Tumble dryer

####### WQB245ALSN

[en] User manual and installation

instructions

en

Futher information and explanations are available online:

| | |---|

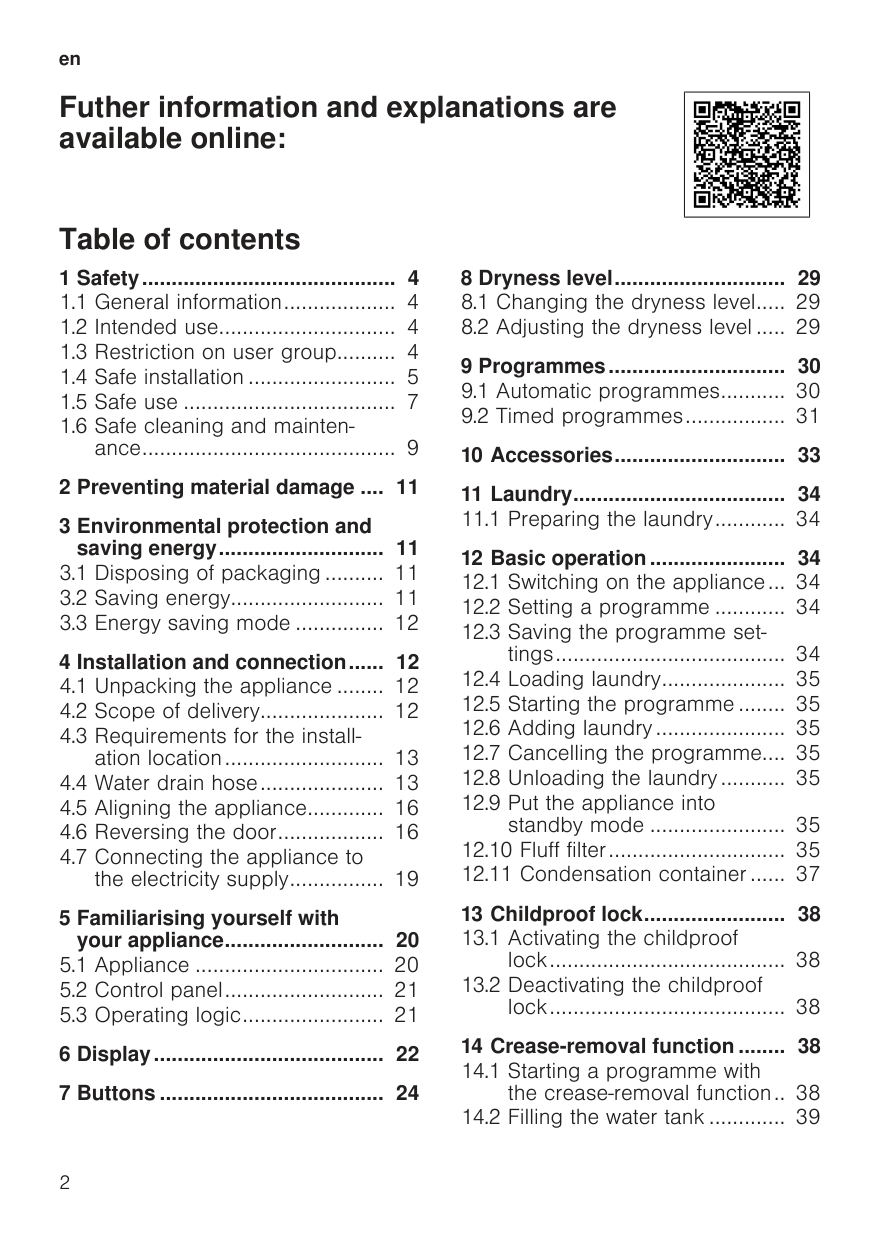

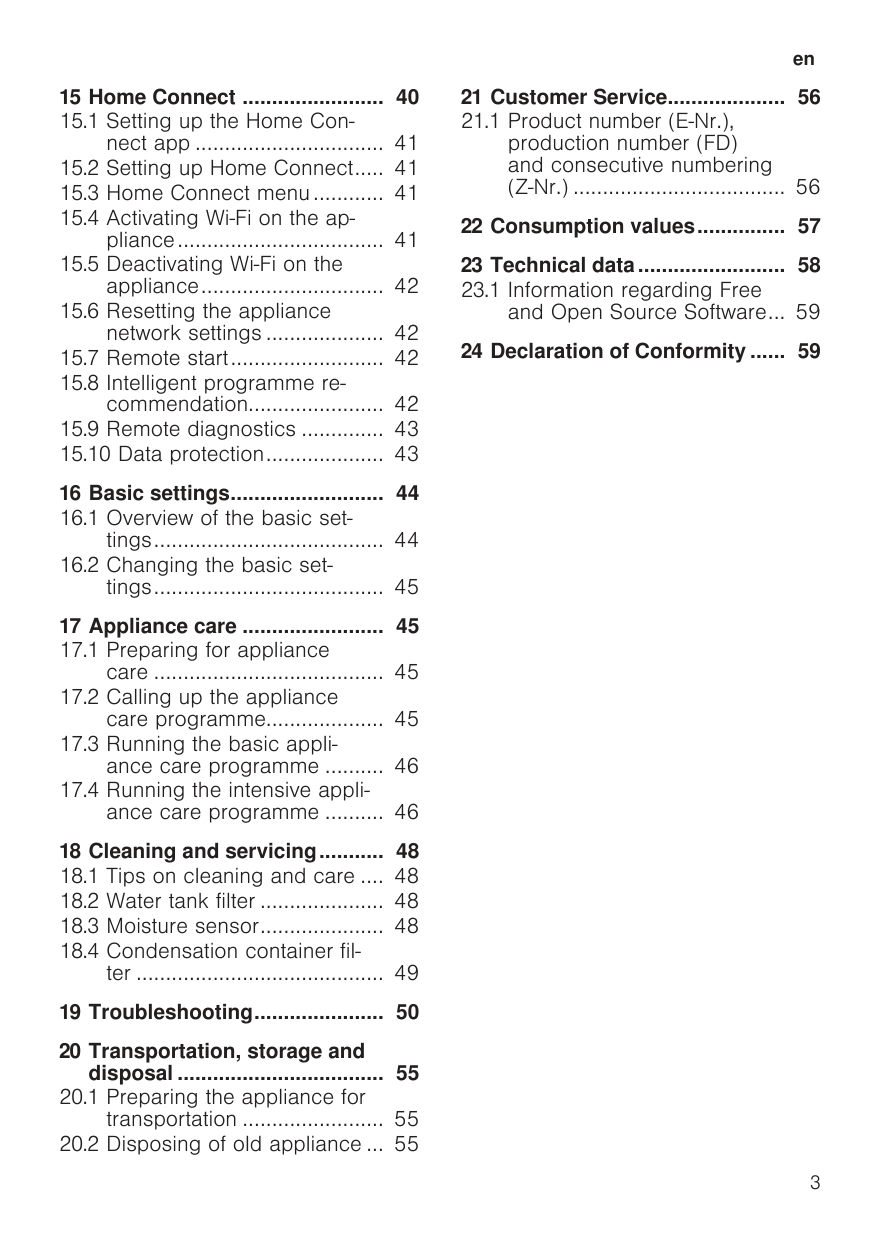

Table of contents

12 Basic operation....................... 34

13 Childproof lock........................ 38

14 Crease-removal function ........ 38

16.2 Changing the basic set-

en

production number (FD) and consecutive numbering (Z-Nr.) .................................... 56

and Open Source Software... 59

| | |---|

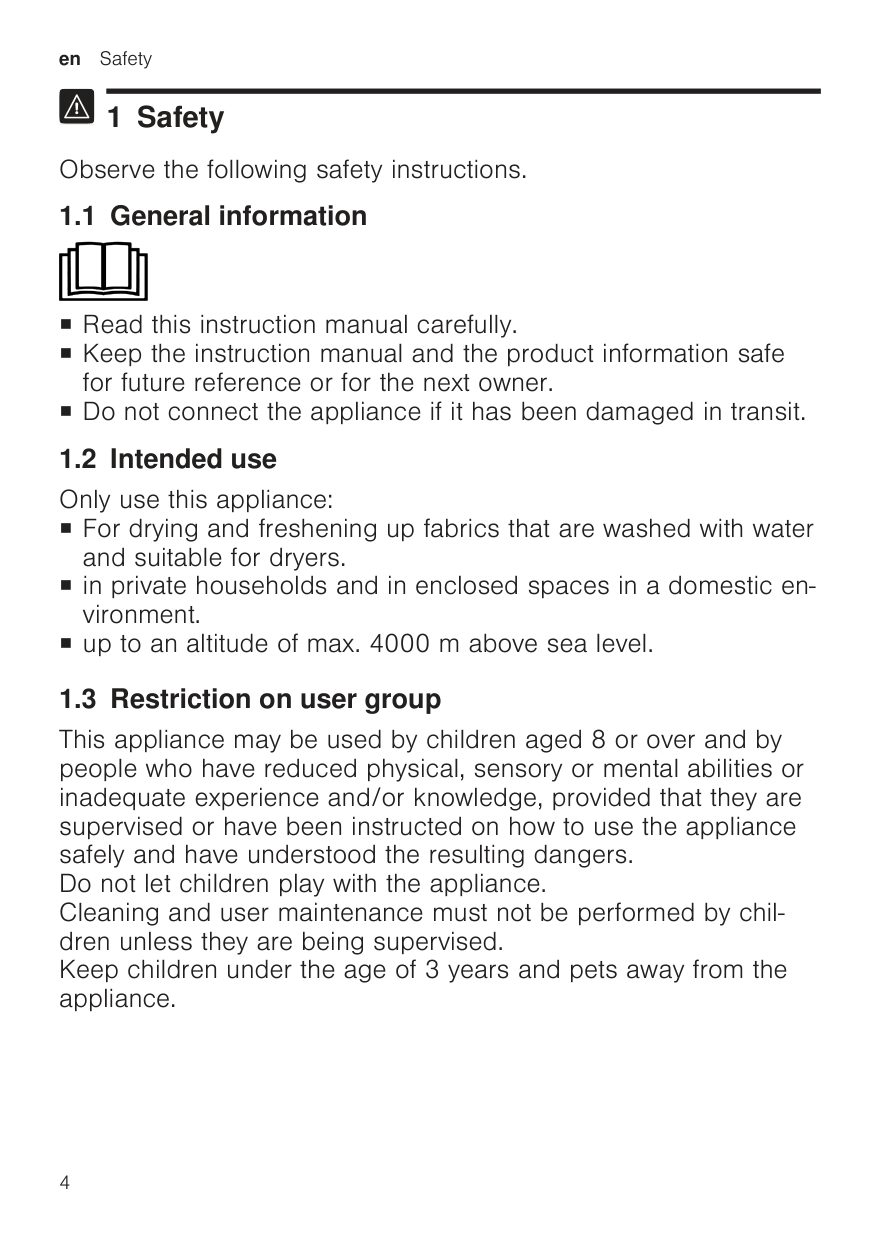

1 Safety

Observe the following safety instructions.

#### 1.1 General information

¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe

for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit.

#### 1.2 Intended use

Only use this appliance: ¡ For drying and freshening up fabrics that are washed with water

and suitable for dryers. ¡ in private households and in enclosed spaces in a domestic environment. ¡ up to an altitude of max. 4000 m above sea level.

#### 1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised. Keep children under the age of 3 years and pets away from the appliance.

#### 1.4 Safe installation

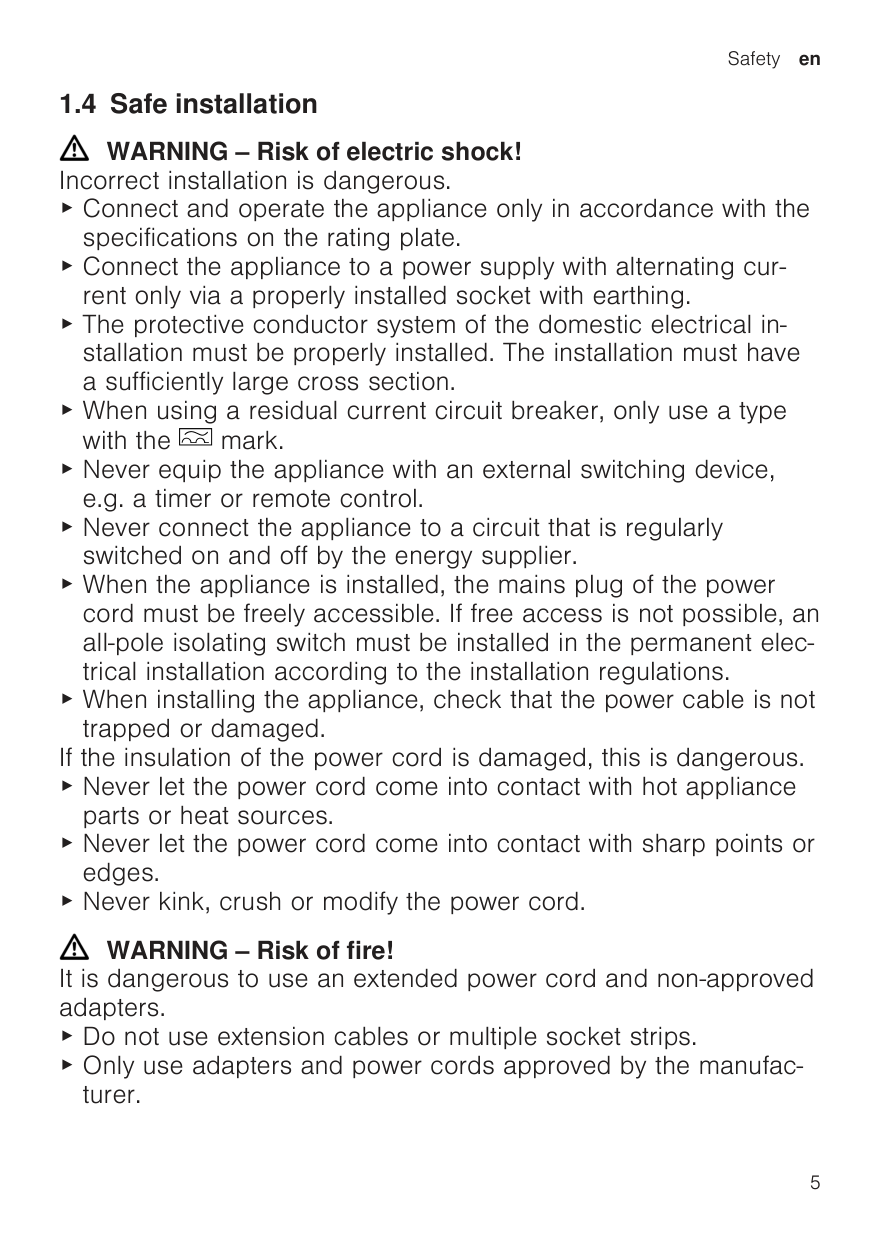

WARNING ‒ Risk of electric shock! Incorrect installation is dangerous.

▶ Connect and operate the appliance only in accordance with the

specifications on the rating plate.

▶ Connect the appliance to a power supply with alternating cur-

rent only via a properly installed socket with earthing.

▶ The protective conductor system of the domestic electrical installation must be properly installed. The installation must have a sufficiently large cross section.

▶ When using a residual current circuit breaker, only use a type

with the mark.

▶ Never equip the appliance with an external switching device,

e.g. a timer or remote control.

▶ Never connect the appliance to a circuit that is regularly

switched on and off by the energy supplier.

▶ When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.

▶ When installing the appliance, check that the power cable is not

trapped or damaged. If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with hot appliance

parts or heat sources.

▶ Never let the power cord come into contact with sharp points or

edges.

▶ Never kink, crush or modify the power cord.


WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-approved adapters.

▶ Do not use extension cables or multiple socket strips.

▶ Only use adapters and power cords approved by the manufac-

turer.

▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

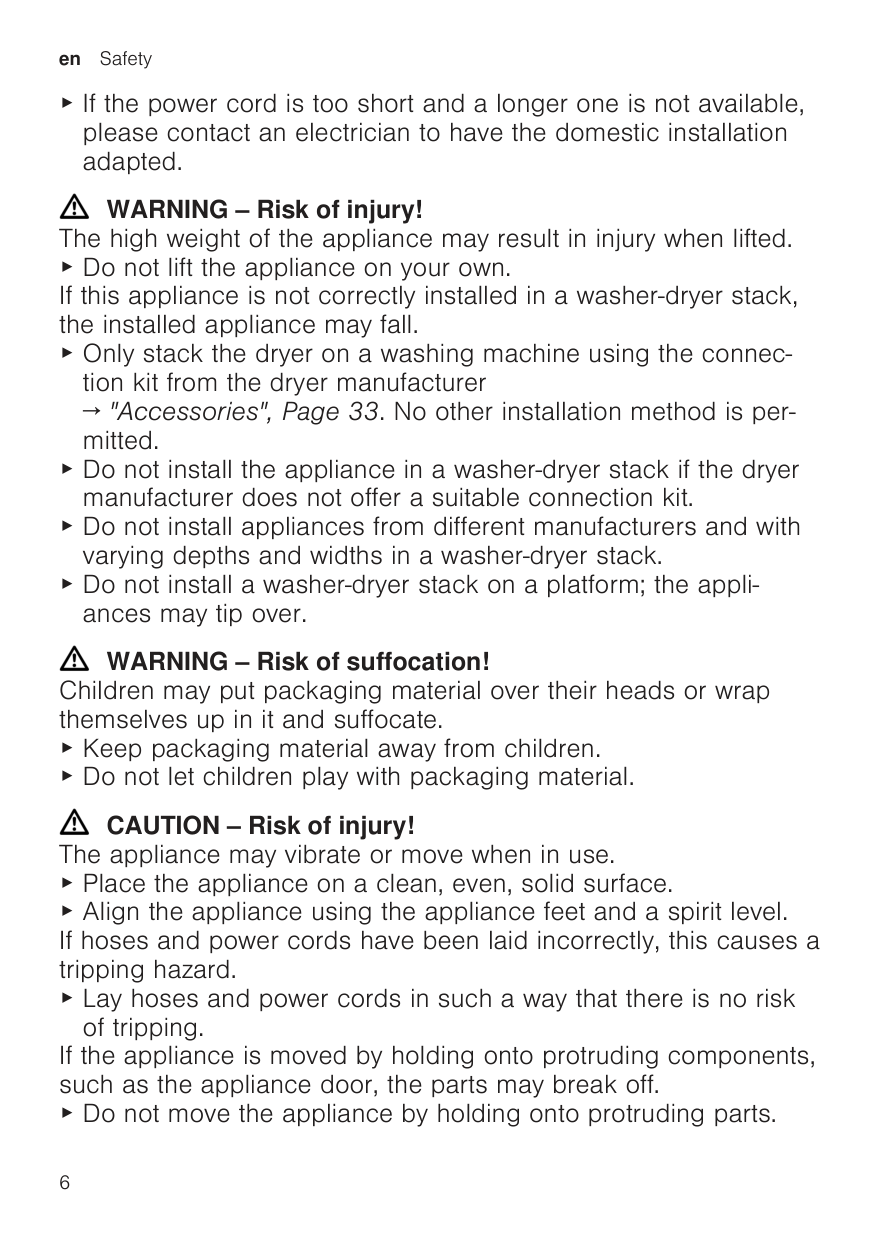

WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted.

▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall.

▶ Only stack the dryer on a washing machine using the connec-

tion kit from the dryer manufacturer

→ "Accessories", Page 33. No other installation method is permitted.

▶ Do not install the appliance in a washer-dryer stack if the dryer

manufacturer does not offer a suitable connection kit.

▶ Do not install appliances from different manufacturers and with

varying depths and widths in a washer-dryer stack.

▶ Do not install a washer-dryer stack on a platform; the appli-

ances may tip over.


WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate.

▶ Keep packaging material away from children.

▶ Do not let children play with packaging material.


CAUTION ‒ Risk of injury! The appliance may vibrate or move when in use.

▶ Place the appliance on a clean, even, solid surface.

▶ Align the appliance using the appliance feet and a spirit level. If hoses and power cords have been laid incorrectly, this causes a tripping hazard.

▶ Lay hoses and power cords in such a way that there is no risk

of tripping. If the appliance is moved by holding onto protruding components, such as the appliance door, the parts may break off.

▶ Do not move the appliance by holding onto protruding parts.

CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts.

▶ Do not touch the sharp edges on the appliance.

▶ Wear protective gloves when installing and transporting the ap-

pliance.

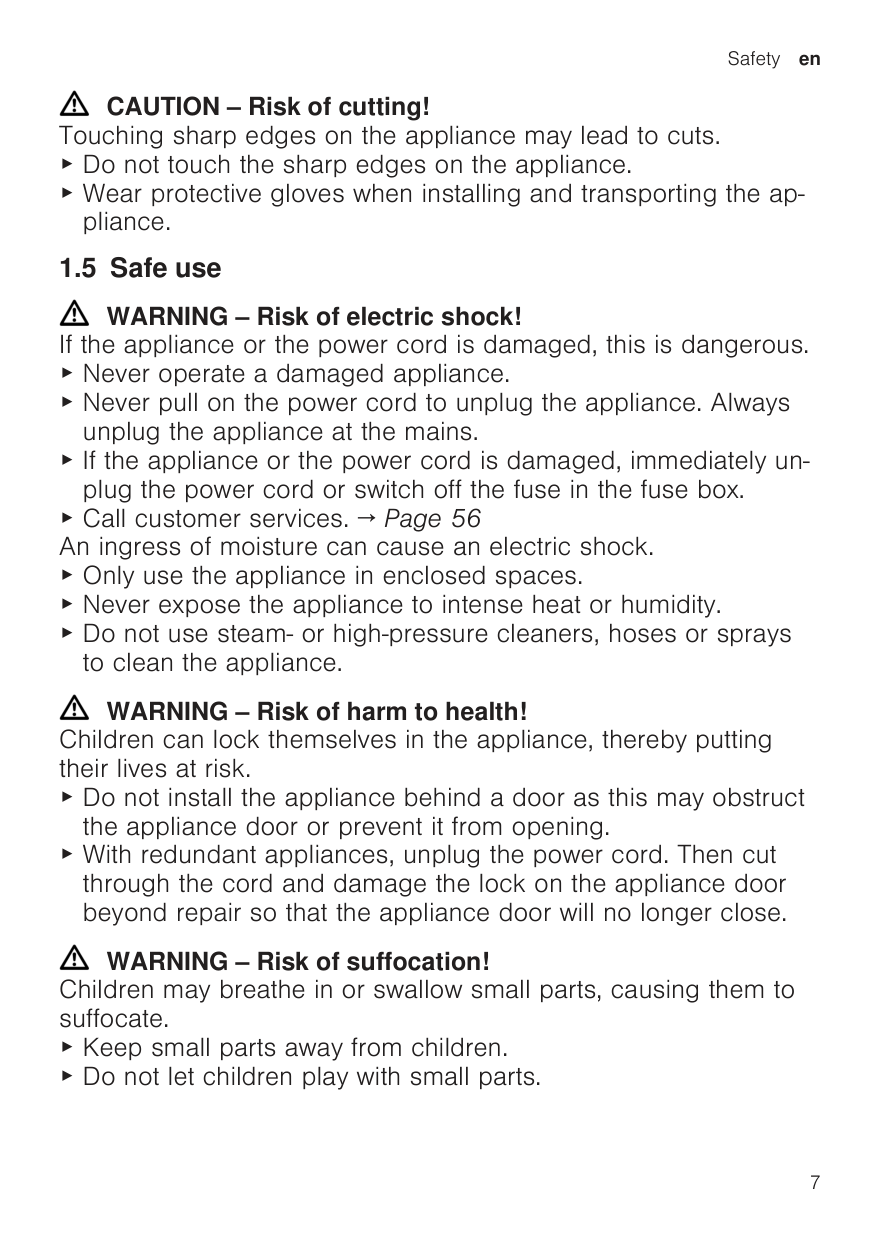

#### 1.5 Safe use


WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.

▶ Never pull on the power cord to unplug the appliance. Always

unplug the appliance at the mains.

▶ If the appliance or the power cord is damaged, immediately un-

plug the power cord or switch off the fuse in the fuse box.

▶ Call customer services. → Page 56 An ingress of moisture can cause an electric shock.

▶ Only use the appliance in enclosed spaces.

▶ Never expose the appliance to intense heat or humidity.

▶ Do not use steam- or high-pressure cleaners, hoses or sprays

to clean the appliance.


WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.

▶ Do not install the appliance behind a door as this may obstruct

the appliance door or prevent it from opening.

▶ With redundant appliances, unplug the power cord. Then cut

through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.


WARNING ‒ Risk of suffocation! Children may breathe in or swallow small parts, causing them to suffocate.

▶ Keep small parts away from children.

▶ Do not let children play with small parts.

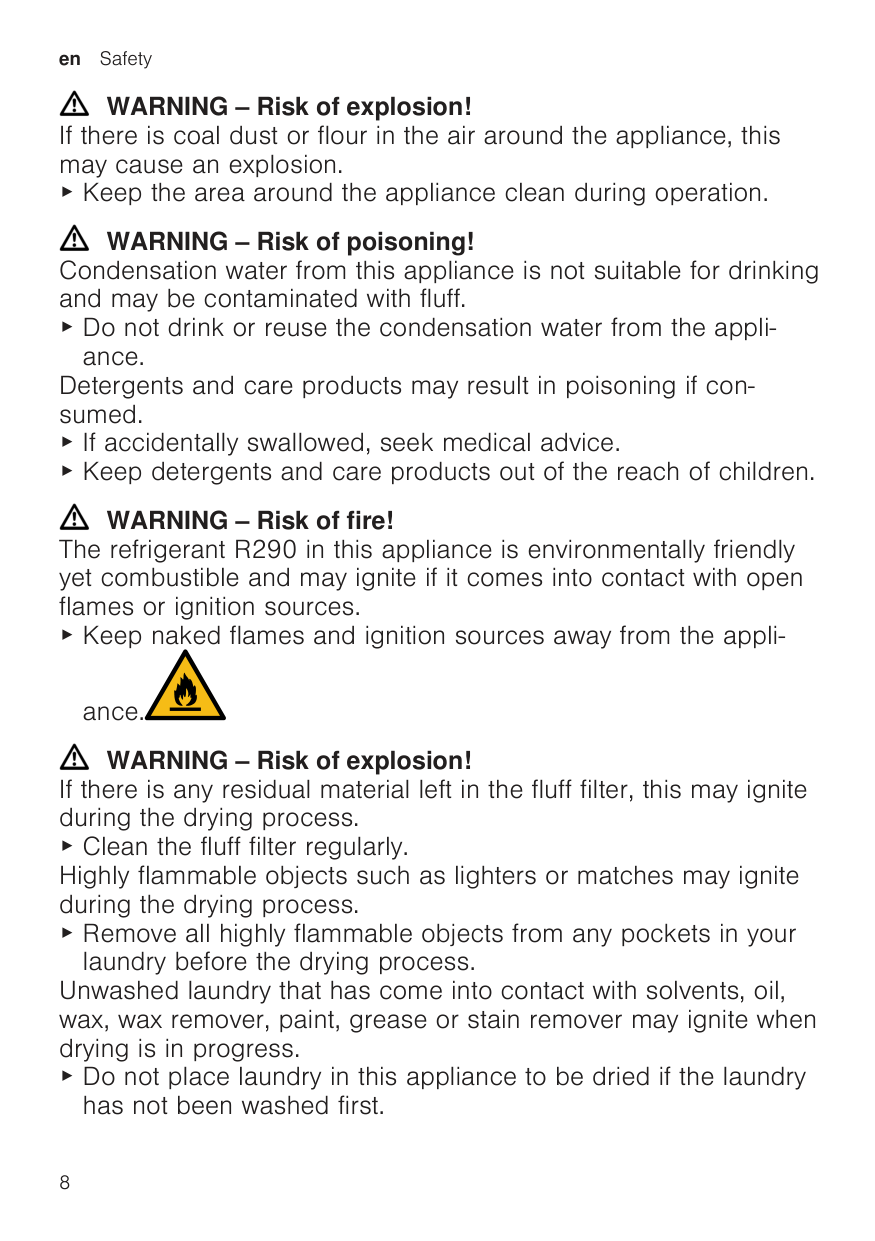

WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion.

▶ Keep the area around the appliance clean during operation.


WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.

▶ Do not drink or reuse the condensation water from the appli-

ance. Detergents and care products may result in poisoning if consumed.

▶ If accidentally swallowed, seek medical advice.

▶ Keep detergents and care products out of the reach of children.


WARNING ‒ Risk of fire! The refrigerant R290 in this appliance is environmentally friendly yet combustible and may ignite if it comes into contact with open flames or ignition sources.

▶ Keep naked flames and ignition sources away from the appli-

ance.


WARNING ‒ Risk of explosion! If there is any residual material left in the fluff filter, this may ignite during the drying process.

▶ Clean the fluff filter regularly. Highly flammable objects such as lighters or matches may ignite during the drying process.

▶ Remove all highly flammable objects from any pockets in your

laundry before the drying process. Unwashed laundry that has come into contact with solvents, oil, wax, wax remover, paint, grease or stain remover may ignite when drying is in progress.

▶ Do not place laundry in this appliance to be dried if the laundry

has not been washed first.

▶ Rinse the laundry thoroughly with warm water and detergent be-

fore drying it in the machine.

▶ Do not use the appliance if industrial chemicals have been used

to clean the laundry beforehand.

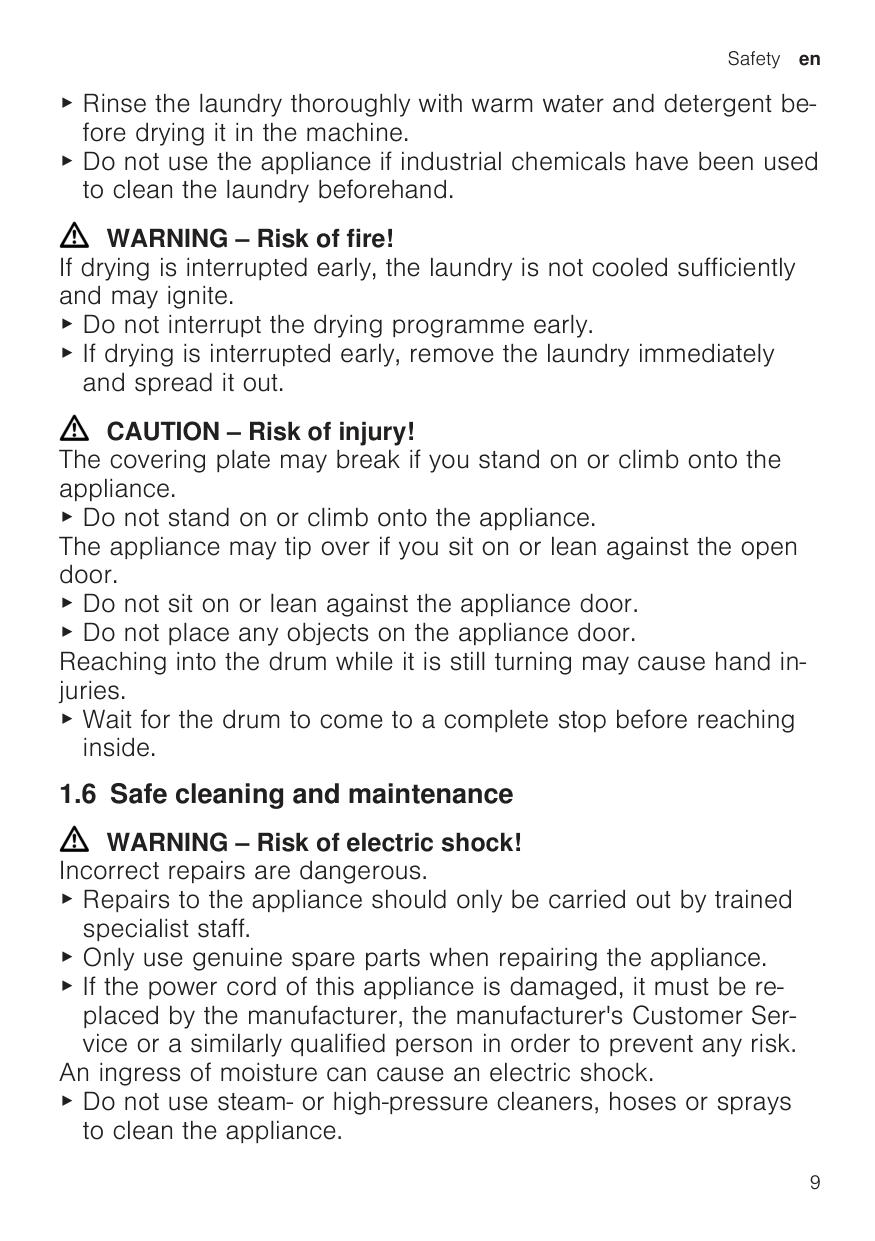

WARNING ‒ Risk of fire! If drying is interrupted early, the laundry is not cooled sufficiently and may ignite.

▶ Do not interrupt the drying programme early.

▶ If drying is interrupted early, remove the laundry immediately

and spread it out.


CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance.

▶ Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door.

▶ Do not sit on or lean against the appliance door. ▶ Do not place any objects on the appliance door. Reaching into the drum while it is still turning may cause hand injuries.

▶ Wait for the drum to come to a complete stop before reaching

inside.

#### 1.6 Safe cleaning and maintenance


WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained

specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

▶ If the power cord of this appliance is damaged, it must be re-

placed by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Do not use steam- or high-pressure cleaners, hoses or sprays

to clean the appliance.

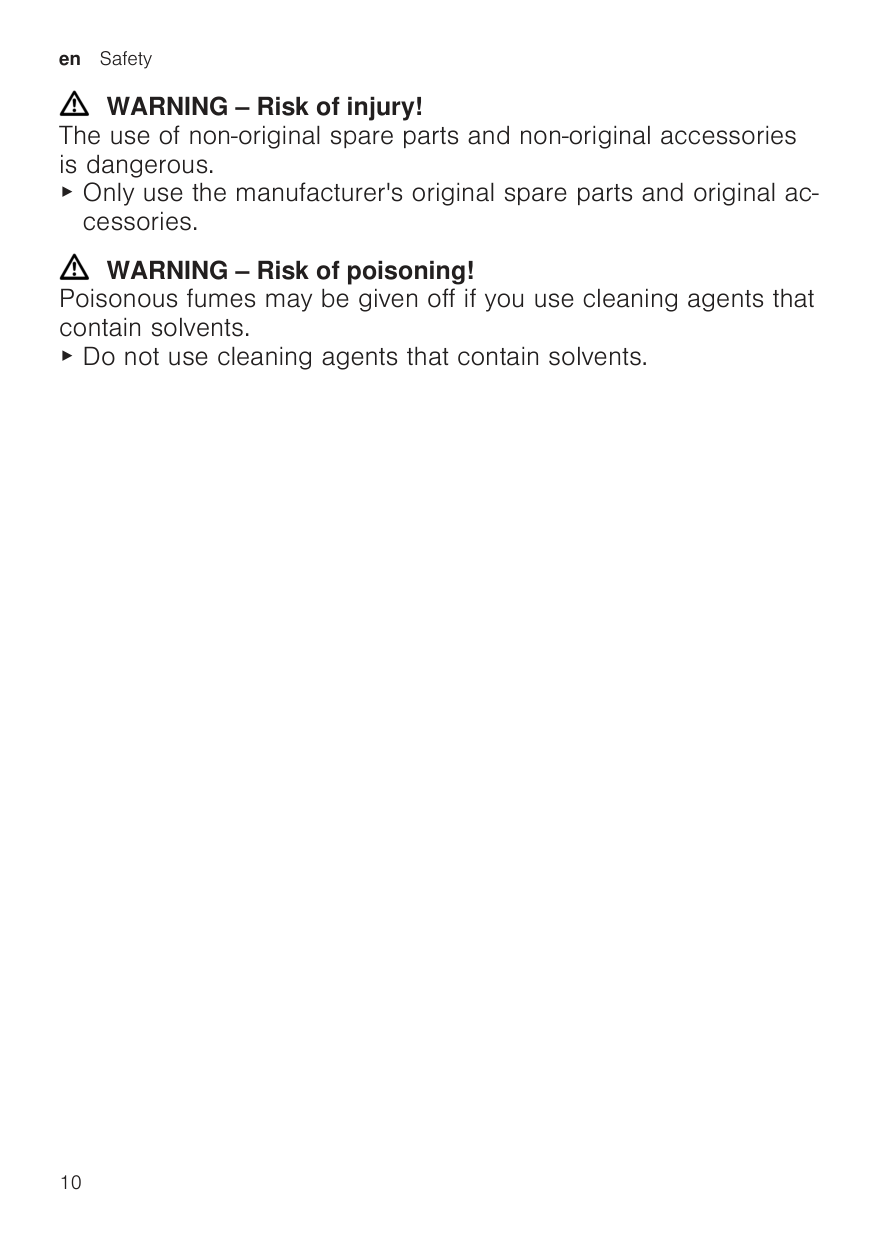

WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous.

▶ Only use the manufacturer's original spare parts and original ac-

cessories.


WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.

▶ Do not use cleaning agents that contain solvents.

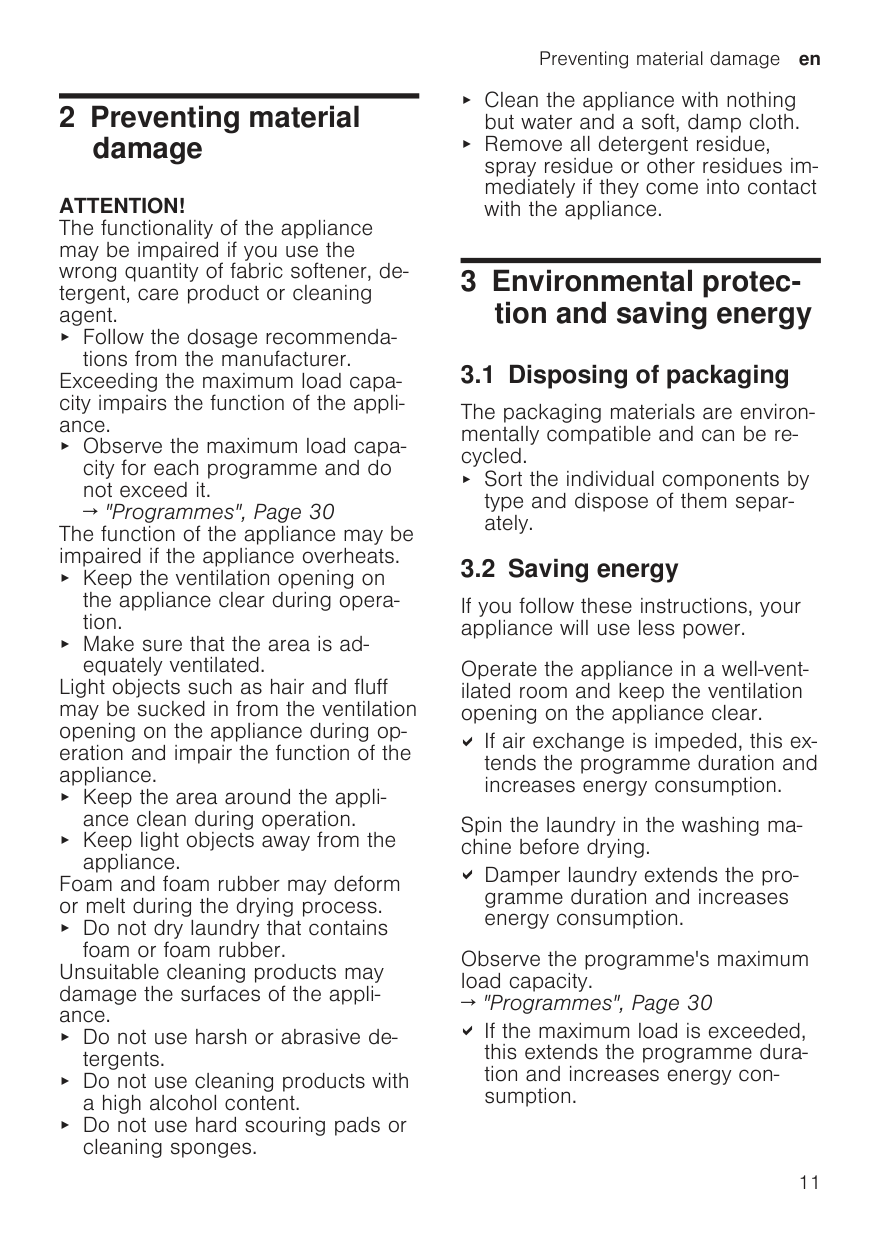

2 Preventing material damage

ATTENTION! The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, detergent, care product or cleaning agent.

▶ Follow the dosage recommenda-

tions from the manufacturer.

Exceeding the maximum load capacity impairs the function of the appliance.

▶ Observe the maximum load capacity for each programme and do not exceed it.

→ "Programmes", Page 30 The function of the appliance may be impaired if the appliance overheats.

▶ Keep the ventilation opening on the appliance clear during operation.

▶ Make sure that the area is ad-

equately ventilated. Light objects such as hair and fluff may be sucked in from the ventilation opening on the appliance during operation and impair the function of the appliance.

▶ Keep the area around the appliance clean during operation.

▶ Keep light objects away from the

appliance. Foam and foam rubber may deform or melt during the drying process.

▶ Do not dry laundry that contains

foam or foam rubber.

Unsuitable cleaning products may damage the surfaces of the appliance.

▶ Do not use harsh or abrasive de-

tergents.

▶ Do not use cleaning products with

a high alcohol content.

▶ Do not use hard scouring pads or

cleaning sponges.

Preventing material damage en

▶ Clean the appliance with nothing but water and a soft, damp cloth.

▶ Remove all detergent residue,

spray residue or other residues immediately if they come into contact with the appliance.

3 Environmental protection and saving energy

The packaging materials are environmentally compatible and can be recycled.

▶ Sort the individual components by type and dispose of them separately.

If you follow these instructions, your appliance will use less power.

Operate the appliance in a well-ventilated room and keep the ventilation opening on the appliance clear. a If air exchange is impeded, this ex-

tends the programme duration and increases energy consumption.

Spin the laundry in the washing machine before drying. a Damper laundry extends the pro-

gramme duration and increases energy consumption.

Observe the programme's maximum load capacity.

→ "Programmes", Page 30 a If the maximum load is exceeded,

this extends the programme duration and increases energy consumption.

After drying, clean the fluff filter

→ Page 35. a If the fluff filter is dirty, this reduces the air flow in the appliance, extends the programme duration and increases energy consumption.

Deactivate Wi-Fi on the appliance if it is not being used.

→ "Deactivating Wi-Fi on the appliance", Page 42. a If the Wi-Fi is activated, this in-

creases energy consumption.

If you do not use the appliance for an extended period, it automatically switches to energy-saving mode. All displays go out and ⁠ flashes. Energy-saving mode ends when you use the appliance again. If you do not continue operating the appliance, it switches to standby mode.

ATTENTION! Objects remaining in the drum that are not designed for operation with the appliance may cause material damage and damage to the appliance.

▶ Remove these objects, along with all supplied accessories, from the drum before starting the appliance.

→ "Disposing of packaging", Page 11

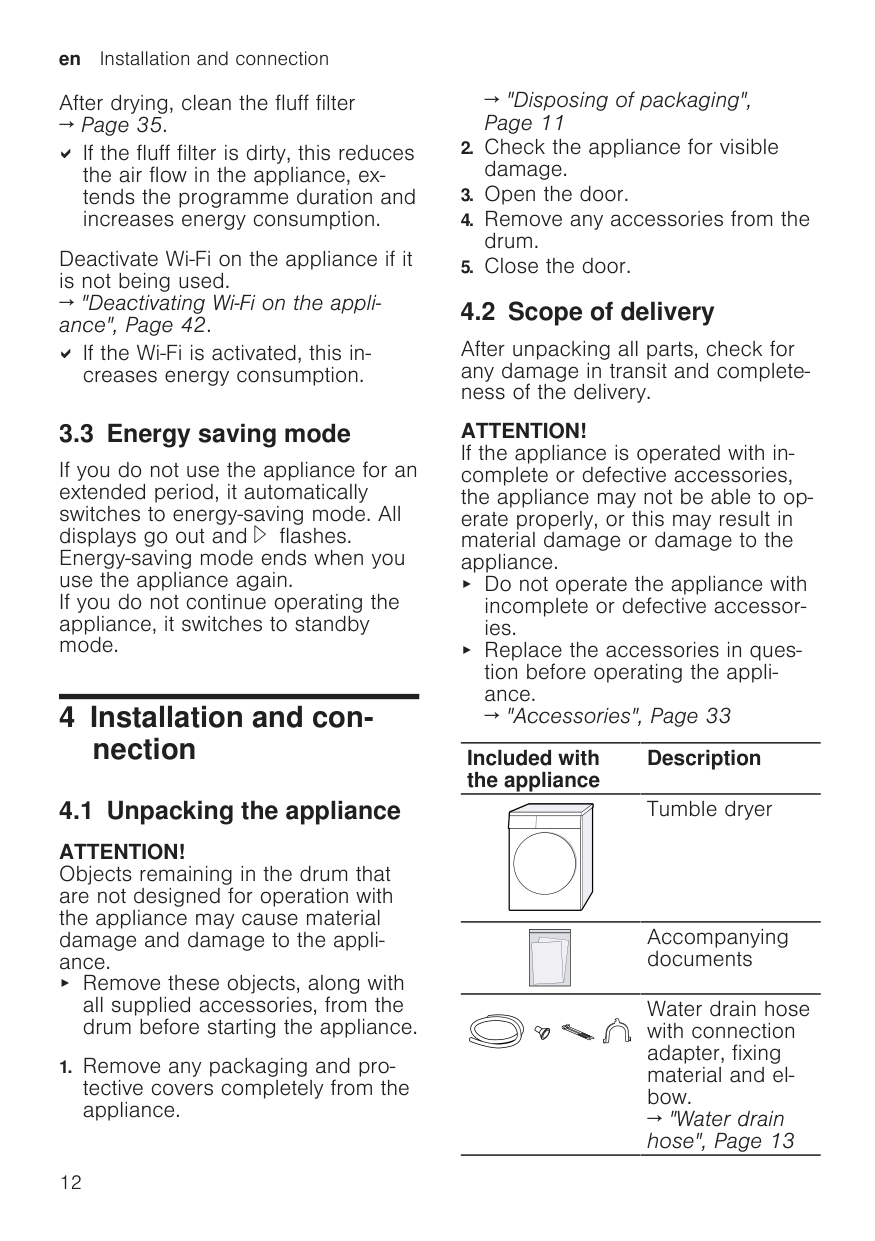

4.2 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

ATTENTION! If the appliance is operated with incomplete or defective accessories, the appliance may not be able to operate properly, or this may result in material damage or damage to the appliance.

▶ Do not operate the appliance with incomplete or defective accessories.

▶ Replace the accessories in question before operating the appliance.

→ "Accessories", Page 33

Included with the appliance

Description Tumble dryer

| | |---|

Accompanying documents

| | |---| | |

Water drain hose with connection adapter, fixing material and elbow.

→ "Water drain hose", Page 13

Included with the appliance

Description Water jug

Installation location

Requirements

In a washer-dryer stack

Only use the original connection set from the dryer manufacturer when setting up this appliance in a washer-dryer stack. ¡ Connection kit with pull-out worktop

→ "Filling the water tank", Page 39

ATTENTION! If the appliance is tilted at an angle greater than 40°, residual water may leak out of the appliance and cause material damage.

→ Page 33 ¡ Connection kit

▶ Tilt the appliance carefully.

→ Page 33

▶ Transport the appliance in an up-

right position. If residual water in the appliance freezes, this may cause damage to the appliance.

This appliance must only be stacked on a washing machine from the same manufacturer. The depth and width of this appliance must correspond with the dimensions of the washing machine. Do not place the washer-dryer stack on a platform.

▶ Do not install or operate this appliance anywhere that is liable to experience frost or outdoors.

If the appliance is operated immediately after transportation, the refrigerant contained in the appliance may result in damage to the appliance.

▶ Immediately after transporting the appliance, leave it to rest for two hours before putting it into operation.

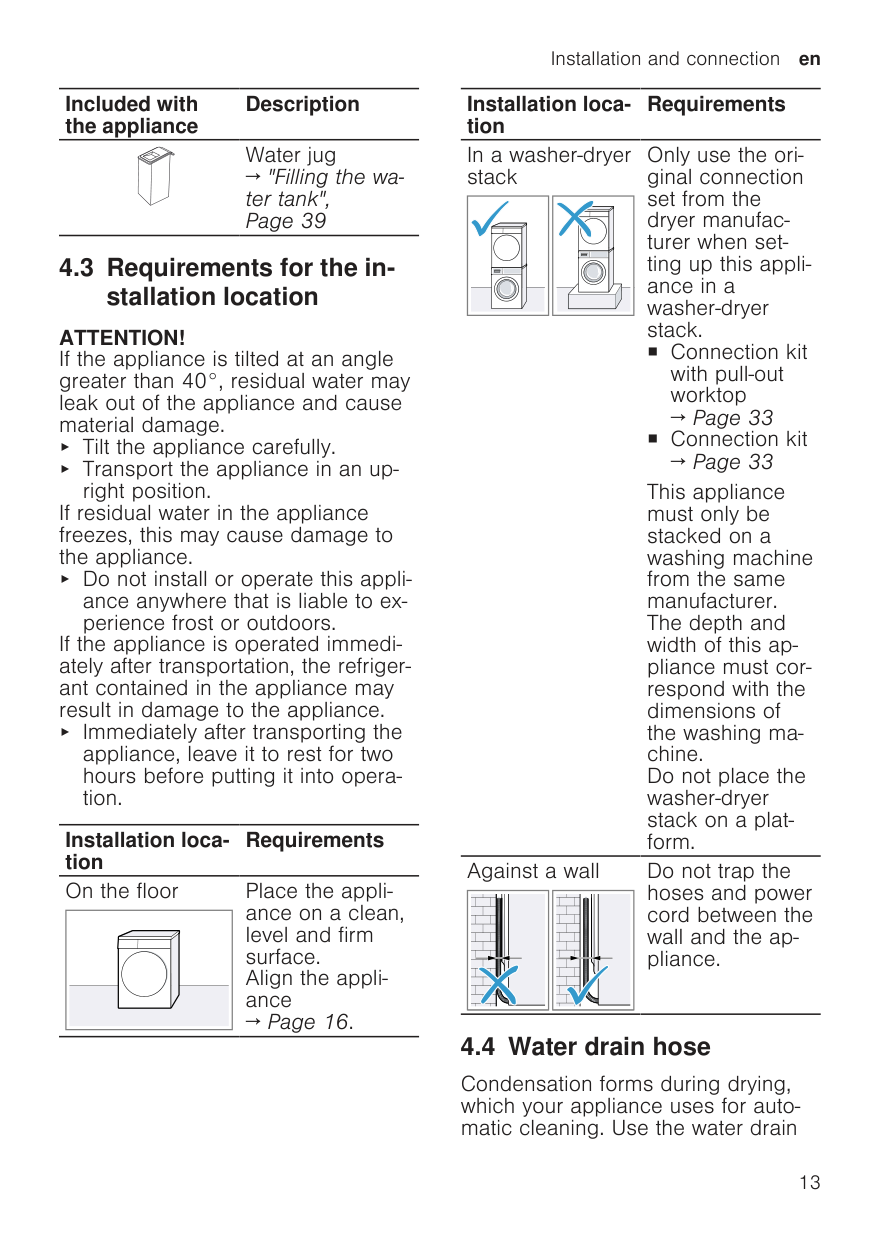

Installation location

Requirements

Against a wall

Do not trap the hoses and power cord between the wall and the appliance.

On the floor Place the appliance on a clean, level and firm surface. Align the appliance

| | | | | |---|---|---|---| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

→ Page 16.

4.4 Water drain hose

Condensation forms during drying, which your appliance uses for automatic cleaning. Use the water drain

hose to drain away excess condensation directly into the waste water system.

Notes ¡ Operate this appliance using the

water drain hose provided. If you connect the water drain hose

→ Page 14, you do not have to regularly empty the condensation container → Page 37.

¡ You can order this optional

→ "Accessories", Page 33 from our customer service.

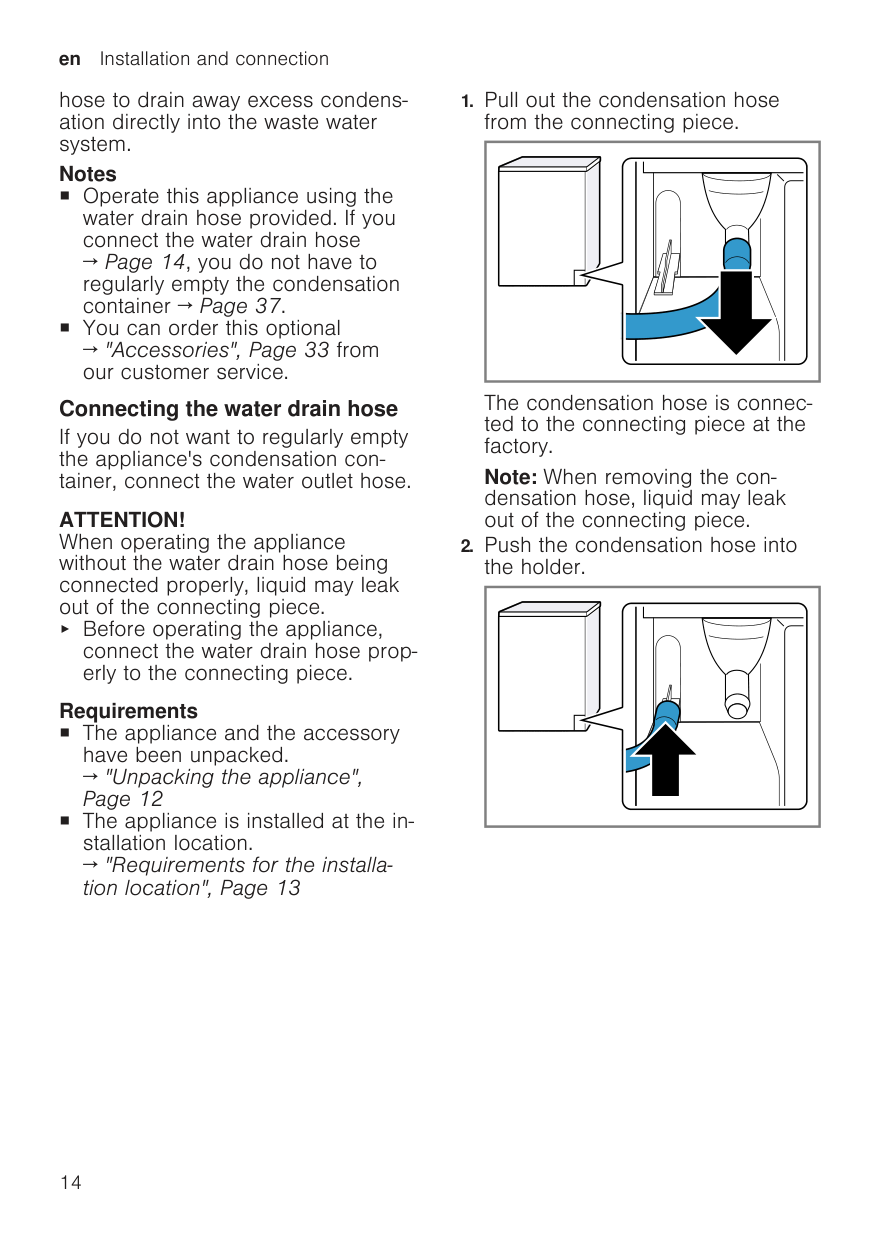

Connecting the water drain hose

If you do not want to regularly empty the appliance's condensation container, connect the water outlet hose.

ATTENTION! When operating the appliance without the water drain hose being connected properly, liquid may leak out of the connecting piece.

▶ Before operating the appliance, connect the water drain hose properly to the connecting piece.

Requirements ¡ The appliance and the accessory

have been unpacked.

→ "Unpacking the appliance", Page 12

¡ The appliance is installed at the installation location.

→ "Requirements for the installation location", Page 13

| | | |---|---| | | |


The condensation hose is connected to the connecting piece at the factory.

Note: When removing the condensation hose, liquid may leak out of the connecting piece.


| | | |---|---| | | |

| | | |---|---| | | |


→ Page 37.

→ Page 38.

→ "Water outlet connection types", Page 15

Tip: To collect condensation in the condensation container again (e.g. if you change where the appliance is located), carry out these steps in reverse order.

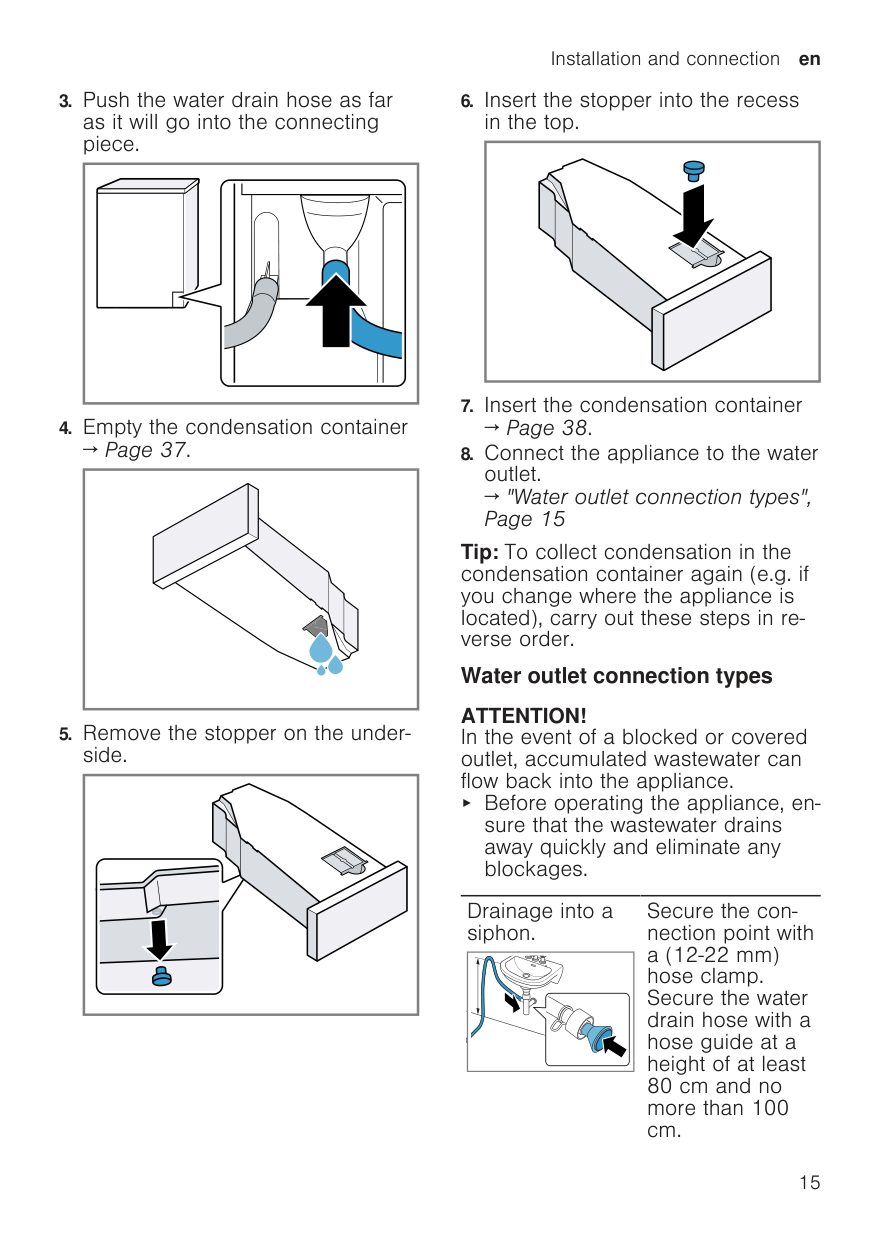

Water outlet connection types ATTENTION! In the event of a blocked or covered outlet, accumulated wastewater can flow back into the appliance.

▶ Before operating the appliance, en-

sure that the wastewater drains away quickly and eliminate any blockages.


Drainage into a siphon.

Secure the connection point with a (12-22 mm) hose clamp. Secure the water drain hose with a hose guide at a height of at least 80 cm and no more than 100 cm.



Note: You can use the Y-distributor → Page 33 to connect the water drain hose of an additional appliance, such as a washing machine, to the same siphon outlet.

Drainage into a wash basin.

Push the water drain hose fully through the and secure it using fixing material. Secure the elbow at a height of no more than 100 cm.


2

1

Drainage into a gully.

Push the water drain hose fully through the and secure it using fixing material. Secure the elbow to the gully.

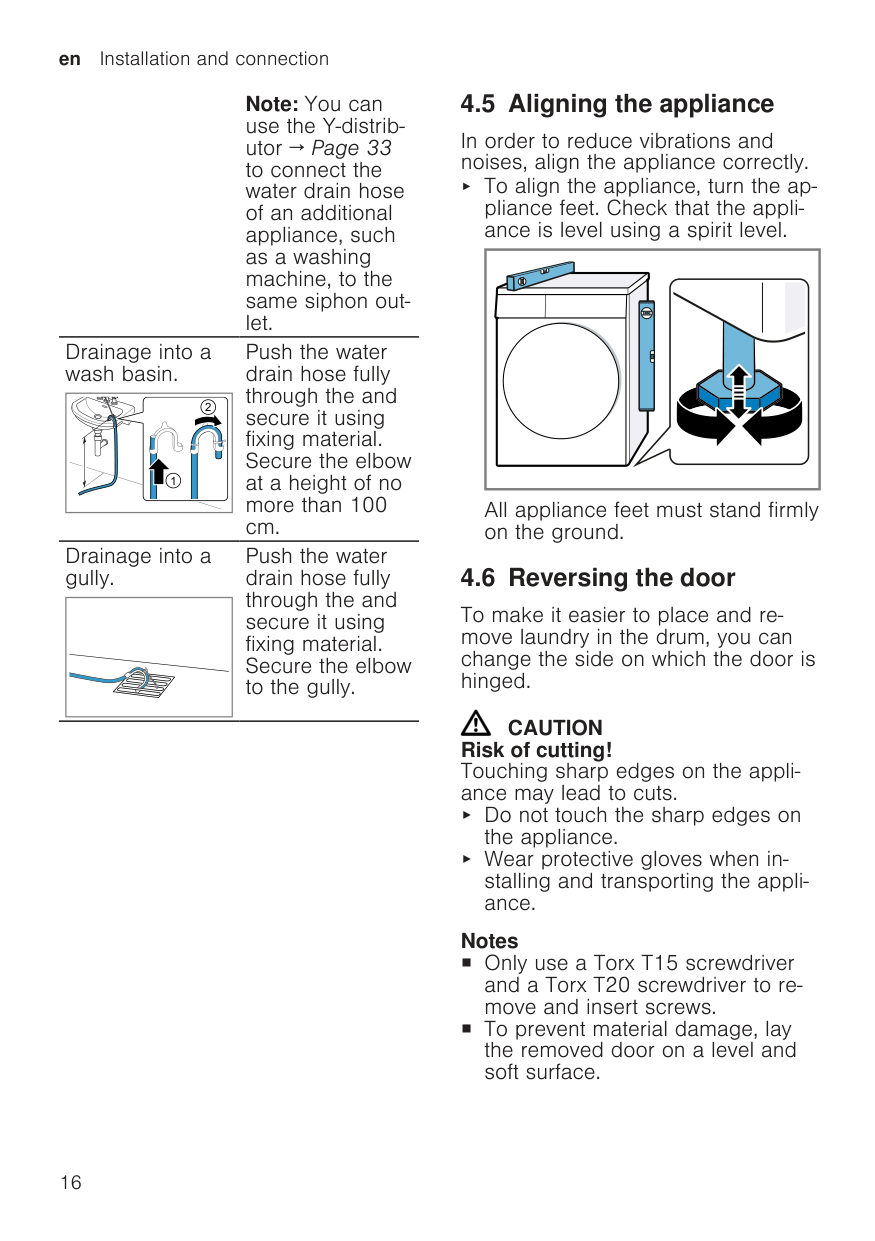

In order to reduce vibrations and noises, align the appliance correctly.

▶ To align the appliance, turn the appliance feet. Check that the appliance is level using a spirit level.

All appliance feet must stand firmly on the ground.

To make it easier to place and remove laundry in the drum, you can change the side on which the door is hinged.


CAUTION Risk of cutting! Touching sharp edges on the appliance may lead to cuts.

▶ Do not touch the sharp edges on

the appliance.

▶ Wear protective gloves when installing and transporting the appliance.

Notes ¡ Only use a Torx T15 screwdriver

and a Torx T20 screwdriver to remove and insert screws.

¡ To prevent material damage, lay the removed door on a level and soft surface.

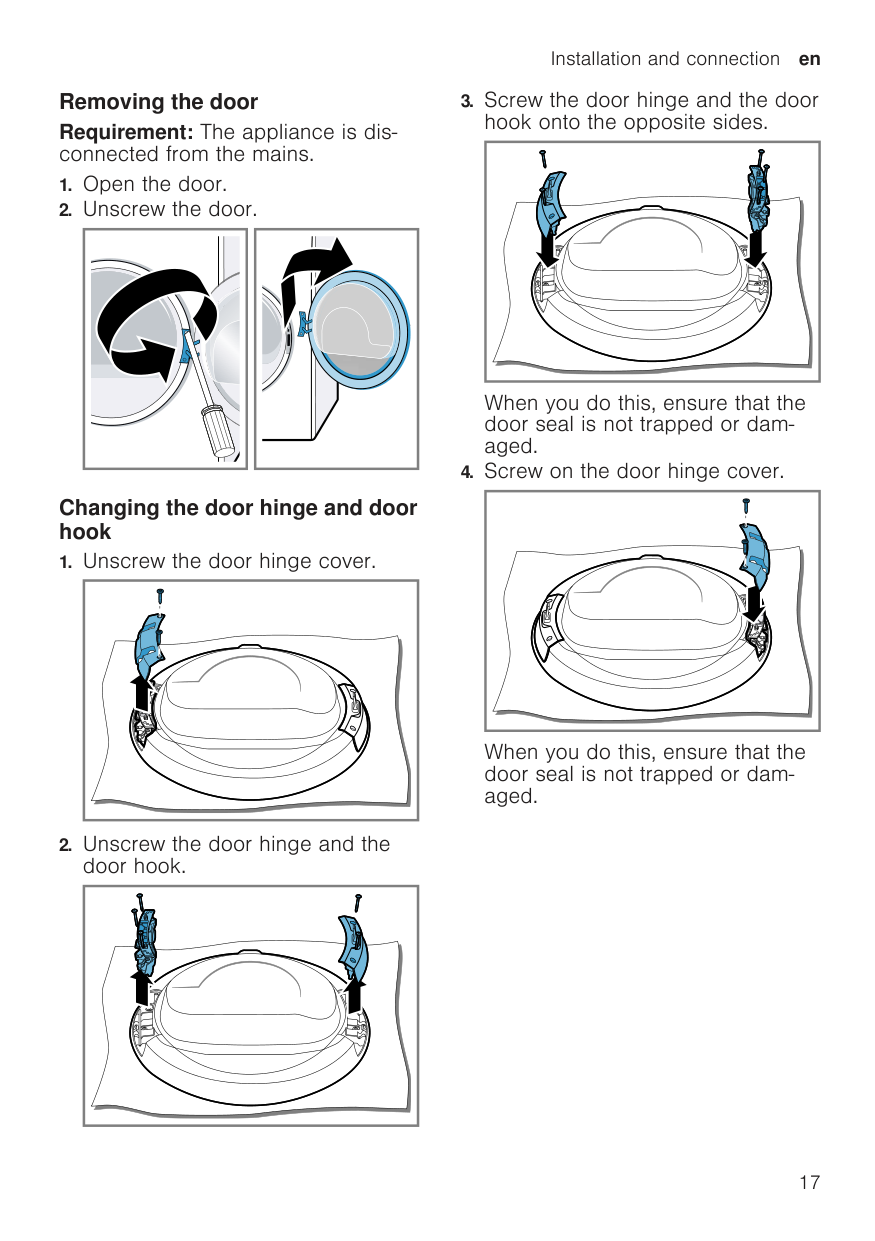

Removing the door Requirement: The appliance is disconnected from the mains.










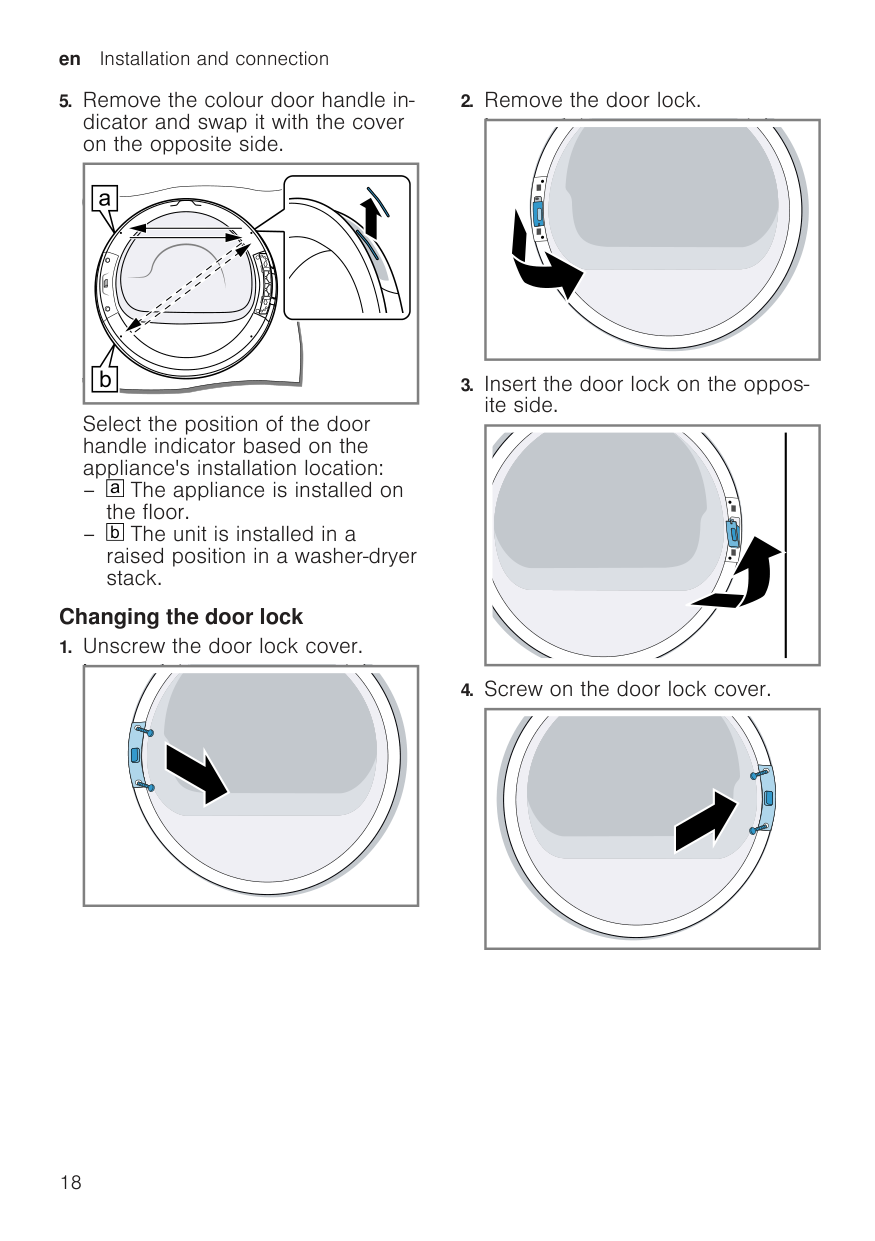

Changing the door hinge and door hook

| | | |---|---| | | |

When you do this, ensure that the door seal is not trapped or damaged.

When you do this, ensure that the door seal is not trapped or damaged.

|osition of the doo cator based on th|3.| |---|---| |installation locati pliance is installe

The unit is installed in a sition in a washer

Unscrew the door lock cover.|n:

on

dryer|

Insert the door lock on the opposite side.

–

the floor.

–

stack.

Changing the door lock 1.

|| | |---|---| ||



| | | |

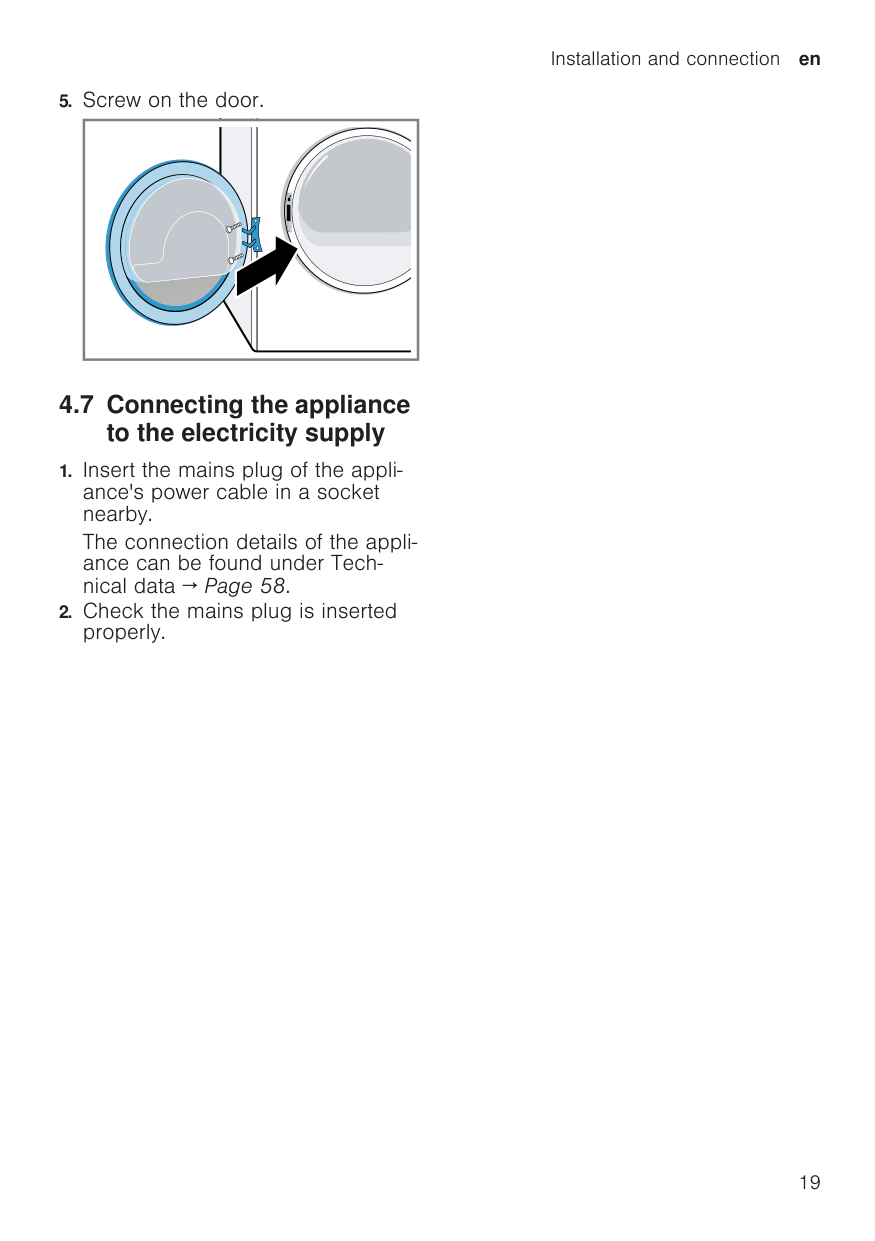

The connection details of the appliance can be found under Technical data → Page 58.

Installation and connection en

en Familiarising yourself with your appliance

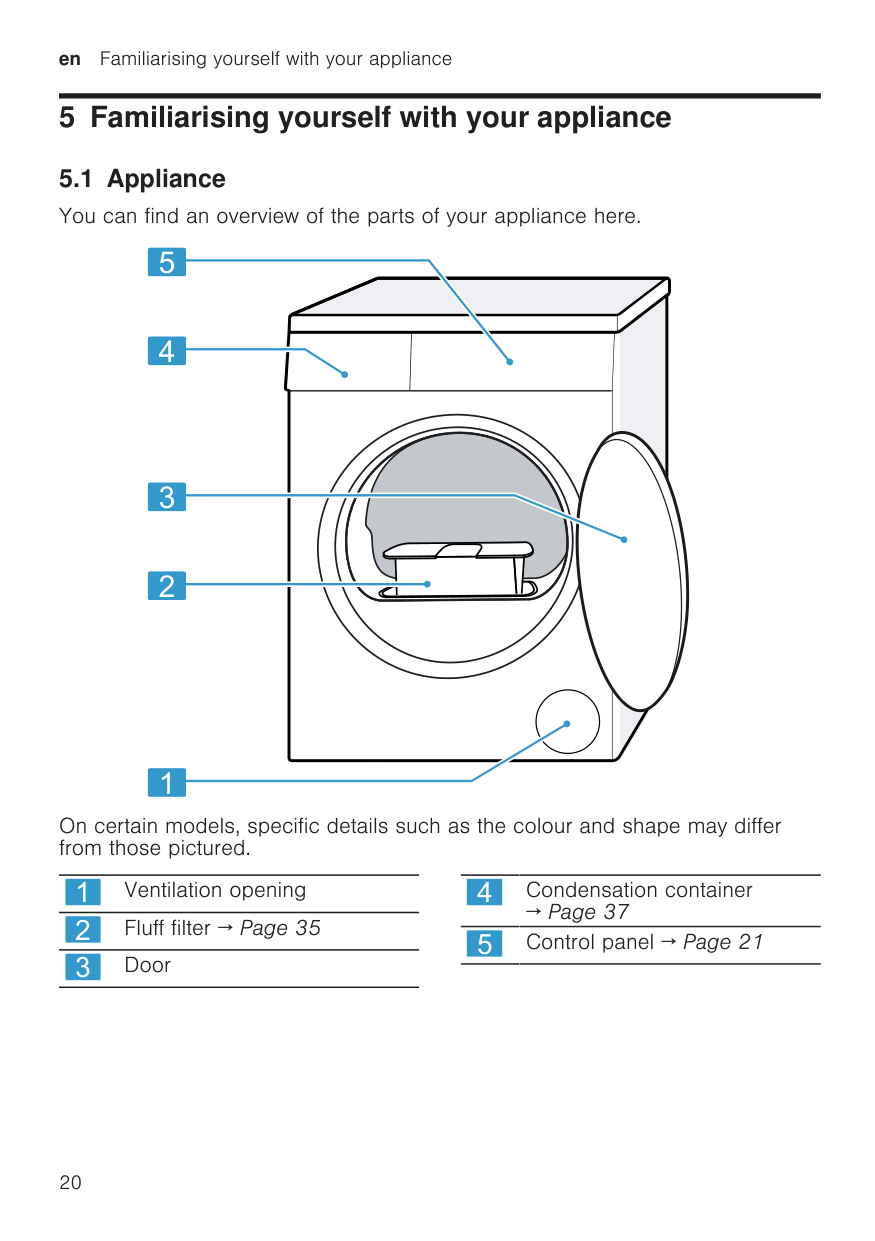

5 Familiarising yourself with your appliance






On certain models, specific details such as the colour and shape may differ from those pictured.

→ Page 37

Familiarising yourself with your appliance en

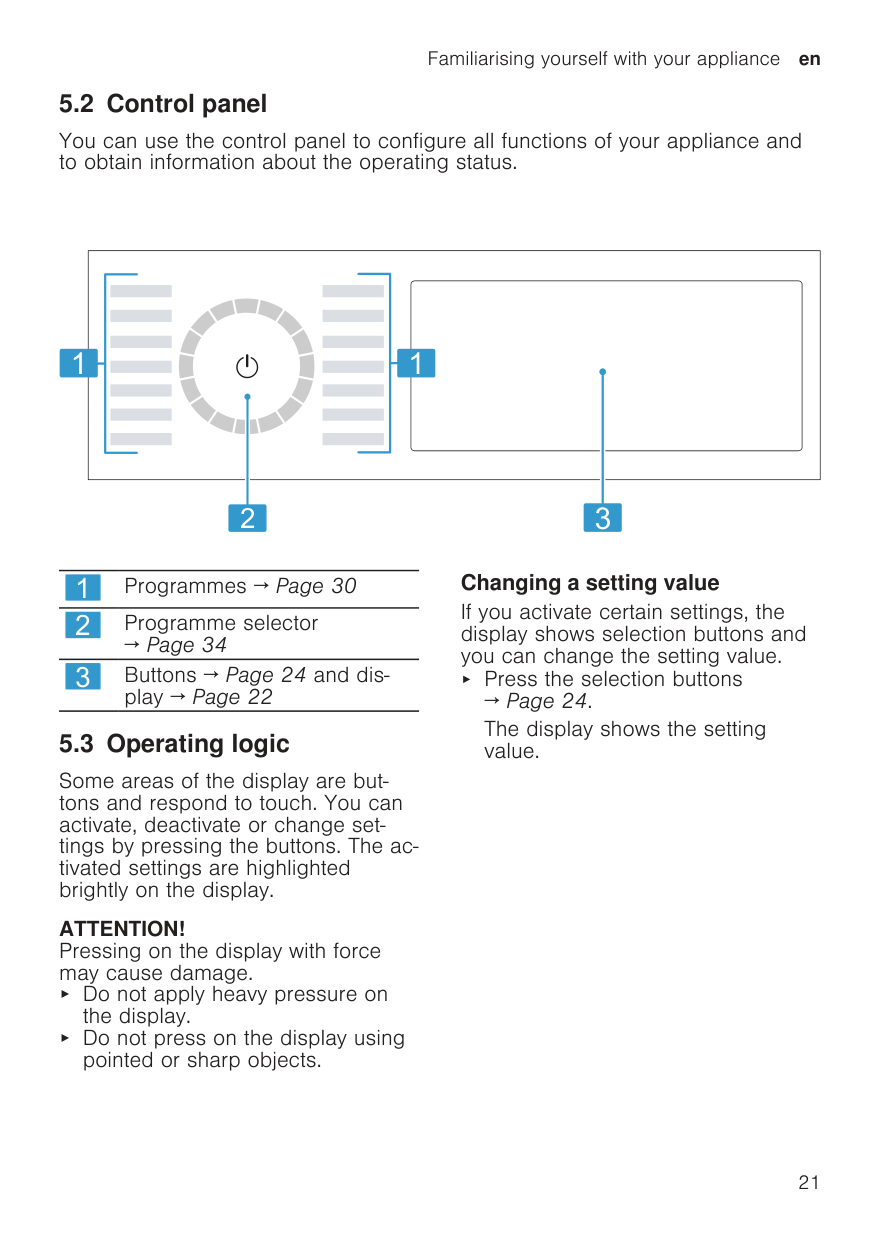

##### 5.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

1 1

2

3

→ Page 34

##### 5.3 Operating logic

Some areas of the display are buttons and respond to touch. You can activate, deactivate or change settings by pressing the buttons. The activated settings are highlighted brightly on the display.

ATTENTION! Pressing on the display with force may cause damage.

▶ Do not apply heavy pressure on

the display.

▶ Do not press on the display using

pointed or sharp objects.

Changing a setting value

If you activate certain settings, the display shows selection buttons and you can change the setting value.

▶ Press the selection buttons

→ Page 24. The display shows the setting value.

en Display

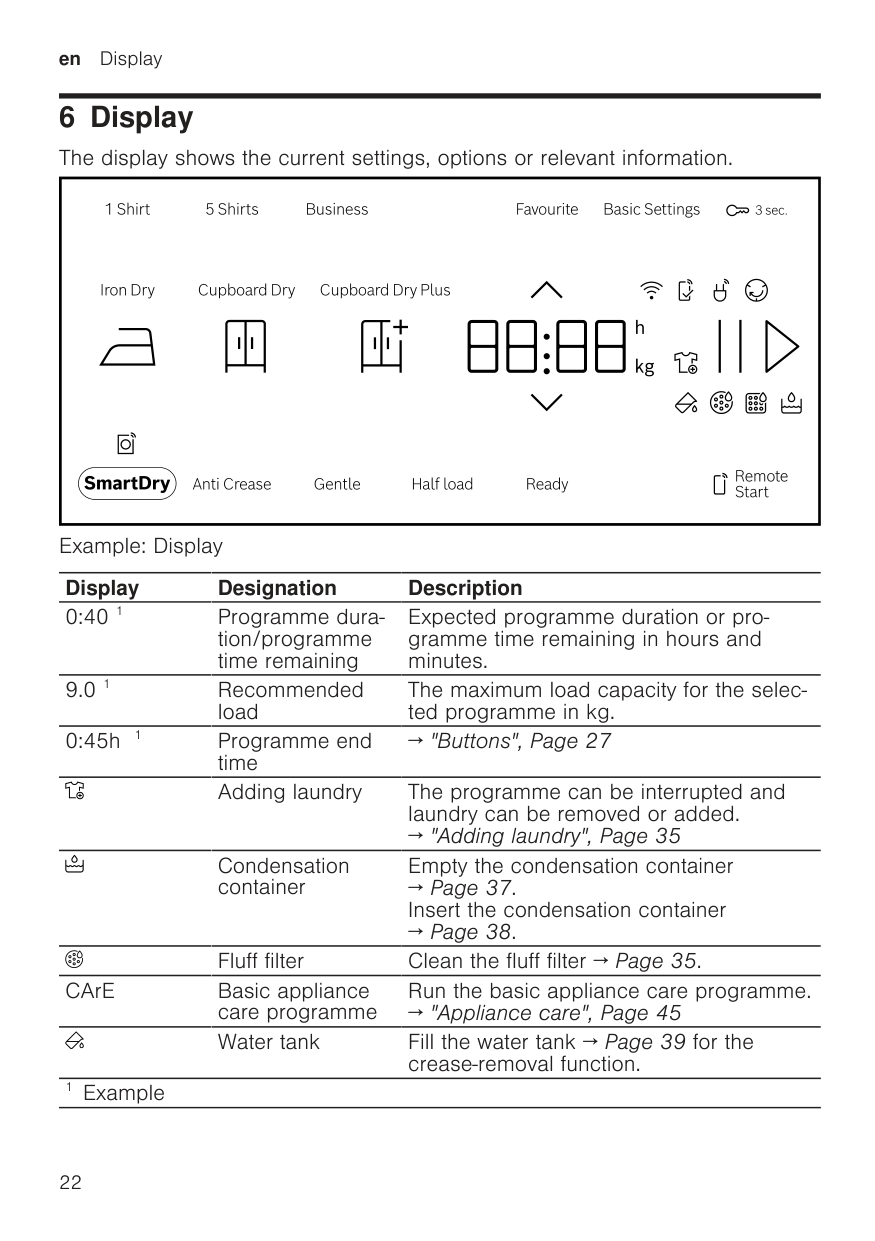

6 Display

The display shows the current settings, options or relevant information.

Example: Display

Display Designation Description 0:40 1 Programme dura-

Expected programme duration or programme time remaining in hours and minutes.

tion/programme time remaining

9.0 1 Recommended load

The maximum load capacity for the selected programme in kg.

0:45h 1 Programme end time

→ "Buttons", Page 27 ⁠ Adding laundry The programme can be interrupted and laundry can be removed or added.

→ "Adding laundry", Page 35 ⁠ Condensation

Empty the condensation container

container

⁠ Fluff filter Clean the fluff filter → Page 35. CArE Basic appliance

Run the basic appliance care programme.

care programme

→ "Appliance care", Page 45 ⁠ Water tank Fill the water tank → Page 39 for the

crease-removal function. 1 Example

Display en

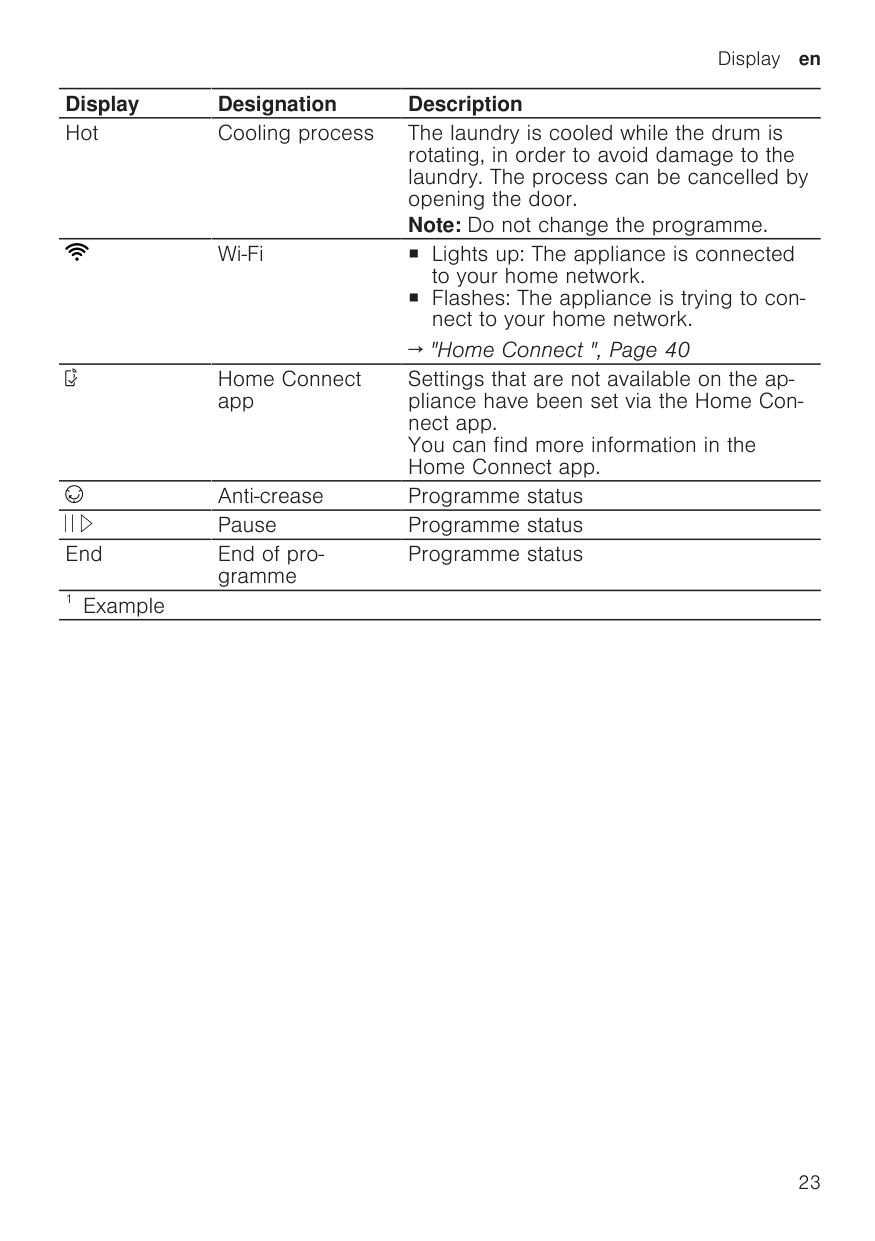

Display Designation Description Hot Cooling process The laundry is cooled while the drum is

rotating, in order to avoid damage to the laundry. The process can be cancelled by opening the door. Note: Do not change the programme.

⁠ Wi-Fi ¡ Lights up: The appliance is connected to your home network. ¡ Flashes: The appliance is trying to connect to your home network.

→ "Home Connect ", Page 40 ⁠ Home Connect

Settings that are not available on the appliance have been set via the Home Connect app. You can find more information in the Home Connect app.

app

⁠ Anti-crease Programme status

⁠ Pause Programme status End End of pro-

Programme status

gramme

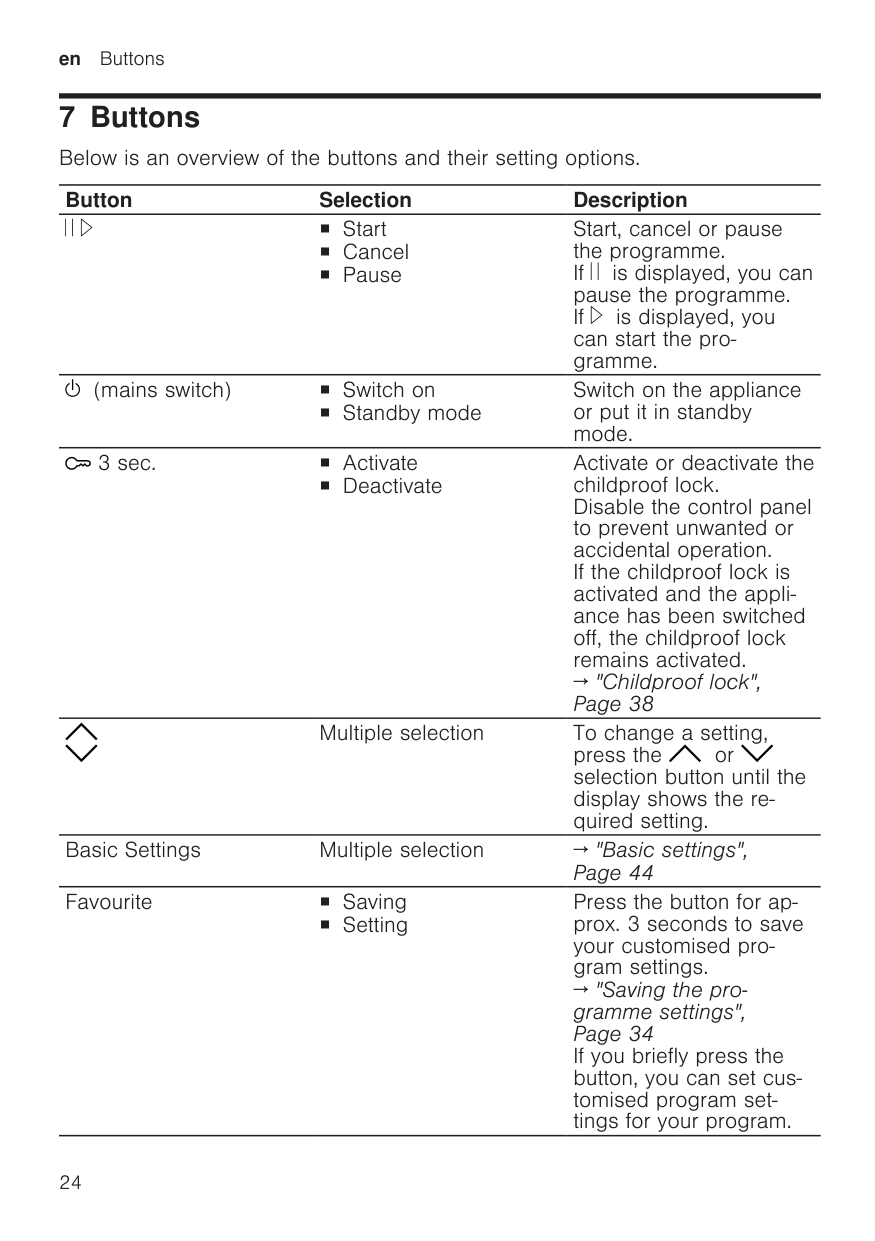

7 Buttons

Below is an overview of the buttons and their setting options. Button Selection Description

⁠ ¡ Start ¡ Cancel ¡ Pause

Start, cancel or pause the programme. If ⁠ is displayed, you can pause the programme. If ⁠ is displayed, you can start the programme.

⁠ (mains switch) ¡ Switch on ¡ Standby mode

Switch on the appliance or put it in standby mode.

⁠ 3 sec. ¡ Activate ¡ Deactivate

Activate or deactivate the childproof lock. Disable the control panel to prevent unwanted or accidental operation. If the childproof lock is activated and the appliance has been switched off, the childproof lock remains activated.

→ "Childproof lock", Page 38

⁠ ⁠

Multiple selection To change a setting, press the ⁠ or ⁠ selection button until the display shows the required setting.

Basic Settings Multiple selection → "Basic settings",

Page 44 Favourite ¡ Saving

Press the button for approx. 3 seconds to save your customised program settings.

¡ Setting

→ "Saving the programme settings", Page 34

If you briefly press the button, you can set customised program settings for your program.

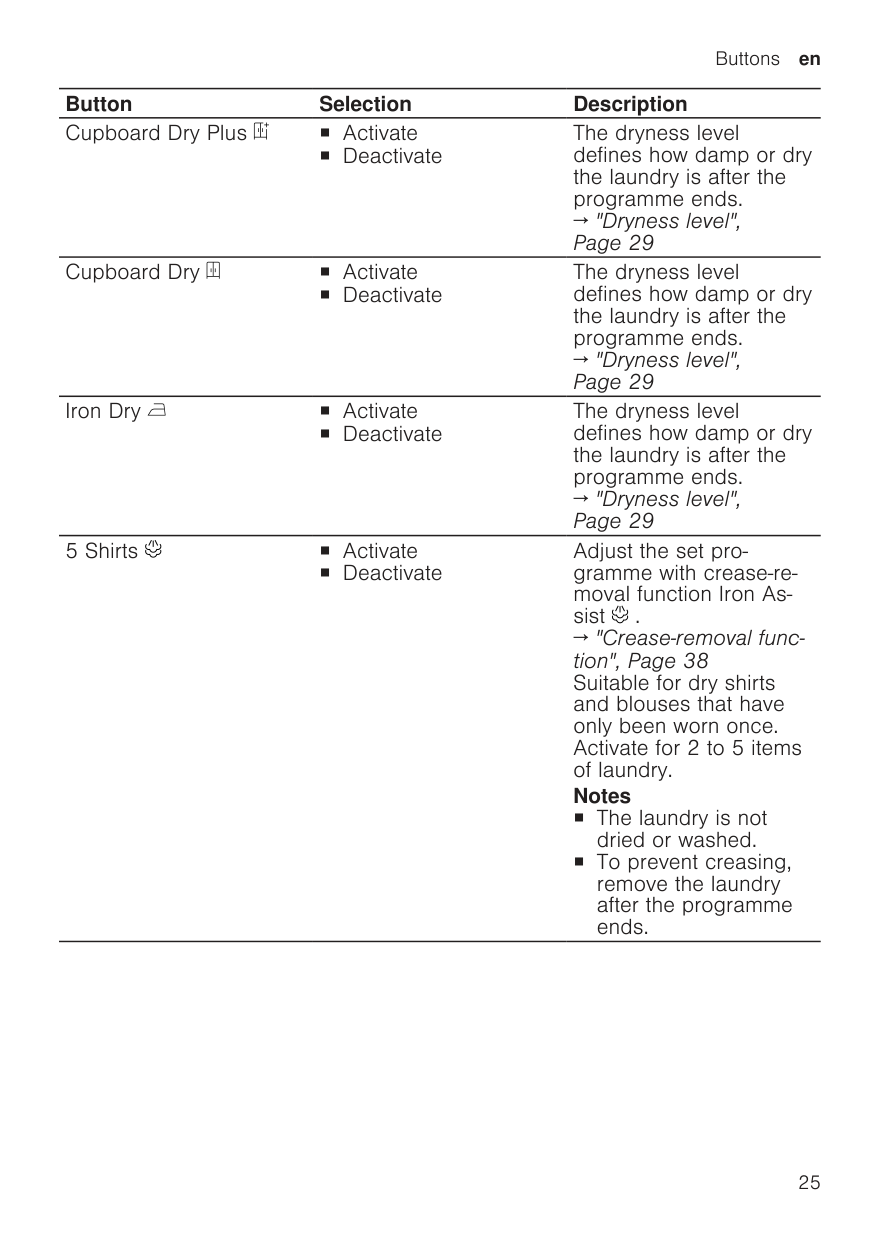

Cupboard Dry Plus ⁠ ¡ Activate ¡ Deactivate

The dryness level defines how damp or dry the laundry is after the programme ends. → "Dryness level", Page 29

Cupboard Dry ⁠ ¡ Activate ¡ Deactivate

The dryness level defines how damp or dry the laundry is after the programme ends. → "Dryness level", Page 29

Iron Dry ⁠ ¡ Activate ¡ Deactivate

The dryness level defines how damp or dry the laundry is after the programme ends. → "Dryness level", Page 29

5 Shirts ¡ Activate ¡ Deactivate

Adjust the set programme with crease-removal function Iron Assist ⁠ .

→ "Crease-removal function", Page 38 Suitable for dry shirts and blouses that have only been worn once. Activate for 2 to 5 items of laundry. Notes ¡ The laundry is not

dried or washed.

¡ To prevent creasing, remove the laundry after the programme ends.

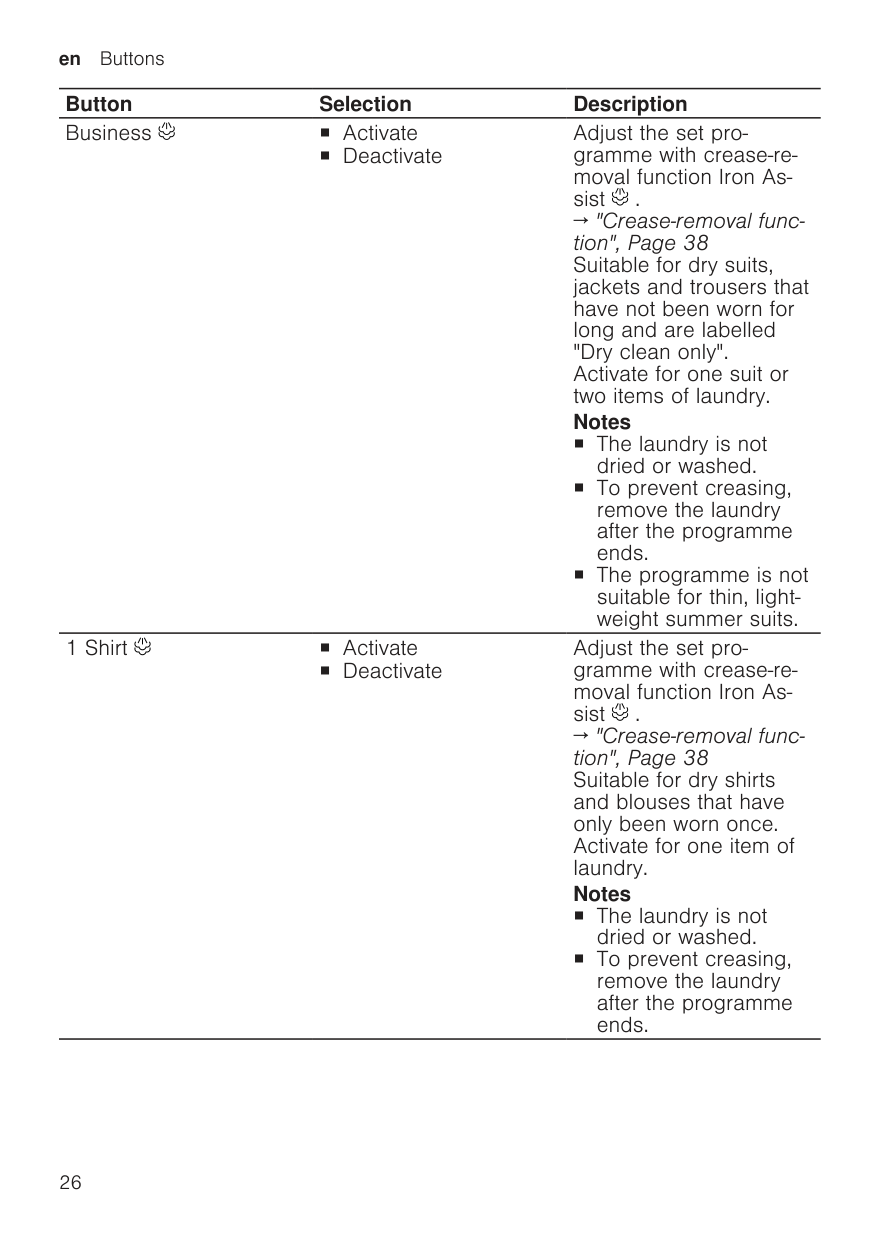

Business ⁠ ¡ Activate ¡ Deactivate

Adjust the set programme with crease-removal function Iron Assist ⁠ .

→ "Crease-removal function", Page 38 Suitable for dry suits, jackets and trousers that have not been worn for long and are labelled "Dry clean only". Activate for one suit or two items of laundry. Notes ¡ The laundry is not

dried or washed.

¡ To prevent creasing, remove the laundry after the programme ends.

¡ The programme is not

suitable for thin, lightweight summer suits.

Adjust the set programme with crease-removal function Iron Assist ⁠ .

→ "Crease-removal function", Page 38 Suitable for dry shirts and blouses that have only been worn once. Activate for one item of laundry. Notes ¡ The laundry is not

dried or washed.

¡ To prevent creasing, remove the laundry after the programme ends.

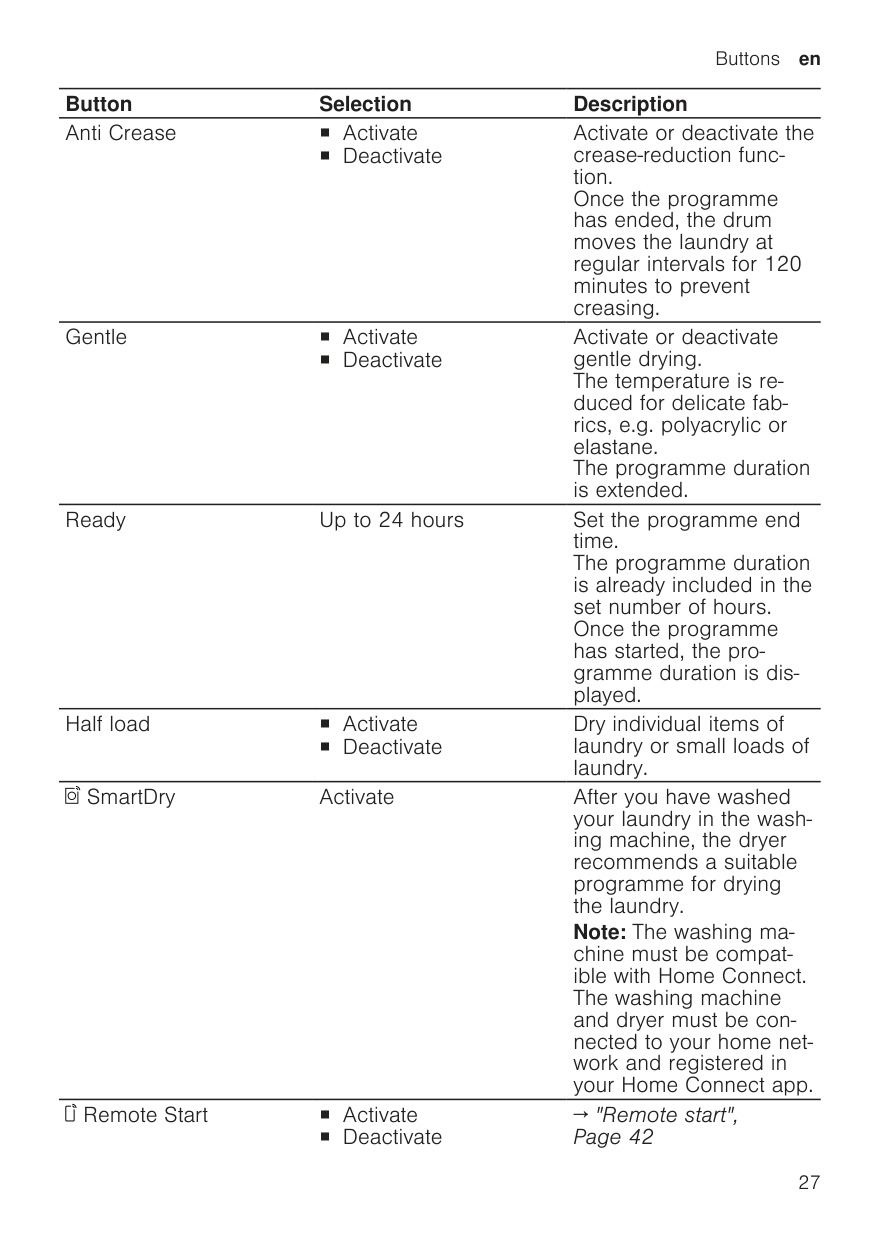

Anti Crease ¡ Activate ¡ Deactivate

Activate or deactivate the crease-reduction function. Once the programme has ended, the drum moves the laundry at regular intervals for 120 minutes to prevent creasing.

Gentle ¡ Activate ¡ Deactivate

Activate or deactivate gentle drying. The temperature is reduced for delicate fabrics, e.g. polyacrylic or elastane. The programme duration is extended.

Ready Up to 24 hours Set the programme end time. The programme duration is already included in the set number of hours. Once the programme has started, the programme duration is displayed.

Half load ¡ Activate ¡ Deactivate

Dry individual items of laundry or small loads of laundry.

⁠ SmartDry Activate After you have washed your laundry in the washing machine, the dryer recommends a suitable programme for drying the laundry.

Note: The washing machine must be compatible with Home Connect. The washing machine and dryer must be connected to your home network and registered in your Home Connect app.

⁠ Remote Start ¡ Activate ¡ Deactivate

→ "Remote start", Page 42

###### ¡ Open the Home Connect menu

Dryness level en

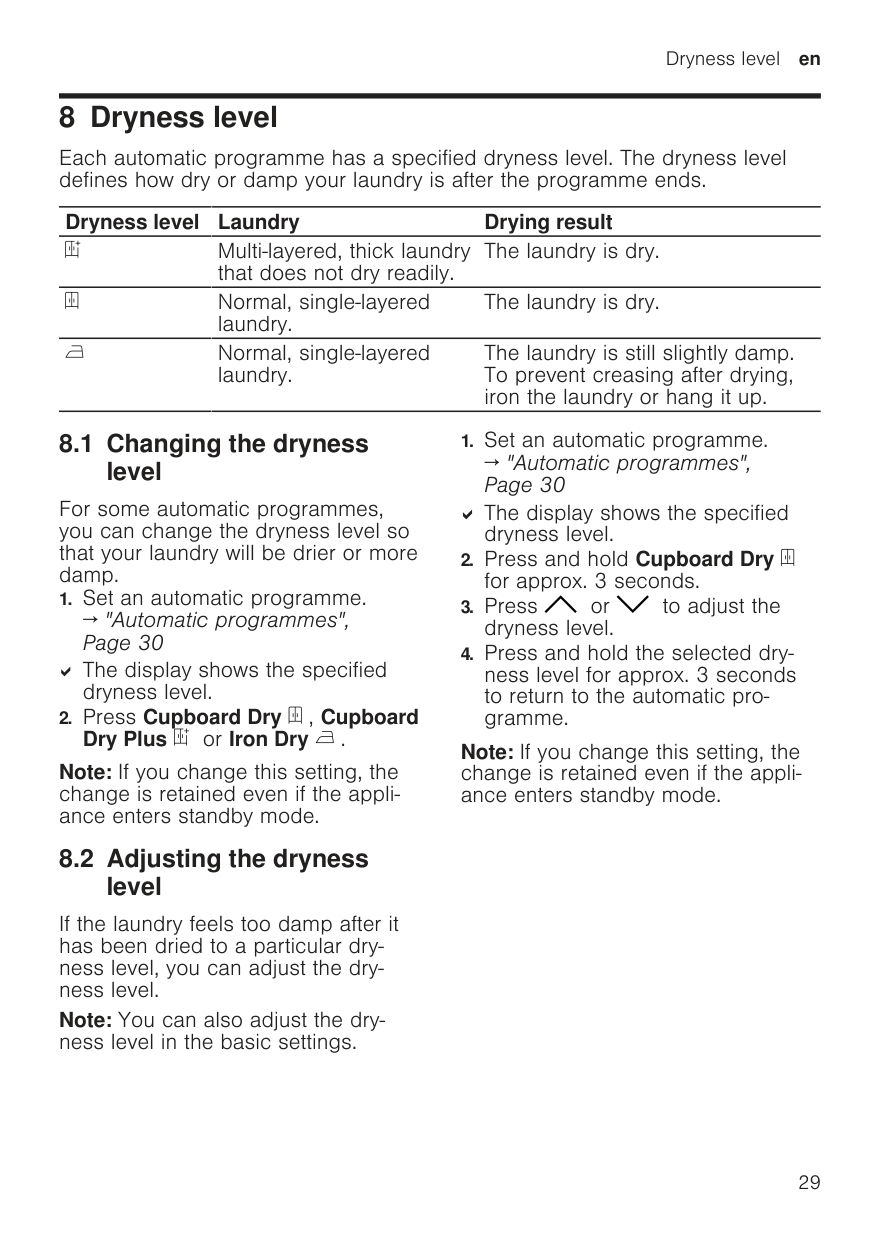

8 Dryness level

Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends.

Dryness level Laundry Drying result ⁠ Multi-layered, thick laundry that does not dry readily.

The laundry is dry.

⁠ Normal, single-layered laundry.

The laundry is dry.

⁠ Normal, single-layered laundry.

The laundry is still slightly damp. To prevent creasing after drying, iron the laundry or hang it up.

For some automatic programmes, you can change the dryness level so that your laundry will be drier or more damp.

→ "Automatic programmes", Page 30

a The display shows the specified dryness level.

Note: If you change this setting, the change is retained even if the appliance enters standby mode.

If the laundry feels too damp after it has been dried to a particular dryness level, you can adjust the dryness level.

Note: You can also adjust the dryness level in the basic settings.

→ "Automatic programmes", Page 30

a The display shows the specified dryness level.

Note: If you change this setting, the change is retained even if the appliance enters standby mode.

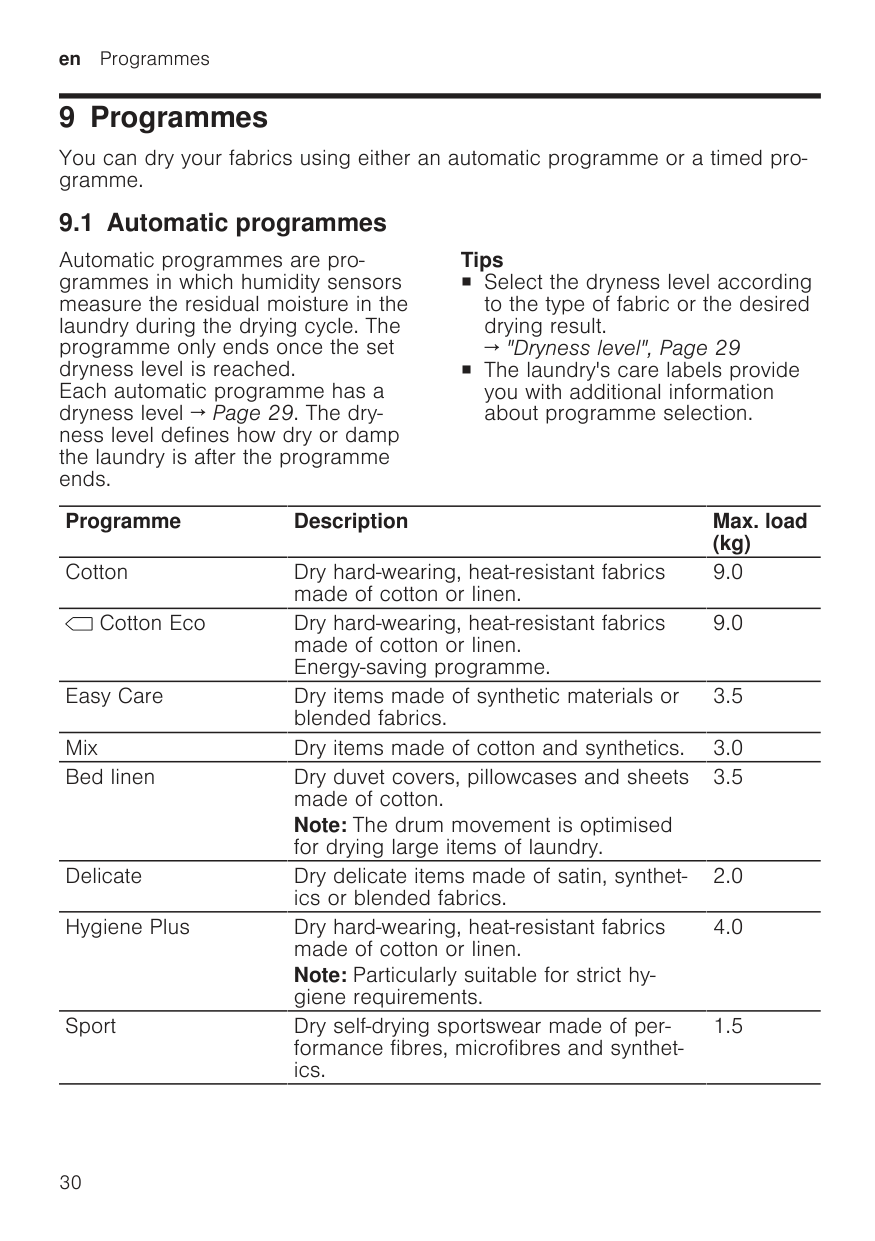

9 Programmes

You can dry your fabrics using either an automatic programme or a timed programme.

Automatic programmes are programmes in which humidity sensors measure the residual moisture in the laundry during the drying cycle. The programme only ends once the set dryness level is reached. Each automatic programme has a dryness level → Page 29. The dryness level defines how dry or damp the laundry is after the programme ends.

Tips ¡ Select the dryness level according

to the type of fabric or the desired drying result.

→ "Dryness level", Page 29

¡ The laundry's care labels provide you with additional information about programme selection.

Programme Description Max. load

(kg) Cotton Dry hard-wearing, heat-resistant fabrics

9.0

made of cotton or linen.

⁠ Cotton Eco Dry hard-wearing, heat-resistant fabrics made of cotton or linen. Energy-saving programme.

9.0

Easy Care Dry items made of synthetic materials or blended fabrics.

3.5

Mix Dry items made of cotton and synthetics. 3.0 Bed linen Dry duvet covers, pillowcases and sheets

3.5

made of cotton. Note: The drum movement is optimised for drying large items of laundry.

Delicate Dry delicate items made of satin, synthetics or blended fabrics.

2.0

Hygiene Plus Dry hard-wearing, heat-resistant fabrics made of cotton or linen. Note: Particularly suitable for strict hygiene requirements.

4.0

Sport Dry self-drying sportswear made of performance fibres, microfibres and synthetics.

1.5

Programmes en Programme Description Max. load

(kg)

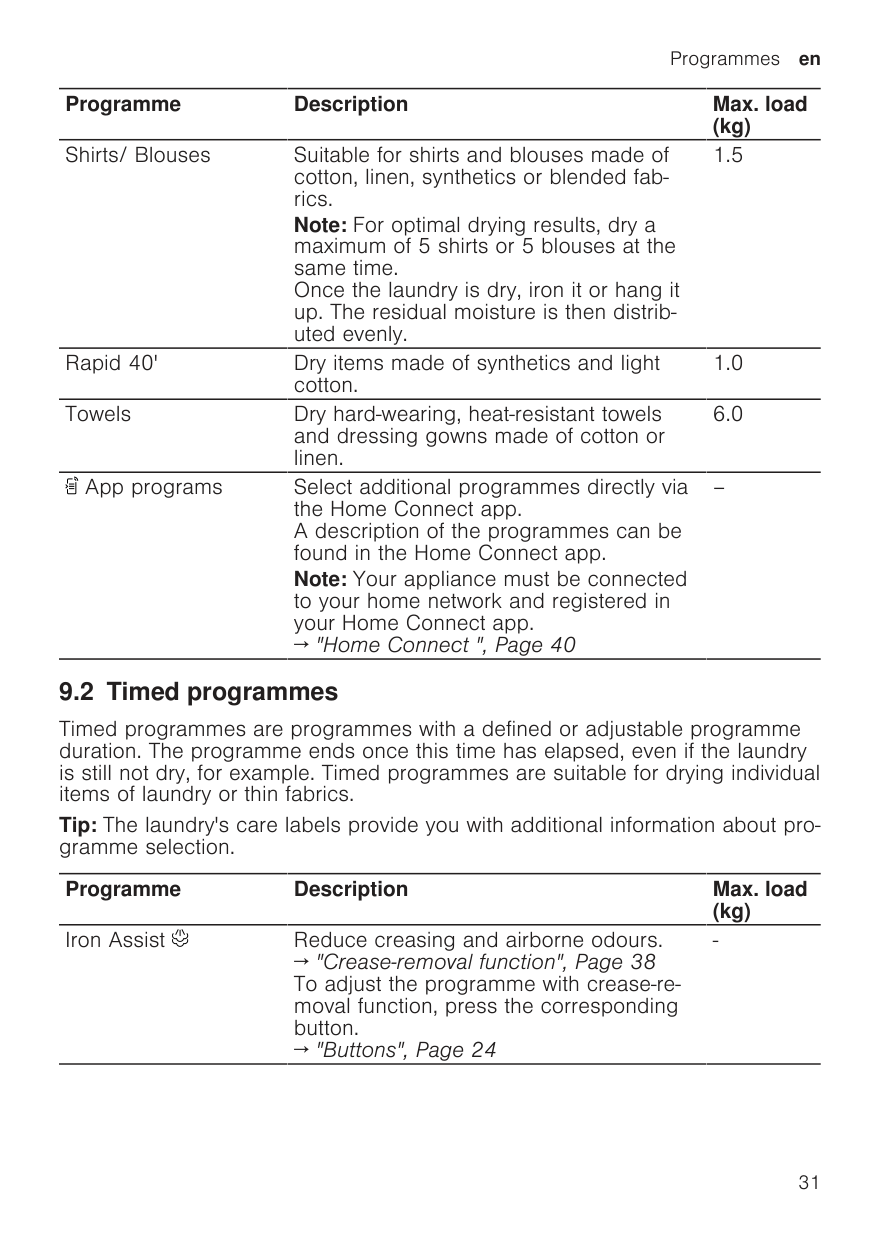

Shirts/ Blouses Suitable for shirts and blouses made of cotton, linen, synthetics or blended fabrics. Note: For optimal drying results, dry a maximum of 5 shirts or 5 blouses at the same time. Once the laundry is dry, iron it or hang it up. The residual moisture is then distributed evenly.

1.5

Rapid 40' Dry items made of synthetics and light cotton.

1.0

Towels Dry hard-wearing, heat-resistant towels and dressing gowns made of cotton or linen.

6.0

⁠ App programs Select additional programmes directly via the Home Connect app. A description of the programmes can be found in the Home Connect app. Note: Your appliance must be connected to your home network and registered in your Home Connect app.

–

→ "Home Connect ", Page 40

Timed programmes are programmes with a defined or adjustable programme duration. The programme ends once this time has elapsed, even if the laundry is still not dry, for example. Timed programmes are suitable for drying individual items of laundry or thin fabrics.

Tip: The laundry's care labels provide you with additional information about programme selection.

Programme Description Max. load

(kg) Iron Assist ⁠ Reduce creasing and airborne odours.

→ "Buttons", Page 24

Programme Description Max. load (kg)

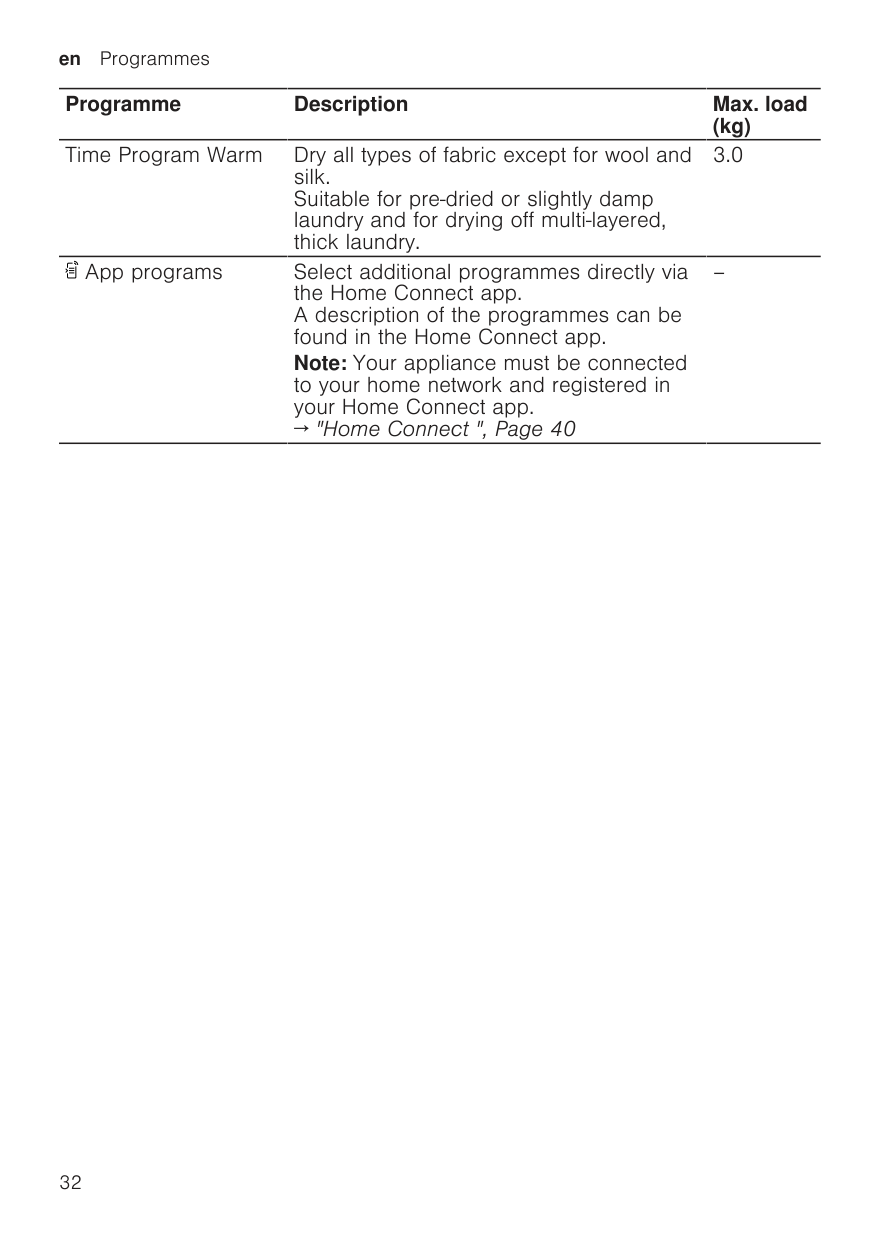

Time Program Warm Dry all types of fabric except for wool and silk. Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick laundry.

3.0

⁠ App programs Select additional programmes directly via the Home Connect app. A description of the programmes can be found in the Home Connect app. Note: Your appliance must be connected to your home network and registered in your Home Connect app.

–

→ "Home Connect ", Page 40

Accessories en

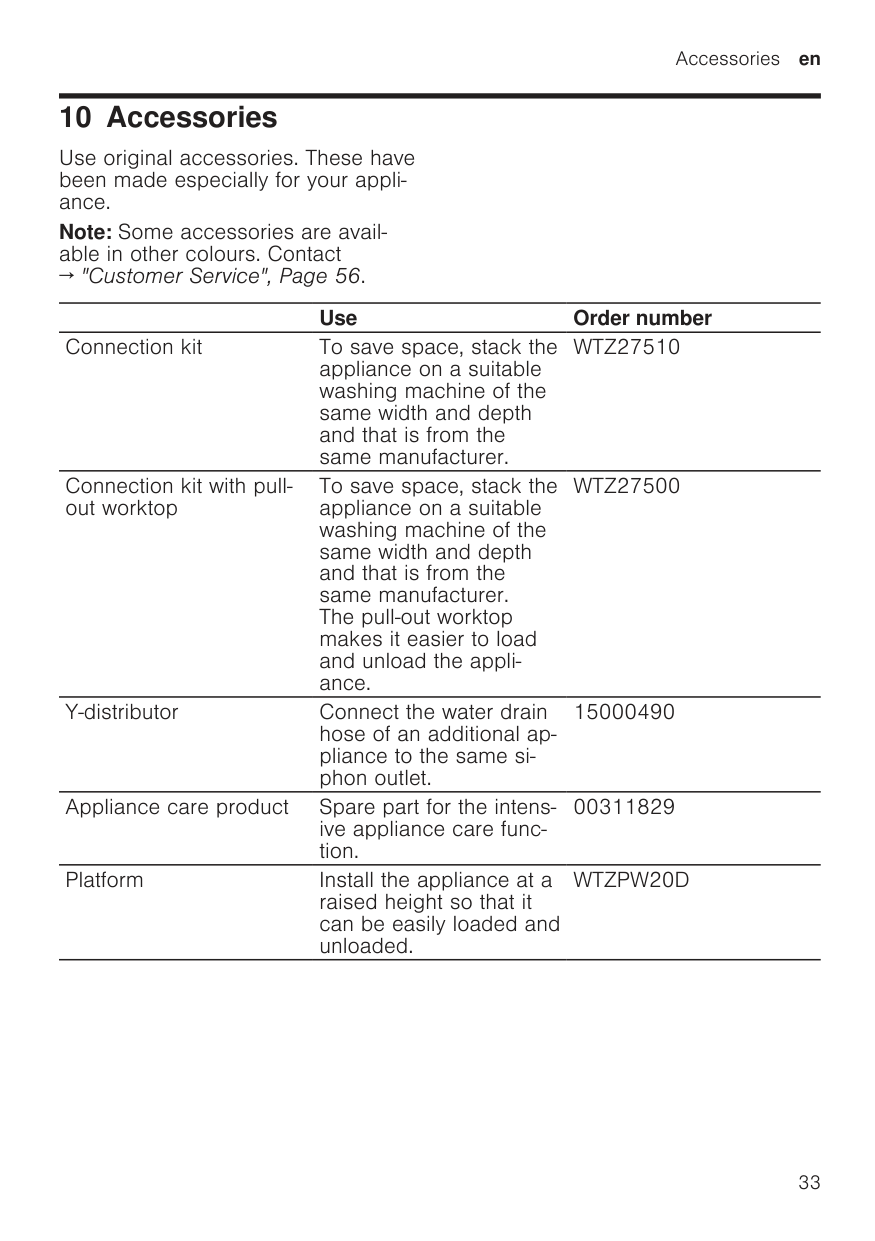

10 Accessories

Use original accessories. These have been made especially for your appliance.

Note: Some accessories are available in other colours. Contact

→ "Customer Service", Page 56. Use Order number

Connection kit To save space, stack the appliance on a suitable washing machine of the same width and depth and that is from the same manufacturer.

WTZ27510

Connection kit with pullout worktop

To save space, stack the appliance on a suitable washing machine of the same width and depth and that is from the same manufacturer. The pull-out worktop makes it easier to load and unload the appliance.

WTZ27500

Y-distributor Connect the water drain hose of an additional appliance to the same siphon outlet.

15000490

Appliance care product Spare part for the intensive appliance care function.

00311829

Platform Install the appliance at a raised height so that it can be easily loaded and unloaded.

WTZPW20D

en Laundry

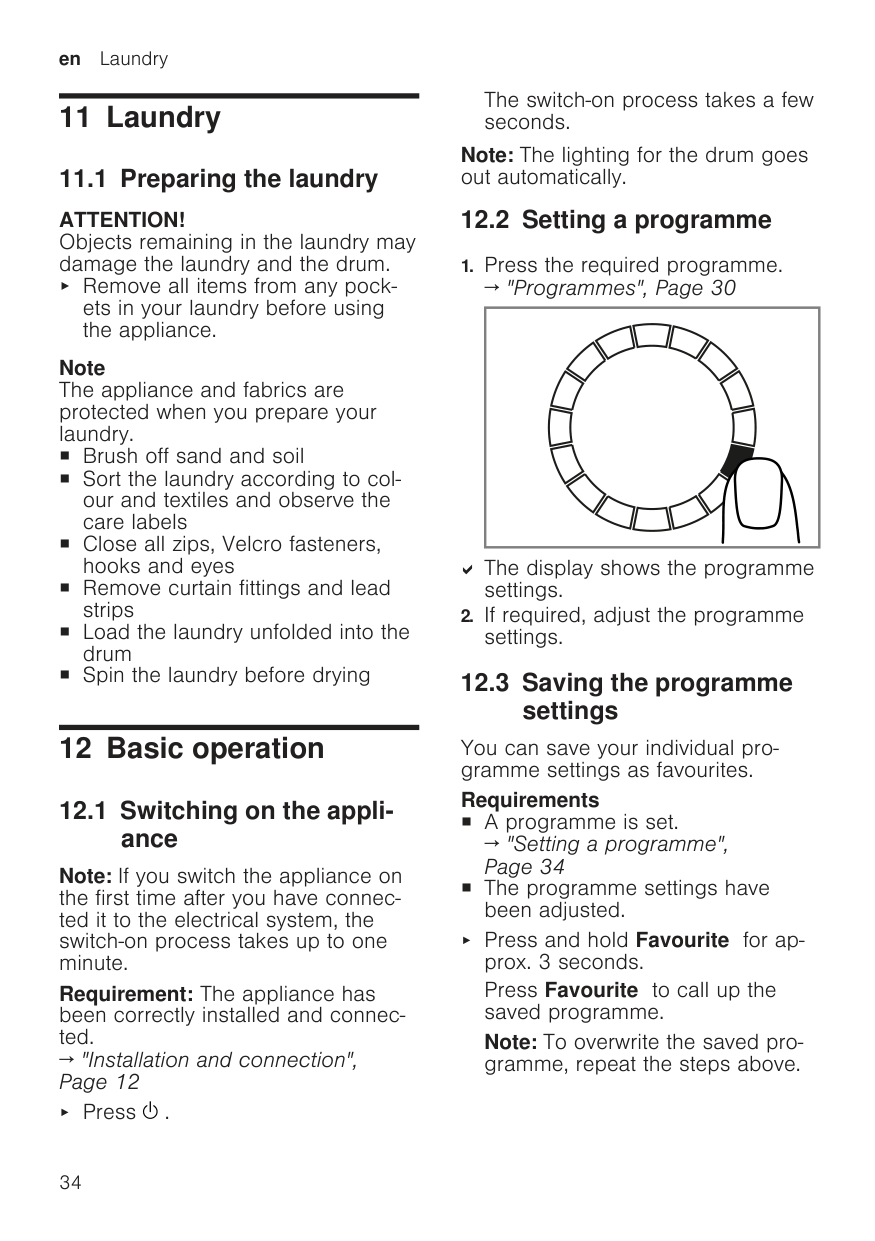

11 Laundry

ATTENTION! Objects remaining in the laundry may damage the laundry and the drum.

▶ Remove all items from any pockets in your laundry before using the appliance.

Note The appliance and fabrics are protected when you prepare your laundry. ¡ Brush off sand and soil ¡ Sort the laundry according to col-

our and textiles and observe the care labels

¡ Close all zips, Velcro fasteners, hooks and eyes ¡ Remove curtain fittings and lead strips ¡ Load the laundry unfolded into the drum ¡ Spin the laundry before drying

12 Basic operation

Note: If you switch the appliance on the first time after you have connected it to the electrical system, the switch-on process takes up to one minute.

Requirement: The appliance has been correctly installed and connected.

→ "Installation and connection", Page 12

▶ Press ⁠ .

The switch-on process takes a few seconds.

Note: The lighting for the drum goes out automatically.

→ "Programmes", Page 30

a The display shows the programme settings.

You can save your individual programme settings as favourites.

Requirements ¡ A programme is set.

→ "Setting a programme", Page 34

¡ The programme settings have been adjusted.

▶ Press and hold Favourite for approx. 3 seconds. Press Favourite to call up the saved programme.

Note: To overwrite the saved programme, repeat the steps above.

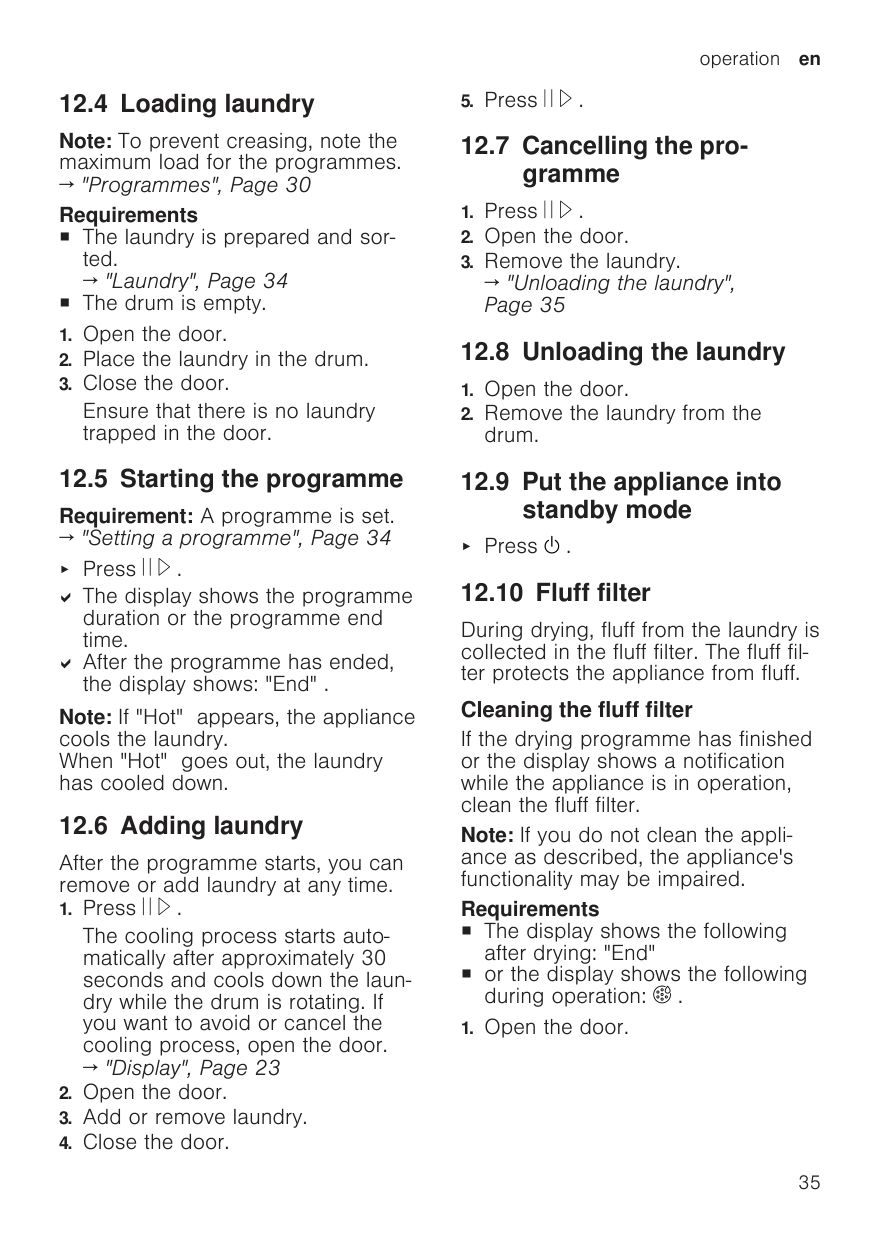

Note: To prevent creasing, note the maximum load for the programmes. → "Programmes", Page 30

Requirements ¡ The laundry is prepared and sor-

ted.

→ "Laundry", Page 34 ¡ The drum is empty.

Ensure that there is no laundry trapped in the door.

Requirement: A programme is set. → "Setting a programme", Page 34

▶ Press ⁠ . a The display shows the programme duration or the programme end time.

a After the programme has ended, the display shows: "End" .

Note: If "Hot" appears, the appliance cools the laundry. When "Hot" goes out, the laundry has cooled down.

After the programme starts, you can remove or add laundry at any time.

The cooling process starts automatically after approximately 30 seconds and cools down the laundry while the drum is rotating. If you want to avoid or cancel the cooling process, open the door.

→ "Display", Page 23

→ "Unloading the laundry", Page 35

▶ Press ⁠ .

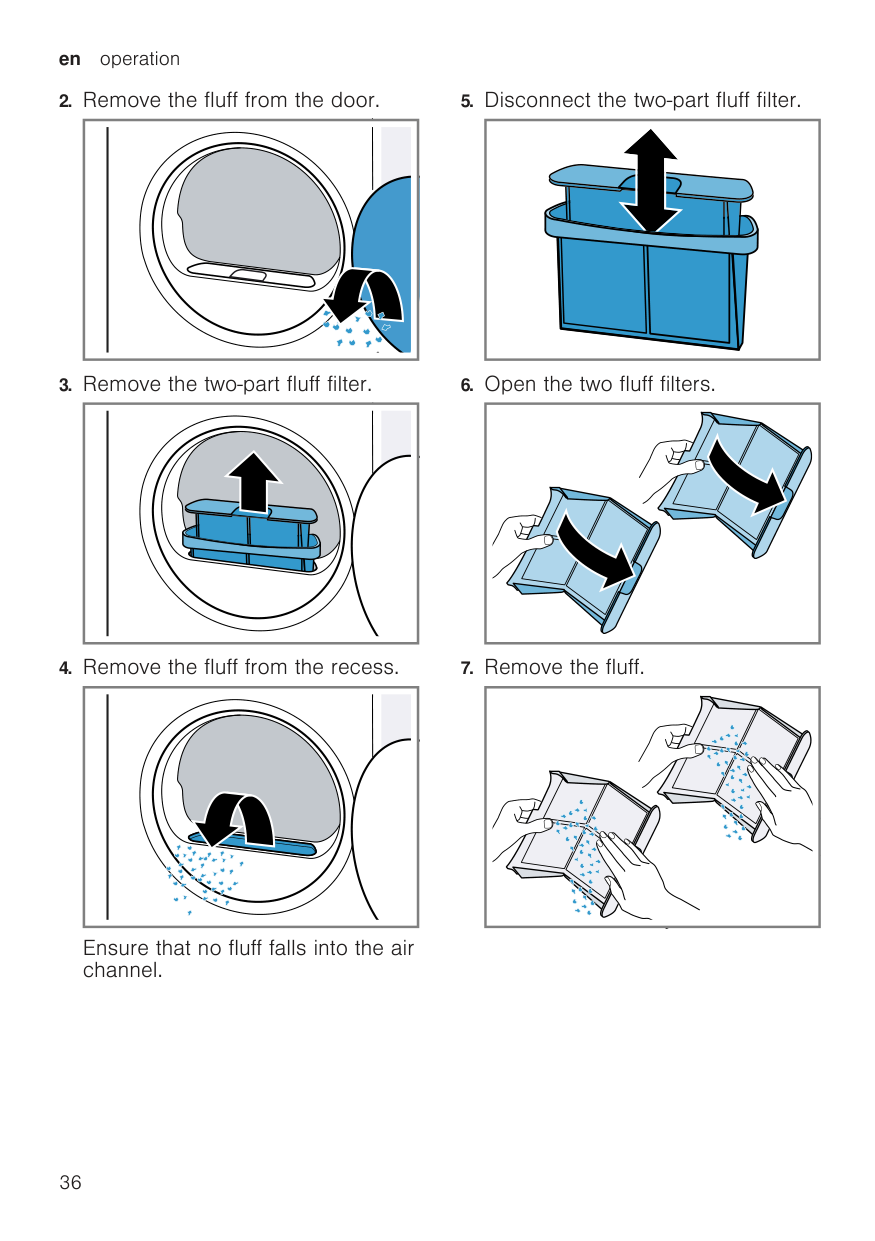

During drying, fluff from the laundry is collected in the fluff filter. The fluff filter protects the appliance from fluff.

Cleaning the fluff filter

If the drying programme has finished or the display shows a notification while the appliance is in operation, clean the fluff filter.

Note: If you do not clean the appliance as described, the appliance's functionality may be impaired.

Requirements ¡ The display shows the following

after drying: "End" ¡ or the display shows the following during operation: ⁠ .

en operation

Ensure that no fluff falls into the air channel.

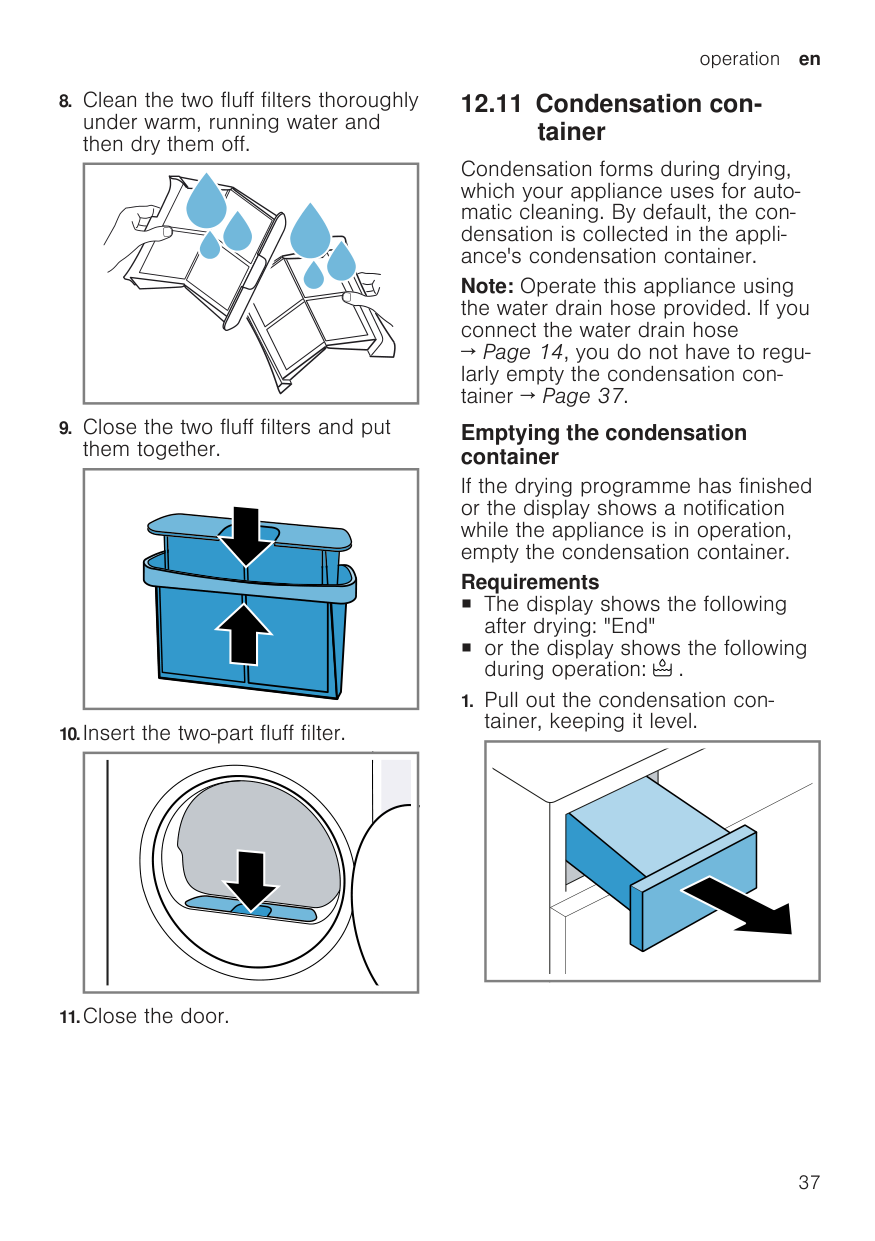

##### 12.11 Condensation container

Condensation forms during drying, which your appliance uses for automatic cleaning. By default, the condensation is collected in the appliance's condensation container.

Note: Operate this appliance using the water drain hose provided. If you connect the water drain hose

→ Page 14, you do not have to regularly empty the condensation container → Page 37.

Emptying the condensation container

If the drying programme has finished or the display shows a notification while the appliance is in operation, empty the condensation container.

Requirements ¡ The display shows the following

after drying: "End" ¡ or the display shows the following during operation: ⁠ .

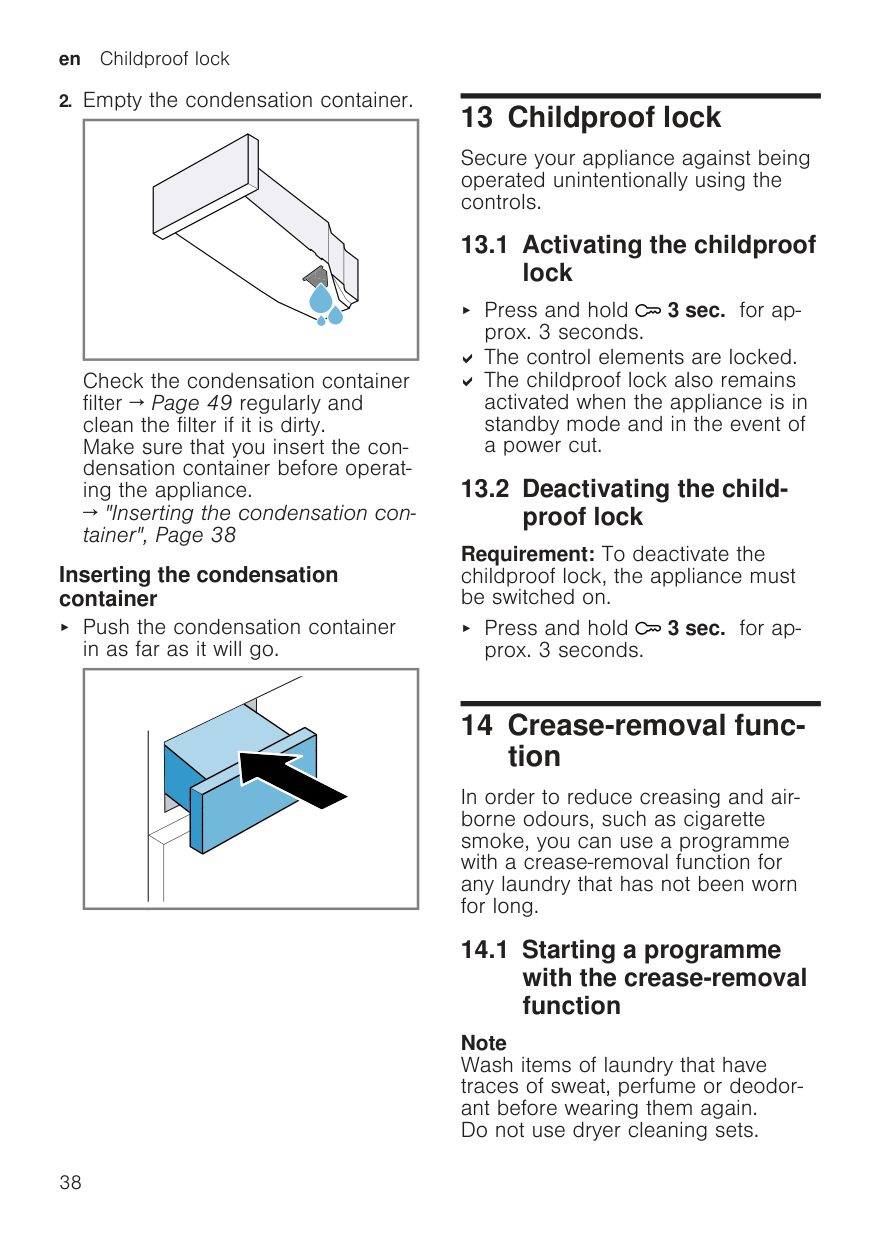

en Childproof lock

Check the condensation container filter → Page 49 regularly and clean the filter if it is dirty. Make sure that you insert the condensation container before operating the appliance.

→ "Inserting the condensation container", Page 38

Inserting the condensation container

▶ Push the condensation container

in as far as it will go.

13 Childproof lock

Secure your appliance against being operated unintentionally using the controls.

▶ Press and hold ⁠ 3 sec. for ap-

prox. 3 seconds.

a The control elements are locked. a The childproof lock also remains

activated when the appliance is in standby mode and in the event of a power cut.

Requirement: To deactivate the childproof lock, the appliance must be switched on.

▶ Press and hold ⁠ 3 sec. for ap-

prox. 3 seconds.

14 Crease-removal func-tion

In order to reduce creasing and airborne odours, such as cigarette smoke, you can use a programme with a crease-removal function for any laundry that has not been worn for long.

14.1 Starting a programme with the crease-removal function

Note Wash items of laundry that have traces of sweat, perfume or deodorant before wearing them again. Do not use dryer cleaning sets.

Do not use a programme with the crease-removal function for the following fabrics: ¡ Wool, leather and viscose ¡ Fabrics with parts made from

metal, wood or plastic ¡ Waxed jackets and oilskin jackets Requirements ¡ The laundry is prepared.

→ "Preparing the laundry", Page 34 ¡ The laundry is sorted. ¡ The laundry is placed in the appli-

ance.

→ "Loading laundry", Page 35

→ "Timed programmes", Page 31

→ "Buttons", Page 24

→ "Starting the programme", Page 35

If the water tank is empty, the display shows: ⁠ .

→ "Filling the water tank", Page 39 The average programme duration of the crease-removal function is approx. 45 minutes and may be longer or shorter depending on the ambient temperature.

a After the programme has ended, the display shows: "End" .

→ "Unloading the laundry", Page 35

The results of the crease-removal function may vary depending on the type of fabric, the amount of laundry and the selected programme. Remove the laundry immediately after the programme has ended to prevent creasing.

Crease-removal function en

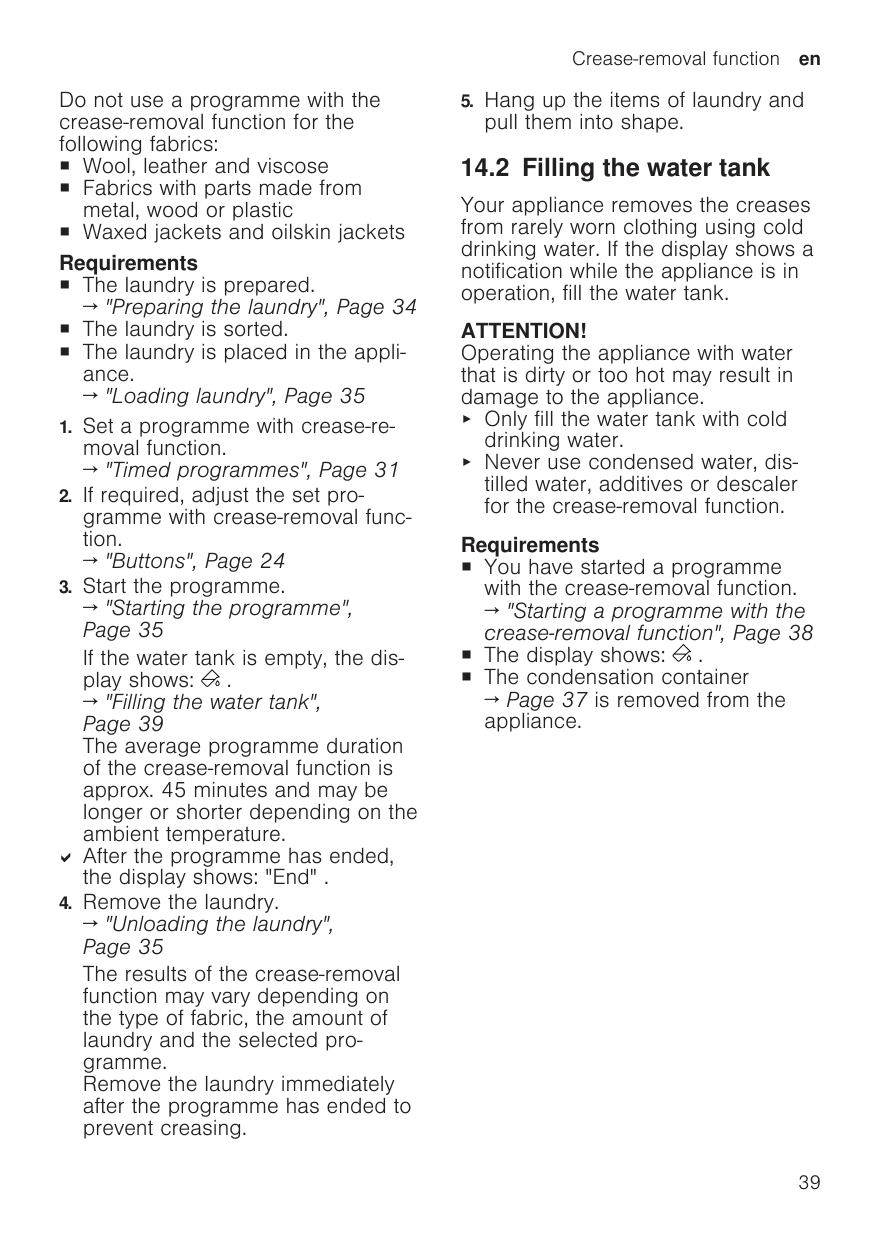

14.2 Filling the water tank

Your appliance removes the creases from rarely worn clothing using cold drinking water. If the display shows a notification while the appliance is in operation, fill the water tank.

ATTENTION!

Operating the appliance with water that is dirty or too hot may result in damage to the appliance.

▶ Only fill the water tank with cold

drinking water.

▶ Never use condensed water, distilled water, additives or descaler for the crease-removal function.

Requirements ¡ You have started a programme

with the crease-removal function.

→ "Starting a programme with the crease-removal function", Page 38

¡ The display shows: ⁠ . ¡ The condensation container

→ Page 37 is removed from the appliance.

Check the water tank filter regularly and clean the filter if it is dirty.

→ "Cleaning the water tank filter", Page 48 If ⁠ does not go out on the display, add cold drinking water through the front opening and align the appliance correctly.

→ "Aligning the appliance", Page 16

a ⁠ goes out on the display.

→ "Inserting the condensation container", Page 38

→ "Starting a programme with the crease-removal function", Page 38

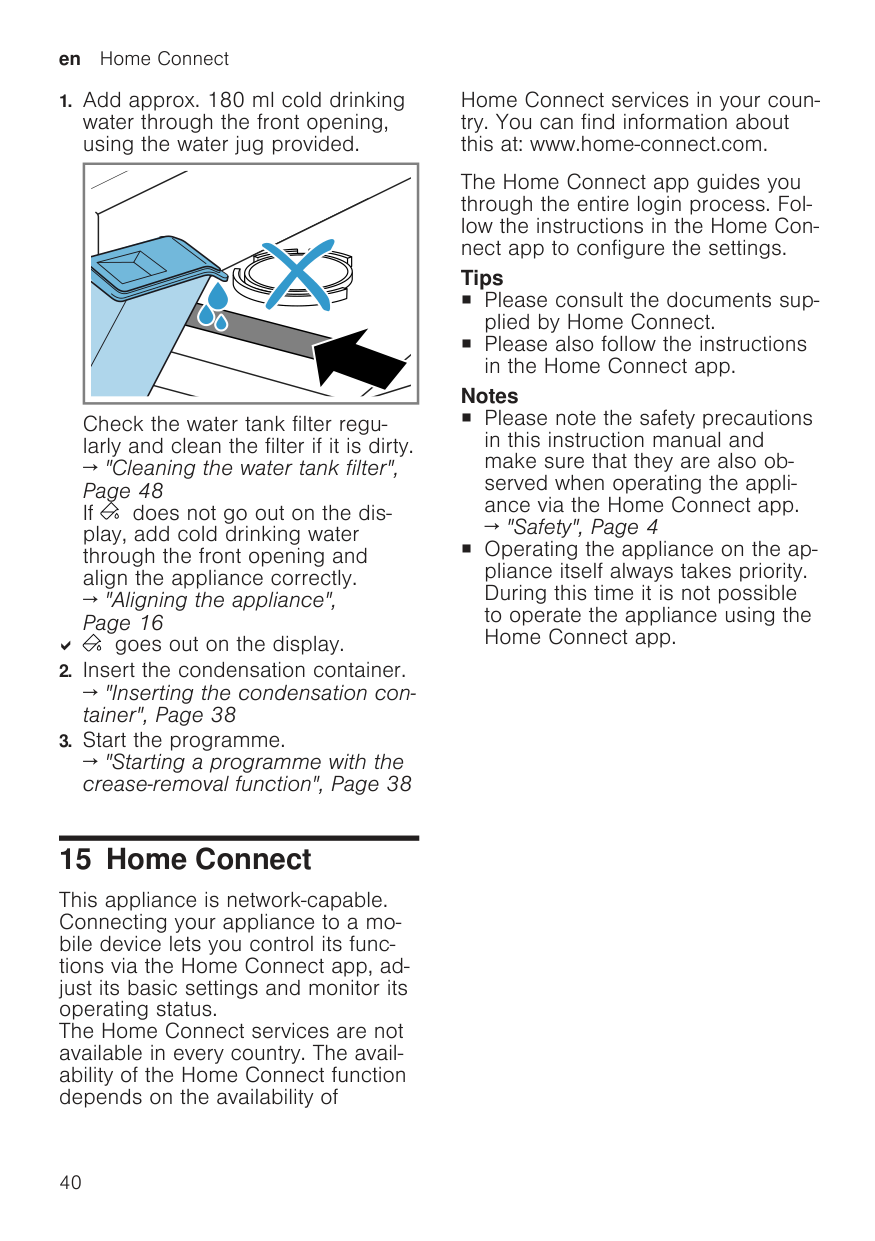

15 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of

Home Connect services in your country. You can find information about this at: www.home-connect.com.

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tips ¡ Please consult the documents sup-

plied by Home Connect. ¡ Please also follow the instructions in the Home Connect app.

Notes ¡ Please note the safety precautions

in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 4

¡ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

| | | |---|---| | | |

The Home Connect app guides you through the entire login process.

Requirements ¡ The Home Connect app has been installed on your mobile device. ¡ Wi-Fi has been activated on the

router.

¡ The appliance is receiving signals from the WLAN home network (WiFi) at its installation location.

The Home Connect menu contains all of the Home Connect settings.

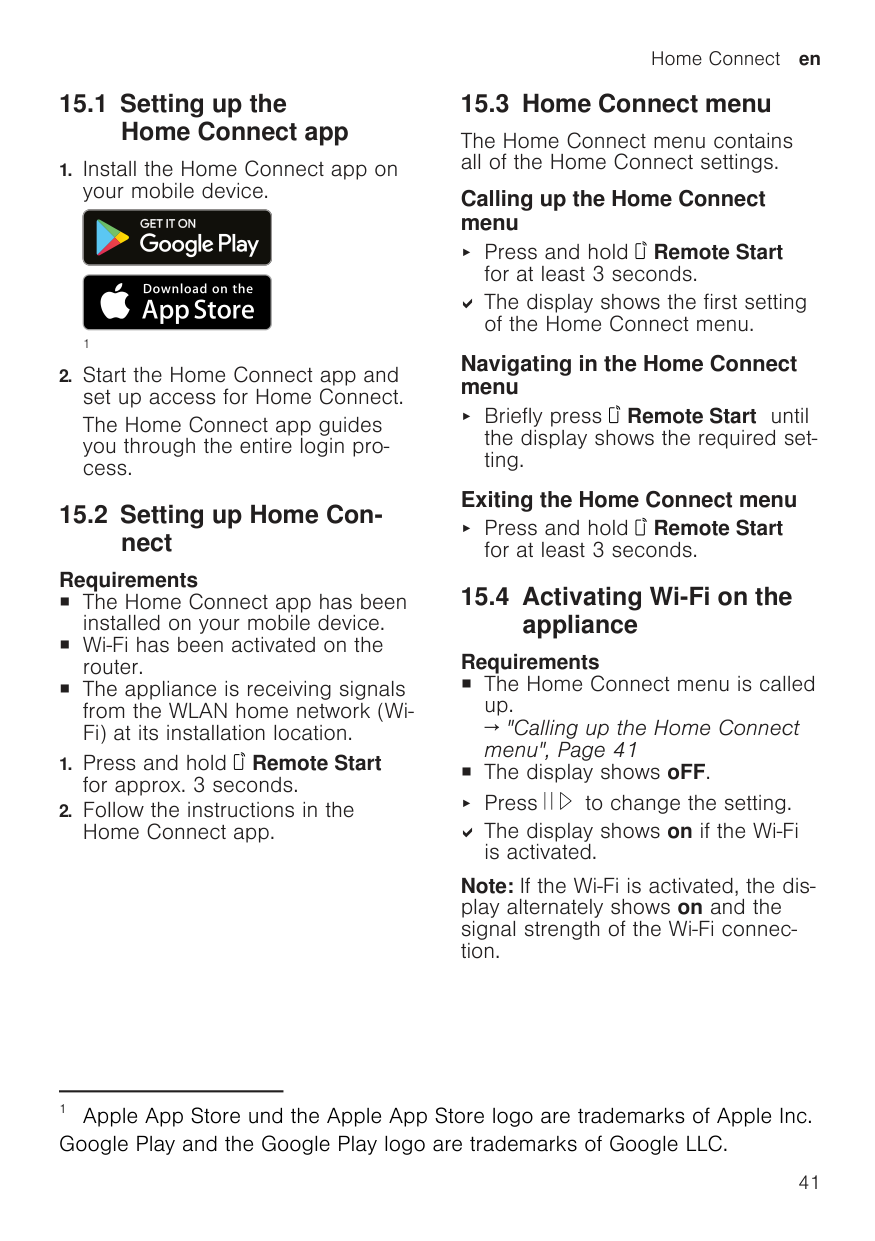

Calling up the Home Connect menu

▶ Press and hold ⁠ Remote Start

for at least 3 seconds. a The display shows the first setting of the Home Connect menu.

Navigating in the Home Connect menu

▶ Briefly press ⁠ Remote Start until the display shows the required setting.

Exiting the Home Connect menu

▶ Press and hold ⁠ Remote Start

for at least 3 seconds.

Requirements ¡ The Home Connect menu is called

up.

→ "Calling up the Home Connect menu", Page 41

¡ The display shows oFF.

▶ Press ⁠ to change the setting. a The display shows on if the Wi-Fi

is activated.

Note: If the Wi-Fi is activated, the display alternately shows on and the signal strength of the Wi-Fi connection.

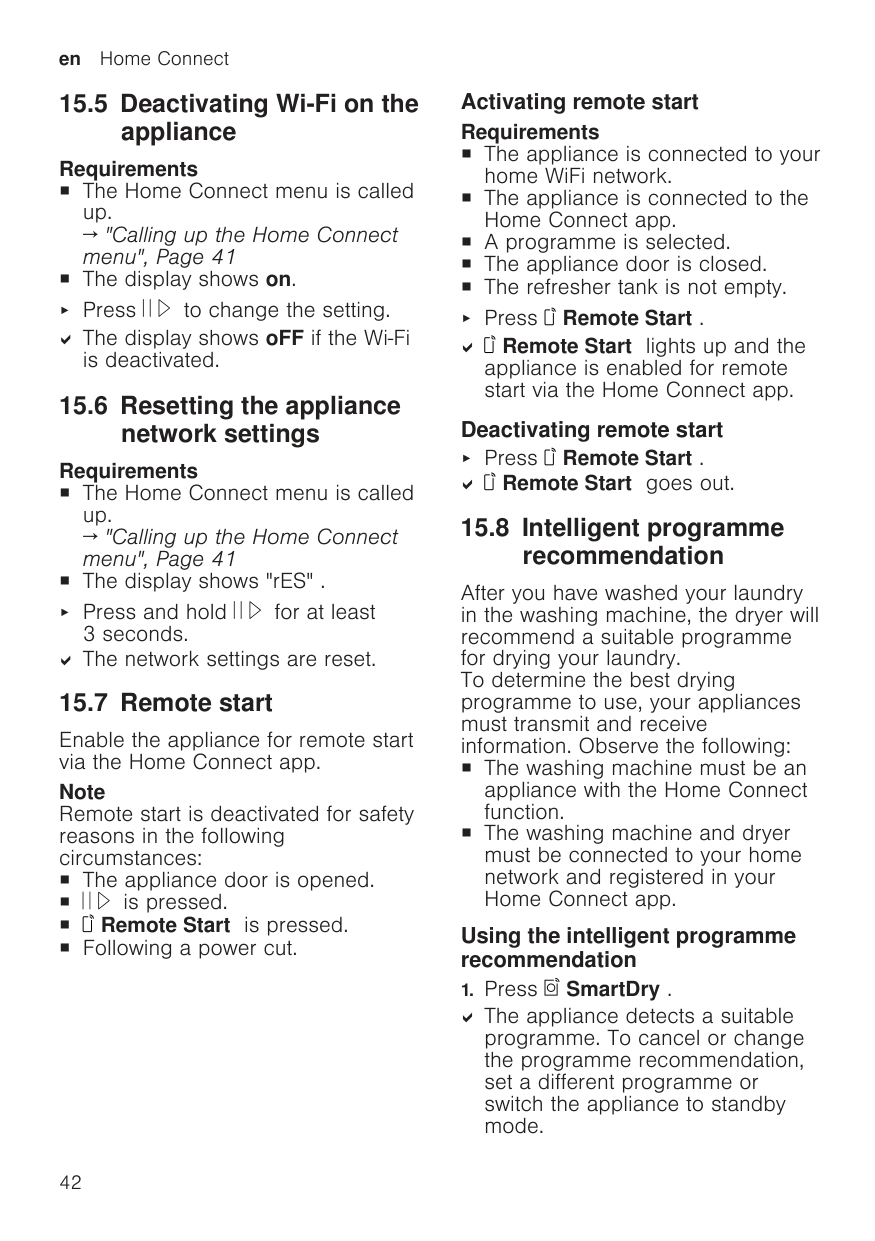

##### 15.5 Deactivating Wi-Fi on theappliance

Requirements ¡ The Home Connect menu is called

up.

→ "Calling up the Home Connect menu", Page 41

¡ The display shows on.

▶ Press ⁠ to change the setting. a The display shows oFF if the Wi-Fi

is deactivated.

##### 15.6 Resetting the appliancenetwork settings

Requirements ¡ The Home Connect menu is called

up.

→ "Calling up the Home Connect menu", Page 41

¡ The display shows "rES" .

▶ Press and hold ⁠ for at least

3 seconds. a The network settings are reset.

##### 15.7 Remote start

Enable the appliance for remote start via the Home Connect app.

Note Remote start is deactivated for safety reasons in the following circumstances: ¡ The appliance door is opened. ¡ ⁠ is pressed. ¡ ⁠ Remote Start is pressed. ¡ Following a power cut.

Activating remote start Requirements ¡ The appliance is connected to your

home WiFi network. ¡ The appliance is connected to the

Home Connect app. ¡ A programme is selected. ¡ The appliance door is closed. ¡ The refresher tank is not empty.

▶ Press ⁠ Remote Start . a ⁠ Remote Start lights up and the

appliance is enabled for remote start via the Home Connect app.

Deactivating remote start

▶ Press ⁠ Remote Start . a ⁠ Remote Start goes out.

##### 15.8 Intelligent programme recommendation

After you have washed your laundry in the washing machine, the dryer will recommend a suitable programme for drying your laundry. To determine the best drying programme to use, your appliances must transmit and receive information. Observe the following: ¡ The washing machine must be an

appliance with the Home Connect function.

¡ The washing machine and dryer must be connected to your home network and registered in your Home Connect app.

Using the intelligent programme recommendation

programme. To cancel or change the programme recommendation, set a different programme or switch the appliance to standby mode.

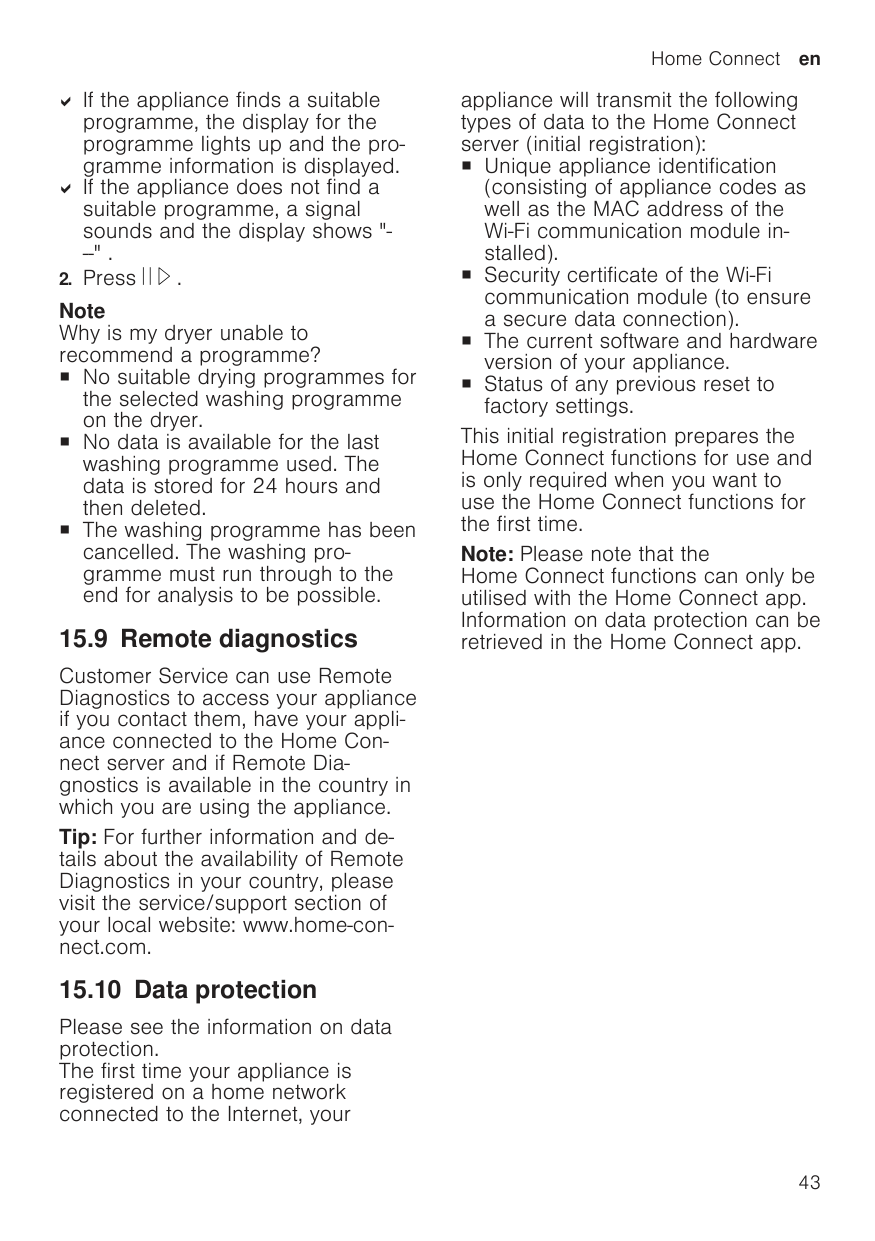

a If the appliance finds a suitable programme, the display for the programme lights up and the programme information is displayed.

a If the appliance does not find a suitable programme, a signal sounds and the display shows "-

--" .

Note Why is my dryer unable to recommend a programme? ¡ No suitable drying programmes for

the selected washing programme on the dryer.

¡ No data is available for the last washing programme used. The data is stored for 24 hours and then deleted.

¡ The washing programme has been cancelled. The washing programme must run through to the end for analysis to be possible.

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com.

Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your

appliance will transmit the following types of data to the Home Connect server (initial registration):

¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed).

¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).

¡ The current software and hardware version of your appliance. ¡ Status of any previous reset to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

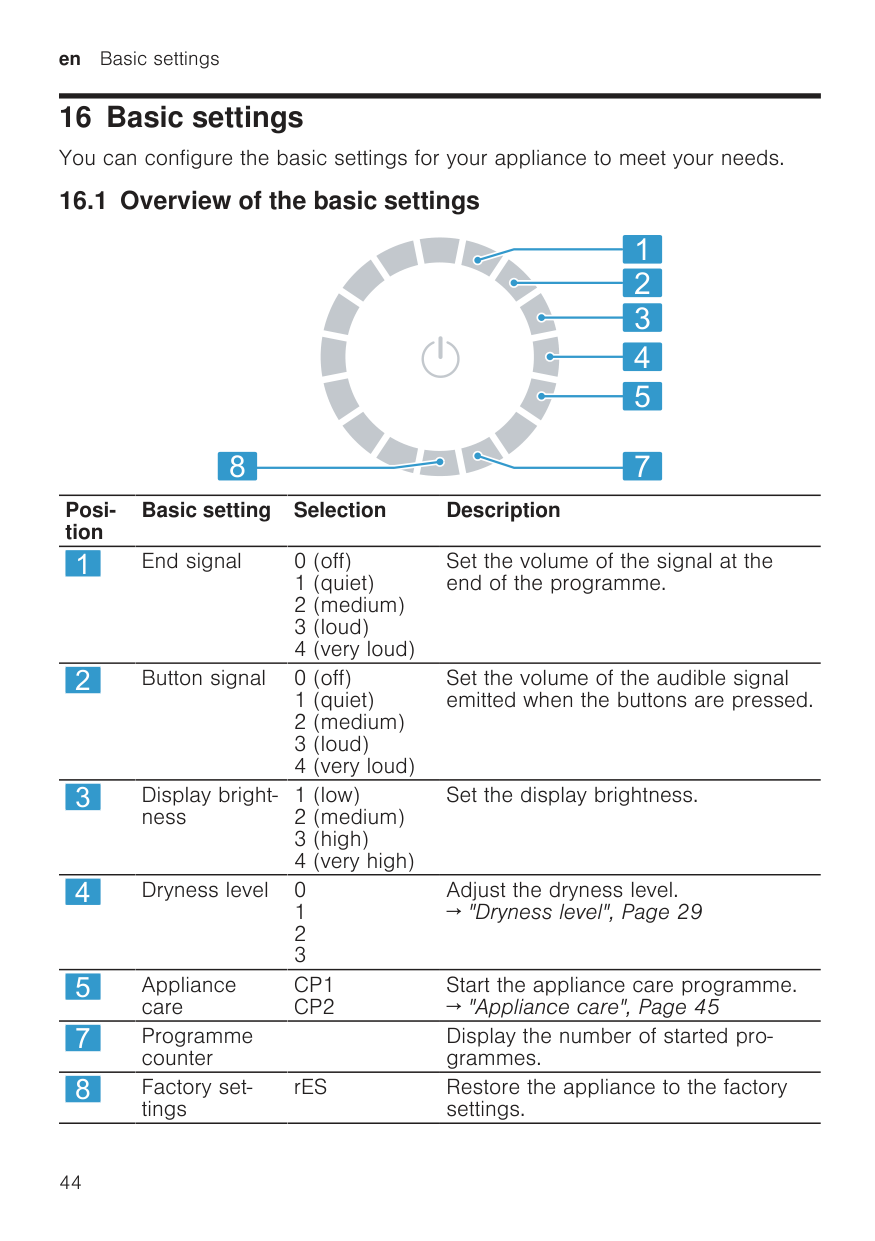

en Basic settings

You can configure the basic settings for your appliance to meet your needs.

78

Position

Basic setting Selection Description

Set the volume of the signal at the end of the programme.

Set the volume of the audible signal emitted when the buttons are pressed.

Set the display brightness.

Adjust the dryness level.

→ "Dryness level", Page 29

Start the appliance care programme.

→ "Appliance care", Page 45

Display the number of started programmes.

rES Restore the appliance to the factory settings.

Requirement: The display shows all additional buttons.

→ "Overview of the basic settings", Page 44

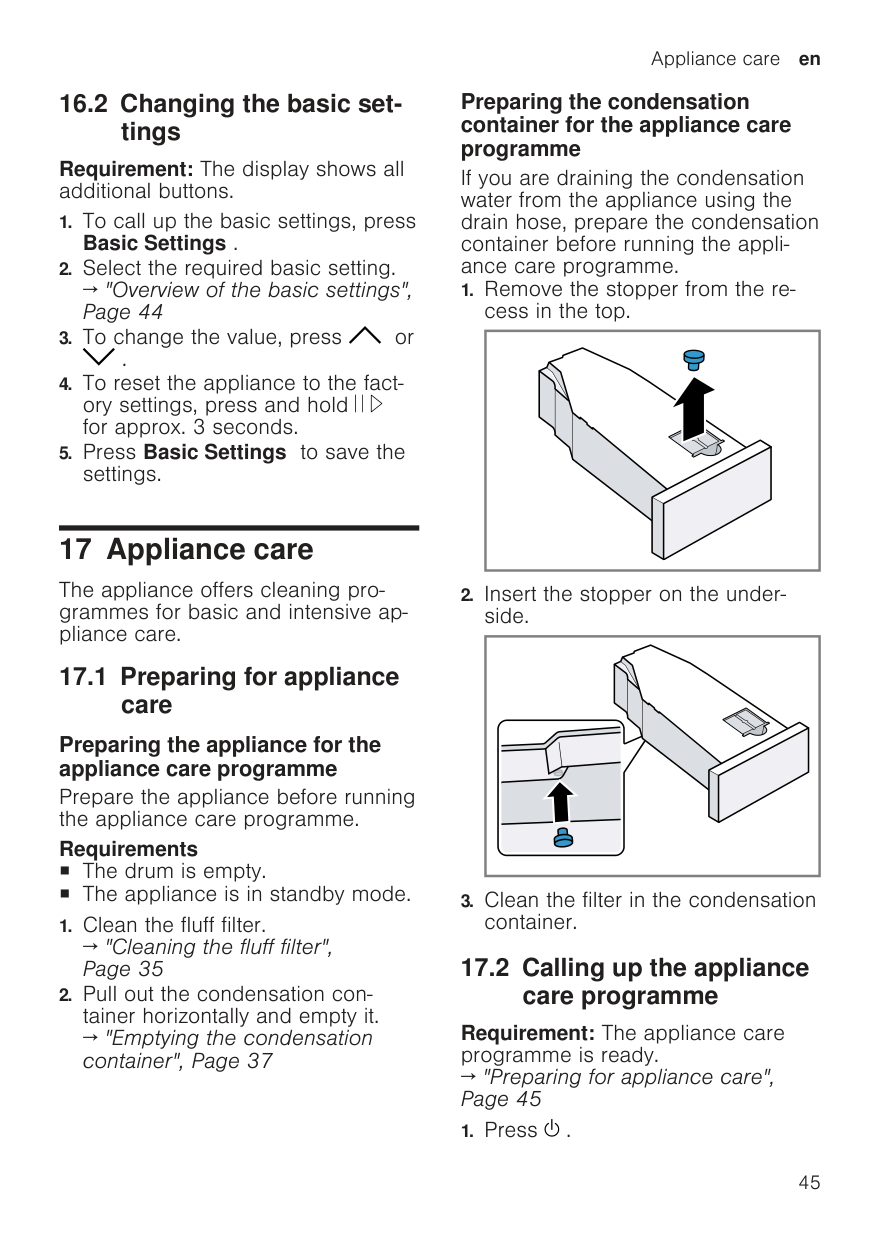

17 Appliance care

The appliance offers cleaning programmes for basic and intensive appliance care.

Preparing the appliance for the appliance care programme

Prepare the appliance before running the appliance care programme.

Requirements ¡ The drum is empty. ¡ The appliance is in standby mode.

→ "Cleaning the fluff filter", Page 35

→ "Emptying the condensation container", Page 37

Preparing the condensation container for the appliance care programme

If you are draining the condensation water from the appliance using the drain hose, prepare the condensation container before running the appliance care programme.

17.2 Calling up the appliance care programme

Requirement: The appliance care programme is ready.

→ "Preparing for appliance care", Page 45

en Appliance care

The switch-on process takes a few seconds.

To remove any dirt deposits in the appliance, you can run the basic appliance care programme.

Notes ¡ The basic appliance care pro-

gramme runs for approximately 1 hour.

¡ After a lengthy period of use, the appliance reminds you to run the basic appliance care programme. Before the programme starts or after the programme has ended, the display shows the message "CArE" . This message appears repeatedly until you have run the basic appliance care programme through to the end.

Requirements ¡ The appliance care programme is

ready.

→ "Preparing for appliance care", Page 45

¡ The appliance care programme is now called up.

→ "Calling up the appliance care programme", Page 45

Hold the filled condensation container level so that no liquid spills out.

a The appliance care programme

starts and a signal tone sounds. a "End" appears on the display and a signal tone sounds once the appliance care programme has ended.

→ "Emptying the condensation container", Page 37

‒ Remove the stopper from the underside of the condensation container.

‒ Insert the stopper into the recess on the top of the condensation container.

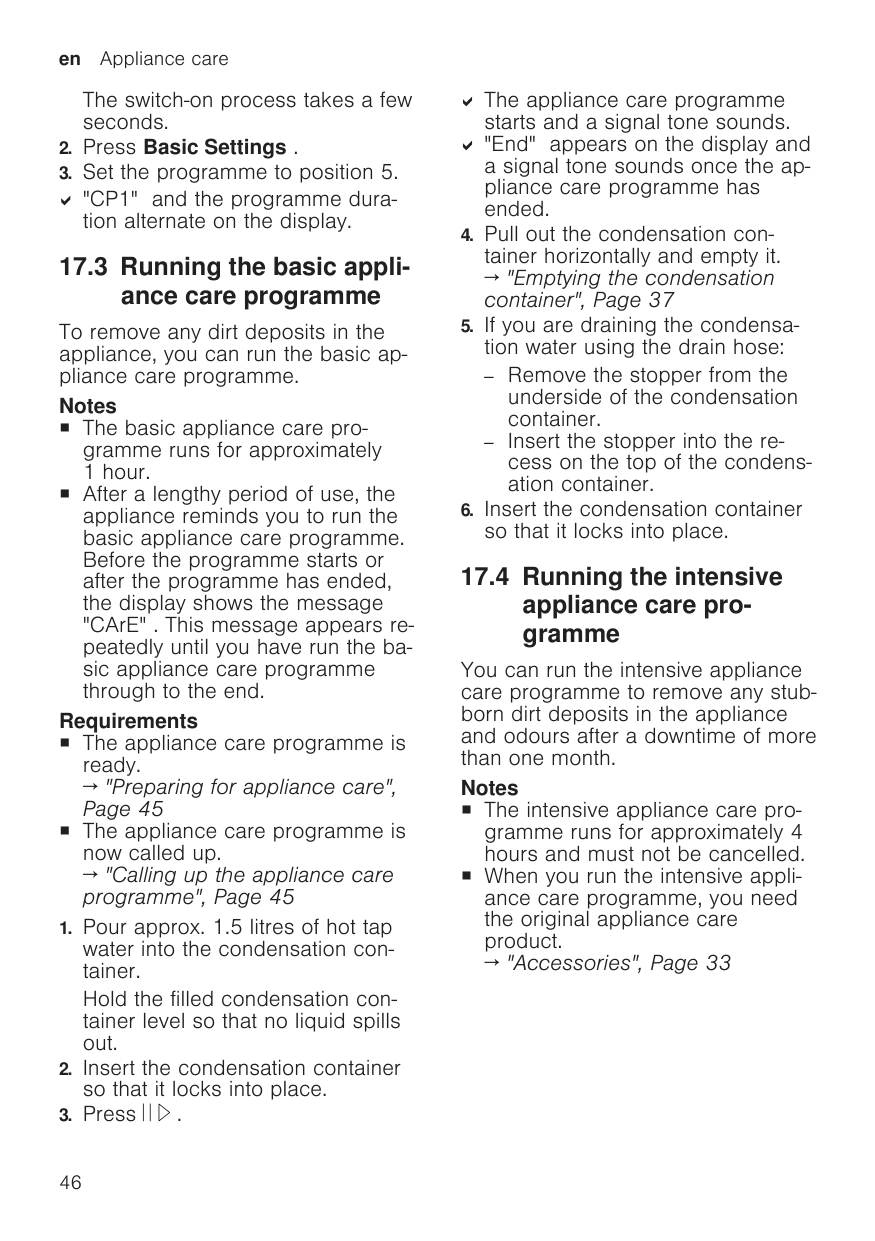

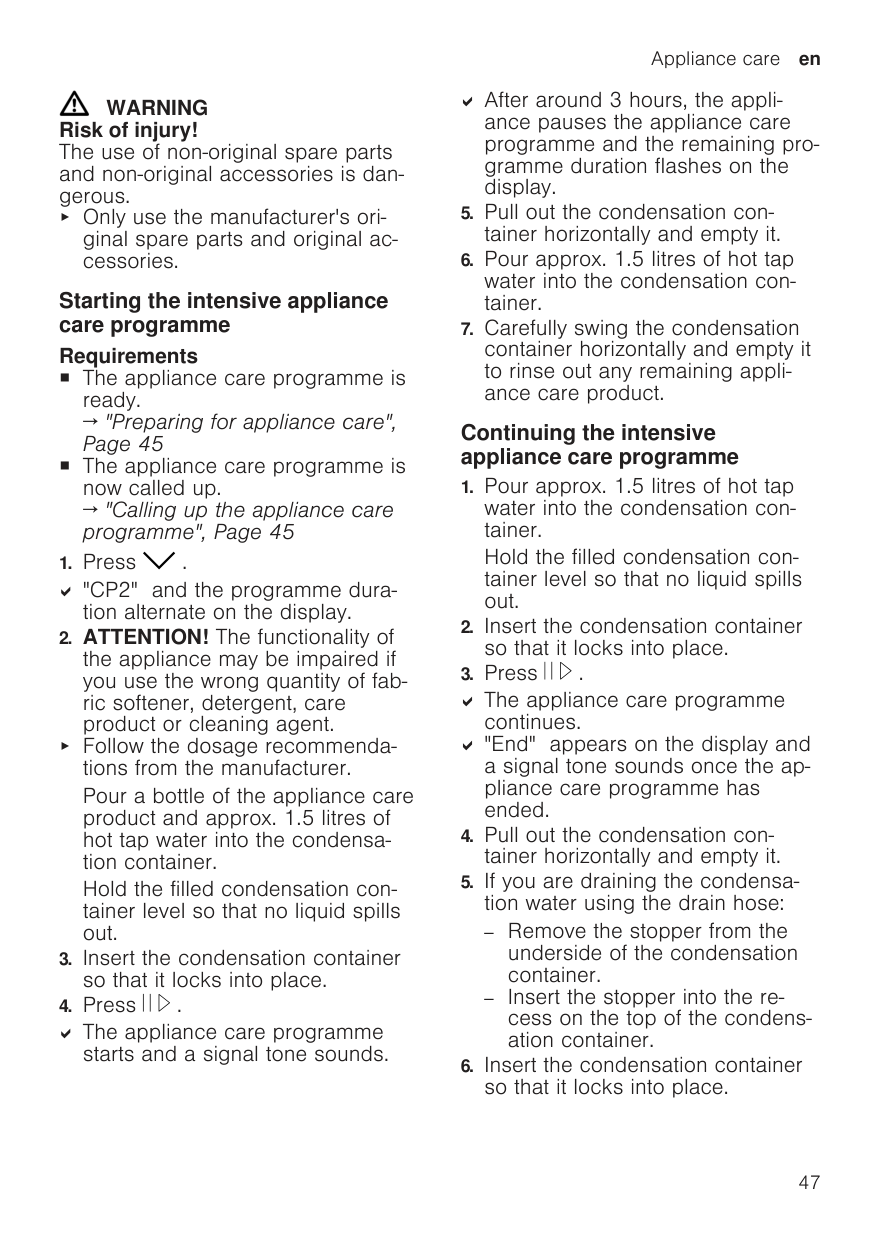

17.4 Running the intensive appliance care programme

You can run the intensive appliance care programme to remove any stubborn dirt deposits in the appliance and odours after a downtime of more than one month.

Notes

¡ The intensive appliance care programme runs for approximately 4 hours and must not be cancelled.

¡ When you run the intensive appliance care programme, you need the original appliance care product.

→ "Accessories", Page 33


WARNING Risk of injury! The use of non-original spare parts and non-original accessories is dangerous.

▶ Only use the manufacturer's original spare parts and original accessories.

Starting the intensive appliance care programme Requirements ¡ The appliance care programme is

ready.

→ "Preparing for appliance care", Page 45

¡ The appliance care programme is now called up.

→ "Calling up the appliance care programme", Page 45

a "CP2" and the programme duration alternate on the display.

▶ Follow the dosage recommendations from the manufacturer. Pour a bottle of the appliance care product and approx. 1.5 litres of hot tap water into the condensation container.

Hold the filled condensation container level so that no liquid spills out.

a The appliance care programme starts and a signal tone sounds.

a After around 3 hours, the appliance pauses the appliance care programme and the remaining programme duration flashes on the display.

Continuing the intensive appliance care programme

Hold the filled condensation container level so that no liquid spills out.

a The appliance care programme continues.

a "End" appears on the display and a signal tone sounds once the appliance care programme has ended.

‒ Remove the stopper from the underside of the condensation container.

‒ Insert the stopper into the recess on the top of the condensation container.

en Cleaning and servicing

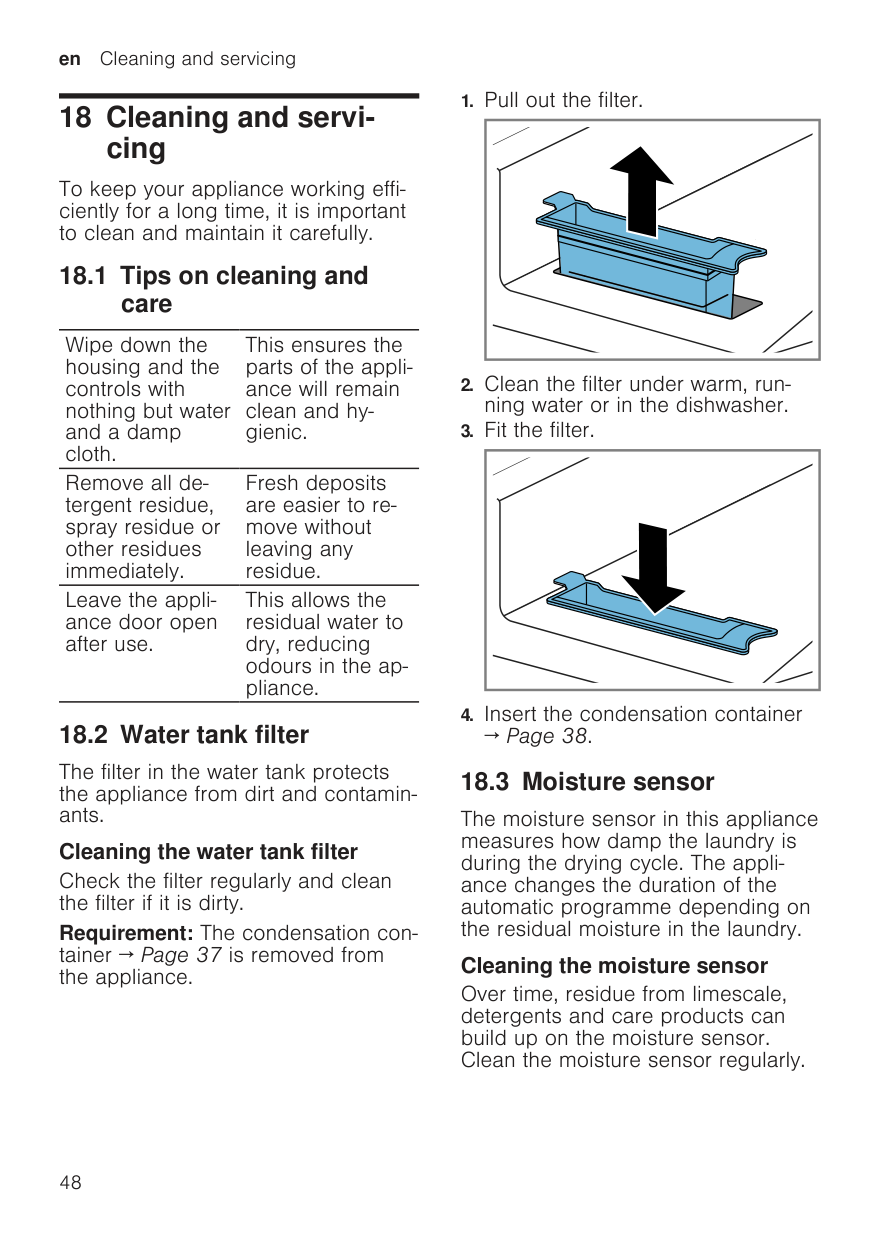

18 Cleaning and servi-cing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Wipe down the housing and the controls with nothing but water and a damp cloth.

This ensures the parts of the appliance will remain clean and hygienic.

Remove all detergent residue, spray residue or other residues immediately.

Fresh deposits are easier to remove without leaving any residue.

Leave the appliance door open after use.

This allows the residual water to dry, reducing odours in the appliance.

The filter in the water tank protects the appliance from dirt and contaminants.

Cleaning the water tank filter

Check the filter regularly and clean the filter if it is dirty.

Requirement: The condensation container → Page 37 is removed from the appliance.

→ Page 38.

18.3 Moisture sensor

The moisture sensor in this appliance measures how damp the laundry is during the drying cycle. The appliance changes the duration of the automatic programme depending on the residual moisture in the laundry.

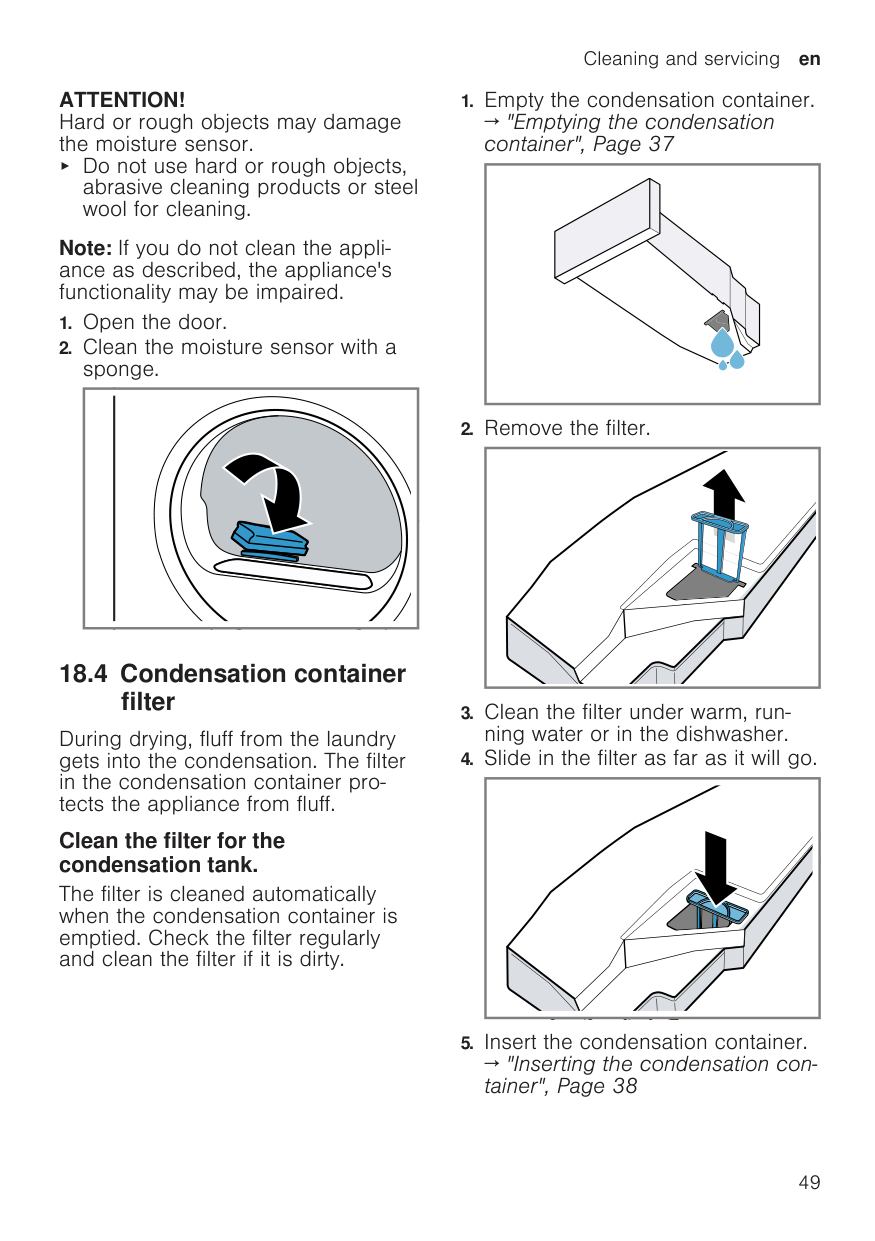

Cleaning the moisture sensor

Over time, residue from limescale, detergents and care products can build up on the moisture sensor. Clean the moisture sensor regularly.

ATTENTION! Hard or rough objects may damage the moisture sensor.

▶ Do not use hard or rough objects, abrasive cleaning products or steel wool for cleaning.

Note: If you do not clean the appliance as described, the appliance's functionality may be impaired.

##### 18.4 Condensation container filter

During drying, fluff from the laundry gets into the condensation. The filter in the condensation container protects the appliance from fluff.

Clean the filter for the condensation tank.

The filter is cleaned automatically when the condensation container is emptied. Check the filter regularly and clean the filter if it is dirty.

Cleaning and servicing en

→ "Emptying the condensation container", Page 37



→ "Inserting the condensation container", Page 38

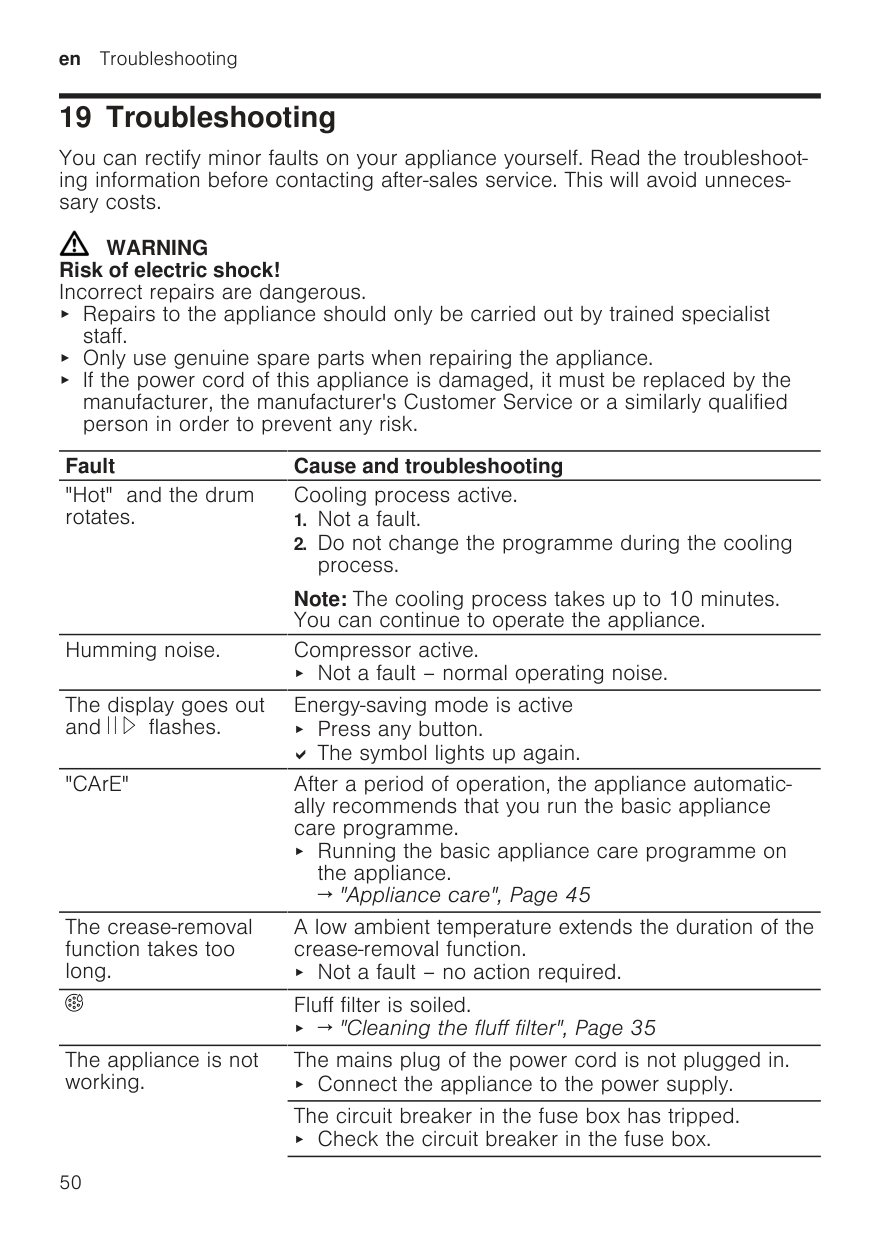

19 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.


WARNING Risk of electric shock! Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist

staff.

▶ Only use genuine spare parts when repairing the appliance.

▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

"Hot" and the drum rotates.

Cooling process active.

Note: The cooling process takes up to 10 minutes. You can continue to operate the appliance.

Humming noise. Compressor active.

▶ Not a fault – normal operating noise.

The display goes out and ⁠ flashes.

Energy-saving mode is active

▶ Press any button. a The symbol lights up again.

"CArE" After a period of operation, the appliance automatically recommends that you run the basic appliance care programme.

▶ Running the basic appliance care programme on

the appliance.

→ "Appliance care", Page 45

The crease-removal function takes too long.

A low ambient temperature extends the duration of the crease-removal function.

▶ Not a fault – no action required. ⁠ Fluff filter is soiled.

▶ → "Cleaning the fluff filter", Page 35

The appliance is not working.

The mains plug of the power cord is not plugged in.

▶ Connect the appliance to the power supply. The circuit breaker in the fuse box has tripped.

▶ Check the circuit breaker in the fuse box.

The appliance is not working.

There has been a power cut.

▶ Check whether the lighting in your kitchen or other

appliances are working.

Appliance paused, but the drum is rotating.

Cooling process active.

▶ Not a fault – no action required.

Home Connect is not working properly.

Different causes are possible.

▶ Go to www.home-connect.com.

No connection to the home network.

Wi-Fi is switched off.

▶ Activating Wi-Fi on the appliance.

→ "Activating Wi-Fi on the appliance", Page 41.

Wi-Fi is activated but a connection to your home network cannot be established.

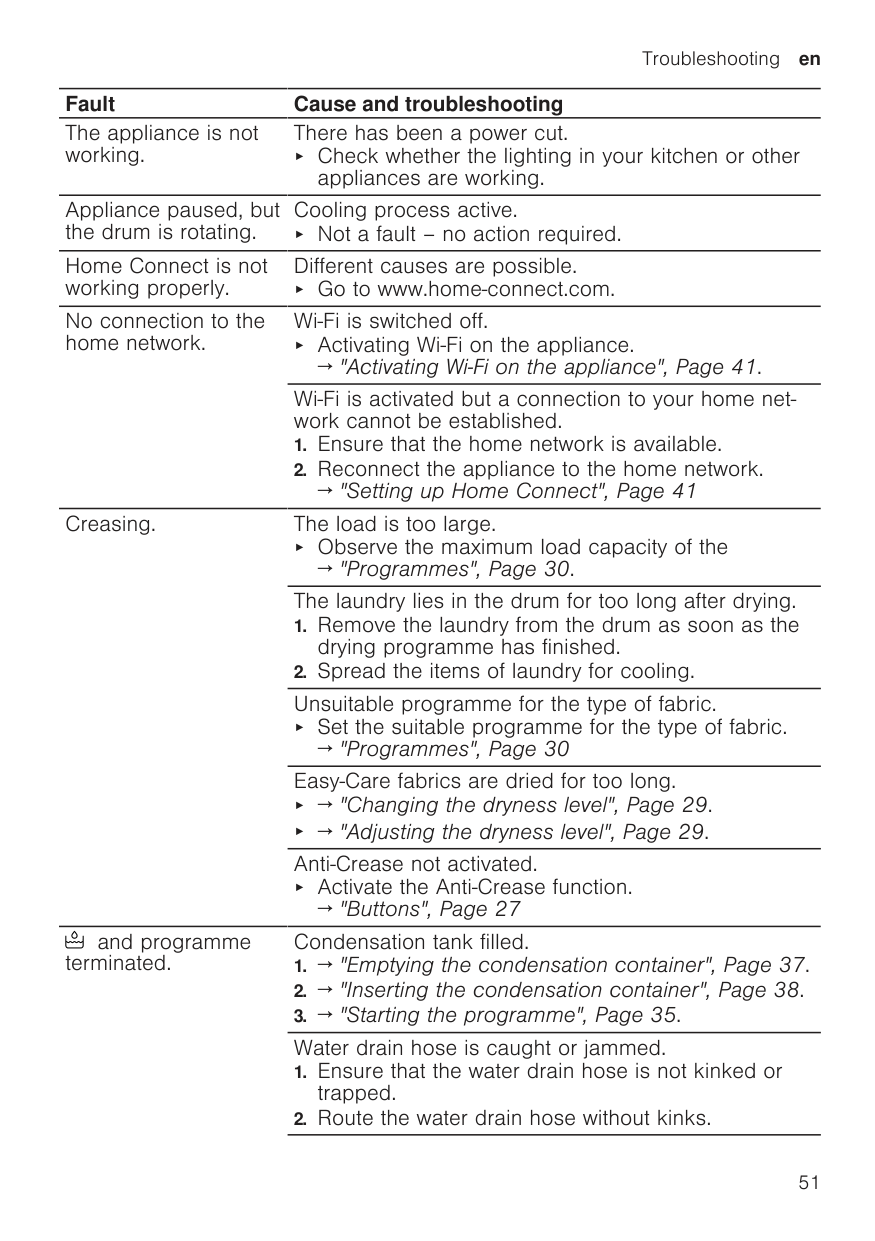

→ "Setting up Home Connect", Page 41 Creasing. The load is too large.

▶ Observe the maximum load capacity of the

→ "Programmes", Page 30. The laundry lies in the drum for too long after drying.

Unsuitable programme for the type of fabric.

▶ Set the suitable programme for the type of fabric.

→ "Programmes", Page 30 Easy-Care fabrics are dried for too long.

▶ → "Changing the dryness level", Page 29. ▶ → "Adjusting the dryness level", Page 29. Anti-Crease not activated.

▶ Activate the Anti-Crease function.

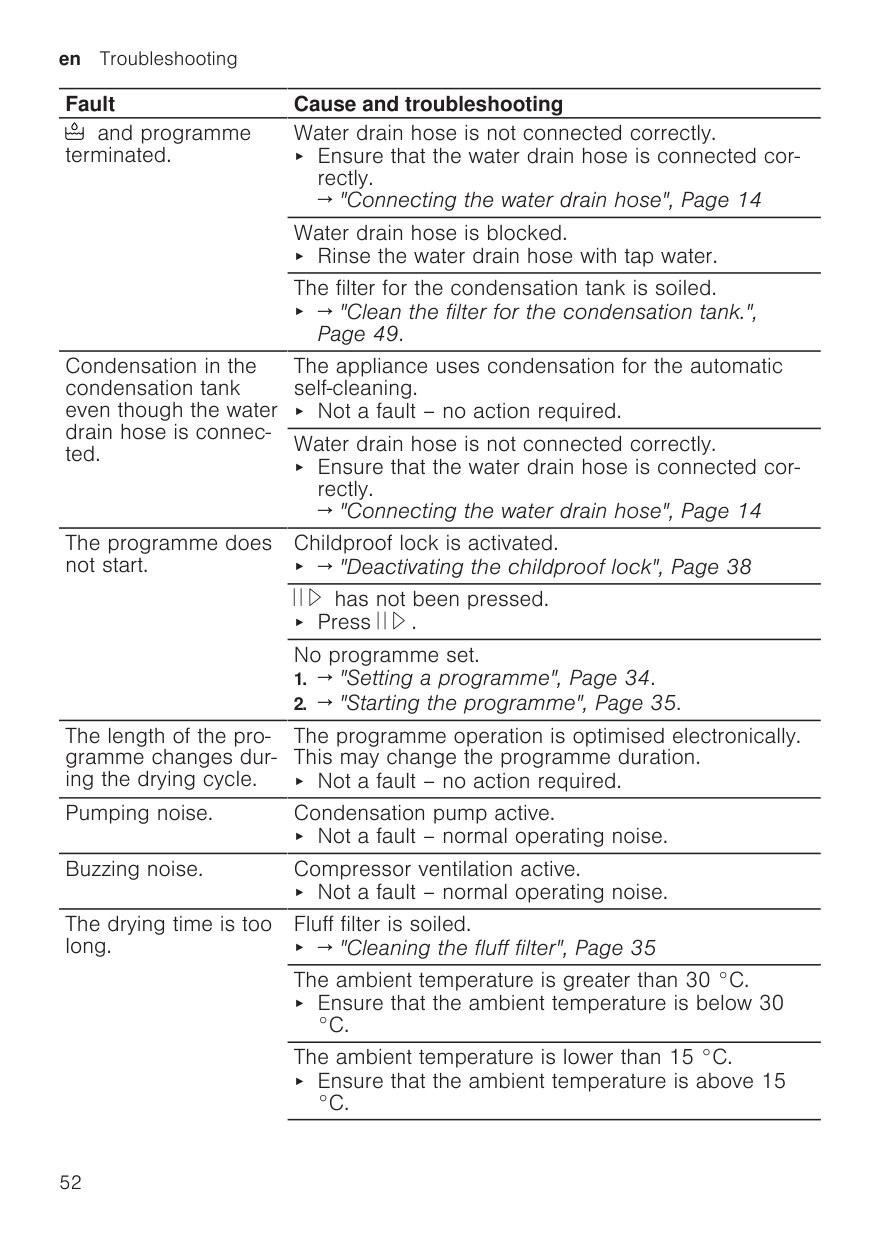

→ "Buttons", Page 27 ⁠ and programme

Condensation tank filled.

terminated.

⁠ and programme terminated.

Water drain hose is not connected correctly.

▶ Ensure that the water drain hose is connected cor-

rectly.

→ "Connecting the water drain hose", Page 14 Water drain hose is blocked.

▶ Rinse the water drain hose with tap water. The filter for the condensation tank is soiled. ▶ → "Clean the filter for the condensation tank.",

Page 49.

Condensation in the condensation tank even though the water drain hose is connected.

The appliance uses condensation for the automatic self-cleaning.

▶ Not a fault – no action required. Water drain hose is not connected correctly.

▶ Ensure that the water drain hose is connected cor-

rectly.

→ "Connecting the water drain hose", Page 14

The programme does not start.

Childproof lock is activated.

▶ → "Deactivating the childproof lock", Page 38

⁠ has not been pressed.

▶ Press ⁠ . No programme set.

The length of the programme changes during the drying cycle.

The programme operation is optimised electronically. This may change the programme duration.

▶ Not a fault – no action required. Pumping noise. Condensation pump active.

▶ Not a fault – normal operating noise. Buzzing noise. Compressor ventilation active.

▶ Not a fault – normal operating noise.

The drying time is too long.

Fluff filter is soiled.

▶ → "Cleaning the fluff filter", Page 35 The ambient temperature is greater than 30 °C.

▶ Ensure that the ambient temperature is below 30

°C. The ambient temperature is lower than 15 °C.

▶ Ensure that the ambient temperature is above 15

°C.

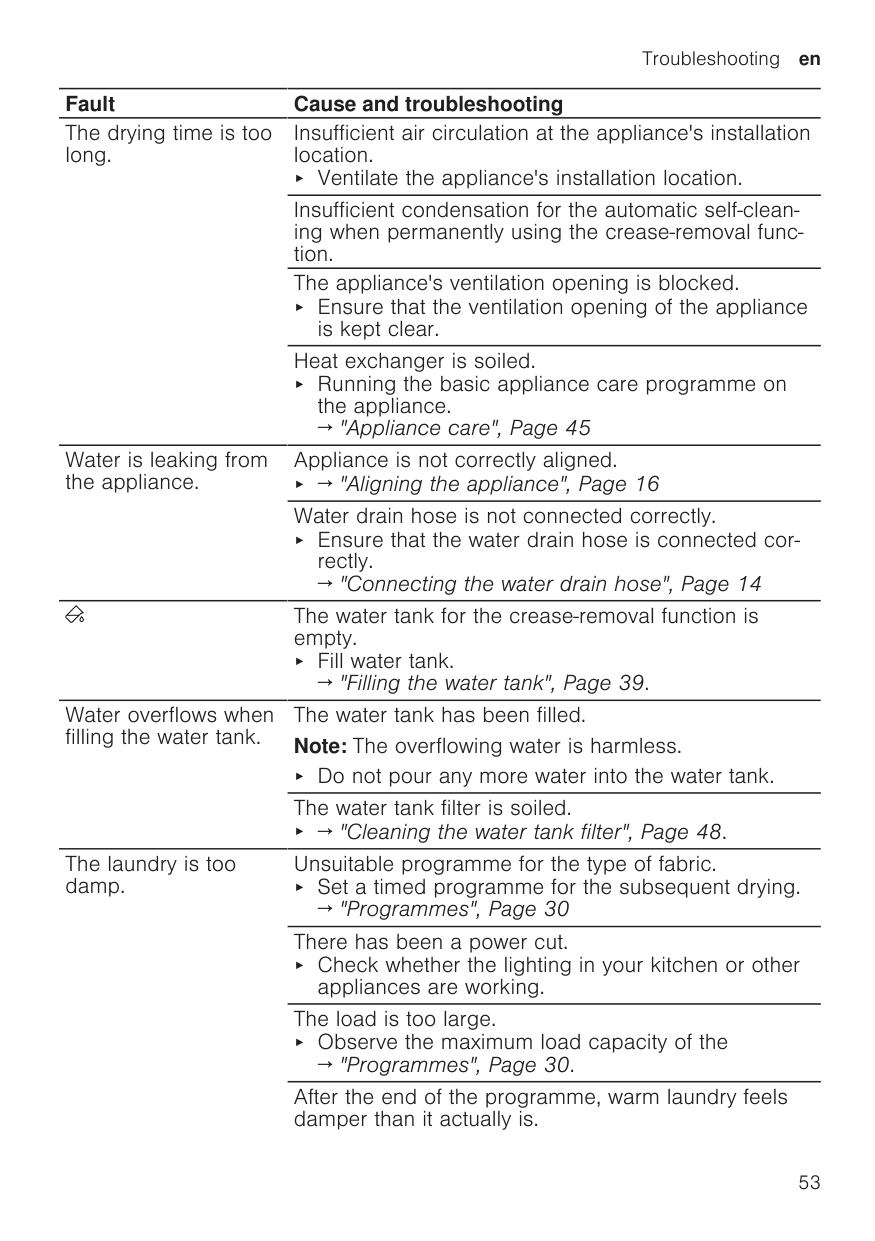

The drying time is too long.

Insufficient air circulation at the appliance's installation location.

▶ Ventilate the appliance's installation location.

Insufficient condensation for the automatic self-cleaning when permanently using the crease-removal function.

The appliance's ventilation opening is blocked.

▶ Ensure that the ventilation opening of the appliance

is kept clear. Heat exchanger is soiled.

▶ Running the basic appliance care programme on

the appliance.

→ "Appliance care", Page 45

Water is leaking from the appliance.

Appliance is not correctly aligned.

▶ → "Aligning the appliance", Page 16 Water drain hose is not connected correctly.

▶ Ensure that the water drain hose is connected cor-

rectly.

→ "Connecting the water drain hose", Page 14 ⁠ The water tank for the crease-removal function is

empty.

▶ Fill water tank.

→ "Filling the water tank", Page 39.

Water overflows when filling the water tank.

The water tank has been filled. Note: The overflowing water is harmless.

▶ Do not pour any more water into the water tank. The water tank filter is soiled.

▶ → "Cleaning the water tank filter", Page 48.

The laundry is too damp.

Unsuitable programme for the type of fabric.

▶ Set a timed programme for the subsequent drying.

→ "Programmes", Page 30 There has been a power cut.

▶ Check whether the lighting in your kitchen or other

appliances are working. The load is too large.

▶ Observe the maximum load capacity of the

→ "Programmes", Page 30.

After the end of the programme, warm laundry feels damper than it actually is.

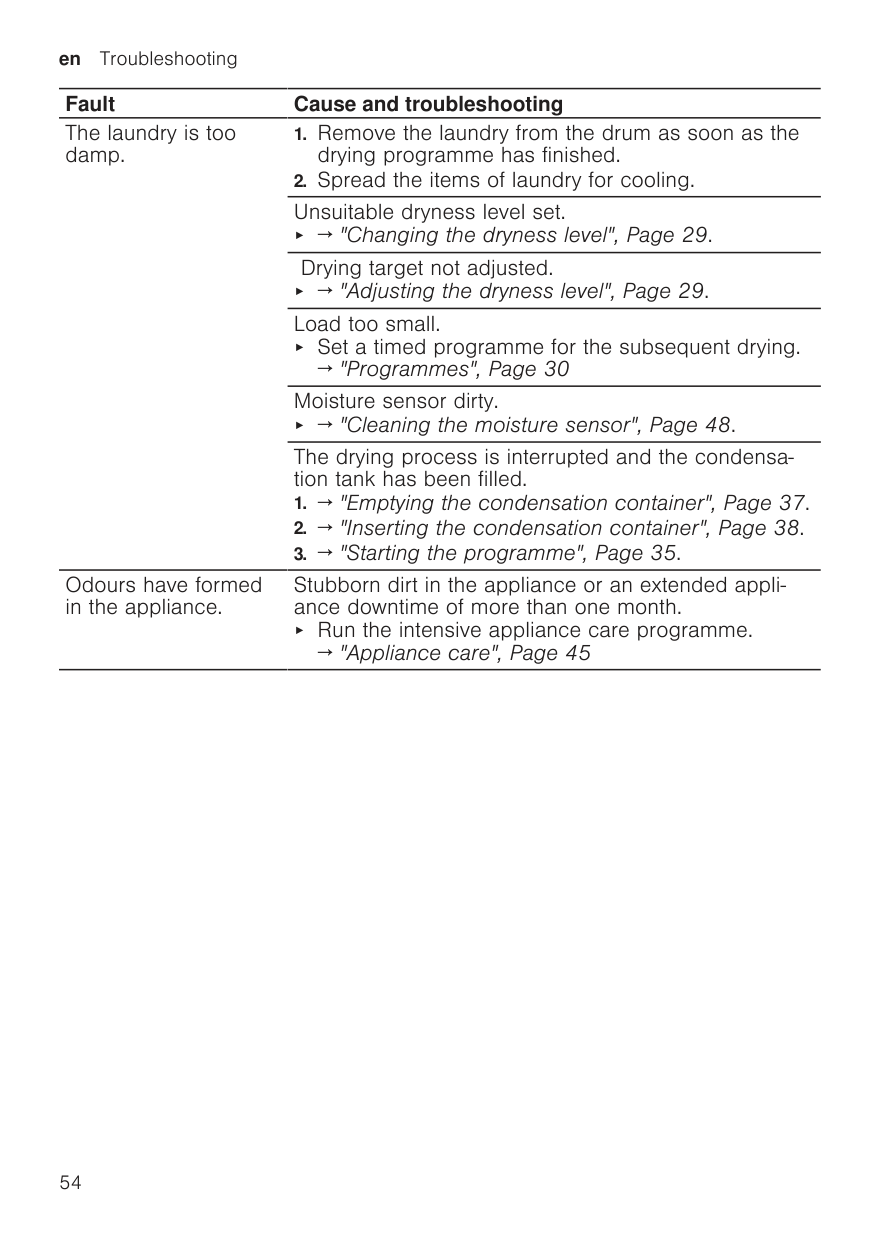

The laundry is too damp.

Unsuitable dryness level set.

▶ → "Changing the dryness level", Page 29.

Drying target not adjusted.

▶ → "Adjusting the dryness level", Page 29. Load too small.

▶ Set a timed programme for the subsequent drying.

→ "Programmes", Page 30 Moisture sensor dirty.

▶ → "Cleaning the moisture sensor", Page 48.

The drying process is interrupted and the condensation tank has been filled.

Odours have formed in the appliance.

Stubborn dirt in the appliance or an extended appliance downtime of more than one month.

▶ Run the intensive appliance care programme.

→ "Appliance care", Page 45

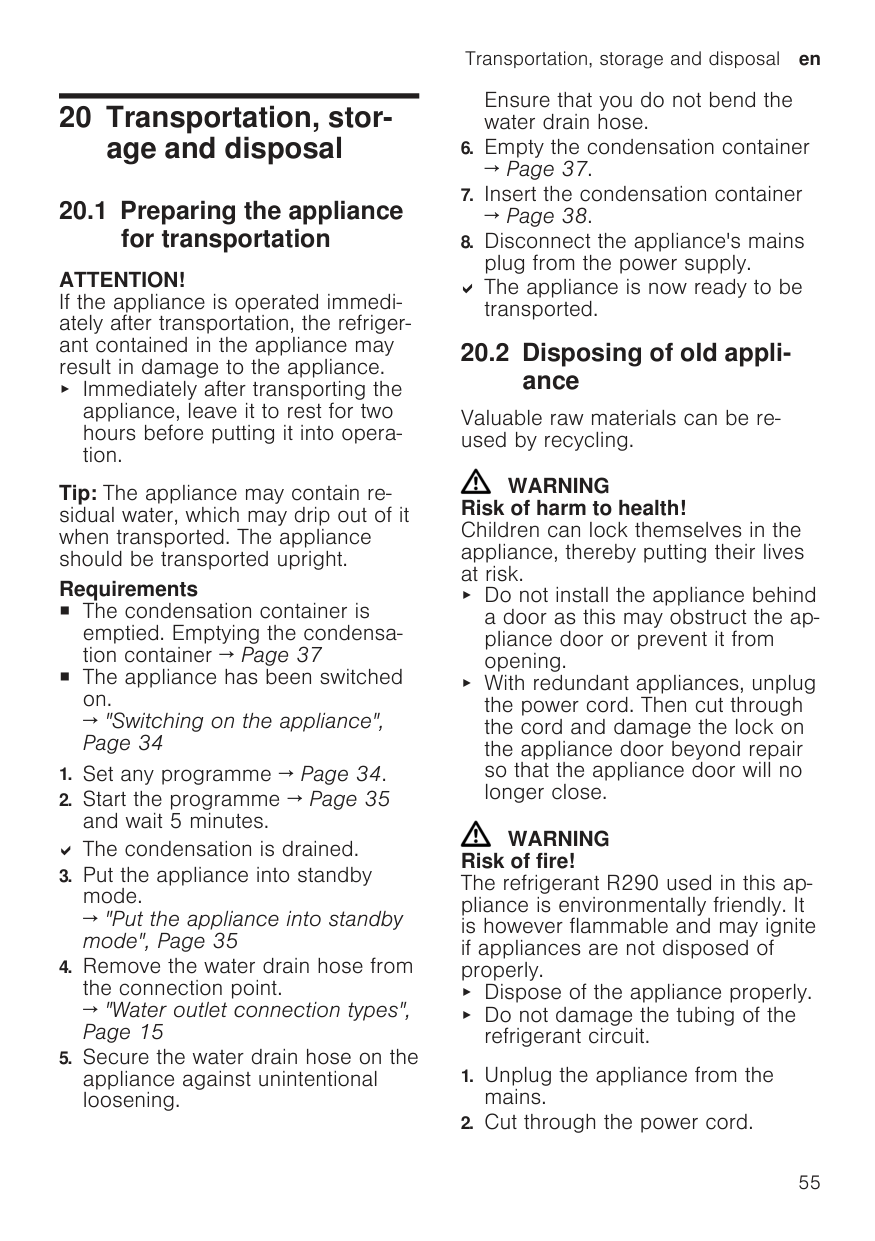

20 Transportation, stor-age and disposal

20.1 Preparing the appliance for transportation

ATTENTION! If the appliance is operated immediately after transportation, the refrigerant contained in the appliance may result in damage to the appliance.

▶ Immediately after transporting the appliance, leave it to rest for two hours before putting it into operation.

Tip: The appliance may contain residual water, which may drip out of it when transported. The appliance should be transported upright.

Requirements ¡ The condensation container is

emptied. Emptying the condensation container → Page 37

¡ The appliance has been switched on.

→ "Switching on the appliance", Page 34

a The condensation is drained.

→ "Put the appliance into standby mode", Page 35

→ "Water outlet connection types", Page 15

Transportation, storage and disposal en

→ Page 37.

→ Page 38.

a The appliance is now ready to be transported.

20.2 Disposing of old appliance

Valuable raw materials can be reused by recycling.


WARNING Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

▶ Do not install the appliance behind a door as this may obstruct the appliance door or prevent it from opening.

▶ With redundant appliances, unplug

the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.


WARNING Risk of fire! The refrigerant R290 used in this appliance is environmentally friendly. It is however flammable and may ignite if appliances are not disposed of properly.

▶ Dispose of the appliance properly.

▶ Do not damage the tubing of the

refrigerant circuit.

en Customer Service

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

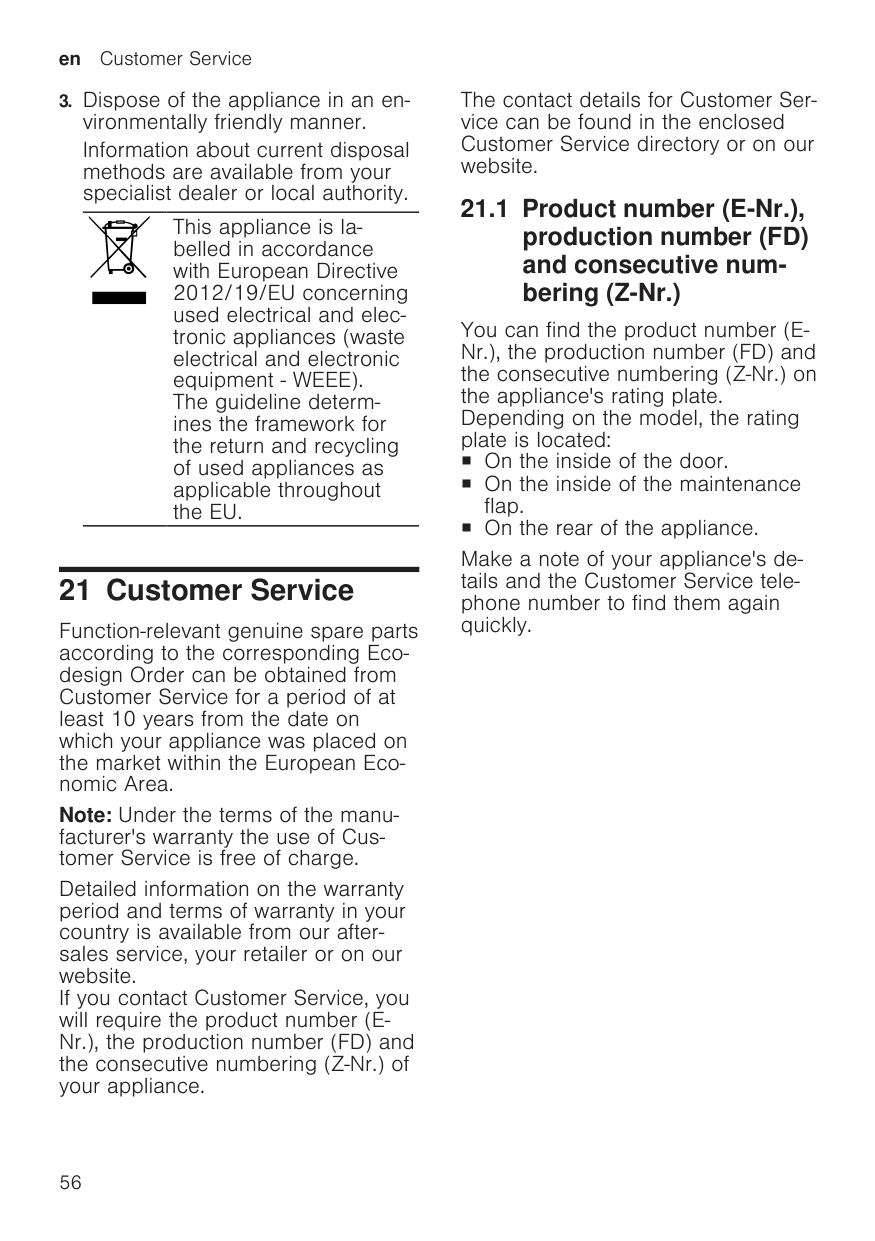

21 Customer Service

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

21.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. Depending on the model, the rating plate is located: ¡ On the inside of the door. ¡ On the inside of the maintenance

flap. ¡ On the rear of the appliance.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Consumption values en

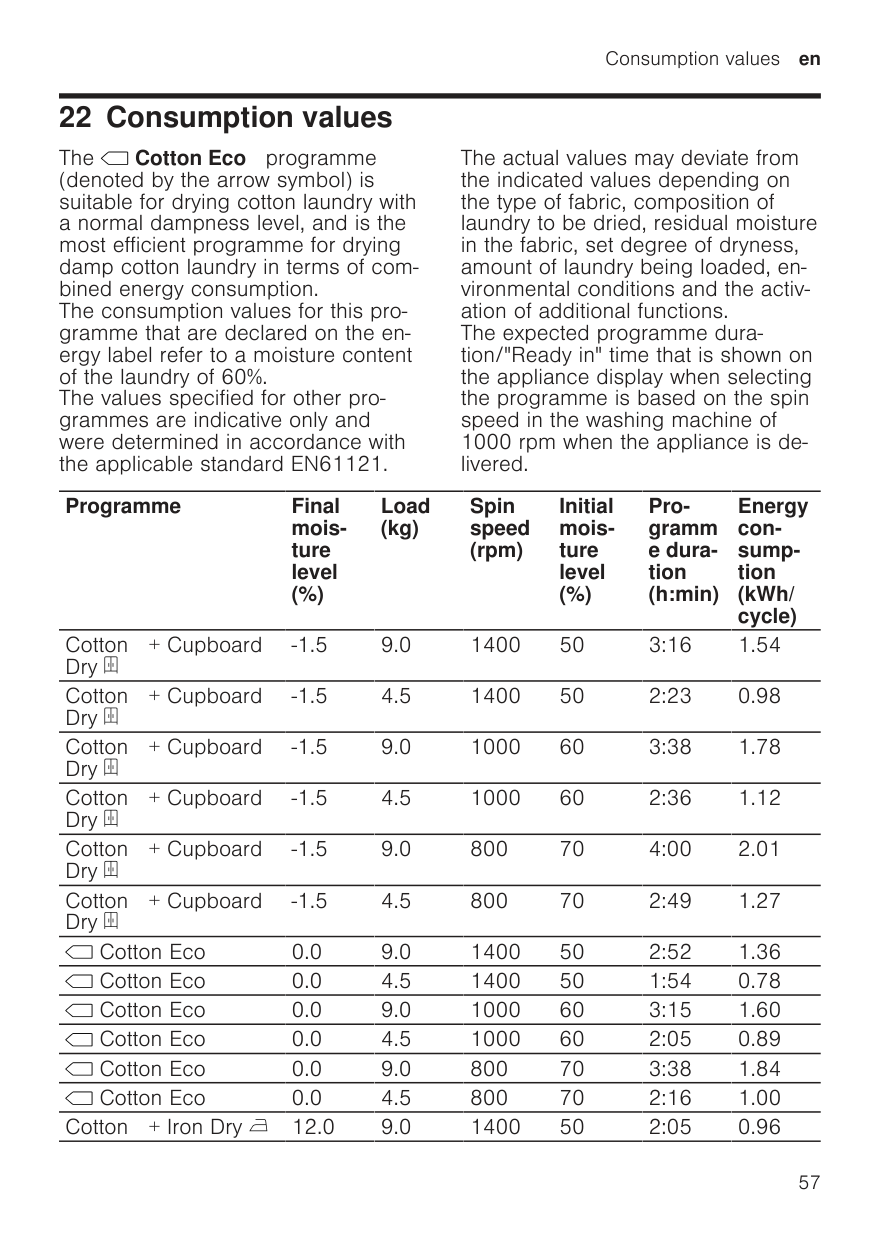

22 Consumption values

The actual values may deviate from the indicated values depending on the type of fabric, composition of laundry to be dried, residual moisture in the fabric, set degree of dryness, amount of laundry being loaded, environmental conditions and the activation of additional functions. The expected programme duration/"Ready in" time that is shown on the appliance display when selecting the programme is based on the spin speed in the washing machine of 1000 rpm when the appliance is delivered.

The ⁠ Cotton Eco programme (denoted by the arrow symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption. The consumption values for this programme that are declared on the energy label refer to a moisture content of the laundry of 60%. The values specified for other programmes are indicative only and were determined in accordance with the applicable standard EN61121.

Programme Final moisture level (%)

Load (kg)

Spin speed (rpm)

Initial moisture level (%)

Programm e duration (h:min)

Energy consumption (kWh/ cycle)

Cotton + Cupboard Dry ⁠

-1.5 9.0 1400 50 3:16 1.54

Cotton + Cupboard Dry ⁠

-1.5 4.5 1400 50 2:23 0.98

Cotton + Cupboard Dry ⁠

-1.5 9.0 1000 60 3:38 1.78

Cotton + Cupboard Dry ⁠

-1.5 4.5 1000 60 2:36 1.12

Cotton + Cupboard Dry ⁠

-1.5 9.0 800 70 4:00 2.01

Cotton + Cupboard Dry ⁠

-1.5 4.5 800 70 2:49 1.27

⁠ Cotton Eco 0.0 9.0 1400 50 2:52 1.36 ⁠ Cotton Eco 0.0 4.5 1400 50 1:54 0.78 ⁠ Cotton Eco 0.0 9.0 1000 60 3:15 1.60 ⁠ Cotton Eco 0.0 4.5 1000 60 2:05 0.89 ⁠ Cotton Eco 0.0 9.0 800 70 3:38 1.84 ⁠ Cotton Eco 0.0 4.5 800 70 2:16 1.00

Cotton + Iron Dry ⁠ 12.0 9.0 1400 50 2:05 0.96

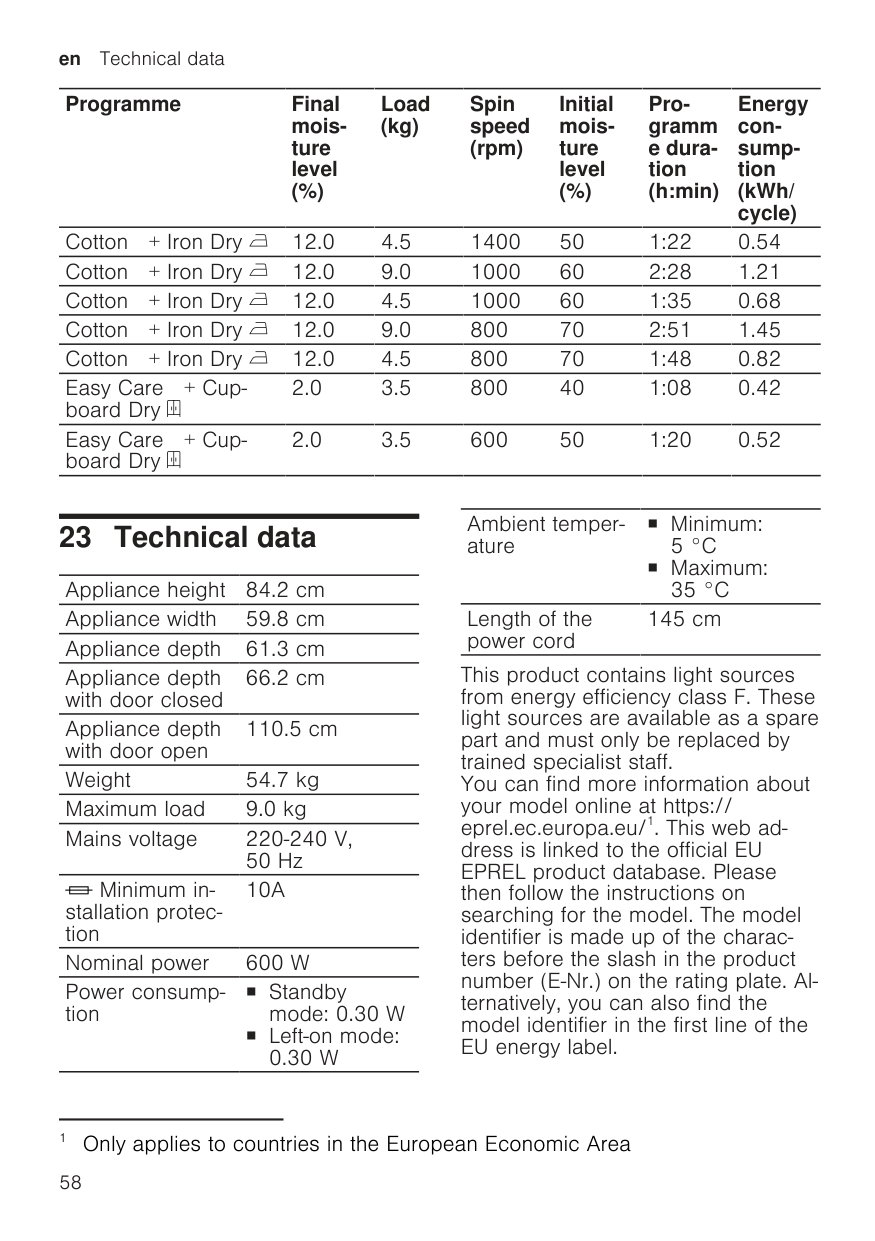

en Technical data

Programme Final moisture level (%)

Load (kg)

Spin speed (rpm)

Initial moisture level (%)

Programm e duration (h:min)

Energy consumption (kWh/ cycle)

Cotton + Iron Dry ⁠ 12.0 4.5 1400 50 1:22 0.54 Cotton + Iron Dry ⁠ 12.0 9.0 1000 60 2:28 1.21 Cotton + Iron Dry ⁠ 12.0 4.5 1000 60 1:35 0.68 Cotton + Iron Dry ⁠ 12.0 9.0 800 70 2:51 1.45 Cotton + Iron Dry ⁠ 12.0 4.5 800 70 1:48 0.82 Easy Care + Cupboard Dry ⁠

2.0 3.5 800 40 1:08 0.42

Easy Care + Cupboard Dry ⁠

2.0 3.5 600 50 1:20 0.52

23 Technical data

Appliance height 84.2 cm Appliance width 59.8 cm Appliance depth 61.3 cm

Appliance depth with door closed

66.2 cm

Appliance depth with door open

110.5 cm

Weight 54.7 kg Maximum load 9.0 kg Mains voltage 220-240 V,

50 Hz

Minimum installation protection

10A

Nominal power 600 W Power consumption

¡ Standby

mode: 0.30 W ¡ Left-on mode:

0.30 W

Ambient temperature

¡ Minimum: 5 °C ¡ Maximum: 35 °C

Length of the power cord

145 cm

This product contains light sources from energy efficiency class F. These light sources are available as a spare part and must only be replaced by trained specialist staff. You can find more information about your model online at https:// eprel.ec.europa.eu/1. This web address is linked to the official EU EPREL product database. Please then follow the instructions on searching for the model. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

1 Only applies to countries in the European Economic Area

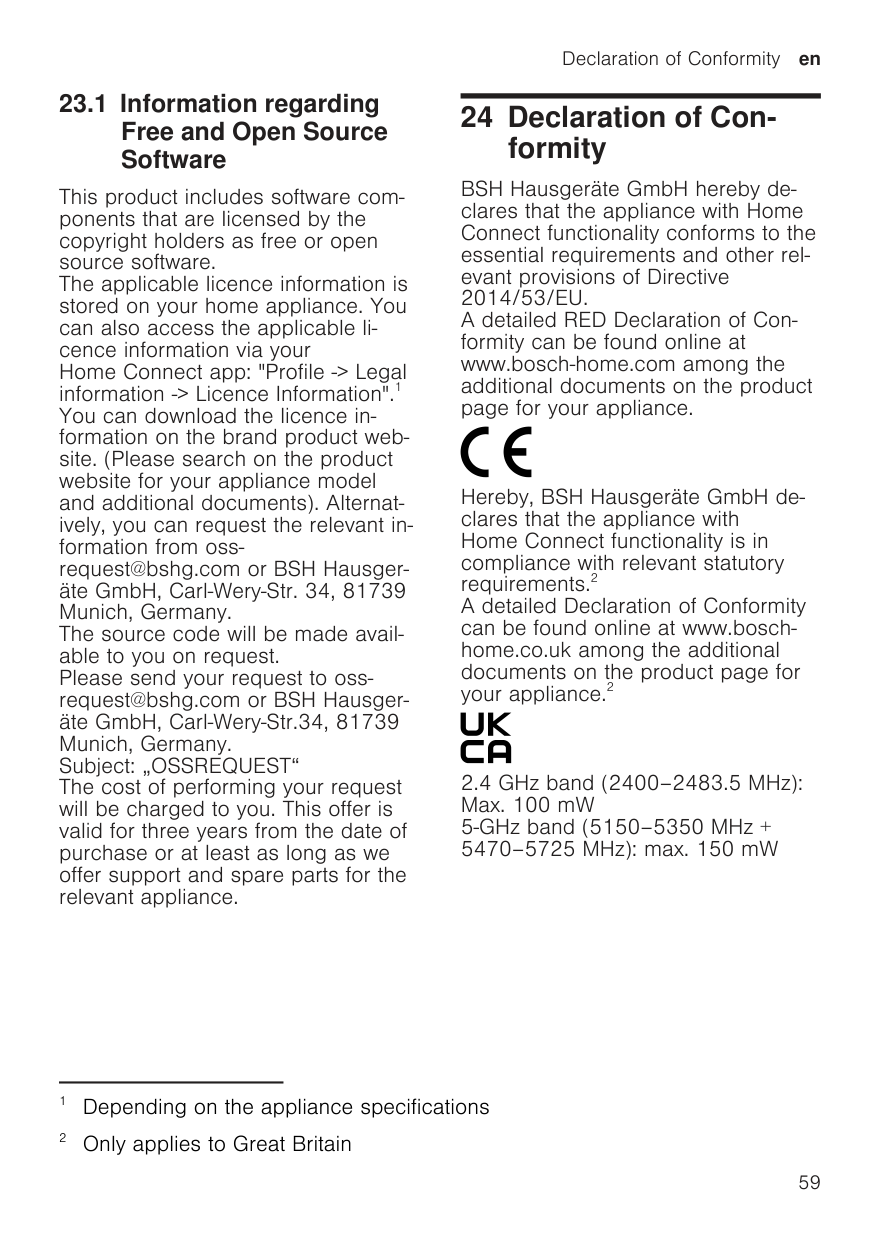

23.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software. The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect app: "Profile -> Legal information -> Licence Information".1 You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany. The source code will be made available to you on request. Please send your request to ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany. Subject: „OSSREQUEST“ The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

Declaration of Conformity en

24 Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essential requirements and other relevant provisions of Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance.

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements.2 A detailed Declaration of Conformity can be found online at www.boschhome.co.uk among the additional documents on the product page for your appliance.2

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW 5-GHz band (5150–5350 MHz + 5470–5725 MHz): max. 150 mW

en Declaration of Conformity

BE BG CZ DK DE EE IE EL ES FR HR IT CY LI LV LT LU HU MT NL AT PL PT RO SI SK FI SE NO CH TR IS UK (NI)

5 GHz WLAN (Wi-Fi): For indoor use only. AL BA MD ME MK RS UK UA 5 GHz WLAN (Wi-Fi): For indoor use only.


Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY www.bosch-home.com

Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom

A Bosch Company

*9001845152* 9001845152 (030317) en
