How do I factory reset the Bushnell Golf Phantom 2?

To restore the unit to all original factory settings, go to the Settings Menu, select RESET DEVICE, then select DEFAULT SETTINGS and confirm. This will only reset the settings, not the firmware or course data stored in the device. (Page 6)

How long does it take to fully charge the Phantom 2 and how long does the battery last?

A full charge from a totally discharged state takes about 3.5 hours, though it will be less if a partial charge remains. The battery provides up to 18+ hours, or typically 3+ rounds of golf, on a single charge. Battery life may be reduced due to factors such as external temperature. (Page 3)

How do I check the remaining battery life on the Phantom 2?

To check your remaining battery life, select 'Battery' from the SETTINGS menu to view the charge percentage. Battery information is also accessible from within the PLAY GOLF menu. (Page 3)

How do I connect the Phantom 2 with a mobile device?

First download the Bushnell Golf app at bushnellgolf.com/install, register your device as a new unit or add it to an existing account under My Devices. Follow on-screen instructions in the app for pairing.

What does the battery indicator on the home screen mean?

Press POWER to check charge status and see a full circle around the battery icon when fully charged. This indicates the device is ready to use after charging from a totally discharged state, which takes about 3.5 hours.

How do I switch between basic and advanced score modes?

From the Golf Menu in PLAY GOLF mode, select Score then choose BASIC or ADVANCED depending on if you want to enter only strokes or also include putts and fairway hit statistics.

How do I update the pre-loaded golf courses on my device?

You can use the Bushnell Golf App to individually search for your specific course or visit appsupport.bushnellgolf.com via Google Chrome to update multiple course files at once.

What languages are supported in the Phantom 2 menu?

The Phantom 2 supports 12 language settings through the MENU: ENGLISH, SPANISH, FRENCH, GERMAN, ITALIAN, PORTUGUESE, SWEDISH, DANISH, INDONESIAN, CHINESE, KOREAN AND JAPANESE. You can change this by going to SETTINGS.

How do I conserve battery life on the device?

Avoid prolonged exposure to extreme temperatures as it reduces battery performance. Ensure the unit is turned off when not in use and recharged before fully discharged, ideally avoiding letting it drop below 30%.

What does pressing and holding the Select button do?

Pressing and holding the SELECT button during PLAY GOLF mode displays all menu options. This allows for menu navigation without ending your game progress.

How can I clean my Phantom 2 safely?

You may occasionally clean the unit with a soft, damp cloth but avoid exposing it to strong chemicals like gasoline or alcohol which can damage its surface and housing materials.

How do I start a round of golf and select a course on the Phantom 2?

Make sure you are outdoors with an unobstructed view of the sky, then highlight PLAY GOLF on the Home Screen and press SELECT. The device will display 'SEARCHING' while it acquires GPS satellite signals, which can take several minutes the first time but will be faster in the same area afterward. Once connected, a list of nearby courses will appear and you can use the UP/DOWN buttons to select your course, with the closest course appearing at the top of the list. (Page 7)

How do I connect the Phantom 2 to the Bushnell Golf app?

Download the Bushnell Golf mobile app at app.bushnellgolf.com/install or by scanning the QR code in the manual. New users will be prompted to set up a device after registration — select Phantom 2. Returning users should select 'See All' from the 'My Devices' section, click 'Add Device,' select Phantom 2, and follow the on-screen instructions to pair. (Page 6)

How do I update the golf course data on my Phantom 2?

To update a single course, connect the device to the Bushnell Golf Mobile App via Bluetooth, select Phantom 2 from your device list, select Course Update, and follow the in-app instructions. To update multiple courses, visit the Bushnell Golf Update Manager at https://appsupport.bushnellgolf.com in Google Chrome and follow the instructions. The Phantom 2 comes pre-loaded with data for over 38,000 courses worldwide and requires no membership fees. (Page 9)

Is the Phantom 2 waterproof? How should I care for it?

The Phantom 2 is IPX7 rated, meaning it is water resistant but not waterproof — it should not be submerged in any liquids. You may clean it occasionally with a soft, damp cloth, and should avoid exposing it to strong chemicals such as gasoline and alcohol, as they will damage the unit. Store the unit in a dry place when not in use. (Page 3)

What are the battery temperature warnings I should be aware of?

Do not expose the unit to temperatures above 140°F (60°C), and do not charge the battery when the temperature is over 113°F (45°C). Do not store the unit in temperatures above 113°F (45°C) or below 32°F (0°C). The battery is not replaceable, so it should not be opened, disassembled, crushed, punctured, or disposed of in fire or water. (Page 3)

How do I enter my score during a round on the Phantom 2?

To enter your score, press the SCORE button on the right side of the unit. Once strokes are entered, press the NEXT button to proceed, then enter your number of putts and press NEXT again, followed by the Fairway Hit screen where you can select Left, Hit, or Right. Note that to enter Putts and Fairways Hit, the device must be set to Advanced Score mode. (Page 8)

What safety warnings apply to the BITE magnet accessory on the Phantom 2?

The included mounting accessory contains a Neodymium magnet that could affect the functioning of pacemakers and implanted heart defibrillators — users of such devices should keep sufficient distance from the magnet. The magnet may also permanently lose part of its adhesive force if exposed to temperatures above 175°F (80°C). Additionally, the strong magnetic field can damage TVs, laptops, computer hard drives, credit and ATM cards, mechanical watches, hearing aids, and speakers. (Page 9)

Bushnell Golf Phantom 2 — Manual, FAQ & Troubleshooting

Name: Bushnell Golf Phantom 2
Brand: Bushnell

Page 1

User Manual Model #’s 362110, 362111, 362112, 362113 4-21

Gps Rangefinder

Page 2

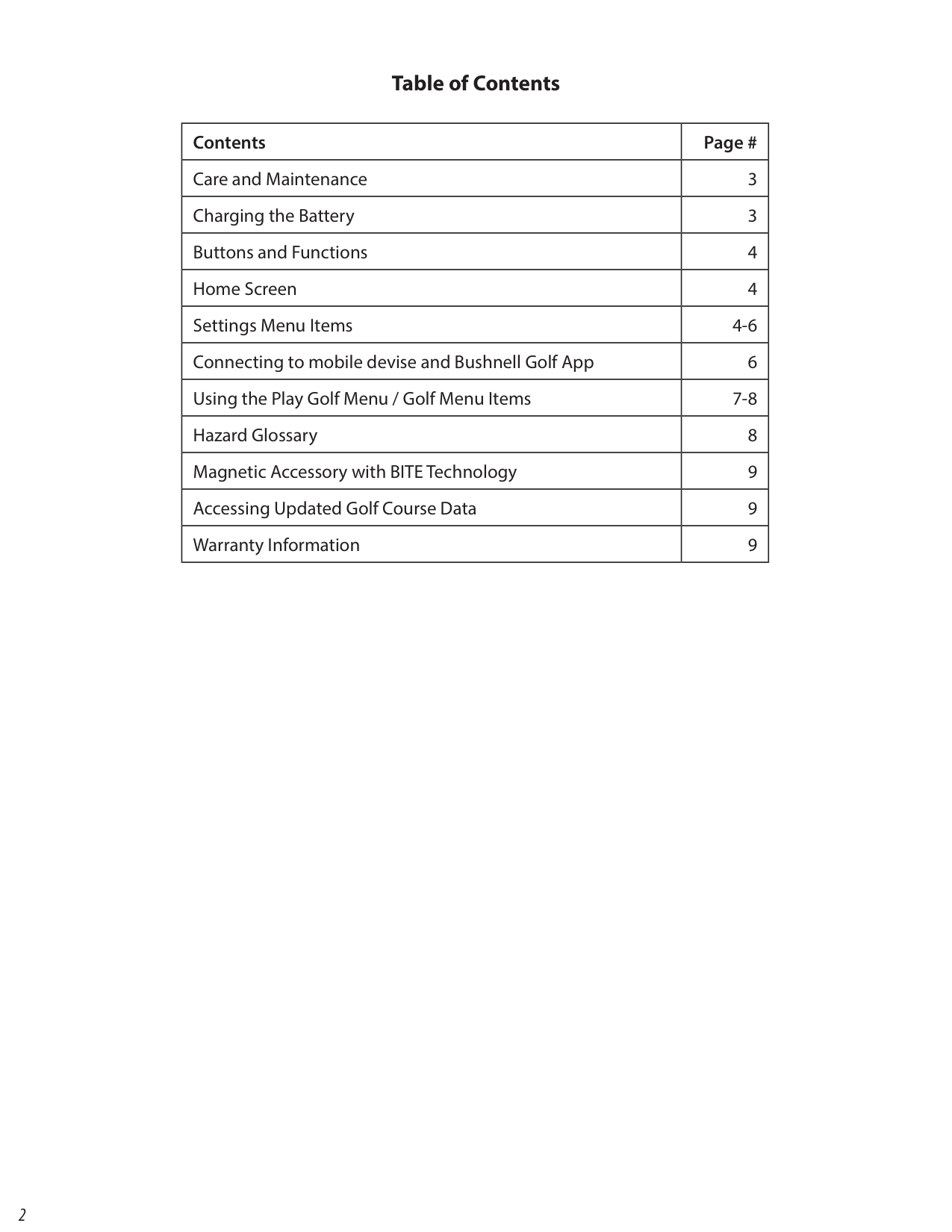

2 Contents Page # Care and Maintenance 3 Charging the Battery 3 Buttons and Functions 4 Home Screen 4 Settings Menu Items 4-6 Connecting to mobile devise and Bushnell Golf App 6 Using the Play Golf Menu / Golf Menu Items 7-8 Hazard Glossary 8 Magnetic Accessory with BITE Technology 9 Accessing Updated Golf Course Data 9 Warranty Information 9 Table of Contents

Page 3

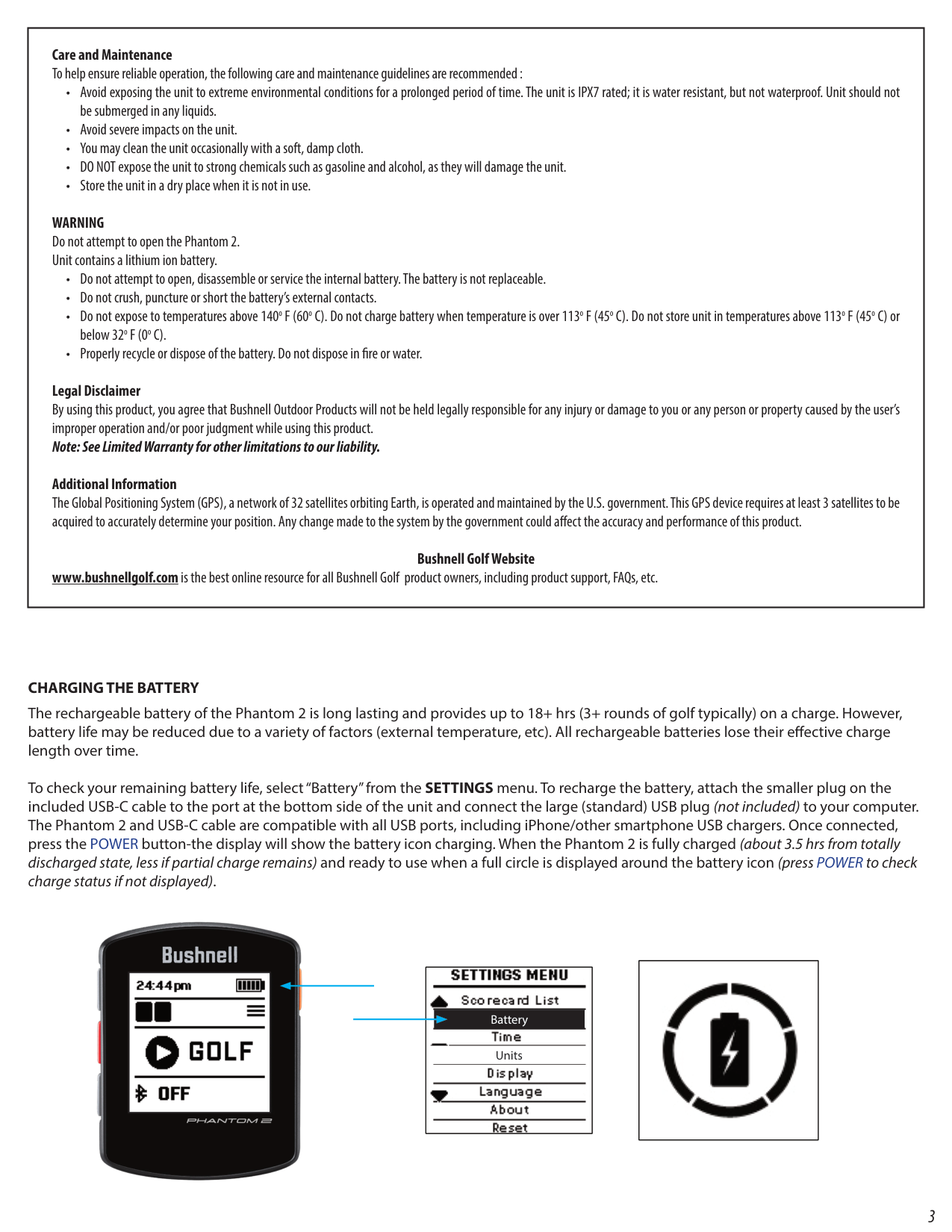

3 Care and Maintenance To help ensure reliable operation, the following care and maintenance guidelines are recommended :

Avoid exposing the unit to extreme environmental conditions for a prolonged period of time. The unit is IPX7 rated; it is water resistant, but not waterproof. Unit should not

be submerged in any liquids.

Avoid severe impacts on the unit.

You may clean the unit occasionally with a soft, damp cloth.

DO NOT expose the unit to strong chemicals such as gasoline and alcohol, as they will damage the unit.

Store the unit in a dry place when it is not in use.

Warning

Do not attempt to open the Phantom 2. Unit contains a lithium ion battery.

Do not attempt to open, disassemble or service the internal battery. The battery is not replaceable.

Do not crush, puncture or short the battery’s external contacts.

Do not expose to temperatures above 140o F (60o C). Do not charge battery when temperature is over 113o F (45o C). Do not store unit in temperatures above 113o F (45o C) or

below 32o F (0o C).

Properly recycle or dispose of the battery. Do not dispose in fire or water.

Legal Disclaimer By using this product, you agree that Bushnell Outdoor Products will not be held legally responsible for any injury or damage to you or any person or property caused by the user’s improper operation and/or poor judgment while using this product. Note: See Limited Warranty for other limitations to our liability. Additional Information The Global Positioning System (GPS), a network of 32 satellites orbiting Earth, is operated and maintained by the U.S. government. This GPS device requires at least 3 satellites to be acquired to accurately determine your position. Any change made to the system by the government could affect the accuracy and performance of this product. Bushnell Golf Website www.bushnellgolf.com is the best online resource for all Bushnell Golf product owners, including product support, FAQs, etc.

Charging The Battery

The rechargeable battery of the Phantom 2 is long lasting and provides up to 18+ hrs (3+ rounds of golf typically) on a charge. However, battery life may be reduced due to a variety of factors (external temperature, etc). All rechargeable batteries lose their effective charge length over time. To check your remaining battery life, select “Battery” from the SETTINGS menu. To recharge the battery, attach the smaller plug on the included USB-C cable to the port at the bottom side of the unit and connect the large (standard) USB plug (not included) to your computer. The Phantom 2 and USB-C cable are compatible with all USB ports, including iPhone/other smartphone USB chargers. Once connected, press the POWER button-the display will show the battery icon charging. When the Phantom 2 is fully charged (about 3.5 hrs from totally discharged state, less if partial charge remains) and ready to use when a full circle is displayed around the battery icon (press POWER to check charge status if not displayed).

Battery Units

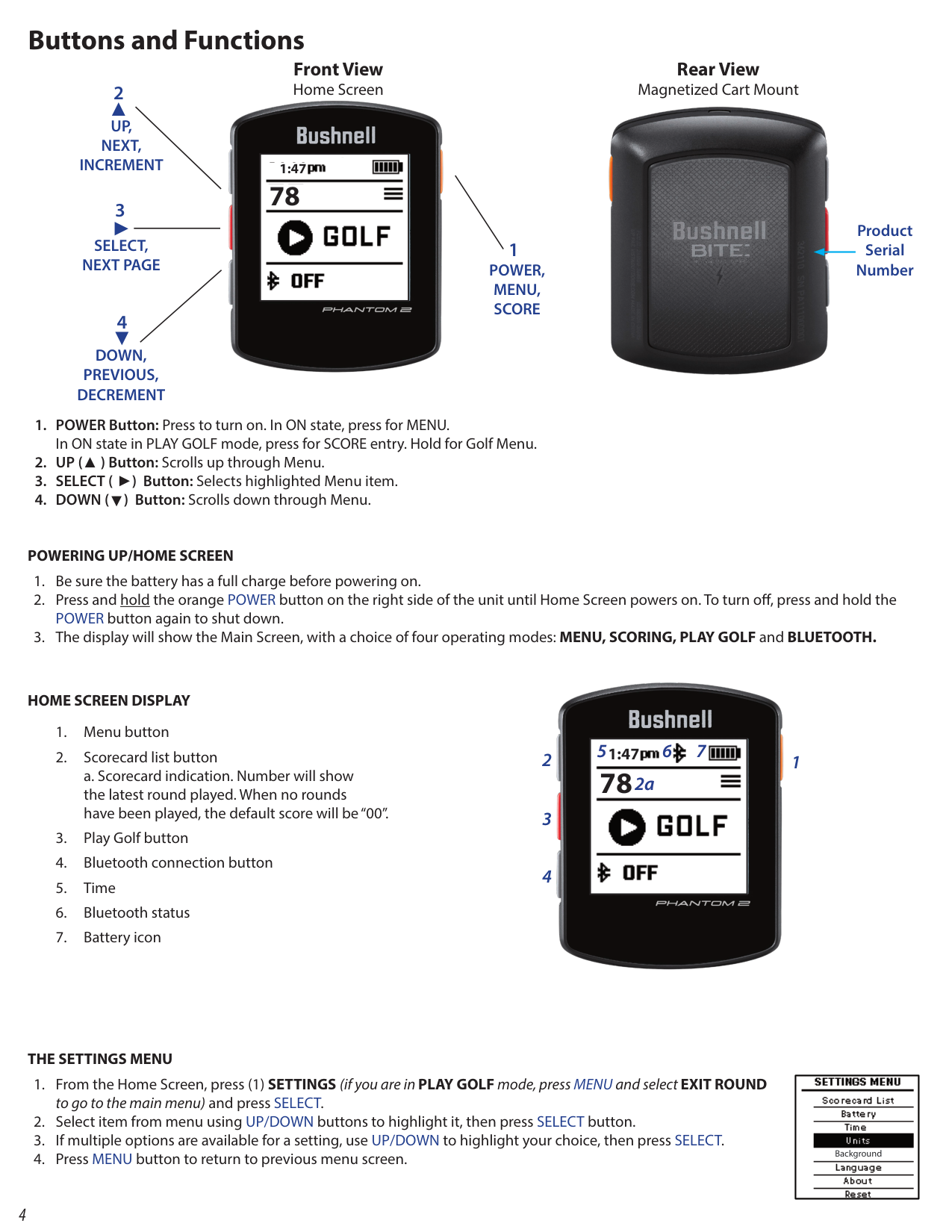

Page 4

Page 5

Page 6

Page 7

7

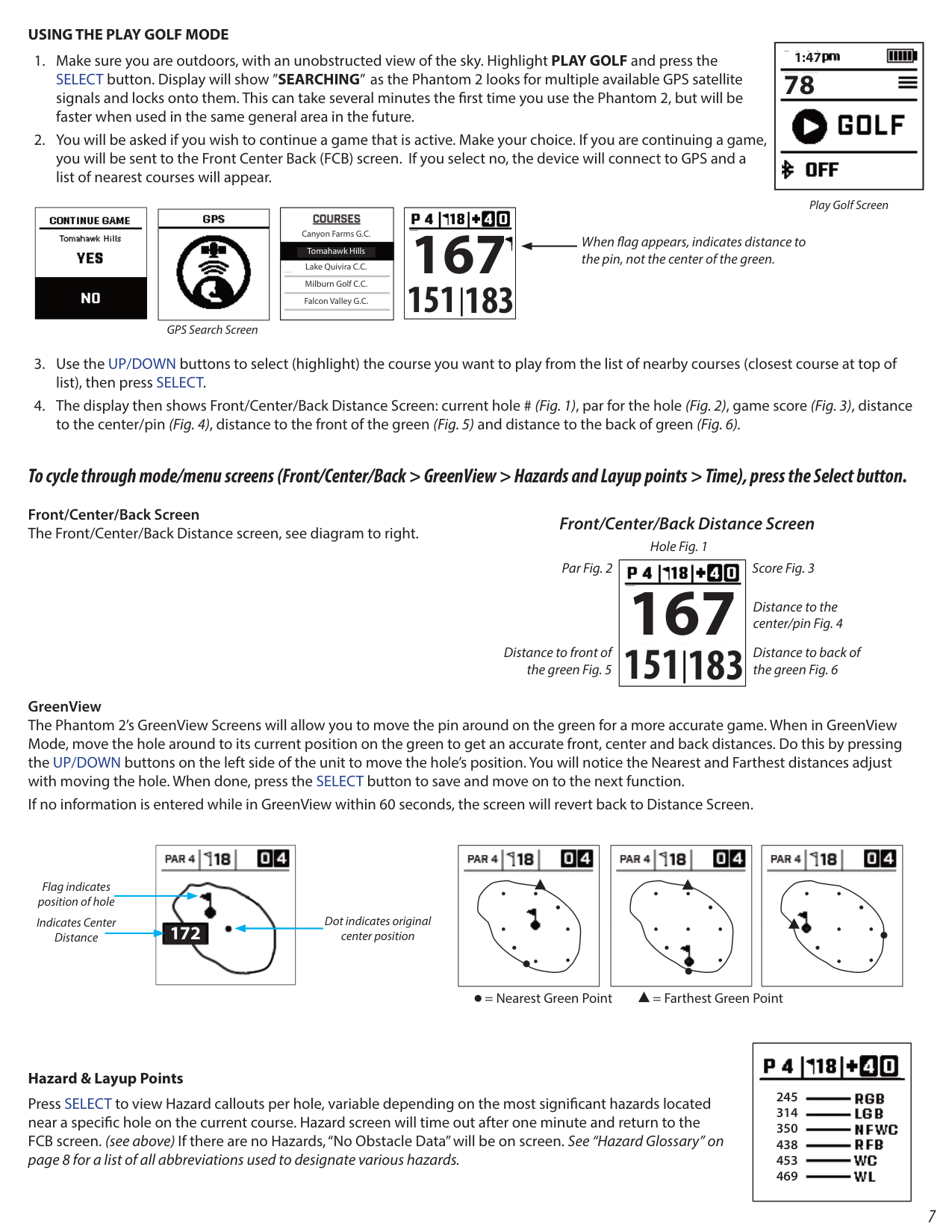

Using The Play Golf Mode

Make sure you are outdoors, with an unobstructed view of the sky. Highlight PLAY GOLF and press the

SELECT button. Display will show ”SEARCHING” as the Phantom 2 looks for multiple available GPS satellite signals and locks onto them. This can take several minutes the first time you use the Phantom 2, but will be faster when used in the same general area in the future.

You will be asked if you wish to continue a game that is active. Make your choice. If you are continuing a game,

you will be sent to the Front Center Back (FCB) screen. If you select no, the device will connect to GPS and a list of nearest courses will appear.

Use the UP/DOWN buttons to select (highlight) the course you want to play from the list of nearby courses (closest course at top of

list), then press SELECT.

The display then shows Front/Center/Back Distance Screen: current hole # (Fig. 1), par for the hole (Fig. 2), game score (Fig. 3), distance

to the center/pin (Fig. 4), distance to the front of the green (Fig. 5) and distance to the back of green (Fig. 6).

GreenView The Phantom 2’s GreenView Screens will allow you to move the pin around on the green for a more accurate game. When in GreenView Mode, move the hole around to its current position on the green to get an accurate front, center and back distances. Do this by pressing the UP/DOWN buttons on the left side of the unit to move the hole’s position. You will notice the Nearest and Farthest distances adjust with moving the hole. When done, press the SELECT button to save and move on to the next function. If no information is entered while in GreenView within 60 seconds, the screen will revert back to Distance Screen.

Hazard & Layup Points Press SELECT to view Hazard callouts per hole, variable depending on the most significant hazards located near a specific hole on the current course. Hazard screen will time out after one minute and return to the FCB screen. (see above) If there are no Hazards, “No Obstacle Data” will be on screen. See “Hazard Glossary” on page 8 for a list of all abbreviations used to designate various hazards. Play Golf Screen Flag indicates position of hole Dot indicates original center position 172 Indicates Center Distance = Nearest Green Point = Farthest Green Point To cycle through mode/menu screens (Front/Center/Back > GreenView > Hazards and Layup points > Time), press the Select button.

Front/Center/Back Screen The Front/Center/Back Distance screen, see diagram to right. 245 314 350 438 453 469 78 1:47 When flag appears, indicates distance to the pin, not the center of the green. 167 151 183 Tomahawk Hills Canyon Farms G.C. Lake Quivira C.C. Milburn Golf C.C. Falcon Valley G.C. GPS Search Screen Hole Fig. 1 Par Fig. 2 Score Fig. 3 Distance to back of the green Fig. 6 Distance to front of the green Fig. 5 167 151 183 Front/Center/Back Distance Screen Distance to the center/pin Fig. 4

Page 8

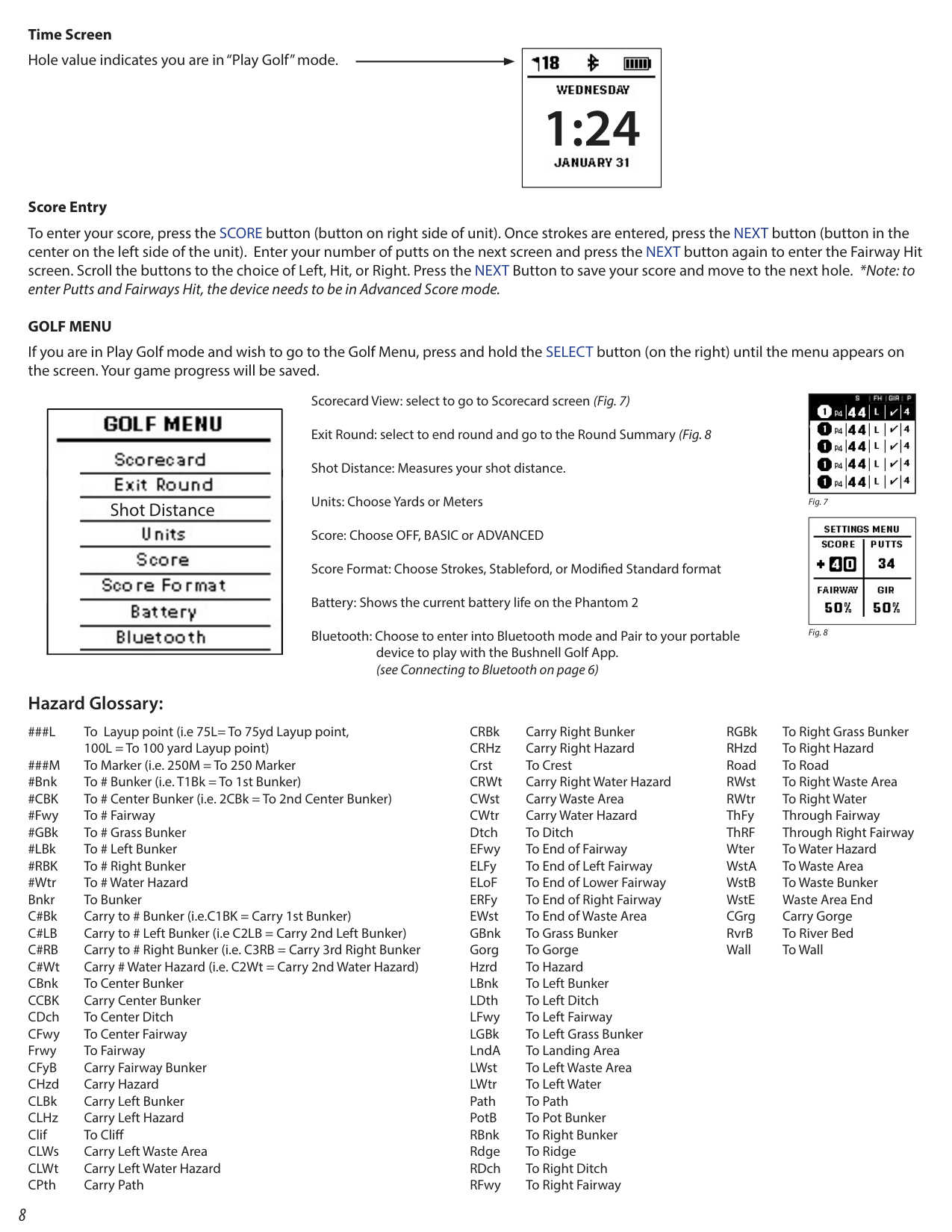

8 Time Screen Hole value indicates you are in “Play Golf” mode.

Score Entry To enter your score, press the SCORE button (button on right side of unit). Once strokes are entered, press the NEXT button (button in the center on the left side of the unit). Enter your number of putts on the next screen and press the NEXT button again to enter the Fairway Hit screen. Scroll the buttons to the choice of Left, Hit, or Right. Press the NEXT Button to save your score and move to the next hole. *Note: to enter Putts and Fairways Hit, the device needs to be in Advanced Score mode.

Golf Menu

If you are in Play Golf mode and wish to go to the Golf Menu, press and hold the SELECT button (on the right) until the menu appears on the screen. Your game progress will be saved.

###L

To Layup point (i.e 75L= To 75yd Layup point,

100L = To 100 yard Layup point)

###M

To Marker (i.e. 250M = To 250 Marker #Bnk To # Bunker (i.e. T1Bk = To 1st Bunker)

#Cbk

To # Center Bunker (i.e. 2CBk = To 2nd Center Bunker) #Fwy To # Fairway #GBk To # Grass Bunker #LBk To # Left Bunker

#Rbk

To # Right Bunker #Wtr To # Water Hazard Bnkr To Bunker C#Bk Carry to # Bunker (i.e.C1BK = Carry 1st Bunker)

C#Lb

Carry to # Left Bunker (i.e C2LB = Carry 2nd Left Bunker)

C#Rb

Carry to # Right Bunker (i.e. C3RB = Carry 3rd Right Bunker C#Wt Carry # Water Hazard (i.e. C2Wt = Carry 2nd Water Hazard) CBnk To Center Bunker

Ccbk

Carry Center Bunker CDch To Center Ditch CFwy To Center Fairway Frwy To Fairway CFyB Carry Fairway Bunker CHzd Carry Hazard CLBk Carry Left Bunker CLHz Carry Left Hazard Clif To Cliff CLWs Carry Left Waste Area CLWt Carry Left Water Hazard CPth Carry Path CRBk Carry Right Bunker CRHz Carry Right Hazard Crst To Crest CRWt Carry Right Water Hazard CWst Carry Waste Area CWtr Carry Water Hazard Dtch To Ditch EFwy To End of Fairway ELFy To End of Left Fairway ELoF To End of Lower Fairway ERFy To End of Right Fairway EWst To End of Waste Area GBnk To Grass Bunker Gorg To Gorge Hzrd To Hazard LBnk To Left Bunker LDth To Left Ditch LFwy To Left Fairway LGBk To Left Grass Bunker LndA To Landing Area LWst To Left Waste Area LWtr To Left Water Path To Path PotB To Pot Bunker RBnk To Right Bunker Rdge To Ridge RDch To Right Ditch RFwy To Right Fairway RGBk To Right Grass Bunker RHzd To Right Hazard Road To Road RWst To Right Waste Area RWtr To Right Water ThFy Through Fairway ThRF Through Right Fairway Wter To Water Hazard WstA To Waste Area WstB To Waste Bunker WstE Waste Area End CGrg Carry Gorge RvrB To River Bed Wall To Wall Scorecard View: select to go to Scorecard screen (Fig. 7) Exit Round: select to end round and go to the Round Summary (Fig. 8 Shot Distance: Measures your shot distance. Units: Choose Yards or Meters Score: Choose OFF, BASIC or ADVANCED Score Format: Choose Strokes, Stableford, or Modified Standard format Battery: Shows the current battery life on the Phantom 2 Bluetooth: Choose to enter into Bluetooth mode and Pair to your portable

device to play with the Bushnell Golf App.

(see Connecting to Bluetooth on page 6) Hazard Glossary: Shot Distance 1:24 Fig. 7 Fig. 8

Page 9

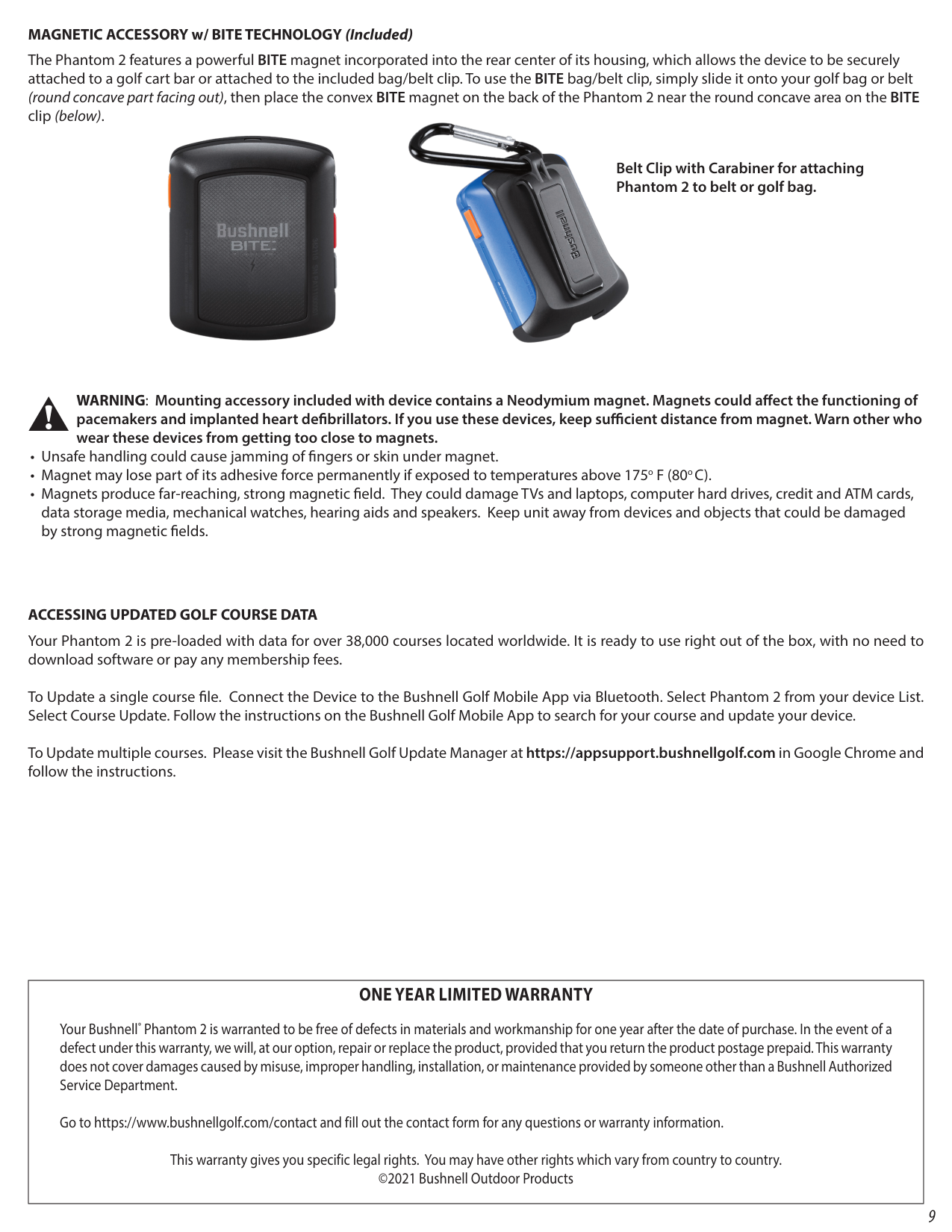

9 MAGNETIC ACCESSORY w/ BITE TECHNOLOGY (Included) The Phantom 2 features a powerful BITE magnet incorporated into the rear center of its housing, which allows the device to be securely attached to a golf cart bar or attached to the included bag/belt clip. To use the BITE bag/belt clip, simply slide it onto your golf bag or belt (round concave part facing out), then place the convex BITE magnet on the back of the Phantom 2 near the round concave area on the BITE clip (below). WARNING: Mounting accessory included with device contains a Neodymium magnet. Magnets could affect the functioning of pacemakers and implanted heart defibrillators. If you use these devices, keep sufficient distance from magnet. Warn other who wear these devices from getting too close to magnets.

Unsafe handling could cause jamming of fingers or skin under magnet.

Magnet may lose part of its adhesive force permanently if exposed to temperatures above 175o F (80o C).

Magnets produce far-reaching, strong magnetic field. They could damage TVs and laptops, computer hard drives, credit and ATM cards,

data storage media, mechanical watches, hearing aids and speakers. Keep unit away from devices and objects that could be damaged by strong magnetic fields.

Accessing Updated Golf Course Data

Your Phantom 2 is pre-loaded with data for over 38,000 courses located worldwide. It is ready to use right out of the box, with no need to download software or pay any membership fees. To Update a single course file. Connect the Device to the Bushnell Golf Mobile App via Bluetooth. Select Phantom 2 from your device List. Select Course Update. Follow the instructions on the Bushnell Golf Mobile App to search for your course and update your device.

To Update multiple courses. Please visit the Bushnell Golf Update Manager at https://appsupport.bushnellgolf.com in Google Chrome and follow the instructions. Belt Clip with Carabiner for attaching Phantom 2 to belt or golf bag.

One Year Limited Warranty

Your Bushnell® Phantom 2 is warranted to be free of defects in materials and workmanship for one year after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department. Go to https://www.bushnellgolf.com/contact and fill out the contact form for any questions or warranty information. This warranty gives you specific legal rights. You may have other rights which vary from country to country. ©2021 Bushnell Outdoor Products

Page 10

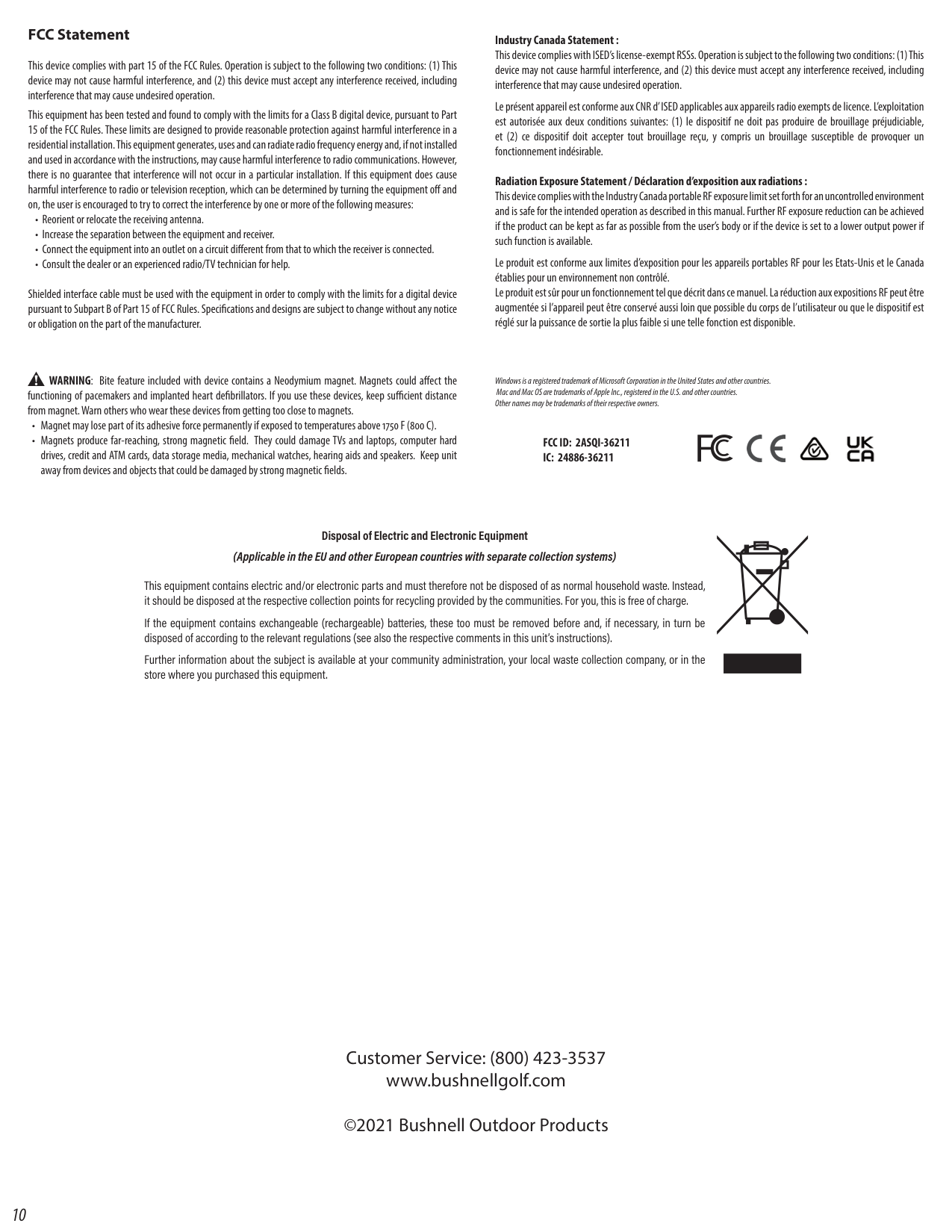

10 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Other names may be trademarks of their respective owners.

Fcc Id: 2Asqi-36211

Ic: 24886-36211

WARNING: Bite feature included with device contains a Neodymium magnet. Magnets could affect the functioning of pacemakers and implanted heart defibrillators. If you use these devices, keep sufficient distance from magnet. Warn others who wear these devices from getting too close to magnets.

Magnet may lose part of its adhesive force permanently if exposed to temperatures above 175o F (80o C).

Magnets produce far-reaching, strong magnetic field. They could damage TVs and laptops, computer hard

drives, credit and ATM cards, data storage media, mechanical watches, hearing aids and speakers. Keep unit away from devices and objects that could be damaged by strong magnetic fields. Disposal of Electric and Electronic Equipment (Applicable in the EU and other European countries with separate collection systems) This equipment contains electric and/or electronic parts and must therefore not be disposed of as normal household waste. Instead, it should be disposed at the respective collection points for recycling provided by the communities. For you, this is free of charge. If the equipment contains exchangeable (rechargeable) batteries, these too must be removed before and, if necessary, in turn be disposed of according to the relevant regulations (see also the respective comments in this unit’s instructions). Further information about the subject is available at your community administration, your local waste collection company, or in the store where you purchased this equipment. Industry Canada Statement : This device complies with ISED’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement / Déclaration d’exposition aux radiations : This device complies with the Industry Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user’s body or if the device is set to a lower output power if such function is available. Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du corps de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. Customer Service: (800) 423-3537 www.bushnellgolf.com ©2021 Bushnell Outdoor Products
