Cat Warning Symbols And Meanings Guide

Safety.Cat.Com™

Dictionary Of

Pictograph Symbols

Excerpted from Operation & Maintenance Manual (SEBD0400-03-01)

® © 2007 Caterpillar All Rights Reserved ®

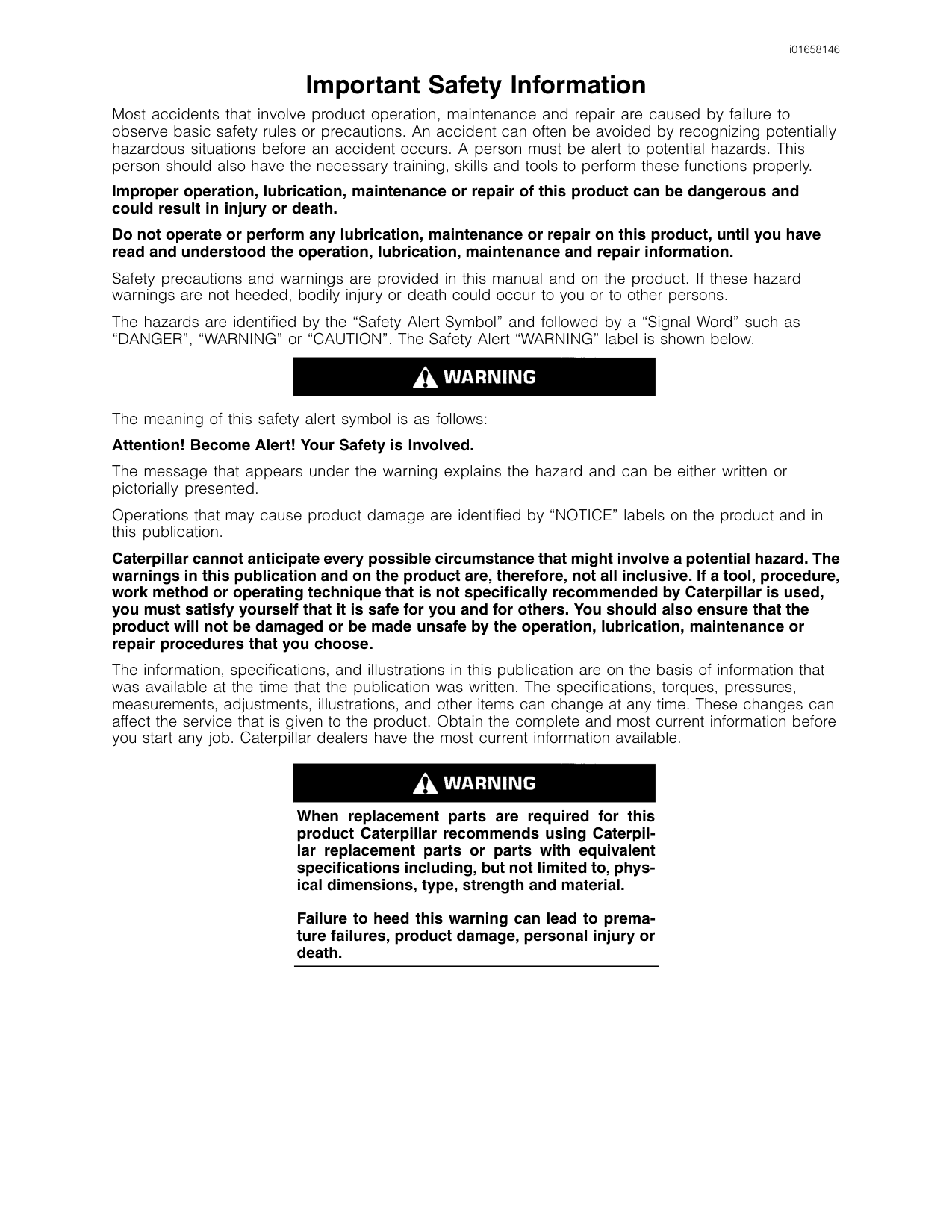

i01658146 Important Safety Information Most accidents that involve product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person should also have the necessary training, skills and tools to perform these functions properly. Improper operation, lubrication, maintenance or repair of this product can be dangerous and could result in injury or death. Do not operate or perform any lubrication, maintenance or repair on this product, until you have read and understood the operation, lubrication, maintenance and repair information. Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons. The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as “DANGER”, “WARNING” or “CAUTION”. The Safety Alert “WARNING” label is shown below. The meaning of this safety alert symbol is as follows: Attention! Become Alert! Your Safety is Involved. The message that appears under the warning explains the hazard and can be either written or pictorially presented. Operations that may cause product damage are identified by “NOTICE” labels on the product and in this publication. Caterpillar cannot anticipate every possible circumstance that might involve a potential hazard. The warnings in this publication and on the product are, therefore, not all inclusive. If a tool, procedure, work method or operating technique that is not specifically recommended by Caterpillar is used, you must satisfy yourself that it is safe for you and for others. You should also ensure that the product will not be damaged or be made unsafe by the operation, lubrication, maintenance or repair procedures that you choose. The information, specifications, and illustrations in this publication are on the basis of information that was available at the time that the publication was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other items can change at any time. These changes can affect the service that is given to the product. Obtain the complete and most current information before you start any job. Caterpillar dealers have the most current information available. When replacement parts are required for this product Caterpillar recommends using Caterpil- lar replacement parts or parts with equivalent specifications including, but not limited to, phys- ical dimensions, type, strength and material. Failure to heed this warning can lead to prema- ture failures, product damage, personal injury or death.

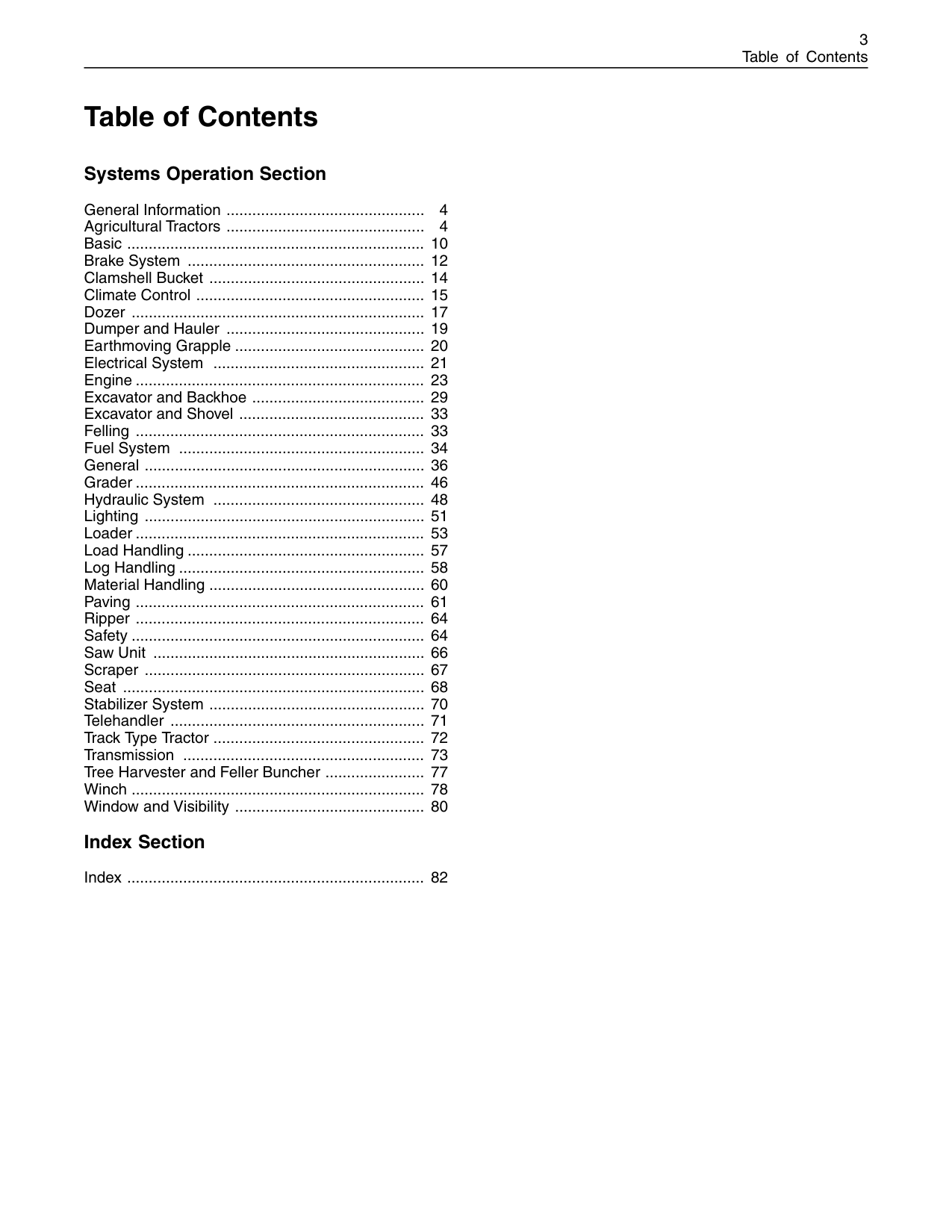

3 Table of Contents Table of Contents Systems Operation Section General Information .............................................. 4 Agricultural Tractors .............................................. 4 Basic ..................................................................... 10 Brake System ....................................................... 12 Clamshell Bucket .................................................. 14 Climate Control ..................................................... 15 Dozer .................................................................... 17 Dumper and Hauler .............................................. 19 Earthmoving Grapple ............................................ 20 Electrical System ................................................. 21 Engine ................................................................... 23 Excavator and Backhoe ........................................ 29 Excavator and Shovel ........................................... 33 Felling ................................................................... 33 Fuel System ......................................................... 34 General ................................................................. 36 Grader ................................................................... 46 Hydraulic System ................................................. 48 Lighting ................................................................. 51 Loader ................................................................... 53 Load Handling ....................................................... 57 Log Handling ......................................................... 58 Material Handling .................................................. 60 Paving ................................................................... 61 Ripper ................................................................... 64 Safety .................................................................... 64 Saw Unit ............................................................... 66 Scraper ................................................................. 67 Seat ...................................................................... 68 Stabilizer System .................................................. 70 Telehandler ........................................................... 71 Track Type Tractor ................................................. 72 Transmission ........................................................ 73 Tree Harvester and Feller Buncher ....................... 77 Winch .................................................................... 78 Window and Visibility ............................................ 80 Index Section Index ..................................................................... 82

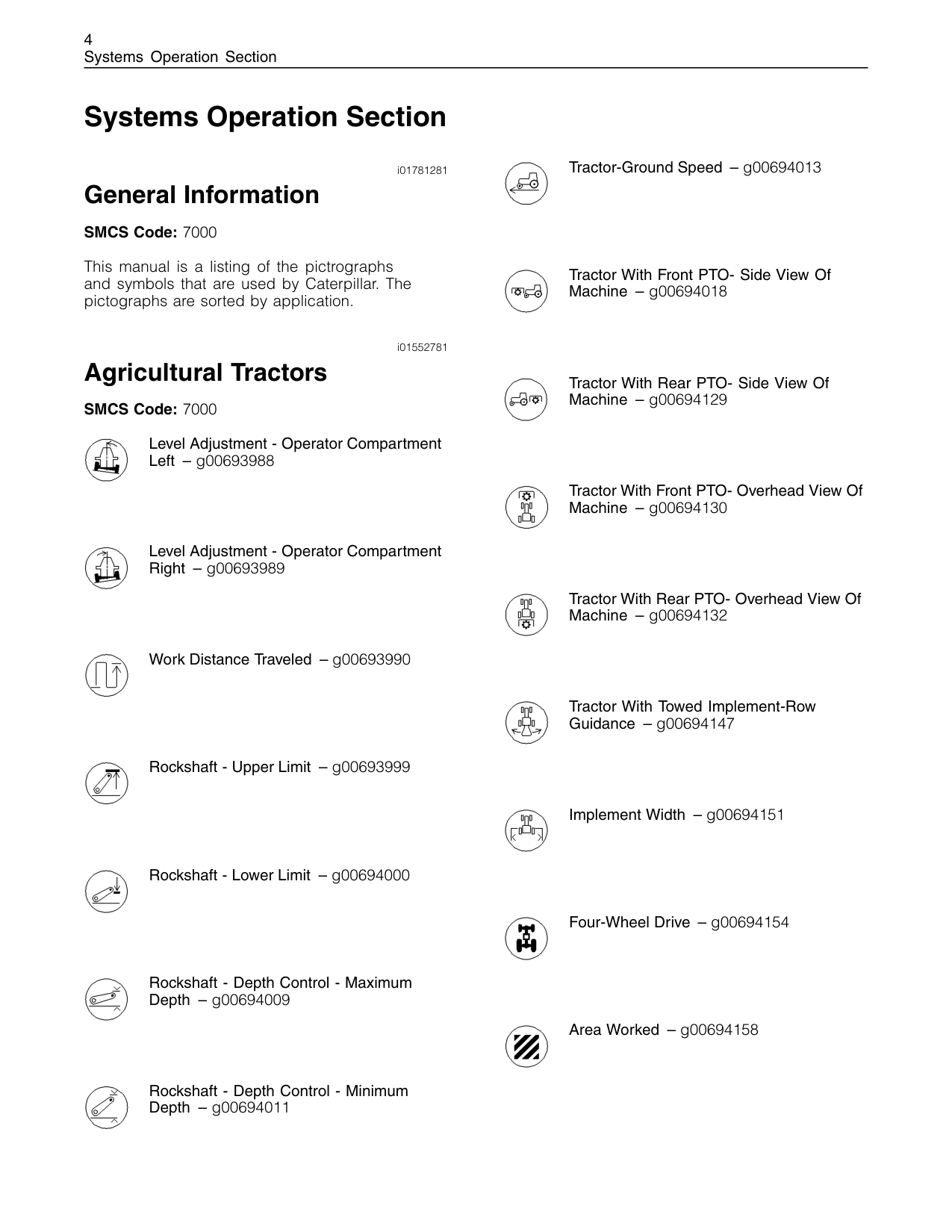

4 Systems Operation Section Systems Operation Section i01781281 General Information SMCS Code: 7000 This manual is a listing of the pictrographs and symbols that are used by Caterpillar. The pictographs are sorted by application. i01552781 Agricultural Tractors SMCS Code: 7000 Level Adjustment - Operator Compartment Left – g00693988 Level Adjustment - Operator Compartment Right – g00693989 Work Distance Traveled – g00693990 Rockshaft - Upper Limit – g00693999 Rockshaft - Lower Limit – g00694000 Rockshaft - Depth Control - Maximum Depth – g00694009 Rockshaft - Depth Control - Minimum Depth – g00694011 Tractor-Ground Speed – g00694013 Tractor With Front PTO- Side View Of Machine – g00694018 Tractor With Rear PTO- Side View Of Machine – g00694129 Tractor With Front PTO- Overhead View Of Machine – g00694130 Tractor With Rear PTO- Overhead View Of Machine – g00694132 Tractor With Towed Implement-Row Guidance – g00694147 Implement Width – g00694151 Four-Wheel Drive – g00694154 Area Worked – g00694158

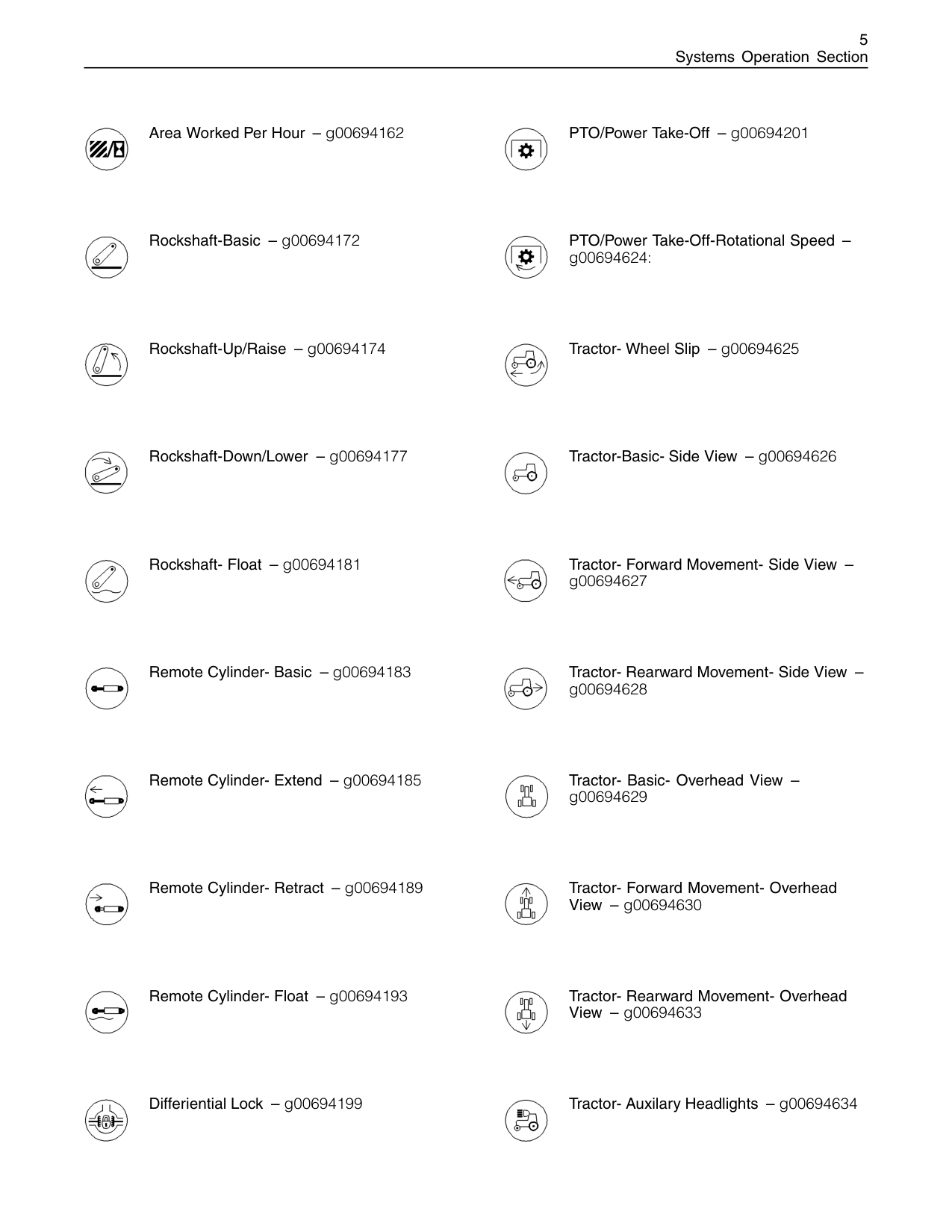

5 Systems Operation Section Area Worked Per Hour – g00694162 Rockshaft-Basic – g00694172 Rockshaft-Up/Raise – g00694174 Rockshaft-Down/Lower – g00694177 Rockshaft- Float – g00694181 Remote Cylinder- Basic – g00694183 Remote Cylinder- Extend – g00694185 Remote Cylinder- Retract – g00694189 Remote Cylinder- Float – g00694193 Differiential Lock – g00694199 PTO/Power Take-Off – g00694201 PTO/Power Take-Off-Rotational Speed – g00694624: Tractor- Wheel Slip – g00694625 Tractor-Basic- Side View – g00694626 Tractor- Forward Movement- Side View – g00694627 Tractor- Rearward Movement- Side View – g00694628 Tractor- Basic- Overhead View – g00694629 Tractor- Forward Movement- Overhead View – g00694630 Tractor- Rearward Movement- Overhead View – g00694633 Tractor- Auxilary Headlights – g00694634

6 Systems Operation Section Tractor- Main Headlights – g00694636 Tractor- Front Wheel Drive – g00694640 Tractor- Front Wheel Drive- Automatic Operation – g00694641 Tractor- Front Wheel Drive-Brake – g00694644 Trailer 1 – g00694656 Trailer 2 – g00694660 Area Worked Per Hour – g00694662 Machine Ground Speed – g00694664 % Track Slip – g00694667 Belt Tension – g00694670 Draft Control – g00762972 % Track Slip – g00762976 Machine Ground Speed – g00911040 Flow Control – g00911045 Right Cylinder Retract – g00911046 Remote Cylinder Extend – g00911049 Trailer Connector – g00717168 Forward Speed – g00911050 Percent Slip – g00911052

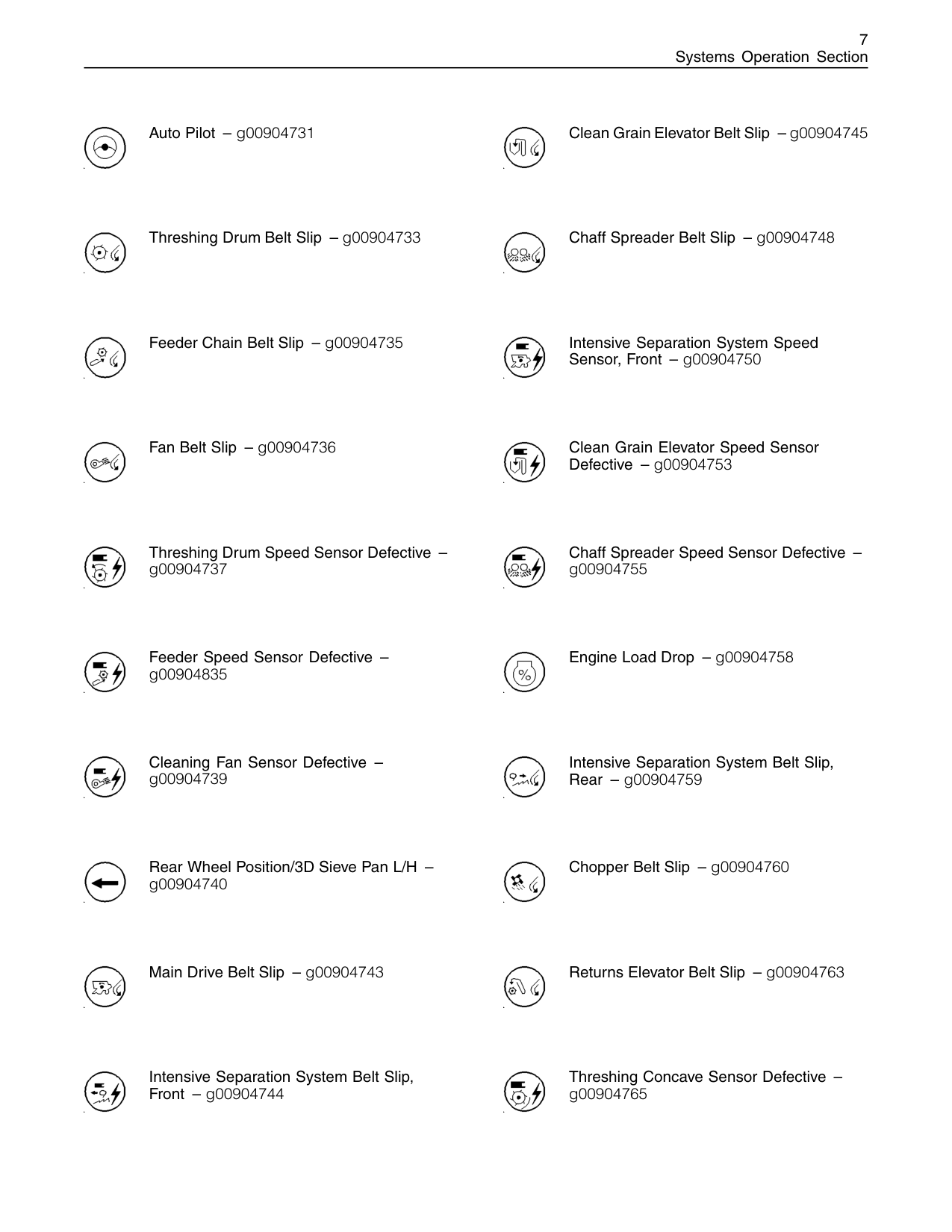

7 Systems Operation Section Auto Pilot – g00904731 Threshing Drum Belt Slip – g00904733 Feeder Chain Belt Slip – g00904735 Fan Belt Slip – g00904736 Threshing Drum Speed Sensor Defective – g00904737 Feeder Speed Sensor Defective – g00904835 Cleaning Fan Sensor Defective – g00904739 Rear Wheel Position/3D Sieve Pan L/H – g00904740 Main Drive Belt Slip – g00904743 Intensive Separation System Belt Slip, Front – g00904744 Clean Grain Elevator Belt Slip – g00904745 Chaff Spreader Belt Slip – g00904748 Intensive Separation System Speed Sensor, Front – g00904750 Clean Grain Elevator Speed Sensor Defective – g00904753 Chaff Spreader Speed Sensor Defective – g00904755 Engine Load Drop – g00904758 Intensive Separation System Belt Slip, Rear – g00904759 Chopper Belt Slip – g00904760 Returns Elevator Belt Slip – g00904763 Threshing Concave Sensor Defective – g00904765

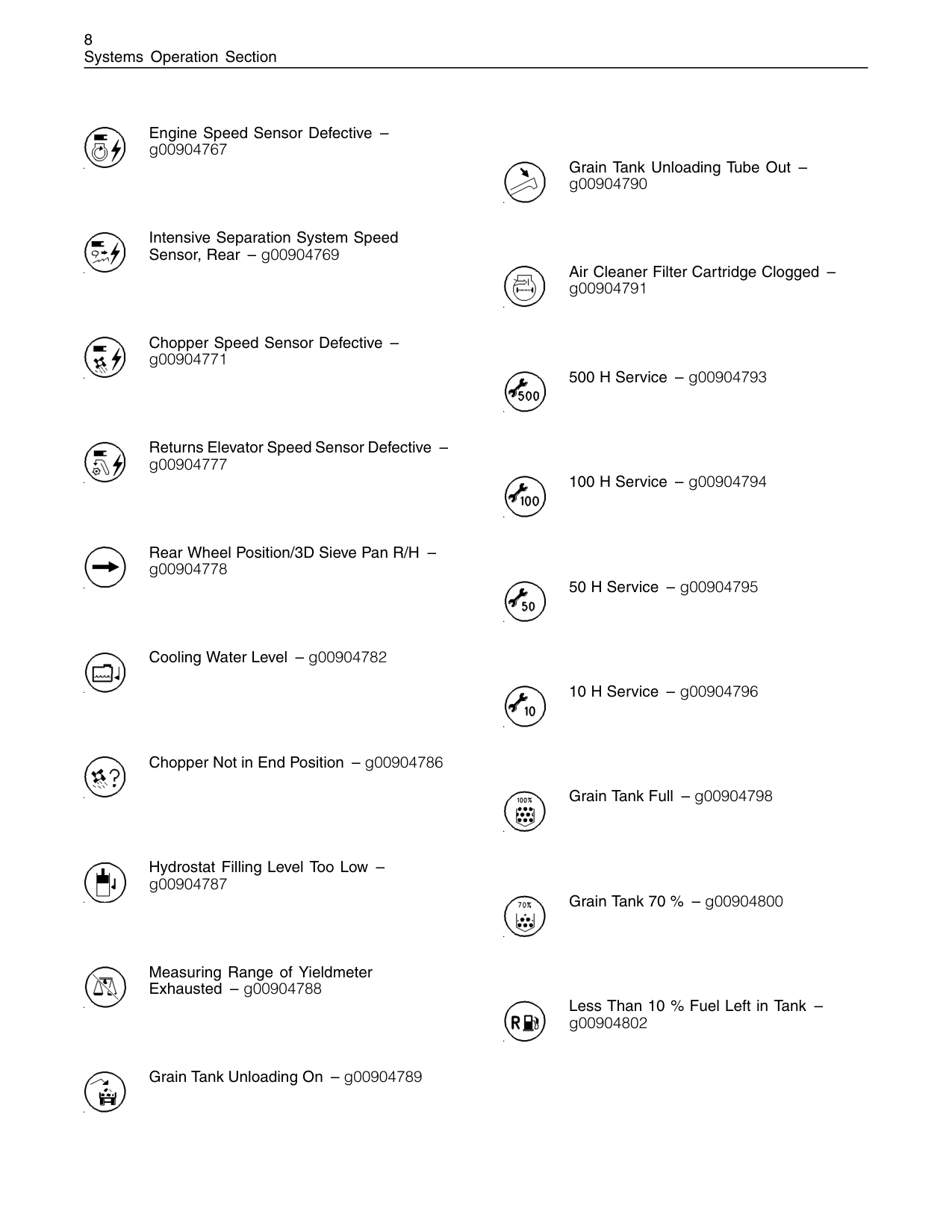

8 Systems Operation Section Engine Speed Sensor Defective – g00904767 Intensive Separation System Speed Sensor, Rear – g00904769 Chopper Speed Sensor Defective – g00904771 Returns Elevator Speed Sensor Defective – g00904777 Rear Wheel Position/3D Sieve Pan R/H – g00904778 Cooling Water Level – g00904782 Chopper Not in End Position – g00904786 Hydrostat Filling Level Too Low – g00904787 Measuring Range of Yieldmeter Exhausted – g00904788 Grain Tank Unloading On – g00904789 Grain Tank Unloading Tube Out – g00904790 Air Cleaner Filter Cartridge Clogged – g00904791 500 H Service – g00904793 100 H Service – g00904794 50 H Service – g00904795 10 H Service – g00904796 Grain Tank Full – g00904798 Grain Tank 70 % – g00904800 Less Than 10 % Fuel Left in Tank – g00904802

9 Systems Operation Section Interruption to Sensor For Cutting Height - Feed Rake – g00904804 Rotor Belt Slip – g00904812 Rotor Speed Sensor Defective – g00904819 Threshing Drum Speed – g00451306 Concave Position – g00451307 Fan Speed - Combine – g00904821 Reel Speed - Combine – g00451309 Upper Sieve Adjustment – g00451310 Parial Width – g00904824 Feeder Chain Speed – g00451313 Sensitivity Separation – g00451315 Sensitivity of Sieve Sensors – g00451316 Lower Sieve Adjustment – g00451317 Area – g00453371 Area Work Rate – g00453374 Yield – g00453375 Yield Rate – g00453377 Daily Recorder – g00453378 Main Drive Speed Sensor Defective – g00465184 Tractor - High Drive Basic – g00716998

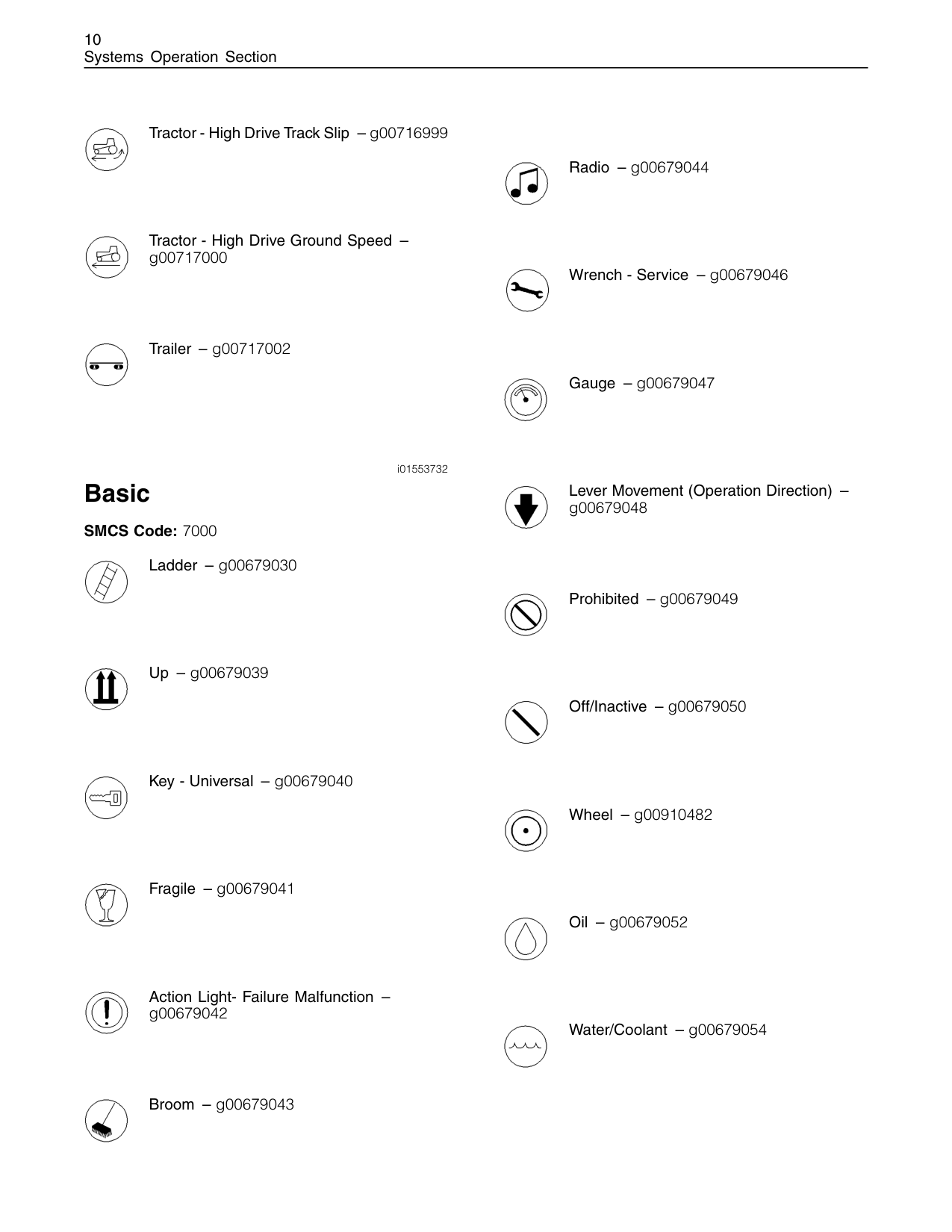

10 Systems Operation Section Tractor - High Drive Track Slip – g00716999 Tractor - High Drive Ground Speed – g00717000 Trailer – g00717002 i01553732 Basic SMCS Code: 7000 Ladder – g00679030 Up – g00679039 Key - Universal – g00679040 Fragile – g00679041 Action Light- Failure Malfunction – g00679042 Broom – g00679043 Radio – g00679044 Wrench - Service – g00679046 Gauge – g00679047 Lever Movement (Operation Direction) – g00679048 Prohibited – g00679049 Off/Inactive – g00679050 Wheel – g00910482 Oil – g00679052 Water/Coolant – g00679054

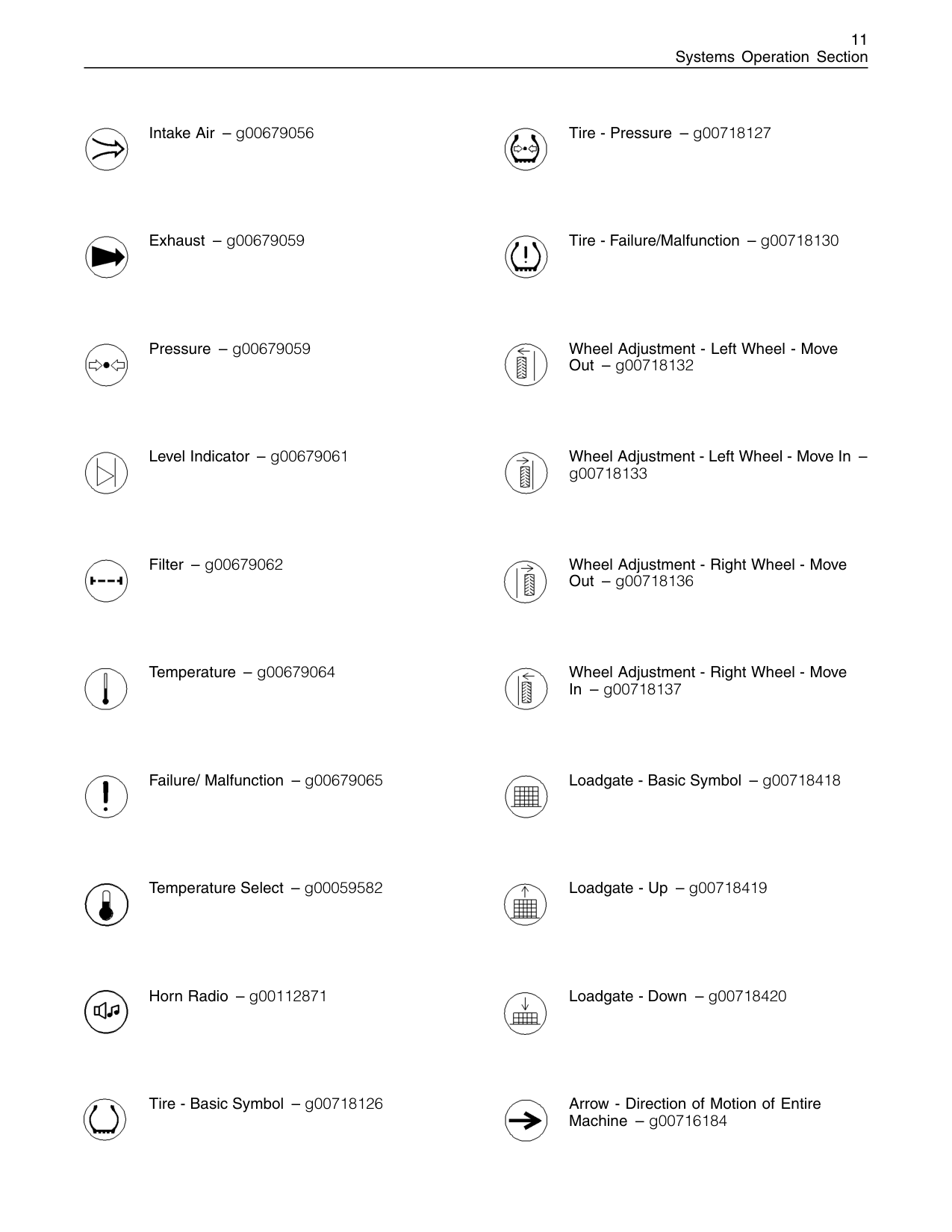

11 Systems Operation Section Intake Air – g00679056 Exhaust – g00679059 Pressure – g00679059 Level Indicator – g00679061 Filter – g00679062 Temperature – g00679064 Failure/ Malfunction – g00679065 Temperature Select – g00059582 Horn Radio – g00112871 Tire - Basic Symbol – g00718126 Tire - Pressure – g00718127 Tire - Failure/Malfunction – g00718130 Wheel Adjustment - Left Wheel - Move Out – g00718132 Wheel Adjustment - Left Wheel - Move In – g00718133 Wheel Adjustment - Right Wheel - Move Out – g00718136 Wheel Adjustment - Right Wheel - Move In – g00718137 Loadgate - Basic Symbol – g00718418 Loadgate - Up – g00718419 Loadgate - Down – g00718420 Arrow - Direction of Motion of Entire Machine – g00716184

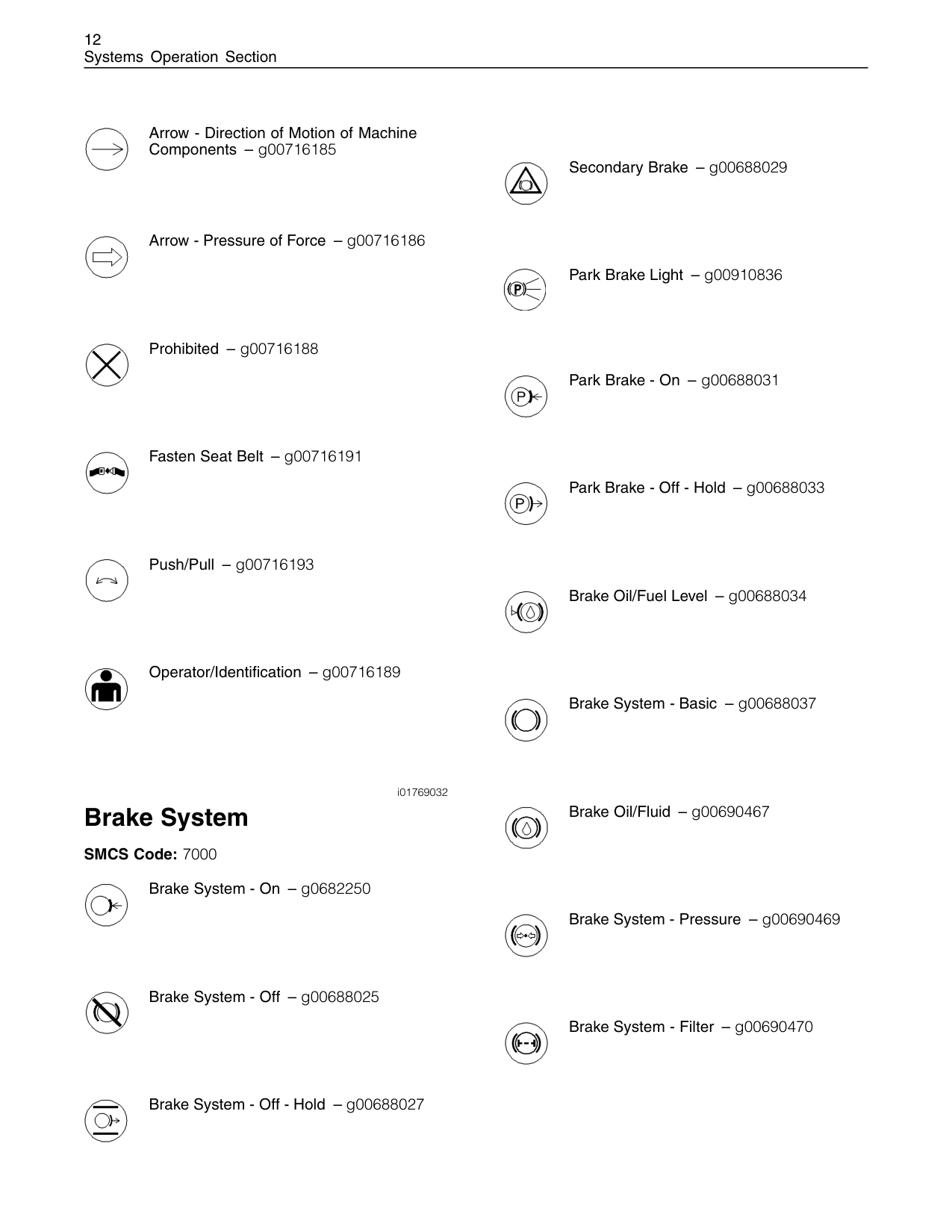

12 Systems Operation Section Arrow - Direction of Motion of Machine Components – g00716185 Arrow - Pressure of Force – g00716186 Prohibited – g00716188 Fasten Seat Belt – g00716191 Push/Pull – g00716193 Operator/Identification – g00716189 i01769032 Brake System SMCS Code: 7000 Brake System - On – g0682250 Brake System - Off – g00688025 Brake System - Off - Hold – g00688027 Secondary Brake – g00688029 Park Brake Light – g00910836 Park Brake - On – g00688031 Park Brake - Off - Hold – g00688033 Brake Oil/Fuel Level – g00688034 Brake System - Basic – g00688037 Brake Oil/Fluid – g00690467 Brake System - Pressure – g00690469 Brake System - Filter – g00690470

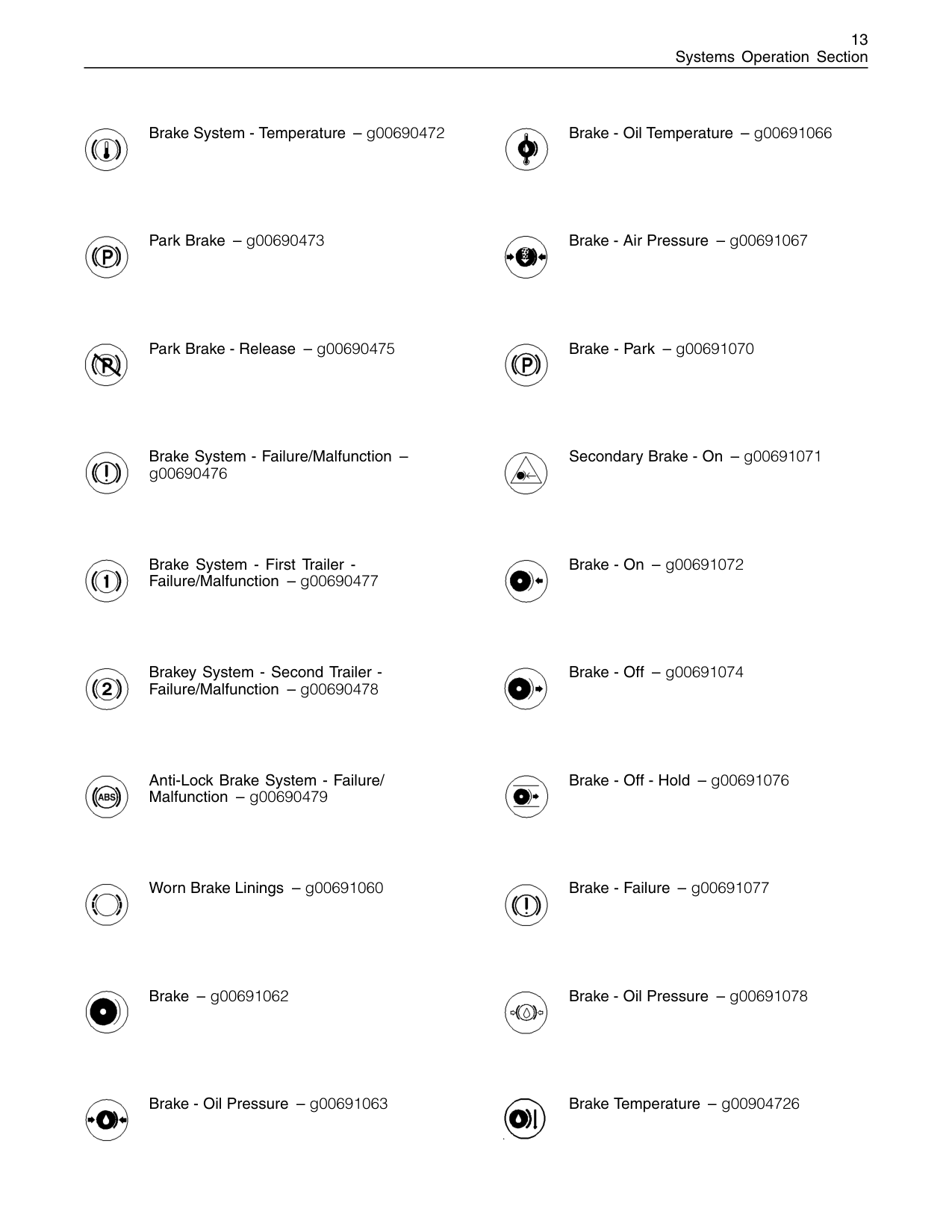

13 Systems Operation Section Brake System - Temperature – g00690472 Park Brake – g00690473 Park Brake - Release – g00690475 Brake System - Failure/Malfunction – g00690476 Brake System - First Trailer - Failure/Malfunction – g00690477 Brakey System - Second Trailer - Failure/Malfunction – g00690478 Anti-Lock Brake System - Failure/ Malfunction – g00690479 Worn Brake Linings – g00691060 Brake – g00691062 Brake - Oil Pressure – g00691063 Brake - Oil Temperature – g00691066 Brake - Air Pressure – g00691067 Brake - Park – g00691070 Secondary Brake - On – g00691071 Brake - On – g00691072 Brake - Off – g00691074 Brake - Off - Hold – g00691076 Brake - Failure – g00691077 Brake - Oil Pressure – g00691078 Brake Temperature – g00904726

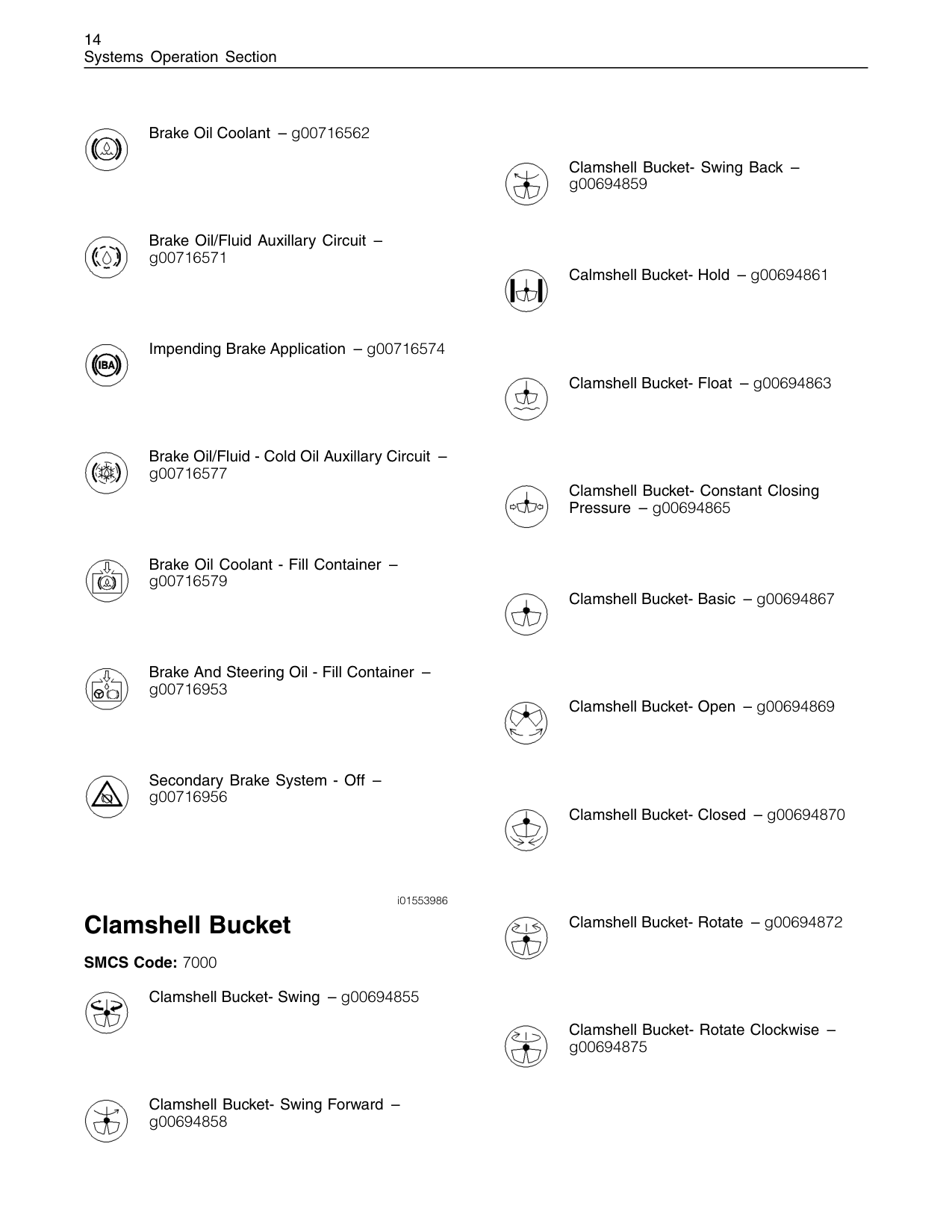

14 Systems Operation Section Brake Oil Coolant – g00716562 Brake Oil/Fluid Auxillary Circuit – g00716571 Impending Brake Application – g00716574 Brake Oil/Fluid - Cold Oil Auxillary Circuit – g00716577 Brake Oil Coolant - Fill Container – g00716579 Brake And Steering Oil - Fill Container – g00716953 Secondary Brake System - Off – g00716956 i01553986 Clamshell Bucket SMCS Code: 7000 Clamshell Bucket- Swing – g00694855 Clamshell Bucket- Swing Forward – g00694858 Clamshell Bucket- Swing Back – g00694859 Calmshell Bucket- Hold – g00694861 Clamshell Bucket- Float – g00694863 Clamshell Bucket- Constant Closing Pressure – g00694865 Clamshell Bucket- Basic – g00694867 Clamshell Bucket- Open – g00694869 Clamshell Bucket- Closed – g00694870 Clamshell Bucket- Rotate – g00694872 Clamshell Bucket- Rotate Clockwise – g00694875

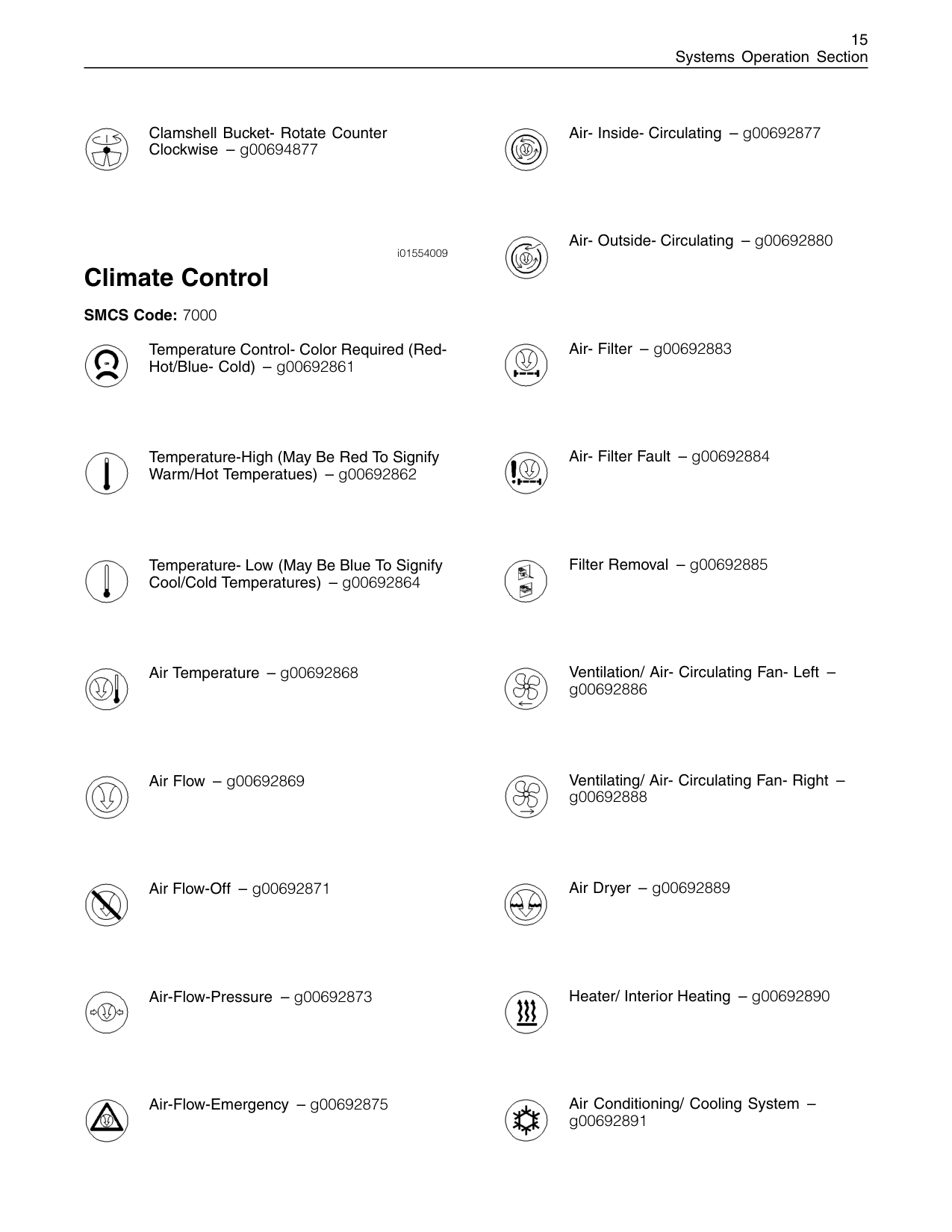

15 Systems Operation Section Clamshell Bucket- Rotate Counter Clockwise – g00694877 i01554009 Climate Control SMCS Code: 7000 Temperature Control- Color Required (Red- Hot/Blue- Cold) – g00692861 Temperature-High (May Be Red To Signify Warm/Hot Temperatues) – g00692862 Temperature- Low (May Be Blue To Signify Cool/Cold Temperatures) – g00692864 Air Temperature – g00692868 Air Flow – g00692869 Air Flow-Off – g00692871 Air-Flow-Pressure – g00692873 Air-Flow-Emergency – g00692875 Air- Inside- Circulating – g00692877 Air- Outside- Circulating – g00692880 Air- Filter – g00692883 Air- Filter Fault – g00692884 Filter Removal – g00692885 Ventilation/ Air- Circulating Fan- Left – g00692886 Ventilating/ Air- Circulating Fan- Right – g00692888 Air Dryer – g00692889 Heater/ Interior Heating – g00692890 Air Conditioning/ Cooling System – g00692891

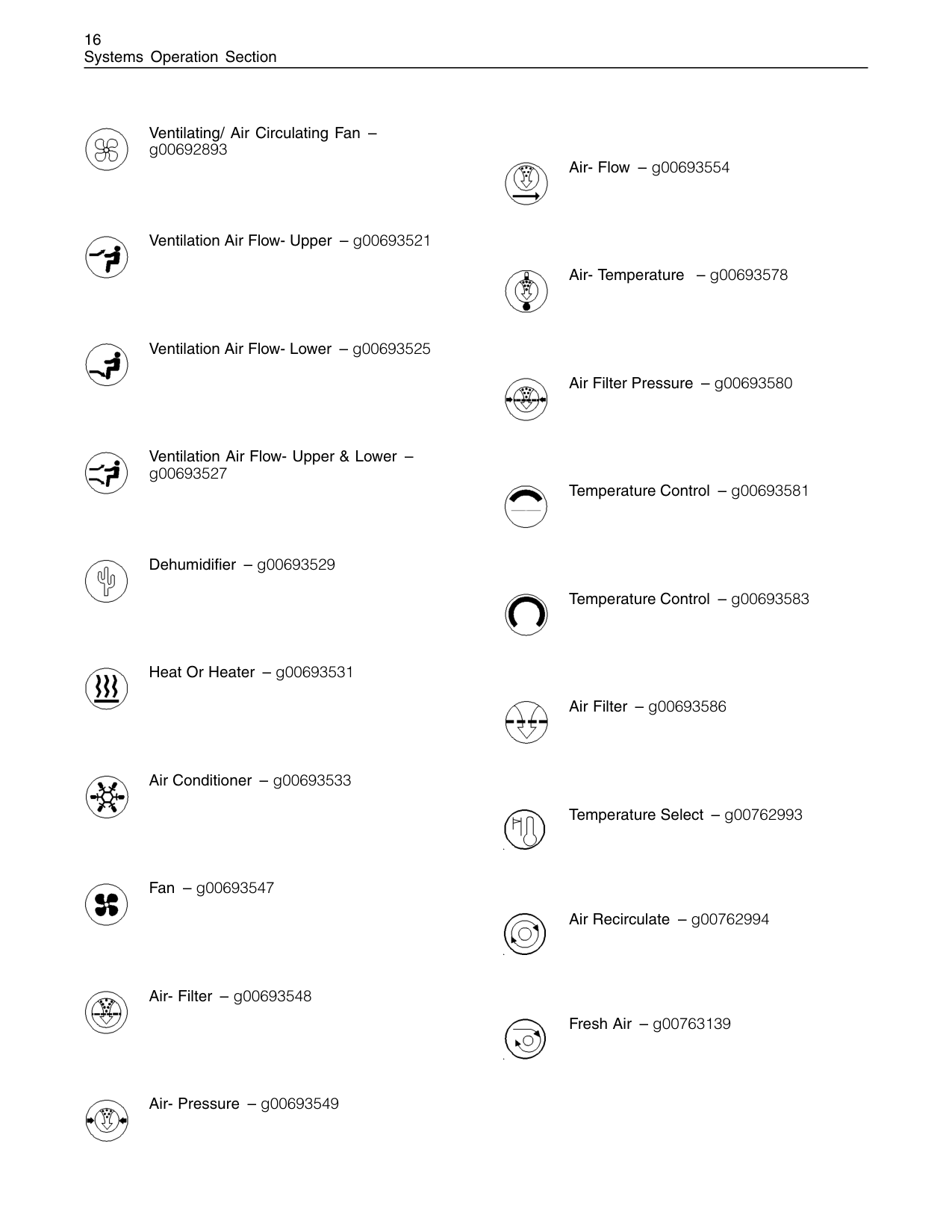

16 Systems Operation Section Ventilating/ Air Circulating Fan – g00692893 Ventilation Air Flow- Upper – g00693521 Ventilation Air Flow- Lower – g00693525 Ventilation Air Flow- Upper & Lower – g00693527 Dehumidifier – g00693529 Heat Or Heater – g00693531 Air Conditioner – g00693533 Fan – g00693547 Air- Filter – g00693548 Air- Pressure – g00693549 Air- Flow – g00693554 Air- Temperature – g00693578 Air Filter Pressure – g00693580 Temperature Control – g00693581 Temperature Control – g00693583 Air Filter – g00693586 Temperature Select – g00762993 Air Recirculate – g00762994 Fresh Air – g00763139

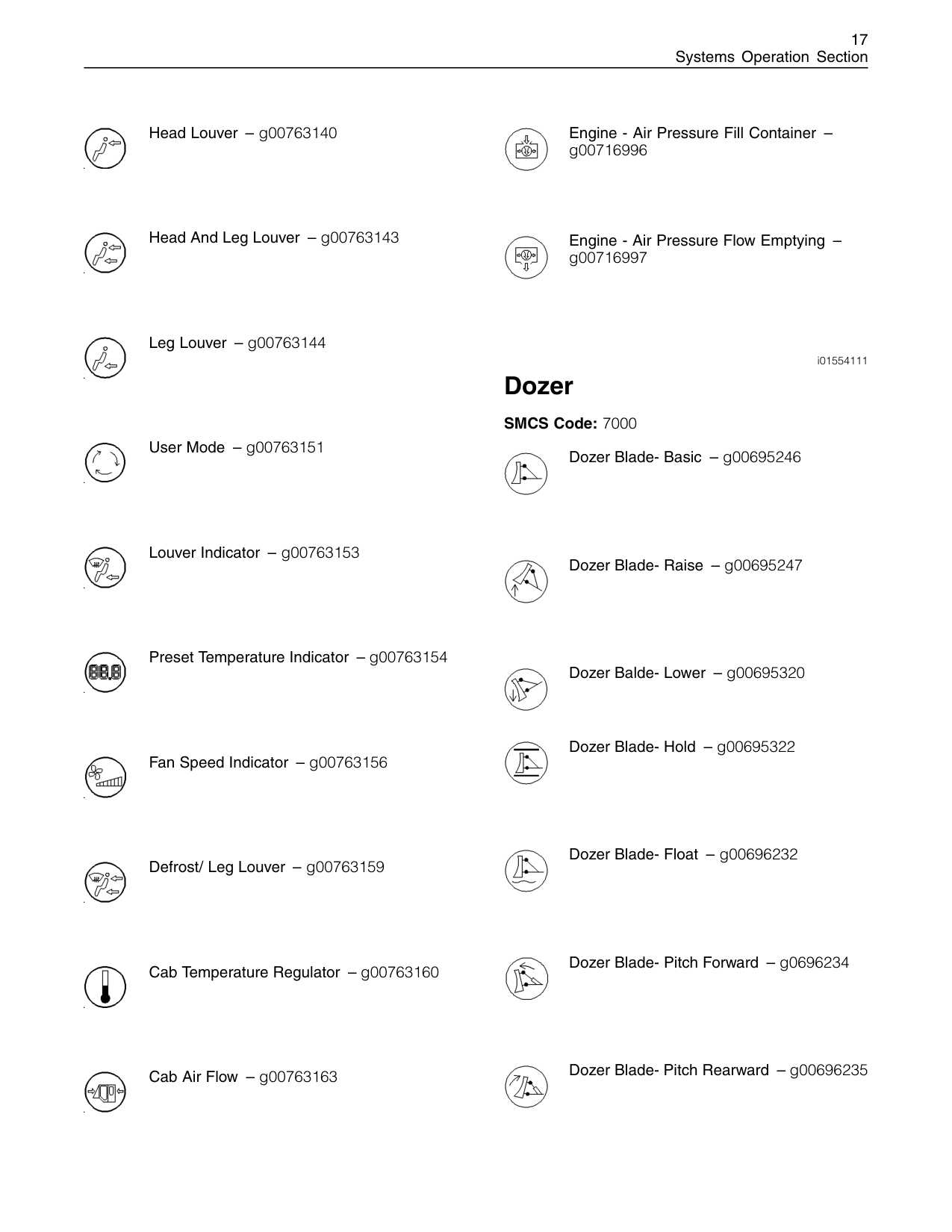

17 Systems Operation Section Head Louver – g00763140 Head And Leg Louver – g00763143 Leg Louver – g00763144 User Mode – g00763151 Louver Indicator – g00763153 Preset Temperature Indicator – g00763154 Fan Speed Indicator – g00763156 Defrost/ Leg Louver – g00763159 Cab Temperature Regulator – g00763160 Cab Air Flow – g00763163 Engine - Air Pressure Fill Container – g00716996 Engine - Air Pressure Flow Emptying – g00716997 i01554111 Dozer SMCS Code: 7000 Dozer Blade- Basic – g00695246 Dozer Blade- Raise – g00695247 Dozer Balde- Lower – g00695320 Dozer Blade- Hold – g00695322 Dozer Blade- Float – g00696232 Dozer Blade- Pitch Forward – g0696234 Dozer Blade- Pitch Rearward – g00696235

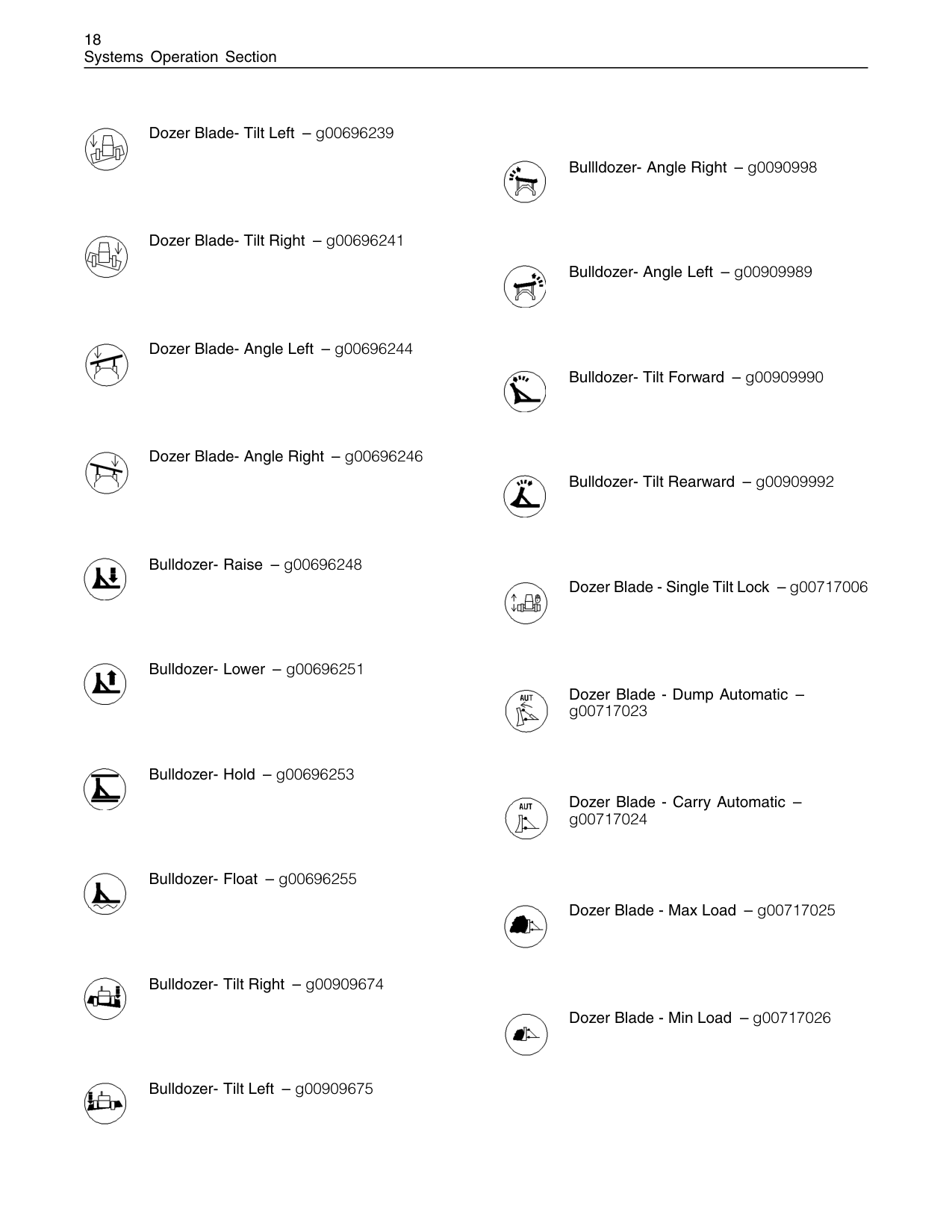

18 Systems Operation Section Dozer Blade- Tilt Left – g00696239 Dozer Blade- Tilt Right – g00696241 Dozer Blade- Angle Left – g00696244 Dozer Blade- Angle Right – g00696246 Bulldozer- Raise – g00696248 Bulldozer- Lower – g00696251 Bulldozer- Hold – g00696253 Bulldozer- Float – g00696255 Bulldozer- Tilt Right – g00909674 Bulldozer- Tilt Left – g00909675 Bullldozer- Angle Right – g0090998 Bulldozer- Angle Left – g00909989 Bulldozer- Tilt Forward – g00909990 Bulldozer- Tilt Rearward – g00909992 Dozer Blade - Single Tilt Lock – g00717006 Dozer Blade - Dump Automatic – g00717023 Dozer Blade - Carry Automatic – g00717024 Dozer Blade - Max Load – g00717025 Dozer Blade - Min Load – g00717026

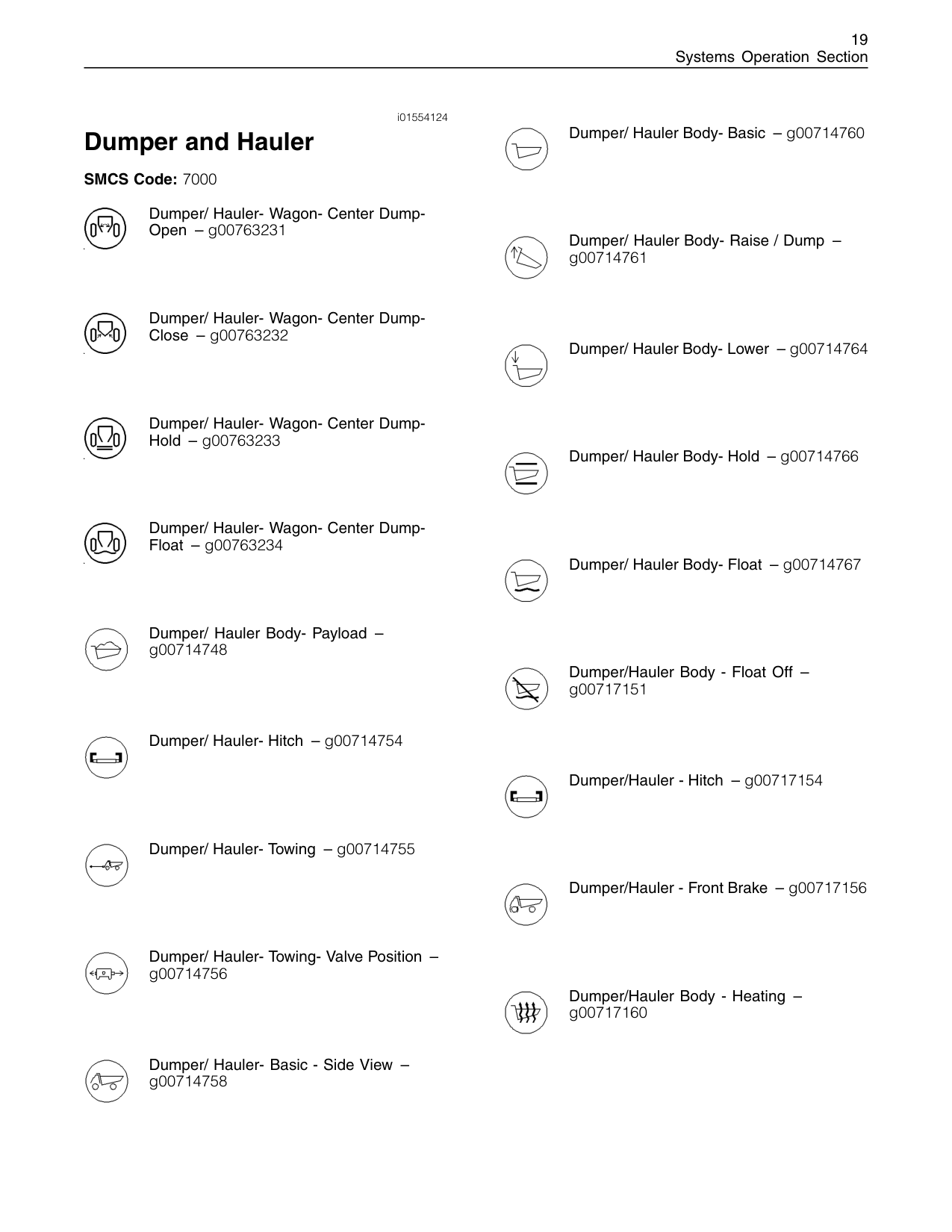

19 Systems Operation Section i01554124 Dumper and Hauler SMCS Code: 7000 Dumper/ Hauler- Wagon- Center Dump- Open – g00763231 Dumper/ Hauler- Wagon- Center Dump- Close – g00763232 Dumper/ Hauler- Wagon- Center Dump- Hold – g00763233 Dumper/ Hauler- Wagon- Center Dump- Float – g00763234 Dumper/ Hauler Body- Payload – g00714748 Dumper/ Hauler- Hitch – g00714754 Dumper/ Hauler- Towing – g00714755 Dumper/ Hauler- Towing- Valve Position – g00714756 Dumper/ Hauler- Basic - Side View – g00714758 Dumper/ Hauler Body- Basic – g00714760 Dumper/ Hauler Body- Raise / Dump – g00714761 Dumper/ Hauler Body- Lower – g00714764 Dumper/ Hauler Body- Hold – g00714766 Dumper/ Hauler Body- Float – g00714767 Dumper/Hauler Body - Float Off – g00717151 Dumper/Hauler - Hitch – g00717154 Dumper/Hauler - Front Brake – g00717156 Dumper/Hauler Body - Heating – g00717160

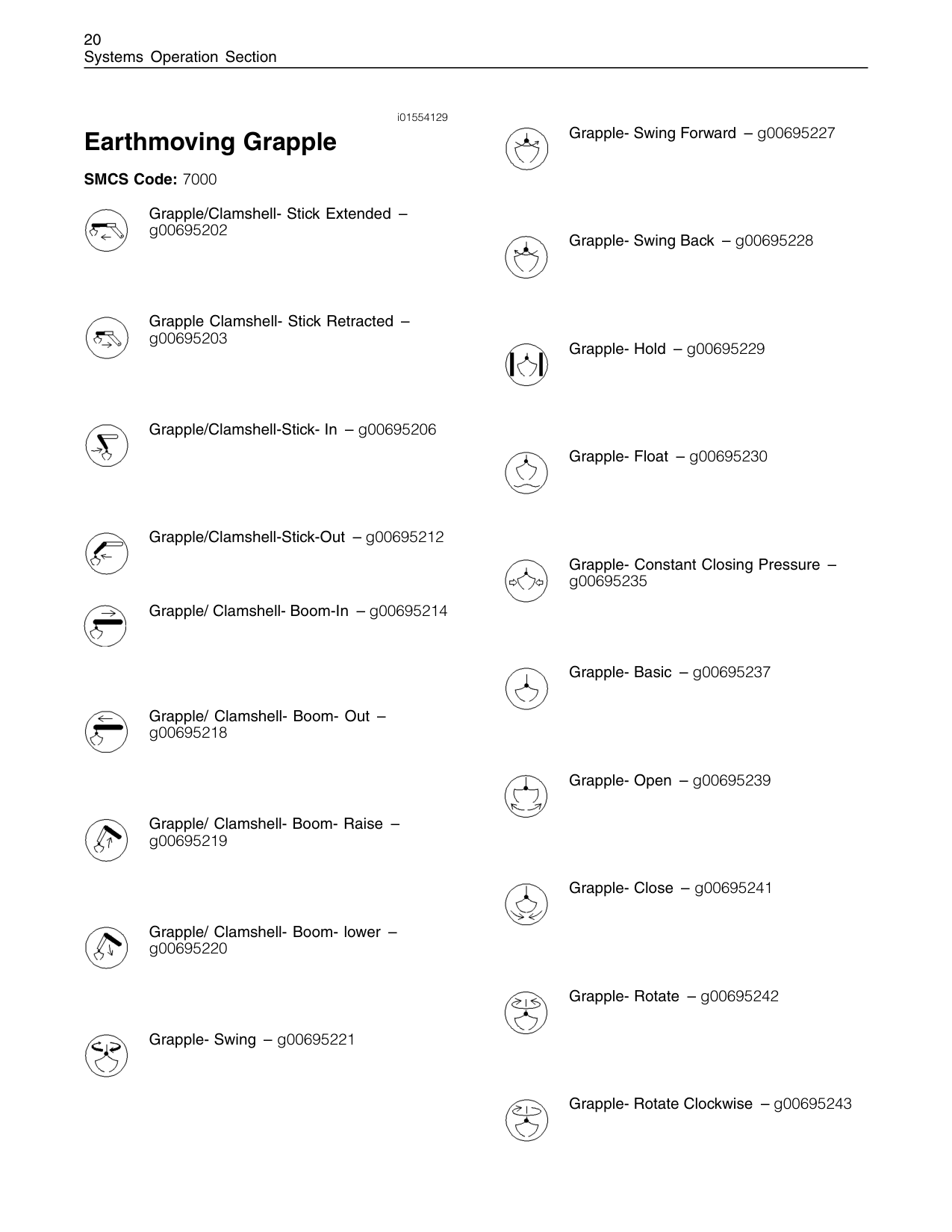

20 Systems Operation Section i01554129 Earthmoving Grapple SMCS Code: 7000 Grapple/Clamshell- Stick Extended – g00695202 Grapple Clamshell- Stick Retracted – g00695203 Grapple/Clamshell-Stick- In – g00695206 Grapple/Clamshell-Stick-Out – g00695212 Grapple/ Clamshell- Boom-In – g00695214 Grapple/ Clamshell- Boom- Out – g00695218 Grapple/ Clamshell- Boom- Raise – g00695219 Grapple/ Clamshell- Boom- lower – g00695220 Grapple- Swing – g00695221 Grapple- Swing Forward – g00695227 Grapple- Swing Back – g00695228 Grapple- Hold – g00695229 Grapple- Float – g00695230 Grapple- Constant Closing Pressure – g00695235 Grapple- Basic – g00695237 Grapple- Open – g00695239 Grapple- Close – g00695241 Grapple- Rotate – g00695242 Grapple- Rotate Clockwise – g00695243

21 Systems Operation Section Grapple- Rotate Counter Clockwise – g00695245 Grapple- Close Automatic – g00717005 Grapple Skidder - Single Function Boom - Basic – g00718320 Grapple Skidder - Single Function Boom - Up/In – g00718321 Grapple Skidder - Single Function Boom - Down/Out – g00718324 Grapple Skidder - Double Function Boom

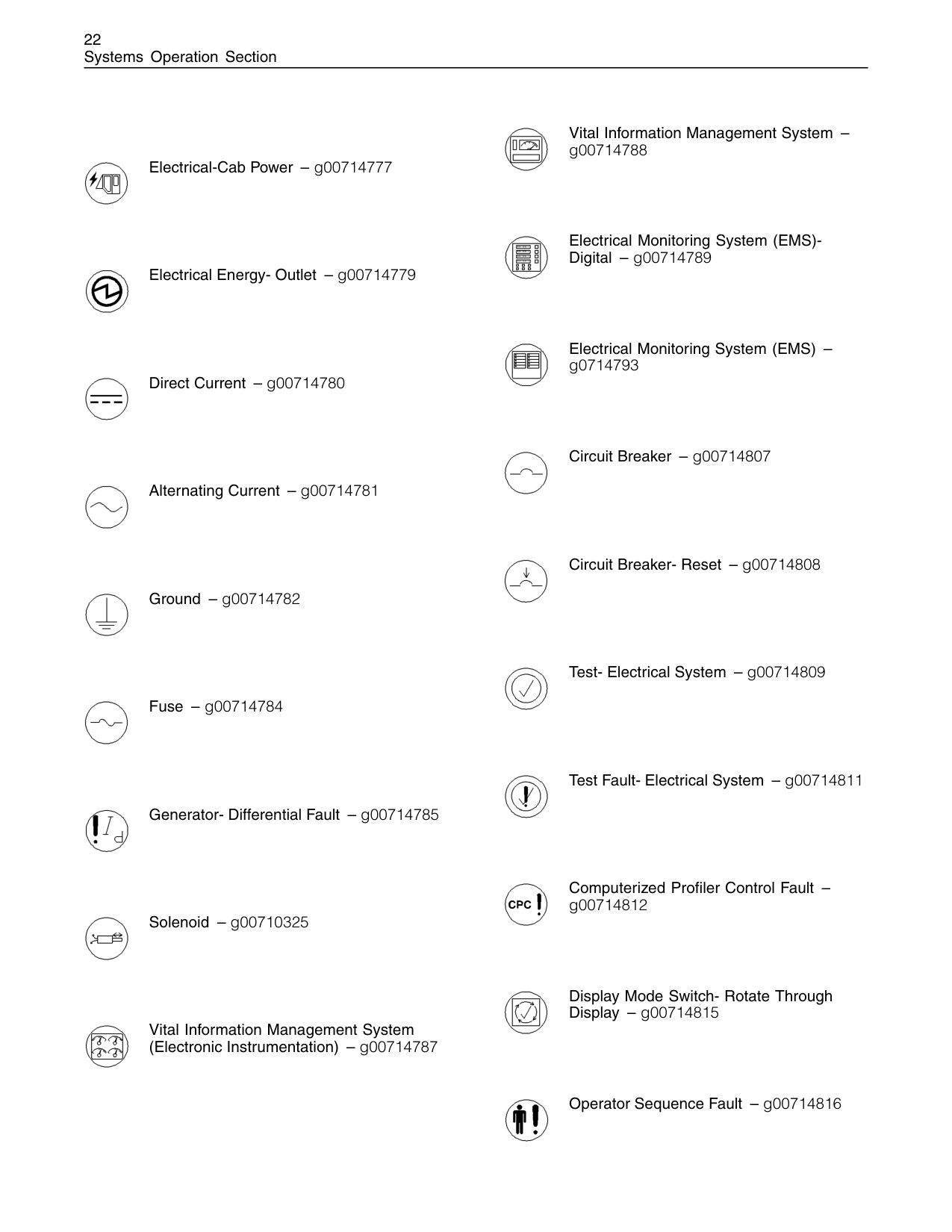

22 Systems Operation Section Electrical-Cab Power – g00714777 Electrical Energy- Outlet – g00714779 Direct Current – g00714780 Alternating Current – g00714781 Ground – g00714782 Fuse – g00714784 Generator- Differential Fault – g00714785 Solenoid – g00710325 Vital Information Management System (Electronic Instrumentation) – g00714787 Vital Information Management System – g00714788 Electrical Monitoring System (EMS)- Digital – g00714789 Electrical Monitoring System (EMS) – g0714793 Circuit Breaker – g00714807 Circuit Breaker- Reset – g00714808 Test- Electrical System – g00714809 Test Fault- Electrical System – g00714811 Computerized Profiler Control Fault – g00714812 Display Mode Switch- Rotate Through Display – g00714815 Operator Sequence Fault – g00714816

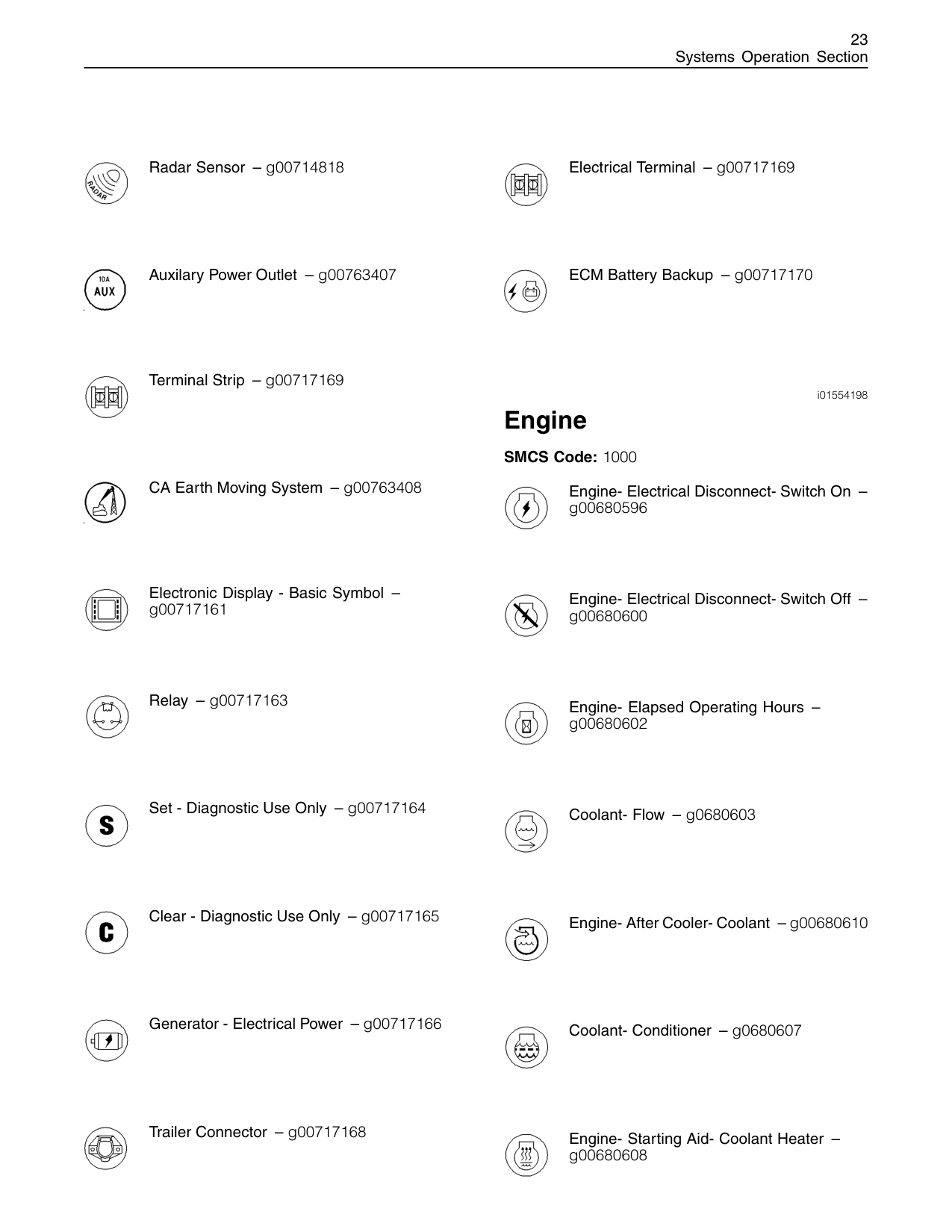

23 Systems Operation Section Radar Sensor – g00714818 Auxilary Power Outlet – g00763407 Terminal Strip – g00717169 CA Earth Moving System – g00763408 Electronic Display - Basic Symbol – g00717161 Relay – g00717163 Set - Diagnostic Use Only – g00717164 Clear - Diagnostic Use Only – g00717165 Generator - Electrical Power – g00717166 Trailer Connector – g00717168 Electrical Terminal – g00717169 ECM Battery Backup – g00717170 i01554198 Engine SMCS Code: 1000 Engine- Electrical Disconnect- Switch On – g00680596 Engine- Electrical Disconnect- Switch Off – g00680600 Engine- Elapsed Operating Hours – g00680602 Coolant- Flow – g0680603 Engine- After Cooler- Coolant – g00680610 Coolant- Conditioner – g0680607 Engine- Starting Aid- Coolant Heater – g00680608

24 Systems Operation Section Engine- Overload – g00680613 Engine- Percent Load – g00680614 Engine- High Idle- Hold – g00680618 Engine- Over Crank – g00680621 Enine- Over Speed – g00680623 Engine- Increased Horsepower – g00680624 Engine- Service – g00680626 Engine- Prelube- Start Pressure – g00680635 Engine- Oil Filter Pressure – g00680637 Engine- Oil Pressure Override – g00680643 Engine Fuel injection- Electronic – g00680644 Engine Fuel Injection- Not Electronic – g00680647 Engine- Rotational Speed- Automatic Control – g00680662 Engine- Coolant- Fan And Shutters – g00680665 Tank- Ethanol- Low – g00680666 Tank- Ethanol- Empty – g00680668 Filter Pressure- Ethanol- Primary – g00680670 Filter Pressure- Ethanol- Secondary – g00680672 Engine- Basic – g00680673

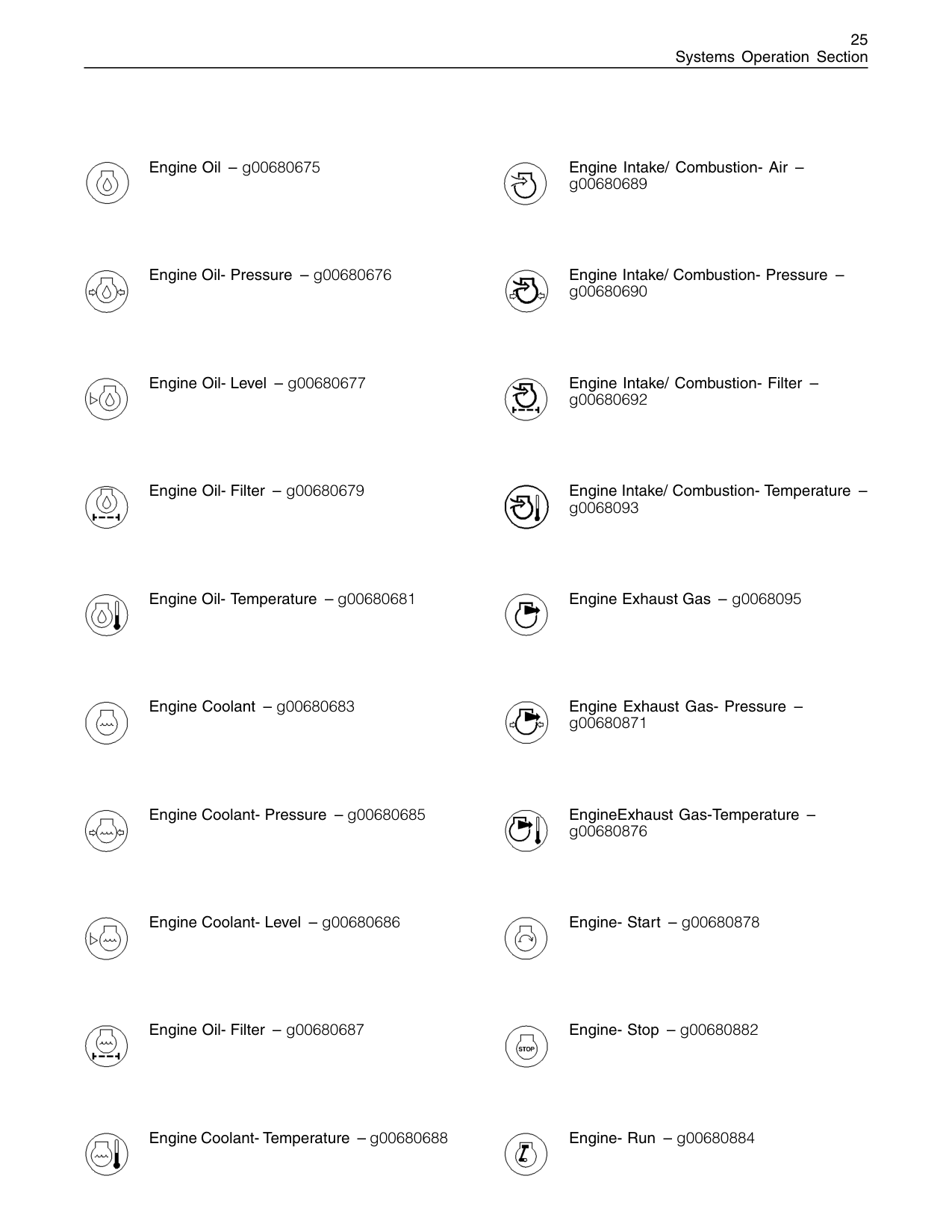

25 Systems Operation Section Engine Oil – g00680675 Engine Oil- Pressure – g00680676 Engine Oil- Level – g00680677 Engine Oil- Filter – g00680679 Engine Oil- Temperature – g00680681 Engine Coolant – g00680683 Engine Coolant- Pressure – g00680685 Engine Coolant- Level – g00680686 Engine Oil- Filter – g00680687 Engine Coolant- Temperature – g00680688 Engine Intake/ Combustion- Air – g00680689 Engine Intake/ Combustion- Pressure – g00680690 Engine Intake/ Combustion- Filter – g00680692 Engine Intake/ Combustion- Temperature – g0068093 Engine Exhaust Gas – g0068095 Engine Exhaust Gas- Pressure – g00680871 EngineExhaust Gas-Temperature – g00680876 Engine- Start – g00680878 Engine- Stop – g00680882 Engine- Run – g00680884

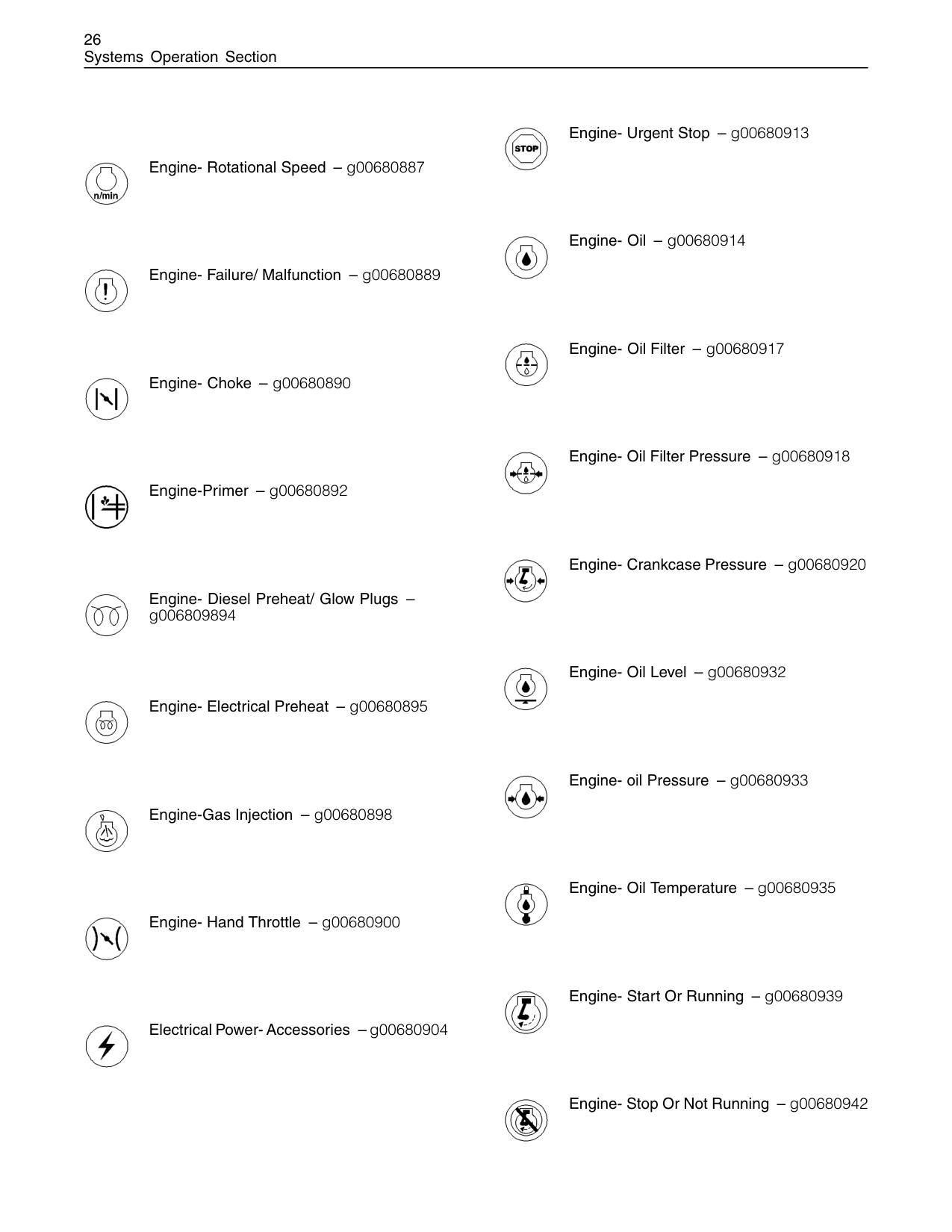

26 Systems Operation Section Engine- Rotational Speed – g00680887 Engine- Failure/ Malfunction – g00680889 Engine- Choke – g00680890 Engine-Primer – g00680892 Engine- Diesel Preheat/ Glow Plugs – g006809894 Engine- Electrical Preheat – g00680895 Engine-Gas Injection – g00680898 Engine- Hand Throttle – g00680900 Electrical Power- Accessories – g00680904 Engine- Urgent Stop – g00680913 Engine- Oil – g00680914 Engine- Oil Filter – g00680917 Engine- Oil Filter Pressure – g00680918 Engine- Crankcase Pressure – g00680920 Engine- Oil Level – g00680932 Engine- oil Pressure – g00680933 Engine- Oil Temperature – g00680935 Engine- Start Or Running – g00680939 Engine- Stop Or Not Running – g00680942

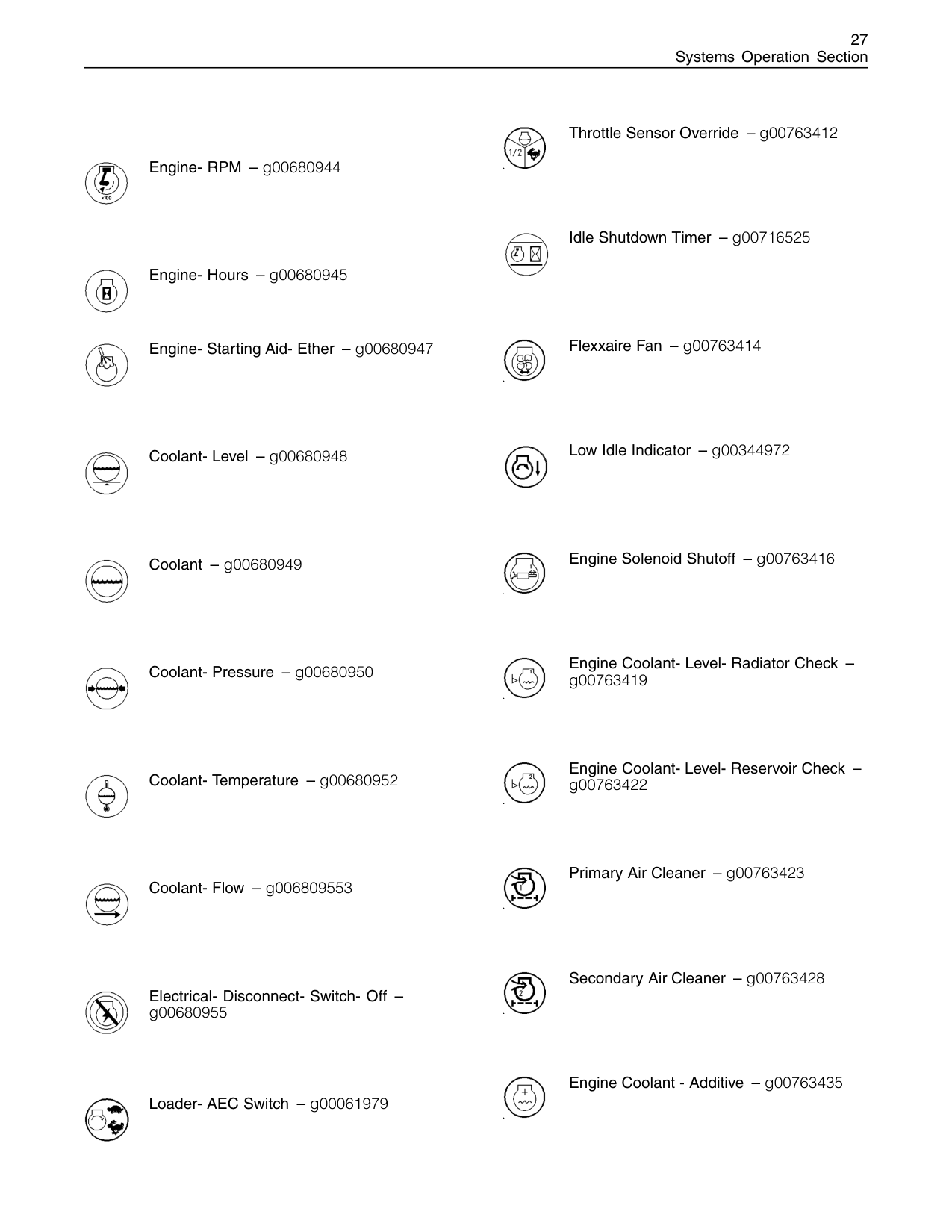

27 Systems Operation Section Engine- RPM – g00680944 Engine- Hours – g00680945 Engine- Starting Aid- Ether – g00680947 Coolant- Level – g00680948 Coolant – g00680949 Coolant- Pressure – g00680950 Coolant- Temperature – g00680952 Coolant- Flow – g006809553 Electrical- Disconnect- Switch- Off – g00680955 Loader- AEC Switch – g00061979 Throttle Sensor Override – g00763412 Idle Shutdown Timer – g00716525 Flexxaire Fan – g00763414 Low Idle Indicator – g00344972 Engine Solenoid Shutoff – g00763416 Engine Coolant- Level- Radiator Check – g00763419 Engine Coolant- Level- Reservoir Check – g00763422 Primary Air Cleaner – g00763423 Secondary Air Cleaner – g00763428 Engine Coolant - Additive – g00763435

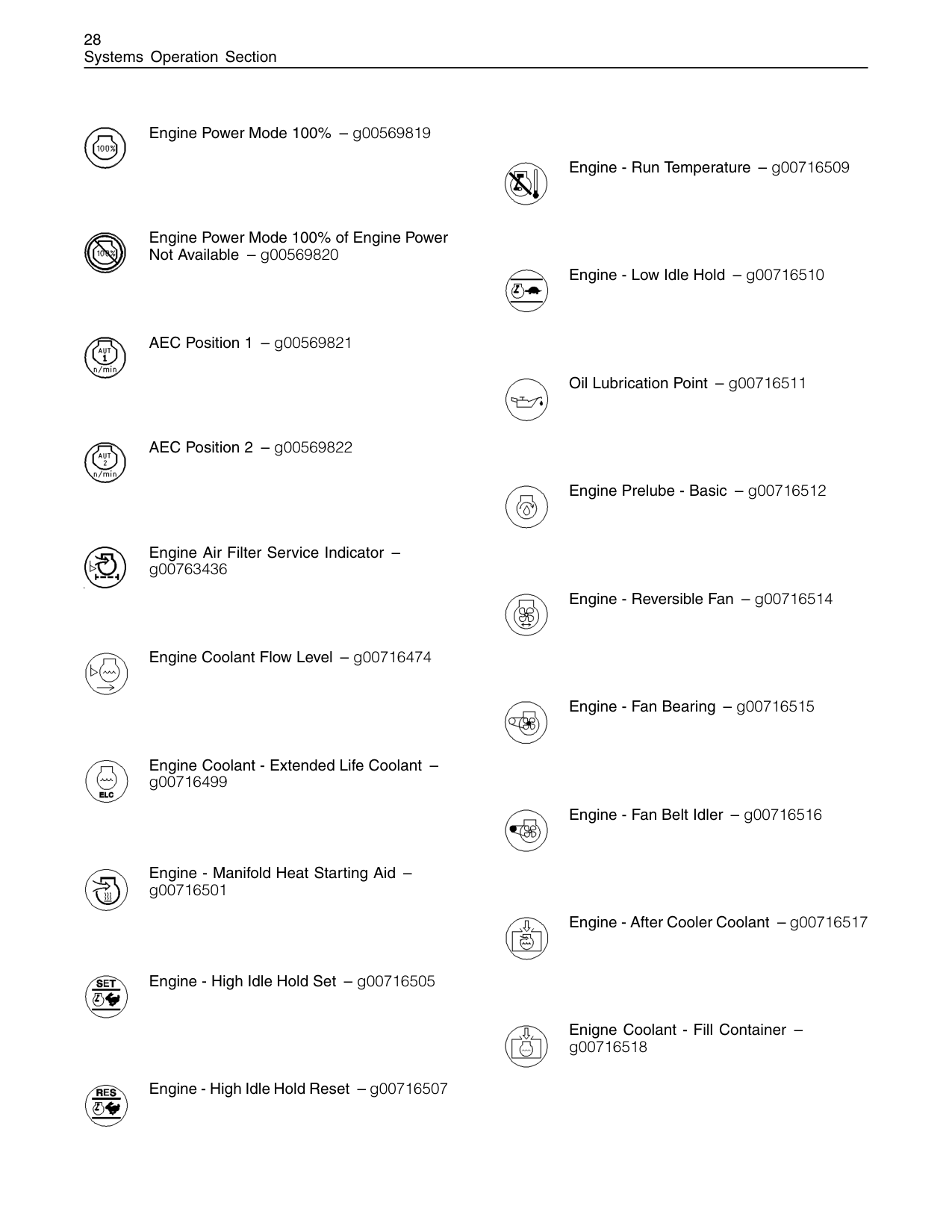

28 Systems Operation Section Engine Power Mode 100% – g00569819 Engine Power Mode 100% of Engine Power Not Available – g00569820 AEC Position 1 – g00569821 AEC Position 2 – g00569822 Engine Air Filter Service Indicator – g00763436 Engine Coolant Flow Level – g00716474 Engine Coolant - Extended Life Coolant – g00716499 Engine - Manifold Heat Starting Aid – g00716501 Engine - High Idle Hold Set – g00716505 Engine - High Idle Hold Reset – g00716507 Engine - Run Temperature – g00716509 Engine - Low Idle Hold – g00716510 Oil Lubrication Point – g00716511 Engine Prelube - Basic – g00716512 Engine - Reversible Fan – g00716514 Engine - Fan Bearing – g00716515 Engine - Fan Belt Idler – g00716516 Engine - After Cooler Coolant – g00716517 Enigne Coolant - Fill Container – g00716518

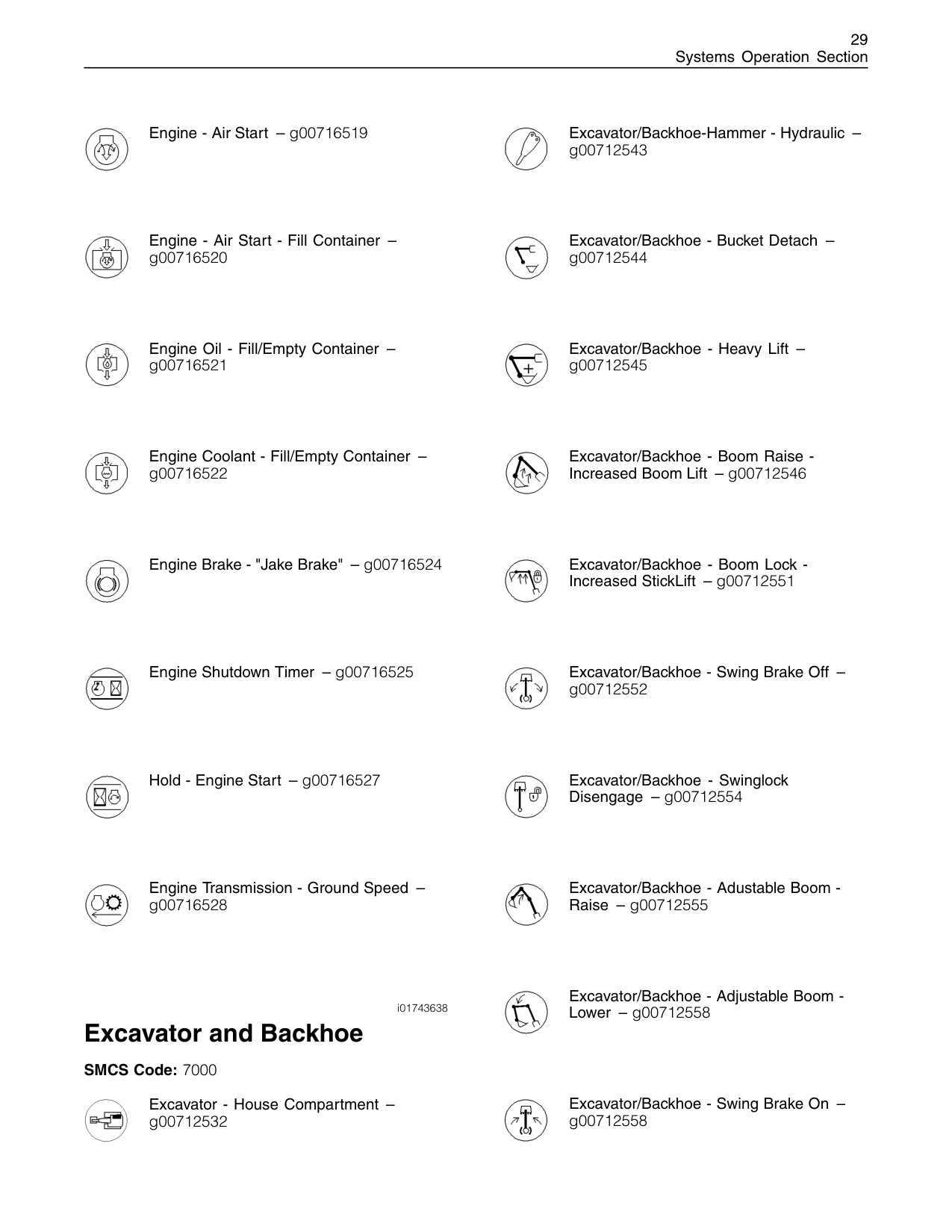

29 Systems Operation Section Engine - Air Start – g00716519 Engine - Air Start - Fill Container – g00716520 Engine Oil - Fill/Empty Container – g00716521 Engine Coolant - Fill/Empty Container – g00716522 Engine Brake - "Jake Brake" – g00716524 Engine Shutdown Timer – g00716525 Hold - Engine Start – g00716527 Engine Transmission - Ground Speed – g00716528 i01743638 Excavator and Backhoe SMCS Code: 7000 Excavator - House Compartment – g00712532 Excavator/Backhoe-Hammer - Hydraulic – g00712543 Excavator/Backhoe - Bucket Detach – g00712544 Excavator/Backhoe - Heavy Lift – g00712545 Excavator/Backhoe - Boom Raise - Increased Boom Lift – g00712546 Excavator/Backhoe - Boom Lock - Increased StickLift – g00712551 Excavator/Backhoe - Swing Brake Off – g00712552 Excavator/Backhoe - Swinglock Disengage – g00712554 Excavator/Backhoe - Adustable Boom - Raise – g00712555 Excavator/Backhoe - Adjustable Boom - Lower – g00712558 Excavator/Backhoe - Swing Brake On – g00712558

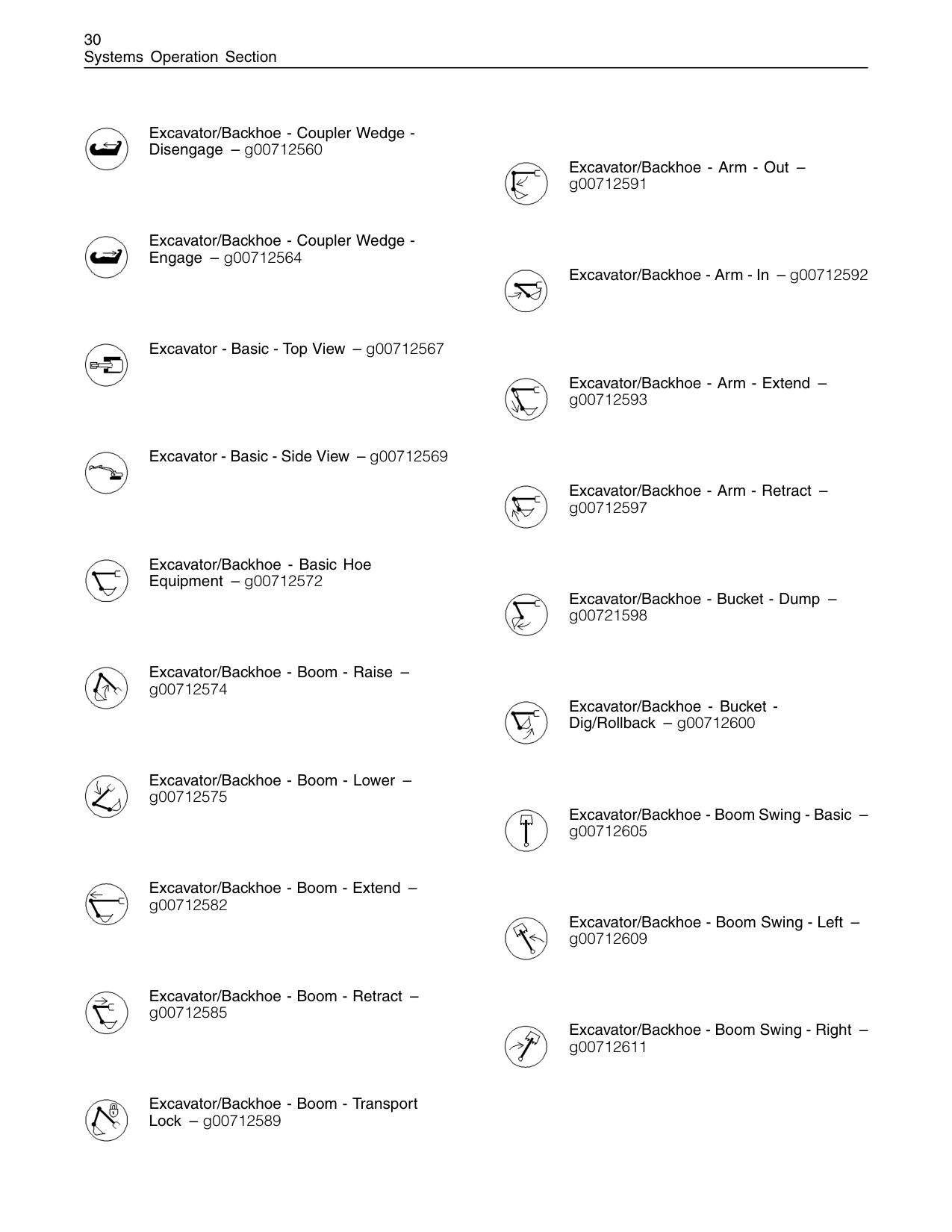

30 Systems Operation Section Excavator/Backhoe - Coupler Wedge - Disengage – g00712560 Excavator/Backhoe - Coupler Wedge - Engage – g00712564 Excavator - Basic - Top View – g00712567 Excavator - Basic - Side View – g00712569 Excavator/Backhoe - Basic Hoe Equipment – g00712572 Excavator/Backhoe - Boom - Raise – g00712574 Excavator/Backhoe - Boom - Lower – g00712575 Excavator/Backhoe - Boom - Extend – g00712582 Excavator/Backhoe - Boom - Retract – g00712585 Excavator/Backhoe - Boom - Transport Lock – g00712589 Excavator/Backhoe - Arm - Out – g00712591 Excavator/Backhoe - Arm - In – g00712592 Excavator/Backhoe - Arm - Extend – g00712593 Excavator/Backhoe - Arm - Retract – g00712597 Excavator/Backhoe - Bucket - Dump – g00721598 Excavator/Backhoe - Bucket - Dig/Rollback – g00712600 Excavator/Backhoe - Boom Swing - Basic – g00712605 Excavator/Backhoe - Boom Swing - Left – g00712609 Excavator/Backhoe - Boom Swing - Right – g00712611

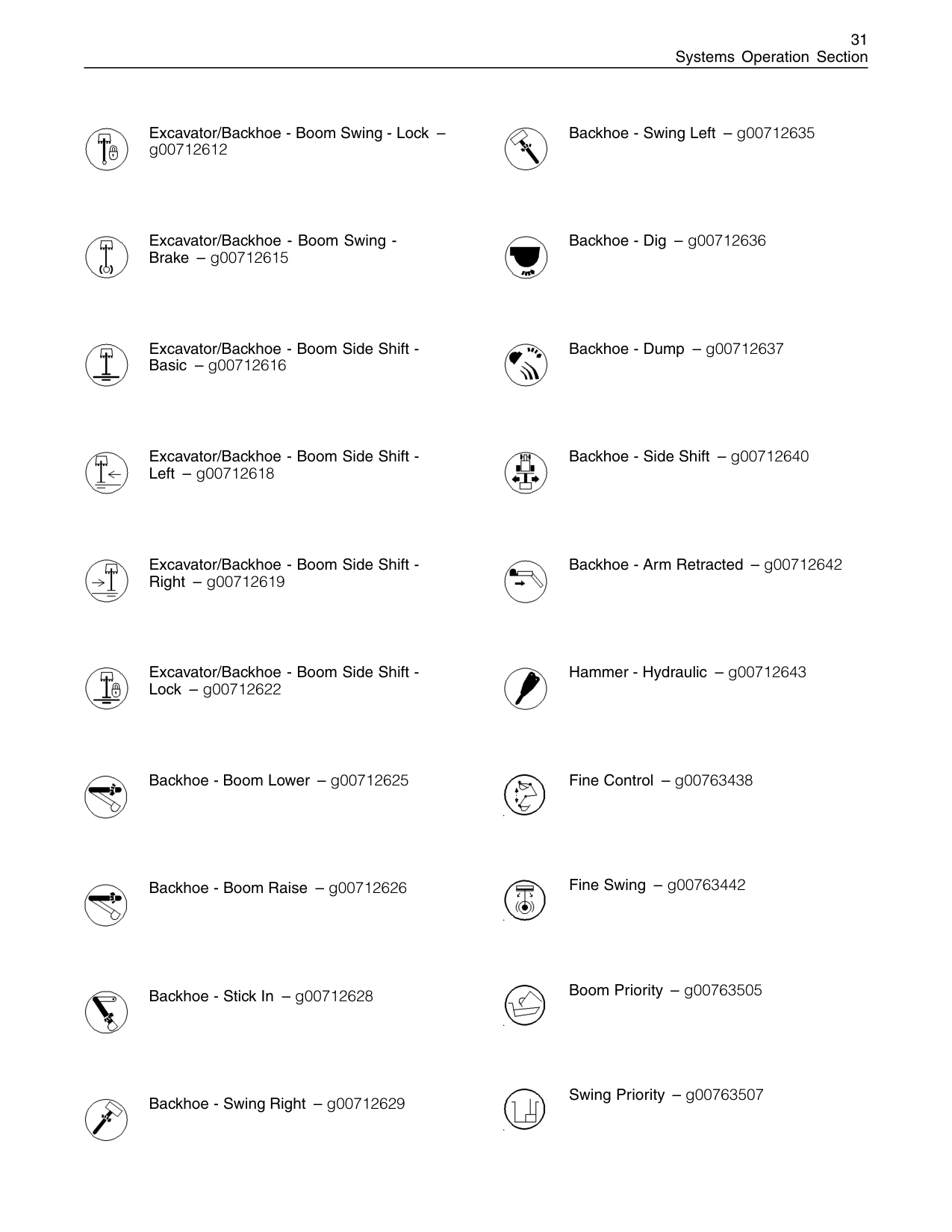

31 Systems Operation Section Excavator/Backhoe - Boom Swing - Lock – g00712612 Excavator/Backhoe - Boom Swing - Brake – g00712615 Excavator/Backhoe - Boom Side Shift - Basic – g00712616 Excavator/Backhoe - Boom Side Shift - Left – g00712618 Excavator/Backhoe - Boom Side Shift - Right – g00712619 Excavator/Backhoe - Boom Side Shift - Lock – g00712622 Backhoe - Boom Lower – g00712625 Backhoe - Boom Raise – g00712626 Backhoe - Stick In – g00712628 Backhoe - Swing Right – g00712629 Backhoe - Swing Left – g00712635 Backhoe - Dig – g00712636 Backhoe - Dump – g00712637 Backhoe - Side Shift – g00712640 Backhoe - Arm Retracted – g00712642 Hammer - Hydraulic – g00712643 Fine Control – g00763438 Fine Swing – g00763442 Boom Priority – g00763505 Swing Priority – g00763507

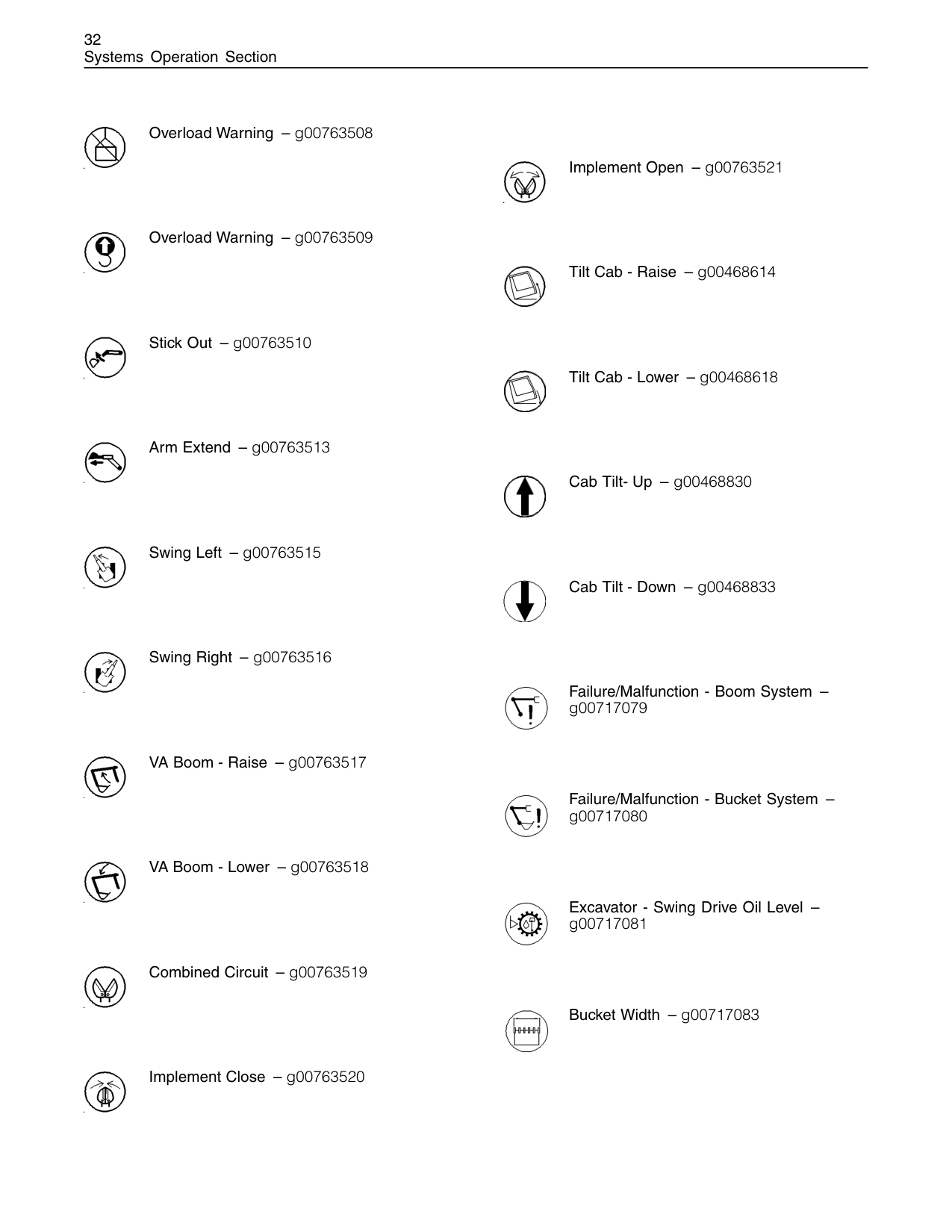

32 Systems Operation Section Overload Warning – g00763508 Overload Warning – g00763509 Stick Out – g00763510 Arm Extend – g00763513 Swing Left – g00763515 Swing Right – g00763516 VA Boom - Raise – g00763517 VA Boom - Lower – g00763518 Combined Circuit – g00763519 Implement Close – g00763520 Implement Open – g00763521 Tilt Cab - Raise – g00468614 Tilt Cab - Lower – g00468618 Cab Tilt- Up – g00468830 Cab Tilt - Down – g00468833 Failure/Malfunction - Boom System – g00717079 Failure/Malfunction - Bucket System – g00717080 Excavator - Swing Drive Oil Level – g00717081 Bucket Width – g00717083

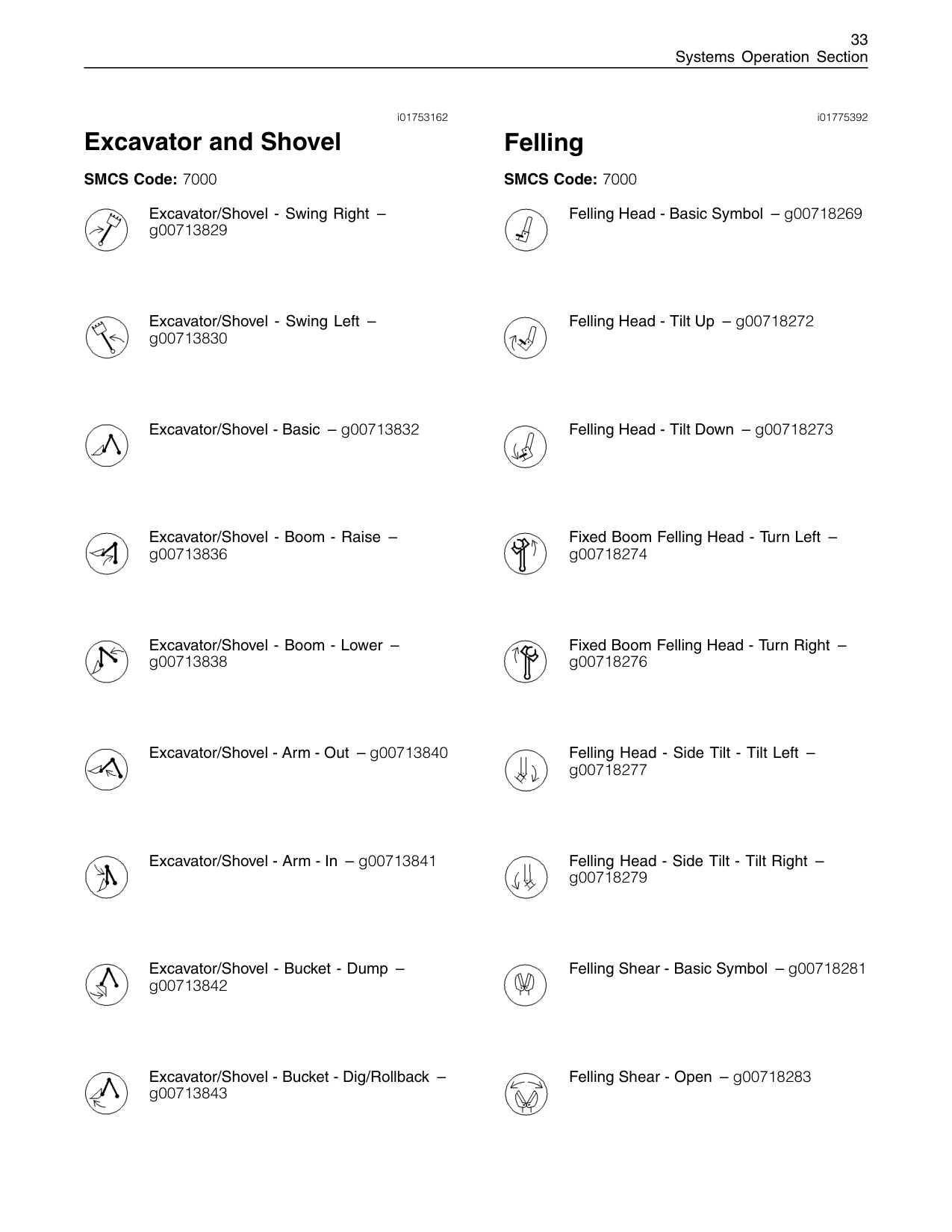

33 Systems Operation Section i01753162 Excavator and Shovel SMCS Code: 7000 Excavator/Shovel - Swing Right – g00713829 Excavator/Shovel - Swing Left – g00713830 Excavator/Shovel - Basic – g00713832 Excavator/Shovel - Boom - Raise – g00713836 Excavator/Shovel - Boom - Lower – g00713838 Excavator/Shovel - Arm - Out – g00713840 Excavator/Shovel - Arm - In – g00713841 Excavator/Shovel - Bucket - Dump – g00713842 Excavator/Shovel - Bucket - Dig/Rollback – g00713843 i01775392 Felling SMCS Code: 7000 Felling Head - Basic Symbol – g00718269 Felling Head - Tilt Up – g00718272 Felling Head - Tilt Down – g00718273 Fixed Boom Felling Head - Turn Left – g00718274 Fixed Boom Felling Head - Turn Right – g00718276 Felling Head - Side Tilt - Tilt Left – g00718277 Felling Head - Side Tilt - Tilt Right – g00718279 Felling Shear - Basic Symbol – g00718281 Felling Shear - Open – g00718283

34 Systems Operation Section Felling Shear - Close – g00718286 Bunk Jaws/Grab Arms - Basic Symbol – g00718287 Bunk Jaws/Grab Arms - Open – g00718288 Bunk Jaws/Grab Arms - Close – g00718289 Bunk Jaws/Grab Arms - Left Jaw/Arm - Out – g00718290 Bunk Jaws/Grab Arms - Left Jaw/Arm - In – g00718291 Bunk Jaws/Grab Arms - Right Jaw/Arm - Out – g00718292 Bunk Jaws/Grab Arms - Right Jaw/Arm - In – g00718293 Bunk Jaws/Grab Arms - Ropes - Tighten – g00718294 Bunk Jaws/Grab Arms - Ropes - Slacken – g00718295 Felling Shear - Swing Right – g00717131 Felling Shear - Swing Left – g00717133 Felling Shears - Shear Blade Off – g00717135 i01765790 Fuel System SMCS Code: 1000; 7000 Fuel - Gasoline – g00691079 Fuel - Filter Fault – g00691080 Fuel or Fuel System - Basic – g00691780 Fuel - Pressure – g00691786 Fuel - Level – g00691791

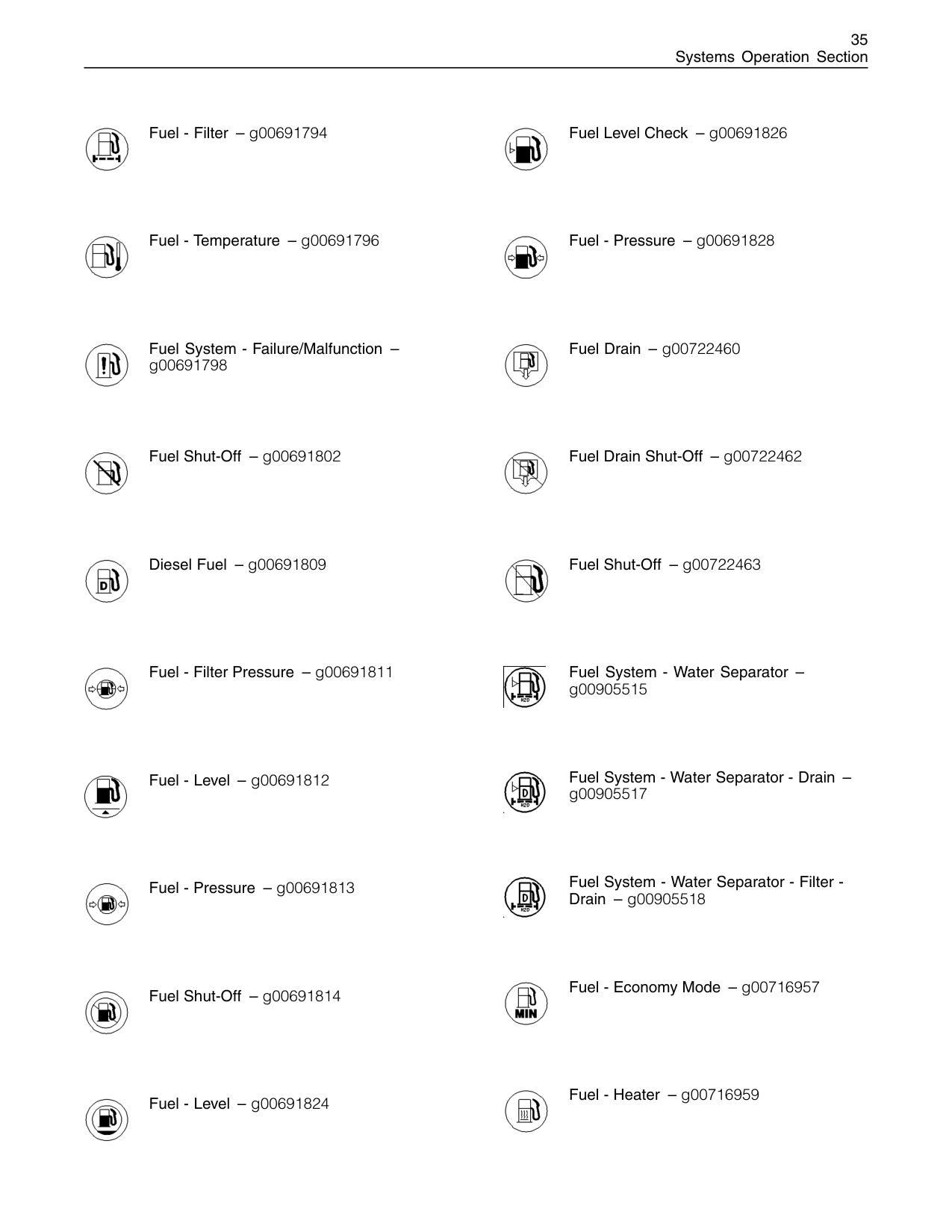

35 Systems Operation Section Fuel - Filter – g00691794 Fuel - Temperature – g00691796 Fuel System - Failure/Malfunction – g00691798 Fuel Shut-Off – g00691802 Diesel Fuel – g00691809 Fuel - Filter Pressure – g00691811 Fuel - Level – g00691812 Fuel - Pressure – g00691813 Fuel Shut-Off – g00691814 Fuel - Level – g00691824 Fuel Level Check – g00691826 Fuel - Pressure – g00691828 Fuel Drain – g00722460 Fuel Drain Shut-Off – g00722462 Fuel Shut-Off – g00722463 Fuel System - Water Separator – g00905515 Fuel System - Water Separator - Drain – g00905517 Fuel System - Water Separator - Filter - Drain – g00905518 Fuel - Economy Mode – g00716957 Fuel - Heater – g00716959

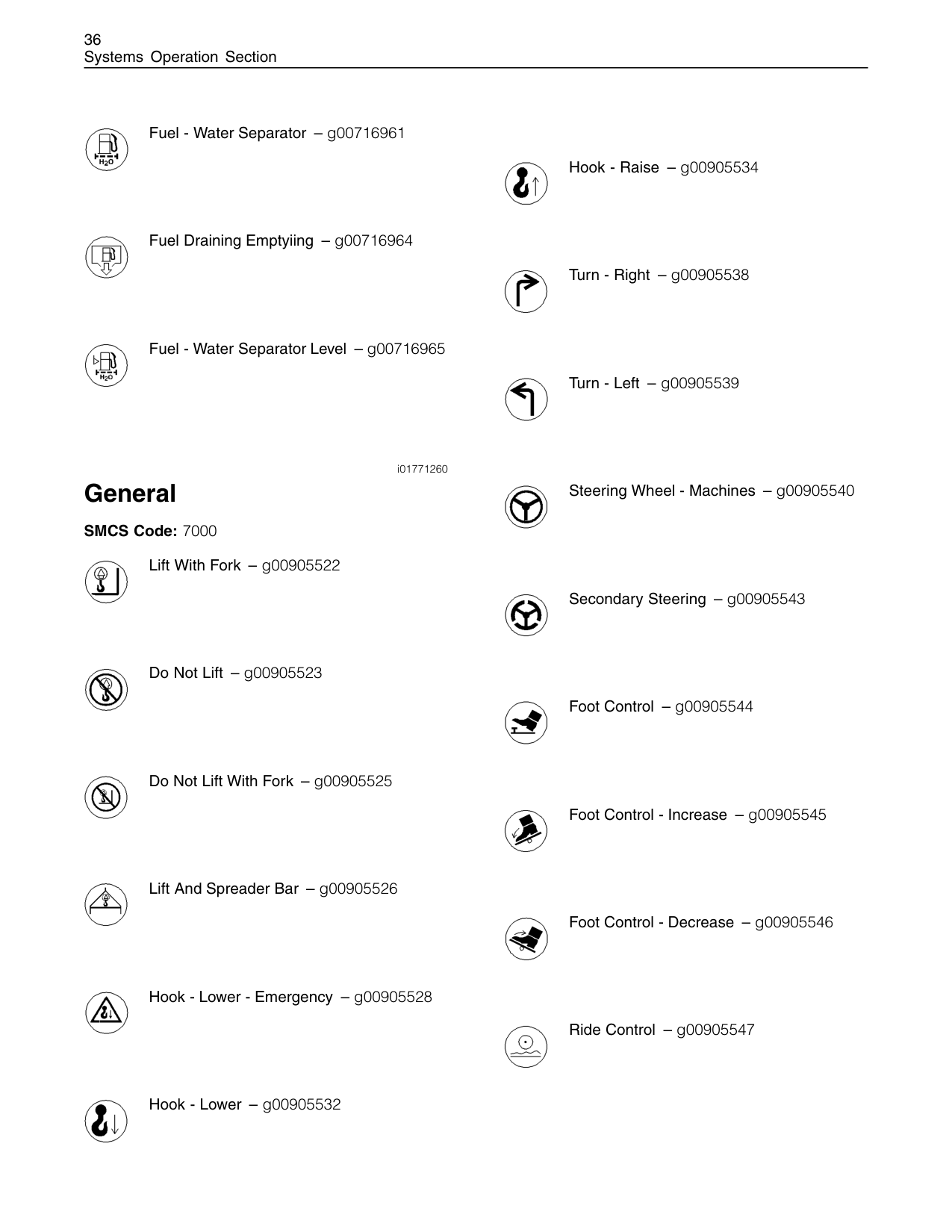

36 Systems Operation Section Fuel - Water Separator – g00716961 Fuel Draining Emptyiing – g00716964 Fuel - Water Separator Level – g00716965 i01771260 General SMCS Code: 7000 Lift With Fork – g00905522 Do Not Lift – g00905523 Do Not Lift With Fork – g00905525 Lift And Spreader Bar – g00905526 Hook - Lower - Emergency – g00905528 Hook - Lower – g00905532 Hook - Raise – g00905534 Turn - Right – g00905538 Turn - Left – g00905539 Steering Wheel - Machines – g00905540 Secondary Steering – g00905543 Foot Control – g00905544 Foot Control - Increase – g00905545 Foot Control - Decrease – g00905546 Ride Control – g00905547

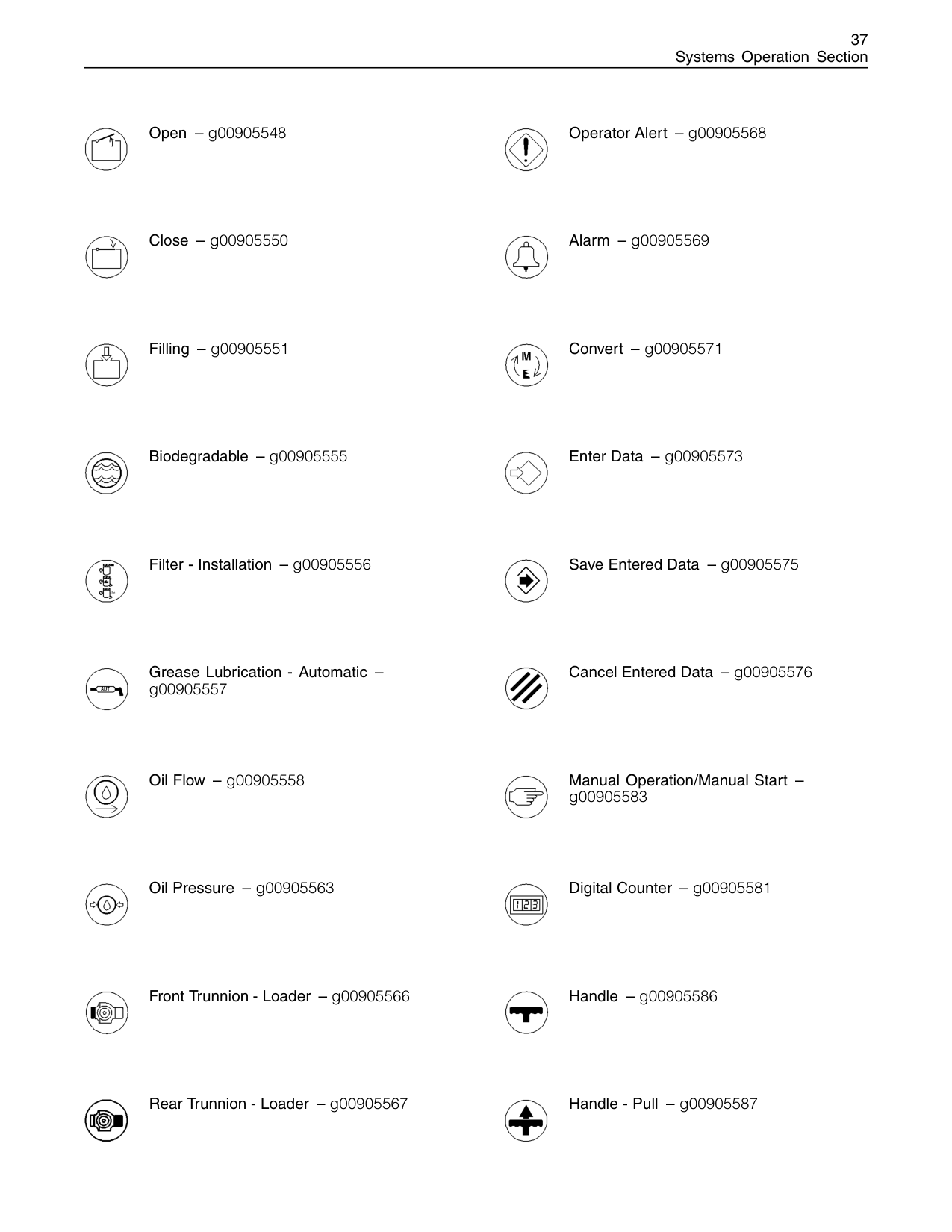

37 Systems Operation Section Open – g00905548 Close – g00905550 Filling – g00905551 Biodegradable – g00905555 Filter - Installation – g00905556 Grease Lubrication - Automatic – g00905557 Oil Flow – g00905558 Oil Pressure – g00905563 Front Trunnion - Loader – g00905566 Rear Trunnion - Loader – g00905567 Operator Alert – g00905568 Alarm – g00905569 Convert – g00905571 Enter Data – g00905573 Save Entered Data – g00905575 Cancel Entered Data – g00905576 Manual Operation/Manual Start – g00905583 Digital Counter – g00905581 Handle – g00905586 Handle - Pull – g00905587

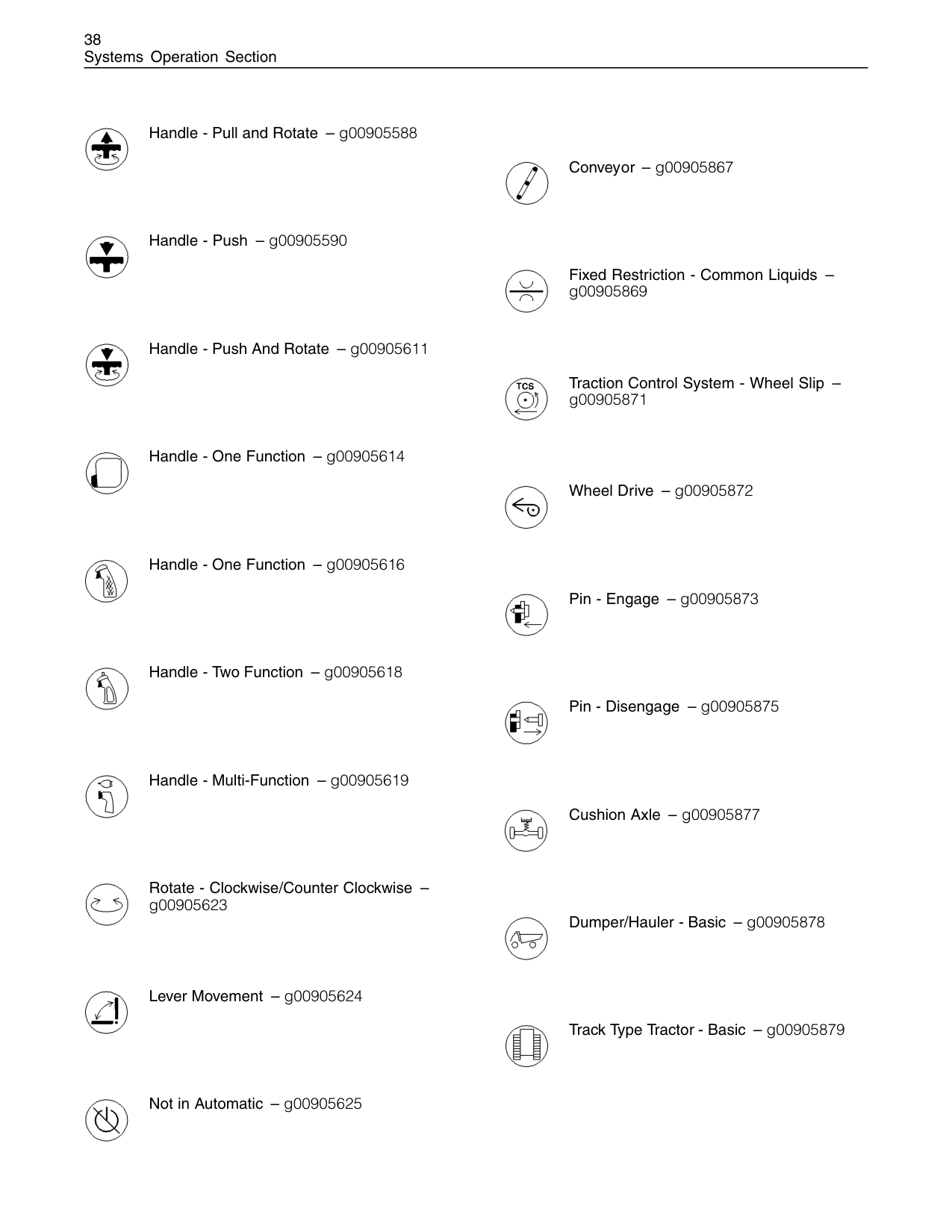

38 Systems Operation Section Handle - Pull and Rotate – g00905588 Handle - Push – g00905590 Handle - Push And Rotate – g00905611 Handle - One Function – g00905614 Handle - One Function – g00905616 Handle - Two Function – g00905618 Handle - Multi-Function – g00905619 Rotate - Clockwise/Counter Clockwise – g00905623 Lever Movement – g00905624 Not in Automatic – g00905625 Conveyor – g00905867 Fixed Restriction - Common Liquids – g00905869 Traction Control System - Wheel Slip – g00905871 Wheel Drive – g00905872 Pin - Engage – g00905873 Pin - Disengage – g00905875 Cushion Axle – g00905877 Dumper/Hauler - Basic – g00905878 Track Type Tractor - Basic – g00905879

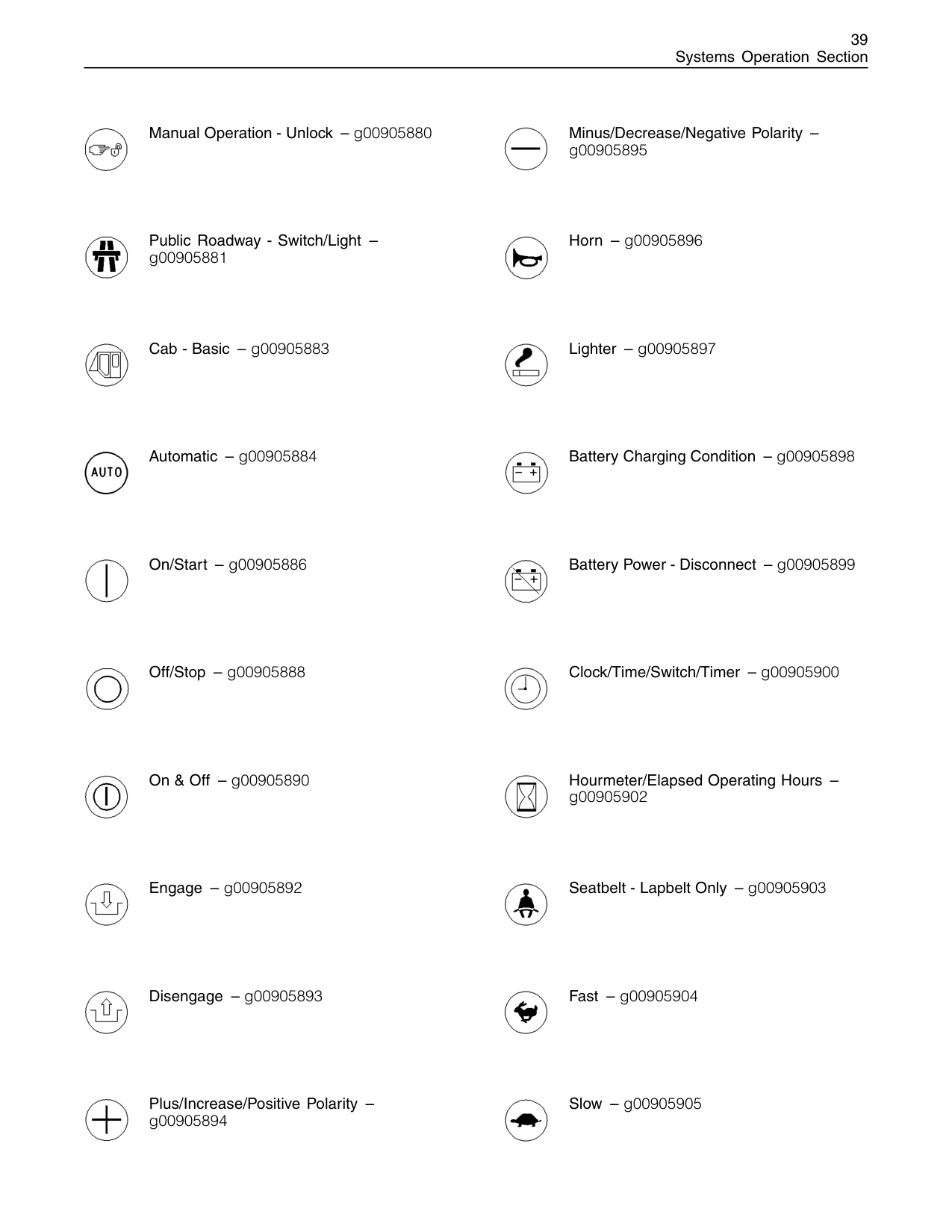

39 Systems Operation Section Manual Operation - Unlock – g00905880 Public Roadway - Switch/Light – g00905881 Cab - Basic – g00905883 Automatic – g00905884 On/Start – g00905886 Off/Stop – g00905888 On & Off – g00905890 Engage – g00905892 Disengage – g00905893 Plus/Increase/Positive Polarity – g00905894 Minus/Decrease/Negative Polarity – g00905895 Horn – g00905896 Lighter – g00905897 Battery Charging Condition – g00905898 Battery Power - Disconnect – g00905899 Clock/Time/Switch/Timer – g00905900 Hourmeter/Elapsed Operating Hours – g00905902 Seatbelt - Lapbelt Only – g00905903 Fast – g00905904 Slow – g00905905

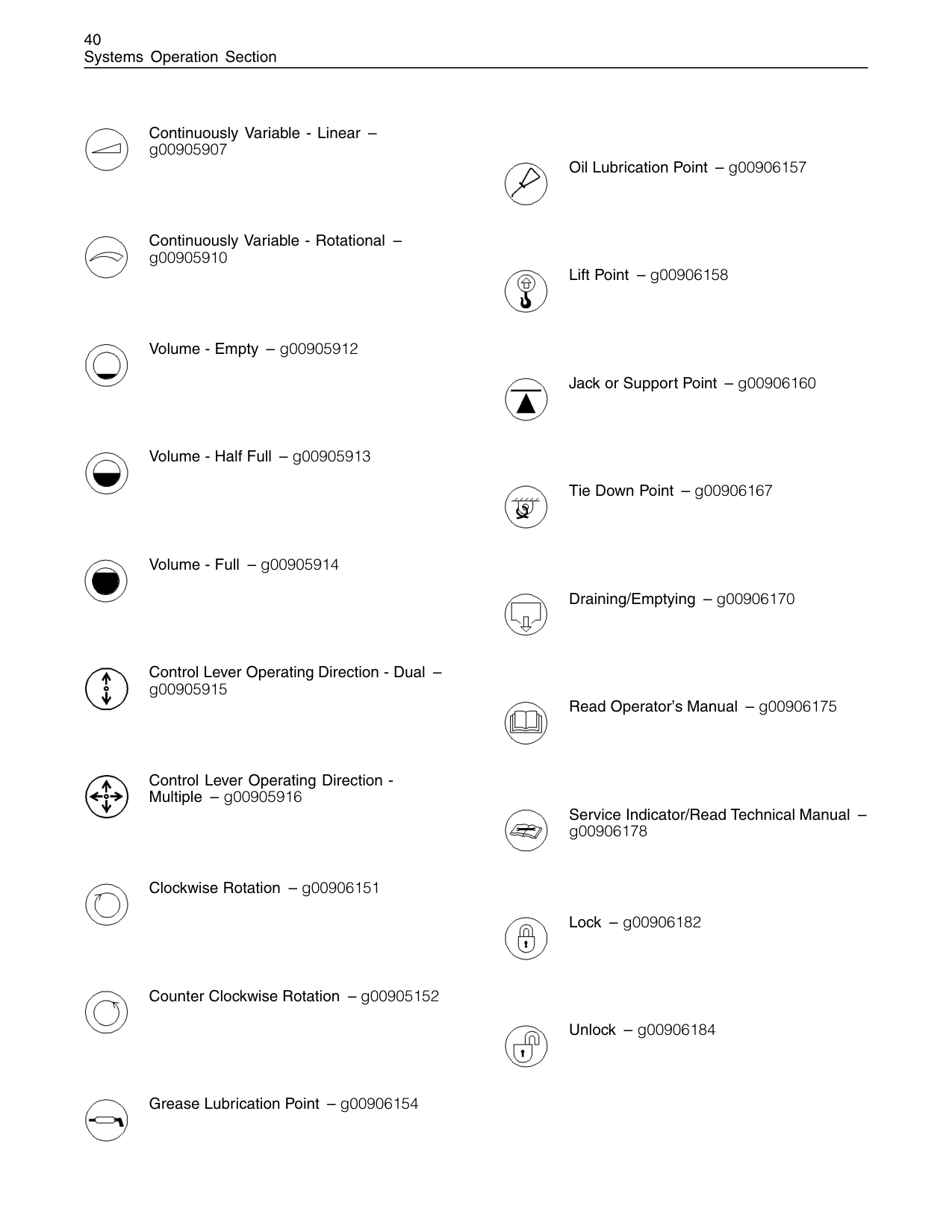

40 Systems Operation Section Continuously Variable - Linear – g00905907 Continuously Variable - Rotational – g00905910 Volume - Empty – g00905912 Volume - Half Full – g00905913 Volume - Full – g00905914 Control Lever Operating Direction - Dual – g00905915 Control Lever Operating Direction - Multiple – g00905916 Clockwise Rotation – g00906151 Counter Clockwise Rotation – g00905152 Grease Lubrication Point – g00906154 Oil Lubrication Point – g00906157 Lift Point – g00906158 Jack or Support Point – g00906160 Tie Down Point – g00906167 Draining/Emptying – g00906170 Read Operator’s Manual – g00906175 Service Indicator/Read Technical Manual – g00906178 Lock – g00906182 Unlock – g00906184

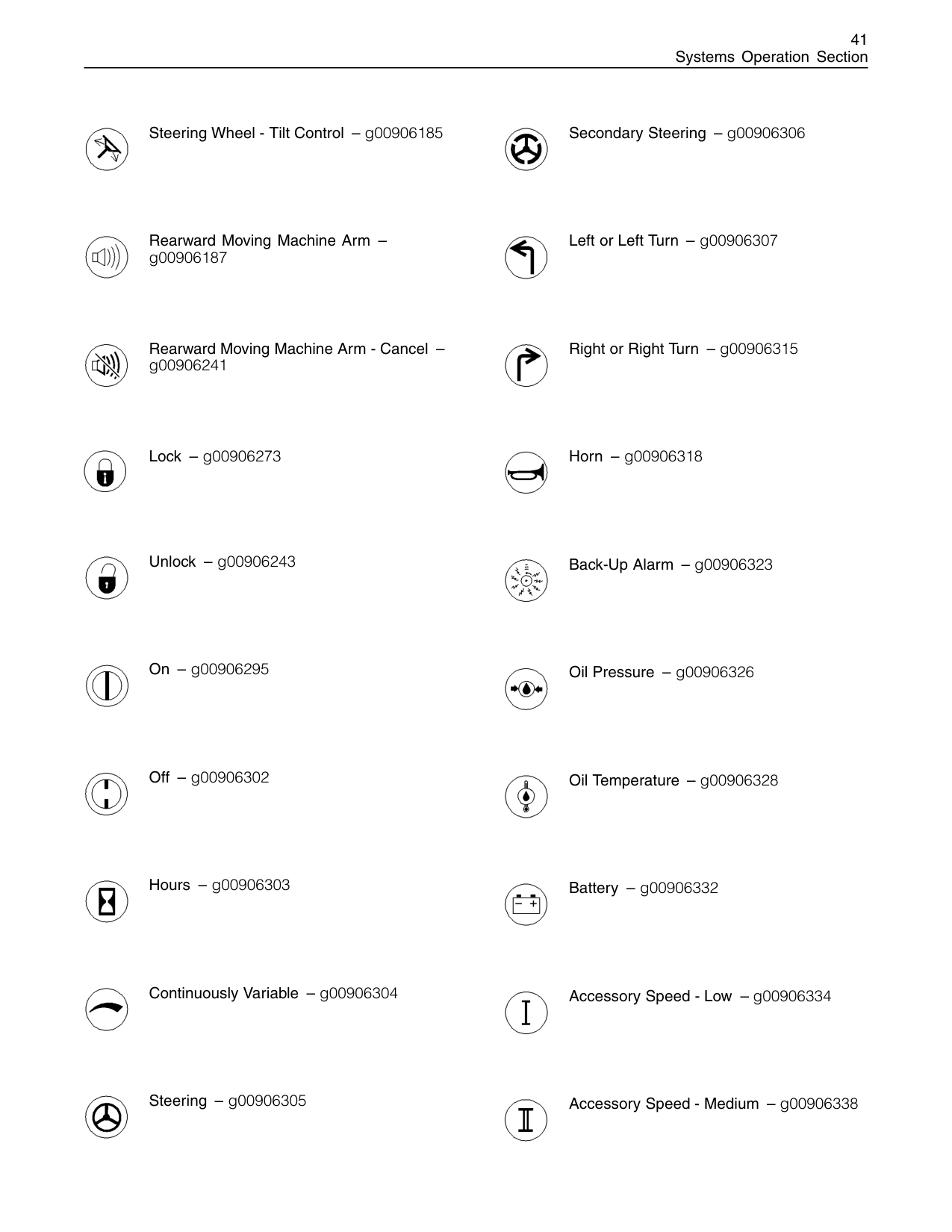

41 Systems Operation Section Steering Wheel - Tilt Control – g00906185 Rearward Moving Machine Arm – g00906187 Rearward Moving Machine Arm - Cancel – g00906241 Lock – g00906273 Unlock – g00906243 On – g00906295 Off – g00906302 Hours – g00906303 Continuously Variable – g00906304 Steering – g00906305 Secondary Steering – g00906306 Left or Left Turn – g00906307 Right or Right Turn – g00906315 Horn – g00906318 Back-Up Alarm – g00906323 Oil Pressure – g00906326 Oil Temperature – g00906328 Battery – g00906332 Accessory Speed - Low – g00906334 Accessory Speed - Medium – g00906338

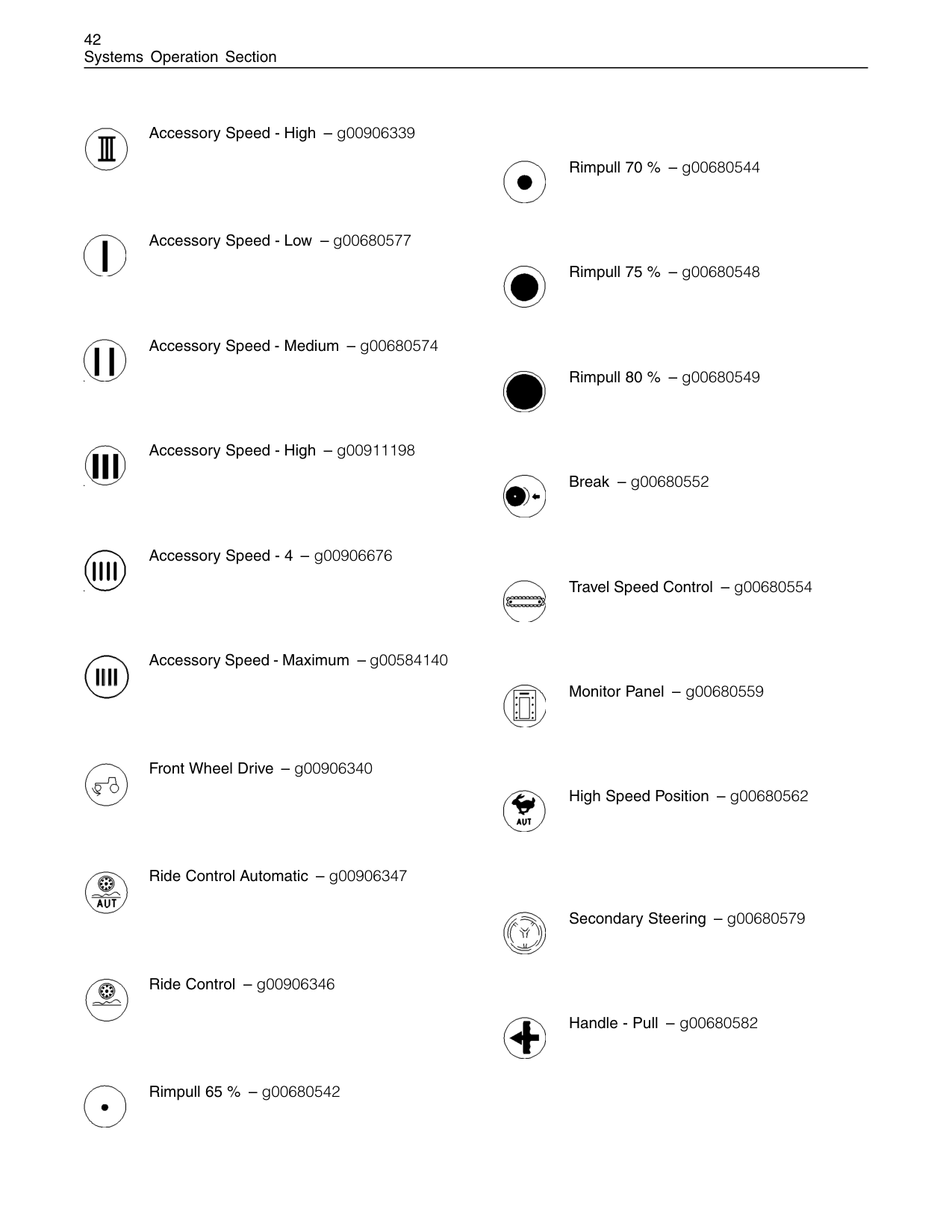

42 Systems Operation Section Accessory Speed - High – g00906339 Accessory Speed - Low – g00680577 Accessory Speed - Medium – g00680574 Accessory Speed - High – g00911198 Accessory Speed - 4 – g00906676 Accessory Speed - Maximum – g00584140 Front Wheel Drive – g00906340 Ride Control Automatic – g00906347 Ride Control – g00906346 Rimpull 65 % – g00680542 Rimpull 70 % – g00680544 Rimpull 75 % – g00680548 Rimpull 80 % – g00680549 Break – g00680552 Travel Speed Control – g00680554 Monitor Panel – g00680559 High Speed Position – g00680562 Secondary Steering – g00680579 Handle - Pull – g00680582

43 Systems Operation Section Handle - Push – g00680585 Torque Converter/Hour Meter – g00680586 Do Not Grease or Lubricate – g00680587 Do Not Grease or Lubricate – g00680593 Hook Hold – g00906665 Increase – g00906666 Decrease – g00906668 Shutters – g00906669 Increase – g00327379 Decrease – g00327380 Foot Control - Increase – g00906671 Foot Control - Decrease – g00906674 Hook Hold – g00447227 Clear – g00451345 OK/Enter – g00451347 Arrow Up – g00451348 Arrow Down – g00451349 Broom Tilt Left – g00906677 Broom Tilt Right – g00906678 Speed Hold Control - On – g00906679

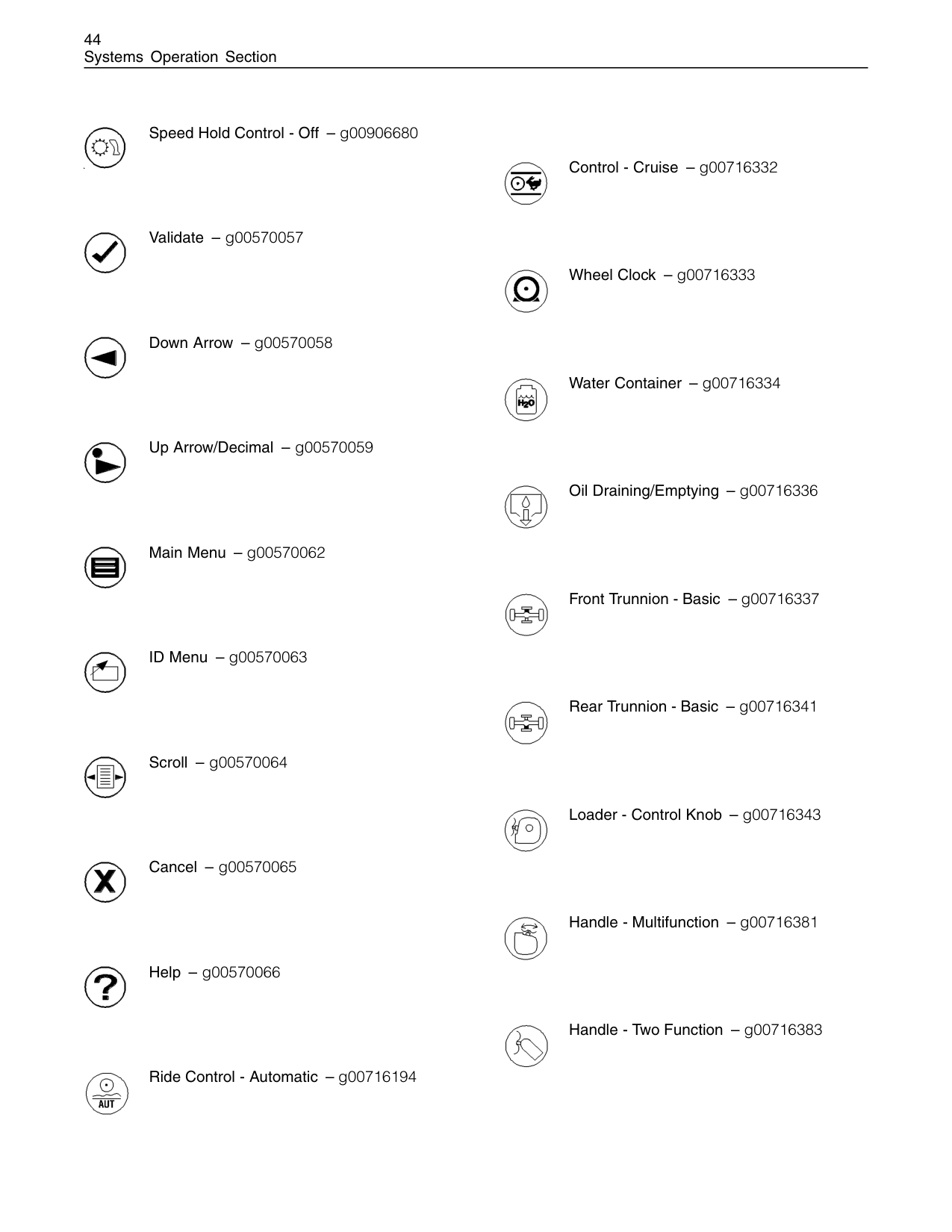

44 Systems Operation Section Speed Hold Control - Off – g00906680 Validate – g00570057 Down Arrow – g00570058 Up Arrow/Decimal – g00570059 Main Menu – g00570062 ID Menu – g00570063 Scroll – g00570064 Cancel – g00570065 Help – g00570066 Ride Control - Automatic – g00716194 Control - Cruise – g00716332 Wheel Clock – g00716333 Water Container – g00716334 Oil Draining/Emptying – g00716336 Front Trunnion - Basic – g00716337 Rear Trunnion - Basic – g00716341 Loader - Control Knob – g00716343 Handle - Multifunction – g00716381 Handle - Two Function – g00716383

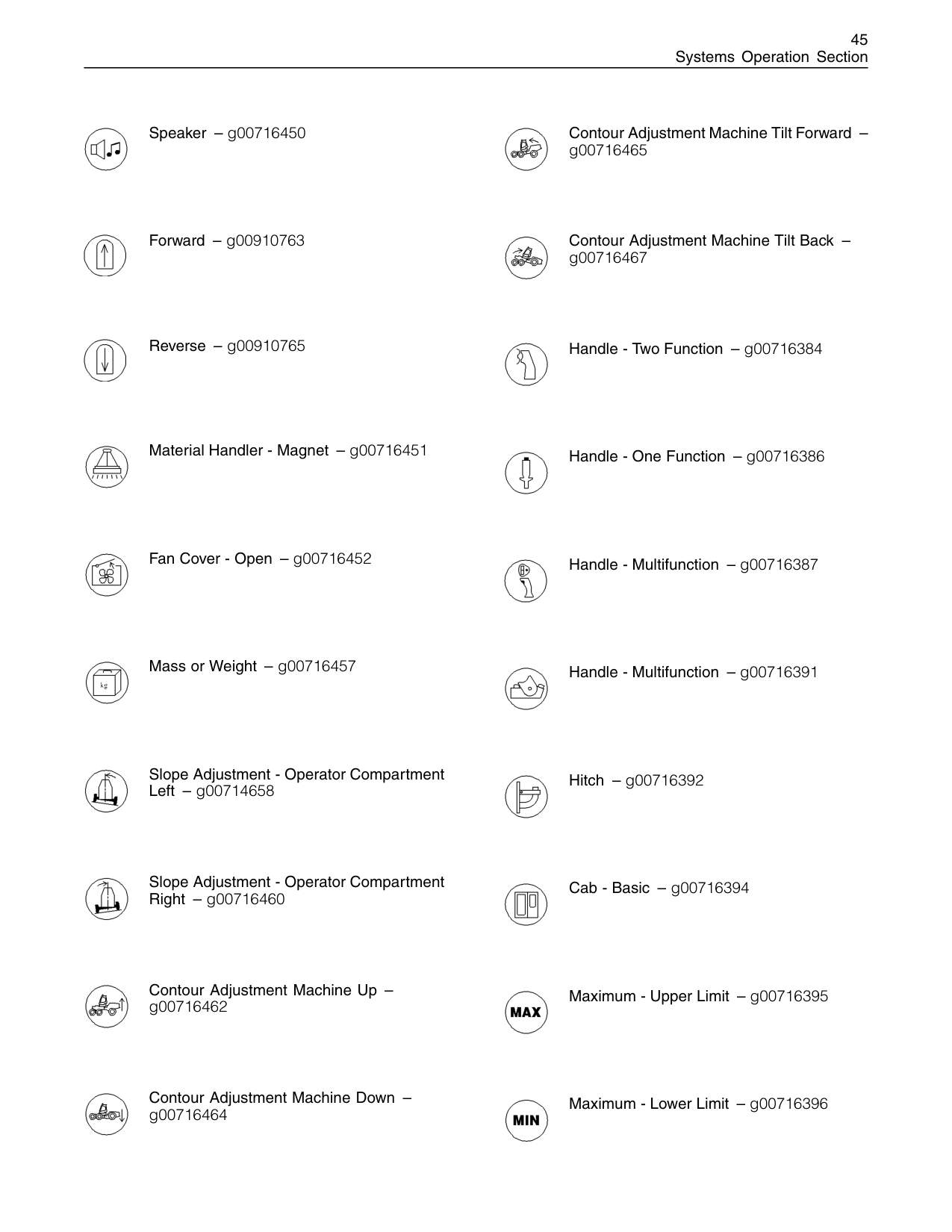

45 Systems Operation Section Speaker – g00716450 Forward – g00910763 Reverse – g00910765 Material Handler - Magnet – g00716451 Fan Cover - Open – g00716452 Mass or Weight – g00716457 Slope Adjustment - Operator Compartment Left – g00714658 Slope Adjustment - Operator Compartment Right – g00716460 Contour Adjustment Machine Up – g00716462 Contour Adjustment Machine Down – g00716464 Contour Adjustment Machine Tilt Forward – g00716465 Contour Adjustment Machine Tilt Back – g00716467 Handle - Two Function – g00716384 Handle - One Function – g00716386 Handle - Multifunction – g00716387 Handle - Multifunction – g00716391 Hitch – g00716392 Cab - Basic – g00716394 Maximum - Upper Limit – g00716395 Maximum - Lower Limit – g00716396

46 Systems Operation Section Alarm Off – g00716397 Do Not Overload When Lifting – g00716398 Grease Lubrication - Automatic - Container Full – g00716399 Grease Lubrication - Automatic - Container Empty – g00716400 Grease Lubrication - Automatic - Fill Container – g00716404 Grease Lubrication - Automatic - Failure/Malfunction – g00716408 Grease Lubrication - Automatic - Auxiliary – g00716410 Grease Lubrication - Autolube Pressure – g00716412 Steering Cylinder - Cap End - Grease Lubrication Point – g00716438 Steering Cylinder - Rod End - Grease Lubrication Point – g00716439 Ladder Position - Down – g00716441 Ethanol System Leak – g00716442 Filter Pressure - Ethanol - Primary (Not intended to be used as a fuel filter) – g00716444 Filter Pressure - Ethanol - Secondary (Not intended to be used as a fuel filter) – g00716447 Tank - Ethanol - Low – g00910564 Tank - Ethanol - Empty – g00910566 i01773776 Grader SMCS Code: 7000 Grader Wheel Drive - Front – g00696280 Wheel - Hold – g00696283

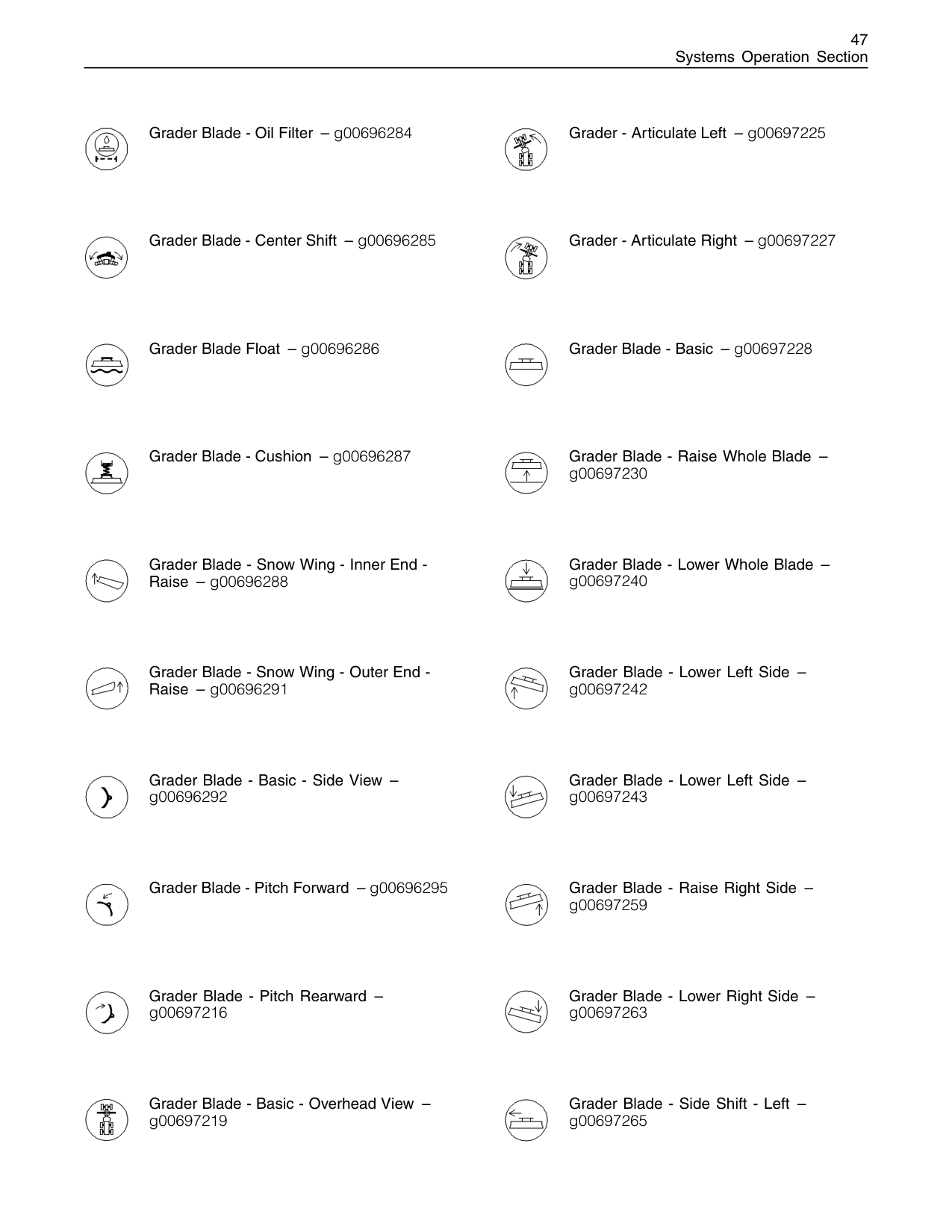

47 Systems Operation Section Grader Blade - Oil Filter – g00696284 Grader Blade - Center Shift – g00696285 Grader Blade Float – g00696286 Grader Blade - Cushion – g00696287 Grader Blade - Snow Wing - Inner End - Raise – g00696288 Grader Blade - Snow Wing - Outer End - Raise – g00696291 Grader Blade - Basic - Side View – g00696292 Grader Blade - Pitch Forward – g00696295 Grader Blade - Pitch Rearward – g00697216 Grader Blade - Basic - Overhead View – g00697219 Grader - Articulate Left – g00697225 Grader - Articulate Right – g00697227 Grader Blade - Basic – g00697228 Grader Blade - Raise Whole Blade – g00697230 Grader Blade - Lower Whole Blade – g00697240 Grader Blade - Lower Left Side – g00697242 Grader Blade - Lower Left Side – g00697243 Grader Blade - Raise Right Side – g00697259 Grader Blade - Lower Right Side – g00697263 Grader Blade - Side Shift - Left – g00697265

48 Systems Operation Section Grader Blade - Side Shift - Right – g00697268 Grader Blade Circle - Rotate Clockwise – g00697271 Grader Blade Circle - Rotate Counter Clockwise – g00697274 Grader Blade Circle - Shift Left – g00697277 Grader Blade Circle - Shift Right – g00697278 Grader Wheel Lean - Left – g00697280 Grader Wheel Lean - Right – g00697282 All Wheel Drive – g00189287 Overload Warning – g00906925 Front Scarifier - Basic – g00714446 Front Scarifier - Raise – g00714448 Front Scarifier - Lower – g00714450 Rear Scarifier - Basic – g00714451 Rear Scarifier - Raise – g00714453 Rear Scarifier - Lower – g00714454 i01773794 Hydraulic System SMCS Code: 7000 Accumulator Pressure - Gas Charged – g00681170 Hydraulic - Auxiliary Circuit – g00681176 Hydraulic Oil - Filter Pressure – g00681177

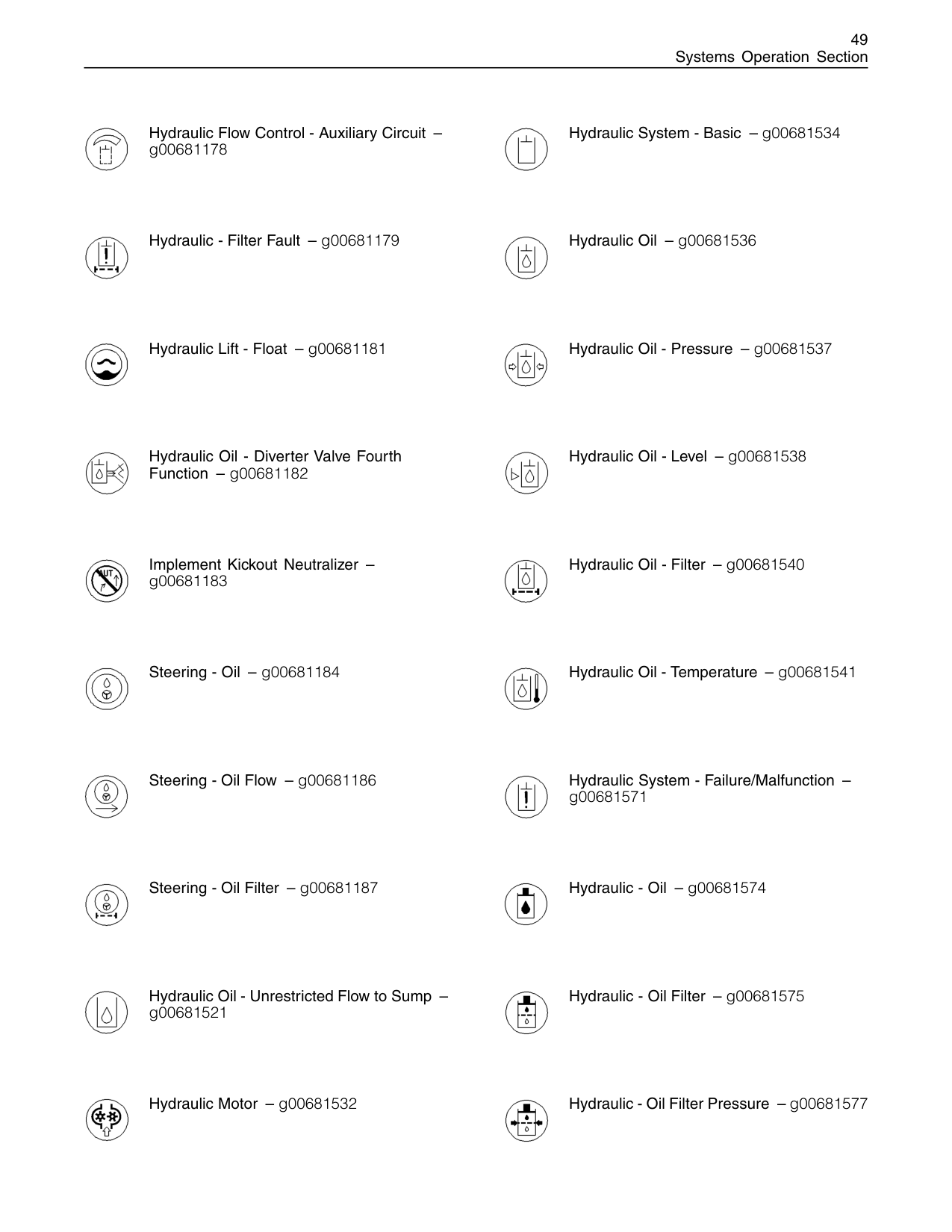

49 Systems Operation Section Hydraulic Flow Control - Auxiliary Circuit – g00681178 Hydraulic - Filter Fault – g00681179 Hydraulic Lift - Float – g00681181 Hydraulic Oil - Diverter Valve Fourth Function – g00681182 Implement Kickout Neutralizer – g00681183 Steering - Oil – g00681184 Steering - Oil Flow – g00681186 Steering - Oil Filter – g00681187 Hydraulic Oil - Unrestricted Flow to Sump – g00681521 Hydraulic Motor – g00681532 Hydraulic System - Basic – g00681534 Hydraulic Oil – g00681536 Hydraulic Oil - Pressure – g00681537 Hydraulic Oil - Level – g00681538 Hydraulic Oil - Filter – g00681540 Hydraulic Oil - Temperature – g00681541 Hydraulic System - Failure/Malfunction – g00681571 Hydraulic - Oil – g00681574 Hydraulic - Oil Filter – g00681575 Hydraulic - Oil Filter Pressure – g00681577

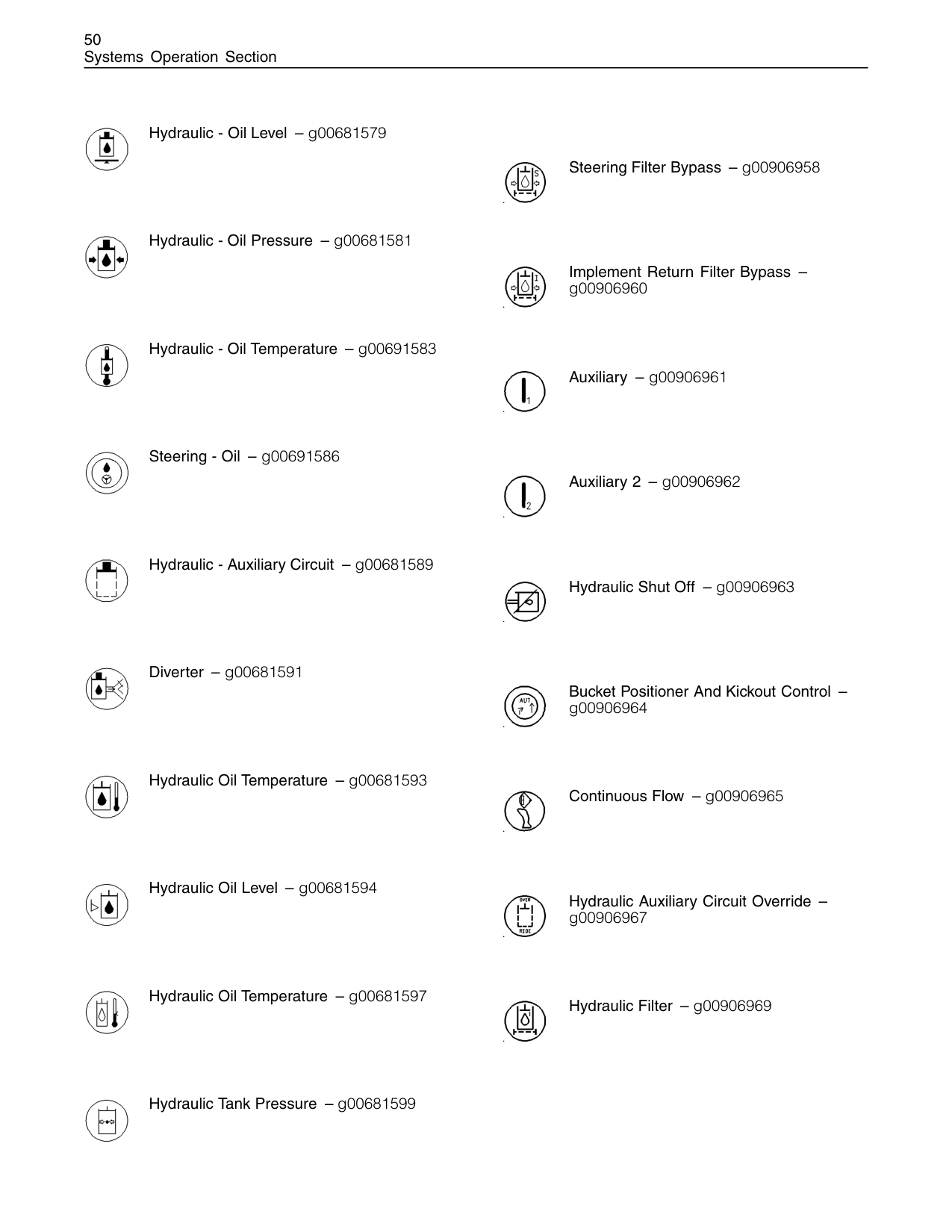

50 Systems Operation Section Hydraulic - Oil Level – g00681579 Hydraulic - Oil Pressure – g00681581 Hydraulic - Oil Temperature – g00691583 Steering - Oil – g00691586 Hydraulic - Auxiliary Circuit – g00681589 Diverter – g00681591 Hydraulic Oil Temperature – g00681593 Hydraulic Oil Level – g00681594 Hydraulic Oil Temperature – g00681597 Hydraulic Tank Pressure – g00681599 Steering Filter Bypass – g00906958 Implement Return Filter Bypass – g00906960 Auxiliary – g00906961 Auxiliary 2 – g00906962 Hydraulic Shut Off – g00906963 Bucket Positioner And Kickout Control – g00906964 Continuous Flow – g00906965 Hydraulic Auxiliary Circuit Override – g00906967 Hydraulic Filter – g00906969

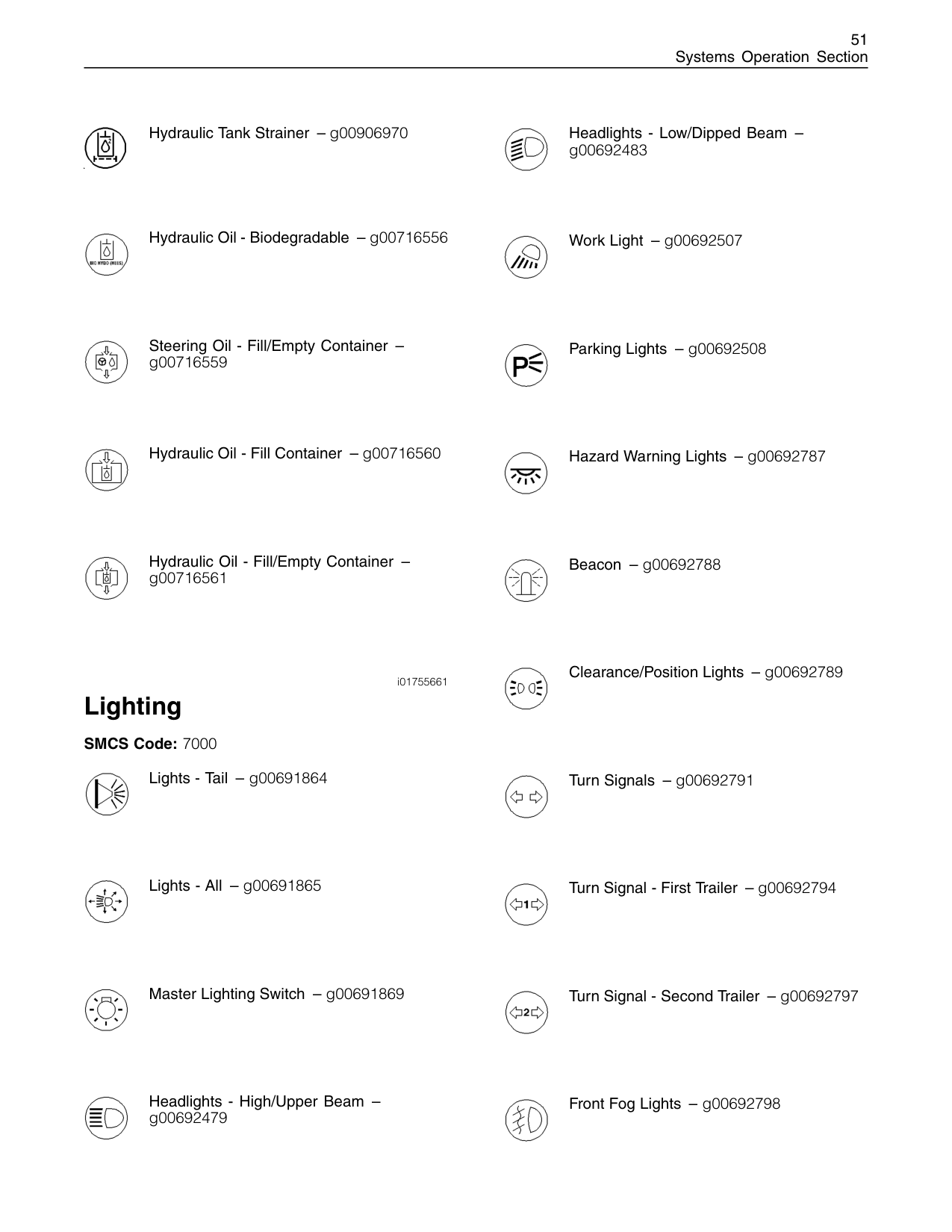

51 Systems Operation Section Hydraulic Tank Strainer – g00906970 Hydraulic Oil - Biodegradable – g00716556 Steering Oil - Fill/Empty Container – g00716559 Hydraulic Oil - Fill Container – g00716560 Hydraulic Oil - Fill/Empty Container – g00716561 i01755661 Lighting SMCS Code: 7000 Lights - Tail – g00691864 Lights - All – g00691865 Master Lighting Switch – g00691869 Headlights - High/Upper Beam – g00692479 Headlights - Low/Dipped Beam – g00692483 Work Light – g00692507 Parking Lights – g00692508 Hazard Warning Lights – g00692787 Beacon – g00692788 Clearance/Position Lights – g00692789 Turn Signals – g00692791 Turn Signal - First Trailer – g00692794 Turn Signal - Second Trailer – g00692797 Front Fog Lights – g00692798

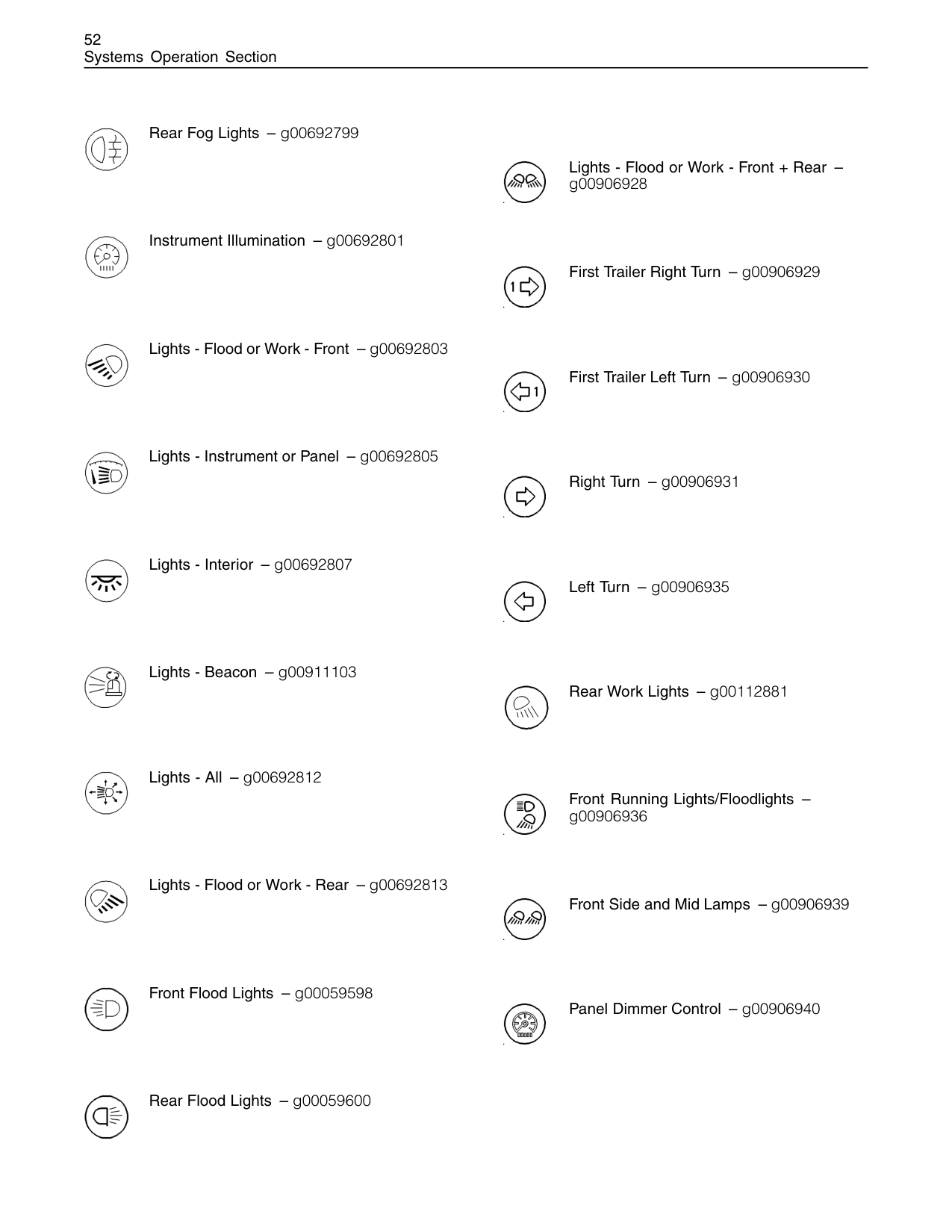

52 Systems Operation Section Rear Fog Lights – g00692799 Instrument Illumination – g00692801 Lights - Flood or Work - Front – g00692803 Lights - Instrument or Panel – g00692805 Lights - Interior – g00692807 Lights - Beacon – g00911103 Lights - All – g00692812 Lights - Flood or Work - Rear – g00692813 Front Flood Lights – g00059598 Rear Flood Lights – g00059600 Lights - Flood or Work - Front + Rear – g00906928 First Trailer Right Turn – g00906929 First Trailer Left Turn – g00906930 Right Turn – g00906931 Left Turn – g00906935 Rear Work Lights – g00112881 Front Running Lights/Floodlights – g00906936 Front Side and Mid Lamps – g00906939 Panel Dimmer Control – g00906940

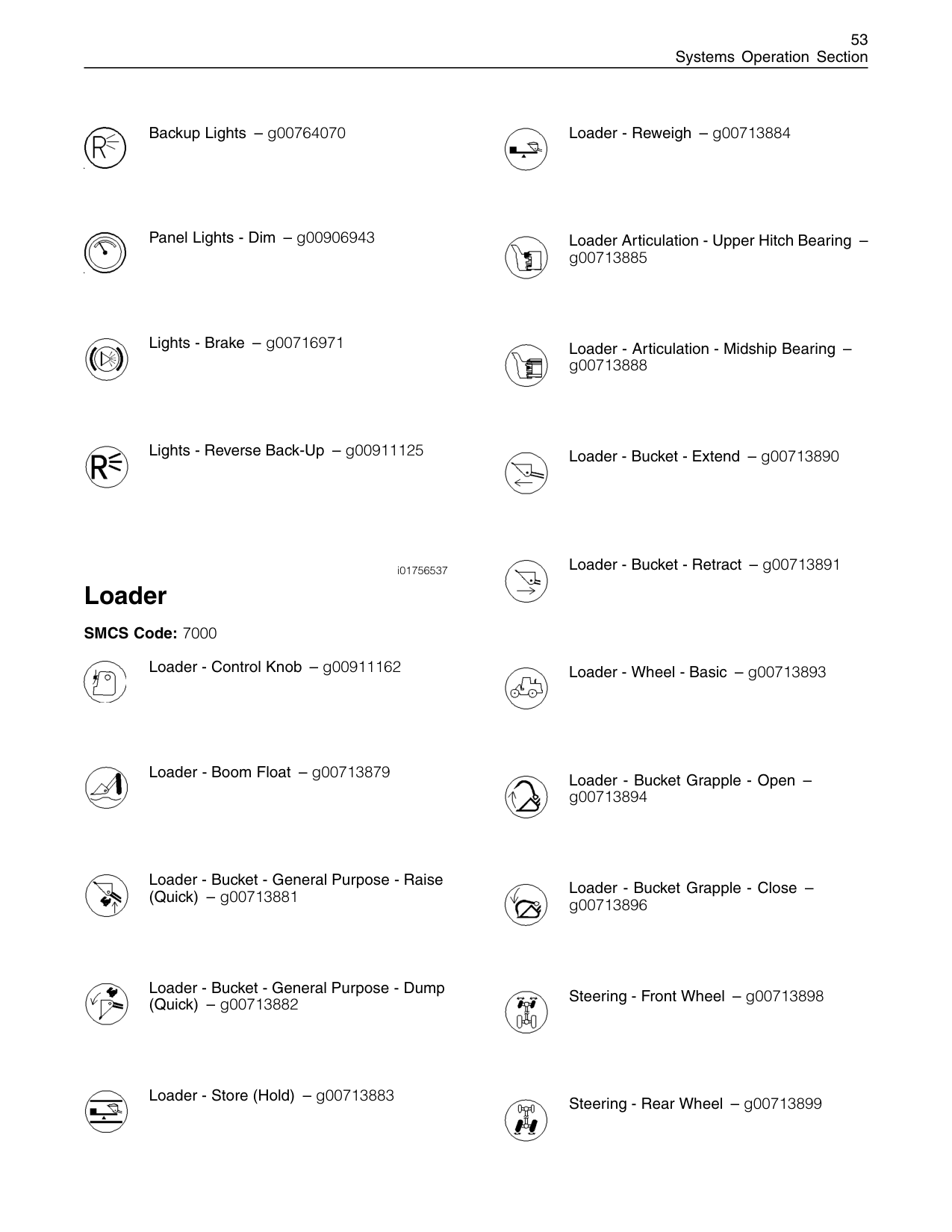

53 Systems Operation Section Backup Lights – g00764070 Panel Lights - Dim – g00906943 Lights - Brake – g00716971 Lights - Reverse Back-Up – g00911125 i01756537 Loader SMCS Code: 7000 Loader - Control Knob – g00911162 Loader - Boom Float – g00713879 Loader - Bucket - General Purpose - Raise (Quick) – g00713881 Loader - Bucket - General Purpose - Dump (Quick) – g00713882 Loader - Store (Hold) – g00713883 Loader - Reweigh – g00713884 Loader Articulation - Upper Hitch Bearing – g00713885 Loader - Articulation - Midship Bearing – g00713888 Loader - Bucket - Extend – g00713890 Loader - Bucket - Retract – g00713891 Loader - Wheel - Basic – g00713893 Loader - Bucket Grapple - Open – g00713894 Loader - Bucket Grapple - Close – g00713896 Steering - Front Wheel – g00713898 Steering - Rear Wheel – g00713899

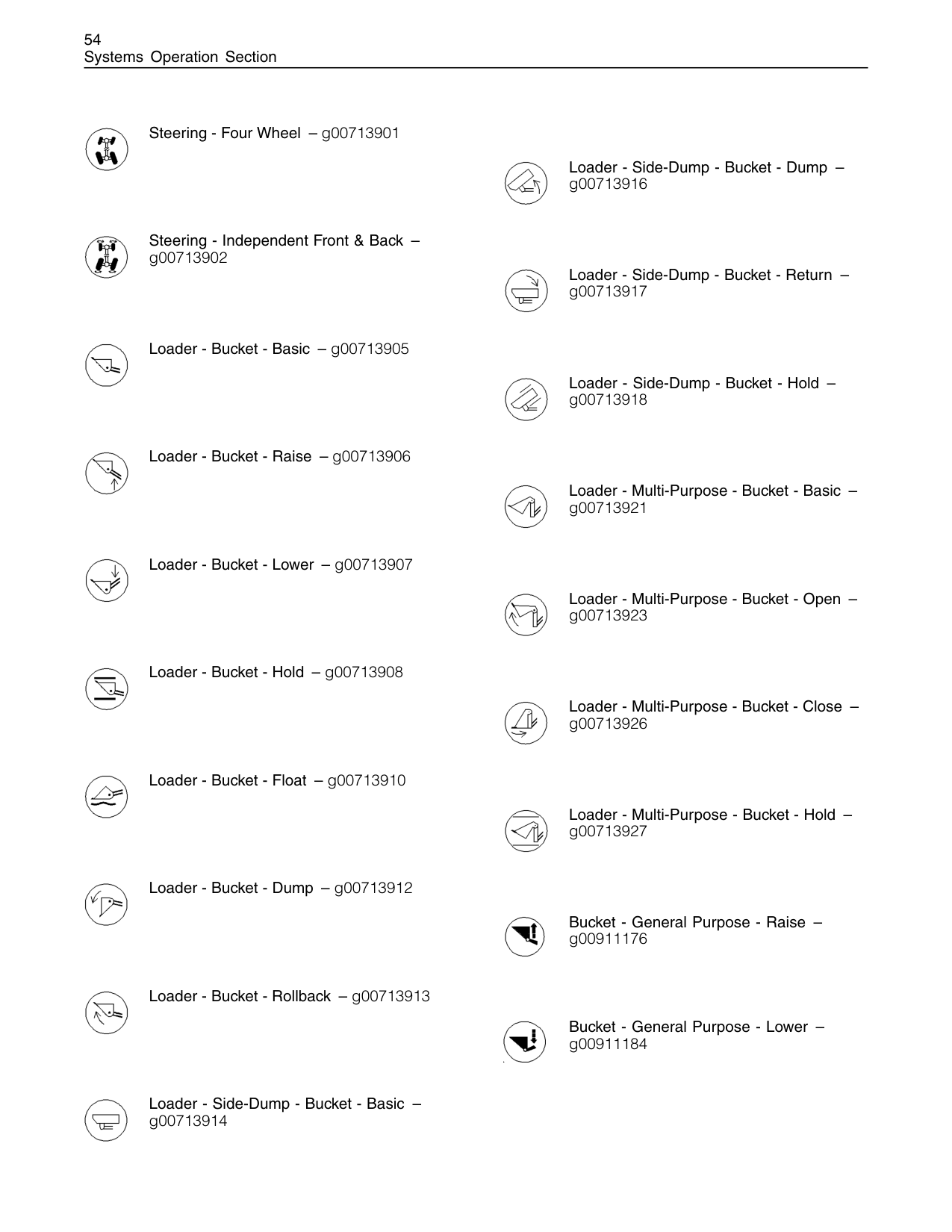

54 Systems Operation Section Steering - Four Wheel – g00713901 Steering - Independent Front & Back – g00713902 Loader - Bucket - Basic – g00713905 Loader - Bucket - Raise – g00713906 Loader - Bucket - Lower – g00713907 Loader - Bucket - Hold – g00713908 Loader - Bucket - Float – g00713910 Loader - Bucket - Dump – g00713912 Loader - Bucket - Rollback – g00713913 Loader - Side-Dump - Bucket - Basic – g00713914 Loader - Side-Dump - Bucket - Dump – g00713916 Loader - Side-Dump - Bucket - Return – g00713917 Loader - Side-Dump - Bucket - Hold – g00713918 Loader - Multi-Purpose - Bucket - Basic – g00713921 Loader - Multi-Purpose - Bucket - Open – g00713923 Loader - Multi-Purpose - Bucket - Close – g00713926 Loader - Multi-Purpose - Bucket - Hold – g00713927 Bucket - General Purpose - Raise – g00911176 Bucket - General Purpose - Lower – g00911184

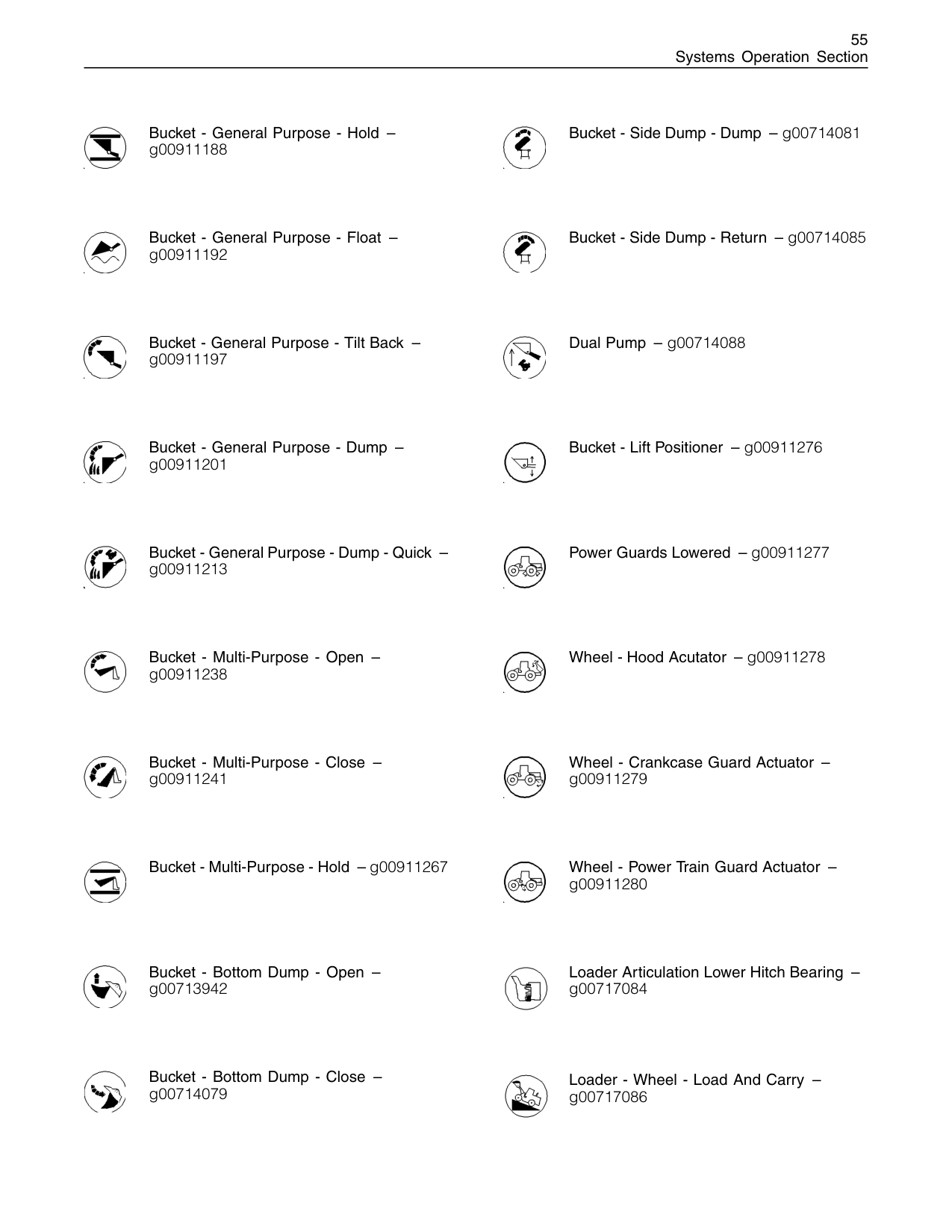

55 Systems Operation Section Bucket - General Purpose - Hold – g00911188 Bucket - General Purpose - Float – g00911192 Bucket - General Purpose - Tilt Back – g00911197 Bucket - General Purpose - Dump – g00911201 Bucket - General Purpose - Dump - Quick – g00911213 Bucket - Multi-Purpose - Open – g00911238 Bucket - Multi-Purpose - Close – g00911241 Bucket - Multi-Purpose - Hold – g00911267 Bucket - Bottom Dump - Open – g00713942 Bucket - Bottom Dump - Close – g00714079 Bucket - Side Dump - Dump – g00714081 Bucket - Side Dump - Return – g00714085 Dual Pump – g00714088 Bucket - Lift Positioner – g00911276 Power Guards Lowered – g00911277 Wheel - Hood Acutator – g00911278 Wheel - Crankcase Guard Actuator – g00911279 Wheel - Power Train Guard Actuator – g00911280 Loader Articulation Lower Hitch Bearing – g00717084 Loader - Wheel - Load And Carry – g00717086

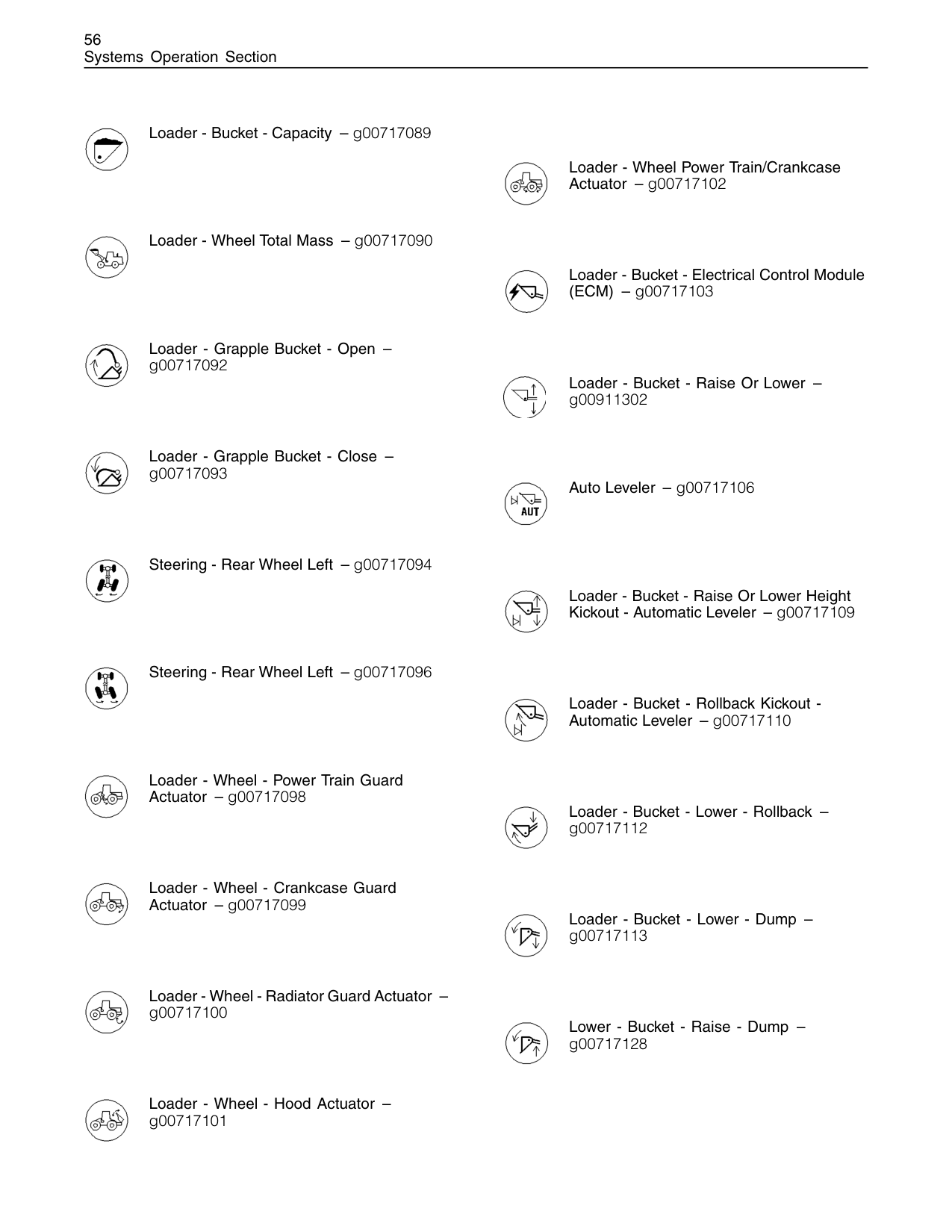

56 Systems Operation Section Loader - Bucket - Capacity – g00717089 Loader - Wheel Total Mass – g00717090 Loader - Grapple Bucket - Open – g00717092 Loader - Grapple Bucket - Close – g00717093 Steering - Rear Wheel Left – g00717094 Steering - Rear Wheel Left – g00717096 Loader - Wheel - Power Train Guard Actuator – g00717098 Loader - Wheel - Crankcase Guard Actuator – g00717099 Loader - Wheel - Radiator Guard Actuator – g00717100 Loader - Wheel - Hood Actuator – g00717101 Loader - Wheel Power Train/Crankcase Actuator – g00717102 Loader - Bucket - Electrical Control Module (ECM) – g00717103 Loader - Bucket - Raise Or Lower – g00911302 Auto Leveler – g00717106 Loader - Bucket - Raise Or Lower Height Kickout - Automatic Leveler – g00717109 Loader - Bucket - Rollback Kickout - Automatic Leveler – g00717110 Loader - Bucket - Lower - Rollback – g00717112 Loader - Bucket - Lower - Dump – g00717113 Lower - Bucket - Raise - Dump – g00717128

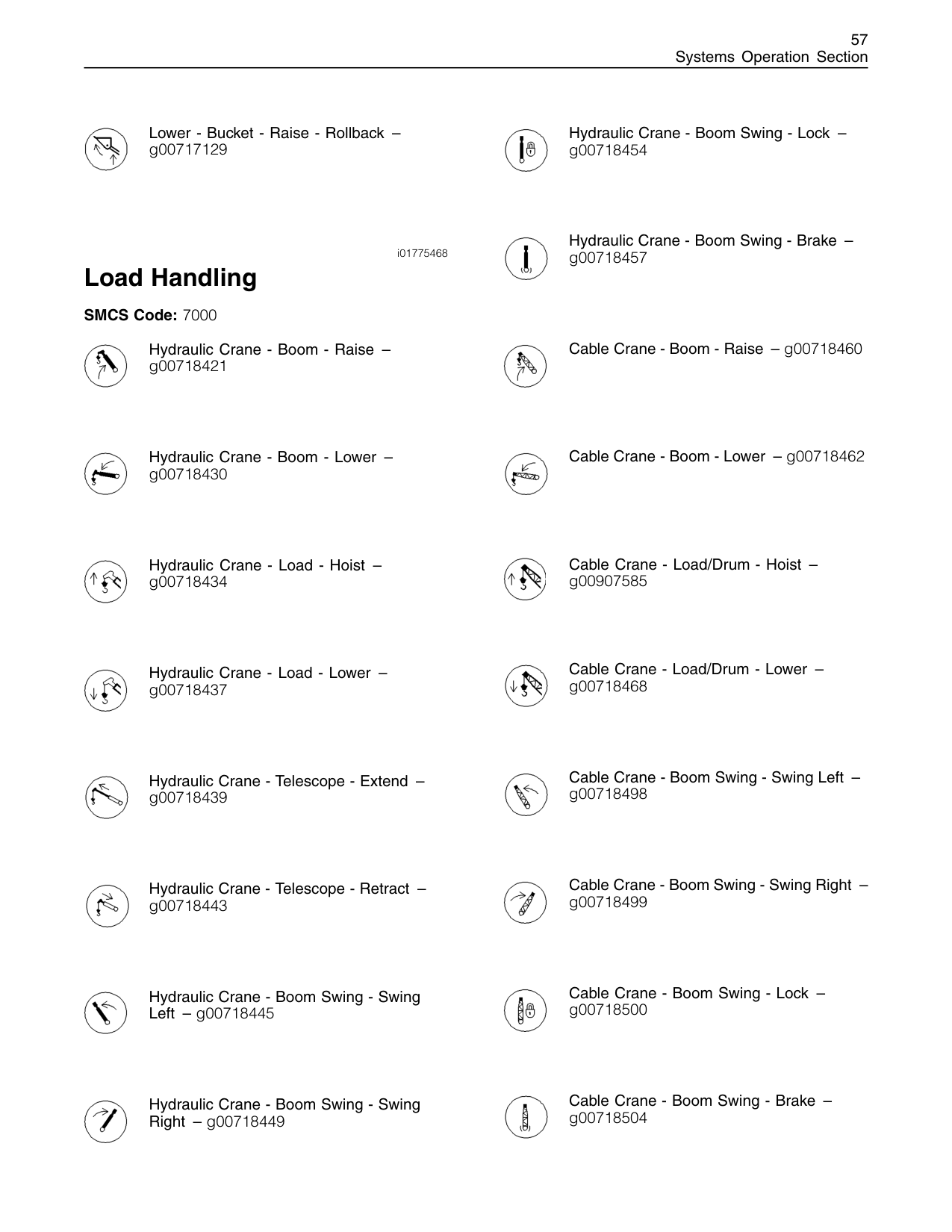

57 Systems Operation Section Lower - Bucket - Raise - Rollback – g00717129 i01775468 Load Handling SMCS Code: 7000 Hydraulic Crane - Boom - Raise – g00718421 Hydraulic Crane - Boom - Lower – g00718430 Hydraulic Crane - Load - Hoist – g00718434 Hydraulic Crane - Load - Lower – g00718437 Hydraulic Crane - Telescope - Extend – g00718439 Hydraulic Crane - Telescope - Retract – g00718443 Hydraulic Crane - Boom Swing - Swing Left – g00718445 Hydraulic Crane - Boom Swing - Swing Right – g00718449 Hydraulic Crane - Boom Swing - Lock – g00718454 Hydraulic Crane - Boom Swing - Brake – g00718457 Cable Crane - Boom - Raise – g00718460 Cable Crane - Boom - Lower – g00718462 Cable Crane - Load/Drum - Hoist – g00907585 Cable Crane - Load/Drum - Lower – g00718468 Cable Crane - Boom Swing - Swing Left – g00718498 Cable Crane - Boom Swing - Swing Right – g00718499 Cable Crane - Boom Swing - Lock – g00718500 Cable Crane - Boom Swing - Brake – g00718504

58 Systems Operation Section i01758477 Log Handling SMCS Code: 7000 Clamp - Fork - Raise – g00714456 Clamp - Fork - Lower – g00714457 Clamp - Fork - Float – g00714458 Clamp - Fork - Tilt Forward – g00714459 Clamp - Fork - Tilt Back – Log Grapple - Close Automatic – g00714461 Log Accumulator - Basic – g00714462 Log Accumulator - Open – g00714464 Log Accumulator - Close – g00900666 Log Feeder - Basic – g00714468 Log Feeder - Open – g00714645 Log Feeder - Close – g00714647 Log Feeder - Feed In – g00714648 Log Feeder - Feed Out – g00714649 Log Feeder - Stop/Lock – g00714650 Log Clamp - Basic – g00714651 Log Clamp - Open – g00714652 Log Clamp - Close – g00714653

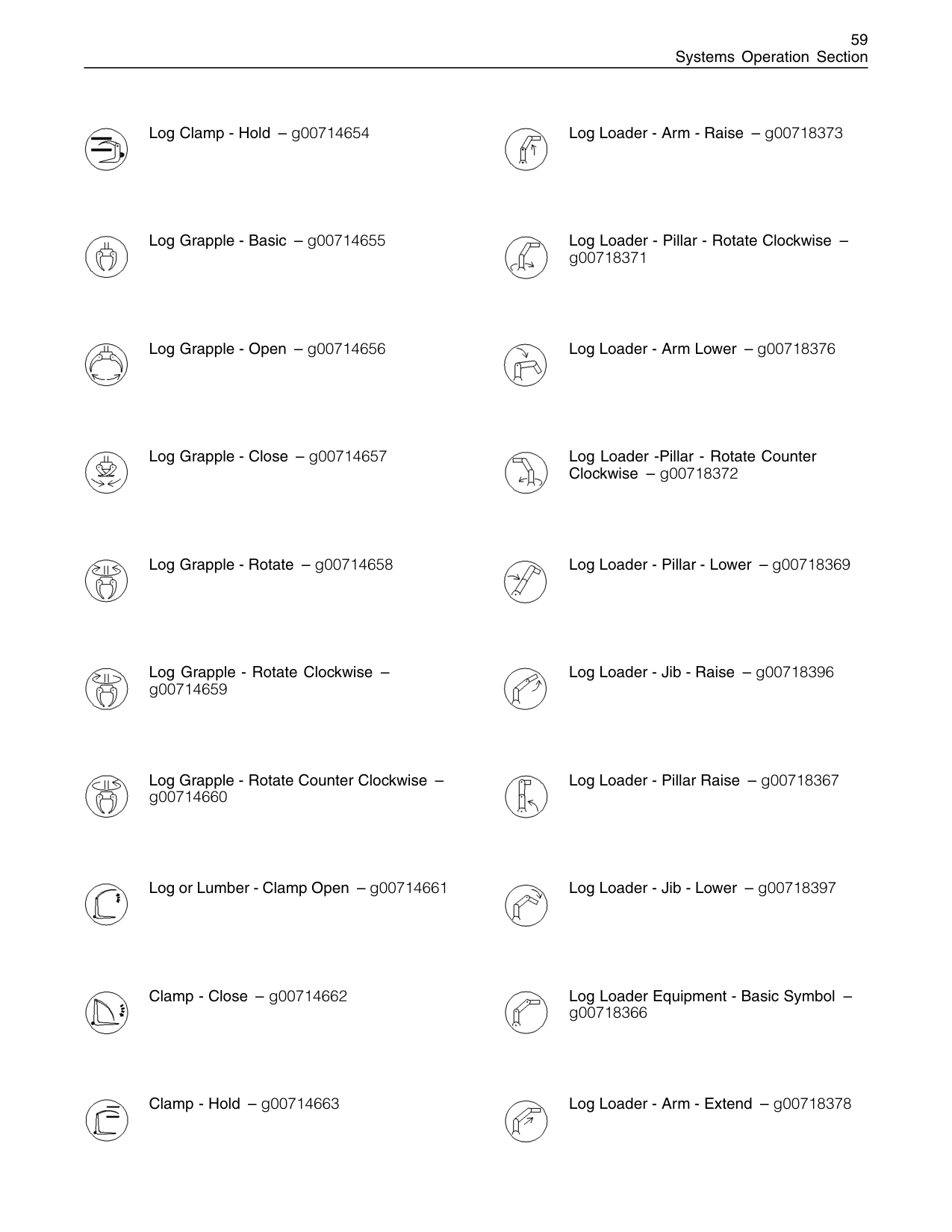

59 Systems Operation Section Log Clamp - Hold – g00714654 Log Grapple - Basic – g00714655 Log Grapple - Open – g00714656 Log Grapple - Close – g00714657 Log Grapple - Rotate – g00714658 Log Grapple - Rotate Clockwise – g00714659 Log Grapple - Rotate Counter Clockwise – g00714660 Log or Lumber - Clamp Open – g00714661 Clamp - Close – g00714662 Clamp - Hold – g00714663 Log Loader - Arm - Raise – g00718373 Log Loader - Pillar - Rotate Clockwise – g00718371 Log Loader - Arm Lower – g00718376 Log Loader -Pillar - Rotate Counter Clockwise – g00718372 Log Loader - Pillar - Lower – g00718369 Log Loader - Jib - Raise – g00718396 Log Loader - Pillar Raise – g00718367 Log Loader - Jib - Lower – g00718397 Log Loader Equipment - Basic Symbol – g00718366 Log Loader - Arm - Extend – g00718378

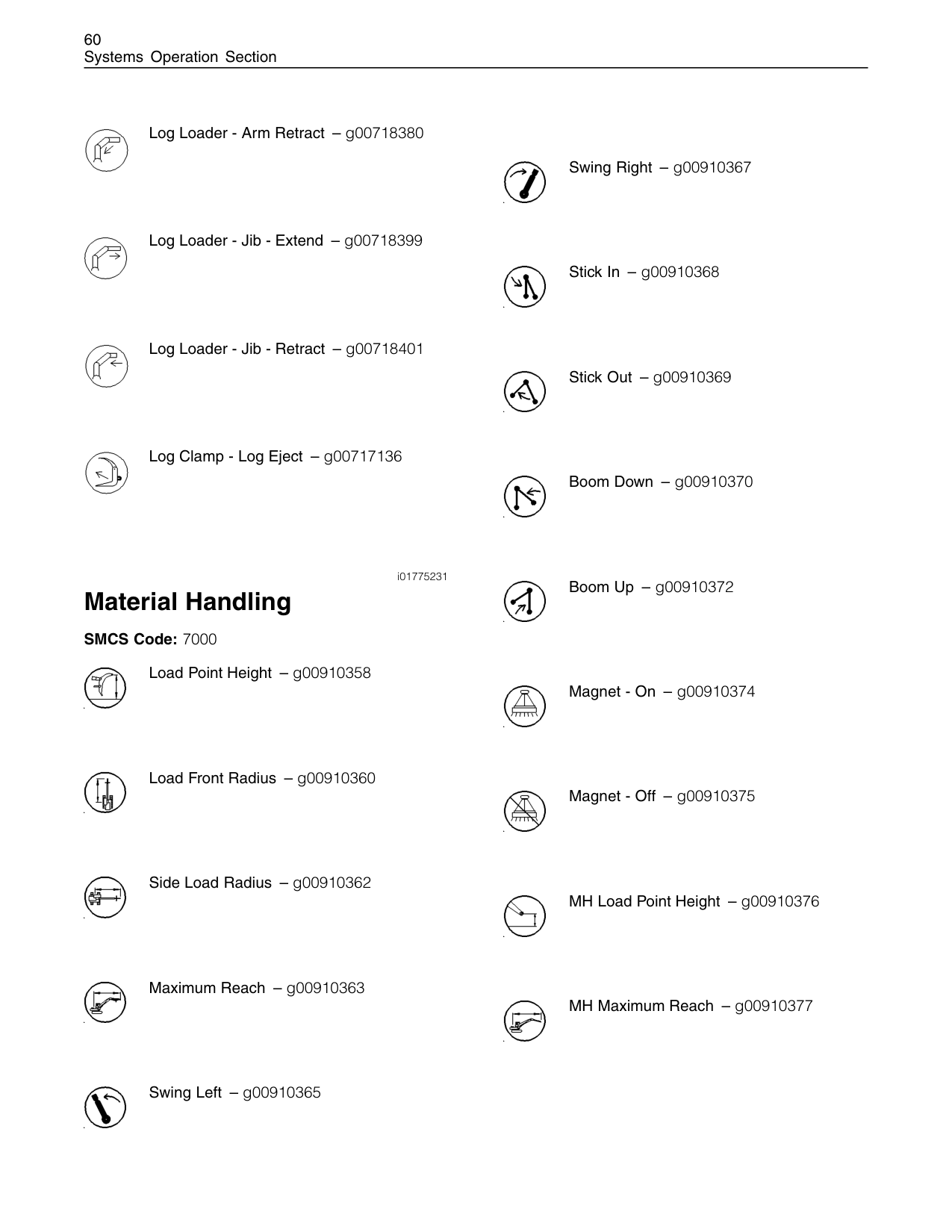

60 Systems Operation Section Log Loader - Arm Retract – g00718380 Log Loader - Jib - Extend – g00718399 Log Loader - Jib - Retract – g00718401 Log Clamp - Log Eject – g00717136 i01775231 Material Handling SMCS Code: 7000 Load Point Height – g00910358 Load Front Radius – g00910360 Side Load Radius – g00910362 Maximum Reach – g00910363 Swing Left – g00910365 Swing Right – g00910367 Stick In – g00910368 Stick Out – g00910369 Boom Down – g00910370 Boom Up – g00910372 Magnet - On – g00910374 Magnet - Off – g00910375 MH Load Point Height – g00910376 MH Maximum Reach – g00910377

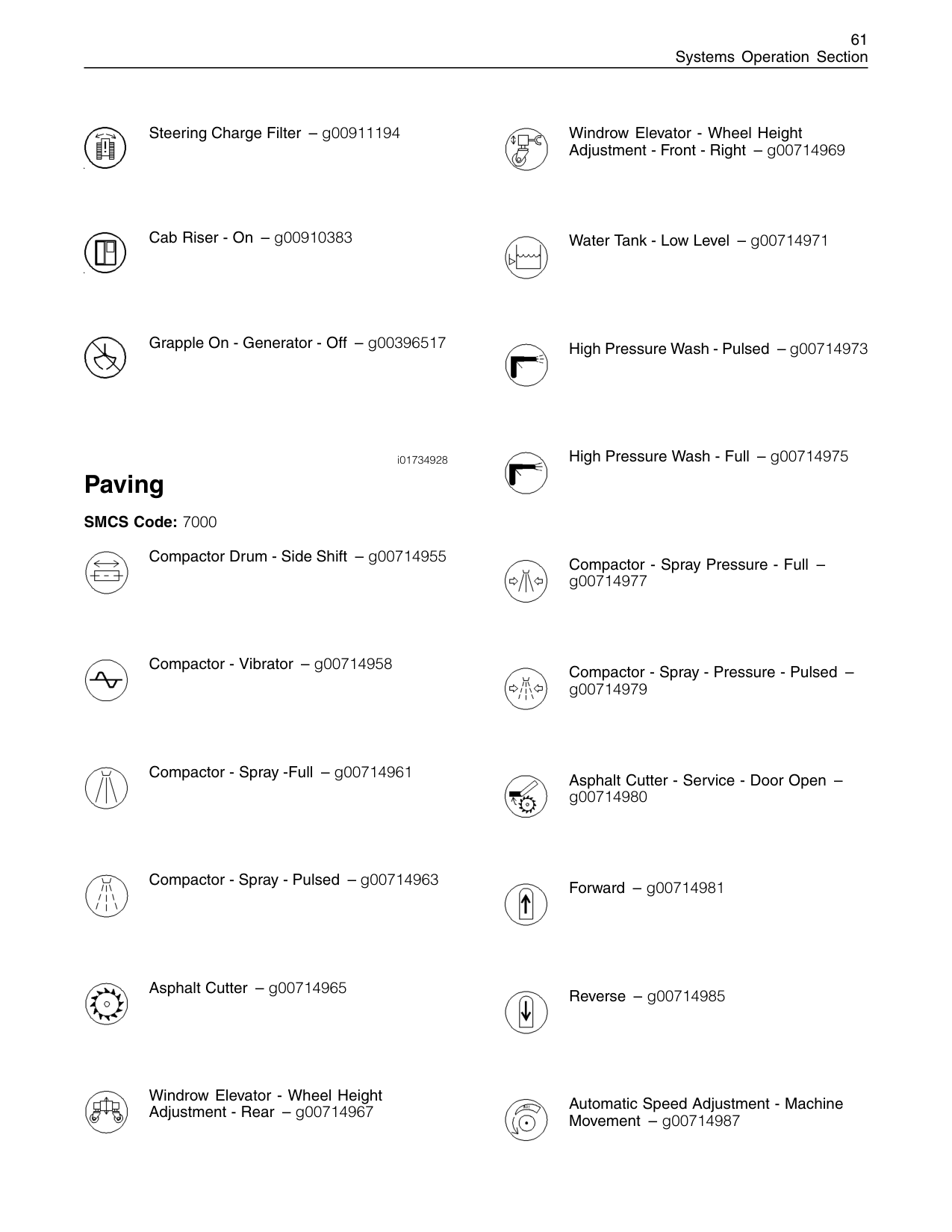

61 Systems Operation Section Steering Charge Filter – g00911194 Cab Riser - On – g00910383 Grapple On - Generator - Off – g00396517 i01734928 Paving SMCS Code: 7000 Compactor Drum - Side Shift – g00714955 Compactor - Vibrator – g00714958 Compactor - Spray -Full – g00714961 Compactor - Spray - Pulsed – g00714963 Asphalt Cutter – g00714965 Windrow Elevator - Wheel Height Adjustment - Rear – g00714967 Windrow Elevator - Wheel Height Adjustment - Front - Right – g00714969 Water Tank - Low Level – g00714971 High Pressure Wash - Pulsed – g00714973 High Pressure Wash - Full – g00714975 Compactor - Spray Pressure - Full – g00714977 Compactor - Spray - Pressure - Pulsed – g00714979 Asphalt Cutter - Service - Door Open – g00714980 Forward – g00714981 Reverse – g00714985 Automatic Speed Adjustment - Machine Movement – g00714987

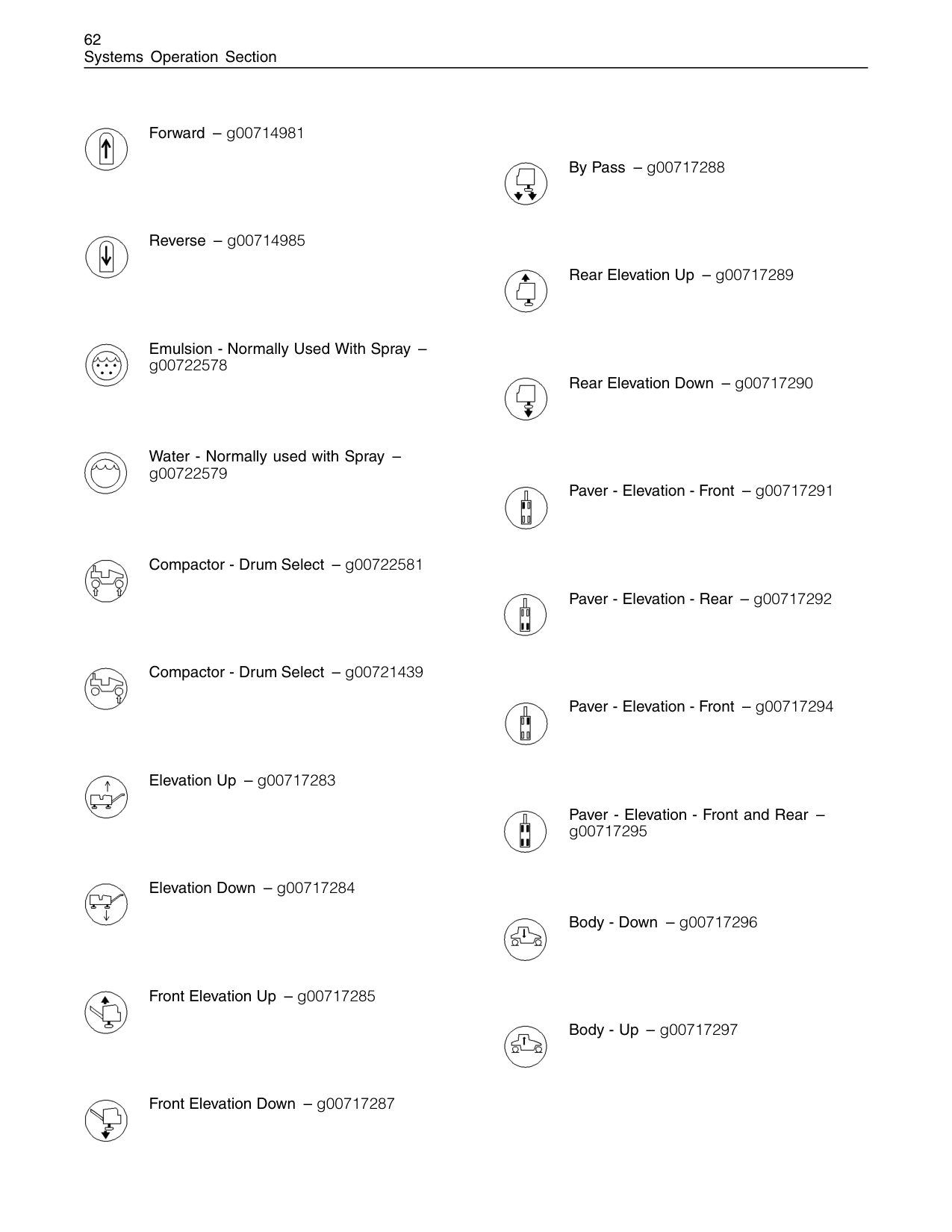

62 Systems Operation Section Forward – g00714981 Reverse – g00714985 Emulsion - Normally Used With Spray – g00722578 Water - Normally used with Spray – g00722579 Compactor - Drum Select – g00722581 Compactor - Drum Select – g00721439 Elevation Up – g00717283 Elevation Down – g00717284 Front Elevation Up – g00717285 Front Elevation Down – g00717287 By Pass – g00717288 Rear Elevation Up – g00717289 Rear Elevation Down – g00717290 Paver - Elevation - Front – g00717291 Paver - Elevation - Rear – g00717292 Paver - Elevation - Front – g00717294 Paver - Elevation - Front and Rear – g00717295 Body - Down – g00717296 Body - Up – g00717297

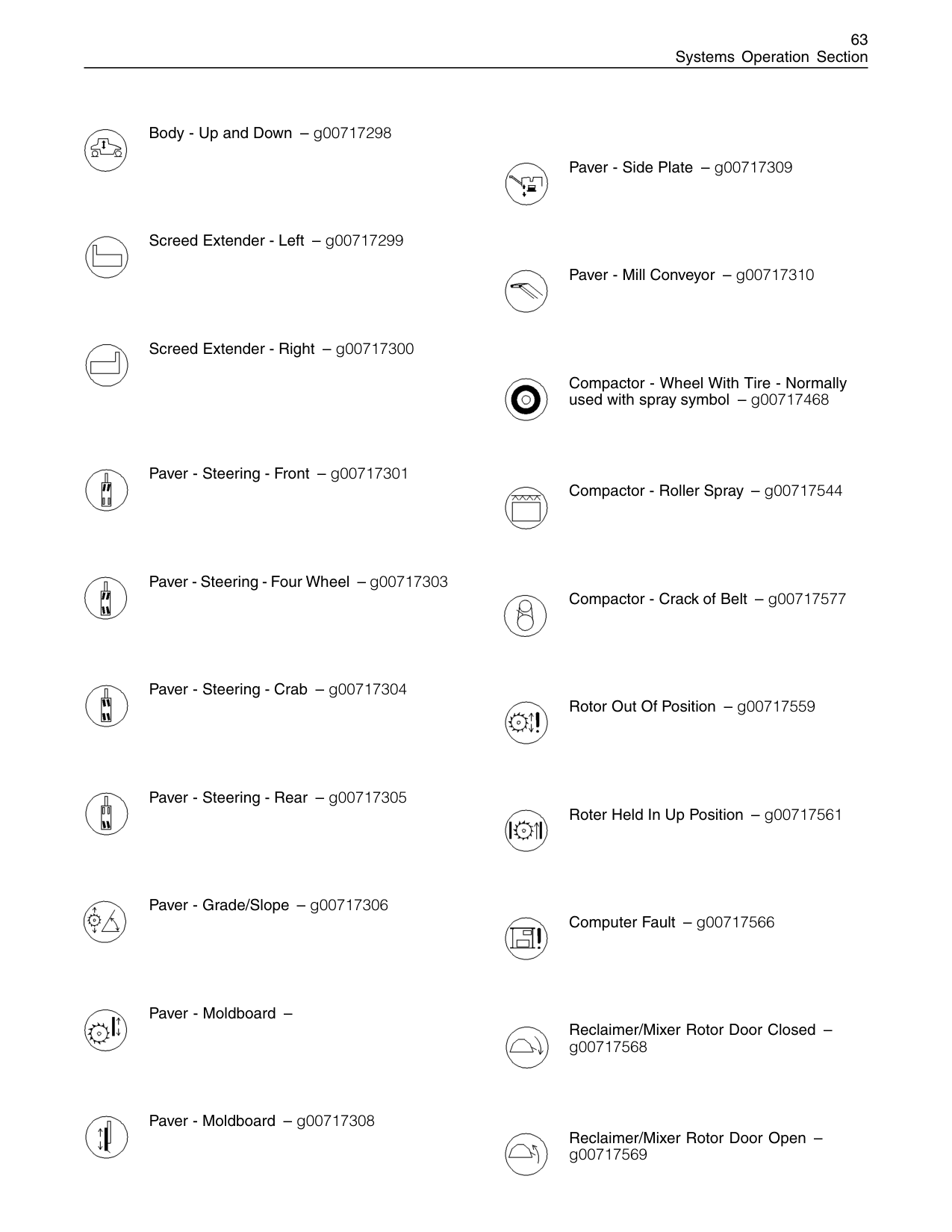

63 Systems Operation Section Body - Up and Down – g00717298 Screed Extender - Left – g00717299 Screed Extender - Right – g00717300 Paver - Steering - Front – g00717301 Paver - Steering - Four Wheel – g00717303 Paver - Steering - Crab – g00717304 Paver - Steering - Rear – g00717305 Paver - Grade/Slope – g00717306 Paver - Moldboard – Paver - Moldboard – g00717308 Paver - Side Plate – g00717309 Paver - Mill Conveyor – g00717310 Compactor - Wheel With Tire - Normally used with spray symbol – g00717468 Compactor - Roller Spray – g00717544 Compactor - Crack of Belt – g00717577 Rotor Out Of Position – g00717559 Roter Held In Up Position – g00717561 Computer Fault – g00717566 Reclaimer/Mixer Rotor Door Closed – g00717568 Reclaimer/Mixer Rotor Door Open – g00717569

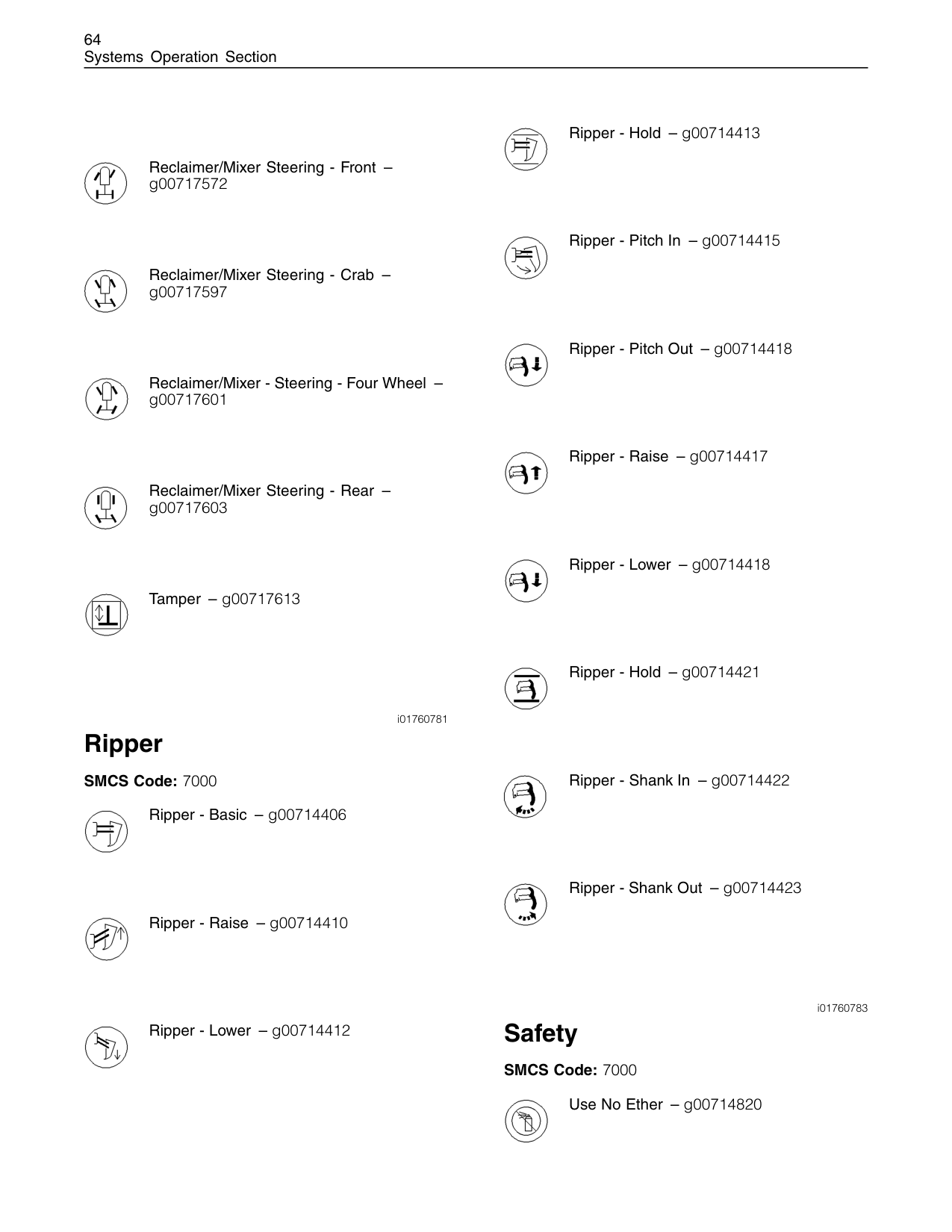

64 Systems Operation Section Reclaimer/Mixer Steering - Front – g00717572 Reclaimer/Mixer Steering - Crab – g00717597 Reclaimer/Mixer - Steering - Four Wheel – g00717601 Reclaimer/Mixer Steering - Rear – g00717603 Tamper – g00717613 i01760781 Ripper SMCS Code: 7000 Ripper - Basic – g00714406 Ripper - Raise – g00714410 Ripper - Lower – g00714412 Ripper - Hold – g00714413 Ripper - Pitch In – g00714415 Ripper - Pitch Out – g00714418 Ripper - Raise – g00714417 Ripper - Lower – g00714418 Ripper - Hold – g00714421 Ripper - Shank In – g00714422 Ripper - Shank Out – g00714423 i01760783 Safety SMCS Code: 7000 Use No Ether – g00714820

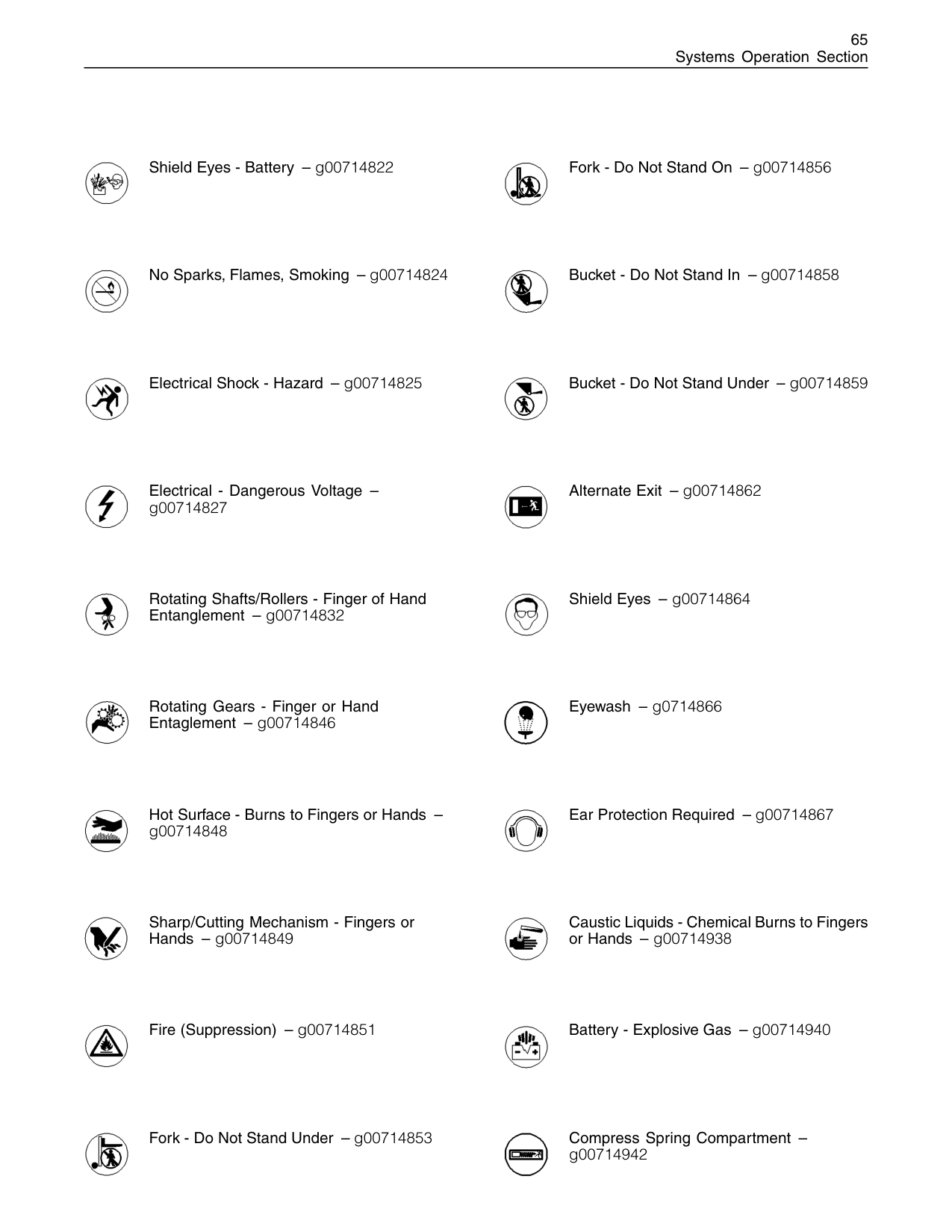

65 Systems Operation Section Shield Eyes - Battery – g00714822 No Sparks, Flames, Smoking – g00714824 Electrical Shock - Hazard – g00714825 Electrical - Dangerous Voltage – g00714827 Rotating Shafts/Rollers - Finger of Hand Entanglement – g00714832 Rotating Gears - Finger or Hand Entaglement – g00714846 Hot Surface - Burns to Fingers or Hands – g00714848 Sharp/Cutting Mechanism - Fingers or Hands – g00714849 Fire (Suppression) – g00714851 Fork - Do Not Stand Under – g00714853 Fork - Do Not Stand On – g00714856 Bucket - Do Not Stand In – g00714858 Bucket - Do Not Stand Under – g00714859 Alternate Exit – g00714862 Shield Eyes – g00714864 Eyewash – g0714866 Ear Protection Required – g00714867 Caustic Liquids - Chemical Burns to Fingers or Hands – g00714938 Battery - Explosive Gas – g00714940 Compress Spring Compartment – g00714942

66 Systems Operation Section No Room For Person – g00714943 Rotating Driveline - Whole Body Entaglement – g00714944 Falling – g00714946 Trip Point – g00714947 Cutter/Rotor Warning – g00714949 Safety Alert – g00714950 Pull the Ring – g00714951 No Hands - Keep Hands Away – g00714953 No Step – g00714954 Travel Alarm Cancel – g00901050 No Drilling – g00717171 No Welding – g00717172 i01775406 Saw Unit SMCS Code: 7000 Circular Saw - Basic Symbol – g00718311 Circular Saw - Out – g00718313 Circular Saw - In – g00718314 Chain Saw - Basic Symbol – g00718316 Chain Saw - Out – g00718317 Chain Saw - In – g00718318

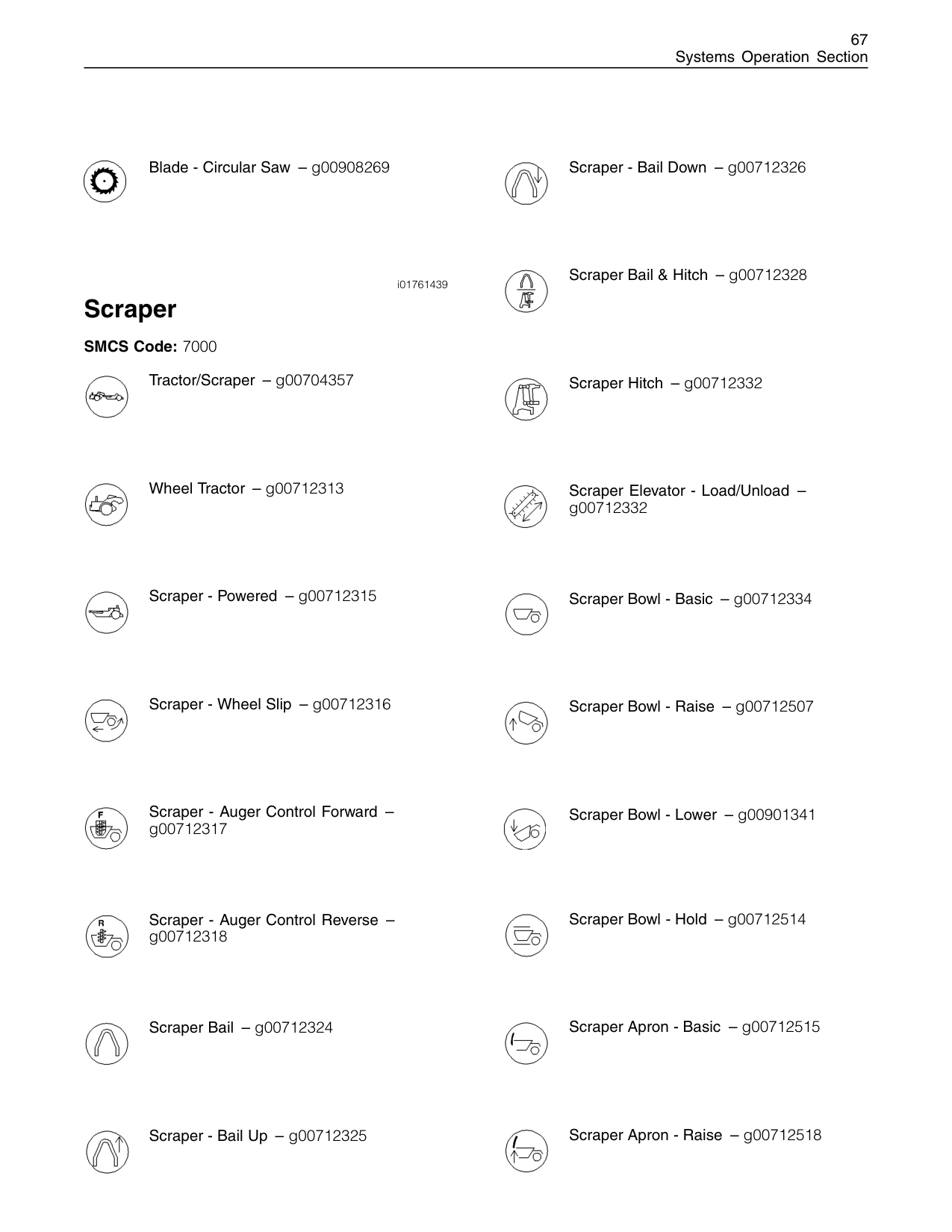

67 Systems Operation Section Blade - Circular Saw – g00908269 i01761439 Scraper SMCS Code: 7000 Tractor/Scraper – g00704357 Wheel Tractor – g00712313 Scraper - Powered – g00712315 Scraper - Wheel Slip – g00712316 Scraper - Auger Control Forward – g00712317 Scraper - Auger Control Reverse – g00712318 Scraper Bail – g00712324 Scraper - Bail Up – g00712325 Scraper - Bail Down – g00712326 Scraper Bail & Hitch – g00712328 Scraper Hitch – g00712332 Scraper Elevator - Load/Unload – g00712332 Scraper Bowl - Basic – g00712334 Scraper Bowl - Raise – g00712507 Scraper Bowl - Lower – g00901341 Scraper Bowl - Hold – g00712514 Scraper Apron - Basic – g00712515 Scraper Apron - Raise – g00712518

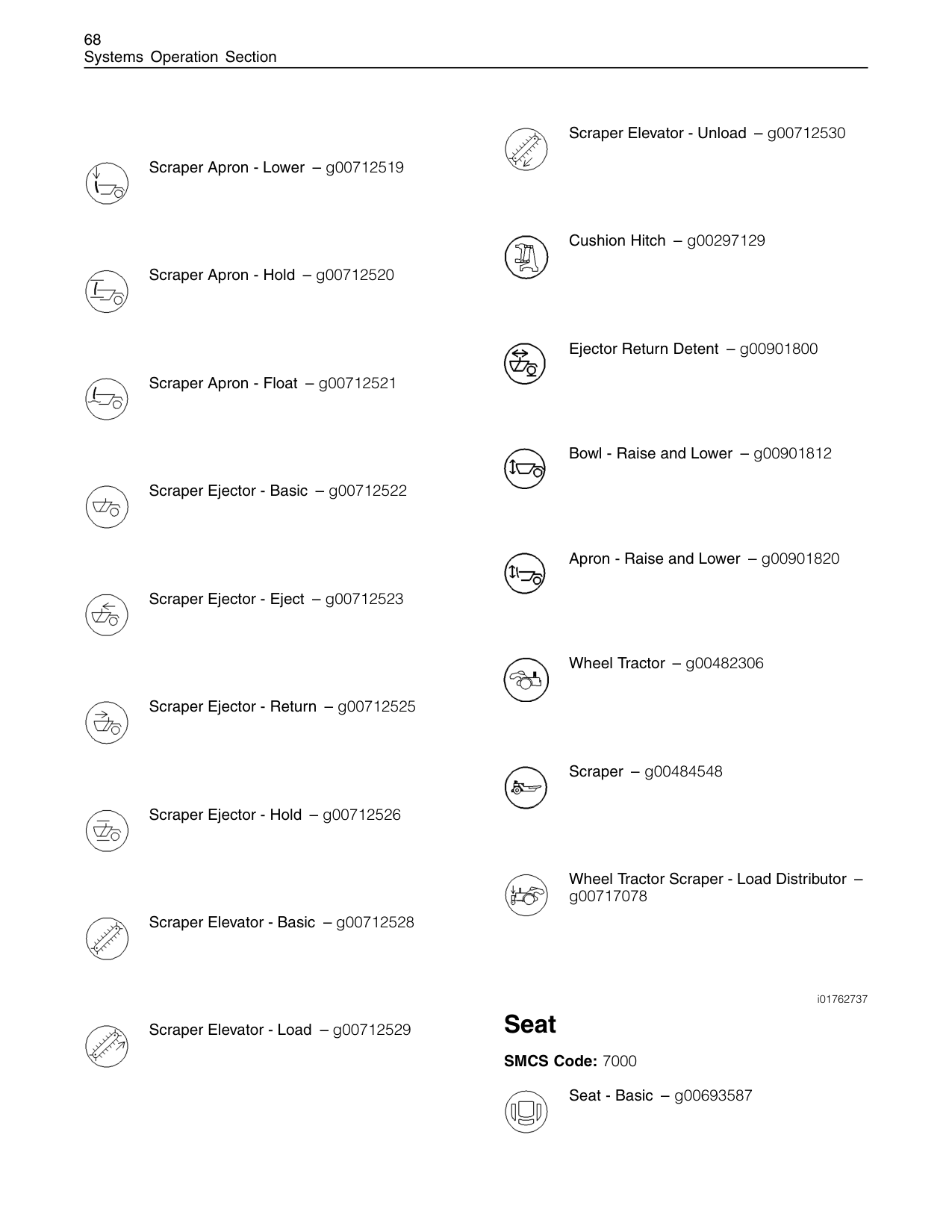

68 Systems Operation Section Scraper Apron - Lower – g00712519 Scraper Apron - Hold – g00712520 Scraper Apron - Float – g00712521 Scraper Ejector - Basic – g00712522 Scraper Ejector - Eject – g00712523 Scraper Ejector - Return – g00712525 Scraper Ejector - Hold – g00712526 Scraper Elevator - Basic – g00712528 Scraper Elevator - Load – g00712529 Scraper Elevator - Unload – g00712530 Cushion Hitch – g00297129 Ejector Return Detent – g00901800 Bowl - Raise and Lower – g00901812 Apron - Raise and Lower – g00901820 Wheel Tractor – g00482306 Scraper – g00484548 Wheel Tractor Scraper - Load Distributor – g00717078 i01762737 Seat SMCS Code: 7000 Seat - Basic – g00693587

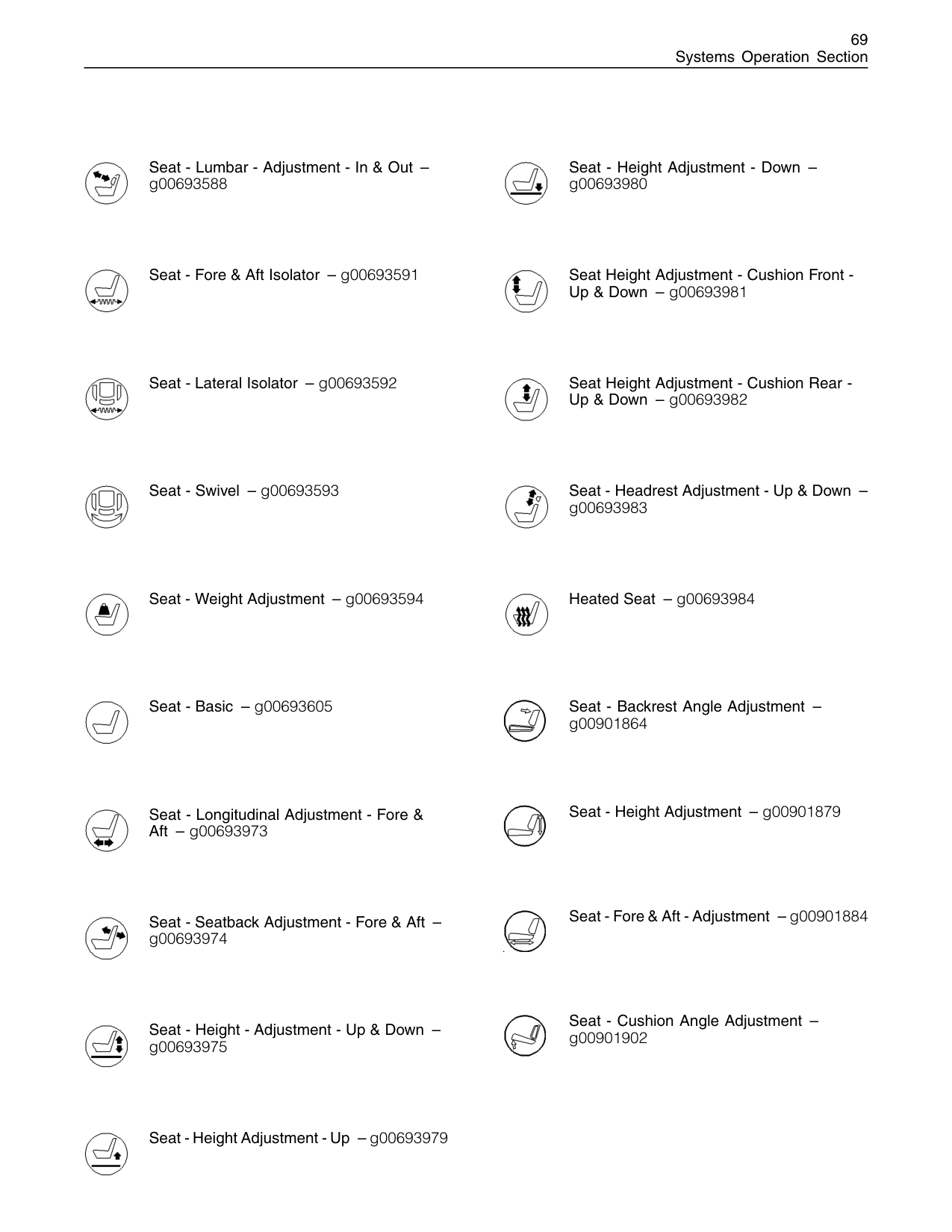

69 Systems Operation Section Seat - Lumbar - Adjustment - In & Out – g00693588 Seat - Fore & Aft Isolator – g00693591 Seat - Lateral Isolator – g00693592 Seat - Swivel – g00693593 Seat - Weight Adjustment – g00693594 Seat - Basic – g00693605 Seat - Longitudinal Adjustment - Fore & Aft – g00693973 Seat - Seatback Adjustment - Fore & Aft – g00693974 Seat - Height - Adjustment - Up & Down – g00693975 Seat - Height Adjustment - Up – g00693979 Seat - Height Adjustment - Down – g00693980 Seat Height Adjustment - Cushion Front - Up & Down – g00693981 Seat Height Adjustment - Cushion Rear - Up & Down – g00693982 Seat - Headrest Adjustment - Up & Down – g00693983 Heated Seat – g00693984 Seat - Backrest Angle Adjustment – g00901864 Seat - Height Adjustment – g00901879 Seat - Fore & Aft - Adjustment – g00901884 Seat - Cushion Angle Adjustment – g00901902

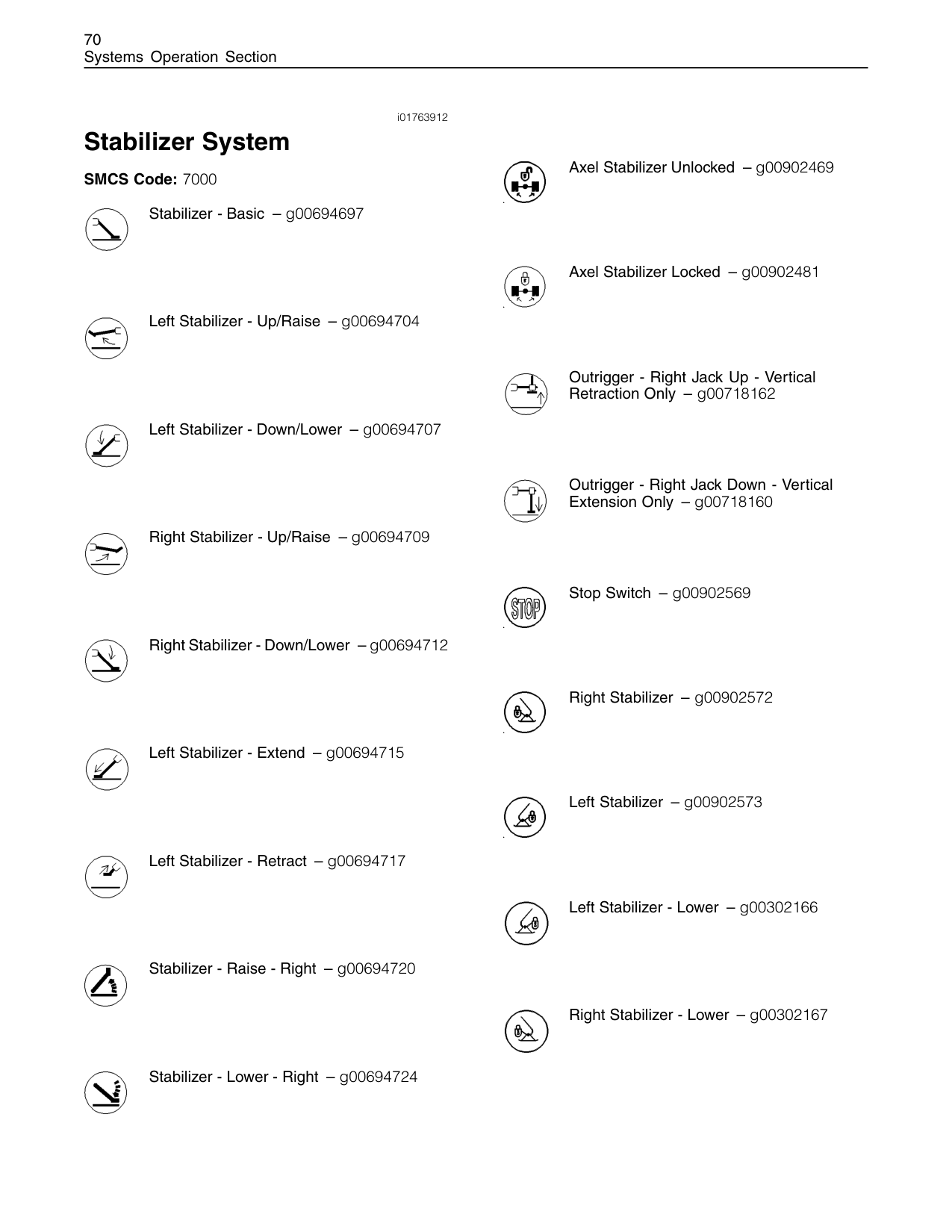

70 Systems Operation Section i01763912 Stabilizer System SMCS Code: 7000 Stabilizer - Basic – g00694697 Left Stabilizer - Up/Raise – g00694704 Left Stabilizer - Down/Lower – g00694707 Right Stabilizer - Up/Raise – g00694709 Right Stabilizer - Down/Lower – g00694712 Left Stabilizer - Extend – g00694715 Left Stabilizer - Retract – g00694717 Stabilizer - Raise - Right – g00694720 Stabilizer - Lower - Right – g00694724 Axel Stabilizer Unlocked – g00902469 Axel Stabilizer Locked – g00902481 Outrigger - Right Jack Up - Vertical Retraction Only – g00718162 Outrigger - Right Jack Down - Vertical Extension Only – g00718160 Stop Switch – g00902569 Right Stabilizer – g00902572 Left Stabilizer – g00902573 Left Stabilizer - Lower – g00302166 Right Stabilizer - Lower – g00302167

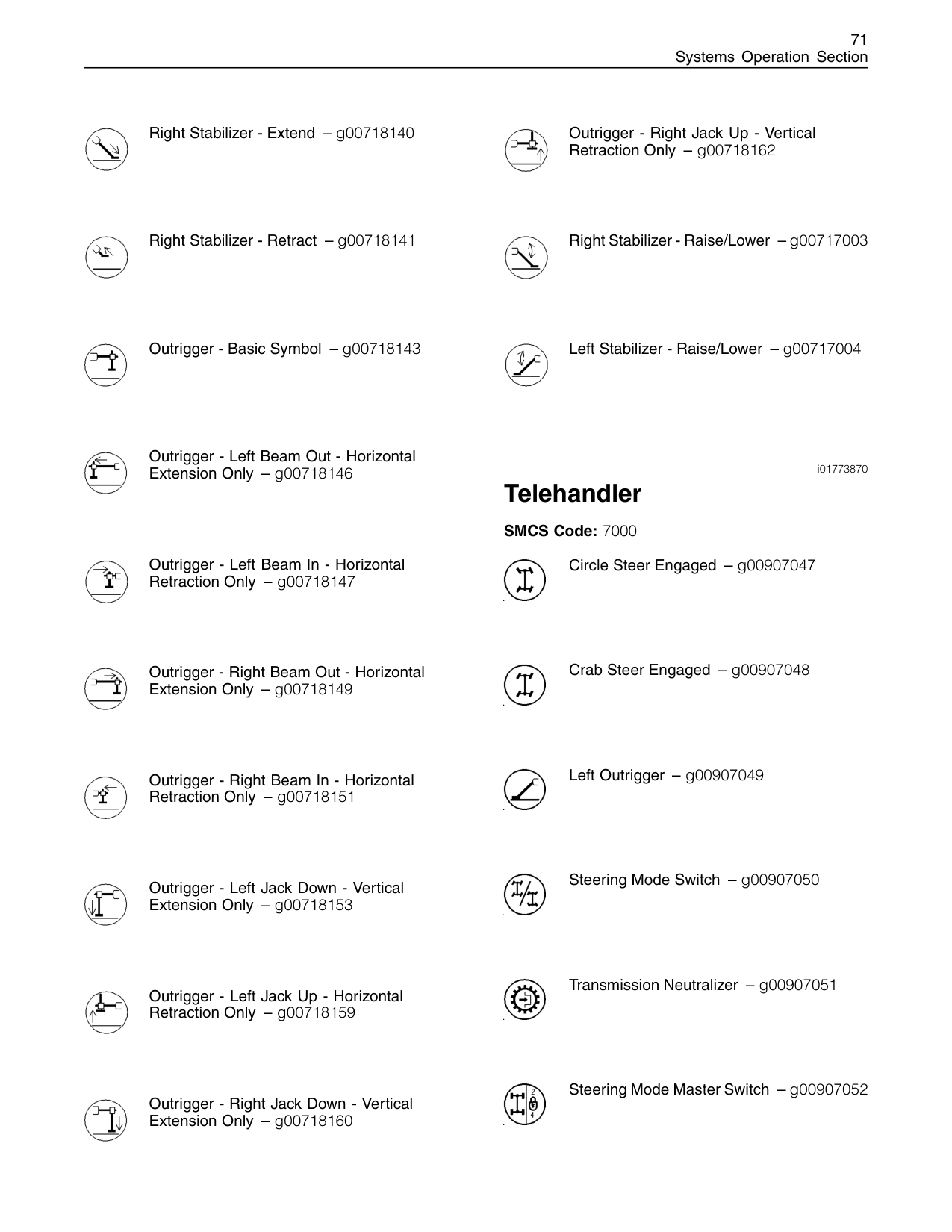

71 Systems Operation Section Right Stabilizer - Extend – g00718140 Right Stabilizer - Retract – g00718141 Outrigger - Basic Symbol – g00718143 Outrigger - Left Beam Out - Horizontal Extension Only – g00718146 Outrigger - Left Beam In - Horizontal Retraction Only – g00718147 Outrigger - Right Beam Out - Horizontal Extension Only – g00718149 Outrigger - Right Beam In - Horizontal Retraction Only – g00718151 Outrigger - Left Jack Down - Vertical Extension Only – g00718153 Outrigger - Left Jack Up - Horizontal Retraction Only – g00718159 Outrigger - Right Jack Down - Vertical Extension Only – g00718160 Outrigger - Right Jack Up - Vertical Retraction Only – g00718162 Right Stabilizer - Raise/Lower – g00717003 Left Stabilizer - Raise/Lower – g00717004 i01773870 Telehandler SMCS Code: 7000 Circle Steer Engaged – g00907047 Crab Steer Engaged – g00907048 Left Outrigger – g00907049 Steering Mode Switch – g00907050 Transmission Neutralizer – g00907051 Steering Mode Master Switch – g00907052

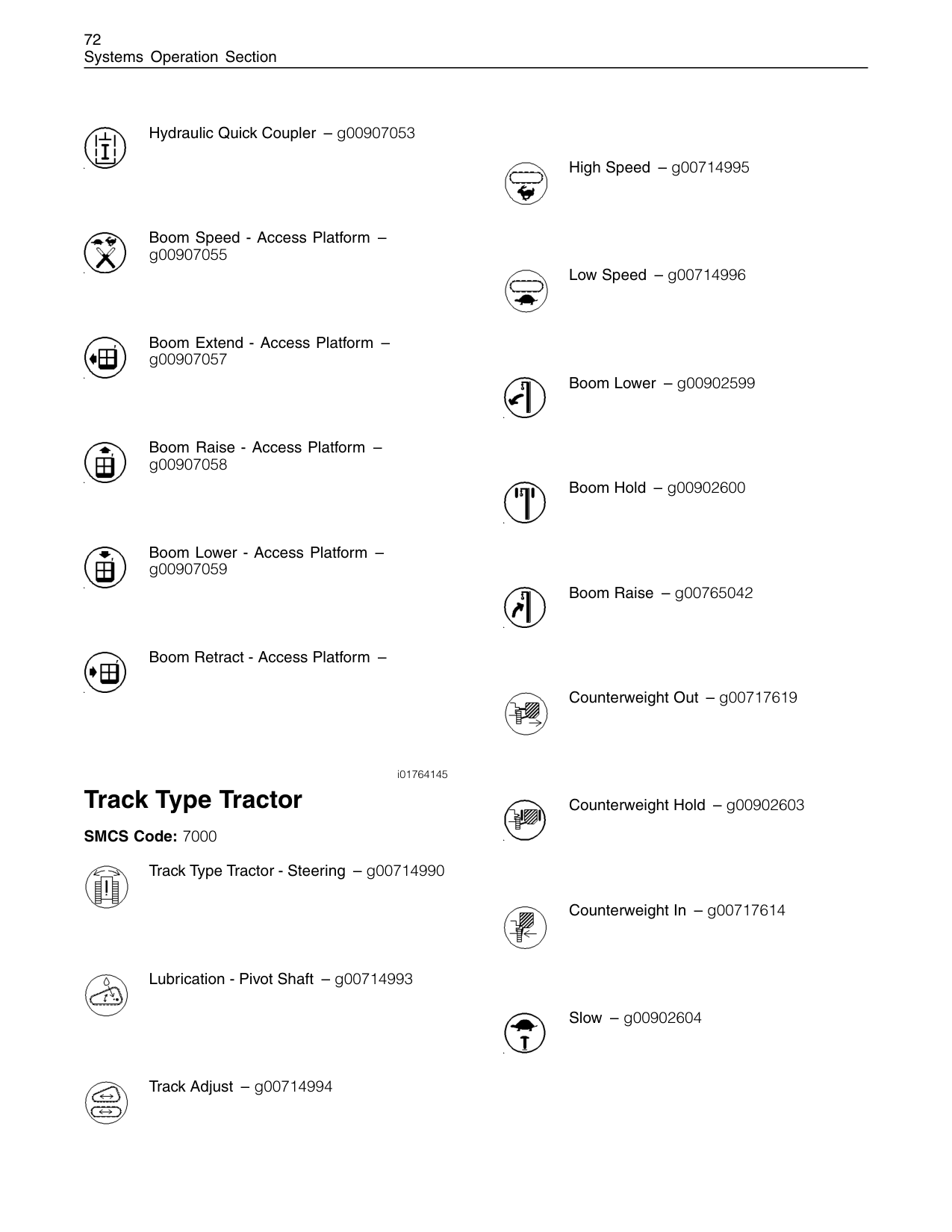

72 Systems Operation Section Hydraulic Quick Coupler – g00907053 Boom Speed - Access Platform – g00907055 Boom Extend - Access Platform – g00907057 Boom Raise - Access Platform – g00907058 Boom Lower - Access Platform – g00907059 Boom Retract - Access Platform – i01764145 Track Type Tractor SMCS Code: 7000 Track Type Tractor - Steering – g00714990 Lubrication - Pivot Shaft – g00714993 Track Adjust – g00714994 High Speed – g00714995 Low Speed – g00714996 Boom Lower – g00902599 Boom Hold – g00902600 Boom Raise – g00765042 Counterweight Out – g00717619 Counterweight Hold – g00902603 Counterweight In – g00717614 Slow – g00902604

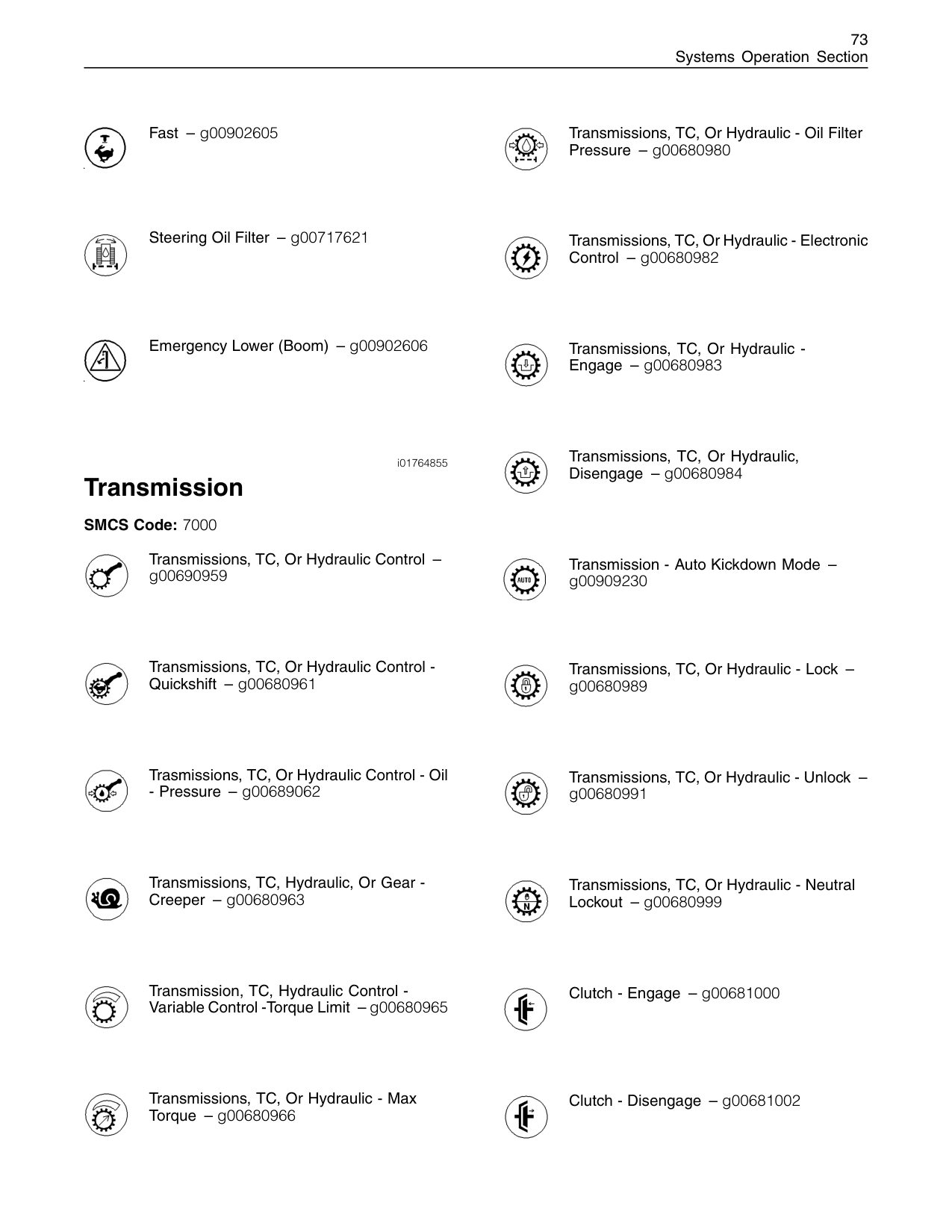

73 Systems Operation Section Fast – g00902605 Steering Oil Filter – g00717621 Emergency Lower (Boom) – g00902606 i01764855 Transmission SMCS Code: 7000 Transmissions, TC, Or Hydraulic Control – g00690959 Transmissions, TC, Or Hydraulic Control - Quickshift – g00680961 Trasmissions, TC, Or Hydraulic Control - Oil

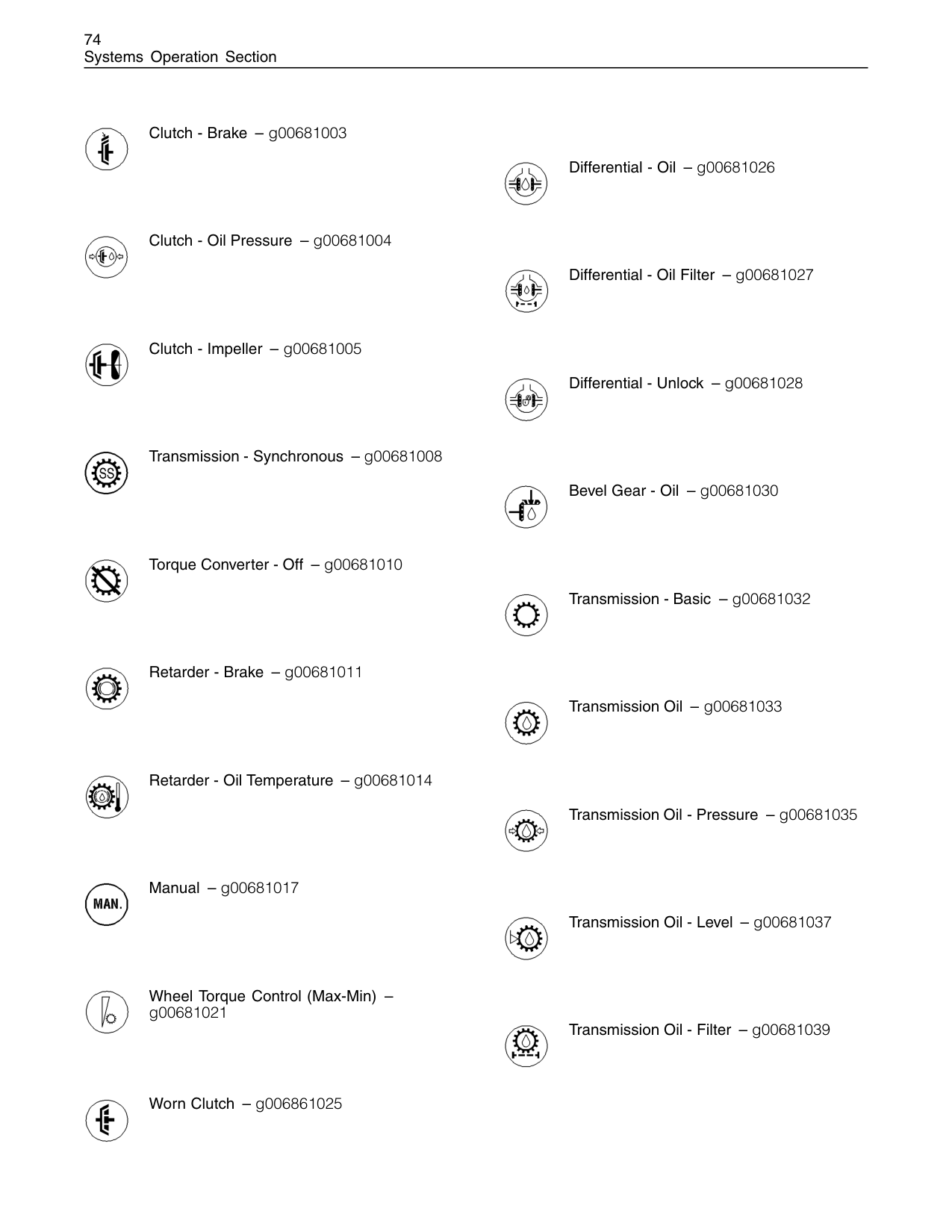

74 Systems Operation Section Clutch - Brake – g00681003 Clutch - Oil Pressure – g00681004 Clutch - Impeller – g00681005 Transmission - Synchronous – g00681008 Torque Converter - Off – g00681010 Retarder - Brake – g00681011 Retarder - Oil Temperature – g00681014 Manual – g00681017 Wheel Torque Control (Max-Min) – g00681021 Worn Clutch – g006861025 Differential - Oil – g00681026 Differential - Oil Filter – g00681027 Differential - Unlock – g00681028 Bevel Gear - Oil – g00681030 Transmission - Basic – g00681032 Transmission Oil – g00681033 Transmission Oil - Pressure – g00681035 Transmission Oil - Level – g00681037 Transmission Oil - Filter – g00681039

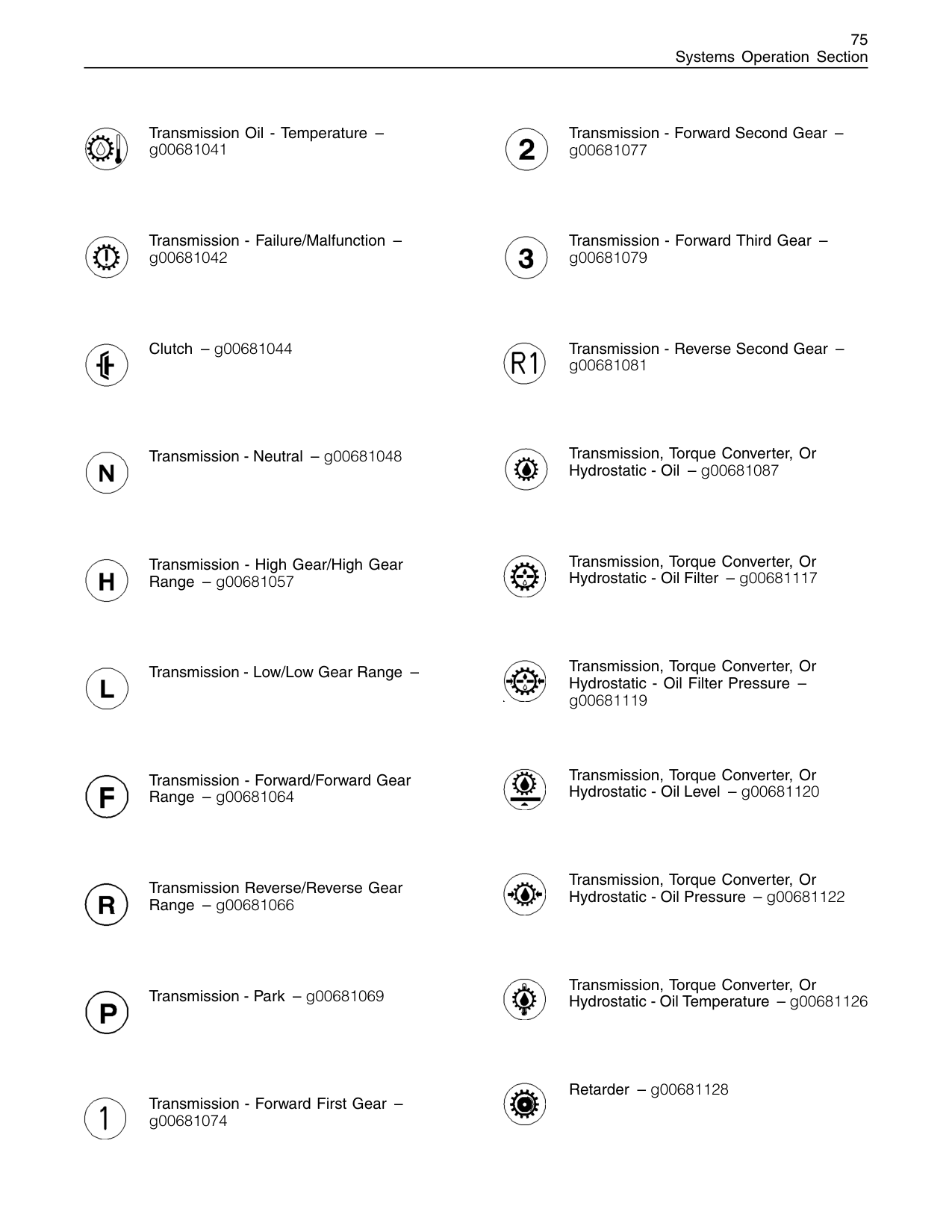

75 Systems Operation Section Transmission Oil - Temperature – g00681041 Transmission - Failure/Malfunction – g00681042 Clutch – g00681044 Transmission - Neutral – g00681048 Transmission - High Gear/High Gear Range – g00681057 Transmission - Low/Low Gear Range – Transmission - Forward/Forward Gear Range – g00681064 Transmission Reverse/Reverse Gear Range – g00681066 Transmission - Park – g00681069 Transmission - Forward First Gear – g00681074 Transmission - Forward Second Gear – g00681077 Transmission - Forward Third Gear – g00681079 Transmission - Reverse Second Gear – g00681081 Transmission, Torque Converter, Or Hydrostatic - Oil – g00681087 Transmission, Torque Converter, Or Hydrostatic - Oil Filter – g00681117 Transmission, Torque Converter, Or Hydrostatic - Oil Filter Pressure – g00681119 Transmission, Torque Converter, Or Hydrostatic - Oil Level – g00681120 Transmission, Torque Converter, Or Hydrostatic - Oil Pressure – g00681122 Transmission, Torque Converter, Or Hydrostatic - Oil Temperature – g00681126 Retarder – g00681128

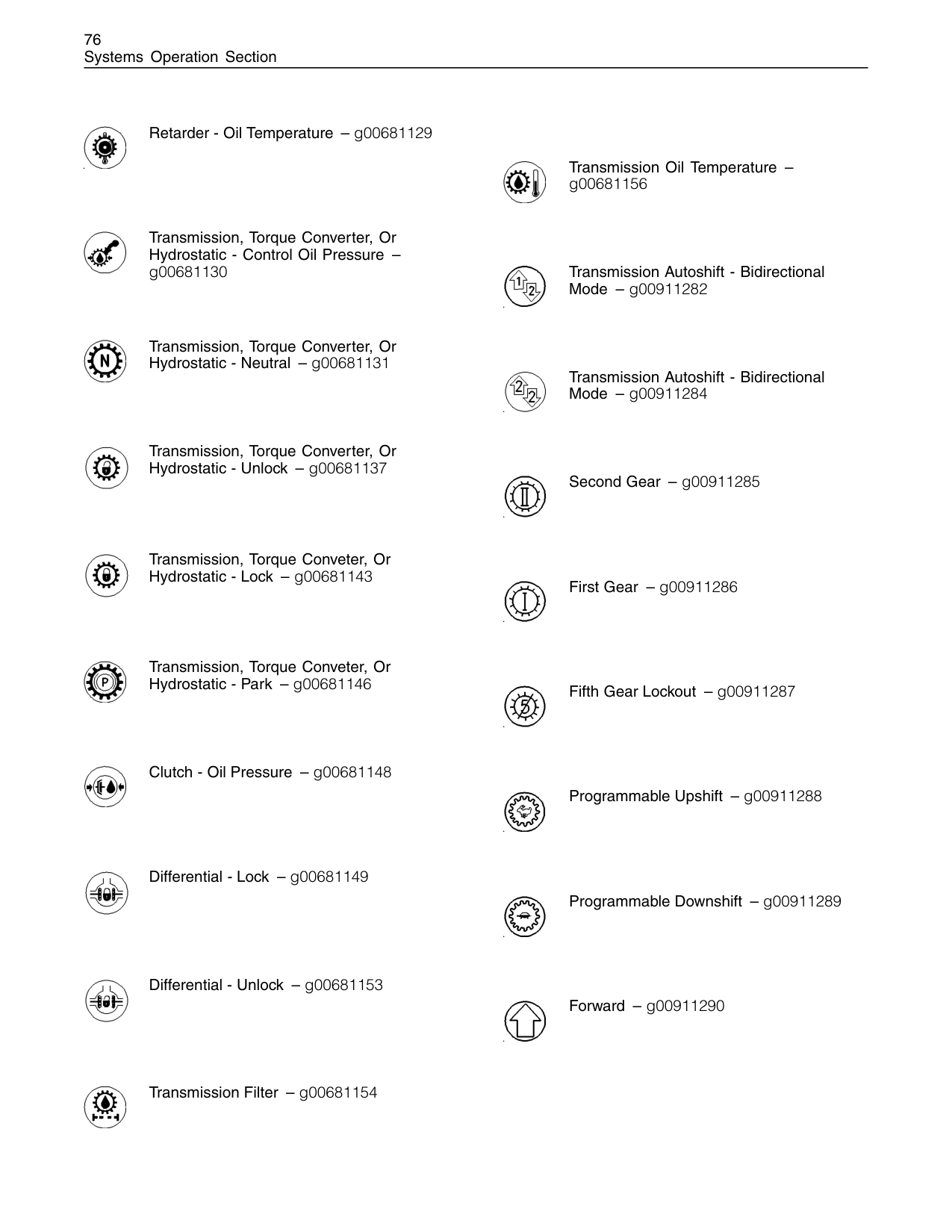

76 Systems Operation Section Retarder - Oil Temperature – g00681129 Transmission, Torque Converter, Or Hydrostatic - Control Oil Pressure – g00681130 Transmission, Torque Converter, Or Hydrostatic - Neutral – g00681131 Transmission, Torque Converter, Or Hydrostatic - Unlock – g00681137 Transmission, Torque Conveter, Or Hydrostatic - Lock – g00681143 Transmission, Torque Conveter, Or Hydrostatic - Park – g00681146 Clutch - Oil Pressure – g00681148 Differential - Lock – g00681149 Differential - Unlock – g00681153 Transmission Filter – g00681154 Transmission Oil Temperature – g00681156 Transmission Autoshift - Bidirectional Mode – g00911282 Transmission Autoshift - Bidirectional Mode – g00911284 Second Gear – g00911285 First Gear – g00911286 Fifth Gear Lockout – g00911287 Programmable Upshift – g00911288 Programmable Downshift – g00911289 Forward – g00911290

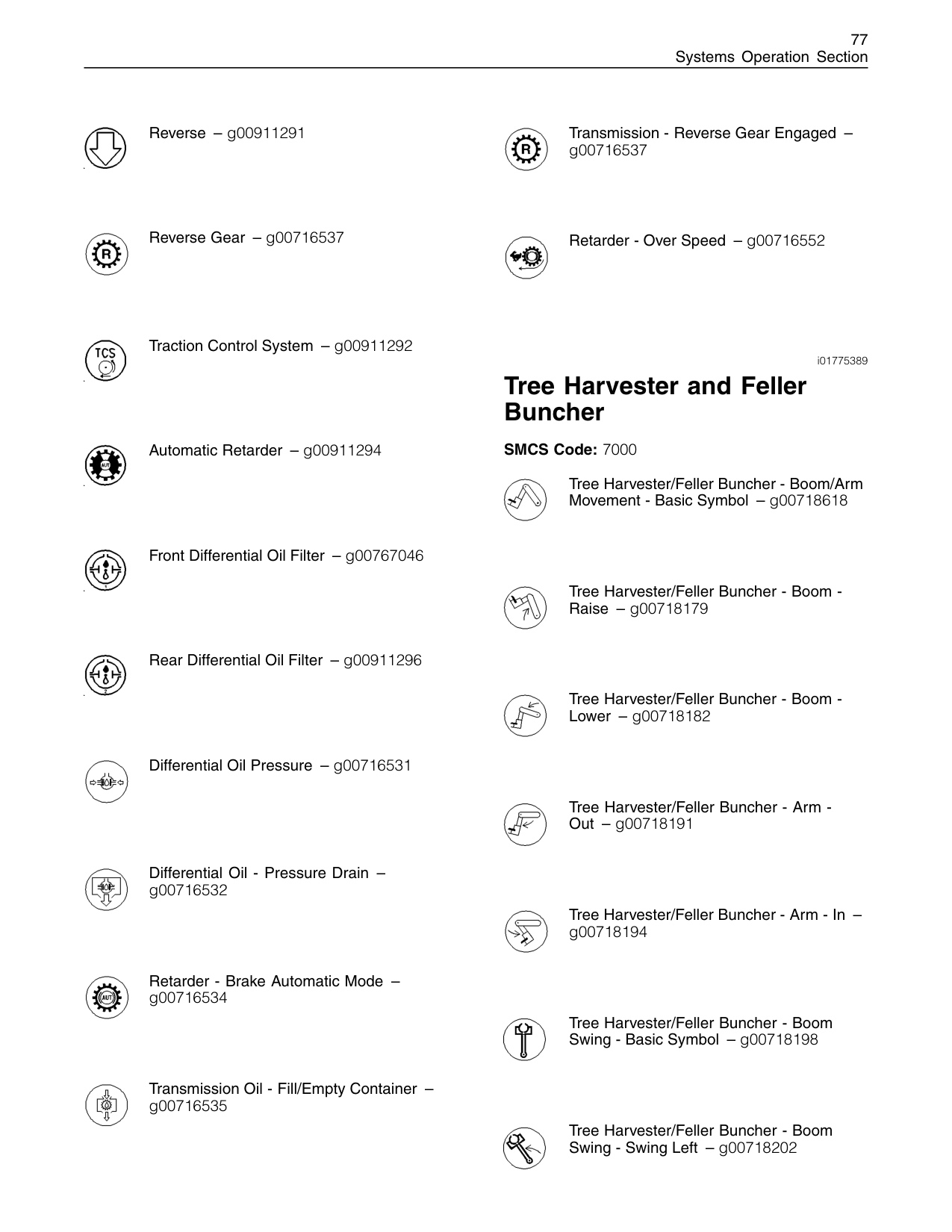

77 Systems Operation Section Reverse – g00911291 Reverse Gear – g00716537 Traction Control System – g00911292 Automatic Retarder – g00911294 Front Differential Oil Filter – g00767046 Rear Differential Oil Filter – g00911296 Differential Oil Pressure – g00716531 Differential Oil - Pressure Drain – g00716532 Retarder - Brake Automatic Mode – g00716534 Transmission Oil - Fill/Empty Container – g00716535 Transmission - Reverse Gear Engaged – g00716537 Retarder - Over Speed – g00716552 i01775389 Tree Harvester and Feller Buncher SMCS Code: 7000 Tree Harvester/Feller Buncher - Boom/Arm Movement - Basic Symbol – g00718618 Tree Harvester/Feller Buncher - Boom - Raise – g00718179 Tree Harvester/Feller Buncher - Boom - Lower – g00718182 Tree Harvester/Feller Buncher - Arm - Out – g00718191 Tree Harvester/Feller Buncher - Arm - In – g00718194 Tree Harvester/Feller Buncher - Boom Swing - Basic Symbol – g00718198 Tree Harvester/Feller Buncher - Boom Swing - Swing Left – g00718202

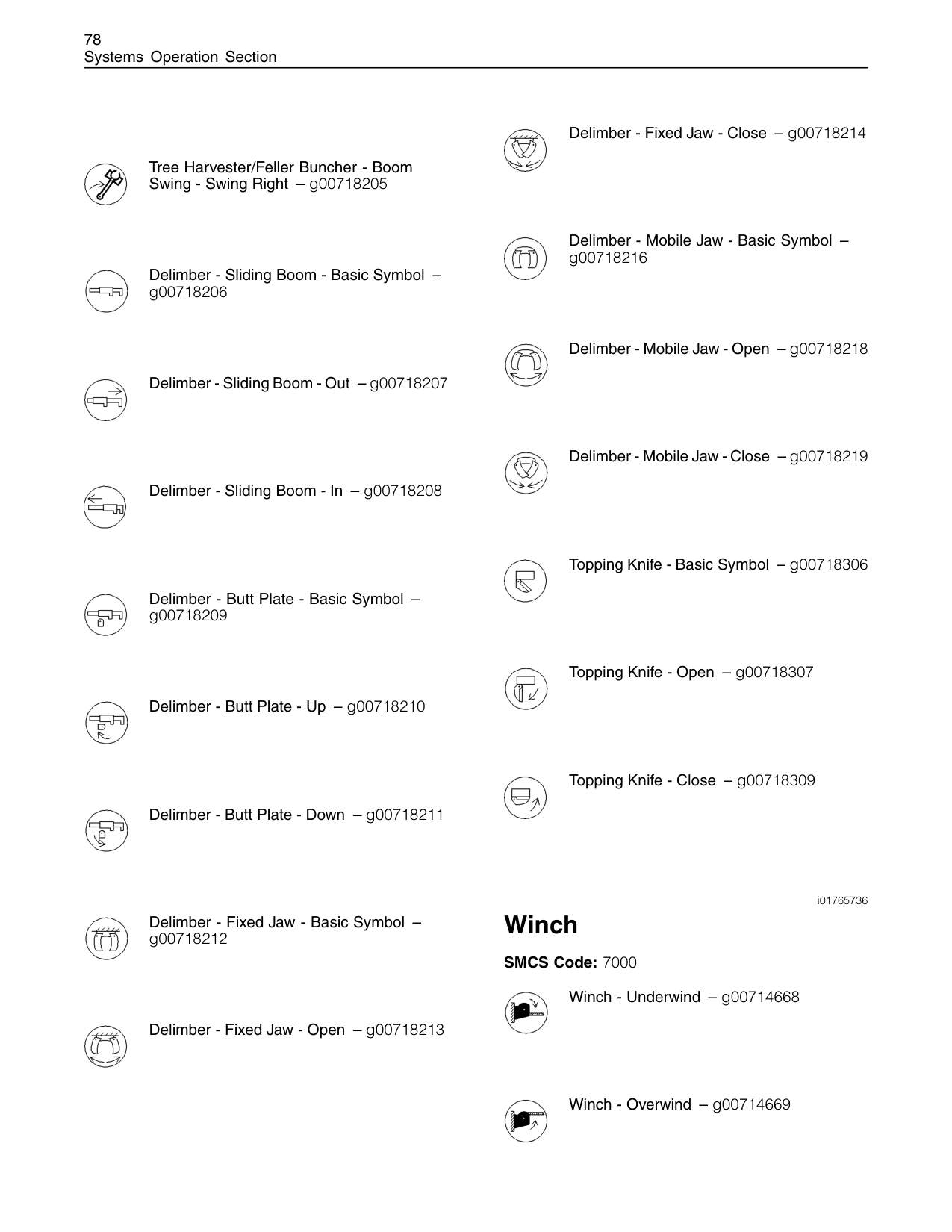

78 Systems Operation Section Tree Harvester/Feller Buncher - Boom Swing - Swing Right – g00718205 Delimber - Sliding Boom - Basic Symbol – g00718206 Delimber - Sliding Boom - Out – g00718207 Delimber - Sliding Boom - In – g00718208 Delimber - Butt Plate - Basic Symbol – g00718209 Delimber - Butt Plate - Up – g00718210 Delimber - Butt Plate - Down – g00718211 Delimber - Fixed Jaw - Basic Symbol – g00718212 Delimber - Fixed Jaw - Open – g00718213 Delimber - Fixed Jaw - Close – g00718214 Delimber - Mobile Jaw - Basic Symbol – g00718216 Delimber - Mobile Jaw - Open – g00718218 Delimber - Mobile Jaw - Close – g00718219 Topping Knife - Basic Symbol – g00718306 Topping Knife - Open – g00718307 Topping Knife - Close – g00718309 i01765736 Winch SMCS Code: 7000 Winch - Underwind – g00714668 Winch - Overwind – g00714669

79 Systems Operation Section Winch - In & Out – g00714671 Winch - Hold – g00714672 Winch - Spool & Drag – g00714673 Winch - Disconnect – g00714674 Winch - Brake On – g00714675 Winch - Brake Off – g00714677 Winch - Basic – g00714679 Winch - Spool Out – g00714680 Winch - Spool In – g00714685 Winch - Free Spool – g00714692 Winch - Lock – g00714693 Winch - Brake – g00714695 Winch - Reel In – g00015381 Winch - Reel Out – g00015383 Winch - Overwind – g00015385 Winch - Underwind – g00015387 Winch - Brake Off – g00015389 Winch - In & Out – g00015391 Winch - Brake On – g00015393 Boom Priority Mode – g00714717

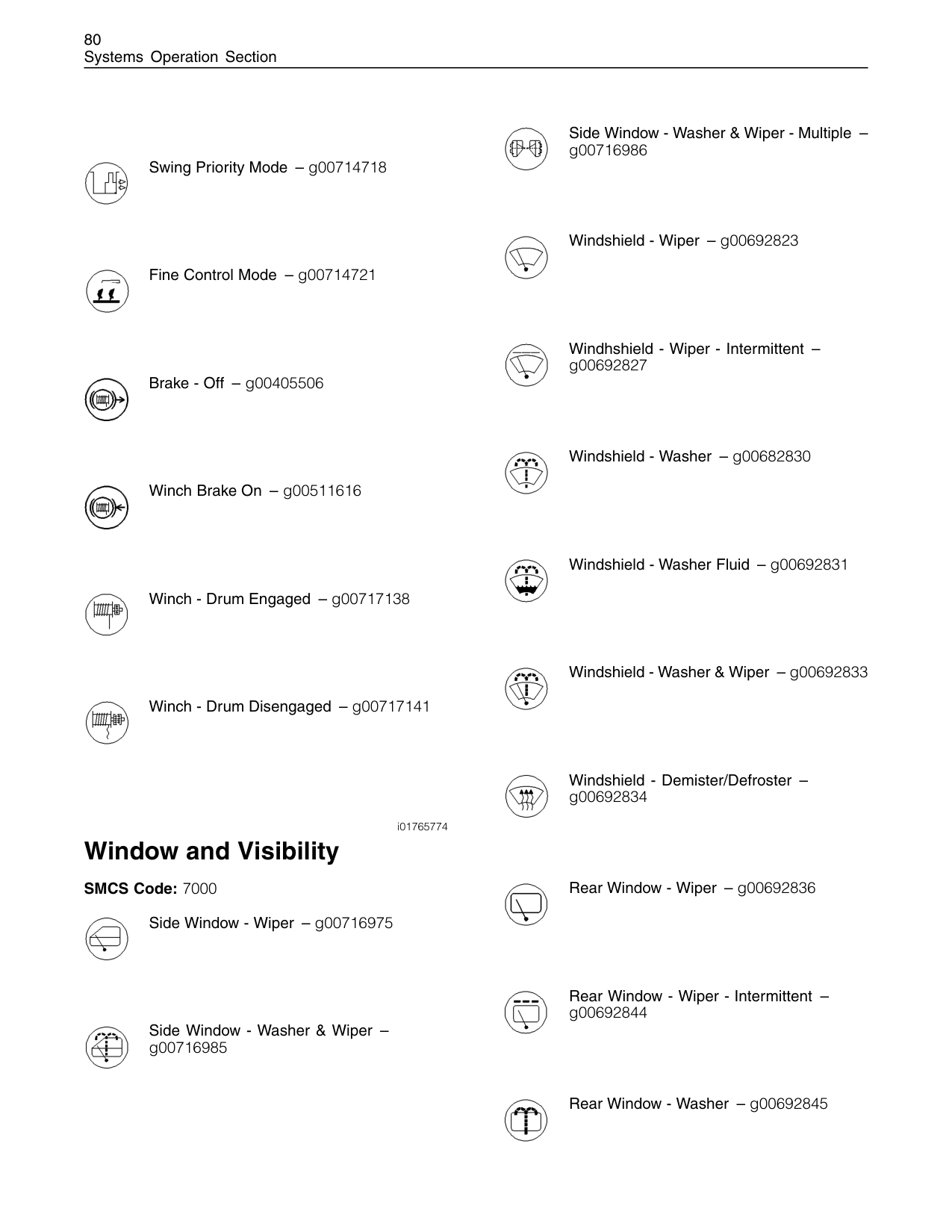

80 Systems Operation Section Swing Priority Mode – g00714718 Fine Control Mode – g00714721 Brake - Off – g00405506 Winch Brake On – g00511616 Winch - Drum Engaged – g00717138 Winch - Drum Disengaged – g00717141 i01765774 Window and Visibility SMCS Code: 7000 Side Window - Wiper – g00716975 Side Window - Washer & Wiper – g00716985 Side Window - Washer & Wiper - Multiple – g00716986 Windshield - Wiper – g00692823 Windhshield - Wiper - Intermittent – g00692827 Windshield - Washer – g00682830 Windshield - Washer Fluid – g00692831 Windshield - Washer & Wiper – g00692833 Windshield - Demister/Defroster – g00692834 Rear Window - Wiper – g00692836 Rear Window - Wiper - Intermittent – g00692844 Rear Window - Washer – g00692845

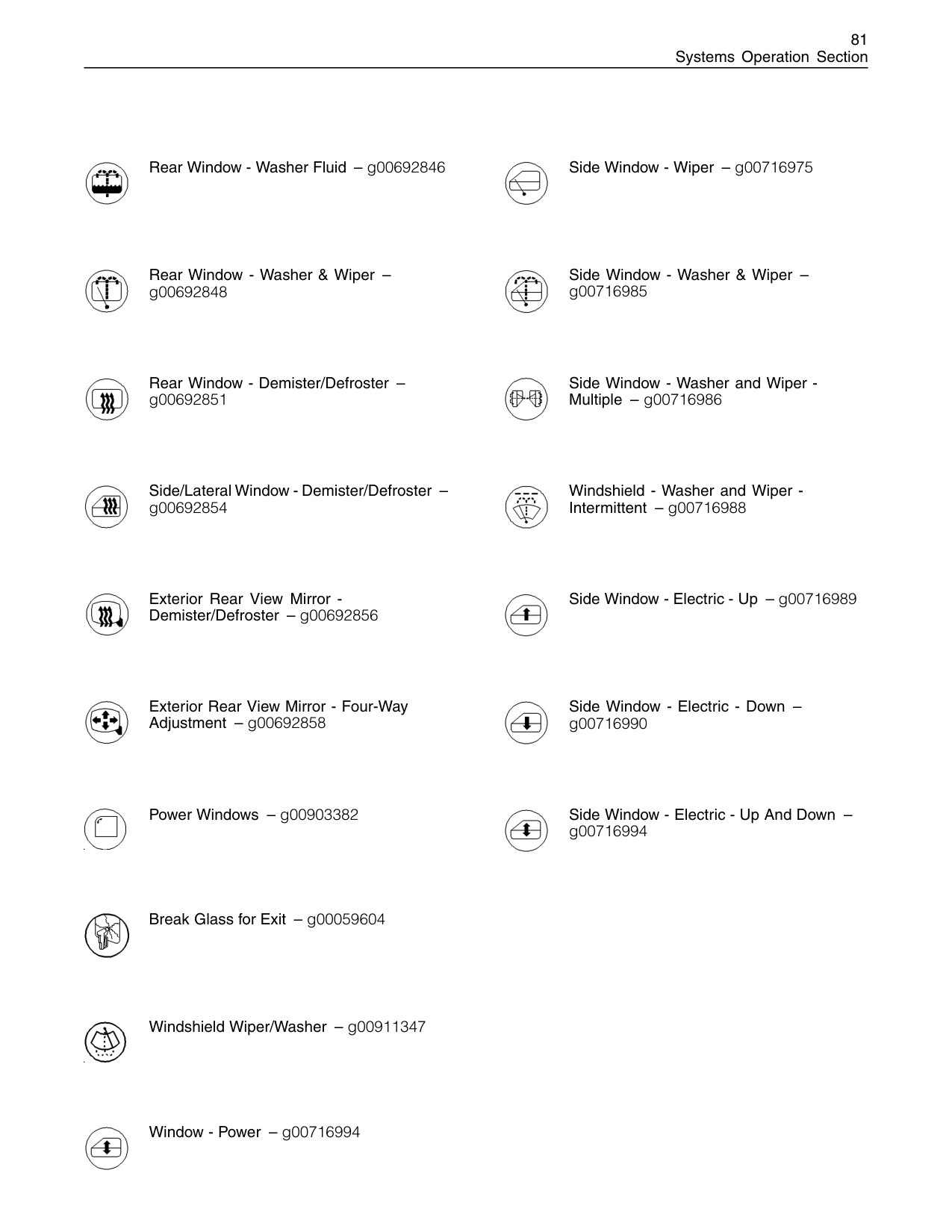

81 Systems Operation Section Rear Window - Washer Fluid – g00692846 Rear Window - Washer & Wiper – g00692848 Rear Window - Demister/Defroster – g00692851 Side/Lateral Window - Demister/Defroster – g00692854 Exterior Rear View Mirror - Demister/Defroster – g00692856 Exterior Rear View Mirror - Four-Way Adjustment – g00692858 Power Windows – g00903382 Break Glass for Exit – g00059604 Windshield Wiper/Washer – g00911347 Window - Power – g00716994 Side Window - Wiper – g00716975 Side Window - Washer & Wiper – g00716985 Side Window - Washer and Wiper - Multiple – g00716986 Windshield - Washer and Wiper - Intermittent – g00716988 Side Window - Electric - Up – g00716989 Side Window - Electric - Down – g00716990 Side Window - Electric - Up And Down – g00716994

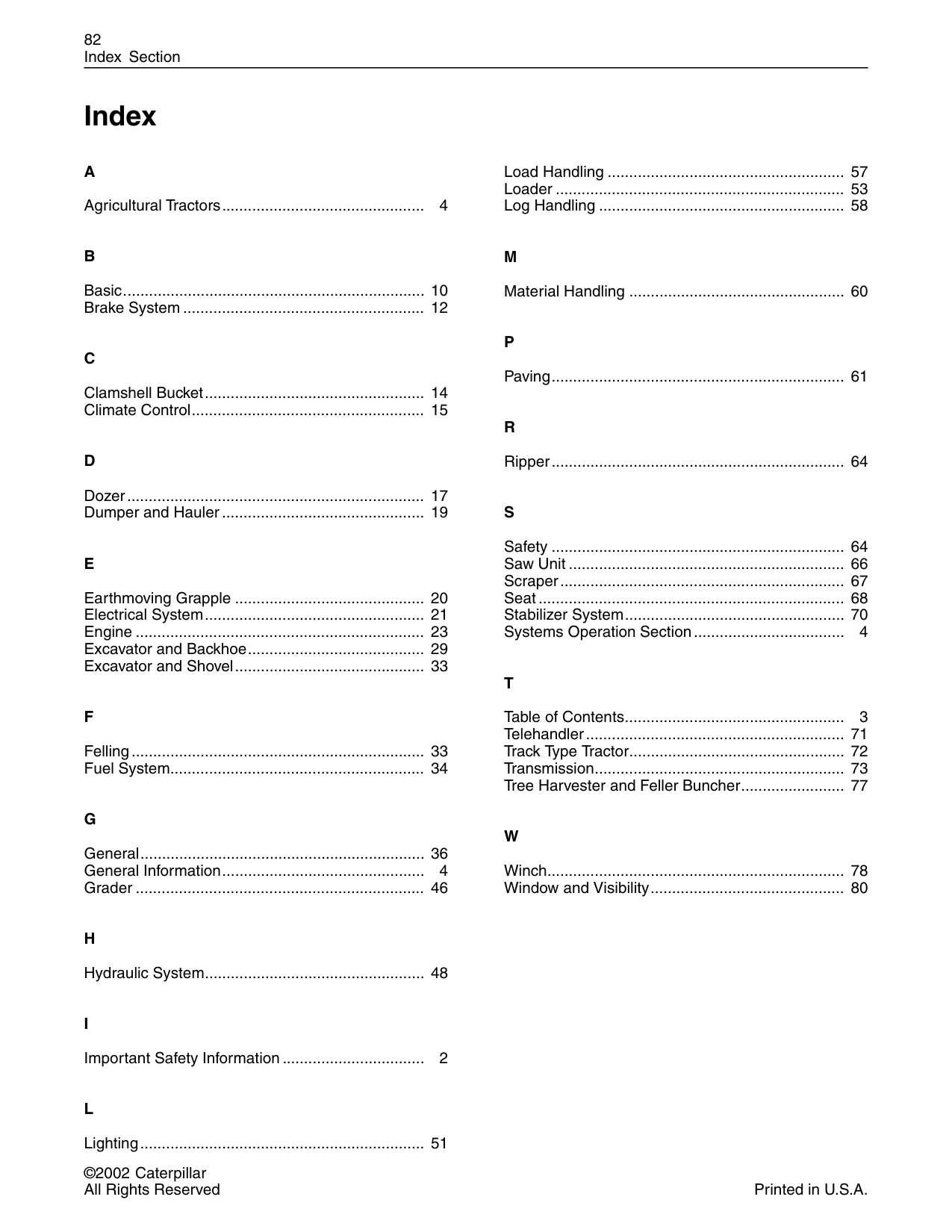

82 Index Section Index
