Full Manual
76 pages
Unmanaged narrow Ethernet switches
User manual
UM EN FL SWITCH 1000
#### User manual
#### Unmanaged narrow Ethernet switches
UM EN FL SWITCH 1000, Revision A

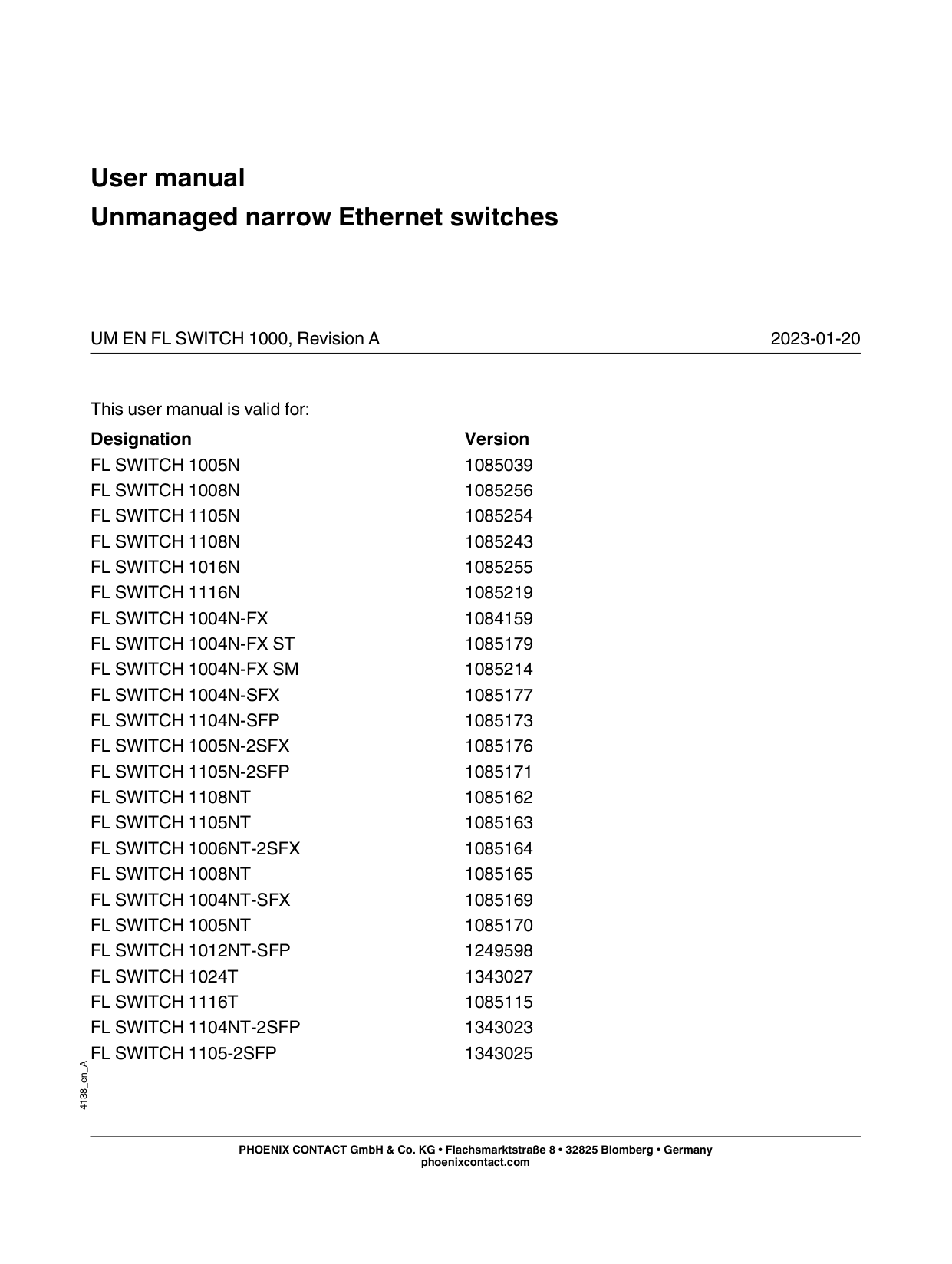

This user manual is valid for: Designation Version
FL SWITCH 1005N 1085039 FL SWITCH 1008N 1085256 FL SWITCH 1105N 1085254 FL SWITCH 1108N 1085243 FL SWITCH 1016N 1085255 FL SWITCH 1116N 1085219 FL SWITCH 1004N-FX 1084159 FL SWITCH 1004N-FX ST 1085179 FL SWITCH 1004N-FX SM 1085214
FL SWITCH 1005N-2SFX 1085176
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com 4138_en_A
2023-01-20

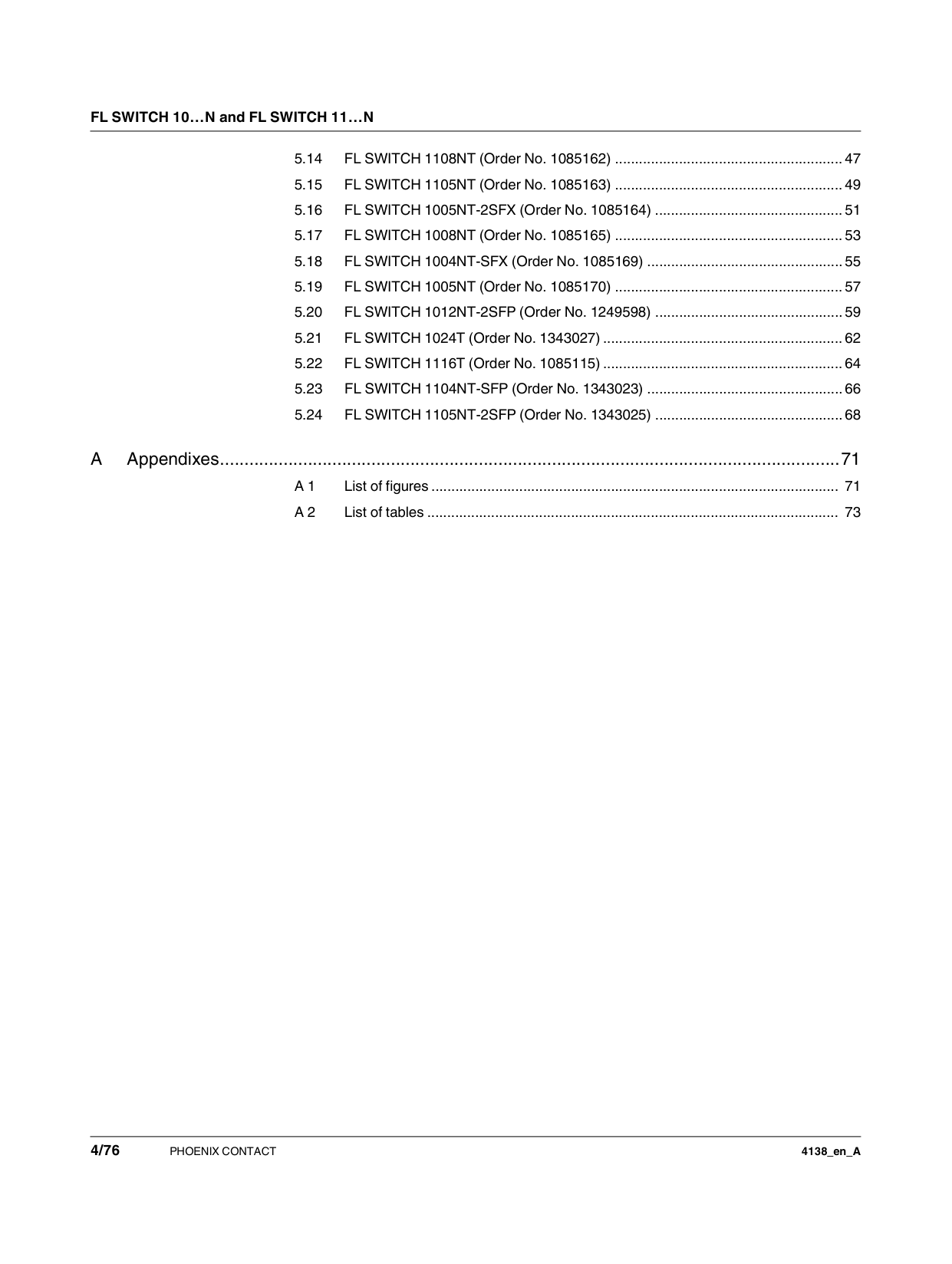

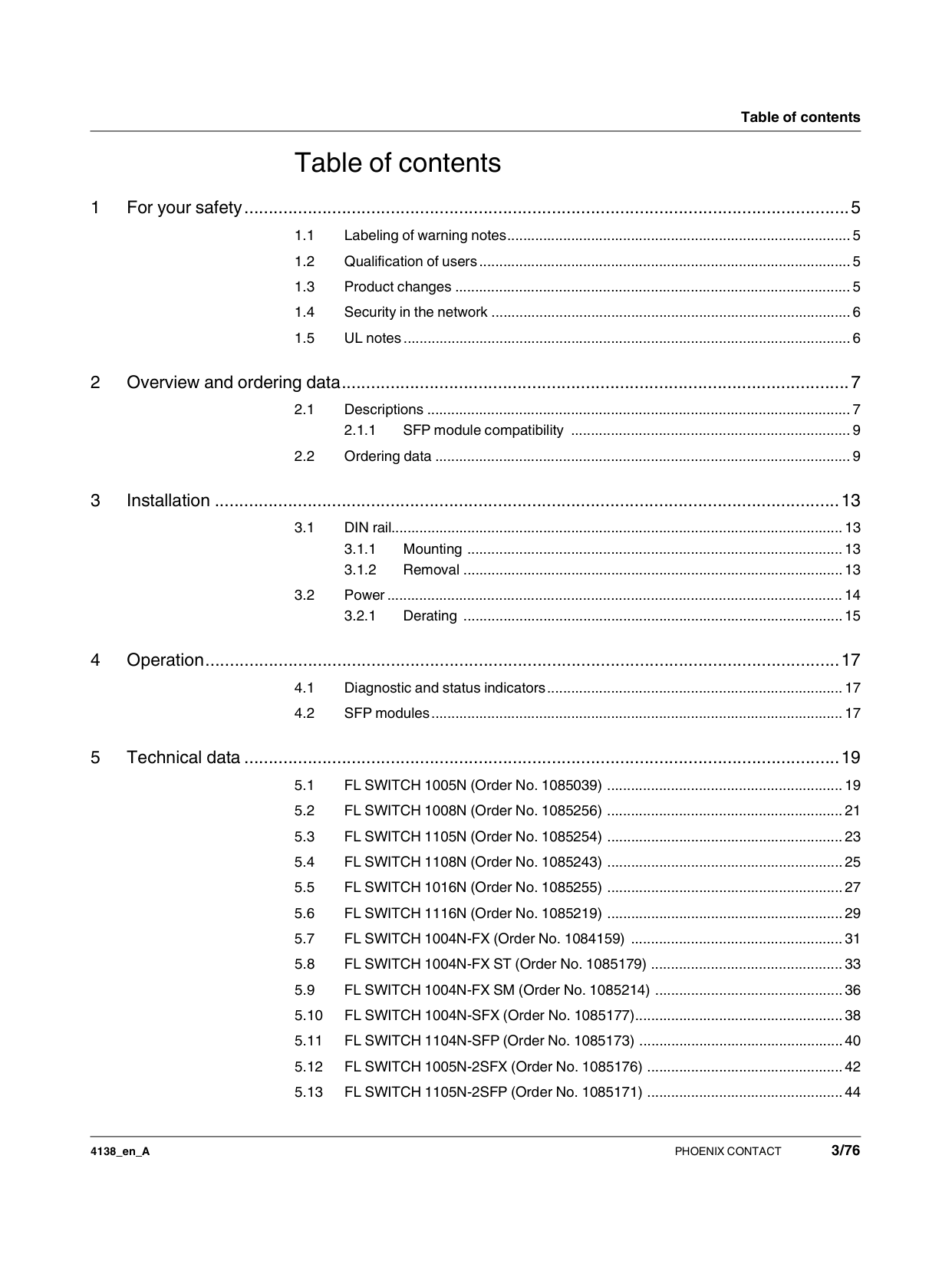

Table of contents
Table of contents
A Appendixes...............................................................................................................................71

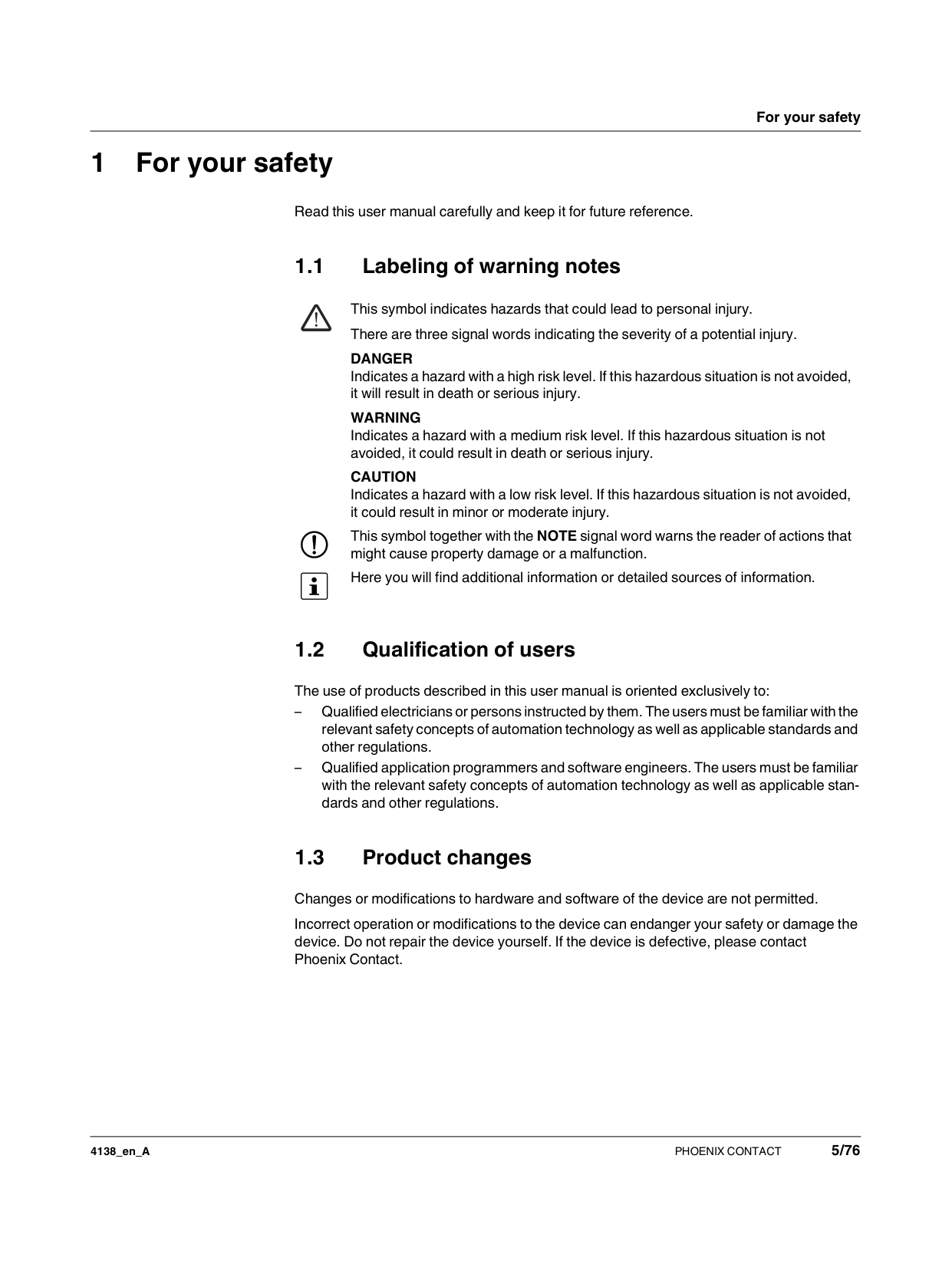

1 For your safety
Read this user manual carefully and keep it for future reference.
For your safety
The use of products described in this user manual is oriented exclusively to:
This symbol indicates hazards that could lead to personal injury. There are three signal words indicating the severity of a potential injury. DANGER Indicates a hazard with a high risk level. If this hazardous situation is not avoided, it will result in death or serious injury. WARNING Indicates a hazard with a medium risk level. If this hazardous situation is not avoided, it could result in death or serious injury. CAUTION Indicates a hazard with a low risk level. If this hazardous situation is not avoided, it could result in minor or moderate injury.
This symbol together with the NOTE signal word warns the reader of actions that might cause property damage or a malfunction.
Here you will find additional information or detailed sources of information.
Changes or modifications to hardware and software of the device are not permitted. Incorrect operation or modifications to the device can endanger your safety or damage the device. Do not repair the device yourself. If the device is defective, please contact Phoenix Contact.

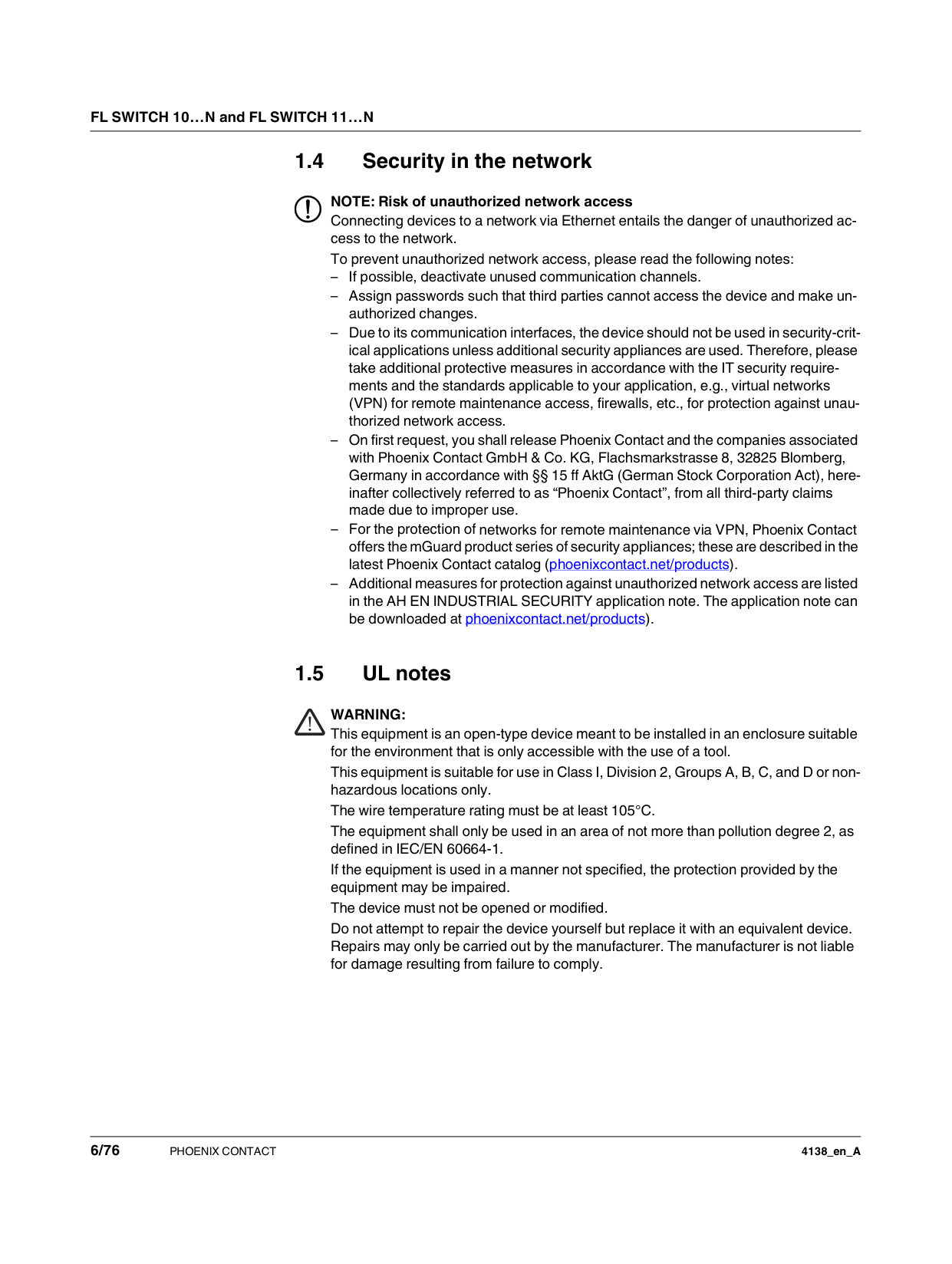

###### 1.4 Security in the network
NOTE: Risk of unauthorized network access Connecting devices to a network via Ethernet entails the danger of unauthorized access to the network. To prevent unauthorized network access, please read the following notes:
###### 1.5 UL notes
WARNING: This equipment is an open-type device meant to be installed in an enclosure suitable for the environment that is only accessible with the use of a tool. This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or nonhazardous locations only. The wire temperature rating must be at least 105°C. The equipment shall only be used in an area of not more than pollution degree 2, as defined in IEC/EN 60664-1. If the equipment is used in a manner not specified, the protection provided by the equipment may be impaired. The device must not be opened or modified.
Do not attempt to repair the device yourself but replace it with an equivalent device. Repairs may only be carried out by the manufacturer. The manufacturer is not liable for damage resulting from failure to comply.
2 Overview and ordering data
###### 2.1 Descriptions

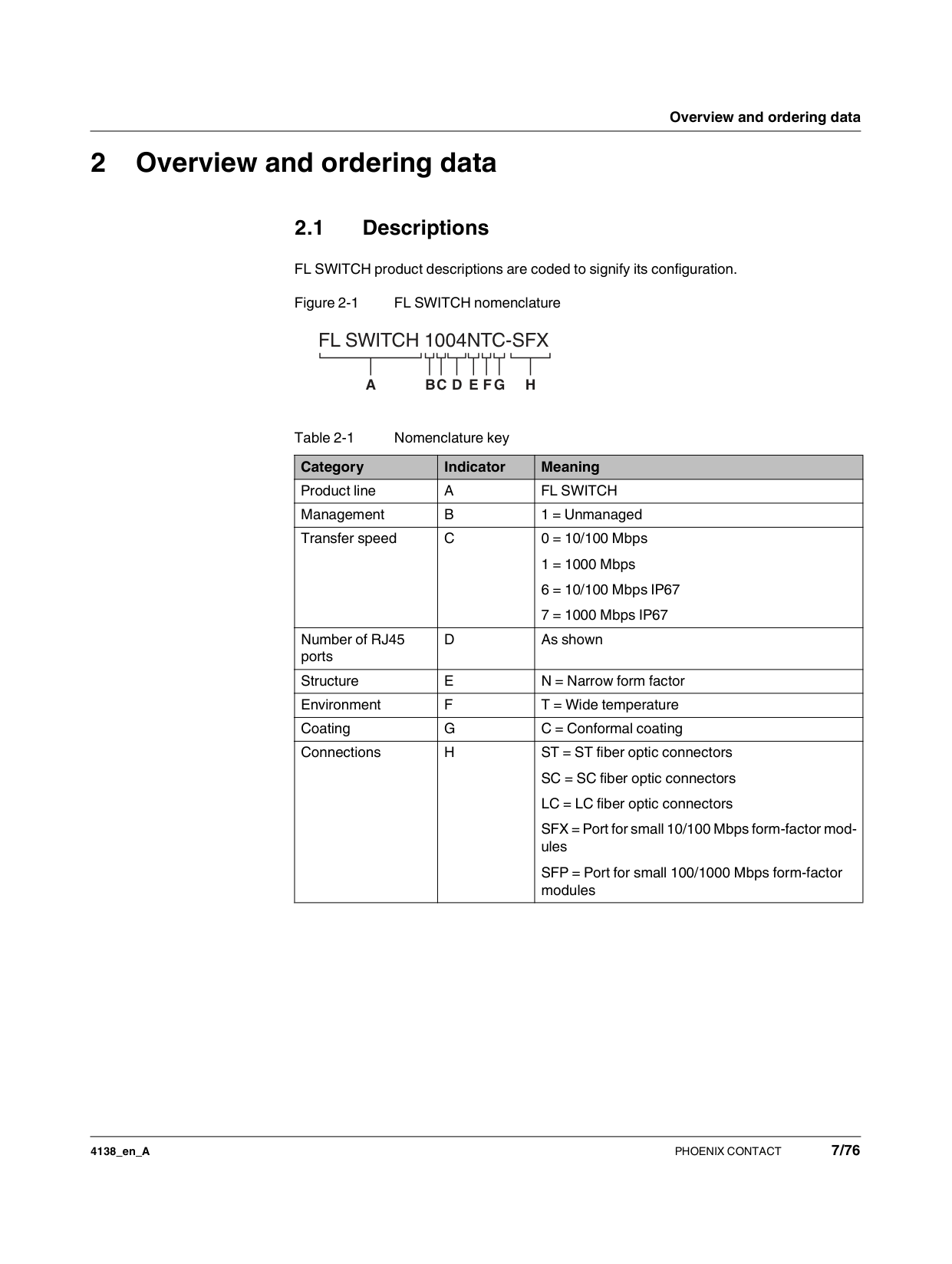

FL SWITCH product descriptions are coded to signify its configuration. Figure 2-1 FL SWITCH nomenclature
FL SWITCH 1004NTC-SFX
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
ABCDFE
GH
|Category|Indicator|Meaning| |---|---|---| |Product line|A|FL SWITCH| |Management|B|1 = Unmanaged| |Transfer speed|C|0 = 10/100 Mbps
1 = 1000 Mbps
6 = 10/100 Mbps IP67
7 = 1000 Mbps IP67
|
|Number of RJ45 ports|D|As shown| |Structure|E|N = Narrow form factor| |Environment|F|T = Wide temperature| |Coating|G|C = Conformal coating| |Connections|H|ST = ST fiber optic connectors SC = SC fiber optic connectors LC = LC fiber optic connectors SFX = Port for small 10/100 Mbps form-factor modules SFP = Port for small 100/1000 Mbps form-factor modules|
######## FL SWITCH 10…N and FL SWITCH 11…N

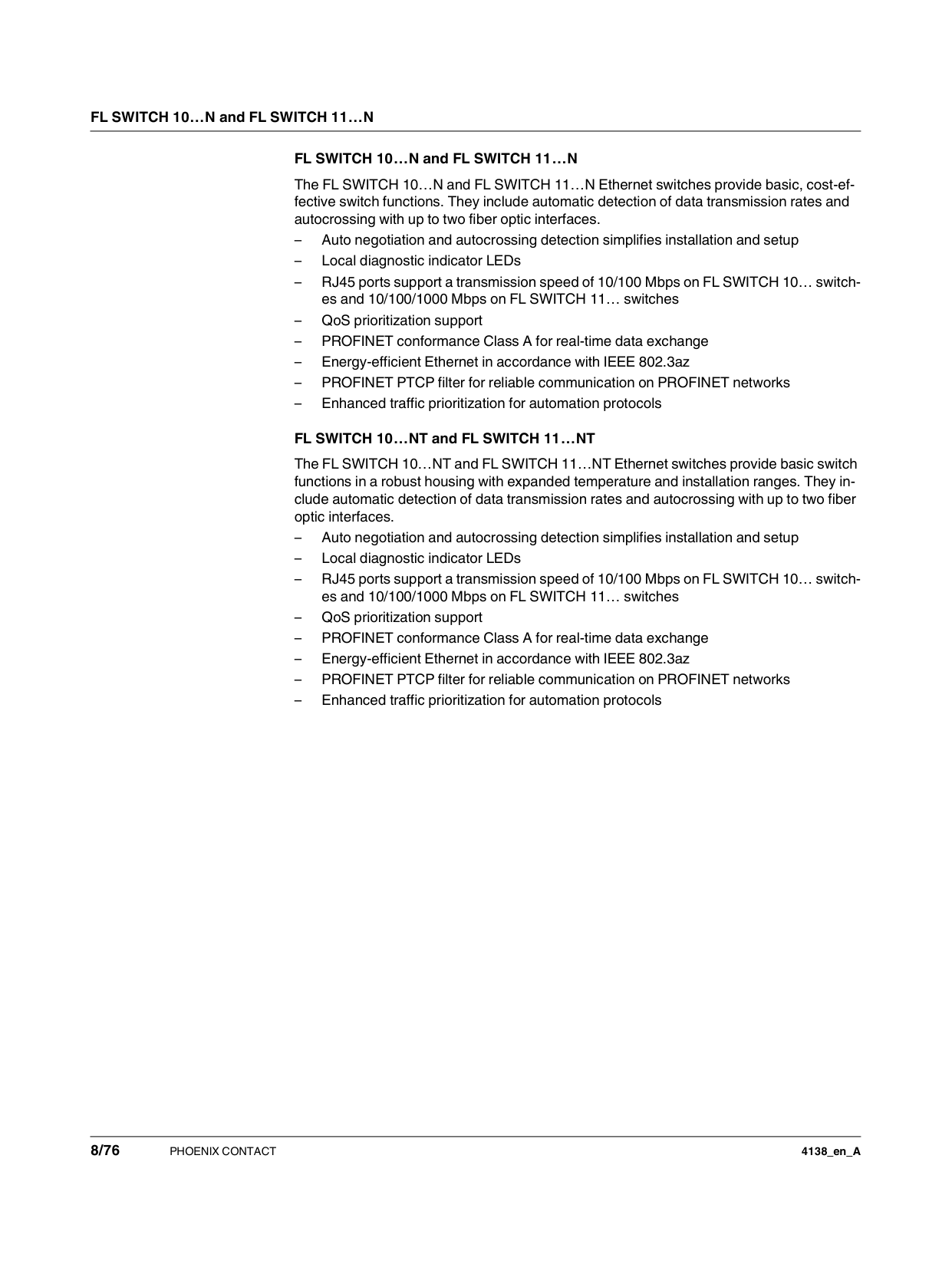

The FL SWITCH 10…N and FL SWITCH 11…N Ethernet switches provide basic, cost-effective switch functions. They include automatic detection of data transmission rates and autocrossing with up to two fiber optic interfaces.
FL SWITCH 10…NT and FL SWITCH 11…NT
The FL SWITCH 10…NT and FL SWITCH 11…NT Ethernet switches provide basic switch functions in a robust housing with expanded temperature and installation ranges. They include automatic detection of data transmission rates and autocrossing with up to two fiber optic interfaces.

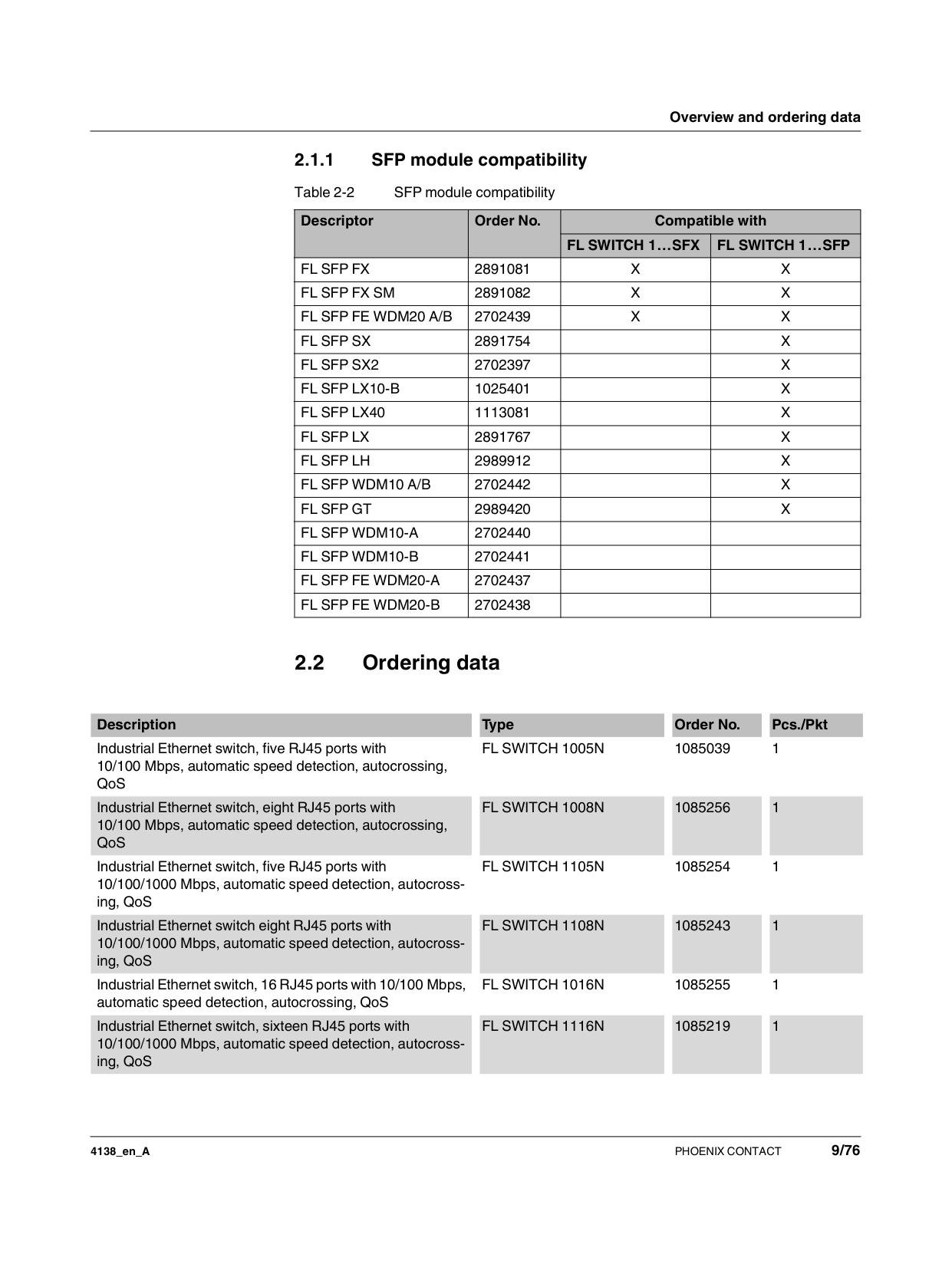

2.1.1 SFP module compatibility
|Descriptor|Order No.|Compatible with|Compatible with| |---|---|---|---| |Descriptor|Order No.|FL SWITCH 1…SFX|FL SWITCH 1…SFP| |FL SFP FX|2891081|X|X| |FL SFP FX SM|2891082|X|X| |FL SFP FE WDM20 A/B|2702439|X|X| |FL SFP SX|2891754| |X| |FL SFP SX2|2702397| |X| |FL SFP LX10-B|1025401| |X| |FL SFP LX40|1113081| |X| |FL SFP LX|2891767| |X| |FL SFP LH|2989912| |X| |FL SFP WDM10 A/B|2702442| |X| |FL SFP GT|2989420| |X| |FL SFP WDM10-A|2702440| | |
|FL SFP WDM10-B|2702441| | | |FL SFP FE WDM20-A|2702437| | | |FL SFP FE WDM20-B|2702438| | |
###### 2.2 Ordering data
|Description Type Order No. Pcs./Pkt
| |---| |Industrial Ethernet switch, five RJ45 ports with 10/100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1005N 1085039 1| |Industrial Ethernet switch, eight RJ45 ports with 10/100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1008N 1085256 1
| |Industrial Ethernet switch, five RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1105N 1085254 1| |Industrial Ethernet switch eight RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1108N 1085243 1
| |Industrial Ethernet switch, 16 RJ45 ports with 10/100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1016N 1085255 1| |Industrial Ethernet switch, sixteen RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1116N 1085219 1
|

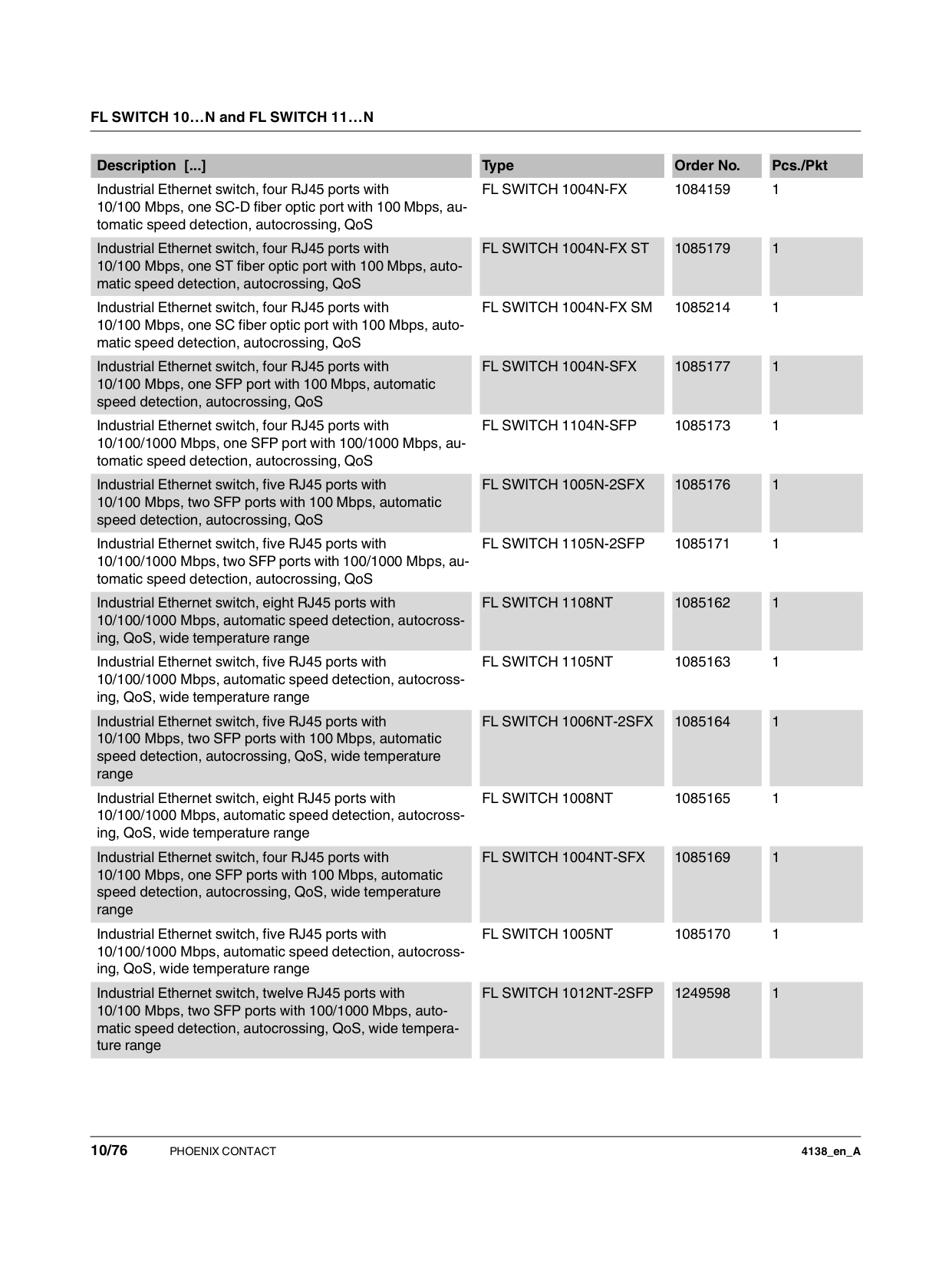

######## Description [...] Type Order No. Pcs./Pkt
Industrial Ethernet switch, four RJ45 ports with 10/100 Mbps, one SC-D fiber optic port with 100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1004N-FX 1084159 1
Industrial Ethernet switch, four RJ45 ports with 10/100 Mbps, one ST fiber optic port with 100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1004N-FX ST 1085179 1
Industrial Ethernet switch, four RJ45 ports with 10/100 Mbps, one SC fiber optic port with 100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1004N-FX SM 1085214 1
Industrial Ethernet switch, four RJ45 ports with 10/100 Mbps, one SFP port with 100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1004N-SFX 1085177 1
Industrial Ethernet switch, four RJ45 ports with 10/100/1000 Mbps, one SFP port with 100/1000 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1104N-SFP 1085173 1
Industrial Ethernet switch, five RJ45 ports with 10/100 Mbps, two SFP ports with 100 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1005N-2SFX 1085176 1
Industrial Ethernet switch, five RJ45 ports with 10/100/1000 Mbps, two SFP ports with 100/1000 Mbps, automatic speed detection, autocrossing, QoS
FL SWITCH 1105N-2SFP 1085171 1
Industrial Ethernet switch, eight RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1108NT 1085162 1
Industrial Ethernet switch, five RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1105NT 1085163 1
Industrial Ethernet switch, five RJ45 ports with 10/100 Mbps, two SFP ports with 100 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1006NT-2SFX 1085164 1
Industrial Ethernet switch, eight RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1008NT 1085165 1
Industrial Ethernet switch, four RJ45 ports with 10/100 Mbps, one SFP ports with 100 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
Industrial Ethernet switch, five RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
Industrial Ethernet switch, twelve RJ45 ports with 10/100 Mbps, two SFP ports with 100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1012NT-2SFP 1249598 1
|Description [...] Type Order No. Pcs./Pkt
| |---| |Industrial Ethernet switch, 24 RJ45 ports with 10/100 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1024T 1343027 1| |Industrial Ethernet switch, four RJ45 ports with 10/100/1000 Mbps, one SFP ports with 100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1104NT-SFP 1343023 1
| |Industrial Ethernet switch, five RJ45 ports with 10/100/1000 Mbps, two SFP ports with 100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1105NT-2SFP 1343025 1|
|Industrial Ethernet switch, 16 RJ45 ports with 10/100/1000 Mbps, automatic speed detection, autocrossing, QoS, wide temperature range
FL SWITCH 1116T 1085115 1
|

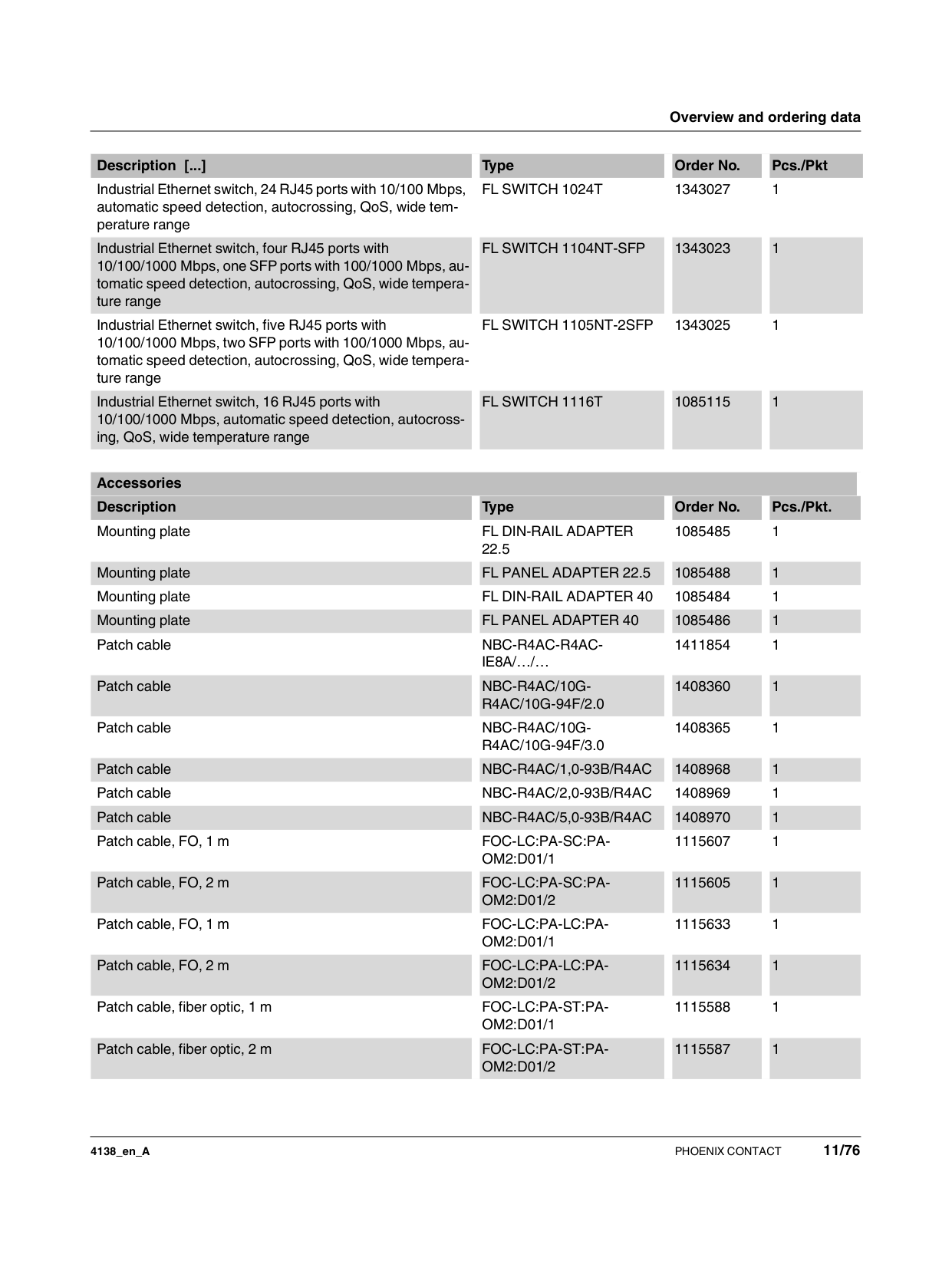

|Accessories|Accessories| |---|---| |Description Type Order No. Pcs./Pkt.
| | |Mounting plate FL DIN-RAIL ADAPTER 22.5
1085485 1| | |Mounting plate FL PANEL ADAPTER 22.5 1085488 1
| | |Mounting plate FL DIN-RAIL ADAPTER 40 1085484 1| | |Mounting plate FL PANEL ADAPTER 40 1085486 1
| | |Patch cable NBC-R4AC-R4ACIE8A/…/…
1411854 1| | |Patch cable NBC-R4AC/10GR4AC/10G-94F/2.0
1408360 1
| | |Patch cable NBC-R4AC/10GR4AC/10G-94F/3.0
1408365 1| | |Patch cable NBC-R4AC/1,0-93B/R4AC 1408968 1
| | |Patch cable NBC-R4AC/2,0-93B/R4AC 1408969 1| | |Patch cable NBC-R4AC/5,0-93B/R4AC 1408970 1
| | |Patch cable, FO, 1 m FOC-LC:PA-SC:PAOM2:D01/1
1115607 1| | |Patch cable, FO, 2 m FOC-LC:PA-SC:PAOM2:D01/2
1115605 1
| | |Patch cable, FO, 1 m FOC-LC:PA-LC:PAOM2:D01/1
1115633 1| | |Patch cable, FO, 2 m FOC-LC:PA-LC:PAOM2:D01/2
1115634 1
| | |Patch cable, fiber optic, 1 m FOC-LC:PA-ST:PAOM2:D01/1
1115588 1| | |Patch cable, fiber optic, 2 m FOC-LC:PA-ST:PAOM2:D01/2
1115587 1
| |

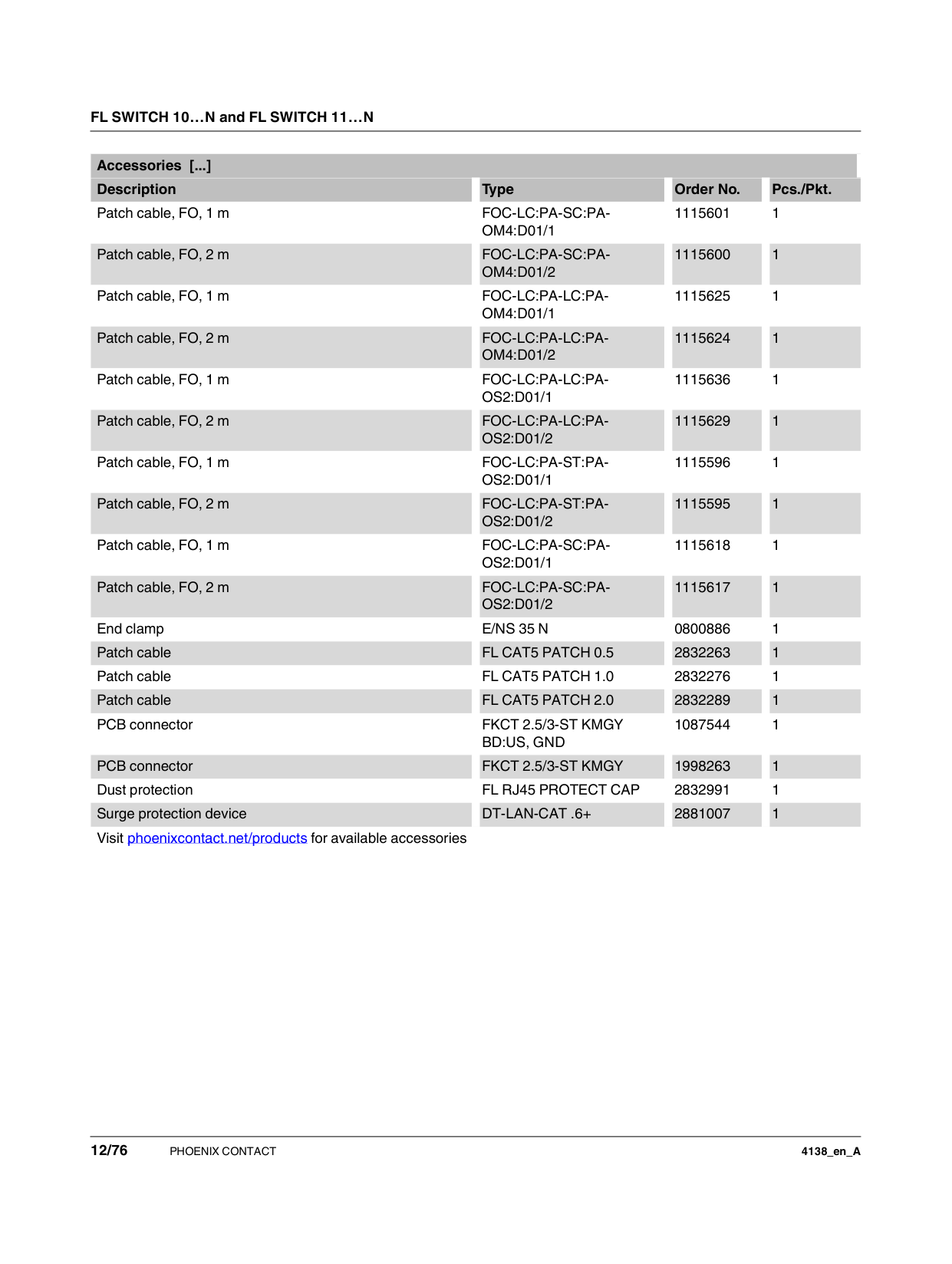

|Accessories [...]|Accessories [...]| |---|---| |Description Type Order No. Pcs./Pkt.
| |
|Patch cable, FO, 1 m FOC-LC:PA-SC:PAOM4:D01/1
1115601 1| | |Patch cable, FO, 2 m FOC-LC:PA-SC:PAOM4:D01/2
1115600 1
| | |Patch cable, FO, 1 m FOC-LC:PA-LC:PAOM4:D01/1
1115625 1| | |Patch cable, FO, 2 m FOC-LC:PA-LC:PAOM4:D01/2
1115624 1
| | |Patch cable, FO, 1 m FOC-LC:PA-LC:PAOS2:D01/1
1115636 1| | |Patch cable, FO, 2 m FOC-LC:PA-LC:PAOS2:D01/2
1115629 1
| | |Patch cable, FO, 1 m FOC-LC:PA-ST:PAOS2:D01/1
1115596 1| | |Patch cable, FO, 2 m FOC-LC:PA-ST:PAOS2:D01/2
1115595 1
| | |Patch cable, FO, 1 m FOC-LC:PA-SC:PAOS2:D01/1
1115618 1| | |Patch cable, FO, 2 m FOC-LC:PA-SC:PAOS2:D01/2
1115617 1
| | |End clamp E/NS 35 N 0800886 1| | |Patch cable FL CAT5 PATCH 0.5 2832263 1
| | |Patch cable FL CAT5 PATCH 1.0 2832276 1| | |Patch cable FL CAT5 PATCH 2.0 2832289 1
| | |PCB connector FKCT 2.5/3-ST KMGY BD:US, GND
1087544 1| | |PCB connector FKCT 2.5/3-ST KMGY 1998263 1
| | |Dust protection FL RJ45 PROTECT CAP 2832991 1| | |Surge protection device DT-LAN-CAT .6+ 2881007 1
| | |Visit phoenixcontact.net/products for available accessories
| |
3 Installation

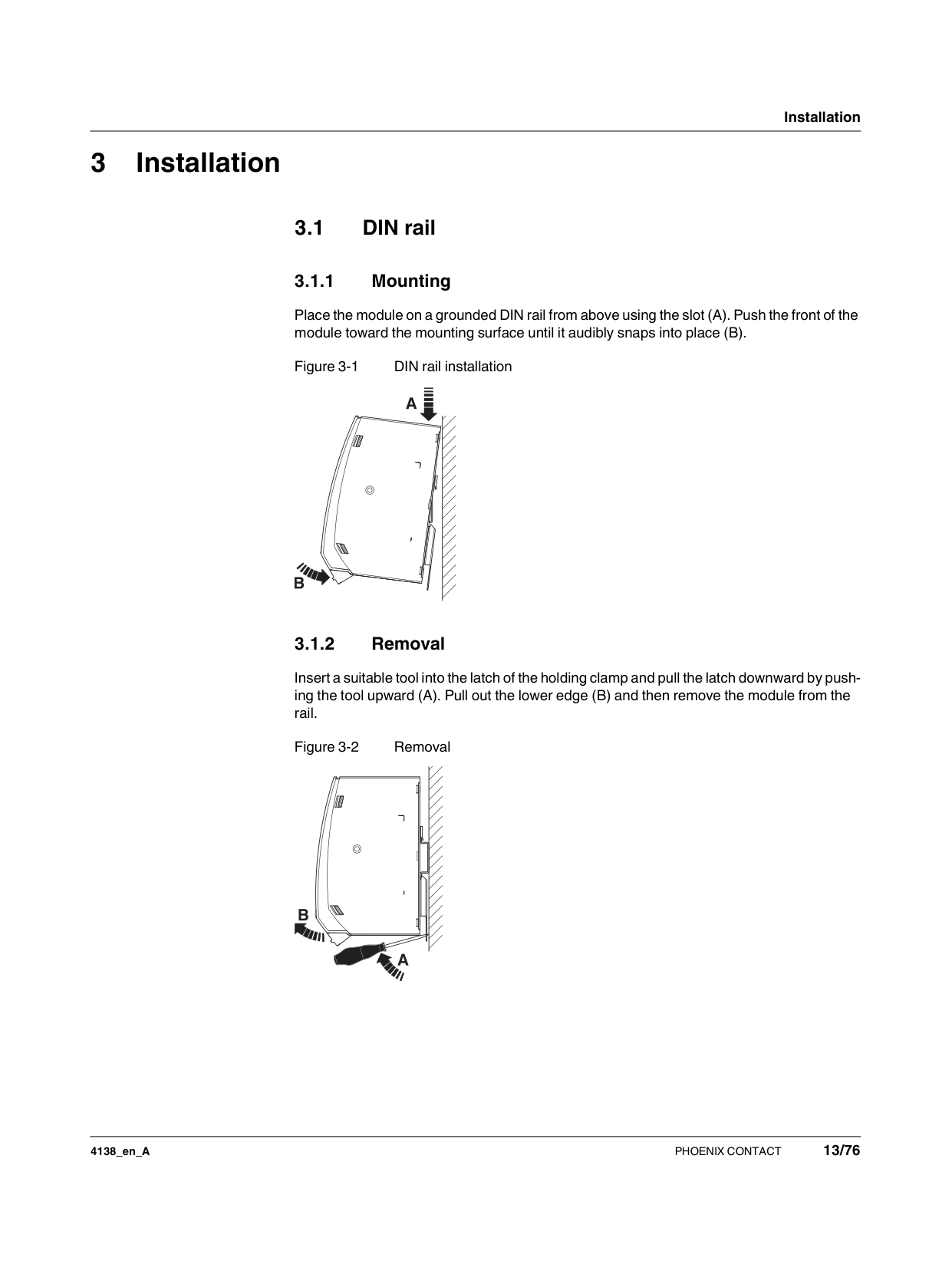

###### 3.1 DIN rail
Place the module on a grounded DIN rail from above using the slot (A). Push the front of the module toward the mounting surface until it audibly snaps into place (B).
3.1.2 Removal
Insert a suitable tool into the latch of the holding clamp and pull the latch downward by pushing the tool upward (A). Pull out the lower edge (B) and then remove the module from the rail.
###### 3.2 Power
WARNING: This device is designed for SELV and PELV operation according to IEC 61140/ EN 61140.
The switch connects to a single power source through a removable COMBICON connector. Snapping the switch onto a grounded rail connects it to the ground potential. Protective ground is through the DIN rail. In an environment particularly prone to EMI, noise immunity can be increased by an additional low-impedance connection to functional earth ground.

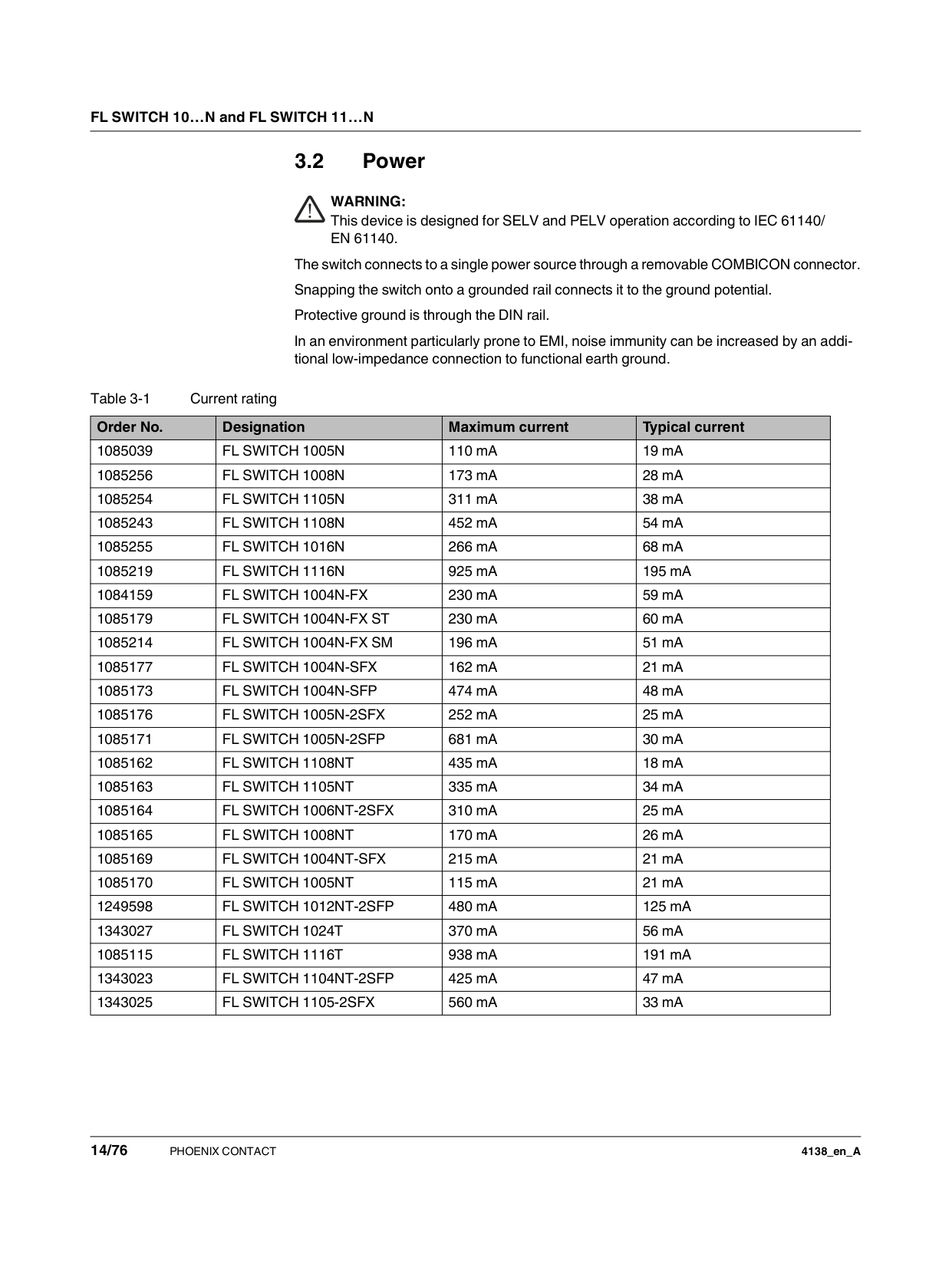

Table 3-1 Current rating
|Order No.|Designation|Maximum current|Typical current| |---|---|---|---| |1085039|FL SWITCH 1005N|110 mA|19 mA| |1085256|FL SWITCH 1008N|173 mA|28 mA| |1085254|FL SWITCH 1105N|311 mA|38 mA| |1085243|FL SWITCH 1108N|452 mA|54 mA|
|1085255|FL SWITCH 1016N|266 mA|68 mA| |1085219|FL SWITCH 1116N|925 mA|195 mA| |1084159|FL SWITCH 1004N-FX|230 mA|59 mA| |1085179|FL SWITCH 1004N-FX ST|230 mA|60 mA| |1085214|FL SWITCH 1004N-FX SM|196 mA|51 mA| |1085177|FL SWITCH 1004N-SFX|162 mA|21 mA| |1085173|FL SWITCH 1004N-SFP|474 mA|48 mA| |1085176|FL SWITCH 1005N-2SFX|252 mA|25 mA| |1085171|FL SWITCH 1005N-2SFP|681 mA|30 mA| |1085162|FL SWITCH 1108NT|435 mA|18 mA| |1085163|FL SWITCH 1105NT|335 mA|34 mA| |1085164|FL SWITCH 1006NT-2SFX|310 mA|25 mA| |1085165|FL SWITCH 1008NT|170 mA|26 mA| |1085169|FL SWITCH 1004NT-SFX|215 mA|21 mA| |1085170|FL SWITCH 1005NT|115 mA|21 mA| |1249598|FL SWITCH 1012NT-2SFP|480 mA|125 mA| |1343027|FL SWITCH 1024T|370 mA|56 mA| |1085115|FL SWITCH 1116T|938 mA|191 mA| |1343023|FL SWITCH 1104NT-2SFP|425 mA|47 mA| |1343025|FL SWITCH 1105-2SFX|560 mA|33 mA|
####### 3.2.1 Derating

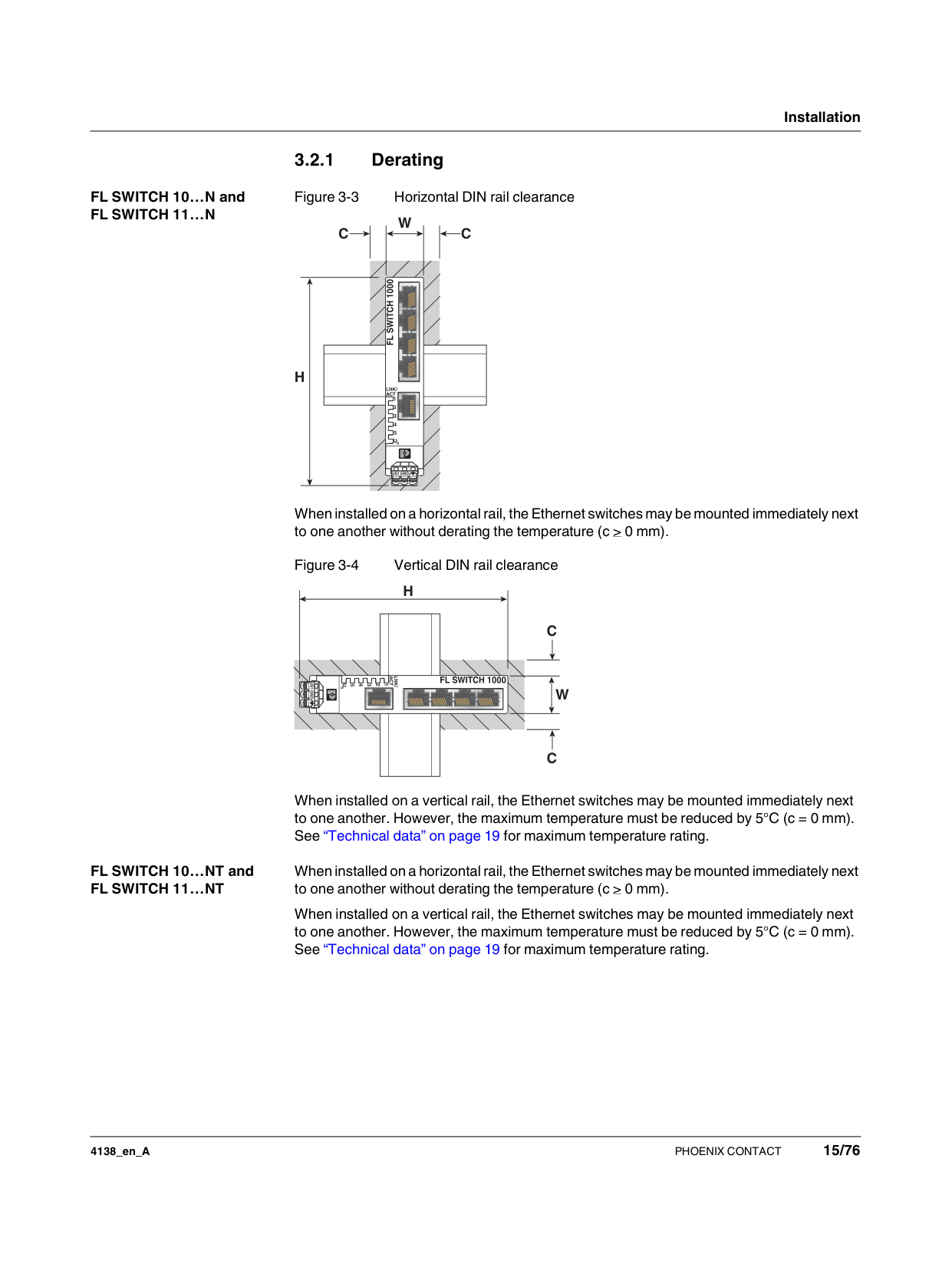

When installed on a horizontal rail, the Ethernet switches may be mounted immediately next to one another without derating the temperature (c > 0 mm).
W
CC
H
H
C
W
C
When installed on a vertical rail, the Ethernet switches may be mounted immediately next to one another. However, the maximum temperature must be reduced by 5°C (c = 0 mm). See “Technical data” on page 19 for maximum temperature rating.
FL SWITCH 10…NT and FL SWITCH 11…NT
When installed on a horizontal rail, the Ethernet switches may be mounted immediately next to one another without derating the temperature (c > 0 mm).
When installed on a vertical rail, the Ethernet switches may be mounted immediately next to one another. However, the maximum temperature must be reduced by 5°C (c = 0 mm). See “Technical data” on page 19 for maximum temperature rating.
4 Operation
Operation

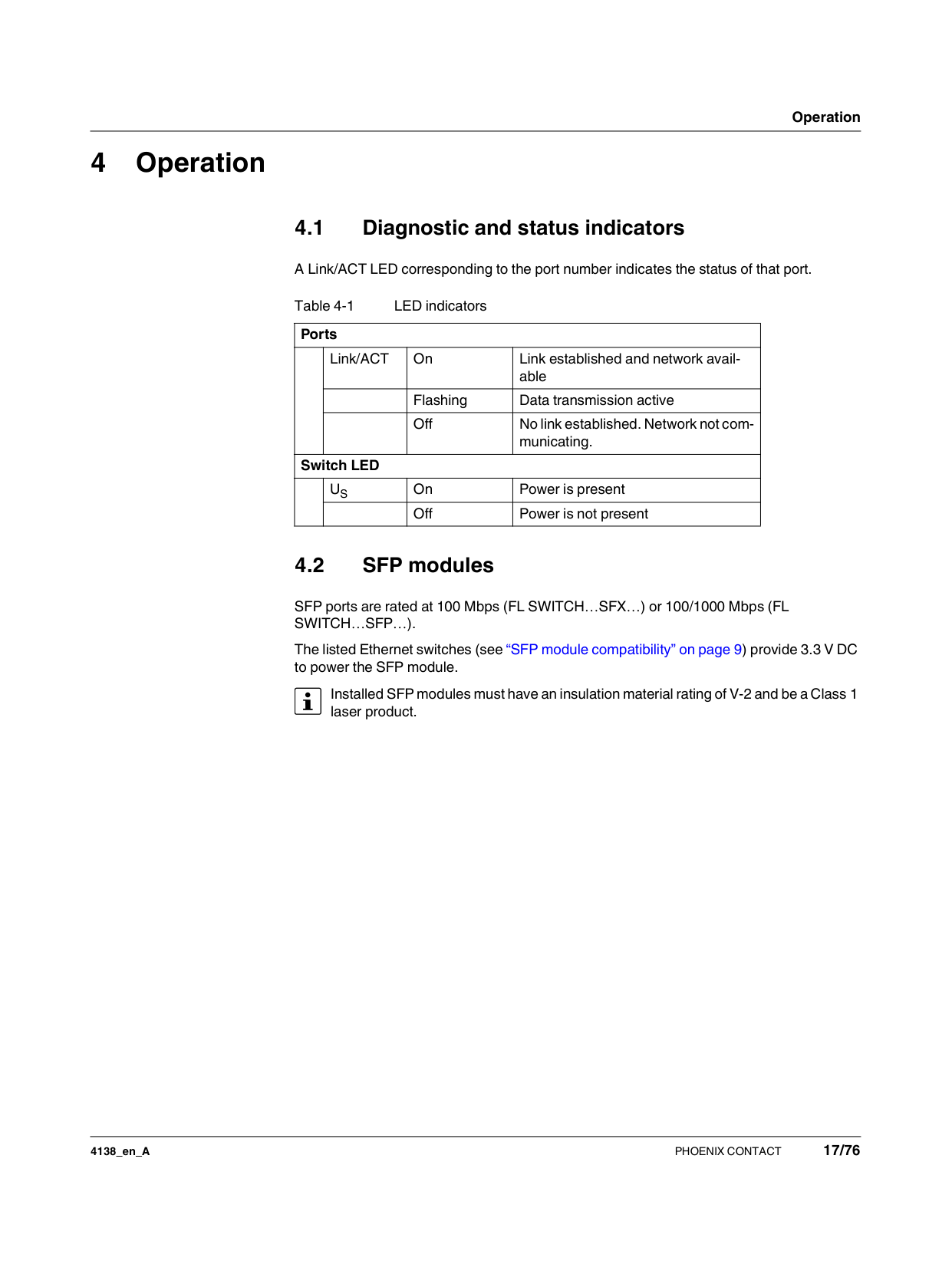

###### 4.1 Diagnostic and status indicators
A Link/ACT LED corresponding to the port number indicates the status of that port.
Table 4-1 LED indicators
|Ports|Ports|Ports|Ports| |---|---|---|---| | |Link/ACT|On|Link established and network available| | | |Flashing|Data transmission active| | | |Off|No link established. Network not communicating.| |Switch LED|Switch LED|Switch LED|Switch LED| | |US|On|Power is present| | | |Off|Power is not present|
###### 4.2 SFP modules
SFP ports are rated at 100 Mbps (FL SWITCHSFX) or 100/1000 Mbps (FL SWITCHSFP).
The listed Ethernet switches (see “SFP module compatibility” on page 9) provide 3.3 V DC to power the SFP module.
Installed SFP modules must have an insulation material rating of V-2 and be a Class 1 laser product.
5 Technical data

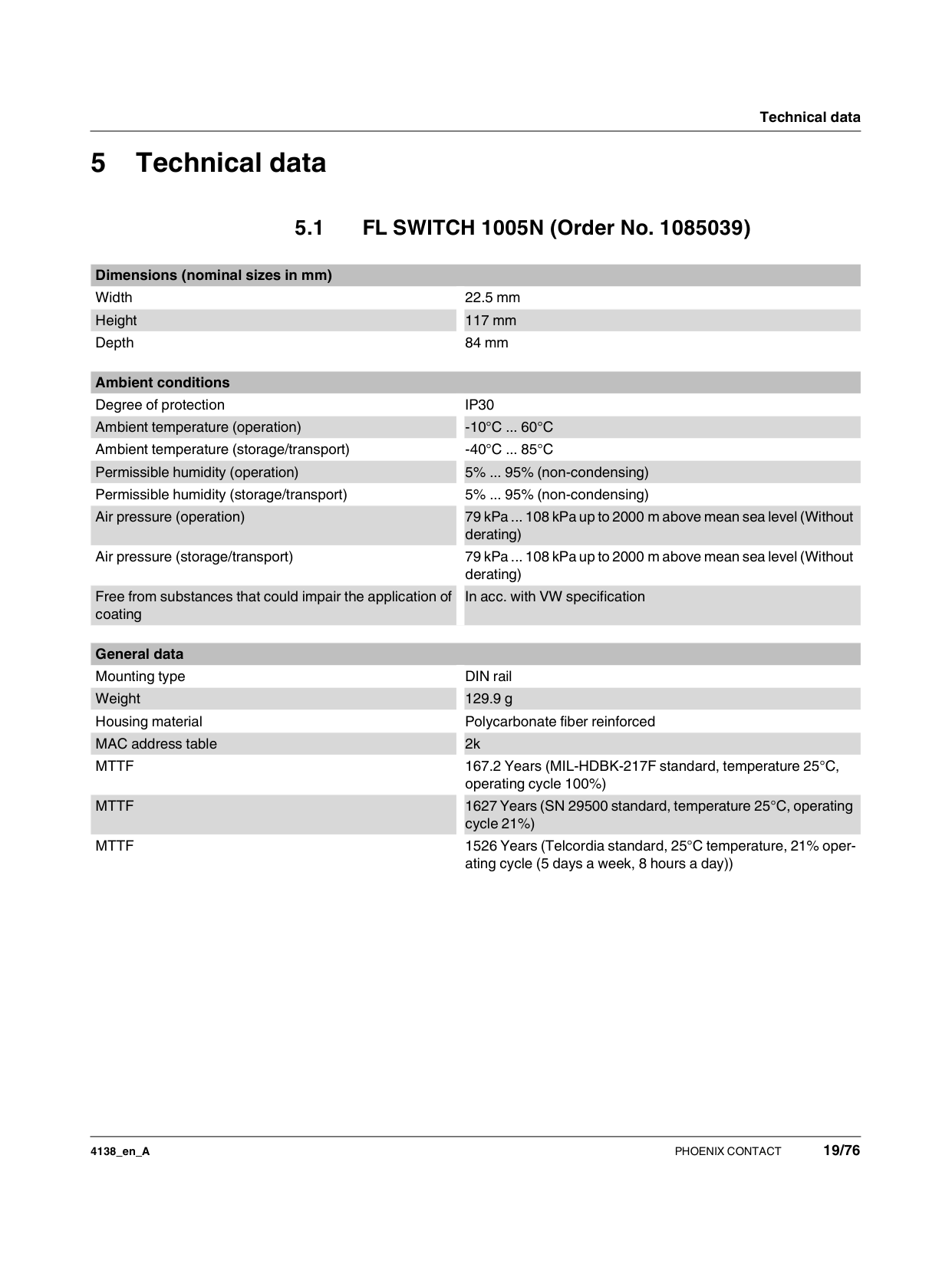

###### 5.1 FL SWITCH 1005N (Order No. 1085039)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
Ambient conditions Degree of protection IP30 Ambient temperature (operation) -10°C ... 60°C Ambient temperature (storage/transport) -40°C ... 85°C Permissible humidity (operation) 5% ... 95% (non-condensing) Permissible humidity (storage/transport) 5% ... 95% (non-condensing) Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without
derating) Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
Free from substances that could impair the application of coating
In acc. with VW specification
General data Mounting type DIN rail Weight 129.9 g Housing material Polycarbonate fiber reinforced MAC address table 2k MTTF 167.2 Years (MIL-HDBK-217F standard, temperature 25°C,
operating cycle 100%) MTTF 1627 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 1526 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
Interface: Ethernet (RJ45) Number of interfaces 5 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 19 mA
| |Max. current consumption 110 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
###### 5.2 FL SWITCH 1008N (Order No. 1085256)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 140.4 mm Depth 92.4 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
|
|Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 173.2 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 2k
| |MTTF 133.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 1254 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 1196 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|

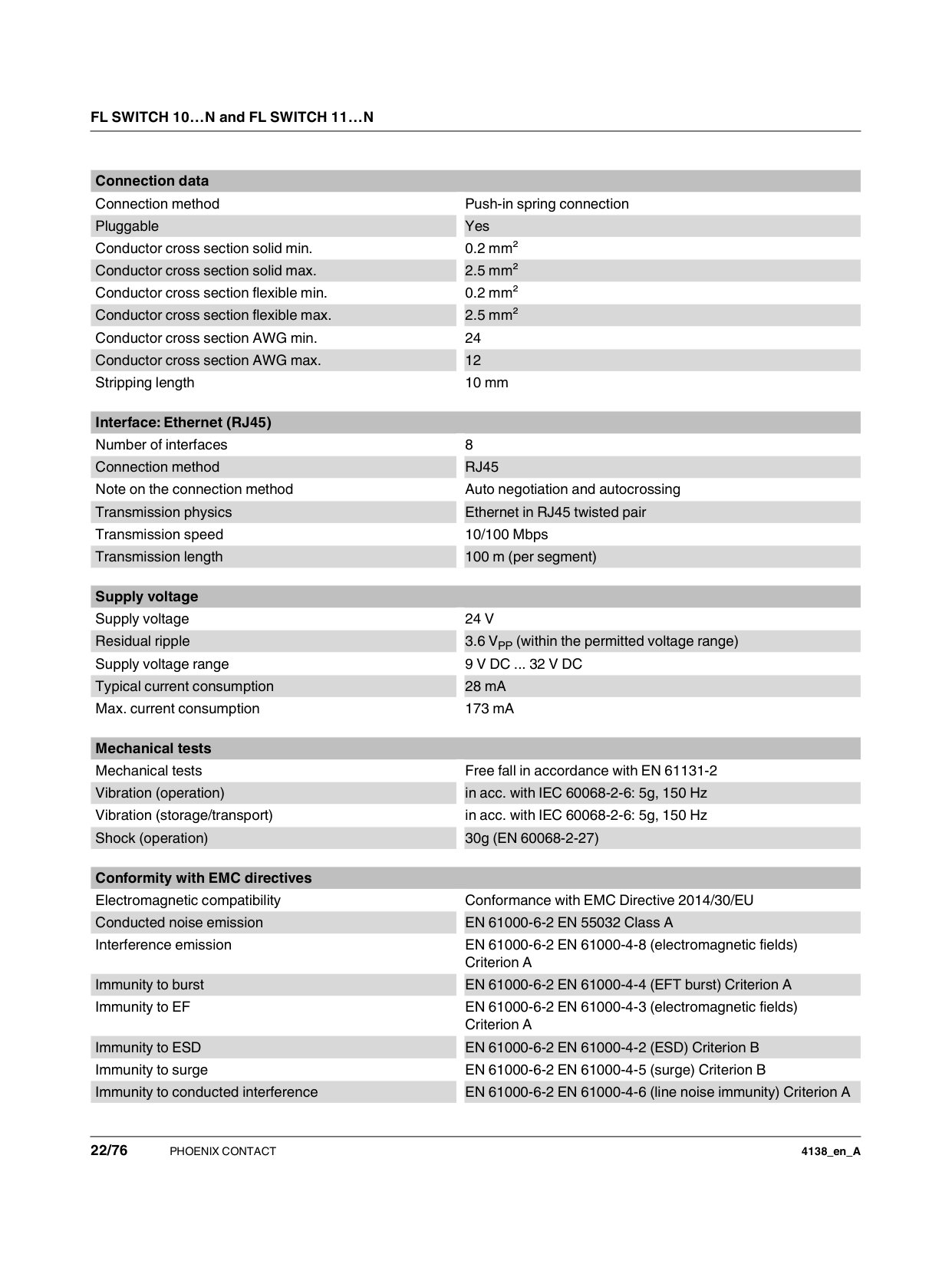

Interface: Ethernet (RJ45) Number of interfaces 8 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 28 mA
| |Max. current consumption 173 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|

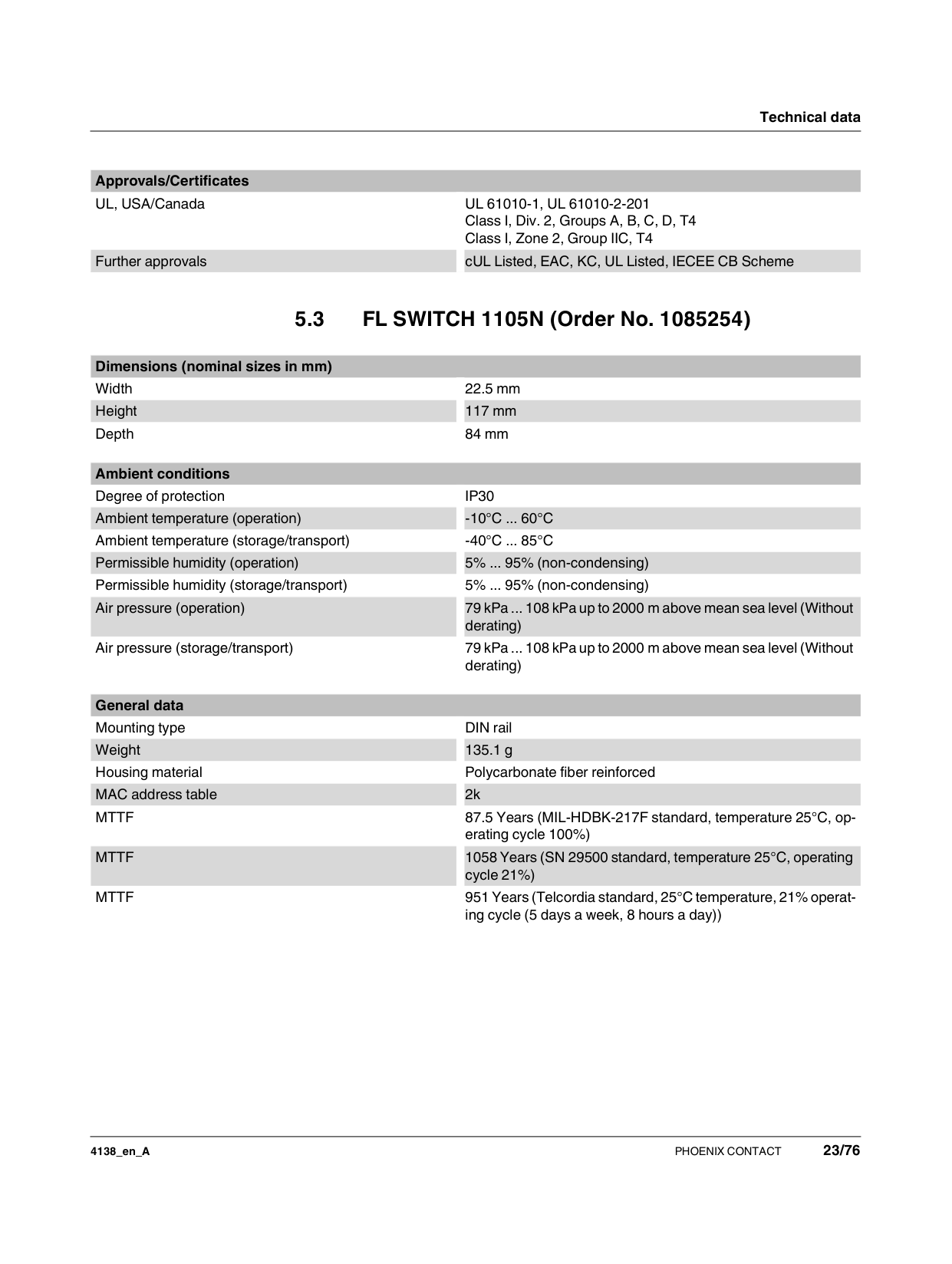

###### 5.3 FL SWITCH 1105N (Order No. 1085254)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 117 mm Depth 84 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---|
|Mounting type DIN rail| |Weight 135.1 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 2k
| |MTTF 87.5 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 1058 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 951 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|

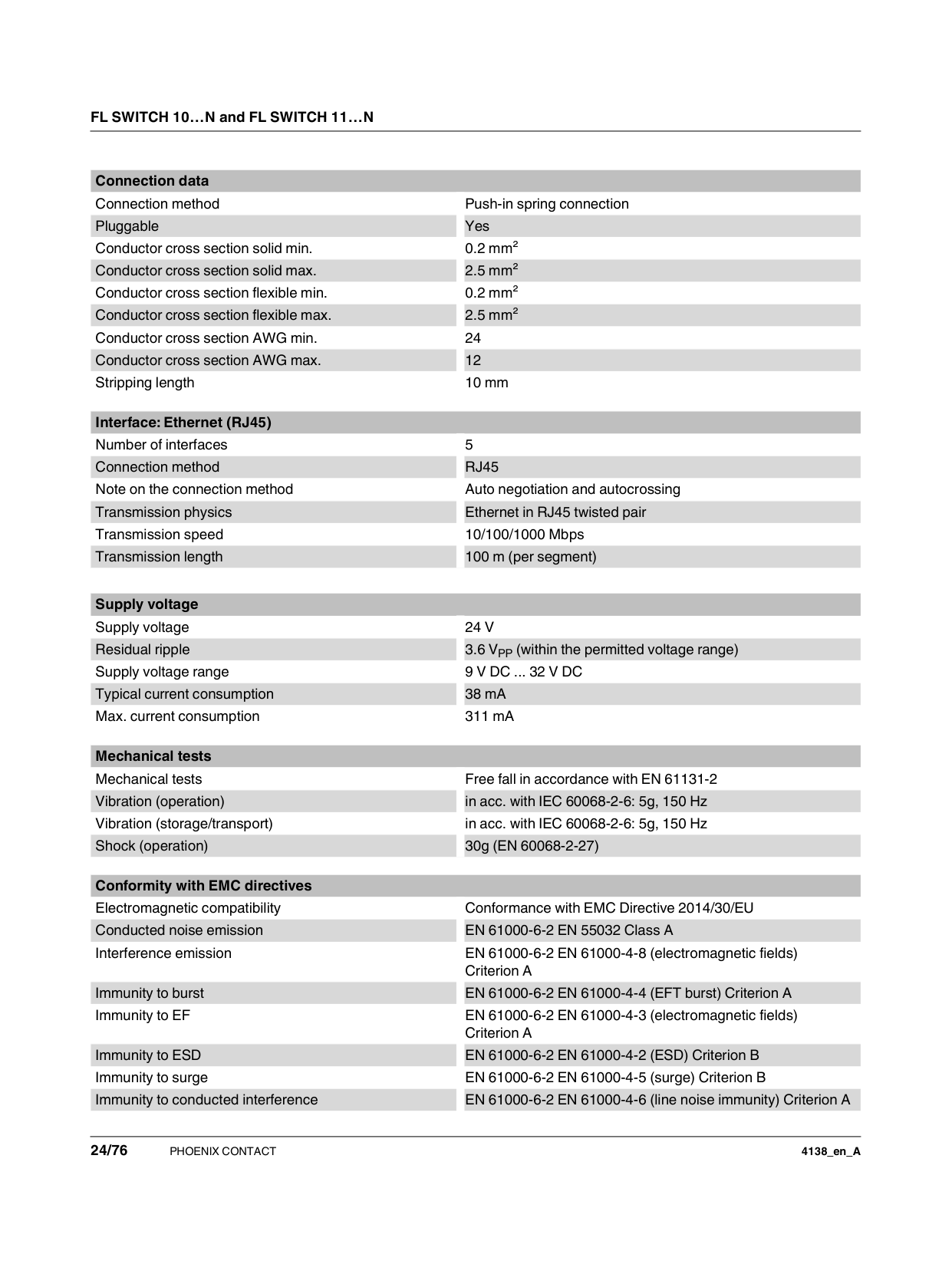

Interface: Ethernet (RJ45) Number of interfaces 5 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100/1000 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 38 mA
| |Max. current consumption 311 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A|
|Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
|Approvals/Certificates| |---| |UL, USA UL 61010-1| |UL, USA/Canada Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4
| |Further approvals cUL Listed, EAC, KC, UL Listed, CC-Link IE Field, IECEE CB Scheme|

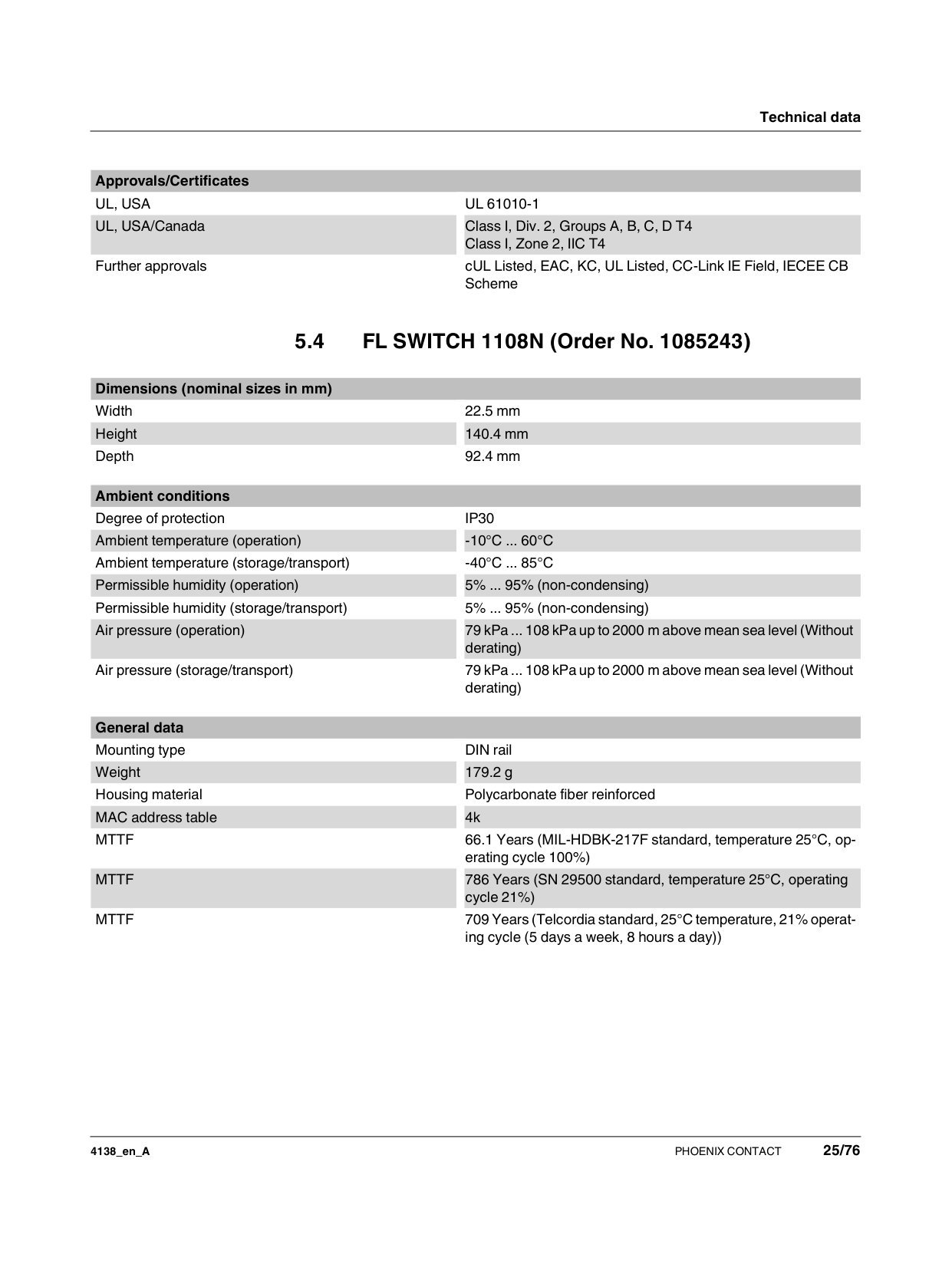

###### 5.4 FL SWITCH 1108N (Order No. 1085243)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 140.4 mm
| |Depth 92.4 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
|
|Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 179.2 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 4k
| |MTTF 66.1 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 786 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 709 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Interface: Ethernet (RJ45) Number of interfaces 8 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100/1000 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 54 mA
| |Max. current consumption 452 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|

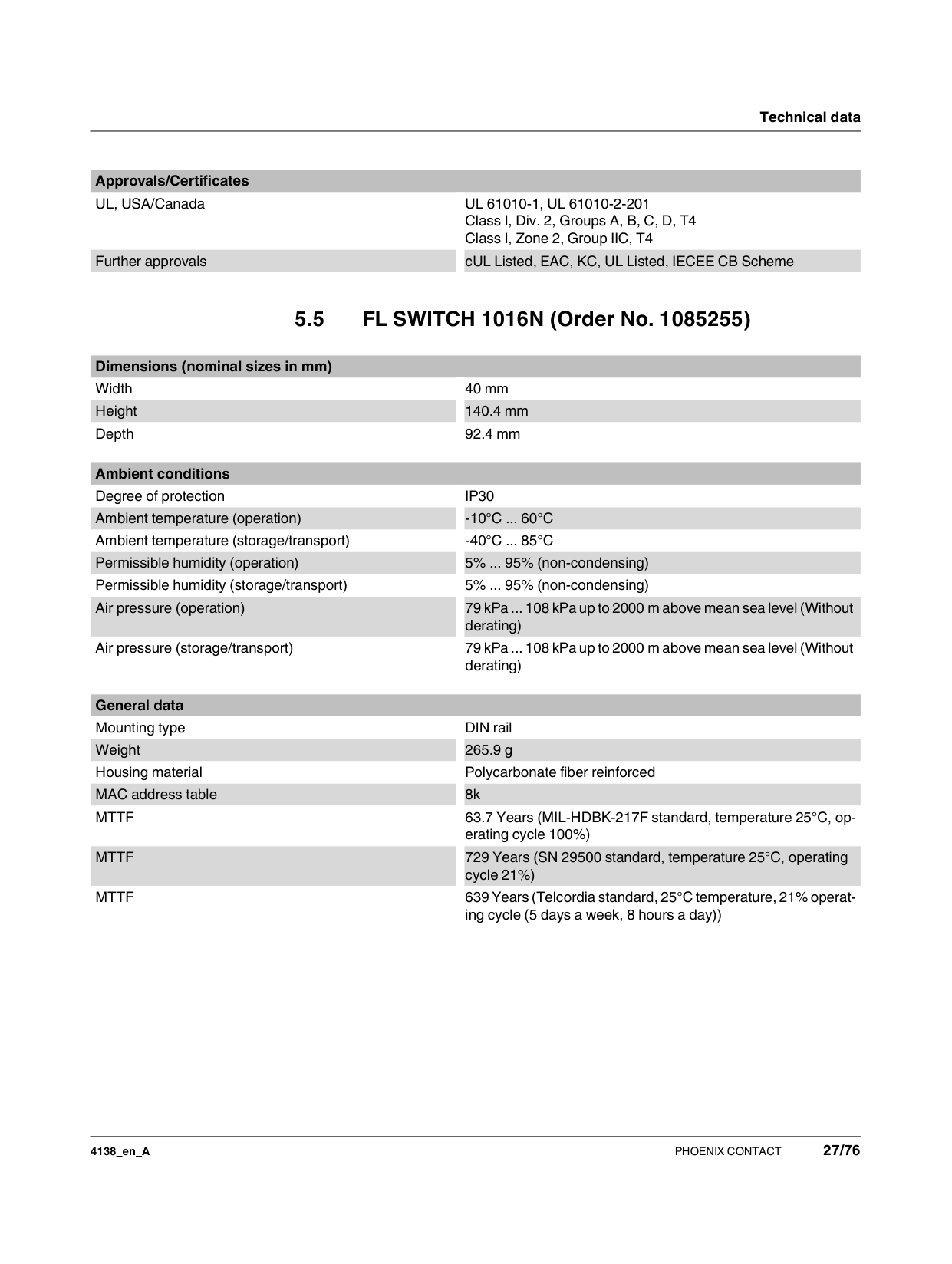

###### 5.5 FL SWITCH 1016N (Order No. 1085255)
Dimensions (nominal sizes in mm) Width 40 mm Height 140.4 mm Depth 92.4 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---|
|Mounting type DIN rail| |Weight 265.9 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 8k
| |MTTF 63.7 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 729 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 639 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Interface: Ethernet (RJ45) Number of interfaces 16 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 68 mA
| |Max. current consumption 266 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
###### 5.6 FL SWITCH 1116N (Order No. 1085219)
Dimensions (nominal sizes in mm) Width 40 mm Height 151 mm Depth 98 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 455 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 8k
| |MTTF 77.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 833.6 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 616.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Interface: Ethernet (RJ45) Number of interfaces 16 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100/1000 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 195 mA
| |Max. current consumption 344 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4|

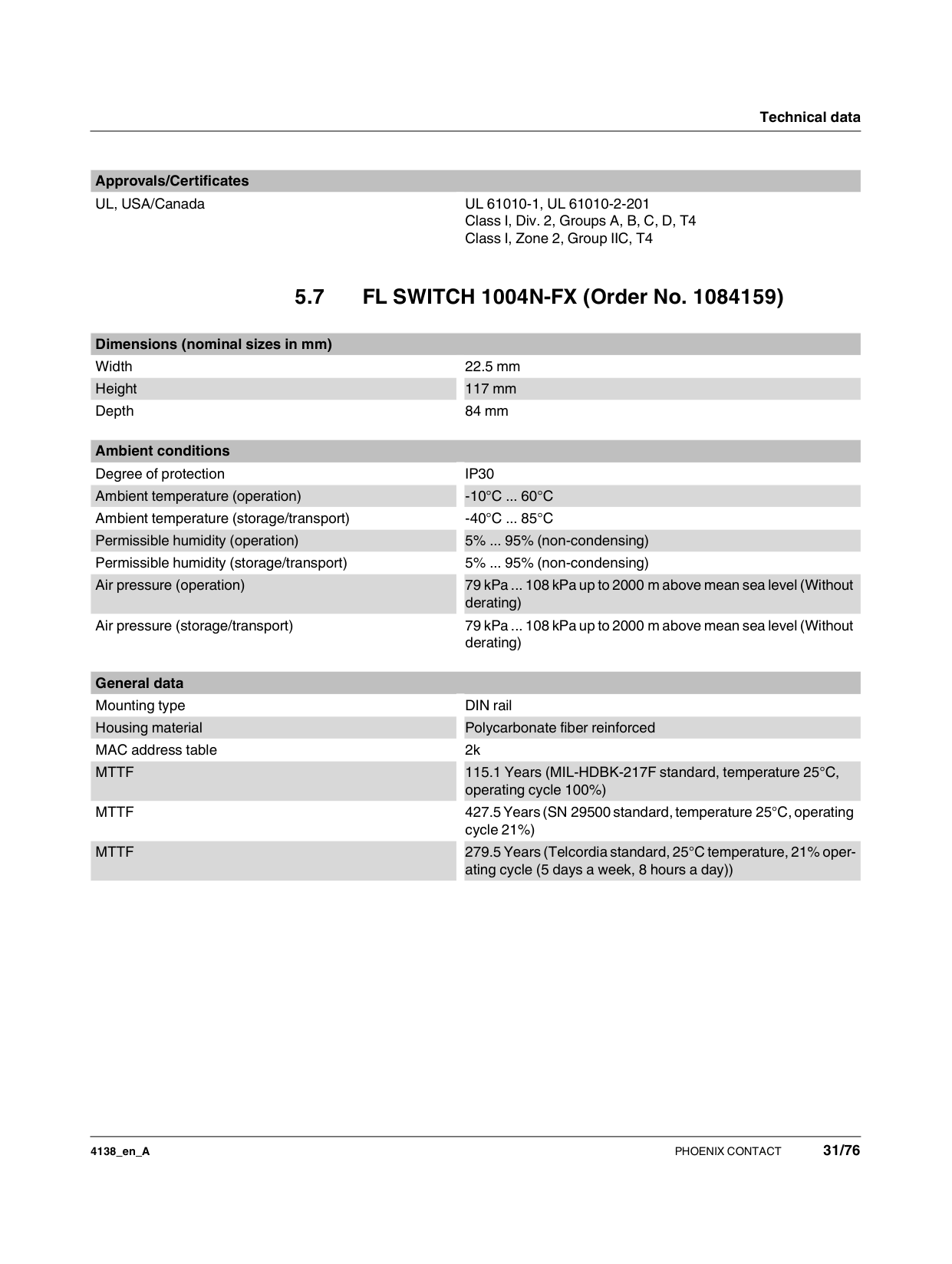

###### 5.7 FL SWITCH 1004N-FX (Order No. 1084159)
|Dimensions (nominal sizes in mm)|
|---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
Ambient conditions Degree of protection IP30 Ambient temperature (operation) -10°C ... 60°C Ambient temperature (storage/transport) -40°C ... 85°C Permissible humidity (operation) 5% ... 95% (non-condensing) Permissible humidity (storage/transport) 5% ... 95% (non-condensing) Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without
derating) Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
|General data| |---| |Mounting type DIN rail| |Housing material Polycarbonate fiber reinforced
| |MAC address table 2k| |MTTF 115.1 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
| |MTTF 427.5 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)| |MTTF 279.5 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
|

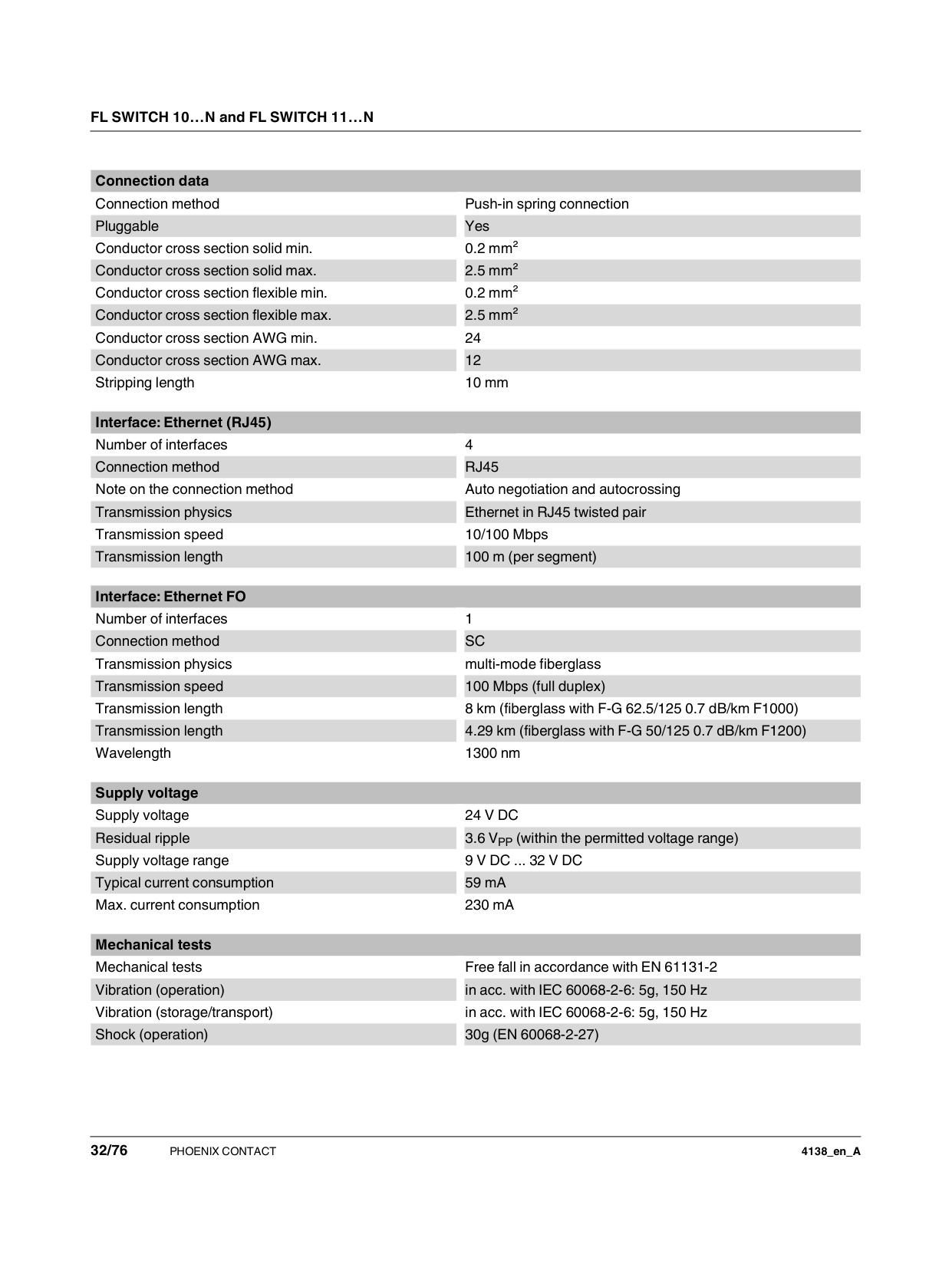

Interface: Ethernet (RJ45) Number of interfaces 4 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 Mbps Transmission length 100 m (per segment)
|Interface: Ethernet FO| |---| |Number of interfaces 1| |Connection method SC
| |Transmission physics multi-mode fiberglass|
|Transmission speed 100 Mbps (full duplex)
| |Transmission length 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)| |Transmission length 4.29 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
| |Wavelength 1300 nm|
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 59 mA
| |Max. current consumption 230 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
Conformity with EMC directives Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Conducted noise emission EN 61000-6-2 EN 55032 Class A Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields)
Criterion A Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields)
Criterion A Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4| |Further approvals cUL Listed, EAC, UL Listed
|
5.8 FL SWITCH 1004N-FX ST (Order No. 1085179)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|

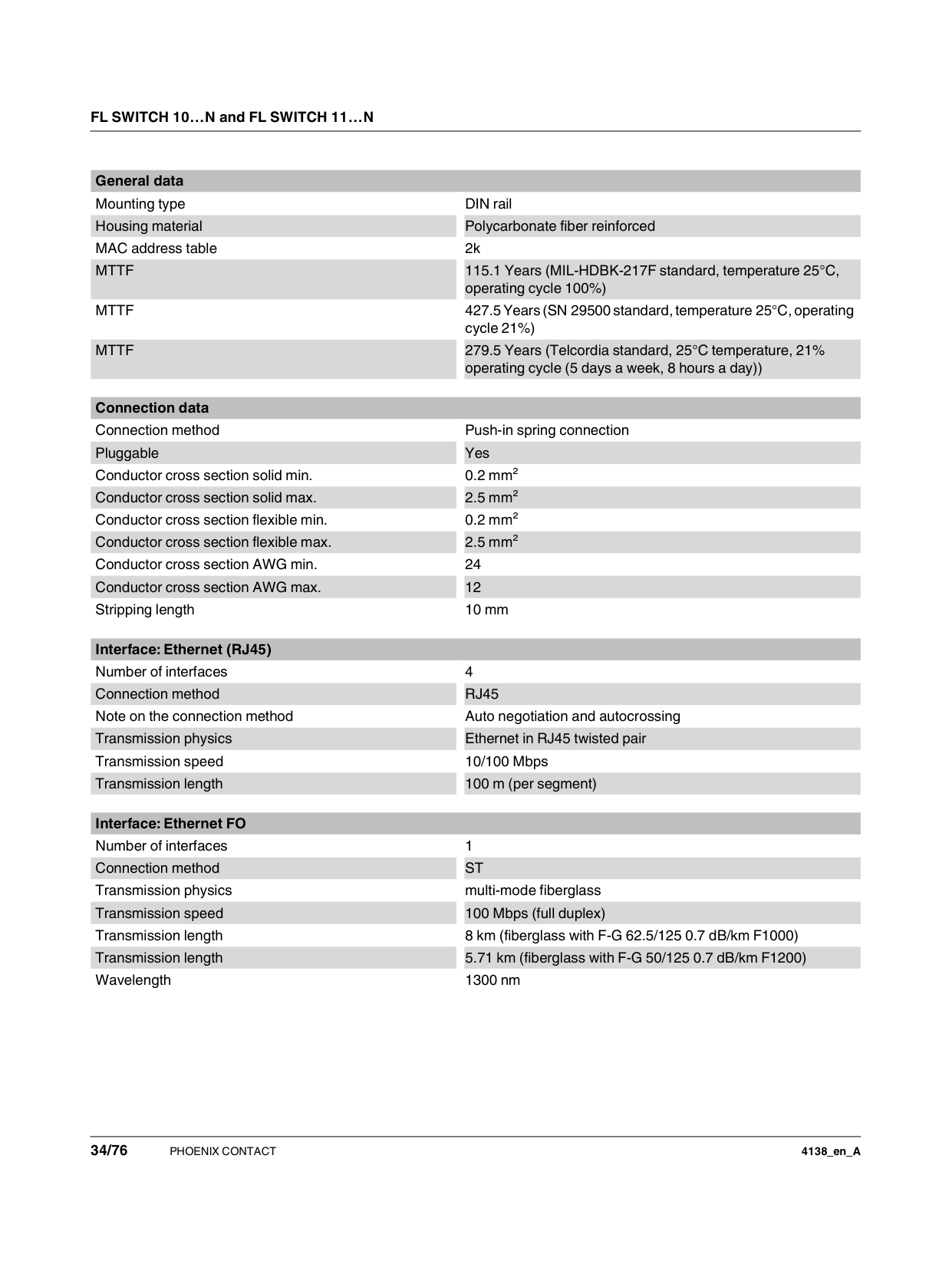

General data Mounting type DIN rail Housing material Polycarbonate fiber reinforced MAC address table 2k MTTF 115.1 Years (MIL-HDBK-217F standard, temperature 25°C,
operating cycle 100%) MTTF 427.5 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 279.5 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
|Interface: Ethernet (RJ45)| |---| |Number of interfaces 4| |Connection method RJ45
| |Note on the connection method Auto negotiation and autocrossing| |Transmission physics Ethernet in RJ45 twisted pair
| |Transmission speed 10/100 Mbps| |Transmission length 100 m (per segment)
|
Interface: Ethernet FO Number of interfaces 1 Connection method ST Transmission physics multi-mode fiberglass Transmission speed 100 Mbps (full duplex) Transmission length 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000) Transmission length 5.71 km (fiberglass with F-G 50/125 0.7 dB/km F1200) Wavelength 1300 nm

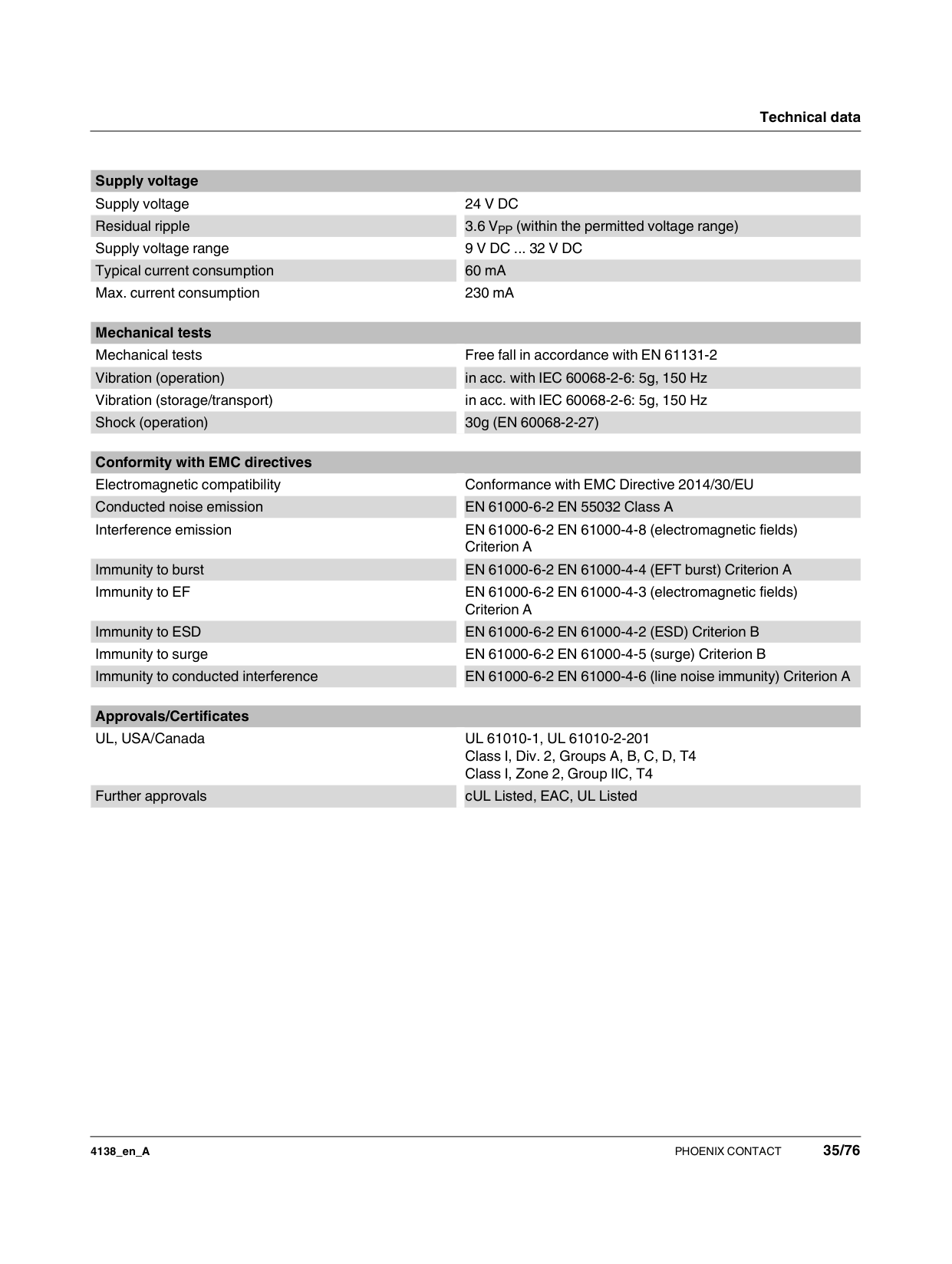

|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 60 mA
| |Max. current consumption 230 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
Approvals/Certificates UL, USA/Canada UL 61010-1, UL 61010-2-201
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4
Further approvals cUL Listed, EAC, UL Listed

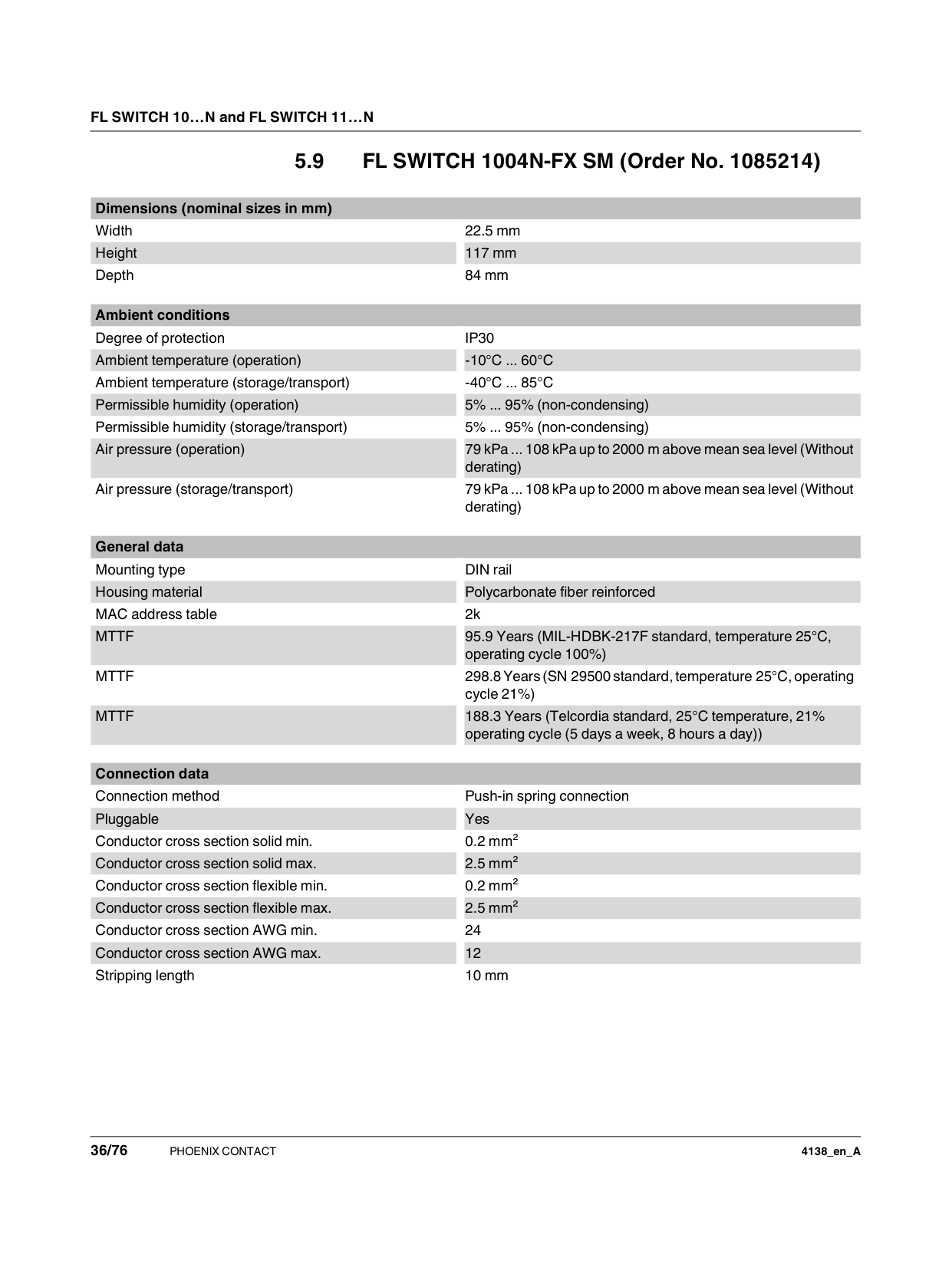

###### 5.9 FL SWITCH 1004N-FX SM (Order No. 1085214)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---|
|Mounting type DIN rail| |Housing material Polycarbonate fiber reinforced
| |MAC address table 2k| |MTTF 95.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
| |MTTF 298.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)| |MTTF 188.3 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
|

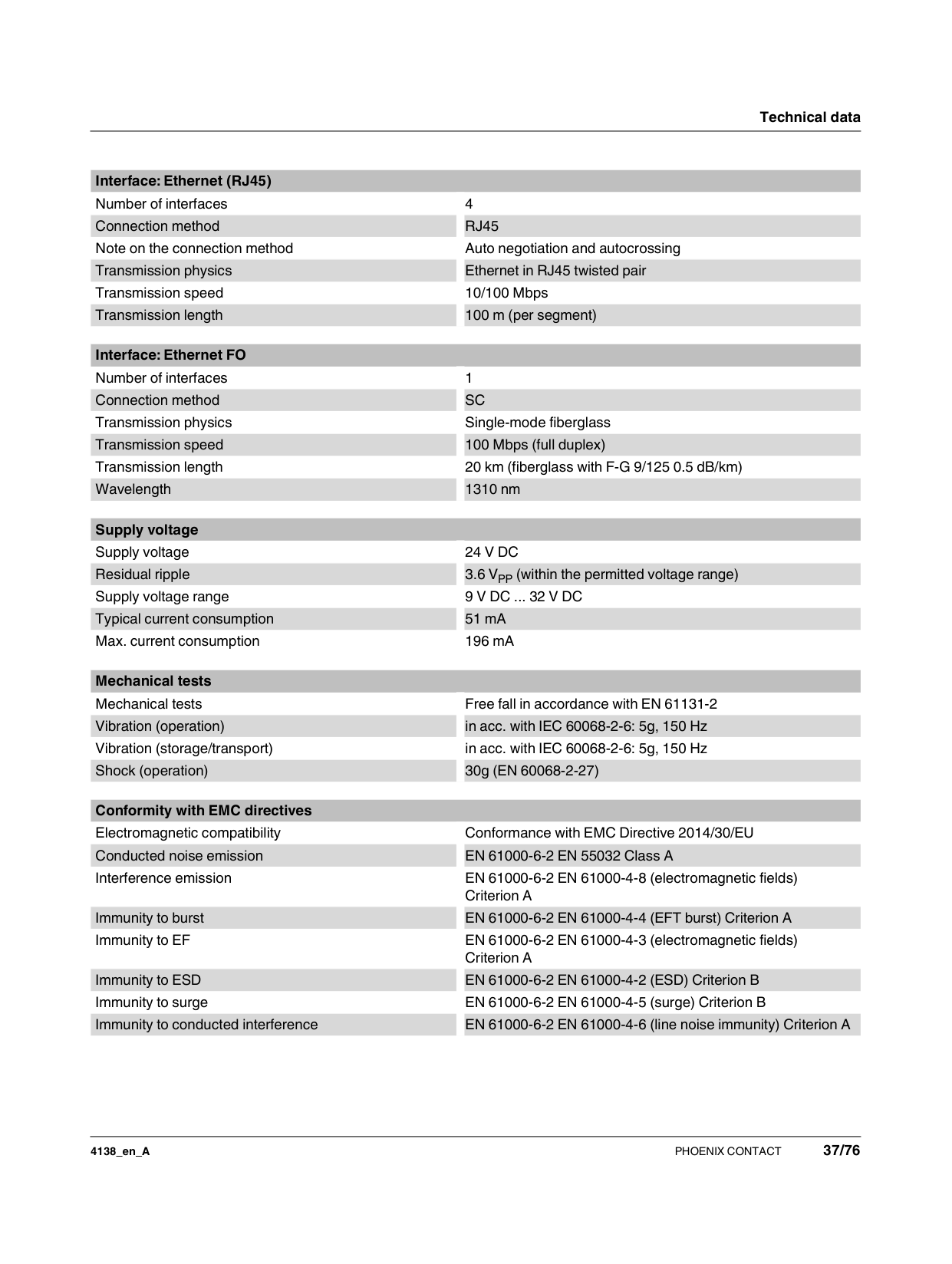

|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
|Interface: Ethernet (RJ45)| |---| |Number of interfaces 4| |Connection method RJ45
| |Note on the connection method Auto negotiation and autocrossing| |Transmission physics Ethernet in RJ45 twisted pair
|
|Transmission speed 10/100 Mbps| |Transmission length 100 m (per segment)
|
Interface: Ethernet FO Number of interfaces 1 Connection method SC Transmission physics Single-mode fiberglass Transmission speed 100 Mbps (full duplex) Transmission length 20 km (fiberglass with F-G 9/125 0.5 dB/km) Wavelength 1310 nm
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 51 mA
| |Max. current consumption 196 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
|
|Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
Approvals/Certificates UL, USA/Canada UL 61010-1, UL 61010-2-201
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4
Further approvals cUL Listed, EAC, UL Listed

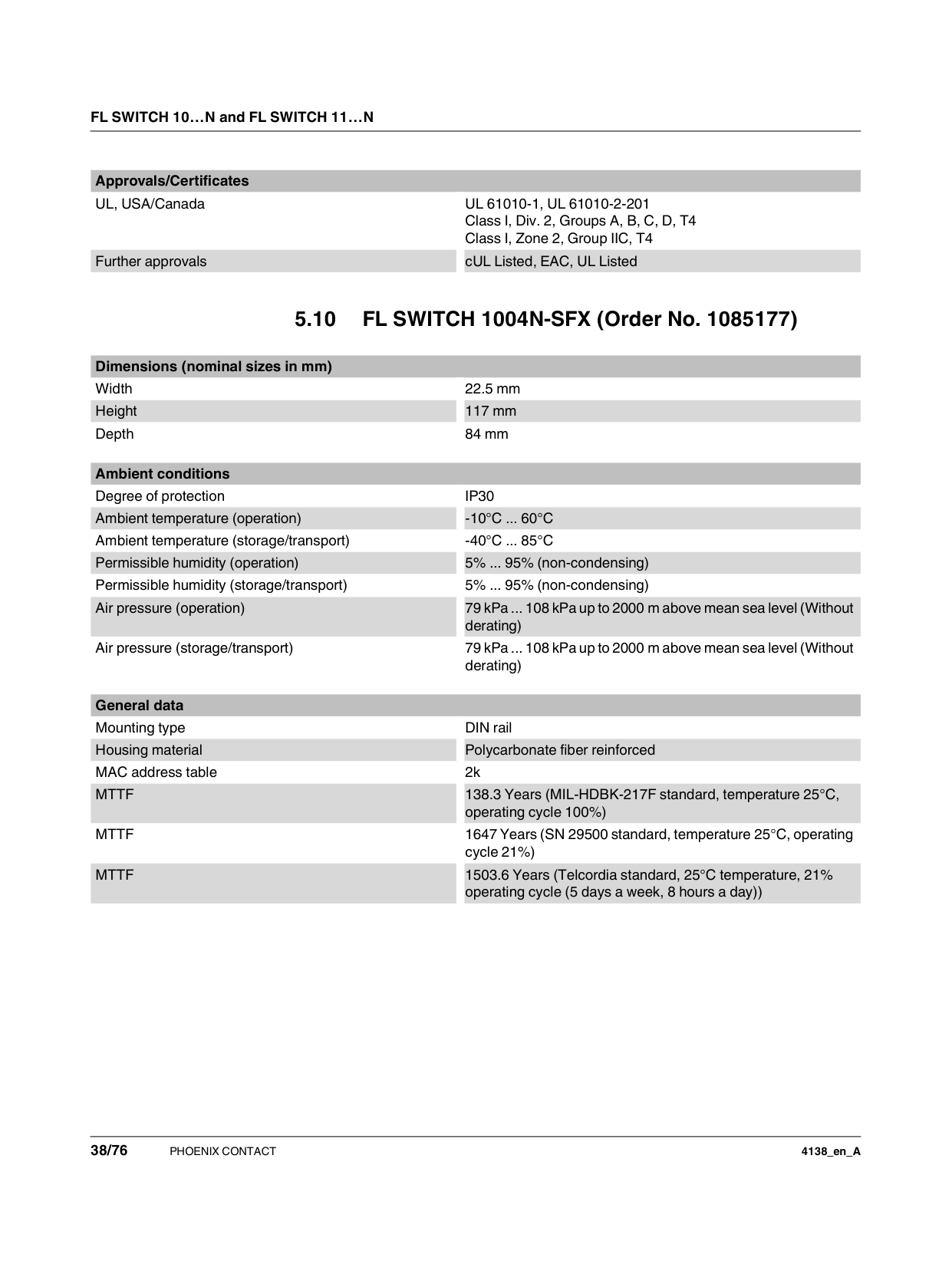

5.10 FL SWITCH 1004N-SFX (Order No. 1085177)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 117 mm Depth 84 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
General data Mounting type DIN rail Housing material Polycarbonate fiber reinforced MAC address table 2k MTTF 138.3 Years (MIL-HDBK-217F standard, temperature 25°C,
operating cycle 100%) MTTF 1647 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 1503.6 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))

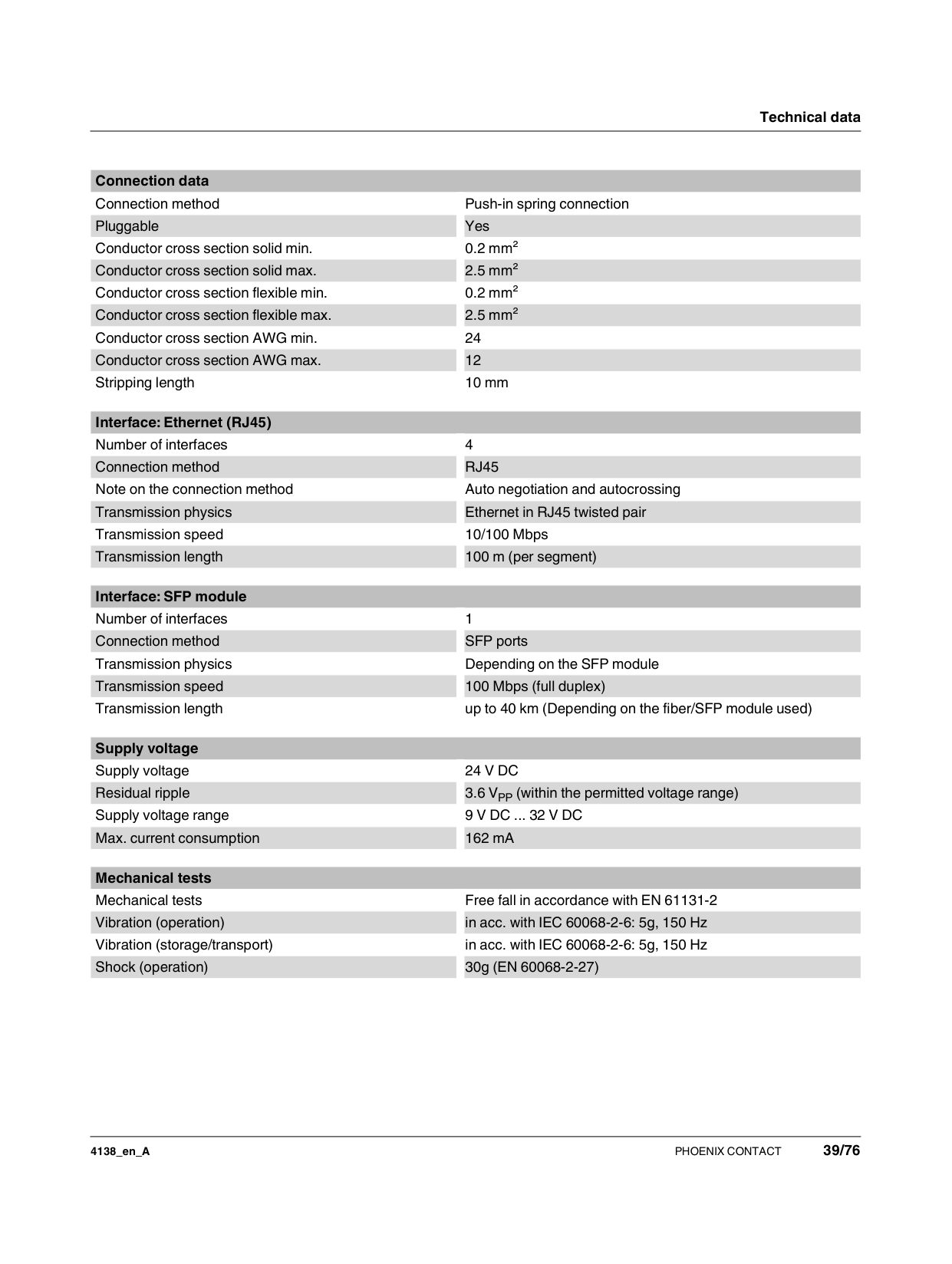

|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
######## Interface: Ethernet (RJ45)
|Interface: SFP module| |---| |Number of interfaces 1|
|Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Max. current consumption 162 mA
|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
Conformity with EMC directives Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Conducted noise emission EN 61000-6-2 EN 55032 Class A Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields)
Criterion A Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields)
Criterion A Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4| |Further approvals cUL Listed, EAC, UL Listed
|

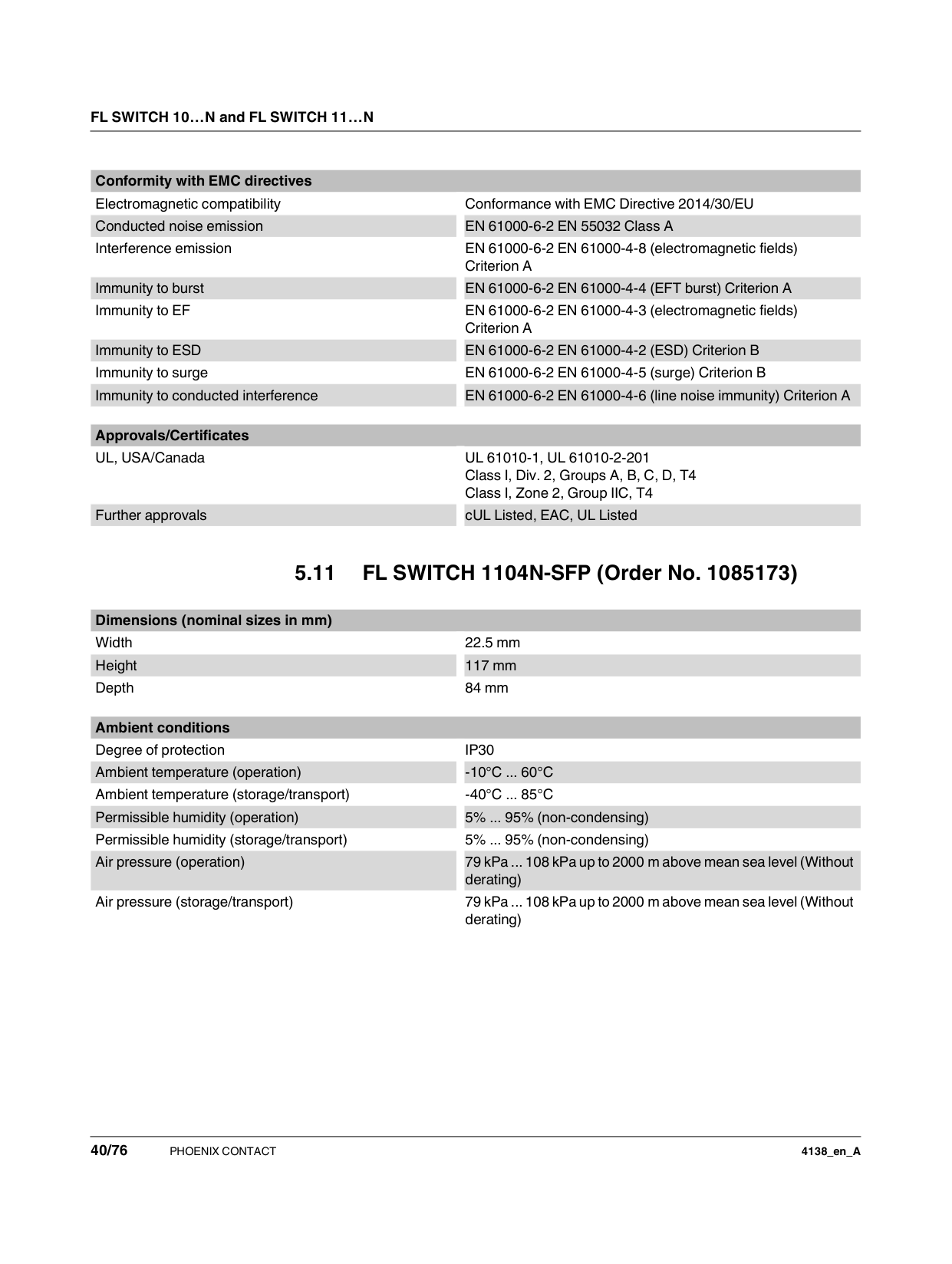

5.11 FL SWITCH 1104N-SFP (Order No. 1085173)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -10°C ... 60°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
MAC address table 4k MTTF 77.4 Years (MIL-HDBK-217F standard, temperature 25°C,
operating cycle 100%) MTTF 949.7 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 828.9 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
|Interface: Ethernet (RJ45)| |---| |Number of interfaces 4| |Connection method RJ45
| |Note on the connection method Auto negotiation and autocrossing| |Transmission physics Ethernet in RJ45 twisted pair
| |Transmission speed 10/100/1000 Mbps| |Transmission length 100 m (per segment)
|
|Interface: SFP module| |---| |Number of interfaces 1| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 or 1000 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
Approvals/Certificates UL, USA/Canada UL 61010-1, UL 61010-2-201
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4
Further approvals cUL Listed, EAC, UL Listed
5.12 FL SWITCH 1005N-2SFX (Order No. 1085176)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 140.4 mm Depth 92.4 mm

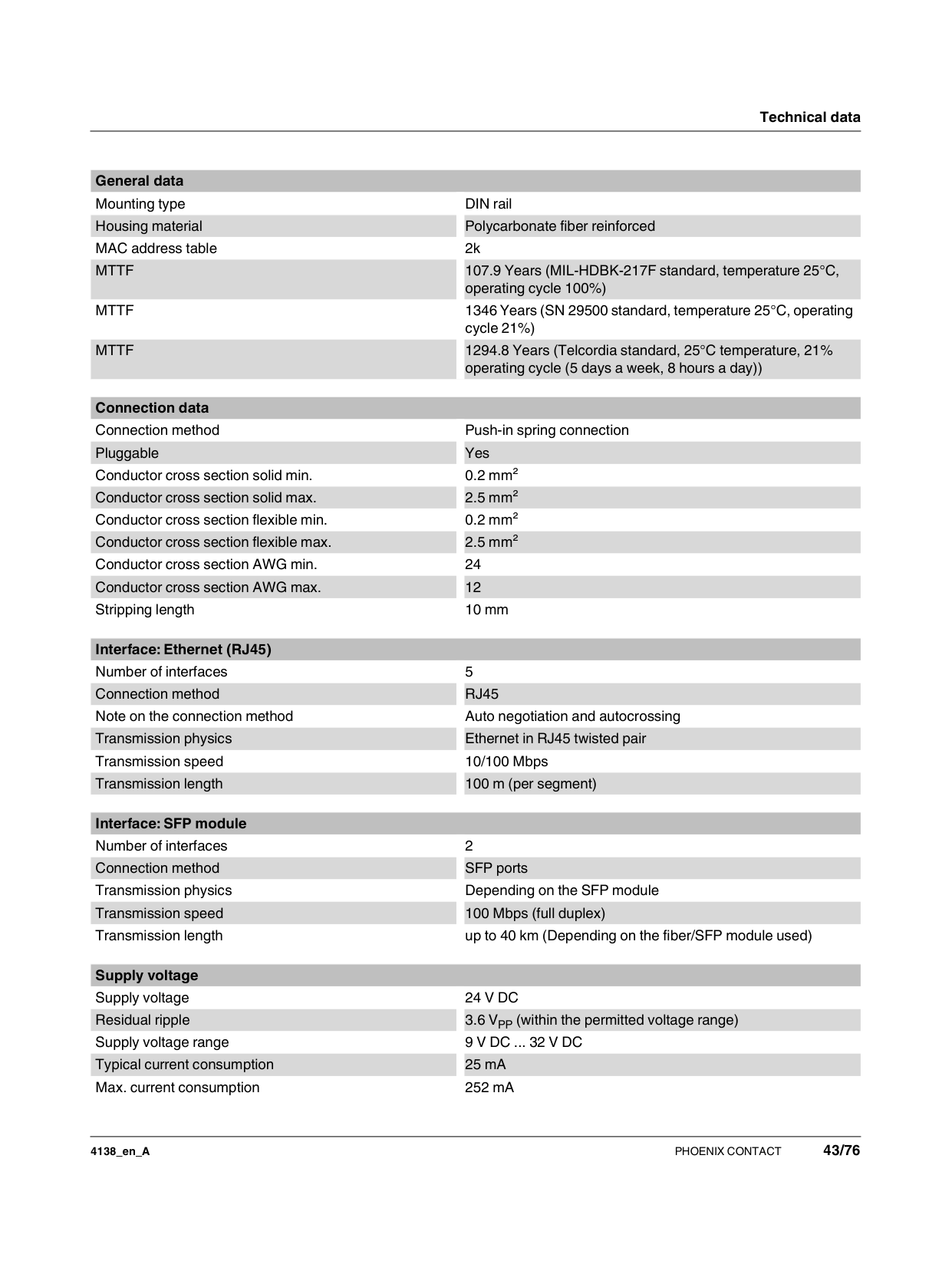

MTTF 107.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) MTTF 1346 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 1294.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
|Interface: Ethernet (RJ45)| |---| |Number of interfaces 5| |Connection method RJ45
| |Note on the connection method Auto negotiation and autocrossing| |Transmission physics Ethernet in RJ45 twisted pair
| |Transmission speed 10/100 Mbps| |Transmission length 100 m (per segment)
|
|Interface: SFP module| |---| |Number of interfaces 2| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
Approvals/Certificates UL, USA/Canada UL 61010-1, UL 61010-2-201
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4
Further approvals cUL Listed, EAC, UL Listed

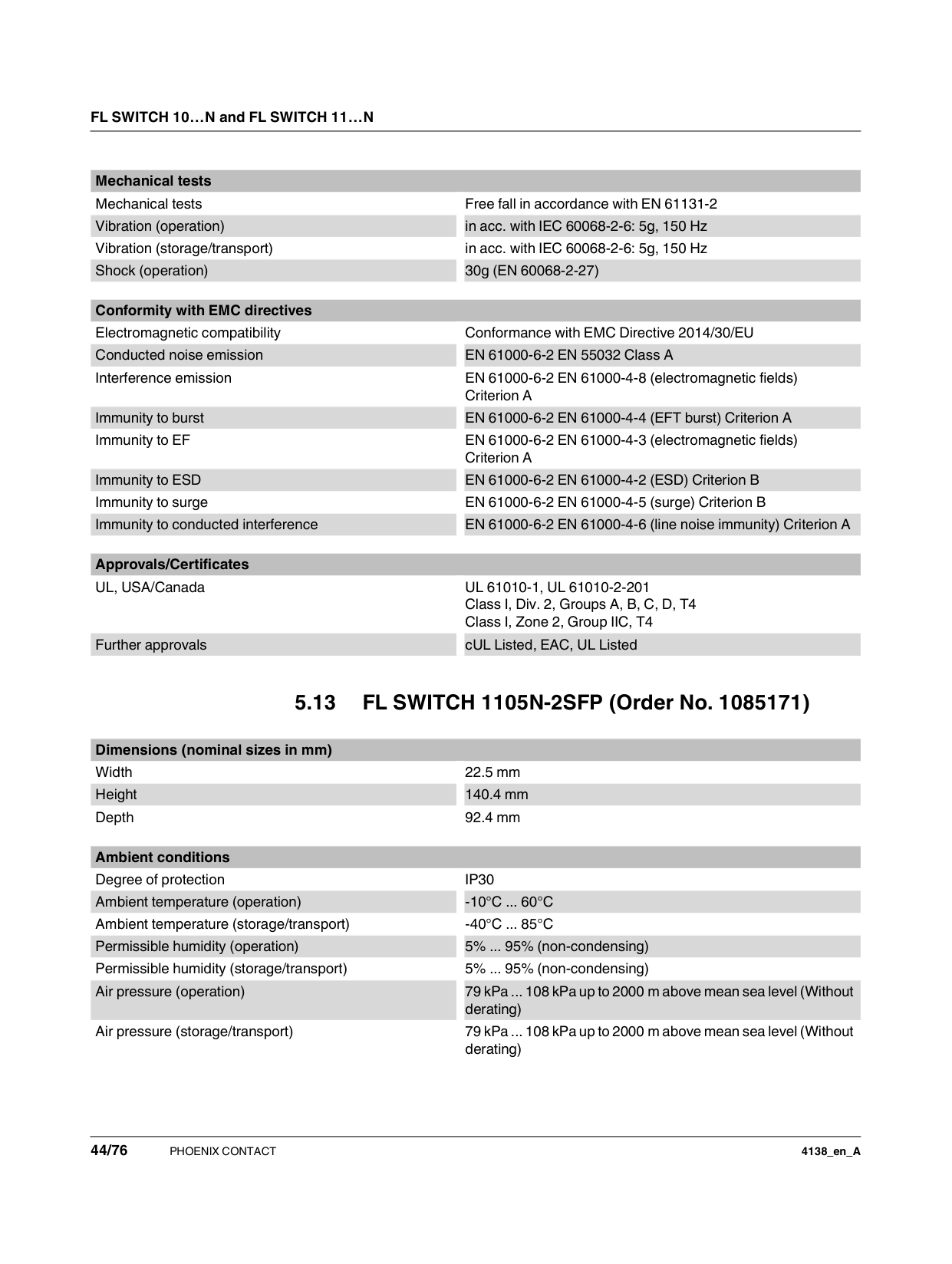

5.13 FL SWITCH 1105N-2SFP (Order No. 1085171)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 140.4 mm Depth 92.4 mm

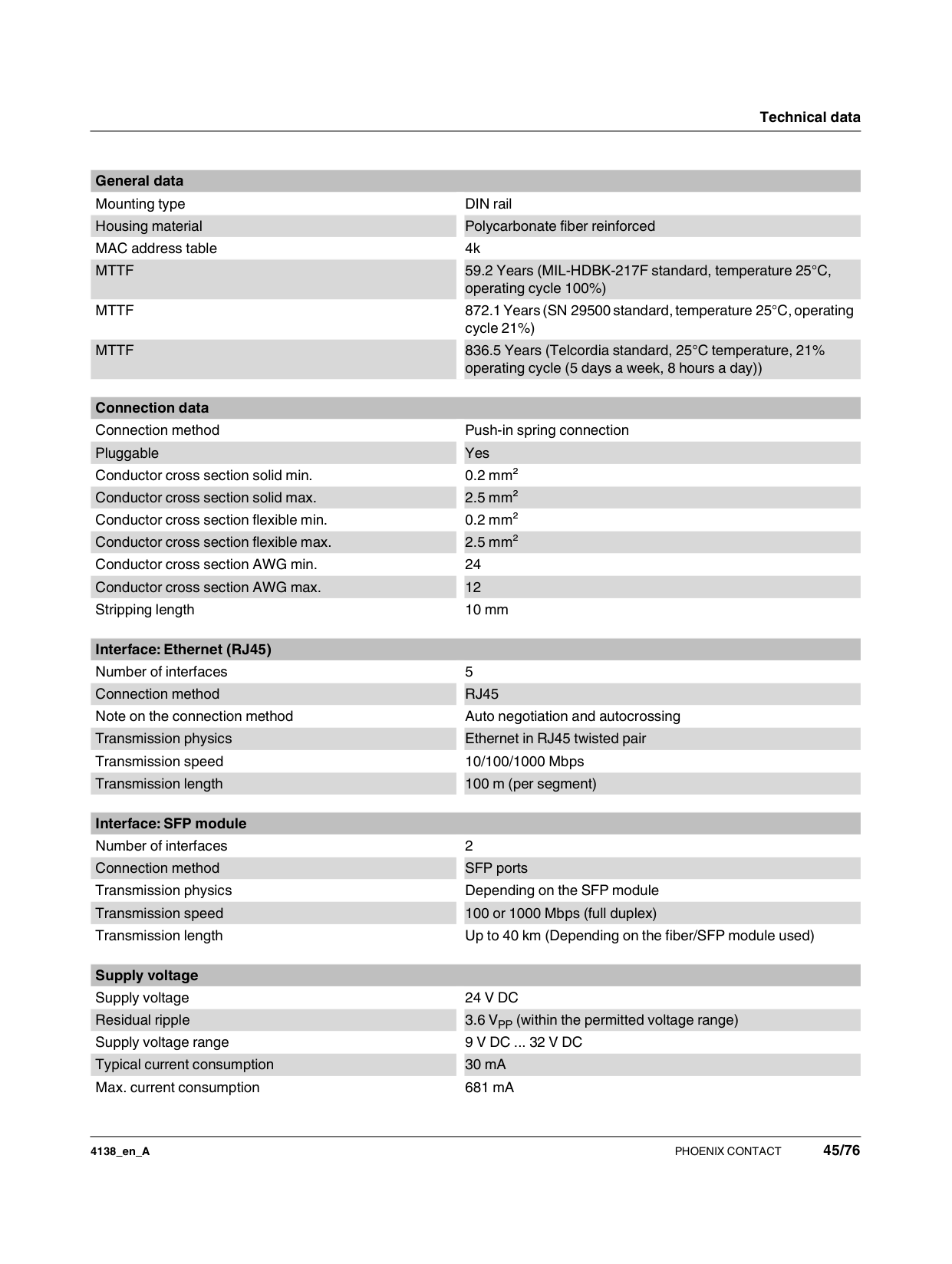

MTTF 59.2 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) MTTF 872.1 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 836.5 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
|Interface: Ethernet (RJ45)| |---| |Number of interfaces 5| |Connection method RJ45
| |Note on the connection method Auto negotiation and autocrossing| |Transmission physics Ethernet in RJ45 twisted pair
|
|Transmission speed 10/100/1000 Mbps| |Transmission length 100 m (per segment)
|

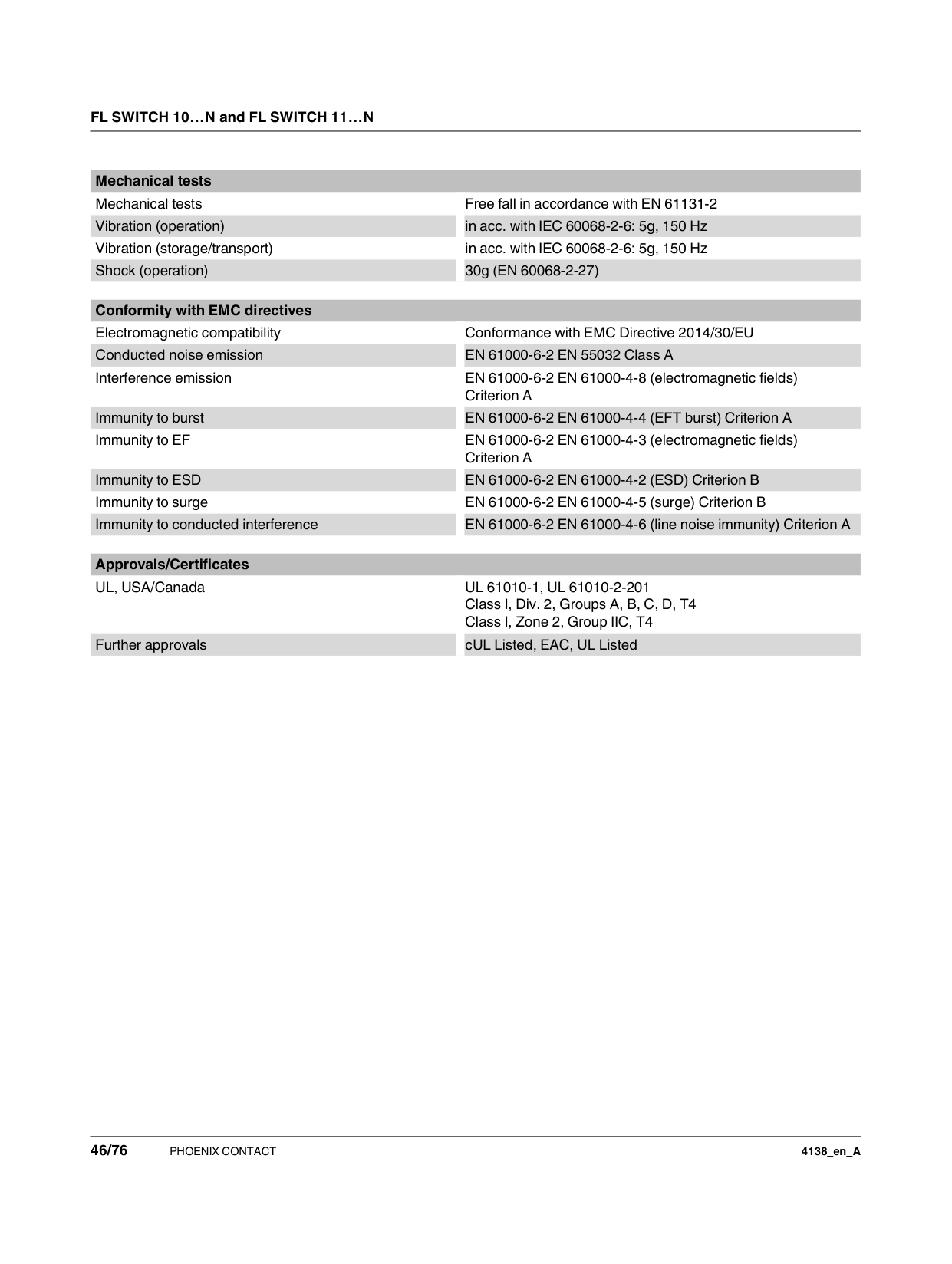

|Interface: SFP module| |---| |Number of interfaces 2| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 or 1000 Mbps (full duplex)
| |Transmission length Up to 40 km (Depending on the fiber/SFP module used)|
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
Approvals/Certificates UL, USA/Canada UL 61010-1, UL 61010-2-201
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4
Further approvals cUL Listed, EAC, UL Listed

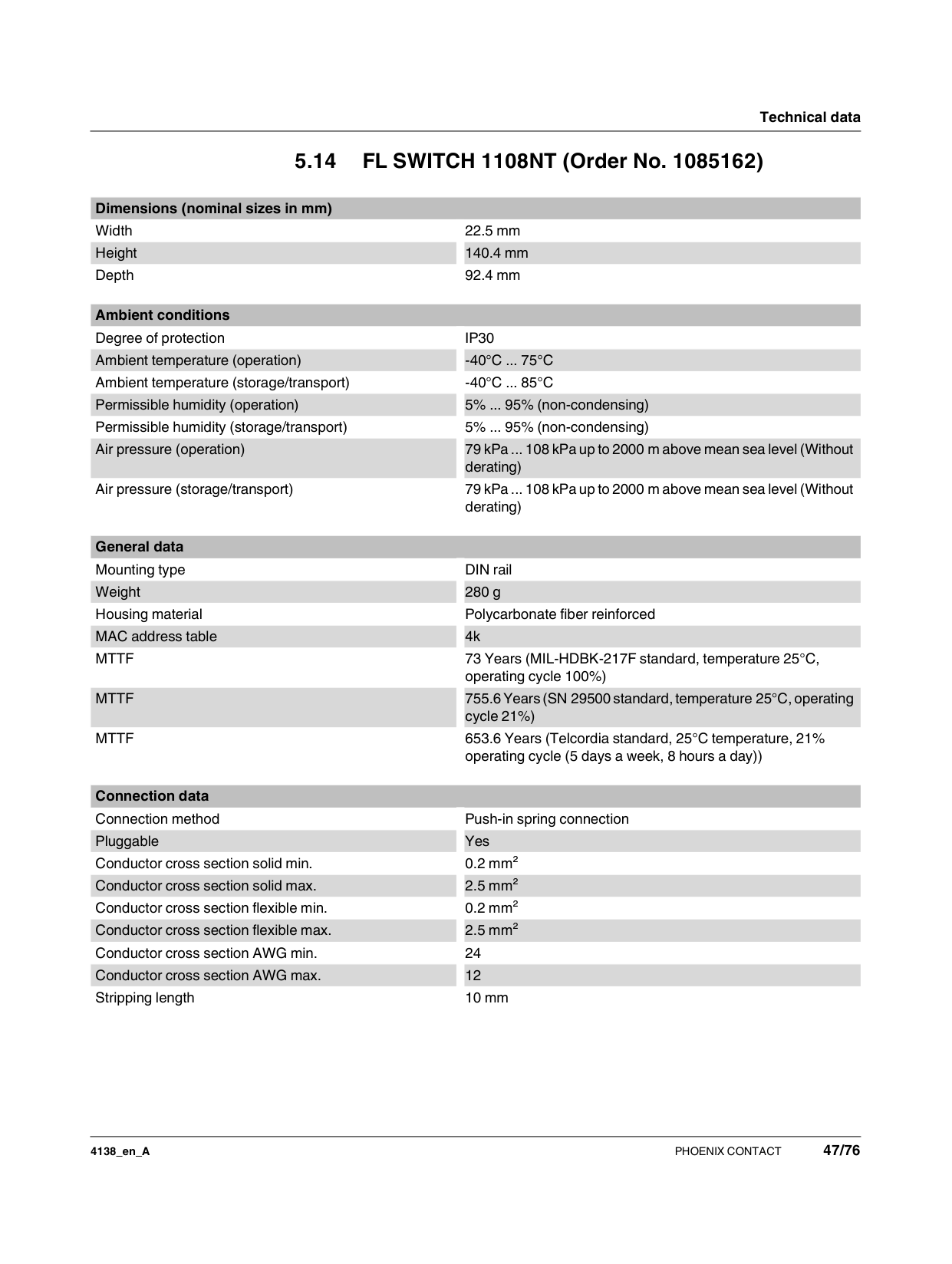

###### 5.14 FL SWITCH 1108NT (Order No. 1085162)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 140.4 mm
| |Depth 92.4 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail|
|Weight 280 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 4k
| |MTTF 73 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 755.6 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 653.6 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Connection data Connection method Push-in spring connection Pluggable Yes

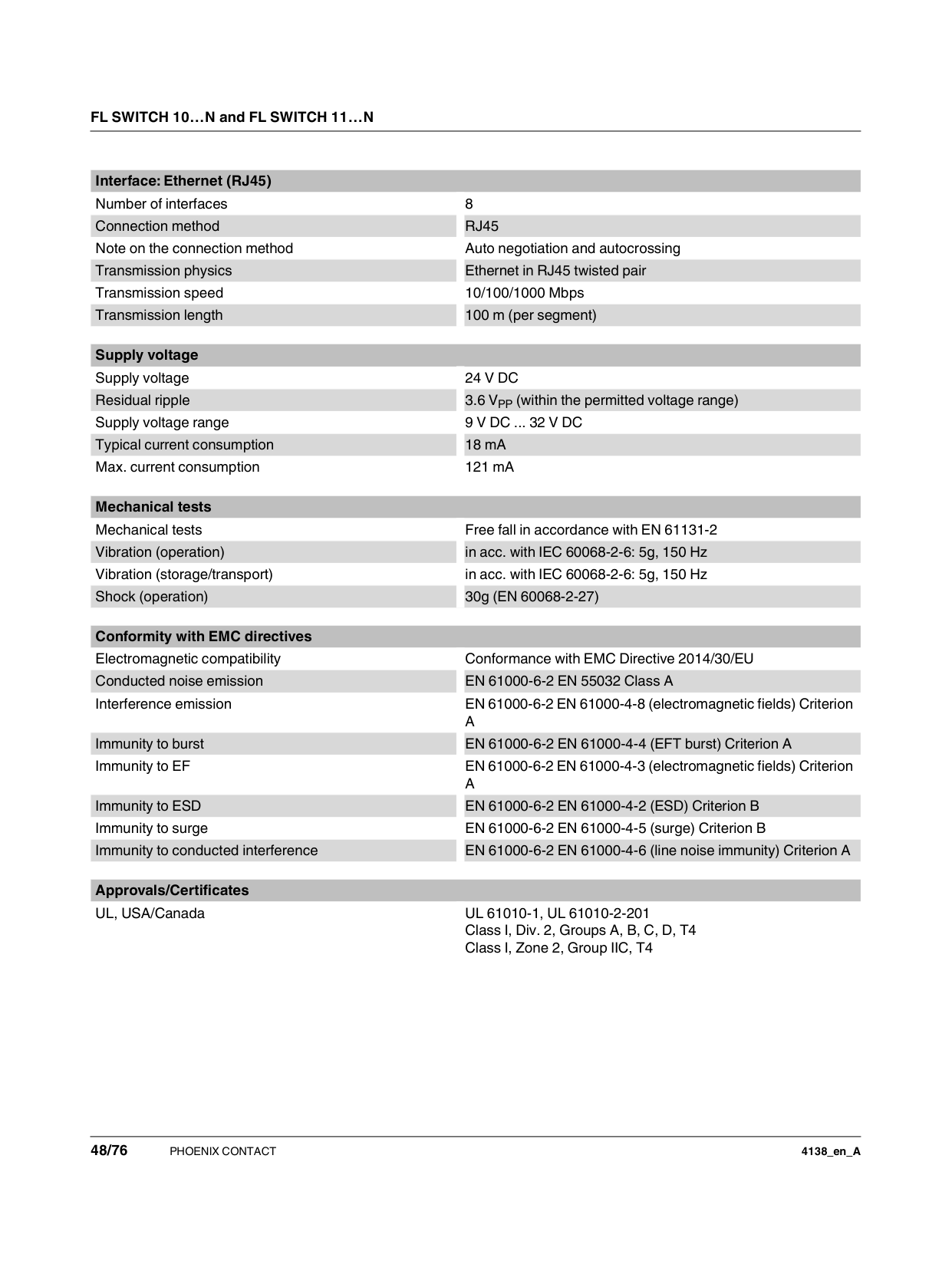

|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 18 mA
| |Max. current consumption 121 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
|
|Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4|
###### 5.15 FL SWITCH 1105NT (Order No. 1085163)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)|
|Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 222 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 4k
| |MTTF 97.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 888.3 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 818.3 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Connection data Connection method Push-in spring connection Pluggable Yes

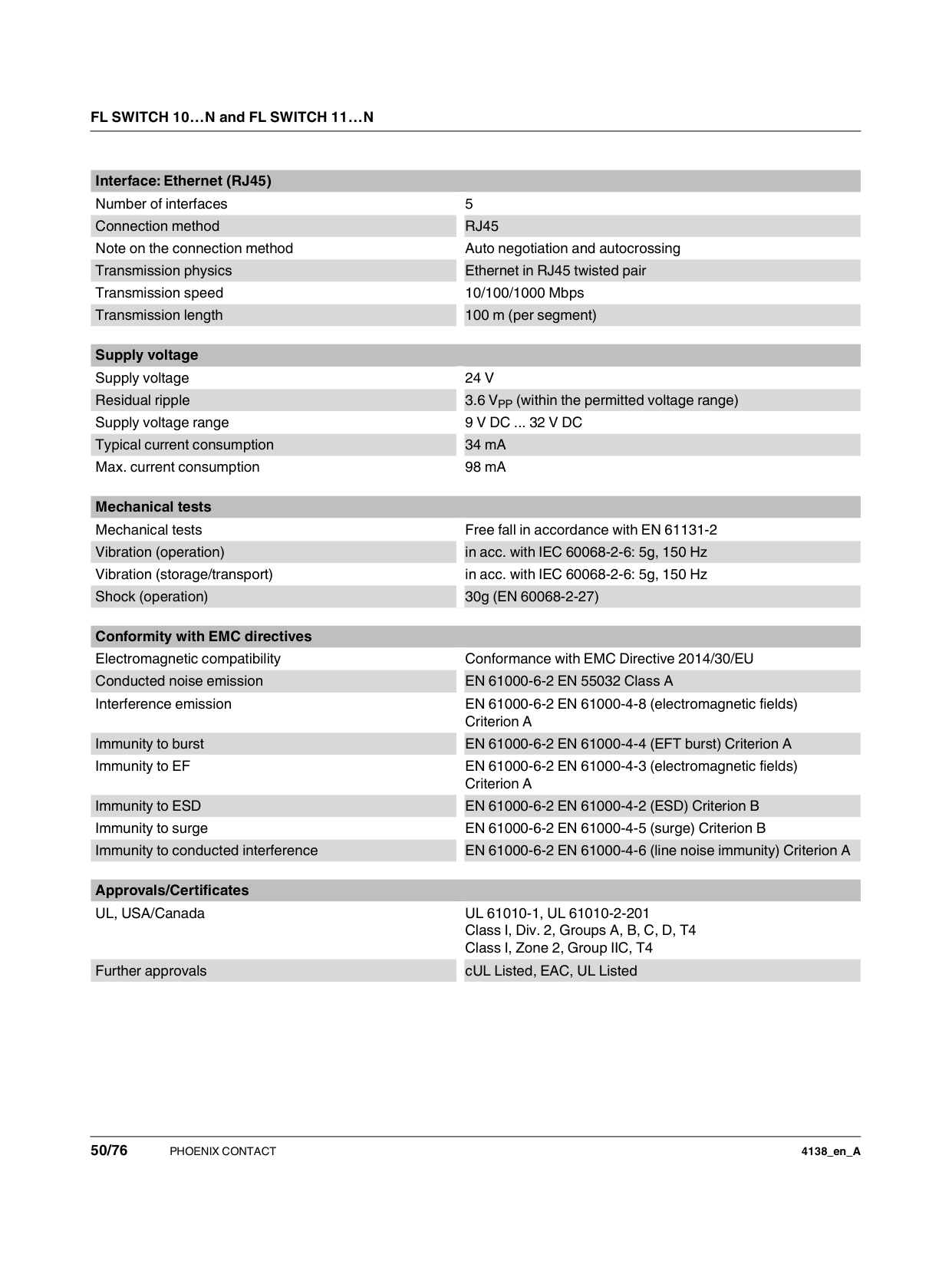

|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 34 mA
| |Max. current consumption 98 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
Approvals/Certificates UL, USA/Canada UL 61010-1, UL 61010-2-201
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4
Further approvals cUL Listed, EAC, UL Listed

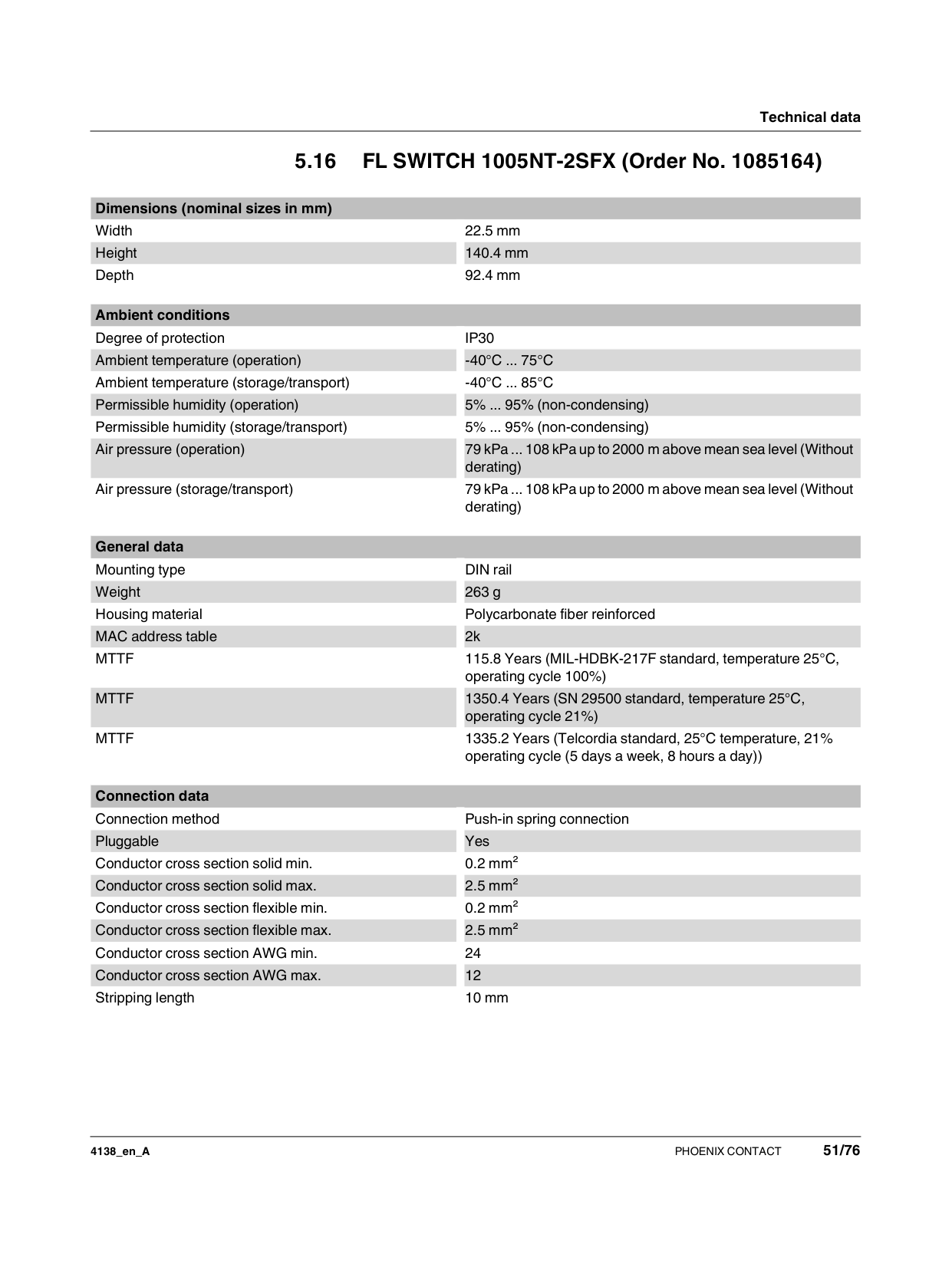

###### 5.16 FL SWITCH 1005NT-2SFX (Order No. 1085164)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 140.4 mm
| |Depth 92.4 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 263 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 2k
| |MTTF 115.8 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 1350.4 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 1335.2 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Connection data Connection method Push-in spring connection Pluggable Yes

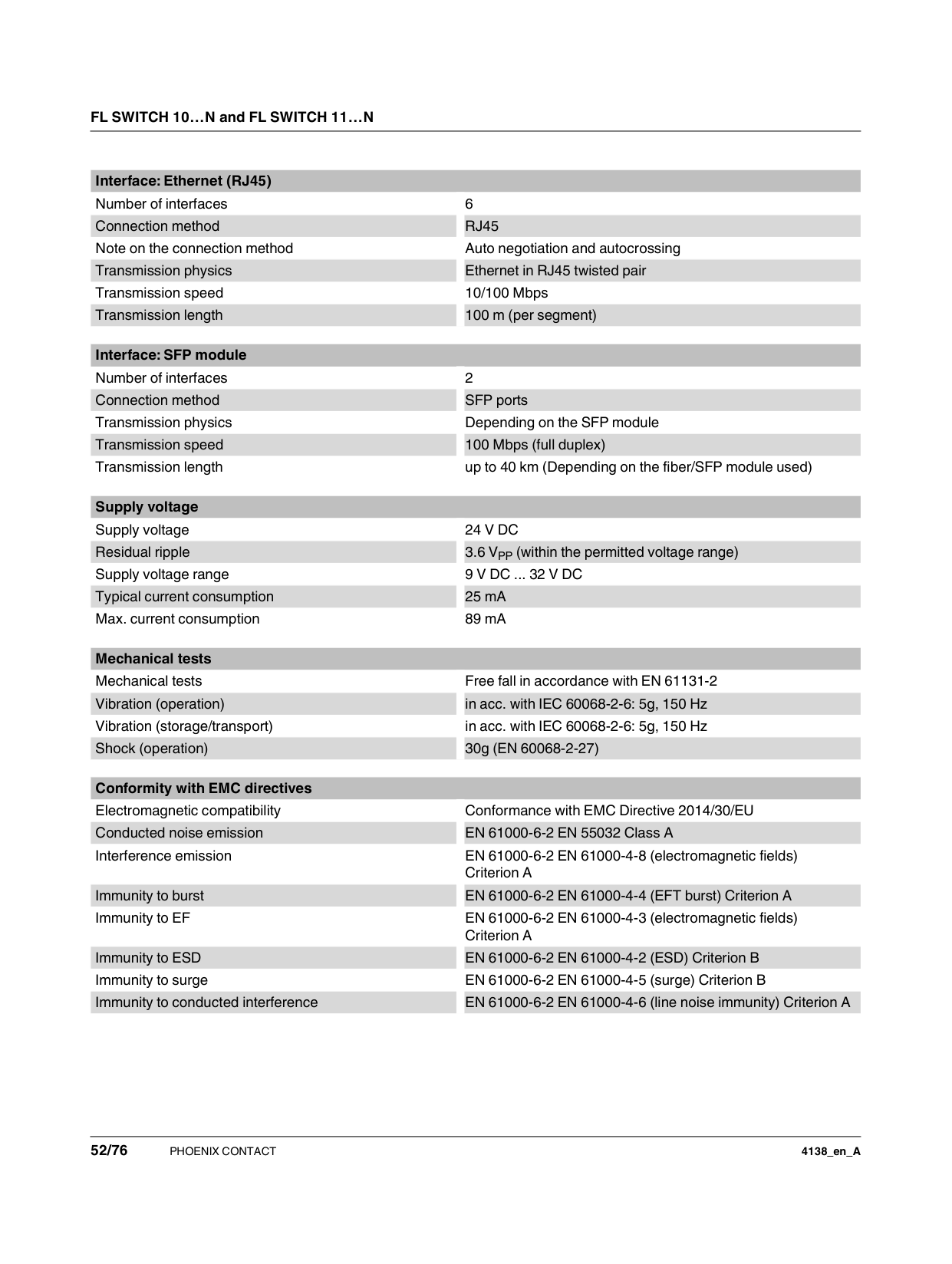

|Interface: SFP module| |---|
|Number of interfaces 2| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 25 mA
| |Max. current consumption 89 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B|
|Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|

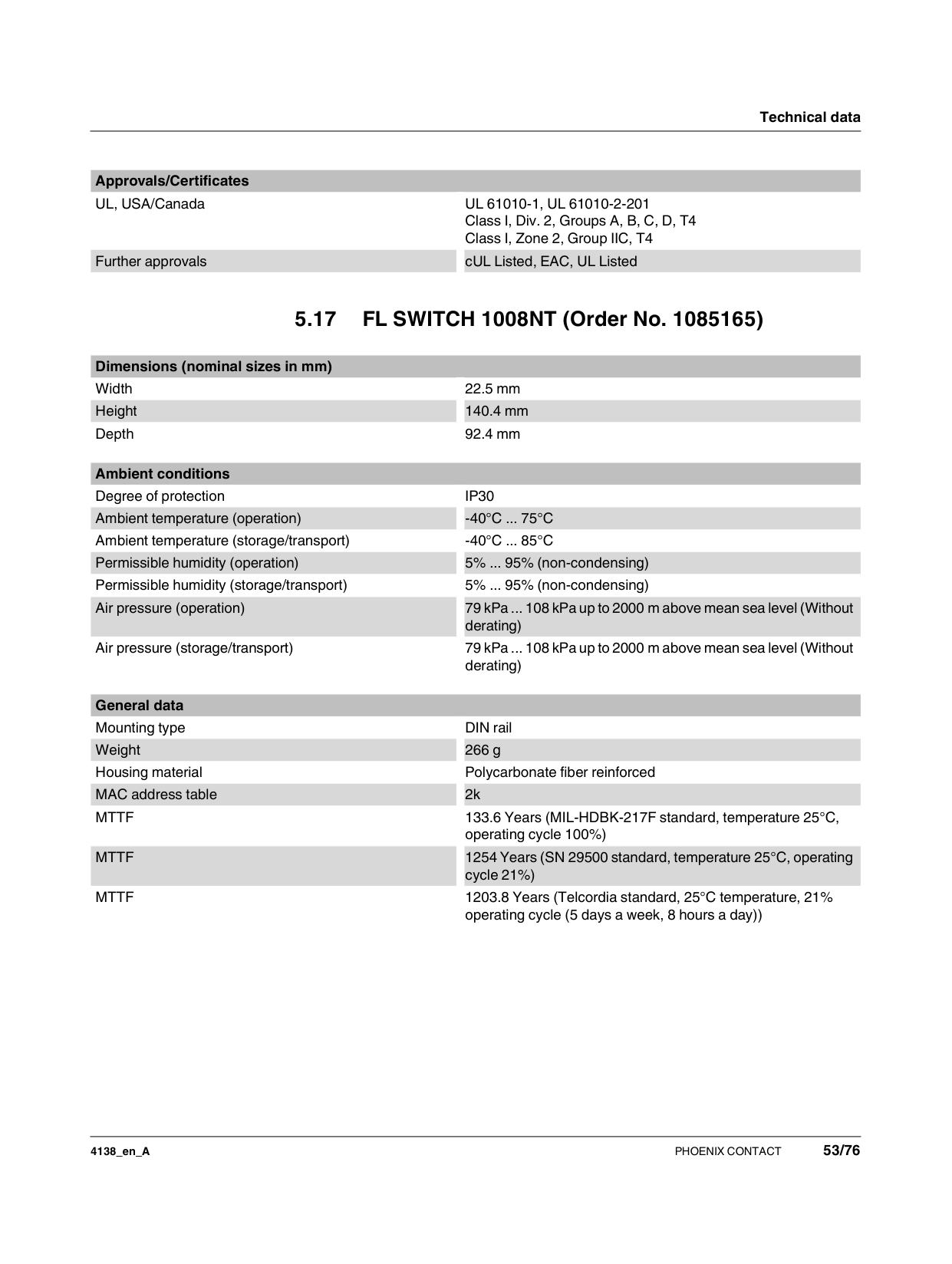

###### 5.17 FL SWITCH 1008NT (Order No. 1085165)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 140.4 mm Depth 92.4 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 266 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 2k
| |MTTF 133.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 1254 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 1203.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|

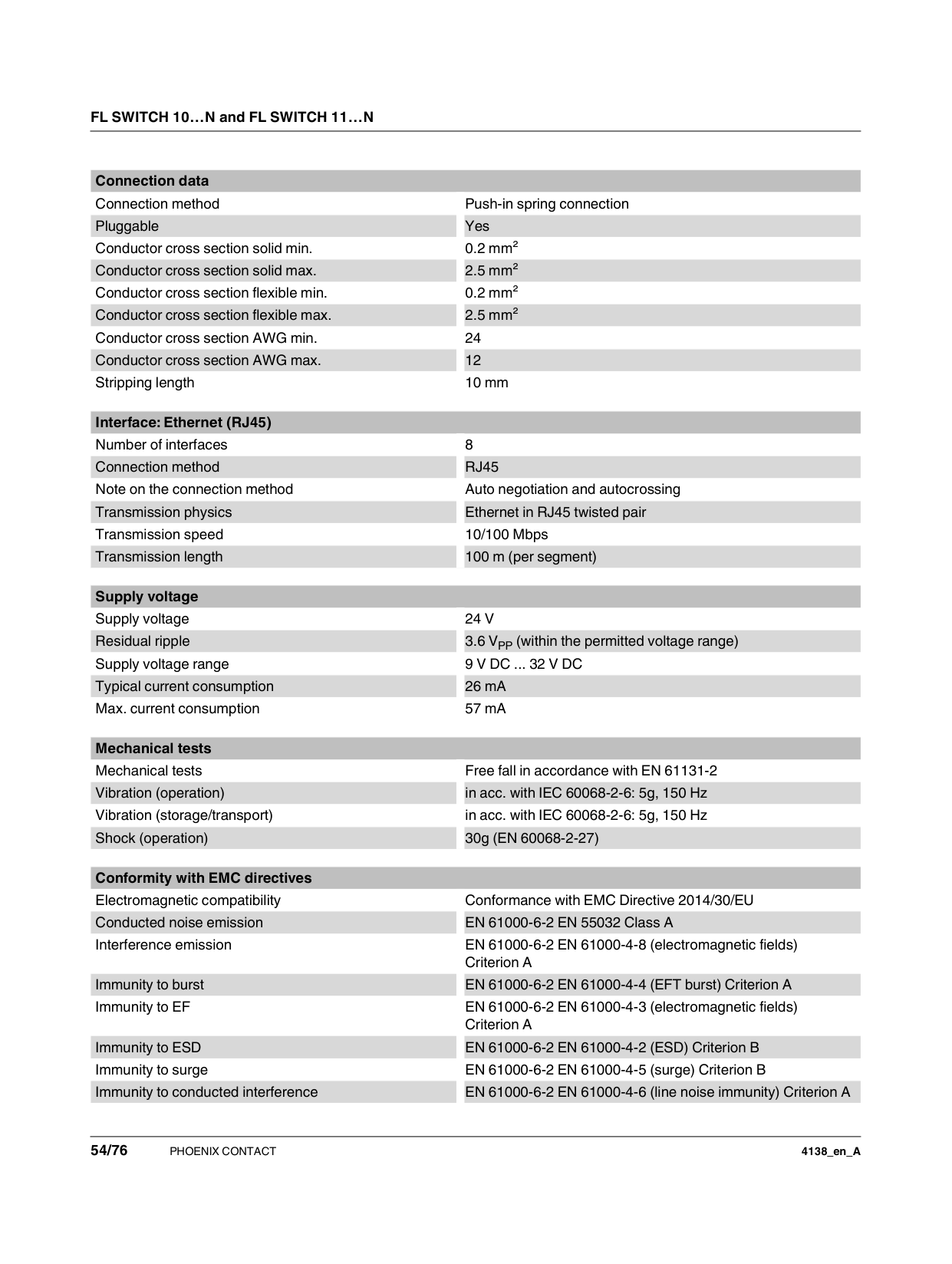

Interface: Ethernet (RJ45) Number of interfaces 8 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 Mbps Transmission length 100 m (per segment)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 26 mA
| |Max. current consumption 57 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
|
|Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|

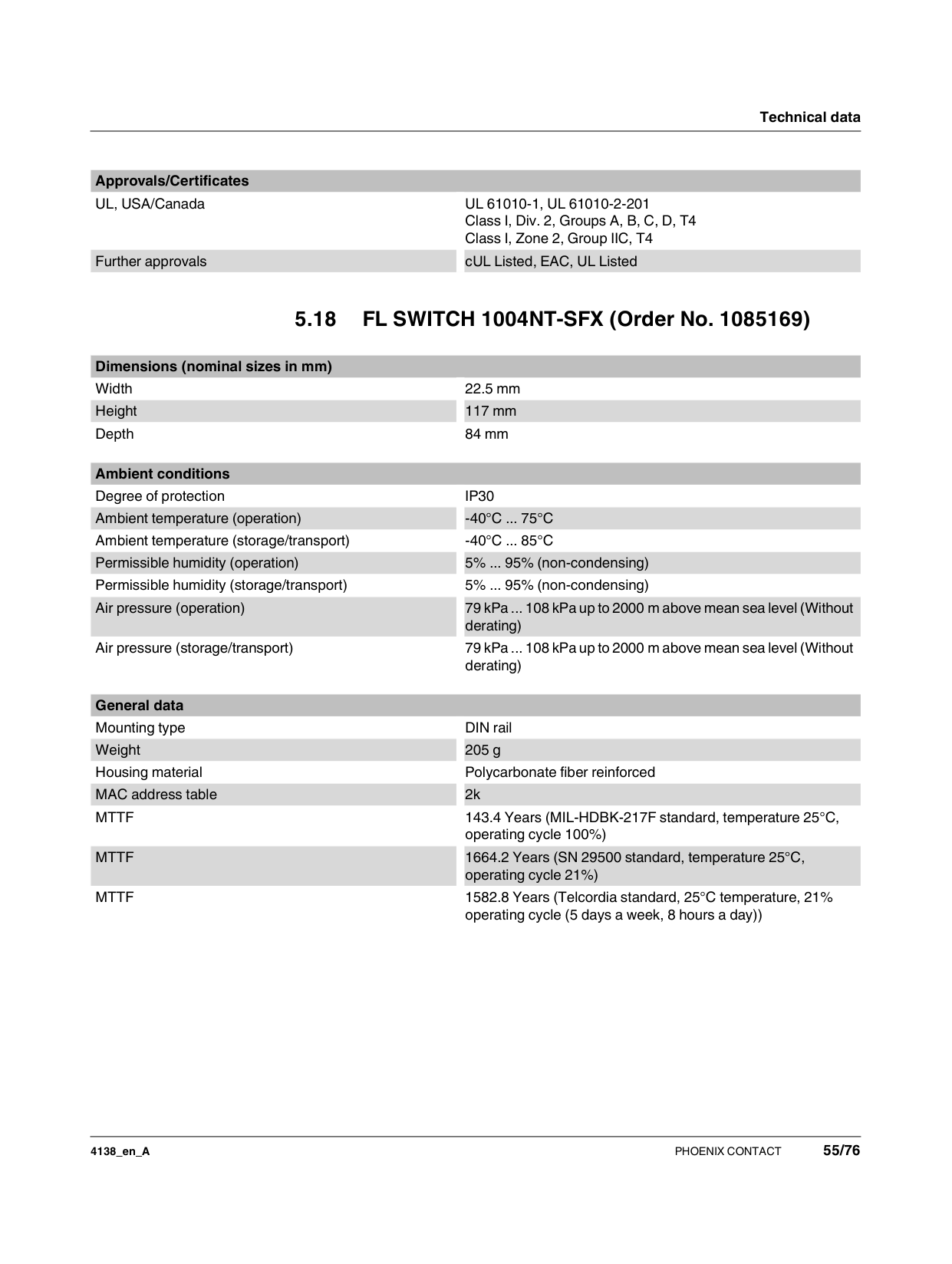

###### 5.18 FL SWITCH 1004NT-SFX (Order No. 1085169)
Dimensions (nominal sizes in mm) Width 22.5 mm Height 117 mm Depth 84 mm
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 205 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 2k
|
|MTTF 143.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 1664.2 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 1582.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|

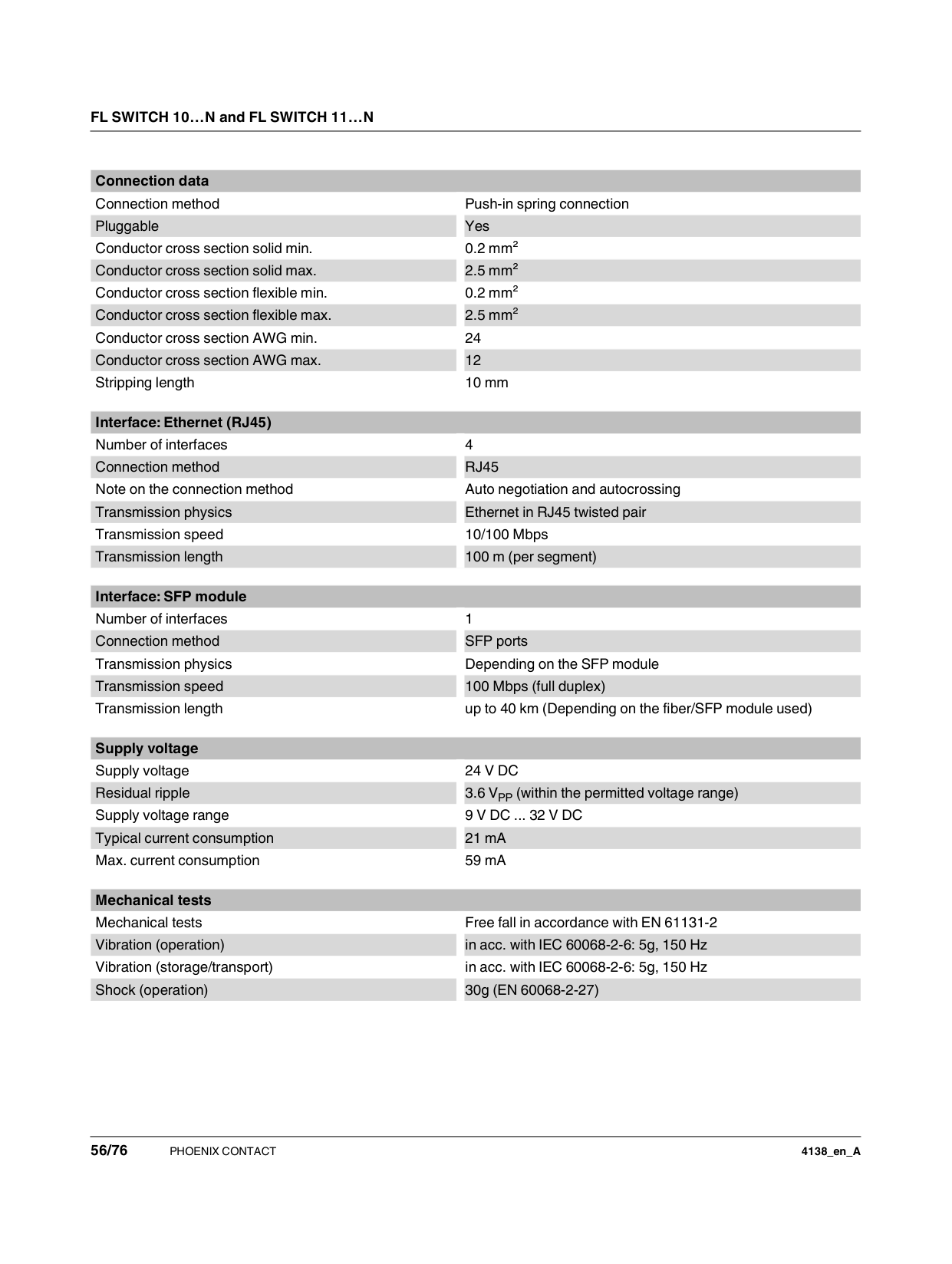

######## Interface: Ethernet (RJ45)
|Interface: SFP module| |---| |Number of interfaces 1| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 21 mA
| |Max. current consumption 59 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4| |Further approvals cUL Listed, EAC, UL Listed
|

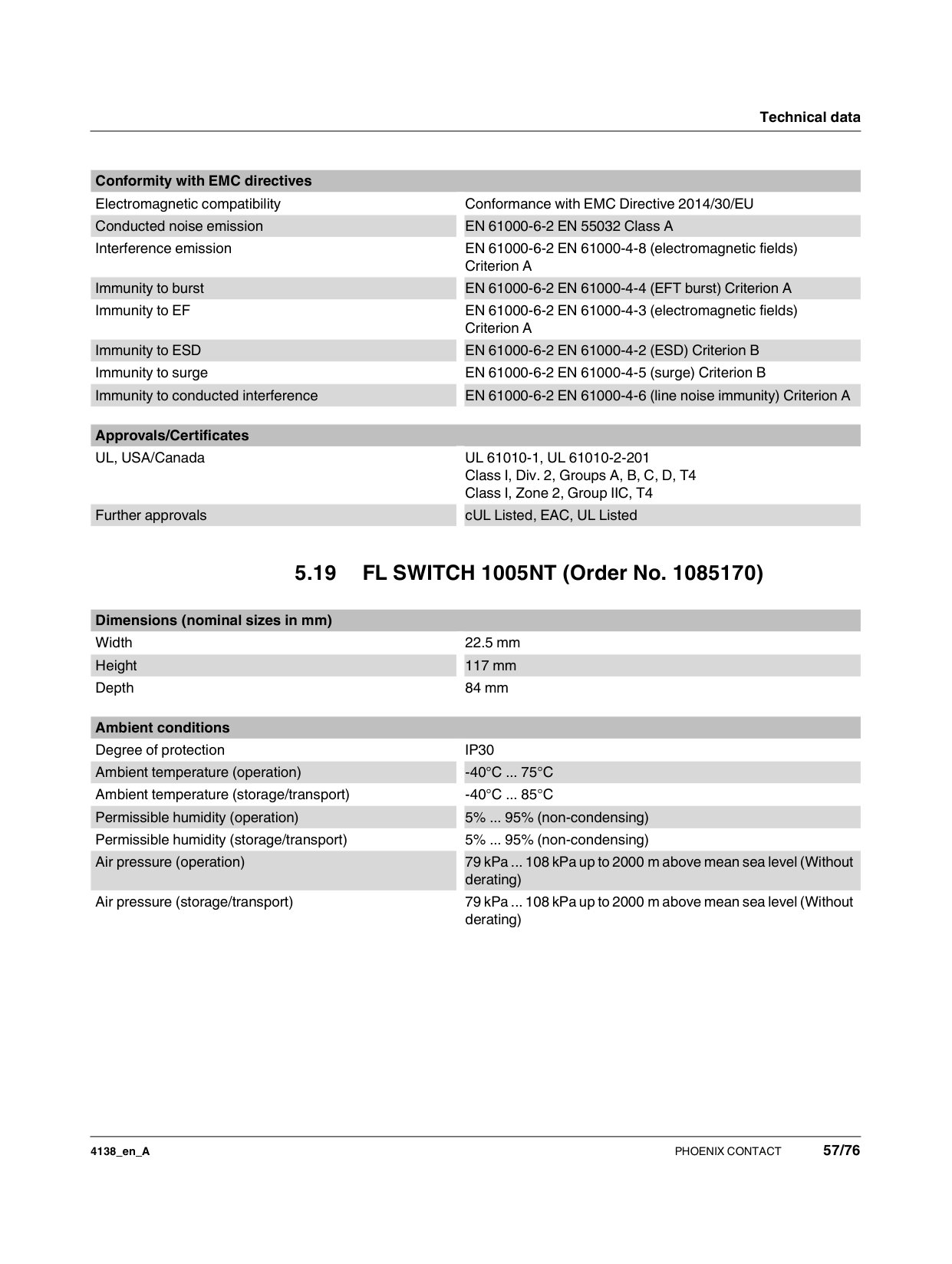

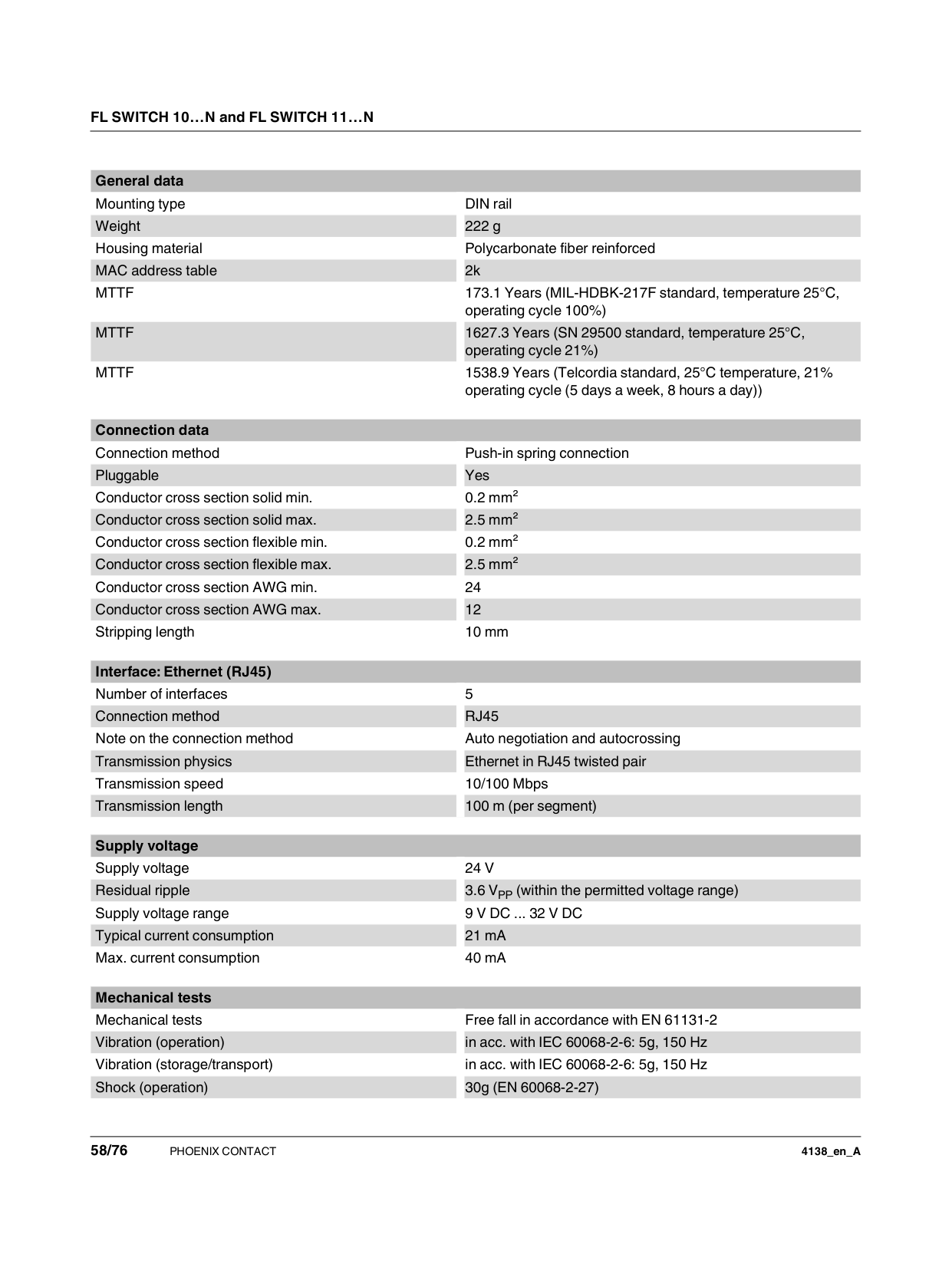

###### 5.19 FL SWITCH 1005NT (Order No. 1085170)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 117 mm
| |Depth 84 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
######## Interface: Ethernet (RJ45)
|Supply voltage| |---| |Supply voltage 24 V| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 21 mA
| |Max. current consumption 40 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4| |Further approvals cUL Listed, EAC, UL Listed
|

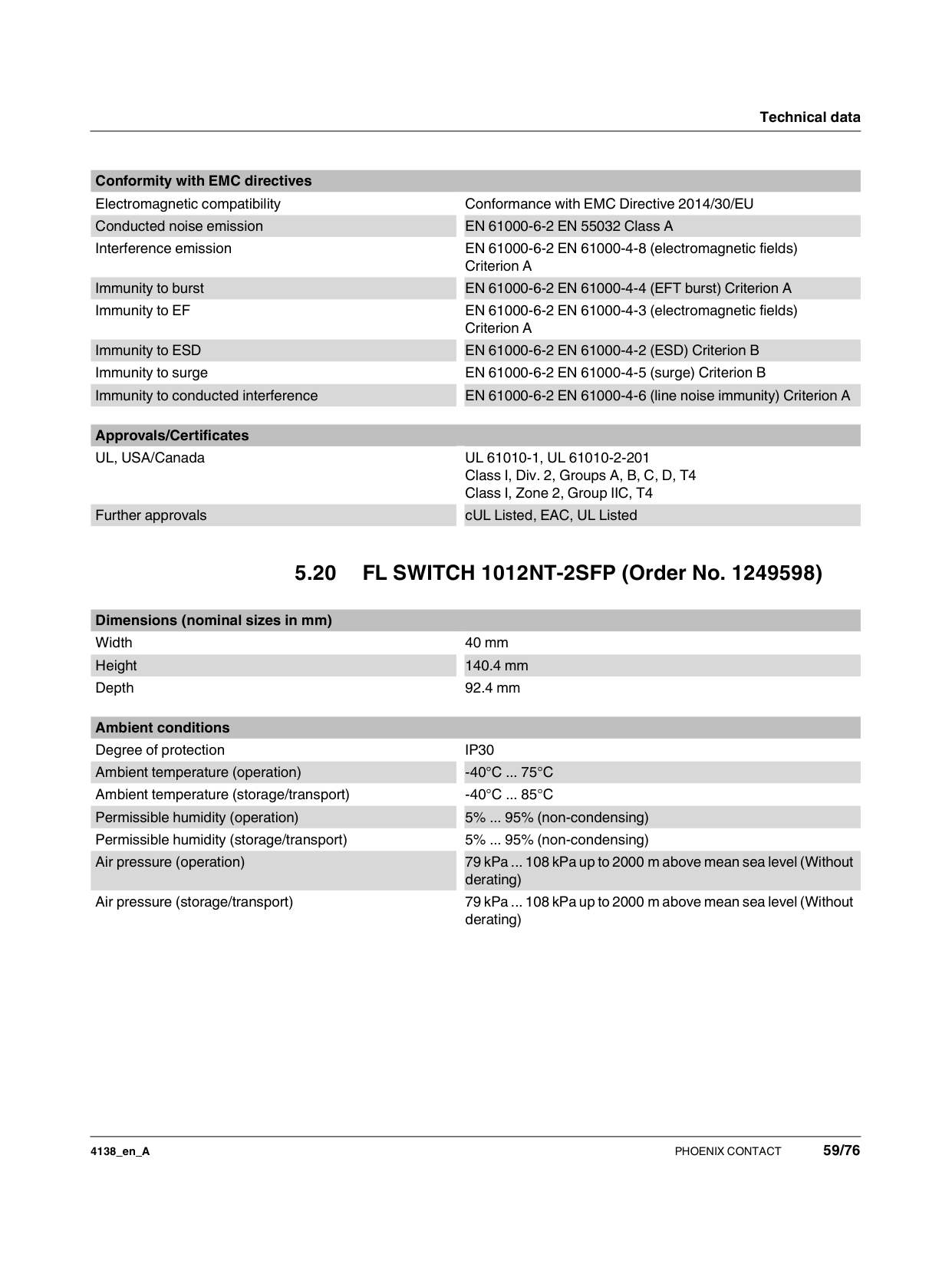

###### 5.20 FL SWITCH 1012NT-2SFP (Order No. 1249598)

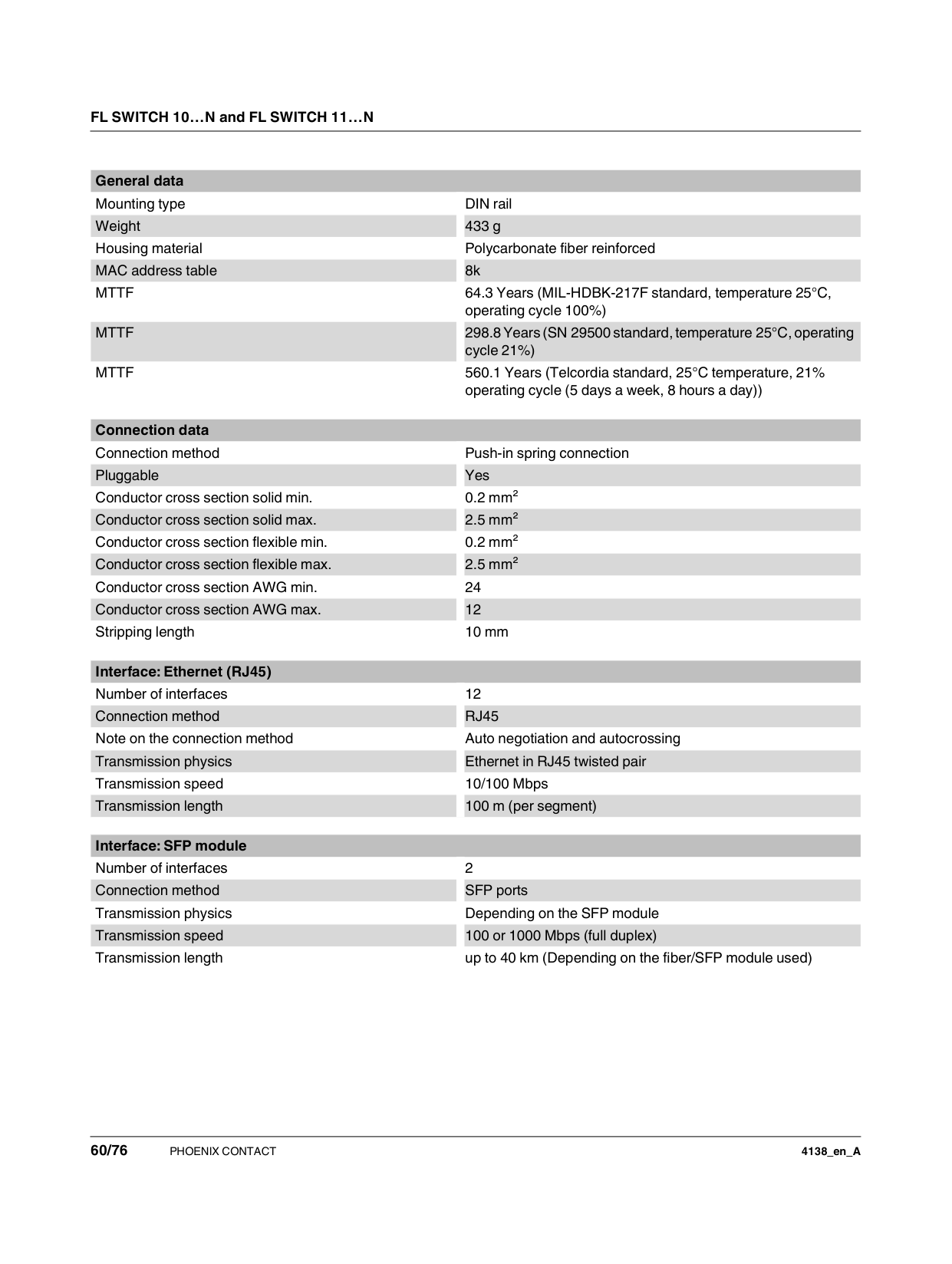

|Dimensions (nominal sizes in mm)| |---| |Width 40 mm| |Height 140.4 mm
| |Depth 92.4 mm|
|Ambient conditions| |---|
|Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
| |Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
Interface: Ethernet (RJ45) Number of interfaces 12 Connection method RJ45 Note on the connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 Mbps Transmission length 100 m (per segment)
|Interface: SFP module| |---| |Number of interfaces 2|
|Connection method SFP ports

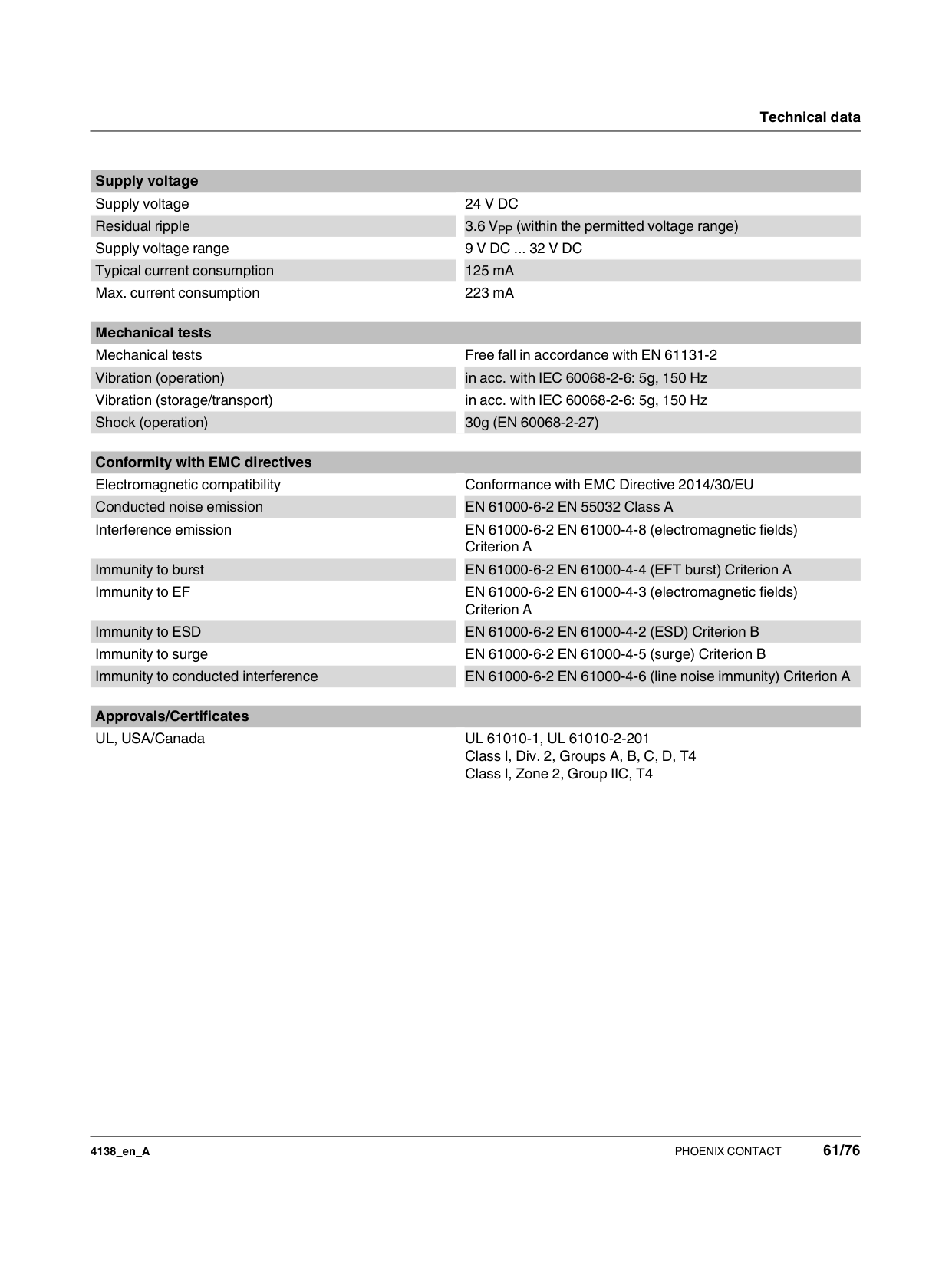

| |Transmission physics Depending on the SFP module| |Transmission speed 100 or 1000 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 125 mA
| |Max. current consumption 223 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4|
###### 5.21 FL SWITCH 1024T (Order No. 1343027)
|Dimensions (nominal sizes in mm)| |---| |Width 65 mm| |Height 140mm
| |Depth 107 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 620 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 8k
| |MTTF 64.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 298.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 560.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Connection data Connection method Push-in spring connection Pluggable Yes

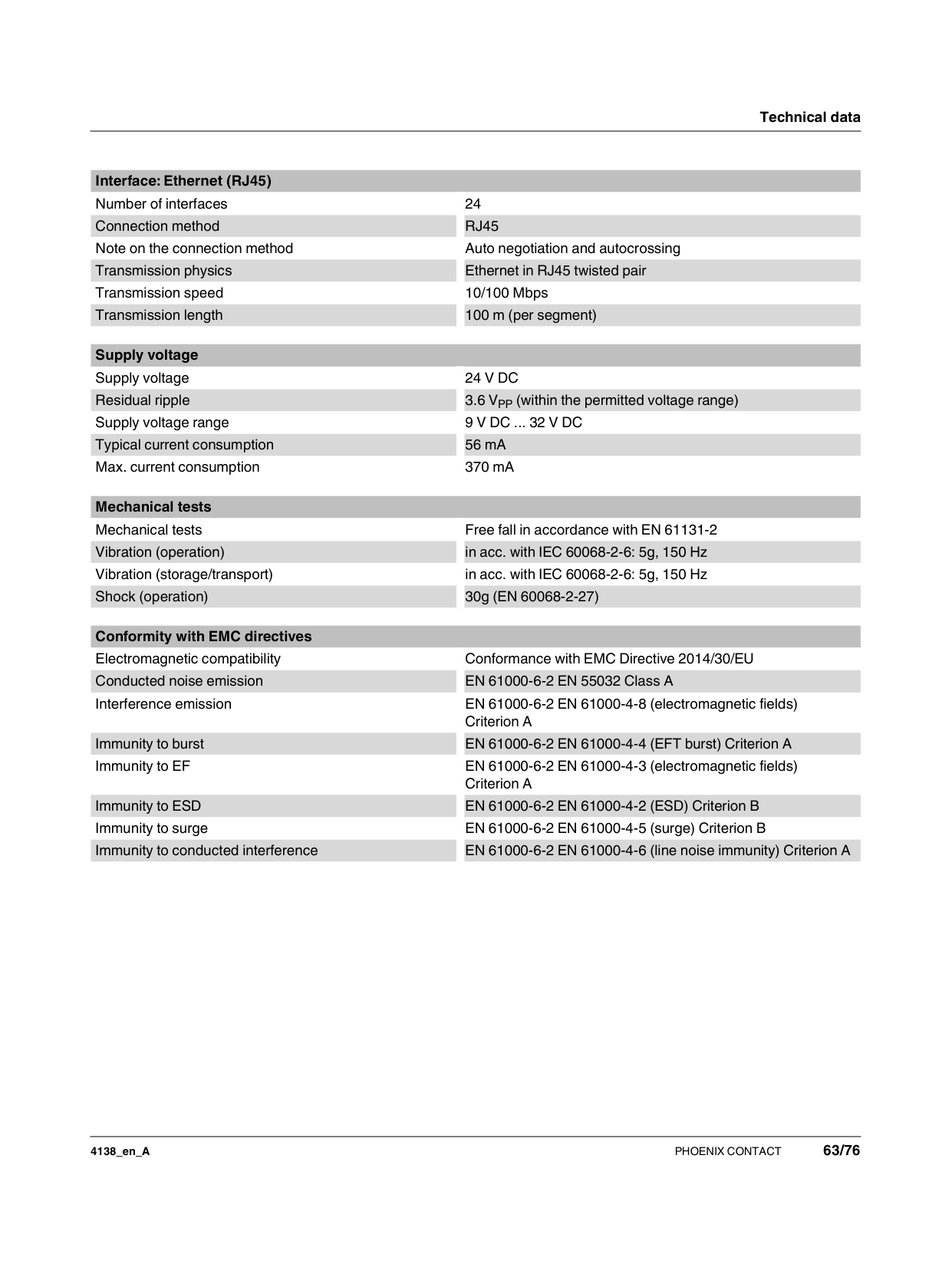

|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 56 mA
| |Max. current consumption 370 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU|
|Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|

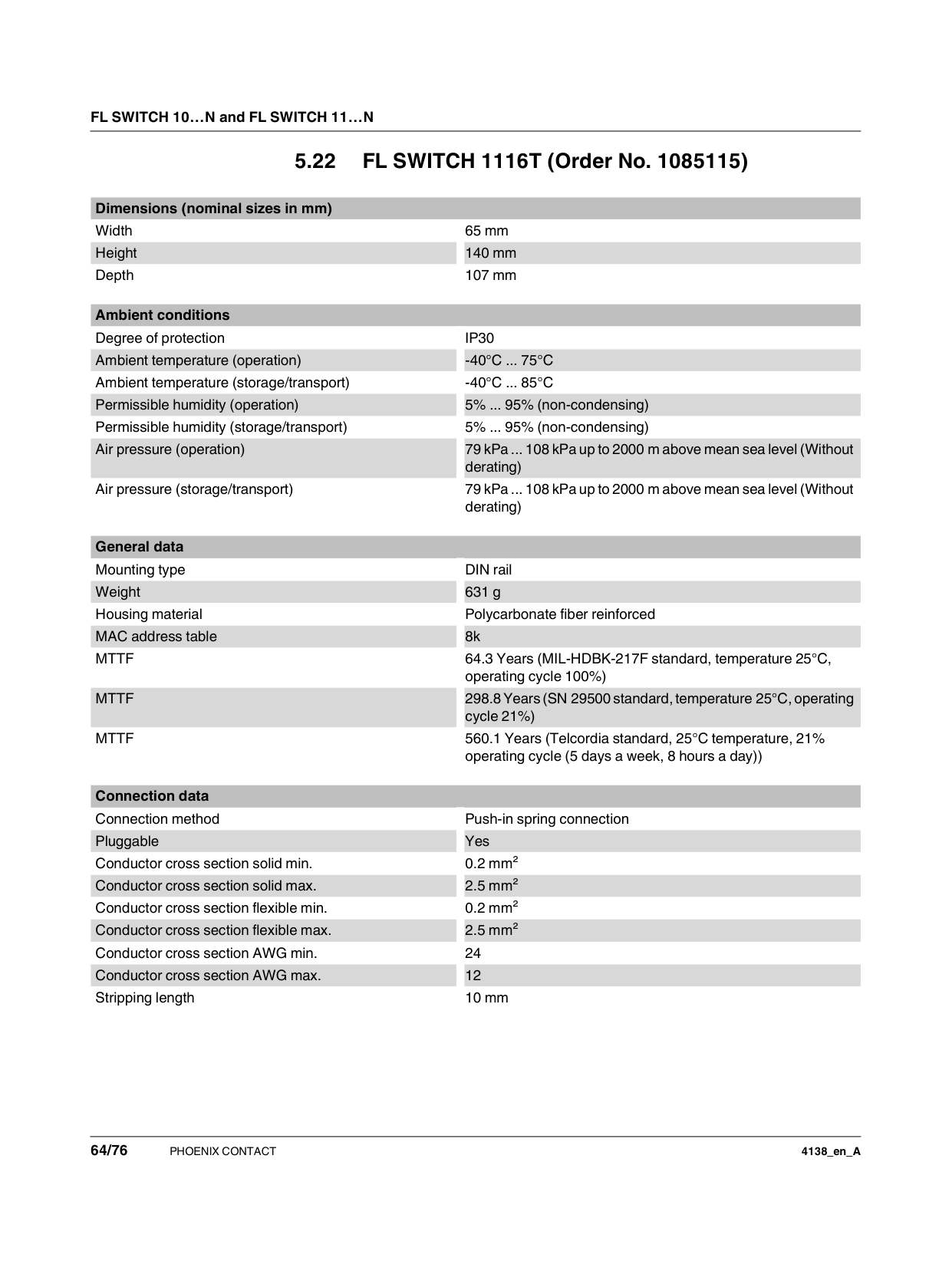

###### 5.22 FL SWITCH 1116T (Order No. 1085115)
|Dimensions (nominal sizes in mm)| |---| |Width 65 mm| |Height 140 mm
| |Depth 107 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)| |Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 631 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 8k
| |MTTF 64.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 298.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 560.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Connection data Connection method Push-in spring connection Pluggable Yes

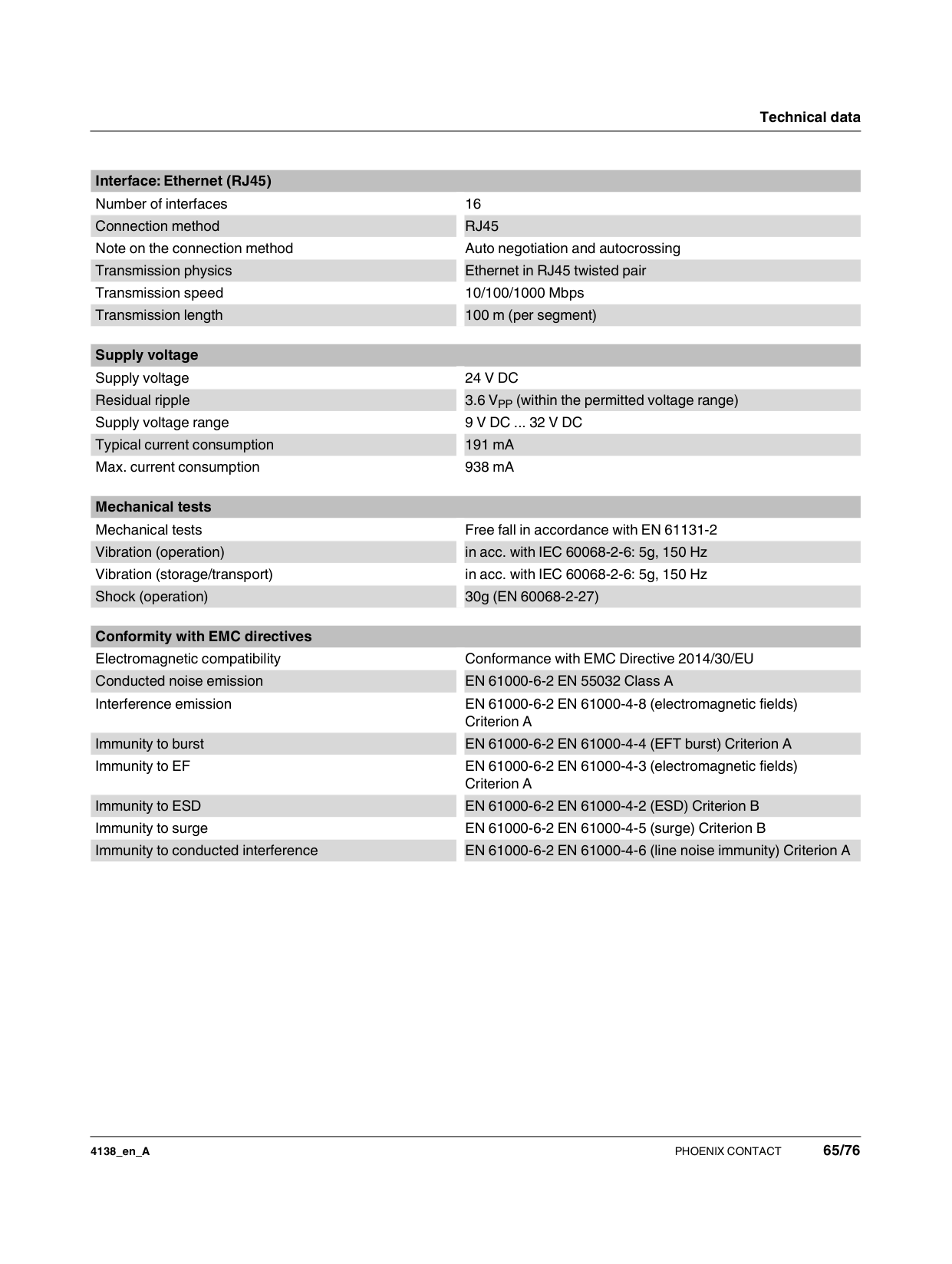

|Supply voltage| |---| |Supply voltage 24 V DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC| |Typical current consumption 191 mA
| |Max. current consumption 938 mA|
Mechanical tests Mechanical tests Free fall in accordance with EN 61131-2 Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz Shock (operation) 30g (EN 60068-2-27)
|Conformity with EMC directives|
|---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|

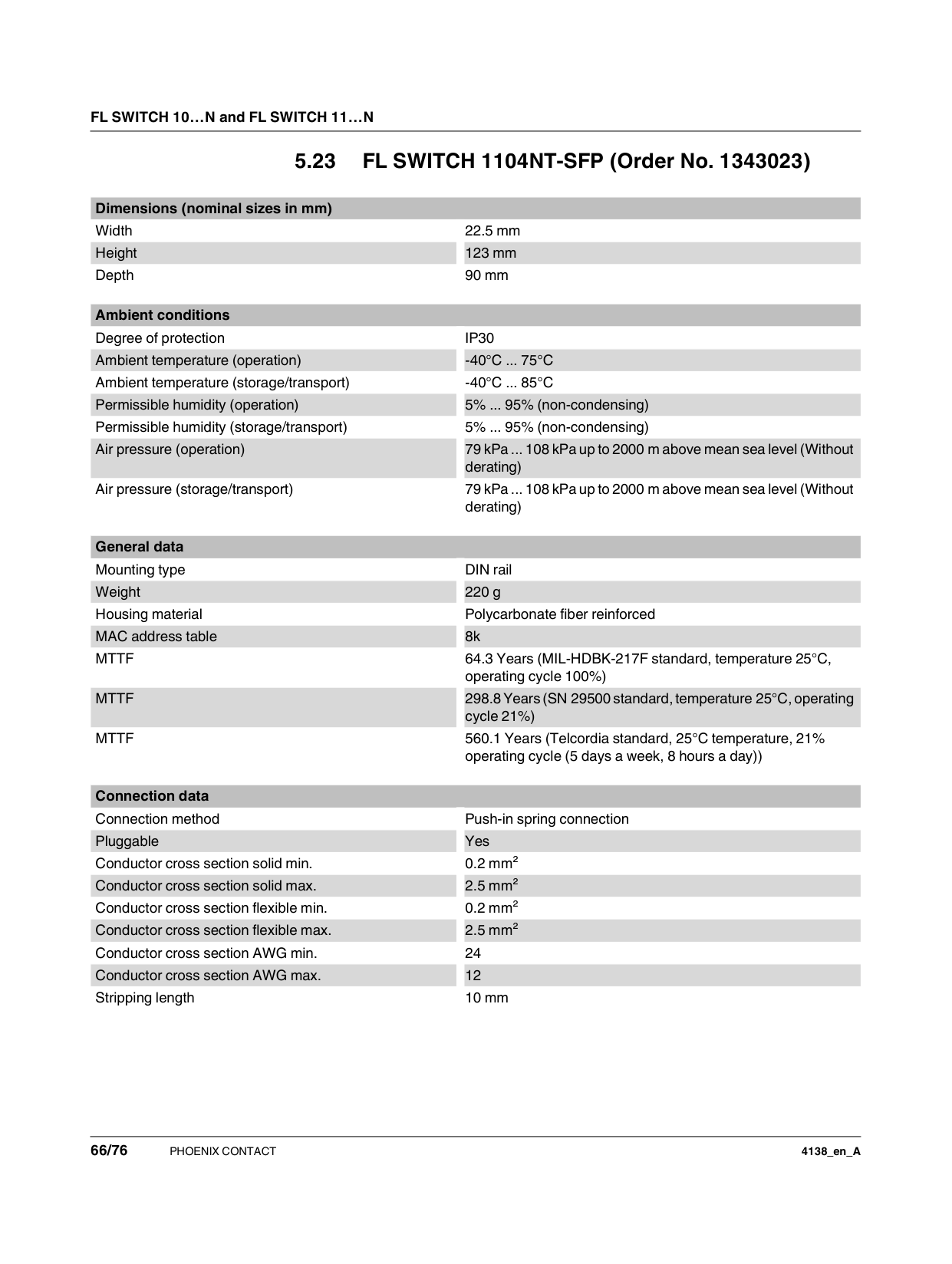

###### 5.23 FL SWITCH 1104NT-SFP (Order No. 1343023)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 123 mm
| |Depth 90 mm|
|Ambient conditions| |---| |Degree of protection IP30| |Ambient temperature (operation) -40°C ... 75°C
| |Ambient temperature (storage/transport) -40°C ... 85°C| |Permissible humidity (operation) 5% ... 95% (non-condensing)
| |Permissible humidity (storage/transport) 5% ... 95% (non-condensing)|
|Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
| |Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)|
|General data| |---| |Mounting type DIN rail| |Weight 220 g
| |Housing material Polycarbonate fiber reinforced| |MAC address table 8k
| |MTTF 64.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)| |MTTF 298.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
| |MTTF 560.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))|
Connection data Connection method Push-in spring connection Pluggable Yes

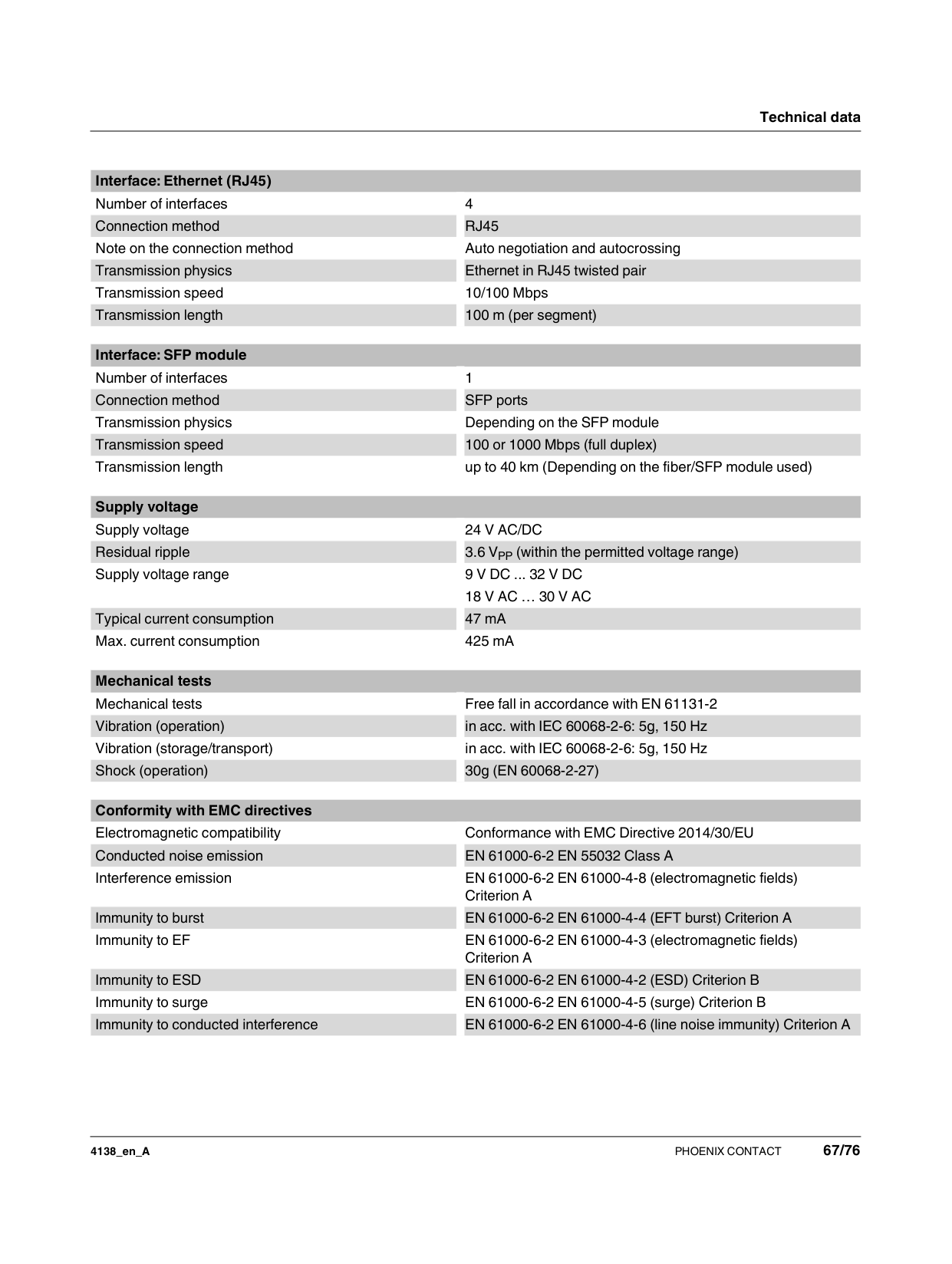

|Interface: SFP module| |---| |Number of interfaces 1| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 or 1000 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
|Supply voltage|
|---| |Supply voltage 24 V AC/DC| |Residual ripple 3.6 VPP (within the permitted voltage range)
| |Supply voltage range 9 V DC ... 32 V DC 18 V AC … 30 V AC| |Typical current consumption 47 mA
| |Max. current consumption 425 mA|
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|
|Conformity with EMC directives| |---| |Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU| |Conducted noise emission EN 61000-6-2 EN 55032 Class A
| |Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A| |Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
| |Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A| |Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
| |Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B| |Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4|

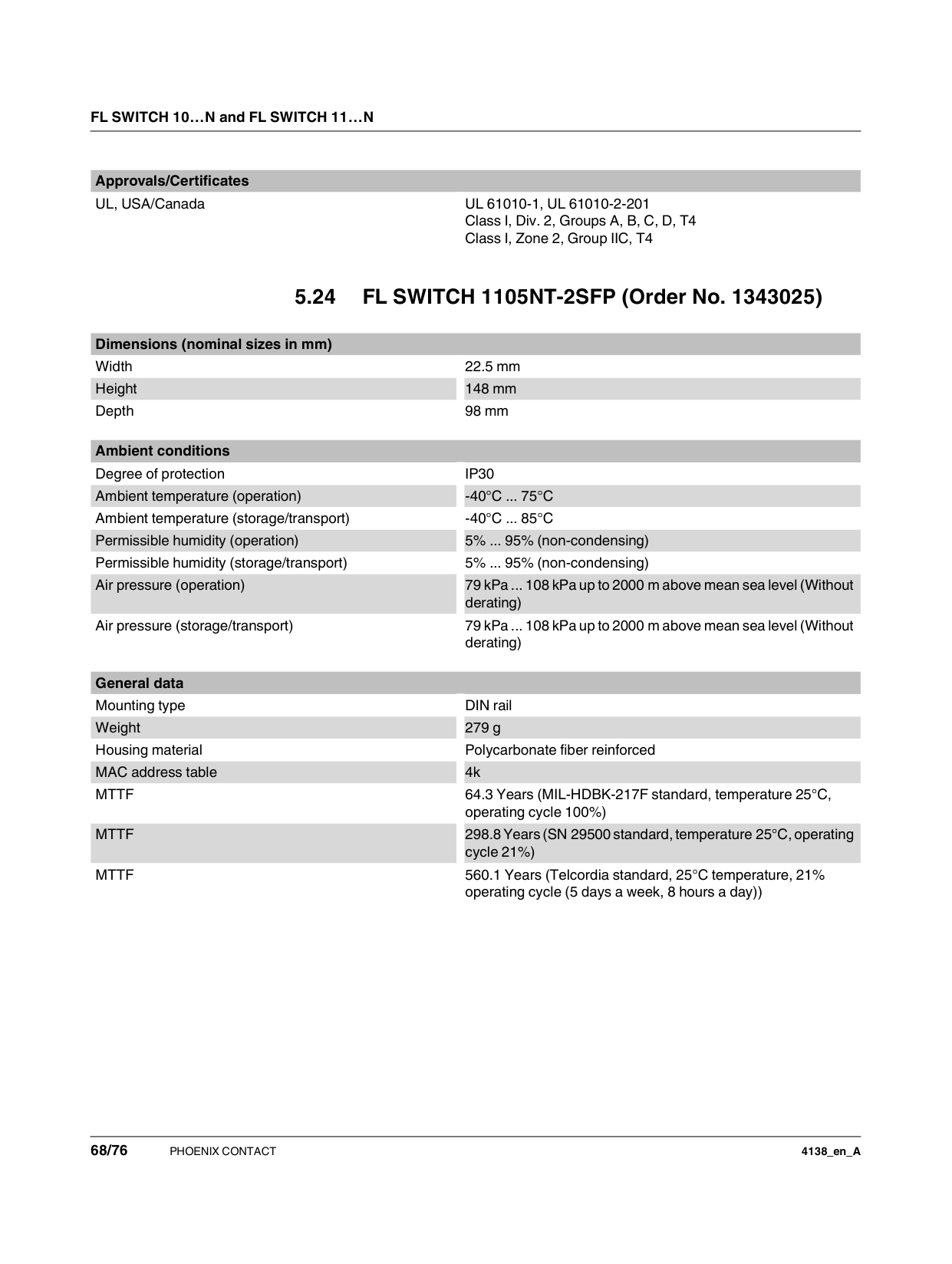

###### 5.24 FL SWITCH 1105NT-2SFP (Order No. 1343025)
|Dimensions (nominal sizes in mm)| |---| |Width 22.5 mm| |Height 148 mm
| |Depth 98 mm|
Ambient conditions Degree of protection IP30 Ambient temperature (operation) -40°C ... 75°C Ambient temperature (storage/transport) -40°C ... 85°C Permissible humidity (operation) 5% ... 95% (non-condensing) Permissible humidity (storage/transport) 5% ... 95% (non-condensing) Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without
derating) Air pressure (storage/transport) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
General data Mounting type DIN rail Weight 279 g Housing material Polycarbonate fiber reinforced MAC address table 4k MTTF 64.3 Years (MIL-HDBK-217F standard, temperature 25°C,
operating cycle 100%) MTTF 298.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) MTTF 560.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))

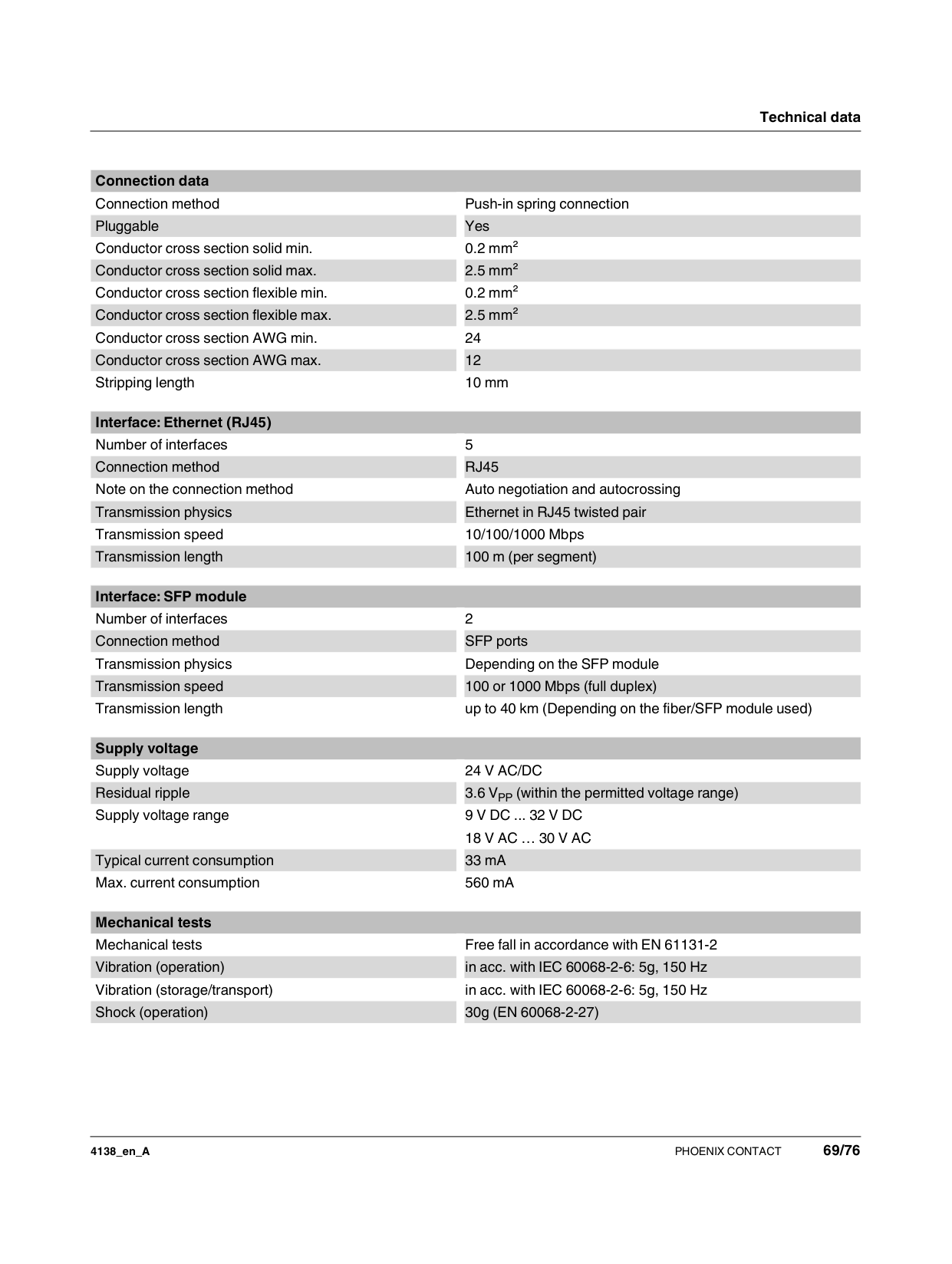

|Connection data| |---| |Connection method Push-in spring connection| |Pluggable Yes
|
|Conductor cross section solid min. 0.2 mm²| |Conductor cross section solid max. 2.5 mm²
| |Conductor cross section flexible min. 0.2 mm²| |Conductor cross section flexible max. 2.5 mm²
| |Conductor cross section AWG min. 24| |Conductor cross section AWG max. 12
| |Stripping length 10 mm|
######## Interface: Ethernet (RJ45)
|Interface: SFP module| |---| |Number of interfaces 2| |Connection method SFP ports
| |Transmission physics Depending on the SFP module| |Transmission speed 100 or 1000 Mbps (full duplex)
| |Transmission length up to 40 km (Depending on the fiber/SFP module used)|
Supply voltage Supply voltage 24 V AC/DC Residual ripple 3.6 VPP (within the permitted voltage range) Supply voltage range 9 V DC ... 32 V DC
18 V AC … 30 V AC Typical current consumption 33 mA Max. current consumption 560 mA
|Mechanical tests| |---| |Mechanical tests Free fall in accordance with EN 61131-2| |Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
| |Vibration (storage/transport) in acc. with IEC 60068-2-6: 5g, 150 Hz| |Shock (operation) 30g (EN 60068-2-27)
|

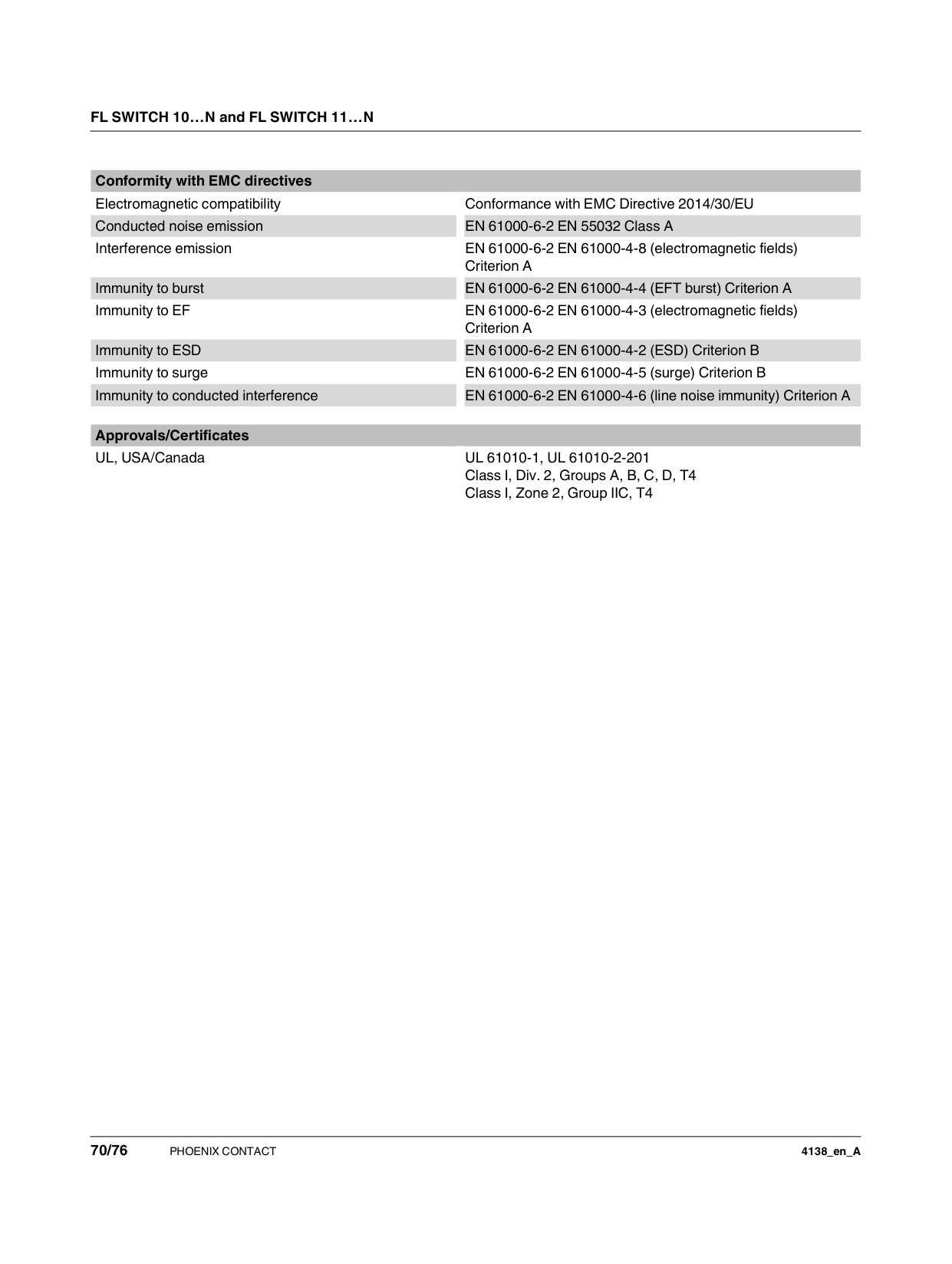

Conformity with EMC directives Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Conducted noise emission EN 61000-6-2 EN 55032 Class A Interference emission EN 61000-6-2 EN 61000-4-8 (electromagnetic fields)
Criterion A Immunity to burst EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A Immunity to EF EN 61000-6-2 EN 61000-4-3 (electromagnetic fields)
Criterion A Immunity to ESD EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B Immunity to surge EN 61000-6-2 EN 61000-4-5 (surge) Criterion B Immunity to conducted interference EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
|Approvals/Certificates| |---| |UL, USA/Canada UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4|
A Appendixes
Section 3
###### A 1 List of figures
Appendixes
Section 4
###### A 2 List of tables
List of tables

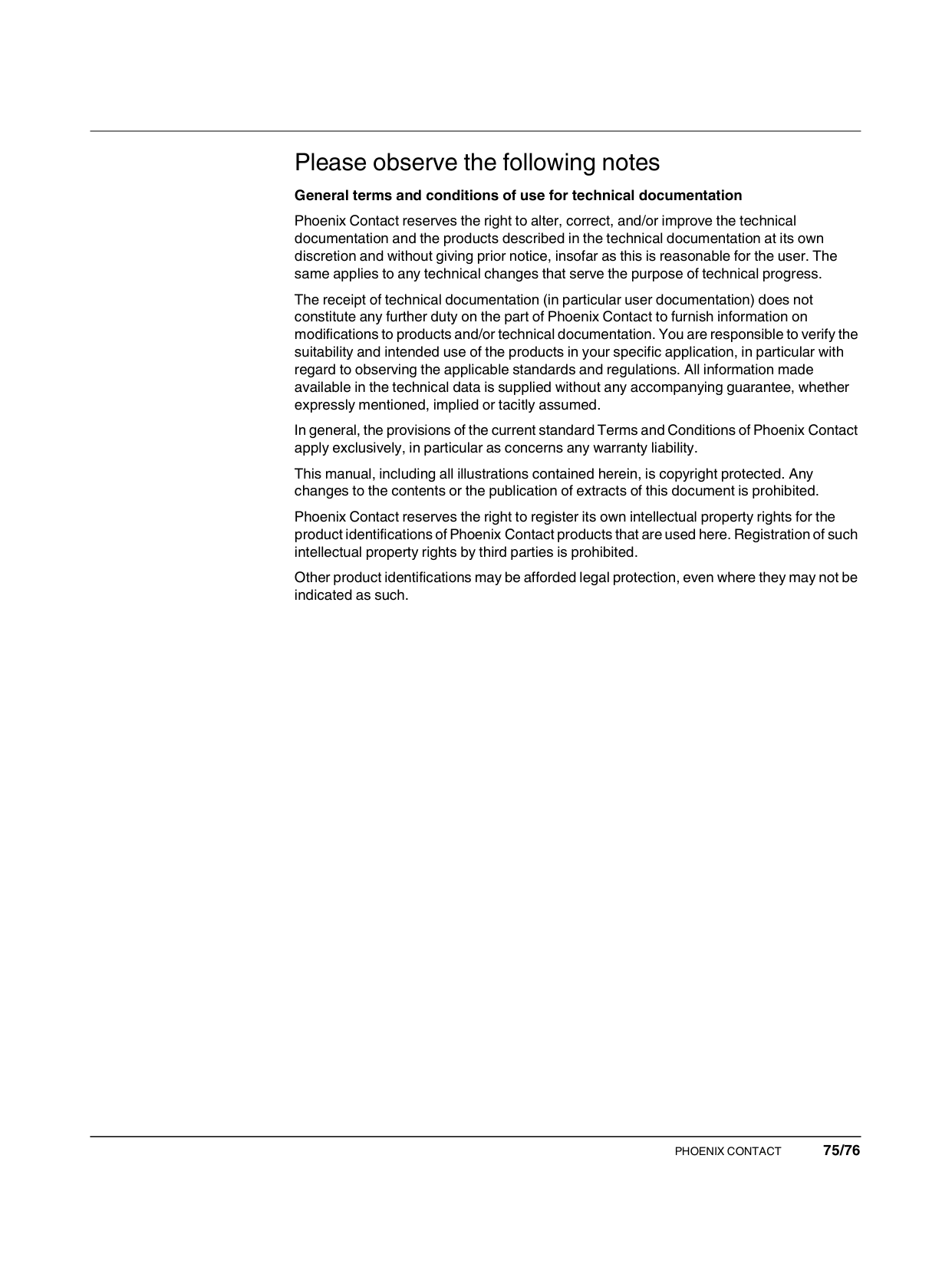

##### Please observe the following notes
######## General terms and conditions of use for technical documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the technical documentation and the products described in the technical documentation at its own discretion and without giving prior notice, insofar as this is reasonable for the user. The same applies to any technical changes that serve the purpose of technical progress.
The receipt of technical documentation (in particular user documentation) does not constitute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observing the applicable standards and regulations. All information made available in the technical data is supplied without any accompanying guarantee, whether expressly mentioned, implied or tacitly assumed.
In general, the provisions of the current standard Terms and Conditions of Phoenix Contact apply exclusively, in particular as concerns any warranty liability.
This manual, including all illustrations contained herein, is copyright protected. Any changes to the contents or the publication of extracts of this document is prohibited.
Phoenix Contact reserves the right to register its own intellectual property rights for the product identifications of Phoenix Contact products that are used here. Registration of such intellectual property rights by third parties is prohibited.
Other product identifications may be afforded legal protection, even where they may not be indicated as such.
PHOENIX CONTACT 75/76
##### How to contact us
Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be found on the Internet at: phoenixcontact.com
Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/products
Subsidiaries If there are any problems that cannot be solved using the documentation, please contact your Phoenix Contact subsidiary. Subsidiary contact information is available at phoenixcontact.com.
Published by PHOENIX CONTACT GmbH & Co. KG Flachsmarktstraße 8 32825 Blomberg GERMANY
PHOENIX CONTACT Development and Manufacturing, Inc. 586 Fulling Mill Road Middletown, PA 17057 USA
Should you have any suggestions or recommendations for improvement of the contents and layout of our manuals, please send your comments to: tecdoc@phoenixcontact.com
76/76
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com
