Front Runner LASJ003 Suzuki Jimny Ladder

What vehicles is the Front Runner LASJ003 ladder compatible with?

The Front Runner LASJ003 ladder is designed for the Suzuki Jimny (2018 – Current). The product is specifically engineered to fit this model year range and later versions. (Page 1)

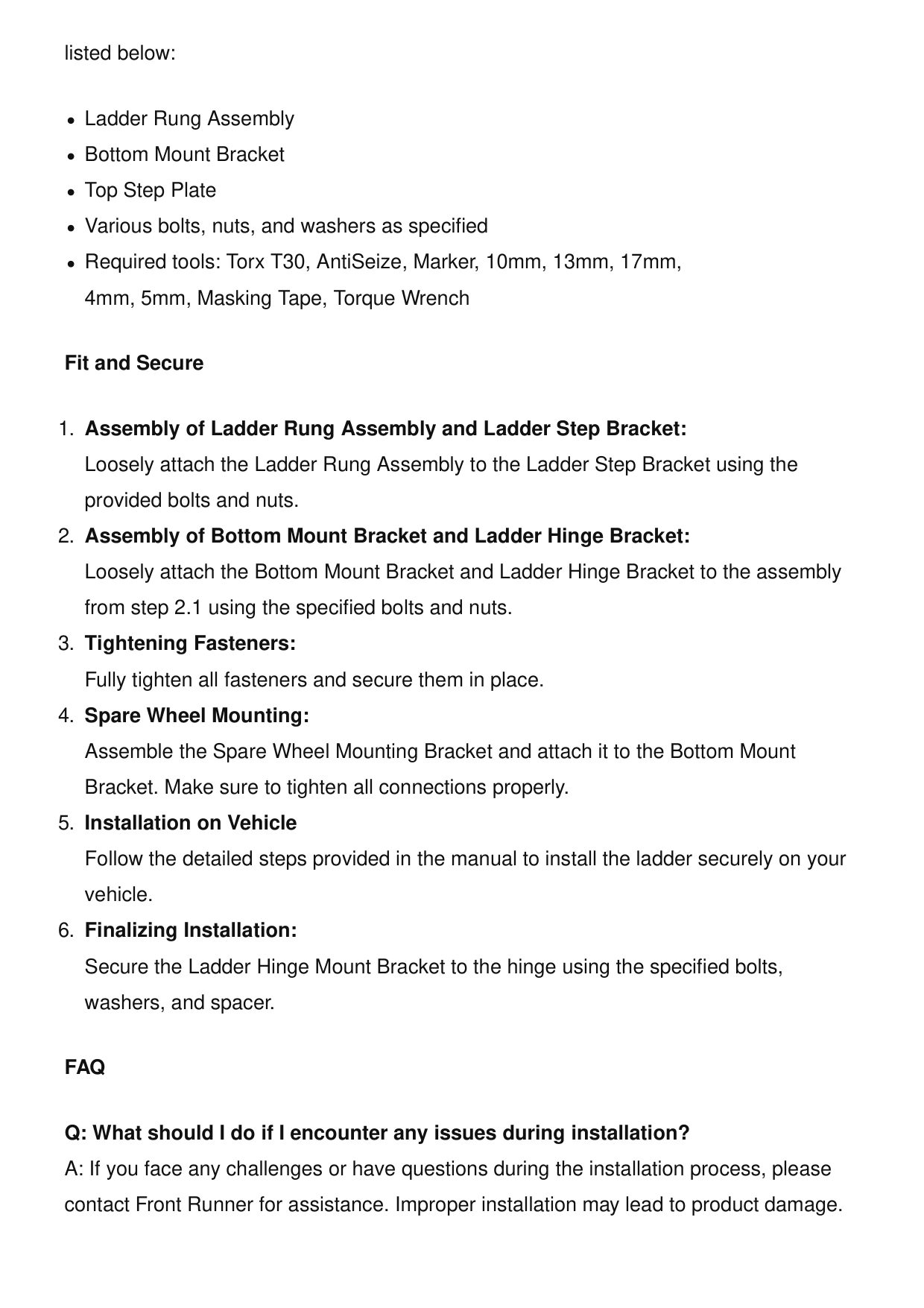

What components are included in the box with the LASJ003 ladder?

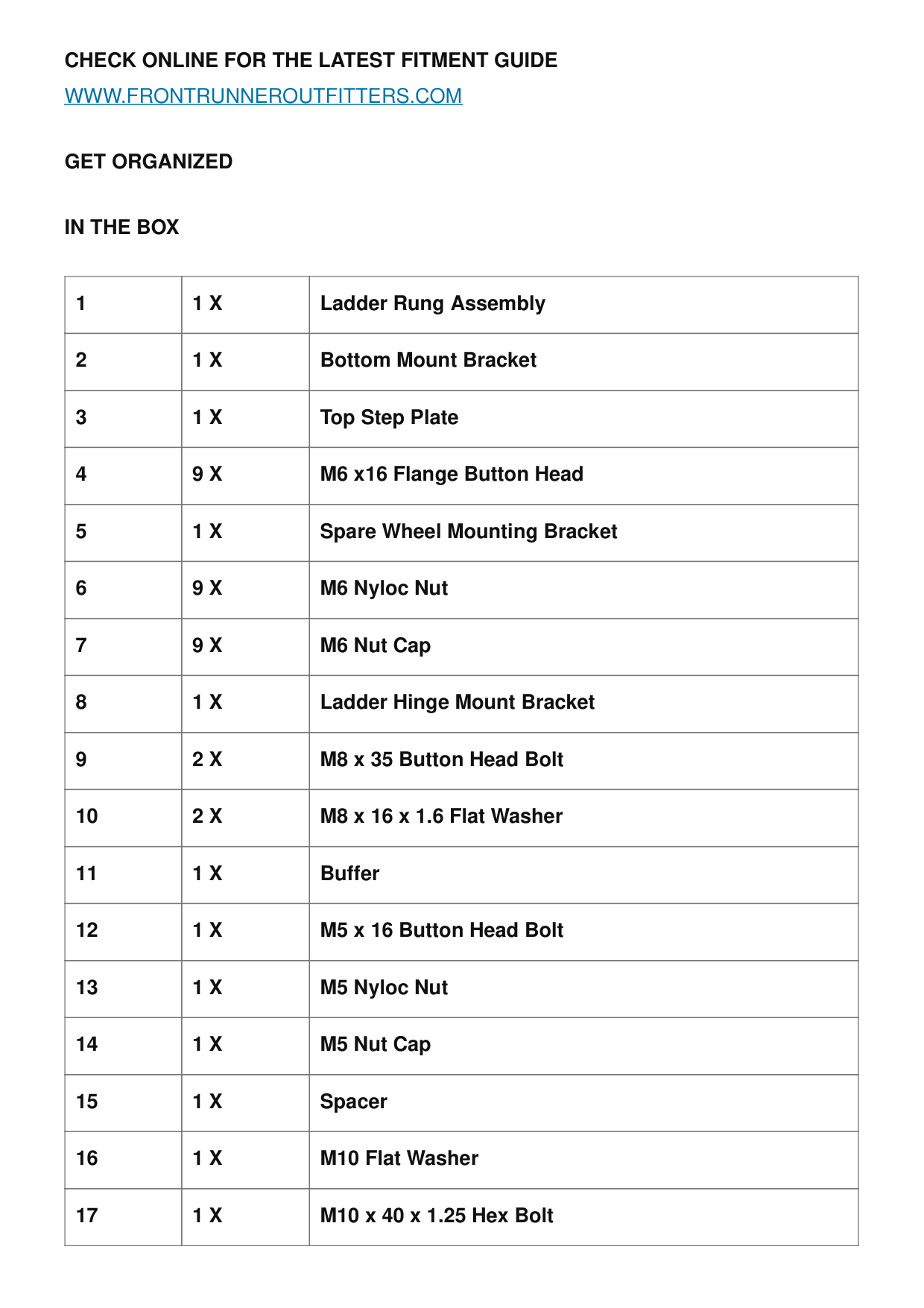

The box includes a Ladder Rung Assembly, Bottom Mount Bracket, Top Step Plate, Spare Wheel Mounting Bracket, Ladder Hinge Mount Bracket, Buffer, Spacer, Hinge Spacer, Rubber U Channel (76mm Long), and various bolts, nuts, washers, and nut caps. There are 19 distinct items in total included in the package. (Page 3-4)

What is the correct tightening torque for M6 bolts during installation?

The tightening torque for M6 bolts is 8-10Nm, which is equivalent to 5.9 ft lb – 7.38 ft lb. A torque wrench should be used to ensure fasteners are properly secured to this specification. (Page 5)

What is the correct tightening torque for M10 bolts used in the spare wheel mounting?

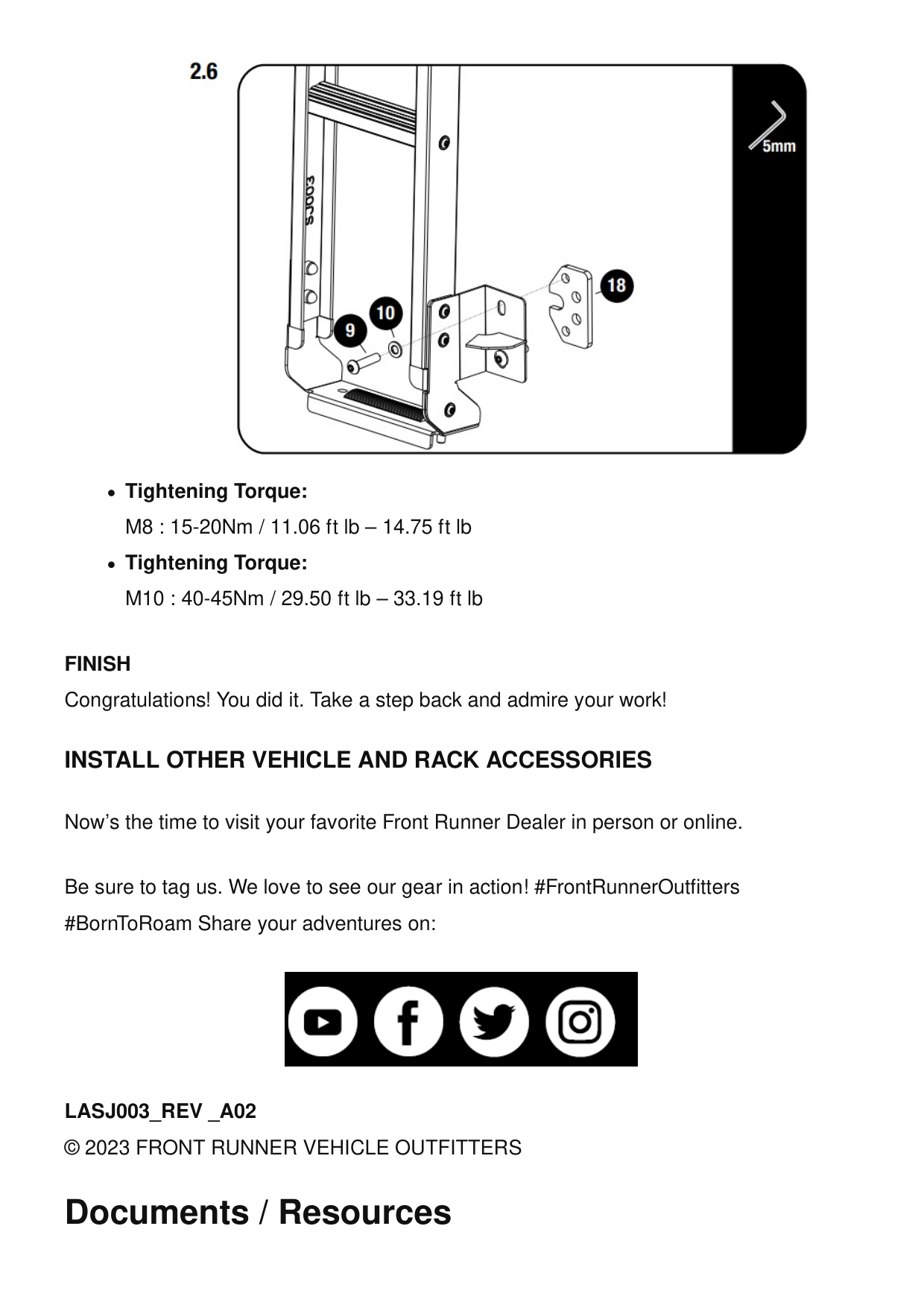

The tightening torque for M10 bolts is 40-45Nm, which is equivalent to 29.50 ft lb – 33.19 ft lb. This applies to the M10 x 40 x 1.25 Hex Bolt used to secure the Spare Wheel Mounting Bracket. (Page 6)

How should the Ladder Step Bracket be positioned relative to the Ladder Rung Assembly?

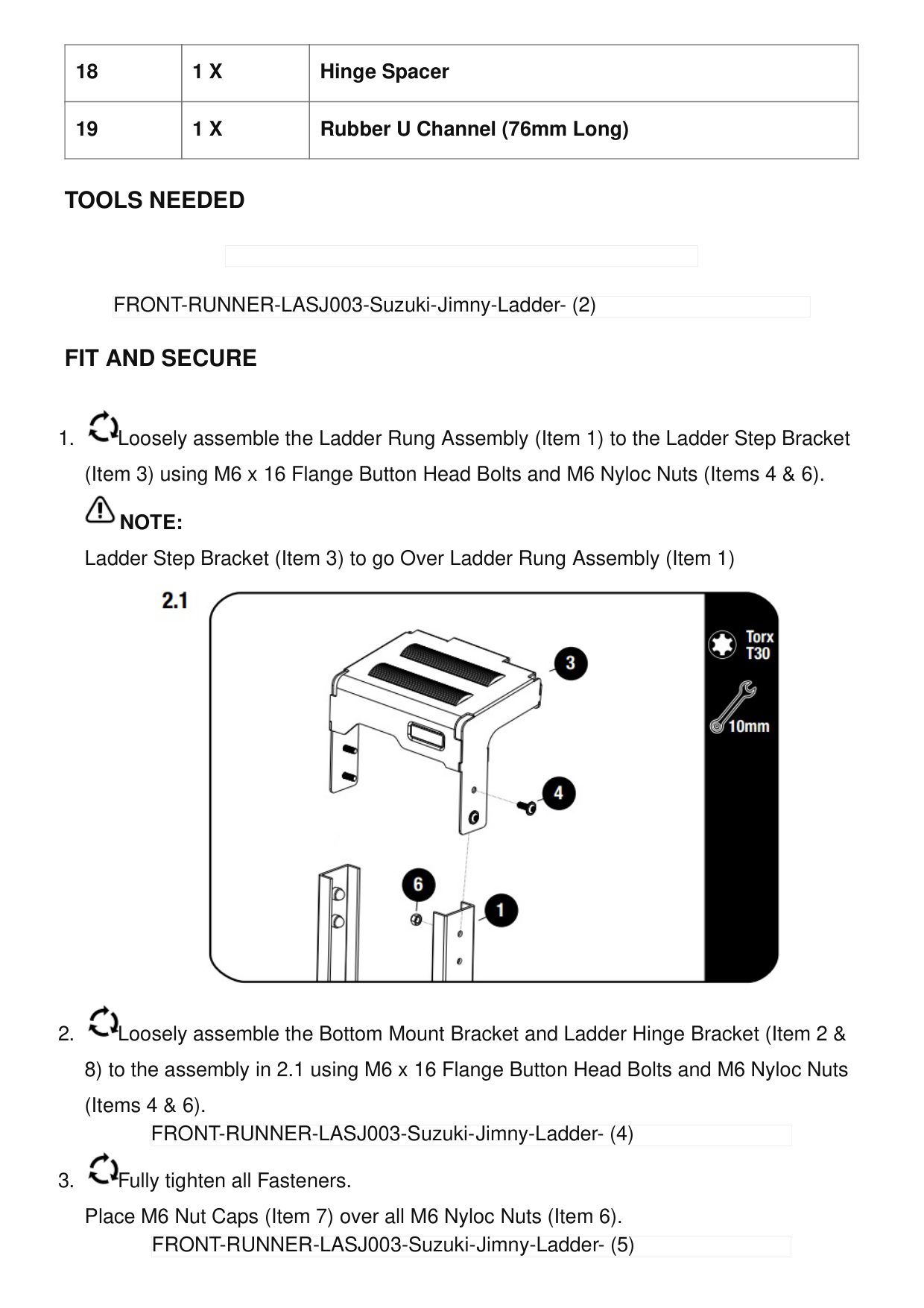

The Ladder Step Bracket (Item 3) should go over the Ladder Rung Assembly (Item 1). This is noted as an important step during the initial loose assembly using M6 x 16 Flange Button Head Bolts and M6 Nyloc Nuts. (Page 4)

How do I prepare the vehicle door before hooking on the ladder assembly?

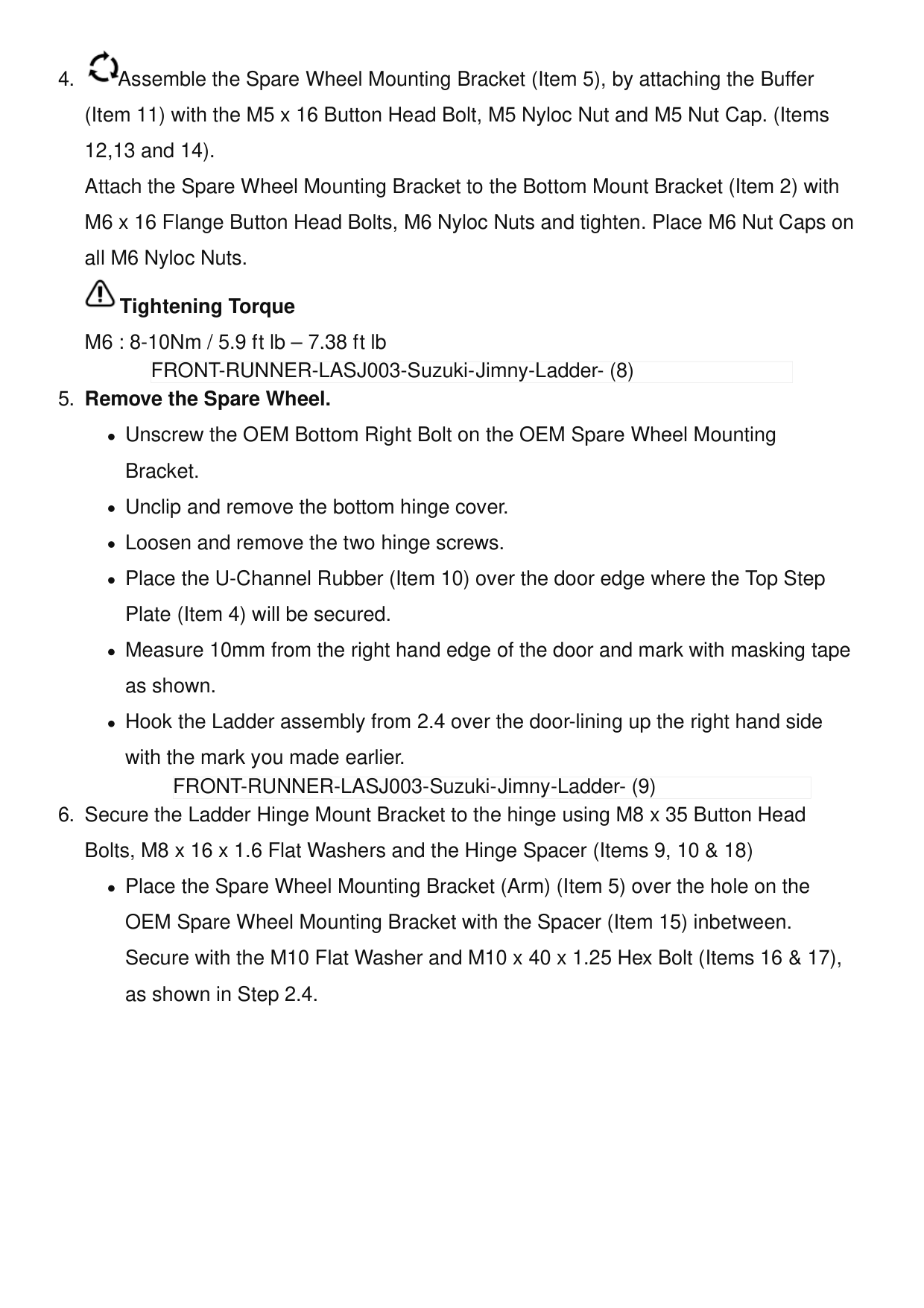

Place the U-Channel Rubber (Item 19) over the door edge where the Top Step Plate will be secured, then measure 10mm from the right-hand edge of the door and mark it with masking tape. Hook the ladder assembly over the door, lining up the right-hand side with the mark you made. (Page 5)
