Graco Snugride Snuglock 35 Dlx





PD349578C 8/16









SNUGRIDE

SNUGLOCK

35 DLX

TM

®





#### INFANT CAR SEAT








Do not install or use this child restraint until you read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH.

KEEP INSTRUCTIONS FOR FUTURE USE.

www.gracobaby.com

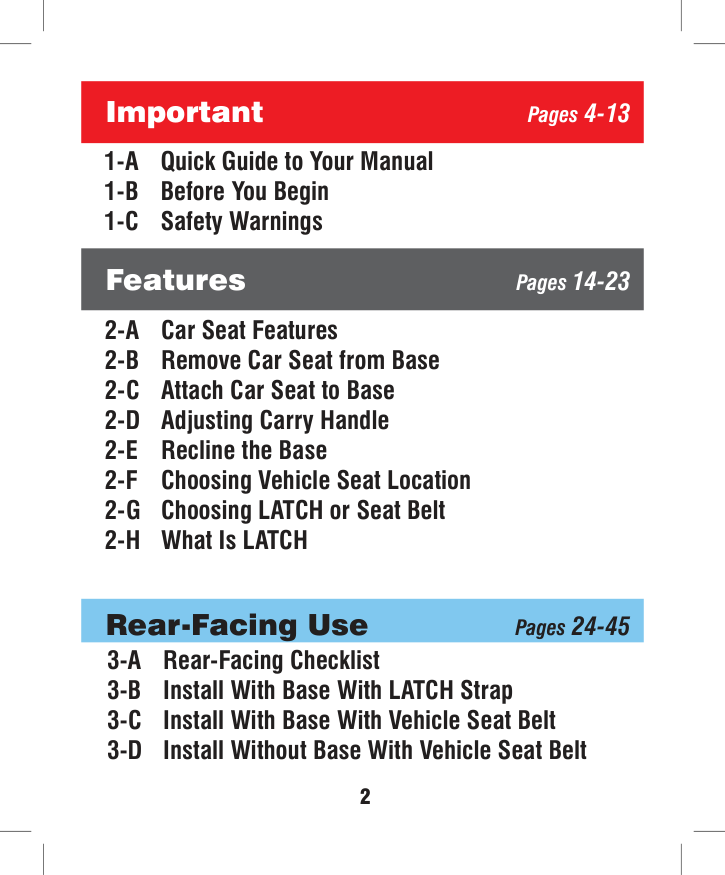

Important Pages 4-13

Features Pages 14-23

Rear-Facing Use Pages 24-45

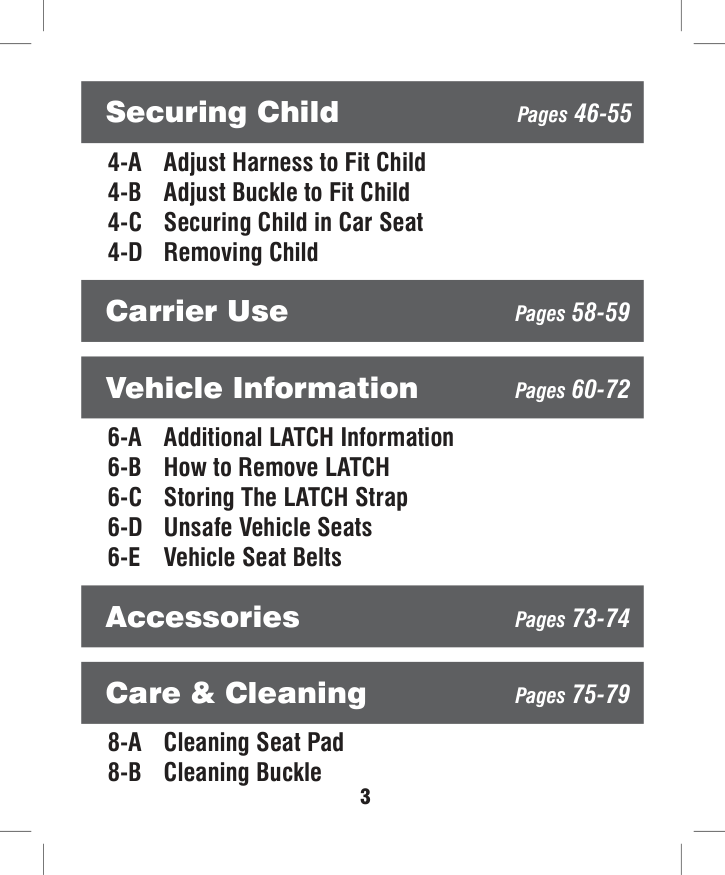

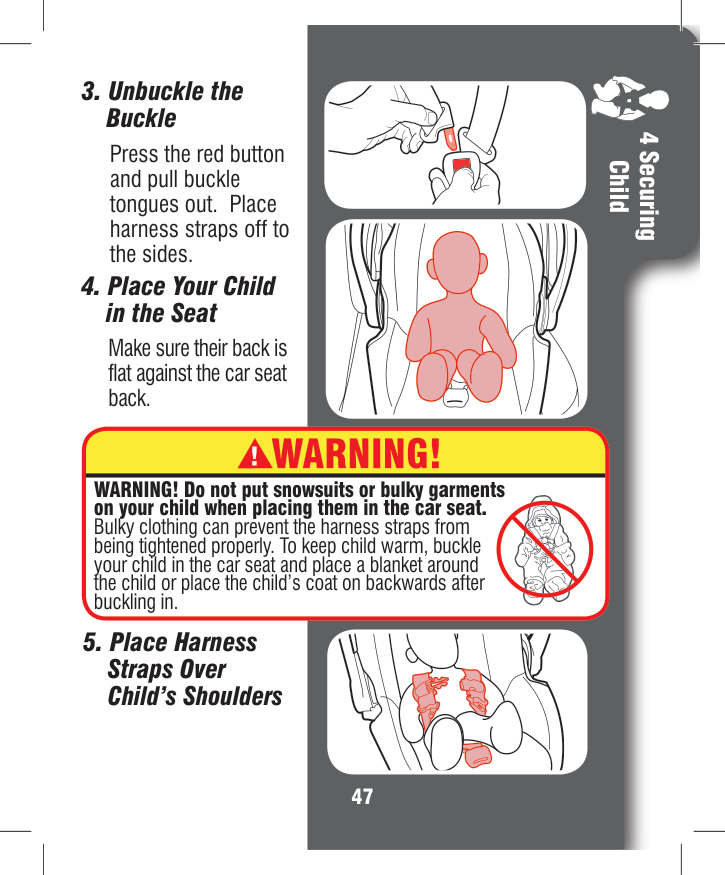

Securing Child Pages 46-55

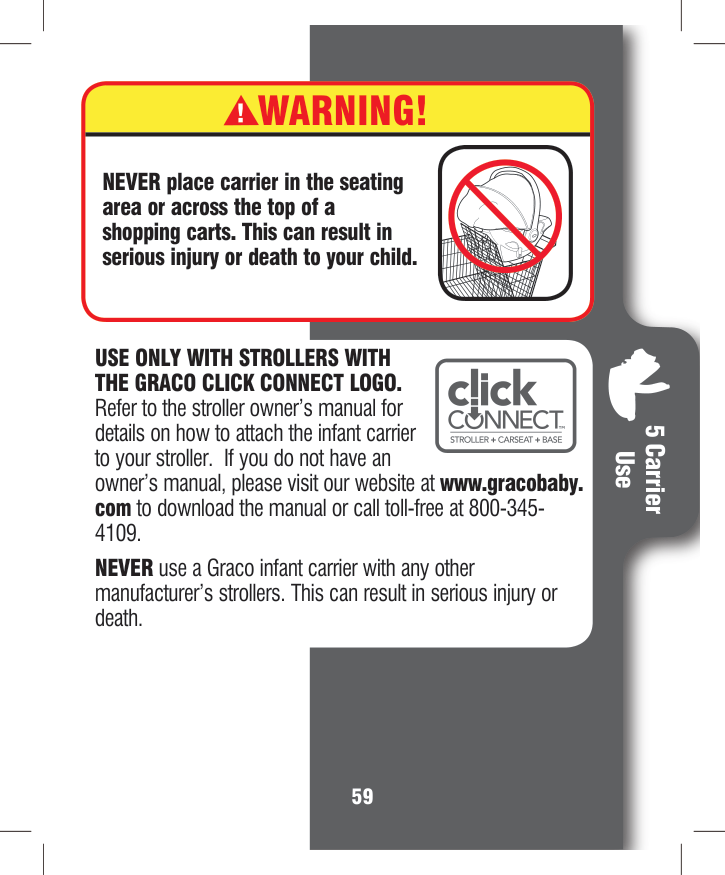

Carrier Use Pages 58-59

Vehicle Information Pages 60-72

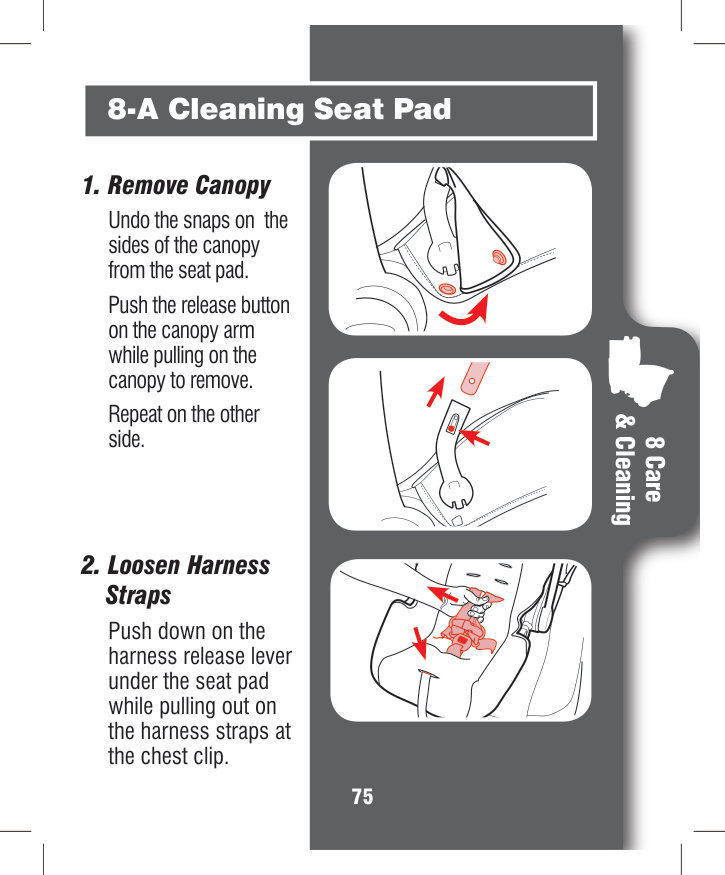

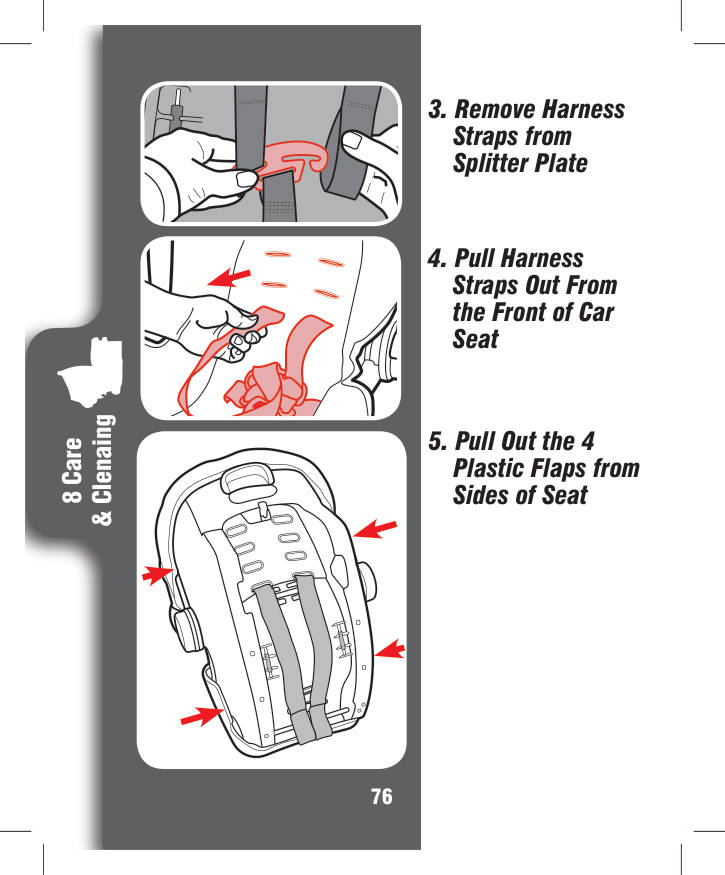

Care & Cleaning Pages 75-79

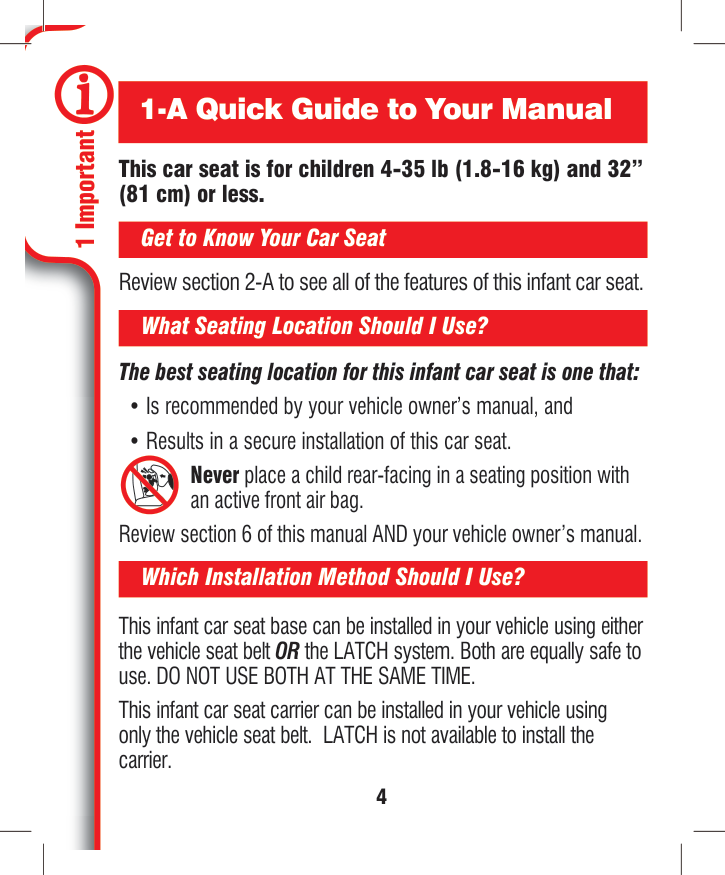

1-A Quick Guide to Your Manual

1 Important

This car seat is for children 4-35 lb (1.8-16 kg) and 32” (81 cm) or less.

Get to Know Your Car Seat

|

the LATCH system. Both are equally safe to|

the LATCH system. Both are equally safe to| |---|---| | | |

###### The best seating location for this infant car seat is one that:


Never place a child rear-facing in a seating position with an active front air bag.

Review section 6 of this manual AND your vehicle owner’s manual.

###### Which Installation Method Should I Use?

This infant car seat base can be installed in your vehicle using either the vehicle seat belt OR use. DO NOT USE BOTH AT THE SAME TIME.

This infant car seat carrier can be installed in your vehicle using only the vehicle seat belt. LATCH is not available to install the carrier.

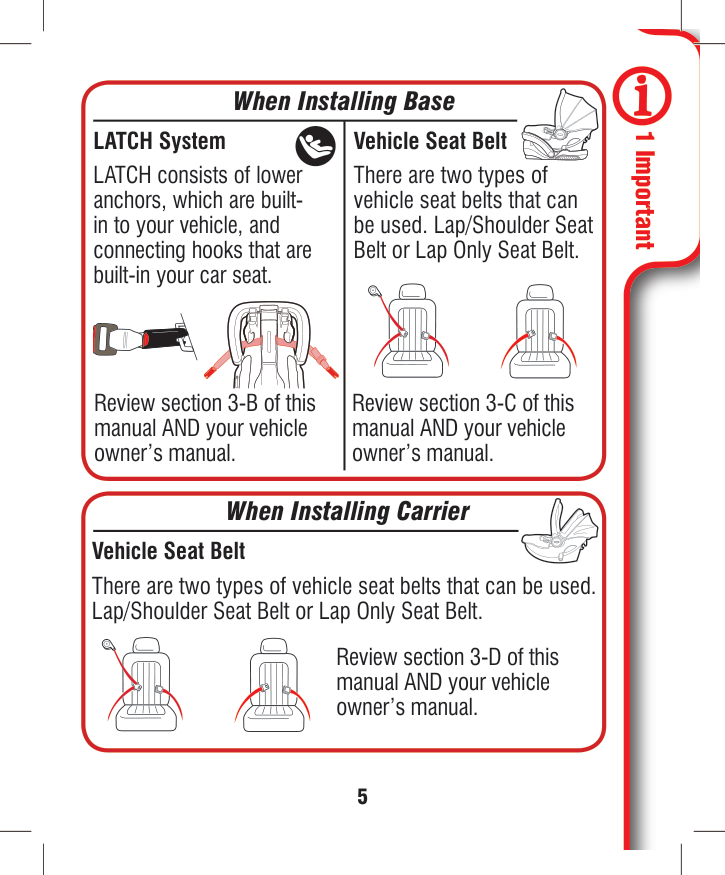

##### When Installing Base LATCH System

Vehicle Seat Belt

##### 1 Important

LATCH consists of lower anchors, which are builtin to your vehicle, and connecting hooks that are built-in your car seat.

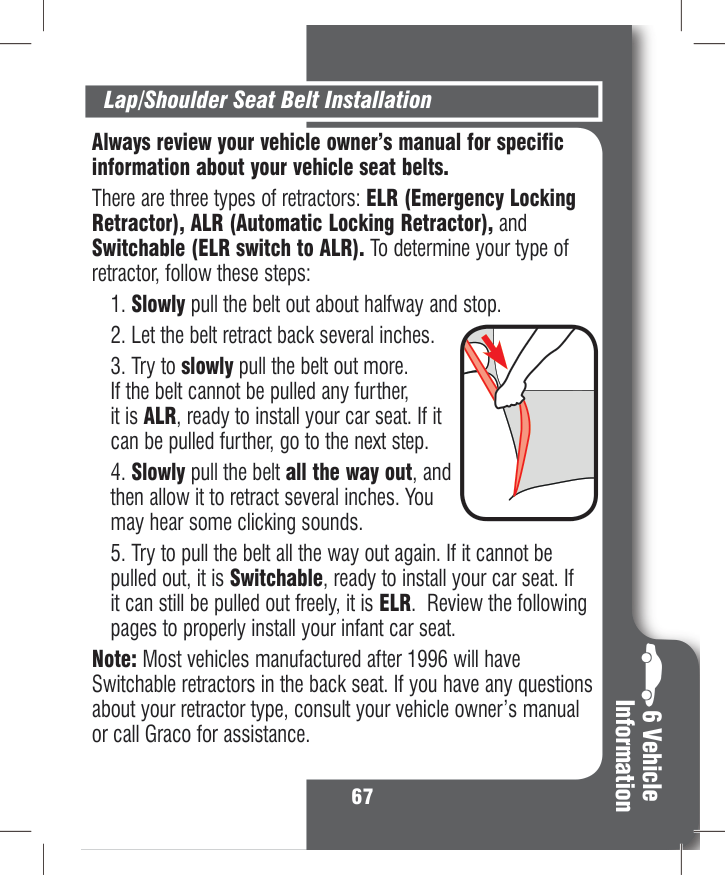

There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.

Review section 3-C of this manual AND your vehicle owner’s manual.


| | | | |When Installing Carrier| |---|---|---|---|---| | | | | | |

Vehicle Seat Belt

There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.

Review section 3-D of this manual AND your vehicle owner’s manual.

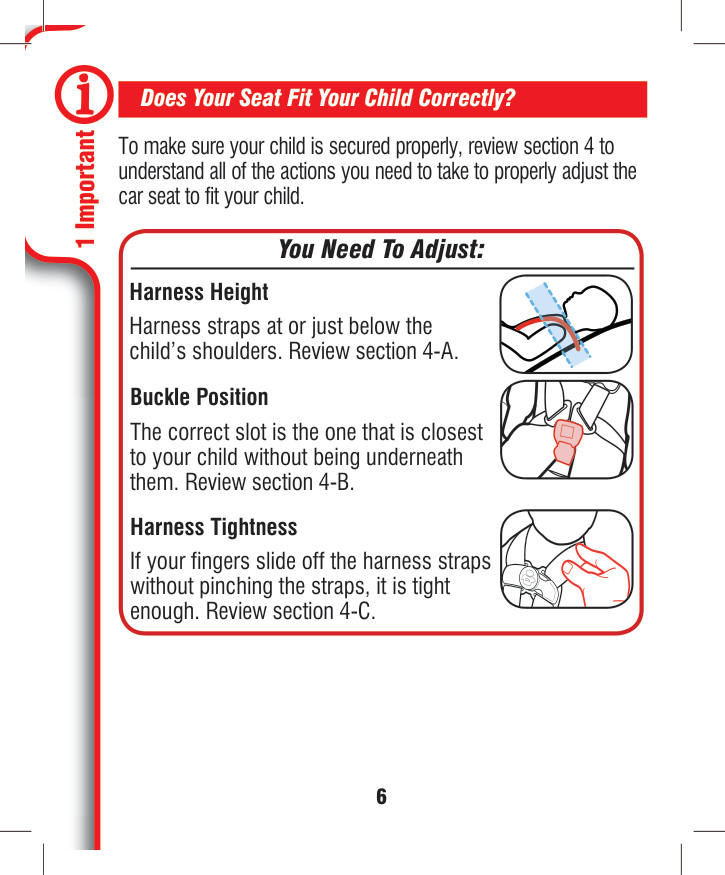

###### Does Your Seat Fit Your Child Correctly?

##### 1 Important

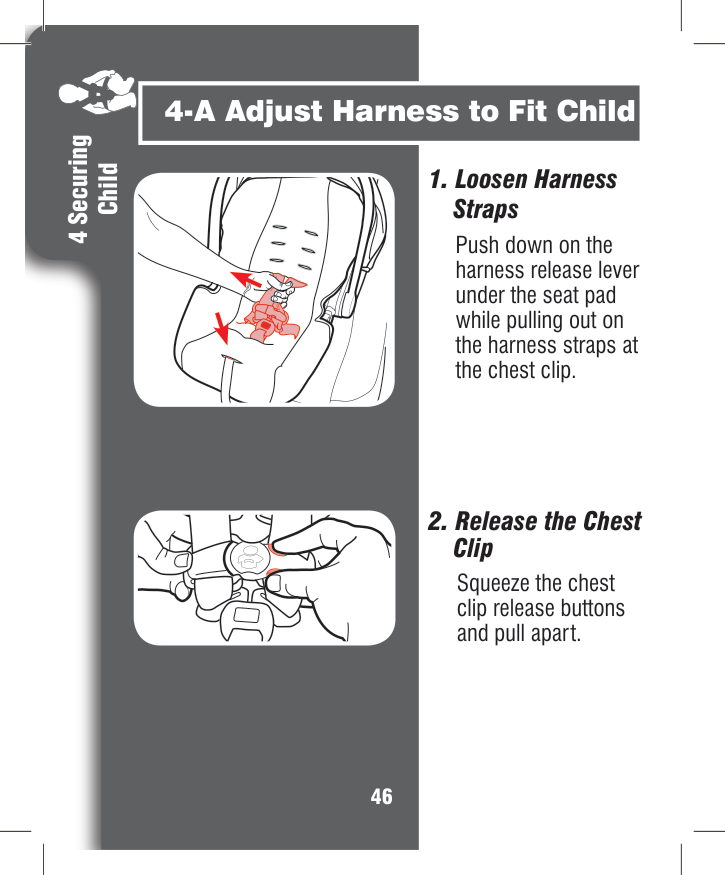

To make sure your child is secured properly, review section 4 to understand all of the actions you need to take to properly adjust the car seat to fit your child.

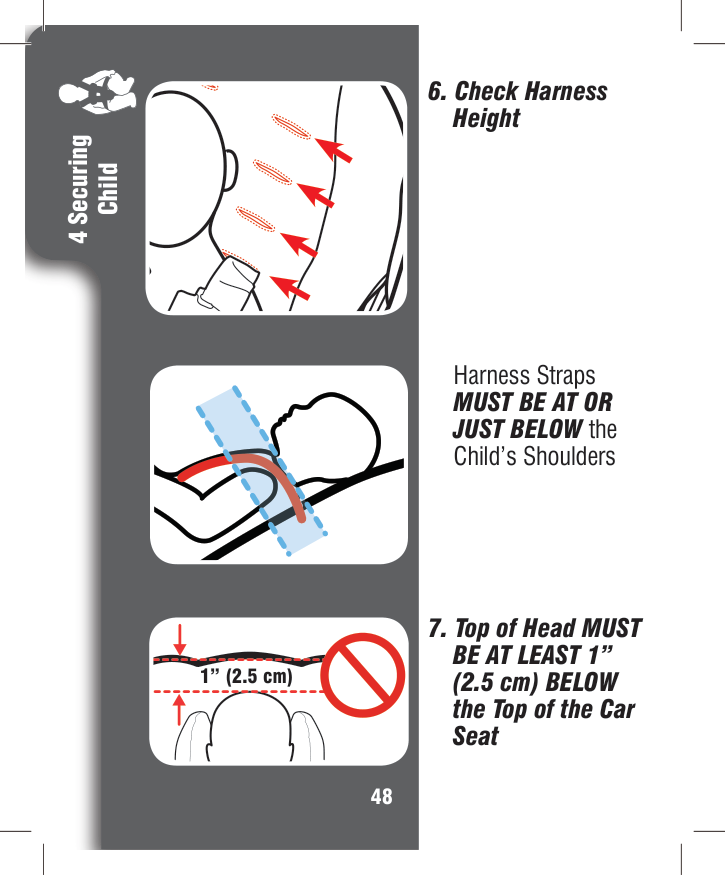

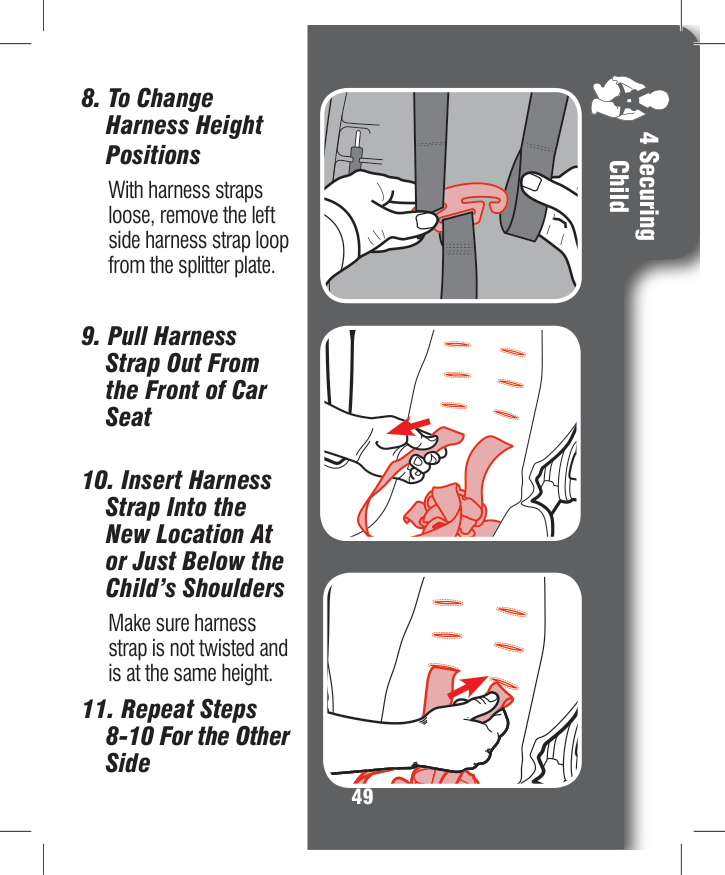

##### You Need To Adjust: Harness Height

|

|

|

|---|---| | | |

Harness straps at or just below the child’s shoulders. Review section 4-A.

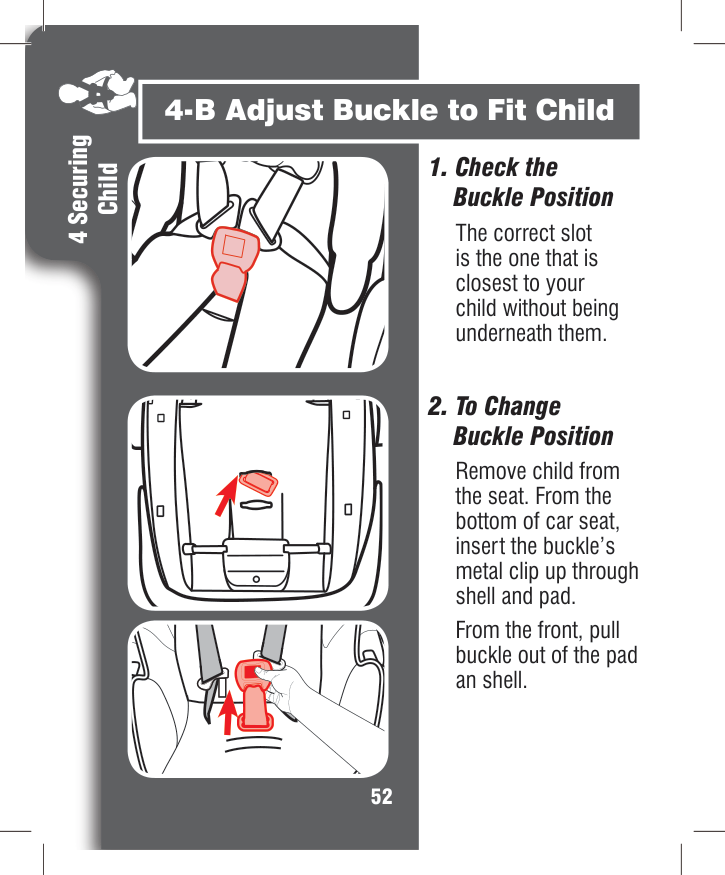

Buckle Position


The correct slot is the one that is closest to your child without being underneath them. Review section 4-B.

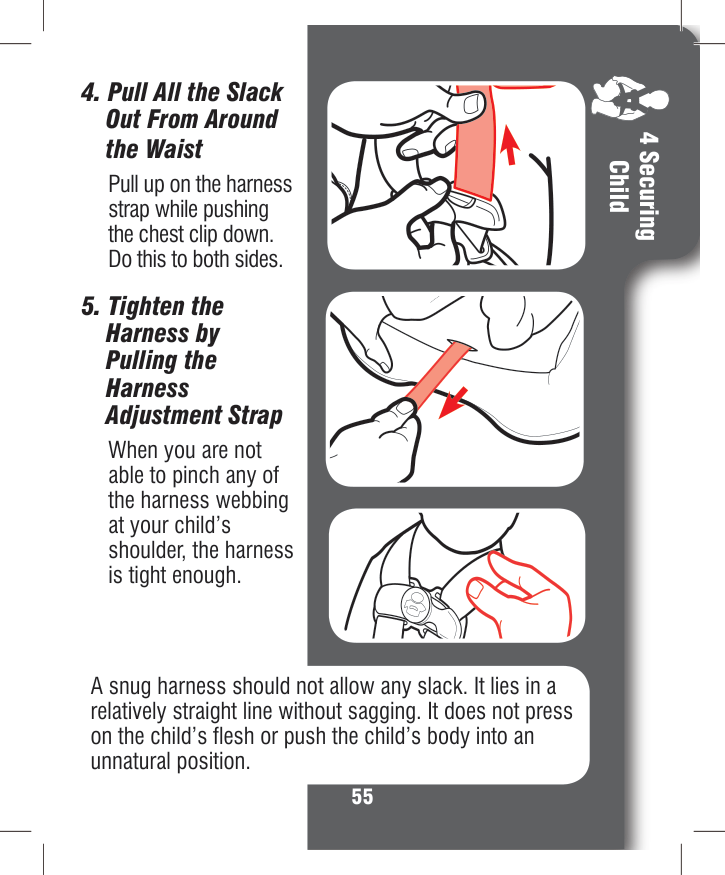

Harness Tightness

If your fingers slide off the harness straps without pinching the straps, it is tight enough. Review section 4-C.

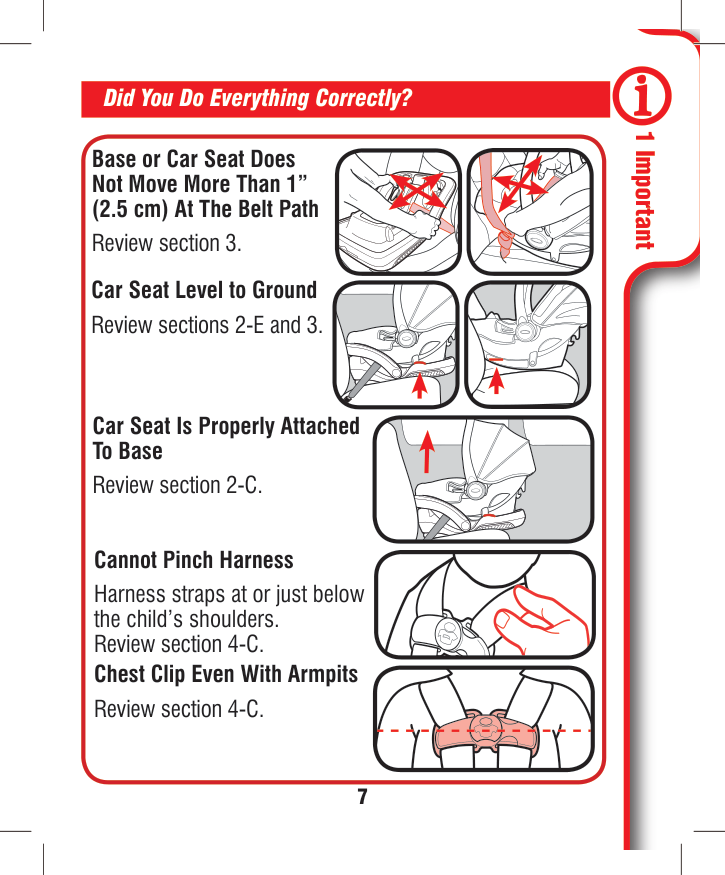

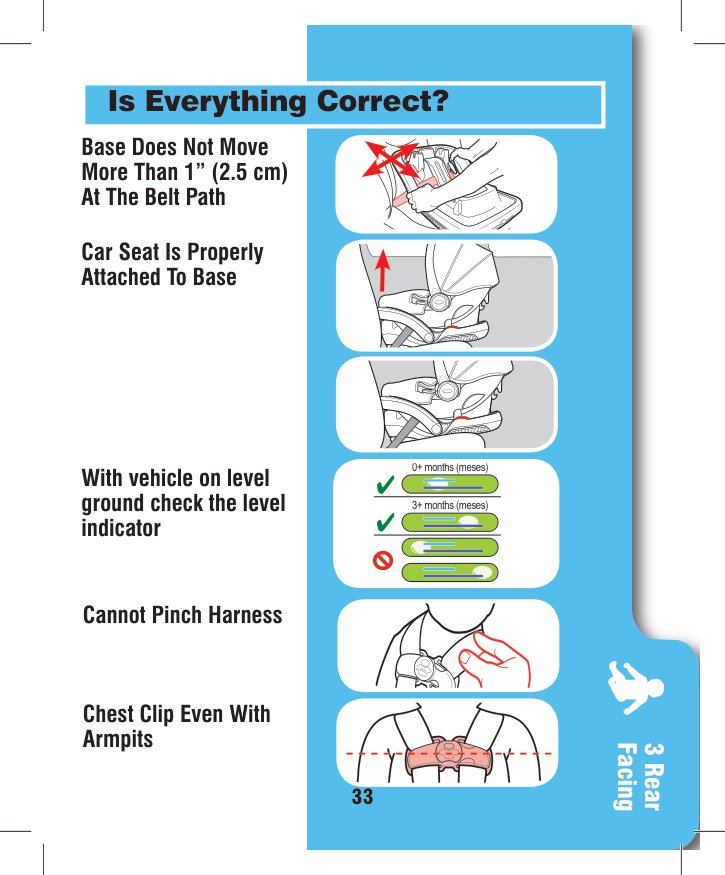

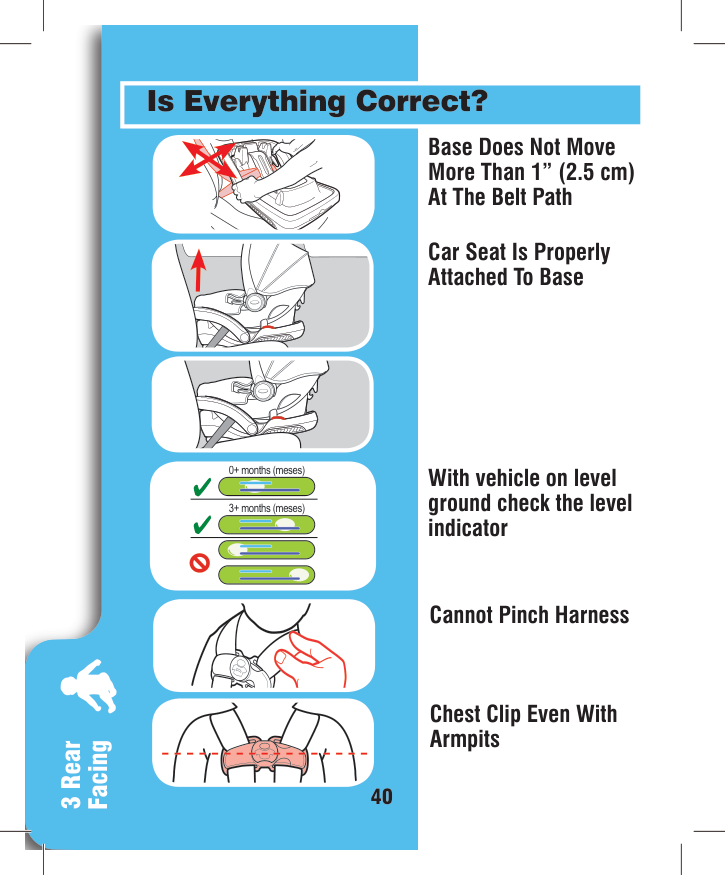

###### Did You Do Everything Correctly?

##### 1 Important

Base or Car Seat Does Not Move More Than 1” (2.5 cm) At The Belt Path

Review section 3. Car Seat Level to Ground Review sections 2-E and 3.


Car Seat Is Properly Attached To Base

Review section 2-C.

Cannot Pinch Harness Harness straps at or just below the child’s shoulders. Review section 4-C. Chest Clip Even With Armpits Review section 4-C.

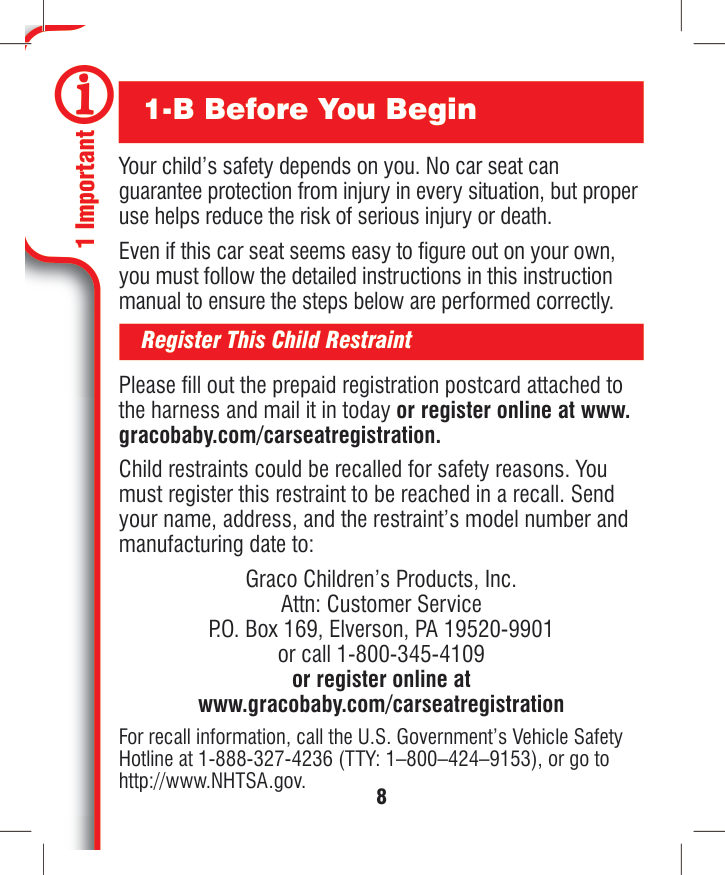

1-B Before You Begin

1 Important

Your child’s safety depends on you. No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death.

Even if this car seat seems easy to figure out on your own, you must follow the detailed instructions in this instruction manual to ensure the steps below are performed correctly.

|

or register online at www.|

or register online at www.| |---|---| | | |

Register This Child Restraint

Please fill out the prepaid registration postcard attached to the harness and mail it in today gracobaby.com/carseatregistration.


Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, and the restraint’s model number and manufacturing date to:

Graco Children’s Products, Inc. Attn: Customer Service P.O. Box 169, Elverson, PA 19520-9901 or call 1-800-345-4109 or register online at www.gracobaby.com/carseatregistration

For recall information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1–800–424–9153), or go to http://www.NHTSA.gov.

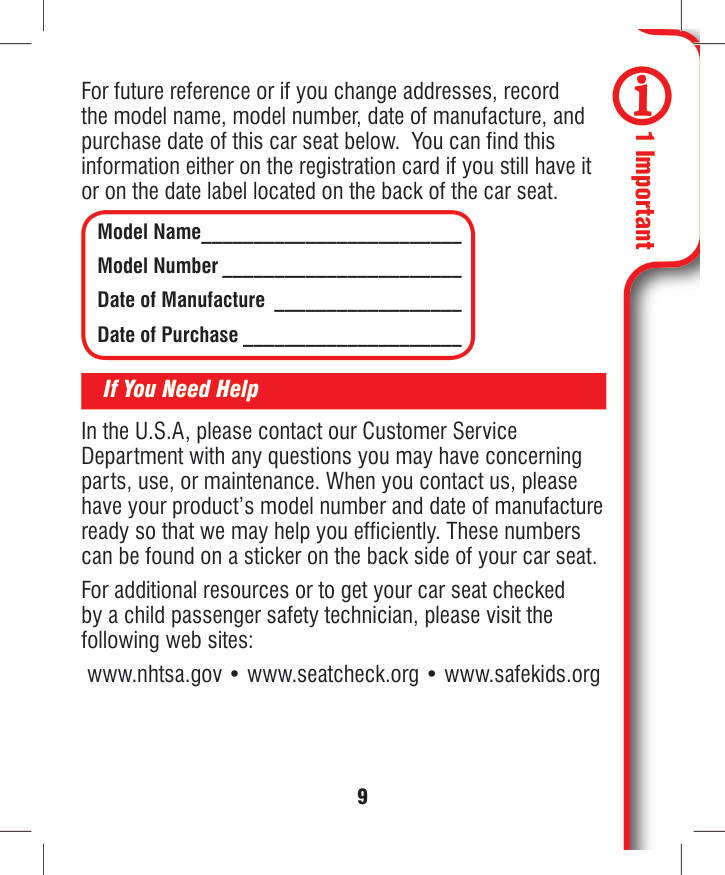

For future reference or if you change addresses, record the model name, model number, date of manufacture, and purchase date of this car seat below. You can find this information either on the registration card if you still have it or on the date label located on the back of the car seat.

##### 1 Important

Model Name _________________________ Model Number _______________________

|

9

Date of Manufacture __________________ Date of Purchase _____________________

In the U.S.A, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product’s model number and date of manufacture ready so that we may help you efficiently. These numbers can be found on a sticker on the back side of your car seat.

For additional resources or to get your car seat checked by a child passenger safety technician, please visit the following web sites:

www.nhtsa.gov • www.seatcheck.org • www.safekids.org

If You Need Help|

9

Date of Manufacture __________________ Date of Purchase _____________________

In the U.S.A, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product’s model number and date of manufacture ready so that we may help you efficiently. These numbers can be found on a sticker on the back side of your car seat.

For additional resources or to get your car seat checked by a child passenger safety technician, please visit the following web sites:

www.nhtsa.gov • www.seatcheck.org • www.safekids.org

If You Need Help| |---|---| | | |

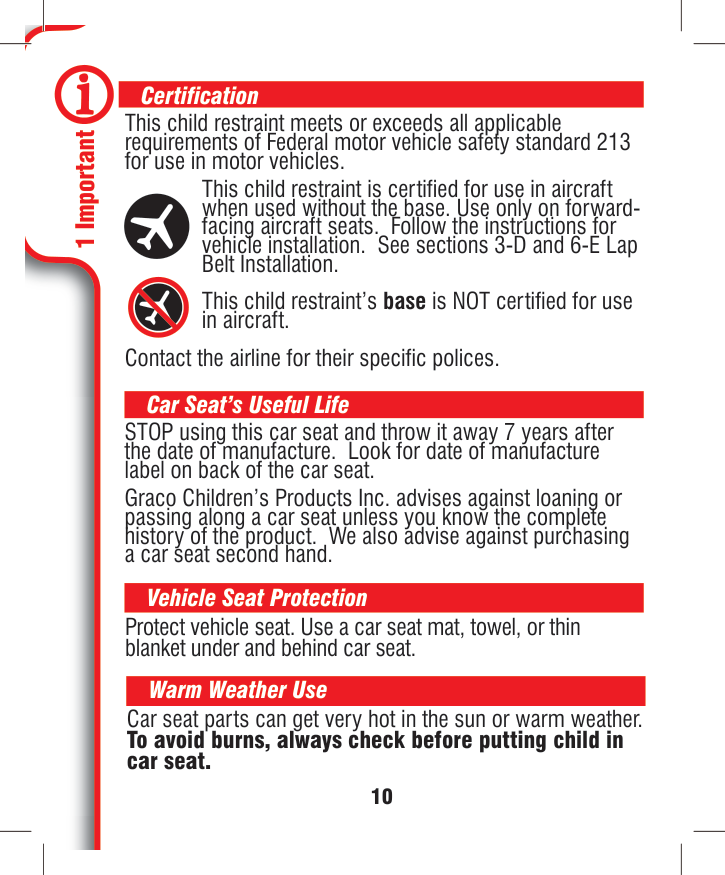

###### Certification

This child restraint meets or exceeds all applicable requirements of Federal motor vehicle safety standard 213 for use in motor vehicles.

##### 1 Important

This child restraint is certified for use in aircraft when used without the base. Use only on forwardfacing aircraft seats. Follow the instructions for vehicle installation. See sections 3-D and 6-E Lap Belt Installation.

This child restraint’s base in aircraft.

|

is NOT certified for use|

is NOT certified for use| |---|---| | | |

Contact the airline for their specific polices.

###### Car Seat’s Useful Life


STOP using this car seat and throw it away 7 years after the date of manufacture. Look for date of manufacture label on back of the car seat.

Graco Children’s Products Inc. advises against loaning or passing along a car seat unless you know the complete history of the product. We also advise against purchasing a car seat second hand.

Vehicle Seat Protection

Protect vehicle seat. Use a car seat mat, towel, or thin blanket under and behind car seat.

Warm Weather Use

Car seat parts can get very hot in the sun or warm weather. To avoid burns, always check before putting child in car seat.

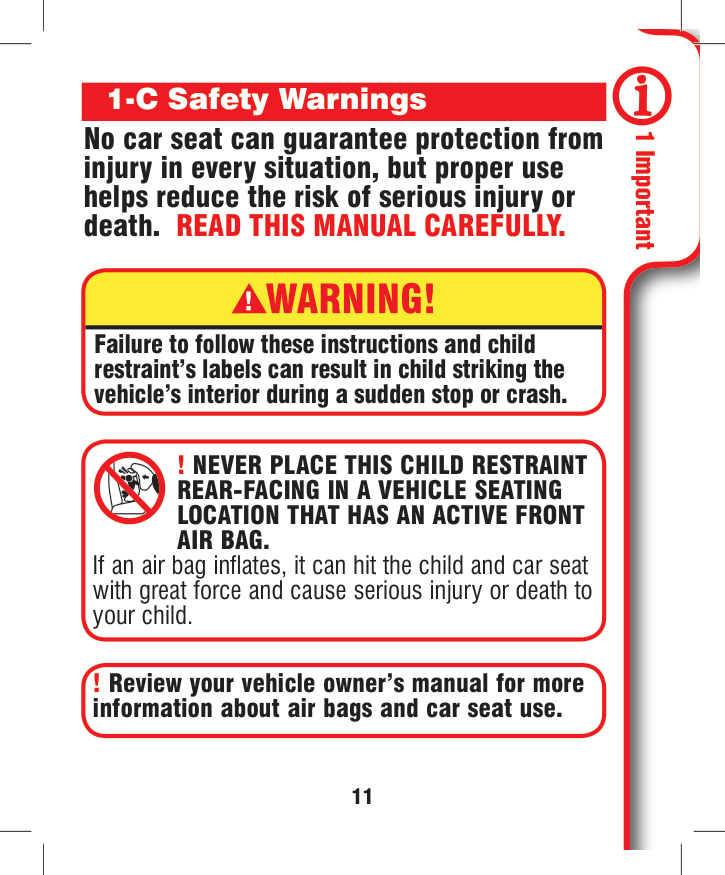

1-C Safety Warnings

No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death. READ THIS MANUAL CAREFULLY.

1 Important

Failure to follow these instructions and child restraint’s labels can result in child striking the vehicle’s interior during a sudden stop or crash.


! NEVER PLACE THIS CHILD RESTRAINT REAR-FACING IN A VEHICLE SEATING LOCATION THAT HAS AN ACTIVE FRONT AIR BAG.

If an air bag inflates, it can hit the child and car seat with great force and cause serious injury or death to your child.

##### ! Review your vehicle owner’s manual for more information about air bags and car seat use.

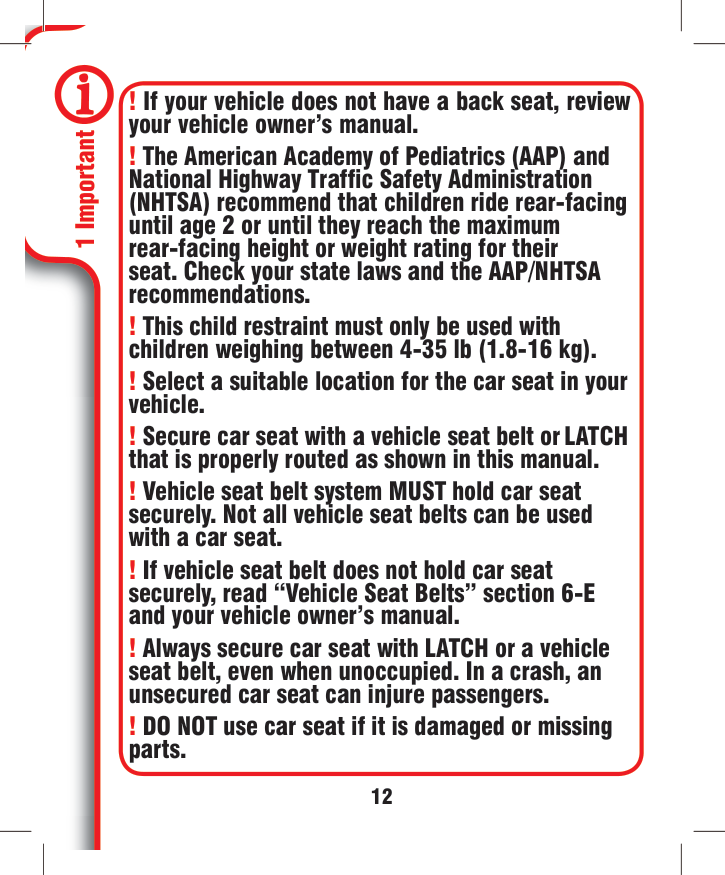

! If your vehicle does not have a back seat, review your vehicle owner’s manual.

! The American Academy of Pediatrics (AAP) and National Highway Traffic Safety Administration (NHTSA) recommend that children ride rear-facing until age 2 or until they reach the maximum rear-facing height or weight rating for their seat. Check your state laws and the AAP/NHTSA recommendations.

||| |---|---| | | |

! This child restraint must only be used with children weighing between 4-35 lb (1.8-16 kg).

! Select a suitable location for the car seat in your vehicle.


! Secure car seat with a vehicle seat belt or LATCH that is properly routed as shown in this manual.

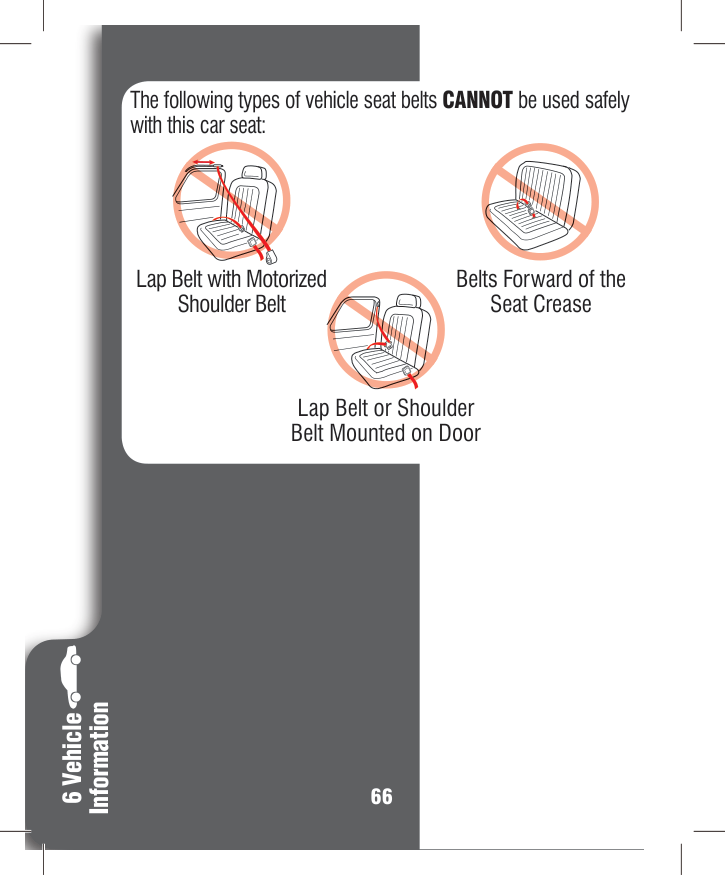

! Vehicle seat belt system MUST hold car seat securely. Not all vehicle seat belts can be used with a car seat.

! If vehicle seat belt does not hold car seat securely, read “Vehicle Seat Belts” section 6-E and your vehicle owner’s manual.

! Always secure car seat with LATCH or a vehicle seat belt, even when unoccupied. In a crash, an unsecured car seat can injure passengers.

! DO NOT use car seat if it is damaged or missing parts.

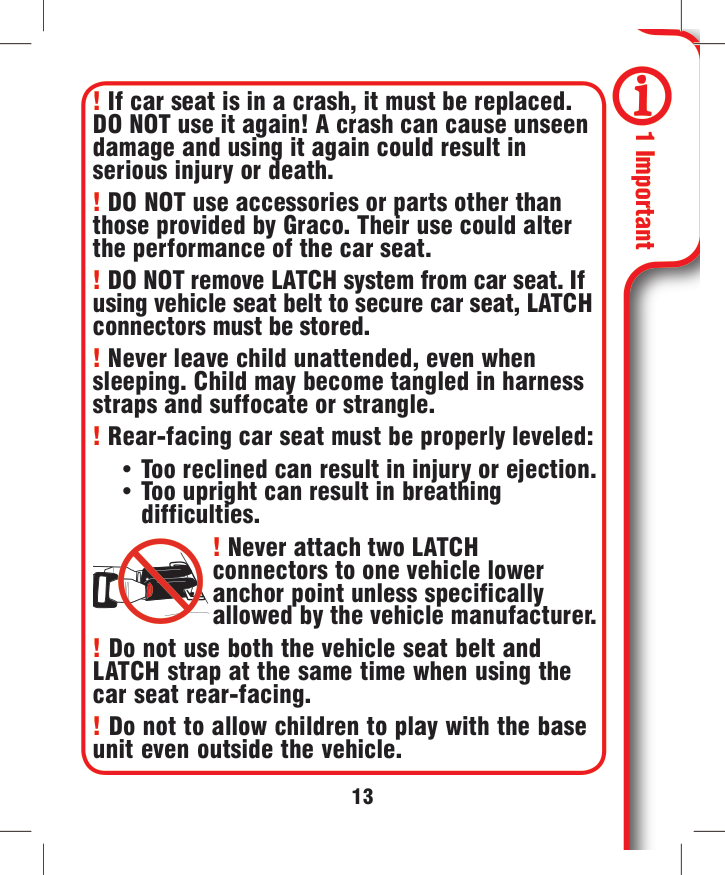

! If car seat is in a crash, it must be replaced. DO NOT use it again! A crash can cause unseen damage and using it again could result in serious injury or death.

1 Important

! DO NOT use accessories or parts other than those provided by Graco. Their use could alter the performance of the car seat.

! DO NOT remove LATCH system from car seat. If

|

13

using vehicle seat belt to secure car seat, LATCH connectors must be stored.

! Never leave child unattended, even when sleeping. Child may become tangled in harness straps and suffocate or strangle.

! Rear-facing car seat must be properly leveled:

• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.


! Never attach two LATCH

connectors to one vehicle lower anchor point unless specifically allowed by the vehicle manufacturer.

! Do not use both the vehicle seat belt and LATCH strap at the same time when using the car seat rear-facing.

! Do not to allow children to play with the base unit even outside the vehicle.

|

13

using vehicle seat belt to secure car seat, LATCH connectors must be stored.

! Never leave child unattended, even when sleeping. Child may become tangled in harness straps and suffocate or strangle.

! Rear-facing car seat must be properly leveled:

• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.


! Never attach two LATCH

connectors to one vehicle lower anchor point unless specifically allowed by the vehicle manufacturer.

! Do not use both the vehicle seat belt and LATCH strap at the same time when using the car seat rear-facing.

! Do not to allow children to play with the base unit even outside the vehicle.

| |---|---| | | |

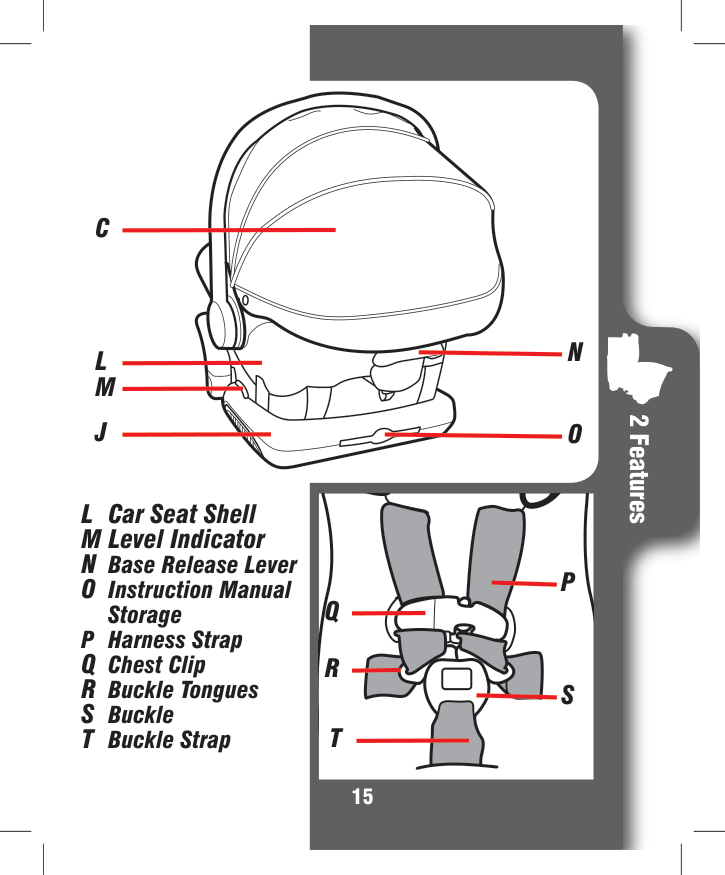

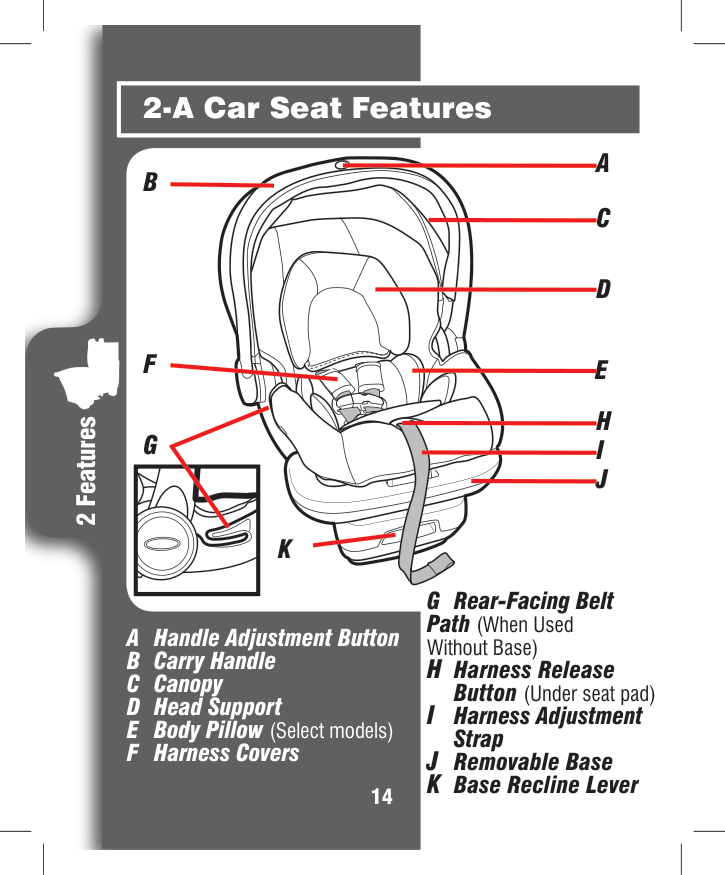

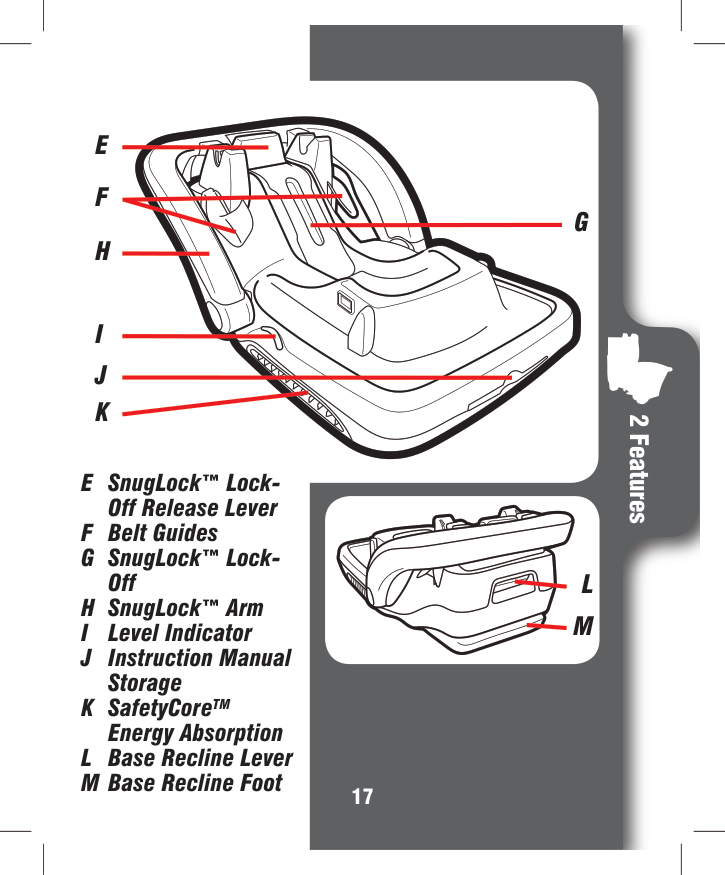

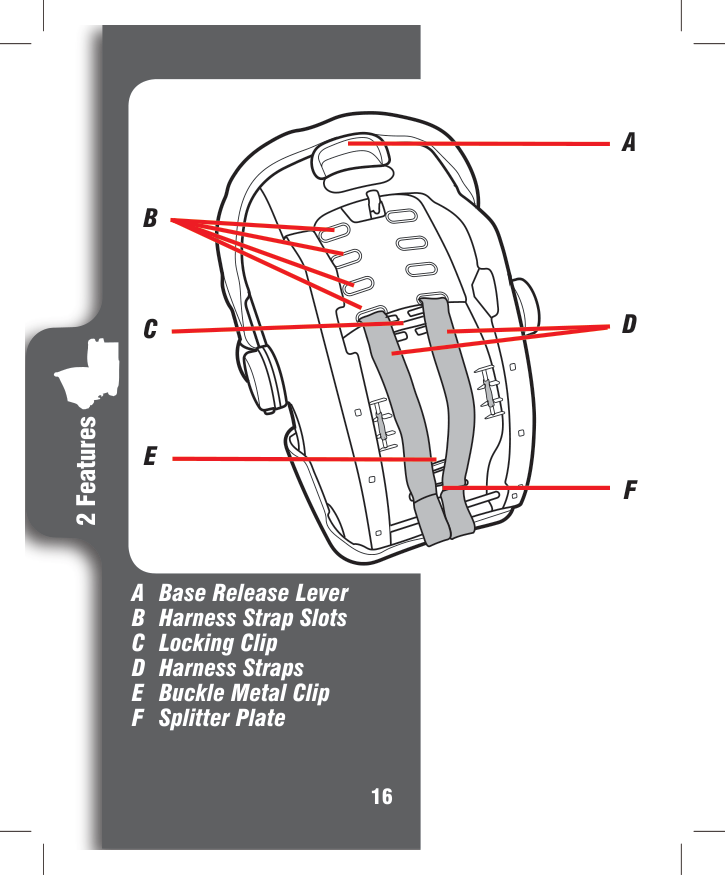

2-A Car Seat Features

A

B

C

##### D

EF

G

J

| | |---|

K



C

L N

M

##### 2 Features

J

O

L Car Seat Shell

P

T

15Base Recline Lever



A

D

F

2 Features

E



E

F

G

H

I

2 Features

L

M

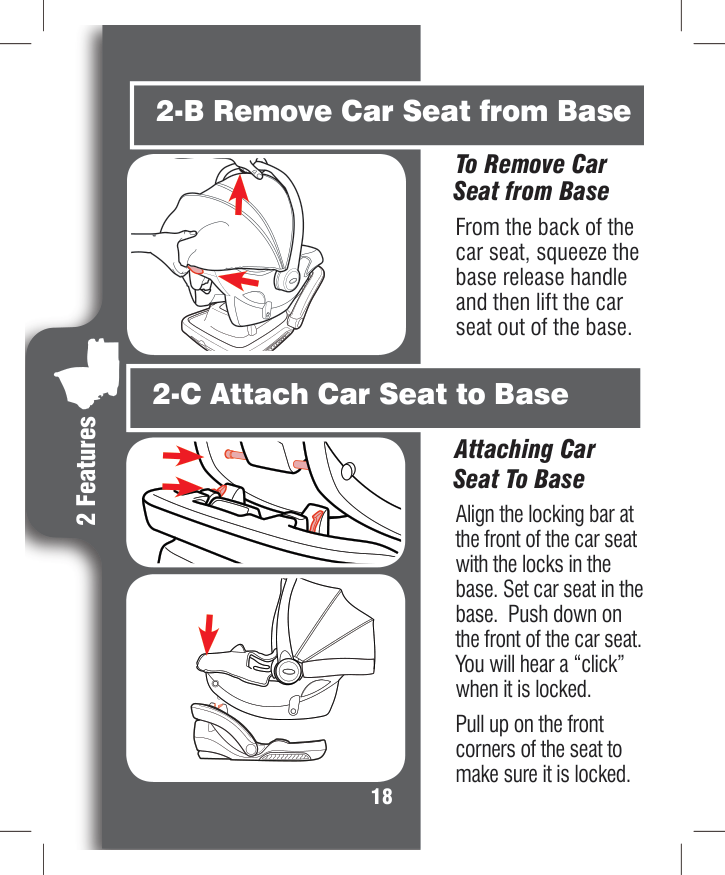

2-B Remove Car Seat from Base

To Remove Car Seat from Base From the back of the car seat, squeeze the base release handle and then lift the car seat out of the base.

2-C Attach Car Seat to Base

Attaching Car Seat To Base

Align the locking bar at the front of the car seat with the locks in the base. Set car seat in the base. Push down on the front of the car seat. You will hear a “click” when it is locked.

Pull up on the front corners of the seat to make sure it is locked.

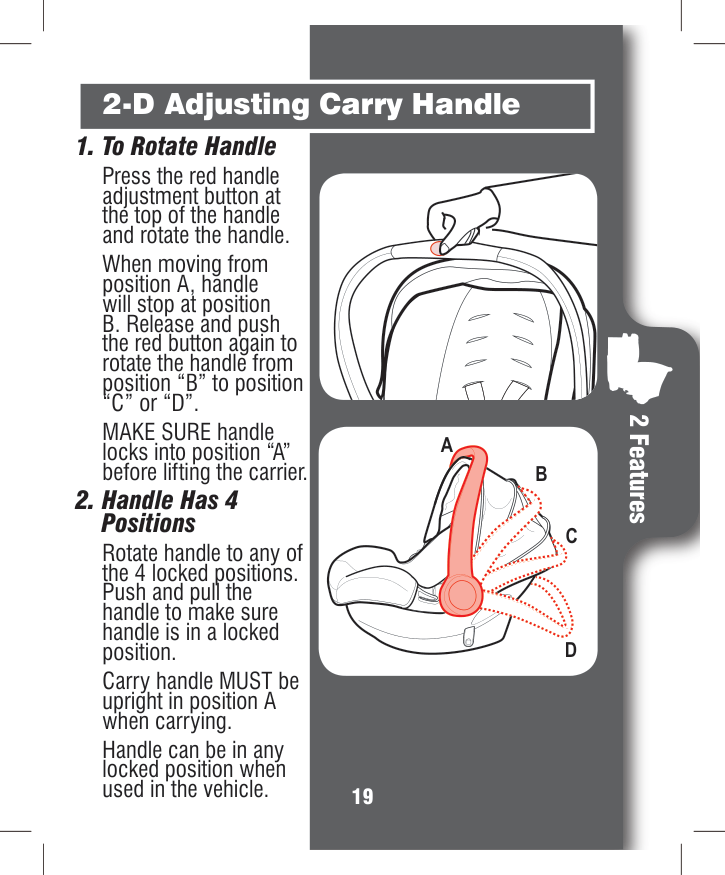

2-D Adjusting Carry Handle

##### 1. To Rotate Handle

Press the red handle adjustment button at the top of the handle and rotate the handle.

When moving from position A, handle will stop at position B. Release and push the red button again to rotate the handle from position “B” to position “C” or “D”.

2 Features

MAKE SURE handle locks into position “A” before lifting the carrier.

A

B

##### 2. Handle Has 4Positions

C

Rotate handle to any of the 4 locked positions. Push and pull the handle to make sure handle is in a locked position.

D

Carry handle MUST be upright in position A when carrying.

Handle can be in any locked position when used in the vehicle.

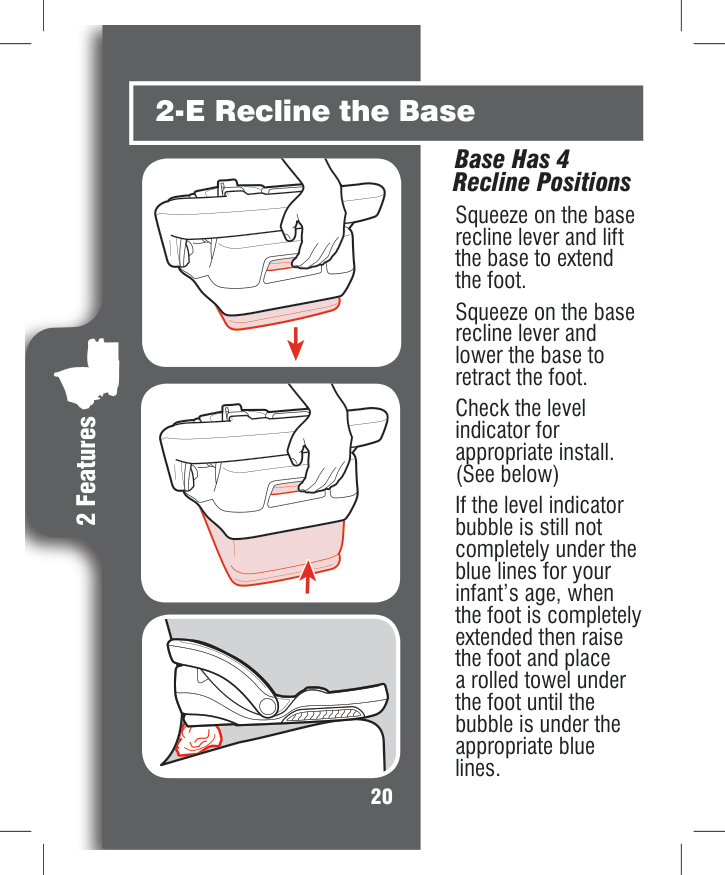

2-E Recline the Base

Base Has 4 Recline Positions Squeeze on the base recline lever and lift the base to extend the foot. Squeeze on the base recline lever and lower the base to retract the foot. Check the level indicator for appropriate install. (See below) If the level indicator bubble is still not completely under the blue lines for your infant’s age, when the foot is completely extended then raise the foot and place a rolled towel under the foot until the bubble is under the appropriate blue lines.

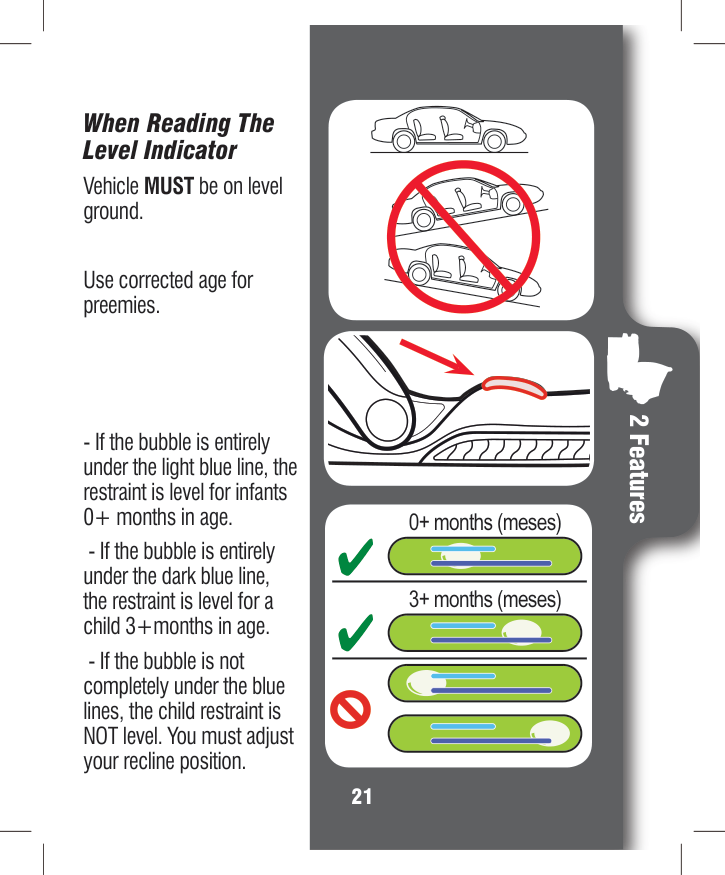

##### When Reading The Level Indicator

Vehicle MUST be on level ground.

Use corrected age for preemies.

##### 2 Features

0+ months (meses)

3+ months (meses)

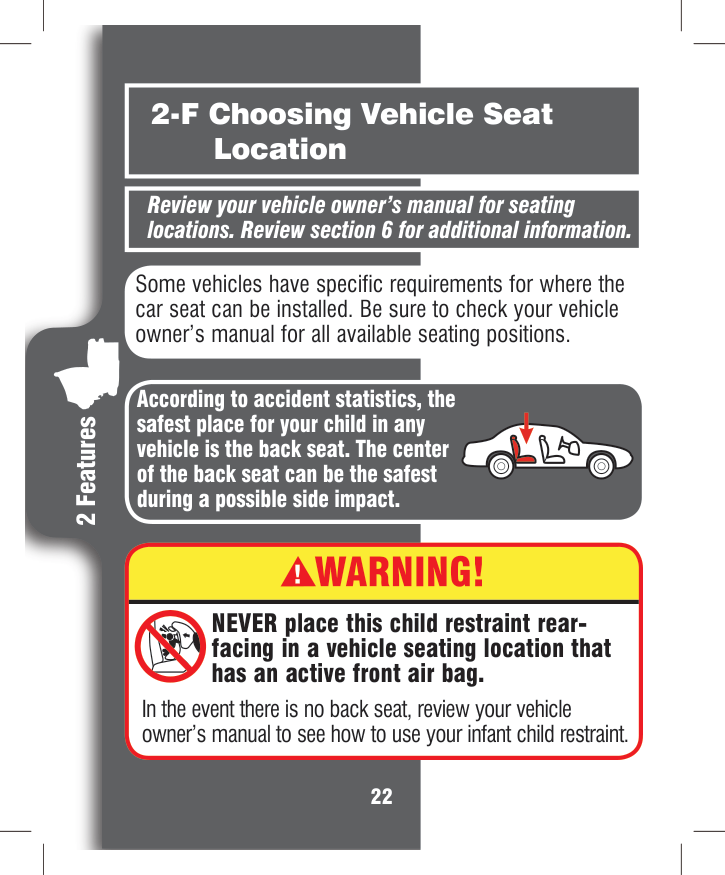

2-F Choosing Vehicle Seat Location

Review your vehicle owner’s manual for seating locations. Review section 6 for additional information.

Some vehicles have specific requirements for where the car seat can be installed. Be sure to check your vehicle owner’s manual for all available seating positions.

According to accident statistics, the safest place for your child in any vehicle is the back seat. The center of the back seat can be the safest during a possible side impact.

2 Features

##### NEVER place this child restraint rearfacing in a vehicle seating location that has an active front air bag.

In the event there is no back seat, review your vehicle owner’s manual to see how to use your infant child restraint.

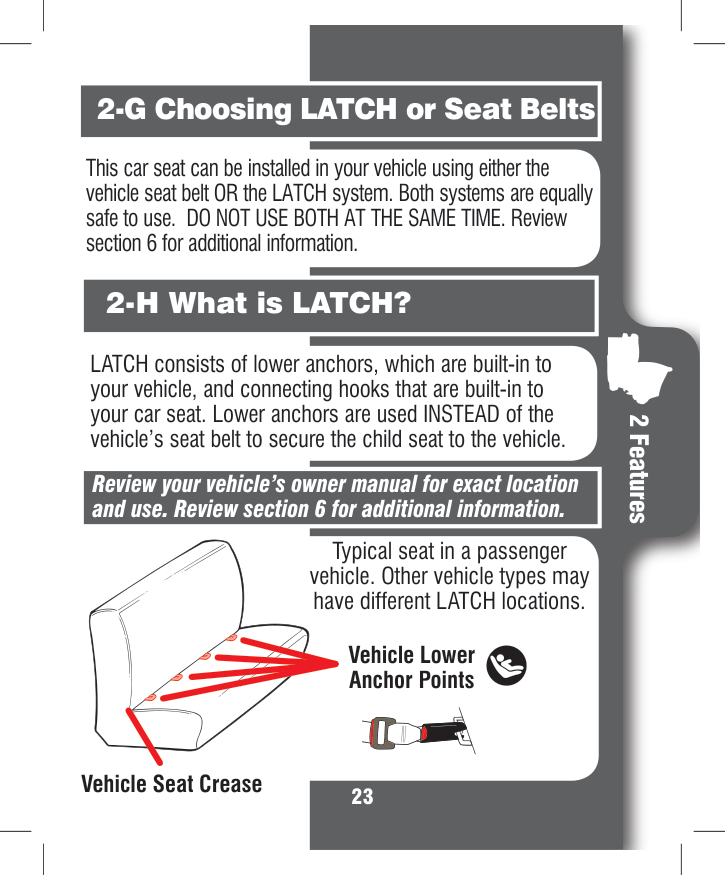

2-G Choosing LATCH or Seat Belts

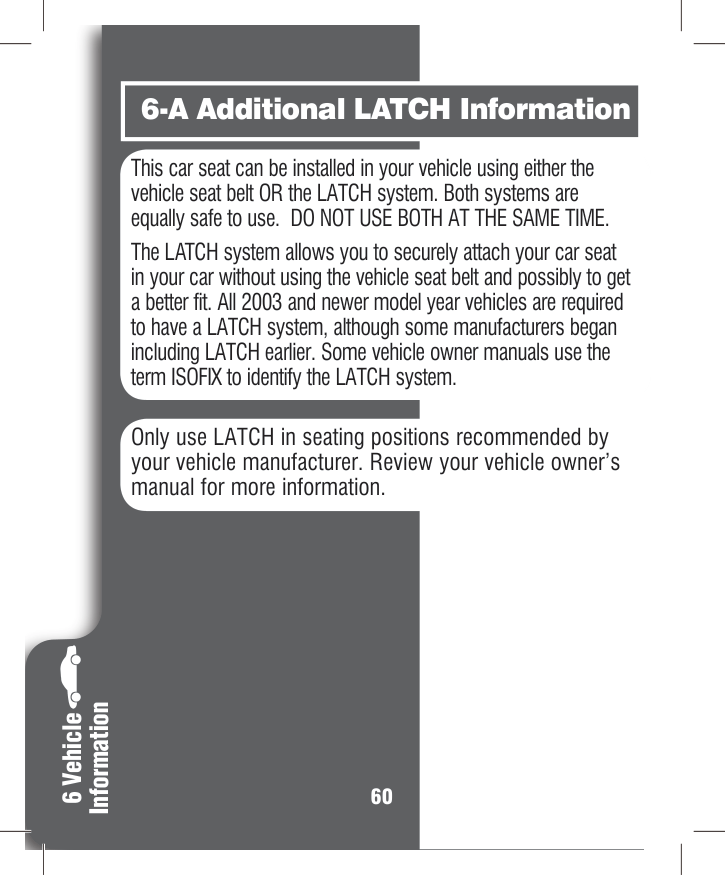

This car seat can be installed in your vehicle using either the vehicle seat belt OR the LATCH system. Both systems are equally safe to use. DO NOT USE BOTH AT THE SAME TIME. Review section 6 for additional information.

2 Features 2-H What is LATCH?

LATCH consists of lower anchors, which are built-in to your vehicle, and connecting hooks that are built-in to your car seat. Lower anchors are used INSTEAD of the vehicle’s seat belt to secure the child seat to the vehicle.

###### Review your vehicle’s owner manual for exact location and use. Review section 6 for additional information.

Typical seat in a passenger vehicle. Other vehicle types may have different LATCH locations.

Vehicle Lower Anchor Points

Vehicle Seat Crease

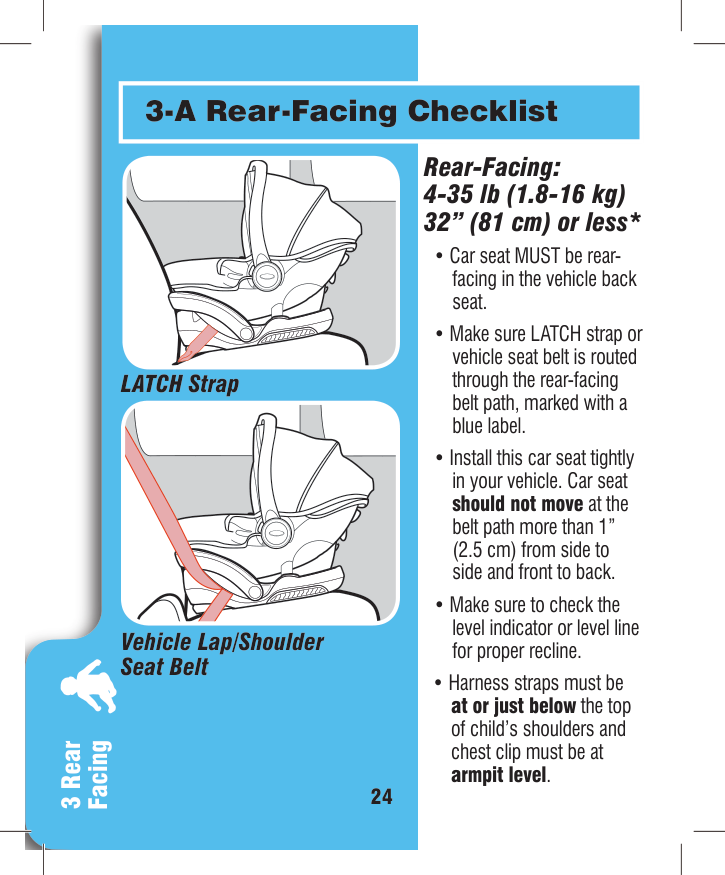

3-A Rear-Facing Checklist

##### Rear-Facing: 4-35 lb (1.8-16 kg) 32” (81 cm) or less*

LATCH Strap

Vehicle Lap/Shoulder Seat Belt

Facing

3 Rear

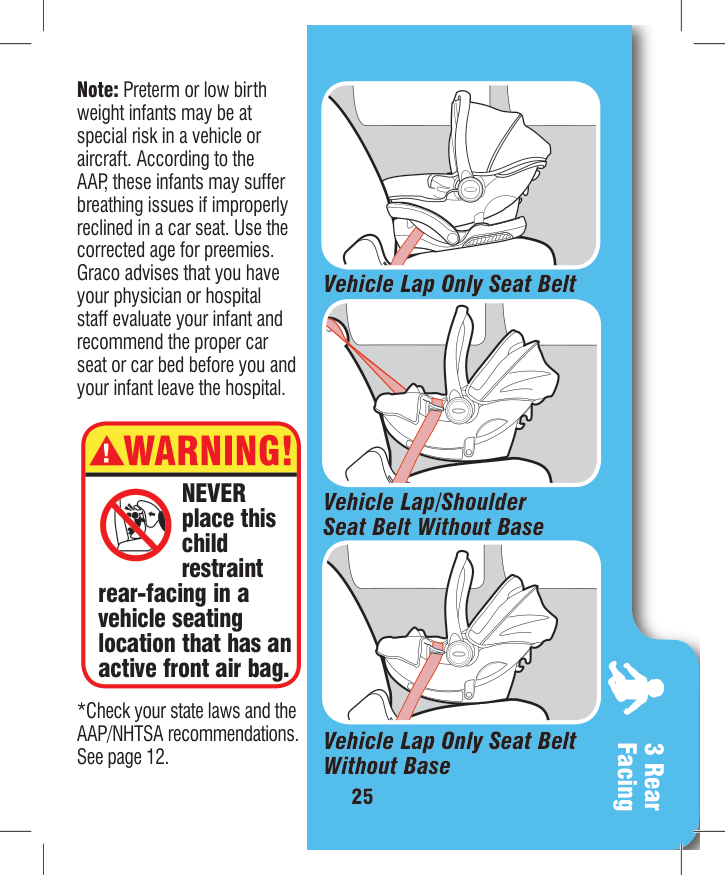

Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft. According to the AAP, these infants may suffer breathing issues if improperly reclined in a car seat. Use the corrected age for preemies. Graco advises that you have your physician or hospital staff evaluate your infant and recommend the proper car seat or car bed before you and your infant leave the hospital.

Vehicle Lap Only Seat Belt

##### NEVER place this child restraint

Vehicle Lap/Shoulder Seat Belt Without Base

##### rear-facing in a vehicle seating location that has an active front air bag.

*Check your state laws and the AAP/NHTSA recommendations. See page 12.

Vehicle Lap Only Seat Belt Without Base

##### 3 Rear Facing

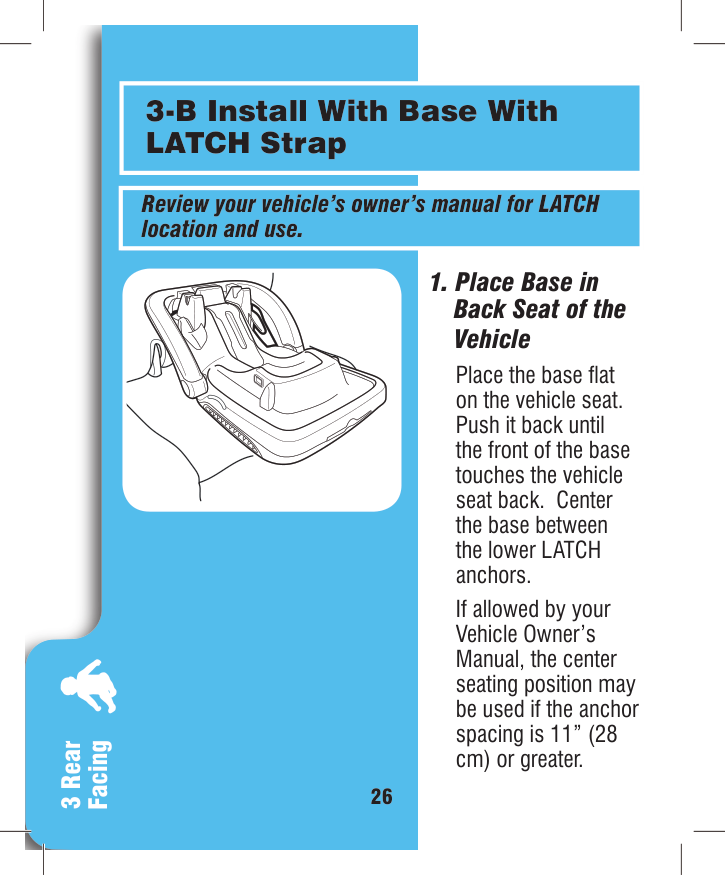

3-B Install With Base With LATCH Strap

Review your vehicle’s owner’s manual for LATCH location and use.

##### 1. Place Base in Back Seat of the Vehicle

Place the base flat on the vehicle seat. Push it back until the front of the base touches the vehicle seat back. Center the base between the lower LATCH anchors.

If allowed by your Vehicle Owner’s Manual, the center seating position may be used if the anchor spacing is 11” (28 cm) or greater.

Facing

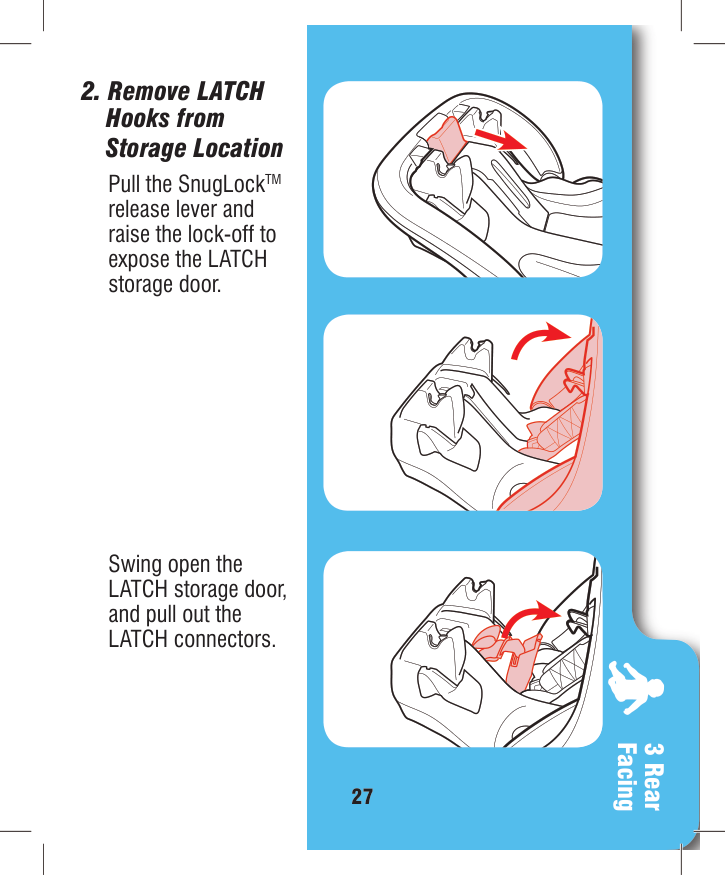

##### 2. Remove LATCHHooks fromStorage Location

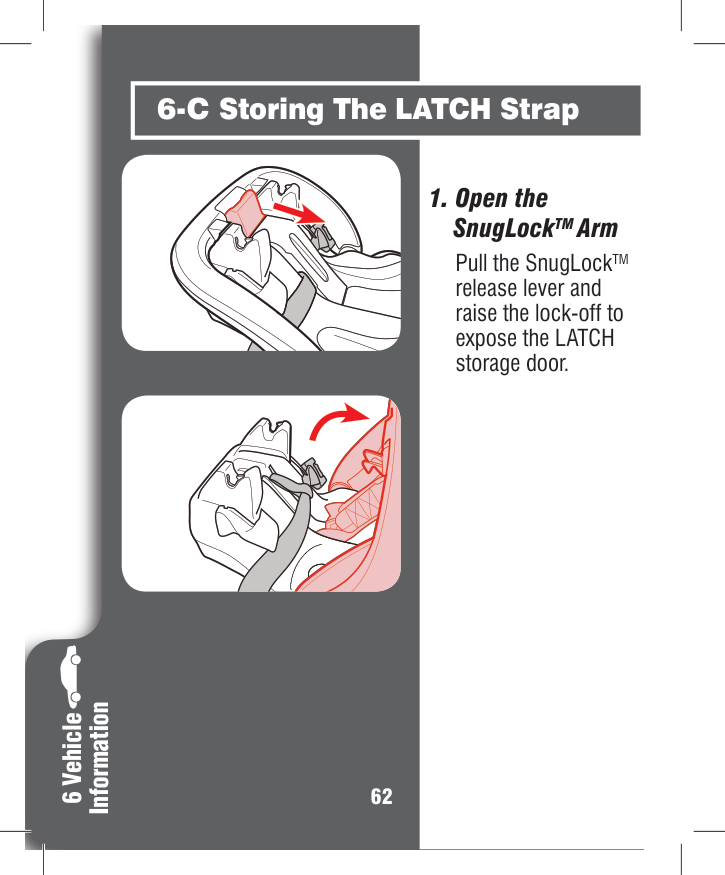

Pull the SnugLockTM release lever and raise the lock-off to expose the LATCH storage door.

Swing open the LATCH storage door, and pull out the LATCH connectors.

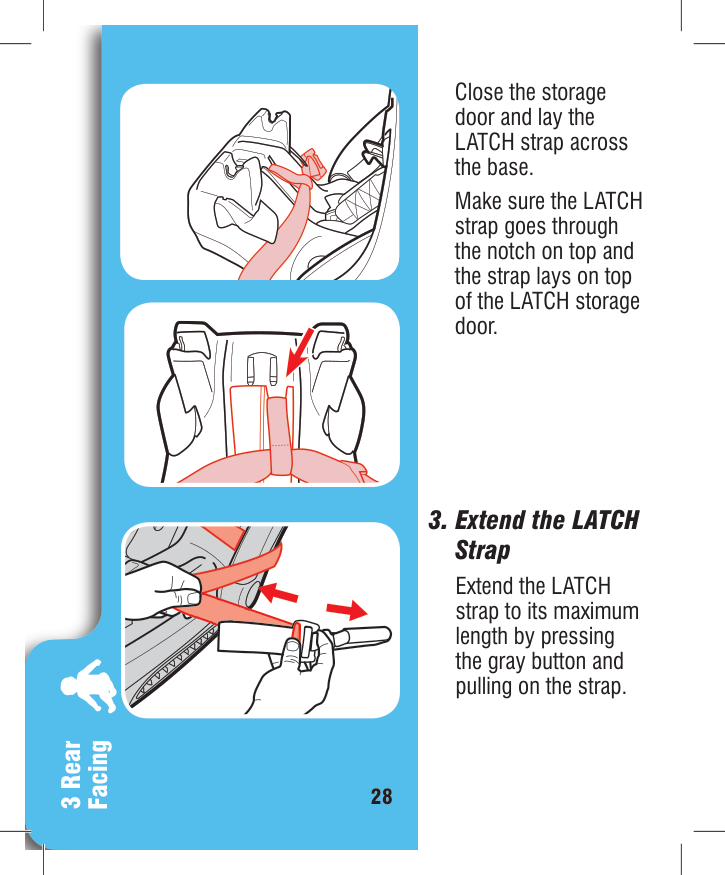

Close the storage door and lay the LATCH strap across the base.

Make sure the LATCH strap goes through the notch on top and the strap lays on top of the LATCH storage door.

##### 3. Extend the LATCH Strap

Extend the LATCH strap to its maximum length by pressing the gray button and pulling on the strap.

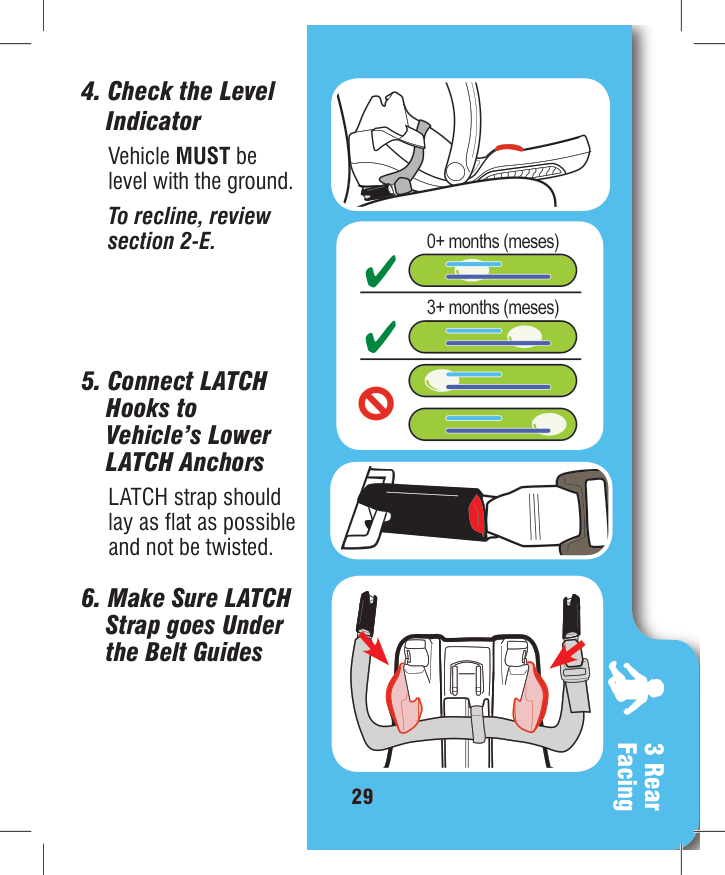

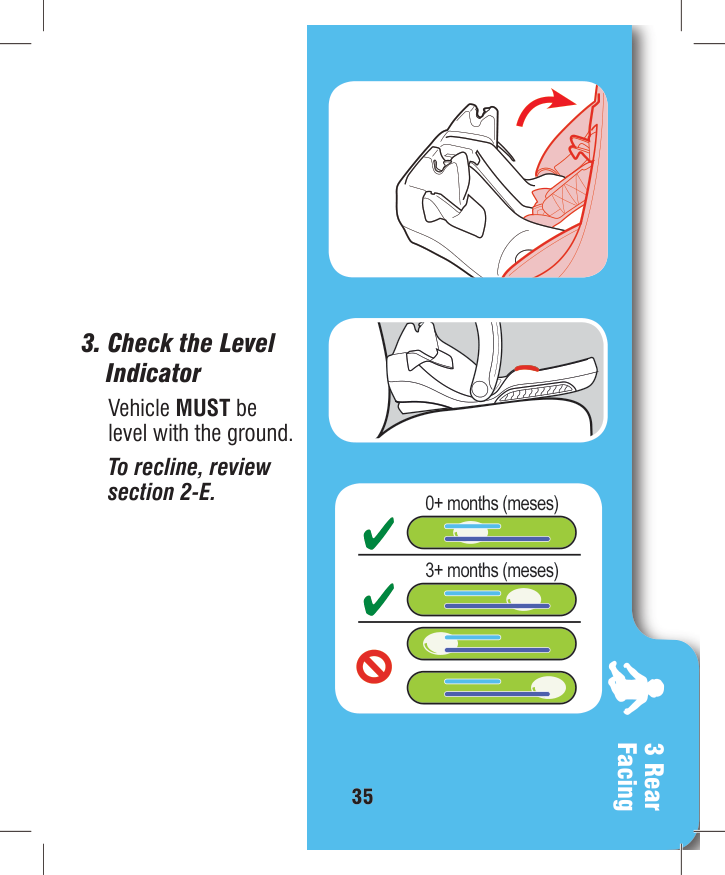

##### 4. Check the LevelIndicator

Vehicle MUST be level with the ground.

To recline, review section 2-E.

0+ months (meses)

3+ months (meses)

##### 5. Connect LATCHHooks toVehicle’s LowerLATCH Anchors

LATCH strap should lay as flat as possible and not be twisted.

##### 6. Make Sure LATCHStrap goes Underthe Belt Guides

| | | |---|---| | | |

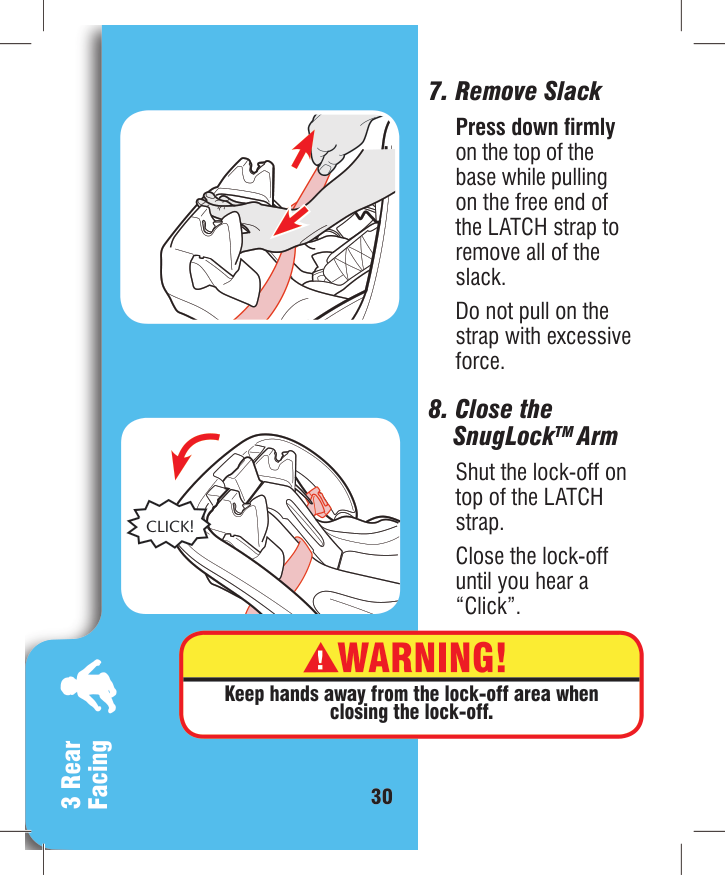

##### 7. Remove Slack

Press down firmly on the top of the base while pulling on the free end of the LATCH strap to remove all of the slack.

Do not pull on the strap with excessive force.

##### 8. Close the SnugLockTMArm

Shut the lock-off on top of the LATCH strap.

CLICK!

Close the lock-off until you hear a “Click”.

Keep hands away from the lock-off area when closing the lock-off.

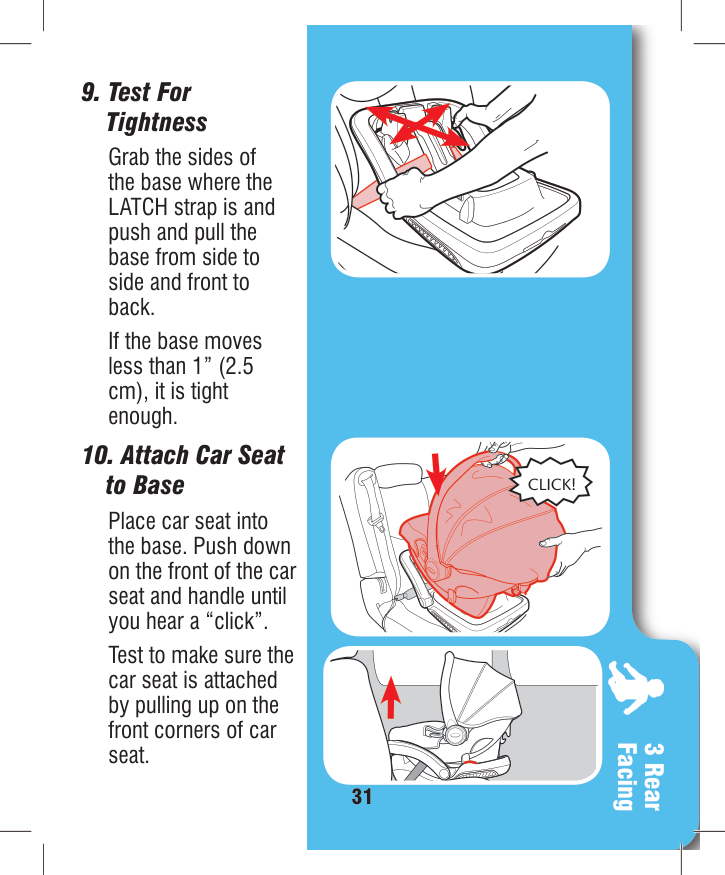

##### 9. Test ForTightness

Grab the sides of the base where the LATCH strap is and push and pull the base from side to side and front to back.

If the base moves less than 1” (2.5 cm), it is tight enough.

##### 10. Attach Car Seatto Base

######## CLICK!

Place car seat into the base. Push down on the front of the car seat and handle until you hear a “click”.

Test to make sure the car seat is attached by pulling up on the front corners of car seat.

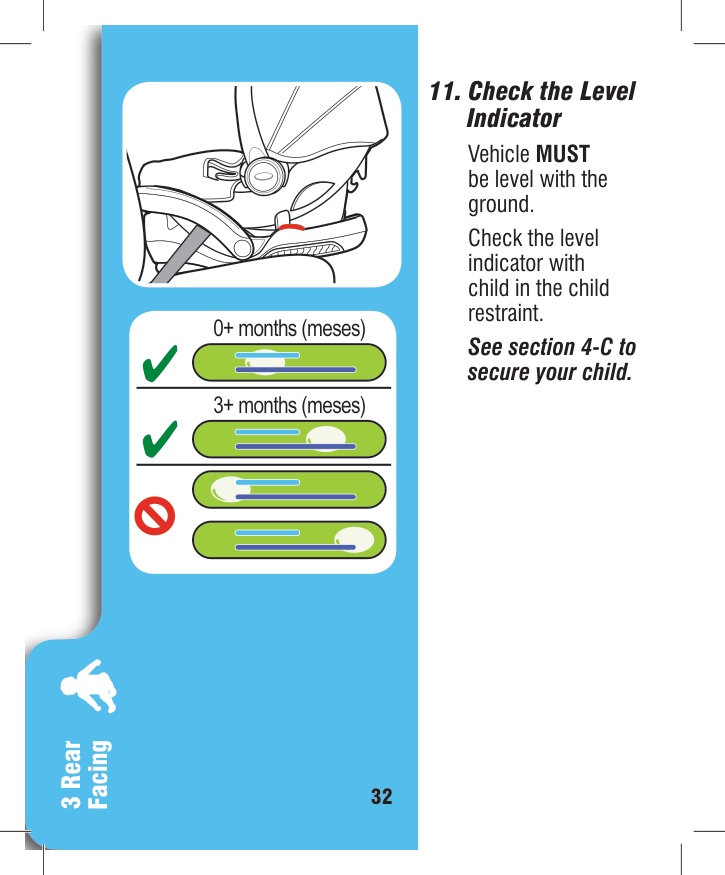

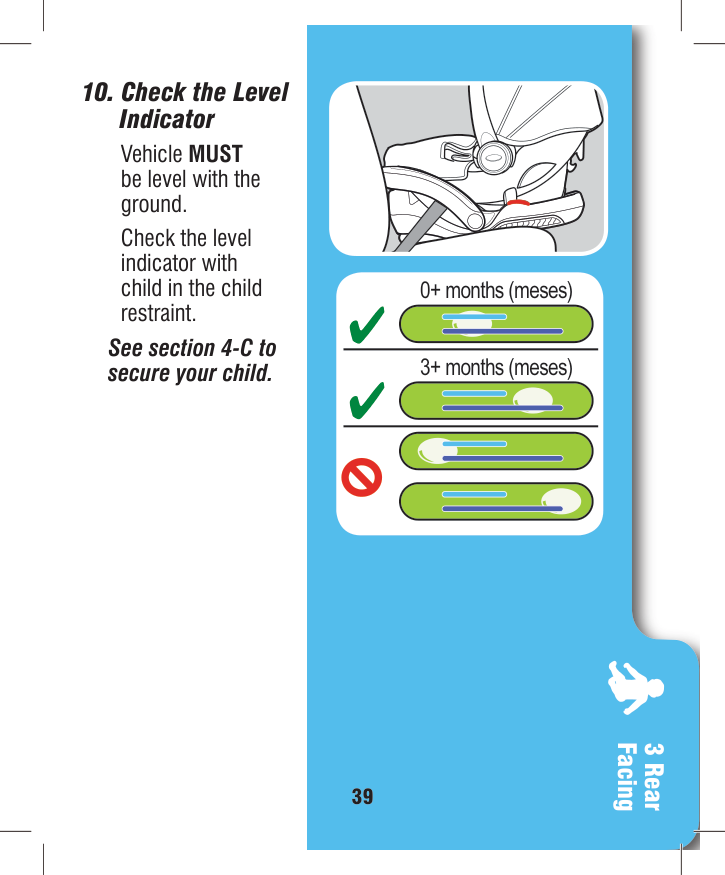

##### 11. Check the Level Indicator

Vehicle MUST be level with the ground.

Check the level indicator with child in the child restraint.

0+ months (meses)

See section 4-C to secure your child.

3+ months (meses)


Is Everything Correct?

Base Does Not Move More Than 1” (2.5 cm) At The Belt Path

Car Seat Is Properly Attached To Base

0+ months (meses)

With vehicle on level ground check the level indicator

3+ months (meses)

Cannot Pinch Harness

Chest Clip Even With Armpits

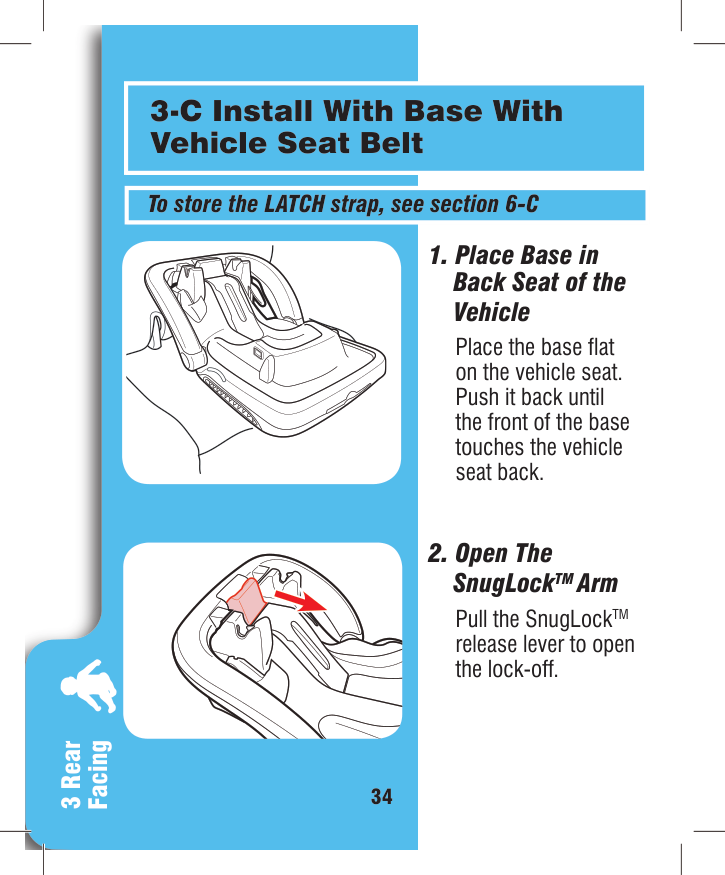

3-C Install With Base With Vehicle Seat Belt

To store the LATCH strap, see section 6-C

##### 1. Place Base inBack Seat of theVehicle

Place the base flat on the vehicle seat. Push it back until the front of the base touches the vehicle seat back.

##### 2. Open TheSnugLockTMArm

Pull the SnugLockTM release lever to open the lock-off.


##### 3. Check the LevelIndicator

Vehicle MUST be level with the ground.

To recline, review section 2-E.

0+ months (meses)

3+ months (meses)


Review your vehicle’s owner’s manual for vehicle seat belt use

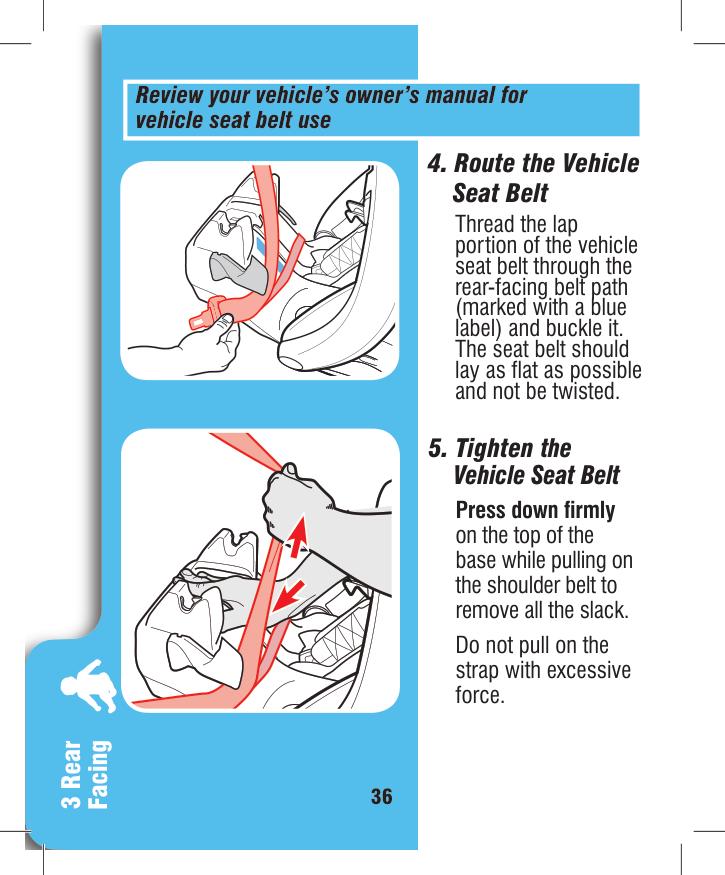

##### 4. Route the VehicleSeat Belt

Thread the lap portion of the vehicle seat belt through the rear-facing belt path (marked with a blue label) and buckle it. The seat belt should lay as flat as possible and not be twisted.

##### 5. Tighten theVehicle Seat Belt

Press down firmly on the top of the base while pulling on the shoulder belt to remove all the slack.

Do not pull on the strap with excessive force.


##### 6. Route ShoulderBelt

Thread the shoulder portion of the vehicle seat belt through the rear-facing belt path (marked with a blue label) and under the red belt guides. The seat belt should lay as flat as possible and not be twisted. Make sure both lap and shoulder belt goes under the red belt guides

CLICK!

##### 7. Close theSnugLockTMArm

Shut the lock-off on top of the seat belt strap.

Close the lock-off until you hear a “Click”.

Keep hands away from the lock-off area when closing the lock-off.


##### 8. Test For Tightness

Grab the sides of the base where the seat belt is and push and pull the base from side to side and front to back.

If the base moves less than 1” (2.5 cm), it is tight enough.

##### 9. Attach Car Seat to Base

######## CLICK!

Place car seat into the base. Push down on the front of the car seat and handle until you hear a “click”.

Test to make sure the car seat is attached by pulling up on the front corners of car seat.


##### 10. Check the Level Indicator

Vehicle MUST be level with the ground.

Check the level indicator with child in the child restraint.

0+ months (meses)

See section 4-C to secure your child. 3+ months (meses)


Is Everything Correct?

Base Does Not Move More Than 1” (2.5 cm) At The Belt Path

Car Seat Is Properly Attached To Base

0+ months (meses)

With vehicle on level ground check the level indicator

3+ months (meses)

Cannot Pinch Harness

Chest Clip Even With Armpits

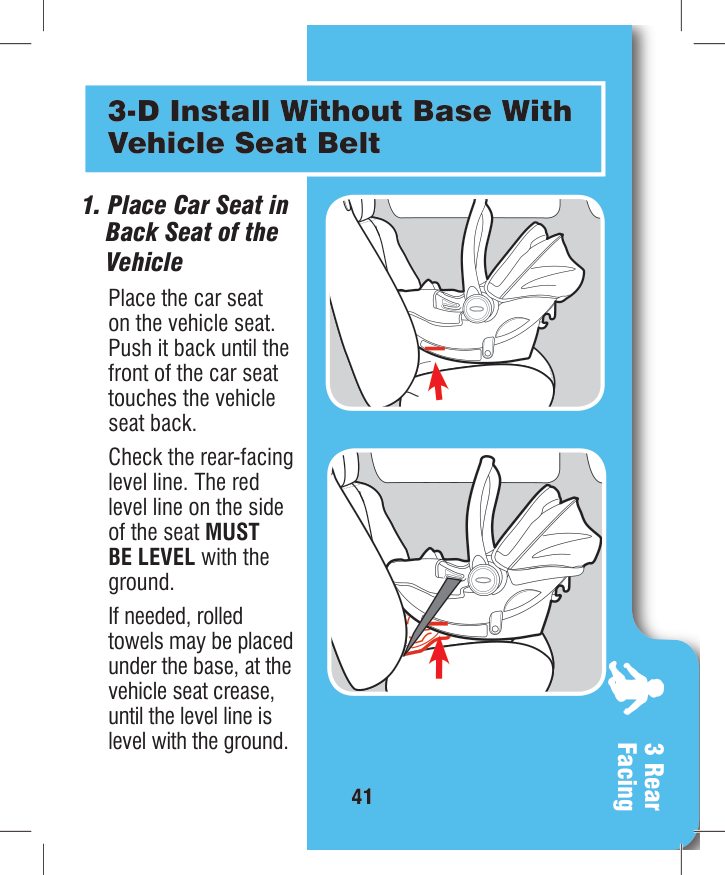

3-D Install Without Base With Vehicle Seat Belt

##### 1. Place Car Seat in Back Seat of the Vehicle

Place the car seat on the vehicle seat. Push it back until the front of the car seat touches the vehicle seat back.

Check the rear-facing level line. The red level line on the side of the seat MUST BE LEVEL with the ground. If needed, rolled towels may be placed under the base, at the vehicle seat crease, until the level line is level with the ground.

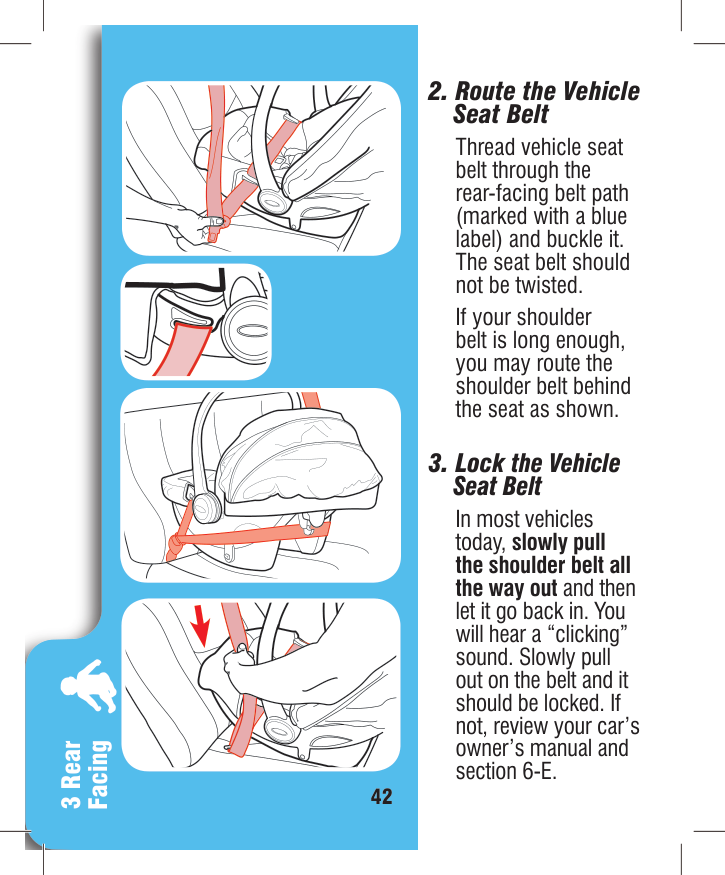

Thread vehicle seat belt through the rear-facing belt path (marked with a blue label) and buckle it. The seat belt should not be twisted.

If your shoulder belt is long enough, you may route the shoulder belt behind the seat as shown.

In most vehicles today, slowly pull the shoulder belt all the way out and then let it go back in. You will hear a “clicking” sound. Slowly pull out on the belt and it should be locked. If not, review your car’s owner’s manual and section 6-E.

Facing

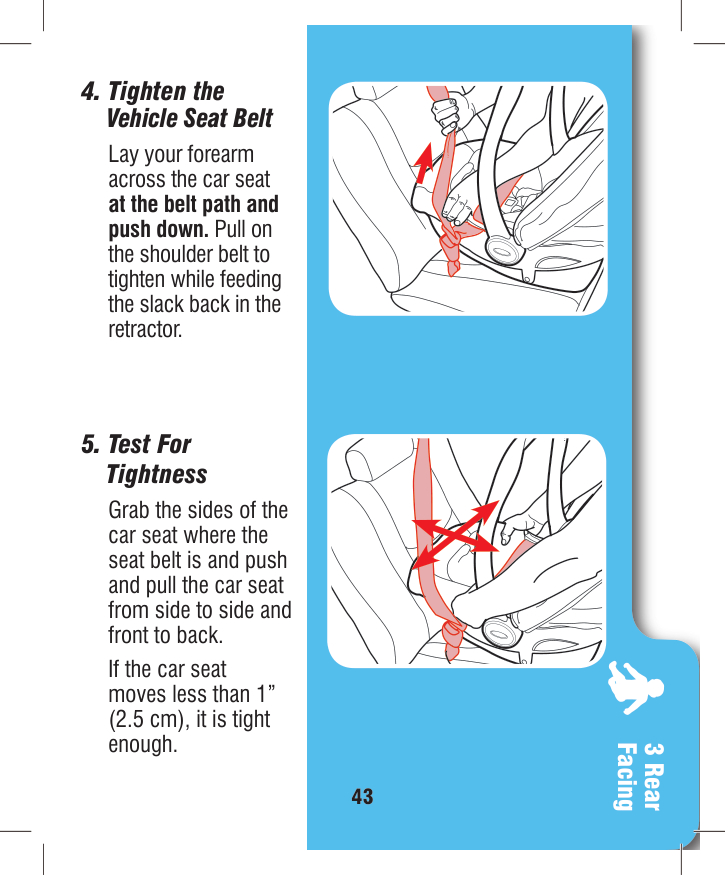

##### 4. Tighten theVehicle Seat Belt

Lay your forearm across the car seat at the belt path and push down. Pull on the shoulder belt to tighten while feeding the slack back in the retractor.

##### 5. Test ForTightness

Grab the sides of the car seat where the seat belt is and push and pull the car seat from side to side and front to back. If the car seat moves less than 1” (2.5 cm), it is tight enough.

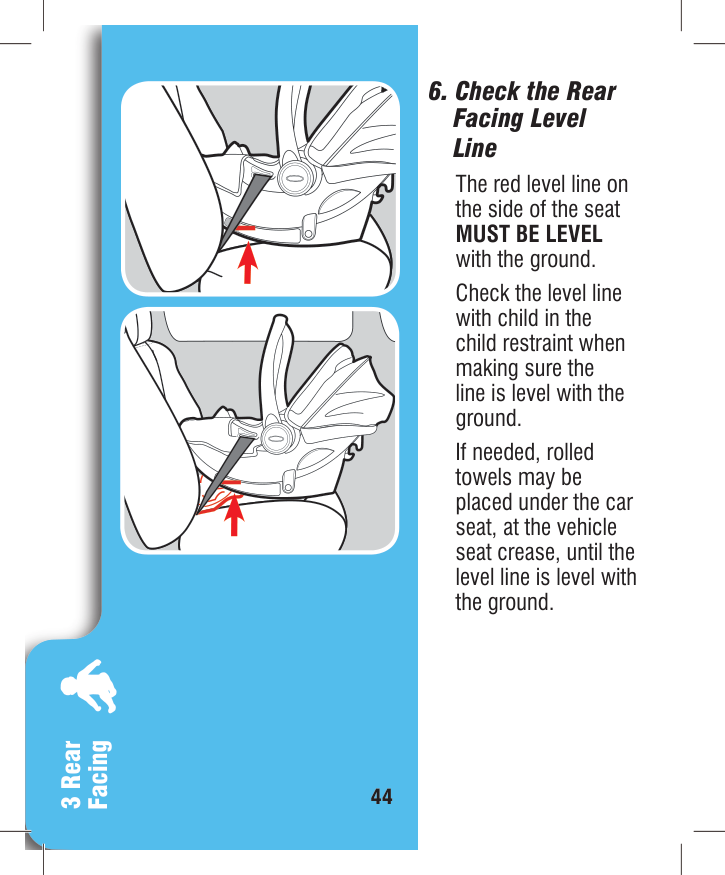

The red level line on the side of the seat MUST BE LEVEL with the ground. Check the level line with child in the child restraint when making sure the line is level with the ground. If needed, rolled towels may be placed under the car seat, at the vehicle seat crease, until the level line is level with the ground.

Facing

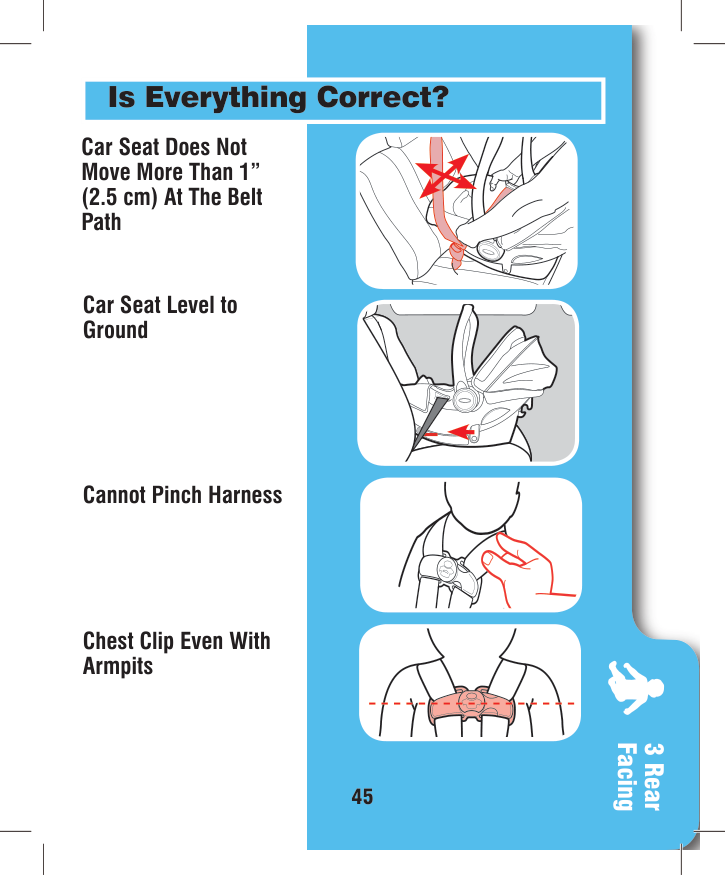

Is Everything Correct?

Car Seat Does Not Move More Than 1” (2.5 cm) At The Belt Path

Car Seat Level to Ground

Cannot Pinch Harness

Chest Clip Even With Armpits


4-A Adjust Harness to Fit Child

Child

##### 1. Loosen Harness Straps

Push down on the harness release lever under the seat pad while pulling out on the harness straps at the chest clip.

##### 2. Release the Chest Clip

Squeeze the chest clip release buttons and pull apart.


4 Securing Child

Press the red button and pull buckle tongues out. Place harness straps off to the sides.

Important

Make sure their back is flat against the car seat back.

WARNING! Do not put snowsuits or bulky garments on your child when placing them in the car seat. Bulky clothing can prevent the harness straps from being tightened properly. To keep child warm, buckle your child in the car seat and place a blanket around the child or place the child’s coat on backwards after buckling in.


Child

Harness Straps

MUST BE AT OR JUST BELOW the Child’s Shoulders

1” (2.5 cm)


With harness straps loose, remove the left side harness strap loop from the splitter plate.

Make sure harness strap is not twisted and is at the same height.

4 Securing Child

Important

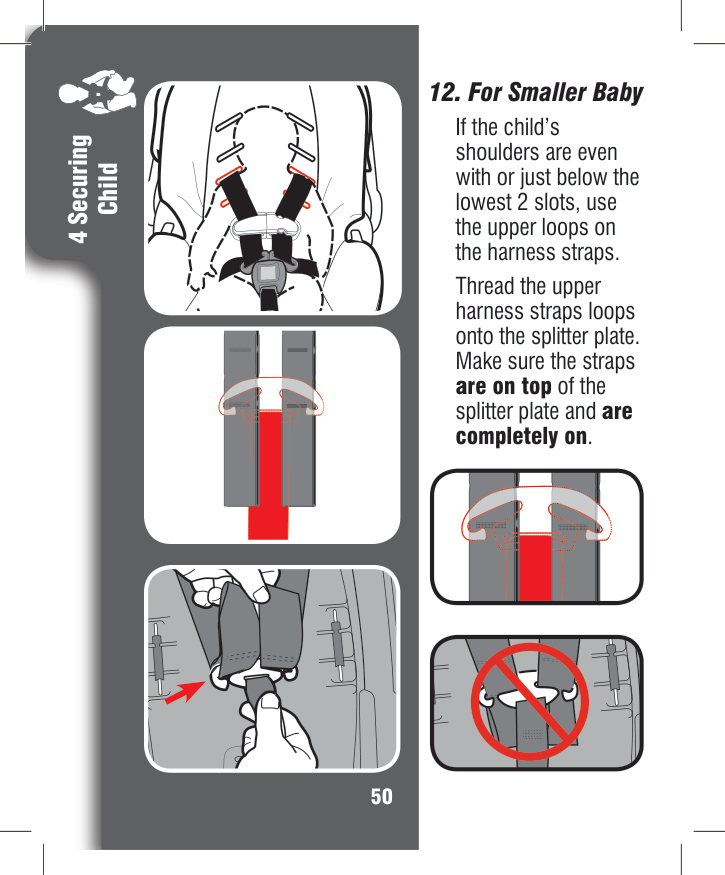

If the child’s shoulders are even with or just below the lowest 2 slots, use the upper loops on the harness straps.

Child

Thread the upper harness straps loops onto the splitter plate. Make sure the straps are on top of the splitter plate and are completely on.

| | | |---|---| | | |

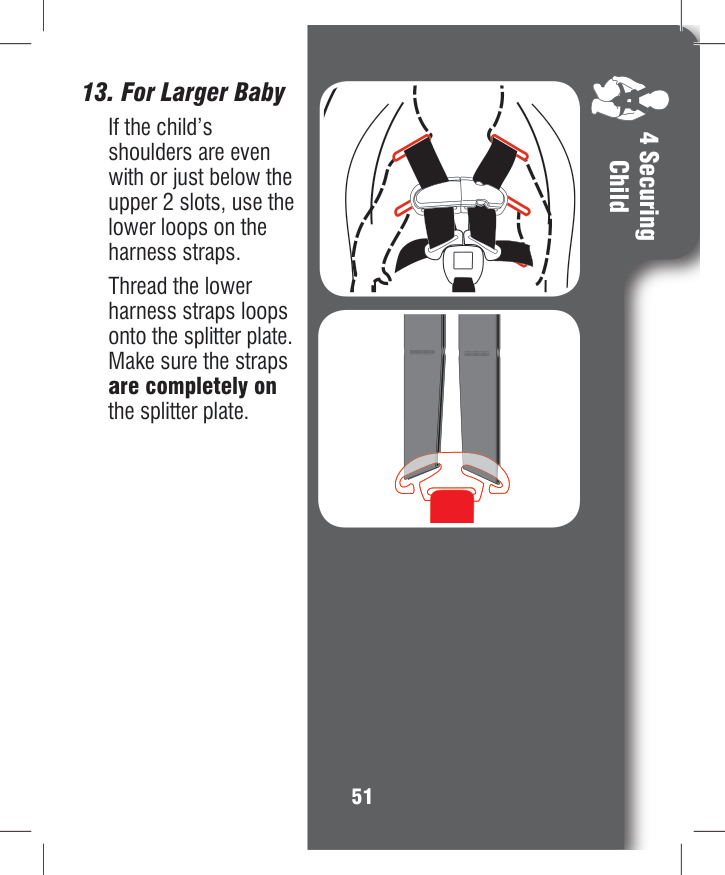

If the child’s shoulders are even with or just below the upper 2 slots, use the lower loops on the harness straps.

4 Securing Child

Important

Thread the lower harness straps loops onto the splitter plate. Make sure the straps are completely on the splitter plate.


4-B Adjust Buckle to Fit Child

4 Securing

Child

The correct slot is the one that is closest to your child without being underneath them.

##### 2. To Change Buckle Position

Remove child from the seat. From the bottom of car seat, insert the buckle’s metal clip up through shell and pad.

From the front, pull buckle out of the pad an shell.

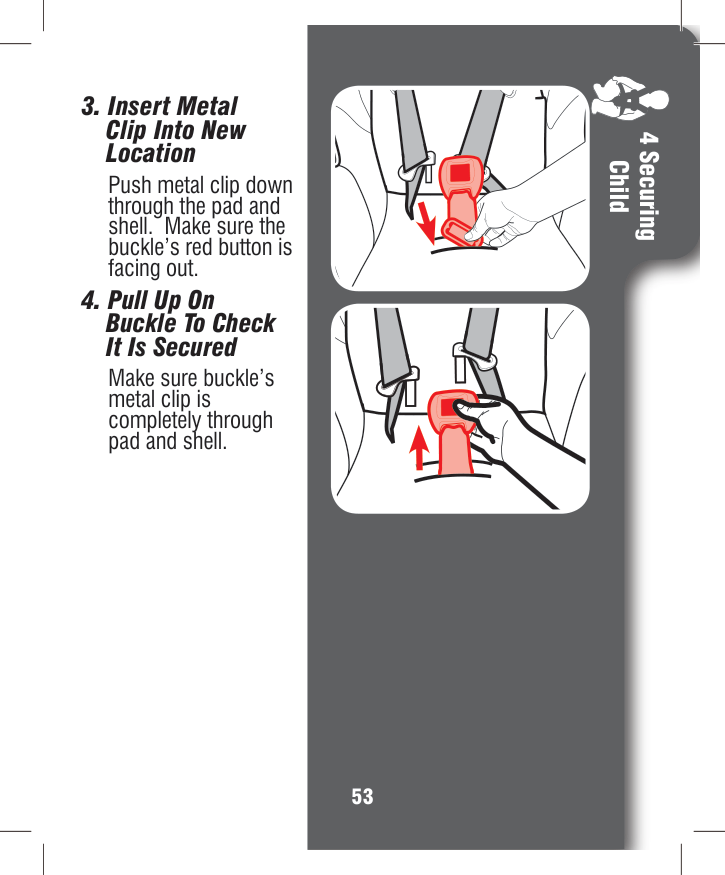

Push metal clip down through the pad and shell. Make sure the buckle’s red button is facing out.

4 Securing Child

Important

Make sure buckle’s metal clip is completely through pad and shell.

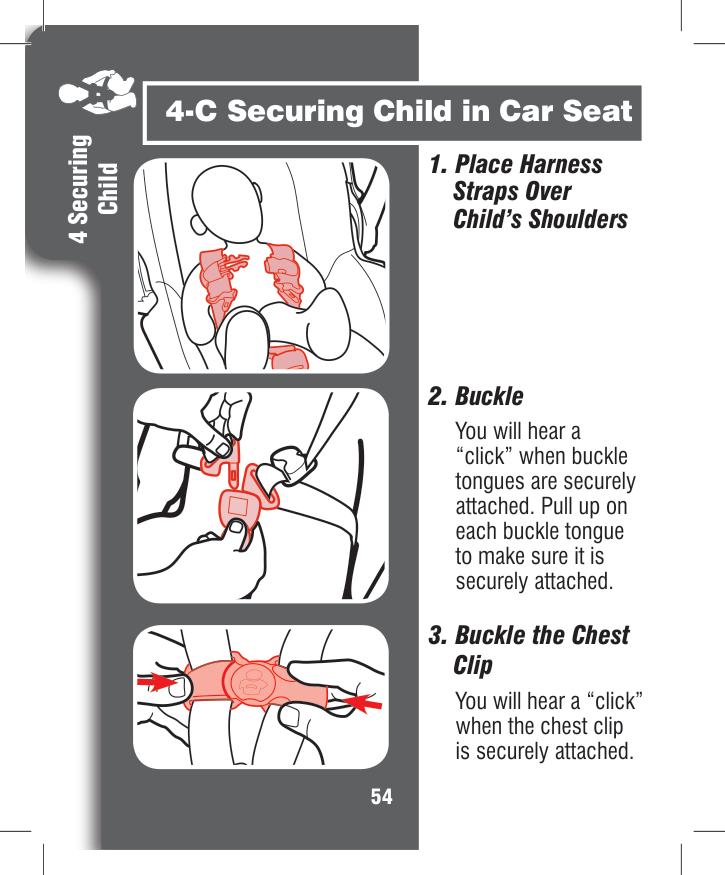

4-C Securing Child in Car Seat

4 Securing

You will hear a “click” when buckle tongues are securely attached. Pull up on each buckle tongue to make sure it is securely attached.

Child

You will hear a “click” when the chest clip is securely attached.


Pull up on the harness strap while pushing the chest clip down. Do this to both sides.

4 Securing Child

Important

When you are not able to pinch any of the harness webbing at your child’s shoulder, the harness is tight enough.

A snug harness should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position.


4 Securing

Child

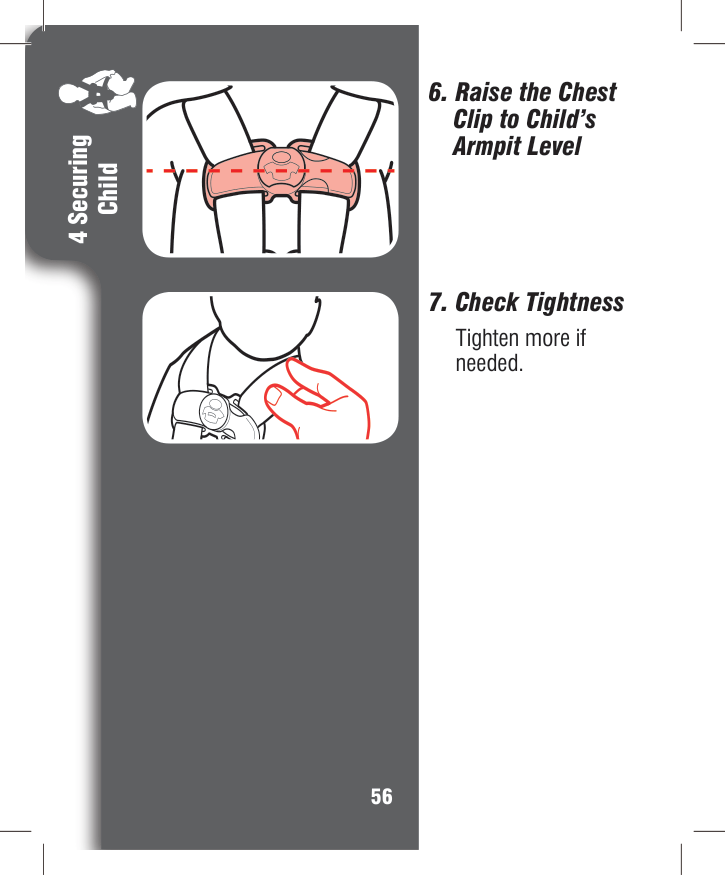

Tighten more if needed.

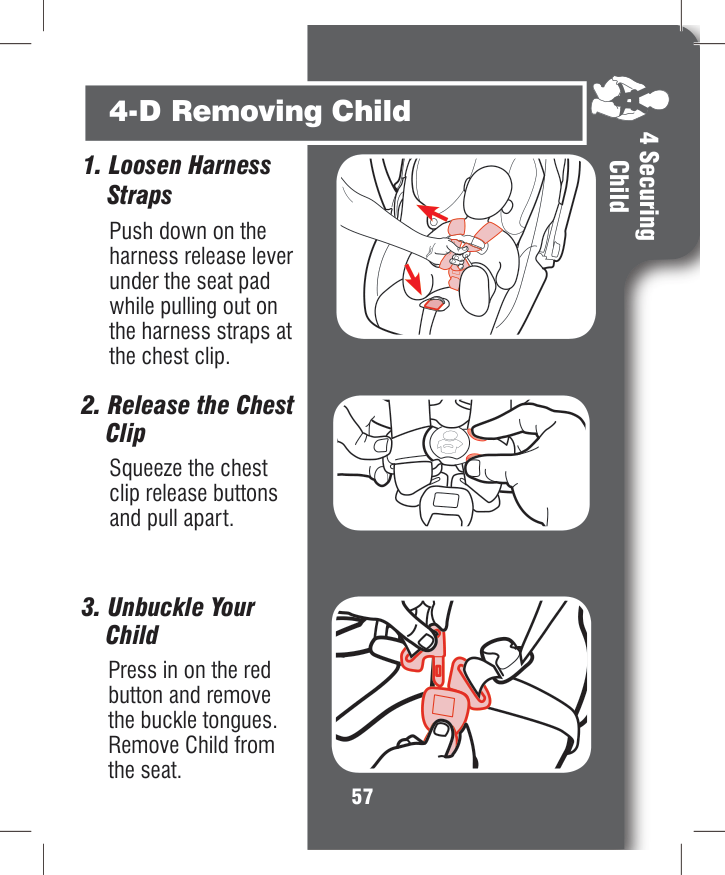

4-D Removing Child

4 Securing Child

Important

##### 1. Loosen Harness Straps

Push down on the harness release lever under the seat pad while pulling out on the harness straps at the chest clip.

##### 2. Release the Chest Clip

Squeeze the chest clip release buttons and pull apart.

##### 3. Unbuckle Your Child

Press in on the red button and remove the buckle tongues. Remove Child from the seat.

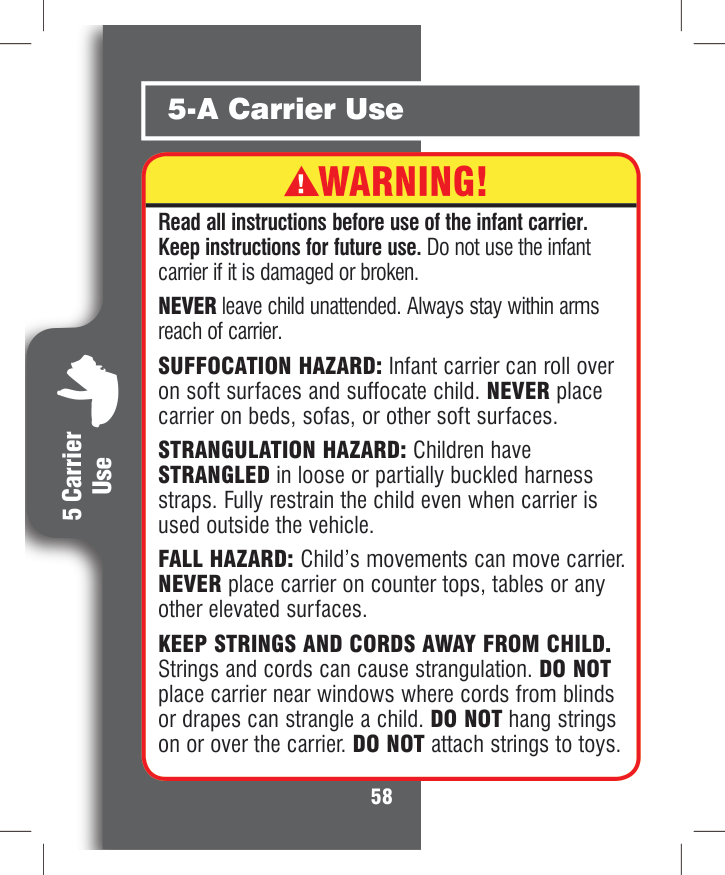

5-A Carrier Use

Read all instructions before use of the infant carrier. Keep instructions for future use. Do not use the infant carrier if it is damaged or broken.

NEVER leave child unattended. Always stay within arms reach of carrier.

SUFFOCATION HAZARD: Infant carrier can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas, or other soft surfaces.

5 Carrier

STRANGULATION HAZARD: Children have STRANGLED in loose or partially buckled harness straps. Fully restrain the child even when carrier is used outside the vehicle.

Use

FALL HAZARD: Child’s movements can move carrier. NEVER place carrier on counter tops, tables or any other elevated surfaces.

KEEP STRINGS AND CORDS AWAY FROM CHILD. Strings and cords can cause strangulation. DO NOT place carrier near windows where cords from blinds or drapes can strangle a child. DO NOT hang strings on or over the carrier. DO NOT attach strings to toys.


###### NEVER place carrier in the seating area or across the top of a shopping carts. This can result in serious injury or death to your child.

USE ONLY WITH STROLLERS WITH THE GRACO CLICK CONNECT LOGO. Refer to the stroller owner’s manual for details on how to attach the infant carrier to your stroller. If you do not have an owner’s manual, please visit our website at www.gracobaby. com to download the manual or call toll-free at 800-3454109.

##### 5 Carrier Use

NEVER use a Graco infant carrier with any other manufacturer’s strollers. This can result in serious injury or death.


6-A Additional LATCH Information

This car seat can be installed in your vehicle using either the vehicle seat belt OR the LATCH system. Both systems are equally safe to use. DO NOT USE BOTH AT THE SAME TIME.

The LATCH system allows you to securely attach your car seat in your car without using the vehicle seat belt and possibly to get a better fit. All 2003 and newer model year vehicles are required to have a LATCH system, although some manufacturers began including LATCH earlier. Some vehicle owner manuals use the term ISOFIX to identify the LATCH system.

Only use LATCH in seating positions recommended by your vehicle manufacturer. Review your vehicle owner’s manual for more information.

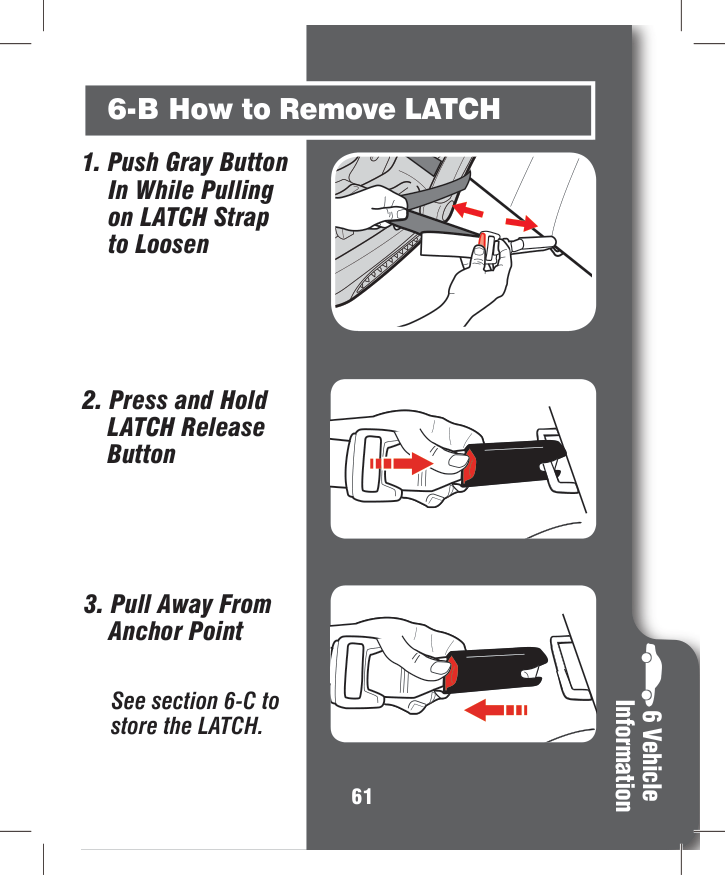

6-B How to Remove LATCH

See section 6-C to store the LATCH.

6 Vehicle Information


6-C Storing The LATCH Strap

##### 1. Open the SnugLockTMArm

Pull the SnugLockTM release lever and raise the lock-off to expose the LATCH storage door.


Swing open the LATCH storage door, and insert the LATCH connectors into the storage slots. Tuck the LATCH straps into the storage compartment and close the storage door.

Make sure the LATCH connectors are stored facing the correct direction.

##### 2. Close theSnugLockTMArm

Close the lock-off until you hear a “Click”.

CLICK!

##### 6 Vehicle Information

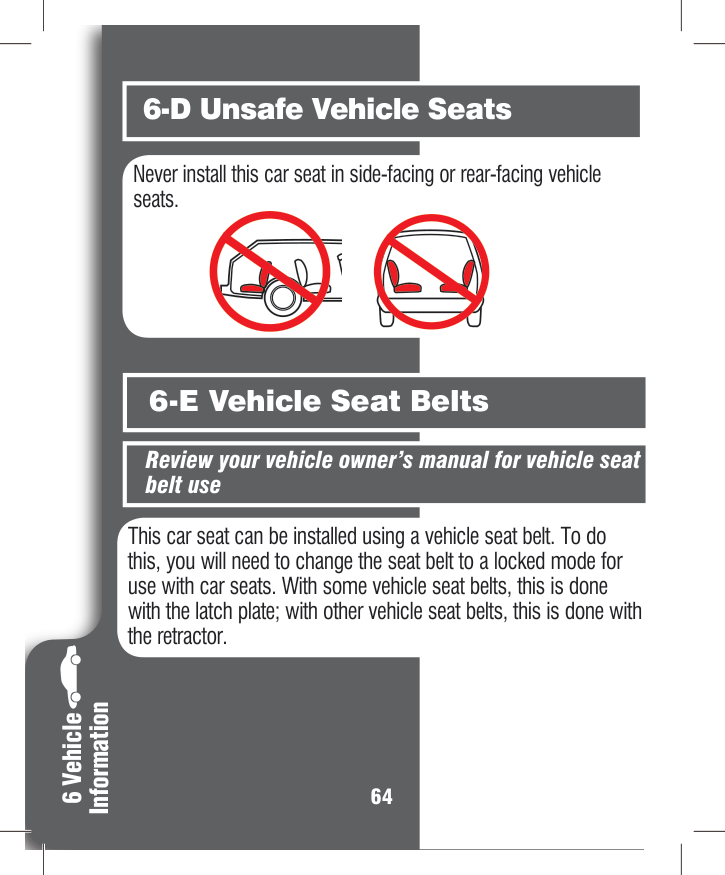

6-D Unsafe Vehicle Seats

Never install this car seat in side-facing or rear-facing vehicle seats.

6-E Vehicle Seat Belts

###### Review your vehicle owner’s manual for vehicle seat belt use

This car seat can be installed using a vehicle seat belt. To do this, you will need to change the seat belt to a locked mode for use with car seats. With some vehicle seat belts, this is done with the latch plate; with other vehicle seat belts, this is done with the retractor.

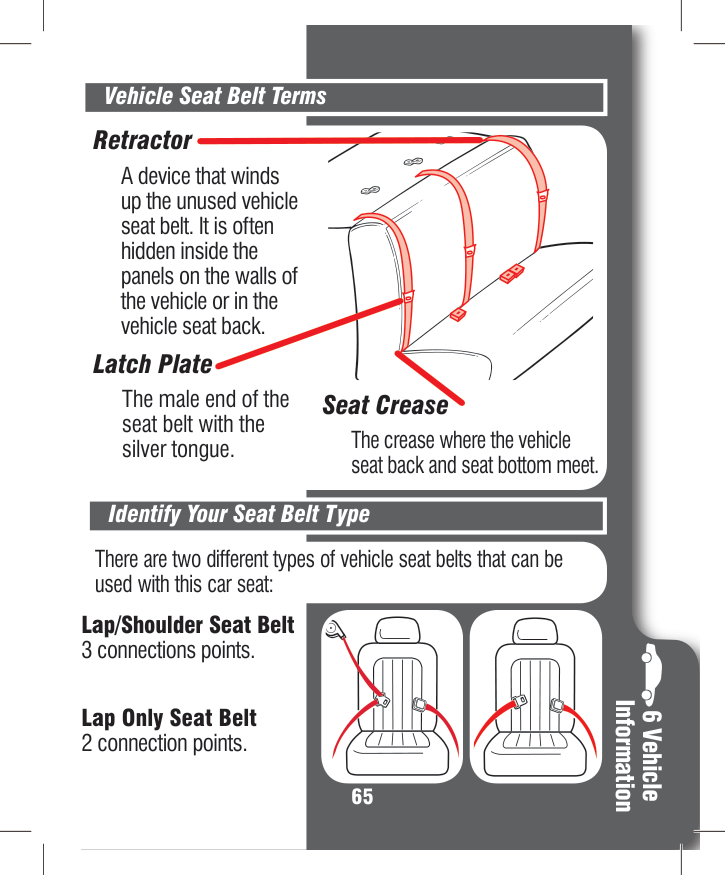

##### Vehicle Seat Belt Terms Retractor

A device that winds up the unused vehicle seat belt. It is often hidden inside the panels on the walls of the vehicle or in the vehicle seat back.

##### Latch Plate

The male end of the seat belt with the silver tongue.

##### Seat Crease

The crease where the vehicle seat back and seat bottom meet.

###### Identify Your Seat Belt Type

There are two different types of vehicle seat belts that can be used with this car seat:

###### Lap/Shoulder Seat Belt

##### 6 Vehicle Information

###### Lap Only Seat Belt 2 connection points.


The following types of vehicle seat belts CANNOT be used safely with this car seat:

Lap Belt with Motorized Shoulder Belt

Belts Forward of the Seat Crease

Lap Belt or Shoulder Belt Mounted on Door


###### Lap/Shoulder Seat Belt Installation

Always review your vehicle owner’s manual for specific information about your vehicle seat belts. There are three types of retractors: ELR (Emergency Locking Retractor), ALR (Automatic Locking Retractor), and Switchable (ELR switch to ALR). To determine your type of retractor, follow these steps:

Note: Most vehicles manufactured after 1996 will have Switchable retractors in the back seat. If you have any questions about your retractor type, consult your vehicle owner’s manual or call Graco for assistance.

##### 6 Vehicle Information


###### How to Lock Your Lap/Shoulder Vehicle Seat Belt

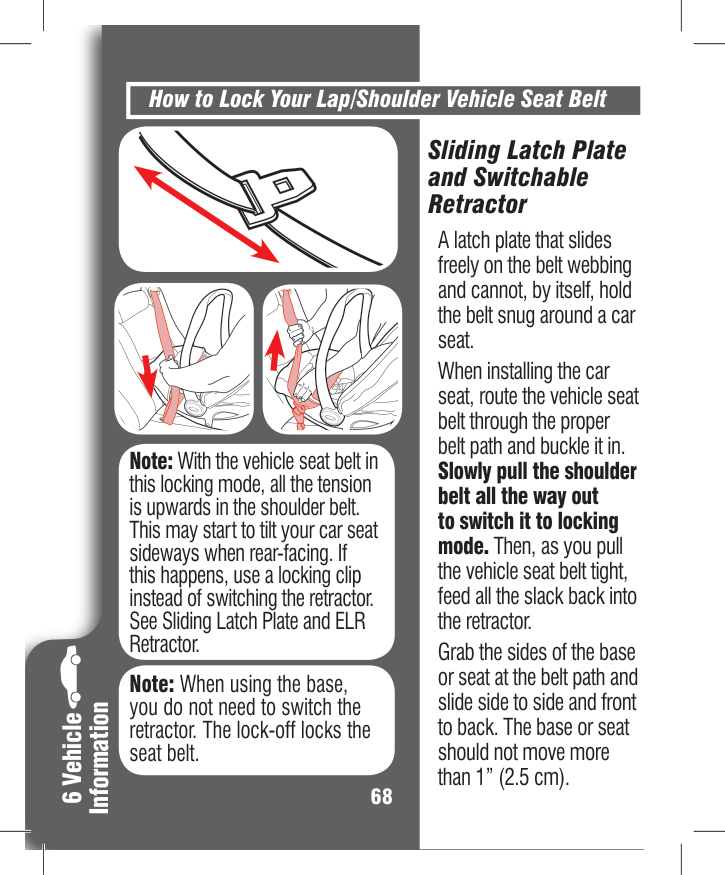

##### Sliding Latch Plate and Switchable Retractor

A latch plate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat. When installing the car seat, route the vehicle seat belt through the proper belt path and buckle it in. Slowly pull the shoulder belt all the way out to switch it to locking mode. Then, as you pull the vehicle seat belt tight, feed all the slack back into the retractor.

Note: With the vehicle seat belt in this locking mode, all the tension is upwards in the shoulder belt. This may start to tilt your car seat sideways when rear-facing. If this happens, use a locking clip instead of switching the retractor. See Sliding Latch Plate and ELR Retractor.

Grab the sides of the base or seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1” (2.5 cm).

Note: When using the base, you do not need to switch the retractor. The lock-off locks the seat belt.

##### Information

##### 6 Vehicle

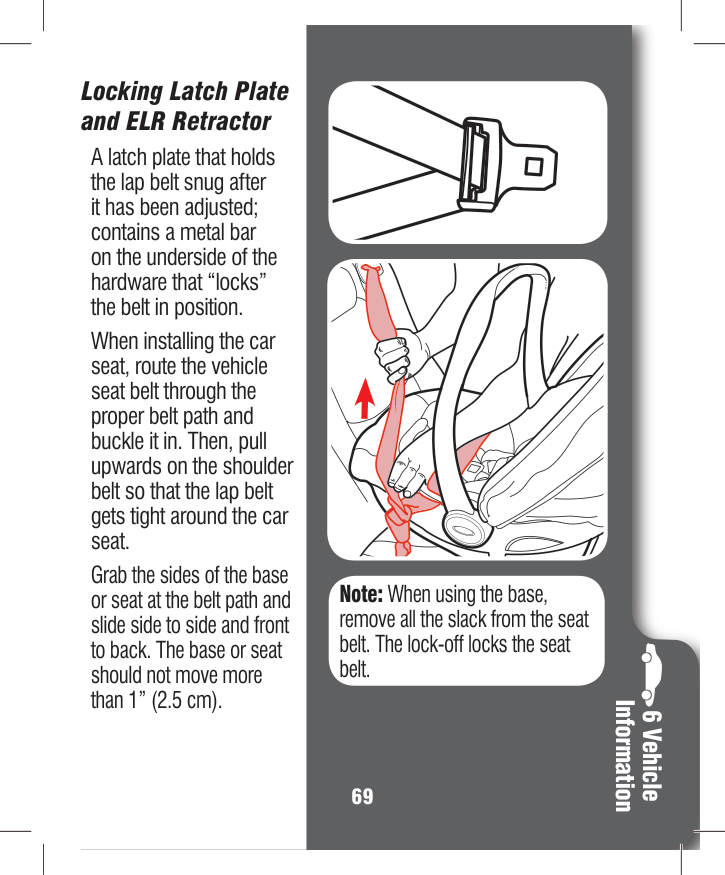

##### Locking Latch Plate and ELR Retractor

A latch plate that holds the lap belt snug after it has been adjusted; contains a metal bar on the underside of the hardware that “locks” the belt in position.

When installing the car seat, route the vehicle seat belt through the proper belt path and buckle it in. Then, pull upwards on the shoulder belt so that the lap belt gets tight around the car seat.

Grab the sides of the base or seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1” (2.5 cm).

Note: When using the base, remove all the slack from the seat belt. The lock-off locks the seat belt.

##### 6 Vehicle Information

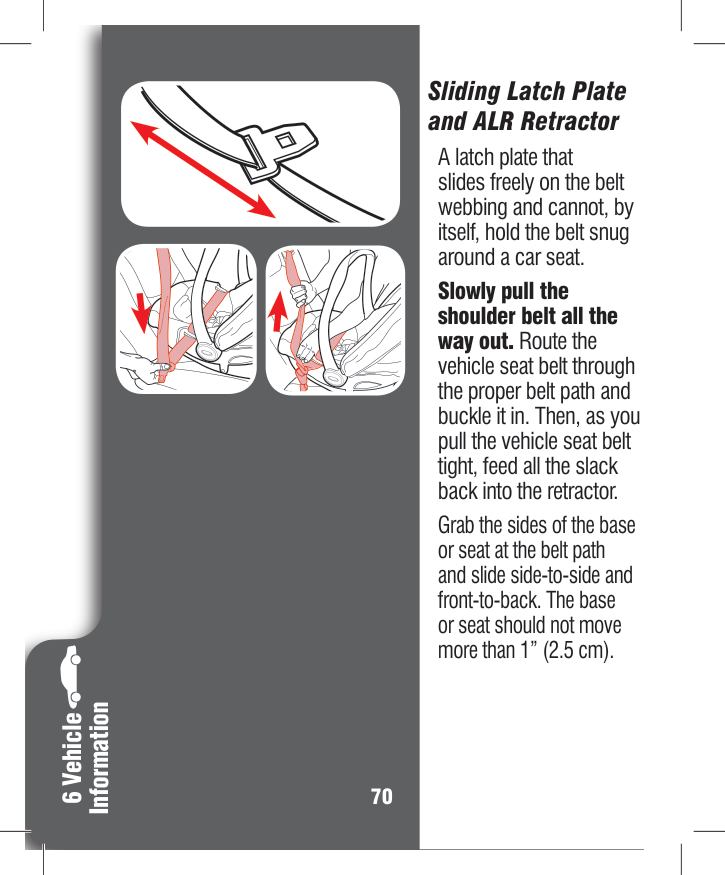

##### Sliding Latch Plate and ALR Retractor

A latch plate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

Slowly pull the shoulder belt all the way out. Route the vehicle seat belt through the proper belt path and buckle it in. Then, as you pull the vehicle seat belt tight, feed all the slack back into the retractor.

Grab the sides of the base or seat at the belt path and slide side-to-side and front-to-back. The base or seat should not move more than 1” (2.5 cm).

##### Information

##### 6 Vehicle

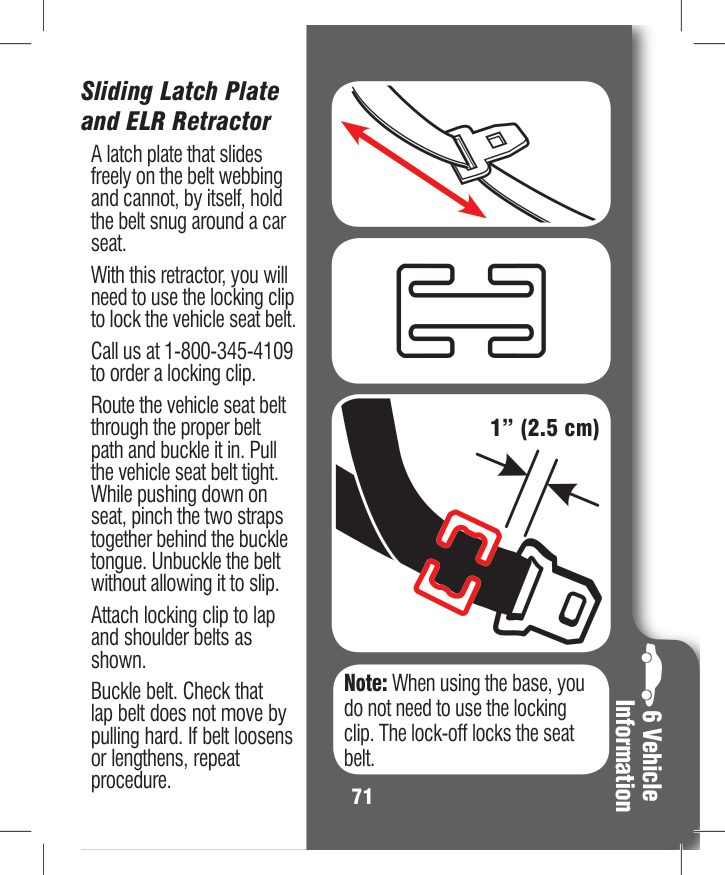

##### Sliding Latch Plate and ELR Retractor

A latch plate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

With this retractor, you will need to use the locking clip to lock the vehicle seat belt.

Call us at 1-800-345-4109 to order a locking clip.

Route the vehicle seat belt through the proper belt path and buckle it in. Pull the vehicle seat belt tight. While pushing down on seat, pinch the two straps together behind the buckle tongue. Unbuckle the belt without allowing it to slip.

###### 1” (2.5 cm)

Attach locking clip to lap and shoulder belts as shown.

Note: When using the base, you do not need to use the locking clip. The lock-off locks the seat belt.

Buckle belt. Check that lap belt does not move by pulling hard. If belt loosens or lengthens, repeat procedure.

##### 6 Vehicle Information

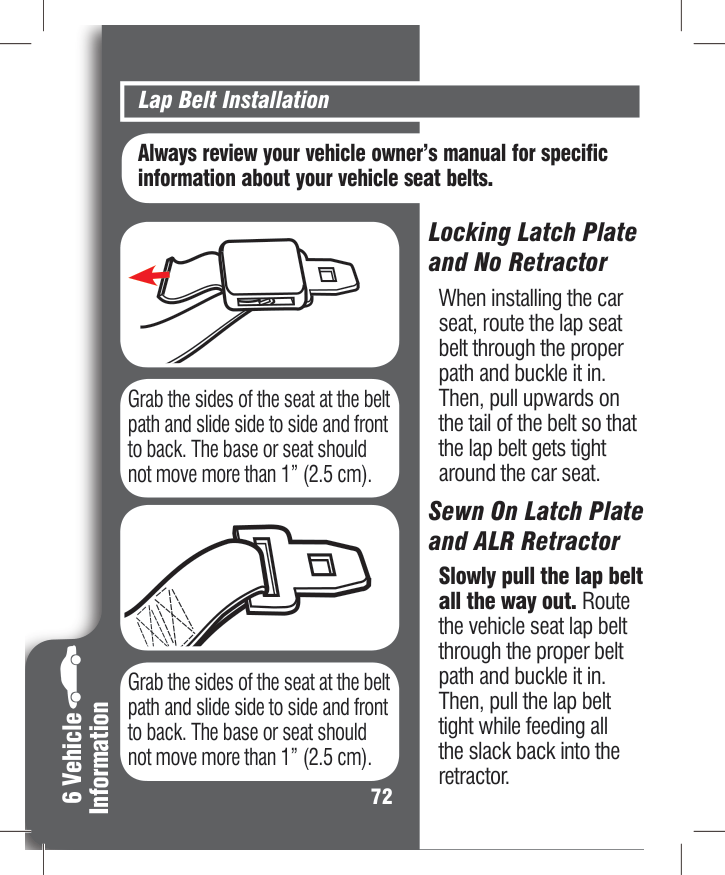

Lap Belt Installation

Always review your vehicle owner’s manual for specific information about your vehicle seat belts.

##### Locking Latch Plate and No Retractor

When installing the car seat, route the lap seat belt through the proper path and buckle it in. Then, pull upwards on the tail of the belt so that the lap belt gets tight around the car seat.

Grab the sides of the seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1” (2.5 cm).

##### Sewn On Latch Plate and ALR Retractor

Slowly pull the lap belt all the way out. Route the vehicle seat lap belt through the proper belt path and buckle it in. Then, pull the lap belt tight while feeding all the slack back into the retractor.

Grab the sides of the seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1” (2.5 cm).

##### Information

##### 6 Vehicle

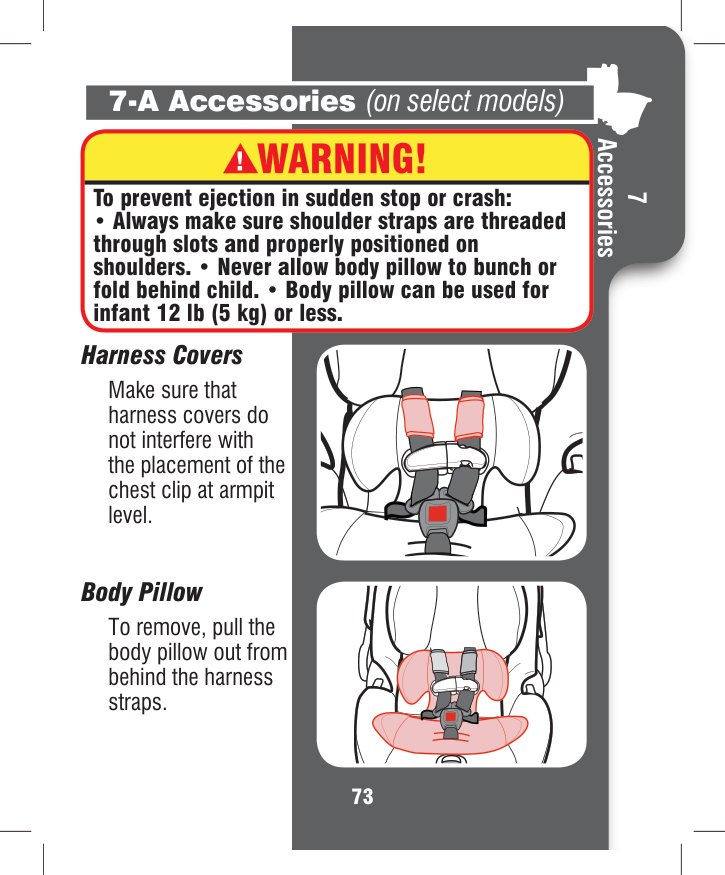

7-A Accessories (on select models)

7 Accessories

To prevent ejection in sudden stop or crash:

• Always make sure shoulder straps are threaded through slots and properly positioned on shoulders. • Never allow body pillow to bunch or fold behind child. • Body pillow can be used for infant 12 lb (5 kg) or less.

##### Harness Covers

Make sure that harness covers do not interfere with the placement of the chest clip at armpit level.

##### Body Pillow

To remove, pull the body pillow out from behind the harness straps.

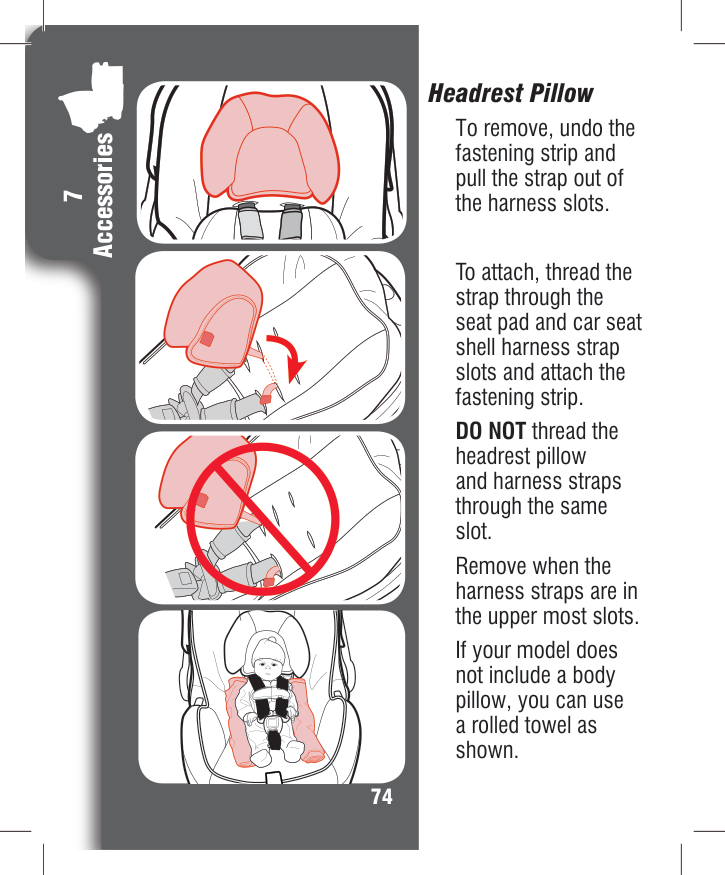

##### Headrest Pillow

To remove, undo the fastening strip and pull the strap out of the harness slots.

##### Accessories

##### 7

To attach, thread the strap through the seat pad and car seat shell harness strap slots and attach the fastening strip.

DO NOT thread the headrest pillow and harness straps through the same slot.

Remove when the harness straps are in the upper most slots.

If your model does not include a body pillow, you can use a rolled towel as shown.


8-A Cleaning Seat Pad

##### 1. Remove Canopy

Undo the snaps on the sides of the canopy from the seat pad.

Push the release button on the canopy arm while pulling on the canopy to remove.

Repeat on the other side.

8 Care & Cleaning

##### 2. Loosen Harness Straps

Push down on the harness release lever under the seat pad while pulling out on the harness straps at the chest clip.


Straps Out From the Front of Car Seat

& Clenaing


##### 8 Care & Cleaning

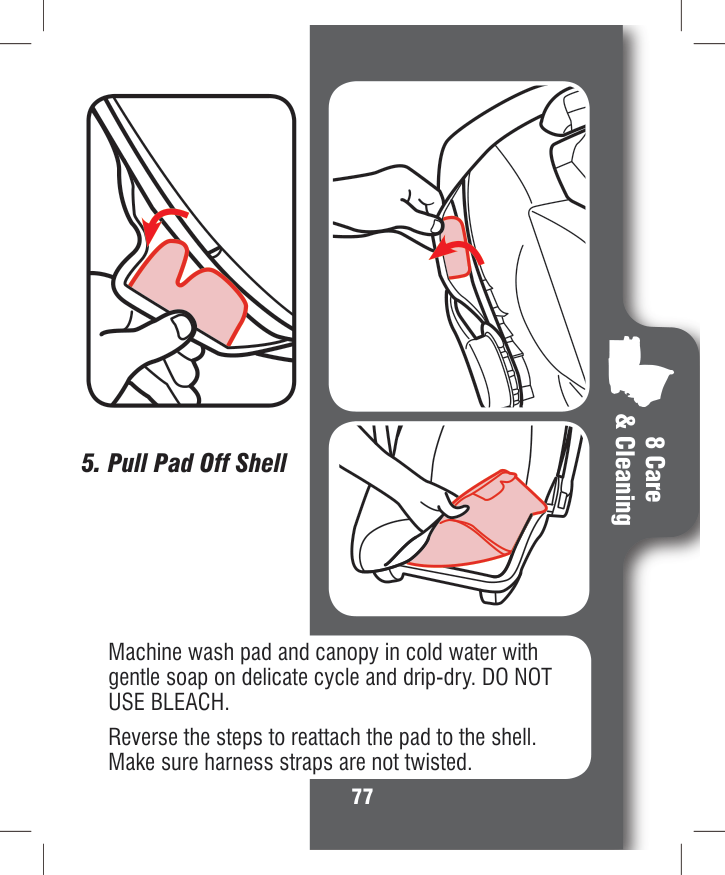

##### 5. Pull Pad Off Shell

Machine wash pad and canopy in cold water with gentle soap on delicate cycle and drip-dry. DO NOT USE BLEACH.

Reverse the steps to reattach the pad to the shell. Make sure harness straps are not twisted.

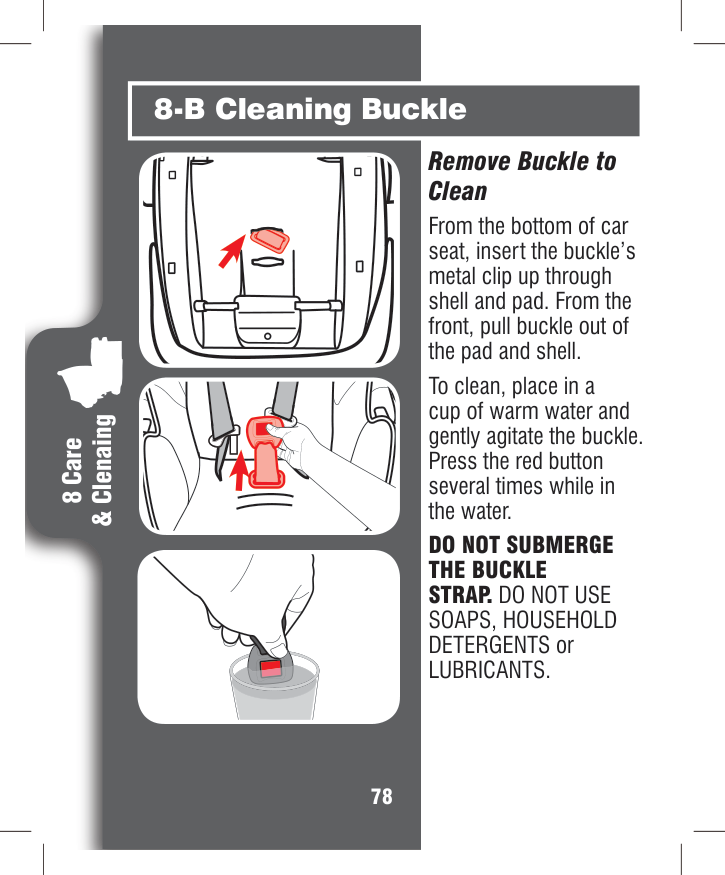

8-B Cleaning Buckle

##### Remove Buckle to Clean

From the bottom of car seat, insert the buckle’s metal clip up through shell and pad. From the front, pull buckle out of the pad and shell.

To clean, place in a cup of warm water and gently agitate the buckle. Press the red button several times while in the water.

& Clenaing

DO NOT SUBMERGE THE BUCKLE STRAP. DO NOT USE SOAPS, HOUSEHOLD DETERGENTS or LUBRICANTS.

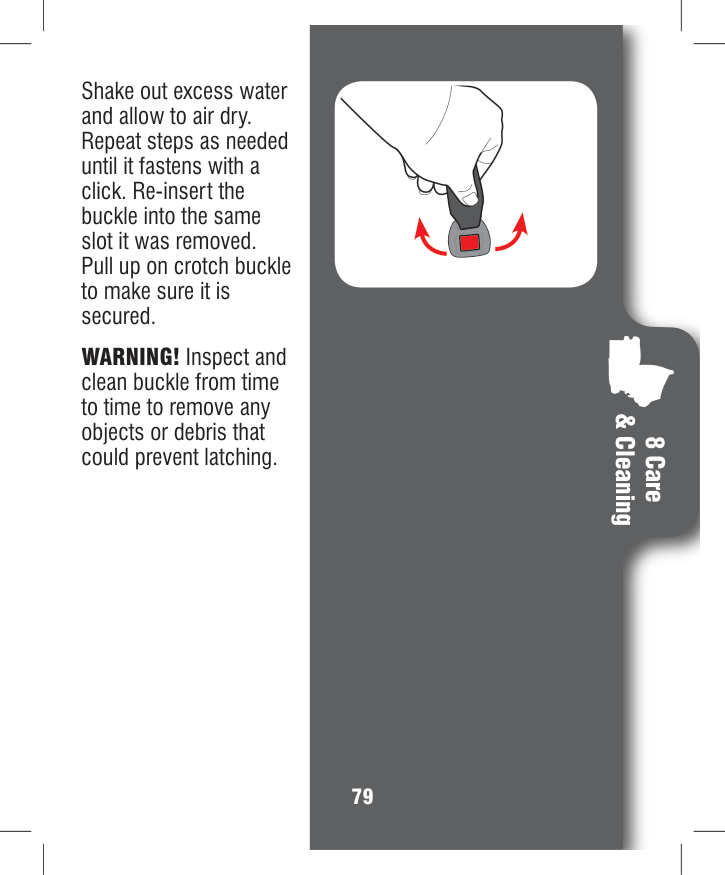

Shake out excess water and allow to air dry. Repeat steps as needed until it fastens with a click. Re-insert the buckle into the same slot it was removed. Pull up on crotch buckle to make sure it is secured.

WARNING! Inspect and clean buckle from time to time to remove any objects or debris that could prevent latching.

##### 8 Care & Cleaning

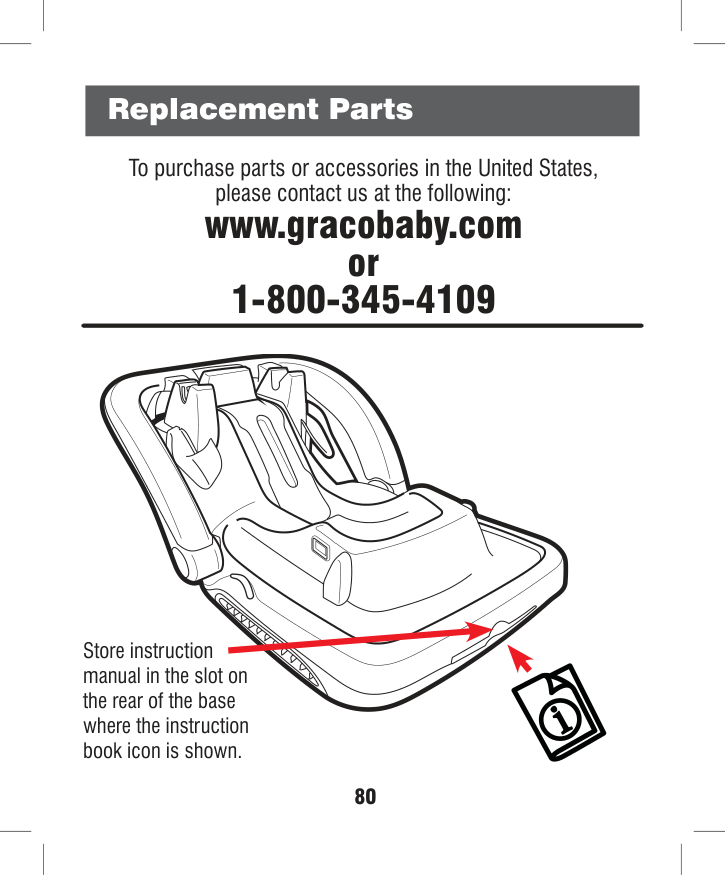

Replacement Parts

To purchase parts or accessories in the United States, please contact us at the following:

www.gracobaby.com or 1-800-345-4109

Store instruction manual in the slot on the rear of the base where the instruction book icon is shown.
