Ask AI
— answers from the official manualAnswers from the official manual.
Common questions
Common Questions
10 totalHow do I set the time on my Karlsson Ka5968 Cuckoo Clock?
To set the time, open the battery cover and turn the hands knob in the direction of the arrow until it reaches 05:45. Then insert 3xAA batteries and continue turning the hands to set the current correct time according to the 24-hour mode.
What should I do if my Karlsson Ka5968 Cuckoo Clock doesn't start at 5:45 AM?
Ensure that the current time is set correctly according to the 24-hour mode. If it is, press the 'SET' button for the cuckoo to sing and move until you hear a complete cycle of sound.
How do I adjust the volume for the Karlsson Ka5968 Cuckoo Clock?
The volume can be adjusted in three levels using the volume adjustment switch. After setting, take out the batteries and reset the time as per steps (1)~(4).
What should I do if my cuckoo clock stops singing during the night?
The cuckoo will not sing between 10 PM (22:00) and 5 AM (05:00). This is normal, and it resumes at 5 AM. Ensure correct time setting according to steps (1)~(4).
How do I change the batteries in my Karlsson Ka5968 Cuckoo Clock?
Before changing batteries, set the current accurate time by following 'Steps for Use'. Change batteries regularly once per year to prevent leakage or explosion. Do not remove the battery during song adjustment procedures.
What temperature range is recommended for my cuckoo clock?
Ensure your Karlsson Ka5968 Cuckoo Clock operates within a usable temperature range of 0 - 40°C to maintain accuracy and prevent time inaccuracy due to temperature variations.
Full Manual
5 pages
|INSTRUCTION MANUAL | CUCKOO CLOCK | KA5768
User's Manual
• Thank you for your purchase.
• Read this User's Manual before using this product.
• Keep this User's Manual for future reference.
Steps for use:
（1）Open the battery cover (no battery inside) and turn the hands knob in the direction of the arrow and set time to 05:45 as below :
Do not touch the clock hands directly to set time.
（2）Insert 3xAA batteries (not included) as illustrated.
1
Karlsson is a trademark of Present Time Present Time/ Almere/ Holland www.karlsson-clocks.com| | |---|---|

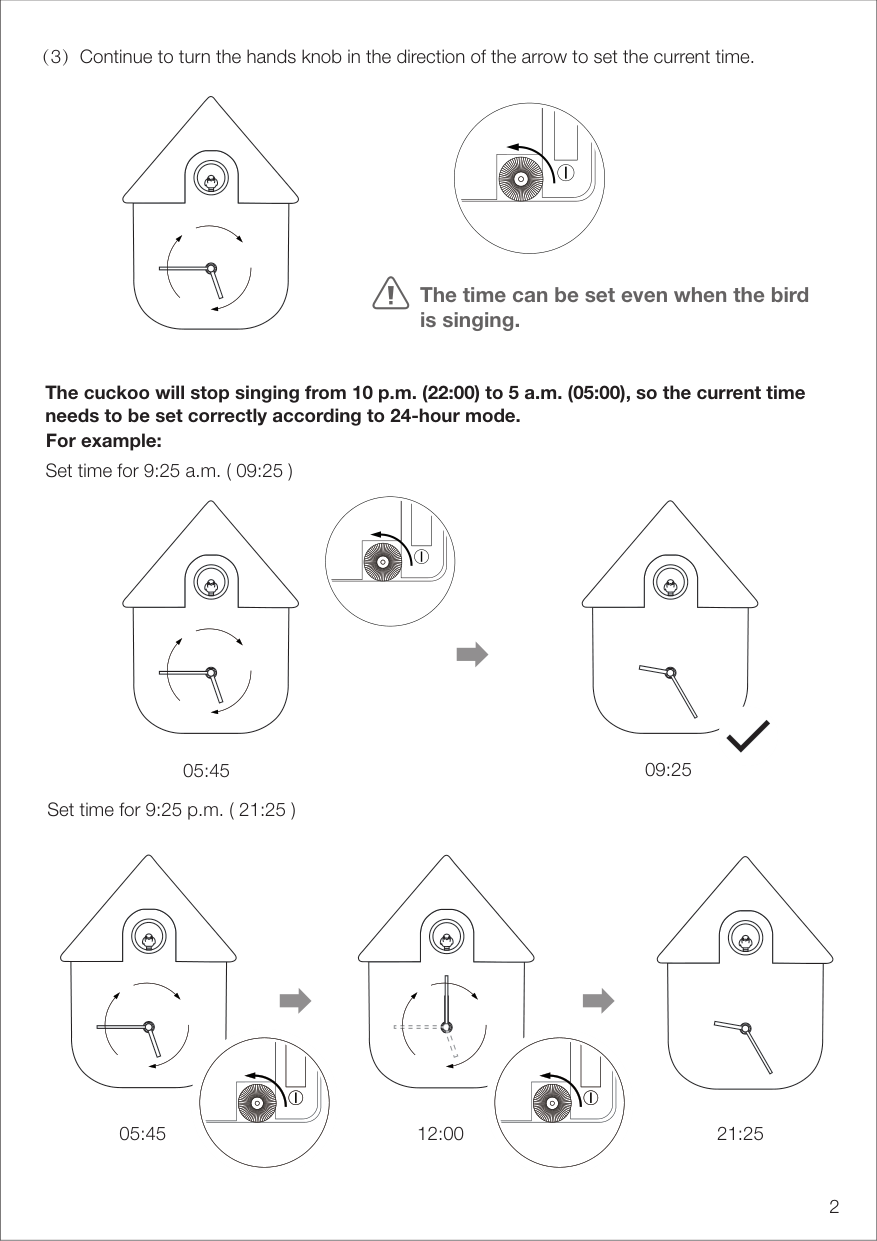

| |（3）Continue to turn the hands knob in the direction of the arrow to set the current time.
The time can be set even when the bird is singing.
The cuckoo will stop singing from 10 p.m. (22:00) to 5 a.m. (05:00), so the current time needs to be set correctly according to 24-hour mode. For example: Set time for 9:25 a.m. ( 09:25 )
05:45
05:45 12:00 21:25
09:25 Set time for 9:25 p.m. ( 21:25 )
| | | |---|---|
| | |
2| | |---|---|---|

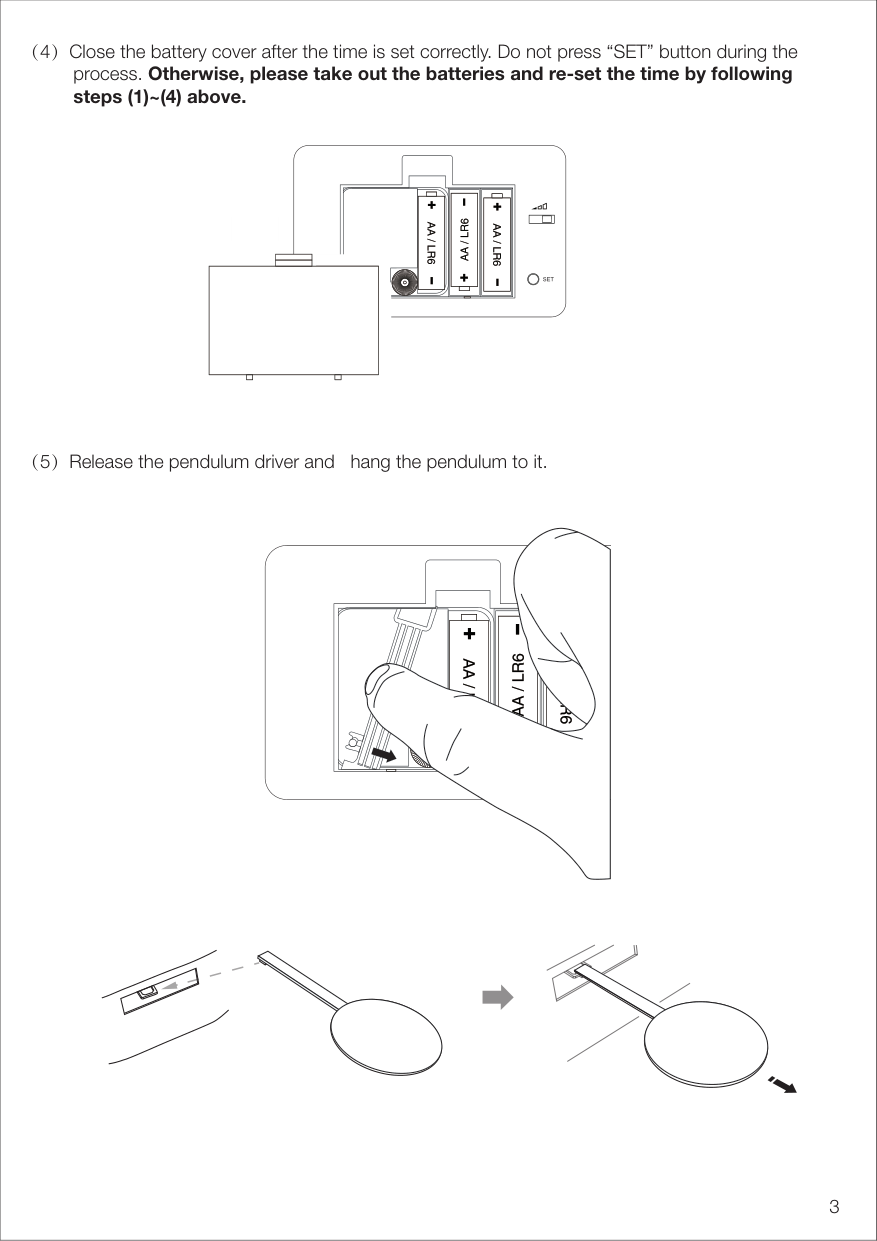

| |（4）Close the battery cover after the time is set correctly. Do not press “SET” button during the process. Otherwise, please take out the batteries and re-set the time by following steps (1)~(4) above.
（5）Release the pendulum driver and hang the pendulum to it.
3
| |
|---|---|---|

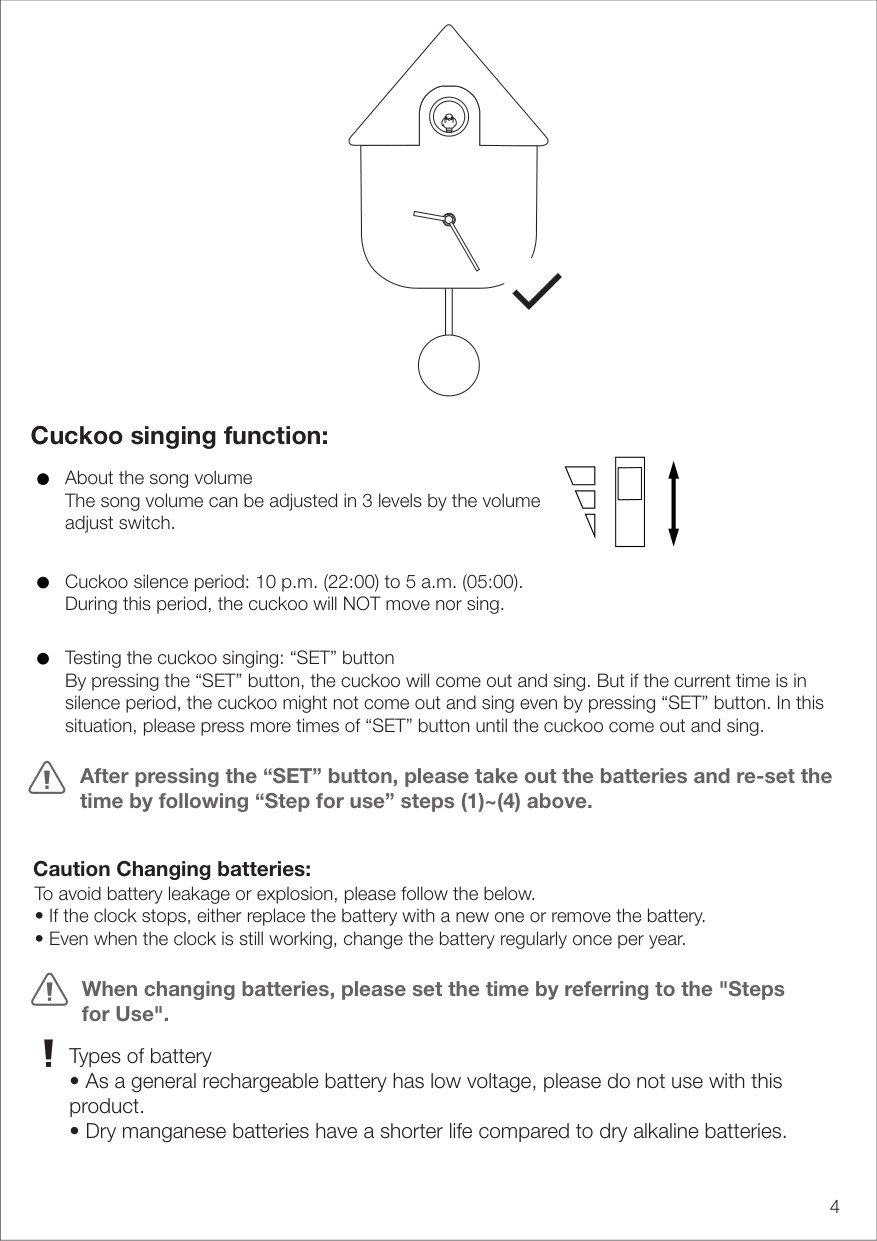

| |Cuckoo singing function:
About the song volume The song volume can be adjusted in 3 levels by the volume adjust switch.
After pressing the “SET” button, please take out the batteries and re-set the time by following “Step for use” steps (1)~(4) above.
Cuckoo silence period: 10 p.m. (22:00) to 5 a.m. (05:00). During this period, the cuckoo will NOT move nor sing.
Testing the cuckoo singing: “SET” button By pressing the “SET” button, the cuckoo will come out and sing. But if the current time is in silence period, the cuckoo might not come out and sing even by pressing “SET” button. In this situation, please press more times of “SET” button until the cuckoo come out and sing.
Caution Changing batteries:
When changing batteries, please set the time by referring to the "Steps for Use".
To avoid battery leakage or explosion, please follow the below.
• If the clock stops, either replace the battery with a new one or remove the battery.
• Even when the clock is still working, change the battery regularly once per year. Types of battery
• As a general rechargeable battery has low voltage, please do not use with this product.
• Dry manganese batteries have a shorter life compared to dry alkaline batteries.
4| |---|---|

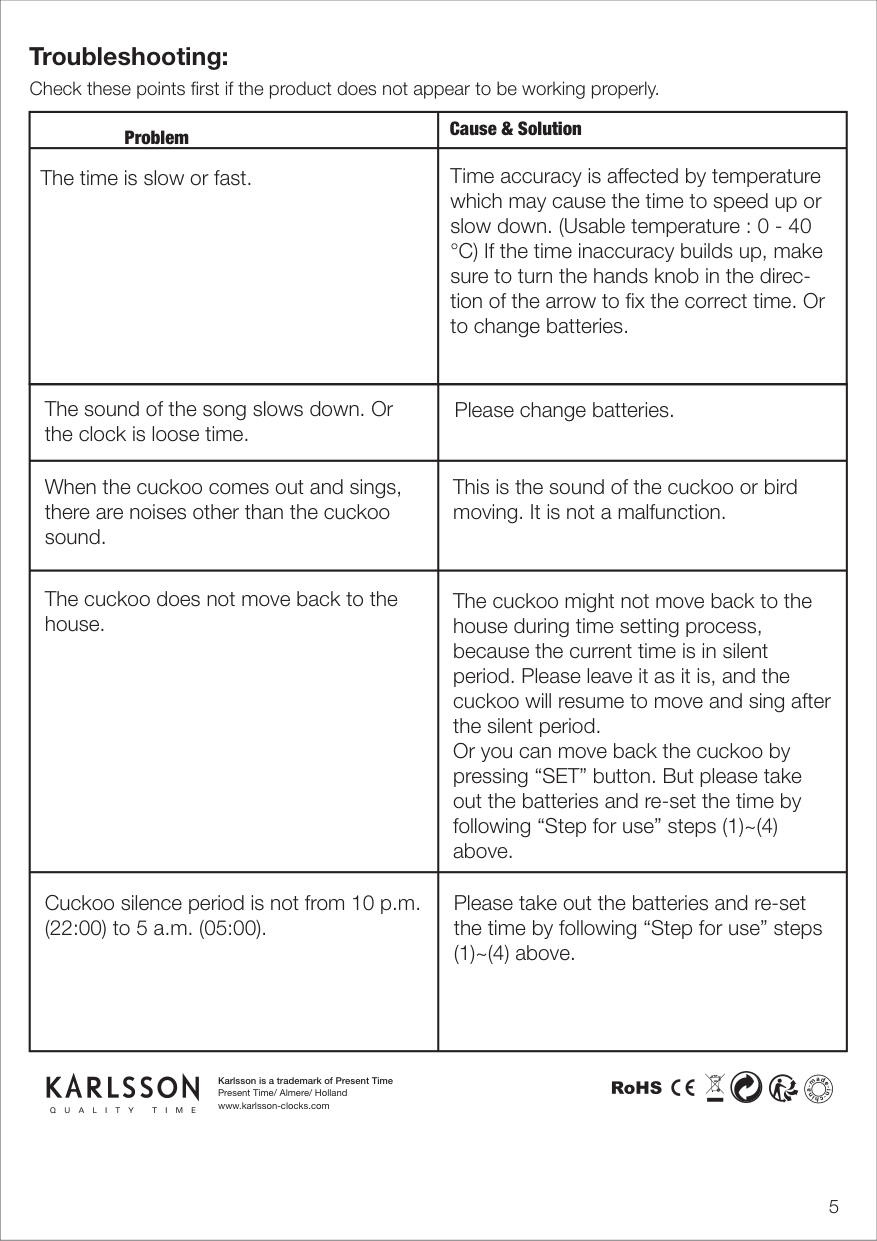

| |Troubleshooting: Check these points first if the product does not appear to be working properly.
|Problem|Cause & Solution| |---|---| |The time is slow or fast.|Time accuracy is affected by temperature which may cause the time to speed up or slow down. (Usable temperature : 0 - 40 °C) If the time inaccuracy builds up, make sure to turn the hands knob in the direction of the arrow to fix the correct time. Or to change batteries.| |The sound of the song slows down. Or the clock is loose time.|Please change batteries.| |When the cuckoo comes out and sings, there are noises other than the cuckoo sound.|This is the sound of the cuckoo or bird moving. It is not a malfunction.|
|The cuckoo does not move back to the house.|The cuckoo might not move back to the house during time setting process, because the current time is in silent period. Please leave it as it is, and the cuckoo will resume to move and sing after the silent period. Or you can move back the cuckoo by pressing “SET” button. But please take out the batteries and re-set the time by following “Step for use” steps (1)~(4) above.| |Cuckoo silence period is not from 10 p.m. (22:00) to 5 a.m. (05:00).|Please take out the batteries and re-set the time by following “Step for use” steps
(1)~(4) above.|
5
Karlsson is a trademark of Present Time Present Time/ Almere/ Holland www.karlsson-clocks.com
| |---|---|
