1

What is the warranty period and what does it cover?

The charger comes with a full 12-month warranty from the date of purchase against all manufacturing defects. The warranty covers defects in design or manufacture that cause the product to fail to perform as described, with the company choosing to either repair or replace the product at their discretion. The warranty does not cover damage from improper use, faulty installation, or modification made during installation. (Page 8)

2

What does the red Fault LED flashing with no other LEDs on mean?

If only the Fault LED is quick flashing and all other LEDs are off, this indicates an over-temperature condition. You should let the unit cool down for some time or improve ventilation around the unit. A minimum air gap of 150mm around the unit is required. (Page 4)

3

What does it mean when the Fault LED and Solar LED are both quick flashing?

If both the Solar (Green) and Fault (Red) LEDs are quick flashing simultaneously with no other LEDs active, this indicates high voltage has been detected at the solar input. You should check the solar input voltage to resolve this issue. (Page 4)

4

How should the temperature sensor be connected?

The temperature sensor (thin black wire) should be connected to the negative terminal of the auxiliary battery for the best and most accurate temperature reading. If the sensor cannot reach the terminal, it can be affixed to the battery case itself using a small amount of removable adhesive. (Page 6)

5

What happens when LiFePO4 battery mode is selected?

When LiFePO4 battery setting is selected, the charger automatically activates a lithium 'wake' feature, sending out a pulse of power every minute. If a battery is detected, charging will continue; if no battery or a short circuit is detected, the charger will switch to standby mode. (Page 7)

6

What battery types are compatible with the Kings DCDC25A charger?

The charger is compatible with Lead Acid, AGM, Calcium, LiFePO4, and GEL battery types. For the 25A model, the recommended battery capacity is 60–250 Ah. For other Lithium-Ion batteries not listed, you should refer to the 'Charging Voltage Limits' section to confirm if the charging voltage is applicable. (Page 2)

Show 12 more questions

Full Manual

8 pages
Page 1

User Manual

Sku: Akep-Dcdc25A_01 & Akep-Dcdc40A_01

Dcdc Battery Charger

Please Read And Understand This Manual

Completely Before Using This Product.

Page 2

2

V1.15

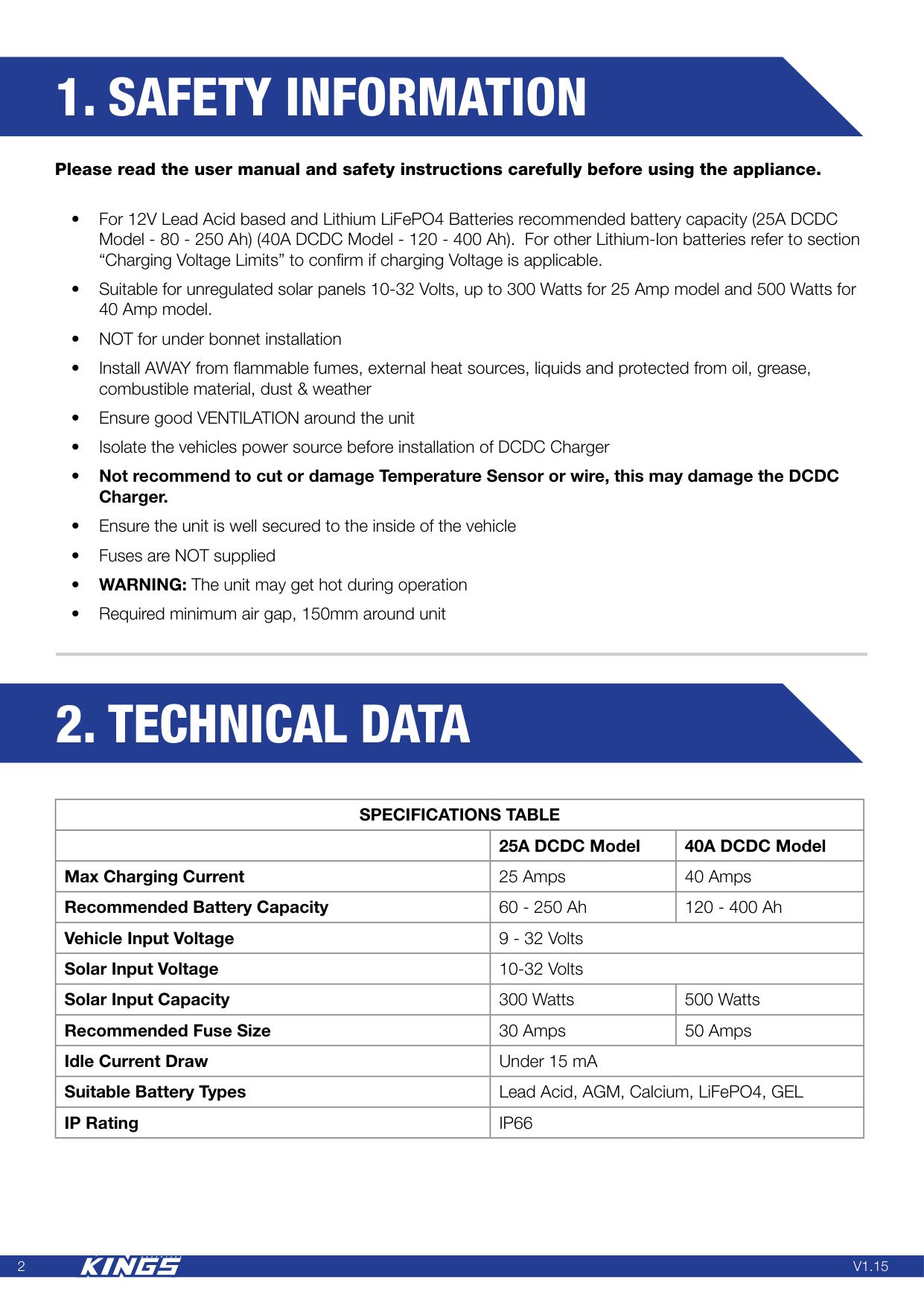

2. Technical Data

1. Safety Information

Please read the user manual and safety instructions carefully before using the appliance. • For 12V Lead Acid based and Lithium LiFePO4 Batteries recommended battery capacity (25A DCDC Model - 80 - 250 Ah) (40A DCDC Model - 120 - 400 Ah). For other Lithium-Ion batteries refer to section “Charging Voltage Limits” to confirm if charging Voltage is applicable. • Suitable for unregulated solar panels 10-32 Volts, up to 300 Watts for 25 Amp model and 500 Watts for 40 Amp model. • NOT for under bonnet installation • Install AWAY from flammable fumes, external heat sources, liquids and protected from oil, grease, combustible material, dust & weather • Ensure good VENTILATION around the unit • Isolate the vehicles power source before installation of DCDC Charger • Not recommend to cut or damage Temperature Sensor or wire, this may damage the DCDC Charger. • Ensure the unit is well secured to the inside of the vehicle • Fuses are NOT supplied • WARNING: The unit may get hot during operation • Required minimum air gap, 150mm around unit

Specifications Table

25A DCDC Model 40A DCDC Model Max Charging Current 25 Amps 40 Amps Recommended Battery Capacity 60 - 250 Ah 120 - 400 Ah Vehicle Input Voltage 9 - 32 Volts Solar Input Voltage 10-32 Volts Solar Input Capacity 300 Watts 500 Watts Recommended Fuse Size 30 Amps 50 Amps Idle Current Draw Under 15 mA Suitable Battery Types Lead Acid, AGM, Calcium, LiFePO4, GEL IP Rating

Ip66

Page 3

3

V1.15

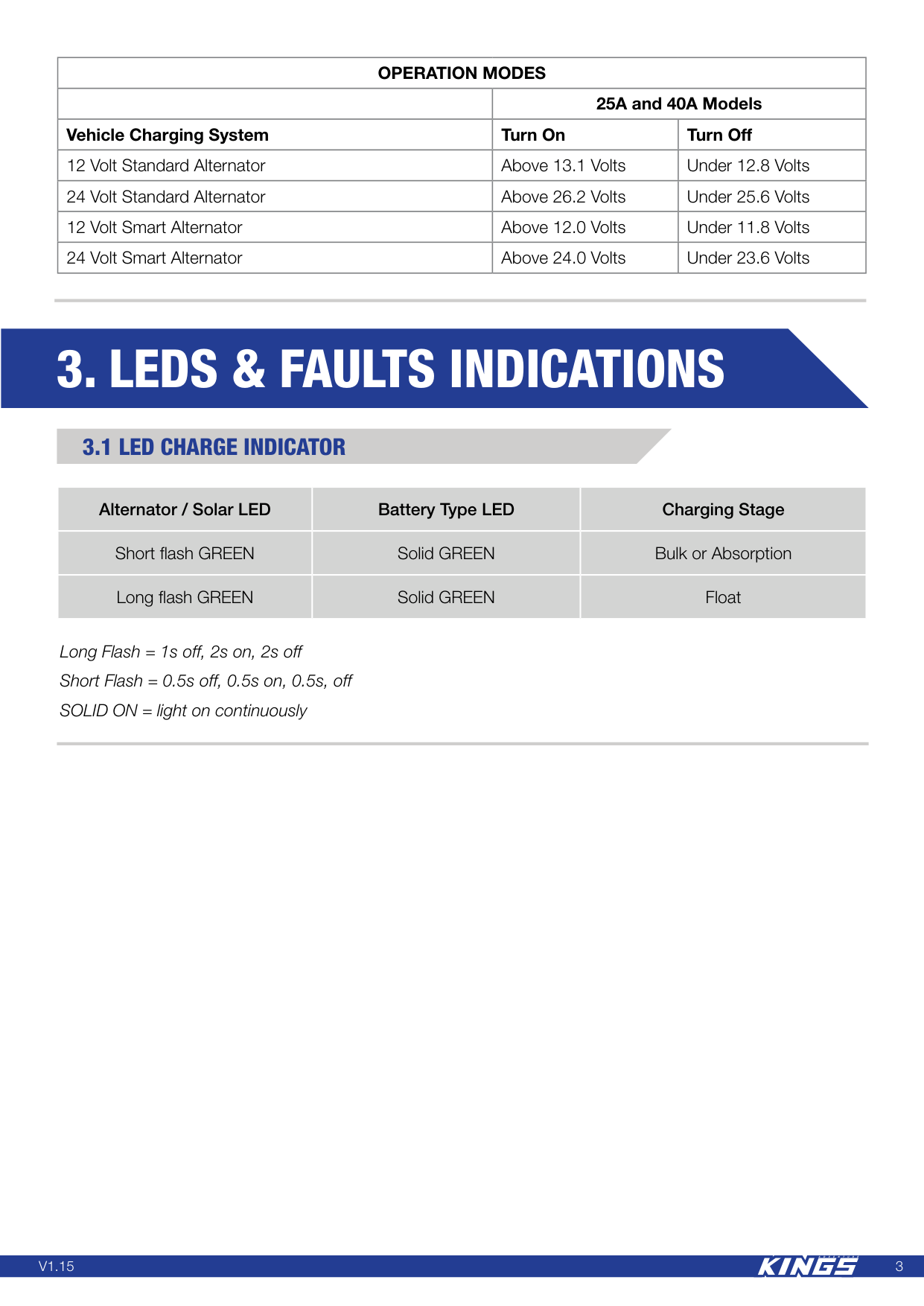

3. Leds & Faults Indications

3.1 Led Charge Indicator

Alternator / Solar LED Battery Type LED Charging Stage Short flash GREEN Solid GREEN Bulk or Absorption Long flash GREEN Solid GREEN Float

Operation Modes

25A and 40A Models Vehicle Charging System Turn On Turn Off 12 Volt Standard Alternator Above 13.1 Volts Under 12.8 Volts 24 Volt Standard Alternator Above 26.2 Volts Under 25.6 Volts 12 Volt Smart Alternator Above 12.0 Volts Under 11.8 Volts 24 Volt Smart Alternator Above 24.0 Volts Under 23.6 Volts Long Flash = 1s off, 2s on, 2s off Short Flash = 0.5s off, 0.5s on, 0.5s, off SOLID ON = light on continuously

Page 4

4

V1.15

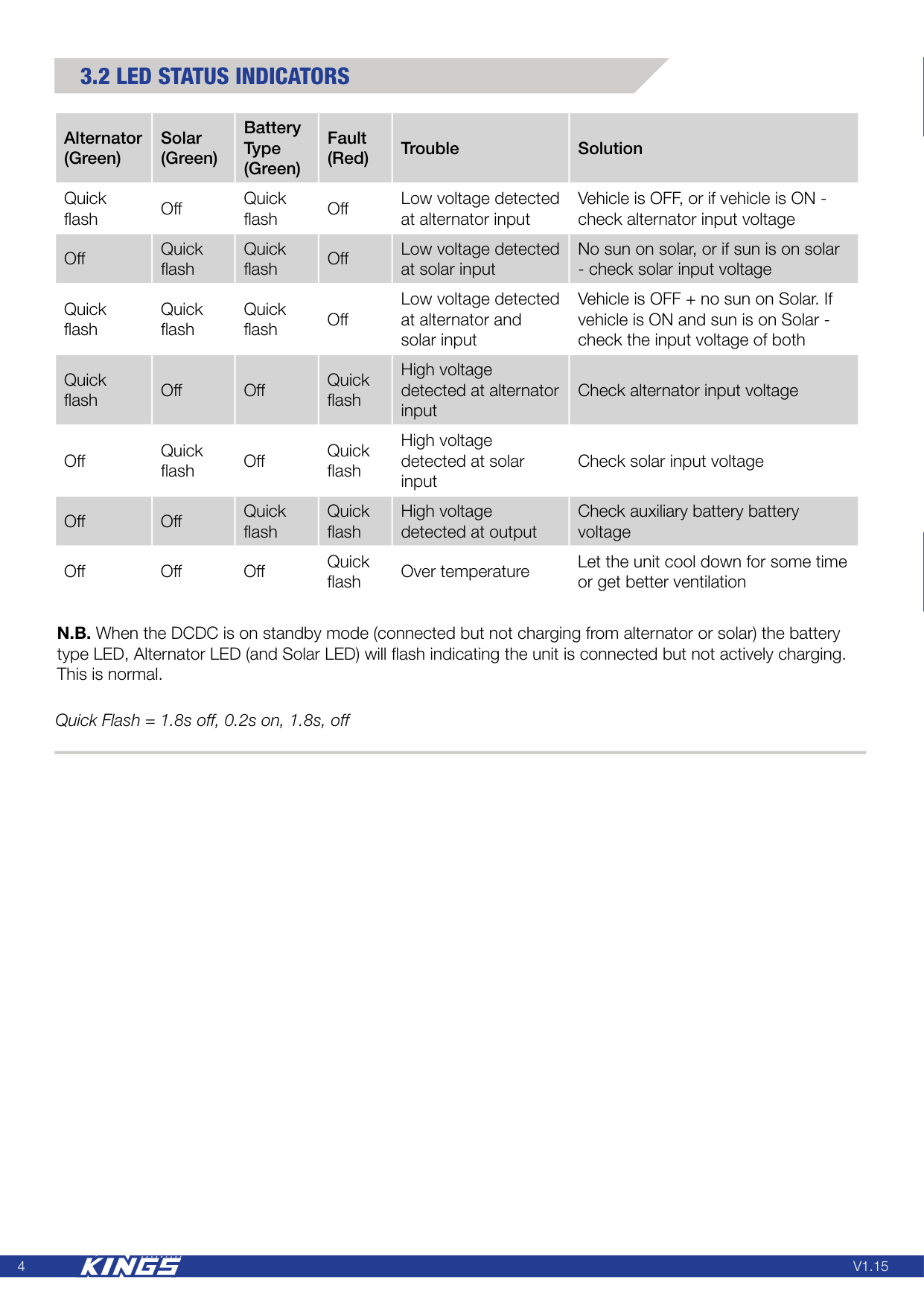

3.2 Led Status Indicators

Alternator (Green) Solar (Green) Battery Type (Green) Fault (Red) Trouble Solution Quick flash Off Quick flash Off Low voltage detected at alternator input Vehicle is OFF, or if vehicle is ON - check alternator input voltage Off Quick flash Quick flash Off Low voltage detected at solar input No sun on solar, or if sun is on solar
  • check solar input voltage
  • Quick flash Quick flash Quick flash Off Low voltage detected at alternator and solar input Vehicle is OFF + no sun on Solar. If vehicle is ON and sun is on Solar - check the input voltage of both Quick flash Off Off Quick flash High voltage detected at alternator input Check alternator input voltage Off Quick flash Off Quick flash High voltage detected at solar input Check solar input voltage Off Off Quick flash Quick flash High voltage detected at output Check auxiliary battery battery voltage Off Off Off Quick flash Over temperature Let the unit cool down for some time or get better ventilation Quick Flash = 1.8s off, 0.2s on, 1.8s, off N.B. When the DCDC is on standby mode (connected but not charging from alternator or solar) the battery type LED, Alternator LED (and Solar LED) will flash indicating the unit is connected but not actively charging. This is normal.

    Page 5

    5

    V1.15

    Cables

    Battery Type

    Charging Voltage

    At 25°C

    Float Voltage

    At 25°C

    Std (Wet Lead Acid)

    14.4V

    13.4V

    Gel

    14.1V

    13.5V

    Agm

    14.7V

    13.4V

    Calcium

    15.3V

    13.6V

    Lithium (Lifepo4)

    14.5V

    13.6V

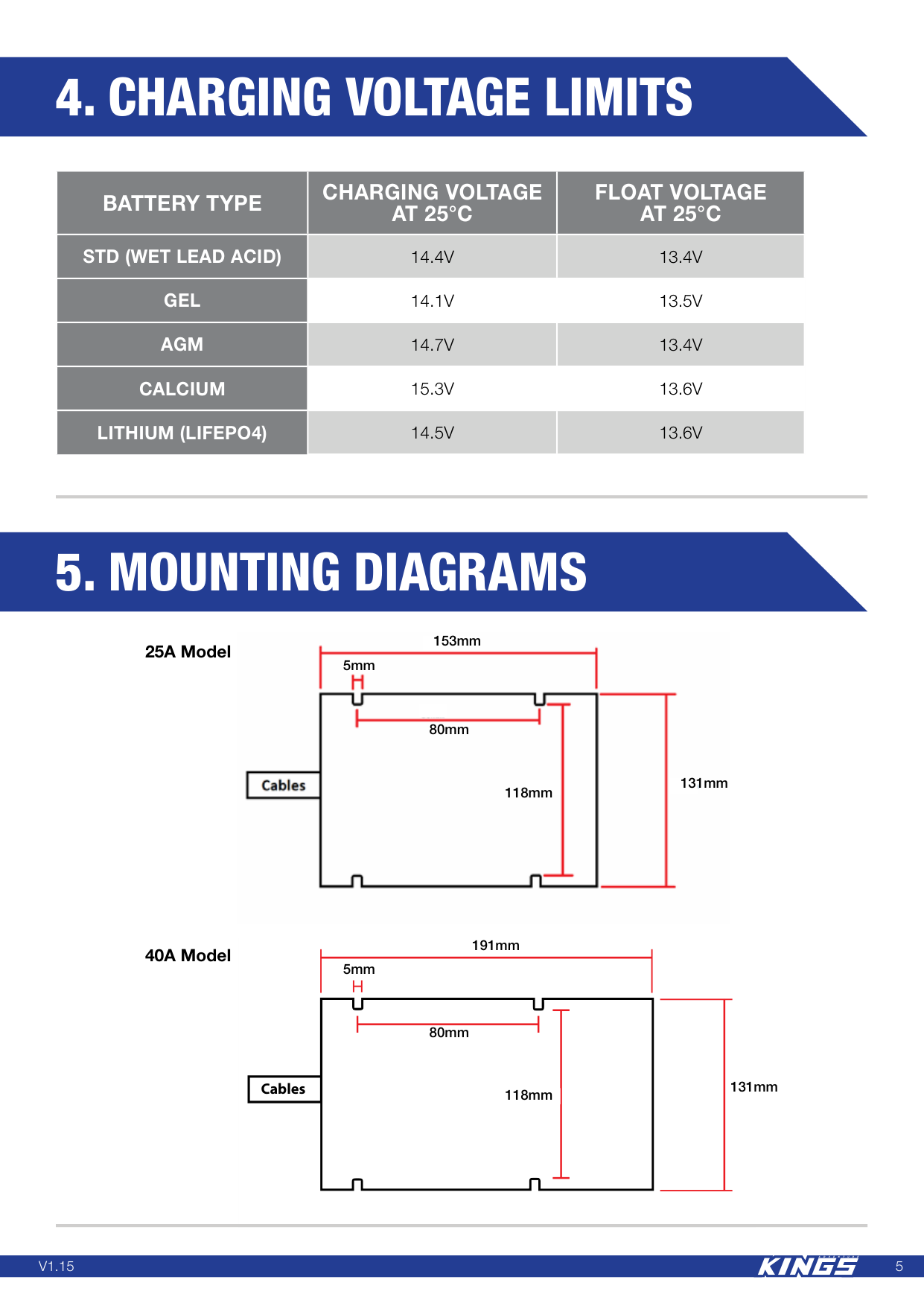

    4. Charging Voltage Limits

    5. Mounting Diagrams

    25A Model 40A Model 131mm 191mm 118mm 5mm 80mm 131mm 153mm 118mm 5mm 80mm

    Page 6

    6

    V1.15

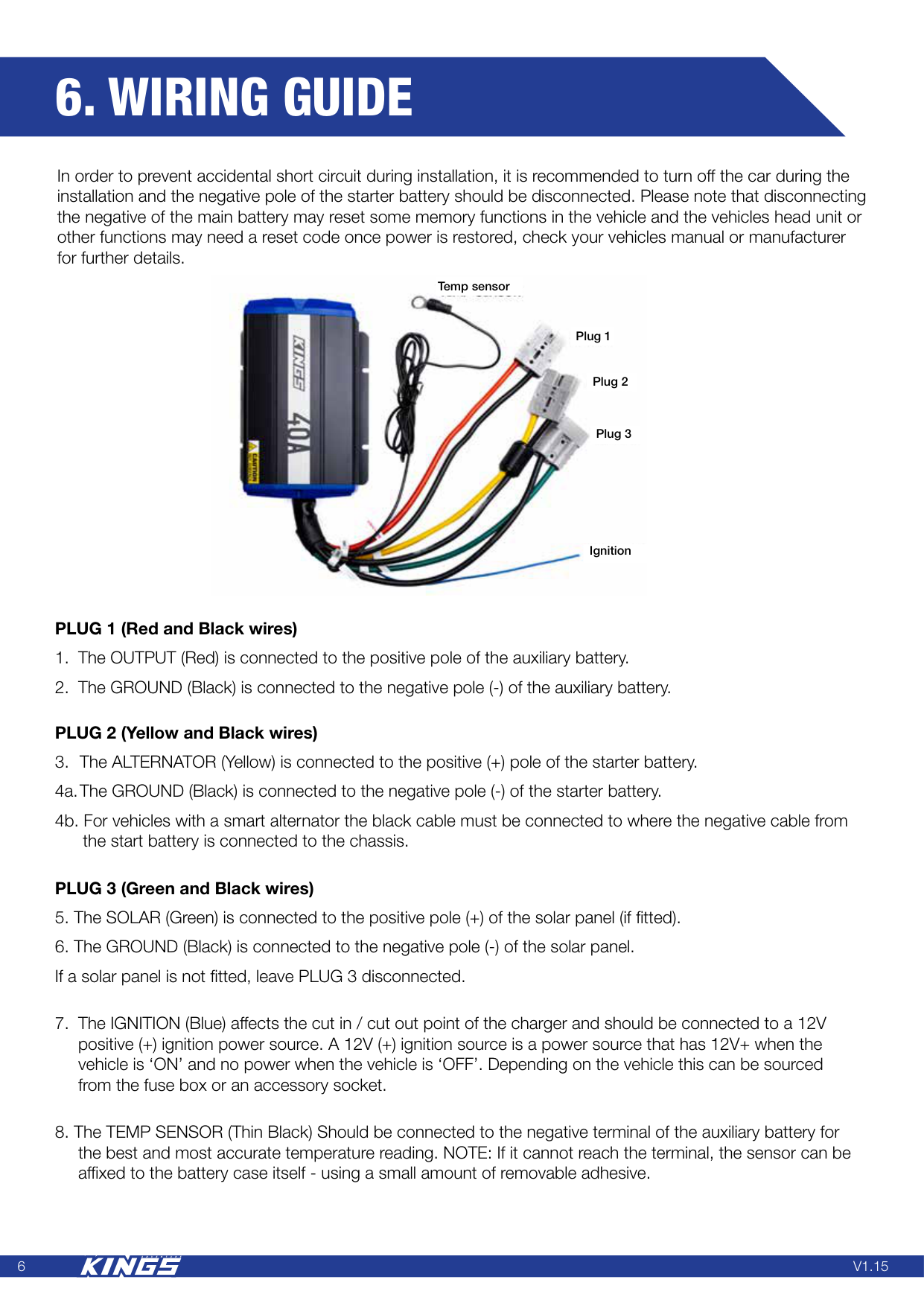

    6. Wiring Guide

    Temp sensor Plug 2 Plug 3 Ignition Plug 1 PLUG 1 (Red and Black wires)
  • The OUTPUT (Red) is connected to the positive pole of the auxiliary battery.
  • The GROUND (Black) is connected to the negative pole (-) of the auxiliary battery.
  • PLUG 2 (Yellow and Black wires)
  • The ALTERNATOR (Yellow) is connected to the positive (+) pole of the starter battery.
  • 4a. The GROUND (Black) is connected to the negative pole (-) of the starter battery. 4b. For vehicles with a smart alternator the black cable must be connected to where the negative cable from the start battery is connected to the chassis. PLUG 3 (Green and Black wires)
  • The SOLAR (Green) is connected to the positive pole (+) of the solar panel (if fitted).
  • The GROUND (Black) is connected to the negative pole (-) of the solar panel.
  • If a solar panel is not fitted, leave PLUG 3 disconnected.
  • The IGNITION (Blue) affects the cut in / cut out point of the charger and should be connected to a 12V
  • positive (+) ignition power source. A 12V (+) ignition source is a power source that has 12V+ when the vehicle is ‘ON’ and no power when the vehicle is ‘OFF’. Depending on the vehicle this can be sourced from the fuse box or an accessory socket.
  • The TEMP SENSOR (Thin Black) Should be connected to the negative terminal of the auxiliary battery for
  • the best and most accurate temperature reading. NOTE: If it cannot reach the terminal, the sensor can be affixed to the battery case itself - using a small amount of removable adhesive. In order to prevent accidental short circuit during installation, it is recommended to turn off the car during the installation and the negative pole of the starter battery should be disconnected. Please note that disconnecting the negative of the main battery may reset some memory functions in the vehicle and the vehicles head unit or other functions may need a reset code once power is restored, check your vehicles manual or manufacturer for further details.

    Page 7

    7

    V1.15

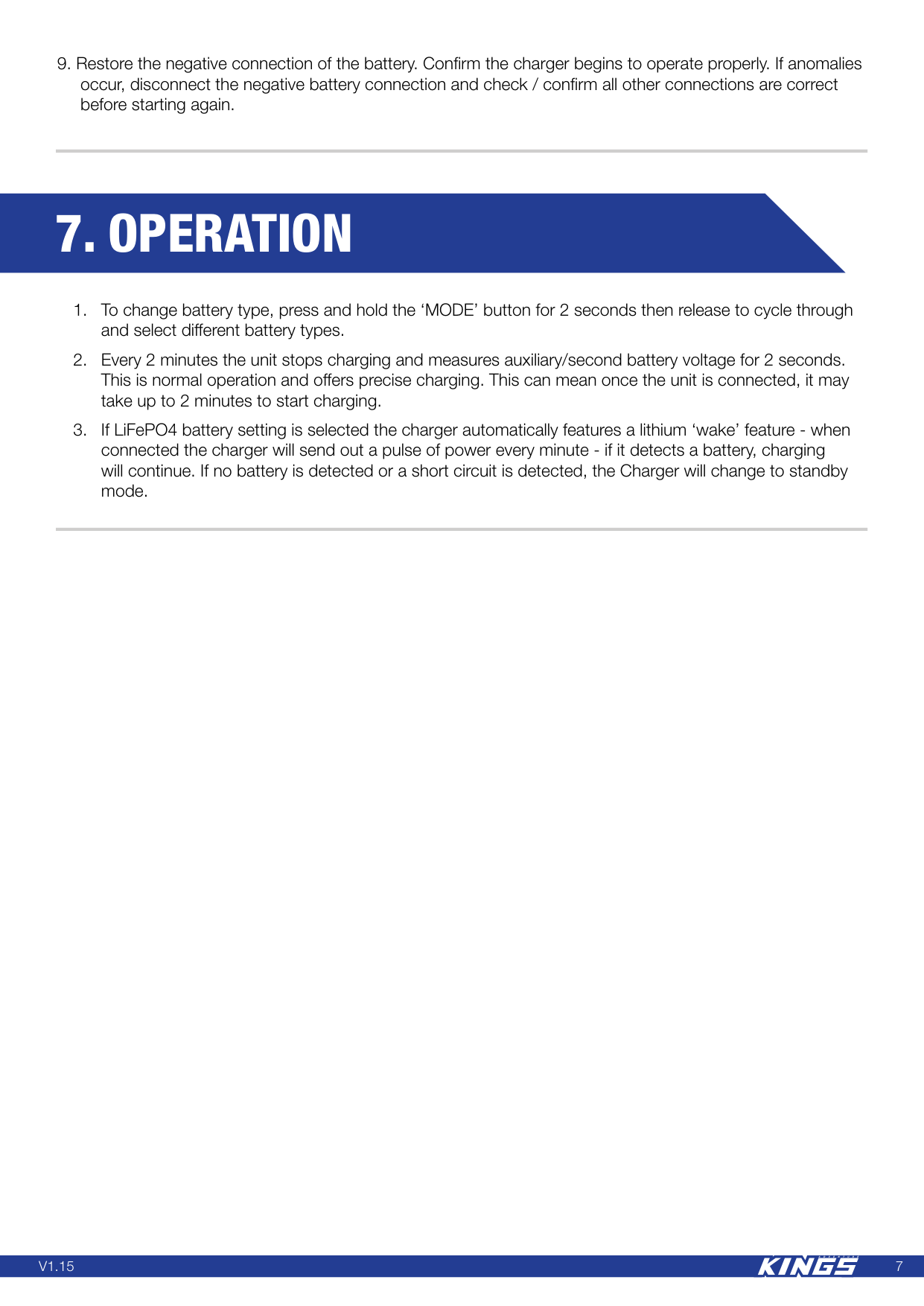

    7. Operation

  • To change battery type, press and hold the ‘MODE’ button for 2 seconds then release to cycle through
  • and select different battery types.
  • Every 2 minutes the unit stops charging and measures auxiliary/second battery voltage for 2 seconds.
  • This is normal operation and offers precise charging. This can mean once the unit is connected, it may take up to 2 minutes to start charging.
  • If LiFePO4 battery setting is selected the charger automatically features a lithium ‘wake’ feature - when
  • connected the charger will send out a pulse of power every minute - if it detects a battery, charging will continue. If no battery is detected or a short circuit is detected, the Charger will change to standby mode.
  • Restore the negative connection of the battery. Confirm the charger begins to operate properly. If anomalies
  • occur, disconnect the negative battery connection and check / confirm all other connections are correct before starting again.

    Page 8

    8

    V1.15

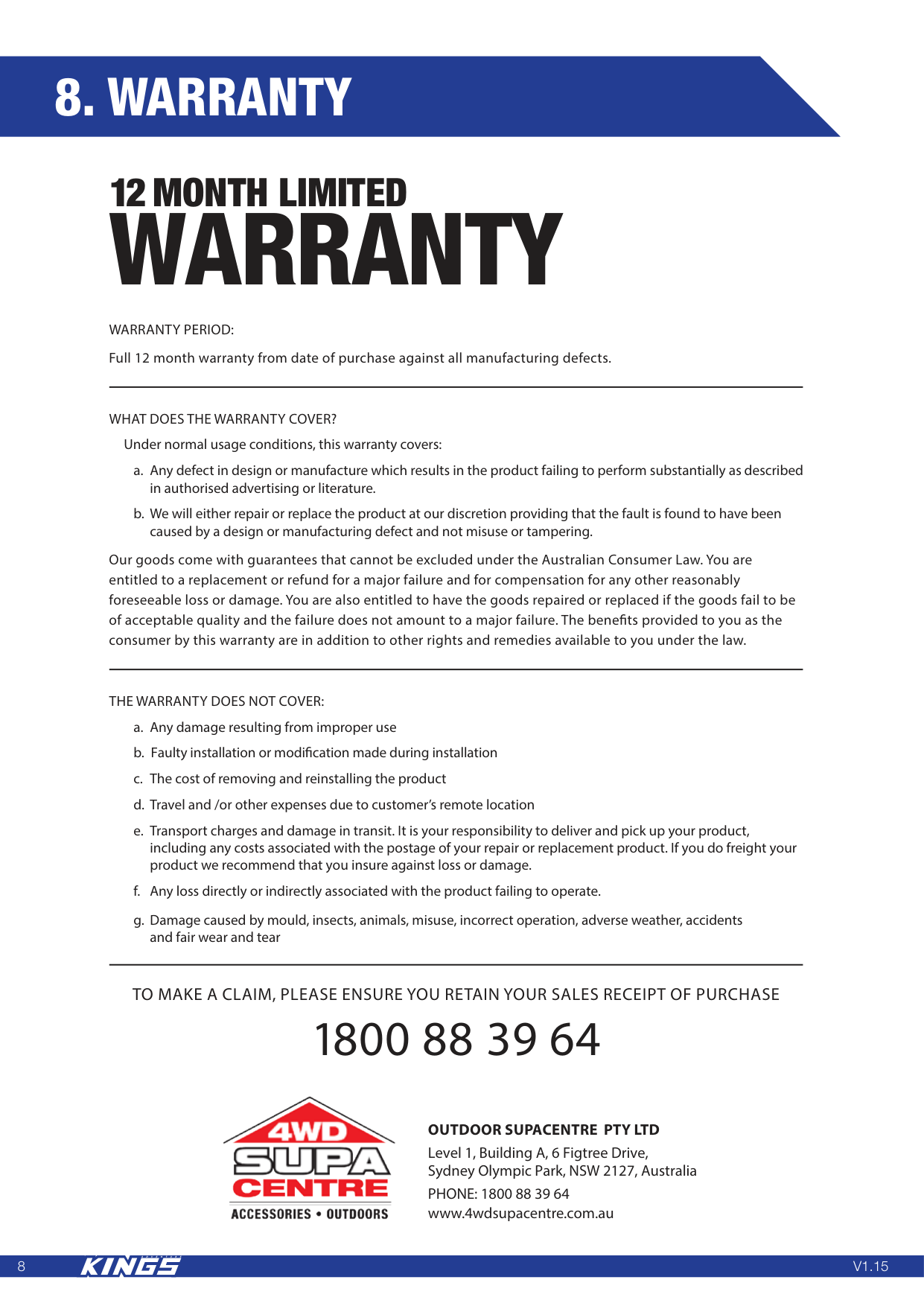

    8. Warranty

    Warranty Period:

    Full 12 month warranty from date of purchase against all manufacturing defects.

    What Does The Warranty Cover?

    Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature. b. We will either repair or replace the product at our discretion providing that the fault is found to have been caused by a design or manufacturing defect and not misuse or tampering. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits provided to you as the consumer by this warranty are in addition to other rights and remedies available to you under the law.

    The Warranty Does Not Cover:

    a. Any damage resulting from improper use b. c. The cost of removing and reinstalling the product d. Travel and /or other expenses due to customer’s remote location e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product, including any costs associated with the postage of your repair or replacement product. If you do freight your product we recommend that you insure against loss or damage. f. Any loss directly or indirectly associated with the product failing to operate. g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents and fair wear and tear

    To Make A Claim, Please Ensure You Retain Your Sales Receipt Of Purchase

    1800 88 39 64

    12 Month Limited

    Warranty

    Outdoor Supacentre Pty Ltd

    Level 1, Building A, 6 Figtree Drive, Sydney Olympic Park, NSW 2127, Australia

    Phone: 1800 88 39 64

    www.4wdsupacentre.com.au Faulty installation or modification made during installation
