Full Manual
4 pages
Processes Stick (SMAW) Air Carbon Arc (CAC-A) Cutting and Gouging Light Industrial Applications Production Line Work Plant Maintenance Garage/Job Shops Fabrication Vocational School Training Stick Welding Power Source Issued May 2015 • Index No. AD/2.1 Single-dial current control simplifies weld adjustment. Infinite current control allows precise weld output adjustment; you always get the exact heat you need to produce a better weld. High and low ranges for both AC and DC allow greater control of weld performance for changes in welding conditions. Fully varnished magnetic amplifier technology provides lower maintenance, and outstanding product reliability with fewer moving parts. Forced-draft cooling fan ensures a cooler running product, extending the life of the power source. Power source is warranted for 3 years, parts and labor. Original main power rectified parts are warranted for 5 years. Input Power 1-Phase Power Rated Output AC: 225 A at 29 V, 30% Duty Cycle DC: 175 A at 27 V, 50% Duty Cycle Max. Open-Circuit Voltage AC: 70 DC: 79 Miller Electric Mfg. Co. An ITW Welding Company 1635 West Spencer Street P.O. Box 1079 Appleton, WI 54912-1079 USA MillerWelds.com Equipment Sales US and Canada Phone: 866-931-9730
Fax: 800-637-2315
International Phone: 920-735-4554 International FAX: 920-735-4125 Dialarc®250 Ac/Dc
Quick Specs Superior 6010 and 7018 Stick welding performance offers a wide range of electrode versatility; welds difficult-to-weld metals. High output and duty cycle allows unit to handle nearly all of your Stick welding needs. Industrial, weld output terminal cover. Power factor correction is available for lower primary power demand. Optional remote weld output control provides current control without going back to the power source saving time and effort.

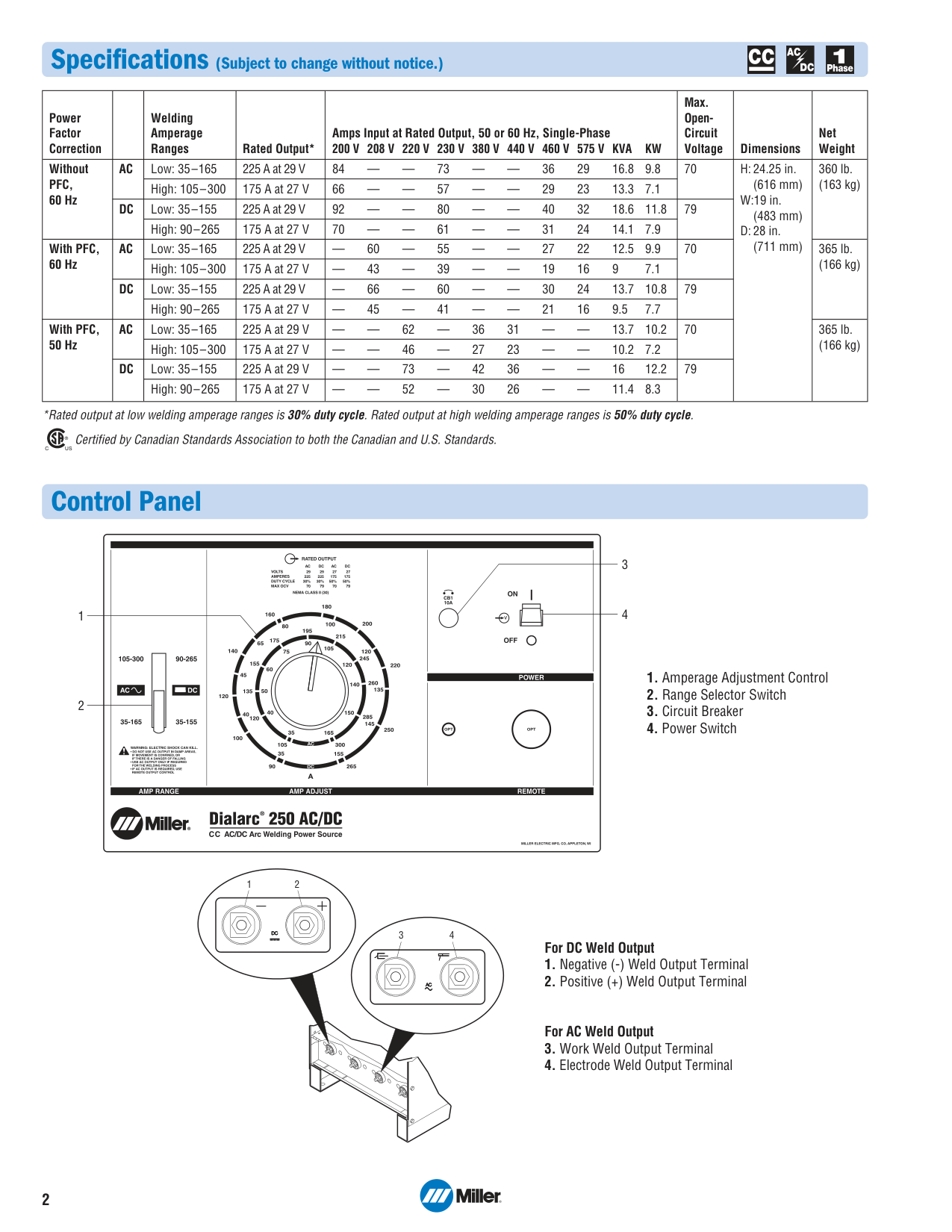

1 2 3 4 1 2 4 3 29 29 27 27 225 225 175 175 2 Control Panel Specifications (Subject to change without notice.)
Pfc,
60 Hz With PFC, 60 Hz With PFC, 50 Hz Welding Amperage Ranges Low: 35–165 High: 105–300 Low: 35–155 High: 90–265 Low: 35–165 High: 105–300 Low: 35–155 High: 90–265 Low: 35–165 High: 105–300 Low: 35–155 High: 90–265 Max. Open- Circuit Voltage 70 79 70 79 70 79Ac
Dc
Ac
Dc
Ac
Dc
Rated Output* 225 A at 29 V 175 A at 27 V 225 A at 29 V 175 A at 27 V 225 A at 29 V 175 A at 27 V 225 A at 29 V 175 A at 27 V 225 A at 29 V 175 A at 27 V 225 A at 29 V 175 A at 27 V Net Weight 360 lb. (163 kg) 365 lb. (166 kg) 365 lb. (166 kg) Amps Input at Rated Output, 50 or 60 Hz, Single-Phase200 V 208 V 220 V 230 V 380 V 440 V 460 V 575 V Kva Kw
84 — — 73 — — 36 29 16.8 9.8 66 — — 57 — — 29 23 13.3 7.1 92 — — 80 — — 40 32 18.6 11.8 70 — — 61 — — 31 24 14.1 7.9 — 60 — 55 — — 27 22 12.5 9.9 — 43 — 39 — — 19 16 9 7.1 — 66 — 60 — — 30 24 13.7 10.8 — 45 — 41 — — 21 16 9.5 7.7 — — 62 — 36 31 — — 13.7 10.2 — — 46 — 27 23 — — 10.2 7.2 — — 73 — 42 36 — — 16 12.2 — — 52 — 30 26 — — 11.4 8.3 Dimensions H: 24.25 in. (616 mm) W:19 in. (483 mm) D: 28 in. (711 mm) *Rated output at low welding amperage ranges is 30% duty cycle. Rated output at high welding amperage ranges is 50% duty cycle. Certified by Canadian Standards Association to both the Canadian and U.S. Standards.

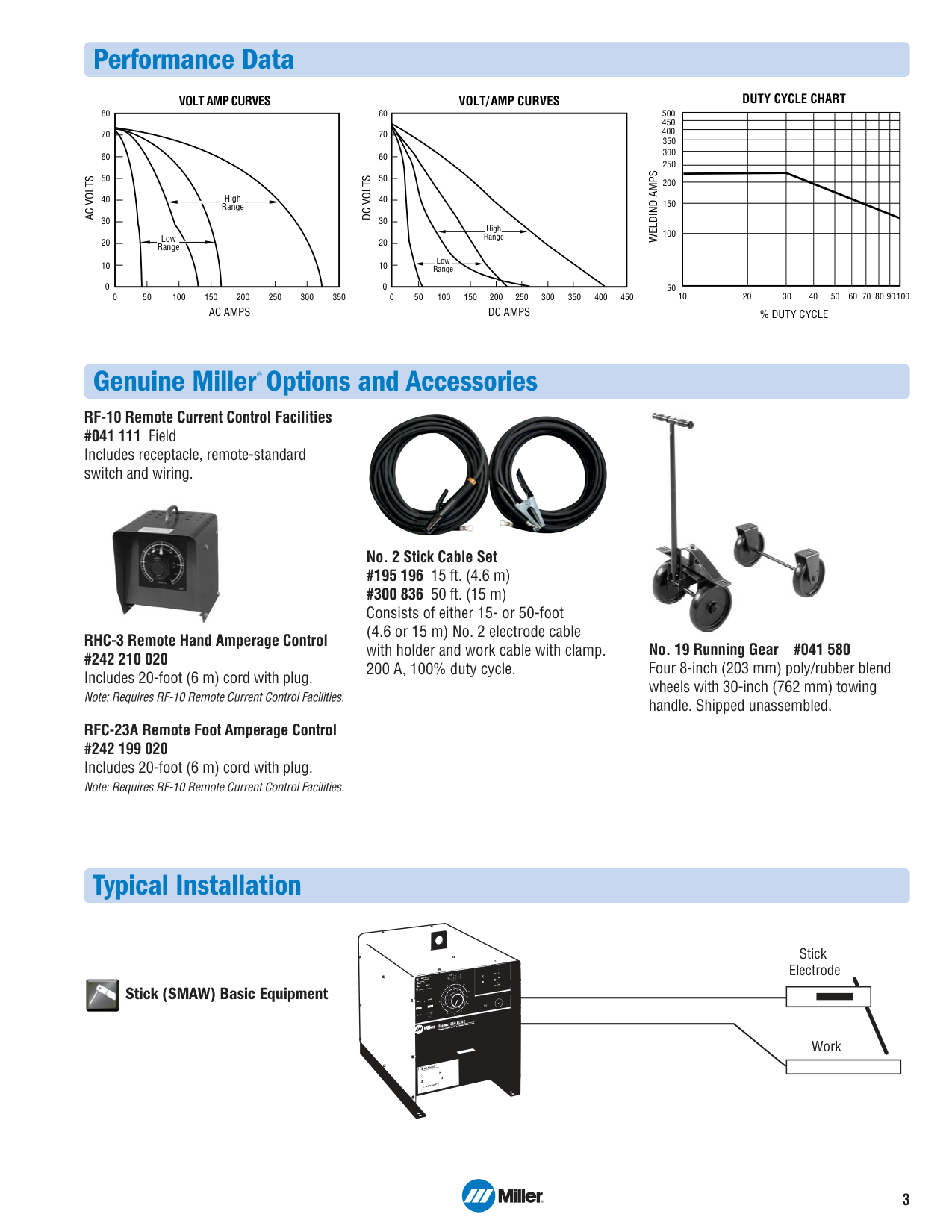

3 Genuine Miller ®Options and Accessories RF-10 Remote Current Control Facilities #041 111 Field Includes receptacle, remote-standard switch and wiring. RHC-3 Remote Hand Amperage Control #242 210 020 Includes 20-foot (6 m) cord with plug. Note: Requires RF-10 Remote Current Control Facilities. RFC-23A Remote Foot Amperage Control #242 199 020 Includes 20-foot (6 m) cord with plug. Note: Requires RF-10 Remote Current Control Facilities. No. 2 Stick Cable Set #195 196 15 ft. (4.6 m) #300 836 50 ft. (15 m) Consists of either 15- or 50-foot (4.6 or 15 m) No. 2 elec trode cable with holder and work cable with clamp. 200 A, 100% duty cycle. No. 19 Running Gear #041 580 Four 8-inch (203 mm) poly/rubber blend wheels with 30-inch (762 mm) towing handle. Shipped unassembled. 10 20 30 40 0 0 100 50 150 300 350 50 60 70 80 200 250 Low Range High Range
Ac Amps
Ac Volts
Volt Amp Curves
50 40 30 20 10 60 70 80 90100 450 500 250 200 150 100 50 300 350 400% Duty Cycle
Weldind Amps
Duty Cycle Chart
10 20 30 40 0 0 100 50 150 300 350 50 60 70 80 200 250 400 450Dc Amps
Dc Volts
Volt/Amp Curves
Low Range High Range Performance Data Typical Installation Work Stick Electrode Stick (SMAW) Basic Equipment

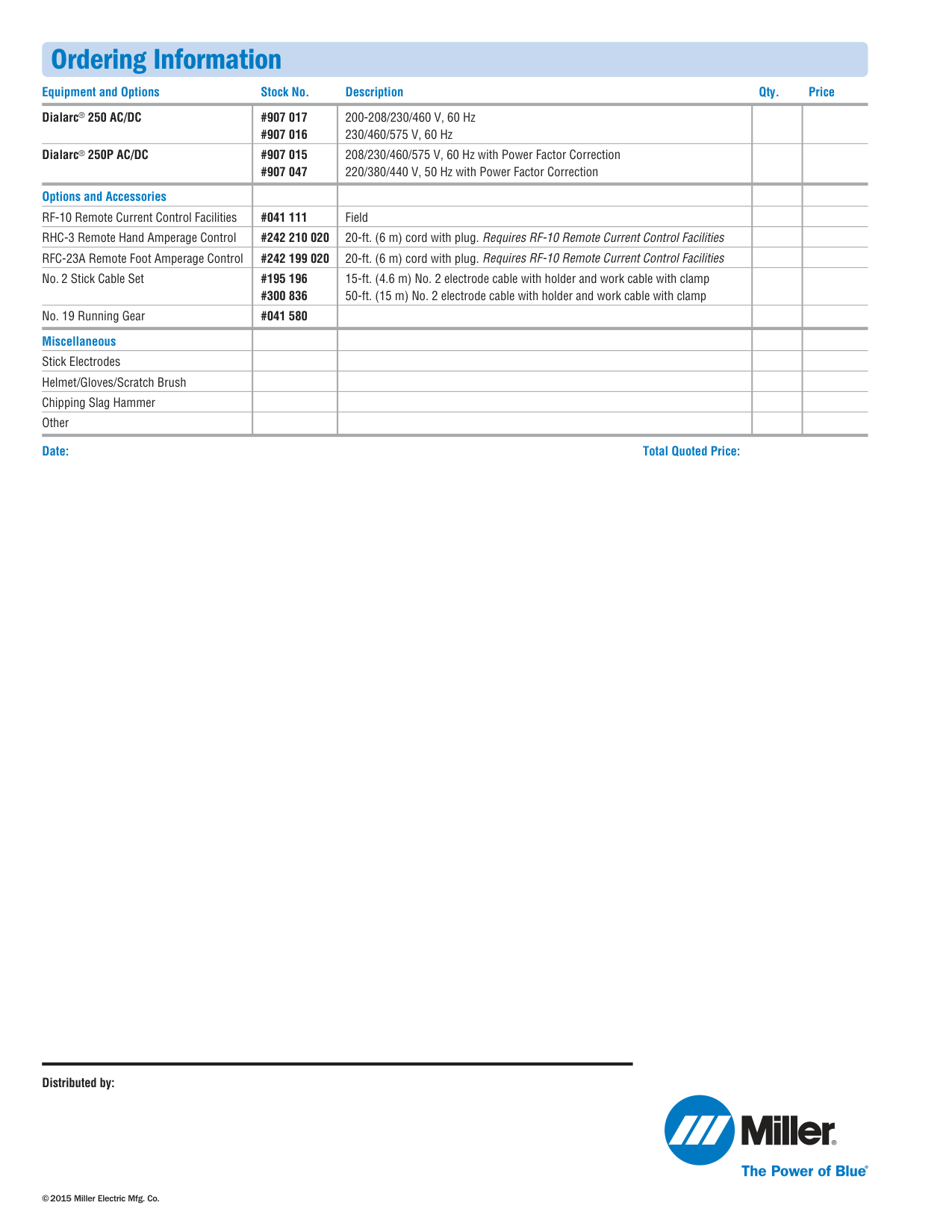

Ordering Information Equipment and Options Stock No. Description Qty. Price Dialarc® 250 AC/DC #907 017 200-208/230/460 V, 60 Hz #907 016 230/460/575 V, 60 Hz Dialarc® 250P AC/DC #907 015 208/230/460/575 V, 60 Hz with Power Factor Correction #907 047 220/380/440 V, 50 Hz with Power Factor Correction Options and Accessories RF-10 Remote Current Control Facilities #041 111 Field RHC-3 Remote Hand Amperage Control #242 210 020 20-ft. (6 m) cord with plug. Requires RF-10 Remote Current Control Facilities RFC-23A Remote Foot Amperage Control #242 199 020 20-ft. (6 m) cord with plug. Requires RF-10 Remote Current Control Facilities No. 2 Stick Cable Set #195 196 15-ft. (4.6 m) No. 2 electrode cable with holder and work cable with clamp #300 836 50-ft. (15 m) No. 2 electrode cable with holder and work cable with clamp No. 19 Running Gear #041 580 Miscellaneous Stick Electrodes Helmet/Gloves/Scratch Brush Chipping Slag Hammer Other Date: Total Quoted Price: © 2015 Miller Electric Mfg. Co. Distributed by:
