How do I charge my batteries with the ProSport charger?

Plug in your heavily duty U.L. approved extension cord to the ProSport charger first, then plug it into a nearby 120VAC GFCI protected outlet. Observe both green (AC Power) and red (Charging) LEDs as they indicate charging is occurring. The system will automatically manage charging and maintenance modes (Page 9).

How do I perform periodic maintenance on the ProSport charger?

Monthly clean and tighten battery connections, check electrolyte levels per manufacturer instructions for each battery, visually inspect all wiring for cuts or abrasions (replace if needed), and verify AC power cord and mounting hardware integrity. Refer to page 11.

What is the function of the LED indicators on the ProSport charger?

The green LED indicates AC Power presence, while the red LED shows that batteries are in Multi-Stage Charging mode. Once charging is complete and maintenance mode begins, only the green LED remains on (Page 9).

Where should I mount my ProSport charger for optimal performance?

Mount horizontally with extruded fins up or vertically with cables down. Ensure at least 8 inches of clear, unobstructed space around the charger and accessible LED indicators (Page 7).

How do I set the ProSport charger for Gel Batteries?

Set it to gel batteries by cutting a jumper near cables on one-time Gel Battery Selector. Fill dimpled area with marine silicon sealant after adjustment (Page 9).

What safety precautions should I take before charging my batteries?

Ensure proper ventilation and open battery compartments for at least 15 minutes. Tighten all connections, clean terminal posts with a wire brush until shiny. Follow battery manufacturer’s instructions regarding caps (Page 7).

Show 4 more questions

How do I fix if no LEDs are showing when using my ProSport charger?

How do I reset the ProSport charger if it encounters an error?

How do I read battery levels using the Optional Battery Bank Status Monitor?

What is the maintenance mode on ProSport chargers?

Full Manual

11 pages

Page 1

ProMariner

###### Visit ProMariner Online at www.pmariner.com, for a Complete Selection of Quality Marine Products...

Here are just a few: Recreational Grade ProSport Waterproof Marine Battery Chargers Professional Grade ProTournament Waterproof Marine Battery Chargers Advanced 4 Step Dry Mount Marine Battery Chargers Battery Maintainers AC Plug Holders Battery Isolators Pro Inverters DC to DC Converters Advanced Regulators Corrosion Control Products Waterproof Marine Binoculars Marine CCTV Color Camera Equipment Gold Plated Fuses and Holders A complete selection of panel meters and shunts A complete line of hand held test meters

Visit frequently, we are always adding new products for your boating enjoyment!

Professional Mariner, LLC PO. Box 968 Rye, New Hampshire 03870 TEL: 603-433-4440 FAX: 603-433-4442 www.pmariner.com

ProMariner

ProSport Series

Owner's Manual and Installation Guide

![image 1](prosport_images/imageFile1.png)

##### Distributed-On-Demand Charging

######### Fully Automatic / Electronic Multi-Stage Marine Battery Chargers

Models Amperage No. Of Banks Volts ProSport Portable (maintainer) 1.5 Amps 1 Bank 12 ProSport On-Board (maintainer) 1.5 Amps 1 Bank 12 ProSport6 6 Amps 1 Banks 12 ProSport8 8 Amps 2 Banks 12/24 ProSport12 12 Amps 2 Banks 12/24 ProSport20 20 Amps 2 Banks 12/24 ProSport20 Plus 20 Amps 3 Banks 12/24/36

############ IMPORTANT NOTICE

Please save and read all safety, operating and installation instructions before installing or applying AC power to your ProMariner on-board battery charger.

For all product, installation or service questions call ProMariner directly at: 1-800-824-0524 8am to 5pm (Eastern Standard Time).

ProMariner

Notes

ProMariner

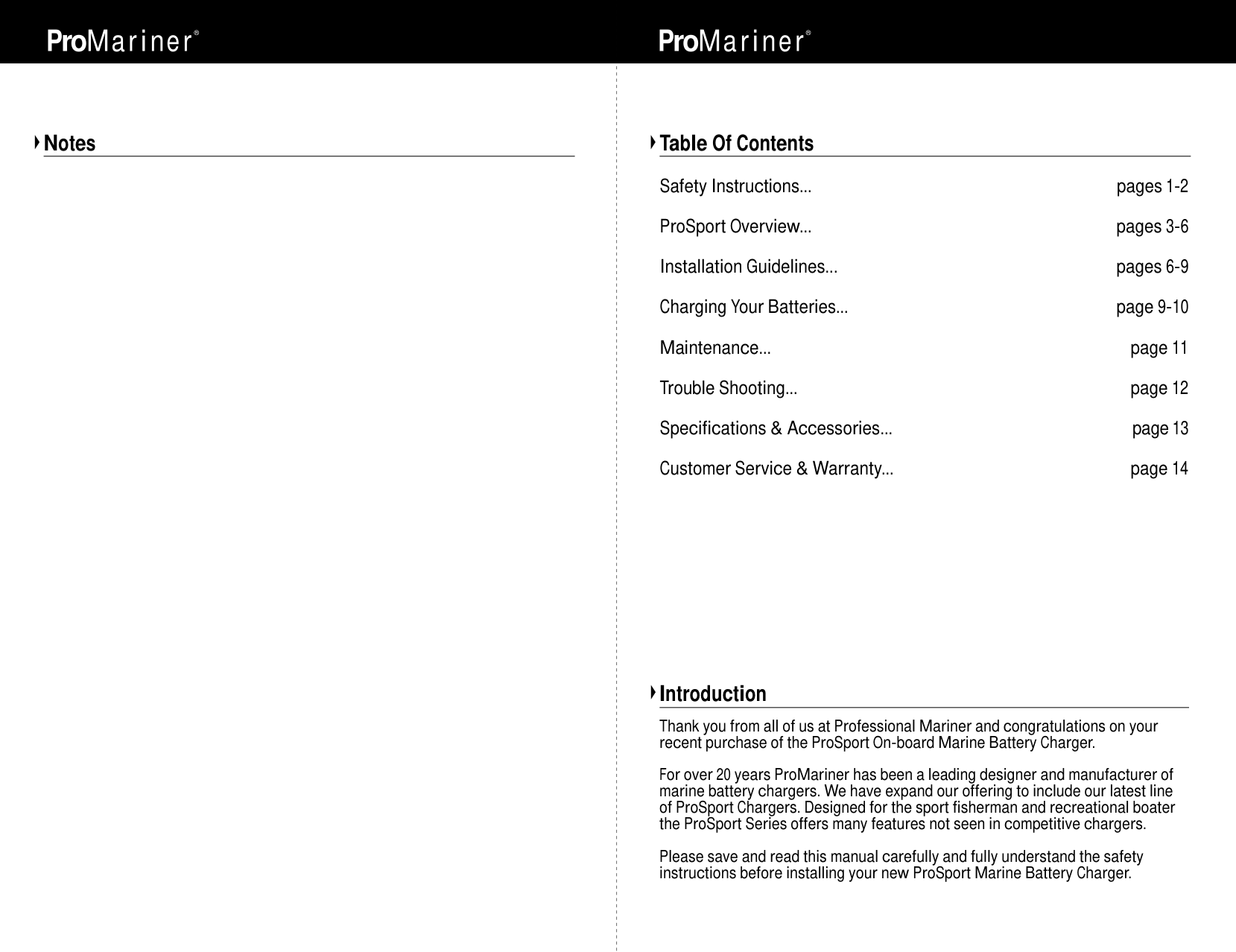

Table Of Contents Safety Instructions... pages 1-2 ProSport Overview... pages 3-6 Installation Guidelines... pages 6-9 Charging Your Batteries... page 9-10 Maintenance... page 11 Trouble Shooting... page 12 Specifications & Accessories... Customer Service & Warranty... page 14

Introduction

Thank you from all of us at Professional Mariner and congratulations on your recent purchase of the ProSport On-board Marine Battery Charger.

For over 20 years ProMariner has been a leading designer and manufacturer of marine battery chargers. We have expand our offering to include our latest line of ProSport Chargers. Designed for the sport fisherman and recreational boater the ProSport Series offers many features not seen in competitive chargers. Please save and read this manual carefully and fully understand the safety instructions before installing your new ProSport Marine Battery Charger.

######## Safety Instructions

Page 2

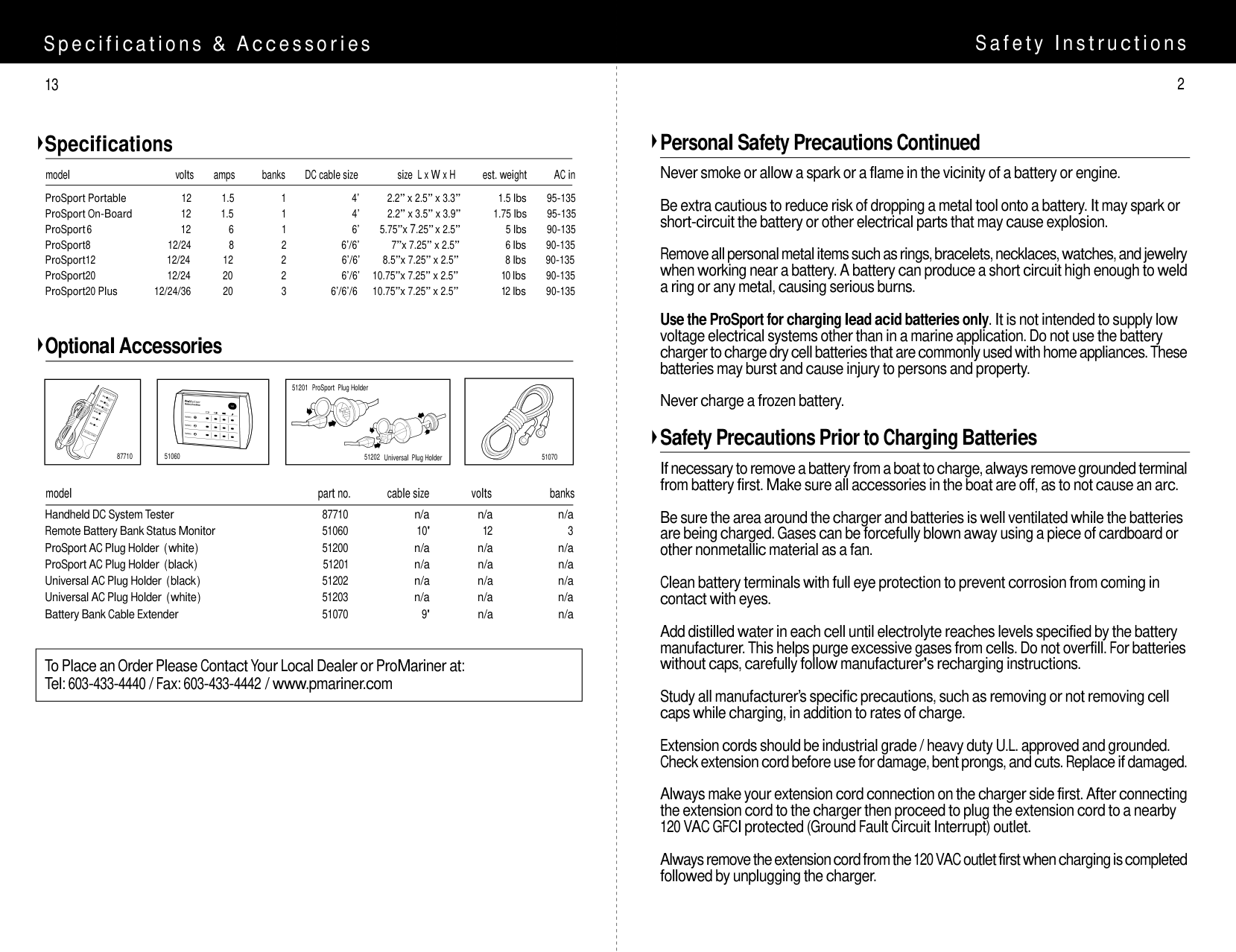

General Safety Instructions

Before connecting your batteries or AC power, read all instructions and cautionary markings on the battery charger and batteries.

CAUTION - To reduce the risk of injury; charge only lead acid type rechargeable batteries (lead acid, sealed lead acid, gel cell and AGM). Other types of batteries may burst, causing personal injury. The ProSport is factory set for lead acid batteries.

Use of attachments not recommended or sold by Professional Mariner, LLC may result in a risk of fire, electrical shock or personal injury.

Do not operate the charger if it has received a sharp blow, direct hit of force, dropped or otherwise damaged in any way.

Do not disassemble the charger. Call the factory directly when service or repair is required. Incorrect assembly may result in risk of electrical shock or fire.

To reduce the risk of electrical shock, remove AC power from the charger prior to any maintenance or cleaning.

|WARNING: RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON IT IS OF EXTREME IMPORTANCE THAT EACH TIME BEFORE USING YOUR CHARGER YOU FOLLOW THESE SAFETY INSTRUCTIONS.| |---|

To reduce risk of battery explosion, follow these instructions and those published by the battery manufacturer, and of any equipment you intend to use in the vicinity of a battery. Review all cautionary markings and labels.

Personal Safety Precautions

Someone should be within the range of your voice or close enough to come to your aid when working near a lead acid battery.

Have plenty of water and soap nearby in case battery acid comes in contact with skin, clothes or eyes.

Wear complete eye protection and clothing protection. Avoid touching eyes while working with a battery.

If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters the eye(s) flood eye(s) with running cold water for at least 10 minutes and get medical attention immediately.

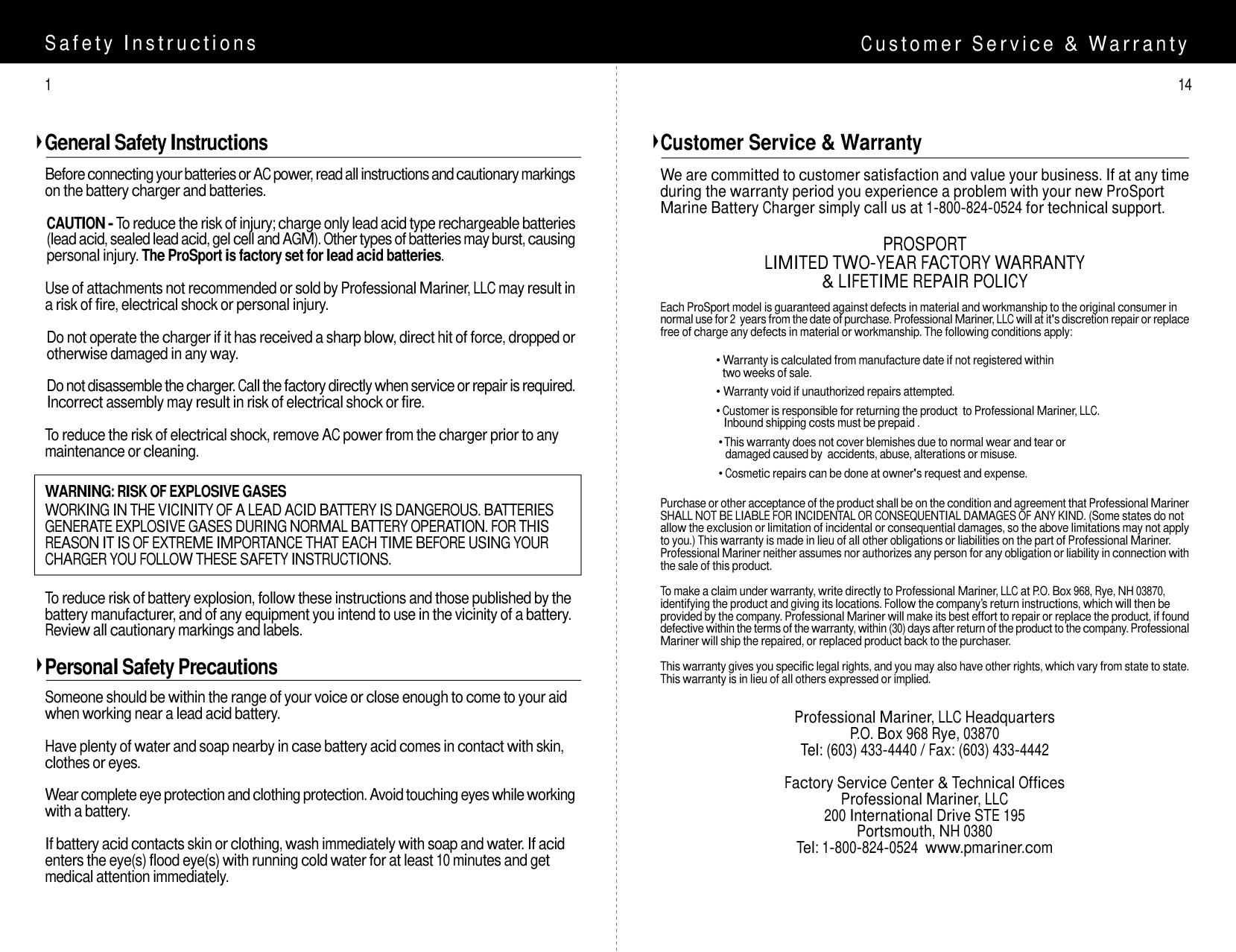

Customer Service & Warranty

We are committed to customer satisfaction and value your business. If at any time during the warranty period you experience a problem with your new ProSport Marine Battery Charger simply call us at 1-800-824-0524 for technical support.

########## PROSPORT LIMITED TWO-YEAR FACTORY WARRANTY & LIFETIME REPAIR POLICY

Each ProSport model is guaranteed against defects in material and workmanship to the original consumer in normal use for 2 years from the date of purchase. Professional Mariner, LLC will at it's discretion repair or replace free of charge any defects in material or workmanship. The following conditions apply:

• Warranty is calculated from manufacture date if not registered within two weeks of sale.

• Warranty void if unauthorized repairs attempted.

• Customer is responsible for returning the product to Professional Mariner, LLC. Inbound shipping costs must be prepaid .

• This warranty does not cover blemishes due to normal wear and tear or damaged caused by accidents, abuse, alterations or misuse.

• Cosmetic repairs can be done at owner's request and expense.

Purchase or other acceptance of the product shall be on the condition and agreement that Professional Mariner SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND. (Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.) This warranty is made in lieu of all other obligations or liabilities on the part of Professional Mariner. Professional Mariner neither assumes nor authorizes any person for any obligation or liability in connection with the sale of this product.

Page 3

Page 4

Page 5

Use the ProSport for charging lead acid batteries only voltage electrical systems other than in a marine application. Do not use the battery charger to charge dry cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and property.

Never charge a frozen battery. Safety Precautions Prior to Charging Batteries

If necessary to remove a battery from a boat to charge, always remove grounded terminal from battery first. Make sure all accessories in the boat are off, as to not cause an arc.

Be sure the area around the charger and batteries is well ventilated while the batteries are being charged. Gases can be forcefully blown away using a piece of cardboard or other nonmetallic material as a fan.

Clean battery terminals with full eye protection to prevent corrosion from coming in contact with eyes.

Add distilled water in each cell until electrolyte reaches levels specified by the battery manufacturer. This helps purge excessive gases from cells. Do not overfill. For batteries without caps, carefully follow manufacturer's recharging instructions.

Study all manufacturer’s specific precautions, such as removing or not removing cell caps while charging, in addition to rates of charge.

Extension cords should be industrial grade / heavy duty U.L. approved and grounded. Check extension cord before use for damage, bent prongs, and cuts. Replace if damaged. Always make your extension cord connection on the charger side first. After connecting the extension cord to the charger then proceed to plug the extension cord to a nearby 120 VAC GFCI protected (Ground Fault Circuit Interrupt) outlet. Always remove the extension cord from the 120 VAC outlet first when charging is completed followed by unplugging the charger.

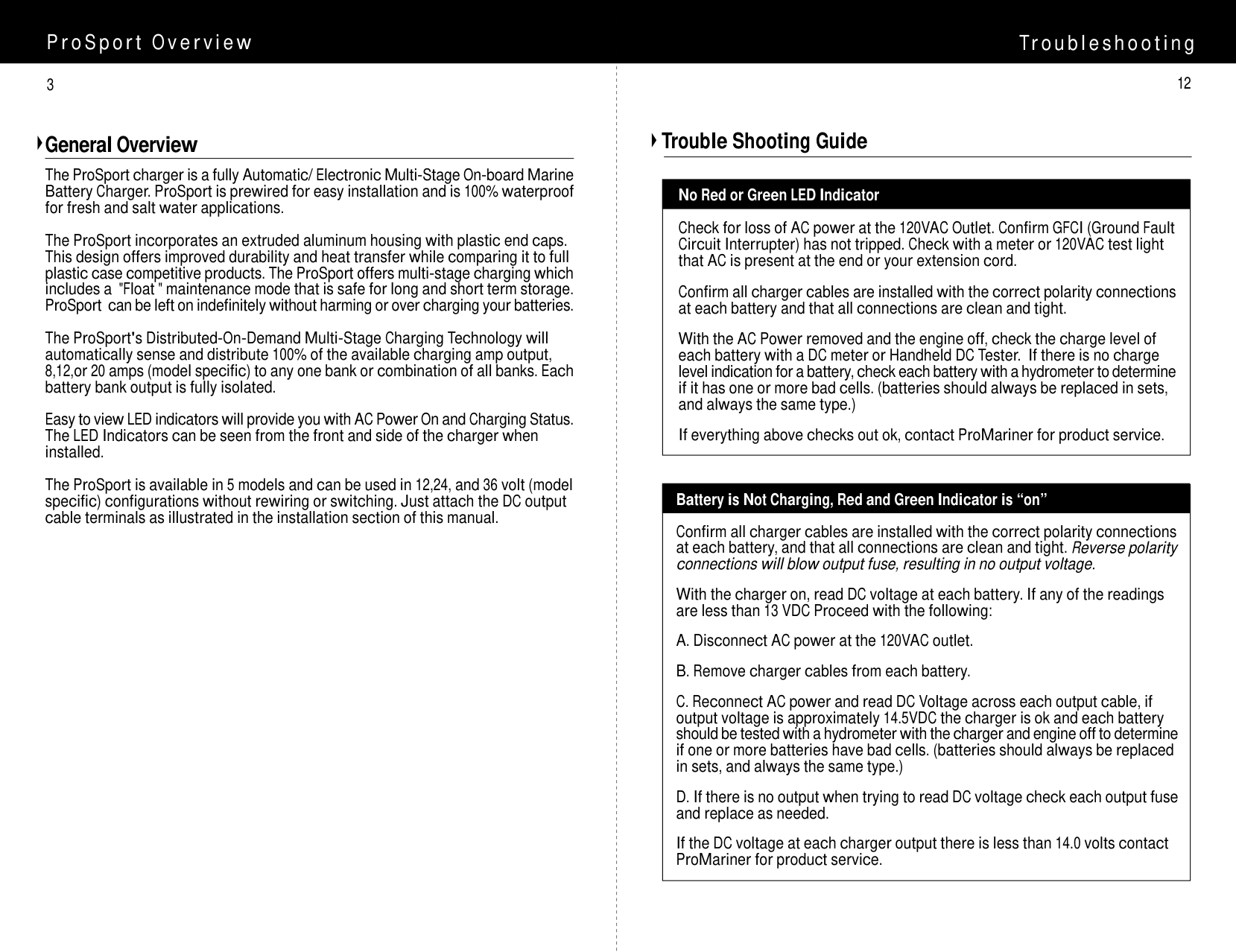

General Overview

The ProSport charger is a fully Automatic/ Electronic Multi-Stage On-board Marine Battery Charger. ProSport is prewired for easy installation and is 100% waterproof for fresh and salt water applications.

The ProSport incorporates an extruded aluminum housing with plastic end caps. This design offers improved durability and heat transfer while comparing it to full plastic case competitive products. The ProSport offers multi-stage charging which includes a "Float " maintenance mode that is safe for long and short term storage. ProSport can be left on indefinitely without harming or over charging your batteries.

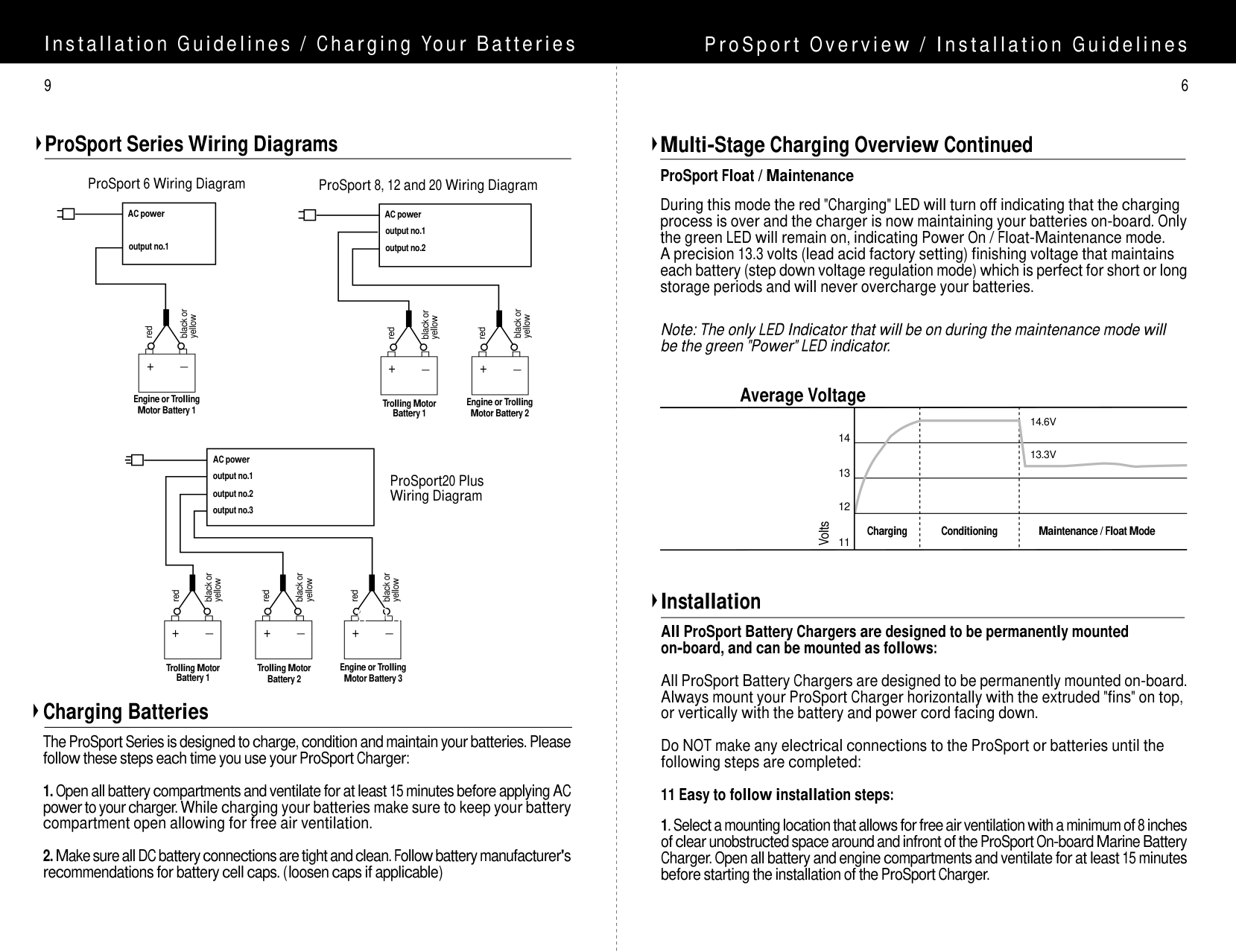

The ProSport's Distributed-On-Demand Multi-Stage Charging Technology will automatically sense and distribute 100% of the available charging amp output,

8,12,or 20 amps (model specific) to any one bank or combination of all banks. Each battery bank output is fully isolated.

Easy to view LED indicators will provide you with AC Power On and Charging Status. The LED Indicators can be seen from the front and side of the charger when installed.

The ProSport is available in 5 models and can be used in 12,24, and 36 volt (model specific) configurations without rewiring or switching. Just attach the DC output cable terminals as illustrated in the installation section of this manual.

Trouble Shooting Guide

|No Red or Green LED Indicator

Check for loss of AC power at the 120VAC Outlet. Confirm GFCI (Ground Fault Circuit Interrupter) has not tripped. Check with a meter or 120VAC test light that AC is present at the end or your extension cord.

Confirm all charger cables are installed with the correct polarity connections at each battery and that all connections are clean and tight.

With the AC Power removed and the engine off, check the charge level of each battery with a DC meter or Handheld DC Tester. If there is no charge level indication for a battery, check each battery with a hydrometer to determine if it has one or more bad cells. (batteries should always be replaced in sets, and always the same type.)

If everything above checks out ok, contact ProMariner for product service.| |---|

|Battery is Not Charging, Red and Green Indicator is “on”

Confirm all charger cables are installed with the correct polarity connections at each battery, and that all connections are clean and tight. connections will blow output fuse, resulting in no output voltage.

With the charger on, read DC voltage at each battery. If any of the readings are less than 13 VDC Proceed with the following:

A. Disconnect AC power at the 120VAC outlet.
B. Remove charger cables from each battery.
C. Reconnect AC power and read DC Voltage across each output cable, if output voltage is approximately 14.5VDC the charger is ok and each battery should be tested with a hydrometer with the charger and engine off to determine if one or more batteries have bad cells. (batteries should always be replaced in sets, and always the same type.)
D. If there is no output when trying to read DC voltage check each output fuse and replace as needed.

If the DC voltage at each charger output there is less than 14.0 volts contact ProMariner for product service.| |---|

Maintenance

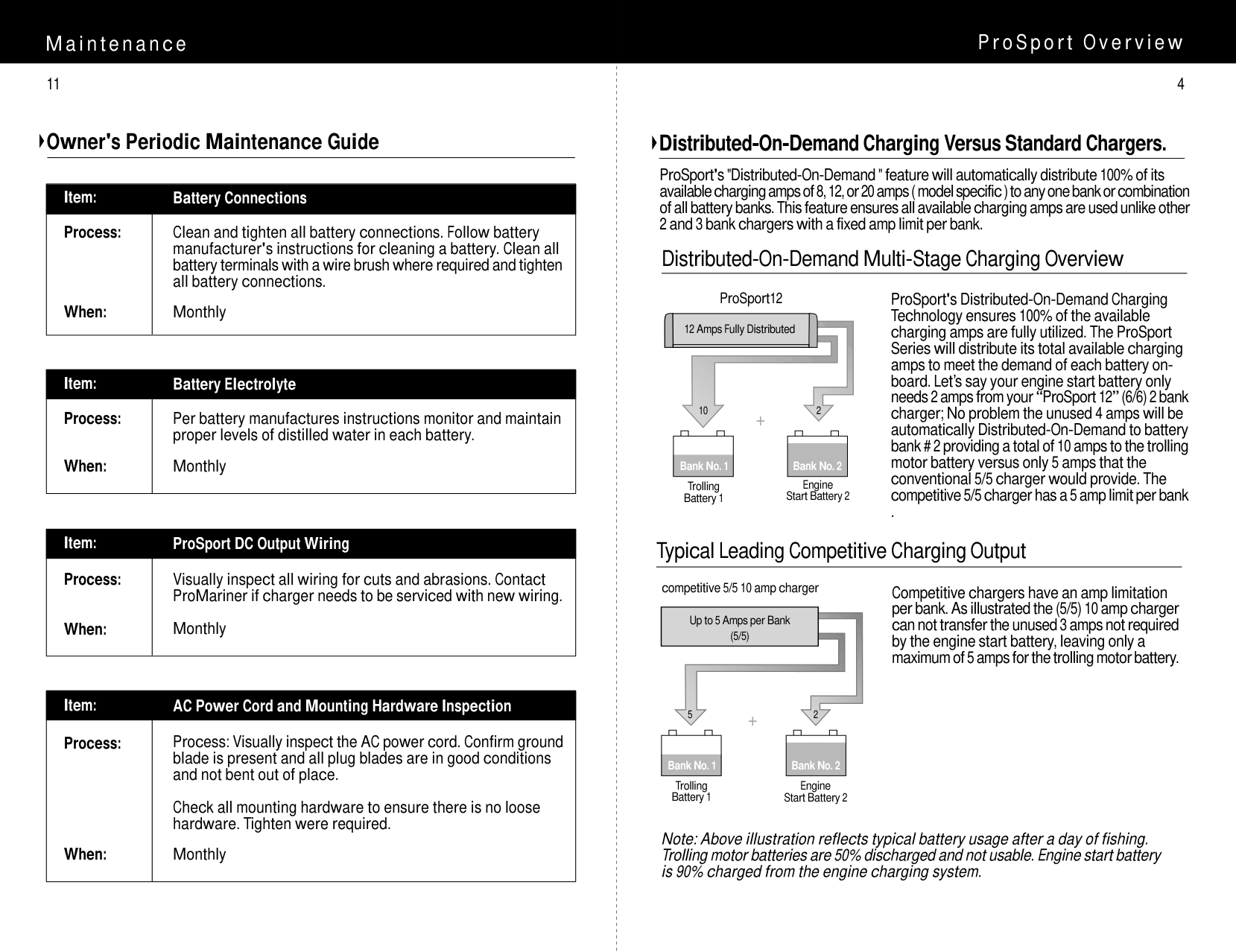

Owner's Periodic Maintenance Guide

|Item: Process:

When:

Battery Connections

Clean and tighten all battery connections. Follow battery manufacturer's instructions for cleaning a battery. Clean all battery terminals with a wire brush where required and tighten all battery connections.

Monthly| |---|

Page 6

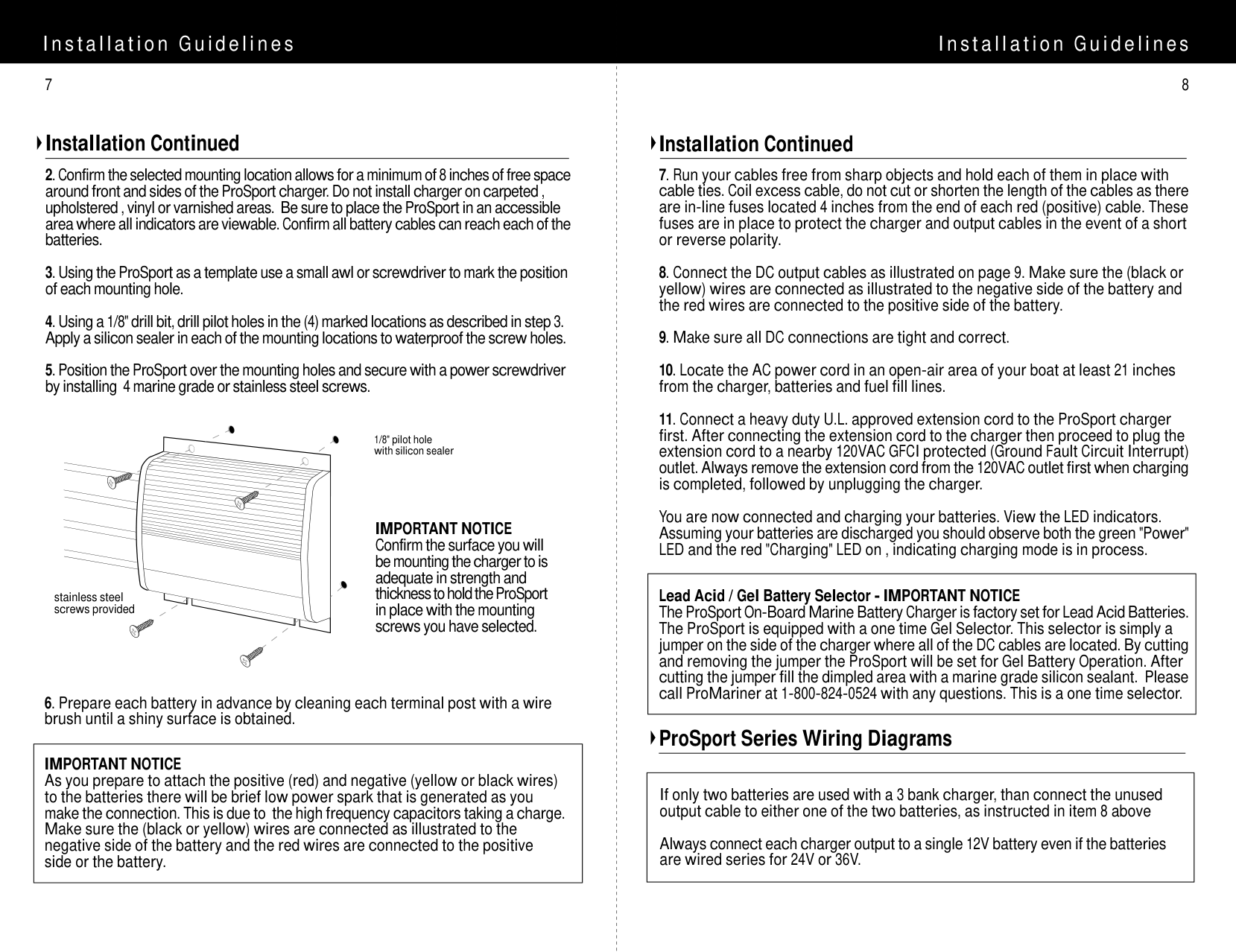

Page 7

52+

| | | | | | |---|---|---|---|---| |Bank No. 1|Bank No. 1|Bank No. 1|Bank No. 1|Bank No. 1|

| | | | | | |---|---|---|---|---| |Bank No. 2|Bank No. 2|Bank No. 2|Bank No. 2|Bank No. 2|

Trolling Battery 1

Engine Start Battery 2

Note: Above illustration reflects typical battery usage after a day of fishing. Trolling motor batteries are 50% discharged and not usable. Engine start battery is 90% charged from the engine charging system.

######## Charging Your Batteries

Charging Batteries Continued

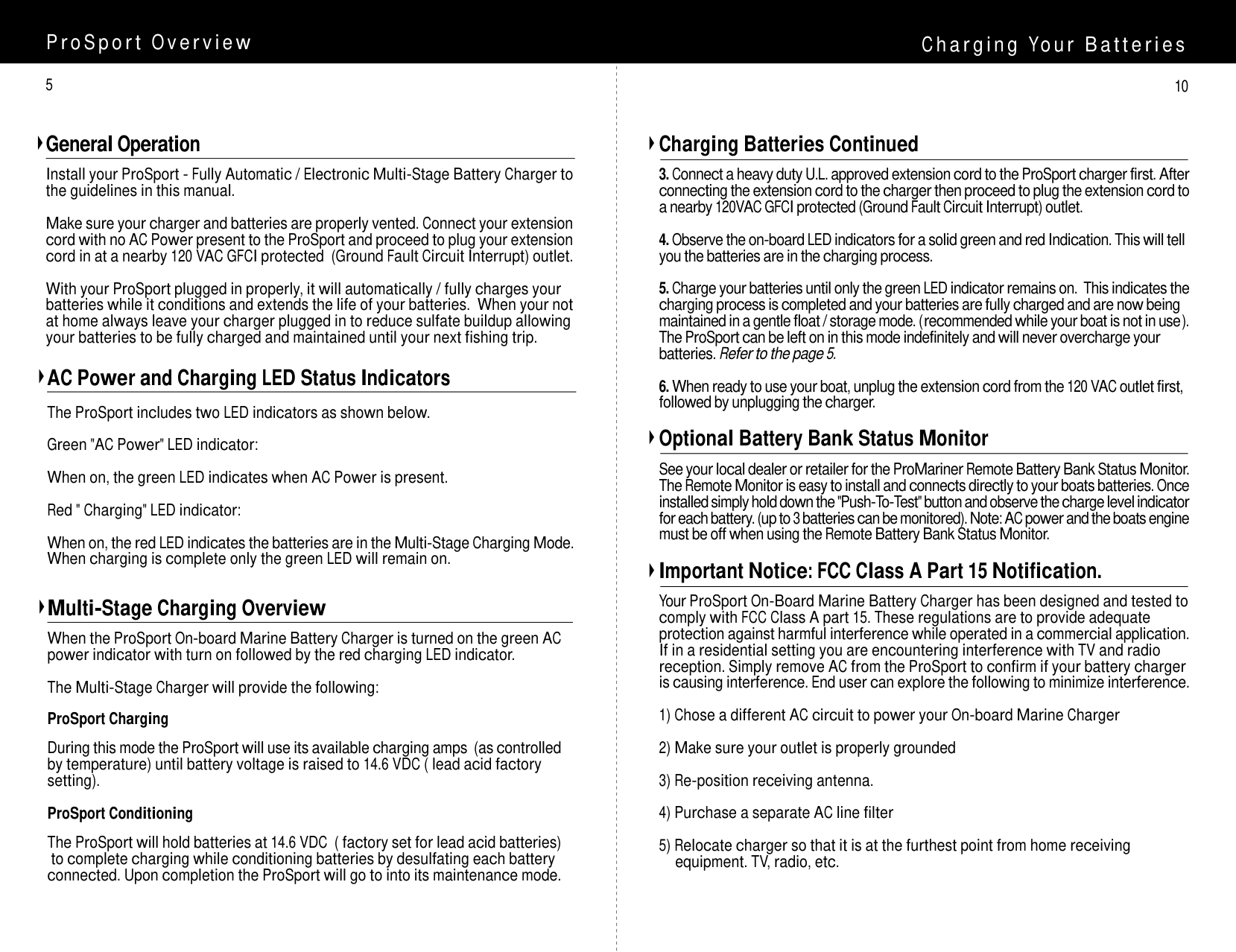

General Operation

3. Connect a heavy duty U.L. approved extension cord to the ProSport charger first. After connecting the extension cord to the charger then proceed to plug the extension cord to a nearby 120VAC GFCI protected (Ground Fault Circuit Interrupt) outlet.

4. Observe the on-board LED indicators for a solid green and red Indication. This will tell you the batteries are in the charging process.

5. Charge your batteries until only the green LED indicator remains on. This indicates the charging process is completed and your batteries are fully charged and are now being maintained in a gentle float / storage mode. (recommended while your boat is not in use). The ProSport can be left on in this mode indefinitely and will never overcharge your batteries.Refer to the page 5.

6. When ready to use your boat, unplug the extension cord from the 120 VAC outlet first, followed by unplugging the charger.

Install your ProSport - Fully Automatic / Electronic Multi-Stage Battery Charger to the guidelines in this manual.

Make sure your charger and batteries are properly vented. Connect your extension cord with no AC Power present to the ProSport and proceed to plug your extension cord in at a nearby 120 VAC GFCI protected (Ground Fault Circuit Interrupt) outlet.

With your ProSport plugged in properly, it will automatically / fully charges your batteries while it conditions and extends the life of your batteries. When your not at home always leave your charger plugged in to reduce sulfate buildup allowing your batteries to be fully charged and maintained until your next fishing trip.

AC Power and Charging LED Status Indicators The ProSport includes two LED indicators as shown below. Green "AC Power" LED indicator: When on, the green LED indicates when AC Power is present. Red " Charging" LED indicator: When on, the red LED indicates the batteries are in the Multi-Stage Charging Mode. When charging is complete only the green LED will remain on.

Optional Battery Bank Status Monitor

See your local dealer or retailer for the ProMariner Remote Battery Bank Status Monitor. The Remote Monitor is easy to install and connects directly to your boats batteries. Once installed simply hold down the "Push-To-Test" button and observe the charge level indicator for each battery. (up to 3 batteries can be monitored). Note: AC power and the boats engine must be off when using the Remote Battery Bank Status Monitor.

Important Notice: FCC Class A Part 15 Notification.

Your ProSport On-Board Marine Battery Charger has been designed and tested to comply with FCC Class A part 15. These regulations are to provide adequate protection against harmful interference while operated in a commercial application. If in a residential setting you are encountering interference with TV and radio reception. Simply remove AC from the ProSport to confirm if your battery charger is causing interference. End user can explore the following to minimize interference.
