Common questions
Common Questions
10 totalWhat is the warranty on this electric range?
The product has a one-year all parts and labor warranty, with an additional five years coverage specifically for the electric cooktop.
How do I perform a self-cleaning cycle?
To start the self-cleaning cycle, set the oven control panel to select Self Clean mode and then choose a cleaning time of 2 hours (light soiling), 3 hours (moderate soiling), or 5 hours (heavy soiling).
What are the dimensions and weight of this range?
The outside net dimensions of the range are 297/8" x 471/8" x 26", with a weight of 141.3 lbs for stainless steel and white models, and slightly heavier for the black model.
What is the oven capacity?
The range has a large oven capacity of 5.9 cubic feet, allowing you to cook multiple dishes at once or accommodate larger items during holidays.
How much clearance space is needed above and below the range?
A minimum clearance of 30 inches from the top of the cooking surface to the bottom of an unprotected wood or metal cabinet, or 24 inches if protected by flame-retardant millboard. Between countertop and adjacent cabinet bottom: a minimum distance of 15 inches.
Can I use Sabbath mode on this range?
Yes, the Samsung Electric Range includes a Sabbath Mode feature which can be activated according to your religious requirements for observance days. (Page 2)

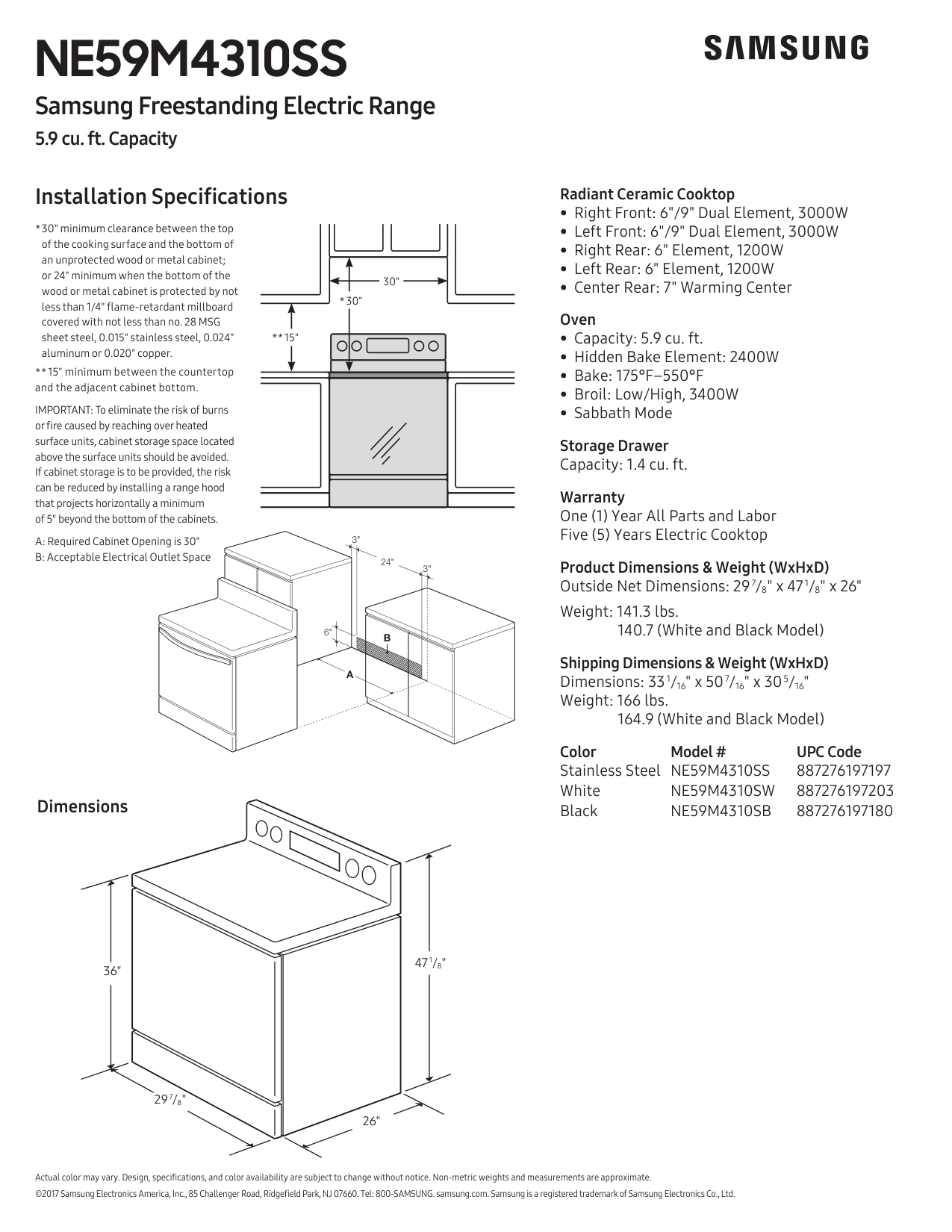

Full Manual
2 pages
#### Available Colors
Stainless Steel (shown)
White
Black
#### Signature Features 5.9 cu. ft. Capacity
• Cook multiple dishes at once or accommodate larger items
for the holidays. Flexible Cooktop
• Accommodates multiple pan sizes on 5 specialized elements
with two dual elements. Self Clean
• Cycle with 2, 3, or 5 hour settings for various cleaning needs.
Powerful/Flexible Cooktop5.9 cu. ft. Capacity
#### Features
#### Convenience
Installation Specifications Radiant Ceramic Cooktop
30"
*30"
**15"
IMPORTANT: To eliminate the risk of burns or fire caused by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" beyond the bottom of the cabinets.
Storage Drawer Capacity: 1.4 cu. ft.
Warranty One (1) Year All Parts and Labor Five (5) Years Electric Cooktop
3"
24"
Product Dimensions & Weight (WxHxD) Outside Net Dimensions: 297/8" x 471/8" x 26" Weight: 141.3 lbs.
3"
140.7 (White and Black Model)
6"
B
Shipping Dimensions & Weight (WxHxD) Dimensions: 331/16" x 507/16" x 305/16" Weight: 166 lbs.
A
164.9 (White and Black Model)
Color Model # UPC Code Stainless Steel NE59M4310SS 887276197197 White NE59M4310SW 887276197203
Black NE59M4310SB 887276197180Dimensions
| | | |---|---| |3|"| | | |
471/8"
|297/8"| |---|
26"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2017 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
