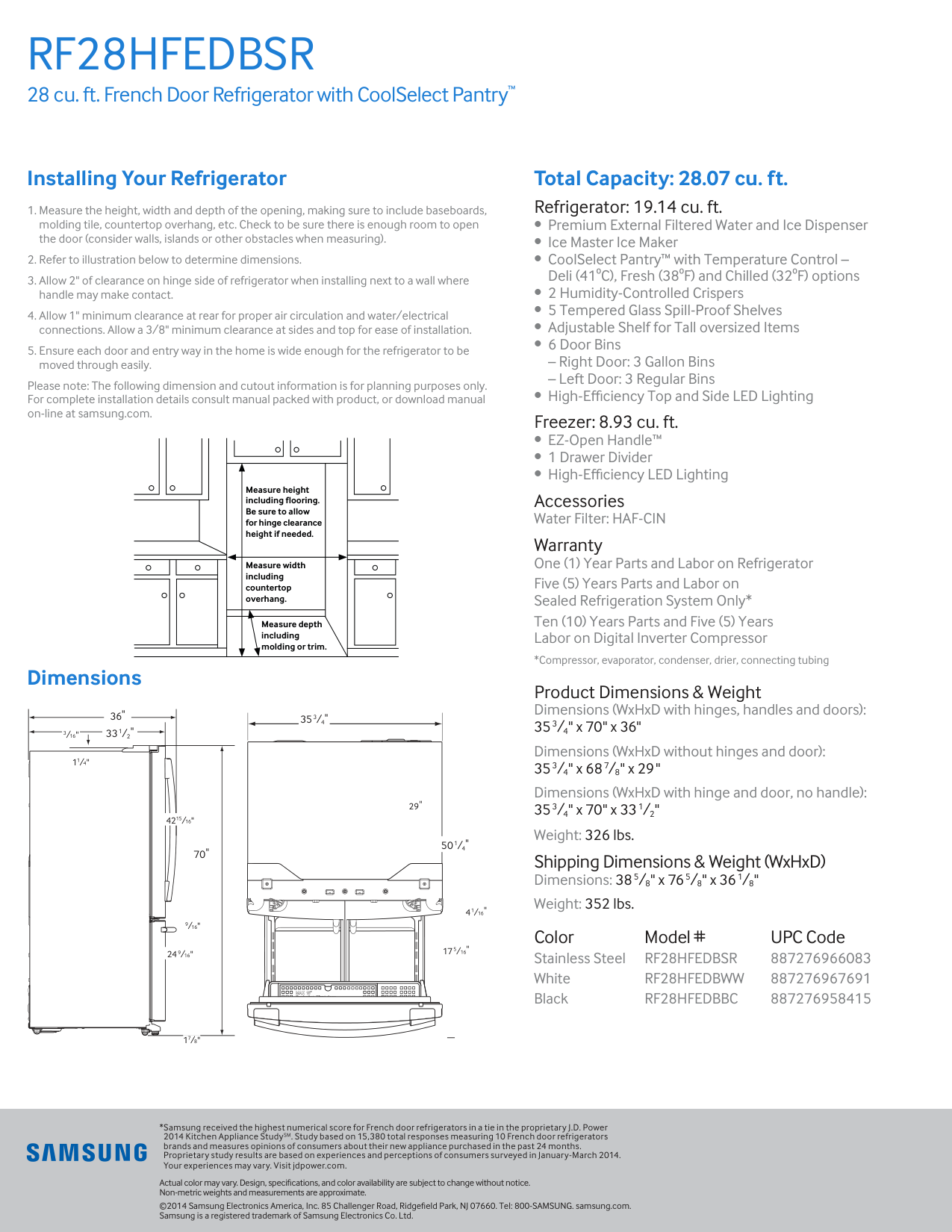

Samsung Rf28hfedbsr AA

Rf28Hfedbsr

28 cu. ft. French Door Refrigerator with CoolSelect Pantry™ Features

Large Capacity – 28 cu. ft.

Twin Cooling Plus System™

Ice Master Ice Maker in the Refrigerator

ENERGY STAR® Compliant

CoolSelect Pantry™ with

Temperature Control

Premium External Filtered Water

and Ice Dispenser

High-Efficiency Top and Side LED Lighting

EZ-Open Handle™ on Freezer Door

Adjustable Shelf for Tall Oversized Items

Two Humidity-Controlled Crispers

Tempered Glass Spill-Proof Shelves

Auto Pull-Out Upper Freezer Drawer

Easy-to-Access Water Filter

Convenience

Cool Tight Door

Door Alarm

Water Filter Indicator

ENERGY STAR® Rated: CEE Tier 1 (10% more efficient than Federal Standard) 725 kWh/yr CoolSelect Pantry™ with Temperature Control Signature Features White Black Available Colors Stainless Steel

Twin Cooling Plus™

Keeps food fresher longer – Twin Cooling Plus™ humidity levels

up to 3.6x higher than single cooling.

Refrigerator air is kept at higher, near commercial grade humidity

levels to keep perishable fruits and vegetables fresher longer.

Drier freezer air means less freezer burn for better-tasting frozen foods.

Ice Master

Produces 10 lbs. of ice per day and stores 4.2 lbs.

Space-saving design leaves more room in the refrigerator.

Coolselect Pantry™

Provides additional temperature control for your food storage needs

with Deli, Fresh and Chilled options. Ice Master Ranked “Highest in customer satisfaction with French Door refrigerators, in a tie.” * – J.D. Power

*Samsung received the highest numerical score for French door refrigerators in a tie in the proprietary J.D. Power 2014 Kitchen Appliance StudySM. Study based on 15,380 total responses measuring 10 French door refrigerators brands and measures opinions of consumers about their new appliance purchased in the past 24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January-March 2014. Your experiences may vary. Visit jdpower.com. Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2014 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd. Total Capacity: 28.07 cu. ft. Refrigerator: 19.14 cu. ft.

Premium External Filtered Water and Ice Dispenser

Ice Master Ice Maker

CoolSelect Pantry™ with Temperature Control –

Deli (410C), Fresh (380F) and Chilled (320F) options

2 Humidity-Controlled Crispers

5 Tempered Glass Spill-Proof Shelves

Adjustable Shelf for Tall oversized Items

6 Door Bins

– Right Door: 3 Gallon Bins – Left Door: 3 Regular Bins

High-Efficiency Top and Side LED Lighting

Freezer: 8.93 cu. ft.

EZ-Open Handle™

1 Drawer Divider

High-Efficiency LED Lighting

Accessories Water Filter: HAF-CIN Warranty One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years Labor on Digital Inverter Compressor *Compressor, evaporator, condenser, drier, connecting tubing Product Dimensions & Weight Dimensions (WxHxD with hinges, handles and doors): 35 3/4" x 70" x 36" Dimensions (WxHxD without hinges and door): 35 3/4" x 68 7/8" x 29" Dimensions (WxHxD with hinge and door, no handle): 35 3/4" x 70" x 33 1/2" Weight: 326 lbs. Shipping Dimensions & Weight (WxHxD) Dimensions: 38 5/8" x 76 5/8" x 36 1/8" Weight: 352 lbs. Color Model # UPC Code Stainless Steel

Rf28Hfedbsr

887276966083 White

Rf28Hfedbww

887276967691 Black

Rf28Hfedbbc

887276958415 Measure height including flooring. Be sure to allow for hinge clearance height if needed. Measure width including countertop overhang. Measure depth including molding or trim. Installing Your Refrigerator

Measure the height, width and depth of the opening, making sure to include baseboards,

molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

Refer to illustration below to determine dimensions.

Allow 2" of clearance on hinge side of refrigerator when installing next to a wall where

handle may make contact.

Allow 1" minimum clearance at rear for proper air circulation and water/electrical

connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

Ensure each door and entry way in the home is wide enough for the refrigerator to be

moved through easily. Please note: The following dimension and cutout information is for planning purposes only. For complete installation details consult manual packed with product, or download manual on-line at samsung.com.

Rf28Hfedbsr

28 cu. ft. French Door Refrigerator with CoolSelect Pantry™ Dimensions 36" 33 1/2" 70" 11/4" 3/16" 4215/16" 24 9/16" 9/16" 17/8" 50 1/4" 29" 17 5/16" 41/16" 35 3/4"
