Triton T80 Easi Fit

T80 Easi-Fit electric shower

Installation and

operating instructions

Installers please note these InstructIons are to be left wIth the user

|Please read this book thoroughly and familiarise yourself with all instructions before commencing installation and keep it for future reference.

The shower installation MUST be carried out by a suitably qualified person, in the sequence of this instruction book.| |---|

Patents Pending: GB 2489547

EC Registered Design No. 001902388-0005 to 0007

2180858E - April 2013

GB 2495343 Patent: GB 2481878

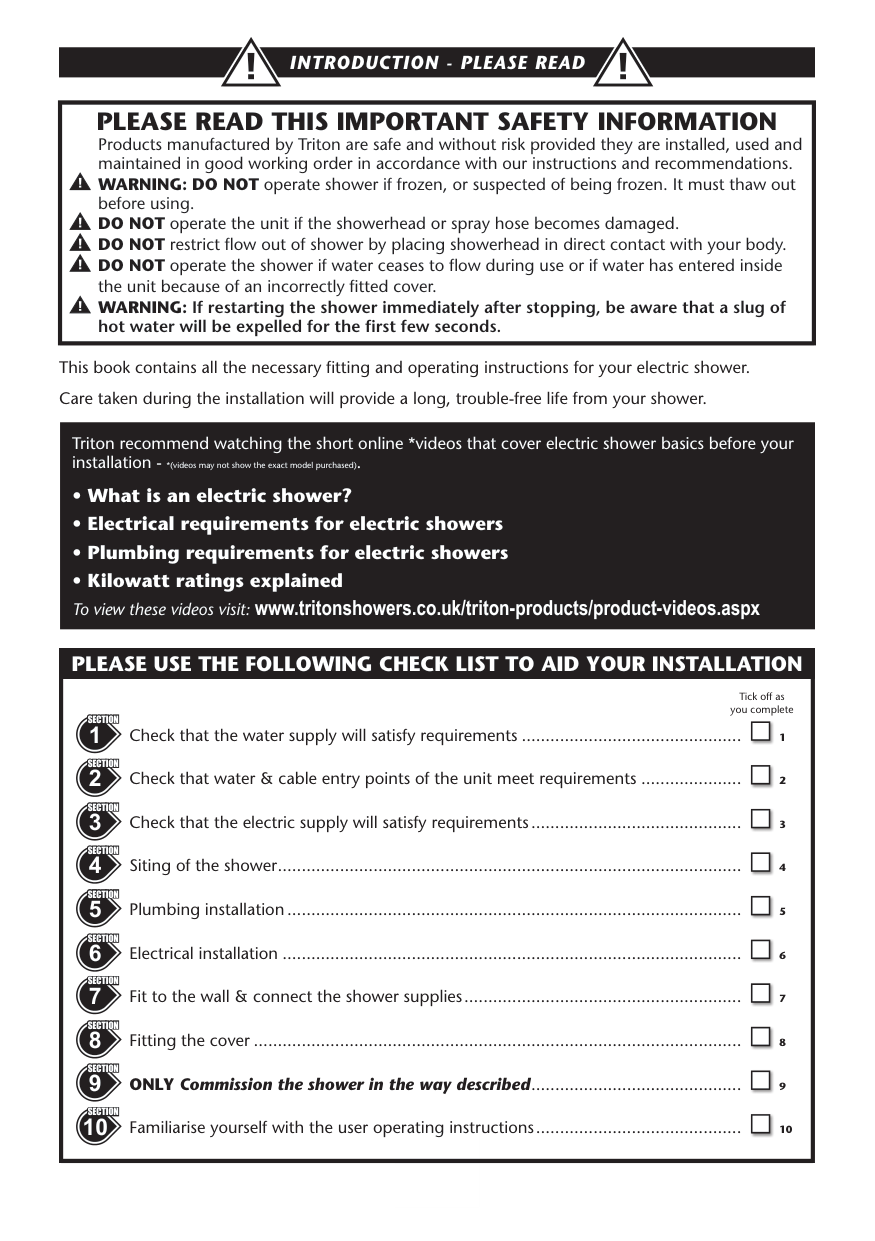

######## INTRODUCTION - PLEASE READ

|Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out before using. DO NOT operate the unit if the showerhead or spray hose becomes damaged. DO NOT restrict flow out of shower by placing showerhead in direct contact with your body. DO NOT operate the shower if water ceases to flow during use or if water has entered inside the unit because of an incorrectly fitted cover. WARNING: If restarting the shower immediately after stopping, be aware that a slug of hot water will be expelled for the first few seconds.

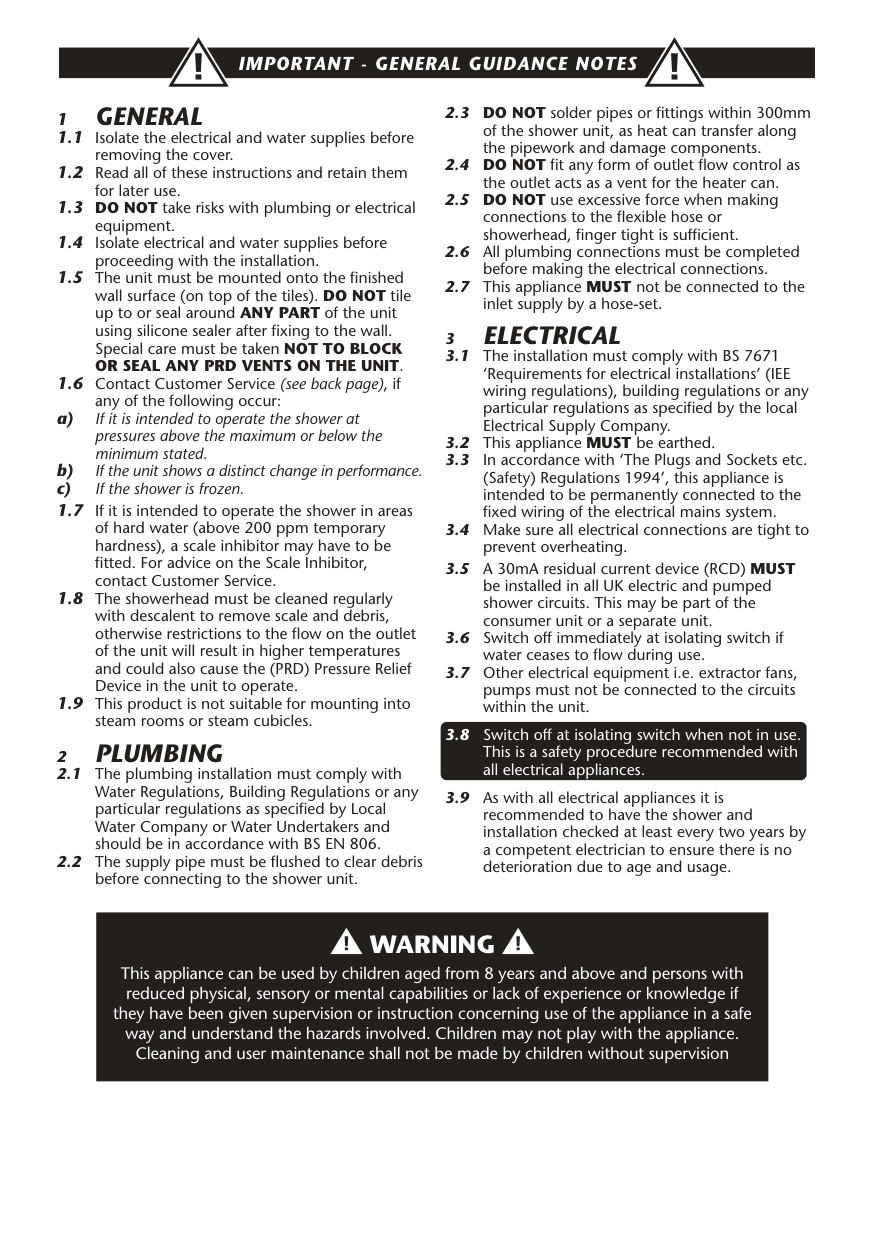

PLEASE READ THIS IMPORTANT SAFETY INFORMATION

| |---|

#### 1 GENERAL

This book contains all the necessary fitting and operating instructions for your electric shower. Care taken during the installation will provide a long, trouble-free life from your shower.

Triton recommend watching the short online *videos that cover electric shower basics before your installation - *(videos may not show the exact model purchased).

before making the electrical connections.

3 ELECTRICAL

PLEASE USE THE FOLLOWING CHECK LIST TO AID YOUR INSTALLATION

|Check that the water supply will satisfy requirements .............................................. 1

Check that water & cable entry points of the unit meet requirements ..................... 2

Check that the electric supply will satisfy requirements ............................................ 3

Siting of the shower ................................................................................................. 4

Plumbing installation ............................................................................................... 5

Electrical installation ................................................................................................ 6

Fit to the wall & connect the shower supplies .......................................................... 7

Fitting the cover ...................................................................................................... 8

ONLY Commission the shower in the way described............................................ 9

Familiarise yourself with the user operating instructions ........................................... 10

1

2

3

4

5

6

7

8

9

10


a) If it is intended to operate the shower at minimum stated.
b) If the unit shows a distinct change in performance.
c) If the shower is frozen.


1.7 If it is intended to operate the shower in areas of hard water (above 200 ppm temporary hardness), a scale inhibitor may have to be fitted. For advice on the Scale Inhibitor, contact Customer Service.
1.8 The showerhead must be cleaned regularly with descalent to remove scale and debris, otherwise restrictions to the flow on the outlet of the unit will result in higher temperatures and could also cause the (PRD) Pressure Relief Device in the unit to operate.
1.9 This product is not suitable for mounting into steam rooms or steam cubicles.


2 PLUMBING

2.1 The plumbing installation must comply with Water Regulations, Building Regulations or any particular regulations as specified by Local Water Company or Water Undertakers and should be in accordance with BS EN 806.
2.2 The supply pipe must be flushed to clear debris before connecting to the shower unit.


Electrical Supply Company. In accordance with ‘The Plugs and Sockets etc. (Safety) Regulations 1994’, this appliance is intended to be permanently connected to the fixed wiring of the electrical mains system.

3.4 Make sure all electrical connections are tight to
3.5 A 30mA residual current device (RCD) MUST


shower circuits. This may be part of the consumer unit or a separate unit. Switch off immediately at isolating switch if water ceases to flow during use. Other electrical equipment i.e. extractor fans, pumps must not be connected to the circuits within the unit.

3.8 Switch off at isolating switch when not in use. This is a safety procedure recommended with
3.9 As with all electrical appliances it is recommended to have the shower and installation checked at least every two years by deterioration due to age and usage.


| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

Tick off as you complete SECTION

SECTION

SECTION

SECTION

SECTION

SECTION

SECTION

SECTION

SECTION

SECTION| |---|

the unit because of an incorrectly fitted cover.

|WARNING: If restarting the shower immediately after stopping, be aware that a slug of hot water will be expelled for the first few seconds.IMPORTANT - GENERAL GUIDANCE NOTES| |---|

#### 1 GENERAL

#### 2 PLUMBING

#### 3 ELECTRICAL

##### WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children may not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

|GENERAL ADVICE TO USERS| |---|

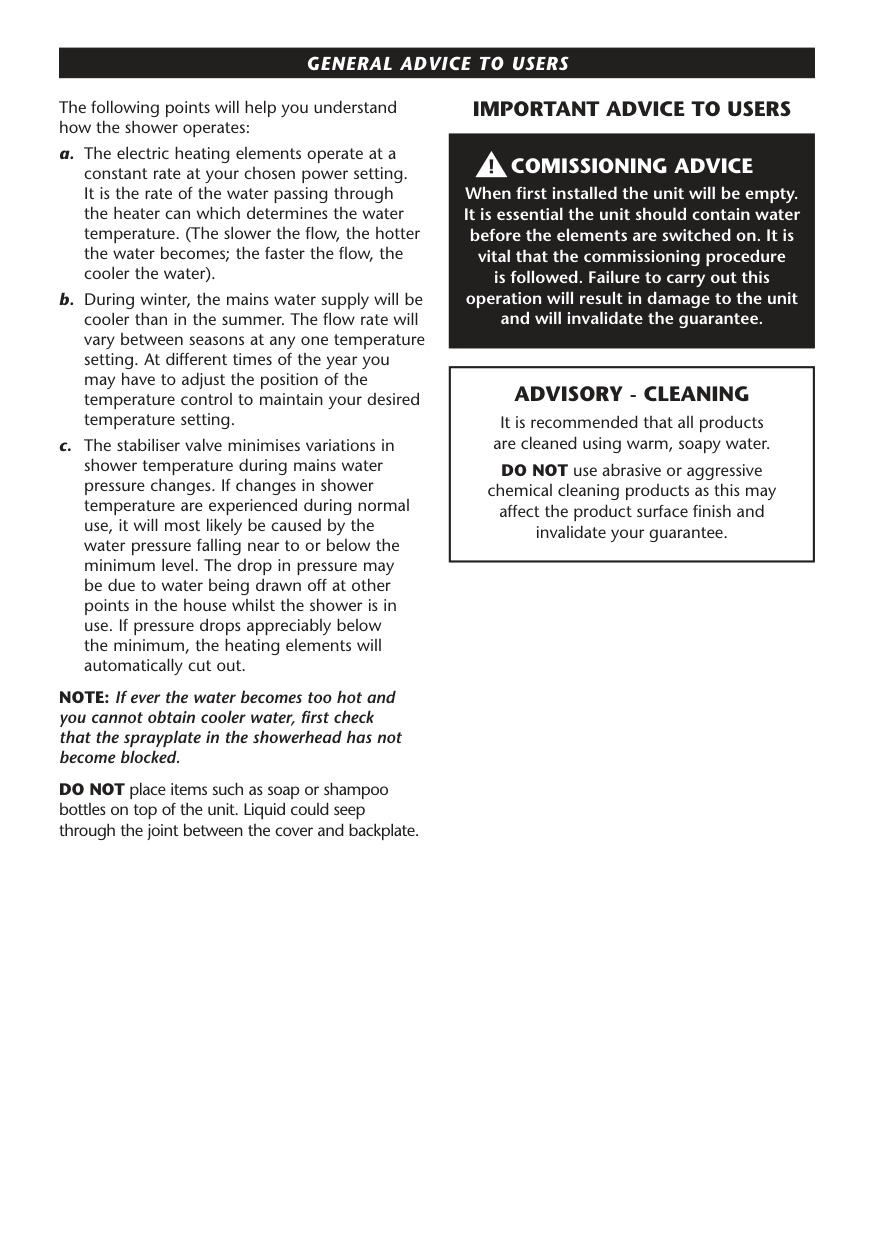

The following points will help you understand how the shower operates:

NOTE: If ever the water becomes too hot and you cannot obtain cooler water, first check that the sprayplate in the showerhead has not become blocked.

DO NOT place items such as soap or shampoo bottles on top of the unit. Liquid could seep through the joint between the cover and backplate.

####### IMPORTANT ADVICE TO USERS

|COMISSIONING ADVICE When first installed the unit will be empty. It is essential the unit should contain water before the elements are switched on. It is vital that the commissioning procedure is followed. Failure to carry out this operation will result in damage to the unit and will invalidate the guarantee.| |---|

|ADVISORY - CLEANING It is recommended that all products are cleaned using warm, soapy water. DO NOT use abrasive or aggressive chemical cleaning products as this may affect the product surface finish and invalidate your guarantee.| |---|

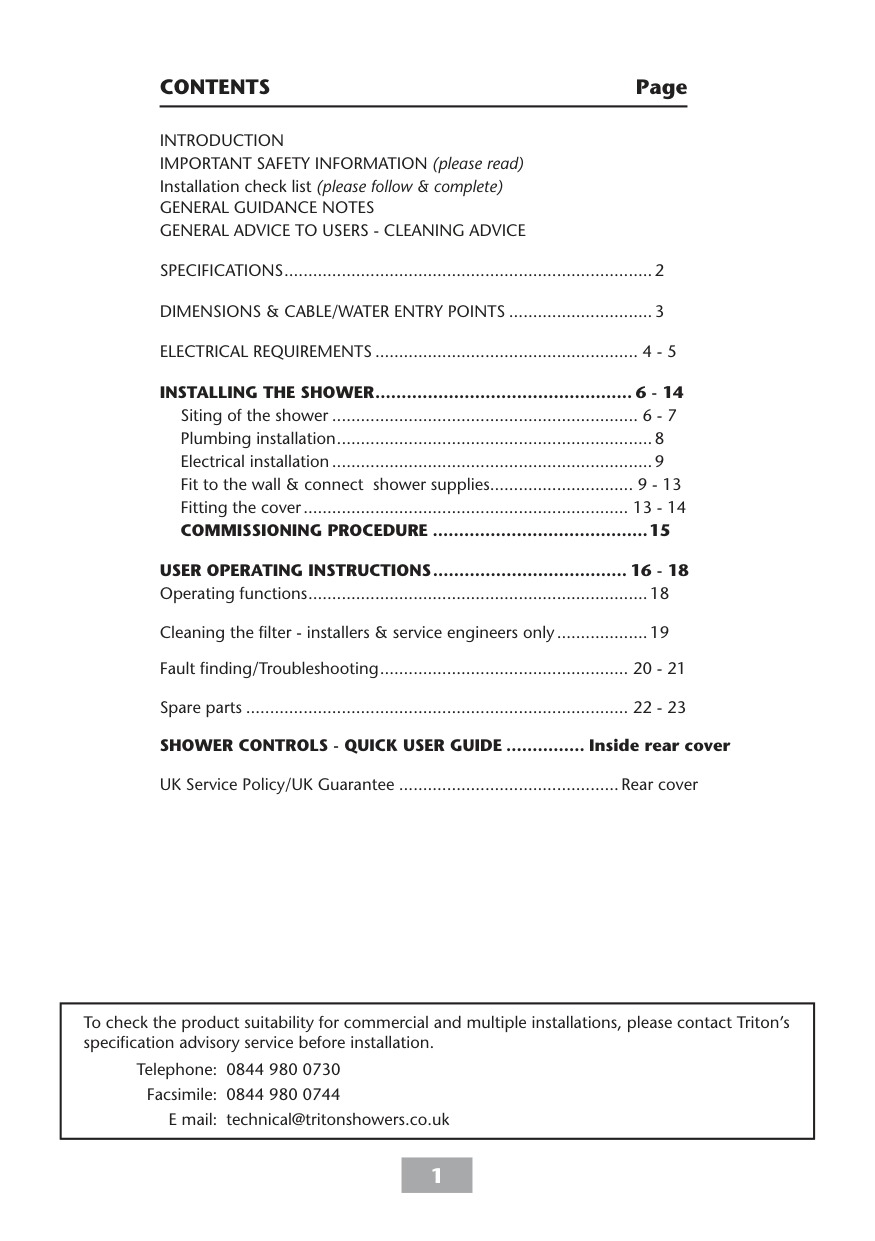

####### CONTENTS Page

INTRODUCTION IMPORTANT SAFETY INFORMATION (please read) Installation check list (please follow & complete) GENERAL GUIDANCE NOTES GENERAL ADVICE TO USERS - CLEANING ADVICE

SPECIFICATIONS .............................................................................2 DIMENSIONS & CABLE/WATER ENTRY POINTS ..............................3 ELECTRICAL REQUIREMENTS ....................................................... 4 - 5

INSTALLING THE SHOWER ................................................. 6 - 14 Siting of the shower ................................................................ 6 - 7 Plumbing installation ..................................................................8 Electrical installation ...................................................................9 Fit to the wall & connect shower supplies .............................. 9 - 13 Fitting the cover .................................................................... 13 - 14 COMMISSIONING PROCEDURE .........................................15

USER OPERATING INSTRUCTIONS ..................................... 16 - 18 Operating functions .......................................................................18 Cleaning the filter - installers & service engineers only ...................19 Fault finding/Troubleshooting .................................................... 20 - 21 Spare parts ................................................................................ 22 - 23 SHOWER CONTROLS - QUICK USER GUIDE ............... Inside rear cover UK Service Policy/UK Guarantee ..............................................Rear cover

|To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation.

Telephone: Facsimile: E mail:

0844 980 0730 0844 980 0744 technical@tritonshowers.co.uk| |---|

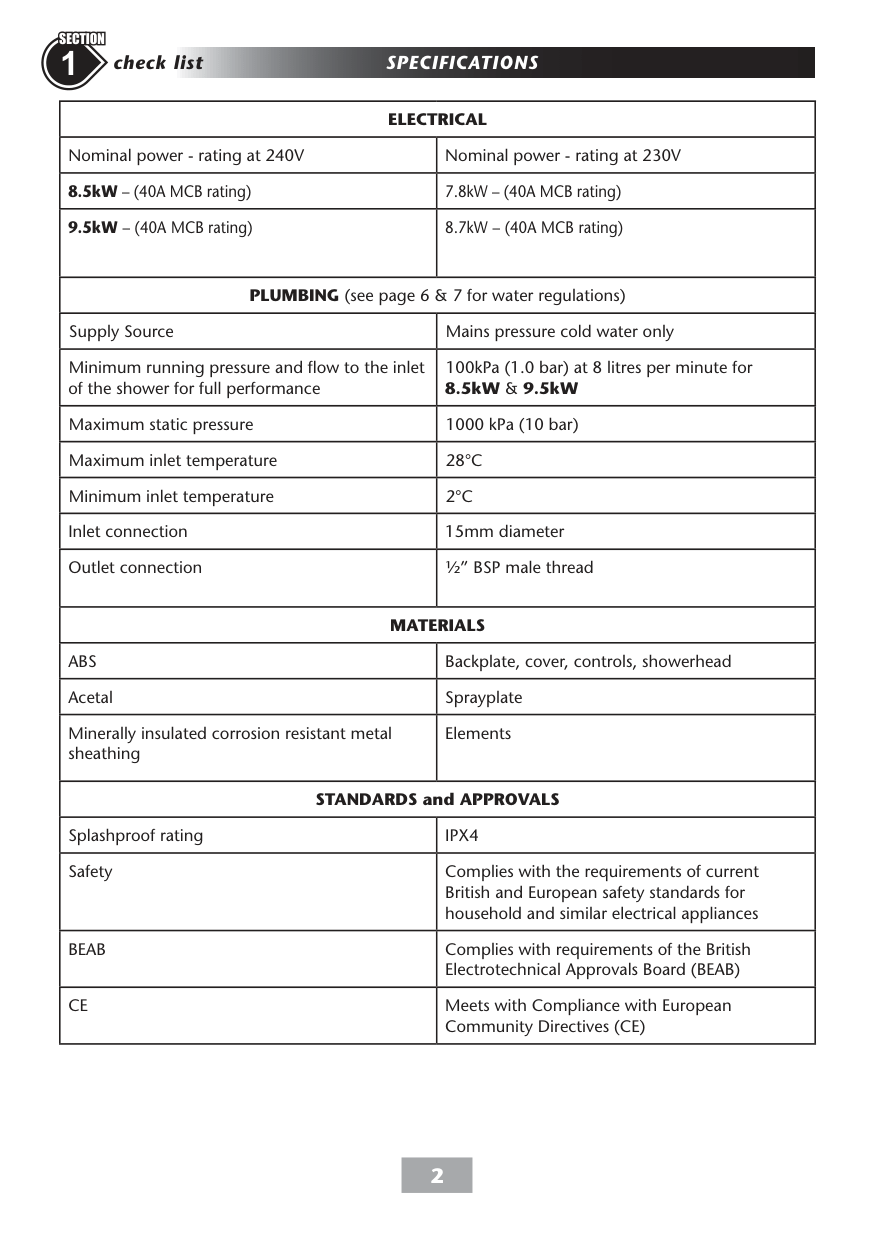

SPECIFICATIONScheck list1

|ELECTRICAL|ELECTRICAL| |---|---| |Nominal power - rating at 240V|Nominal power - rating at 230V| |8.5kW – (40A MCB rating)|7.8kW – (40A MCB rating)| |9.5kW – (40A MCB rating)|8.7kW – (40A MCB rating)| |PLUMBING (see page 6 & 7 for water regulations)|PLUMBING (see page 6 & 7 for water regulations)| |Supply Source|Mains pressure cold water only| |Minimum running pressure and flow to the inlet of the shower for full performance|100kPa (1.0 bar) at 8 litres per minute for 8.5kW & 9.5kW| |Maximum static pressure|1000 kPa (10 bar)| |Maximum inlet temperature|28°C| |Minimum inlet temperature|2°C| |Inlet connection|15mm diameter| |Outlet connection|½” BSP male thread| |MATERIALS|MATERIALS| |ABS|Backplate, cover, controls, showerhead| |Acetal|Sprayplate| |Minerally insulated corrosion resistant metal sheathing|Elements| |STANDARDS and APPROVALS|STANDARDS and APPROVALS| |Splashproof rating|IPX4| |Safety|Complies with the requirements of current British and European safety standards for household and similar electrical appliances| |BEAB|Complies with requirements of the British Electrotechnical Approvals Board (BEAB)| |CE|Meets with Compliance with European Community Directives (CE)|

############ Fig.1

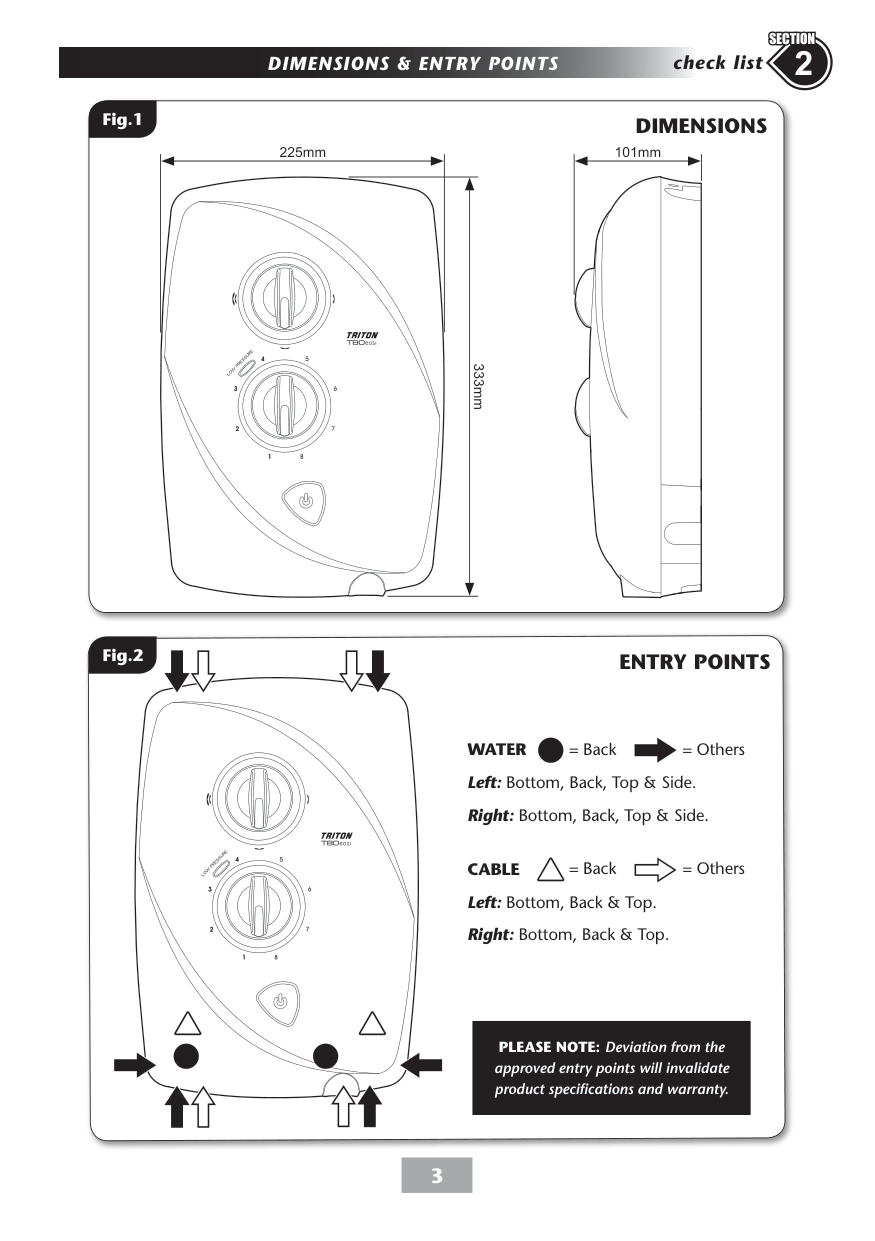

DIMENSIONS & ENTRY POINTS 2check list

DIMENSIONS

225mm 101mm

333mm

Fig.2

ENTRY POINTS

= Back

= Others

WATER Left: Bottom, Back, Top & Side. Right: Bottom, Back, Top & Side.

= Back

= Others

CABLE Left: Bottom, Back & Top. Right: Bottom, Back & Top.

################# PLEASE NOTE: Deviation from the approved entry points will invalidate product specifications and warranty.

3 check list

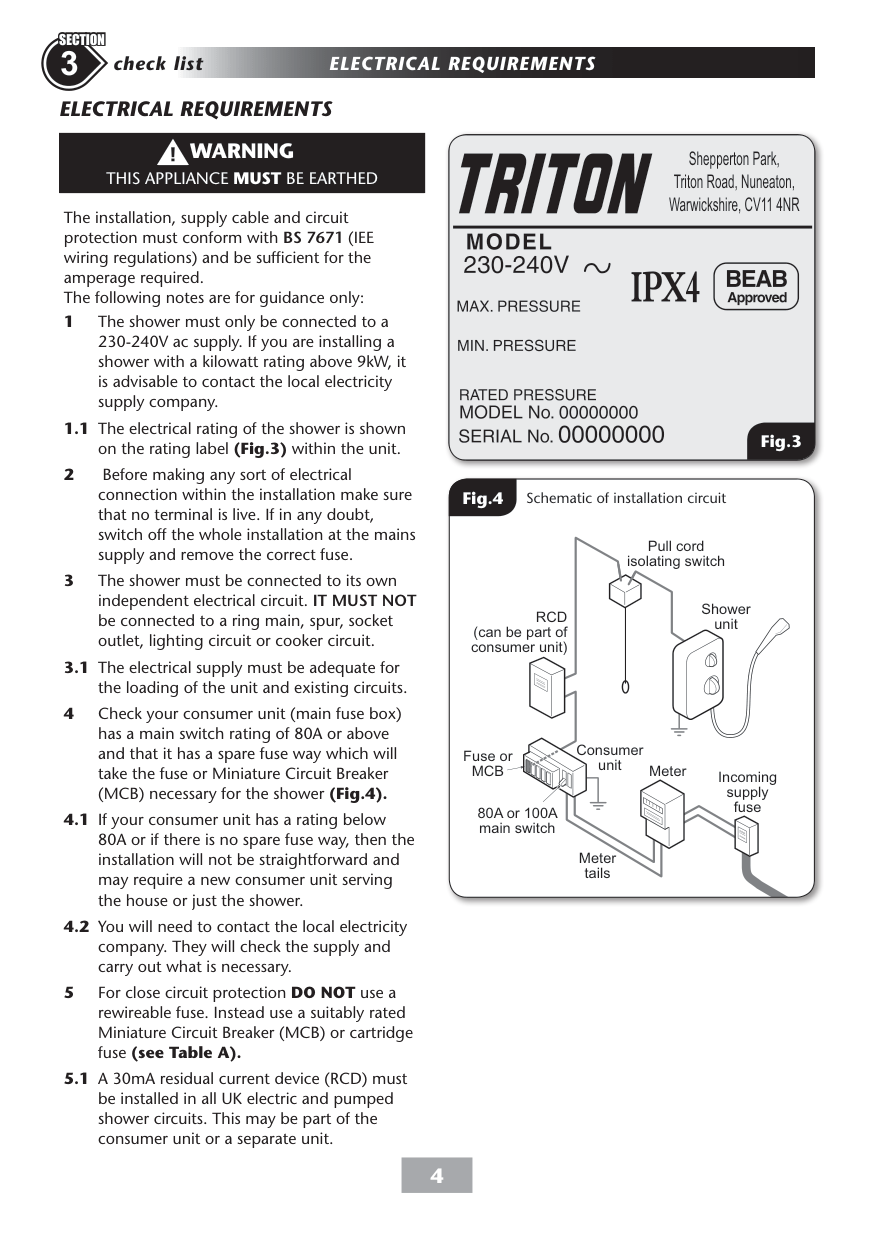

######## ELECTRICAL REQUIREMENTS

####### ELECTRICAL REQUIREMENTS

|WARNING THIS APPLIANCE MUST BE EARTHED| |---|

Shepperton Park, Triton Road, Nuneaton, Warwickshire, CV11 4NR

The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be sufficient for the amperage required. The following notes are for guidance only:

1.1 The electrical rating of the shower is shown

on the rating label (Fig.3) within the unit.

4 Check your consumer unit (main fuse box) has a main switch rating of 80A or above and that it has a spare fuse way which will take the fuse or Miniature Circuit Breaker (MCB) necessary for the shower (Fig.4).

Fig.3

|Meter Incoming

supply fuse

Meter tails

Consumer unit

Pull cord isolating switch

Shower unit

Fuse or MCB

RCD (can be part of consumer unit)

80A or 100A main switch

Schematic of installation circuitFig.4

| |---|

5 For close circuit protection DO NOT use a rewireable fuse. Instead use a suitably rated Miniature Circuit Breaker (MCB) or cartridge fuse (see Table A).

without the use of a plug or socket outlet. The switch must be accessible and clearly

be installed in all UK electric and pumped

3Continued

consumer unit or a separate unit.

using a fixed bath or shower, except for the cord of a cord operated switch, and should

6.2 The switch must be accessible and clearly identifiable, but out of reach of a person using a fixed bath or shower, except for the cord of a cord operated switch, and should be placed so that it is not possible to touch the switch body while standing in a bath or shower cubicle. It should be readily accessible to switch off after using the shower.

| |MCB

cartridge fuse

unit rating

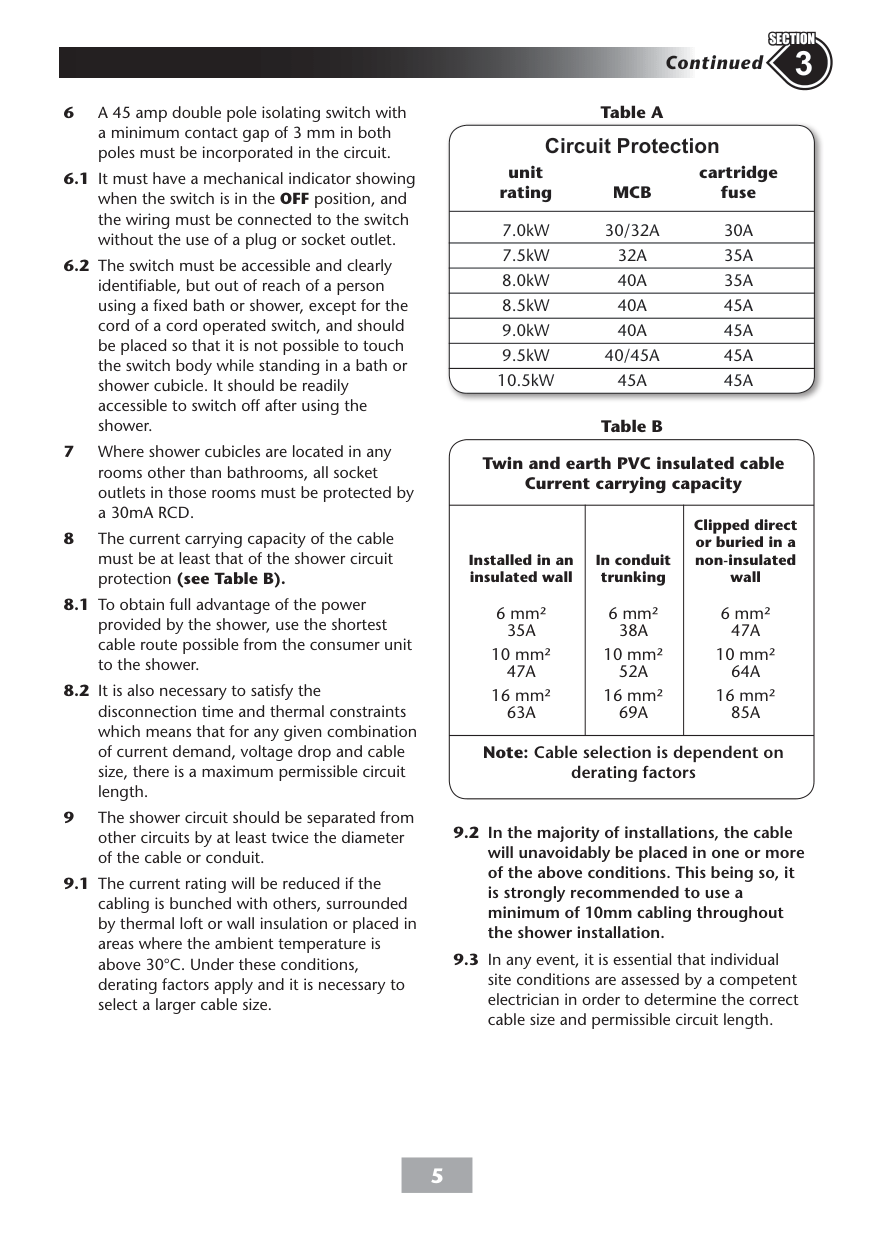

CIRCUIT PROTECTION E-002-A

be placed so that it is not possible to touch the switch body while standing in a bath or shower cubicle. It should be readily accessible to switch off after using the

Circuit Protection| | |---|---|---| | |30/32A 30A7.0kWshower.| | | |32A 35A7.5kWWhere shower cubicles are located in any| | | |40A 35A8.0kWrooms other than bathrooms, all socket| | | |40A 45A8.5kW outlets in those rooms must be protected by a 30mA RCD.| | | |40A 45A9.0kW

8 The current carrying capacity of the cable| | | |40/45A 45A9.5kWmust be at least that of the shower circuit| | | | | |

45A 45A10.5kWE-002-A

############### protection (see Table B).

| |to the shower. It is also necessary to satisfy the

Twin and earth PVC insulated cable Current carrying capacity|to the shower. It is also necessary to satisfy the

Twin and earth PVC insulated cable Current carrying capacity|to the shower. It is also necessary to satisfy the

Twin and earth PVC insulated cable Current carrying capacity| | |---|---|---|---|---| | |disconnectio which means of current de size, there is

The shower c other circuits of the cable o

The current r cabling is bu by thermal lo

Installed in an insulated wall

6 mm² 35A

10 mm² 47A

16 mm² 63A|time and the

that for any g and, voltage maximum p

rcuit should y at least twi conduit.

ting will be r ched with ot t or wall insul

In conduit trunking

6 mm² 38A

10 mm² 52A

16 mm² 69A|mal constraints ven combination drop and cable rmissible circuit

e separated from e the diameter

duced if the ers, surrounded

tion or placed in

Clipped direct or buried in a non-insulated wall

6 mm² 47A

10 mm² 64A

16 mm² 85A| | | |areas where the ambient temperature is above 30°C. Under these conditions,

Note: Cable selection is dependent on derating factors|areas where the ambient temperature is above 30°C. Under these conditions,

Note: Cable selection is dependent on derating factors|areas where the ambient temperature is above 30°C. Under these conditions,

Note: Cable selection is dependent on derating factors| |

derating factors apply and it is necessary to select a larger cable size.

9.1 The current rating will be reduced if the cabling is bunched with others, surrounded by thermal loft or wall insulation or placed in areas where the ambient temperature is above 30°C. Under these conditions, derating factors apply and it is necessary to select a larger cable size.

9.3 In any event, it is essential that individual

site conditions are assessed by a competent electrician in order to determine the correct cable size and permissible circuit length.

5

site conditions are assessed by a competent electrician in order to determine the correct

4 check list

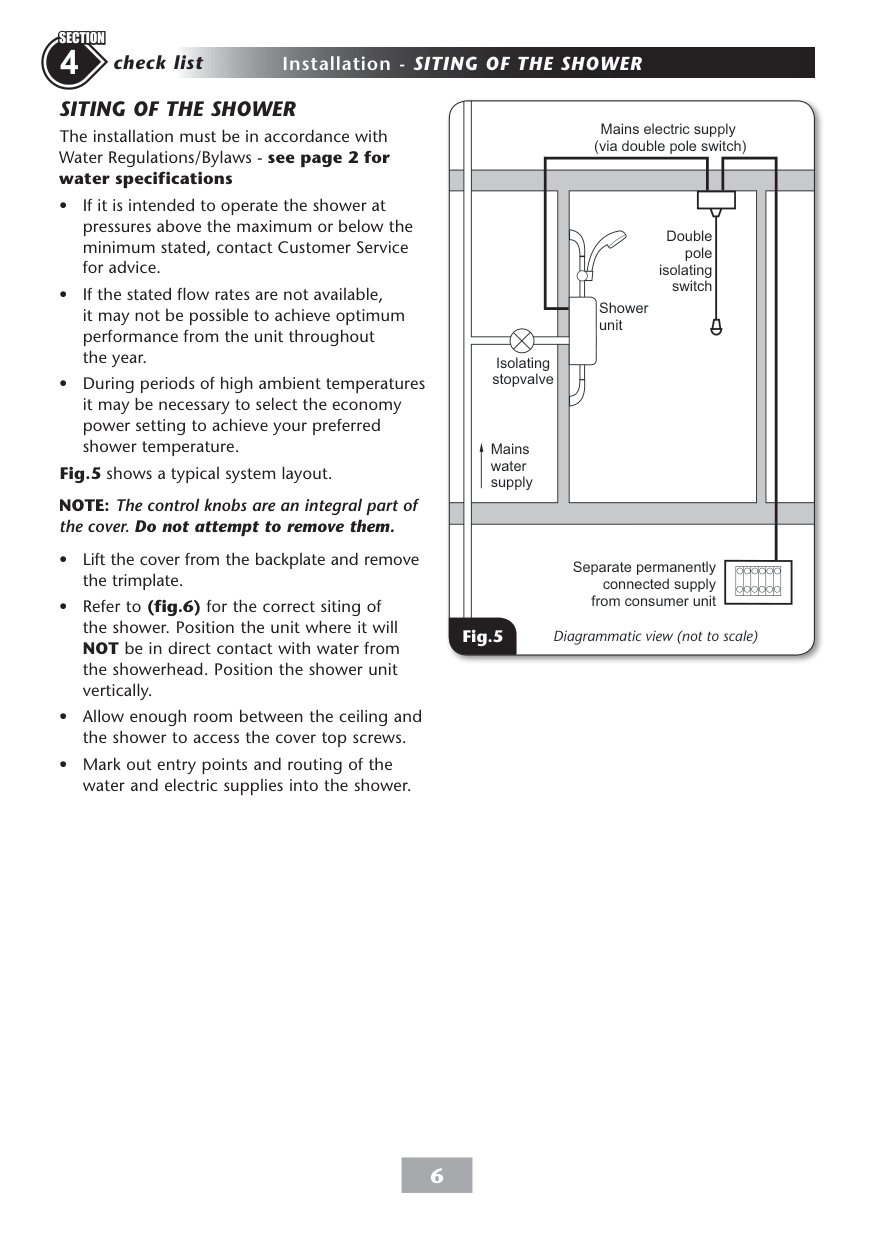

######## Installation - SITING OF THE SHOWER

####### SITING OF THE SHOWER

Mains electric supply (via double pole switch)

The installation must be in accordance with Water Regulations/Bylaws - see page 2 for water specifications

Double pole isolating switch

Shower unit

Isolating stopvalve

Mains water supply

Fig.5 shows a typical system layout. NOTE: The control knobs are an integral part of the cover. Do not attempt to remove them.

Separate permanently connected supply from consumer unit

| | | | | | | |---|---|---|---|---|---|

Fig.5

Diagrammatic view (not to scale)

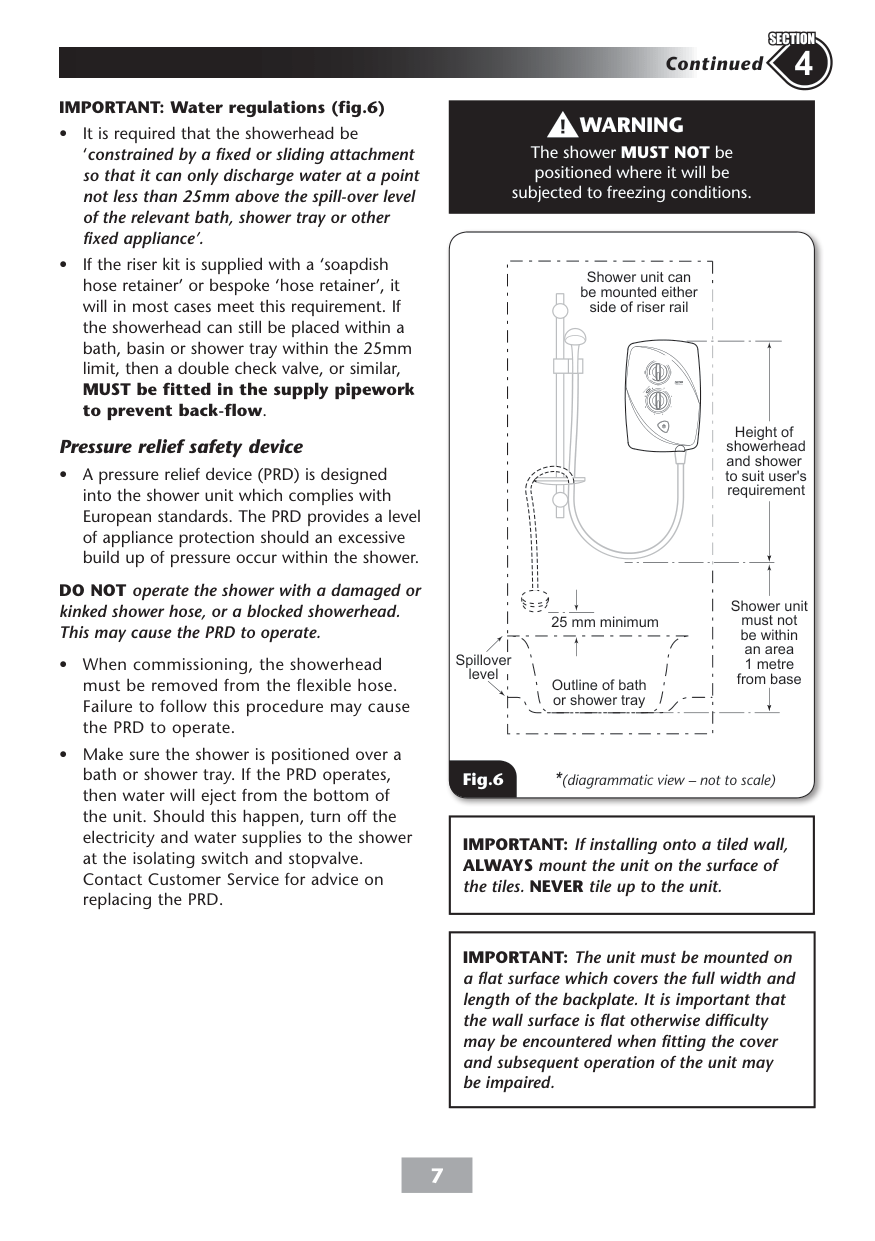

############ IMPORTANT: Water regulations (fig.6)

######## Pressure relief safety device

• A pressure relief device (PRD) is designed into the shower unit which complies with European standards. The PRD provides a level of appliance protection should an excessive build up of pressure occur within the shower.

DO NOT operate the shower with a damaged or kinked shower hose, or a blocked showerhead. This may cause the PRD to operate.

4Continued

|WARNING The shower MUST NOT be positioned where it will be subjected to freezing conditions.| |---|

Shower unit can be mounted either side of riser rail

| | | |---|---| | | | | | |

Height of showerhead and shower to suit user's requirement

Shower unit must not be within an area 1 metre from base

25 mm minimum

Spillover level

Outline of bath or shower tray

######### Fig.6 *(diagrammatic view – not to scale)

|IMPORTANT: If installing onto a tiled wall, ALWAYS mount the unit on the surface of the tiles. NEVER tile up to the unit.| |---|

|IMPORTANT: The unit must be mounted on a flat surface which covers the full width and length of the backplate. It is important that the wall surface is flat otherwise difficulty may be encountered when fitting the cover and subsequent operation of the unit may be impaired.| |---|

5 check list

Installation - PLUMBING INSTALLATION

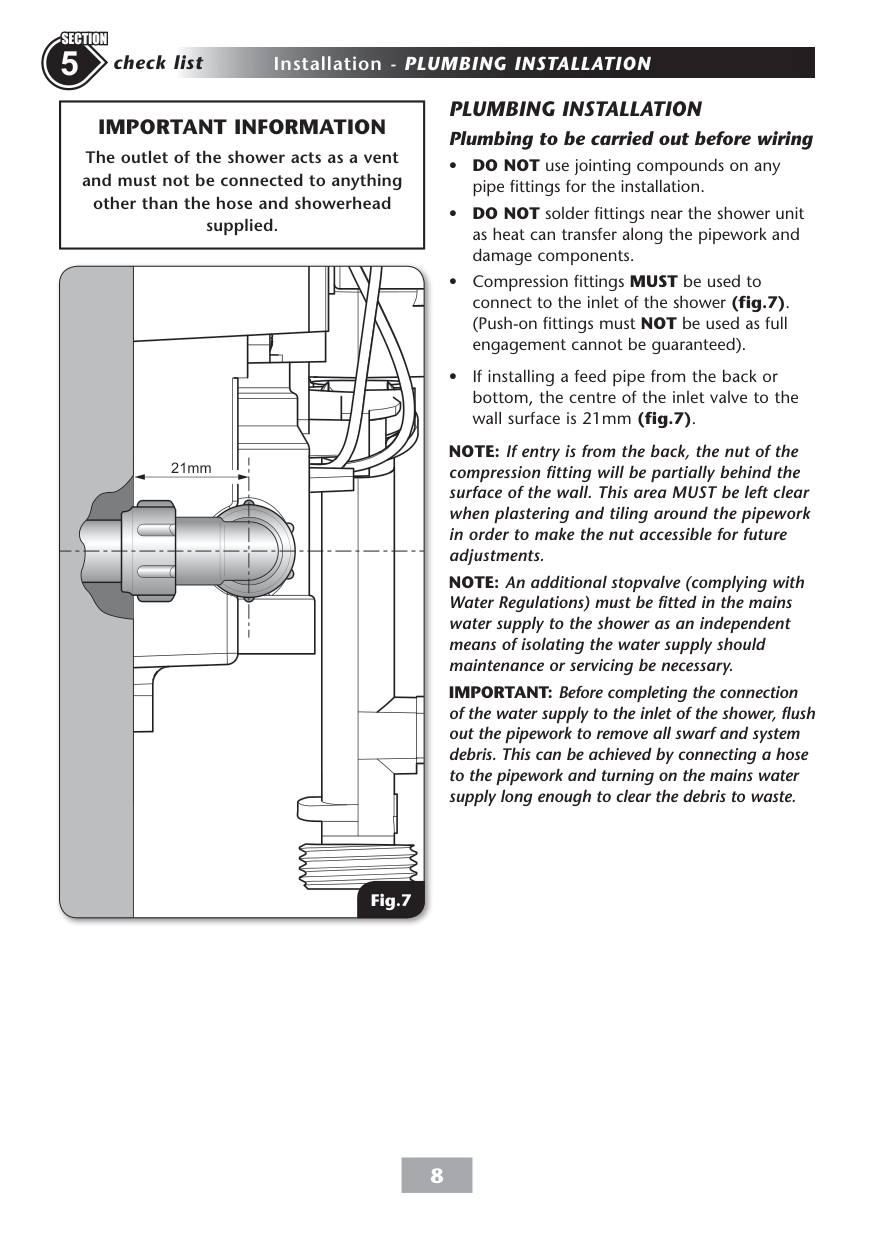

PLUMBING INSTALLATION Plumbing to be carried out before wiring

IMPORTANT INFORMATION The outlet of the shower acts as a vent and must not be connected to anything other than the hose and showerhead supplied.

21mm

NOTE: If entry is from the back, the nut of the compression fitting will be partially behind the surface of the wall. This area MUST be left clear when plastering and tiling around the pipework in order to make the nut accessible for future adjustments. NOTE: An additional stopvalve (complying with Water Regulations) must be fitted in the mains water supply to the shower as an independent means of isolating the water supply should maintenance or servicing be necessary. IMPORTANT: Before completing the connection of the water supply to the inlet of the shower, flush out the pipework to remove all swarf and system debris. This can be achieved by connecting a hose to the pipework and turning on the mains water supply long enough to clear the debris to waste.

Fig.7

######## Installation - ELECTRICAL INSTALLATION

ELECTRICAL INSTALLATION IMPORTANT: Switch off the electricity supply at the mains before proceeding.

NOTE: Deviations from the designated entry points will invalidate product approvals. The cable entry points are listed on page 3.

• The supply cable MUST be secured either by

• Seal around rear entry cable to prevent water ingress into the wall.

routing through conduit, in trunking, or by embedding in the wall, in accordance with IEE regulations.

NOTE: Conduit entry can only be from rear.

SECTION

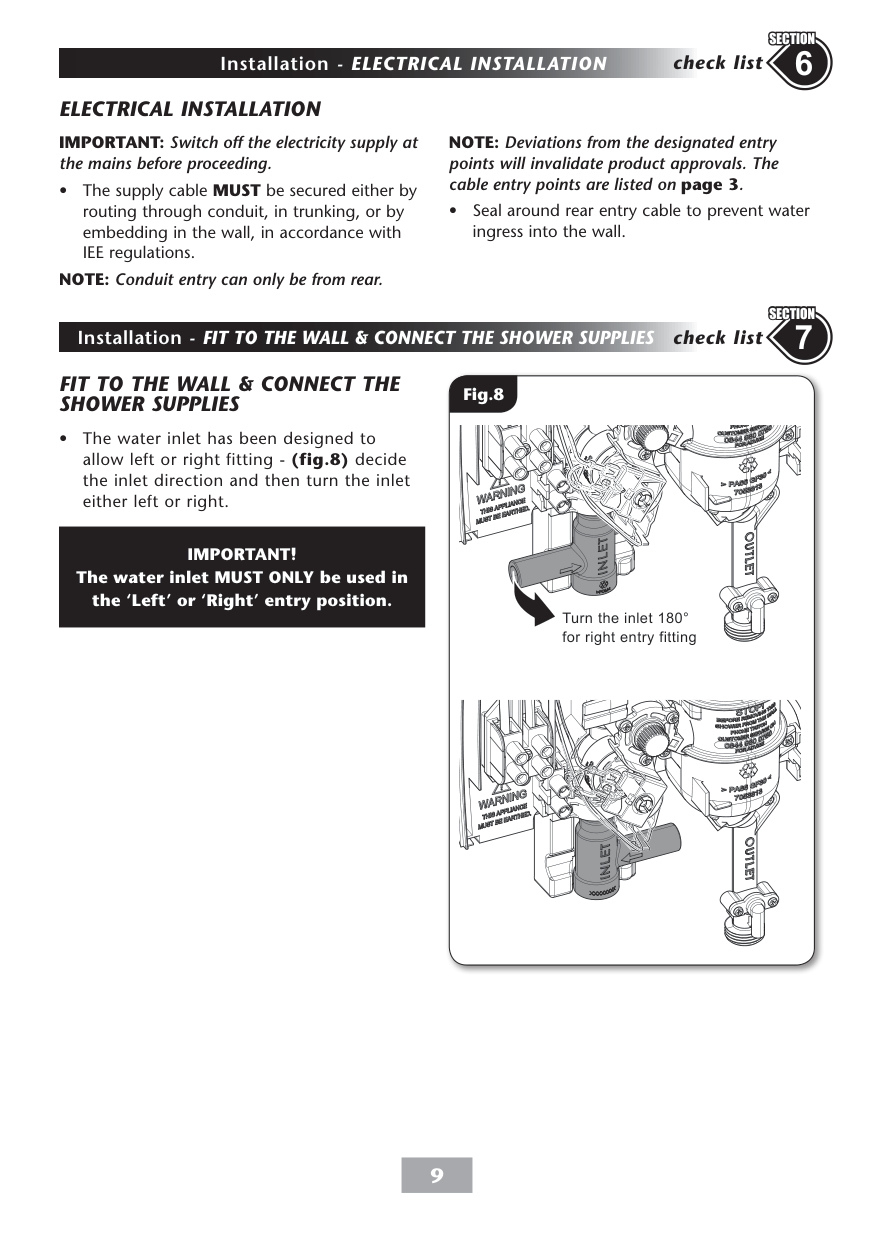

Installation - FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES

####### FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES

############ IMPORTANT! The water inlet MUST ONLY be used in the ‘Left’ or ‘Right’ entry position.

############ Fig.8

Turn the inlet 180° for right entry fitting

############ Fig.9

Top pipe trims

Top cable

“Cut out” entry points

“Cut out” Cable entry point

“Cut out” Cable entry point

“Cut out” Pipe entry points - on trimplate

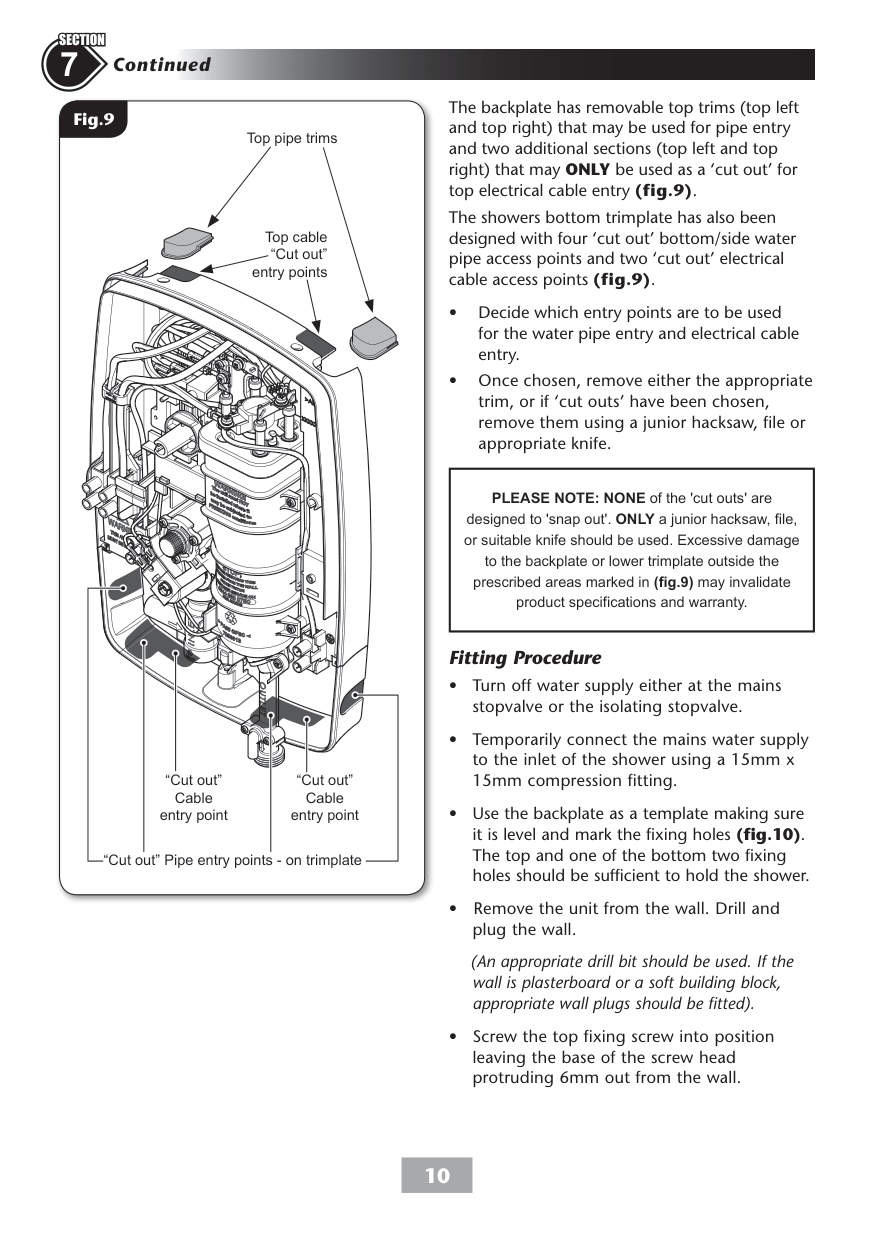

The backplate has removable top trims (top left and top right) that may be used for pipe entry and two additional sections (top left and top right) that may ONLY be used as a ‘cut out’ for top electrical cable entry (fig.9). The showers bottom trimplate has also been designed with four ‘cut out’ bottom/side water pipe access points and two ‘cut out’ electrical cable access points (fig.9).

|PLEASE NOTE: NONE of the 'cut outs' are designed to 'snap out'. ONLY a junior hacksaw, file, or suitable knife should be used. Excessive damage to the backplate or lower trimplate outside the prescribed areas marked in (fig.9) may invalidate product specifications and warranty.| |---|

######## Fitting Procedure

(An appropriate drill bit should be used. If the wall is plasterboard or a soft building block, appropriate wall plugs should be fitted).

NOTE: At this stage no water can flow through the unit. IMPORTANT: A suitable sealant should always be used to seal around the incoming pipework to prevent water entering the wall.

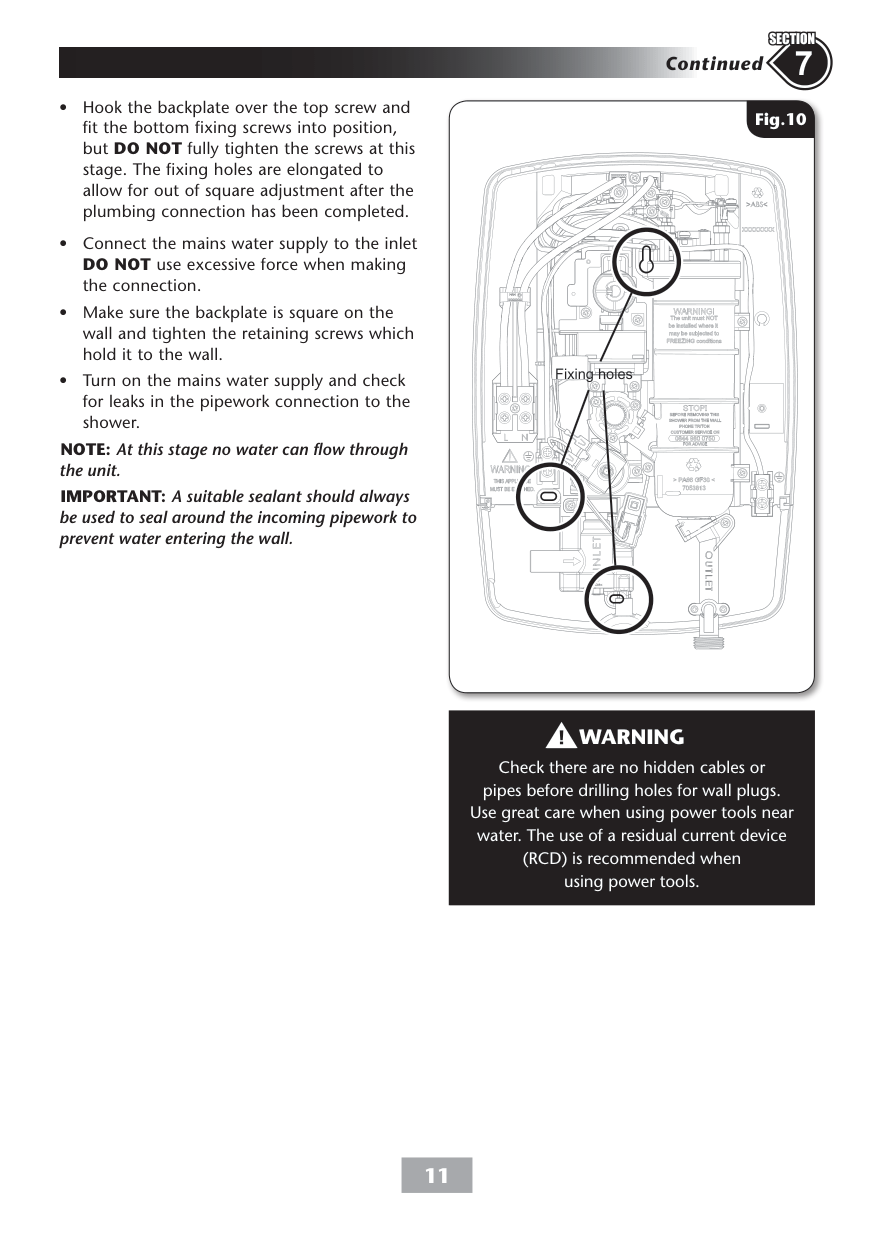

############ Fig.10

| | | |---|---| | | | | | |

| | | |

|---|---|---| | | | | | | | |

| | | |---|---| | | |

| | | |---|---| | | |

| | | |---|---| | | |

| | | |---|---| | | | | | |

| | | |---|---| | | | | | |

Fixing holes

| | | |---|---| | | |

| | | |---|---| | | |

| | | | |---|---|---| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

| | | | |---|---|---| | | | |

| | | |---|---| | | |

| | | | |---|---|---| | | | |

|WARNING Check there are no hidden cables or pipes before drilling holes for wall plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is recommended when using power tools.| |---|

Fig.11

| | | | |---|---|---| | | | |

| | | |---|---|

| | |

| | | |---|---| | | |

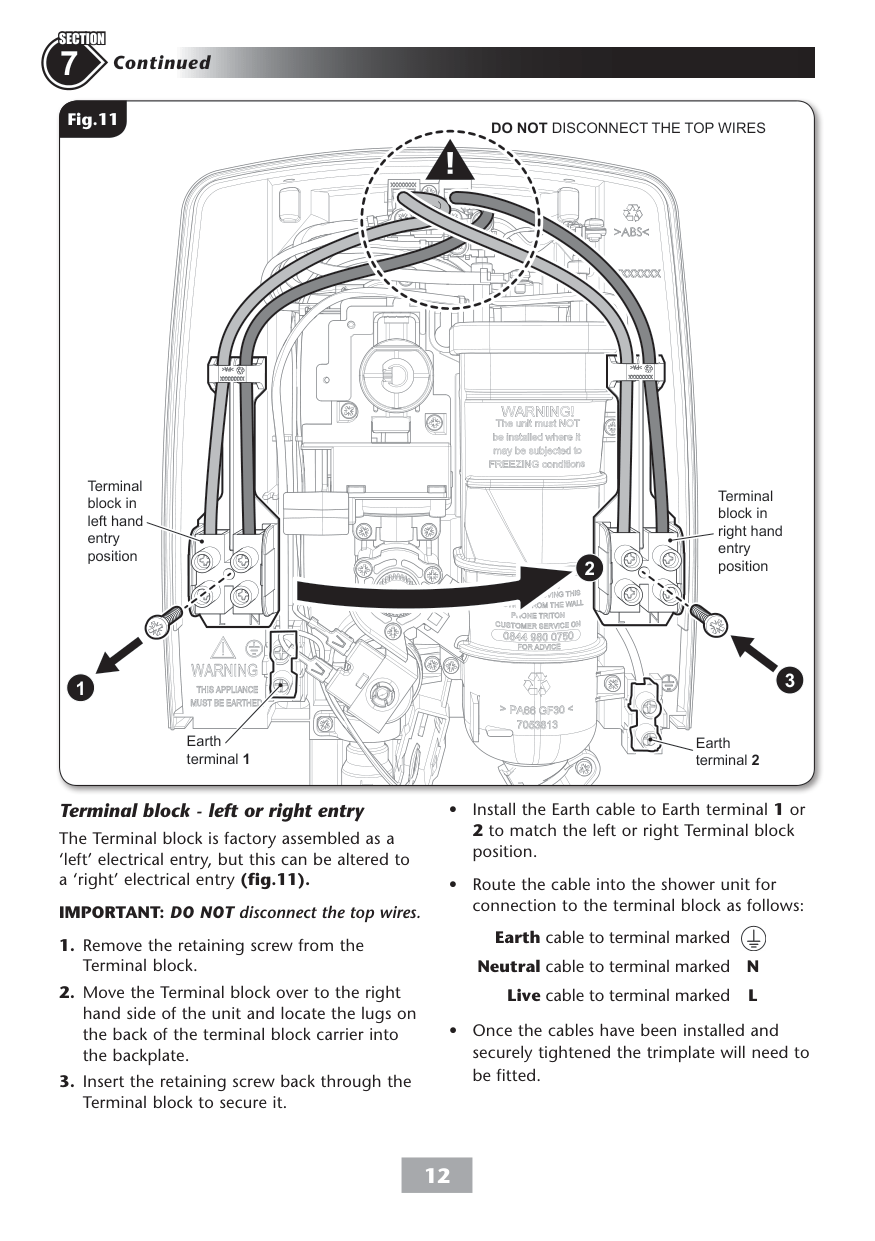

Terminal block in left hand entry position

| | | |---|---| | | | | | | | | |

| | | |---|---| | | | | | |

1

Earth terminal 1

DO NOT DISCONNECT THE TOP WIRES

| | | |---|---| | | |

| | | |---|---| | | |

| | | |---|---| | | |

2

Terminal block in right hand entry position

| | | |---|---| | | | | | |

| | | |---|---| | | | | | |

| | | |---|---| | | |

| | | |---|---| | | |

Earth terminal 2

3

Terminal block - left or right entry The Terminal block is factory assembled as a ‘left’ electrical entry, but this can be altered to a ‘right’ electrical entry (fig.11). IMPORTANT: DO NOT disconnect the top wires.

Earth cable to terminal marked

Neutral cable to terminal marked N Live cable to terminal marked L

IMPORTANT: When connecting the cable fully tighten the terminal block screws and make sure that no cable insulation is trapped under the screws. Loose connections can result in cable overheating.

NOTE: The supply cable earth conductor must be sleeved. The outer sheath of the supply cable must be stripped back to the minimum.

2

L

1

E

5

3

N

3

6

7

7

4

|NOTE: The elements on UK models are to 240V specification and will give a lower kW rating if the voltage supply is below 240V.|

|---|

inletoutlet

Thermal cut-out (main) Neon - power Element

Terminal block Start/Stop switch Power selector Microswitch Solenoid valve

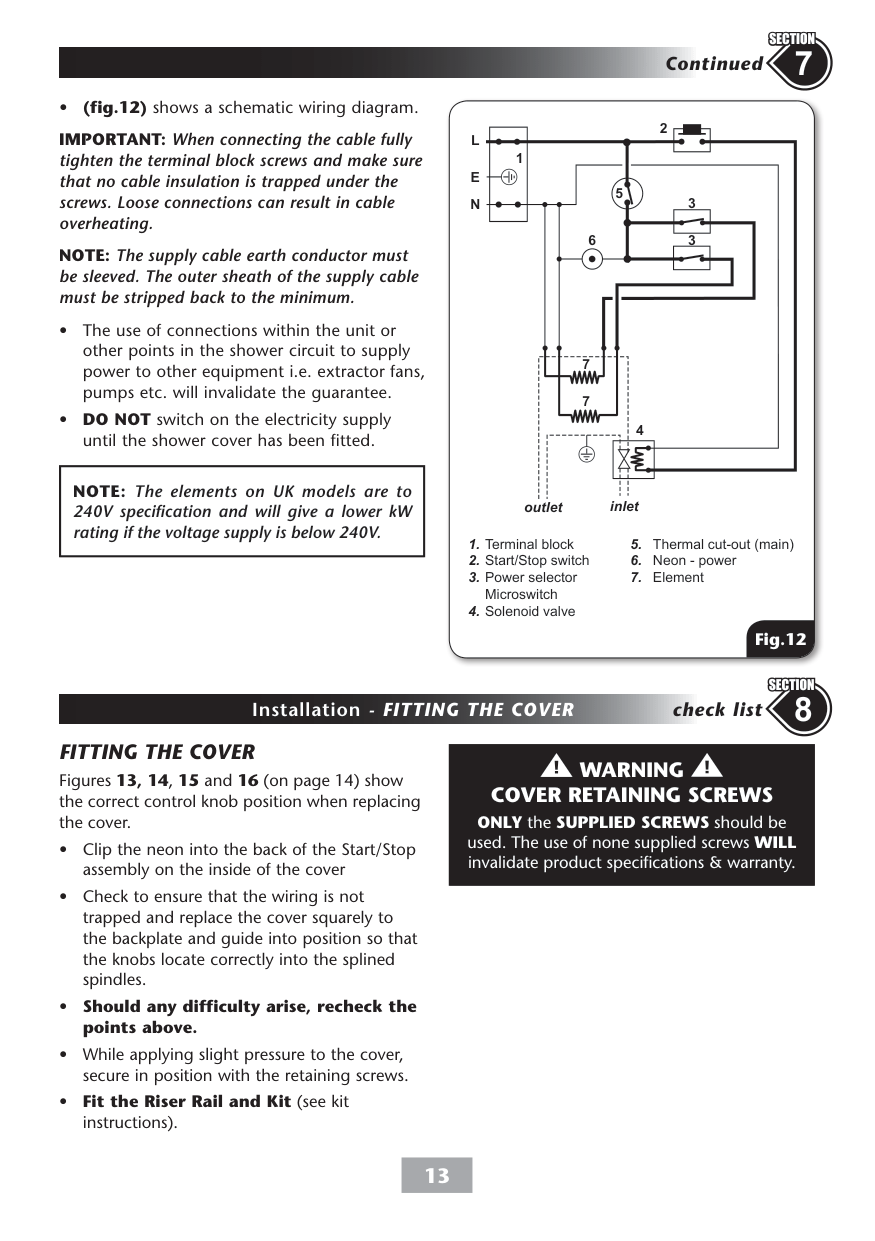

############ Fig.12

T00404

SECTION

Installation - FITTING THE COVER 8check list

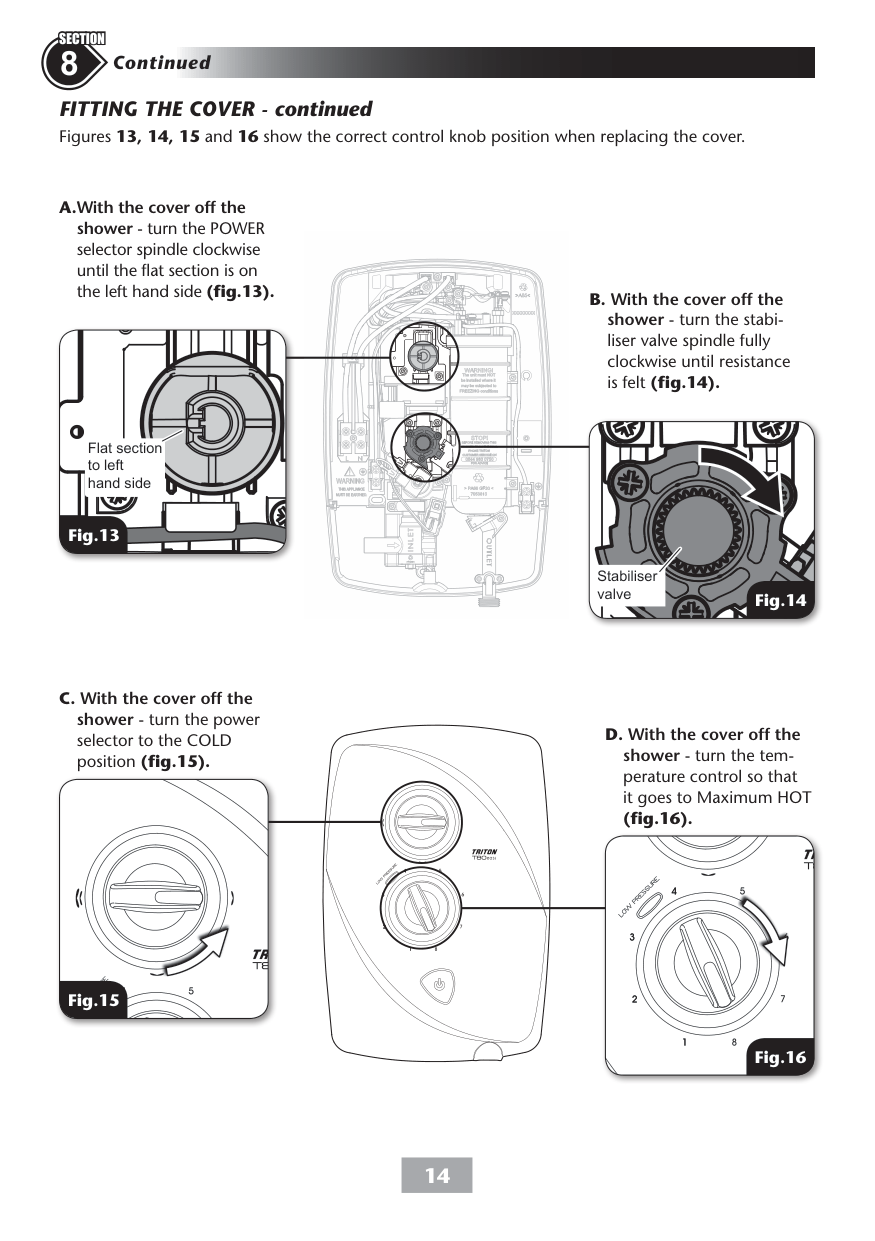

FITTING THE COVER Figures 13, 14, 15 and 16 (on page 14) show the correct control knob position when replacing the cover.

|WARNING COVER RETAINING SCREWS ONLY the SUPPLIED SCREWS should be used. The use of none supplied screws WILL invalidate product specifications & warranty.| |---|

SECTION

8 Continued

FITTING THE COVER - continued Figures 13, 14, 15 and 16 show the correct control knob position when replacing the cover.

| | | | |---|---|---| | | | |

A.With the cover off the

shower - turn the POWER

selector spindle clockwise until the flat section is on the left hand side (fig.13).

B. With the cover off the shower - turn the stabiliser valve spindle fully clockwise until resistance is felt (fig.14).

Flat section to left hand side

| | | |---|---| | | |

Fig.13

Stabiliser valve

| | | | | |---|---|---|---| | | | | |

Fig.14

C. With the cover off the shower - turn the power selector to the COLD position (fig.15).

D. With the cover off the shower - turn the temperature control so that it goes to Maximum HOT (fig.16).

############ Fig.15

Fig.16

9check list!! IMPORTANT !!

######## COMMISSIONING

|WARNING Before normal operation of the shower, it is essential the following commissioning procedure is completed correctly.| |---|

COMMISSIONING PROCEDURE The first operation of the shower is intended to flush out any remaining unit debris, and to make sure the heater unit contains water before the elements are switched on.

This operation MUST be carried out WITH the flexible hose screwed to the outlet but WITHOUT THE SHOWERHEAD ATTACHED. Make sure the outlet of the flexible hose is directed to waste. IMPORTANT: Failure to turn the control to the minimum flow position MAY cause the PRD to operate.

The shower is now ready for normal operation.

Fig.17

Power selector to COLD

Temperature control - Turn fully clockwise to ‘MINIMUM flow

Start/Stop button

Fig.18

Temperature control Turn fully anti-clockwise to MAXIMUM flow

######## USER OPERATING INSTRUCTIONS

############ Fig.19

Power selector

High

Cold

Economy

HOTTER

COOLER

Temperature control

Start/Stop button

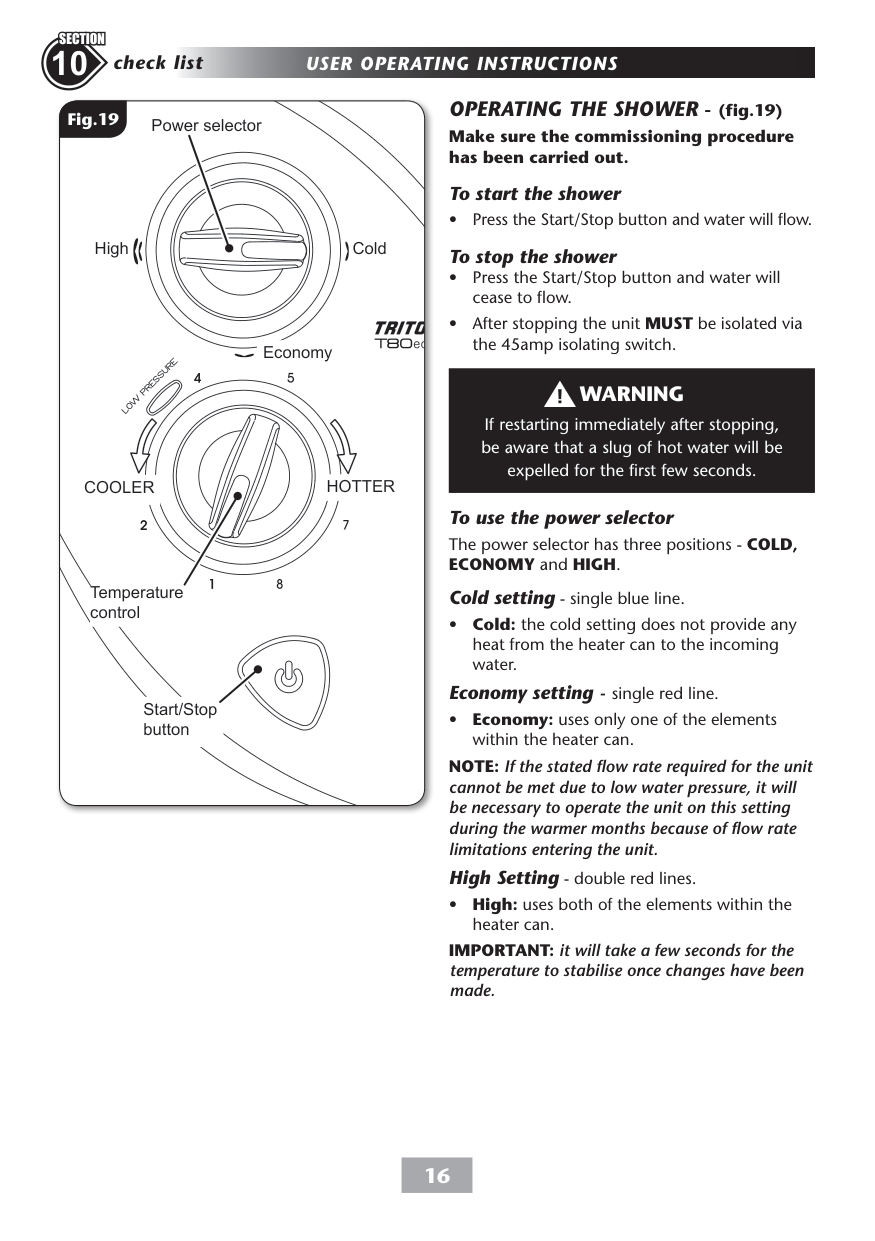

OPERATING THE SHOWER - (fig.19) Make sure the commissioning procedure has been carried out.

######## To start the shower

|WARNING If restarting immediately after stopping, be aware that a slug of hot water will be expelled for the first few seconds.| |---|

To use the power selector The power selector has three positions - COLD, ECONOMY and HIGH.

Cold setting - single blue line.

• Cold: the cold setting does not provide any heat from the heater can to the incoming water.

######## Economy setting - single red line.

• Economy: uses only one of the elements

within the heater can. NOTE: If the stated flow rate required for the unit cannot be met due to low water pressure, it will be necessary to operate the unit on this setting during the warmer months because of flow rate limitations entering the unit.

High Setting - double red lines.

• High: uses both of the elements within the

heater can. IMPORTANT: it will take a few seconds for the temperature to stabilise once changes have been made.

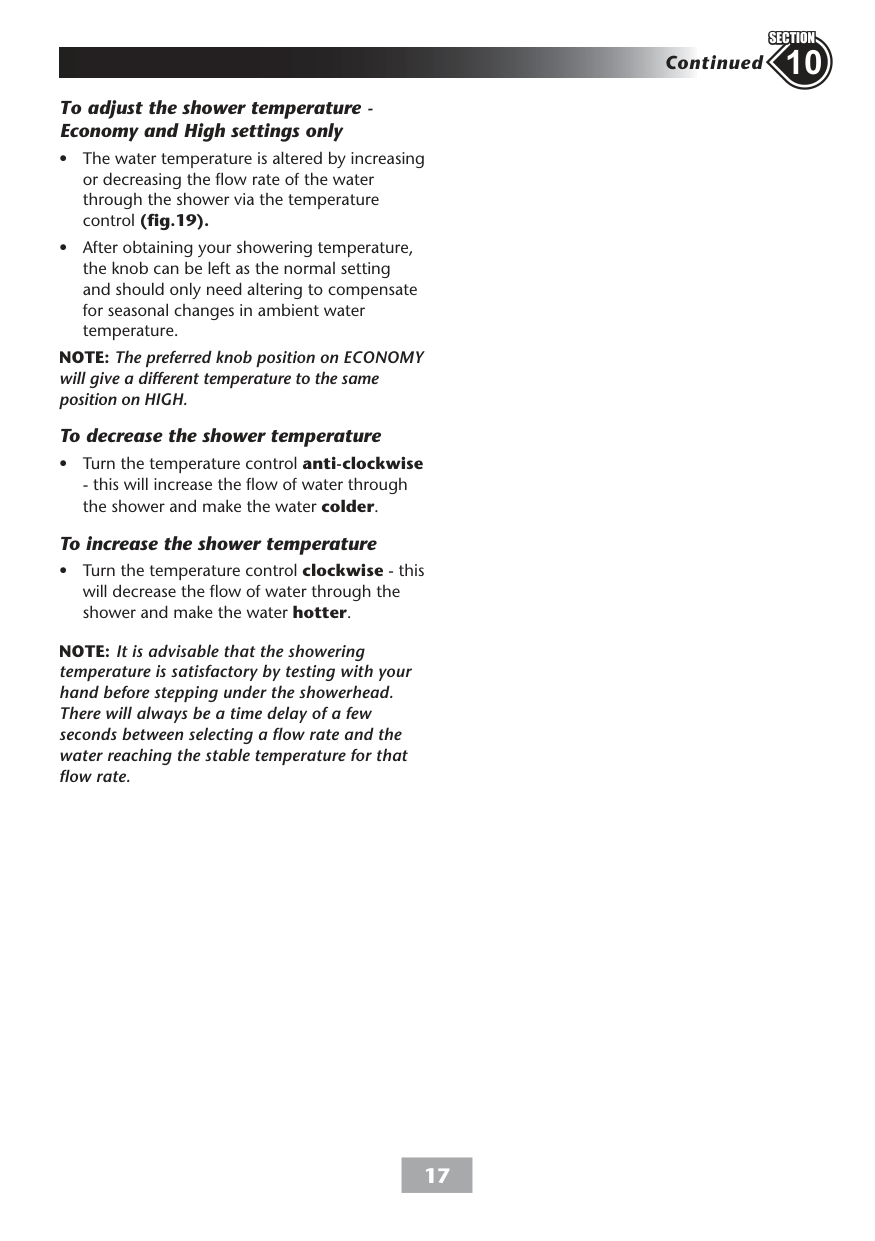

To adjust the shower temperature Economy and High settings only

NOTE: The preferred knob position on ECONOMY will give a different temperature to the same position on HIGH.

######## To decrease the shower temperature

• Turn the temperature control anti-clockwise

######## To increase the shower temperature

• Turn the temperature control clockwise - this will decrease the flow of water through the shower and make the water hotter.

NOTE: It is advisable that the showering temperature is satisfactory by testing with your hand before stepping under the showerhead. There will always be a time delay of a few seconds between selecting a flow rate and the water reaching the stable temperature for that flow rate.

10Continued

############ Fig.20

Low pressure indicator

Power ‘on’ indicator

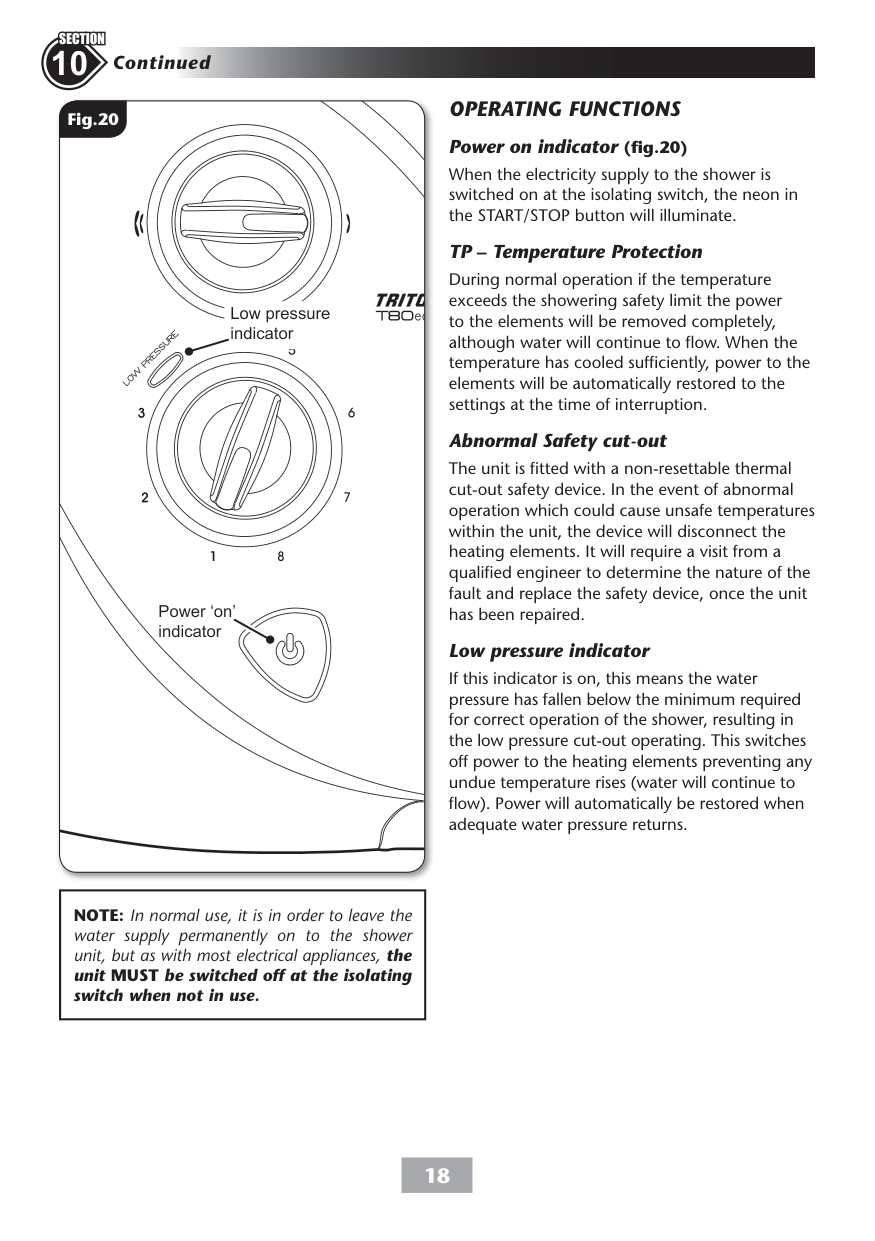

####### OPERATING FUNCTIONS Power on indicator (fig.20)

When the electricity supply to the shower is switched on at the isolating switch, the neon in the START/STOP button will illuminate.

TP – Temperature Protection During normal operation if the temperature exceeds the showering safety limit the power to the elements will be removed completely, although water will continue to flow. When the temperature has cooled sufficiently, power to the elements will be automatically restored to the settings at the time of interruption.

Abnormal Safety cut-out The unit is fitted with a non-resettable thermal cut-out safety device. In the event of abnormal operation which could cause unsafe temperatures within the unit, the device will disconnect the heating elements. It will require a visit from a qualified engineer to determine the nature of the fault and replace the safety device, once the unit has been repaired.

Low pressure indicator If this indicator is on, this means the water pressure has fallen below the minimum required for correct operation of the shower, resulting in the low pressure cut-out operating. This switches off power to the heating elements preventing any undue temperature rises (water will continue to flow). Power will automatically be restored when adequate water pressure returns.

|NOTE: In normal use, it is in order to leave the water supply permanently on to the shower unit, but as with most electrical appliances, the unit MUST be switched off at the isolating switch when not in use.| |---|

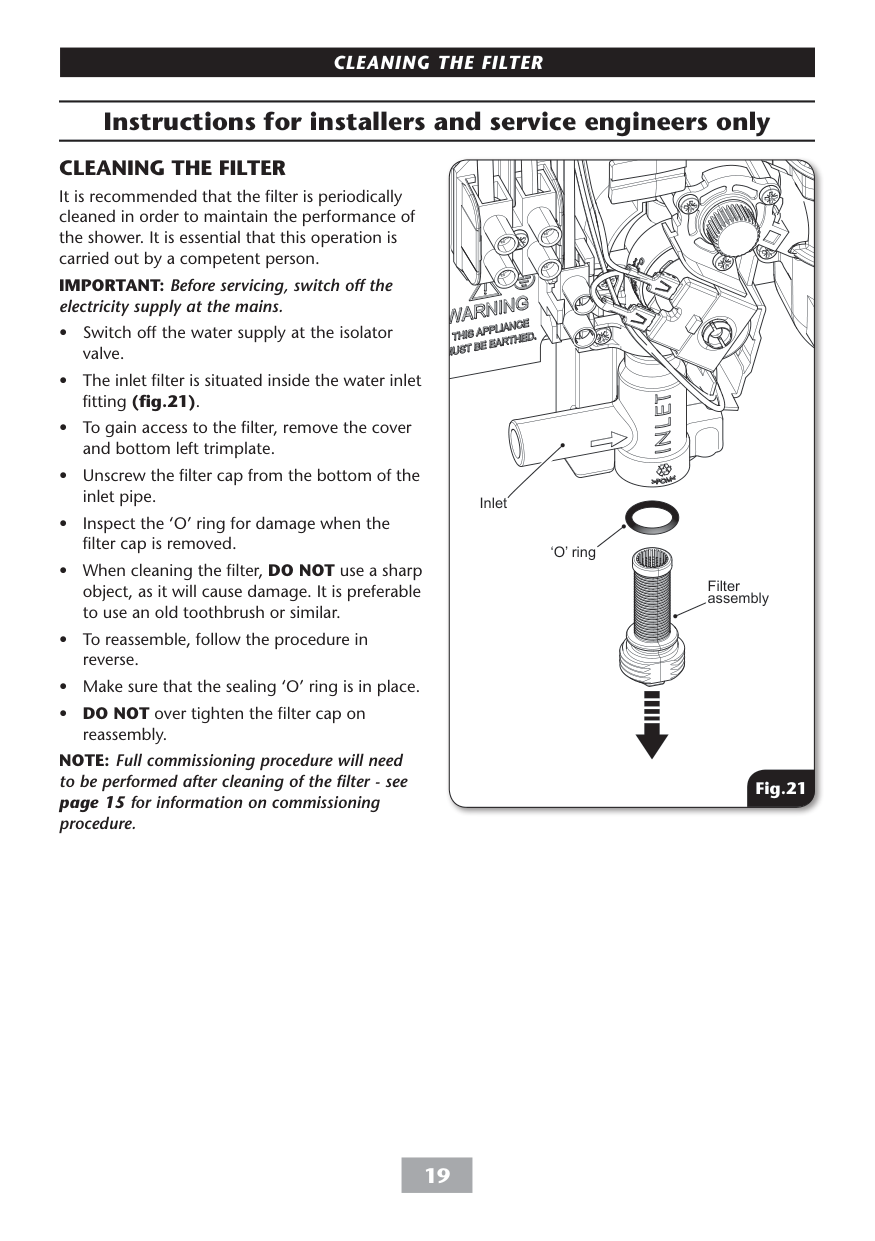

CLEANING THE FILTER

Instructions for installers and service engineers onlyINSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLYInstructions for installers and service engineers only

CLEANING THE FILTER It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by a competent person. IMPORTANT: Before servicing, switch off the electricity supply at the mains.

NOTE: Full commissioning procedure will need to be performed after cleaning of the filter - see page 15 for information on commissioning procedure.

Inlet

‘O’ ring

Filter assembly

Fig.21

IMPORTANT: Switch OFF the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit.

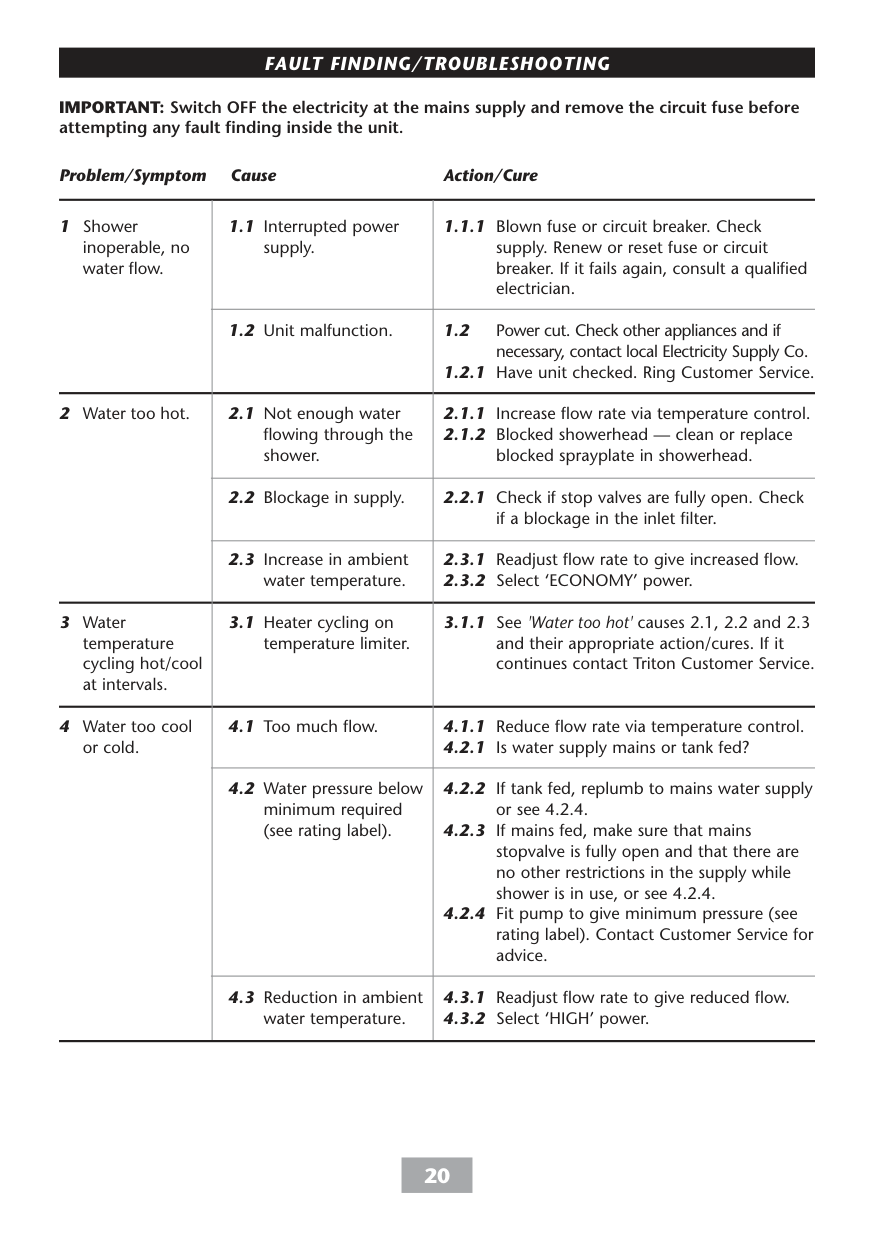

############ Problem/Symptom Cause Action/Cure

|1 Shower inoperable, no water flow.|1.1 Interrupted power

supply.|1.1.1 Blown fuse or circuit breaker. Check supply. Renew or reset fuse or circuit breaker. If it fails again, consult a qualified electrician.| |---|---|---| |1 Shower inoperable, no water flow.|1.2 Unit malfunction.|1.2 Power cut. Check other appliances and if

necessary, contact local Electricity Supply Co.

1.2.1 Have unit checked. Ring Customer Service.| |2 Water too hot.|2.1 Not enough water flowing through the shower.|2.1.1 Increase flow rate via temperature control.
2.1.2 Blocked showerhead — clean or replace blocked sprayplate in showerhead.
| |2 Water too hot.|2.2 Blockage in supply.|2.2.1 Check if stop valves are fully open. Check

if a blockage in the inlet filter.| |2 Water too hot.|2.3 Increase in ambient water temperature.|2.3.1 Readjust flow rate to give increased flow.
2.3.2 Select ‘ECONOMY’ power.
| |3 Water temperature cycling hot/cool at intervals.|3.1 Heater cycling on

temperature limiter.|3.1.1 See 'Water too hot' causes 2.1, 2.2 and 2.3 and their appropriate action/cures. If it continues contact Triton Customer Service.| |4 Water too cool

or cold.|4.1 Too much flow.|4.1.1 Reduce flow rate via temperature control.
4.2.1 Is water supply mains or tank fed?
| |4 Water too cool

or cold.|4.2 Water pressure below minimum required (see rating label).|4.2.2 If tank fed, replumb to mains water supply or see 4.2.4.
4.2.3 If mains fed, make sure that mains stopvalve is fully open and that there are no other restrictions in the supply while shower is in use, or see 4.2.4.
4.2.4 Fit pump to give minimum pressure (see rating label). Contact Customer Service for advice.
| |4 Water too cool

or cold.|4.3 Reduction in ambient

water temperature.|4.3.1 Readjust flow rate to give reduced flow.
4.3.2 Select ‘HIGH’ power.
|

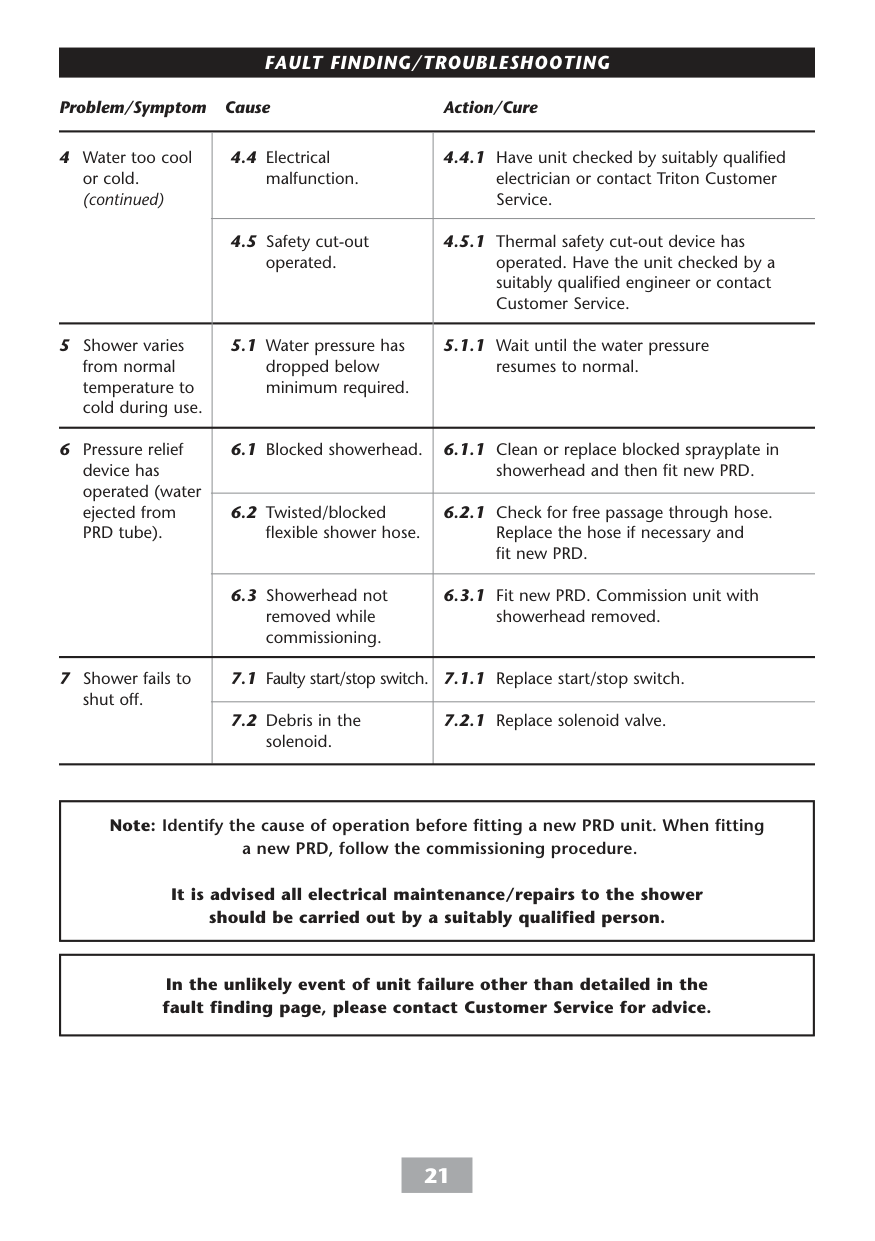

Problem/Symptom Cause Action/Cure

|4 Water too cool or cold. (continued)|4.4 Electrical

malfunction.|4.4.1 Have unit checked by suitably qualified electrician or contact Triton Customer Service.| |---|---|---| |4 Water too cool or cold. (continued)|4.5 Safety cut-out operated.|4.5.1 Thermal safety cut-out device has operated. Have the unit checked by a suitably qualified engineer or contact Customer Service.| |5 Shower varies from normal temperature to cold during use.|5.1 Water pressure has dropped below minimum required.|5.1.1 Wait until the water pressure

resumes to normal.| |6 Pressure relief device has operated (water ejected from PRD tube).|6.1 Blocked showerhead.|6.1.1 Clean or replace blocked sprayplate in

showerhead and then fit new PRD.| |6 Pressure relief device has operated (water ejected from PRD tube).|6.2 Twisted/blocked

flexible shower hose.|6.2.1 Check for free passage through hose. Replace the hose if necessary and fit new PRD.| |6 Pressure relief device has operated (water ejected from PRD tube).|6.3 Showerhead not removed while commissioning.|6.3.1 Fit new PRD. Commission unit with

showerhead removed.| |7 Shower fails to

shut off.|7.1 Faulty start/stop switch.|7.1.1 Replace start/stop switch.| |7 Shower fails to

shut off.|7.2 Debris in the

solenoid.|7.2.1 Replace solenoid valve.|

|Note: Identify the cause of operation before fitting a new PRD unit. When fitting a new PRD, follow the commissioning procedure.

It is advised all electrical maintenance/repairs to the shower should be carried out by a suitably qualified person.| |---|

|In the unlikely event of unit failure other than detailed in the fault finding page, please contact Customer Service for advice.| |---|

13

######## 9

| | | | |---|---|---| | | | |

| | | |---|---| | | | | | |

14

10

2

7

7

| | | |---|---| | | |

5

11

| | | |---|---| | | |

12

| | | | |---|---|---| | | | |

| | | |---|---| | | |

1

3

| | | |---|---| | | |

| | | | | |---|---|---|---| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

8

6

16

4

5

6

Images are for reference only - due to continual development, supplied spares may have modified appearance

8

9

10

11

12

15

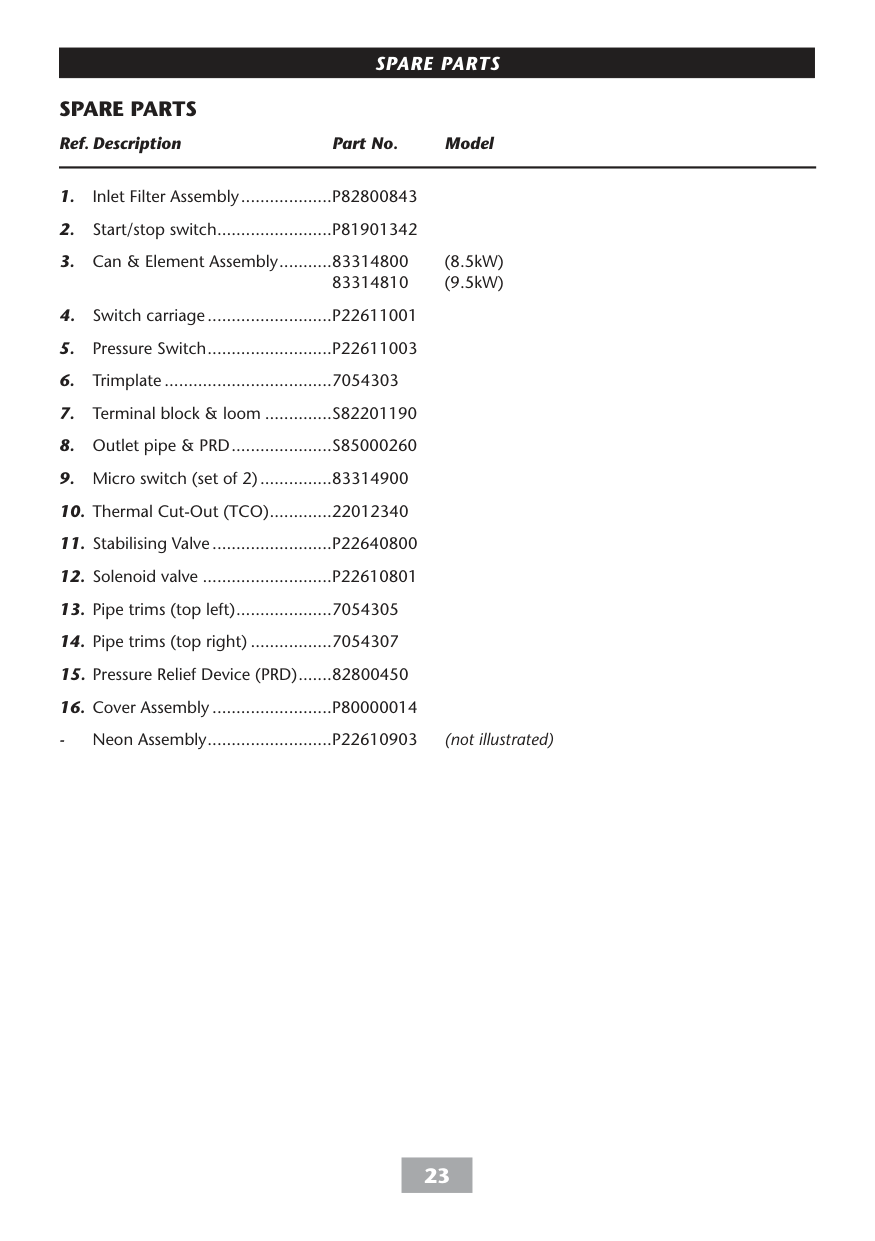

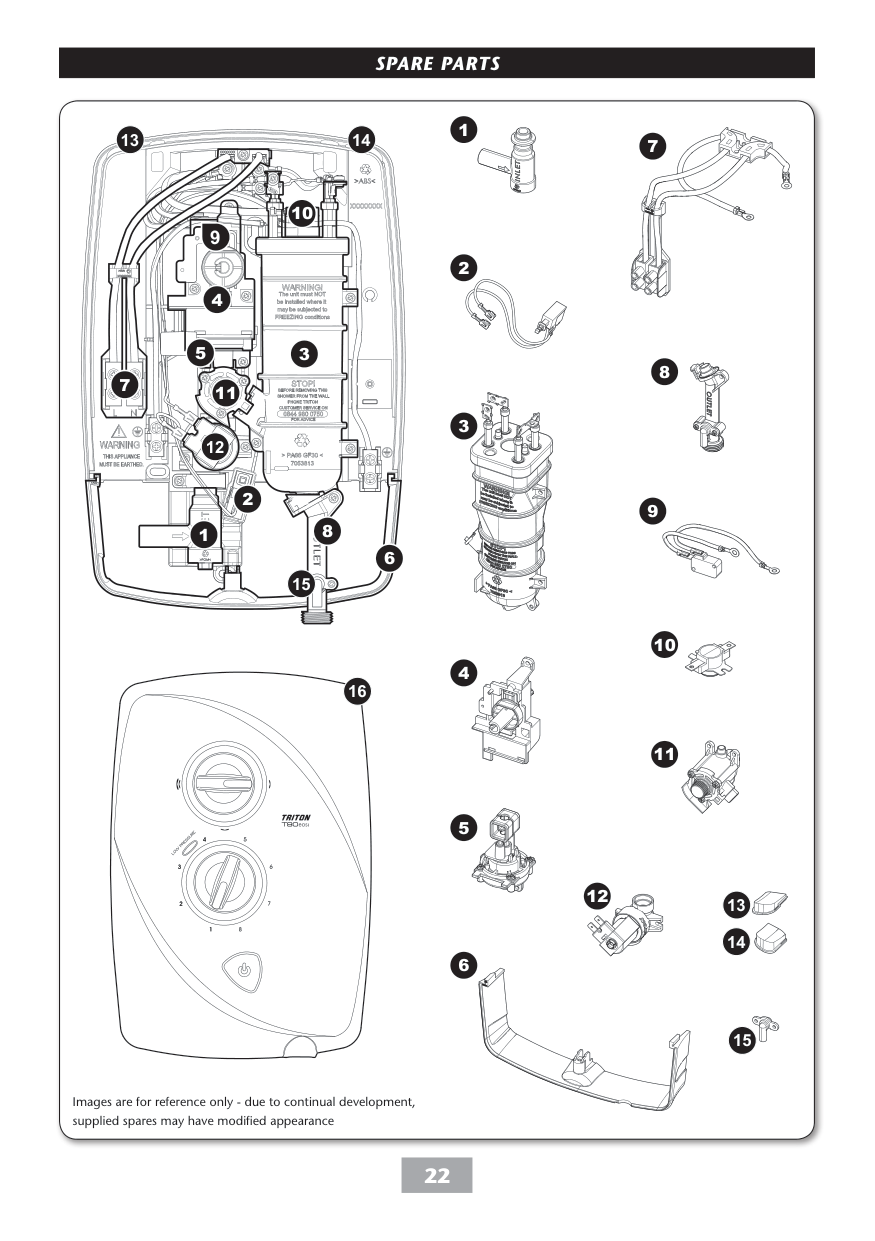

####### SPARE PARTS Ref. Description Part No. Model

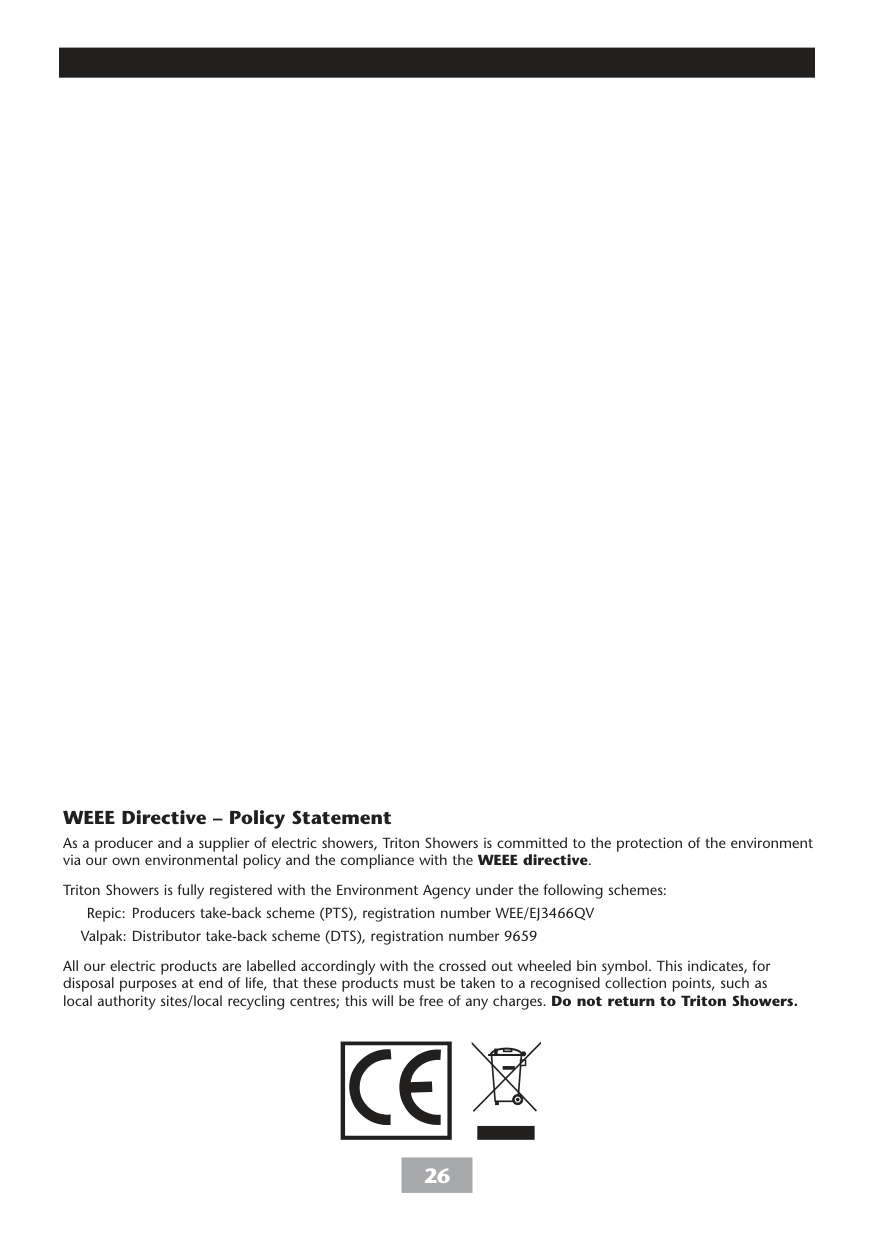

######## WEEE Directive – Policy Statement

As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive.

Triton Showers is fully registered with the Environment Agency under the following schemes:

Repic: Producers take-back scheme (PTS), registration number WEE/EJ3466QV Valpak: Distributor take-back scheme (DTS), registration number 9659

All our electric products are labelled accordingly with the crossed out wheeled bin symbol. This indicates, for disposal purposes at end of life, that these products must be taken to a recognised collection points, such as local authority sites/local recycling centres; this will be free of any charges. Do not return to Triton Showers.

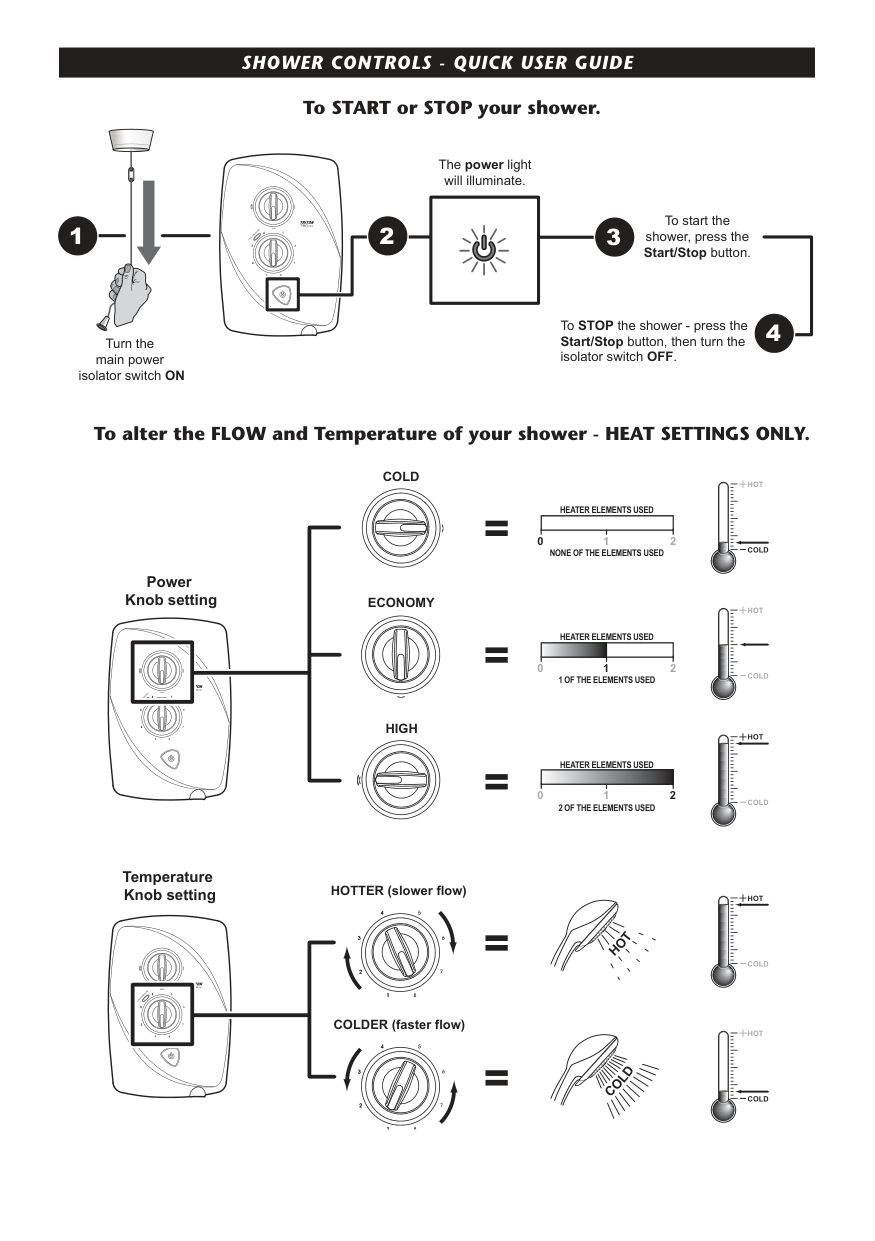

######## SHOWER CONTROLS - QUICK USER GUIDE

To START or STOP your shower.

The power light will illuminate.

To start the shower, press the Start/Stop button.

###### 1 3

2

4ToSTOPthe shower - press theStart/Stopbutton, then turn the

Turn the main power isolator switch ON

isolator switch OFF.

To alter the FLOW and Temperature of your shower - HEAT SETTINGS ONLY.

COLD

|Power Knob setting|Power Knob setting| |---|---| | | | | | |

ECONOMY

HIGH

Temperature Knob setting

HOTTER (slower flow)

COLDER (faster flow)

HEATER ELEMENTS USED

| | | |---|---| | | |

0 1 2

NONE OF THE ELEMENTS USED

HOT

COLD

HOT

HEATER ELEMENTS USED

| | | |---|---| | | |

0 1 2

COLD

HEATER ELEMENTS USED

HOT

| | | |---|---| | | |

0 1 2

COLD

HOT

T

O

H

COLD

HOT

D

L

O

C

COLD

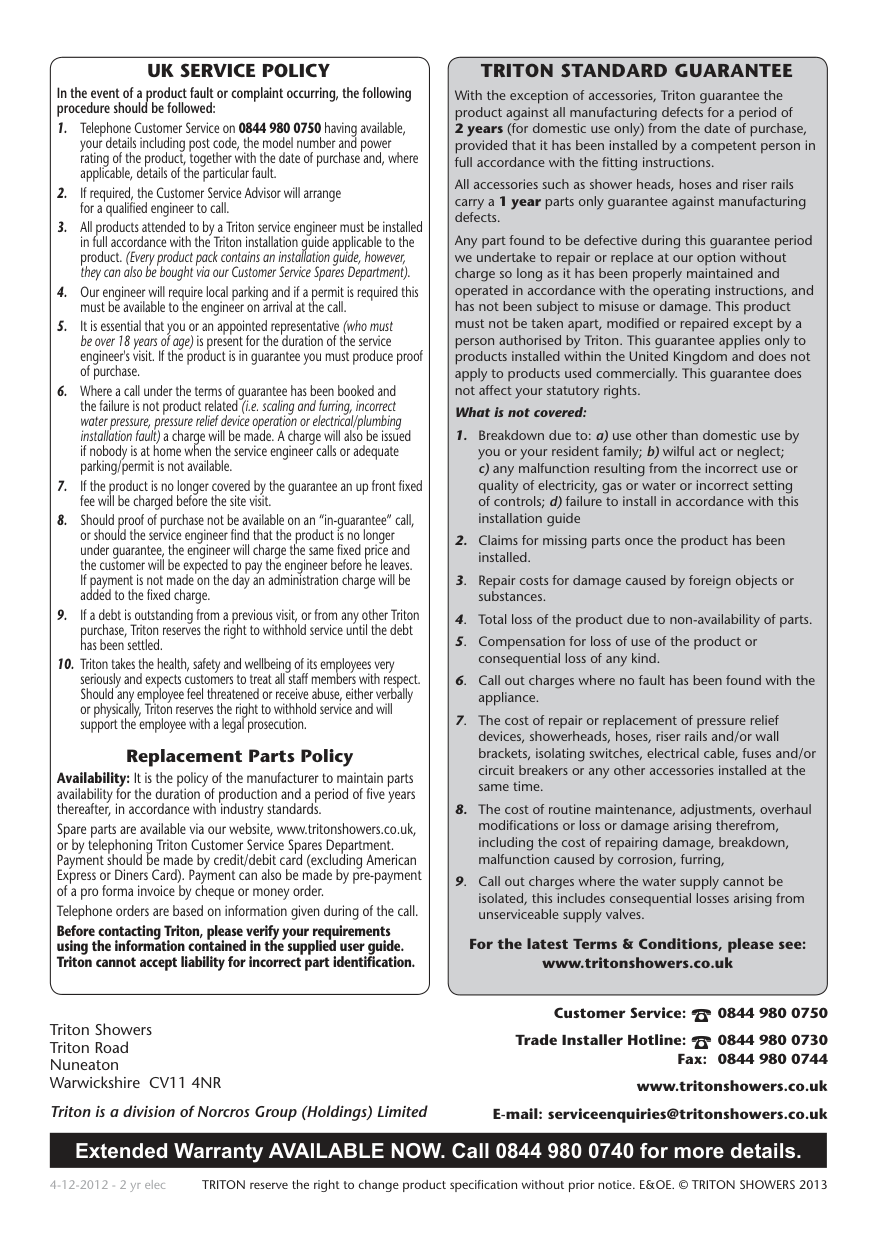

########## UK SERVICE POLICY

In the event of a product fault or complaint occurring, the following procedure should be followed:

########### Replacement Parts Policy

Availability: It is the policy of the manufacturer to maintain parts availability for the duration of production and a period of five years thereafter, in accordance with industry standards.

Spare parts are available via our website, www.tritonshowers.co.uk, or by telephoning Triton Customer Service Spares Department. Payment should be made by credit/debit card (excluding American Express or Diners Card). Payment can also be made by pre-payment of a pro forma invoice by cheque or money order.

Telephone orders are based on information given during of the call.

Before contacting Triton, please verify your requirements using the information contained in the supplied user guide. Triton cannot accept liability for incorrect part identification.

TRITON STANDARD GUARANTEE

With the exception of accessories, Triton guarantee the product against all manufacturing defects for a period of 2 years (for domestic use only) from the date of purchase, provided that it has been installed by a competent person in full accordance with the fitting instructions.

All accessories such as shower heads, hoses and riser rails carry a 1 year parts only guarantee against manufacturing defects.

Any part found to be defective during this guarantee period we undertake to repair or replace at our option without charge so long as it has been properly maintained and operated in accordance with the operating instructions, and has not been subject to misuse or damage. This product must not be taken apart, modified or repaired except by a person authorised by Triton. This guarantee applies only to products installed within the United Kingdom and does not apply to products used commercially. This guarantee does not affect your statutory rights.

################### What is not covered:

For the latest Terms & Conditions, please see: www.tritonshowers.co.uk

Customer Service: % 0844 980 0750 Trade Installer Hotline: % 0844 980 0730

Triton Showers Triton Road Nuneaton Warwickshire CV11 4NR

Fax: 0844 980 0744 www.tritonshowers.co.uk

################ Triton is a division of Norcros Group (Holdings) Limited

E-mail: serviceenquiries@tritonshowers.co.uk Extended Warranty AVAILABLE NOW. Call 0844 980 0740 for more details.

TRITON reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2013

4-12-2012 - 2 yr elec
