Yale Mpb045vg


MPB-VG

Motorized Hand Low Lift Pallet

4,500 lbs.

• Exclusive Yale Smart Lift™

• Exclusive Yale Smart Slow Down™

• Creep speed

• Enhanced maneuverability

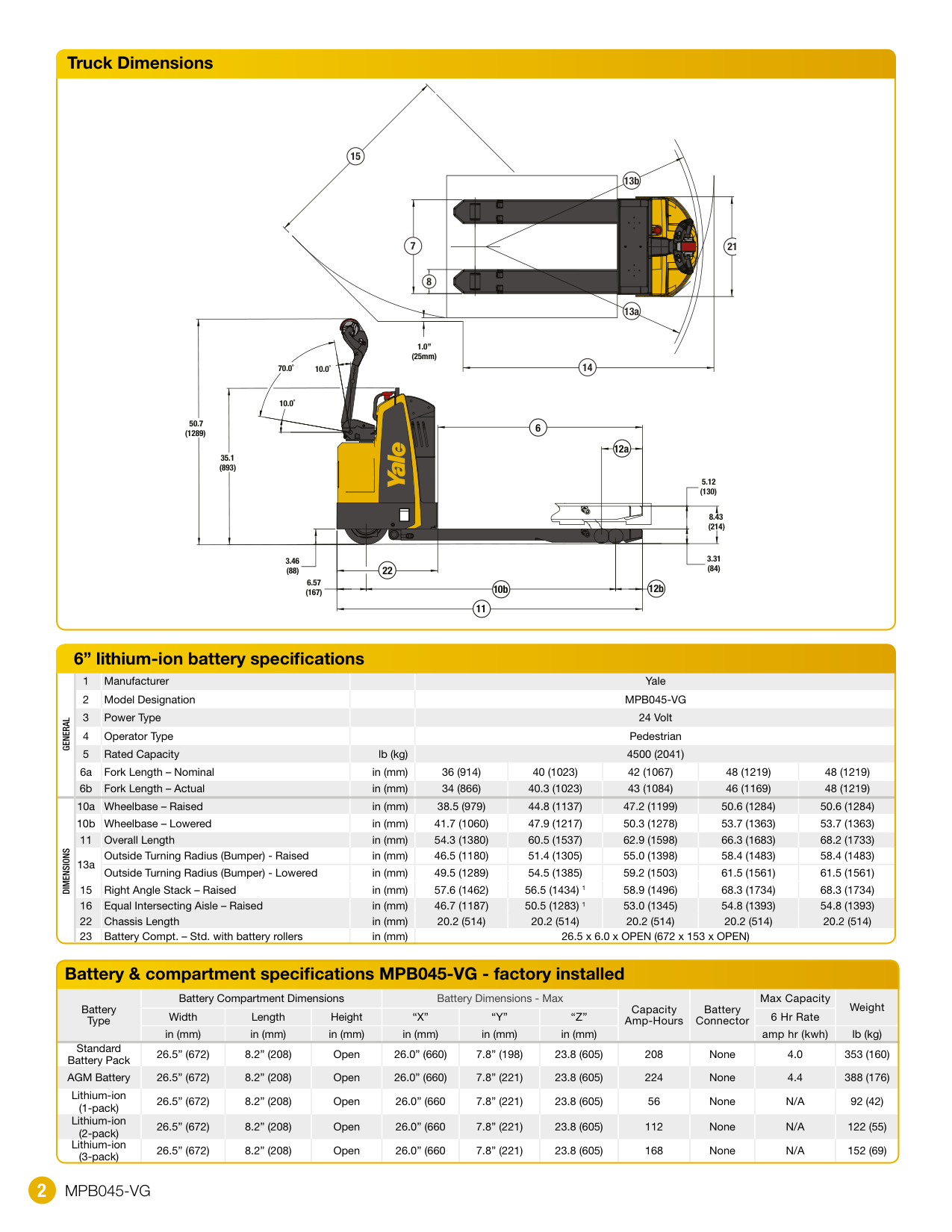

##### Truck Dimensions

15

7

8

12a

| | | |---|---| | | |

21

13b

13a

1.0” (25mm)

14

70.0˚

10.0˚

10.0˚

50.7 (1289)

6

35.1 (893)

5.12 (130)

| | |---| | |

8.43

(214)

3.31 (84)

3.46 (88)

22

6.57 (167)

12b

10b

11

##### 6” lithium-ion battery specifications

1 Manufacturer Yale

2 Model Designation MPB045-VG

3 Power Type 24 Volt

4 Operator Type Pedestrian

5 Rated Capacity lb (kg) 4500 (2041)

6a Fork Length – Nominal in (mm) 36 (914) 40 (1023) 42 (1067) 48 (1219) 48 (1219) 6b Fork Length – Actual in (mm) 34 (866) 40.3 (1023) 43 (1084) 46 (1169) 48 (1219)

GENERAL

10a Wheelbase – Raised in (mm) 38.5 (979) 44.8 (1137) 47.2 (1199) 50.6 (1284) 50.6 (1284)

10b Wheelbase – Lowered in (mm) 41.7 (1060) 47.9 (1217) 50.3 (1278) 53.7 (1363) 53.7 (1363) 11 Overall Length in (mm) 54.3 (1380) 60.5 (1537) 62.9 (1598) 66.3 (1683) 68.2 (1733)

DIMENSIONS

Outside Turning Radius (Bumper) - Raised in (mm) 46.5 (1180) 51.4 (1305) 55.0 (1398) 58.4 (1483) 58.4 (1483) Outside Turning Radius (Bumper) - Lowered in (mm) 49.5 (1289) 54.5 (1385) 59.2 (1503) 61.5 (1561) 61.5 (1561)

13a

15 Right Angle Stack – Raised in (mm) 57.6 (1462) 56.5 (1434) 1 58.9 (1496) 68.3 (1734) 68.3 (1734)

16 Equal Intersecting Aisle – Raised in (mm) 46.7 (1187) 50.5 (1283) 1 53.0 (1345) 54.8 (1393) 54.8 (1393)

22 Chassis Length in (mm) 20.2 (514) 20.2 (514) 20.2 (514) 20.2 (514) 20.2 (514)

23 Battery Compt. – Std. with battery rollers in (mm) 26.5 x 6.0 x OPEN (672 x 153 x OPEN)

|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed|Battery & compartment specifications MPB045-VG - factory installed| |---|---|---|---|---|---|---|---|---|---|---| |Battery Type|Battery Compartment Dimensions|Battery Compartment Dimensions|Battery Compartment Dimensions|Battery Dimensions - Max|Battery Dimensions - Max|Battery Dimensions - Max|Capacity Amp-Hours|Battery Connector|Max Capacity|Weight| |Battery Type|Width|Length|Height|“X”|“Y”|“Z”|Capacity Amp-Hours|Battery Connector|6 Hr Rate|Weight| |Battery Type|in (mm)|in (mm)|in (mm)|in (mm)|in (mm)|in (mm)|Capacity Amp-Hours|Battery Connector|amp hr (kwh)|lb (kg)| |Standard Battery Pack AGM Battery Lithium-ion

(1-pack)

Lithium-ion

(2-pack)

Lithium-ion

(3-pack)
|26.5” (672) 26.5” (672) 26.5” (672) 26.5” (672) 26.5” (672)|8.2” (208) 8.2” (208) 8.2” (208) 8.2” (208) 8.2” (208)|Open Open Open Open Open|26.0” (660) 26.0” (660) 26.0” (660 26.0” (660 26.0” (660|7.8” (198) 7.8” (221) 7.8” (221) 7.8” (221) 7.8” (221)|23.8 (605) 23.8 (605) 23.8 (605) 23.8 (605) 23.8 (605)|208 224 56

112 168|None None None None None|4.0 4.4 N/A N/A N/A|353 (160) 388 (176) 92 (42)

122 (55) 152 (69)|

#### 2

MPB045-VG

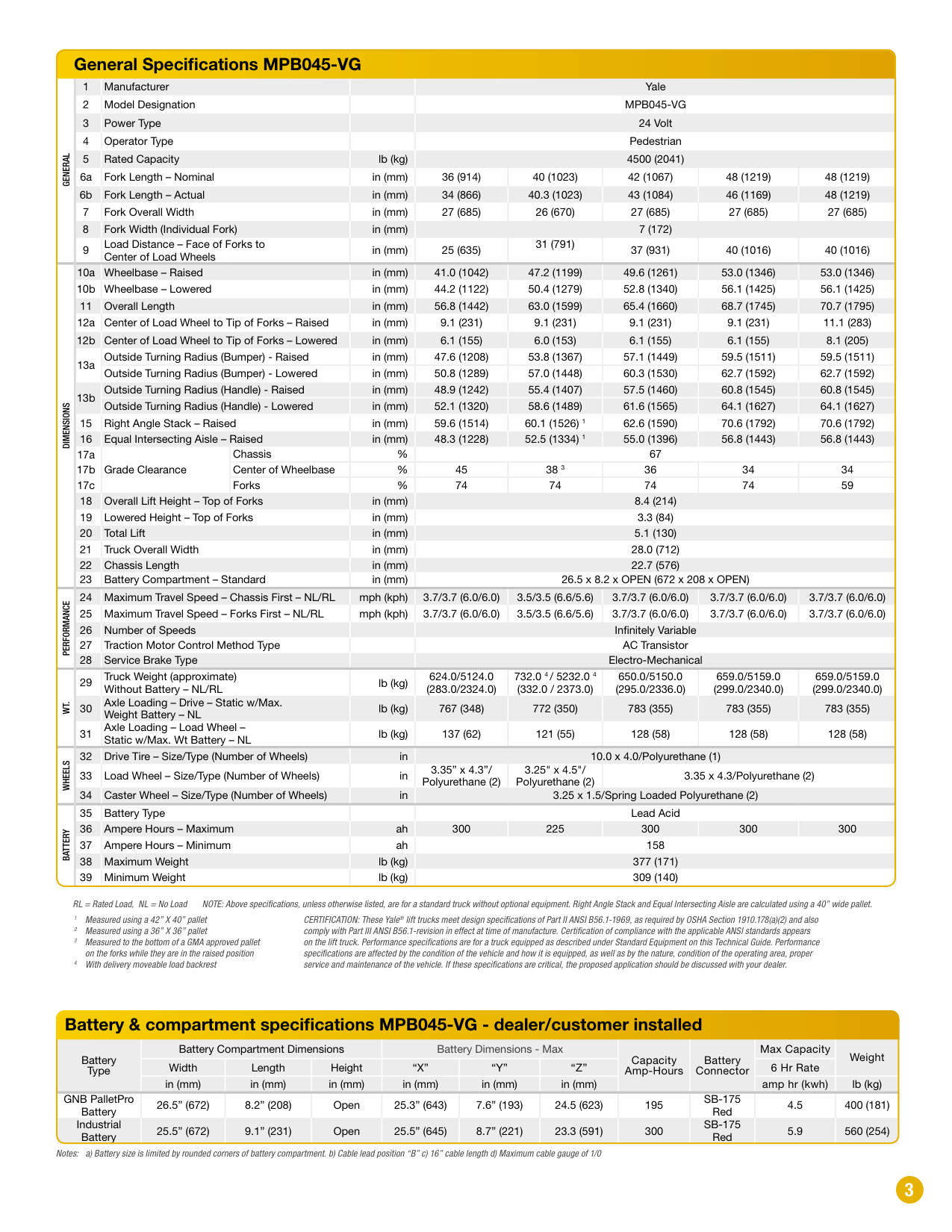

##### General Specifications MPB045-VG

1 Manufacturer Yale 2 Model Designation MPB045-VG 3 Power Type 24 Volt 4 Operator Type Pedestrian 5 Rated Capacity lb (kg) 4500 (2041)

GENERAL

6a Fork Length – Nominal in (mm) 36 (914) 40 (1023) 42 (1067) 48 (1219) 48 (1219)

6b Fork Length – Actual in (mm) 34 (866) 40.3 (1023) 43 (1084) 46 (1169) 48 (1219)

7 Fork Overall Width in (mm) 27 (685) 26 (670) 27 (685) 27 (685) 27 (685)

8 Fork Width (Individual Fork) in (mm) 7 (172)

9

Load Distance – Face of Forks to Center of Load Wheels

31 (791)

in (mm) 25 (635)

37 (931) 40 (1016) 40 (1016)

10a Wheelbase – Raised in (mm) 41.0 (1042) 47.2 (1199) 49.6 (1261) 53.0 (1346) 53.0 (1346) 10b Wheelbase – Lowered in (mm) 44.2 (1122) 50.4 (1279) 52.8 (1340) 56.1 (1425) 56.1 (1425)

11 Overall Length in (mm) 56.8 (1442) 63.0 (1599) 65.4 (1660) 68.7 (1745) 70.7 (1795)

12a Center of Load Wheel to Tip of Forks – Raised in (mm) 9.1 (231) 9.1 (231) 9.1 (231) 9.1 (231) 11.1 (283)

12b Center of Load Wheel to Tip of Forks – Lowered in (mm) 6.1 (155) 6.0 (153) 6.1 (155) 6.1 (155) 8.1 (205)

13a

Outside Turning Radius (Bumper) - Raised in (mm) 47.6 (1208) 53.8 (1367) 57.1 (1449) 59.5 (1511) 59.5 (1511) Outside Turning Radius (Bumper) - Lowered in (mm) 50.8 (1289) 57.0 (1448) 60.3 (1530) 62.7 (1592) 62.7 (1592)

13b

Outside Turning Radius (Handle) - Raised in (mm) 48.9 (1242) 55.4 (1407) 57.5 (1460) 60.8 (1545) 60.8 (1545) Outside Turning Radius (Handle) - Lowered in (mm) 52.1 (1320) 58.6 (1489) 61.6 (1565) 64.1 (1627) 64.1 (1627)

DIMENSIONS

15 Right Angle Stack – Raised in (mm) 59.6 (1514) 60.1 (1526) 1 62.6 (1590) 70.6 (1792) 70.6 (1792)

16 Equal Intersecting Aisle – Raised in (mm) 48.3 (1228) 52.5 (1334) 1 55.0 (1396) 56.8 (1443) 56.8 (1443)

17a Grade Clearance

Chassis % 67

17b Center of Wheelbase % 45 38 3 36 34 34

17c Forks % 74 74 74 74 59

18 Overall Lift Height – Top of Forks in (mm) 8.4 (214)

19 Lowered Height – Top of Forks in (mm) 3.3 (84)

20 Total Lift in (mm) 5.1 (130)

21 Truck Overall Width in (mm) 28.0 (712)

22 Chassis Length in (mm) 22.7 (576)

23 Battery Compartment – Standard in (mm) 26.5 x 8.2 x OPEN (672 x 208 x OPEN)

PERFORMANCE

24 Maximum Travel Speed – Chassis First – NL/RL mph (kph) 3.7/3.7 (6.0/6.0) 3.5/3.5 (6.6/5.6) 3.7/3.7 (6.0/6.0) 3.7/3.7 (6.0/6.0) 3.7/3.7 (6.0/6.0)

25 Maximum Travel Speed – Forks First – NL/RL mph (kph) 3.7/3.7 (6.0/6.0) 3.5/3.5 (6.6/5.6) 3.7/3.7 (6.0/6.0) 3.7/3.7 (6.0/6.0) 3.7/3.7 (6.0/6.0)

26 Number of Speeds Infinitely Variable

27 Traction Motor Control Method Type AC Transistor

28 Service Brake Type Electro-Mechanical

WT.

29

Truck Weight (approximate) Without Battery – NL/RL

lb (kg)

624.0/5124.0 (283.0/2324.0)

732.0 4/ 5232.0 4 (332.0 / 2373.0)

650.0/5150.0 (295.0/2336.0)

659.0/5159.0 (299.0/2340.0)

659.0/5159.0 (299.0/2340.0)

30

Axle Loading – Drive – Static w/Max. Weight Battery – NL

lb (kg) 767 (348) 772 (350) 783 (355) 783 (355) 783 (355)

31

Axle Loading – Load Wheel – Static w/Max. Wt Battery – NL

lb (kg) 137 (62) 121 (55) 128 (58) 128 (58) 128 (58)

32 Drive Tire – Size/Type (Number of Wheels) in 10.0 x 4.0/Polyurethane (1)

33 Load Wheel – Size/Type (Number of Wheels) in

3.35” x 4.3”/ Polyurethane (2)

3.25" x 4.5"/ Polyurethane (2)

3.35 x 4.3/Polyurethane (2)

34 Caster Wheel – Size/Type (Number of Wheels) in 3.25 x 1.5/Spring Loaded Polyurethane (2)

BATTERY

35 Battery Type Lead Acid

36 Ampere Hours – Maximum ah 300 225 300 300 300

37 Ampere Hours – Minimum ah 158

38 Maximum Weight lb (kg) 377 (171)

39 Minimum Weight lb (kg) 309 (140)

WHEELS

RL = Rated Load, NL = No Load NOTE: Above specifications, unless otherwise listed, are for a standard truck without optional equipment. Right Angle Stack and Equal Intersecting Aisle are calculated using a 40” wide pallet.

1 Measured using a 42” X 40” pallet

2 Measured using a 36” X 36” pallet

3 Measured to the bottom of a GMA approved pallet on the forks while they are in the raised position

4 With delivery moveable load backrest

CERTIFICATION: These Yale® lift trucks meet design specifications of Part II ANSI B56.1-1969, as required by OSHA Section 1910.178(a)(2) and also comply with Part III ANSI B56.1-revision in effect at time of manufacture. Certification of compliance with the applicable ANSI standards appears on the lift truck. Performance specifications are for a truck equipped as described under Standard Equipment on this Technical Guide. Performance specifications are affected by the condition of the vehicle and how it is equipped, as well as by the nature, condition of the operating area, proper service and maintenance of the vehicle. If these specifications are critical, the proposed application should be discussed with your dealer.

|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed|Battery & compartment specifications MPB045-VG - dealer/customer installed| |---|---|---|---|---|---|---|---|---|---|---| |Battery Type|Battery Compartment Dimensions|Battery Compartment Dimensions|Battery Compartment Dimensions|Battery Dimensions - Max|Battery Dimensions - Max|Battery Dimensions - Max|Capacity Amp-Hours|Battery Connector|Max Capacity|Weight| |Battery Type|Width|Length|Height|“X”|“Y”|“Z”|Capacity Amp-Hours|Battery Connector|6 Hr Rate|Weight| |Battery Type|in (mm)|in (mm)|in (mm)|in (mm)|in (mm)|in (mm)|Capacity Amp-Hours|Battery Connector|amp hr (kwh)|lb (kg)| |GNB PalletPro Battery Industrial Battery|26.5” (672) 25.5” (672)|8.2” (208)
9.1” (231)
|Open Open|25.3” (643) 25.5” (645)|7.6” (193)
8.7” (221)
|24.5 (623) 23.3 (591)|195 300|SB-175 Red SB-175 Red|4.5 5.9|400 (181) 560 (254)|

Notes: a) Battery size is limited by rounded corners of battery compartment. b) Cable lead position “B” c) 16” cable length d) Maximum cable gauge of 1/0

#### 3

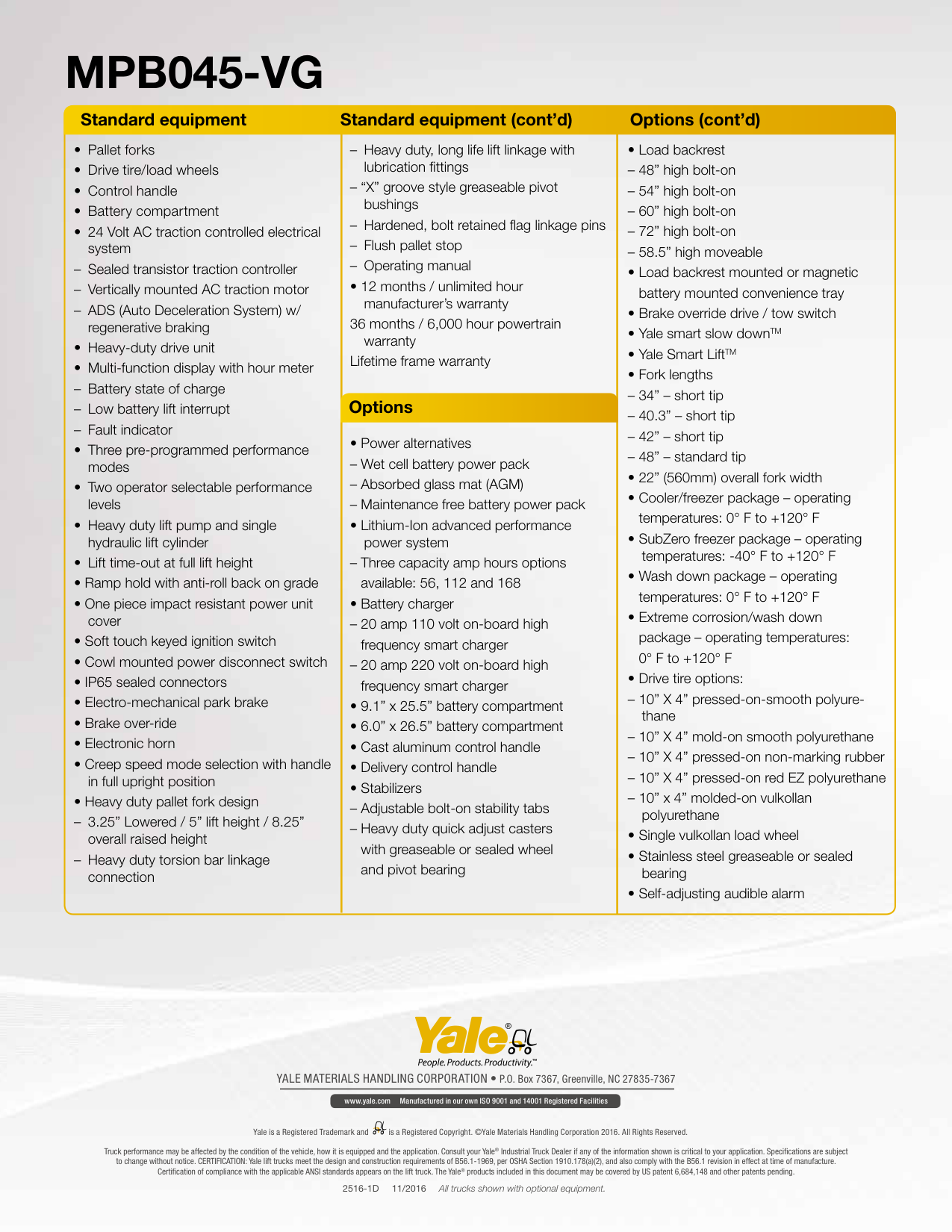

MPB045-VG

Standard equipment (cont’d)Standard equipment Options (cont’d)

• Load backrest

– 48” high bolt-on

– 54” high bolt-on

– 60” high bolt-on

– 72” high bolt-on

– 58.5” high moveable

• Load backrest mounted or magnetic battery mounted convenience tray

• Brake override drive / tow switch

• Yale smart slow downTM

• Yale Smart LiftTM

• Fork lengths

– 34” – short tip

– 40.3” – short tip

– 42” – short tip

– 48” – standard tip

• 22” (560mm) overall fork width

• Cooler/freezer package – operating temperatures: 0° F to +120° F

• SubZero freezer package – operating temperatures: -40° F to +120° F

• Wash down package – operating temperatures: 0° F to +120° F

• Extreme corrosion/wash down package – operating temperatures: 0° F to +120° F

• Drive tire options:

• Pallet forks

• Drive tire/load wheels

• Control handle

• Battery compartment

• 24 Volt AC traction controlled electrical system

– Heavy duty, long life lift linkage with lubrication fittings

– “X” groove style greaseable pivot bushings

– Hardened, bolt retained flag linkage pins

– Flush pallet stop

– Operating manual

– Sealed transistor traction controller

– Vertically mounted AC traction motor

– ADS (Auto Deceleration System) w/ regenerative braking

• 12 months / unlimited hour manufacturer’s warranty

36 months / 6,000 hour powertrain warranty Lifetime frame warranty

• Heavy-duty drive unit

• Multi-function display with hour meter

– Battery state of charge

– Low battery lift interrupt

– Fault indicator

• Three pre-programmed performance modes

• Two operator selectable performance levels

• Heavy duty lift pump and single hydraulic lift cylinder

• Lift time-out at full lift height

• Ramp hold with anti-roll back on grade

• One piece impact resistant power unit cover

• Soft touch keyed ignition switch

• Cowl mounted power disconnect switch

• IP65 sealed connectors

• Electro-mechanical park brake

• Brake over-ride

• Electronic horn

• Creep speed mode selection with handle in full upright position

• Heavy duty pallet fork design

Options

• Power alternatives

– Wet cell battery power pack

– Absorbed glass mat (AGM)

– Maintenance free battery power pack

• Lithium-Ion advanced performance power system

– Three capacity amp hours options available: 56, 112 and 168

• Battery charger

– 20 amp 110 volt on-board high frequency smart charger

– 20 amp 220 volt on-board high frequency smart charger

– 10” X 4” pressed-on-smooth polyurethane

– 10” X 4” mold-on smooth polyurethane

– 10” X 4” pressed-on non-marking rubber

– 10” X 4” pressed-on red EZ polyurethane

– 10” x 4” molded-on vulkollan polyurethane

• 9.1” x 25.5” battery compartment

• 6.0” x 26.5” battery compartment

• Cast aluminum control handle

• Delivery control handle

• Stabilizers

– Adjustable bolt-on stability tabs

– Heavy duty quick adjust casters with greaseable or sealed wheel and pivot bearing

– 3.25” Lowered / 5” lift height / 8.25” overall raised height

– Heavy duty torsion bar linkage connection

• Single vulkollan load wheel

• Stainless steel greaseable or sealed bearing

• Self-adjusting audible alarm

YALE MATERIALS HANDLING CORPORATION • P.O. Box 7367, Greenville, NC 27835-7367

www.yale.com Manufactured in our own ISO 9001 and 14001 Registered Facilities

Yale is a Registered Trademark and is a Registered Copyright. ©Yale Materials Handling Corporation 2016. All Rights Reserved.

Truck performance may be affected by the condition of the vehicle, how it is equipped and the application. Consult your Yale® Industrial Truck Dealer if any of the information shown is critical to your application. Specifications are subject to change without notice. CERTIFICATION: Yale lift trucks meet the design and construction requirements of B56.1-1969, per OSHA Section 1910.178(a)(2), and also comply with the B56.1 revision in effect at time of manufacture. Certification of compliance with the applicable ANSI standards appears on the lift truck. The Yale products included in this document may be covered by US patent 6,684,148 and other patents pending.

2516-1D 11/2016 All trucks shown with optional equipment.
