Page 1

The multifunctional baby stroller instruction

To make sure how to use the stroller, please read the instruction carefully, keep it safe for future reference. If you do not follow instructions to use the stroller, may affect children's safety. If you assign the stroller, please assign this instruction together.

ILLUSTRATIONS ARE REPRESENTATIVE ONLY. DESIGN AND STYLE MAY VARY.

3-position adjustable backrest Adjustable footrest Removable front tray Shocking-proof,free direction and orientable for front wheels

One touch double brakes

Closed canopy with clearstories and with cup

|3| |---|

|2| |---|

  • 1.OPEN STROLLER: Release the hook on the side. Seize the handle by one hand while push the frame toward front by the other hand to release the stroller in half folding. Hold on the handle and touch the pedal down to open it.
  • cup

  • 5. CANOPY : Inset the canopy with the adaptor on both sides . Draw out them①
  • |Instruction & tool kit| |---|

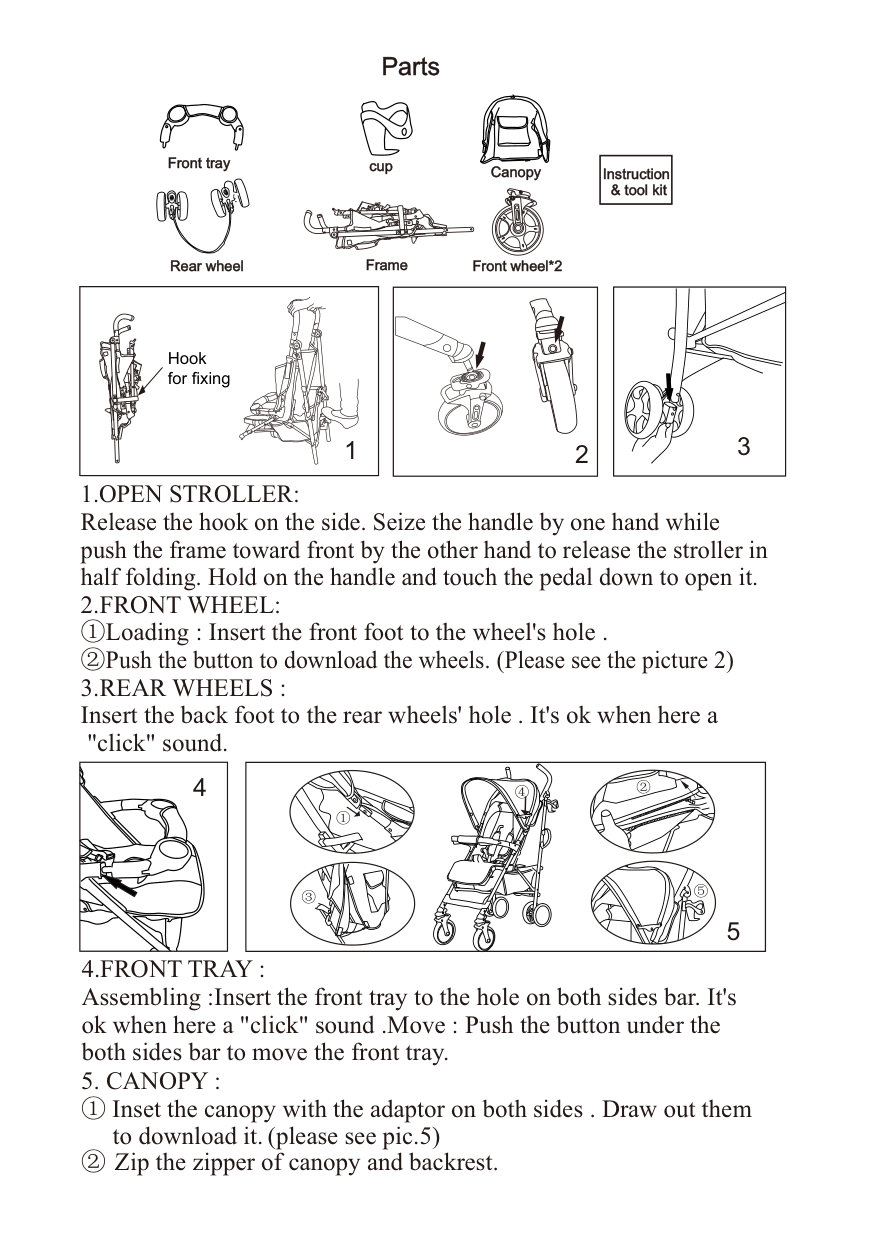

    Parts

    Rear wheel

    Canopy

    Front tray

    Front wheel*2Frame

    Page 2

    |Hook for fixing



    1

    | |---|

  • 2.FRONT WHEEL: Loading : Insert the front foot to the wheel's hole . Push the button to download the wheels. (Please see the picture 2)
  • 3.REAR WHEELS : Insert the back foot to the rear wheels' hole . It's ok when here a
  • "click" sound.

  • 4.FRONT TRAY : Assembling :Insert the front tray to the hole on both sides bar. It's ok when here a "click" sound .Move : Push the button under the both sides bar to move the front tray.
  • |4| |---|

    |④







    5





    ③| |---|

    (please see pic.5)to download it. Zip the zipper of canopy and backrest.②

    Stick the velcro on the fabric with both sides and the back rest .③

    |6



    Button| |---|

    |8| |---|

    |

    Orientation

    parts 9| |---|

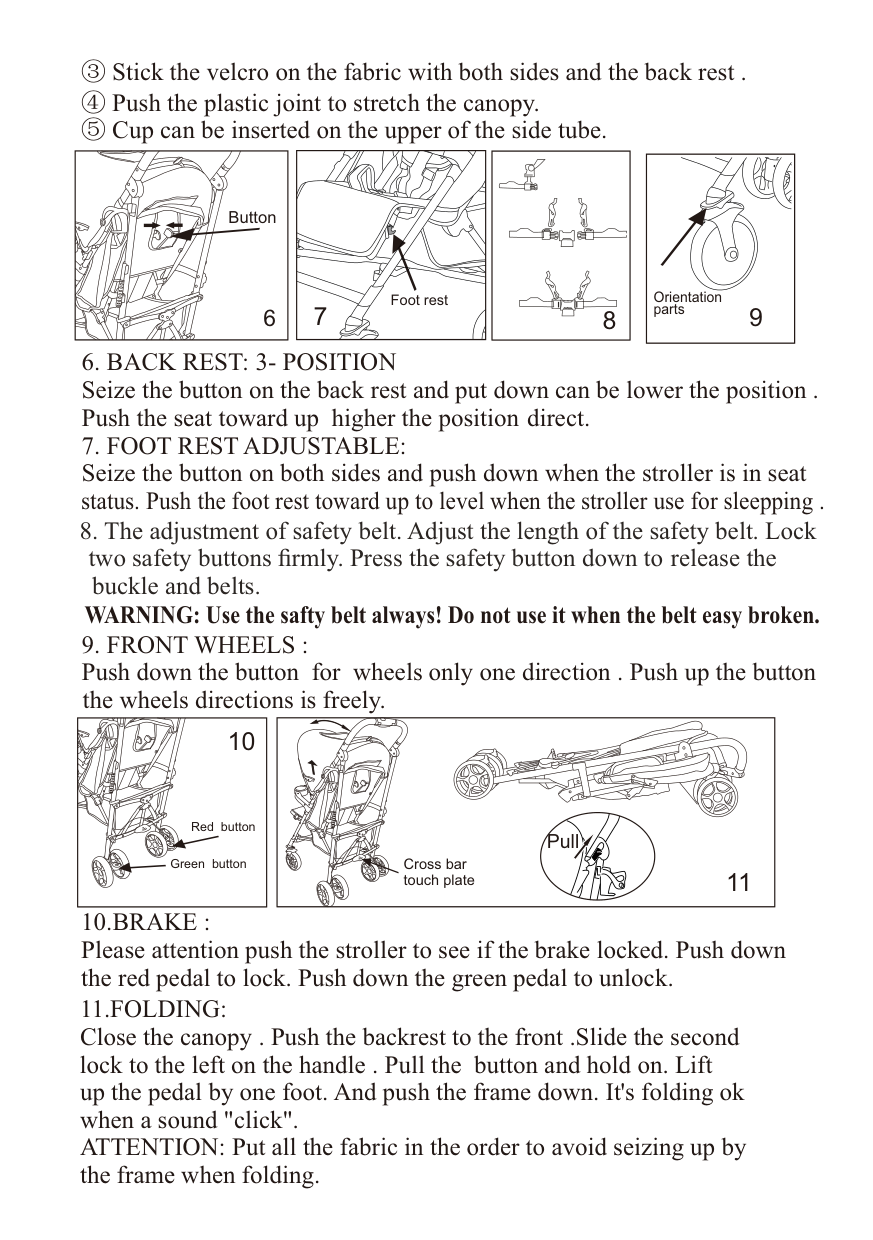

  • 6. BACK REST: 3- POSITION Seize the button on the back rest and put down can be lower the position . Push the seat toward up higher the position
  • Page 3

  • 7. FOOT REST ADJUSTABLE: Seize the button on both sides and push down when the stroller is in seat status. Push the foot rest toward up to level when the stroller use for sleepping .
  • FRONT WHEELS : Push down the button for wheels only one direction . Push up the button the wheels directions is freely.
  • direct.

    Push the plastic joint to stretch the canopy. Cup can be inserted on the upper of the side tube.

  • |Foot rest



    7| |---|

  • 8. The adjustment of safety belt. Adjust the length of the safety belt. Lock two safety buttons firmly. Press the safety button down to release the
  • buckle and belts.

    ##### WARNING: Use the safty belt always! Do not use it when the belt easy broken.

    |Pull Cross bar

    touch plate 11





    | |---|

    |Red button

    Green button

    10



    | |---|

  • 10.BRAKE : Please attention push the stroller to see if the brake locked. Push down the red pedal to lock. Push down the green pedal to unlock.
  • 11.FOLDING: Close the canopy . Push the backrest to the front .Slide the second lock to the left on the handle . Pull the button and hold on. Lift up the pedal by one foot. And push the frame down. It's folding ok when a sound "click". ATTENTION: Put all the fabric in the order to avoid seizing up by the frame when folding.

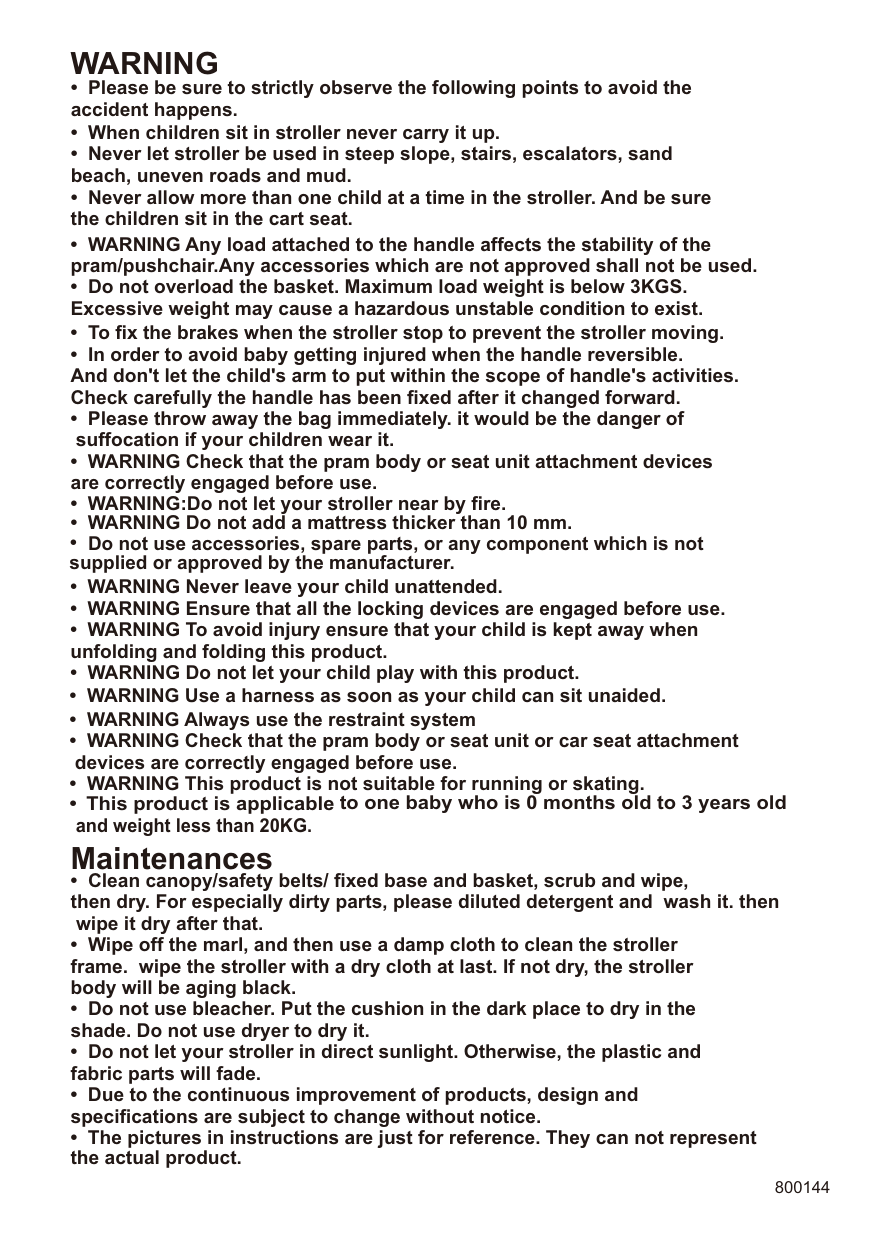

  • #### WARNING

  • • Please be sure to strictly observe the following points to avoid the accident happens.
  • • When children sit in stroller never carry it up.
  • • Never let stroller be used in steep slope, stairs, escalators, sand beach, uneven roads and mud.
  • • Never allow more than one child at a time in the stroller. And be sure the children sit in the cart seat.
  • Page 4

  • • WARNING Any load attached to the handle affects the stability of the pram/pushchair.Any accessories which are not approved shall not be used.
  • • Do not overload the basket. Maximum load weight is below 3KGS. Excessive weight may cause a hazardous unstable condition to exist.
  • • To fix the brakes when the stroller stop to prevent the stroller moving.
  • • In order to avoid baby getting injured when the handle reversible. And don't let the child's arm to put within the scope of handle's activities. Check carefully the handle has been fixed after it changed forward.
  • • Please throw away the bag immediately. it would be the danger of suffocation .if your children wear it
  • • WARNING Check that the pram body or seat unit attachment devices are correctly engaged before use.
  • • WARNING:Do not let your stroller near by fire.
  • • WARNING Do not add a mattress thicker than 10 mm.
  • • Clean canopy/safety belts/ fixed base and basket, scrub and wipe, then dry. For especially dirty parts, please diluted detergent and wash it. then
  • wipe it dry .after that

  • • Wipe off the marl, and then use a damp cloth to clean the stroller frame. wipe the stroller with a dry cloth at last. If not dry, the stroller body will be aging black.
  • • Do not use bleacher. Put the cushion in the dark place to dry in the shade. Do not use dryer to dry it.
  • • Do not let your stroller in direct sunlight. Otherwise, the plastic and fabric parts will fade.
  • • Due to the continuous improvement of products, design and specifications are subject to change without notice.
  • • The pictures in instructions are just for reference. They can not represent the actual product.
  • Do not use accessories, spare parts, or any component which is not supplied or approved by the manufacturer.

  • • WARNING Never leave your child unattended.
  • • WARNING Ensure that all the locking devices are engaged before use.
  • • WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.
  • • WARNING Do not let your child play with this product.
  • • WARNING Use a harness as soon as your child can sit unaided.
  • • WARNING Always use the restraint system
  • • WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
  • • WARNING This product is not suitable for running or skating.
  • This product is applicable to one baby who is 0 months old to 3 years old and weight less than 20KG.

    #### Maintenances
