Diono Radian 3 R

P. 1 of 4

########### DIONO RADIAN 3RXT SAFE+


Type: Convertible/Combination Last date made: Current First made: 2021 Weight limits: 4 to 50 lbs. rear-facing; 22 to 65 lbs. forward facing; 40-120 lbs. as belt positioning booster with vehicle lap- shoulder belt on child. Booster mode not recommended for children under four. Harness: 5-point harness (removable)

Height Requirements: 18-44” RF, 30-57” FF with harness, 40-57” in booster mode Harness: Harness straps are attached to a splitter plate behind seat. Make certain





3


that both loops of harness are securely threaded onto splitter plate (diagram 1). Pull strap end in front of seat to tighten harness. Lift lever at lower front of seat and pull on shoulder straps to loosen. A load-limiting "SafeStop" attachment for harness is designed to absorb energy and reduce impact to a smaller forward-facing child. SafeStop attachment is included with the car seat in the box

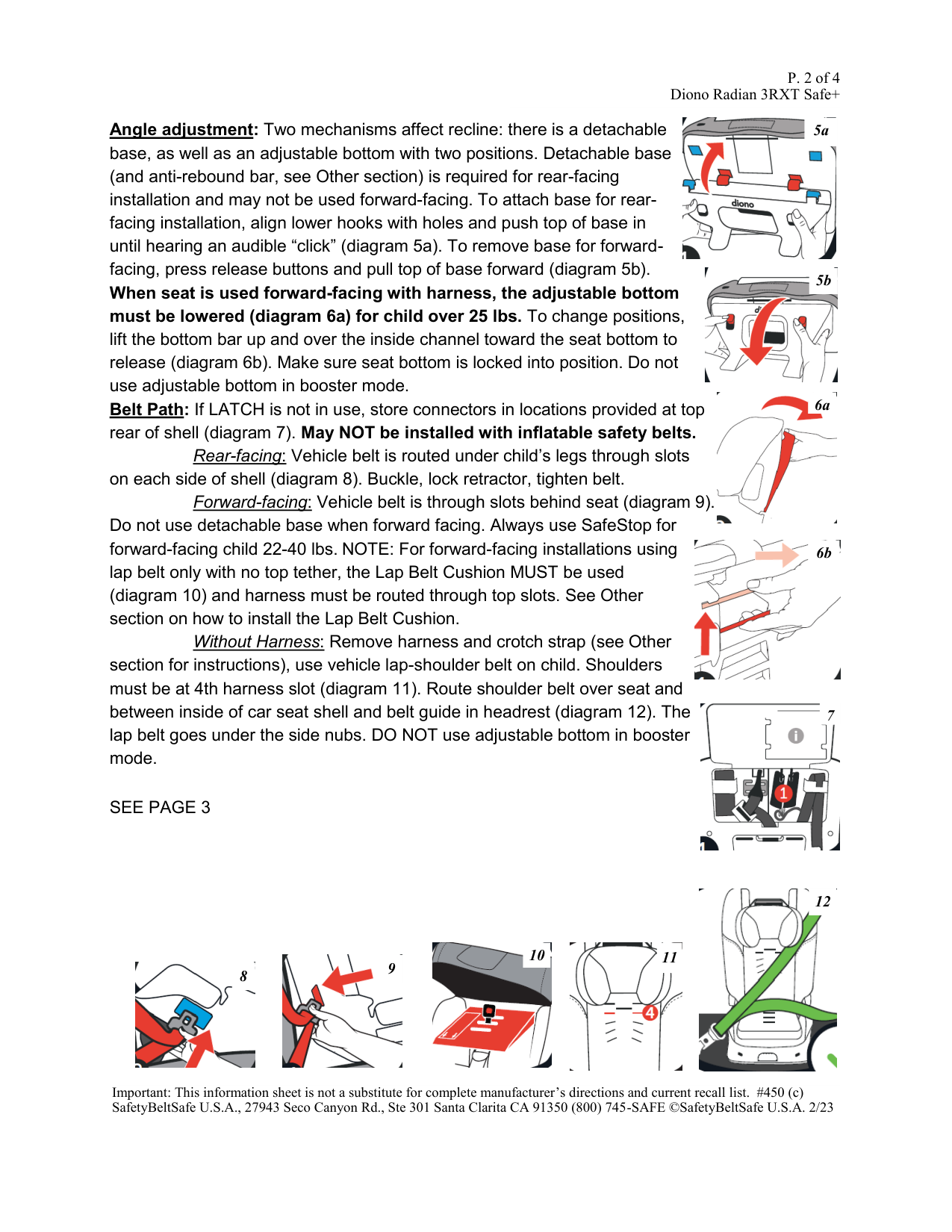

Angle adjustment: Two mechanisms affect recline: there is a detachable base, as well as an adjustable bottom with two positions. Detachable base (and anti-rebound bar, see Other section) is required for rear-facing installation and may not be used forward-facing. To attach base for rearfacing installation, align lower hooks with holes and push top of base in until hearing an audible “click” (diagram 5a). To remove base for forwardfacing, press release buttons and pull top of base forward (diagram 5b). When seat is used forward-facing with harness, the adjustable bottom must be lowered (diagram 6a) for child over 25 lbs. To change positions,

5a


5b

lift the bottom bar up and over the inside channel toward the seat bottom to release (diagram 6b). Make sure seat bottom is locked into position. Do not use adjustable bottom in booster mode.


6a

Belt Path: If LATCH is not in use, store connectors in locations provided at top rear of shell (diagram 7). May NOT be installed with inflatable safety belts.

Rear-facing: Vehicle belt is routed under child’s legs through slots on each side of shell (diagram 8). Buckle, lock retractor, tighten belt.

Forward-facing: Vehicle belt is through slots behind seat (diagram 9). Do not use detachable base when forward facing. Always use SafeStop for forward-facing child 22-40 lbs. NOTE: For forward-facing installations using lap belt only with no top tether, the Lap Belt Cushion MUST be used (diagram 10) and harness must be routed through top slots. See Other section on how to install the Lap Belt Cushion.


6b

Without Harness: Remove harness and crotch strap (see Other section for instructions), use vehicle lap-shoulder belt on child. Shoulders must be at 4th harness slot (diagram 11). Route shoulder belt over seat and between inside of car seat shell and belt guide in headrest (diagram 12). The lap belt goes under the side nubs. DO NOT use adjustable bottom in booster mode.


7


8 9



10


11


12

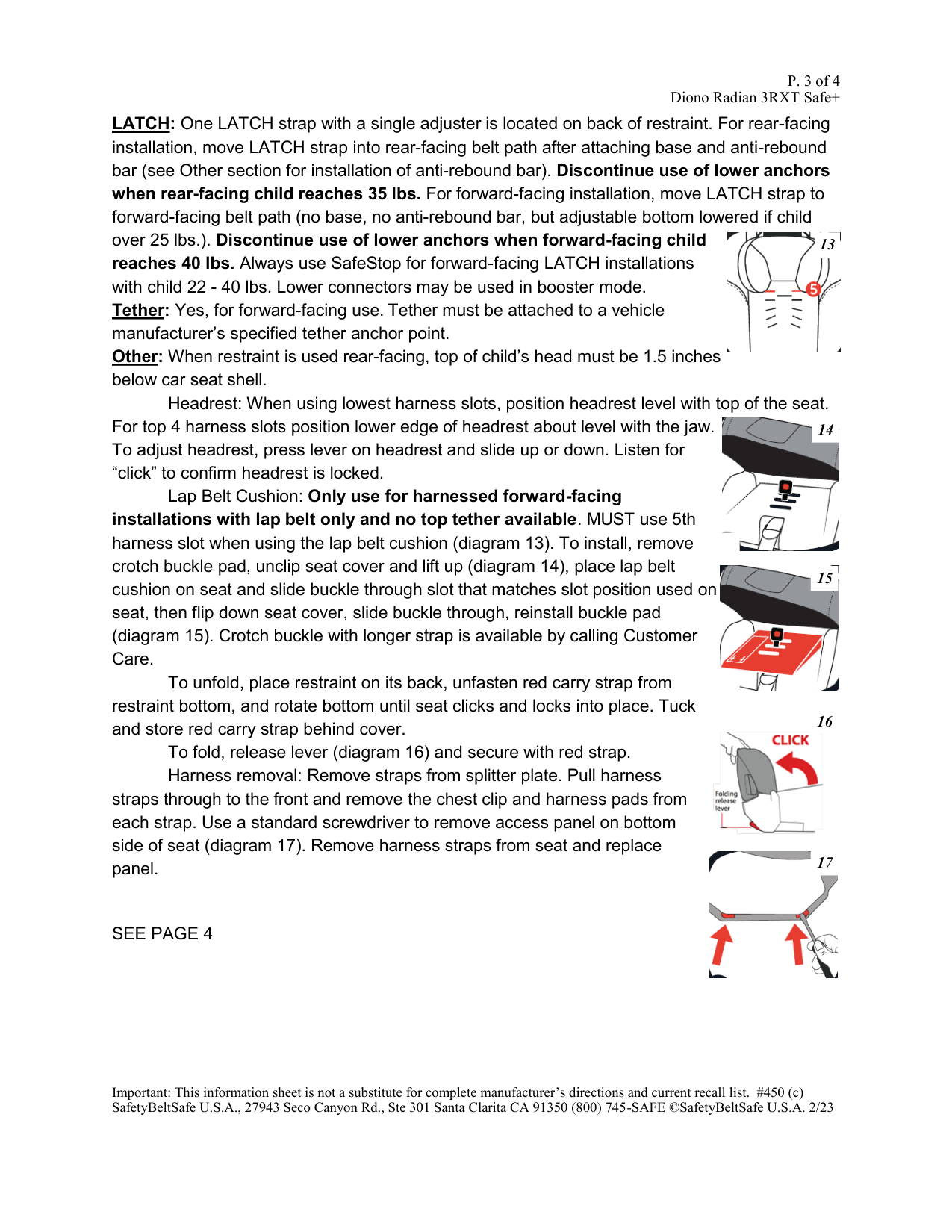

LATCH: One LATCH strap with a single adjuster is located on back of restraint. For rear-facing installation, move LATCH strap into rear-facing belt path after attaching base and anti-rebound bar (see Other section for installation of anti-rebound bar). Discontinue use of lower anchors when rear-facing child reaches 35 lbs. For forward-facing installation, move LATCH strap to

forward-facing belt path (no base, no anti-rebound bar, but adjustable bottom lowered if child over 25 lbs.). Discontinue use of lower anchors when forward-facing child reaches 40 lbs. Always use SafeStop for forward-facing LATCH installations with child 22 - 40 lbs. Lower connectors may be used in booster mode. Tether: Yes, for forward-facing use. Tether must be attached to a vehicle manufacturer’s specified tether anchor point. Other: When restraint is used rear-facing, top of child’s head must be 1.5 inches below car seat shell.

Headrest: When using lowest harness slots, position headrest level with top of the seat. For top 4 harness slots position lower edge of headrest about level with the jaw. To adjust headrest, press lever on headrest and slide up or down. Listen for “click” to confirm headrest is locked.

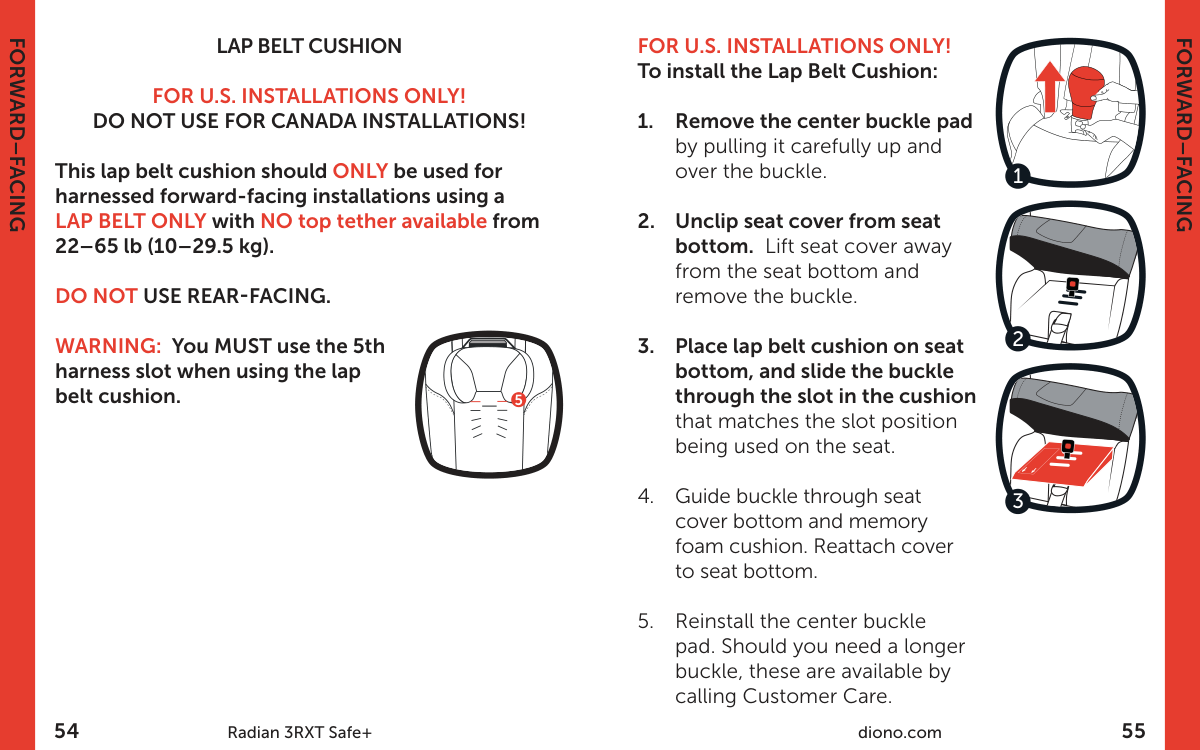

Lap Belt Cushion: Only use for harnessed forward-facing installations with lap belt only and no top tether available. MUST use 5th harness slot when using the lap belt cushion (diagram 13). To install, remove crotch buckle pad, unclip seat cover and lift up (diagram 14), place lap belt cushion on seat and slide buckle through slot that matches slot position used on seat, then flip down seat cover, slide buckle through, reinstall buckle pad (diagram 15). Crotch buckle with longer strap is available by calling Customer Care.

To unfold, place restraint on its back, unfasten red carry strap from restraint bottom, and rotate bottom until seat clicks and locks into place. Tuck and store red carry strap behind cover.



15


14


13


To fold, release lever (diagram 16) and secure with red strap. Harness removal: Remove straps from splitter plate. Pull harness

straps through to the front and remove the chest clip and harness pads from each strap. Use a standard screwdriver to remove access panel on bottom side of seat (diagram 17). Remove harness straps from seat and replace panel.


############### Other: (cont.)

18

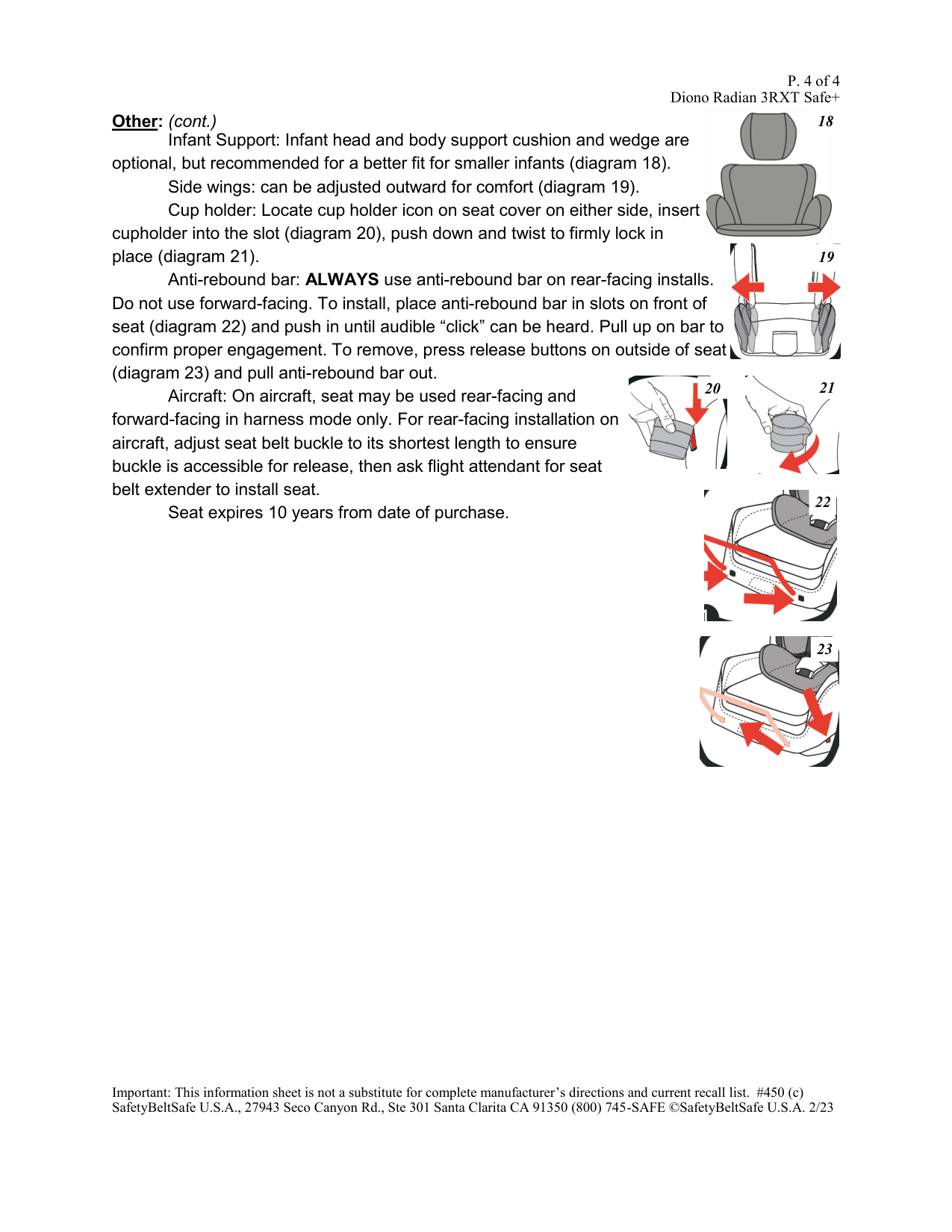

Infant Support: Infant head and body support cushion and wedge are

optional, but recommended for a better fit for smaller infants (diagram 18). Side wings: can be adjusted outward for comfort (diagram 19). Cup holder: Locate cup holder icon on seat cover on either side, insert

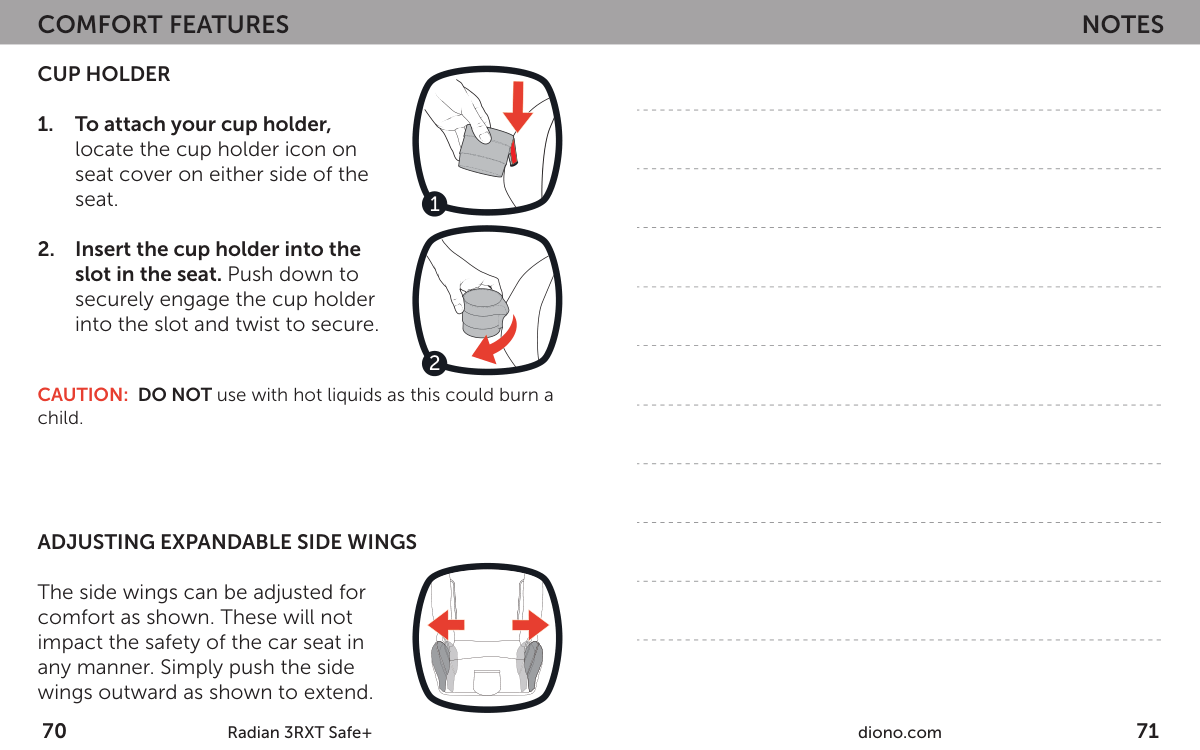

cupholder into the slot (diagram 20), push down and twist to firmly lock in place (diagram 21).


19

Anti-rebound bar: ALWAYS use anti-rebound bar on rear-facing installs. Do not use forward-facing. To install, place anti-rebound bar in slots on front of seat (diagram 22) and push in until audible “click” can be heard. Pull up on bar to confirm proper engagement. To remove, press release buttons on outside of seat (diagram 23) and pull anti-rebound bar out.





20

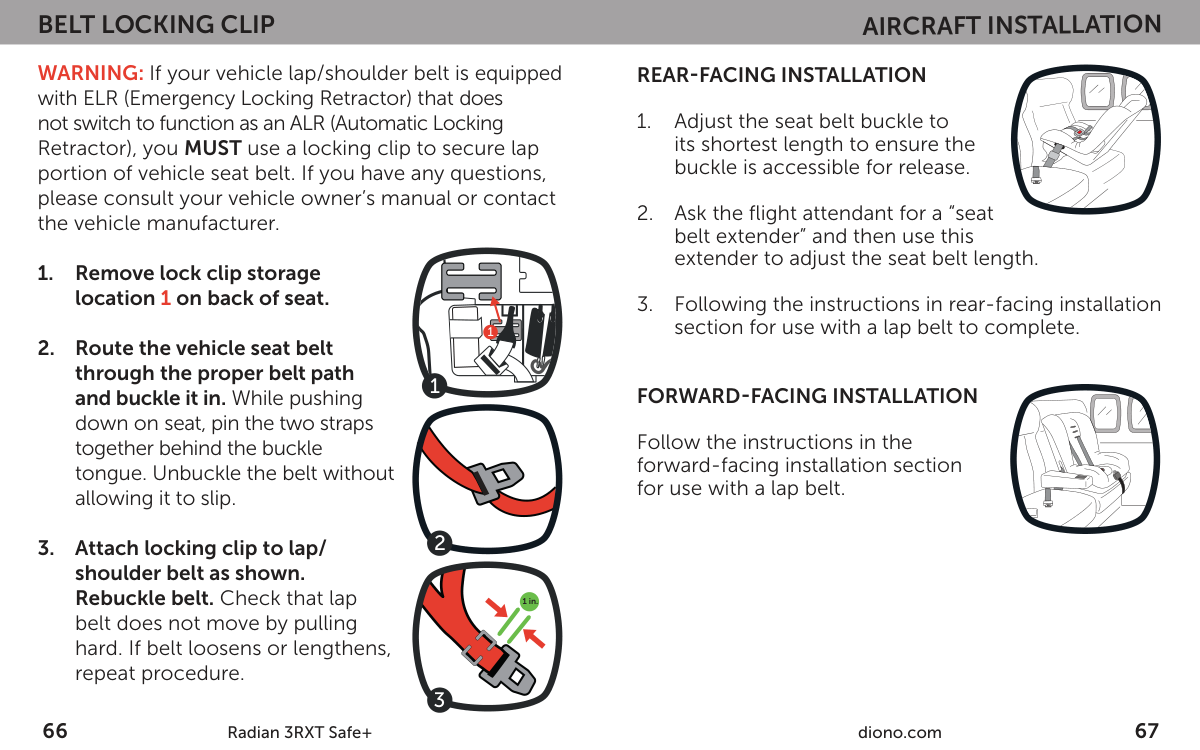

Aircraft: On aircraft, seat may be used rear-facing and forward-facing in harness mode only. For rear-facing installation on aircraft, adjust seat belt buckle to its shortest length to ensure buckle is accessible for release, then ask flight attendant for seat belt extender to install seat.

Seat expires 10 years from date of purchase.

Radian

3RXT Safe+

®

®

all-in-one convertible

from birth up to 120 lb / 54 kg

car seat instruction manual

################ READ INSTRUCTION MANUAL before using this child restraint

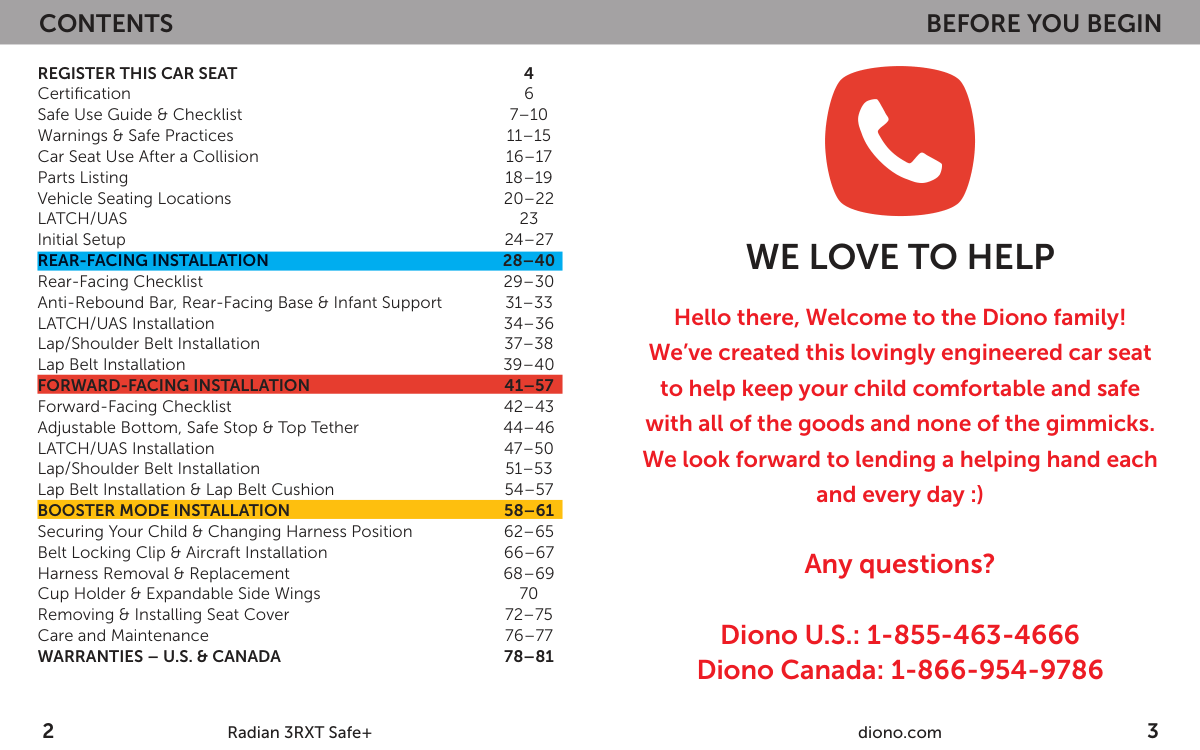

CONTENTS BEFORE YOU BEGIN

REGISTER THIS CAR SEAT Certification Safe Use Guide & Checklist Warnings & Safe Practices Car Seat Use After a Collision Parts Listing Vehicle Seating Locations LATCH/UAS Initial Setup REAR-FACING INSTALLATION Rear-Facing Checklist Anti-Rebound Bar, Rear-Facing Base & Infant Support LATCH/UAS Installation Lap/Shoulder Belt Installation Lap Belt Installation FORWARD-FACING INSTALLATION Forward-Facing Checklist Adjustable Bottom, Safe Stop & Top Tether LATCH/UAS Installation Lap/Shoulder Belt Installation Lap Belt Installation & Lap Belt Cushion BOOSTER MODE INSTALLATION Securing Your Child & Changing Harness Position Belt Locking Clip & Aircraft Installation Harness Removal & Replacement Cup Holder & Expandable Side Wings Removing & Installing Seat Cover Care and Maintenance WARRANTIES – U.S. & CANADA

4

70 72–75 76–77 78–81

#### WE LOVE TO HELP

Hello there, Welcome to the Diono family! We’ve created this lovingly engineered car seat to help keep your child comfortable and safe with all of the goods and none of the gimmicks. We look forward to lending a helping hand each and every day :)

Any questions?

Diono U.S.: 1-855-463-4666 Diono Canada: 1-866-954-9786

diono.comRadian 3RXT Safe+2 3

############# REGISTER THIS CAR SEAT OUR STORY

######### DO NOT SCALE - ART CANNOT BE SCALED

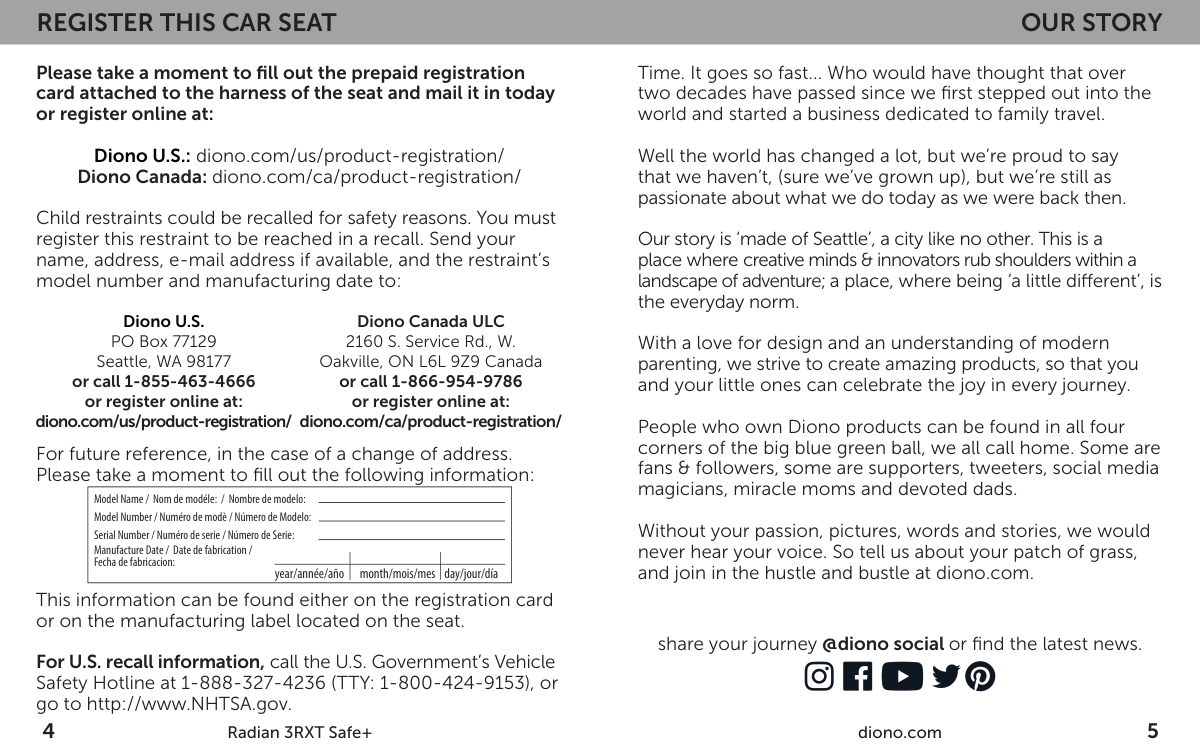

Please take a moment to fill out the prepaid registration card attached to the harness of the seat and mail it in today or register online at:

Time. It goes so fast... Who would have thought that over two decades have passed since we first stepped out into the world and started a business dedicated to family travel.

Diono U.S.: diono.com/us/product-registration/ Diono Canada: diono.com/ca/product-registration/

Well the world has changed a lot, but we’re proud to say that we haven’t, (sure we’ve grown up), but we’re still as passionate about what we do today as we were back then.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available, and the restraint’s model number and manufacturing date to:

Our story is ‘made of Seattle’, a city like no other. This is a place where creative minds & innovators rub shoulders within a landscape of adventure; a place, where being ‘a little different’, is the everyday norm.

Diono U.S. PO Box 77129 Seattle, WA 98177 or call 1-855-463-4666 or register online at: diono.com/us/product-registration/

Diono Canada ULC 2160 S. Service Rd., W. Oakville, ON L6L 9Z9 Canada or call 1-866-954-9786 or register online at: diono.com/ca/product-registration/

With a love for design and an understanding of modern parenting, we strive to create amazing products, so that you and your little ones can celebrate the joy in every journey.

People who own Diono products can be found in all four corners of the big blue green ball, we all call home. Some are fans & followers, some are supporters, tweeters, social media magicians, miracle moms and devoted dads.

For future reference, in the case of a change of address. Please take a moment to fill out the following information:

|year/année/año month/mois/mes day/jour/día

Model Name / Nom de modéle: / Nombre de modelo: Model Number / Numéro de modè / Número de Modelo: Serial Number / Numéro de serie / Número de Serie: Manufacture Date / Date de fabrication / Fecha de fabricacion:|

|---|

Without your passion, pictures, words and stories, we would never hear your voice. So tell us about your patch of grass, and join in the hustle and bustle at diono.com.

This information can be found either on the registration card or on the manufacturing label located on the seat.

106 mm

share your journey @diono social or find the latest news.

For U.S. recall information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.

diono.comRadian 3RXT Safe+4 5

############# CERTIFICATION

############# SAFE USE GUIDE

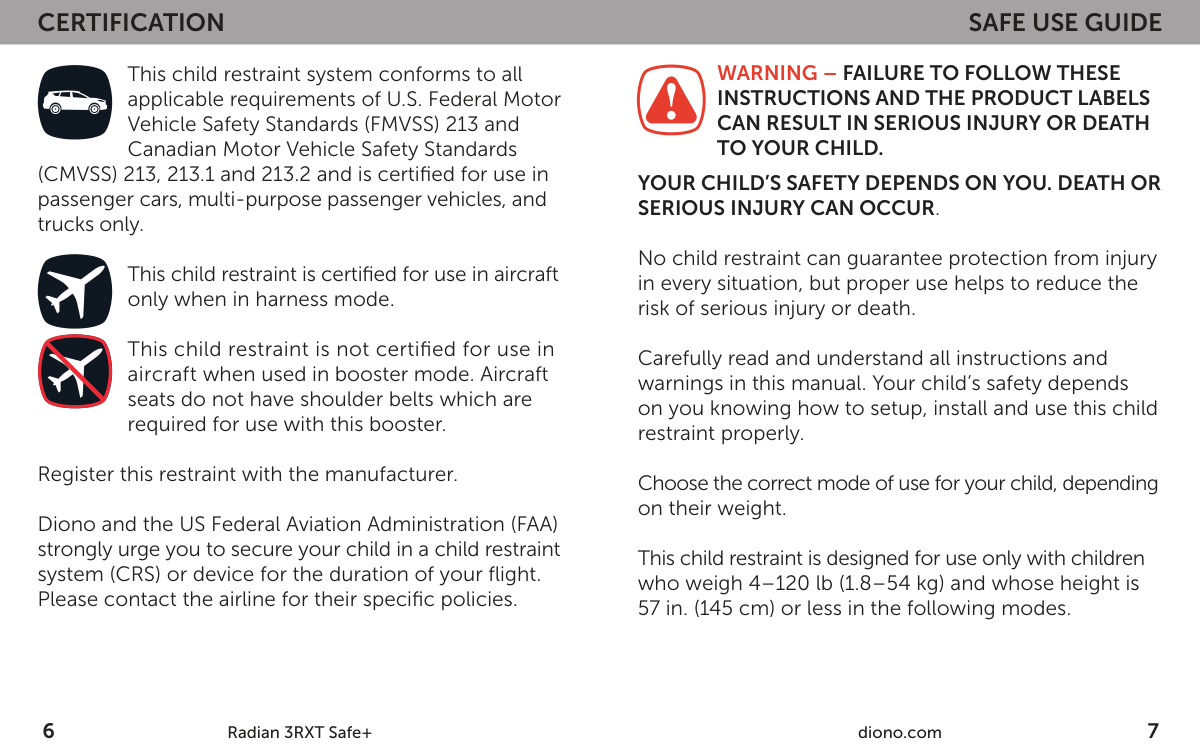

This child restraint system conforms to all applicable requirements of U.S. Federal Motor Vehicle Safety Standards (FMVSS) 213 and Canadian Motor Vehicle Safety Standards

(CMVSS) 213, 213.1 and 213.2 and is certified for use in passenger cars, multi-purpose passenger vehicles, and trucks only.

This child restraint is certified for use in aircraft only when in harness mode.

This child restraint is not certified for use in aircraft when used in booster mode. Aircraft seats do not have shoulder belts which are required for use with this booster.

WARNING – FAILURE TO FOLLOW THESE

INSTRUCTIONS AND THE PRODUCT LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD.

################# YOUR CHILD’S SAFETY DEPENDS ON YOU. DEATH OR SERIOUS INJURY CAN OCCUR.

No child restraint can guarantee protection from injury in every situation, but proper use helps to reduce the risk of serious injury or death.

Carefully read and understand all instructions and warnings in this manual. Your child’s safety depends on you knowing how to setup, install and use this child restraint properly.

Register this restraint with the manufacturer.

Diono and the US Federal Aviation Administration (FAA) strongly urge you to secure your child in a child restraint system (CRS) or device for the duration of your flight. Please contact the airline for their specific policies.

Choose the correct mode of use for your child, depending on their weight.

This child restraint is designed for use only with children who weigh 4–120 lb (1.8–54 kg) and whose height is 57 in. (145 cm) or less in the following modes.

diono.comRadian 3RXT Safe+6 7

############# SAFE USE GUIDE

############# SAFE USE CHECKLIST

For newborn infants, you must consult the infant’s doctor before using this child restraint. A newborn infant may have difficulty breathing or have other medical problems when placed in a seated position.

Before installing this child restraint in a vehicle, be sure to also check the vehicle owner’s manual for information on proper installation.

Check all installation configurations before discarding the box. Diono cannot guarantee proper fit in all vehicles.

DO NOT place this child restraint rear-facing in a vehicle seating location with an active front air bag.

Choose the proper child restraint belt path

4 lb (1.8 kg)

22 lb (10 kg)

40 lb (18 kg)

50 lb (22.7 kg)

65 lb (29.5 kg)

120 lb (54 kg)

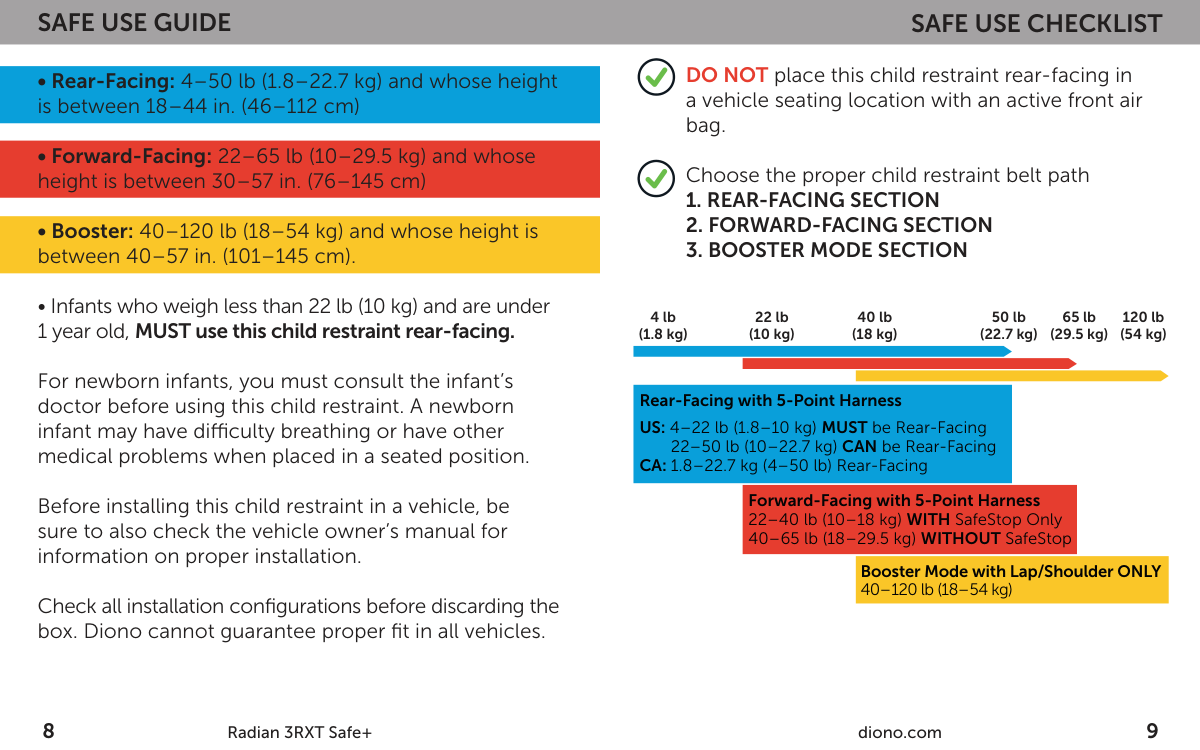

Rear-Facing with 5-Point Harness US: 4–22 lb (1.8–10 kg) MUST be Rear-Facing

22–50 lb (10–22.7 kg) CAN be Rear-Facing CA: 1.8–22.7 kg (4–50 lb) Rear-Facing

Forward-Facing with 5-Point Harness 22–40 lb (10–18 kg) WITH SafeStop Only 40–65 lb (18–29.5 kg) WITHOUT SafeStop

Booster Mode with Lap/Shoulder ONLY 40–120 lb (18–54 kg)

diono.comRadian 3RXT Safe+8 9

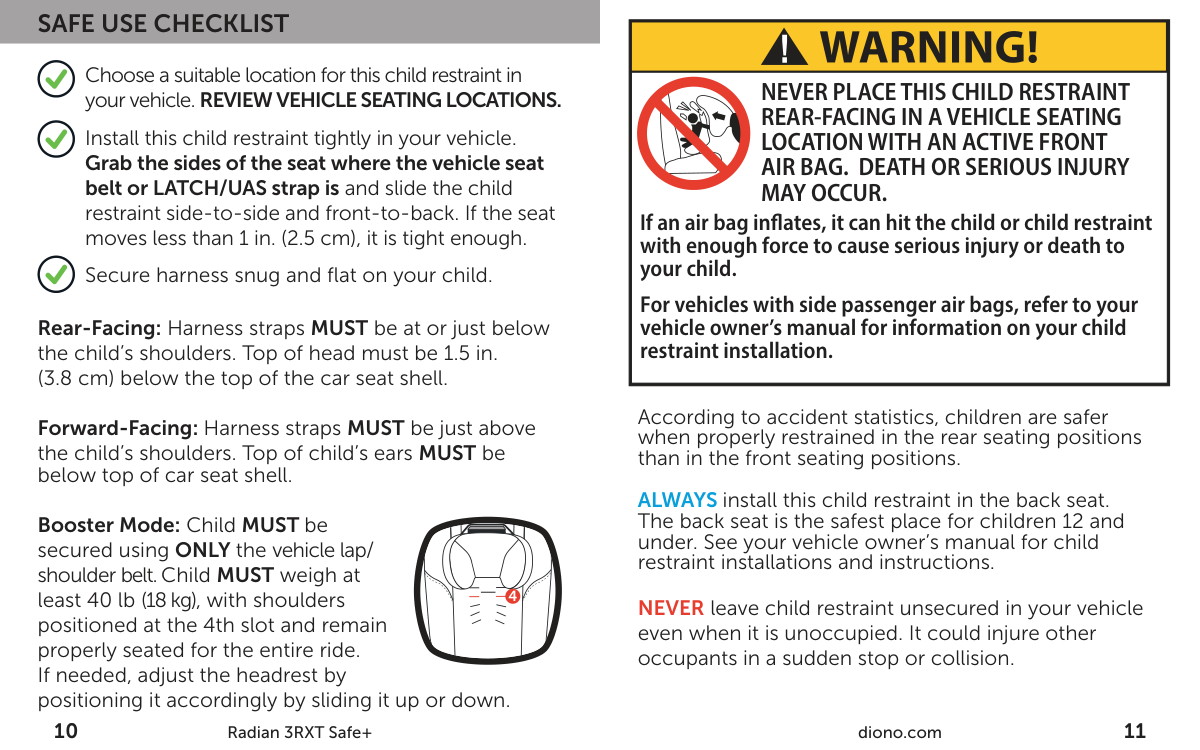

############# SAFE USE CHECKLIST

Choose a suitable location for this child restraint in your vehicle. REVIEW VEHICLE SEATING LOCATIONS.

Install this child restraint tightly in your vehicle. Grab the sides of the seat where the vehicle seat belt or LATCH/UAS strap is and slide the child restraint side-to-side and front-to-back. If the seat moves less than 1 in. (2.5 cm), it is tight enough.

Secure harness snug and flat on your child.

Rear-Facing: Harness straps MUST be at or just below the child’s shoulders. Top of head must be 1.5 in. (3.8 cm) below the top of the car seat shell.

| | |---| |NEVER PLACE THIS CHILD RESTRAINT REAR-FACING IN A VEHICLE SEATING LOCATION WITH AN ACTIVE FRONT AIR BAG. DEATH OR SERIOUS INJURY MAY OCCUR.

If an air bag in ates, it can hit the child or child restraint with enough force to cause serious injury or death to your child.

For vehicles with side passenger air bags, refer to your vehicle owner’s manual for information on your child restraint installation.|

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.

Forward-Facing: Harness straps MUST be just above the child’s shoulders. Top of child’s ears MUST be below top of car seat shell.

ALWAYS install this child restraint in the back seat. The back seat is the safest place for children 12 and under. See your vehicle owner’s manual for child restraint installations and instructions.

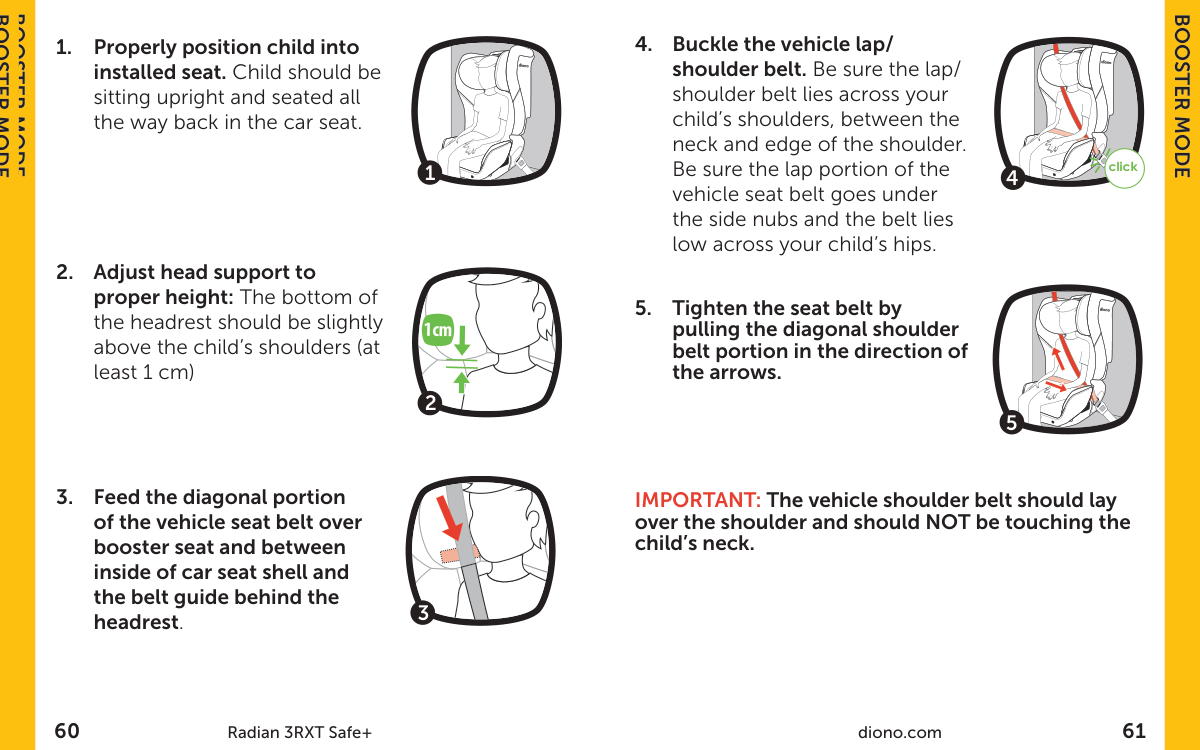

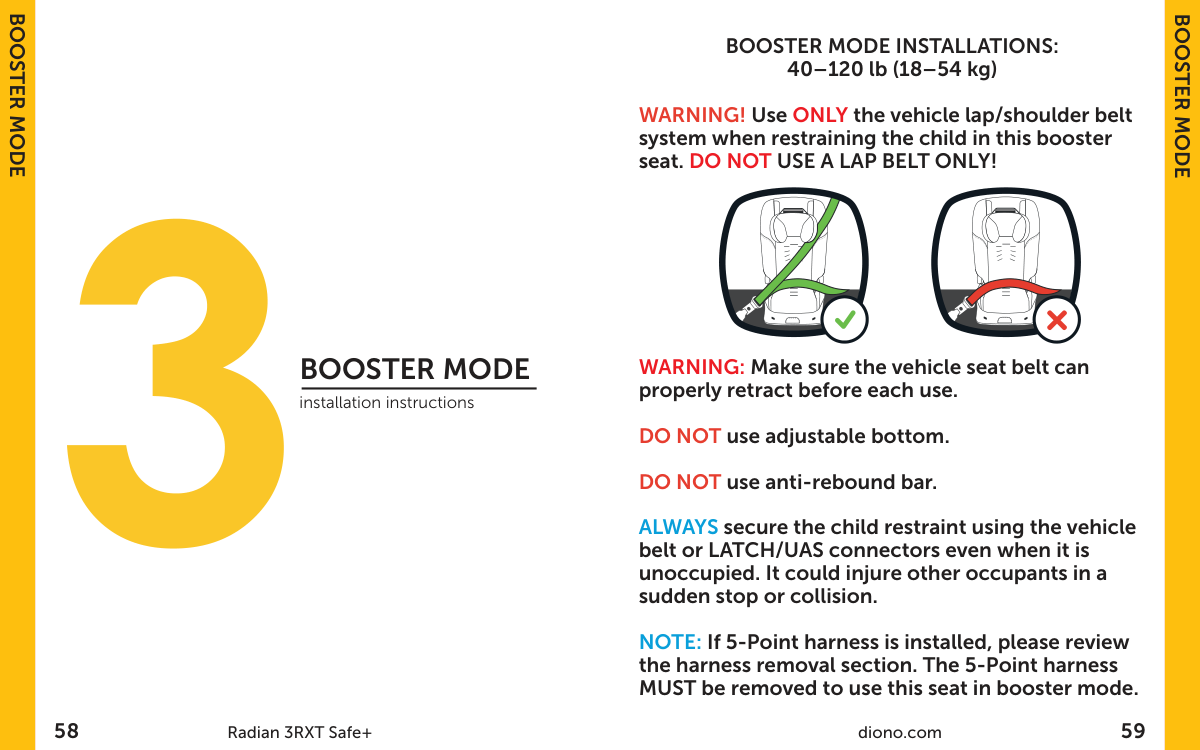

Booster Mode: Child MUST be secured using ONLY the vehicle lap/ shoulder belt. Child MUST weigh at least 40 lb (18 kg), with shoulders positioned at the 4th slot and remain properly seated for the entire ride. If needed, adjust the headrest by positioning it accordingly by sliding it up or down.

##### CA EN

4

NEVER leave child restraint unsecured in your vehicle even when it is unoccupied. It could injure other occupants in a sudden stop or collision.

diono.comRadian 3RXT Safe+10 11

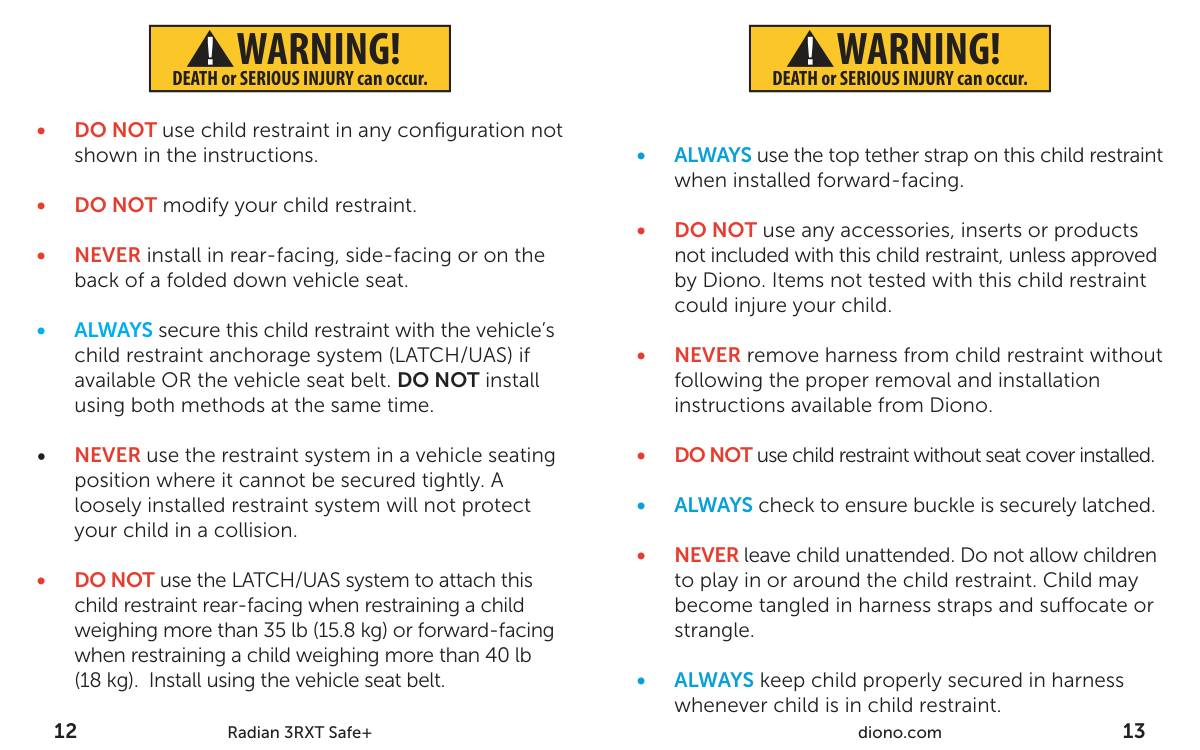

|WARNING!

DEATH or SERIOUS INJURY can occur.

| |---|

|WARNING!

DEATH or SERIOUS INJURY can occur.

| |---|

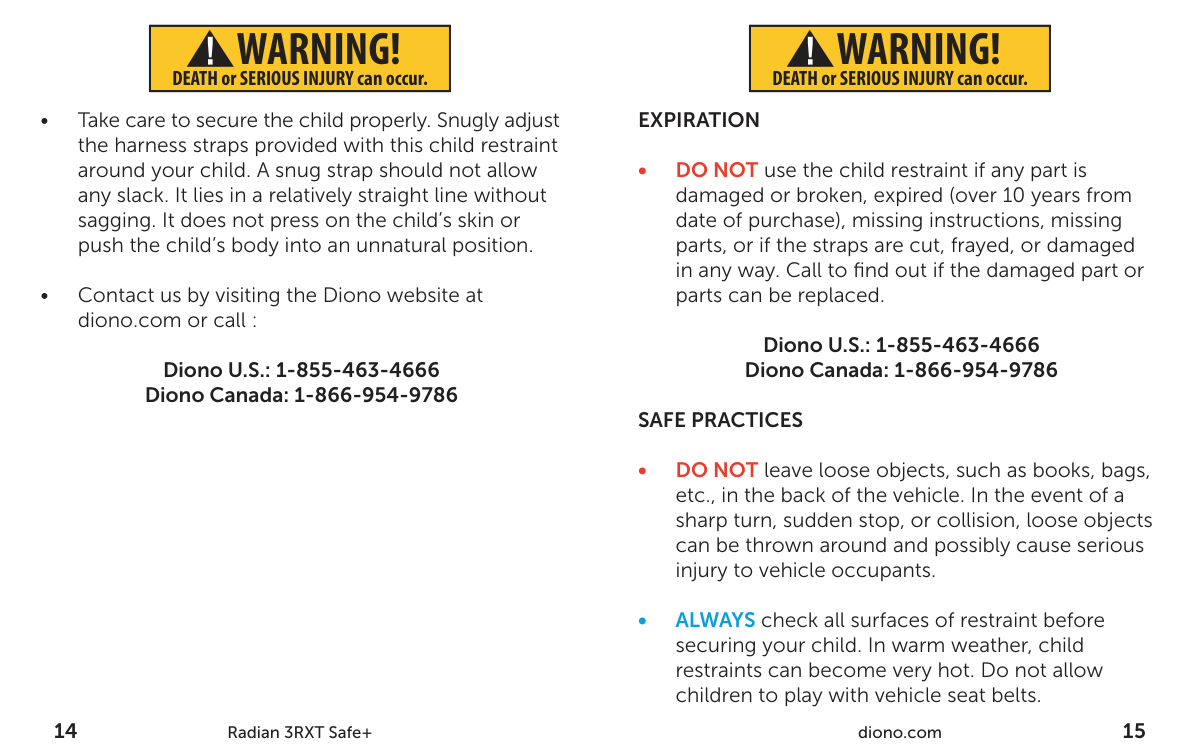

diono.comRadian 3RXT Safe+12 13

|WARNING!

DEATH or SERIOUS INJURY can occur.

| |---|

Diono U.S.: 1-855-463-4666 Diono Canada: 1-866-954-9786

|WARNING!

DEATH or SERIOUS INJURY can occur.

| |---|

EXPIRATION

• DO NOT use the child restraint if any part is damaged or broken, expired (over 10 years from date of purchase), missing instructions, missing parts, or if the straps are cut, frayed, or damaged in any way. Call to find out if the damaged part or parts can be replaced.

Diono U.S.: 1-855-463-4666 Diono Canada: 1-866-954-9786 SAFE PRACTICES

diono.comRadian 3RXT Safe+14 15

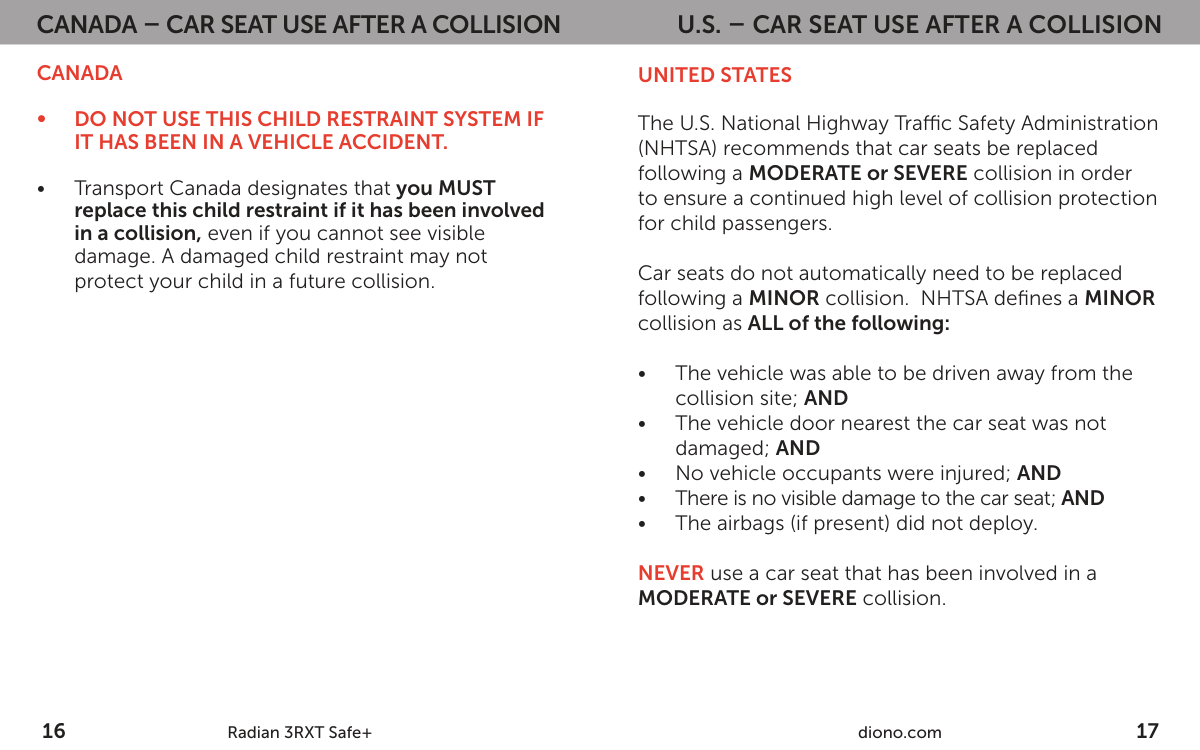

############# CANADA – CAR SEAT USE AFTER A COLLISION U.S. – CAR SEAT USE AFTER A COLLISION CANADA

UNITED STATES

The U.S. National Highway Traffic Safety Administration (NHTSA) recommends that car seats be replaced following a MODERATE or SEVERE collision in order to ensure a continued high level of collision protection for child passengers.

Car seats do not automatically need to be replaced following a MINOR collision. NHTSA defines a MINOR collision as ALL of the following:

NEVER use a car seat that has been involved in a MODERATE or SEVERE collision.

diono.comRadian 3RXT Safe+16 17

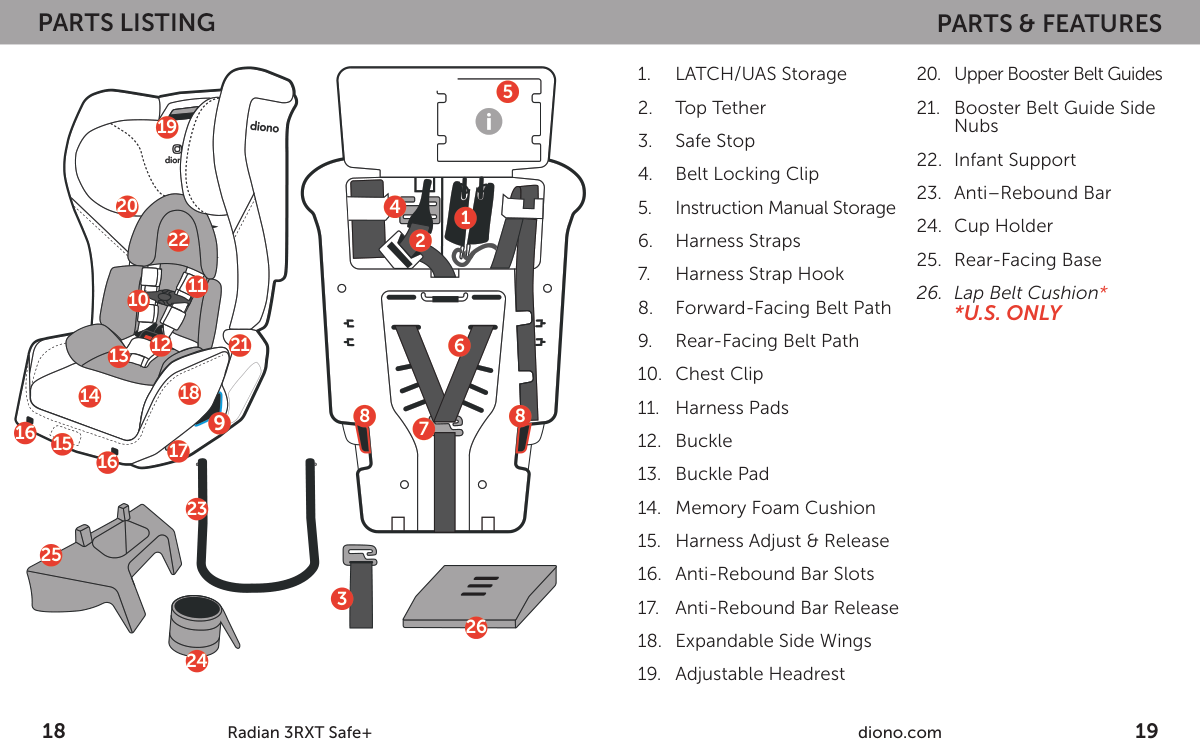

############# PARTS LISTING

############# PARTS & FEATURES

16

20

22

11

10

12 13

21

14

9

15

17

16

25

5

4

1 2

6

88

7

3

26

################# *U.S. ONLY

diono.comRadian 3RXT Safe+18 19

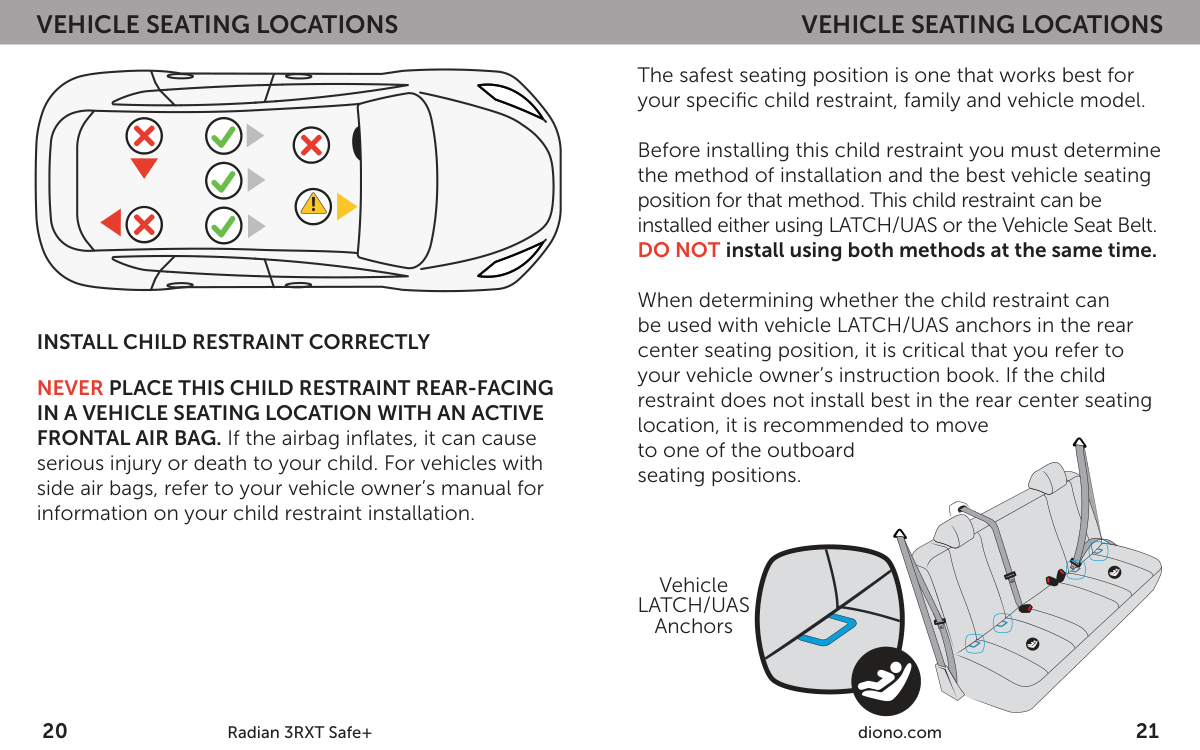

############# VEHICLE SEATING LOCATIONS VEHICLE SEATING LOCATIONS

The safest seating position is one that works best for your specific child restraint, family and vehicle model.

################ !

Before installing this child restraint you must determine the method of installation and the best vehicle seating position for that method. This child restraint can be installed either using LATCH/UAS or the Vehicle Seat Belt. DO NOT install using both methods at the same time.

When determining whether the child restraint can be used with vehicle LATCH/UAS anchors in the rear center seating position, it is critical that you refer to your vehicle owner’s instruction book. If the child restraint does not install best in the rear center seating location, it is recommended to move to one of the outboard seating positions.

INSTALL CHILD RESTRAINT CORRECTLY NEVER PLACE THIS CHILD RESTRAINT REAR-FACING IN A VEHICLE SEATING LOCATION WITH AN ACTIVE FRONTAL AIR BAG. If the airbag inflates, it can cause

serious injury or death to your child. For vehicles with side air bags, refer to your vehicle owner’s manual for information on your child restraint installation.

Vehicle LATCH/UAS Anchors

diono.comRadian 3RXT Safe+20 21

############# VEHICLE SEATING LOCATIONS LATCH/UAS

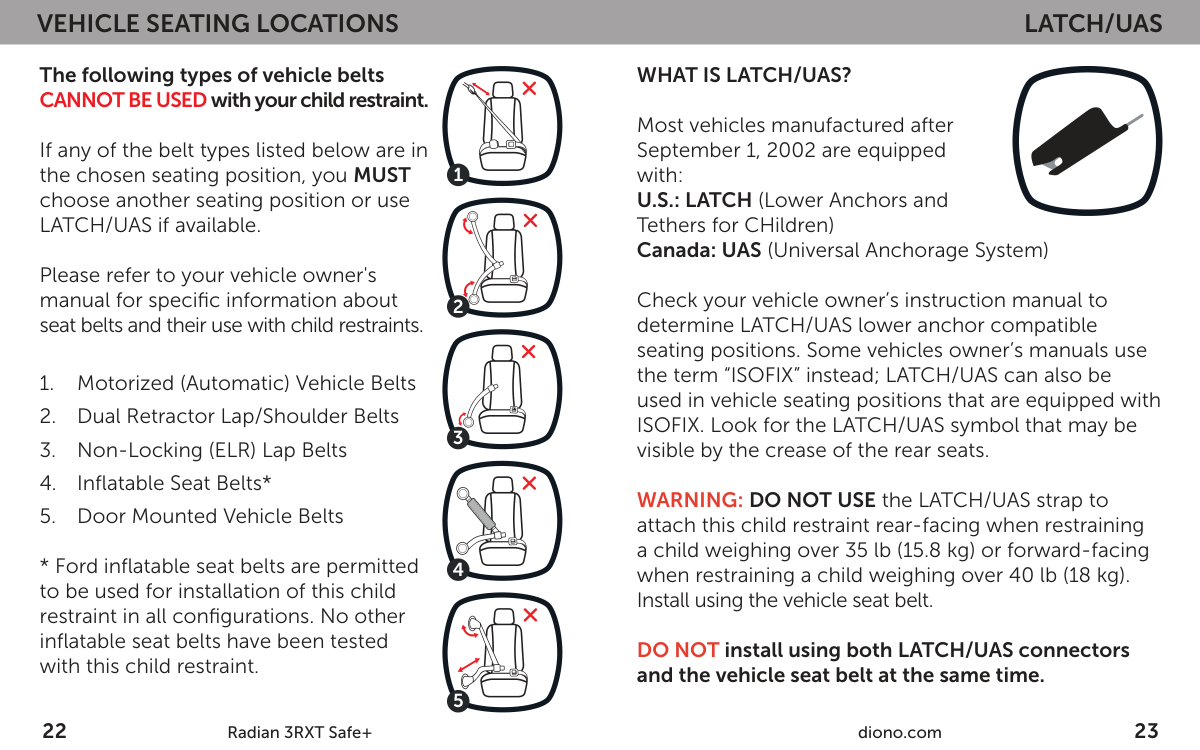

The following types of vehicle belts CANNOT BE USED with your child restraint. If any of the belt types listed below are in the chosen seating position, you MUST choose another seating position or use LATCH/UAS if available. Please refer to your vehicle owner's manual for specific information about seat belts and their use with child restraints.

################# WHAT IS LATCH/UAS?

Most vehicles manufactured after September 1, 2002 are equipped with: U.S.: LATCH (Lower Anchors and Tethers for CHildren) Canada: UAS (Universal Anchorage System)

Check your vehicle owner’s instruction manual to determine LATCH/UAS lower anchor compatible seating positions. Some vehicles owner’s manuals use the term “ISOFIX” instead; LATCH/UAS can also be used in vehicle seating positions that are equipped with ISOFIX. Look for the LATCH/UAS symbol that may be visible by the crease of the rear seats.

WARNING: DO NOT USE the LATCH/UAS strap to attach this child restraint rear-facing when restraining a child weighing over 35 lb (15.8 kg) or forward-facing when restraining a child weighing over 40 lb (18 kg). Install using the vehicle seat belt.

DO NOT install using both LATCH/UAS connectors and the vehicle seat belt at the same time.

diono.comRadian 3RXT Safe+22 23

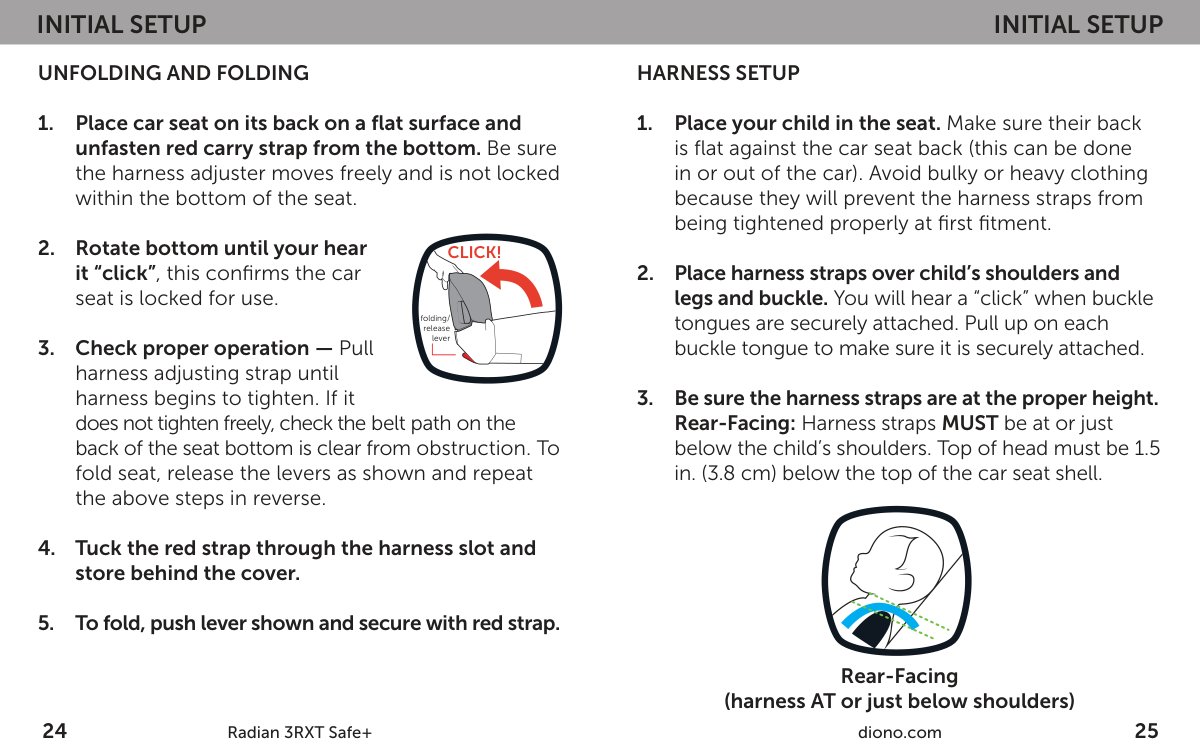

############# INITIAL SETUP INITIAL SETUP

UNFOLDING AND FOLDING

################# HARNESS SETUP

###################### CLICK!

folding/ release lever

###### US & CA EN

Rear-Facing (harness AT or just below shoulders)

diono.comRadian 3RXT Safe+24 25

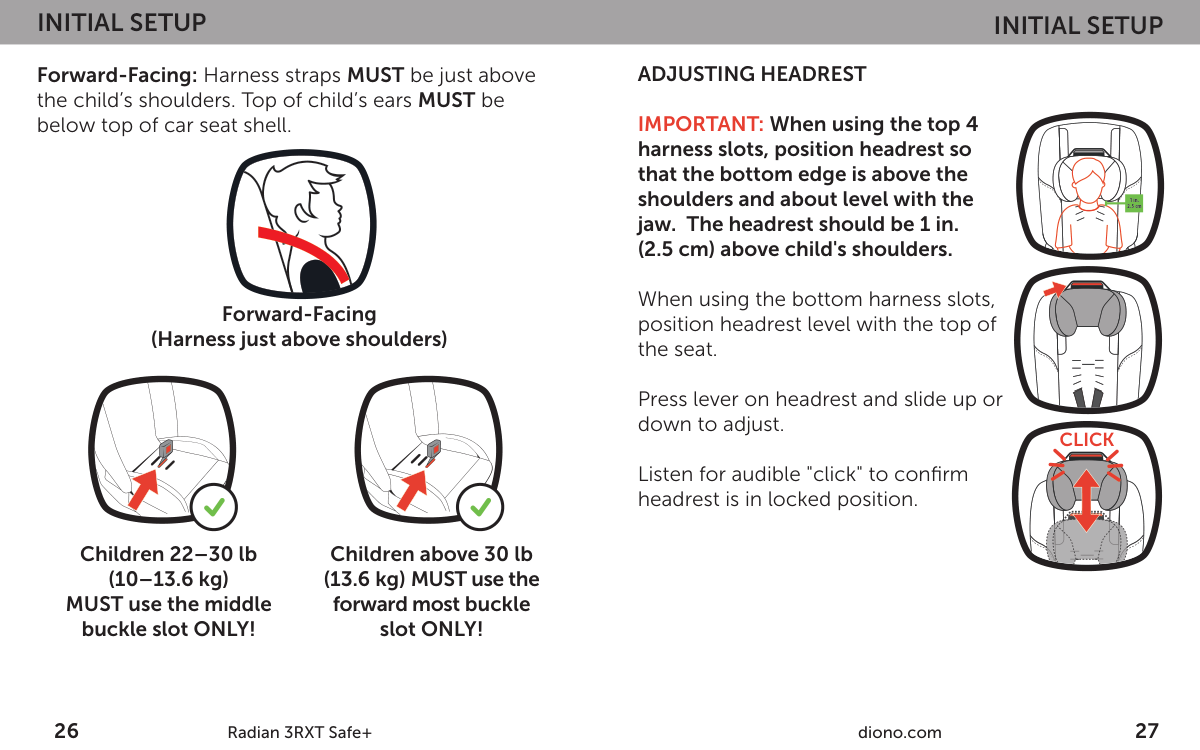

INITIAL SETUP Forward-Facing: Harness straps MUST be just above the child’s shoulders. Top of child’s ears MUST be below top of car seat shell.

############# INITIAL SETUP

ADJUSTING HEADREST IMPORTANT: When using the top 4 harness slots, position headrest so that the bottom edge is above the shoulders and about level with the jaw. The headrest should be 1 in. (2.5 cm) above child's shoulders.

1 in. 2.5 cm

When using the bottom harness slots, position headrest level with the top of the seat.

Forward-Facing (Harness just above shoulders)

Press lever on headrest and slide up or down to adjust.

#################### CLICK

Listen for audible "click" to confirm headrest is in locked position.

###### FORWARD-FACING

Children 22–30 lb (10–13.6 kg) MUST use the middle buckle slot ONLY!

Children above 30 lb (13.6 kg) MUST use the forward most buckle slot ONLY!

Radian 3RXT Safe+26 diono.com 27

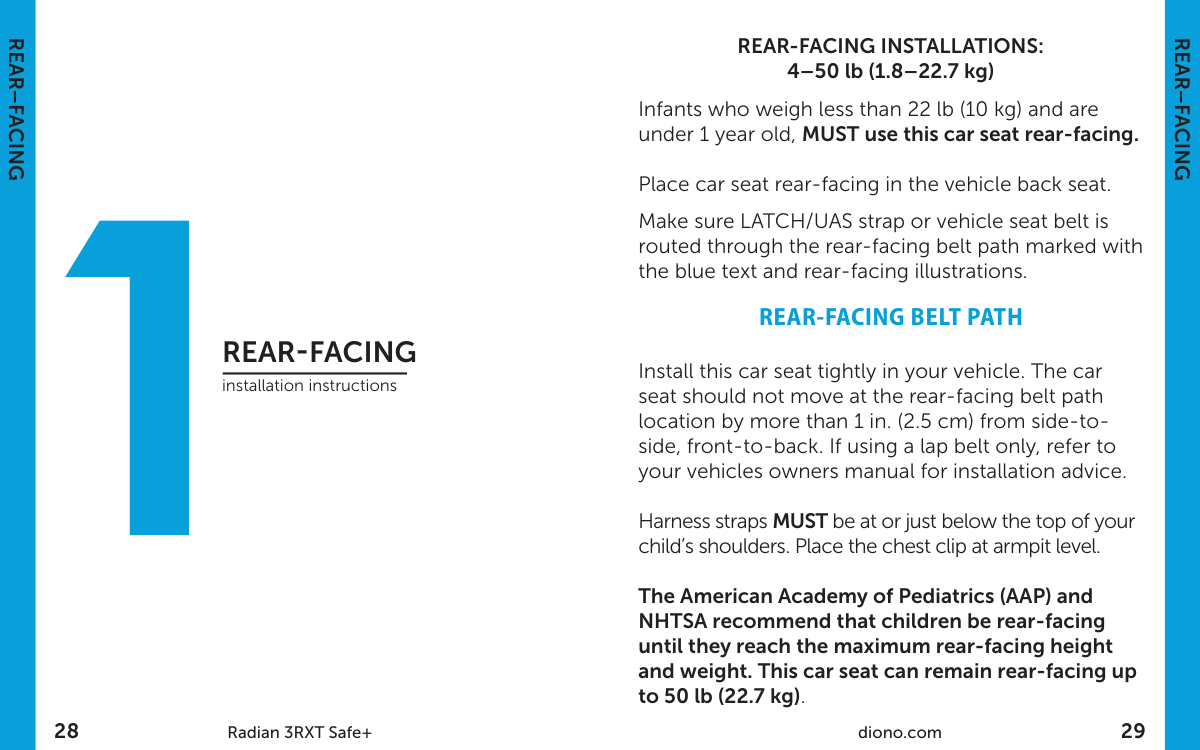

REAR-FACING INSTALLATIONS: 4–50 lb (1.8–22.7 kg)

REAR–FACING

1REAR-FACING

Infants who weigh less than 22 lb (10 kg) and are under 1 year old, MUST use this car seat rear-facing.

Place car seat rear-facing in the vehicle back seat. Make sure LATCH/UAS strap or vehicle seat belt is routed through the rear-facing belt path marked with the blue text and rear-facing illustrations.

############ REAR-FACING BELT PATH

Install this car seat tightly in your vehicle. The car seat should not move at the rear-facing belt path location by more than 1 in. (2.5 cm) from side-toside, front-to-back. If using a lap belt only, refer to your vehicles owners manual for installation advice.

installation instructions

Harness straps MUST be at or just below the top of your child’s shoulders. Place the chest clip at armpit level.

The American Academy of Pediatrics (AAP) and NHTSA recommend that children be rear-facing until they reach the maximum rear-facing height and weight. This car seat can remain rear-facing up to 50 lb (22.7 kg).

diono.comRadian 3RXT Safe+28 29

REAR–FACING

Diono RECOMMENDS that children be rear-facing until they reach the maximum rear-facing height and weight. This car seat can remain rear-facing up to 50 lb (22.7 kg).

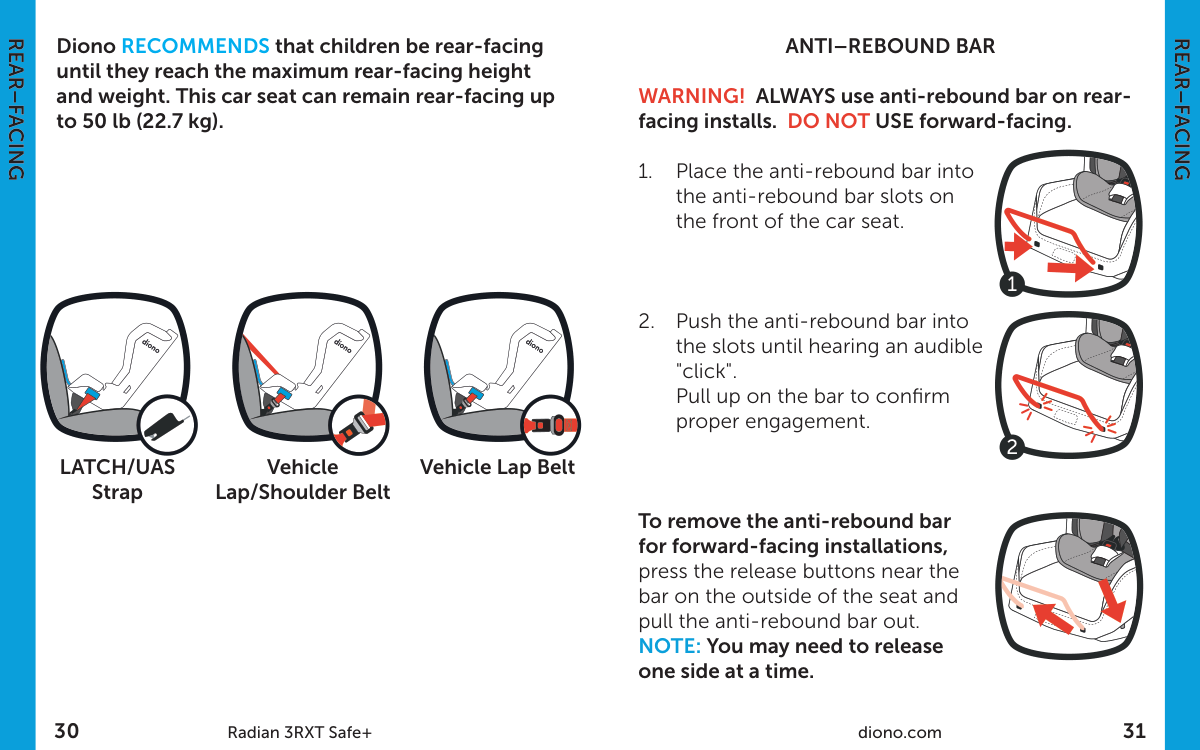

ANTI–REBOUND BAR

REAR–FACING

REAR–FACING

WARNING! ALWAYS use anti-rebound bar on rearfacing installs. DO NOT USE forward-facing.

LATCH/UAS Strap

Vehicle Lap/Shoulder Belt

Vehicle Lap Belt

To remove the anti-rebound bar for forward-facing installations,

press the release buttons near the bar on the outside of the seat and pull the anti-rebound bar out.

NOTE: You may need to release one side at a time.

diono.comRadian 3RXT Safe+30 31

REAR–FACING

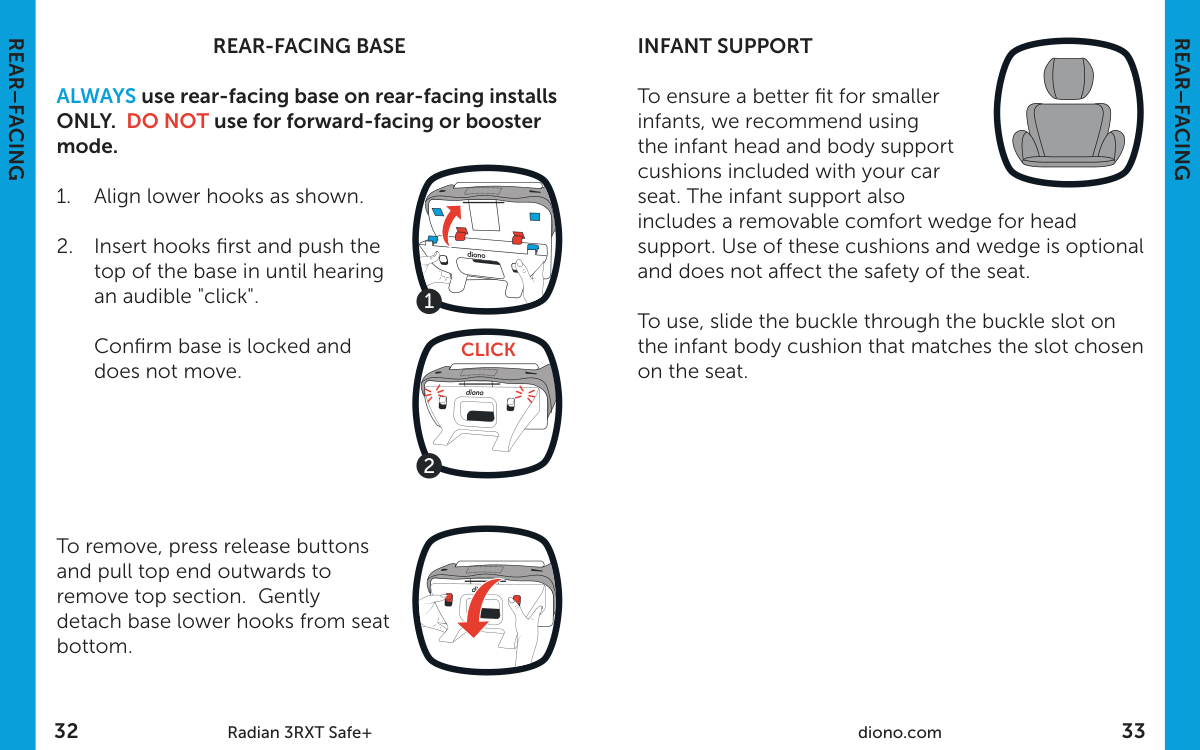

REAR-FACING BASE

ALWAYS use rear-facing base on rear-facing installs ONLY. DO NOT use for forward-facing or booster mode.

Confirm base is locked and does not move.

CLICK

################# INFANT SUPPORT

To ensure a better fit for smaller infants, we recommend using the infant head and body support cushions included with your car seat. The infant support also includes a removable comfort wedge for head support. Use of these cushions and wedge is optional and does not affect the safety of the seat.

To use, slide the buckle through the buckle slot on the infant body cushion that matches the slot chosen on the seat.

To remove, press release buttons and pull top end outwards to remove top section. Gently detach base lower hooks from seat bottom.

diono.comRadian 3RXT Safe+32 33

REAR–FACING

REAR–FACING

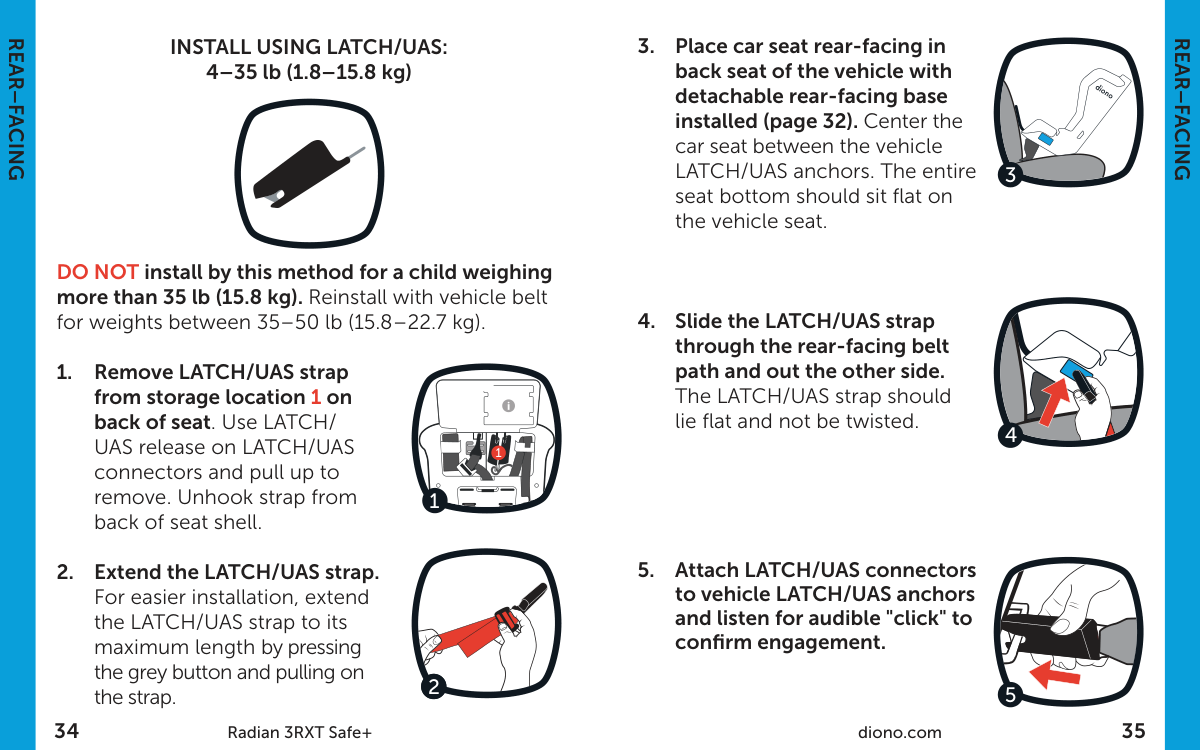

INSTALL USING LATCH/UAS: 4–35 lb (1.8–15.8 kg)

DO NOT install by this method for a child weighing more than 35 lb (15.8 kg). Reinstall with vehicle belt for weights between 35–50 lb (15.8–22.7 kg).

1

1

32

diono.comRadian 3RXT Safe+34 35

REAR–FACING

REAR–FACING

6

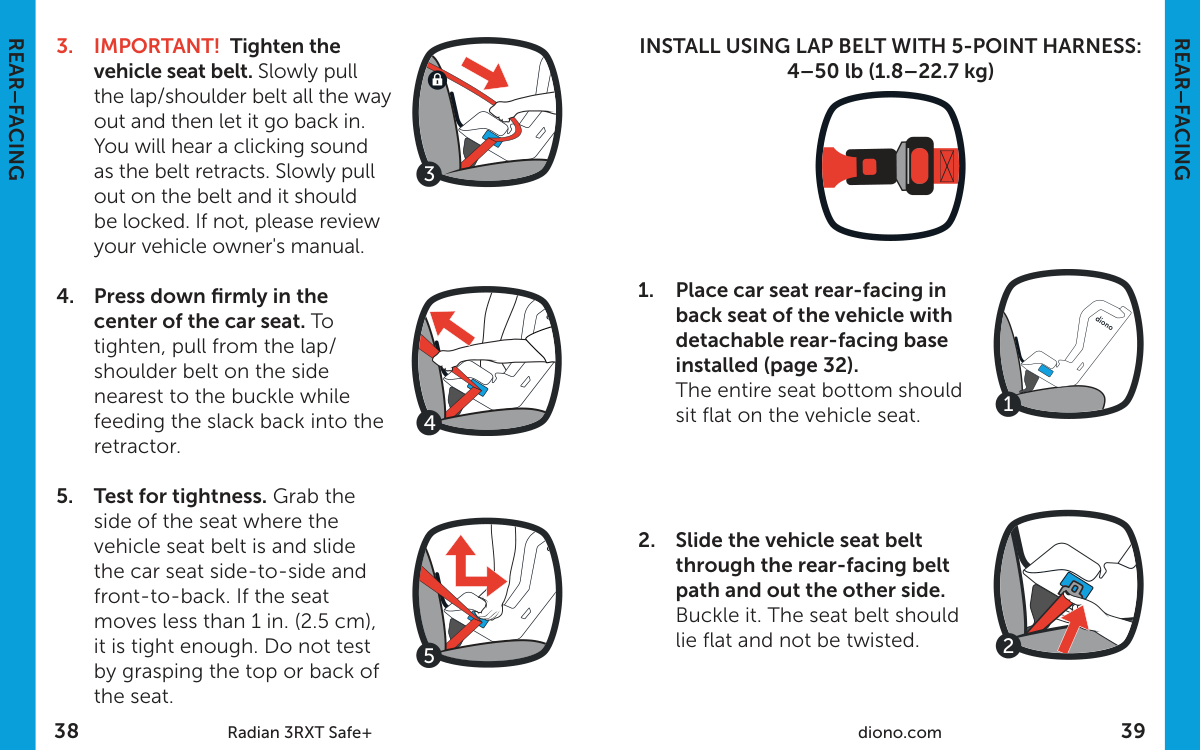

INSTALL USING LAP/SHOULDER BELT WITH 5-POINT HARNESS : 4–50 lb (1.8–22.7 kg)

diono.comRadian 3RXT Safe+36 37

REAR–FACING

REAR–FACING

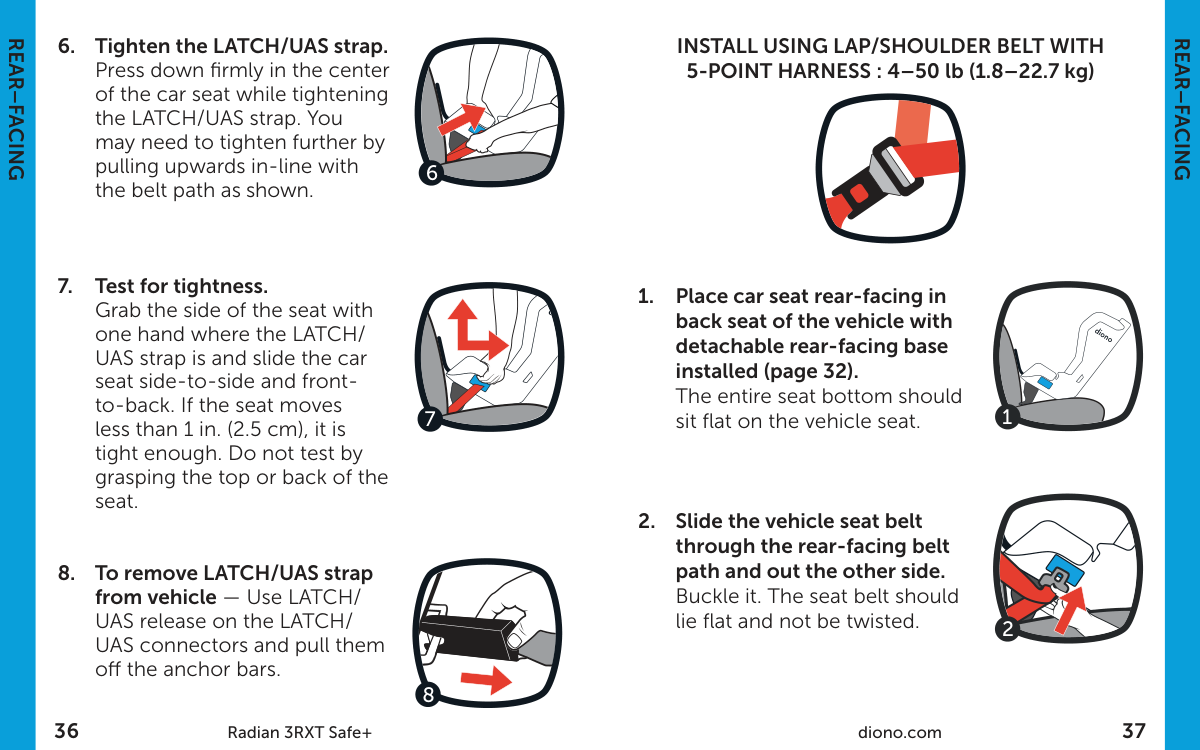

INSTALL USING LAP BELT WITH 5-POINT HARNESS: 4–50 lb (1.8–22.7 kg)

vehicle seat belt. Slowly pull the lap/shoulder belt all the way out and then let it go back in. You will hear a clicking sound as the belt retracts. Slowly pull out on the belt and it should be locked. If not, please review your vehicle owner's manual.

################## 3

################## 4

5

diono.comRadian 3RXT Safe+38 39

REAR–FACING

REAR–FACING

vehicle seat belt.

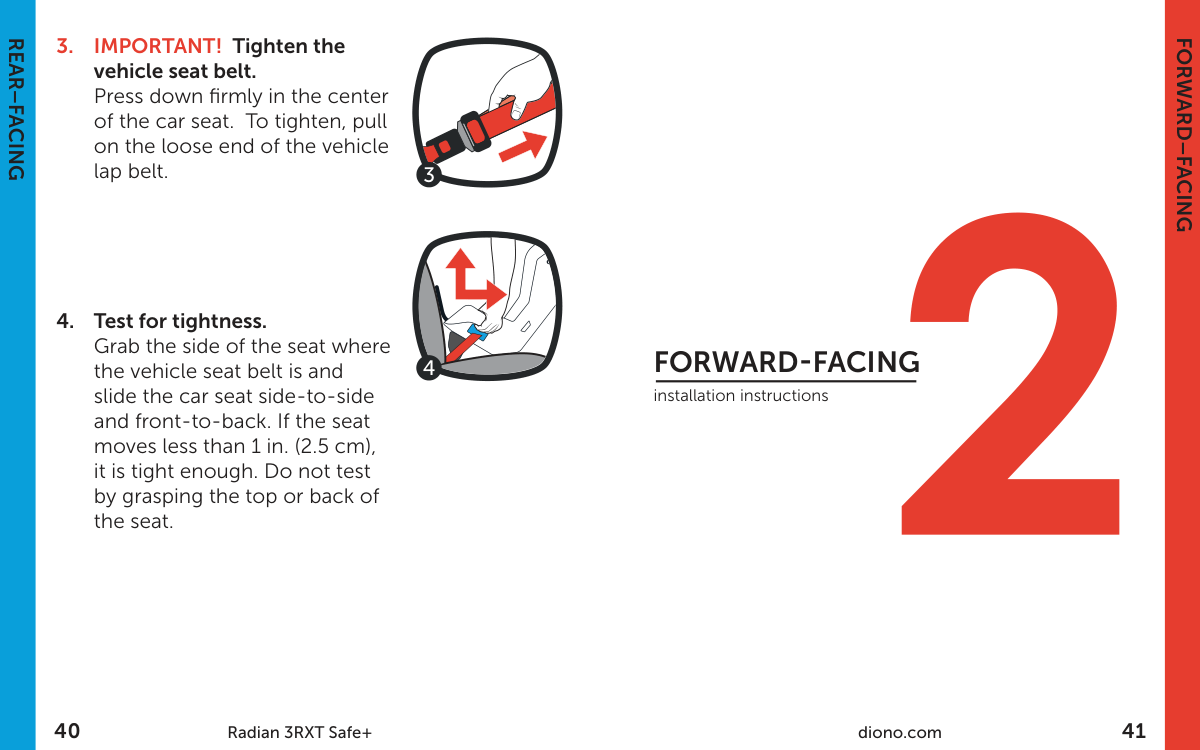

Press down firmly in the center of the car seat. To tighten, pull on the loose end of the vehicle lap belt.

installation instructions

diono.comRadian 3RXT Safe+40 41

FORWARD–FACING

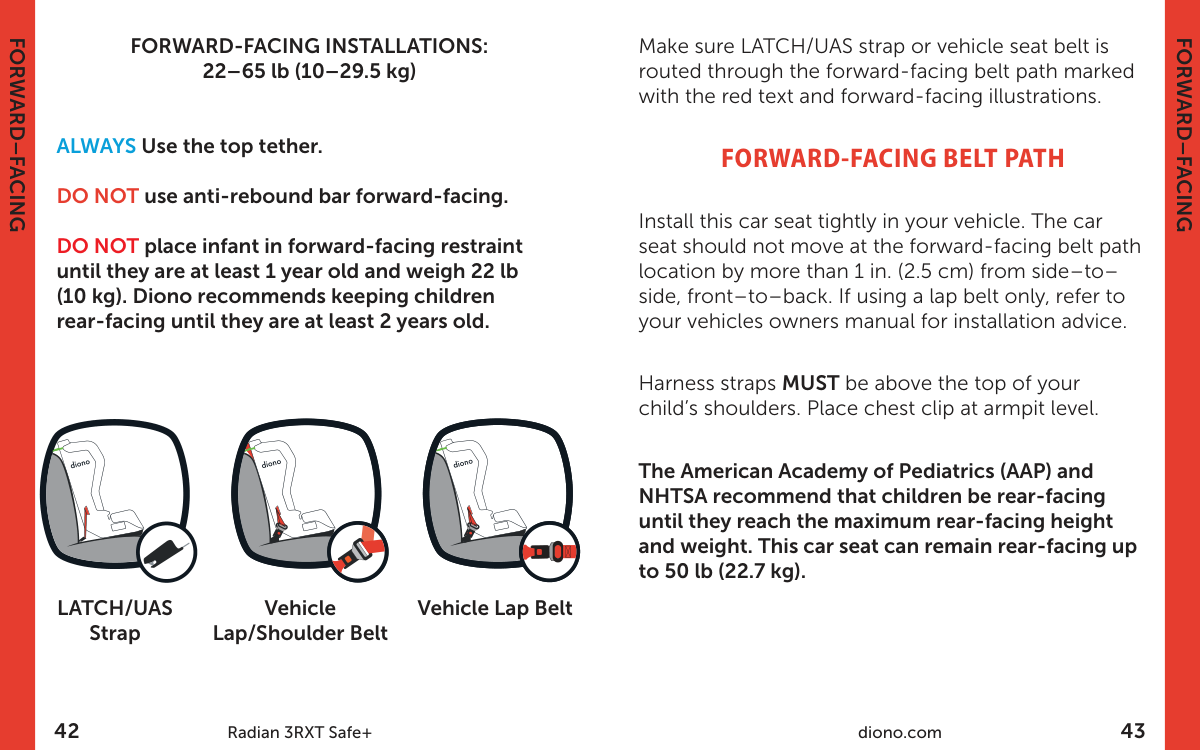

FORWARD-FACING INSTALLATIONS: 22–65 lb (10–29.5 kg)

Make sure LATCH/UAS strap or vehicle seat belt is routed through the forward-facing belt path marked with the red text and forward-facing illustrations.

FORWARD–FACING

ALWAYS Use the top tether. DO NOT use anti-rebound bar forward-facing. DO NOT place infant in forward-facing restraint until they are at least 1 year old and weigh 22 lb (10 kg). Diono recommends keeping children rear-facing until they are at least 2 years old.

######## FORWARD-FACING BELT PATH

Install this car seat tightly in your vehicle. The car seat should not move at the forward-facing belt path location by more than 1 in. (2.5 cm) from side–to– side, front–to–back. If using a lap belt only, refer to your vehicles owners manual for installation advice.

Harness straps MUST be above the top of your child’s shoulders. Place chest clip at armpit level.

The American Academy of Pediatrics (AAP) and NHTSA recommend that children be rear-facing until they reach the maximum rear-facing height and weight. This car seat can remain rear-facing up to 50 lb (22.7 kg).

LATCH/UAS Strap

Vehicle Lap/Shoulder Belt

Vehicle Lap Belt

diono.comRadian 3RXT Safe+42 43

FORWARD–FACING

FORWARD–FACING

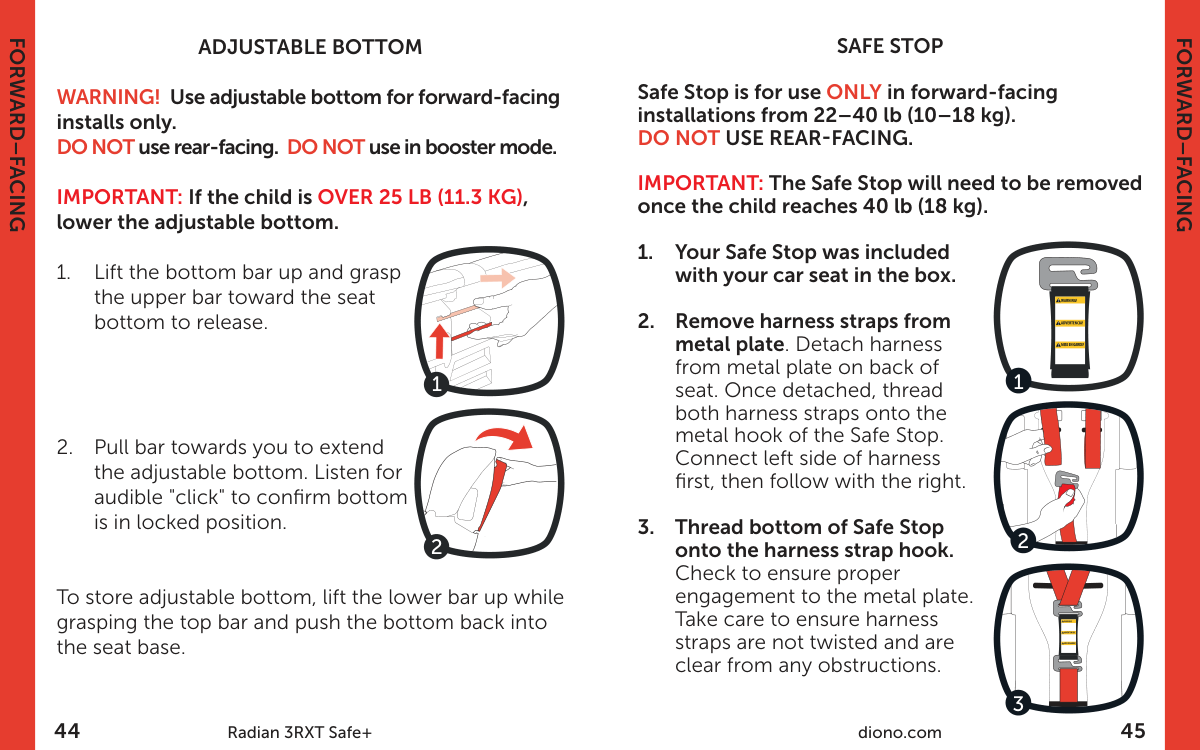

ADJUSTABLE BOTTOM

SAFE STOP

WARNING! Use adjustable bottom for forward-facing installs only. DO NOT use rear-facing. DO NOT use in booster mode.

Safe Stop is for use ONLY in forward-facing installations from 22–40 lb (10–18 kg). DO NOT USE REAR-FACING.

IMPORTANT: The Safe Stop will need to be removed once the child reaches 40 lb (18 kg).

IMPORTANT: If the child is OVER 25 LB (11.3 KG), lower the adjustable bottom.

To store adjustable bottom, lift the lower bar up while grasping the top bar and push the bottom back into the seat base.

diono.comRadian 3RXT Safe+44 45

FORWARD–FACING

FORWARD–FACING

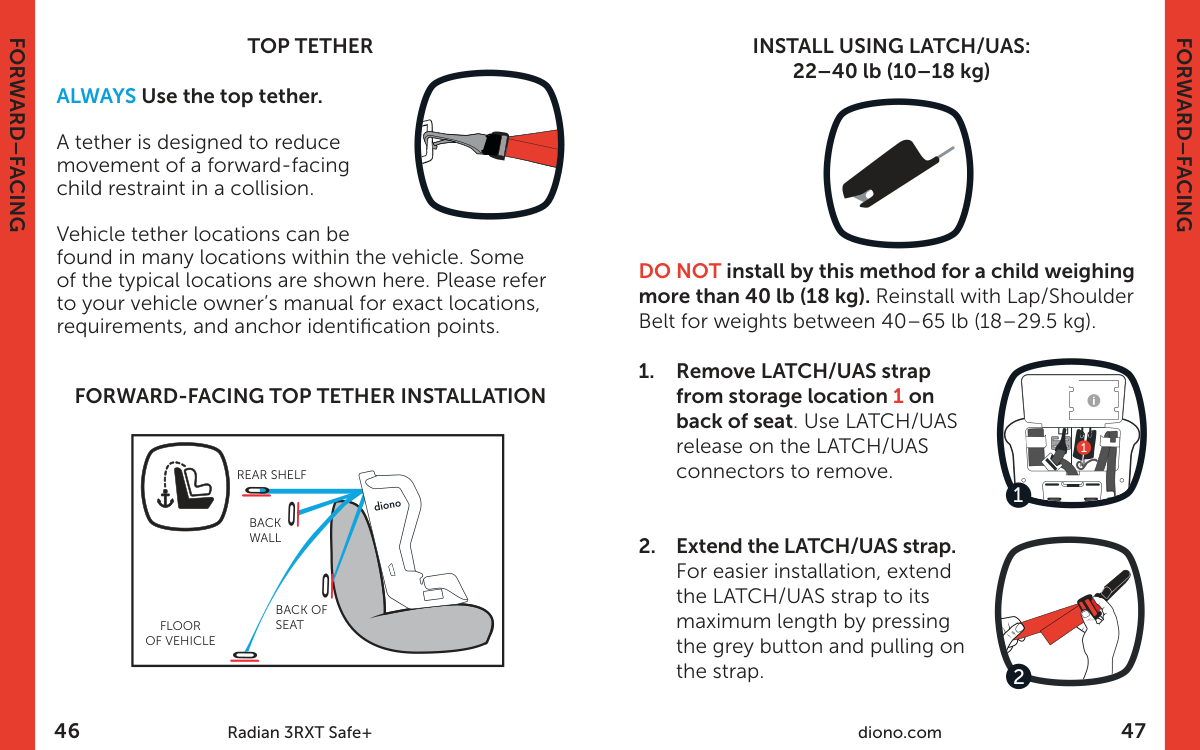

TOP TETHER ALWAYS Use the top tether.

A tether is designed to reduce movement of a forward-facing child restraint in a collision.

Vehicle tether locations can be found in many locations within the vehicle. Some of the typical locations are shown here. Please refer to your vehicle owner’s manual for exact locations, requirements, and anchor identification points.

FORWARD-FACING TOP TETHER INSTALLATION

|FLOOR OF VEHICLE

BACK OF SEAT

BACK WALL

REAR SHELF| |---|

INSTALL USING LATCH/UAS: 22–40 lb (10–18 kg)

DO NOT install by this method for a child weighing more than 40 lb (18 kg). Reinstall with Lap/Shoulder Belt for weights between 40–65 lb (18–29.5 kg).

1

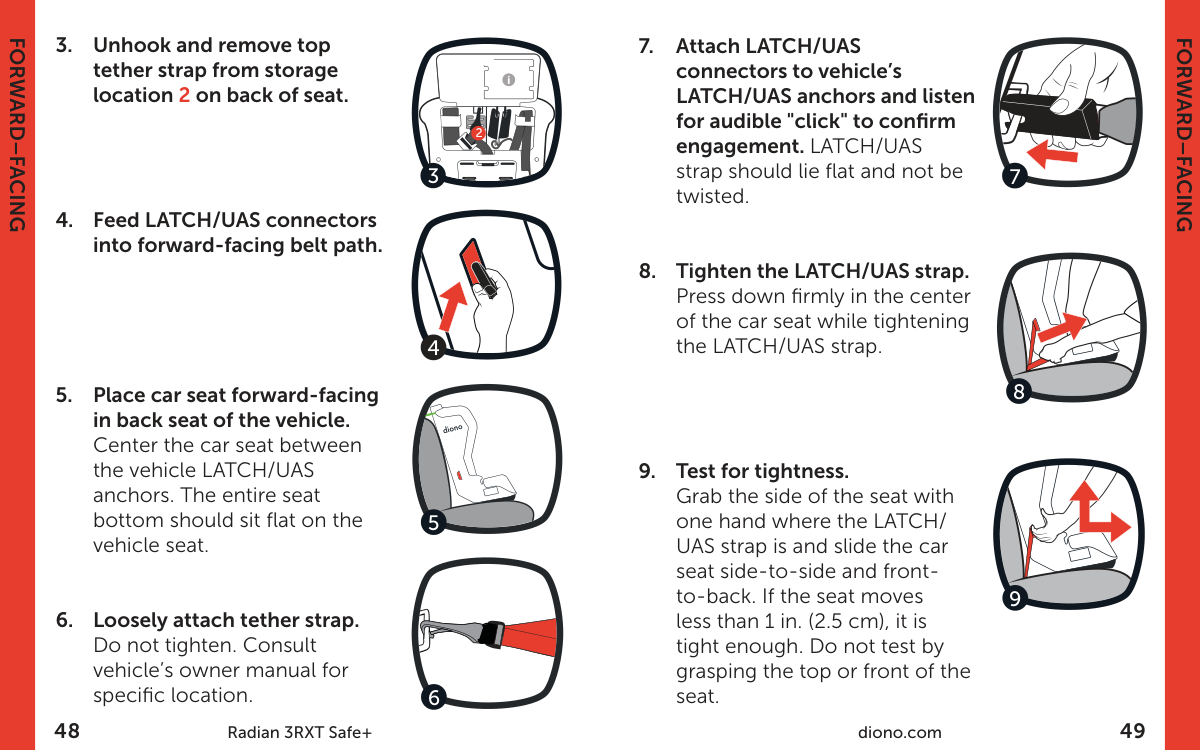

diono.comRadian 3RXT Safe+46 47

FORWARD–FACING

FORWARD–FACING

FORWARD–FACING

2

3

4

###### Top Tether

diono.comRadian 3RXT Safe+48 49

FORWARD–FACING

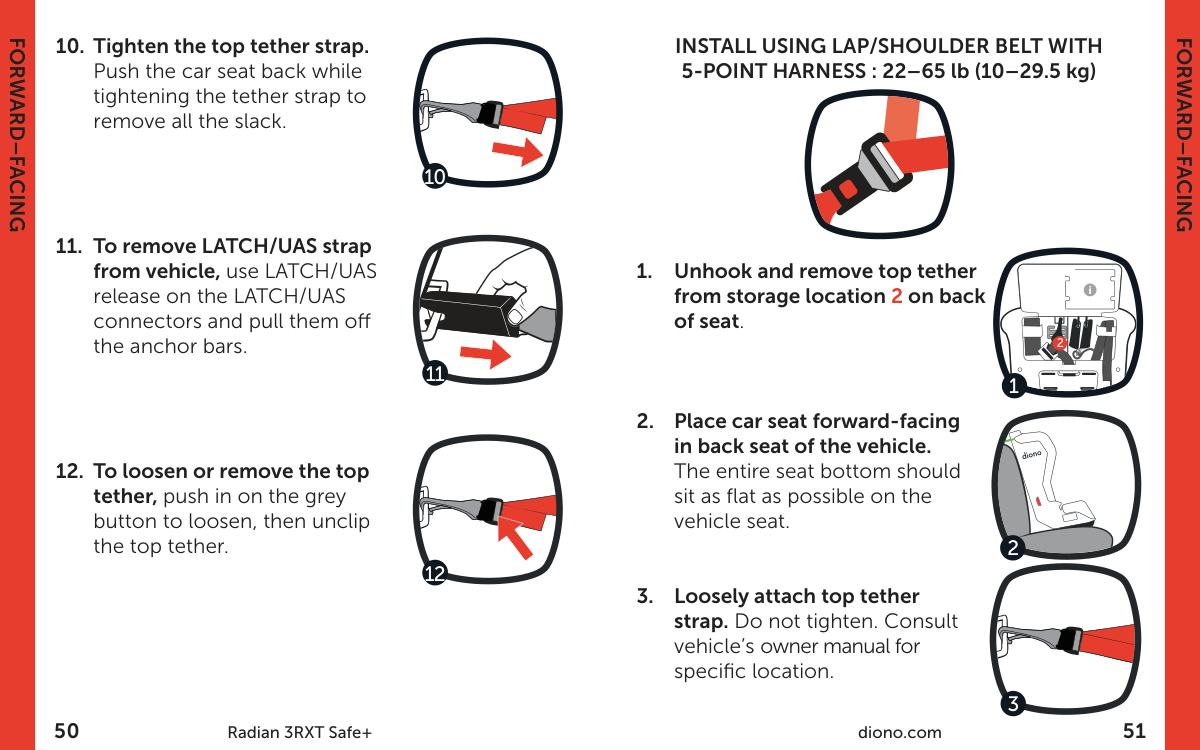

INSTALL USING LAP/SHOULDER BELT WITH 5-POINT HARNESS : 22–65 lb (10–29.5 kg)

2

specific location. Top Tether

diono.comRadian 3RXT Safe+50 51

FORWARD–FACING

FORWARD–FACING

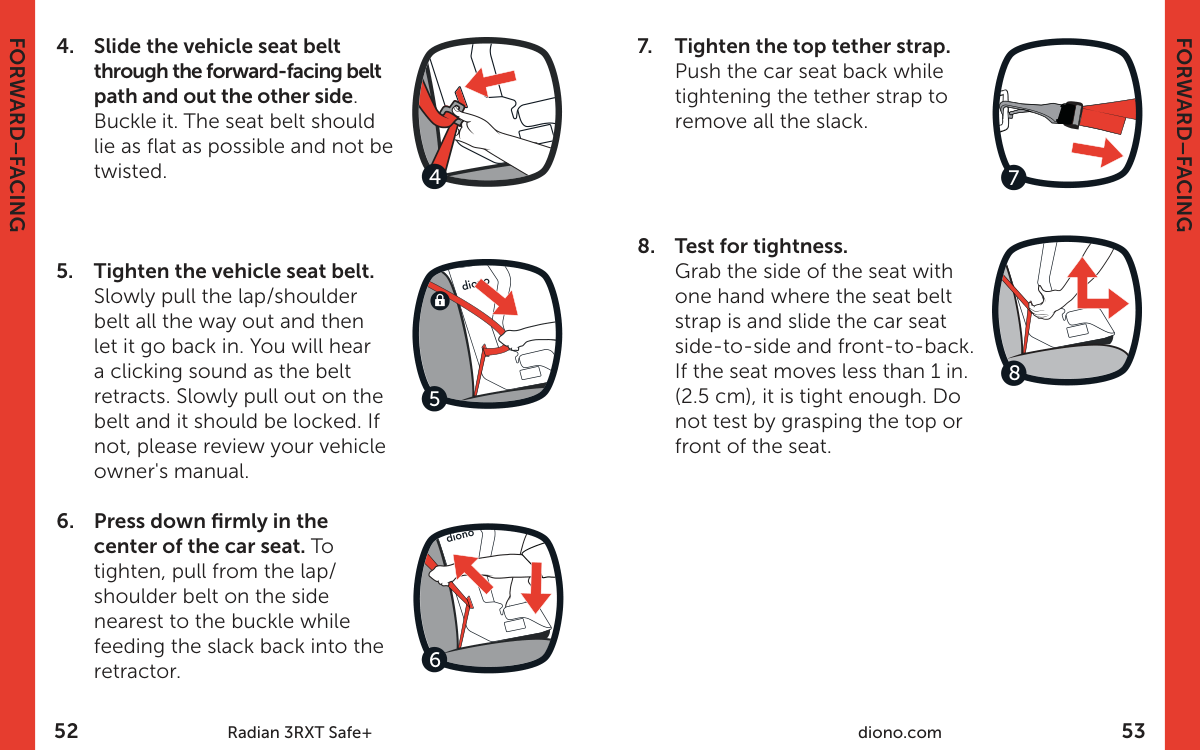

diono.comRadian 3RXT Safe+52 53

FORWARD–FACING

FORWARD–FACING

LAP BELT CUSHION FOR U.S. INSTALLATIONS ONLY! DO NOT USE FOR CANADA INSTALLATIONS!

This lap belt cushion should ONLY be used for harnessed forward-facing installations using a LAP BELT ONLY with NO top tether available from

22–65 lb (10–29.5 kg). DO NOT USE REAR-FACING. WARNING: You MUST use the 5th harness slot when using the lap belt cushion. 5

################# FOR U.S. INSTALLATIONS ONLY! To install the Lap Belt Cushion:

diono.comRadian 3RXT Safe+54 55

FORWARD–FACING

FORWARD–FACING

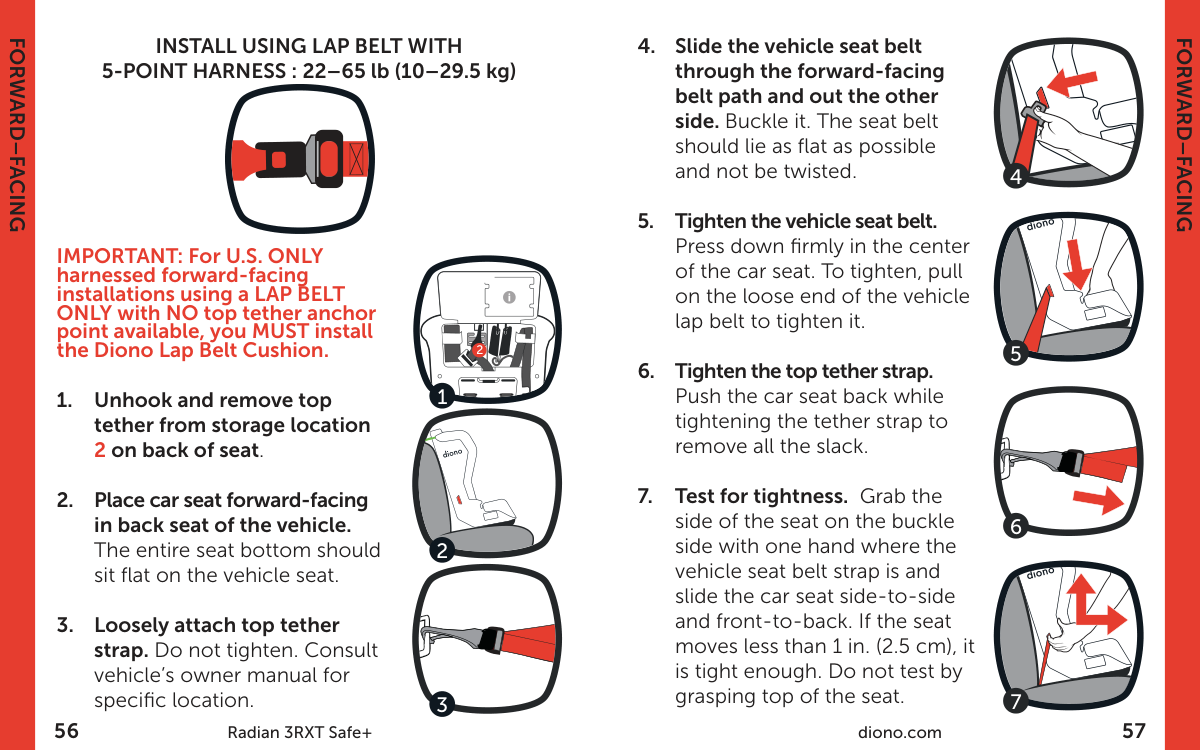

INSTALL USING LAP BELT WITH 5-POINT HARNESS : 22–65 lb (10–29.5 kg)

FORWARD–FACING

IMPORTANT: For U.S. ONLY harnessed forward-facing installations using a LAP BELT ONLY with NO top tether anchor point available, you MUST install the Diono Lap Belt Cushion.

####### Top Tether

diono.comRadian 3RXT Safe+56 57

FORWARD–FACING

BOOSTER MODE INSTALLATIONS: 40–120 lb (18–54 kg)

3BOOSTER MODE

installation instructions

WARNING! Use ONLY the vehicle lap/shoulder belt system when restraining the child in this booster seat. DO NOT USE A LAP BELT ONLY!

WARNING: Make sure the vehicle seat belt can properly retract before each use.

DO NOT use adjustable bottom. DO NOT use anti-rebound bar. ALWAYS secure the child restraint using the vehicle belt or LATCH/UAS connectors even when it is unoccupied. It could injure other occupants in a sudden stop or collision. NOTE: If 5-Point harness is installed, please review the harness removal section. The 5-Point harness MUST be removed to use this seat in booster mode.

diono.comRadian 3RXT Safe+58 59

BOOSTER MODE

FORWARD–FACING

BOOSTER MODE

FORWARD–FACING

| | |---|

1

|click

| |---|

4

| | |---|

5

IMPORTANT: The vehicle shoulder belt should lay over the shoulder and should NOT be touching the child’s neck.

diono.comRadian 3RXT Safe+60 61

BOOSTER MODE

FORWARD–FACING

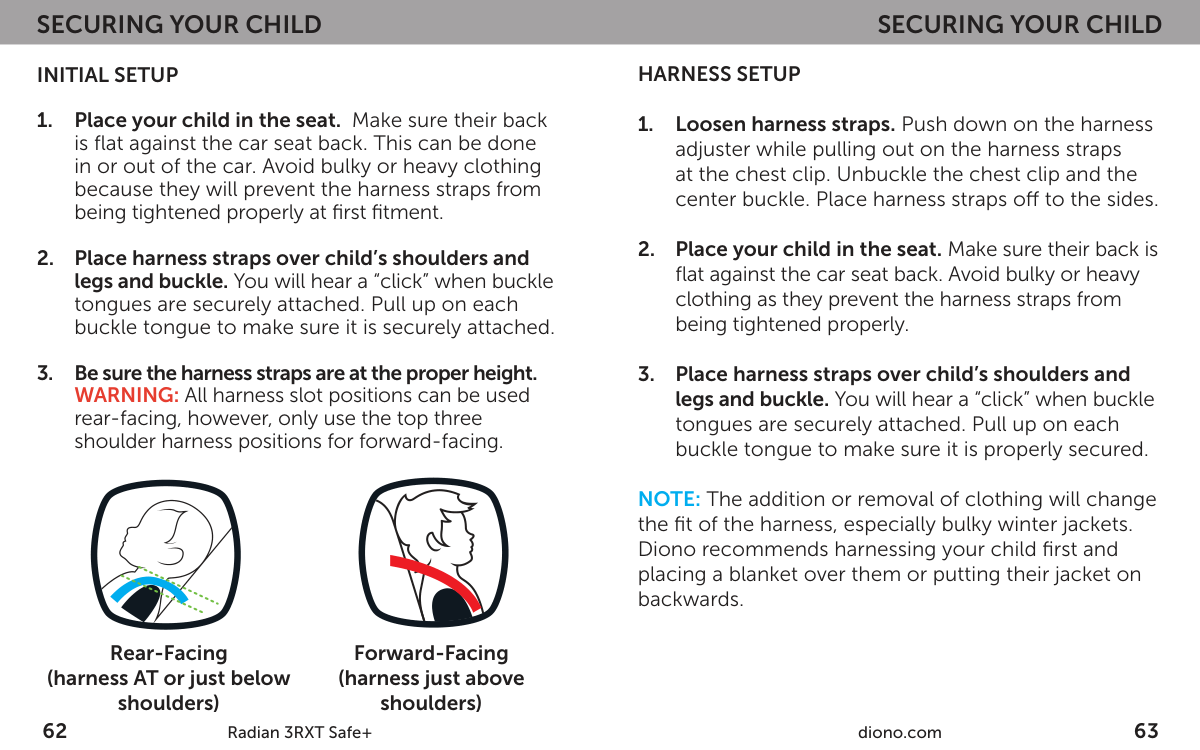

############# SECURING YOUR CHILD

############# SECURING YOUR CHILD HARNESS SETUP

################# INITIAL SETUP

NOTE: The addition or removal of clothing will change the fit of the harness, especially bulky winter jackets. Diono recommends harnessing your child first and placing a blanket over them or putting their jacket on backwards.

Forward-Facing (harness just above shoulders)

Rear-Facing (harness AT or just below shoulders)

diono.comRadian 3RXT Safe+62 63

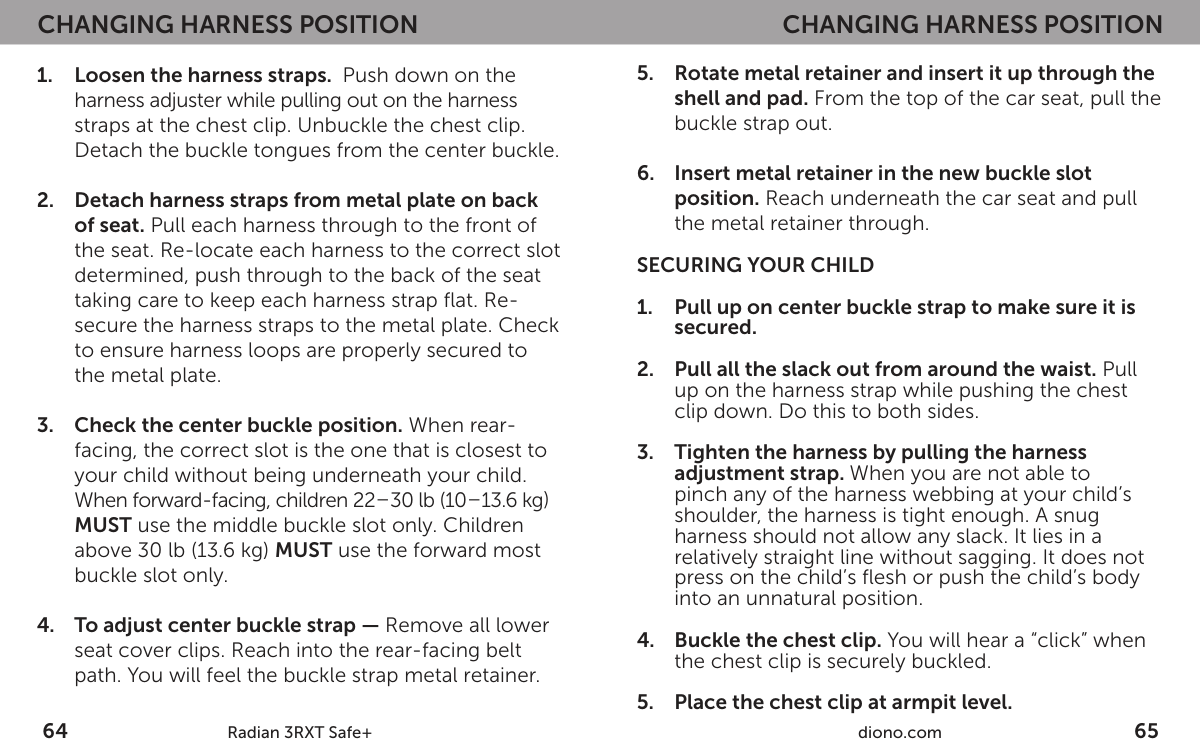

############# CHANGING HARNESS POSITION

############# CHANGING HARNESS POSITION

SECURING YOUR CHILD

diono.comRadian 3RXT Safe+64 65

############## AIRCRAFT INSTALLATION

BELT LOCKING CLIP WARNING: If your vehicle lap/shoulder belt is equipped with ELR (Emergency Locking Retractor) that does not switch to function as an ALR (Automatic Locking Retractor), you MUST use a locking clip to secure lap portion of vehicle seat belt. If you have any questions, please consult your vehicle owner’s manual or contact the vehicle manufacturer.

################# REAR-FACING INSTALLATION

1

################# FORWARD-FACING INSTALLATION

Follow the instructions in the forward-facing installation section for use with a lap belt.

1 in.

diono.comRadian 3RXT Safe+66 67

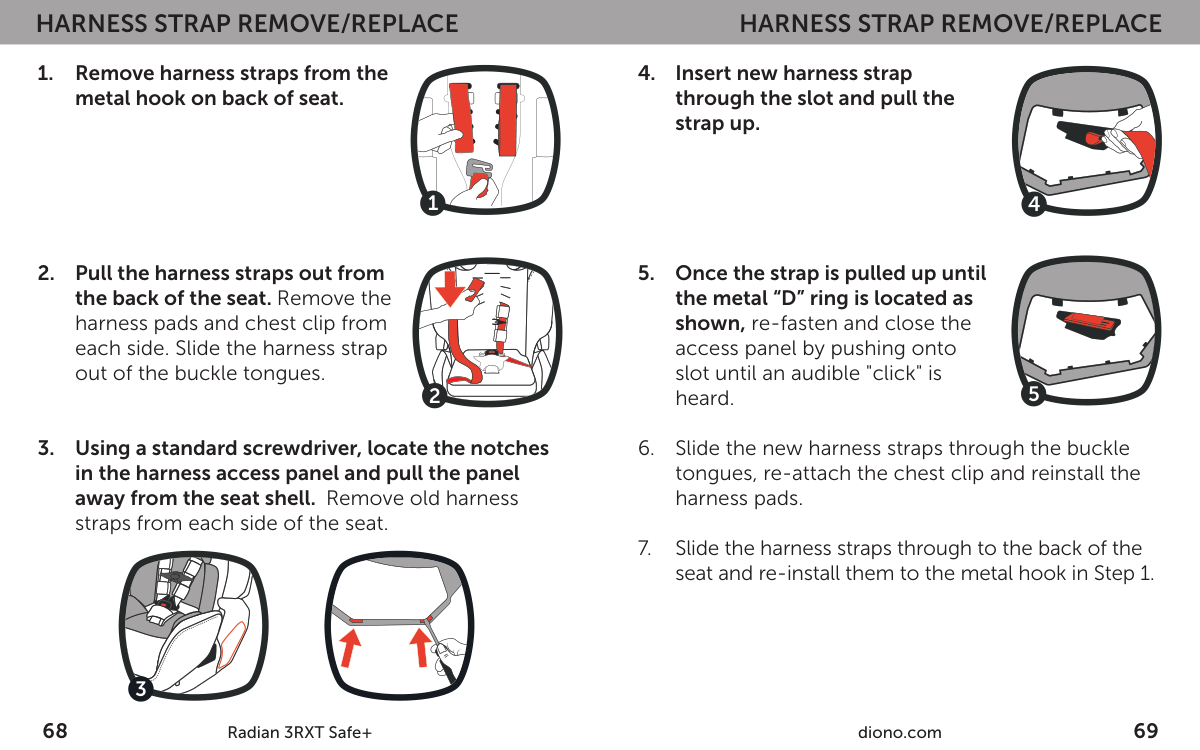

############# HARNESS STRAP REMOVE/REPLACE

############# HARNESS STRAP REMOVE/REPLACE

| | | | |---|---|---| | | | |

3

diono.comRadian 3RXT Safe+68 69

############# COMFORT FEATURES CUP HOLDER

############# NOTES

CAUTION: DO NOT use with hot liquids as this could burn a child.

################# ADJUSTING EXPANDABLE SIDE WINGS

The side wings can be adjusted for comfort as shown. These will not impact the safety of the car seat in any manner. Simply push the side wings outward as shown to extend.

diono.comRadian 3RXT Safe+70 71

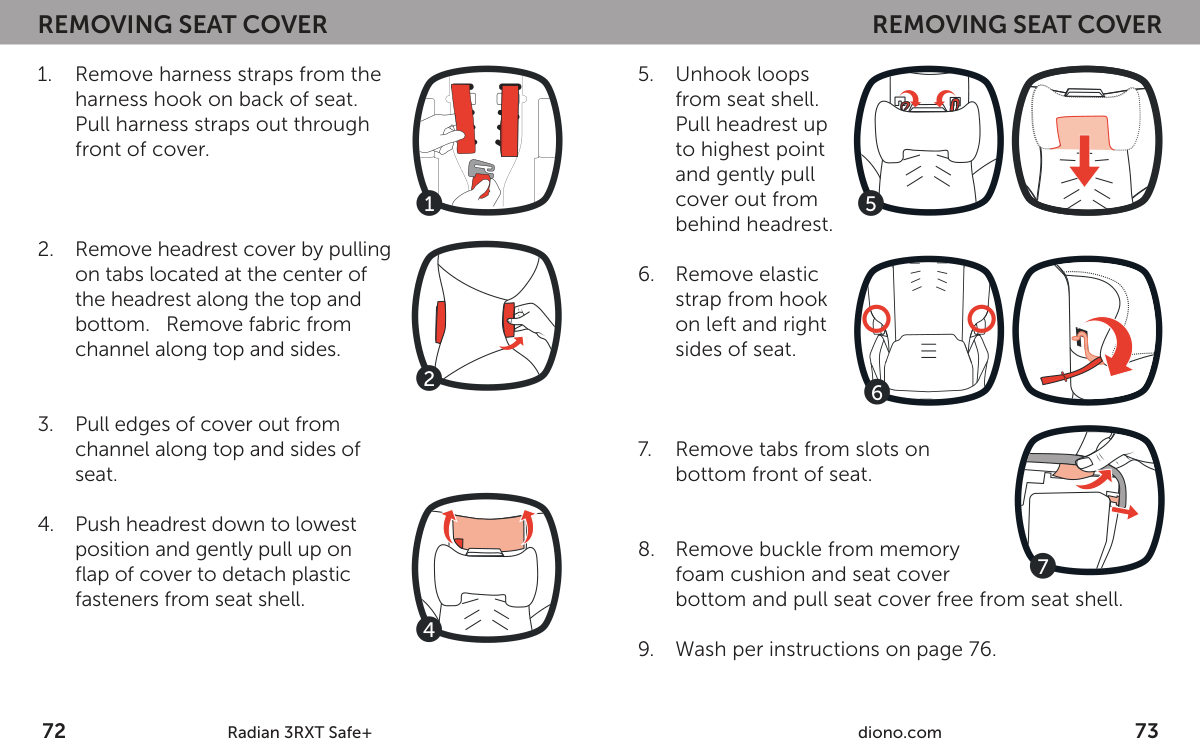

############# REMOVING SEAT COVER

############# REMOVING SEAT COVER

| | | | |---|---|---| | | | |

7

4

diono.comRadian 3RXT Safe+72 73

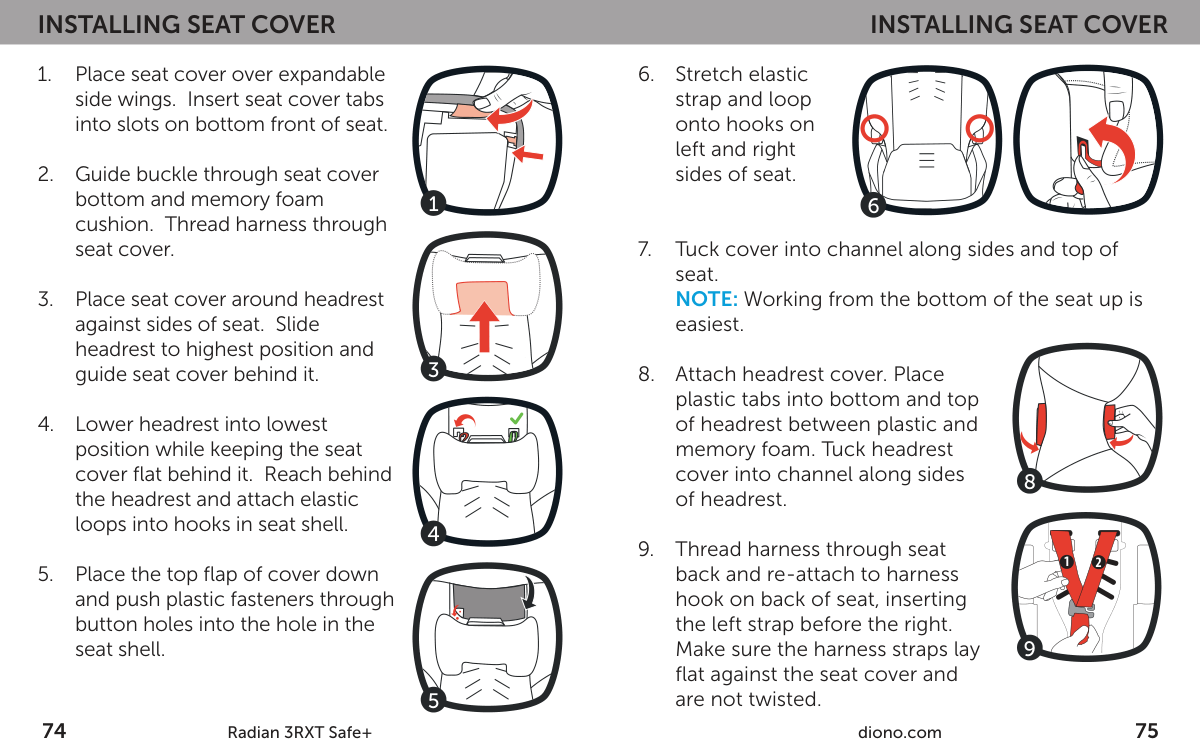

############# INSTALLING SEAT COVER

############# INSTALLING SEAT COVER

1

6

1 2

| | | | |---|---|---| | | | |

diono.comRadian 3RXT Safe+74 75

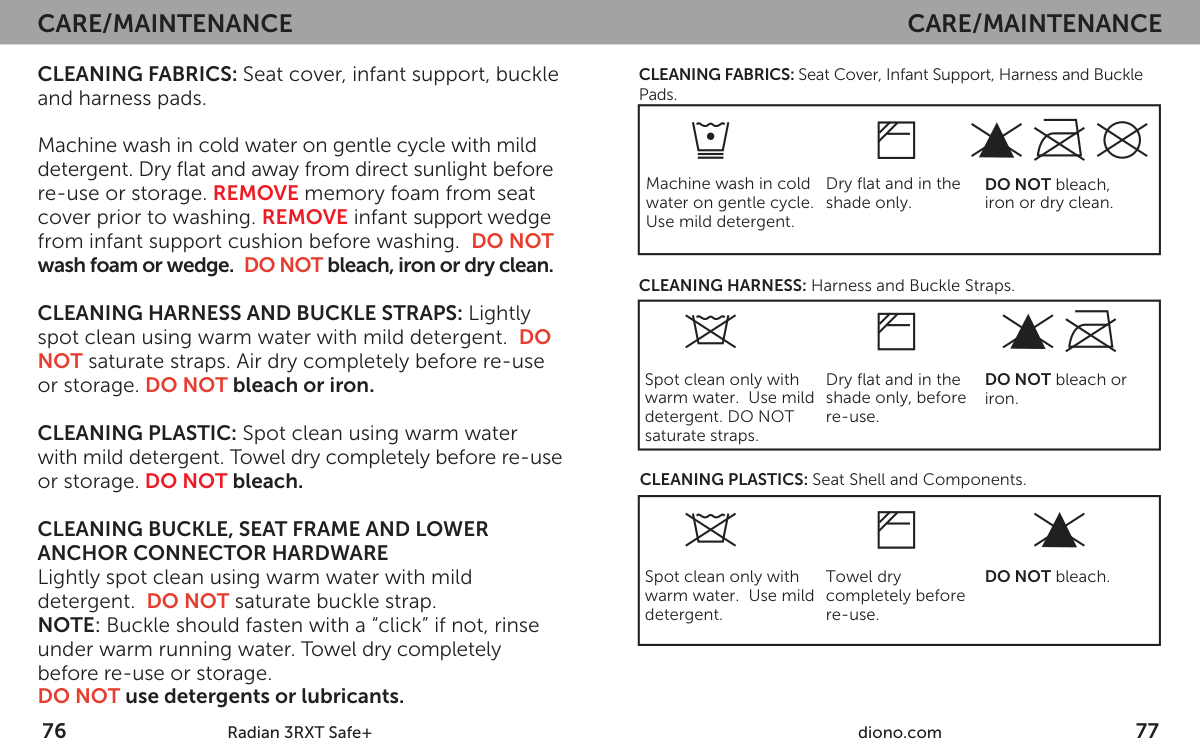

CARE/MAINTENANCE CLEANING FABRICS: Seat cover, infant support, buckle and harness pads. Machine wash in cold water on gentle cycle with mild detergent. Dry flat and away from direct sunlight before re-use or storage. REMOVE memory foam from seat cover prior to washing. REMOVE infant support wedge from infant support cushion before washing. DO NOT wash foam or wedge. DO NOT bleach, iron or dry clean. CLEANING HARNESS AND BUCKLE STRAPS: Lightly spot clean using warm water with mild detergent. DO NOT saturate straps. Air dry completely before re-use or storage. DO NOT bleach or iron. CLEANING PLASTIC: Spot clean using warm water with mild detergent. Towel dry completely before re-use or storage. DO NOT bleach.

############# CARE/MAINTENANCE

CLEANING FABRICS: Seat Cover, Infant Support, Harness and Buckle Pads.

|Machine wash in cold water on gentle cycle. Use mild detergent.

Dry flat and in the shade only.

DO NOT bleach, iron or dry clean.| |---|

CLEANING HARNESS: Harness and Buckle Straps.

|DO NOT bleach or iron.

Dry flat and in the shade only, before re-use.

Spot clean only with warm water. Use mild detergent. DO NOT saturate straps.

| |---|

CLEANING PLASTICS: Seat Shell and Components.

|DO NOT bleach.Towel dry completely before re-use.

Spot clean only with warm water. Use mild detergent.

| |---|

CLEANING BUCKLE, SEAT FRAME AND LOWER ANCHOR CONNECTOR HARDWARE Lightly spot clean using warm water with mild detergent. DO NOT saturate buckle strap. NOTE: Buckle should fasten with a “click” if not, rinse under warm running water. Towel dry completely before re-use or storage. DO NOT use detergents or lubricants.

diono.comRadian 3RXT Safe+76 77

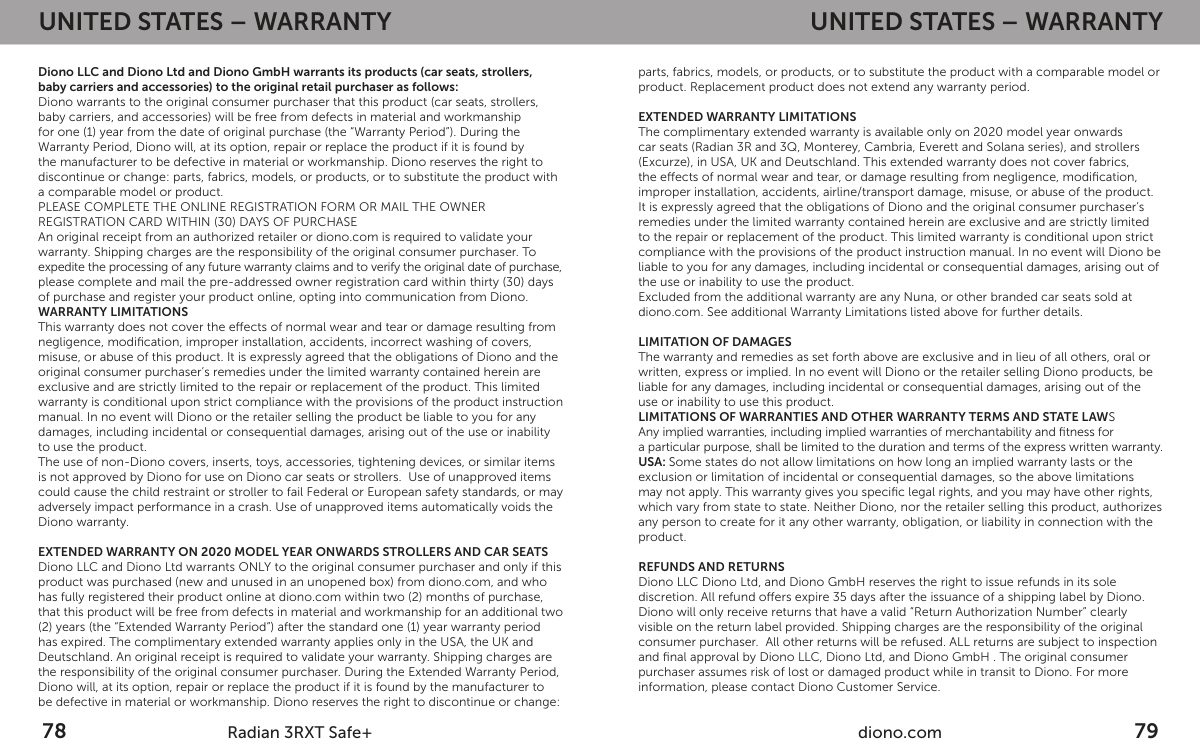

############# UNITED STATES – WARRANTY UNITED STATES – WARRANTY

Diono LLC and Diono Ltd and Diono GmbH warrants its products (car seats, strollers, baby carriers and accessories) to the original retail purchaser as follows: Diono warrants to the original consumer purchaser that this product (car seats, strollers, baby carriers, and accessories) will be free from defects in material and workmanship for one (1) year from the date of original purchase (the “Warranty Period”). During the Warranty Period, Diono will, at its option, repair or replace the product if it is found by the manufacturer to be defective in material or workmanship. Diono reserves the right to discontinue or change: parts, fabrics, models, or products, or to substitute the product with a comparable model or product. PLEASE COMPLETE THE ONLINE REGISTRATION FORM OR MAIL THE OWNER REGISTRATION CARD WITHIN (30) DAYS OF PURCHASE An original receipt from an authorized retailer or diono.com is required to validate your warranty. Shipping charges are the responsibility of the original consumer purchaser. To expedite the processing of any future warranty claims and to verify the original date of purchase, please complete and mail the pre-addressed owner registration card within thirty (30) days of purchase and register your product online, opting into communication from Diono. WARRANTY LIMITATIONS This warranty does not cover the effects of normal wear and tear or damage resulting from negligence, modification, improper installation, accidents, incorrect washing of covers, misuse, or abuse of this product. It is expressly agreed that the obligations of Diono and the original consumer purchaser’s remedies under the limited warranty contained herein are exclusive and are strictly limited to the repair or replacement of the product. This limited warranty is conditional upon strict compliance with the provisions of the product instruction manual. In no event will Diono or the retailer selling the product be liable to you for any damages, including incidental or consequential damages, arising out of the use or inability to use the product. The use of non-Diono covers, inserts, toys, accessories, tightening devices, or similar items is not approved by Diono for use on Diono car seats or strollers. Use of unapproved items could cause the child restraint or stroller to fail Federal or European safety standards, or may adversely impact performance in a crash. Use of unapproved items automatically voids the Diono warranty.

EXTENDED WARRANTY ON 2020 MODEL YEAR ONWARDS STROLLERS AND CAR SEATS Diono LLC and Diono Ltd warrants ONLY to the original consumer purchaser and only if this product was purchased (new and unused in an unopened box) from diono.com, and who has fully registered their product online at diono.com within two (2) months of purchase, that this product will be free from defects in material and workmanship for an additional two

(2) years (the “Extended Warranty Period”) after the standard one (1) year warranty period has expired. The complimentary extended warranty applies only in the USA, the UK and Deutschland. An original receipt is required to validate your warranty. Shipping charges are the responsibility of the original consumer purchaser. During the Extended Warranty Period, Diono will, at its option, repair or replace the product if it is found by the manufacturer to be defective in material or workmanship. Diono reserves the right to discontinue or change:

parts, fabrics, models, or products, or to substitute the product with a comparable model or product. Replacement product does not extend any warranty period.

EXTENDED WARRANTY LIMITATIONS The complimentary extended warranty is available only on 2020 model year onwards car seats (Radian 3R and 3Q, Monterey, Cambria, Everett and Solana series), and strollers (Excurze), in USA, UK and Deutschland. This extended warranty does not cover fabrics, the effects of normal wear and tear, or damage resulting from negligence, modification, improper installation, accidents, airline/transport damage, misuse, or abuse of the product. It is expressly agreed that the obligations of Diono and the original consumer purchaser’s remedies under the limited warranty contained herein are exclusive and are strictly limited to the repair or replacement of the product. This limited warranty is conditional upon strict compliance with the provisions of the product instruction manual. In no event will Diono be liable to you for any damages, including incidental or consequential damages, arising out of the use or inability to use the product. Excluded from the additional warranty are any Nuna, or other branded car seats sold at diono.com. See additional Warranty Limitations listed above for further details.

LIMITATION OF DAMAGES The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Diono or the retailer selling Diono products, be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

LIMITATIONS OF WARRANTIES AND OTHER WARRANTY TERMS AND STATE LAWS Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty.

USA: Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Diono, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with the product.

REFUNDS AND RETURNS Diono LLC Diono Ltd, and Diono GmbH reserves the right to issue refunds in its sole discretion. All refund offers expire 35 days after the issuance of a shipping label by Diono. Diono will only receive returns that have a valid “Return Authorization Number” clearly visible on the return label provided. Shipping charges are the responsibility of the original consumer purchaser. All other returns will be refused. ALL returns are subject to inspection and final approval by Diono LLC, Diono Ltd, and Diono GmbH . The original consumer purchaser assumes risk of lost or damaged product while in transit to Diono. For more information, please contact Diono Customer Service.

diono.comRadian 3RXT Safe+78 79

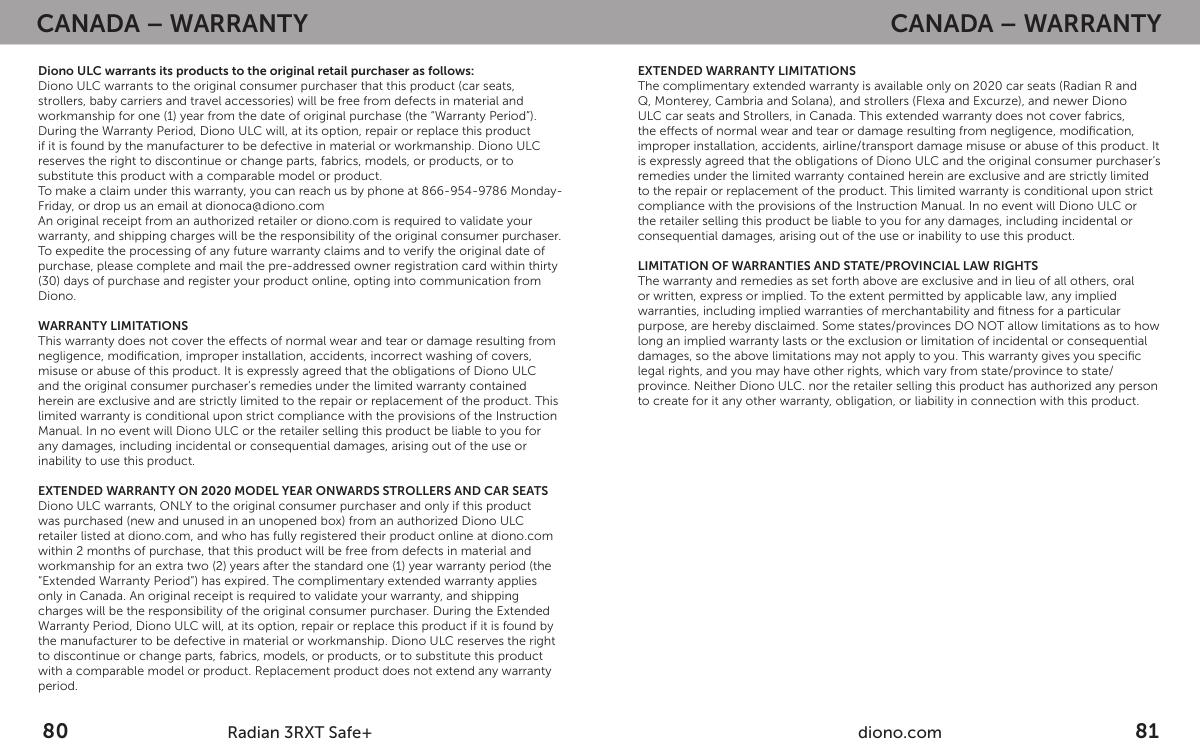

############# CANADA – WARRANTY CANADA – WARRANTY

Diono ULC warrants its products to the original retail purchaser as follows: Diono ULC warrants to the original consumer purchaser that this product (car seats, strollers, baby carriers and travel accessories) will be free from defects in material and workmanship for one (1) year from the date of original purchase (the “Warranty Period”). During the Warranty Period, Diono ULC will, at its option, repair or replace this product if it is found by the manufacturer to be defective in material or workmanship. Diono ULC reserves the right to discontinue or change parts, fabrics, models, or products, or to substitute this product with a comparable model or product. To make a claim under this warranty, you can reach us by phone at 866-954-9786 MondayFriday, or drop us an email at dionoca@diono.com An original receipt from an authorized retailer or diono.com is required to validate your warranty, and shipping charges will be the responsibility of the original consumer purchaser. To expedite the processing of any future warranty claims and to verify the original date of purchase, please complete and mail the pre-addressed owner registration card within thirty

(30) days of purchase and register your product online, opting into communication from Diono.

WARRANTY LIMITATIONS This warranty does not cover the effects of normal wear and tear or damage resulting from negligence, modification, improper installation, accidents, incorrect washing of covers, misuse or abuse of this product. It is expressly agreed that the obligations of Diono ULC and the original consumer purchaser’s remedies under the limited warranty contained herein are exclusive and are strictly limited to the repair or replacement of the product. This limited warranty is conditional upon strict compliance with the provisions of the Instruction Manual. In no event will Diono ULC or the retailer selling this product be liable to you for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

EXTENDED WARRANTY ON 2020 MODEL YEAR ONWARDS STROLLERS AND CAR SEATS Diono ULC warrants, ONLY to the original consumer purchaser and only if this product was purchased (new and unused in an unopened box) from an authorized Diono ULC retailer listed at diono.com, and who has fully registered their product online at diono.com within 2 months of purchase, that this product will be free from defects in material and workmanship for an extra two (2) years after the standard one (1) year warranty period (the “Extended Warranty Period”) has expired. The complimentary extended warranty applies only in Canada. An original receipt is required to validate your warranty, and shipping charges will be the responsibility of the original consumer purchaser. During the Extended Warranty Period, Diono ULC will, at its option, repair or replace this product if it is found by the manufacturer to be defective in material or workmanship. Diono ULC reserves the right to discontinue or change parts, fabrics, models, or products, or to substitute this product with a comparable model or product. Replacement product does not extend any warranty period.

EXTENDED WARRANTY LIMITATIONS The complimentary extended warranty is available only on 2020 car seats (Radian R and Q, Monterey, Cambria and Solana), and strollers (Flexa and Excurze), and newer Diono ULC car seats and Strollers, in Canada. This extended warranty does not cover fabrics, the effects of normal wear and tear or damage resulting from negligence, modification, improper installation, accidents, airline/transport damage misuse or abuse of this product. It is expressly agreed that the obligations of Diono ULC and the original consumer purchaser’s remedies under the limited warranty contained herein are exclusive and are strictly limited to the repair or replacement of the product. This limited warranty is conditional upon strict compliance with the provisions of the Instruction Manual. In no event will Diono ULC or the retailer selling this product be liable to you for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

LIMITATION OF WARRANTIES AND STATE/PROVINCIAL LAW RIGHTS The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. To the extent permitted by applicable law, any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are hereby disclaimed. Some states/provinces DO NOT allow limitations as to how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state/province to state/ province. Neither Diono ULC. nor the retailer selling this product has authorized any person to create for it any other warranty, obligation, or liability in connection with this product.

diono.comRadian 3RXT Safe+80 81

############# NOTES NOTES

diono.comRadian 3RXT Safe+82 83

© 2021 Diono LLC | 14810 Puyallup Street E | Suite 200 Sumner WA 98390 | United States | diono.com United States: 1-855-463-4666 | Canada: 1-866-954-9786

1

Made in China | All Rights Reserved revised 20210203
