Honor Rmo Nx1 Smartphone

Know Your Device Before using the device, familiarize yourself with its basic operations.

To power on your device, press and hold the power

button until the screen turns on.

To power off your device, press and hold the power

button, and then touch .

To restart your device, press and hold the power

button, and then touch .

Press and hold the Power and Volume down buttons

for more than 10 seconds to force restart your device.

Nfc

Volume button Power button Card slot USB Type-C port/ Headset jack In-screen fingerprint

Only RMO-NX1 supports NFC. Please keep the

NFC area close to other devices or objects while using the NFC function.

Check out the pre-installed Tips app and master all

the great features on your device. 1

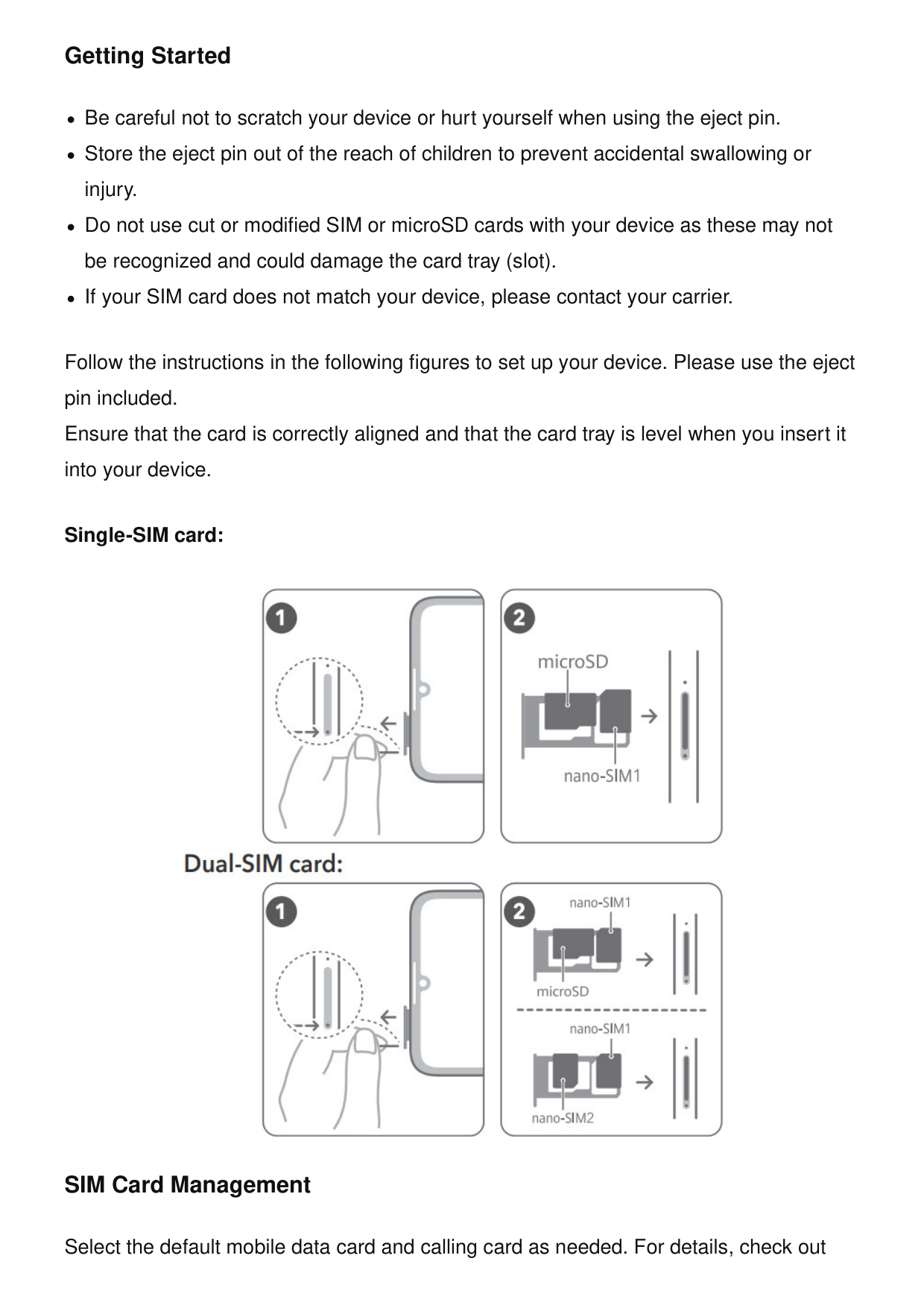

Getting Started

Be careful not to scratch your device or hurt

yourself when using the eject pin.

Store the eject pin out of the reach of children to

prevent accidental swallowing or injury.

Do not use cut or modified SIM cards with your

device as these may not be recognized and could damage the card tray (slot).

If your SIM card does not match your device,

please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Ensure that the card is correctly aligned and its notch is first inserted into the card tray. Single-SIM card: Dual-SIM card: SIM Card Management Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. 2

5G and 4G service depends on the support of your

network carrier and its deployment of relevant services. Please contact your carrier to activate 5G or 4G service.

5G and 4G service may be unavailable in certain

areas due to network interference.

If this guide is inconsistent with the description on

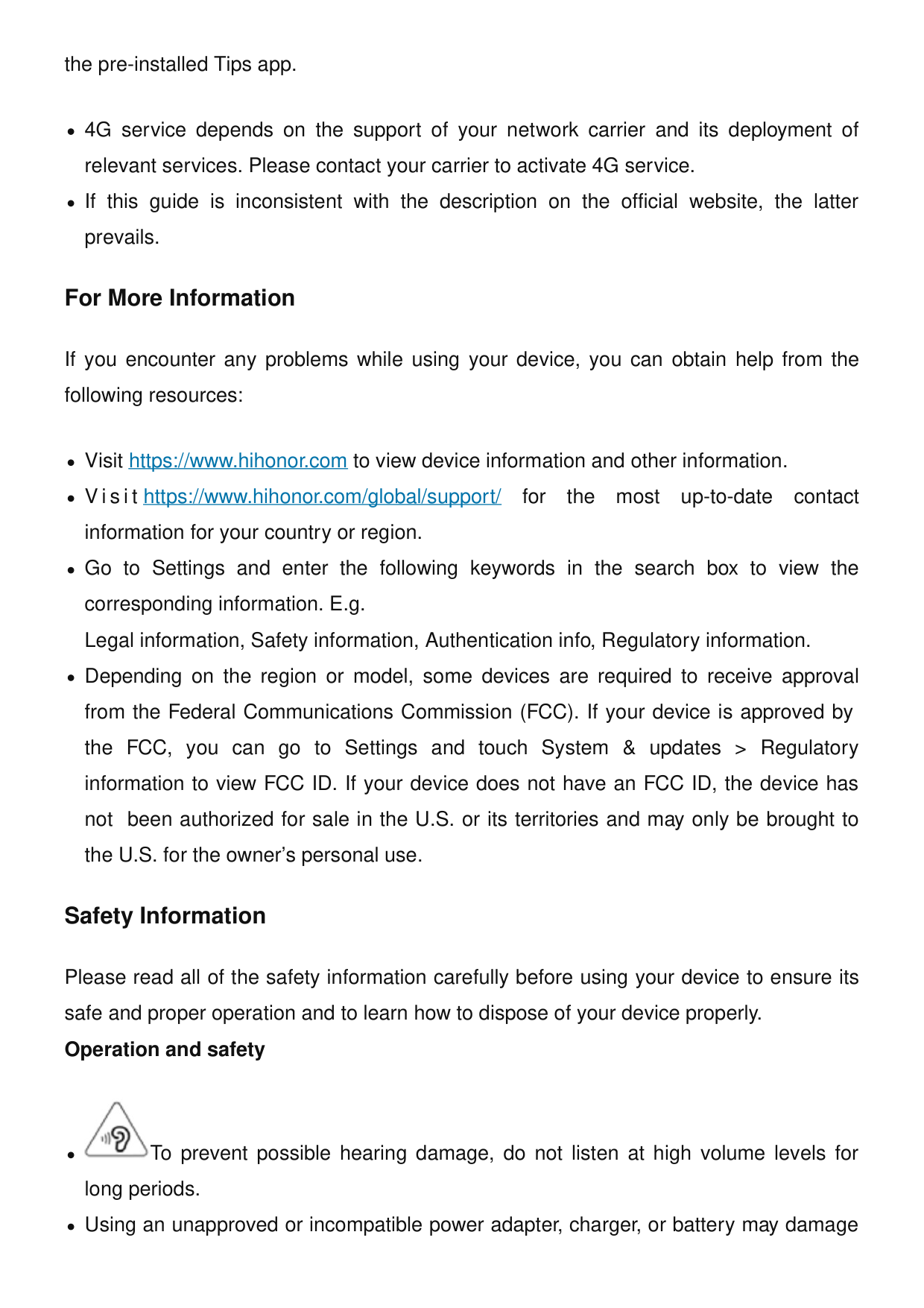

the official website, the latter prevails. For More Information If you encounter any problems while using your device, you can obtain help from the following resources:

Visit https://www.hihonor.com to view device

information and other information.

Visit https://www.hihonor.com/global/support/ for the

most up-to-date contact information for your country or region.

Go to Settings and enter the following keywords in the

search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information.

Depending on the region or model, some devices are

required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can go to Settings and touch System & updates > Regulatory information to view FCC ID. If your device does not have an FCC ID, the device has not been authorized for sale in the U.S. or its territories and may only be brought to the U.S. for the owner's personal use. Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. 3

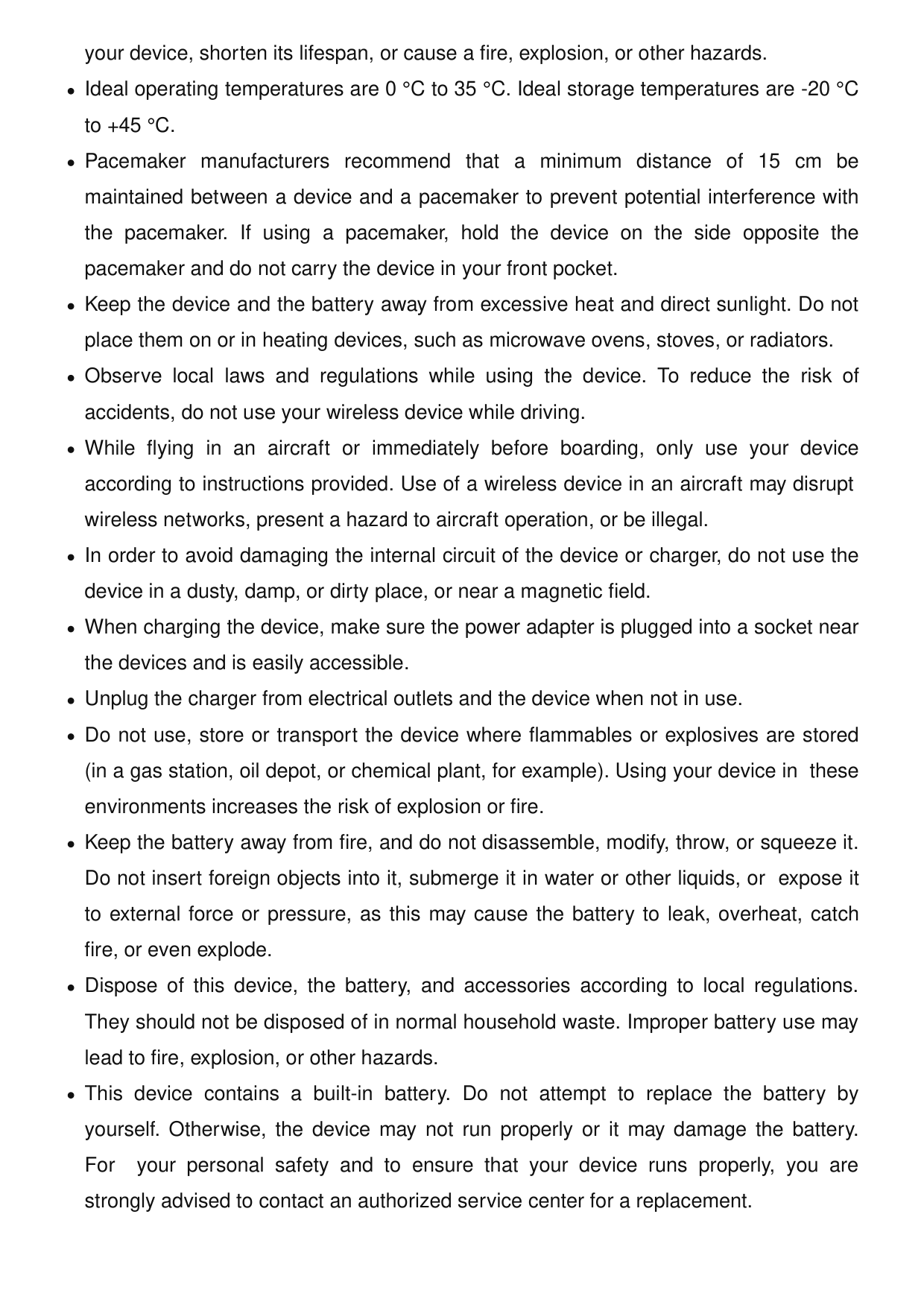

Using an unapproved or incompatible power adapter,

charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards.

Ideal operating temperatures are 0 °C to 35 °C. Ideal

storage temperatures are -20 °C to +45 °C.

Pacemaker manufacturers recommend that a minimum

distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.

Keep the device and the battery away from excessive

heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators.

Observe local laws and regulations while using the

device. To reduce the risk of accidents, do not use your wireless device while driving.

While flying in an aircraft or immediately before

boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal.

In order to avoid damaging the internal circuit of the

device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.

When charging the device, make sure the power

adapter is plugged into a socket near the devices and is easily accessible.

Unplug the charger from electrical outlets and the

device when not in use.

Do not use, store or transport the device where

flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire.

Keep the battery away from fire, and do not

disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode. 4

Dispose of this device, the battery, and accessories

according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards.

This device contains a built-in battery. Do not attempt

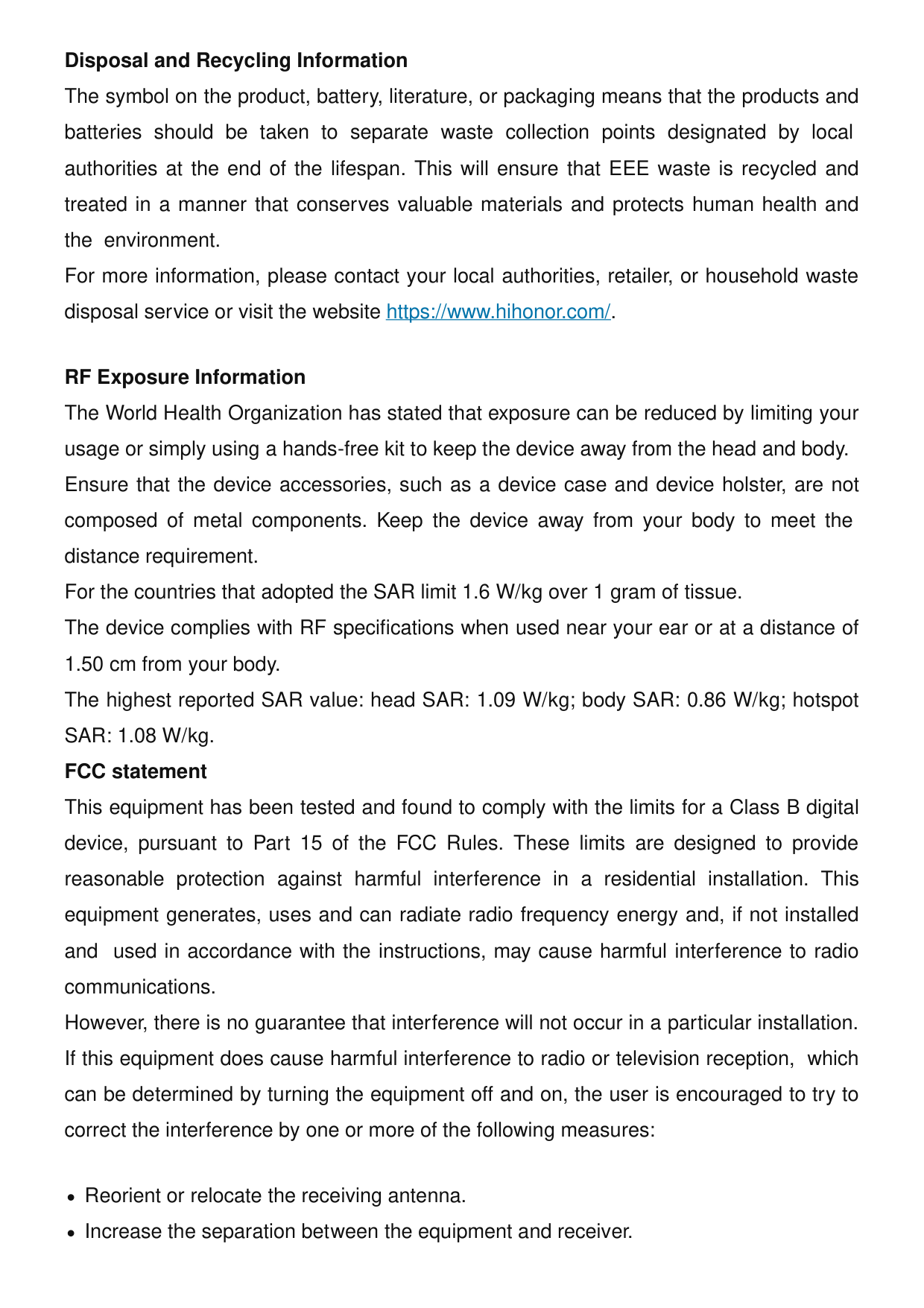

to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement. Disposal and Recycling Information The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/. Reduction of hazardous substances This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation, RoHS and Batteries (where included) directive. For declarations of conformity about REACH and RoHS, please visit the website https://www.hihonor.com/global/legal/certification/. RF Exposure Information The World Health Organization has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit to keep the device away from the head and body. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement. 5

For the countries that adopted the SAR limit 2.0 W/kg over 10 grams of tissue. The device complies with RF specifications when used near your ear or at a distance of 0.50 cm from your body. RMO-NX1: The highest reported SAR value: head SAR: 0.82 W/kg; body SAR: 1.27 W/kg. For the countries that adopted the SAR limit 1.6 W/kg over 1 gram of tissue. The device complies with RF specifications when used near your ear or at a distance of 1.50 cm from your body. RMO-NX1: The highest reported SAR value: head SAR: 1.10 W/kg; body SAR: 0.52 W/kg; hotspot SAR: 0.73 W/ kg. RMO-NX3: The highest reported SAR value: head SAR: 1.10 W/kg; body SAR: 0.56 W/kg; hotspot SAR: 0.62 W/ kg. EU Regulatory Compliance (only applies to

Rmo-Nx1)

Statement Hereby, Honor Device Co., Ltd. declares that this device RMO-NX1 is in compliance with the following Directive: RED 2014/53/EU, RoHS 2011/65/EU, ErP 2009/125/EC. The full text of the EU declaration of conformity, the detailed ErP information and most recent information about accessories & software are available at the following internet address: https://www.hihonor.com/global/legal/certi ication/. This device may be operated in all member states of the EU. Observe national and local regulations where the device is used. This device may be restricted for use, depending on the local network. Restrictions in the 5 GHz band: The 5150 to 5350 MHz frequency range is restricted to indoor use only in: AT, BE, BG, CH, CY, CZ, DE, DK, EE,

El, Es, Fi, Fr, Hr, Hu, Ie, Is, It, Li, Lt, Lu, Lv, Mt, Nl, No,

Pl, Pt, Ro, Se, Si, Sk, Tr, Uk(Ni).

Frequency Bands and Power The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows: 6

Rmo-

Nx1

GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28/38/40: 25.7dBm, 5G NR SA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77: 26dBm, n78: 29dBm, 5G NR NSA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/n77/ n78: 26dBm, Bluetooth 2.4GHz: 20dBm, Wi- Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5725-5850MHz: 14dBm, NFC 13.56MHz: 42 dBμA/m @ 10m FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to this device not expressly approved by Honor Device Co., Ltd. for 7

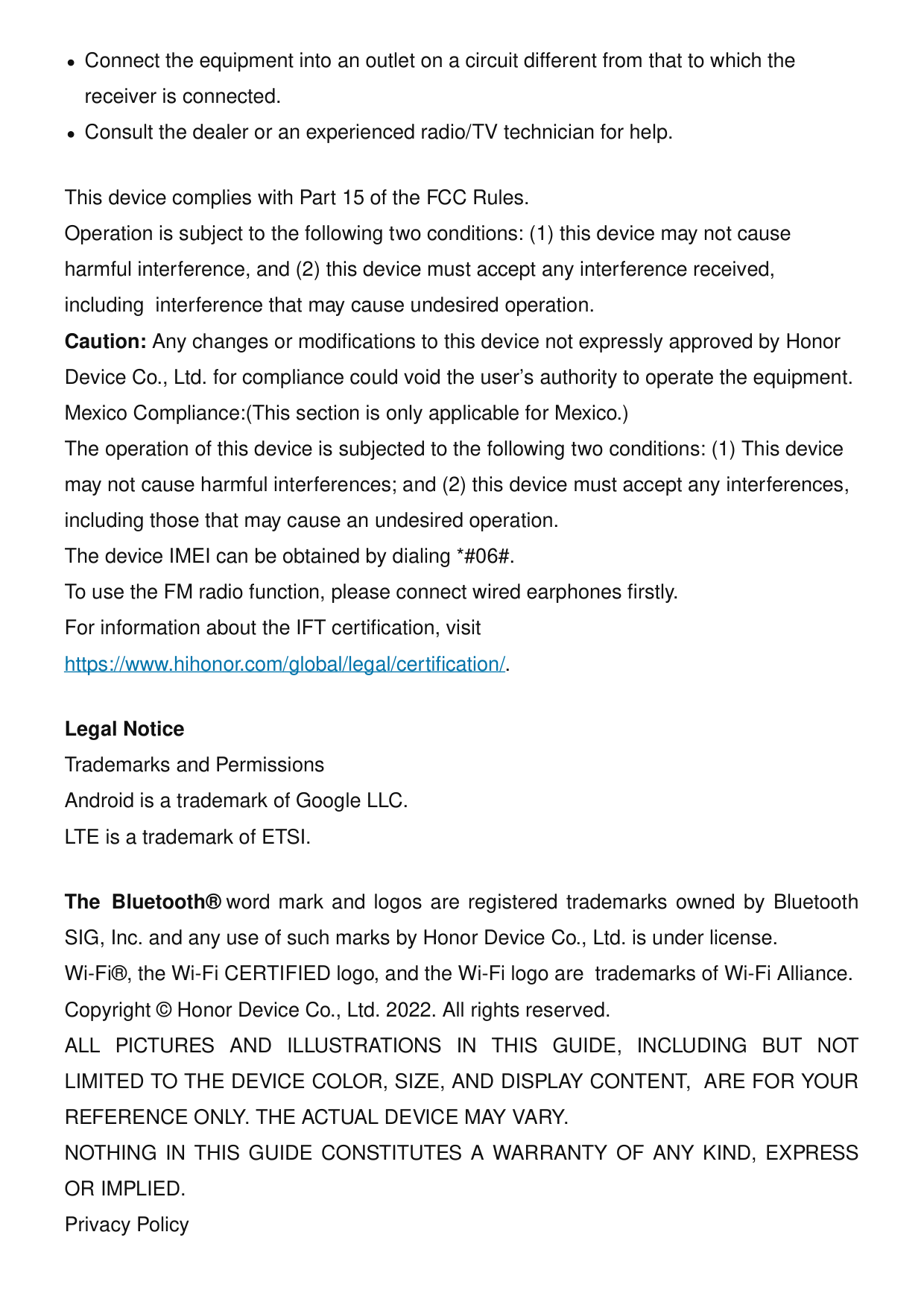

compliance could void the user's authority to operate the equipment. Legal Notice Trademarks and Permissions Android is a trademark of Google LLC. LTE is a trademark of ETSI. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Honor Device Co., Ltd. is under license. Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance. Copyright © Honor Device Co., Ltd. 2022. All rights reserved.

All Pictures And Illustrations In This Guide,

Including But Not Limited To The Device Color,

Size, And Display Content, Are For Your

Reference Only. The Actual Device May Vary.

Nothing In This Guide Constitutes A Warranty

Of Any Kind, Express Or Implied.

Privacy Policy To better understand how we protect your personal information, please see the privacy policy at https://www.hihonor.com/privacy-policy/worldwide/. 8
