HP Compaq Pro 6300 SF Desktop

HP Compaq Business PC Maintenance and Service Guide

Pro 6300 Series Microtower Pro 6300 Series Small Form Factor

© Copyright 2012, 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.

Microsoft and Windows are U.S. registered trademarks of the Microsoft group of companies

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Third Edition (November 2013) First Edition (June 2012) Document Part Number: 690362-003

#### About This Book

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

| | |---|

iii

####### iv About This Book

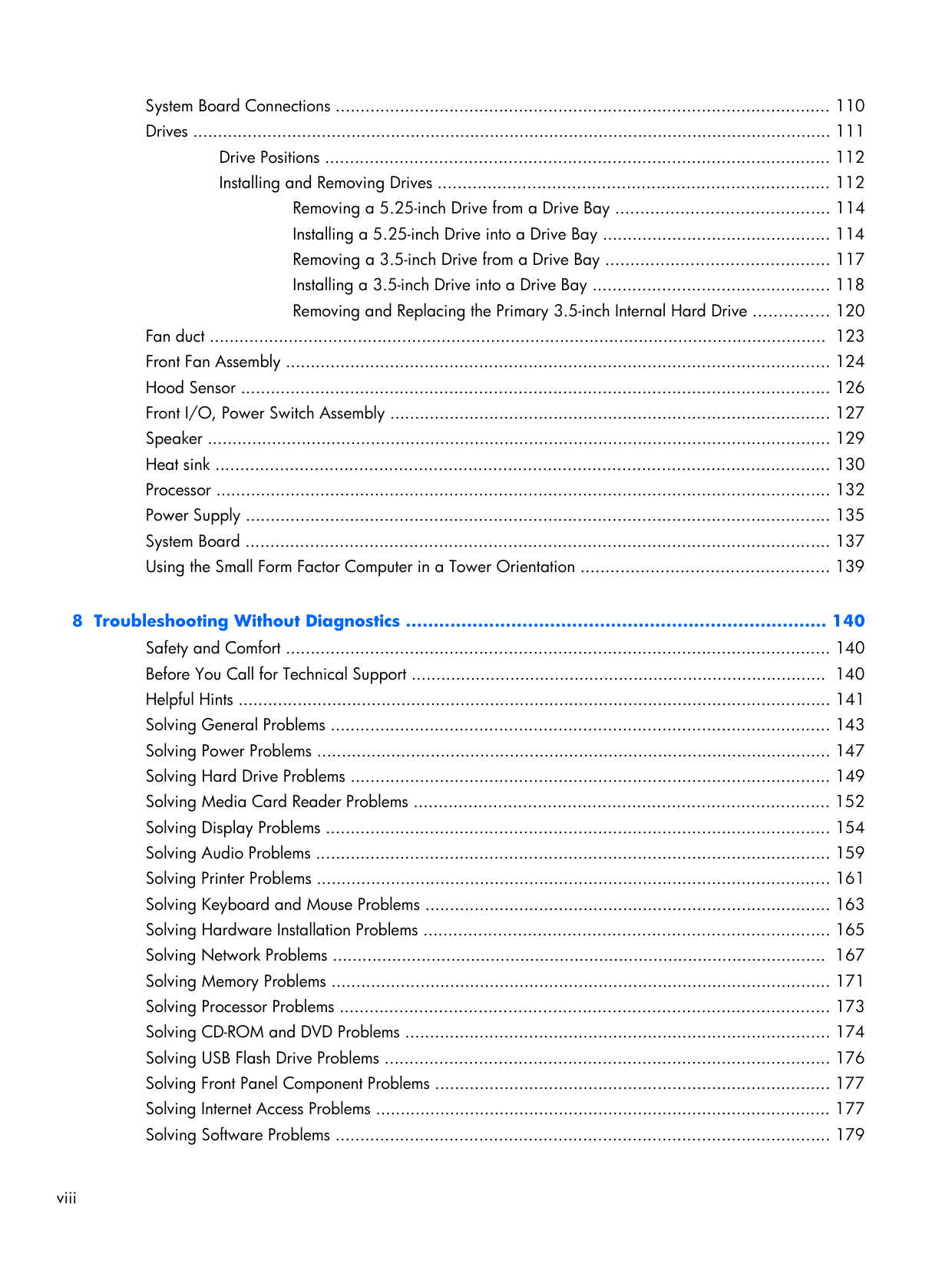

Table of contents

Activating and customizing the software in Windows 8 ................................................................ 8 Activating the Windows Operating System ................................................................... 8 Downloading Windows 8 updates .............................................................................. 9

Using Computer Setup (F10) Utilities .......................................................................... 11 Computer Setup—File .............................................................................................. 12 Computer Setup—Storage ........................................................................................ 13 Computer Setup—Security ........................................................................................ 15 Computer Setup—Power .......................................................................................... 20 Computer Setup—Advanced .................................................................................... 21

Recovering the Configuration Settings ....................................................................................... 24

v

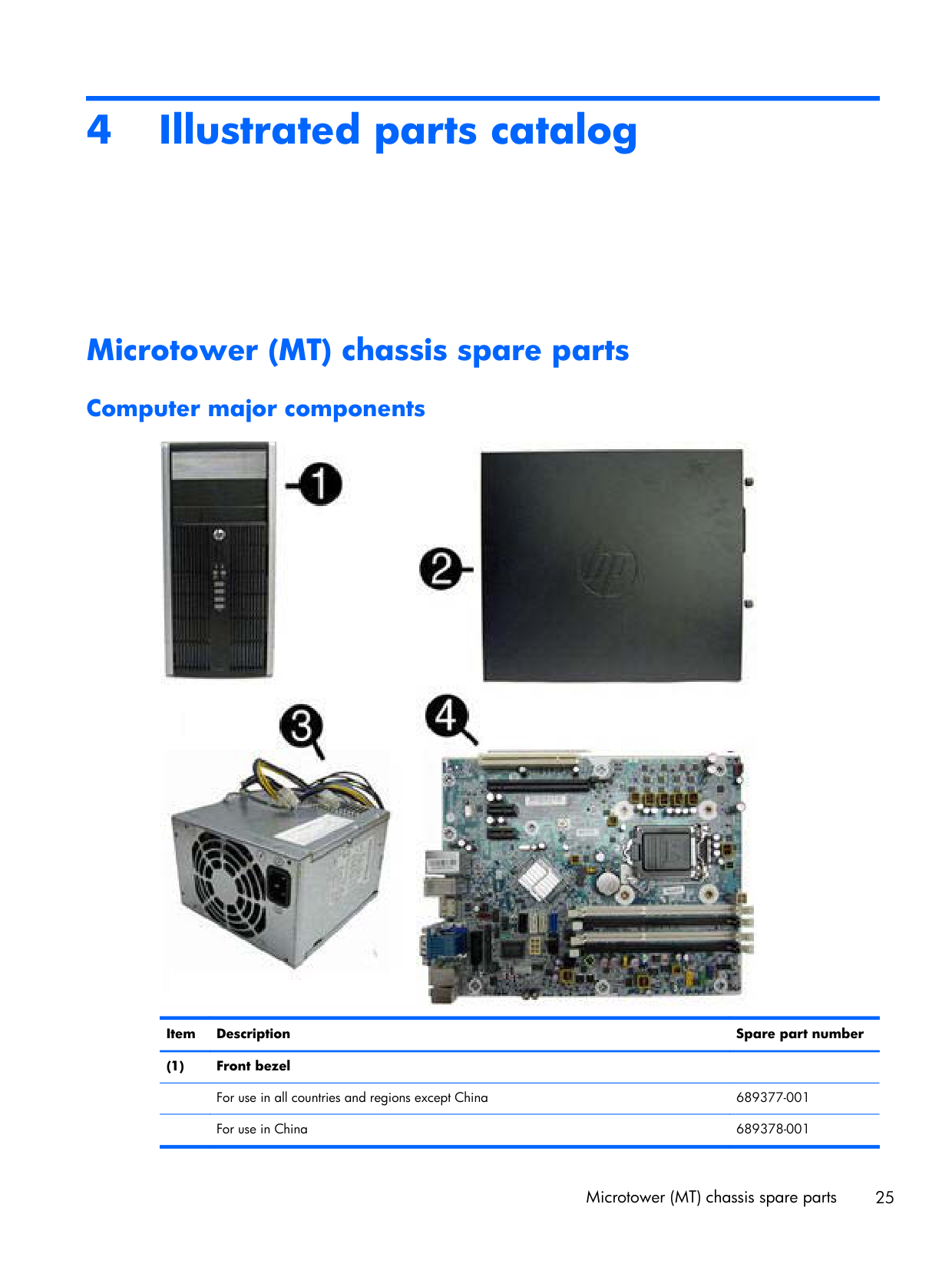

Computer major components .................................................................................... 25 Cables ................................................................................................................... 28 Misc parts .............................................................................................................. 29 Drives .................................................................................................................... 30 Misc boards ........................................................................................................... 31 Sequential part number listing ................................................................................... 32

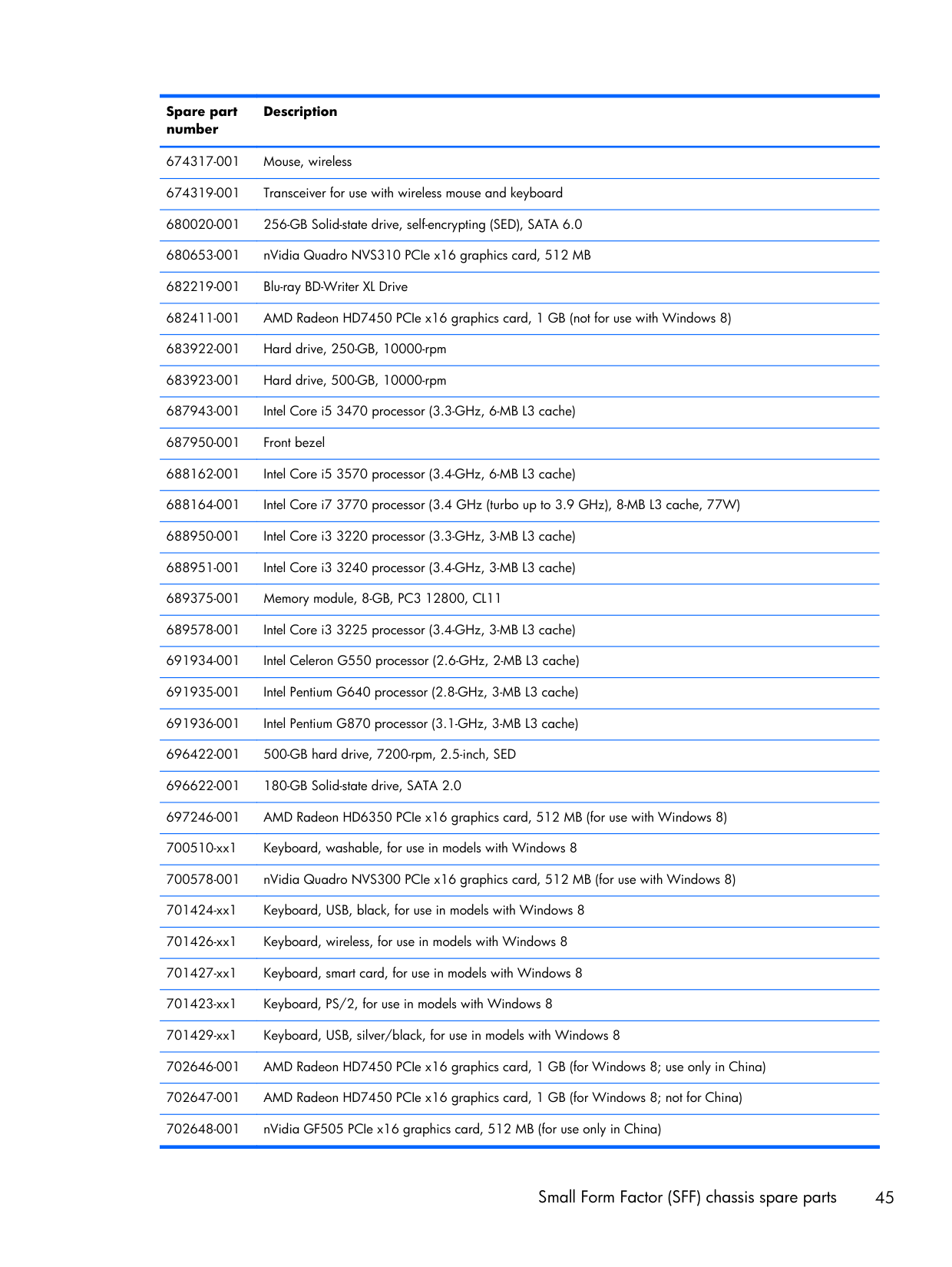

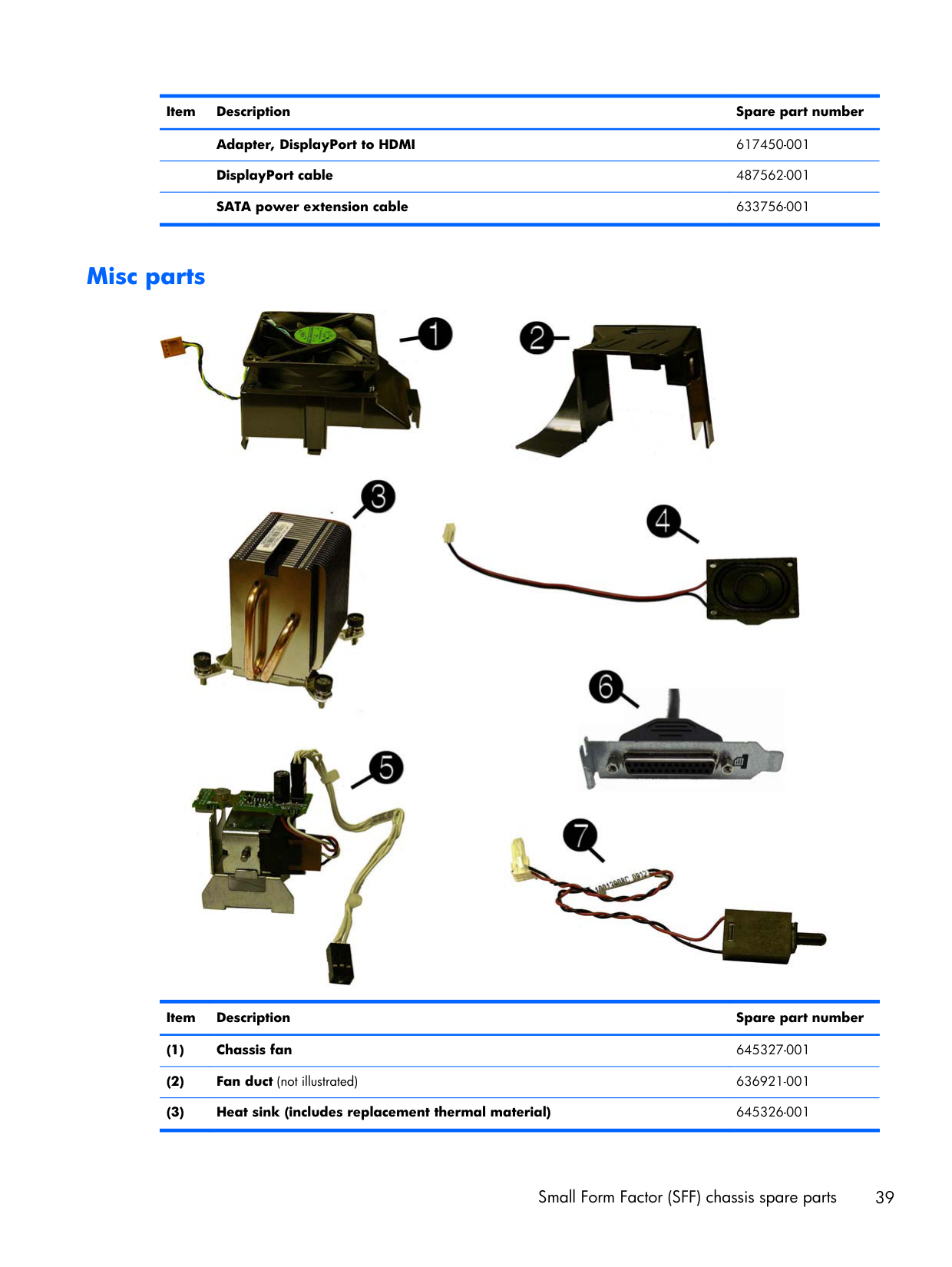

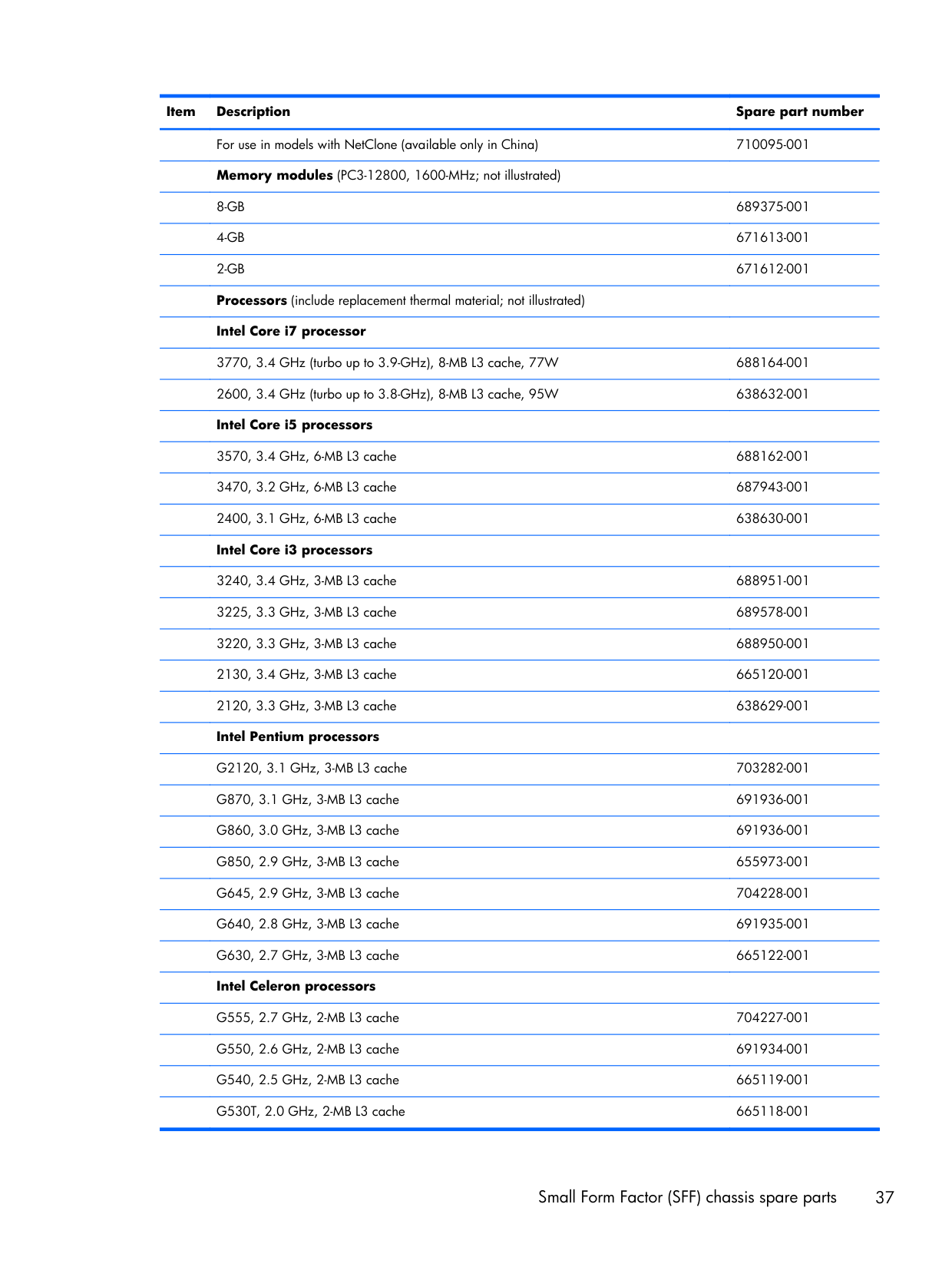

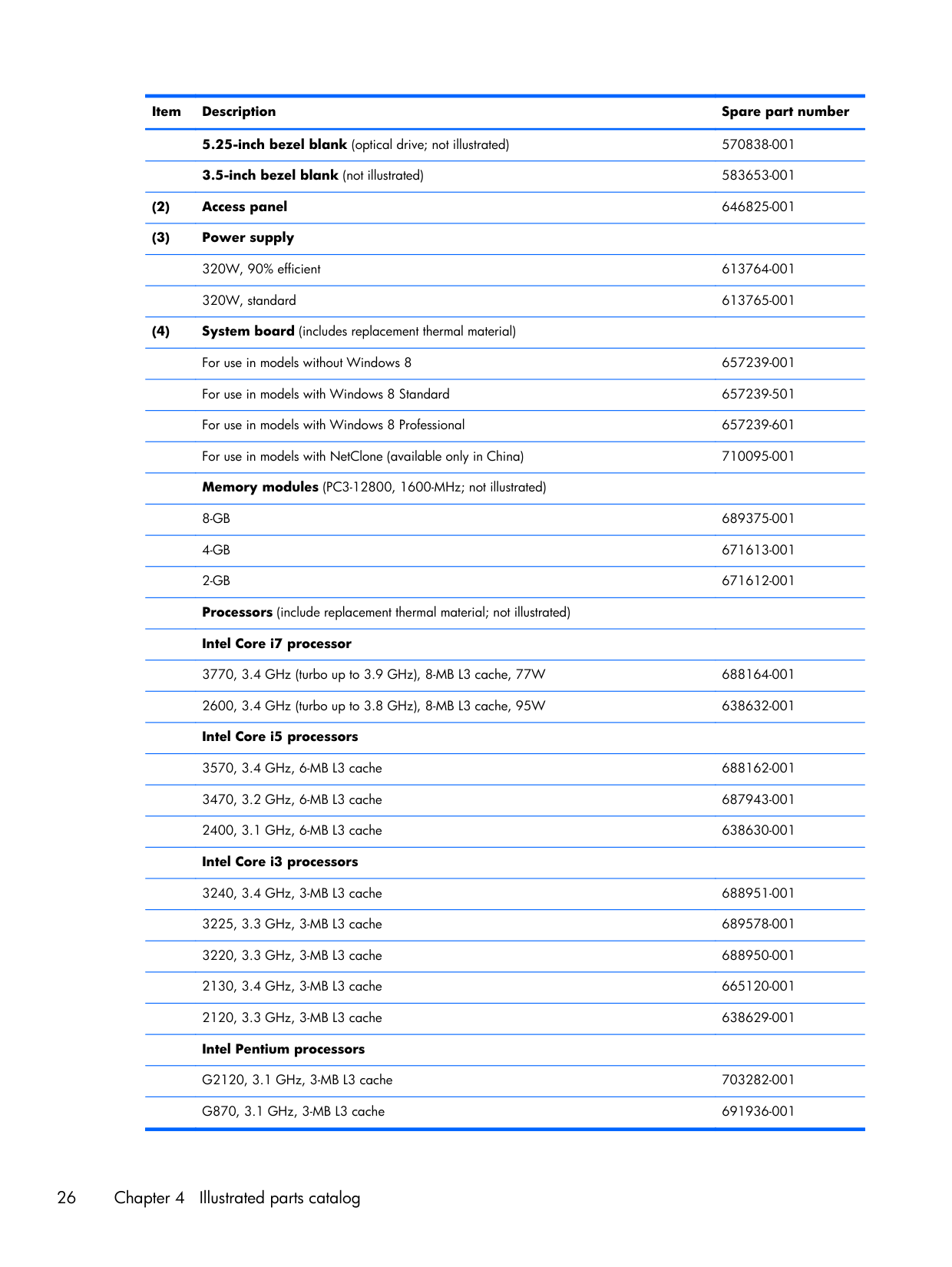

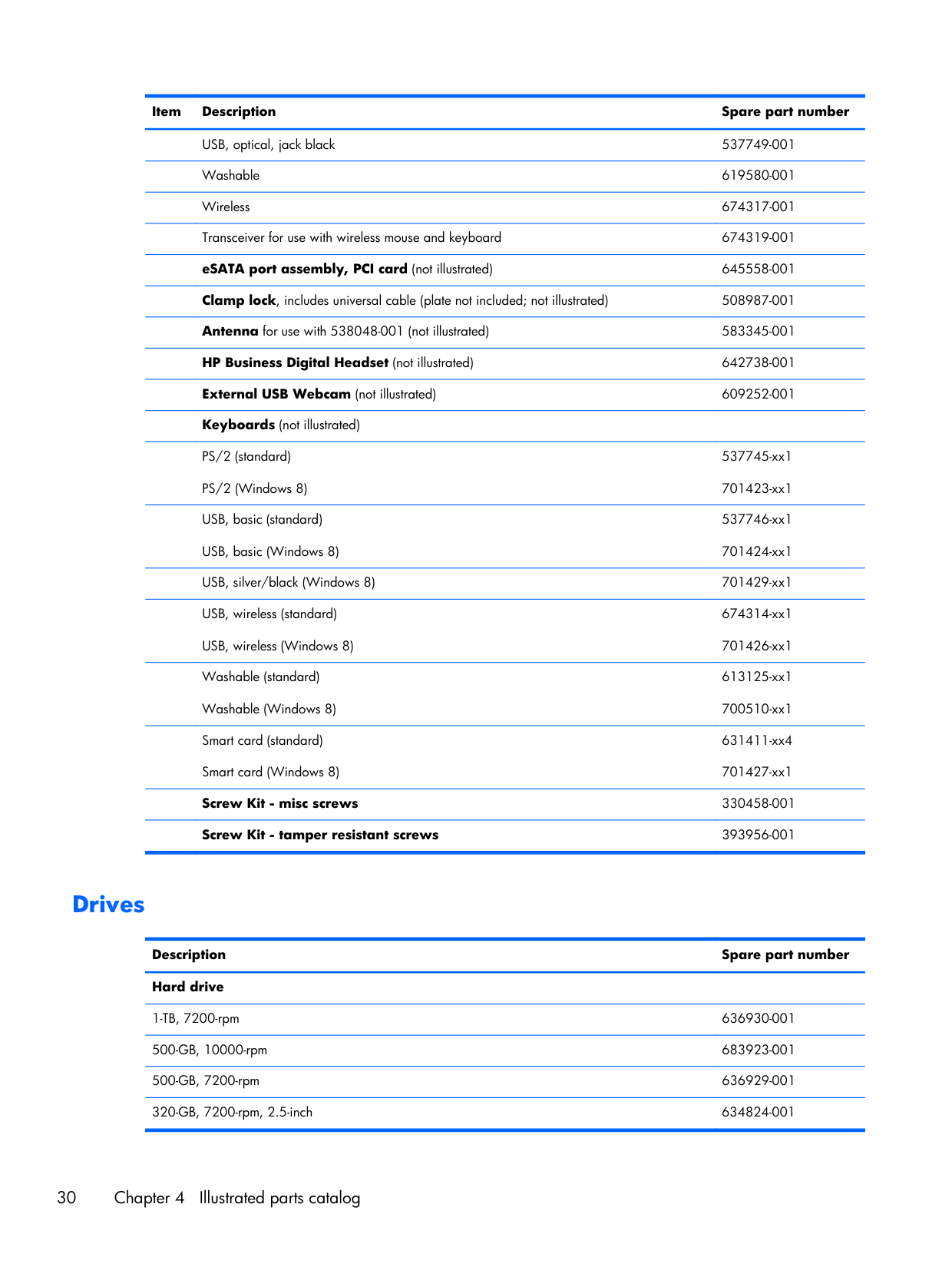

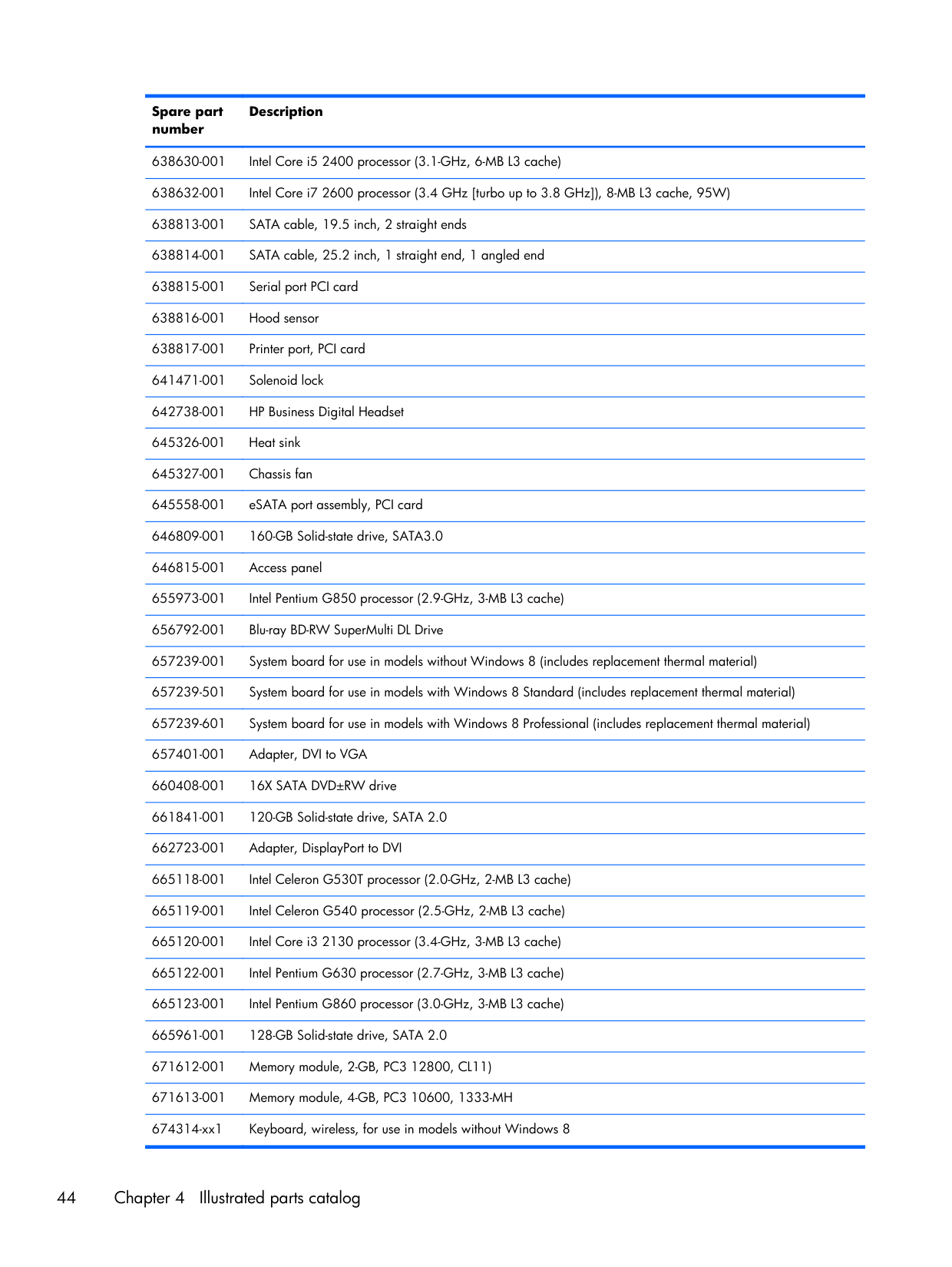

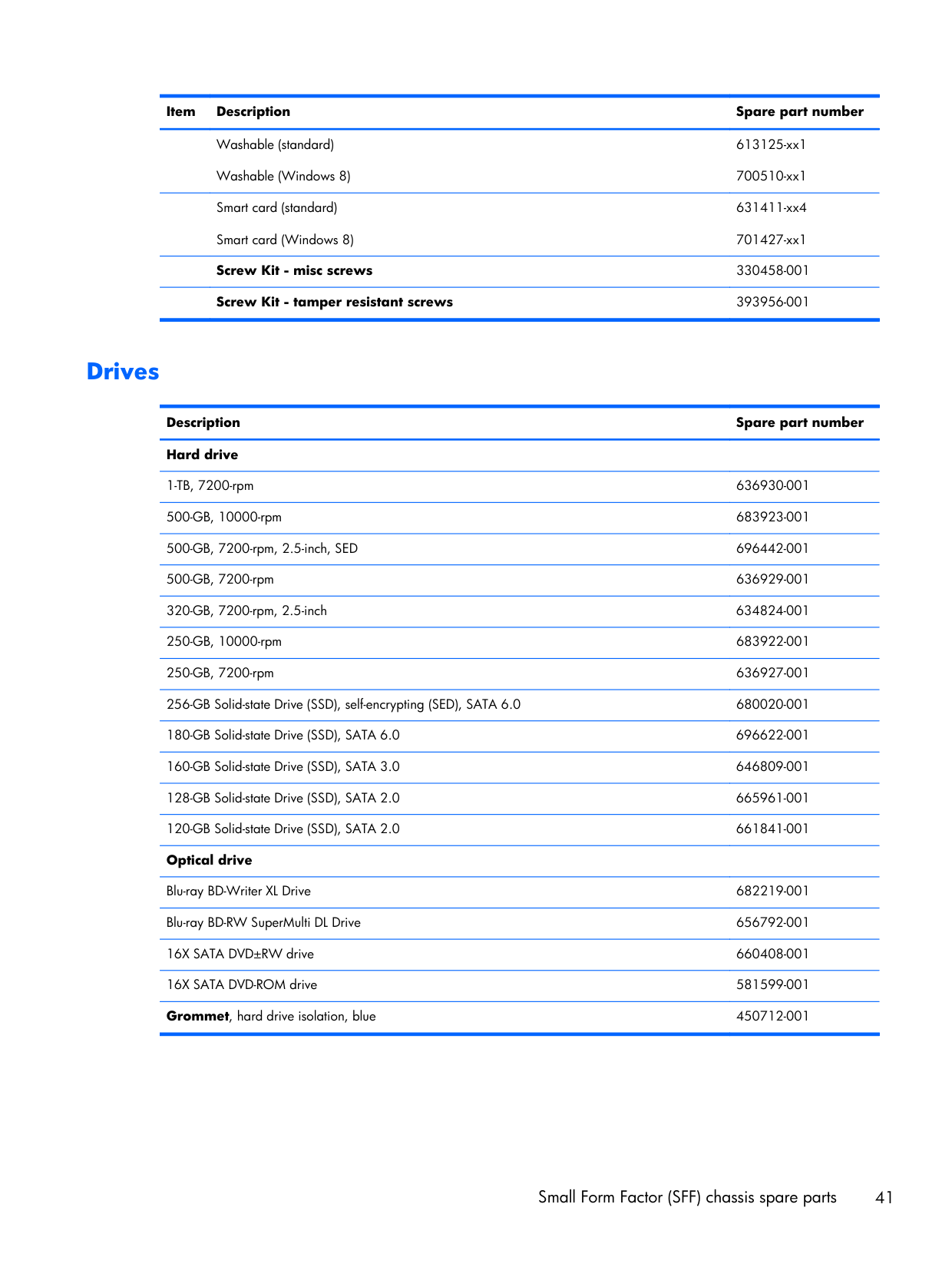

Small Form Factor (SFF) chassis spare parts ............................................................................... 36 Computer major components .................................................................................... 36 Cables ................................................................................................................... 38 Misc parts .............................................................................................................. 39 Drives .................................................................................................................... 41 Misc boards ........................................................................................................... 42 Sequential part number listing ................................................................................... 42

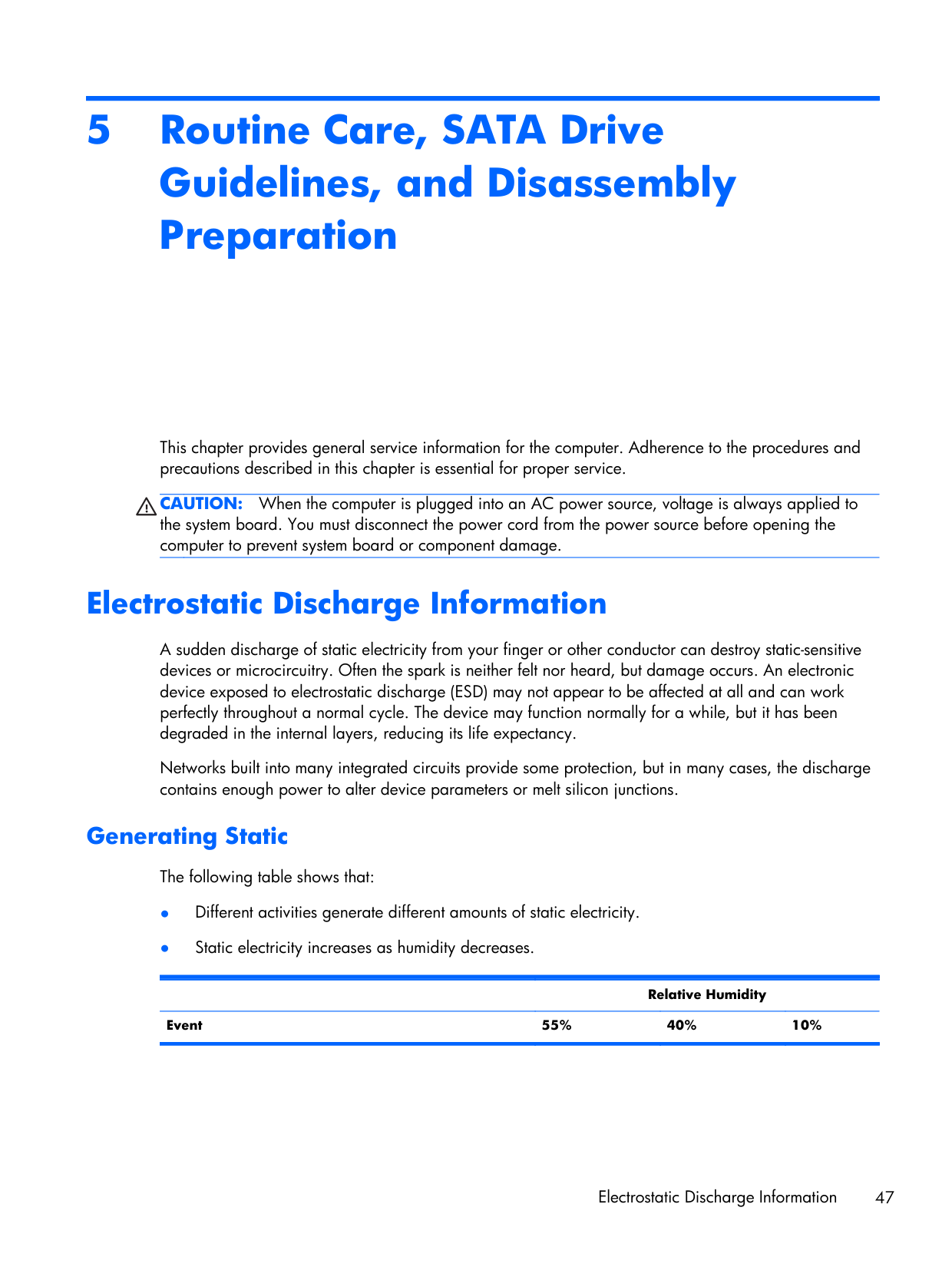

###### 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation ................................ 47Electrostatic Discharge Information ........................................................................................... 47

Generating Static .................................................................................................... 47 Preventing Electrostatic Damage to Equipment ............................................................ 48 Personal Grounding Methods and Equipment ............................................................. 48 Grounding the Work Area ....................................................................................... 49 Recommended Materials and Equipment .................................................................... 49

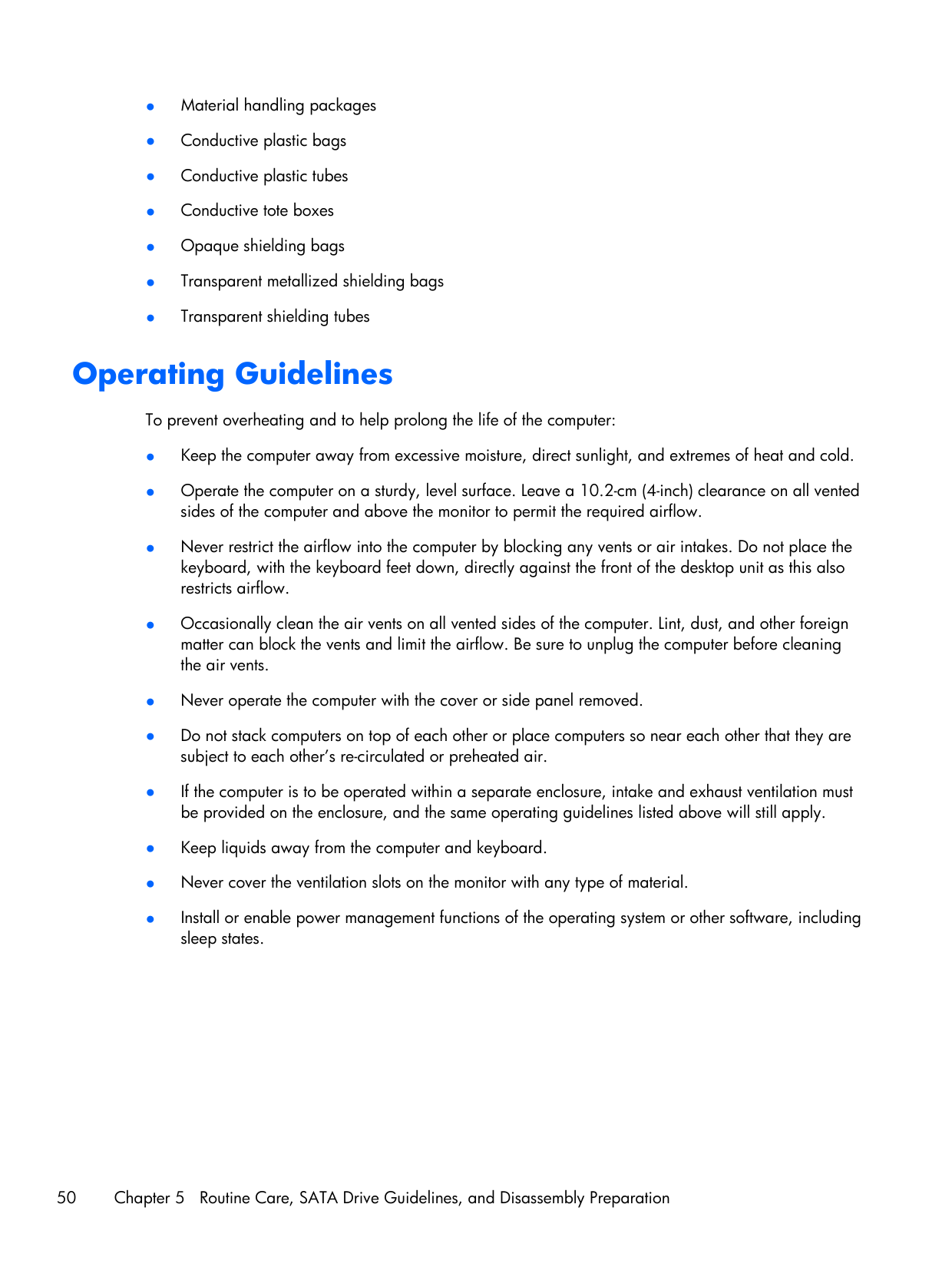

Operating Guidelines ............................................................................................................. 50 Routine Care ......................................................................................................................... 51

General Cleaning Safety Precautions ......................................................................... 51 Cleaning the Computer Case .................................................................................... 51 Cleaning the Keyboard ............................................................................................ 51 Cleaning the Monitor ............................................................................................... 52 Cleaning the Mouse ................................................................................................ 52

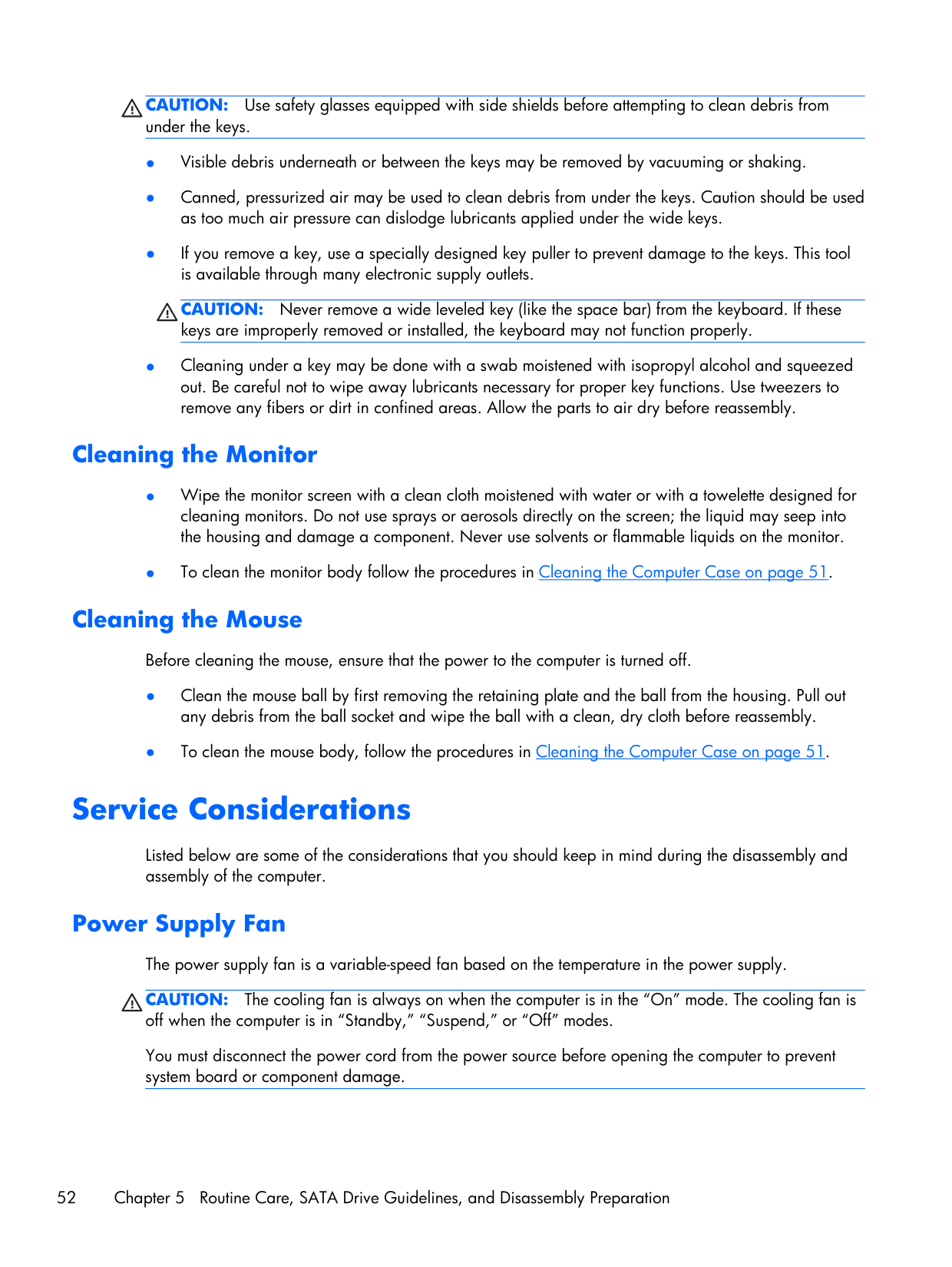

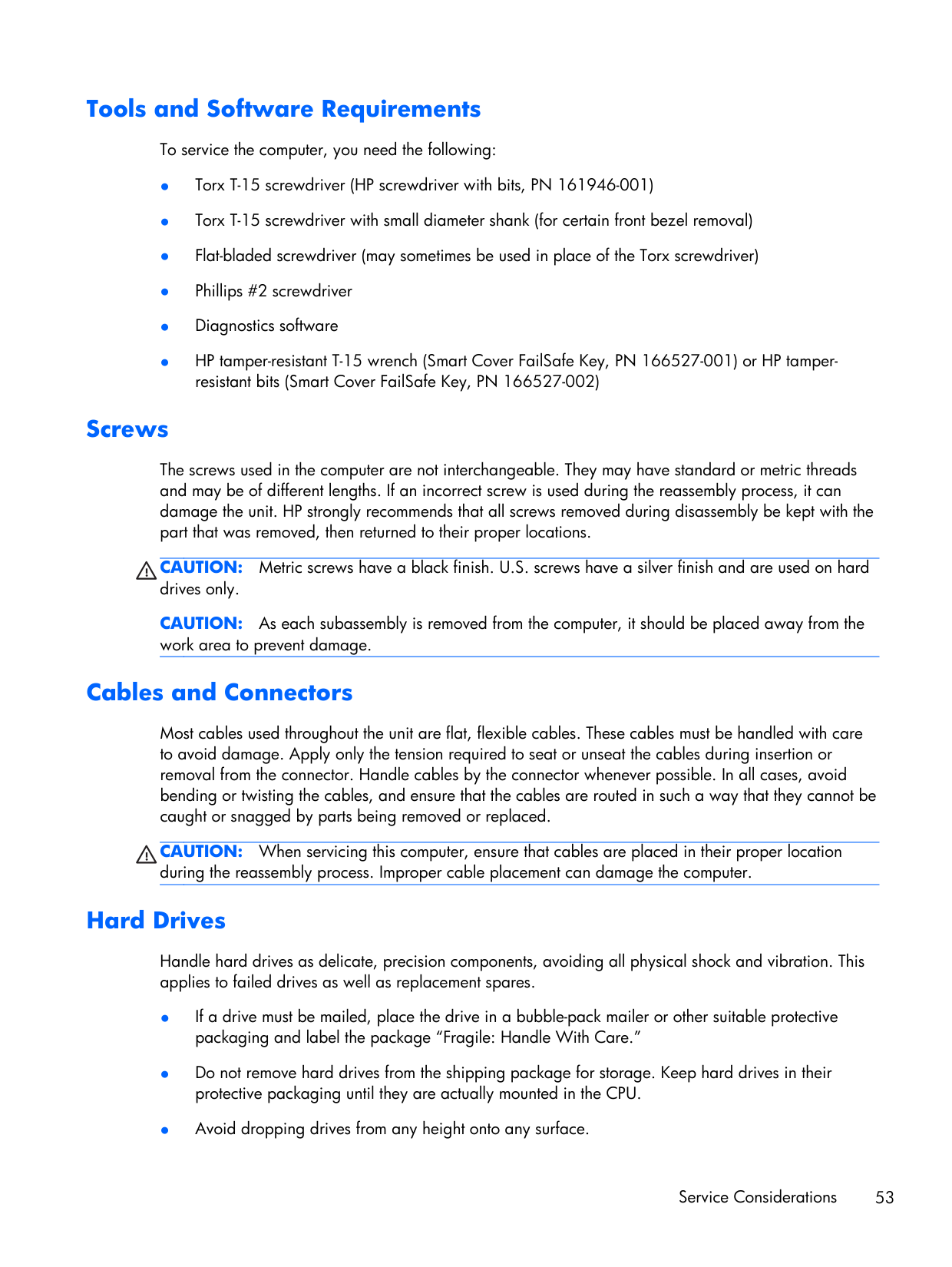

Service Considerations ........................................................................................................... 52 Power Supply Fan ................................................................................................... 52 Tools and Software Requirements .............................................................................. 53 Screws ................................................................................................................... 53 Cables and Connectors ........................................................................................... 53 Hard Drives ............................................................................................................ 53 Lithium Coin Cell Battery .......................................................................................... 54

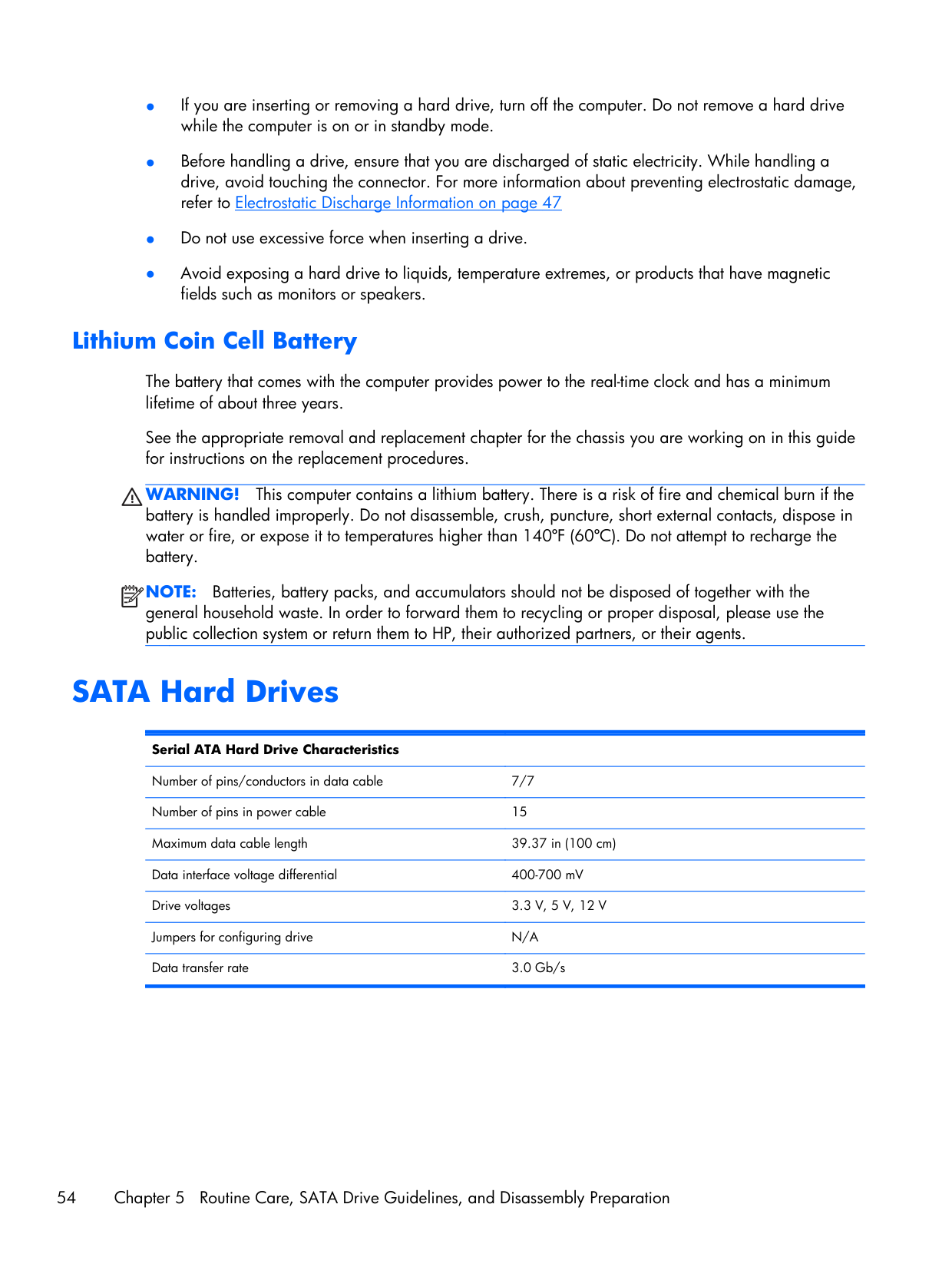

SATA Hard Drives .................................................................................................................. 54 SATA Hard Drive Cables ........................................................................................................ 55

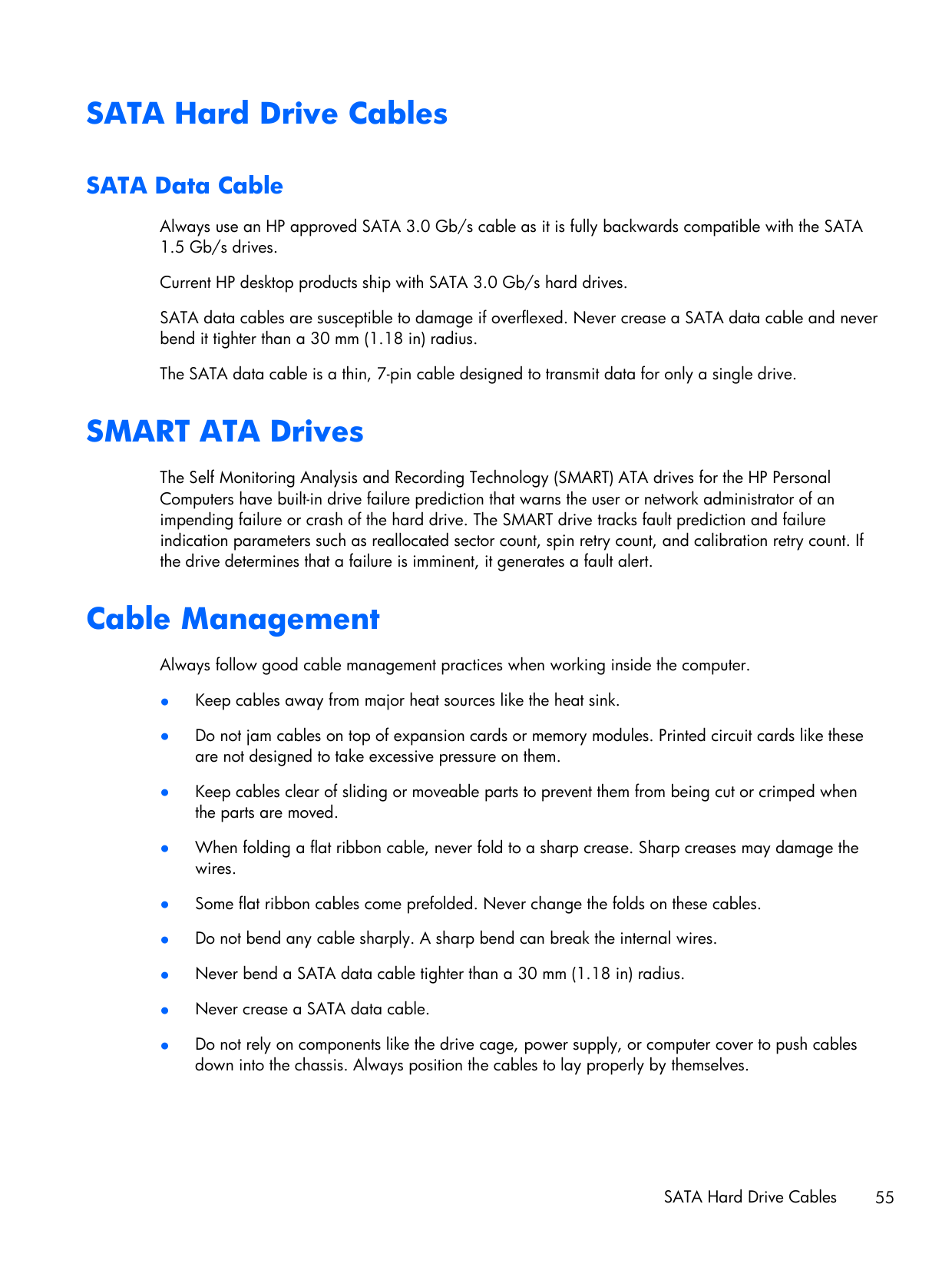

SATA Data Cable ................................................................................................... 55 SMART ATA Drives ................................................................................................................ 55 Cable Management ............................................................................................................... 55

vi

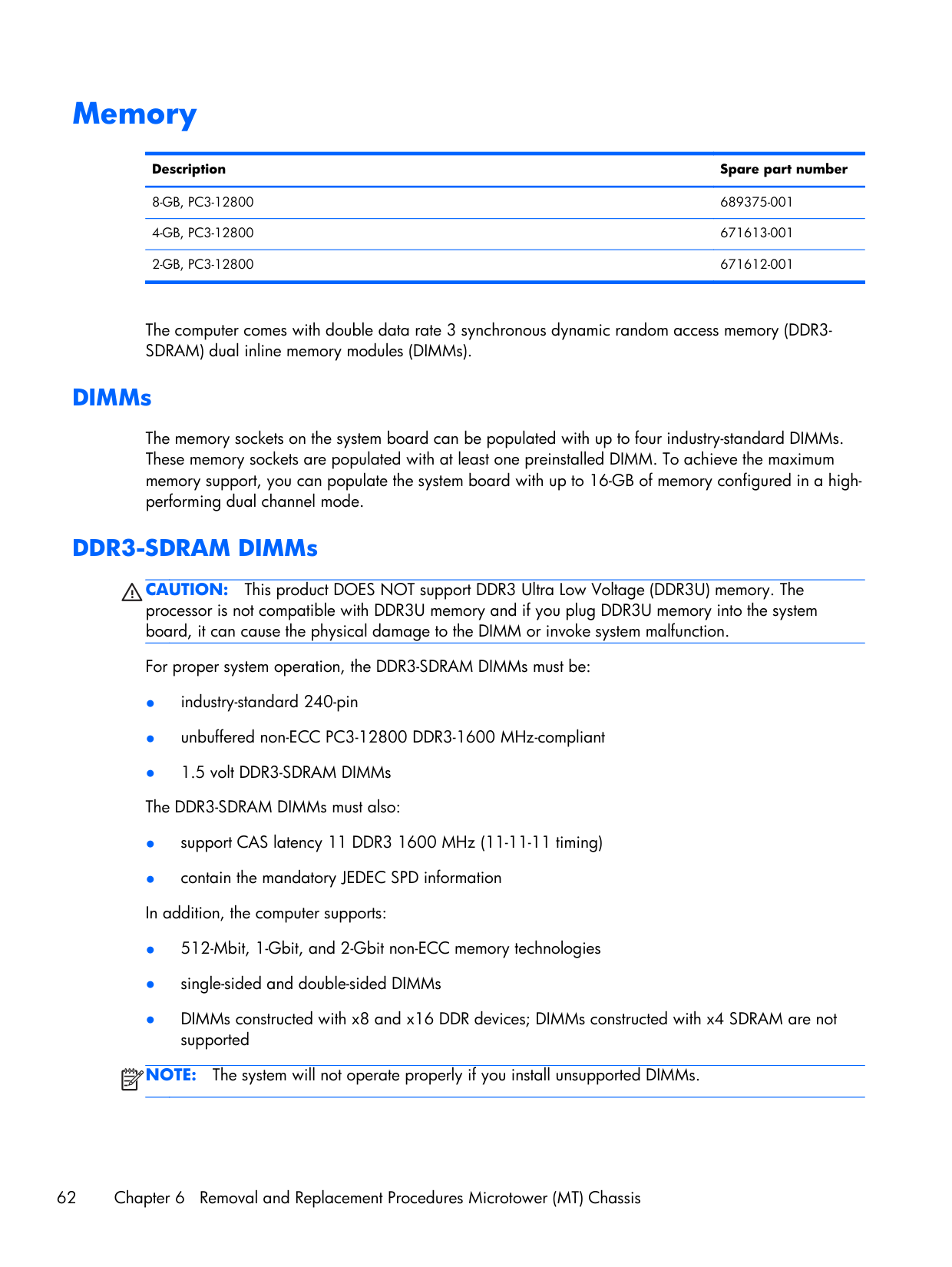

DIMMs .................................................................................................................. 62 DDR3-SDRAM DIMMs .............................................................................................. 62 Populating DIMM Sockets ........................................................................................ 63 Installing DIMMs ..................................................................................................... 63

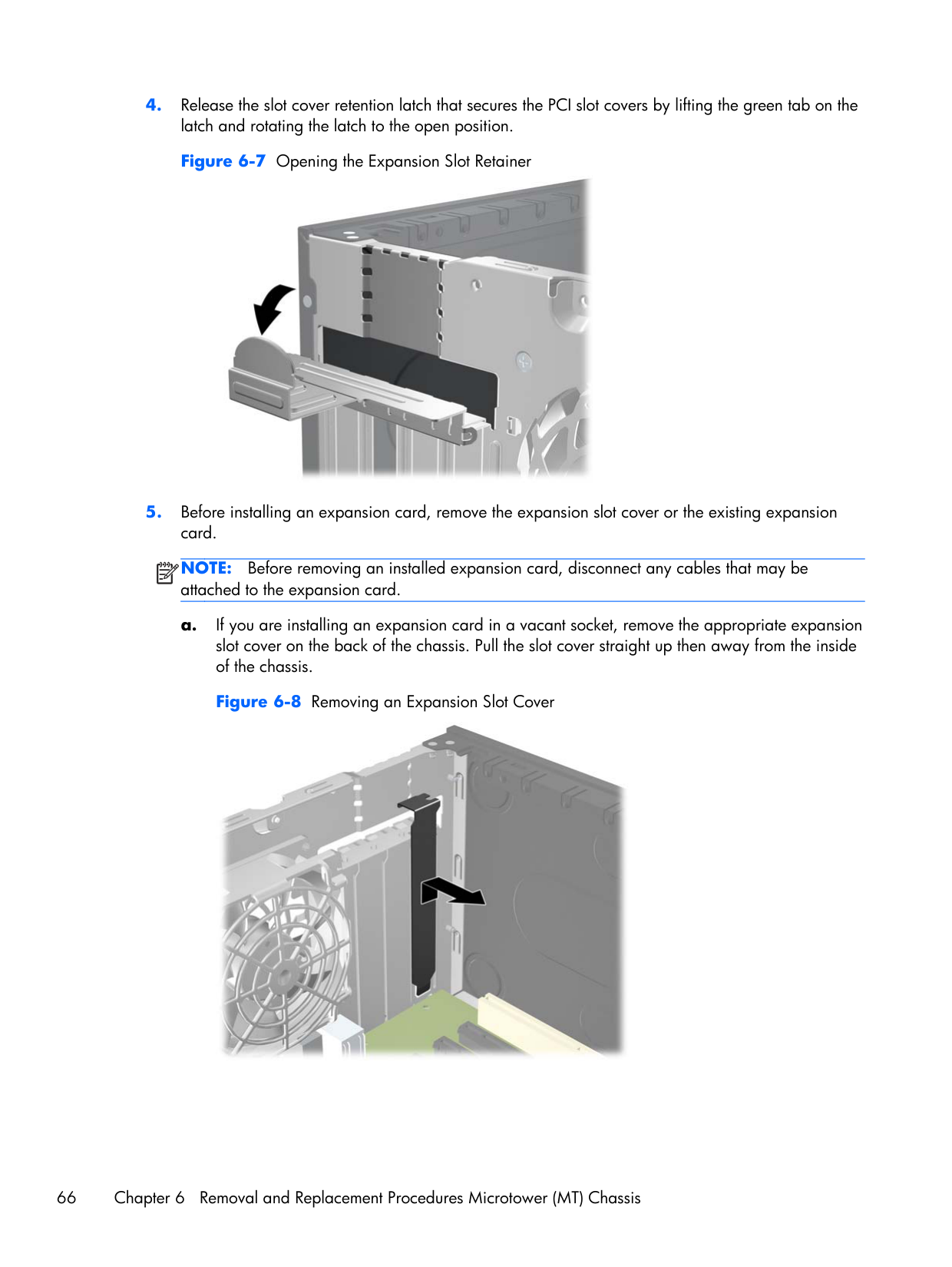

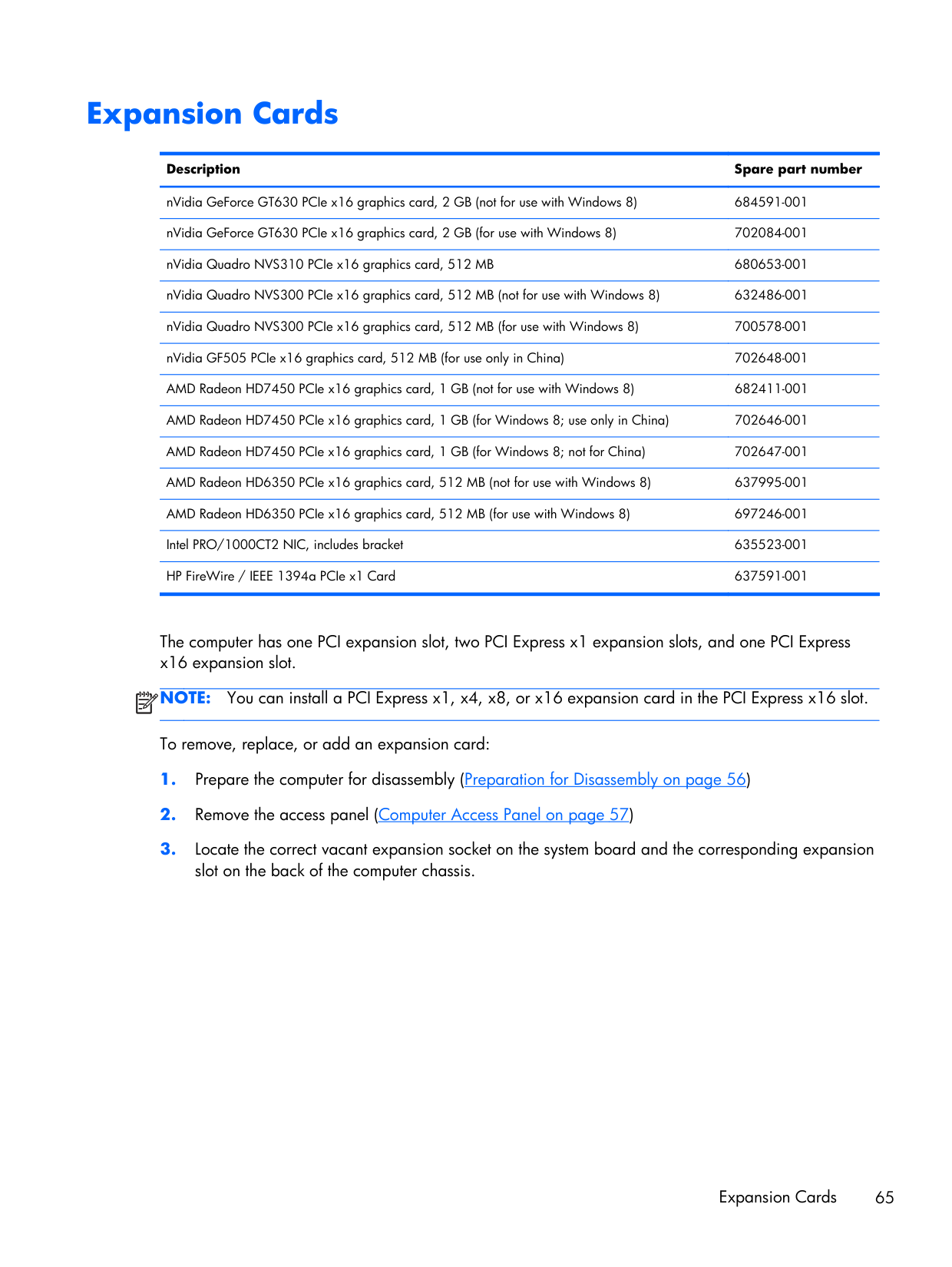

Expansion Cards .................................................................................................................... 65 System Board Connections ...................................................................................................... 69 Drives ................................................................................................................................... 70

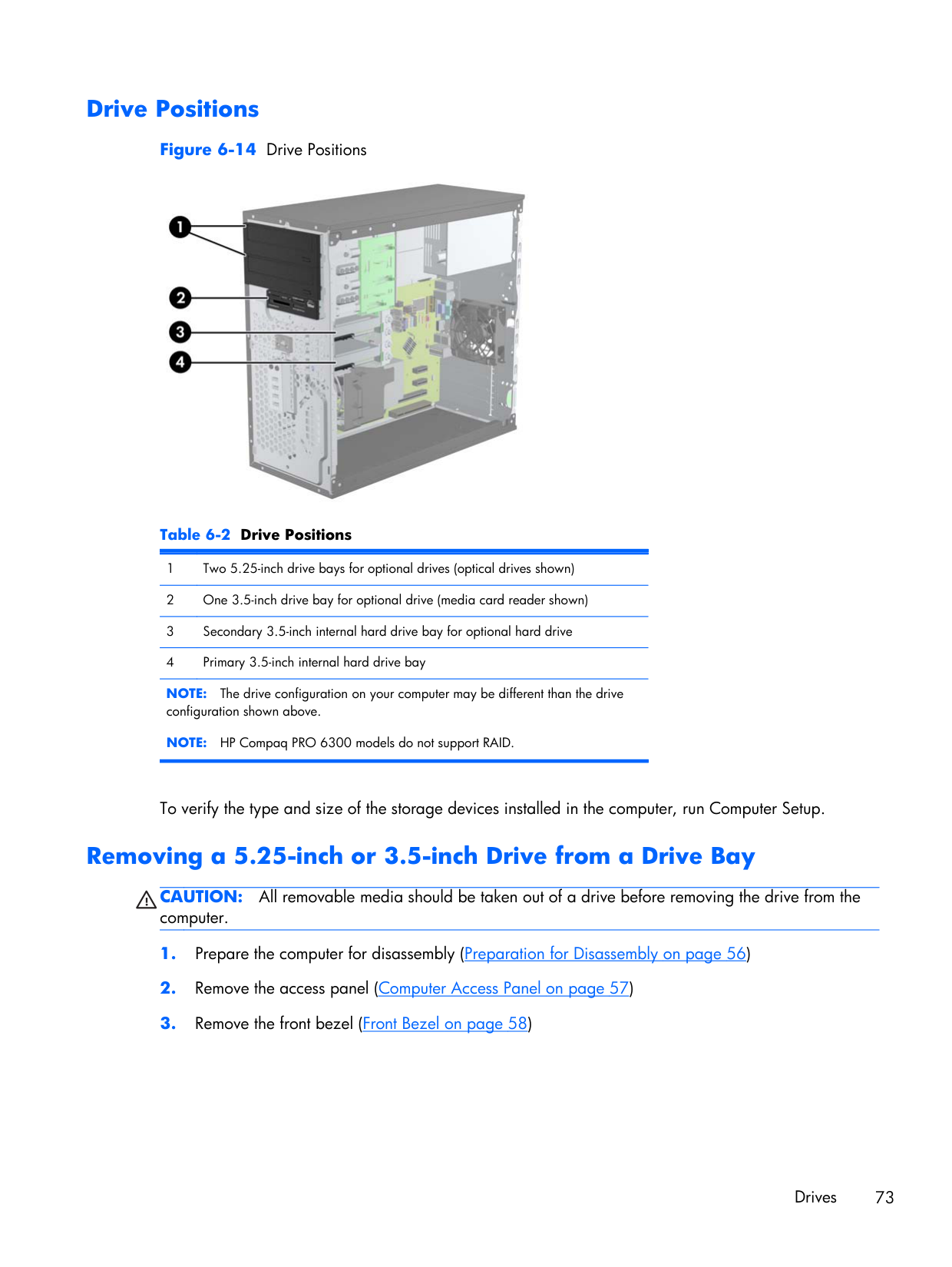

Drive Positions ........................................................................................................ 73 Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay ............................................ 73 Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay .............................................. 75 Removing a Hard Drive from a Drive Bay ................................................................... 78 Installing a Hard Drive into an Internal Drive Bay ........................................................ 78

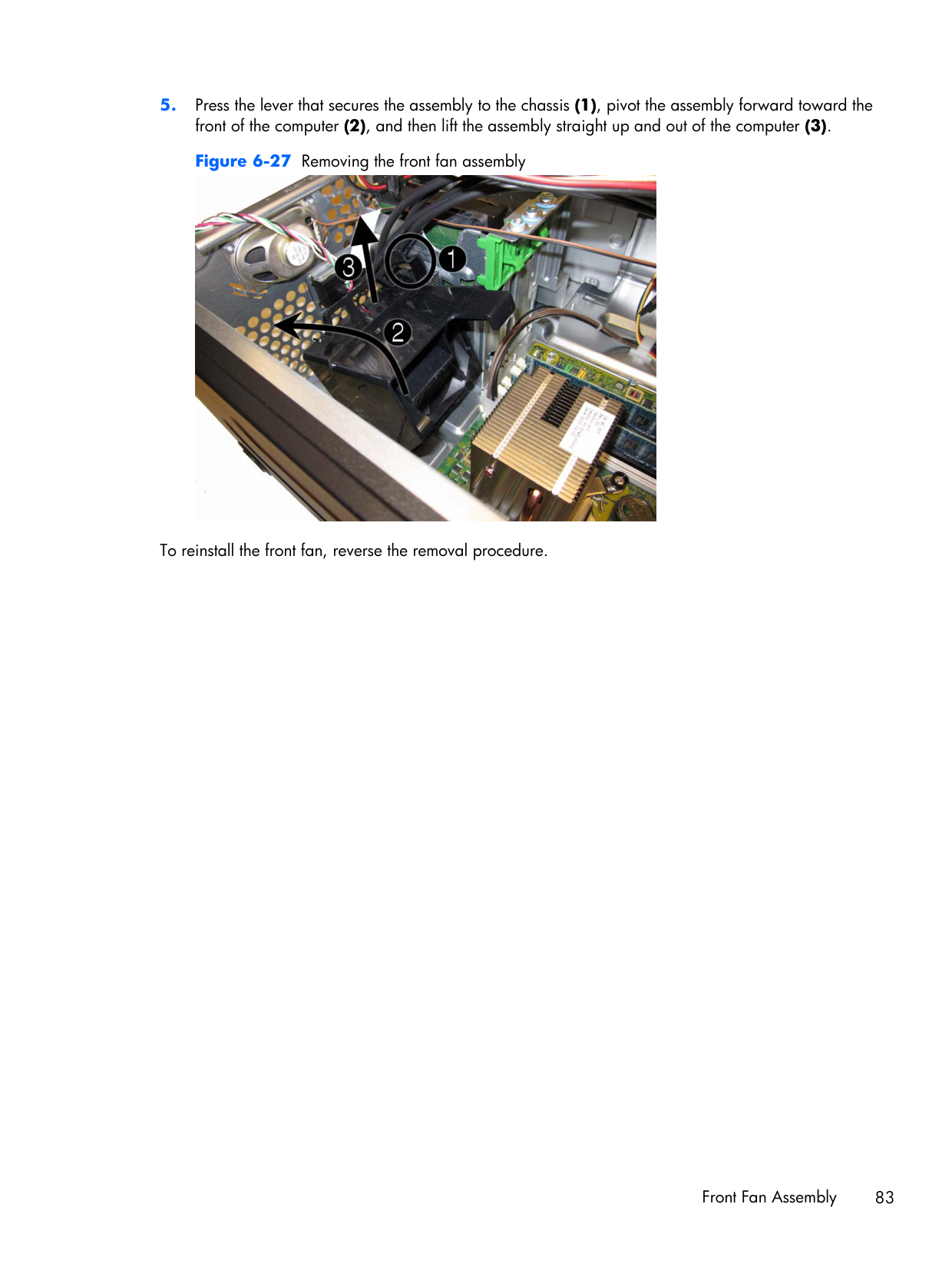

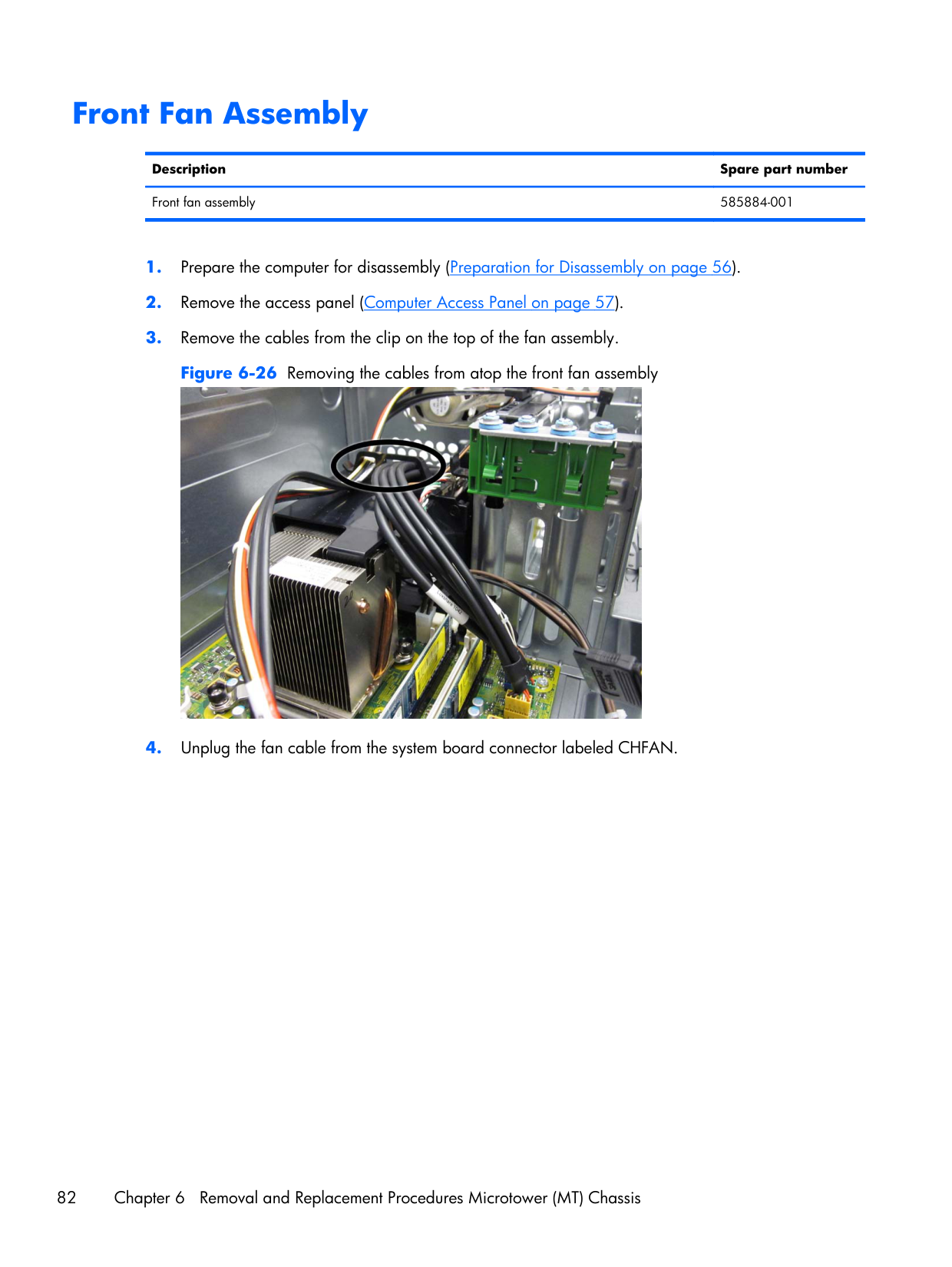

Front Fan Assembly ................................................................................................................ 82 Front I/O Assembly ................................................................................................................ 84 Power Switch/LED Assembly ................................................................................................... 85 Heat sink .............................................................................................................................. 86 Processor .............................................................................................................................. 88 Speaker ................................................................................................................................ 91 Rear Chassis Fan ................................................................................................................... 92 Power Supply ........................................................................................................................ 94 System Board ........................................................................................................................ 96

DIMMs ................................................................................................................ 103 DDR3-SDRAM DIMMs ............................................................................................ 103 Populating DIMM Sockets ...................................................................................... 104 Installing DIMMs ................................................................................................... 104

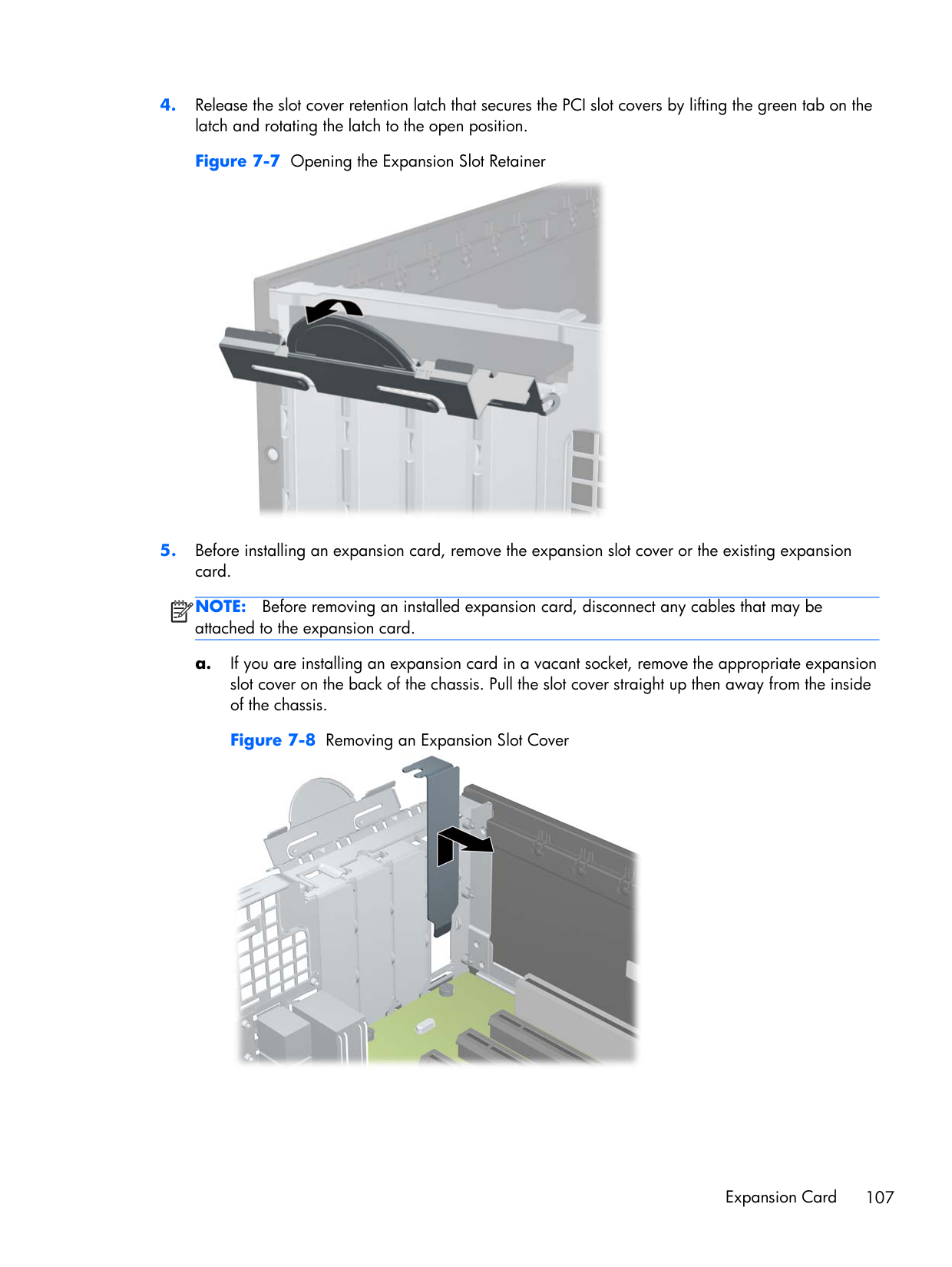

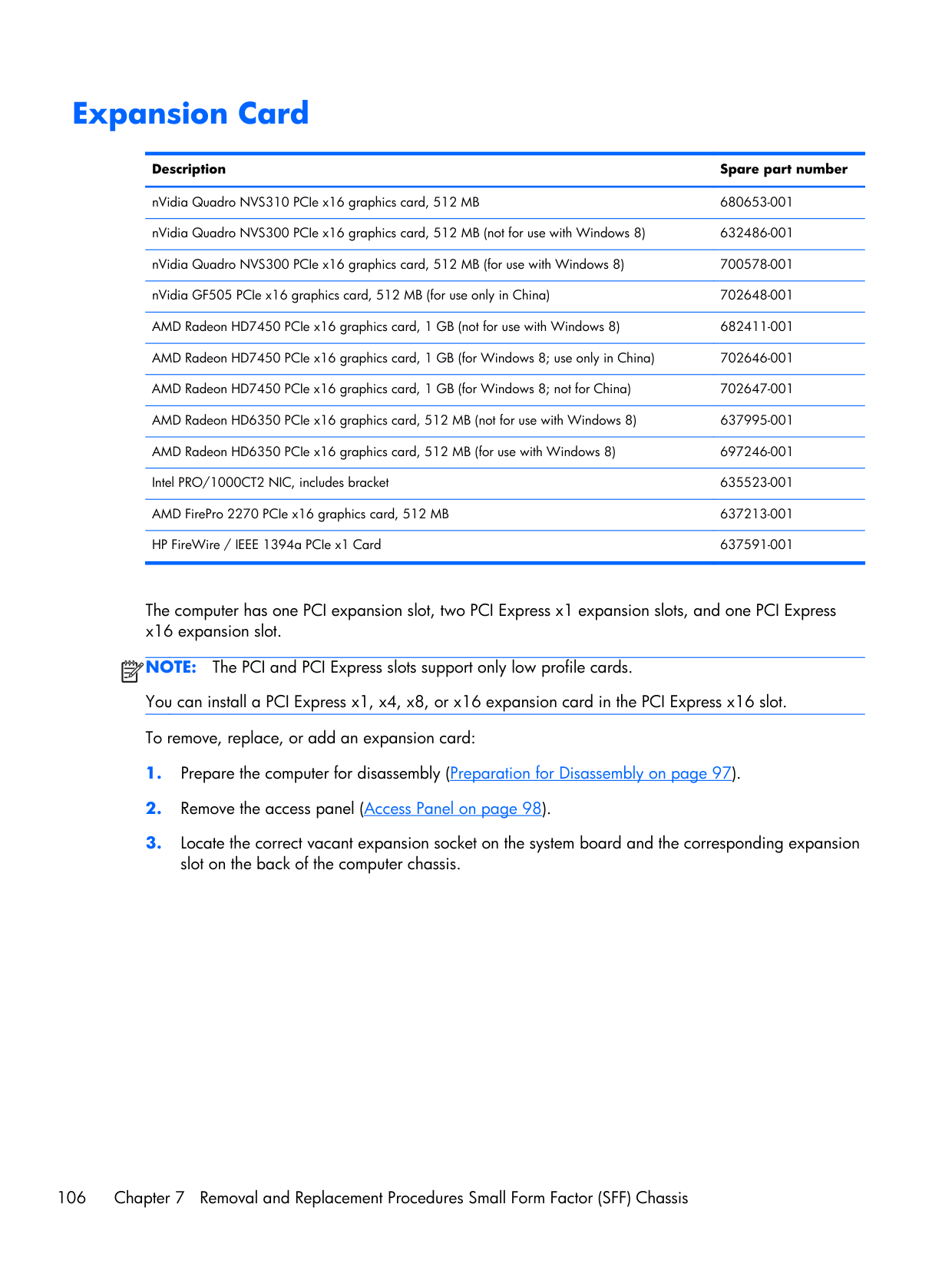

Expansion Card ................................................................................................................... 106

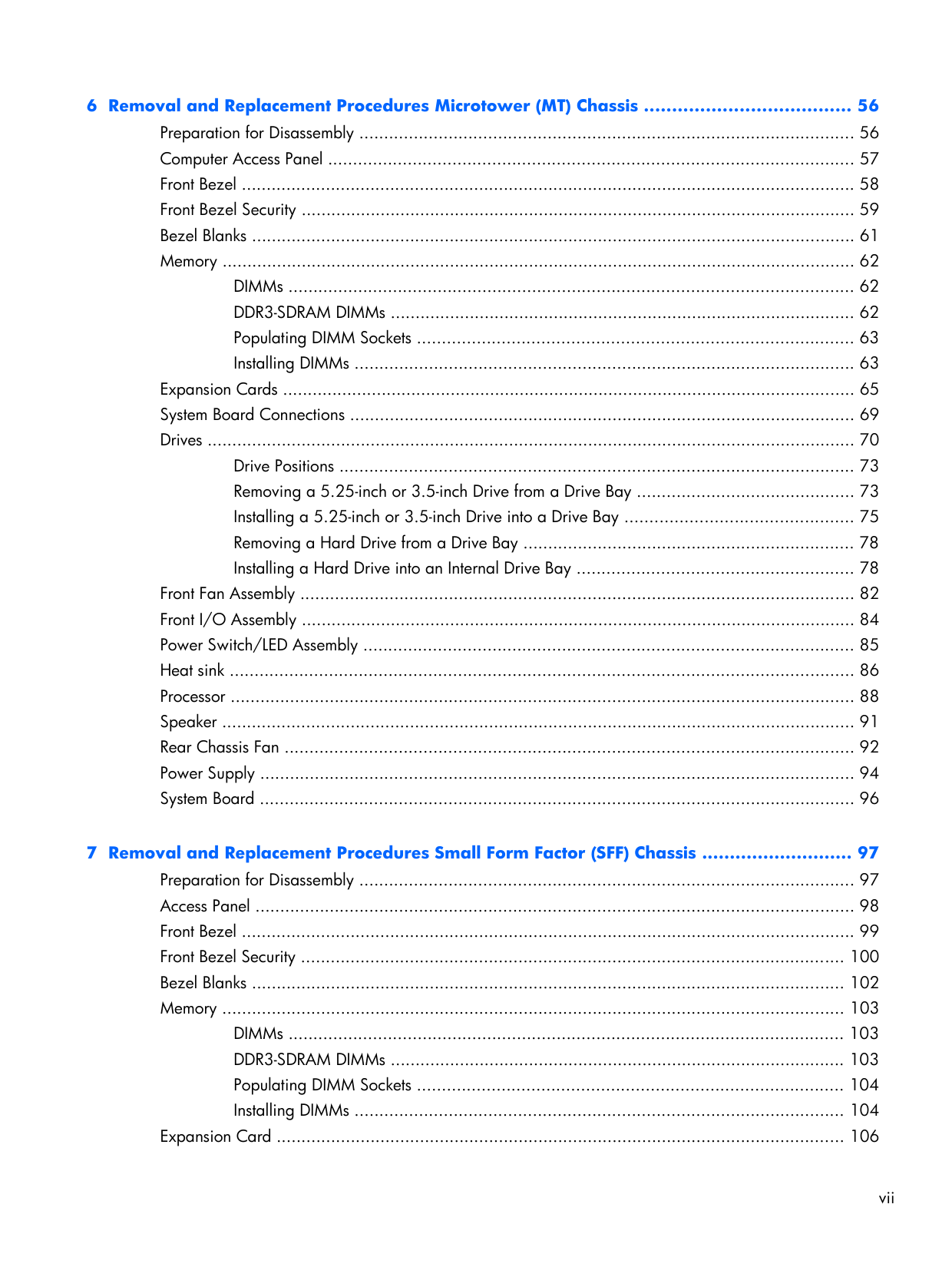

vii

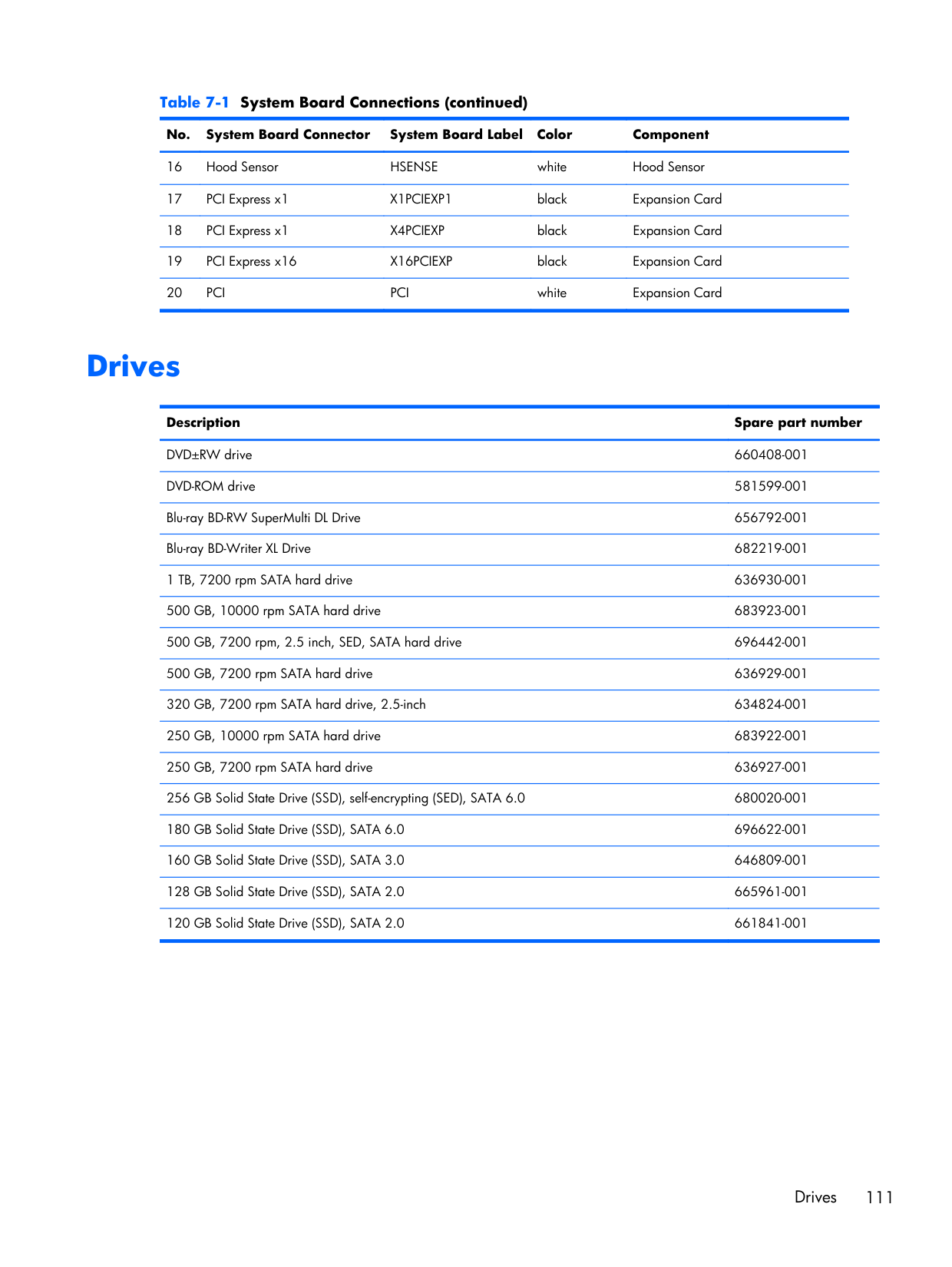

System Board Connections .................................................................................................... 110 Drives ................................................................................................................................. 111

Drive Positions ...................................................................................................... 112 Installing and Removing Drives ............................................................................... 112

Removing a 5.25-inch Drive from a Drive Bay ........................................... 114 Installing a 5.25-inch Drive into a Drive Bay .............................................. 114 Removing a 3.5-inch Drive from a Drive Bay ............................................. 117 Installing a 3.5-inch Drive into a Drive Bay ................................................ 118 Removing and Replacing the Primary 3.5-inch Internal Hard Drive ............... 120

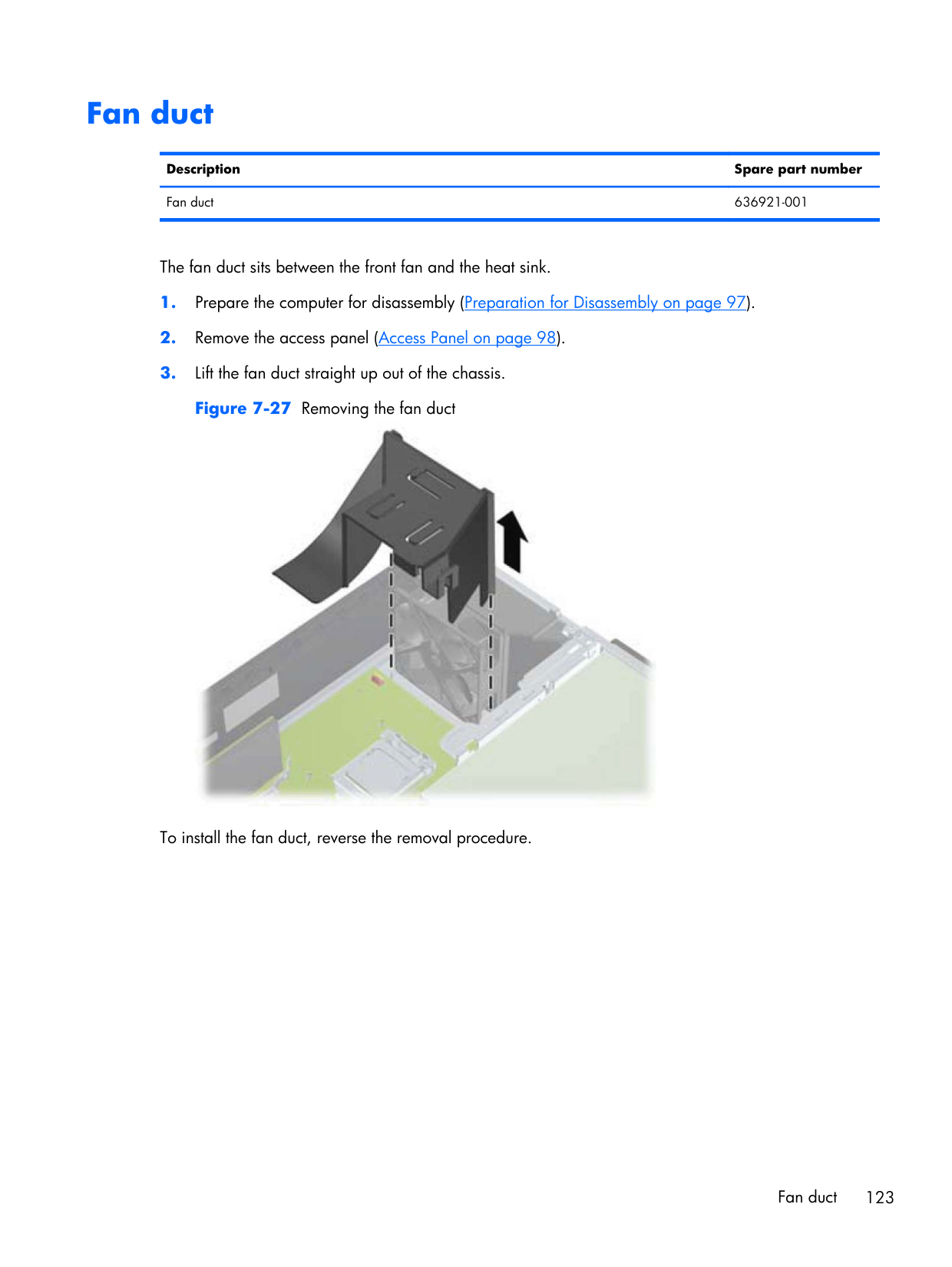

Fan duct ............................................................................................................................. 123 Front Fan Assembly .............................................................................................................. 124 Hood Sensor ....................................................................................................................... 126 Front I/O, Power Switch Assembly ......................................................................................... 127 Speaker .............................................................................................................................. 129 Heat sink ............................................................................................................................ 130 Processor ............................................................................................................................ 132 Power Supply ...................................................................................................................... 135 System Board ...................................................................................................................... 137 Using the Small Form Factor Computer in a Tower Orientation .................................................. 139

viii

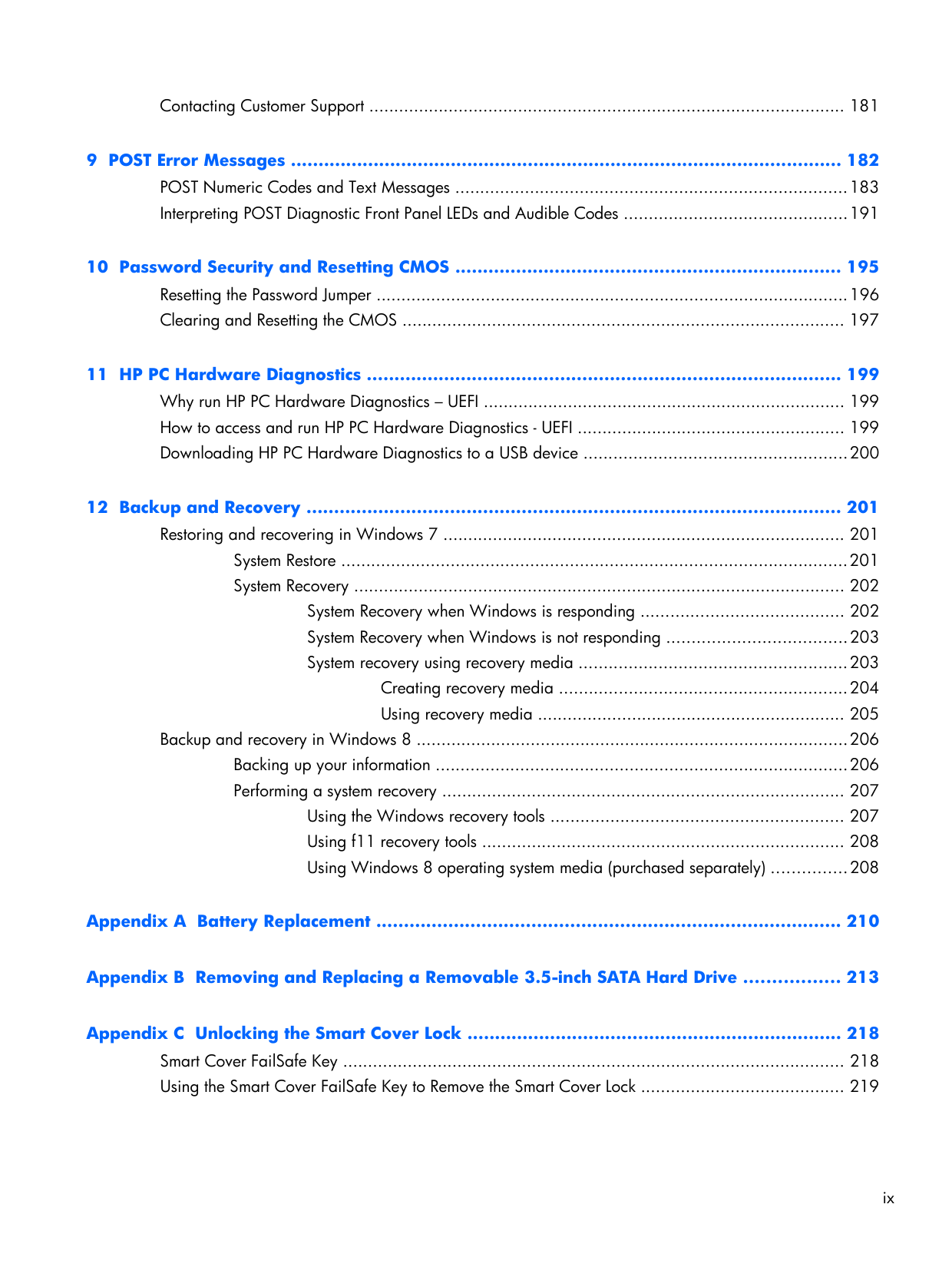

Contacting Customer Support ................................................................................................ 181

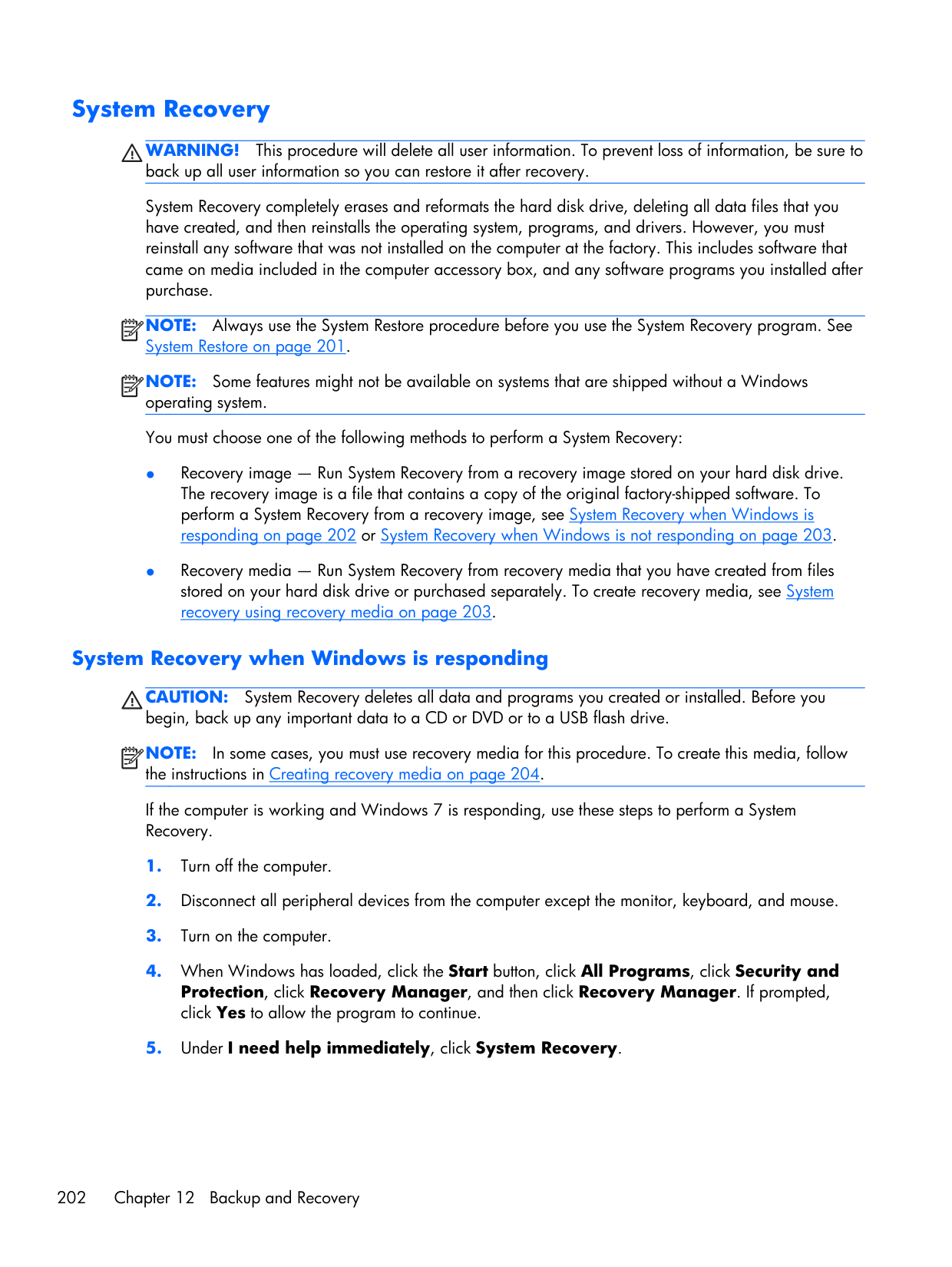

System Restore ...................................................................................................... 201 System Recovery ................................................................................................... 202

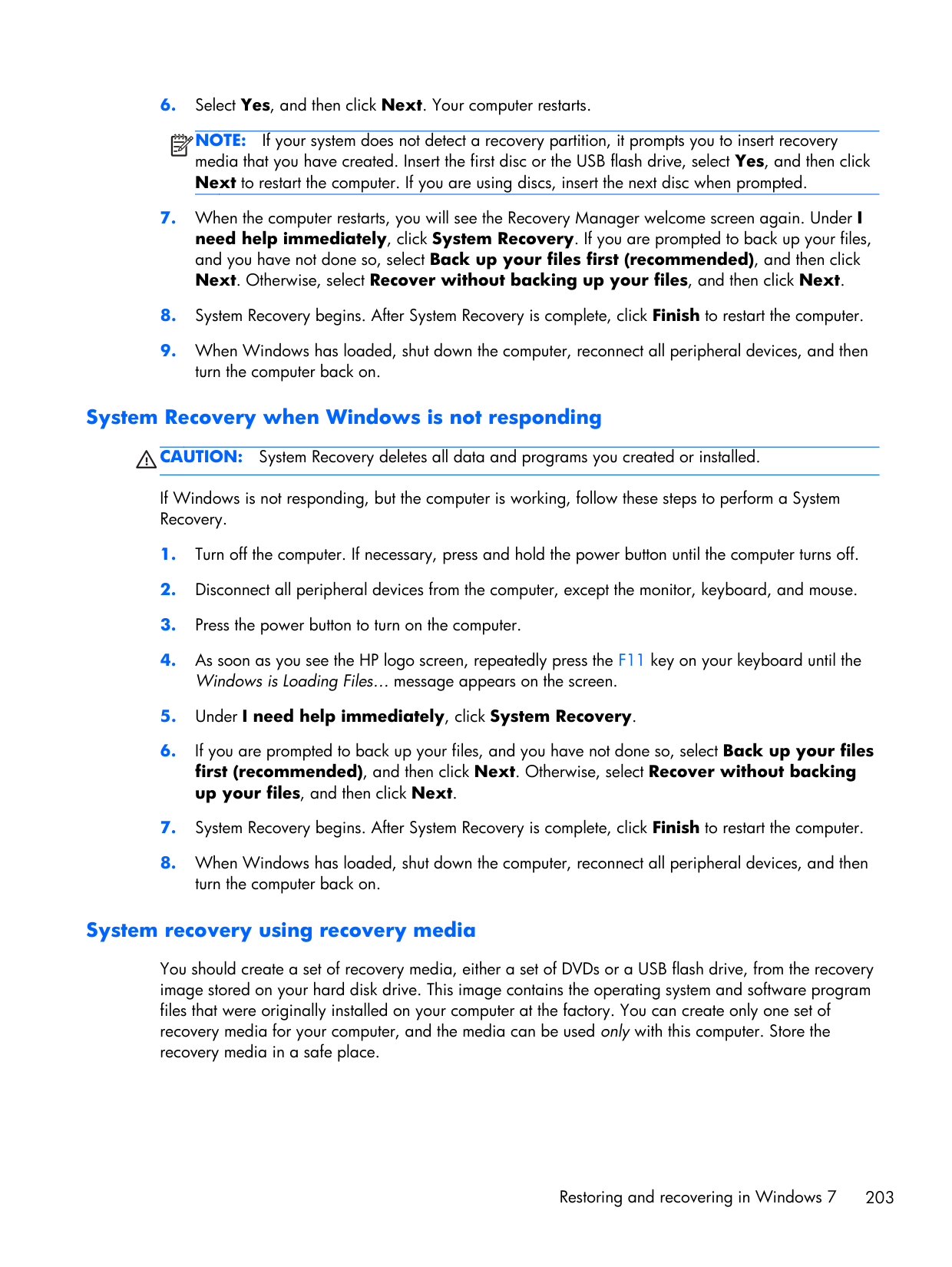

System Recovery when Windows is responding ......................................... 202 System Recovery when Windows is not responding .................................... 203 System recovery using recovery media ...................................................... 203

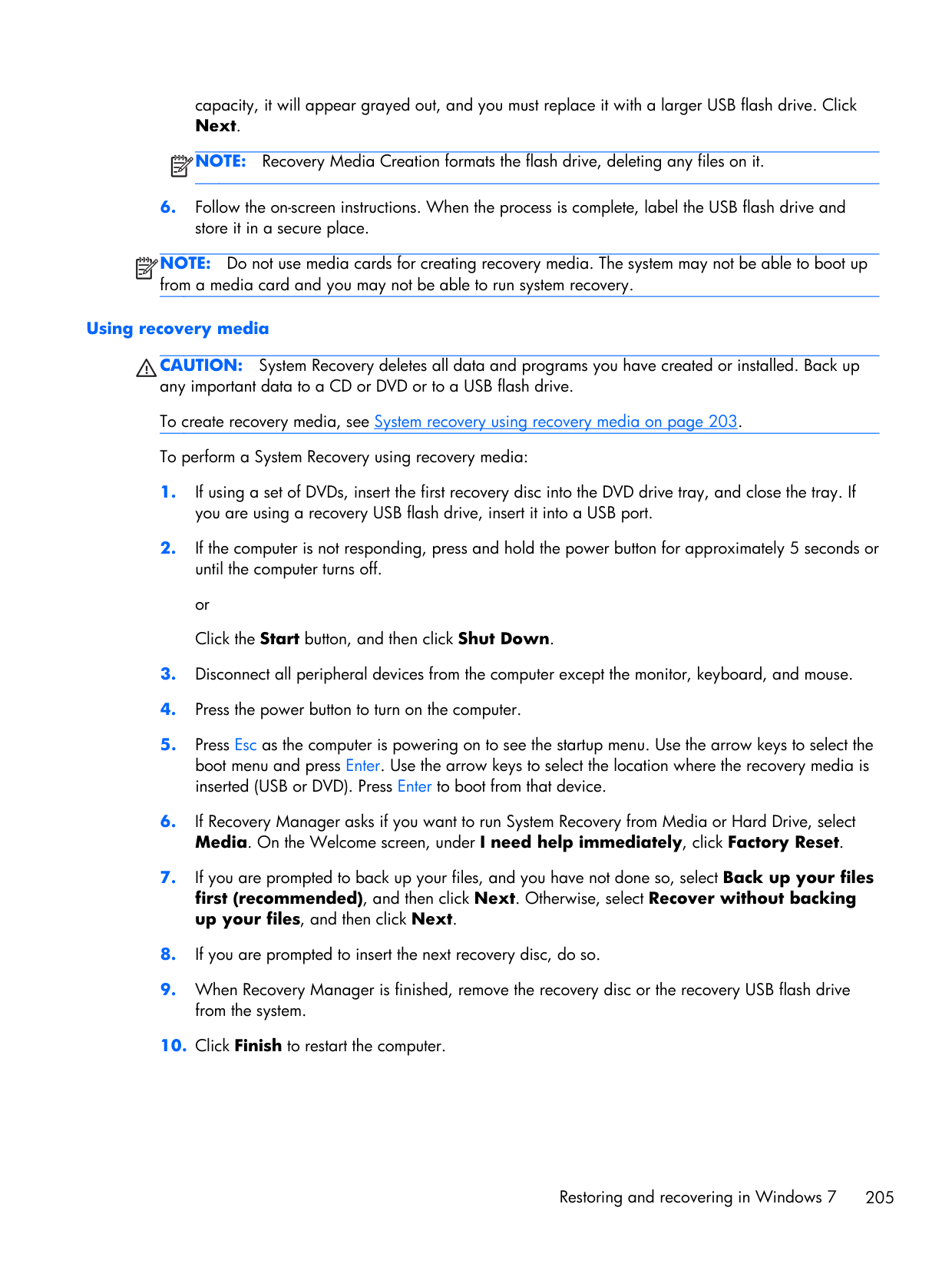

Creating recovery media .......................................................... 204 Using recovery media .............................................................. 205

Backup and recovery in Windows 8 ....................................................................................... 206 Backing up your information ................................................................................... 206 Performing a system recovery ................................................................................. 207

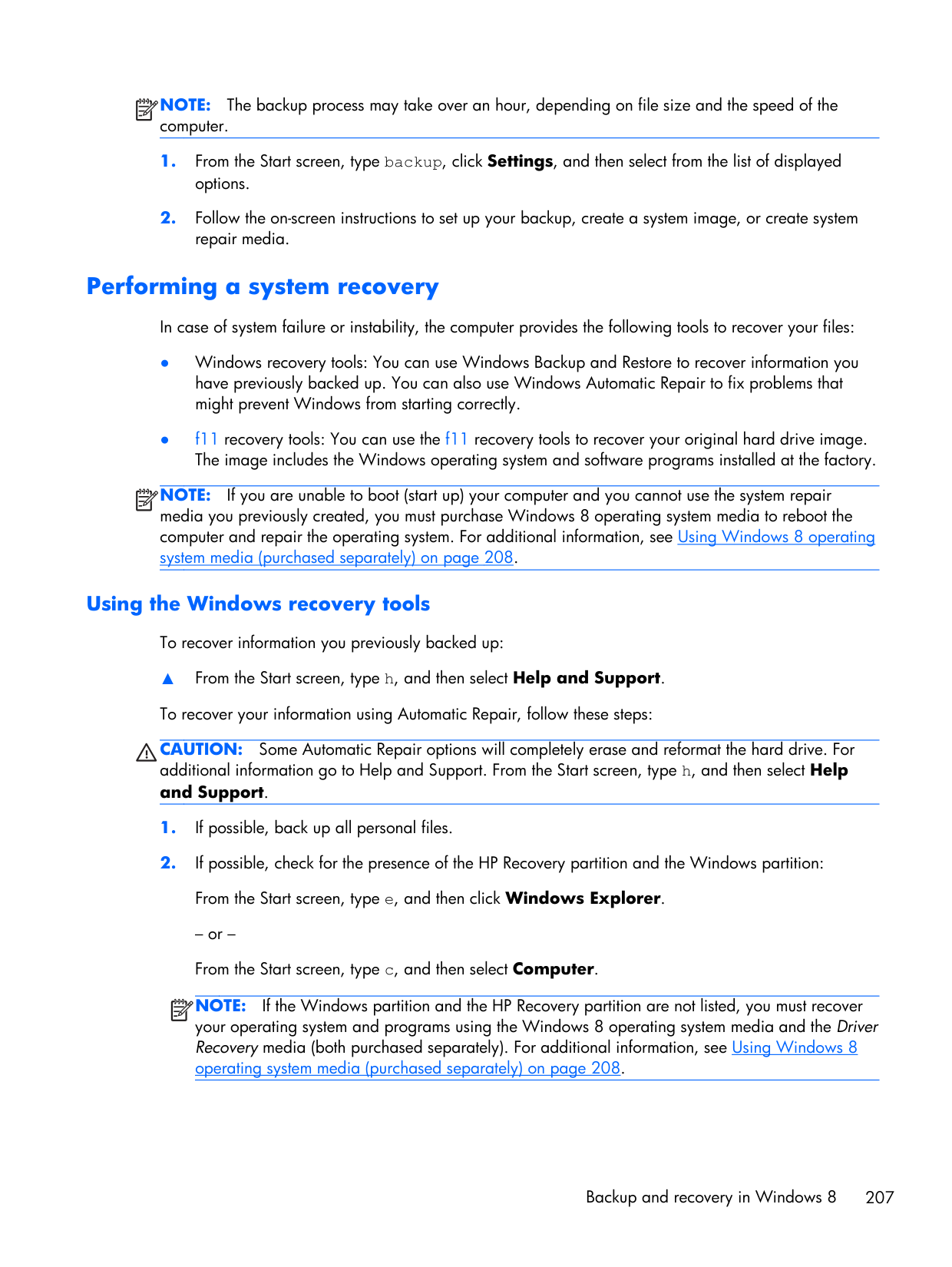

Using the Windows recovery tools ........................................................... 207 Using f11 recovery tools ......................................................................... 208 Using Windows 8 operating system media (purchased separately) ............... 208

ix

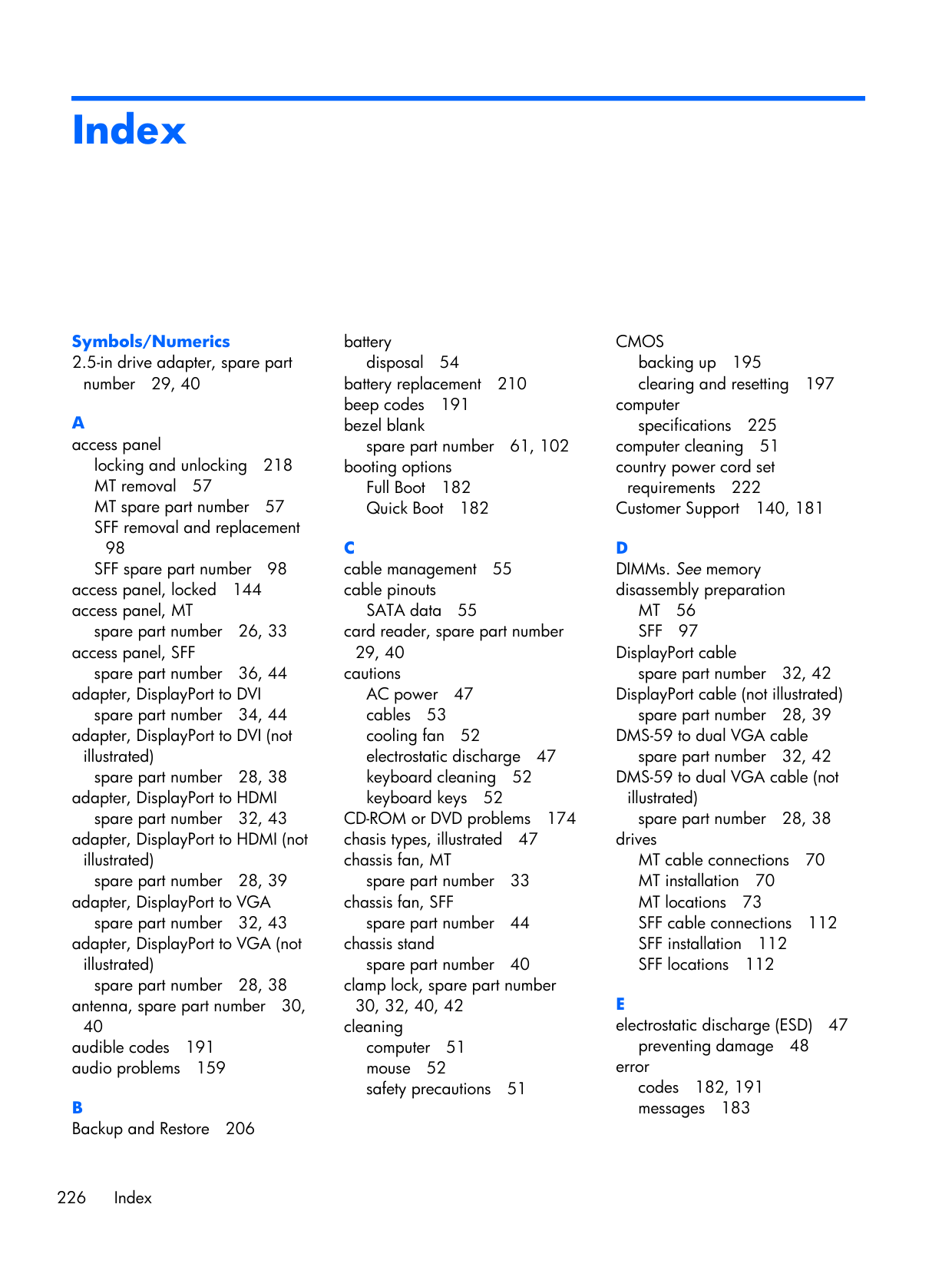

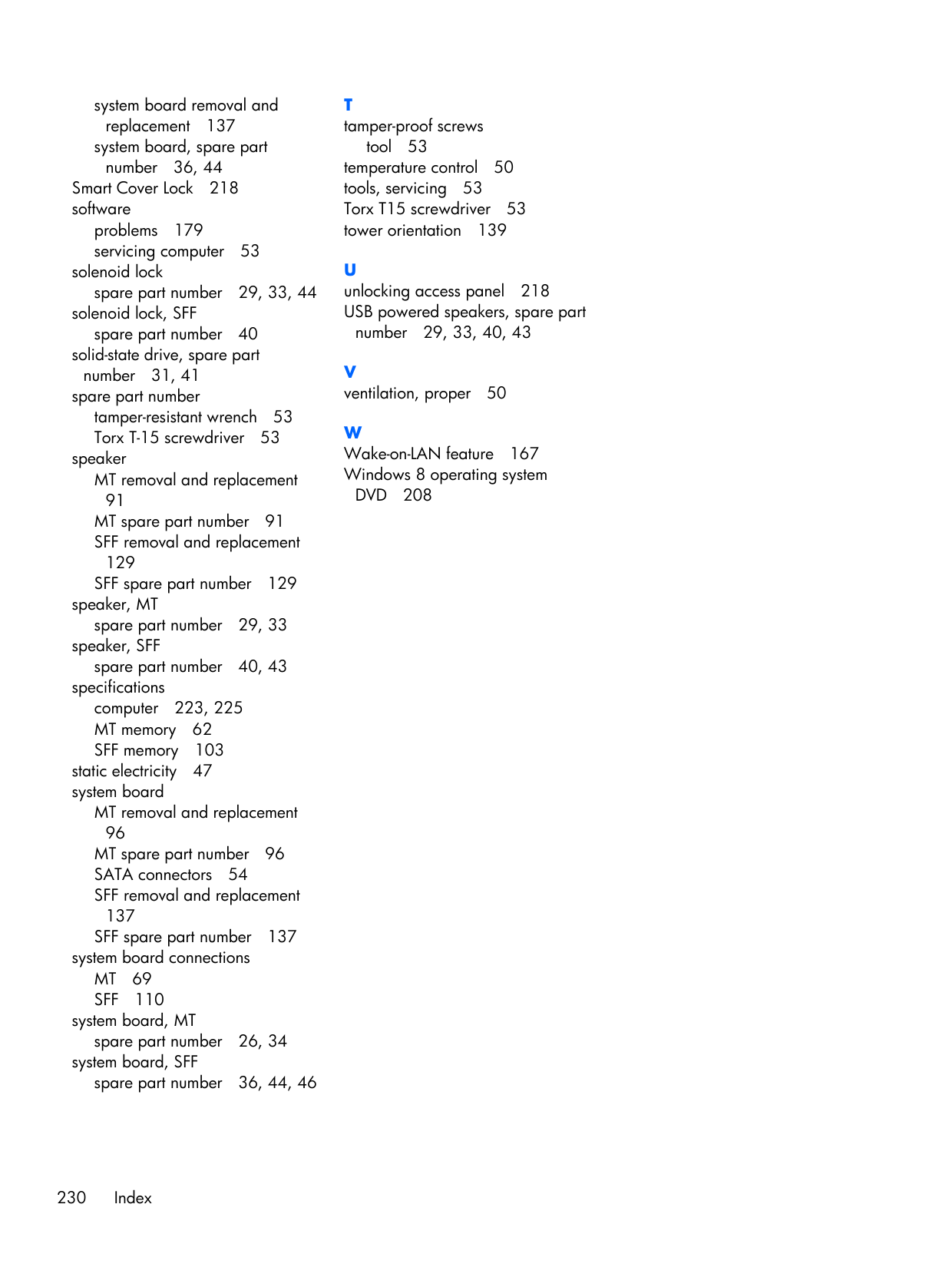

###### Index ............................................................................................................................... 226

x

1 Product Features

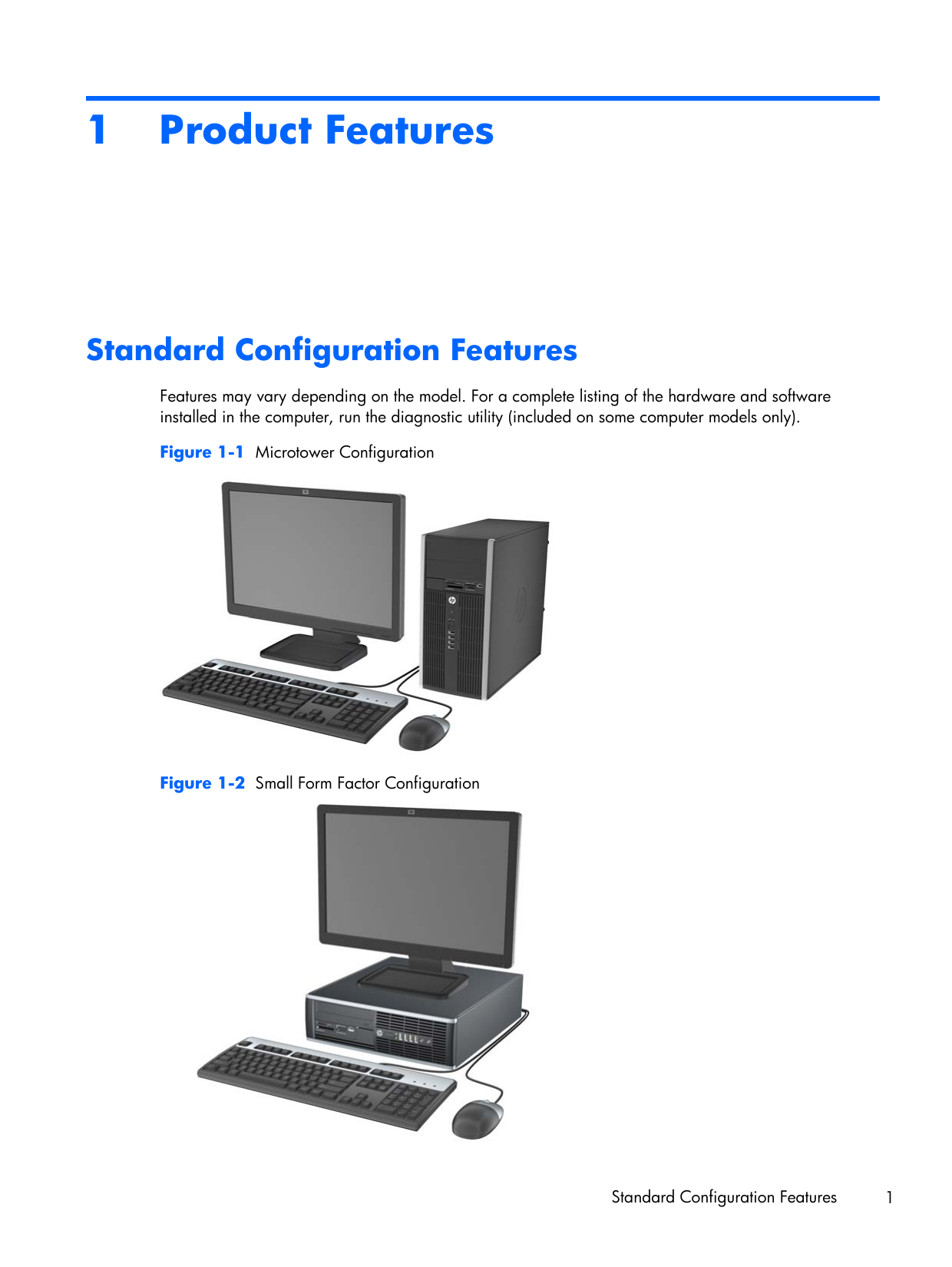

Standard Configuration Features

Features may vary depending on the model. For a complete listing of the hardware and software installed in the computer, run the diagnostic utility (included on some computer models only).



Standard Configuration Features 1

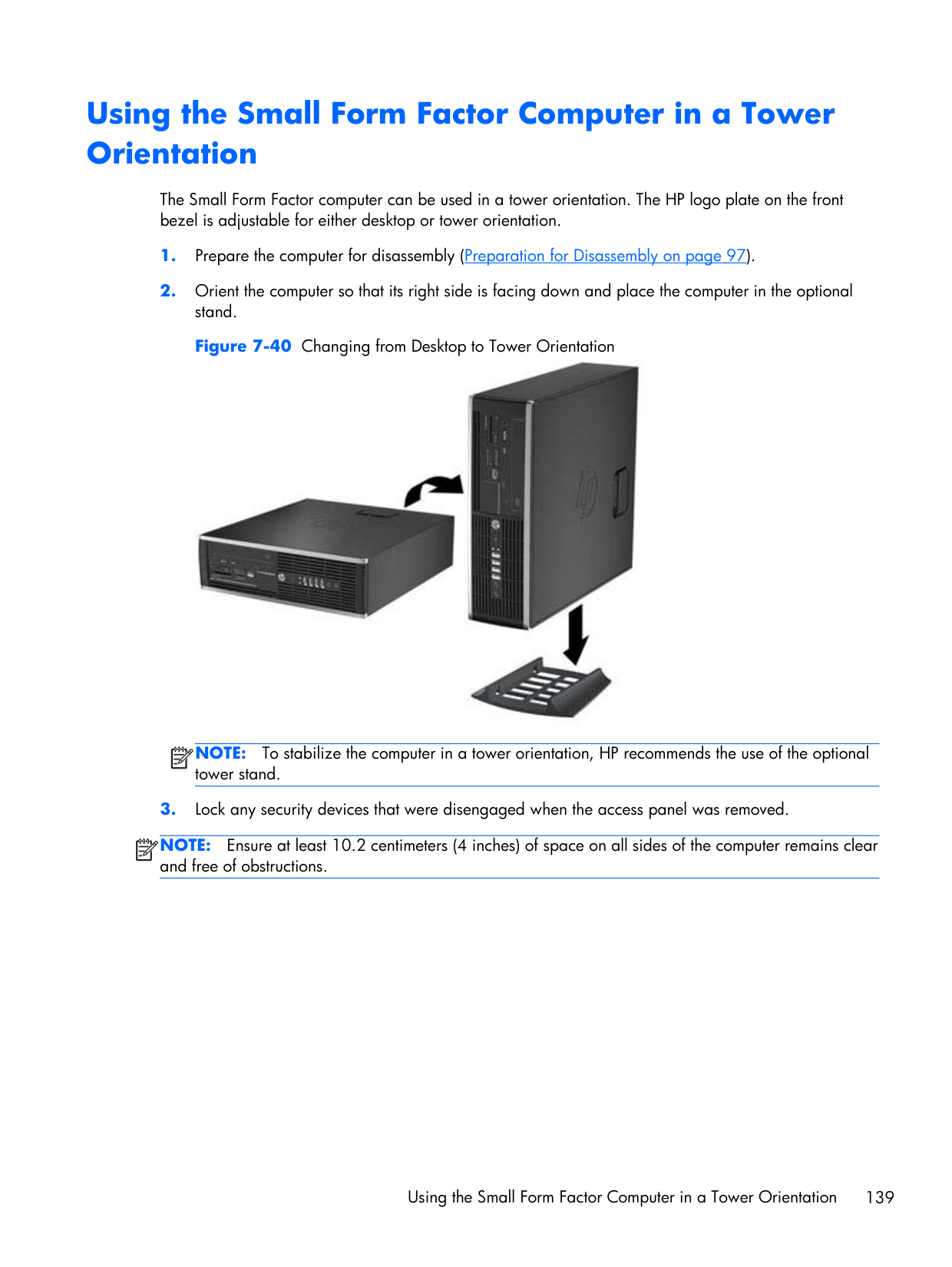

NOTE: The Small Form Factor computer can also be used in a tower orientation. For more information, see Using the Small Form Factor Computer in a Tower Orientation on page 139 in this guide.

| | |---|

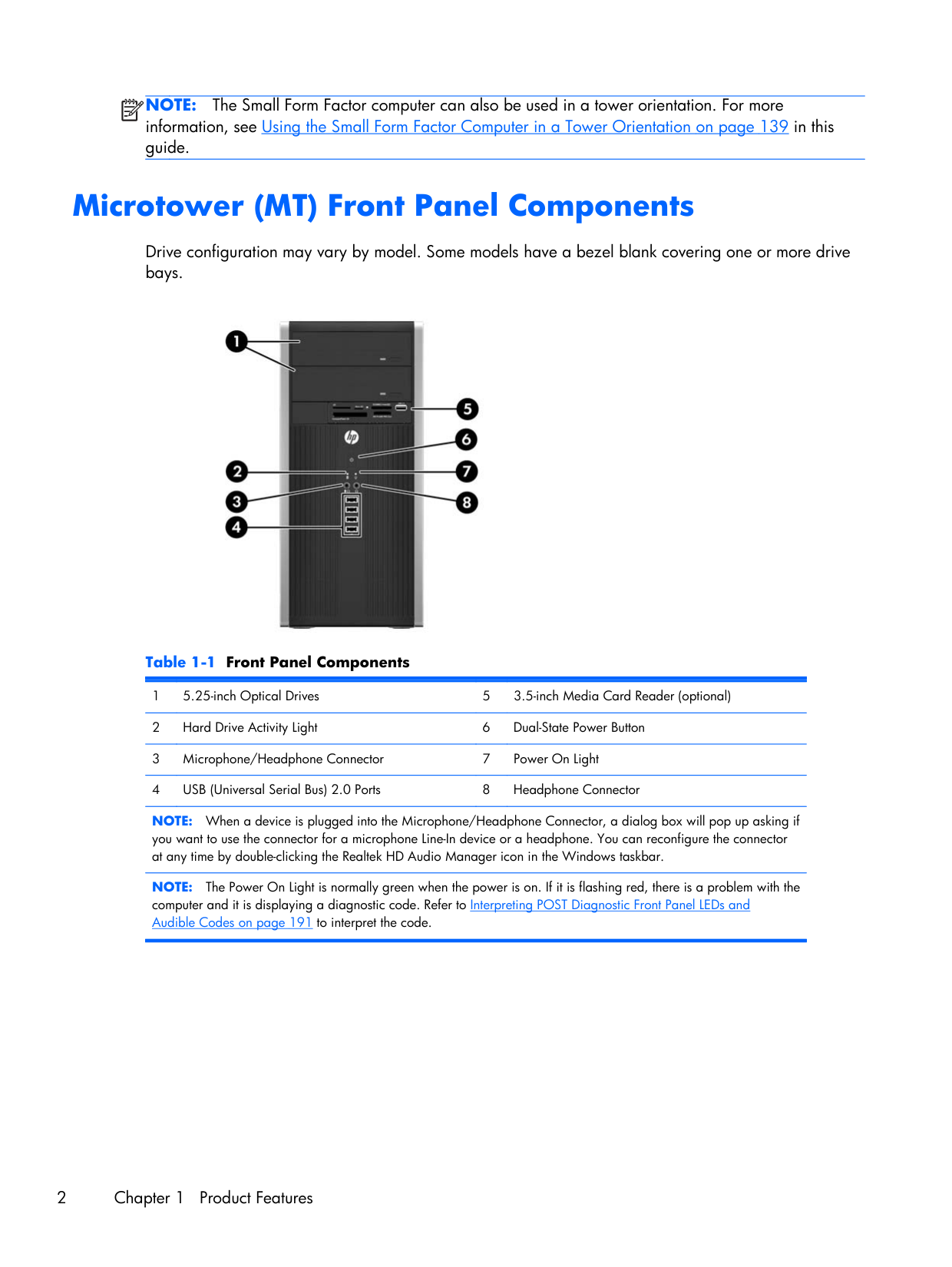

Microtower (MT) Front Panel Components

Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays.


Table 1-1 Front Panel Components

NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the computer and it is displaying a diagnostic code. Refer to Interpreting POST Diagnostic Front Panel LEDs and Audible Codes on page 191 to interpret the code.

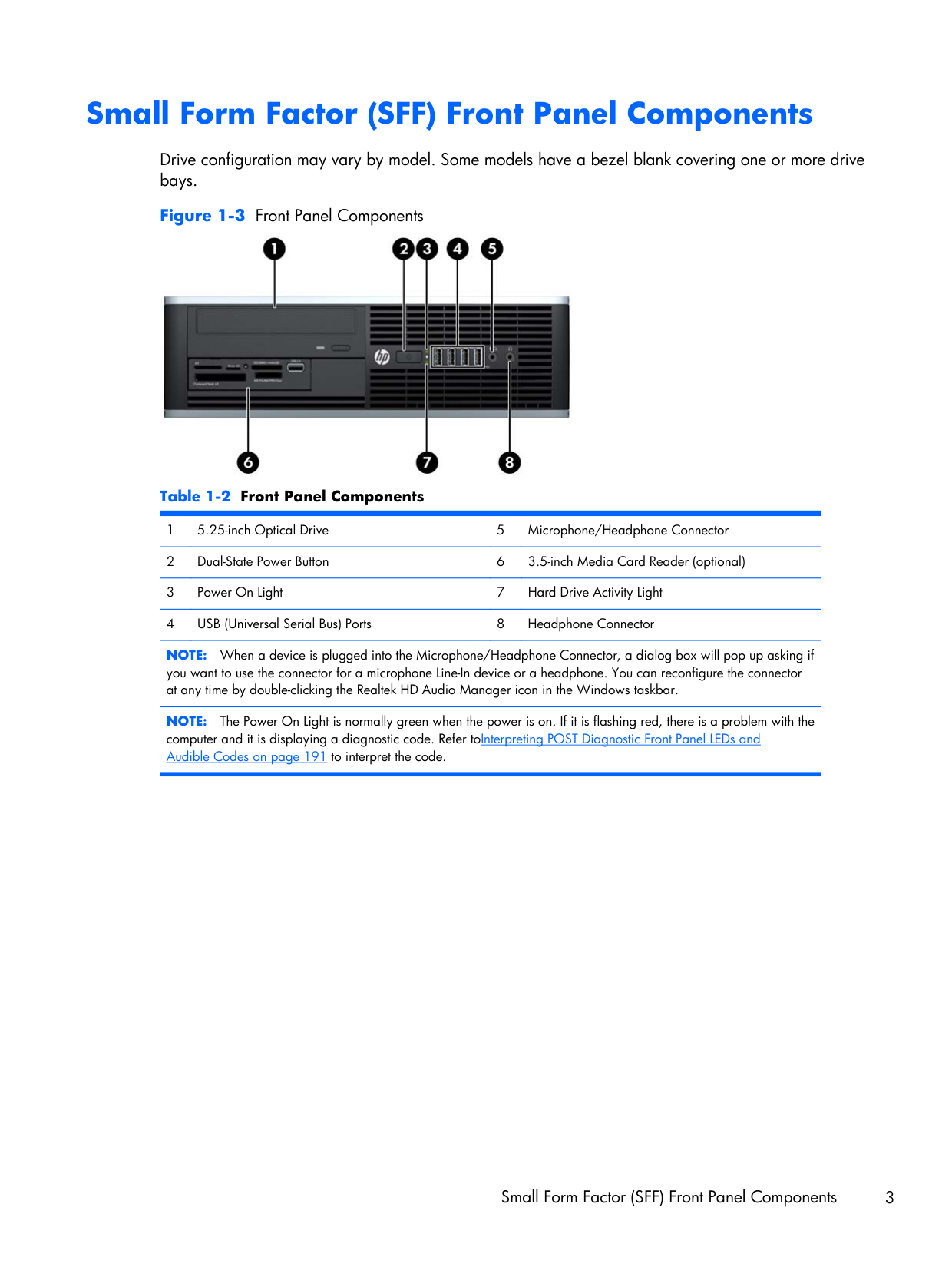

Small Form Factor (SFF) Front Panel Components

Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays.

Figure 1-3 Front Panel Components


Table 1-2 Front Panel Components

NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the computer and it is displaying a diagnostic code. Refer toInterpreting POST Diagnostic Front Panel LEDs and Audible Codes on page 191 to interpret the code.

####### Small Form Factor (SFF) Front Panel Components 3

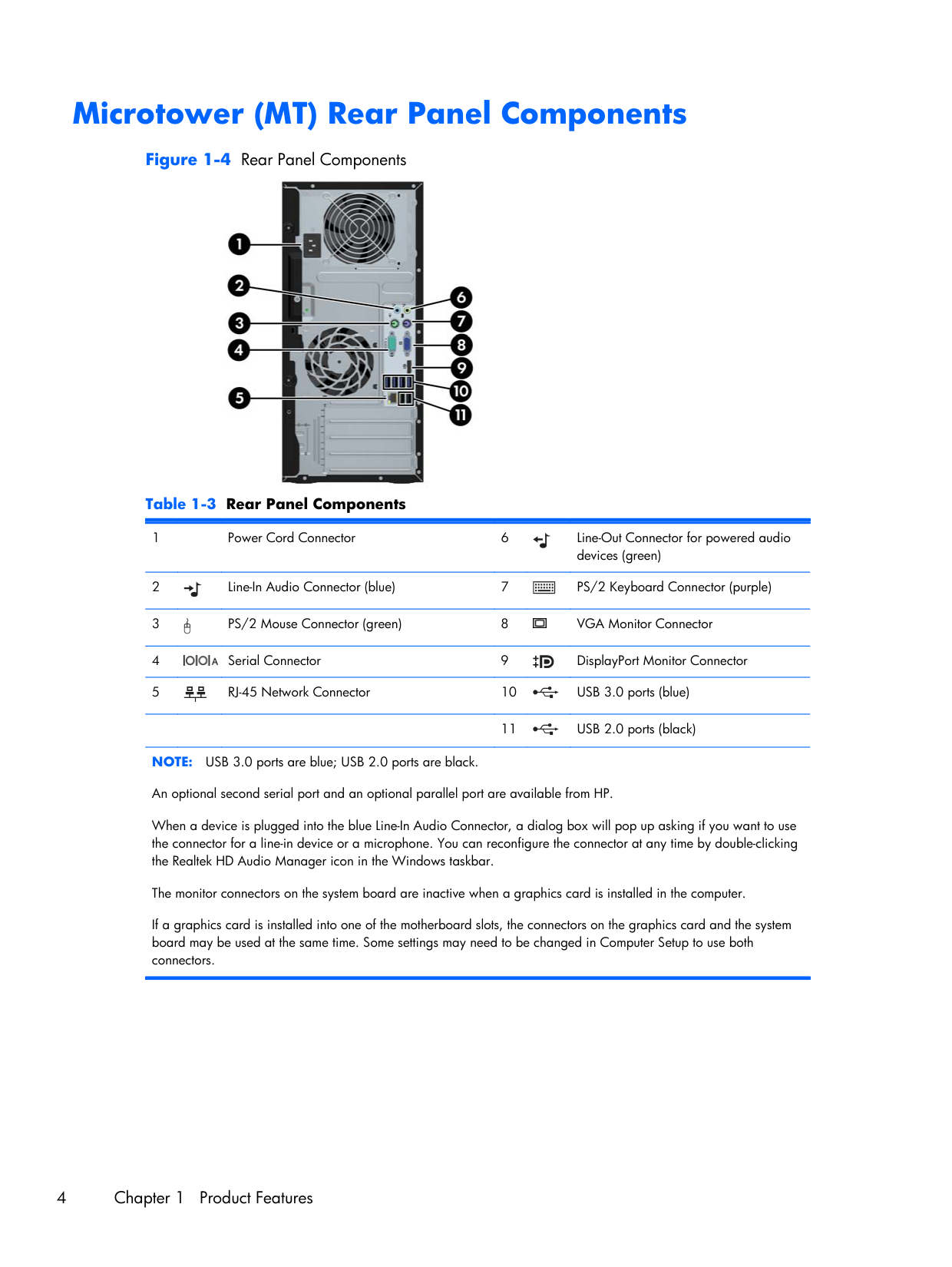

Microtower (MT) Rear Panel Components

Figure 1-4 Rear Panel Components


Table 1-3 Rear Panel Components

devices (green)



11 USB 2.0 ports (black)

NOTE: USB 3.0 ports are blue; USB 2.0 ports are black.

An optional second serial port and an optional parallel port are available from HP.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

The monitor connectors on the system board are inactive when a graphics card is installed in the computer.

If a graphics card is installed into one of the motherboard slots, the connectors on the graphics card and the system board may be used at the same time. Some settings may need to be changed in Computer Setup to use both connectors.

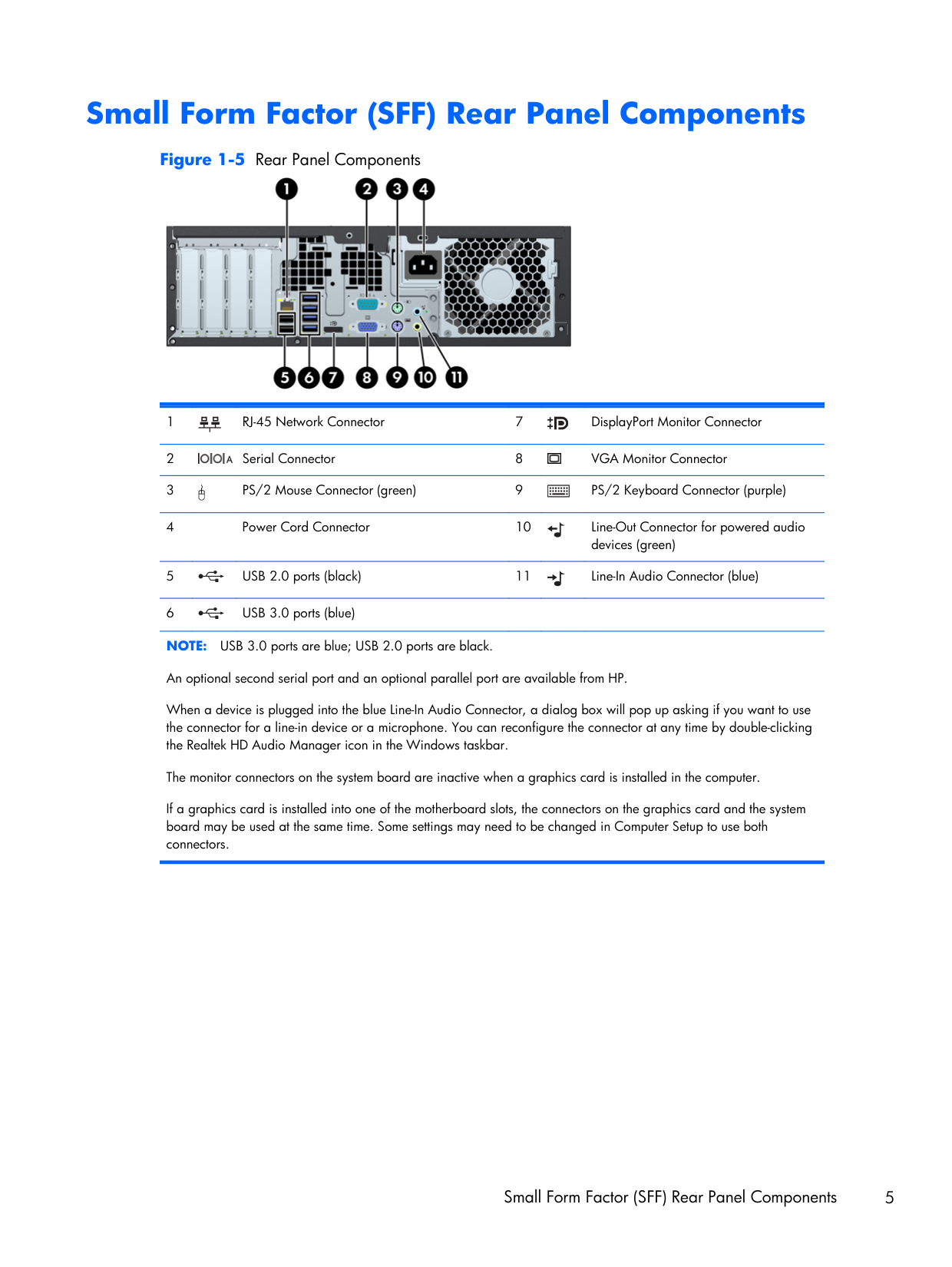

Small Form Factor (SFF) Rear Panel Components

Figure 1-5 Rear Panel Components




devices (green)

NOTE: USB 3.0 ports are blue; USB 2.0 ports are black.

An optional second serial port and an optional parallel port are available from HP.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

The monitor connectors on the system board are inactive when a graphics card is installed in the computer.

If a graphics card is installed into one of the motherboard slots, the connectors on the graphics card and the system board may be used at the same time. Some settings may need to be changed in Computer Setup to use both connectors.

Small Form Factor (SFF) Rear Panel Components 5

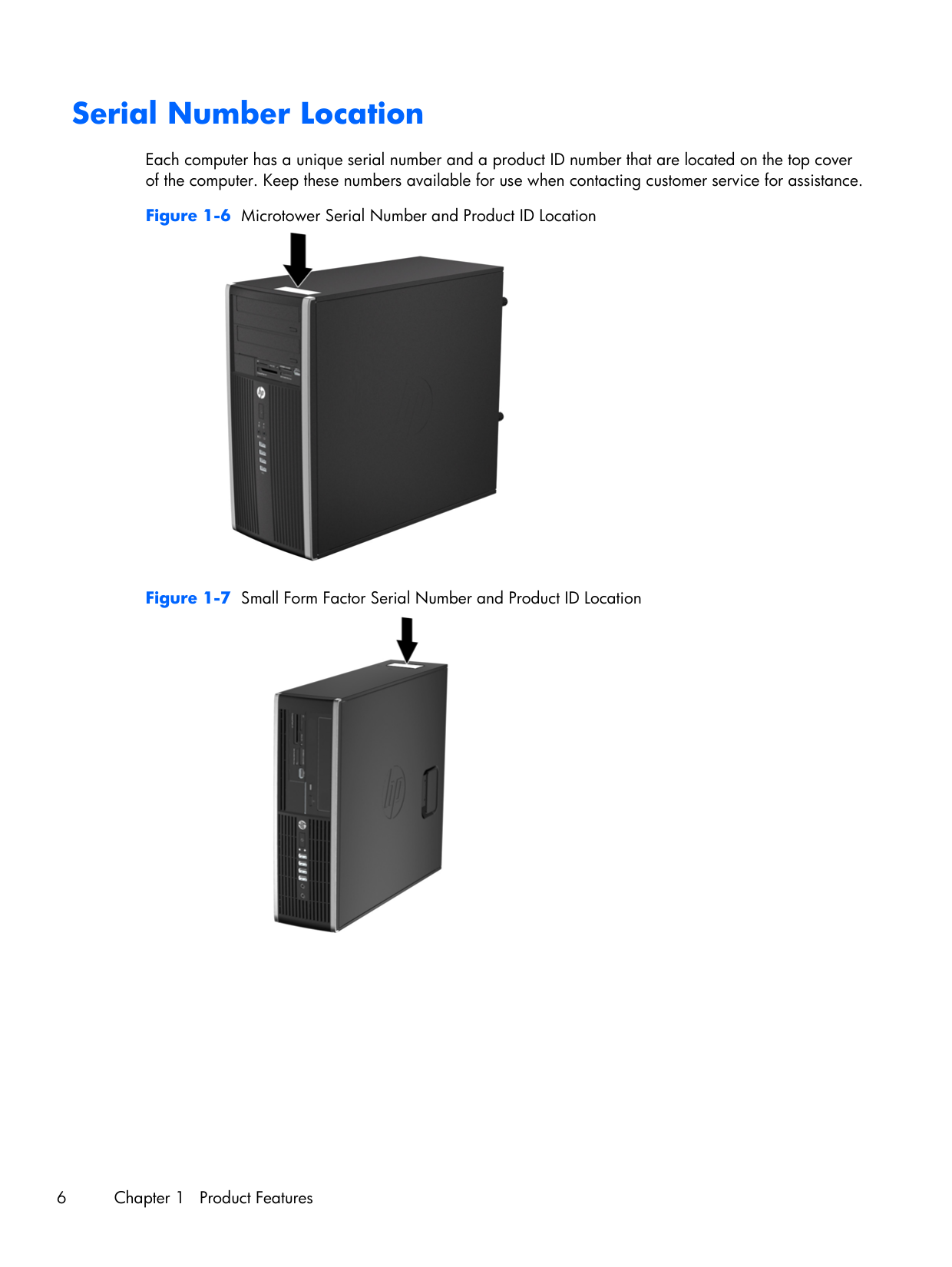

Serial Number Location

Each computer has a unique serial number and a product ID number that are located on the top cover of the computer. Keep these numbers available for use when contacting customer service for assistance.

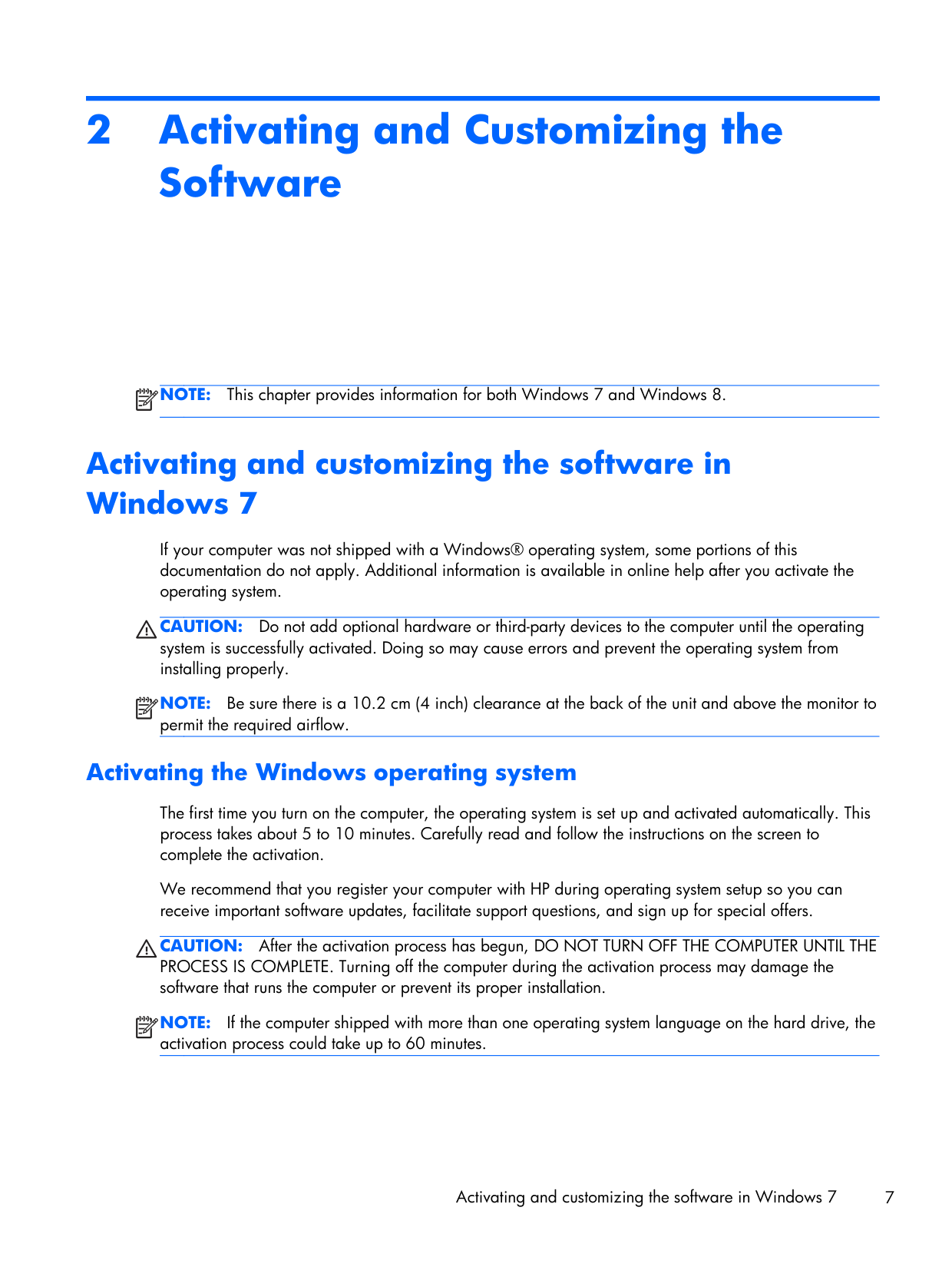

2 Activating and Customizing the Software

NOTE: This chapter provides information for both Windows 7 and Windows 8.

| | |---|

Activating and customizing the software in

If your computer was not shipped with a Windows® operating system, some portions of this documentation do not apply. Additional information is available in online help after you activate the operating system.

CAUTION: Do not add optional hardware or third-party devices to the computer until the operating system is successfully activated. Doing so may cause errors and prevent the operating system from installing properly.

NOTE: Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor to permit the required airflow.

| | |---|

#### Activating the Windows operating system

The first time you turn on the computer, the operating system is set up and activated automatically. This process takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to complete the activation.

We recommend that you register your computer with HP during operating system setup so you can receive important software updates, facilitate support questions, and sign up for special offers.

CAUTION: After the activation process has begun, DO NOT TURN OFF THE COMPUTER UNTIL THE PROCESS IS COMPLETE. Turning off the computer during the activation process may damage the software that runs the computer or prevent its proper installation.

NOTE: If the computer shipped with more than one operating system language on the hard drive, the activation process could take up to 60 minutes.

| | |---|

Activating and customizing the software in Windows 7 7

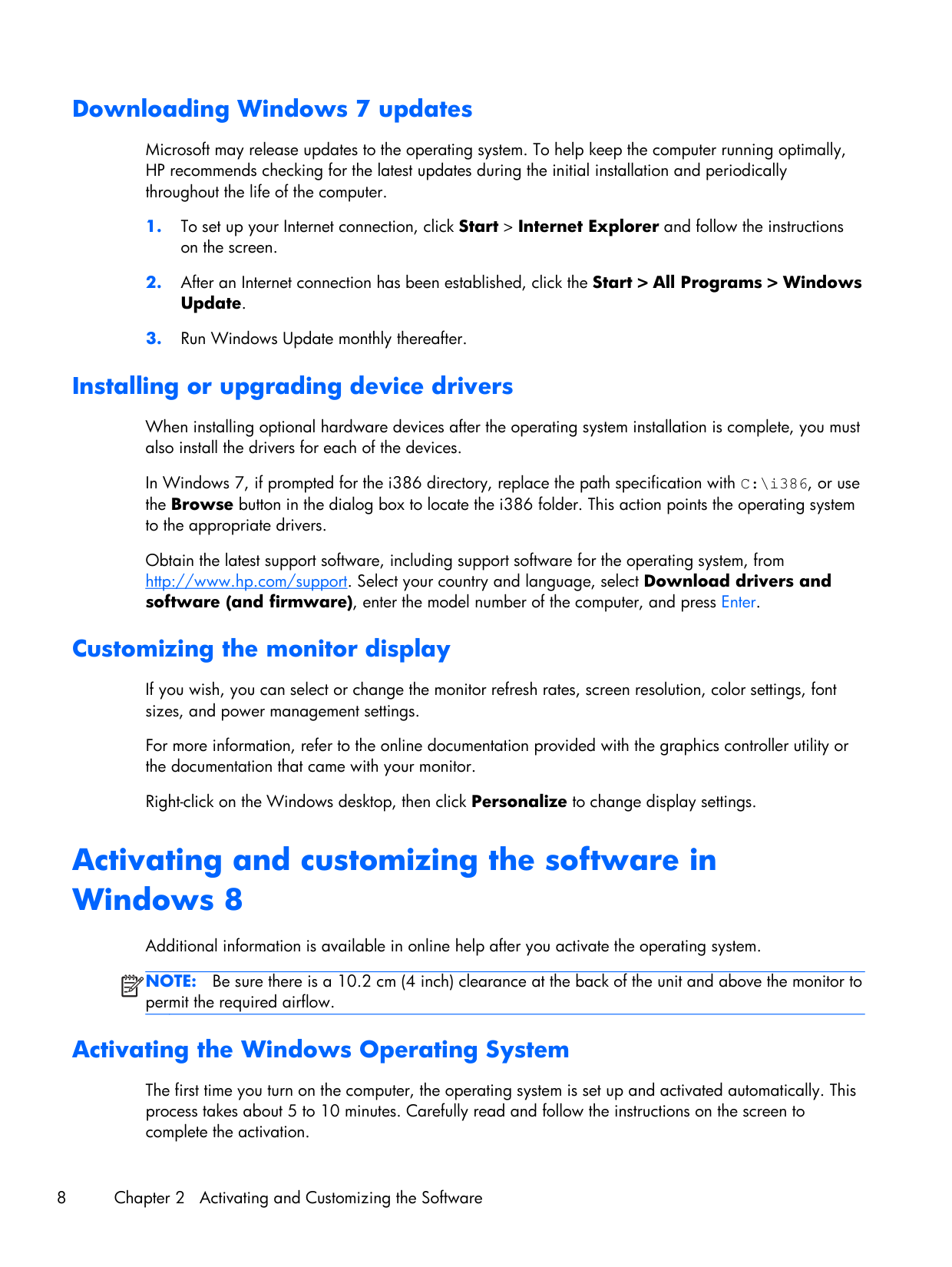

#### Downloading Windows 7 updates

Microsoft may release updates to the operating system. To help keep the computer running optimally, HP recommends checking for the latest updates during the initial installation and periodically throughout the life of the computer.

#### Installing or upgrading device drivers

When installing optional hardware devices after the operating system installation is complete, you must also install the drivers for each of the devices.

In Windows 7, if prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse button in the dialog box to locate the i386 folder. This action points the operating system to the appropriate drivers.

Obtain the latest support software, including support software for the operating system, from http://www.hp.com/support. Select your country and language, select Download drivers and software (and firmware), enter the model number of the computer, and press Enter.

#### Customizing the monitor display

If you wish, you can select or change the monitor refresh rates, screen resolution, color settings, font sizes, and power management settings.

For more information, refer to the online documentation provided with the graphics controller utility or the documentation that came with your monitor.

Right-click on the Windows desktop, then click Personalize to change display settings.

Activating and customizing the software in

Windows 8

Additional information is available in online help after you activate the operating system. NOTE: Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor to permit the required airflow.

| | |---|

#### Activating the Windows Operating System

The first time you turn on the computer, the operating system is set up and activated automatically. This process takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to complete the activation.

8 Chapter 2 Activating and Customizing the Software

We recommend that you register your computer with HP during operating system set up so you can receive important software updates, facilitate support questions, and sign up for special offers. You can also register your computer with HP using the Register with HP app on the Start screen.

CAUTION: After the activation process has begun, DO NOT TURN OFF THE COMPUTER UNTIL THE PROCESS IS COMPLETE. Turning off the computer during the activation process may damage the software that runs the computer or prevent its proper installation.

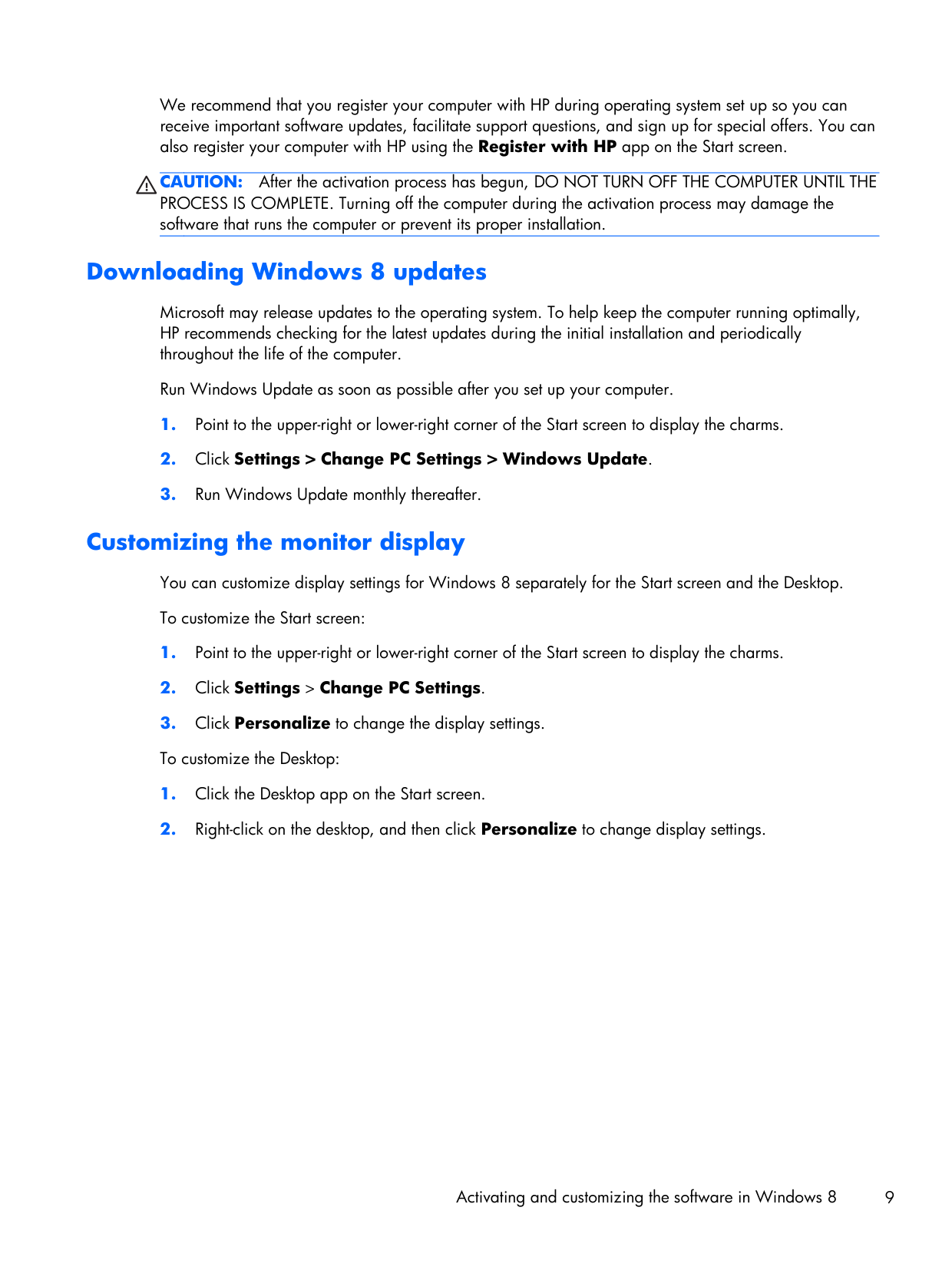

#### Downloading Windows 8 updates

Microsoft may release updates to the operating system. To help keep the computer running optimally, HP recommends checking for the latest updates during the initial installation and periodically throughout the life of the computer.

Run Windows Update as soon as possible after you set up your computer.

Customizing the monitor display You can customize display settings for Windows 8 separately for the Start screen and the Desktop. To customize the Start screen:

Activating and customizing the software in Windows 8 9

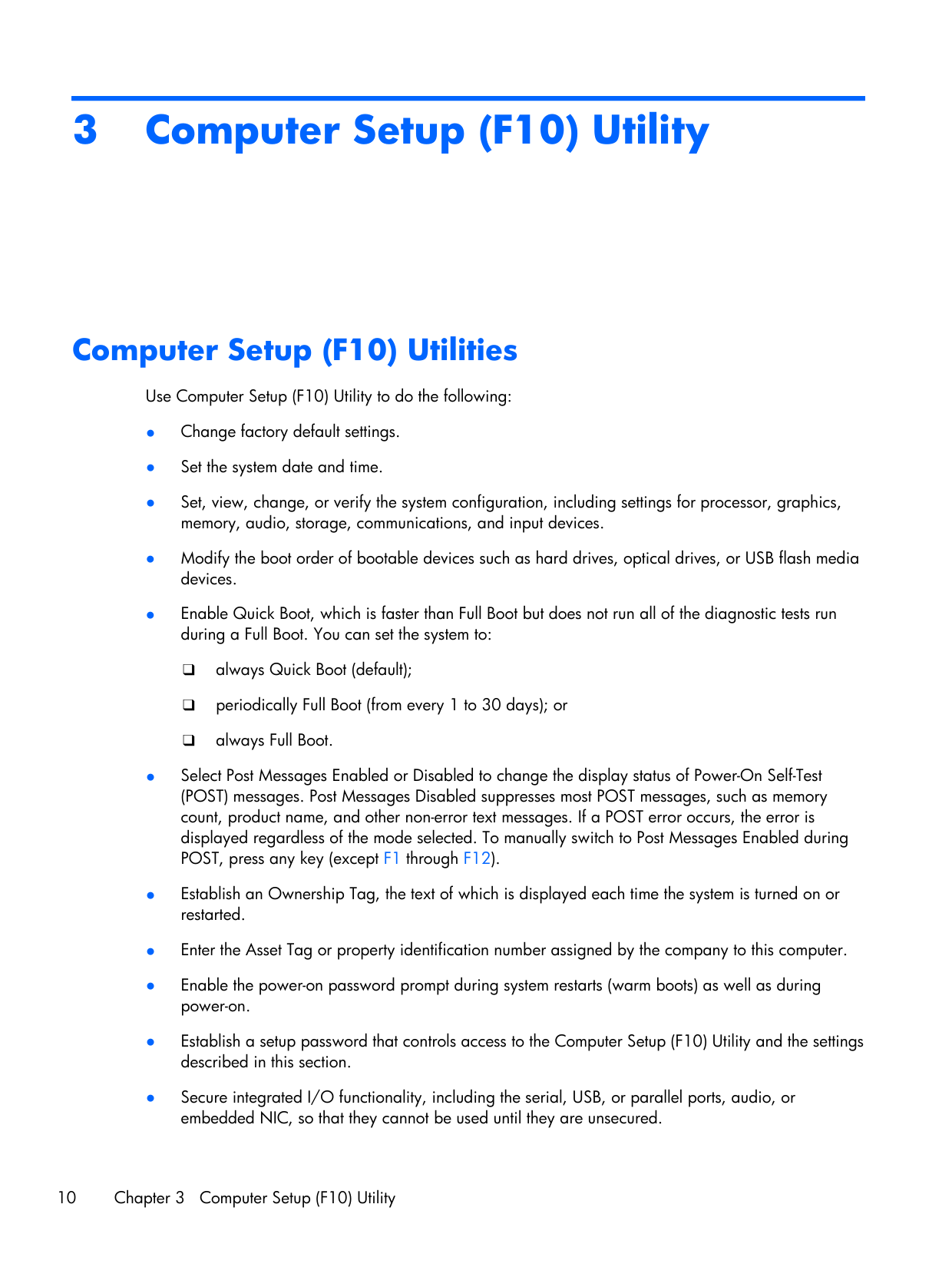

3 Computer Setup (F10) Utility

Computer Setup (F10) Utilities

Use Computer Setup (F10) Utility to do the following:

❑ always Quick Boot (default);

❑ periodically Full Boot (from every 1 to 30 days); or

❑ always Full Boot.

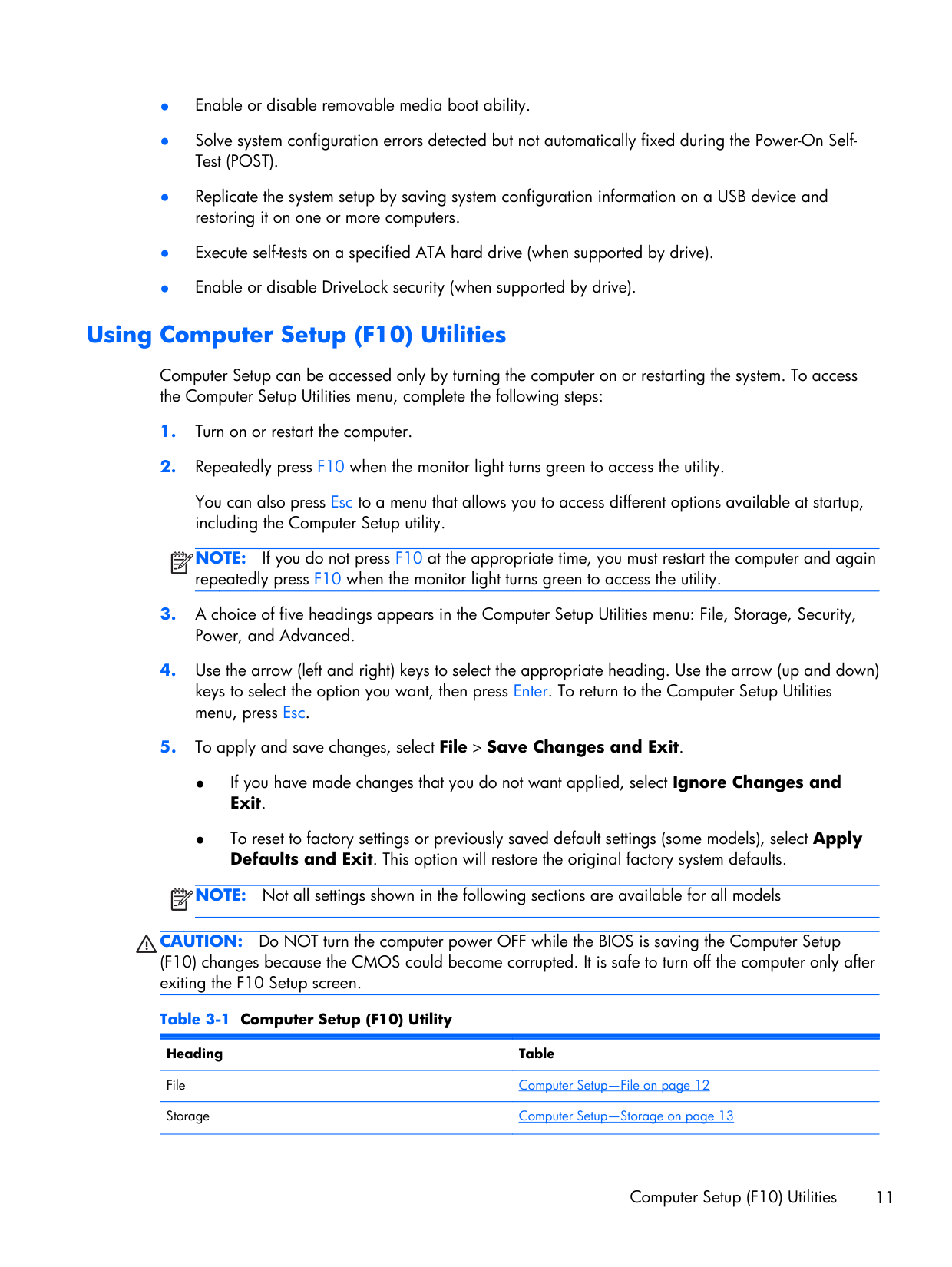

#### Using Computer Setup (F10) Utilities

Computer Setup can be accessed only by turning the computer on or restarting the system. To access the Computer Setup Utilities menu, complete the following steps:

You can also press Esc to a menu that allows you to access different options available at startup, including the Computer Setup utility.

| | |---|

NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again repeatedly press F10 when the monitor light turns green to access the utility.

NOTE: Not all settings shown in the following sections are available for all models

| | |---|

CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup (F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only after exiting the F10 Setup screen.

Table 3-1 Computer Setup (F10) Utility Heading Table File Computer Setup—File on page 12 Storage Computer Setup—Storage on page 13

Table 3-1 Computer Setup (F10) Utility (continued) Security Computer Setup—Security on page 15 Power Computer Setup—Power on page 20 Advanced Computer Setup—Advanced on page 21

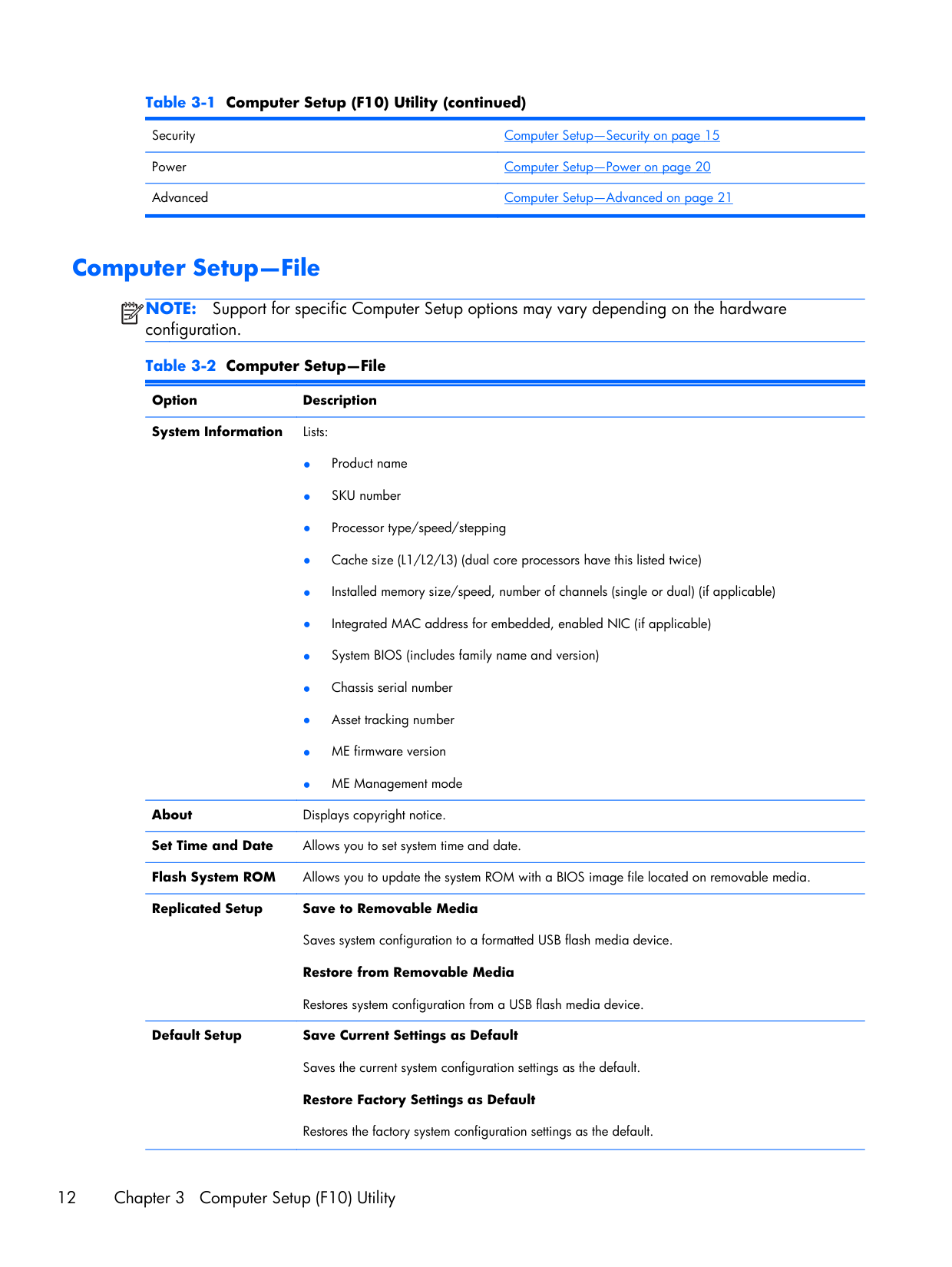

#### Computer Setup—File

NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration.

| | |---|

Table 3-2 Computer Setup—File Option Description System Information Lists:

About Displays copyright notice. Set Time and Date Allows you to set system time and date. Flash System ROM Allows you to update the system ROM with a BIOS image file located on removable media. Replicated Setup Save to Removable Media

Saves system configuration to a formatted USB flash media device.

Restore from Removable Media

Restores system configuration from a USB flash media device. Default Setup Save Current Settings as Default

Saves the current system configuration settings as the default.

######### Restore Factory Settings as Default

Restores the factory system configuration settings as the default.

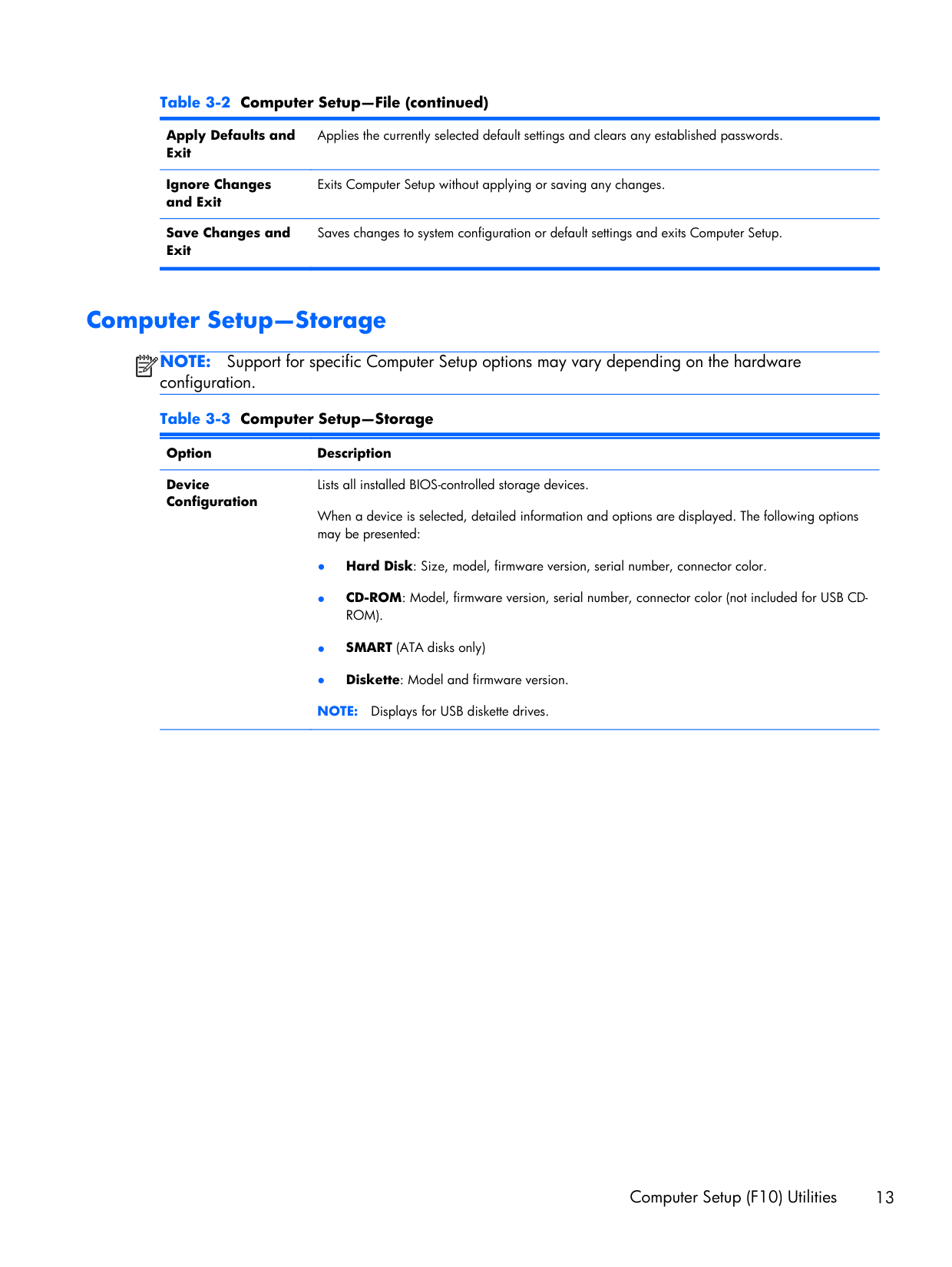

######## Table 3-2 Computer Setup—File (continued)

Apply Defaults and Exit

Ignore Changes and Exit

Save Changes and Exit

Applies the currently selected default settings and clears any established passwords.

Exits Computer Setup without applying or saving any changes.

Saves changes to system configuration or default settings and exits Computer Setup.

#### Computer Setup—Storage

NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration.

| | |---|

Table 3-3 Computer Setup—Storage Option Description Device Configuration

Lists all installed BIOS-controlled storage devices.

When a device is selected, detailed information and options are displayed. The following options may be presented:

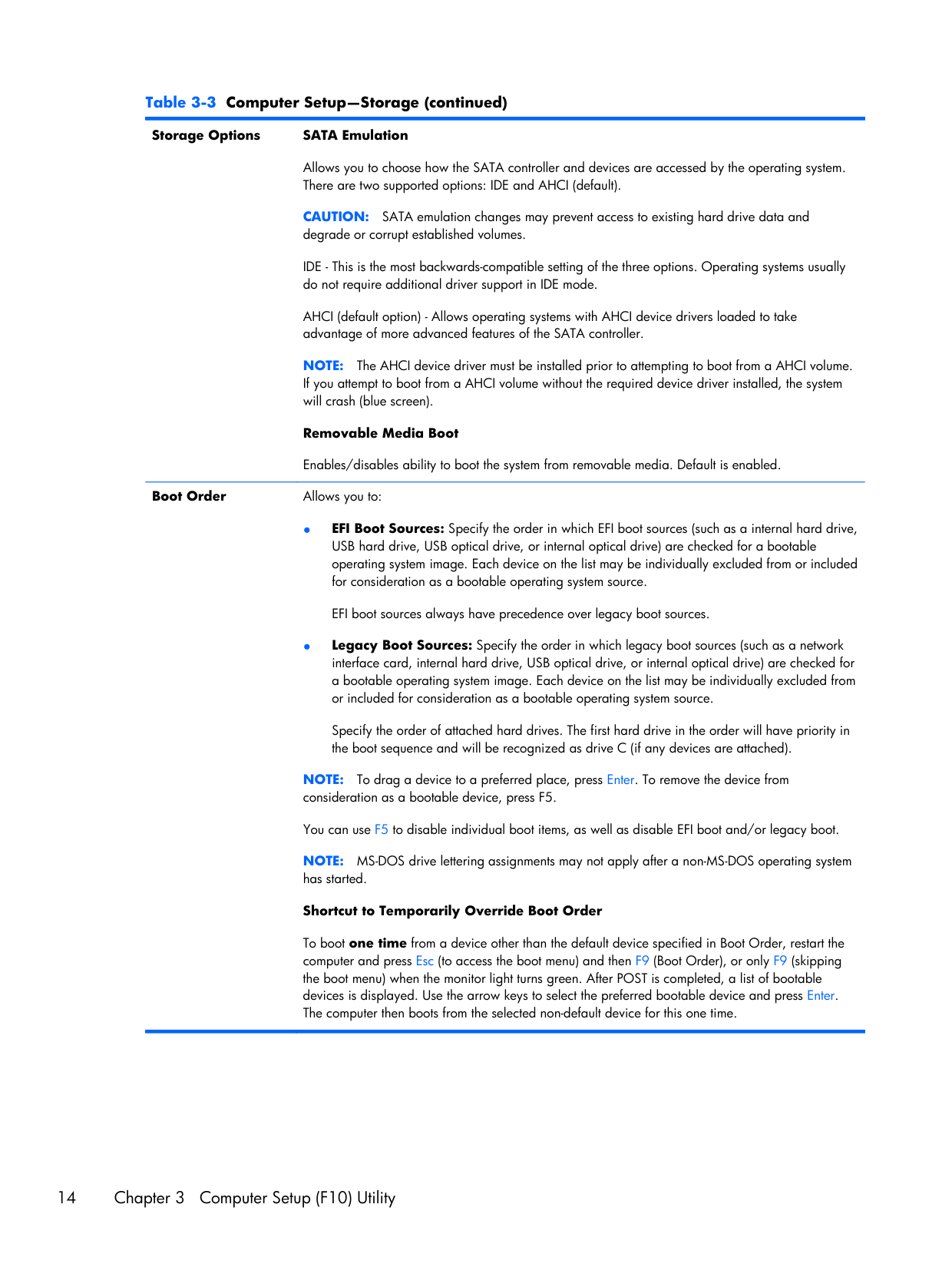

######## Table 3-3 Computer Setup—Storage (continued)

######### Storage Options SATA Emulation

Allows you to choose how the SATA controller and devices are accessed by the operating system. There are two supported options: IDE and AHCI (default).

CAUTION: SATA emulation changes may prevent access to existing hard drive data and degrade or corrupt established volumes.

IDE - This is the most backwards-compatible setting of the three options. Operating systems usually do not require additional driver support in IDE mode.

AHCI (default option) - Allows operating systems with AHCI device drivers loaded to take advantage of more advanced features of the SATA controller.

NOTE: The AHCI device driver must be installed prior to attempting to boot from a AHCI volume. If you attempt to boot from a AHCI volume without the required device driver installed, the system will crash (blue screen).

######### Removable Media Boot

Enables/disables ability to boot the system from removable media. Default is enabled.

Boot Order Allows you to:

EFI boot sources always have precedence over legacy boot sources.

Specify the order of attached hard drives. The first hard drive in the order will have priority in the boot sequence and will be recognized as drive C (if any devices are attached).

NOTE: To drag a device to a preferred place, press Enter. To remove the device from consideration as a bootable device, press F5.

You can use F5 to disable individual boot items, as well as disable EFI boot and/or legacy boot.

NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system has started.

######### Shortcut to Temporarily Override Boot Order

To boot one time from a device other than the default device specified in Boot Order, restart the computer and press Esc (to access the boot menu) and then F9 (Boot Order), or only F9 (skipping the boot menu) when the monitor light turns green. After POST is completed, a list of bootable devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter. The computer then boots from the selected non-default device for this one time.

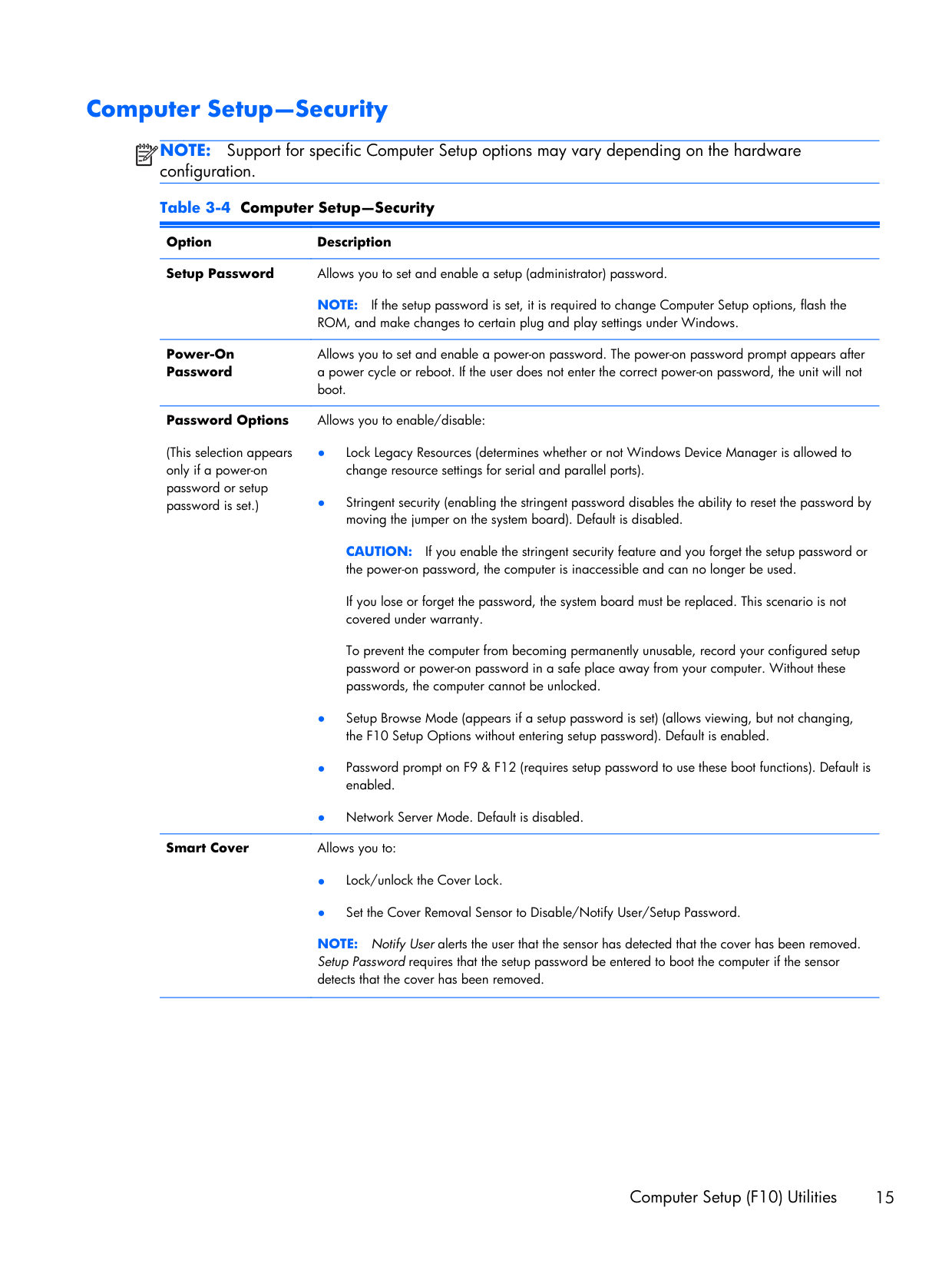

#### Computer Setup—Security

NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration.

| | |---|

Table 3-4 Computer Setup—Security Option Description Setup Password Allows you to set and enable a setup (administrator) password.

Power-On Password

######### Password Options

NOTE: If the setup password is set, it is required to change Computer Setup options, flash the ROM, and make changes to certain plug and play settings under Windows.

Allows you to set and enable a power-on password. The power-on password prompt appears after a power cycle or reboot. If the user does not enter the correct power-on password, the unit will not boot.

Allows you to enable/disable:

(This selection appears only if a power-on password or setup password is set.)

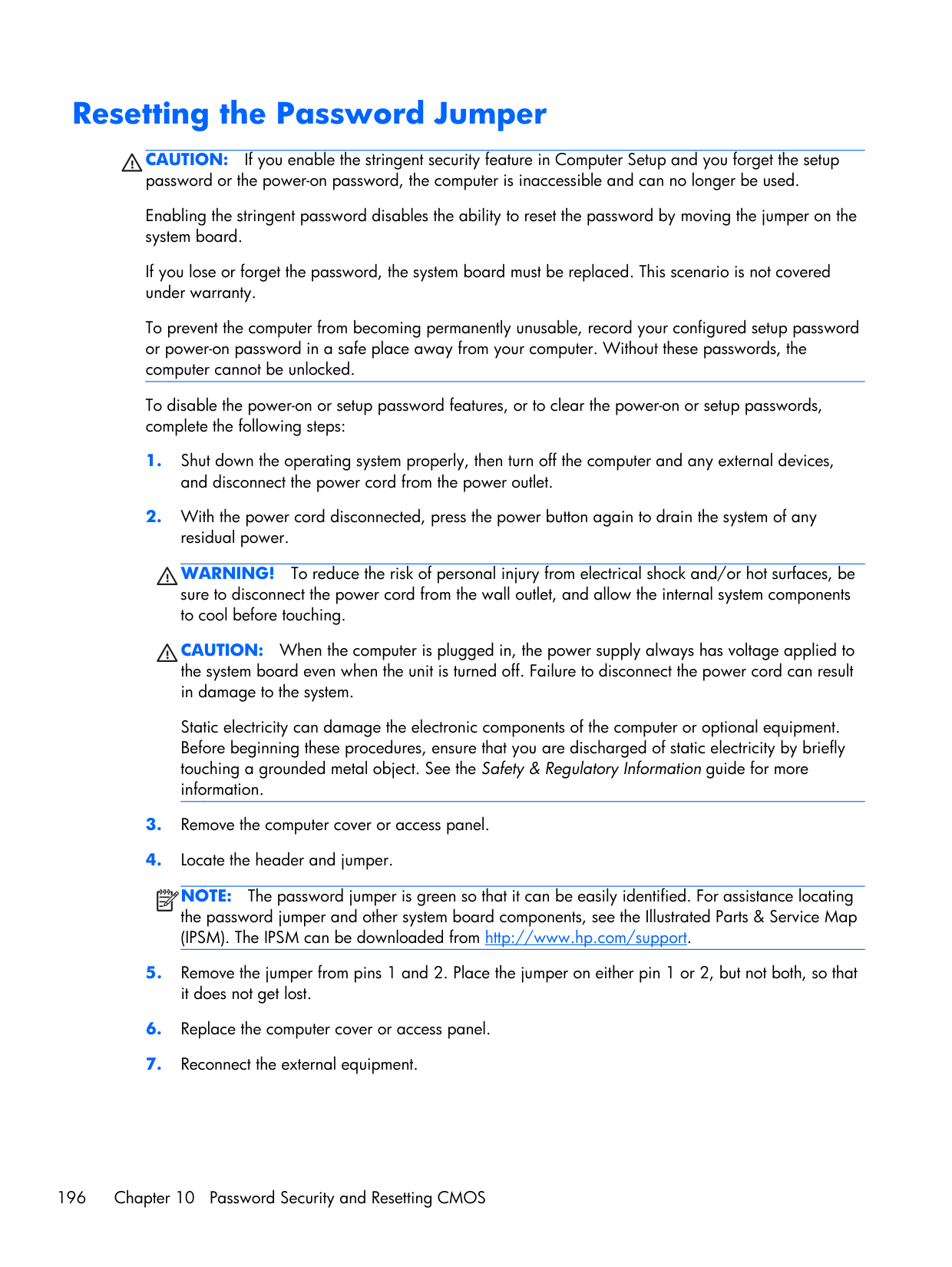

CAUTION: If you enable the stringent security feature and you forget the setup password or the power-on password, the computer is inaccessible and can no longer be used.

If you lose or forget the password, the system board must be replaced. This scenario is not covered under warranty.

To prevent the computer from becoming permanently unusable, record your configured setup password or power-on password in a safe place away from your computer. Without these passwords, the computer cannot be unlocked.

######### Smart Cover Allows you to:

NOTE: Notify User alerts the user that the sensor has detected that the cover has been removed. Setup Password requires that the setup password be entered to boot the computer if the sensor detects that the cover has been removed.

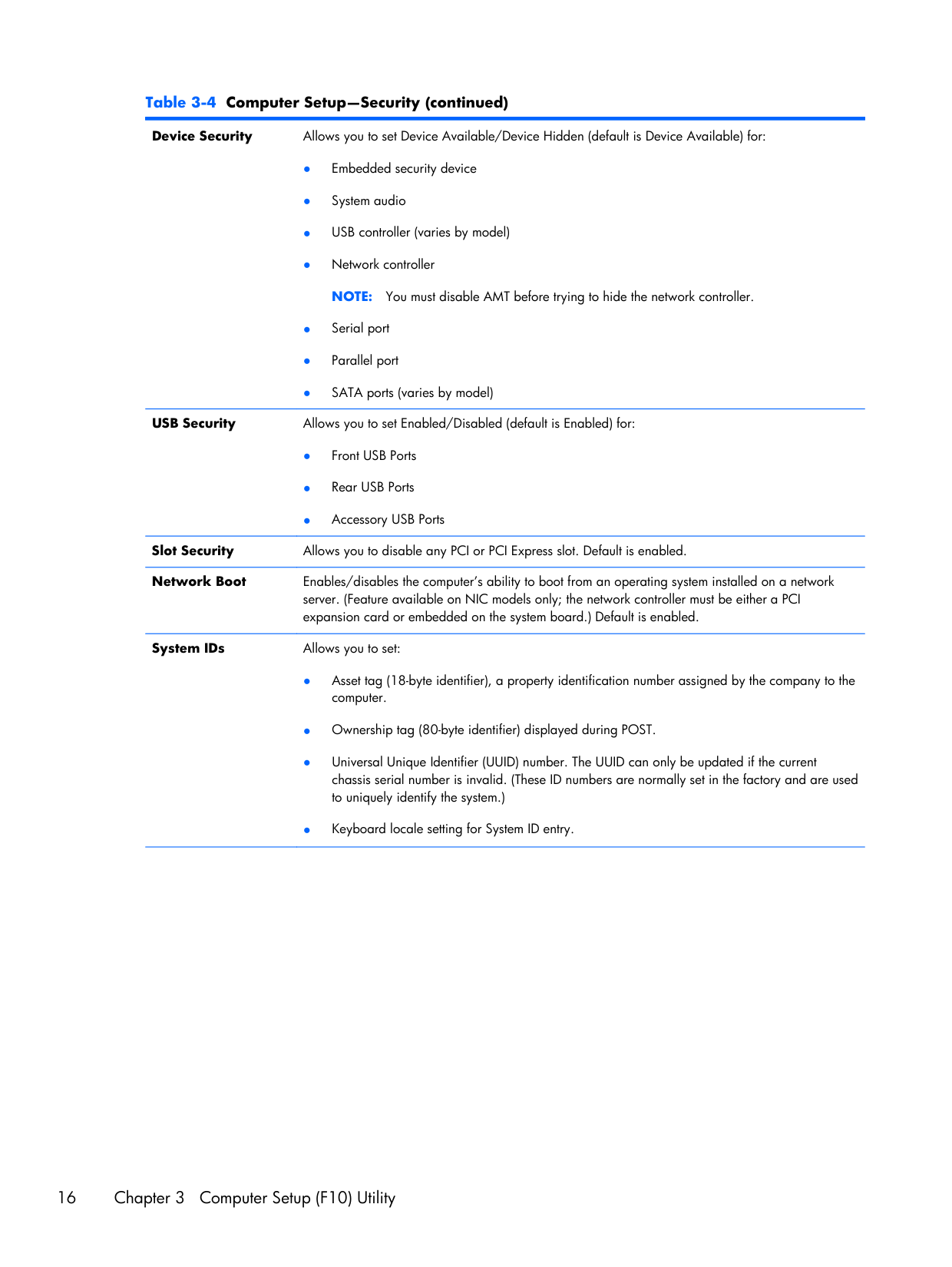

Device Security Allows you to set Device Available/Device Hidden (default is Device Available) for:

USB Security Allows you to set Enabled/Disabled (default is Enabled) for:

Slot Security Allows you to disable any PCI or PCI Express slot. Default is enabled. Network Boot Enables/disables the computer’s ability to boot from an operating system installed on a network

server. (Feature available on NIC models only; the network controller must be either a PCI expansion card or embedded on the system board.) Default is enabled.

System IDs Allows you to set:

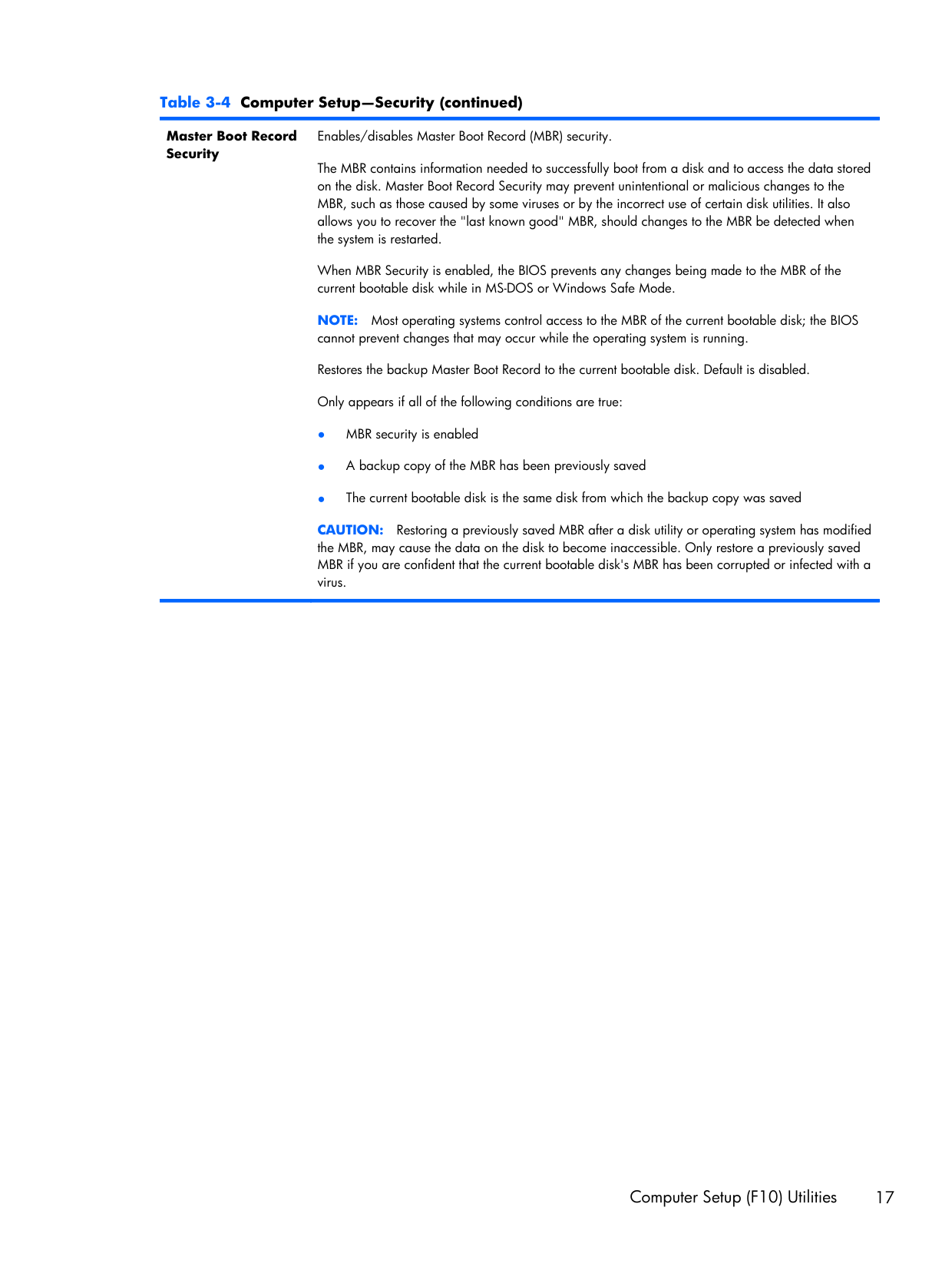

Master Boot Record Security

Enables/disables Master Boot Record (MBR) security.

The MBR contains information needed to successfully boot from a disk and to access the data stored on the disk. Master Boot Record Security may prevent unintentional or malicious changes to the MBR, such as those caused by some viruses or by the incorrect use of certain disk utilities. It also allows you to recover the "last known good" MBR, should changes to the MBR be detected when the system is restarted.

When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the current bootable disk while in MS-DOS or Windows Safe Mode.

NOTE: Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot prevent changes that may occur while the operating system is running.

Restores the backup Master Boot Record to the current bootable disk. Default is disabled.

Only appears if all of the following conditions are true:

CAUTION: Restoring a previously saved MBR after a disk utility or operating system has modified the MBR, may cause the data on the disk to become inaccessible. Only restore a previously saved MBR if you are confident that the current bootable disk's MBR has been corrupted or infected with a virus.

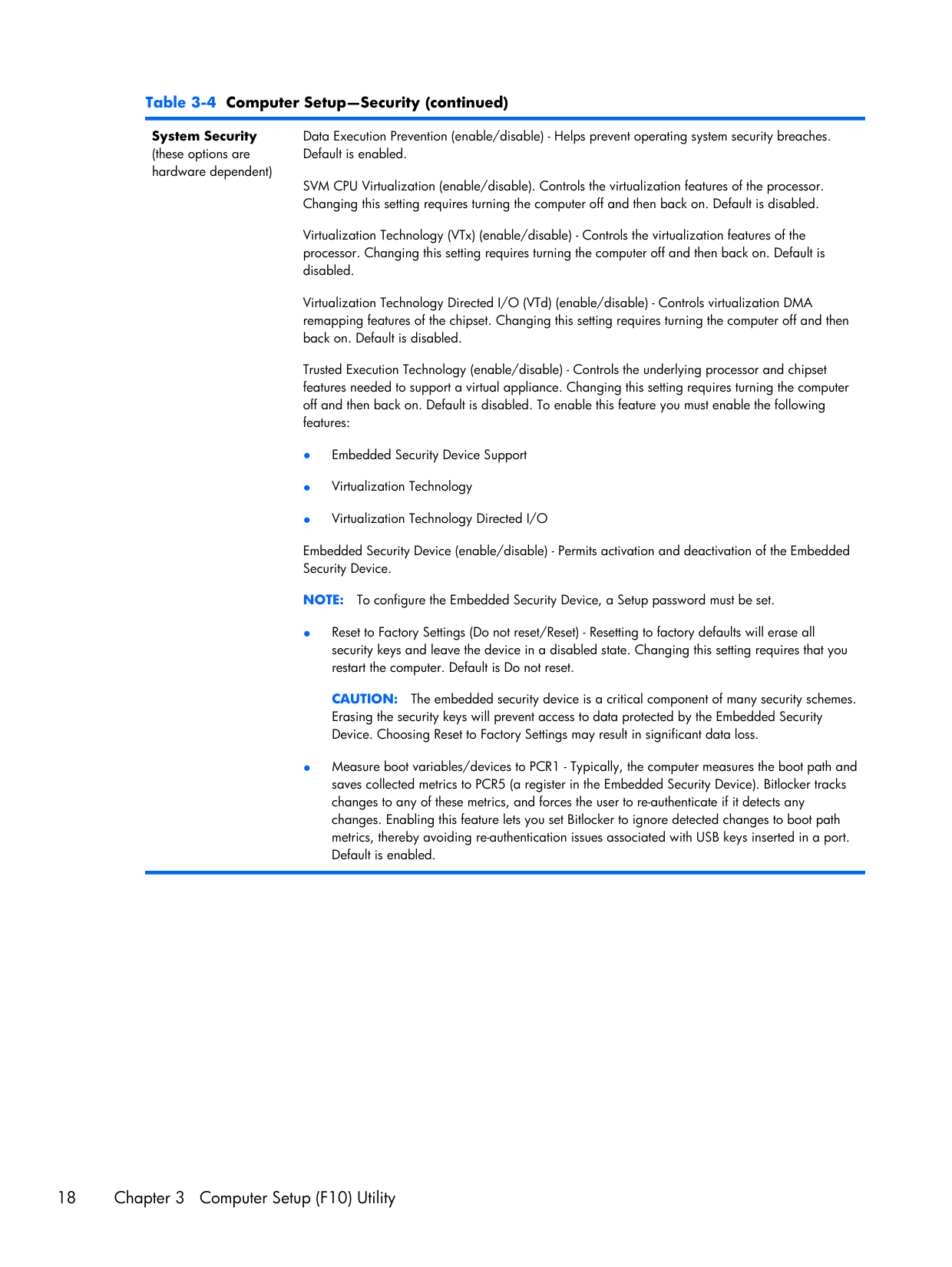

Data Execution Prevention (enable/disable) - Helps prevent operating system security breaches. Default is enabled.

(these options are hardware dependent)

SVM CPU Virtualization (enable/disable). Controls the virtualization features of the processor. Changing this setting requires turning the computer off and then back on. Default is disabled.

Virtualization Technology (VTx) (enable/disable) - Controls the virtualization features of the processor. Changing this setting requires turning the computer off and then back on. Default is disabled.

Virtualization Technology Directed I/O (VTd) (enable/disable) - Controls virtualization DMA remapping features of the chipset. Changing this setting requires turning the computer off and then back on. Default is disabled.

Trusted Execution Technology (enable/disable) - Controls the underlying processor and chipset features needed to support a virtual appliance. Changing this setting requires turning the computer off and then back on. Default is disabled. To enable this feature you must enable the following features:

Embedded Security Device (enable/disable) - Permits activation and deactivation of the Embedded Security Device.

NOTE: To configure the Embedded Security Device, a Setup password must be set.

CAUTION: The embedded security device is a critical component of many security schemes. Erasing the security keys will prevent access to data protected by the Embedded Security Device. Choosing Reset to Factory Settings may result in significant data loss.

OS management of Embedded Security Device (enable/disable) - This option allows the user to limit OS control of the Embedded Security Device. Default is enabled. This option is automatically disabled if Trusted Execution Technology is enabled.

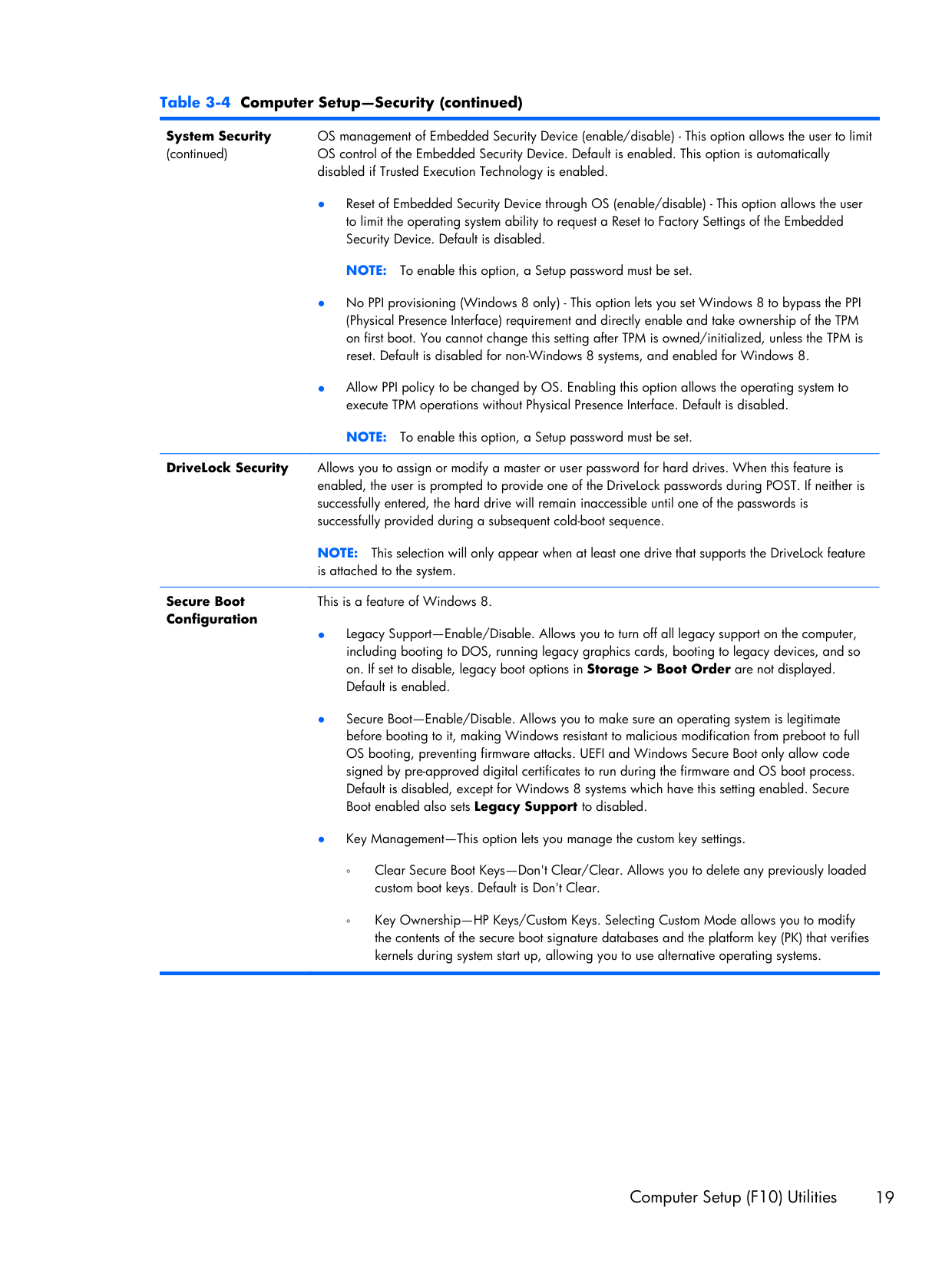

(continued)

DriveLock Security Allows you to assign or modify a master or user password for hard drives. When this feature is enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully entered, the hard drive will remain inaccessible until one of the passwords is successfully provided during a subsequent cold-boot sequence.

Secure Boot Configuration

NOTE: This selection will only appear when at least one drive that supports the DriveLock feature is attached to the system.

This is a feature of Windows 8.

Selecting HP Keys causes the computer boot using the preloaded HP-specific boot keys. Default is HP Keys.

NOTE: If Windows 8 detects a serious error, it will interrupt the boot process automatically and display advanced boot options.

From Windows 8, you can press Shift and select Restart to access the screen that lets you boot to a device or troubleshoot your computer.

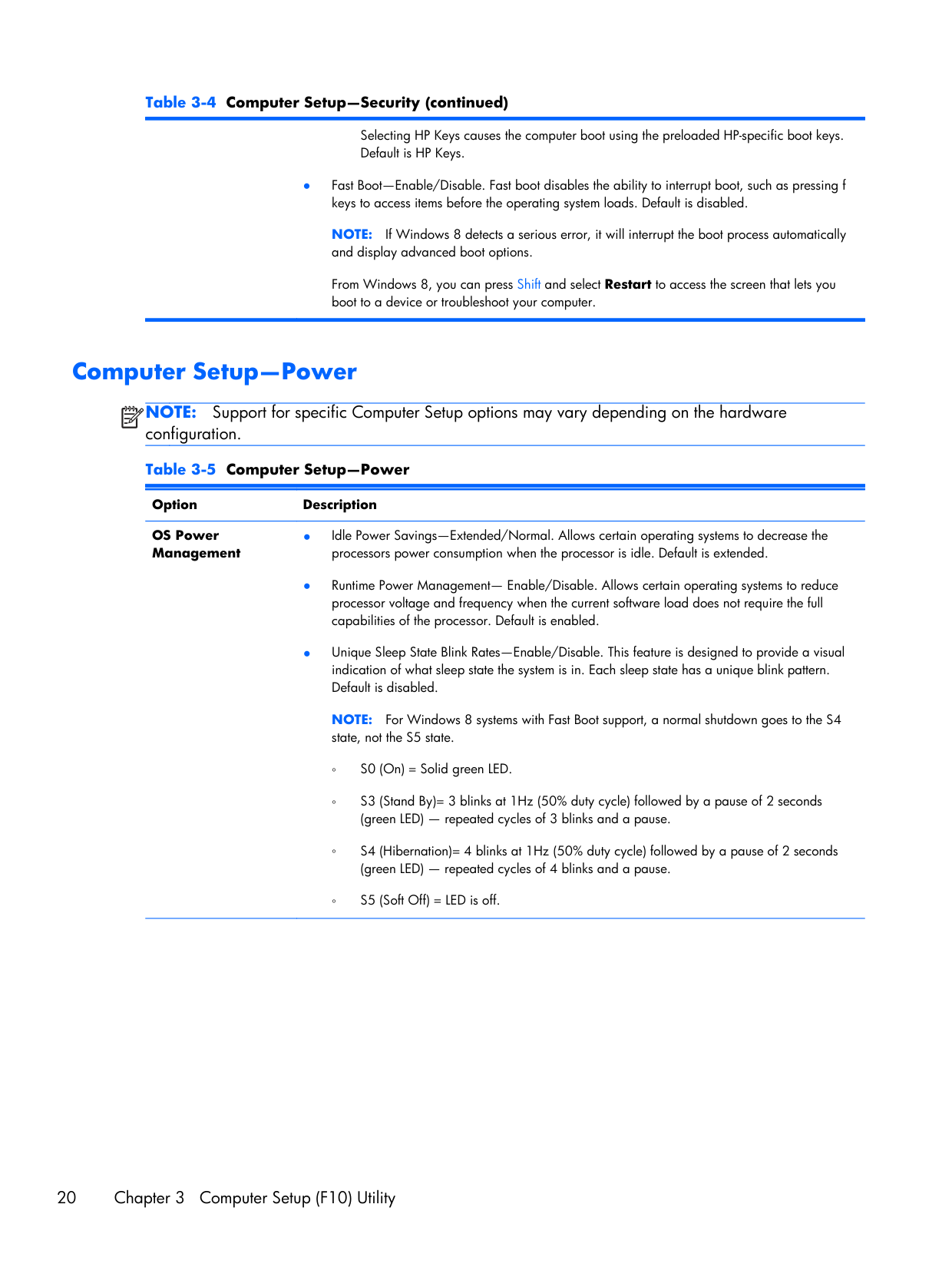

#### Computer Setup—Power

NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration.

| | |---|

Table 3-5 Computer Setup—Power Option Description OS Power Management

NOTE: For Windows 8 systems with Fast Boot support, a normal shutdown goes to the S4 state, not the S5 state.

◦ S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds

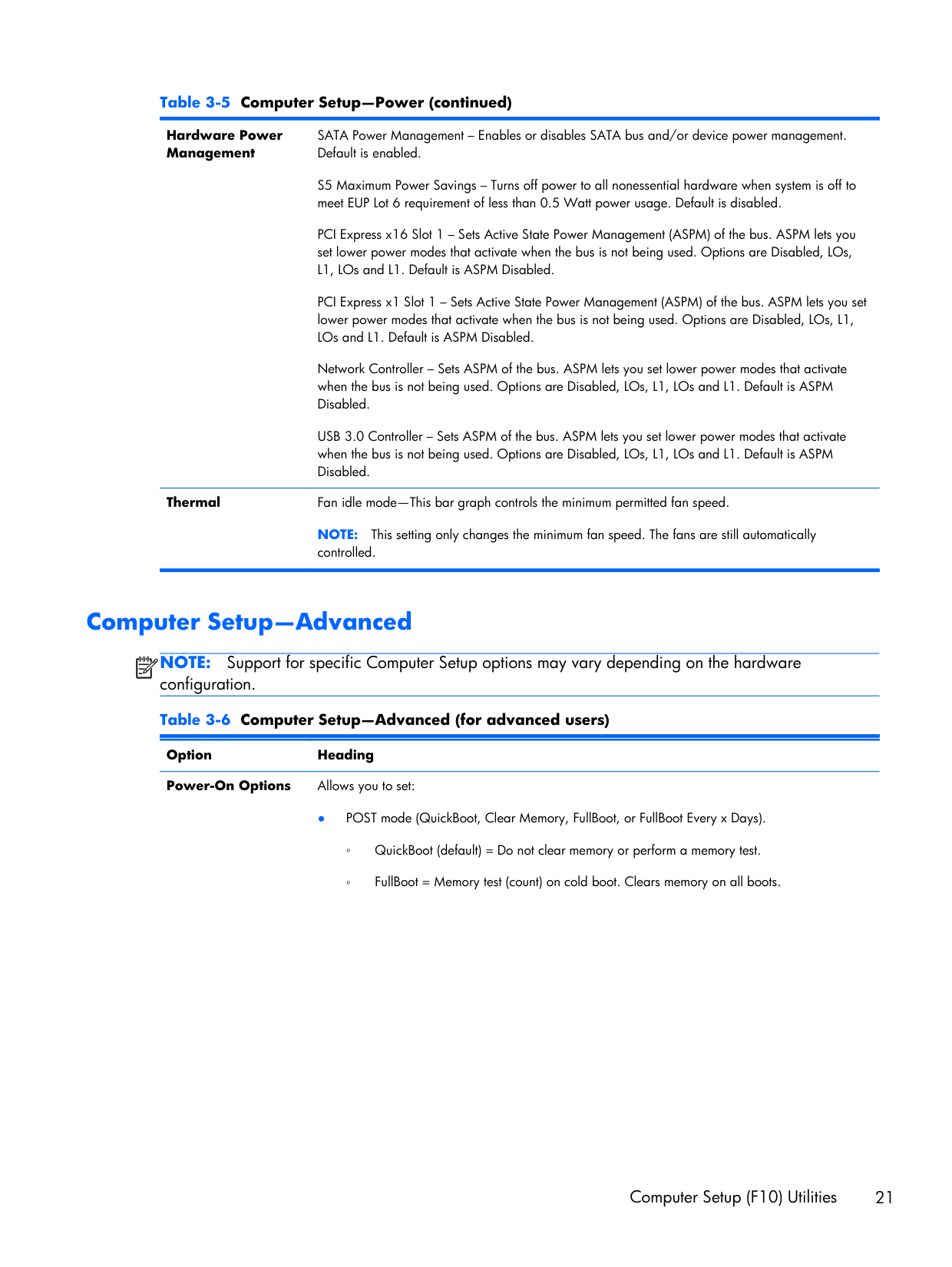

######## Table 3-5 Computer Setup—Power (continued)

Hardware Power Management

SATA Power Management – Enables or disables SATA bus and/or device power management. Default is enabled.

S5 Maximum Power Savings – Turns off power to all nonessential hardware when system is off to meet EUP Lot 6 requirement of less than 0.5 Watt power usage. Default is disabled.

PCI Express x16 Slot 1 – Sets Active State Power Management (ASPM) of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1, LOs and L1. Default is ASPM Disabled.

PCI Express x1 Slot 1 – Sets Active State Power Management (ASPM) of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1, LOs and L1. Default is ASPM Disabled.

Network Controller – Sets ASPM of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1, LOs and L1. Default is ASPM Disabled.

USB 3.0 Controller – Sets ASPM of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1, LOs and L1. Default is ASPM Disabled.

Thermal Fan idle mode—This bar graph controls the minimum permitted fan speed.

NOTE: This setting only changes the minimum fan speed. The fans are still automatically controlled.

#### Computer Setup—Advanced

NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration.

| | |---|

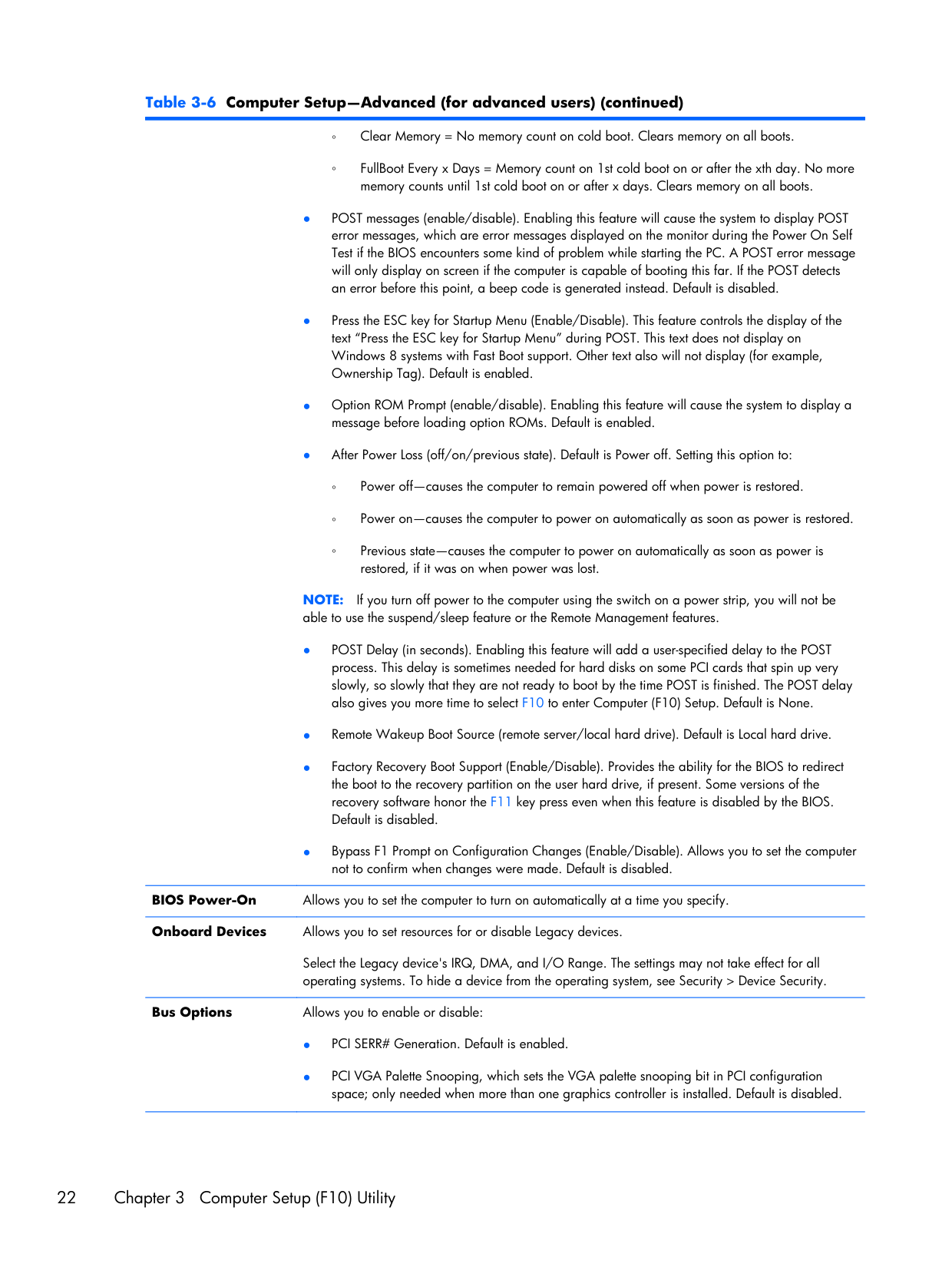

Table 3-6 Computer Setup—Advanced (for advanced users) Option Heading Power-On Options Allows you to set:

NOTE: If you turn off power to the computer using the switch on a power strip, you will not be able to use the suspend/sleep feature or the Remote Management features.

BIOS Power-On Allows you to set the computer to turn on automatically at a time you specify. Onboard Devices Allows you to set resources for or disable Legacy devices.

Select the Legacy device's IRQ, DMA, and I/O Range. The settings may not take effect for all operating systems. To hide a device from the operating system, see Security > Device Security.

Bus Options Allows you to enable or disable:

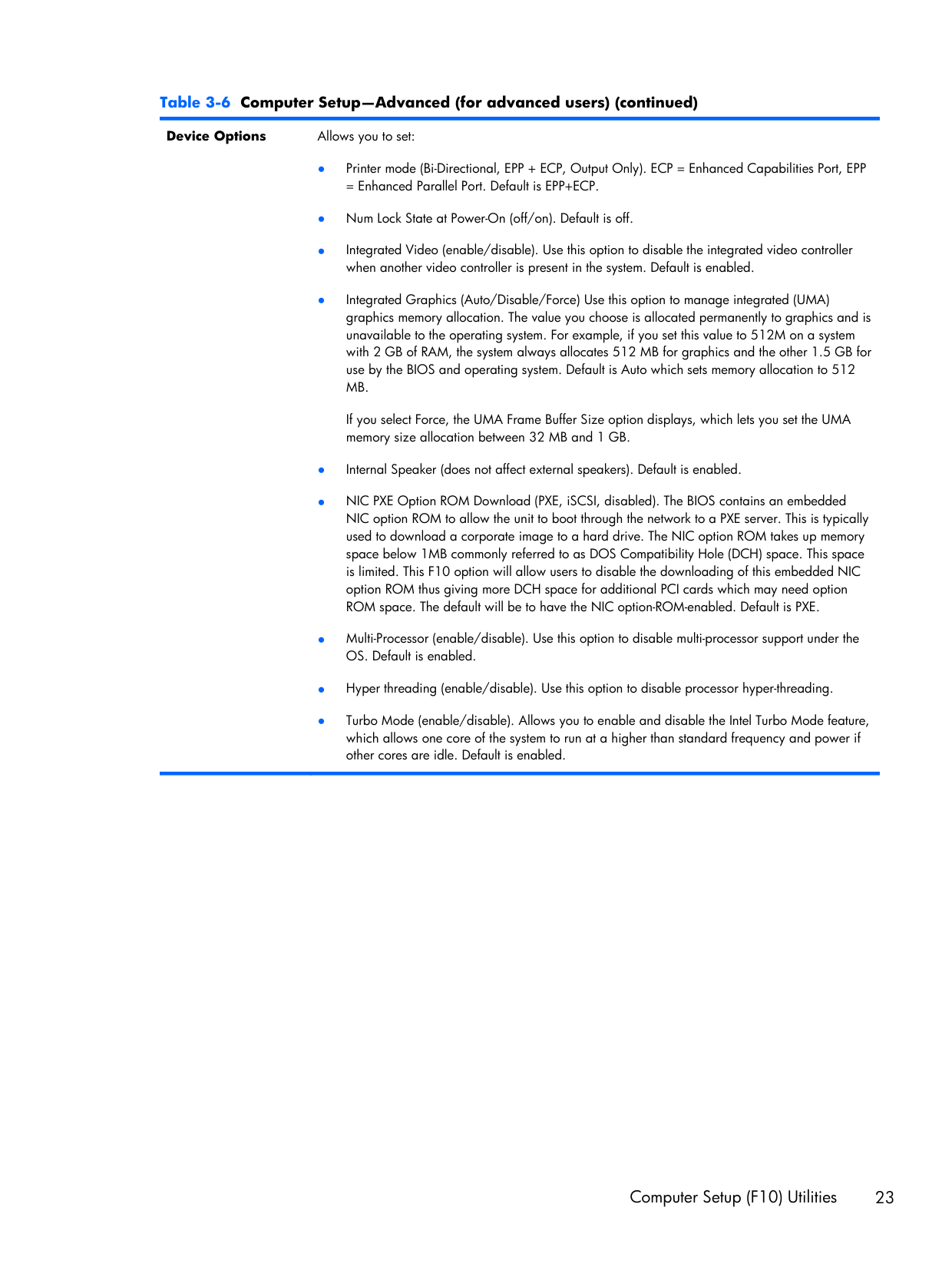

######### Device Options Allows you to set:

= Enhanced Parallel Port. Default is EPP+ECP.

If you select Force, the UMA Frame Buffer Size option displays, which lets you set the UMA memory size allocation between 32 MB and 1 GB.

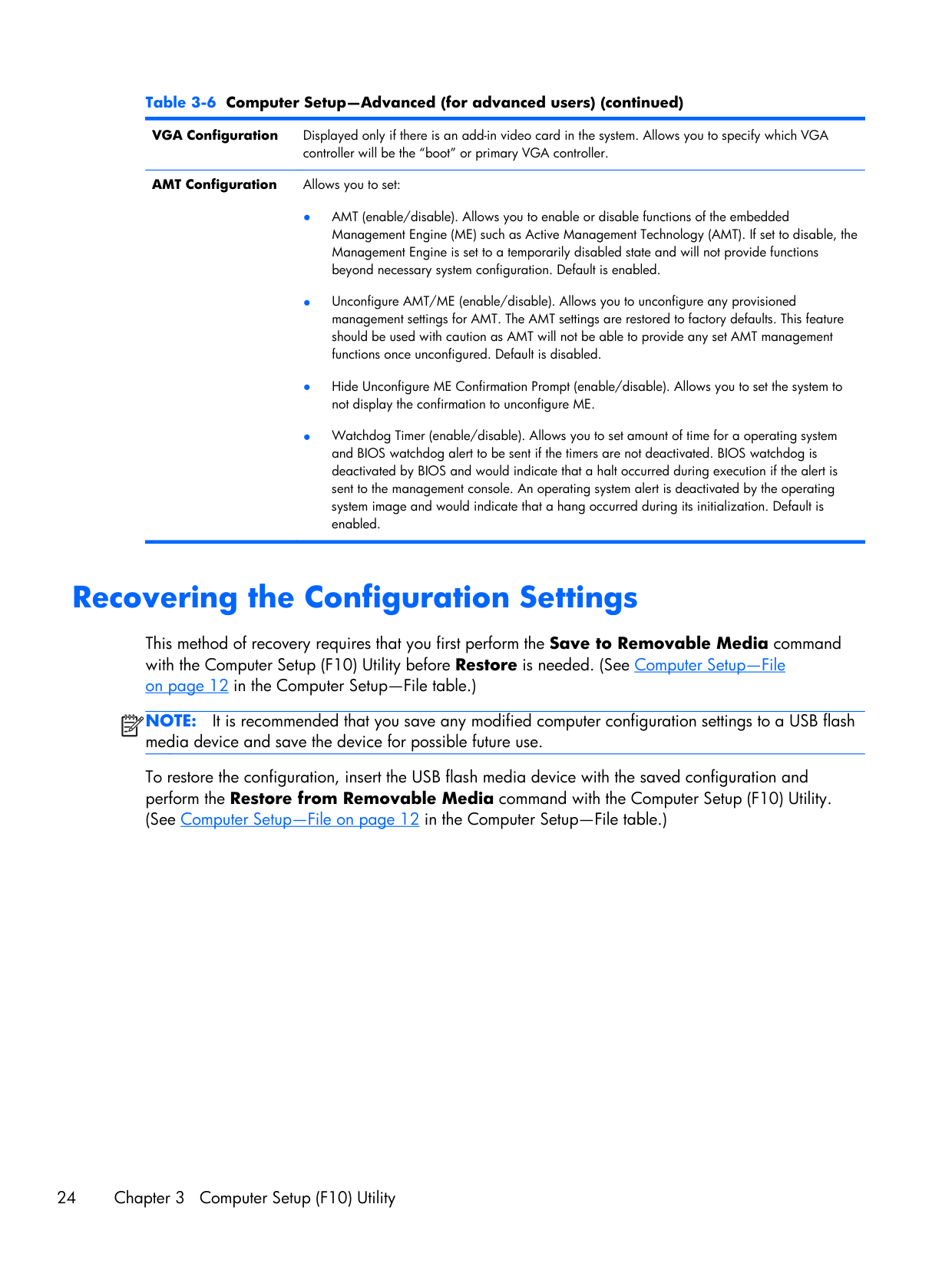

VGA Configuration Displayed only if there is an add-in video card in the system. Allows you to specify which VGA

controller will be the “boot” or primary VGA controller.

######### AMT Configuration Allows you to set:

Recovering the Configuration Settings

This method of recovery requires that you first perform the Save to Removable Media command with the Computer Setup (F10) Utility before Restore is needed. (See Computer Setup—File on page 12 in the Computer Setup—File table.)

NOTE: It is recommended that you save any modified computer configuration settings to a USB flash media device and save the device for possible future use. To restore the configuration, insert the USB flash media device with the saved configuration and perform the Restore from Removable Media command with the Computer Setup (F10) Utility. (See Computer Setup—File on page 12 in the Computer Setup—File table.)

| | |---|

4 Illustrated parts catalog

Microtower (MT) chassis spare parts

#### Computer major components


######### Item Description Spare part number

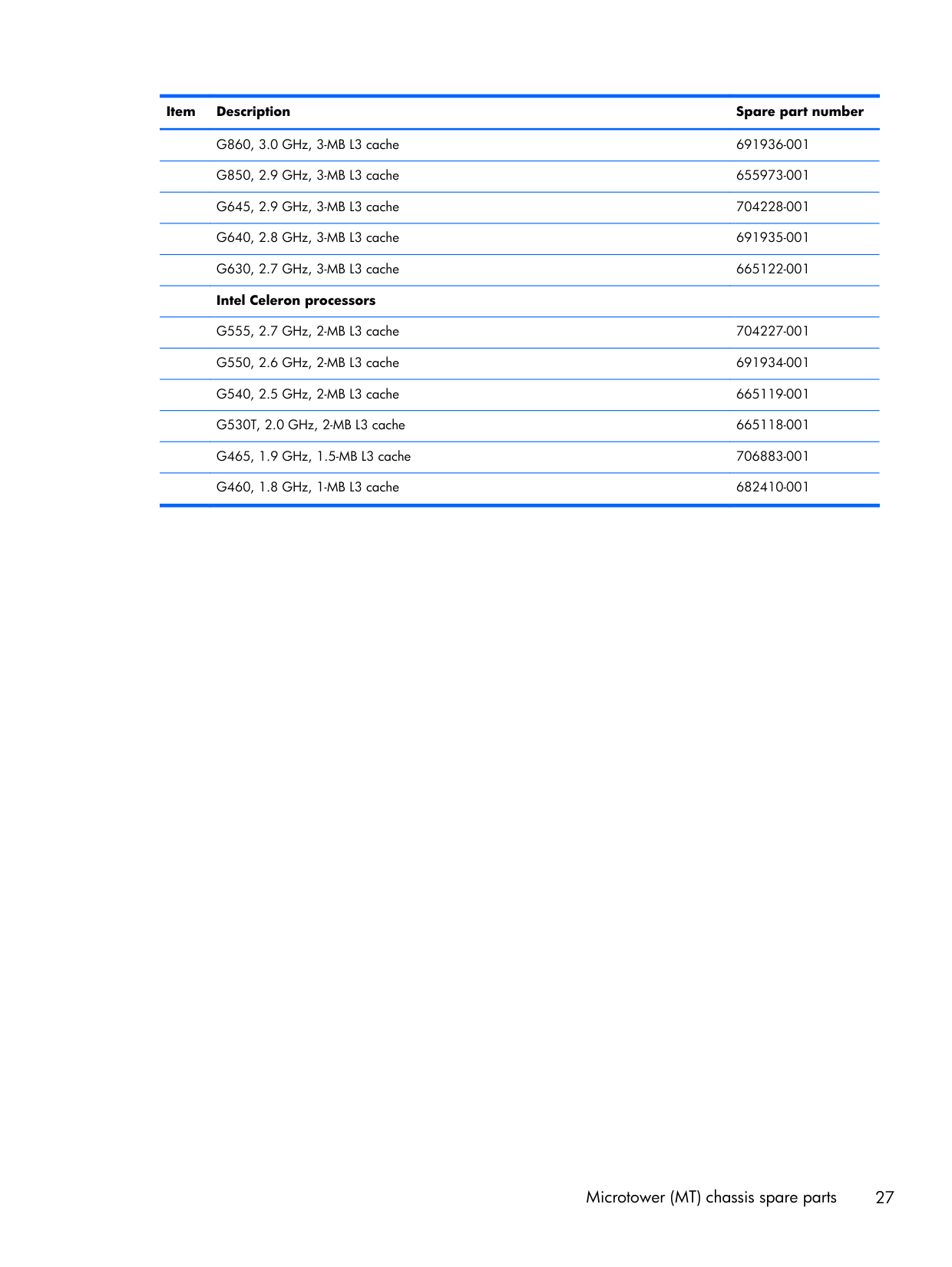

G860, 3.0 GHz, 3-MB L3 cache 691936-001 G850, 2.9 GHz, 3-MB L3 cache 655973-001 G645, 2.9 GHz, 3-MB L3 cache 704228-001 G640, 2.8 GHz, 3-MB L3 cache 691935-001 G630, 2.7 GHz, 3-MB L3 cache 665122-001 Intel Celeron processors

G555, 2.7 GHz, 2-MB L3 cache 704227-001 G550, 2.6 GHz, 2-MB L3 cache 691934-001 G540, 2.5 GHz, 2-MB L3 cache 665119-001 G530T, 2.0 GHz, 2-MB L3 cache 665118-001 G465, 1.9 GHz, 1.5-MB L3 cache 706883-001 G460, 1.8 GHz, 1-MB L3 cache 682410-001

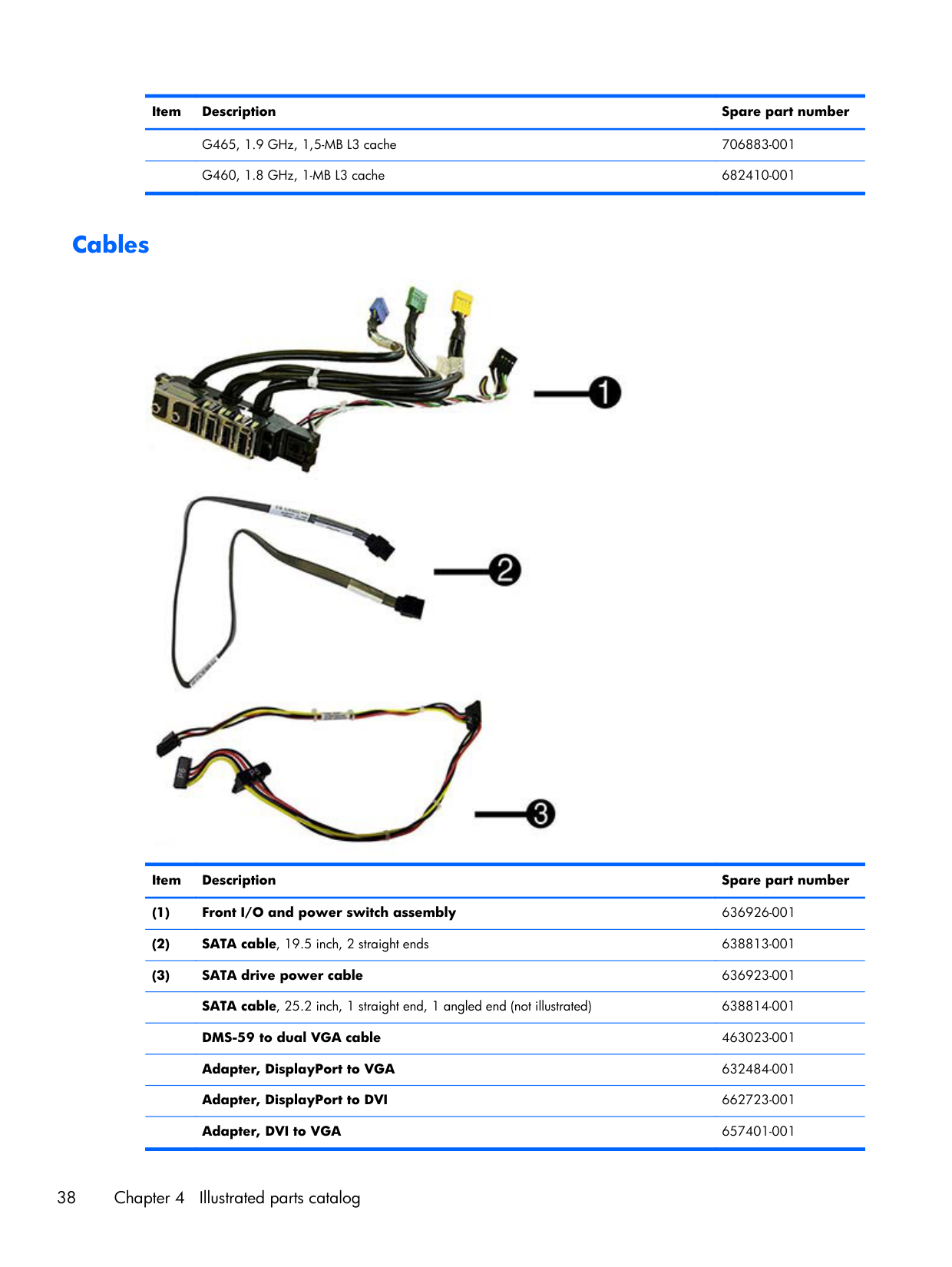

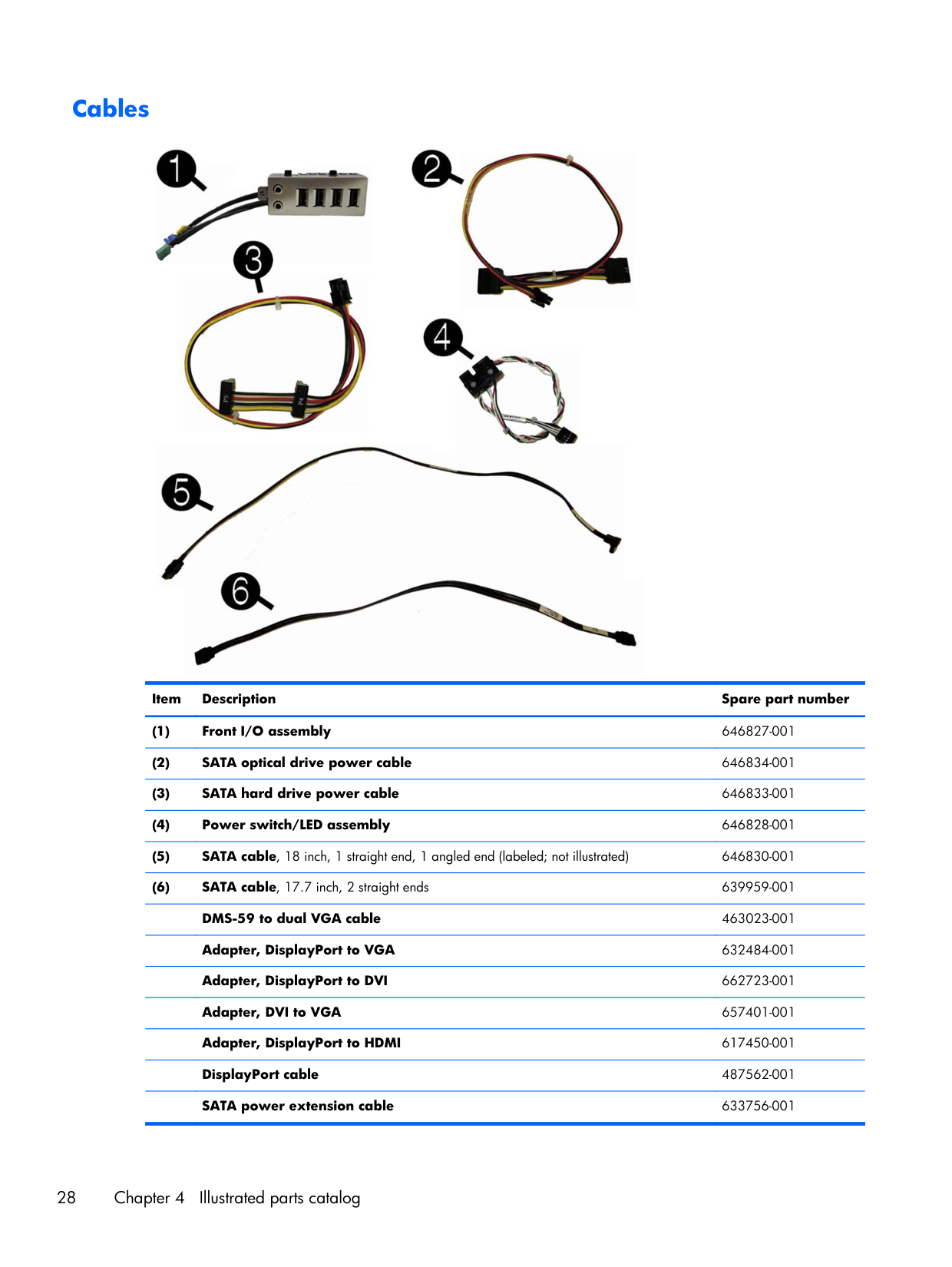

#### Cables


Item Description Spare part number

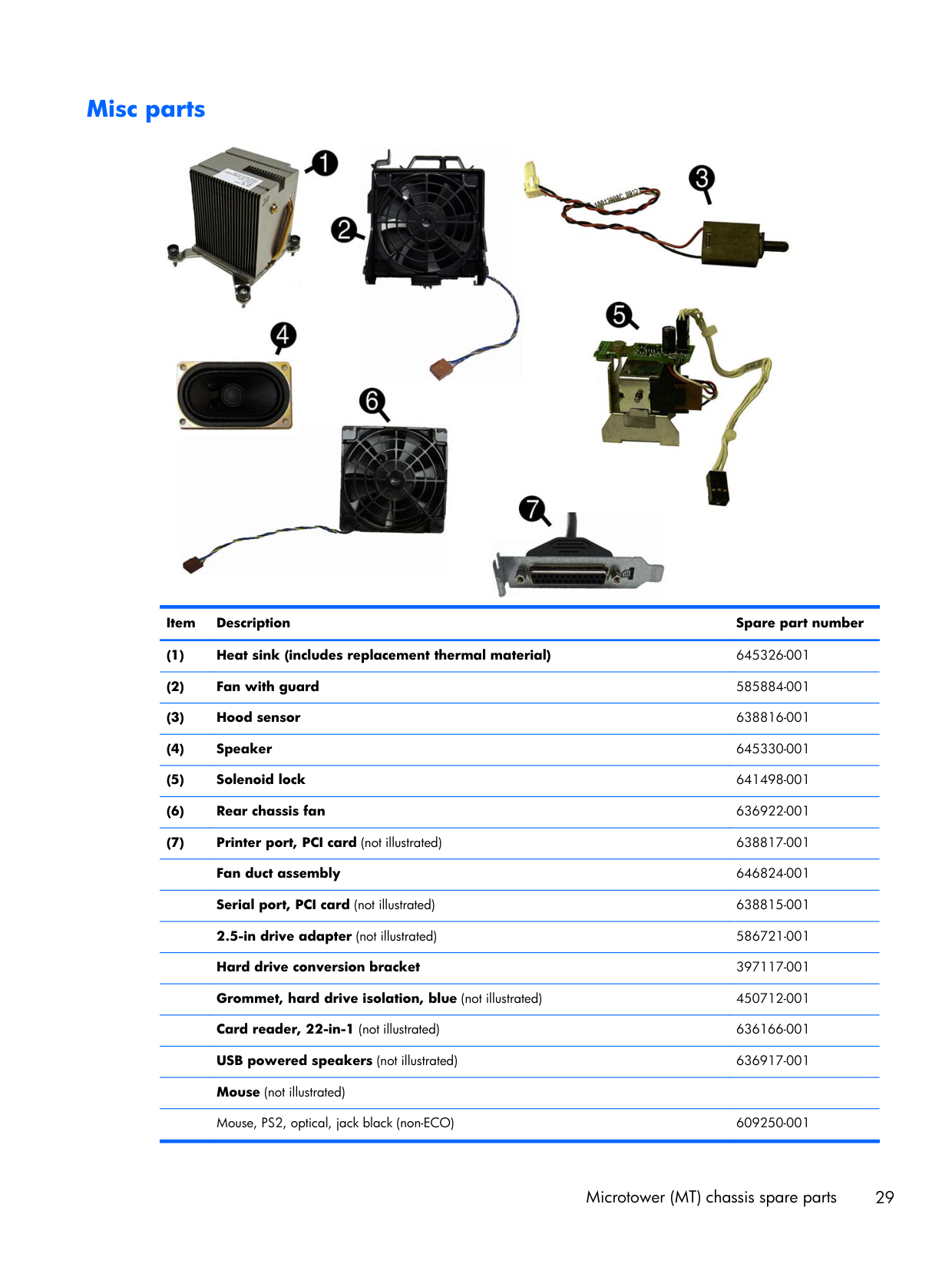

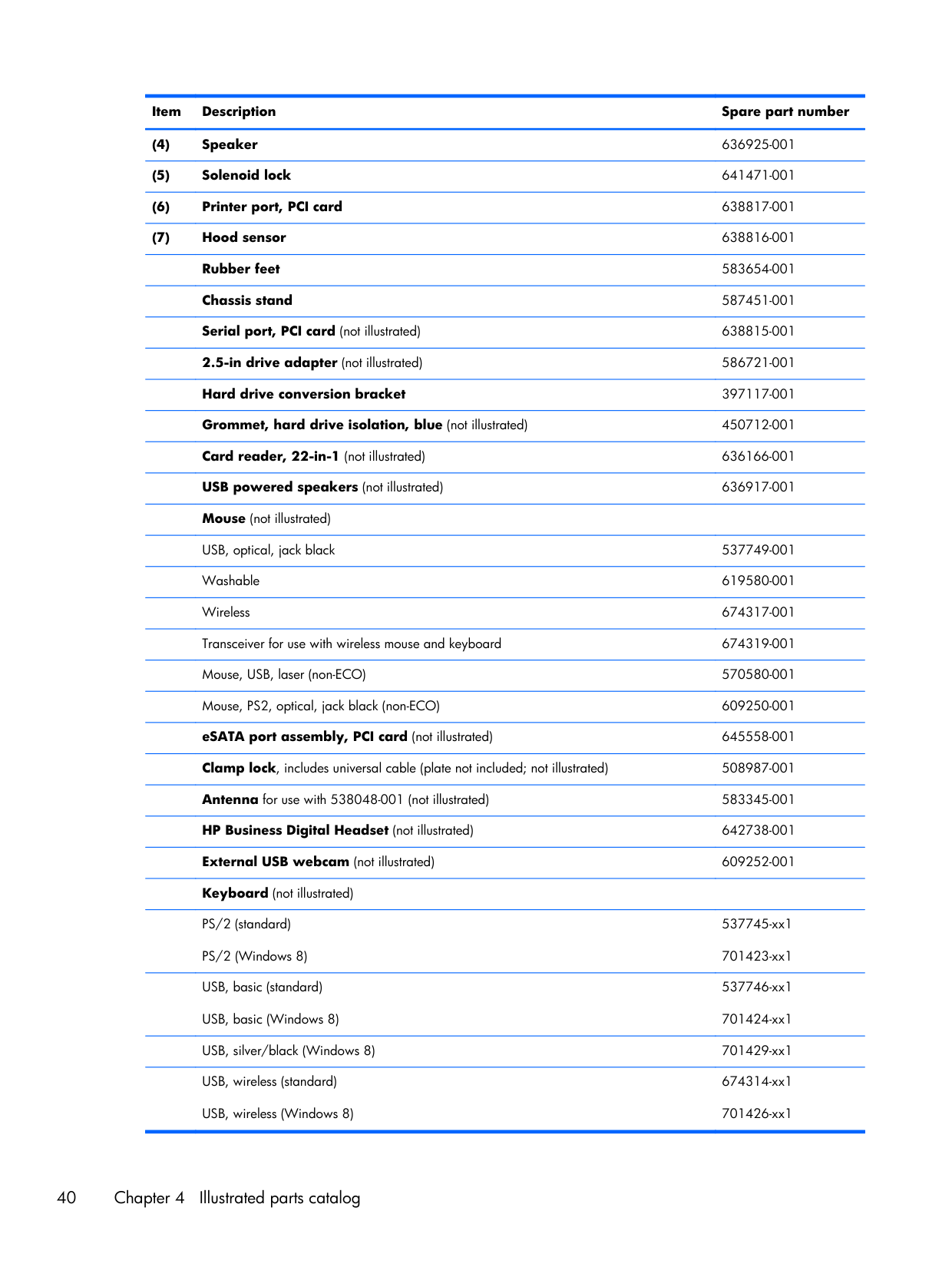

#### Misc parts


Item Description Spare part number

Item Description Spare part number USB, optical, jack black 537749-001 Washable 619580-001 Wireless 674317-001 Transceiver for use with wireless mouse and keyboard 674319-001 eSATA port assembly, PCI card (not illustrated) 645558-001 Clamp lock, includes universal cable (plate not included; not illustrated) 508987-001 Antenna for use with 538048-001 (not illustrated) 583345-001 HP Business Digital Headset (not illustrated) 642738-001 External USB Webcam (not illustrated) 609252-001 Keyboards (not illustrated)

PS/2 (standard)

537745-xx1

701423-xx1 USB, basic (standard)

PS/2 (Windows 8)

537746-xx1

701424-xx1 USB, silver/black (Windows 8) 701429-xx1 USB, wireless (standard) USB, wireless (Windows 8)

USB, basic (Windows 8)

674314-xx1

701426-xx1 Washable (standard)

613125-xx1

700510-xx1 Smart card (standard)

Washable (Windows 8)

631411-xx4

Smart card (Windows 8)

701427-xx1

Screw Kit - misc screws 330458-001 Screw Kit - tamper resistant screws 393956-001

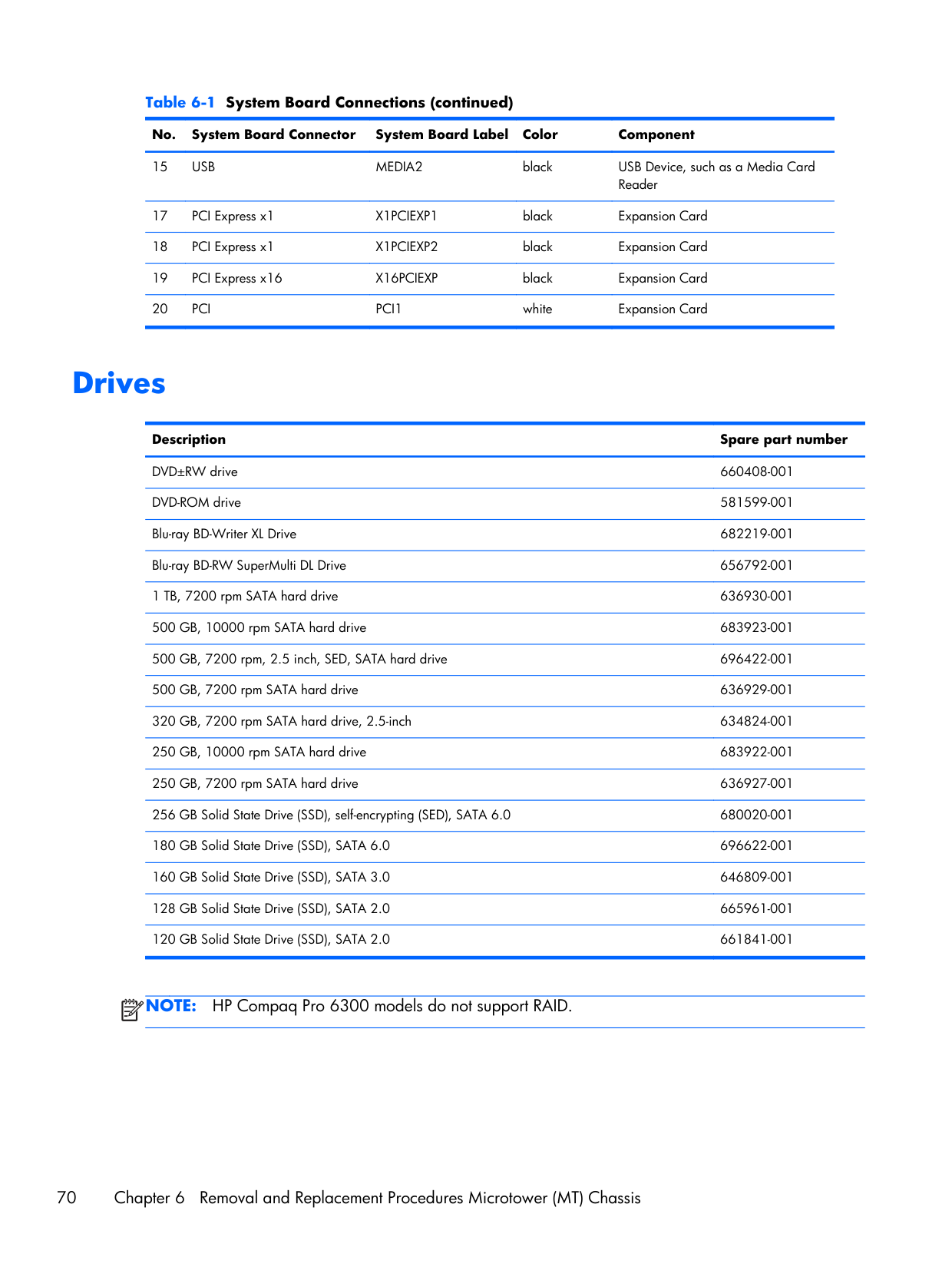

#### Drives

Description Spare part number

Hard drive

1-TB, 7200-rpm 636930-001 500-GB, 10000-rpm 683923-001 500-GB, 7200-rpm 636929-001 320-GB, 7200-rpm, 2.5-inch 634824-001

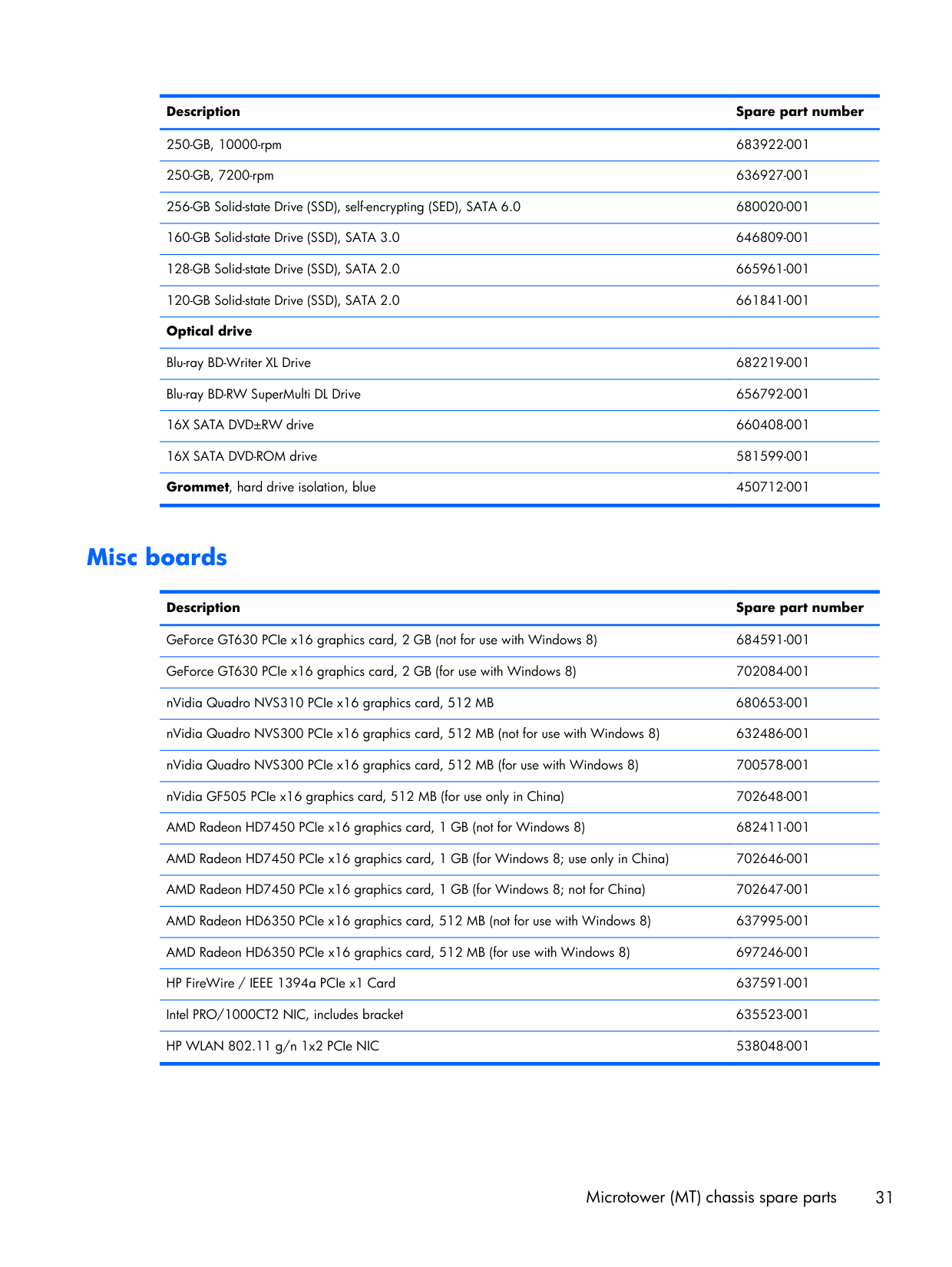

######### Description Spare part number

250-GB, 10000-rpm 683922-001 250-GB, 7200-rpm 636927-001 256-GB Solid-state Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001 160-GB Solid-state Drive (SSD), SATA 3.0 646809-001 128-GB Solid-state Drive (SSD), SATA 2.0 665961-001 120-GB Solid-state Drive (SSD), SATA 2.0 661841-001 Optical drive

Blu-ray BD-Writer XL Drive 682219-001 Blu-ray BD-RW SuperMulti DL Drive 656792-001 16X SATA DVD±RW drive 660408-001 16X SATA DVD-ROM drive 581599-001 Grommet, hard drive isolation, blue 450712-001

#### Misc boards

######### Description Spare part number

GeForce GT630 PCIe x16 graphics card, 2 GB (not for use with Windows 8) 684591-001 GeForce GT630 PCIe x16 graphics card, 2 GB (for use with Windows 8) 702084-001 nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use with Windows 8) 700578-001 nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (not for Windows 8) 682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; use only in China) 702646-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; not for China) 702647-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 637995-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use with Windows 8) 697246-001 HP FireWire / IEEE 1394a PCIe x1 Card 637591-001 Intel PRO/1000CT2 NIC, includes bracket 635523-001 HP WLAN 802.11 g/n 1x2 PCIe NIC 538048-001

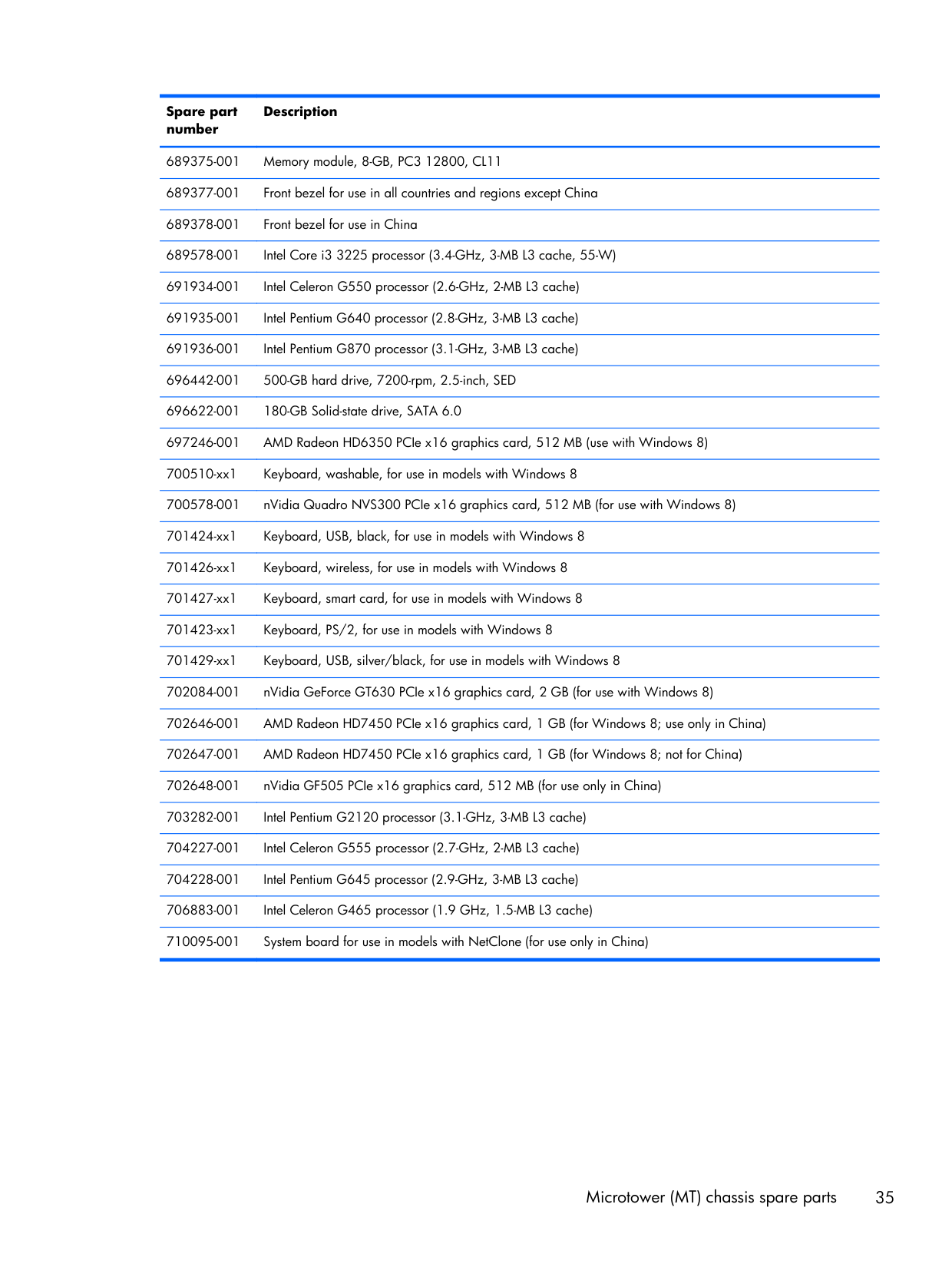

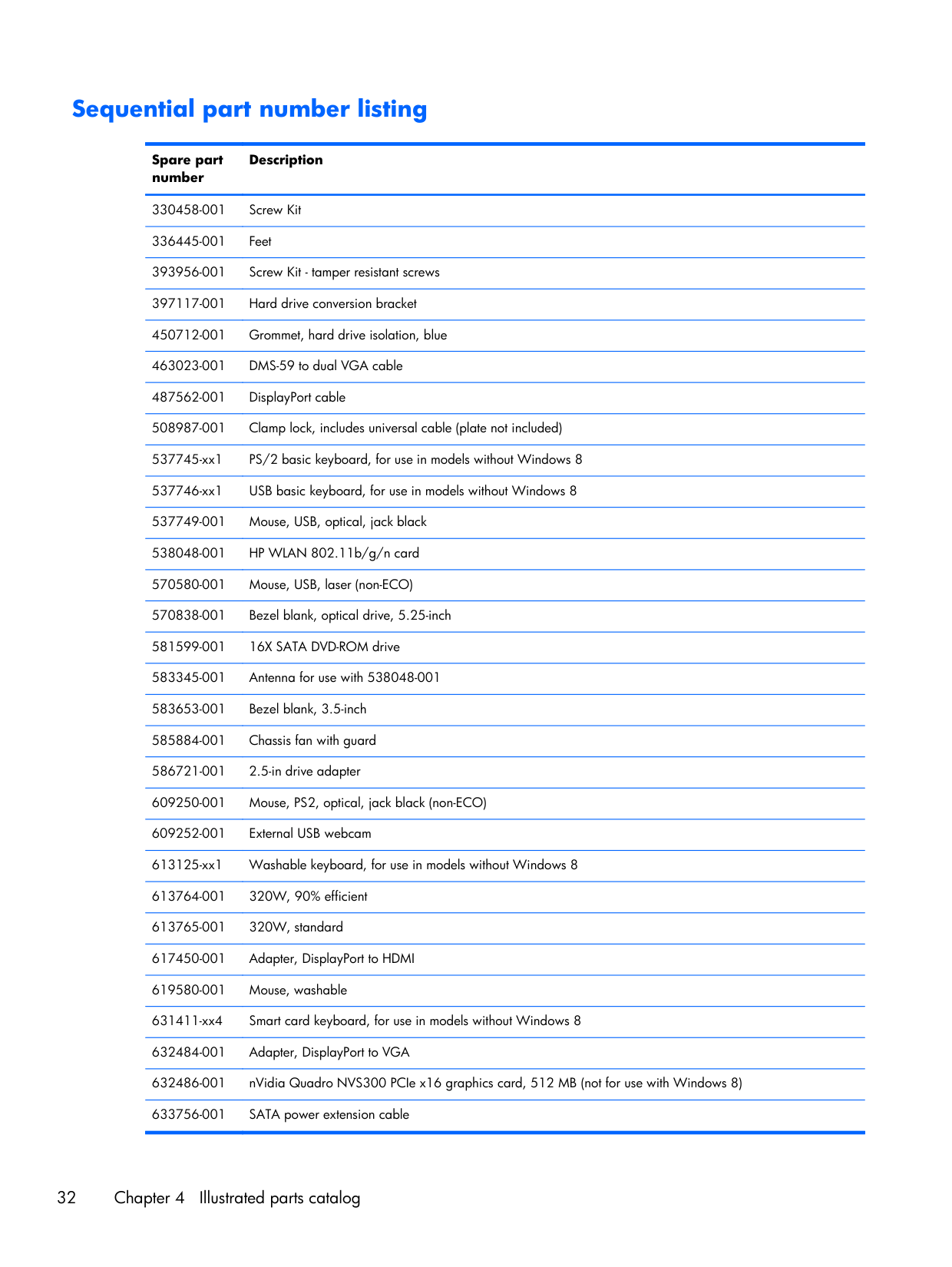

#### Sequential part number listing

Spare part number

Description

330458-001 Screw Kit 336445-001 Feet 393956-001 Screw Kit - tamper resistant screws 397117-001 Hard drive conversion bracket 450712-001 Grommet, hard drive isolation, blue 463023-001 DMS-59 to dual VGA cable 487562-001 DisplayPort cable 508987-001 Clamp lock, includes universal cable (plate not included)

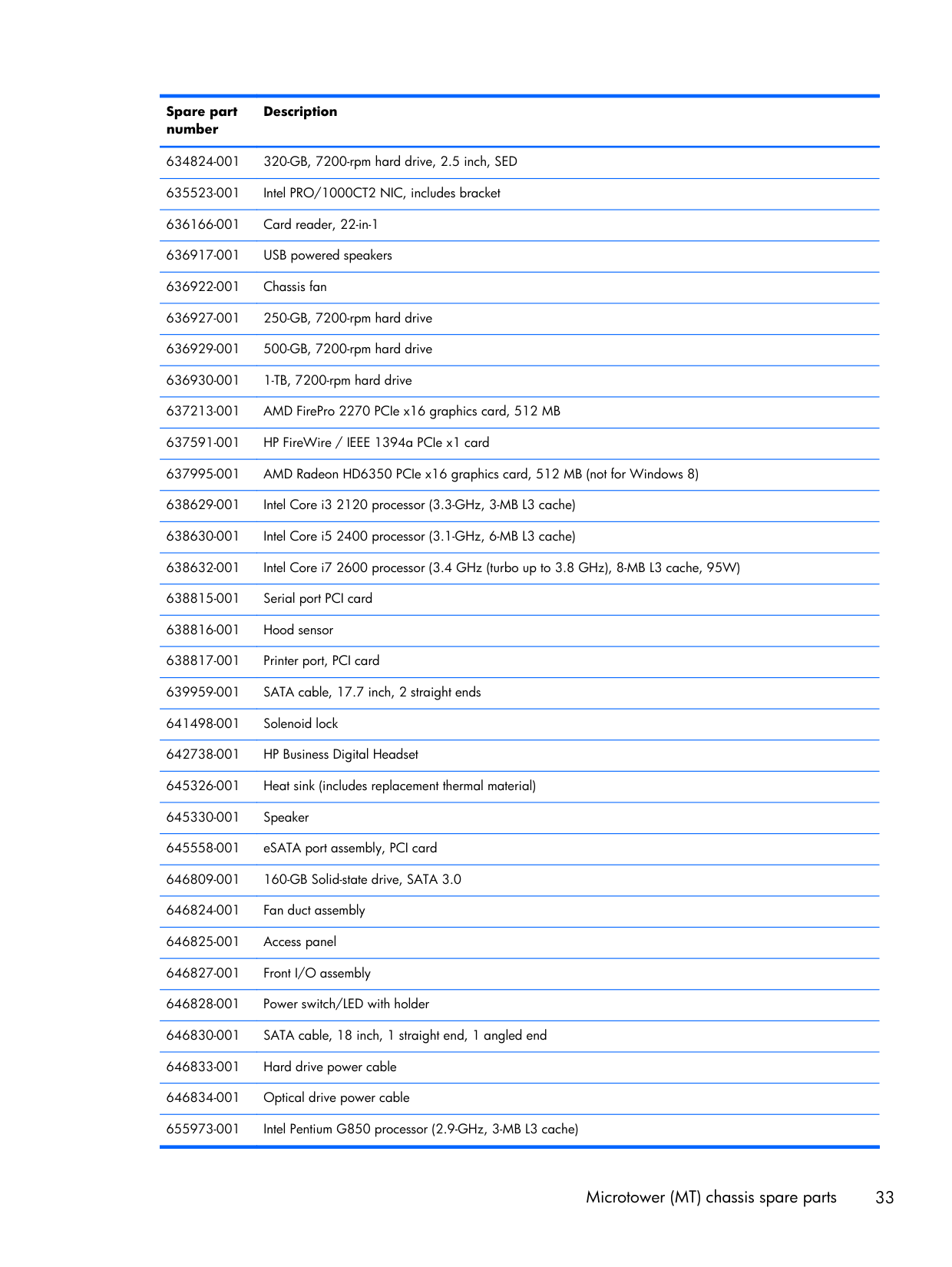

634824-001 320-GB, 7200-rpm hard drive, 2.5 inch, SED 635523-001 Intel PRO/1000CT2 NIC, includes bracket 636166-001 Card reader, 22-in-1 636917-001 USB powered speakers 636922-001 Chassis fan 636927-001 250-GB, 7200-rpm hard drive

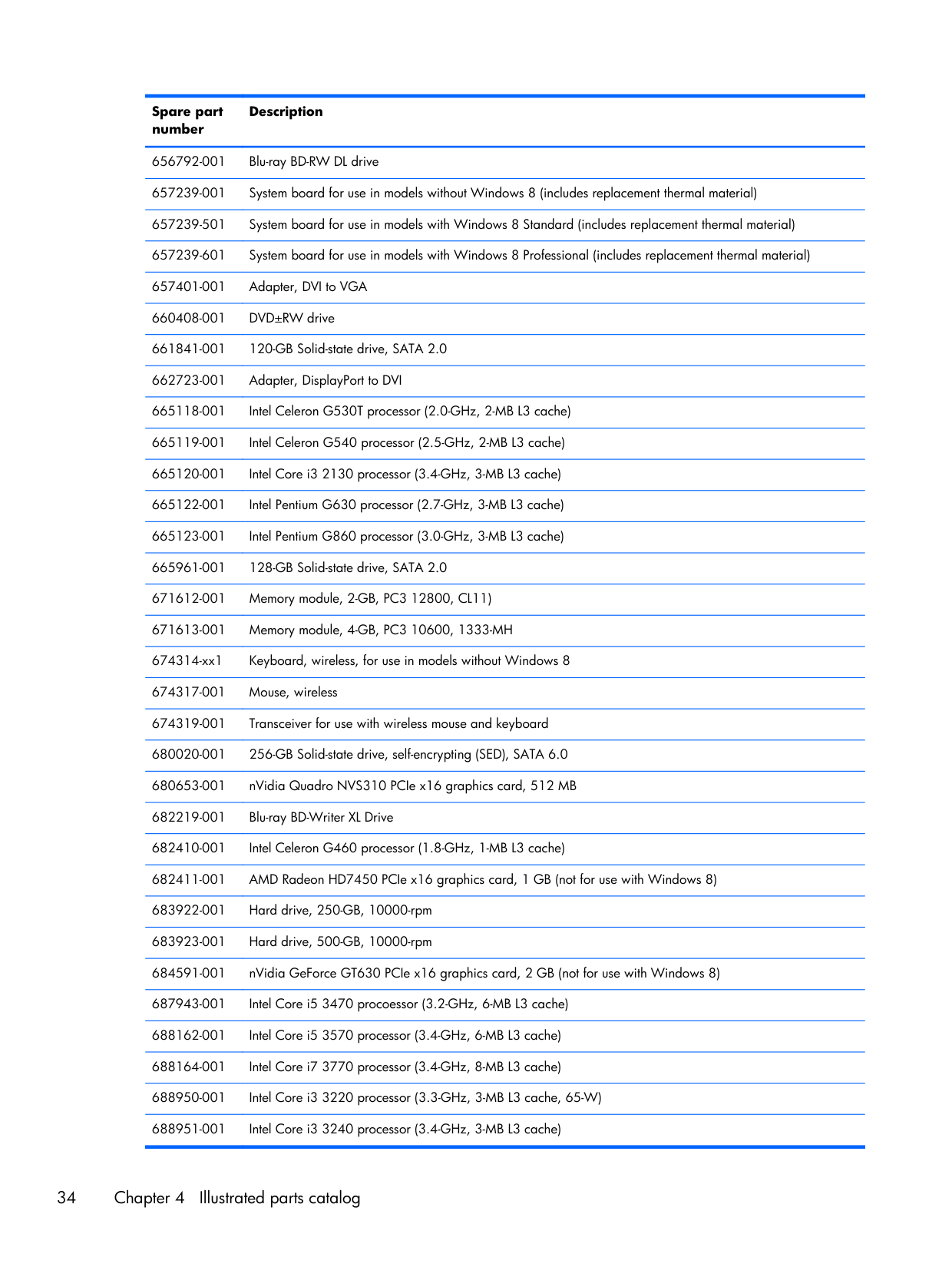

656792-001 Blu-ray BD-RW DL drive 657239-001 System board for use in models without Windows 8 (includes replacement thermal material) 657239-501 System board for use in models with Windows 8 Standard (includes replacement thermal material) 657239-601 System board for use in models with Windows 8 Professional (includes replacement thermal material) 657401-001 Adapter, DVI to VGA 660408-001 DVD±RW drive 661841-001 120-GB Solid-state drive, SATA 2.0 662723-001 Adapter, DisplayPort to DVI

689375-001 Memory module, 8-GB, PC3 12800, CL11

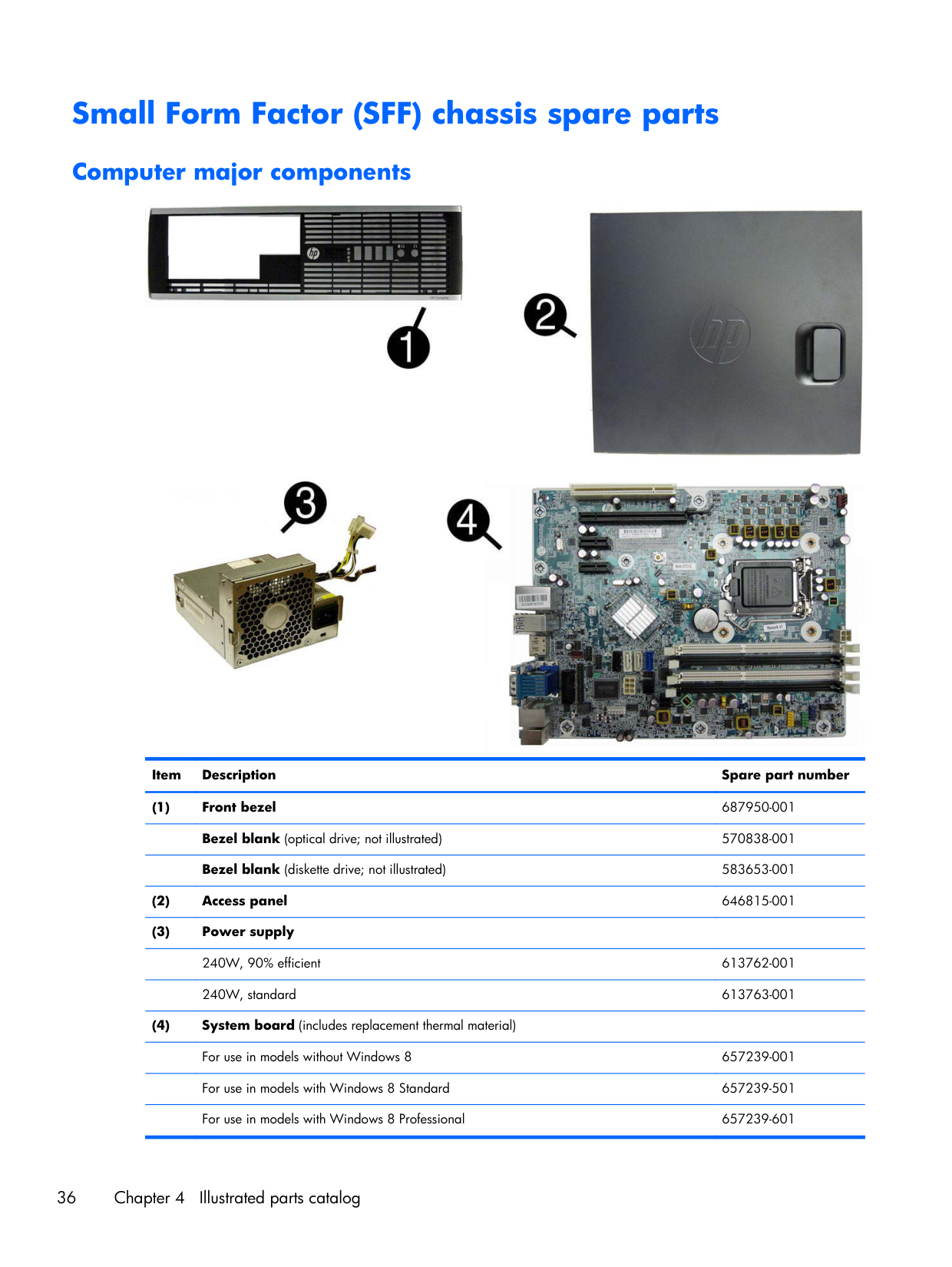

Small Form Factor (SFF) chassis spare parts

#### Computer major components


######### Item Description Spare part number

For use in models with NetClone (available only in China) 710095-001 Memory modules (PC3-12800, 1600-MHz; not illustrated) 8-GB 689375-001 4-GB 671613-001 2-GB 671612-001 Processors (include replacement thermal material; not illustrated) Intel Core i7 processor

3770, 3.4 GHz (turbo up to 3.9-GHz), 8-MB L3 cache, 77W 688164-001 2600, 3.4 GHz (turbo up to 3.8-GHz), 8-MB L3 cache, 95W 638632-001 Intel Core i5 processors

3570, 3.4 GHz, 6-MB L3 cache 688162-001 3470, 3.2 GHz, 6-MB L3 cache 687943-001 2400, 3.1 GHz, 6-MB L3 cache 638630-001 Intel Core i3 processors

3240, 3.4 GHz, 3-MB L3 cache 688951-001 3225, 3.3 GHz, 3-MB L3 cache 689578-001 3220, 3.3 GHz, 3-MB L3 cache 688950-001 2130, 3.4 GHz, 3-MB L3 cache 665120-001 2120, 3.3 GHz, 3-MB L3 cache 638629-001 Intel Pentium processors

G2120, 3.1 GHz, 3-MB L3 cache 703282-001 G870, 3.1 GHz, 3-MB L3 cache 691936-001 G860, 3.0 GHz, 3-MB L3 cache 691936-001 G850, 2.9 GHz, 3-MB L3 cache 655973-001 G645, 2.9 GHz, 3-MB L3 cache 704228-001 G640, 2.8 GHz, 3-MB L3 cache 691935-001 G630, 2.7 GHz, 3-MB L3 cache 665122-001 Intel Celeron processors

G555, 2.7 GHz, 2-MB L3 cache 704227-001 G550, 2.6 GHz, 2-MB L3 cache 691934-001 G540, 2.5 GHz, 2-MB L3 cache 665119-001 G530T, 2.0 GHz, 2-MB L3 cache 665118-001

G465, 1.9 GHz, 1,5-MB L3 cache 706883-001 G460, 1.8 GHz, 1-MB L3 cache 682410-001

#### Cables


Item Description Spare part number

Adapter, DisplayPort to HDMI 617450-001 DisplayPort cable 487562-001 SATA power extension cable 633756-001

#### Misc parts


Item Description Spare part number

537745-xx1

701423-xx1 USB, basic (standard)

PS/2 (Windows 8)

537746-xx1

701424-xx1 USB, silver/black (Windows 8) 701429-xx1 USB, wireless (standard) USB, wireless (Windows 8)

USB, basic (Windows 8)

674314-xx1

701426-xx1

Washable (standard)

613125-xx1

700510-xx1 Smart card (standard)

Washable (Windows 8)

631411-xx4

Smart card (Windows 8)

701427-xx1

Screw Kit - misc screws 330458-001 Screw Kit - tamper resistant screws 393956-001

#### Drives

Description Spare part number

Hard drive

1-TB, 7200-rpm 636930-001 500-GB, 10000-rpm 683923-001 500-GB, 7200-rpm, 2.5-inch, SED 696442-001 500-GB, 7200-rpm 636929-001 320-GB, 7200-rpm, 2.5-inch 634824-001 250-GB, 10000-rpm 683922-001 250-GB, 7200-rpm 636927-001 256-GB Solid-state Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001 180-GB Solid-state Drive (SSD), SATA 6.0 696622-001 160-GB Solid-state Drive (SSD), SATA 3.0 646809-001 128-GB Solid-state Drive (SSD), SATA 2.0 665961-001 120-GB Solid-state Drive (SSD), SATA 2.0 661841-001 Optical drive

Blu-ray BD-Writer XL Drive 682219-001 Blu-ray BD-RW SuperMulti DL Drive 656792-001 16X SATA DVD±RW drive 660408-001 16X SATA DVD-ROM drive 581599-001 Grommet, hard drive isolation, blue 450712-001

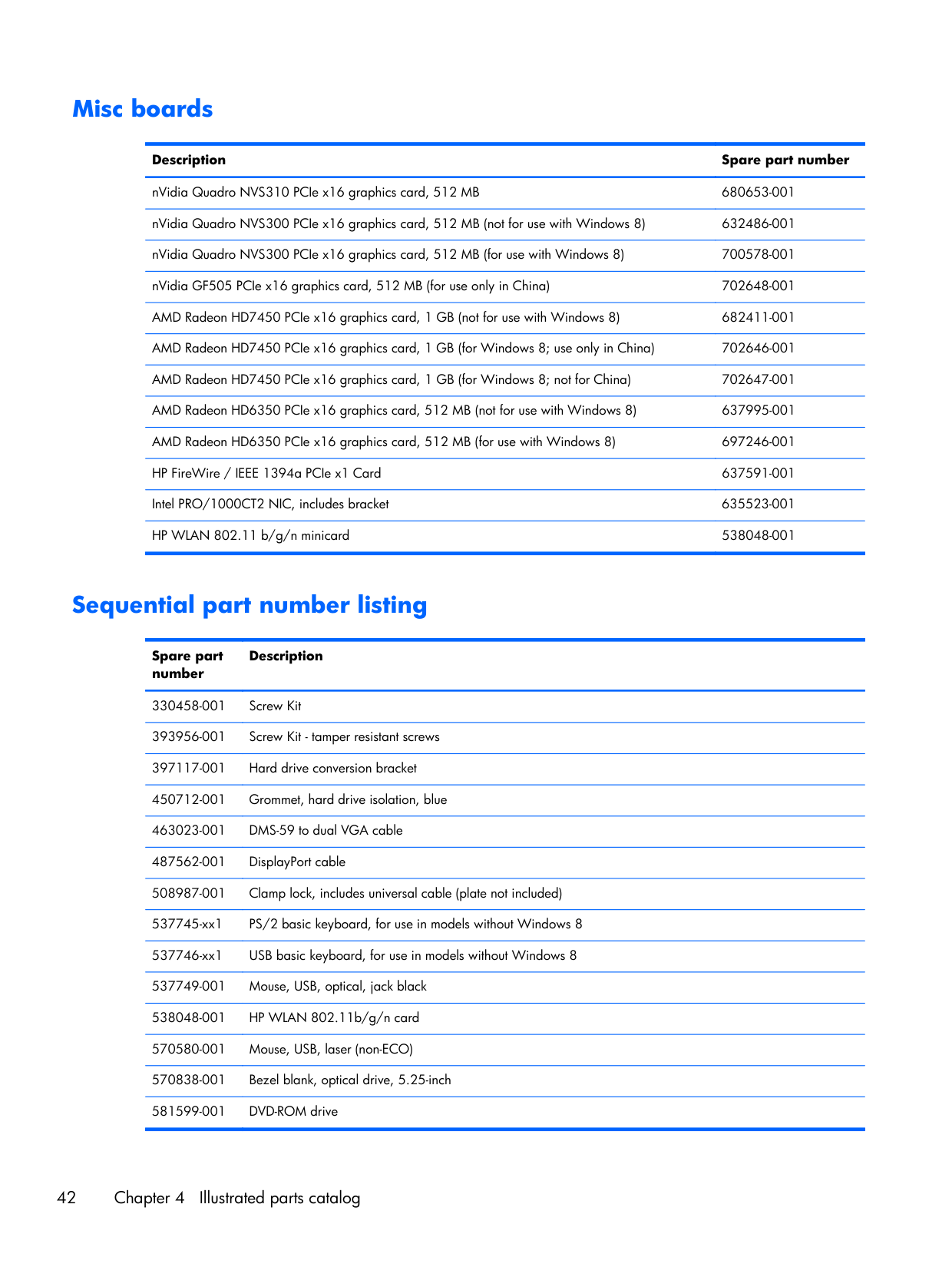

#### Misc boards

######### Description Spare part number

nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use with Windows 8) 700578-001 nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (not for use with Windows 8) 682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; use only in China) 702646-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; not for China) 702647-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 637995-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use with Windows 8) 697246-001 HP FireWire / IEEE 1394a PCIe x1 Card 637591-001 Intel PRO/1000CT2 NIC, includes bracket 635523-001 HP WLAN 802.11 b/g/n minicard 538048-001

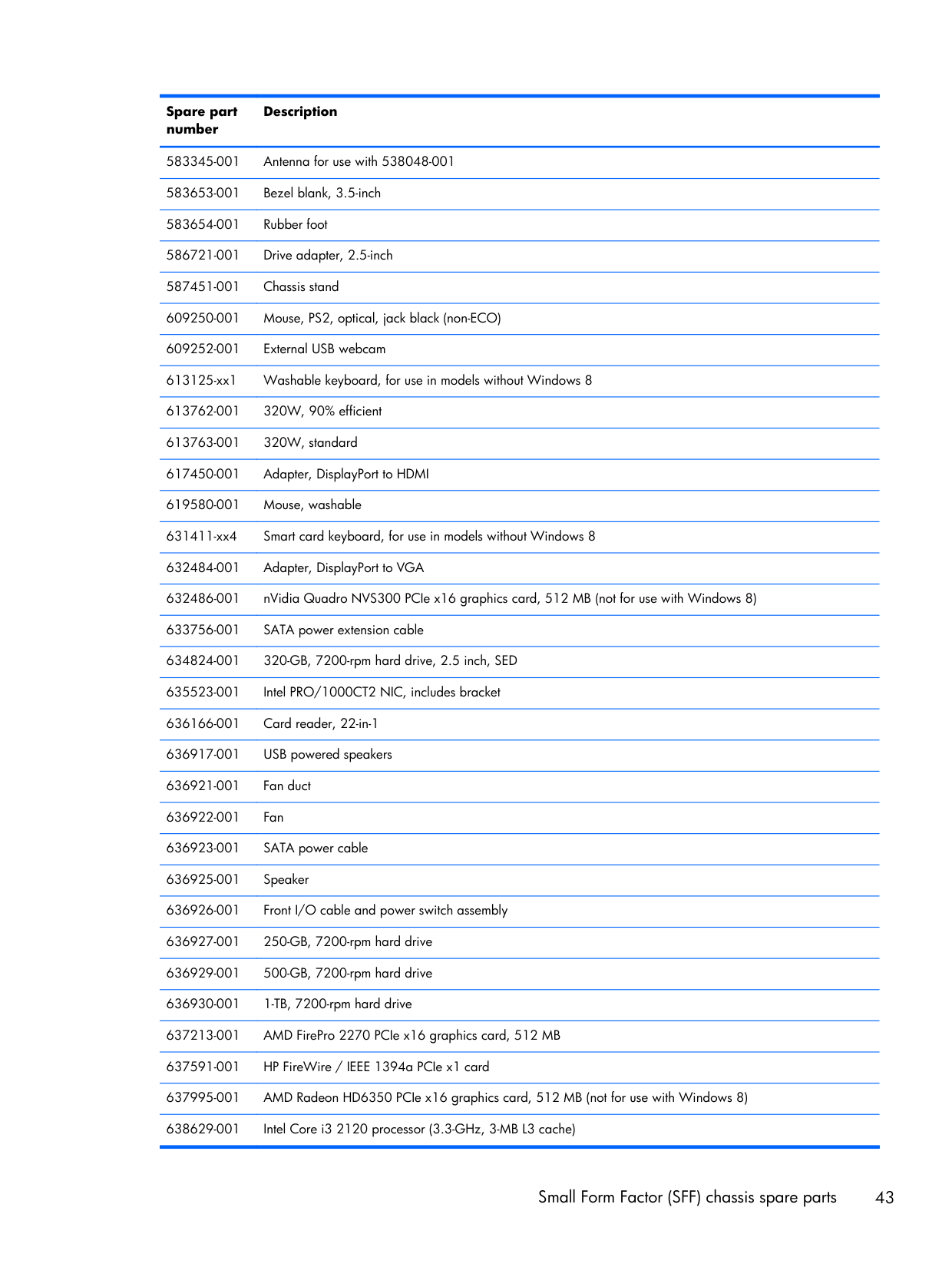

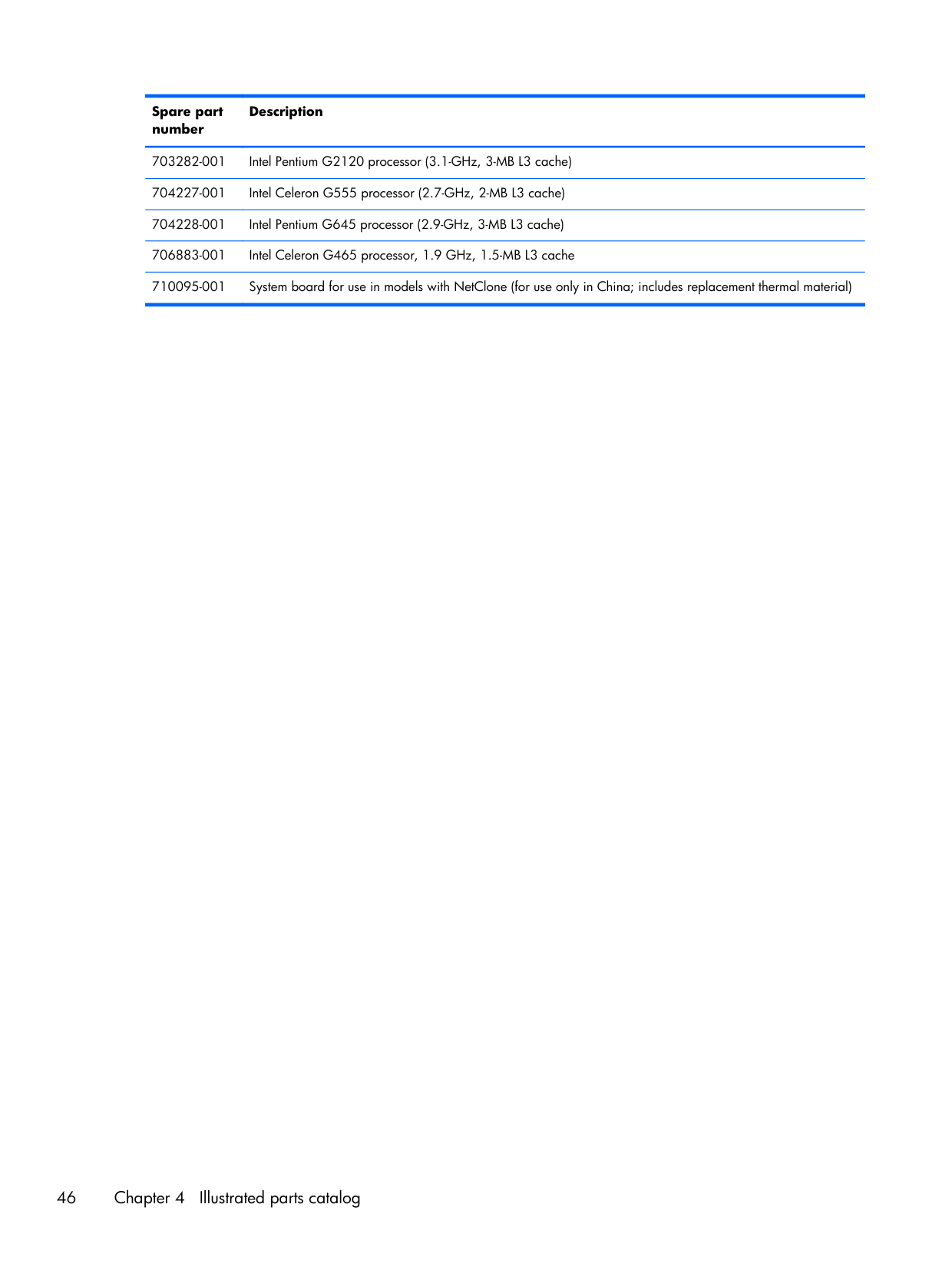

#### Sequential part number listing

Spare part number

Description

330458-001 Screw Kit 393956-001 Screw Kit - tamper resistant screws 397117-001 Hard drive conversion bracket 450712-001 Grommet, hard drive isolation, blue 463023-001 DMS-59 to dual VGA cable 487562-001 DisplayPort cable 508987-001 Clamp lock, includes universal cable (plate not included) 537745-xx1 PS/2 basic keyboard, for use in models without Windows 8 537746-xx1 USB basic keyboard, for use in models without Windows 8 537749-001 Mouse, USB, optical, jack black 538048-001 HP WLAN 802.11b/g/n card 570580-001 Mouse, USB, laser (non-ECO) 570838-001 Bezel blank, optical drive, 5.25-inch 581599-001 DVD-ROM drive

583345-001 Antenna for use with 538048-001 583653-001 Bezel blank, 3.5-inch 583654-001 Rubber foot 586721-001 Drive adapter, 2.5-inch 587451-001 Chassis stand 609250-001 Mouse, PS2, optical, jack black (non-ECO) 609252-001 External USB webcam 613125-xx1 Washable keyboard, for use in models without Windows 8

674317-001 Mouse, wireless 674319-001 Transceiver for use with wireless mouse and keyboard 680020-001 256-GB Solid-state drive, self-encrypting (SED), SATA 6.0 680653-001 nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 682219-001 Blu-ray BD-Writer XL Drive 682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (not for use with Windows 8) 683922-001 Hard drive, 250-GB, 10000-rpm 683923-001 Hard drive, 500-GB, 10000-rpm 687943-001 Intel Core i5 3470 processor (3.3-GHz, 6-MB L3 cache) 687950-001 Front bezel 688162-001 Intel Core i5 3570 processor (3.4-GHz, 6-MB L3 cache) 688164-001 Intel Core i7 3770 processor (3.4 GHz (turbo up to 3.9 GHz), 8-MB L3 cache, 77W)

703282-001 Intel Pentium G2120 processor (3.1-GHz, 3-MB L3 cache) 704227-001 Intel Celeron G555 processor (2.7-GHz, 2-MB L3 cache) 704228-001 Intel Pentium G645 processor (2.9-GHz, 3-MB L3 cache) 706883-001 Intel Celeron G465 processor, 1.9 GHz, 1.5-MB L3 cache 710095-001 System board for use in models with NetClone (for use only in China; includes replacement thermal material)

5 Routine Care, SATA DriveGuidelines, and DisassemblyPreparation

This chapter provides general service information for the computer. Adherence to the procedures and precautions described in this chapter is essential for proper service.

CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

Electrostatic Discharge Information

A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal cycle. The device may function normally for a while, but it has been degraded in the internal layers, reducing its life expectancy.

Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

#### Generating Static

The following table shows that:

Relative Humidity Event 55% 40% 10%

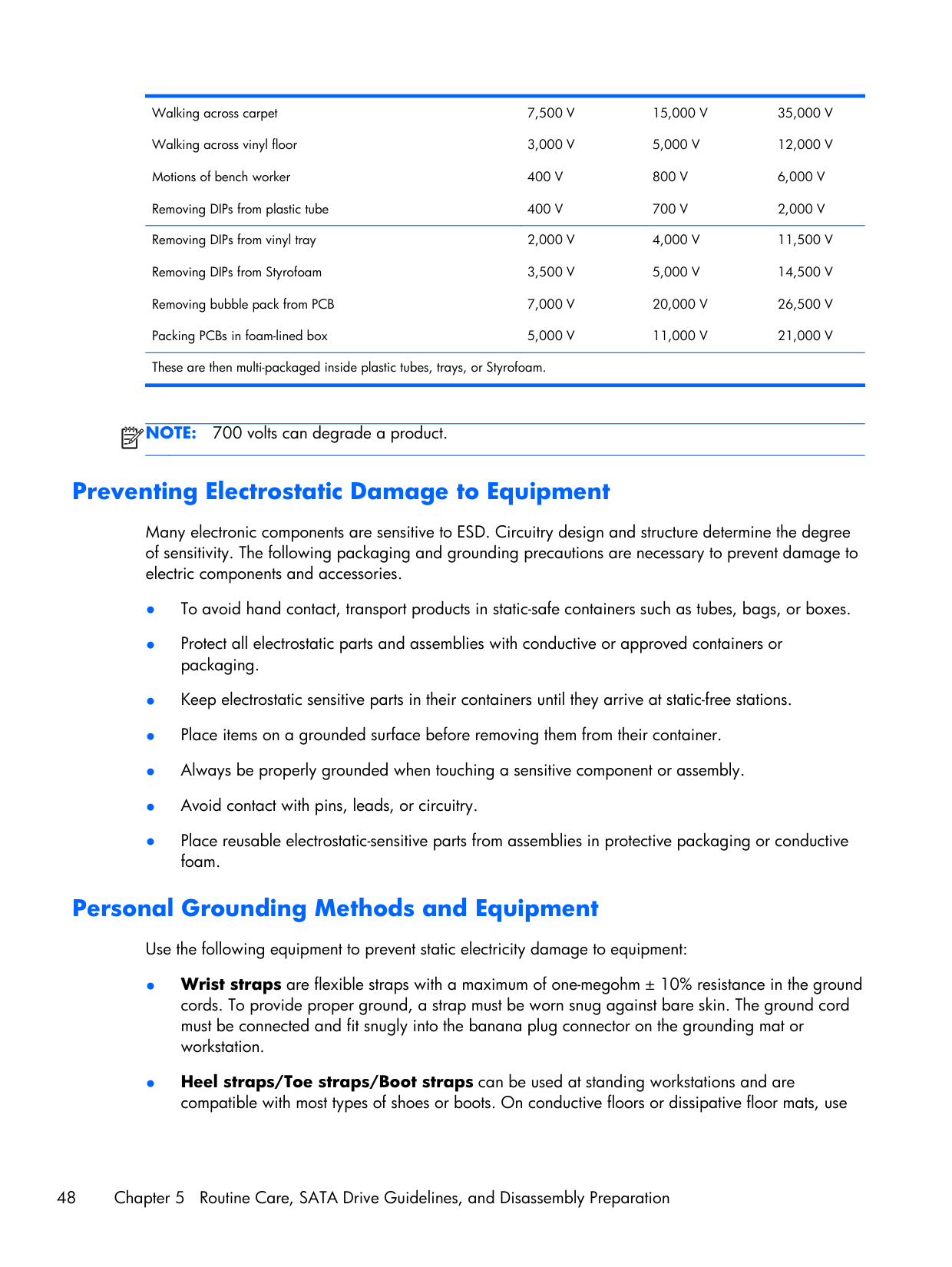

Walking across carpet

7,500 V

15,000 V

35,000 V

Walking across vinyl floor

Motions of bench worker

3,000 V

400 V

5,000 V

800 V

12,000 V

6,000 V

Removing DIPs from plastic tube

2,000 V Removing DIPs from vinyl tray

400 V

700 V

11,500 V

Removing DIPs from Styrofoam

14,500 V

Removing bubble pack from PCB

26,500 V

Packing PCBs in foam-lined box

21,000 V These are then multi-packaged inside plastic tubes, trays, or Styrofoam.

NOTE: 700 volts can degrade a product.

| | |---|

#### Preventing Electrostatic Damage to Equipment

Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric components and accessories.

#### Personal Grounding Methods and Equipment

Use the following equipment to prevent static electricity damage to equipment:

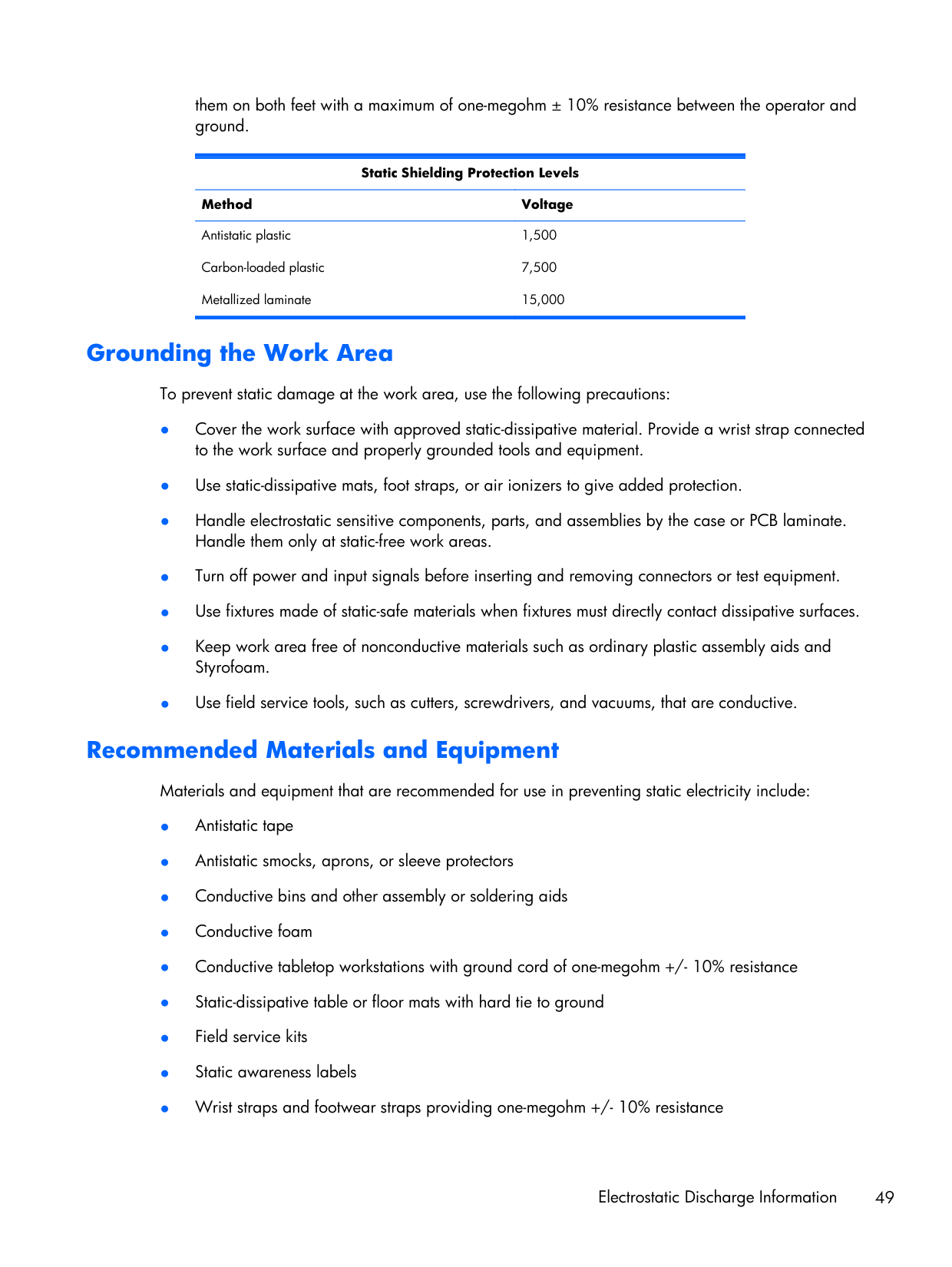

them on both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.

Static Shielding Protection Levels Method Voltage Antistatic plastic Carbon-loaded plastic Metallized laminate

1,500

7,500

15,000

#### Grounding the Work Area

To prevent static damage at the work area, use the following precautions:

#### Recommended Materials and Equipment

Materials and equipment that are recommended for use in preventing static electricity include:

Operating Guidelines

To prevent overheating and to help prolong the life of the computer:

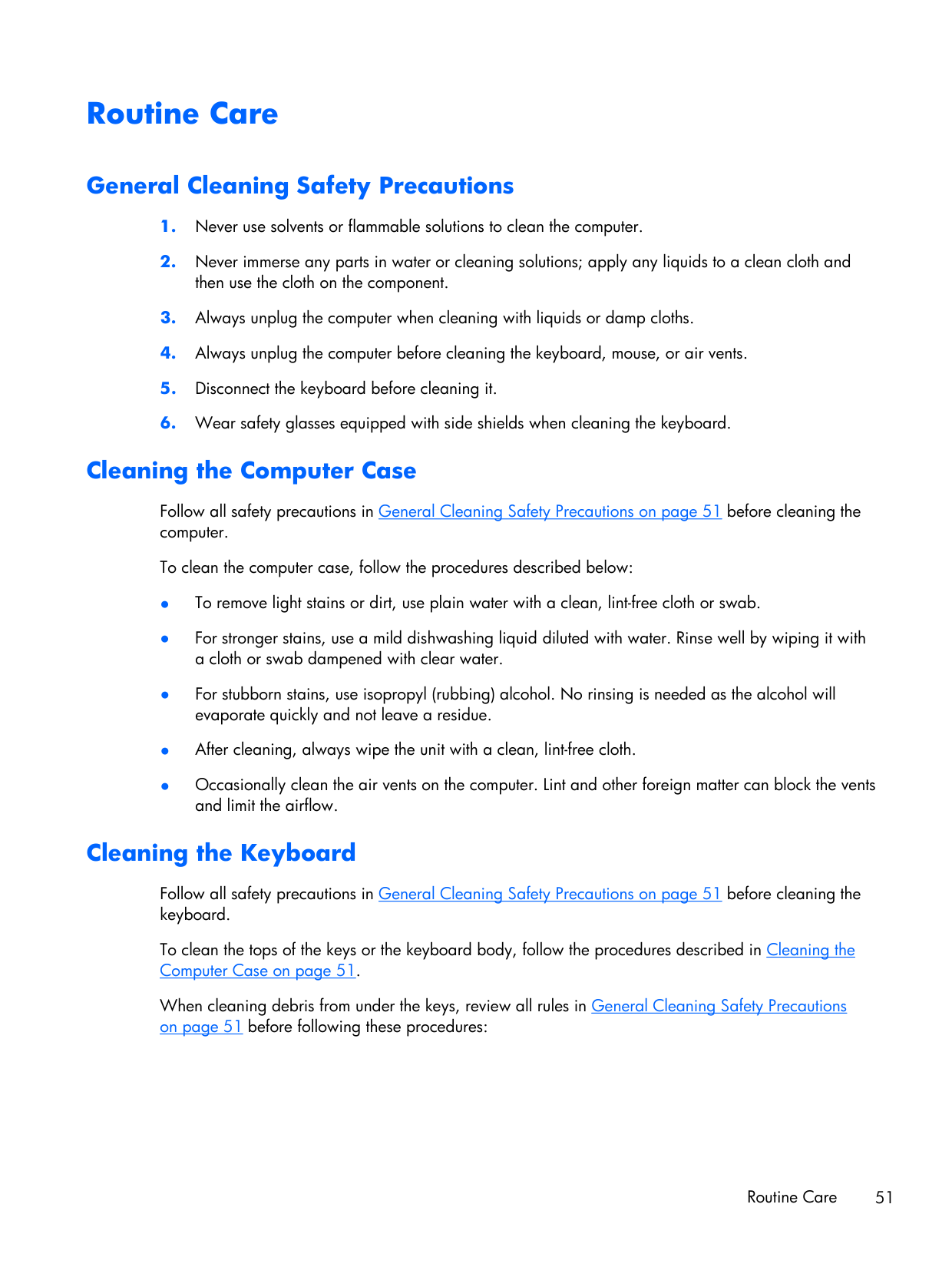

Routine Care

#### General Cleaning Safety Precautions

#### Cleaning the Computer Case

Follow all safety precautions in General Cleaning Safety Precautions on page 51 before cleaning the computer.

To clean the computer case, follow the procedures described below:

#### Cleaning the Keyboard

Follow all safety precautions in General Cleaning Safety Precautions on page 51 before cleaning the keyboard.

To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the Computer Case on page 51.

When cleaning debris from under the keys, review all rules in General Cleaning Safety Precautions on page 51 before following these procedures:

Routine Care 51

CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under the keys.

CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are improperly removed or installed, the keyboard may not function properly.

#### Cleaning the Monitor

#### Cleaning the Mouse

Before cleaning the mouse, ensure that the power to the computer is turned off.

Service Considerations

Listed below are some of the considerations that you should keep in mind during the disassembly and assembly of the computer.

#### Power Supply Fan

The power supply fan is a variable-speed fan based on the temperature in the power supply.

CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is off when the computer is in “Standby,” “Suspend,” or “Off” modes. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

#### Tools and Software Requirements

To service the computer, you need the following:

#### Screws

The screws used in the computer are not interchangeable. They may have standard or metric threads and may be of different lengths. If an incorrect screw is used during the reassembly process, it can damage the unit. HP strongly recommends that all screws removed during disassembly be kept with the part that was removed, then returned to their proper locations.

CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard drives only.

CAUTION: As each subassembly is removed from the computer, it should be placed away from the work area to prevent damage.

#### Cables and Connectors

Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced.

CAUTION: When servicing this computer, ensure that cables are placed in their proper location during the reassembly process. Improper cable placement can damage the computer.

#### Hard Drives

Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies to failed drives as well as replacement spares.

Service Considerations 53

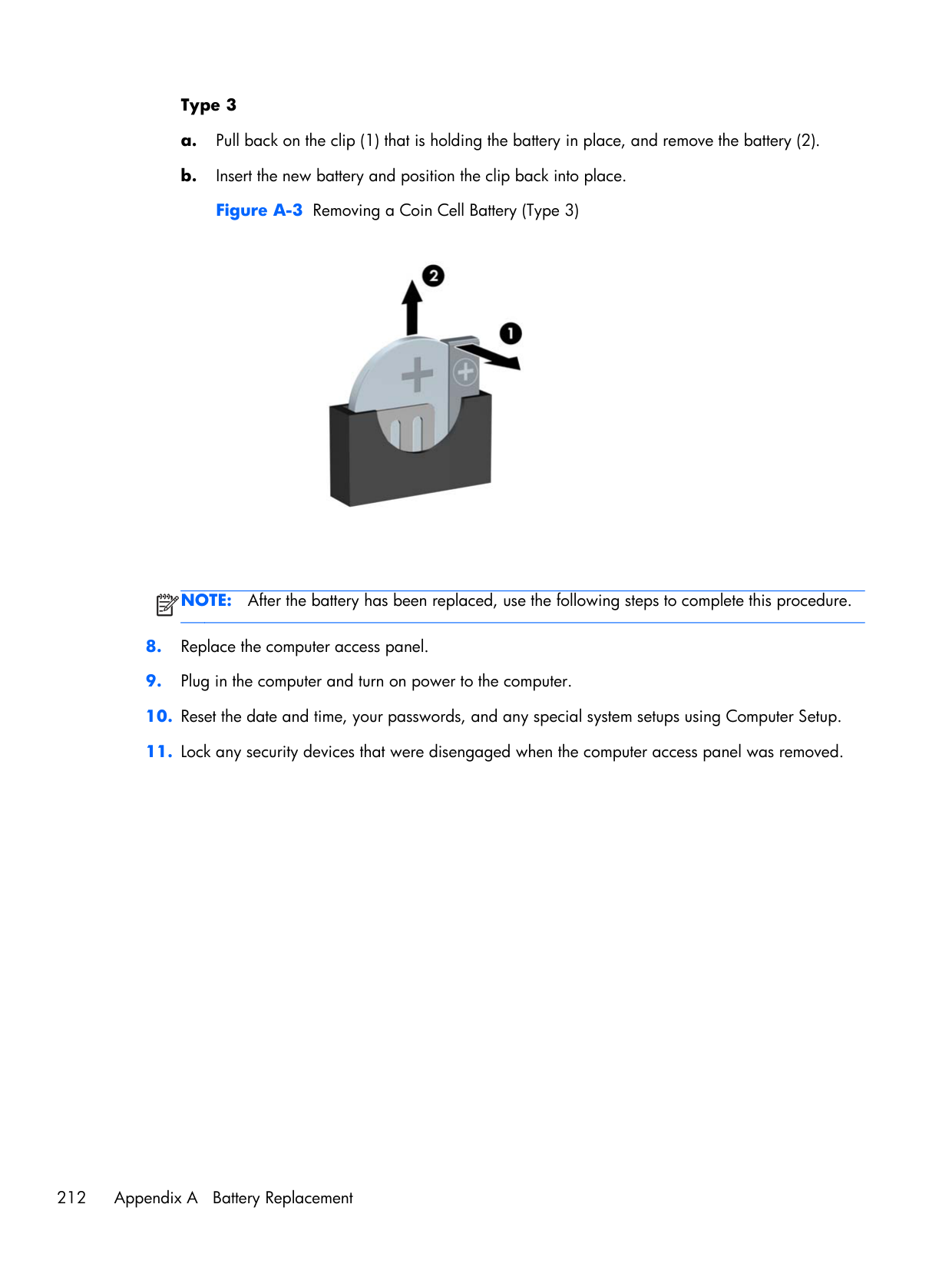

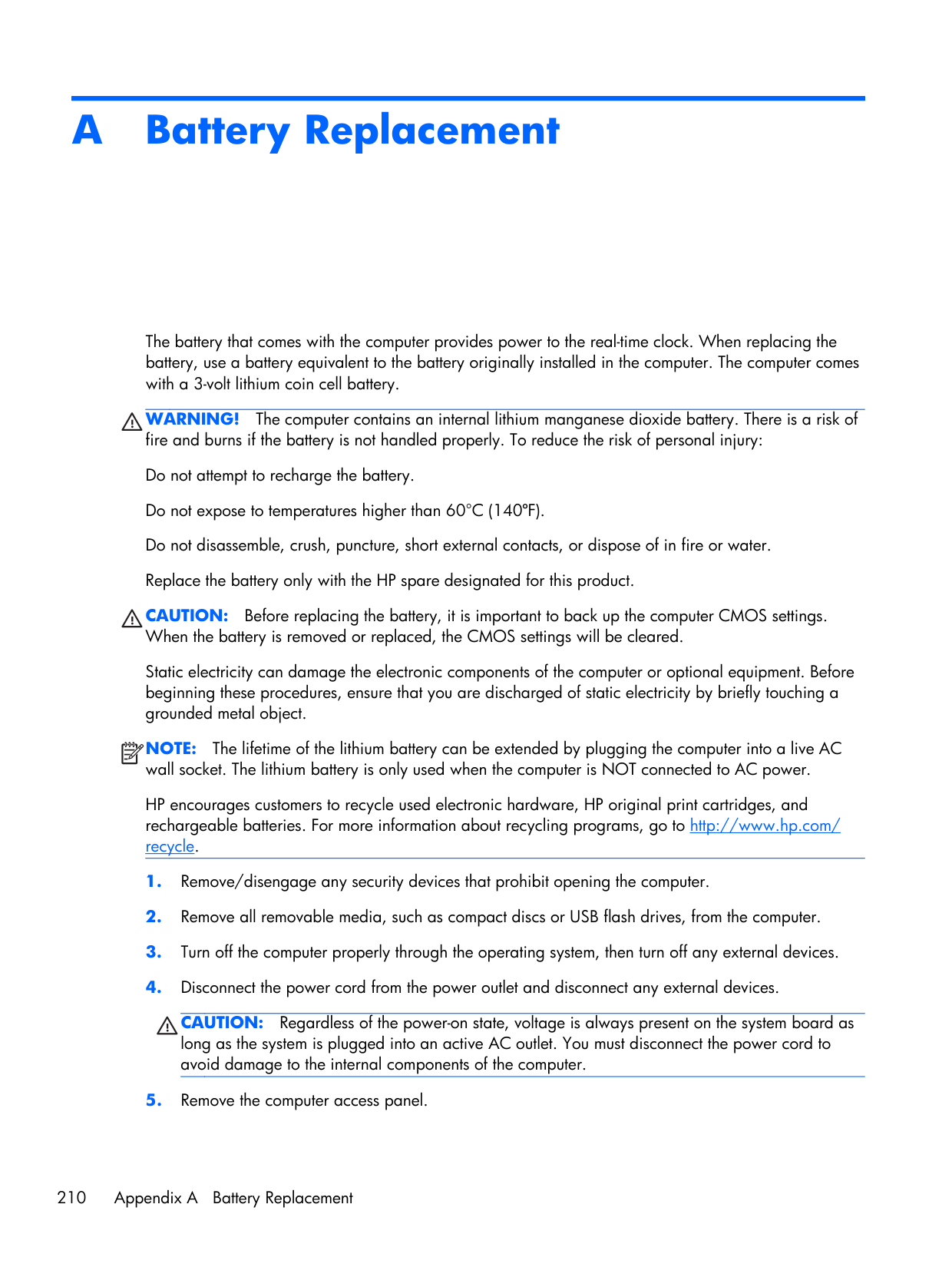

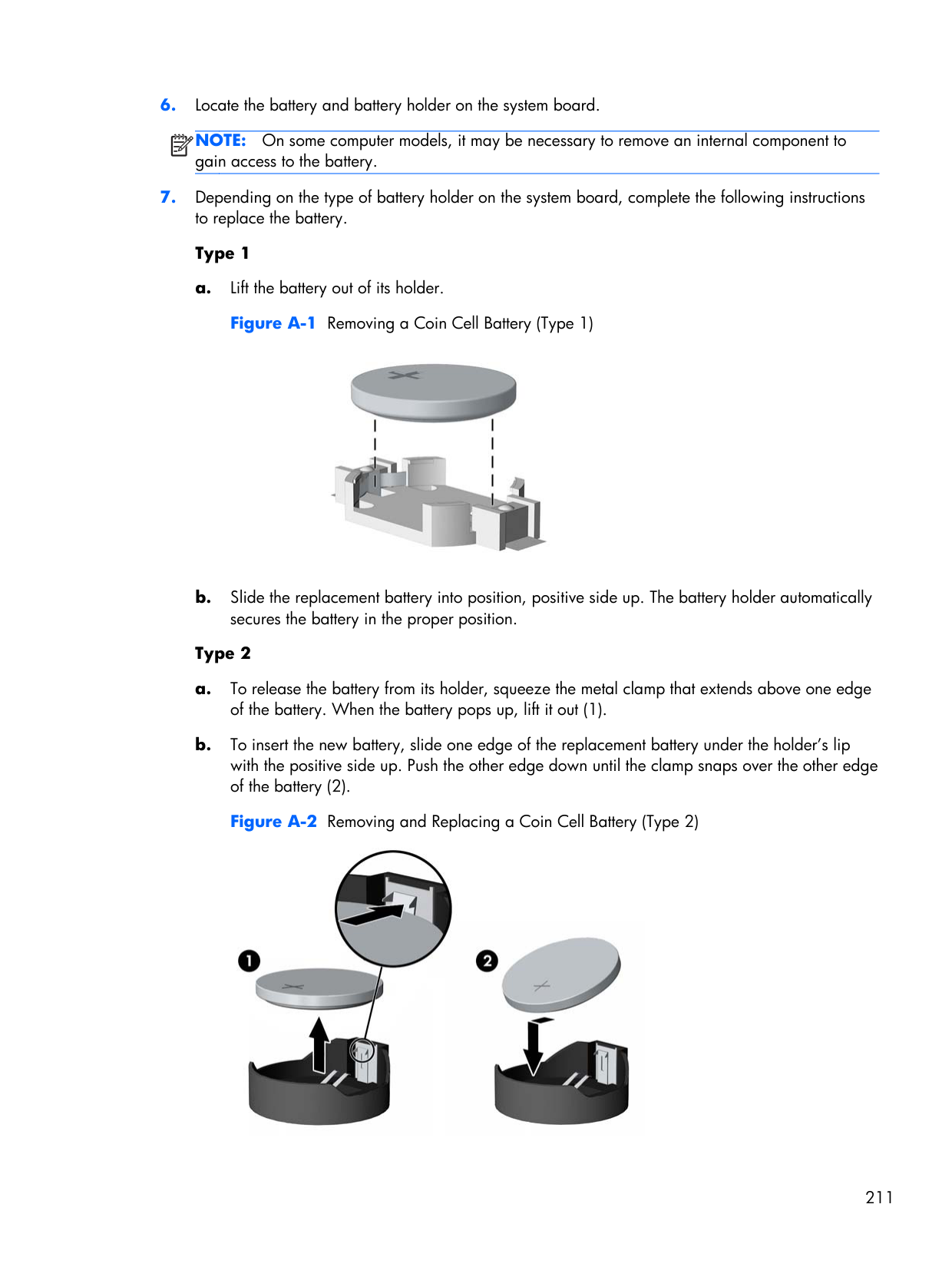

#### Lithium Coin Cell Battery

The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime of about three years.

See the appropriate removal and replacement chapter for the chassis you are working on in this guide for instructions on the replacement procedures.

WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the battery.

NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP, their authorized partners, or their agents.

| | |---|

SATA Hard Drives

Serial ATA Hard Drive Characteristics Number of pins/conductors in data cable 7/7 Number of pins in power cable 15 Maximum data cable length 39.37 in (100 cm) Data interface voltage differential 400-700 mV Drive voltages 3.3 V, 5 V, 12 V Jumpers for configuring drive N/A Data transfer rate 3.0 Gb/s

SATA Hard Drive Cables

#### SATA Data Cable

Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA 1.5 Gb/s drives.

Current HP desktop products ship with SATA 3.0 Gb/s hard drives. SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never bend it tighter than a 30 mm (1.18 in) radius. The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.

SMART ATA Drives

The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers have built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is imminent, it generates a fault alert.

Cable Management

Always follow good cable management practices when working inside the computer.

SATA Hard Drive Cables 55

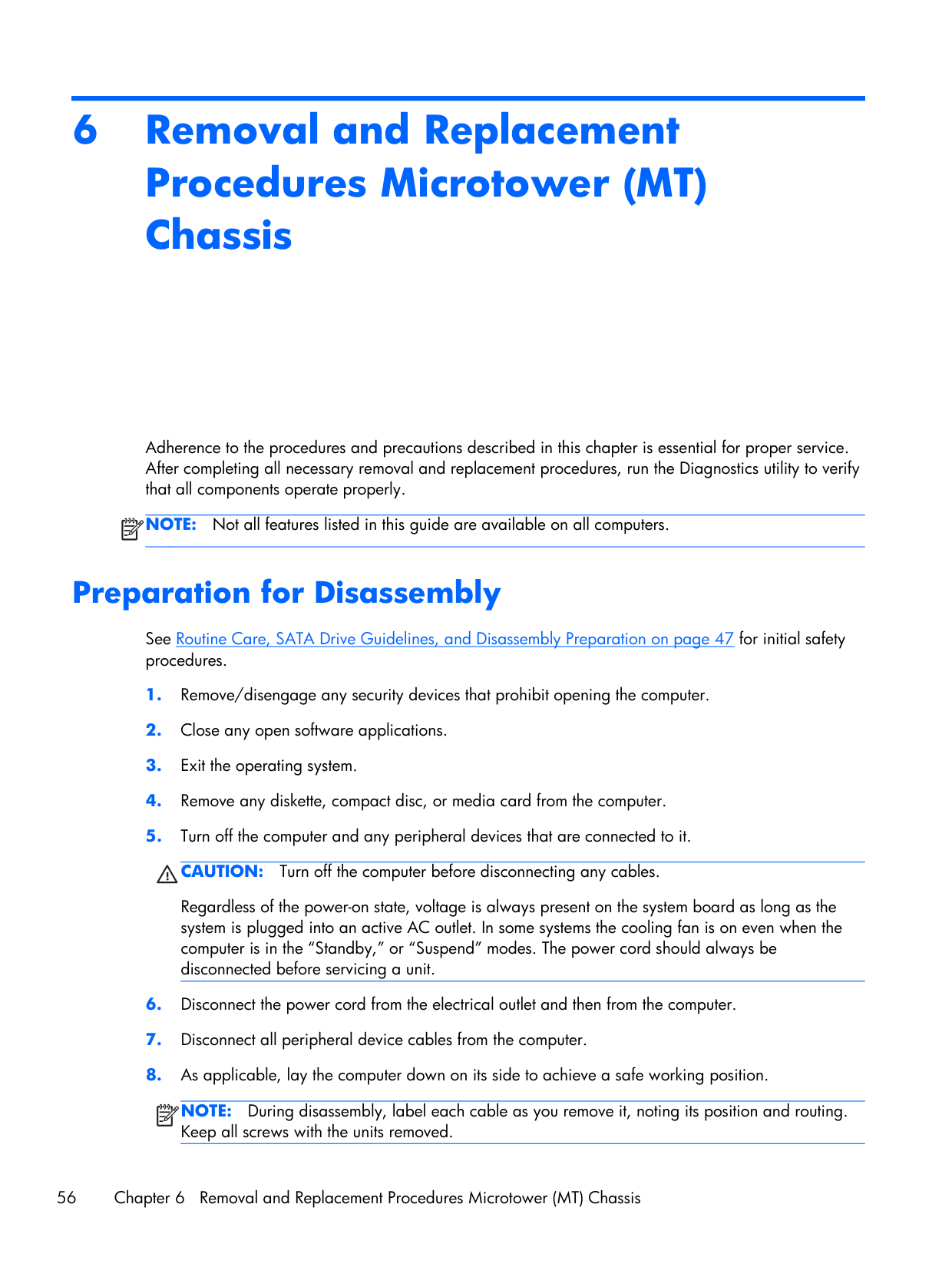

6 Removal and ReplacementProcedures Microtower (MT)Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service. After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

NOTE: Not all features listed in this guide are available on all computers.

| | |---|

Preparation for Disassembly

See Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 47 for initial safety procedures.

CAUTION: Turn off the computer before disconnecting any cables.

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.

NOTE: During disassembly, label each cable as you remove it, noting its position and routing. Keep all screws with the units removed.

| | |---|

CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong screw in an application may damage the unit.

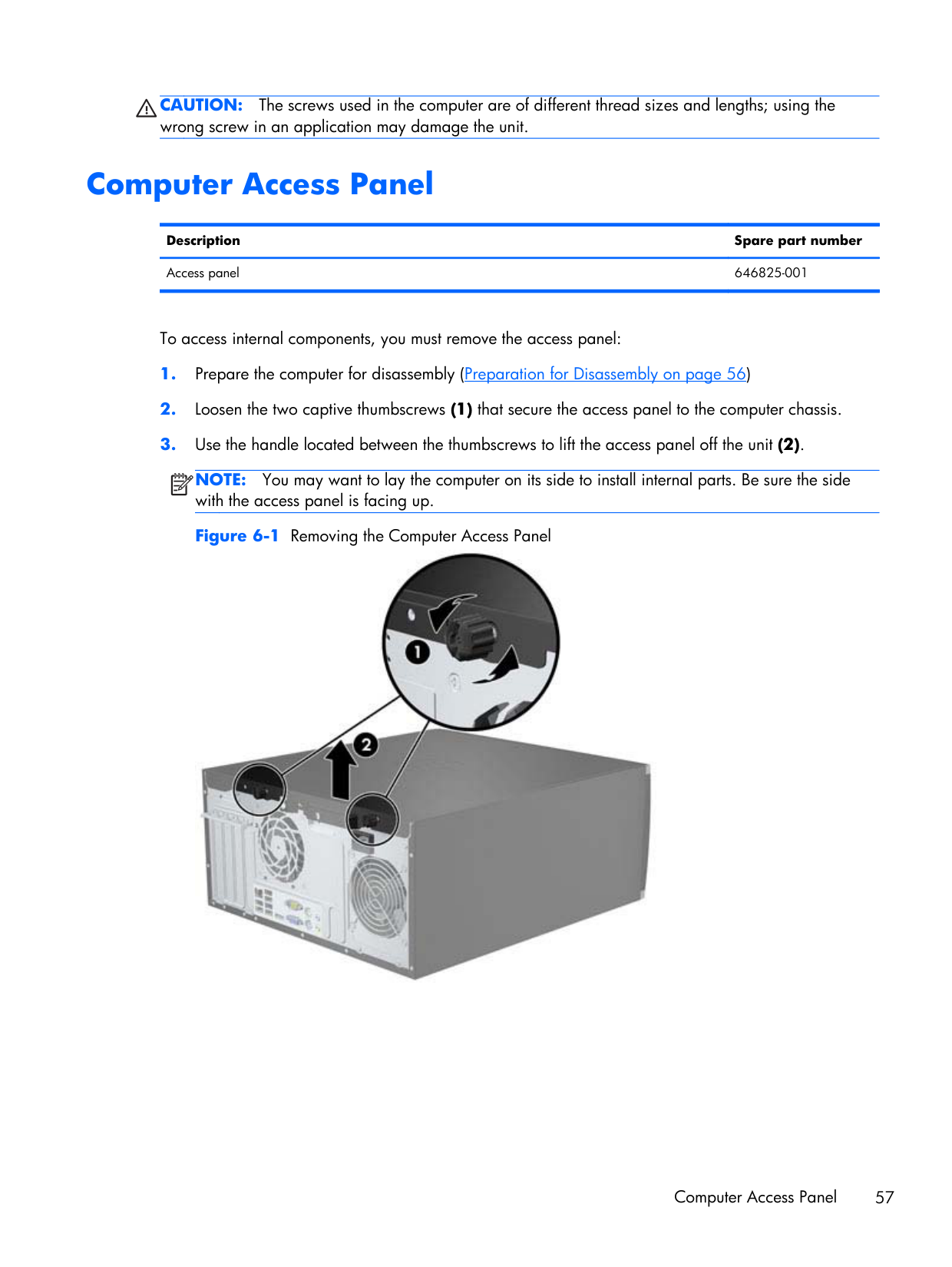

Computer Access Panel

######### Description Spare part number

Access panel 646825-001

To access internal components, you must remove the access panel:

NOTE: You may want to lay the computer on its side to install internal parts. Be sure the side with the access panel is facing up.

| | |---|

Figure 6-1 Removing the Computer Access Panel


Computer Access Panel 57

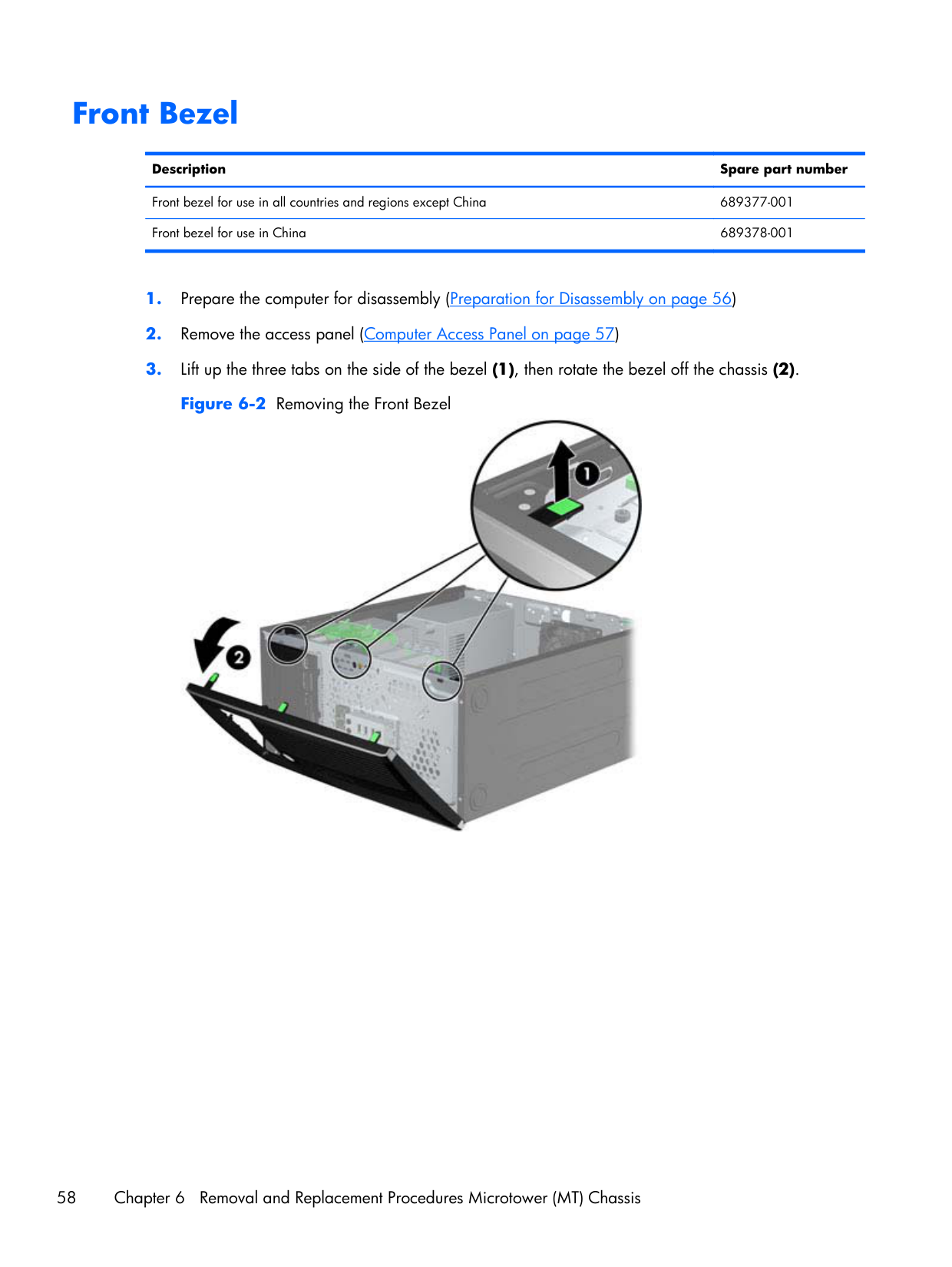

Front Bezel

######### Description Spare part number

Front bezel for use in all countries and regions except China 689377-001 Front bezel for use in China 689378-001

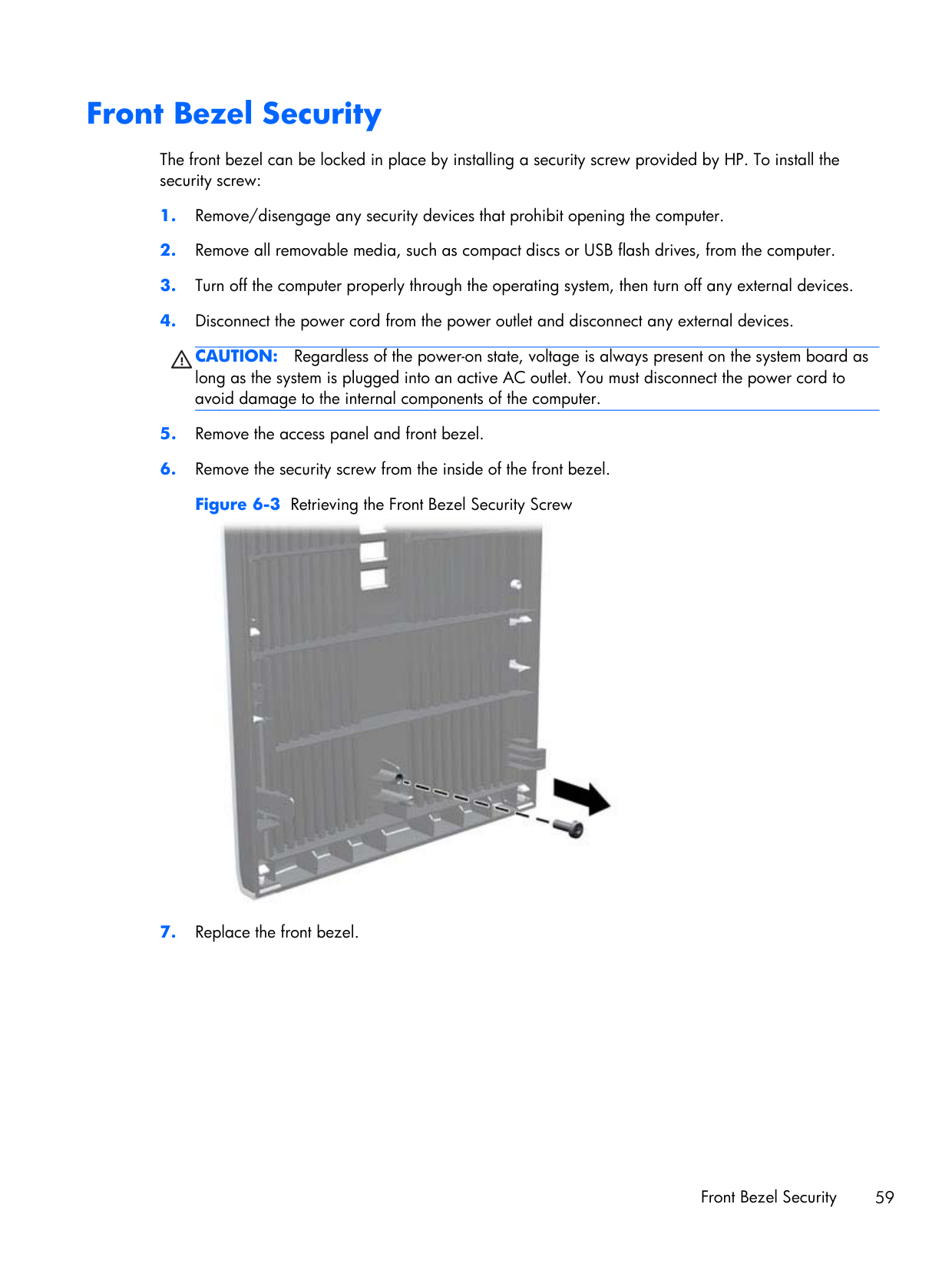

Front Bezel Security

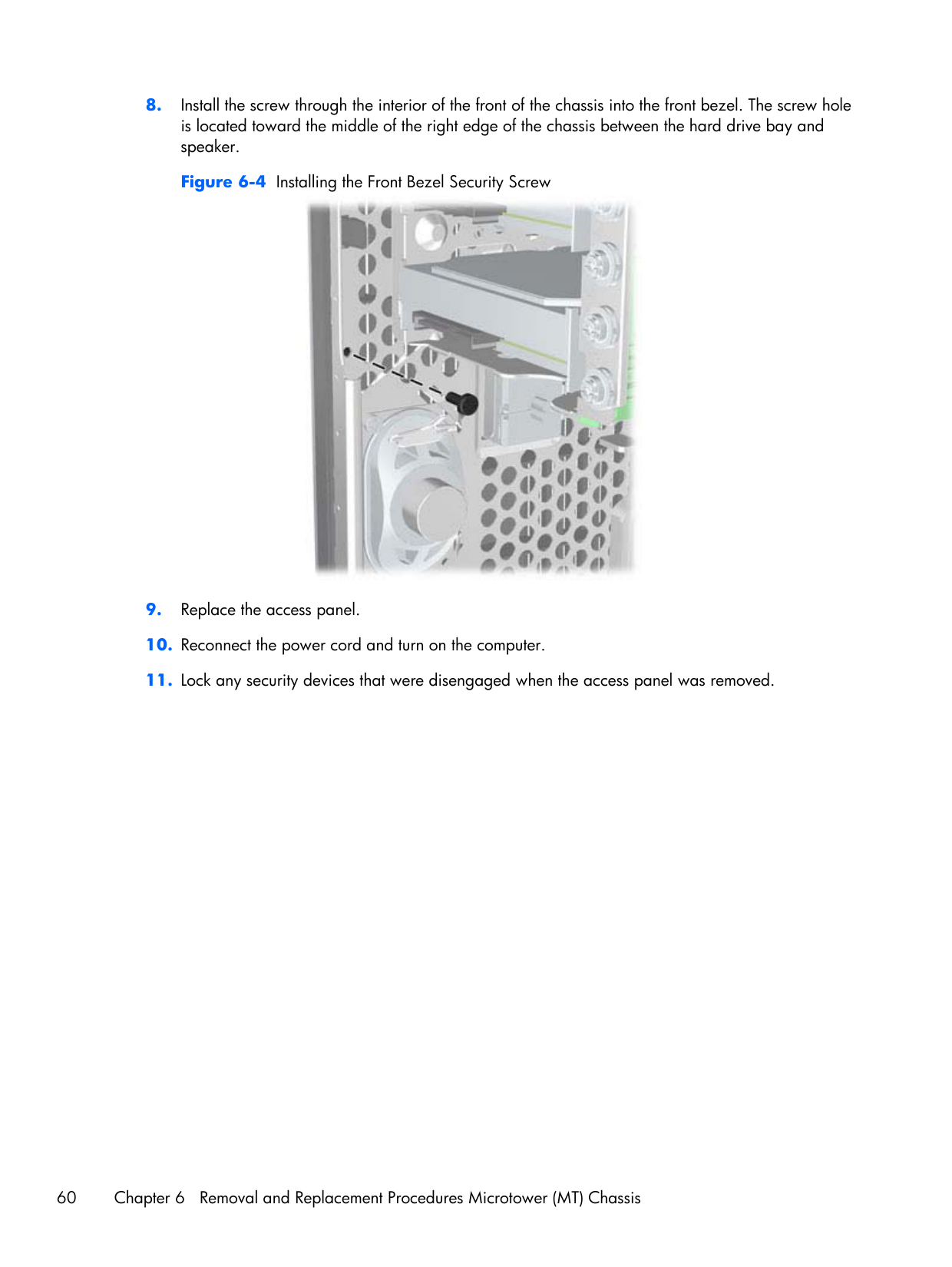

The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw:

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.


Front Bezel Security 59

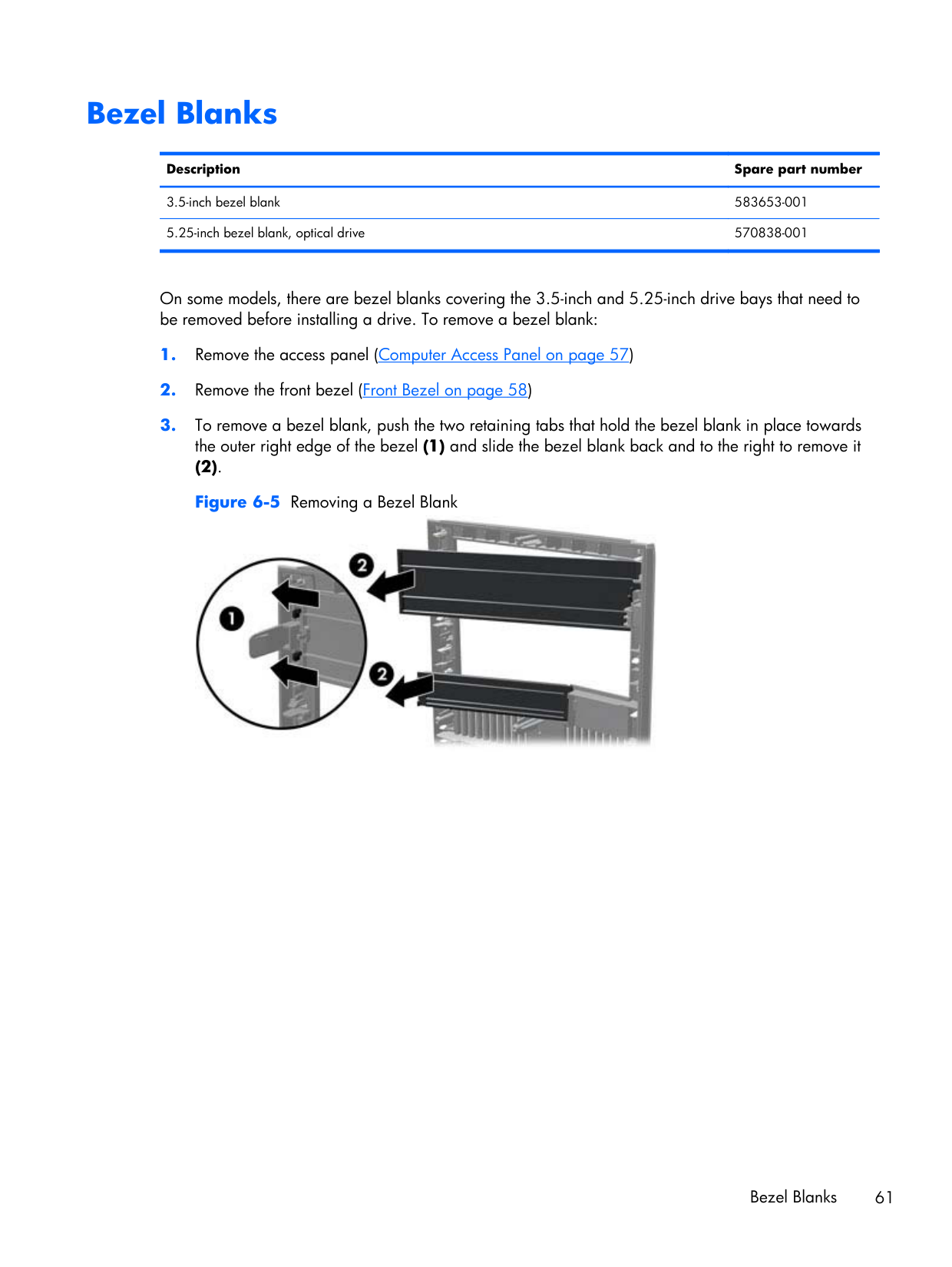

Bezel Blanks

######### Description Spare part number

3.5-inch bezel blank 583653-001 5.25-inch bezel blank, optical drive 570838-001

On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch drive bays that need to be removed before installing a drive. To remove a bezel blank:

(2). Figure 6-5 Removing a Bezel Blank


Bezel Blanks 61

Memory

######### Description Spare part number

8-GB, PC3-12800 689375-001 4-GB, PC3-12800 671613-001 2-GB, PC3-12800 671612-001

The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).

#### DIMMs

The memory sockets on the system board can be populated with up to four industry-standard DIMMs. These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum memory support, you can populate the system board with up to 16-GB of memory configured in a highperforming dual channel mode.

#### DDR3-SDRAM DIMMs

CAUTION: This product DOES NOT support DDR3 Ultra Low Voltage (DDR3U) memory. The processor is not compatible with DDR3U memory and if you plug DDR3U memory into the system board, it can cause the physical damage to the DIMM or invoke system malfunction.

For proper system operation, the DDR3-SDRAM DIMMs must be:

NOTE: The system will not operate properly if you install unsupported DIMMs.

| | |---|

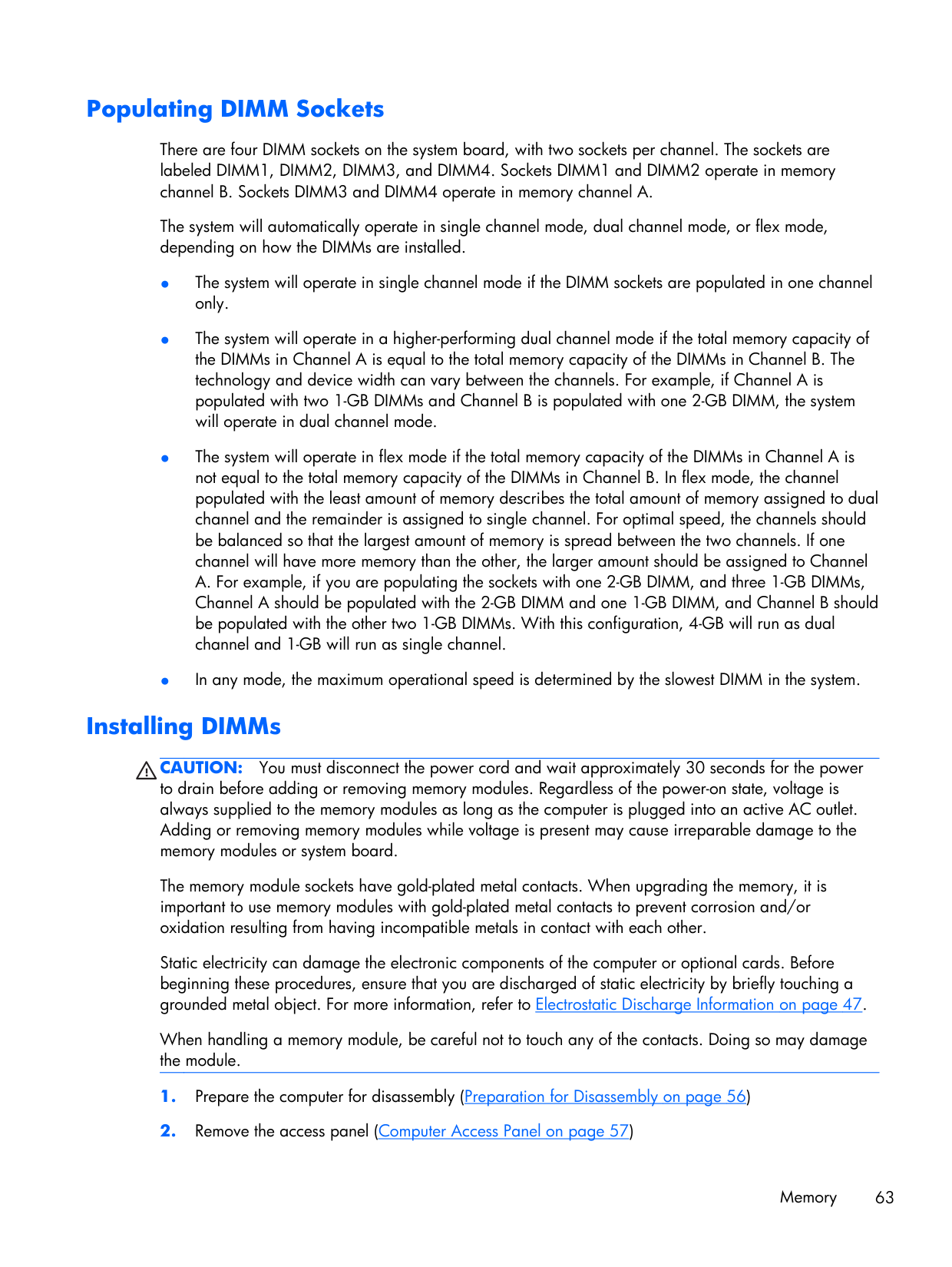

#### Populating DIMM Sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.

The system will automatically operate in single channel mode, dual channel mode, or flex mode, depending on how the DIMMs are installed.

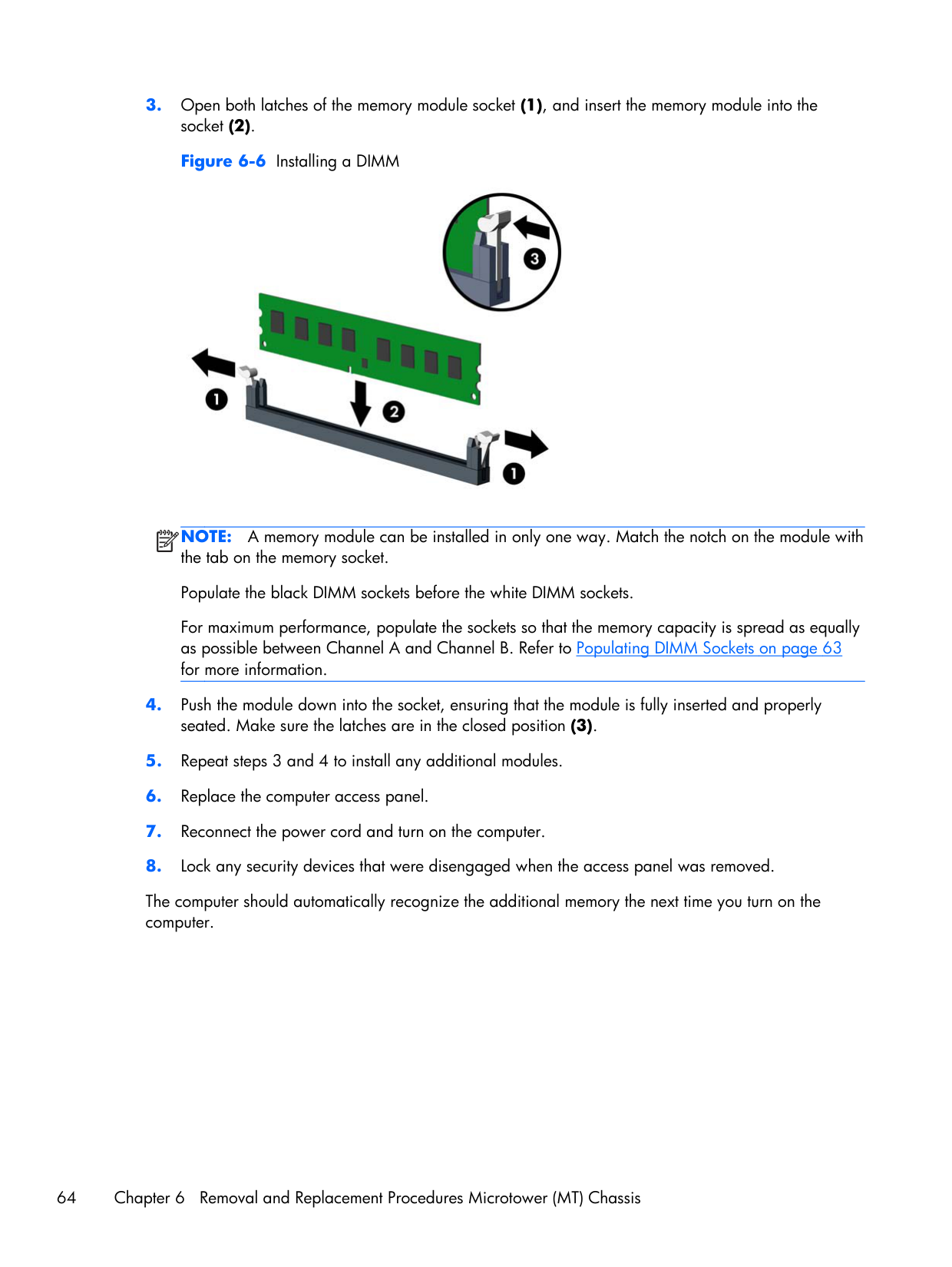

#### Installing DIMMs

CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. For more information, refer to Electrostatic Discharge Information on page 47. When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.

Memory 63


| | |---|

NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket. Populate the black DIMM sockets before the white DIMM sockets. For maximum performance, populate the sockets so that the memory capacity is spread as equally as possible between Channel A and Channel B. Refer to Populating DIMM Sockets on page 63 for more information.

The computer should automatically recognize the additional memory the next time you turn on the computer.

Expansion Cards

######### Description Spare part number

nVidia GeForce GT630 PCIe x16 graphics card, 2 GB (not for use with Windows 8) 684591-001 nVidia GeForce GT630 PCIe x16 graphics card, 2 GB (for use with Windows 8) 702084-001 nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use with Windows 8) 700578-001 nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (not for use with Windows 8) 682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; use only in China) 702646-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; not for China) 702647-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 637995-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use with Windows 8) 697246-001 Intel PRO/1000CT2 NIC, includes bracket 635523-001 HP FireWire / IEEE 1394a PCIe x1 Card 637591-001

The computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI Express x16 expansion slot.

NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot.

| | |---|

To remove, replace, or add an expansion card:


NOTE: Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card.

| | |---|

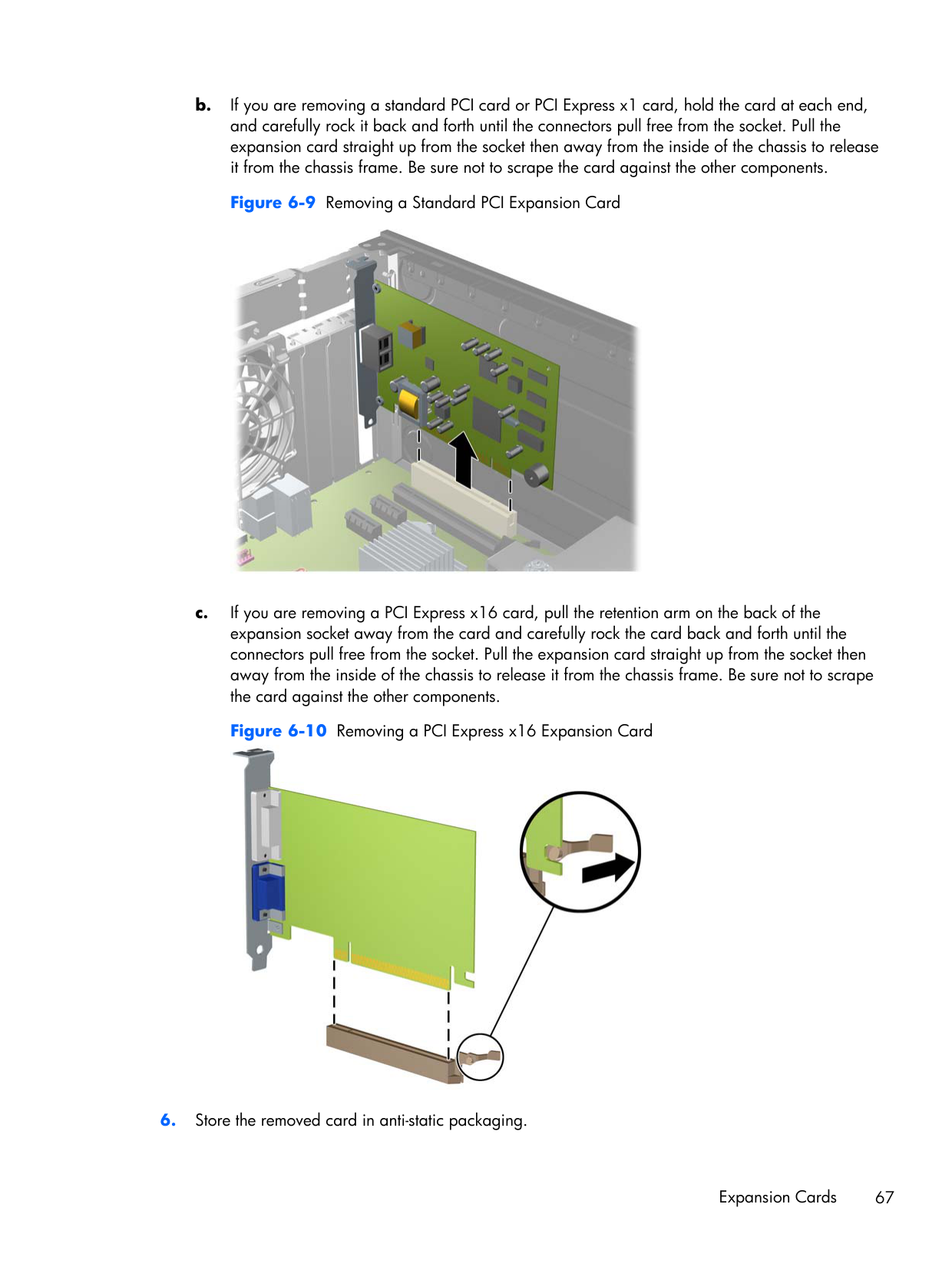

c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against the other components.


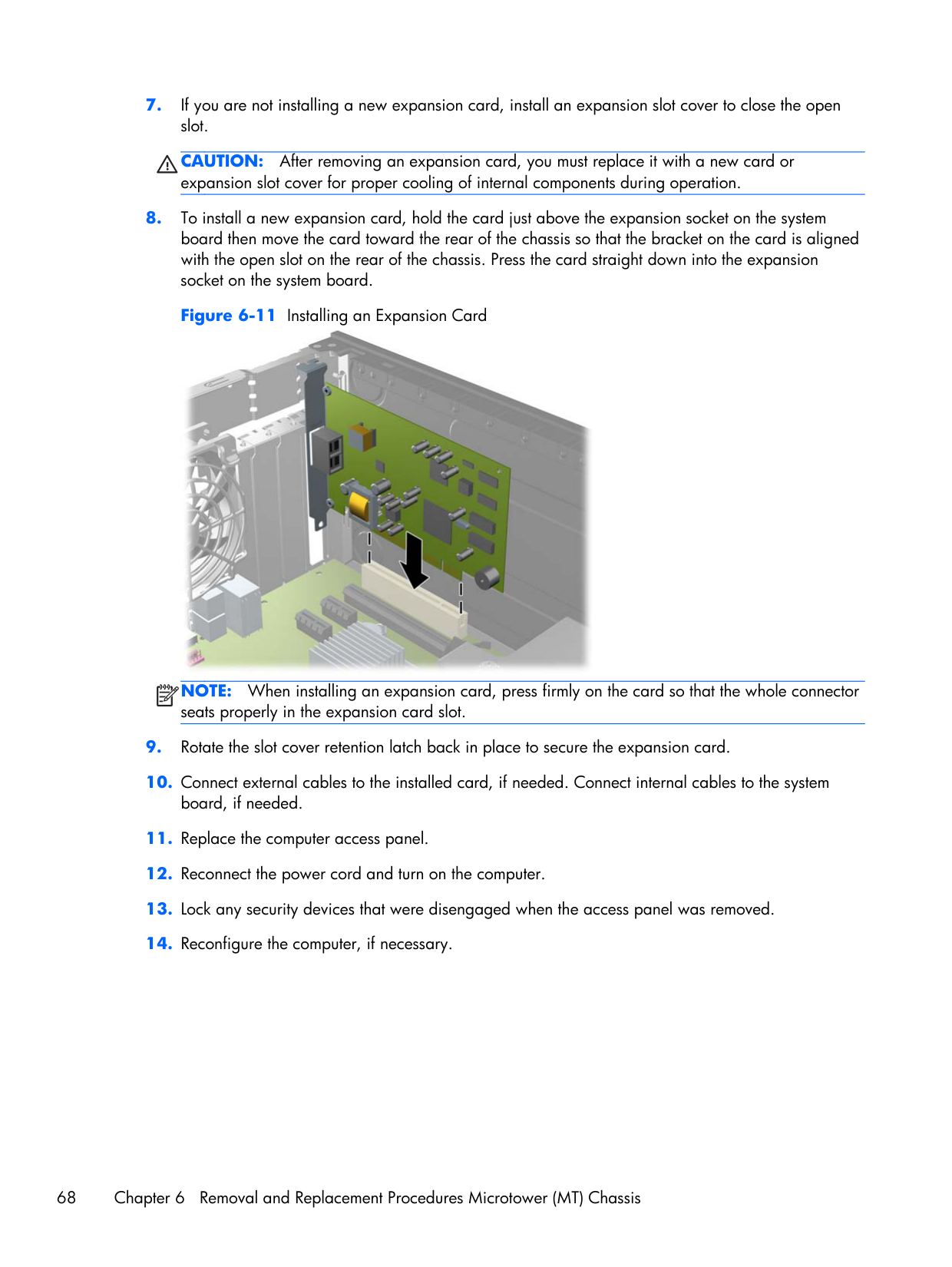

CAUTION: After removing an expansion card, you must replace it with a new card or expansion slot cover for proper cooling of internal components during operation.


| | |---|

NOTE: When installing an expansion card, press firmly on the card so that the whole connector seats properly in the expansion card slot.

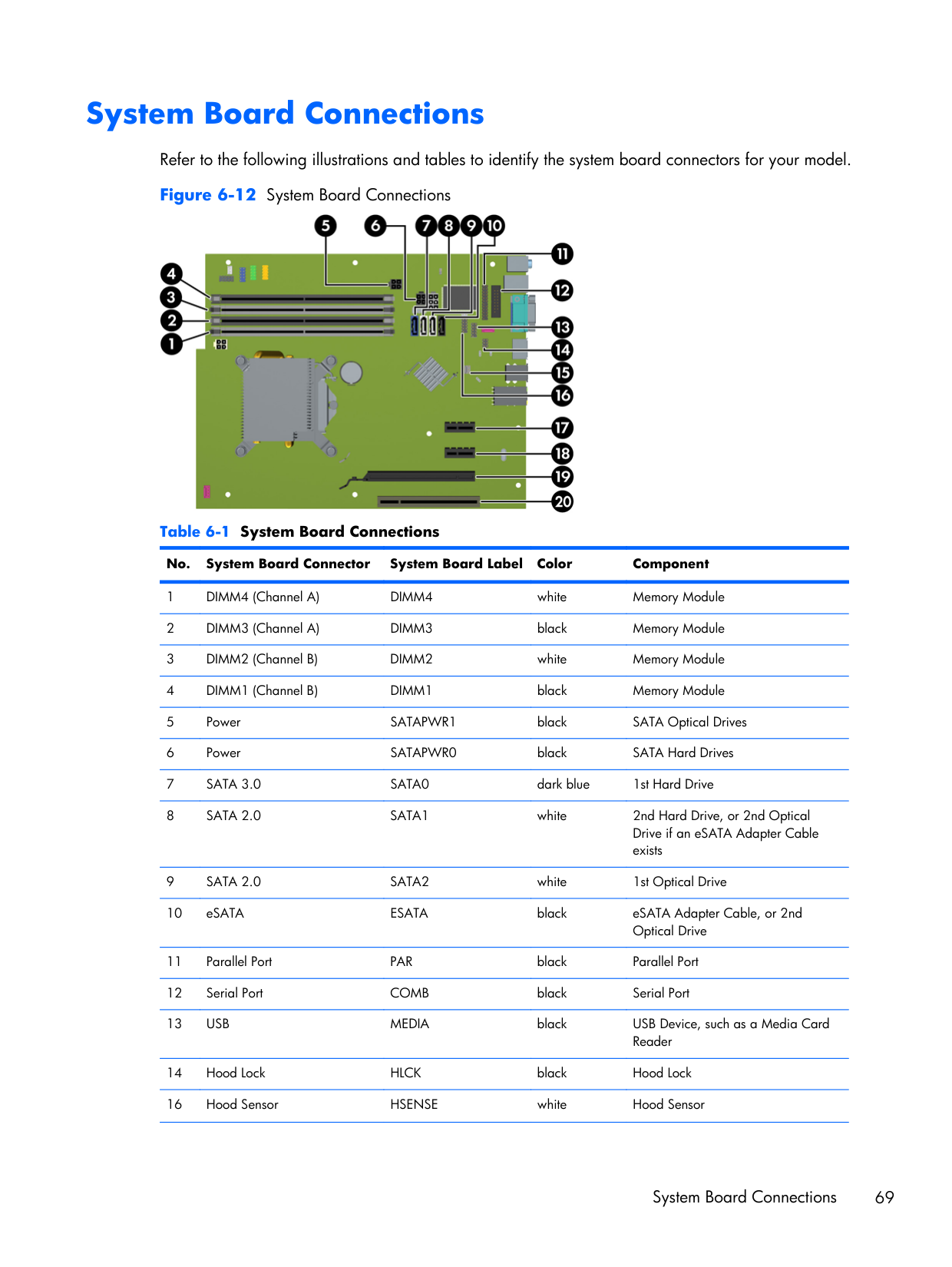

System Board Connections Refer to the following illustrations and tables to identify the system board connectors for your model. Figure 6-12 System Board Connections


Table 6-1 System Board Connections

No. System Board Connector System Board Label Color Component

System Board Connections 69

######## Table 6-1 System Board Connections (continued)

######### No. System Board Connector System Board Label Color Component

15 USB MEDIA2 black USB Device, such as a Media Card Reader

Drives

######### Description Spare part number

DVD±RW drive 660408-001 DVD-ROM drive 581599-001 Blu-ray BD-Writer XL Drive 682219-001 Blu-ray BD-RW SuperMulti DL Drive 656792-001 1 TB, 7200 rpm SATA hard drive 636930-001 500 GB, 10000 rpm SATA hard drive 683923-001 500 GB, 7200 rpm, 2.5 inch, SED, SATA hard drive 696422-001 500 GB, 7200 rpm SATA hard drive 636929-001 320 GB, 7200 rpm SATA hard drive, 2.5-inch 634824-001 250 GB, 10000 rpm SATA hard drive 683922-001 250 GB, 7200 rpm SATA hard drive 636927-001 256 GB Solid State Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001 180 GB Solid State Drive (SSD), SATA 6.0 696622-001 160 GB Solid State Drive (SSD), SATA 3.0 646809-001 128 GB Solid State Drive (SSD), SATA 2.0 665961-001 120 GB Solid State Drive (SSD), SATA 2.0 661841-001

NOTE: HP Compaq Pro 6300 models do not support RAID.

| | |---|

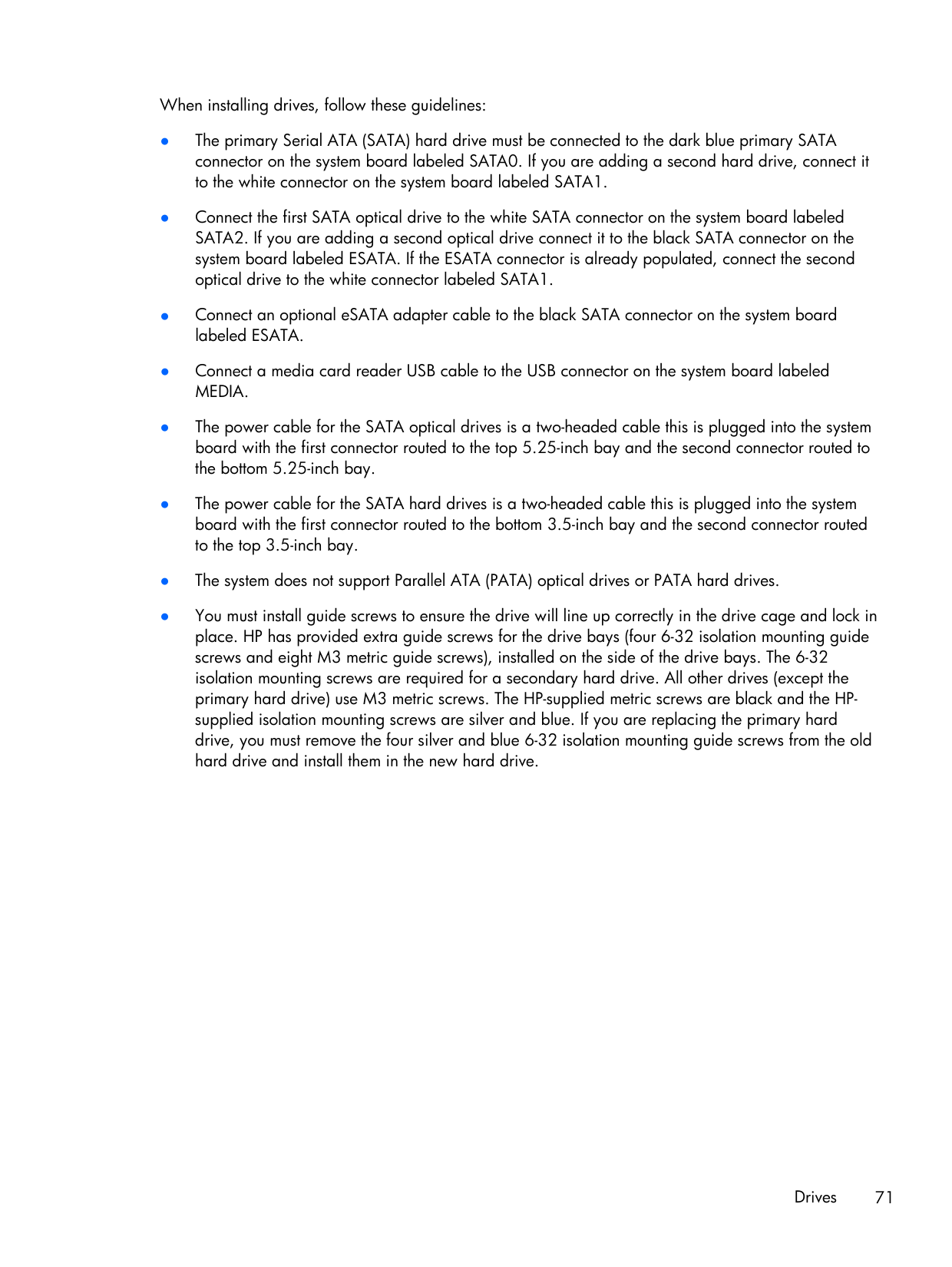

When installing drives, follow these guidelines:

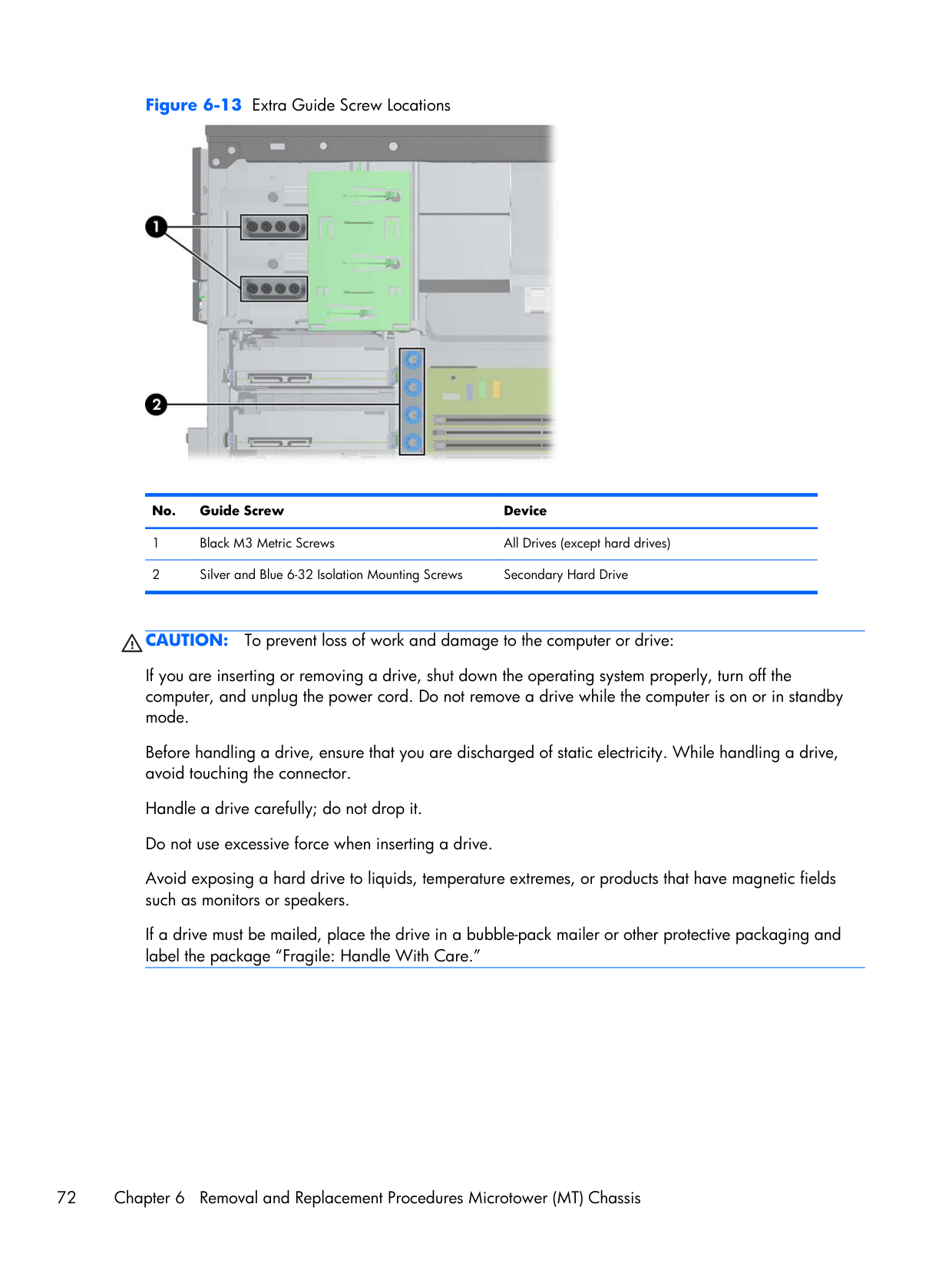

Figure 6-13 Extra Guide Screw Locations


No. Guide Screw Device

CAUTION: To prevent loss of work and damage to the computer or drive:

If you are inserting or removing a drive, shut down the operating system properly, turn off the computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle a drive carefully; do not drop it. Do not use excessive force when inserting a drive. Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers. If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label the package “Fragile: Handle With Care.”

#### Drive Positions

Figure 6-14 Drive Positions


Table 6-2 Drive Positions 1 Two 5.25-inch drive bays for optional drives (optical drives shown) 2 One 3.5-inch drive bay for optional drive (media card reader shown) 3 Secondary 3.5-inch internal hard drive bay for optional hard drive 4 Primary 3.5-inch internal hard drive bay NOTE: The drive configuration on your computer may be different than the drive configuration shown above. NOTE: HP Compaq PRO 6300 models do not support RAID.

To verify the type and size of the storage devices installed in the computer, run Computer Setup.

#### Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay

CAUTION: All removable media should be taken out of a drive before removing the drive from the computer.

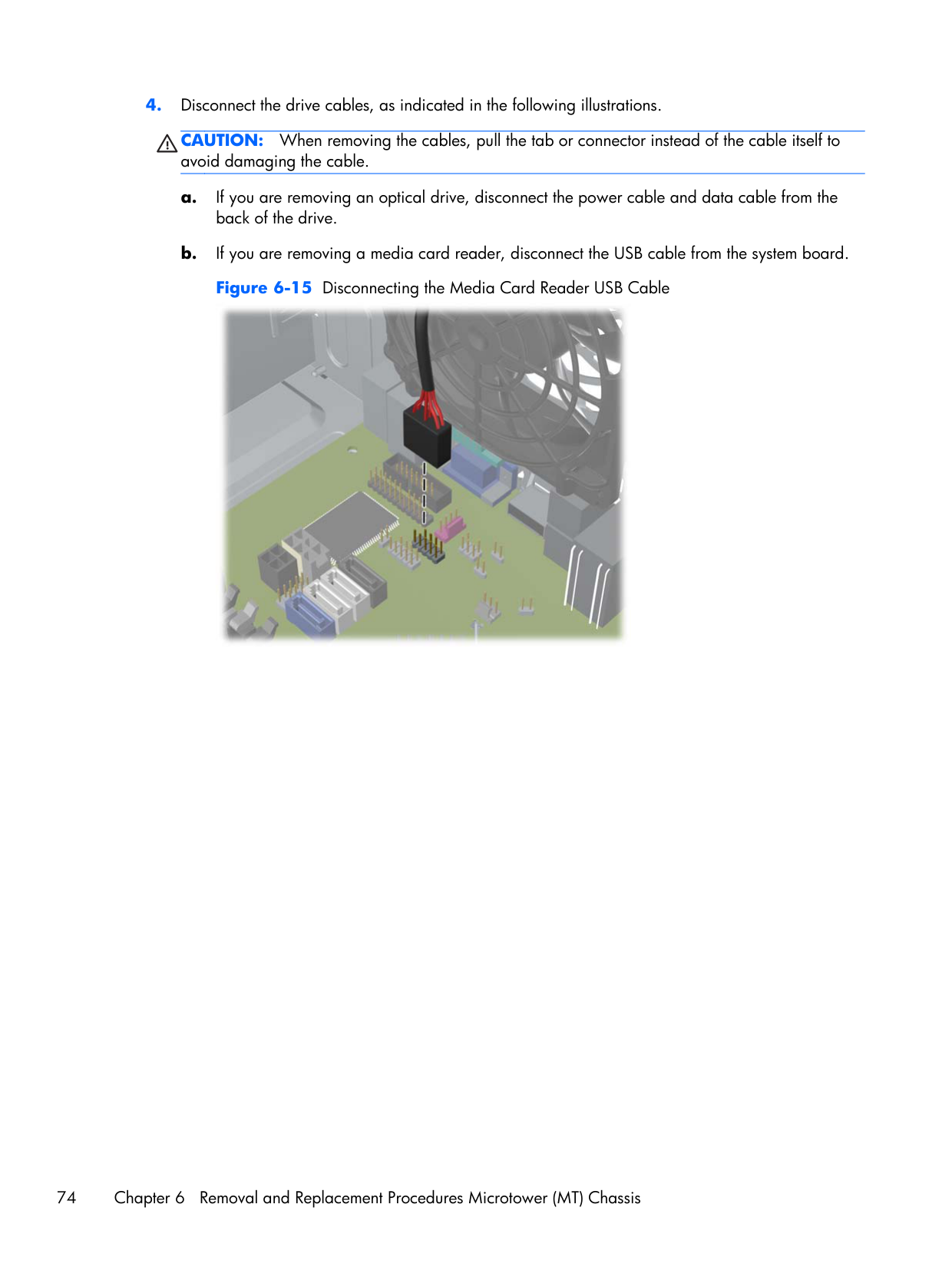

CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid damaging the cable.

a. If you are removing an optical drive, disconnect the power cable and data cable from the

back of the drive.

b. If you are removing a media card reader, disconnect the USB cable from the system board. Figure 6-15 Disconnecting the Media Card Reader USB Cable


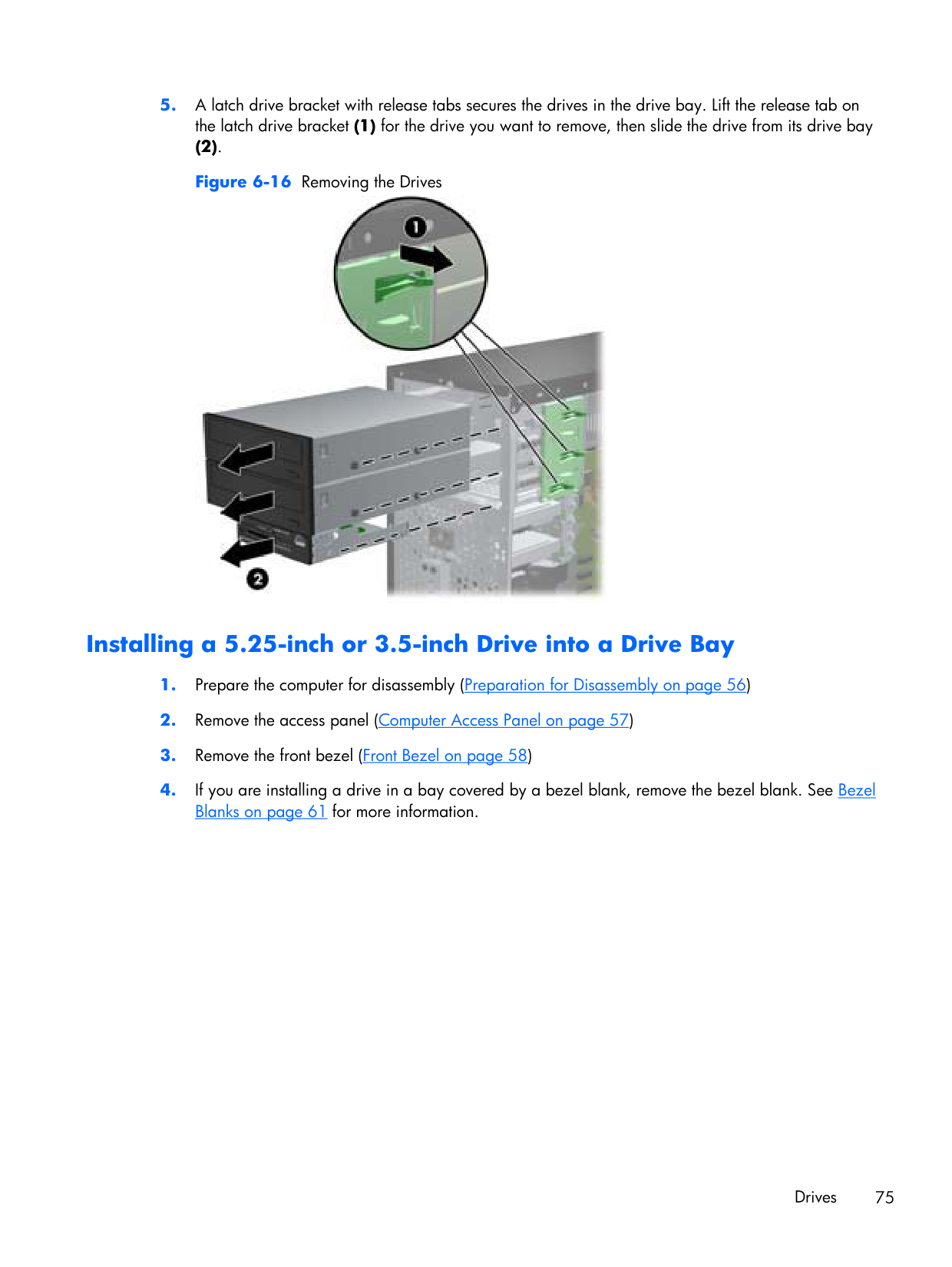

(2). Figure 6-16 Removing the Drives


#### Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay

| | |---|

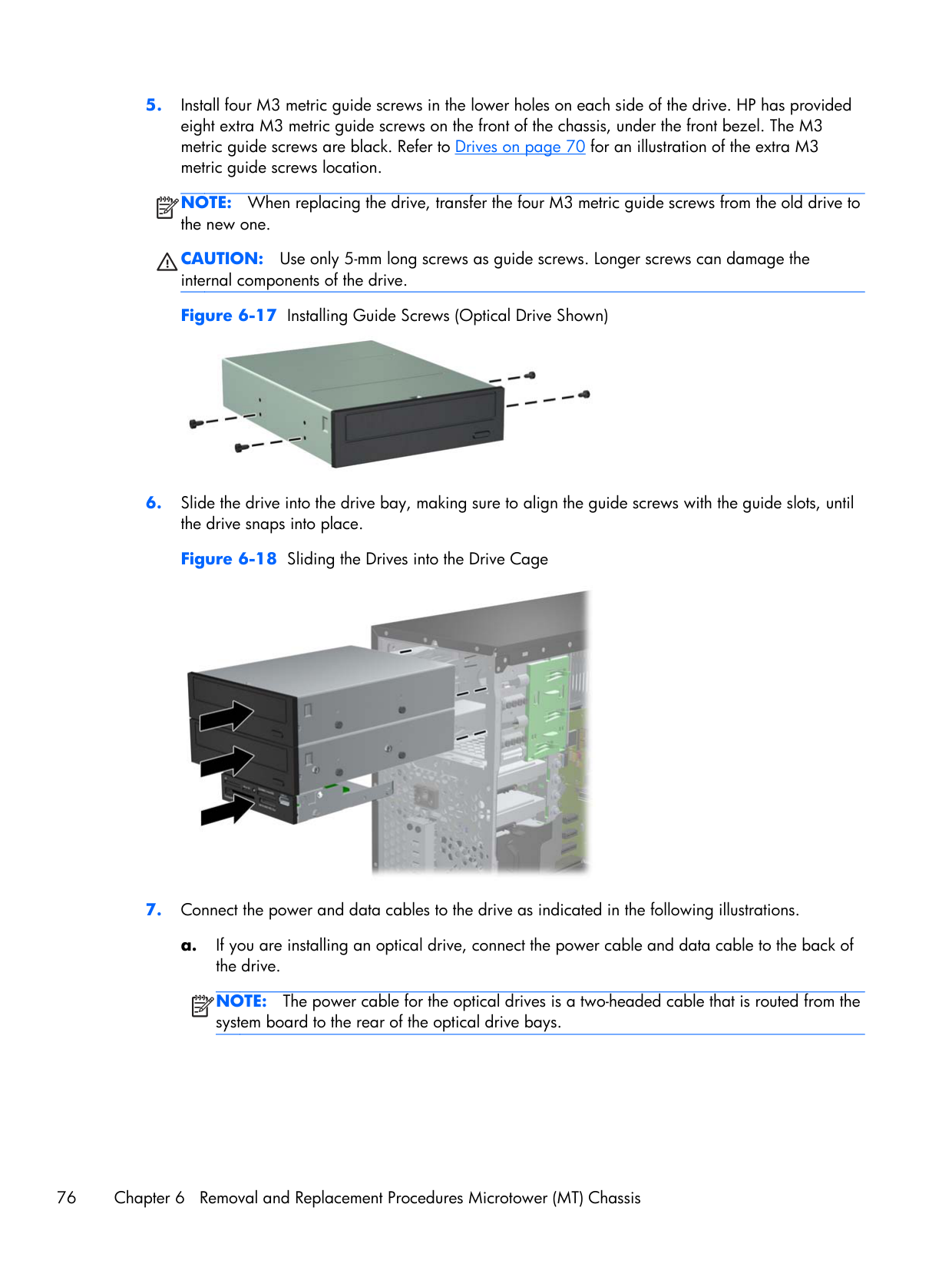

NOTE: When replacing the drive, transfer the four M3 metric guide screws from the old drive to the new one.

CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the internal components of the drive.


the drive snaps into place.


NOTE: The power cable for the optical drives is a two-headed cable that is routed from the system board to the rear of the optical drive bays.

| | |---|


| | |---|

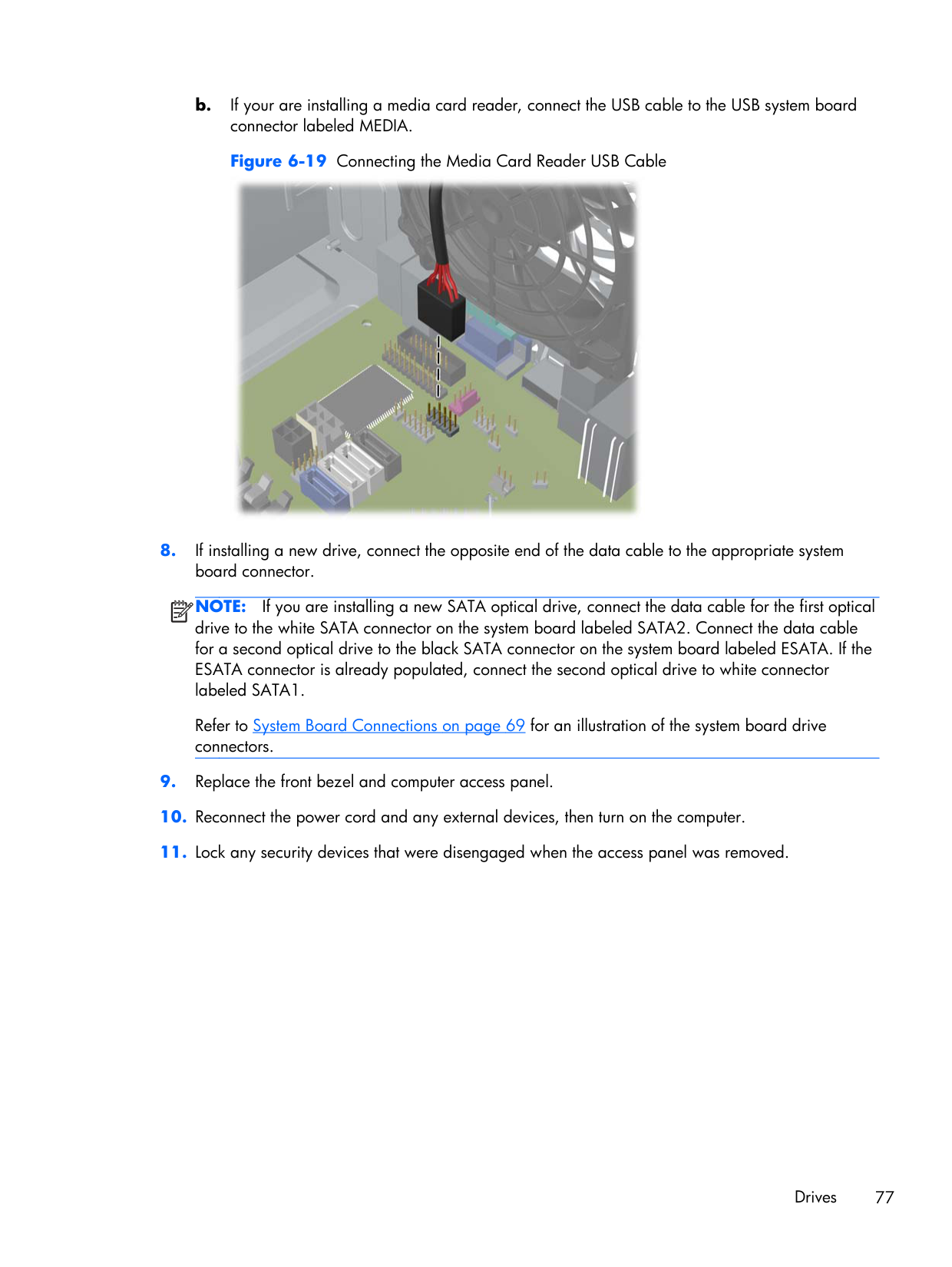

NOTE: If you are installing a new SATA optical drive, connect the data cable for the first optical drive to the white SATA connector on the system board labeled SATA2. Connect the data cable for a second optical drive to the black SATA connector on the system board labeled ESATA. If the ESATA connector is already populated, connect the second optical drive to white connector labeled SATA1.

Refer to System Board Connections on page 69 for an illustration of the system board drive connectors.

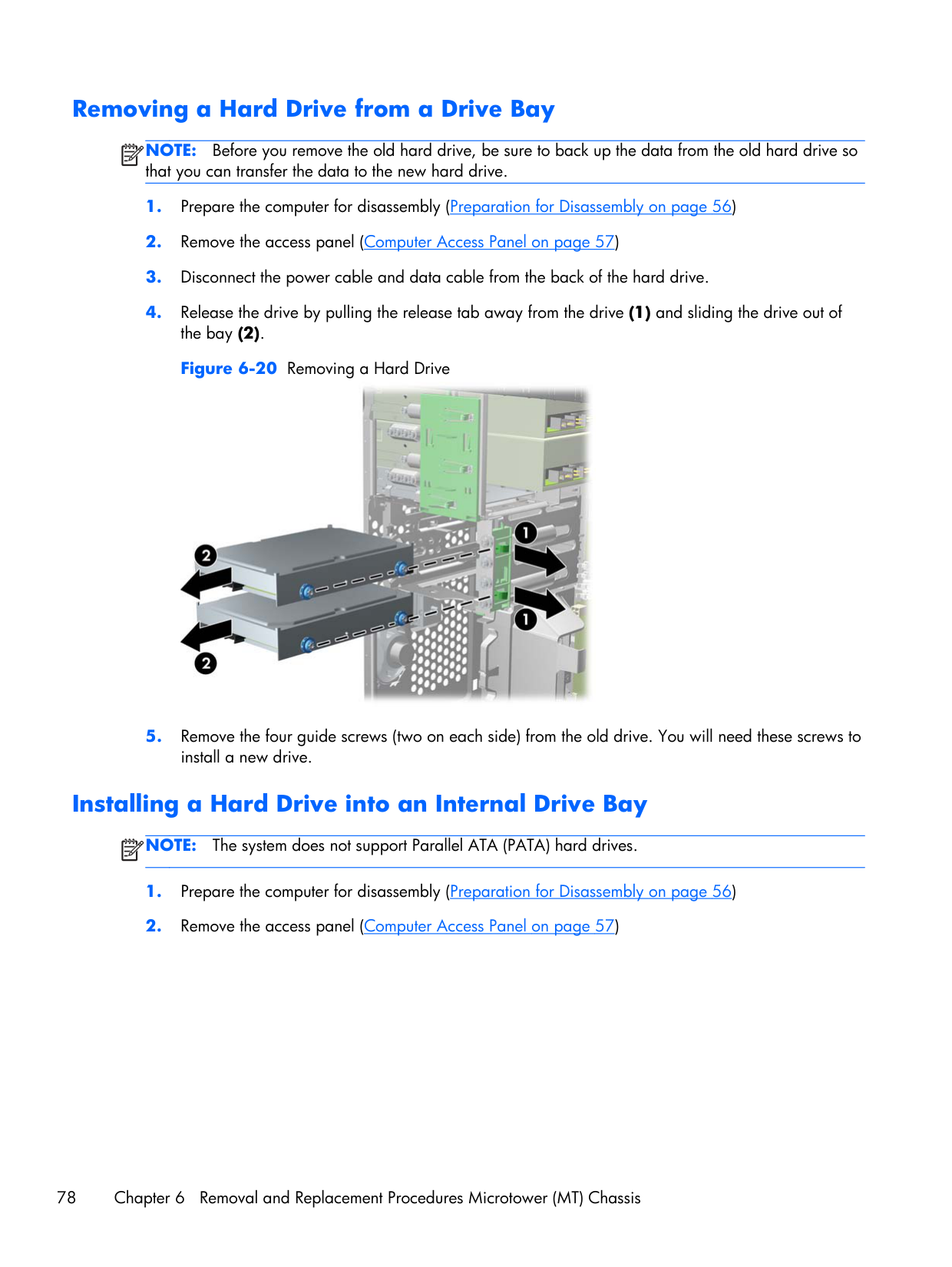

#### Removing a Hard Drive from a Drive Bay

NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.

| | |---|

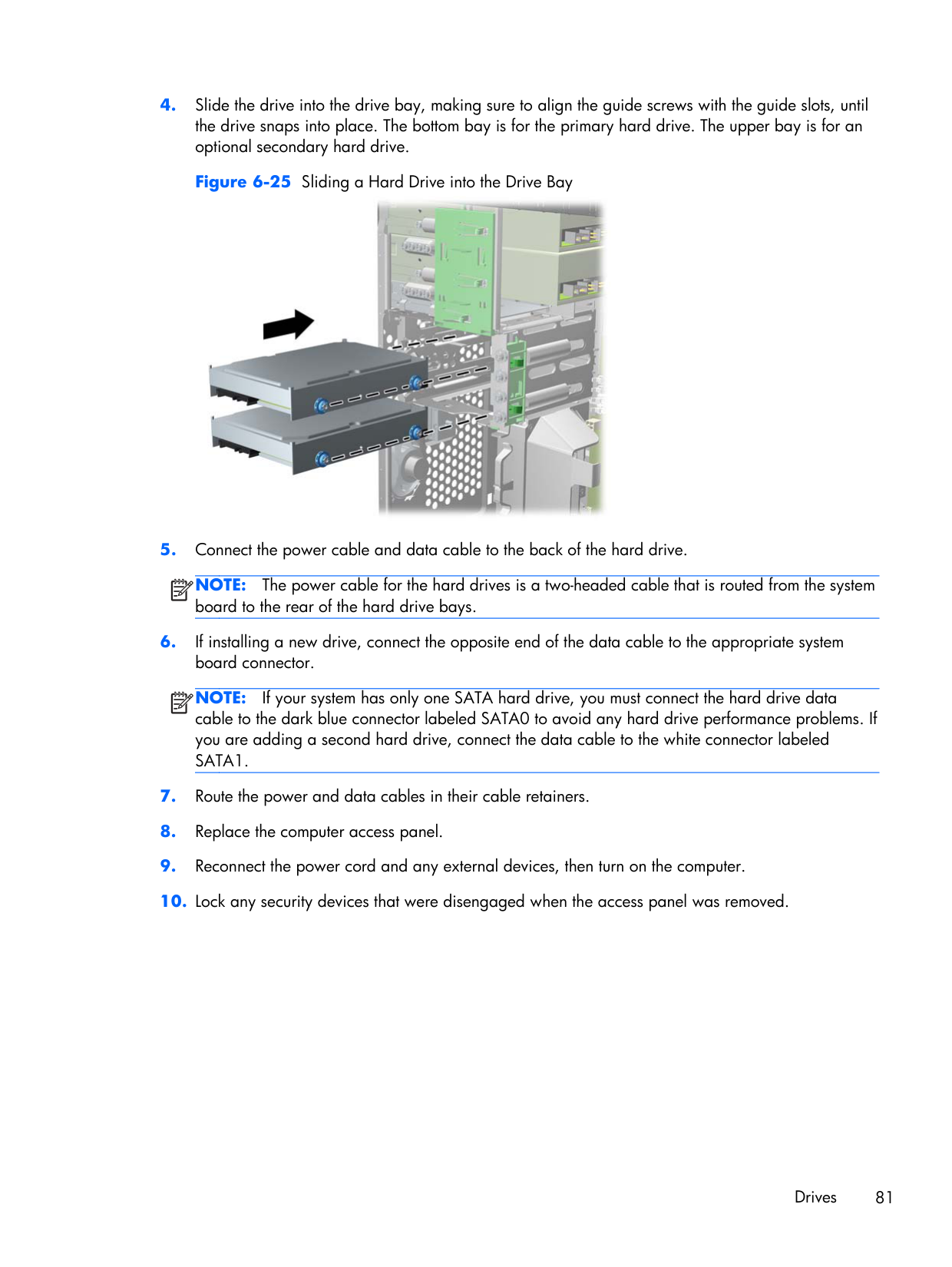

#### Installing a Hard Drive into an Internal Drive Bay

NOTE: The system does not support Parallel ATA (PATA) hard drives.

| |

|---|

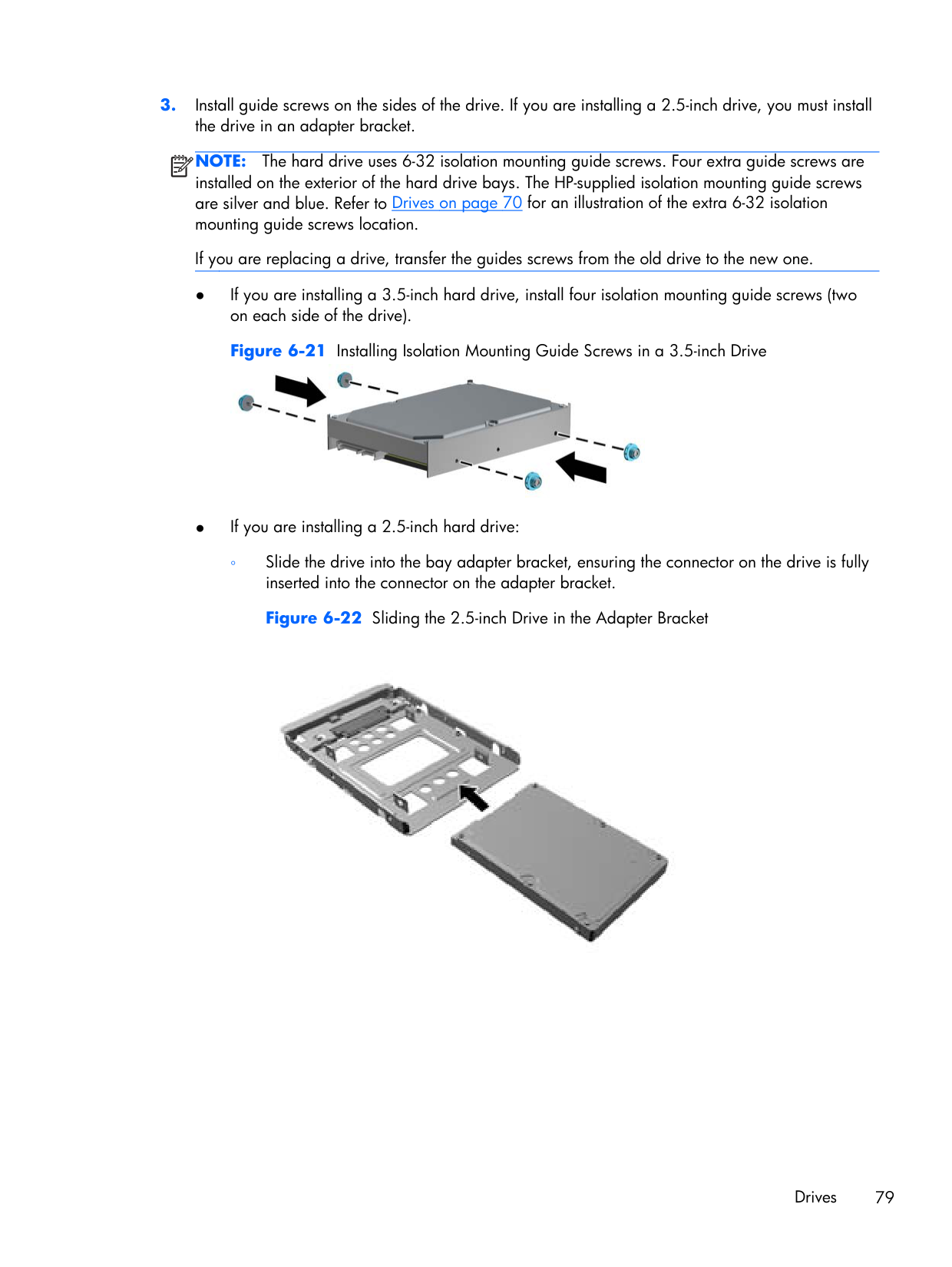

NOTE: The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are installed on the exterior of the hard drive bays. The HP-supplied isolation mounting guide screws are silver and blue. Refer to Drives on page 70 for an illustration of the extra 6-32 isolation mounting guide screws location.

| | |---|

If you are replacing a drive, transfer the guides screws from the old drive to the new one.

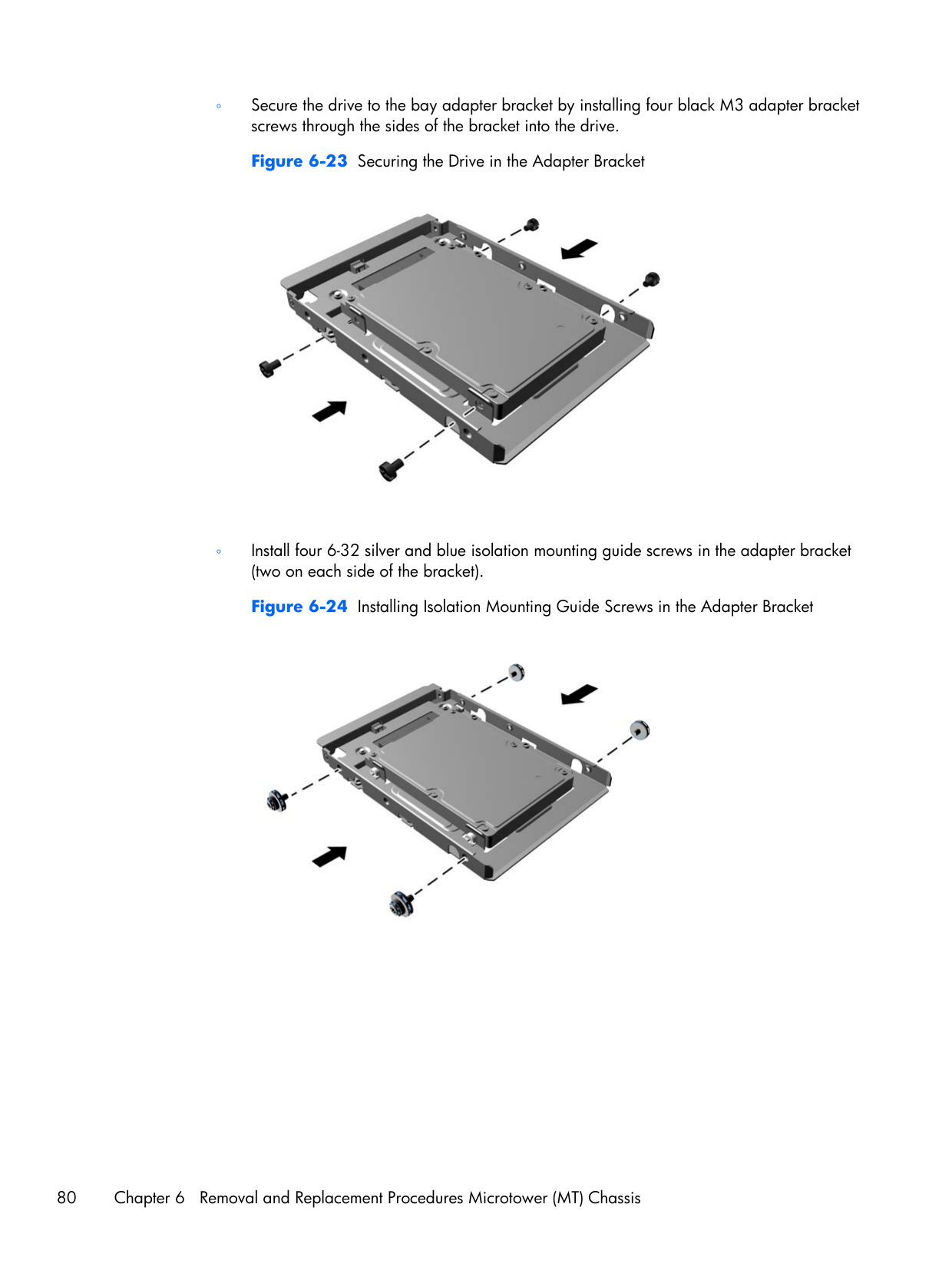

####### ◦ Secure the drive to the bay adapter bracket by installing four black M3 adapter bracketscrews through the sides of the bracket into the drive.


◦ Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket (two on each side of the bracket).



| | |---|

NOTE: The power cable for the hard drives is a two-headed cable that is routed from the system board to the rear of the hard drive bays.

| | |---|

NOTE: If your system has only one SATA hard drive, you must connect the hard drive data cable to the dark blue connector labeled SATA0 to avoid any hard drive performance problems. If you are adding a second hard drive, connect the data cable to the white connector labeled SATA1.

Front Fan Assembly

######### Description Spare part number

Front fan assembly 585884-001



To reinstall the front fan, reverse the removal procedure.

Front Fan Assembly 83

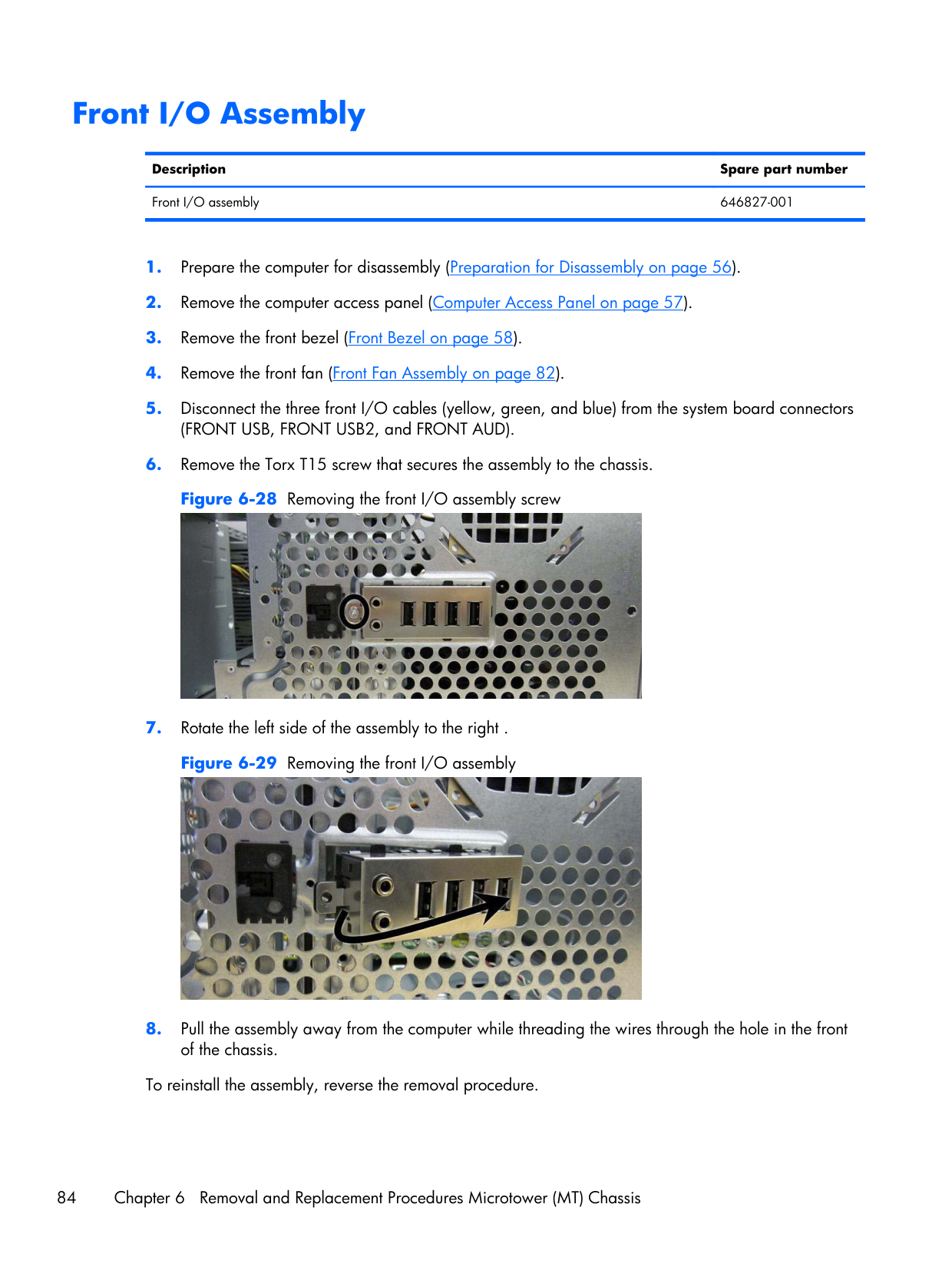

Front I/O Assembly

######### Description Spare part number

Front I/O assembly 646827-001



To reinstall the assembly, reverse the removal procedure.

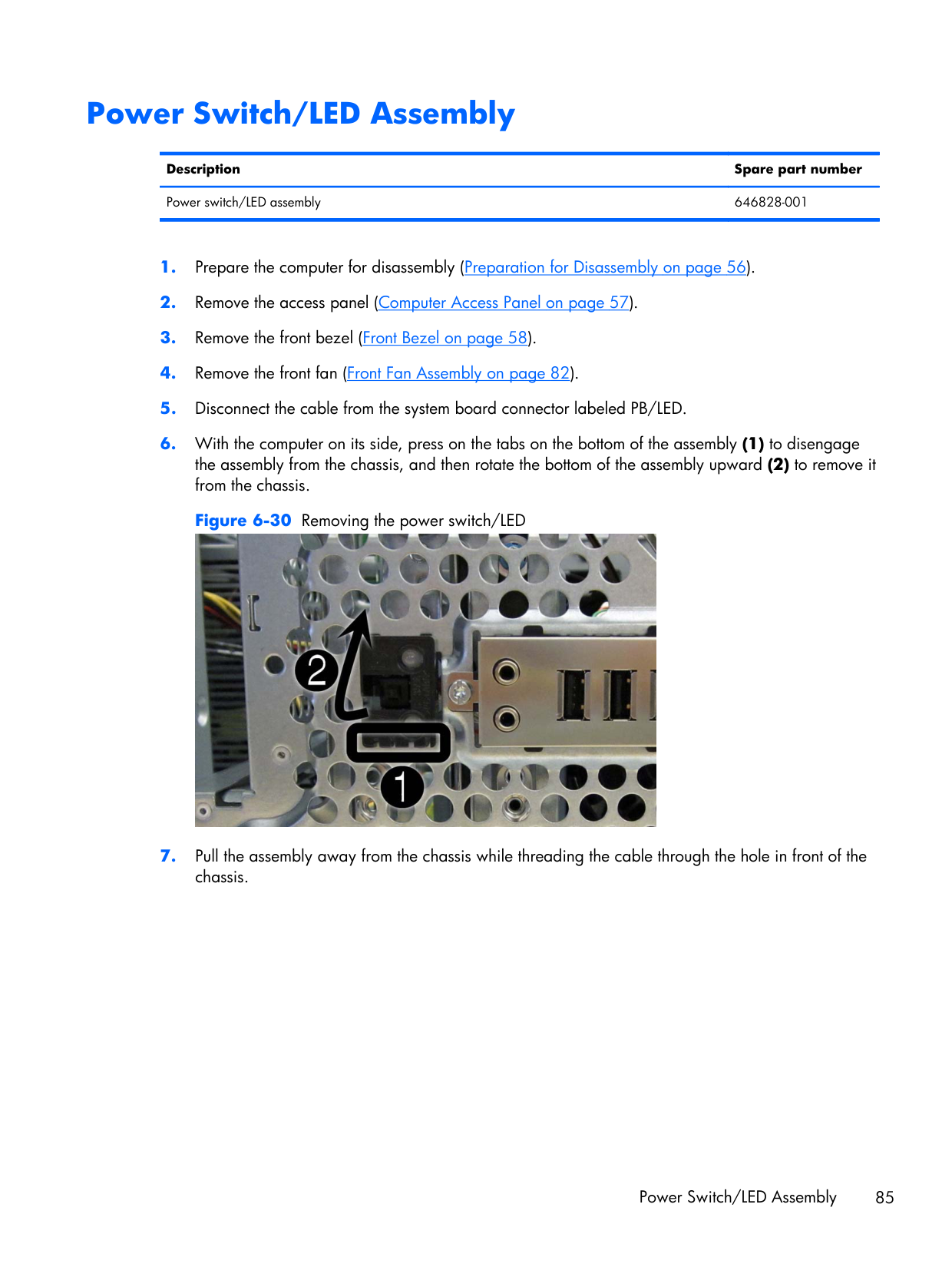

Power Switch/LED Assembly

######### Description Spare part number

Power switch/LED assembly 646828-001


Power Switch/LED Assembly 85

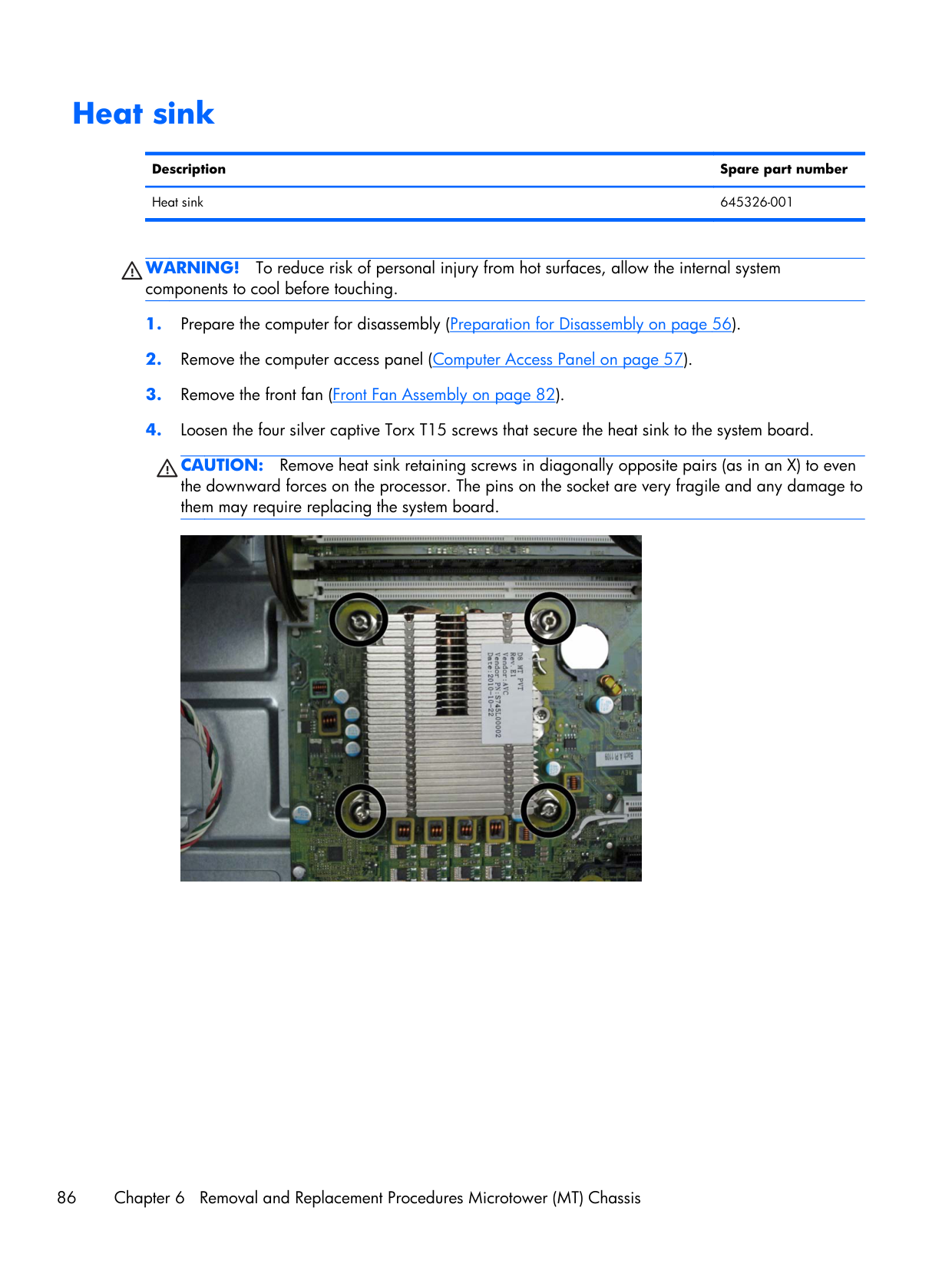

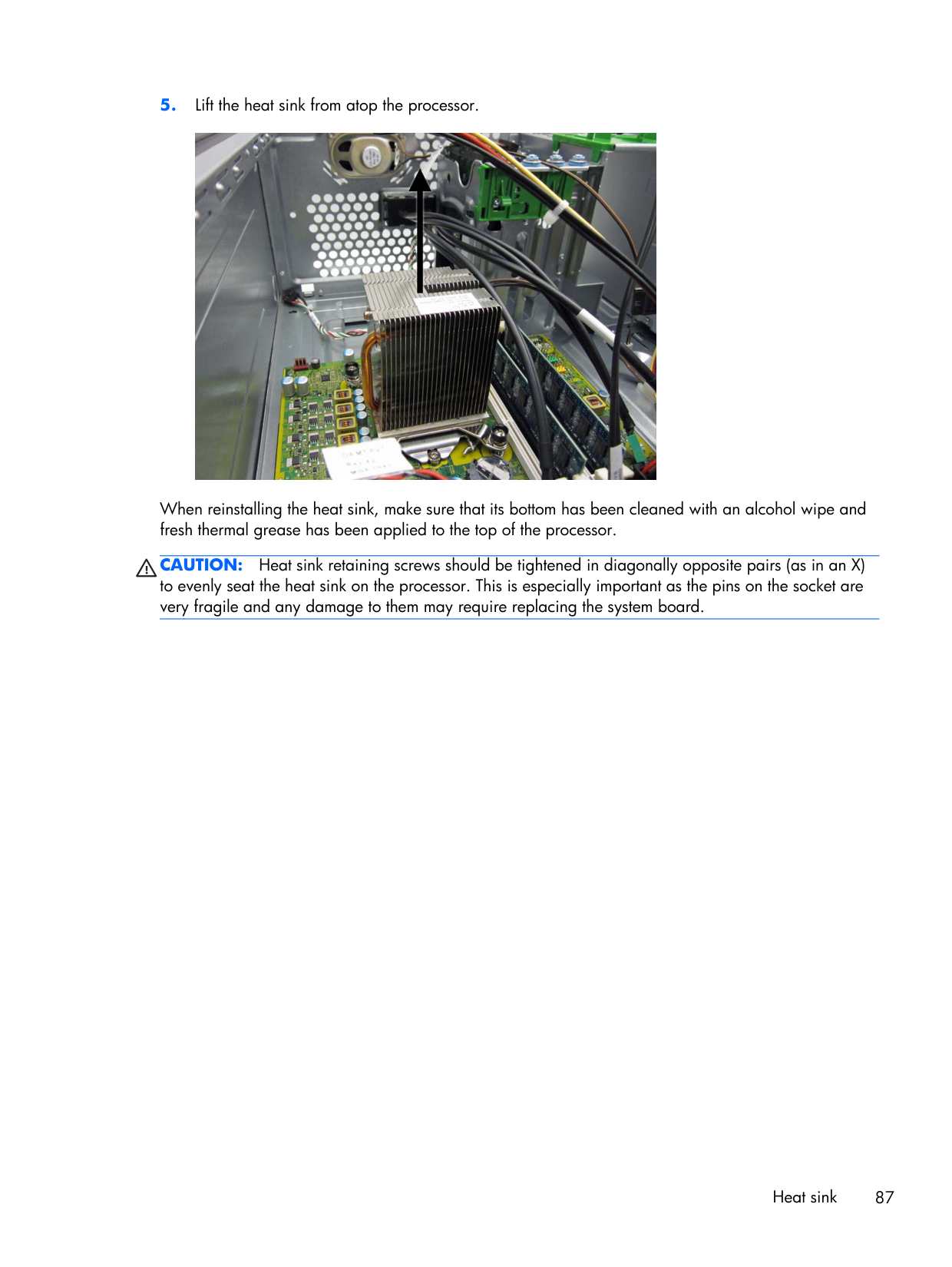

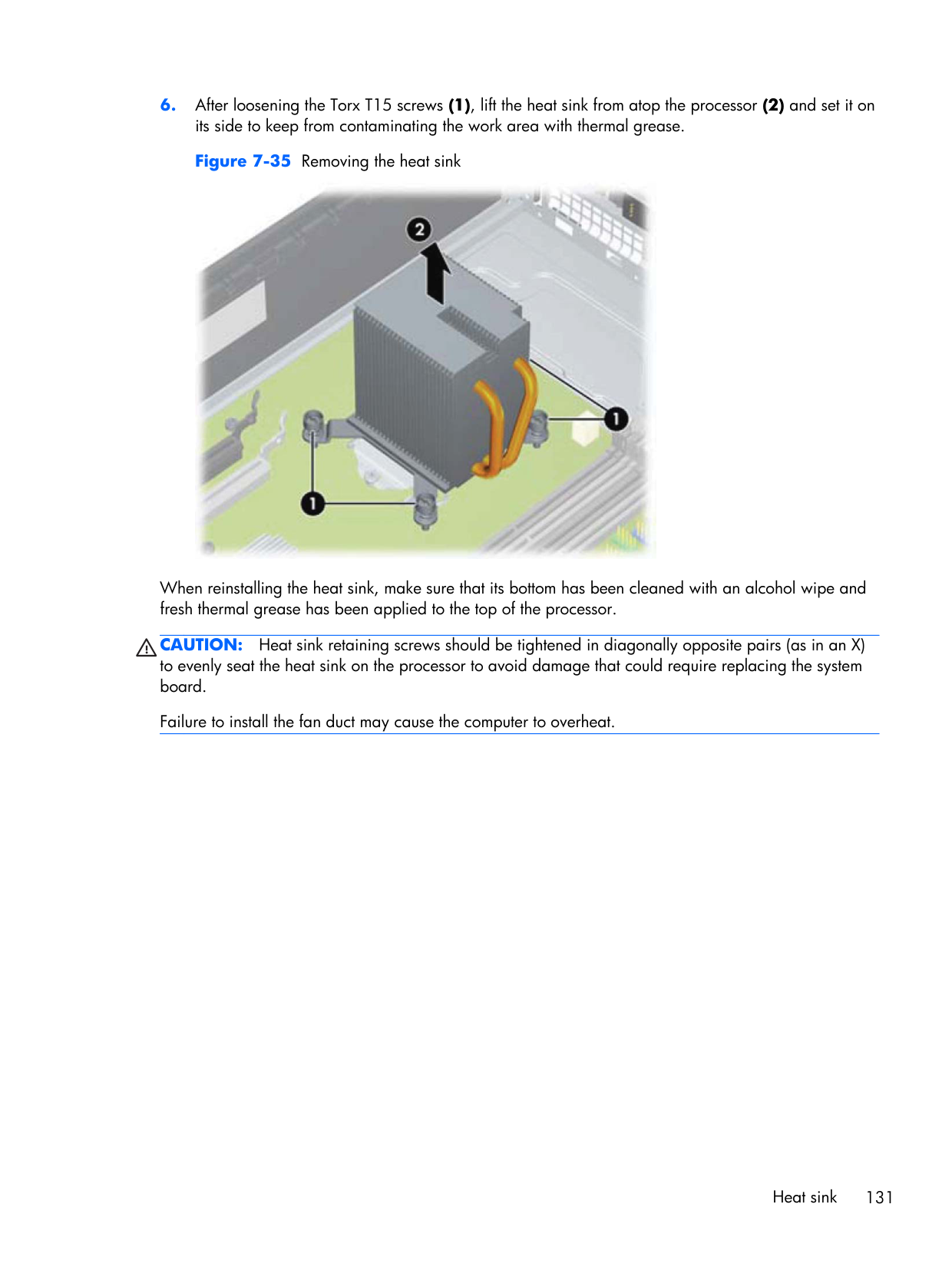

Heat sink

######### Description Spare part number

Heat sink 645326-001

WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system components to cool before touching.

CAUTION: Remove heat sink retaining screws in diagonally opposite pairs (as in an X) to even the downward forces on the processor. The pins on the socket are very fragile and any damage to them may require replacing the system board.



When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and fresh thermal grease has been applied to the top of the processor.

CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heat sink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

Heat sink 87

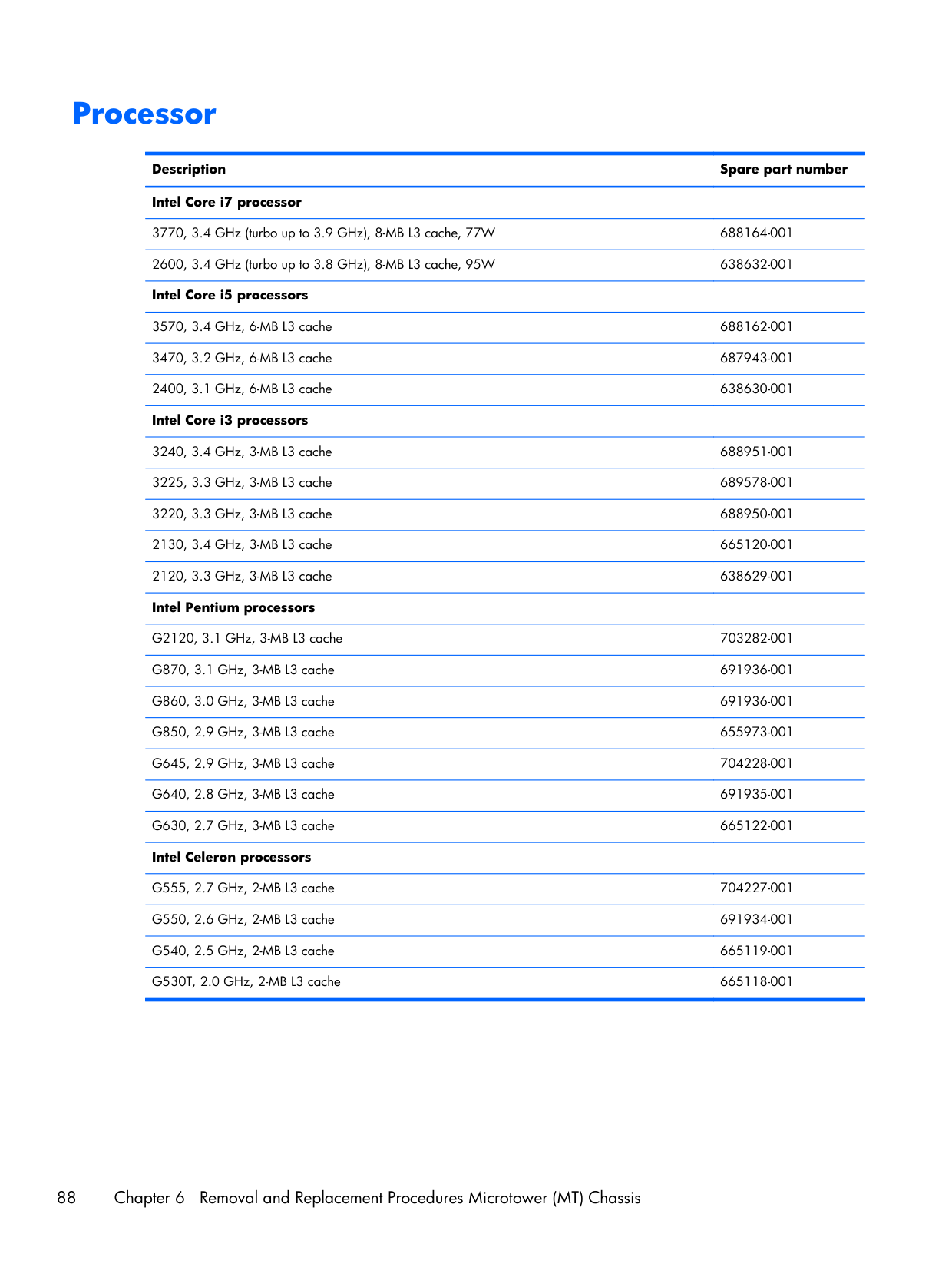

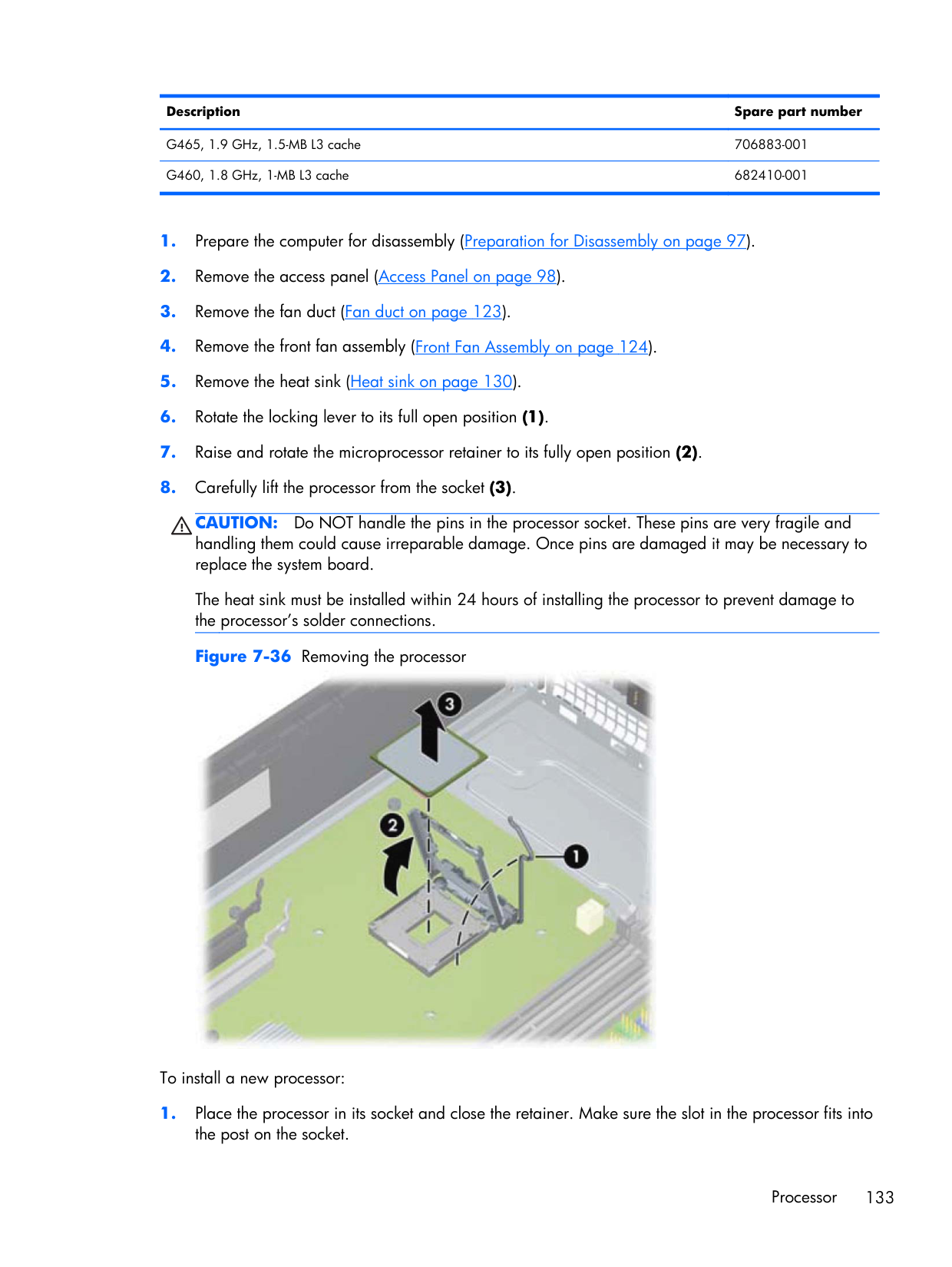

Processor

Description Spare part number

Intel Core i7 processor

3770, 3.4 GHz (turbo up to 3.9 GHz), 8-MB L3 cache, 77W 688164-001 2600, 3.4 GHz (turbo up to 3.8 GHz), 8-MB L3 cache, 95W 638632-001 Intel Core i5 processors

3570, 3.4 GHz, 6-MB L3 cache 688162-001 3470, 3.2 GHz, 6-MB L3 cache 687943-001 2400, 3.1 GHz, 6-MB L3 cache 638630-001 Intel Core i3 processors

3240, 3.4 GHz, 3-MB L3 cache 688951-001 3225, 3.3 GHz, 3-MB L3 cache 689578-001 3220, 3.3 GHz, 3-MB L3 cache 688950-001 2130, 3.4 GHz, 3-MB L3 cache 665120-001 2120, 3.3 GHz, 3-MB L3 cache 638629-001 Intel Pentium processors

G2120, 3.1 GHz, 3-MB L3 cache 703282-001 G870, 3.1 GHz, 3-MB L3 cache 691936-001 G860, 3.0 GHz, 3-MB L3 cache 691936-001 G850, 2.9 GHz, 3-MB L3 cache 655973-001 G645, 2.9 GHz, 3-MB L3 cache 704228-001 G640, 2.8 GHz, 3-MB L3 cache 691935-001 G630, 2.7 GHz, 3-MB L3 cache 665122-001 Intel Celeron processors

G555, 2.7 GHz, 2-MB L3 cache 704227-001 G550, 2.6 GHz, 2-MB L3 cache 691934-001 G540, 2.5 GHz, 2-MB L3 cache 665119-001 G530T, 2.0 GHz, 2-MB L3 cache 665118-001

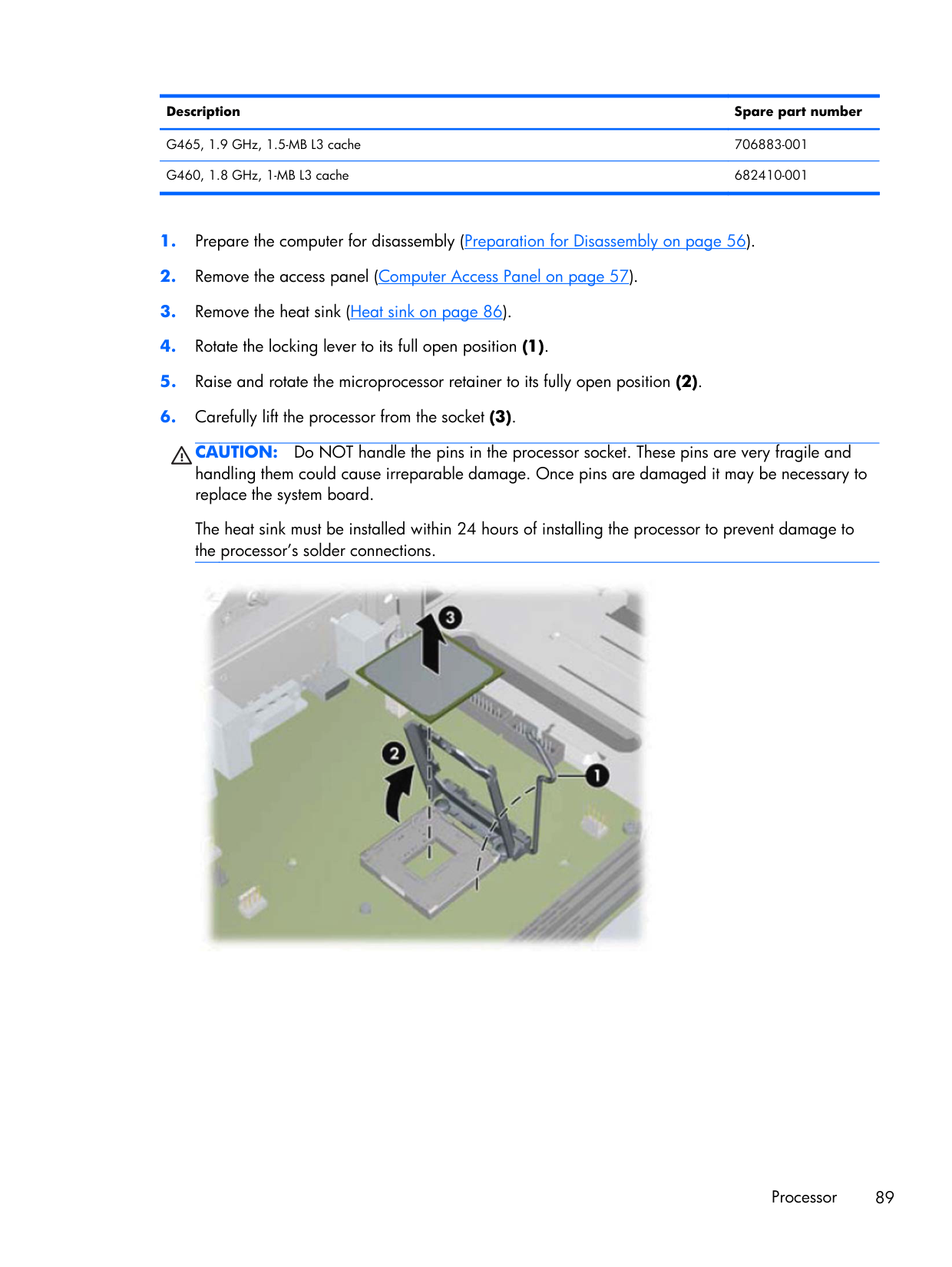

######### Description Spare part number

G465, 1.9 GHz, 1.5-MB L3 cache 706883-001 G460, 1.8 GHz, 1-MB L3 cache 682410-001

CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

The heat sink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.


Processor 89

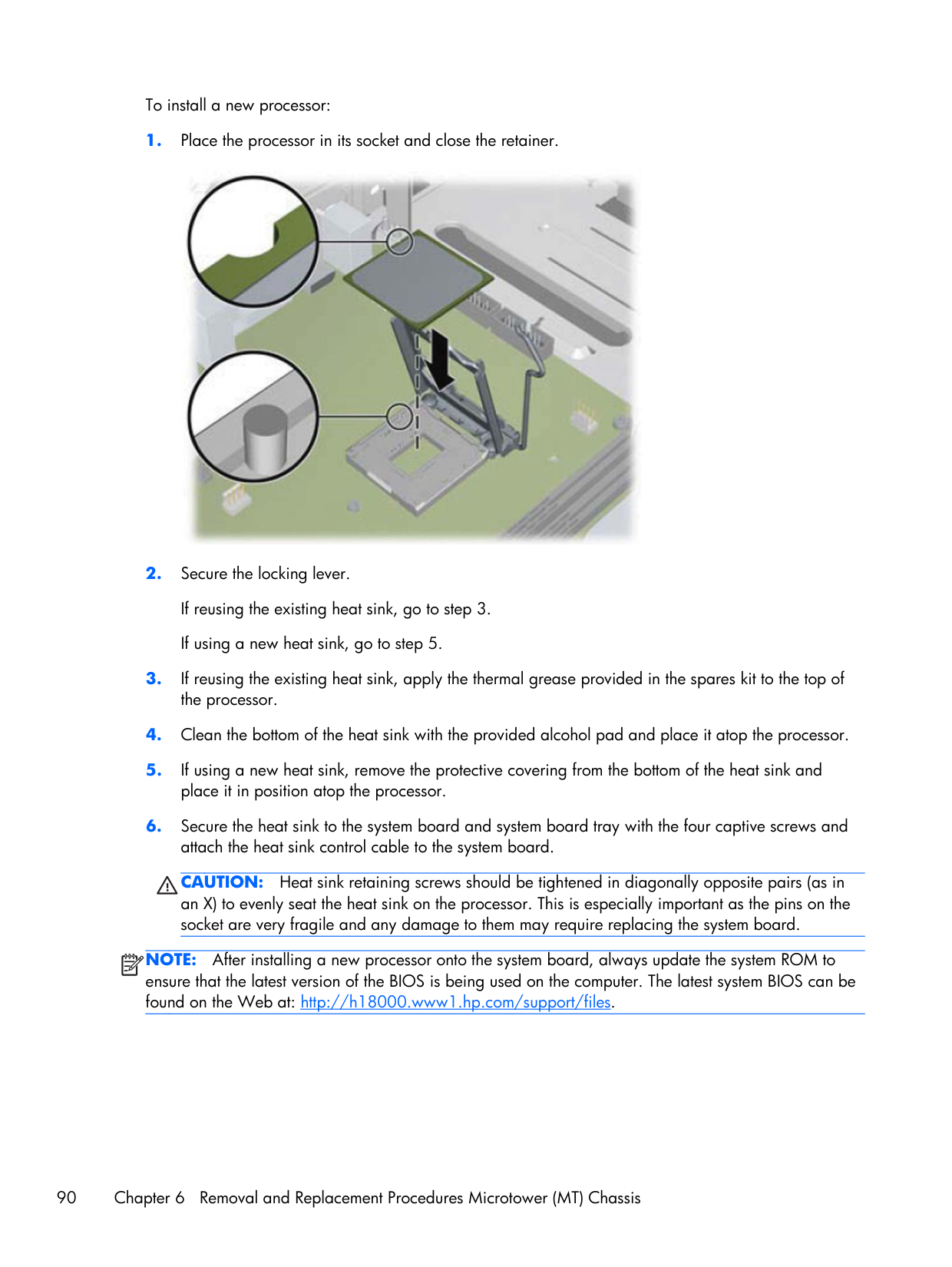

To install a new processor:


CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heat sink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

NOTE: After installing a new processor onto the system board, always update the system ROM to ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can be found on the Web at: http://h18000.www1.hp.com/support/files.

| | |---|

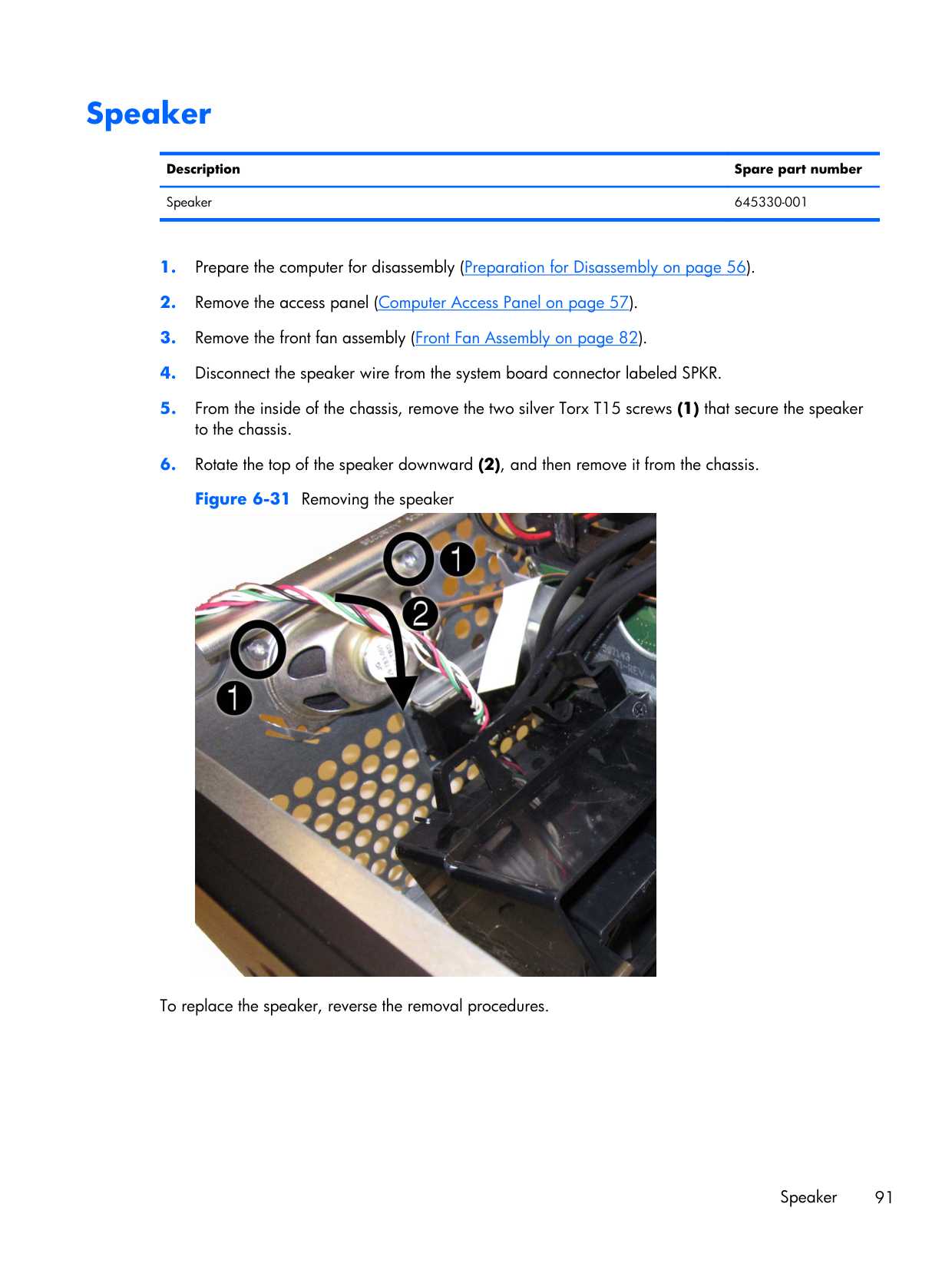

Speaker

######### Description Spare part number

Speaker 645330-001


To replace the speaker, reverse the removal procedures.

Speaker 91

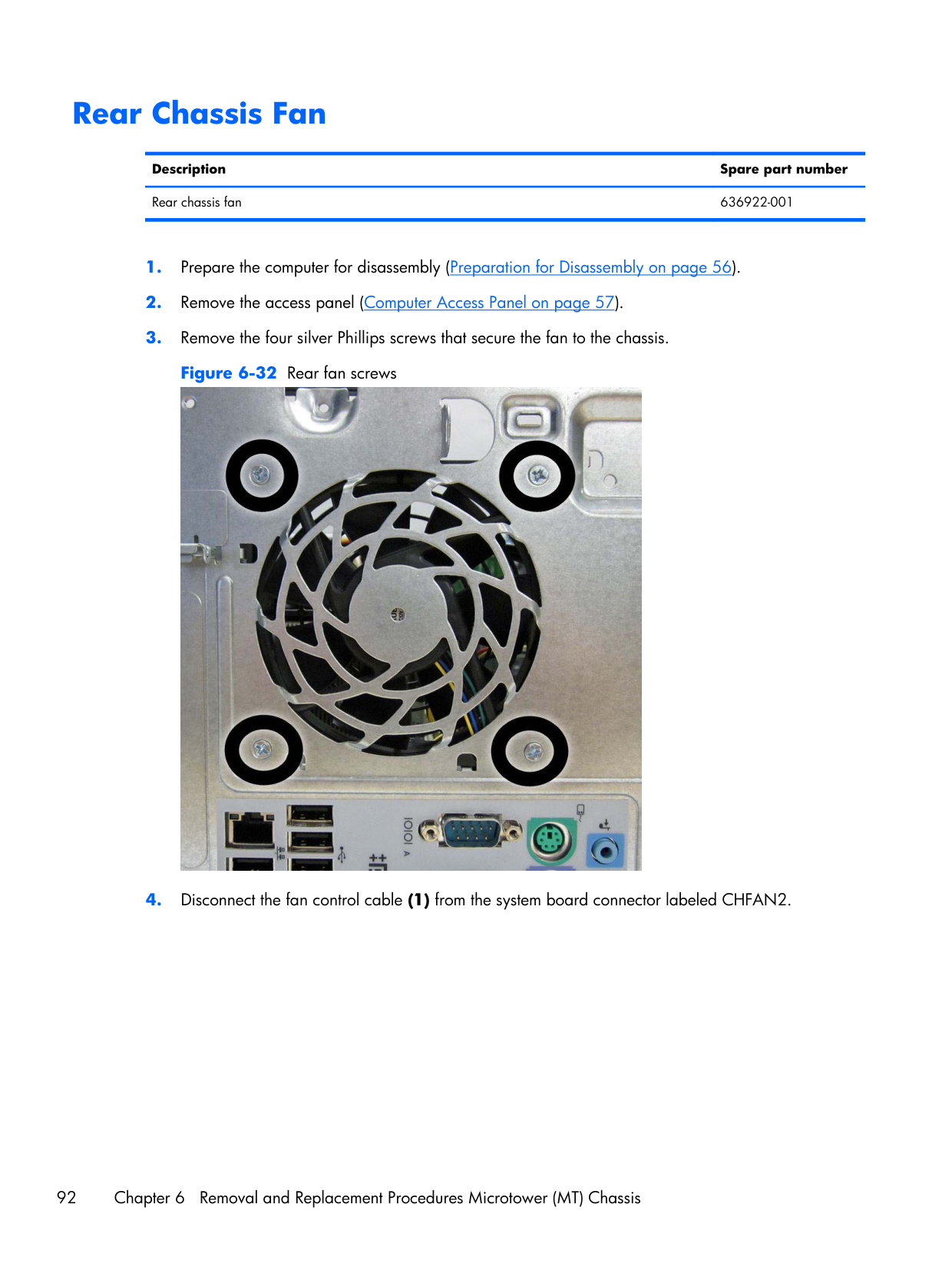

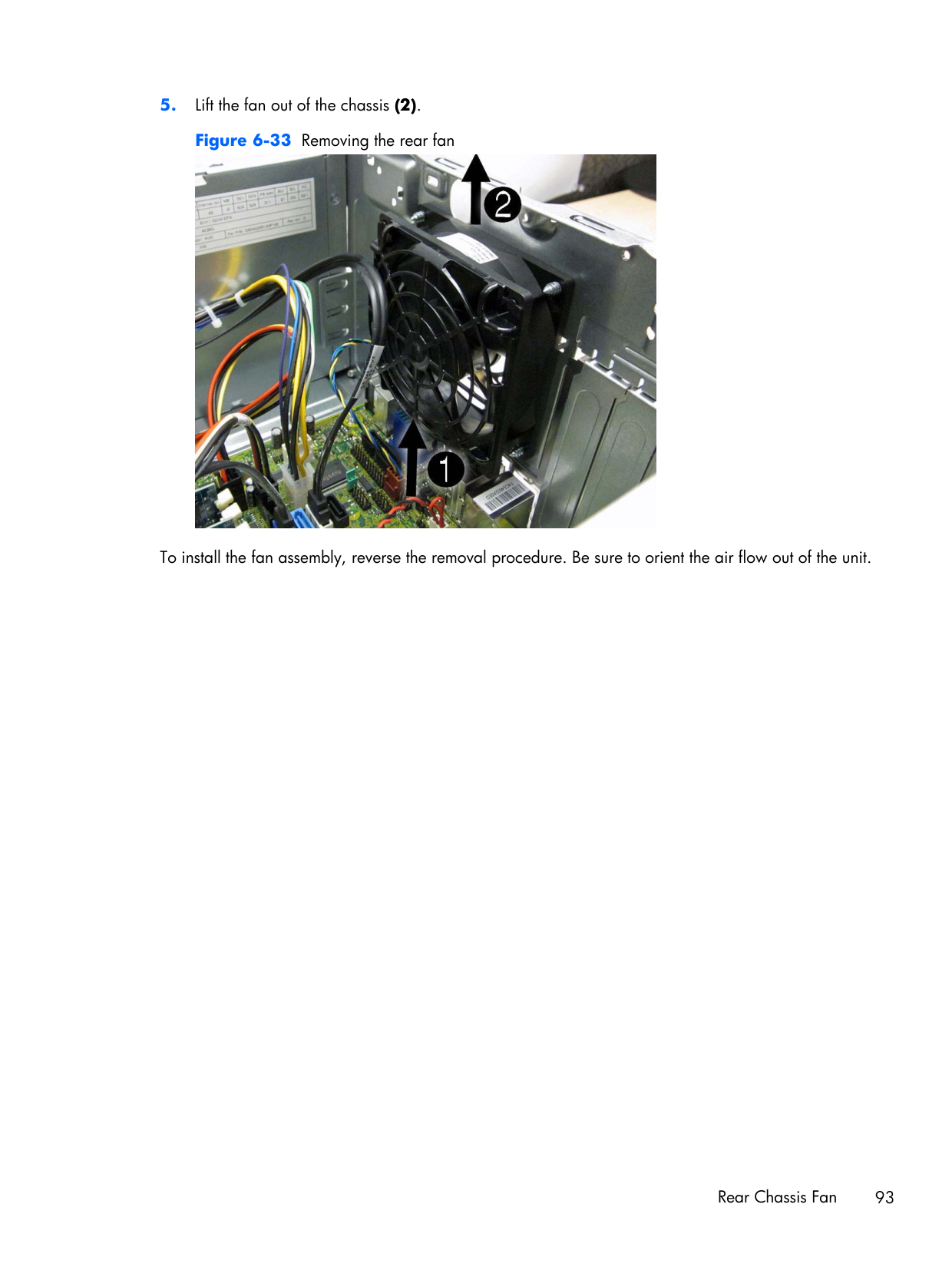

Rear Chassis Fan

######### Description Spare part number

Rear chassis fan 636922-001



To install the fan assembly, reverse the removal procedure. Be sure to orient the air flow out of the unit.

Rear Chassis Fan 93

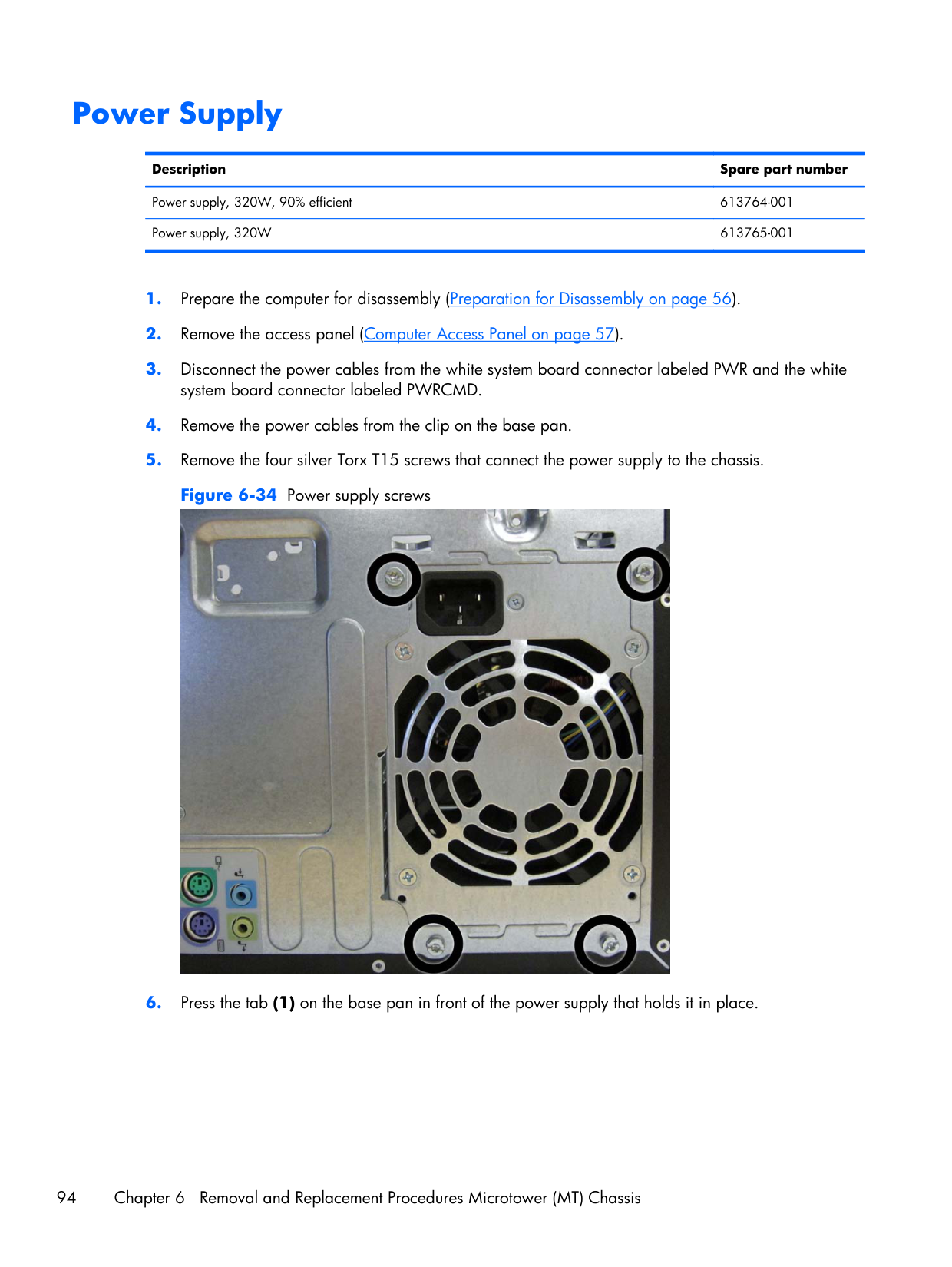

Power Supply

######### Description Spare part number

Power supply, 320W, 90% efficient 613764-001 Power supply, 320W 613765-001

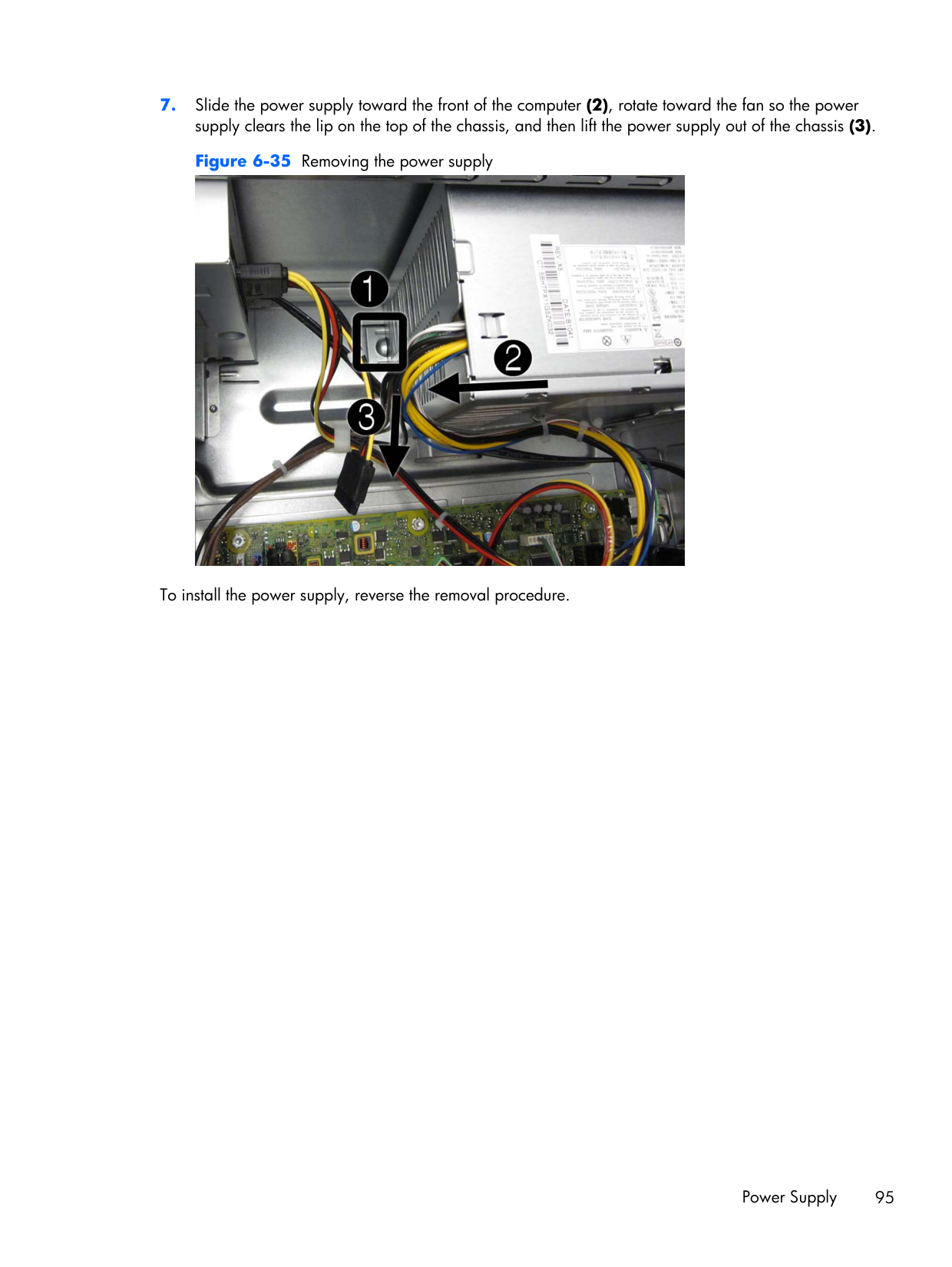

To install the power supply, reverse the removal procedure.

Power Supply 95

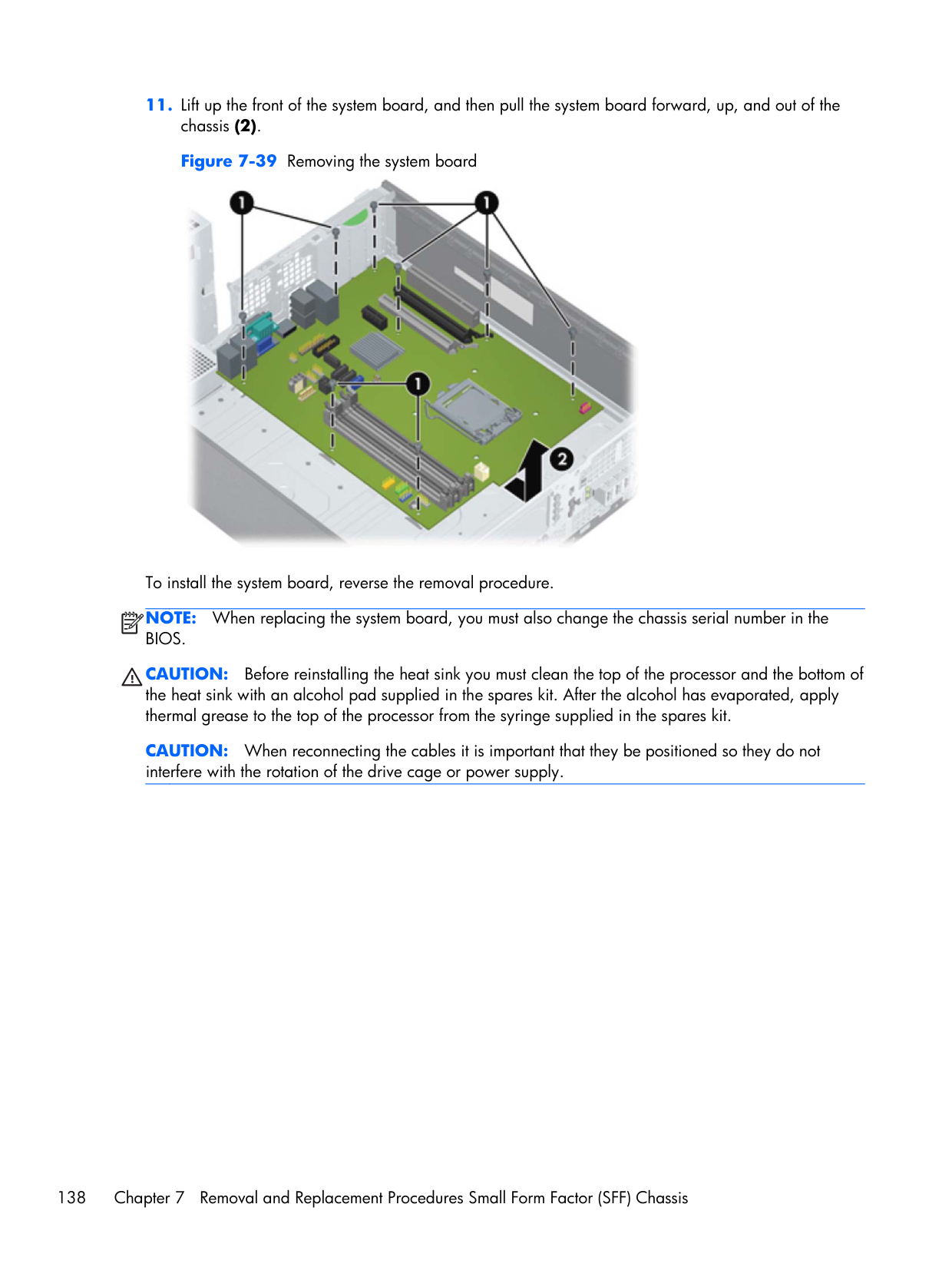

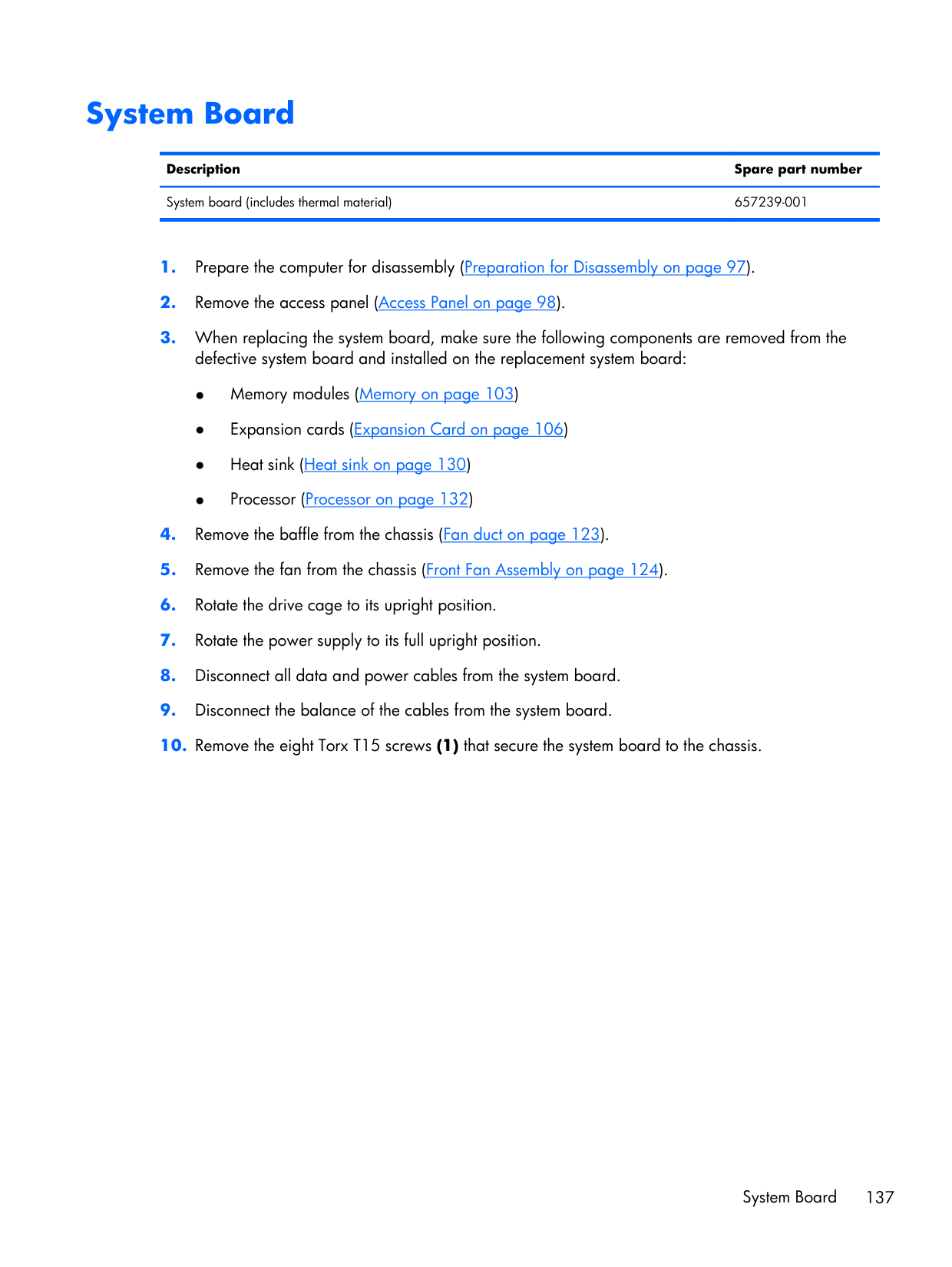

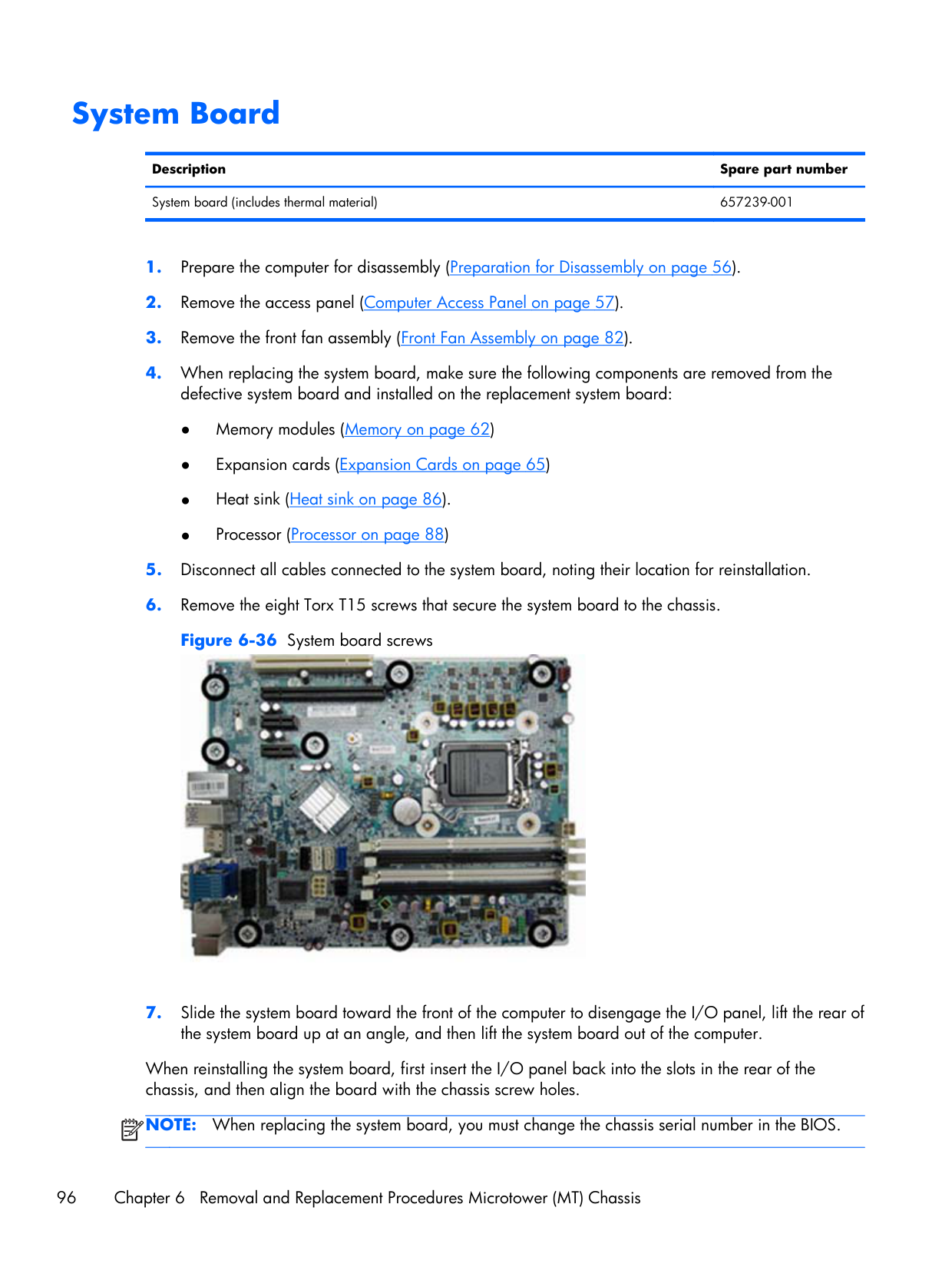

System Board

######### Description Spare part number

System board (includes thermal material) 657239-001


When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the chassis, and then align the board with the chassis screw holes.

NOTE: When replacing the system board, you must change the chassis serial number in the BIOS.

| | |---|

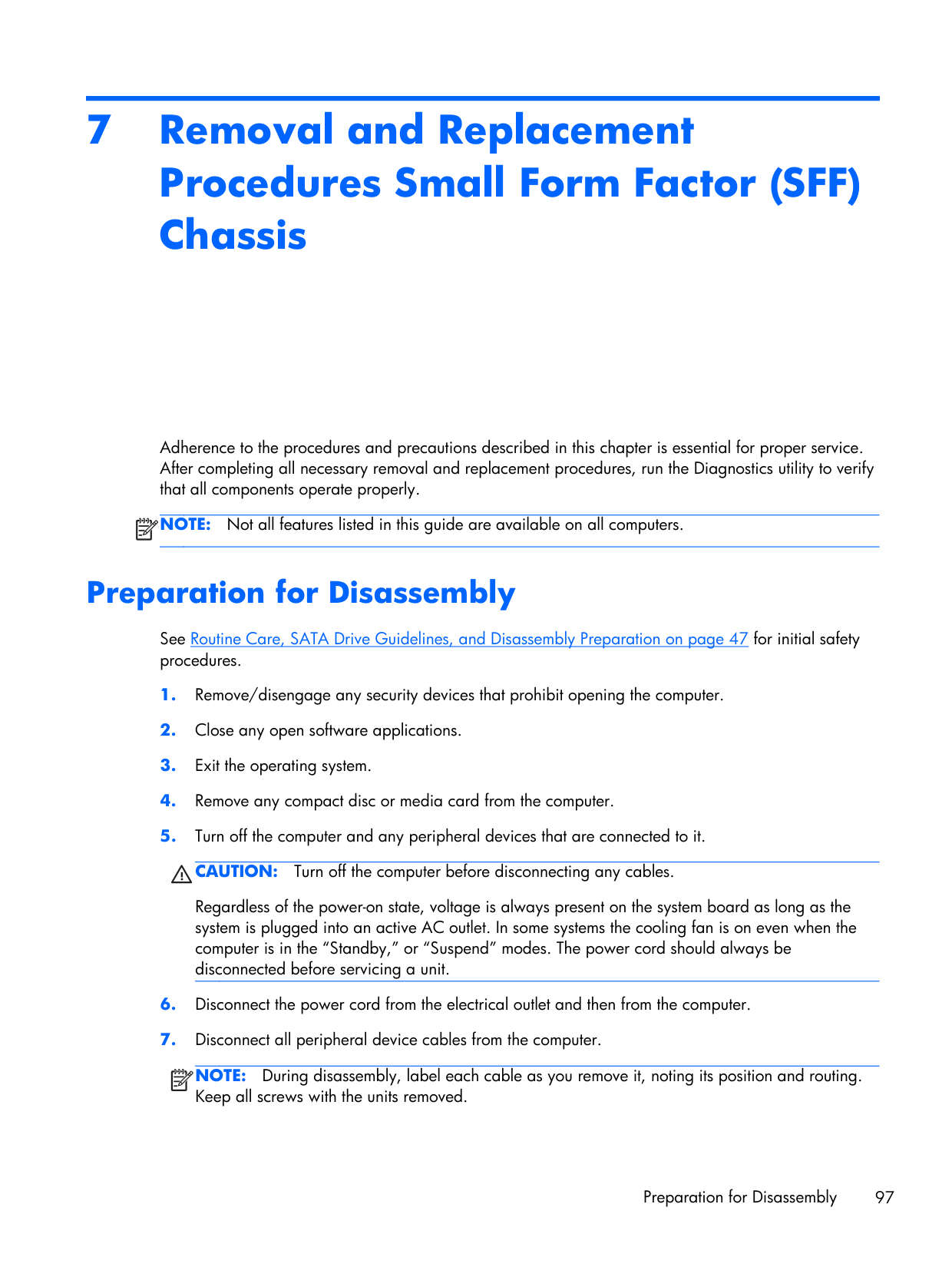

7 Removal and ReplacementProcedures Small Form Factor (SFF)Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service. After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

NOTE: Not all features listed in this guide are available on all computers.

| | |---|

Preparation for Disassembly

See Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 47 for initial safety procedures.

CAUTION: Turn off the computer before disconnecting any cables.

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.

NOTE: During disassembly, label each cable as you remove it, noting its position and routing. Keep all screws with the units removed.

| | |---|

Preparation for Disassembly 97

CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong screw in an application may damage the unit.

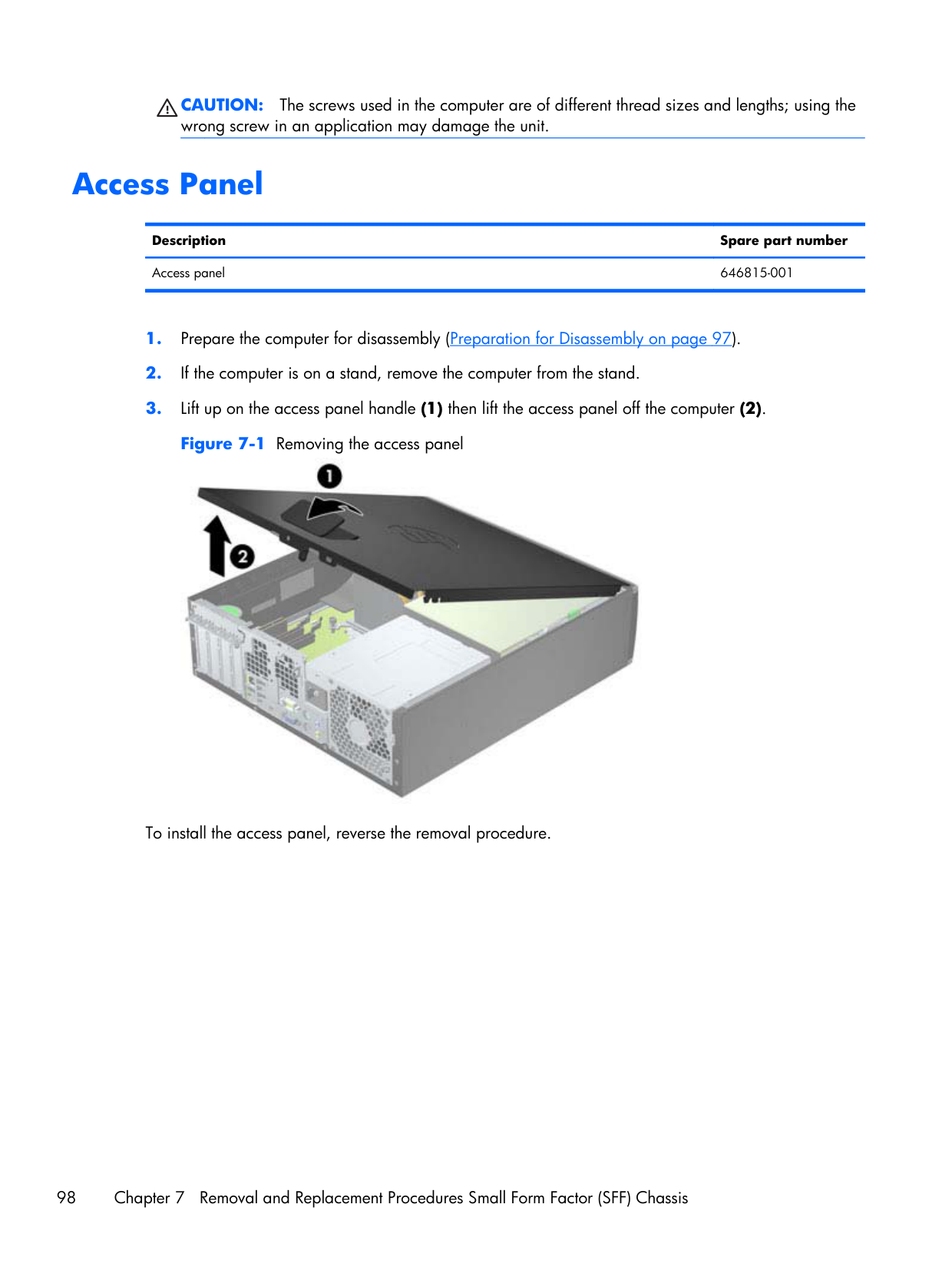

Access Panel

######### Description Spare part number

Access panel 646815-001


To install the access panel, reverse the removal procedure.

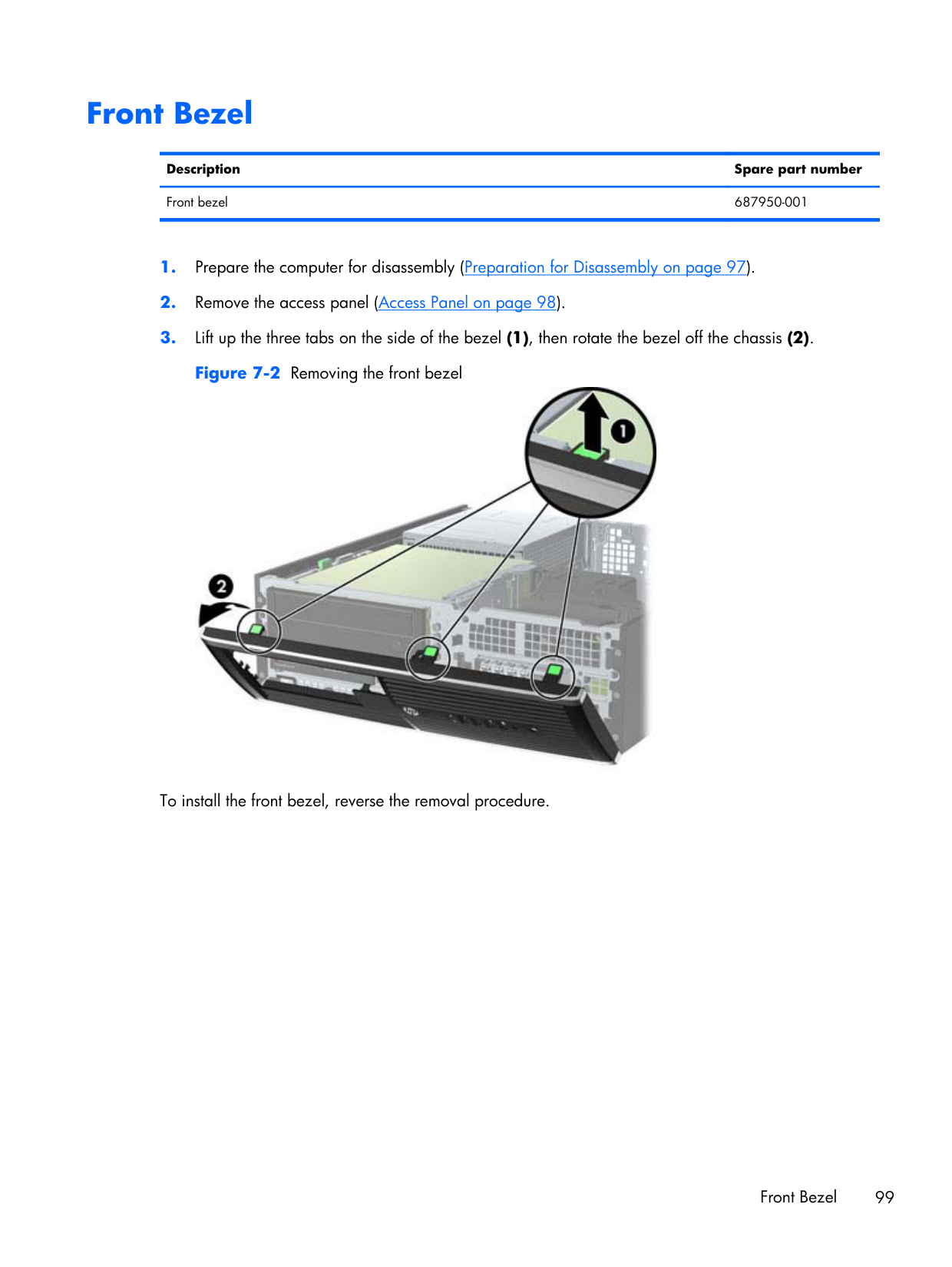

Front Bezel

######### Description Spare part number

Front bezel 687950-001


To install the front bezel, reverse the removal procedure.

Front Bezel 99

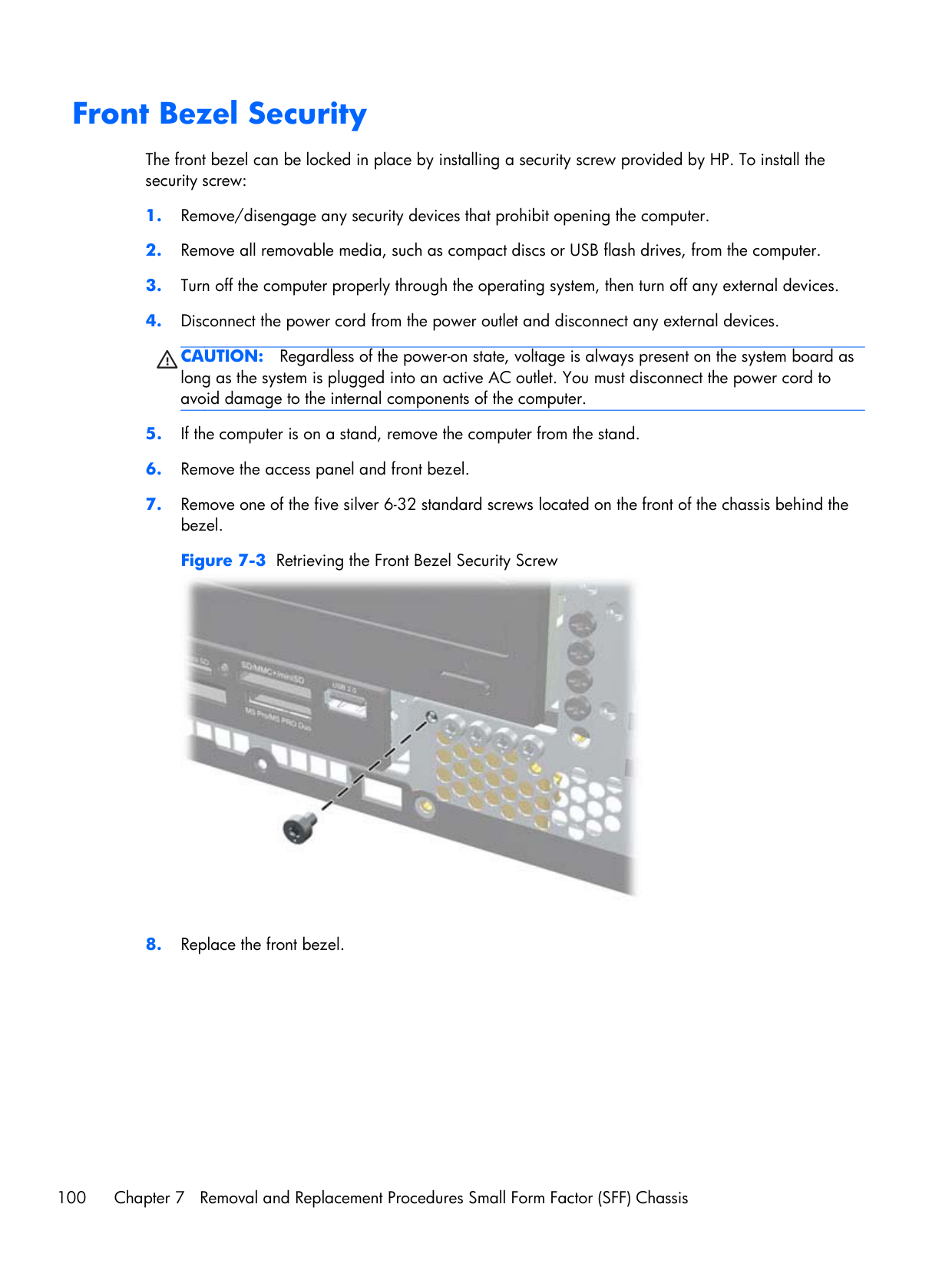

Front Bezel Security

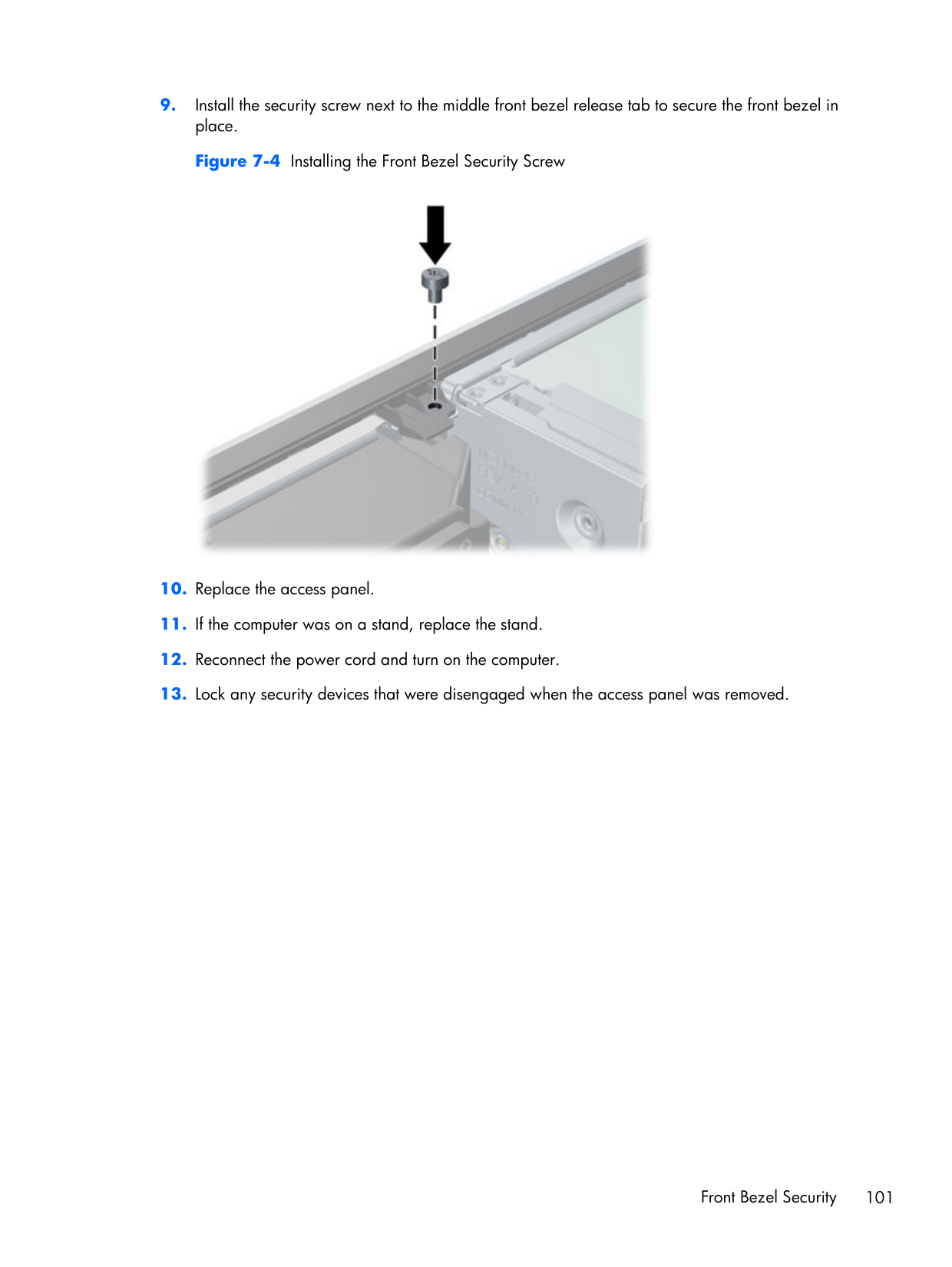

The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw:

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.



Front Bezel Security 101

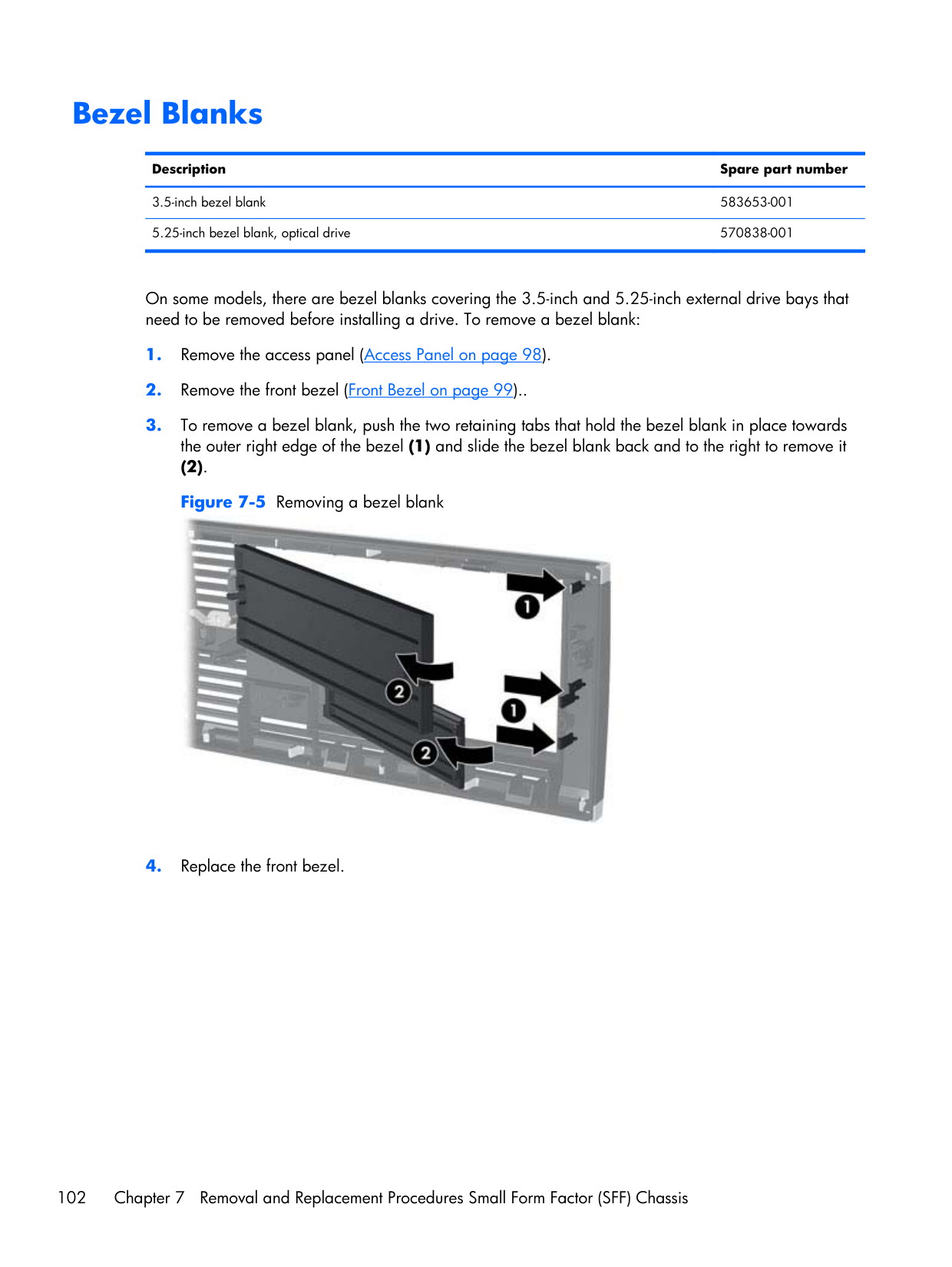

Bezel Blanks

######### Description Spare part number

3.5-inch bezel blank 583653-001 5.25-inch bezel blank, optical drive 570838-001

On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that need to be removed before installing a drive. To remove a bezel blank:

(2). Figure 7-5 Removing a bezel blank

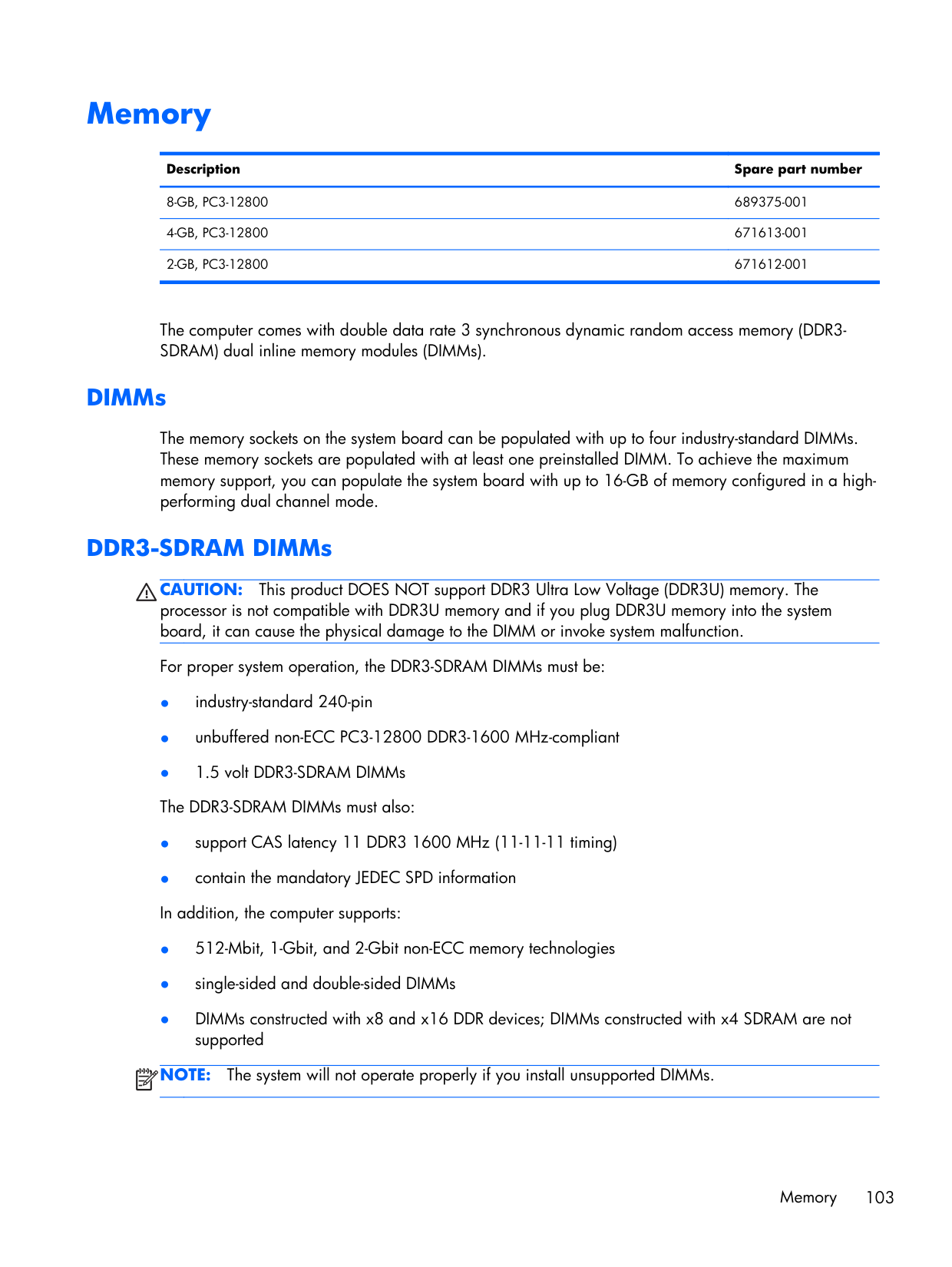

Memory

######### Description Spare part number

8-GB, PC3-12800 689375-001 4-GB, PC3-12800 671613-001 2-GB, PC3-12800 671612-001

The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).

#### DIMMs

The memory sockets on the system board can be populated with up to four industry-standard DIMMs. These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum memory support, you can populate the system board with up to 16-GB of memory configured in a highperforming dual channel mode.

#### DDR3-SDRAM DIMMs

CAUTION: This product DOES NOT support DDR3 Ultra Low Voltage (DDR3U) memory. The processor is not compatible with DDR3U memory and if you plug DDR3U memory into the system board, it can cause the physical damage to the DIMM or invoke system malfunction.

For proper system operation, the DDR3-SDRAM DIMMs must be:

NOTE: The system will not operate properly if you install unsupported DIMMs.

| | |---|

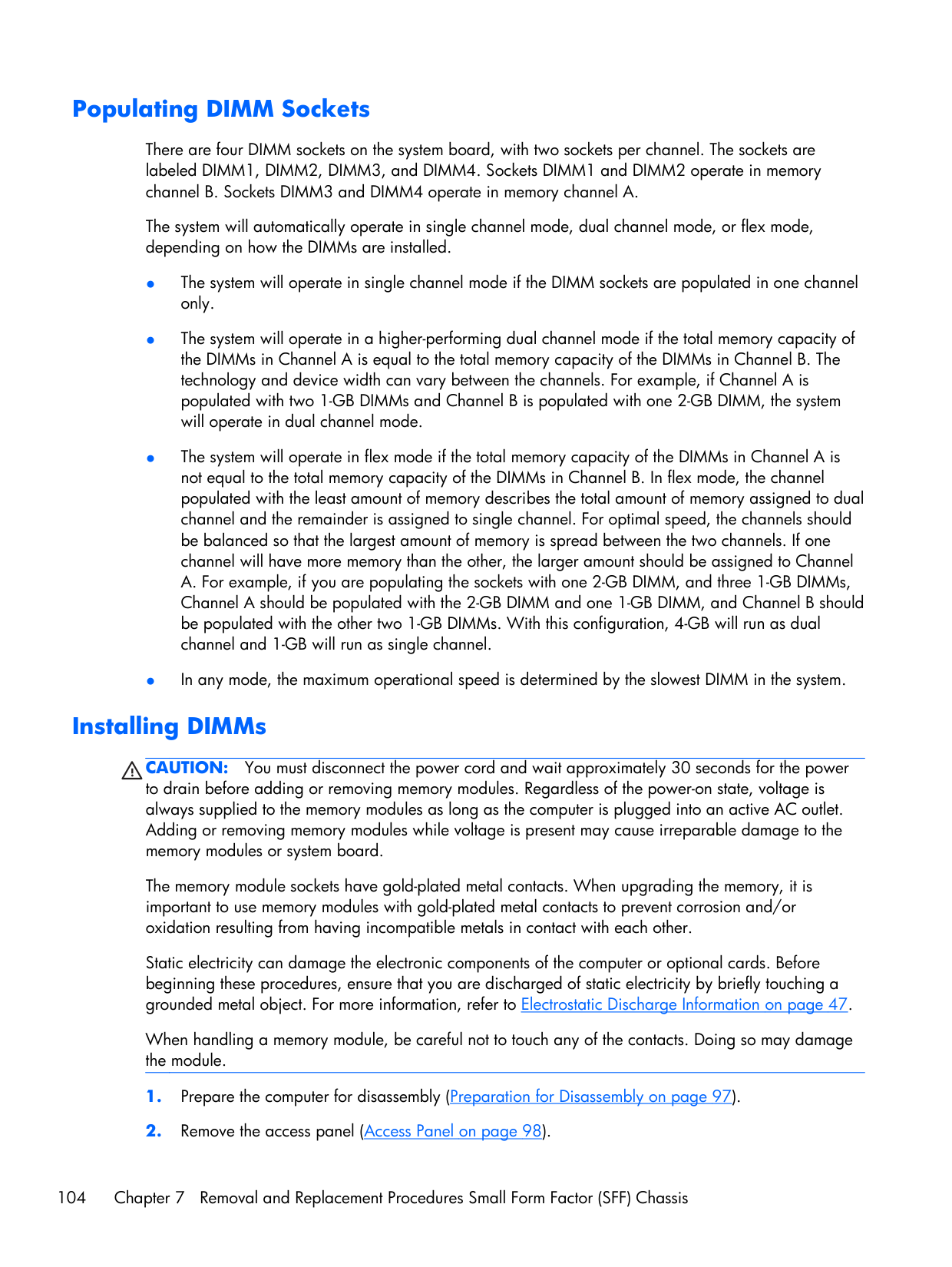

#### Populating DIMM Sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.

The system will automatically operate in single channel mode, dual channel mode, or flex mode, depending on how the DIMMs are installed.

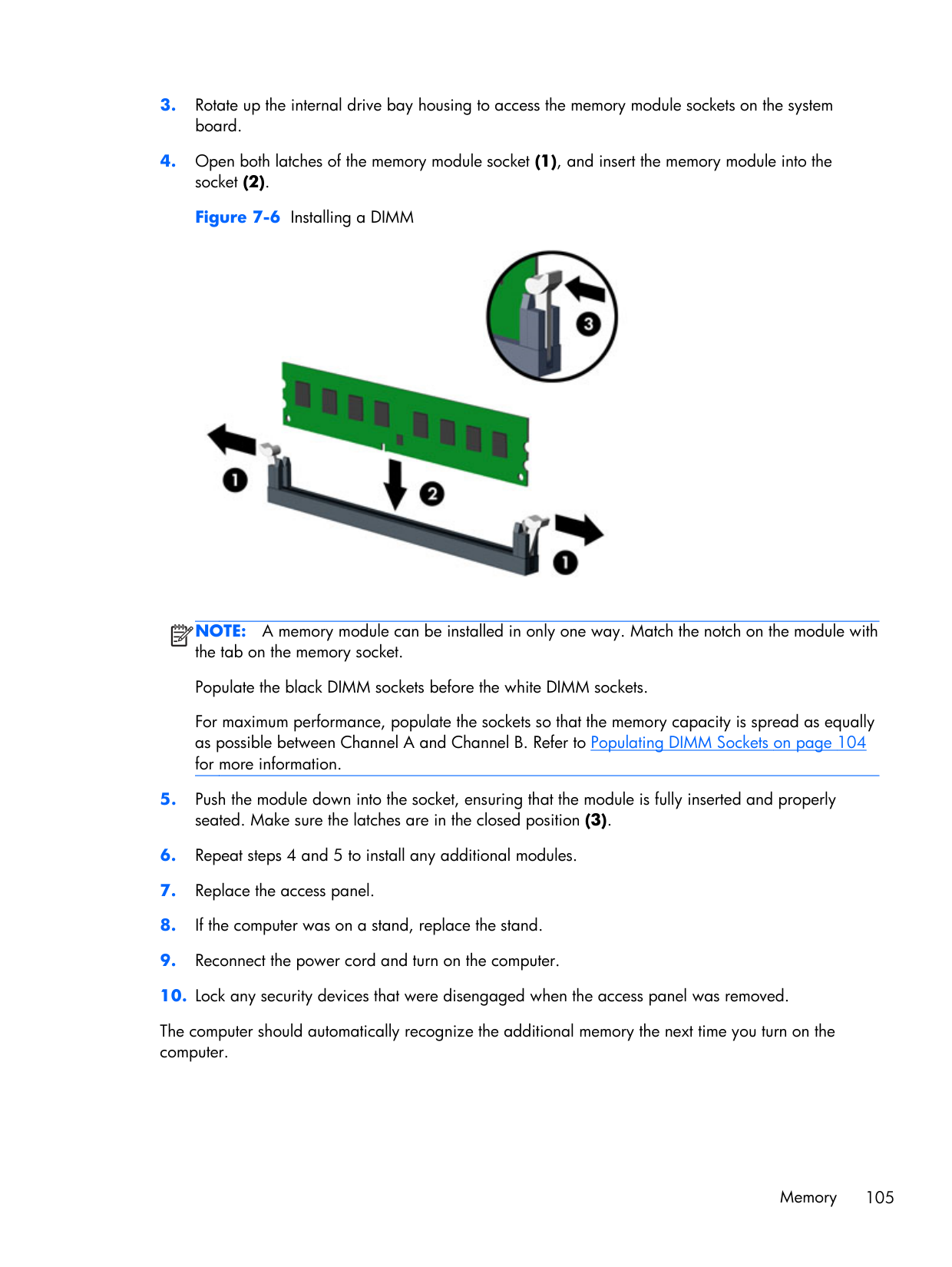

#### Installing DIMMs

CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. For more information, refer to Electrostatic Discharge Information on page 47. When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.


| | |---|

NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket. Populate the black DIMM sockets before the white DIMM sockets. For maximum performance, populate the sockets so that the memory capacity is spread as equally as possible between Channel A and Channel B. Refer to Populating DIMM Sockets on page 104 for more information.

The computer should automatically recognize the additional memory the next time you turn on the computer.

Expansion Card

######### Description Spare part number

nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use with Windows 8) 700578-001 nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (not for use with Windows 8) 682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; use only in China) 702646-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for Windows 8; not for China) 702647-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 637995-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use with Windows 8) 697246-001 Intel PRO/1000CT2 NIC, includes bracket 635523-001 AMD FirePro 2270 PCIe x16 graphics card, 512 MB 637213-001 HP FireWire / IEEE 1394a PCIe x1 Card 637591-001

The computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI Express x16 expansion slot.

NOTE: The PCI and PCI Express slots support only low profile cards. You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot. To remove, replace, or add an expansion card:

| | |---|


NOTE: Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card.

| | |---|



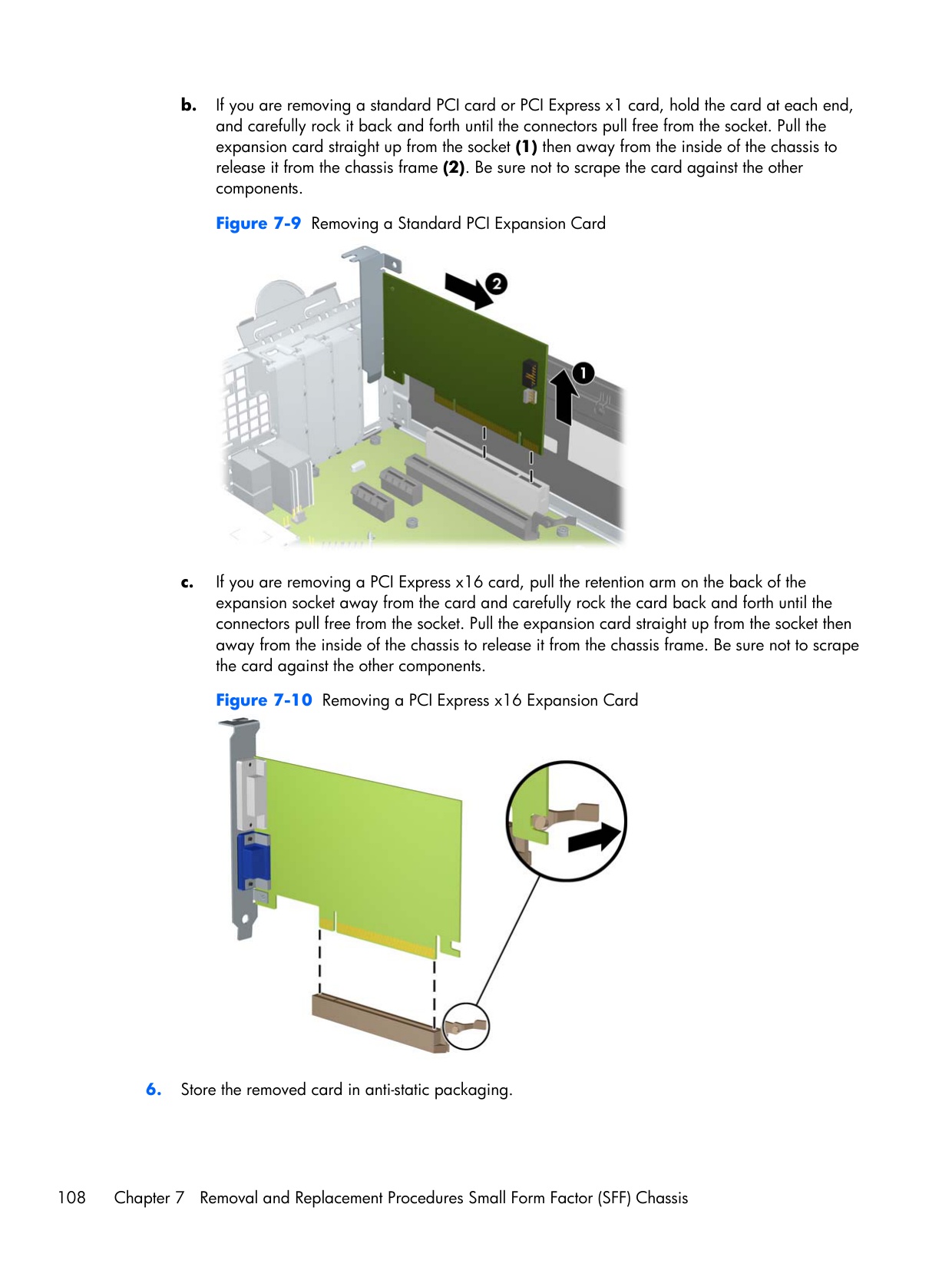

c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against the other components.


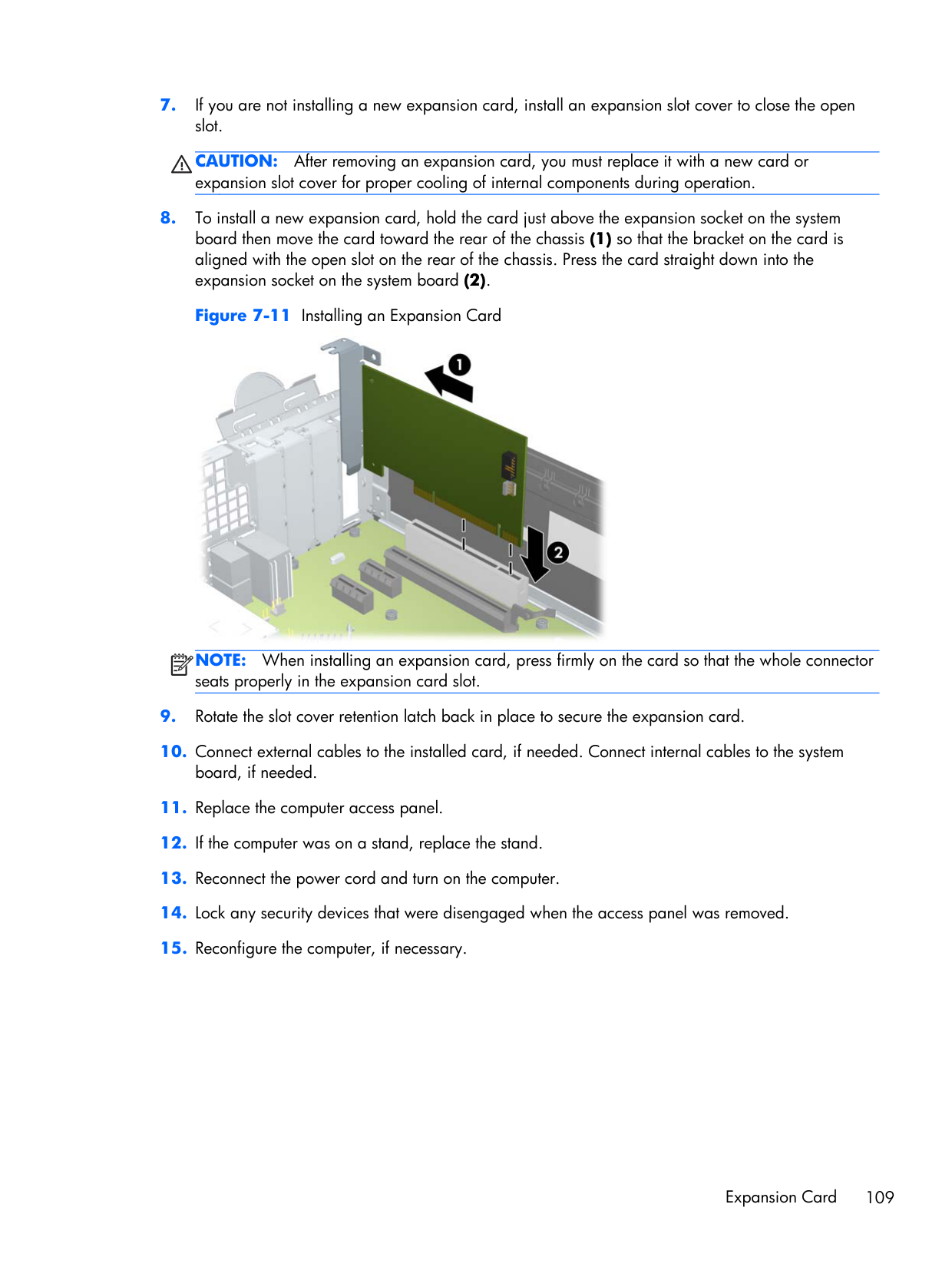

CAUTION: After removing an expansion card, you must replace it with a new card or expansion slot cover for proper cooling of internal components during operation.


| | |---|

NOTE: When installing an expansion card, press firmly on the card so that the whole connector seats properly in the expansion card slot.

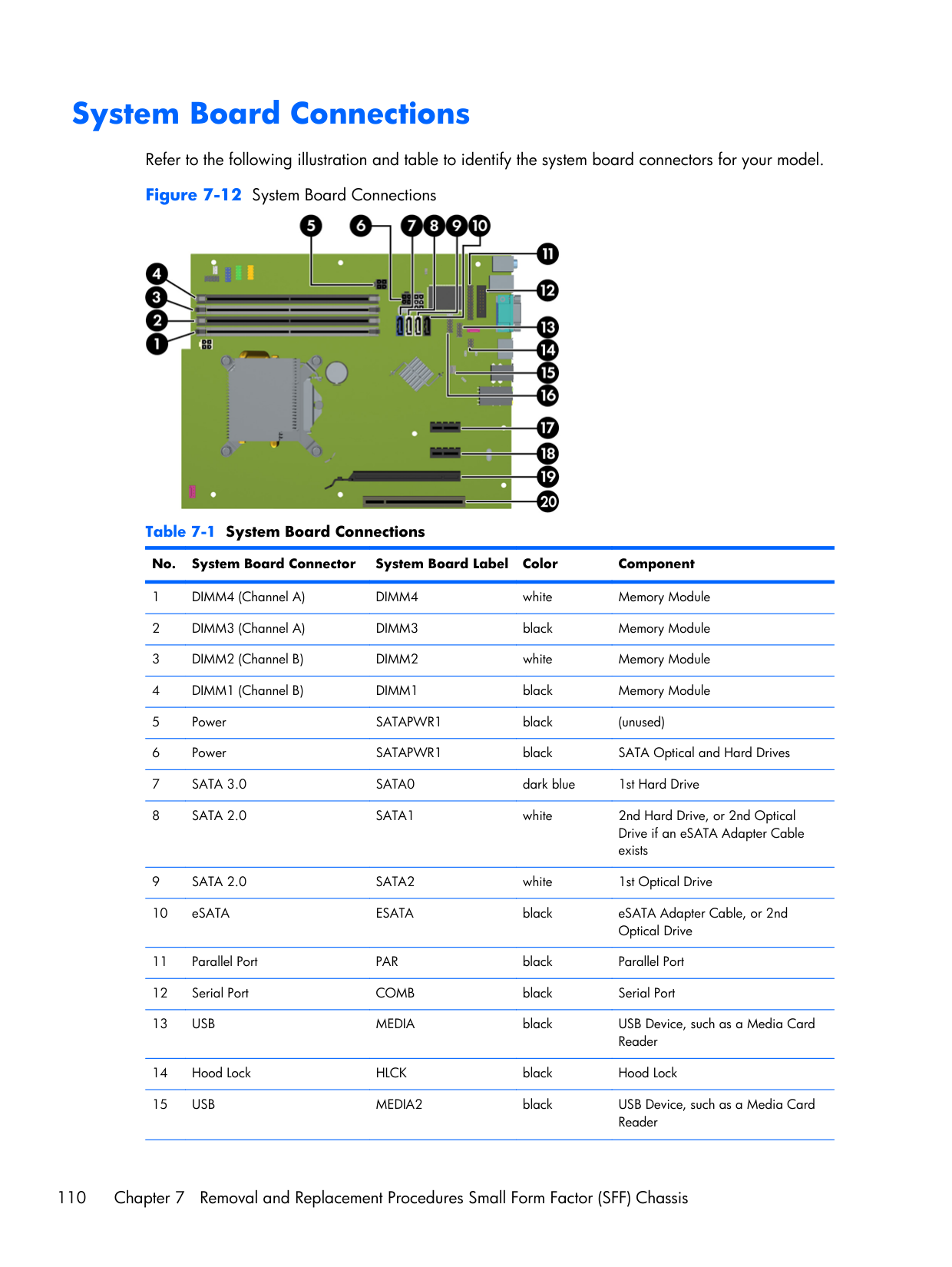

System Board Connections Refer to the following illustration and table to identify the system board connectors for your model. Figure 7-12 System Board Connections


Table 7-1 System Board Connections

No. System Board Connector System Board Label Color Component

######## Table 7-1 System Board Connections (continued)

######### No. System Board Connector System Board Label Color Component

Drives

######### Description Spare part number

DVD±RW drive 660408-001 DVD-ROM drive 581599-001 Blu-ray BD-RW SuperMulti DL Drive 656792-001 Blu-ray BD-Writer XL Drive 682219-001 1 TB, 7200 rpm SATA hard drive 636930-001 500 GB, 10000 rpm SATA hard drive 683923-001 500 GB, 7200 rpm, 2.5 inch, SED, SATA hard drive 696442-001 500 GB, 7200 rpm SATA hard drive 636929-001 320 GB, 7200 rpm SATA hard drive, 2.5-inch 634824-001 250 GB, 10000 rpm SATA hard drive 683922-001 250 GB, 7200 rpm SATA hard drive 636927-001 256 GB Solid State Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001 180 GB Solid State Drive (SSD), SATA 6.0 696622-001 160 GB Solid State Drive (SSD), SATA 3.0 646809-001 128 GB Solid State Drive (SSD), SATA 2.0 665961-001 120 GB Solid State Drive (SSD), SATA 2.0 661841-001

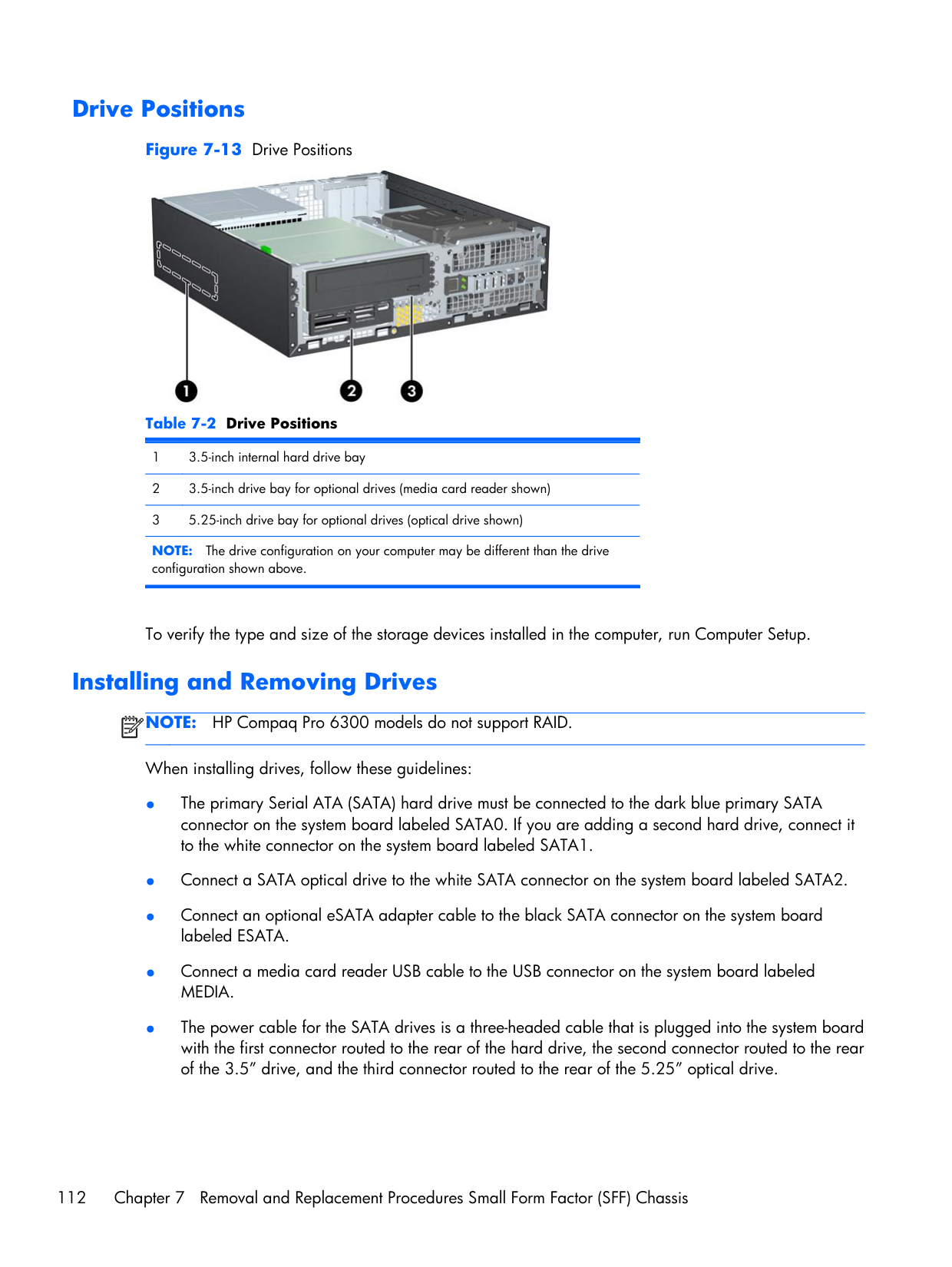

#### Drive Positions

Figure 7-13 Drive Positions


Table 7-2 Drive Positions

NOTE: The drive configuration on your computer may be different than the drive configuration shown above.

To verify the type and size of the storage devices installed in the computer, run Computer Setup.

#### Installing and Removing Drives

NOTE: HP Compaq Pro 6300 models do not support RAID.

| | |---|

When installing drives, follow these guidelines:

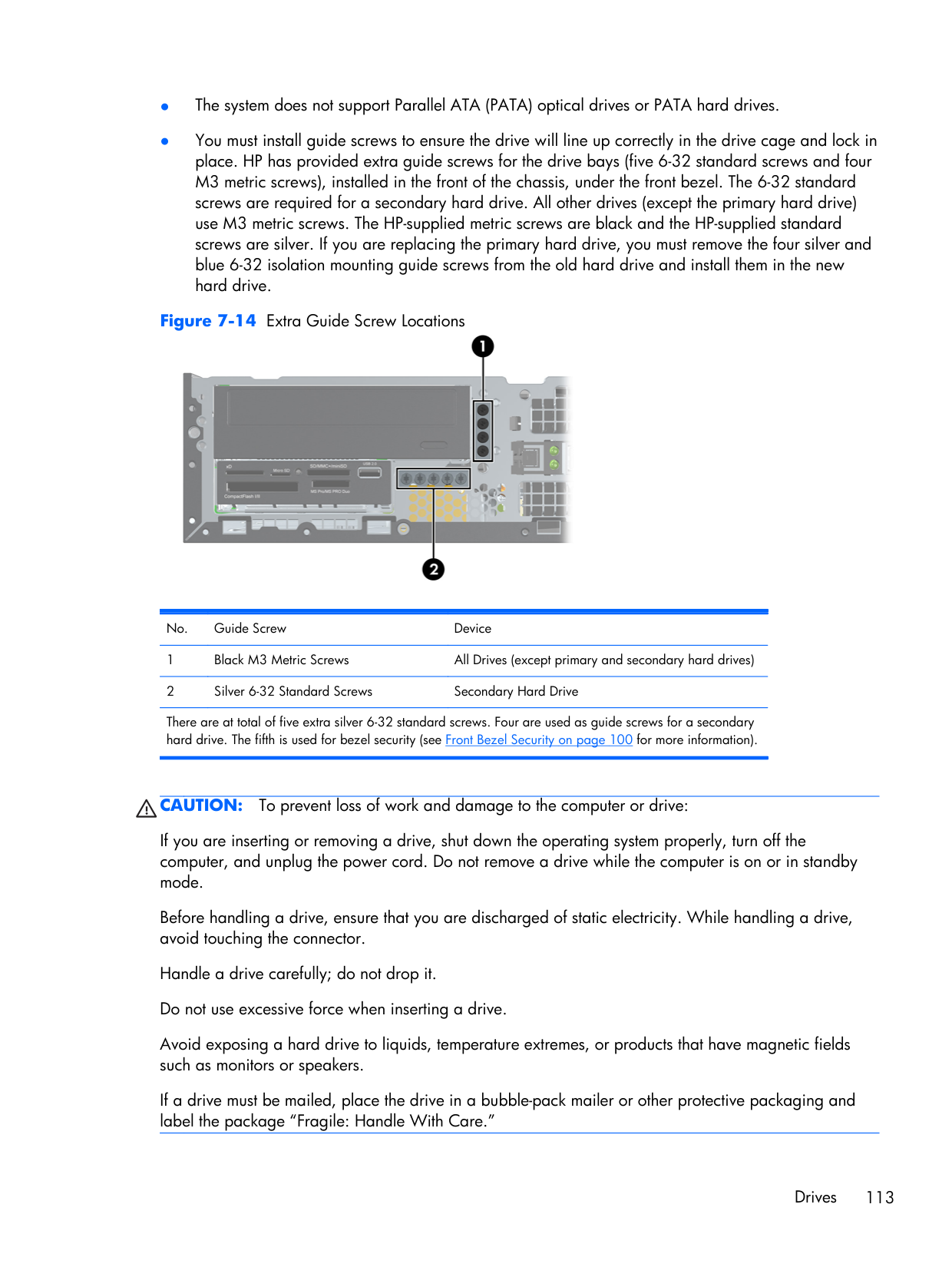

Figure 7-14 Extra Guide Screw Locations


No. Guide Screw Device 1 Black M3 Metric Screws All Drives (except primary and secondary hard drives) 2 Silver 6-32 Standard Screws Secondary Hard Drive There are at total of five extra silver 6-32 standard screws. Four are used as guide screws for a secondary hard drive. The fifth is used for bezel security (see Front Bezel Security on page 100 for more information).

CAUTION: To prevent loss of work and damage to the computer or drive:

If you are inserting or removing a drive, shut down the operating system properly, turn off the computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle a drive carefully; do not drop it. Do not use excessive force when inserting a drive. Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers. If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label the package “Fragile: Handle With Care.”

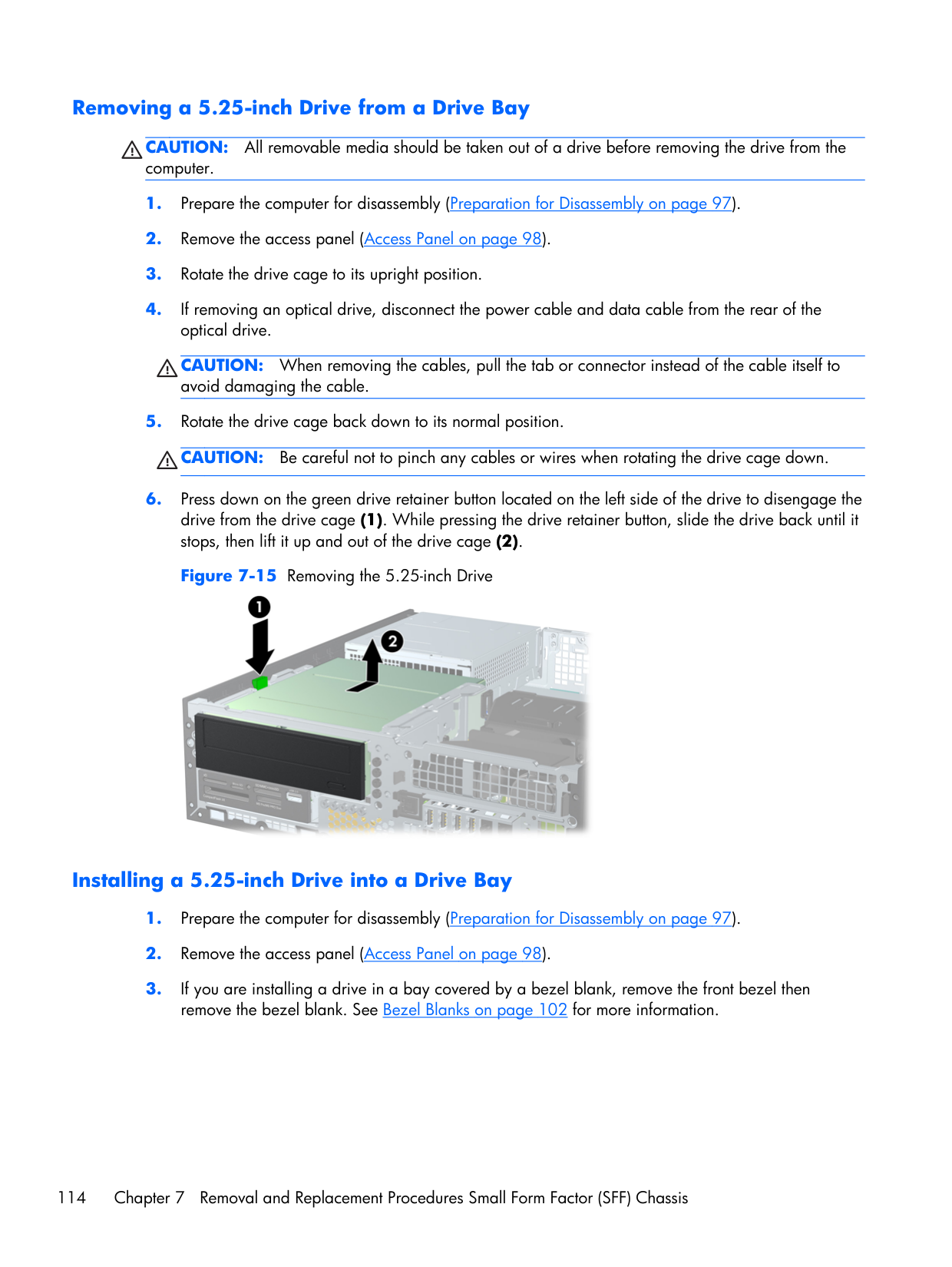

##### Removing a 5.25-inch Drive from a Drive Bay

CAUTION: All removable media should be taken out of a drive before removing the drive from the computer.

CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid damaging the cable.

CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.


##### Installing a 5.25-inch Drive into a Drive Bay

| | |---|

NOTE: When replacing the drive, transfer the four M3 metric guide screws from the old drive to the new one.

CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the internal components of the drive.

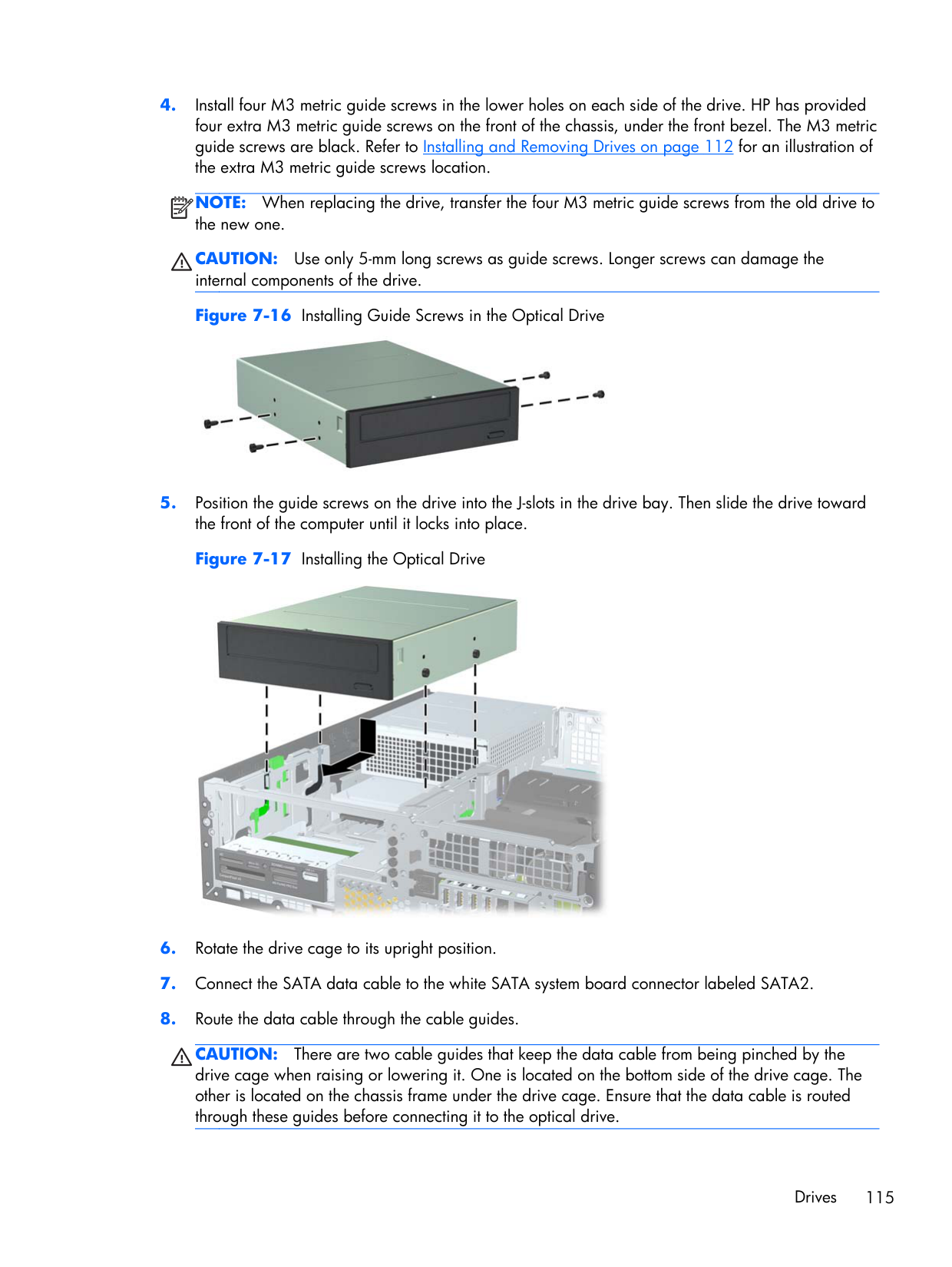

Figure 7-16 Installing Guide Screws in the Optical Drive



CAUTION: There are two cable guides that keep the data cable from being pinched by the drive cage when raising or lowering it. One is located on the bottom side of the drive cage. The other is located on the chassis frame under the drive cage. Ensure that the data cable is routed through these guides before connecting it to the optical drive.

| | |---|

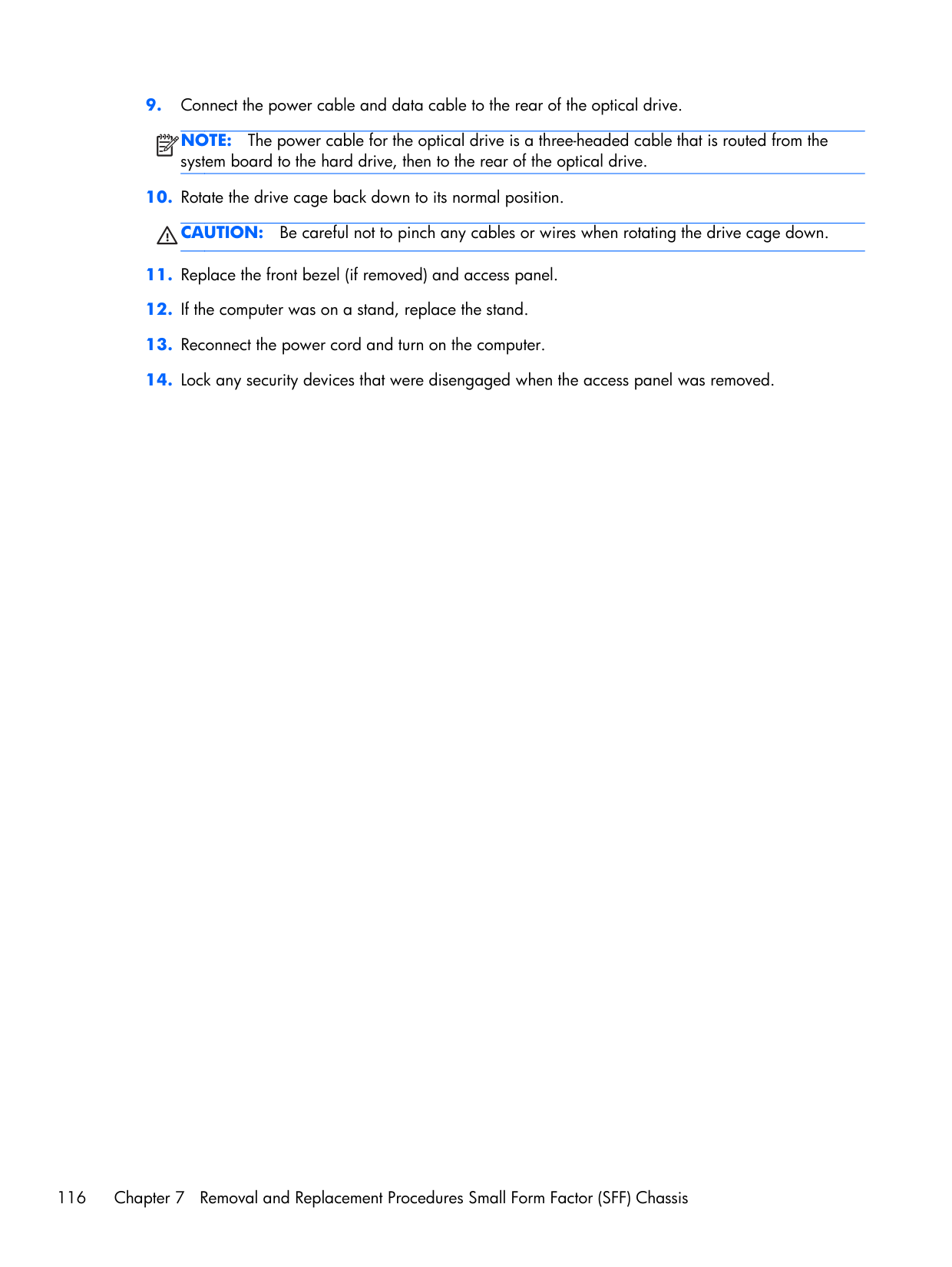

NOTE: The power cable for the optical drive is a three-headed cable that is routed from the system board to the hard drive, then to the rear of the optical drive.

CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.

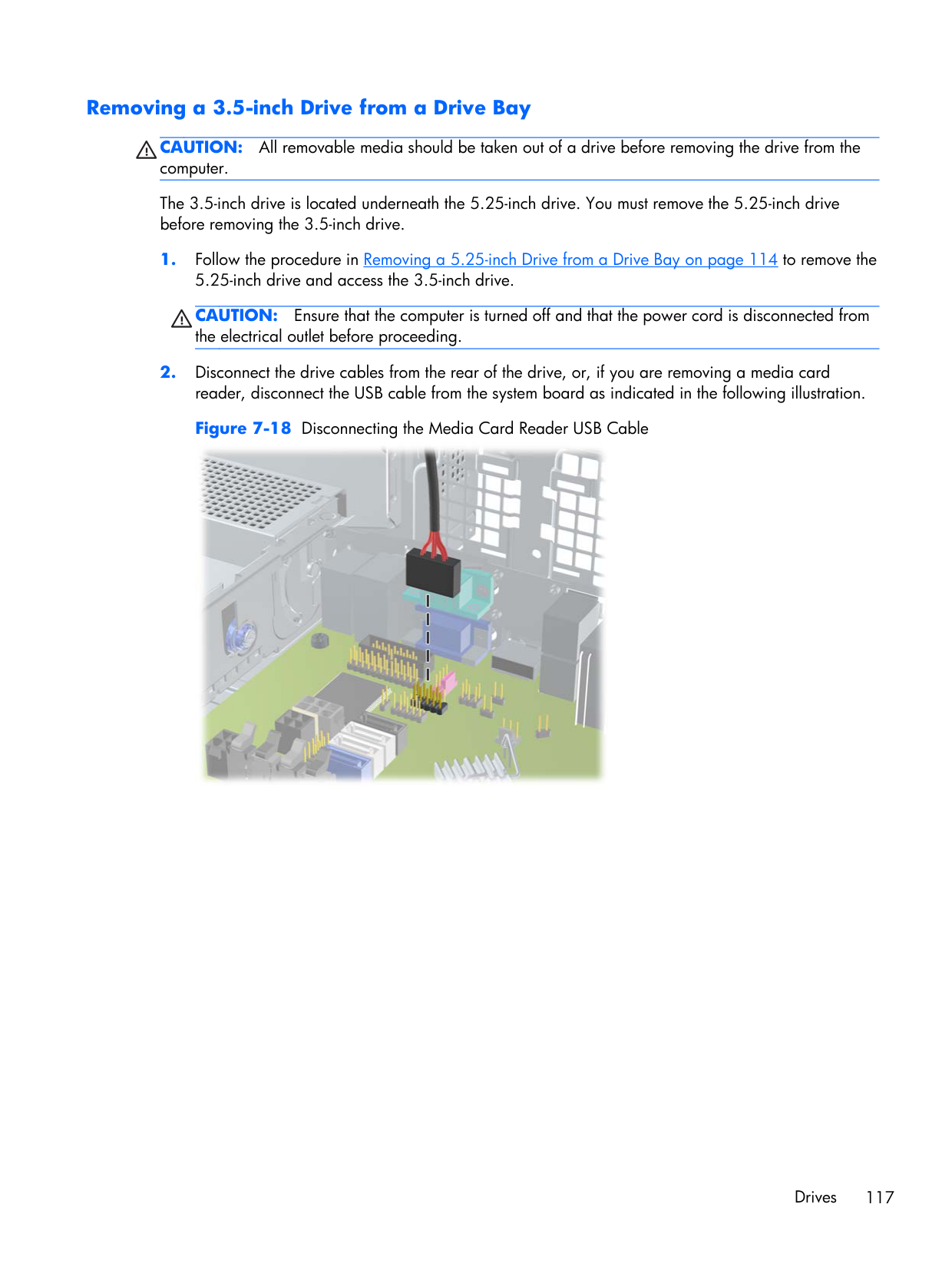

##### Removing a 3.5-inch Drive from a Drive Bay

CAUTION: All removable media should be taken out of a drive before removing the drive from the computer. The 3.5-inch drive is located underneath the 5.25-inch drive. You must remove the 5.25-inch drive before removing the 3.5-inch drive.

CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from the electrical outlet before proceeding.



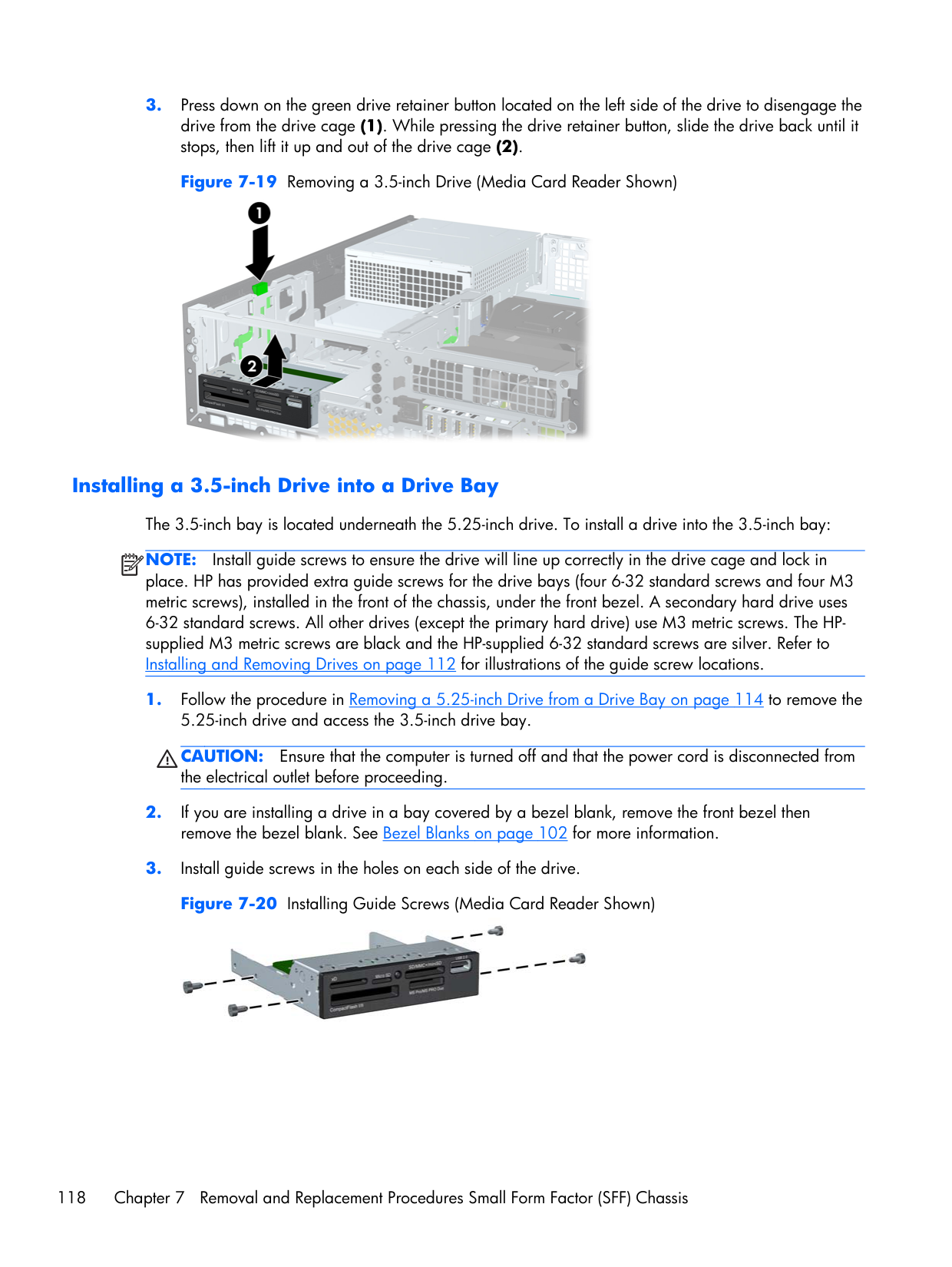

Installing a 3.5-inch Drive into a Drive Bay The 3.5-inch bay is located underneath the 5.25-inch drive. To install a drive into the 3.5-inch bay: NOTE: Install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (four 6-32 standard screws and four M3 metric screws), installed in the front of the chassis, under the front bezel. A secondary hard drive uses 6-32 standard screws. All other drives (except the primary hard drive) use M3 metric screws. The HPsupplied M3 metric screws are black and the HP-supplied 6-32 standard screws are silver. Refer to Installing and Removing Drives on page 112 for illustrations of the guide screw locations.

| | |---|

CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from the electrical outlet before proceeding.




| | |---|

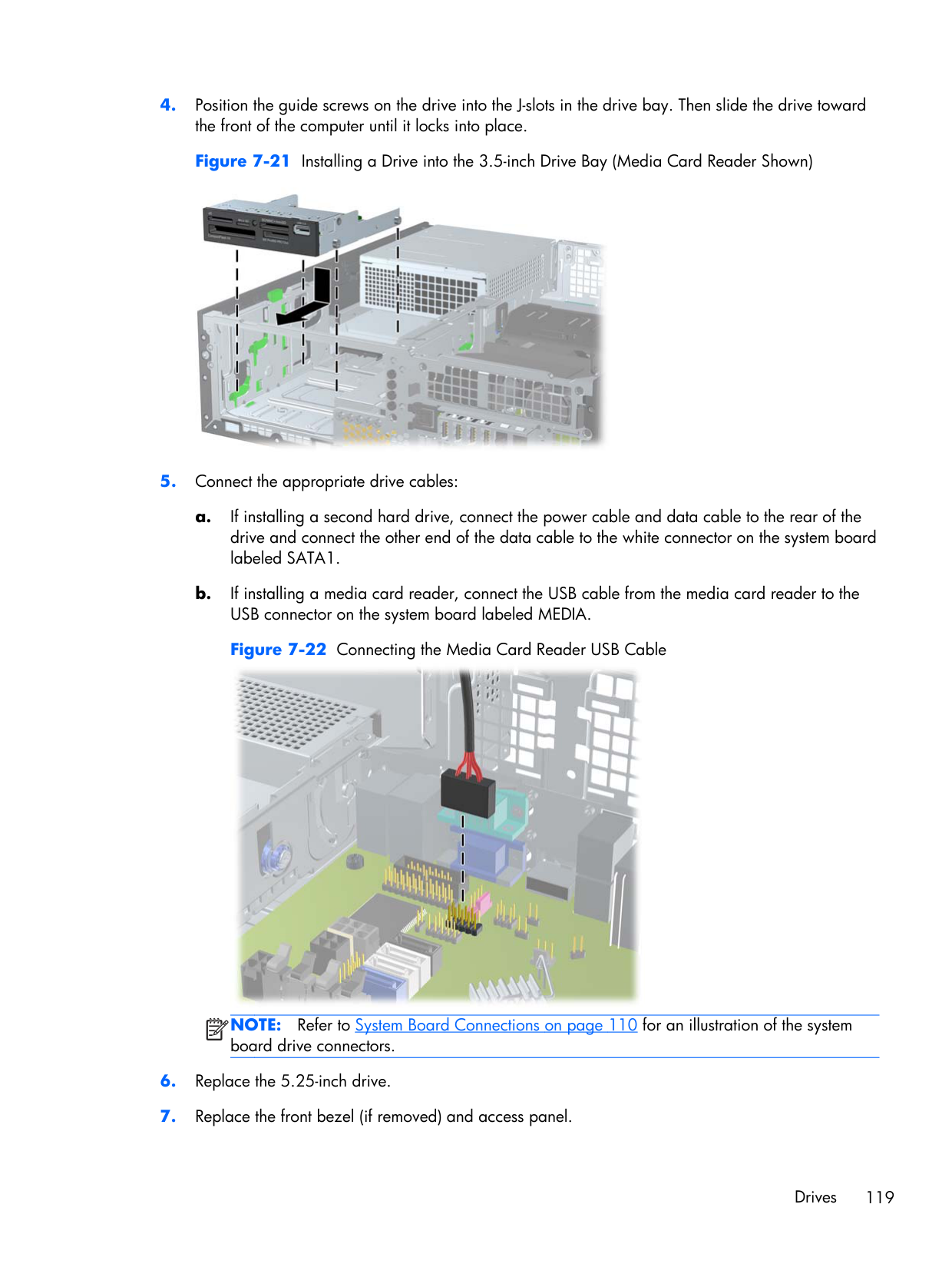

NOTE: Refer to System Board Connections on page 110 for an illustration of the system board drive connectors.

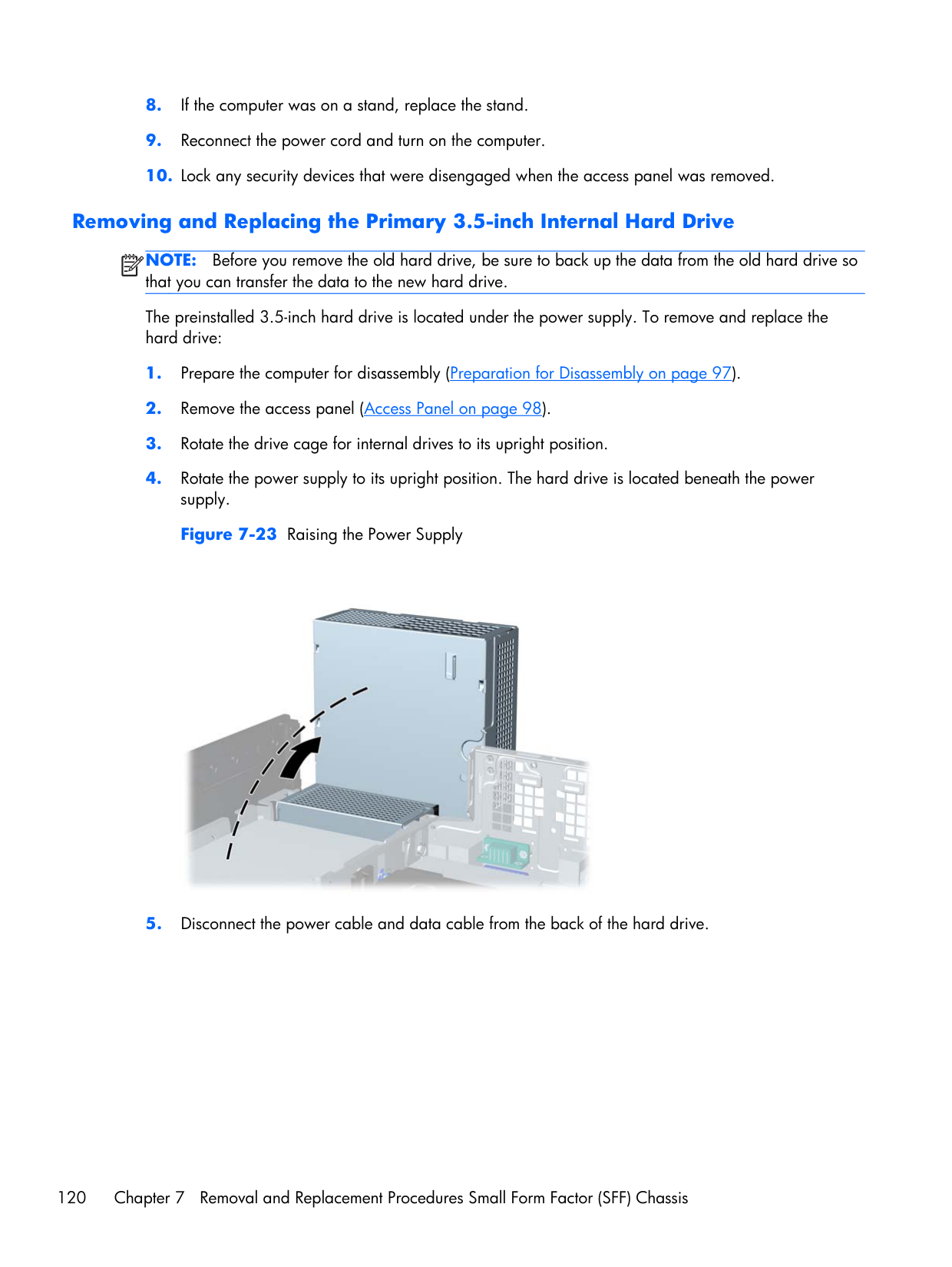

Removing and Replacing the Primary 3.5-inch Internal Hard Drive NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive. The preinstalled 3.5-inch hard drive is located under the power supply. To remove and replace the hard drive:

| | |---|

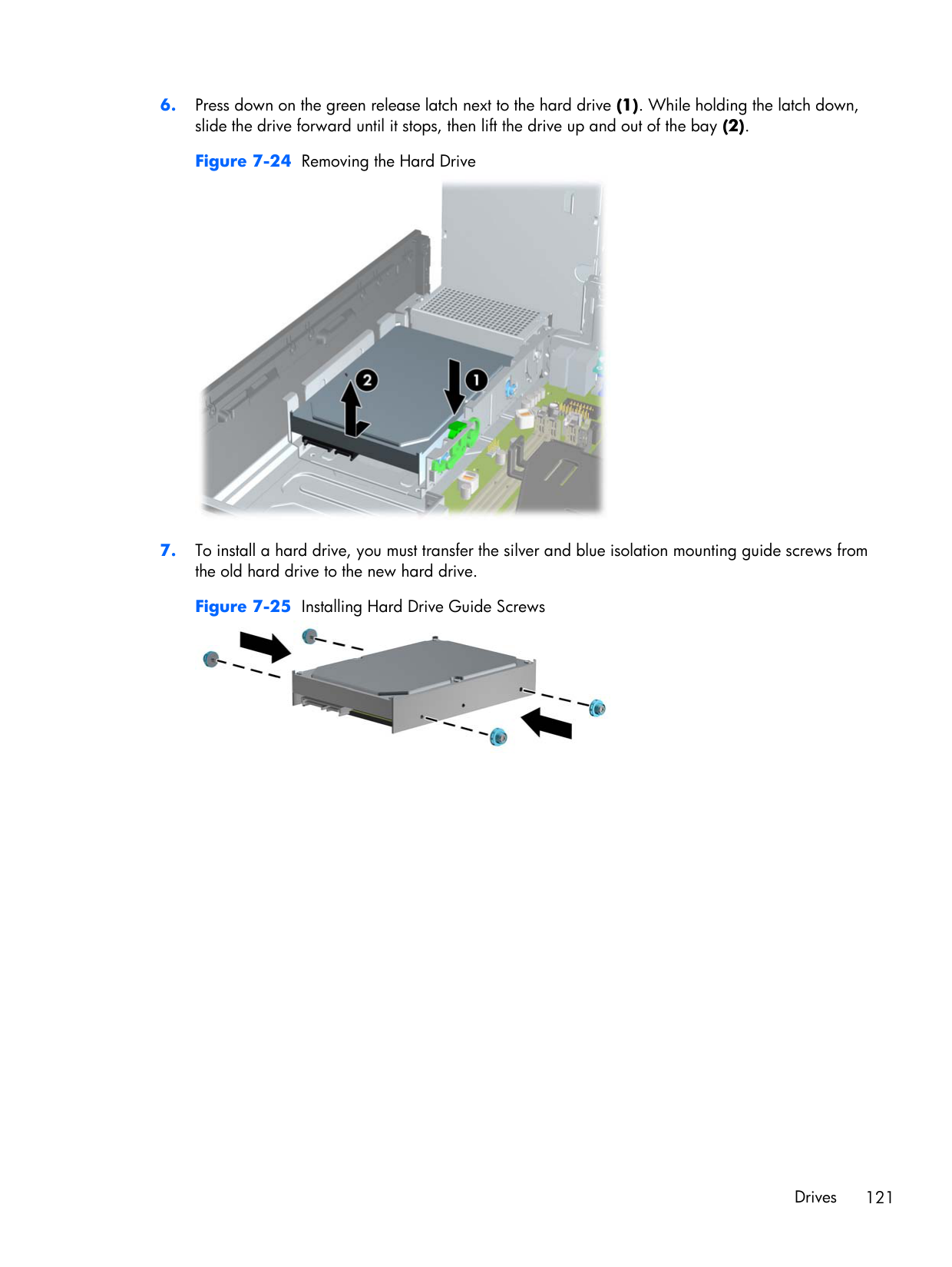

####### 6. Press down on the green release latch next to the hard drive (1). While holding the latch down,slide the drive forward until it stops, then lift the drive up and out of the bay (2).


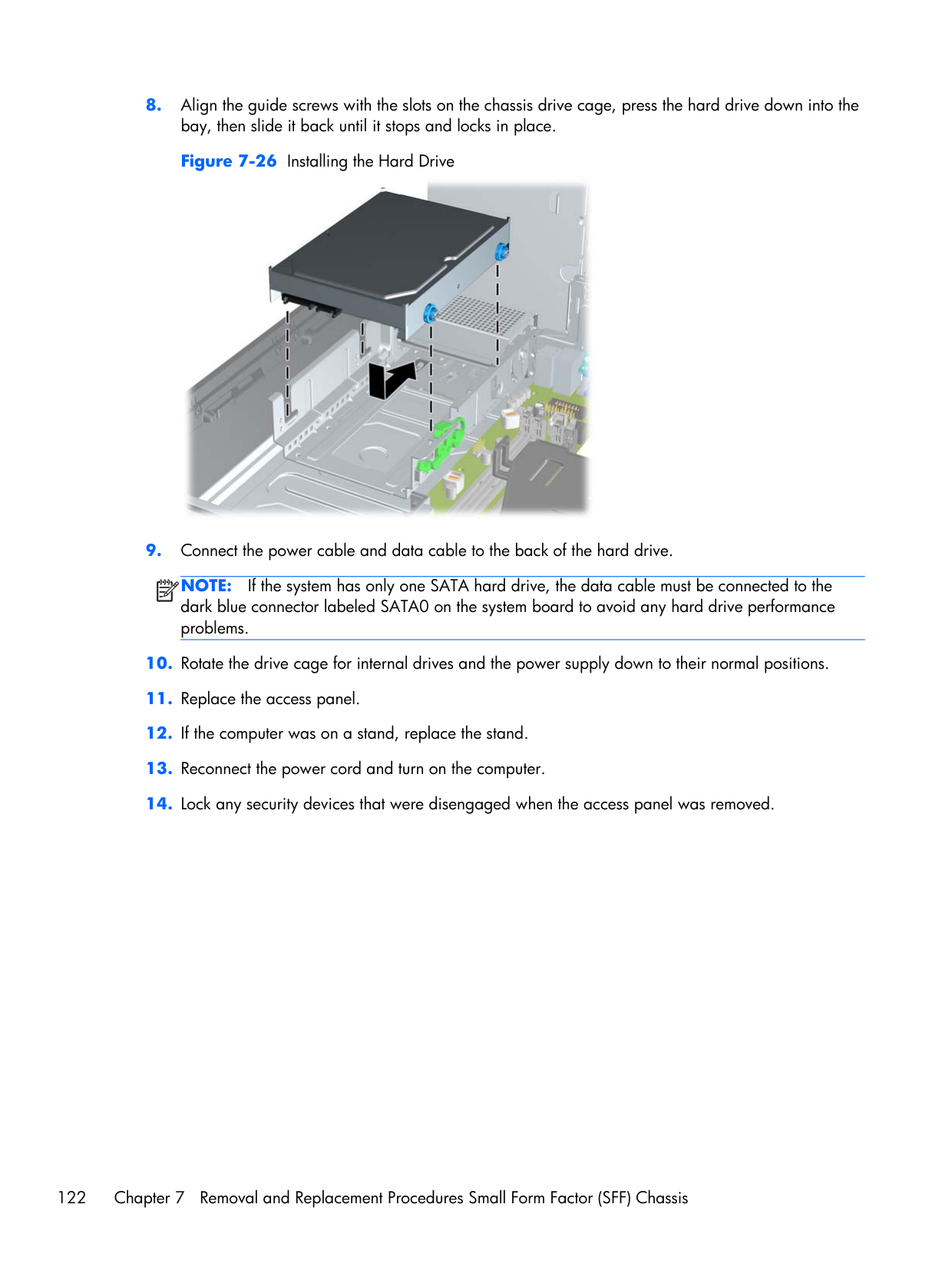

the old hard drive to the new hard drive.



| | |---|

NOTE: If the system has only one SATA hard drive, the data cable must be connected to the dark blue connector labeled SATA0 on the system board to avoid any hard drive performance problems.

Fan duct

######### Description Spare part number

Fan duct 636921-001

The fan duct sits between the front fan and the heat sink.


To install the fan duct, reverse the removal procedure.

Fan duct 123

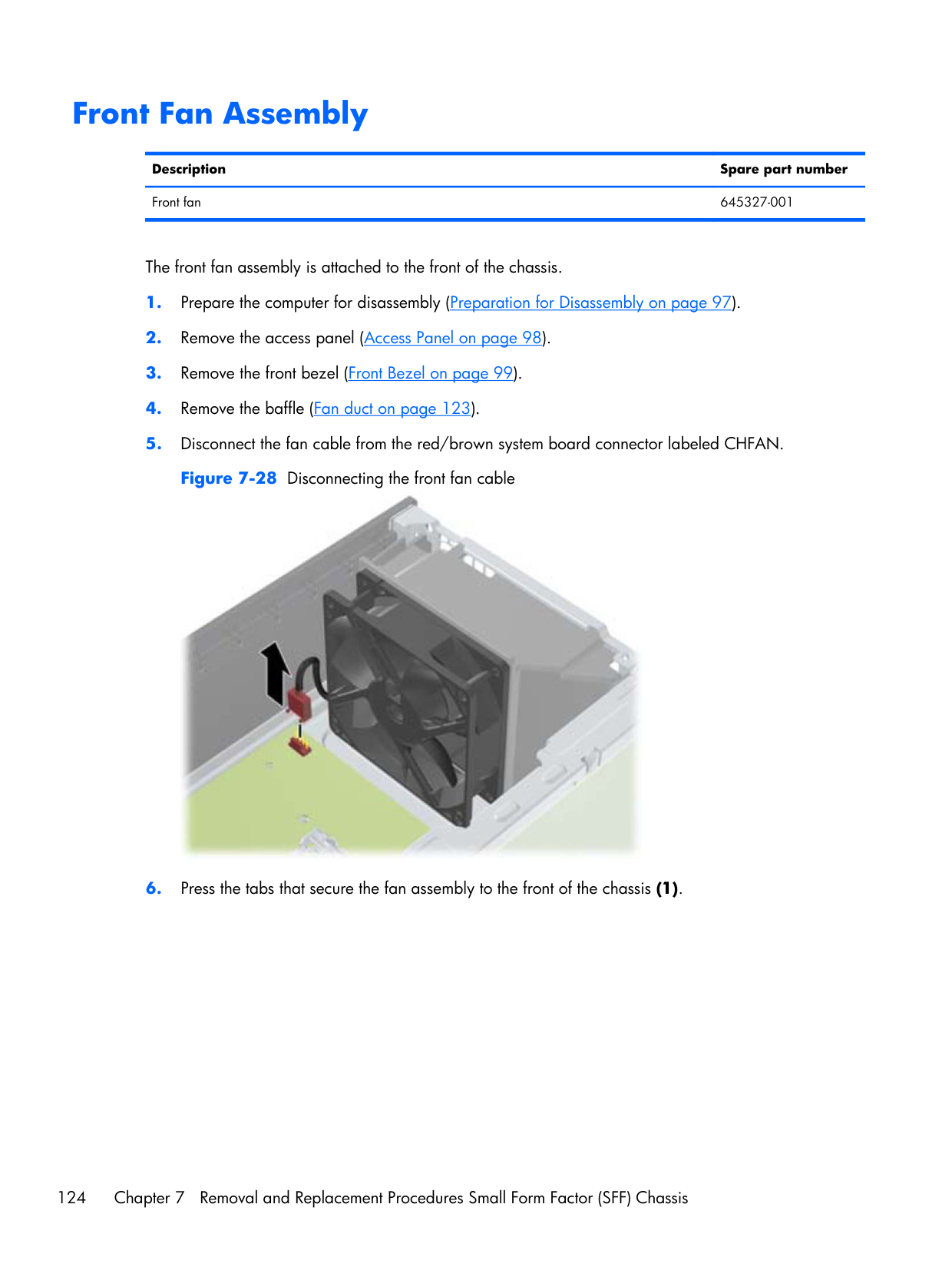

Front Fan Assembly

######### Description Spare part number

Front fan 645327-001

The front fan assembly is attached to the front of the chassis.



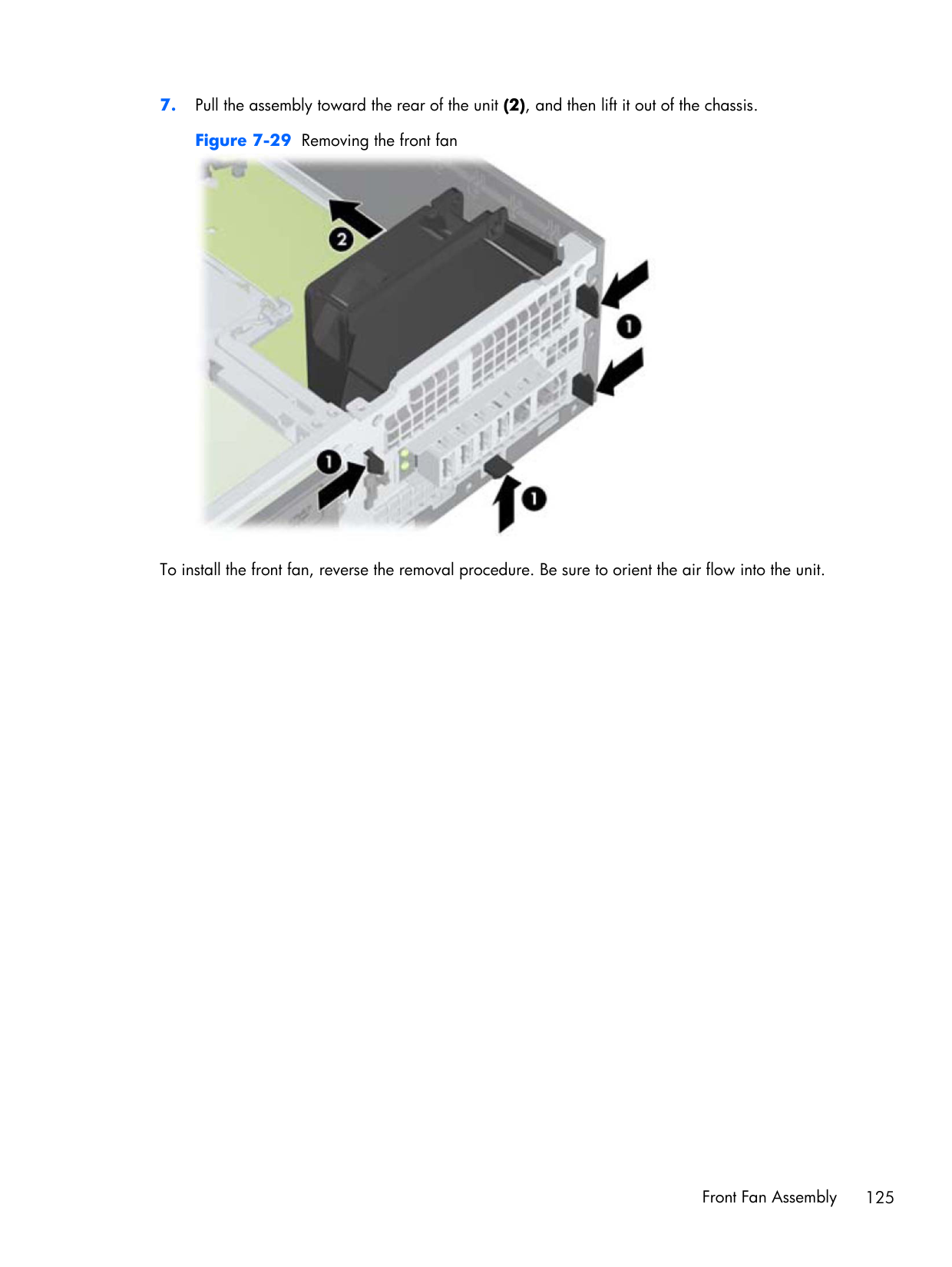

To install the front fan, reverse the removal procedure. Be sure to orient the air flow into the unit.

Front Fan Assembly 125

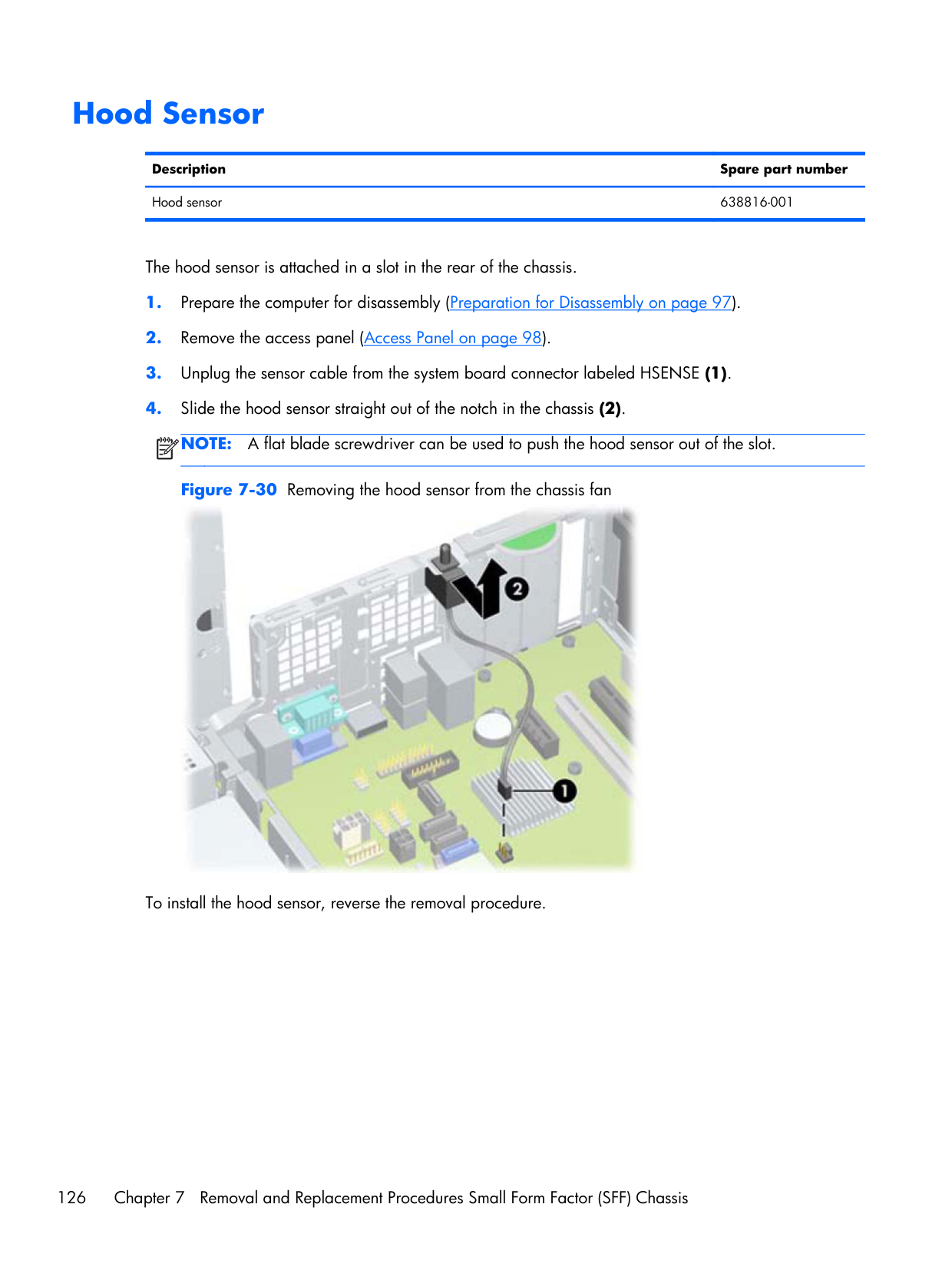

Hood Sensor

######### Description Spare part number

Hood sensor 638816-001

The hood sensor is attached in a slot in the rear of the chassis.

| | |---|

Figure 7-30 Removing the hood sensor from the chassis fan


To install the hood sensor, reverse the removal procedure.

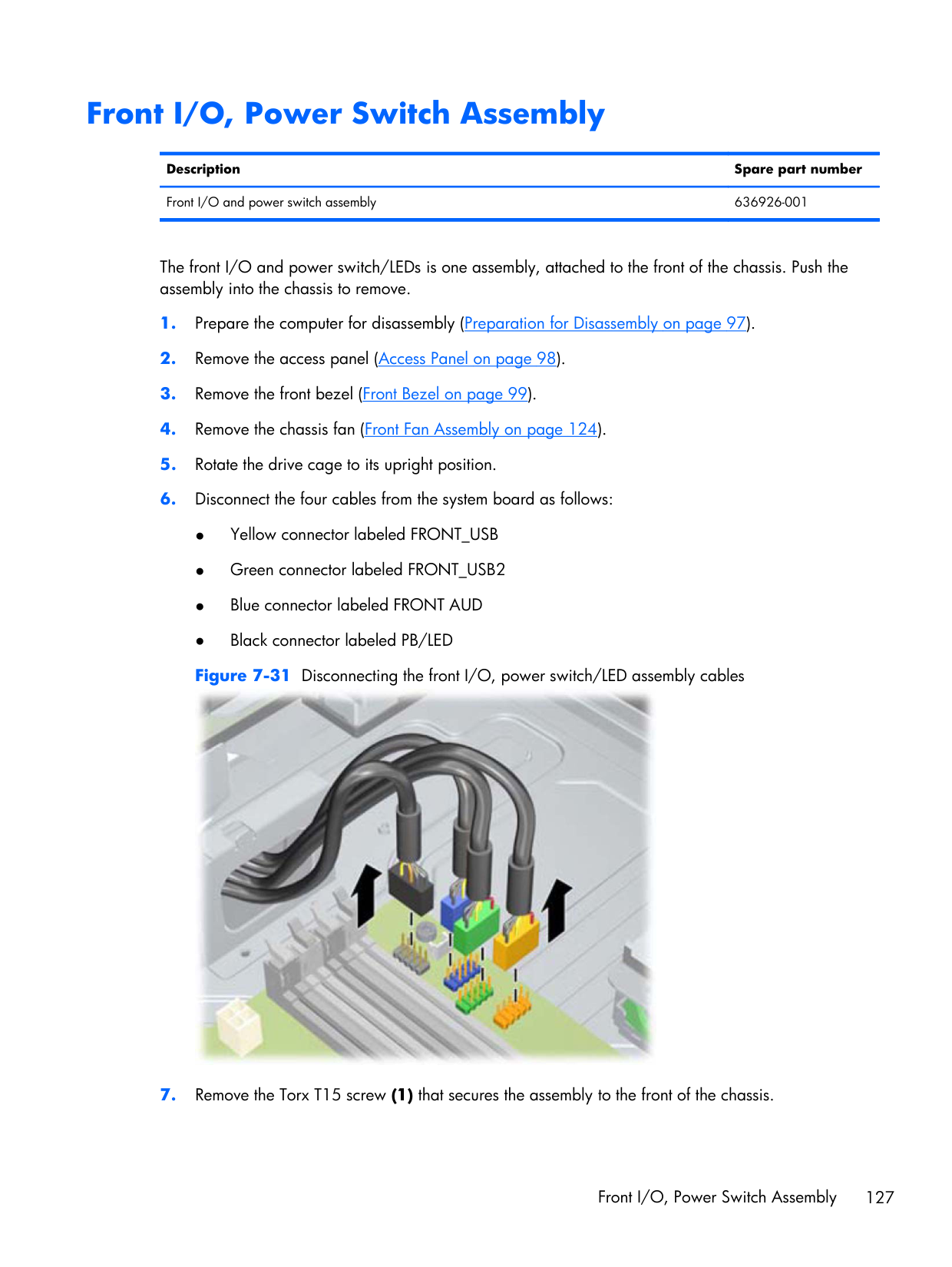

Front I/O, Power Switch Assembly

######### Description Spare part number

Front I/O and power switch assembly 636926-001

The front I/O and power switch/LEDs is one assembly, attached to the front of the chassis. Push the assembly into the chassis to remove.


Front I/O, Power Switch Assembly 127


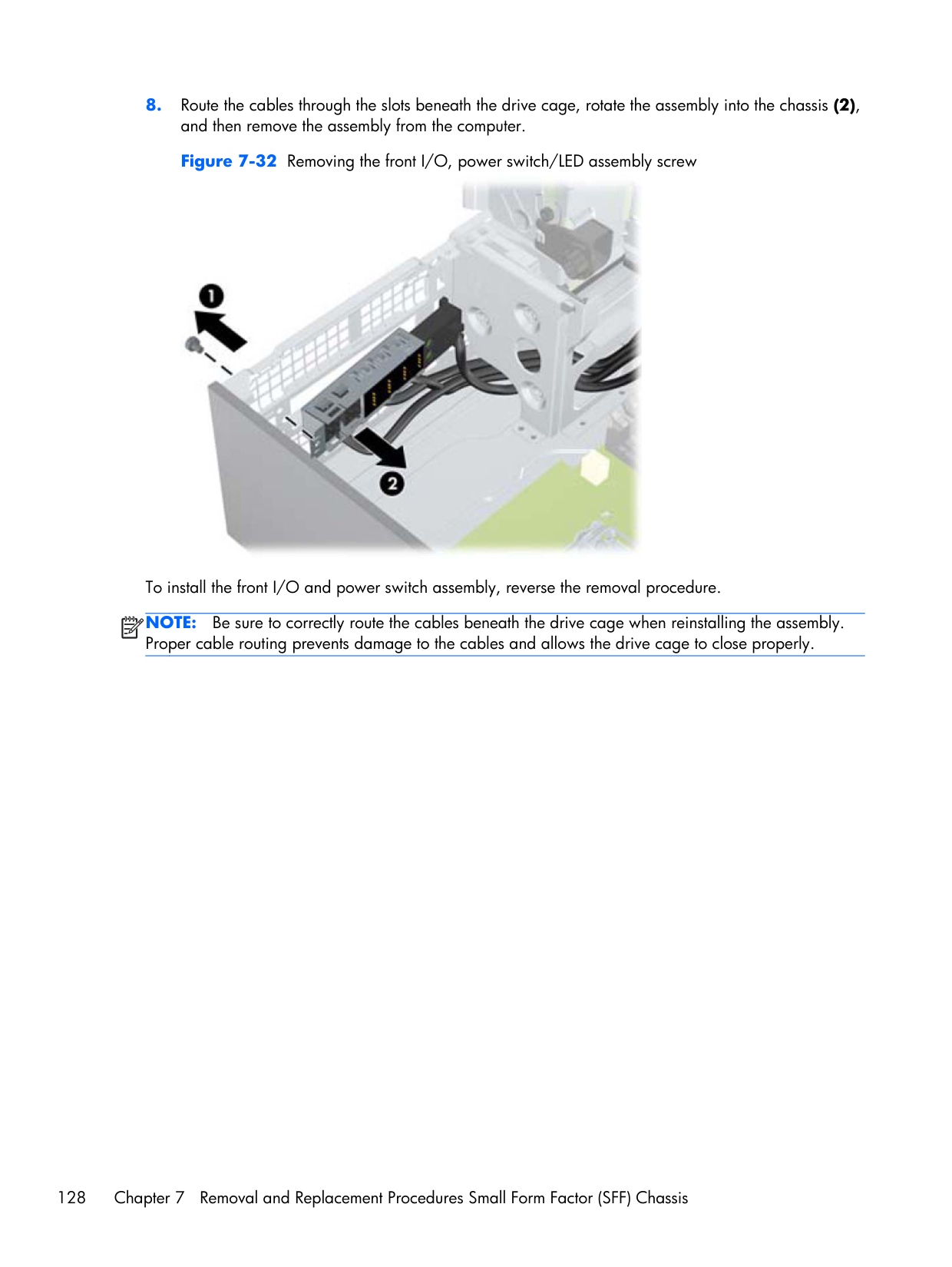

To install the front I/O and power switch assembly, reverse the removal procedure. NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly. Proper cable routing prevents damage to the cables and allows the drive cage to close properly.

| | |---|

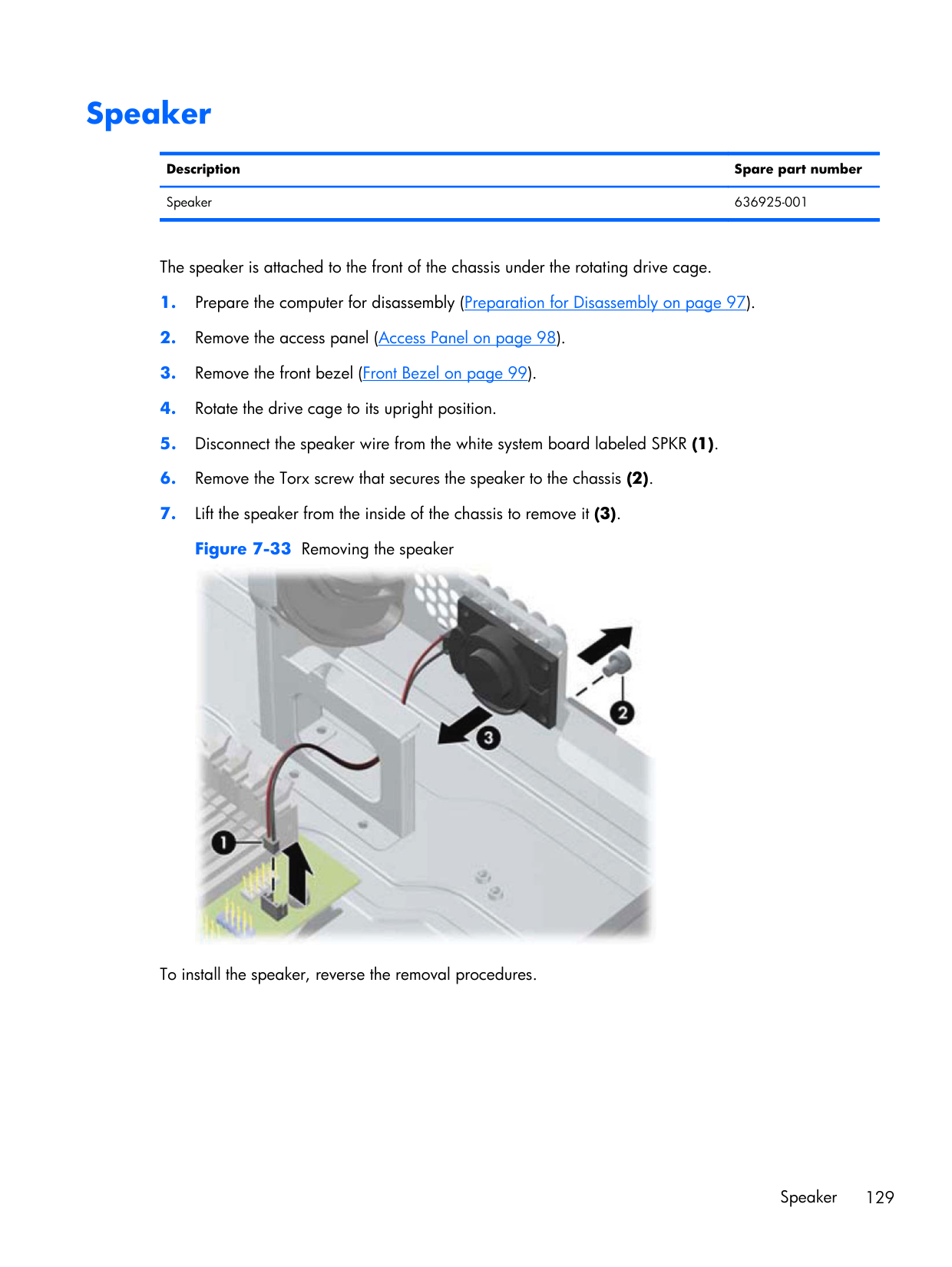

Speaker

######### Description Spare part number

Speaker 636925-001

The speaker is attached to the front of the chassis under the rotating drive cage.


To install the speaker, reverse the removal procedures.

Speaker 129

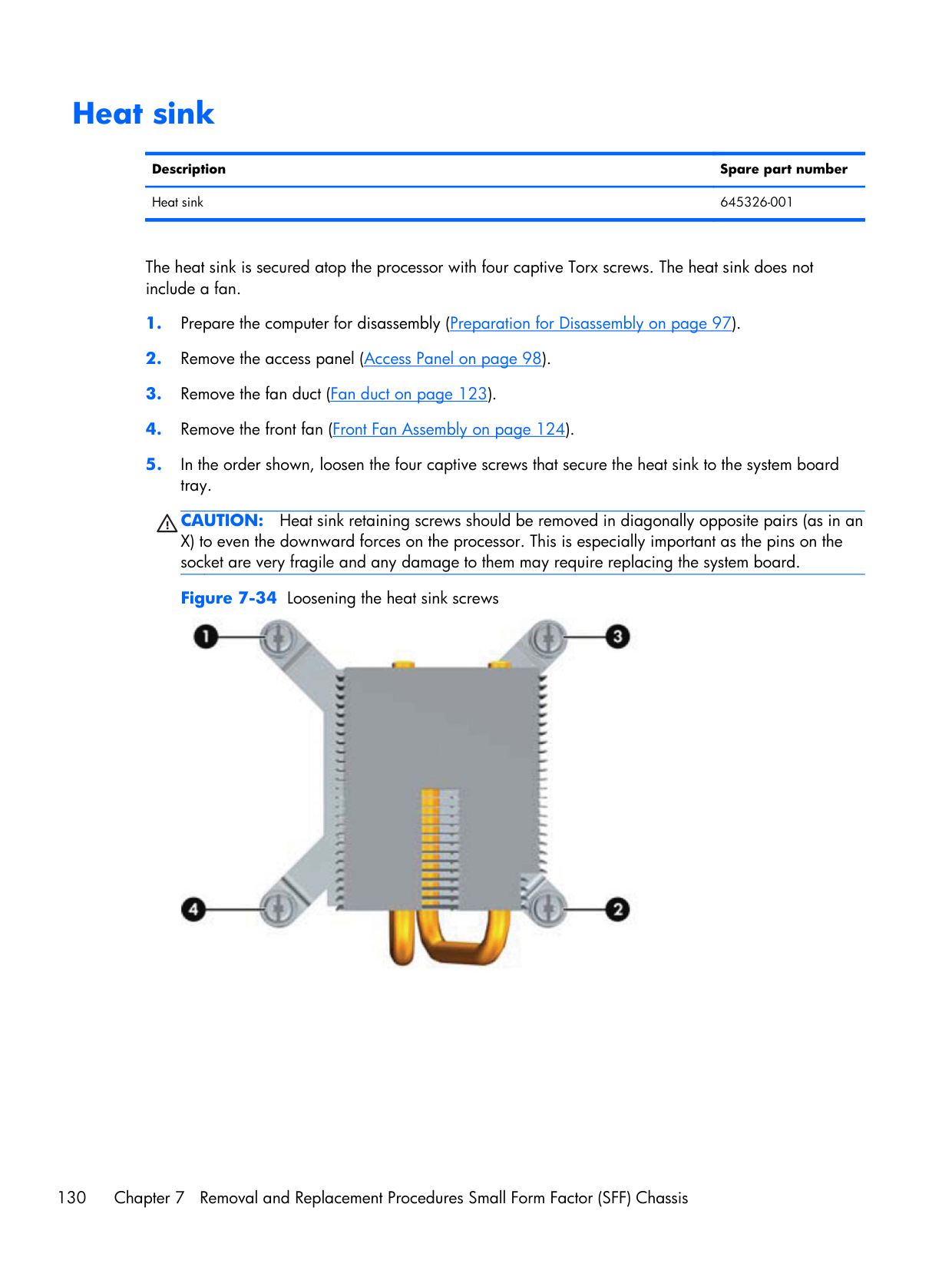

Heat sink

######### Description Spare part number

Heat sink 645326-001

The heat sink is secured atop the processor with four captive Torx screws. The heat sink does not include a fan.

CAUTION: Heat sink retaining screws should be removed in diagonally opposite pairs (as in an X) to even the downward forces on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.



When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and fresh thermal grease has been applied to the top of the processor.

CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heat sink on the processor to avoid damage that could require replacing the system board.

Failure to install the fan duct may cause the computer to overheat.

Heat sink 131

Processor

Description Spare part number

Intel Core i7 processor

3770, 3.4 GHz (turbo up to 3.9 GHz), 8-MB L3 cache, 77W 688164-001 2600, 3.4 GHz (turbo up to 3.8 GHz), 8-MB L3 cache, 95W 638632-001 Intel Core i5 processors

3570, 3.4 GHz, 6-MB L3 cache, 95W 688162-001 3470, 3.2 GHz, 6-MB L3 cache, 95W 687943-001 2400, 3.1 GHz, 6-MB L3 cache 638630-001 Intel Core i3 processors

3240, 3.4 GHz, 3-MB L3 cache 688951-001 3225, 3.3 GHz, 3-MB L3 cache, 55W 689578-001 3220, 3.3 GHz, 3-MB L3 cache, 65W 688950-001 2130, 3.4 GHz, 3-MB L3 cache 665120-001 2120, 3.3 GHz, 3-MB L3 cache 638629-001 Intel Pentium processors

G2120, 3.1 GHz, 3-MB L3 cache 703282-001 G870, 3.1 GHz, 3-MB L3 cache 691936-001 G860, 3.0 GHz, 3-MB L3 cache 665123-001 G850, 2.9 GHz, 3-MB L3 cache 655973-001 G645, 2.9 GHz, 3-MB L3 cache 704228-001 G640, 2.8 GHz, 3-MB L3 cache 691935-001 G630, 2.7 GHz, 3-MB L3 cache 665122-001 Intel Celeron processors

G555, 2.7 GHz, 2-MB L3 cache 704227-001 G550, 2.6 GHz, 2-MB L3 cache 691934-001 G540, 2.5 GHz, 2-MB L3 cache 665119-001 G530T, 2.0 GHz, 2-MB L3 cache 665118-001

######### Description Spare part number

G465, 1.9 GHz, 1.5-MB L3 cache 706883-001 G460, 1.8 GHz, 1-MB L3 cache 682410-001

CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

The heat sink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.

Figure 7-36 Removing the processor

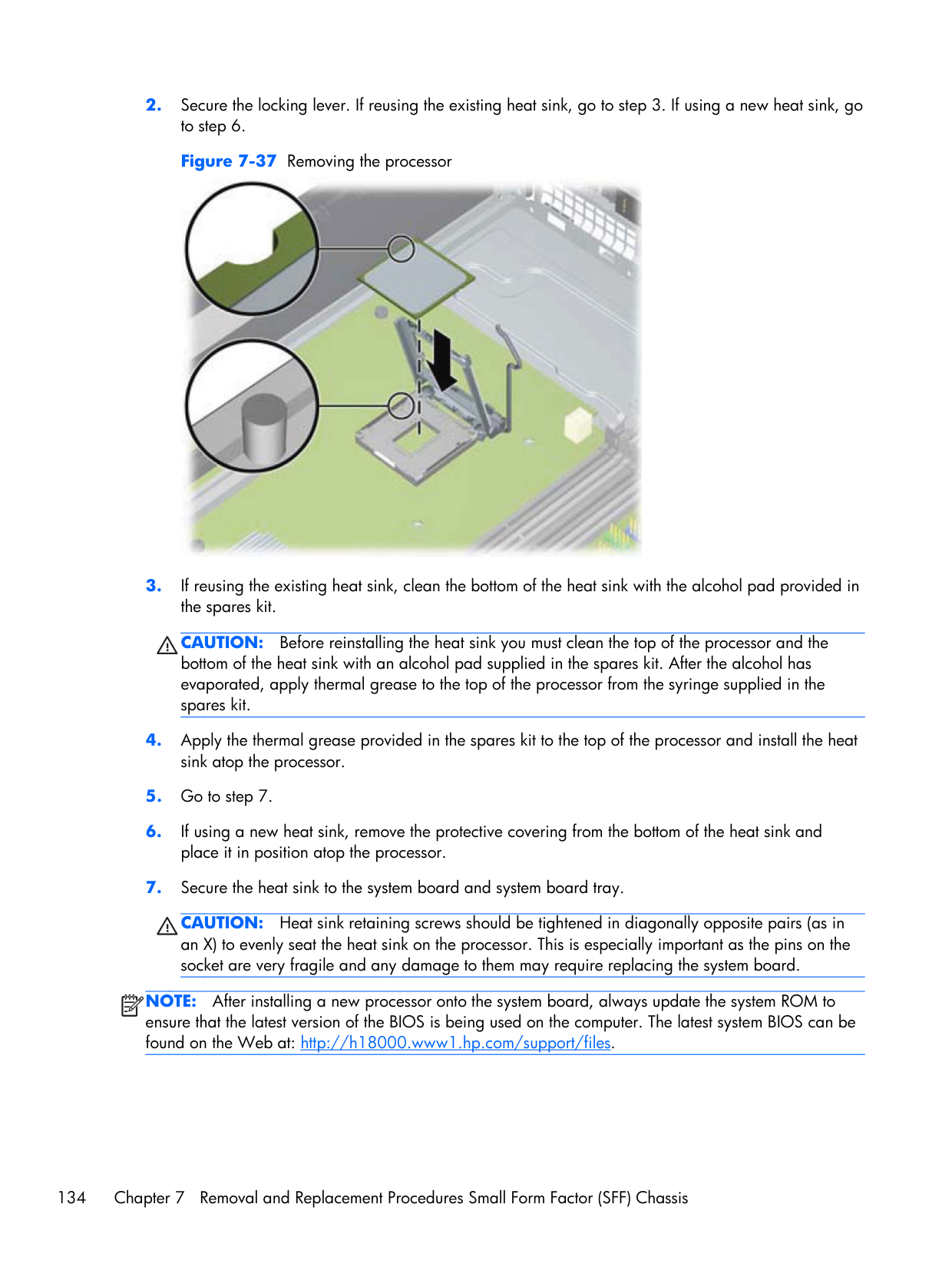

To install a new processor:

Processor 133


CAUTION: Before reinstalling the heat sink you must clean the top of the processor and the bottom of the heat sink with an alcohol pad supplied in the spares kit. After the alcohol has evaporated, apply thermal grease to the top of the processor from the syringe supplied in the spares kit.

CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heat sink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

NOTE: After installing a new processor onto the system board, always update the system ROM to ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can be found on the Web at: http://h18000.www1.hp.com/support/files.

| | |---|

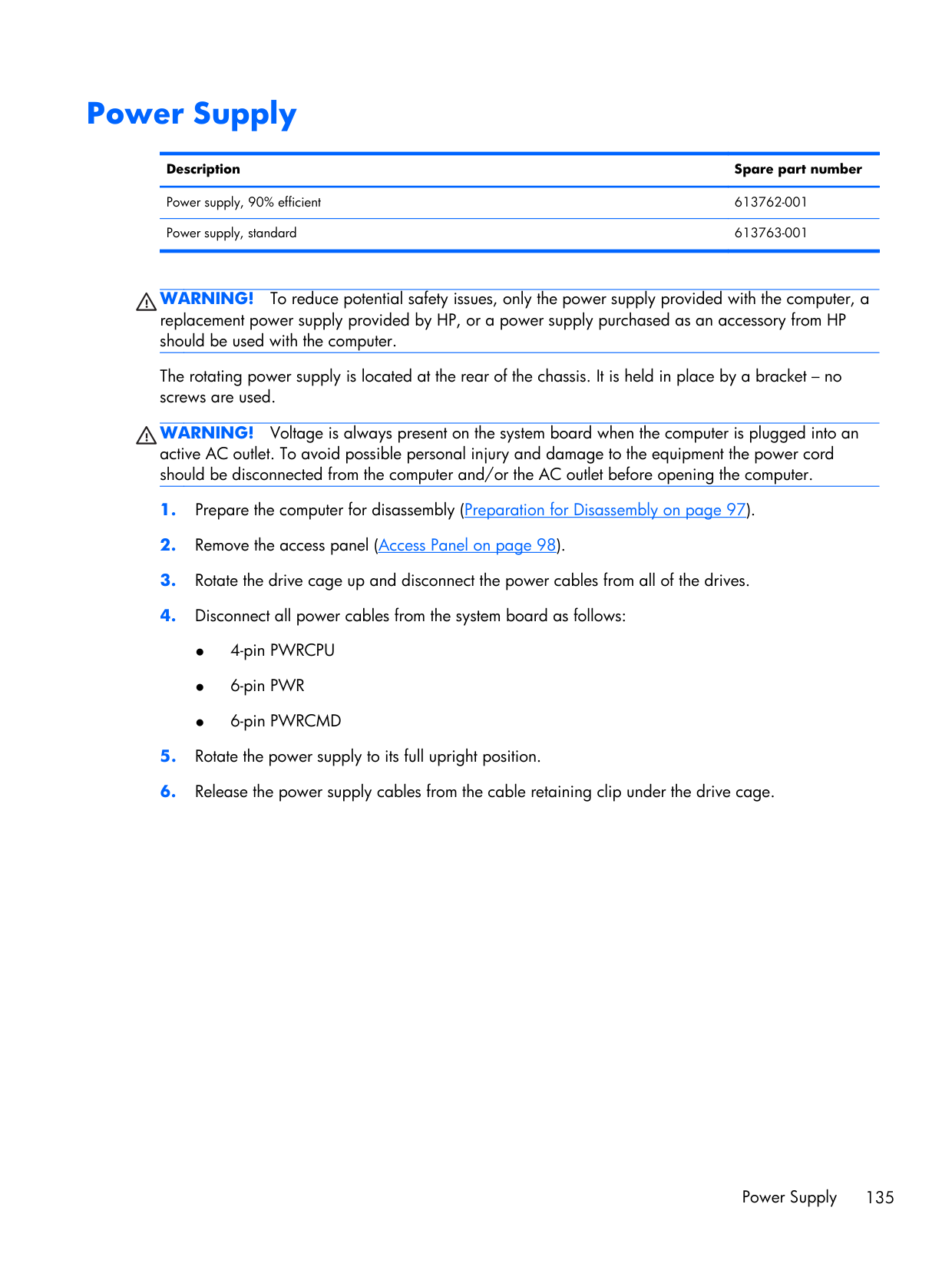

Power Supply

######### Description Spare part number

Power supply, 90% efficient 613762-001 Power supply, standard 613763-001

WARNING! To reduce potential safety issues, only the power supply provided with the computer, a replacement power supply provided by HP, or a power supply purchased as an accessory from HP should be used with the computer.

The rotating power supply is located at the rear of the chassis. It is held in place by a bracket – no screws are used.

WARNING! Voltage is always present on the system board when the computer is plugged into an active AC outlet. To avoid possible personal injury and damage to the equipment the power cord should be disconnected from the computer and/or the AC outlet before opening the computer.

Power Supply 135


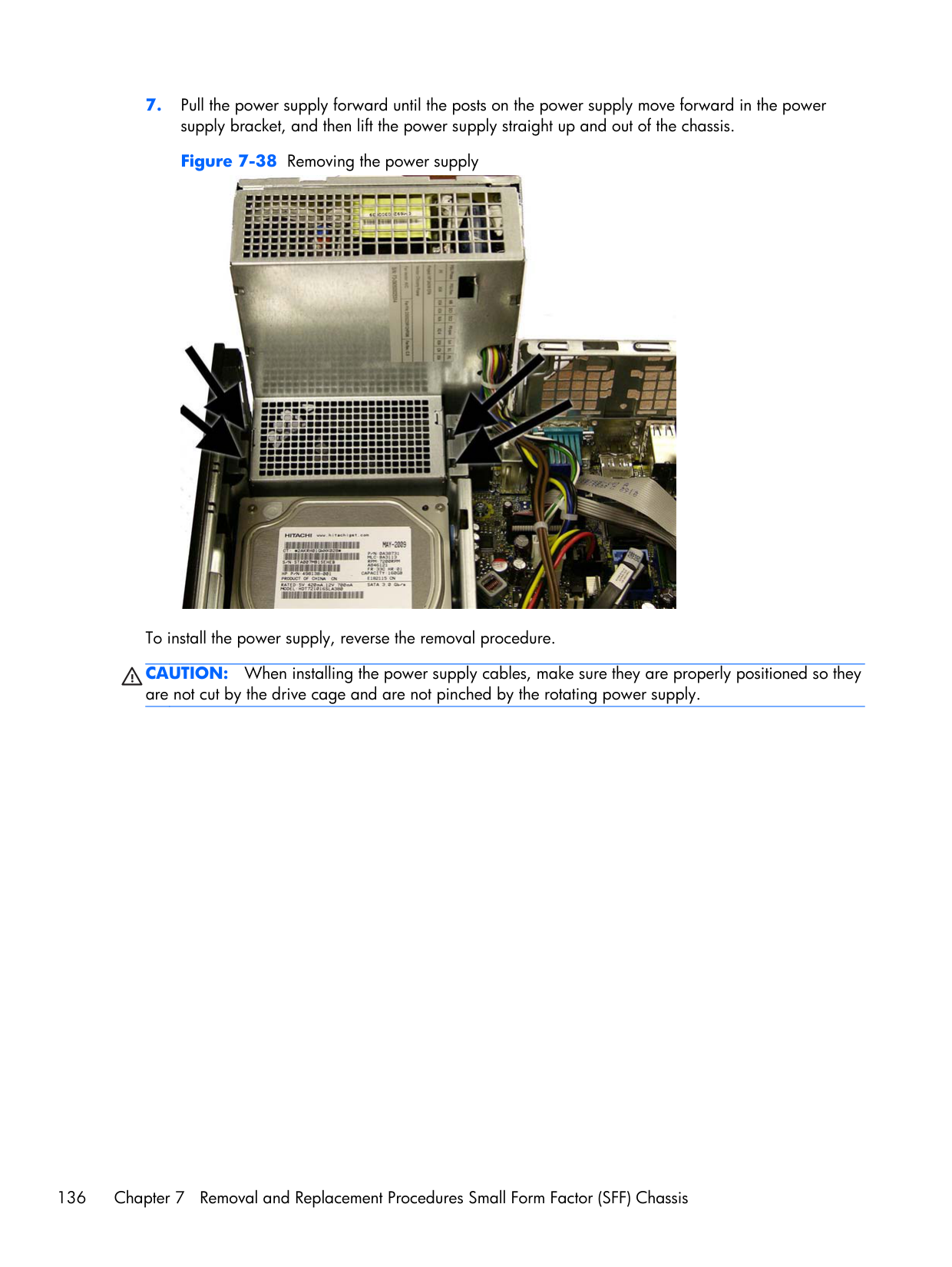

To install the power supply, reverse the removal procedure.

CAUTION: When installing the power supply cables, make sure they are properly positioned so they are not cut by the drive cage and are not pinched by the rotating power supply.

System Board

######### Description Spare part number

System board (includes thermal material) 657239-001

System Board 137


To install the system board, reverse the removal procedure. NOTE: When replacing the system board, you must also change the chassis serial number in the BIOS.

| | |---|

CAUTION: Before reinstalling the heat sink you must clean the top of the processor and the bottom of the heat sink with an alcohol pad supplied in the spares kit. After the alcohol has evaporated, apply thermal grease to the top of the processor from the syringe supplied in the spares kit.

CAUTION: When reconnecting the cables it is important that they be positioned so they do not interfere with the rotation of the drive cage or power supply.

Using the Small Form Factor Computer in a Tower Orientation

The Small Form Factor computer can be used in a tower orientation. The HP logo plate on the front bezel is adjustable for either desktop or tower orientation.


| | |---|

NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the optional tower stand.

NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains clear and free of obstructions.

| | |---|

Using the Small Form Factor Computer in a Tower Orientation 139

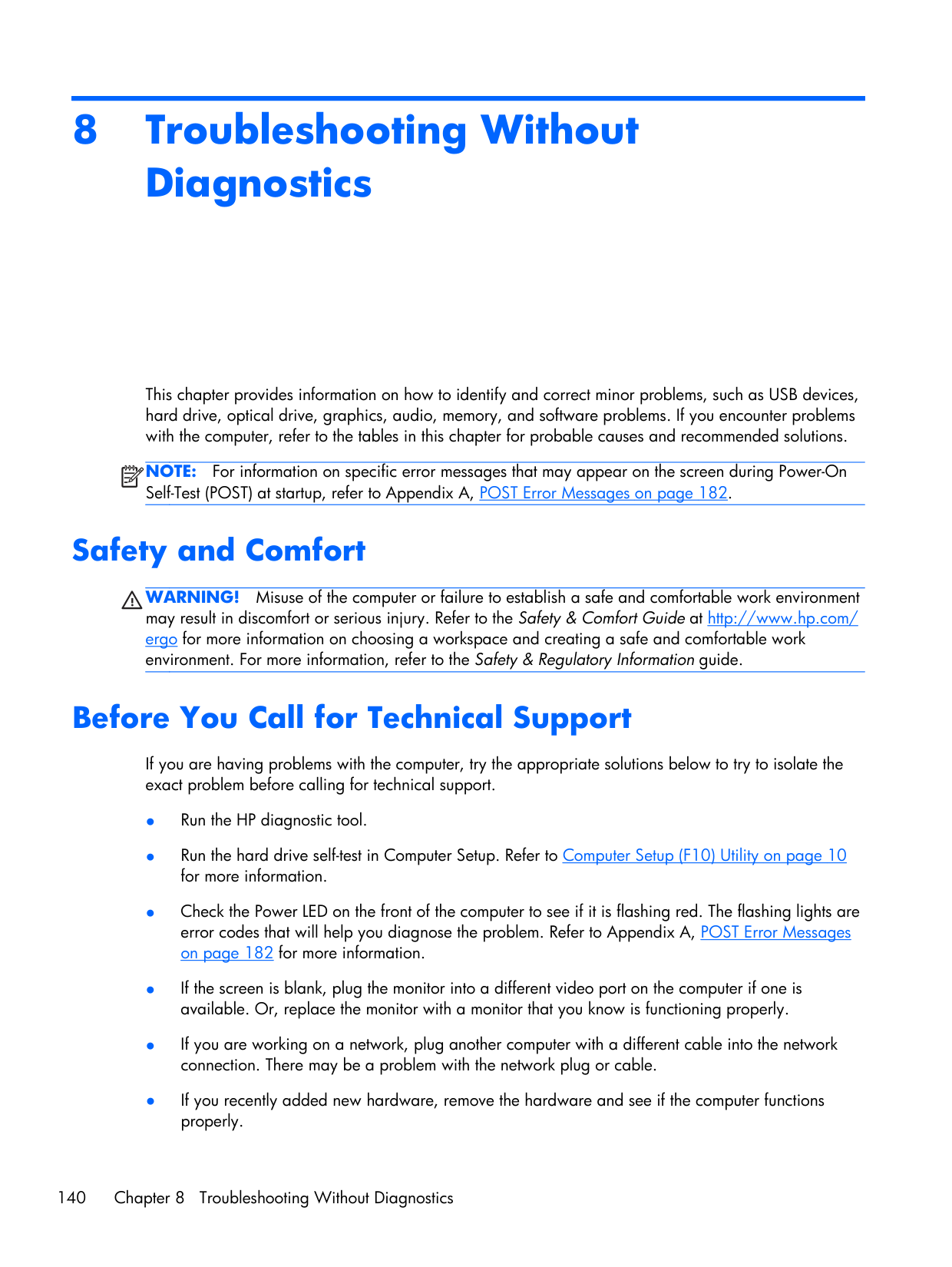

8 Troubleshooting WithoutDiagnostics

This chapter provides information on how to identify and correct minor problems, such as USB devices, hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems with the computer, refer to the tables in this chapter for probable causes and recommended solutions. NOTE: For information on specific error messages that may appear on the screen during Power-On Self-Test (POST) at startup, refer to Appendix A, POST Error Messages on page 182.

| | |---|

Safety and Comfort

WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment may result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/ ergo for more information on choosing a workspace and creating a safe and comfortable work

environment. For more information, refer to the Safety & Regulatory Information guide.

Before You Call for Technical Support

If you are having problems with the computer, try the appropriate solutions below to try to isolate the exact problem before calling for technical support.

To assist you in resolving problems online, HP Instant Support Professional Edition provides you with self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.

Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online support information, software and drivers, proactive notification, and worldwide community of peers and HP experts.

If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that your service call is handled properly:

CAUTION: Restoring the system will erase all data on the hard drive. Be sure to back up all data files before running the restore process.

NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized service provider or dealer.

| | |---|

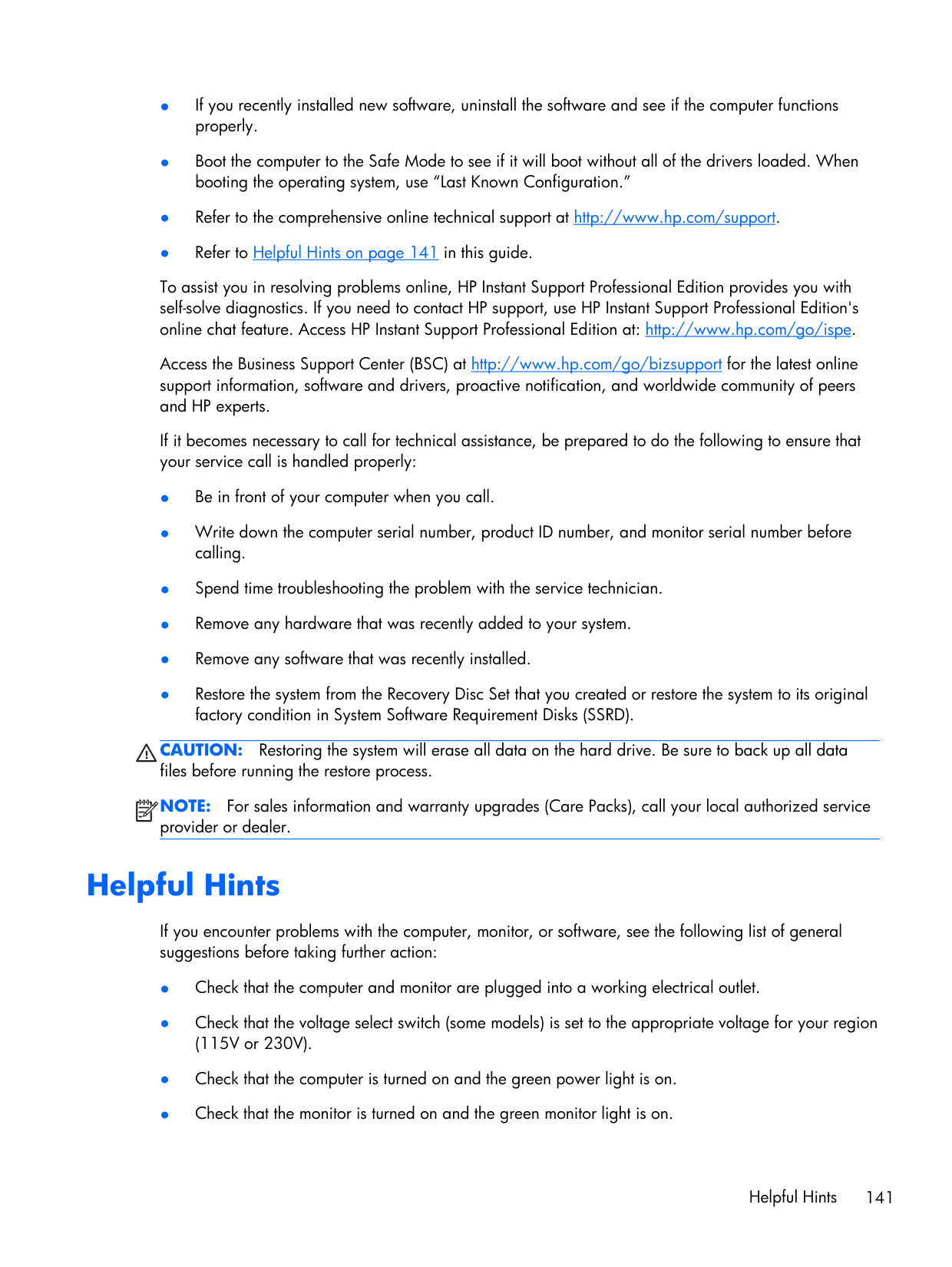

Helpful Hints

If you encounter problems with the computer, monitor, or software, see the following list of general suggestions before taking further action:

Helpful Hints 141

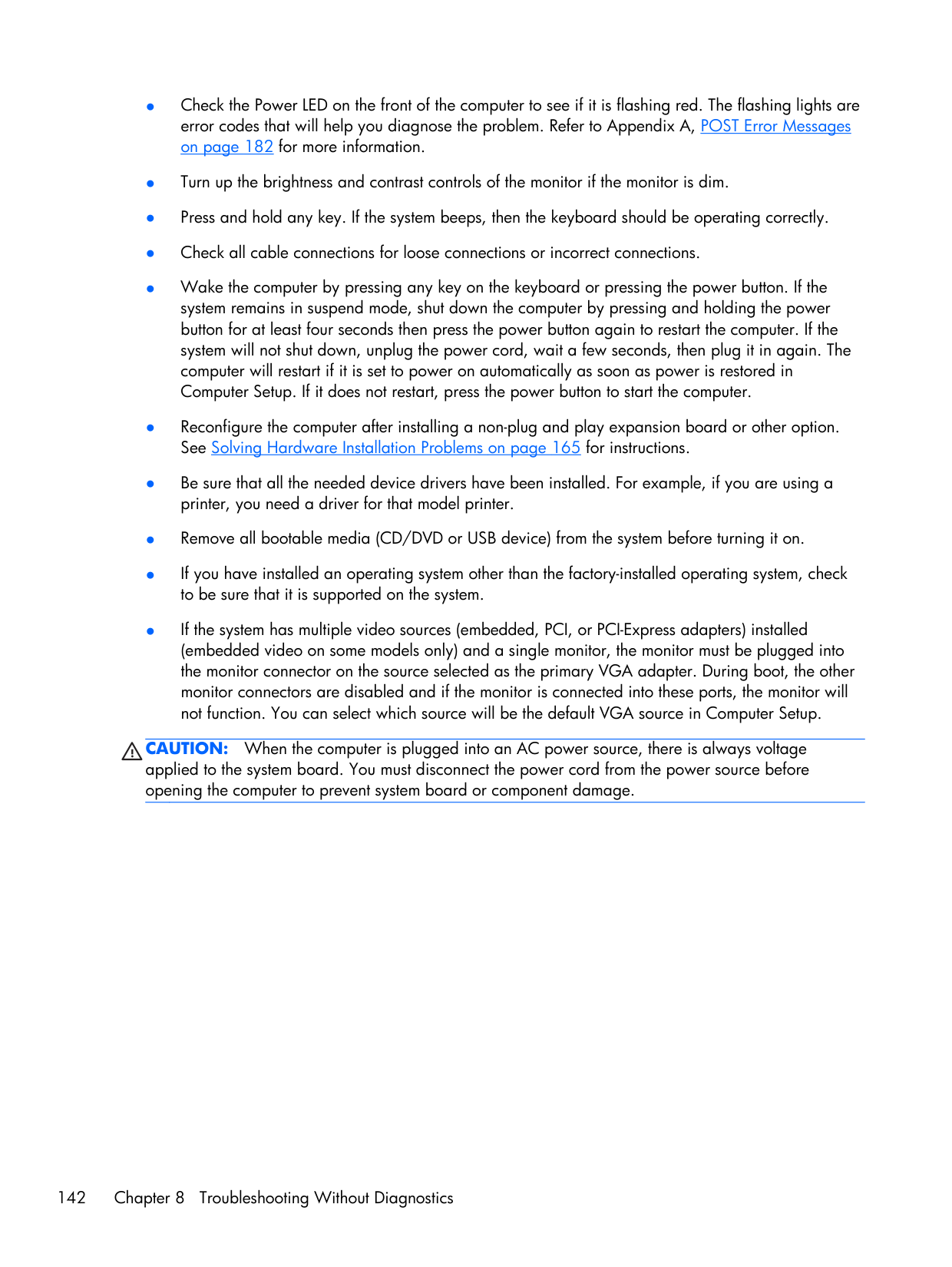

CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

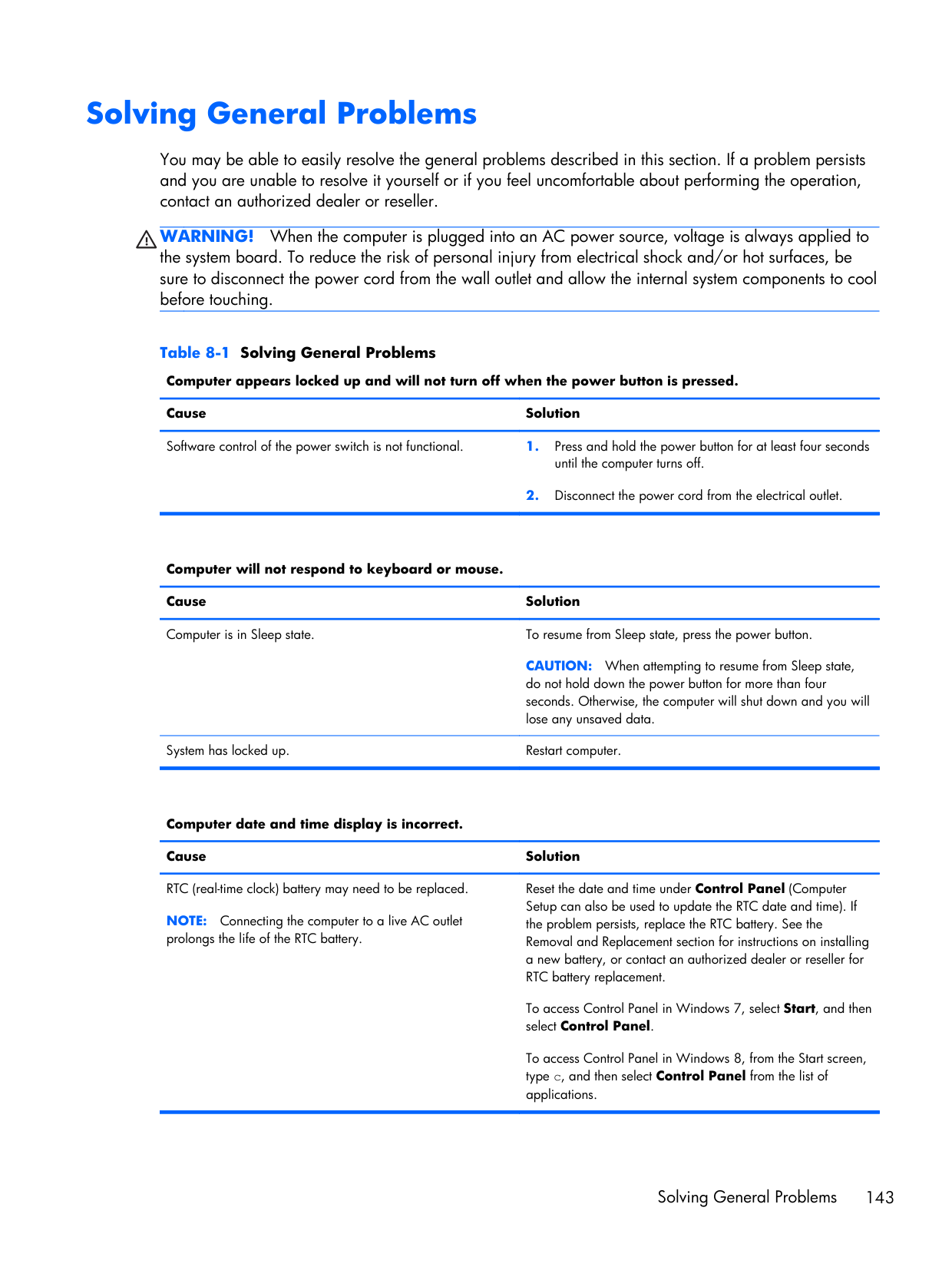

Solving General Problems

You may be able to easily resolve the general problems described in this section. If a problem persists and you are unable to resolve it yourself or if you feel uncomfortable about performing the operation, contact an authorized dealer or reseller.

WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

Table 8-1 Solving General Problems

Computer appears locked up and will not turn off when the power button is pressed.

Cause Solution

Software control of the power switch is not functional. 1. Press and hold the power button for at least four seconds until the computer turns off.

Computer will not respond to keyboard or mouse.

Cause Solution

Computer is in Sleep state. To resume from Sleep state, press the power button.

CAUTION: When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

System has locked up. Restart computer.

Computer date and time display is incorrect.

Cause Solution

RTC (real-time clock) battery may need to be replaced.

NOTE: Connecting the computer to a live AC outlet prolongs the life of the RTC battery.

Reset the date and time under Control Panel (Computer Setup can also be used to update the RTC date and time). If the problem persists, replace the RTC battery. See the Removal and Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

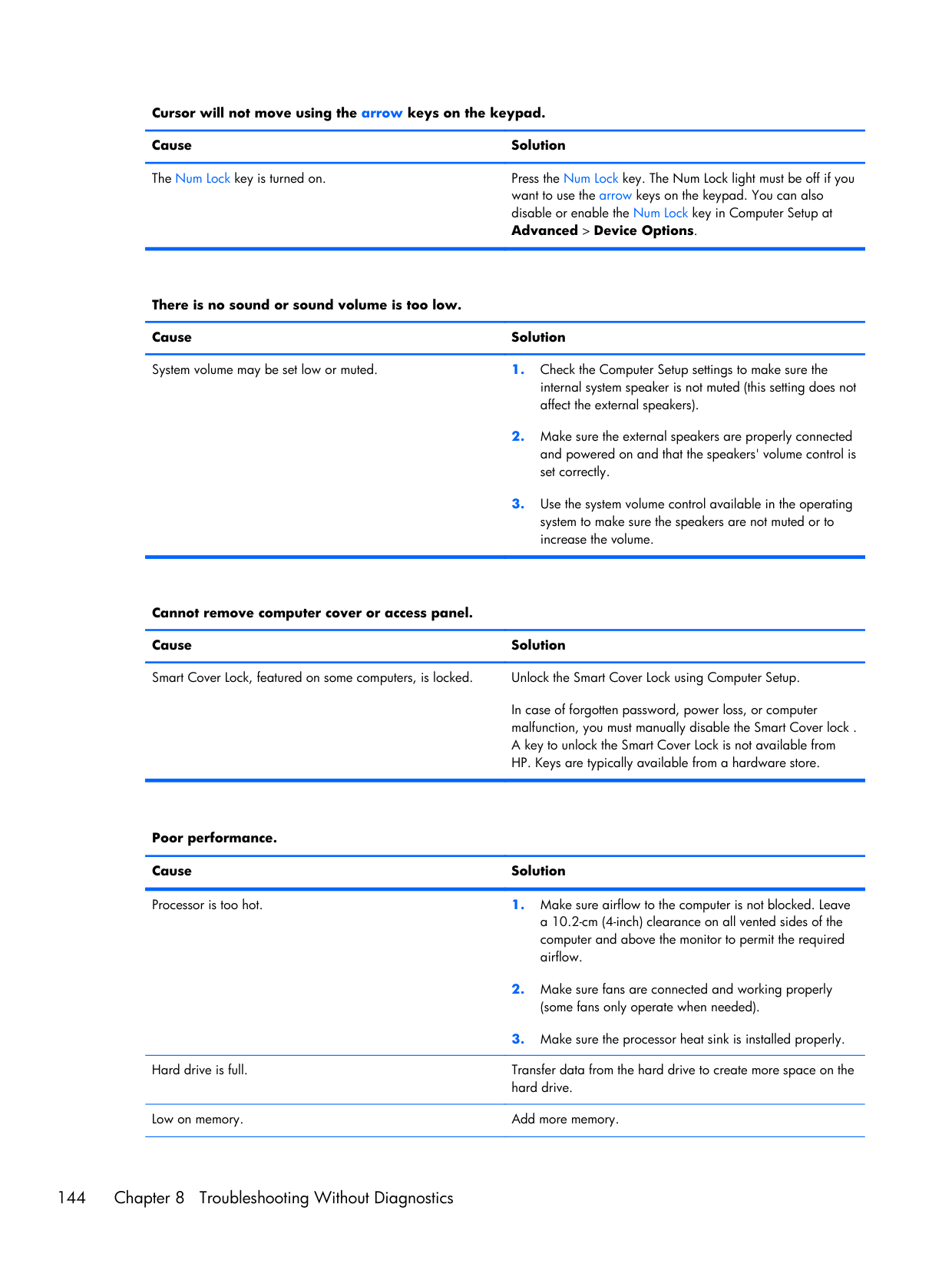

Cursor will not move using the arrow keys on the keypad.

Cause Solution

The Num Lock key is turned on. Press the Num Lock key. The Num Lock light must be off if you want to use the arrow keys on the keypad. You can also disable or enable the Num Lock key in Computer Setup at Advanced > Device Options.

There is no sound or sound volume is too low.

Cause Solution

System volume may be set low or muted. 1. Check the Computer Setup settings to make sure the internal system speaker is not muted (this setting does not affect the external speakers).

Cannot remove computer cover or access panel.

Cause Solution

Smart Cover Lock, featured on some computers, is locked. Unlock the Smart Cover Lock using Computer Setup.

In case of forgotten password, power loss, or computer malfunction, you must manually disable the Smart Cover lock . A key to unlock the Smart Cover Lock is not available from HP. Keys are typically available from a hardware store.

Poor performance.

Cause Solution

Processor is too hot. 1. Make sure airflow to the computer is not blocked. Leave

a 10.2-cm (4-inch) clearance on all vented sides of the computer and above the monitor to permit the required airflow.

Hard drive is full. Transfer data from the hard drive to create more space on the hard drive.

Low on memory. Add more memory.

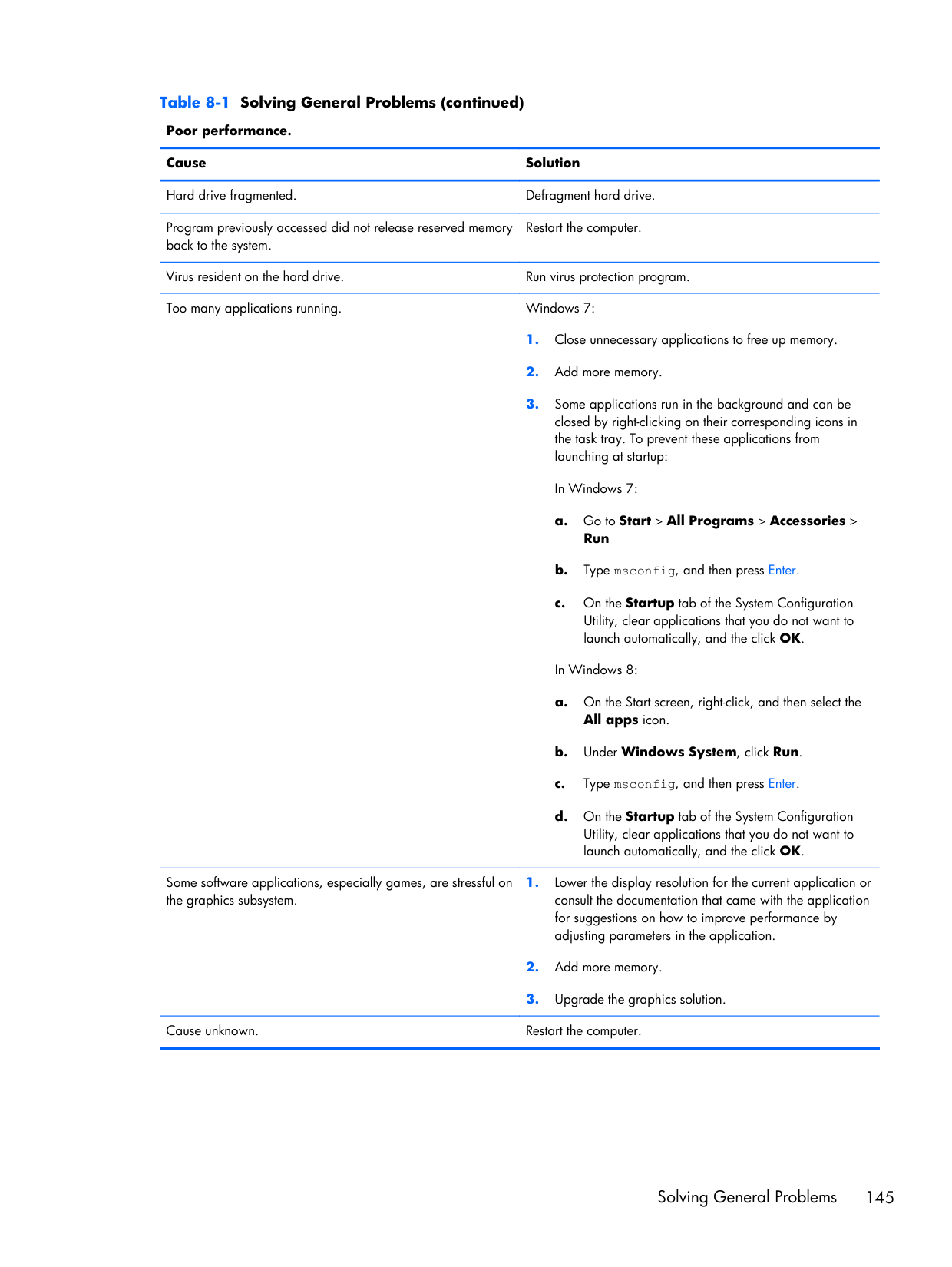

######## Table 8-1 Solving General Problems (continued)

Poor performance.

Cause Solution

Hard drive fragmented. Defragment hard drive.

Program previously accessed did not release reserved memory back to the system.

Restart the computer.

Virus resident on the hard drive. Run virus protection program. Too many applications running. Windows 7:

Some software applications, especially games, are stressful on the graphics subsystem.

Cause unknown. Restart the computer.

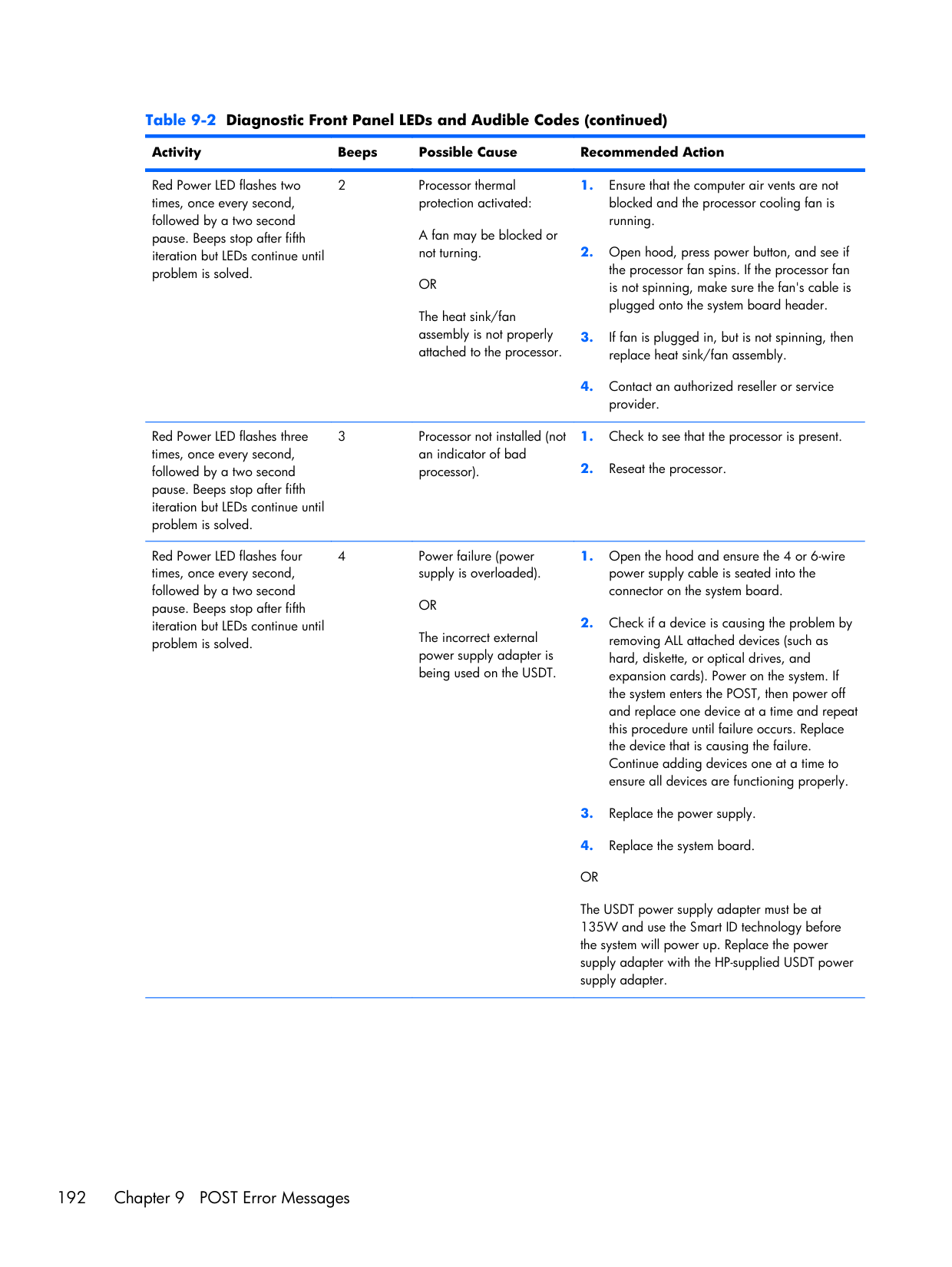

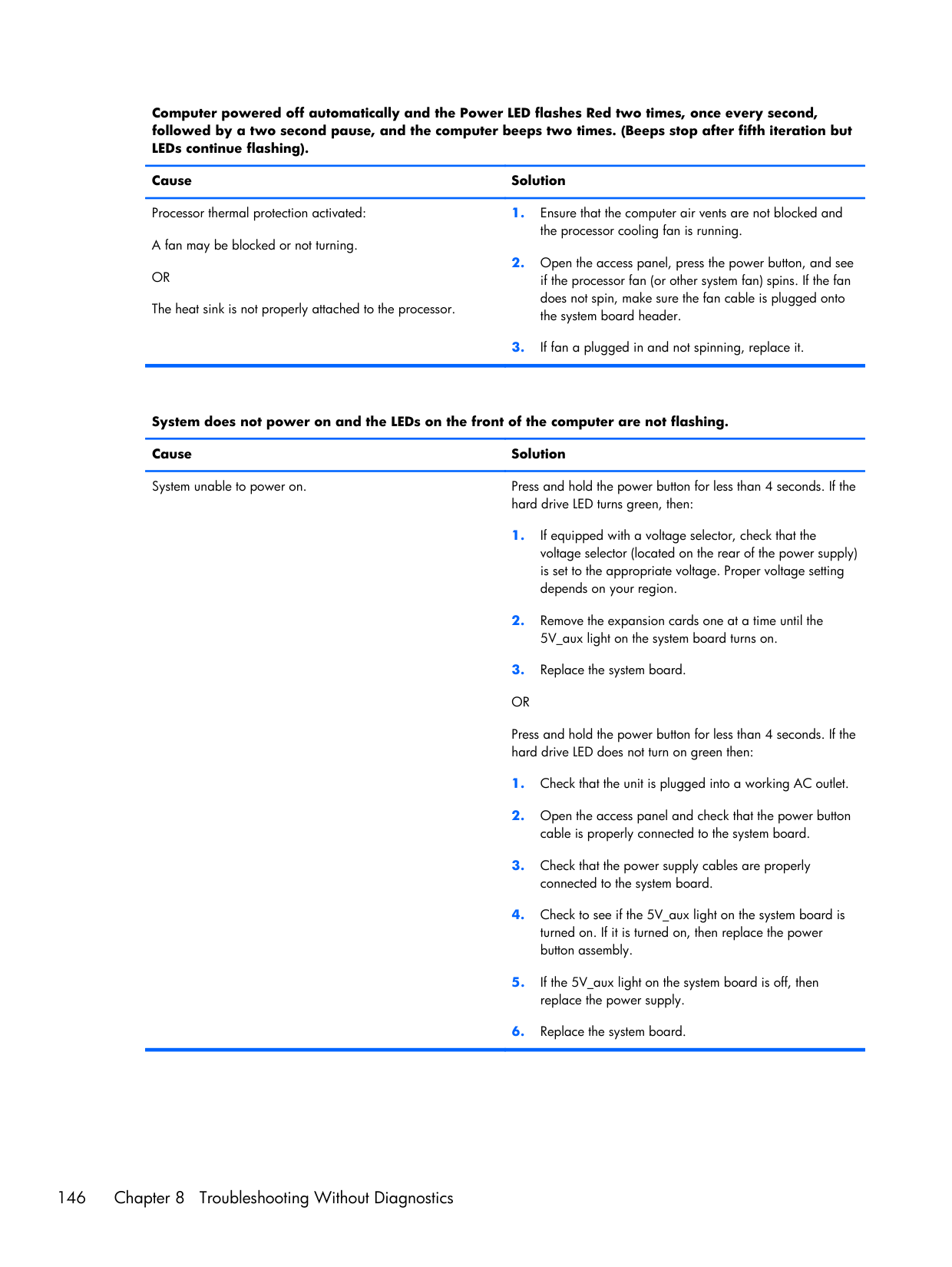

Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing).

Cause Solution

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heat sink is not properly attached to the processor.

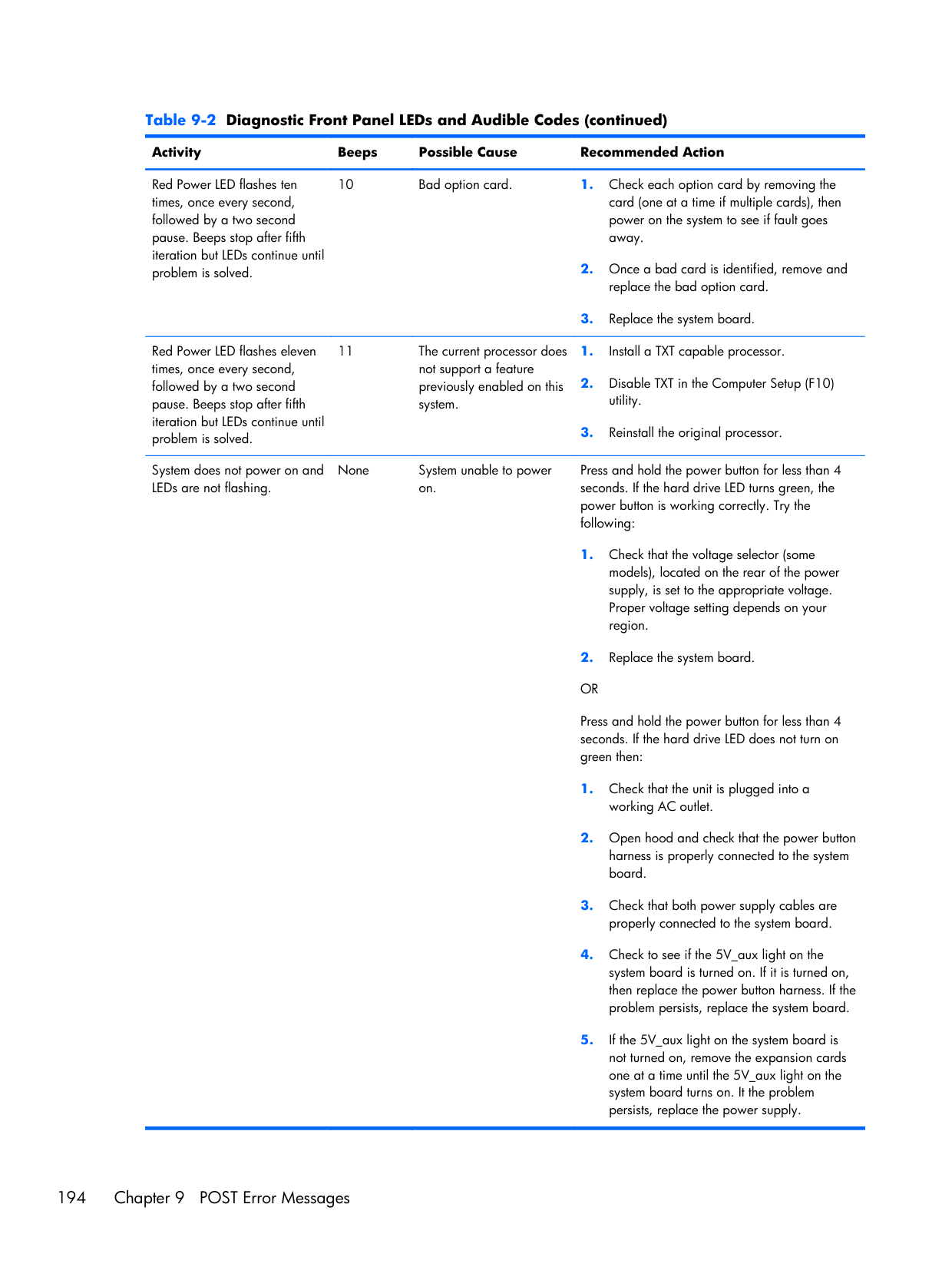

System does not power on and the LEDs on the front of the computer are not flashing.

Cause Solution

System unable to power on. Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, then:

OR

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

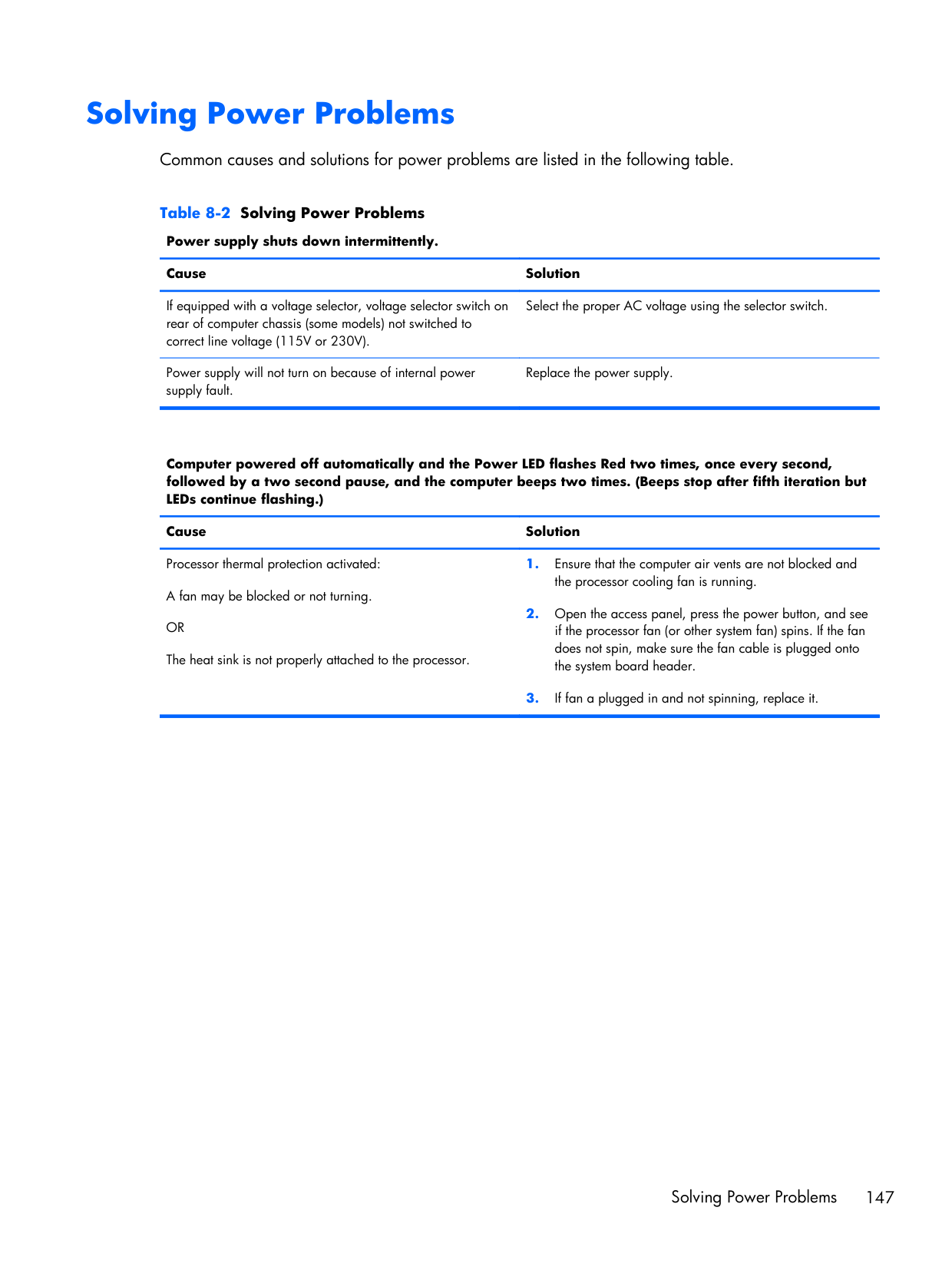

Solving Power Problems

Common causes and solutions for power problems are listed in the following table.

Table 8-2 Solving Power Problems

Power supply shuts down intermittently.

Cause Solution

If equipped with a voltage selector, voltage selector switch on rear of computer chassis (some models) not switched to correct line voltage (115V or 230V).

Power supply will not turn on because of internal power supply fault.

Select the proper AC voltage using the selector switch.

Replace the power supply.

Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heat sink is not properly attached to the processor.

Solving Power Problems 147

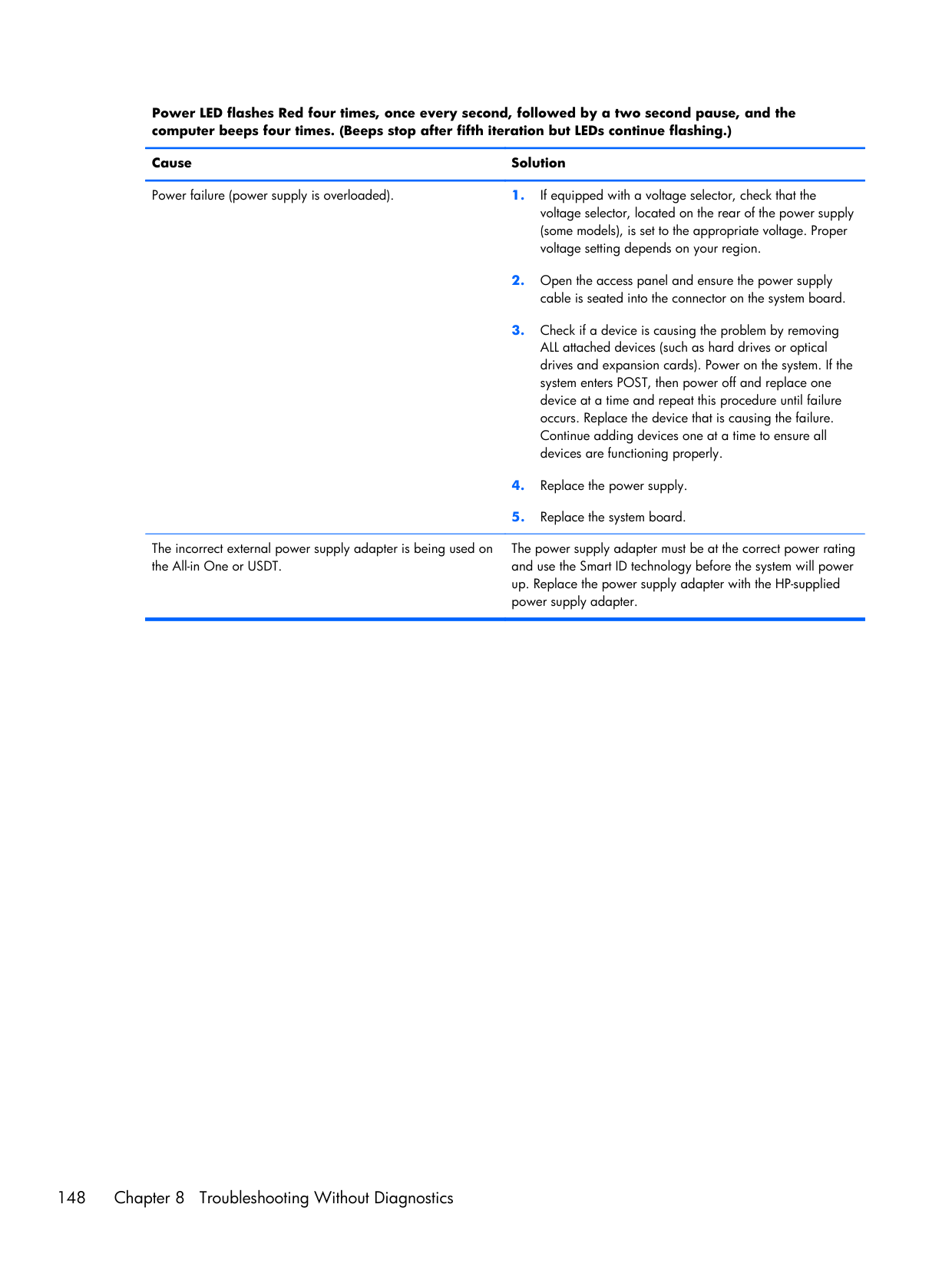

Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Power failure (power supply is overloaded). 1. If equipped with a voltage selector, check that the voltage selector, located on the rear of the power supply (some models), is set to the appropriate voltage. Proper voltage setting depends on your region.

The incorrect external power supply adapter is being used on the All-in One or USDT.

The power supply adapter must be at the correct power rating and use the Smart ID technology before the system will power up. Replace the power supply adapter with the HP-supplied power supply adapter.

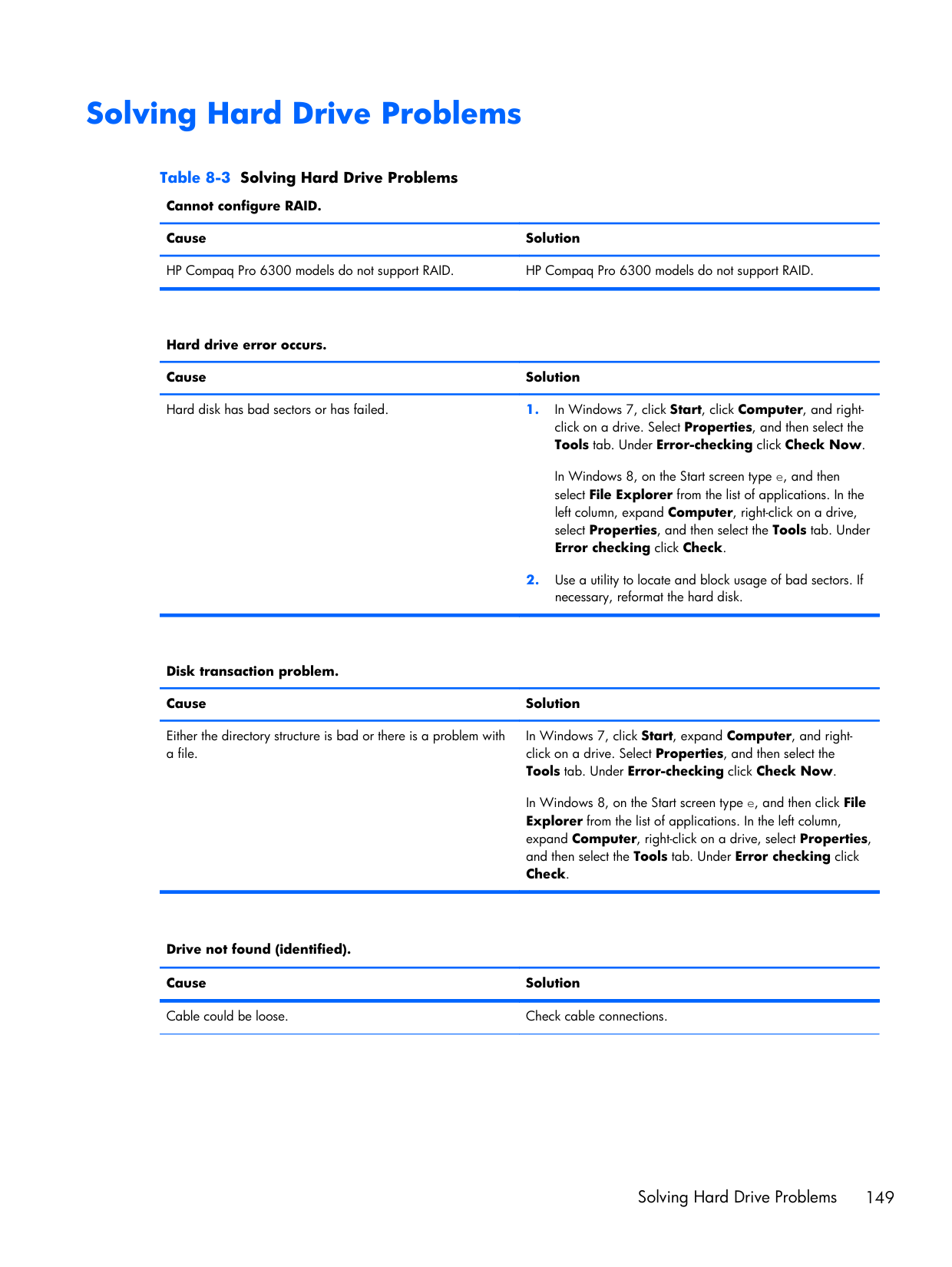

Solving Hard Drive Problems

######## Table 8-3 Solving Hard Drive Problems

Cannot configure RAID.

Cause Solution

HP Compaq Pro 6300 models do not support RAID. HP Compaq Pro 6300 models do not support RAID.

Hard drive error occurs.

Cause Solution

Hard disk has bad sectors or has failed. 1. In Windows 7, click Start, click Computer, and rightclick on a drive. Select Properties, and then select the Tools tab. Under Error-checking click Check Now.

In Windows 8, on the Start screen type e, and then select File Explorer from the list of applications. In the left column, expand Computer, right-click on a drive, select Properties, and then select the Tools tab. Under Error checking click Check.

necessary, reformat the hard disk.

Disk transaction problem.

Cause Solution

Either the directory structure is bad or there is a problem with a file.

Drive not found (identified).

Cause Solution

Cable could be loose. Check cable connections.

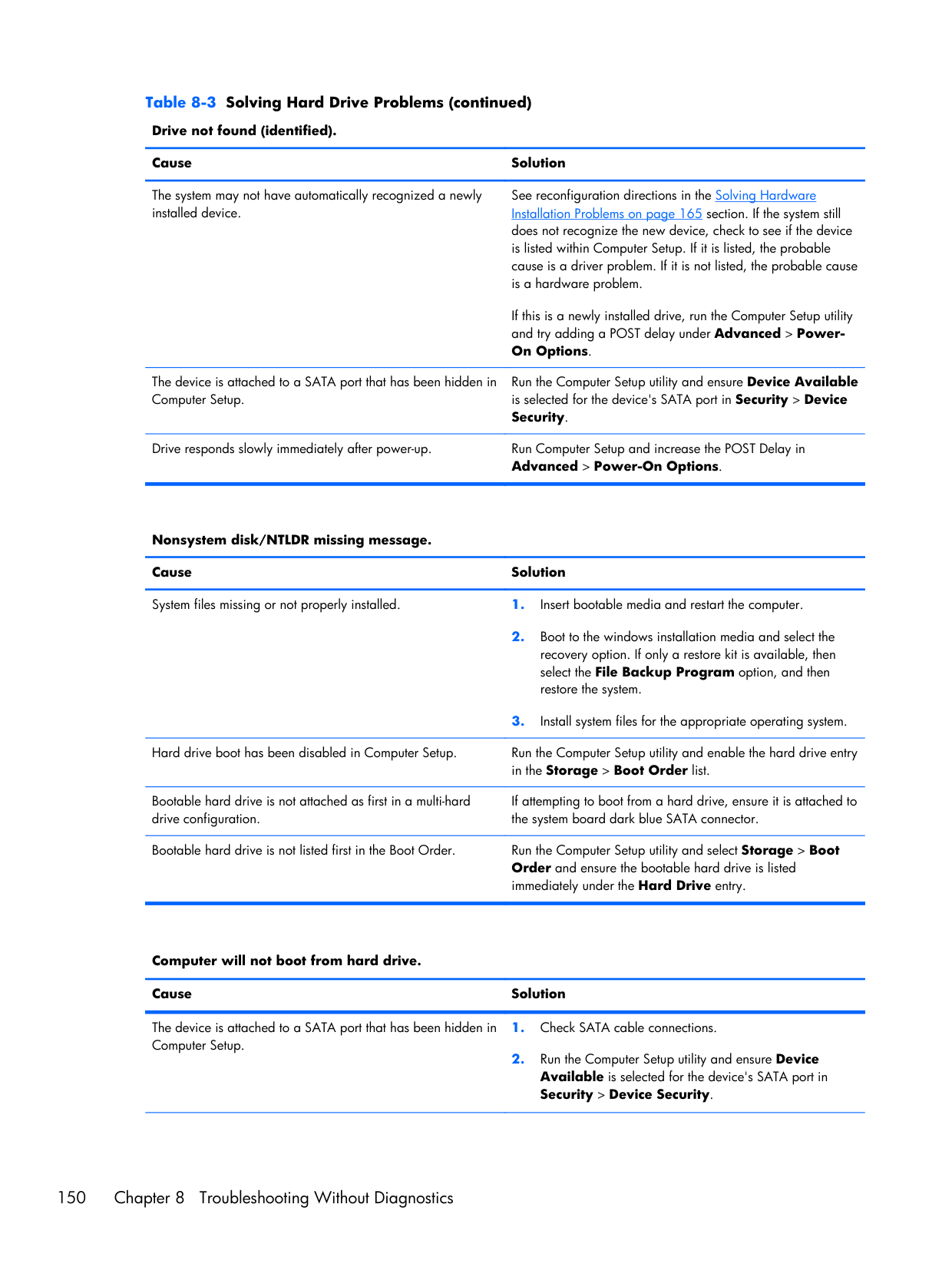

Drive not found (identified).

Cause Solution

The system may not have automatically recognized a newly installed device.

See reconfiguration directions in the Solving Hardware Installation Problems on page 165 section. If the system still does not recognize the new device, check to see if the device is listed within Computer Setup. If it is listed, the probable cause is a driver problem. If it is not listed, the probable cause is a hardware problem.

The device is attached to a SATA port that has been hidden in Computer Setup.

If this is a newly installed drive, run the Computer Setup utility and try adding a POST delay under Advanced > PowerOn Options.

Run the Computer Setup utility and ensure Device Available is selected for the device's SATA port in Security > Device Security.

Drive responds slowly immediately after power-up. Run Computer Setup and increase the POST Delay in

Advanced > Power-On Options.

Nonsystem disk/NTLDR missing message.

Cause Solution

System files missing or not properly installed. 1. Insert bootable media and restart the computer.

Hard drive boot has been disabled in Computer Setup. Run the Computer Setup utility and enable the hard drive entry in the Storage > Boot Order list.

Bootable hard drive is not attached as first in a multi-hard drive configuration.

If attempting to boot from a hard drive, ensure it is attached to the system board dark blue SATA connector.

Bootable hard drive is not listed first in the Boot Order. Run the Computer Setup utility and select Storage > Boot Order and ensure the bootable hard drive is listed immediately under the Hard Drive entry.

Computer will not boot from hard drive.

Cause Solution

The device is attached to a SATA port that has been hidden in Computer Setup.

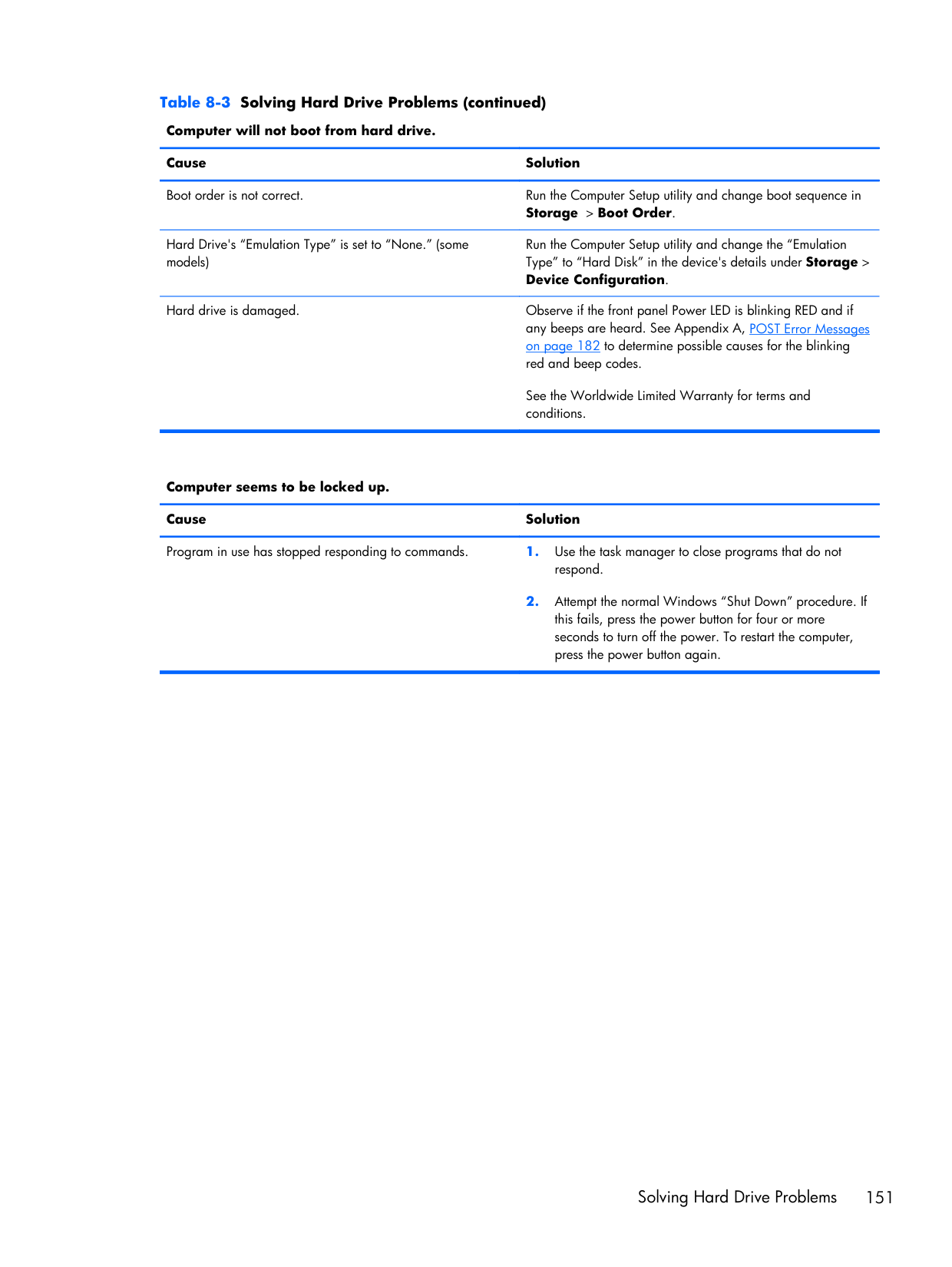

Computer will not boot from hard drive.

Cause Solution

Boot order is not correct. Run the Computer Setup utility and change boot sequence in

######### Storage > Boot Order.

Hard Drive's “Emulation Type” is set to “None.” (some models)

Run the Computer Setup utility and change the “Emulation Type” to “Hard Disk” in the device's details under Storage > Device Configuration.

Hard drive is damaged. Observe if the front panel Power LED is blinking RED and if any beeps are heard. See Appendix A, POST Error Messages on page 182 to determine possible causes for the blinking red and beep codes.

See the Worldwide Limited Warranty for terms and conditions.

Computer seems to be locked up.

Cause Solution

Program in use has stopped responding to commands. 1. Use the task manager to close programs that do not respond.

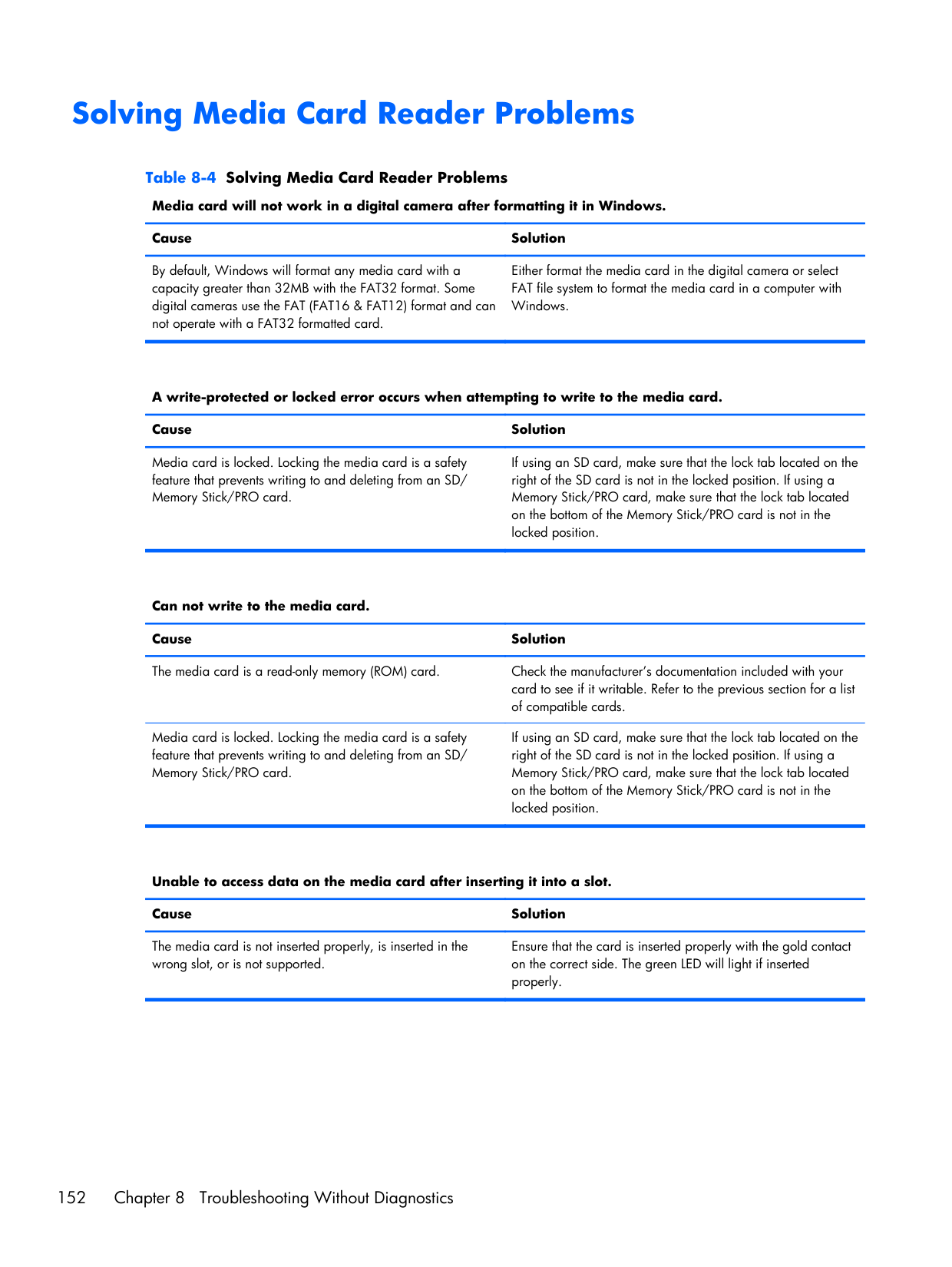

Solving Media Card Reader Problems

######## Table 8-4 Solving Media Card Reader Problems

Media card will not work in a digital camera after formatting it in Windows.

Cause Solution

By default, Windows will format any media card with a capacity greater than 32MB with the FAT32 format. Some digital cameras use the FAT (FAT16 & FAT12) format and can not operate with a FAT32 formatted card.

Either format the media card in the digital camera or select FAT file system to format the media card in a computer with Windows.

A write-protected or locked error occurs when attempting to write to the media card.

Cause Solution

Media card is locked. Locking the media card is a safety feature that prevents writing to and deleting from an SD/ Memory Stick/PRO card.

If using an SD card, make sure that the lock tab located on the right of the SD card is not in the locked position. If using a Memory Stick/PRO card, make sure that the lock tab located on the bottom of the Memory Stick/PRO card is not in the locked position.

Can not write to the media card.

Cause Solution

The media card is a read-only memory (ROM) card. Check the manufacturer’s documentation included with your card to see if it writable. Refer to the previous section for a list of compatible cards.

Media card is locked. Locking the media card is a safety feature that prevents writing to and deleting from an SD/ Memory Stick/PRO card.

If using an SD card, make sure that the lock tab located on the right of the SD card is not in the locked position. If using a Memory Stick/PRO card, make sure that the lock tab located on the bottom of the Memory Stick/PRO card is not in the locked position.

Unable to access data on the media card after inserting it into a slot.

Cause Solution

The media card is not inserted properly, is inserted in the wrong slot, or is not supported.

Ensure that the card is inserted properly with the gold contact on the correct side. The green LED will light if inserted properly.

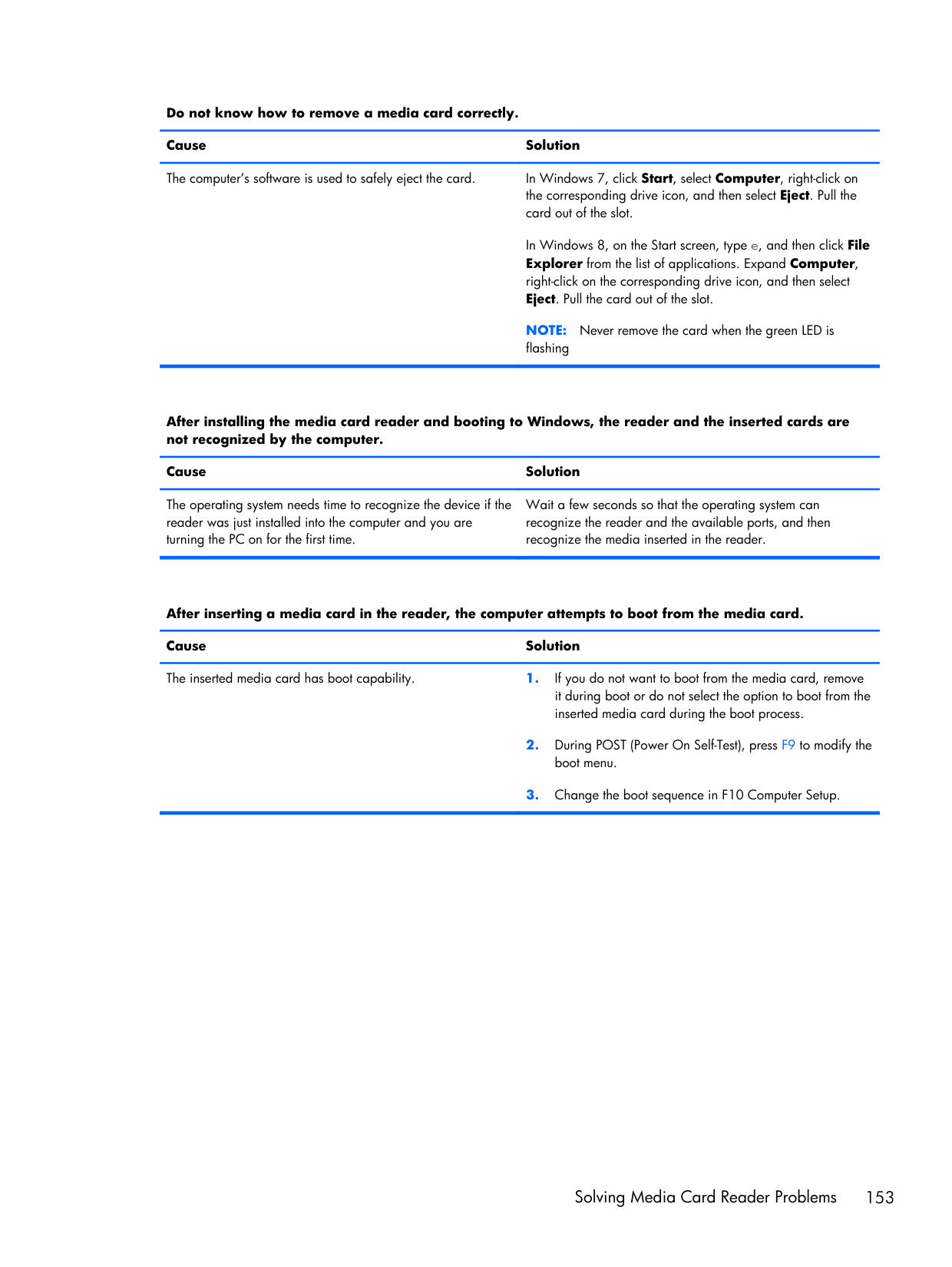

Do not know how to remove a media card correctly.

Cause Solution

The computer’s software is used to safely eject the card. In Windows 7, click Start, select Computer, right-click on the corresponding drive icon, and then select Eject. Pull the card out of the slot.

In Windows 8, on the Start screen, type e, and then click File Explorer from the list of applications. Expand Computer, right-click on the corresponding drive icon, and then select Eject. Pull the card out of the slot.

NOTE: Never remove the card when the green LED is flashing

After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized by the computer.

Cause Solution

The operating system needs time to recognize the device if the reader was just installed into the computer and you are turning the PC on for the first time.

Wait a few seconds so that the operating system can recognize the reader and the available ports, and then recognize the media inserted in the reader.

After inserting a media card in the reader, the computer attempts to boot from the media card.

Cause Solution

The inserted media card has boot capability. 1. If you do not want to boot from the media card, remove it during boot or do not select the option to boot from the inserted media card during the boot process.

boot menu.

Solving Media Card Reader Problems 153

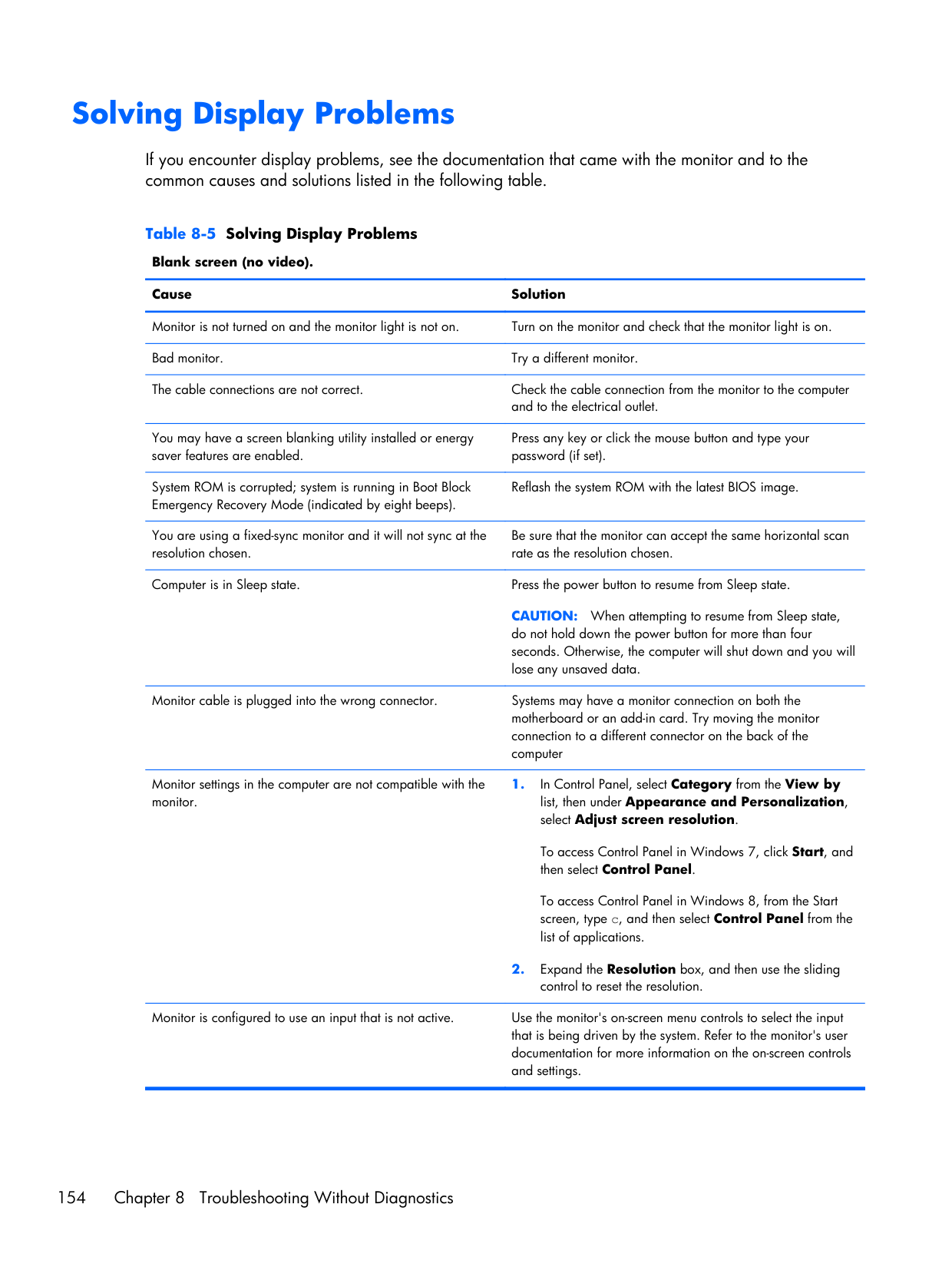

Solving Display Problems

If you encounter display problems, see the documentation that came with the monitor and to the common causes and solutions listed in the following table.

Table 8-5 Solving Display Problems

Blank screen (no video). Cause Solution Monitor is not turned on and the monitor light is not on. Turn on the monitor and check that the monitor light is on. Bad monitor. Try a different monitor. The cable connections are not correct. Check the cable connection from the monitor to the computer

and to the electrical outlet.

You may have a screen blanking utility installed or energy saver features are enabled.

Press any key or click the mouse button and type your password (if set).

System ROM is corrupted; system is running in Boot Block Emergency Recovery Mode (indicated by eight beeps).

Reflash the system ROM with the latest BIOS image.

You are using a fixed-sync monitor and it will not sync at the resolution chosen.

Be sure that the monitor can accept the same horizontal scan rate as the resolution chosen.

Computer is in Sleep state. Press the power button to resume from Sleep state.

CAUTION: When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Monitor cable is plugged into the wrong connector. Systems may have a monitor connection on both the motherboard or an add-in card. Try moving the monitor connection to a different connector on the back of the computer

Monitor settings in the computer are not compatible with the monitor.

######### 1. In Control Panel, select Category from the View bylist, then under Appearance and Personalization,select Adjust screen resolution.

########## 2. Expand the Resolution box, and then use the slidingcontrol to reset the resolution.

Monitor is configured to use an input that is not active. Use the monitor's on-screen menu controls to select the input that is being driven by the system. Refer to the monitor's user documentation for more information on the on-screen controls and settings.

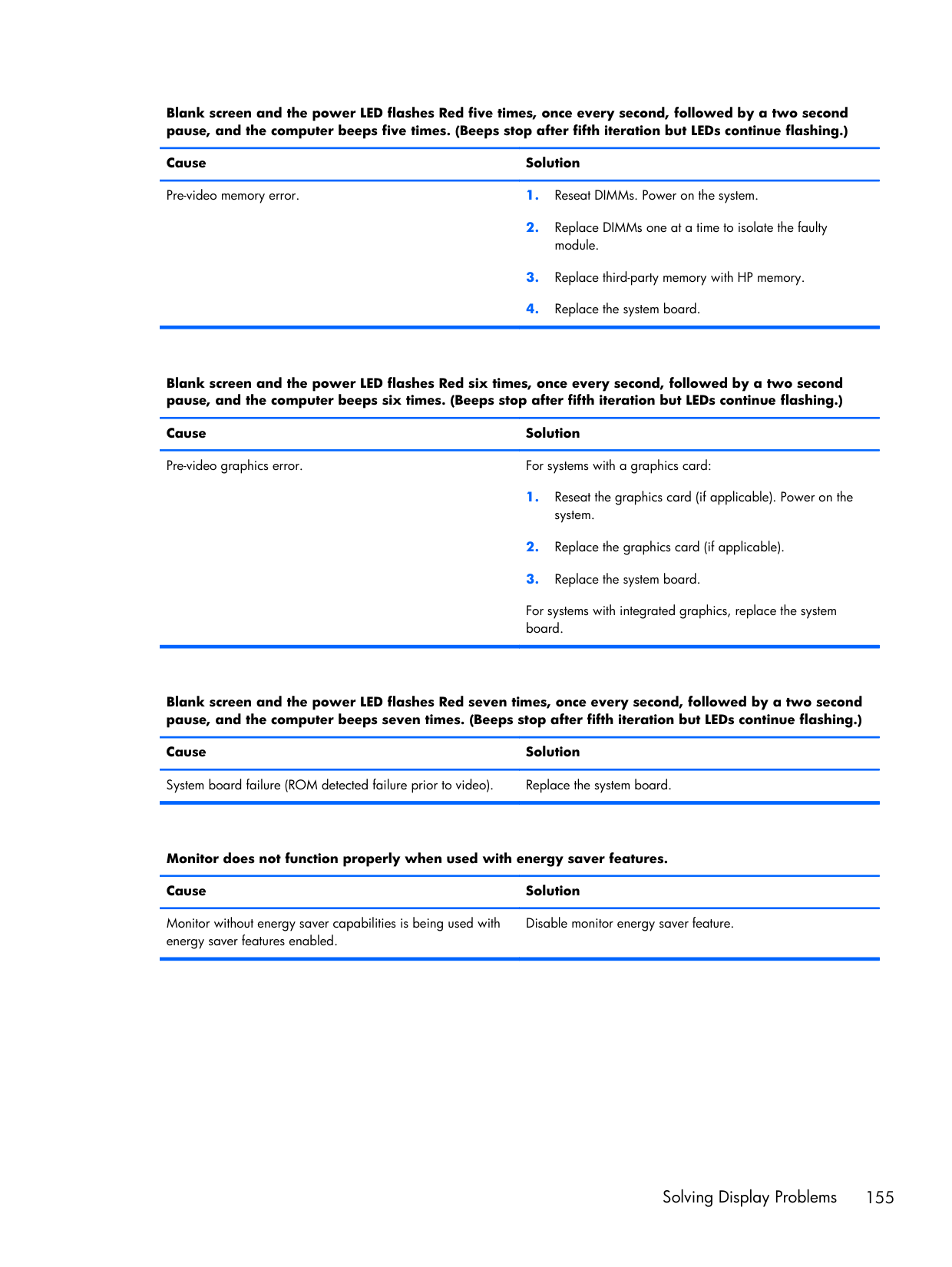

Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Pre-video memory error. 1. Reseat DIMMs. Power on the system.

Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Pre-video graphics error. For systems with a graphics card:

For systems with integrated graphics, replace the system board.

Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and the computer beeps seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

System board failure (ROM detected failure prior to video). Replace the system board.

Monitor does not function properly when used with energy saver features.

Cause Solution

Monitor without energy saver capabilities is being used with energy saver features enabled.

Disable monitor energy saver feature.

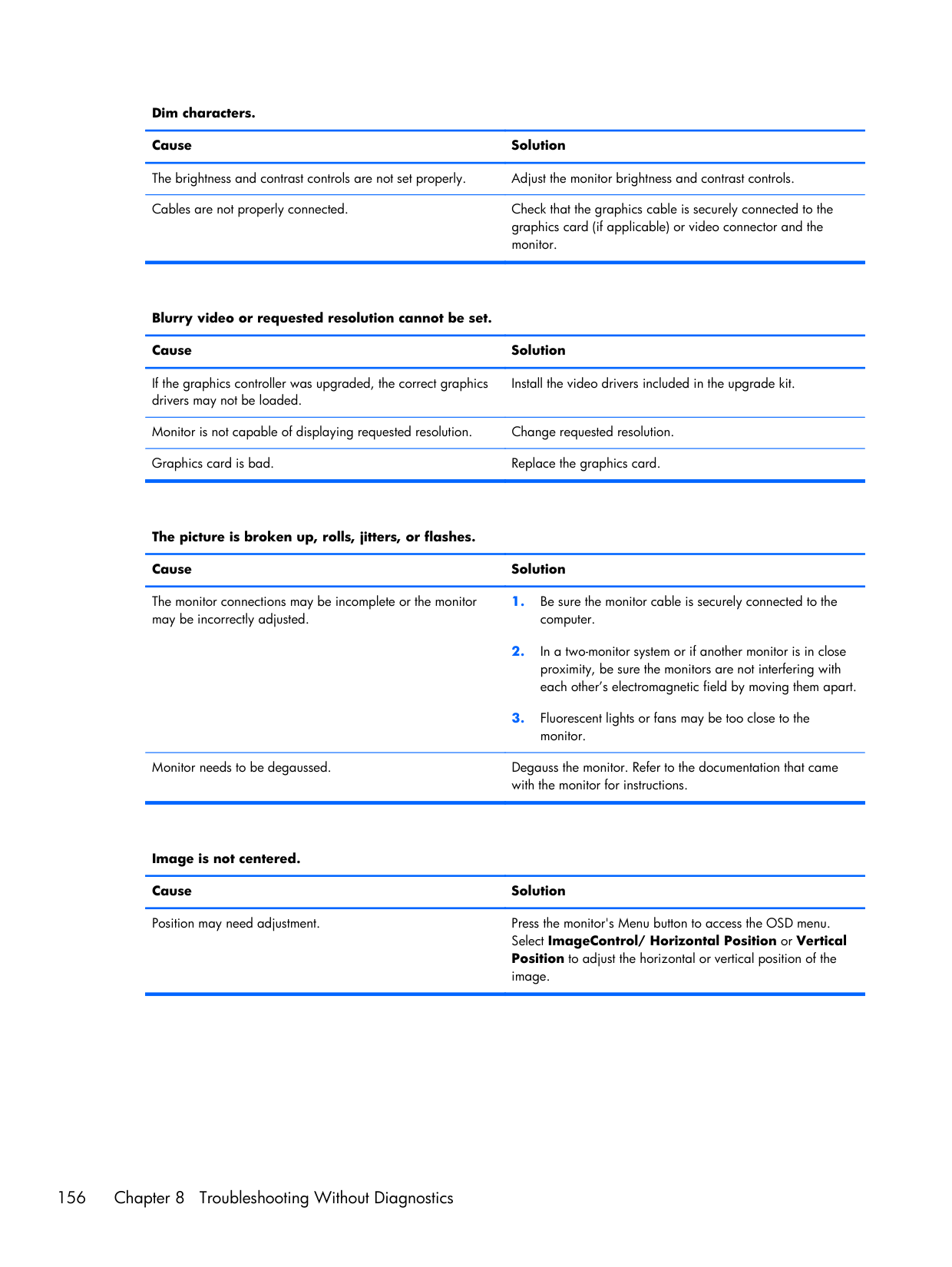

Dim characters. Cause Solution The brightness and contrast controls are not set properly. Adjust the monitor brightness and contrast controls. Cables are not properly connected. Check that the graphics cable is securely connected to the

graphics card (if applicable) or video connector and the monitor.

Blurry video or requested resolution cannot be set.

Cause Solution

If the graphics controller was upgraded, the correct graphics drivers may not be loaded.

Install the video drivers included in the upgrade kit.

Monitor is not capable of displaying requested resolution. Change requested resolution. Graphics card is bad. Replace the graphics card.

The picture is broken up, rolls, jitters, or flashes.

Cause Solution

The monitor connections may be incomplete or the monitor may be incorrectly adjusted.

Monitor needs to be degaussed. Degauss the monitor. Refer to the documentation that came with the monitor for instructions.

Image is not centered.

Cause Solution

Position may need adjustment. Press the monitor's Menu button to access the OSD menu. Select ImageControl/ Horizontal Position or Vertical Position to adjust the horizontal or vertical position of the image.

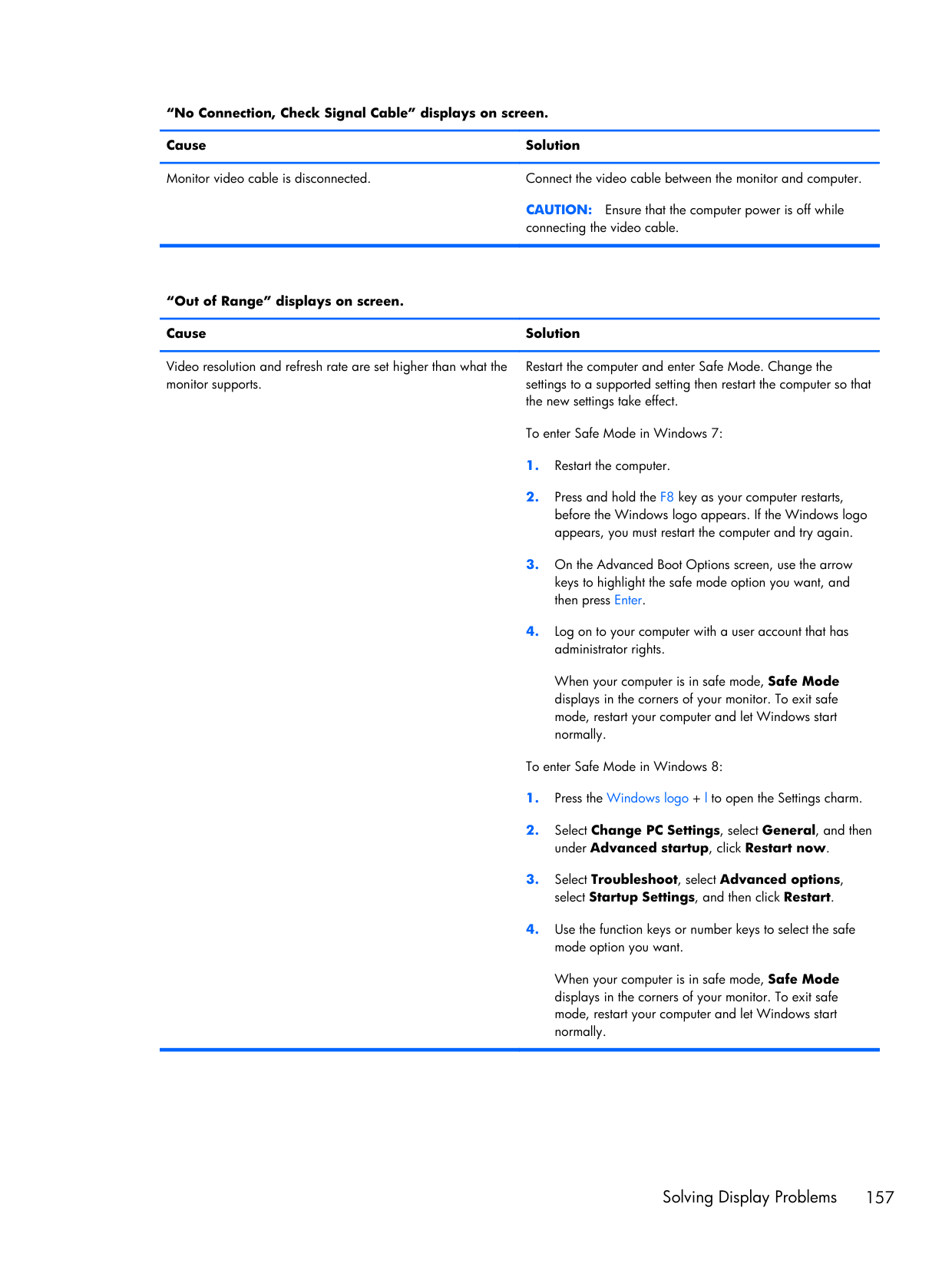

“No Connection, Check Signal Cable” displays on screen.

Cause Solution

Monitor video cable is disconnected. Connect the video cable between the monitor and computer.

CAUTION: Ensure that the computer power is off while connecting the video cable.

“Out of Range” displays on screen.

Cause Solution

Video resolution and refresh rate are set higher than what the monitor supports.

Restart the computer and enter Safe Mode. Change the settings to a supported setting then restart the computer so that the new settings take effect.

When your computer is in safe mode, Safe Mode displays in the corners of your monitor. To exit safe mode, restart your computer and let Windows start normally.

under Advanced startup, click Restart now.

select Startup Settings, and then click Restart.

mode option you want.

When your computer is in safe mode, Safe Mode displays in the corners of your monitor. To exit safe mode, restart your computer and let Windows start normally.

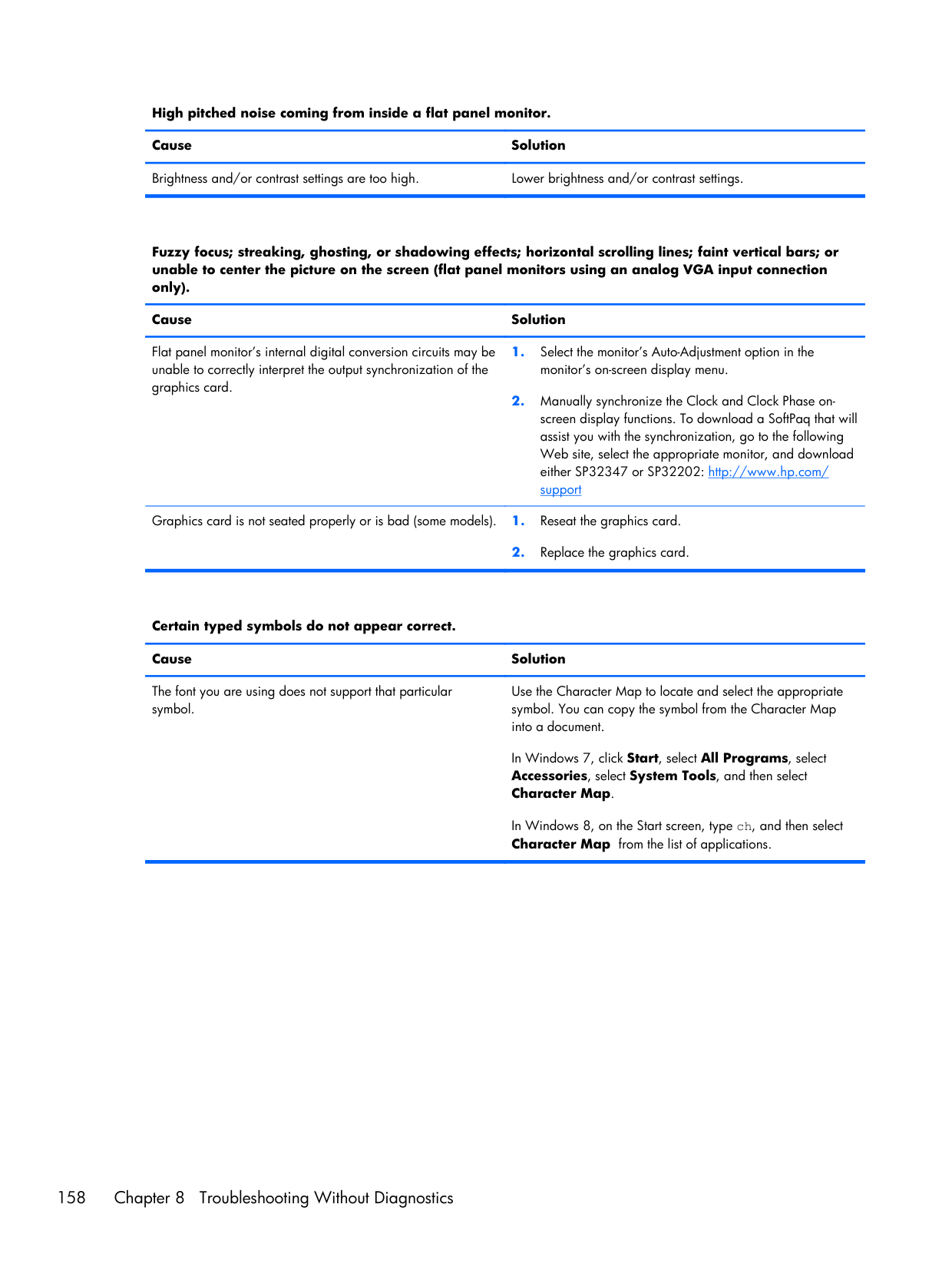

High pitched noise coming from inside a flat panel monitor.

Cause Solution

Brightness and/or contrast settings are too high. Lower brightness and/or contrast settings.

Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to center the picture on the screen (flat panel monitors using an analog VGA input connection only).

Cause Solution

Flat panel monitor’s internal digital conversion circuits may be unable to correctly interpret the output synchronization of the graphics card.

Graphics card is not seated properly or is bad (some models). 1. Reseat the graphics card.

Certain typed symbols do not appear correct.

Cause Solution

The font you are using does not support that particular symbol.

Use the Character Map to locate and select the appropriate symbol. You can copy the symbol from the Character Map into a document.

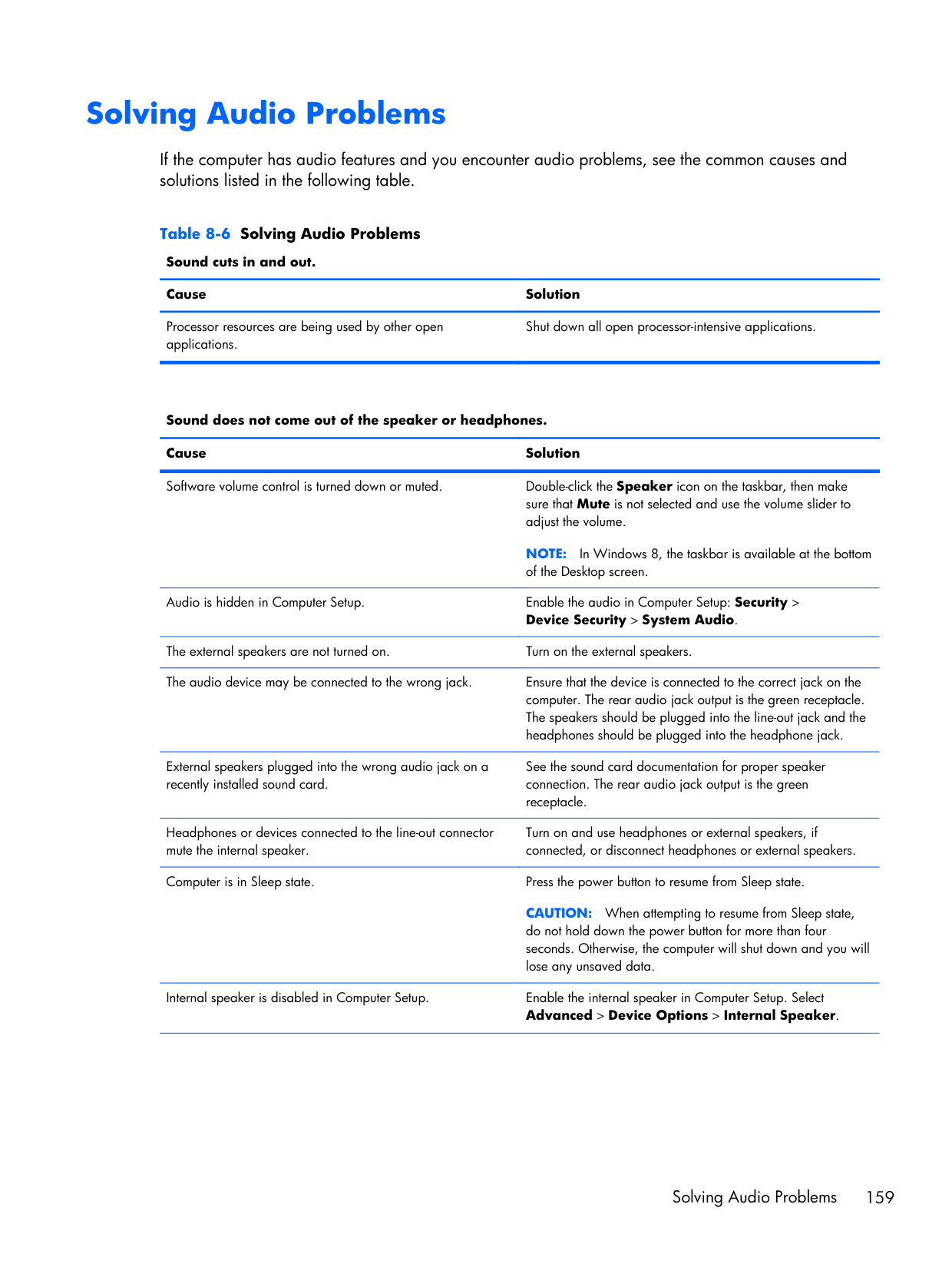

Solving Audio Problems

If the computer has audio features and you encounter audio problems, see the common causes and solutions listed in the following table.

Table 8-6 Solving Audio Problems

Sound cuts in and out.

Cause Solution

Processor resources are being used by other open applications.

Shut down all open processor-intensive applications.

Sound does not come out of the speaker or headphones.

Cause Solution

Software volume control is turned down or muted. Double-click the Speaker icon on the taskbar, then make sure that Mute is not selected and use the volume slider to adjust the volume.

NOTE: In Windows 8, the taskbar is available at the bottom of the Desktop screen.

Audio is hidden in Computer Setup. Enable the audio in Computer Setup: Security >

Device Security > System Audio. The external speakers are not turned on. Turn on the external speakers. The audio device may be connected to the wrong jack. Ensure that the device is connected to the correct jack on the

computer. The rear audio jack output is the green receptacle. The speakers should be plugged into the line-out jack and the headphones should be plugged into the headphone jack.

External speakers plugged into the wrong audio jack on a recently installed sound card.

See the sound card documentation for proper speaker connection. The rear audio jack output is the green receptacle.

Headphones or devices connected to the line-out connector mute the internal speaker.

Turn on and use headphones or external speakers, if connected, or disconnect headphones or external speakers.

Computer is in Sleep state. Press the power button to resume from Sleep state.

CAUTION: When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Internal speaker is disabled in Computer Setup. Enable the internal speaker in Computer Setup. Select

Advanced > Device Options > Internal Speaker.

Solving Audio Problems 159

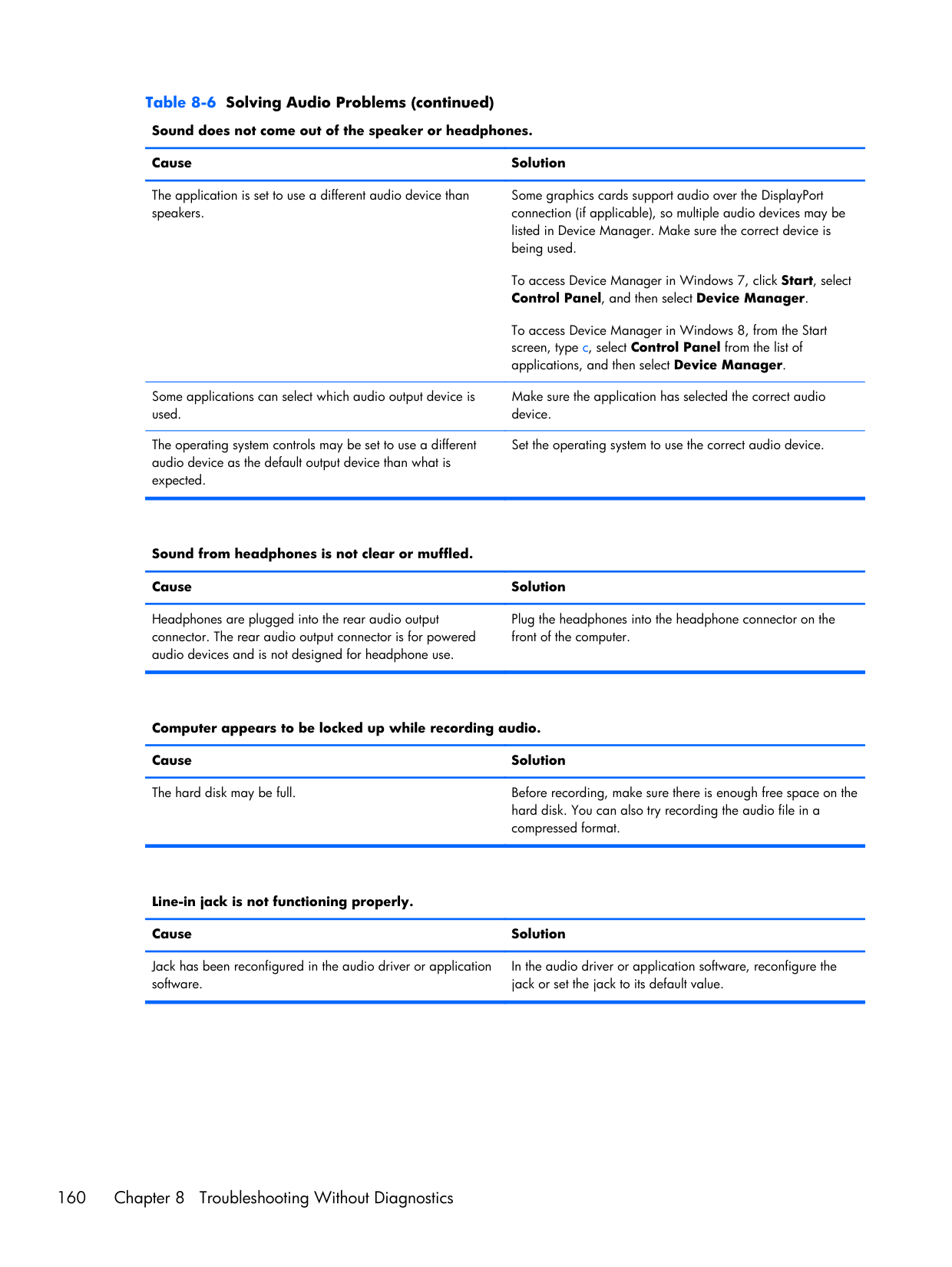

######## Table 8-6 Solving Audio Problems (continued)

Sound does not come out of the speaker or headphones.

Cause Solution

The application is set to use a different audio device than speakers.

Some applications can select which audio output device is used.

The operating system controls may be set to use a different audio device as the default output device than what is expected.

Some graphics cards support audio over the DisplayPort connection (if applicable), so multiple audio devices may be listed in Device Manager. Make sure the correct device is being used.

Make sure the application has selected the correct audio device.

Set the operating system to use the correct audio device.

Sound from headphones is not clear or muffled.

Cause Solution

Headphones are plugged into the rear audio output connector. The rear audio output connector is for powered audio devices and is not designed for headphone use.

Plug the headphones into the headphone connector on the front of the computer.

Computer appears to be locked up while recording audio.

Cause Solution

The hard disk may be full. Before recording, make sure there is enough free space on the hard disk. You can also try recording the audio file in a compressed format.

Line-in jack is not functioning properly.

Cause Solution

Jack has been reconfigured in the audio driver or application software.

In the audio driver or application software, reconfigure the jack or set the jack to its default value.

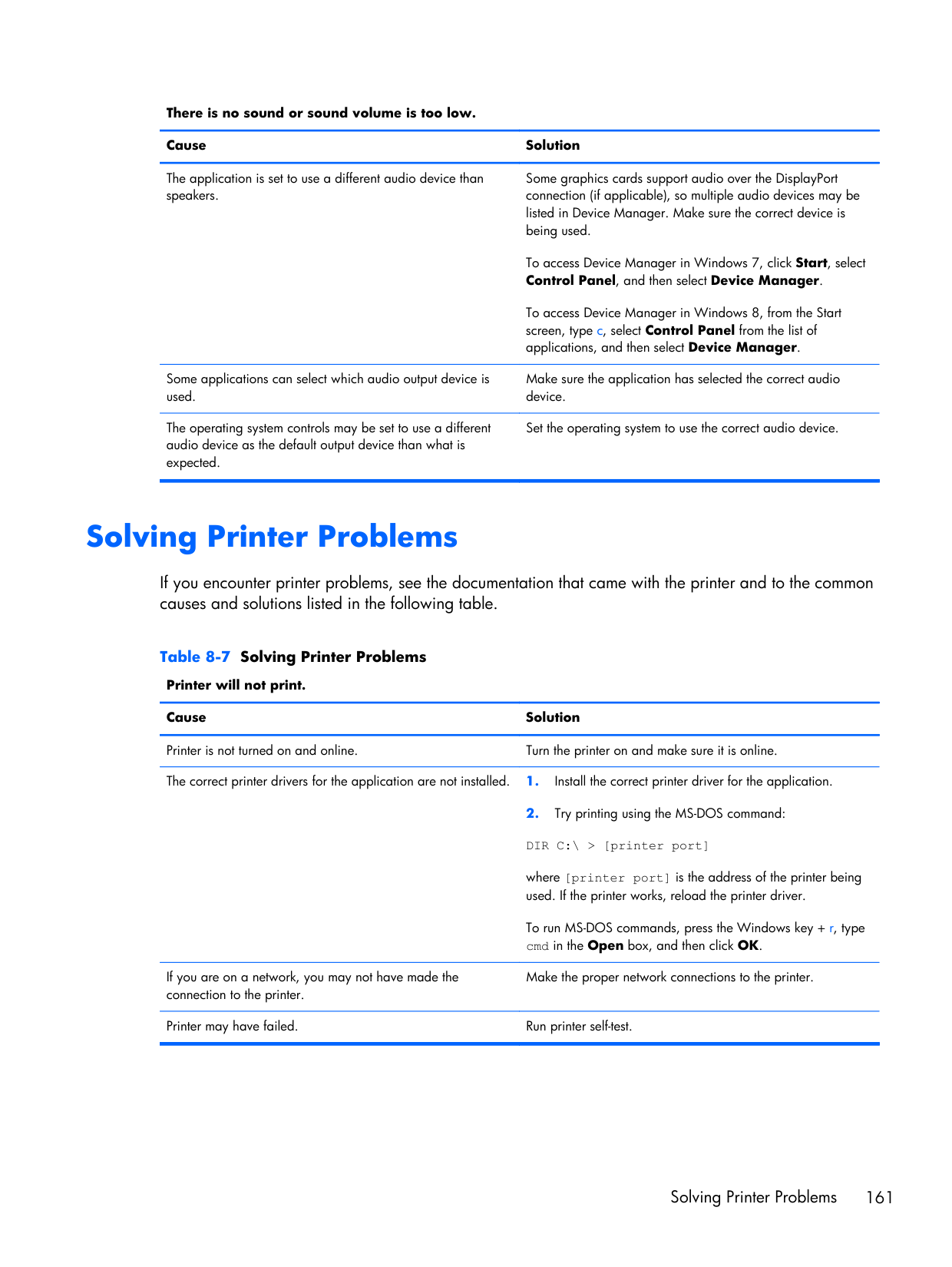

There is no sound or sound volume is too low.

Cause Solution

The application is set to use a different audio device than speakers.

Some applications can select which audio output device is used.

The operating system controls may be set to use a different audio device as the default output device than what is expected.

Some graphics cards support audio over the DisplayPort connection (if applicable), so multiple audio devices may be listed in Device Manager. Make sure the correct device is being used.

Make sure the application has selected the correct audio device.

Set the operating system to use the correct audio device.

Solving Printer Problems

If you encounter printer problems, see the documentation that came with the printer and to the common causes and solutions listed in the following table.

Table 8-7 Solving Printer Problems

Printer will not print. Cause Solution Printer is not turned on and online. Turn the printer on and make sure it is online. The correct printer drivers for the application are not installed. 1. Install the correct printer driver for the application.

DIR C:\ > [printer port]

where [printer port] is the address of the printer being used. If the printer works, reload the printer driver.

To run MS-DOS commands, press the Windows key + r, type cmd in the Open box, and then click OK.

If you are on a network, you may not have made the connection to the printer.

Make the proper network connections to the printer.

Printer may have failed. Run printer self-test.

Solving Printer Problems 161

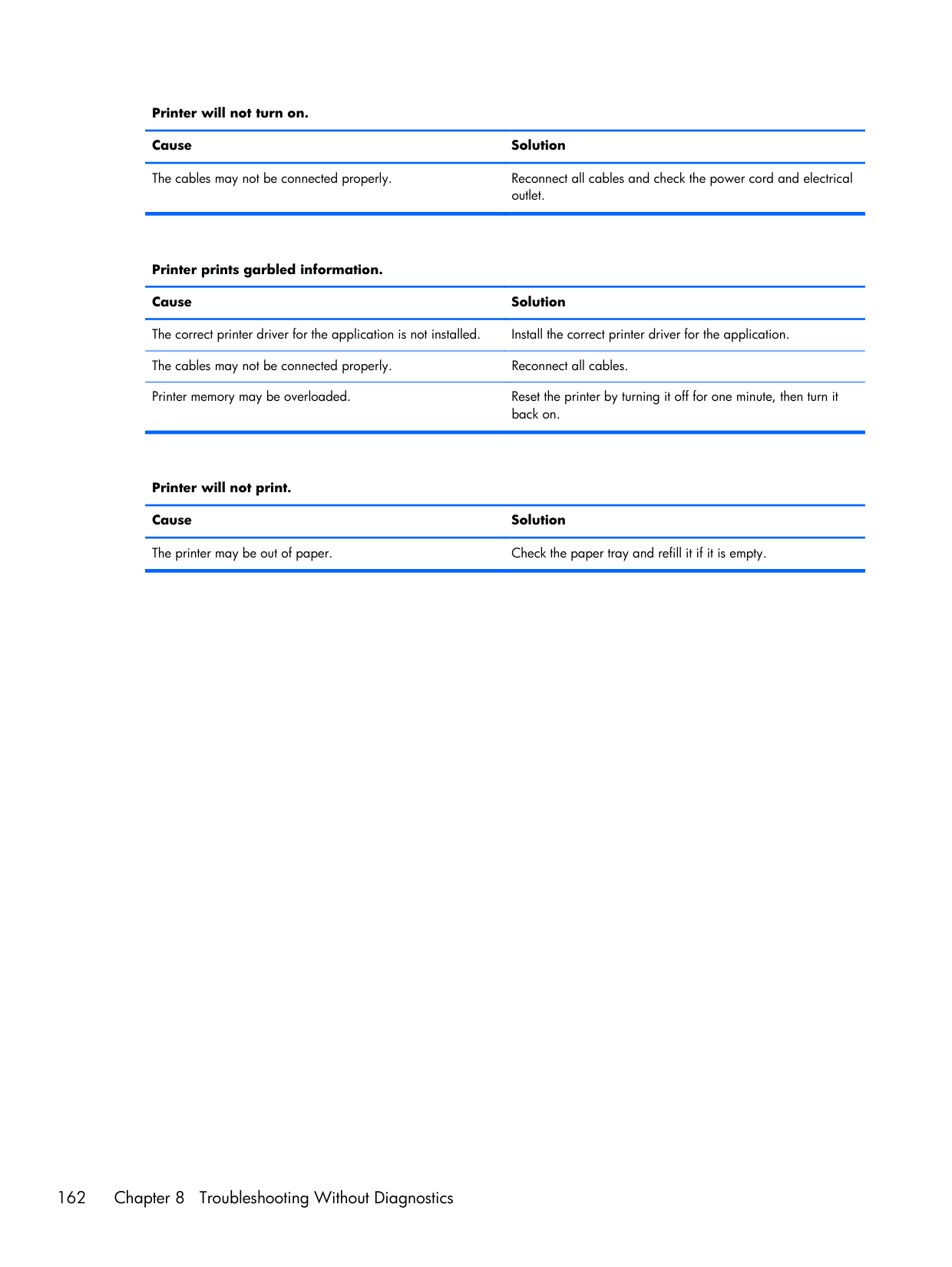

Printer will not turn on.

Cause Solution

The cables may not be connected properly. Reconnect all cables and check the power cord and electrical outlet.

Printer prints garbled information. Cause Solution The correct printer driver for the application is not installed. Install the correct printer driver for the application. The cables may not be connected properly. Reconnect all cables. Printer memory may be overloaded. Reset the printer by turning it off for one minute, then turn it

back on.

Printer will not print.

Cause Solution

The printer may be out of paper. Check the paper tray and refill it if it is empty.

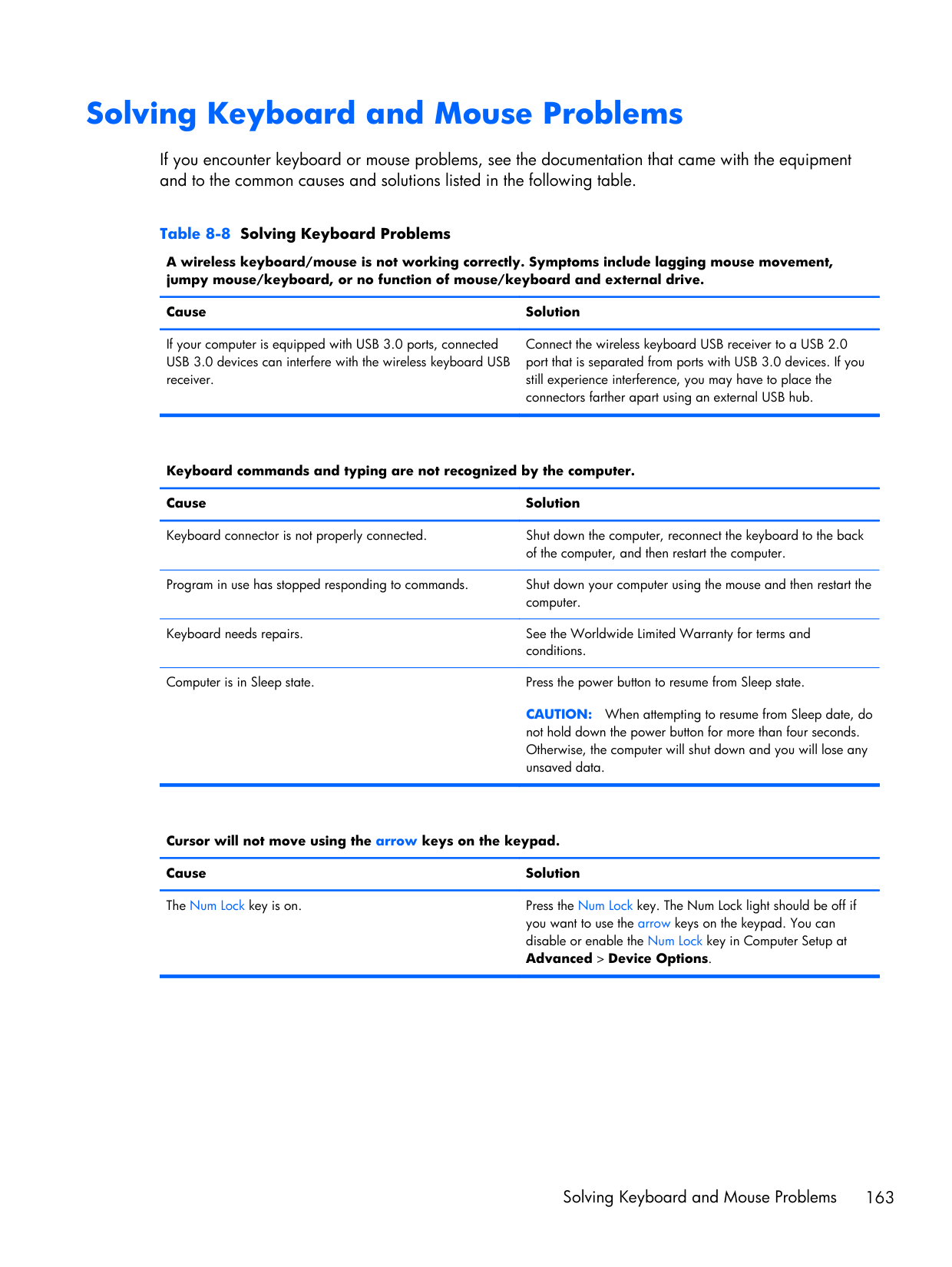

Solving Keyboard and Mouse Problems

If you encounter keyboard or mouse problems, see the documentation that came with the equipment and to the common causes and solutions listed in the following table.

A wireless keyboard/mouse is not working correctly. Symptoms include lagging mouse movement, jumpy mouse/keyboard, or no function of mouse/keyboard and external drive.

Cause Solution

If your computer is equipped with USB 3.0 ports, connected USB 3.0 devices can interfere with the wireless keyboard USB receiver.

Connect the wireless keyboard USB receiver to a USB 2.0 port that is separated from ports with USB 3.0 devices. If you still experience interference, you may have to place the connectors farther apart using an external USB hub.

Keyboard commands and typing are not recognized by the computer.

Cause Solution

Keyboard connector is not properly connected. Shut down the computer, reconnect the keyboard to the back of the computer, and then restart the computer.

Program in use has stopped responding to commands. Shut down your computer using the mouse and then restart the computer.

Keyboard needs repairs. See the Worldwide Limited Warranty for terms and conditions.

Computer is in Sleep state. Press the power button to resume from Sleep state.

CAUTION: When attempting to resume from Sleep date, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Cursor will not move using the arrow keys on the keypad.

Cause Solution

The Num Lock key is on. Press the Num Lock key. The Num Lock light should be off if you want to use the arrow keys on the keypad. You can disable or enable the Num Lock key in Computer Setup at Advanced > Device Options.

Solving Keyboard and Mouse Problems 163

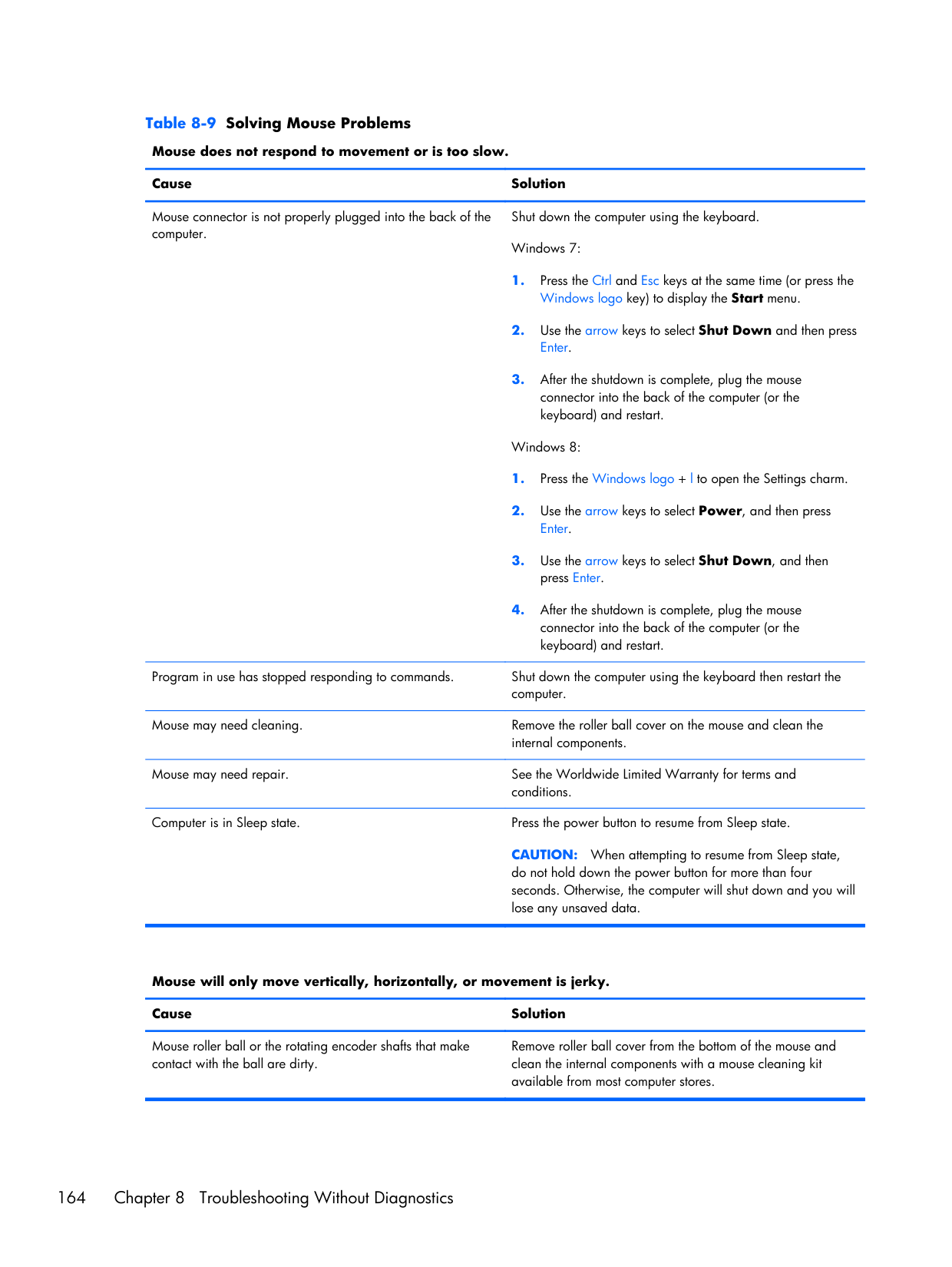

Cause Solution

Mouse connector is not properly plugged into the back of the computer.

Shut down the computer using the keyboard.

Program in use has stopped responding to commands. Shut down the computer using the keyboard then restart the computer.

Mouse may need cleaning. Remove the roller ball cover on the mouse and clean the internal components.

Mouse may need repair. See the Worldwide Limited Warranty for terms and conditions.

Computer is in Sleep state. Press the power button to resume from Sleep state.

CAUTION: When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Mouse will only move vertically, horizontally, or movement is jerky.

Cause Solution

Mouse roller ball or the rotating encoder shafts that make contact with the ball are dirty.

Remove roller ball cover from the bottom of the mouse and clean the internal components with a mouse cleaning kit available from most computer stores.

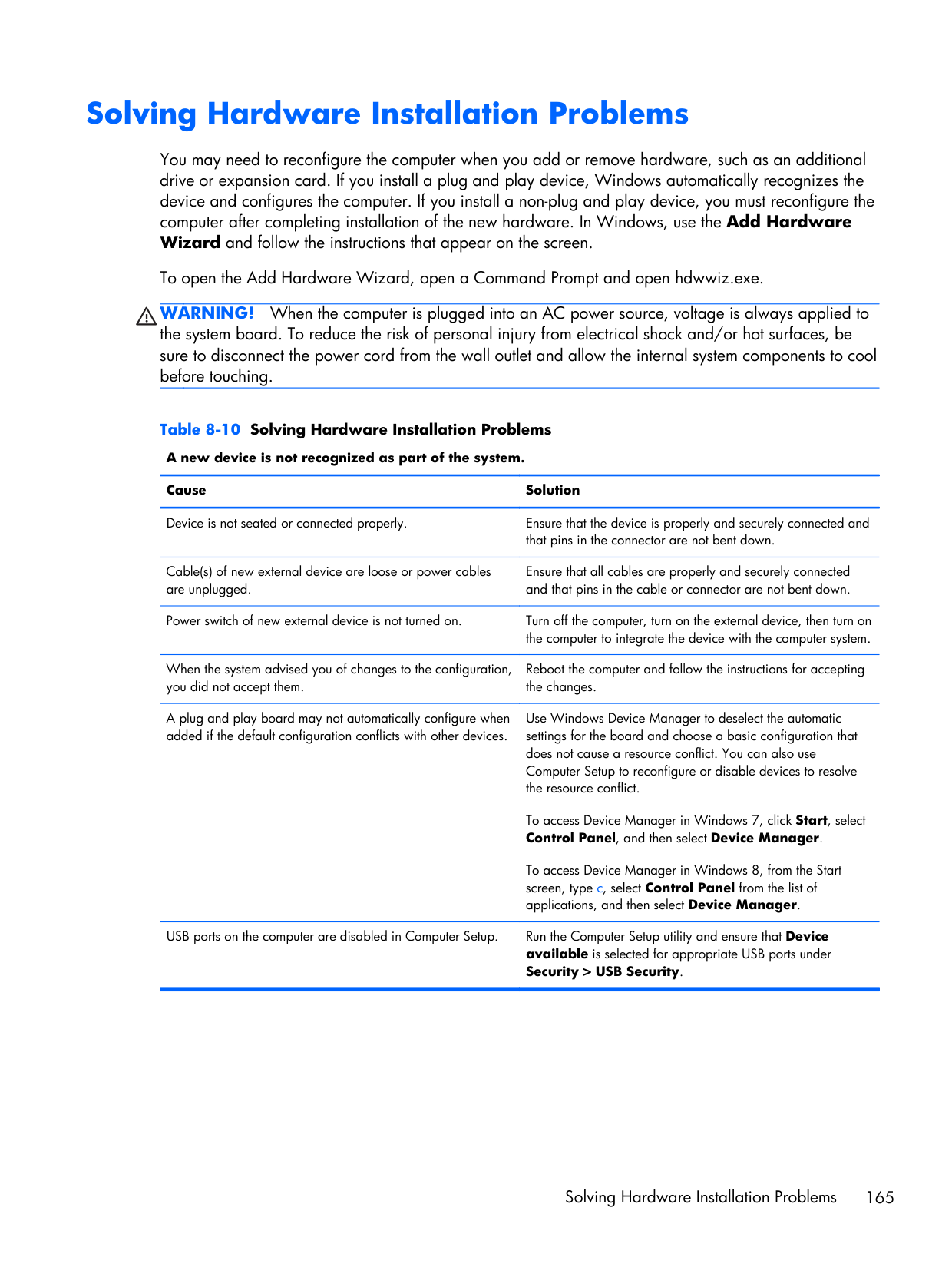

Solving Hardware Installation Problems

You may need to reconfigure the computer when you add or remove hardware, such as an additional drive or expansion card. If you install a plug and play device, Windows automatically recognizes the device and configures the computer. If you install a non-plug and play device, you must reconfigure the computer after completing installation of the new hardware. In Windows, use the Add Hardware Wizard and follow the instructions that appear on the screen.

To open the Add Hardware Wizard, open a Command Prompt and open hdwwiz.exe.

WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

Table 8-10 Solving Hardware Installation Problems

A new device is not recognized as part of the system.

Cause Solution

Device is not seated or connected properly. Ensure that the device is properly and securely connected and that pins in the connector are not bent down.

Cable(s) of new external device are loose or power cables are unplugged.

Ensure that all cables are properly and securely connected and that pins in the cable or connector are not bent down.

Power switch of new external device is not turned on. Turn off the computer, turn on the external device, then turn on the computer to integrate the device with the computer system.

When the system advised you of changes to the configuration, you did not accept them.

Reboot the computer and follow the instructions for accepting the changes.

A plug and play board may not automatically configure when added if the default configuration conflicts with other devices.

Use Windows Device Manager to deselect the automatic settings for the board and choose a basic configuration that does not cause a resource conflict. You can also use Computer Setup to reconfigure or disable devices to resolve the resource conflict.

USB ports on the computer are disabled in Computer Setup. Run the Computer Setup utility and ensure that Device available is selected for appropriate USB ports under Security > USB Security.

Solving Hardware Installation Problems 165

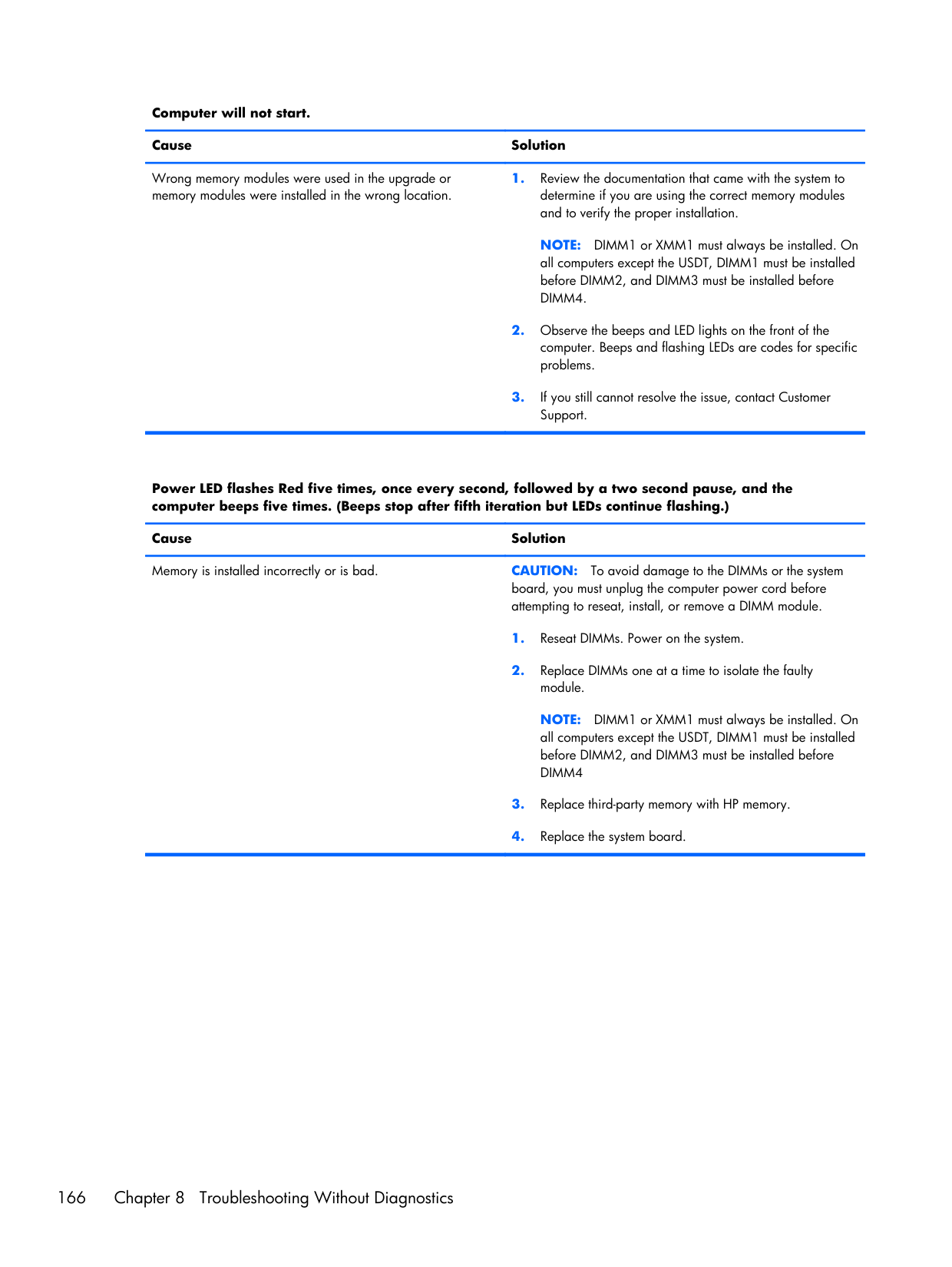

Computer will not start.

Cause Solution

Wrong memory modules were used in the upgrade or memory modules were installed in the wrong location.

NOTE: DIMM1 or XMM1 must always be installed. On all computers except the USDT, DIMM1 must be installed before DIMM2, and DIMM3 must be installed before DIMM4.

Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Memory is installed incorrectly or is bad. CAUTION: To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.

NOTE: DIMM1 or XMM1 must always be installed. On all computers except the USDT, DIMM1 must be installed before DIMM2, and DIMM3 must be installed before DIMM4

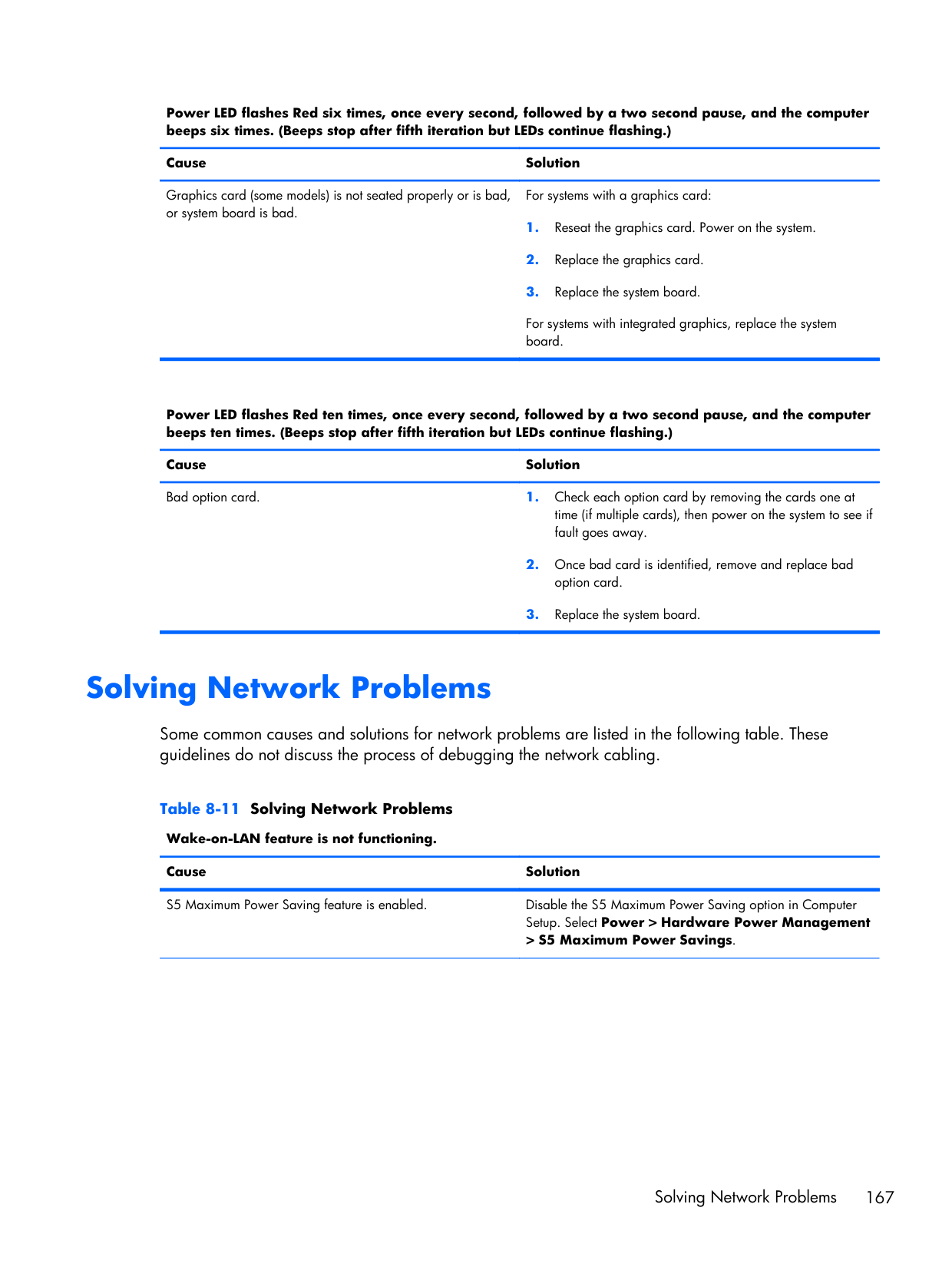

Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Graphics card (some models) is not seated properly or is bad, or system board is bad.

For systems with a graphics card:

For systems with integrated graphics, replace the system board.

Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Bad option card. 1. Check each option card by removing the cards one at time (if multiple cards), then power on the system to see if fault goes away.

Solving Network Problems

Some common causes and solutions for network problems are listed in the following table. These guidelines do not discuss the process of debugging the network cabling.

Table 8-11 Solving Network Problems

Wake-on-LAN feature is not functioning.

Cause Solution

S5 Maximum Power Saving feature is enabled. Disable the S5 Maximum Power Saving option in Computer Setup. Select Power > Hardware Power Management > S5 Maximum Power Savings.

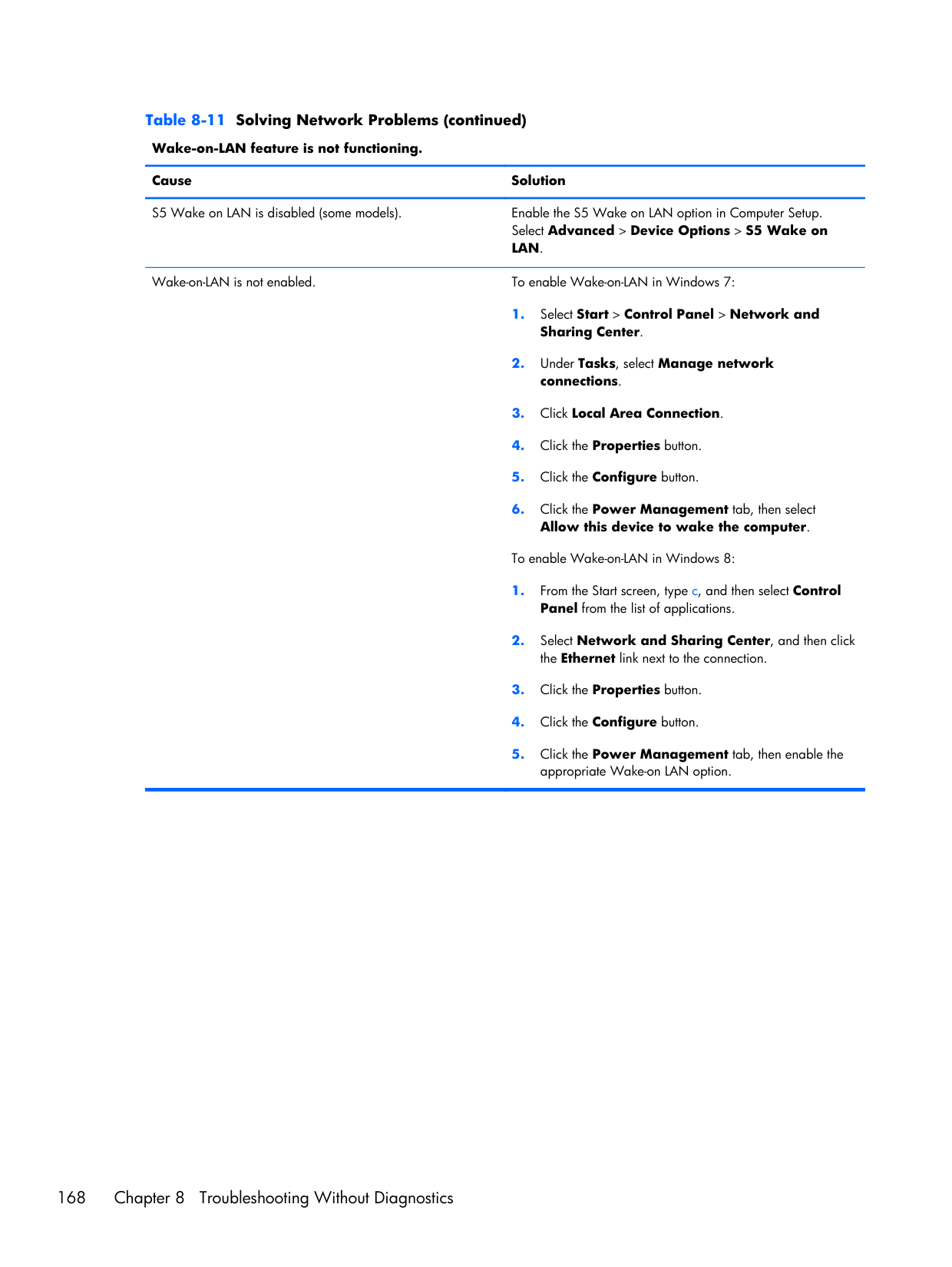

######## Table 8-11 Solving Network Problems (continued)

Wake-on-LAN feature is not functioning.

Cause Solution

S5 Wake on LAN is disabled (some models). Enable the S5 Wake on LAN option in Computer Setup. Select Advanced > Device Options > S5 Wake on LAN.

Wake-on-LAN is not enabled. To enable Wake-on-LAN in Windows 7:

To enable Wake-on-LAN in Windows 8:

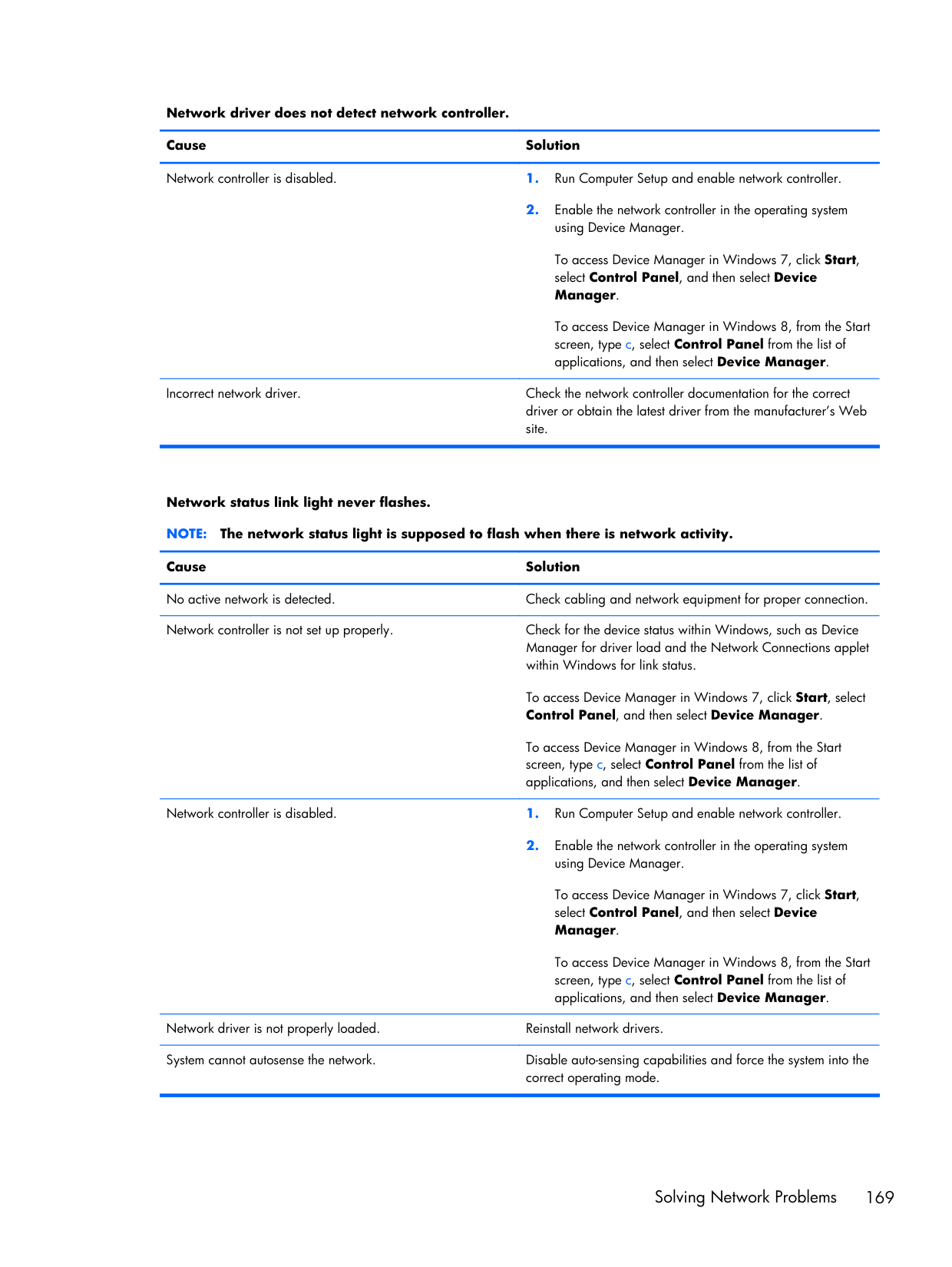

Network driver does not detect network controller.

Cause Solution

Network controller is disabled. 1. Run Computer Setup and enable network controller.

using Device Manager.

Incorrect network driver. Check the network controller documentation for the correct driver or obtain the latest driver from the manufacturer’s Web site.

######### Network status link light never flashes.

NOTE: The network status light is supposed to flash when there is network activity. Cause Solution No active network is detected. Check cabling and network equipment for proper connection. Network controller is not set up properly. Check for the device status within Windows, such as Device

Manager for driver load and the Network Connections applet within Windows for link status.

Network controller is disabled. 1. Run Computer Setup and enable network controller.

using Device Manager.

Network driver is not properly loaded. Reinstall network drivers. System cannot autosense the network. Disable auto-sensing capabilities and force the system into the

correct operating mode.

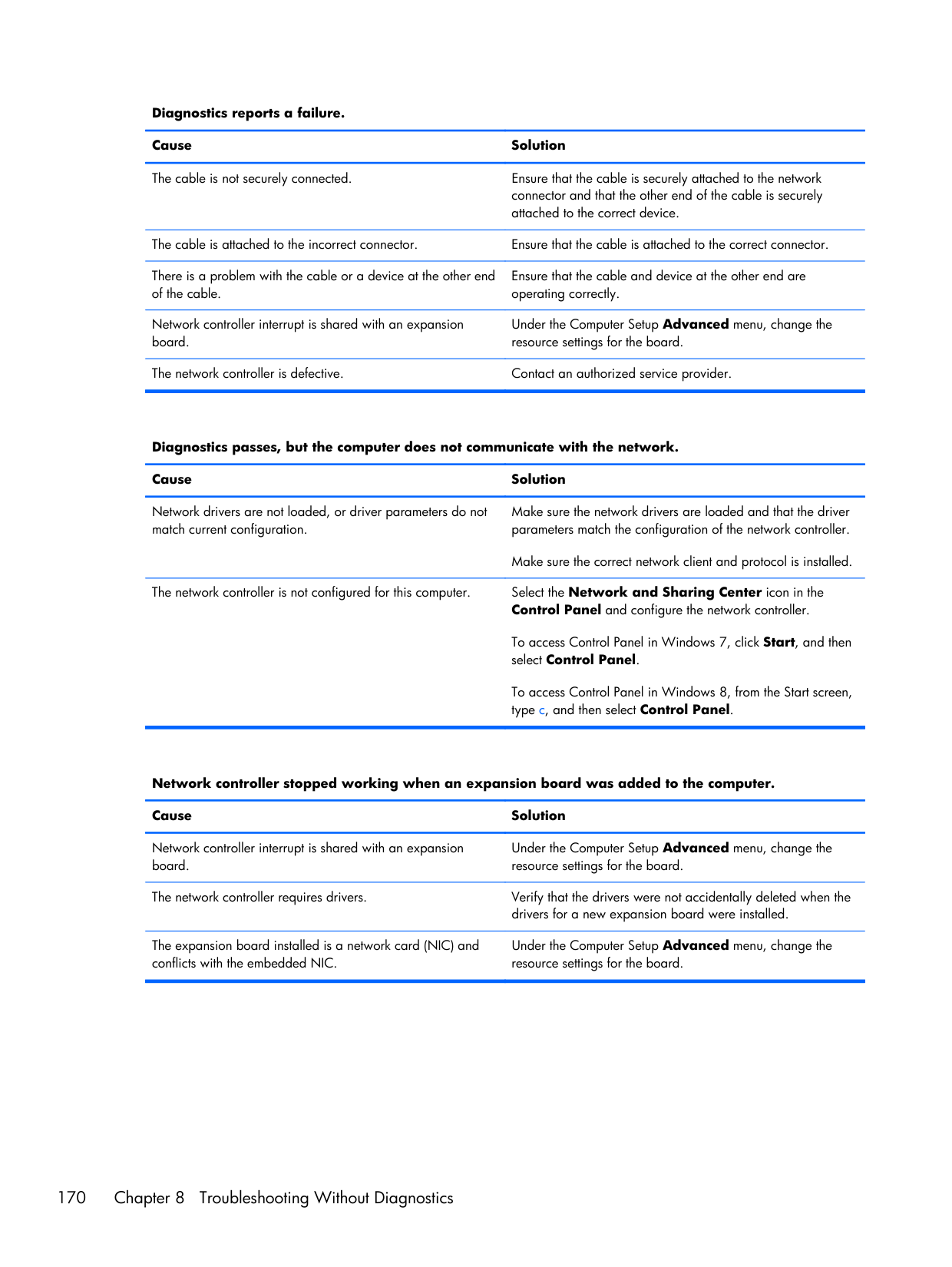

Diagnostics reports a failure.

Cause Solution

The cable is not securely connected. Ensure that the cable is securely attached to the network connector and that the other end of the cable is securely attached to the correct device.

The cable is attached to the incorrect connector. Ensure that the cable is attached to the correct connector. There is a problem with the cable or a device at the other end of the cable.

Ensure that the cable and device at the other end are operating correctly.

Network controller interrupt is shared with an expansion board.

Under the Computer Setup Advanced menu, change the resource settings for the board.

The network controller is defective. Contact an authorized service provider.

Diagnostics passes, but the computer does not communicate with the network.

Cause Solution

Network drivers are not loaded, or driver parameters do not match current configuration.

Make sure the network drivers are loaded and that the driver parameters match the configuration of the network controller.

Make sure the correct network client and protocol is installed. The network controller is not configured for this computer. Select the Network and Sharing Center icon in the

Control Panel and configure the network controller.

Network controller stopped working when an expansion board was added to the computer.

Cause Solution

Network controller interrupt is shared with an expansion board.

Under the Computer Setup Advanced menu, change the resource settings for the board.

The network controller requires drivers. Verify that the drivers were not accidentally deleted when the drivers for a new expansion board were installed.

The expansion board installed is a network card (NIC) and conflicts with the embedded NIC.

Under the Computer Setup Advanced menu, change the resource settings for the board.

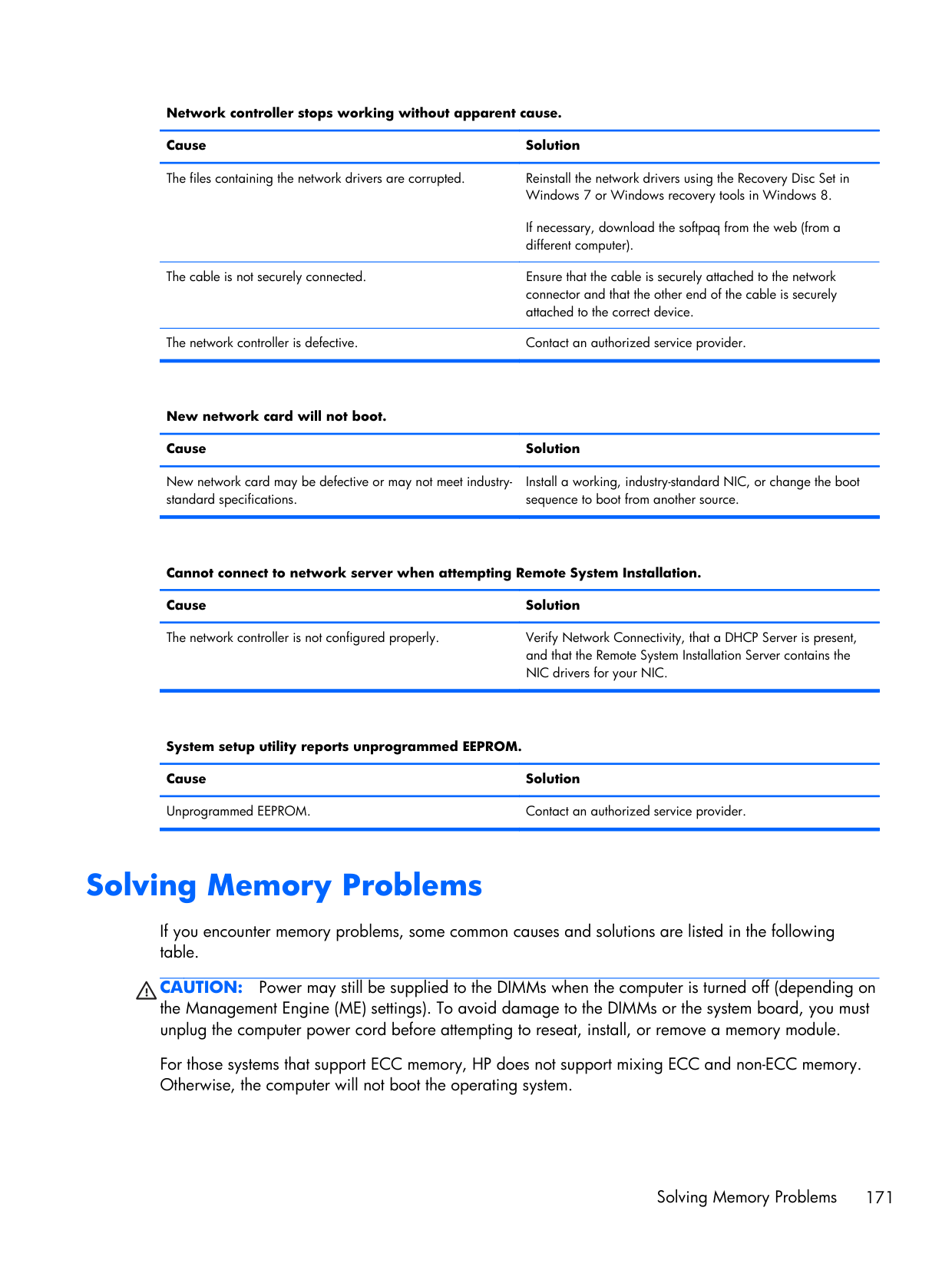

Network controller stops working without apparent cause.

Cause Solution

The files containing the network drivers are corrupted. Reinstall the network drivers using the Recovery Disc Set in Windows 7 or Windows recovery tools in Windows 8.

If necessary, download the softpaq from the web (from a different computer).

The cable is not securely connected. Ensure that the cable is securely attached to the network connector and that the other end of the cable is securely attached to the correct device.

The network controller is defective. Contact an authorized service provider.

New network card will not boot.

Cause Solution

New network card may be defective or may not meet industrystandard specifications.

Install a working, industry-standard NIC, or change the boot sequence to boot from another source.

Cannot connect to network server when attempting Remote System Installation.

Cause Solution

The network controller is not configured properly. Verify Network Connectivity, that a DHCP Server is present, and that the Remote System Installation Server contains the NIC drivers for your NIC.

System setup utility reports unprogrammed EEPROM.

Cause Solution

Unprogrammed EEPROM. Contact an authorized service provider.

Solving Memory Problems

If you encounter memory problems, some common causes and solutions are listed in the following table.

CAUTION: Power may still be supplied to the DIMMs when the computer is turned off (depending on the Management Engine (ME) settings). To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a memory module.

For those systems that support ECC memory, HP does not support mixing ECC and non-ECC memory. Otherwise, the computer will not boot the operating system.

Solving Memory Problems 171

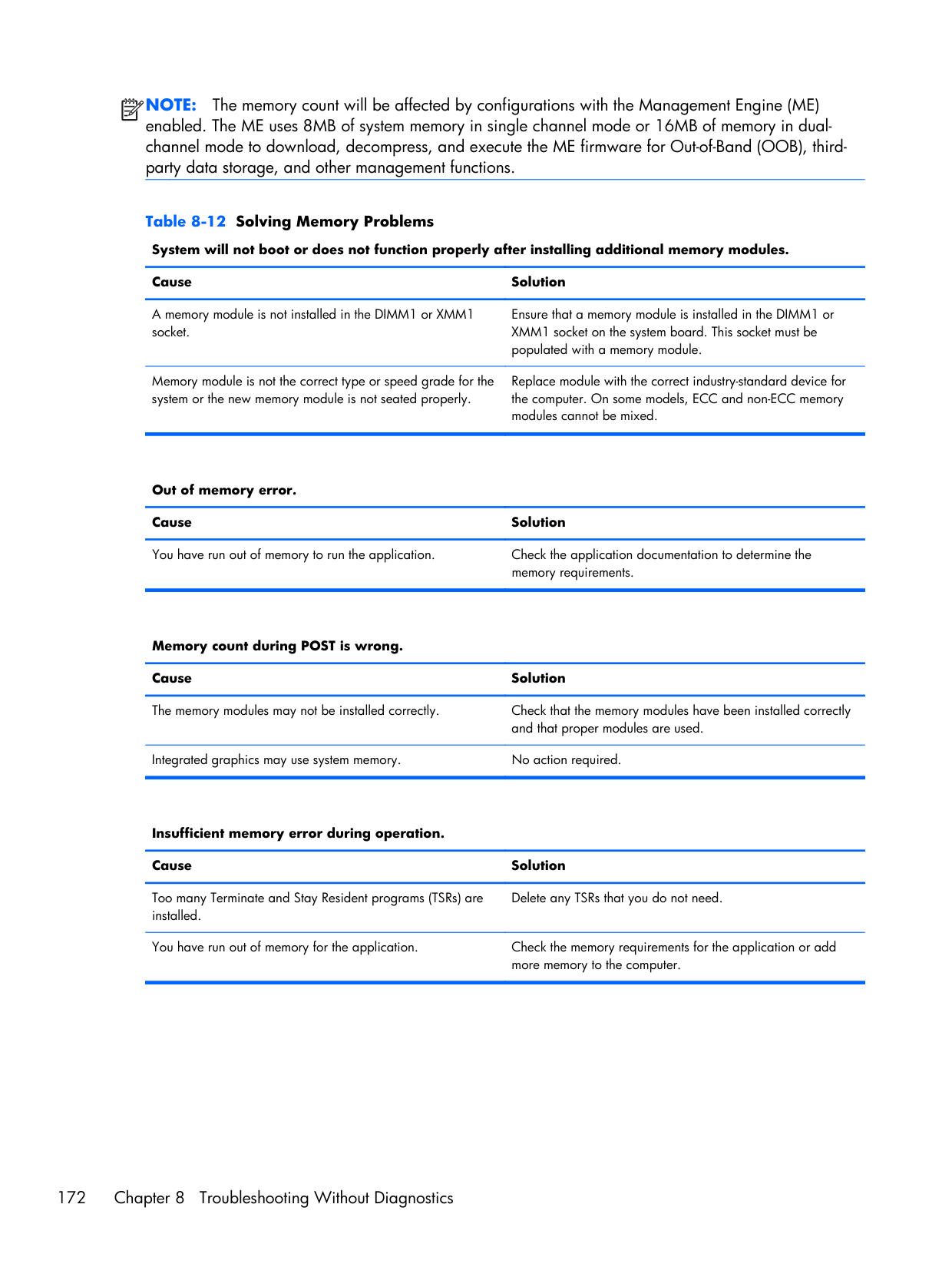

NOTE: The memory count will be affected by configurations with the Management Engine (ME) enabled. The ME uses 8MB of system memory in single channel mode or 16MB of memory in dualchannel mode to download, decompress, and execute the ME firmware for Out-of-Band (OOB), thirdparty data storage, and other management functions.

| | |---|

Table 8-12 Solving Memory Problems

System will not boot or does not function properly after installing additional memory modules.

Cause Solution

A memory module is not installed in the DIMM1 or XMM1 socket.

Memory module is not the correct type or speed grade for the system or the new memory module is not seated properly.

Ensure that a memory module is installed in the DIMM1 or XMM1 socket on the system board. This socket must be populated with a memory module.

Replace module with the correct industry-standard device for the computer. On some models, ECC and non-ECC memory modules cannot be mixed.

Out of memory error.

Cause Solution

You have run out of memory to run the application. Check the application documentation to determine the memory requirements.

Memory count during POST is wrong.

Cause Solution

The memory modules may not be installed correctly. Check that the memory modules have been installed correctly

and that proper modules are used. Integrated graphics may use system memory. No action required.

Insufficient memory error during operation.

Cause Solution

Too many Terminate and Stay Resident programs (TSRs) are installed.

Delete any TSRs that you do not need.

You have run out of memory for the application. Check the memory requirements for the application or add more memory to the computer.

Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Memory is installed incorrectly or is bad. 1. Reseat DIMMs. Power on the system.

module.

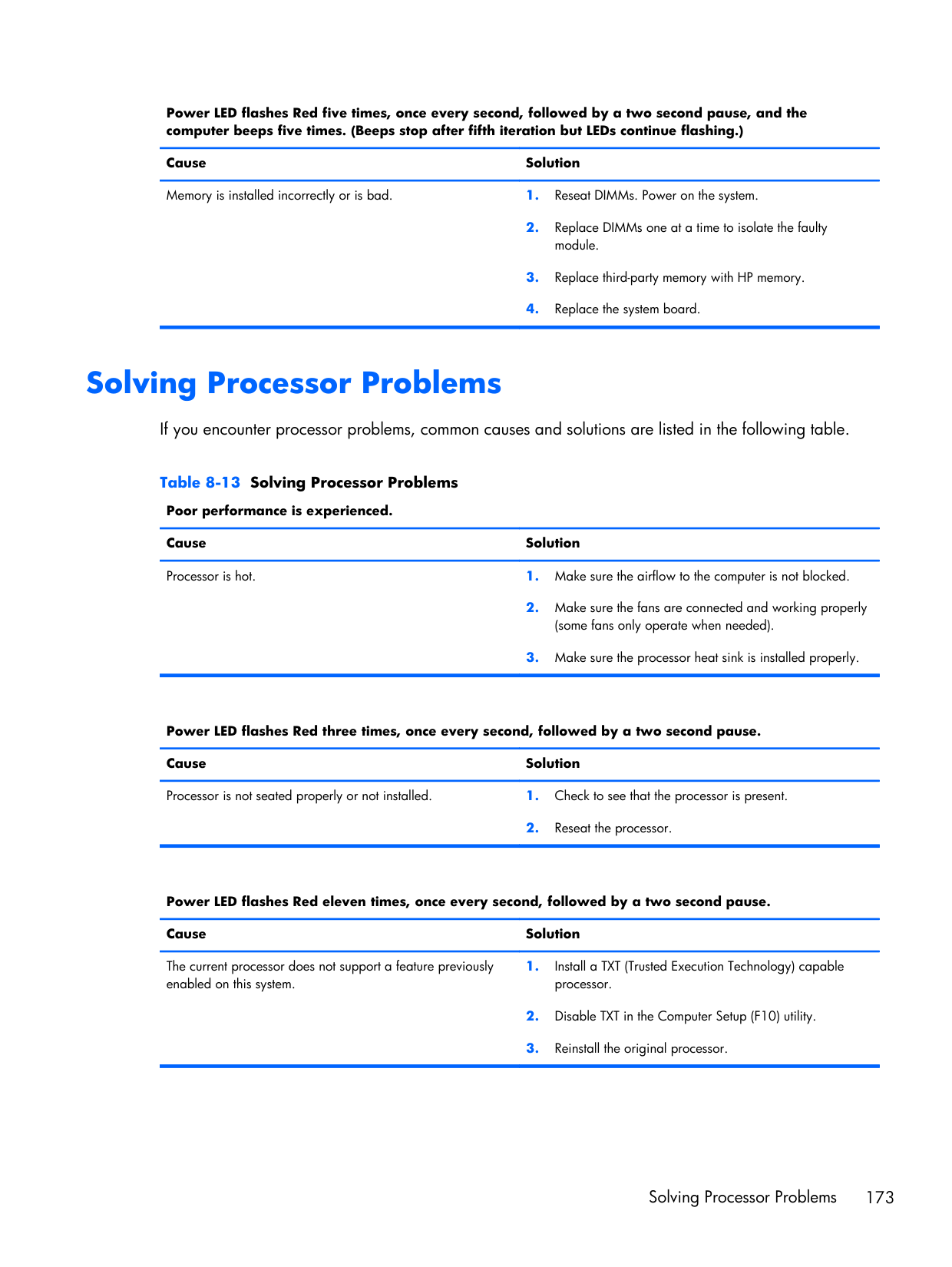

Solving Processor Problems

If you encounter processor problems, common causes and solutions are listed in the following table.

Table 8-13 Solving Processor Problems

Poor performance is experienced.

Cause Solution

Processor is hot. 1. Make sure the airflow to the computer is not blocked.

Power LED flashes Red three times, once every second, followed by a two second pause.

Cause Solution

Processor is not seated properly or not installed. 1. Check to see that the processor is present.

Power LED flashes Red eleven times, once every second, followed by a two second pause.

Cause Solution

The current processor does not support a feature previously enabled on this system.

Solving Processor Problems 173

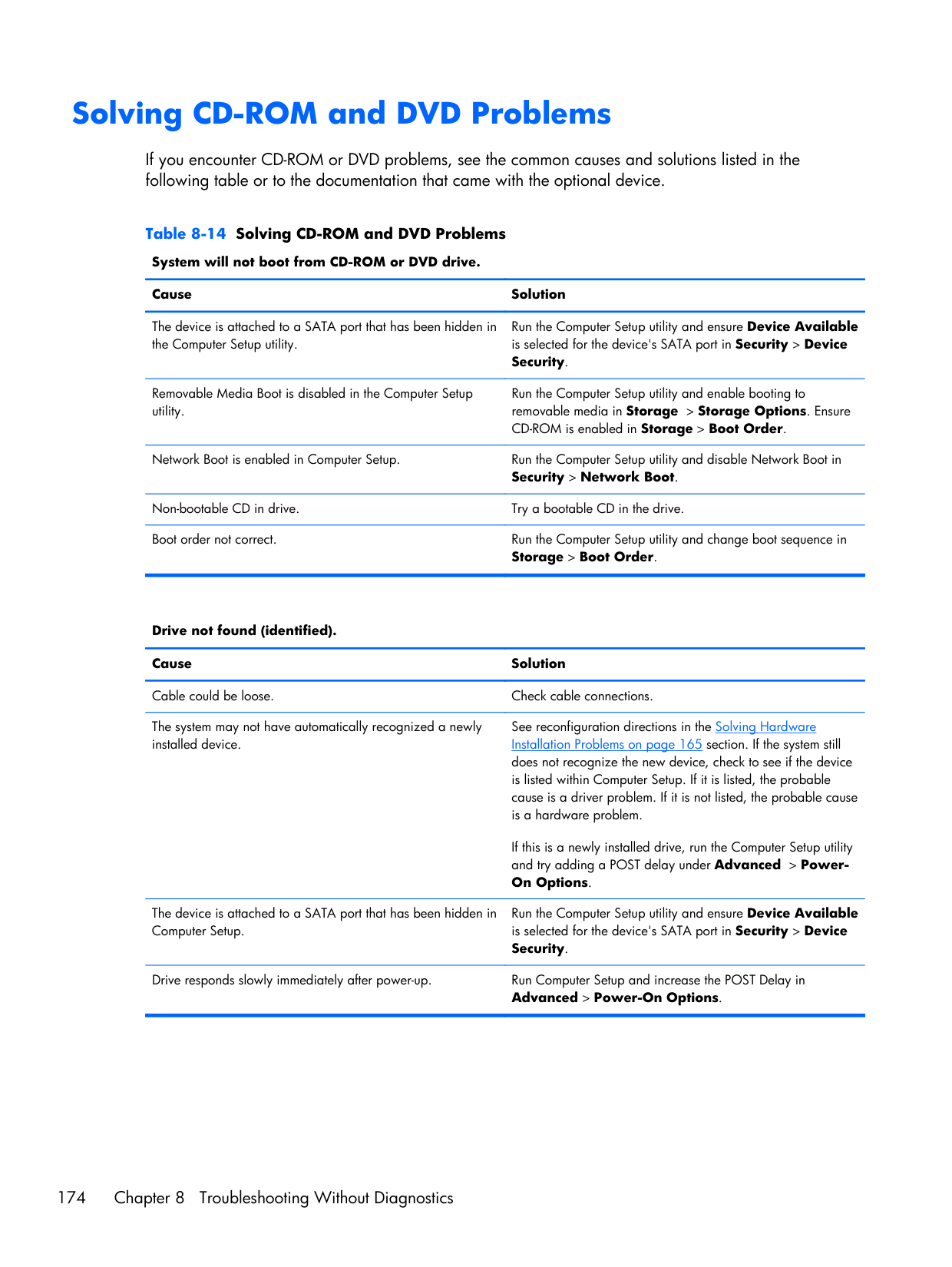

Solving CD-ROM and DVD Problems

If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the following table or to the documentation that came with the optional device.

Table 8-14 Solving CD-ROM and DVD Problems

System will not boot from CD-ROM or DVD drive.

Cause Solution

The device is attached to a SATA port that has been hidden in the Computer Setup utility.

Run the Computer Setup utility and ensure Device Available is selected for the device's SATA port in Security > Device Security.

Removable Media Boot is disabled in the Computer Setup utility.

Run the Computer Setup utility and enable booting to removable media in Storage > Storage Options. Ensure CD-ROM is enabled in Storage > Boot Order.

Network Boot is enabled in Computer Setup. Run the Computer Setup utility and disable Network Boot in

Security > Network Boot. Non-bootable CD in drive. Try a bootable CD in the drive. Boot order not correct. Run the Computer Setup utility and change boot sequence in

######### Storage > Boot Order.

Drive not found (identified). Cause Solution Cable could be loose. Check cable connections. The system may not have automatically recognized a newly installed device.

See reconfiguration directions in the Solving Hardware Installation Problems on page 165 section. If the system still does not recognize the new device, check to see if the device is listed within Computer Setup. If it is listed, the probable cause is a driver problem. If it is not listed, the probable cause is a hardware problem.

The device is attached to a SATA port that has been hidden in Computer Setup.

If this is a newly installed drive, run the Computer Setup utility and try adding a POST delay under Advanced > PowerOn Options.

Run the Computer Setup utility and ensure Device Available is selected for the device's SATA port in Security > Device Security.

Drive responds slowly immediately after power-up. Run Computer Setup and increase the POST Delay in

######### Advanced > Power-On Options.

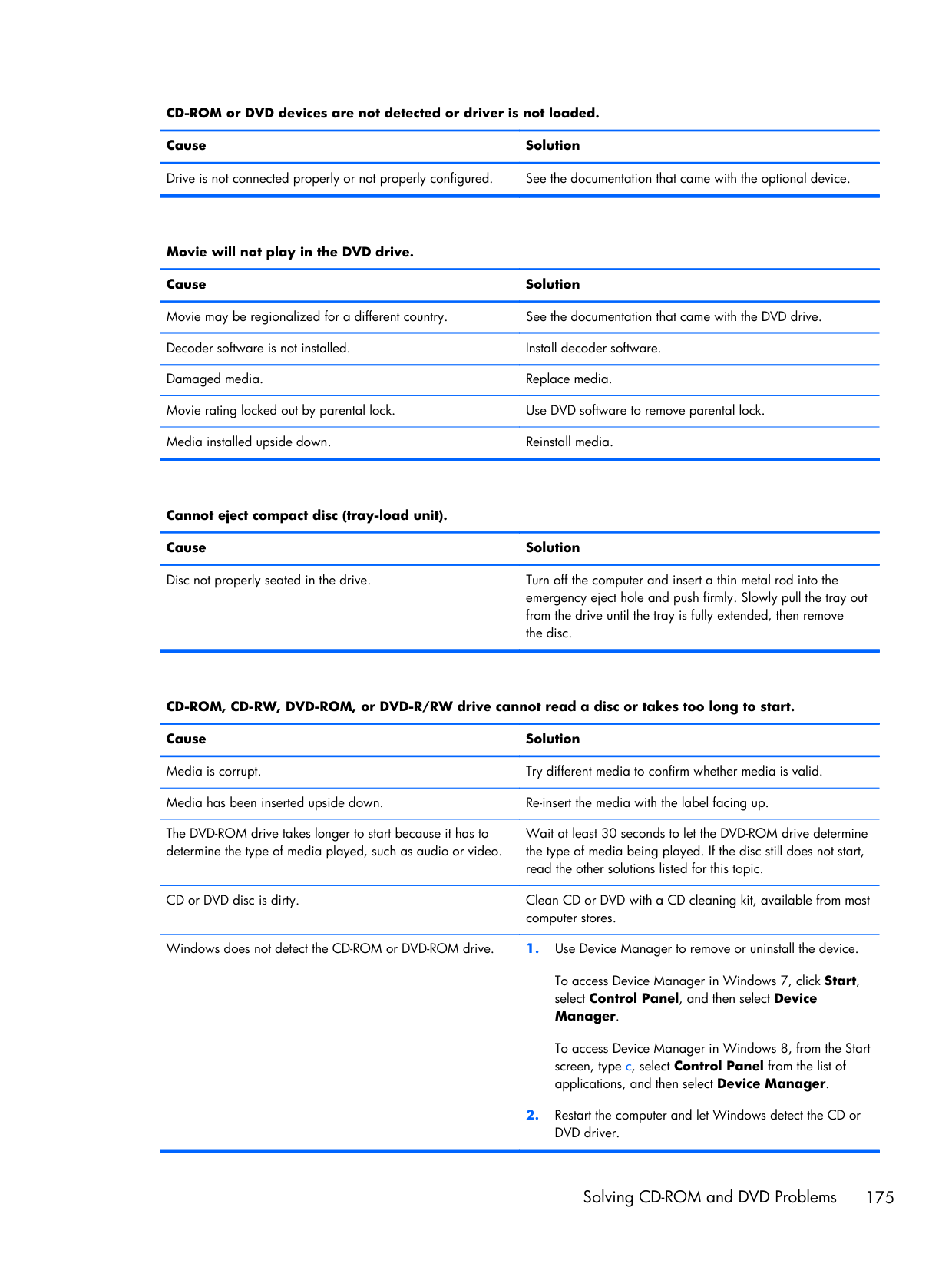

CD-ROM or DVD devices are not detected or driver is not loaded.

Cause Solution

Drive is not connected properly or not properly configured. See the documentation that came with the optional device.

Movie will not play in the DVD drive. Cause Solution Movie may be regionalized for a different country. See the documentation that came with the DVD drive. Decoder software is not installed. Install decoder software. Damaged media. Replace media. Movie rating locked out by parental lock. Use DVD software to remove parental lock. Media installed upside down. Reinstall media.

Cannot eject compact disc (tray-load unit).

Cause Solution

Disc not properly seated in the drive. Turn off the computer and insert a thin metal rod into the emergency eject hole and push firmly. Slowly pull the tray out from the drive until the tray is fully extended, then remove the disc.

CD-ROM, CD-RW, DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start. Cause Solution Media is corrupt. Try different media to confirm whether media is valid. Media has been inserted upside down. Re-insert the media with the label facing up. The DVD-ROM drive takes longer to start because it has to determine the type of media played, such as audio or video.

Wait at least 30 seconds to let the DVD-ROM drive determine the type of media being played. If the disc still does not start, read the other solutions listed for this topic.

CD or DVD disc is dirty. Clean CD or DVD with a CD cleaning kit, available from most computer stores.

Windows does not detect the CD-ROM or DVD-ROM drive. 1. Use Device Manager to remove or uninstall the device.

DVD driver.

Solving CD-ROM and DVD Problems 175

Recording or copying CDs is difficult or impossible.

Cause Solution

Wrong or poor quality media type. 1. Try using a slower speed when recording.

between manufacturers.

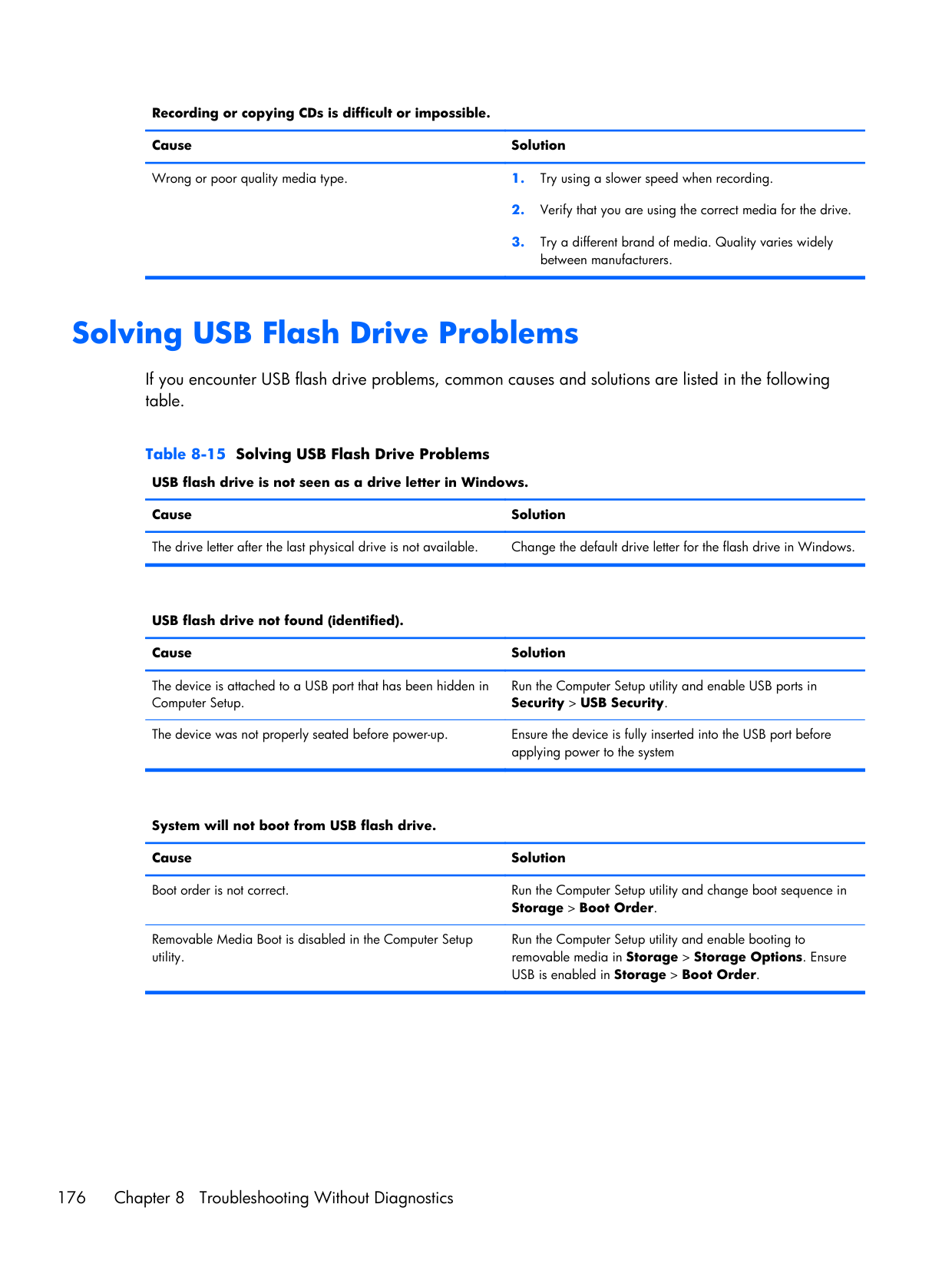

Solving USB Flash Drive Problems

If you encounter USB flash drive problems, common causes and solutions are listed in the following table.

Table 8-15 Solving USB Flash Drive Problems

USB flash drive is not seen as a drive letter in Windows.

Cause Solution

The drive letter after the last physical drive is not available. Change the default drive letter for the flash drive in Windows.

USB flash drive not found (identified).

Cause Solution

The device is attached to a USB port that has been hidden in Computer Setup.

Run the Computer Setup utility and enable USB ports in Security > USB Security.

The device was not properly seated before power-up. Ensure the device is fully inserted into the USB port before applying power to the system

System will not boot from USB flash drive.

Cause Solution

Boot order is not correct. Run the Computer Setup utility and change boot sequence in

######### Storage > Boot Order.

Removable Media Boot is disabled in the Computer Setup utility.

Run the Computer Setup utility and enable booting to removable media in Storage > Storage Options. Ensure USB is enabled in Storage > Boot Order.

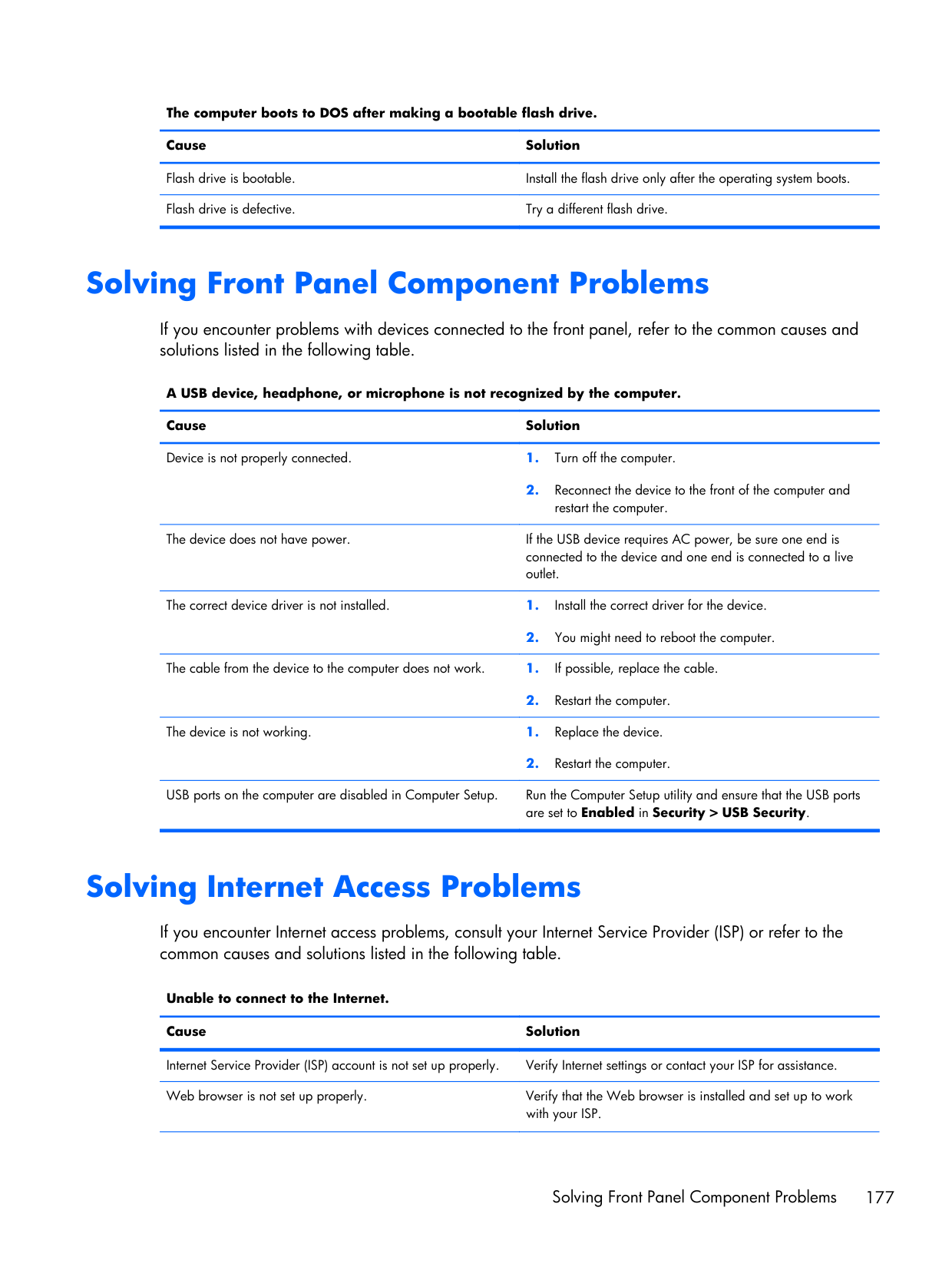

The computer boots to DOS after making a bootable flash drive. Cause Solution Flash drive is bootable. Install the flash drive only after the operating system boots. Flash drive is defective. Try a different flash drive.

Solving Front Panel Component Problems

If you encounter problems with devices connected to the front panel, refer to the common causes and solutions listed in the following table.

A USB device, headphone, or microphone is not recognized by the computer.

Cause Solution

Device is not properly connected. 1. Turn off the computer.

restart the computer.

The device does not have power. If the USB device requires AC power, be sure one end is connected to the device and one end is connected to a live outlet.

The correct device driver is not installed. 1. Install the correct driver for the device.

USB ports on the computer are disabled in Computer Setup. Run the Computer Setup utility and ensure that the USB ports are set to Enabled in Security > USB Security.

Solving Internet Access Problems

If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the common causes and solutions listed in the following table.

Unable to connect to the Internet. Cause Solution Internet Service Provider (ISP) account is not set up properly. Verify Internet settings or contact your ISP for assistance. Web browser is not set up properly. Verify that the Web browser is installed and set up to work

with your ISP.

Solving Front Panel Component Problems 177

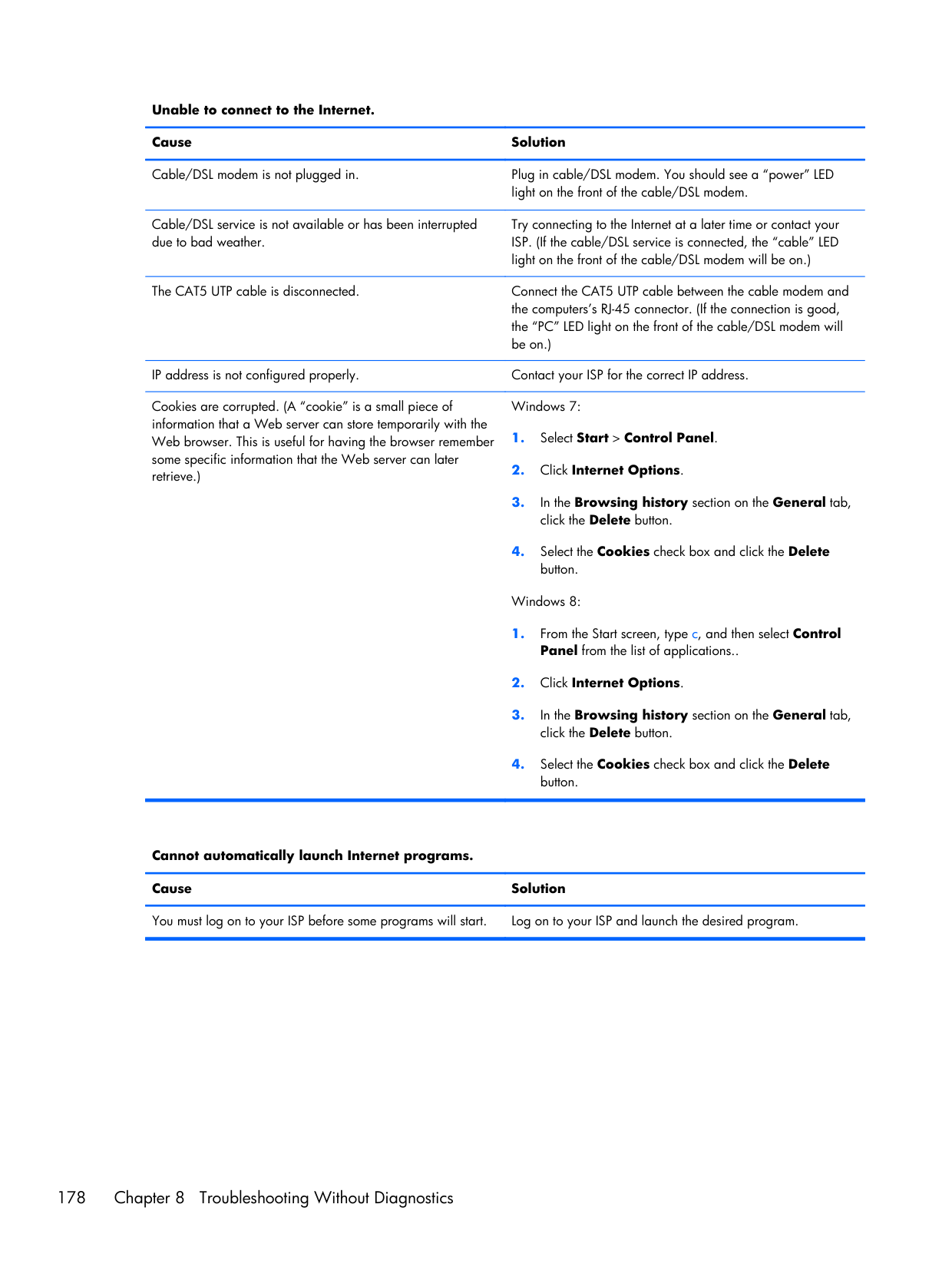

Unable to connect to the Internet.

Cause Solution

Cable/DSL modem is not plugged in. Plug in cable/DSL modem. You should see a “power” LED light on the front of the cable/DSL modem.

Cable/DSL service is not available or has been interrupted due to bad weather.

Try connecting to the Internet at a later time or contact your ISP. (If the cable/DSL service is connected, the “cable” LED light on the front of the cable/DSL modem will be on.)

The CAT5 UTP cable is disconnected. Connect the CAT5 UTP cable between the cable modem and the computers’s RJ-45 connector. (If the connection is good, the “PC” LED light on the front of the cable/DSL modem will be on.)

IP address is not configured properly. Contact your ISP for the correct IP address. Cookies are corrupted. (A “cookie” is a small piece of information that a Web server can store temporarily with the Web browser. This is useful for having the browser remember some specific information that the Web server can later retrieve.)

Cannot automatically launch Internet programs.

Cause Solution

You must log on to your ISP before some programs will start. Log on to your ISP and launch the desired program.

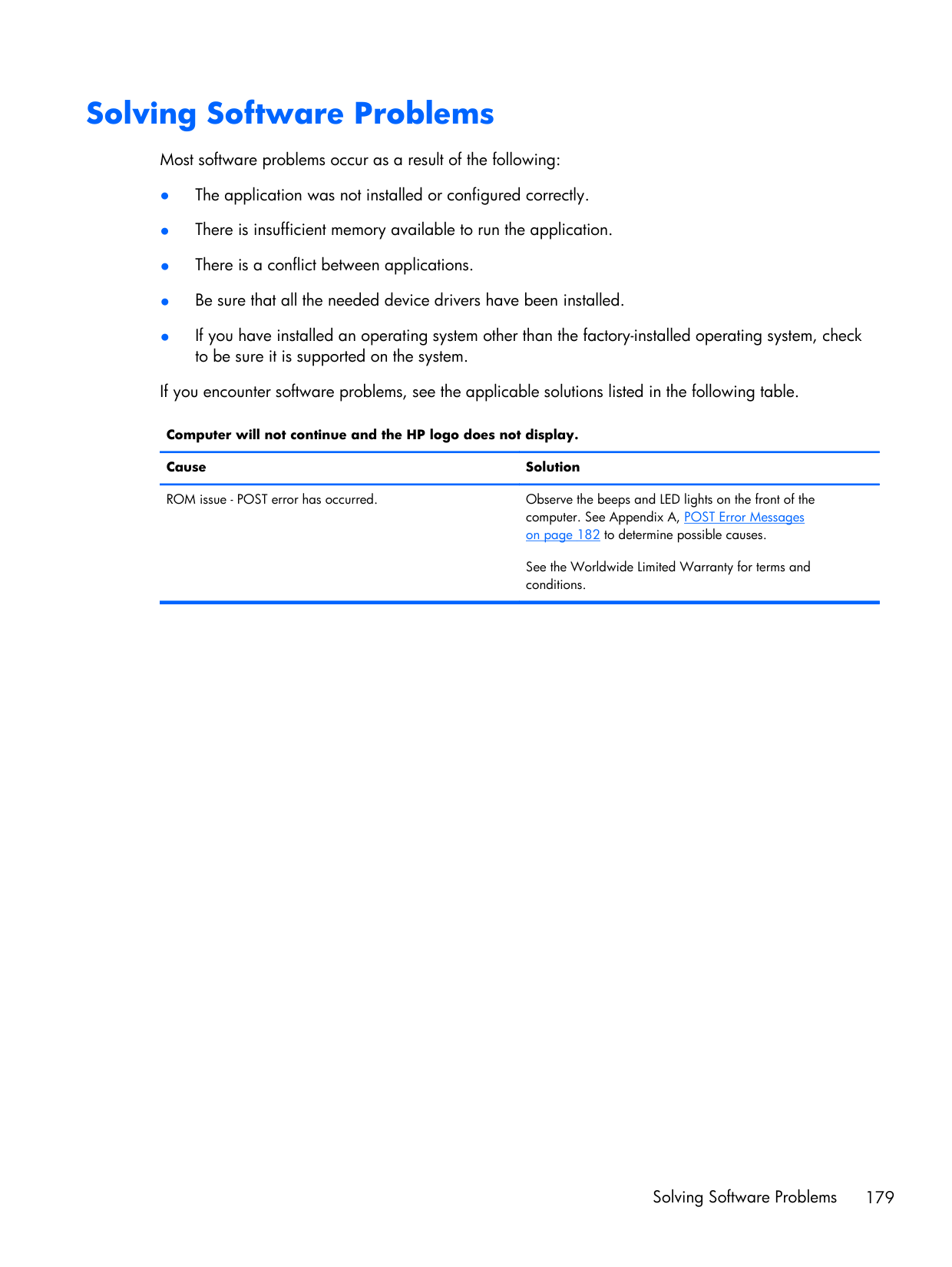

Solving Software Problems

Most software problems occur as a result of the following:

If you encounter software problems, see the applicable solutions listed in the following table.

Computer will not continue and the HP logo does not display.

Cause Solution

ROM issue - POST error has occurred. Observe the beeps and LED lights on the front of the computer. See Appendix A, POST Error Messages on page 182 to determine possible causes.

See the Worldwide Limited Warranty for terms and conditions.

Solving Software Problems 179

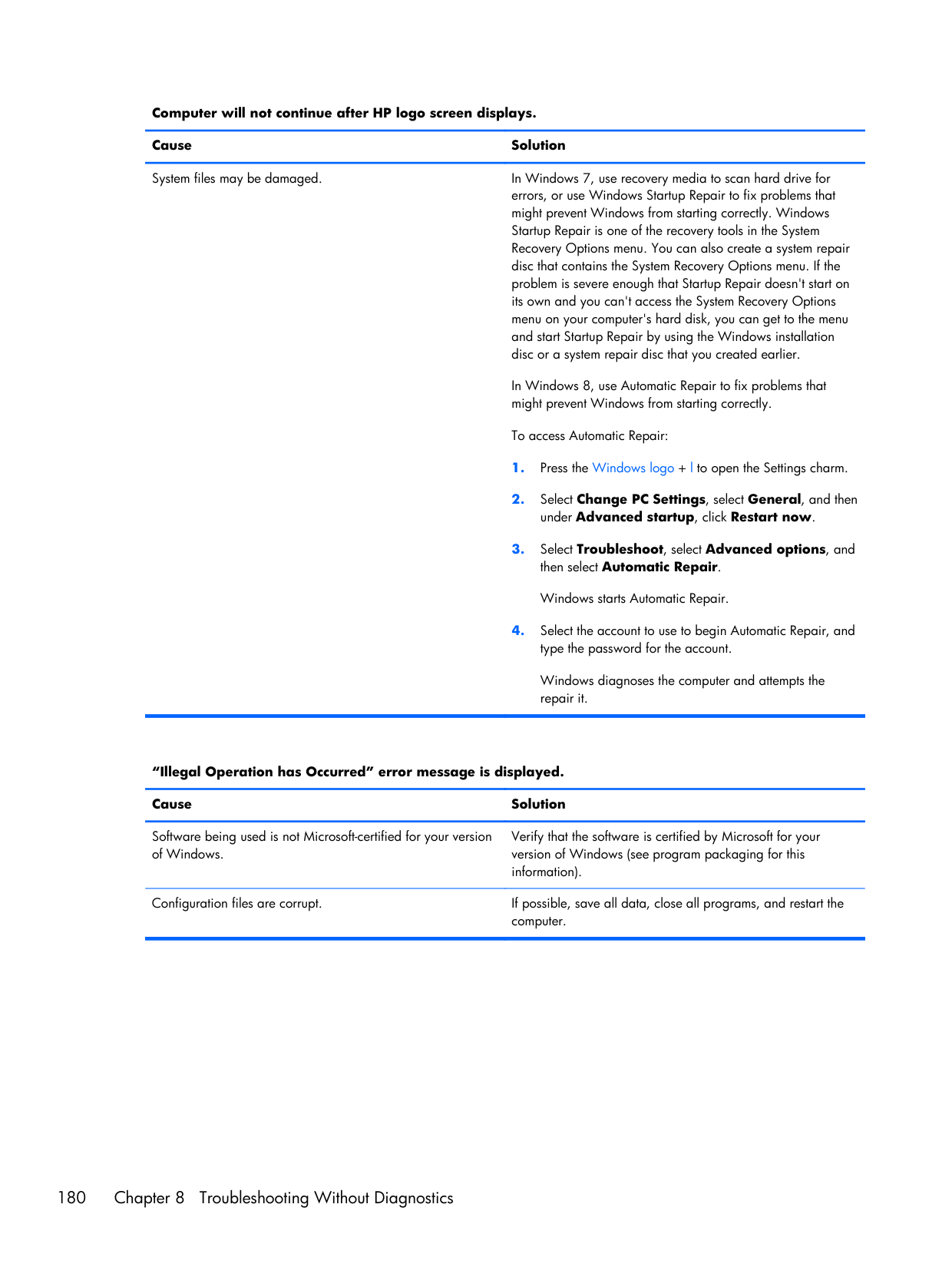

Computer will not continue after HP logo screen displays.

Cause Solution

System files may be damaged. In Windows 7, use recovery media to scan hard drive for errors, or use Windows Startup Repair to fix problems that might prevent Windows from starting correctly. Windows Startup Repair is one of the recovery tools in the System Recovery Options menu. You can also create a system repair disc that contains the System Recovery Options menu. If the problem is severe enough that Startup Repair doesn't start on its own and you can't access the System Recovery Options menu on your computer's hard disk, you can get to the menu and start Startup Repair by using the Windows installation disc or a system repair disc that you created earlier.

In Windows 8, use Automatic Repair to fix problems that might prevent Windows from starting correctly.

To access Automatic Repair:

Windows diagnoses the computer and attempts the repair it.

“Illegal Operation has Occurred” error message is displayed.

Cause Solution

Software being used is not Microsoft-certified for your version of Windows.

Verify that the software is certified by Microsoft for your version of Windows (see program packaging for this information).

Configuration files are corrupt. If possible, save all data, close all programs, and restart the computer.

Contacting Customer Support

For help and service, contact an authorized reseller or dealer. To locate a reseller or dealer near you, visit http://www.hp.com.

NOTE: If you take the computer to an authorized reseller, dealer, or service provider for service, remember to provide the setup and power-on passwords if they are set. Refer to the number listed in the warranty or in the Support Telephone Numbers guide for technical assistance.

| | |---|

Contacting Customer Support 181

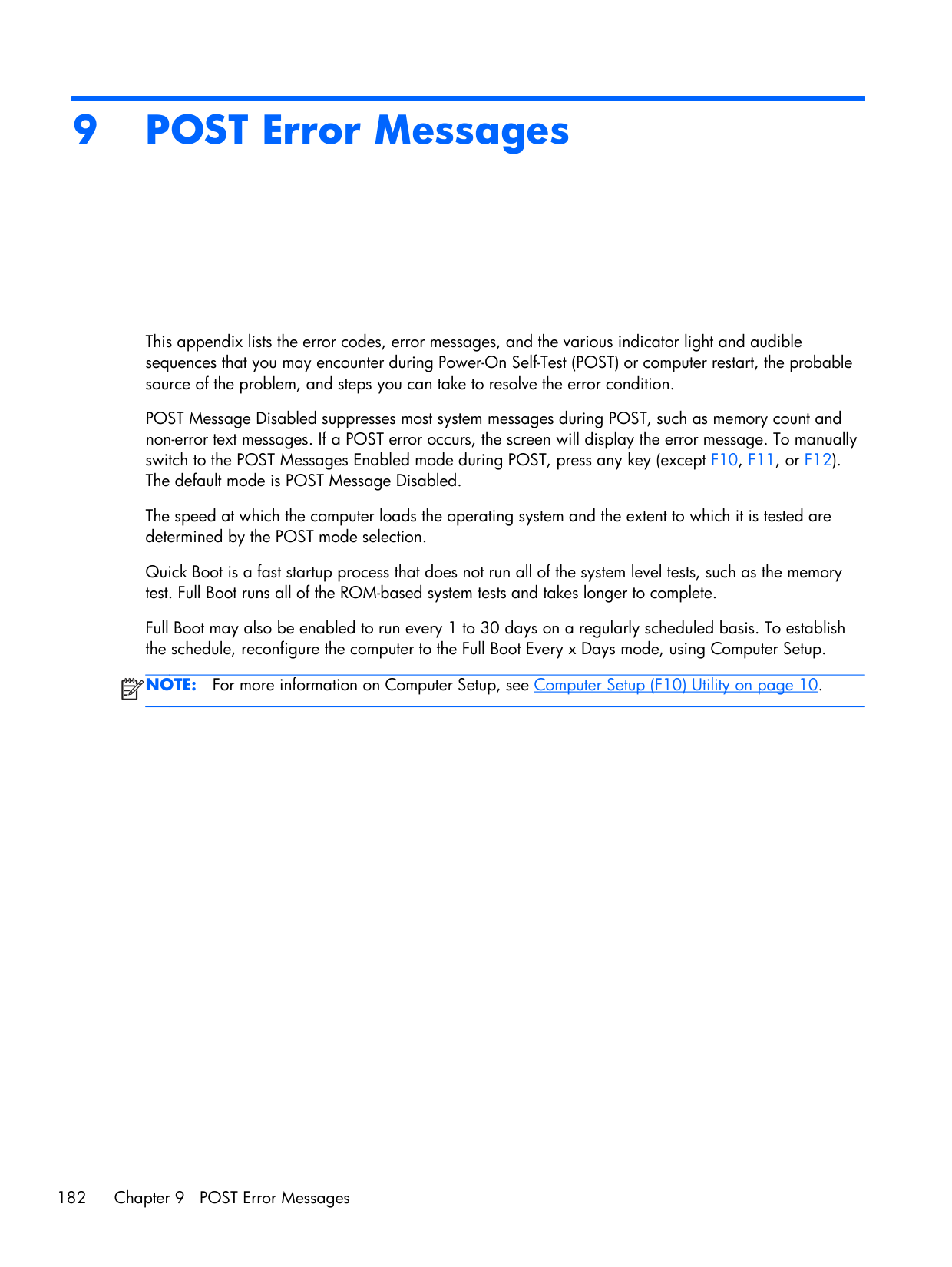

9 POST Error Messages

This appendix lists the error codes, error messages, and the various indicator light and audible sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable source of the problem, and steps you can take to resolve the error condition.

POST Message Disabled suppresses most system messages during POST, such as memory count and non-error text messages. If a POST error occurs, the screen will display the error message. To manually switch to the POST Messages Enabled mode during POST, press any key (except F10, F11, or F12). The default mode is POST Message Disabled.

The speed at which the computer loads the operating system and the extent to which it is tested are determined by the POST mode selection.

Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory test. Full Boot runs all of the ROM-based system tests and takes longer to complete.

Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.

NOTE: For more information on Computer Setup, see Computer Setup (F10) Utility on page 10.

| | |---|

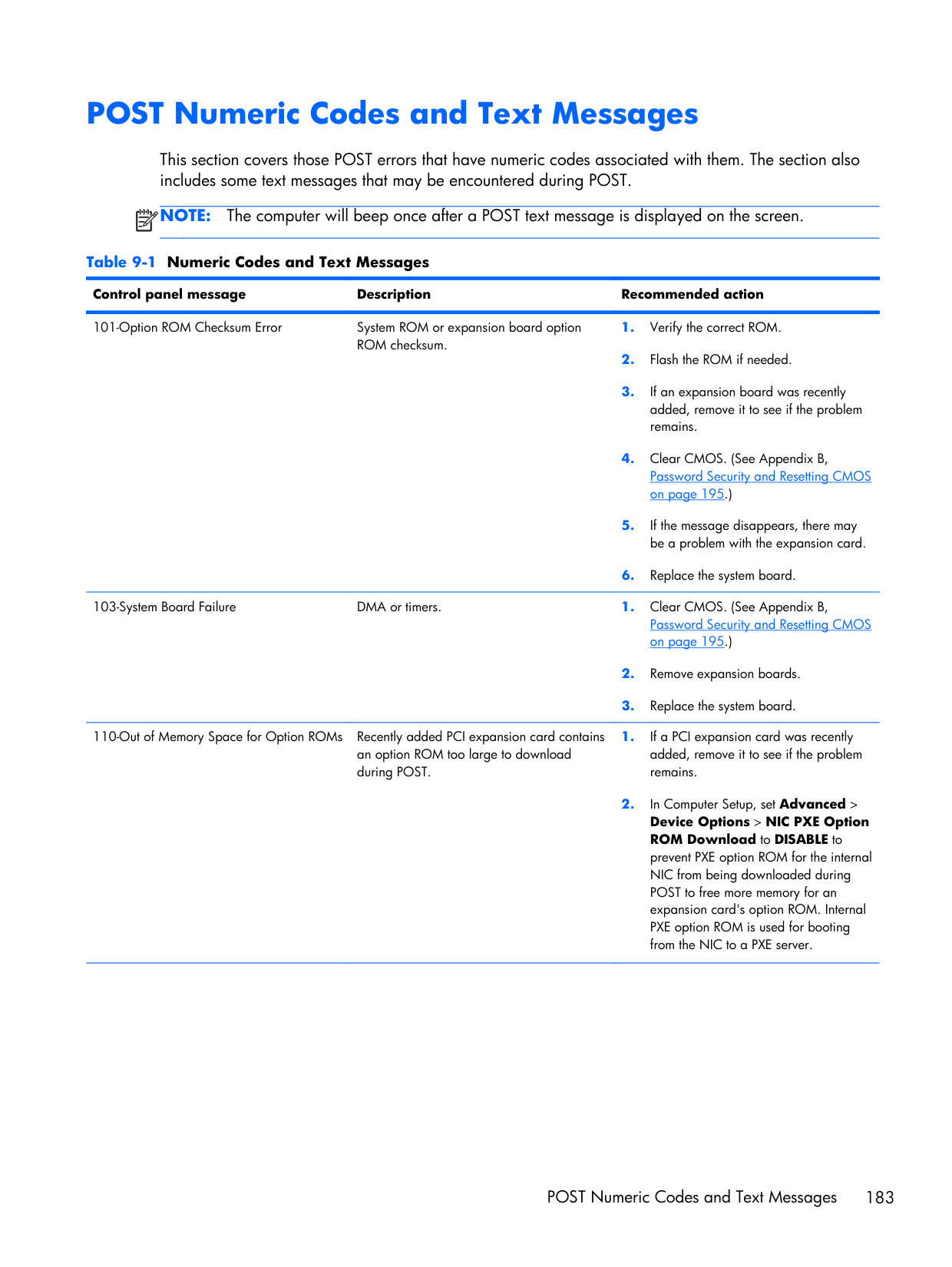

POST Numeric Codes and Text Messages

This section covers those POST errors that have numeric codes associated with them. The section also includes some text messages that may be encountered during POST.

NOTE: The computer will beep once after a POST text message is displayed on the screen.

| | |---|

Table 9-1 Numeric Codes and Text Messages

Control panel message Description Recommended action

101-Option ROM Checksum Error System ROM or expansion board option ROM checksum.

103-System Board Failure DMA or timers. 1. Clear CMOS. (See Appendix B, Password Security and Resetting CMOS on page 195.)

110-Out of Memory Space for Option ROMs Recently added PCI expansion card contains an option ROM too large to download during POST.

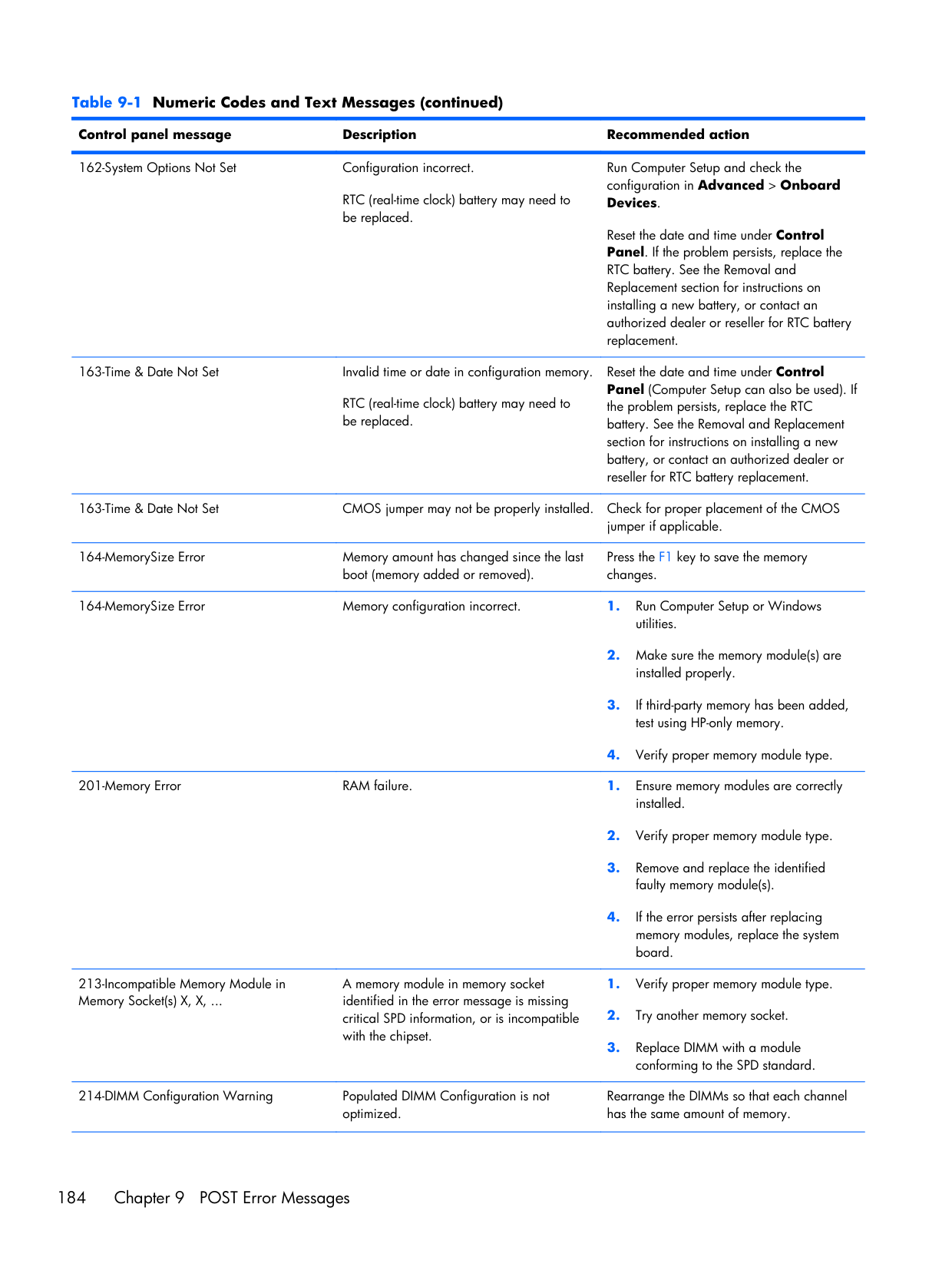

RTC (real-time clock) battery may need to be replaced.

Run Computer Setup and check the configuration in Advanced > Onboard Devices.

Reset the date and time under Control Panel. If the problem persists, replace the RTC battery. See the Removal and Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

RTC (real-time clock) battery may need to be replaced.

Reset the date and time under Control Panel (Computer Setup can also be used). If the problem persists, replace the RTC battery. See the Removal and Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

163-Time & Date Not Set CMOS jumper may not be properly installed. Check for proper placement of the CMOS

jumper if applicable. 164-MemorySize Error Memory amount has changed since the last

boot (memory added or removed).

Press the F1 key to save the memory changes.

201-Memory Error RAM failure. 1. Ensure memory modules are correctly installed.

A memory module in memory socket identified in the error message is missing critical SPD information, or is incompatible with the chipset.

Rearrange the DIMMs so that each channel has the same amount of memory.

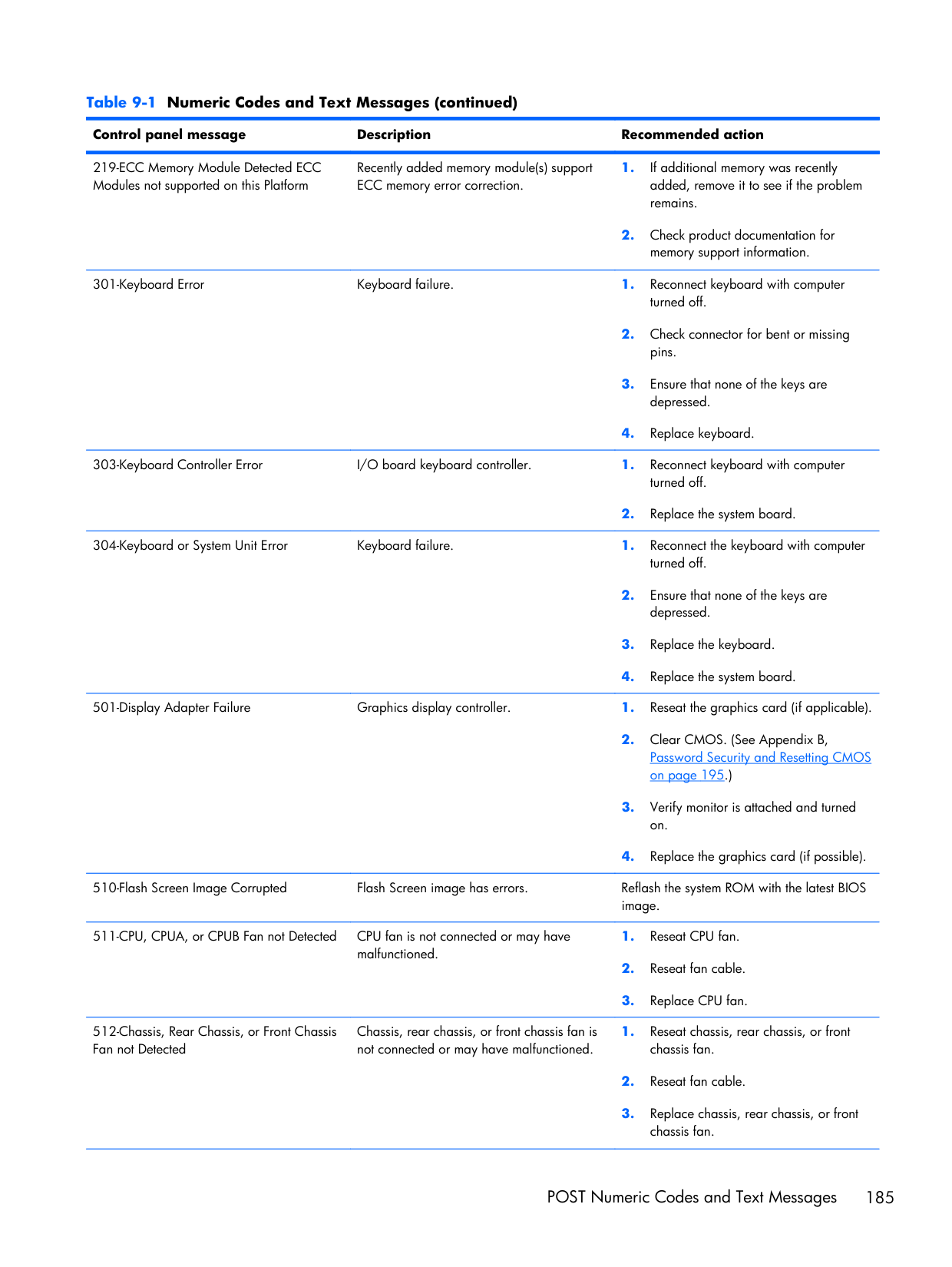

219-ECC Memory Module Detected ECC Modules not supported on this Platform

Recently added memory module(s) support ECC memory error correction.

301-Keyboard Error Keyboard failure. 1. Reconnect keyboard with computer turned off.

303-Keyboard Controller Error I/O board keyboard controller. 1. Reconnect keyboard with computer turned off.

304-Keyboard or System Unit Error Keyboard failure. 1. Reconnect the keyboard with computer turned off.

501-Display Adapter Failure Graphics display controller. 1. Reseat the graphics card (if applicable).

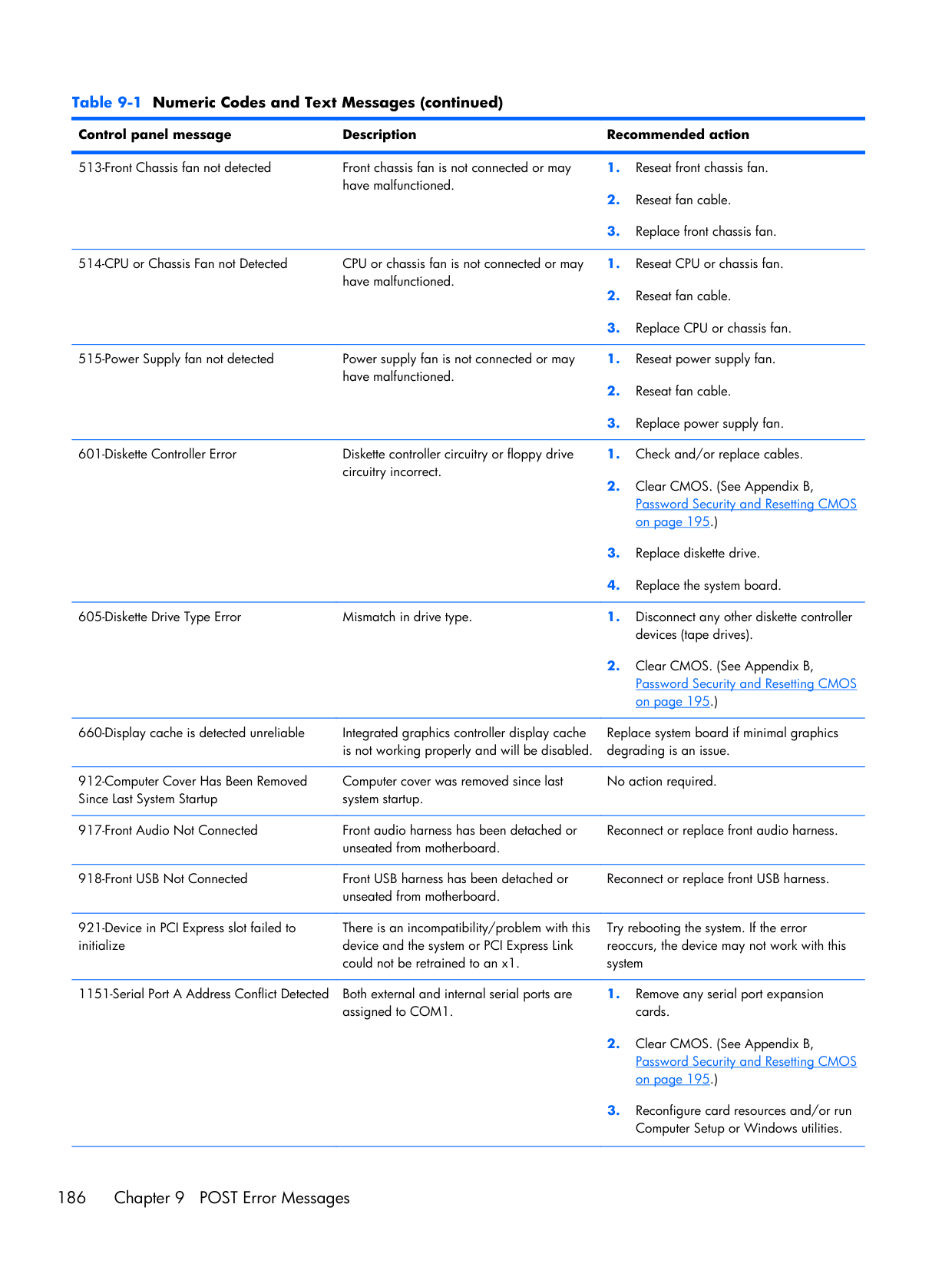

Chassis, rear chassis, or front chassis fan is not connected or may have malfunctioned.

circuitry incorrect.

605-Diskette Drive Type Error Mismatch in drive type. 1. Disconnect any other diskette controller devices (tape drives).

660-Display cache is detected unreliable Integrated graphics controller display cache is not working properly and will be disabled.

Replace system board if minimal graphics degrading is an issue.

912-Computer Cover Has Been Removed Since Last System Startup

Computer cover was removed since last system startup.

Reconnect or replace front audio harness.

No action required.

Reconnect or replace front USB harness.

921-Device in PCI Express slot failed to initialize

There is an incompatibility/problem with this device and the system or PCI Express Link could not be retrained to an x1.

Try rebooting the system. If the error reoccurs, the device may not work with this system

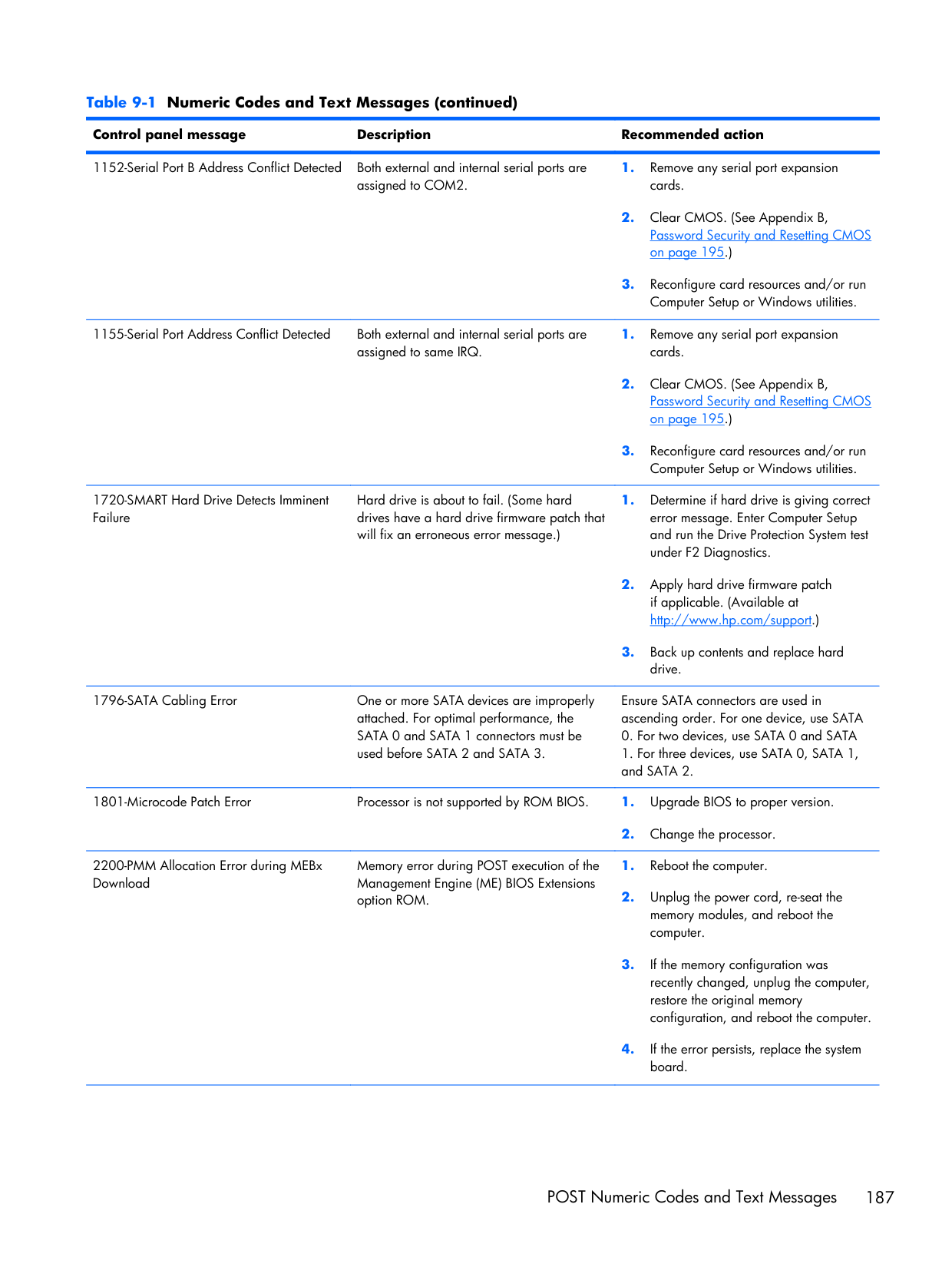

1155-Serial Port Address Conflict Detected Both external and internal serial ports are assigned to same IRQ.

1720-SMART Hard Drive Detects Imminent Failure

Hard drive is about to fail. (Some hard drives have a hard drive firmware patch that will fix an erroneous error message.)

1796-SATA Cabling Error One or more SATA devices are improperly attached. For optimal performance, the SATA 0 and SATA 1 connectors must be used before SATA 2 and SATA 3.

Ensure SATA connectors are used in ascending order. For one device, use SATA

1801-Microcode Patch Error Processor is not supported by ROM BIOS. 1. Upgrade BIOS to proper version.

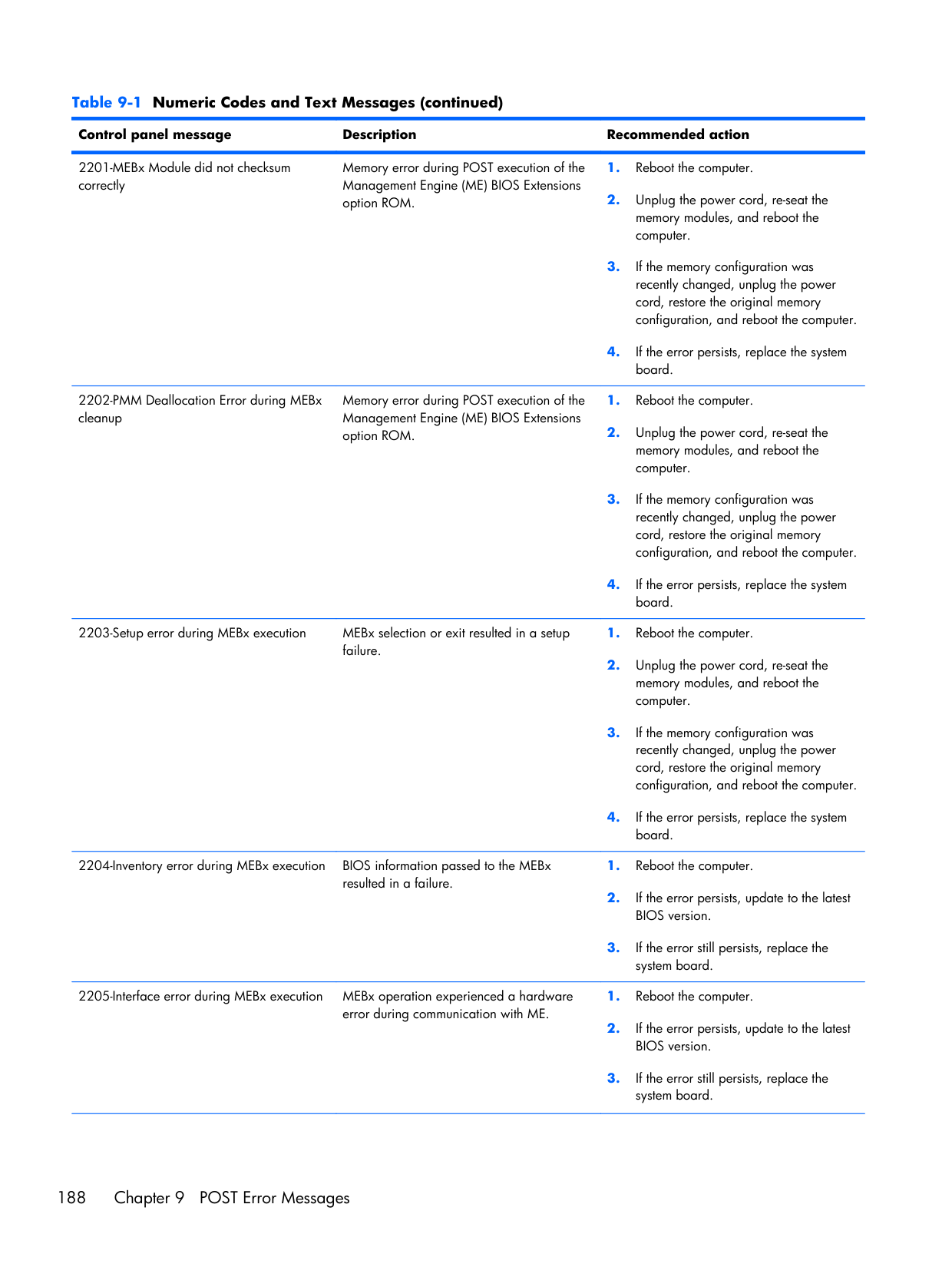

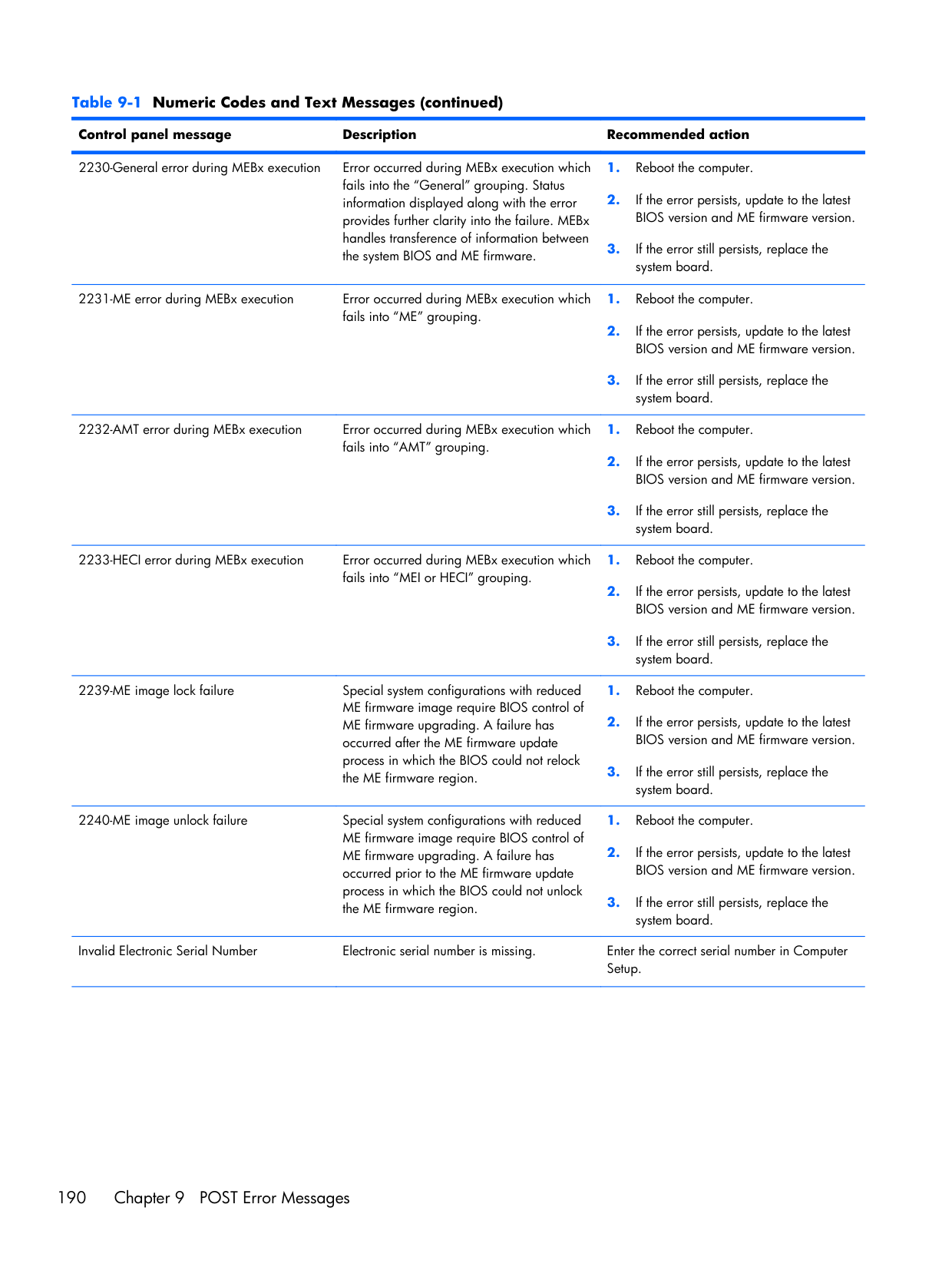

Memory error during POST execution of the Management Engine (ME) BIOS Extensions option ROM.

Memory error during POST execution of the Management Engine (ME) BIOS Extensions option ROM.

Memory error during POST execution of the Management Engine (ME) BIOS Extensions option ROM.

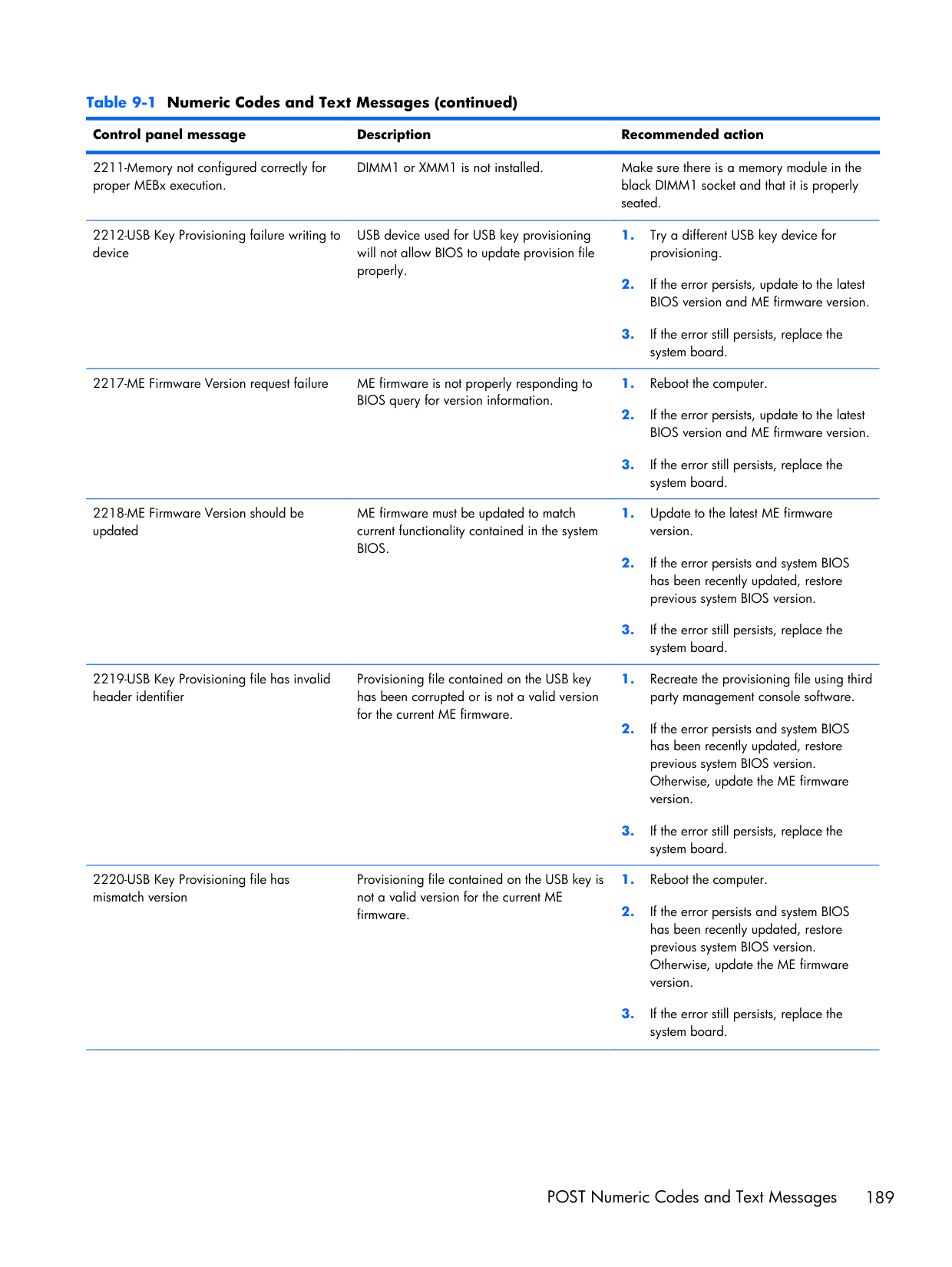

DIMM1 or XMM1 is not installed. Make sure there is a memory module in the black DIMM1 socket and that it is properly seated.

USB device used for USB key provisioning will not allow BIOS to update provision file properly.

ME firmware must be updated to match current functionality contained in the system BIOS.

Provisioning file contained on the USB key has been corrupted or is not a valid version for the current ME firmware.

Provisioning file contained on the USB key is not a valid version for the current ME firmware.

Invalid Electronic Serial Number Electronic serial number is missing. Enter the correct serial number in Computer Setup.

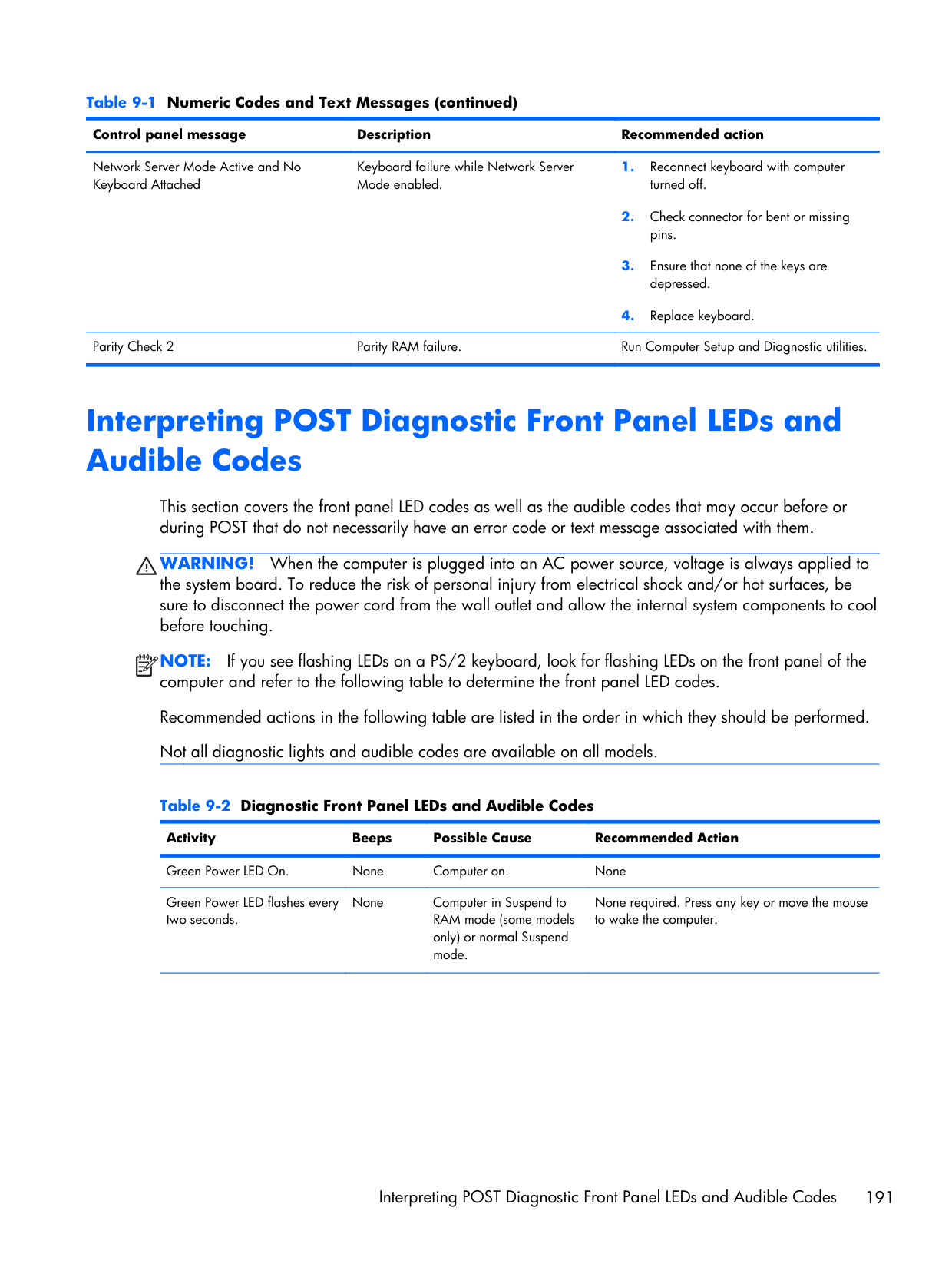

Network Server Mode Active and No Keyboard Attached

Keyboard failure while Network Server Mode enabled.

Parity Check 2 Parity RAM failure. Run Computer Setup and Diagnostic utilities.

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.

WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

NOTE: If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of the computer and refer to the following table to determine the front panel LED codes. Recommended actions in the following table are listed in the order in which they should be performed. Not all diagnostic lights and audible codes are available on all models.

| | |---|

Table 9-2 Diagnostic Front Panel LEDs and Audible Codes Activity Beeps Possible Cause Recommended Action Green Power LED On. None Computer on. None Green Power LED flashes every two seconds.

None Computer in Suspend to RAM mode (some models only) or normal Suspend mode.

None required. Press any key or move the mouse to wake the computer.

Red Power LED flashes two times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

2 Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heat sink/fan assembly is not properly attached to the processor.

Red Power LED flashes three times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

3 Processor not installed (not an indicator of bad processor).

Red Power LED flashes four times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

4 Power failure (power supply is overloaded).

OR

The incorrect external power supply adapter is being used on the USDT.

The USDT power supply adapter must be at 135W and use the Smart ID technology before the system will power up. Replace the power supply adapter with the HP-supplied USDT power supply adapter.

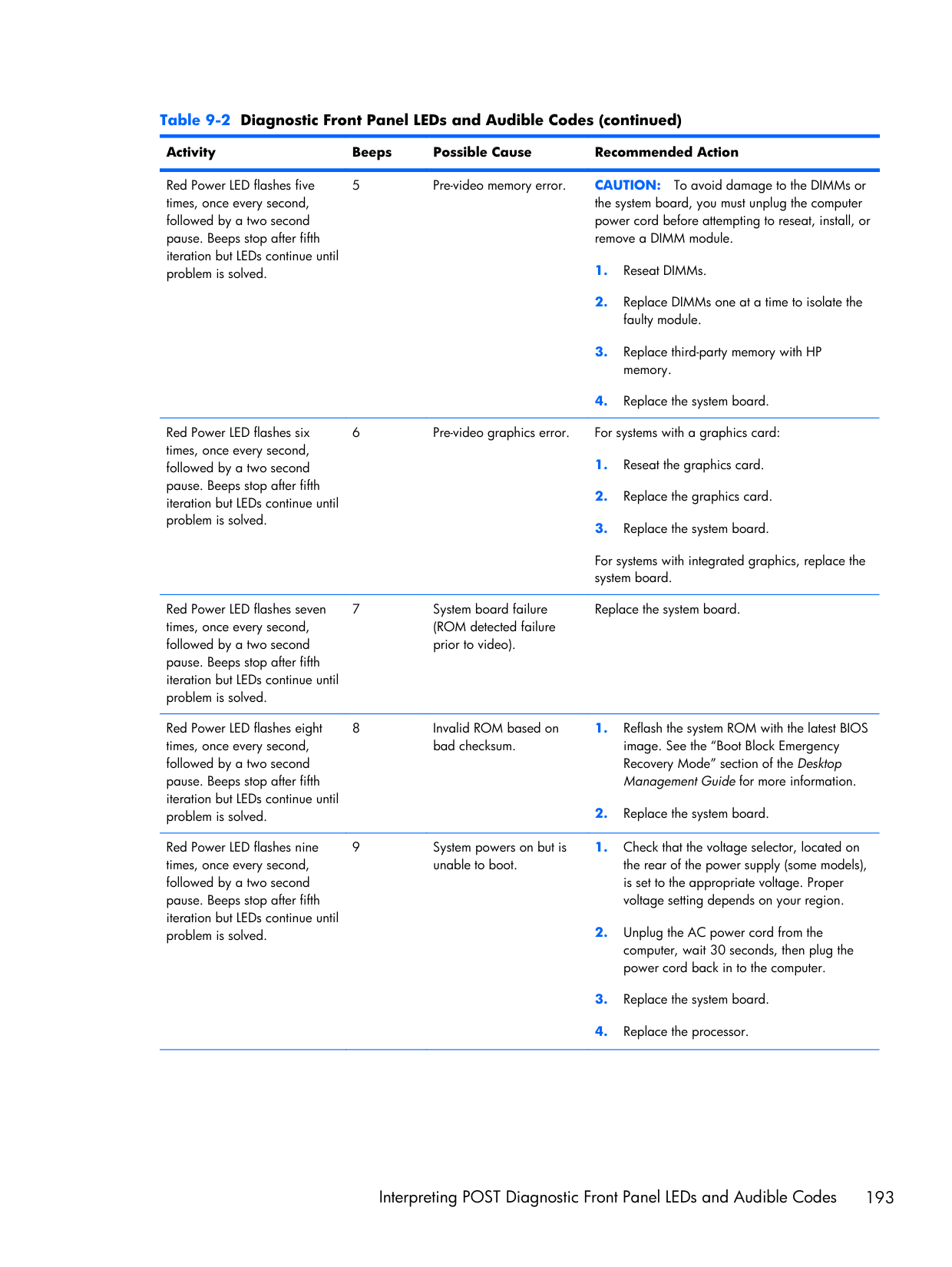

Red Power LED flashes five times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

5 Pre-video memory error. CAUTION: To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.

Red Power LED flashes six times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

6 Pre-video graphics error. For systems with a graphics card:

Red Power LED flashes seven times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

7 System board failure (ROM detected failure prior to video).

Red Power LED flashes eight times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

8 Invalid ROM based on bad checksum.

Red Power LED flashes nine times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

9 System powers on but is unable to boot.

For systems with integrated graphics, replace the system board.

Replace the system board.

Red Power LED flashes ten times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

10 Bad option card. 1. Check each option card by removing the card (one at a time if multiple cards), then power on the system to see if fault goes away.

replace the bad option card.

Red Power LED flashes eleven times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

11 The current processor does not support a feature previously enabled on this system.

System does not power on and LEDs are not flashing.

None System unable to power on.

Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, the power button is working correctly. Try the following:

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

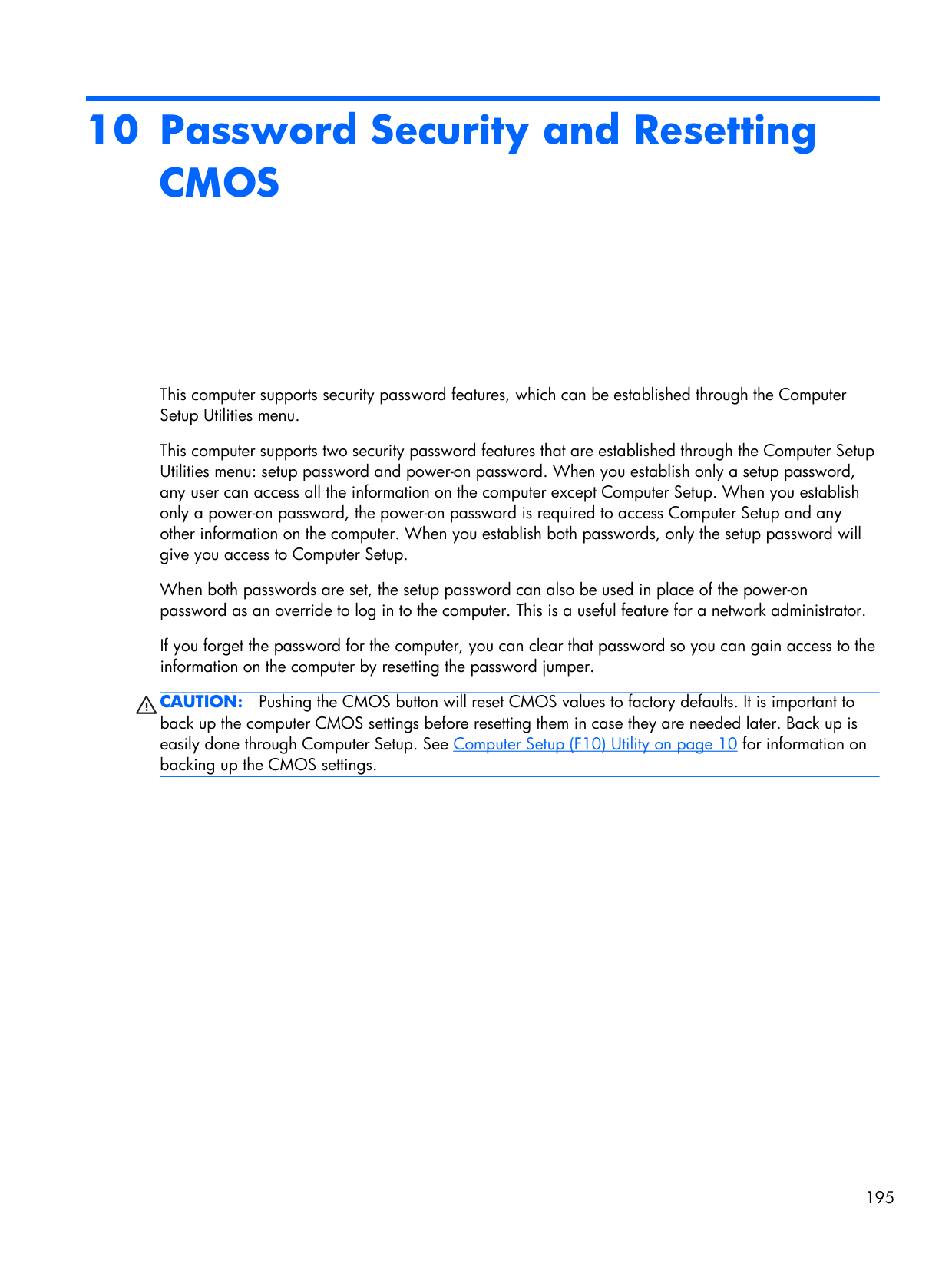

10 Password Security and ResettingCMOS

This computer supports security password features, which can be established through the Computer Setup Utilities menu.

This computer supports two security password features that are established through the Computer Setup Utilities menu: setup password and power-on password. When you establish only a setup password, any user can access all the information on the computer except Computer Setup. When you establish only a power-on password, the power-on password is required to access Computer Setup and any other information on the computer. When you establish both passwords, only the setup password will give you access to Computer Setup.

When both passwords are set, the setup password can also be used in place of the power-on password as an override to log in to the computer. This is a useful feature for a network administrator.

If you forget the password for the computer, you can clear that password so you can gain access to the information on the computer by resetting the password jumper.

CAUTION: Pushing the CMOS button will reset CMOS values to factory defaults. It is important to back up the computer CMOS settings before resetting them in case they are needed later. Back up is easily done through Computer Setup. See Computer Setup (F10) Utility on page 10 for information on backing up the CMOS settings.

195

Resetting the Password Jumper

CAUTION: If you enable the stringent security feature in Computer Setup and you forget the setup password or the power-on password, the computer is inaccessible and can no longer be used. Enabling the stringent password disables the ability to reset the password by moving the jumper on the system board. If you lose or forget the password, the system board must be replaced. This scenario is not covered under warranty. To prevent the computer from becoming permanently unusable, record your configured setup password or power-on password in a safe place away from your computer. Without these passwords, the computer cannot be unlocked. To disable the power-on or setup password features, or to clear the power-on or setup passwords, complete the following steps:

WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet, and allow the internal system components to cool before touching.

CAUTION: When the computer is plugged in, the power supply always has voltage applied to the system board even when the unit is turned off. Failure to disconnect the power cord can result in damage to the system.

Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See the Safety & Regulatory Information guide for more information.

| | |---|

NOTE: The password jumper is green so that it can be easily identified. For assistance locating the password jumper and other system board components, see the Illustrated Parts & Service Map (IPSM). The IPSM can be downloaded from http://www.hp.com/support.

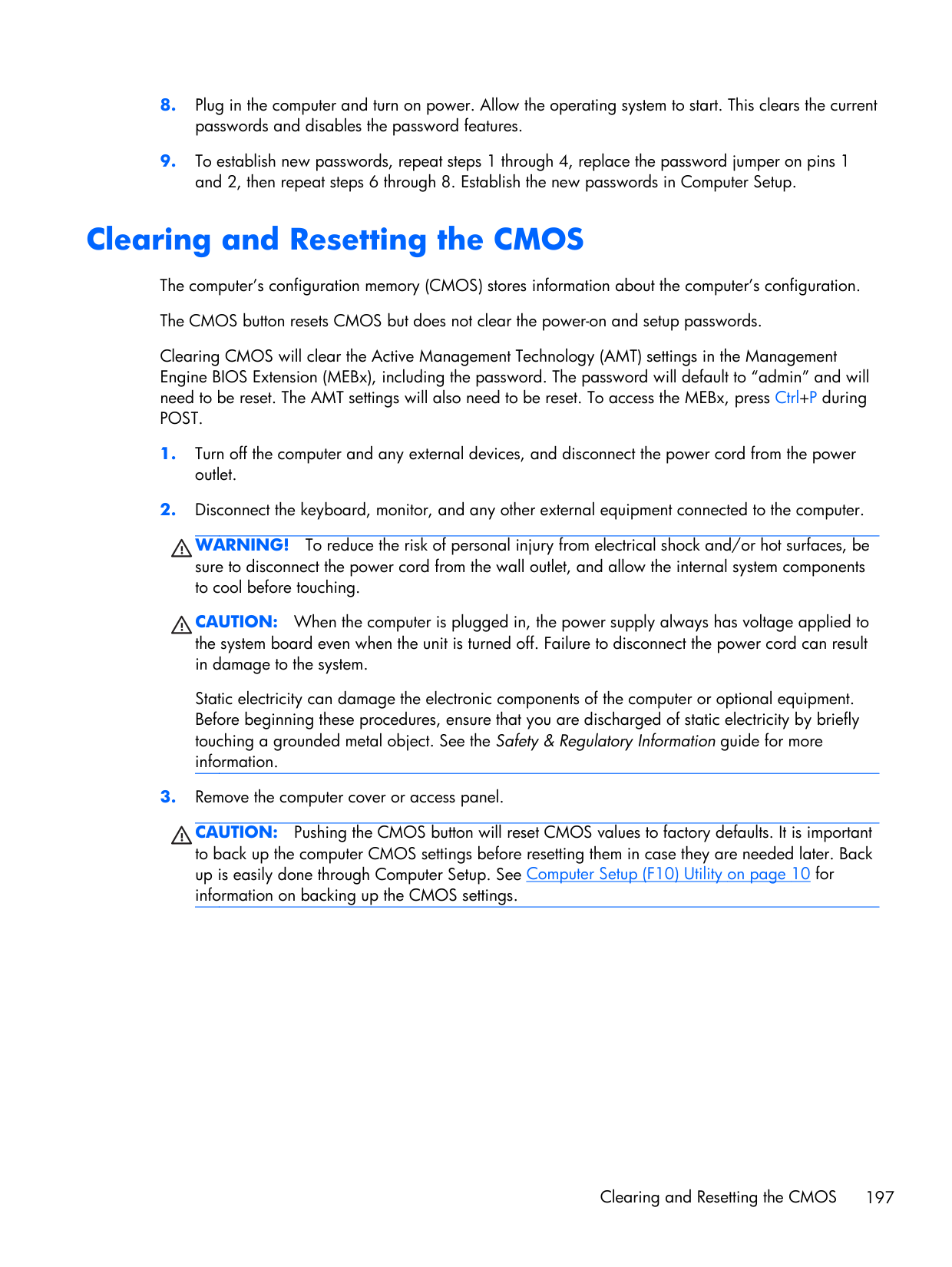

Clearing and Resetting the CMOS The computer’s configuration memory (CMOS) stores information about the computer’s configuration. The CMOS button resets CMOS but does not clear the power-on and setup passwords. Clearing CMOS will clear the Active Management Technology (AMT) settings in the Management Engine BIOS Extension (MEBx), including the password. The password will default to “admin” and will need to be reset. The AMT settings will also need to be reset. To access the MEBx, press Ctrl+P during POST.

WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet, and allow the internal system components to cool before touching.

CAUTION: When the computer is plugged in, the power supply always has voltage applied to the system board even when the unit is turned off. Failure to disconnect the power cord can result in damage to the system.

Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See the Safety & Regulatory Information guide for more information.

CAUTION: Pushing the CMOS button will reset CMOS values to factory defaults. It is important to back up the computer CMOS settings before resetting them in case they are needed later. Back up is easily done through Computer Setup. See Computer Setup (F10) Utility on page 10 for information on backing up the CMOS settings.

Clearing and Resetting the CMOS 197

| | |---|

NOTE: Make sure you have disconnected the AC power cord from the wall outlet. The CMOS button will not clear CMOS if the power cord is connected.

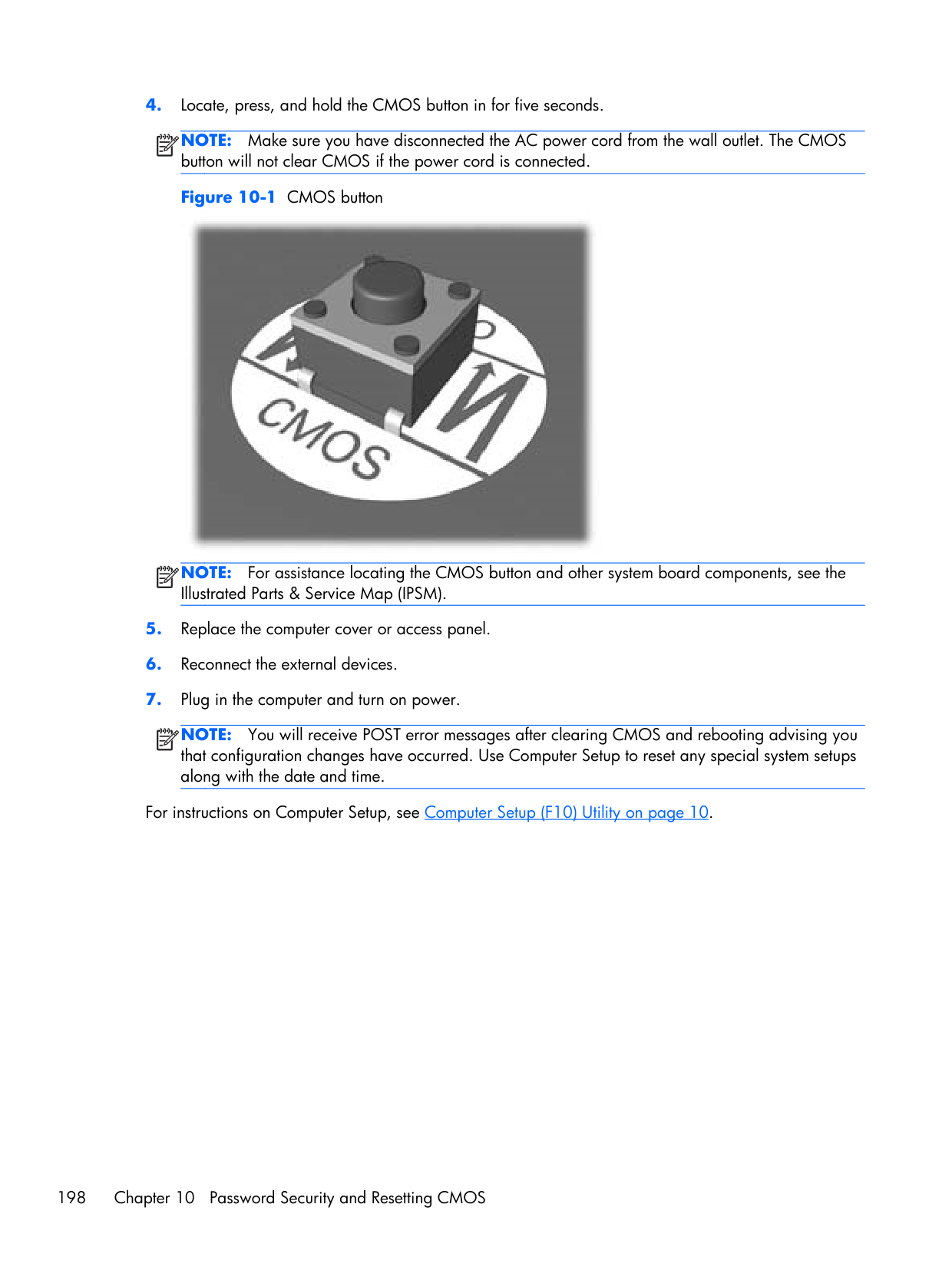

Figure 10-1 CMOS button


| | |---|

NOTE: For assistance locating the CMOS button and other system board components, see the Illustrated Parts & Service Map (IPSM).

NOTE: You will receive POST error messages after clearing CMOS and rebooting advising you that configuration changes have occurred. Use Computer Setup to reset any special system setups along with the date and time.

| | |---|

For instructions on Computer Setup, see Computer Setup (F10) Utility on page 10.

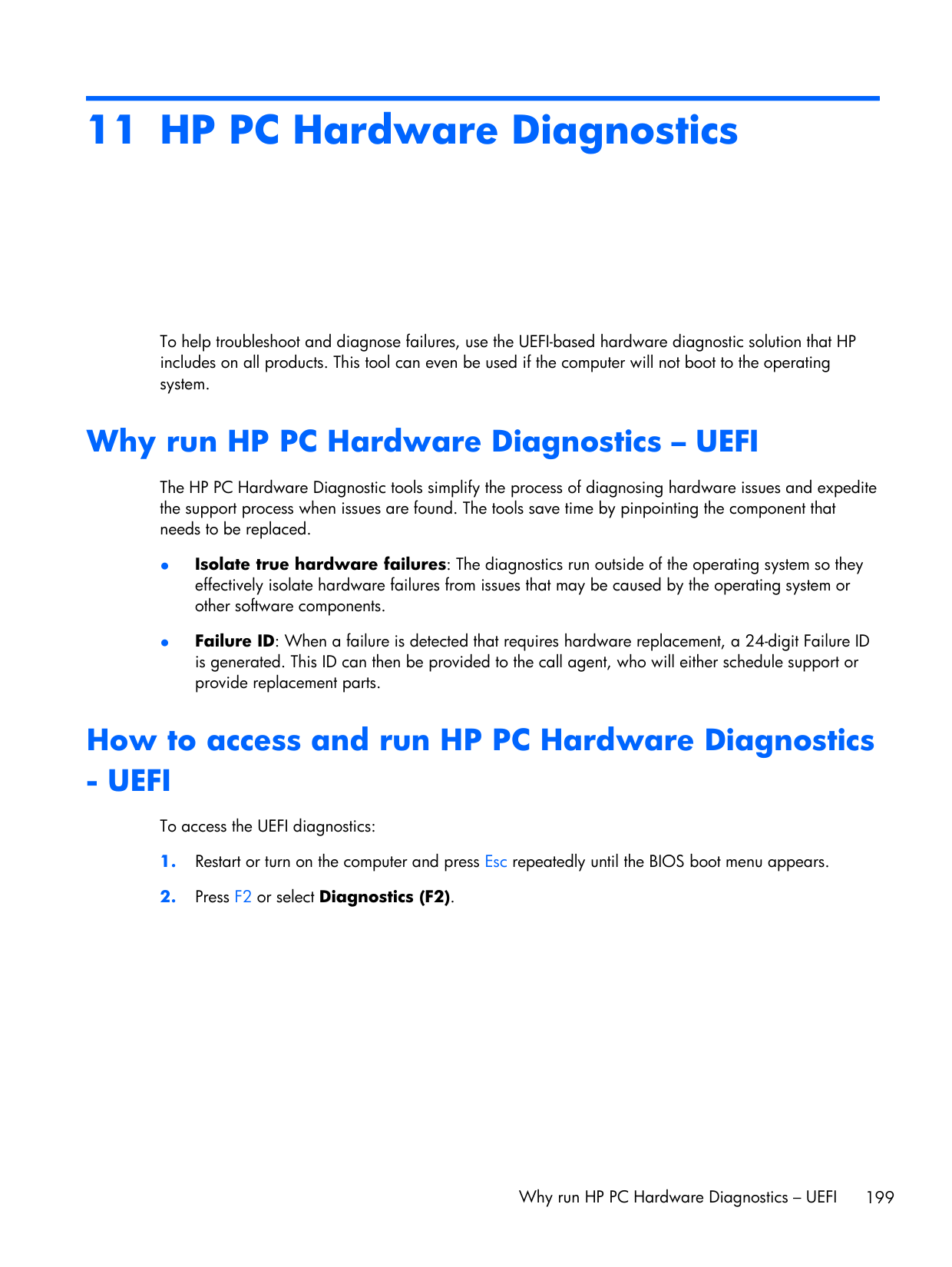

11 HP PC Hardware Diagnostics

To help troubleshoot and diagnose failures, use the UEFI-based hardware diagnostic solution that HP includes on all products. This tool can even be used if the computer will not boot to the operating system.

Why run HP PC Hardware Diagnostics – UEFI

The HP PC Hardware Diagnostic tools simplify the process of diagnosing hardware issues and expedite the support process when issues are found. The tools save time by pinpointing the component that needs to be replaced.

How to access and run HP PC Hardware Diagnostics

- UEFI

To access the UEFI diagnostics:

Why run HP PC Hardware Diagnostics – UEFI 199


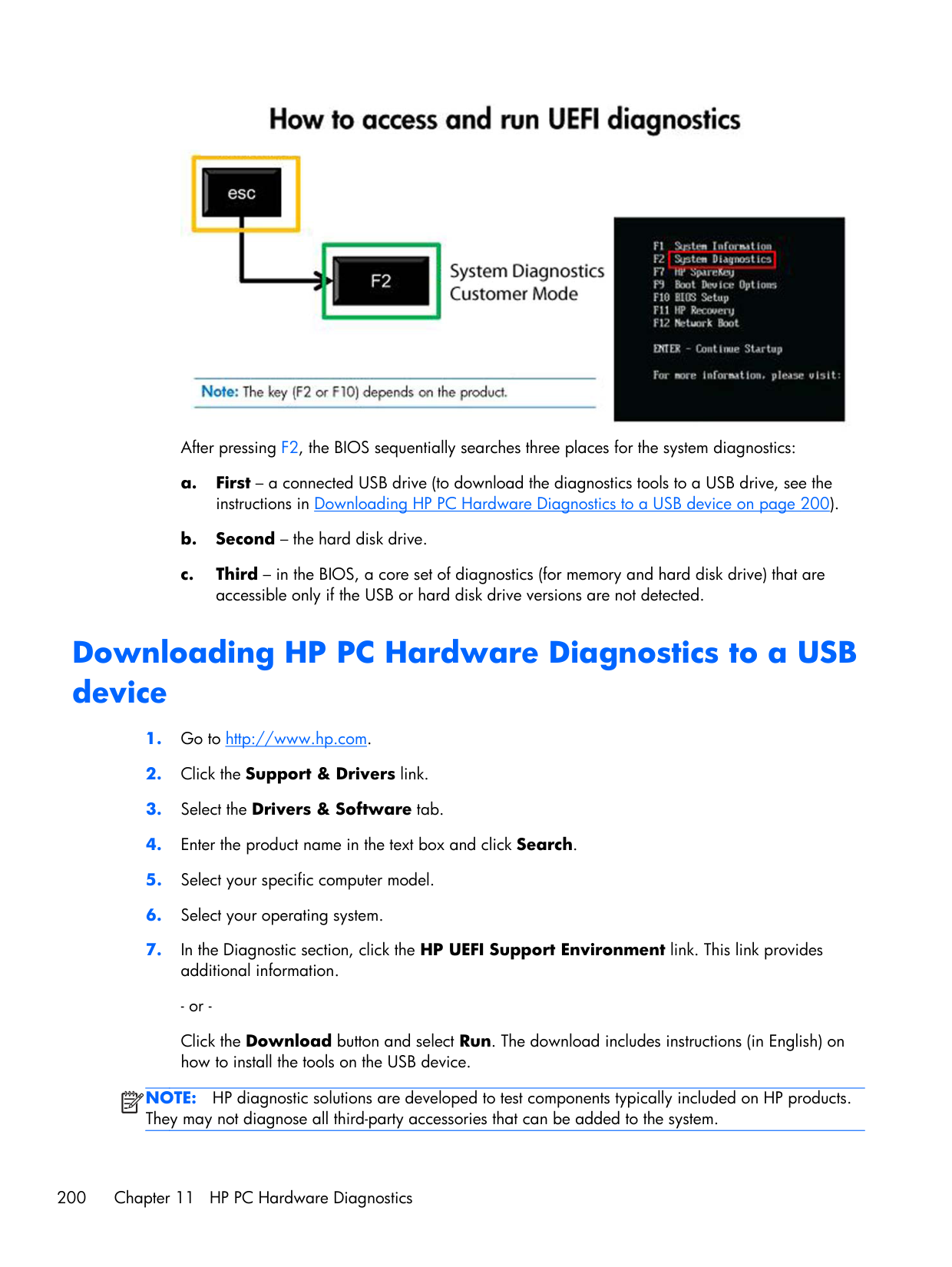

After pressing F2, the BIOS sequentially searches three places for the system diagnostics:

Downloading HP PC Hardware Diagnostics to a USB device

NOTE: HP diagnostic solutions are developed to test components typically included on HP products. They may not diagnose all third-party accessories that can be added to the system.

| | |---|

200 Chapter 11 HP PC Hardware Diagnostics

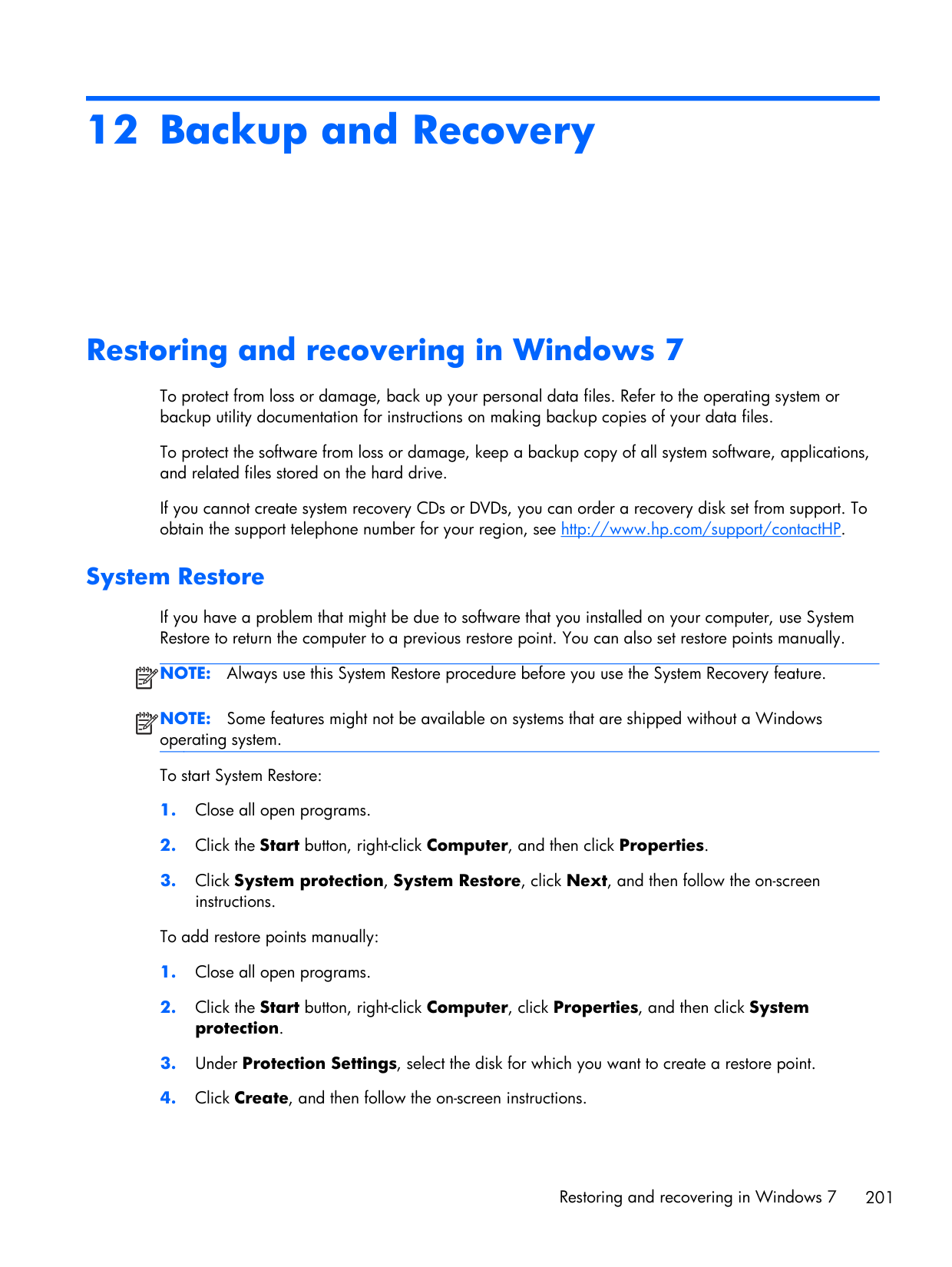

12 Backup and Recovery

Restoring and recovering in Windows 7

To protect from loss or damage, back up your personal data files. Refer to the operating system or backup utility documentation for instructions on making backup copies of your data files.

To protect the software from loss or damage, keep a backup copy of all system software, applications, and related files stored on the hard drive.

If you cannot create system recovery CDs or DVDs, you can order a recovery disk set from support. To obtain the support telephone number for your region, see http://www.hp.com/support/contactHP.

#### System Restore

If you have a problem that might be due to software that you installed on your computer, use System Restore to return the computer to a previous restore point. You can also set restore points manually.

NOTE: Always use this System Restore procedure before you use the System Recovery feature. NOTE: Some features might not be available on systems that are shipped without a Windows operating system. To start System Restore:

| | |---|

| | |---|

To add restore points manually:

#### System Recovery

WARNING! This procedure will delete all user information. To prevent loss of information, be sure to back up all user information so you can restore it after recovery. System Recovery completely erases and reformats the hard disk drive, deleting all data files that you have created, and then reinstalls the operating system, programs, and drivers. However, you must reinstall any software that was not installed on the computer at the factory. This includes software that came on media included in the computer accessory box, and any software programs you installed after purchase. NOTE: Always use the System Restore procedure before you use the System Recovery program. See System Restore on page 201. NOTE: Some features might not be available on systems that are shipped without a Windows operating system. You must choose one of the following methods to perform a System Recovery:

| | |---|

| | |---|

##### System Recovery when Windows is responding

CAUTION: System Recovery deletes all data and programs you created or installed. Before you begin, back up any important data to a CD or DVD or to a USB flash drive.

NOTE: In some cases, you must use recovery media for this procedure. To create this media, follow the instructions in Creating recovery media on page 204. If the computer is working and Windows 7 is responding, use these steps to perform a System Recovery.

| | |---|

| | |---|

NOTE: If your system does not detect a recovery partition, it prompts you to insert recovery media that you have created. Insert the first disc or the USB flash drive, select Yes, and then click Next to restart the computer. If you are using discs, insert the next disc when prompted.

##### System Recovery when Windows is not responding

CAUTION: System Recovery deletes all data and programs you created or installed.

If Windows is not responding, but the computer is working, follow these steps to perform a System Recovery.

##### System recovery using recovery media

You should create a set of recovery media, either a set of DVDs or a USB flash drive, from the recovery image stored on your hard disk drive. This image contains the operating system and software program files that were originally installed on your computer at the factory. You can create only one set of recovery media for your computer, and the media can be used only with this computer. Store the recovery media in a safe place.

NOTE: Some features might not be available on systems that are shipped without a Windows operating system.

| | |---|

| | |---|

NOTE: You cannot use DVD+RW, DVD-RW, DVD+RW DL, DVD-RW DL, DVD+R DL, or DVD-R DL discs to create recovery discs.

NOTE: The process of creating recovery media is lengthy. You can quit the process at any time. The next time you initiate the process, it resumes where it left off.

| | |---|

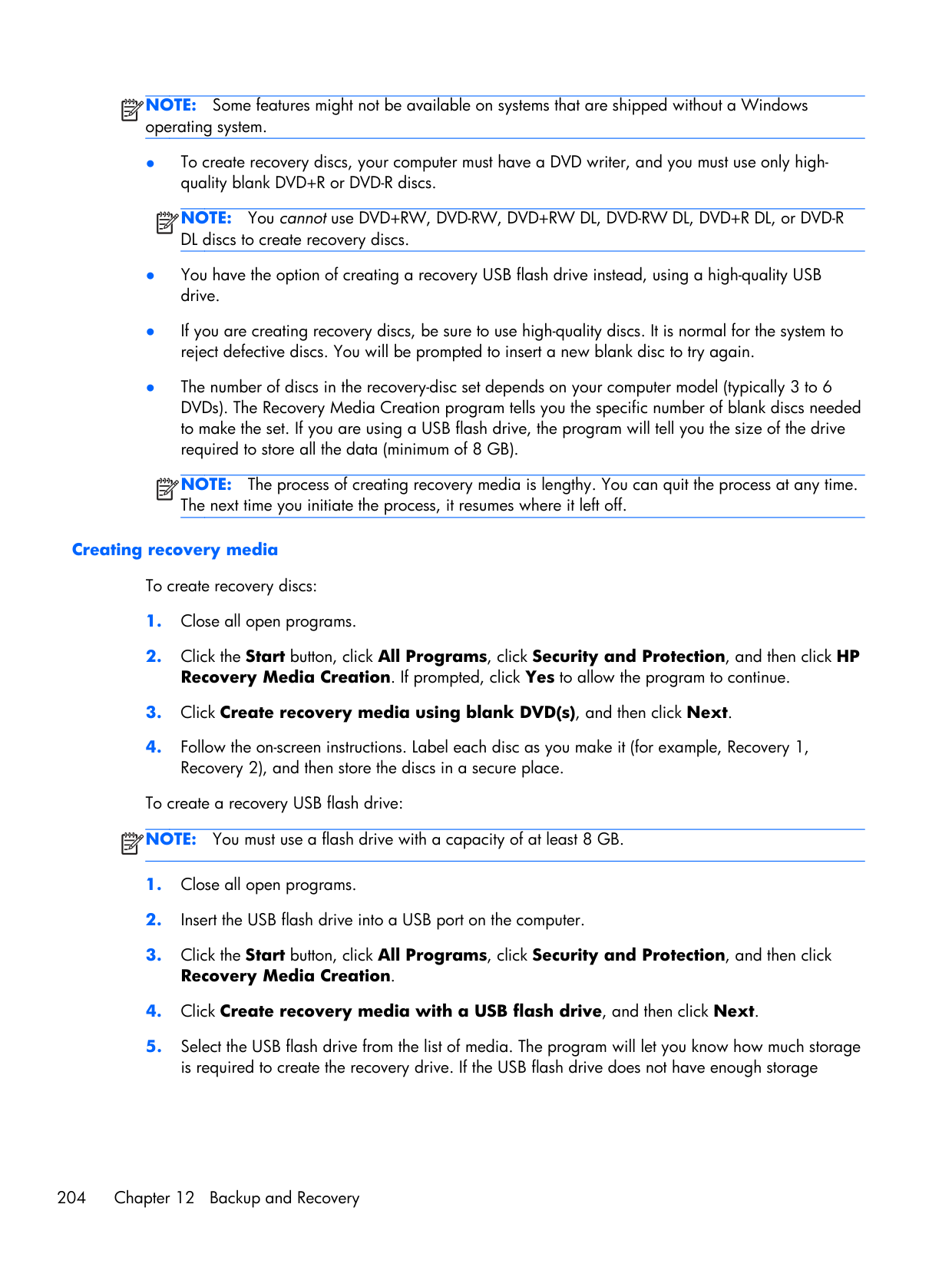

###### Creating recovery media

To create recovery discs:

To create a recovery USB flash drive: NOTE: You must use a flash drive with a capacity of at least 8 GB.

| | |---|

capacity, it will appear grayed out, and you must replace it with a larger USB flash drive. Click Next.

NOTE: Recovery Media Creation formats the flash drive, deleting any files on it.

| | |---|

NOTE: Do not use media cards for creating recovery media. The system may not be able to boot up from a media card and you may not be able to run system recovery.

| | |---|

###### Using recovery media

CAUTION: System Recovery deletes all data and programs you have created or installed. Back up any important data to a CD or DVD or to a USB flash drive. To create recovery media, see System recovery using recovery media on page 203. To perform a System Recovery using recovery media:

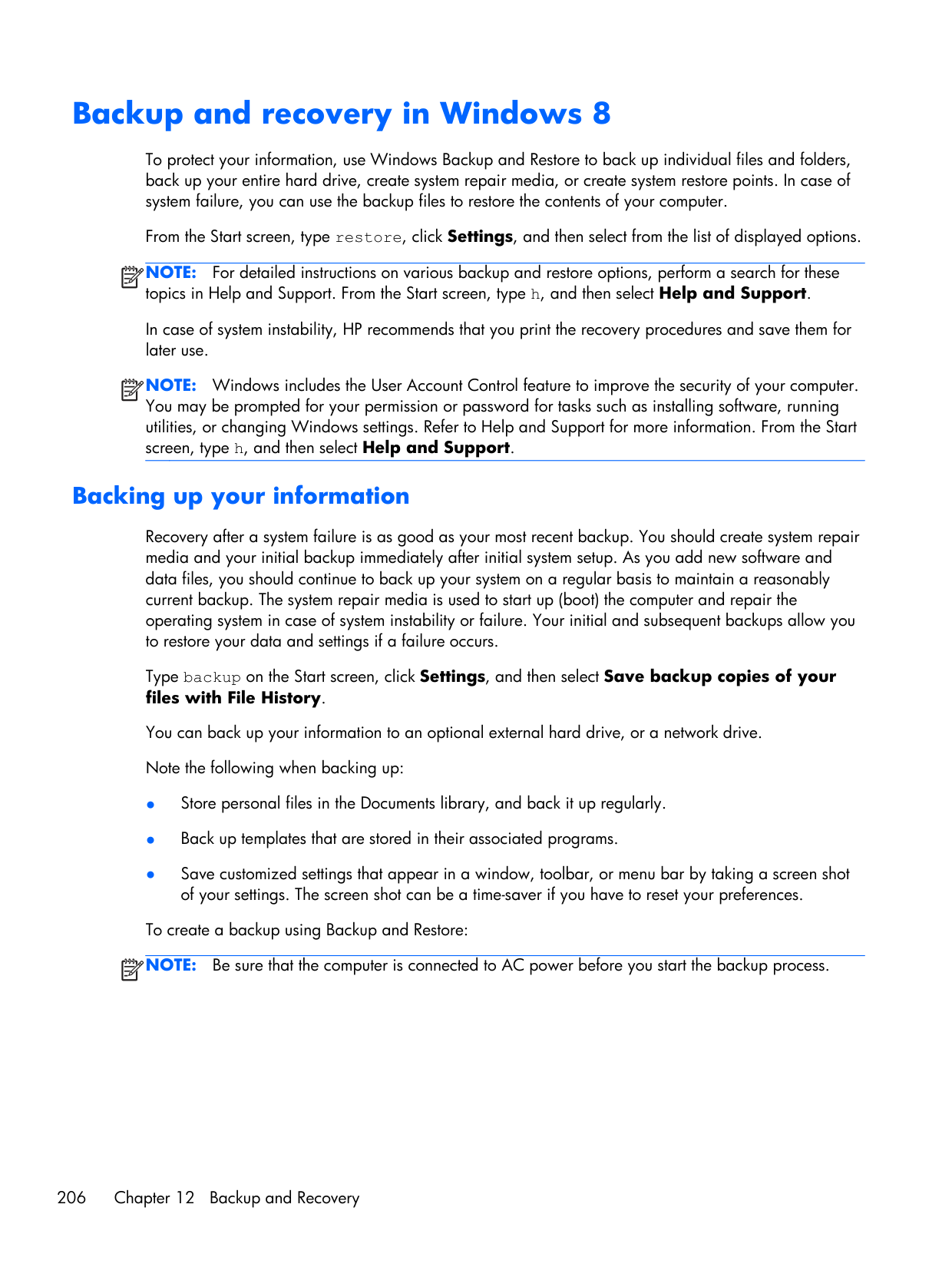

Backup and recovery in Windows 8

To protect your information, use Windows Backup and Restore to back up individual files and folders, back up your entire hard drive, create system repair media, or create system restore points. In case of system failure, you can use the backup files to restore the contents of your computer.

From the Start screen, type restore, click Settings, and then select from the list of displayed options. NOTE: For detailed instructions on various backup and restore options, perform a search for these topics in Help and Support. From the Start screen, type h, and then select Help and Support. In case of system instability, HP recommends that you print the recovery procedures and save them for later use. NOTE: Windows includes the User Account Control feature to improve the security of your computer. You may be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. Refer to Help and Support for more information. From the Start screen, type h, and then select Help and Support.

| | |---|

| | |---|

#### Backing up your information

Recovery after a system failure is as good as your most recent backup. You should create system repair media and your initial backup immediately after initial system setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup. The system repair media is used to start up (boot) the computer and repair the operating system in case of system instability or failure. Your initial and subsequent backups allow you to restore your data and settings if a failure occurs.

Type backup on the Start screen, click Settings, and then select Save backup copies of your files with File History.

You can back up your information to an optional external hard drive, or a network drive. Note the following when backing up:

To create a backup using Backup and Restore: NOTE: Be sure that the computer is connected to AC power before you start the backup process.

| | |---|

NOTE: The backup process may take over an hour, depending on file size and the speed of the computer.

| | |---|

#### Performing a system recovery

In case of system failure or instability, the computer provides the following tools to recover your files:

NOTE: If you are unable to boot (start up) your computer and you cannot use the system repair media you previously created, you must purchase Windows 8 operating system media to reboot the computer and repair the operating system. For additional information, see Using Windows 8 operating system media (purchased separately) on page 208.

| | |---|

##### Using the Windows recovery tools

To recover information you previously backed up:

▲ From the Start screen, type h, and then select Help and Support. To recover your information using Automatic Repair, follow these steps:

CAUTION: Some Automatic Repair options will completely erase and reformat the hard drive. For additional information go to Help and Support. From the Start screen, type h, and then select Help and Support.

– or – From the Start screen, type c, and then select Computer. NOTE: If the Windows partition and the HP Recovery partition are not listed, you must recover your operating system and programs using the Windows 8 operating system media and the Driver Recovery media (both purchased separately). For additional information, see Using Windows 8 operating system media (purchased separately) on page 208.

| | |---|

| | |---|

NOTE: If the computer fails to boot to Windows after several attempts, the system will boot to the Windows Recovery Environment by default.

NOTE: For additional information on recovering information using the Windows tools, perform a search for these topics in Help and Support. From the Start screen, type h, and then select Help and Support.

| | |---|

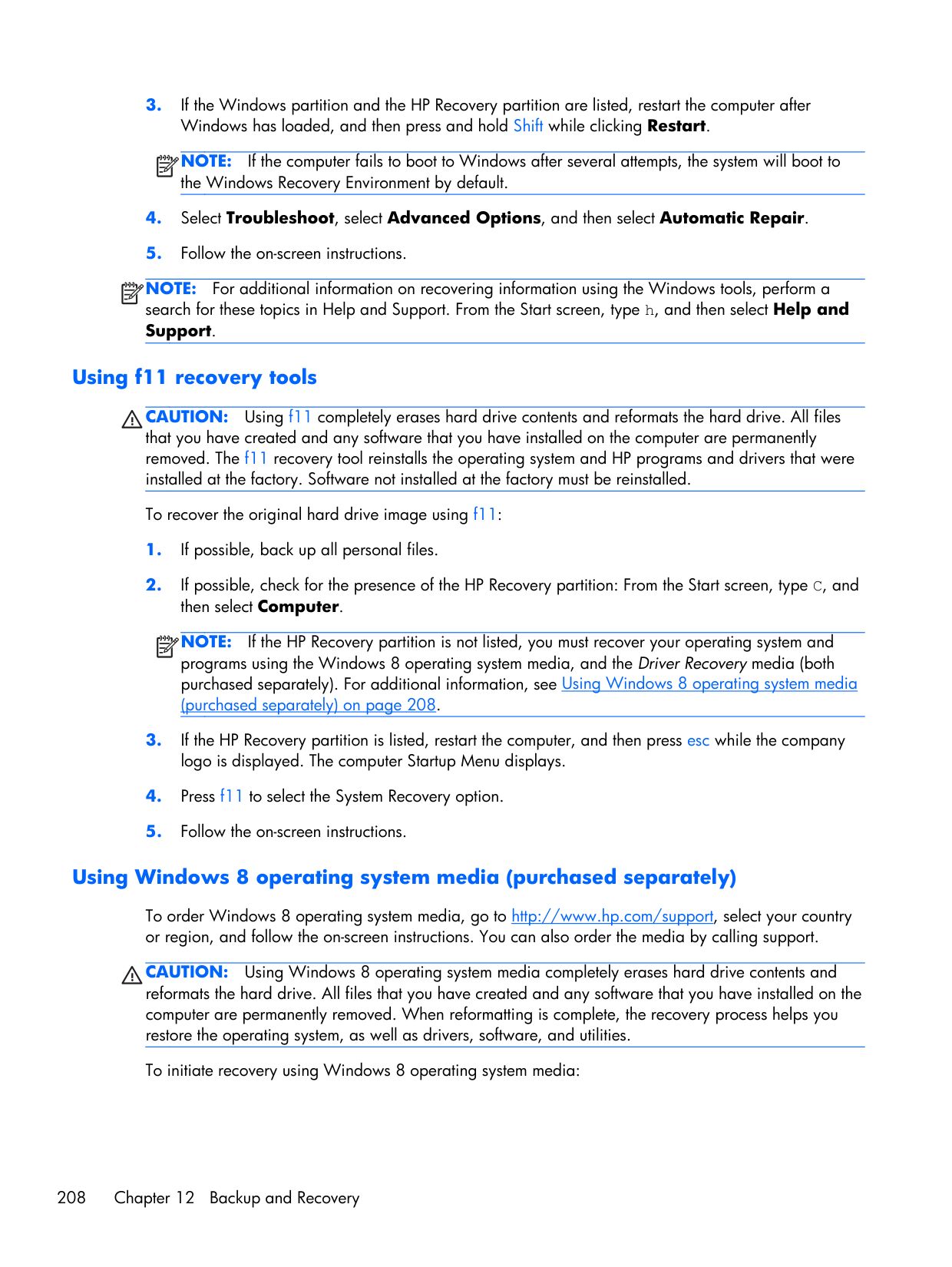

##### Using f11 recovery tools

CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files that you have created and any software that you have installed on the computer are permanently removed. The f11 recovery tool reinstalls the operating system and HP programs and drivers that were installed at the factory. Software not installed at the factory must be reinstalled.

To recover the original hard drive image using f11:

| | |---|

NOTE: If the HP Recovery partition is not listed, you must recover your operating system and programs using the Windows 8 operating system media, and the Driver Recovery media (both purchased separately). For additional information, see Using Windows 8 operating system media

(purchased separately) on page 208.

##### Using Windows 8 operating system media (purchased separately)

To order Windows 8 operating system media, go to http://www.hp.com/support, select your country or region, and follow the on-screen instructions. You can also order the media by calling support.

CAUTION: Using Windows 8 operating system media completely erases hard drive contents and reformats the hard drive. All files that you have created and any software that you have installed on the computer are permanently removed. When reformatting is complete, the recovery process helps you restore the operating system, as well as drivers, software, and utilities.

To initiate recovery using Windows 8 operating system media:

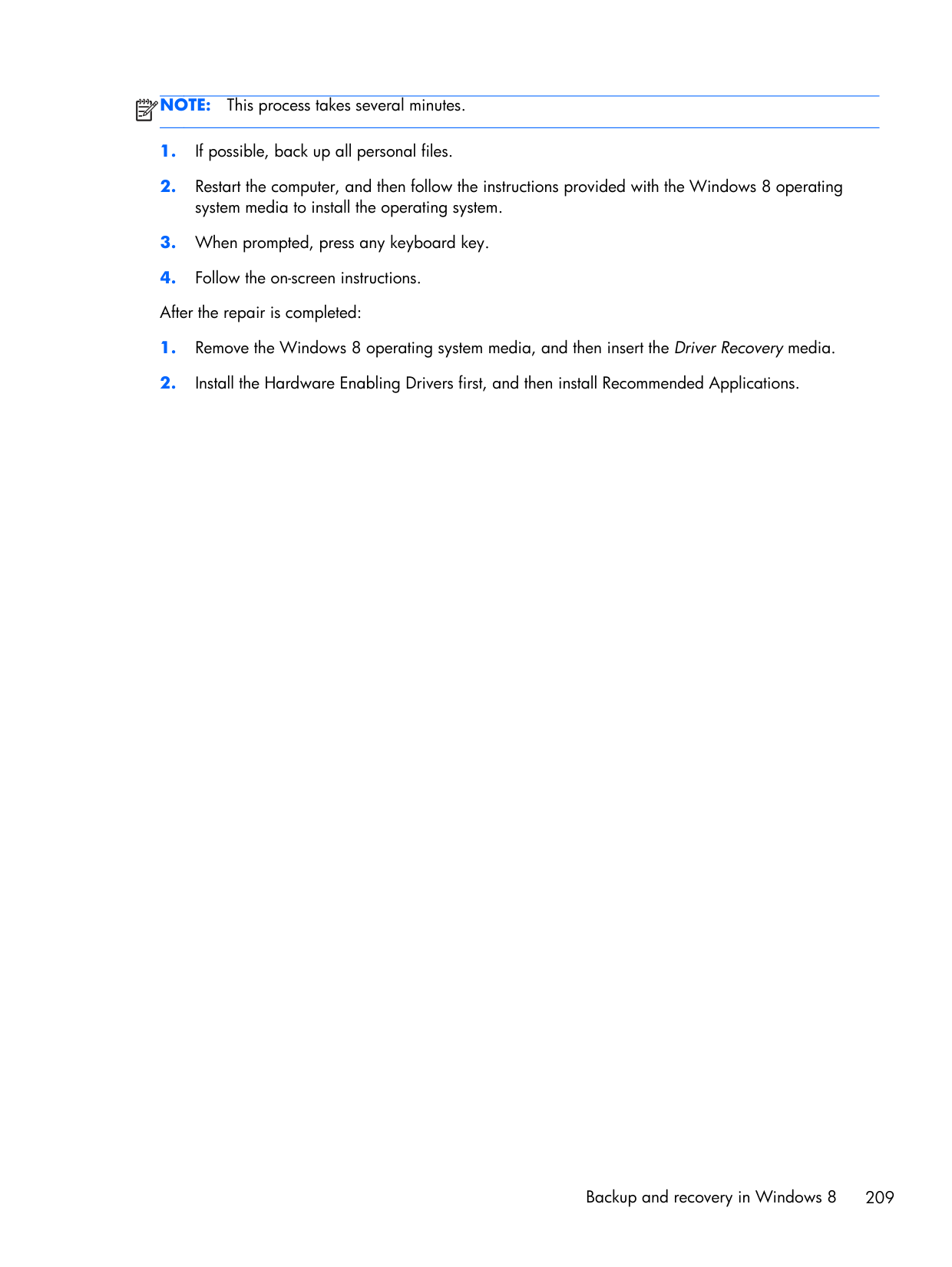

NOTE: This process takes several minutes.

| | |---|

A Battery Replacement

The battery that comes with the computer provides power to the real-time clock. When replacing the battery, use a battery equivalent to the battery originally installed in the computer. The computer comes with a 3-volt lithium coin cell battery.

WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury: Do not attempt to recharge the battery. Do not expose to temperatures higher than 60°C (140ºF). Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water. Replace the battery only with the HP spare designated for this product.

CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When the battery is removed or replaced, the CMOS settings will be cleared. Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC

| | |---|

wall socket. The lithium battery is only used when the computer is NOT connected to AC power. HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/

recycle.

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.

| | |---|

NOTE: On some computer models, it may be necessary to remove an internal component to gain access to the battery.

###### Type 1


###### Type 2

a. To release the battery from its holder, squeeze the metal clamp that extends above one edge

of the battery. When the battery pops up, lift it out (1).

b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery (2).


###### Type 3


NOTE: After the battery has been replaced, use the following steps to complete this procedure.

| | |---|

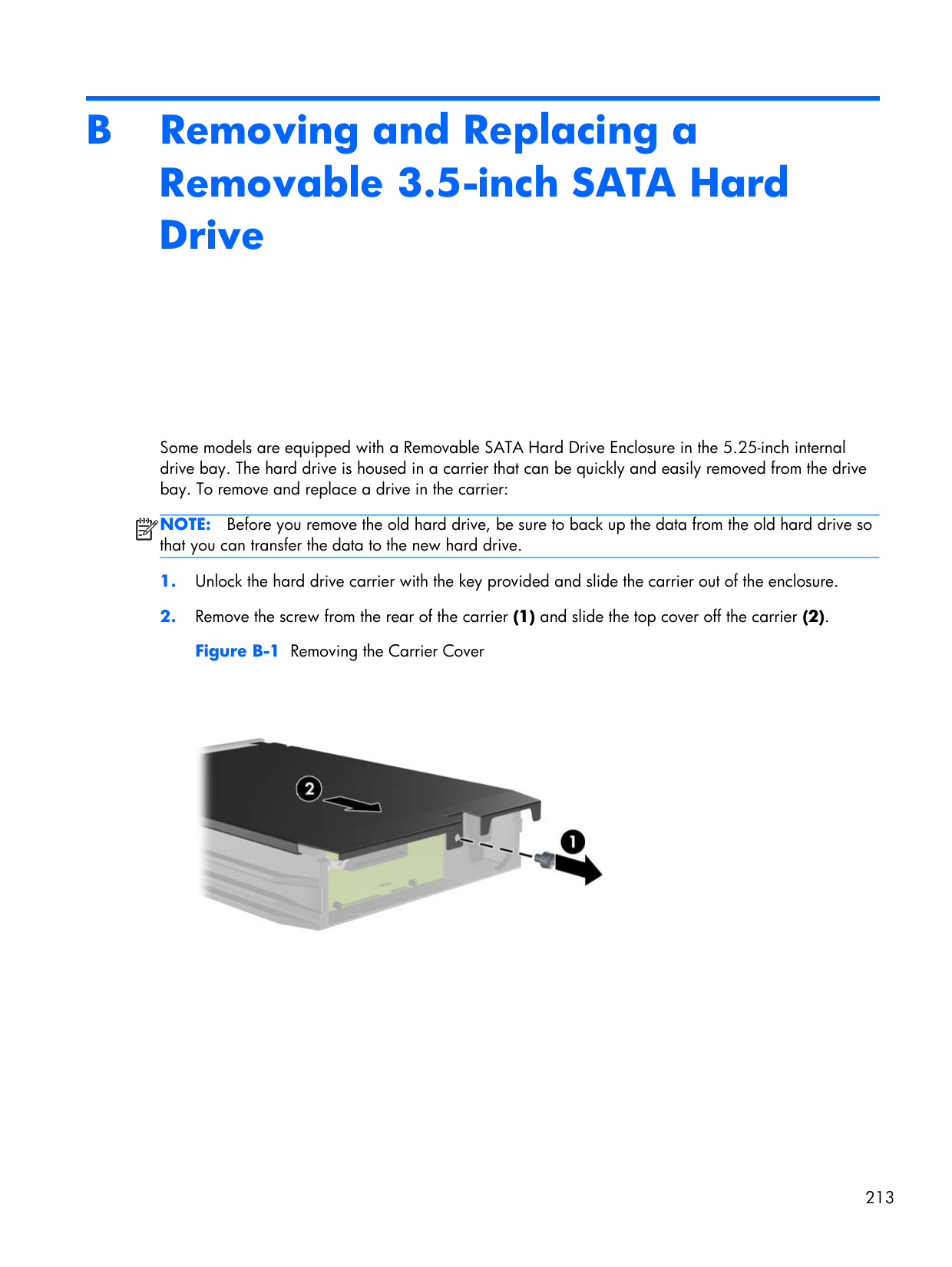

B Removing and Replacing aRemovable 3.5-inch SATA HardDrive

Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch internal drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive bay. To remove and replace a drive in the carrier:

NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.

| | |---|


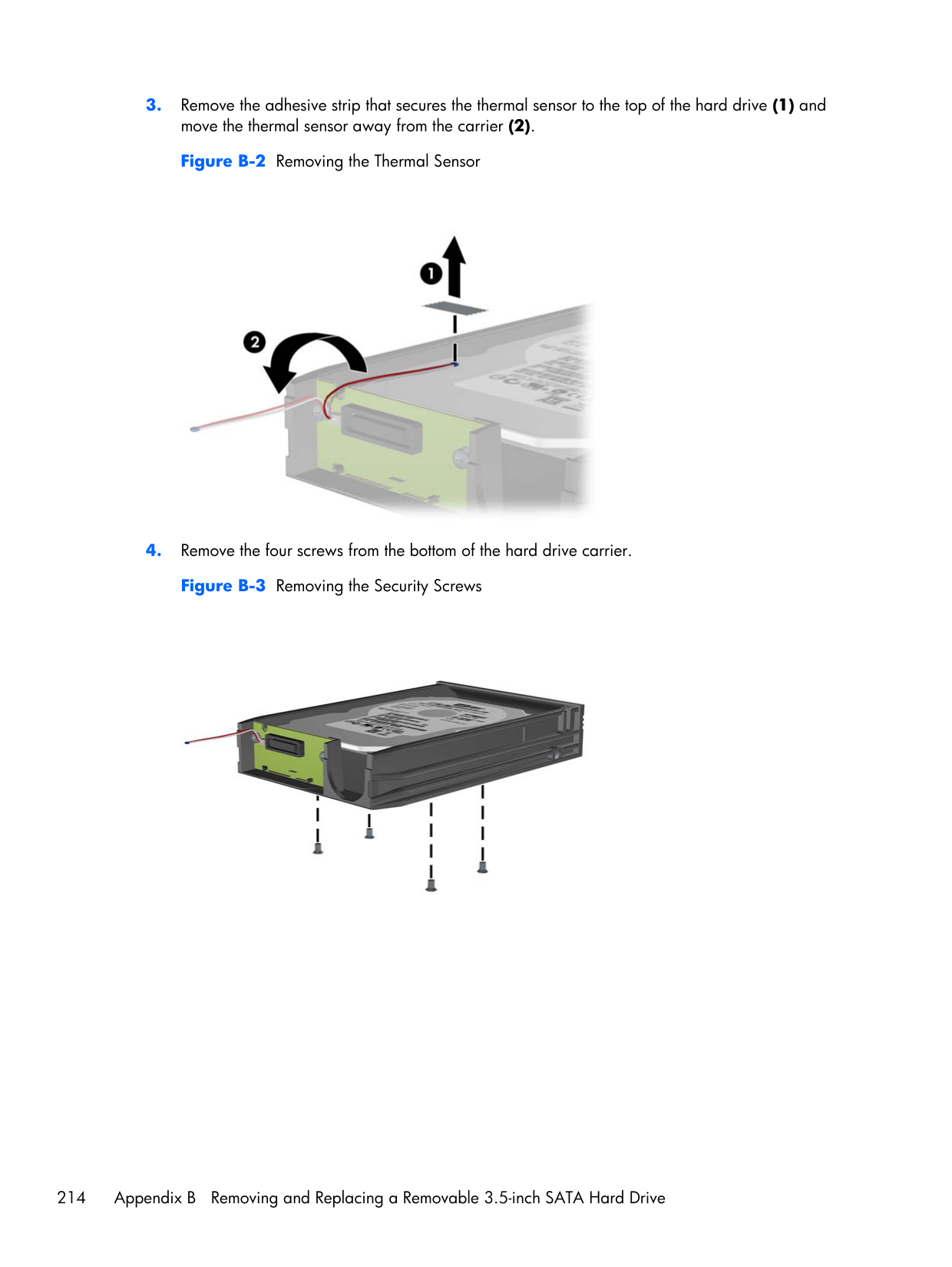

####### 3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) andmove the thermal sensor away from the carrier (2).



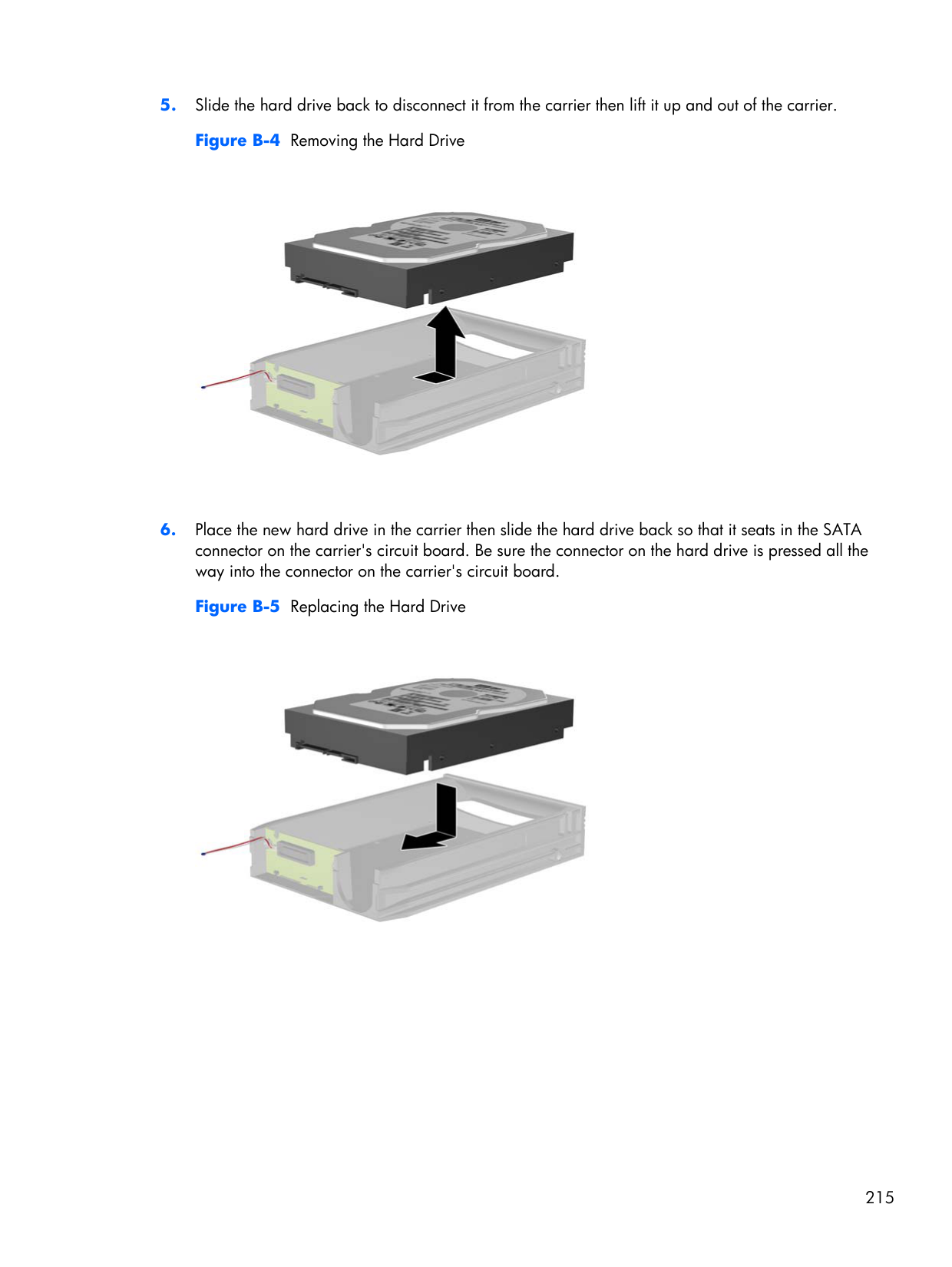

####### 5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.



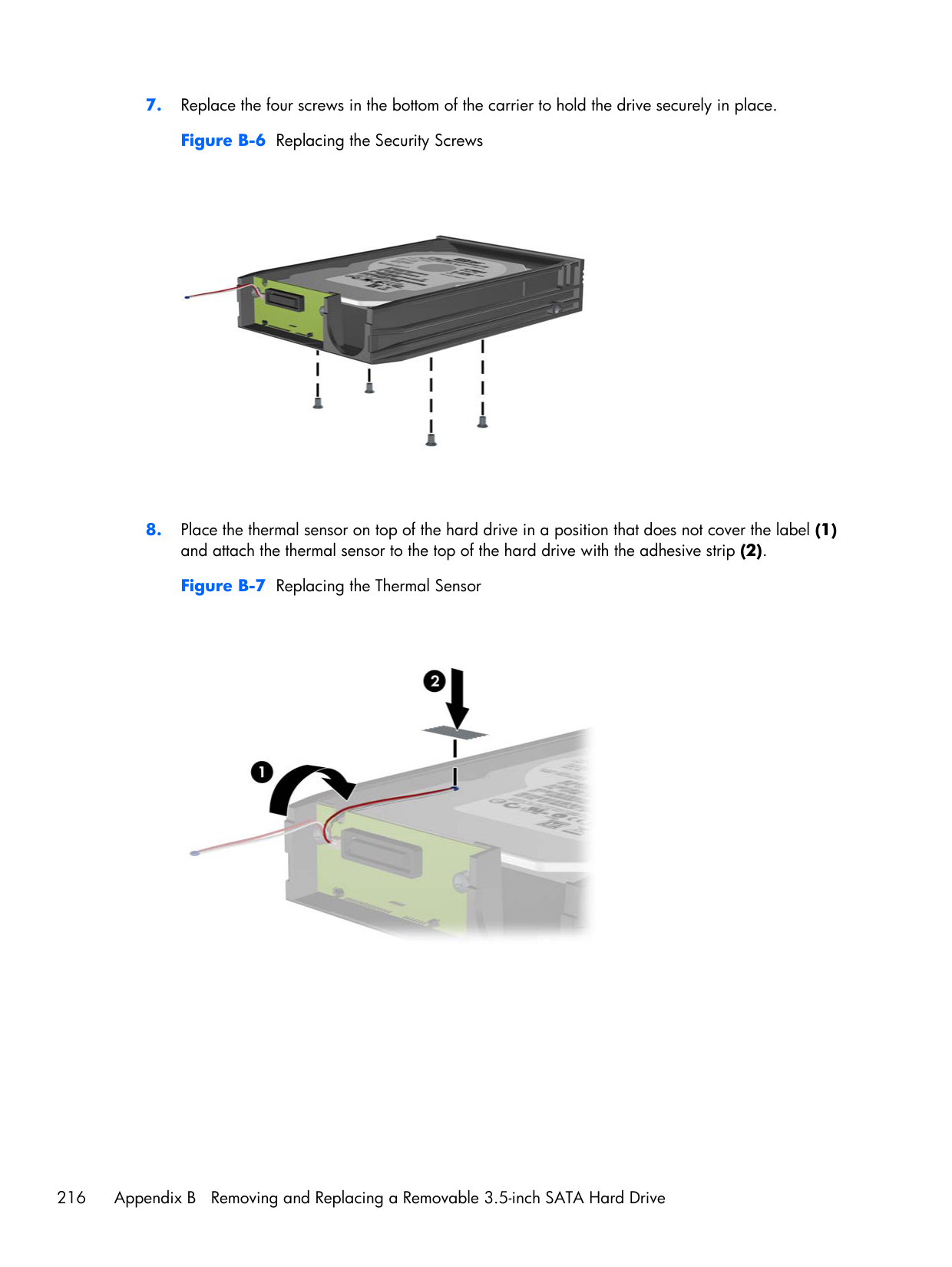

####### 7. Replace the four screws in the bottom of the carrier to hold the drive securely in place.


and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).


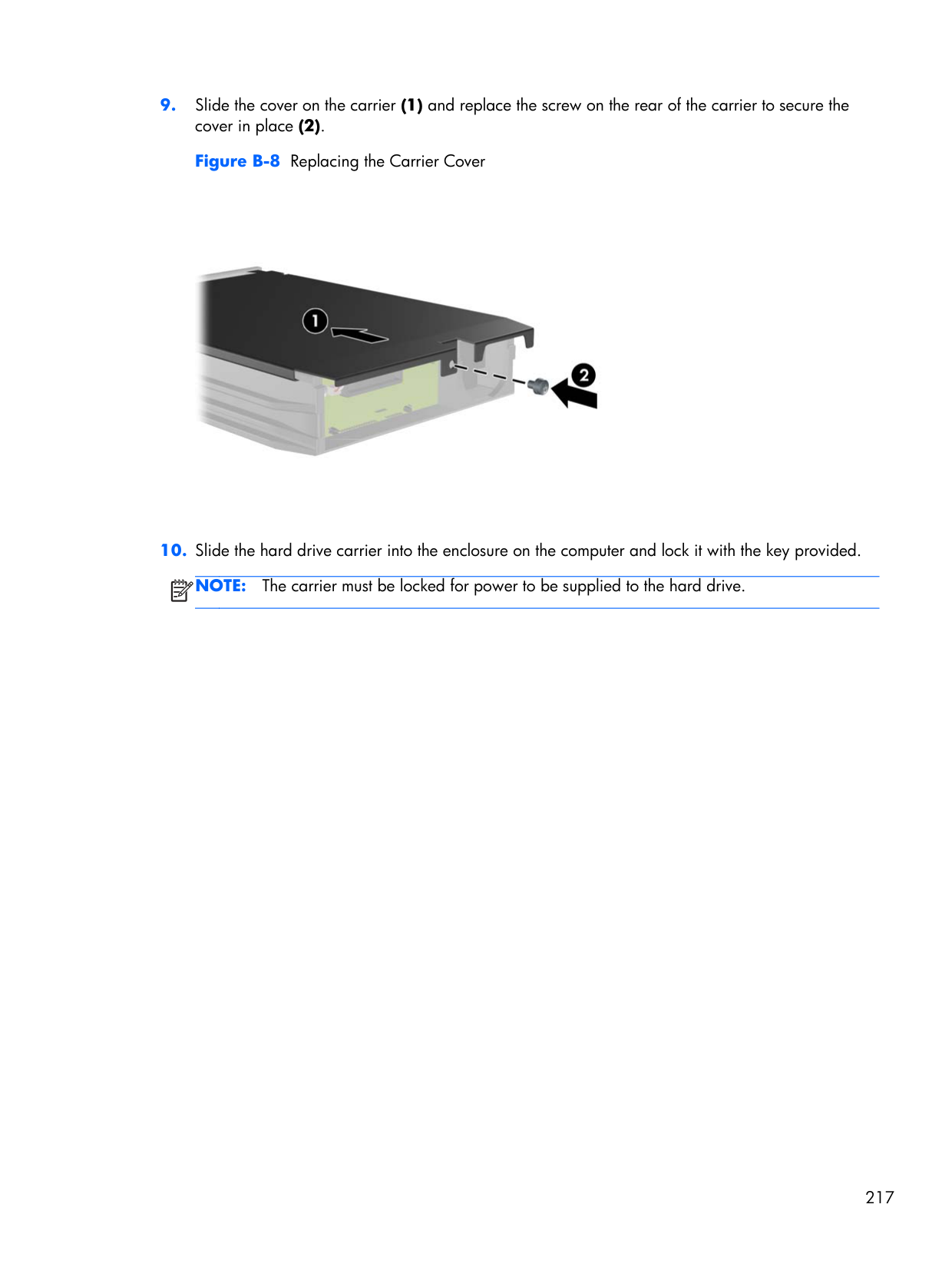

####### 9. Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure thecover in place (2).


####### 10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.NOTE: The carrier must be locked for power to be supplied to the hard drive.

| | |---|

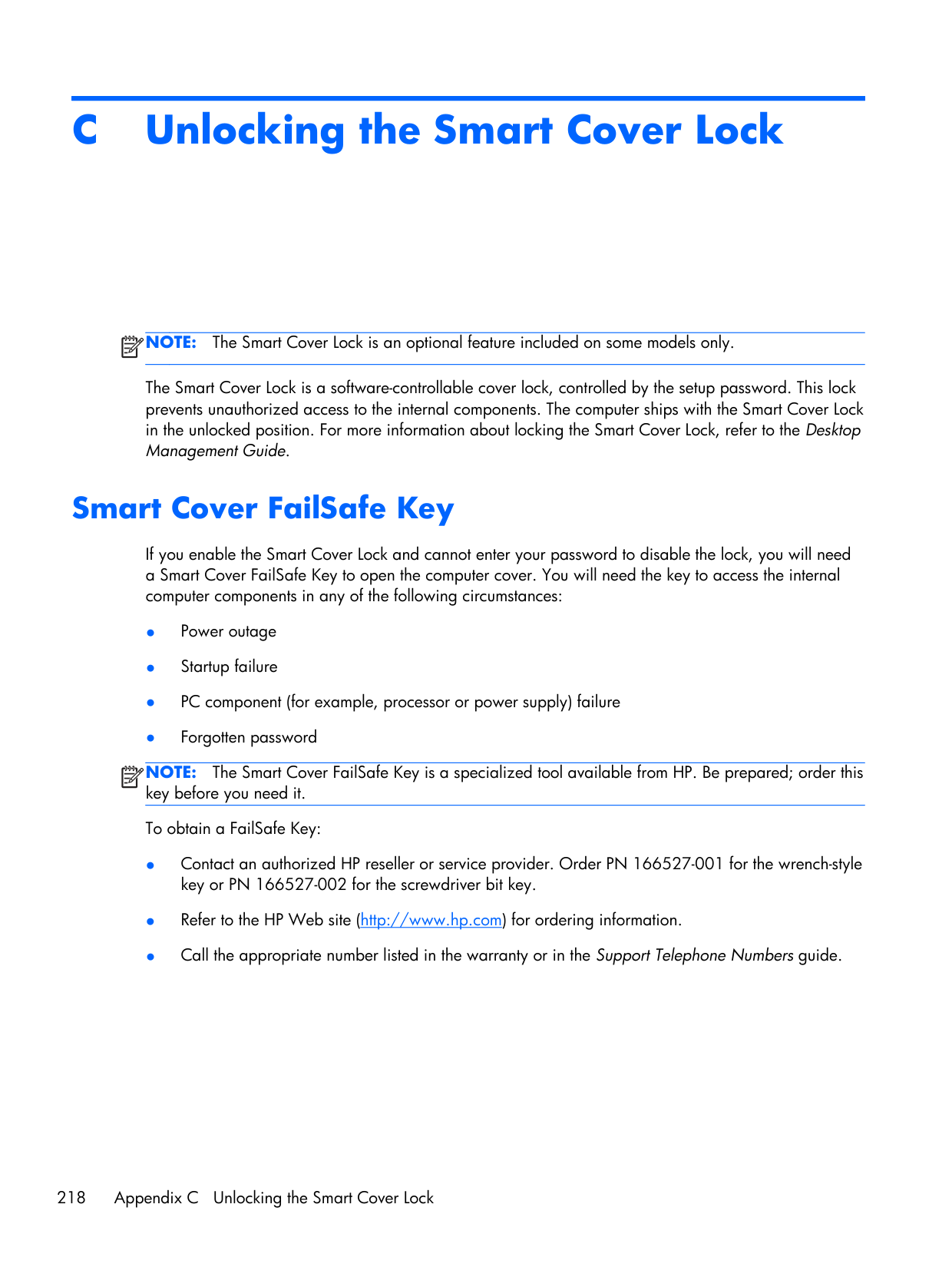

C Unlocking the Smart Cover Lock

NOTE: The Smart Cover Lock is an optional feature included on some models only.

| | |---|

The Smart Cover Lock is a software-controllable cover lock, controlled by the setup password. This lock prevents unauthorized access to the internal components. The computer ships with the Smart Cover Lock in the unlocked position. For more information about locking the Smart Cover Lock, refer to the Desktop Management Guide.

Smart Cover FailSafe Key

If you enable the Smart Cover Lock and cannot enter your password to disable the lock, you will need a Smart Cover FailSafe Key to open the computer cover. You will need the key to access the internal computer components in any of the following circumstances:

| | |---|

NOTE: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order this key before you need it. To obtain a FailSafe Key:

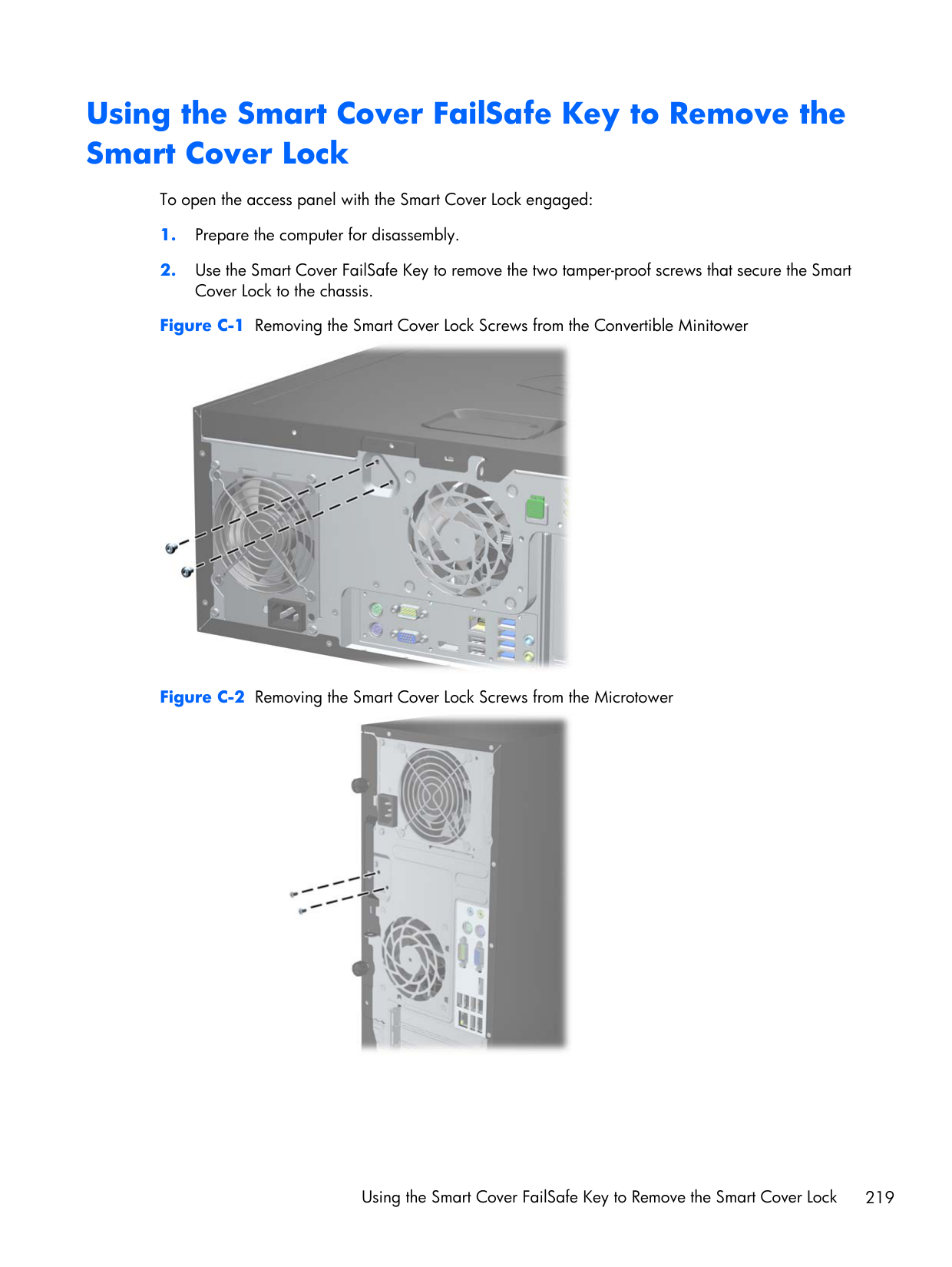

Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock

To open the access panel with the Smart Cover Lock engaged:

Cover Lock to the chassis.



Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock 219


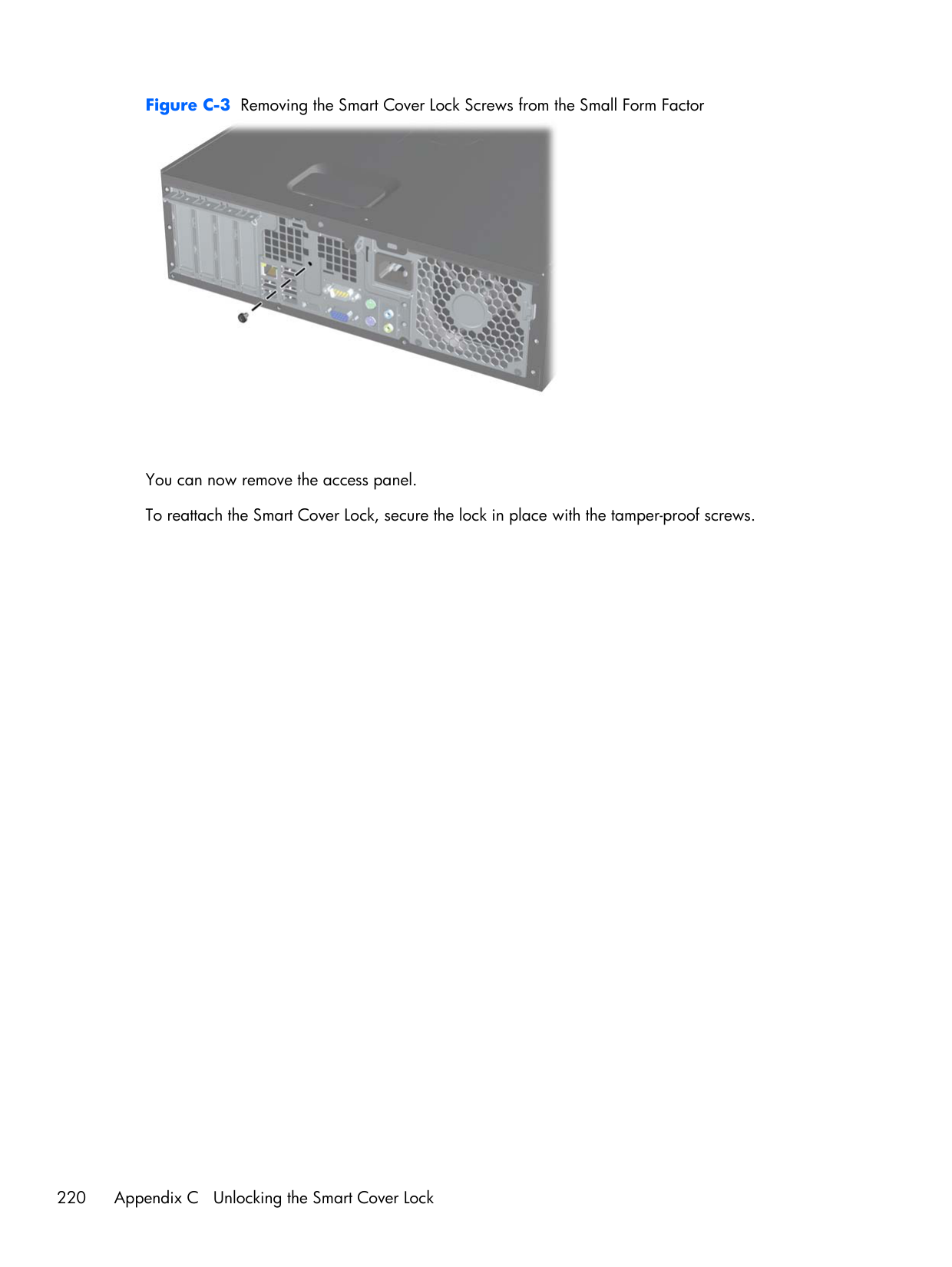

You can now remove the access panel. To reattach the Smart Cover Lock, secure the lock in place with the tamper-proof screws.

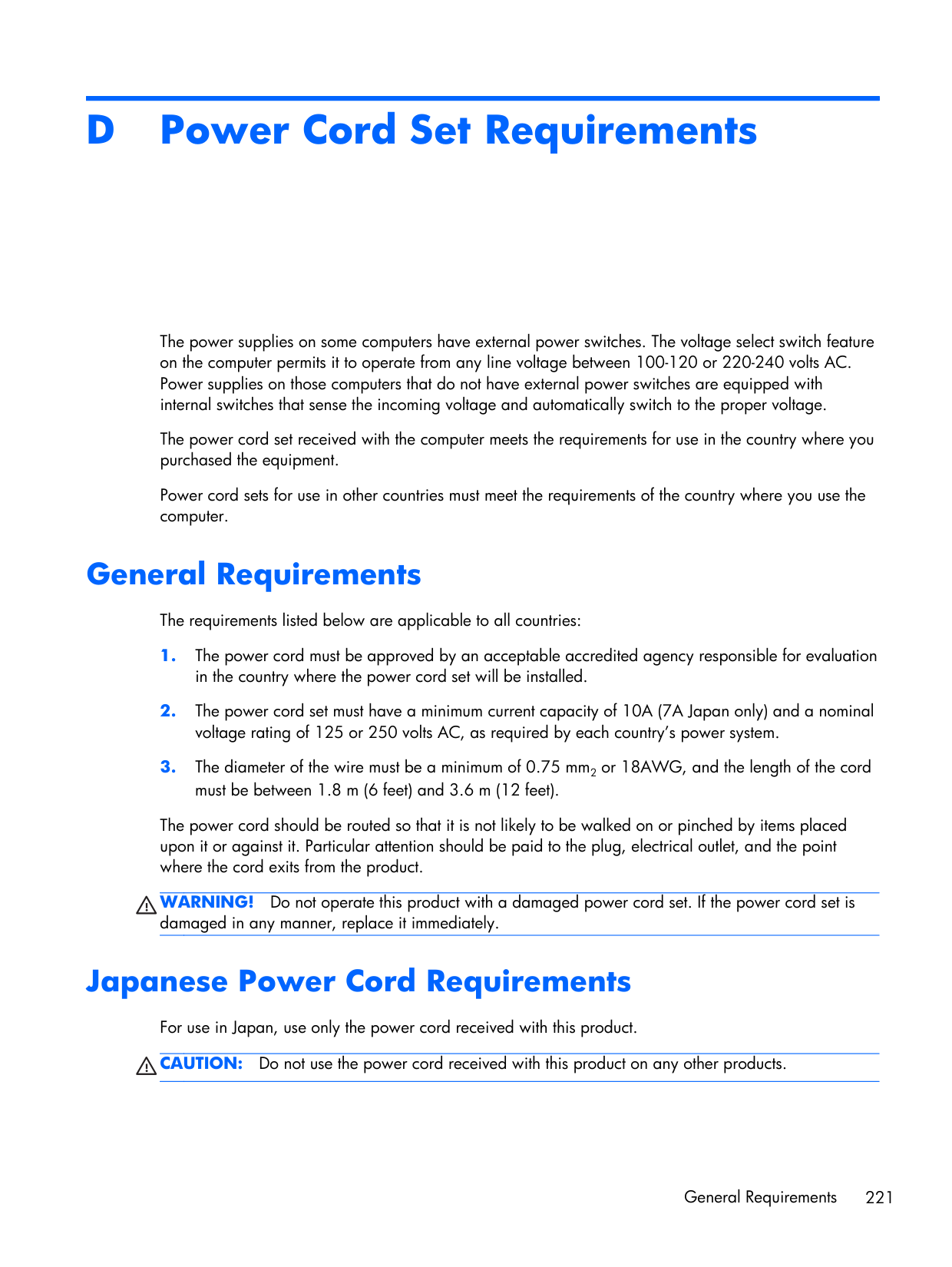

D Power Cord Set Requirements

The power supplies on some computers have external power switches. The voltage select switch feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC. Power supplies on those computers that do not have external power switches are equipped with internal switches that sense the incoming voltage and automatically switch to the proper voltage.

The power cord set received with the computer meets the requirements for use in the country where you purchased the equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer.

General Requirements

The requirements listed below are applicable to all countries:

in the country where the power cord set will be installed.

voltage rating of 125 or 250 volts AC, as required by each country’s power system.

must be between 1.8 m (6 feet) and 3.6 m (12 feet).

The power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

WARNING! Do not operate this product with a damaged power cord set. If the power cord set is damaged in any manner, replace it immediately.

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.

CAUTION: Do not use the power cord received with this product on any other products.

General Requirements 221

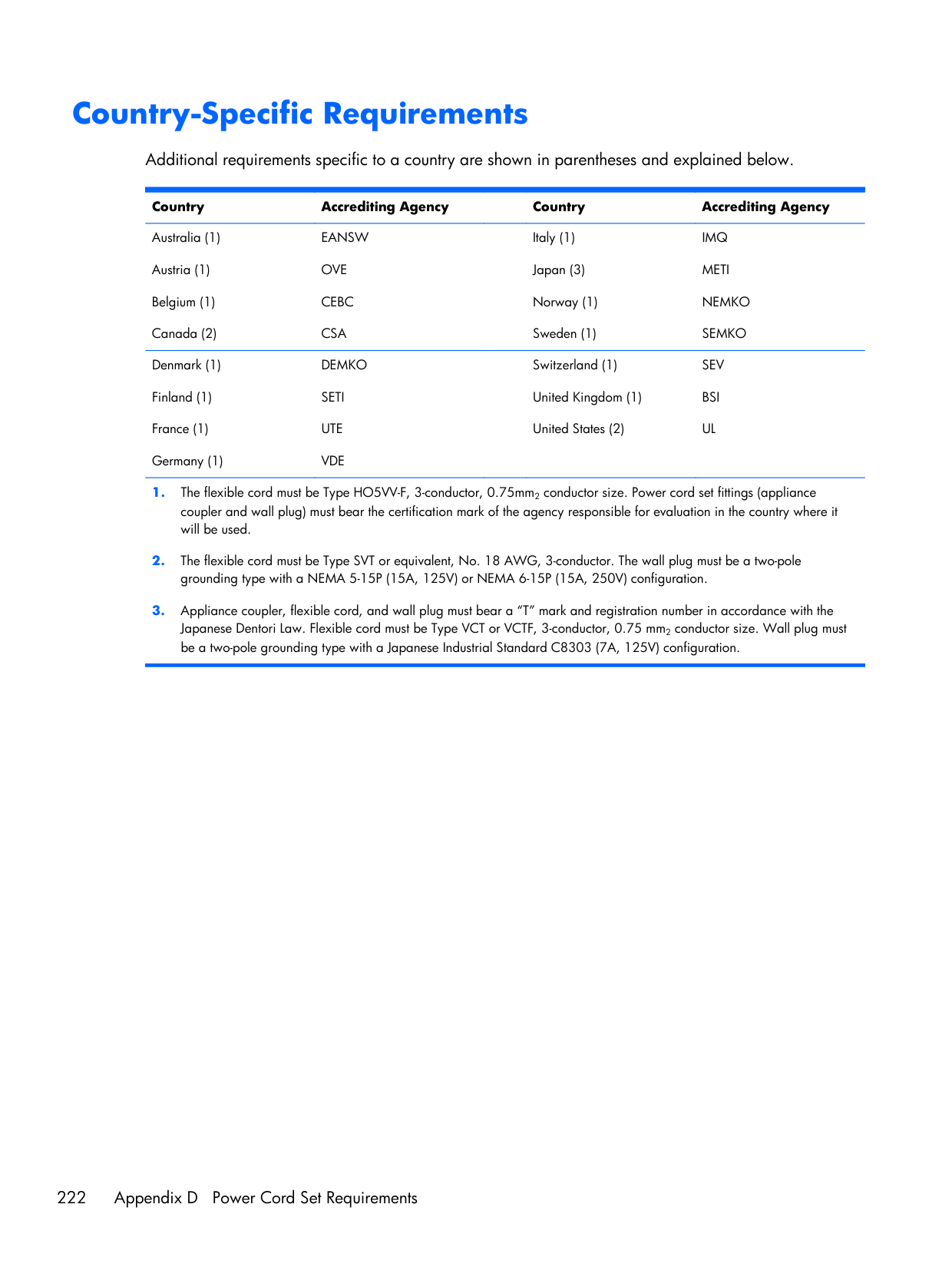

Country-Specific Requirements

Additional requirements specific to a country are shown in parentheses and explained below.

Country Accrediting Agency Country Accrediting Agency Australia (1) Austria (1) Belgium (1)

EANSW

Italy (1)

IMQ

OVE

Japan (3)

METI

CEBC

Norway (1)

NEMKO

Canada (2)

SEMKO Denmark (1)

CSA

Sweden (1)

DEMKO

Switzerland (1)

SEV

Finland (1)

SETI

United Kingdom (1)

BSI

France (1)

UTE

United States (2)

UL

Germany (1)

VDE

Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.

222 Appendix D Power Cord Set Requirements

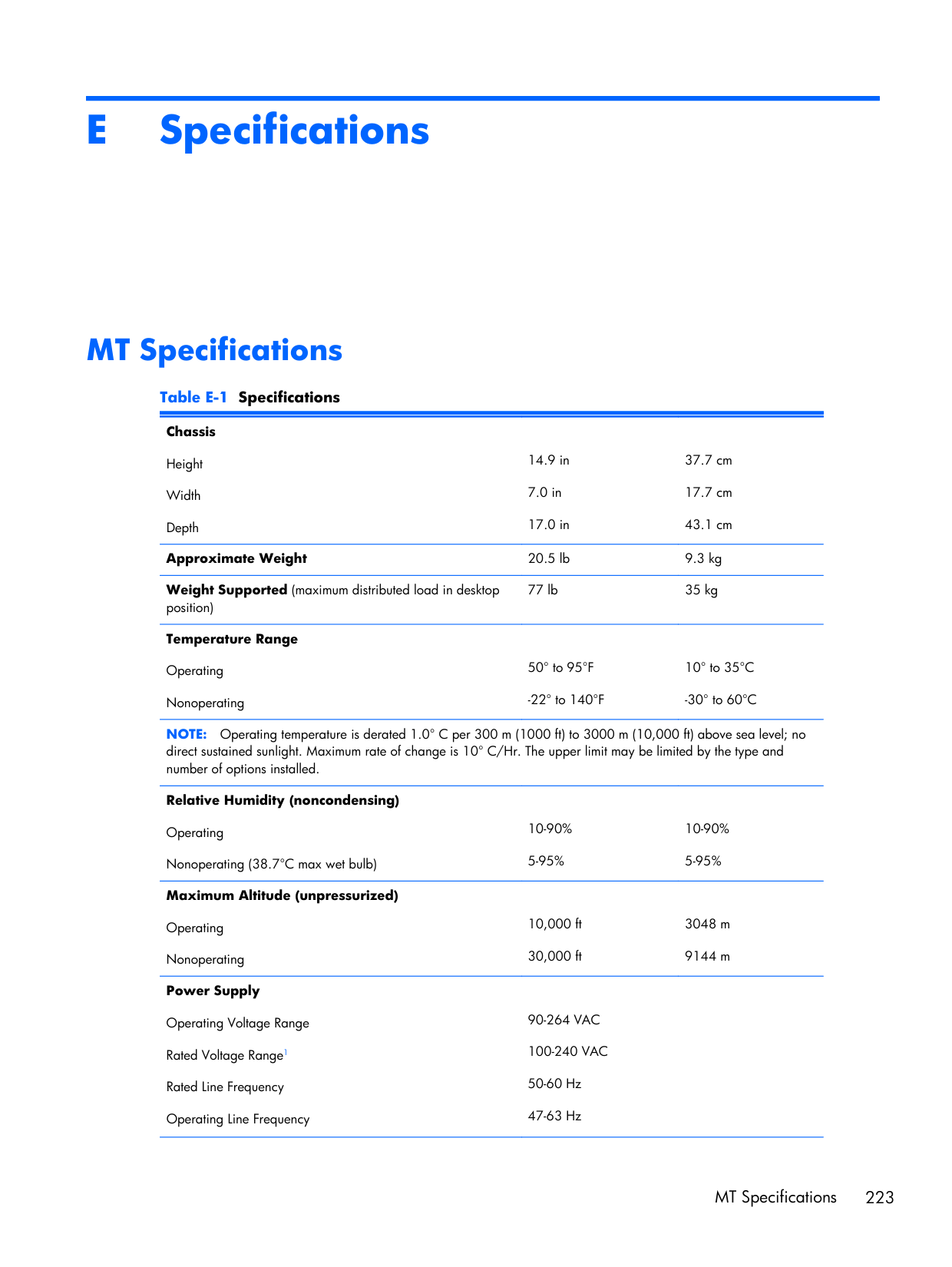

E Specifications

MT Specifications

######## Table E-1 Specifications

######### Chassis

Height

14.9 in

37.7 cm

Width

7.0 in

17.7 cm

43.1 cm Approximate Weight 20.5 lb 9.3 kg Weight Supported (maximum distributed load in desktop position)

17.0 in

Depth

77 lb 35 kg

######### Temperature Range

Operating

Nonoperating

50° to 95°F

-22° to 140°F

10° to 35°C

-30° to 60°C

NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.

######### Relative Humidity (noncondensing)

Operating

Nonoperating (38.7°C max wet bulb)

######### Maximum Altitude (unpressurized)

Operating

Nonoperating

######### Power Supply

Operating Voltage Range

Rated Voltage Range1

Rated Line Frequency

Operating Line Frequency

10-90%

5-95%

10,000 ft

30,000 ft

90-264 VAC

100-240 VAC

50-60 Hz

47-63 Hz

10-90%

5-95%

3048 m

9144 m

MT Specifications 223

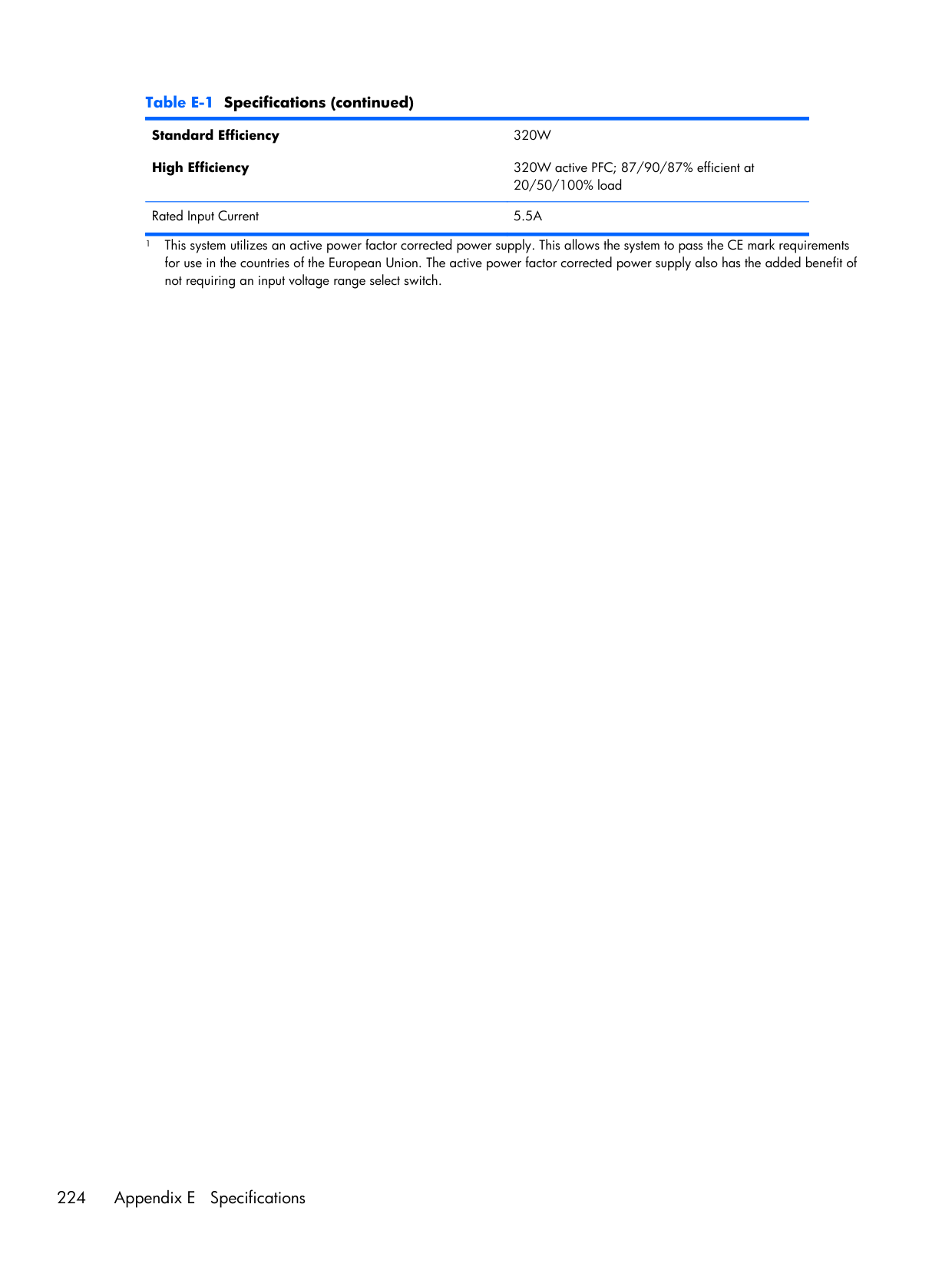

######## Table E-1 Specifications (continued)

Standard Efficiency

320W

High Efficiency

320W active PFC; 87/90/87% efficient at 20/50/100% load

Rated Input Current 5.5A

1 This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements for use in the countries of the European Union. The active power factor corrected power supply also has the added benefit of not requiring an input voltage range select switch.

224 Appendix E Specifications

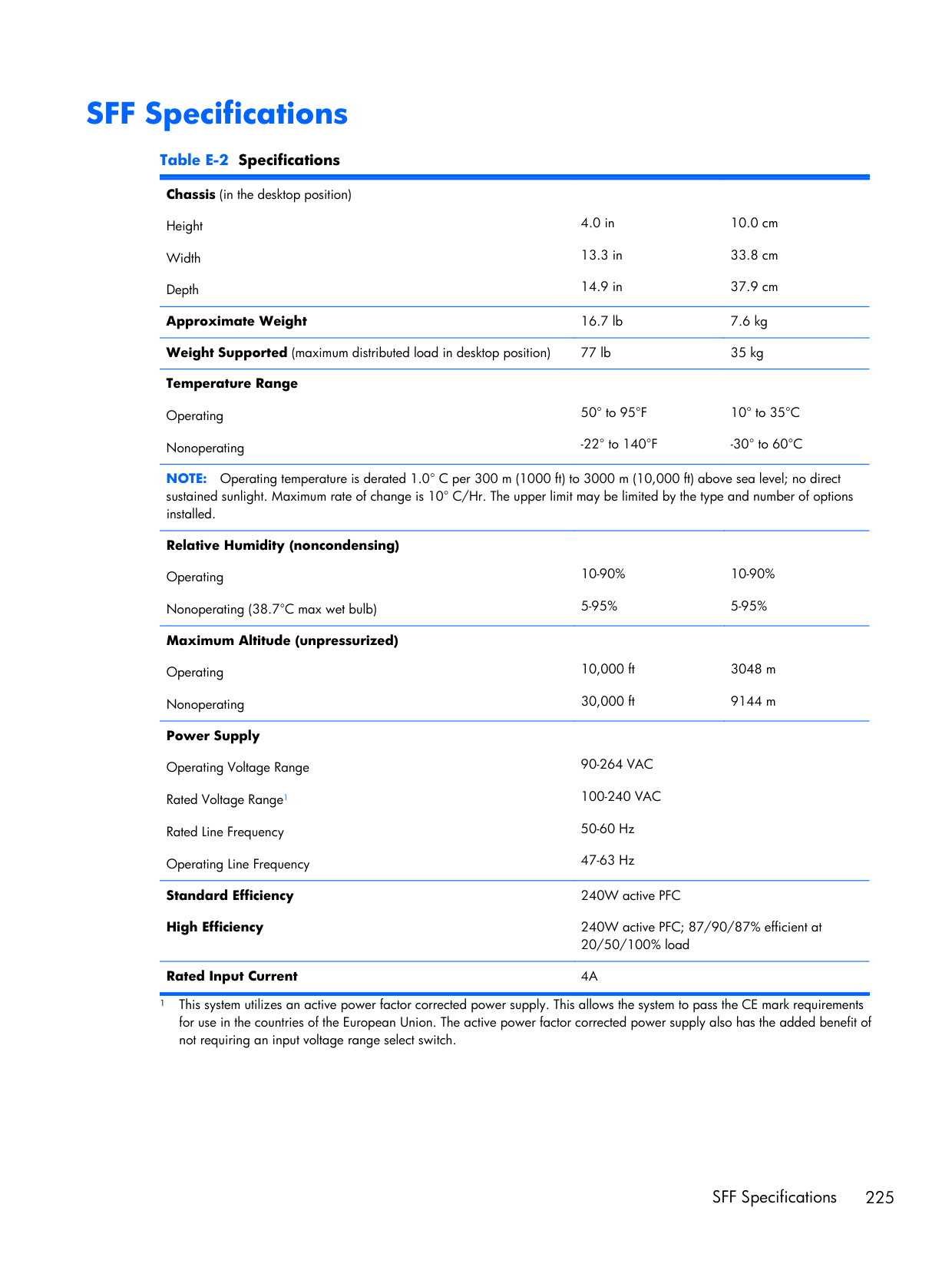

SFF Specifications

######## Table E-2 Specifications

Chassis (in the desktop position)

Height

4.0 in

10.0 cm

33.8 cm

Width

37.9 cm Approximate Weight 16.7 lb 7.6 kg Weight Supported (maximum distributed load in desktop position) 77 lb 35 kg Temperature Range Operating Nonoperating

Depth

50° to 95°F

10° to 35°C

-22° to 140°F

-30° to 60°C

NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.

######### Relative Humidity (noncondensing)

Operating

Nonoperating (38.7°C max wet bulb)

######### Maximum Altitude (unpressurized)

Operating

Nonoperating

######### Power Supply

Operating Voltage Range

Rated Voltage Range1

Rated Line Frequency

Operating Line Frequency

10-90%

5-95%

10,000 ft

30,000 ft

90-264 VAC

100-240 VAC

50-60 Hz

47-63 Hz

10-90%

5-95%

3048 m

9144 m

Standard Efficiency

240W active PFC

High Efficiency

240W active PFC; 87/90/87% efficient at 20/50/100% load

######### Rated Input Current 4A

1 This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements for use in the countries of the European Union. The active power factor corrected power supply also has the added benefit of not requiring an input voltage range select switch.

SFF Specifications 225

Index

Symbols/Numerics 2.5-in drive adapter, spare part

number 29, 40

locking and unlocking 218 MT removal 57 MT spare part number 57 SFF removal and replacement

98

SFF spare part number 98 access panel, locked 144 access panel, MT

spare part number 26, 33 access panel, SFF

spare part number 36, 44 adapter, DisplayPort to DVI

spare part number 34, 44 adapter, DisplayPort to DVI (not illustrated)

spare part number 28, 38 adapter, DisplayPort to HDMI

spare part number 32, 43 adapter, DisplayPort to HDMI (not

illustrated)

spare part number 28, 39 adapter, DisplayPort to VGA

spare part number 32, 43 adapter, DisplayPort to VGA (not illustrated)

spare part number 28, 38 antenna, spare part number 30,

40 audible codes 191 audio problems 159

battery

disposal 54 battery replacement 210 beep codes 191 bezel blank

spare part number 61, 102

booting options Full Boot 182 Quick Boot 182

C cable management 55 cable pinouts

SATA data 55 card reader, spare part number 29, 40

cautions AC power 47 cables 53 cooling fan 52 electrostatic discharge 47 keyboard cleaning 52 keyboard keys 52

CD-ROM or DVD problems 174 chasis types, illustrated 47 chassis fan, MT

spare part number 33 chassis fan, SFF

spare part number 44 chassis stand

spare part number 40 clamp lock, spare part number

30, 32, 40, 42

cleaning computer 51 mouse 52 safety precautions 51

CMOS backing up 195 clearing and resetting 197

computer

specifications 225 computer cleaning 51 country power cord set requirements 222

Customer Support 140, 181

MT 56 SFF 97

DisplayPort cable spare part number 32, 42 DisplayPort cable (not illustrated)

spare part number 28, 39 DMS-59 to dual VGA cable

spare part number 32, 42 DMS-59 to dual VGA cable (not illustrated) spare part number 28, 38

drives MT cable connections 70 MT installation 70 MT locations 73 SFF cable connections 112 SFF installation 112 SFF locations 112

preventing damage 48

error codes 182, 191 messages 183

eSATA port (expansion), spare part number 33, 44 eSATA port assembly, spare part number 30, 40

expansion card MT installation 65 MT removal 65 SFF installation 106 SFF removal 106

expansion slot cover MT removal 66 SFF removal 107

external USB webcam, spare part number 30, 40

###### F

f11 recovery 208 FailSafe Key 218 fan

MT spare part number 92 fan duct

SFF removal and replacement 123

SFF spare part number 123 fan duct, SFF

spare part number 39, 43 fan with guard, MT

spare part number 29 fan, MT

spare part number 33 fan, power supply 52 fan, SFF

spare part number 39, 44 fan/baffle assembly

MT removal and replacement 82 FireWire card, spare part

number 33, 43 flash drive problems 176 flashing LEDs 191 front bezel

MT blank removal 61 MT removal 58 MT security 59 MT spare part number 58 removing blanks 102 SFF removal and replacement

99 SFF security 100 SFF spare part number 99

front bezel, MT

spare part number 25, 35 front bezel, SFF

spare part number 36, 45 front fan

SFF removal and replacement 124

SFF spare part number 124 front fan assembly

MT spare part number 82 front I/O and power switch

assembly

SFF spare part number 127 front I/O assembly

MT spare part number 84 front I/O assembly, MT

spare part number 28, 33 front I/O assembly, SFF

spare part number 38 Front I/O cable and power switch assembly, SFF spare part number 43 front I/O, power switch assembly SFF removal and replacement 127 front panel components

MT 2 SFF 3

front panel problems 177 front USB panel

MT removal and replacement 84

number 31, 42

grommet (hard drive isolation), spare part number 29, 40 grounding methods 48 guide screws

MT location 72 SFF location 113

MT installation 78 MT removal 78 proper handling 53 SATA characteristics 54

SFF installation 120 SFF removal 120 spare part numbers 30, 41

hard drive problems 149 hard drive recovery 208 hardware installation problems

165 heat sink MT removal and replacement

86 MT spare part number 86 SFF removal and replacement

130

SFF spare part number 130 heat sink, MT

spare part number 29, 33 heat sink, SFF

spare part number 39, 44 helpful hints 141 hood sensor

SFF removal and replacement

126 SFF spare part number 126 spare part number 29, 33,

40, 44 HP Business Digital Headset, spare part number 30, 40

I installing

battery 210 MT drive cables 70 MT expansion card 65 MT hard drive 78 MT media card reader 75 MT memory 62 MT optical drive 75 SFF drive cables 112 SFF expansion card 106 SFF hard drive 120 SFF media card reader 118 SFF memory 103 SFF optical drive 114

Internet access problems 177

K keyboard

cleaning 51 spare part numbers 30, 32,

40, 42, 43

keyboard problems 163

L LEDs

blinking power 191 blinking PS/2 keyboard 191

locks MT front bezel 59 SFF front bezel 100 Smart Cover Lock 218

M media card reader

MT installation 75 MT removal 73 SFF installation 118 SFF removal 117

Media Card Reader problems

152 memory MT installation 62 MT socket population 63 MT specifications 62 SFF installation 103 SFF socket population 104 SFF specifications 103

memory module

spare part number 62, 103 memory modules

spare part number 26, 34, 35, 37, 44, 45

memory problems 171 monitor problems 154 mouse

cleaning 52 mouse problems 163 mouse, spare part number 29,

30, 40 MT

access panel, spare part

number 26, 33 disassembly preparation 56 fan with guard, spare part

number 29 fan, spare part number 33 fan/baffle assembly removal

and replacement 82 front bezel, spare part

number 25, 35

front I/O assembly, spare part number 28, 33 front USB panel removal and replacement 84 heat sink removal and replacement 86 heat sink, spare part number 29, 33 power supply removal and replacement 94 power supply, spare part number 26, 32 power switch/LED assembly

removal and replacement 85 power switch/LED assembly,

spare part number 28, 33 preparation for disassembly

56 processor removal and replacement 89 rear chassis fan removal and replacement 92 SATA hard drive cable, spare part number 28, 33 SATA optical drive cable, spare

part number 28, 33 speaker removal and replacement 91

speaker, spare part number 29, 33 system board removal and replacement 96 system board, spare part number 26, 34

MT installation 75 MT removal 73 SFF installation 114 SFF removal 114 spare part numbers 31, 34,

41, 44 optical drive problems 174

overheating, prevention 50

P password

clearing 195 power-on 195 setup 195

POST error messages 182 power cord set requirements country specific 222 power problems 147 power supply

fan 52 MT removal and replacement

94 MT spare part number 94 operating voltage range 223,

225 SFF removal and replacement 135 power supply, MT

spare part number 26, 32 power supply, SFF

spare part number 36, 43 power switch/LED assembly

MT removal and replacement 85 MT spare part number 85 power switch/LED assembly, MT

spare part number 28, 33 power-on password 195 printer port (expansion), spare part

number 33, 44 printer port, PCI card

spare part number 40 printer port, spare part number

29 printer problems 161 problems

audio 159 CD-ROM or DVD 174 flash drive 176 front panel 177 general 143 hard drive 149 hardware installation 165 Internet access 177 keyboard 163 Media Card Reader 152 memory 171

monitor 154 mouse 163 network 167 power 147 printer 161 processor 173 software 179

processor MT removal and replacement 89 SFF removal and replacement 133 spare part number 26, 33,

34, 37, 44, 45 processor problems 173 product ID locations 6

R rear chassis fan

MT removal and replacement 92

MT spare part number 92 rear panel components

MT 4 SFF 5

recovery partition 208 removal and replacement

MT fan/baffle assembly 82 MT front USB panel 84 MT heat sink 86 MT power supply 94 MT power switch/LED

assembly 85 MT processor 89 MT rear chassis fan 92 MT speaker 91 MT system board 96 SFF fan duct 123 SFF front bezel 98, 99 SFF front fan 124 SFF front I/O, power switch

assembly 127 SFF heat sink 130 SFF hood sensor 126 SFF power supply 135 SFF processor 133 SFF speaker 129 SFF system board 137

removing battery 210

bezel blanks 102 MT bezel blanks 61 MT computer access panel 57 MT expansion card 65 MT expansion slot cover 66 MT front bezel 58 MT hard drive 78 MT media card reader 73 MT optical drive 73 SFF expansion card 106 SFF expansion slot cover 107 SFF hard drive 120 SFF media card reader 117 SFF optical drive 114 Smart Cover Lock 218

resetting CMOS 195 password jumper 195 restoring the hard drive 208 rubber foot

spare part number 40

S safety and comfort 140 safety precautions

cleaning 51 SATA

connectors on system board

54 data cable pinouts 55 hard drive characteristics 54

SATA cable, SFF

spare part number 38 SATA drive cable, SFF

spare part number 38 SATA hard drive cable, MT

spare part number 28, 33 SATA optical drive cable, MT

spare part number 28, 33 screws, correct size 53 security

MT front bezel 59 SFF front bezel 100 Smart Cover Lock 218

serial number locations 6 serial port (expansion), spare part

number 33, 44 serial port, spare part number 29, 40 service considerations 52

setup password 195 SFF

access panel, spare part number 36, 44 chassis fan, spare part

number 44 disassembly preparation 97 fan duct removal and replacement 123

fan duct, spare part number

39, 43 fan, spare part number 39 front bezel removal and

replacement 98, 99 front bezel, spare part

number 36, 45

front fan removal and replacement 124

front I/O assembly, spare part number 38

Front I/O cable and power switch assembly, spare part number 43

front I/O, power switch assembly removal and replacement 127 heat sink removal and replacement 130

heat sink, spare part number 39, 44 hood sensor removal and replacement 126 power supply removal and replacement 135 power supply, spare part number 36, 43 preparation for disassembly 97

processor removal and replacement 133

SATA cable, spare part number 38 SATA drive cable, spare part number 38 solenoid lock, spare part number 40

speaker removal and replacement 129

speaker, spare part number 40, 43

system board removal and replacement 137 system board, spare part

number 36, 44 Smart Cover Lock 218 software

problems 179 servicing computer 53

solenoid lock

spare part number 29, 33, 44 solenoid lock, SFF

spare part number 40 solid-state drive, spare part

number 31, 41

spare part number tamper-resistant wrench 53 Torx T-15 screwdriver 53

speaker MT removal and replacement

91 MT spare part number 91 SFF removal and replacement

129

SFF spare part number 129 speaker, MT

spare part number 29, 33 speaker, SFF

spare part number 40, 43

specifications computer 223, 225 MT memory 62 SFF memory 103

static electricity 47 system board

MT removal and replacement

96 MT spare part number 96 SATA connectors 54 SFF removal and replacement

137 SFF spare part number 137

system board connections MT 69 SFF 110

system board, MT

spare part number 26, 34 system board, SFF

spare part number 36, 44, 46

tool 53 temperature control 50 tools, servicing 53 Torx T15 screwdriver 53 tower orientation 139

number 29, 33, 40, 43

DVD 208
