HP Laserjet 1300 Printer


hp LaserJet 1150 1300 1300n

use

hp LaserJet 1150 and hp LaserJet 1300 series printer

user guide

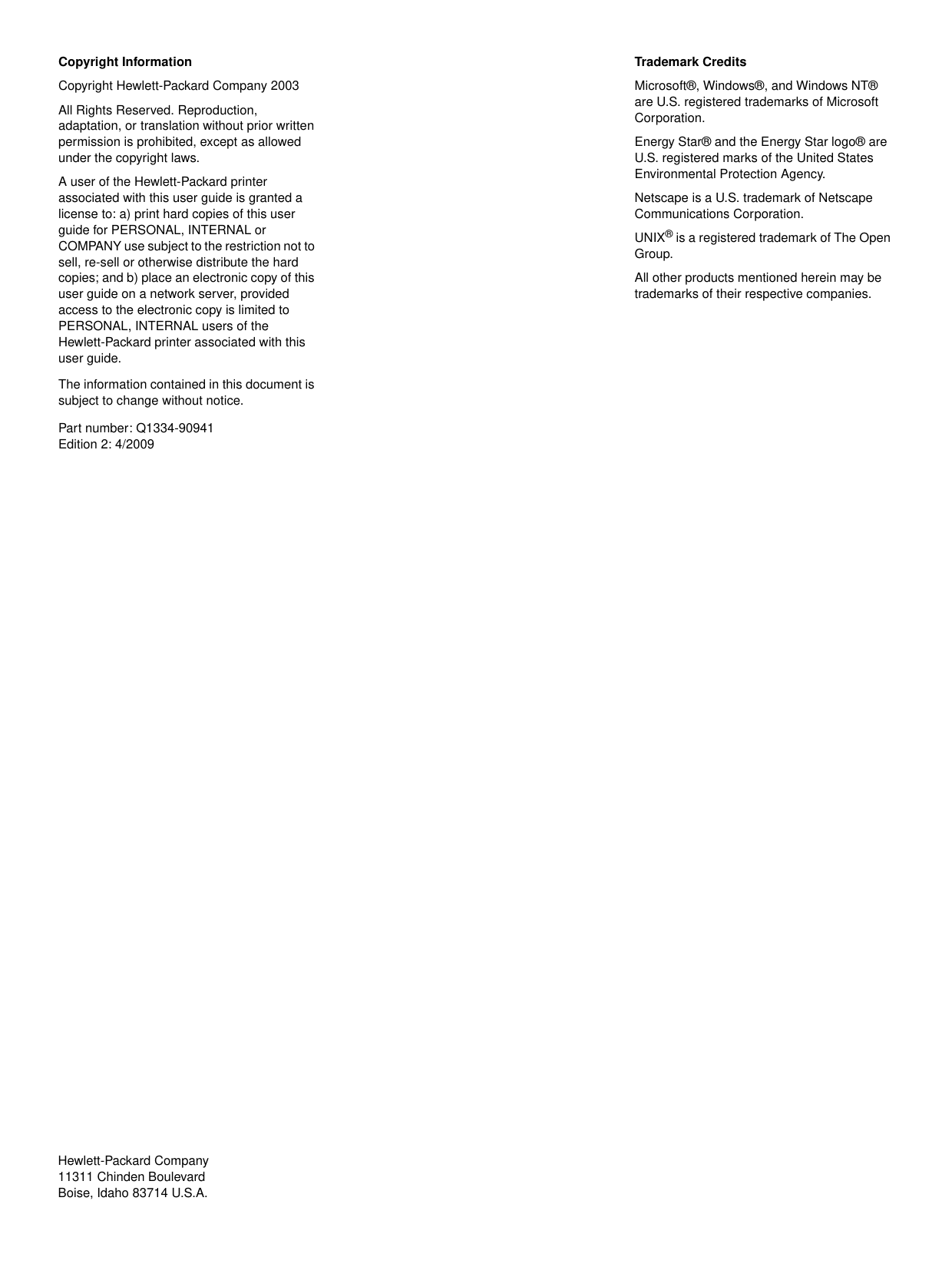

Copyright Information Copyright Hewlett-Packard Company 2003 All Rights Reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. A user of the Hewlett-Packard printer associated with this user guide is granted a license to: a) print hard copies of this user guide for PERSONAL, INTERNAL or COMPANY use subject to the restriction not to sell, re-sell or otherwise distribute the hard copies; and b) place an electronic copy of this user guide on a network server, provided access to the electronic copy is limited to PERSONAL, INTERNAL users of the Hewlett-Packard printer associated with this user guide.

The information contained in this document is subject to change without notice.

Part number: Q1334-90941 Edition 2: 4/2009

########## Trademark Credits

Microsoft®, Windows®, and Windows NT® are U.S. registered trademarks of Microsoft Corporation.

Energy Star® and the Energy Star logo® are U.S. registered marks of the United States Environmental Protection Agency.

Netscape is a U.S. trademark of Netscape Communications Corporation.

UNIX® is a registered trademark of The Open Group.

All other products mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company 11311 Chinden Boulevard Boise, Idaho 83714 U.S.A.

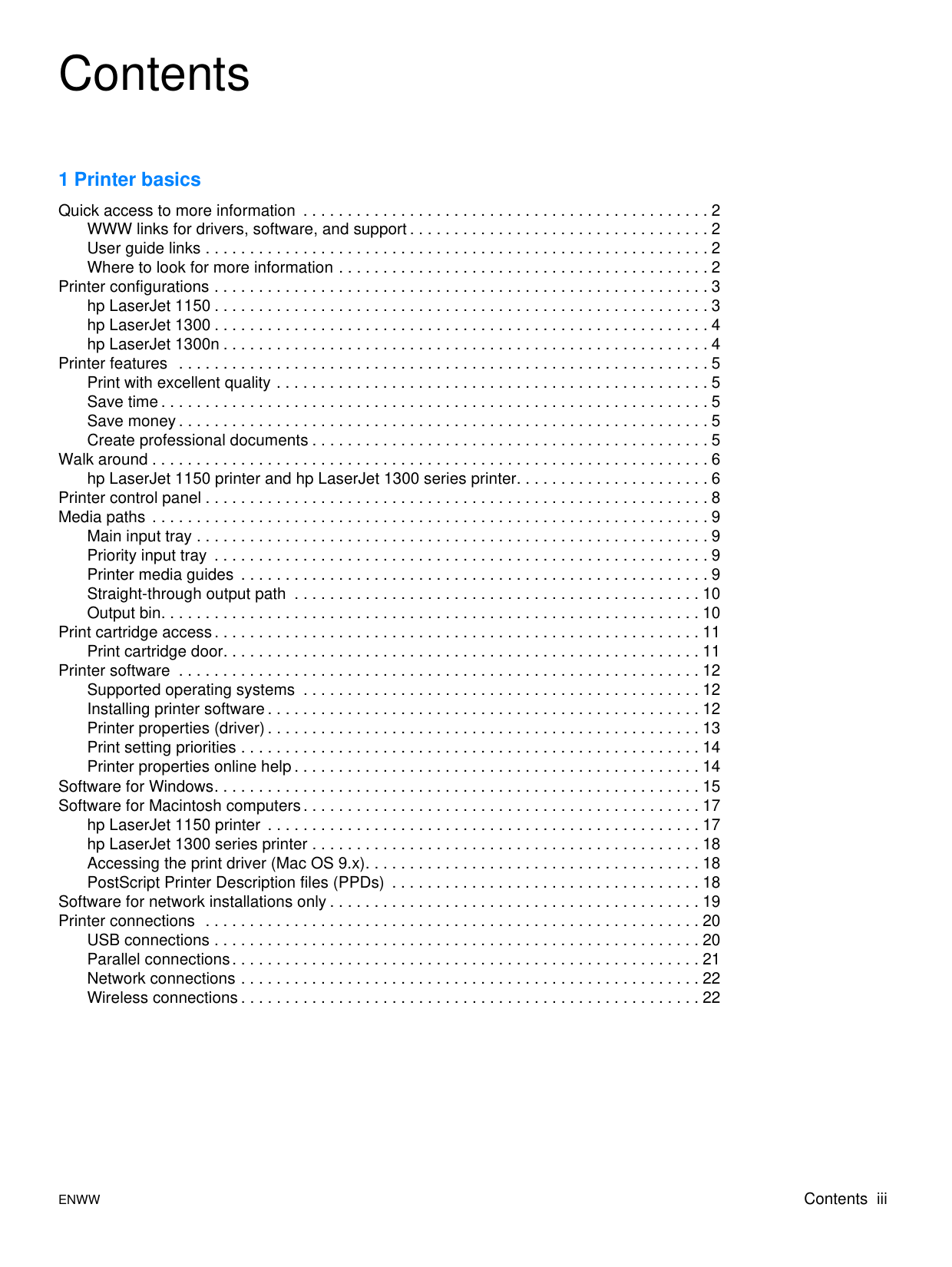

Contents

###### 1 Printer basics

Quick access to more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 WWW links for drivers, software, and support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 User guide links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Where to look for more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Printer configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 hp LaserJet 1150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 hp LaserJet 1300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 hp LaserJet 1300n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Printer features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Print with excellent quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Save time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Save money . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Create professional documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Walk around . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

hp LaserJet 1150 printer and hp LaserJet 1300 series printer. . . . . . . . . . . . . . . . . . . . . . 6 Printer control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Media paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Main input tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Priority input tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Printer media guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Straight-through output path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Output bin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Print cartridge access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Print cartridge door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Printer software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Supported operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing printer software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Printer properties (driver) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Print setting priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Printer properties online help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Software for Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Software for Macintosh computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 hp LaserJet 1150 printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 hp LaserJet 1300 series printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Accessing the print driver (Mac OS 9.x). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 PostScript Printer Description files (PPDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Software for network installations only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Printer connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

USB connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Parallel connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Network connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Wireless connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ENWW Contents iii

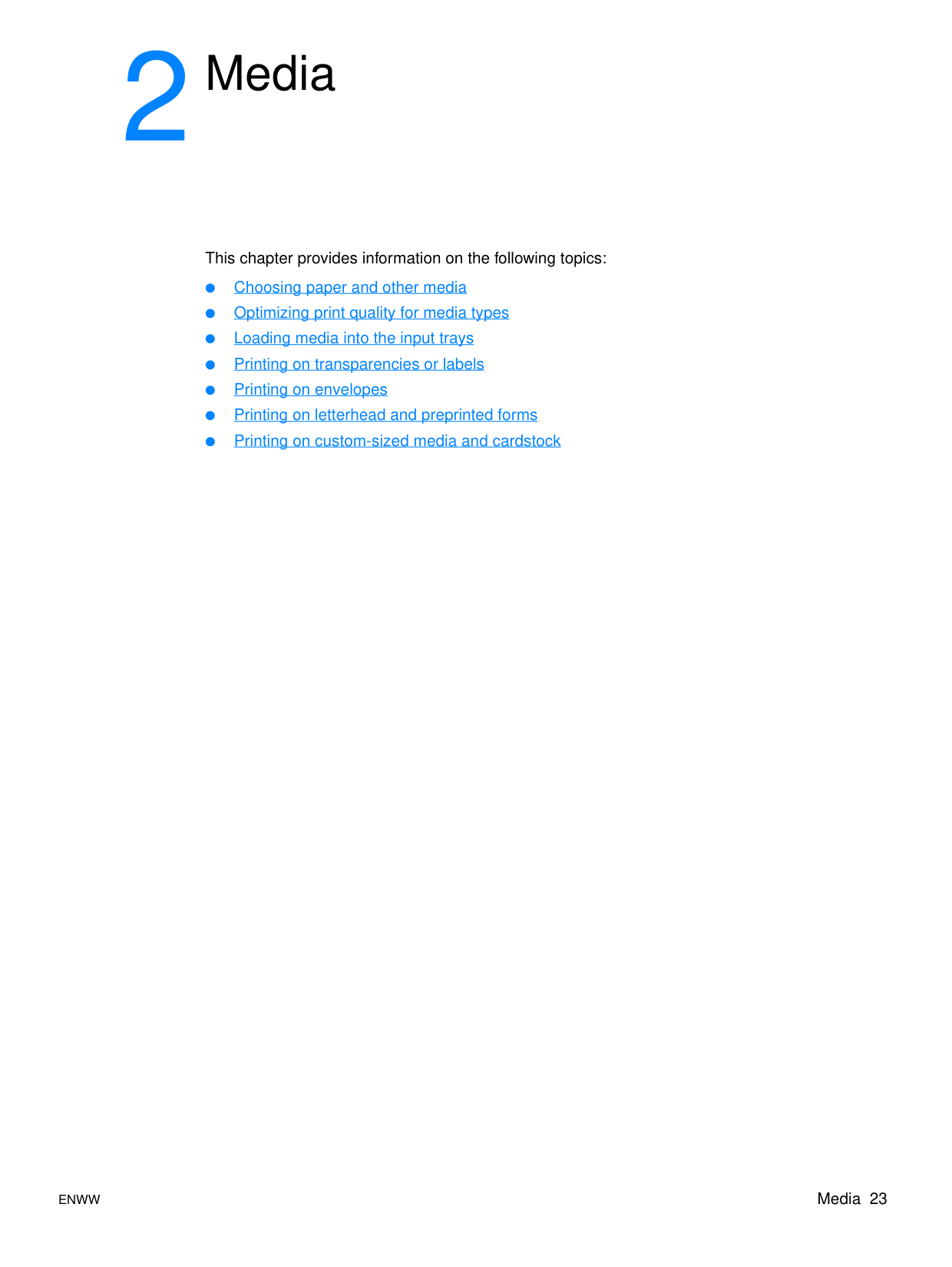

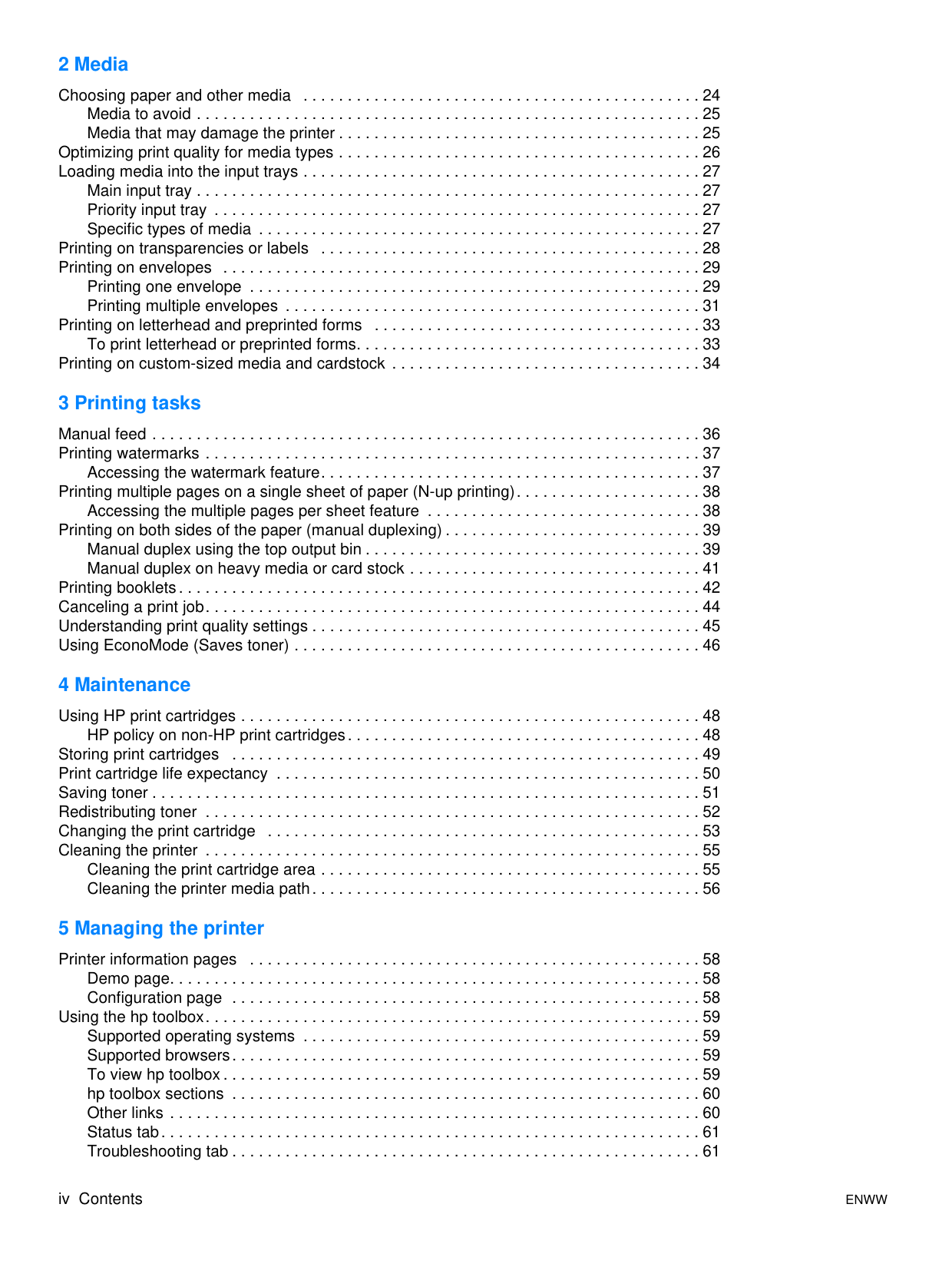

###### 2 Media

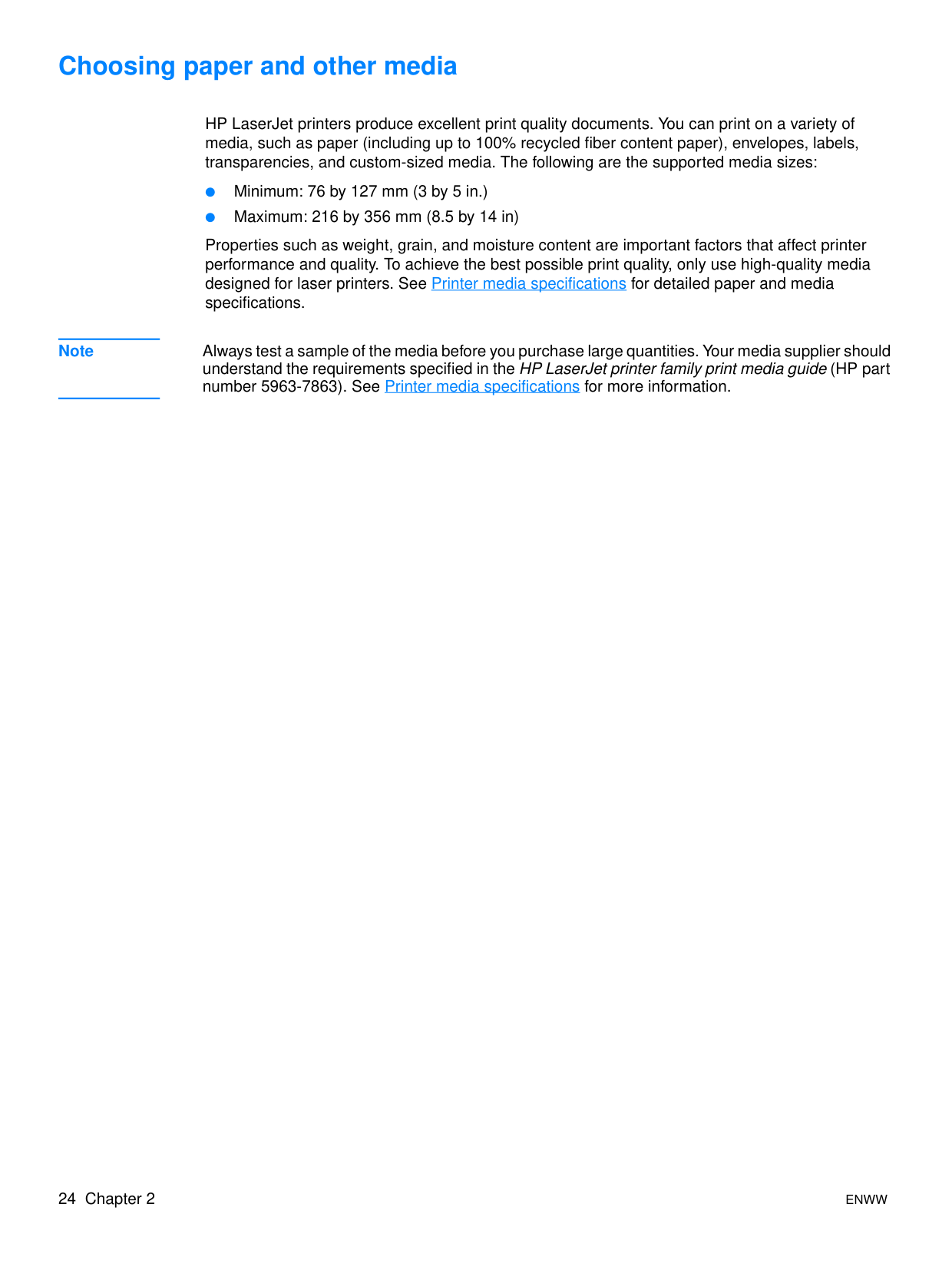

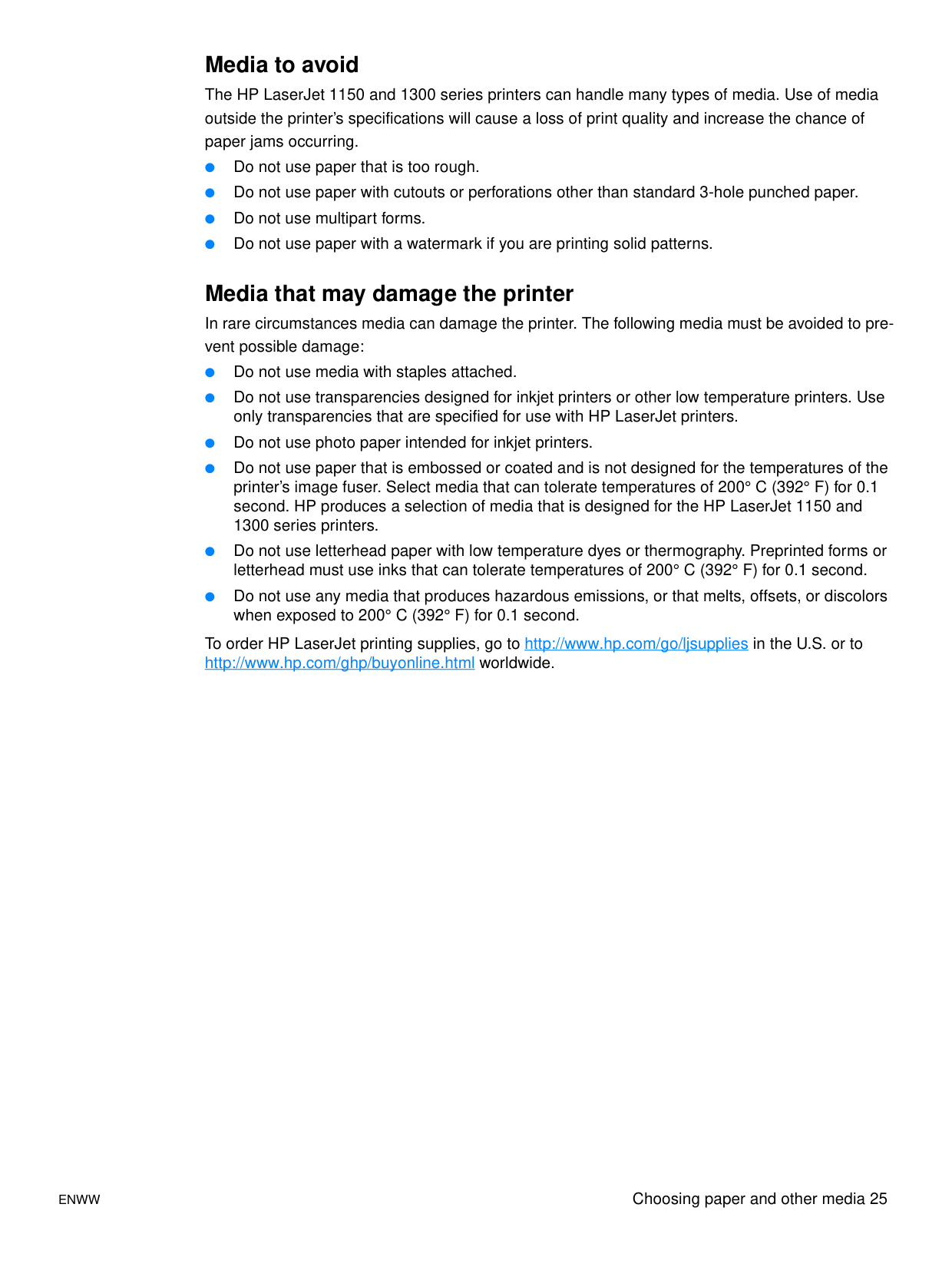

Choosing paper and other media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Media to avoid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Media that may damage the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Optimizing print quality for media types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Loading media into the input trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Main input tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Priority input tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Specific types of media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

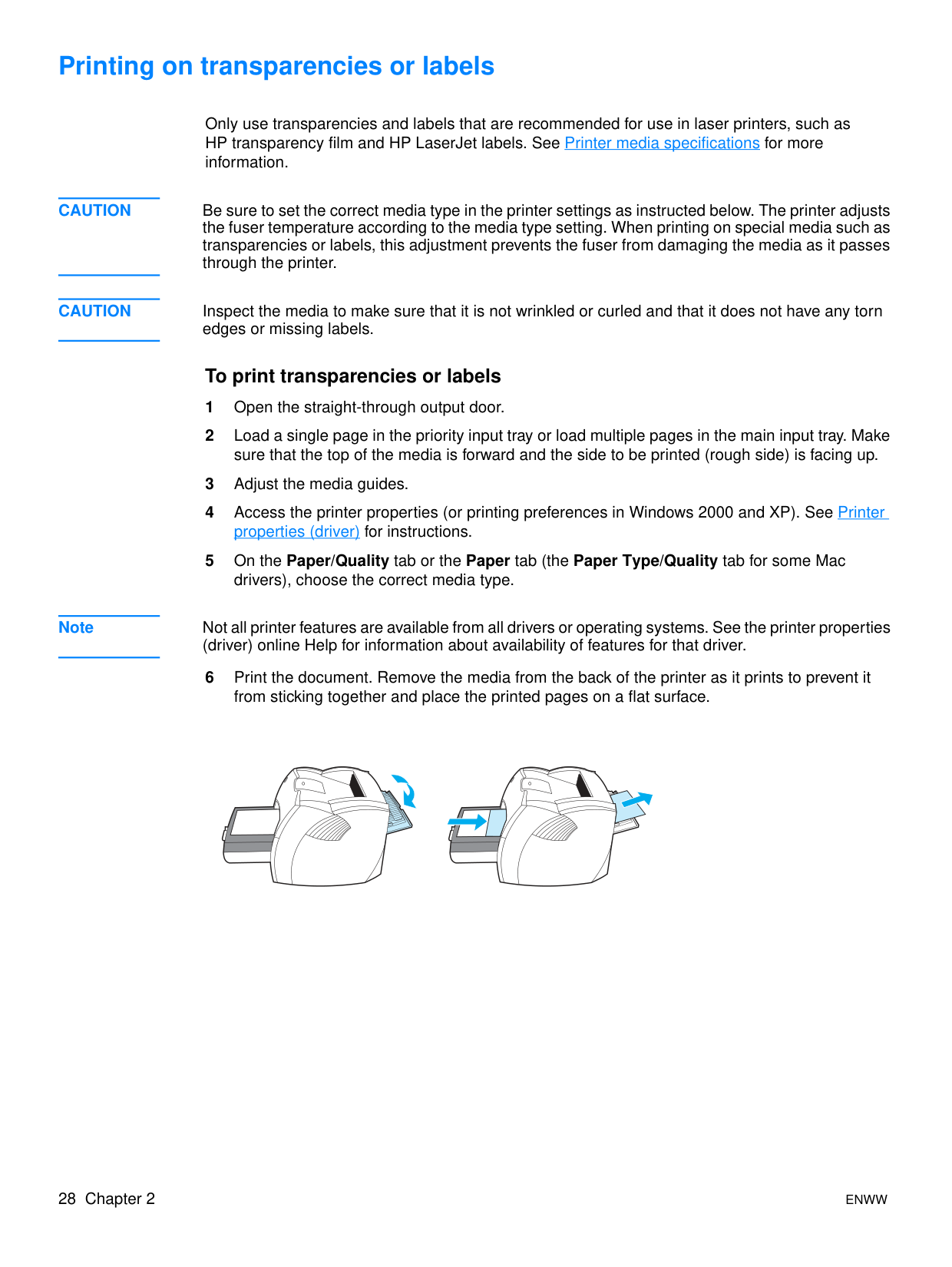

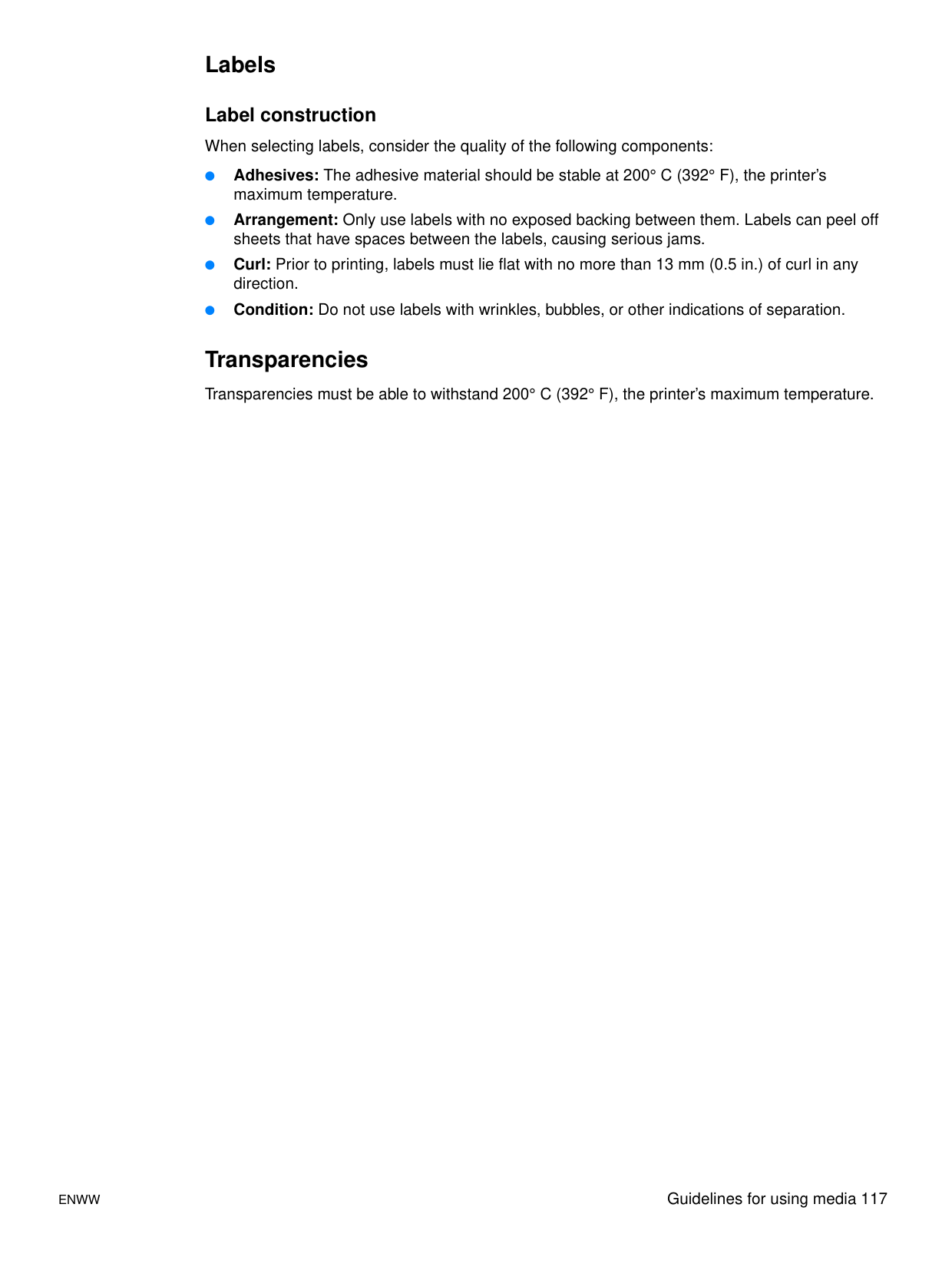

Printing on transparencies or labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Printing on envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

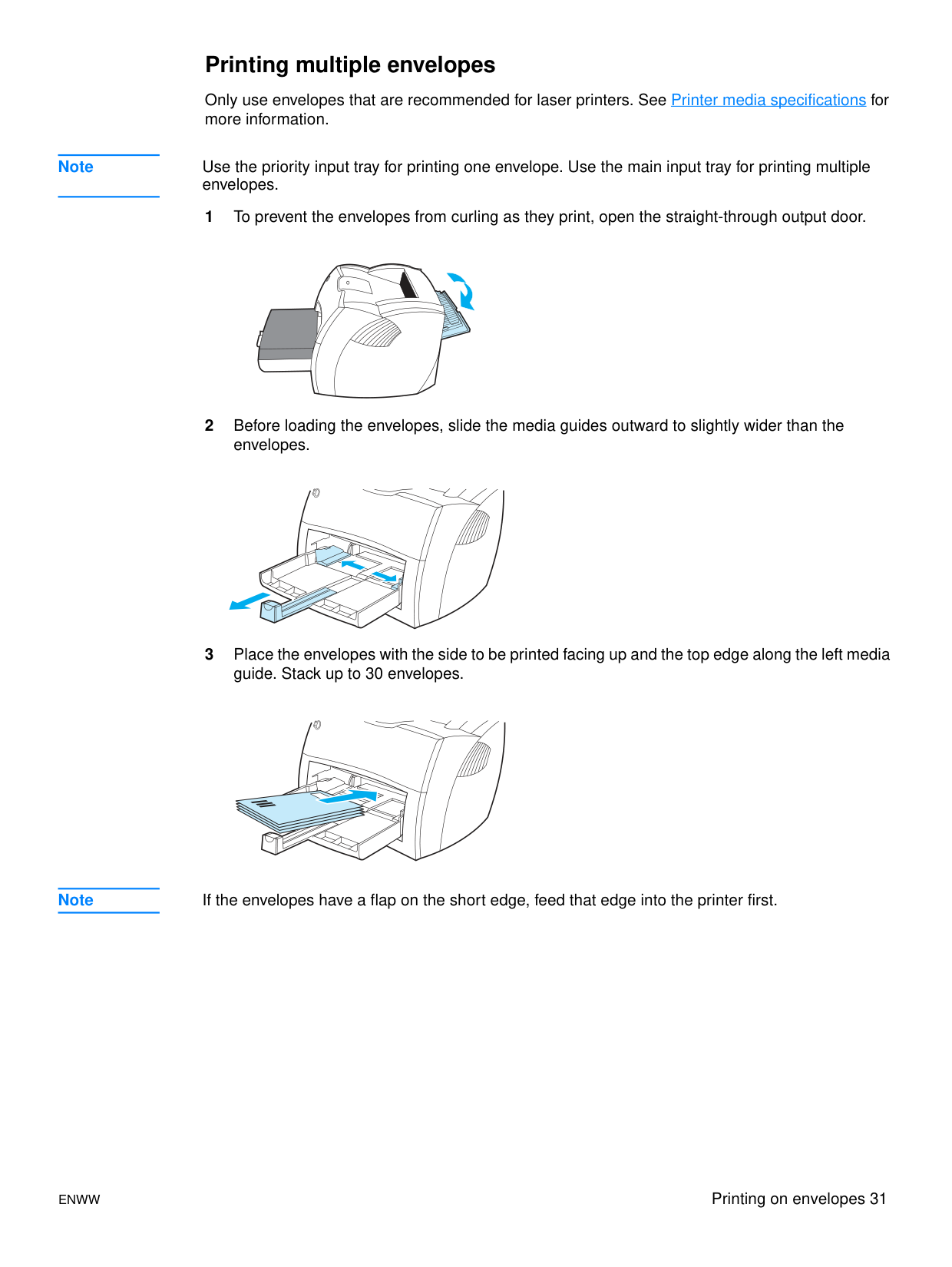

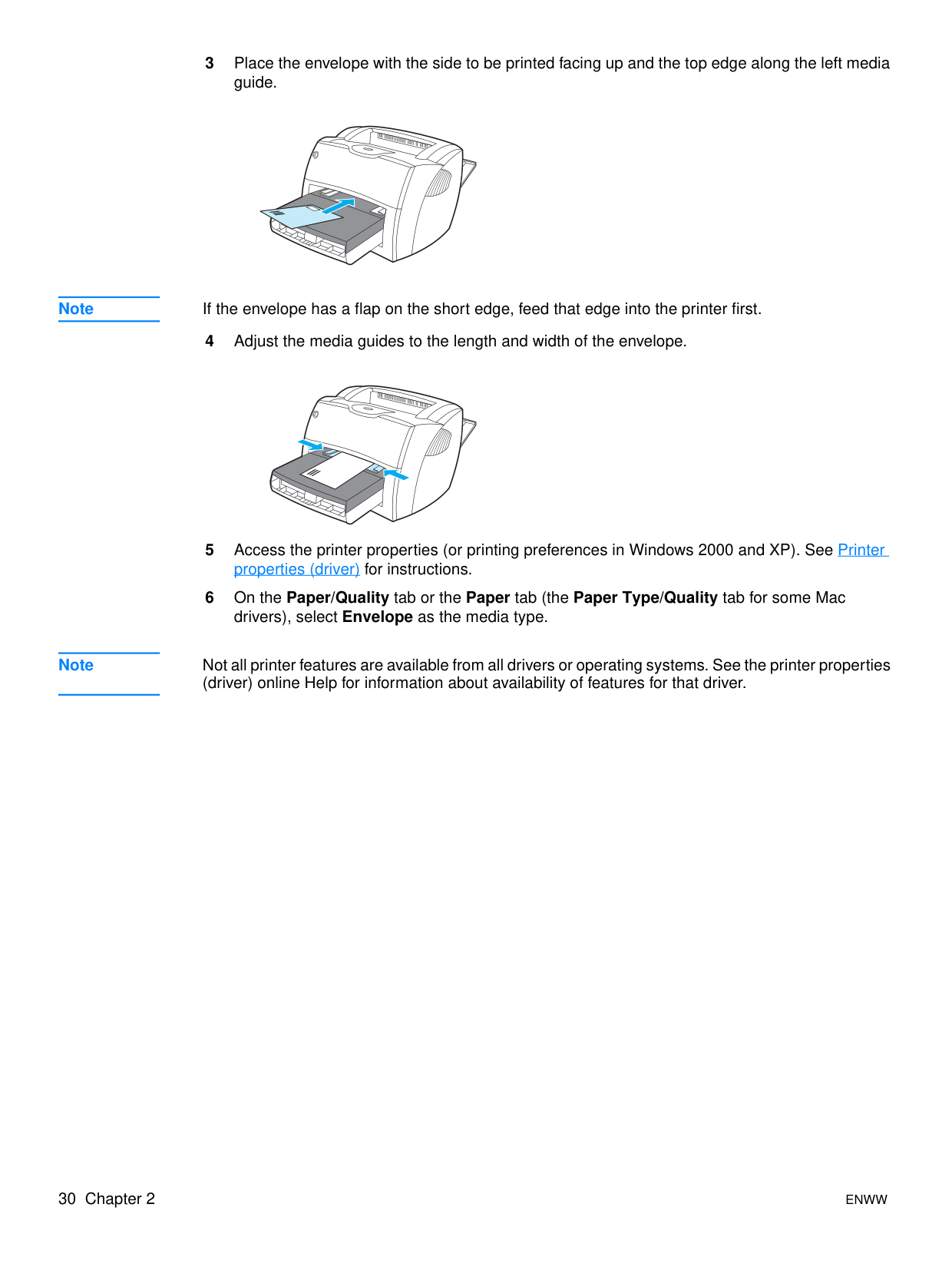

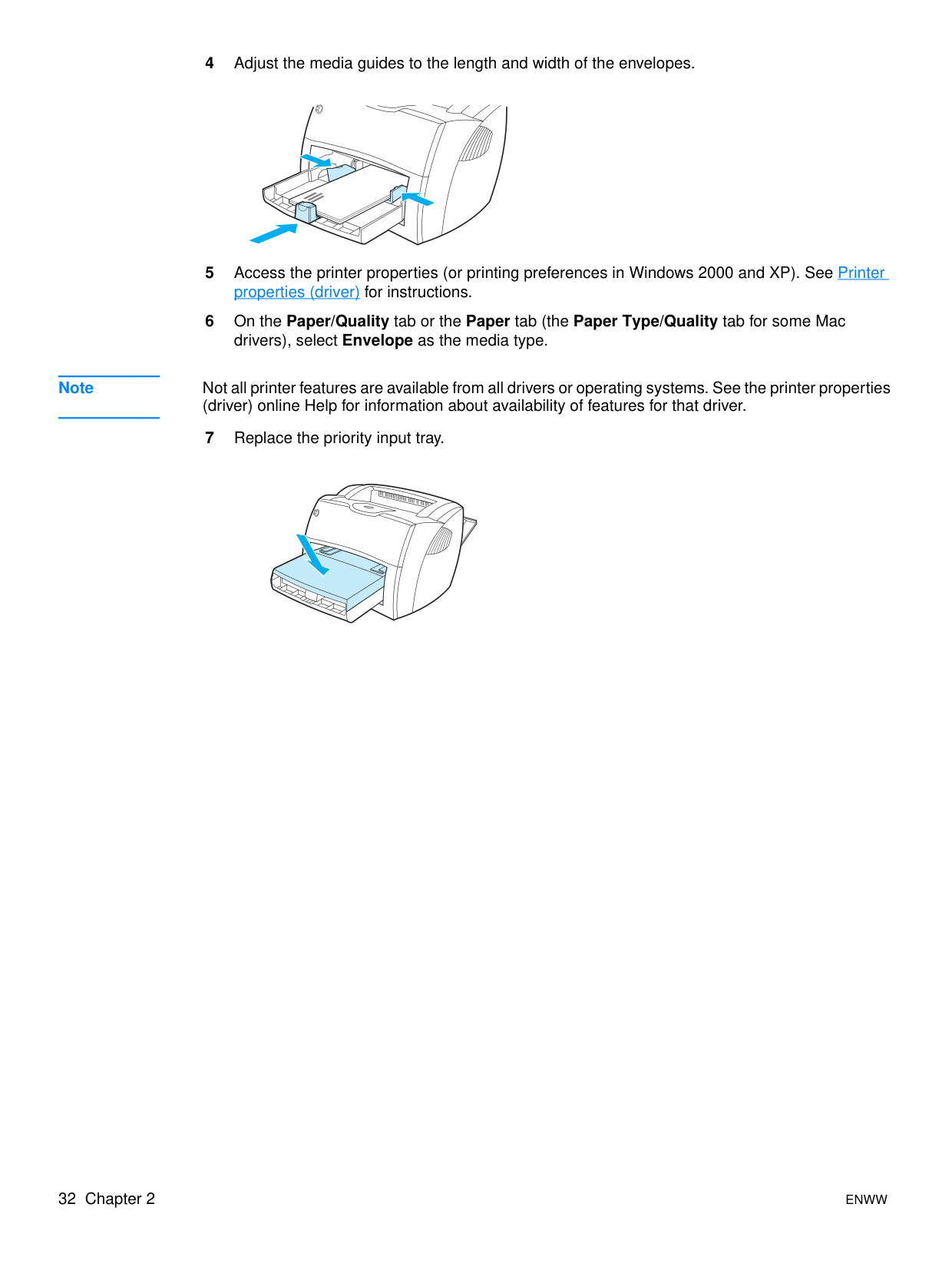

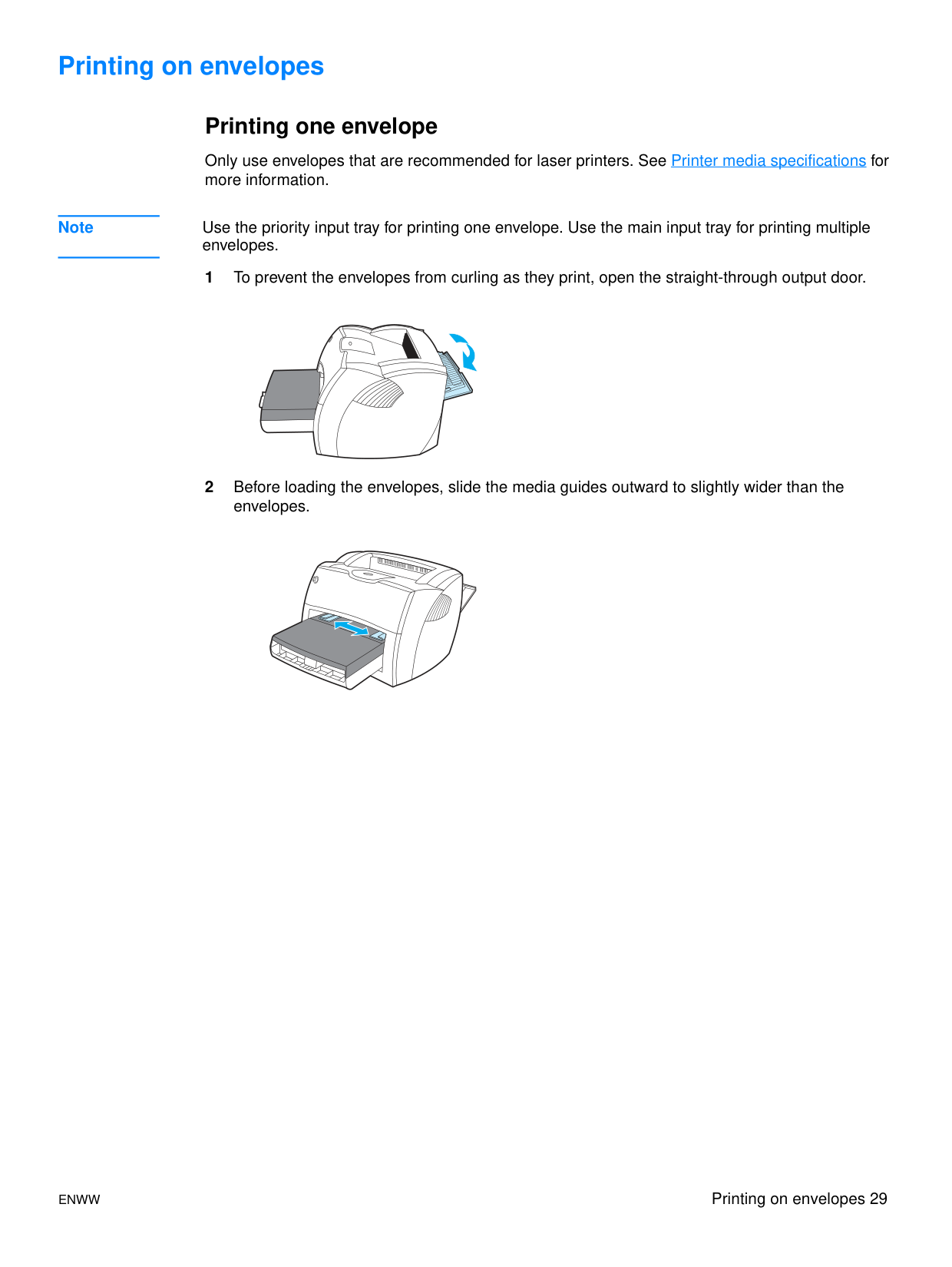

Printing one envelope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Printing multiple envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

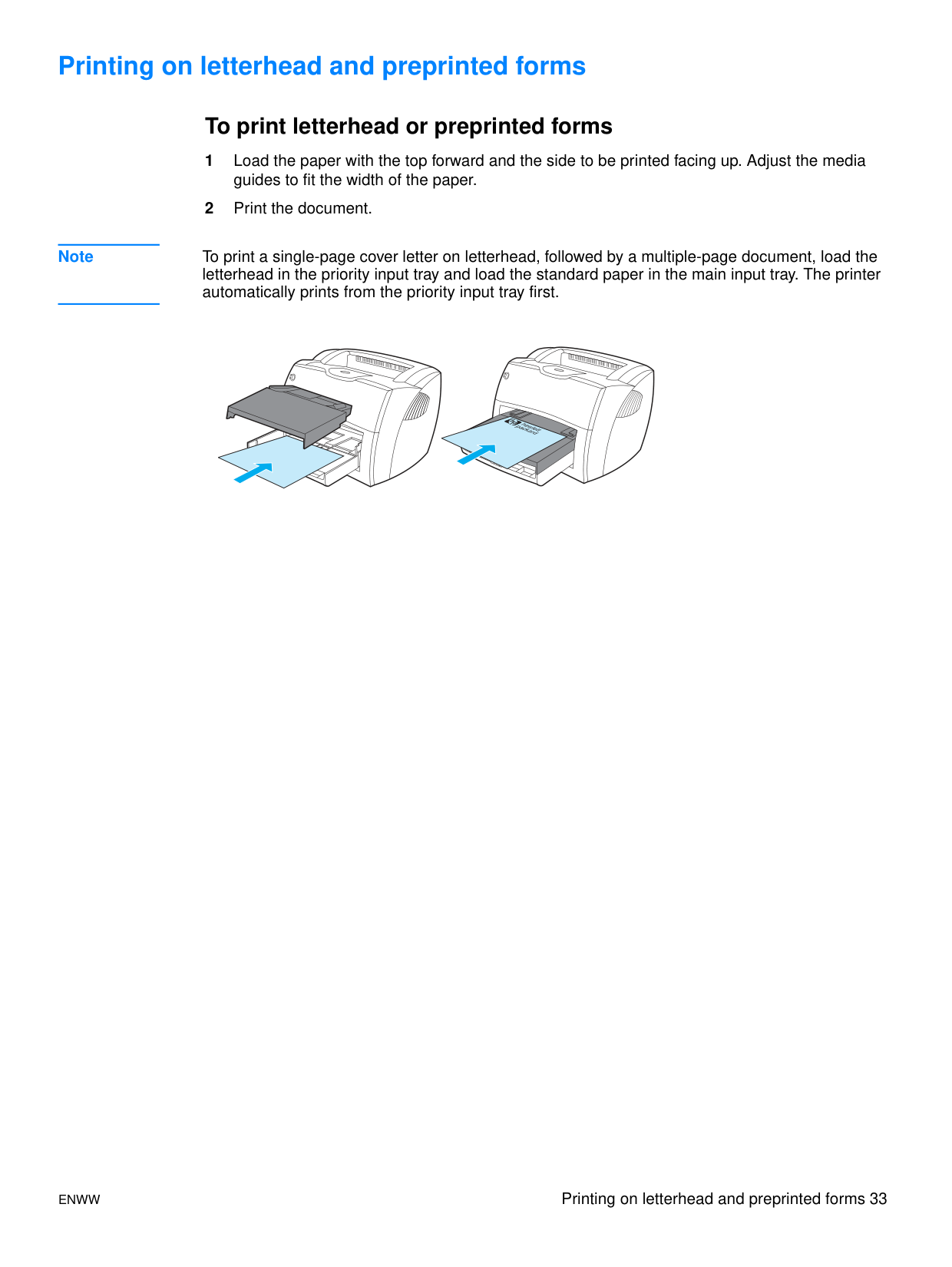

Printing on letterhead and preprinted forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 To print letterhead or preprinted forms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Printing on custom-sized media and cardstock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

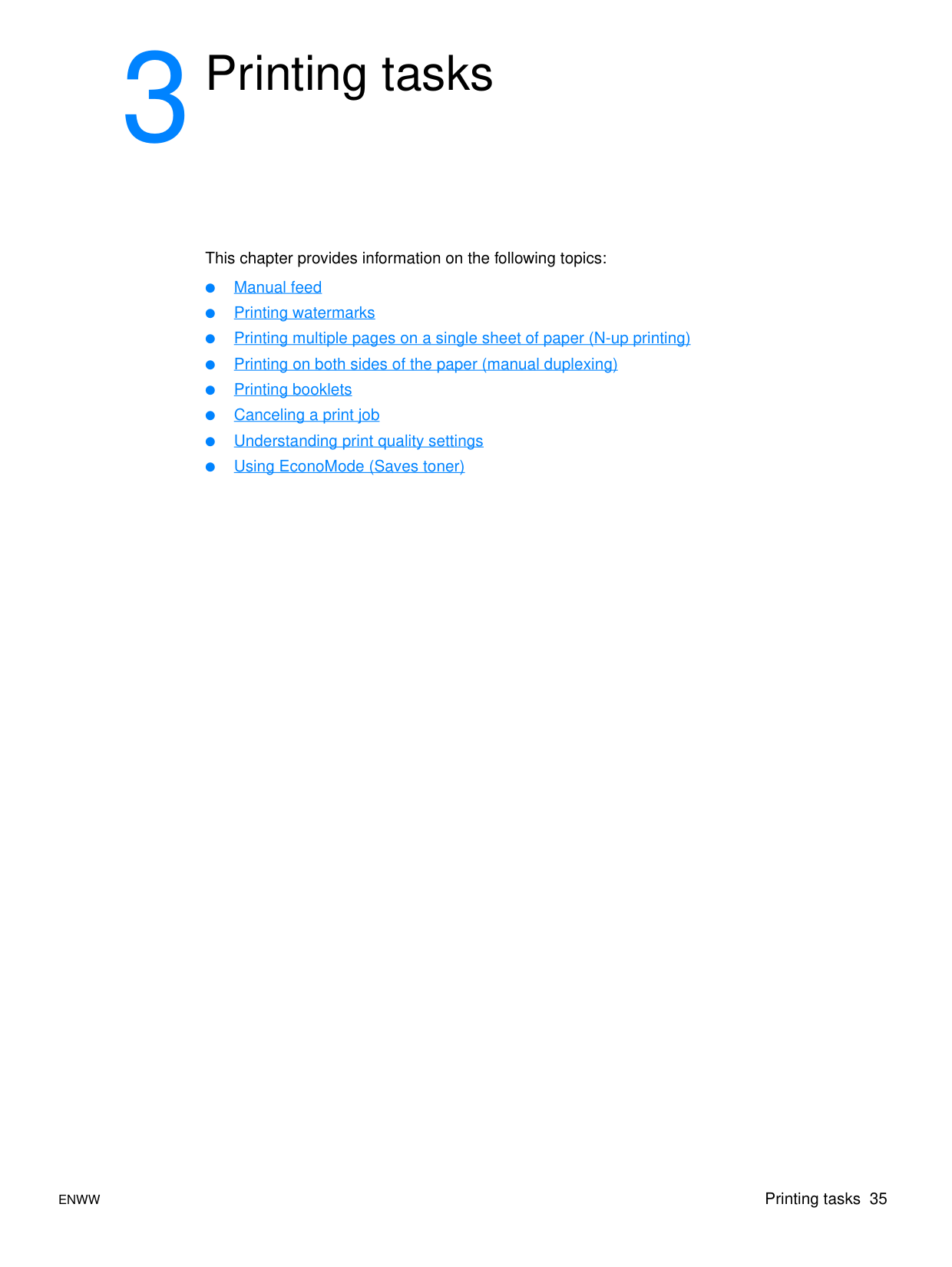

###### 3 Printing tasks

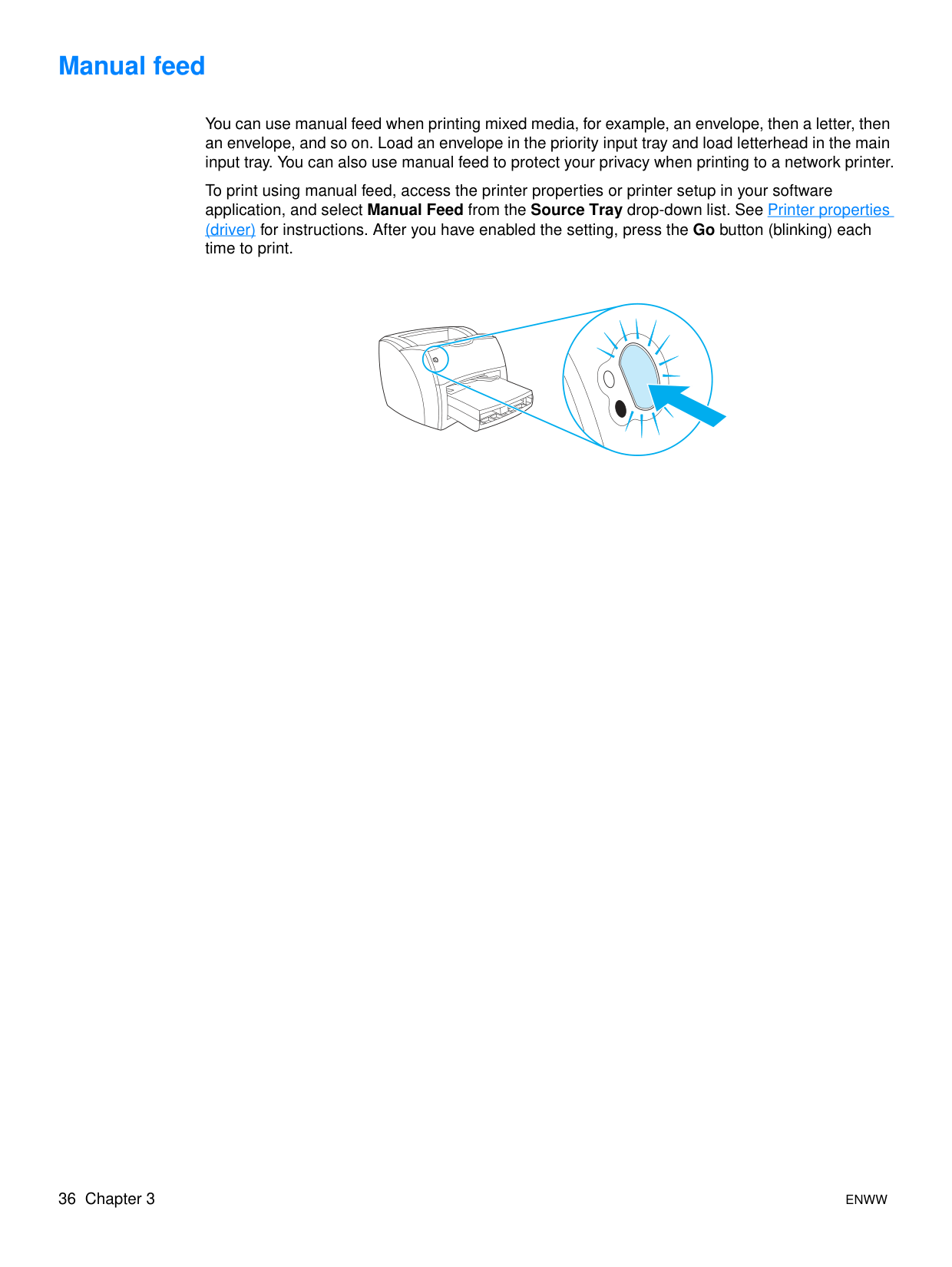

Manual feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Printing watermarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

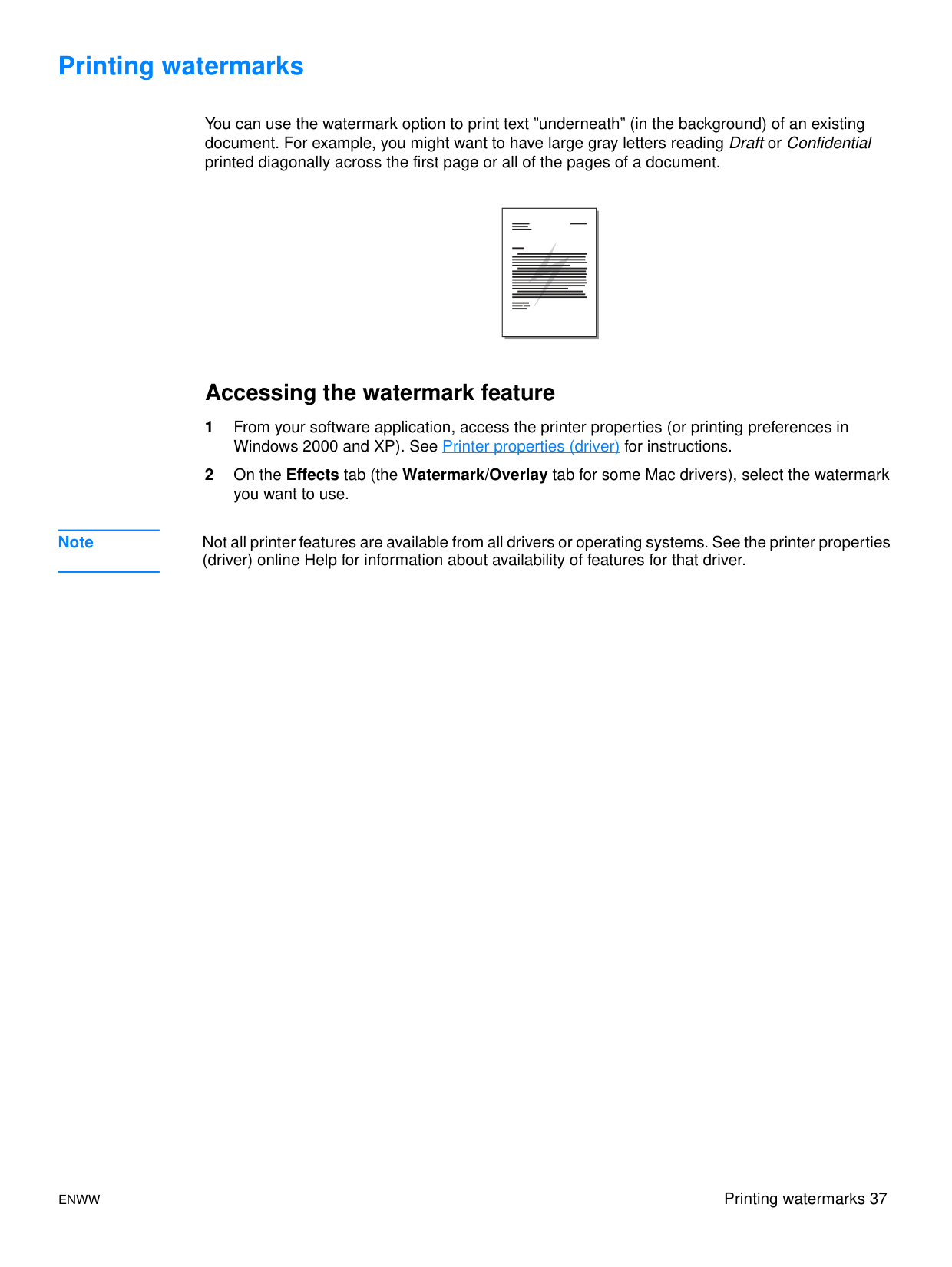

Accessing the watermark feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Printing multiple pages on a single sheet of paper (N-up printing). . . . . . . . . . . . . . . . . . . . . 38 Accessing the multiple pages per sheet feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

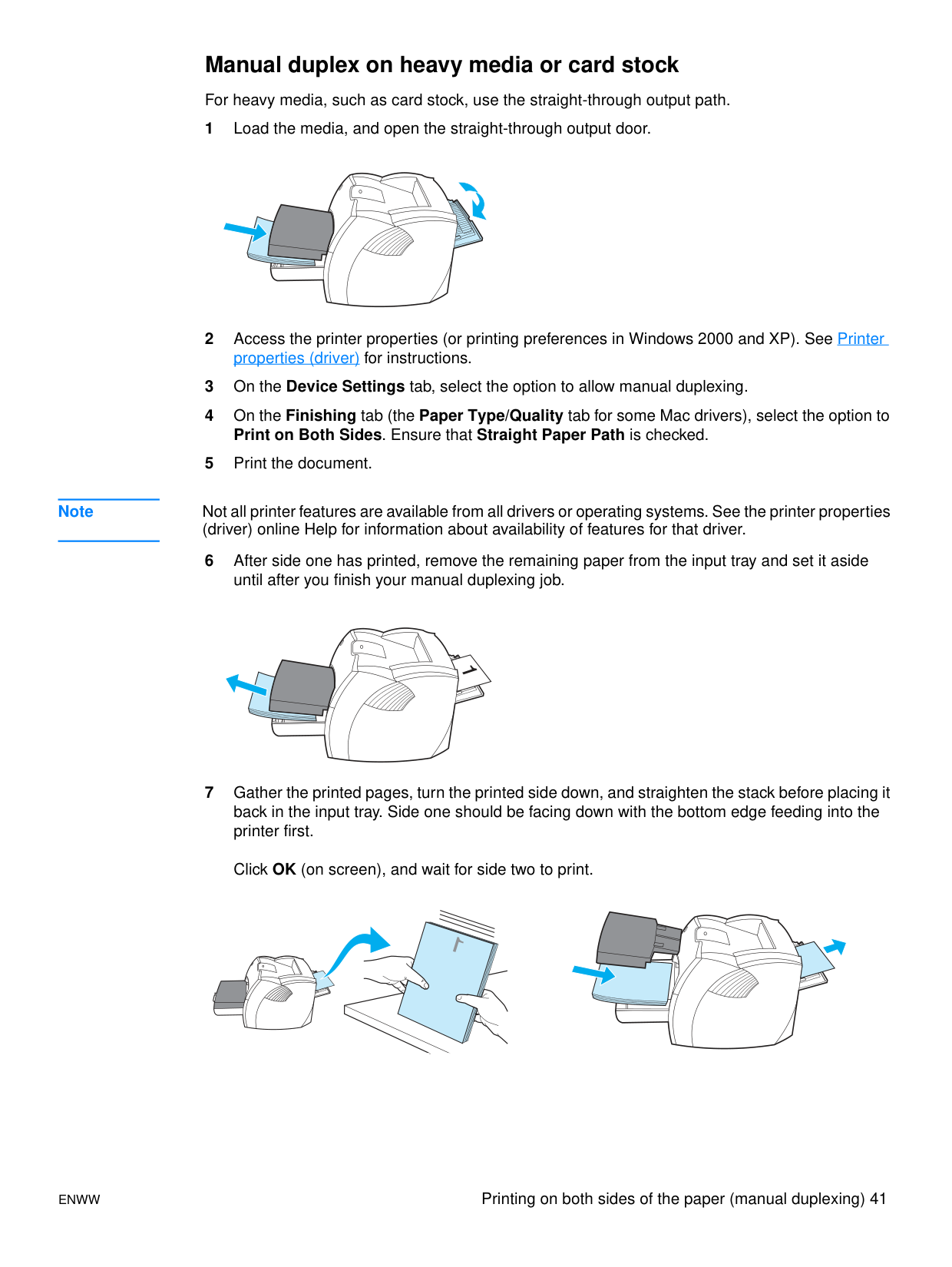

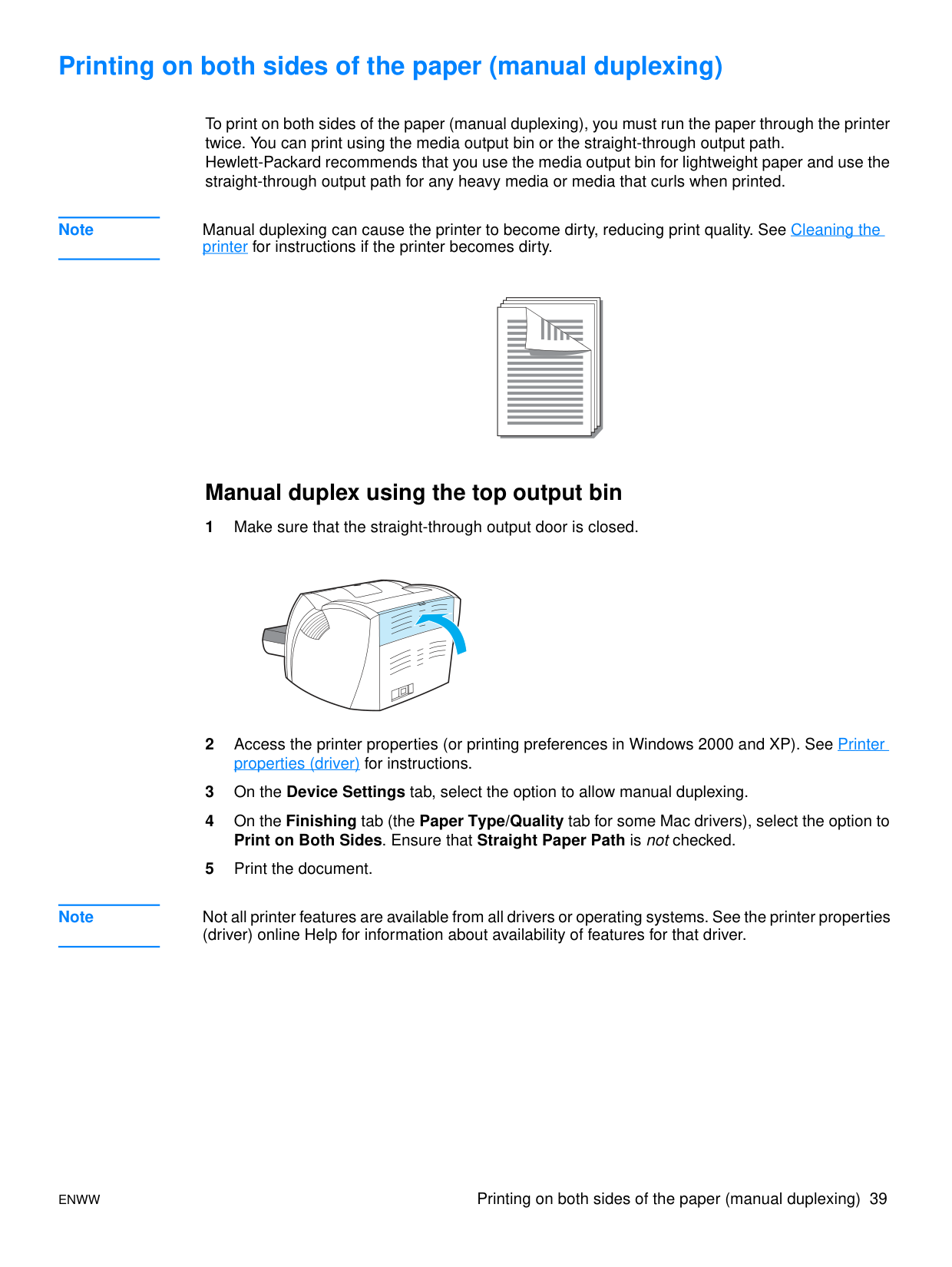

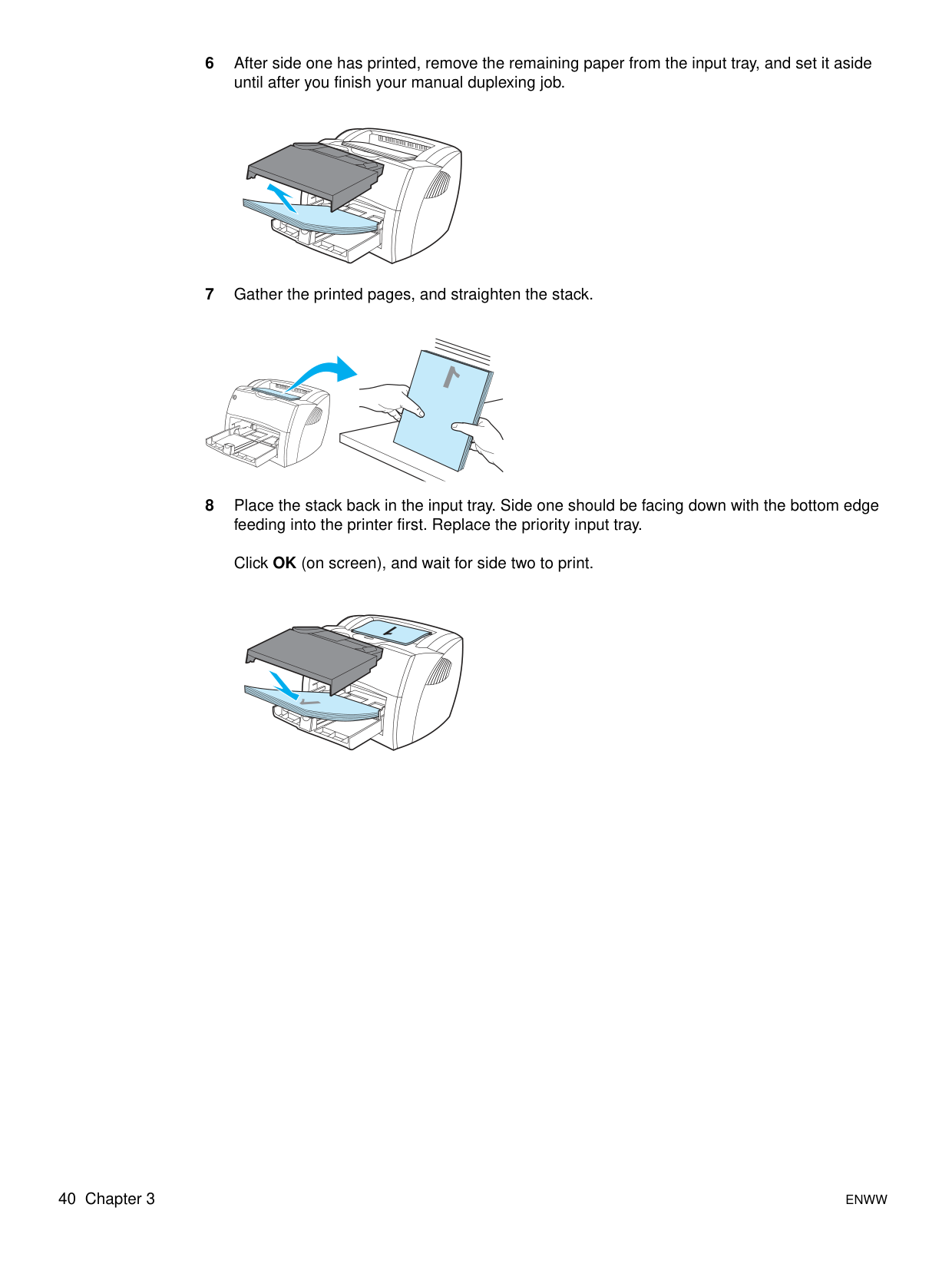

Printing on both sides of the paper (manual duplexing) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Manual duplex using the top output bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Manual duplex on heavy media or card stock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

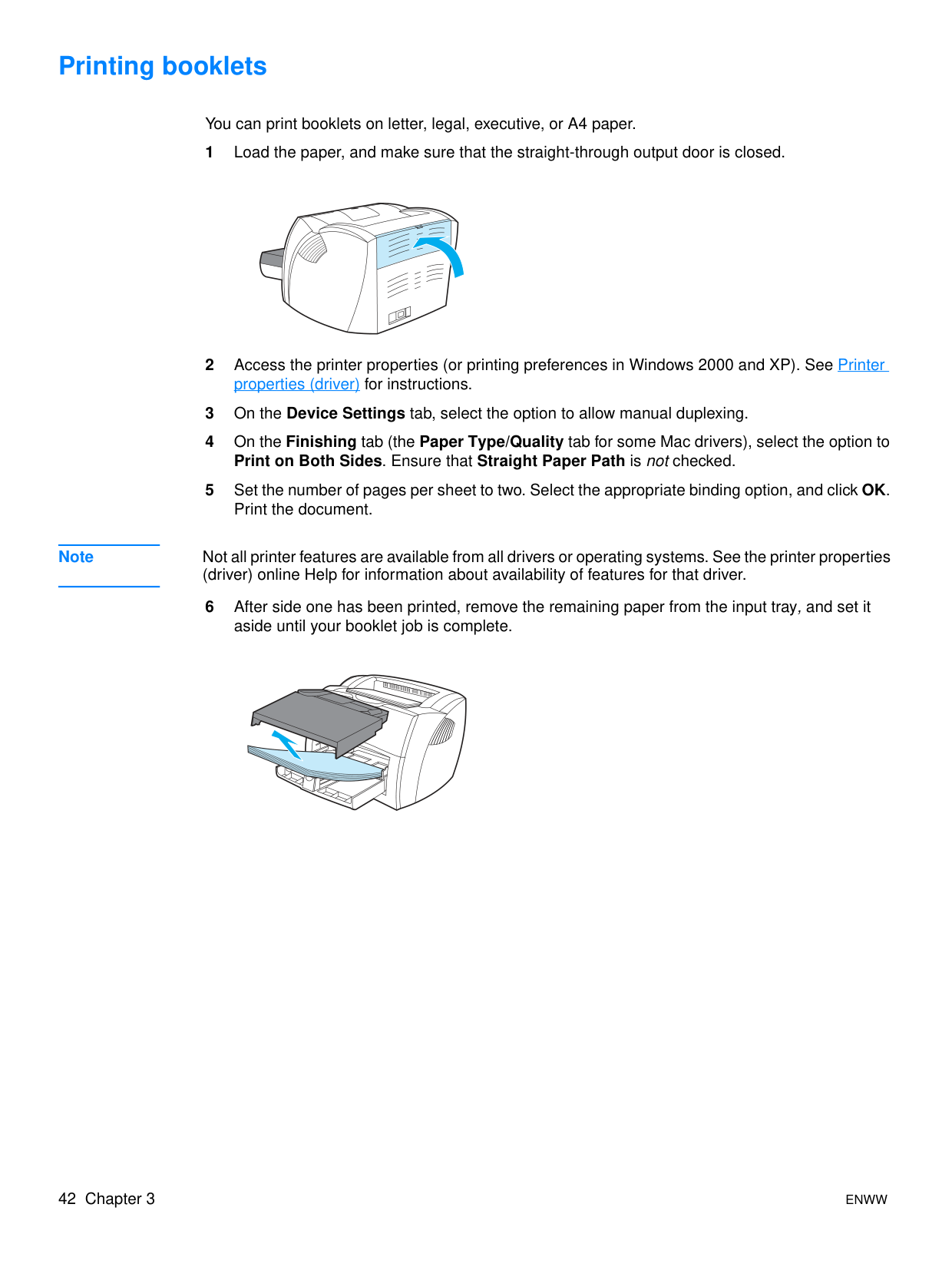

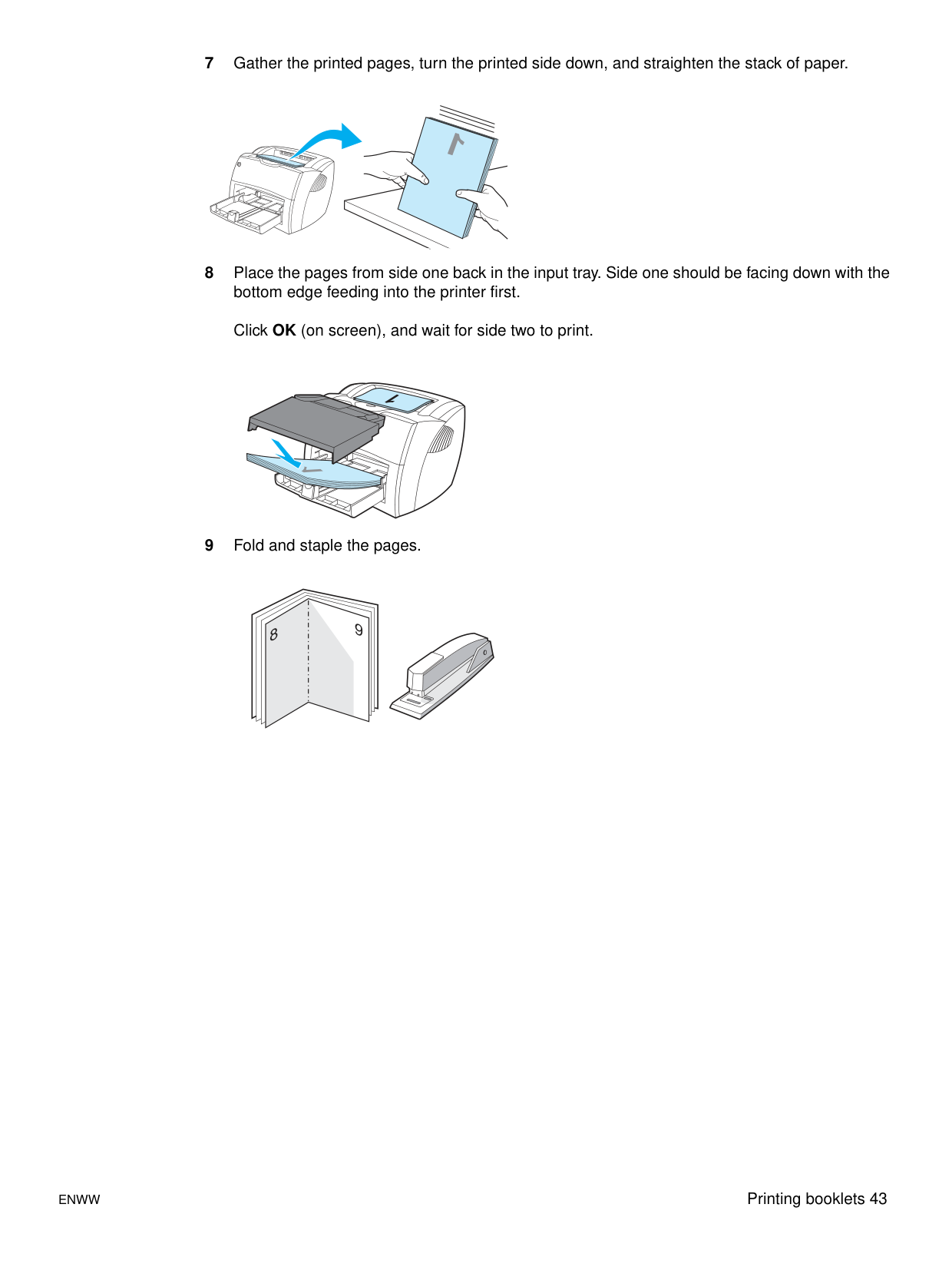

Printing booklets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Canceling a print job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Understanding print quality settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using EconoMode (Saves toner) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

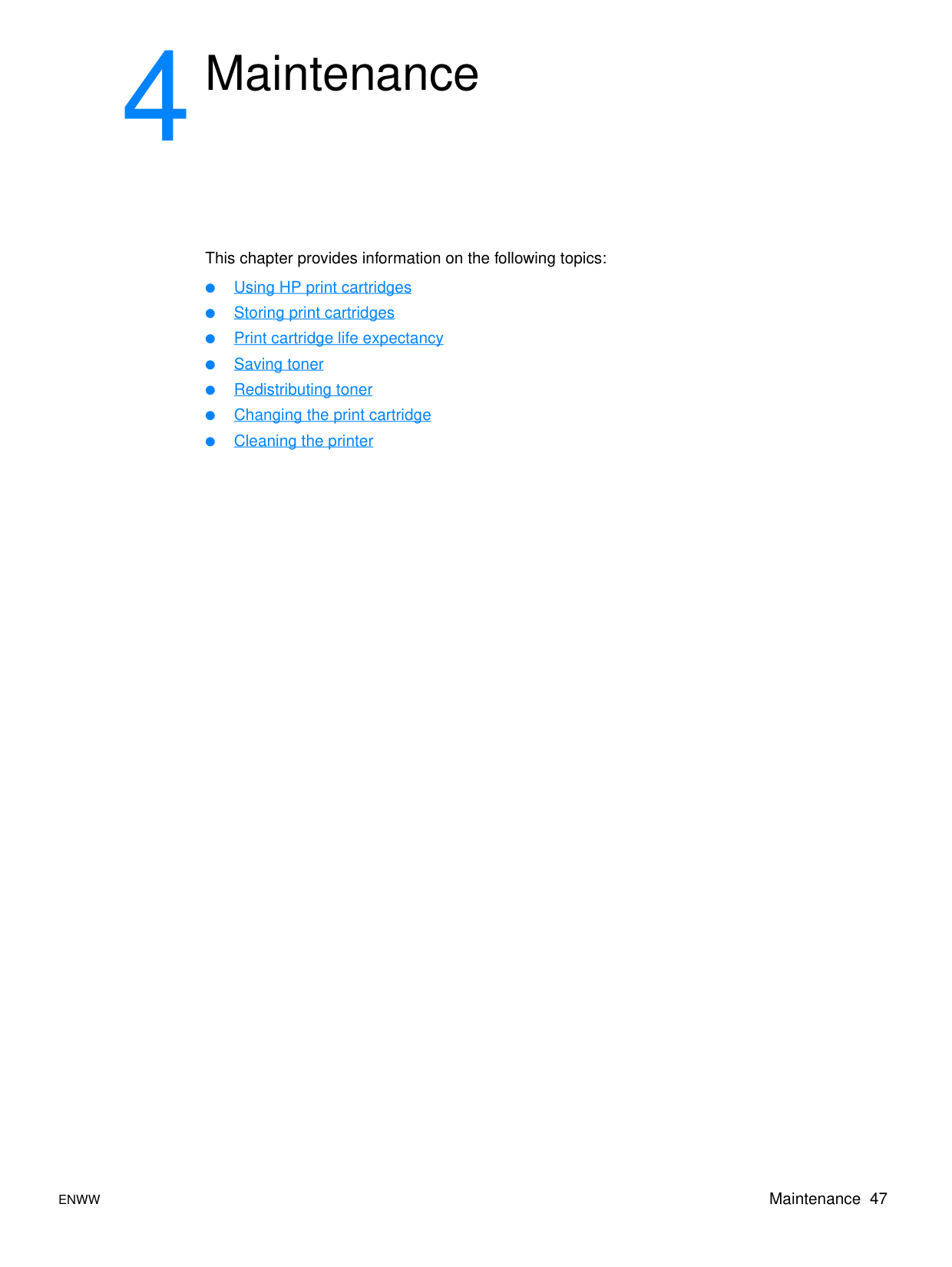

###### 4 Maintenance

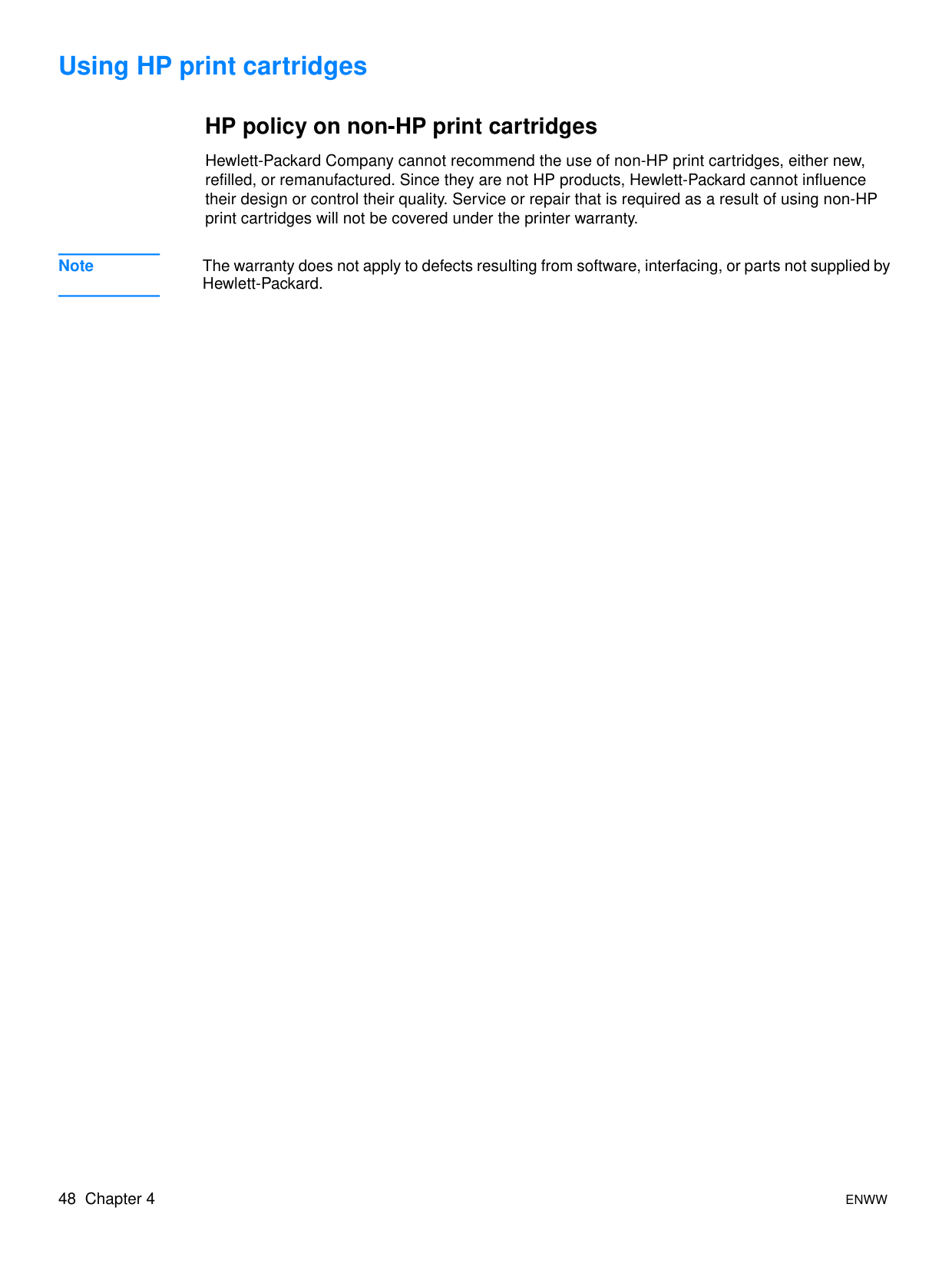

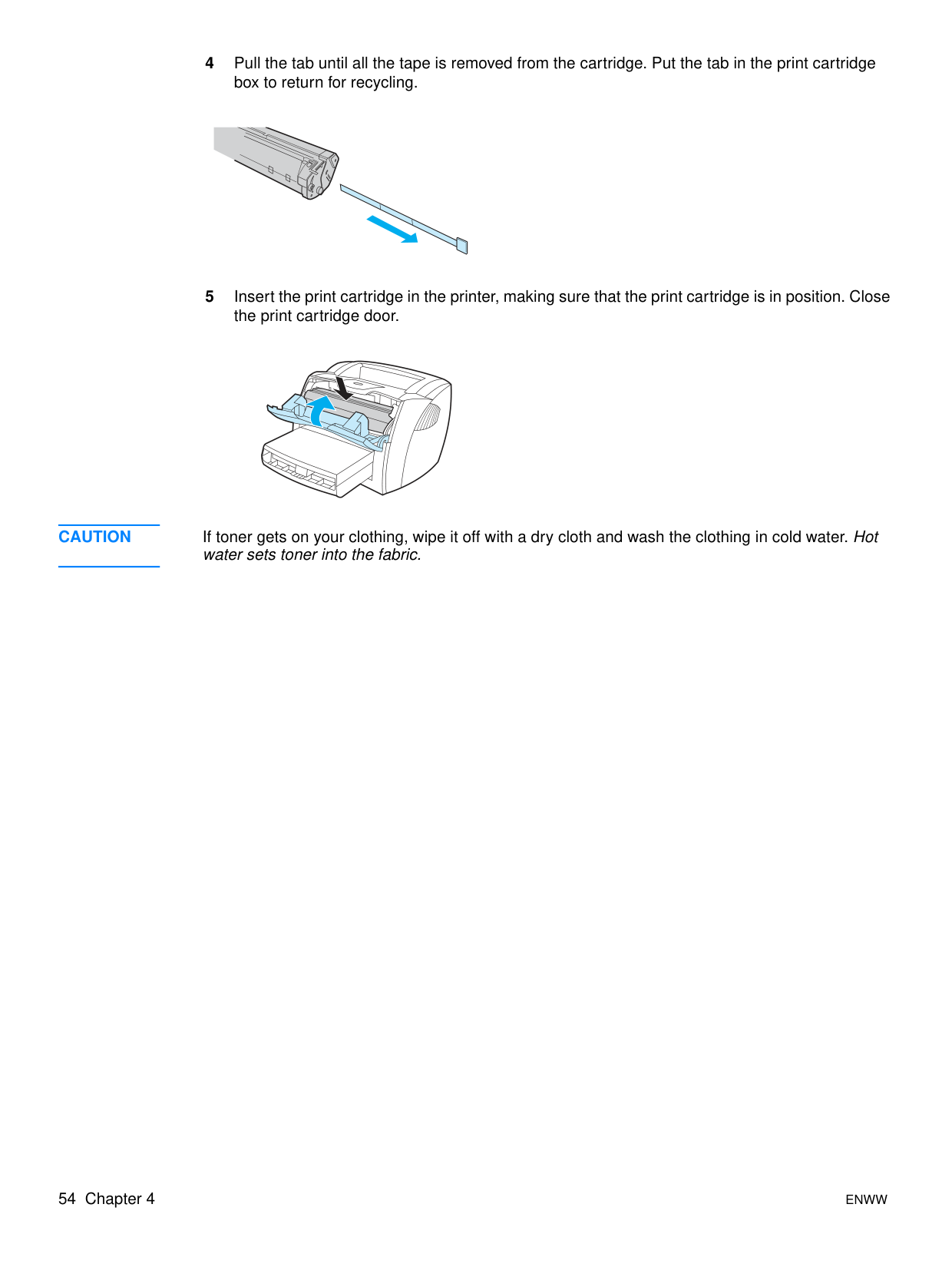

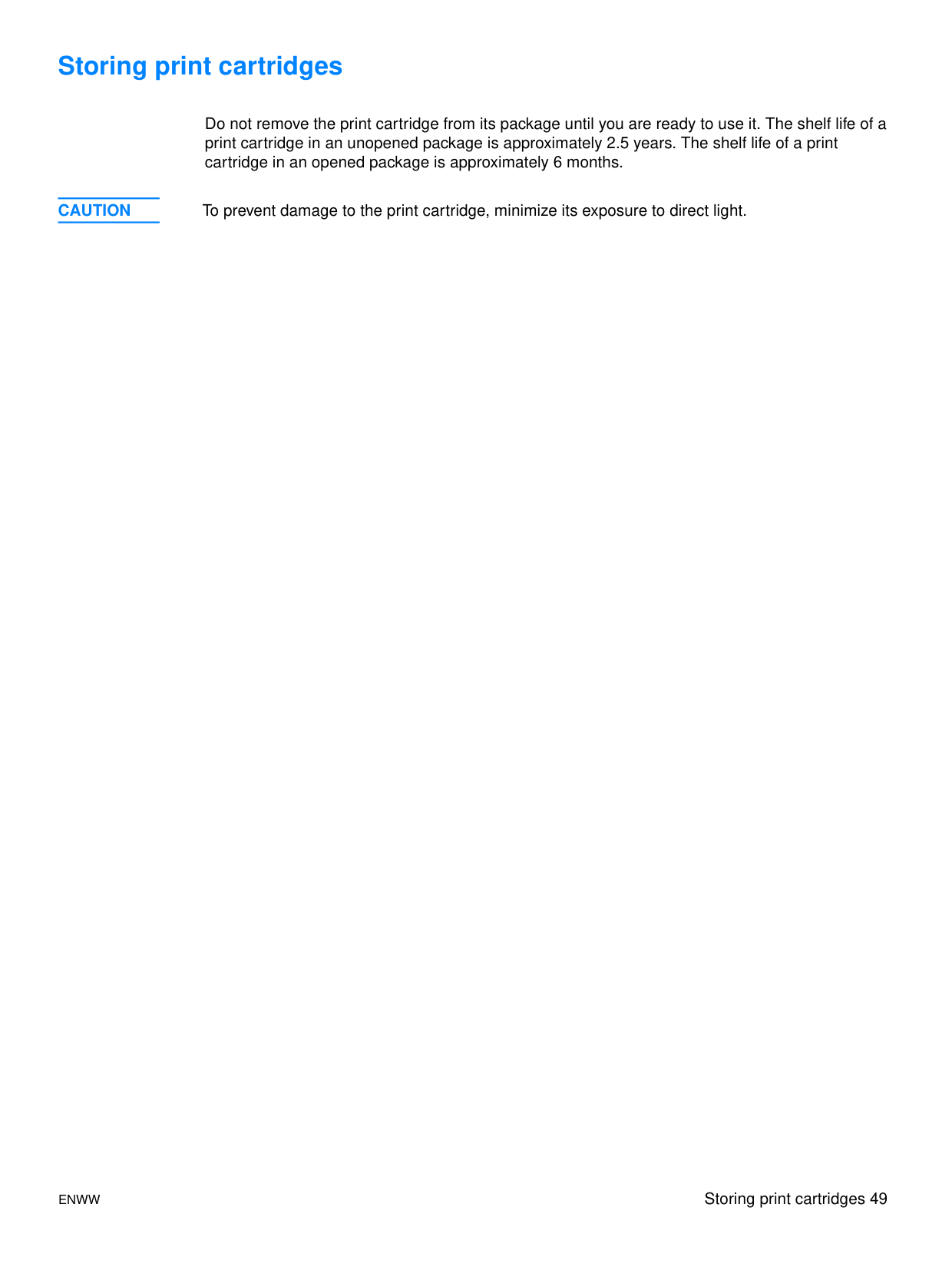

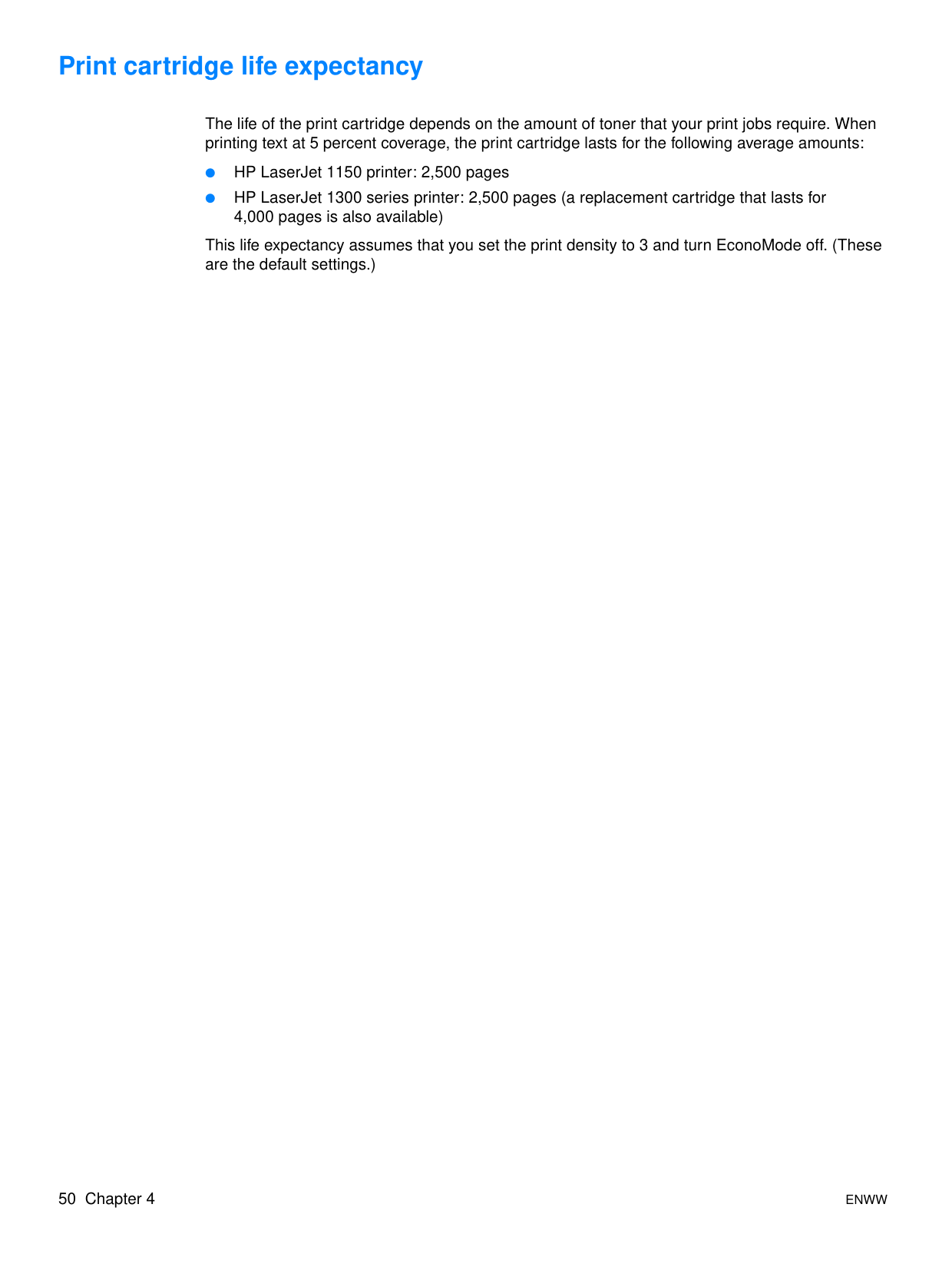

Using HP print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

HP policy on non-HP print cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Storing print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Print cartridge life expectancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Saving toner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Redistributing toner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Changing the print cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Cleaning the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

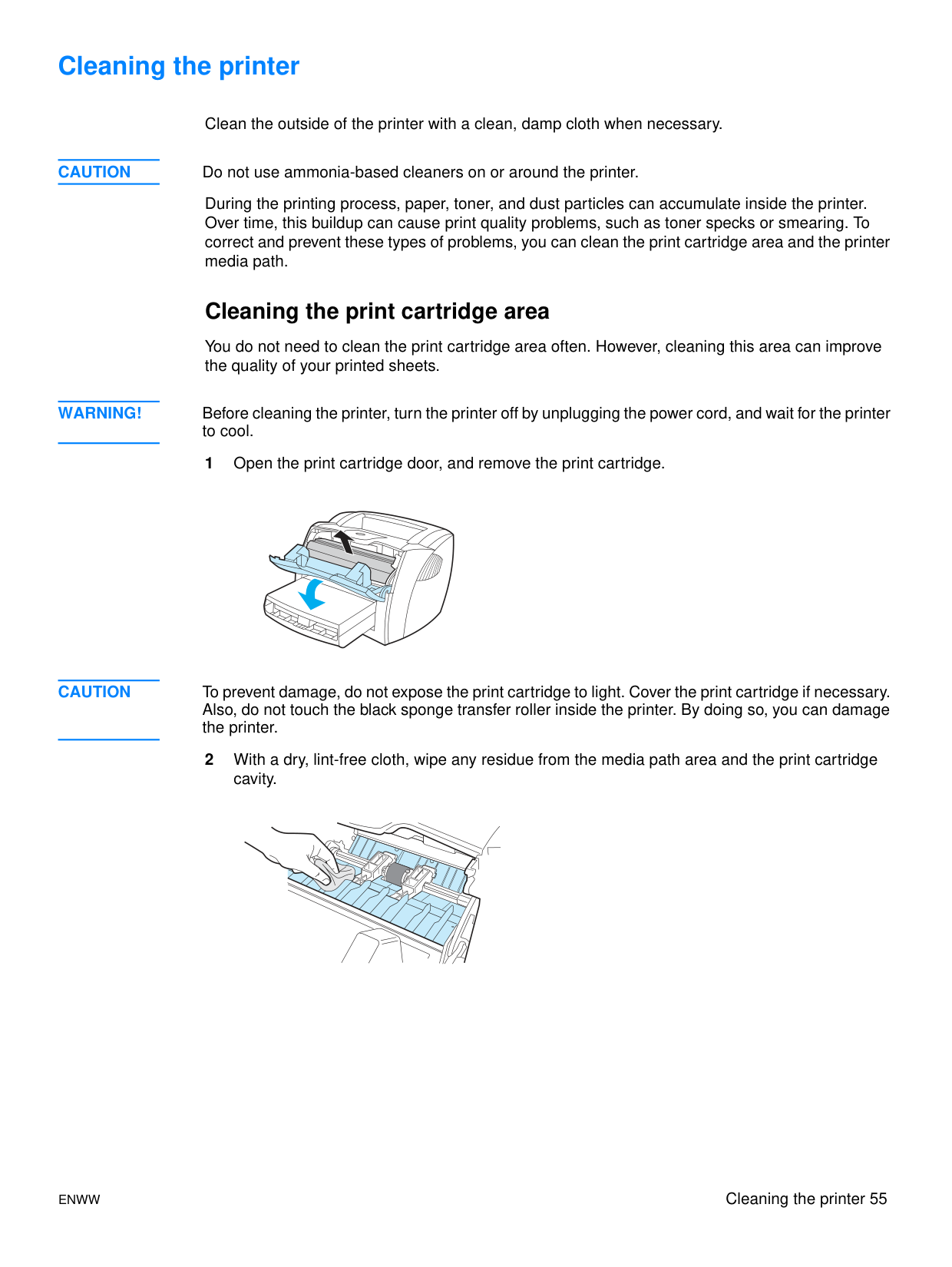

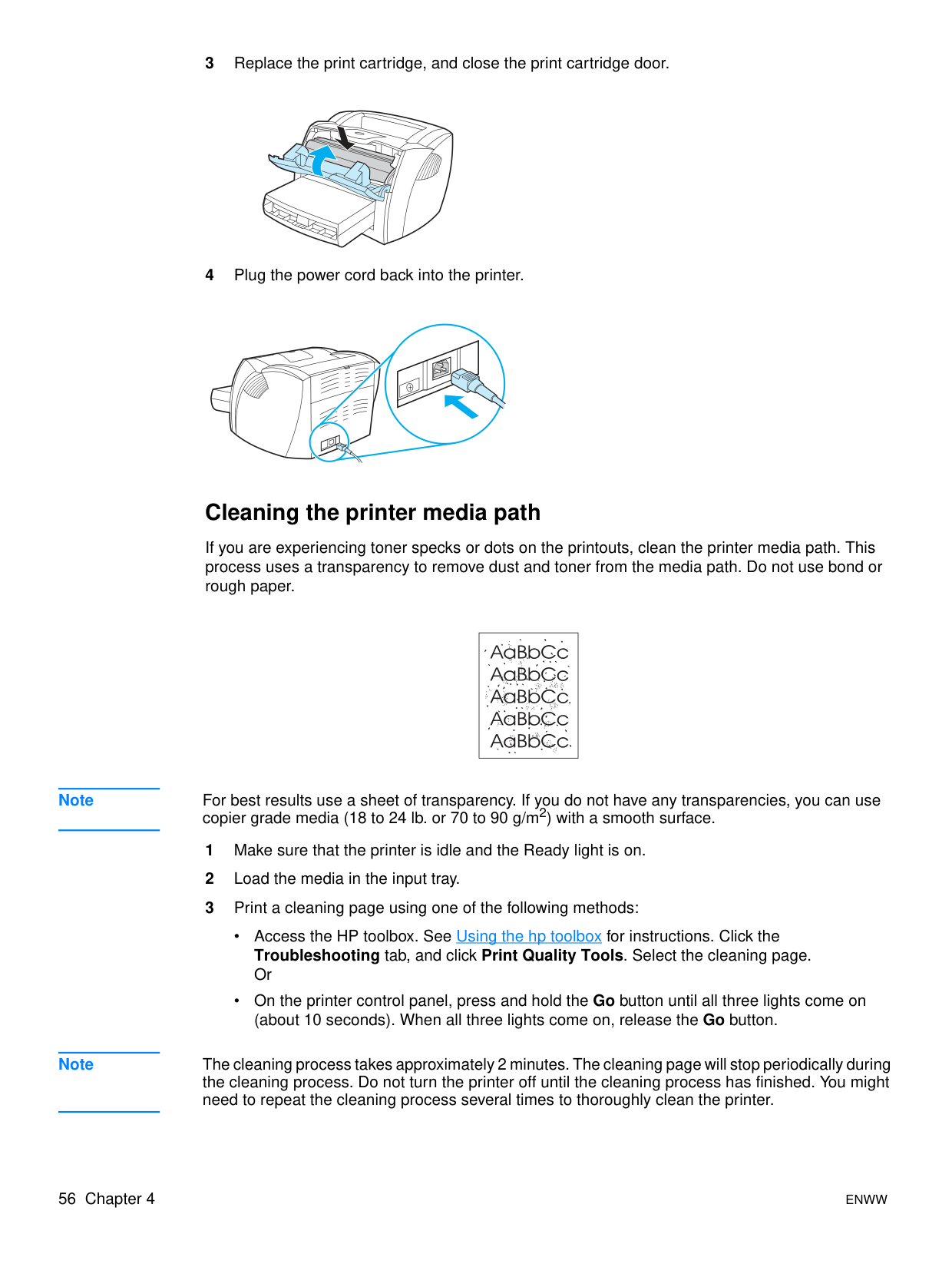

Cleaning the print cartridge area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Cleaning the printer media path. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

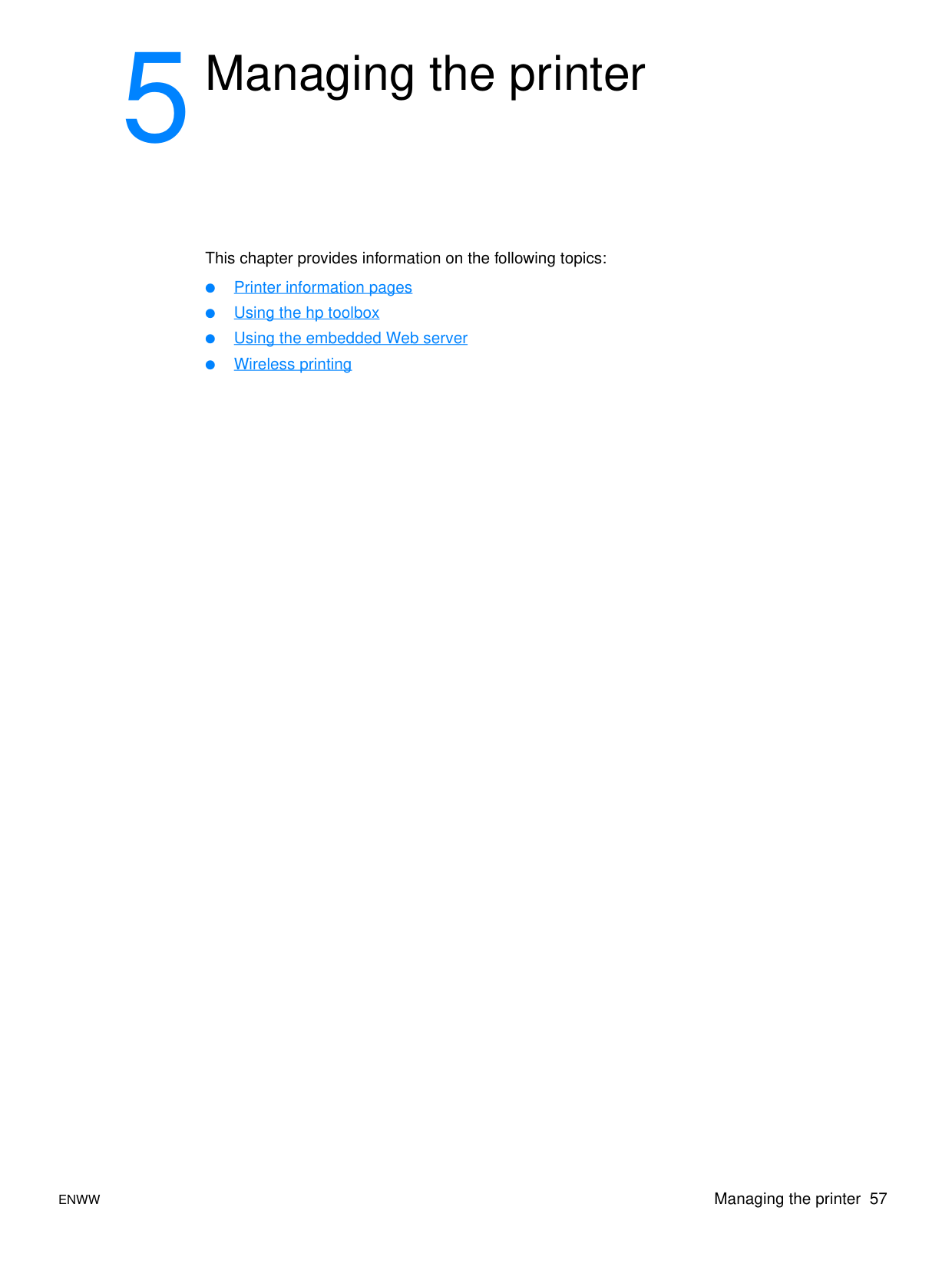

###### 5 Managing the printer

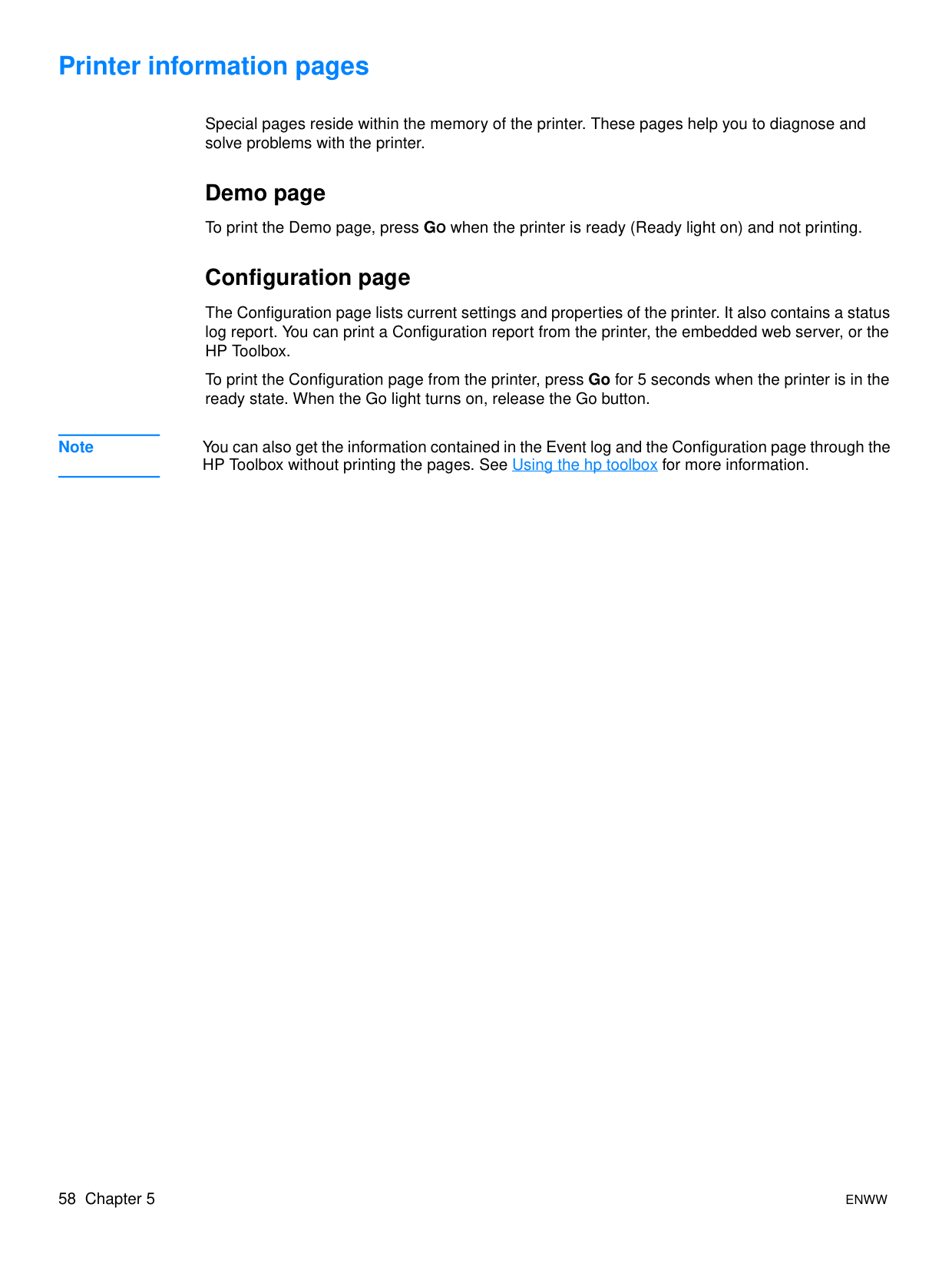

Printer information pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Demo page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Configuration page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Using the hp toolbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Supported operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Supported browsers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 To view hp toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 hp toolbox sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Other links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Status tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Troubleshooting tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

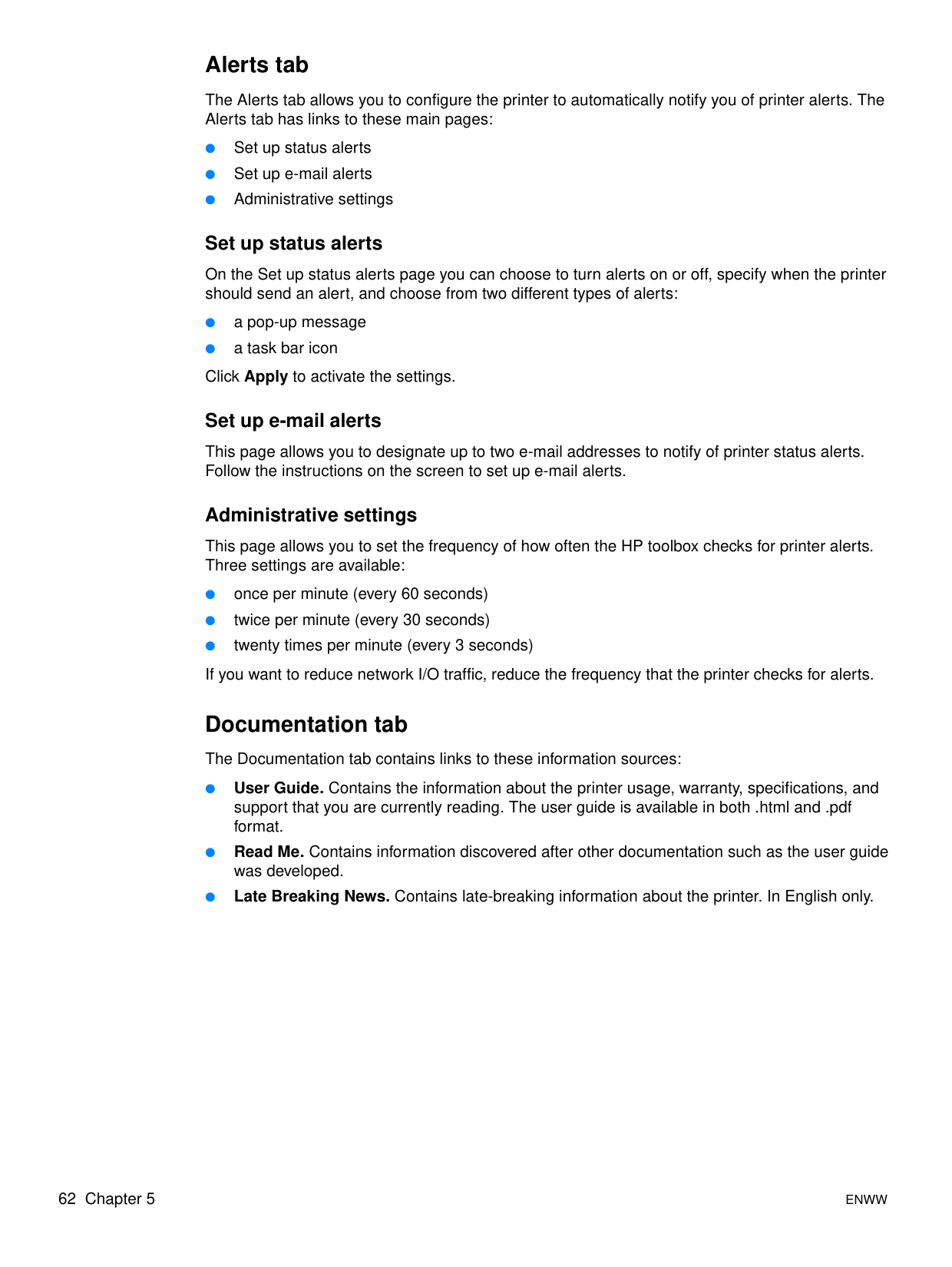

Alerts tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Documentation tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Advanced Printer Settings window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Network window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

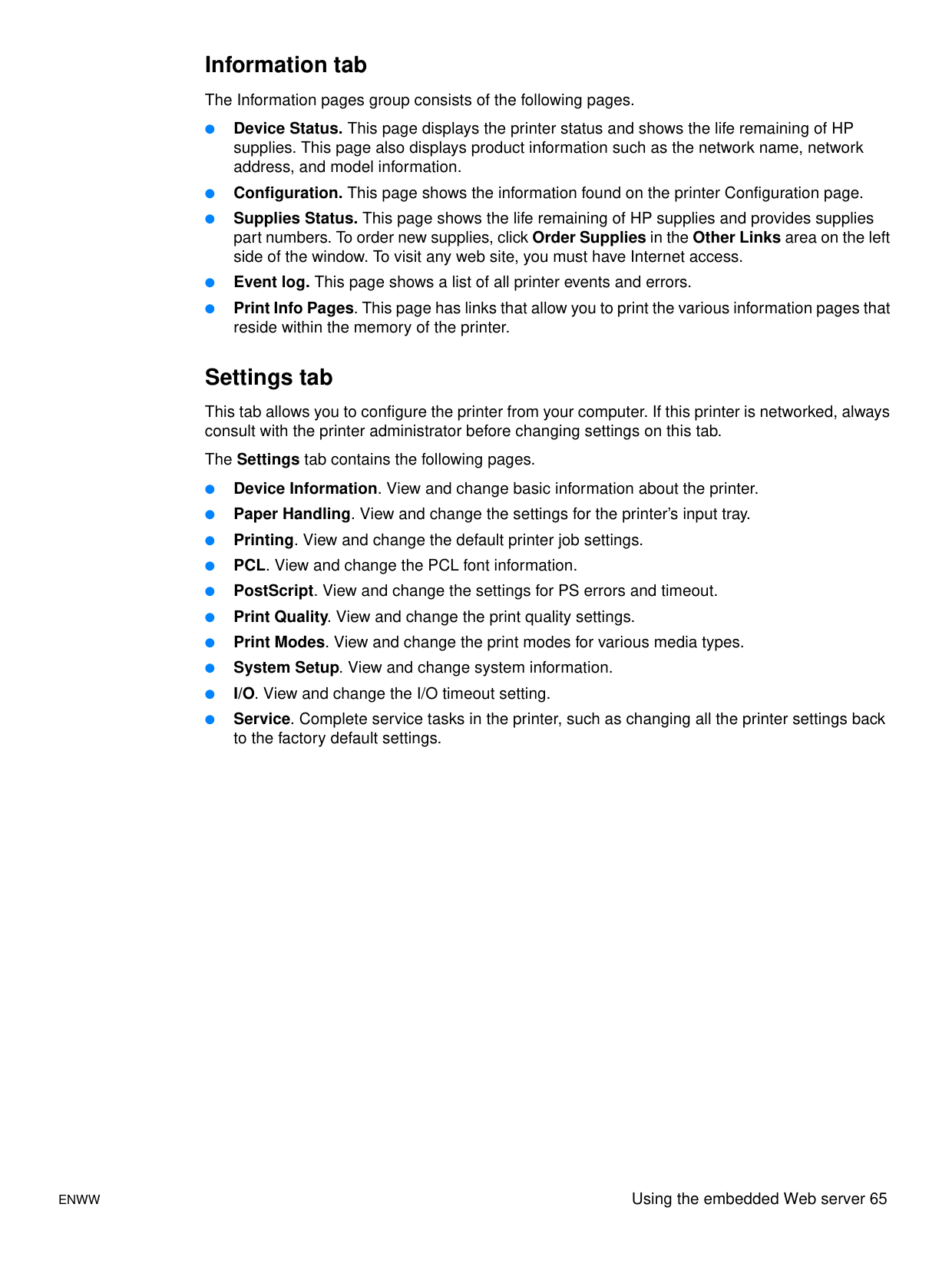

Using the embedded Web server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 To open the embedded Web server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Information tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Networking tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Other links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Wireless printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 IEEE 802.11b standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

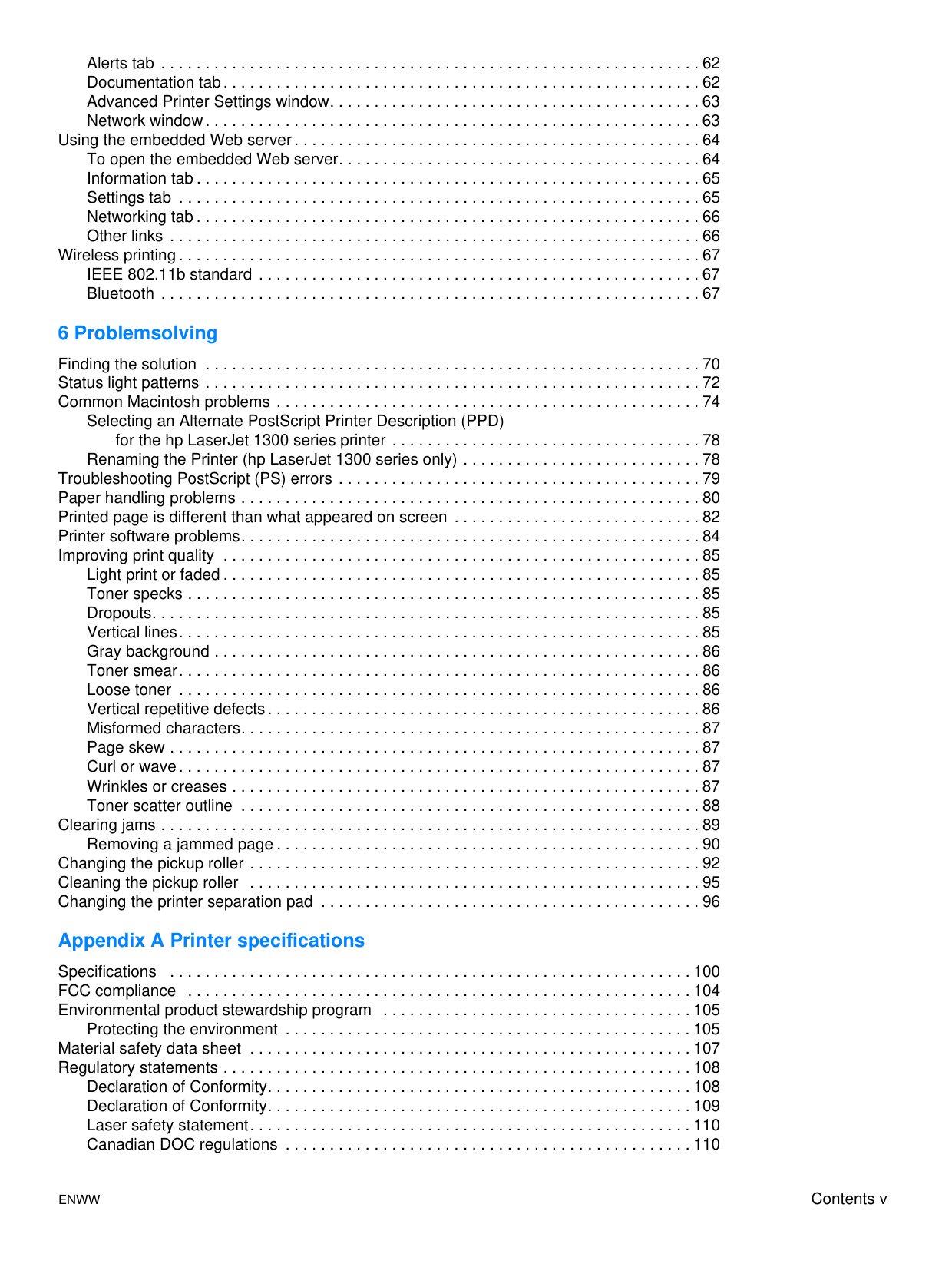

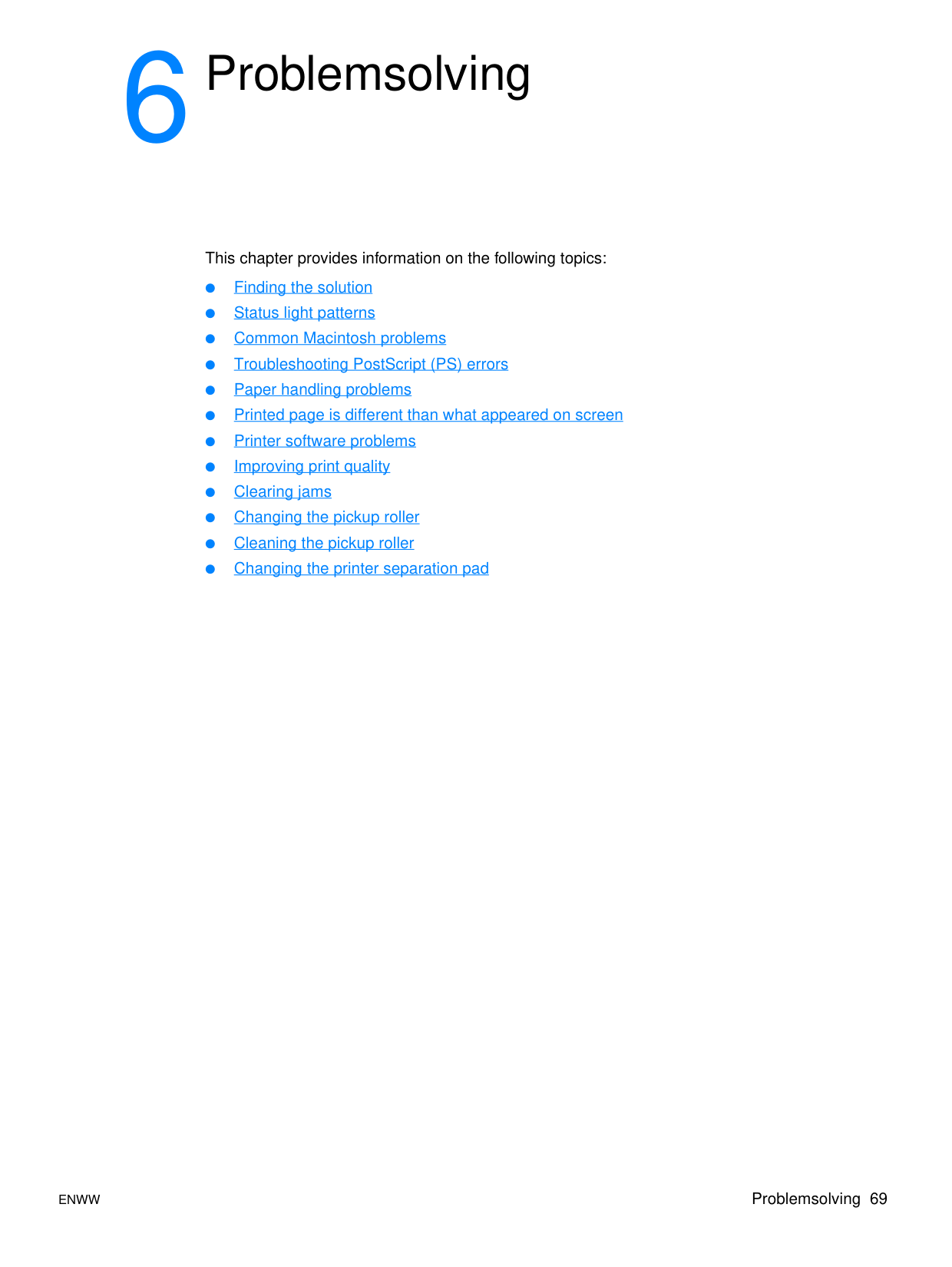

###### 6 Problemsolving

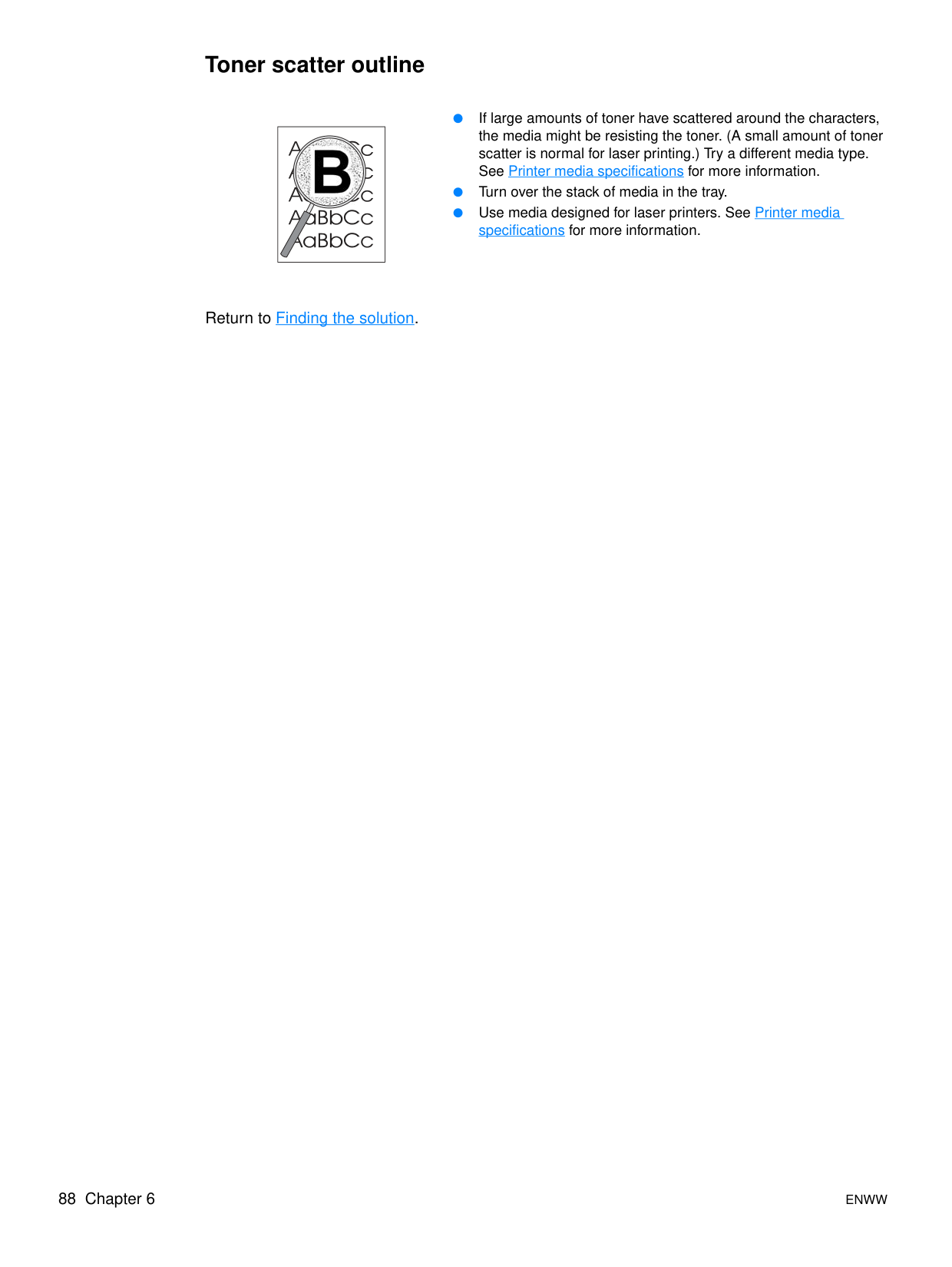

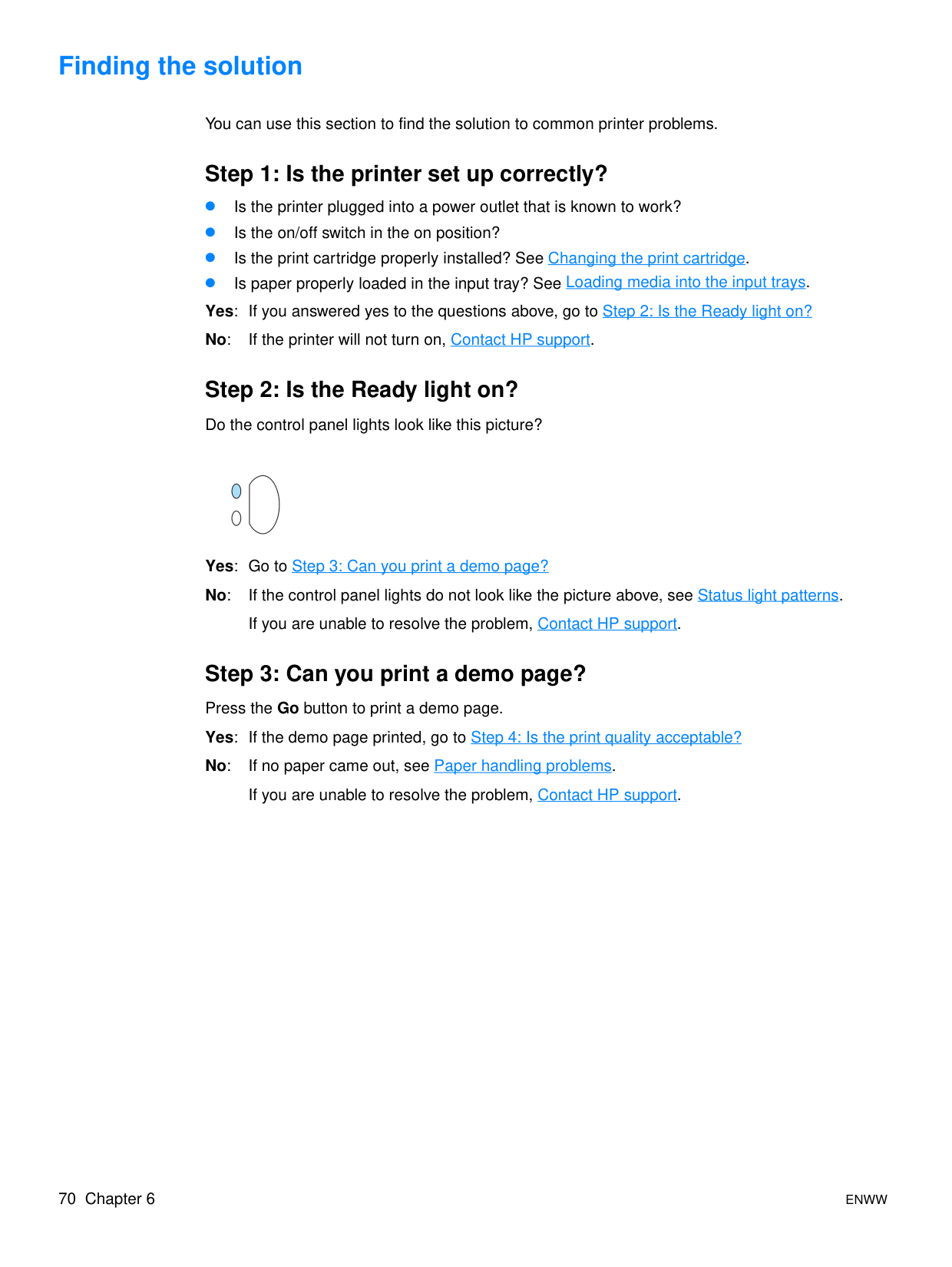

Finding the solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Status light patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Common Macintosh problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

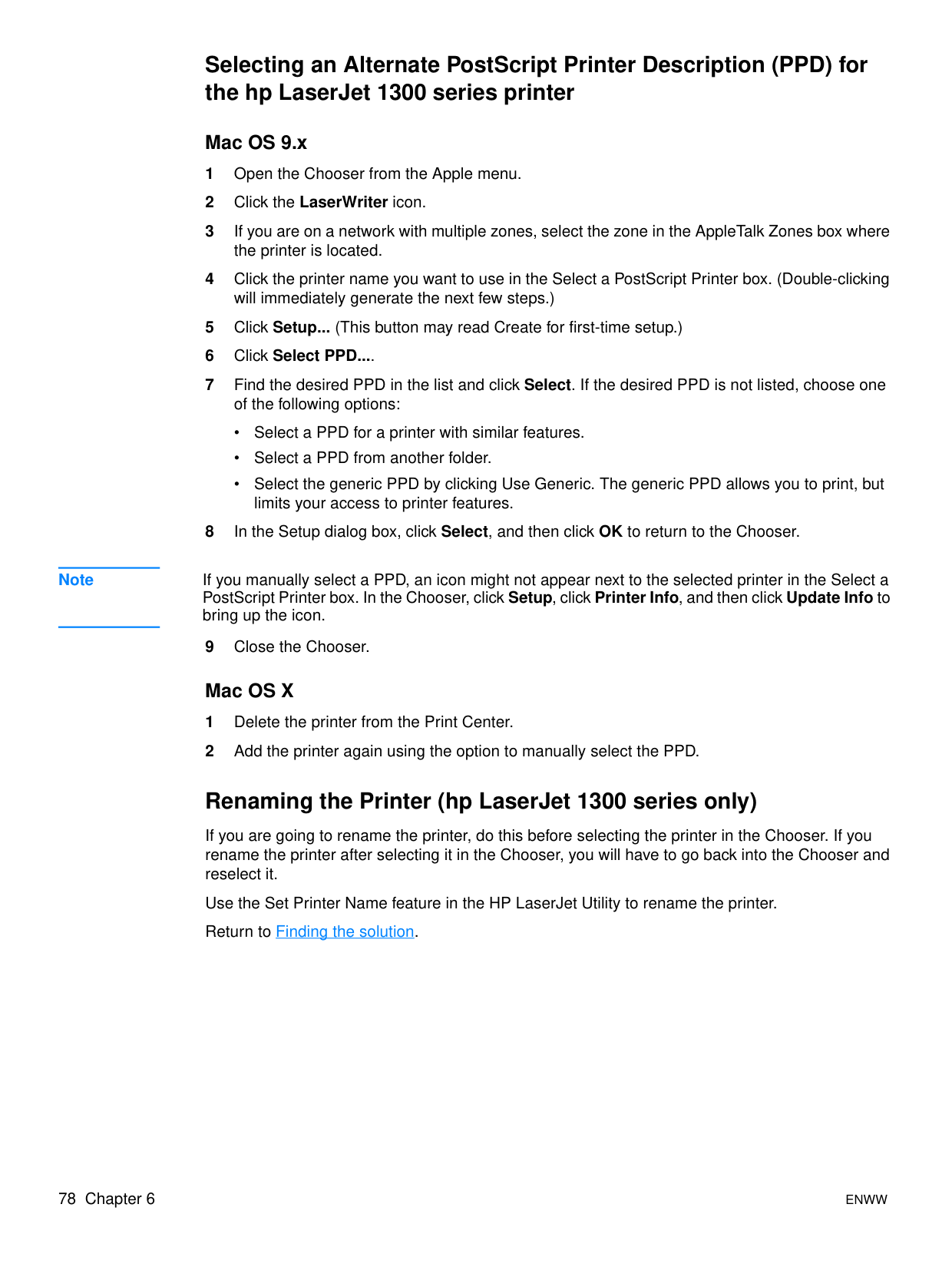

Selecting an Alternate PostScript Printer Description (PPD) for the hp LaserJet 1300 series printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Renaming the Printer (hp LaserJet 1300 series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Troubleshooting PostScript (PS) errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Paper handling problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Printed page is different than what appeared on screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Printer software problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Improving print quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

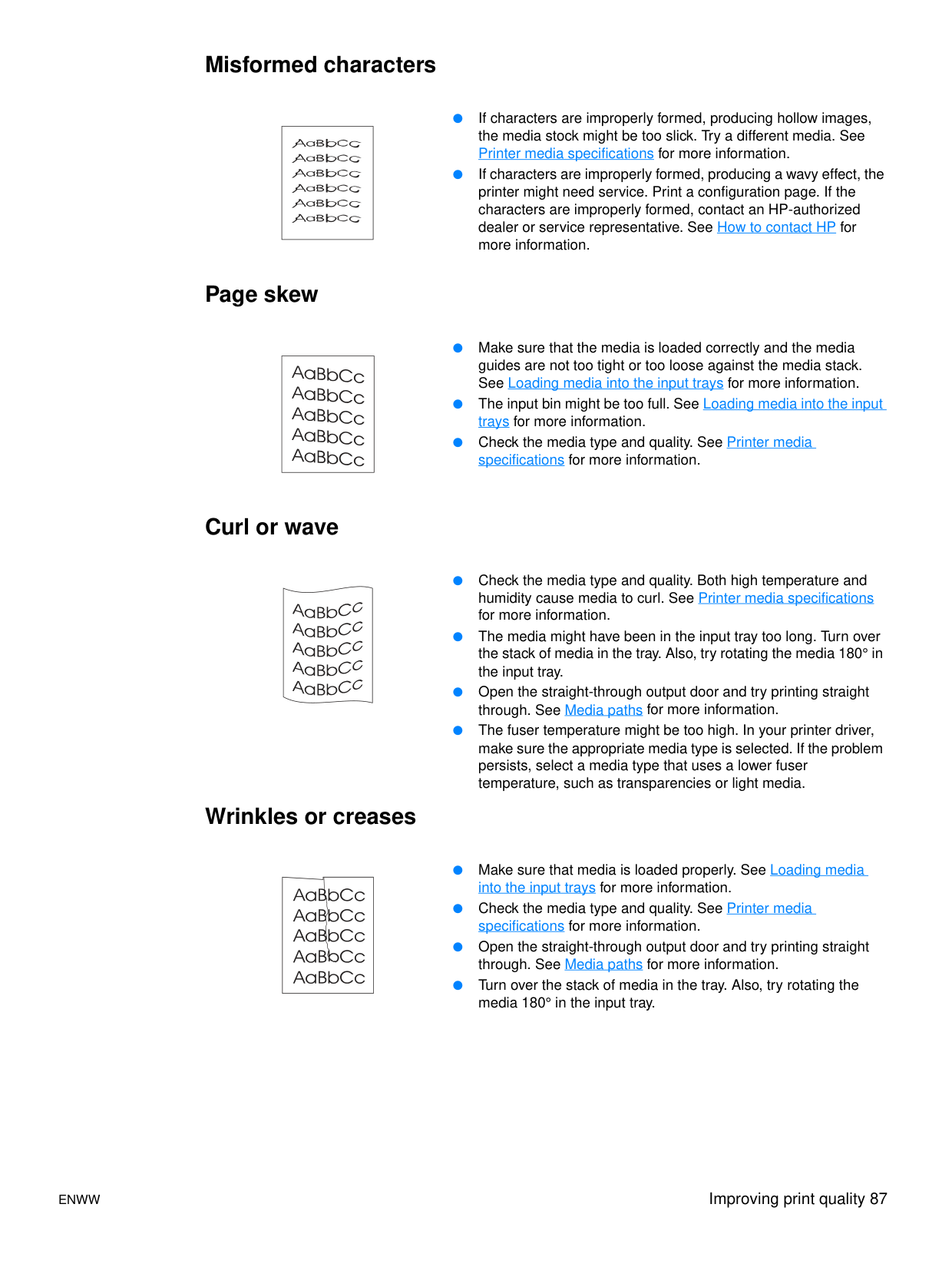

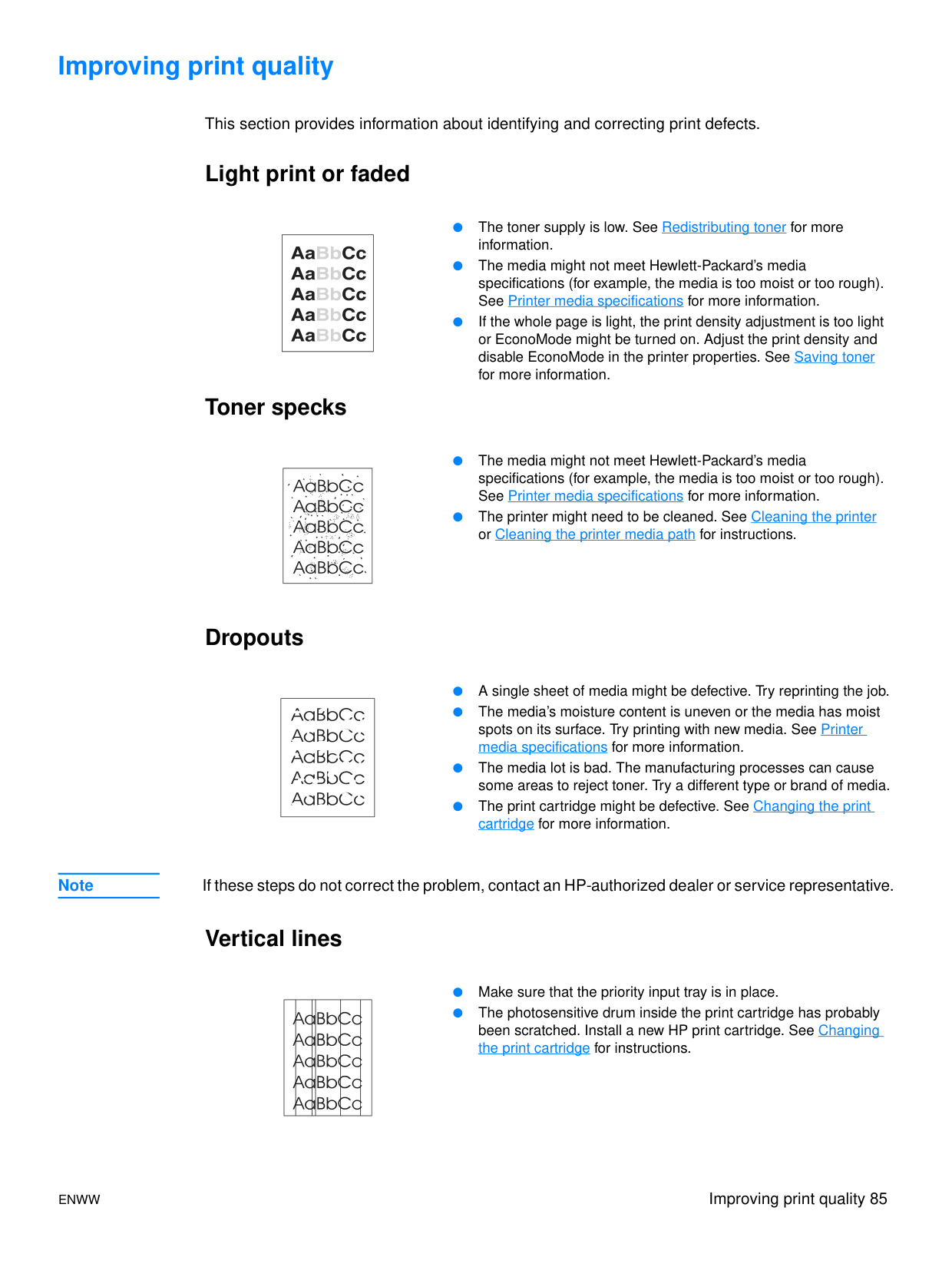

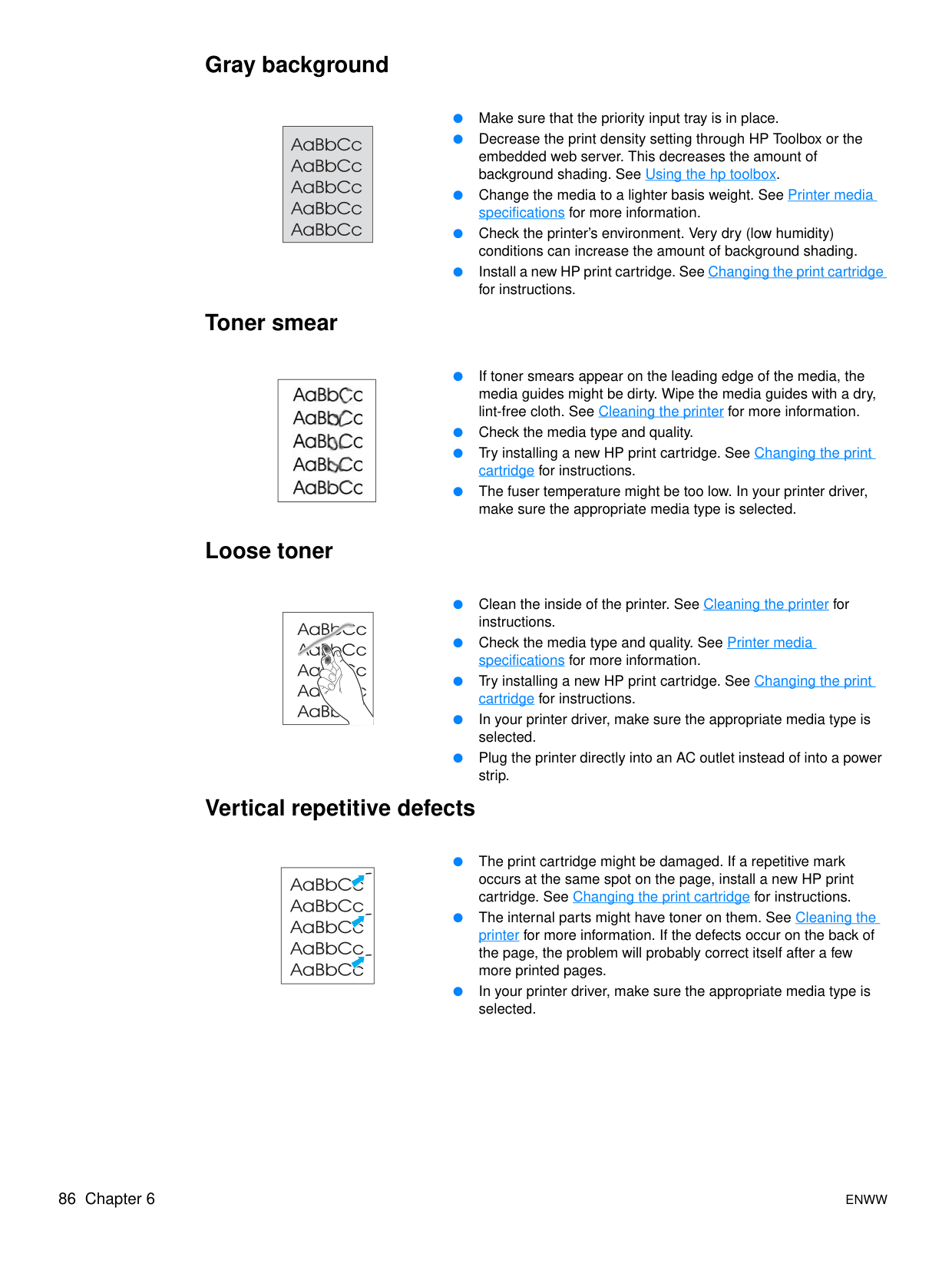

Light print or faded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Toner specks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85 Dropouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Vertical lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Gray background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Toner smear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 Loose toner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 Vertical repetitive defects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Misformed characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Page skew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 Curl or wave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 Wrinkles or creases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Toner scatter outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

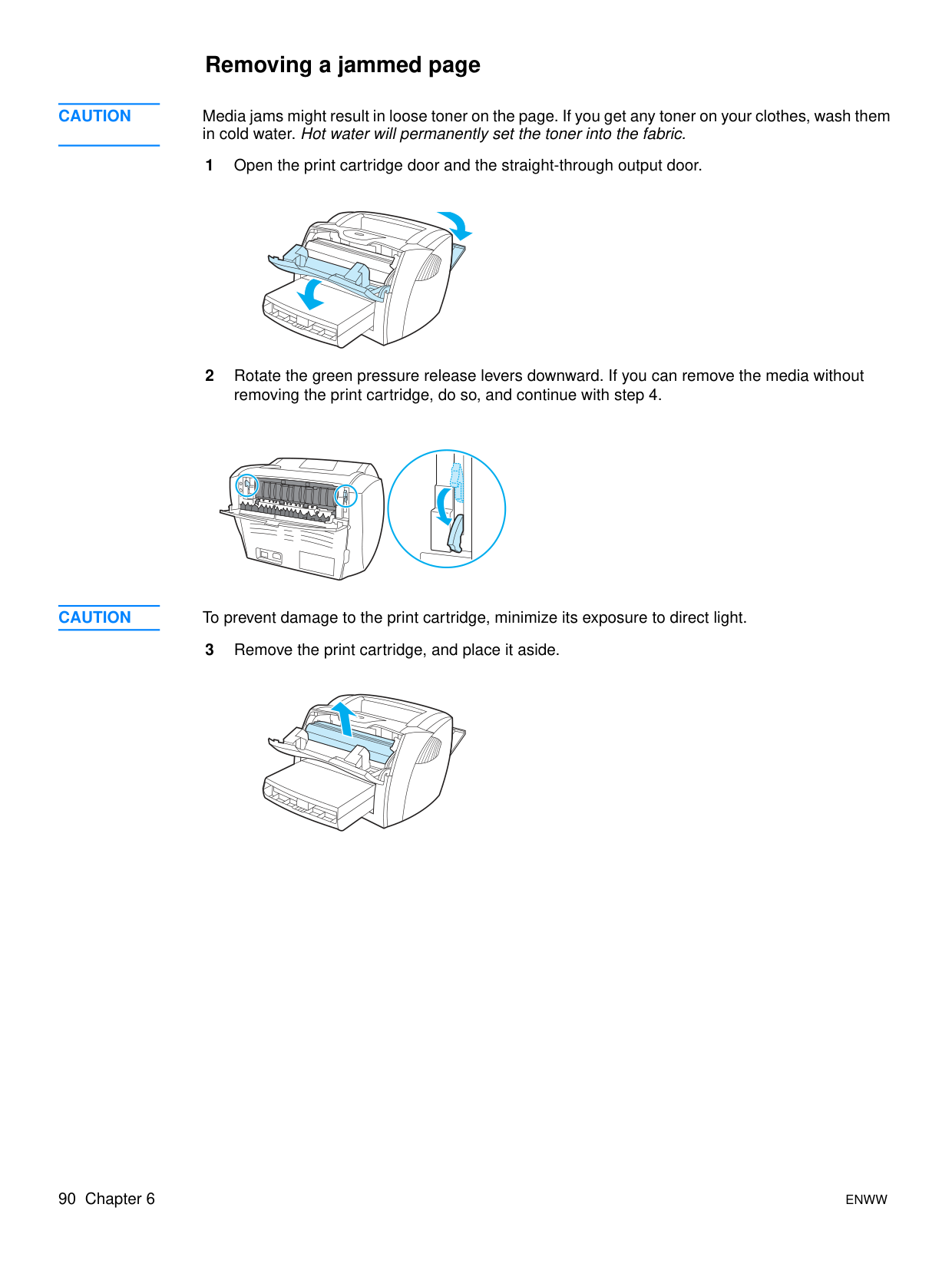

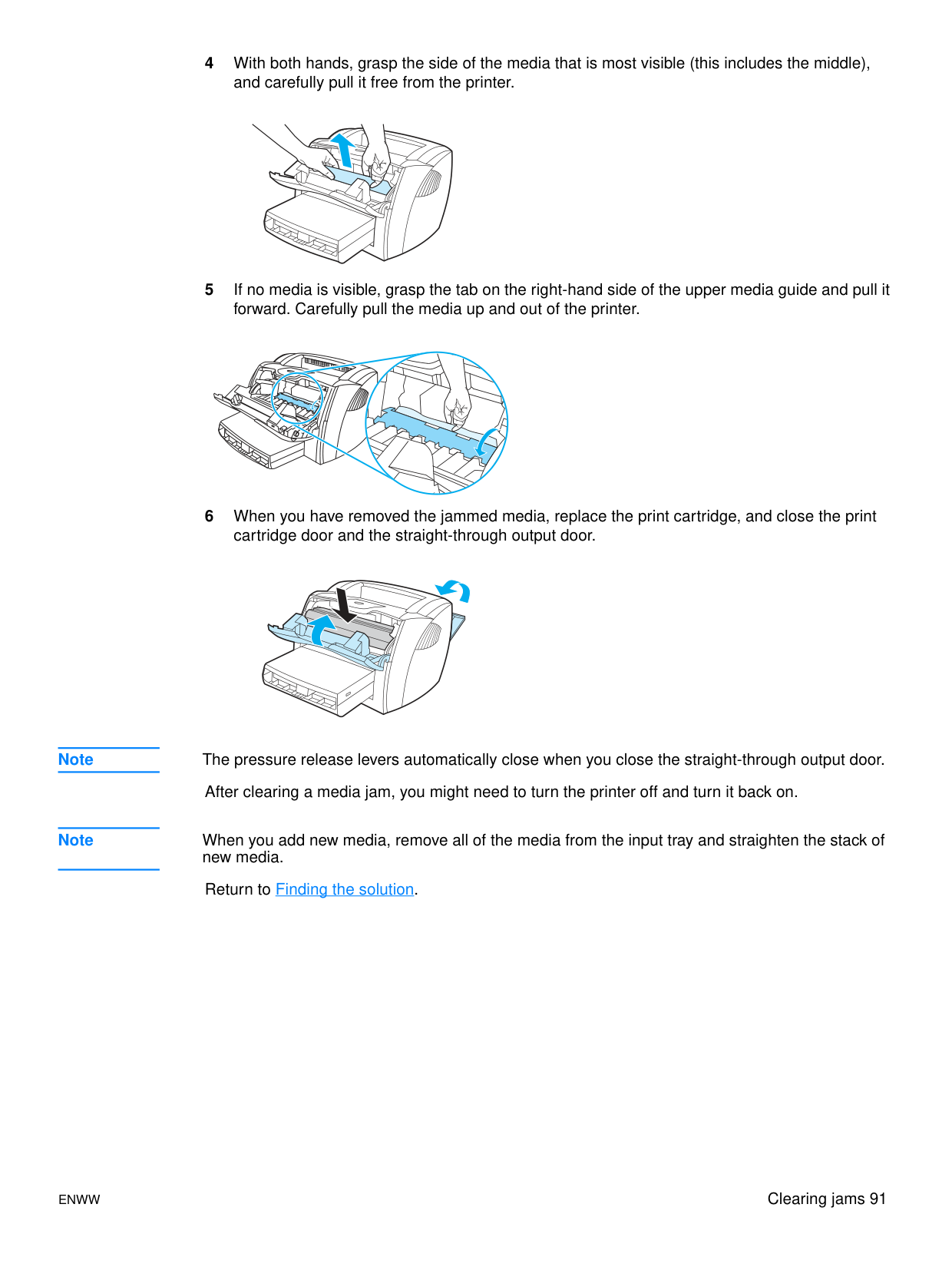

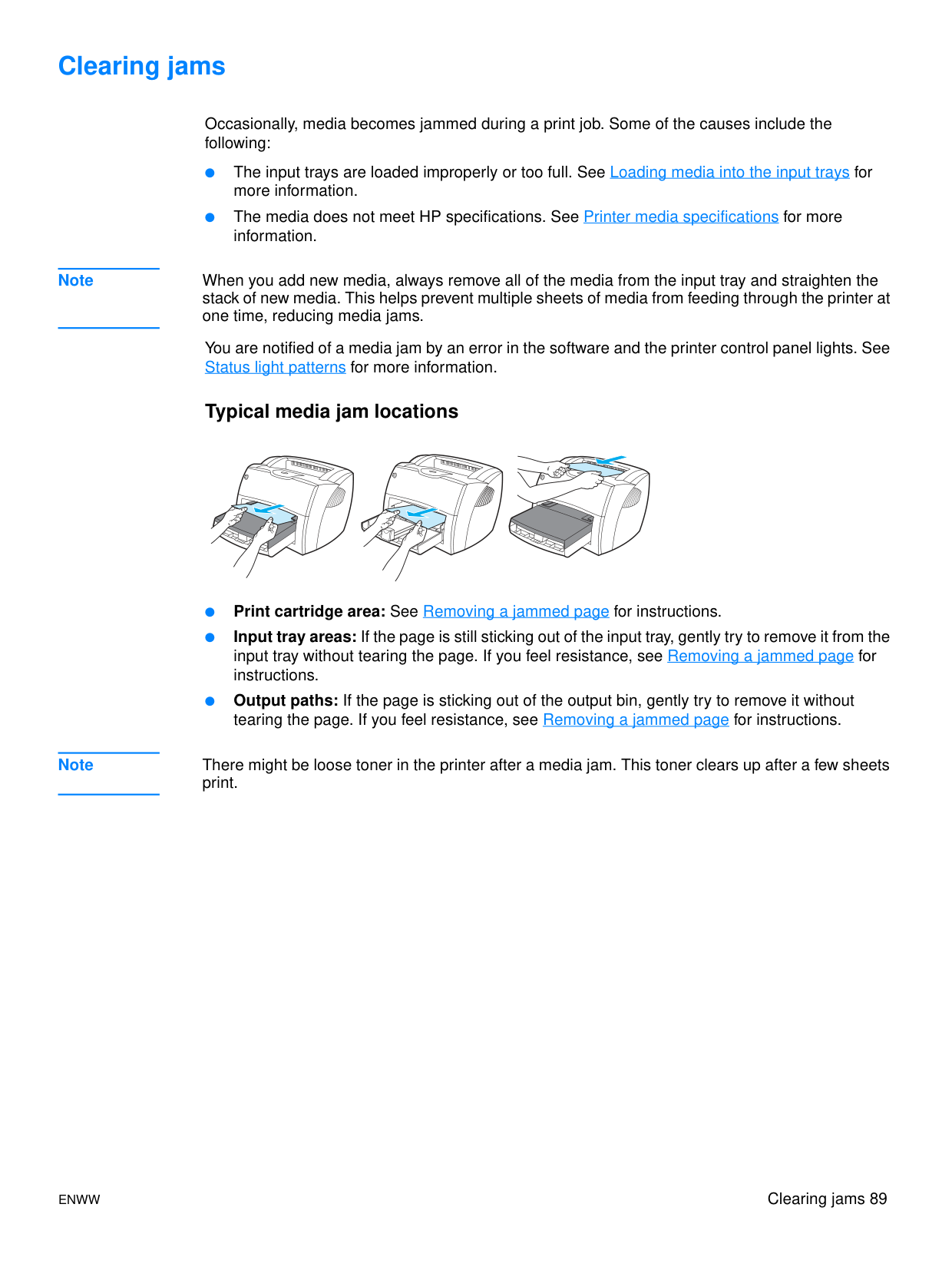

Clearing jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Removing a jammed page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

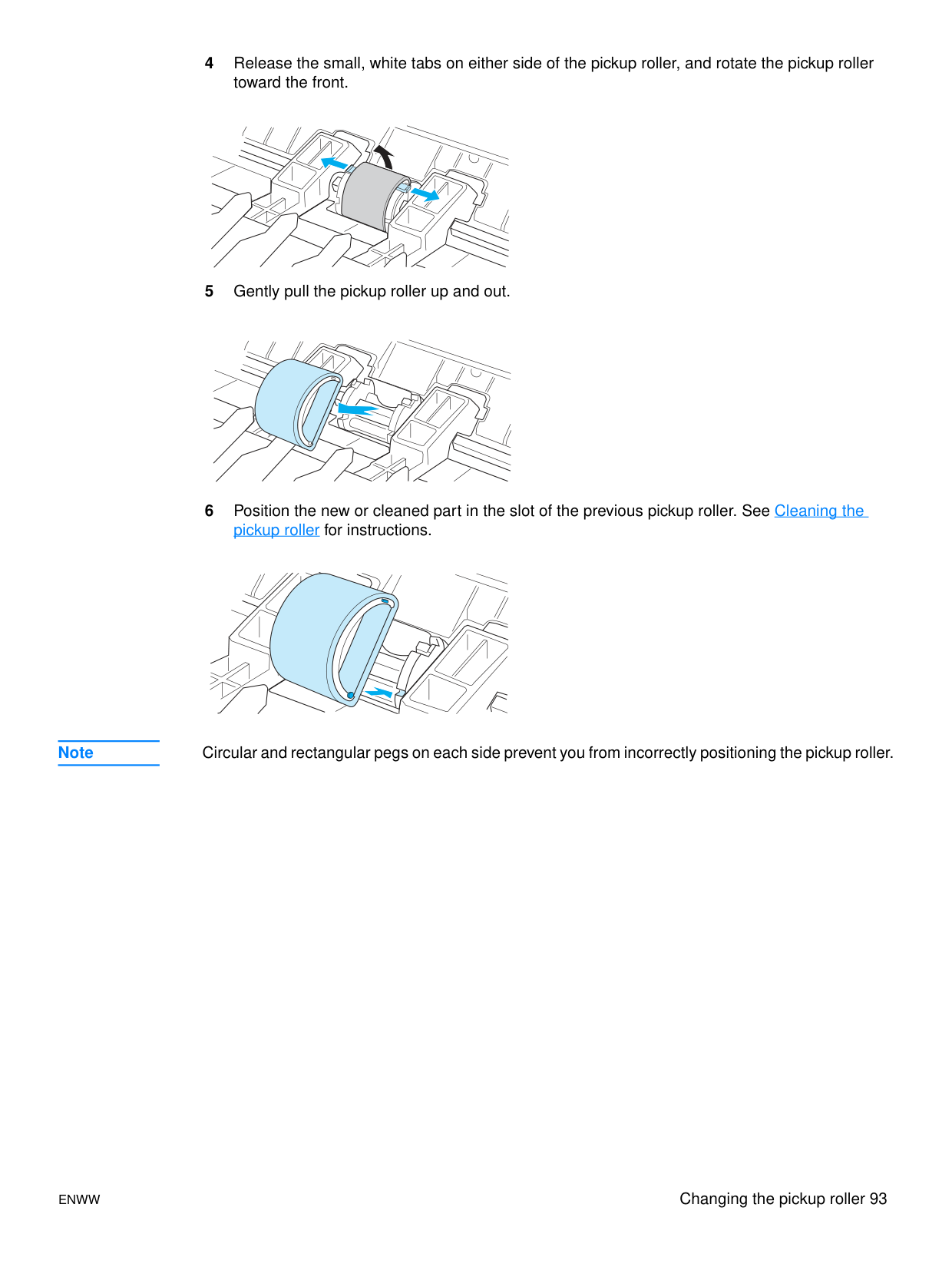

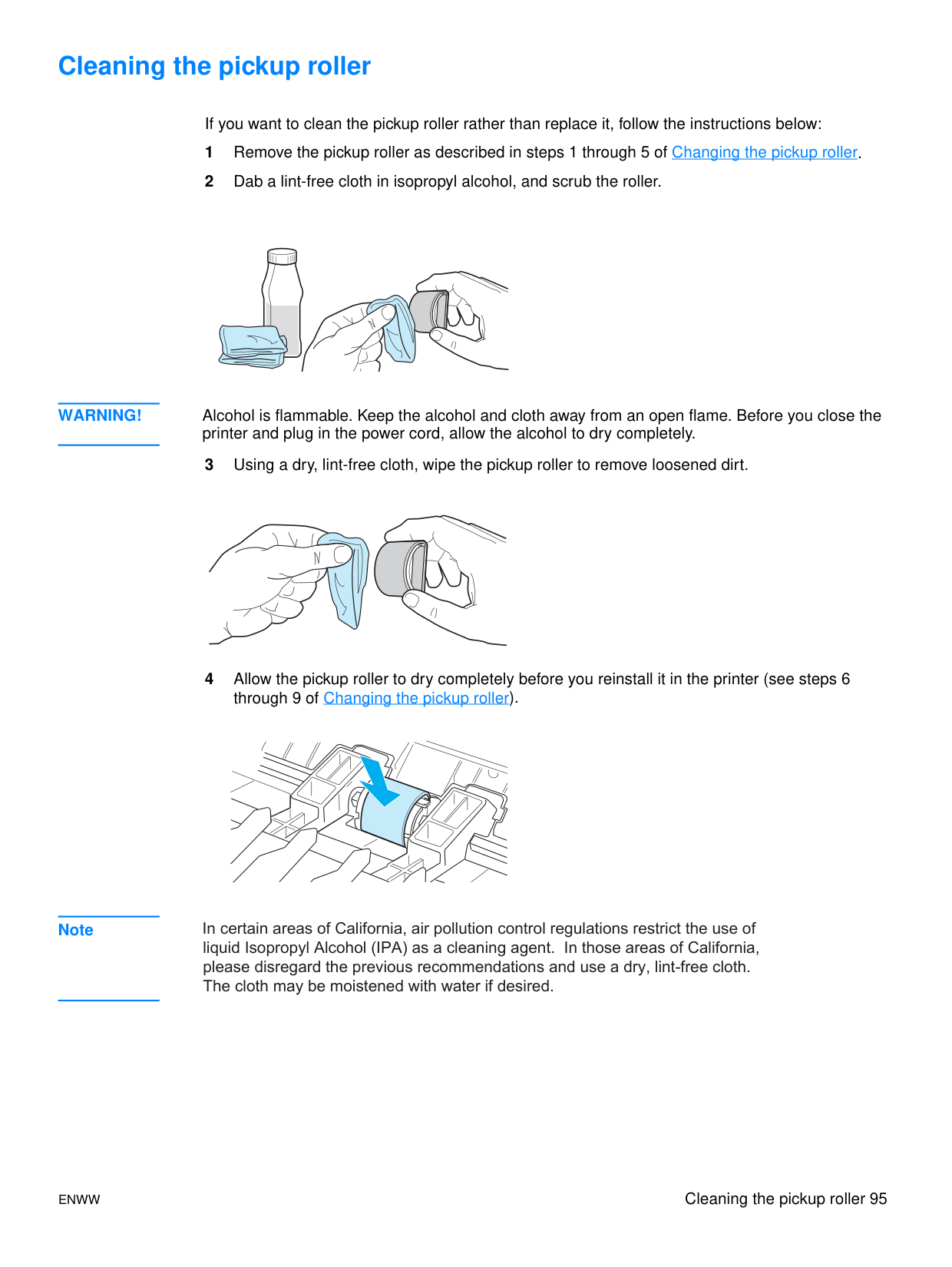

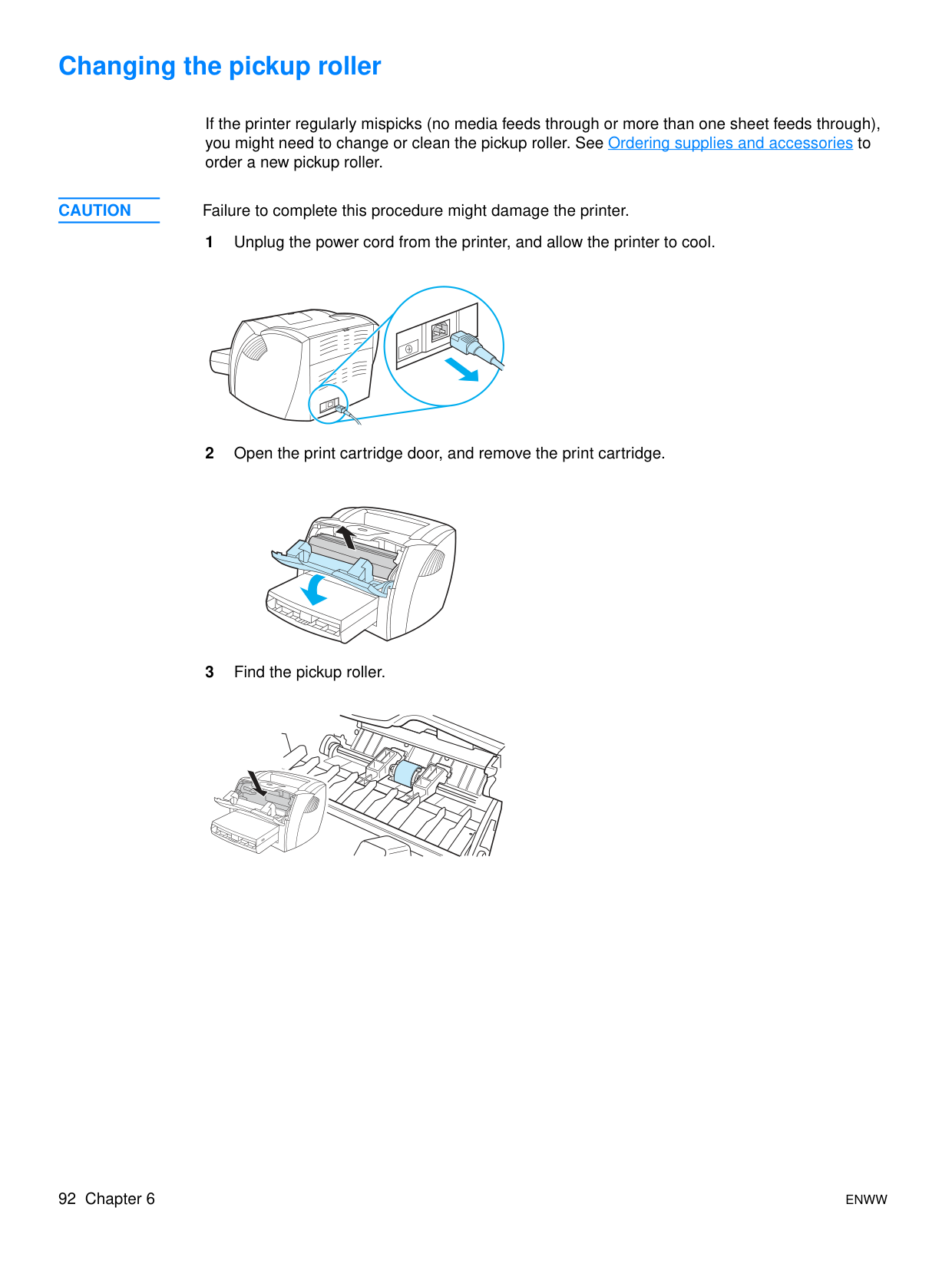

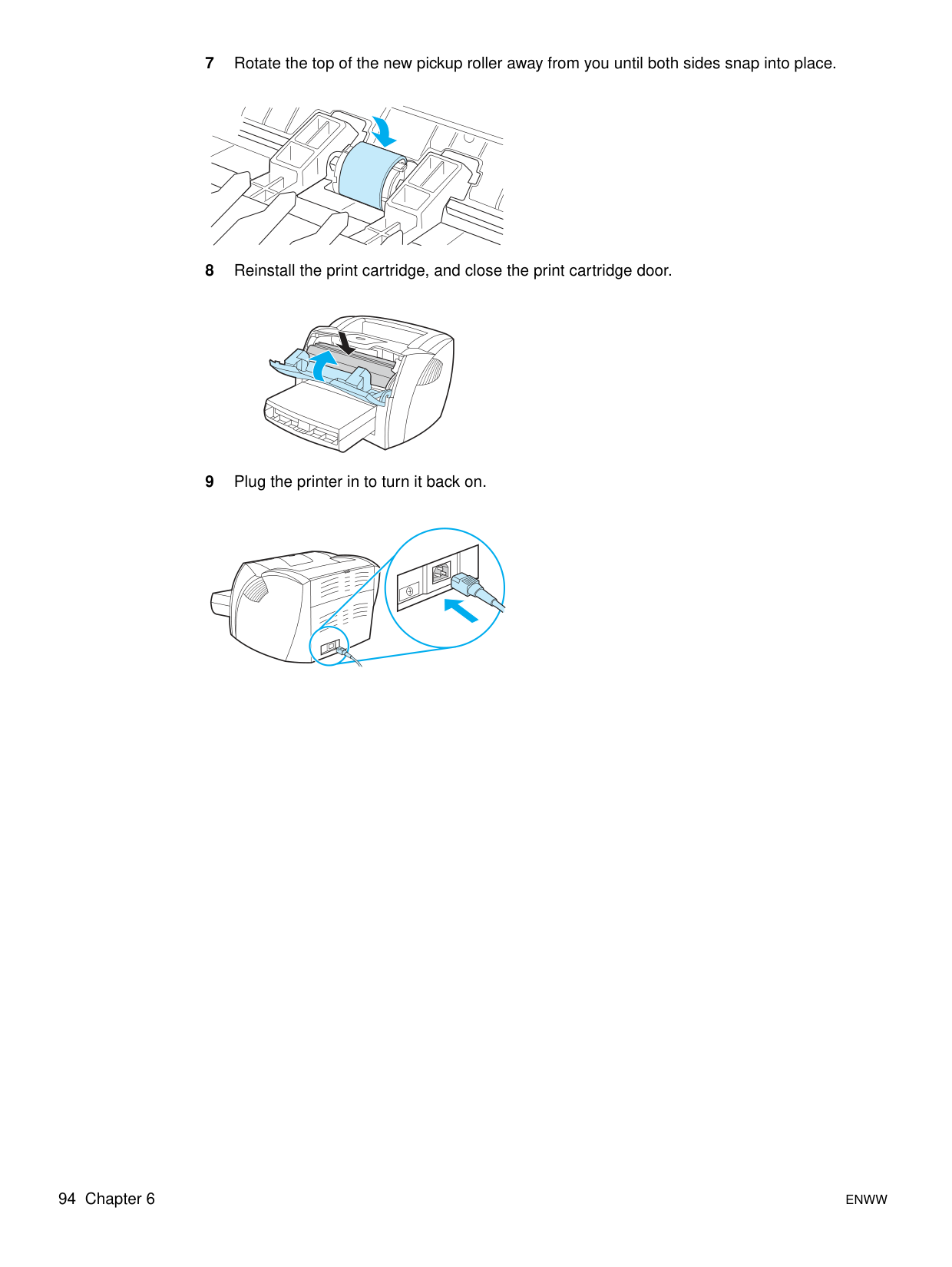

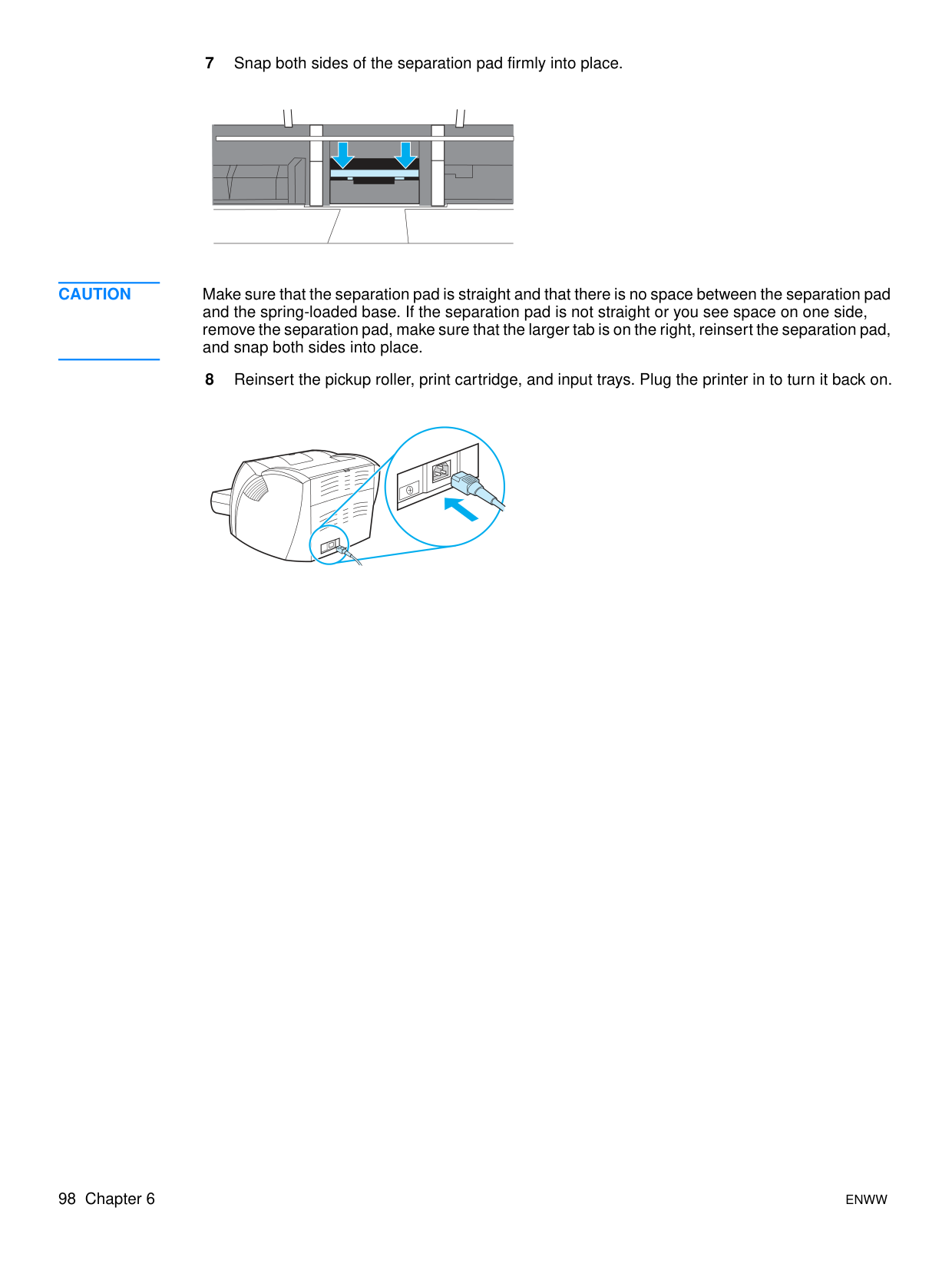

Changing the pickup roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 Cleaning the pickup roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95 Changing the printer separation pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

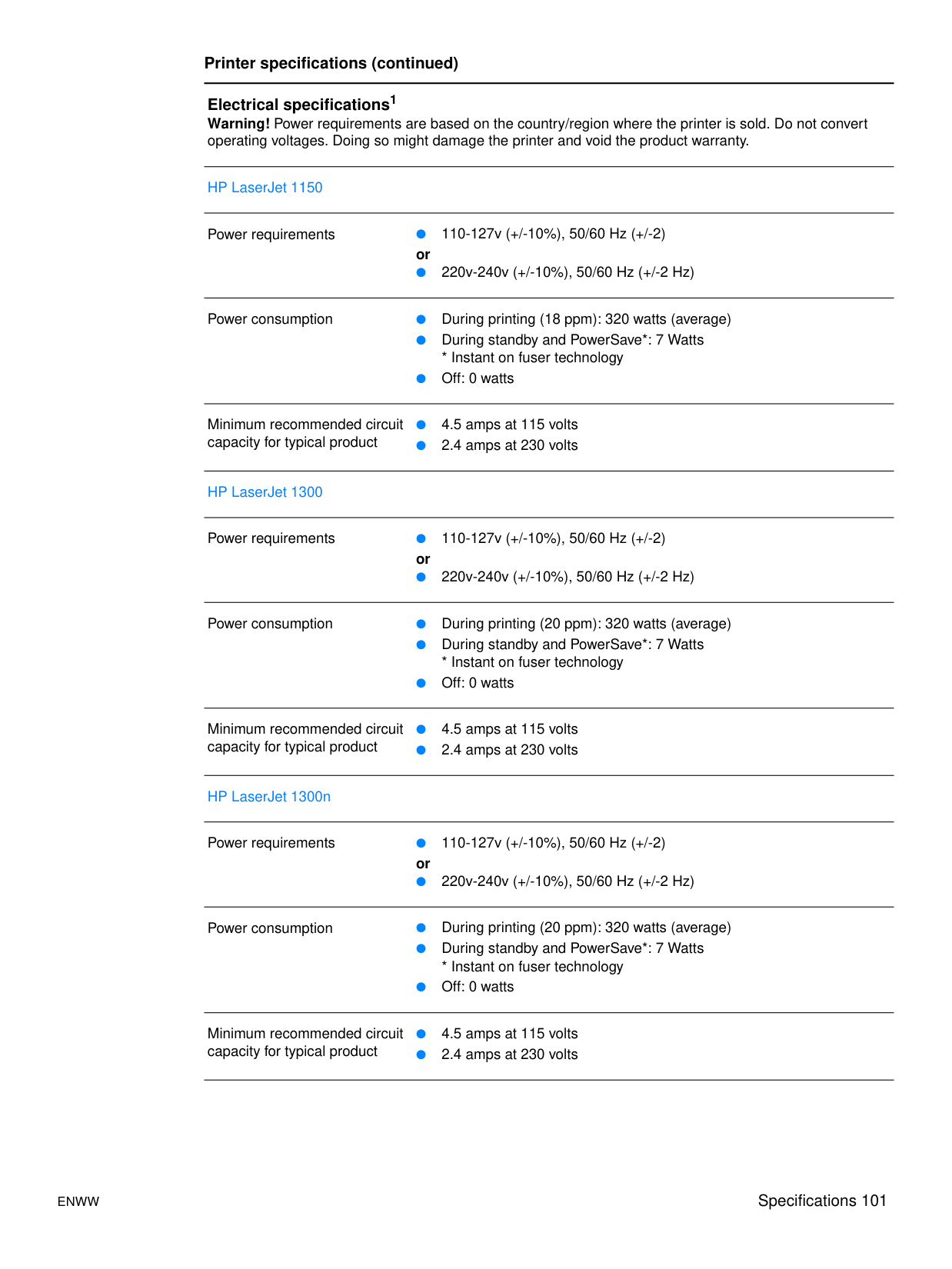

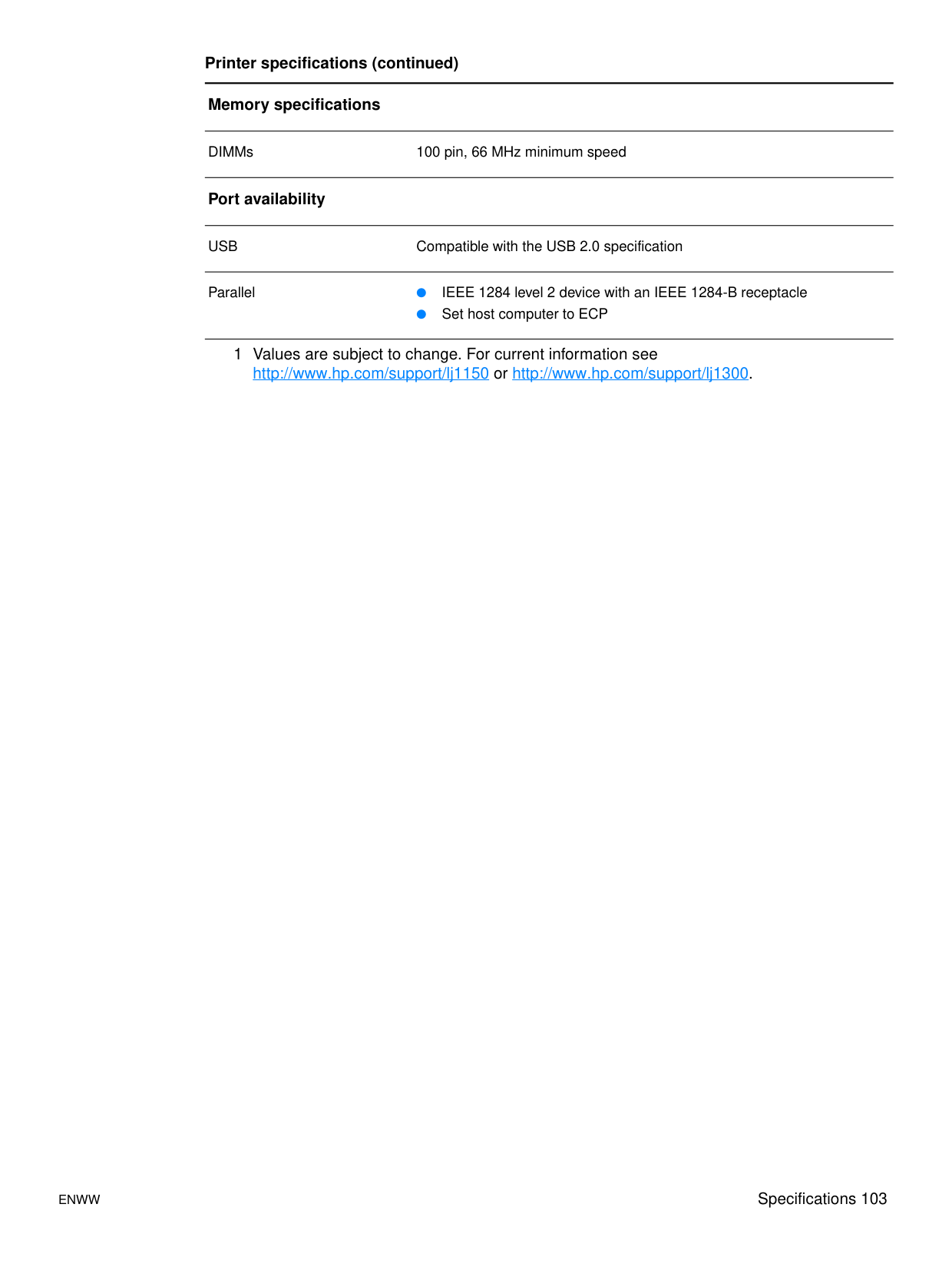

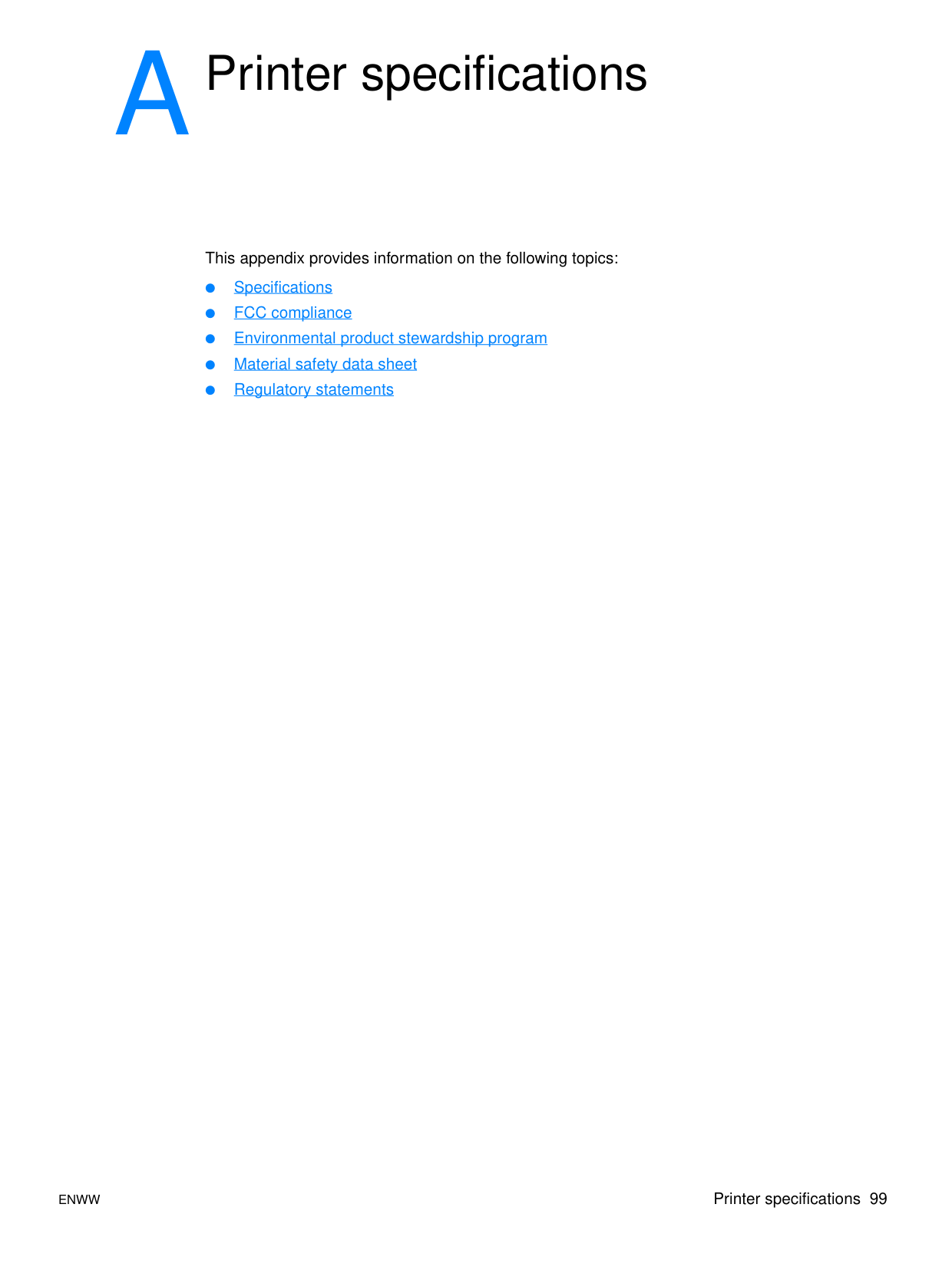

###### Appendix A Printer specifications

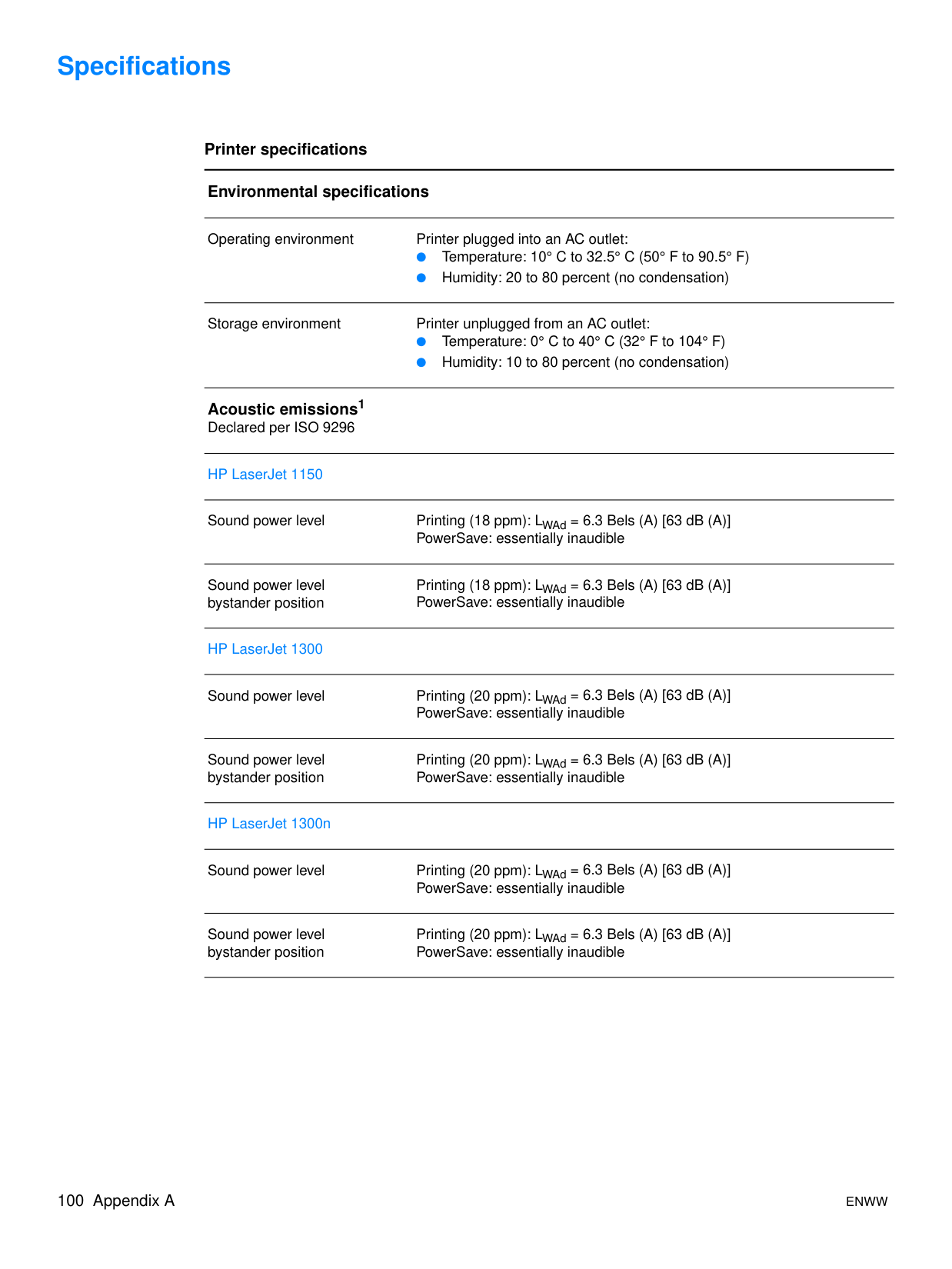

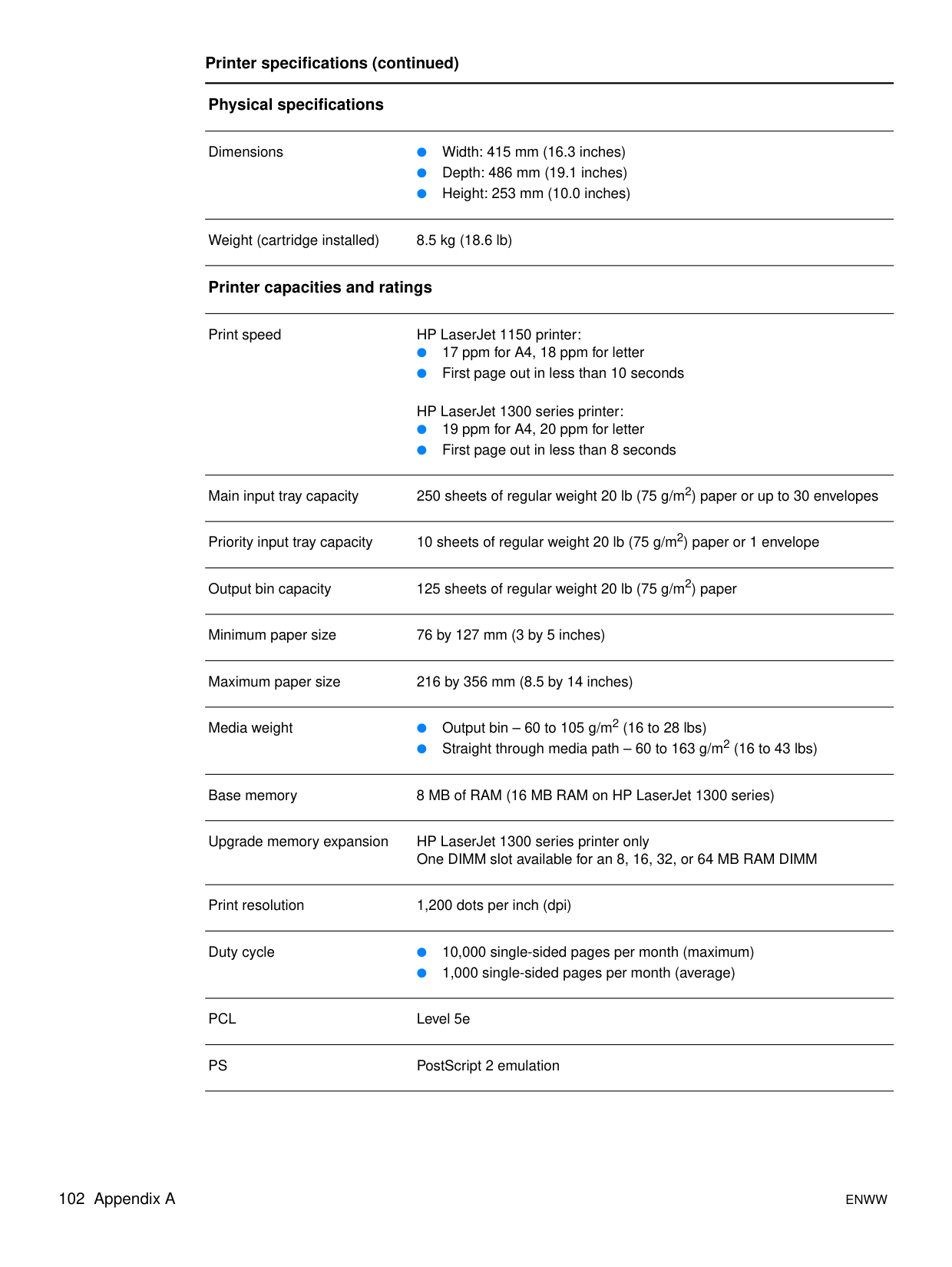

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 FCC compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 Environmental product stewardship program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

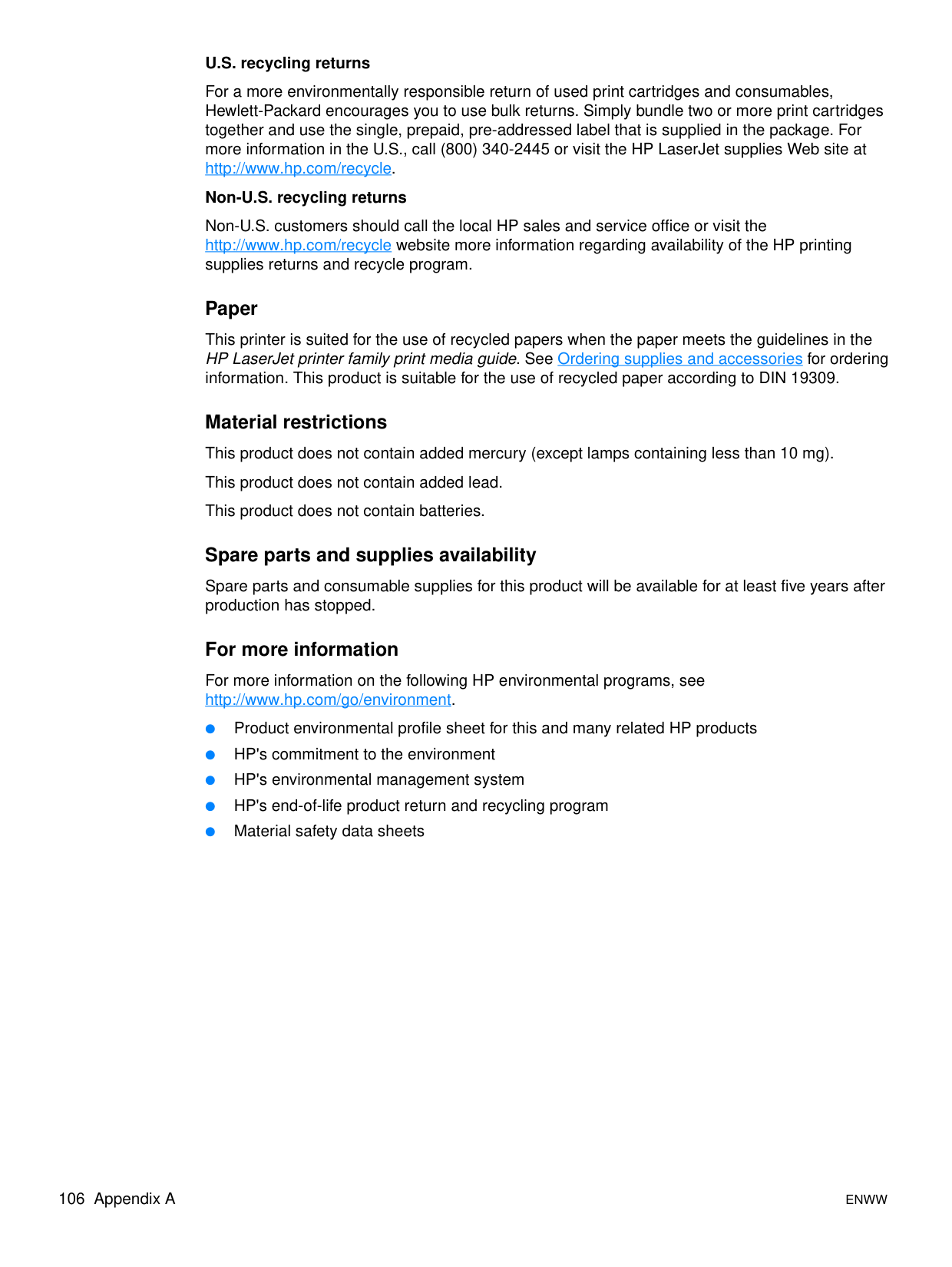

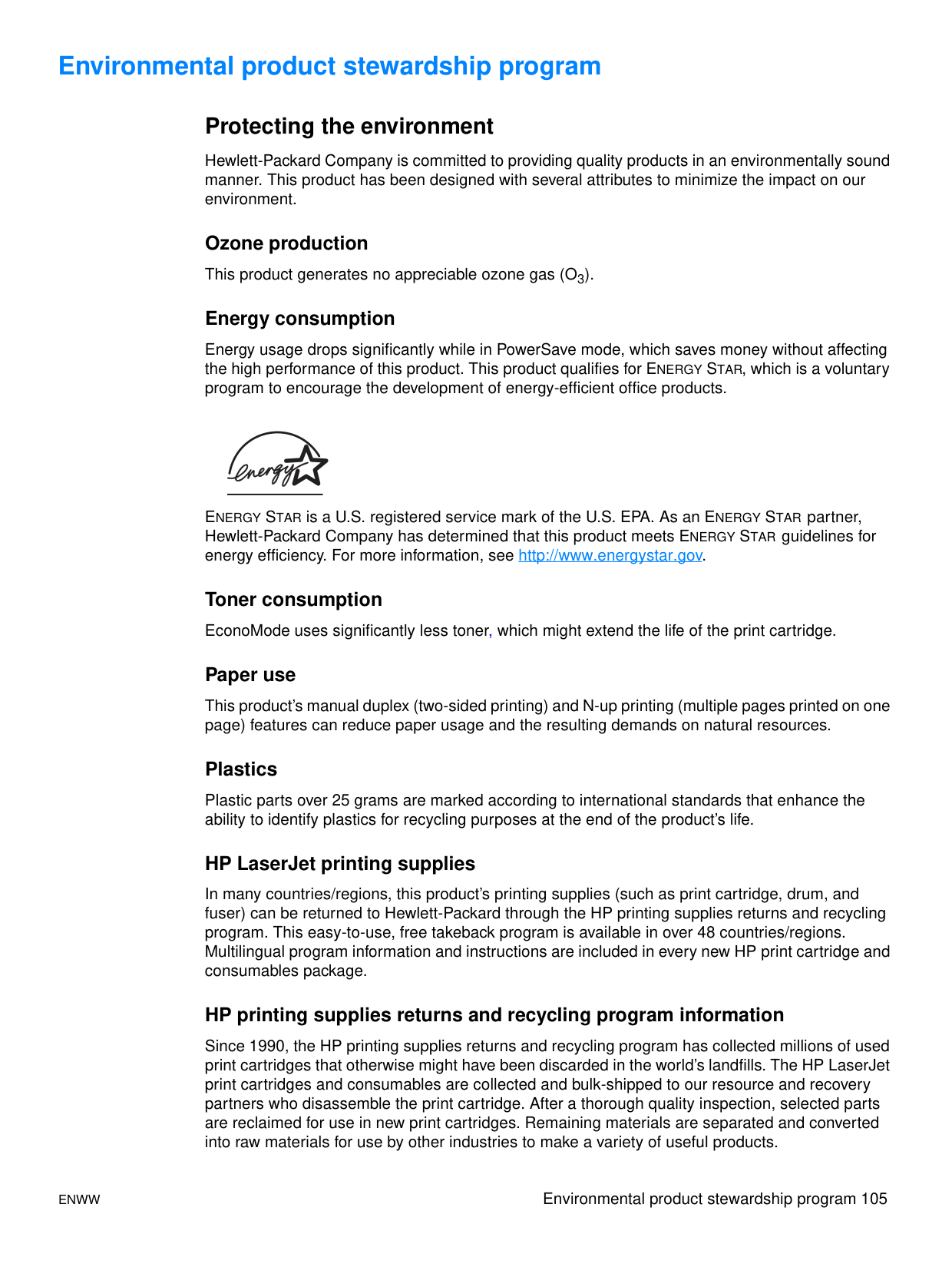

Protecting the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Material safety data sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Regulatory statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

ENWW Contents v

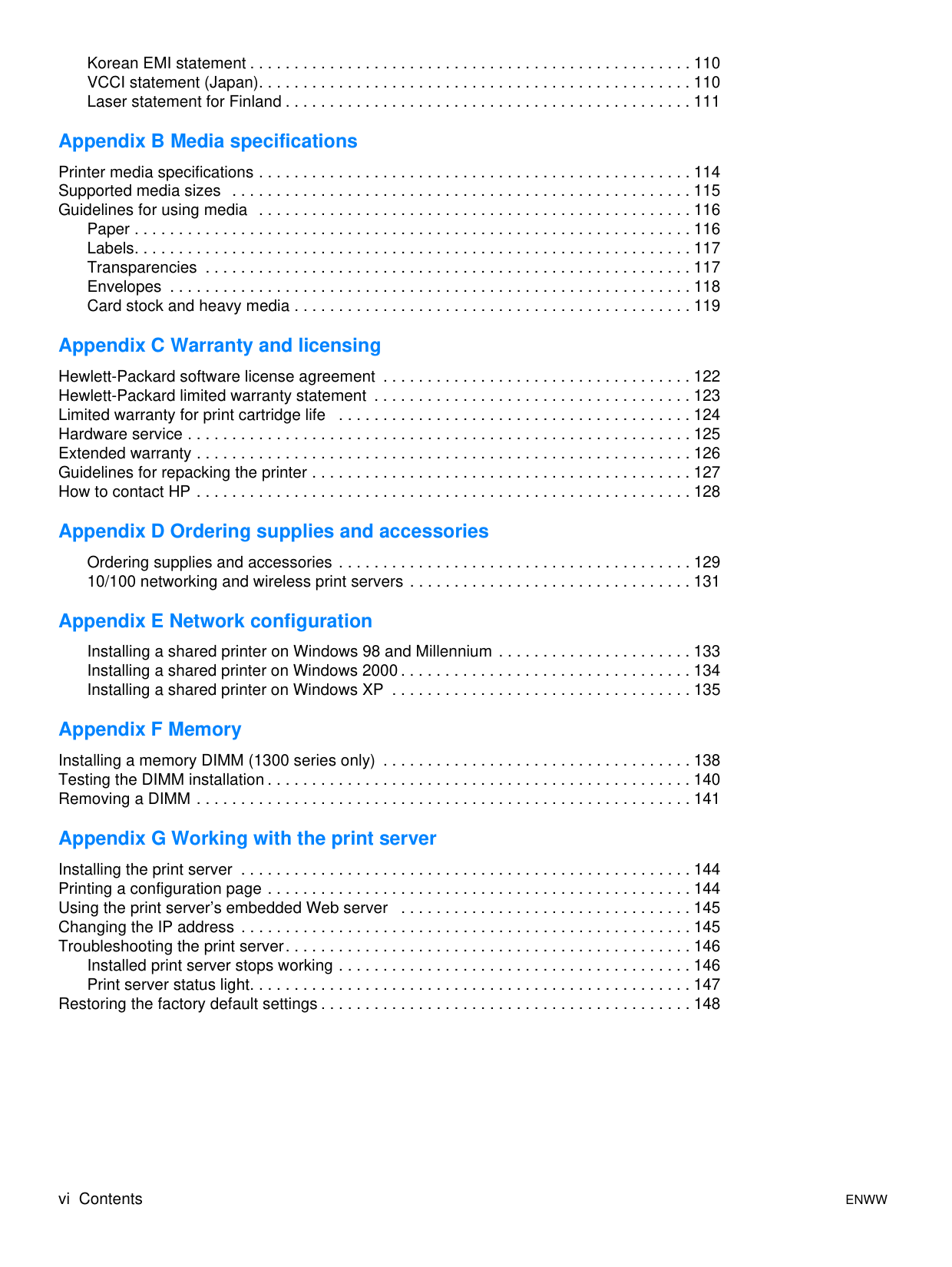

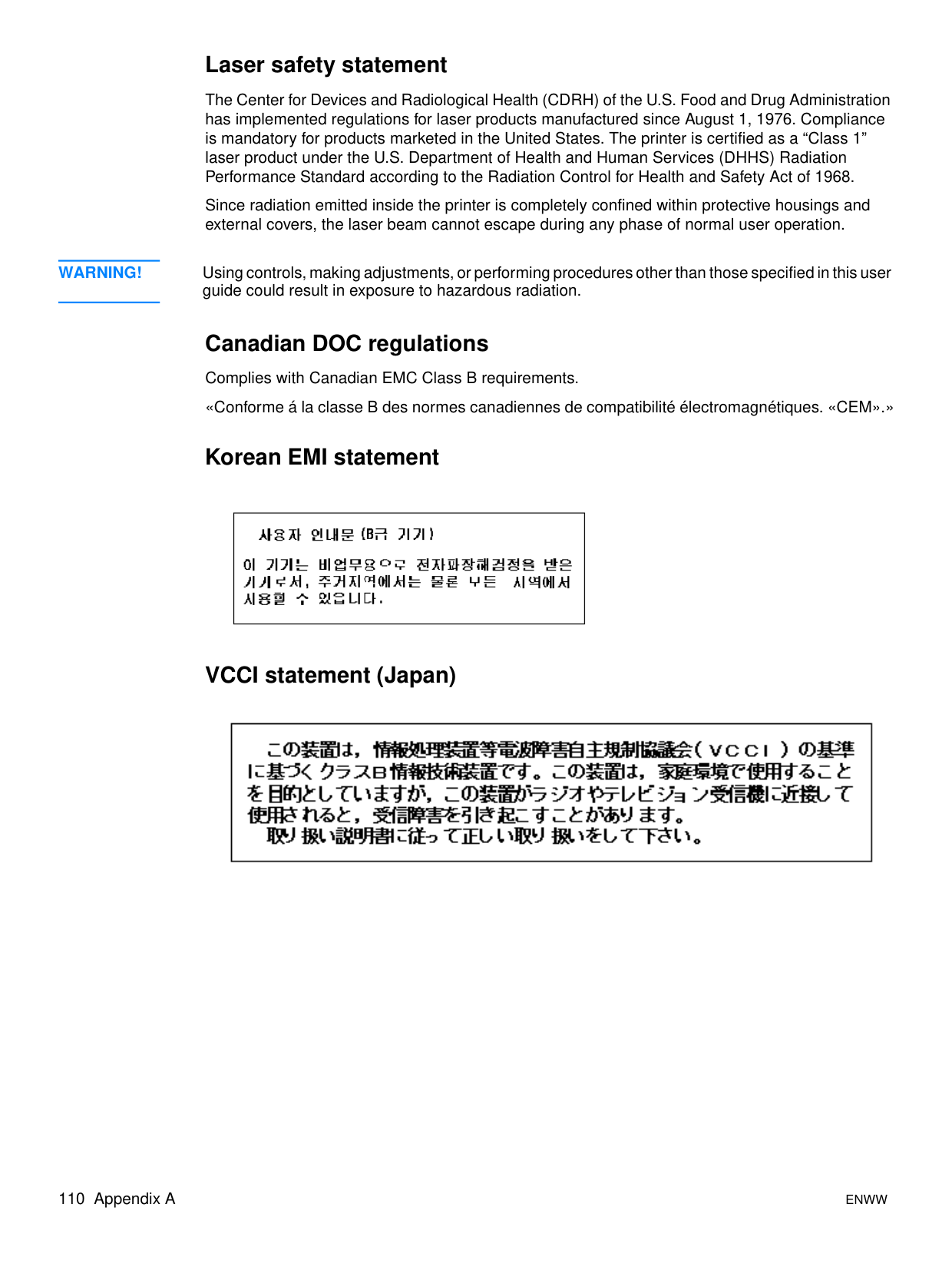

Korean EMI statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 VCCI statement (Japan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 Laser statement for Finland . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

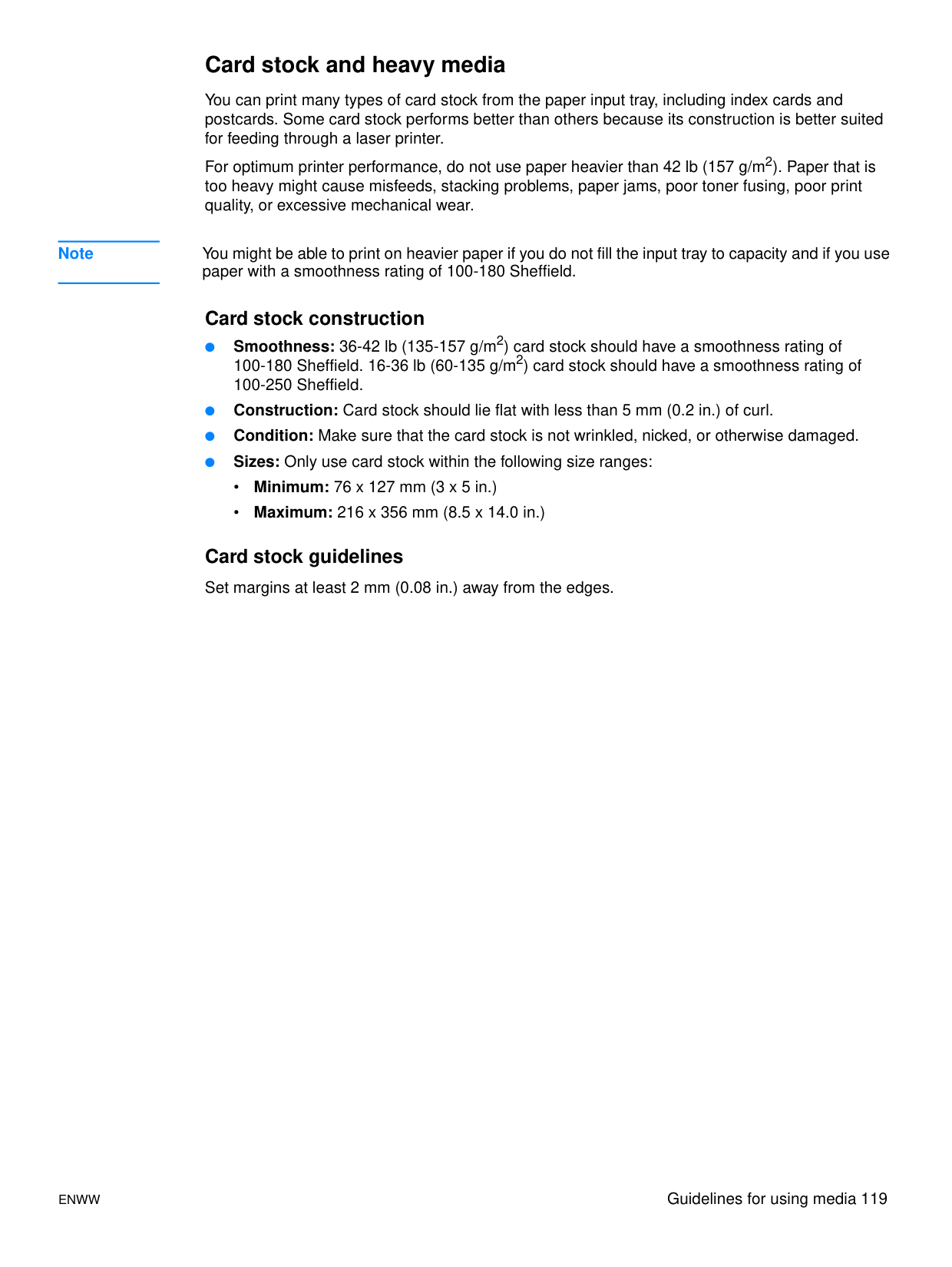

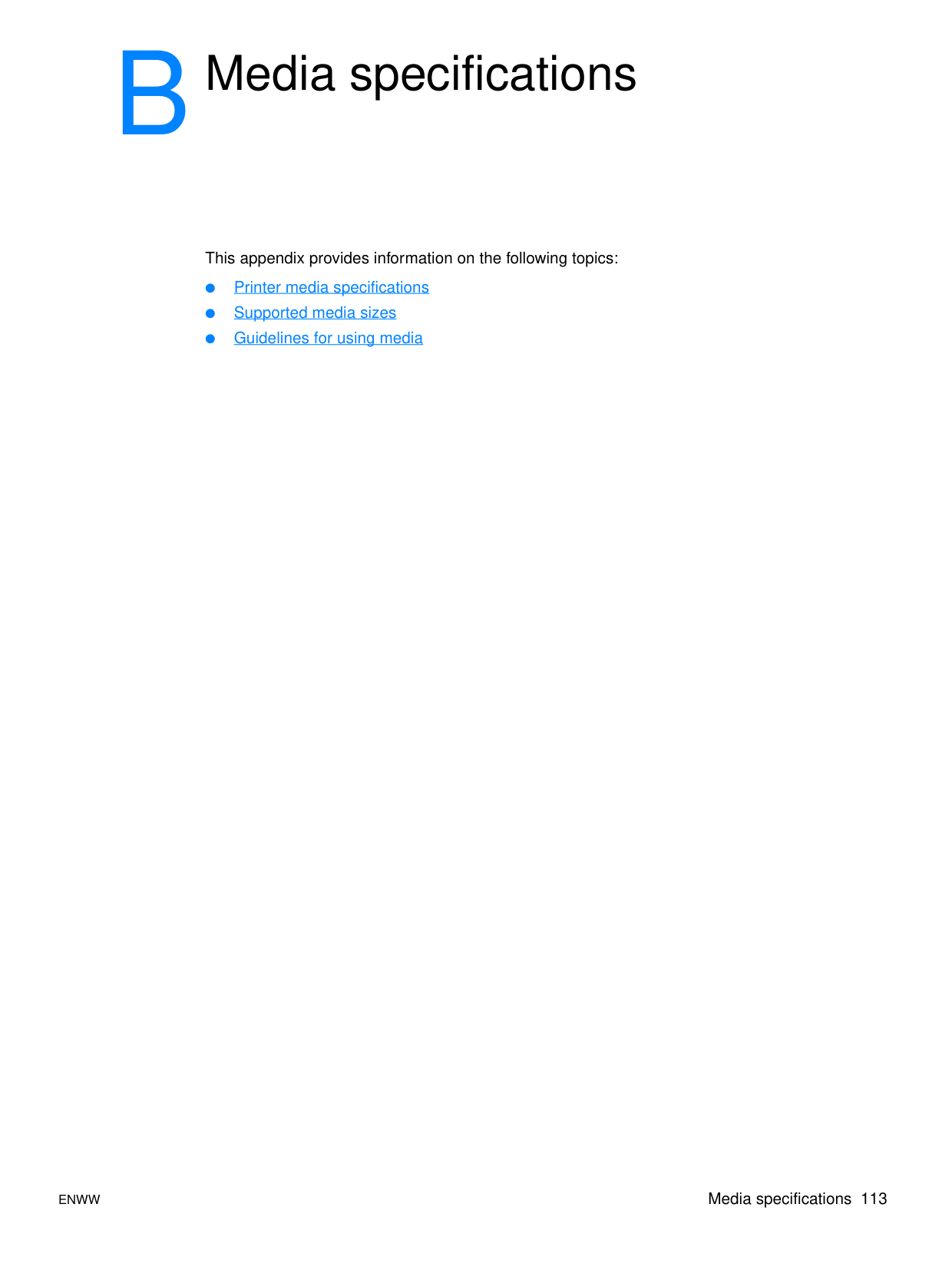

###### Appendix B Media specifications

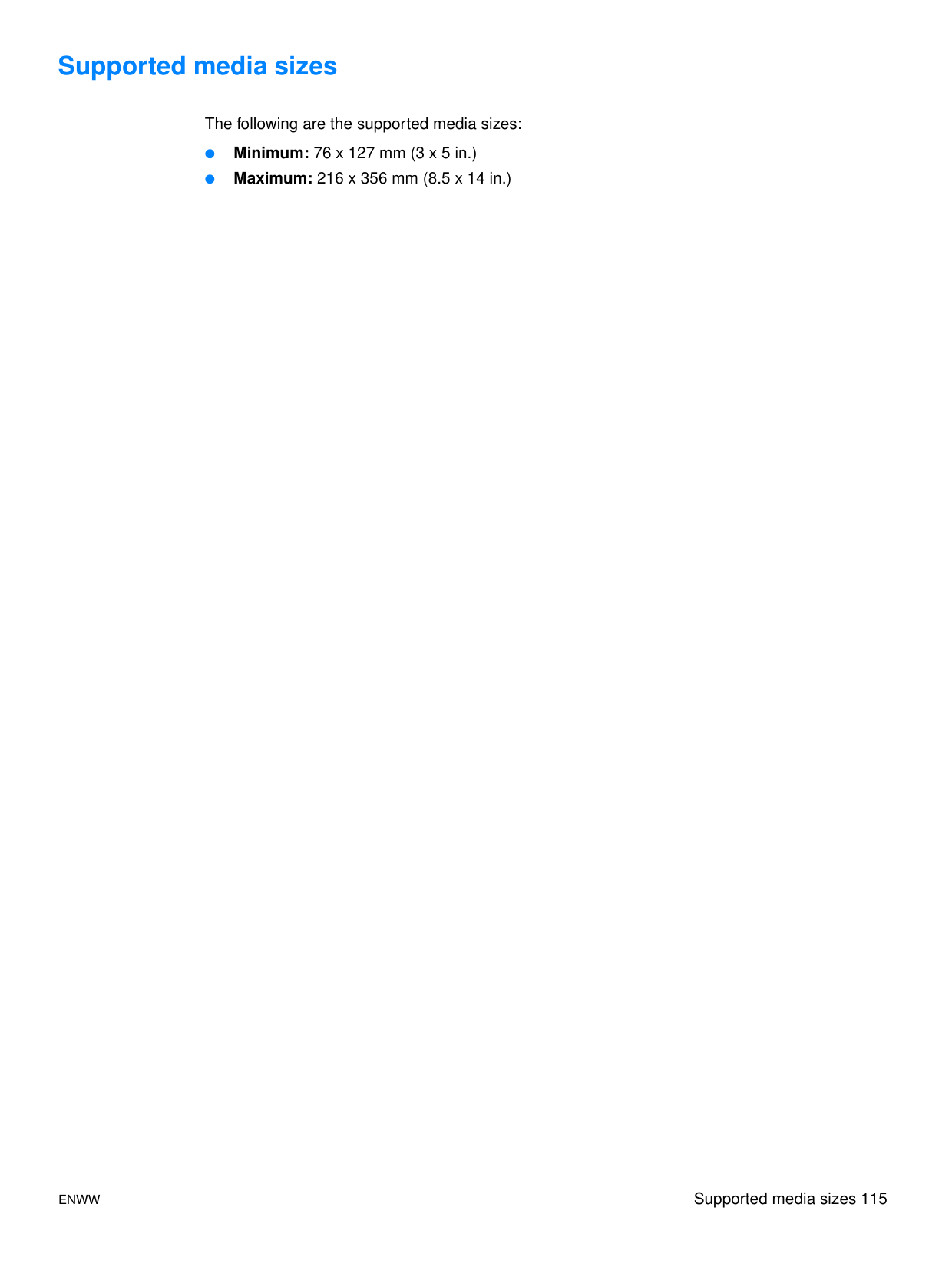

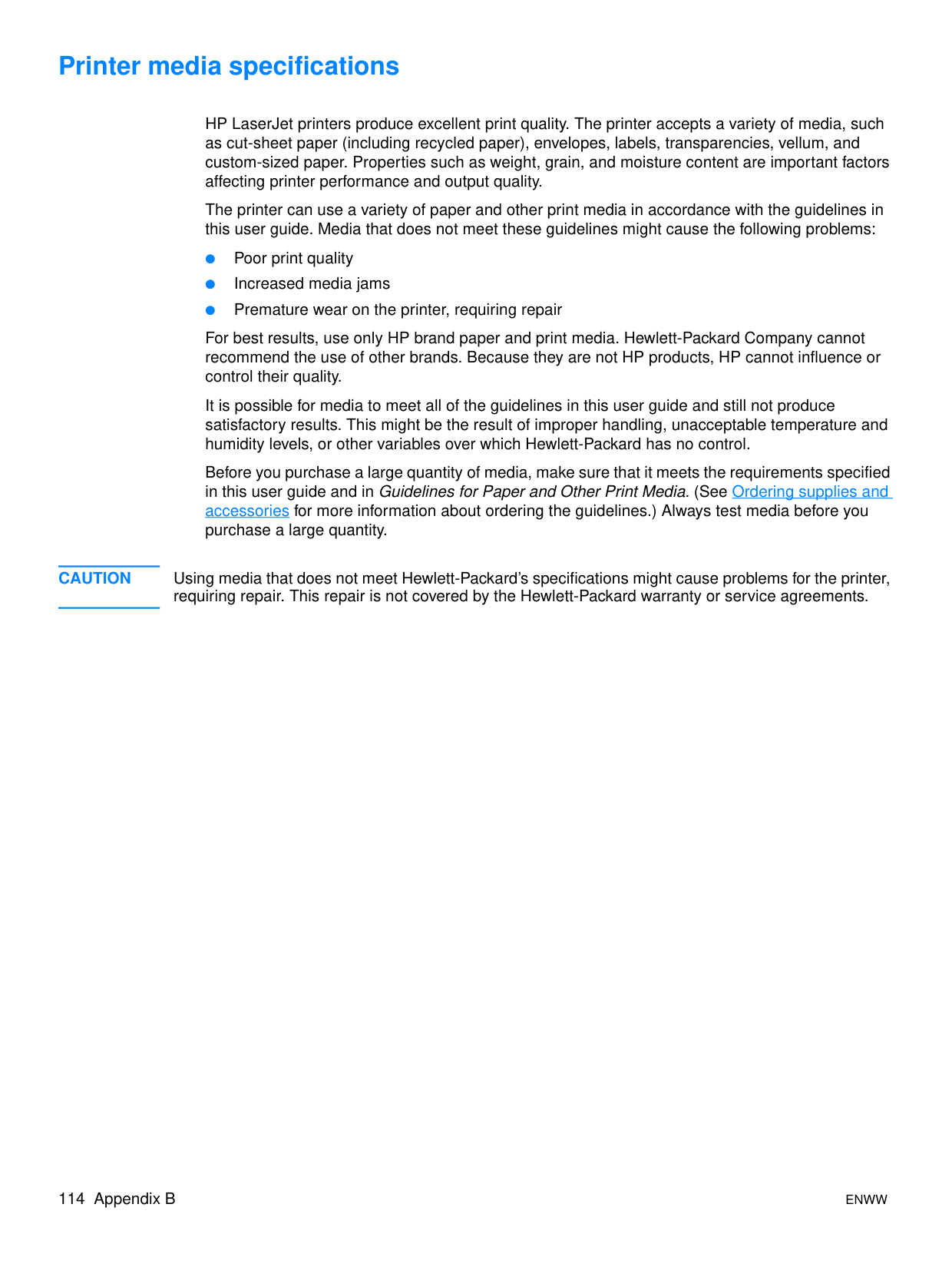

Printer media specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 Supported media sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Guidelines for using media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Transparencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Card stock and heavy media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

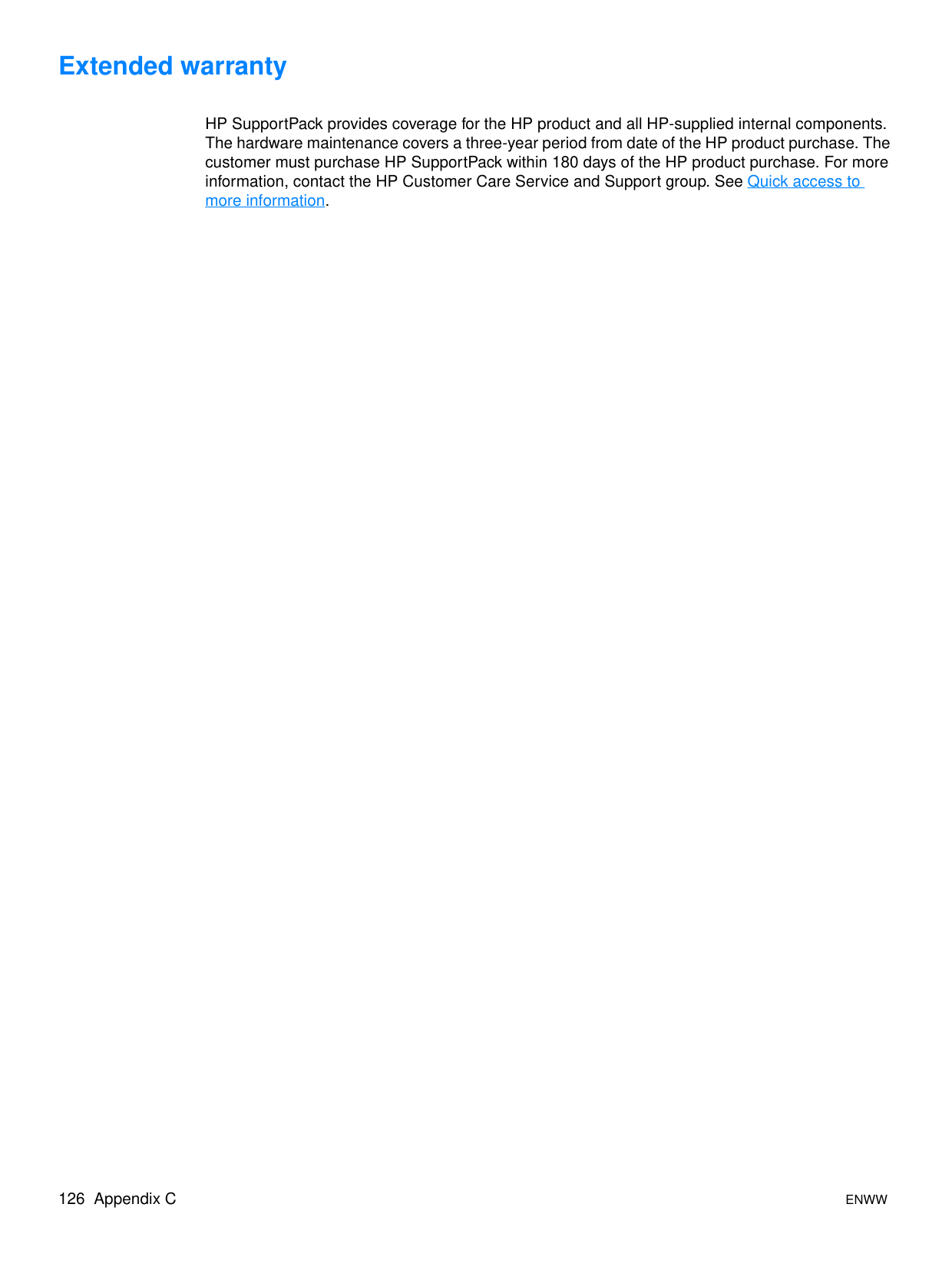

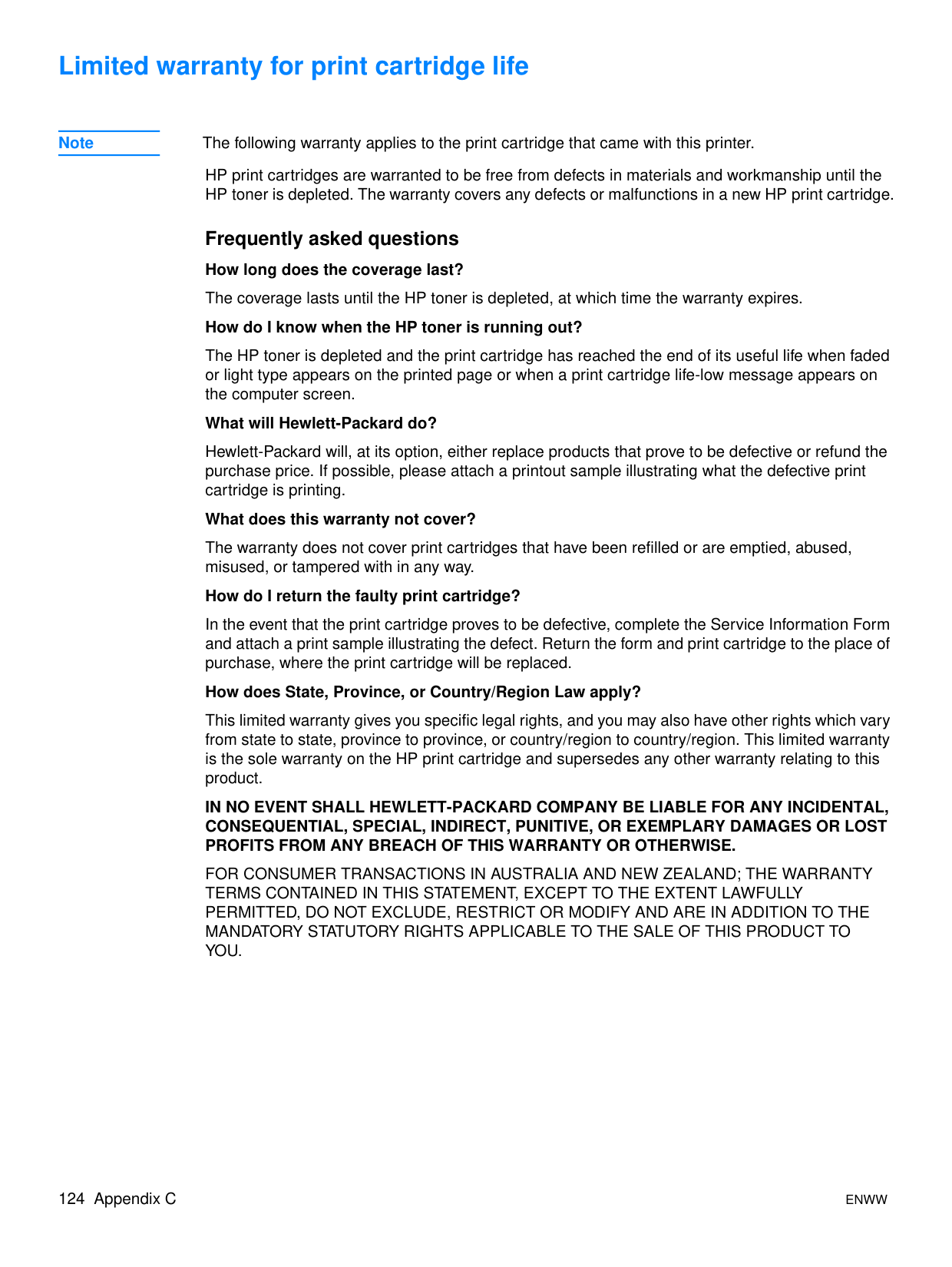

###### Appendix C Warranty and licensing

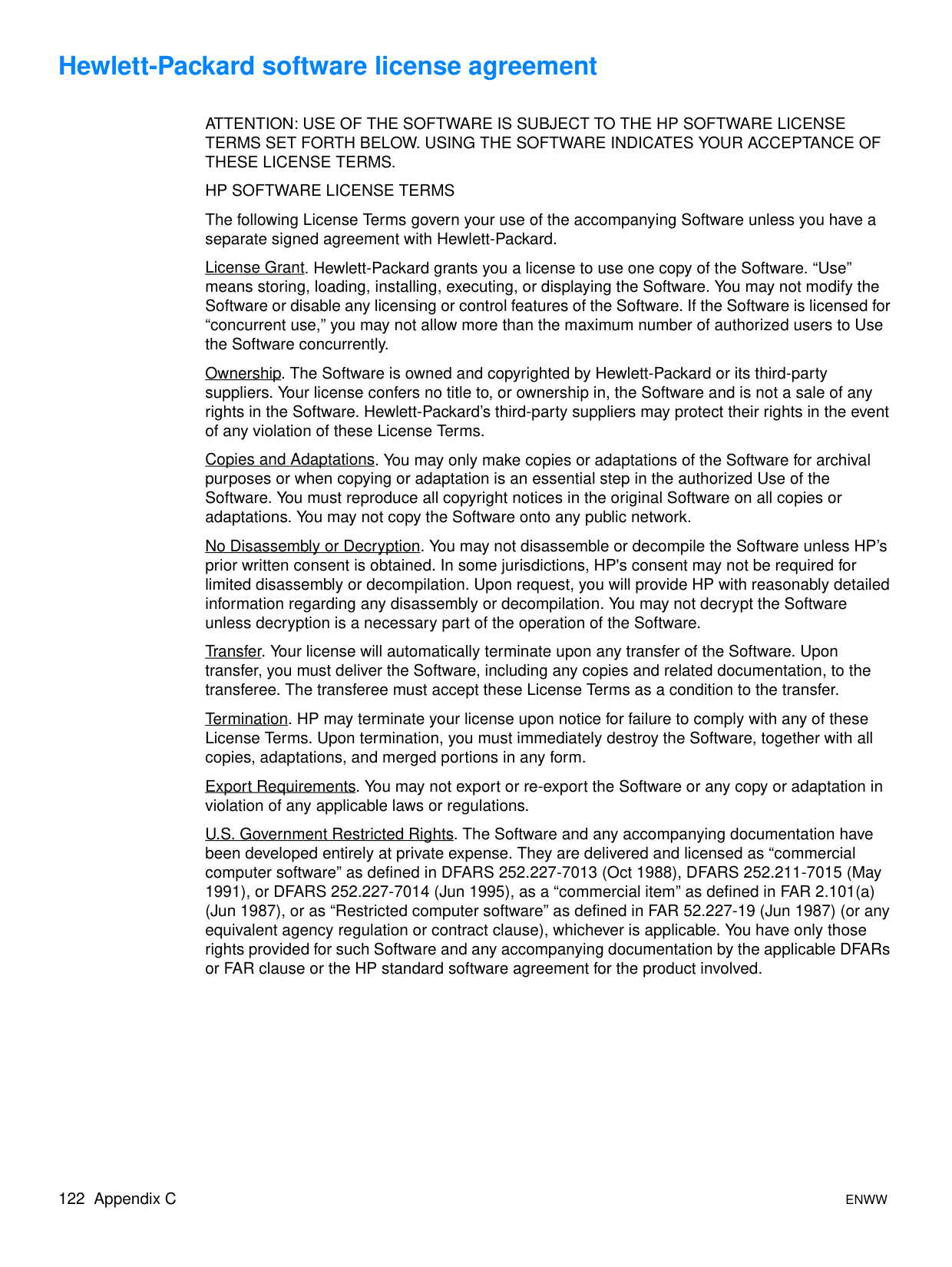

Hewlett-Packard software license agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Hewlett-Packard limited warranty statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Limited warranty for print cartridge life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 Hardware service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Extended warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126 Guidelines for repacking the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 How to contact HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

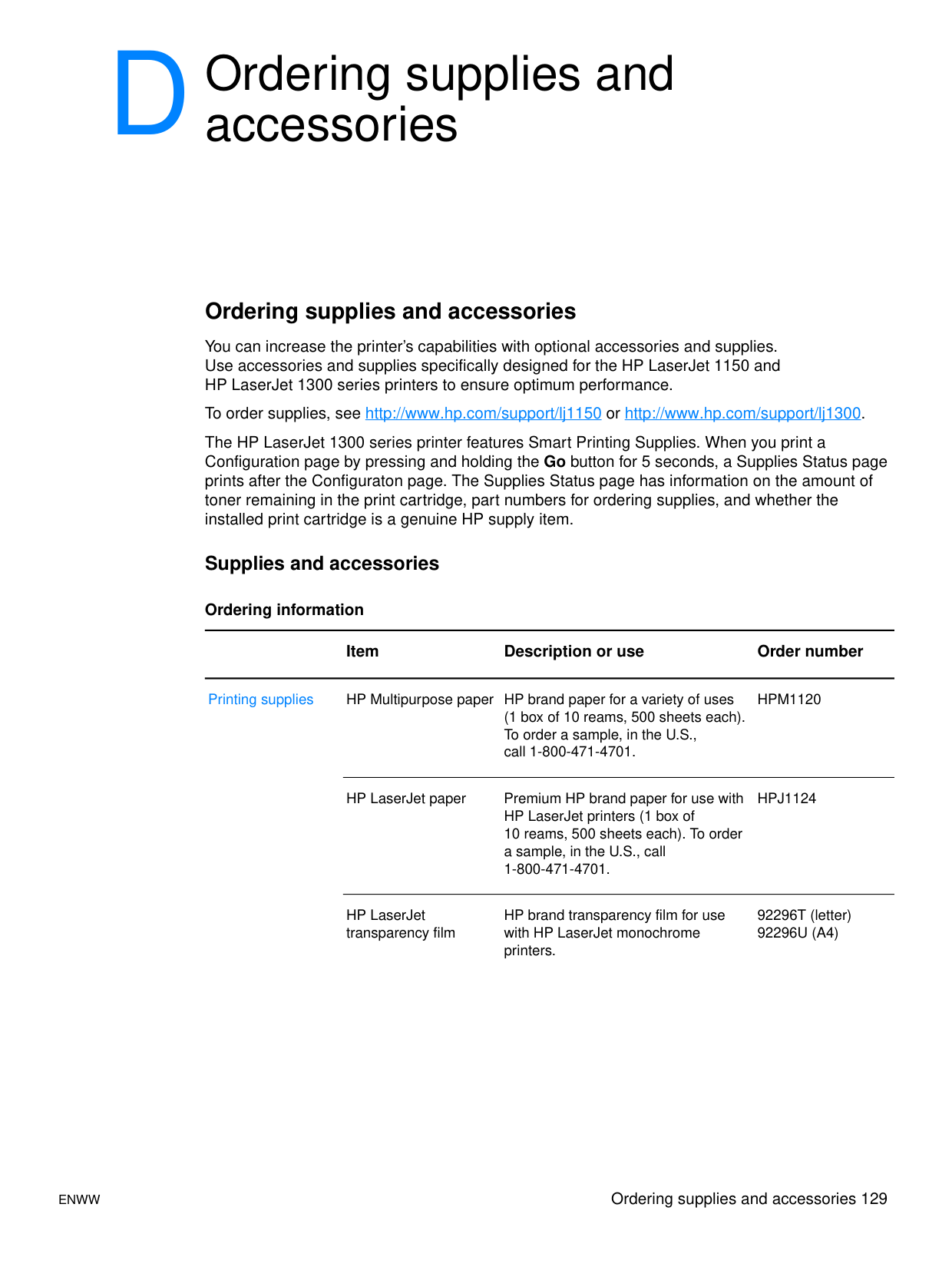

###### Appendix D Ordering supplies and accessories

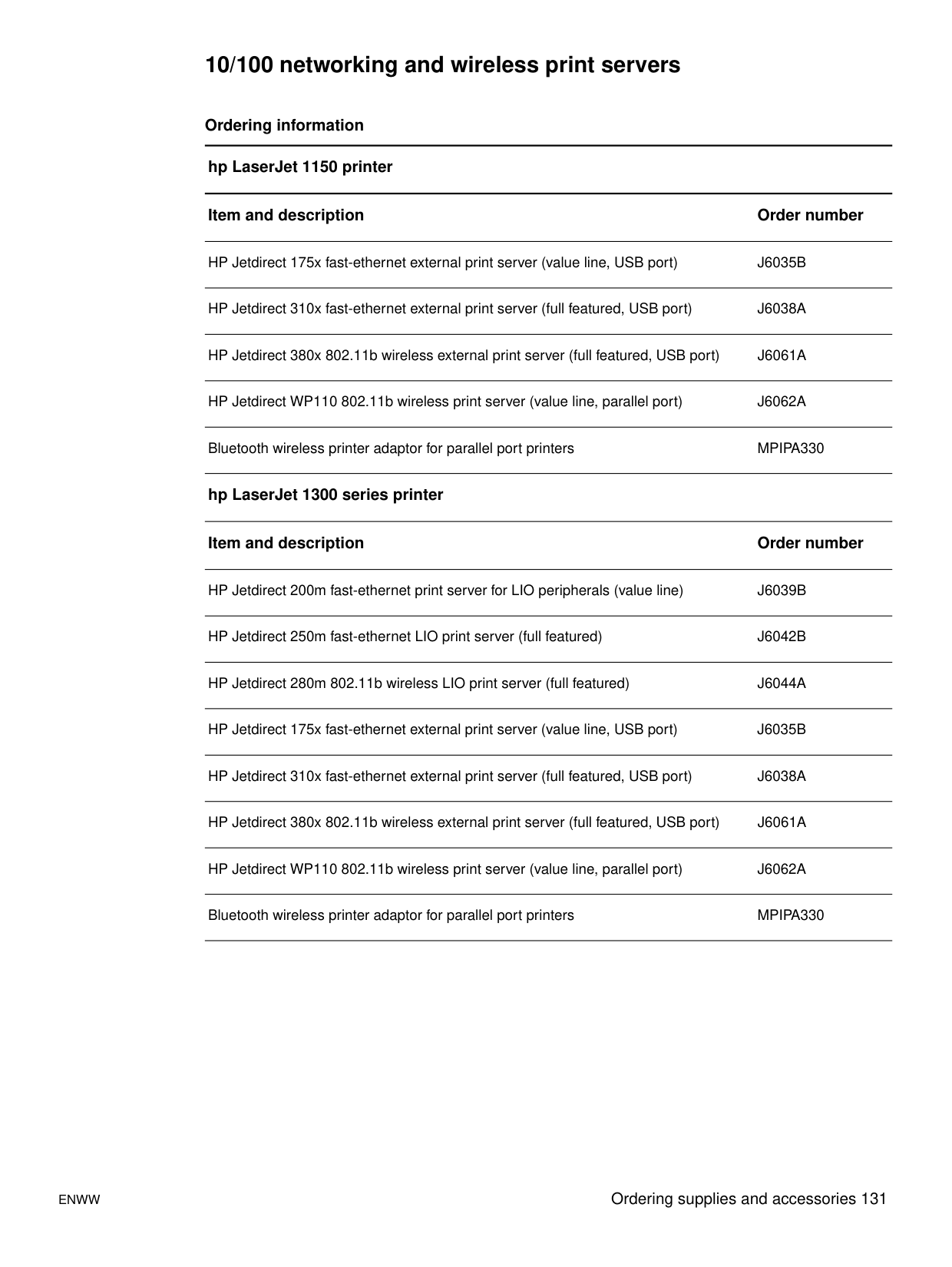

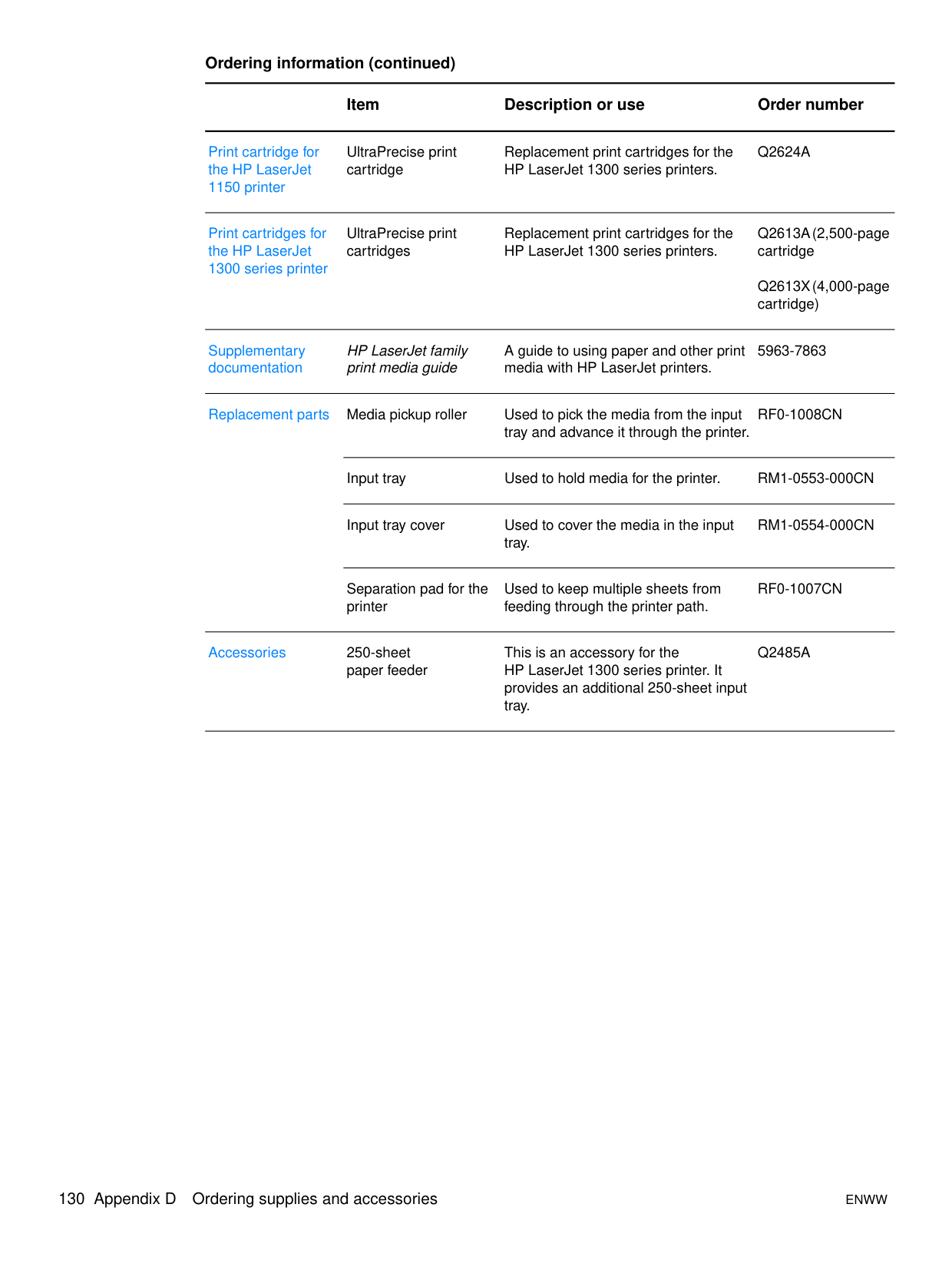

Ordering supplies and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 10/100 networking and wireless print servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

###### Appendix E Network configuration

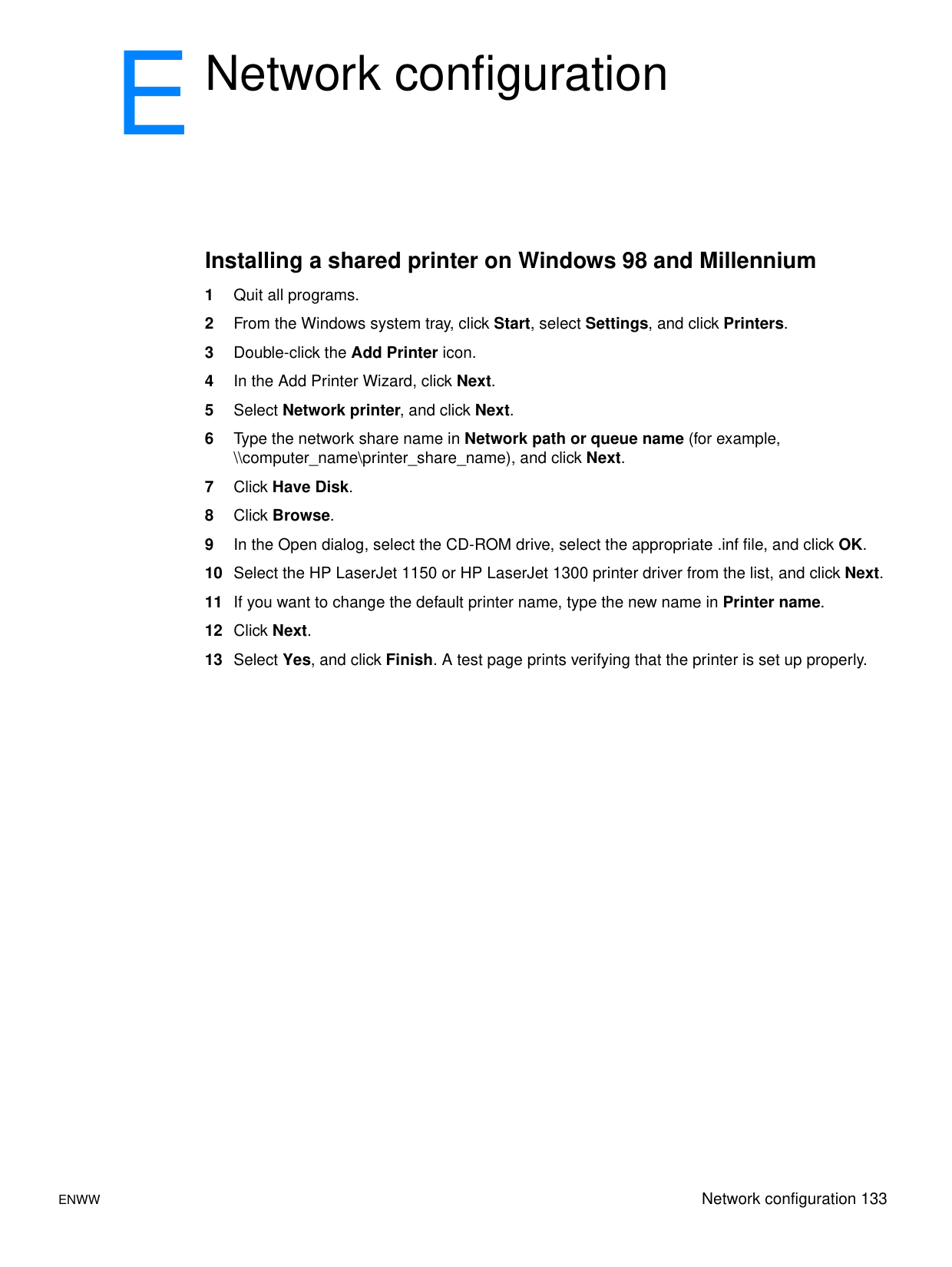

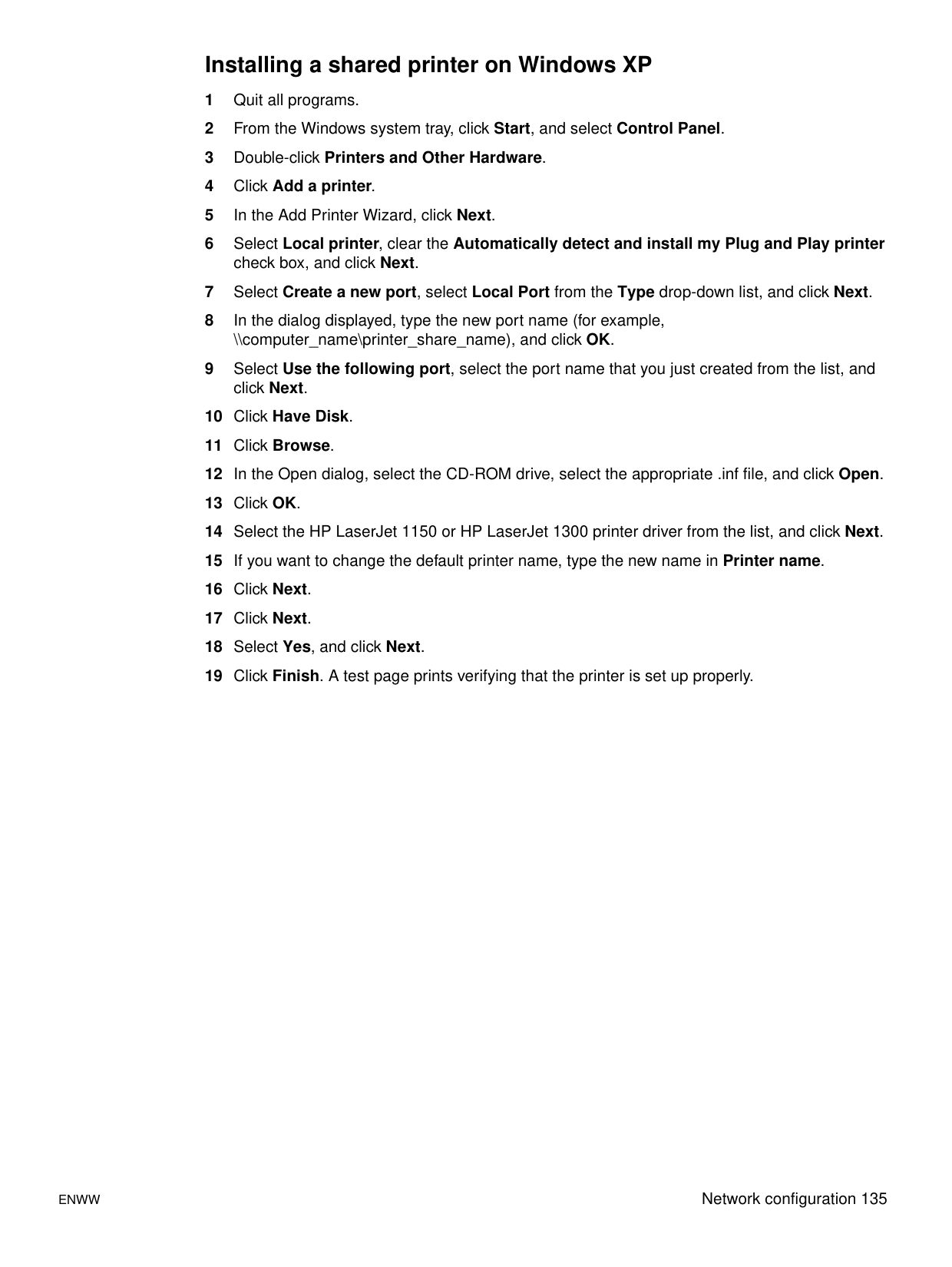

Installing a shared printer on Windows 98 and Millennium . . . . . . . . . . . . . . . . . . . . . . 133 Installing a shared printer on Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 Installing a shared printer on Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

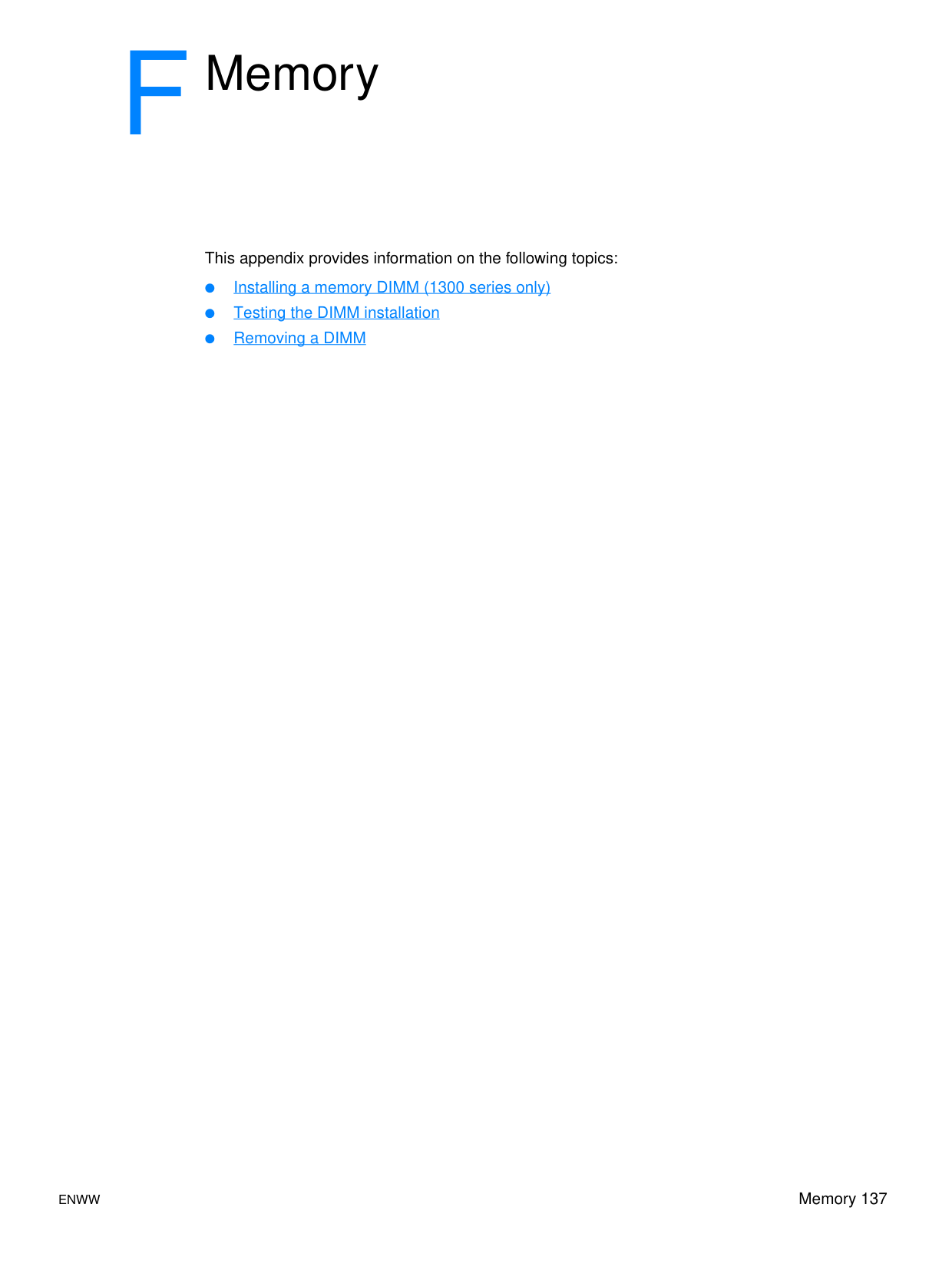

###### Appendix F Memory

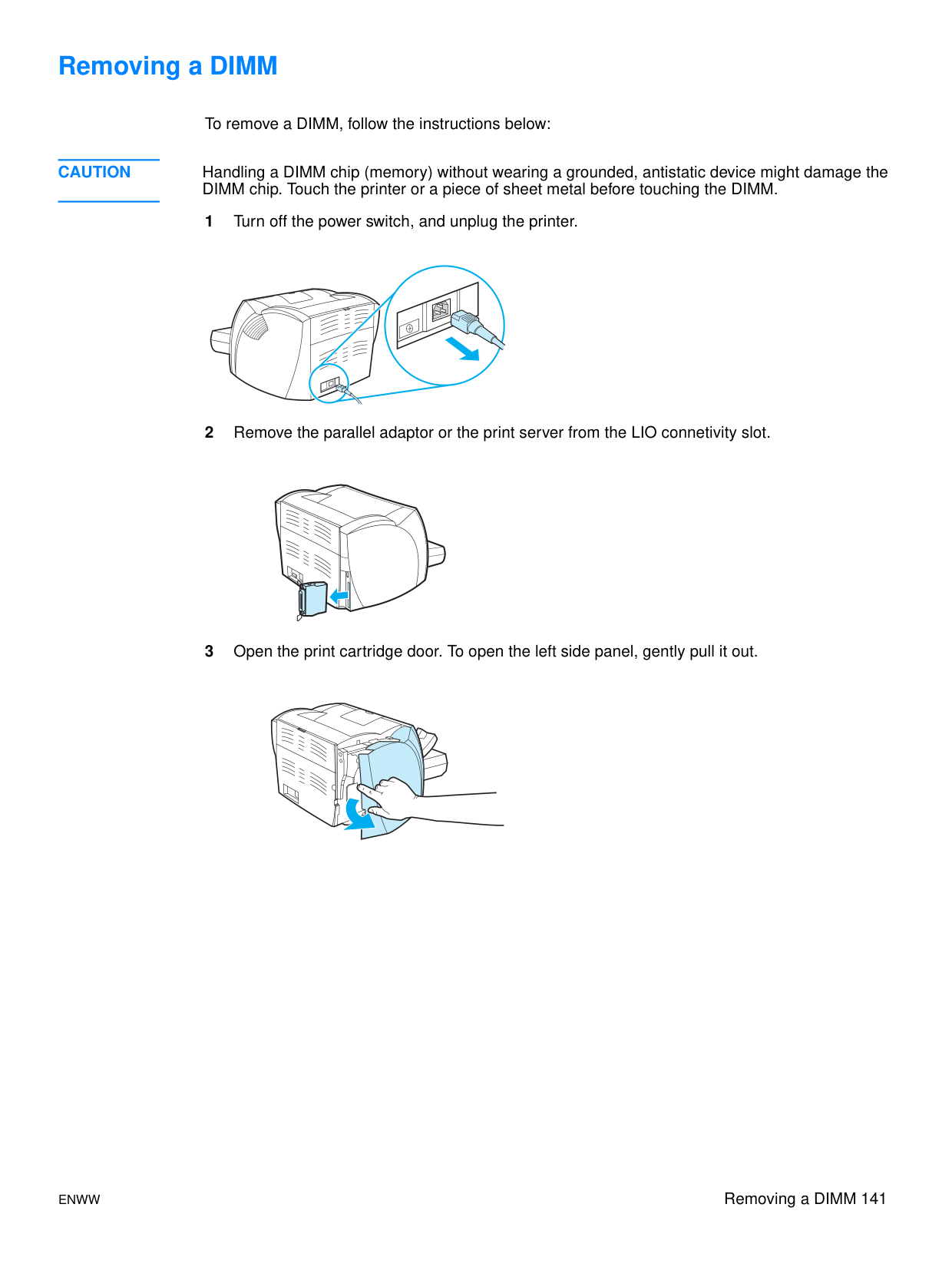

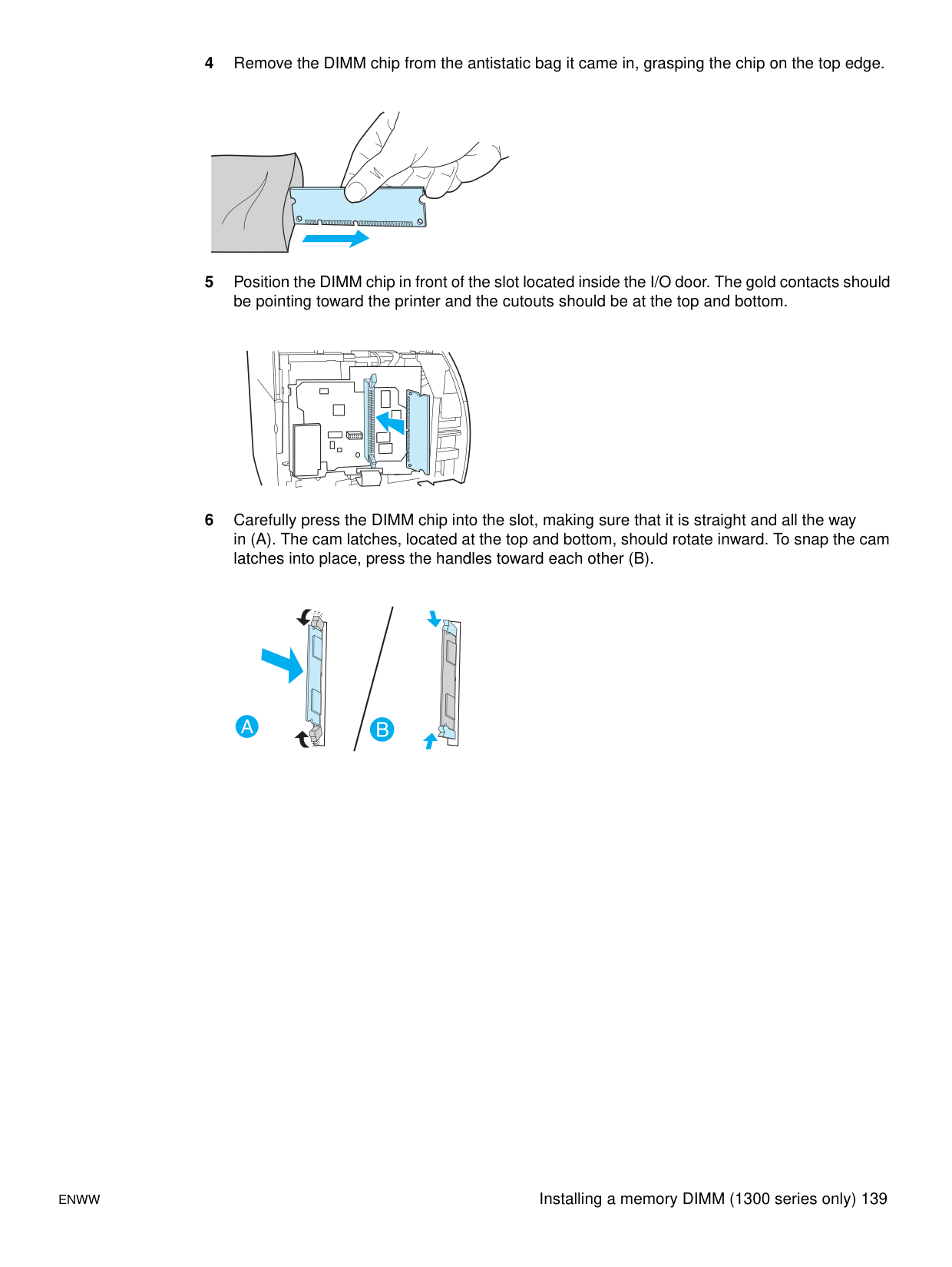

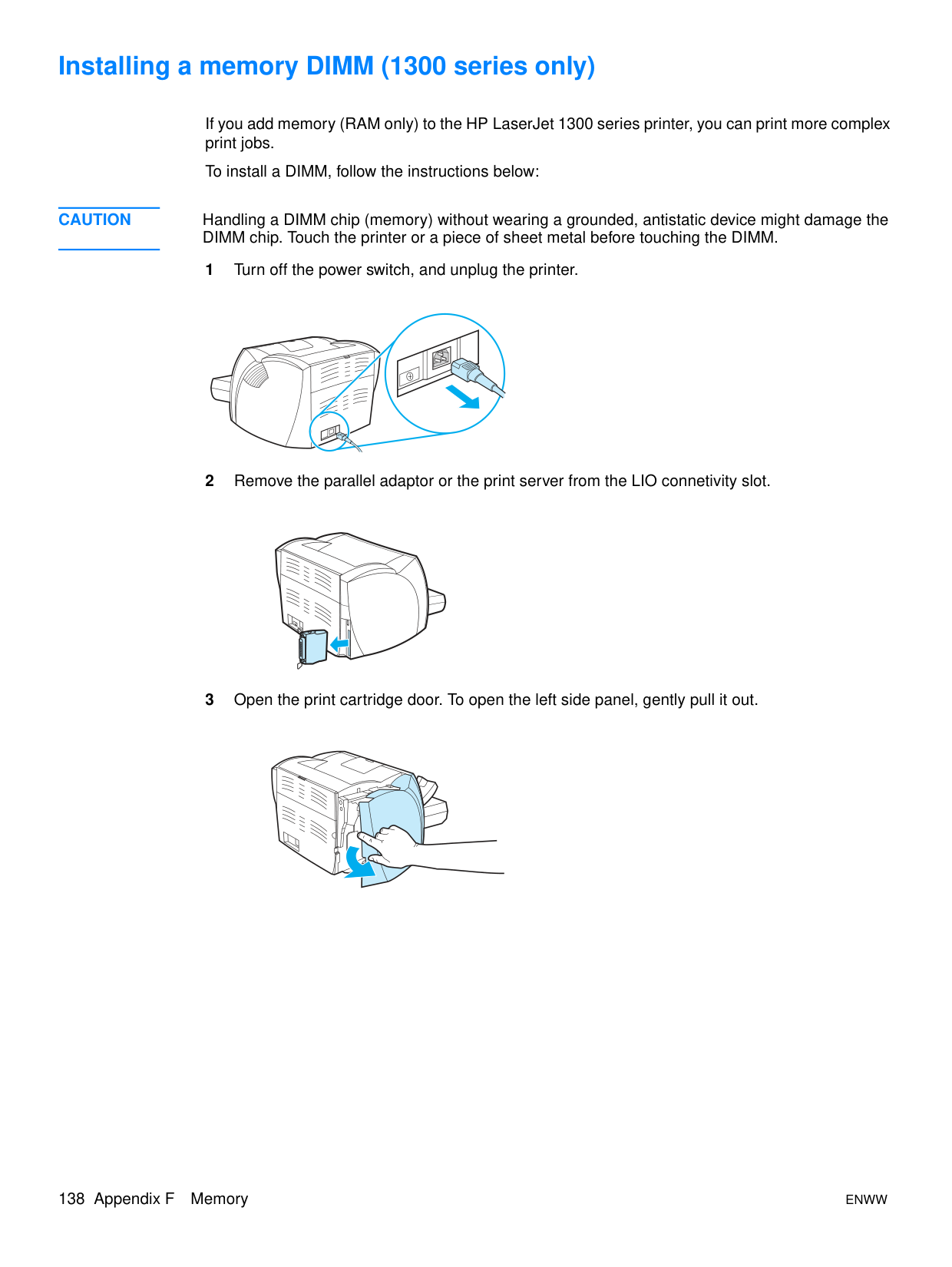

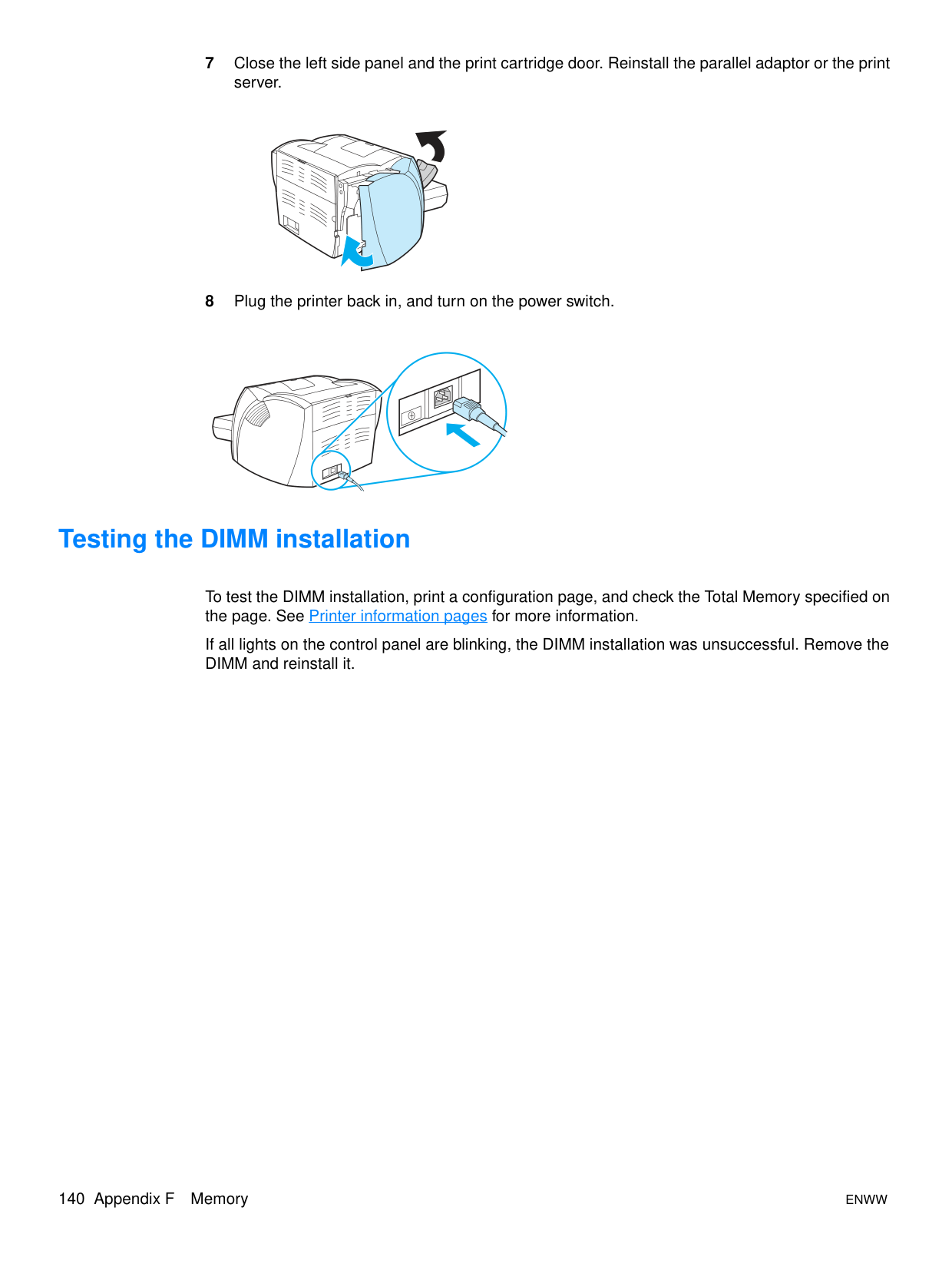

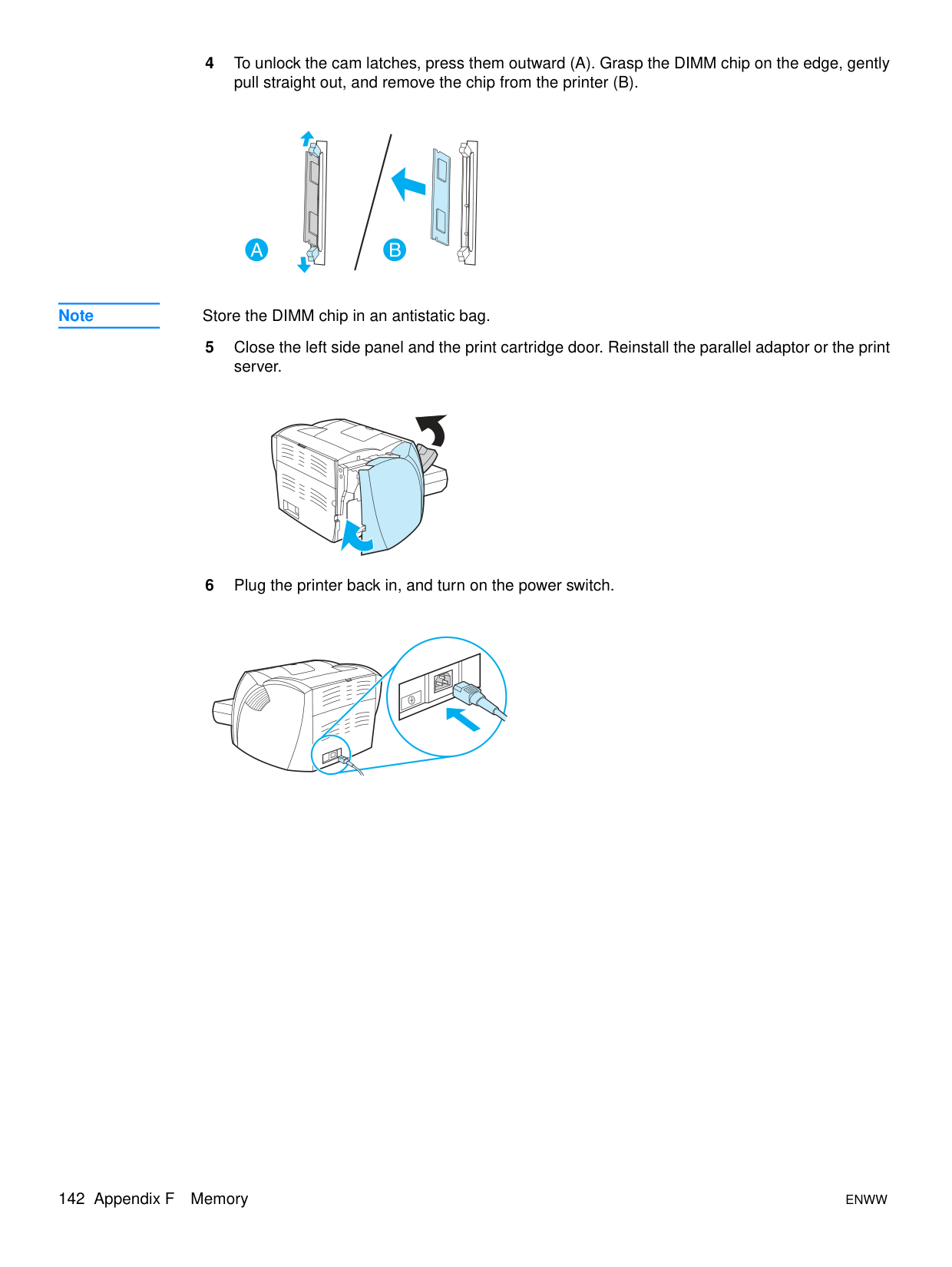

Installing a memory DIMM (1300 series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 Testing the DIMM installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Removing a DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

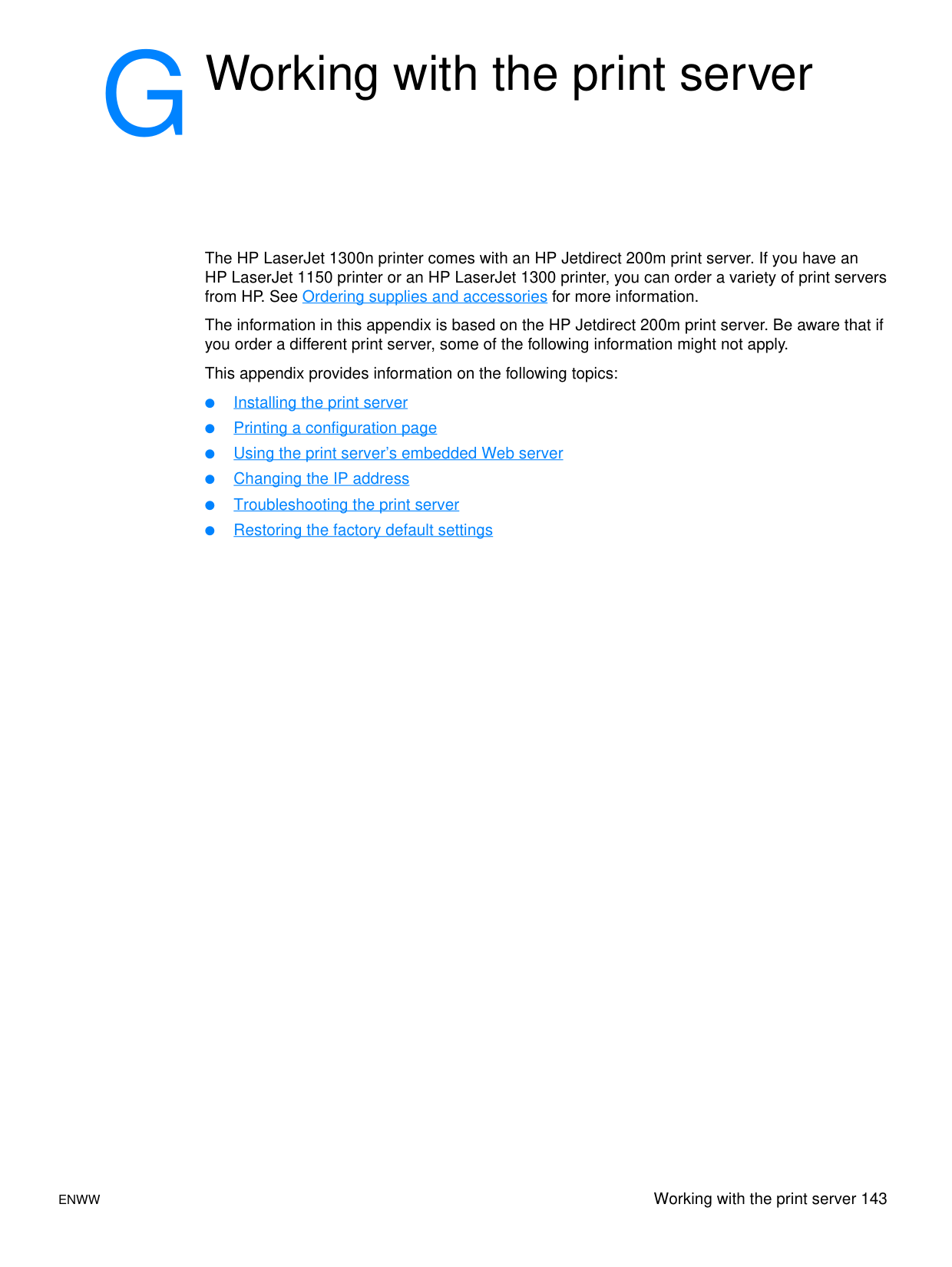

###### Appendix G Working with the print server

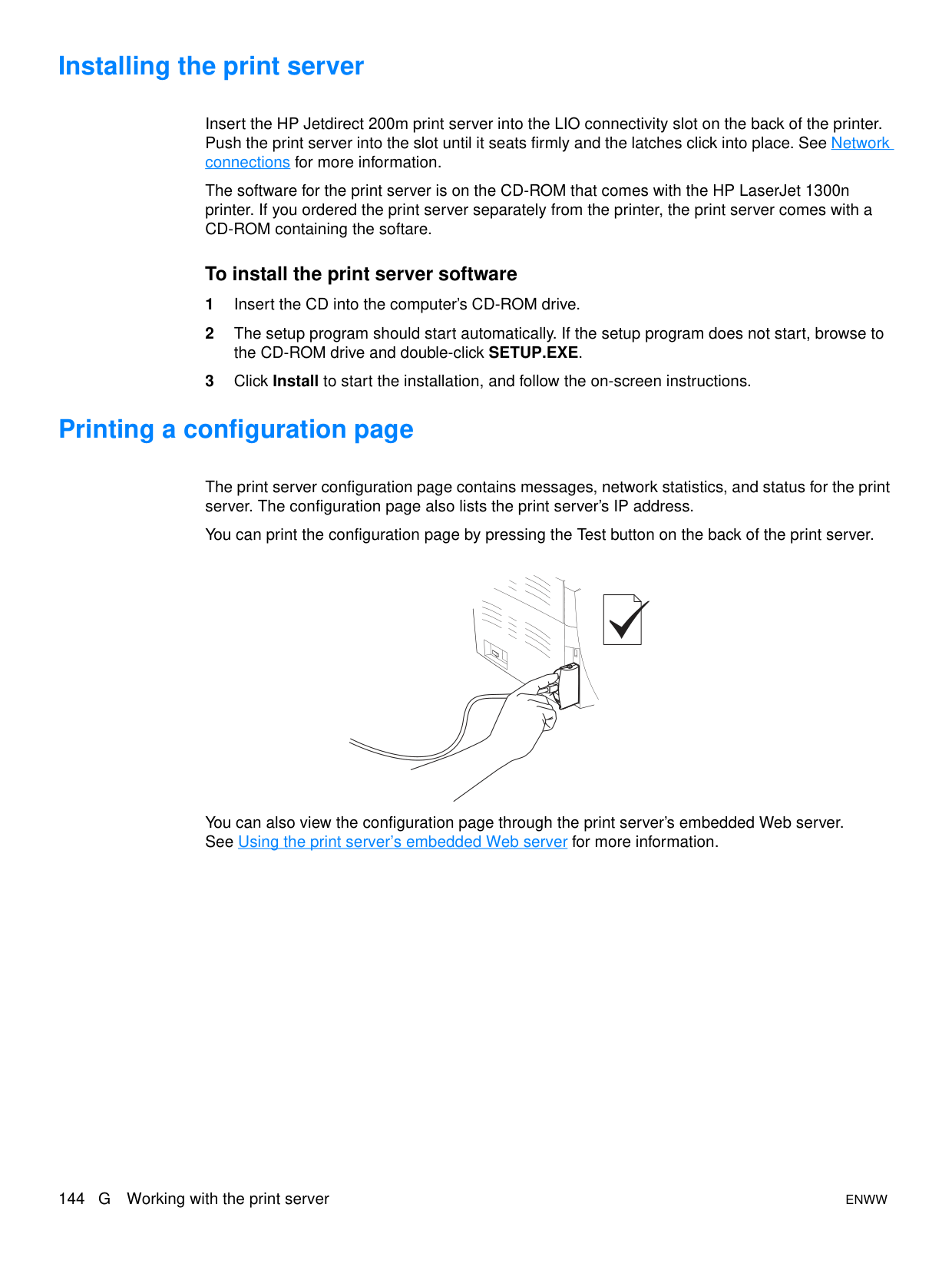

Installing the print server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144 Printing a configuration page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Using the print server’s embedded Web server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Changing the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Troubleshooting the print server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

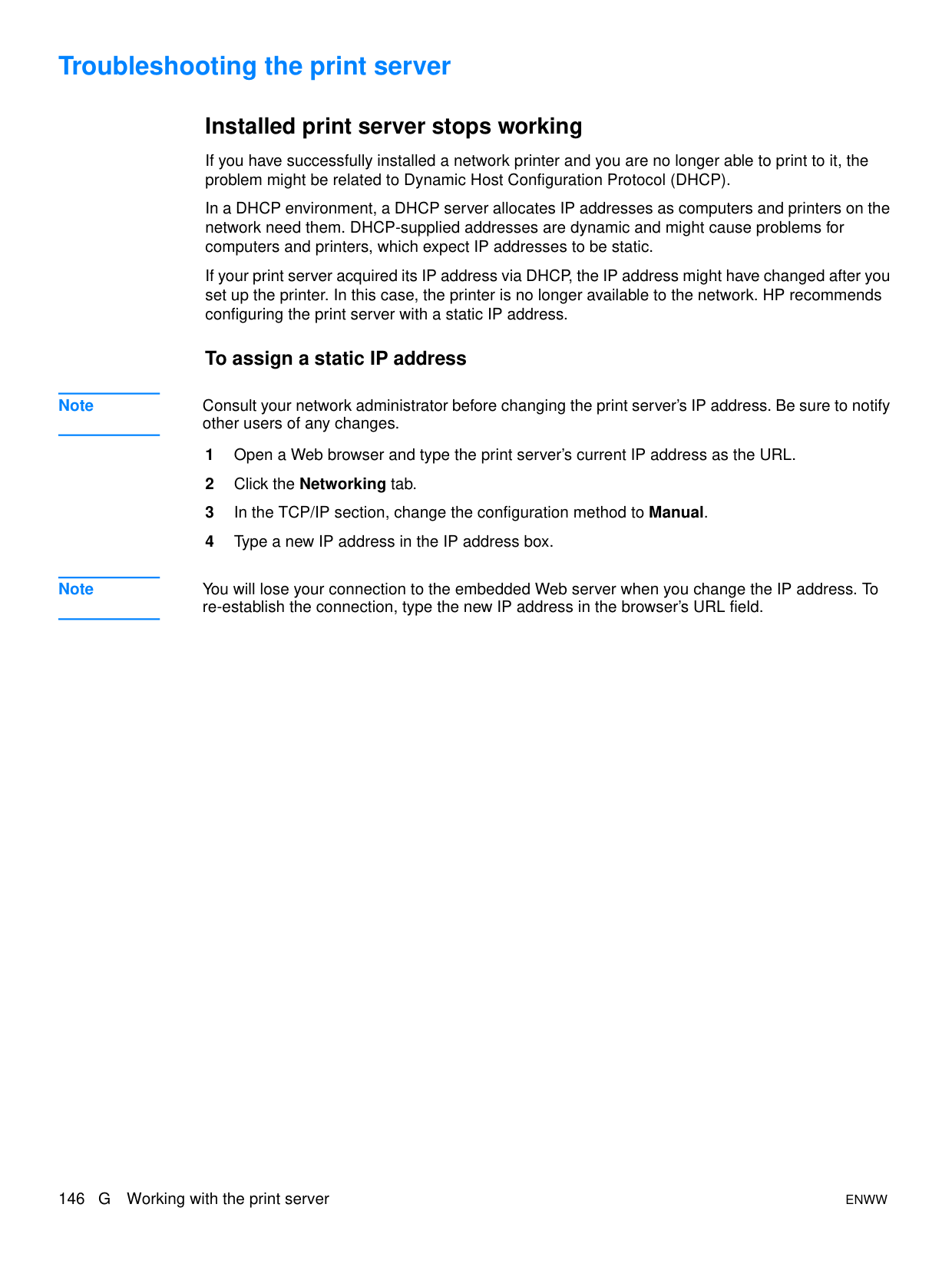

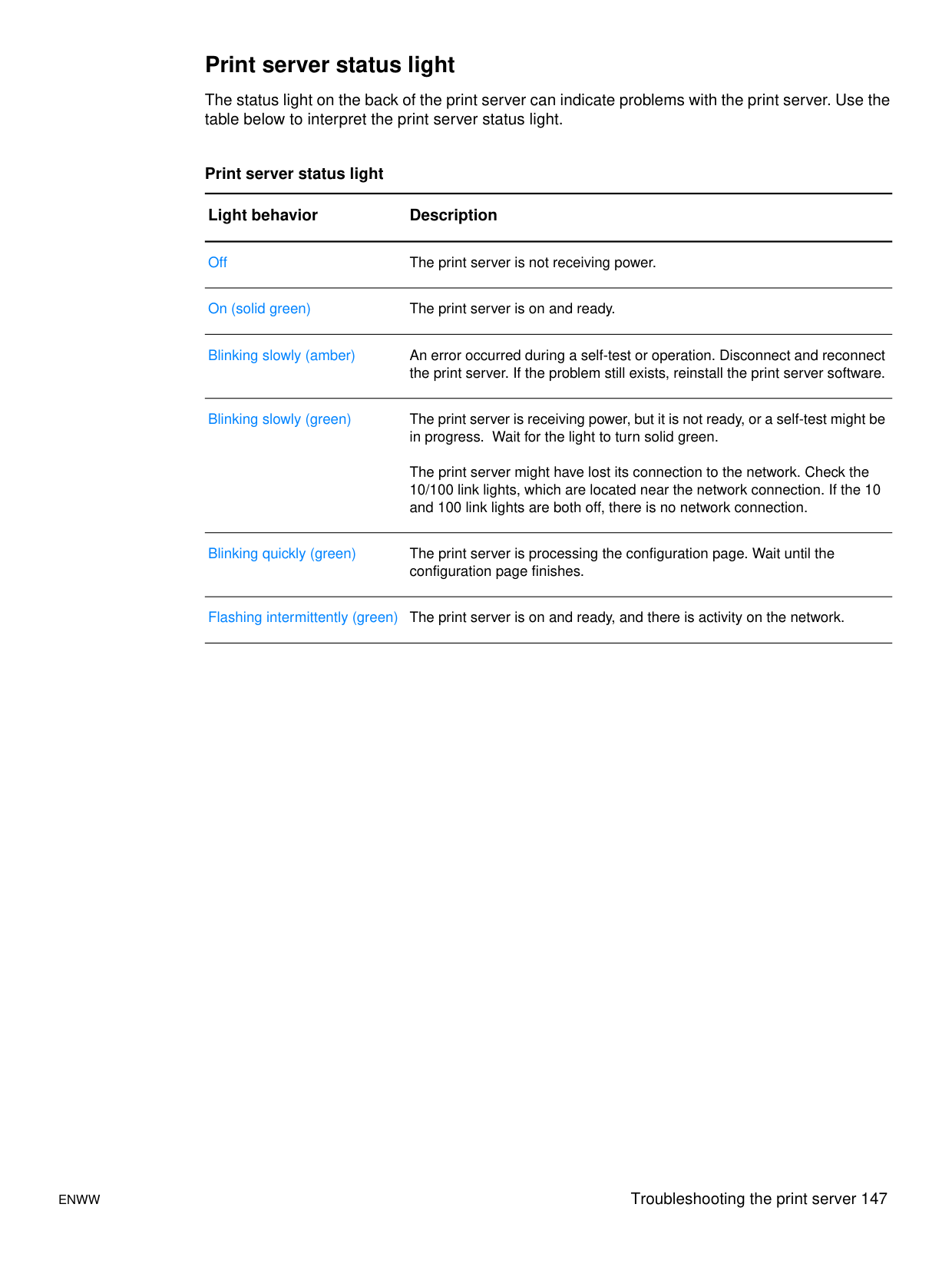

Installed print server stops working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 Print server status light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

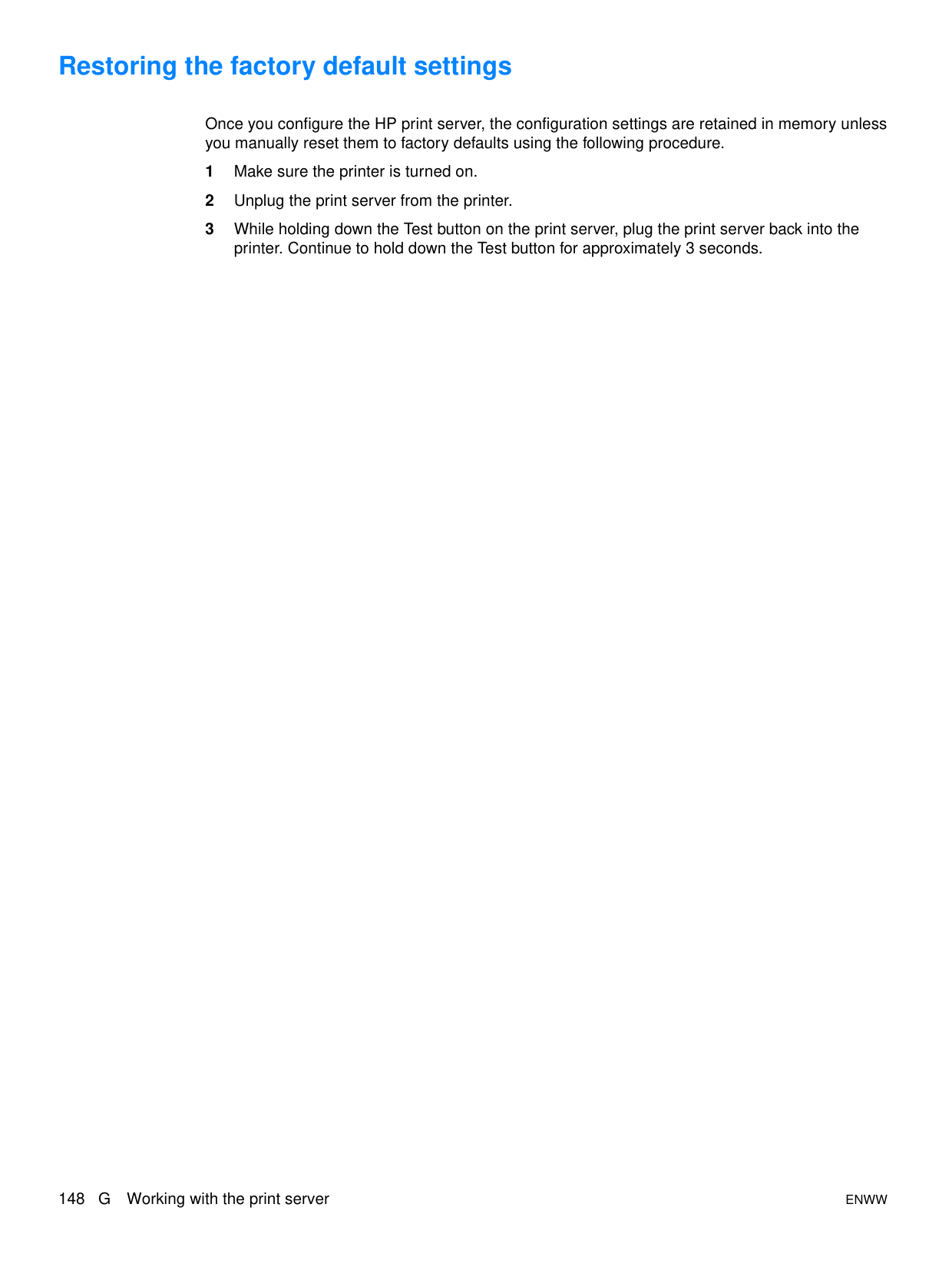

Restoring the factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

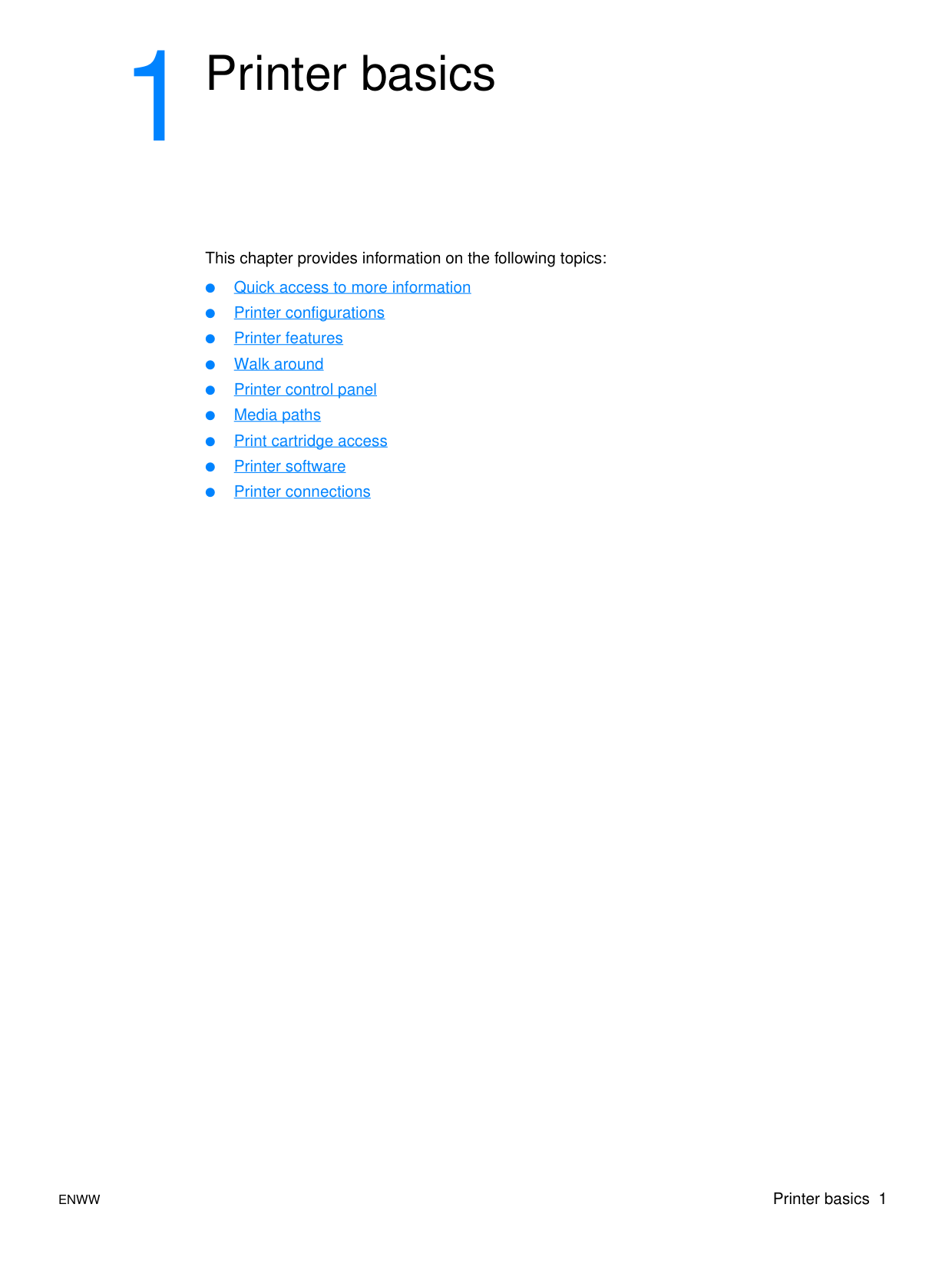

1

Printer basics

This chapter provides information on the following topics:

ENWW Printer basics 1

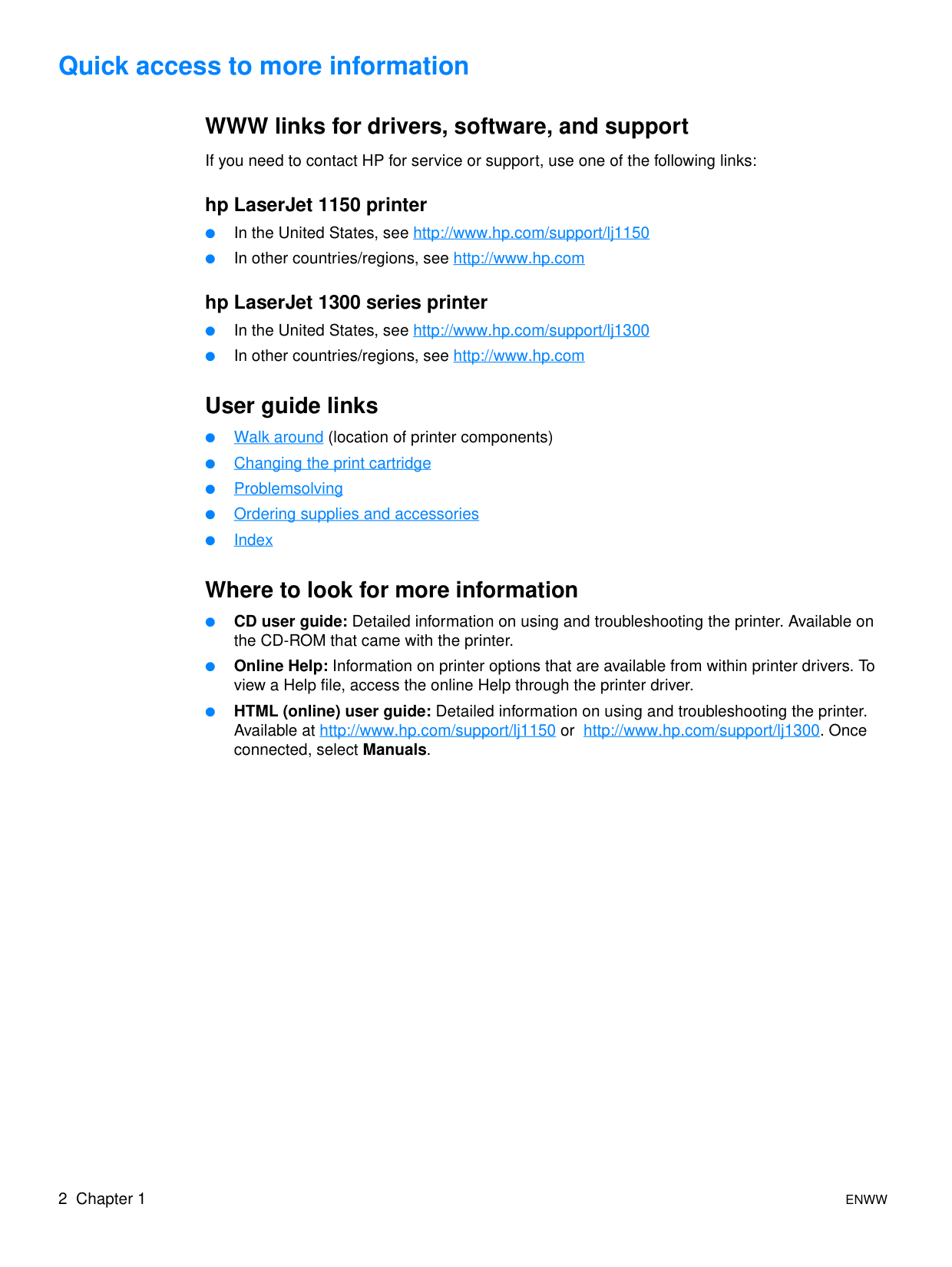

#### Quick access to more information

##### WWW links for drivers, software, and support If you need to contact HP for service or support, use one of the following links: hp LaserJet 1150 printer

User guide links

Where to look for more information

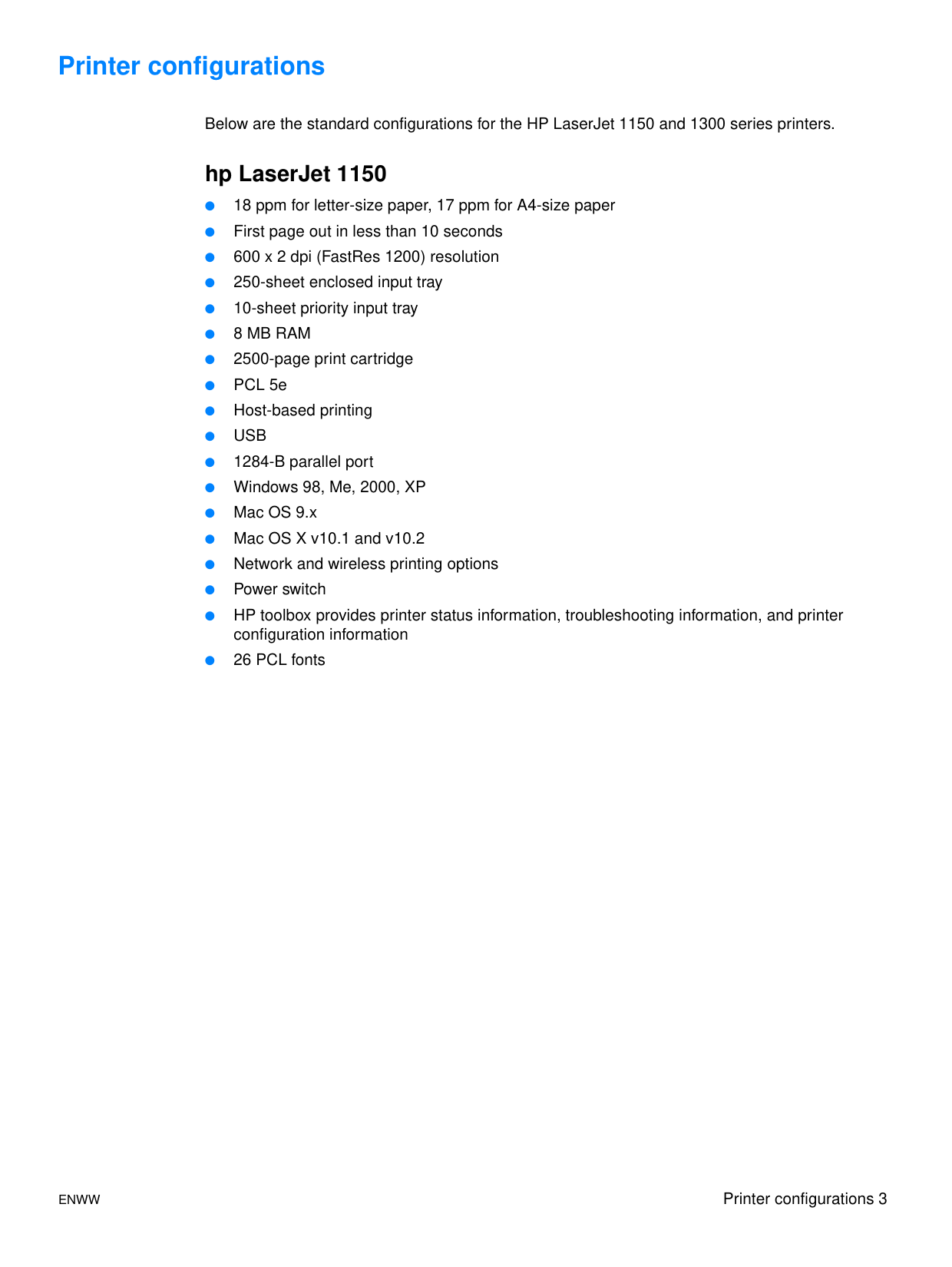

#### Printer configurations

Below are the standard configurations for the HP LaserJet 1150 and 1300 series printers.

##### hp LaserJet 1150

ENWW Printer configurations 3

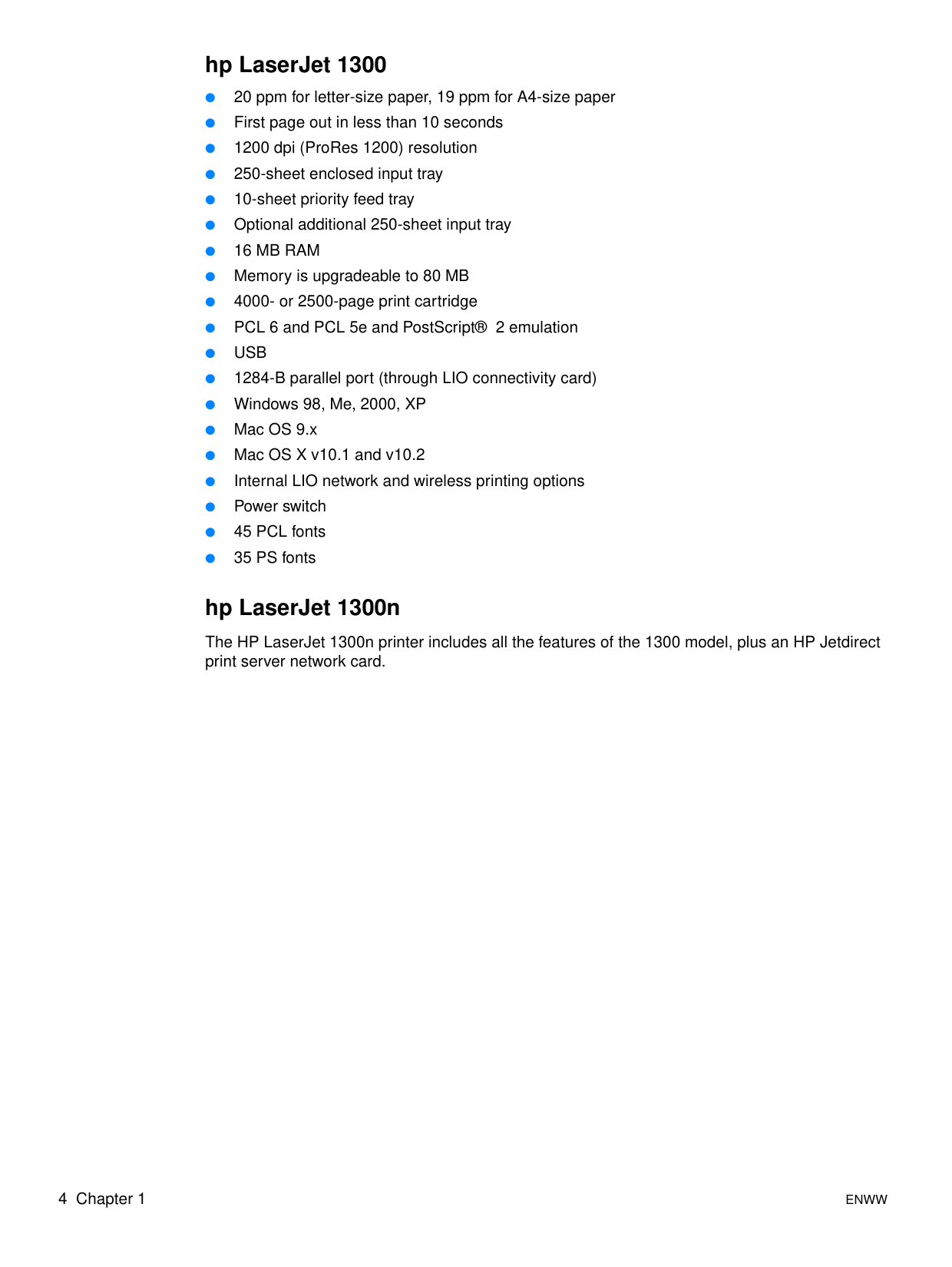

##### hp LaserJet 1300n

The HP LaserJet 1300n printer includes all the features of the 1300 model, plus an HP Jetdirect print server network card.

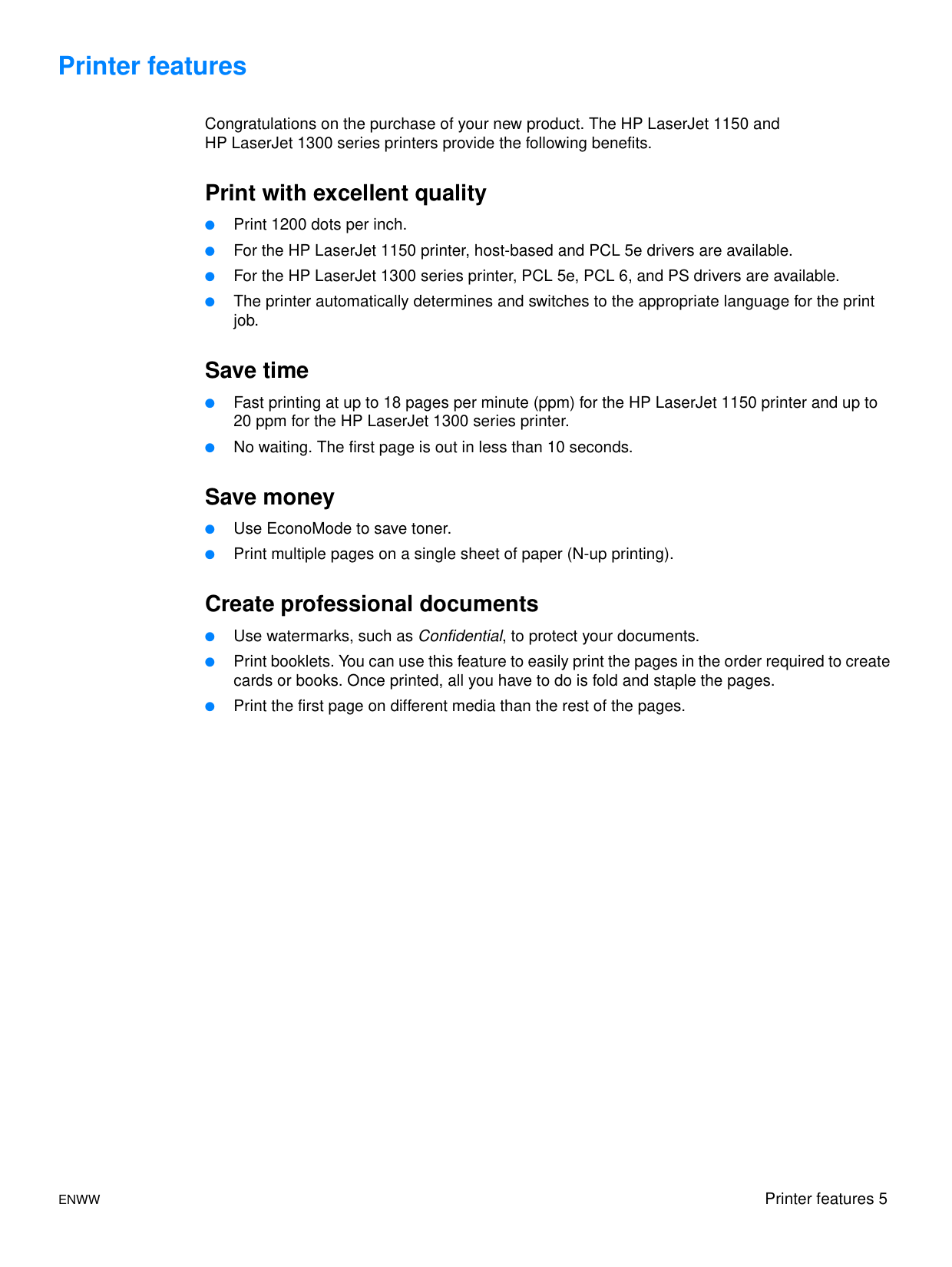

#### Printer features

Congratulations on the purchase of your new product. The HP LaserJet 1150 and HP LaserJet 1300 series printers provide the following benefits.

##### Print with excellent quality

##### Save time

Save money

Create professional documents

ENWW Printer features 5

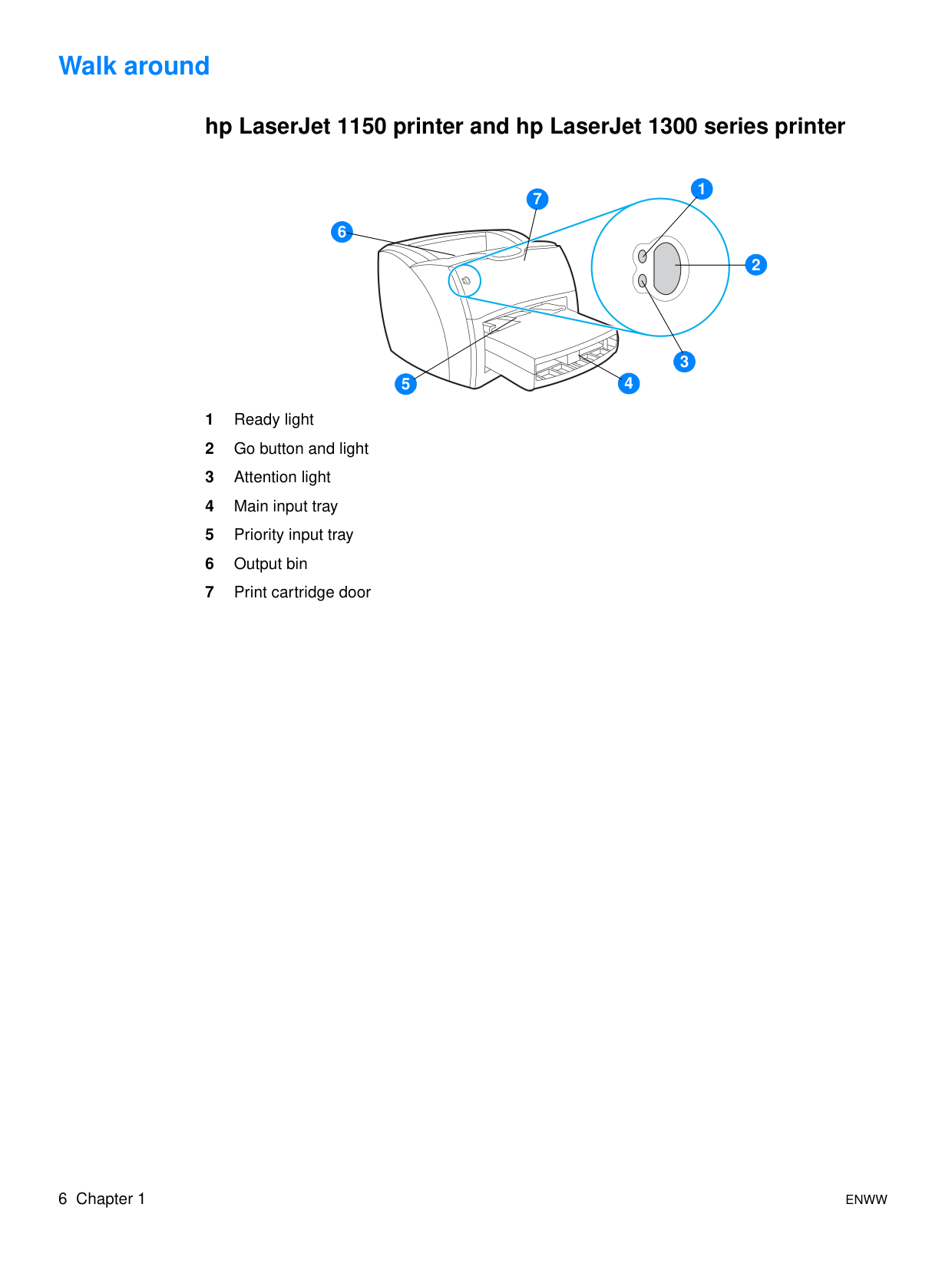

#### Walk around

##### hp LaserJet 1150 printer and hp LaserJet 1300 series printer

1

7

6

2

3 45

1

7

6

5

ENWW Walk around 7

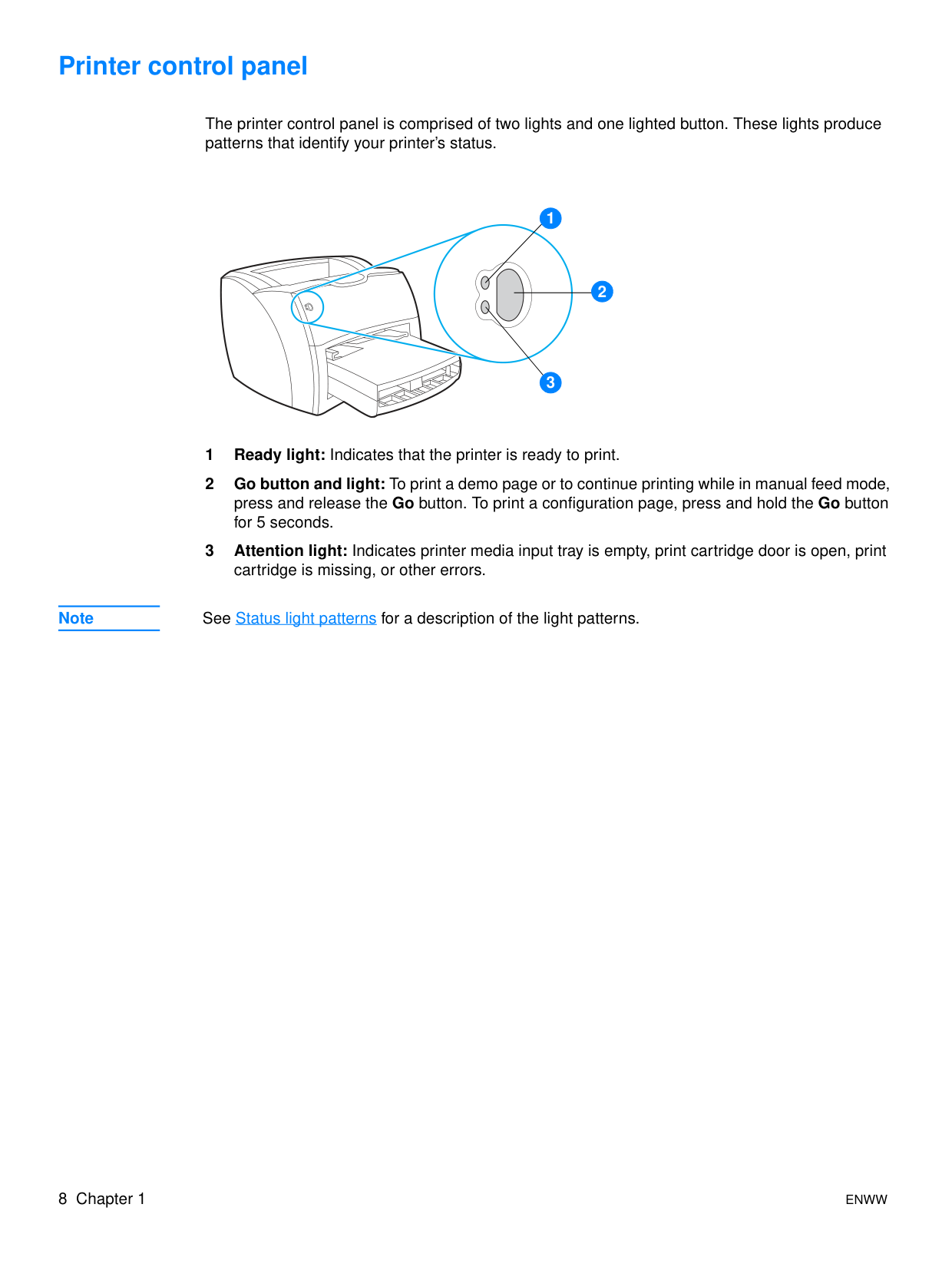

#### Printer control panel

The printer control panel is comprised of two lights and one lighted button. These lights produce patterns that identify your printer’s status.

1

2

3

Note See Status light patterns for a description of the light patterns.

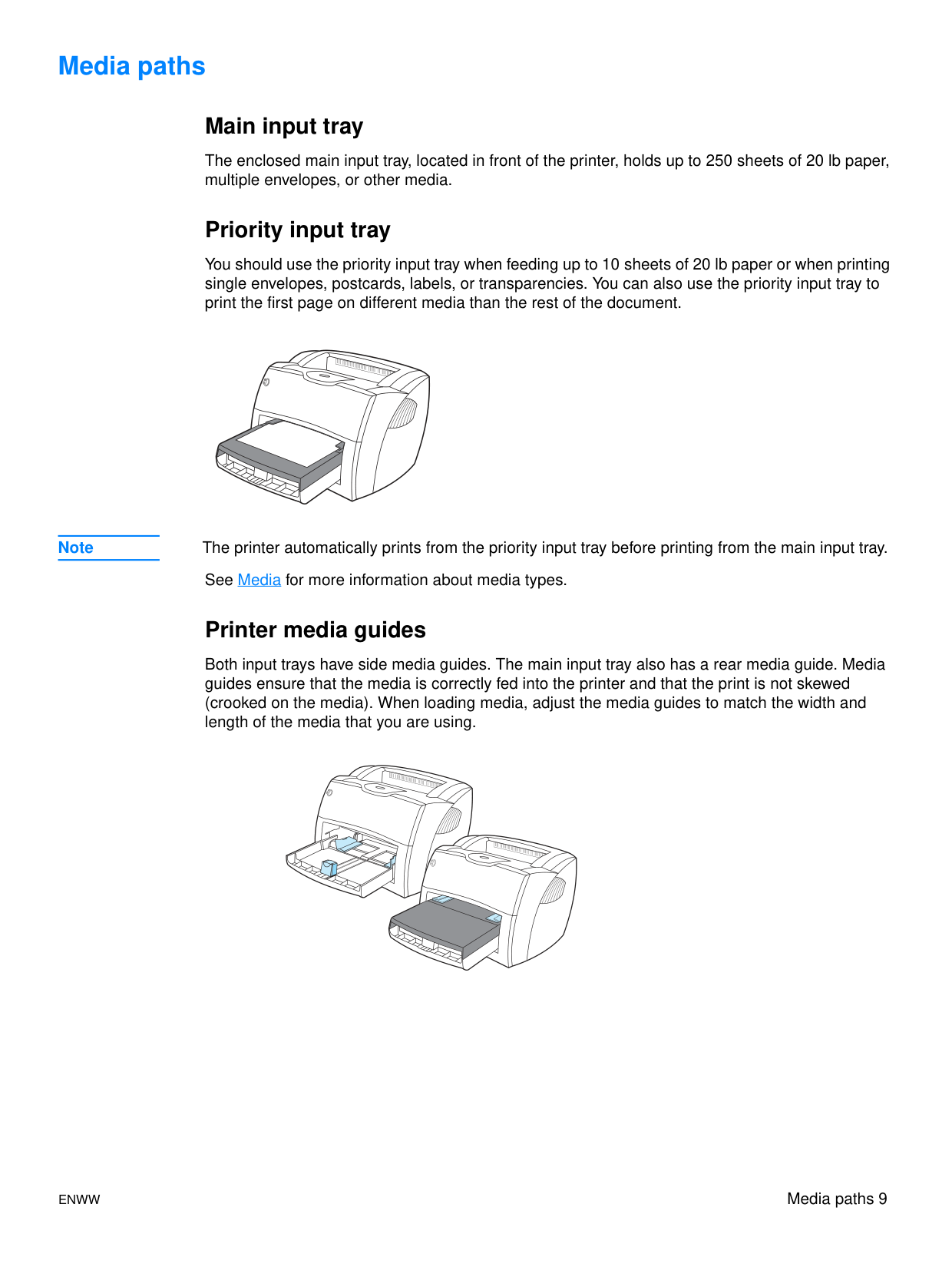

#### Media paths

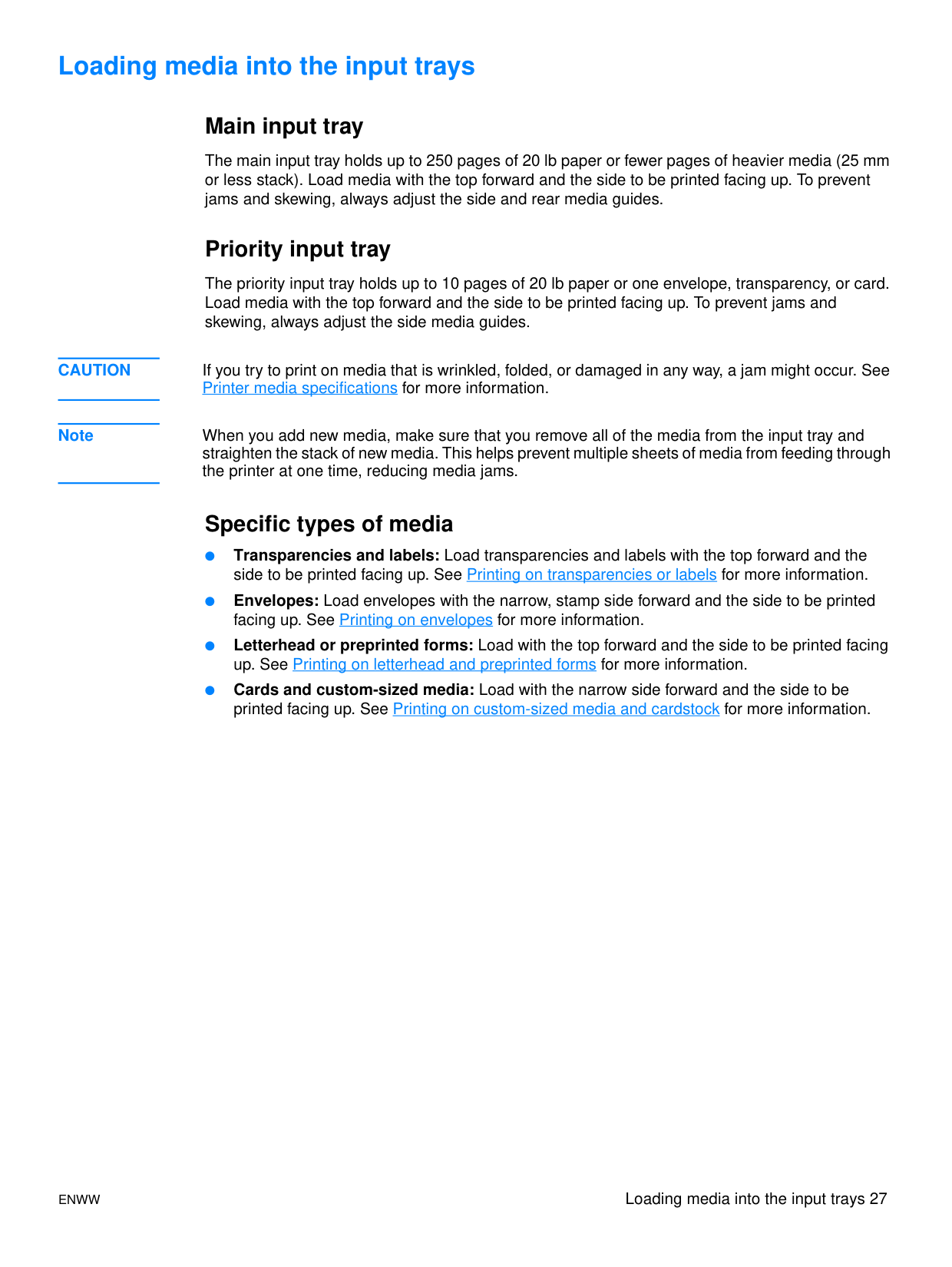

##### Main input tray

The enclosed main input tray, located in front of the printer, holds up to 250 sheets of 20 lb paper, multiple envelopes, or other media.

##### Priority input tray

You should use the priority input tray when feeding up to 10 sheets of 20 lb paper or when printing single envelopes, postcards, labels, or transparencies. You can also use the priority input tray to print the first page on different media than the rest of the document.

Note The printer automatically prints from the priority input tray before printing from the main input tray.

See Media for more information about media types.

##### Printer media guides

Both input trays have side media guides. The main input tray also has a rear media guide. Media guides ensure that the media is correctly fed into the printer and that the print is not skewed (crooked on the media). When loading media, adjust the media guides to match the width and length of the media that you are using.

ENWW Media paths 9

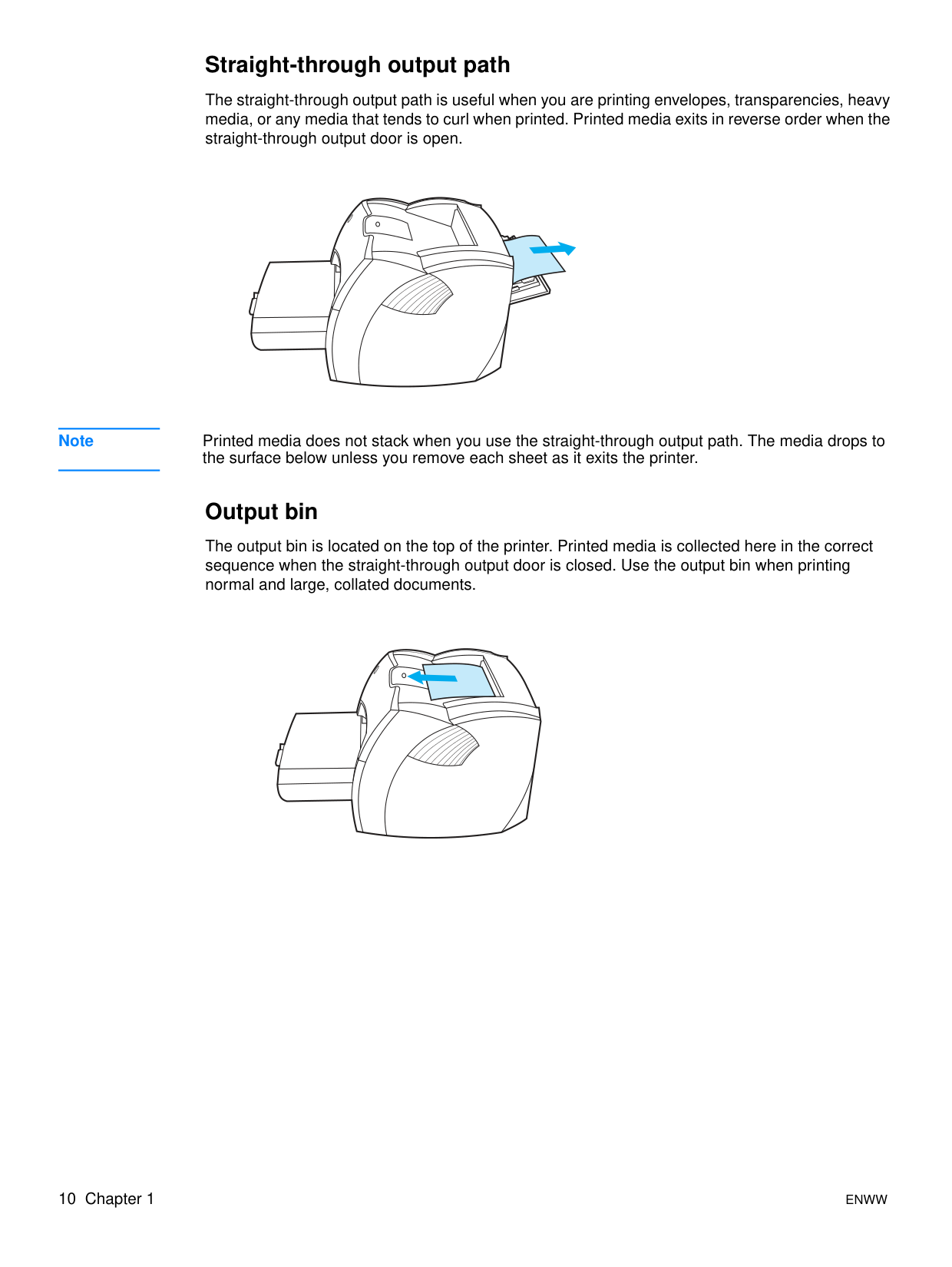

##### Straight-through output path

The straight-through output path is useful when you are printing envelopes, transparencies, heavy media, or any media that tends to curl when printed. Printed media exits in reverse order when the straight-through output door is open.

Note Printed media does not stack when you use the straight-through output path. The media drops to

the surface below unless you remove each sheet as it exits the printer.

##### Output bin

The output bin is located on the top of the printer. Printed media is collected here in the correct sequence when the straight-through output door is closed. Use the output bin when printing normal and large, collated documents.

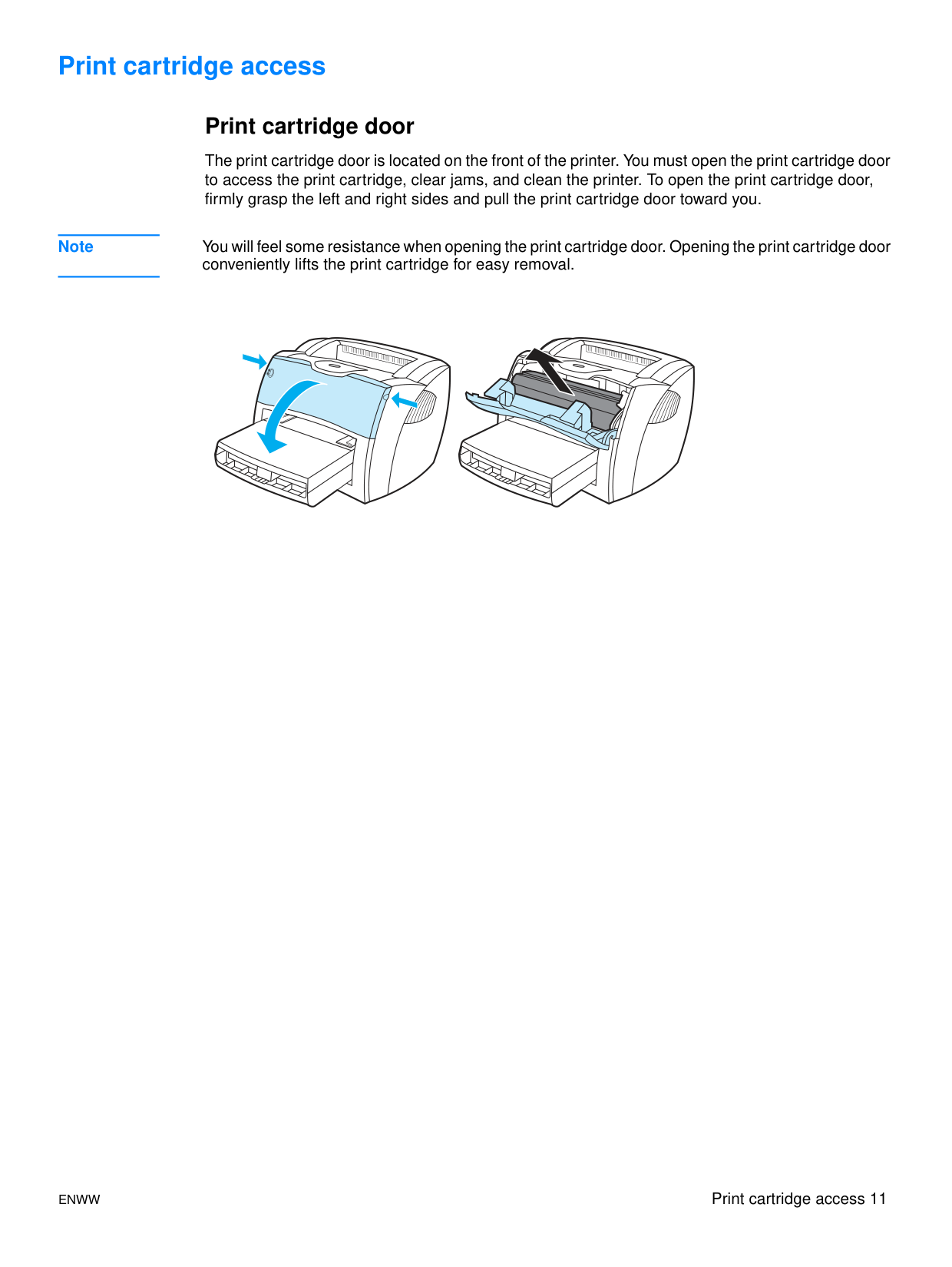

#### Print cartridge access

##### Print cartridge door

The print cartridge door is located on the front of the printer. You must open the print cartridge door to access the print cartridge, clear jams, and clean the printer. To open the print cartridge door, firmly grasp the left and right sides and pull the print cartridge door toward you.

Note You will feel some resistance when opening the print cartridge door. Opening the print cartridge door

conveniently lifts the print cartridge for easy removal.

ENWW Print cartridge access 11

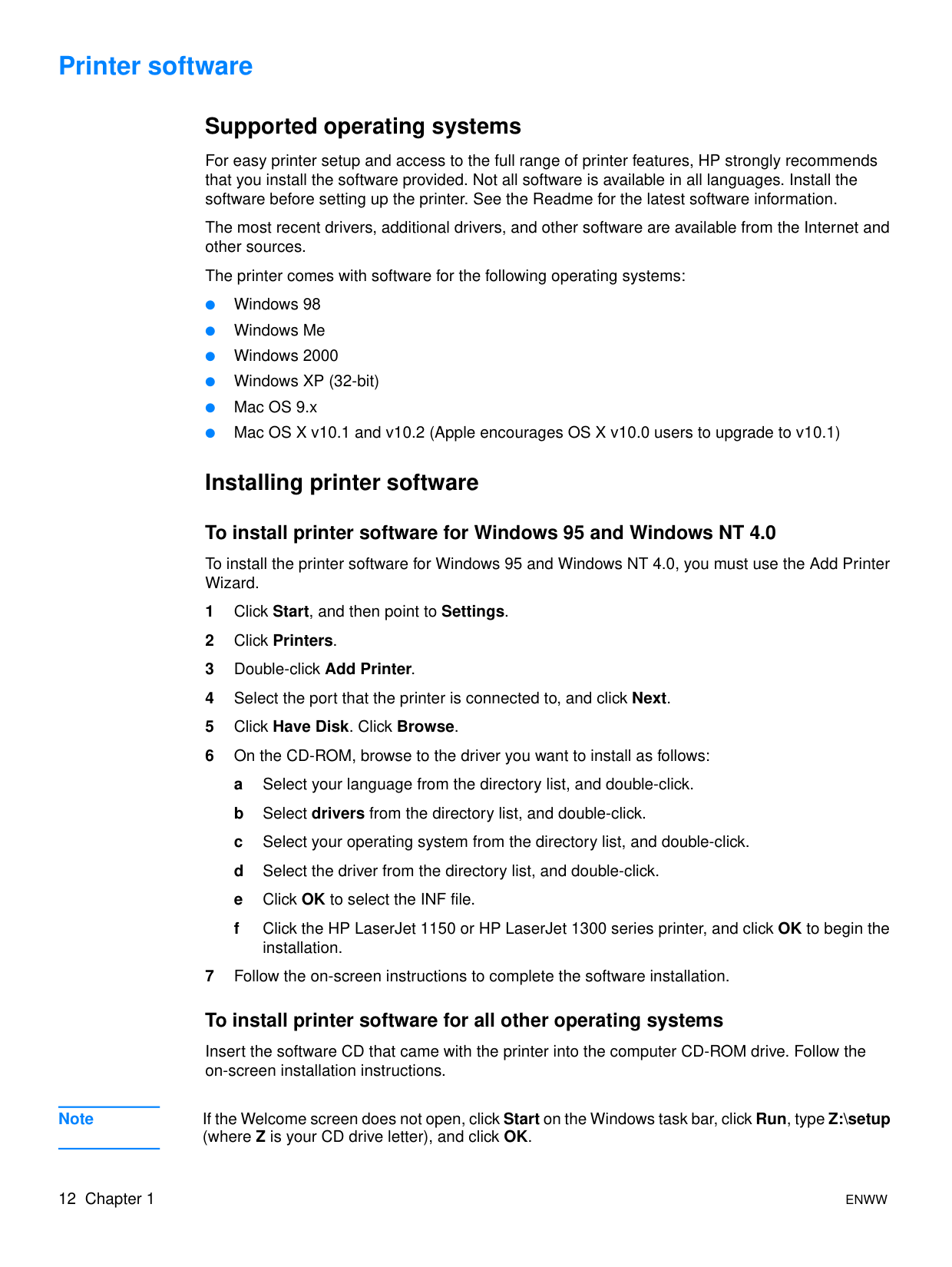

#### Printer software

##### Supported operating systems

For easy printer setup and access to the full range of printer features, HP strongly recommends that you install the software provided. Not all software is available in all languages. Install the software before setting up the printer. See the Readme for the latest software information.

The most recent drivers, additional drivers, and other software are available from the Internet and other sources.

The printer comes with software for the following operating systems:

##### Installing printer software

###### To install printer software for Windows 95 and Windows NT 4.0

To install the printer software for Windows 95 and Windows NT 4.0, you must use the Add Printer Wizard.

###### To install printer software for all other operating systems

Insert the software CD that came with the printer into the computer CD-ROM drive. Follow the on-screen installation instructions.

Note If the Welcome screen does not open, click Start on the Windows task bar, click Run, type Z:\setup

(where Z is your CD drive letter), and click OK.

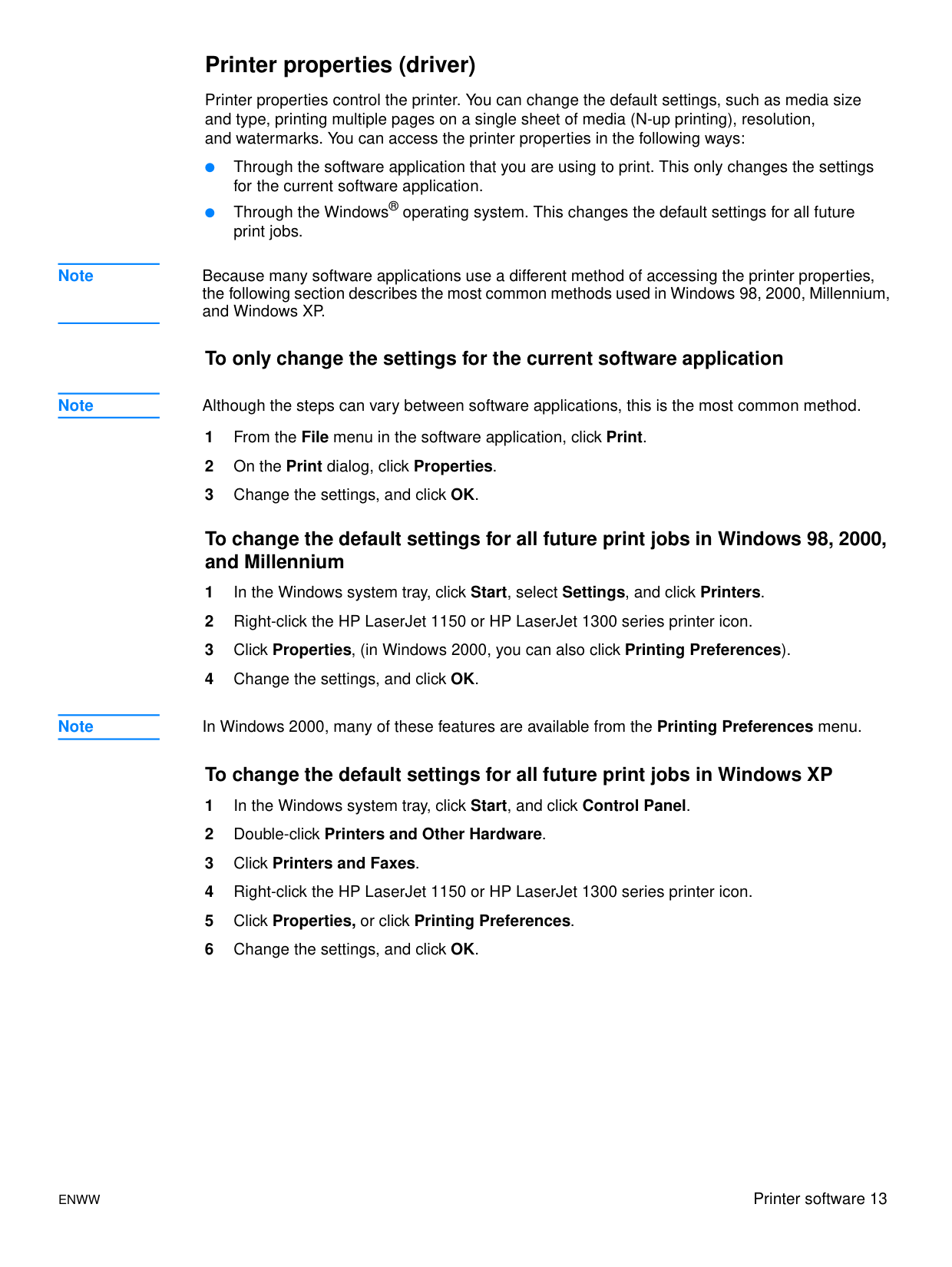

##### Printer properties (driver)

Printer properties control the printer. You can change the default settings, such as media size and type, printing multiple pages on a single sheet of media (N-up printing), resolution, and watermarks. You can access the printer properties in the following ways:

Note Because many software applications use a different method of accessing the printer properties,

the following section describes the most common methods used in Windows 98, 2000, Millennium,

and Windows XP.

###### To only change the settings for the current software application

Note Although the steps can vary between software applications, this is the most common method.

###### To change the default settings for all future print jobs in Windows 98, 2000, and Millennium

Note In Windows 2000, many of these features are available from the Printing Preferences menu.

###### To change the default settings for all future print jobs in Windows XP

ENWW Printer software 13

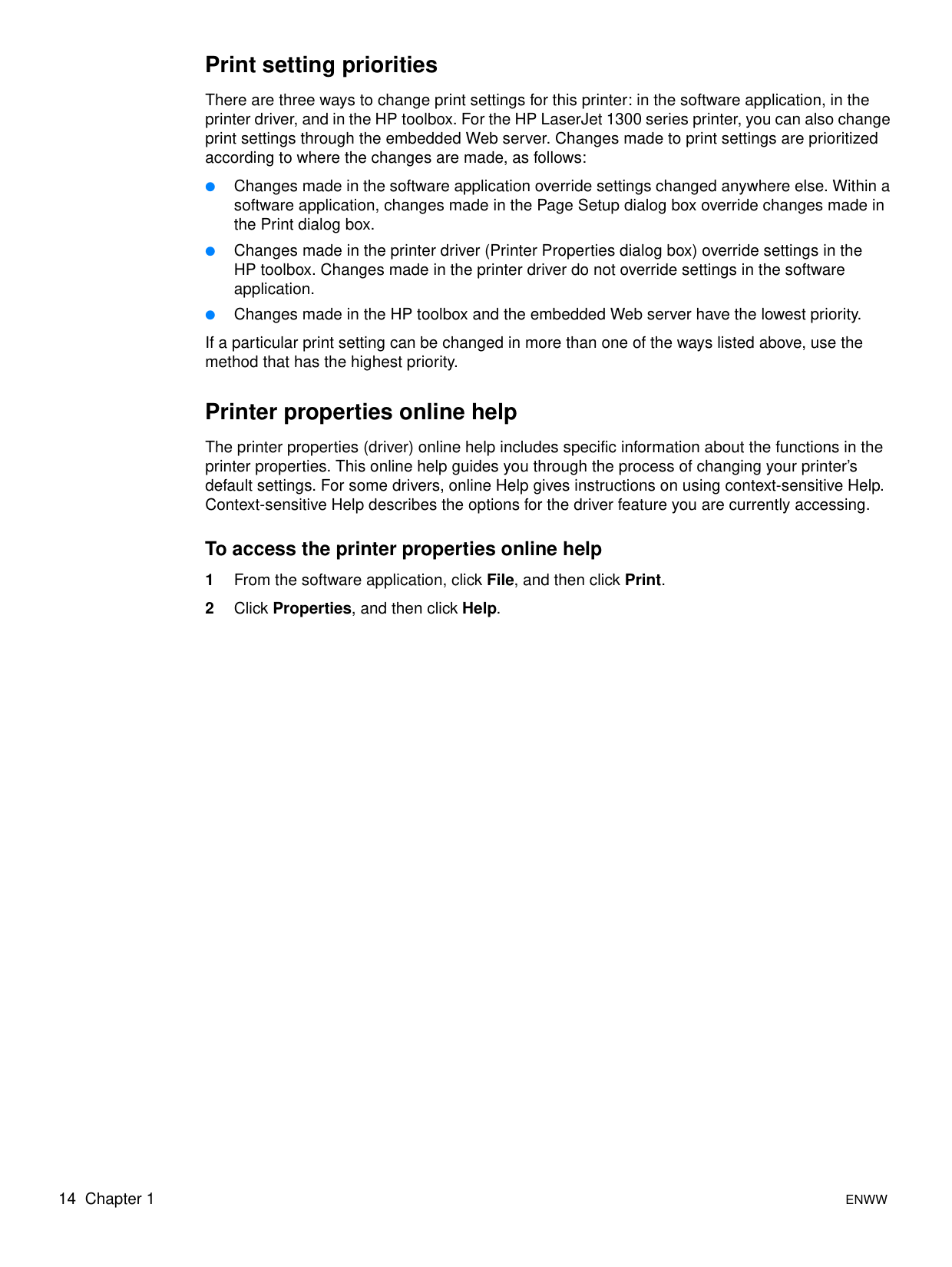

##### Print setting priorities

There are three ways to change print settings for this printer: in the software application, in the printer driver, and in the HP toolbox. For the HP LaserJet 1300 series printer, you can also change print settings through the embedded Web server. Changes made to print settings are prioritized according to where the changes are made, as follows:

If a particular print setting can be changed in more than one of the ways listed above, use the method that has the highest priority.

##### Printer properties online help

The printer properties (driver) online help includes specific information about the functions in the printer properties. This online help guides you through the process of changing your printer’s default settings. For some drivers, online Help gives instructions on using context-sensitive Help. Context-sensitive Help describes the options for the driver feature you are currently accessing.

###### To access the printer properties online help

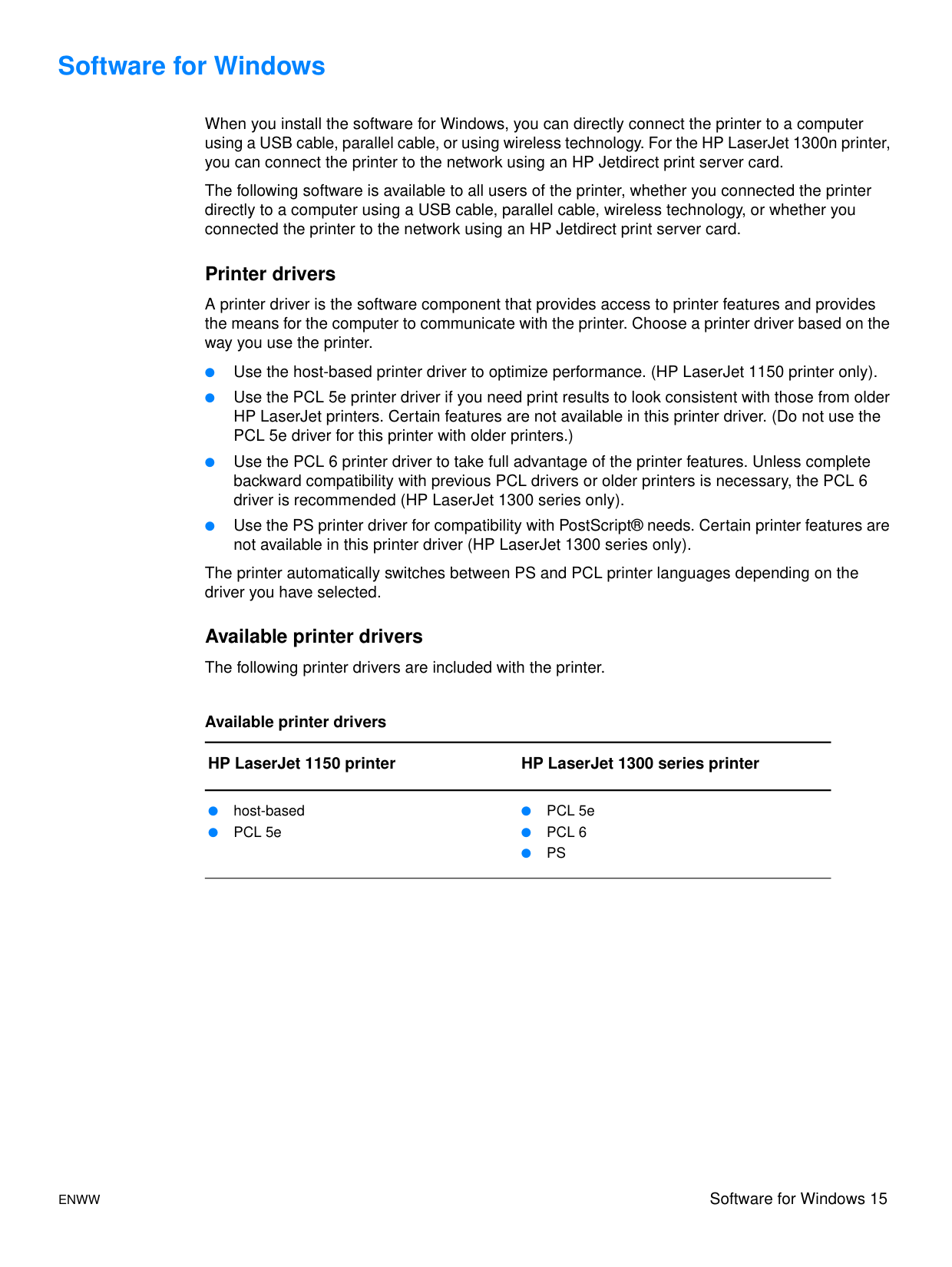

#### Software for Windows

When you install the software for Windows, you can directly connect the printer to a computer using a USB cable, parallel cable, or using wireless technology. For the HP LaserJet 1300n printer, you can connect the printer to the network using an HP Jetdirect print server card.

The following software is available to all users of the printer, whether you connected the printer directly to a computer using a USB cable, parallel cable, wireless technology, or whether you connected the printer to the network using an HP Jetdirect print server card.

###### Printer drivers

A printer driver is the software component that provides access to printer features and provides the means for the computer to communicate with the printer. Choose a printer driver based on the way you use the printer.

The printer automatically switches between PS and PCL printer languages depending on the driver you have selected.

Available printer drivers The following printer drivers are included with the printer.

Available printer drivers

HP LaserJet 1150 printer HP LaserJet 1300 series printer

ENWW Software for Windows 15

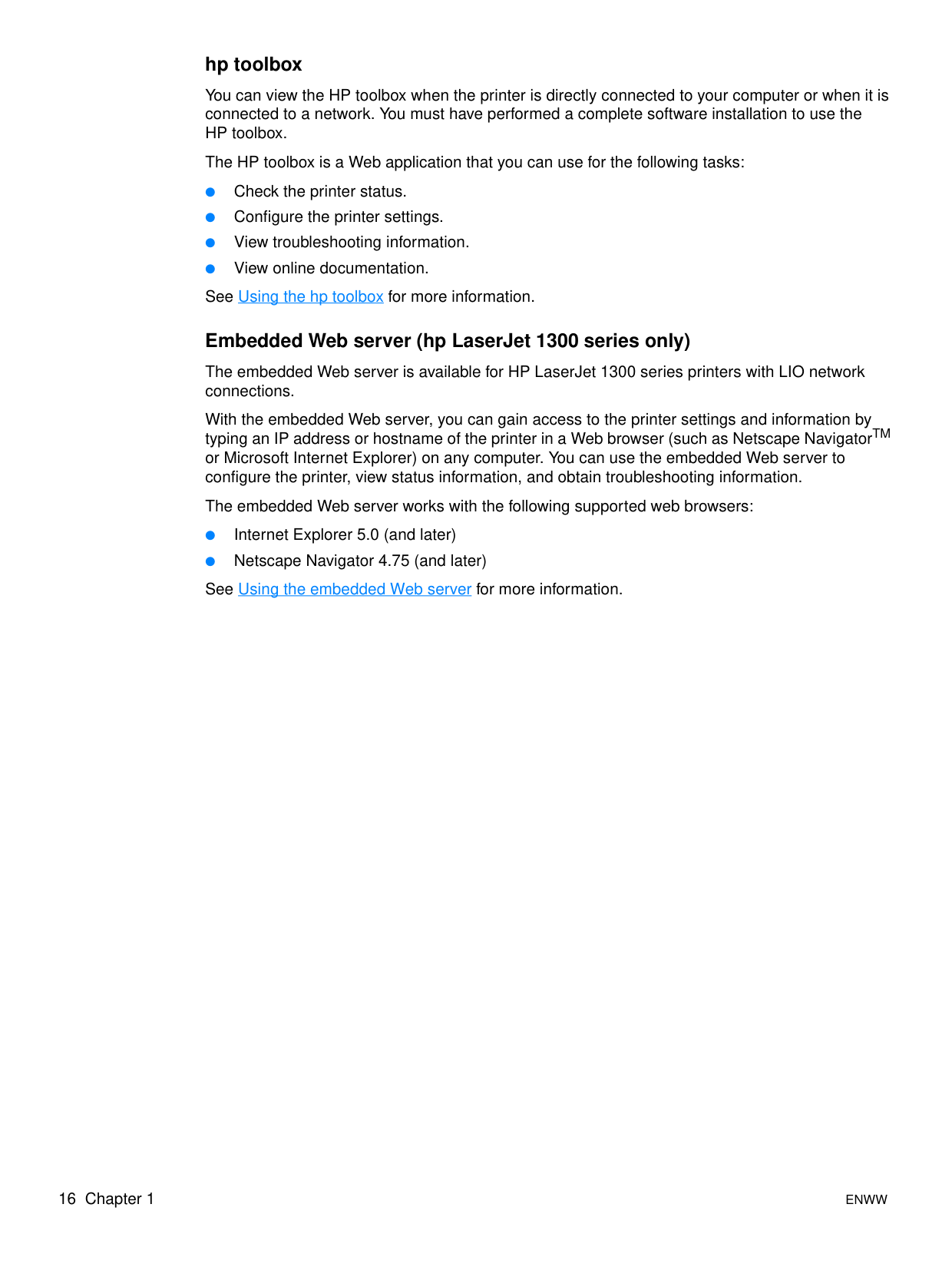

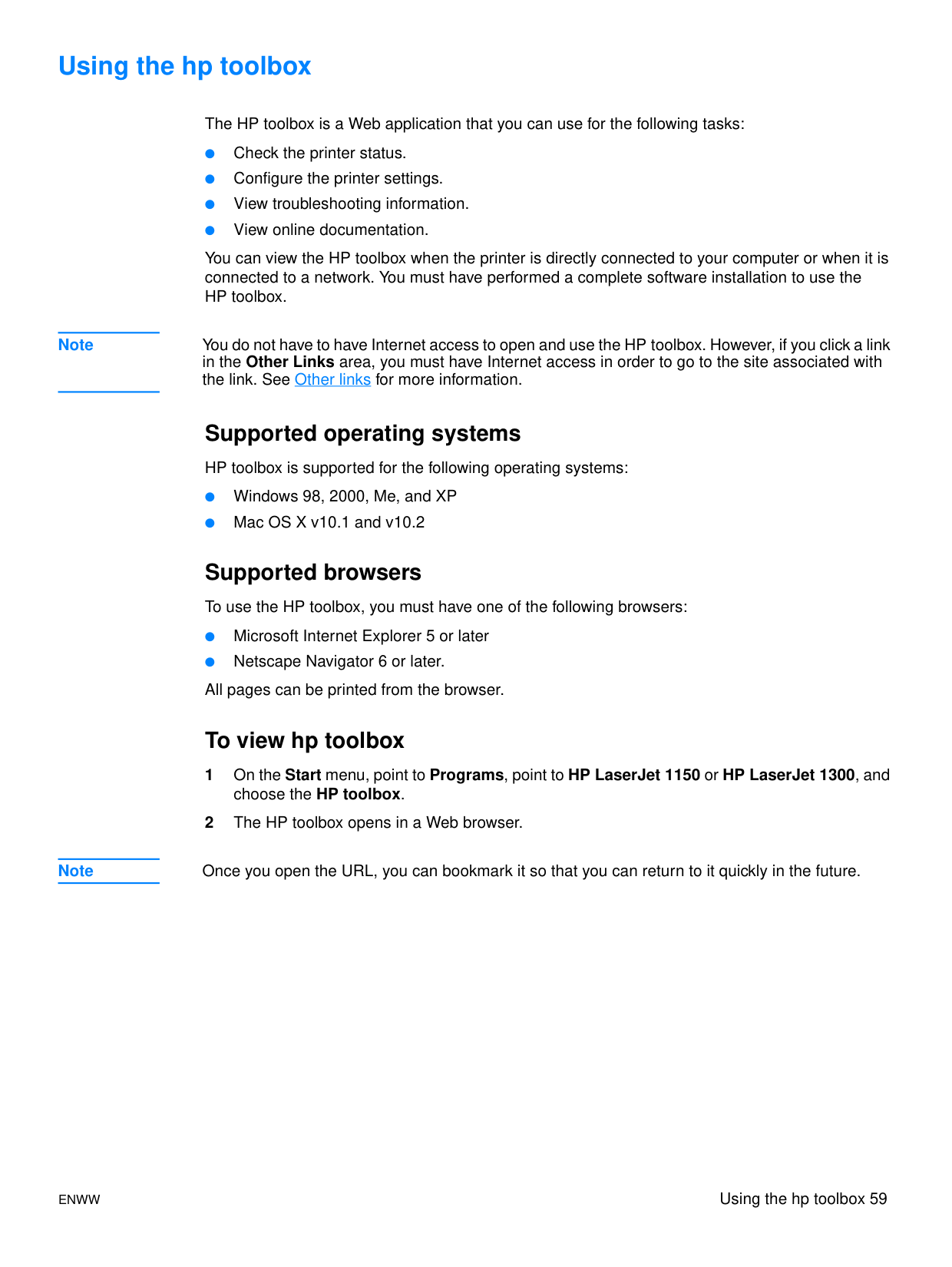

###### hp toolbox

You can view the HP toolbox when the printer is directly connected to your computer or when it is connected to a network. You must have performed a complete software installation to use the HP toolbox.

The HP toolbox is a Web application that you can use for the following tasks:

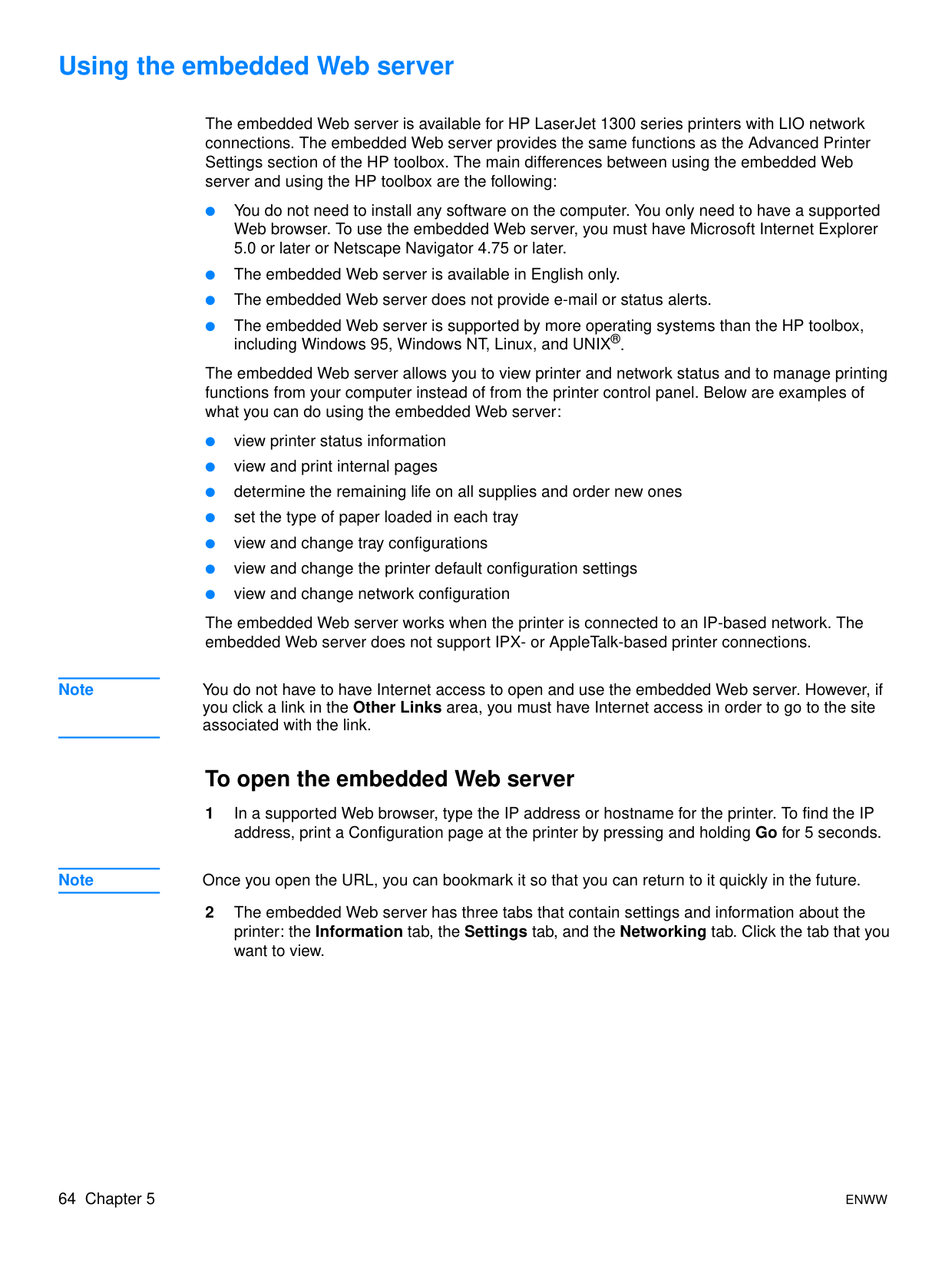

Embedded Web server (hp LaserJet 1300 series only)

The embedded Web server is available for HP LaserJet 1300 series printers with LIO network connections.

With the embedded Web server, you can gain access to the printer settings and information by typing an IP address or hostname of the printer in a Web browser (such as Netscape NavigatorTM or Microsoft Internet Explorer) on any computer. You can use the embedded Web server to configure the printer, view status information, and obtain troubleshooting information.

The embedded Web server works with the following supported web browsers:

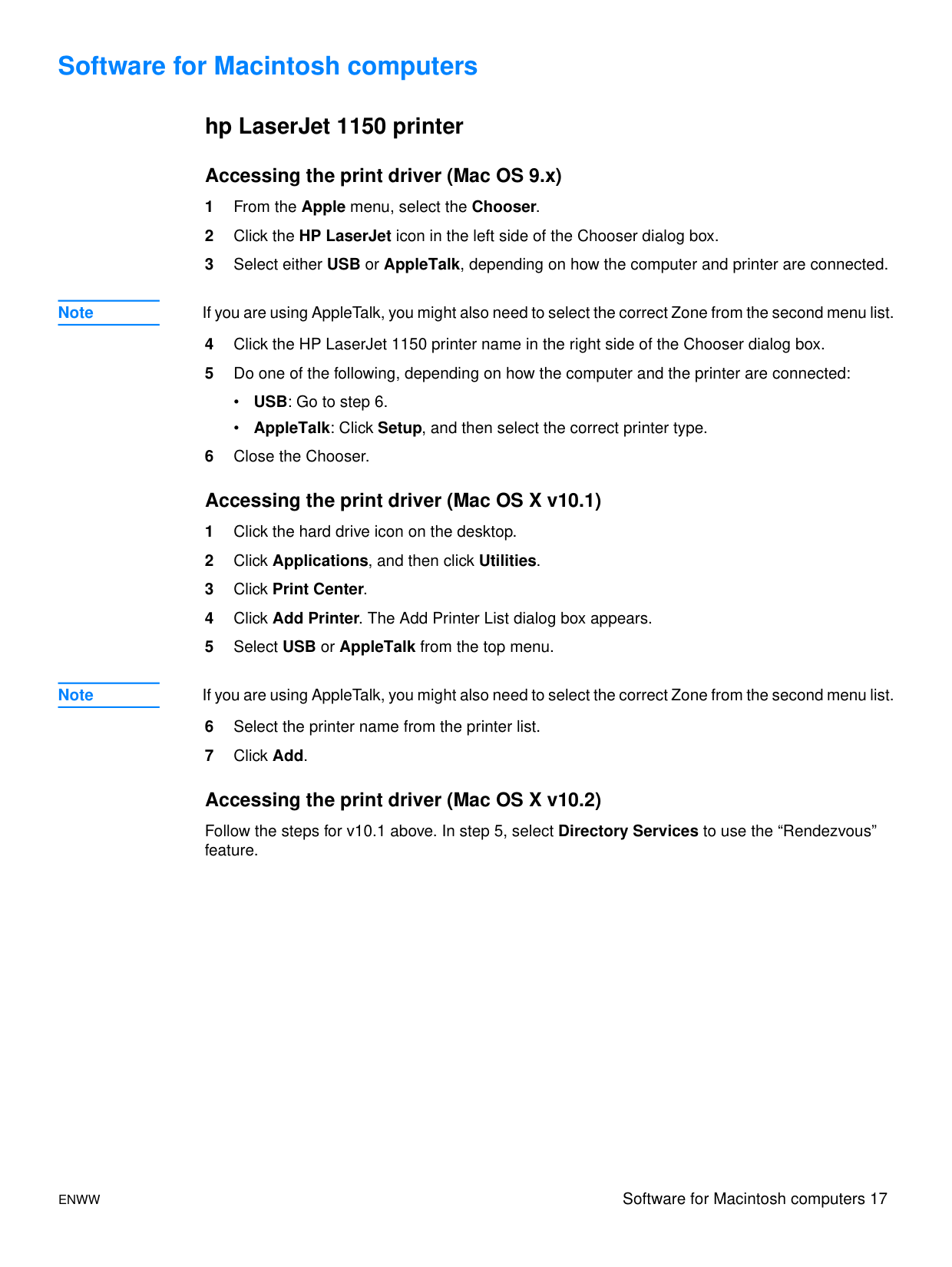

#### Software for Macintosh computers

##### hp LaserJet 1150 printer

###### Accessing the print driver (Mac OS 9.x)

Note If you are using AppleTalk, you might also need to select the correct Zone from the second menu list.

Note If you are using AppleTalk, you might also need to select the correct Zone from the second menu list.

###### Accessing the print driver (Mac OS X v10.2)

Follow the steps for v10.1 above. In step 5, select Directory Services to use the “Rendezvous” feature.

ENWW Software for Macintosh computers 17

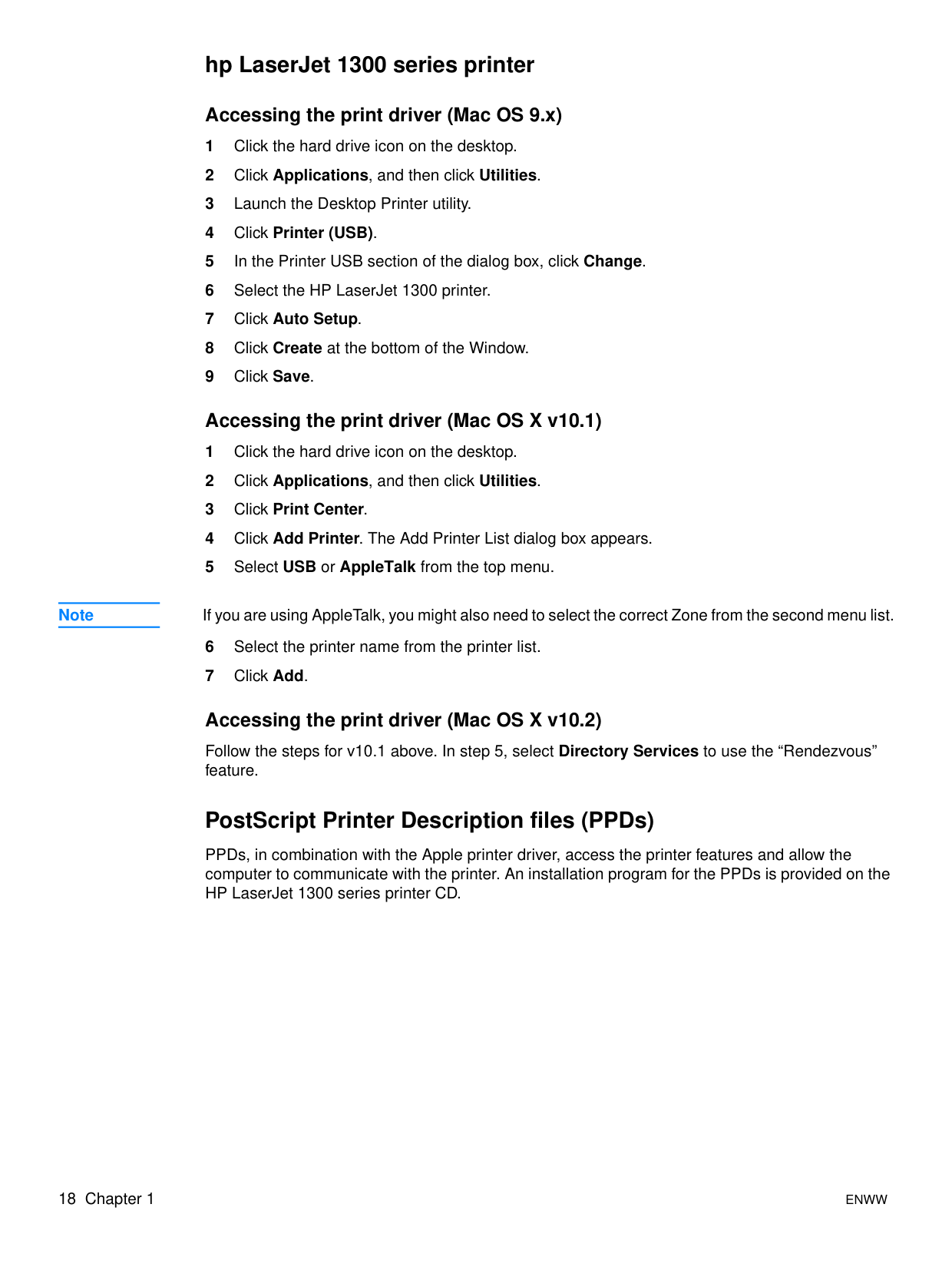

##### hp LaserJet 1300 series printer

###### Accessing the print driver (Mac OS 9.x)

Note If you are using AppleTalk, you might also need to select the correct Zone from the second menu list.

###### Accessing the print driver (Mac OS X v10.2)

Follow the steps for v10.1 above. In step 5, select Directory Services to use the “Rendezvous” feature.

##### PostScript Printer Description files (PPDs)

PPDs, in combination with the Apple printer driver, access the printer features and allow the computer to communicate with the printer. An installation program for the PPDs is provided on the HP LaserJet 1300 series printer CD.

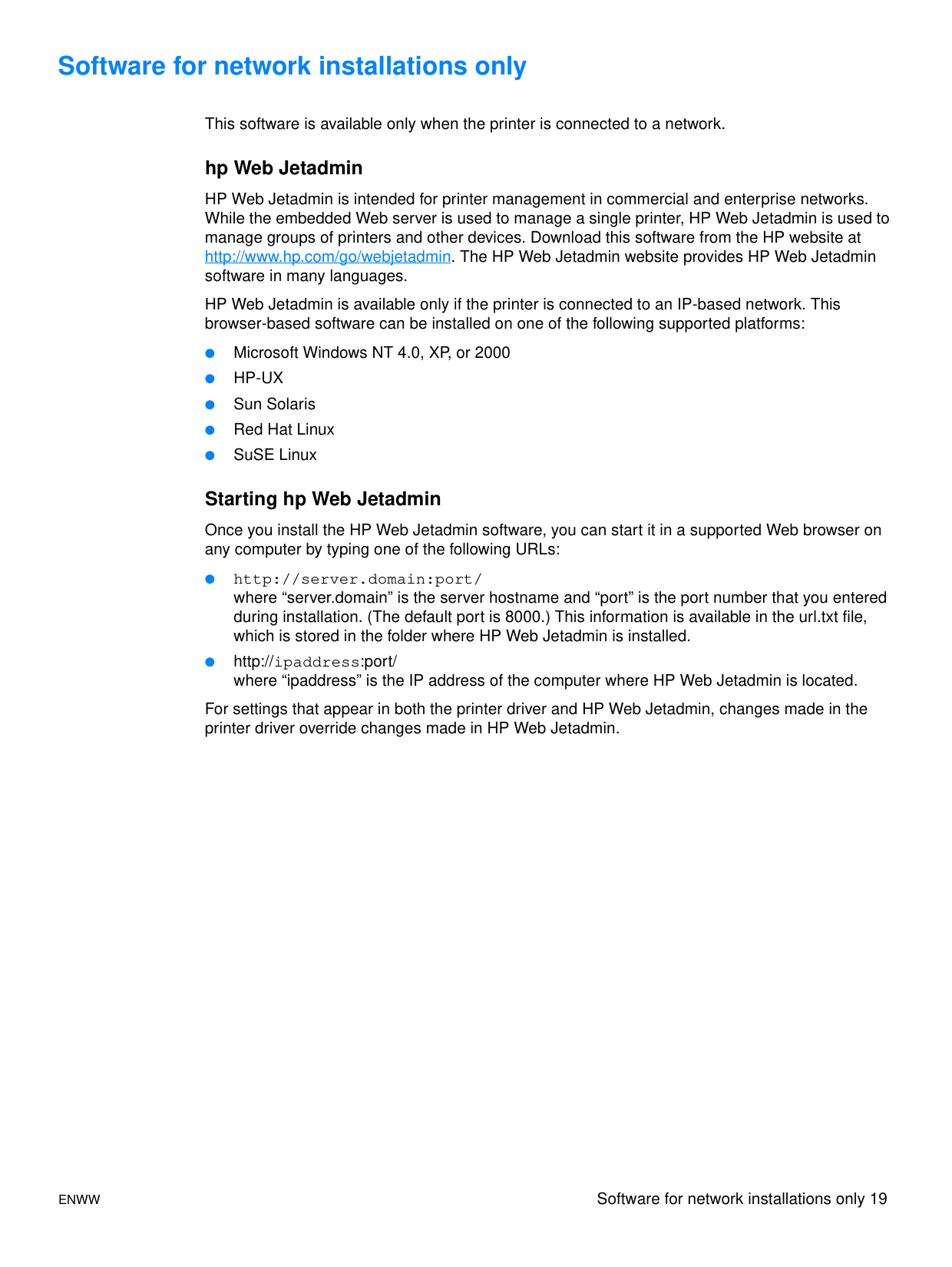

Software for network installations only This software is available only when the printer is connected to a network. hp Web Jetadmin

HP Web Jetadmin is intended for printer management in commercial and enterprise networks. While the embedded Web server is used to manage a single printer, HP Web Jetadmin is used to manage groups of printers and other devices. Download this software from the HP website at http://www.hp.com/go/webjetadmin. The HP Web Jetadmin website provides HP Web Jetadmin software in many languages. HP Web Jetadmin is available only if the printer is connected to an IP-based network. This browser-based software can be installed on one of the following supported platforms:

Starting hp Web Jetadmin

Once you install the HP Web Jetadmin software, you can start it in a supported Web browser on any computer by typing one of the following URLs:

For settings that appear in both the printer driver and HP Web Jetadmin, changes made in the printer driver override changes made in HP Web Jetadmin.

ENWW Software for network installations only 19

#### Printer connections

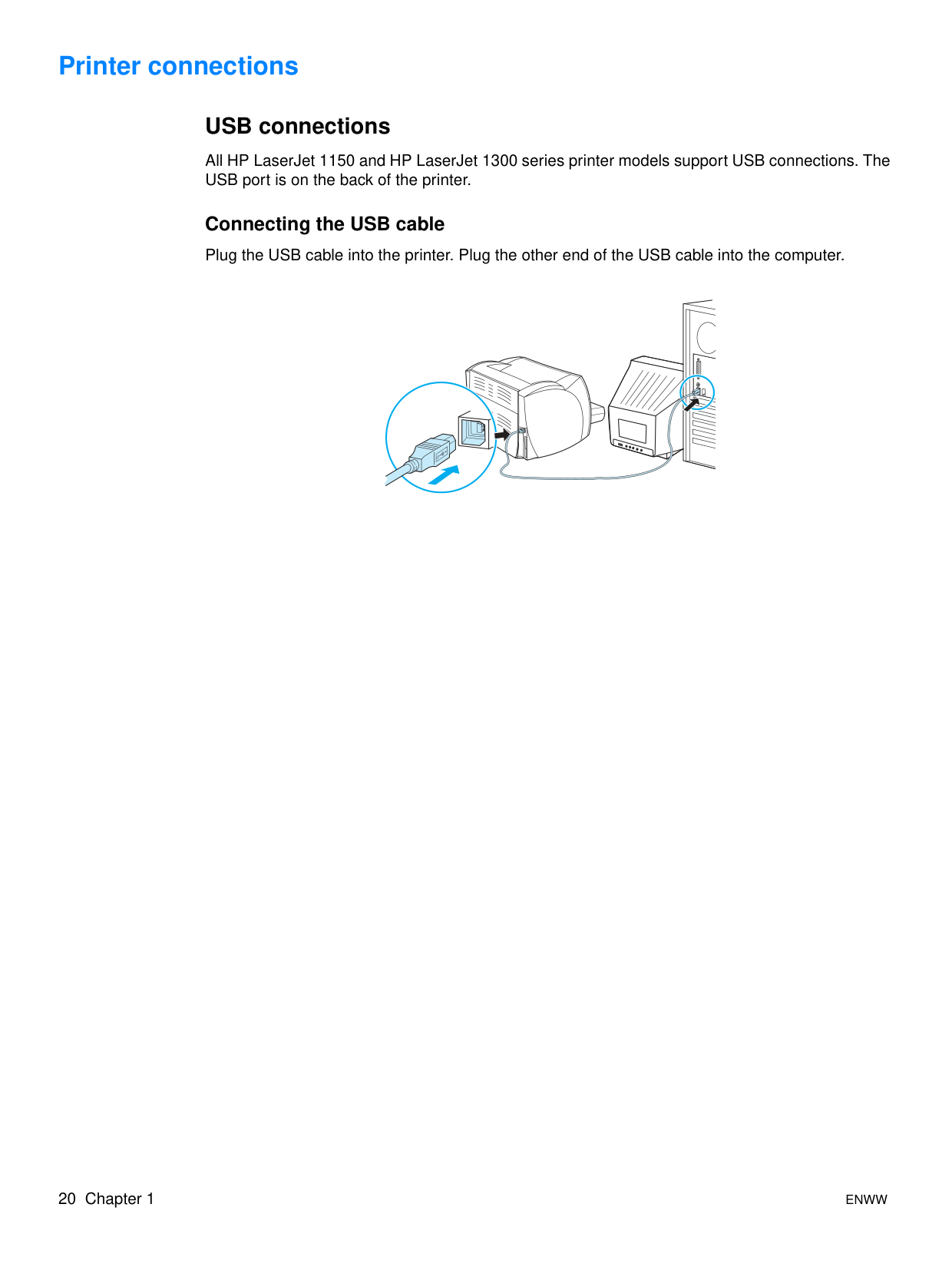

##### USB connections

All HP LaserJet 1150 and HP LaserJet 1300 series printer models support USB connections. The USB port is on the back of the printer.

Connecting the USB cable Plug the USB cable into the printer. Plug the other end of the USB cable into the computer.

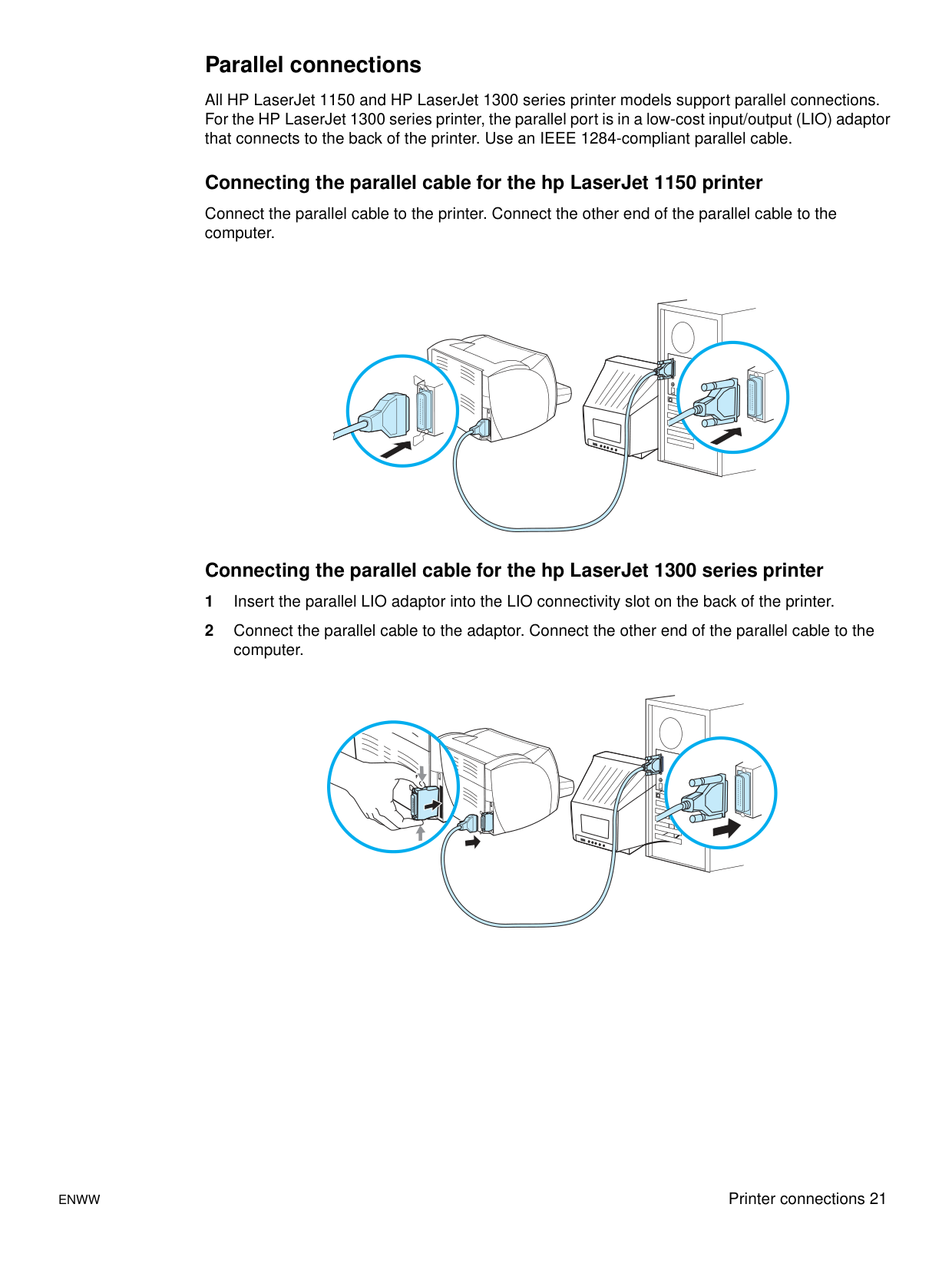

##### Parallel connections

All HP LaserJet 1150 and HP LaserJet 1300 series printer models support parallel connections. For the HP LaserJet 1300 series printer, the parallel port is in a low-cost input/output (LIO) adaptor that connects to the back of the printer. Use an IEEE 1284-compliant parallel cable.

###### Connecting the parallel cable for the hp LaserJet 1150 printer

Connect the parallel cable to the printer. Connect the other end of the parallel cable to the computer.

###### Connecting the parallel cable for the hp LaserJet 1300 series printer

ENWW Printer connections 21

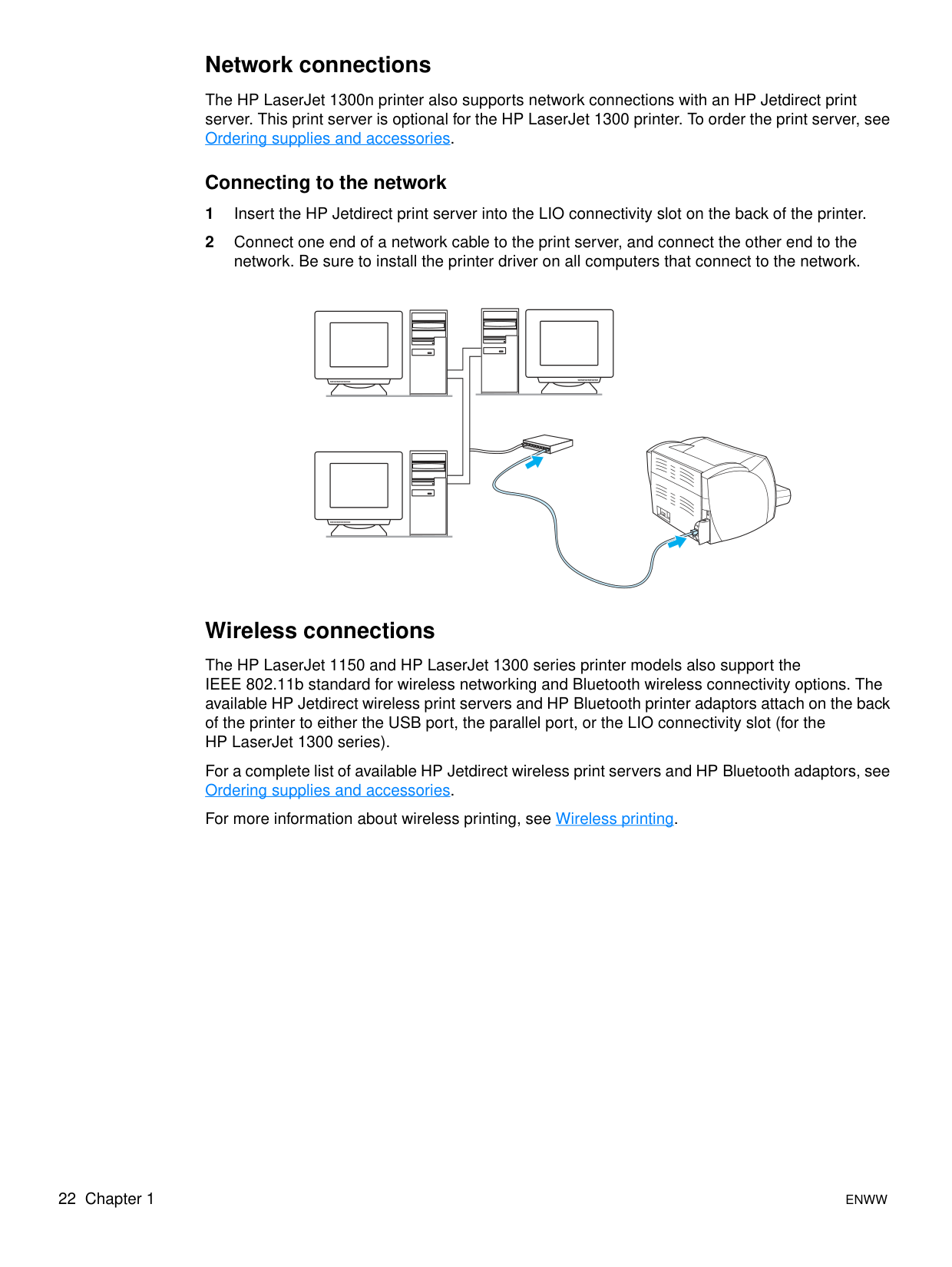

##### Network connections

The HP LaserJet 1300n printer also supports network connections with an HP Jetdirect print server. This print server is optional for the HP LaserJet 1300 printer. To order the print server, see Ordering supplies and accessories.

###### Connecting to the network

##### Wireless connections

The HP LaserJet 1150 and HP LaserJet 1300 series printer models also support the IEEE 802.11b standard for wireless networking and Bluetooth wireless connectivity options. The available HP Jetdirect wireless print servers and HP Bluetooth printer adaptors attach on the back of the printer to either the USB port, the parallel port, or the LIO connectivity slot (for the HP LaserJet 1300 series).

For a complete list of available HP Jetdirect wireless print servers and HP Bluetooth adaptors, see Ordering supplies and accessories.

For more information about wireless printing, see Wireless printing.

2

Media

This chapter provides information on the following topics:

ENWW Media 23

#### Choosing paper and other media

HP LaserJet printers produce excellent print quality documents. You can print on a variety of media, such as paper (including up to 100% recycled fiber content paper), envelopes, labels, transparencies, and custom-sized media. The following are the supported media sizes:

Properties such as weight, grain, and moisture content are important factors that affect printer performance and quality. To achieve the best possible print quality, only use high-quality media designed for laser printers. See Printer media specifications for detailed paper and media specifications.

Note Always test a sample of the media before you purchase large quantities. Your media supplier should understand the requirements specified in the HP LaserJet printer family print media guide (HP part

number 5963-7863). See Printer media specifications for more information.

Media to avoid The HP LaserJet 1150 and 1300 series printers can handle many types of media. Use of media outside the printer’s specifications will cause a loss of print quality and increase the chance of paper jams occurring.

Media that may damage the printer In rare circumstances media can damage the printer. The following media must be avoided to prevent possible damage:

To order HP LaserJet printing supplies, go to http://www.hp.com/go/ljsupplies in the U.S. or to http://www.hp.com/ghp/buyonline.html worldwide.

ENWW Choosing paper and other media 25

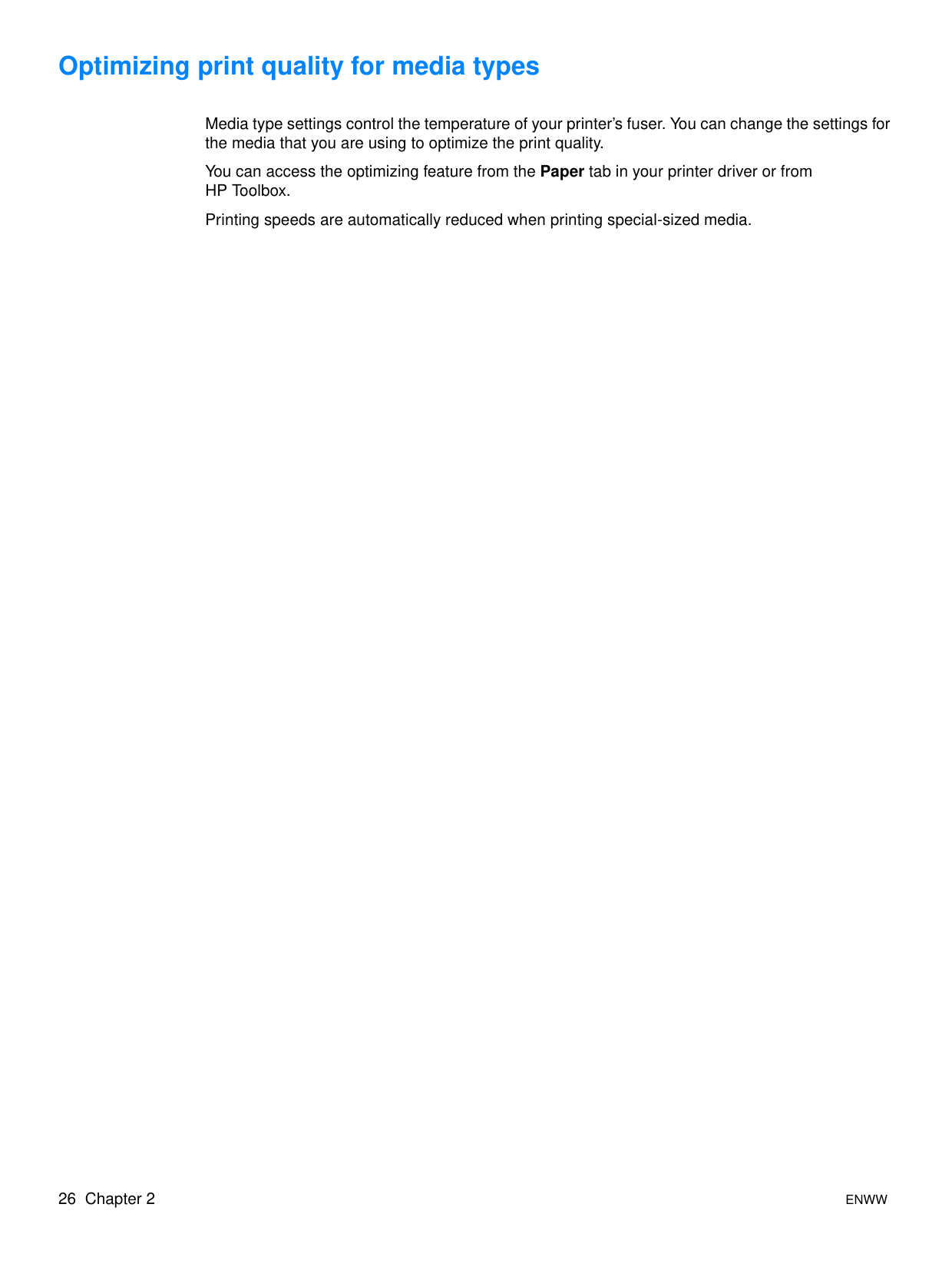

#### Optimizing print quality for media types

Media type settings control the temperature of your printer’s fuser. You can change the settings for the media that you are using to optimize the print quality.

You can access the optimizing feature from the Paper tab in your printer driver or from HP Toolbox.

Printing speeds are automatically reduced when printing special-sized media.

#### Loading media into the input trays

##### Main input tray

The main input tray holds up to 250 pages of 20 lb paper or fewer pages of heavier media (25 mm or less stack). Load media with the top forward and the side to be printed facing up. To prevent jams and skewing, always adjust the side and rear media guides.

##### Priority input tray

The priority input tray holds up to 10 pages of 20 lb paper or one envelope, transparency, or card. Load media with the top forward and the side to be printed facing up. To prevent jams and skewing, always adjust the side media guides.

CAUTION If you try to print on media that is wrinkled, folded, or damaged in any way, a jam might occur. See

Printer media specifications for more information.

Note When you add new media, make sure that you remove all of the media from the input tray and

straighten the stack of new media. This helps prevent multiple sheets of media from feeding through

the printer at one time, reducing media jams.

##### Specific types of media

ENWW Loading media into the input trays 27

#### Printing on transparencies or labels

Only use transparencies and labels that are recommended for use in laser printers, such as HP transparency film and HP LaserJet labels. See Printer media specifications for more information.

CAUTION Be sure to set the correct media type in the printer settings as instructed below. The printer adjusts the fuser temperature according to the media type setting. When printing on special media such as transparencies or labels, this adjustment prevents the fuser from damaging the media as it passes through the printer.

CAUTION Inspect the media to make sure that it is not wrinkled or curled and that it does not have any torn

edges or missing labels.

###### To print transparencies or labels

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver. 6 Print the document. Remove the media from the back of the printer as it prints to prevent it

from sticking together and place the printed pages on a flat surface.

#### Printing on envelopes

##### Printing one envelope

Only use envelopes that are recommended for laser printers. See Printer media specifications for more information.

Note Use the priority input tray for printing one envelope. Use the main input tray for printing multiple

envelopes.

Note If the envelope has a flap on the short edge, feed that edge into the printer first.

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver.

##### Printing multiple envelopes

Only use envelopes that are recommended for laser printers. See Printer media specifications for more information.

Note Use the priority input tray for printing one envelope. Use the main input tray for printing multiple

envelopes.

Note If the envelopes have a flap on the short edge, feed that edge into the printer first.

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver. 7 Replace the priority input tray.

#### Printing on letterhead and preprinted forms

##### To print letterhead or preprinted forms

Note To print a single-page cover letter on letterhead, followed by a multiple-page document, load the letterhead in the priority input tray and load the standard paper in the main input tray. The printer

automatically prints from the priority input tray first.

ENWW Printing on letterhead and preprinted forms 33

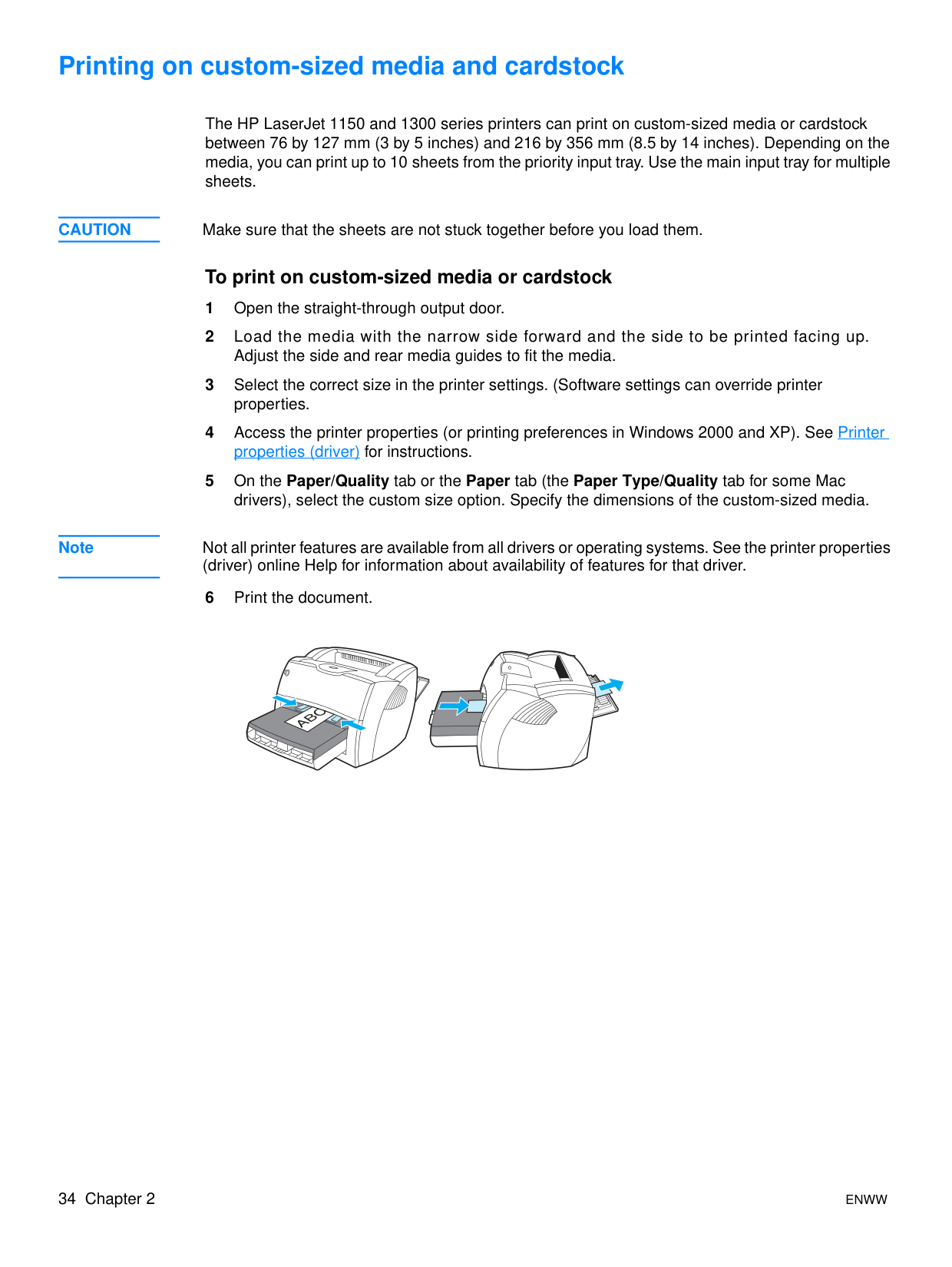

#### Printing on custom-sized media and cardstock

The HP LaserJet 1150 and 1300 series printers can print on custom-sized media or cardstock between 76 by 127 mm (3 by 5 inches) and 216 by 356 mm (8.5 by 14 inches). Depending on the media, you can print up to 10 sheets from the priority input tray. Use the main input tray for multiple sheets.

CAUTION Make sure that the sheets are not stuck together before you load them.

###### To print on custom-sized media or cardstock

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver. 6 Print the document.

3

Printing tasks

This chapter provides information on the following topics:

ENWW Printing tasks 35

#### Manual feed

You can use manual feed when printing mixed media, for example, an envelope, then a letter, then an envelope, and so on. Load an envelope in the priority input tray and load letterhead in the main input tray. You can also use manual feed to protect your privacy when printing to a network printer.

To print using manual feed, access the printer properties or printer setup in your software application, and select Manual Feed from the Source Tray drop-down list. See Printer properties (driver) for instructions. After you have enabled the setting, press the Go button (blinking) each time to print.

#### Printing watermarks

You can use the watermark option to print text ”underneath” (in the background) of an existing document. For example, you might want to have large gray letters reading Draft or Confidential printed diagonally across the first page or all of the pages of a document.

##### Accessing the watermark feature

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver.

ENWW Printing watermarks 37

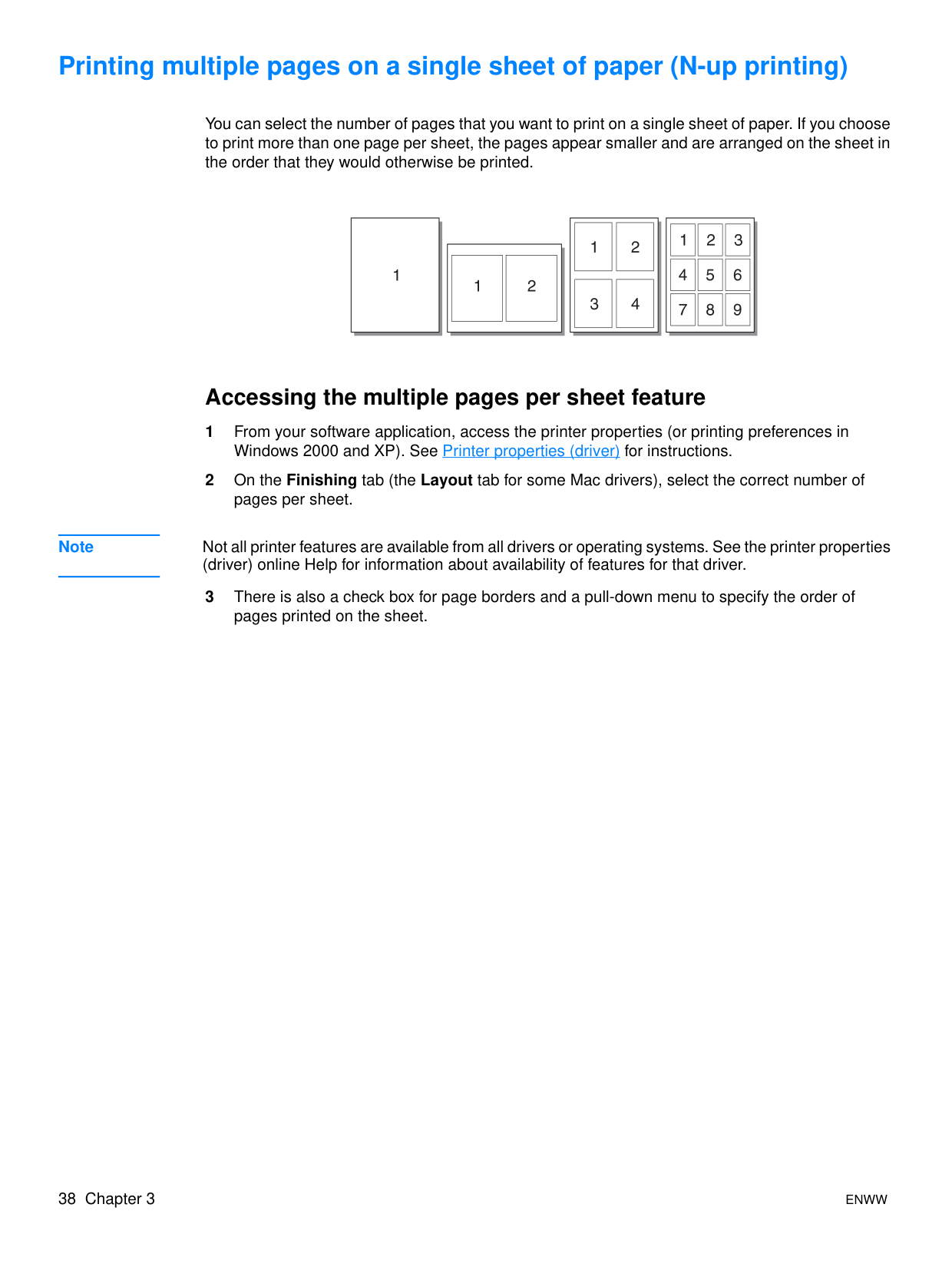

#### Printing multiple pages on a single sheet of paper (N-up printing)

You can select the number of pages that you want to print on a single sheet of paper. If you choose to print more than one page per sheet, the pages appear smaller and are arranged on the sheet in the order that they would otherwise be printed.

##### Accessing the multiple pages per sheet feature

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver. 3 There is also a check box for page borders and a pull-down menu to specify the order of

pages printed on the sheet.

#### Printing on both sides of the paper (manual duplexing)

To print on both sides of the paper (manual duplexing), you must run the paper through the printer twice. You can print using the media output bin or the straight-through output path. Hewlett-Packard recommends that you use the media output bin for lightweight paper and use the straight-through output path for any heavy media or media that curls when printed.

Note Manual duplexing can cause the printer to become dirty, reducing print quality. See Cleaning the

printer for instructions if the printer becomes dirty.

##### Manual duplex using the top output bin

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver.

##### Manual duplex on heavy media or card stock

For heavy media, such as card stock, use the straight-through output path.

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver.

#### Printing booklets

You can print booklets on letter, legal, executive, or A4 paper.

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver. 6 After side one has been printed, remove the remaining paper from the input tray, and set it

aside until your booklet job is complete.

ENWW Printing booklets 43

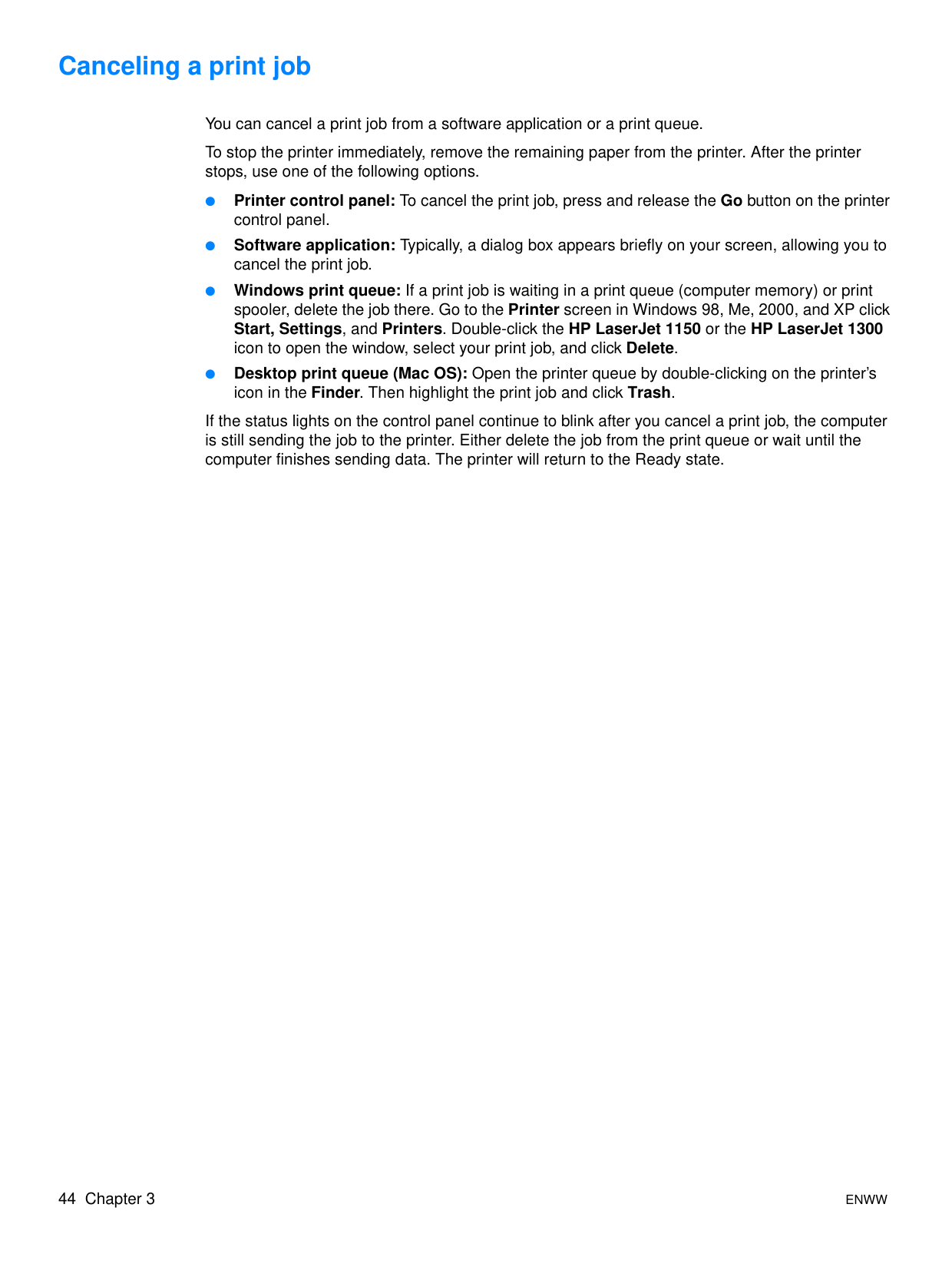

#### Canceling a print job

You can cancel a print job from a software application or a print queue. To stop the printer immediately, remove the remaining paper from the printer. After the printer stops, use one of the following options.

If the status lights on the control panel continue to blink after you cancel a print job, the computer is still sending the job to the printer. Either delete the job from the print queue or wait until the computer finishes sending data. The printer will return to the Ready state.

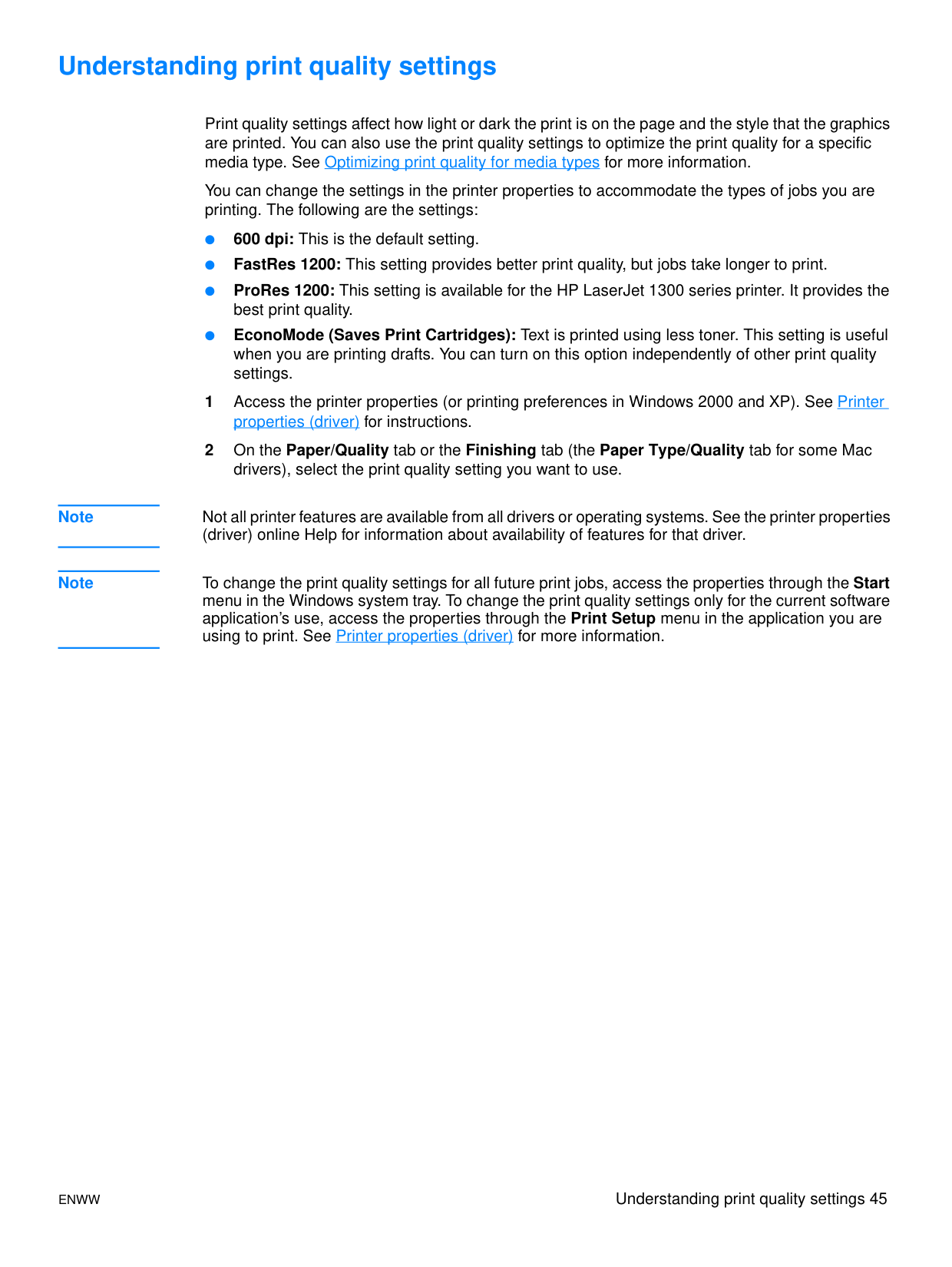

#### Understanding print quality settings

Print quality settings affect how light or dark the print is on the page and the style that the graphics are printed. You can also use the print quality settings to optimize the print quality for a specific media type. See Optimizing print quality for media types for more information.

You can change the settings in the printer properties to accommodate the types of jobs you are printing. The following are the settings:

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver.

Note To change the print quality settings for all future print jobs, access the properties through the Start menu in the Windows system tray. To change the print quality settings only for the current software application’s use, access the properties through the Print Setup menu in the application you are

using to print. See Printer properties (driver) for more information.

ENWW Understanding print quality settings 45

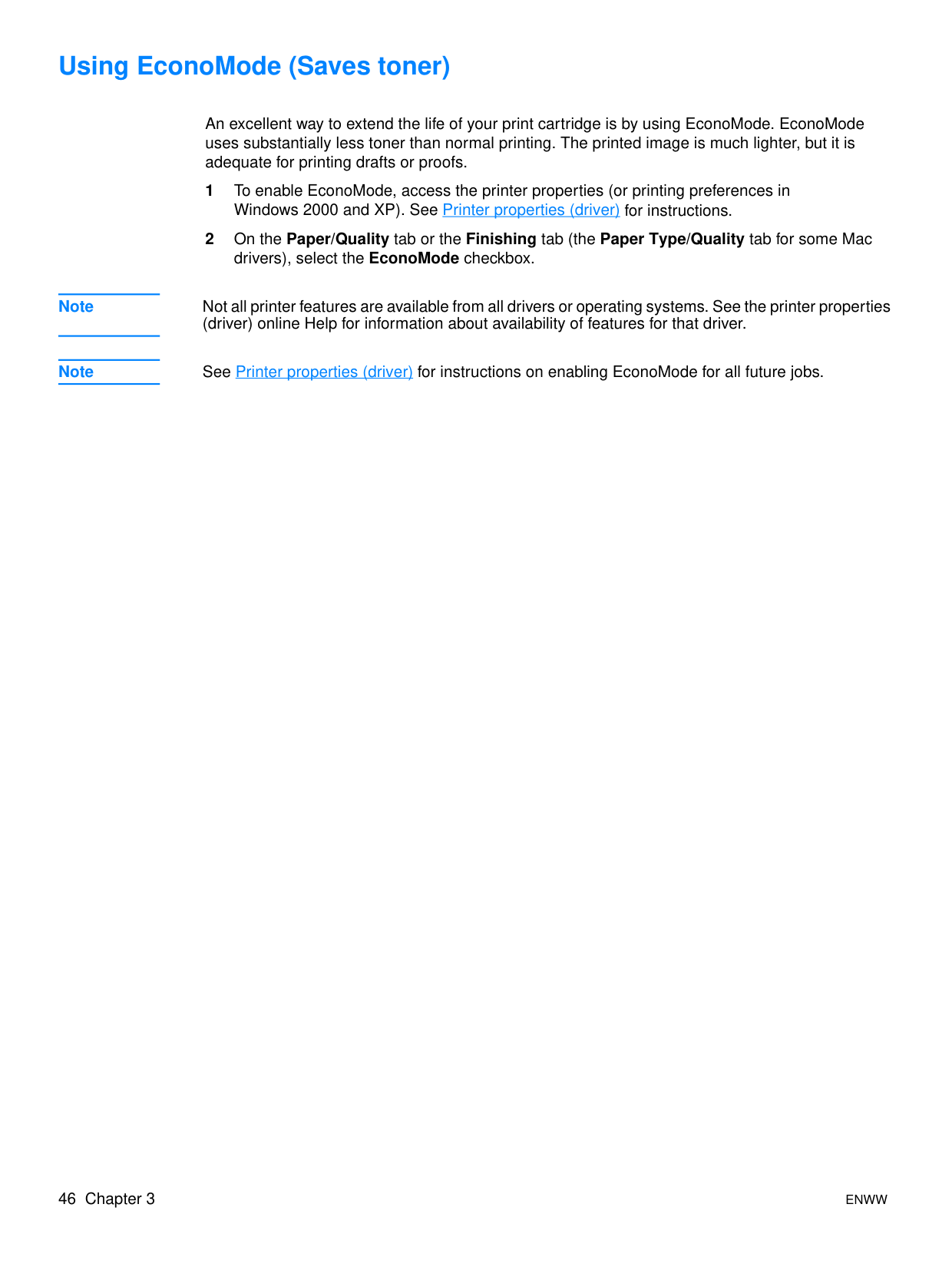

#### Using EconoMode (Saves toner)

An excellent way to extend the life of your print cartridge is by using EconoMode. EconoMode uses substantially less toner than normal printing. The printed image is much lighter, but it is adequate for printing drafts or proofs.

Note Not all printer features are available from all drivers or operating systems. See the printer properties (driver) online Help for information about availability of features for that driver.

Note See Printer properties (driver) for instructions on enabling EconoMode for all future jobs.

4

Maintenance

This chapter provides information on the following topics:

ENWW Maintenance 47

#### Using HP print cartridges

##### HP policy on non-HP print cartridges

Hewlett-Packard Company cannot recommend the use of non-HP print cartridges, either new, refilled, or remanufactured. Since they are not HP products, Hewlett-Packard cannot influence their design or control their quality. Service or repair that is required as a result of using non-HP print cartridges will not be covered under the printer warranty.

Note The warranty does not apply to defects resulting from software, interfacing, or parts not supplied by

Hewlett-Packard.

#### Storing print cartridges

Do not remove the print cartridge from its package until you are ready to use it. The shelf life of a print cartridge in an unopened package is approximately 2.5 years. The shelf life of a print cartridge in an opened package is approximately 6 months.

CAUTION To prevent damage to the print cartridge, minimize its exposure to direct light.

ENWW Storing print cartridges 49

#### Print cartridge life expectancy

The life of the print cartridge depends on the amount of toner that your print jobs require. When printing text at 5 percent coverage, the print cartridge lasts for the following average amounts:

This life expectancy assumes that you set the print density to 3 and turn EconoMode off. (These are the default settings.)

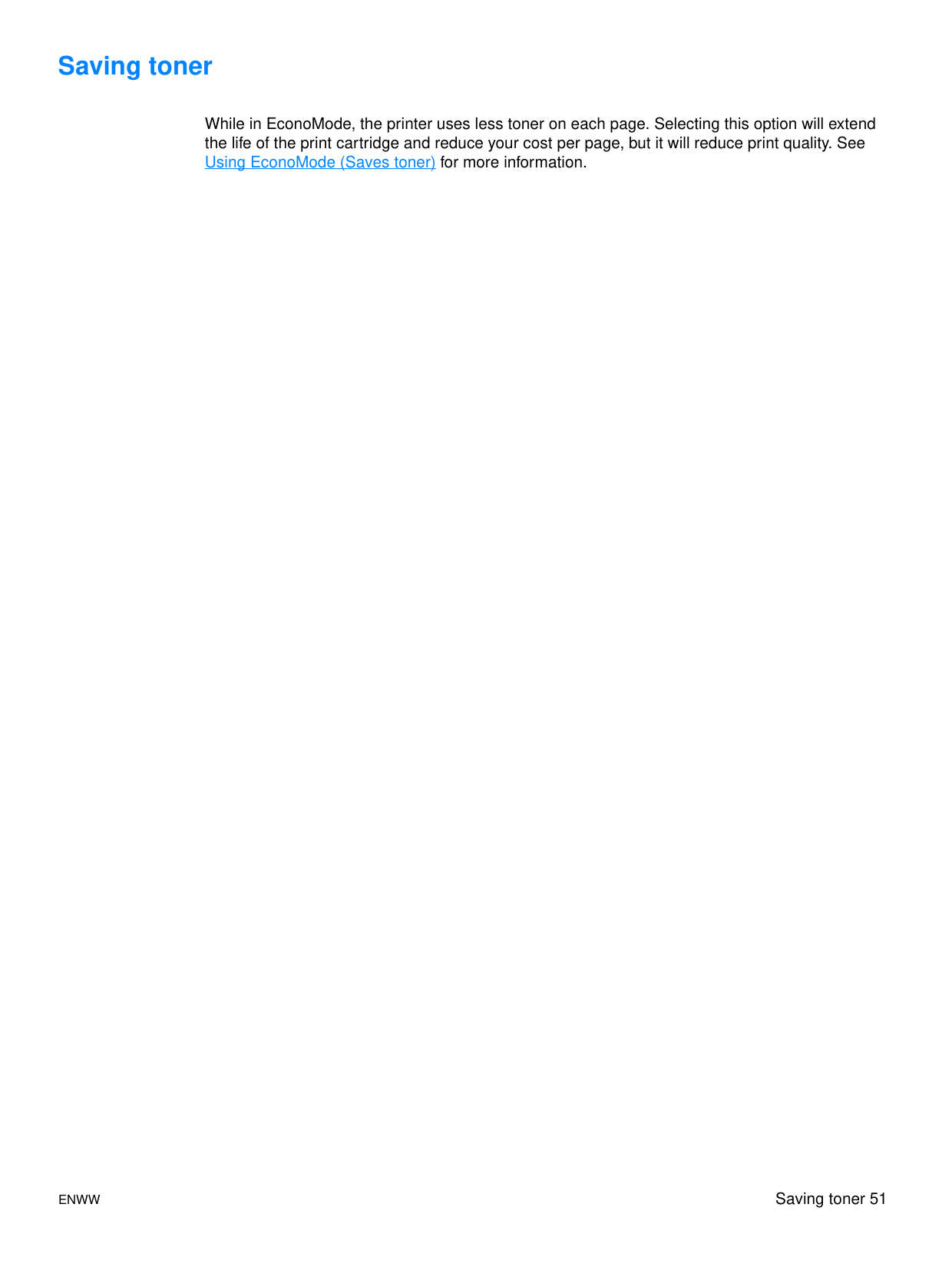

#### Saving toner

While in EconoMode, the printer uses less toner on each page. Selecting this option will extend the life of the print cartridge and reduce your cost per page, but it will reduce print quality. See Using EconoMode (Saves toner) for more information.

ENWW Saving toner 51

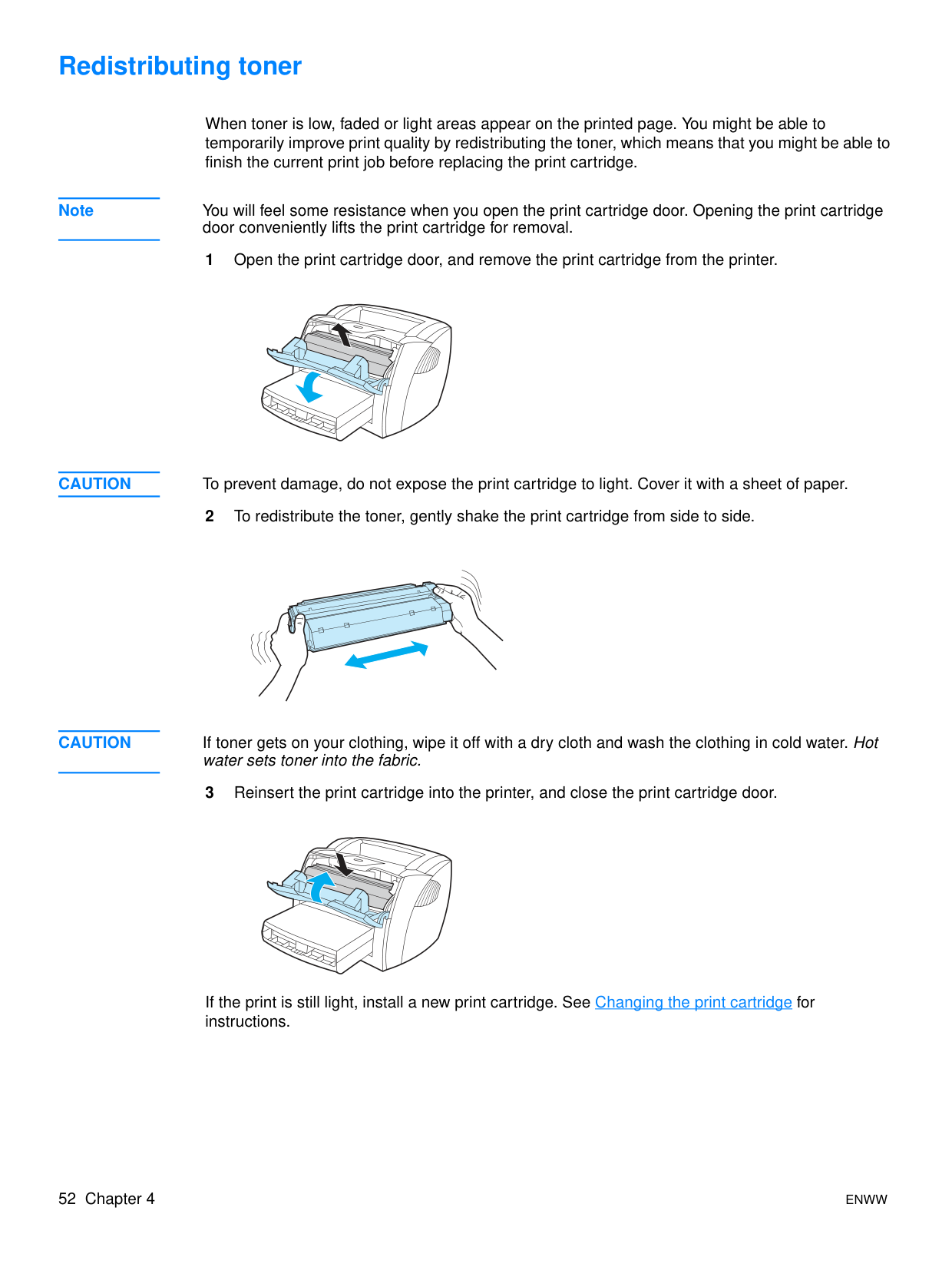

#### Redistributing toner

When toner is low, faded or light areas appear on the printed page. You might be able to temporarily improve print quality by redistributing the toner, which means that you might be able to finish the current print job before replacing the print cartridge.

Note You will feel some resistance when you open the print cartridge door. Opening the print cartridge

door conveniently lifts the print cartridge for removal.

CAUTION To prevent damage, do not expose the print cartridge to light. Cover it with a sheet of paper.

CAUTION If toner gets on your clothing, wipe it off with a dry cloth and wash the clothing in cold water. Hot

water sets toner into the fabric.

If the print is still light, install a new print cartridge. See Changing the print cartridge for instructions.

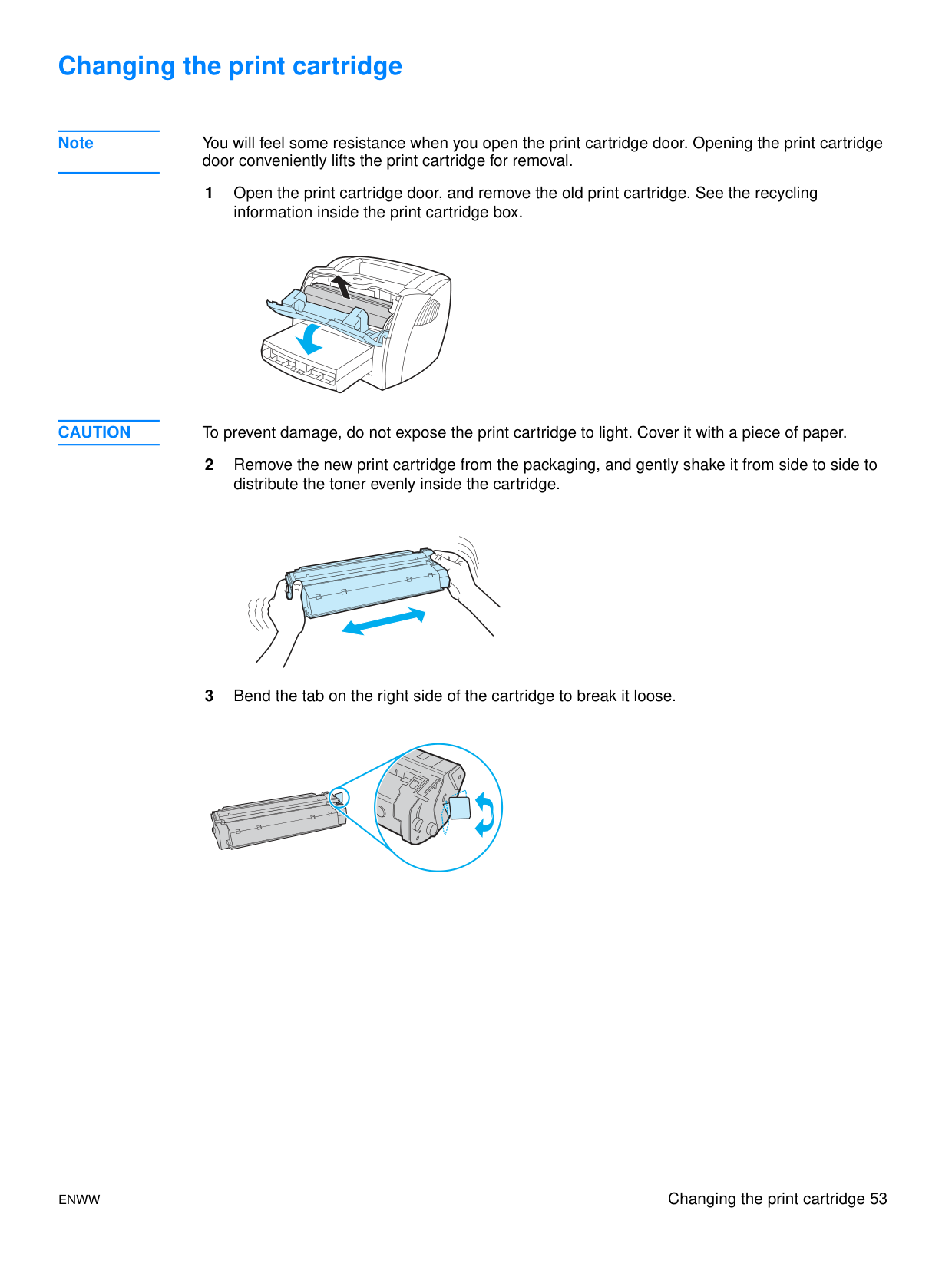

#### Changing the print cartridge

Note You will feel some resistance when you open the print cartridge door. Opening the print cartridge

door conveniently lifts the print cartridge for removal. 1 Open the print cartridge door, and remove the old print cartridge. See the recycling

information inside the print cartridge box.

CAUTION To prevent damage, do not expose the print cartridge to light. Cover it with a piece of paper.

ENWW Changing the print cartridge 53

CAUTION If toner gets on your clothing, wipe it off with a dry cloth and wash the clothing in cold water. Hot

water sets toner into the fabric.

#### Cleaning the printer

Clean the outside of the printer with a clean, damp cloth when necessary.

CAUTION Do not use ammonia-based cleaners on or around the printer.

During the printing process, paper, toner, and dust particles can accumulate inside the printer. Over time, this buildup can cause print quality problems, such as toner specks or smearing. To correct and prevent these types of problems, you can clean the print cartridge area and the printer media path.

##### Cleaning the print cartridge area

You do not need to clean the print cartridge area often. However, cleaning this area can improve the quality of your printed sheets.

WARNING! Before cleaning the printer, turn the printer off by unplugging the power cord, and wait for the printer

to cool.

CAUTION To prevent damage, do not expose the print cartridge to light. Cover the print cartridge if necessary. Also, do not touch the black sponge transfer roller inside the printer. By doing so, you can damage

the printer.

ENWW Cleaning the printer 55

| | |---|

| | |---|

##### Cleaning the printer media path

If you are experiencing toner specks or dots on the printouts, clean the printer media path. This process uses a transparency to remove dust and toner from the media path. Do not use bond or rough paper.

Note For best results use a sheet of transparency. If you do not have any transparencies, you can use

copier grade media (18 to 24 lb. or 70 to 90 g/m2) with a smooth surface.

Note The cleaning process takes approximately 2 minutes. The cleaning page will stop periodically during the cleaning process. Do not turn the printer off until the cleaning process has finished. You might

need to repeat the cleaning process several times to thoroughly clean the printer.

5

Managing the printer

This chapter provides information on the following topics:

ENWW Managing the printer 57

#### Printer information pages

Special pages reside within the memory of the printer. These pages help you to diagnose and solve problems with the printer.

##### Demo page

To print the Demo page, press GO when the printer is ready (Ready light on) and not printing.

##### Configuration page

The Configuration page lists current settings and properties of the printer. It also contains a status log report. You can print a Configuration report from the printer, the embedded web server, or the HP Toolbox.

To print the Configuration page from the printer, press Go for 5 seconds when the printer is in the ready state. When the Go light turns on, release the Go button.

Note You can also get the information contained in the Event log and the Configuration page through the

HP Toolbox without printing the pages. See Using the hp toolbox for more information.

#### Using the hp toolbox

The HP toolbox is a Web application that you can use for the following tasks:

You can view the HP toolbox when the printer is directly connected to your computer or when it is connected to a network. You must have performed a complete software installation to use the HP toolbox.

Note You do not have to have Internet access to open and use the HP toolbox. However, if you click a link

in the Other Links area, you must have Internet access in order to go to the site associated with

the link. See Other links for more information.

##### Supported operating systems

HP toolbox is supported for the following operating systems:

Supported browsers

To use the HP toolbox, you must have one of the following browsers:

##### To view hp toolbox

Note Once you open the URL, you can bookmark it so that you can return to it quickly in the future.

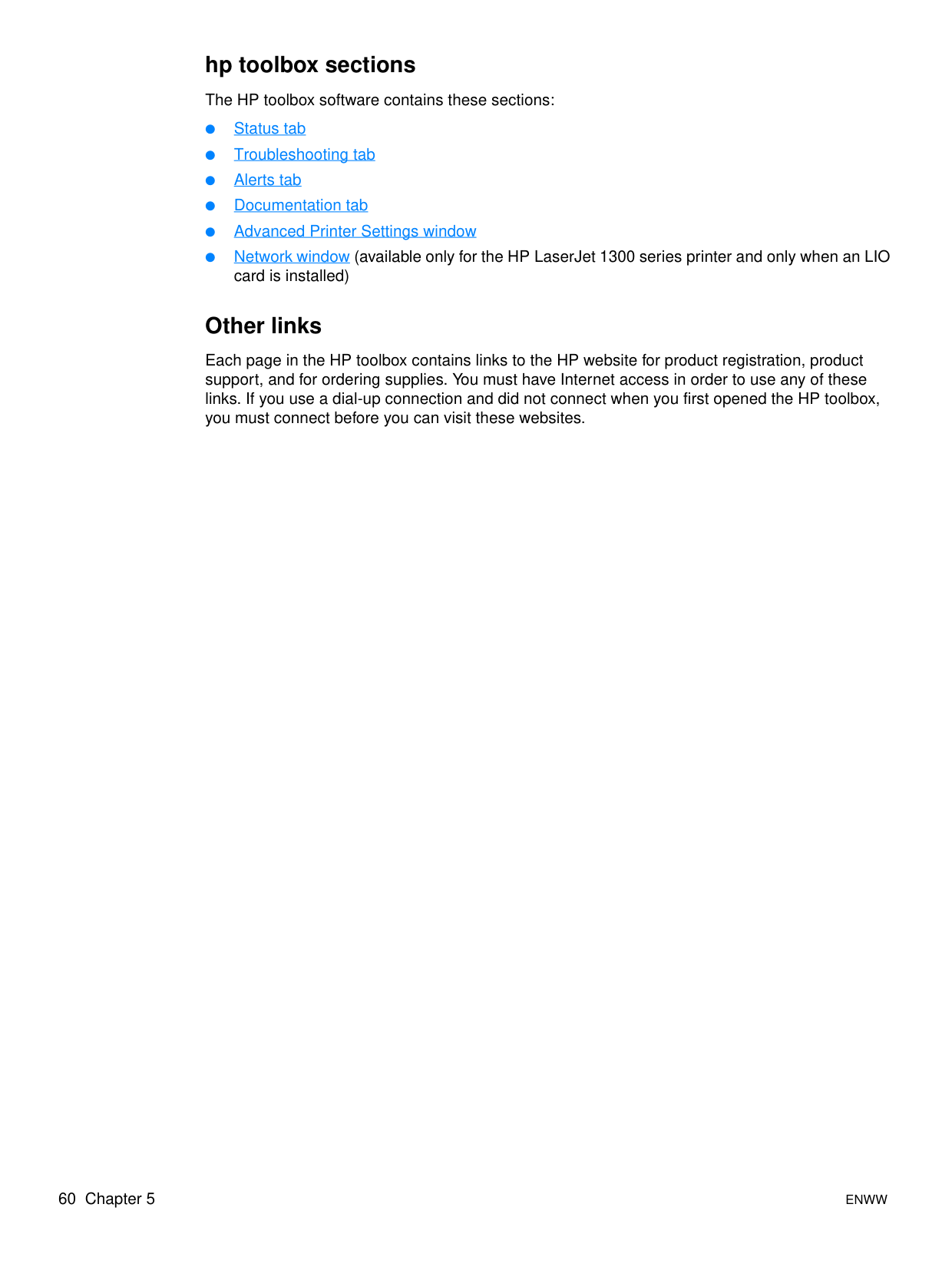

##### hp toolbox sections

The HP toolbox software contains these sections:

##### Other links

Each page in the HP toolbox contains links to the HP website for product registration, product support, and for ordering supplies. You must have Internet access in order to use any of these links. If you use a dial-up connection and did not connect when you first opened the HP toolbox, you must connect before you can visit these websites.

##### Status tab

The Status tab has links to these main pages:

##### Troubleshooting tab

The Troubleshooting tab provides links to various printer troubleshooting information. For example, these pages provide information on how to clear a jam, how to resolve print quality problems, how to interpret the control panel lights, and how to resolve other problems with the printer.

##### Alerts tab

The Alerts tab allows you to configure the printer to automatically notify you of printer alerts. The Alerts tab has links to these main pages:

Set up status alerts

On the Set up status alerts page you can choose to turn alerts on or off, specify when the printer should send an alert, and choose from two different types of alerts:

Set up e-mail alerts

This page allows you to designate up to two e-mail addresses to notify of printer status alerts. Follow the instructions on the screen to set up e-mail alerts.

Administrative settings

This page allows you to set the frequency of how often the HP toolbox checks for printer alerts. Three settings are available:

Documentation tab

The Documentation tab contains links to these information sources:

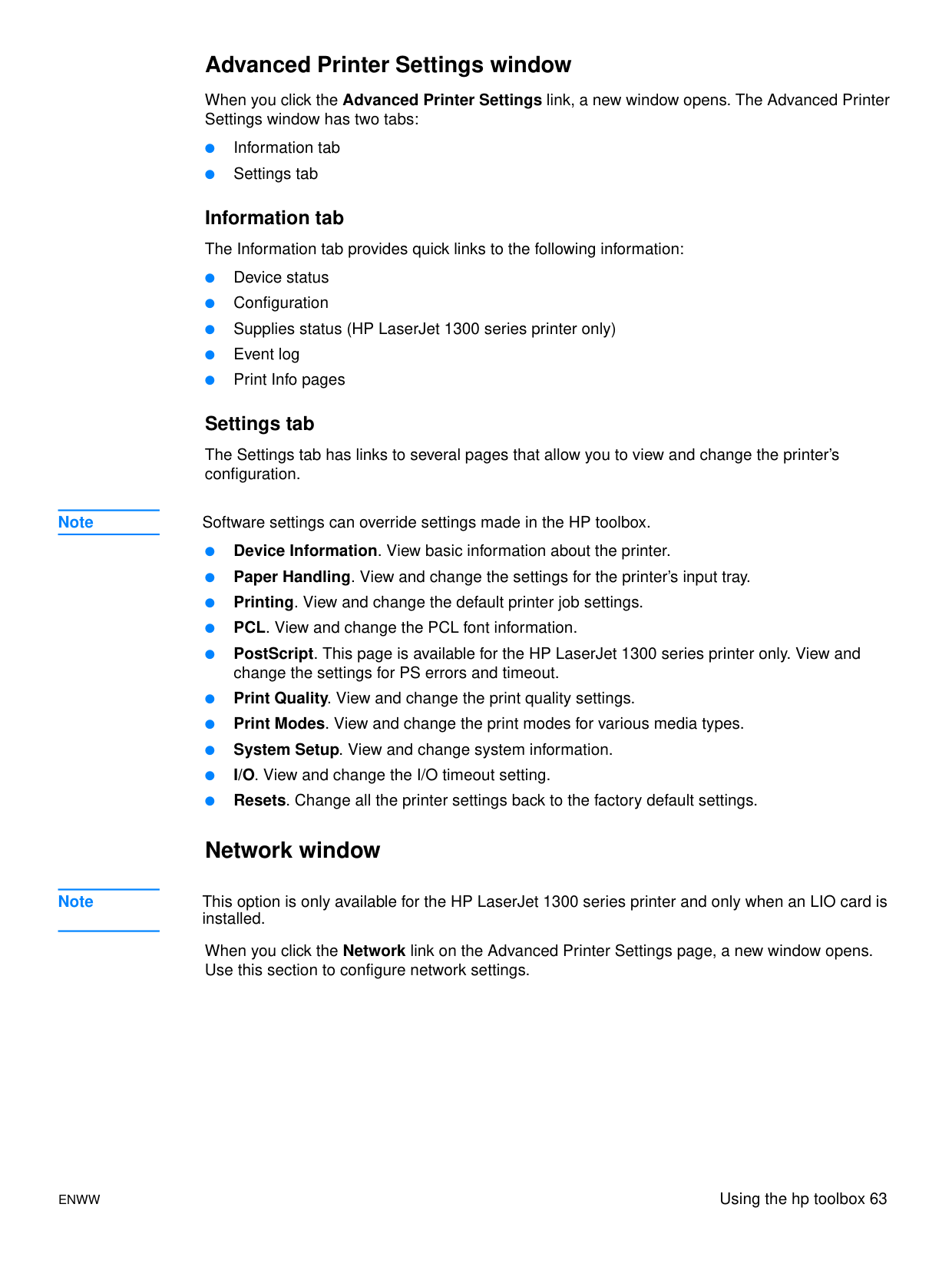

##### Advanced Printer Settings window

When you click the Advanced Printer Settings link, a new window opens. The Advanced Printer Settings window has two tabs:

Information tab The Information tab provides quick links to the following information:

###### Settings tab

The Settings tab has links to several pages that allow you to view and change the printer’s configuration.

Note Software settings can override settings made in the HP toolbox.

##### Network window

Note This option is only available for the HP LaserJet 1300 series printer and only when an LIO card is

installed. When you click the Network link on the Advanced Printer Settings page, a new window opens. Use this section to configure network settings.

#### Using the embedded Web server

The embedded Web server is available for HP LaserJet 1300 series printers with LIO network connections. The embedded Web server provides the same functions as the Advanced Printer Settings section of the HP toolbox. The main differences between using the embedded Web server and using the HP toolbox are the following:

The embedded Web server allows you to view printer and network status and to manage printing functions from your computer instead of from the printer control panel. Below are examples of what you can do using the embedded Web server:

The embedded Web server works when the printer is connected to an IP-based network. The embedded Web server does not support IPX- or AppleTalk-based printer connections.

Note You do not have to have Internet access to open and use the embedded Web server. However, if

you click a link in the Other Links area, you must have Internet access in order to go to the site

associated with the link.

##### To open the embedded Web server

1 In a supported Web browser, type the IP address or hostname for the printer. To find the IP

address, print a Configuration page at the printer by pressing and holding Go for 5 seconds.

Note Once you open the URL, you can bookmark it so that you can return to it quickly in the future.

2 The embedded Web server has three tabs that contain settings and information about the printer: the Information tab, the Settings tab, and the Networking tab. Click the tab that you want to view.

##### Information tab

The Information pages group consists of the following pages.

##### Settings tab

This tab allows you to configure the printer from your computer. If this printer is networked, always consult with the printer administrator before changing settings on this tab.

The Settings tab contains the following pages.

ENWW Using the embedded Web server 65

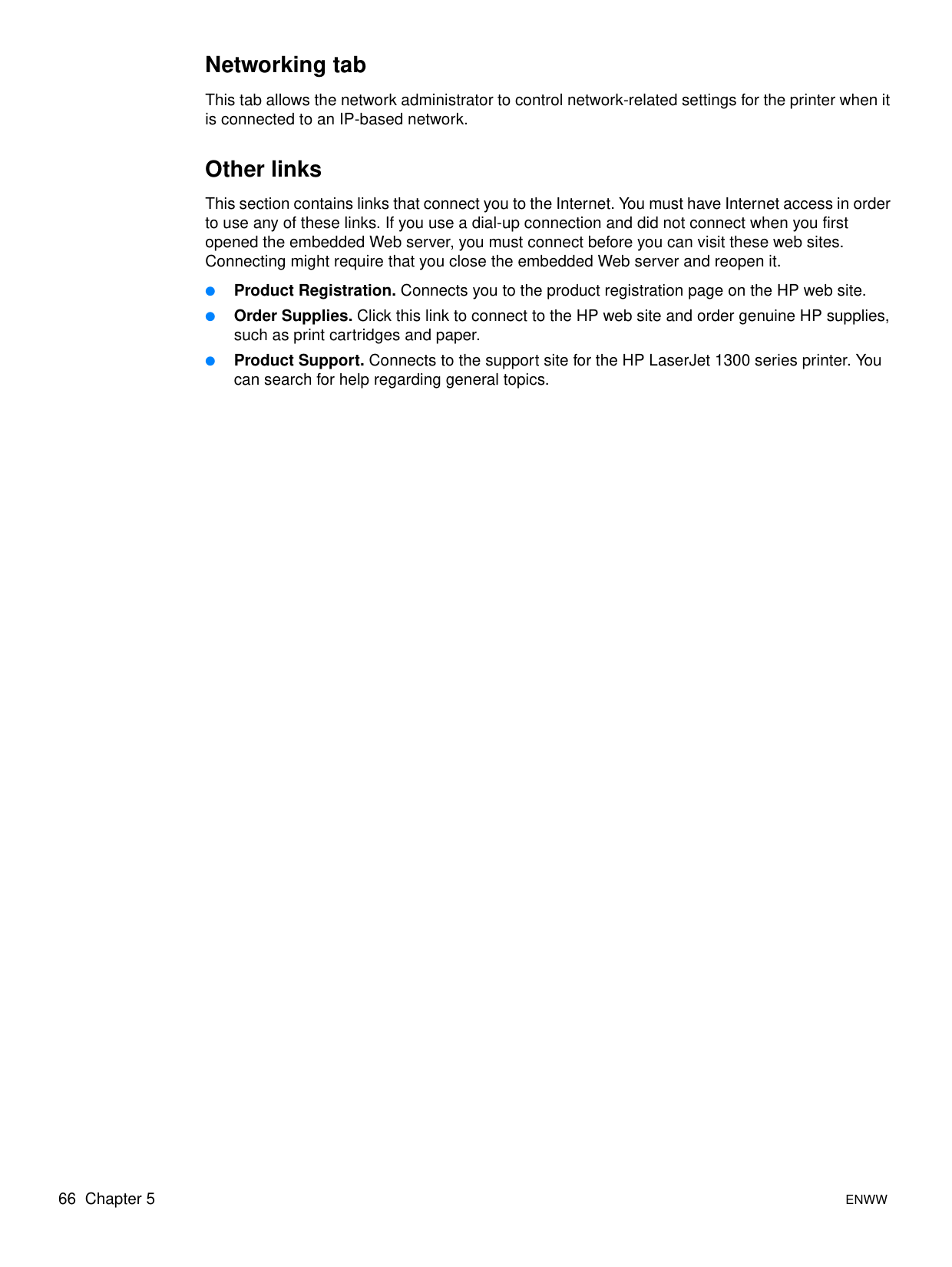

##### Networking tab

This tab allows the network administrator to control network-related settings for the printer when it is connected to an IP-based network.

##### Other links

This section contains links that connect you to the Internet. You must have Internet access in order to use any of these links. If you use a dial-up connection and did not connect when you first opened the embedded Web server, you must connect before you can visit these web sites. Connecting might require that you close the embedded Web server and reopen it.

#### Wireless printing

Wireless networks offer a safe, secure, and cost-effective alternative to traditional wired network connections. See Ordering supplies and accessories for a list of available wireless print servers.

##### IEEE 802.11b standard

With the wireless HP Jetdirect 802.11b print server, HP peripherals can be placed anywhere in the office or home and connected to a wireless network running Microsoft, Apple, Netware, UNIX, or Linux network operating systems. This wireless technology provides a high-quality printing solution without the physical constraints of wiring. Peripherals can be conveniently placed anywhere in an office or home and can be easily moved without changing network cables.

Installation is easy with the HP Install Network Printer Wizard. HP Jetdirect 802.11b print servers are available for USB and parallel connections.

##### Bluetooth

Bluetooth™ wireless technology is a low-power, short-range radio technology that can be used to wirelessly connect computers, printers, personal digital assistants, cell phones, and other devices.

Unlike infra-red technology, Bluetooth's reliance on radio signals means that devices do not have to be in the same room, office, or cubicle with an unobstructed line of sight in order to communicate. This wireless technology increases portability and efficiency within business network applications.

The HP LaserJet 1150 and 1300 series printers have incorporated Bluetooth wireless technology. Bluetooth adaptors are available for USB and parallel connections.

ENWW Wireless printing 67

6

Problemsolving

This chapter provides information on the following topics:

ENWW Problemsolving 69

#### Finding the solution

You can use this section to find the solution to common printer problems.

##### Step 1: Is the printer set up correctly?

##### Step 2: Is the Ready light on?

Do the control panel lights look like this picture?

Yes:Go toStep 3: Can you print a demo page? No: If the control panel lights do not look like the picture above, see Status light patterns.

If you are unable to resolve the problem, Contact HP support.

##### Step 3: Can you print a demo page?

Press the Go button to print a demo page. Yes: If the demo page printed, go to Step 4: Is the print quality acceptable? No: If no paper came out, see Paper handling problems.

If you are unable to resolve the problem, Contact HP support.

##### Step 4: Is the print quality acceptable?

Yes: If the print quality is acceptable, go to Step 5: Is the printer communicating with the computer?

No: If the print quality is poor, see Improving print quality.

Verify that the print settings are correct for the media you are using. See the Media chapter for information on adjusting the settings for various types of media.

If you are unable to resolve the problem, Contact HP support.

##### Step 5: Is the printer communicating with the computer?

Try printing a document from a software application. Yes: If the document prints, go to Step 6: Does the printed page look like you expected? No: If the document does not print, see Printer software problems.

If you are using a Macintosh computer, see Common Macintosh problems. If you are using a PS driver, see Troubleshooting PostScript (PS) errors. If you are unable to resolve the problem, Contact HP support.

##### Step 6: Does the printed page look like you expected?

Yes: The problem should be resolved. If it is not resolved, Contact HP support. No:SeePrinted page is different than what appeared on screen.

If you are unable to resolve the problem, Contact HP support. Contact HP support

ENWW Finding the solution 71

#### Status light patterns

####### Light status legend

Symbol for “light off”

Symbol for “light on”

Symbol for “light blinking”

Control panel light message

Light status Condition of the printer Action

Ready The printer is ready to print.

No action is necessary. To print a configuration page, press and release the Go button on the printer control panel.

Processing The printer is receiving or processing data.

Wait for the job to print.

Manual feed or out of memory

The printer is in manual feed mode or out of memory. You can continue printing.

Make sure that you have loaded the correct media. To continue printing, press and release the Go button.

The software controls manual feed. If you do not want to be in manual feed mode, change the setting from your printer properties. See Printer properties (driver) for more information.

The page being printed might be too complex for the printer’s memory capacity.

Door open, media out, no print cartridge, or media jam

The printer is in an error state that requires operator intervention or help.

Check the following:

Control panel light message (continued)

Light status Condition of the printer Action

Printer initialization/Cancel Job/Cleaning Mode A printer initialization is taking place. If all lights blink for 1/2 of a second or longer in a sequence:

No action is necessary.

Fatal error All lights are on.

Accessory error All lights are blinking.

Return to Finding the solution.

ENWW Status light patterns 73

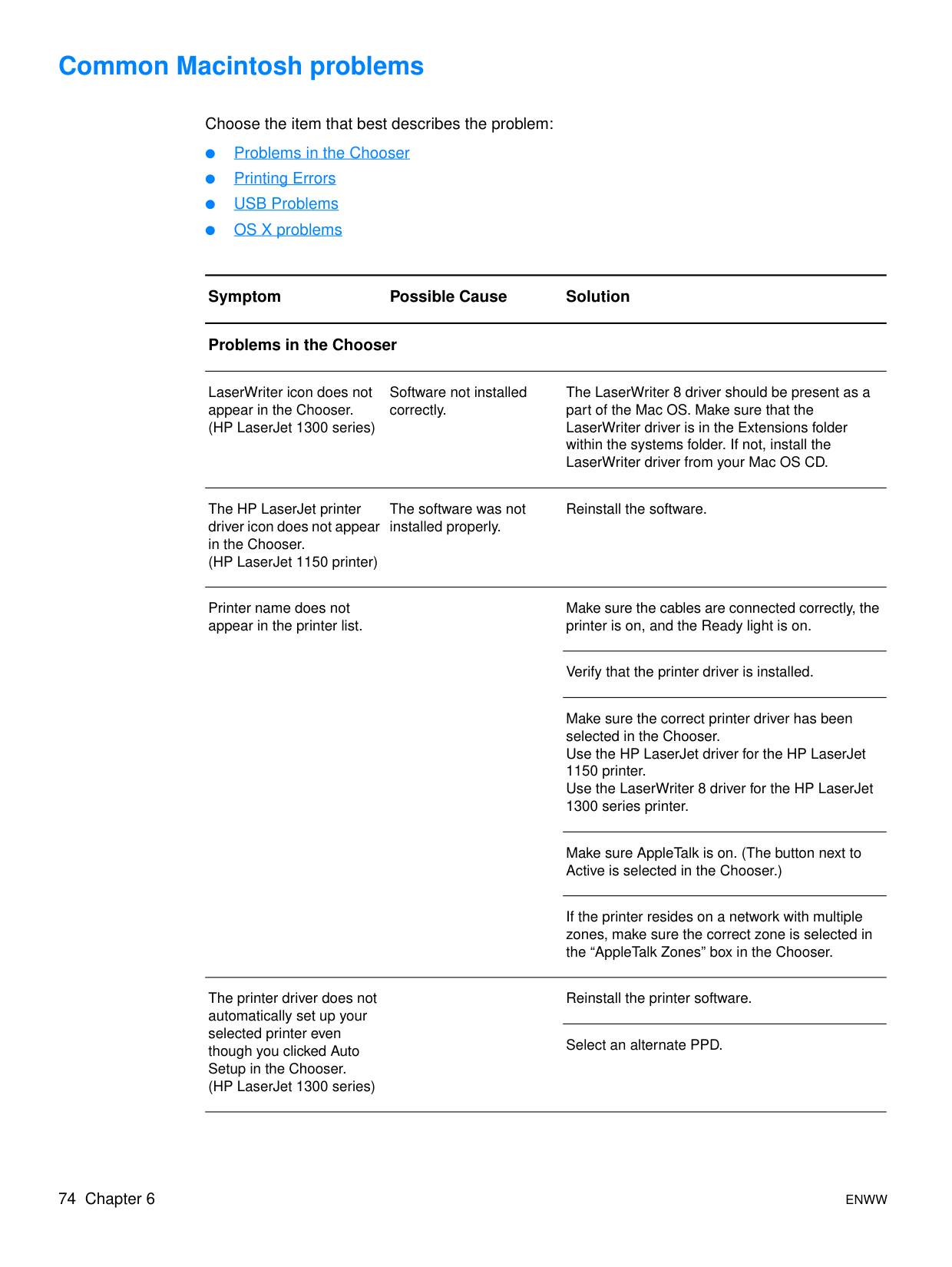

#### Common Macintosh problems

Choose the item that best describes the problem:

Symptom Possible Cause Solution

Problems in the Chooser

LaserWriter icon does not appear in the Chooser. (HP LaserJet 1300 series)

Software not installed correctly.

The HP LaserJet printer driver icon does not appear in the Chooser. (HP LaserJet 1150 printer)

The software was not installed properly.

Printer name does not appear in the printer list.

The printer driver does not automatically set up your selected printer even though you clicked Auto Setup in the Chooser. (HP LaserJet 1300 series)

The LaserWriter 8 driver should be present as a part of the Mac OS. Make sure that the LaserWriter driver is in the Extensions folder within the systems folder. If not, install the LaserWriter driver from your Mac OS CD.

Reinstall the software.

Make sure the cables are connected correctly, the printer is on, and the Ready light is on.

Verify that the printer driver is installed.

Make sure the correct printer driver has been selected in the Chooser. Use the HP LaserJet driver for the HP LaserJet 1150 printer. Use the LaserWriter 8 driver for the HP LaserJet 1300 series printer.

Make sure AppleTalk is on. (The button next to Active is selected in the Chooser.)

If the printer resides on a network with multiple zones, make sure the correct zone is selected in the “AppleTalk Zones” box in the Chooser.

Reinstall the printer software.

Select an alternate PPD.

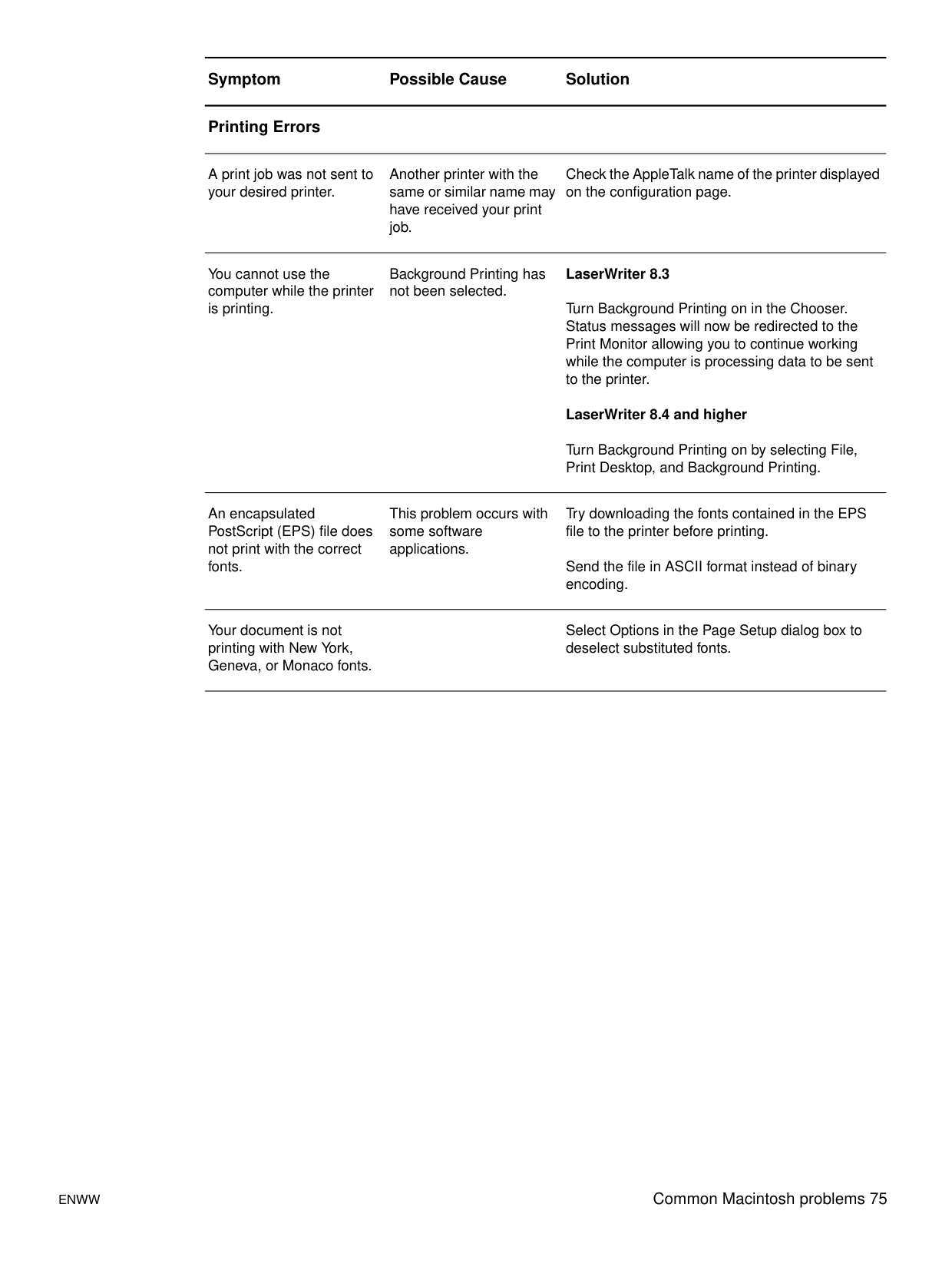

####### Printing Errors

A print job was not sent to your desired printer.

Another printer with the same or similar name may have received your print job.

Check the AppleTalk name of the printer displayed on the configuration page.

You cannot use the computer while the printer is printing.

Background Printing has not been selected.

######### LaserWriter 8.3

Turn Background Printing on in the Chooser. Status messages will now be redirected to the Print Monitor allowing you to continue working while the computer is processing data to be sent to the printer.

######### LaserWriter 8.4 and higher

Turn Background Printing on by selecting File, Print Desktop, and Background Printing.

An encapsulated PostScript (EPS) file does not print with the correct fonts.

This problem occurs with some software applications.

Try downloading the fonts contained in the EPS file to the printer before printing.

Send the file in ASCII format instead of binary encoding.

Your document is not printing with New York, Geneva, or Monaco fonts.

Select Options in the Page Setup dialog box to deselect substituted fonts.

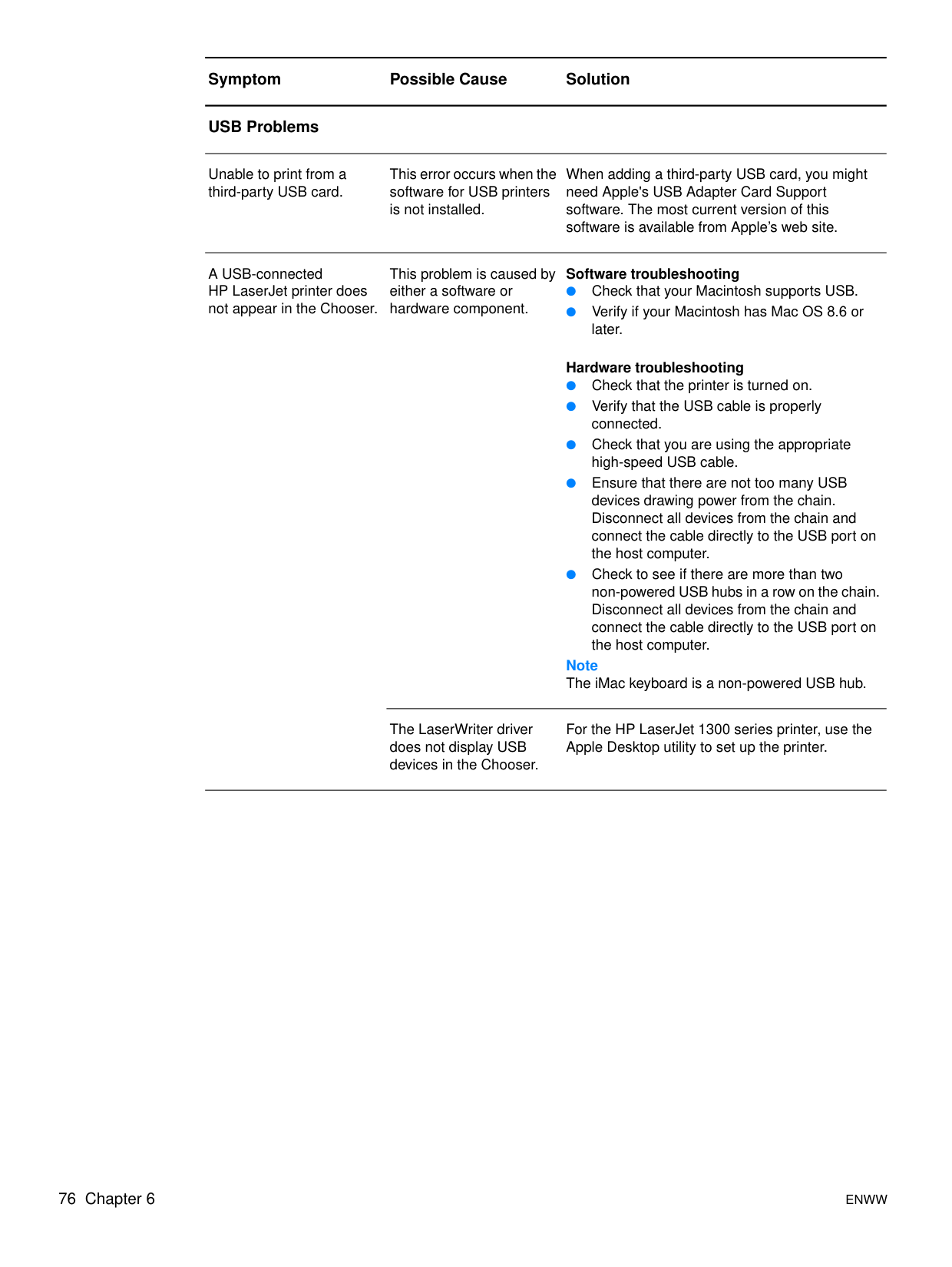

####### USB Problems

Unable to print from a third-party USB card.

This error occurs when the software for USB printers is not installed.

When adding a third-party USB card, you might need Apple's USB Adapter Card Support software. The most current version of this software is available from Apple’s web site.

A USB-connected HP LaserJet printer does not appear in the Chooser.

This problem is caused by either a software or hardware component.

######### Software troubleshooting

######### Hardware troubleshooting

Note The iMac keyboard is a non-powered USB hub.

The LaserWriter driver does not display USB devices in the Chooser.

For the HP LaserJet 1300 series printer, use the Apple Desktop utility to set up the printer.

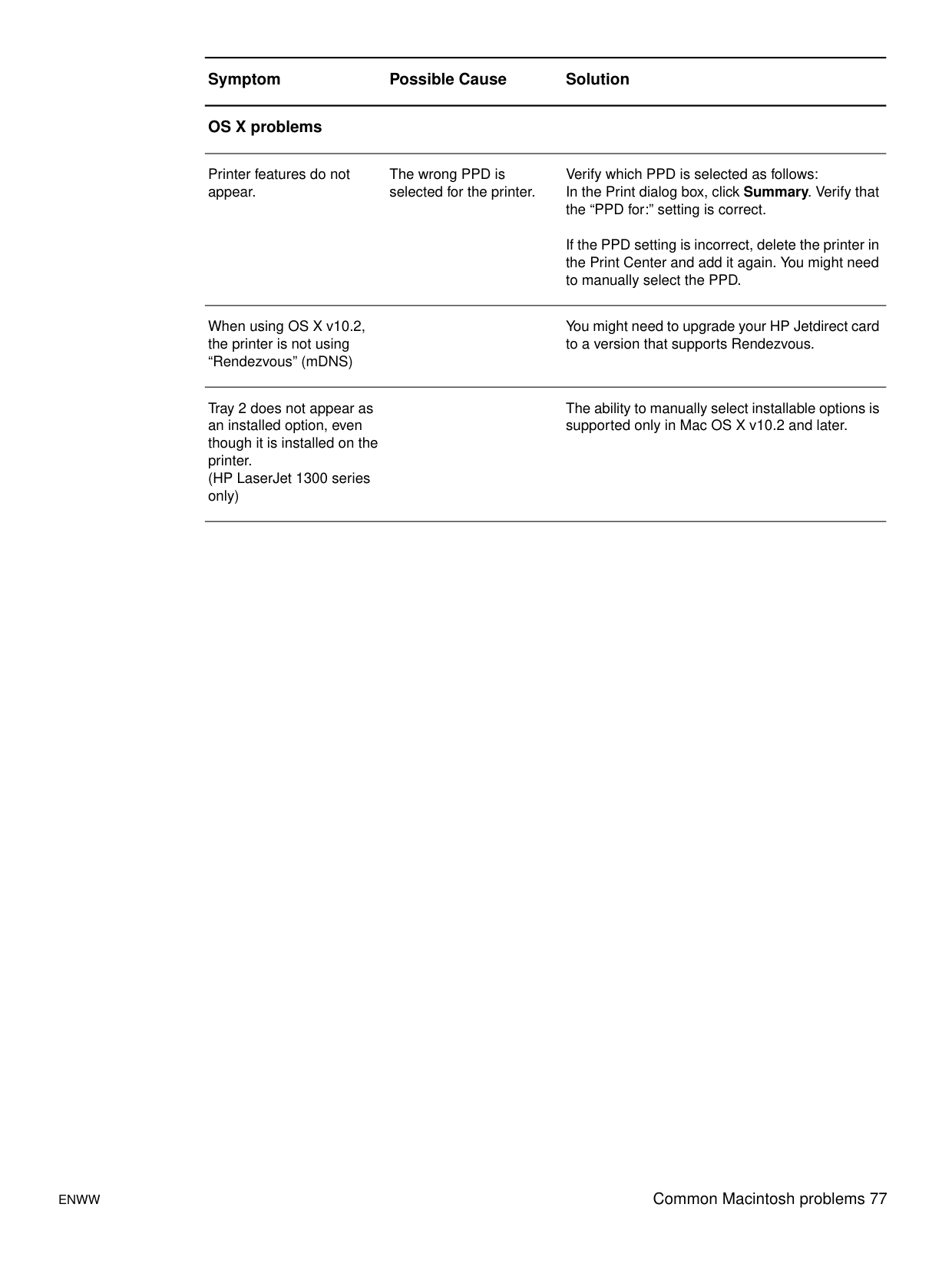

####### OS X problems

Printer features do not appear.

The wrong PPD is selected for the printer.

When using OS X v10.2, the printer is not using “Rendezvous” (mDNS)

Tray 2 does not appear as an installed option, even though it is installed on the printer. (HP LaserJet 1300 series only)

Verify which PPD is selected as follows: In the Print dialog box, click Summary. Verify that the “PPD for:” setting is correct.

If the PPD setting is incorrect, delete the printer in the Print Center and add it again. You might need to manually select the PPD.

You might need to upgrade your HP Jetdirect card to a version that supports Rendezvous.

The ability to manually select installable options is supported only in Mac OS X v10.2 and later.

##### Selecting an Alternate PostScript Printer Description (PPD) for the hp LaserJet 1300 series printer

###### Mac OS 9.x

Note If you manually select a PPD, an icon might not appear next to the selected printer in the Select a PostScript Printer box. In the Chooser, click Setup, click Printer Info, and then click Update Info to

bring up the icon.

##### Renaming the Printer (hp LaserJet 1300 series only)

If you are going to rename the printer, do this before selecting the printer in the Chooser. If you rename the printer after selecting it in the Chooser, you will have to go back into the Chooser and reselect it.

Use the Set Printer Name feature in the HP LaserJet Utility to rename the printer. Return to Finding the solution.

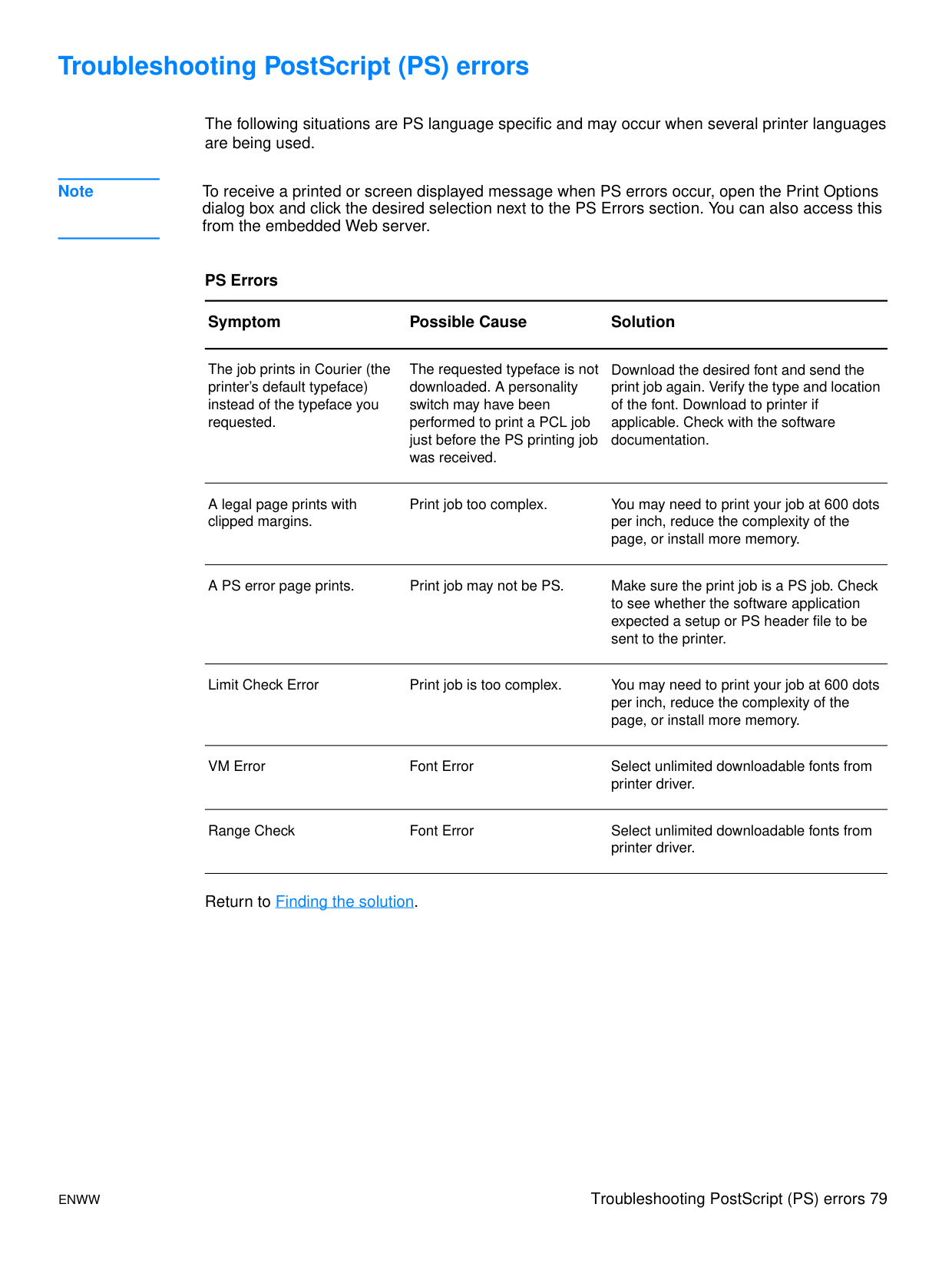

#### Troubleshooting PostScript (PS) errors

The following situations are PS language specific and may occur when several printer languages are being used.

Note To receive a printed or screen displayed message when PS errors occur, open the Print Options

dialog box and click the desired selection next to the PS Errors section. You can also access this

from the embedded Web server.

PS Errors

Symptom Possible Cause Solution

The job prints in Courier (the printer’s default typeface) instead of the typeface you requested.

The requested typeface is not downloaded. A personality switch may have been performed to print a PCL job just before the PS printing job was received.

Download the desired font and send the print job again. Verify the type and location of the font. Download to printer if applicable. Check with the software documentation.

A legal page prints with clipped margins.

Print job too complex. You may need to print your job at 600 dots per inch, reduce the complexity of the page, or install more memory.

A PS error page prints. Print job may not be PS. Make sure the print job is a PS job. Check to see whether the software application expected a setup or PS header file to be sent to the printer.

Limit Check Error Print job is too complex. You may need to print your job at 600 dots per inch, reduce the complexity of the page, or install more memory.

VM Error Font Error Select unlimited downloadable fonts from printer driver.

Range Check Font Error Select unlimited downloadable fonts from printer driver.

Return to Finding the solution.

ENWW Troubleshooting PostScript (PS) errors 79

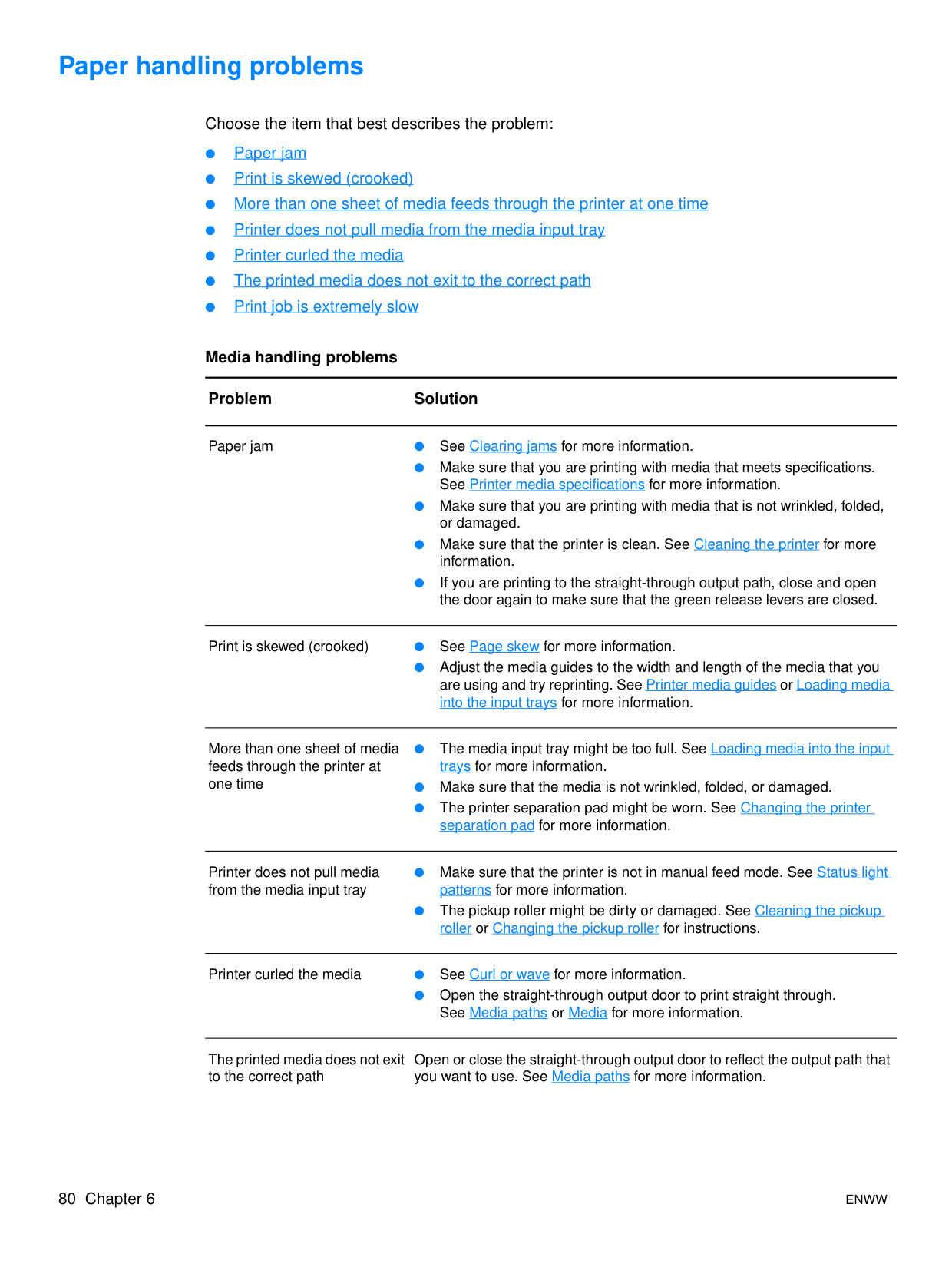

#### Paper handling problems

Choose the item that best describes the problem:

Media handling problems

Problem Solution

Paper jam ● See Clearing jams for more information.

Print is skewed (crooked) ● See Page skew for more information.

● Adjust the media guides to the width and length of the media that you are using and try reprinting. See Printer media guides or Loading media into the input trays for more information.

More than one sheet of media feeds through the printer at one time

Printer does not pull media from the media input tray

Printer curled the media ● See Curl or wave for more information.

● Open the straight-through output door to print straight through. See Media paths or Media for more information.

The printed media does not exit to the correct path

Open or close the straight-through output door to reflect the output path that you want to use. See Media paths for more information.

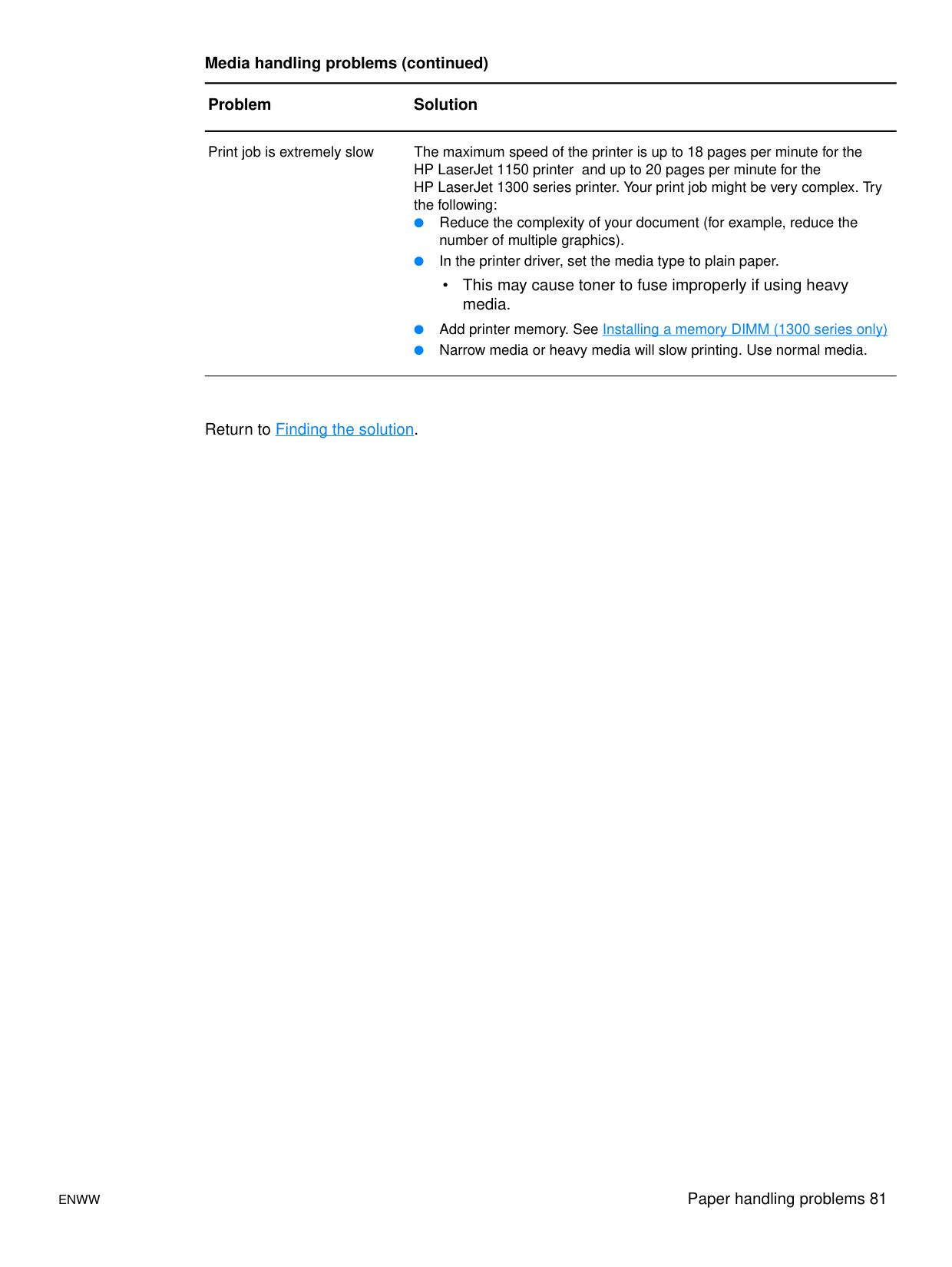

Media handling problems (continued)

Problem Solution

Print job is extremely slow The maximum speed of the printer is up to 18 pages per minute for the HP LaserJet 1150 printer and up to 20 pages per minute for the HP LaserJet 1300 series printer. Your print job might be very complex. Try the following:

• This may cause toner to fuse improperly if using heavy media.

Return to Finding the solution.

ENWW Paper handling problems 81

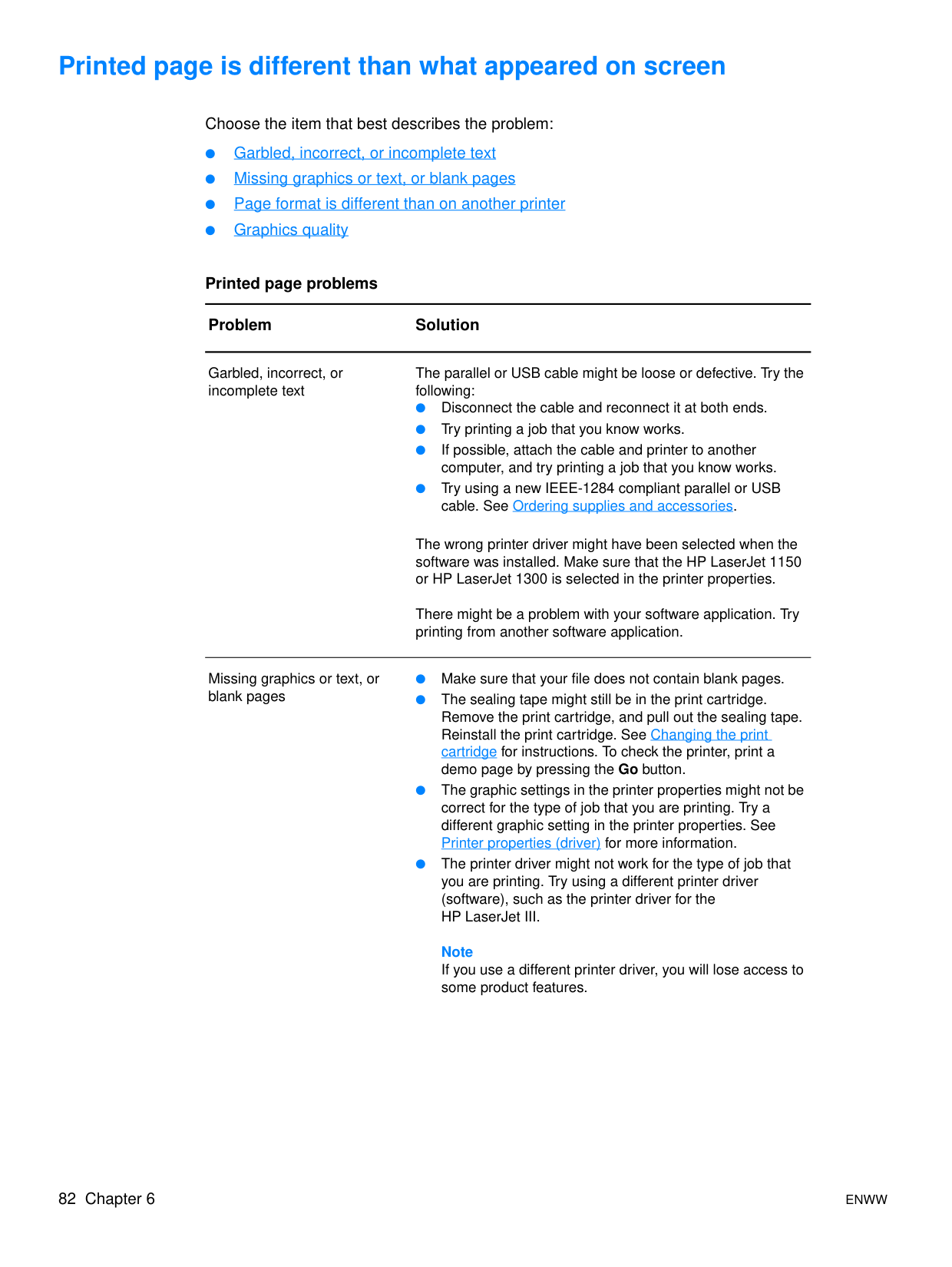

#### Printed page is different than what appeared on screen

Choose the item that best describes the problem:

Printed page problems

Problem Solution

Garbled, incorrect, or incomplete text

Missing graphics or text, or blank pages

The parallel or USB cable might be loose or defective. Try the following:

The wrong printer driver might have been selected when the software was installed. Make sure that the HP LaserJet 1150 or HP LaserJet 1300 is selected in the printer properties.

There might be a problem with your software application. Try printing from another software application.

Note If you use a different printer driver, you will lose access to some product features.

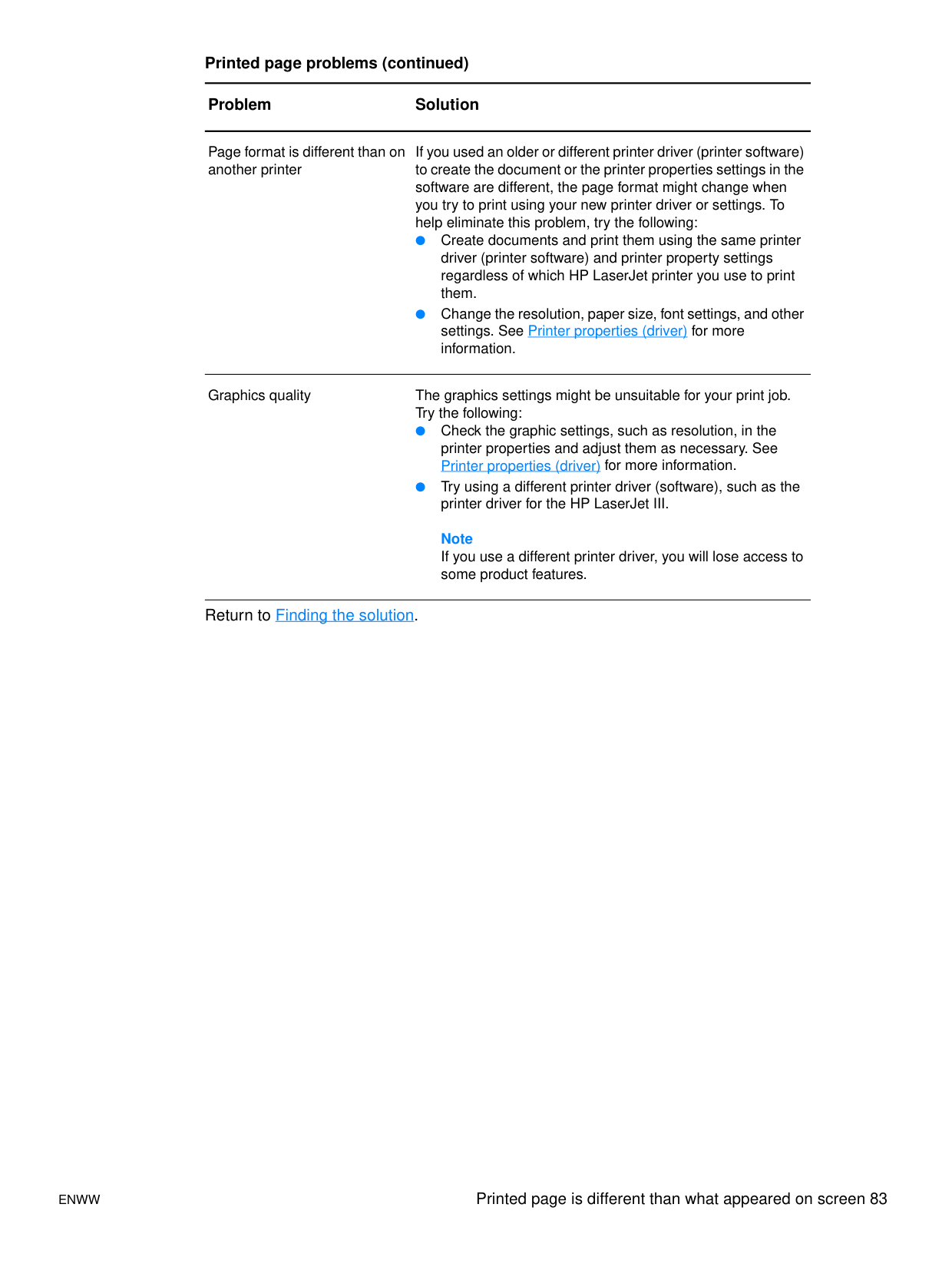

Printed page problems (continued)

Problem Solution

Page format is different than on another printer

If you used an older or different printer driver (printer software) to create the document or the printer properties settings in the software are different, the page format might change when you try to print using your new printer driver or settings. To help eliminate this problem, try the following:

Graphics quality The graphics settings might be unsuitable for your print job. Try the following:

Note If you use a different printer driver, you will lose access to some product features.

Return to Finding the solution.

ENWW Printed page is different than what appeared on screen 83

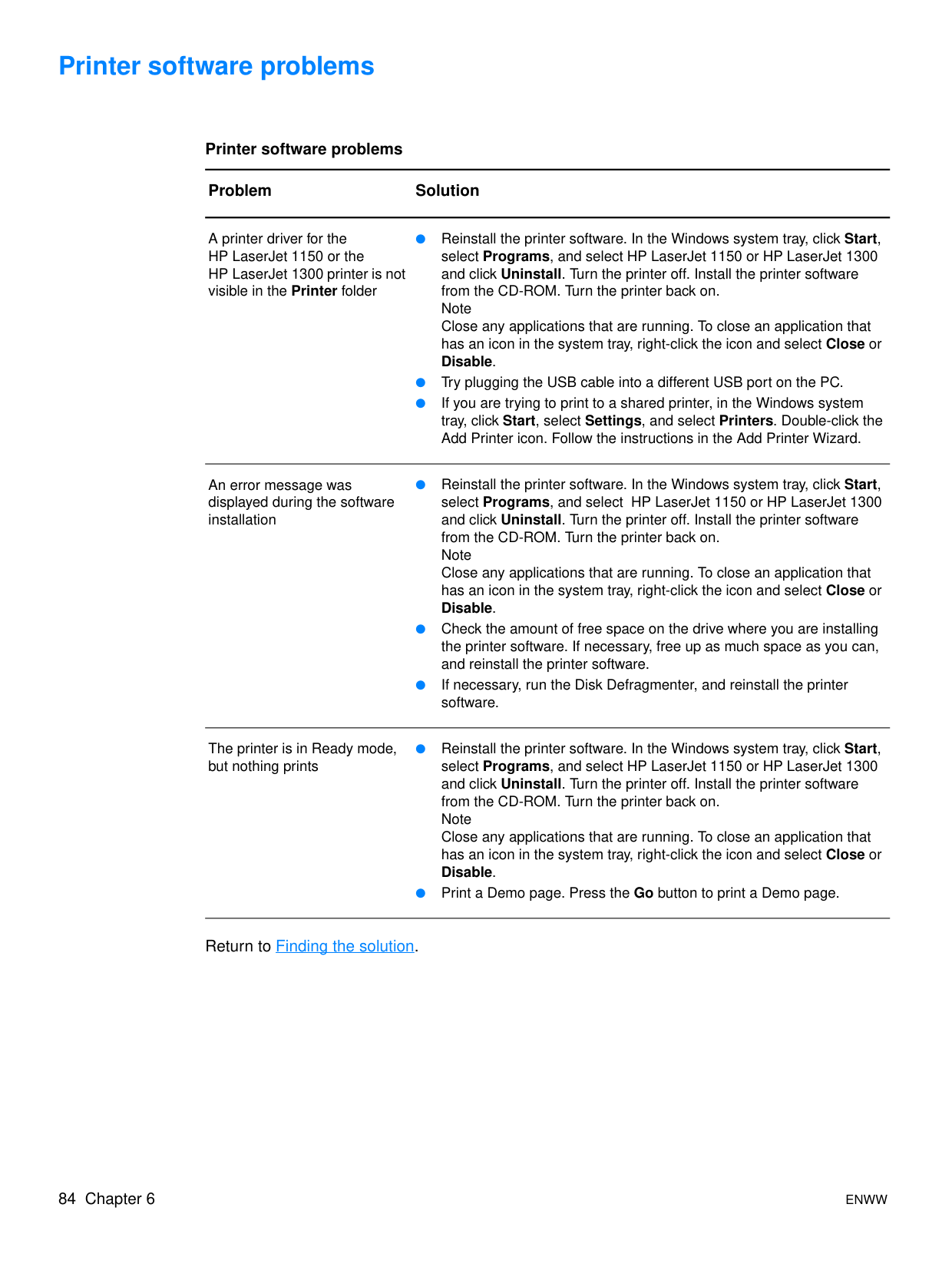

#### Printer software problems

Printer software problems

Problem Solution

A printer driver for the HP LaserJet 1150 or the HP LaserJet 1300 printer is not visible in the Printer folder

An error message was displayed during the software installation

The printer is in Ready mode, but nothing prints

Return to Finding the solution.

#### Improving print quality

This section provides information about identifying and correcting print defects.

Light print or faded

Toner specks

Dropouts

Note If these steps do not correct the problem, contact an HP-authorized dealer or service representative.

Vertical lines

##### Gray background

##### Toner smear

|| |---|

##### Loose toner

##### Vertical repetitive defects

##### Misformed characters

##### Page skew

##### Curl or wave

##### Wrinkles or creases

##### Toner scatter outline


Return to Finding the solution.

#### Clearing jams

Occasionally, media becomes jammed during a print job. Some of the causes include the following:

Note When you add new media, always remove all of the media from the input tray and straighten the

stack of new media. This helps prevent multiple sheets of media from feeding through the printer at

one time, reducing media jams. You are notified of a media jam by an error in the software and the printer control panel lights. See Status light patterns for more information.

###### Typical media jam locations

Note There might be loose toner in the printer after a media jam. This toner clears up after a few sheets

print.

##### Removing a jammed page

CAUTION Media jams might result in loose toner on the page. If you get any toner on your clothes, wash them

in cold water. Hot water will permanently set the toner into the fabric.

CAUTION To prevent damage to the print cartridge, minimize its exposure to direct light.

Note The pressure release levers automatically close when you close the straight-through output door.

After clearing a media jam, you might need to turn the printer off and turn it back on.

Note When you add new media, remove all of the media from the input tray and straighten the stack of

new media. Return to Finding the solution.

#### Changing the pickup roller

If the printer regularly mispicks (no media feeds through or more than one sheet feeds through), you might need to change or clean the pickup roller. See Ordering supplies and accessories to order a new pickup roller.

CAUTION Failure to complete this procedure might damage the printer.

Note Circular and rectangular pegs on each side prevent you from incorrectly positioning the pickup roller.

ENWW Changing the pickup roller 93

#### Cleaning the pickup roller

If you want to clean the pickup roller rather than replace it, follow the instructions below:

WARNING! Alcohol is flammable. Keep the alcohol and cloth away from an open flame. Before you close the

printer and plug in the power cord, allow the alcohol to dry completely.

####### Note

In certain areas of California, air pollution control regulations restrict the use of liquid Isopropyl Alcohol (IPA) as a cleaning agent. In those areas of California, please disregard the previous recommendations and use a dry, lint-free cloth. The cloth may be moistened with water if desired.

ENWW Cleaning the pickup roller 95

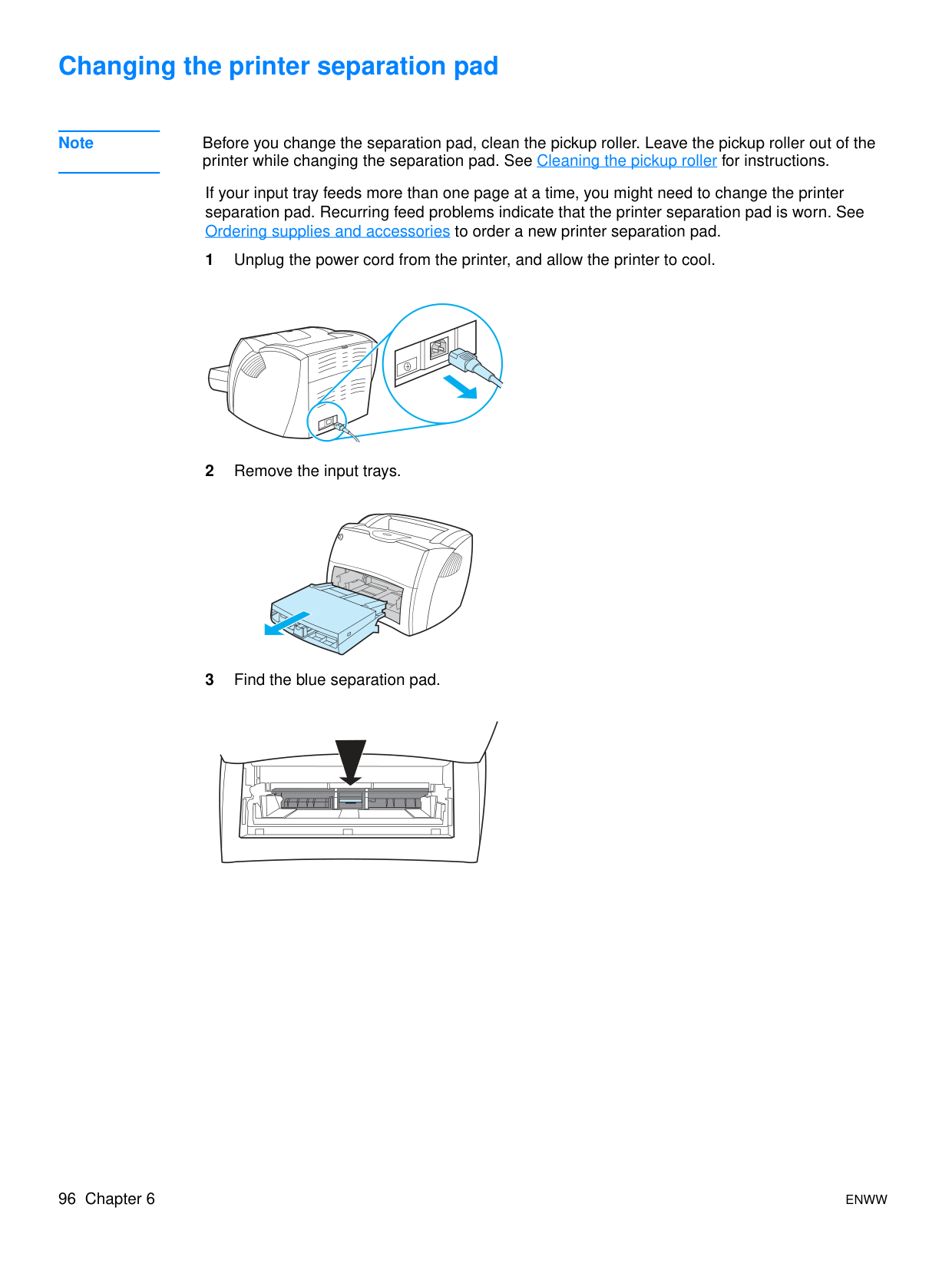

#### Changing the printer separation pad

Note Before you change the separation pad, clean the pickup roller. Leave the pickup roller out of the

printer while changing the separation pad. See Cleaning the pickup roller for instructions. If your input tray feeds more than one page at a time, you might need to change the printer separation pad. Recurring feed problems indicate that the printer separation pad is worn. See Ordering supplies and accessories to order a new printer separation pad.

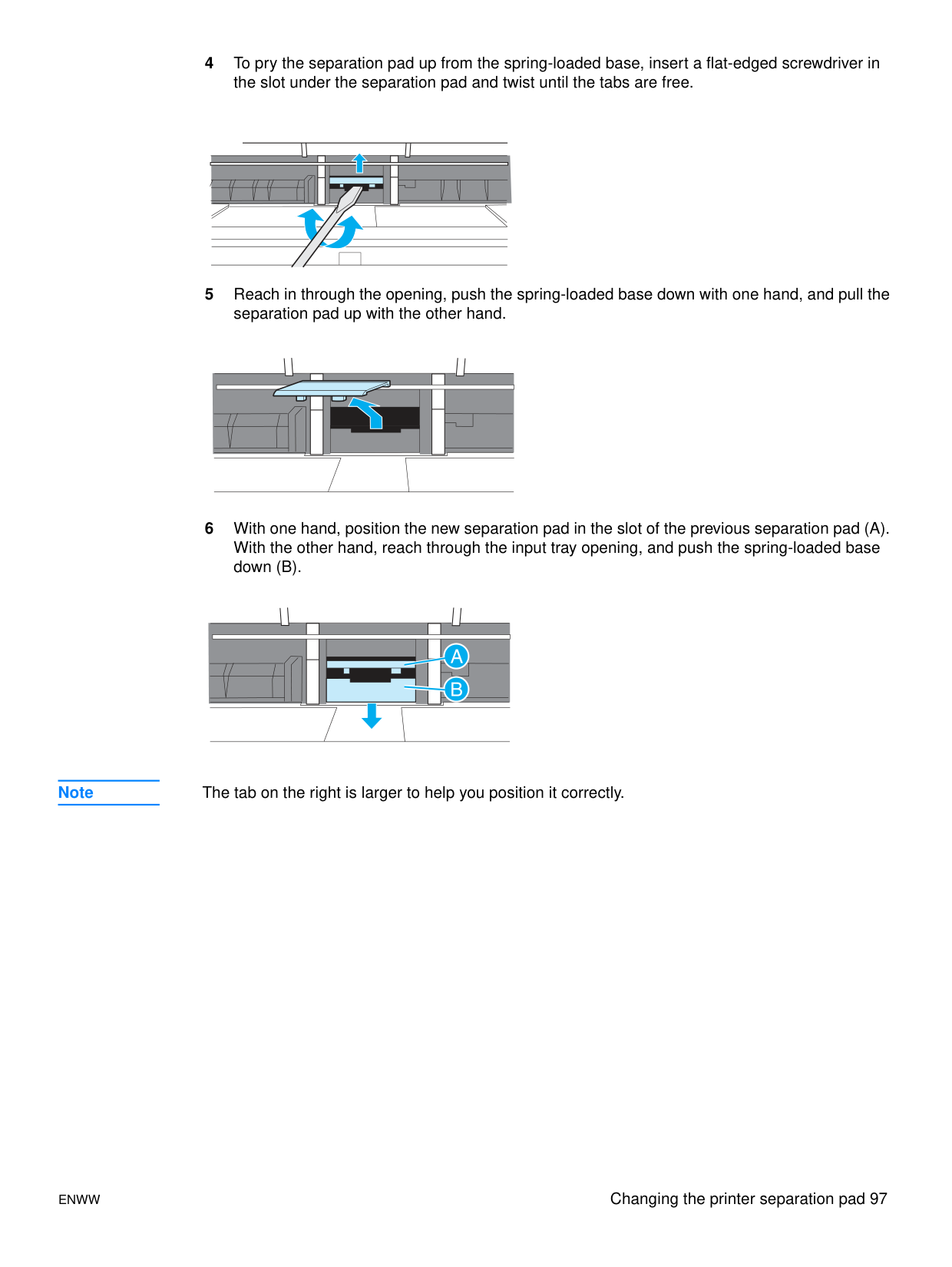

Note The tab on the right is larger to help you position it correctly.

ENWW Changing the printer separation pad 97

######## 7 Snap both sides of the separation pad firmly into place.

CAUTION Make sure that the separation pad is straight and that there is no space between the separation pad and the spring-loaded base. If the separation pad is not straight or you see space on one side, remove the separation pad, make sure that the larger tab is on the right, reinsert the separation pad,

and snap both sides into place.

######## 8 Reinsert the pickup roller, print cartridge, and input trays. Plug the printer in to turn it back on.

A

Printer specifications

This appendix provides information on the following topics:

ENWW Printer specifications 99

#### Specifications

Printer specifications

Environmental specifications

Operating environment Printer plugged into an AC outlet:

Storage environment Printer unplugged from an AC outlet:

####### Acoustic emissions1 Declared per ISO 9296

HP LaserJet 1150

Sound power level Printing (18 ppm): LWAd = 6.3 Bels (A) [63 dB (A)] PowerSave: essentially inaudible

Sound power level bystander position

HP LaserJet 1300

Printing (18 ppm): LWAd = 6.3 Bels (A) [63 dB (A)] PowerSave: essentially inaudible

Sound power level Printing (20 ppm): LWAd = 6.3 Bels (A) [63 dB (A)] PowerSave: essentially inaudible

Sound power level bystander position

HP LaserJet 1300n

Printing (20 ppm): LWAd = 6.3 Bels (A) [63 dB (A)] PowerSave: essentially inaudible

Sound power level Printing (20 ppm): LWAd = 6.3 Bels (A) [63 dB (A)] PowerSave: essentially inaudible

Sound power level bystander position

Printing (20 ppm): LWAd = 6.3 Bels (A) [63 dB (A)] PowerSave: essentially inaudible

Electrical specifications1 Warning! Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. Doing so might damage the printer and void the product warranty.

HP LaserJet 1150

Power requirements ● 110-127v (+/-10%), 50/60 Hz (+/-2)

######### or

● 220v-240v (+/-10%), 50/60 Hz (+/-2 Hz)

Power consumption ● During printing (18 ppm): 320 watts (average)

Minimum recommended circuit capacity for typical product

HP LaserJet 1300

Power requirements ● 110-127v (+/-10%), 50/60 Hz (+/-2)

######### or

● 220v-240v (+/-10%), 50/60 Hz (+/-2 Hz)

Power consumption ● During printing (20 ppm): 320 watts (average)

Minimum recommended circuit capacity for typical product

HP LaserJet 1300n

Power requirements ● 110-127v (+/-10%), 50/60 Hz (+/-2)

######### or

● 220v-240v (+/-10%), 50/60 Hz (+/-2 Hz)

Power consumption ● During printing (20 ppm): 320 watts (average)

Minimum recommended circuit capacity for typical product

####### Physical specifications

Dimensions ● Width: 415 mm (16.3 inches) ● Depth: 486 mm (19.1 inches)

● Height: 253 mm (10.0 inches)

Weight (cartridge installed) 8.5 kg (18.6 lb)

####### Printer capacities and ratings

Print speed HP LaserJet 1150 printer:

HP LaserJet 1300 series printer:

Main input tray capacity 250 sheets of regular weight 20 lb (75 g/m2) paper or up to 30 envelopes

Priority input tray capacity 10 sheets of regular weight 20 lb (75 g/m2) paper or 1 envelope

Output bin capacity 125 sheets of regular weight 20 lb (75 g/m2) paper

Minimum paper size 76 by 127 mm (3 by 5 inches)

Maximum paper size 216 by 356 mm (8.5 by 14 inches)

Media weight ● Output bin – 60 to 105 g/m2 (16 to 28 lbs)

● Straight through media path – 60 to 163 g/m2 (16 to 43 lbs)

Base memory 8 MB of RAM (16 MB RAM on HP LaserJet 1300 series)

Upgrade memory expansion HP LaserJet 1300 series printer only One DIMM slot available for an 8, 16, 32, or 64 MB RAM DIMM

Print resolution 1,200 dots per inch (dpi)

Duty cycle ● 10,000 single-sided pages per month (maximum)

● 1,000 single-sided pages per month (average)

PCL Level 5e

PS PostScript 2 emulation

####### Memory specifications

DIMMs 100 pin, 66 MHz minimum speed

####### Port availability

USB Compatible with the USB 2.0 specification

Parallel ● IEEE 1284 level 2 device with an IEEE 1284-B receptacle

● Set host computer to ECP

1 Values are subject to change. For current information see http://www.hp.com/support/lj1150 or http://www.hp.com/support/lj1300.

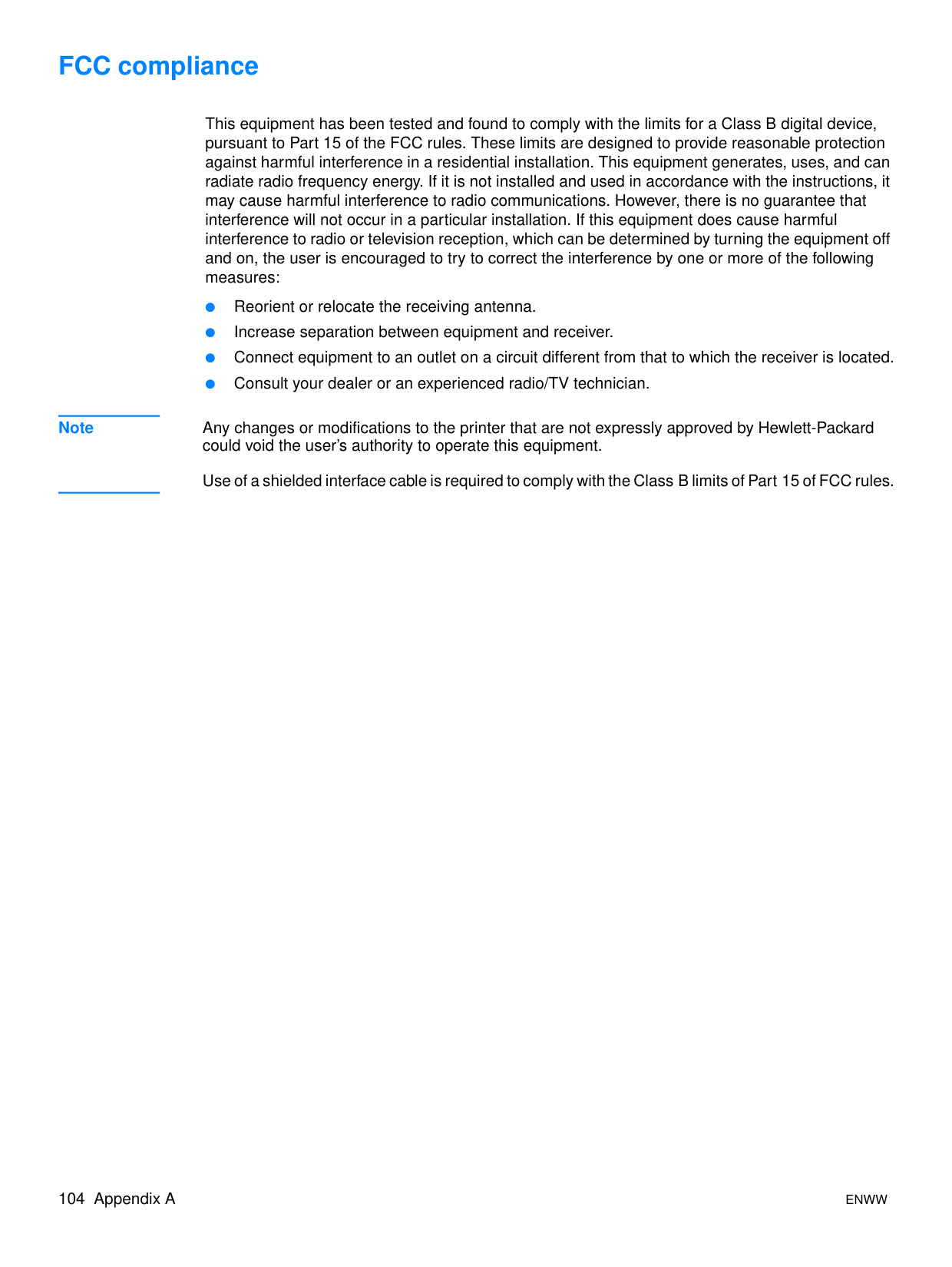

#### FCC compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Note Any changes or modifications to the printer that are not expressly approved by Hewlett-Packard

could void the user’s authority to operate this equipment.

Use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules.

#### Environmental product stewardship program

##### Protecting the environment

Hewlett-Packard Company is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize the impact on our environment.

Ozone production This product generates no appreciable ozone gas (O3). Energy consumption

Energy usage drops significantly while in PowerSave mode, which saves money without affecting the high performance of this product. This product qualifies for ENERGY STAR, which is a voluntary program to encourage the development of energy-efficient office products.

ENERGY STAR is a U.S. registered service mark of the U.S. EPA. As an ENERGY STAR partner, Hewlett-Packard Company has determined that this product meets ENERGY STAR guidelines for energy efficiency. For more information, see http://www.energystar.gov.

Toner consumption EconoMode uses significantly less toner, which might extend the life of the print cartridge.

###### Paper use

This product’s manual duplex (two-sided printing) and N-up printing (multiple pages printed on one page) features can reduce paper usage and the resulting demands on natural resources.

###### Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the product’s life.

###### HP LaserJet printing supplies

In many countries/regions, this product’s printing supplies (such as print cartridge, drum, and fuser) can be returned to Hewlett-Packard through the HP printing supplies returns and recycling program. This easy-to-use, free takeback program is available in over 48 countries/regions. Multilingual program information and instructions are included in every new HP print cartridge and consumables package.

###### HP printing supplies returns and recycling program information

Since 1990, the HP printing supplies returns and recycling program has collected millions of used print cartridges that otherwise might have been discarded in the world’s landfills. The HP LaserJet print cartridges and consumables are collected and bulk-shipped to our resource and recovery partners who disassemble the print cartridge. After a thorough quality inspection, selected parts are reclaimed for use in new print cartridges. Remaining materials are separated and converted into raw materials for use by other industries to make a variety of useful products.

ENWW Environmental product stewardship program 105

####### U.S. recycling returns

For a more environmentally responsible return of used print cartridges and consumables, Hewlett-Packard encourages you to use bulk returns. Simply bundle two or more print cartridges together and use the single, prepaid, pre-addressed label that is supplied in the package. For more information in the U.S., call (800) 340-2445 or visit the HP LaserJet supplies Web site at http://www.hp.com/recycle.

Non-U.S. recycling returns Non-U.S. customers should call the local HP sales and service office or visit the http://www.hp.com/recycle website more information regarding availability of the HP printing supplies returns and recycle program.

Paper This printer is suited for the use of recycled papers when the paper meets the guidelines in the HP LaserJet printer family print media guide. See Ordering supplies and accessories for ordering information. This product is suitable for the use of recycled paper according to DIN 19309.

Material restrictions This product does not contain added mercury (except lamps containing less than 10 mg). This product does not contain added lead. This product does not contain batteries.

###### Spare parts and supplies availability

Spare parts and consumable supplies for this product will be available for at least five years after production has stopped.

For more information For more information on the following HP environmental programs, see http://www.hp.com/go/environment.

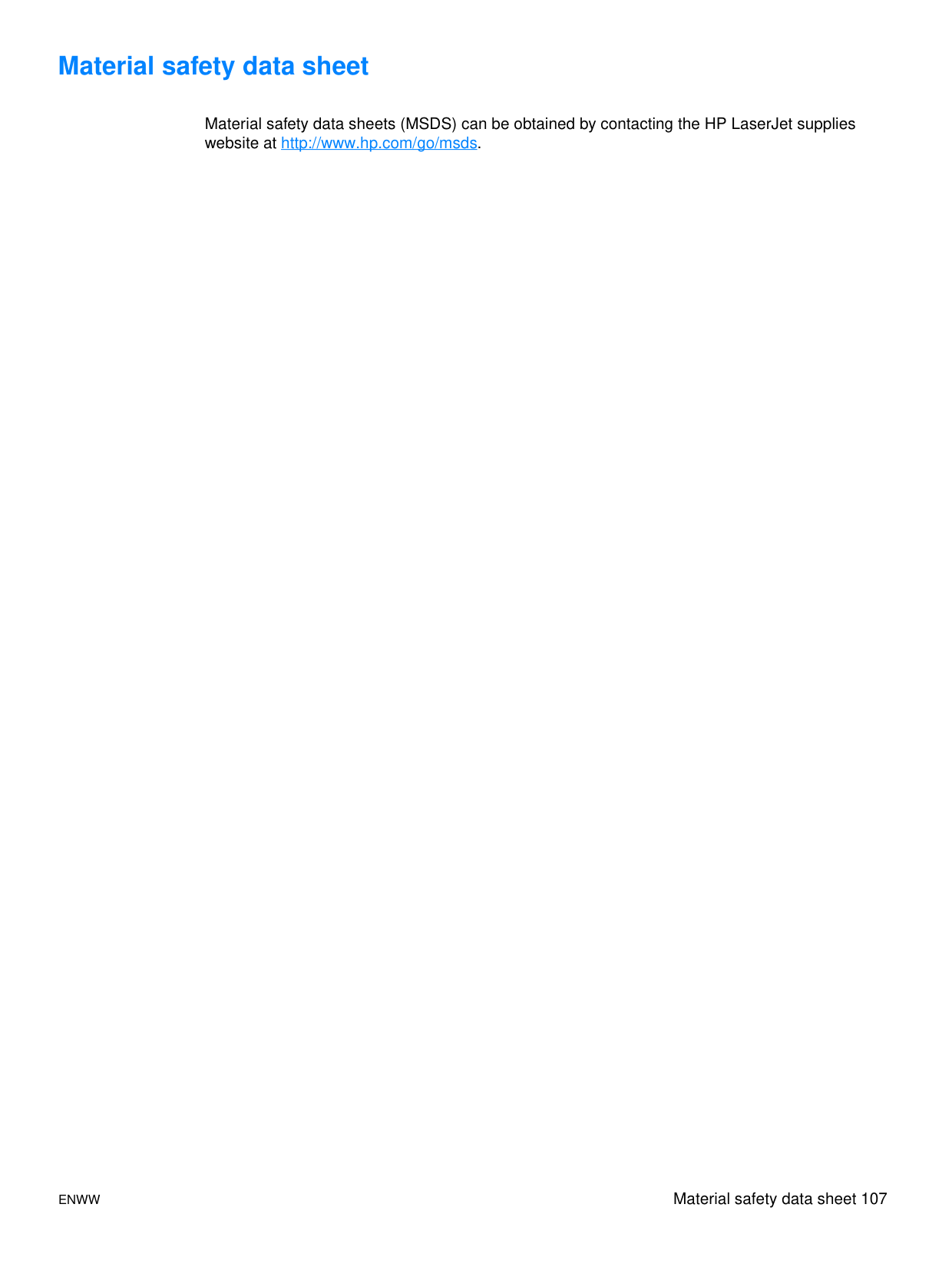

#### Material safety data sheet

Material safety data sheets (MSDS) can be obtained by contacting the HP LaserJet supplies website at http://www.hp.com/go/msds.

ENWW Material safety data sheet 107

#### Regulatory statements

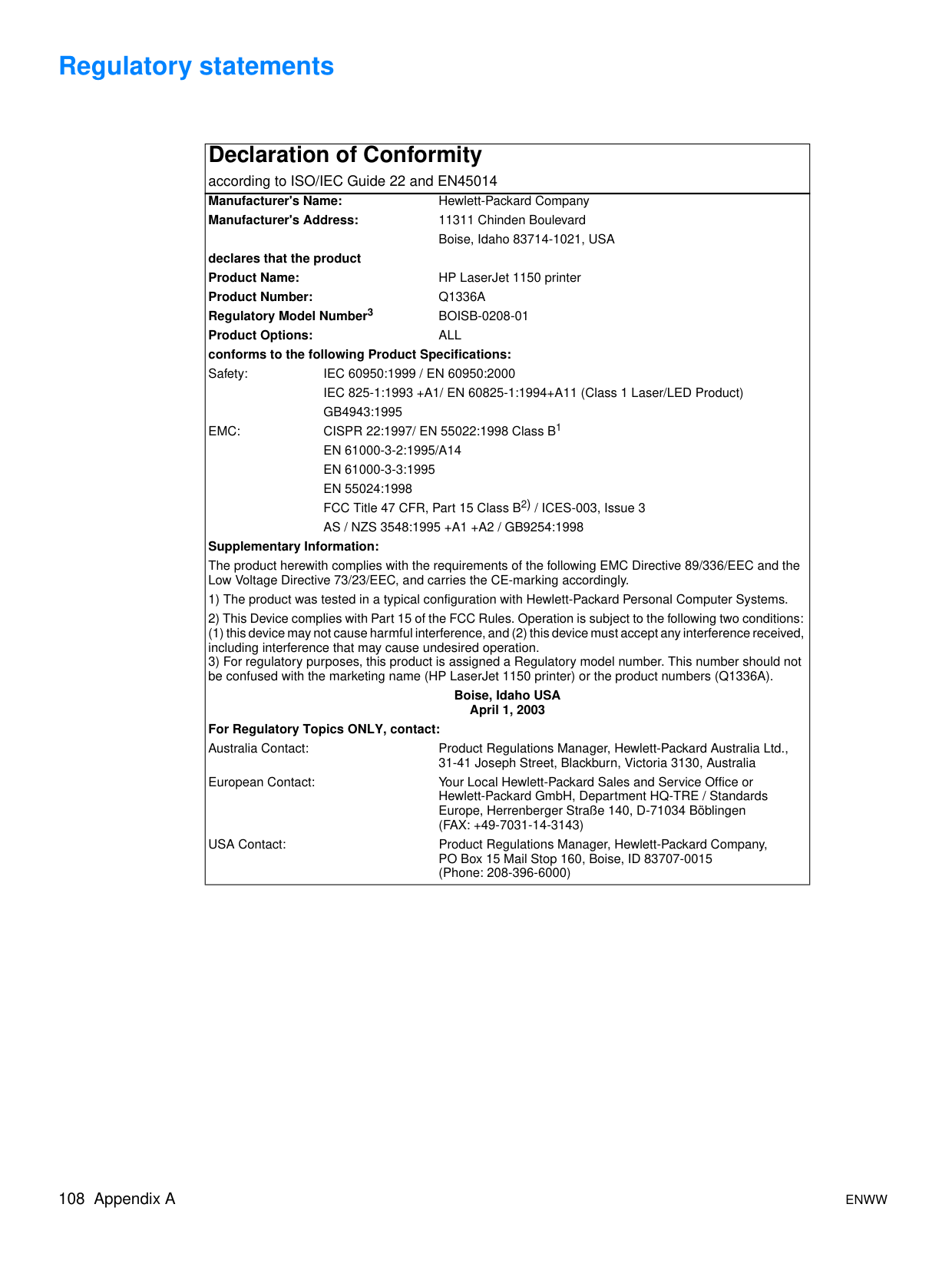

|Declaration of Conformity

according to ISO/IEC Guide 22 and EN45014| |---| |Manufacturer's Name: Hewlett-Packard Company Manufacturer's Address: 11311 Chinden Boulevard

Boise, Idaho 83714-1021, USA

declares that the product Product Name: HP LaserJet 1150 printer Product Number: Q1336A Regulatory Model Number3 BOISB-0208-01 Product Options: ALL conforms to the following Product Specifications: Safety: IEC 60950:1999 / EN 60950:2000

IEC 825-1:1993 +A1/ EN 60825-1:1994+A11 (Class 1 Laser/LED Product) GB4943:1995

EMC: CISPR 22:1997/ EN 55022:1998 Class B1

EN 61000-3-2:1995/A14
EN 61000-3-3:1995 EN 55024:1998 FCC Title 47 CFR, Part 15 Class B2) / ICES-003, Issue 3 AS / NZS 3548:1995 +A1 +A2 / GB9254:1998


Supplementary Information:

The product herewith complies with the requirements of the following EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CE-marking accordingly.

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.
2) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

3) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the marketing name (HP LaserJet 1150 printer) or the product numbers (Q1336A).


Boise, Idaho USA April 1, 2003

For Regulatory Topics ONLY, contact: Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd.,

31-41 Joseph Street, Blackburn, Victoria 3130, Australia

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-TRE / Standards Europe, Herrenberger Straße 140, D-71034 Böblingen (FAX: +49-7031-14-3143)

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15 Mail Stop 160, Boise, ID 83707-0015 (Phone: 208-396-6000)|

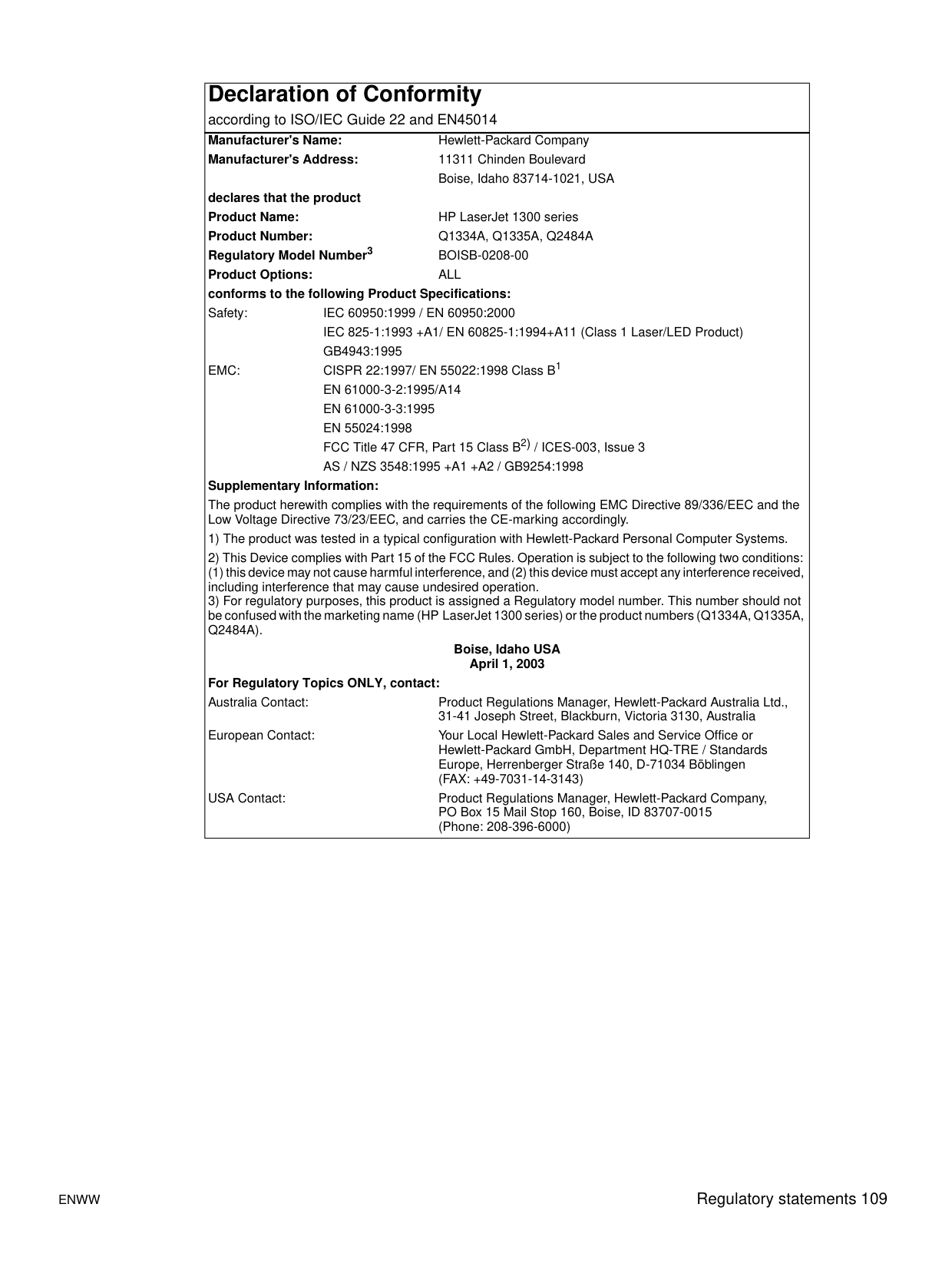

|Declaration of Conformity

according to ISO/IEC Guide 22 and EN45014| |---| |Manufacturer's Name: Hewlett-Packard Company Manufacturer's Address: 11311 Chinden Boulevard

Boise, Idaho 83714-1021, USA

declares that the product Product Name: HP LaserJet 1300 series Product Number: Q1334A, Q1335A, Q2484A Regulatory Model Number3 BOISB-0208-00 Product Options: ALL conforms to the following Product Specifications: Safety: IEC 60950:1999 / EN 60950:2000

IEC 825-1:1993 +A1/ EN 60825-1:1994+A11 (Class 1 Laser/LED Product) GB4943:1995

EMC: CISPR 22:1997/ EN 55022:1998 Class B1

EN 61000-3-2:1995/A14
EN 61000-3-3:1995 EN 55024:1998 FCC Title 47 CFR, Part 15 Class B2) / ICES-003, Issue 3 AS / NZS 3548:1995 +A1 +A2 / GB9254:1998


Supplementary Information:

The product herewith complies with the requirements of the following EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CE-marking accordingly.

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.
2) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

3) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the marketing name (HP LaserJet 1300 series) or the product numbers (Q1334A, Q1335A, Q2484A).


Boise, Idaho USA April 1, 2003

For Regulatory Topics ONLY, contact: Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd.,

31-41 Joseph Street, Blackburn, Victoria 3130, Australia

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-TRE / Standards Europe, Herrenberger Straße 140, D-71034 Böblingen (FAX: +49-7031-14-3143)

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15 Mail Stop 160, Boise, ID 83707-0015 (Phone: 208-396-6000)|

##### Laser safety statement

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration has implemented regulations for laser products manufactured since August 1, 1976. Compliance is mandatory for products marketed in the United States. The printer is certified as a “Class 1” laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968.

Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape during any phase of normal user operation.

WARNING! Using controls, making adjustments, or performing procedures other than those specified in this user

guide could result in exposure to hazardous radiation.

Canadian DOC regulations Complies with Canadian EMC Class B requirements. «Conforme á la classe B des normes canadiennes de compatibilité électromagnétiques. «CEM».»

##### Korean EMI statement


##### VCCI statement (Japan)

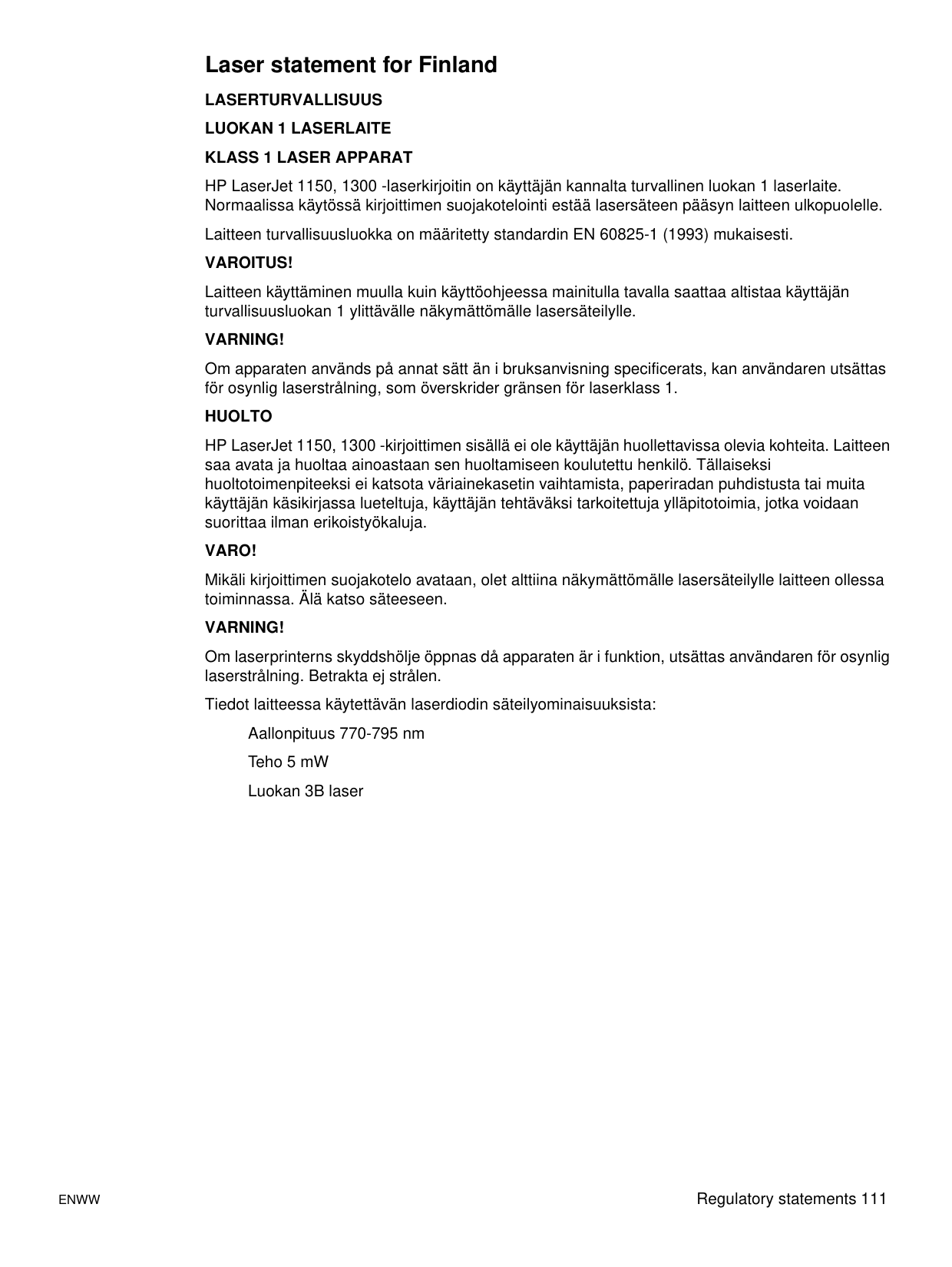

Laser statement for Finland LASERTURVALLISUUS LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

HP LaserJet 1150, 1300 -laserkirjoitin on käyttäjän kannalta turvallinen luokan 1 laserlaite. Normaalissa käytössä kirjoittimen suojakotelointi estää lasersäteen pääsyn laitteen ulkopuolelle.

Laitteen turvallisuusluokka on määritetty standardin EN 60825-1 (1993) mukaisesti. VAROITUS!

Laitteen käyttäminen muulla kuin käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

####### VARNING!

Om apparaten används på annat sätt än i bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

####### HUOLTO

HP LaserJet 1150, 1300 -kirjoittimen sisällä ei ole käyttäjän huollettavissa olevia kohteita. Laitteen saa avata ja huoltaa ainoastaan sen huoltamiseen koulutettu henkilö. Tällaiseksi huoltotoimenpiteeksi ei katsota väriainekasetin vaihtamista, paperiradan puhdistusta tai muita käyttäjän käsikirjassa lueteltuja, käyttäjän tehtäväksi tarkoitettuja ylläpitotoimia, jotka voidaan suorittaa ilman erikoistyökaluja.

####### VARO!

Mikäli kirjoittimen suojakotelo avataan, olet alttiina näkymättömälle lasersäteilylle laitteen ollessa toiminnassa. Älä katso säteeseen.

####### VARNING!

Om laserprinterns skyddshölje öppnas då apparaten är i funktion, utsättas användaren för osynlig laserstrålning. Betrakta ej strålen.

Tiedot laitteessa käytettävän laserdiodin säteilyominaisuuksista: Aallonpituus 770-795 nm Teho 5 mW Luokan 3B laser

B

Media specifications

This appendix provides information on the following topics:

ENWW Media specifications 113

#### Printer media specifications

HP LaserJet printers produce excellent print quality. The printer accepts a variety of media, such as cut-sheet paper (including recycled paper), envelopes, labels, transparencies, vellum, and custom-sized paper. Properties such as weight, grain, and moisture content are important factors affecting printer performance and output quality.

The printer can use a variety of paper and other print media in accordance with the guidelines in this user guide. Media that does not meet these guidelines might cause the following problems:

For best results, use only HP brand paper and print media. Hewlett-Packard Company cannot recommend the use of other brands. Because they are not HP products, HP cannot influence or control their quality.

It is possible for media to meet all of the guidelines in this user guide and still not produce satisfactory results. This might be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Hewlett-Packard has no control.

Before you purchase a large quantity of media, make sure that it meets the requirements specified in this user guide and in Guidelines for Paper and Other Print Media. (See Ordering supplies and accessories for more information about ordering the guidelines.) Always test media before you

purchase a large quantity.

CAUTION Using media that does not meet Hewlett-Packard’s specifications might cause problems for the printer,

requiring repair. This repair is not covered by the Hewlett-Packard warranty or service agreements.

#### Supported media sizes

The following are the supported media sizes:

ENWW Supported media sizes 115

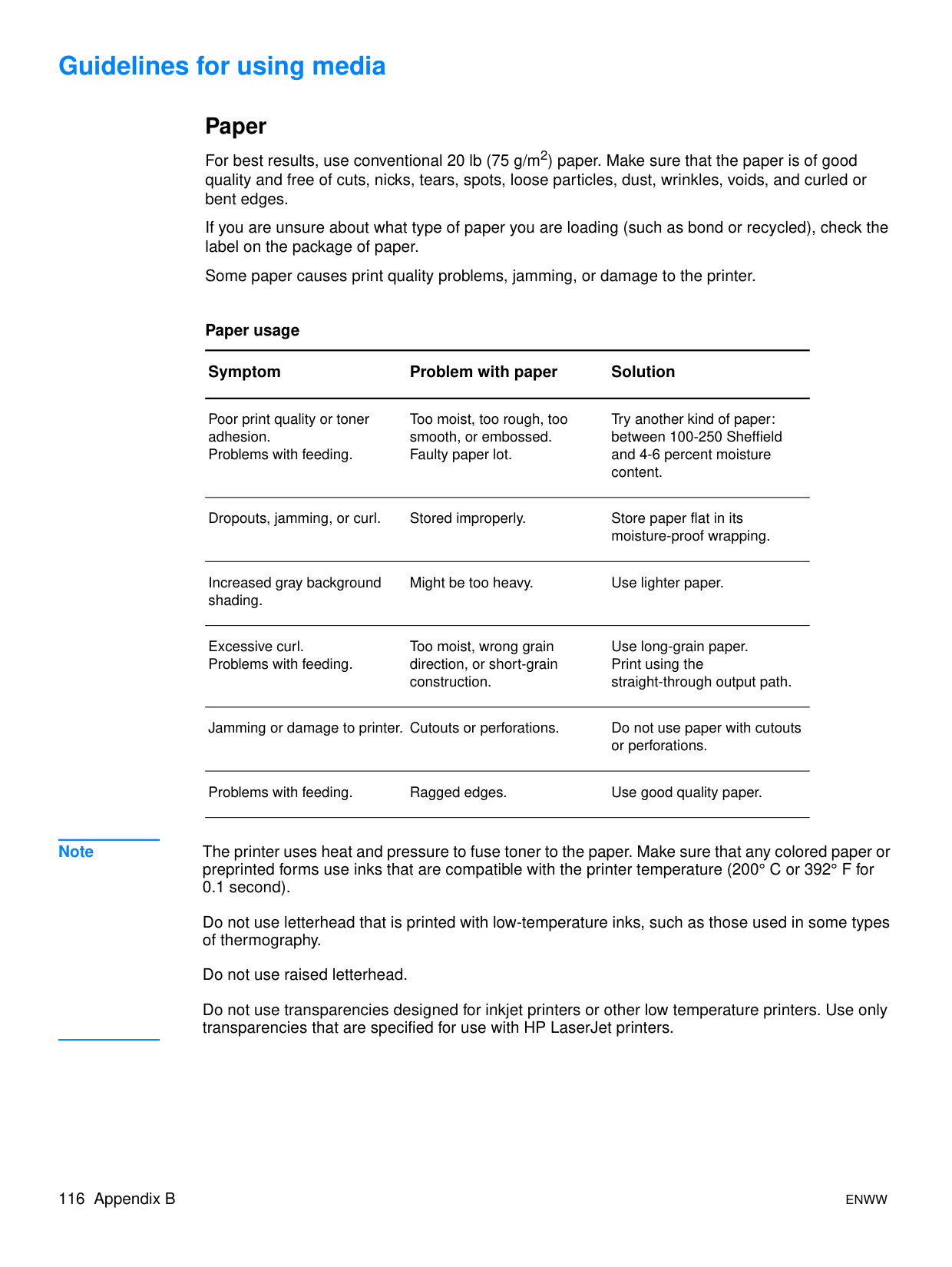

#### Guidelines for using media

##### Paper

For best results, use conventional 20 lb (75 g/m2) paper. Make sure that the paper is of good quality and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges.

If you are unsure about what type of paper you are loading (such as bond or recycled), check the label on the package of paper.

Some paper causes print quality problems, jamming, or damage to the printer.

Paper usage

Symptom Problem with paper Solution

Poor print quality or toner adhesion. Problems with feeding.

Too moist, too rough, too smooth, or embossed. Faulty paper lot.

Try another kind of paper: between 100-250 Sheffield and 4-6 percent moisture content.

Dropouts, jamming, or curl. Stored improperly. Store paper flat in its moisture-proof wrapping.

Increased gray background shading.

Might be too heavy. Use lighter paper.

Excessive curl. Problems with feeding.

Too moist, wrong grain direction, or short-grain construction.

Use long-grain paper. Print using the straight-through output path.

Jamming or damage to printer. Cutouts or perforations. Do not use paper with cutouts or perforations.

Problems with feeding. Ragged edges. Use good quality paper.

Note The printer uses heat and pressure to fuse toner to the paper. Make sure that any colored paper or preprinted forms use inks that are compatible with the printer temperature (200° C or 392° F for 0.1 second).

Do not use letterhead that is printed with low-temperature inks, such as those used in some types of thermography.

Do not use raised letterhead. Do not use transparencies designed for inkjet printers or other low temperature printers. Use only

transparencies that are specified for use with HP LaserJet printers.

##### Labels

Label construction When selecting labels, consider the quality of the following components:

##### Transparencies

Transparencies must be able to withstand 200° C (392° F), the printer’s maximum temperature.

##### Envelopes

###### Envelope construction

Envelope construction is critical. Envelope fold lines can vary considerably, not only between manufacturers, but also within a box from the same manufacturer. Successful printing on envelopes depends upon the quality of the envelopes. When selecting envelopes, consider the following components:

###### Envelopes with double-side seams

An envelope with double-side-seam construction has vertical seams at both ends of the envelope rather than diagonal seams. This style might be more likely to wrinkle. Make sure that the seam extends all the way to the corner of the envelope as shown in the following illustration:

###### Envelopes with adhesive strips or flaps

Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the heat and pressure in the printer: 200° C (392° F). The extra flaps and strips might cause wrinkling, creasing, or jams.

###### Envelope storage

Proper storage of envelopes contributes to good print quality. You should store envelopes flat. If air is trapped in an envelope, creating an air bubble, the envelope might wrinkle during printing.

##### Card stock and heavy media

You can print many types of card stock from the paper input tray, including index cards and postcards. Some card stock performs better than others because its construction is better suited for feeding through a laser printer.

For optimum printer performance, do not use paper heavier than 42 lb (157 g/m2). Paper that is too heavy might cause misfeeds, stacking problems, paper jams, poor toner fusing, poor print quality, or excessive mechanical wear.

Note You might be able to print on heavier paper if you do not fill the input tray to capacity and if you use

paper with a smoothness rating of 100-180 Sheffield.

###### Card stock construction

Card stock guidelines Set margins at least 2 mm (0.08 in.) away from the edges.

C

Warranty and licensing

This appendix provides information on the following topics:

ENWW Warranty and licensing 121

#### Hewlett-Packard software license agreement

ATTENTION: USE OF THE SOFTWARE IS SUBJECT TO THE HP SOFTWARE LICENSE TERMS SET FORTH BELOW. USING THE SOFTWARE INDICATES YOUR ACCEPTANCE OF THESE LICENSE TERMS.

HP SOFTWARE LICENSE TERMS The following License Terms govern your use of the accompanying Software unless you have a separate signed agreement with Hewlett-Packard. License Grant. Hewlett-Packard grants you a license to use one copy of the Software. “Use” means storing, loading, installing, executing, or displaying the Software. You may not modify the Software or disable any licensing or control features of the Software. If the Software is licensed for “concurrent use,” you may not allow more than the maximum number of authorized users to Use the Software concurrently. Ownership. The Software is owned and copyrighted by Hewlett-Packard or its third-party suppliers. Your license confers no title to, or ownership in, the Software and is not a sale of any rights in the Software. Hewlett-Packard’s third-party suppliers may protect their rights in the event of any violation of these License Terms. Copies and Adaptations. You may only make copies or adaptations of the Software for archival purposes or when copying or adaptation is an essential step in the authorized Use of the Software. You must reproduce all copyright notices in the original Software on all copies or adaptations. You may not copy the Software onto any public network. No Disassembly or Decryption. You may not disassemble or decompile the Software unless HP’s prior written consent is obtained. In some jurisdictions, HP's consent may not be required for limited disassembly or decompilation. Upon request, you will provide HP with reasonably detailed information regarding any disassembly or decompilation. You may not decrypt the Software unless decryption is a necessary part of the operation of the Software. Transfer. Your license will automatically terminate upon any transfer of the Software. Upon transfer, you must deliver the Software, including any copies and related documentation, to the transferee. The transferee must accept these License Terms as a condition to the transfer. Termination. HP may terminate your license upon notice for failure to comply with any of these License Terms. Upon termination, you must immediately destroy the Software, together with all copies, adaptations, and merged portions in any form. Export Requirements. You may not export or re-export the Software or any copy or adaptation in violation of any applicable laws or regulations. U.S. Government Restricted Rights. The Software and any accompanying documentation have been developed entirely at private expense. They are delivered and licensed as “commercial computer software” as defined in DFARS 252.227-7013 (Oct 1988), DFARS 252.211-7015 (May 1991), or DFARS 252.227-7014 (Jun 1995), as a “commercial item” as defined in FAR 2.101(a) (Jun 1987), or as “Restricted computer software” as defined in FAR 52.227-19 (Jun 1987) (or any equivalent agency regulation or contract clause), whichever is applicable. You have only those rights provided for such Software and any accompanying documentation by the applicable DFARs or FAR clause or the HP standard software agreement for the product involved.

#### Hewlett-Packard limited warranty statement

DURATION OF WARRANTY: One year from date of purchase.

FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND; THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

ENWW Hewlett-Packard limited warranty statement 123

#### Limited warranty for print cartridge life

Note The following warranty applies to the print cartridge that came with this printer.

HP print cartridges are warranted to be free from defects in materials and workmanship until the HP toner is depleted. The warranty covers any defects or malfunctions in a new HP print cartridge.

Frequently asked questions How long does the coverage last? The coverage lasts until the HP toner is depleted, at which time the warranty expires. How do I know when the HP toner is running out?

The HP toner is depleted and the print cartridge has reached the end of its useful life when faded or light type appears on the printed page or when a print cartridge life-low message appears on the computer screen.

####### What will Hewlett-Packard do?

Hewlett-Packard will, at its option, either replace products that prove to be defective or refund the purchase price. If possible, please attach a printout sample illustrating what the defective print cartridge is printing.

####### What does this warranty not cover?

The warranty does not cover print cartridges that have been refilled or are emptied, abused, misused, or tampered with in any way.

####### How do I return the faulty print cartridge?

In the event that the print cartridge proves to be defective, complete the Service Information Form and attach a print sample illustrating the defect. Return the form and print cartridge to the place of purchase, where the print cartridge will be replaced.

####### How does State, Province, or Country/Region Law apply?

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state, province to province, or country/region to country/region. This limited warranty is the sole warranty on the HP print cartridge and supersedes any other warranty relating to this product.

IN NO EVENT SHALL HEWLETT-PACKARD COMPANY BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE, OR EXEMPLARY DAMAGES OR LOST PROFITS FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE.

FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND; THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

#### Hardware service

If your hardware fails during the warranty period, Hewlett-Packard offers the following support options:

ENWW Hardware service 125

#### Extended warranty

HP SupportPack provides coverage for the HP product and all HP-supplied internal components. The hardware maintenance covers a three-year period from date of the HP product purchase. The customer must purchase HP SupportPack within 180 days of the HP product purchase. For more information, contact the HP Customer Care Service and Support group. See Quick access to more information.

#### Guidelines for repacking the printer

Use the following guidelines when repacking the printer:

CAUTION Static electricity can damage DIMMs. When handling DIMMs, either wear a grounded antistatic wrist

strap or frequently touch the surface of the DIMMs’ antistatic package before touching bare metal

on the printer.

CAUTION To prevent damage to the print cartridge, store the print cartridge in its original packing material, or

store it so that it is not exposed to light.

ENWW Guidelines for repacking the printer 127

#### How to contact HP

If you need to contact HP for service or support, use one of the following links:

D

Ordering supplies and accessories

##### Ordering supplies and accessories

You can increase the printer’s capabilities with optional accessories and supplies. Use accessories and supplies specifically designed for the HP LaserJet 1150 and HP LaserJet 1300 series printers to ensure optimum performance.

To order supplies, see http://www.hp.com/support/lj1150 or http://www.hp.com/support/lj1300. The HP LaserJet 1300 series printer features Smart Printing Supplies. When you print a Configuration page by pressing and holding the Go button for 5 seconds, a Supplies Status page prints after the Configuraton page. The Supplies Status page has information on the amount of toner remaining in the print cartridge, part numbers for ordering supplies, and whether the installed print cartridge is a genuine HP supply item.

###### Supplies and accessories

Ordering information

Item Description or use Order number

Printing supplies HP Multipurpose paper HP brand paper for a variety of uses (1 box of 10 reams, 500 sheets each). To order a sample, in the U.S., call 1-800-471-4701.

HPM1120

HP LaserJet paper Premium HP brand paper for use with HP LaserJet printers (1 box of 10 reams, 500 sheets each). To order a sample, in the U.S., call 1-800-471-4701.

HPJ1124

HP LaserJet transparency film

HP brand transparency film for use with HP LaserJet monochrome printers.

Ordering information (continued)

Item Description or use Order number

Print cartridge for the HP LaserJet 1150 printer

UltraPrecise print cartridge

Print cartridges for the HP LaserJet 1300 series printer

UltraPrecise print cartridges

Supplementary documentation

HP LaserJet family print media guide

Replacement print cartridges for the HP LaserJet 1300 series printers.

Q2624A

Replacement print cartridges for the HP LaserJet 1300 series printers.

Q2613A (2,500-page cartridge

Q2613X (4,000-page cartridge)

A guide to using paper and other print media with HP LaserJet printers.

5963-7863

Replacement parts Media pickup roller Used to pick the media from the input tray and advance it through the printer.

RF0-1008CN

Input tray Used to hold media for the printer. RM1-0553-000CN

Input tray cover Used to cover the media in the input tray.

RM1-0554-000CN

Separation pad for the printer

Used to keep multiple sheets from feeding through the printer path.

RF0-1007CN

Accessories 250-sheet paper feeder

This is an accessory for the HP LaserJet 1300 series printer. It provides an additional 250-sheet input tray.

Q2485A

##### 10/100 networking and wireless print servers

Ordering information

hp LaserJet 1150 printer

Item and description Order number

HP Jetdirect 175x fast-ethernet external print server (value line, USB port) J6035B

HP Jetdirect 310x fast-ethernet external print server (full featured, USB port) J6038A

HP Jetdirect 380x 802.11b wireless external print server (full featured, USB port) J6061A

HP Jetdirect WP110 802.11b wireless print server (value line, parallel port) J6062A

Bluetooth wireless printer adaptor for parallel port printers MPIPA330

hp LaserJet 1300 series printer

Item and description Order number

HP Jetdirect 200m fast-ethernet print server for LIO peripherals (value line) J6039B

HP Jetdirect 250m fast-ethernet LIO print server (full featured) J6042B

HP Jetdirect 280m 802.11b wireless LIO print server (full featured) J6044A

HP Jetdirect 175x fast-ethernet external print server (value line, USB port) J6035B

HP Jetdirect 310x fast-ethernet external print server (full featured, USB port) J6038A

HP Jetdirect 380x 802.11b wireless external print server (full featured, USB port) J6061A

HP Jetdirect WP110 802.11b wireless print server (value line, parallel port) J6062A

Bluetooth wireless printer adaptor for parallel port printers MPIPA330

E

Network configuration

##### Installing a shared printer on Windows 98 and Millennium

##### Installing a shared printer on Windows 2000

##### Installing a shared printer on Windows XP

F

Memory

This appendix provides information on the following topics:

ENWW Memory 137

#### Installing a memory DIMM (1300 series only)

If you add memory (RAM only) to the HP LaserJet 1300 series printer, you can print more complex print jobs.

To install a DIMM, follow the instructions below:

CAUTION Handling a DIMM chip (memory) without wearing a grounded, antistatic device might damage the

DIMM chip. Touch the printer or a piece of sheet metal before touching the DIMM.

ENWW Installing a memory DIMM (1300 series only) 139

#### Testing the DIMM installation

To test the DIMM installation, print a configuration page, and check the Total Memory specified on the page. See Printer information pages for more information.

If all lights on the control panel are blinking, the DIMM installation was unsuccessful. Remove the DIMM and reinstall it.

#### Removing a DIMM

To remove a DIMM, follow the instructions below:

CAUTION Handling a DIMM chip (memory) without wearing a grounded, antistatic device might damage the

DIMM chip. Touch the printer or a piece of sheet metal before touching the DIMM.

ENWW Removing a DIMM 141

Note Store the DIMM chip in an antistatic bag. 5 Close the left side panel and the print cartridge door. Reinstall the parallel adaptor or the print

server.

6 Plug the printer back in, and turn on the power switch.

G

Working with the print server

The HP LaserJet 1300n printer comes with an HP Jetdirect 200m print server. If you have an HP LaserJet 1150 printer or an HP LaserJet 1300 printer, you can order a variety of print servers from HP. See Ordering supplies and accessories for more information.

The information in this appendix is based on the HP Jetdirect 200m print server. Be aware that if you order a different print server, some of the following information might not apply.

This appendix provides information on the following topics:

ENWW Working with the print server 143

#### Installing the print server

Insert the HP Jetdirect 200m print server into the LIO connectivity slot on the back of the printer. Push the print server into the slot until it seats firmly and the latches click into place. See Network connections for more information.

The software for the print server is on the CD-ROM that comes with the HP LaserJet 1300n printer. If you ordered the print server separately from the printer, the print server comes with a CD-ROM containing the softare.

###### To install the print server software

#### Printing a configuration page

The print server configuration page contains messages, network statistics, and status for the print server. The configuration page also lists the print server’s IP address.

You can print the configuration page by pressing the Test button on the back of the print server.

You can also view the configuration page through the print server’s embedded Web server. See Using the print server’s embedded Web server for more information.

#### Using the print server’s embedded Web server

The HP Jetdirect 200m print server has an embedded Web server that allows you to configure various print server parameters in a standard Web browser. The print server’s supported Web browsers are Internet Explorer version 5.0 or later and Netscape Navigator version 4.75 or later. To use the print server’s embedded Web server, open the browser and type the print server’s IP address as the URL. Print a configuration page to find the IP address. See Printing a configuration page for more information.

#### Changing the IP address

The easiest way to change the print server’s IP address is to use the embedded Web server.

Note Consult your network administrator before changing the print server’s IP address. Be sure to notify

other users of any changes.

Note You will lose your connection to the embedded Web server when you change the IP address. To

re-establish the connection, type the new IP address in the browser’s URL field.

ENWW Using the print server’s embedded Web server 145

#### Troubleshooting the print server

##### Installed print server stops working

If you have successfully installed a network printer and you are no longer able to print to it, the problem might be related to Dynamic Host Configuration Protocol (DHCP).

In a DHCP environment, a DHCP server allocates IP addresses as computers and printers on the network need them. DHCP-supplied addresses are dynamic and might cause problems for computers and printers, which expect IP addresses to be static.

If your print server acquired its IP address via DHCP, the IP address might have changed after you set up the printer. In this case, the printer is no longer available to the network. HP recommends configuring the print server with a static IP address.

###### To assign a static IP address

Note Consult your network administrator before changing the print server’s IP address. Be sure to notify

other users of any changes.

Note You will lose your connection to the embedded Web server when you change the IP address. To

re-establish the connection, type the new IP address in the browser’s URL field.

##### Print server status light

The status light on the back of the print server can indicate problems with the print server. Use the table below to interpret the print server status light.

Print server status light

Light behavior Description

Off The print server is not receiving power.

On (solid green) The print server is on and ready.

Blinking slowly (amber) An error occurred during a self-test or operation. Disconnect and reconnect the print server. If the problem still exists, reinstall the print server software.

Blinking slowly (green) The print server is receiving power, but it is not ready, or a self-test might be in progress. Wait for the light to turn solid green. The print server might have lost its connection to the network. Check the 10/100 link lights, which are located near the network connection. If the 10 and 100 link lights are both off, there is no network connection.

Blinking quickly (green) The print server is processing the configuration page. Wait until the configuration page finishes.

Flashing intermittently (green) The print server is on and ready, and there is activity on the network.

ENWW Troubleshooting the print server 147

#### Restoring the factory default settings

Once you configure the HP print server, the configuration settings are retained in memory unless you manually reset them to factory defaults using the following procedure.

Index

parallel 21 USB 20

canceling a print job 44 cardstock

guidelines for using 119 manual duplexing 41 printing 34

changing pickup roller 92 separation pad 96

choosing

media 24 paper 24

cleaning media path 56 pickup roller 95 print cartridge area 55 printer 55

clearing jams 89 configuration

HP LaserJet 1150 3 HP LaserJet 1300 4 HP LaserJet 1300n 4

configuration page

print server 144 Configuration report 58 connecting to the network 22 conserving toner 51 contacting HP 128 control panel 8 custom-sized media, printing 34

adding 138 removing 141 testing 140

Documentation tab (HP toolbox) 62 door

print cartridge 6, 11 straight-through output 7

duplexing 39

Configuration page 65 device status 65 event log 65 Information tab 65 Networking tab 66 order supplies 66 print info pages 65 print server 145 Product registration 66 product support 66 Settings tab 65 supplies status 65

Energy Star 105 envelopes

guidelines for using 118 printing multiple envelopes 31 printing one envelope 29

Environmental Product Stewardship Program 105 environmental specifications 100 errors

PostScript 79 software 84

EWS 16, 64 extended warranty 126

professional quality 5 quality 5 save money 5 speed 5

forms, printing 33

missing 82 poor quality 83

guides, media 9

Alerts tab 62 Documentation tab 62 Network window 63 printer settings 63 Status tab 61 Troubleshooting tab 61 viewing 59

HP Web Jetadmin 19

loading main input tray 27 loading priority input tray 27 main 6, 9 priority 6, 9

installing

shared printer 133 IP address

print server 145

clearing 89 removing a jammed page 90 typical media jam locations 89

L labels

guidelines for using 117 printing 28

letterhead, printing 33 license, software 122 life expectancy, print cartridge 50 lights

Attention 6 Go 6 Ready 6 status light patterns 72

loading media main input tray 27 priority input tray 27

M Macintosh

common problems 74 PPDs 18 printing errors 75 renaming the printer 78 selecting alternate PPD 78 software 17 troubleshooting 74

main input tray 6, 9

loading 27 manual duplexing (printing on both sides of paper) 39 manual feed printing 36 Material Safety Data Sheet (MSDS) 107 media

cleaning the media path 56 clearing jams 89 different types 27 guidelines for use 116 loading 27 optimizing print quality for media types 26 printing custom-sized media 34 printing manually 36 removing a jammed page 90 selecting 24 supported sizes 115 types that may damage the printer 25 types to avoid 25 typical jam locations 89

media guides 9

media paths 9 main input tray 9 media guides 9 output bin 10 priority input tray 9 straight-through output path 10

memory

adding 138 missing graphics 82 missing text 82 multiple pages, printing on a single sheet of paper 38

N network

connections 22 Network window (HP toolbox) 63 Networking tab (embedded Web server) 66

problems and solutions 116 selecting 24 supported sizes 115 using 116

paper handling problems 80 parallel cable, connecting 21 parallel port 7 pickup roller

changing 92 cleaning 95

port parallel 7 USB 7

PostScript, errors 79 power switch 7 PPDs 18

selecting alternate 78

print cartridge access 11 changing 53 cleaning the print cartridge area 55 door 6, 11 life expectancy 50 redistributing toner 52 storing 49 using HP cartridges 48 warranty 124 where to return for recycling 106

print driver installing 12 Macintosh 17 Windows 15

print quality creases 87 curl 87 dropouts 85 EconoMode 46

gray background 86 light or faded print 85 loose toner 86 misformed characters 87 optimizing for media types 26 page skew 87 settings 45 toner scatter outline 88 toner smear 86 toner specks 85 vertical lines 85 vertical repetitive defects 86 wave 87 wrinkles 87

print quality settings 45 print server

configuration page 144 embedded Web server 145 factory default settings 148 installing 144 IP address 145, 146 status light 147 troubleshooting 146

print settings, changing 14 printer

cleaning 55 configurations 3 connections 20 control panel 8 features 5 media guides 9 overview 6 renaming the printer (Macintosh) 78 repacking 127 software 12 software problems 84 specifications 100 Toolbox 16

printer drivers

sites for download 2 printer information pages Configuration report 58 Demo page 58

printer properties accessing 13 online help 14

printer settings

HP toolbox 63 printer, specifications 102 printing

booklets 42 canceling 44 cardstock 34 Configuration report 58 custom-sized media 34 Demo page 58 envelopes 29 forms, preprinted 33 labels 28 letterhead 33 manual feed 36 multiple envelopes 31 multiple pages on a single sheet of paper 38 N-up 38 on both sides of the paper (manual duplexing) 39 transparencies 28 watermarks 37

priority input tray 6, 9 loading 27

HP printing supplies returns and environmental program 105 where to return cartridges 106

redistributing toner 52 registration

embedded Web server 66

regulatory statements Canadian DOC regulations 110 declaration of conformity 108, 109 Korean EMI statement 110 laser safety statement 110 laser statement for Finland 111

removing a jammed page 90 renaming the printer 78 repacking the printer 127 repair

contacting HP 128 hardware service 125

replacement parts 130

alternate PPD 78 media 24 paper 24

separation pad, changing 96 service

contacting HP 128 hardware 125

settings changing default settings for Windows 98, 2000, ME 13 changing default settings for Windows XP 13 changing for current software only 13

Settings tab (embedded Web server) 65 settings, print quality 45 shared printer, installing 133 size, media 115 software

HP Web Jetadmin 19 installing 12 Macintosh 17 network 19 printer drivers, Macintosh 17 printer drivers, Windows 15 problems 84 sites for download 2 software license agreement 122 supported operating systems 12 Windows 15

specifications 100 acoustics 100 capacitites and ratings 102 electrical 101 environmental 100 media 114 memory 103 physical 102 port availability 103 status light patterns 72 Status tab (HP toolbox) 61 straight-through output door 7 straight-through output path 10 supplies, ordering 129 support, web sites 2

T text

garbled 82 missing 82

toner changing the print cartridge 53 cleaning the print cartridge area 55 conserving 51 loose toner 86 low 85 opening the print cartridge door 11 print cartridge door 6 redistributing 52 scatter outline 88 smear 86 specks 85 storing print cartridges 49

Toolbox 16 transparencies

guidelines for using 117 printing 28

tray main input 6 priority input 6

troubleshooting blank pages 82 common Macintosh problems 74 contacting HP support 71 creases 87 curl 87 demo page 70 dropouts 85 garbled text 82 gray background 86 HP toolbox 59 incomplete text 82 light or faded print 85 loose toner 86 Macintosh printing problems 74 misformed characters 87 missing graphics or text 82 page skew 87 paper handling problems 80 poor graphics quality 83 PostScript errors 79 print quality 71 printed page and expectations 71 printed page differs from onscreen page 82 printer setup 70 printer software problems 84 printer-computer communication 71 Ready light 70 solutions 70 toner scatter outline 88 toner smear 86 toner specks 85 vertical lines 85 vertical repetitive defects 86 wave 87 wrinkles 87

Troubleshooting tab (HP toolbox) 61 two-sided (duplex) printing 39 types of media 27

U USB

connecting the USB cable 20 port 7

user guide links 2 using HP print cartridges 48

W warranty

extended 126 HP limited warranty statement 123 print cartridge 124

watermarks, printing 37 Web server, embedded 64 web-based support 2 Windows 2000, installing shared printer 134 Windows 98, installing shared printer 133 Windows Me, installing shared printer 133 Windows XP, installing shared printer 135 wireless printing

Bluetooth 67 IEEE 802.11b standard 67

copyright © 2003 Hewlett-Packard Company

www.hp.com

Q1334-90941
