What is the process for changing paper type in the control panel?

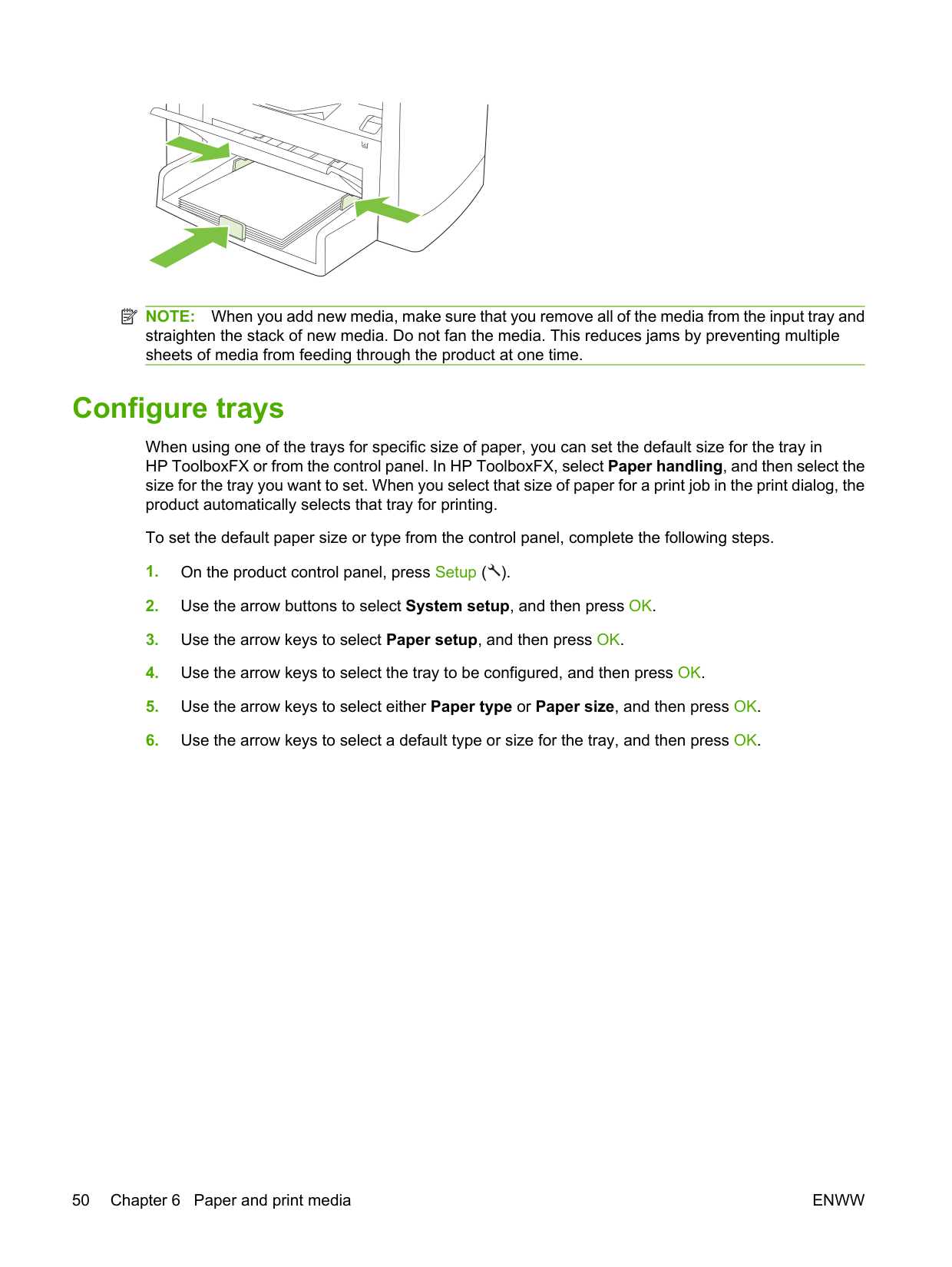

To change paper type, go to 'System setup', then select 'Tray 1 Paper Type'. Choose from available media types such as letter, A4, legal, etc.

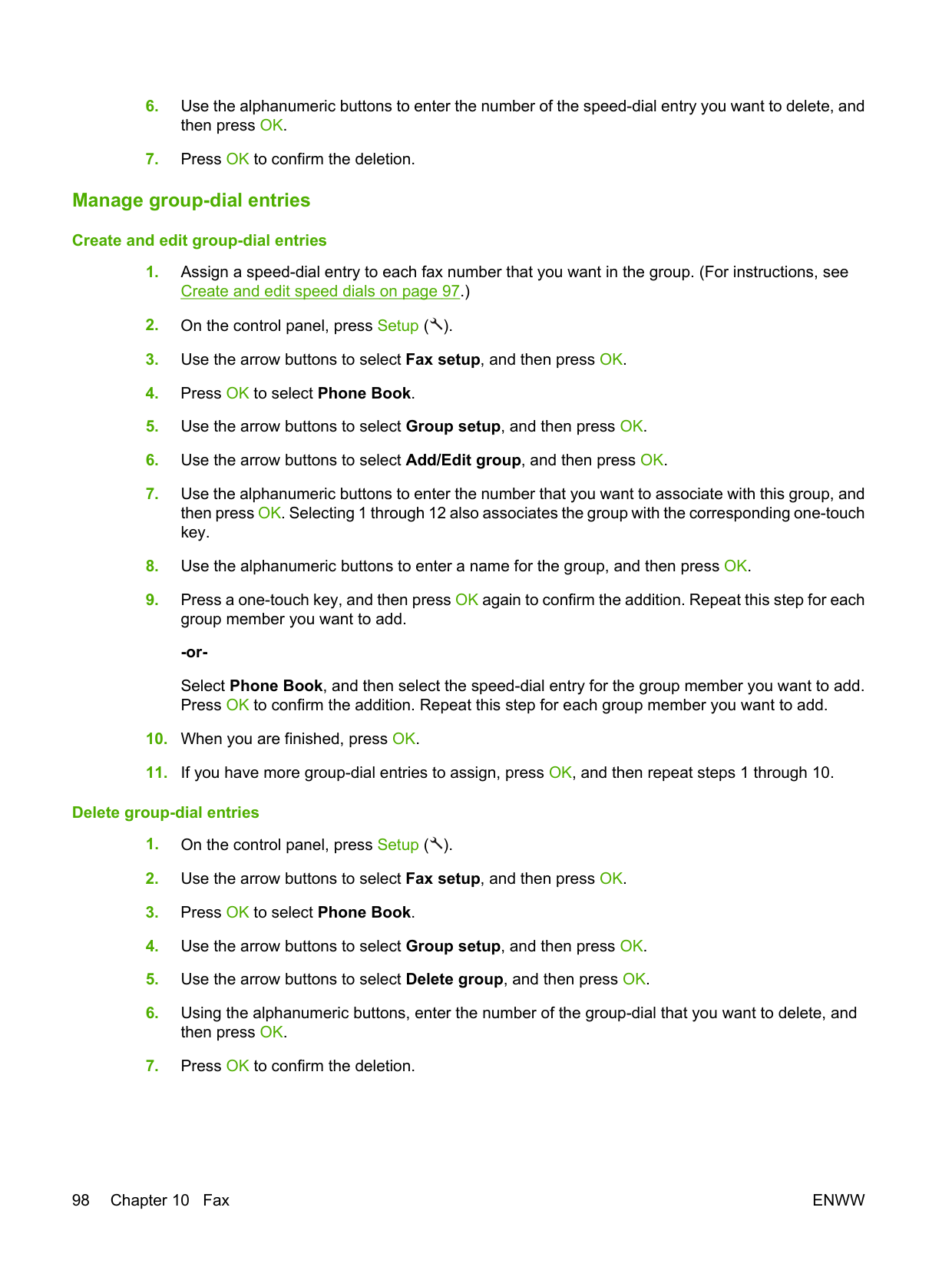

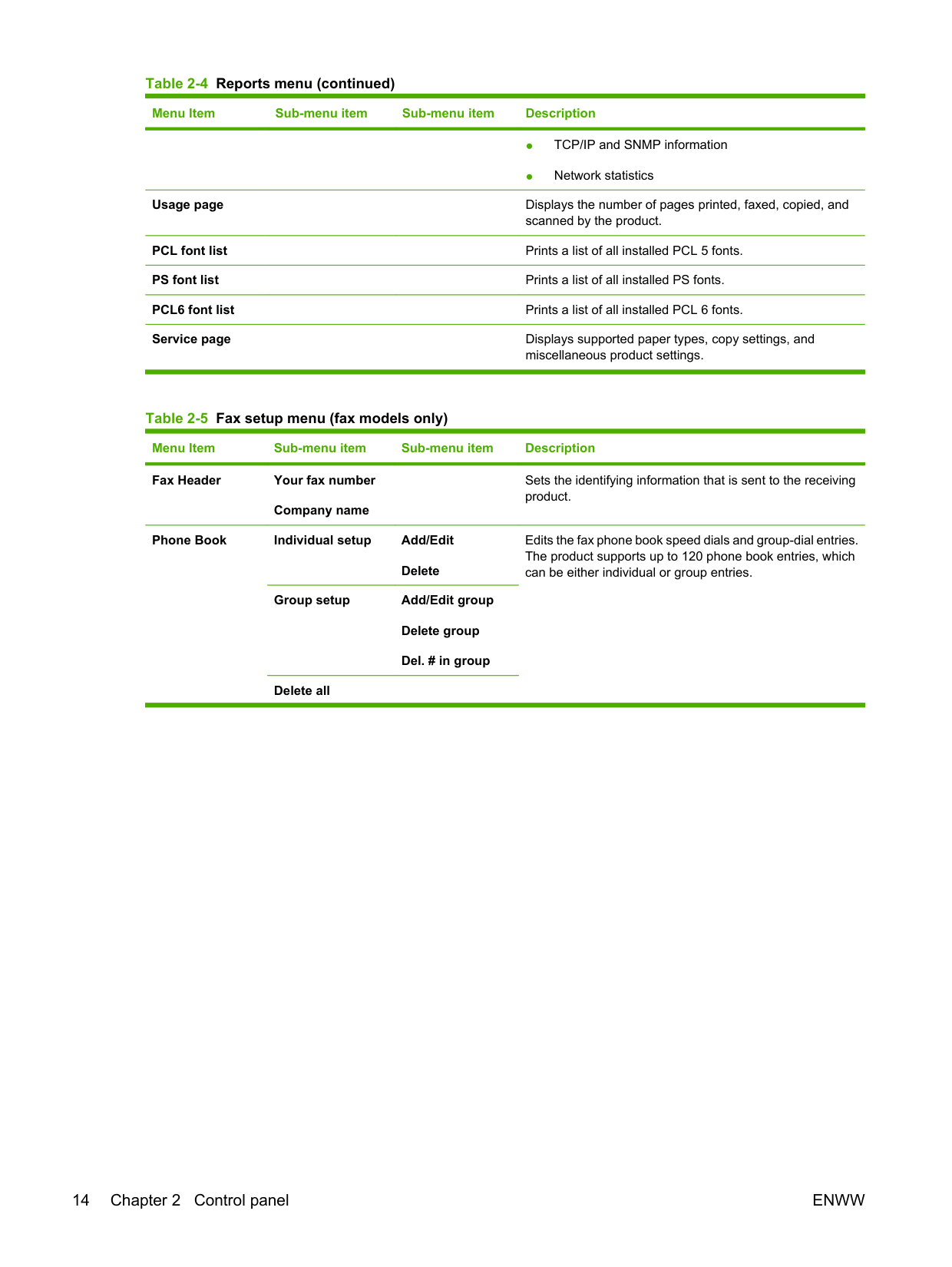

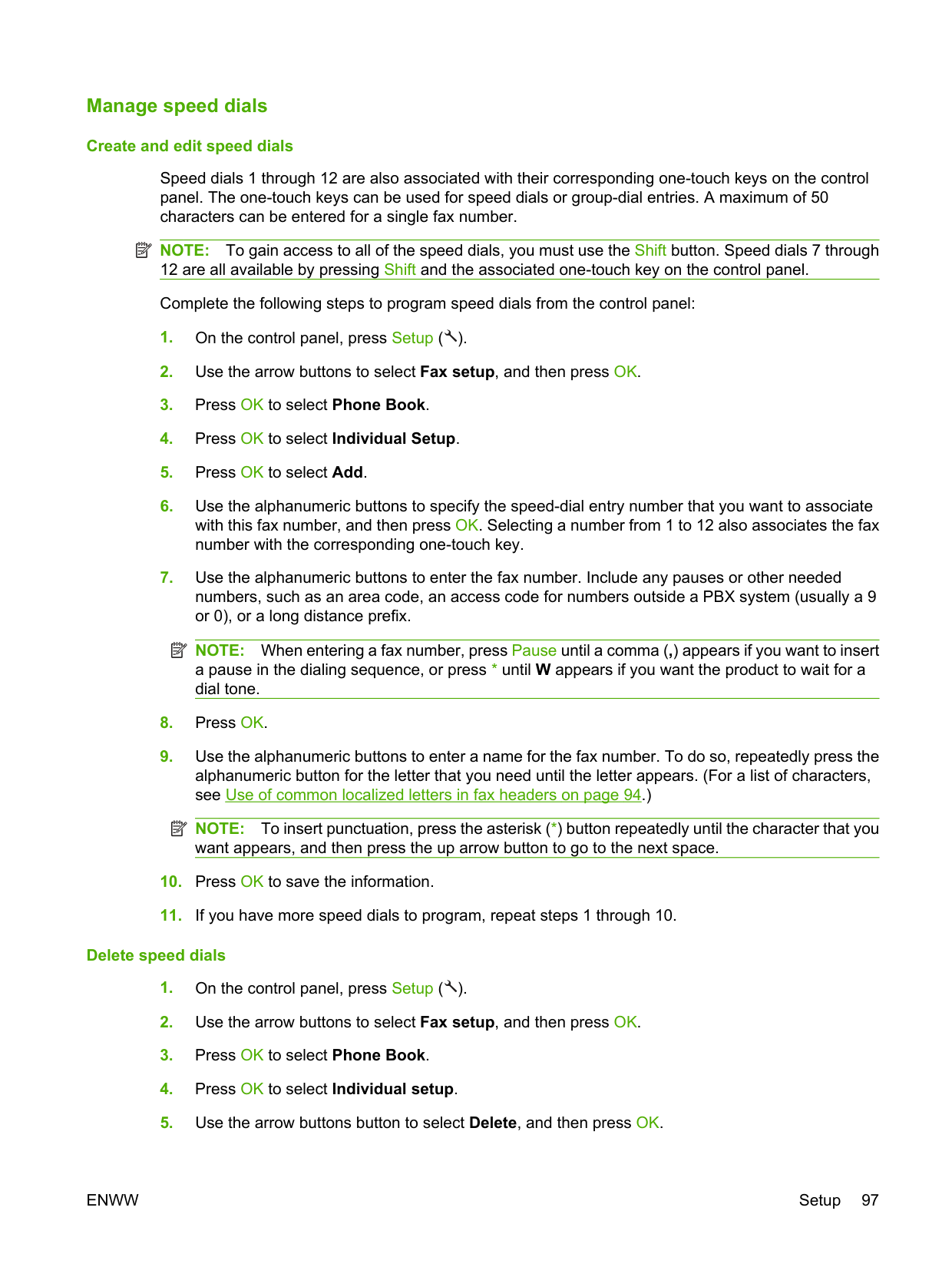

How do I configure fax phone book entries in the control panel?

Go to 'Fax setup - Phone Book', then choose 'Add/Edit' under individual or group setup. Enter up to 120 speed dials or group dial entries.

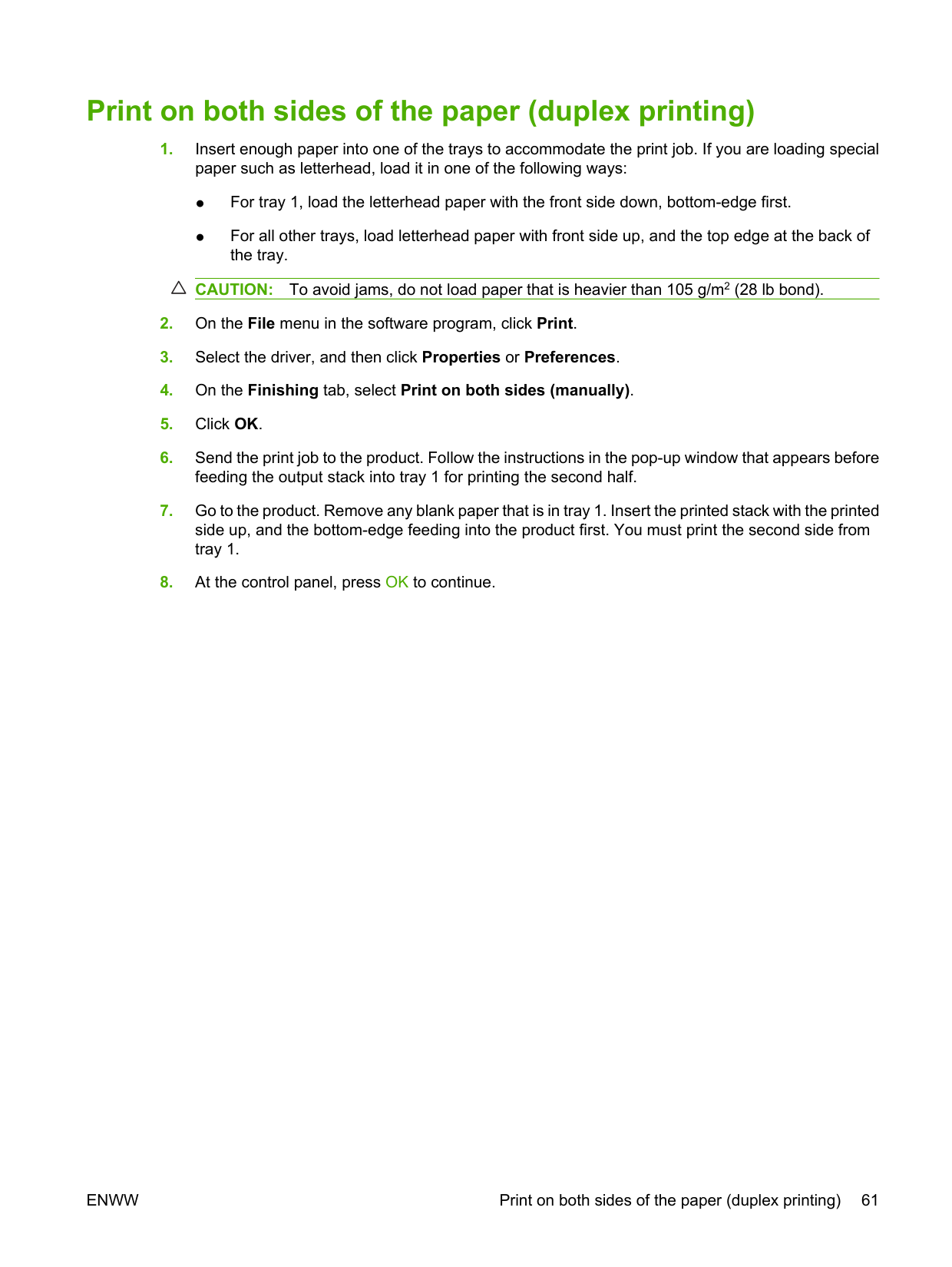

What are the steps to enable duplex printing on my printer?

To perform print on both sides manually, load paper in tray 1 with bottom edge feeding into the printer first. On control panel, choose manual duplex under Finishing options during Print menu configuration.

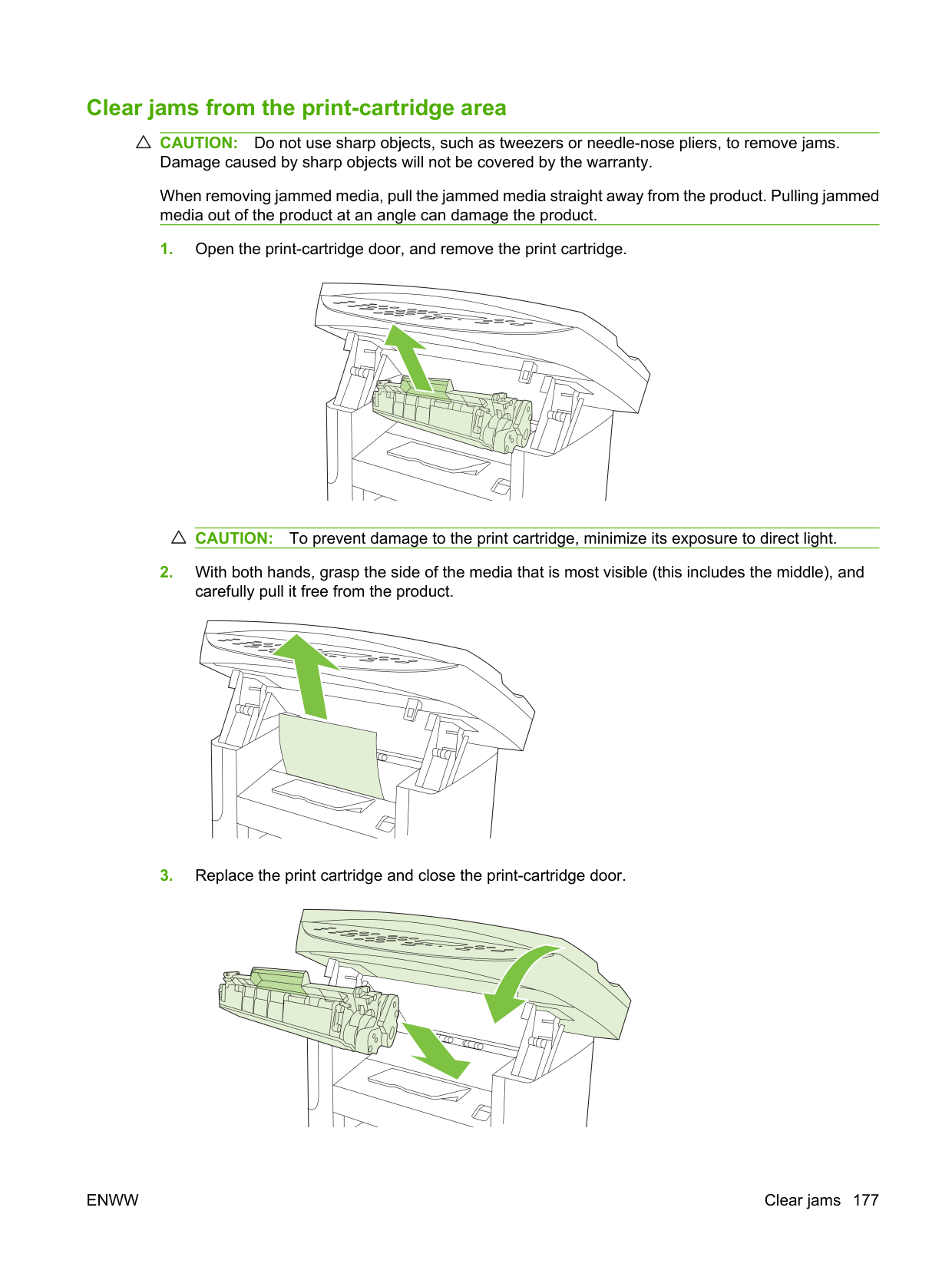

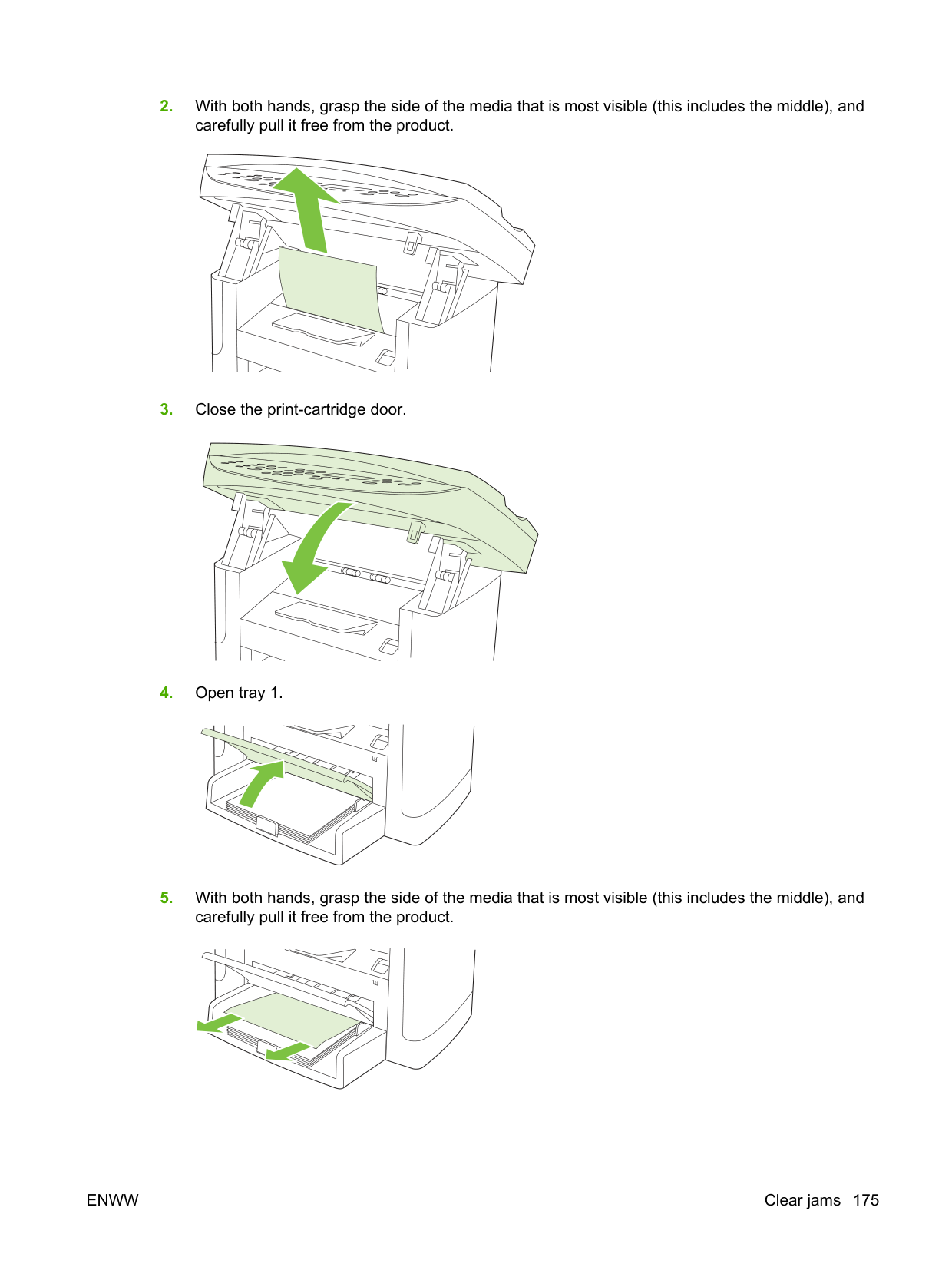

What actions should I take if my printer is jammed?

Identify the type of jam based on visual cues and clean jams from the ADF, input tray areas, output bin, or print-cartridge area as specified in the guide.

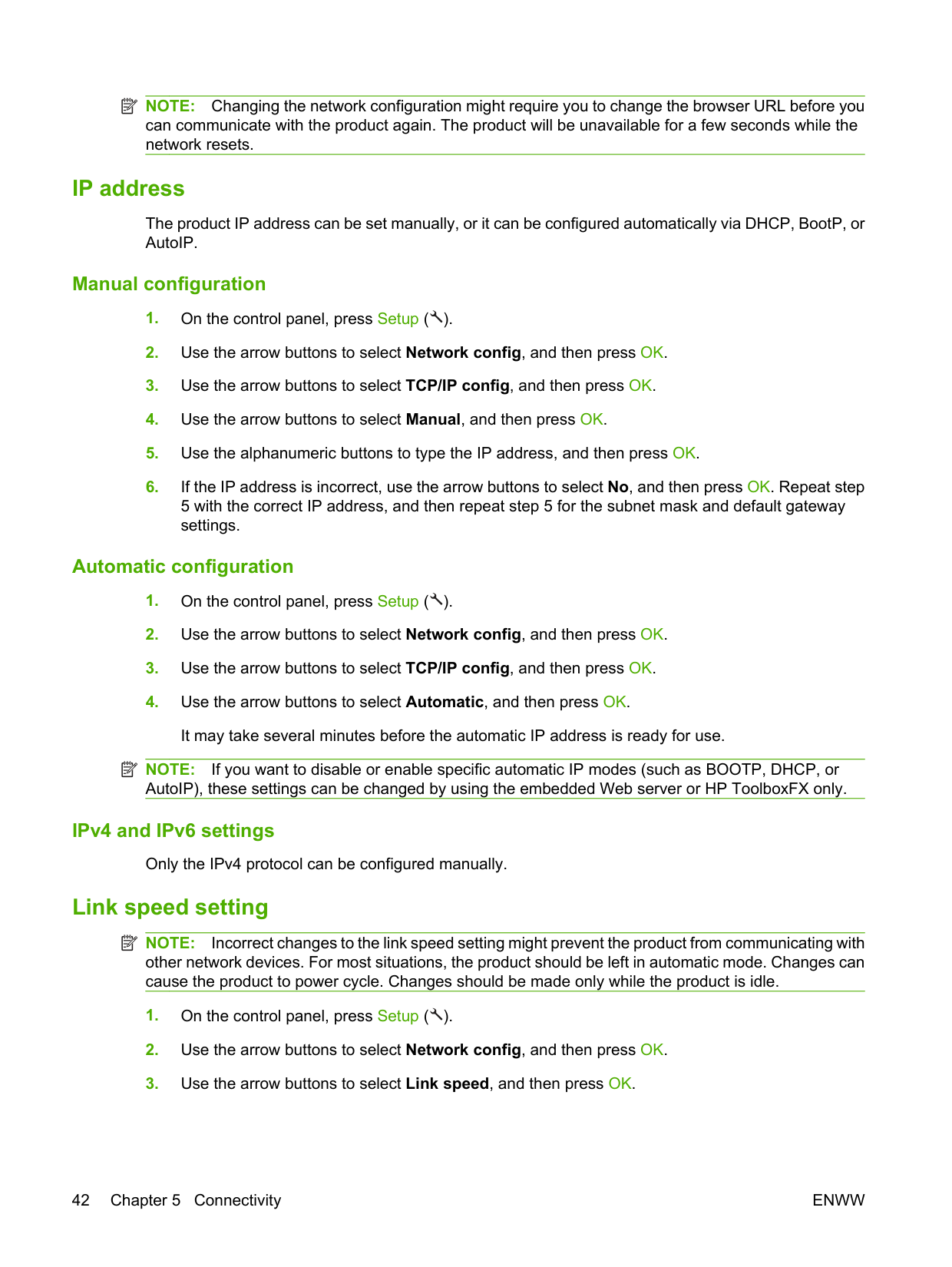

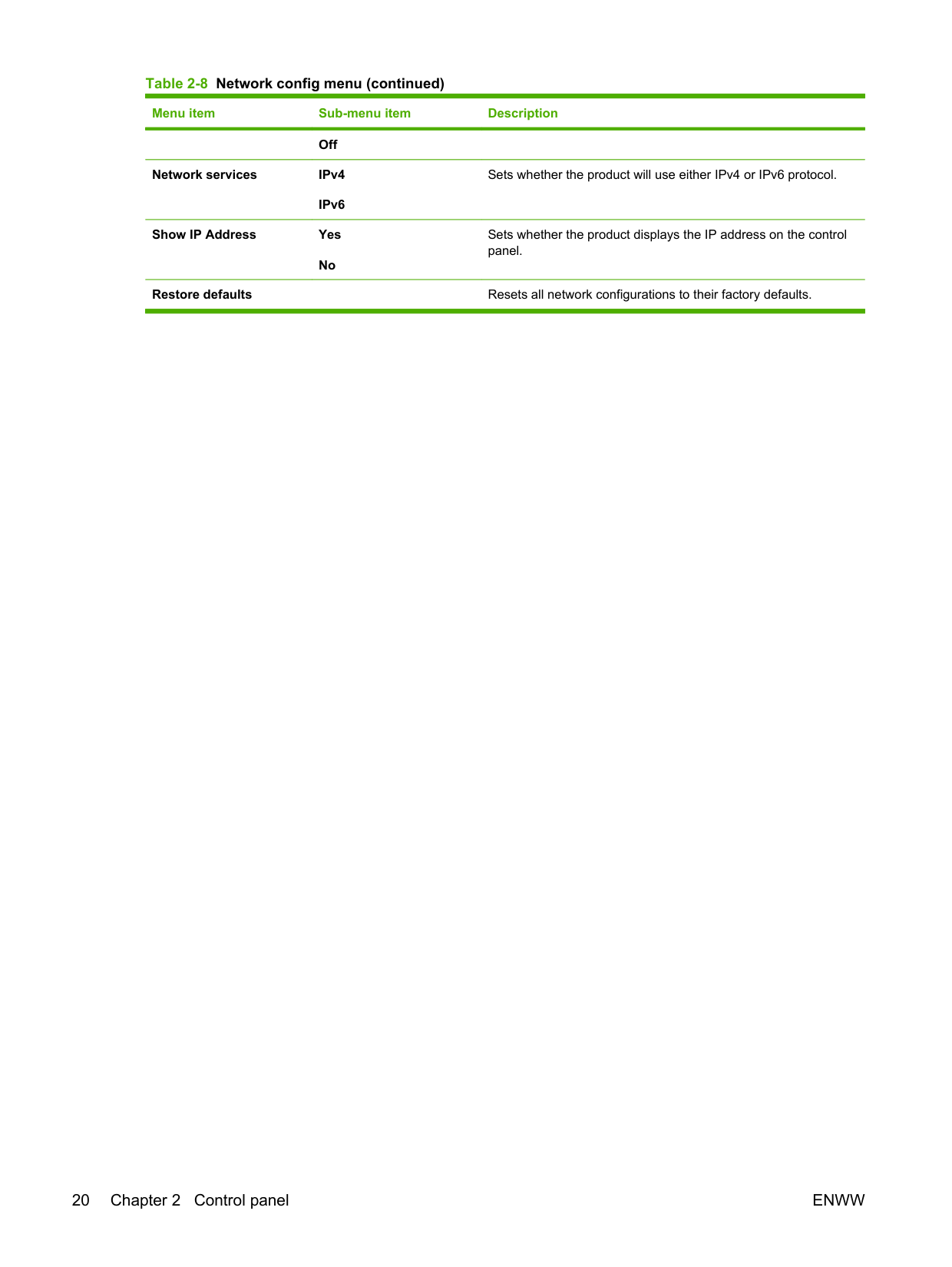

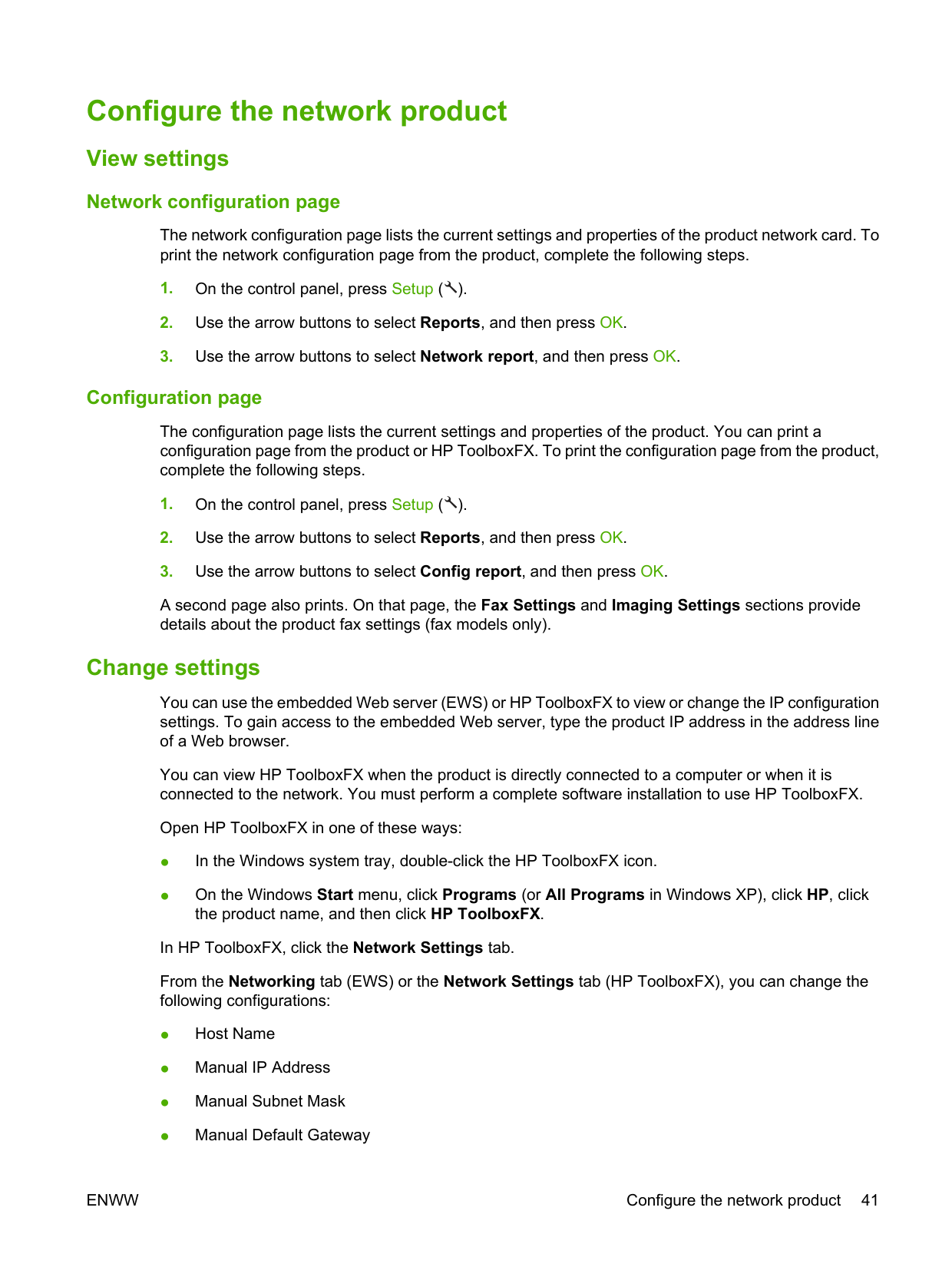

How can I set up my HP LaserJet M1522 to use a network?

Go to 'Network config' menu and select 'TCP/IP'. Configure either automatically via DHCP or manually by entering IP address, subnet mask, default gateway information.

How do I change my printer's resolution settings from the control panel?

In the 'Fax setup' menu under 'Send Fax Setup', select 'Def. Resolution'. Choose from Fine, Superfine Photo options available.

How can I troubleshoot failed fax transmissions using error reports?

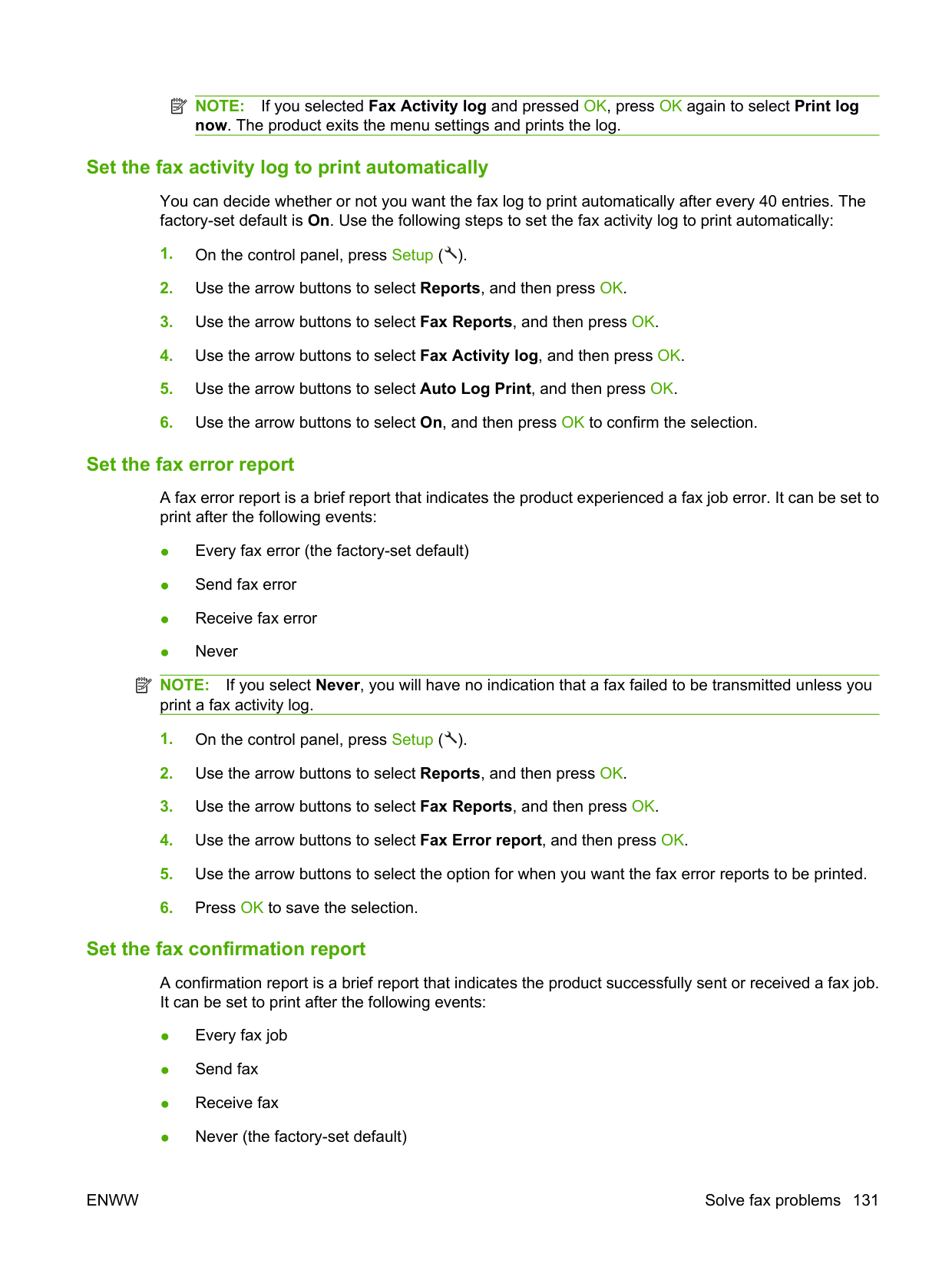

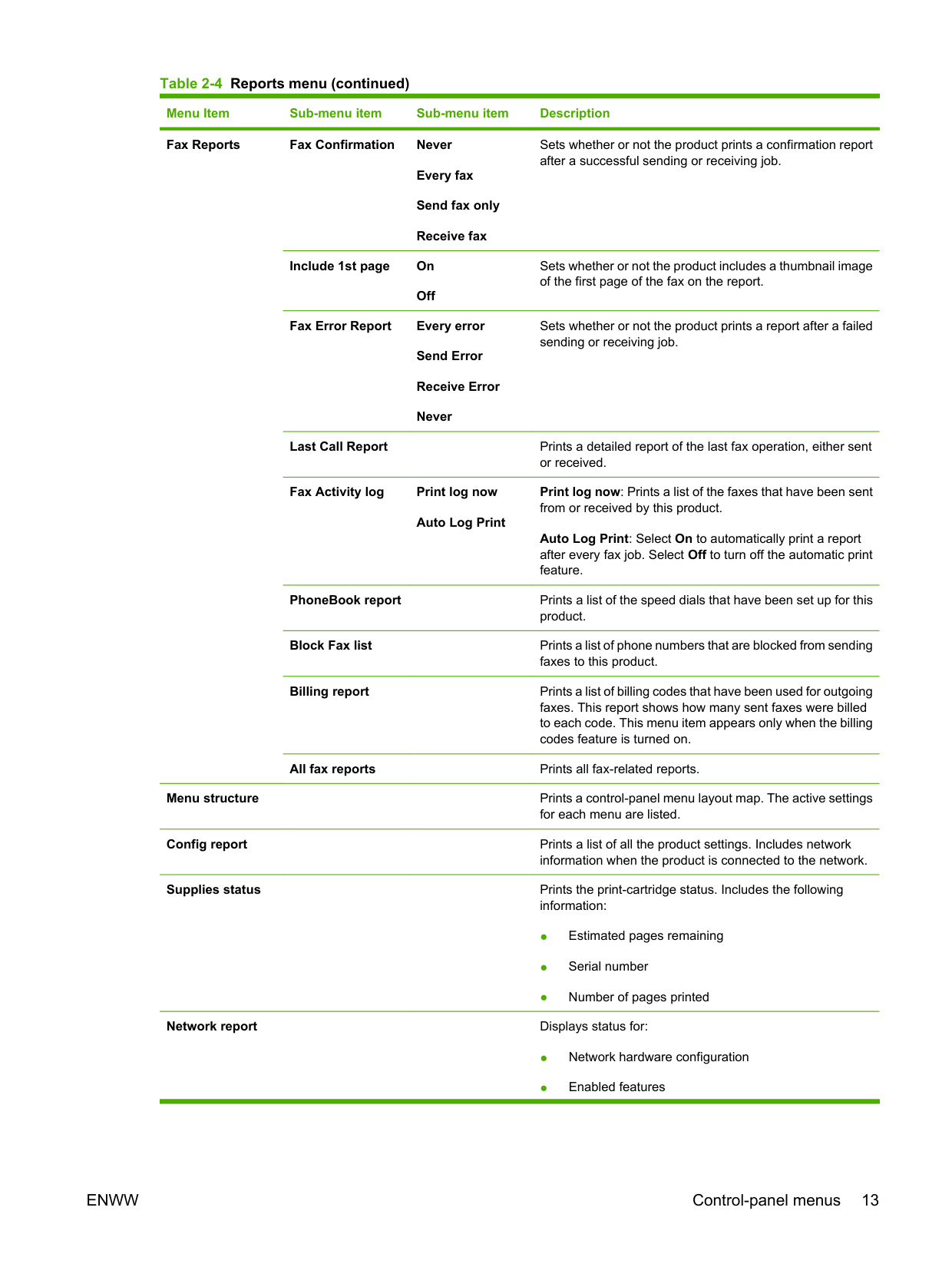

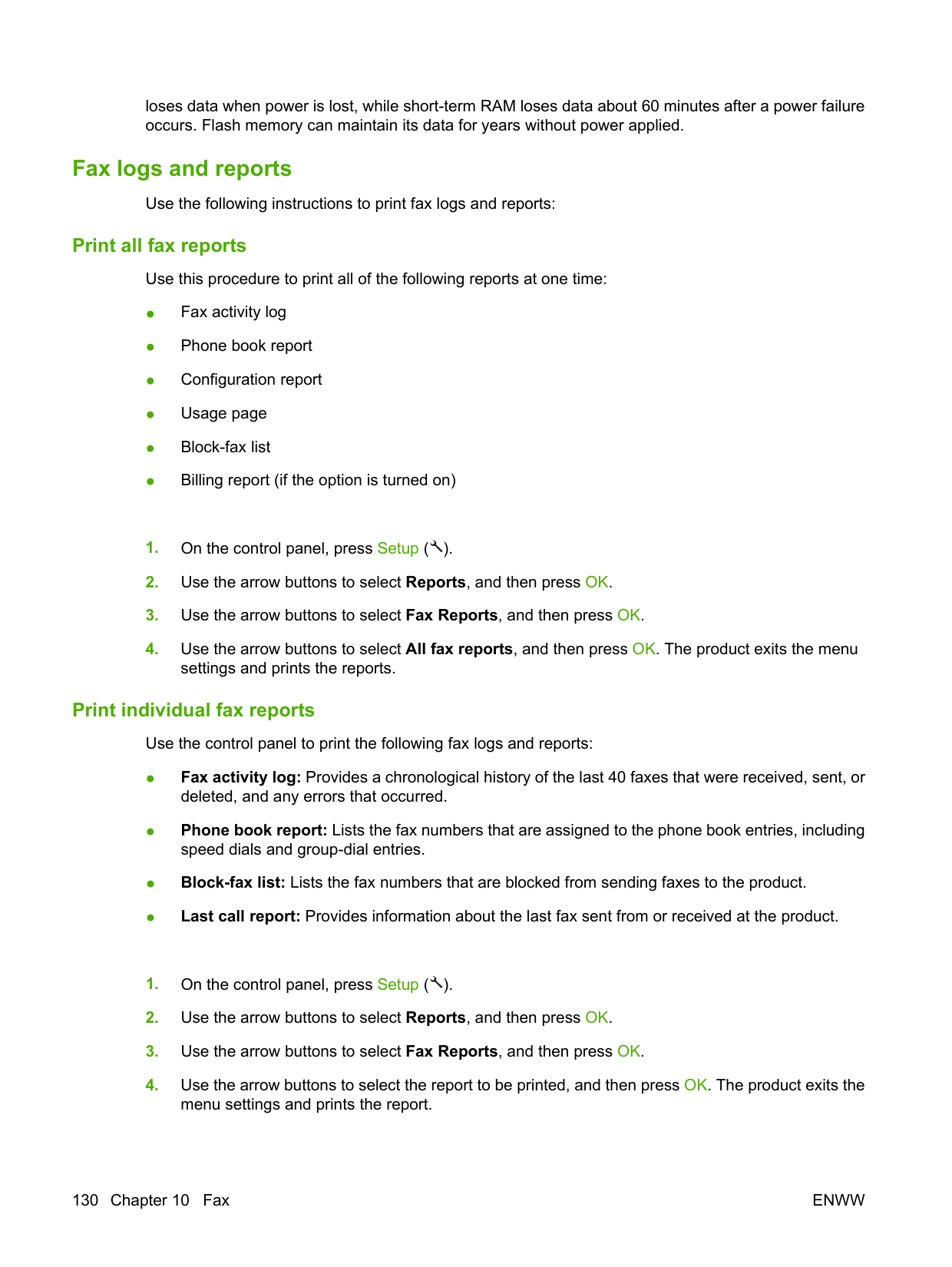

Configure 'Fax Error Report' under Reports menu to print a report after every fax job that has failed. Select when a report should be printed: Never, Every fax, Send Error, or Receive Error.

How do I configure the printer volume settings from the control panel?

From 'System setup', select the 'Volume Settings'. Adjust Alarm volume, Ring volume, Key-press volume to Soft, Medium, Loud, or Off.

How do I clean my printer’s paper path and remove excessive toner?

Use the 'Service menu' under the main control panel menus. Select 'Cleaning mode' to initiate a cleaning process which prints a test page on letter or A4 paper from tray 1.

HP Laserjet M1500 Multifunction Printer — Manual, FAQ & Troubleshooting

Name: HP Laserjet M1500 Multifunction Printer
Brand: HP

Page 1

HP LaserJet M1522 MFP Series User Guide

HP LaserJet M1522 MFP Series

User Guide

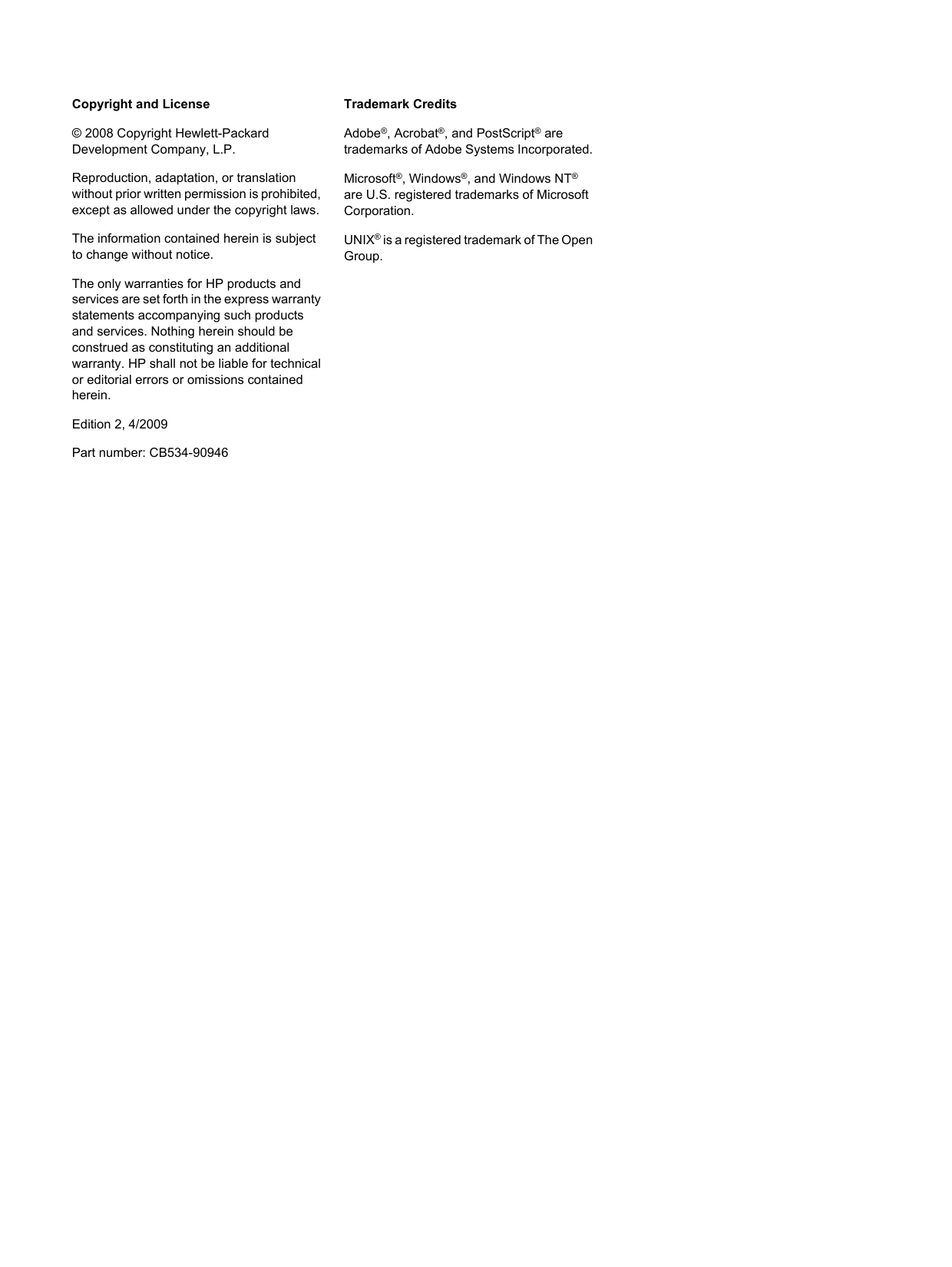

########## Copyright and License

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

########## Trademark Credits

Adobe®, Acrobat®, and PostScript® are trademarks of Adobe Systems Incorporated.

Microsoft®, Windows®, and Windows NT® are U.S. registered trademarks of Microsoft Corporation.

UNIX® is a registered trademark of The Open Group.

Part number: CB534-90946

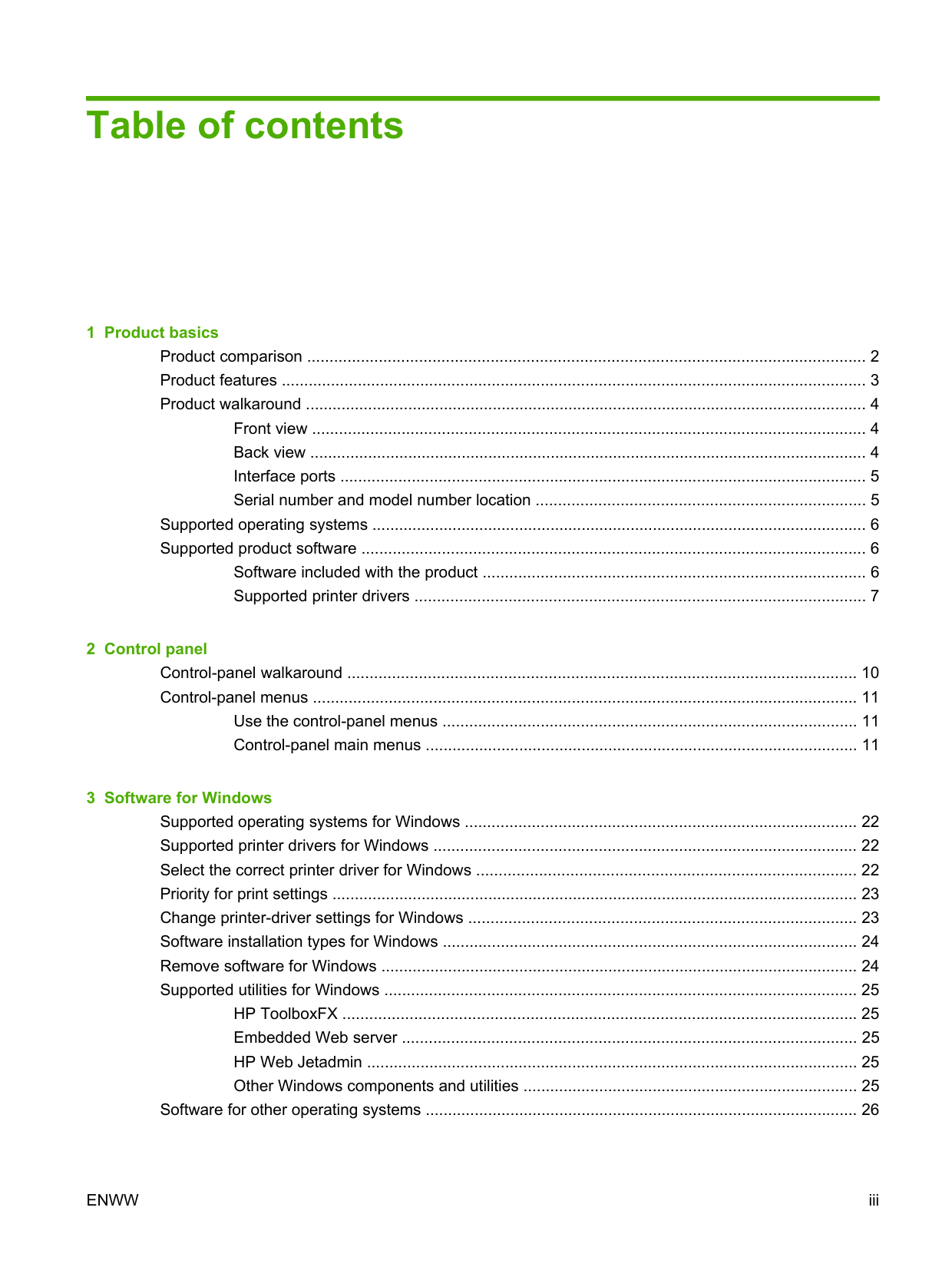

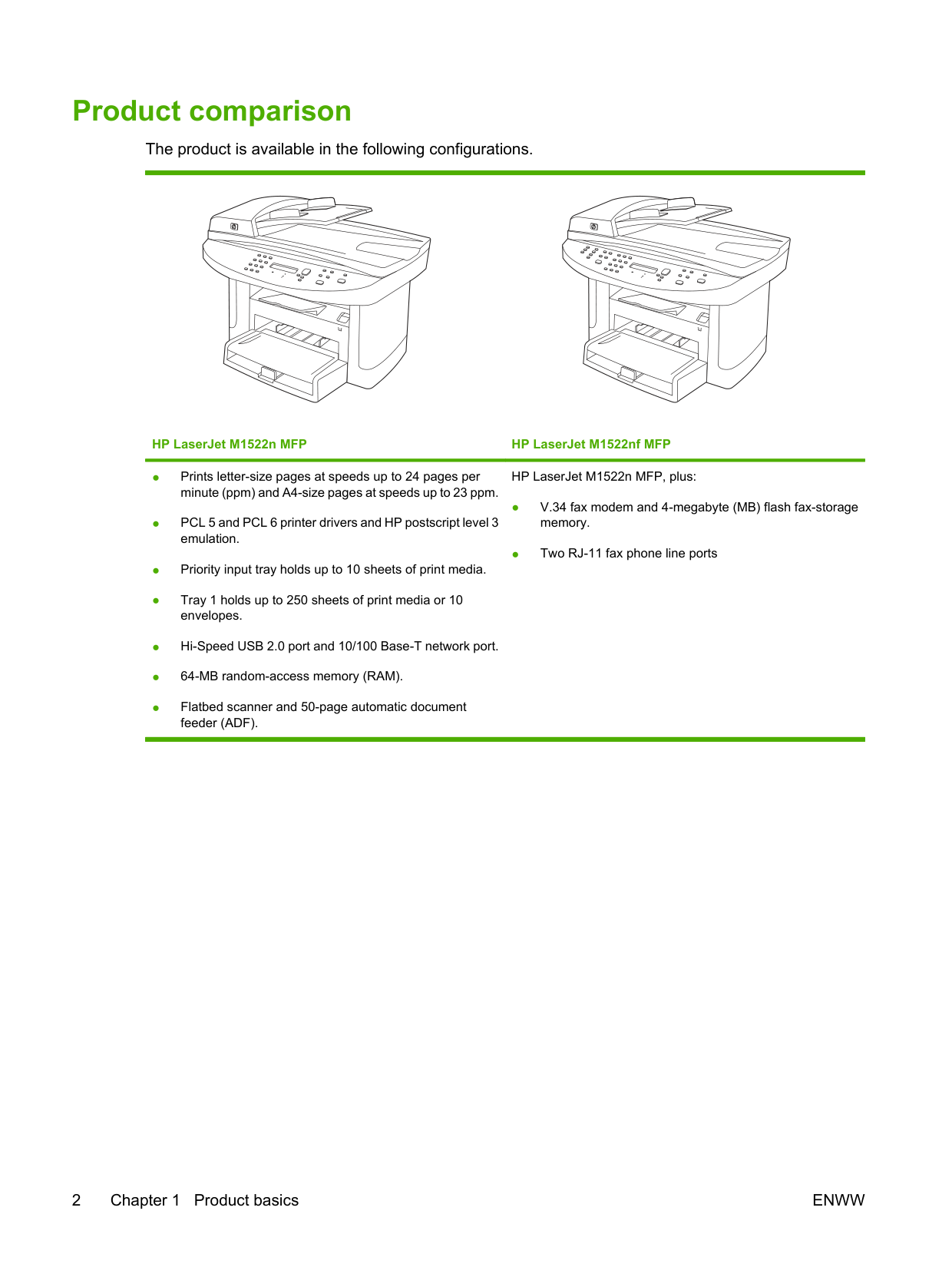

1 Product basics Product comparison ............................................................................................................................. 2 Product features ................................................................................................................................... 3 Product walkaround .............................................................................................................................. 4

Front view ............................................................................................................................ 4 Back view ............................................................................................................................. 4 Interface ports ...................................................................................................................... 5 Serial number and model number location .......................................................................... 5

Page 2

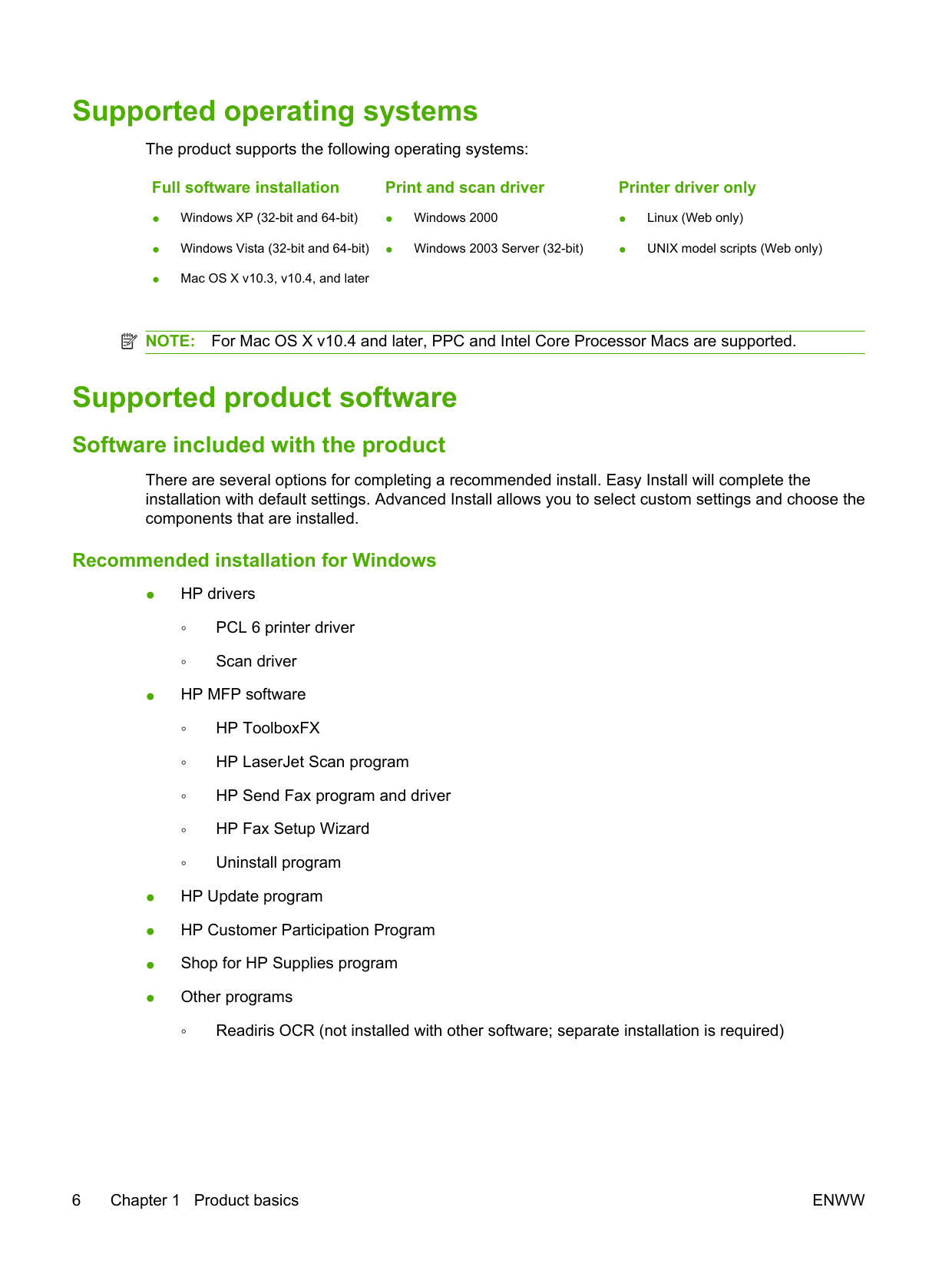

Supported operating systems ............................................................................................................... 6 Supported product software ................................................................................................................. 6

Software included with the product ...................................................................................... 6 Supported printer drivers ..................................................................................................... 7

2 Control panel Control-panel walkaround .................................................................................................................. 10 Control-panel menus .......................................................................................................................... 11

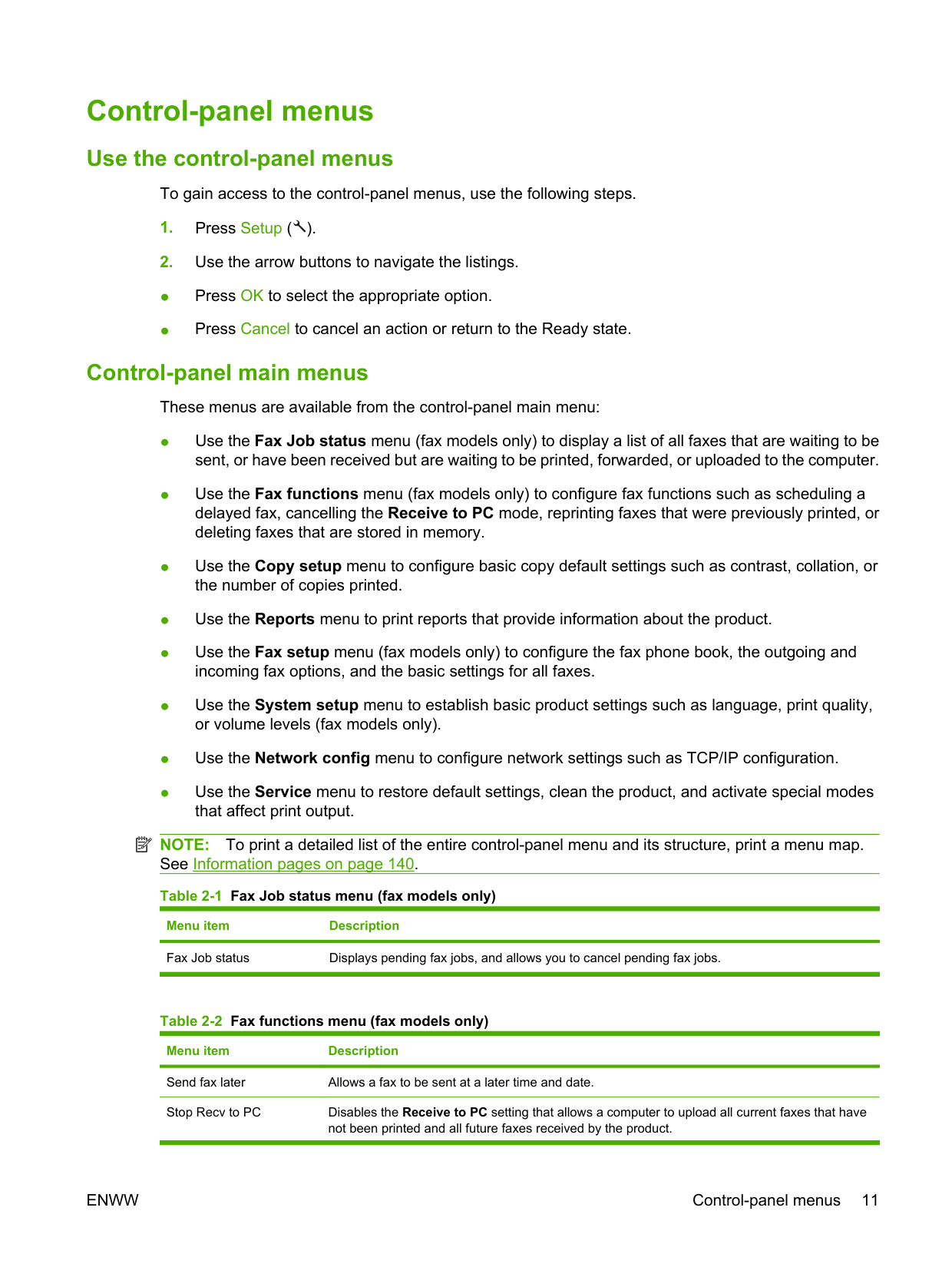

Use the control-panel menus ............................................................................................. 11 Control-panel main menus ................................................................................................. 11

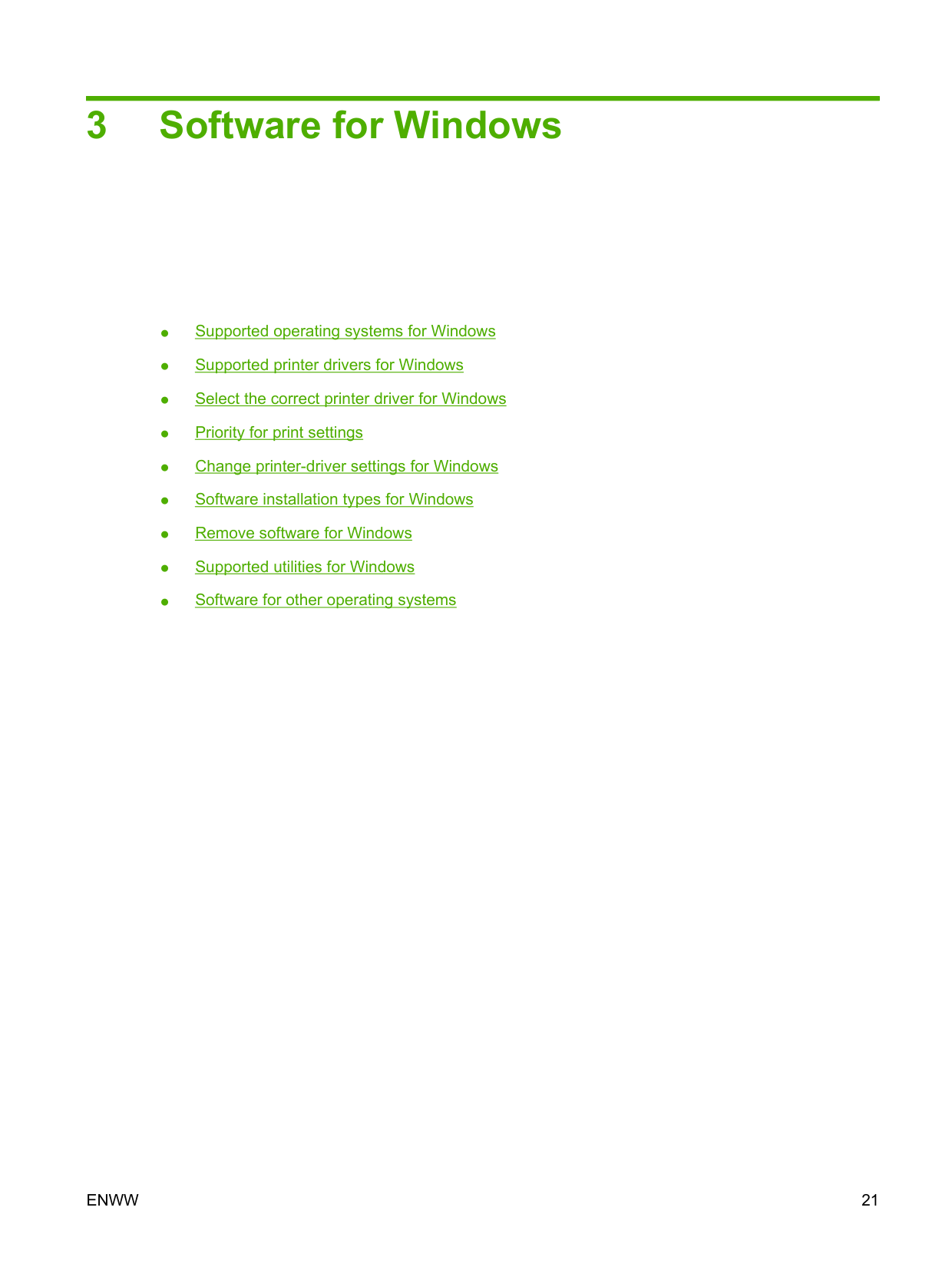

3 Software for Windows Supported operating systems for Windows ........................................................................................ 22 Supported printer drivers for Windows ............................................................................................... 22 Select the correct printer driver for Windows ..................................................................................... 22 Priority for print settings ...................................................................................................................... 23 Change printer-driver settings for Windows ....................................................................................... 23 Software installation types for Windows ............................................................................................. 24 Remove software for Windows ........................................................................................................... 24 Supported utilities for Windows .......................................................................................................... 25

HP ToolboxFX ................................................................................................................... 25 Embedded Web server ...................................................................................................... 25 HP Web Jetadmin .............................................................................................................. 25 Other Windows components and utilities ........................................................................... 25

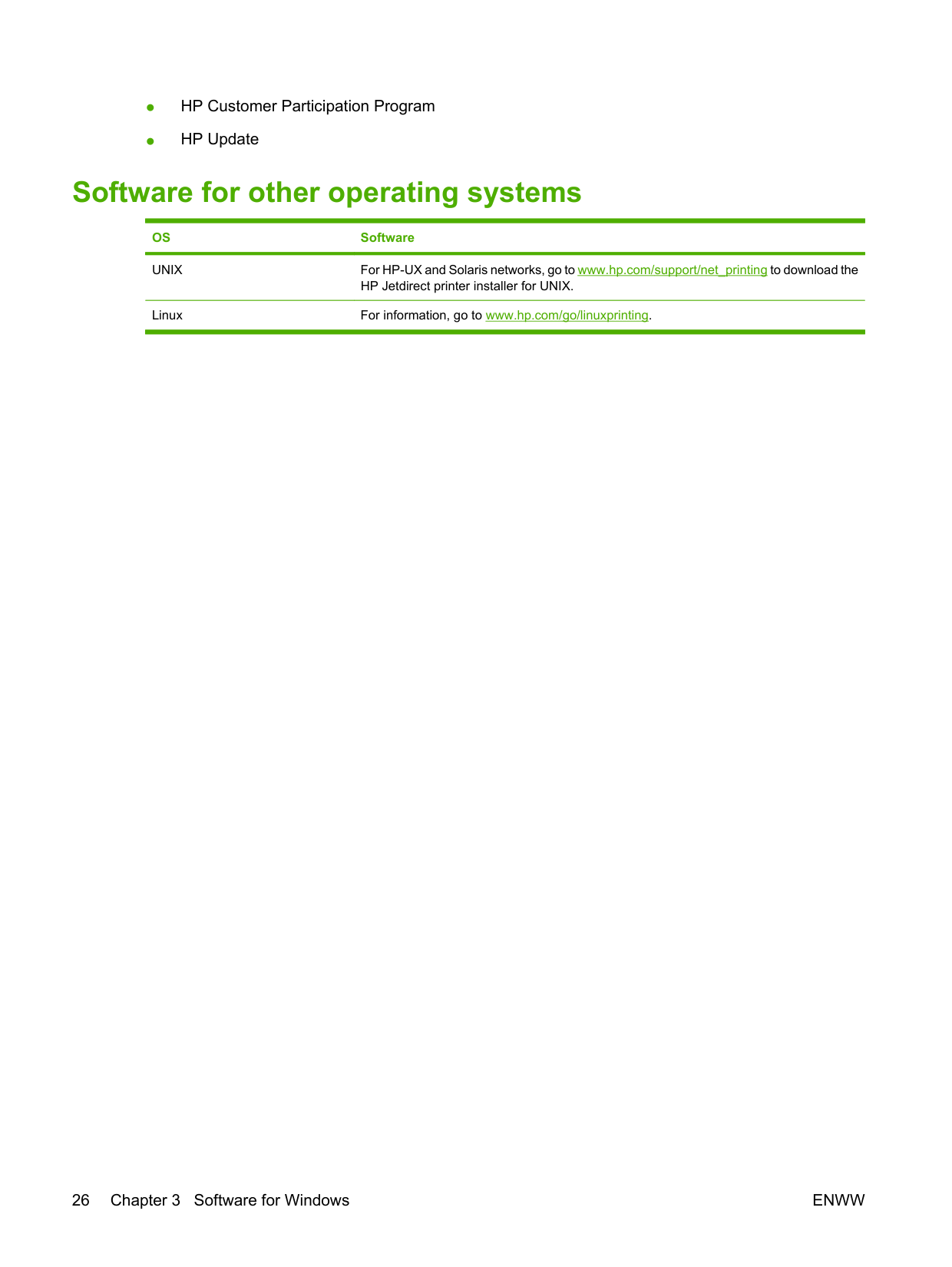

Software for other operating systems ................................................................................................. 26

ENWW iii

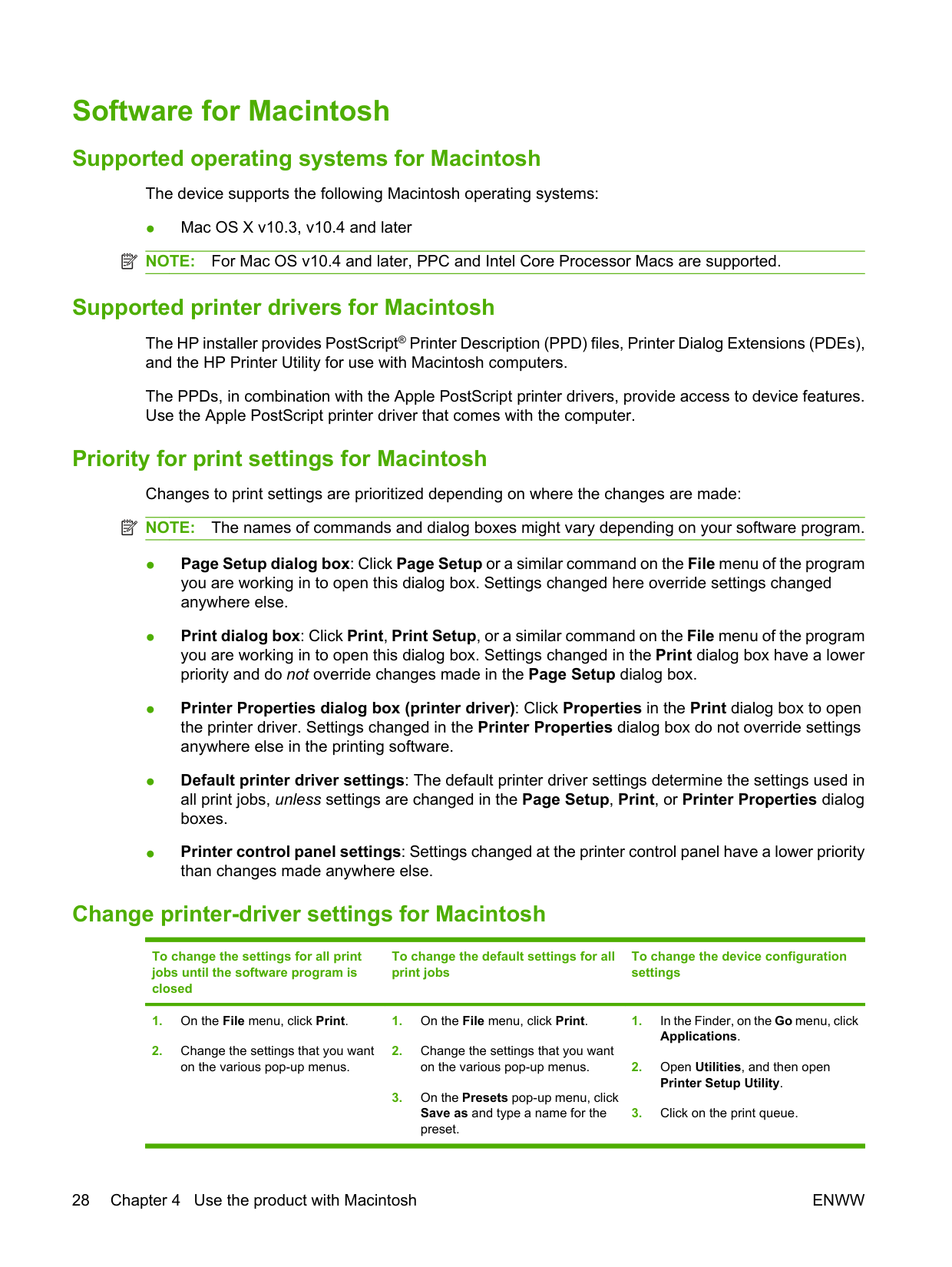

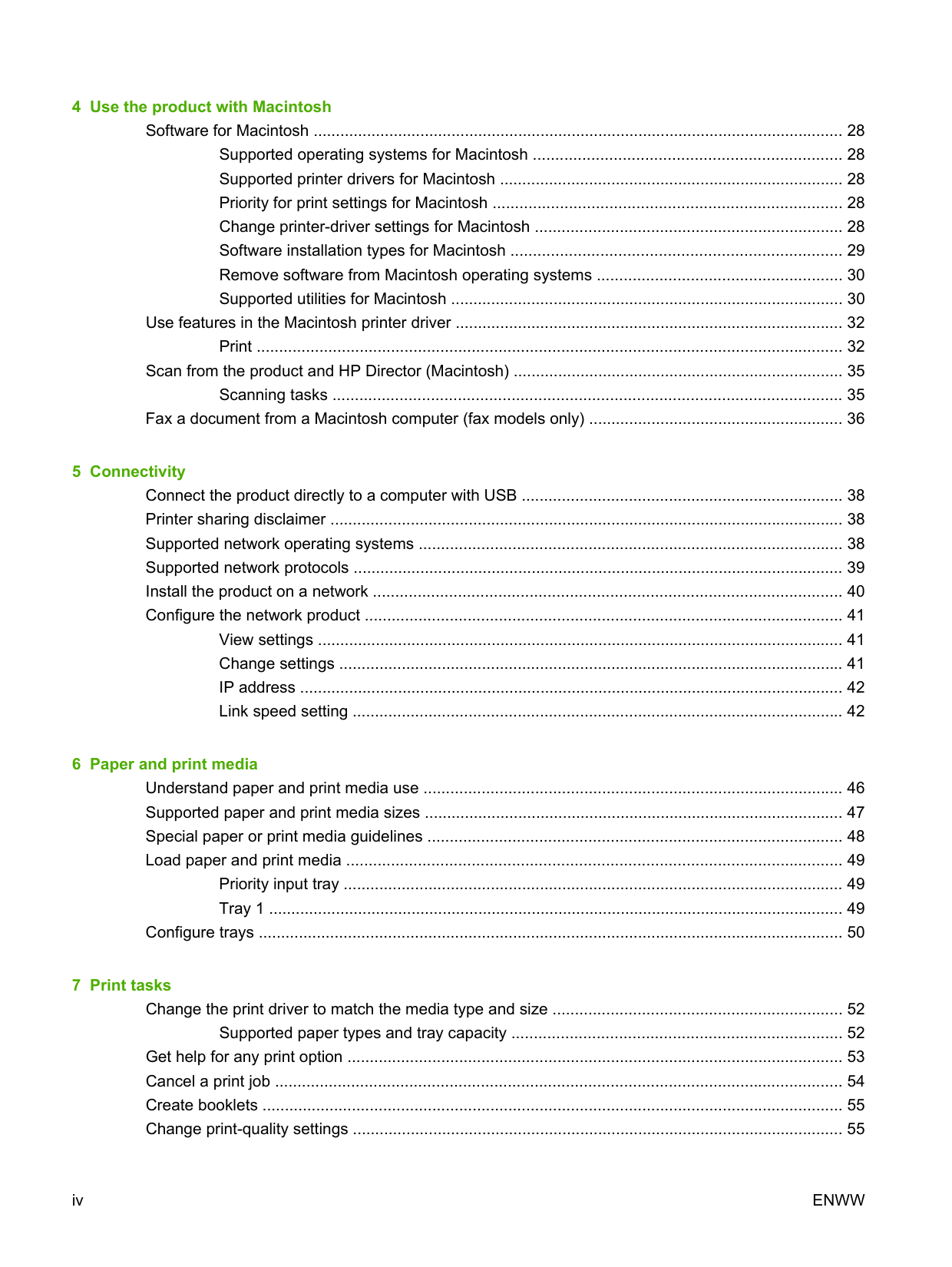

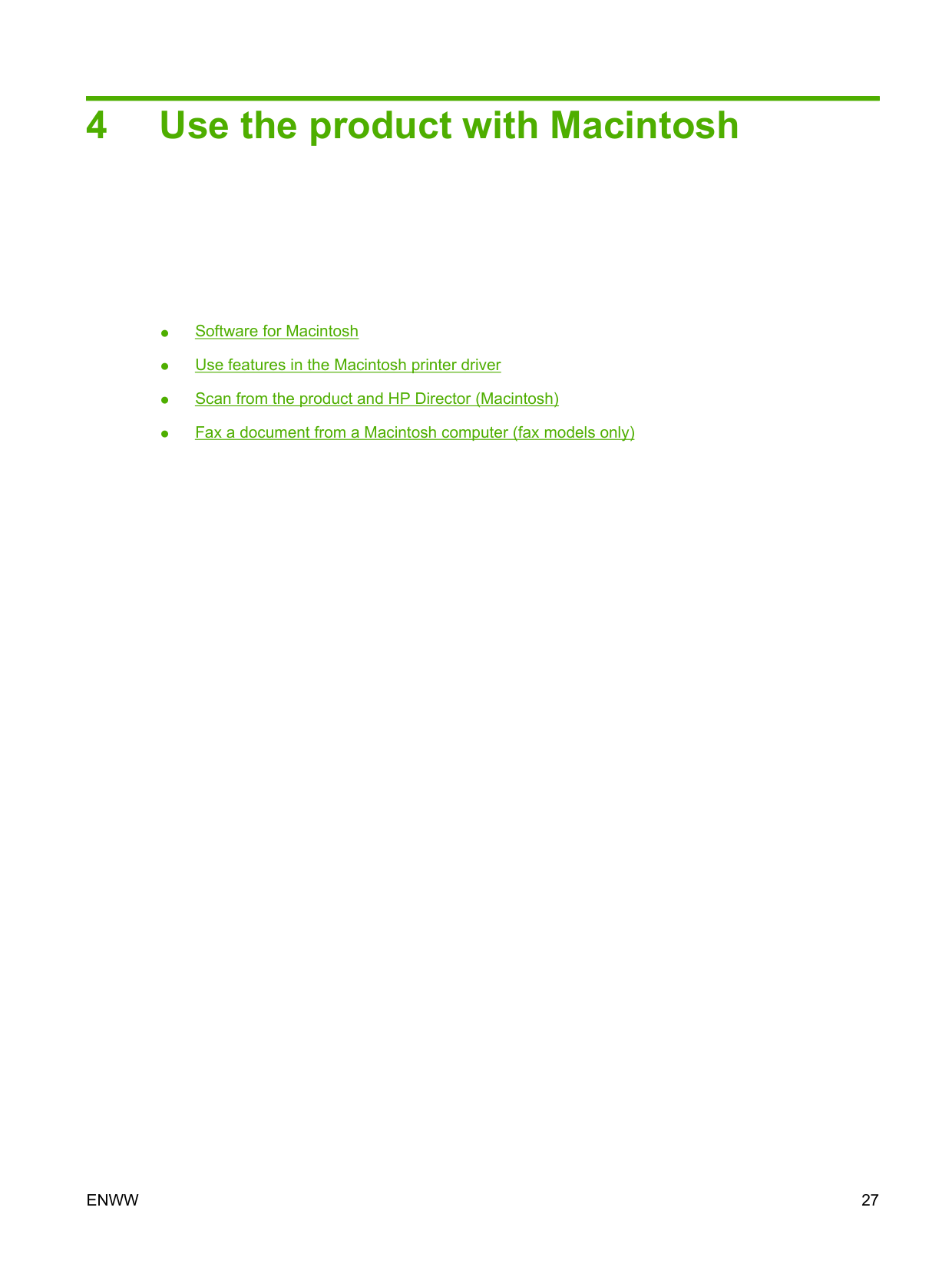

4 Use the product with Macintosh Software for Macintosh ....................................................................................................................... 28

Supported operating systems for Macintosh ..................................................................... 28 Supported printer drivers for Macintosh ............................................................................. 28 Priority for print settings for Macintosh .............................................................................. 28 Change printer-driver settings for Macintosh ..................................................................... 28 Software installation types for Macintosh .......................................................................... 29 Remove software from Macintosh operating systems ....................................................... 30 Supported utilities for Macintosh ........................................................................................ 30

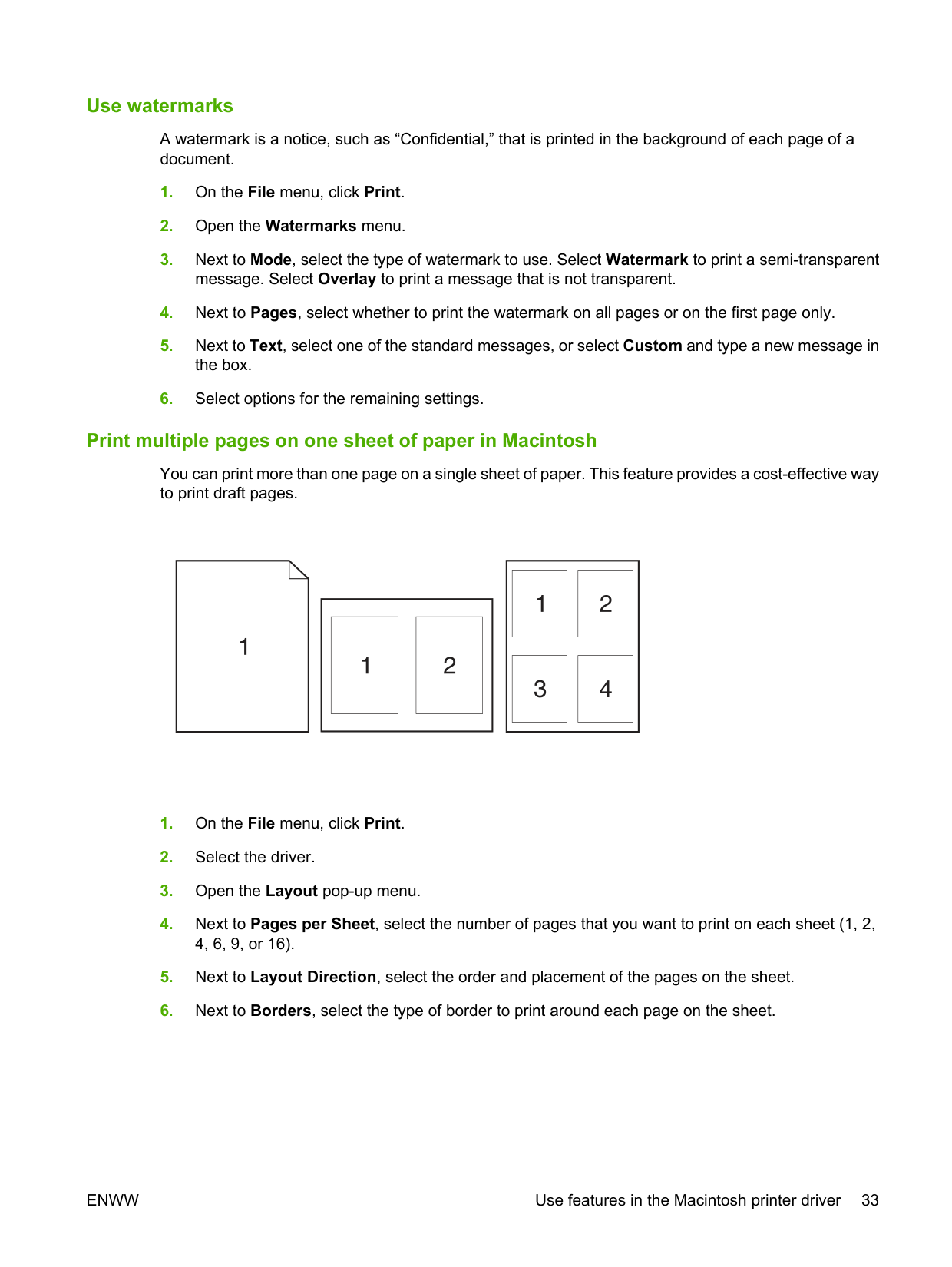

Use features in the Macintosh printer driver ....................................................................................... 32 Print ................................................................................................................................... 32 Scan from the product and HP Director (Macintosh) .......................................................................... 35 Scanning tasks .................................................................................................................. 35 Fax a document from a Macintosh computer (fax models only) ......................................................... 36

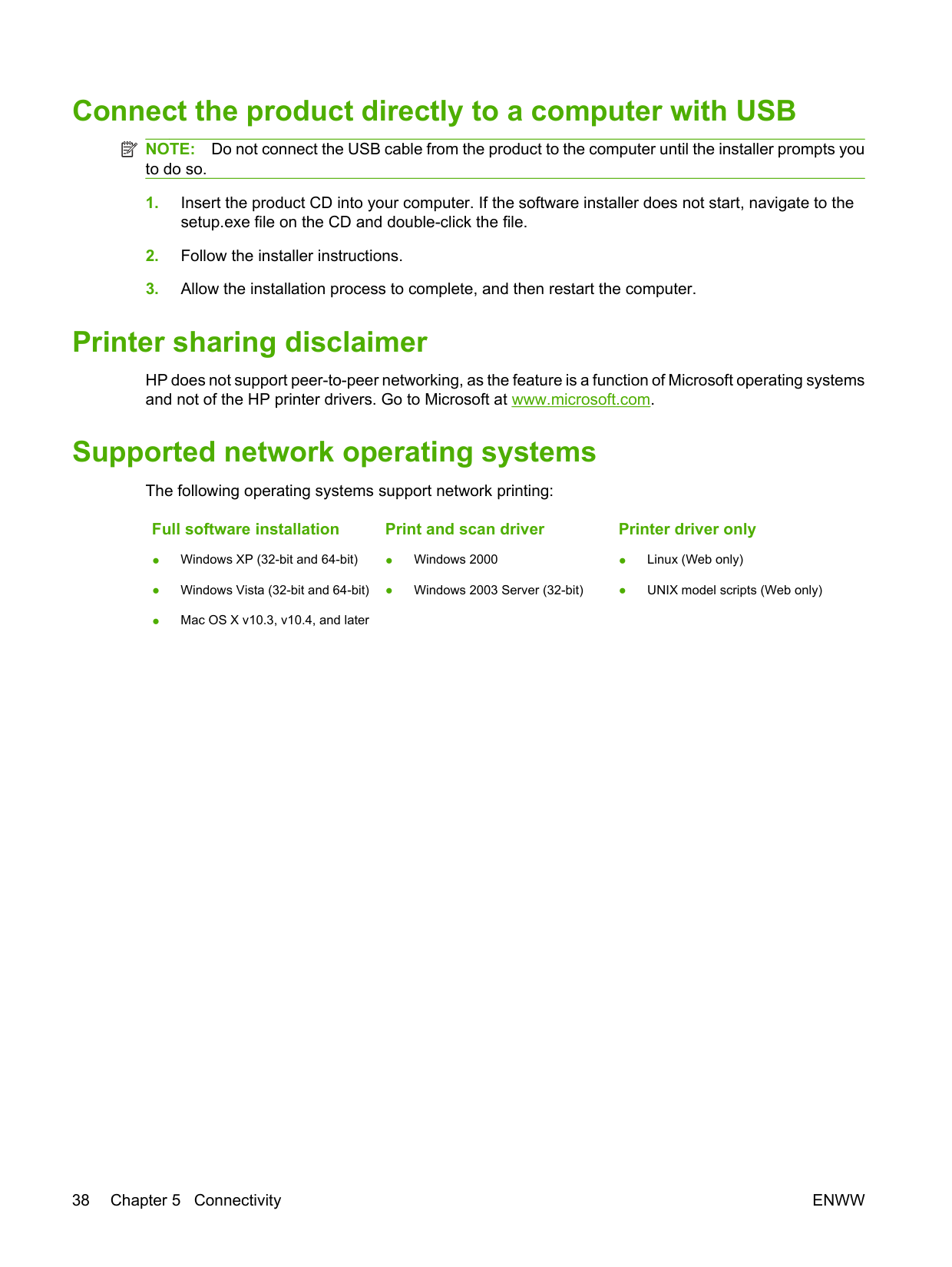

5 Connectivity Connect the product directly to a computer with USB ........................................................................ 38 Printer sharing disclaimer ................................................................................................................... 38 Supported network operating systems ............................................................................................... 38 Supported network protocols .............................................................................................................. 39 Install the product on a network ......................................................................................................... 40 Configure the network product ........................................................................................................... 41

View settings ...................................................................................................................... 41 Change settings ................................................................................................................. 41 IP address .......................................................................................................................... 42 Link speed setting .............................................................................................................. 42

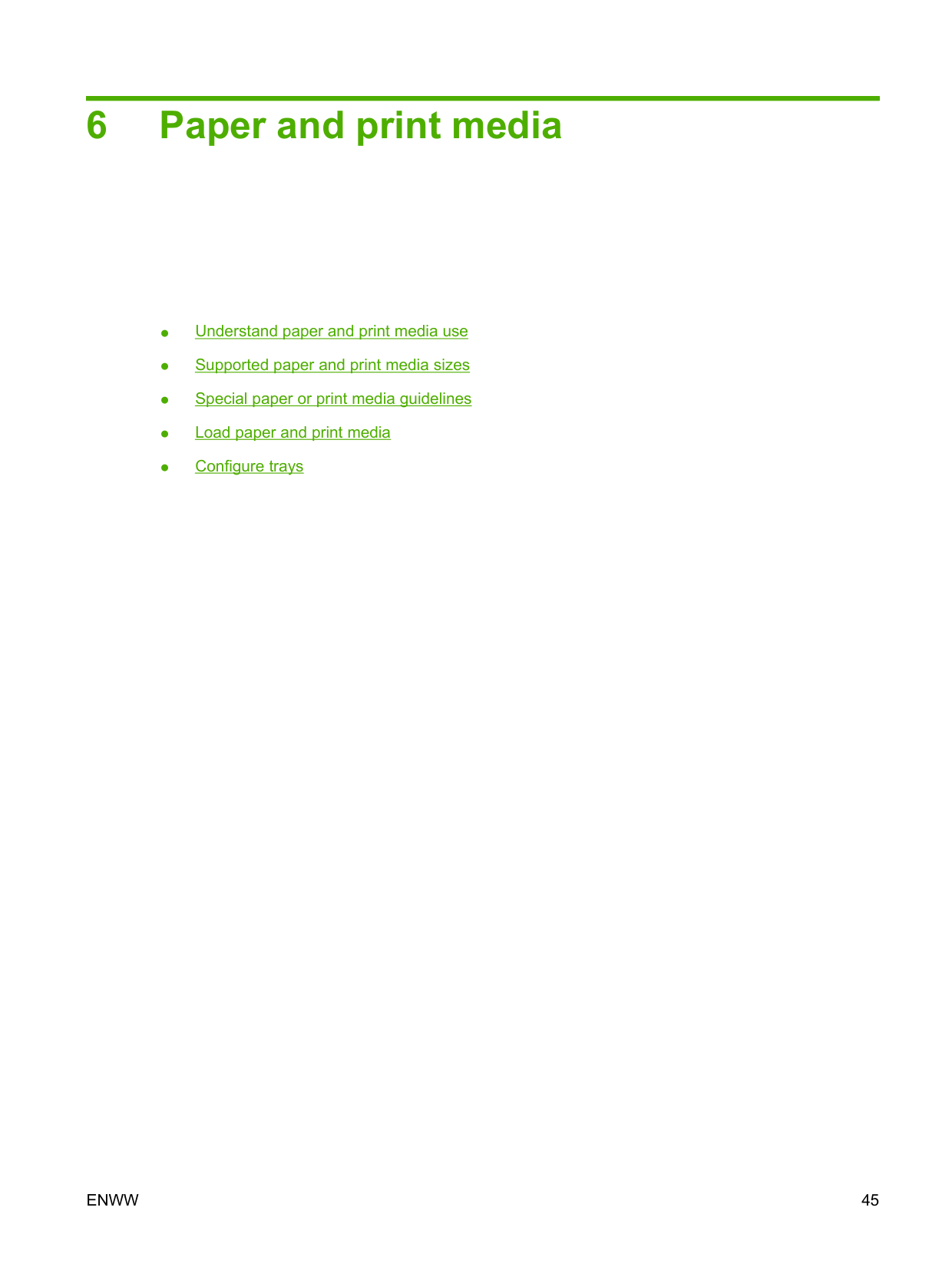

6 Paper and print media Understand paper and print media use .............................................................................................. 46 Supported paper and print media sizes .............................................................................................. 47 Special paper or print media guidelines ............................................................................................. 48 Load paper and print media ............................................................................................................... 49

Priority input tray ................................................................................................................ 49 Tray 1 ................................................................................................................................. 49

Configure trays ................................................................................................................................... 50

Page 3

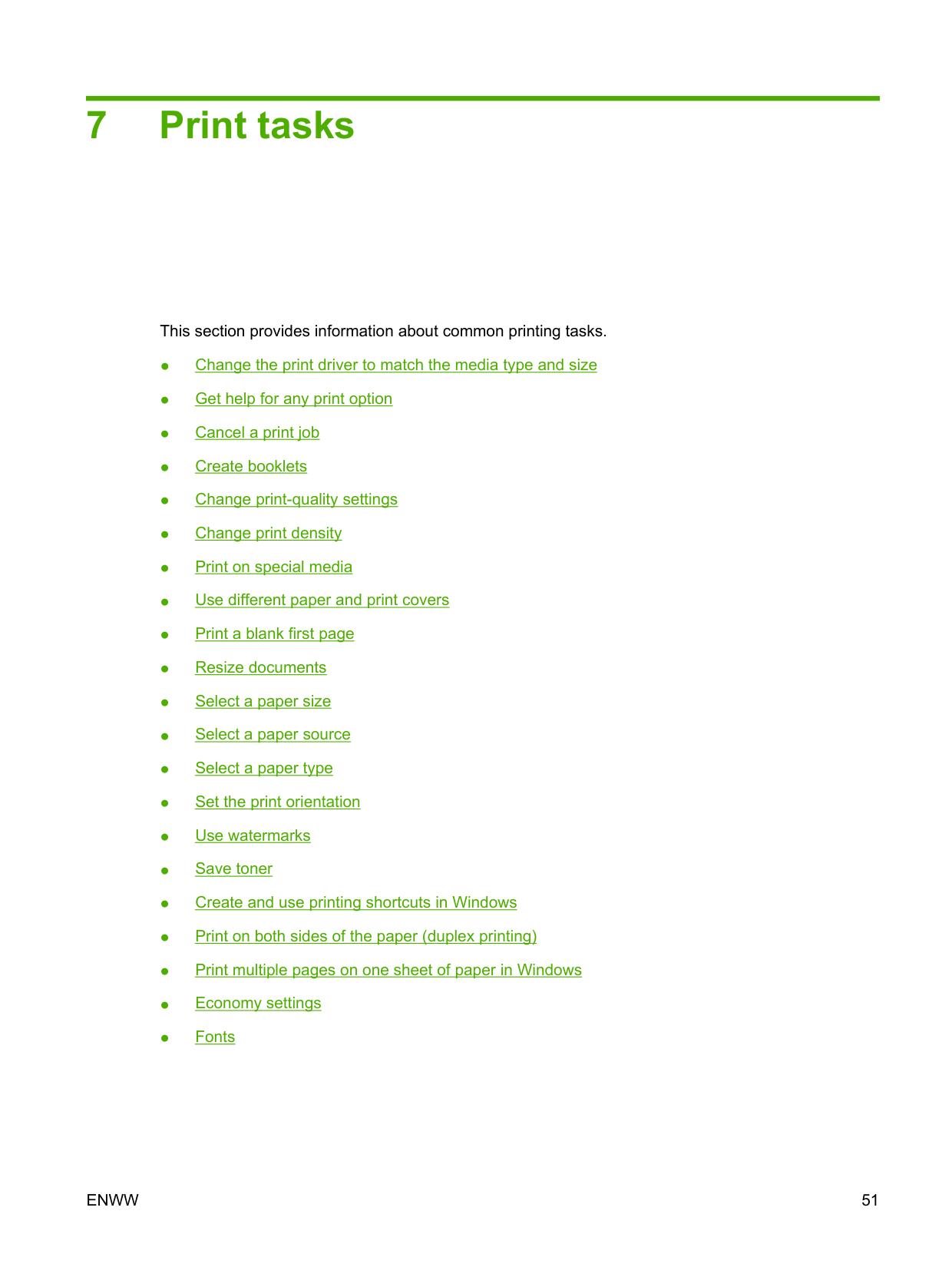

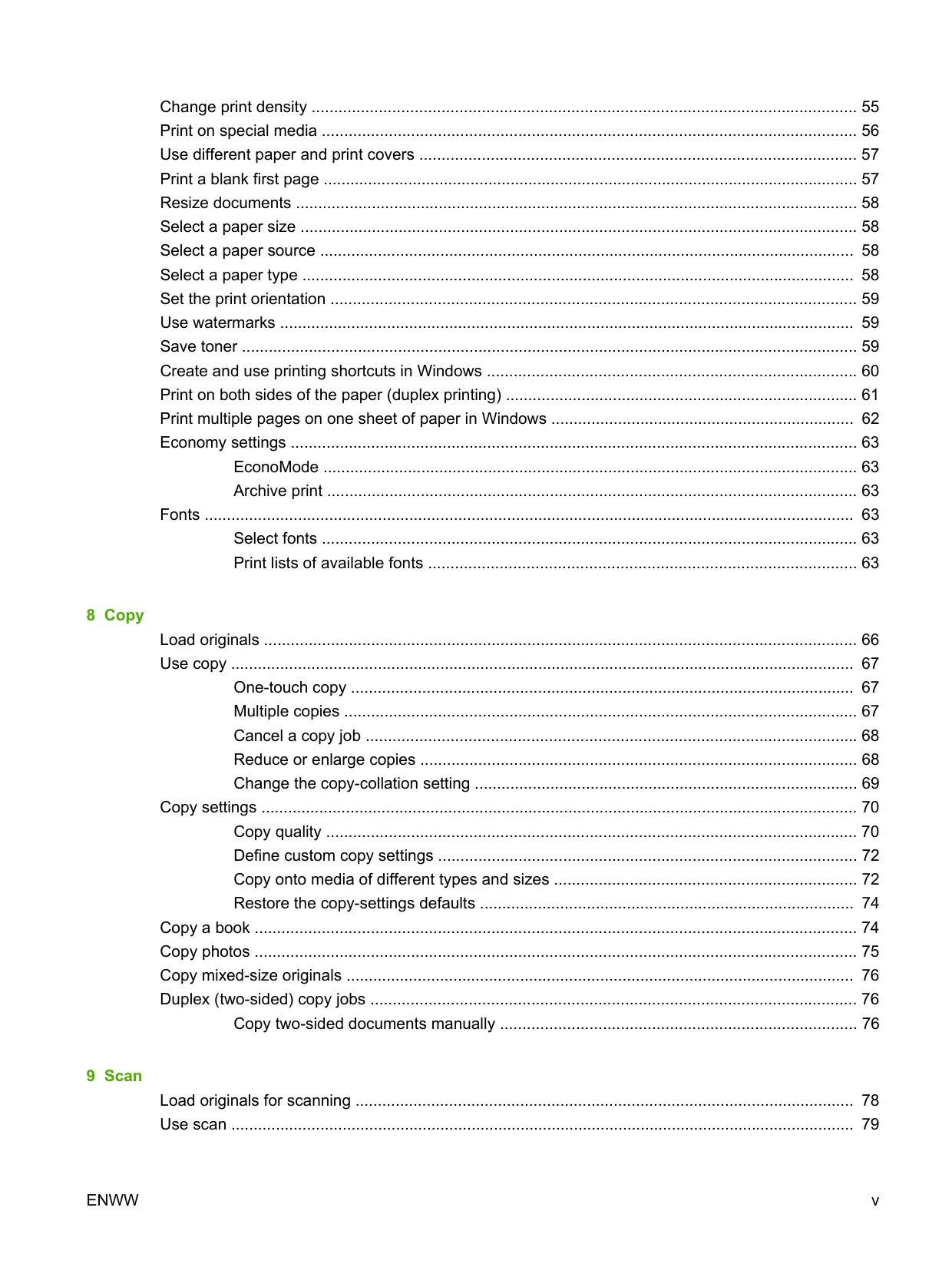

7 Print tasks Change the print driver to match the media type and size ................................................................. 52

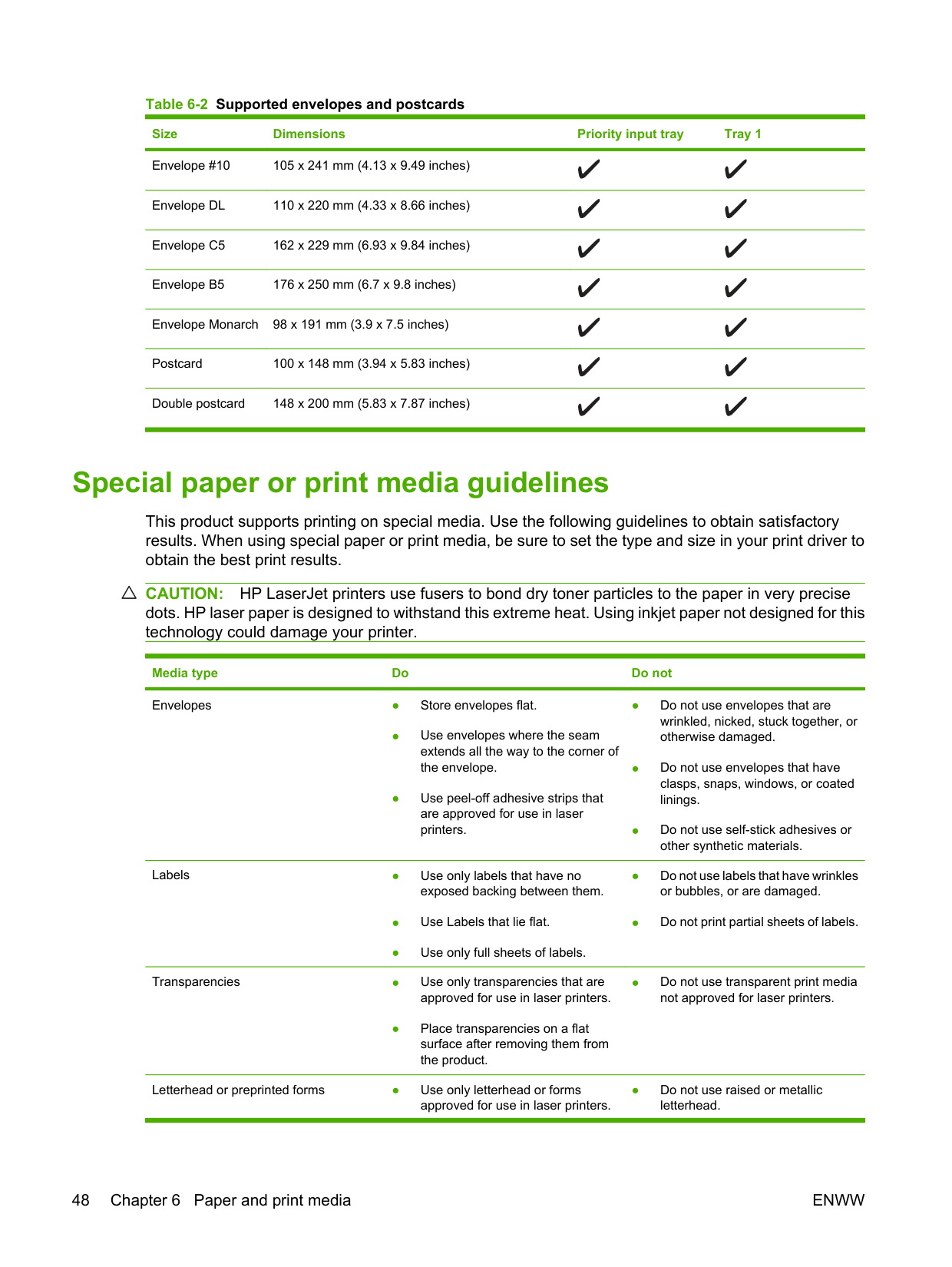

Supported paper types and tray capacity .......................................................................... 52 Get help for any print option ............................................................................................................... 53 Cancel a print job ............................................................................................................................... 54 Create booklets .................................................................................................................................. 55 Change print-quality settings .............................................................................................................. 55

Change print density .......................................................................................................................... 55 Print on special media ........................................................................................................................ 56 Use different paper and print covers .................................................................................................. 57 Print a blank first page ........................................................................................................................ 57 Resize documents .............................................................................................................................. 58 Select a paper size ............................................................................................................................. 58 Select a paper source ........................................................................................................................ 58 Select a paper type ............................................................................................................................ 58 Set the print orientation ...................................................................................................................... 59 Use watermarks ................................................................................................................................. 59 Save toner .......................................................................................................................................... 59 Create and use printing shortcuts in Windows ................................................................................... 60 Print on both sides of the paper (duplex printing) ............................................................................... 61 Print multiple pages on one sheet of paper in Windows .................................................................... 62 Economy settings ............................................................................................................................... 63

EconoMode ........................................................................................................................ 63 Archive print ....................................................................................................................... 63

Fonts .................................................................................................................................................. 63 Select fonts ........................................................................................................................ 63 Print lists of available fonts ................................................................................................ 63

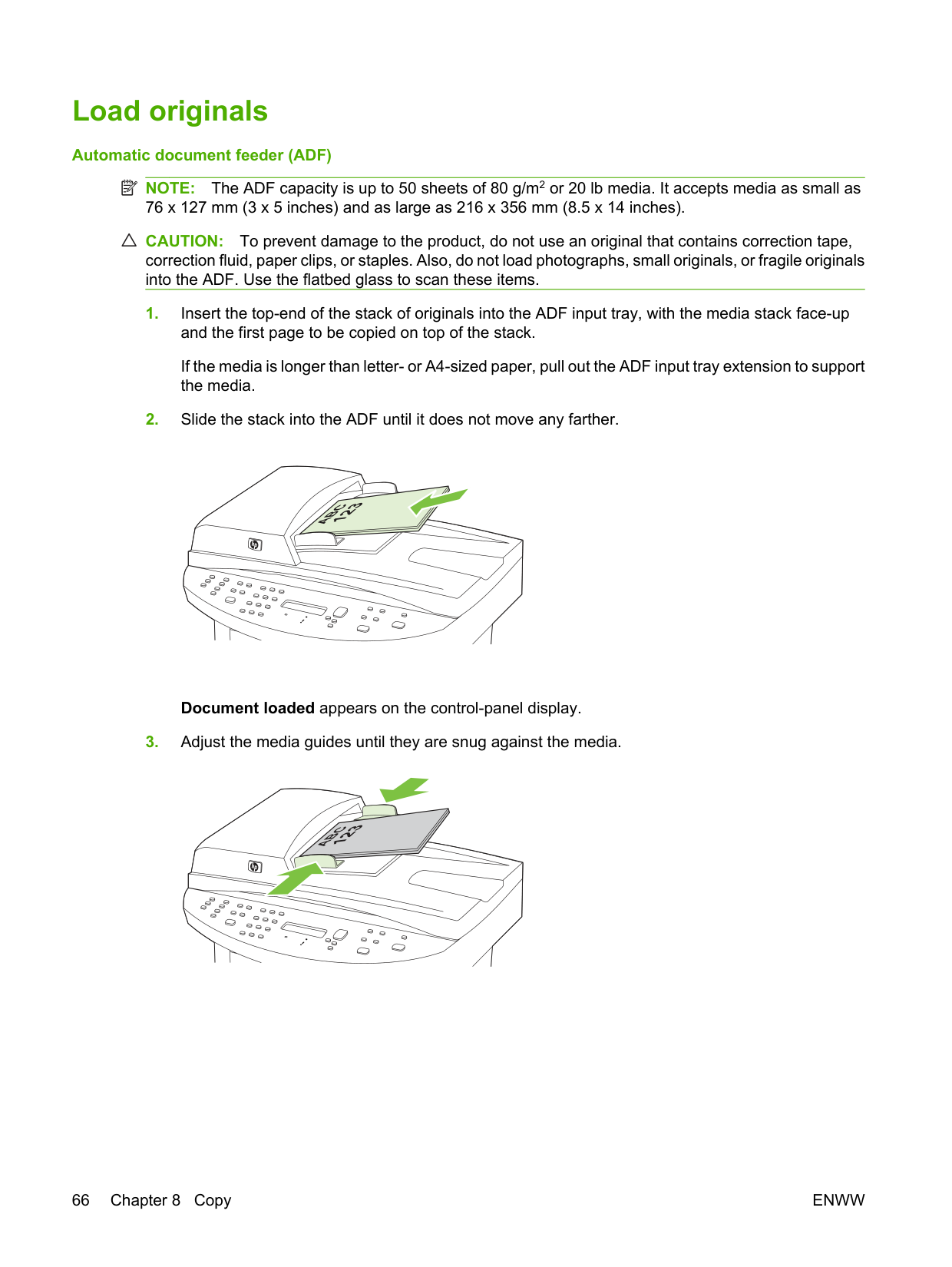

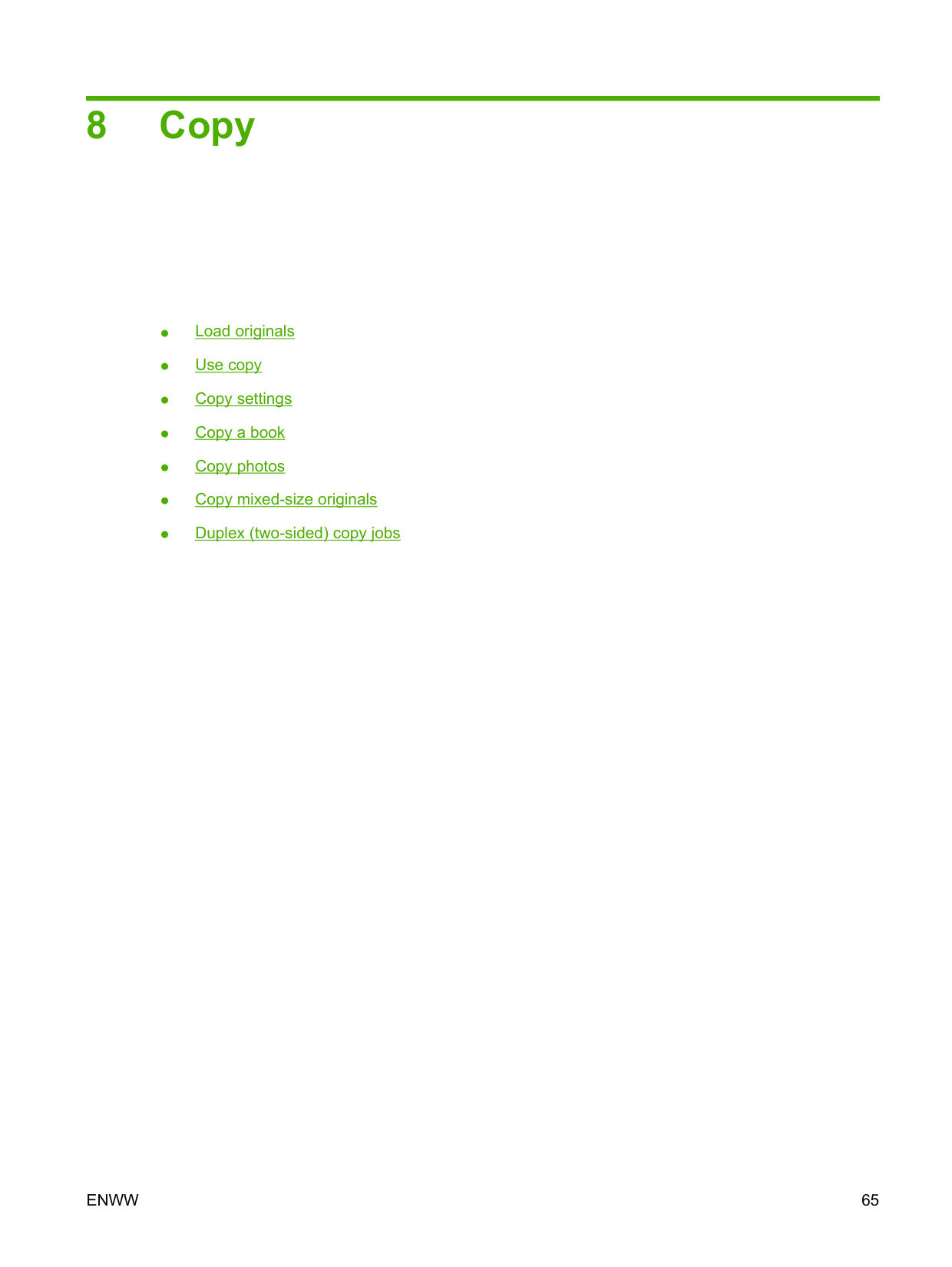

8 Copy Load originals ..................................................................................................................................... 66 Use copy ............................................................................................................................................ 67

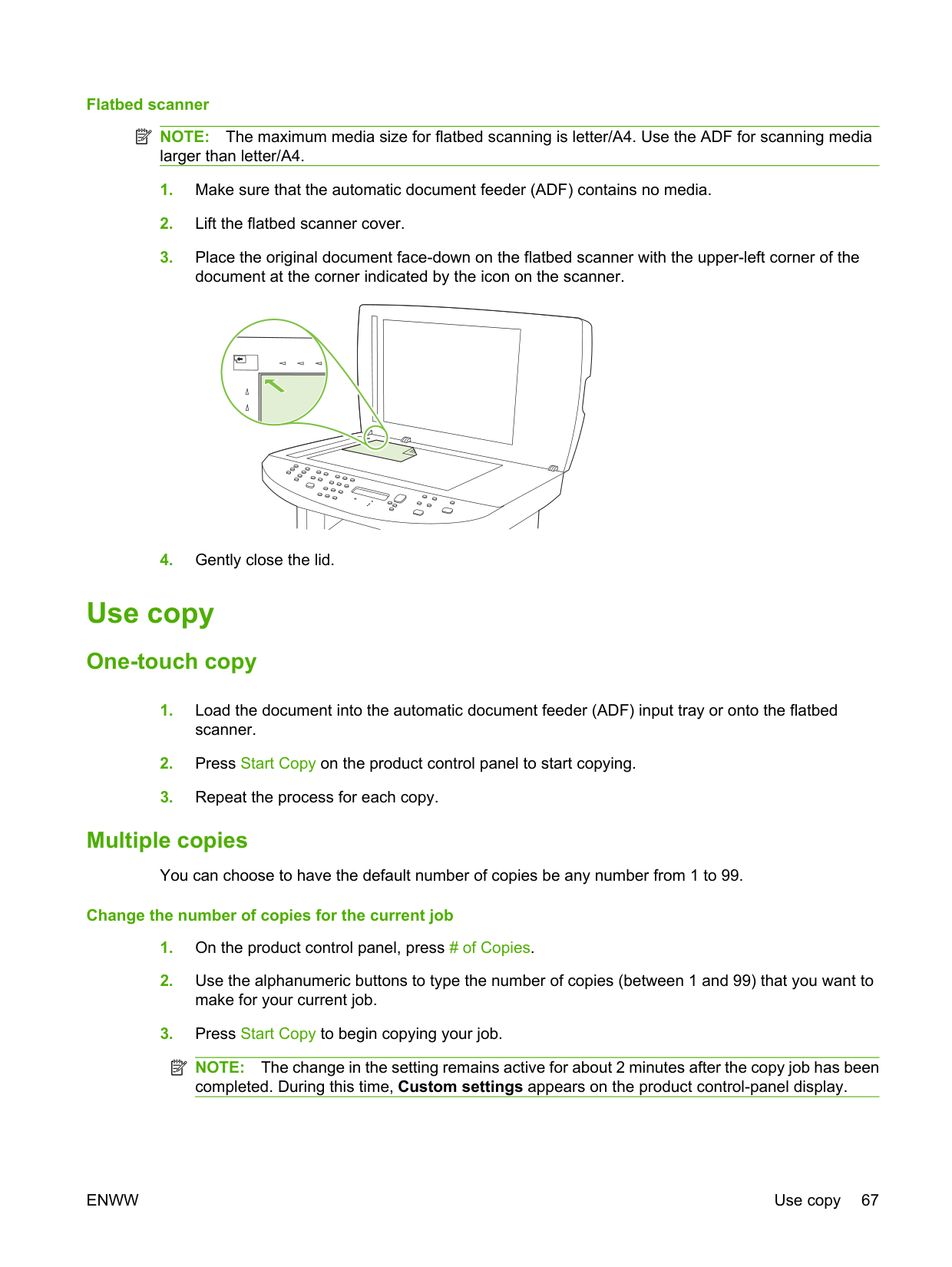

One-touch copy ................................................................................................................. 67 Multiple copies ................................................................................................................... 67 Cancel a copy job .............................................................................................................. 68 Reduce or enlarge copies .................................................................................................. 68 Change the copy-collation setting ...................................................................................... 69

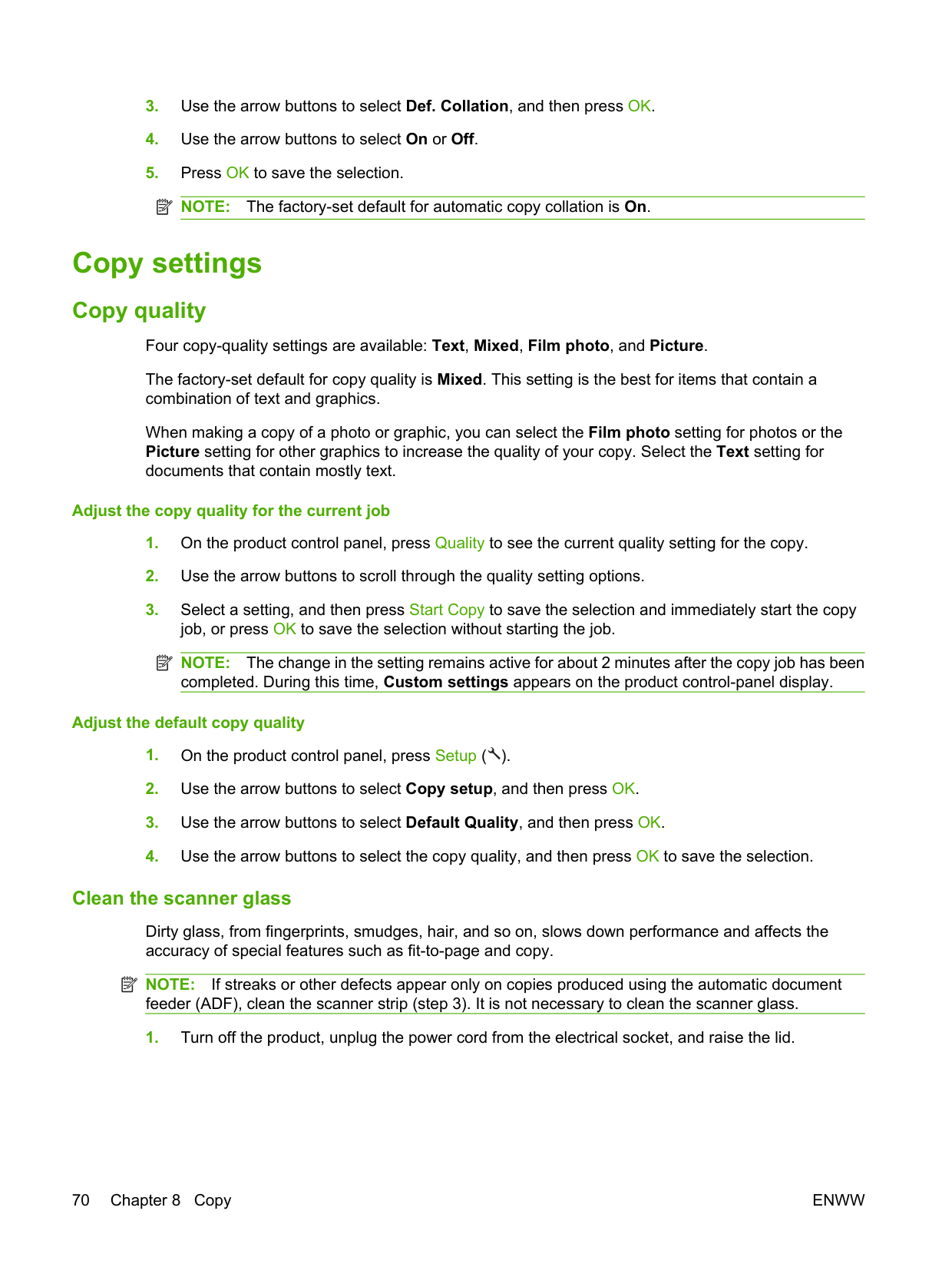

Copy settings ...................................................................................................................................... 70 Copy quality ....................................................................................................................... 70 Define custom copy settings .............................................................................................. 72 Copy onto media of different types and sizes .................................................................... 72 Restore the copy-settings defaults .................................................................................... 74

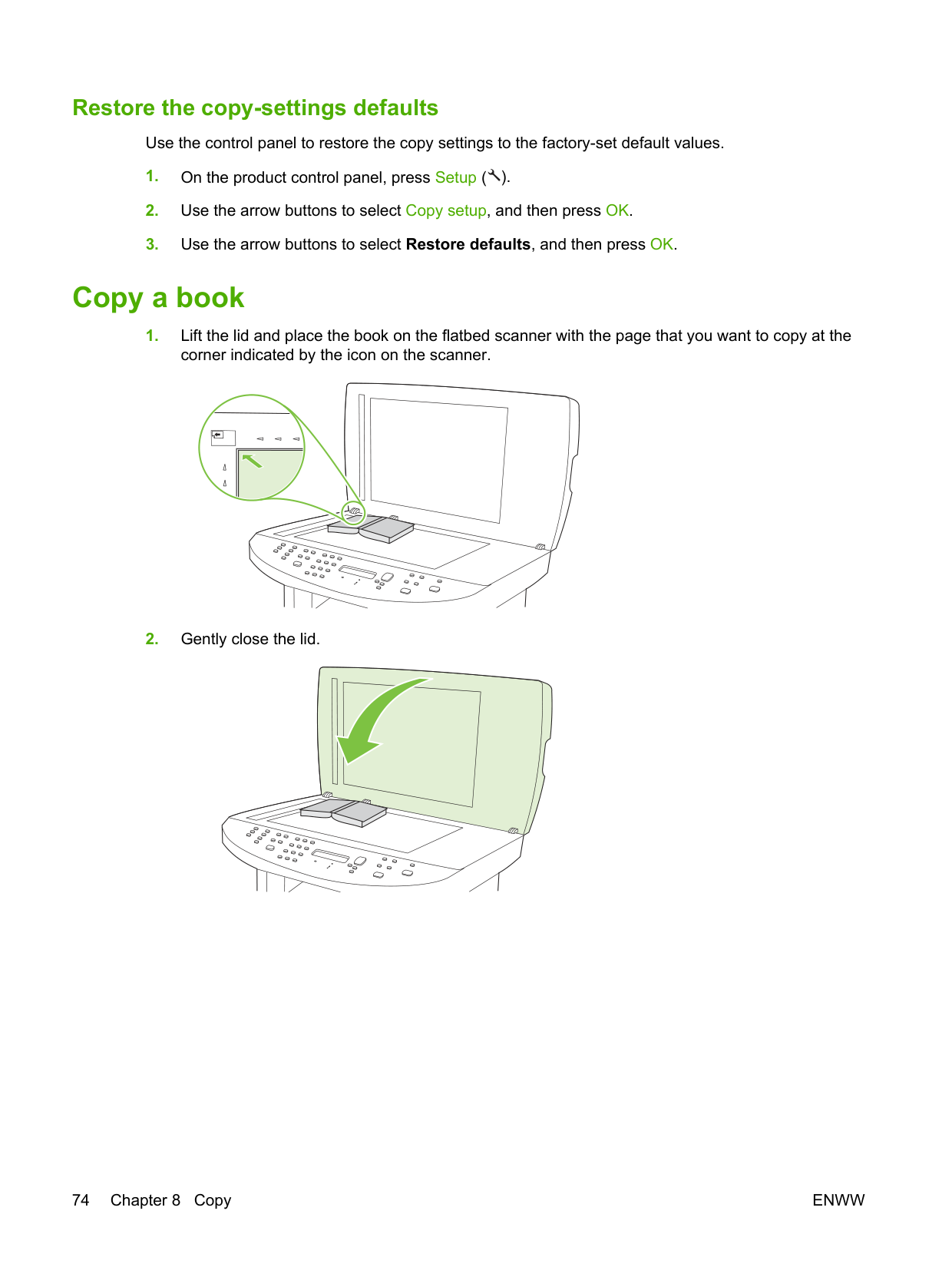

Copy a book ....................................................................................................................................... 74 Copy photos ....................................................................................................................................... 75 Copy mixed-size originals .................................................................................................................. 76 Duplex (two-sided) copy jobs ............................................................................................................. 76

Copy two-sided documents manually ................................................................................ 76

9 Scan Load originals for scanning ................................................................................................................ 78 Use scan ............................................................................................................................................ 79

ENWW v

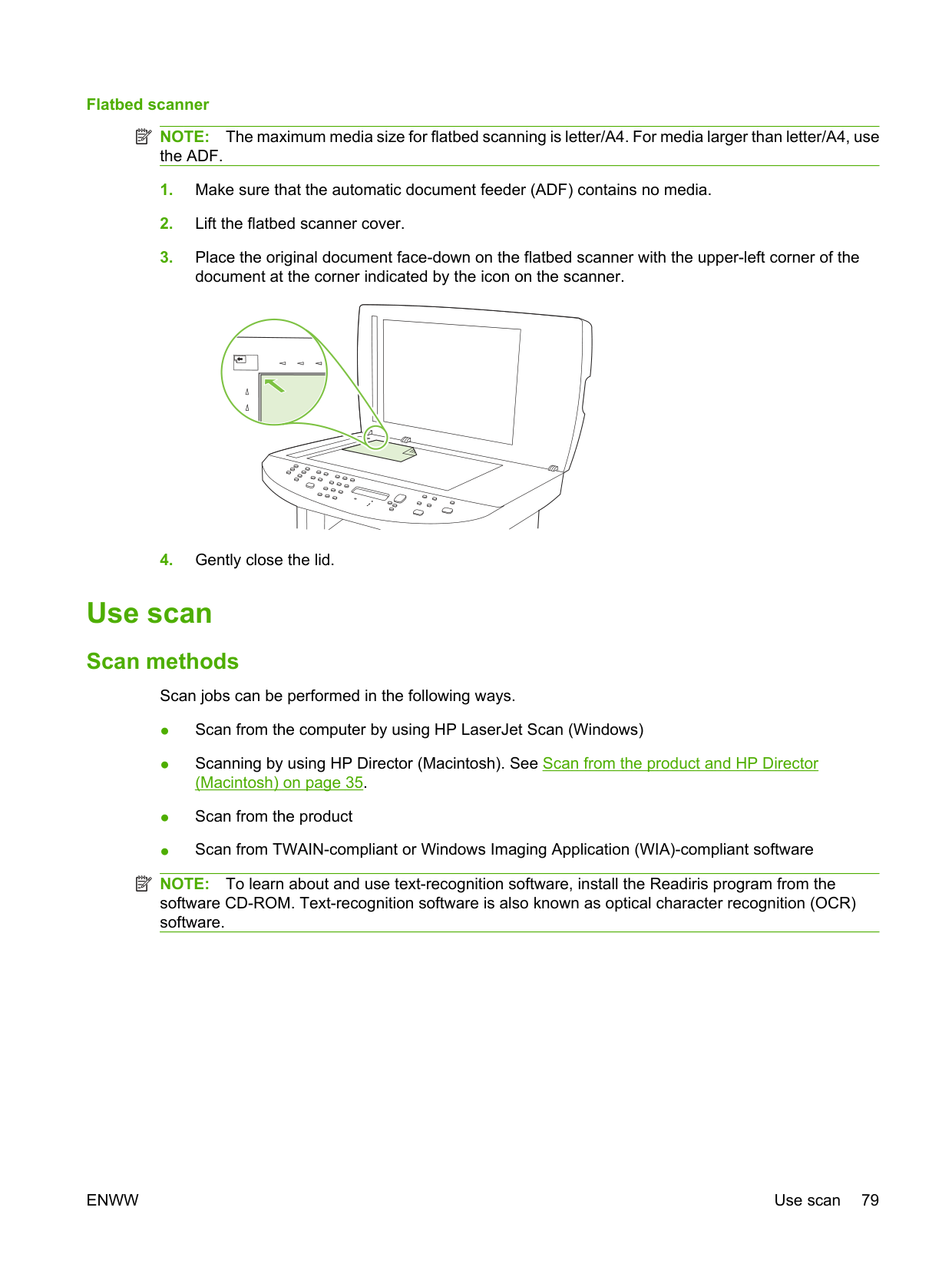

Scan methods .................................................................................................................... 79 Use the Scan To feature .................................................................................................... 81 Canceling a scan job ......................................................................................................... 83

Scan settings ...................................................................................................................................... 84 Scan file format .................................................................................................................. 84 Scanner resolution and color ............................................................................................. 84 Scan quality ....................................................................................................................... 85

Scan a book ....................................................................................................................................... 87 Scan a photo ...................................................................................................................................... 88

Page 4

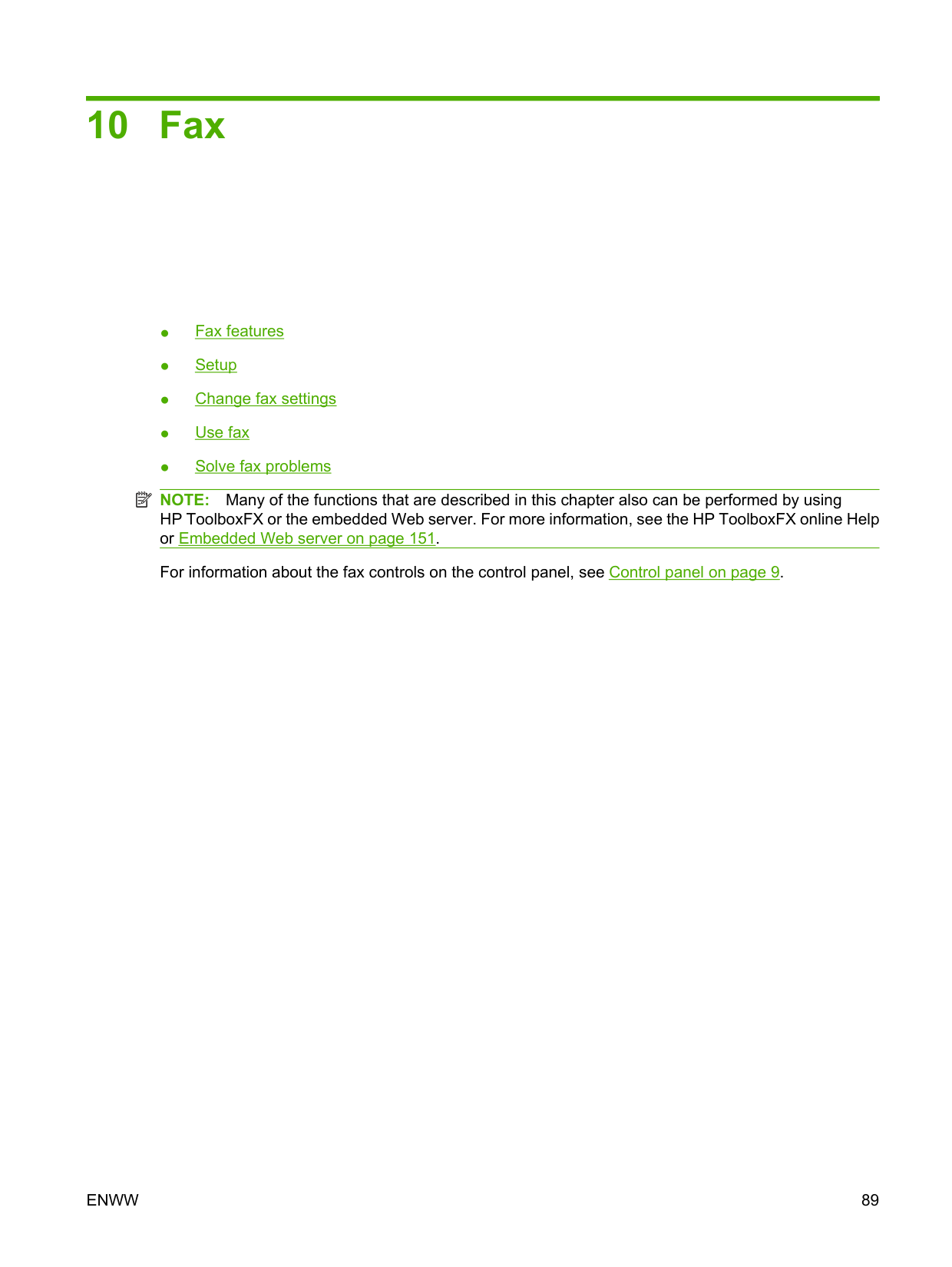

10 Fax Fax features ....................................................................................................................................... 90 Setup .................................................................................................................................................. 91

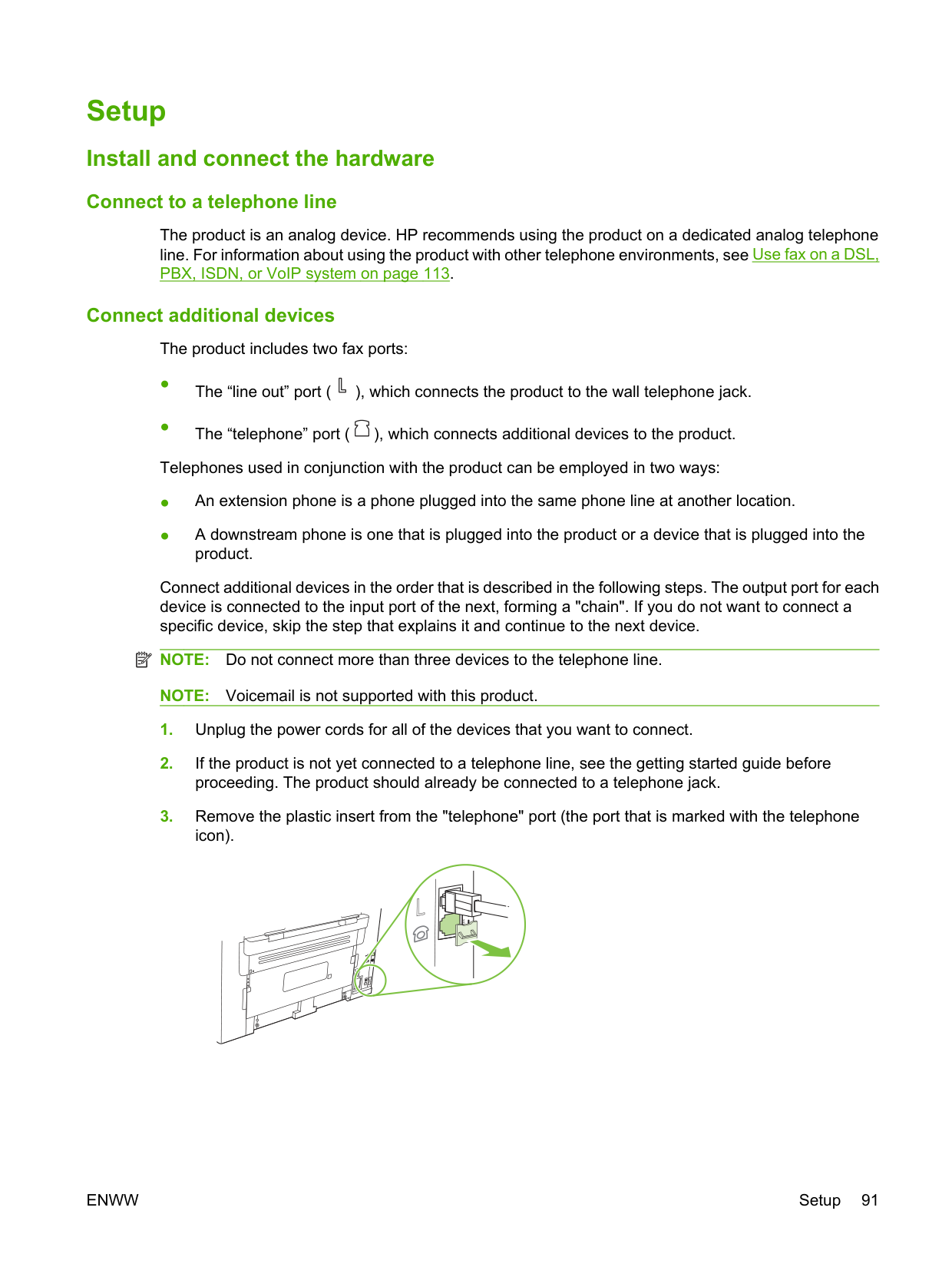

Install and connect the hardware ....................................................................................... 91 Configure fax settings ........................................................................................................ 93 Manage the phone book .................................................................................................... 95 Set fax polling .................................................................................................................... 99 Security .............................................................................................................................. 99

Change fax settings .......................................................................................................................... 101 Set the sound-volume settings ........................................................................................ 101 Send fax settings ............................................................................................................. 101 Receive fax settings ......................................................................................................... 106

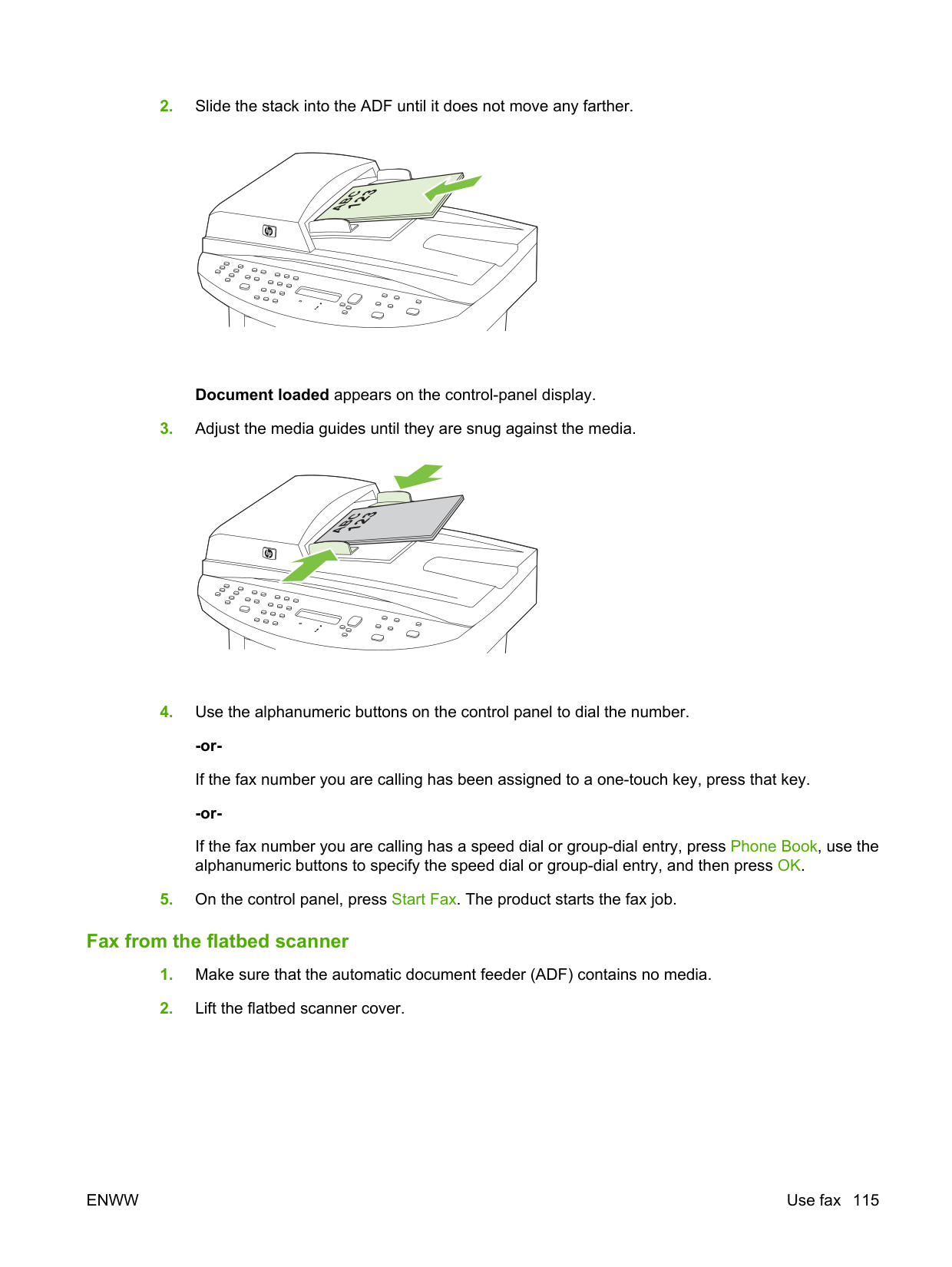

Use fax ............................................................................................................................................. 112 Fax software .................................................................................................................... 112 Cancel a fax ..................................................................................................................... 112 Delete faxes from memory ............................................................................................... 113 Use fax on a DSL, PBX, ISDN, or VoIP system .............................................................. 113 Send a fax ........................................................................................................................ 114 Receive a fax ................................................................................................................... 124

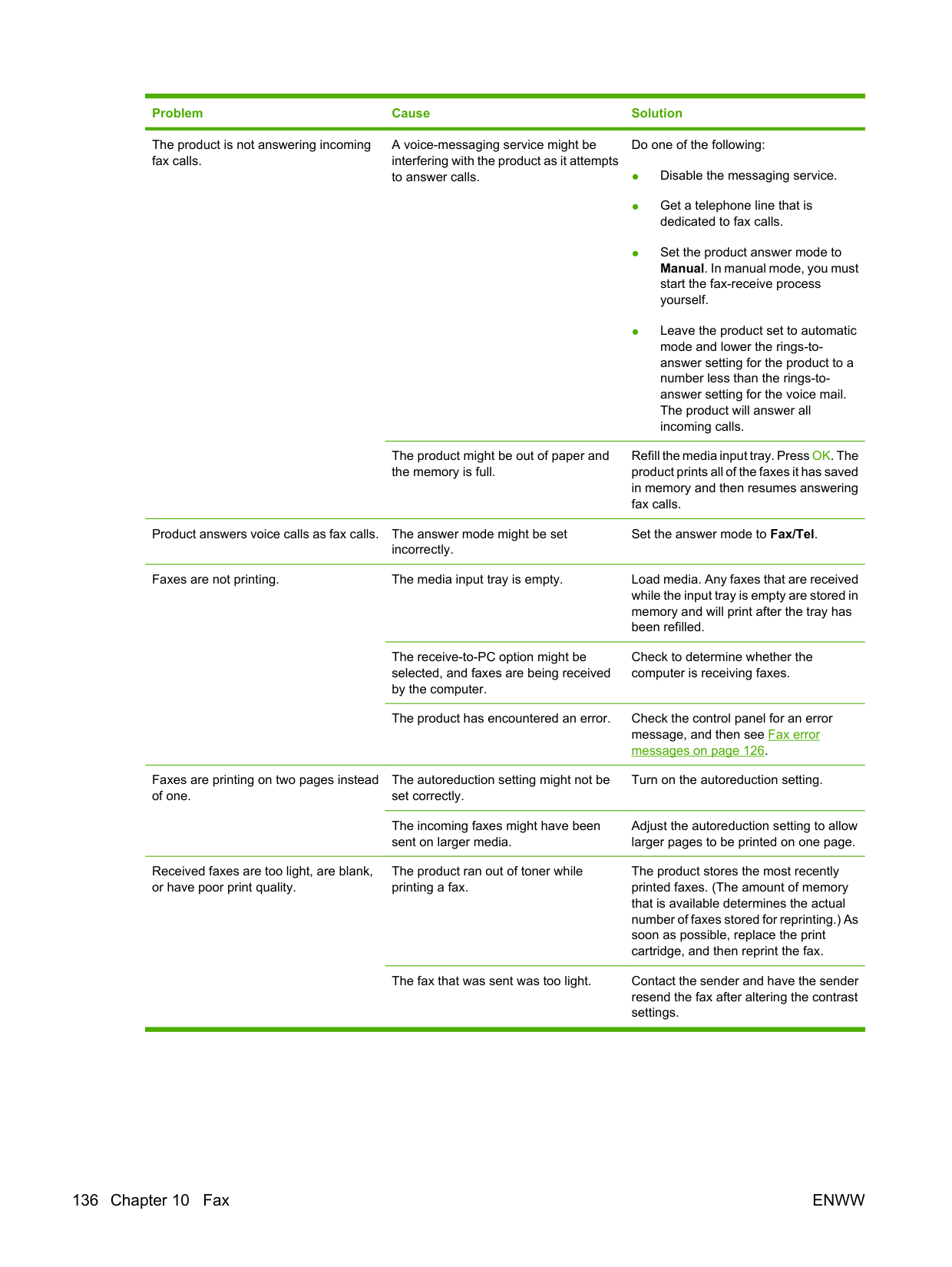

Solve fax problems ........................................................................................................................... 126 Fax error messages ........................................................................................................ 126 Fax memory is retained when there is a loss of power .................................................... 129 Fax logs and reports ........................................................................................................ 130 Change error correction and fax speed ........................................................................... 132 Problems sending faxes .................................................................................................. 133 Problems receiving faxes ................................................................................................. 135 Performance problems .................................................................................................... 137

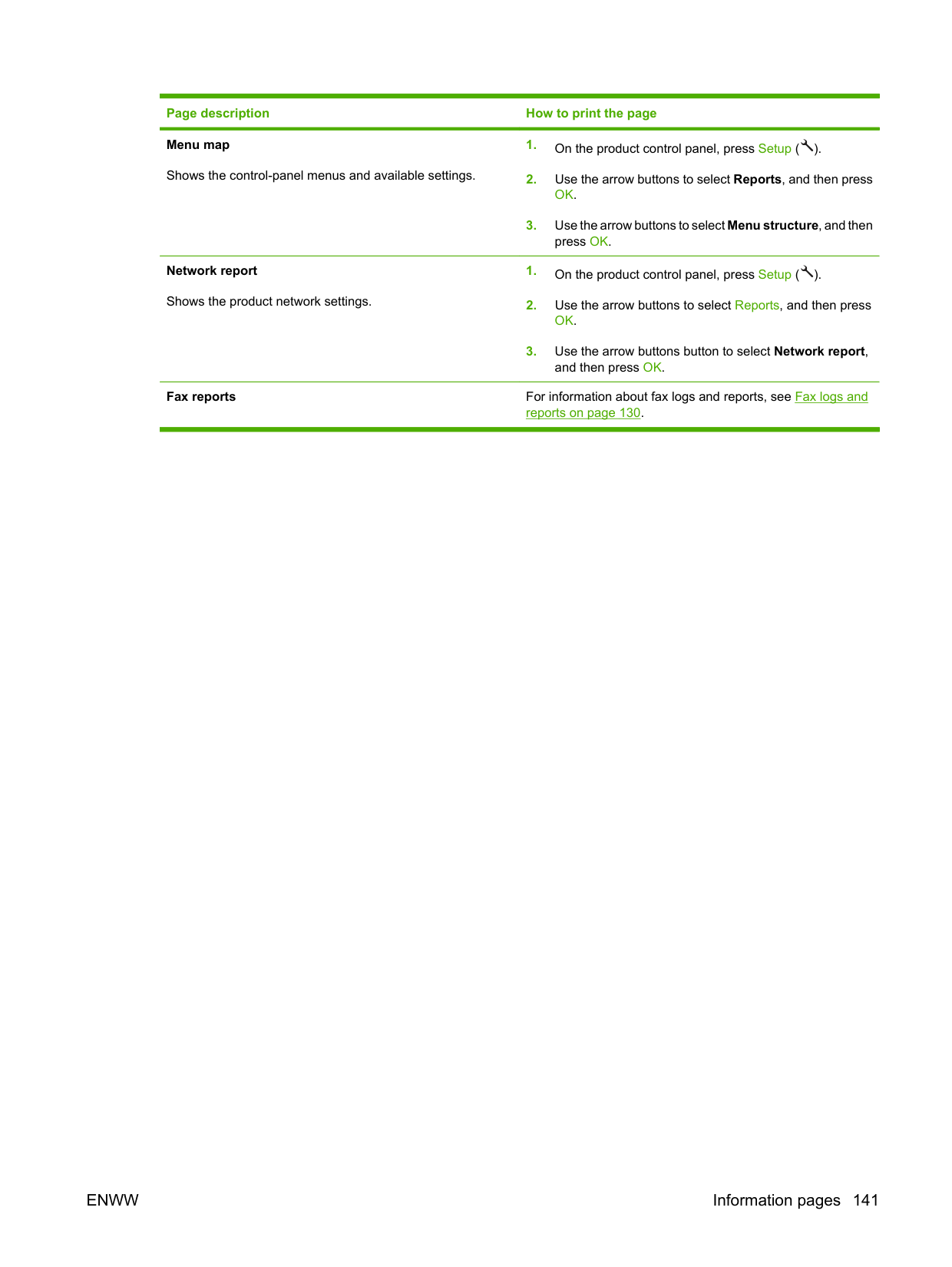

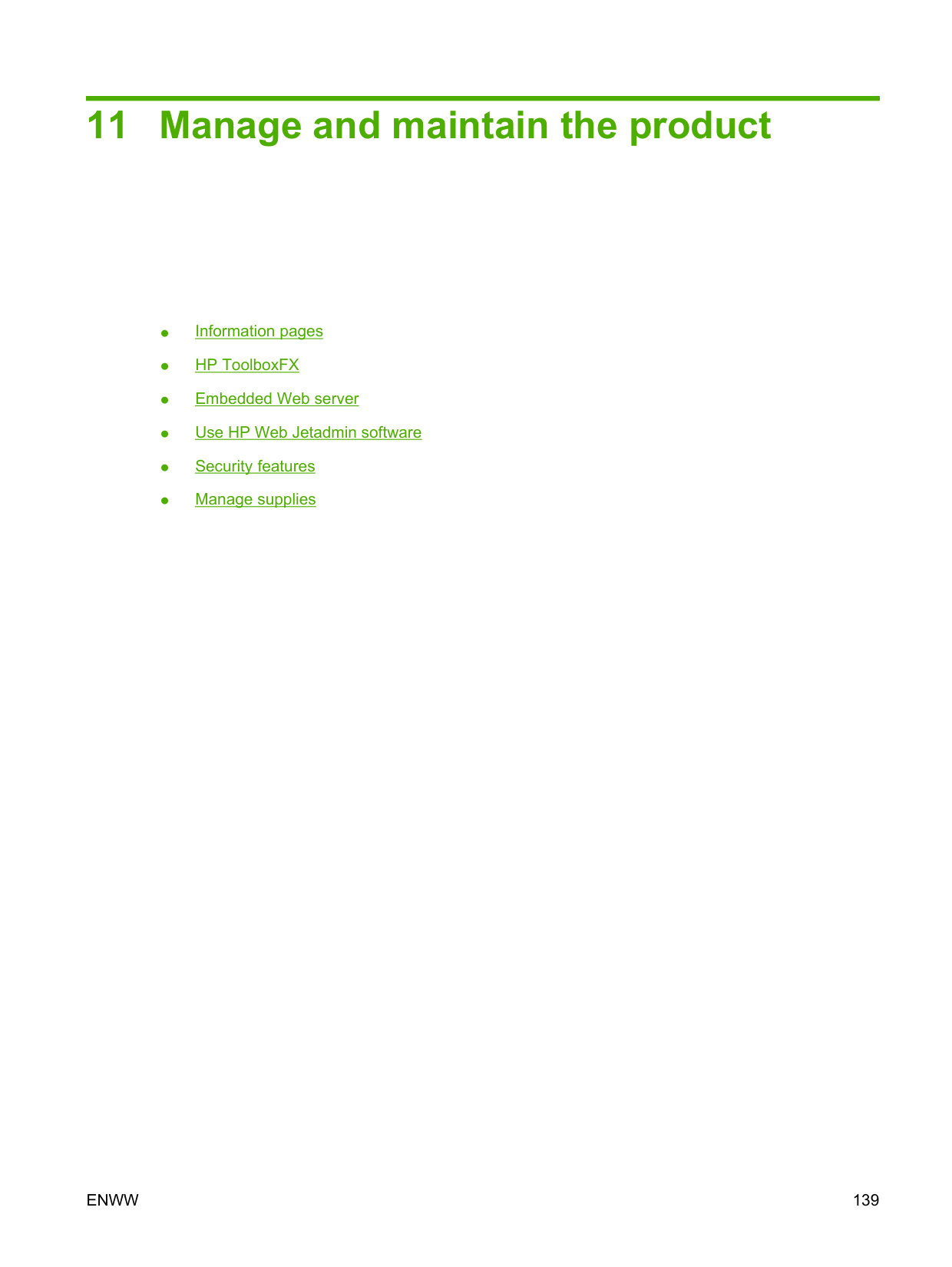

11 Manage and maintain the product Information pages ............................................................................................................................. 140 HP ToolboxFX .................................................................................................................................. 142

View HP ToolboxFX ......................................................................................................... 142 Status ............................................................................................................................... 142

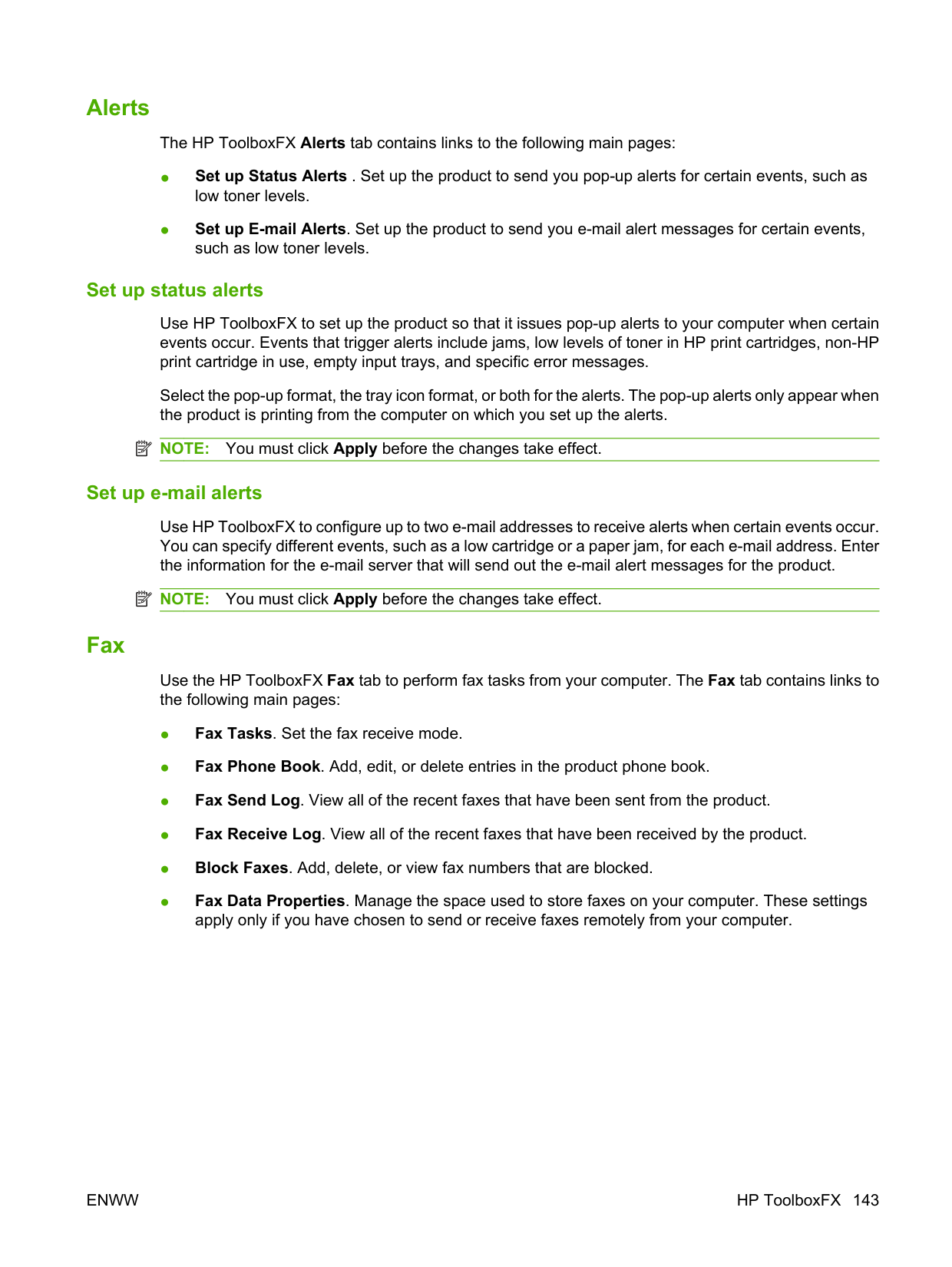

Alerts ................................................................................................................................ 143 Fax ................................................................................................................................... 143 Help ................................................................................................................................. 146 System Settings ............................................................................................................... 147 Print Settings ................................................................................................................... 149 Network Settings .............................................................................................................. 150

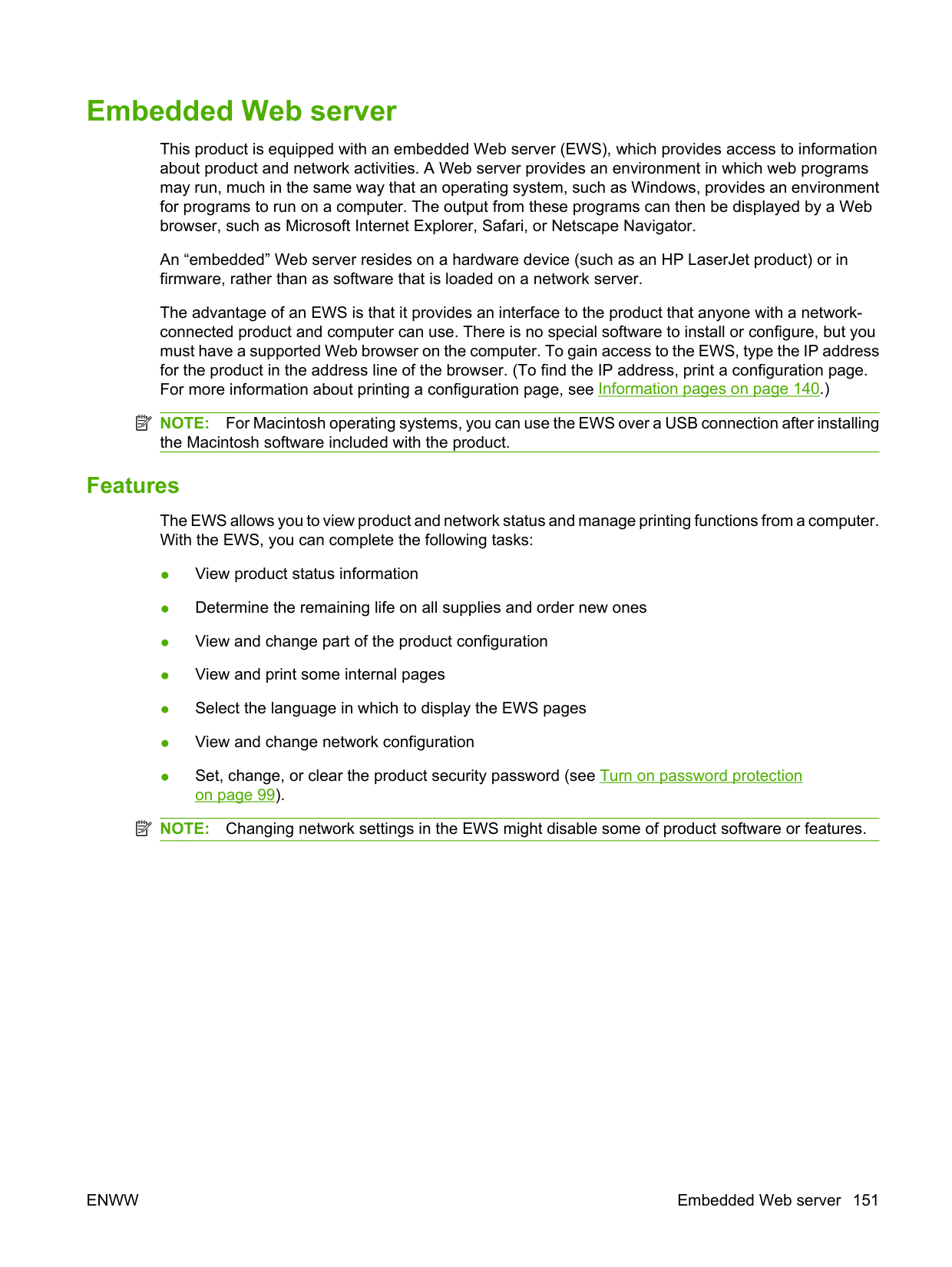

Embedded Web server ..................................................................................................................... 151

Features ........................................................................................................................... 151 Use HP Web Jetadmin software ...................................................................................................... 152 Security features .............................................................................................................................. 152

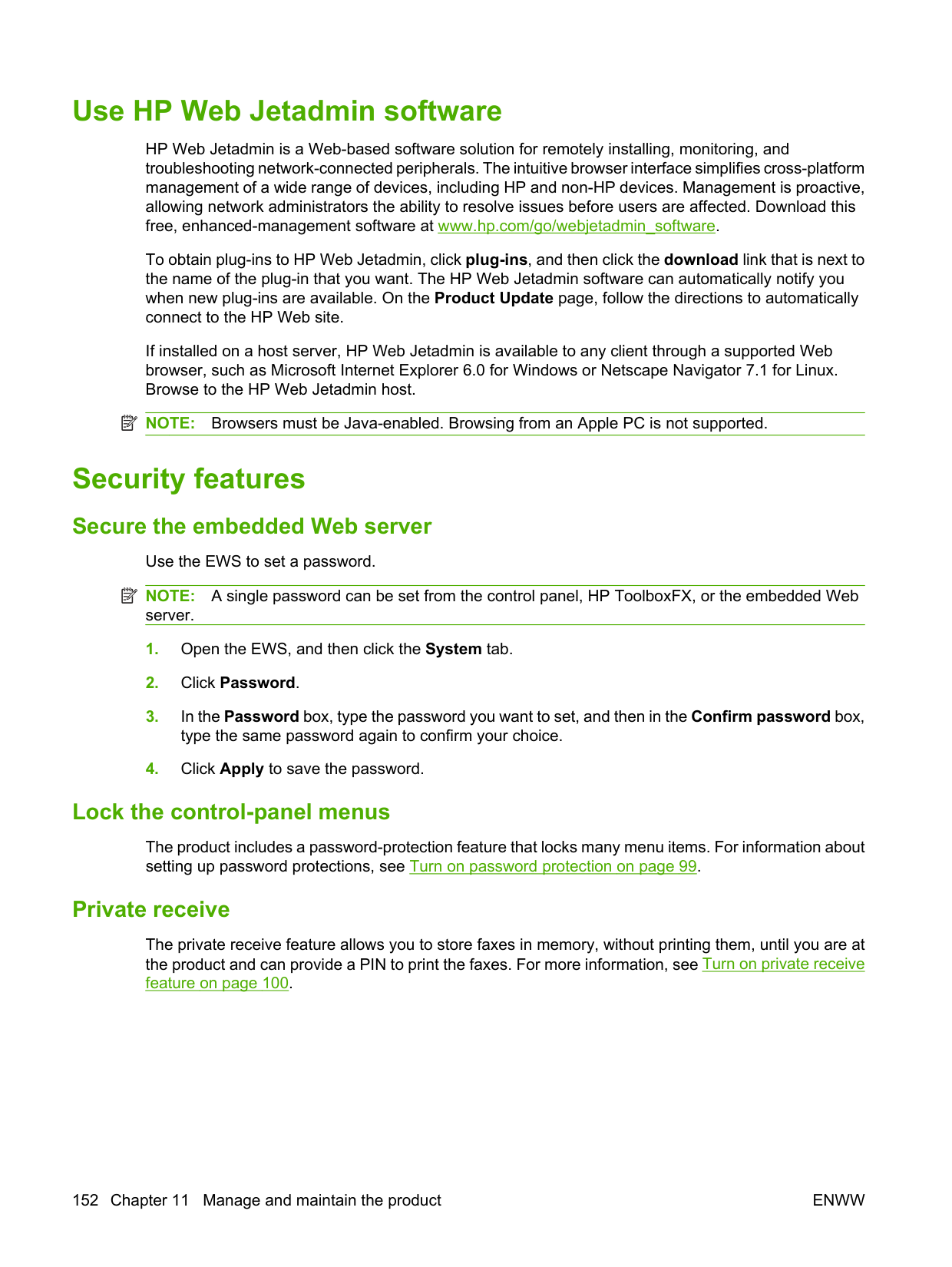

Secure the embedded Web server .................................................................................. 152 Lock the control-panel menus .......................................................................................... 152 Private receive ................................................................................................................. 152

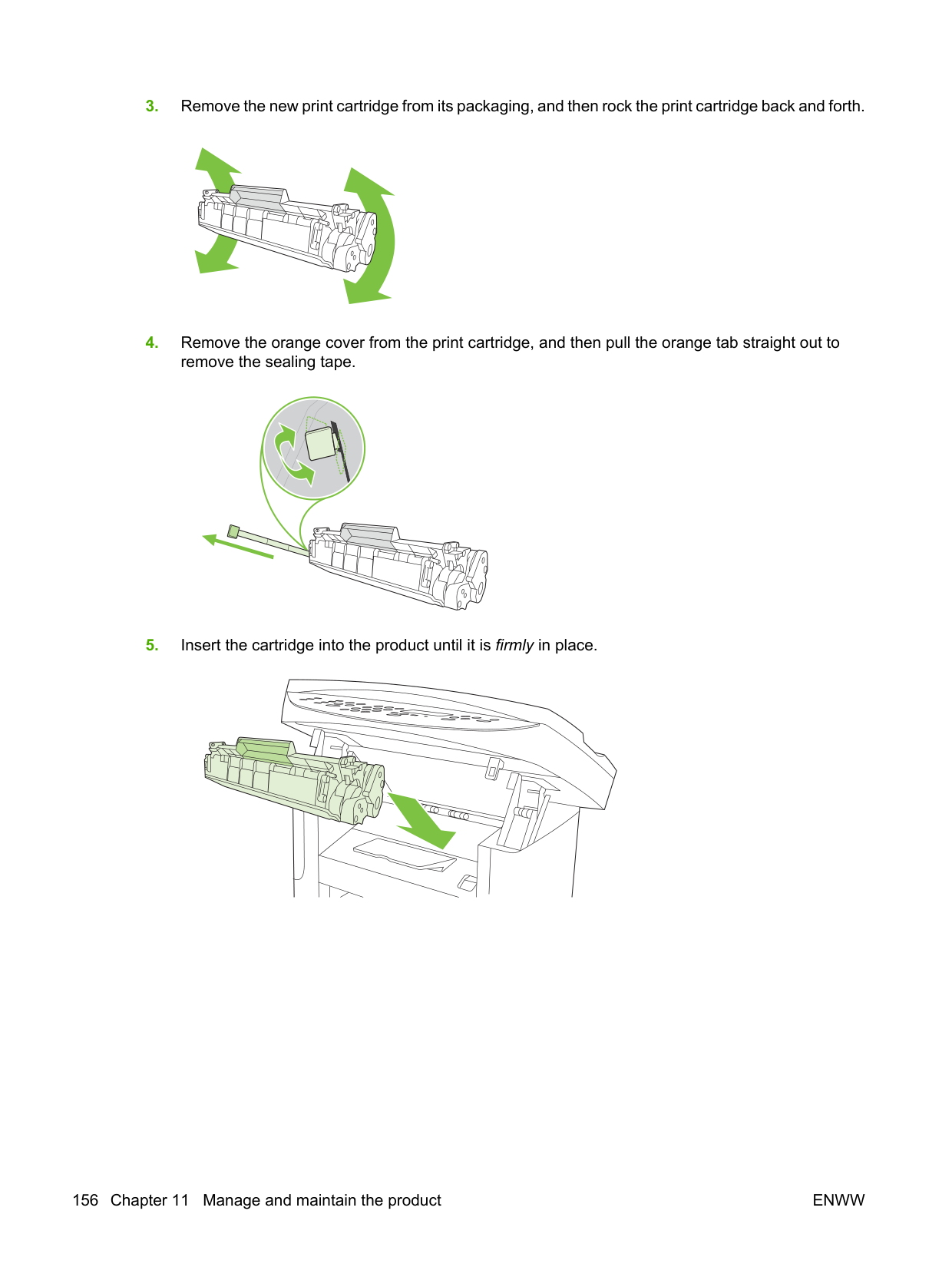

Manage supplies .............................................................................................................................. 153 Check and order supplies ................................................................................................ 153 Replace supplies ............................................................................................................. 155 Clean the product ............................................................................................................ 157 Firmware updates ............................................................................................................ 160

12 Problem solve Problem-solving checklist ................................................................................................................. 162 Restore the factory-set defaults ....................................................................................................... 163 Control-panel messages .................................................................................................................. 164

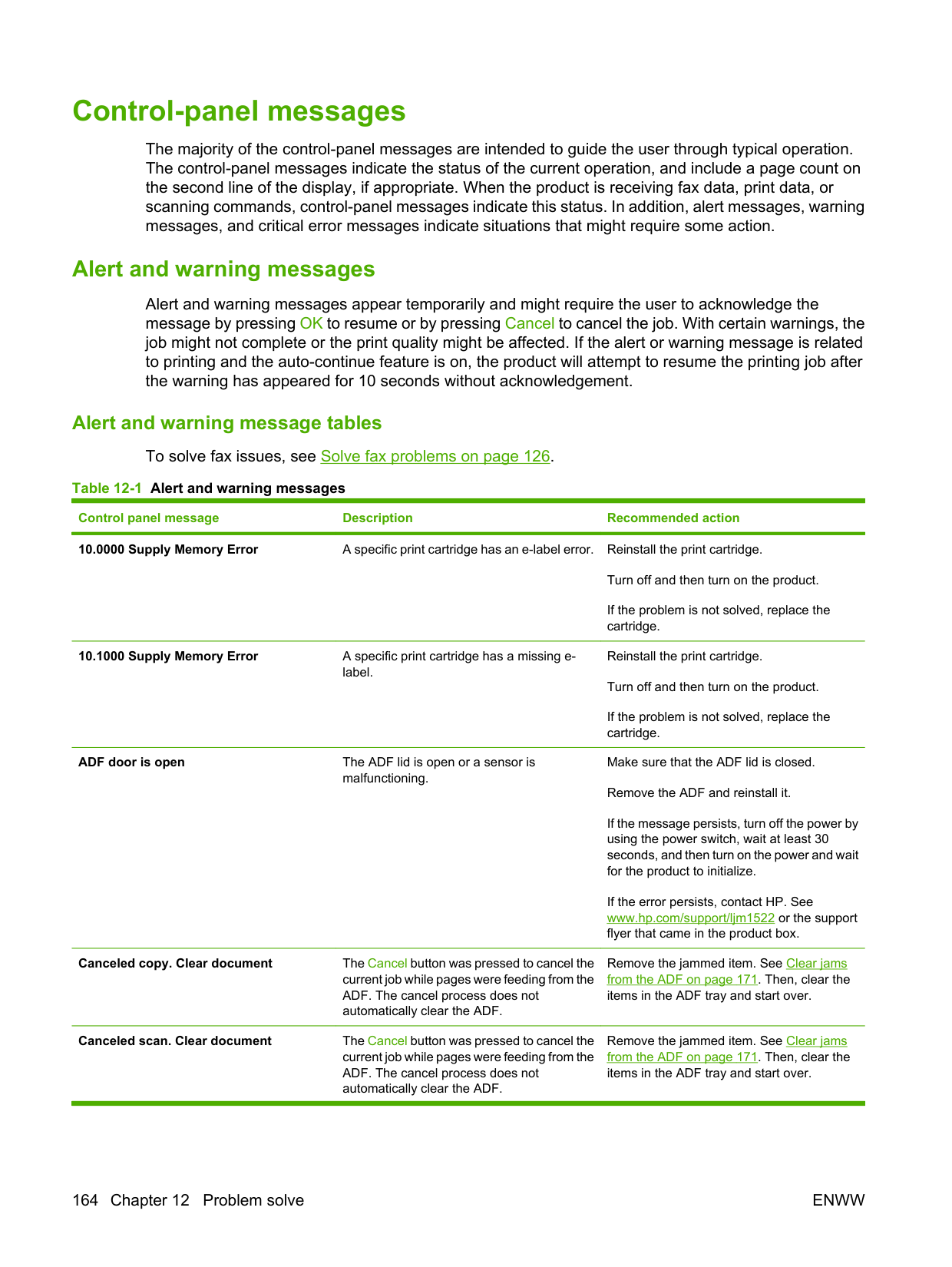

Alert and warning messages .......................................................................................... 164 Critical error messages .................................................................................................... 168

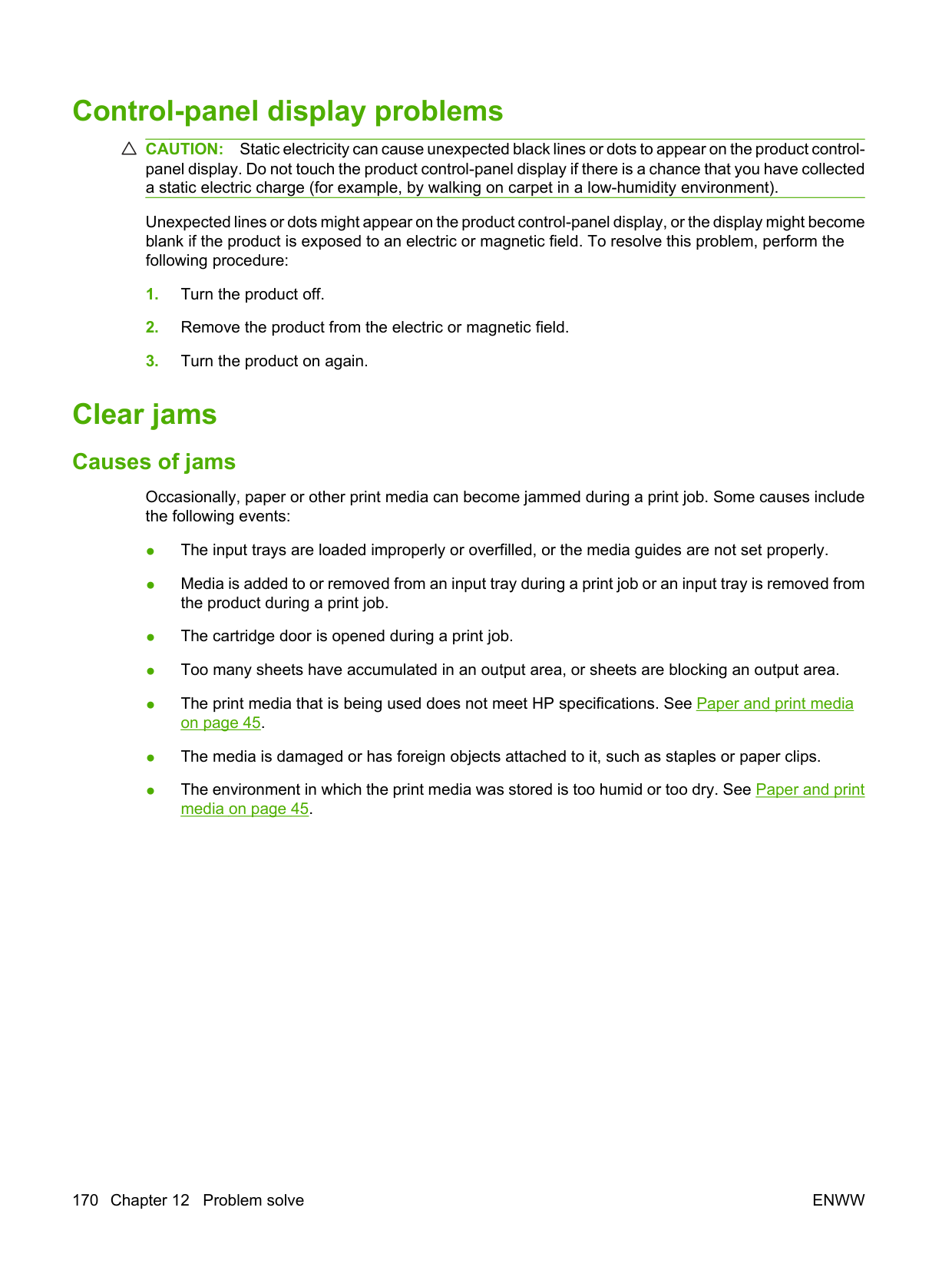

Control-panel display problems ........................................................................................................ 170 Clear jams ........................................................................................................................................ 170

Page 5

Causes of jams ................................................................................................................ 170 Where to look for jams ..................................................................................................... 171 Clear jams from the ADF ................................................................................................. 171 Clear jams from the input-tray areas ............................................................................... 174 Clear jams from the output bin ......................................................................................... 176 Clear jams from the print-cartridge area .......................................................................... 177 Avoid repeated jams ....................................................................................................... 178

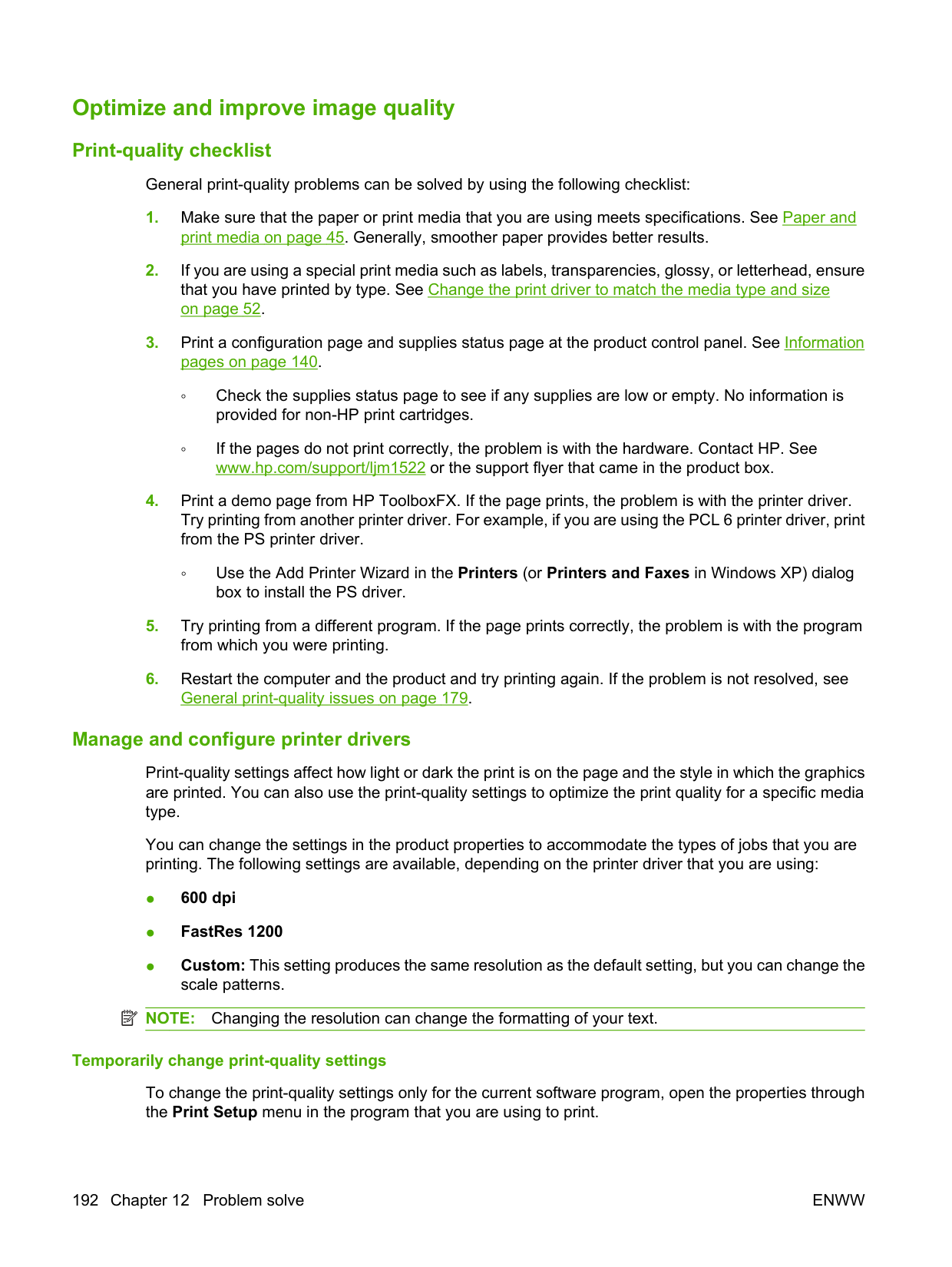

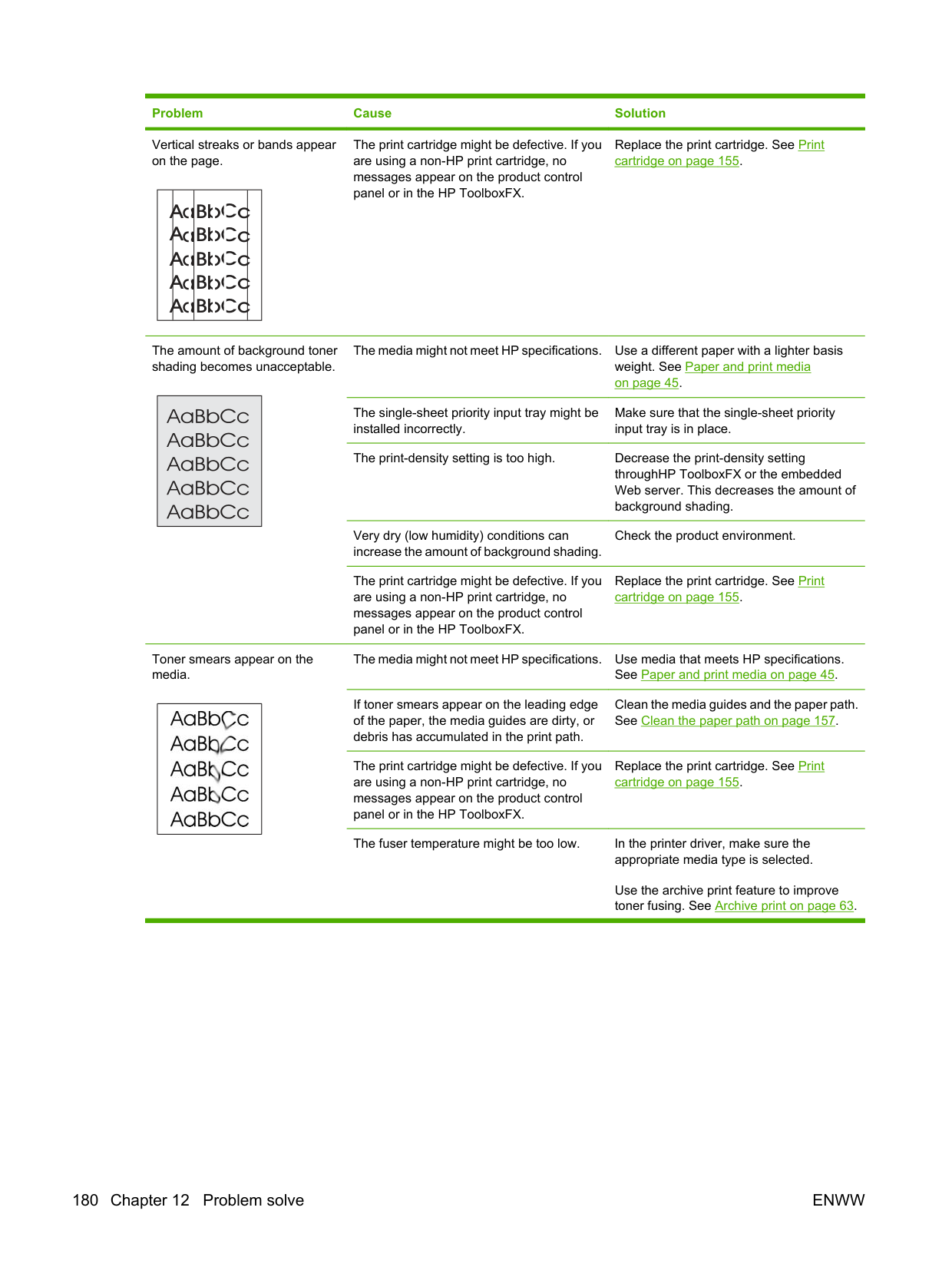

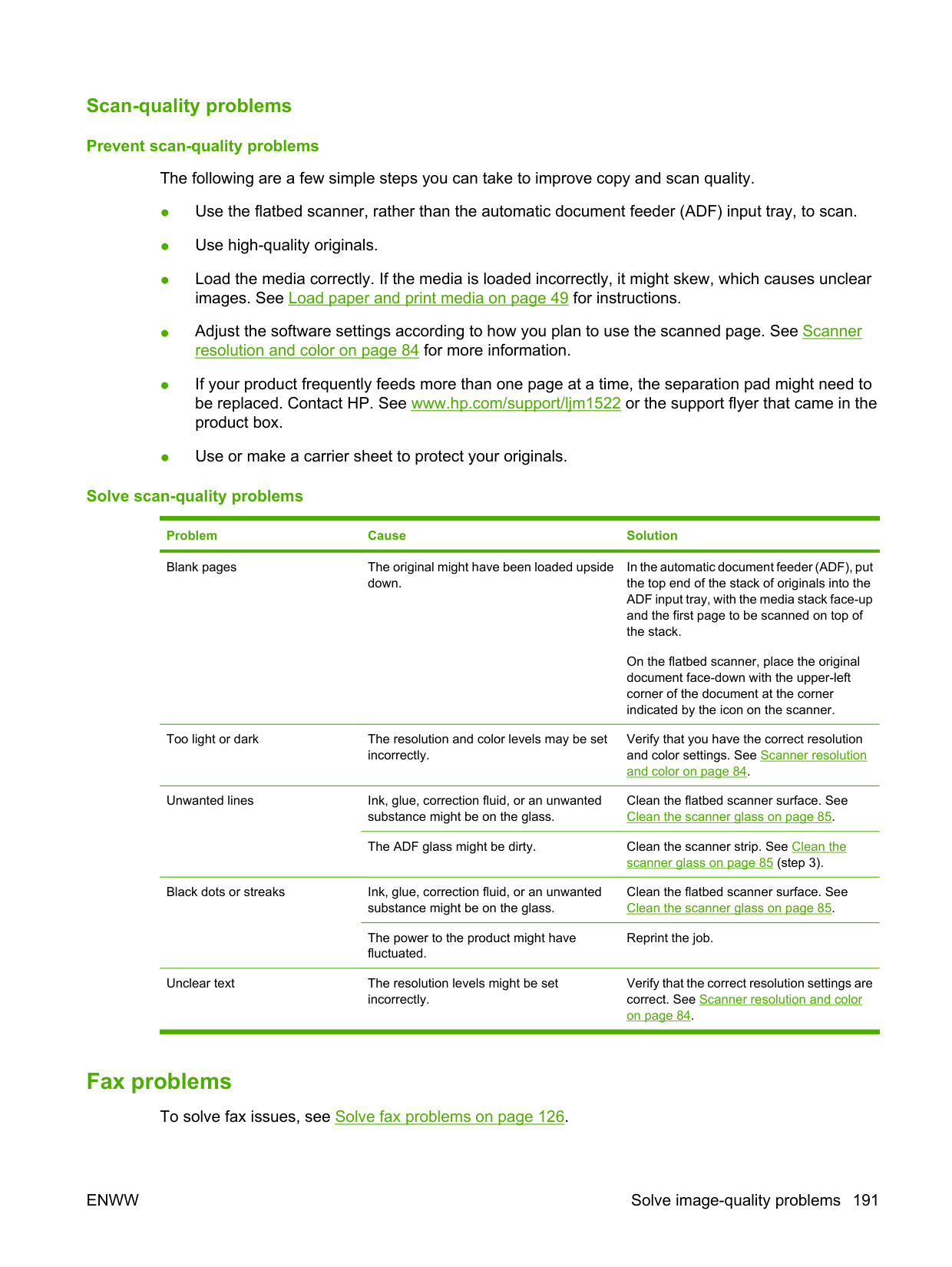

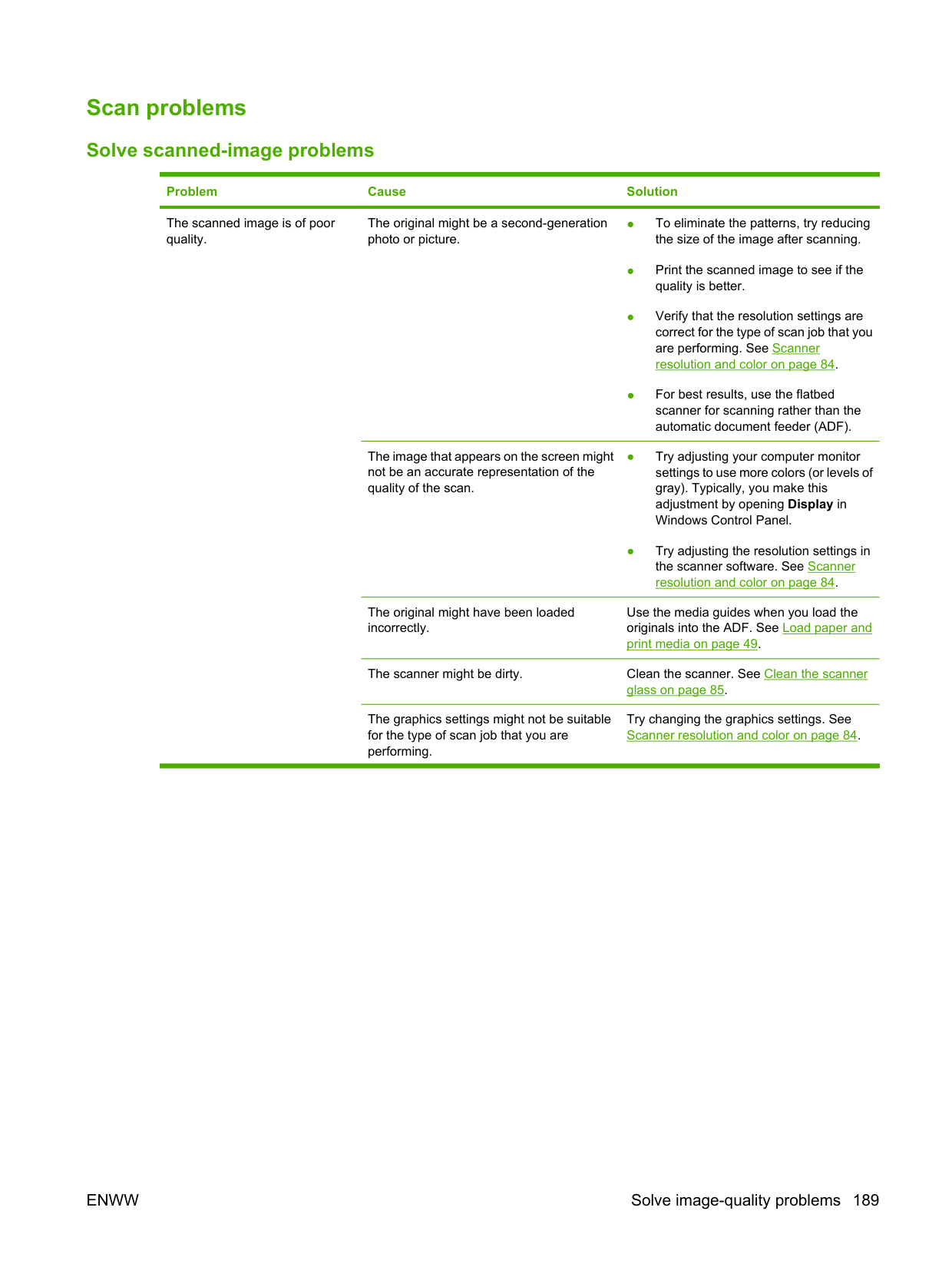

Solve image-quality problems .......................................................................................................... 179 Print problems .................................................................................................................. 179 Copy problems ................................................................................................................. 185 Scan problems ................................................................................................................. 189 Fax problems ................................................................................................................... 191 Optimize and improve image quality ................................................................................ 192

Solve connectivity problems ............................................................................................................. 193 Solve direct-connection problems .................................................................................... 193 Network problems ............................................................................................................ 194

ENWW vii

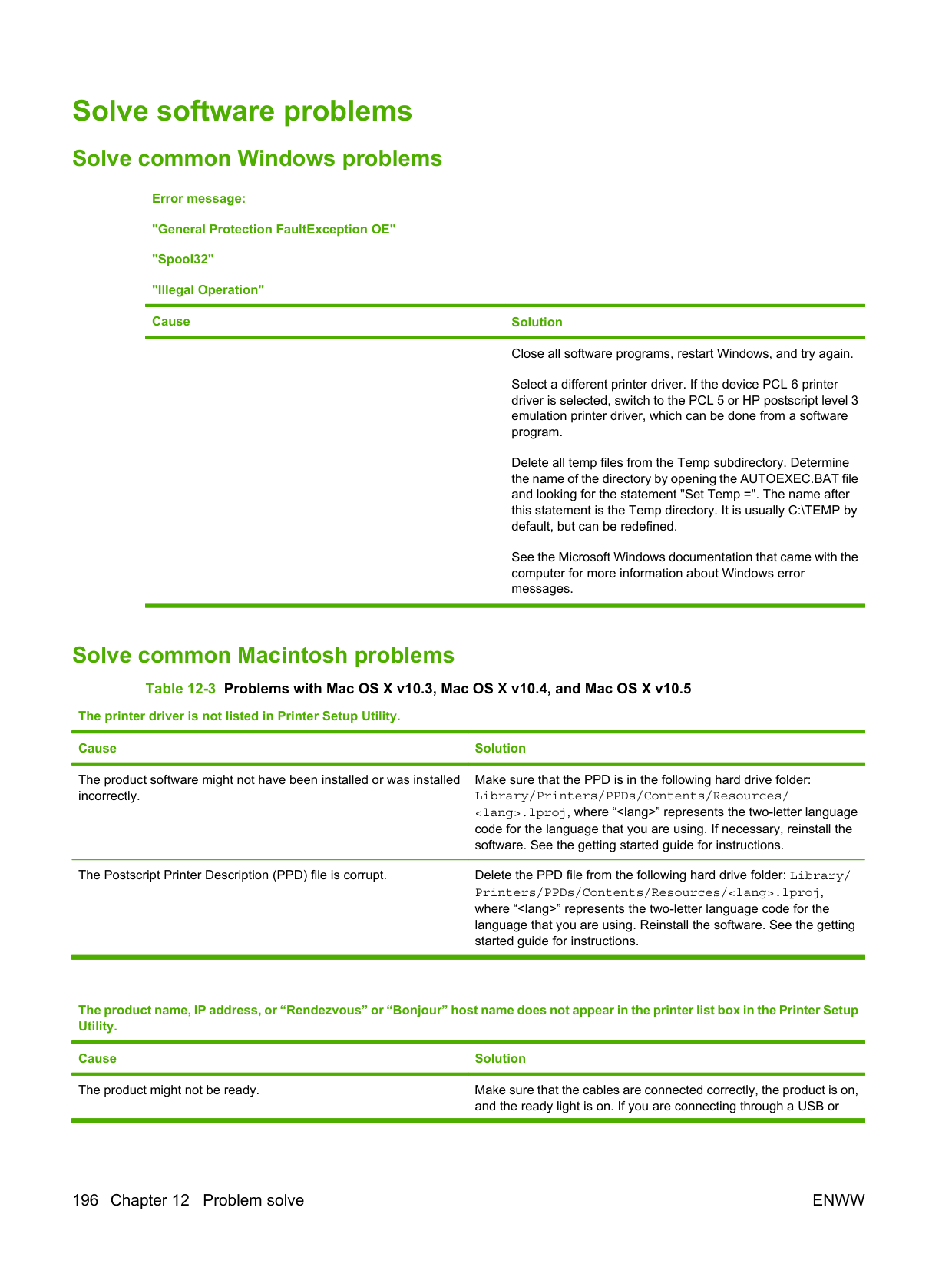

Solve software problems .................................................................................................................. 196 Solve common Windows problems ................................................................................. 196 Solve common Macintosh problems ................................................................................ 196 Solve PostScript (PS) errors ............................................................................................ 198

Appendix A Accessories and ordering information Supplies ............................................................................................................................................ 202 Cable and interface accessories ...................................................................................................... 202

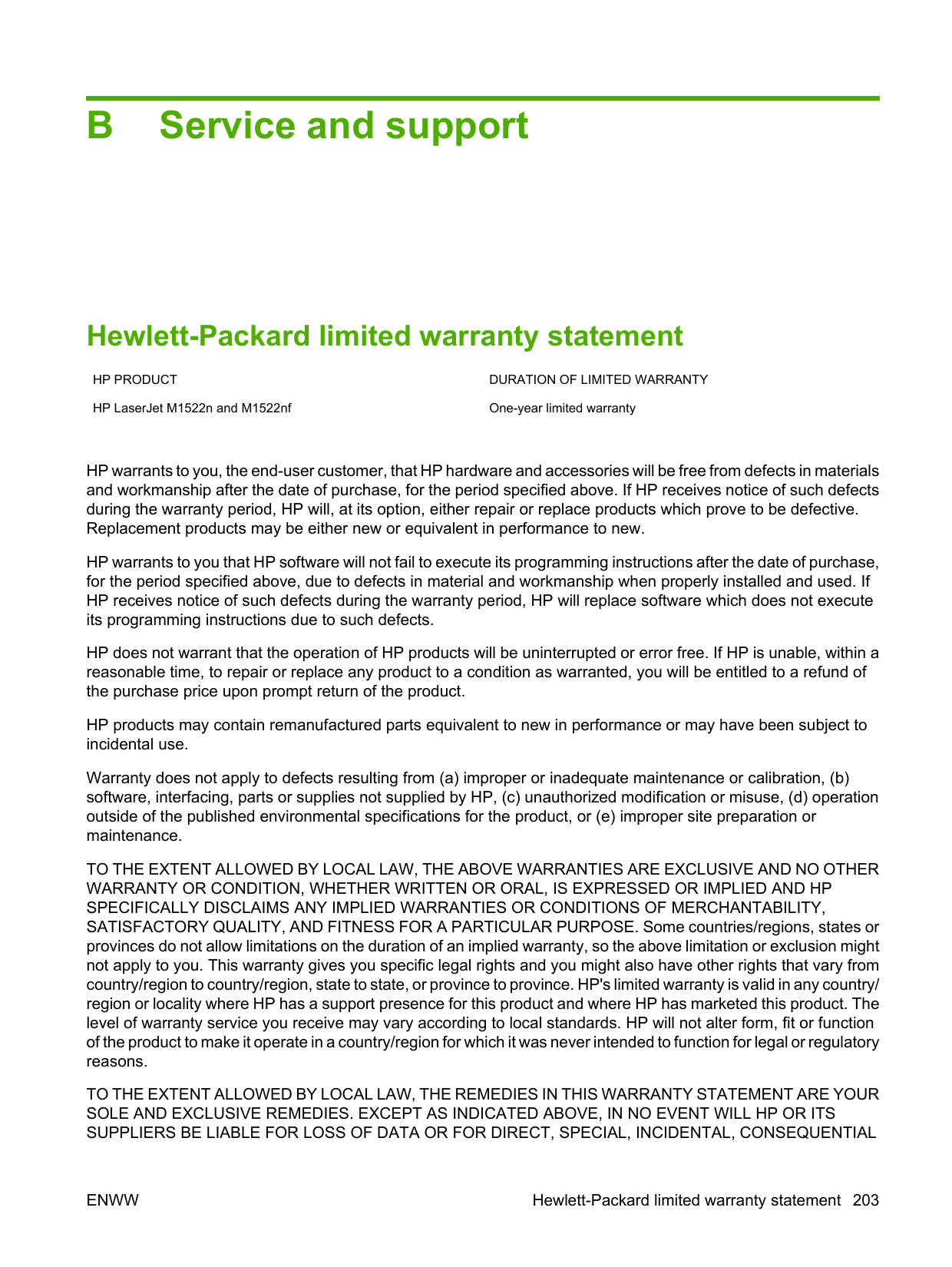

Appendix B Service and support Hewlett-Packard limited warranty statement .................................................................................... 203 Customer self repair warranty service .............................................................................................. 204 Print cartridge limited warranty statement ........................................................................................ 205 HP Customer Care ........................................................................................................................... 206

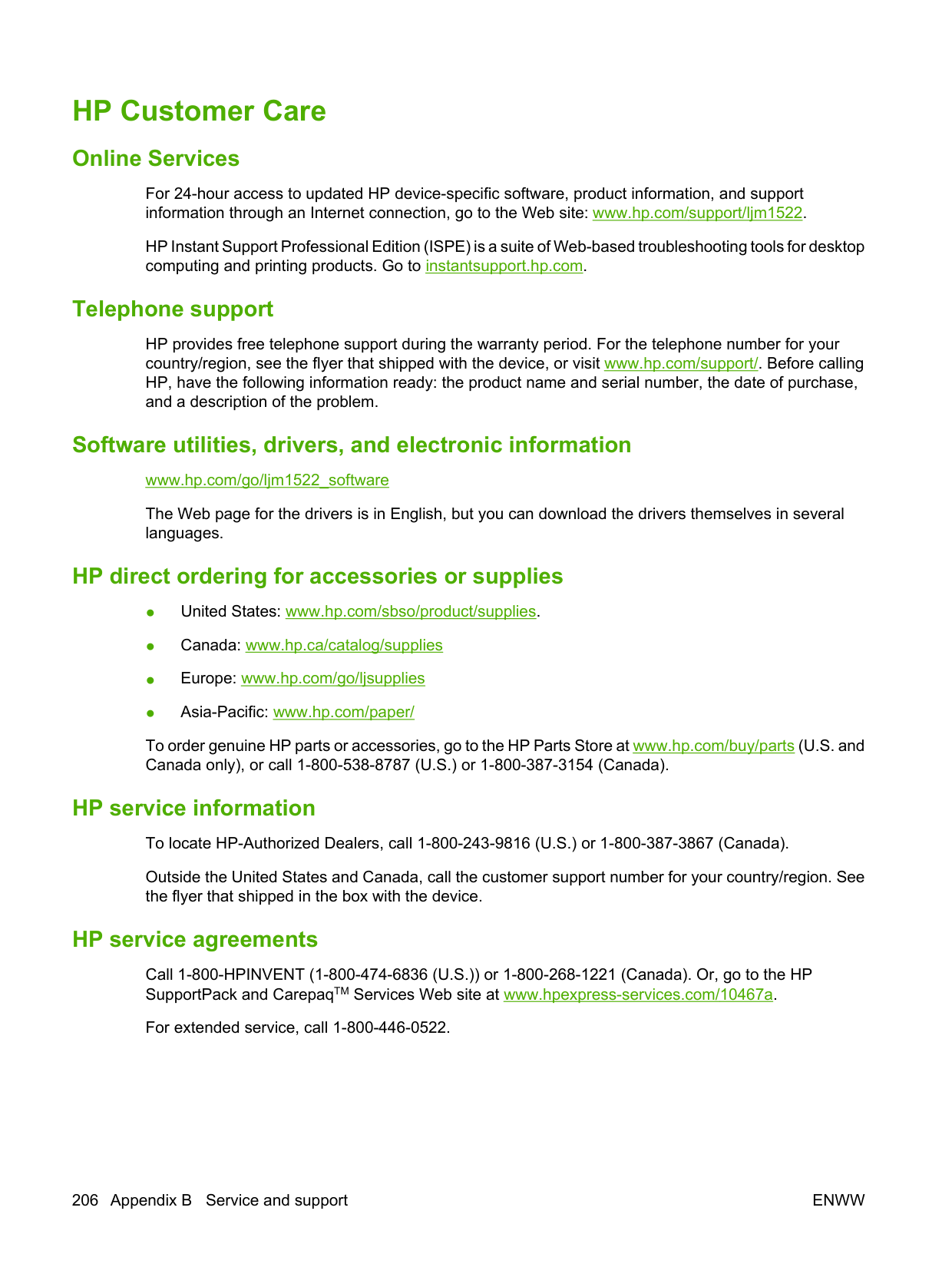

Online Services ................................................................................................................ 206 Telephone support ........................................................................................................... 206 Software utilities, drivers, and electronic information ....................................................... 206 HP direct ordering for accessories or supplies ................................................................ 206 HP service information ..................................................................................................... 206 HP service agreements ................................................................................................... 206 HP ToolboxFX ................................................................................................................. 207 HP support and information for Macintosh computers ..................................................... 207

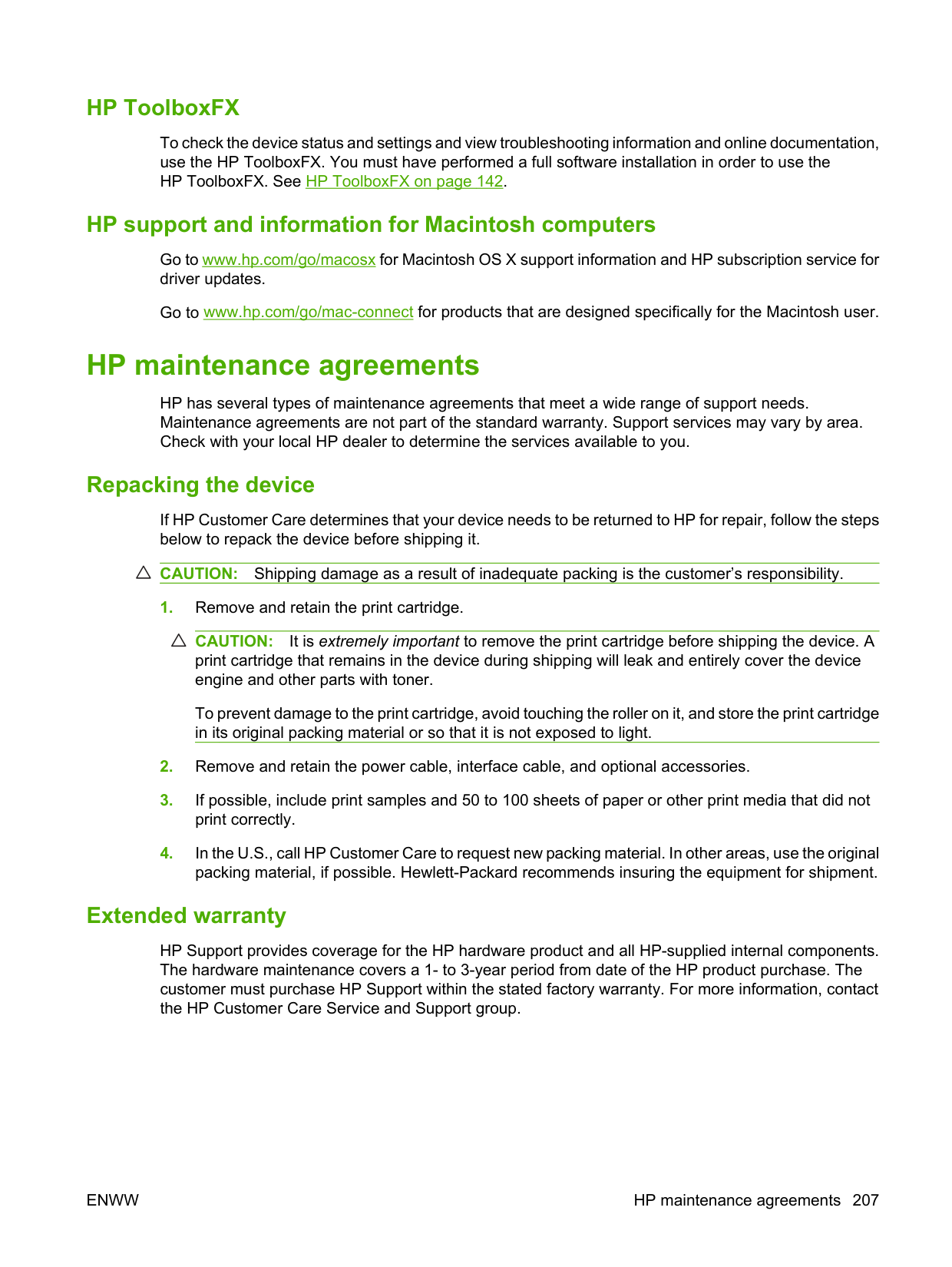

HP maintenance agreements ........................................................................................................... 207 Repacking the device ...................................................................................................... 207 Extended warranty ........................................................................................................... 207

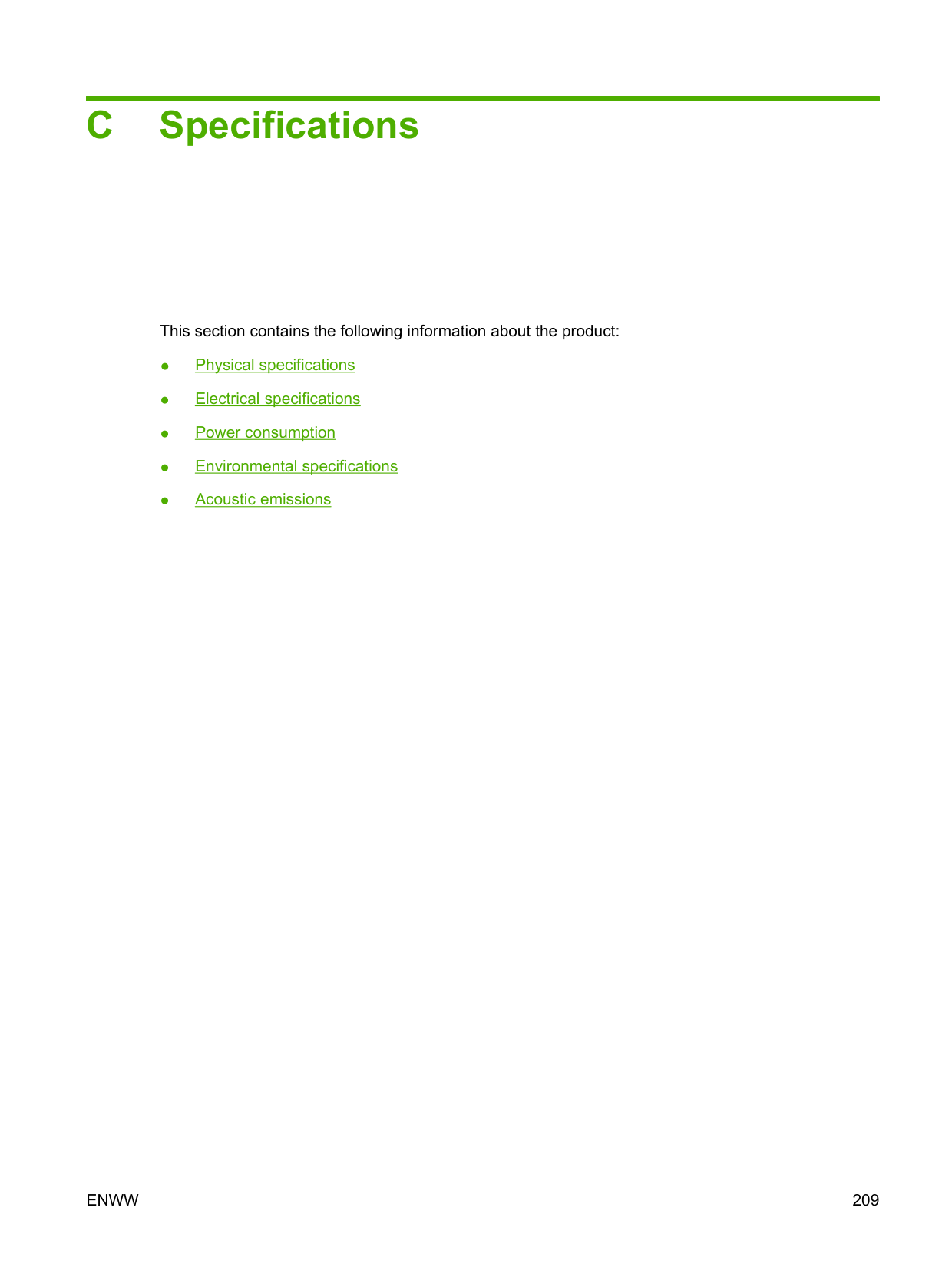

Appendix C Specifications Physical specifications ..................................................................................................................... 210 Electrical specifications .................................................................................................................... 210 Power consumption .......................................................................................................................... 210 Environmental specifications ............................................................................................................ 211 Acoustic emissions ........................................................................................................................... 211

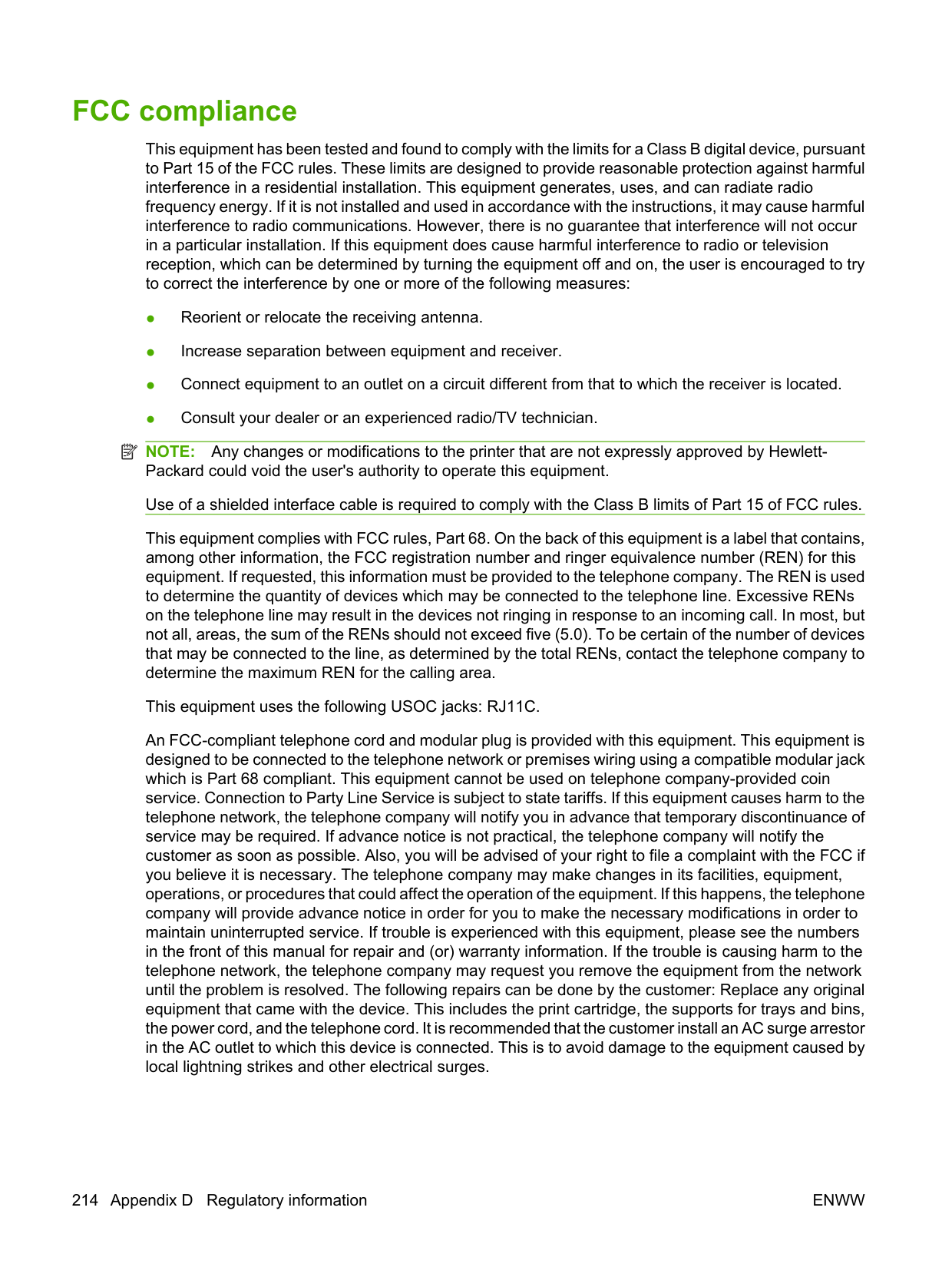

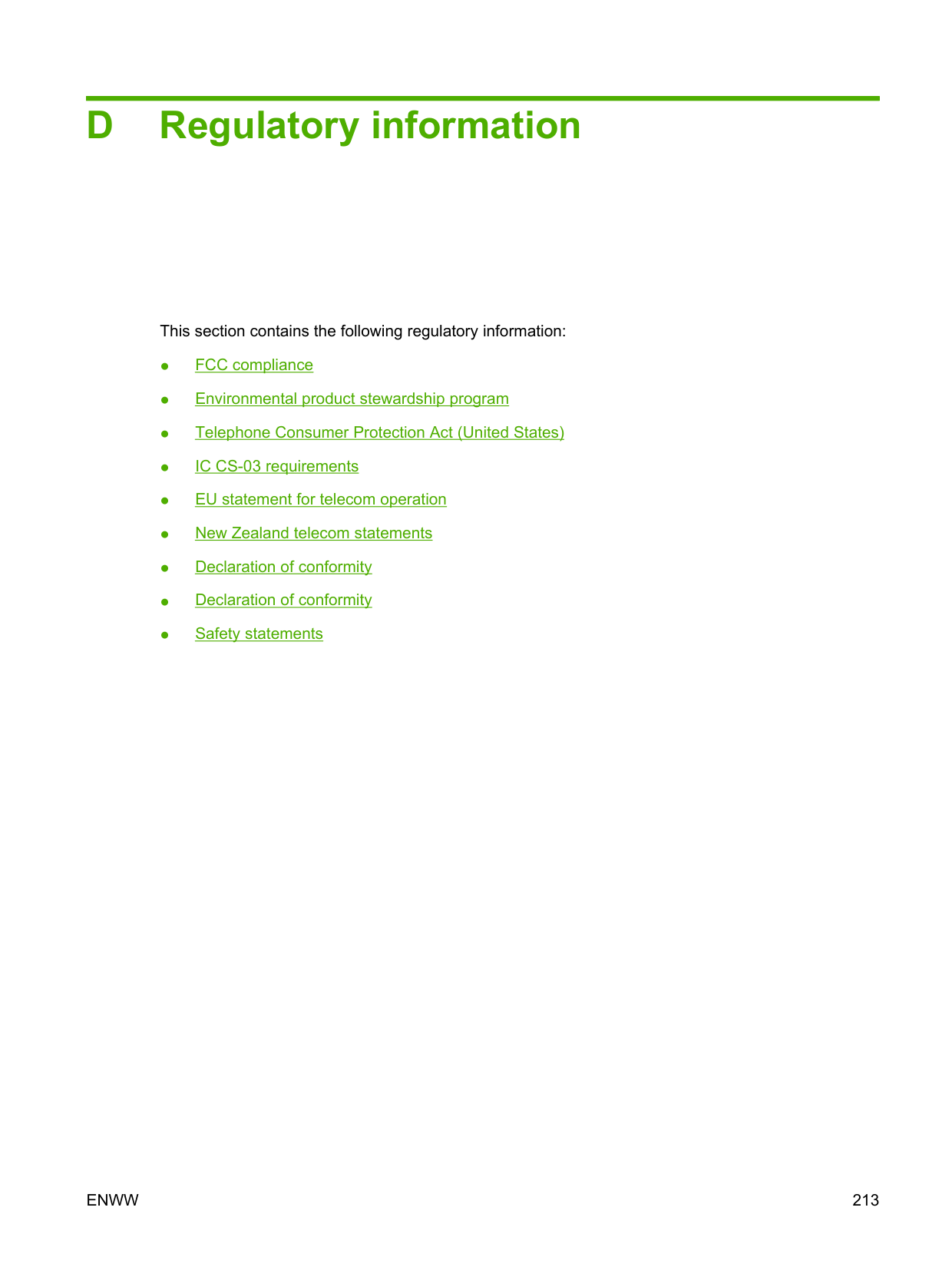

Appendix D Regulatory information FCC compliance ............................................................................................................................... 214 Environmental product stewardship program ................................................................................... 215

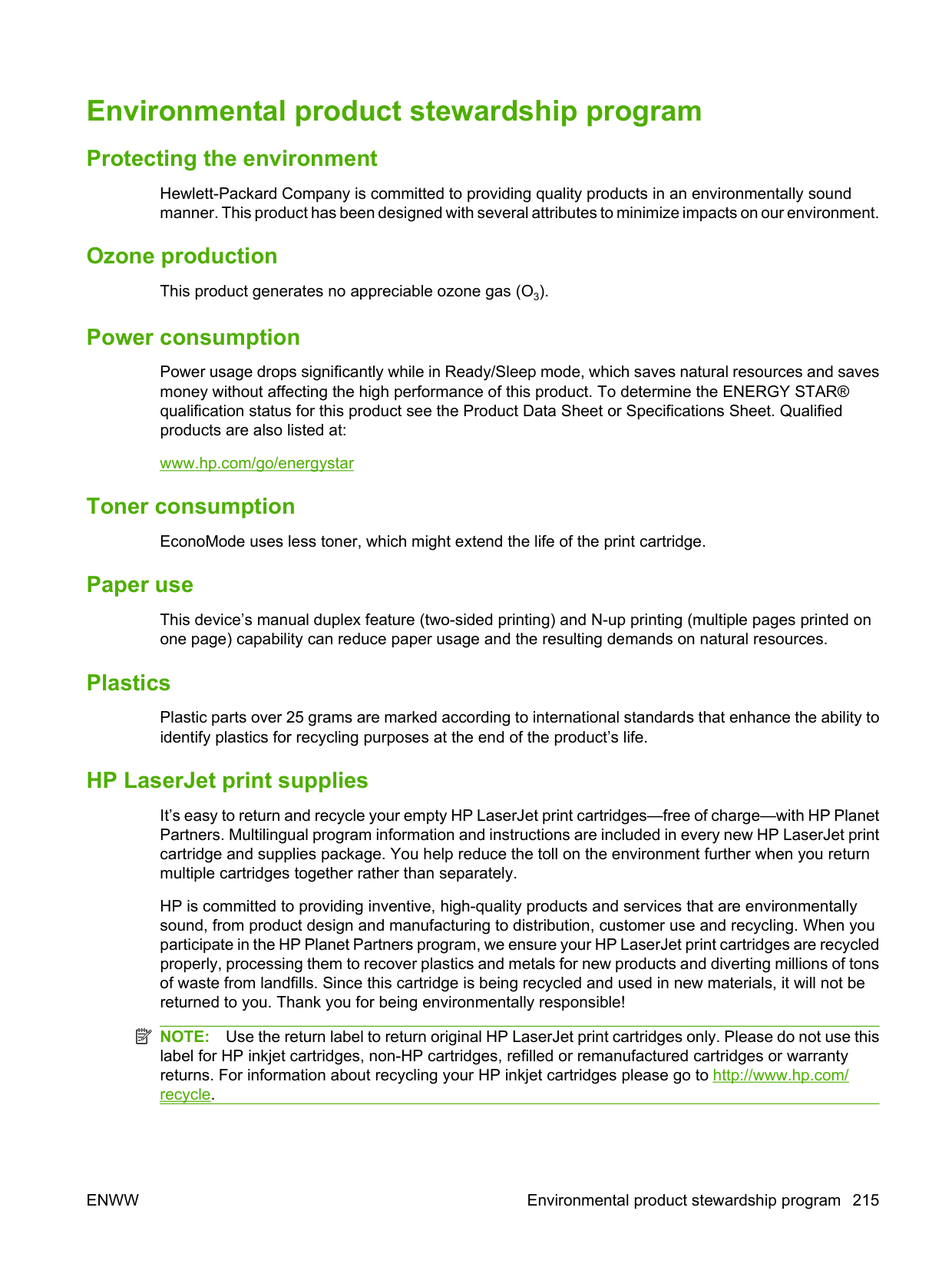

Protecting the environment .............................................................................................. 215 Ozone production ............................................................................................................ 215 Power consumption ......................................................................................................... 215 Toner consumption .......................................................................................................... 215 Paper use ........................................................................................................................ 215 Plastics ............................................................................................................................ 215 HP LaserJet print supplies ............................................................................................... 215

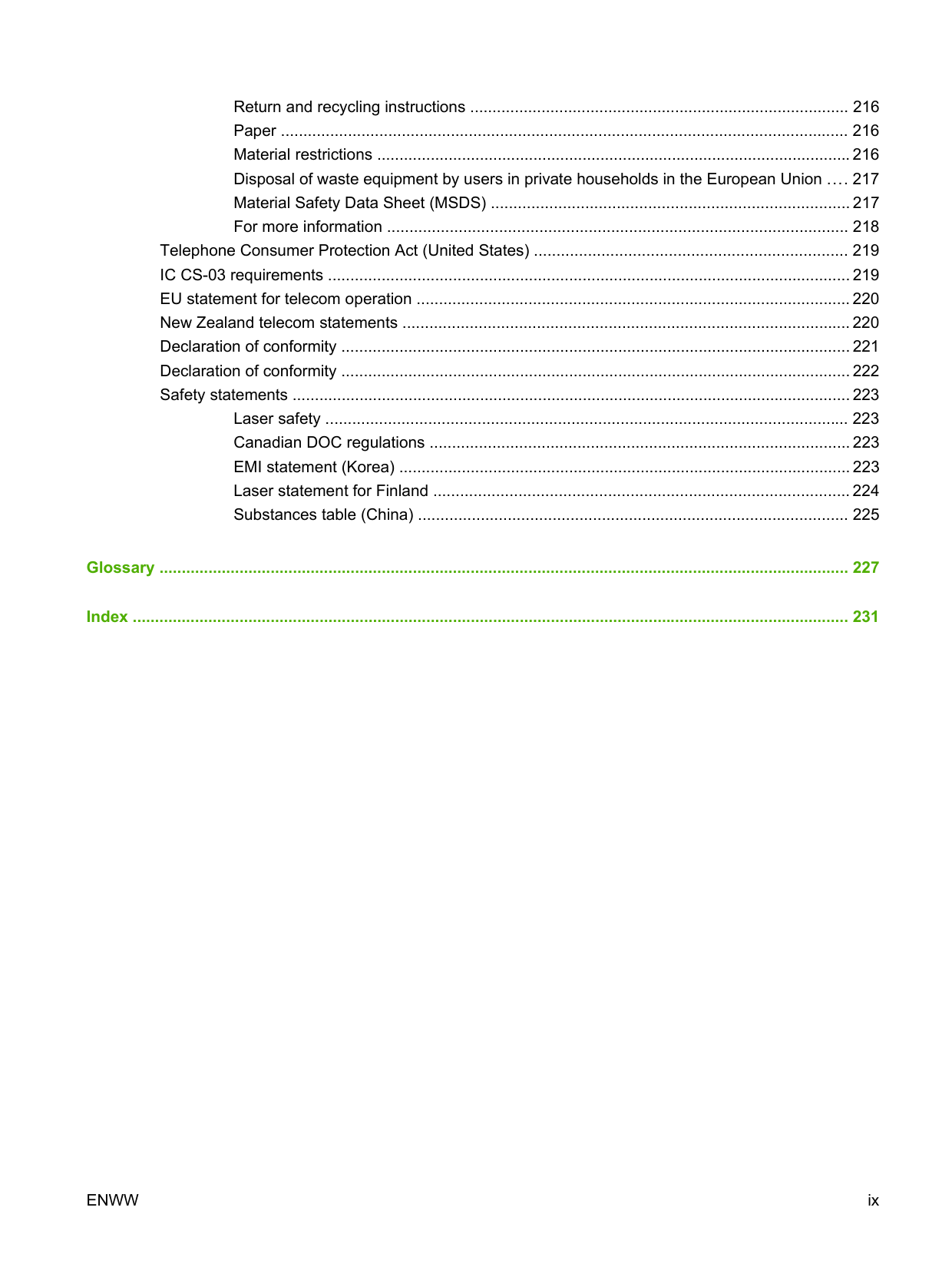

Return and recycling instructions ..................................................................................... 216 Paper ............................................................................................................................... 216 Material restrictions .......................................................................................................... 216 Disposal of waste equipment by users in private households in the European Union .... 217 Material Safety Data Sheet (MSDS) ................................................................................ 217 For more information ....................................................................................................... 218

Telephone Consumer Protection Act (United States) ...................................................................... 219 IC CS-03 requirements ..................................................................................................................... 219 EU statement for telecom operation ................................................................................................. 220 New Zealand telecom statements .................................................................................................... 220

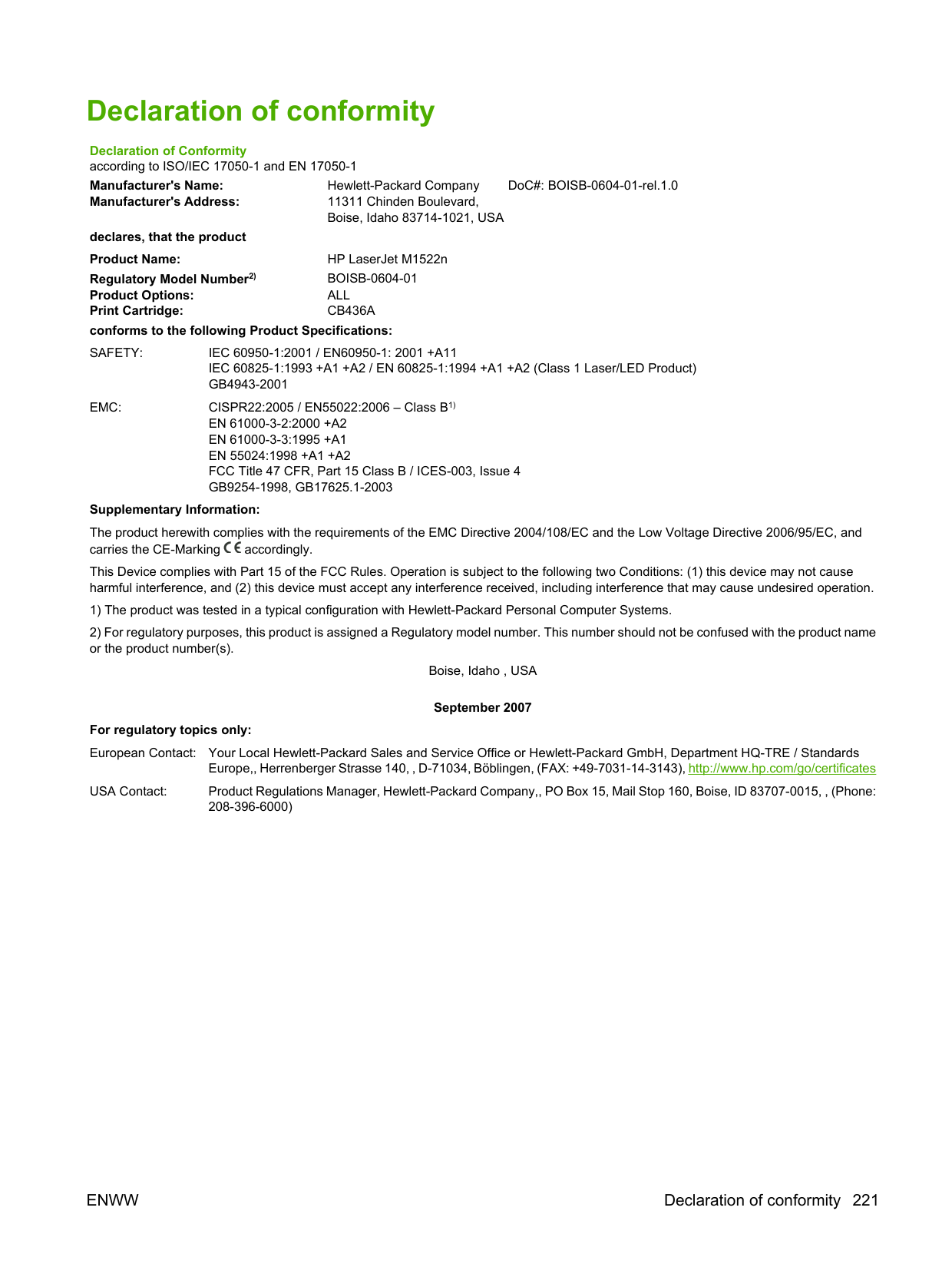

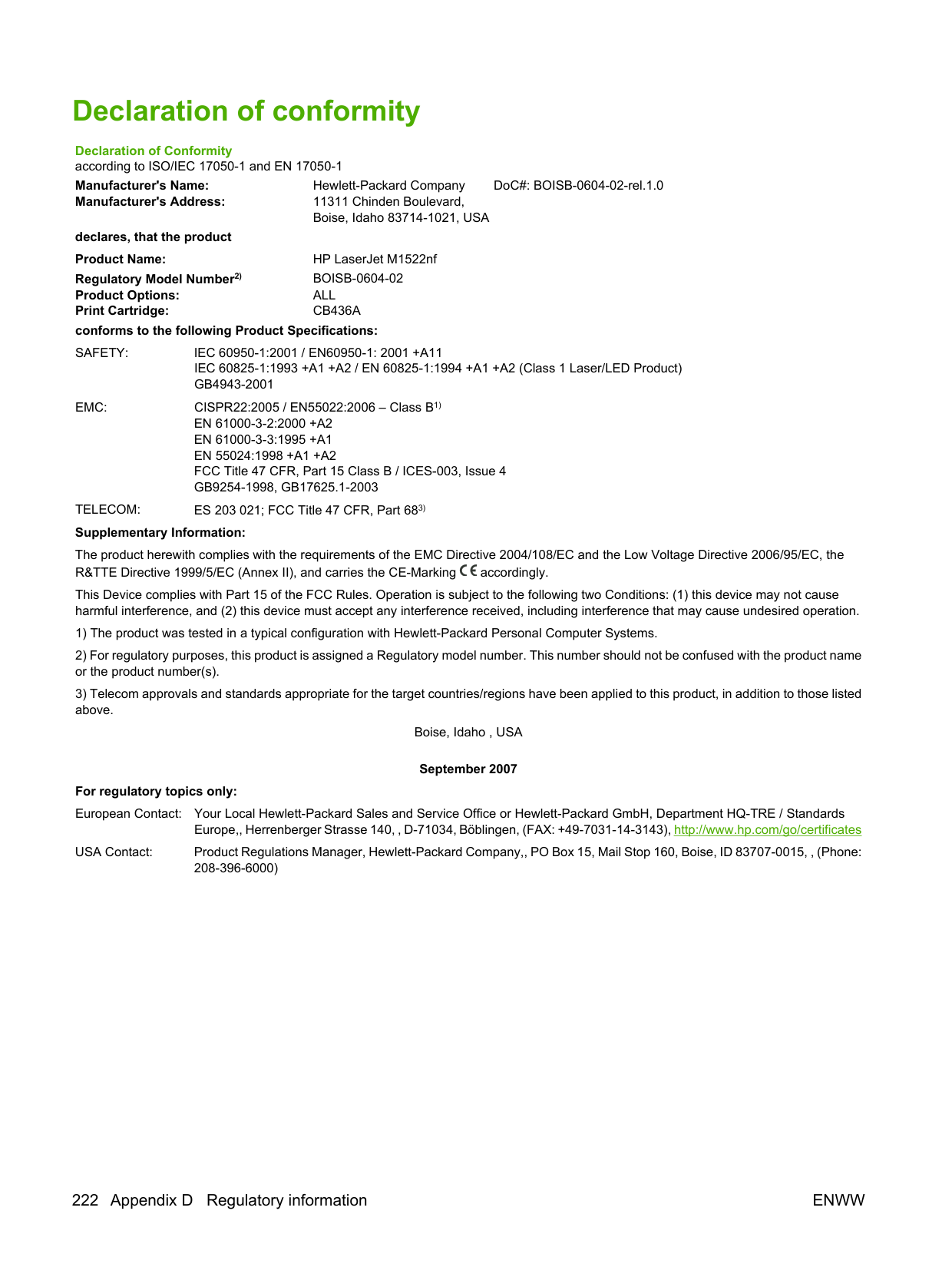

Declaration of conformity .................................................................................................................. 221

Declaration of conformity .................................................................................................................. 222 Safety statements ............................................................................................................................. 223

Page 6

Page 7

Page 8

Page 9

Page 10

Page 11

Page 12

Page 13

Page 14

Page 15

Page 16

Page 17

Page 18

Page 19

Page 20

Page 21

Page 22

Page 23

Page 24

Page 25

Page 26

Page 27

Page 28

Page 29

Page 30

Page 31

Page 32

Page 33

Page 34

Page 35

Page 36

Page 37

Page 38

Page 39

Page 40

Page 41

Page 42

Page 43

Page 44

Page 45

Page 46

Page 47

Page 48

Page 49

Page 50

Page 51

Page 52

Page 53

Page 54

Page 55

Page 56

Page 57

Page 58

Page 59

Page 60

Page 61

Page 62

Page 63

Page 64

Page 65

Page 66

Page 67

Page 68

Page 69

Page 70

Page 71

Page 72

Page 73

Page 74

Page 75

Page 76

Page 77

Page 78

Page 79

Page 80

Page 81

Page 82

Page 83

Page 84

Page 85

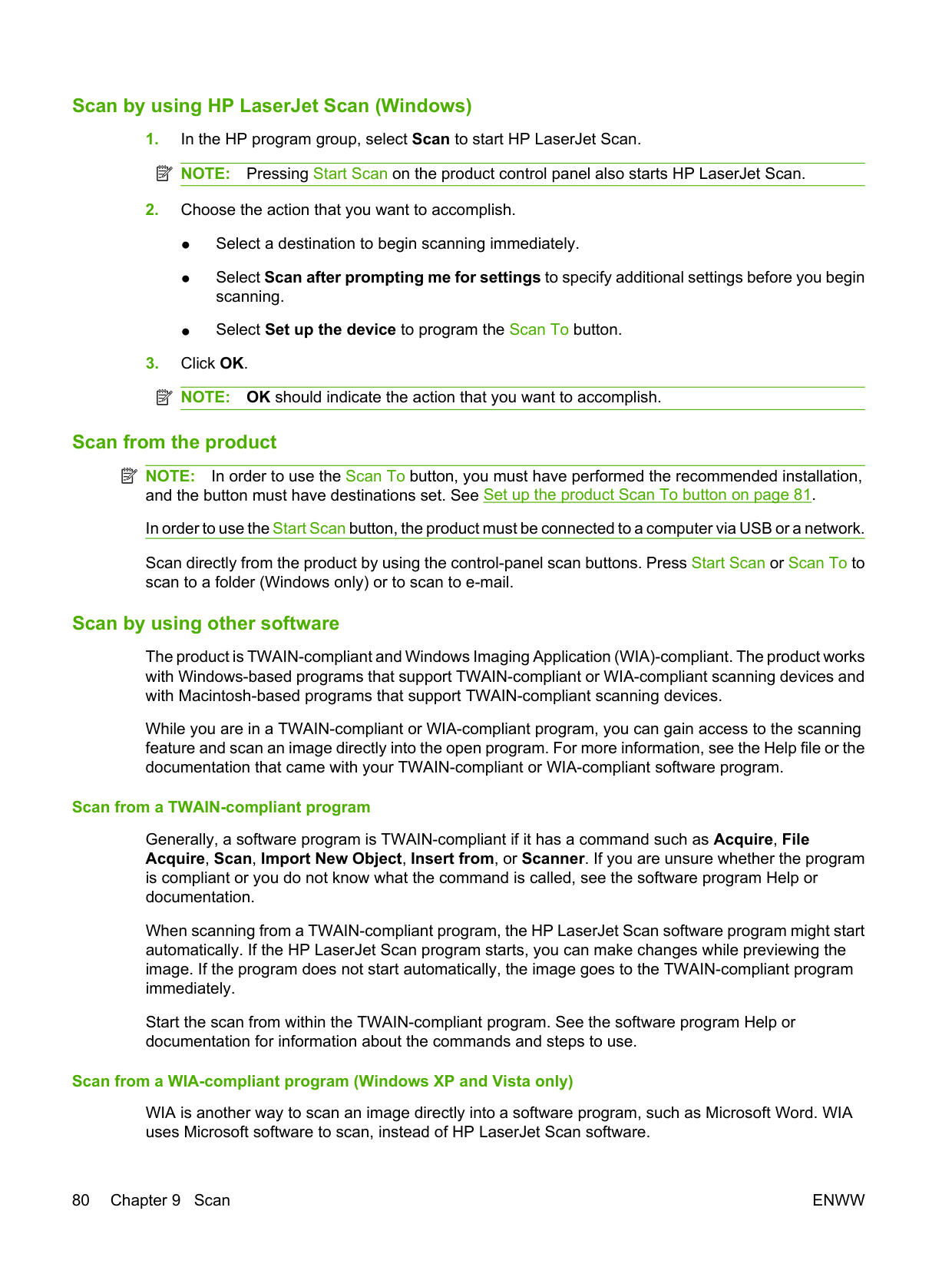

###### Scan by using other software

The product is TWAIN-compliant and Windows Imaging Application (WIA)-compliant. The product works with Windows-based programs that support TWAIN-compliant or WIA-compliant scanning devices and with Macintosh-based programs that support TWAIN-compliant scanning devices.

While you are in a TWAIN-compliant or WIA-compliant program, you can gain access to the scanning feature and scan an image directly into the open program. For more information, see the Help file or the documentation that came with your TWAIN-compliant or WIA-compliant software program.

####### Scan from a TWAIN-compliant program

Generally, a software program is TWAIN-compliant if it has a command such as Acquire, File Acquire, Scan, Import New Object, Insert from, or Scanner. If you are unsure whether the program is compliant or you do not know what the command is called, see the software program Help or documentation.

When scanning from a TWAIN-compliant program, the HP LaserJet Scan software program might start automatically. If the HP LaserJet Scan program starts, you can make changes while previewing the image. If the program does not start automatically, the image goes to the TWAIN-compliant program immediately.

Start the scan from within the TWAIN-compliant program. See the software program Help or documentation for information about the commands and steps to use.

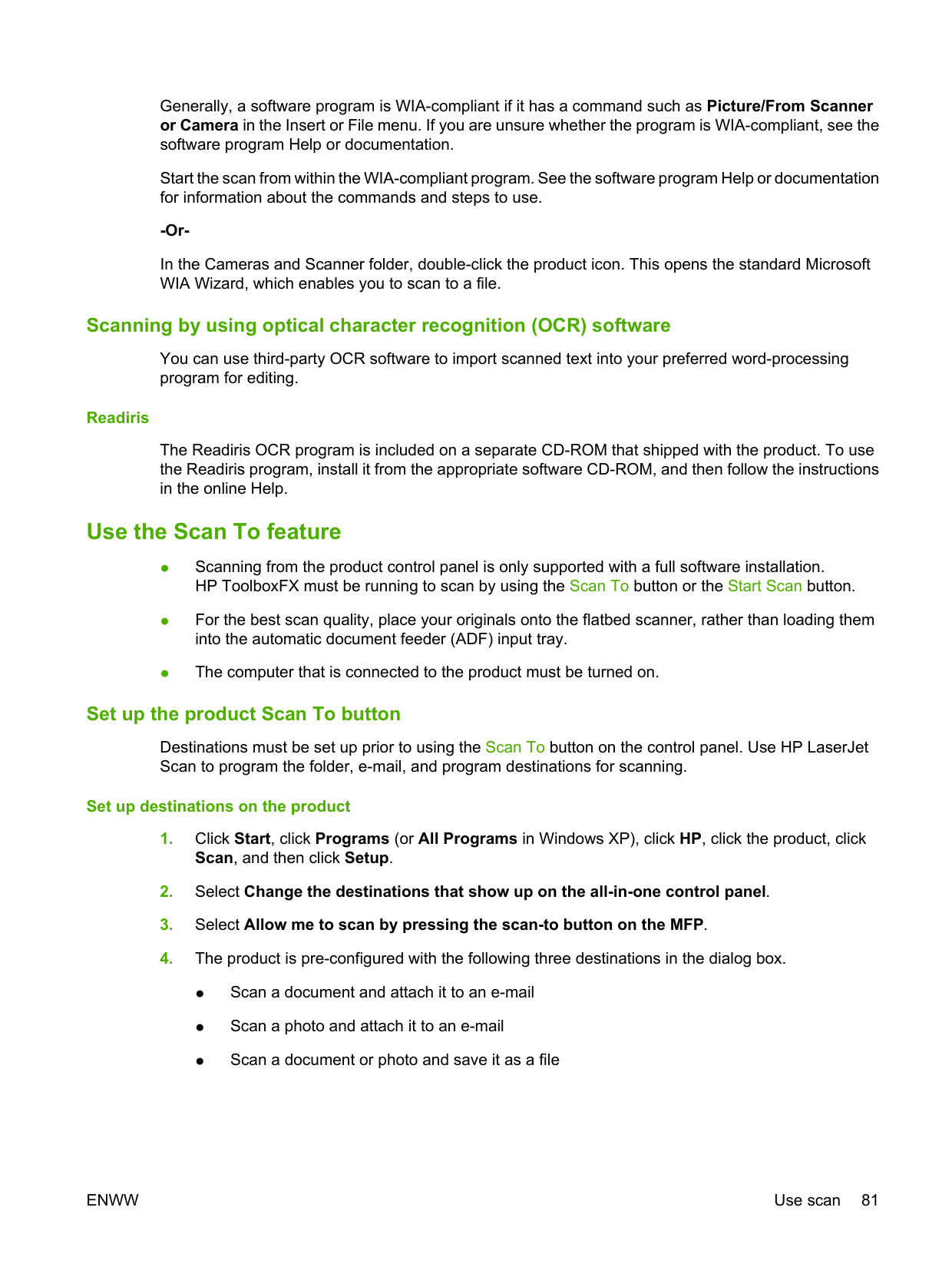

####### Scan from a WIA-compliant program (Windows XP and Vista only)

WIA is another way to scan an image directly into a software program, such as Microsoft Word. WIA uses Microsoft software to scan, instead of HP LaserJet Scan software.

Generally, a software program is WIA-compliant if it has a command such as Picture/From Scanner or Camera in the Insert or File menu. If you are unsure whether the program is WIA-compliant, see the software program Help or documentation. Start the scan from within the WIA-compliant program. See the software program Help or documentation for information about the commands and steps to use.

####### -Or-

In the Cameras and Scanner folder, double-click the product icon. This opens the standard Microsoft WIA Wizard, which enables you to scan to a file.

###### Scanning by using optical character recognition (OCR) software

You can use third-party OCR software to import scanned text into your preferred word-processing program for editing.

####### Readiris

The Readiris OCR program is included on a separate CD-ROM that shipped with the product. To use the Readiris program, install it from the appropriate software CD-ROM, and then follow the instructions in the online Help.

Page 86

Page 87

Page 88

Page 89

Page 90

Page 91

Page 92

Page 93

Page 94

Page 95

Page 96

Page 97

Page 98

Page 99

Page 100

Page 101

Page 102

Page 103

Page 104

Page 105

Page 106

Page 107

Page 108

Page 109

Page 110

Page 111

Page 112

Page 113

Page 114

Page 115

Page 116

Page 117

Page 118

Page 119

Page 120

Page 121

Page 122

Page 123

Page 124

Page 125

Page 126

Page 127

Page 128

Page 129

Page 130

Page 131

Page 132

Page 133

Page 134

Page 135

Page 136

Page 137

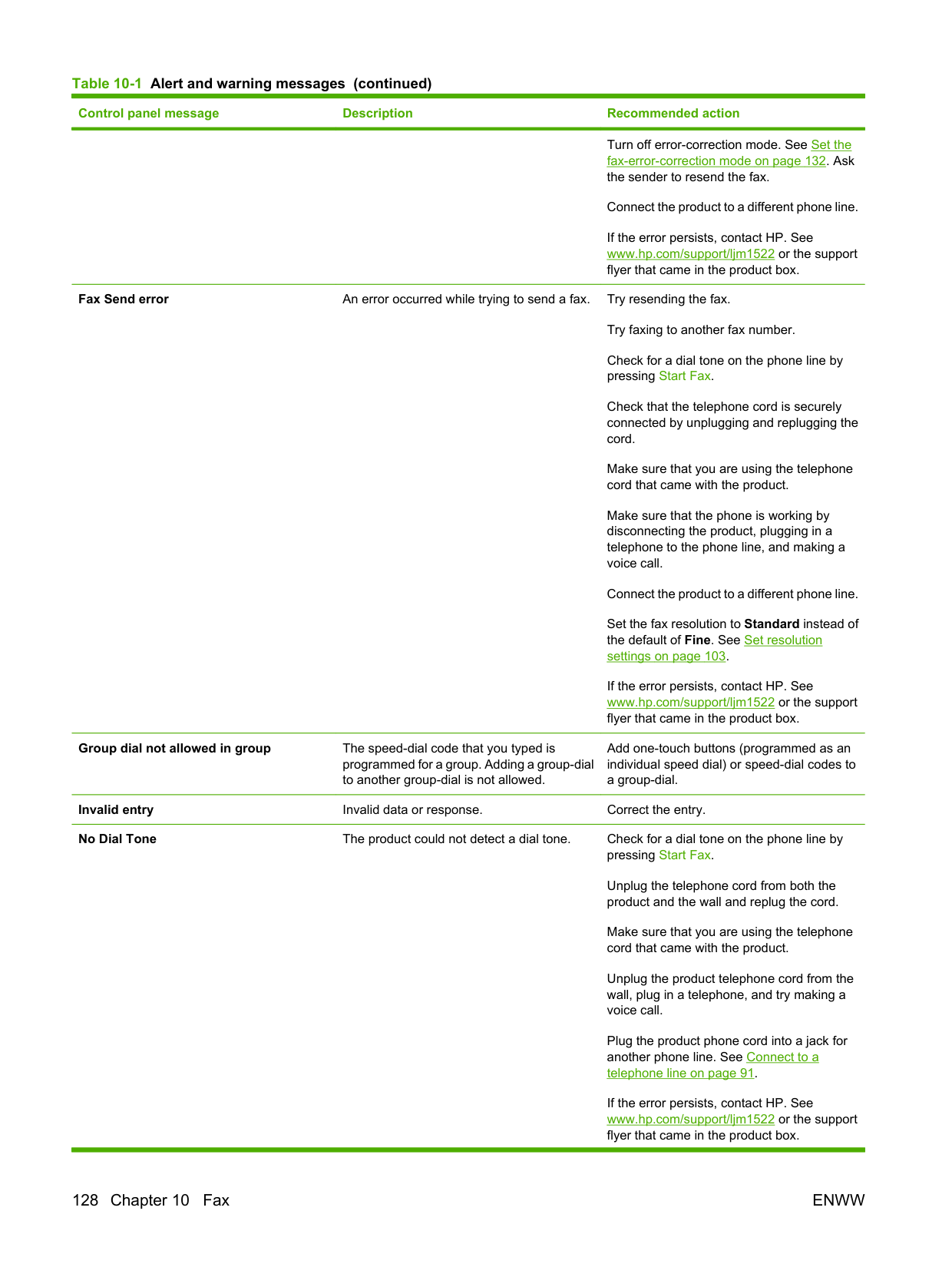

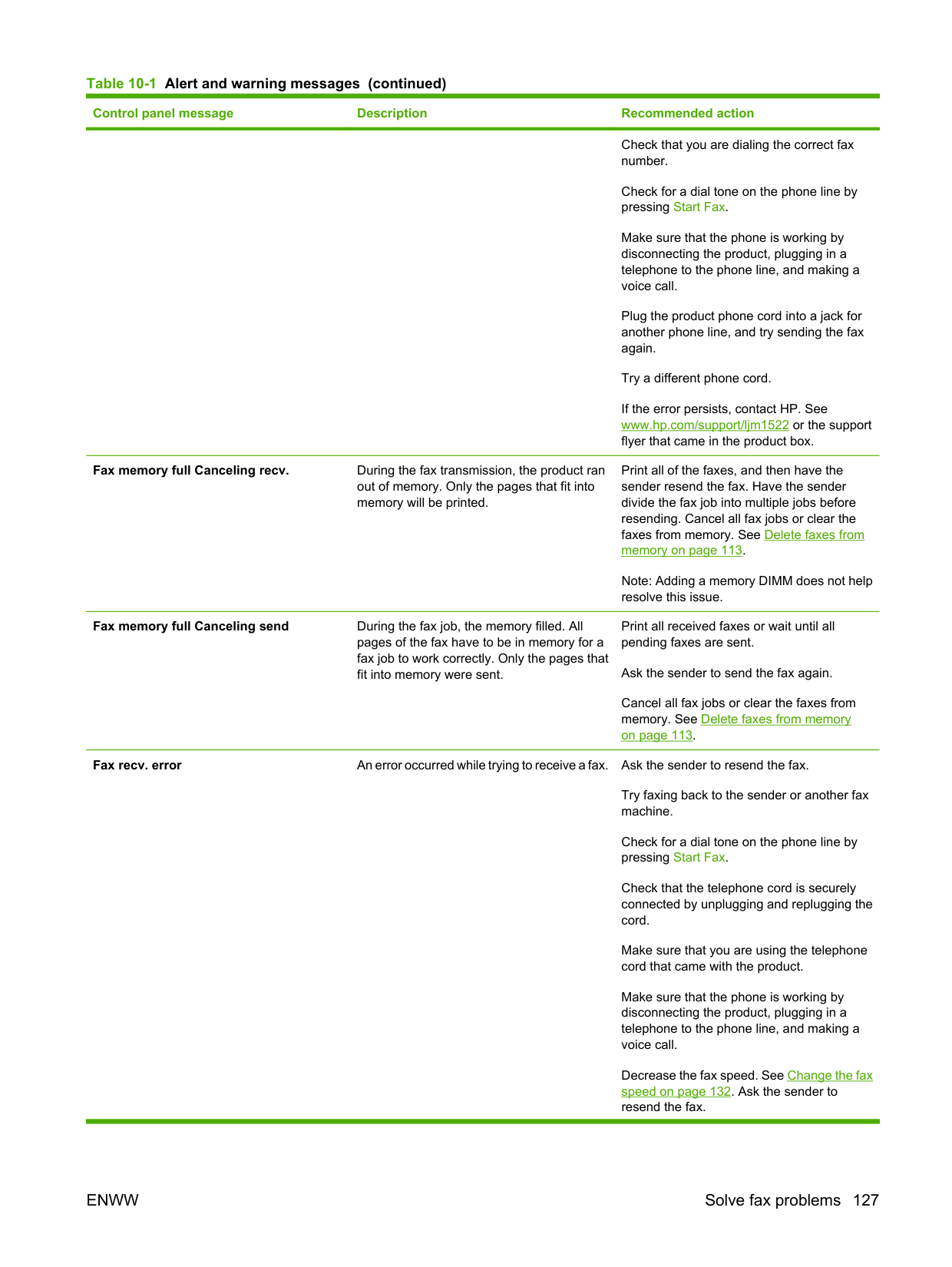

Ask the sender to send the fax again. Cancel all fax jobs or clear the faxes from memory. See Delete faxes from memory on page 113.

Fax recv. error An error occurred while trying to receive a fax. Ask the sender to resend the fax.

Try faxing back to the sender or another fax machine.

Check for a dial tone on the phone line by pressing Start Fax.

Check that the telephone cord is securely connected by unplugging and replugging the cord.

Make sure that you are using the telephone cord that came with the product.

Make sure that the phone is working by disconnecting the product, plugging in a telephone to the phone line, and making a voice call.

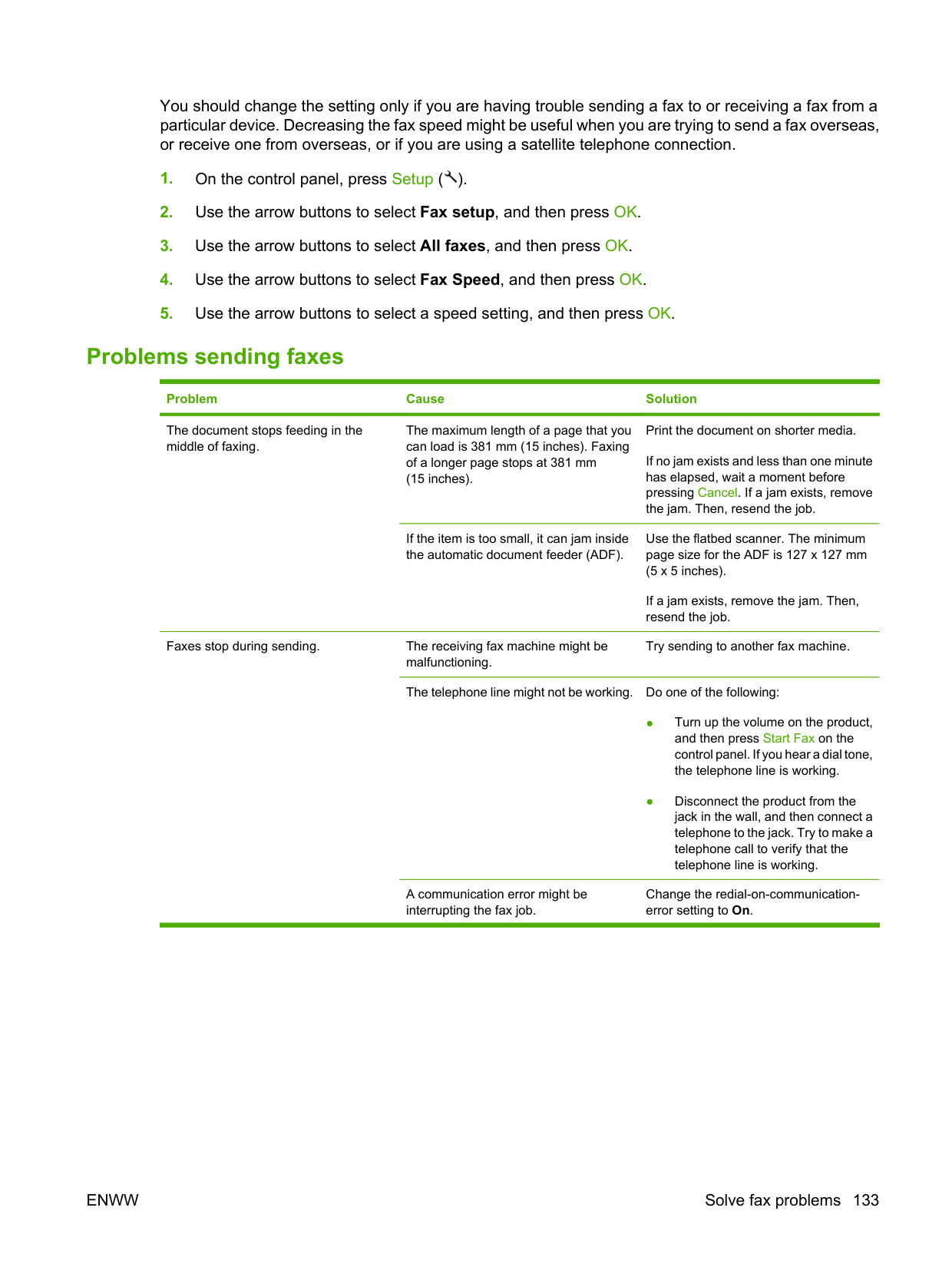

Decrease the fax speed. See Change the fax speed on page 132. Ask the sender to resend the fax.

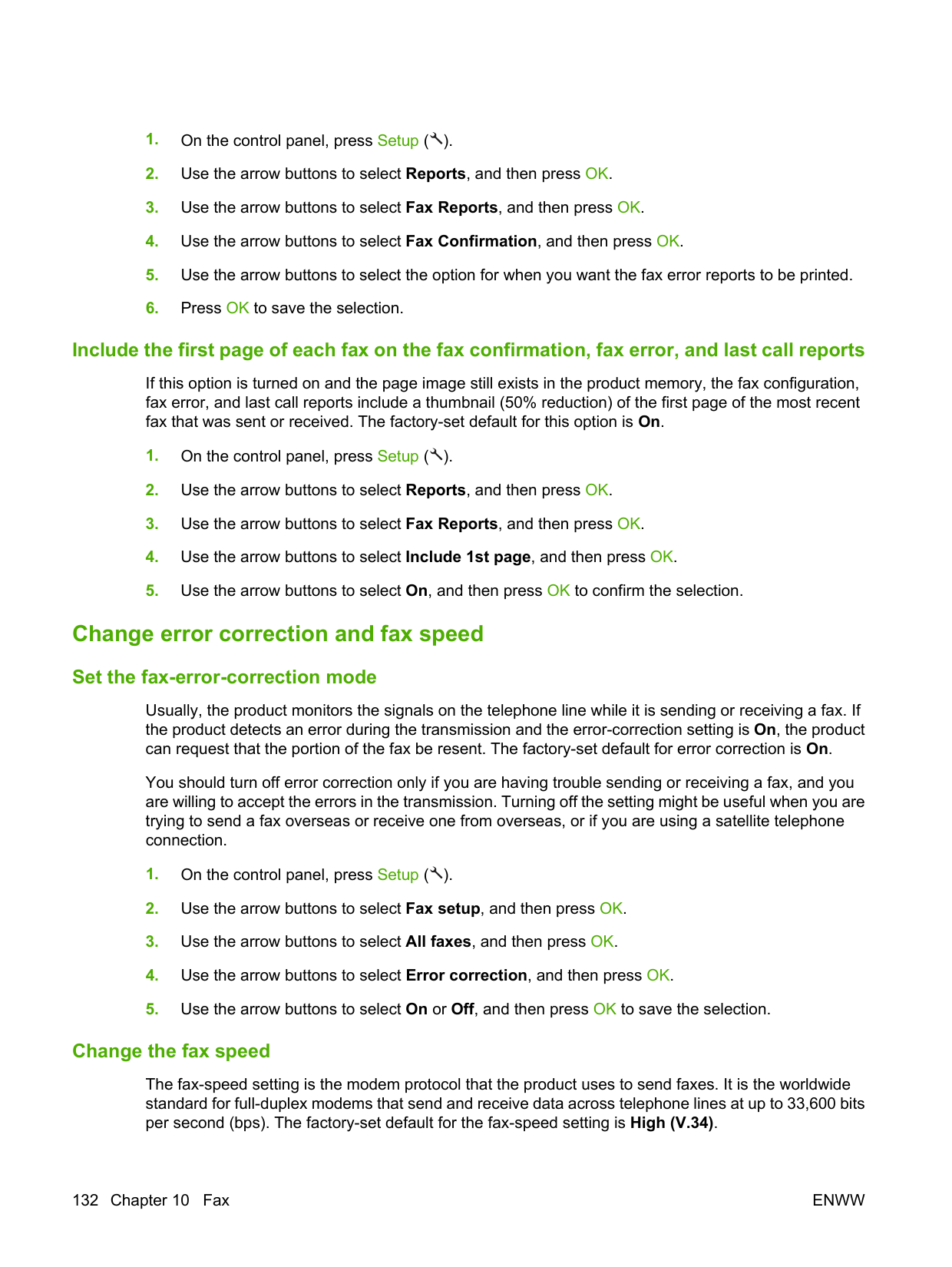

Turn off error-correction mode. See Set the fax-error-correction mode on page 132. Ask the sender to resend the fax. Connect the product to a different phone line. If the error persists, contact HP. See www.hp.com/support/ljm1522 or the support flyer that came in the product box.

Fax Send error An error occurred while trying to send a fax. Try resending the fax.

Try faxing to another fax number. Check for a dial tone on the phone line by pressing Start Fax. Check that the telephone cord is securely connected by unplugging and replugging the cord. Make sure that you are using the telephone cord that came with the product. Make sure that the phone is working by disconnecting the product, plugging in a telephone to the phone line, and making a voice call. Connect the product to a different phone line. Set the fax resolution to Standard instead of the default of Fine. See Set resolution settings on page 103. If the error persists, contact HP. See www.hp.com/support/ljm1522 or the support flyer that came in the product box.

Group dial not allowed in group The speed-dial code that you typed is

Add one-touch buttons (programmed as an individual speed dial) or speed-dial codes to a group-dial.

programmed for a group. Adding a group-dial to another group-dial is not allowed.

Invalid entry Invalid data or response. Correct the entry. No Dial Tone The product could not detect a dial tone. Check for a dial tone on the phone line by

pressing Start Fax. Unplug the telephone cord from both the product and the wall and replug the cord. Make sure that you are using the telephone cord that came with the product. Unplug the product telephone cord from the wall, plug in a telephone, and try making a voice call. Plug the product phone cord into a jack for another phone line. See Connect to a telephone line on page 91. If the error persists, contact HP. See www.hp.com/support/ljm1522 or the support flyer that came in the product box.

Page 138

Page 139

Page 140

Page 141

Page 142

Page 143

Page 144

Page 145

Page 146

Page 147

Page 148

Page 149

Page 150

Page 151

Page 152

Page 153

Page 154

Page 155

Page 156

Page 157

Page 158

Page 159

Page 160

Page 161

Page 162

Page 163

Page 164

Page 165

Page 166

Page 167

Page 168

Page 169

Page 170

Page 171

Page 172

Page 173

Page 174

Page 175

Page 176

Page 177

Page 178

Page 179

Page 180

Page 181

Page 182

Page 183

Page 184

Page 185

Page 186

Page 187

Page 188

Page 189

Page 190

Page 191

Page 192

Page 193

Page 194

Page 195

Page 196

Page 197

Page 198

Page 199

Page 200

Page 201

Page 202

Page 203

Page 204

Page 205

Page 206

Page 207

Page 208

Page 209

Page 210

Page 211

Page 212

Page 213

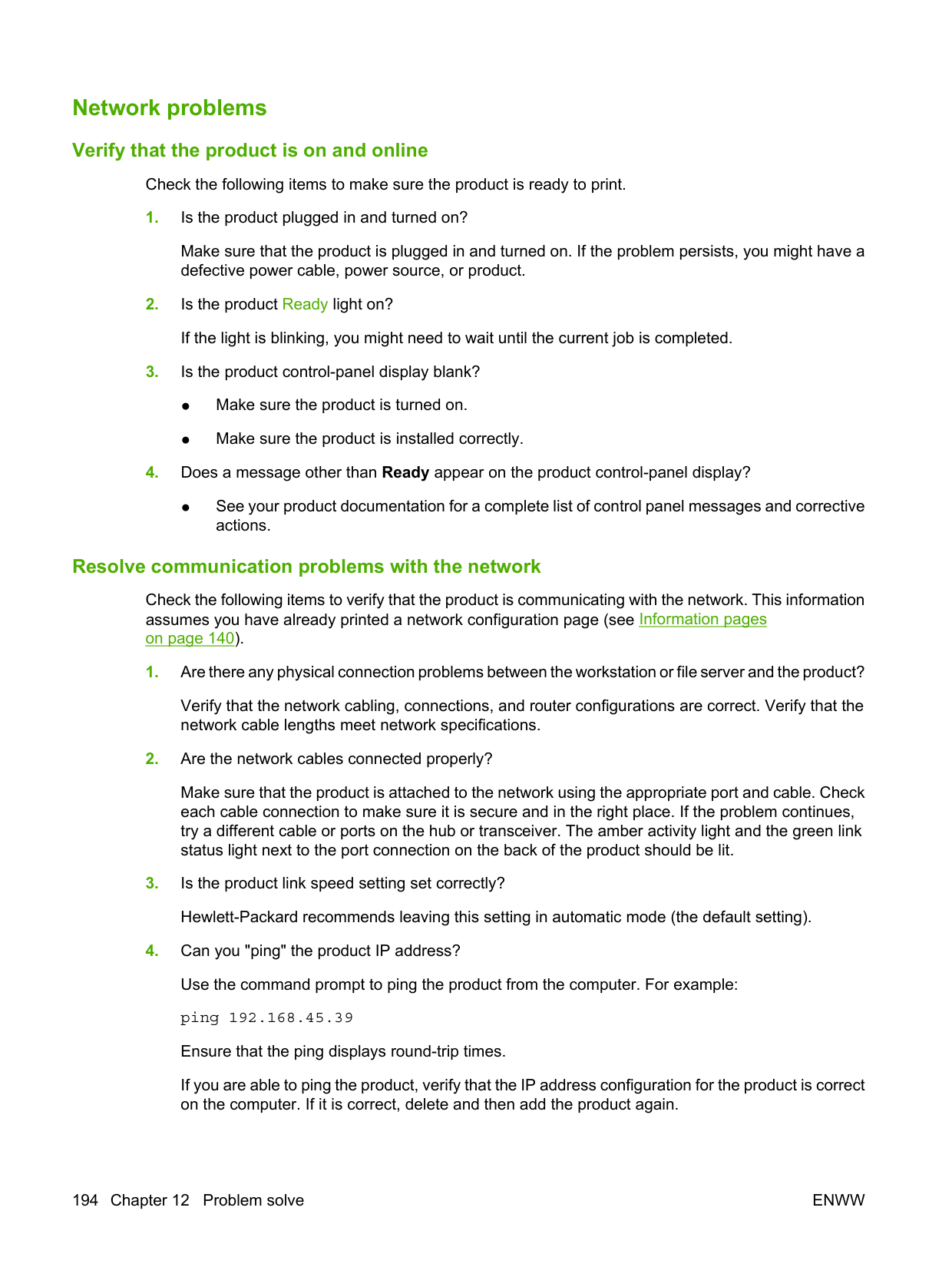

Make sure that the product is attached to the network using the appropriate port and cable. Check each cable connection to make sure it is secure and in the right place. If the problem continues, try a different cable or ports on the hub or transceiver. The amber activity light and the green link status light next to the port connection on the back of the product should be lit.

3. Is the product link speed setting set correctly? Hewlett-Packard recommends leaving this setting in automatic mode (the default setting).

4. Can you "ping" the product IP address? Use the command prompt to ping the product from the computer. For example: ping 192.168.45.39 Ensure that the ping displays round-trip times.

If you are able to ping the product, verify that the IP address configuration for the product is correct on the computer. If it is correct, delete and then add the product again.

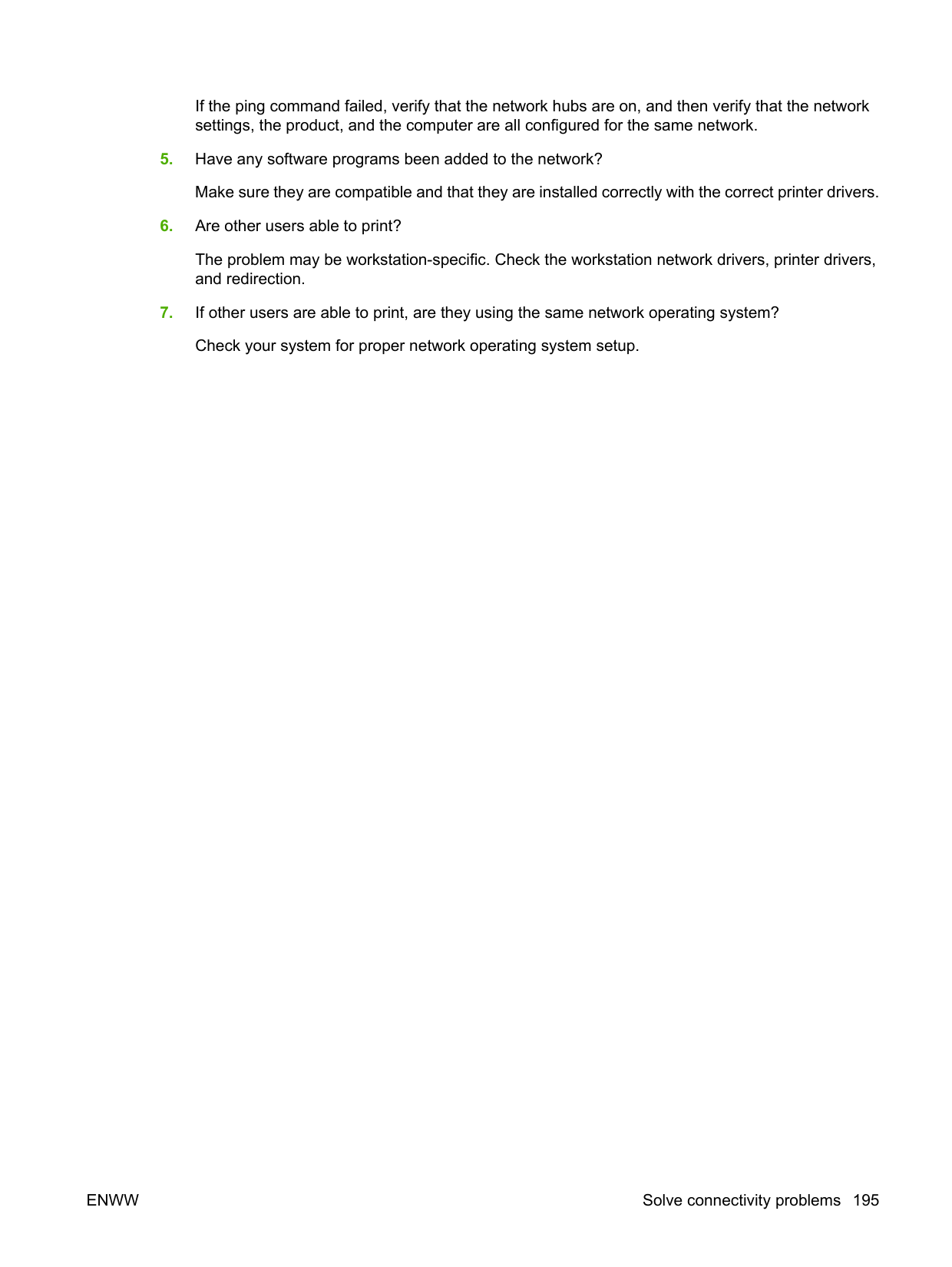

If the ping command failed, verify that the network hubs are on, and then verify that the network settings, the product, and the computer are all configured for the same network.

5. Have any software programs been added to the network? Make sure they are compatible and that they are installed correctly with the correct printer drivers.

6. Are other users able to print?

The problem may be workstation-specific. Check the workstation network drivers, printer drivers, and redirection.

7. If other users are able to print, are they using the same network operating system? Check your system for proper network operating system setup.

#### Solve software problems

Solve common Windows problems Error message: "General Protection FaultException OE" "Spool32" "Illegal Operation" Cause Solution

Close all software programs, restart Windows, and try again. Select a different printer driver. If the device PCL 6 printer driver is selected, switch to the PCL 5 or HP postscript level 3 emulation printer driver, which can be done from a software program. Delete all temp files from the Temp subdirectory. Determine the name of the directory by opening the AUTOEXEC.BAT file and looking for the statement "Set Temp =". The name after this statement is the Temp directory. It is usually C:\TEMP by default, but can be redefined. See the Microsoft Windows documentation that came with the computer for more information about Windows error messages.

##### Solve common Macintosh problems

######### Table 12-3 Problems with Mac OS X v10.3, Mac OS X v10.4, and Mac OS X v10.5 The printer driver is not listed in Printer Setup Utility.

########## Cause Solution

The product software might not have been installed or was installed incorrectly.

Page 214

Make sure that the PPD is in the following hard drive folder: Library/Printers/PPDs/Contents/Resources/ .lproj, where “” represents the two-letter language

code for the language that you are using. If necessary, reinstall the software. See the getting started guide for instructions.

The Postscript Printer Description (PPD) file is corrupt. Delete the PPD file from the following hard drive folder: Library/ Printers/PPDs/Contents/Resources/.lproj, where “” represents the two-letter language code for the language that you are using. Reinstall the software. See the getting started guide for instructions.

The product name, IP address, or “Rendezvous” or “Bonjour” host name does not appear in the printer list box in the Printer Setup Utility.

Cause Solution

The product might not be ready. Make sure that the cables are connected correctly, the product is on, and the ready light is on. If you are connecting through a USB or

The product name, IP address, or “Rendezvous” or “Bonjour” host name does not appear in the printer list box in the Printer Setup Utility.

Cause Solution

Ethernet hub, try connecting directly to the computer or use a different port.

The wrong product name, IP address, or "Rendezvous" or "Bonjour" host name is being used.

Check the product name, IP address, or "Rendezvous" or "Bonjour" host name by printing a configuration page See Information pages on page 140. Verify that the name, IP address, or "Rendezvous" or "Bonjour" host name on the configuration page matches the product name, IP address, or "Rendezvous" or "Bonjour" host name in the Printer Setup Utility.

The interface cable might be defective or of poor quality. Replace the interface cable. Make sure to use a high-quality cable.

A print job was not sent to the product that you wanted. Cause Solution The print queue might be stopped. Open the print queue, and then click Start Jobs. The wrong product name or IP address is being used. Another product with the same or similar name, IP address, or "Rendezvous" or "Bonjour" host name might have received your print job.

Check the product name, IP address, or "Rendezvous" or "Bonjour" host name by printing a configuration page See Information pages on page 140. Verify that the name, IP address, or "Rendezvous" or "Bonjour" host name on the configuration page matches the product name, IP address, or "Rendezvous" or "Bonjour" host name in the Printer Setup Utility.

An encapsulated PostScript (EPS) file does not print with the correct fonts.

Cause Solution

Page 215

Page 216

Page 217

Page 218

Page 219

Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts or supplies not supplied by HP, (c) unauthorized modification or misuse, (d) operation outside of the published environmental specifications for the product, or (e) improper site preparation or maintenance.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE. Some countries/regions, states or provinces do not allow limitations on the duration of an implied warranty, so the above limitation or exclusion might not apply to you. This warranty gives you specific legal rights and you might also have other rights that vary from country/region to country/region, state to state, or province to province. HP's limited warranty is valid in any country/ region or locality where HP has a support presence for this product and where HP has marketed this product. The level of warranty service you receive may vary according to local standards. HP will not alter form, fit or function of the product to make it operate in a country/region for which it was never intended to function for legal or regulatory reasons.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL

ENWW Hewlett-Packard limited warranty statement 203

(INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some countries/regions, states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

#### Customer self repair warranty service

HP products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater flexibility in performing defective parts replacement. If during the diagnosis period, HP identifies that the repair can be accomplished by the use of a CSR part, HP will ship that part directly to you for replacement. There are two categories of CSR parts: 1) Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be charged for the travel and labor costs of this service. 2) Parts for which customer self repair is optional. These parts are also designed for Customer Self Repair. If, however, you require that HP replace them for you, this may be done at no additional charge under the type of warranty service designated for your product.

Based on availability and where geography permits, CSR parts will be shipped for next business day delivery. Same-day or four-hour delivery may be offered at an additional charge where geography permits. If assistance is required, you can call the HP Technical Support Center and a technician will help you over the phone. HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material. Failure to return the defective part may result in HP billing you for the replacement. With a customer self repair, HP will pay all shipping and part return costs and determine the courier/carrier to be used.

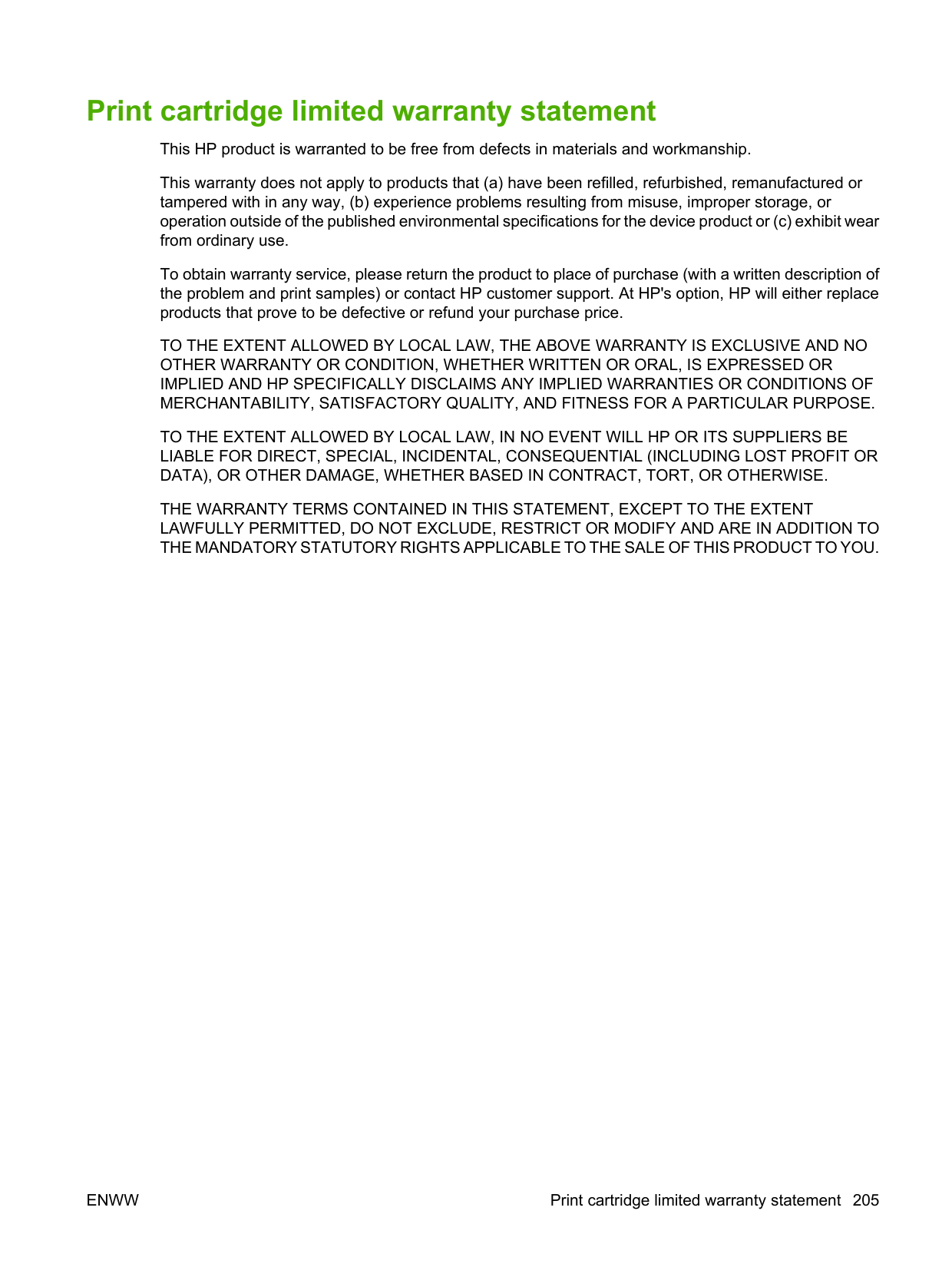

Print cartridge limited warranty statement This HP product is warranted to be free from defects in materials and workmanship. This warranty does not apply to products that (a) have been refilled, refurbished, remanufactured or tampered with in any way, (b) experience problems resulting from misuse, improper storage, or operation outside of the published environmental specifications for the device product or (c) exhibit wear from ordinary use.

To obtain warranty service, please return the product to place of purchase (with a written description of the problem and print samples) or contact HP customer support. At HP's option, HP will either replace products that prove to be defective or refund your purchase price.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTY IS EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT ALLOWED BY LOCAL LAW, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

ENWW Print cartridge limited warranty statement 205

#### HP Customer Care

Page 220

Page 221

Page 222

Page 223

Page 224

Page 225

Page 226

● Reorient or relocate the receiving antenna.

● Increase separation between equipment and receiver.

● Connect equipment to an outlet on a circuit different from that to which the receiver is located.

● Consult your dealer or an experienced radio/TV technician. NOTE: Any changes or modifications to the printer that are not expressly approved by HewlettPackard could void the user's authority to operate this equipment. Use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules. This equipment complies with FCC rules, Part 68. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all, areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area. This equipment uses the following USOC jacks: RJ11C.

An FCC-compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. This equipment cannot be used on telephone company-provided coin service. Connection to Party Line Service is subject to state tariffs. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please see the numbers in the front of this manual for repair and (or) warranty information. If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved. The following repairs can be done by the customer: Replace any original equipment that came with the device. This includes the print cartridge, the supports for trays and bins, the power cord, and the telephone cord. It is recommended that the customer install an AC surge arrestor in the AC outlet to which this device is connected. This is to avoid damage to the equipment caused by local lightning strikes and other electrical surges.

#### Environmental product stewardship program

##### Protecting the environment

Hewlett-Packard Company is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize impacts on our environment.

##### Ozone production

This product generates no appreciable ozone gas (O3).

##### Power consumption

Power usage drops significantly while in Ready/Sleep mode, which saves natural resources and saves money without affecting the high performance of this product. To determine the ENERGY STAR® qualification status for this product see the Product Data Sheet or Specifications Sheet. Qualified products are also listed at:

www.hp.com/go/energystar

##### Toner consumption

EconoMode uses less toner, which might extend the life of the print cartridge.

##### Paper use

Page 227

Page 228

Page 229

| | |---|

For recycling information, you can go to www.hp.com/recycle, or contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

##### Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

##### Material Safety Data Sheet (MSDS)

Material Safety Data Sheets (MSDS) for supplies containing chemical substances (for example, toner) can be obtained by contacting the HP Web site at www.hp.com/go/msds or www.hp.com/hpinfo/ globalcitizenship/environment.

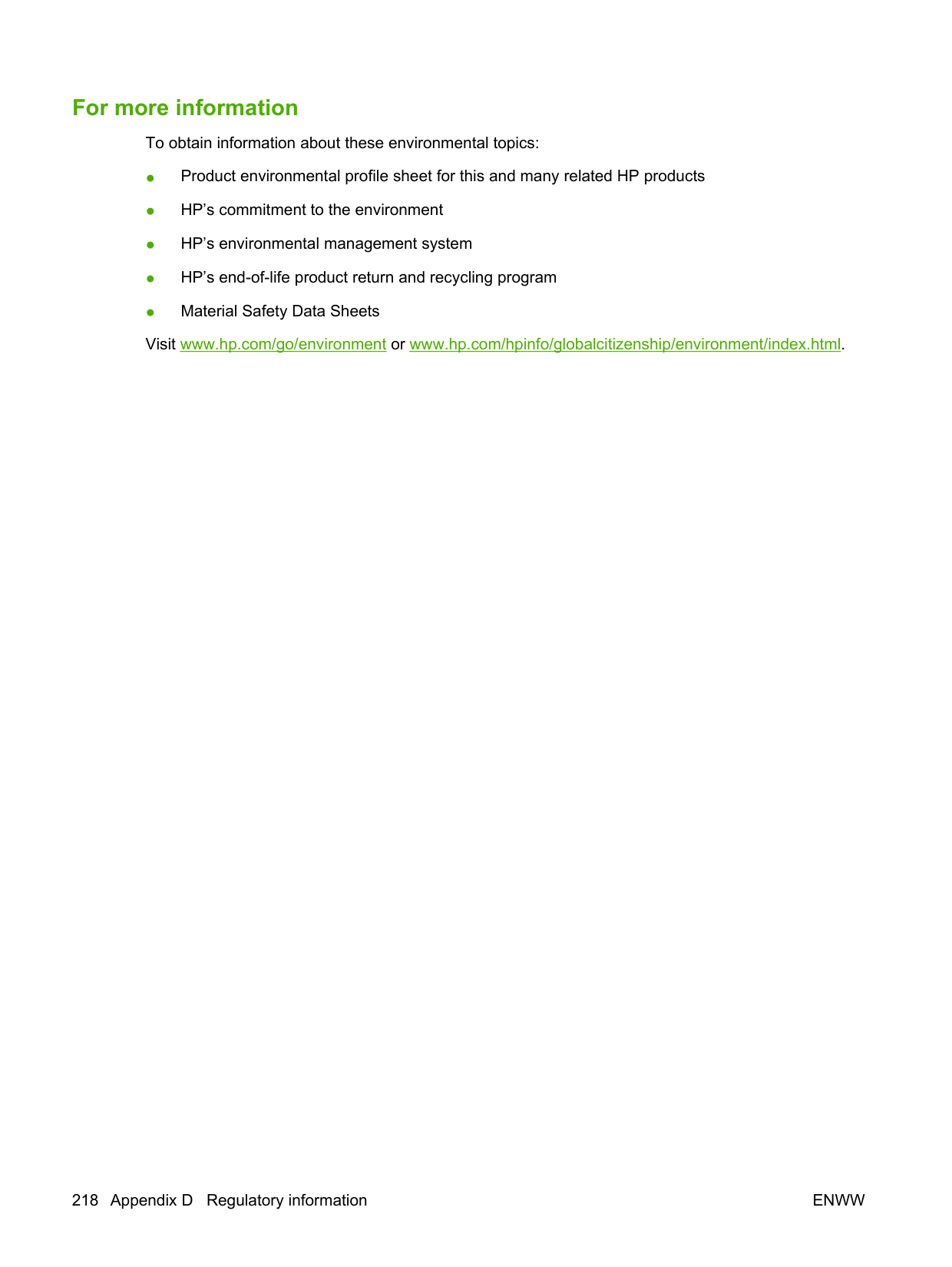

##### For more information

To obtain information about these environmental topics:

● Product environmental profile sheet for this and many related HP products

● HP’s commitment to the environment

● HP’s environmental management system

● HP’s end-of-life product return and recycling program

● Material Safety Data Sheets Visit www.hp.com/go/environment or www.hp.com/hpinfo/globalcitizenship/environment/index.html.

#### Telephone Consumer Protection Act (United States)

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity, or individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided cannot be a 900 number or any other number for which charges exceed local or long-distance transmission charges.)

#### IC CS-03 requirements

Notice: The Industry Canada label identifies certified equipment. This certification means the equipment meets certain telecommunications network protective, operational, and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirement document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible for the equipment to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution can be particularly important in rural areas.

Page 230

CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. The Ringer Equivalence Number (REN) of this device is 0.7.

Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Number of all the devices does not exceed five (5.0). The standard connecting arrangement code (telephone jack type) for equipment with direct connections to the telephone network is CA11A.

ENWW Telephone Consumer Protection Act (United States) 219

#### EU statement for telecom operation

This product is intended to be connected to the analog Public Switched Telecommunication Networks (PSTN) of European Economic Area (EEA) countries/regions. It meets requirements of EU R&TTE Directive 1999/5/EC (Annex II) and carries appropriate CE conformity marking. For more details, see Declaration of Conformity issued by the manufacturer in another section of this manual. However, due to differences between individual national PSTNs, the product may not guarantee unconditional assurance of successful operation on every PSTN termination point. Network compatibility depends on the correct setting being selected by the customer in preparation of its connection to the PSTN. Please follow the instructions provided in the user manual. If you experience network compatibility issues, please contact your equipment supplier or Hewlett-Packard help desk in the country/region of operation. Connecting to a PSTN termination point may be the subject of additional requirements set out by the local PSTN operator.

#### New Zealand telecom statements

The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services.

This equipment may not provide for the effective hand-over of a call to another device connected to the same line.

This equipment shall not be set up to make automatic calls to the Telecom “111” Emergency Service. This product has not been tested to ensure compatibility with the FaxAbility distinctive ring service for New Zealand.

Product Name: HP LaserJet M1522n

Regulatory Model Number2) BOISB-0604-01 Product Options: ALL Print Cartridge: CB436A conforms to the following Product Specifications:

SAFETY: IEC 60950-1:2001 / EN60950-1: 2001 +A11 IEC 60825-1:1993 +A1 +A2 / EN 60825-1:1994 +A1 +A2 (Class 1 Laser/LED Product) GB4943-2001

EMC: CISPR22:2005 / EN55022:2006 – Class B1) EN 61000-3-2:2000 +A2 EN 61000-3-3:1995 +A1 EN 55024:1998 +A1 +A2 FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 4 GB9254-1998, GB17625.1-2003

########## Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC, and carries the CE-Marking accordingly.

Page 231

Page 232

Page 233

Page 234

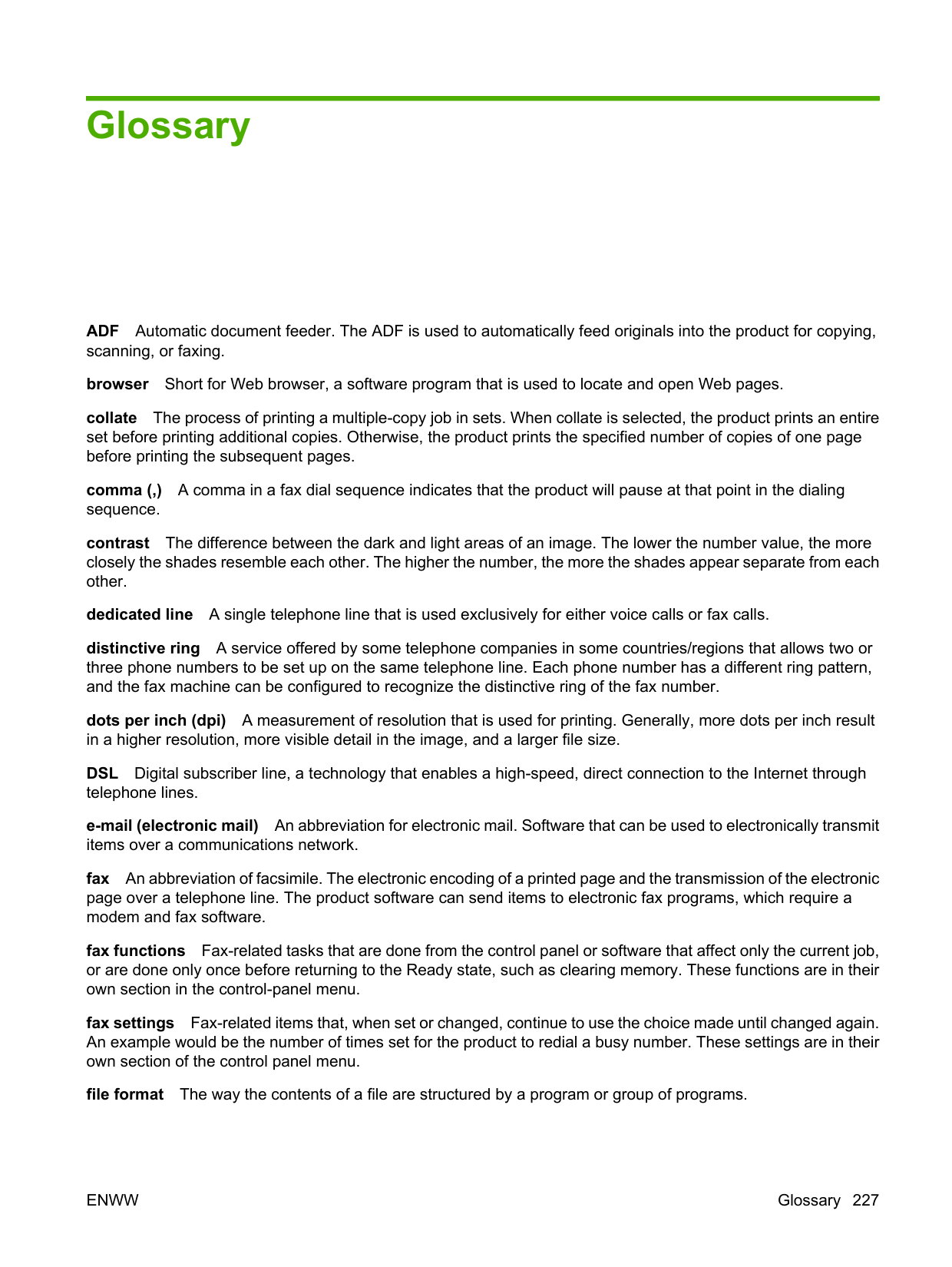

Glossary

ADF Automatic document feeder. The ADF is used to automatically feed originals into the product for copying, scanning, or faxing.

browser Short for Web browser, a software program that is used to locate and open Web pages. collate The process of printing a multiple-copy job in sets. When collate is selected, the product prints an entire set before printing additional copies. Otherwise, the product prints the specified number of copies of one page before printing the subsequent pages. comma (,) A comma in a fax dial sequence indicates that the product will pause at that point in the dialing sequence. contrast The difference between the dark and light areas of an image. The lower the number value, the more closely the shades resemble each other. The higher the number, the more the shades appear separate from each other. dedicated line A single telephone line that is used exclusively for either voice calls or fax calls.

distinctive ring A service offered by some telephone companies in some countries/regions that allows two or three phone numbers to be set up on the same telephone line. Each phone number has a different ring pattern, and the fax machine can be configured to recognize the distinctive ring of the fax number.

dots per inch (dpi) A measurement of resolution that is used for printing. Generally, more dots per inch result in a higher resolution, more visible detail in the image, and a larger file size.

DSL Digital subscriber line, a technology that enables a high-speed, direct connection to the Internet through telephone lines.

e-mail (electronic mail) An abbreviation for electronic mail. Software that can be used to electronically transmit items over a communications network.

fax An abbreviation of facsimile. The electronic encoding of a printed page and the transmission of the electronic page over a telephone line. The product software can send items to electronic fax programs, which require a modem and fax software.

fax functions Fax-related tasks that are done from the control panel or software that affect only the current job, or are done only once before returning to the Ready state, such as clearing memory. These functions are in their own section in the control-panel menu.

fax settings Fax-related items that, when set or changed, continue to use the choice made until changed again. An example would be the number of times set for the product to redial a busy number. These settings are in their own section of the control panel menu.

file format The way the contents of a file are structured by a program or group of programs.

grayscale Shades of gray that represent light and dark portions of an image when color images are converted to grayscale; colors are represented by various shades of gray.

halftone An image type that simulates grayscale by varying the number of dots. Highly colored areas consist of a large number of dots, while lighter areas consist of a smaller number of dots.

HP Director A software screen that is used when working with documents. When the document is loaded into the automatic document feeder (ADF) and the computer is connected directly to the product, the HP Director appears on the computer screen to initiate faxing, copying, or scanning.

HP ToolboxFX HP ToolboxFX is a program that provides access to the product management and troubleshooting tools, embedded Web server, and product documentation. HP ToolboxFX does not support Macintosh operating systems.

Page 235

ISDN Integrated Services Digital Network (ISDN) is a suite of internationally adopted standards for end-to-end digital communication over the public telephone network.

link A connection to a program or device that can be used to send information from the product software to other programs, such as e-mail, electronic fax, and OCR links.

optical character recognition (OCR) software OCR software converts an electronic image of text, such as a scanned document, into a form that word processor, spreadsheet, and database programs can use.

pixels per inch (ppi) A measurement of resolution that is used for scanning. Generally, more pixels per inch result in a higher resolution, more visible detail in the image, and a larger file size.

printer driver A printer driver is a program that software programs use to gain access to a product’s features. A printer driver translates a software program’s formatting commands (such as page breaks and font selection) into a printer language (such as PostScript or PCL), and then sends the print file to the product.

private branch exchange (PBX) A small telephone switching system that typically is used by large businesses or universities to connect all telephone extensions within the organization. A PBX also connects to the public switched telephone network (PSTN) and may be either manual or dial, depending on the method used by extensions to place incoming or outgoing calls. Normally, the equipment is owned by the customer rather than leased from the telephone company.

public switched telephone network (PSTN) The worldwide dial-up telephone network or a portion of that network. Users are assigned unique phone numbers, which allow them to connect to the PSTN through local telephone exchange companies. Often, this phrase is used when referring to data or other non-telephone services carried over a path initially established using normal telephone signaling and ordinary switched long-distance telephone circuits.

Readiris An optical character recognition (OCR) program that was developed by I.R.I.S. and that is included with the product software.

resolution The sharpness of an image, measured in dots per inch (dpi). The higher the dpi, the greater the resolution.

shared line A single telephone line that is used for both voice and fax calls. surge protector A device that protects a power supply and communications lines from electrical surges. TWAIN An industry standard for scanners and software. By using a TWAIN-compliant scanner with a TWAINcompliant program, a scan can be initiated from within the program. URL Uniform resource locator, the global address of documents and resources on the Internet. The first part of the address indicates what protocol to use, the second part specifies the IP address or the domain name where the resource is located.

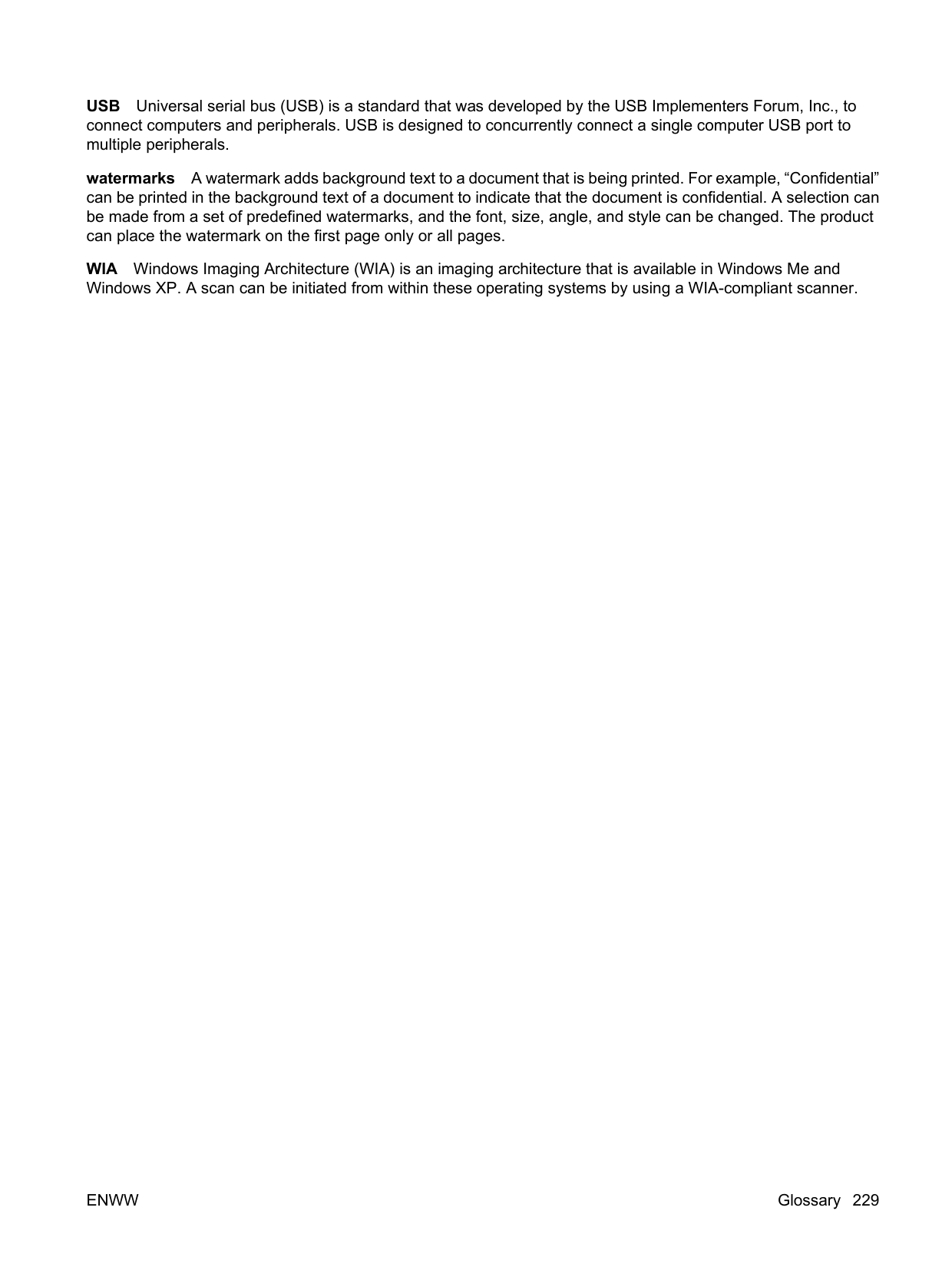

USB Universal serial bus (USB) is a standard that was developed by the USB Implementers Forum, Inc., to connect computers and peripherals. USB is designed to concurrently connect a single computer USB port to multiple peripherals.

watermarks A watermark adds background text to a document that is being printed. For example, “Confidential” can be printed in the background text of a document to indicate that the document is confidential. A selection can be made from a set of predefined watermarks, and the font, size, angle, and style can be changed. The product can place the watermark on the first page only or all pages.

WIA Windows Imaging Architecture (WIA) is an imaging architecture that is available in Windows Me and Windows XP. A scan can be initiated from within these operating systems by using a WIA-compliant scanner.

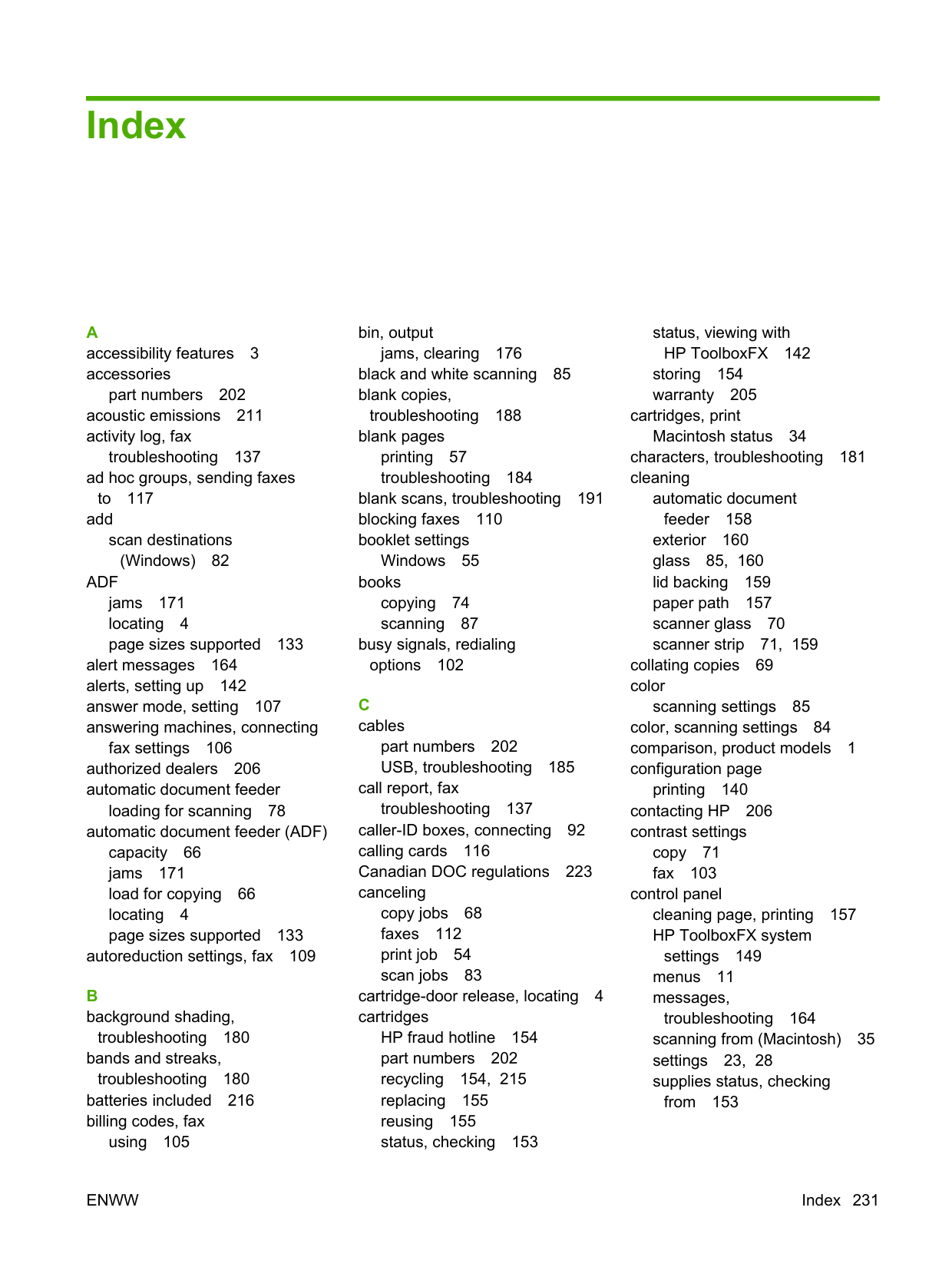

Index

A accessibility features 3 accessories

part numbers 202 acoustic emissions 211 activity log, fax

Page 236

Page 237

Page 238

Page 239

Page 240

Page 241

Page 242

Page 243

Page 244

Page 245

Page 246

Page 247

Page 248

Page 249

Page 250

Page 251

Page 252

Page 253

Page 254

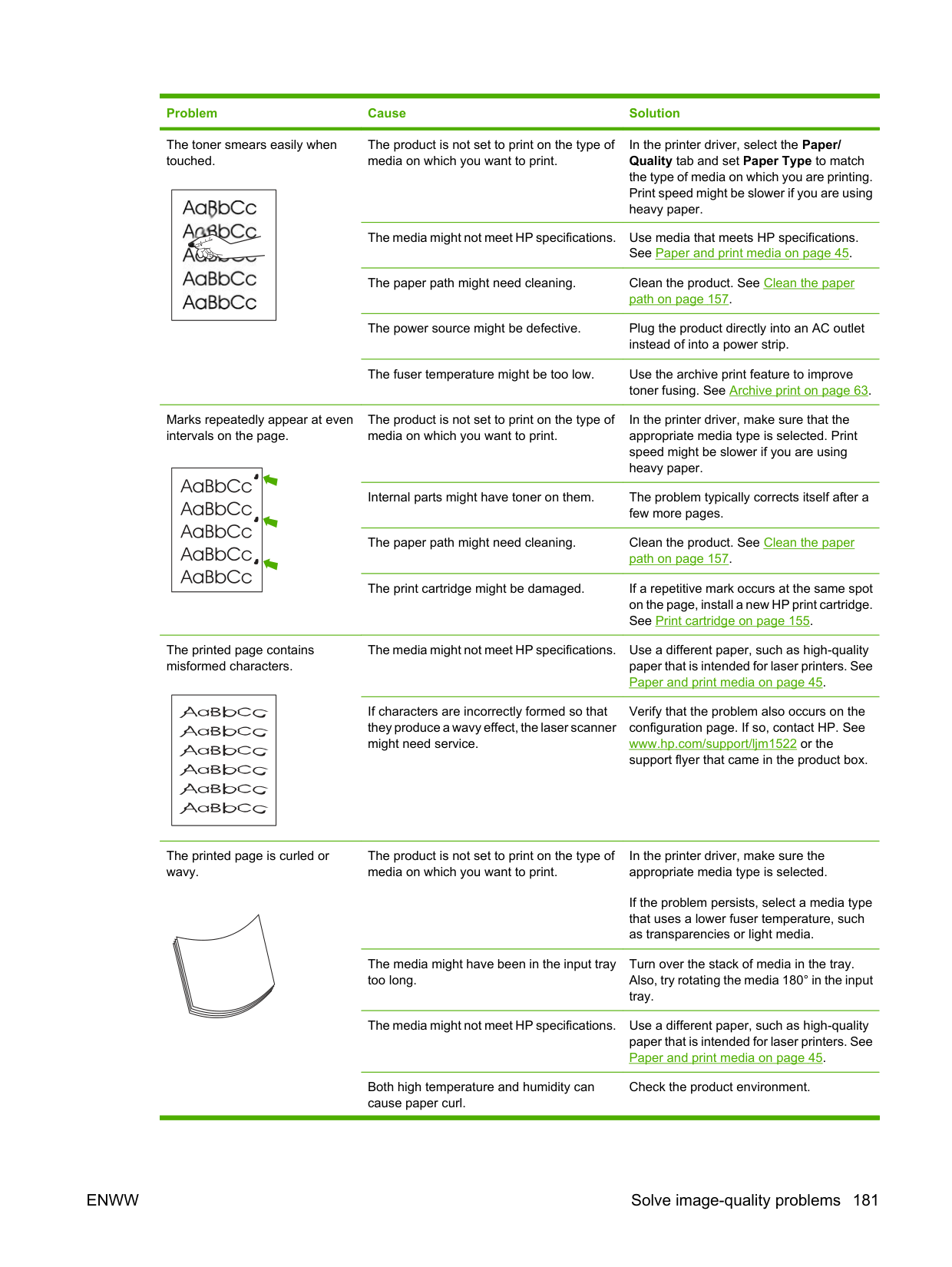

smeared toner, troubleshooting 180

software components 6 direct connection installation,

Macintosh 29 embedded Web server 25,

30 express installation 7 HP ToolboxFX 25, 142 HP Web Jetadmin 25 Linux 26 Macintosh Configure

Device 30 network installation,

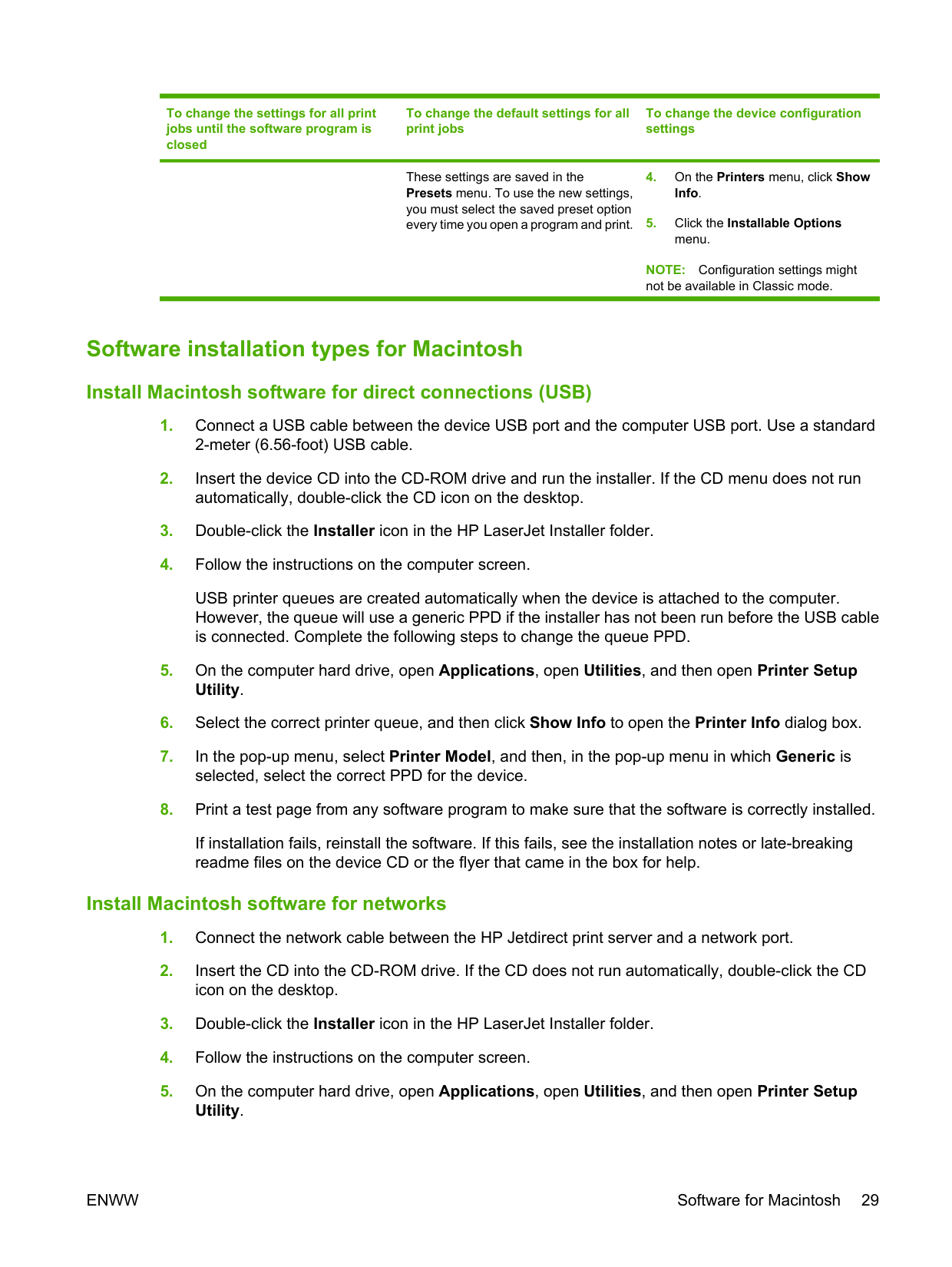

Macintosh 29 Readiris OCR 81 receiving faxes 108 recommended installation 6 scanning from TWAIN or

WIA 80 sending faxes 121 settings 23, 28 Solaris 26 supported operating

systems 6, 22, 28 uninstalling Macintosh 30 UNIX 26 Windows 25 Windows components 21

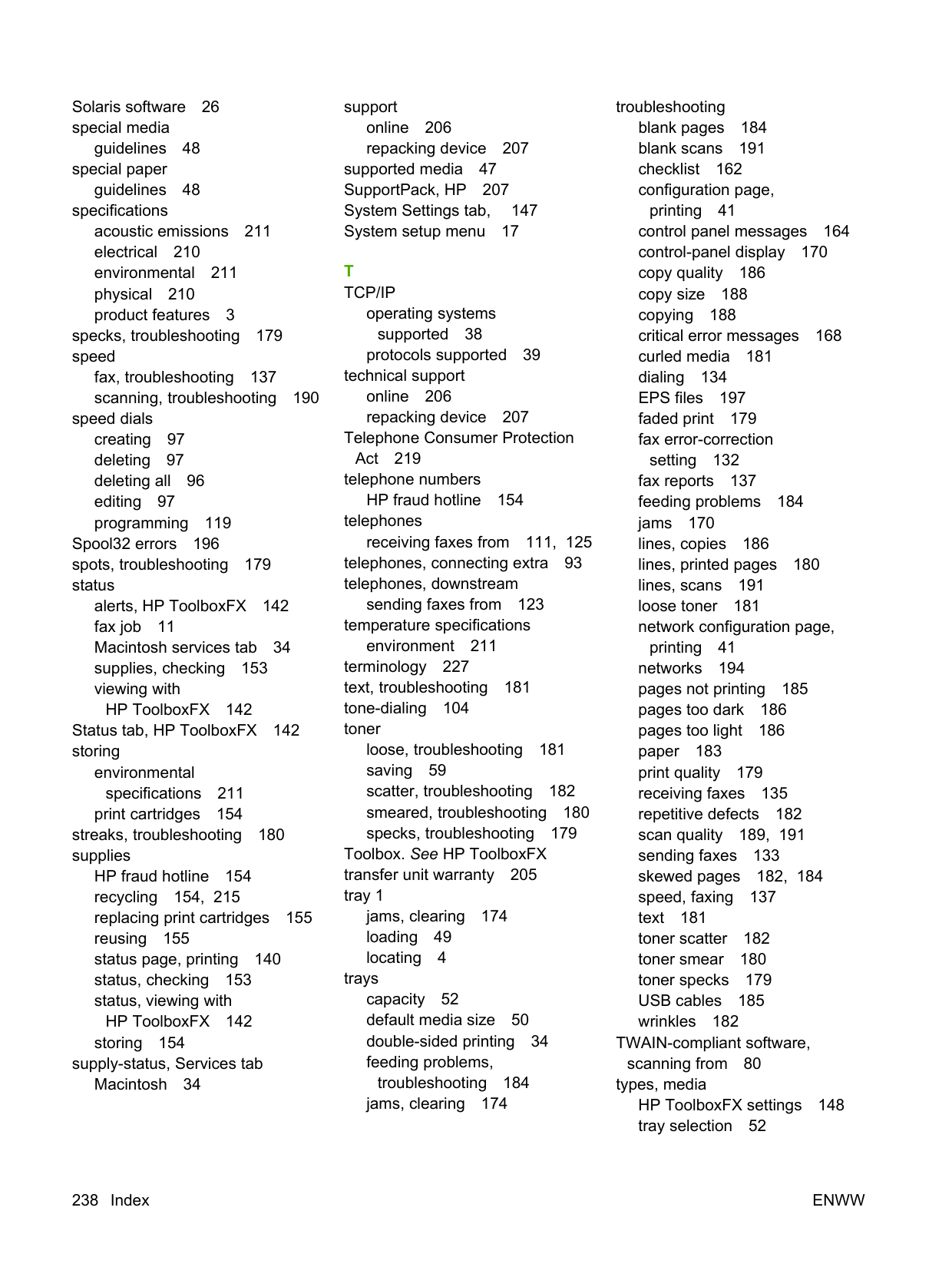

Solaris software 26 special media

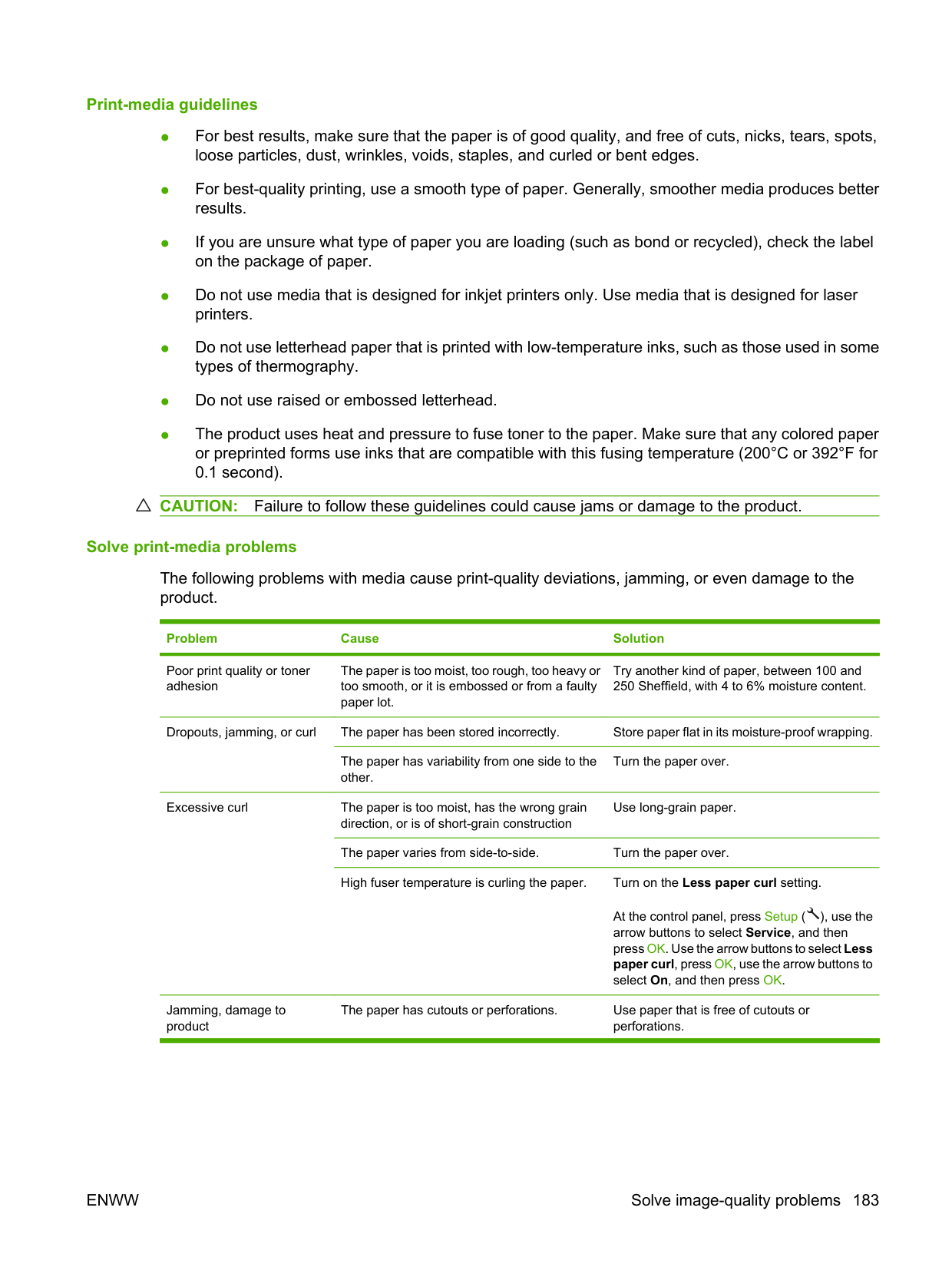

guidelines 48 special paper

guidelines 48

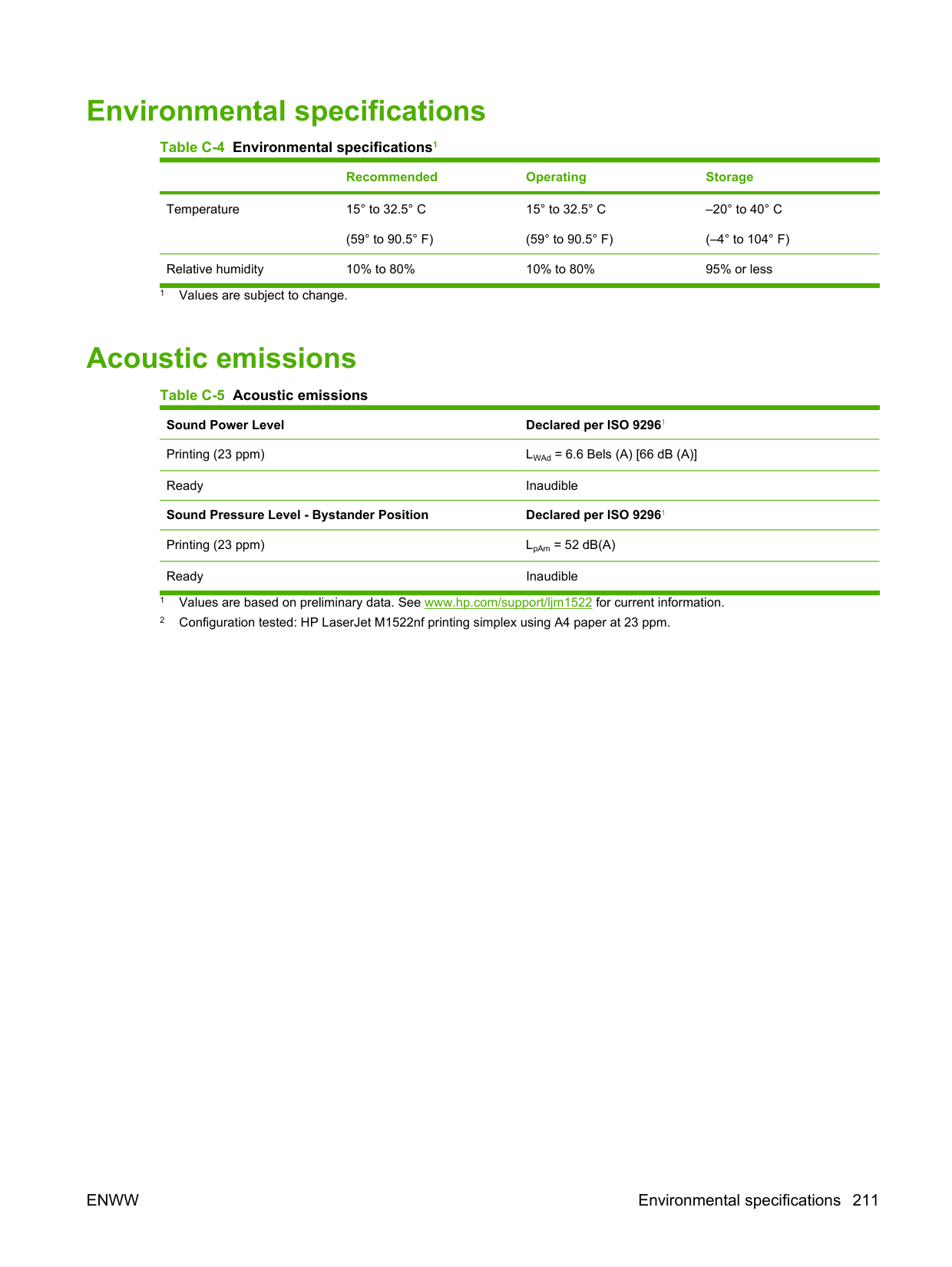

specifications acoustic emissions 211 electrical 210 environmental 211 physical 210 product features 3

specks, troubleshooting 179 speed

fax, troubleshooting 137 scanning, troubleshooting 190

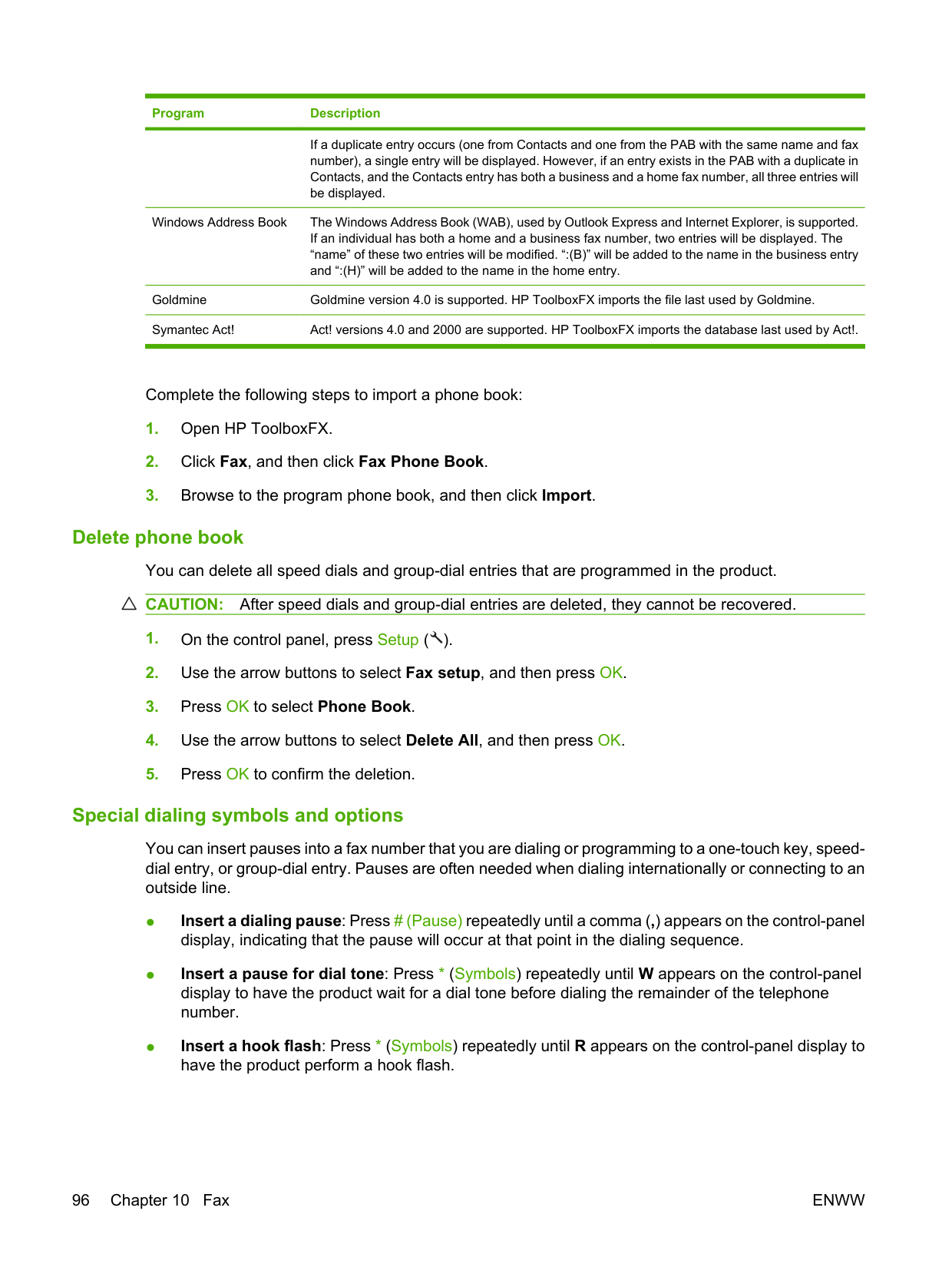

speed dials creating 97 deleting 97 deleting all 96 editing 97 programming 119

Spool32 errors 196 spots, troubleshooting 179 status

alerts, HP ToolboxFX 142 fax job 11 Macintosh services tab 34 supplies, checking 153 viewing with

HP ToolboxFX 142 Status tab, HP ToolboxFX 142 storing

environmental specifications 211

print cartridges 154 streaks, troubleshooting 180 supplies

HP fraud hotline 154 recycling 154, 215 replacing print cartridges 155 reusing 155 status page, printing 140 status, checking 153 status, viewing with

HP ToolboxFX 142 storing 154

supply-status, Services tab Macintosh 34

support online 206 repacking device 207

supported media 47 SupportPack, HP 207 System Settings tab, 147 System setup menu 17

T TCP/IP

operating systems supported 38

protocols supported 39

technical support online 206 repacking device 207

Telephone Consumer Protection Act 219 telephone numbers

HP fraud hotline 154 telephones

receiving faxes from 111, 125 telephones, connecting extra 93 telephones, downstream

sending faxes from 123 temperature specifications

environment 211 terminology 227 text, troubleshooting 181 tone-dialing 104 toner

loose, troubleshooting 181 saving 59 scatter, troubleshooting 182 smeared, troubleshooting 180 specks, troubleshooting 179

Toolbox. See HP ToolboxFX transfer unit warranty 205 tray 1

jams, clearing 174 loading 49 locating 4

trays capacity 52 default media size 50 double-sided printing 34 feeding problems,

troubleshooting 184 jams, clearing 174

troubleshooting blank pages 184 blank scans 191 checklist 162 configuration page,

printing 41 control panel messages 164 control-panel display 170 copy quality 186 copy size 188 copying 188 critical error messages 168 curled media 181 dialing 134 EPS files 197 faded print 179 fax error-correction

setting 132 fax reports 137 feeding problems 184 jams 170 lines, copies 186 lines, printed pages 180 lines, scans 191 loose toner 181 network configuration page,

printing 41 networks 194 pages not printing 185 pages too dark 186 pages too light 186 paper 183 print quality 179 receiving faxes 135 repetitive defects 182 scan quality 189, 191 sending faxes 133 skewed pages 182, 184 speed, faxing 137 text 181 toner scatter 182 toner smear 180 toner specks 179 USB cables 185 wrinkles 182

TWAIN-compliant software, scanning from 80

types, media HP ToolboxFX settings 148 tray selection 52

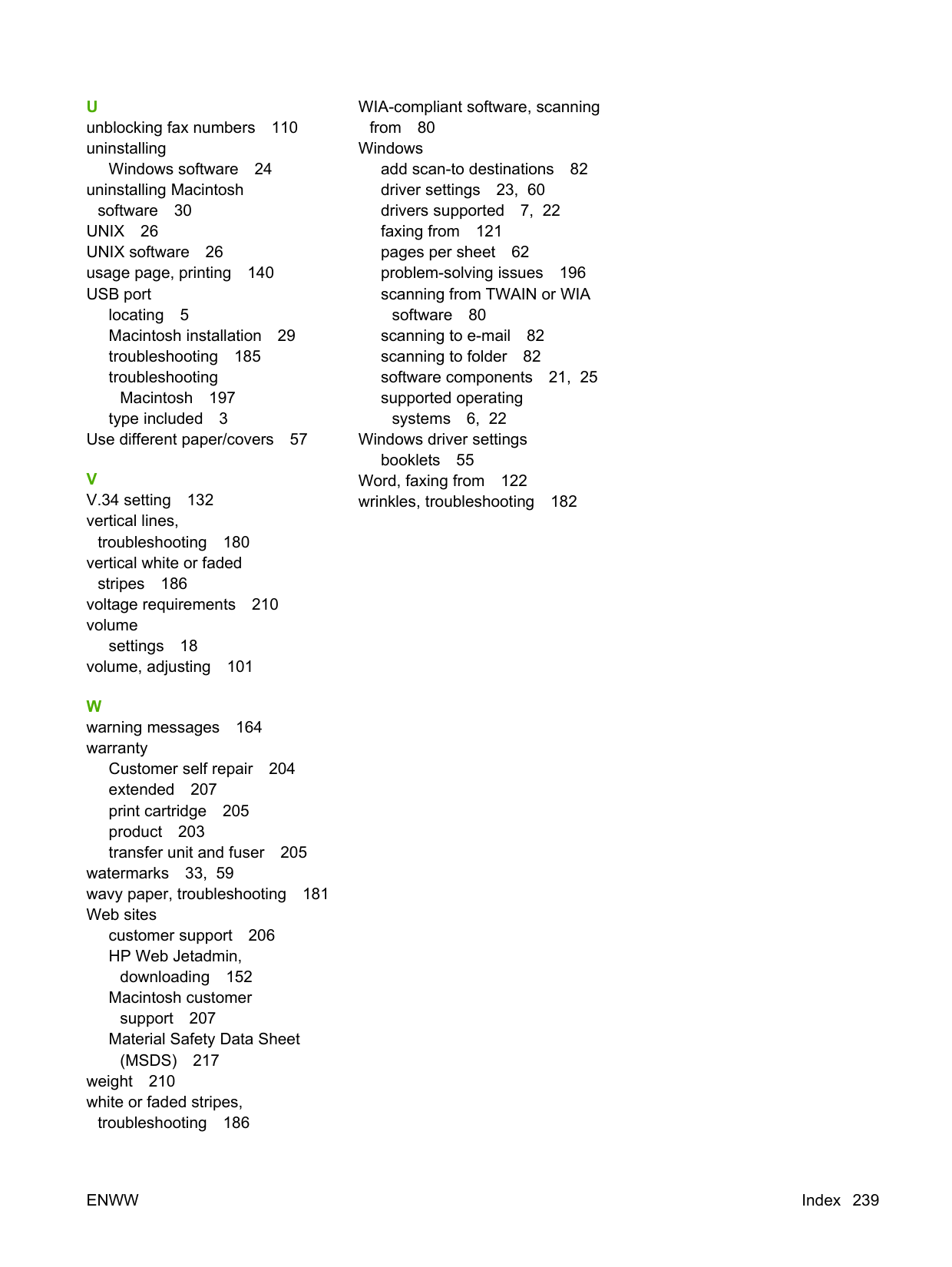

U unblocking fax numbers 110 uninstalling

Windows software 24 uninstalling Macintosh

software 30 UNIX 26 UNIX software 26 usage page, printing 140 USB port

locating 5 Macintosh installation 29 troubleshooting 185 troubleshooting

Macintosh 197 type included 3

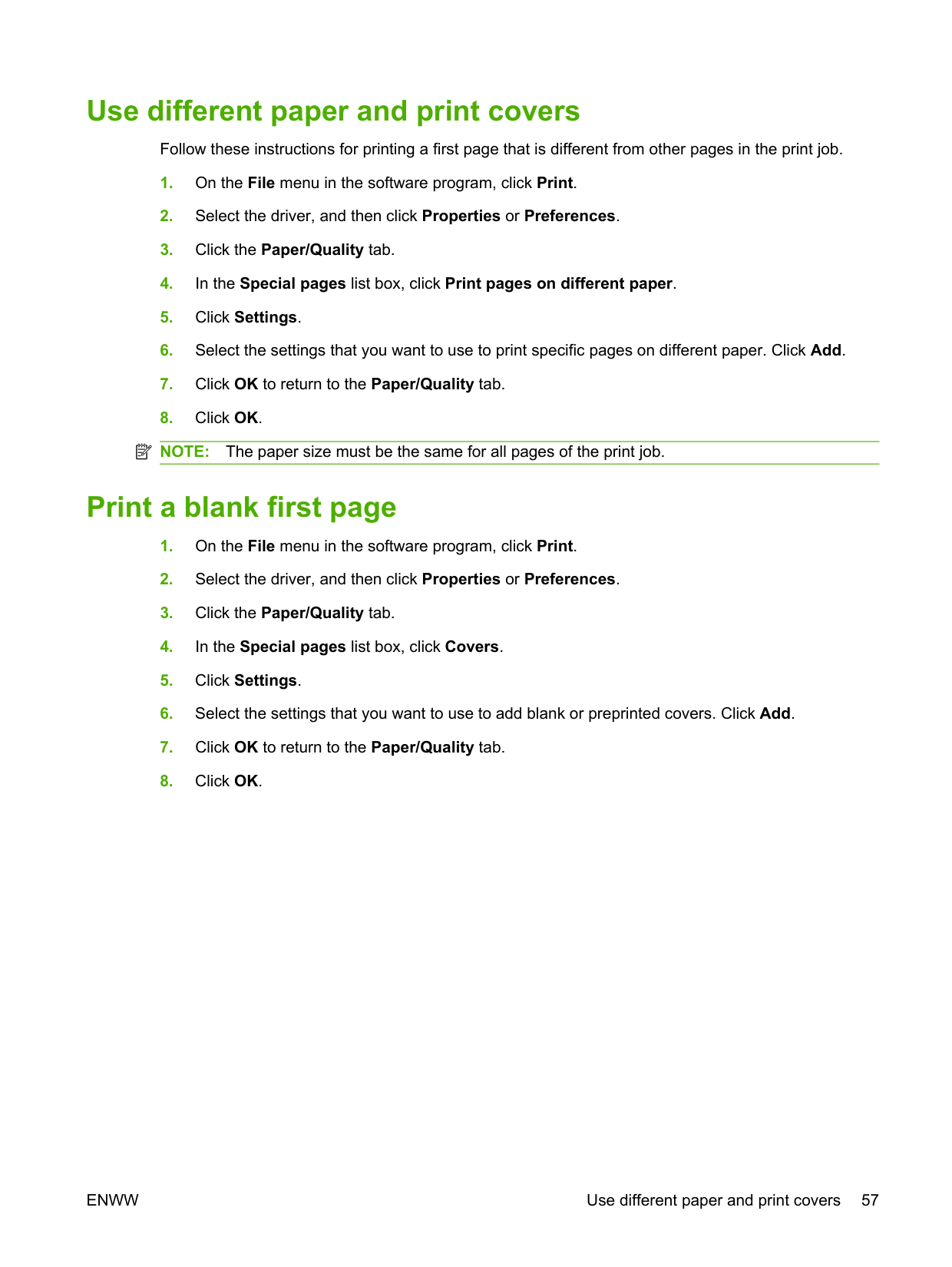

Use different paper/covers 57

V

V.34 setting 132 vertical lines,

troubleshooting 180 vertical white or faded

stripes 186 voltage requirements 210 volume

settings 18 volume, adjusting 101

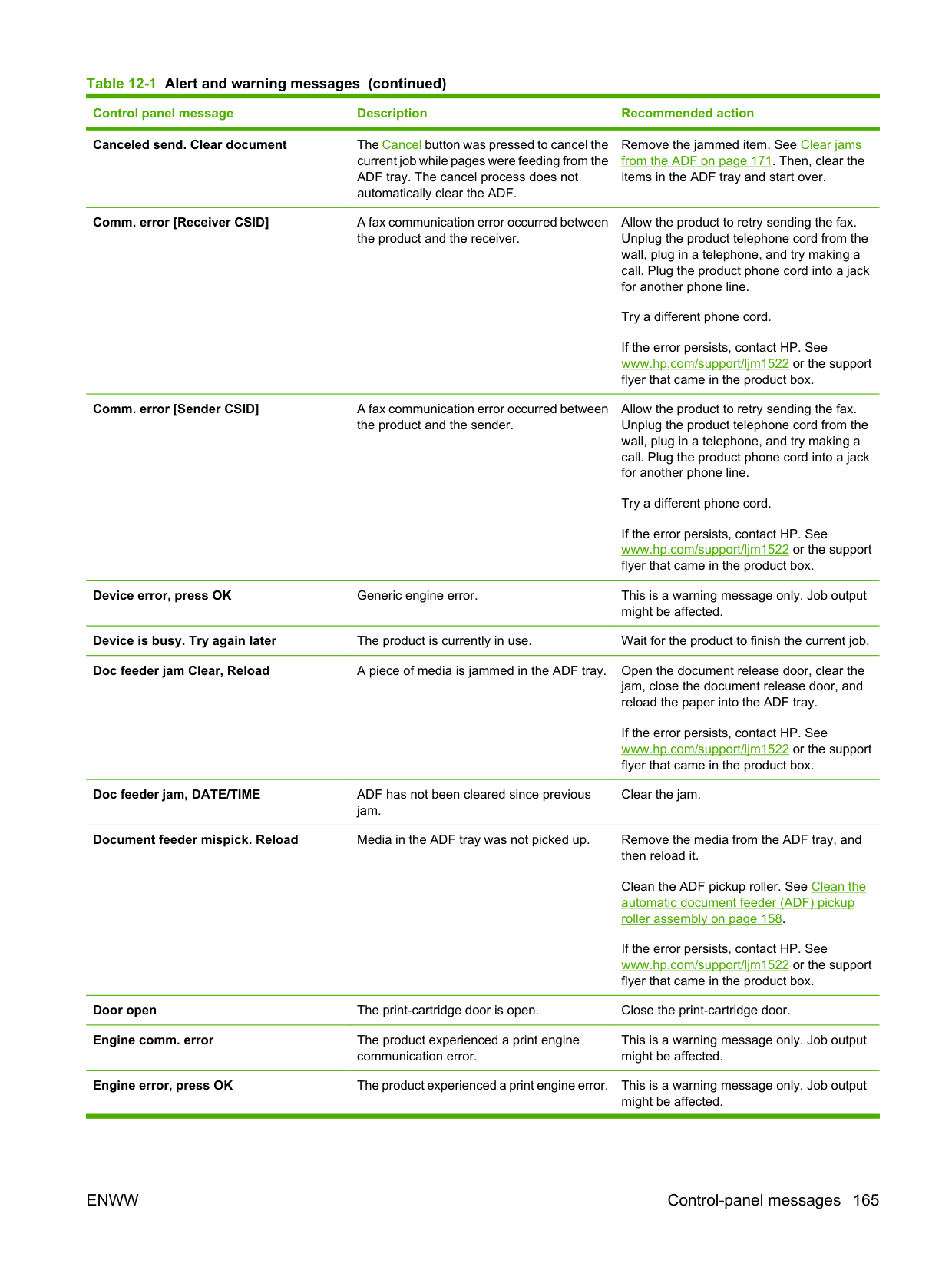

W warning messages 164 warranty

Customer self repair 204 extended 207 print cartridge 205 product 203 transfer unit and fuser 205

watermarks 33, 59 wavy paper, troubleshooting 181 Web sites

customer support 206 HP Web Jetadmin,

downloading 152 Macintosh customer

support 207 Material Safety Data Sheet

(MSDS) 217 weight 210 white or faded stripes,

troubleshooting 186

WIA-compliant software, scanning from 80

Windows add scan-to destinations 82 driver settings 23, 60 drivers supported 7, 22 faxing from 121 pages per sheet 62 problem-solving issues 196 scanning from TWAIN or WIA

software 80 scanning to e-mail 82 scanning to folder 82 software components 21, 25 supported operating systems 6, 22

Windows driver settings

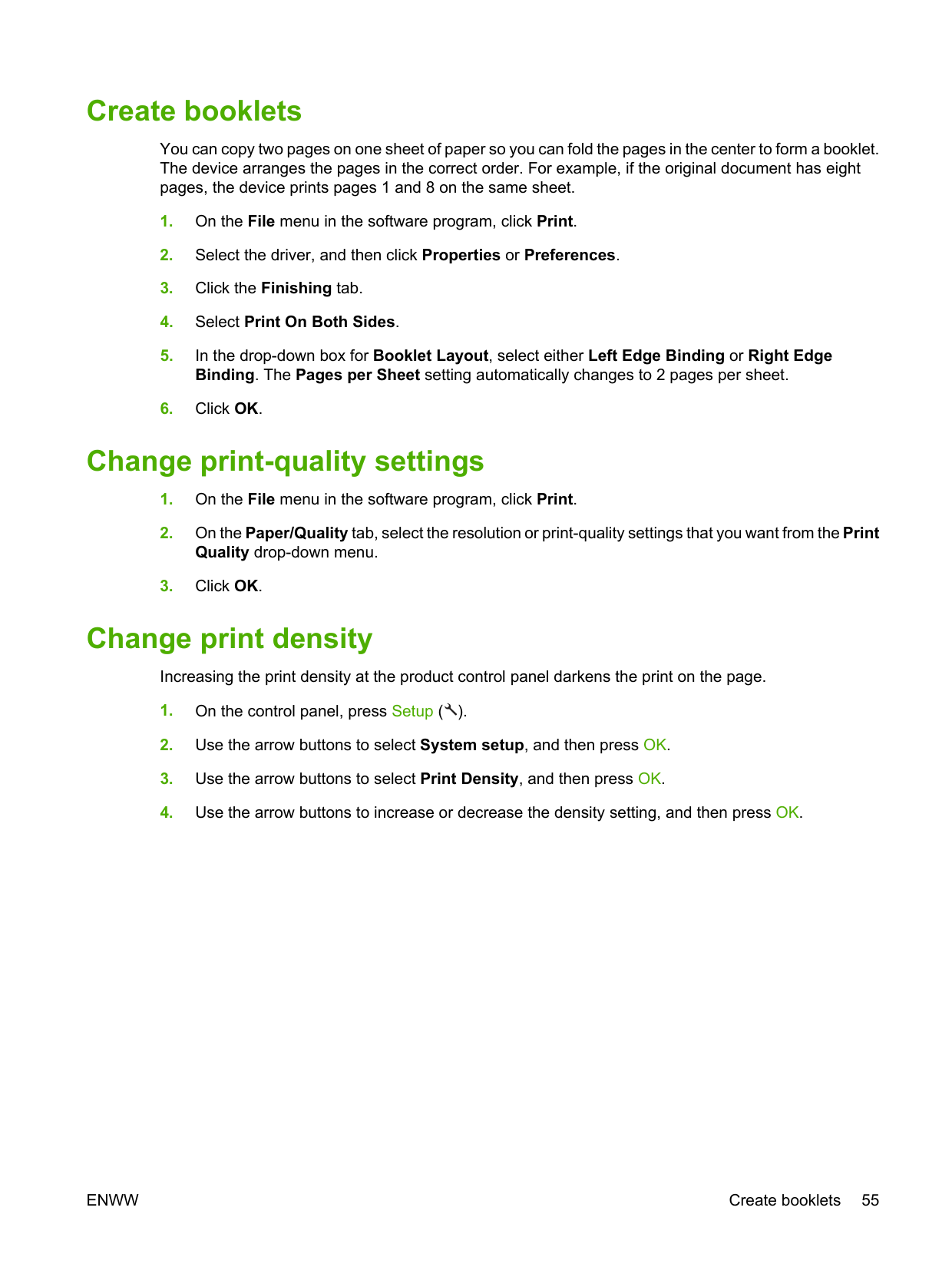

booklets 55 Word, faxing from 122 wrinkles, troubleshooting 182

www.hp.com

*CB534-90946*

CB534-90946

HP Laserjet M1500 Multifunction Printer

Ask AI

Common Questions

Full Manual

More from HP

Similar Printers

HP Laserjet M1500 Multifunction Printer

Ask AI

Common Questions

Full Manual

HP LaserJet M1522 MFP Series User Guide

HP LaserJet M1522 MFP Series

Table of contents

1 Product basics

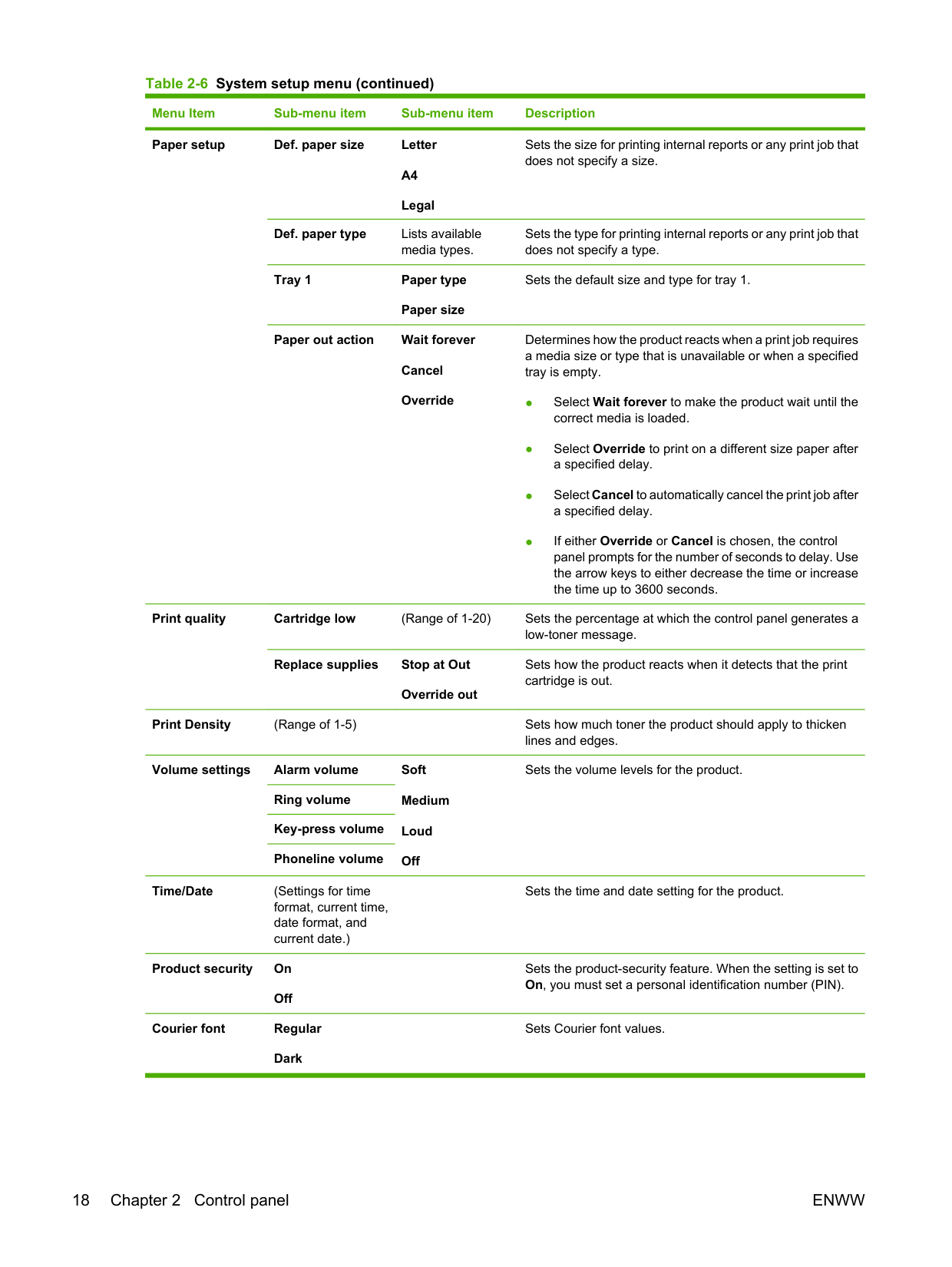

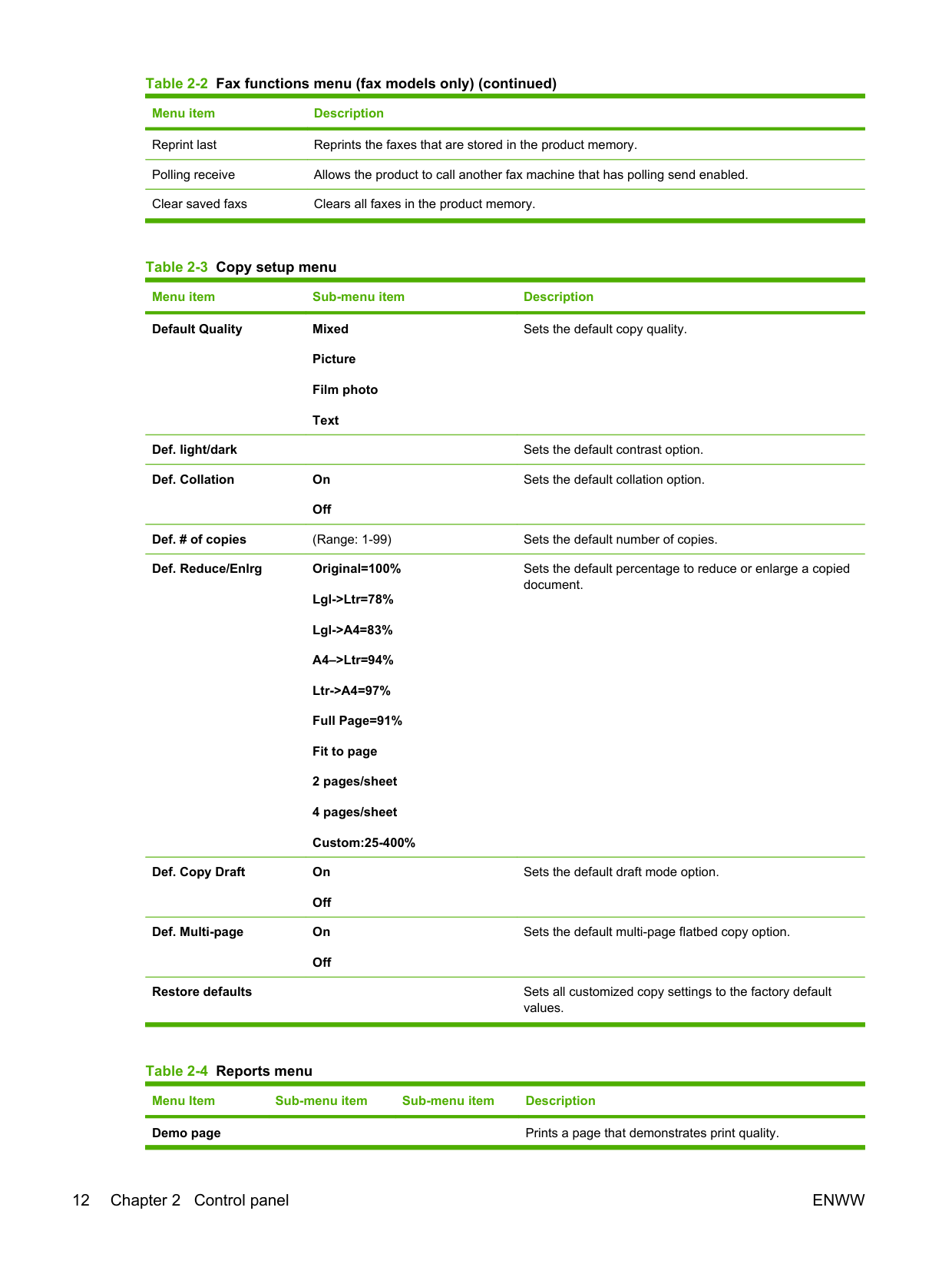

2 Control panel

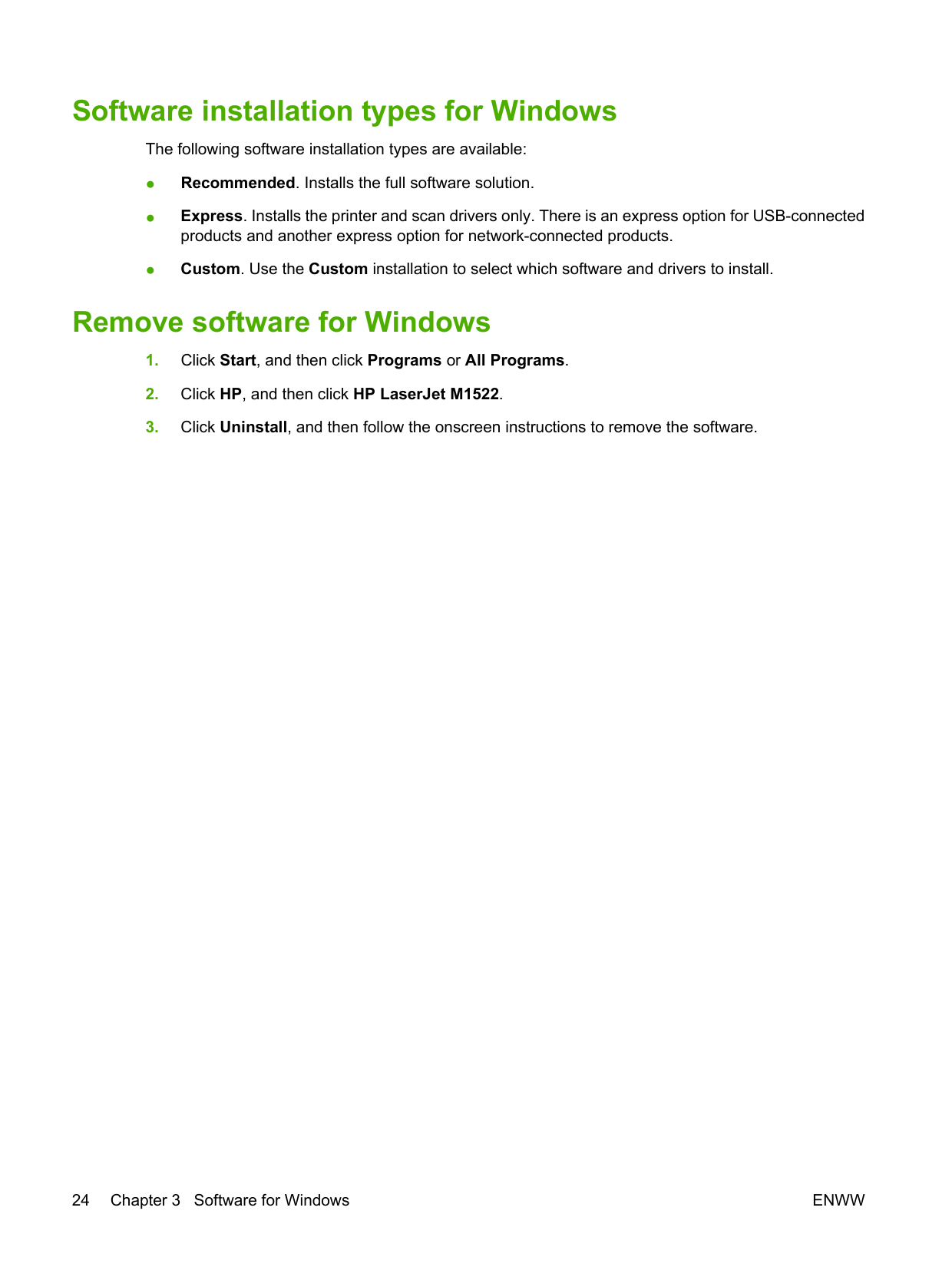

3 Software for Windows

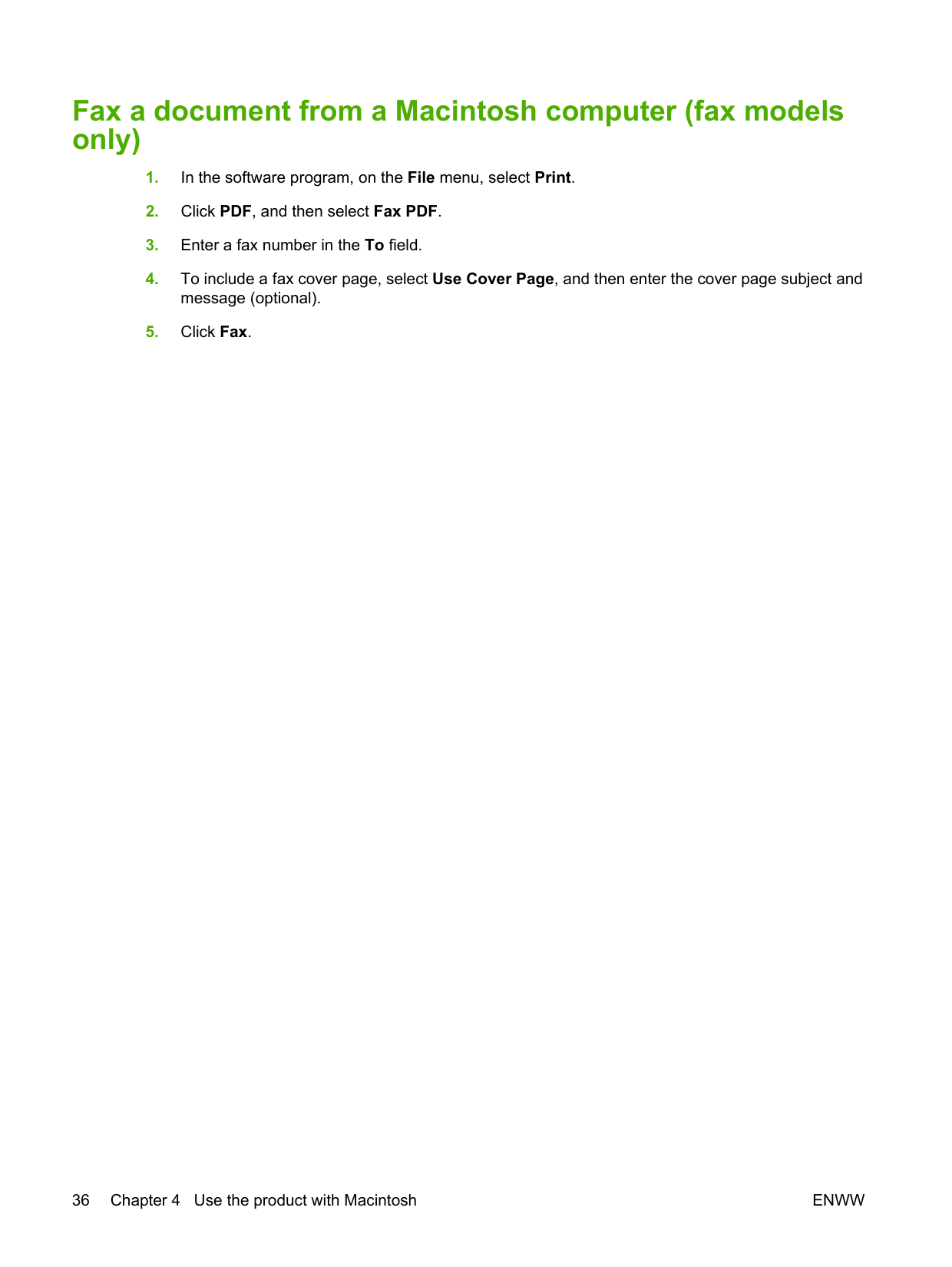

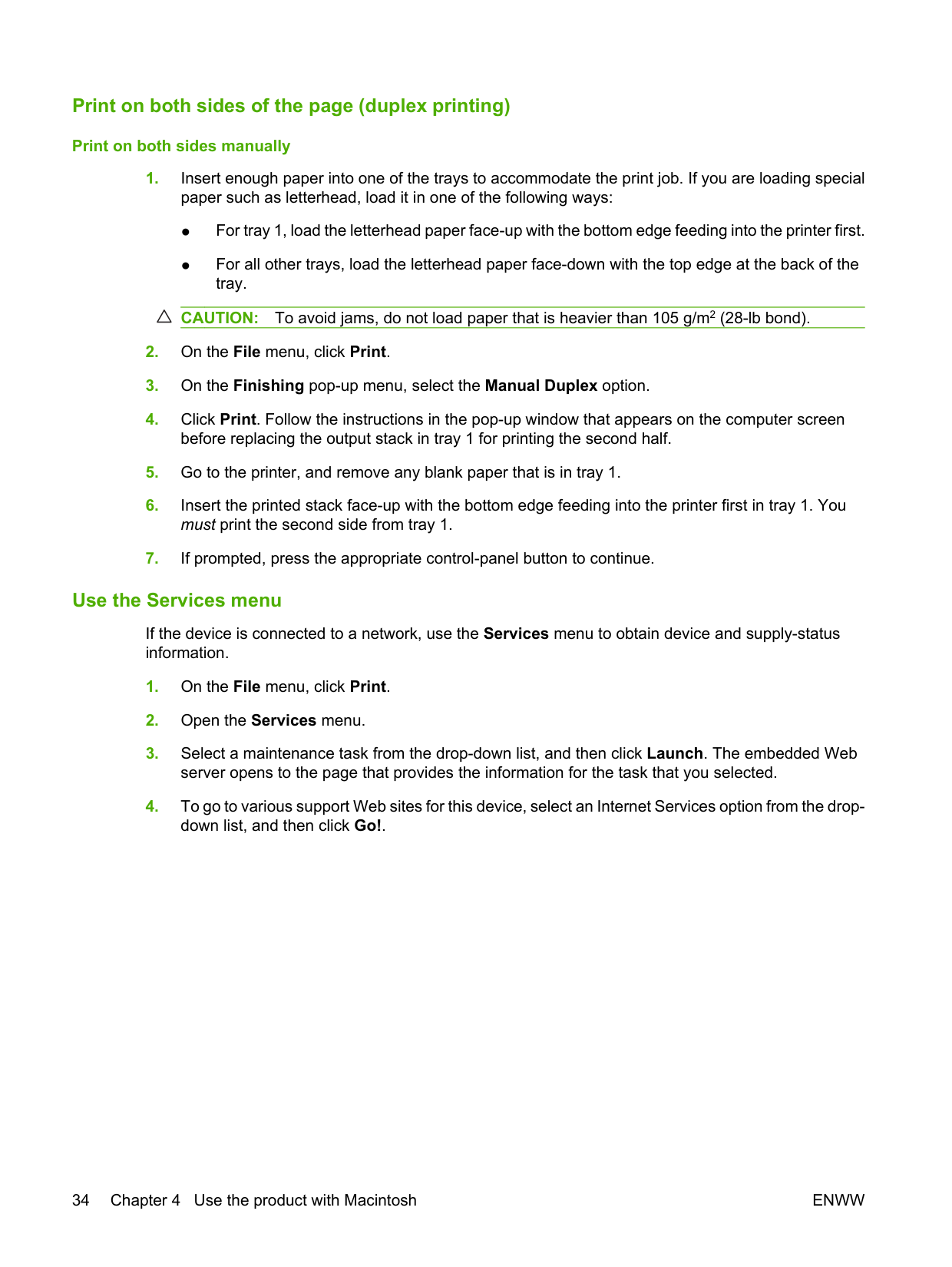

4 Use the product with Macintosh

5 Connectivity

6 Paper and print media

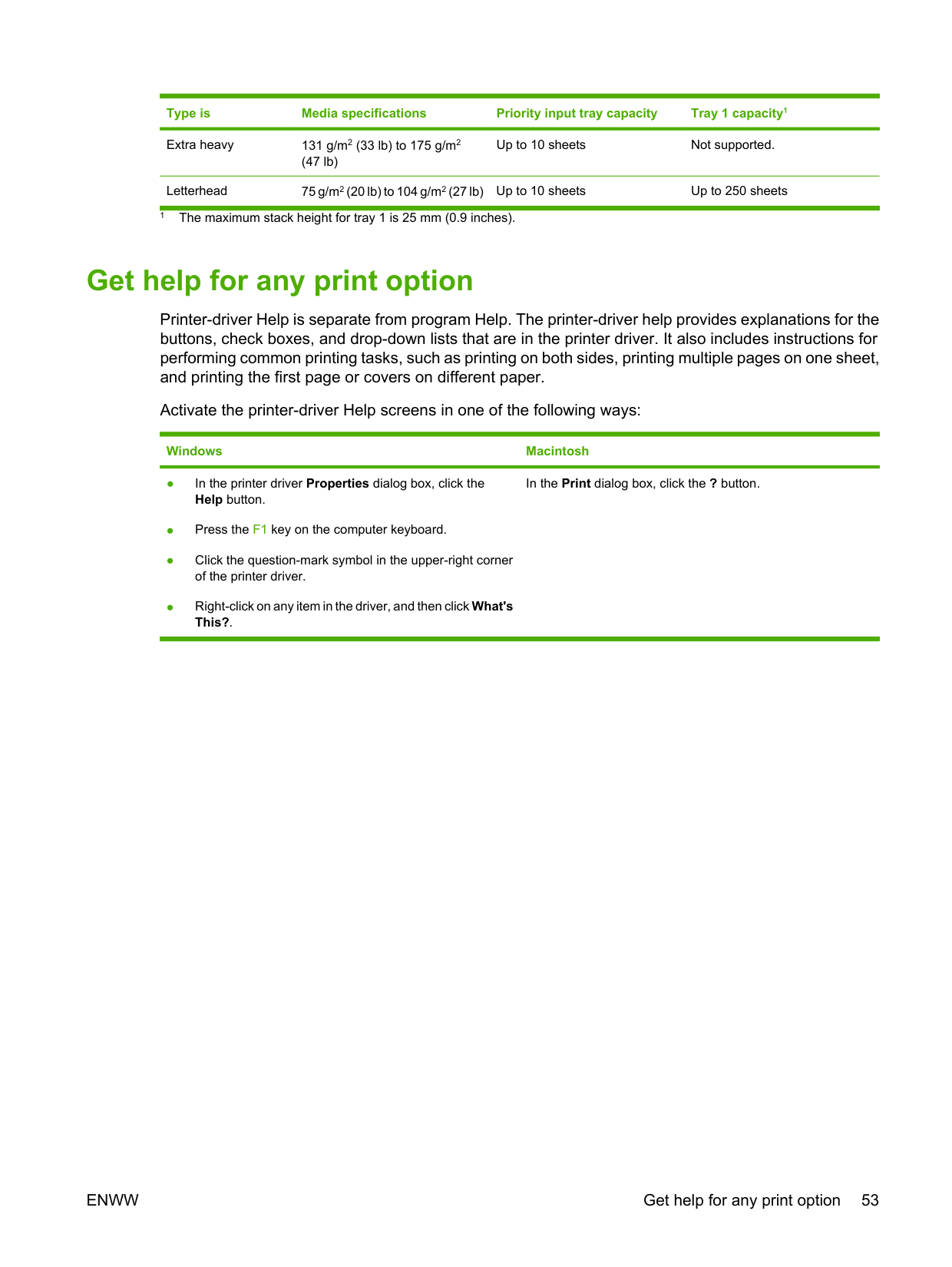

7Print tasks

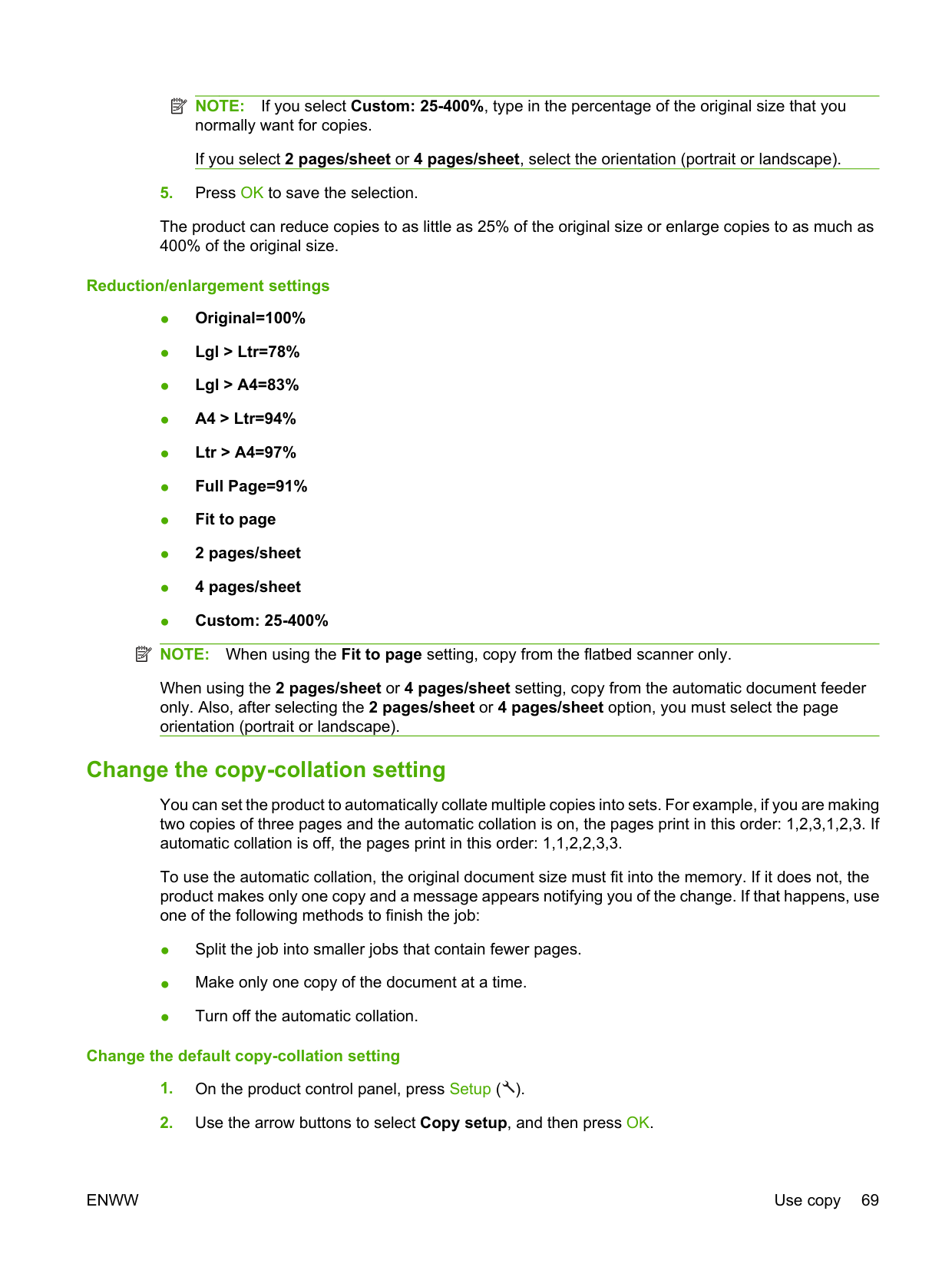

8 Copy

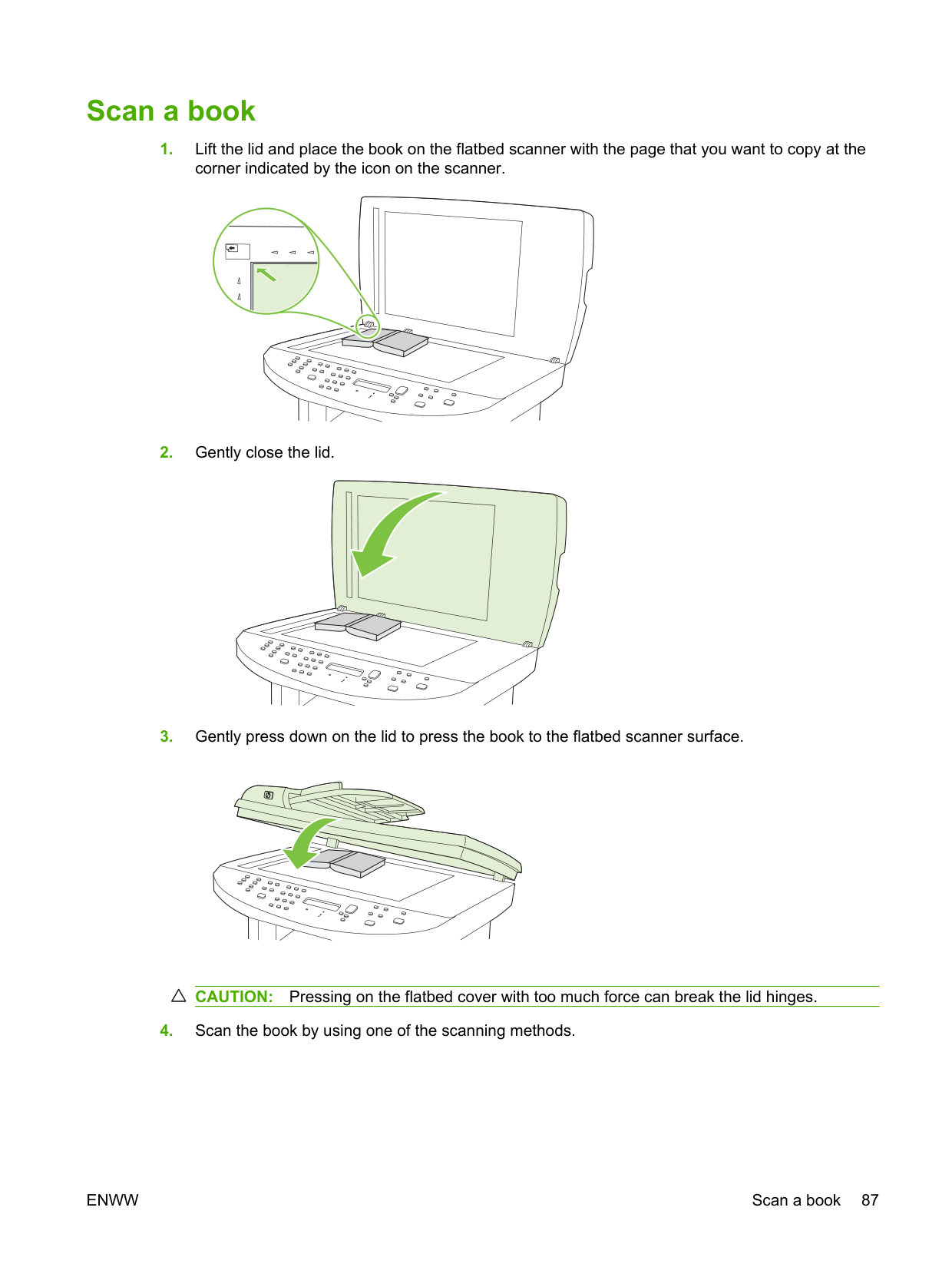

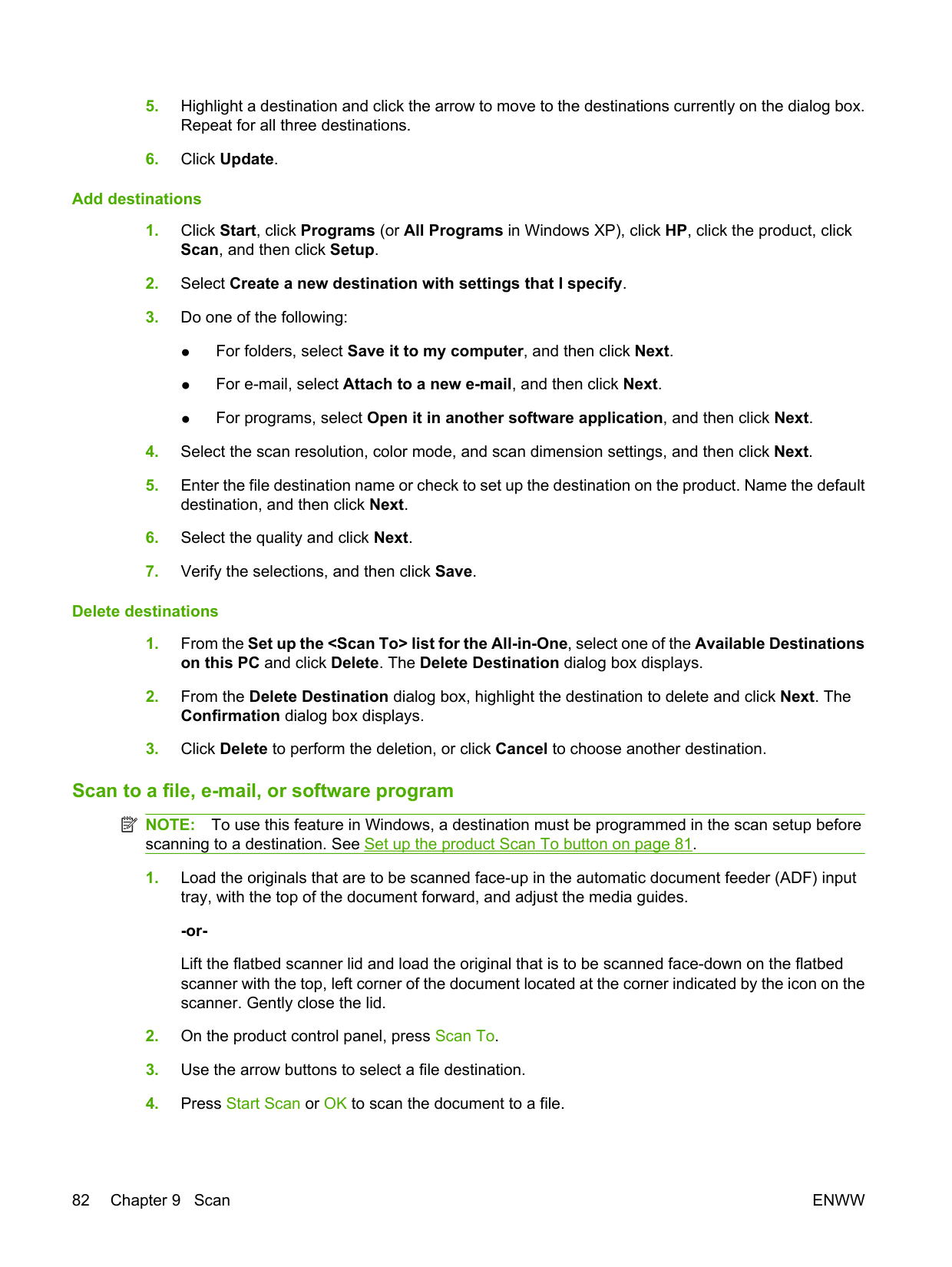

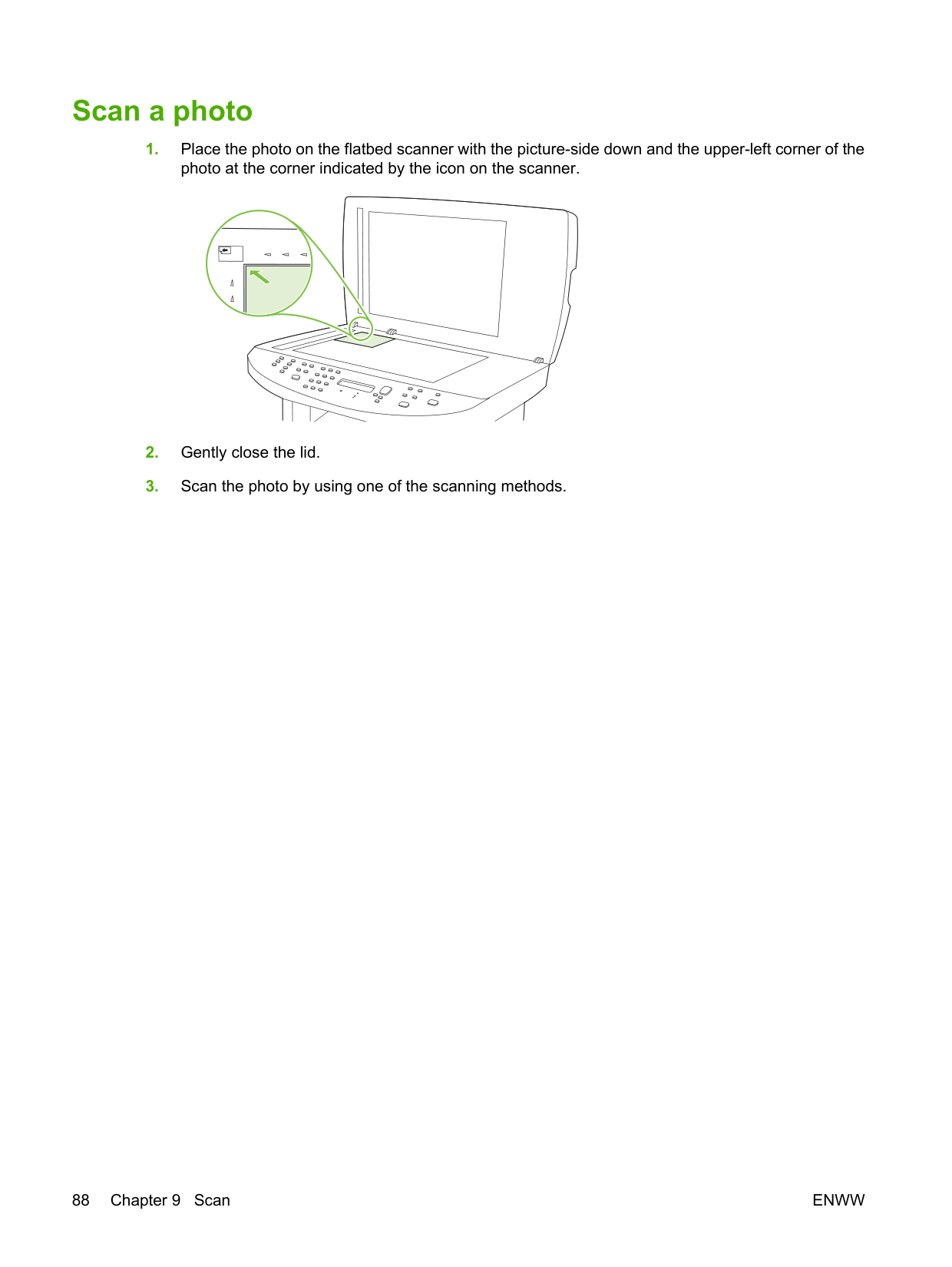

9Scan

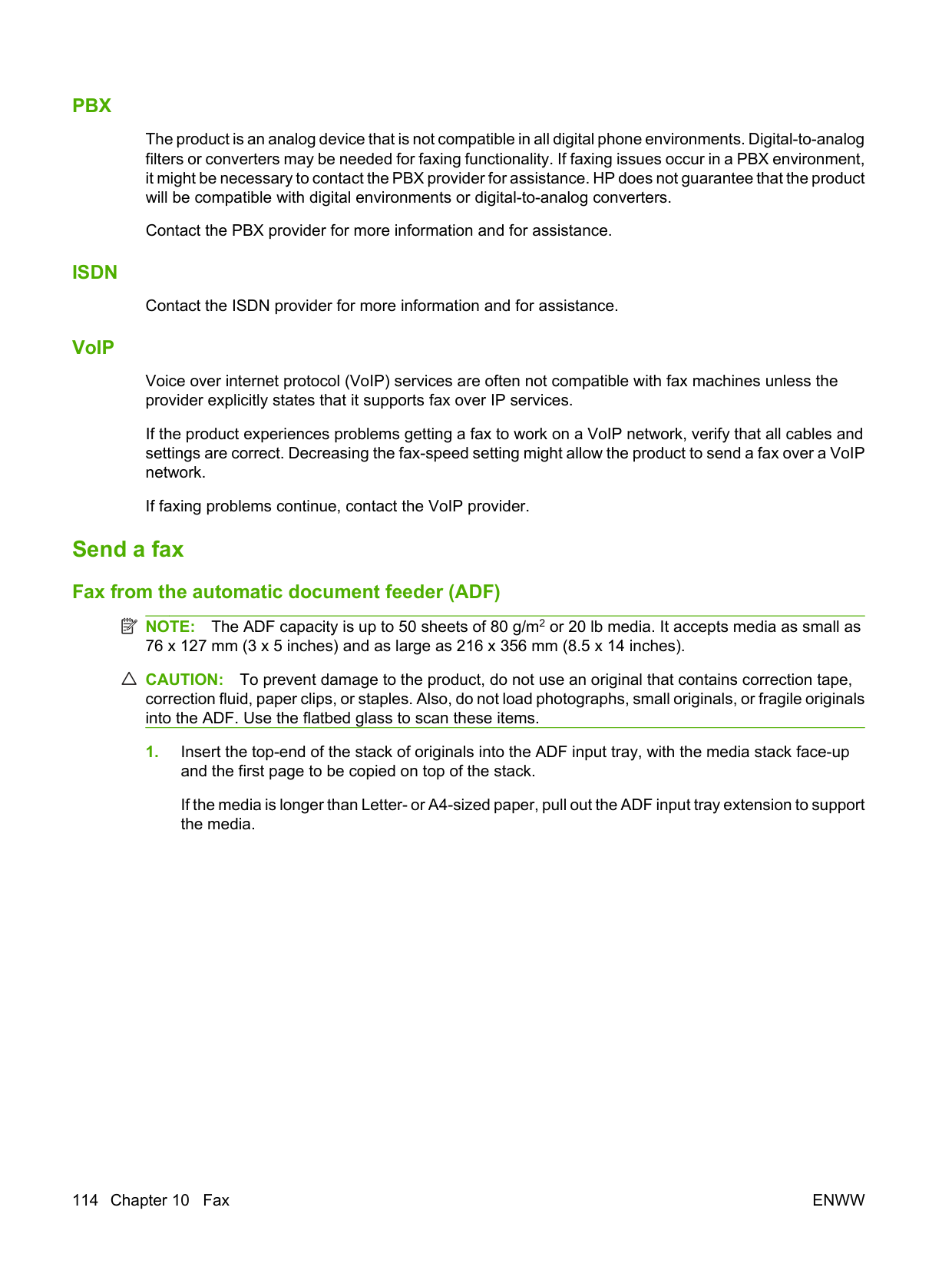

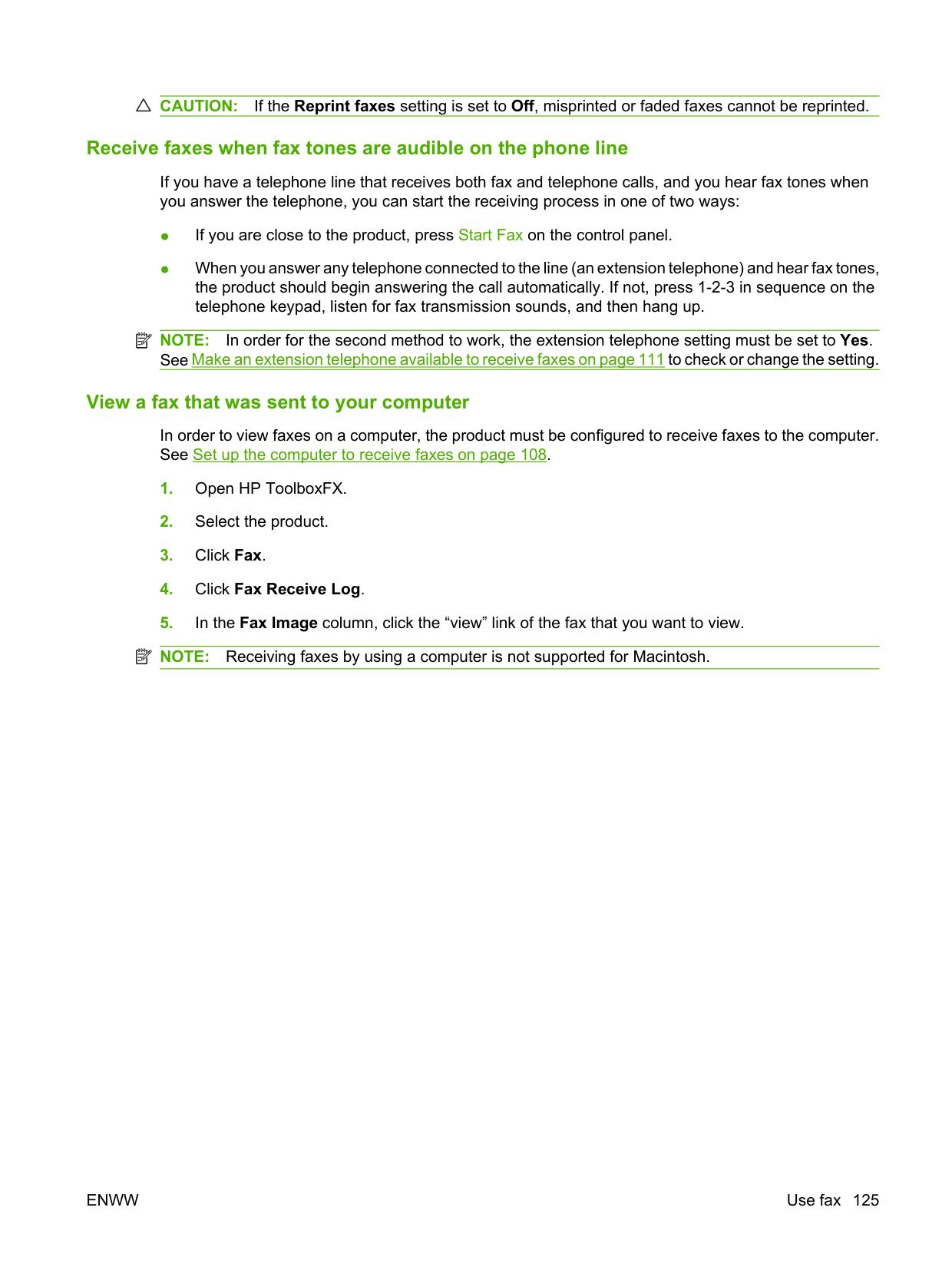

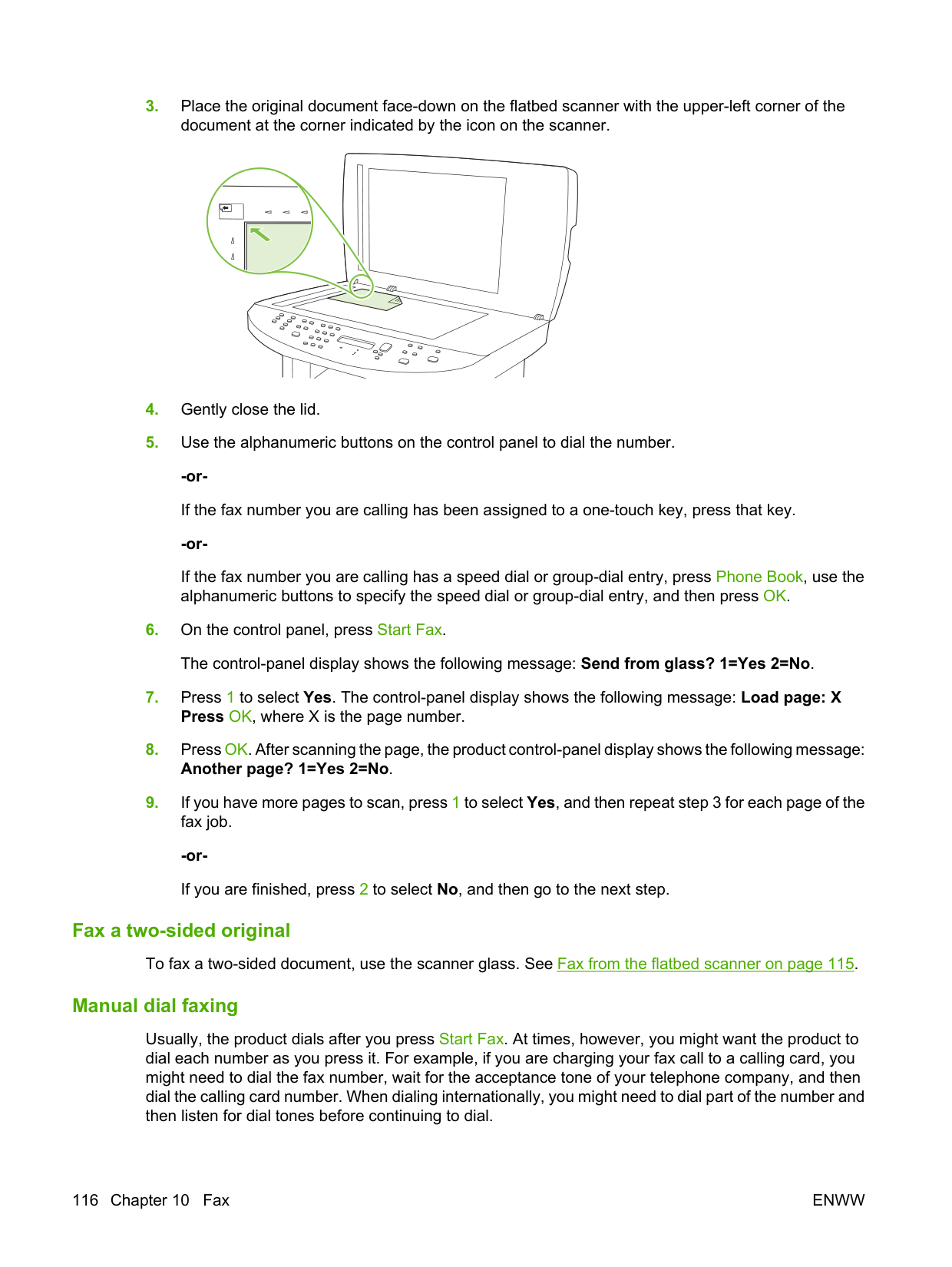

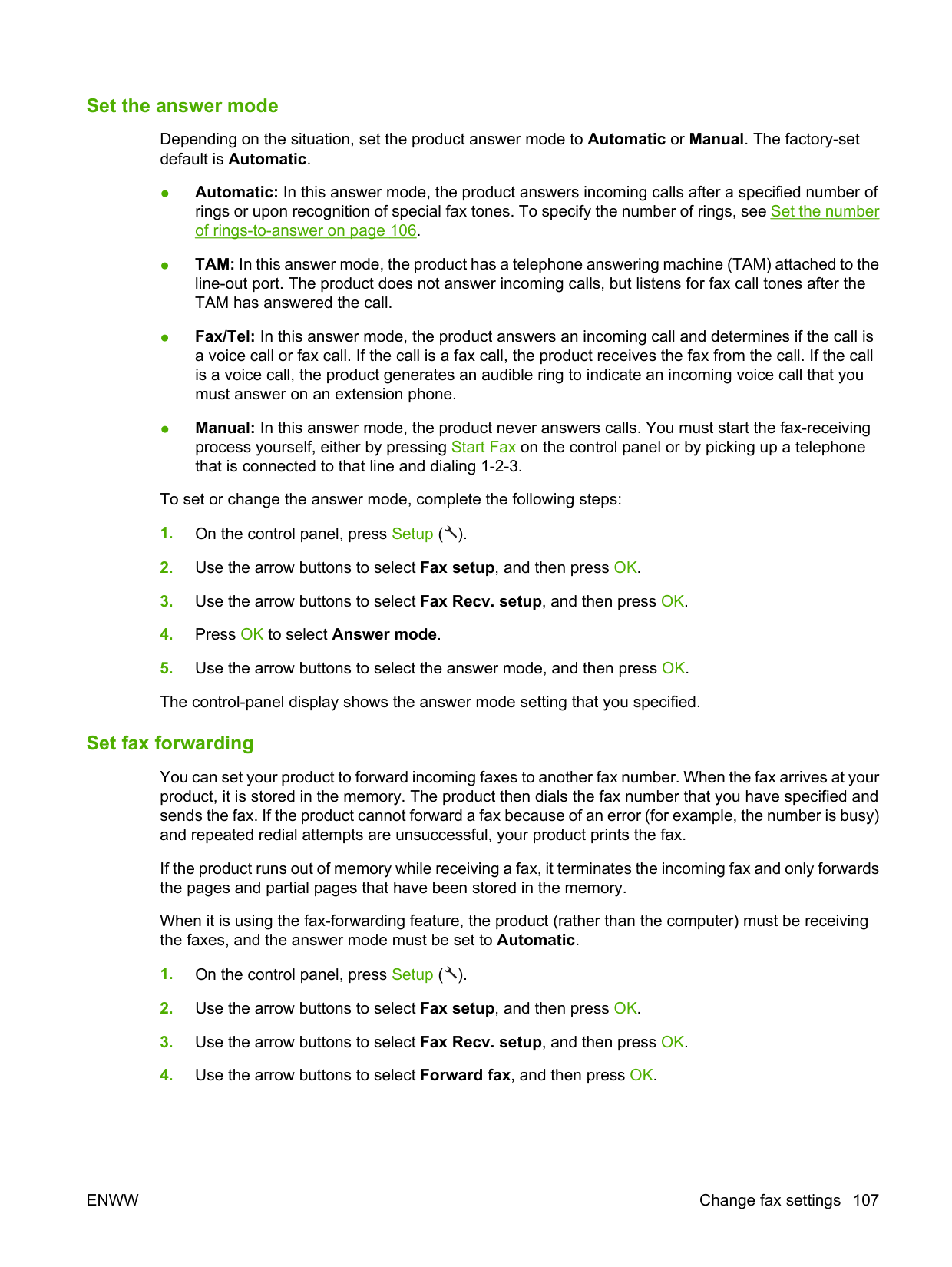

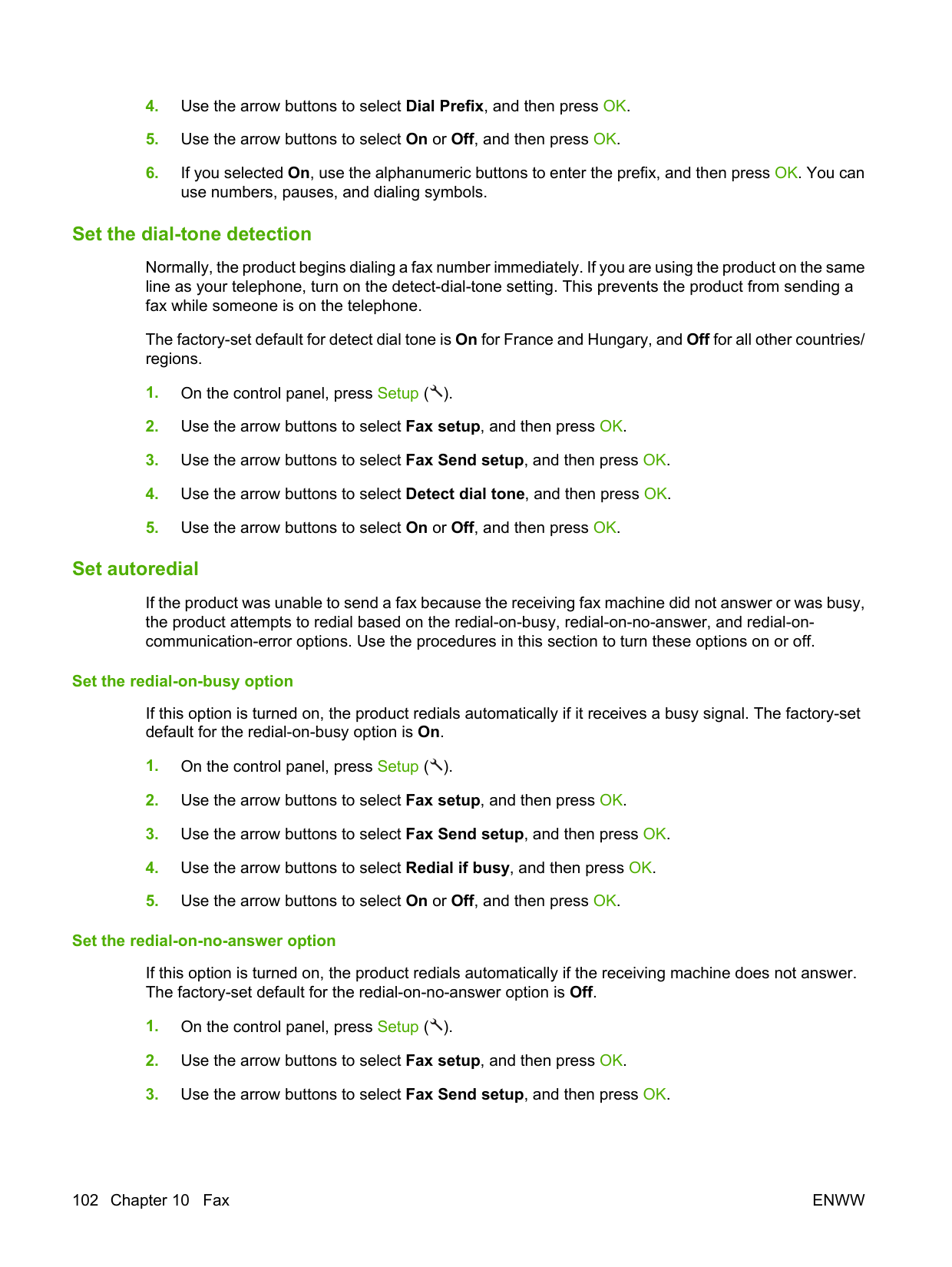

10 Fax

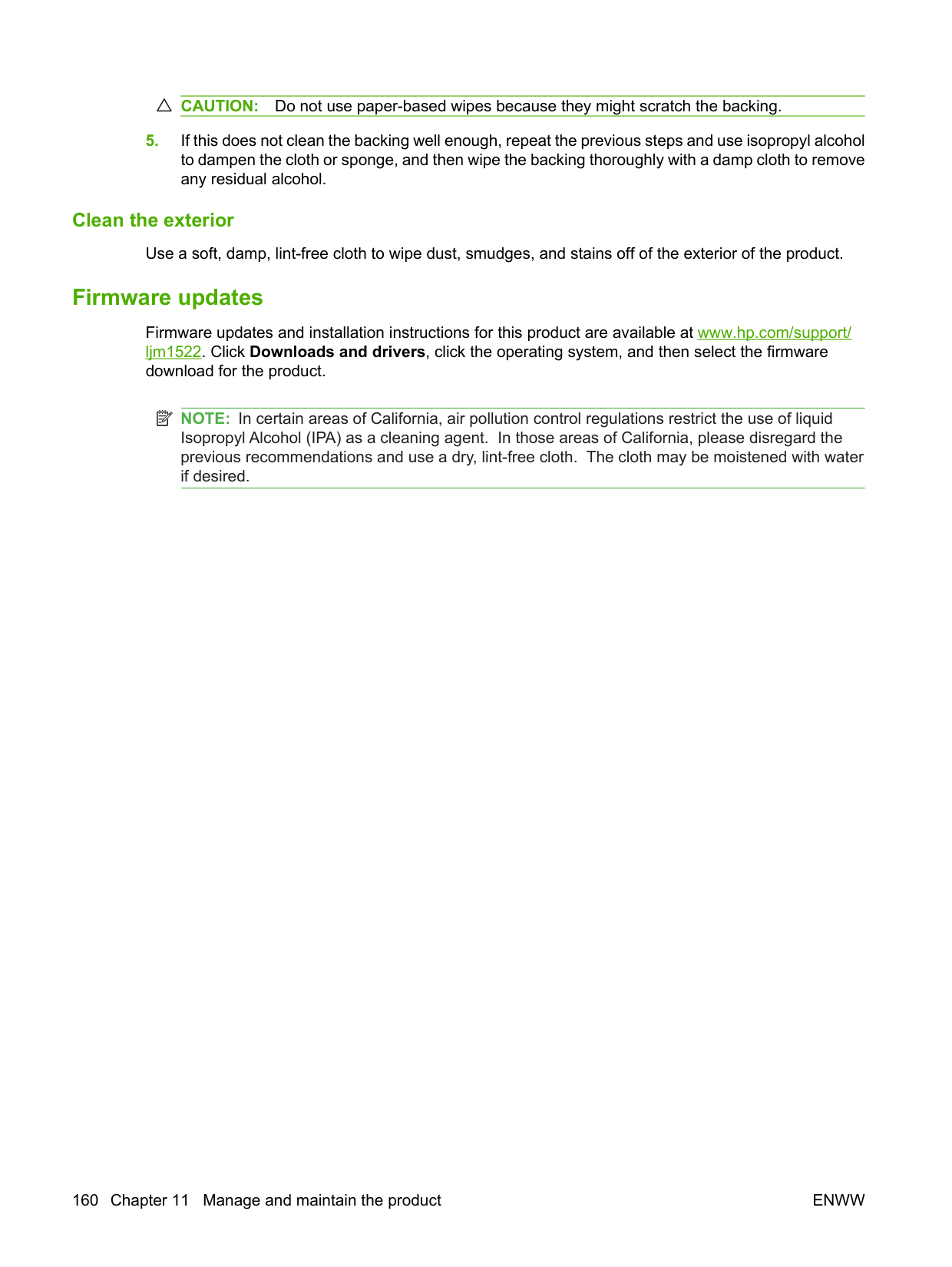

11 Manage and maintain the product

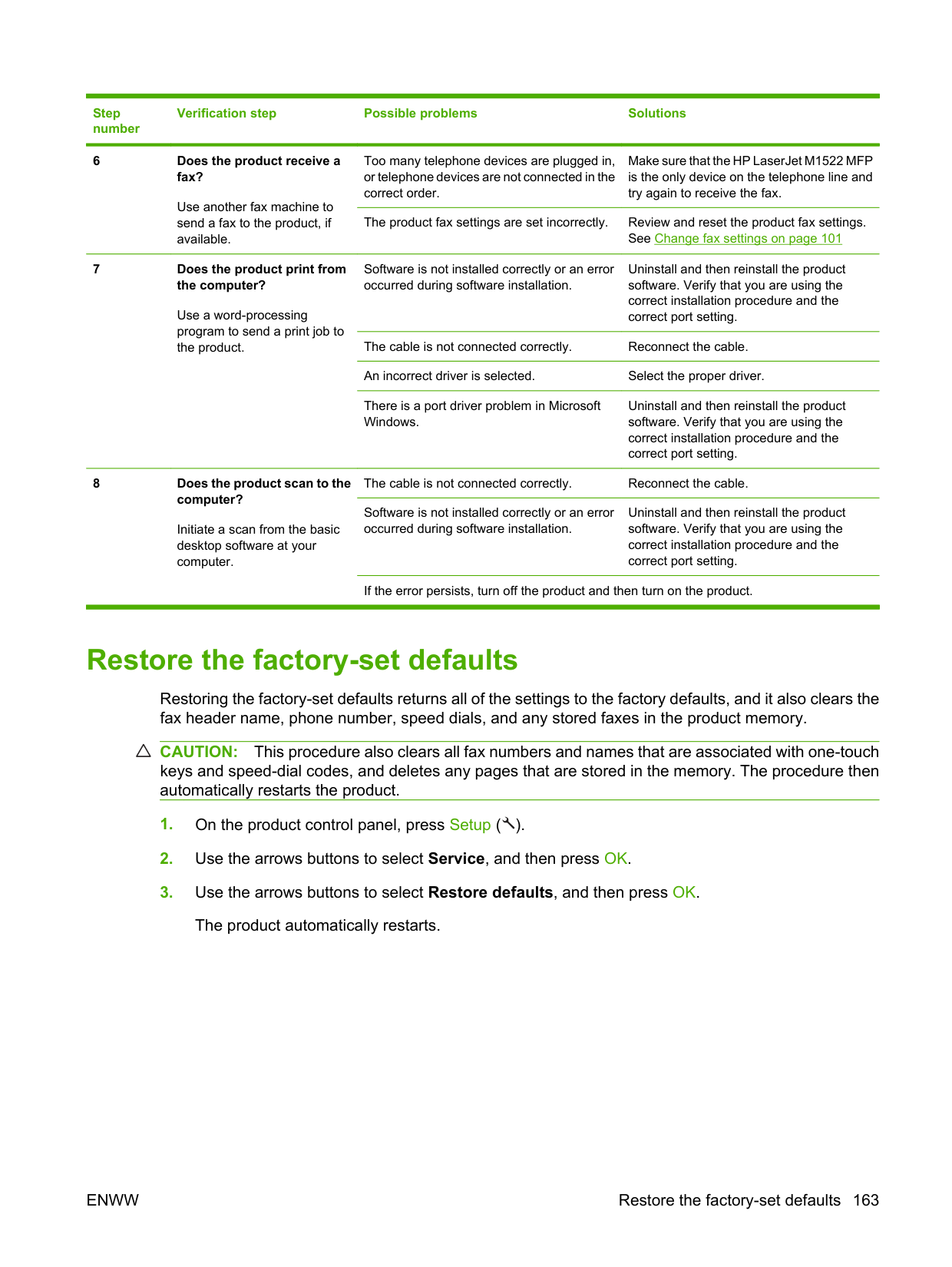

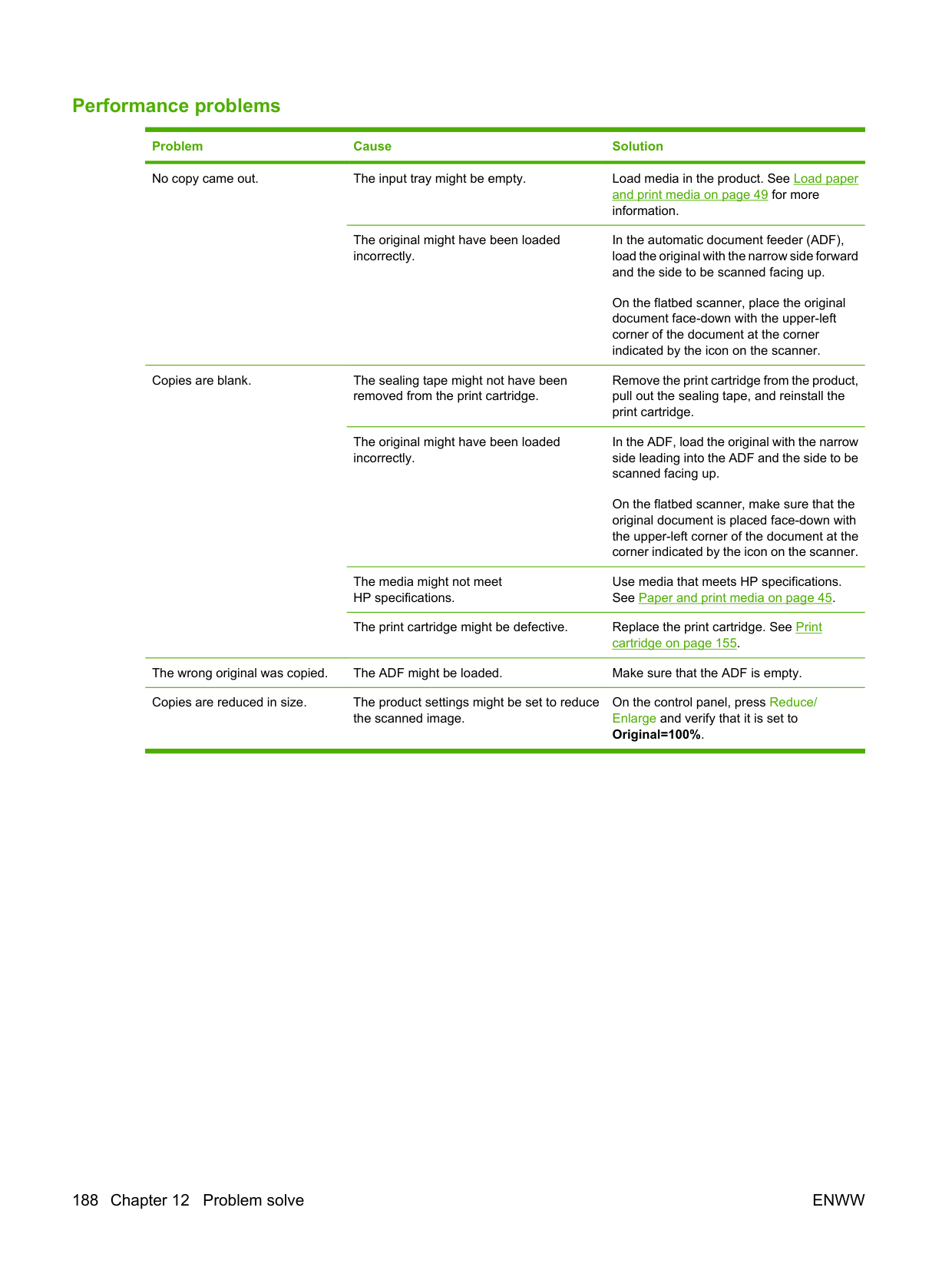

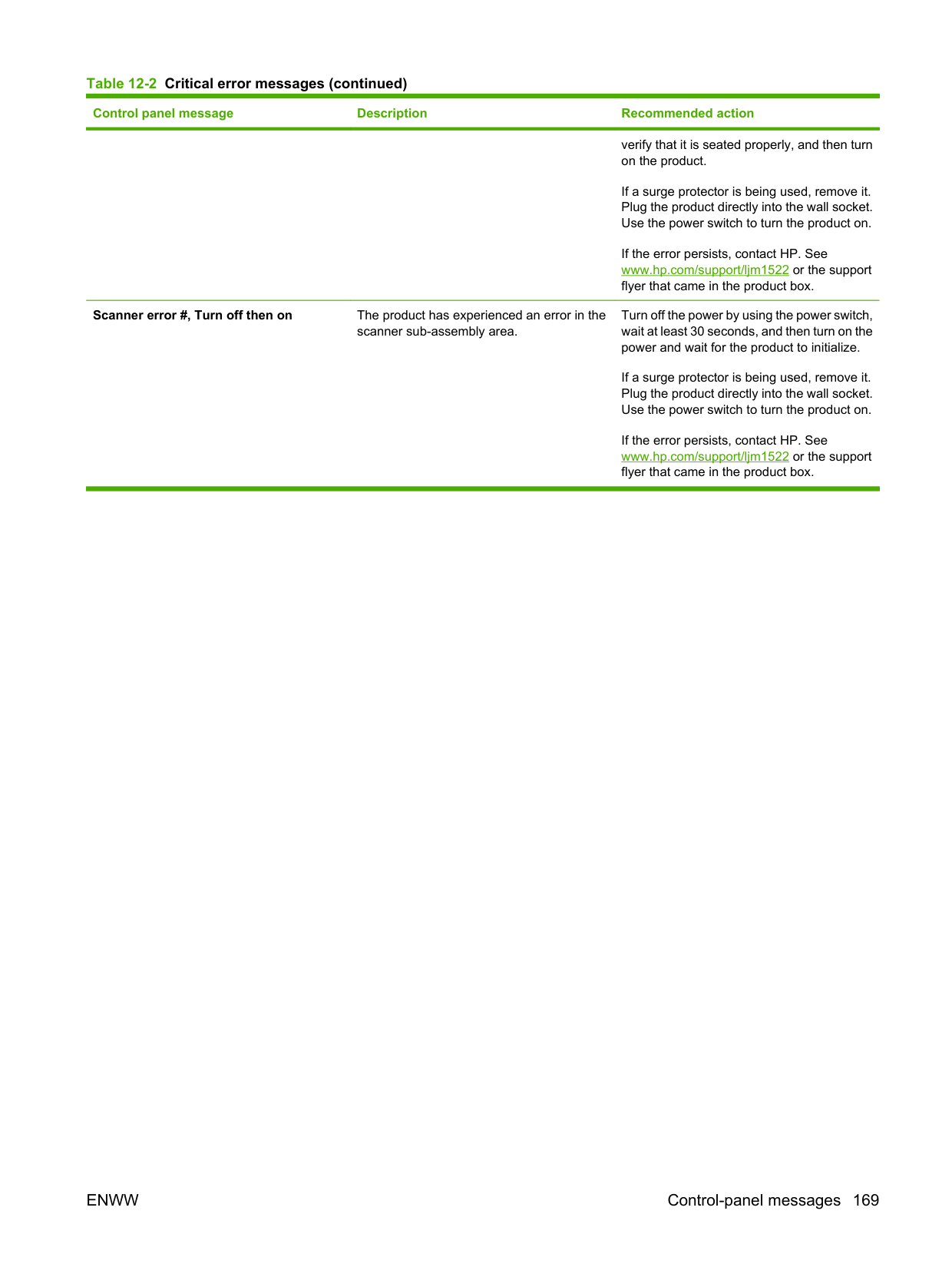

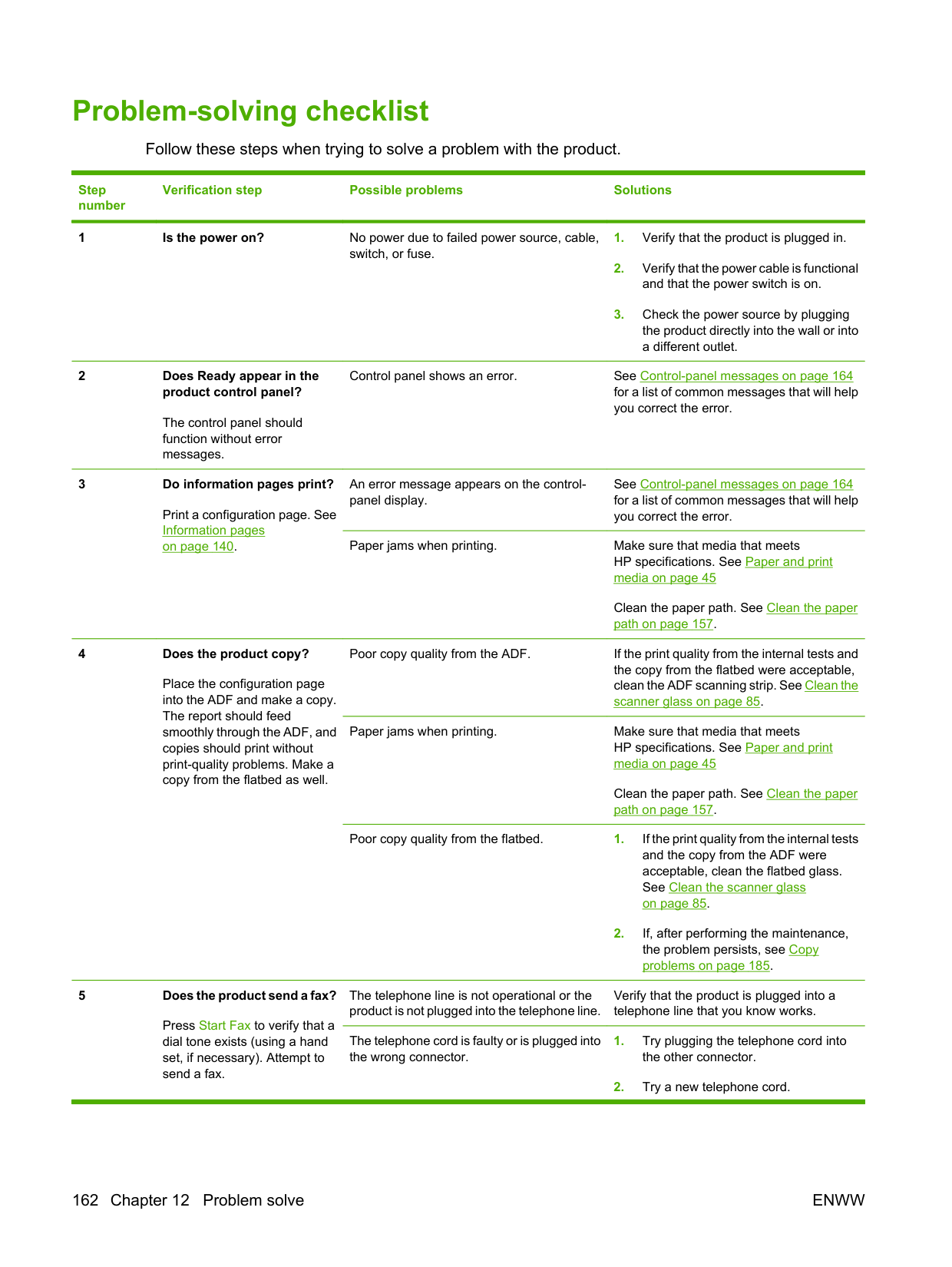

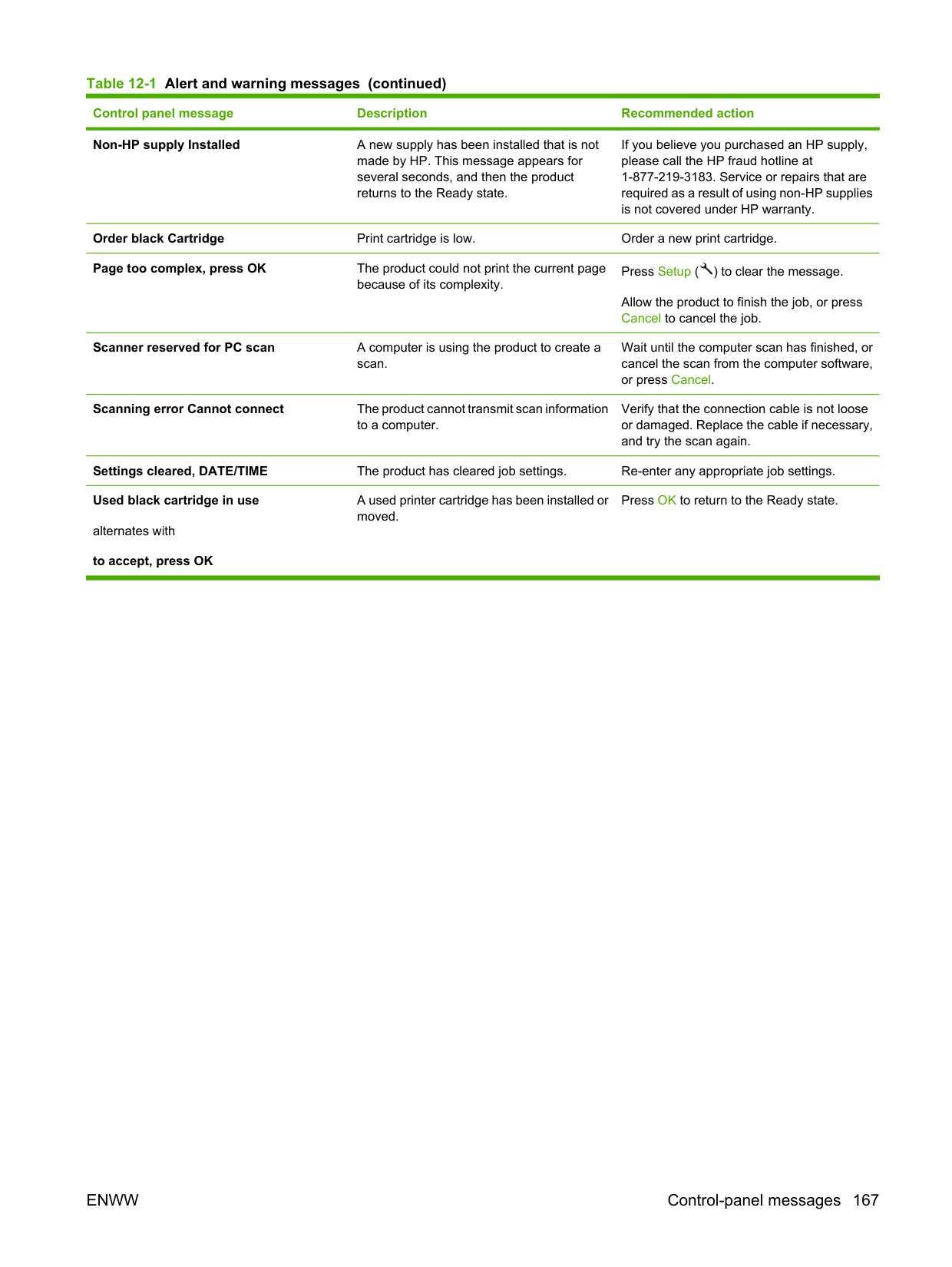

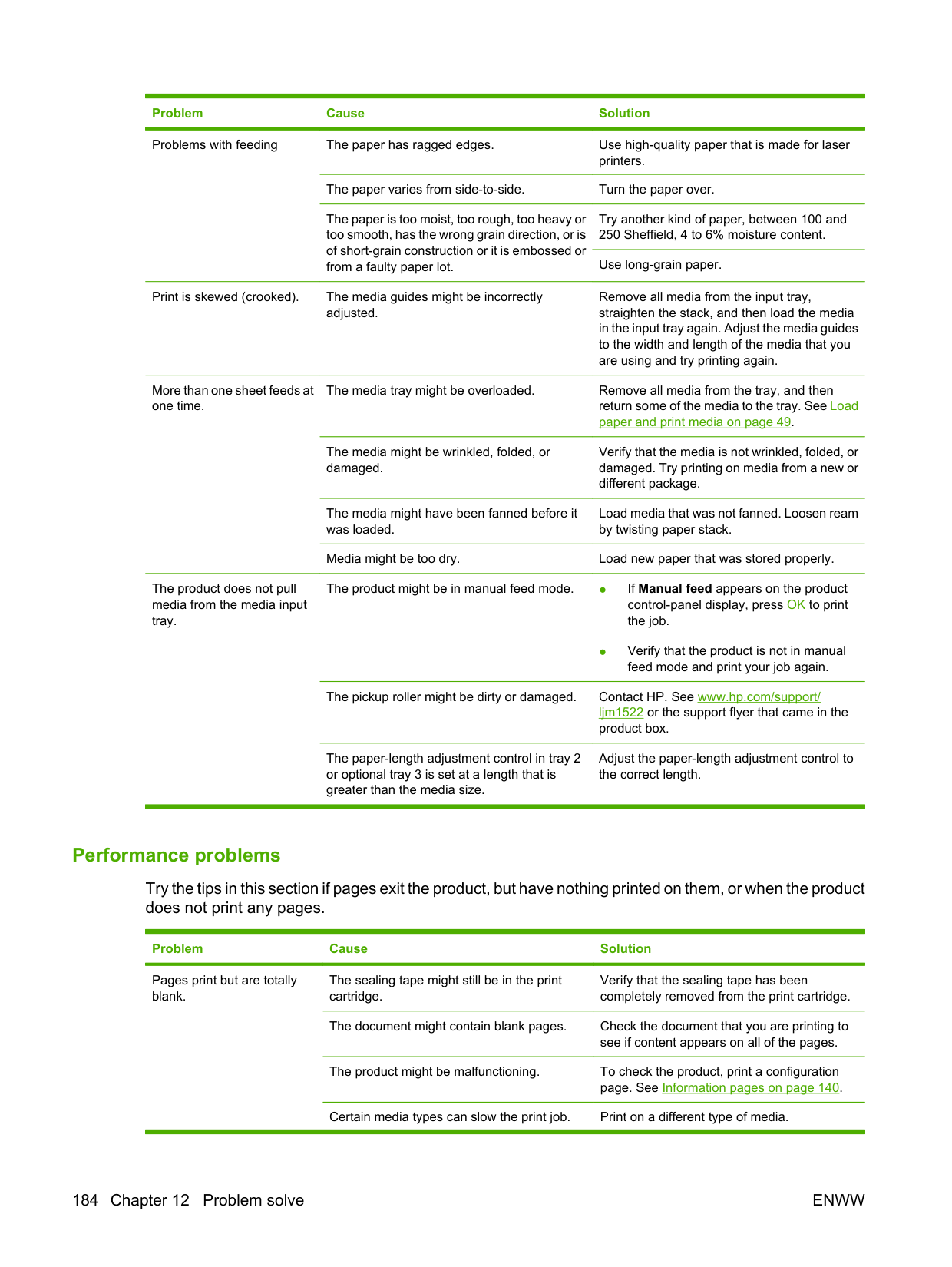

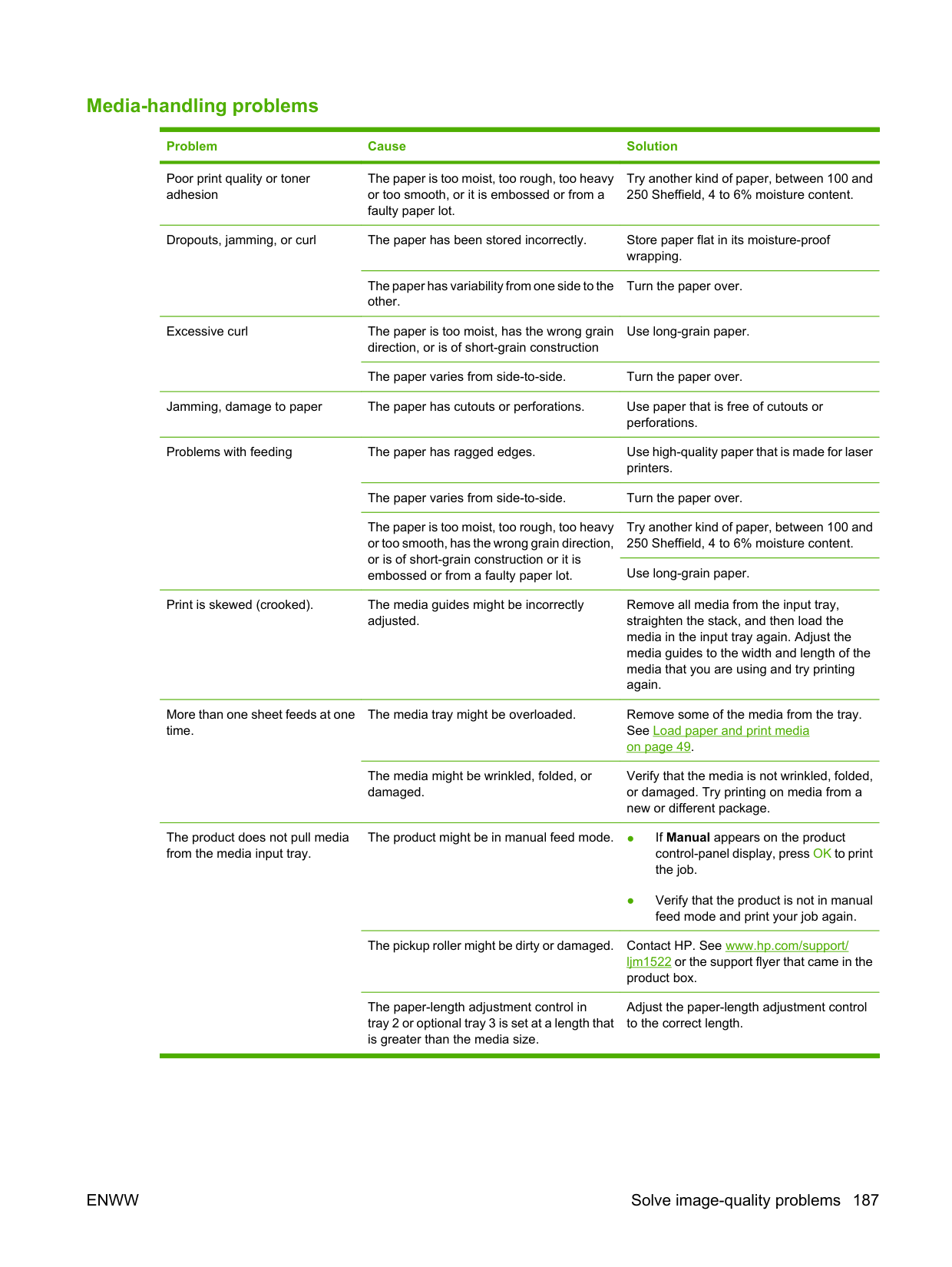

12 Problem solve

A Accessories and ordering information

B Service and support

C Specifications

D Regulatory information

Glossary

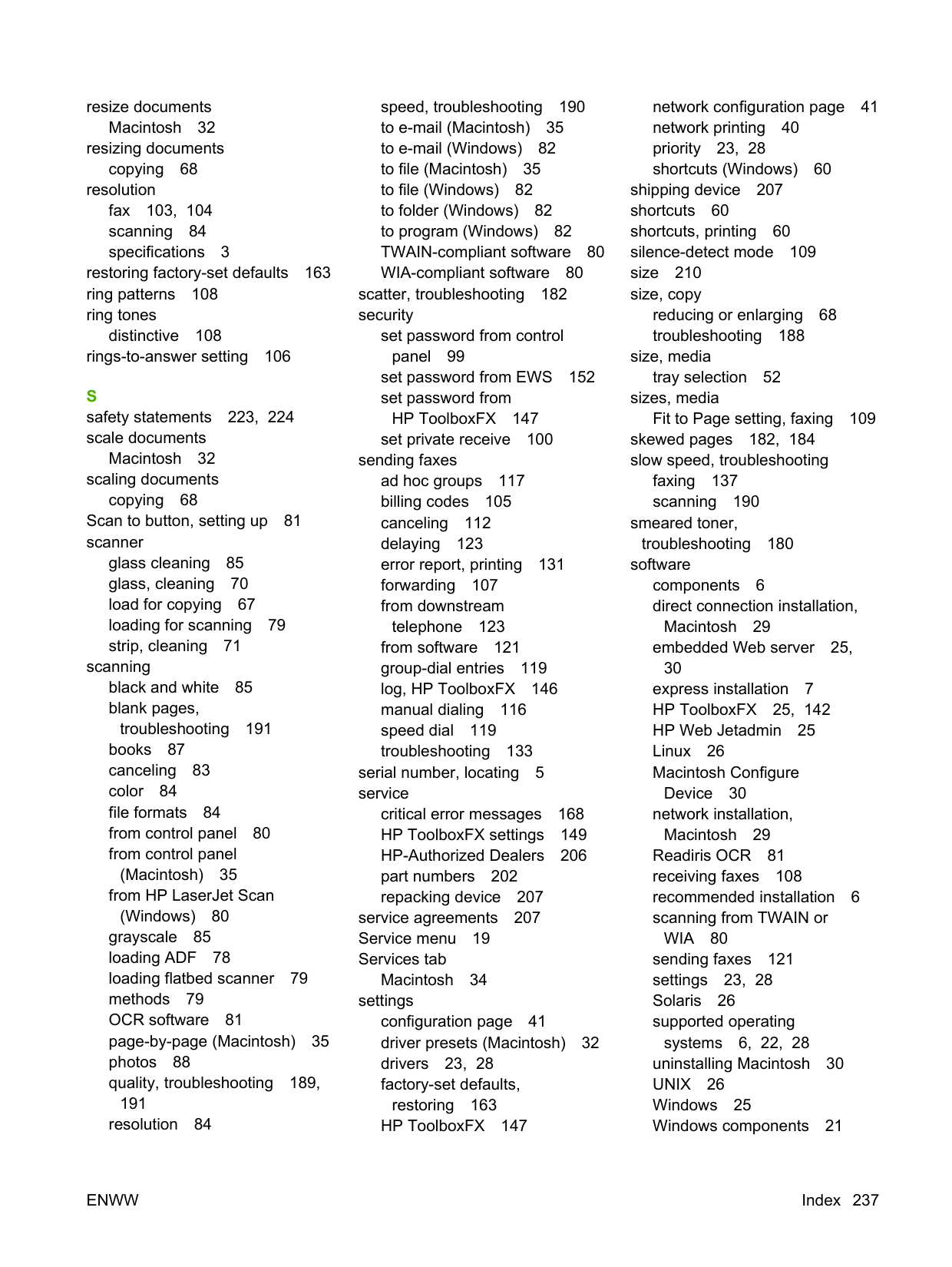

Index

More from HP

Similar Printers
