HP LaserJet Pro MFP M126 Multifunction Printer
Ask AI
— answers from the official manualAnswers from the official manual.
Common questions
Common Questions
36 total如果无线网络连接失败怎么办？
在重新开始路由器后，请确认打印机和接入点均开启且拥有电力供给；并检查是否已断开所有与之关联的以太网或USB连线。
How do I make a basic copy with the M126?
Load the document on the scanner glass, close the scanner, press the Number of Copies button on the control panel, select the number of copies desired, and then press the Start Copy button. The specific steps vary slightly depending on whether you have an LED, LCD, or touchscreen control panel.
What do I need to do before I can send a fax with the M126?
You must connect the telephone cable to the fax port on the product and to the telephone jack on the wall. You also must configure the fax time, date, and header settings using either the product control panel or the HP Fax Setup Wizard, which is required to use the fax feature.
How do I create a speed-dial entry for frequently used fax numbers?
Press the Setup button, select Fax Setup and then Phone Book, select Add/Edit, choose an unassigned number for the new entry and press OK, then use the keypad to enter the fax number and press OK, and finally enter a name for the entry using the keypad.
如何将打印机连接至无线网络？
请参考手册中的步骤：轻触'无线'按钮，然后跟随向导选择SSID，并输入密码确认。
如何通过拨号方式使用传真功能？
确保电话线连接到打印机背后的电话端口并且可以与墙上的插座相连，并根据菜单设置进行时间日期配置以及设定相关的电话号码和公司标签。
Show 30 more questions
What paper sizes and types does the HP LaserJet Pro MFP M126 support?
How do I load paper in the input tray correctly?
What should I do if I need to print on paper smaller than 185 mm (7.3 in)?
How do I manually print on both sides of a document in Windows?
在HP Easy Start网站上如何下载该软件？
怎样启用打印机的无线直接打印功能？
如何使用HP ePrint发送电子邮件给打印机进行打印？
What information does the HP Device Toolbox provide about my printer's supplies?
安装过程提示连接USB电缆时应该怎样操作？
如何查找打印机的IP地址？
在数字环境中的HP打印机如何通过物理模拟线路设置传真？
What is HP ePrint and how do I set it up?
Does the HP LaserJet Pro MFP M126 support wireless printing?
Is AirPrint supported on the M126?
What are the different control panel options available for the M126?
What warranty information is provided for the M126?
How do I load paper into the input tray?
Can I print on both sides of the paper automatically?
What types of paper does this printer support?
What should I know about the warranty and liability?
Which control panel type does my M126 model have?
Can I manually print on both sides of the paper with the M126?
What is HP ePrint and how do I use it?
How do I select different paper types for printing on the M126?
Can I print multiple pages on a single sheet with the M126?
How do I select the correct paper type before printing?
Is there a web-based printing option available?
What paper sizes does the HP LaserJet Pro MFP M126 support?
How do I print multiple pages on a single sheet?
Does the M126 have wireless printing capabilities?
Full Manual
12 pages
LaserJet Pro MFP M125, M126, M127, M128 入门指南 Getting Started Guide
2
ZHCN 4. 选择一种连接方式并准备安装软件 ......... 2
EN 4. Select a connection method and prepare for software installation ...................................................... 7

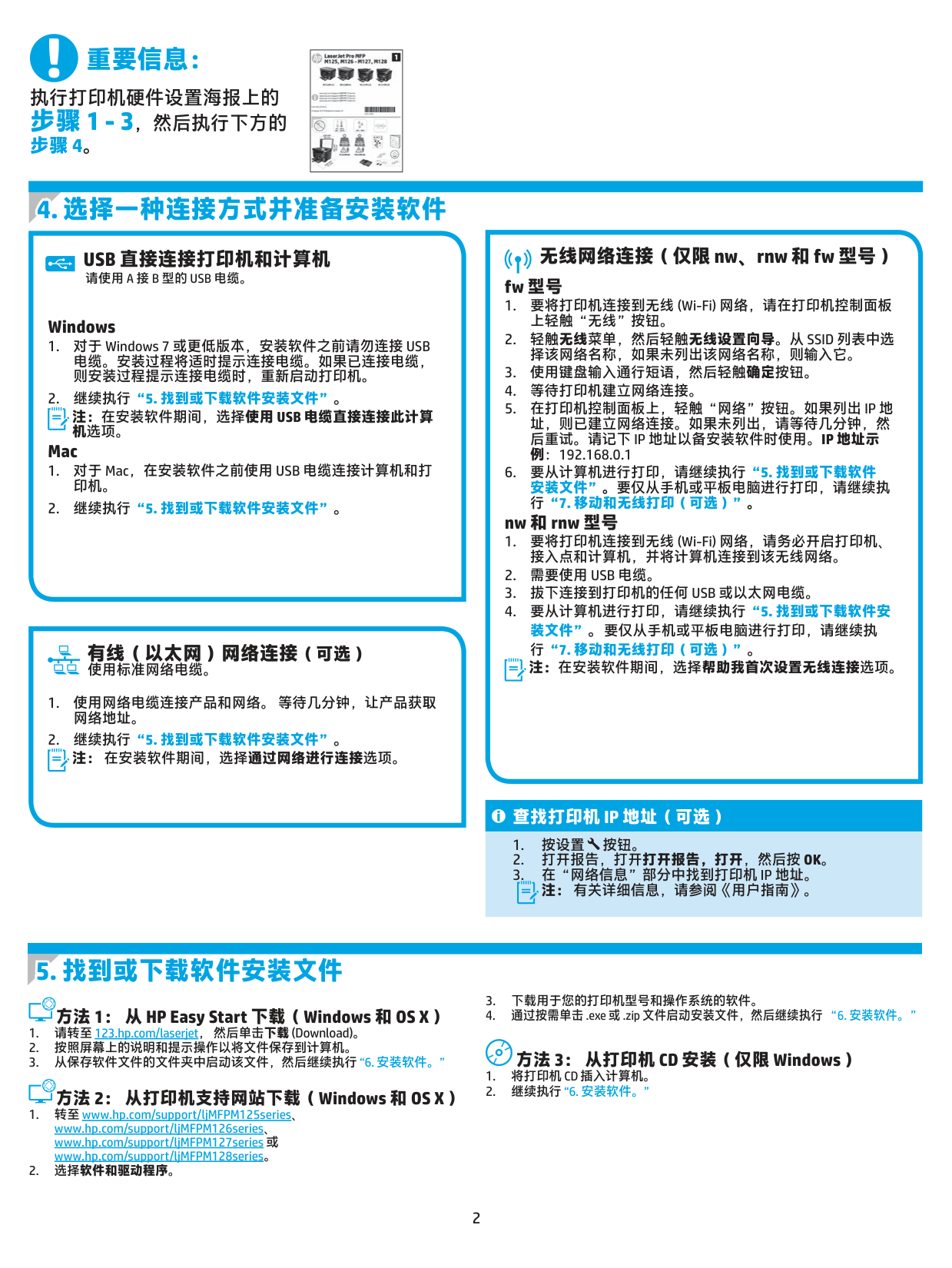

#### 重要信息：
执行打印机硬件设置海报上的
步骤 1 - 3，然后执行下方的
##### 步骤 4。
|| |---|
#### 4. 选择一种连接方式并准备安装软件
无线网络连接（仅限 nw、rnw 和 fw 型号） fw 型号
USB 直接连接打印机和计算机
请使用 A 接 B 型的 USB 电缆。
Windows
Mac
nw 和 rnw 型号
有线（以太网）网络连接（可选） 使用标准网络电缆。
查找打印机 IP 地址（可选）
#### 5. 找到或下载软件安装文件
###### 方法 1： 从 HP Easy Start 下载（Windows 和 OS X）
###### 方法 3： 从打印机 CD 安装（仅限 Windows）
###### 方法 2： 从打印机支持网站下载（Windows 和 OS X）
#### 6. 安装软件
###### Windows 完整解决方案
###### OS X 完整解决方案
OS X 基本安装 要安装基本的打印和传真驱动程序，但不运行 CD 上或从 hp.com 下载的 HP 完整解决方案软件，请执行以下步骤：
注：通过网络进行连接时，检测打印机的最简便方式为选 择在网络上自动查找我的产品。
Readiris Pro for HP 下载此免费软件以启用其他扫描功能，包括光学字符识别 (OCR)。 要从 Web 下载该软件，请访问：
选择驱动程序，选择相应的操作系统，然后单击下一步。单击 应用程序 - 第三方，然后单击下载按钮。
#### 7.1将设备连接到无线网络
7.2HPWirelessDirect（仅限nw、rnw和fw无线型号） 通过 HP Wireless Direct，无需连接到网络或 Internet，即可从无 线移动设备直接打印到支持 HP Wireless Direct 的打印机。
要从手机或平板电脑进行打印，请将该设备与打印机连接到同 一无线网络。 Apple iOS 设备 (AirPrint)
打开要打印的项，然后选择“操作”图标。 依次选择打印、本 打印机、打印。 较新的 Android 设备（4.4 或更高版本） 打开要打印的项，然后选择菜单按钮。 依次选择打印、本打印 机、打印。 某些设备需要从 Google Play 商店下载“HP Print Service 插件” 应用程序。 较旧的 Android 设备（4.3 或更低版本） 从 Google Play 商店下载“HP ePrint”应用程序。 Windows Phone 从 Windows 应用商店下载“HP AiO Remote”应用程序。
启用 HP Wireless Direct 要从控制面板中设置 HP Wireless Direct，请完成以下步骤： LCD 控制面板
######## 触摸屏控制面板
##### 详细了解移动打印
要详细了解其他移动打印选项（包括其他 ePrint 解决方案），请扫描二维码或参阅 《用户指南》的“移动打印”一节。
有关无线打印和无线设置的详细信息，请访问 www.hp.com/go/wirelessprinting。
###### 发现打印机
使用通过电子邮件的 HP ePrint 打印文档只需从任何支持电子邮件的设备（甚至可从不在同一网络上的设备）将这些文档作为电子邮件附件发 送到产品的电子邮件地址即可。
###### 启用 HP Web 服务 LCD 控制面板
要使用通过电子邮件的 HP ePrint，打印机必须满足以下这些要求：
#### 9.1 9.2
配置打印机 必须配置传真时间、日期和标题设置才能使用传真功能。 HP 传真设置向导 (Windows)
连接打印机 本打印机为模拟设备。HP 建议在专用模拟电话线路上使用 本打印机。
注：部分国家/地区可能需要使用适配器才能连接本打印 机随附的电话线。
用打印机随附的电话线连接打印机上的传真端口 与墙上的 电话插孔。
注： 传真号最多可包含 20 个字符。
###### 如何连接电话应答机或电话分机？
注： 传真标题最多可包含 40 个字符。 触摸屏控制面板
注：传真号最多可包含 20 个字符。
注：传真标题最多可包含 40 个字符。
###### 了解详细信息！
###### 如何在数字电话环境下设置 HP 打印机？
有关发送传真的其他方法，如安排以后发送传真或从计 算机发送传真，请参阅打印机 CD 上的《用户指南》 或访问：
HP 打印机专为使用传统模拟电话服务而设计。对于数字电 话环境（如 DSL/ADSL、PBX、ISDN 或 FoIP），为打印机设 置传真时可能需要使用数模滤波器或转换器。
注：根据电话公司的不同，打印机可能并非在所有数字环 境下与所有数字服务线路或提供商兼容或与所有数模转换 器兼容。请与电话公司联系以判断何种设置方式最佳。
注：为国际长途电话和外线电话振铃模式不同的 PBX 电话 系统设置振铃模式检测时，务必使用外线号码拨打打印机 传真号以录制振铃模式。
使用计算机上的 HP 扫描软件在打印机上开始进行扫描作业。 Windows 单击开始，然后依次选择程序或所有程序、HP、HP 扫描。
OS X 单击应用程序，然后依次选择 HP、HP 扫描。
故障排除
用户指南 《用户指南》中含有打印机使用和故障排除信息。 可在打印机 CD 和 Web 上找到它： 从网上获得《用户指南》
从打印机 CD 获得《用户指南》 对于 Windows，在安装推荐的软件期间，将《用户指南》复制到 计算机。 Windows® XP、Windows Vista® 和 Windows® 7 单击开始，依次选择程序或所有程序、HP、HP 打印机对应的文件 夹、帮助。 Windows® 8 在开始屏幕上，右键单击屏幕上的空白区域，在应用栏上单击所有 应用，单击具有打印机名称的图标，然后选择帮助。 检查固件更新
控制面板帮助（仅限 M127fw 和 M128fw 型号） 轻触打印机控制面板上的“帮助” 按钮以访问帮助主题。
其他支持资源 有关打印机的 HP 全方位帮助，请访问：
###### 有线（以太网）网络连接（可选）
###### 无线网络连接（nw、rnw 和 fw 型号）
###### 传真故障排除（仅限 fn、fp 和 fw 型号） 确认实物连接
######## 确认打印机传真设置
#### IMPORTANT:
Follow Steps 1 - 3on the printer hardware setup poster, then continue with Step 4 below.
|| |---|
##### USB connection directly between the printer and the computer
##### Wireless network connection (nw, rnw, and fw models only)
Use an A-to-B type USB cable.
###### fw models
###### Windows
###### Mac
###### nw and rnw models
##### Wired (Ethernet) network connection (optional)
Use a standard network cable.
set up a first-time wireless connection.
###### Find printer IP address (optional)
###### Method 1: Download from HP Easy Start (Windowsand OS X)
###### Method 2: Download from printer support Web site(Windows and OS X)
###### Method 3: Install from the printer CD (Windows only)
#### 6. Install the software
###### Windows full solution
###### OS X full solution
###### OS X basic installation
To install basic print and fax drivers without running the HP full solution software from CD or hp.com download, follow these steps:
NOTE: When connecting through a network, the easiest way to detect the printer is to select Automatically find my product on the network.
###### Readiris Pro for HP
Download this free software to enable extra scanning features, including Optical Character Recognition (OCR).
To download the software from the Web, go to:
Select Drivers, select the appropriate operating system, and click Next. Click Application - 3rd Party, and then click the Download button.
#### 7.1Connect the device to the wireless network
7.2HP Wireless Direct (nw, rnw, and fw wireless models only) HP Wireless Direct enables close-proximity printing from a wireless mobile device directly to an HP Wireless Direct-enabled printer without requiring a connection to a network or the Internet.
To print from a phone or tablet, connect the device to the same wireless network as the printer. Apple iOS devices (AirPrint)
Open the item to print, and select the Action icon. Select Print, select the printer, and then select Print. Newer Android devices (4.4 or newer) Open the item to print, and select the Menu button. Select Print, select the printer, and select Print. Some devices require downloading the HP Print Service plugin app from the Google Play store. Older Android Devices (4.3 or older) Download the HP ePrint app from the Google Play store. Windows Phone Download the HP AiO Remote app from the Windows Store.
Enable HP Wireless Direct To set up HP Wireless Direct from the control panel, complete the following steps: LCD control panel
##### Learn more about mobile printing
To learn more about other mobile printing options, including additional ePrint solutions, scan the QR code, or see the “Mobile printing” section of the User Guide.
######## Touchscreen control panel
For more information on wireless printing and wireless setup, go to www.hp.com/go/wirelessprinting.
###### Discover the printer
Use HP ePrint via email to print documents by sending them as an email attachment to the printer’s email address from any email enabled device, even from devices that are not on the same network.
###### Enable HP Web Services LCD control panel
To use HP ePrint via email, the printer must meet these requirements:
#### 9.1 9.2
Configure the printer Configuring the fax time, date, and header settings is required to use the fax feature. HP Fax Setup Wizard (Windows)
Connect the printer The printer is an analog device. HP recommends using the printer on a dedicated analog telephone line.
NOTE: Some countries/regions might require an adapter for the phone cord that came with the printer.
Connect the phone cord that came with the printer to the Fax port on the printer and to the telephone jack on the wall.
######## LCD control panel
NOTE: The maximum number of characters for the fax number is 20.
###### How do I connect an answering machine or extension phone?
NOTE: The maximum number of characters for the fax header is 40.
######## Touchscreen control panel
NOTE: The maximum number of characters for the fax number is 20.
###### How do I set up HP printers in digital phone environments?
NOTE: The maximum number of characters for the fax header is 40.
HP printers are designed specifically for use with traditional analog phone services. For a digital phone environment (such as DSL/ ADSL, PBX, ISDN, or FoIP), digital-to-analog filters or converters might be necessary when setting up the printer for fax. Note:Depending on the phone company, the printer might not be compatible with all digital service lines or providers, in all digital environments, or with all digital-to-analog converters. Contact the phone company to determine which setup options are best. Note:When setting up ring pattern detection in a PBX phone
###### Learn more!
For more information about other ways to send faxes, such as scheduling a fax to be sent later or sending faxes from a computer, see the User Guide on the printer CD, or go to:
system that has different ring patterns for internal and external calls, make sure to dial the printer fax number using an external number for recording the ring pattern.
Use the HP Scan software on your computer to start a scan job at the printer. Windows Click Start, select Programs or All Programs, select HP, and then select HP Scan.
OS X Click Applications, select HP, and then select HP Scan.
Troubleshooting
User Guide The User Guide includes printer usage and troubleshooting information. It is available on the printer CD and on the Web: User Guide on the Web
User Guide from the printer CD For Windows, the User Guide is copied to the computer during the recommended software installation. Windows® XP, Windows Vista®, and Windows® 7 Click Start, select Programs or All Programs, select HP, select the folder for the HP printer, and then select Help. Windows® 8 On the Start screen, right-click an empty area on the screen, click All Apps on the app bar, click the icon with the printer’s name, and then select Help. Check for firmware updates
###### Control panel help (M127fw and M128fw models only) Touch the Help button on the printer control panel to access help topics.
Additional support resources For HP’s all-inclusive help for the printer, go to:
###### Wired (Ethernet) network connection (optional)
###### Wireless network connection (nw, rnw, and fw models)
###### Fax troubleshooting (fn, fp, and fw models only) Verify the physical connection
######## Verify the printer fax settings
