How do I print a configuration report on the SCX-3200?

In ready mode, press and hold the Stop/Clear button on the control panel for about two seconds until the Status LED blinks slowly, then release the button. This will print a configuration page to confirm the machine is operating properly. For the SCX-3205W(K), you can also print a network configuration report by holding the Stop/Clear button for four seconds until the Status LED blinks fast. (Page 29)

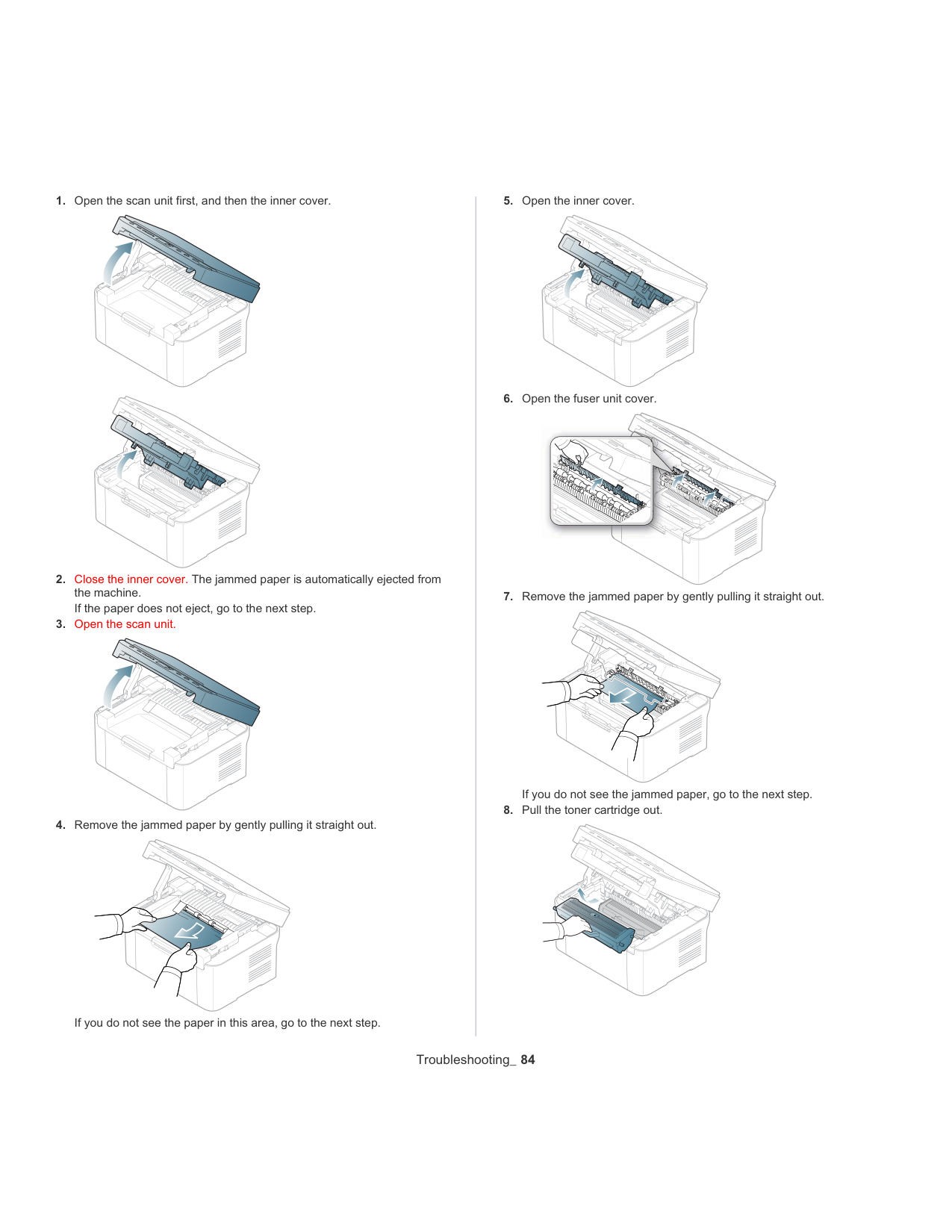

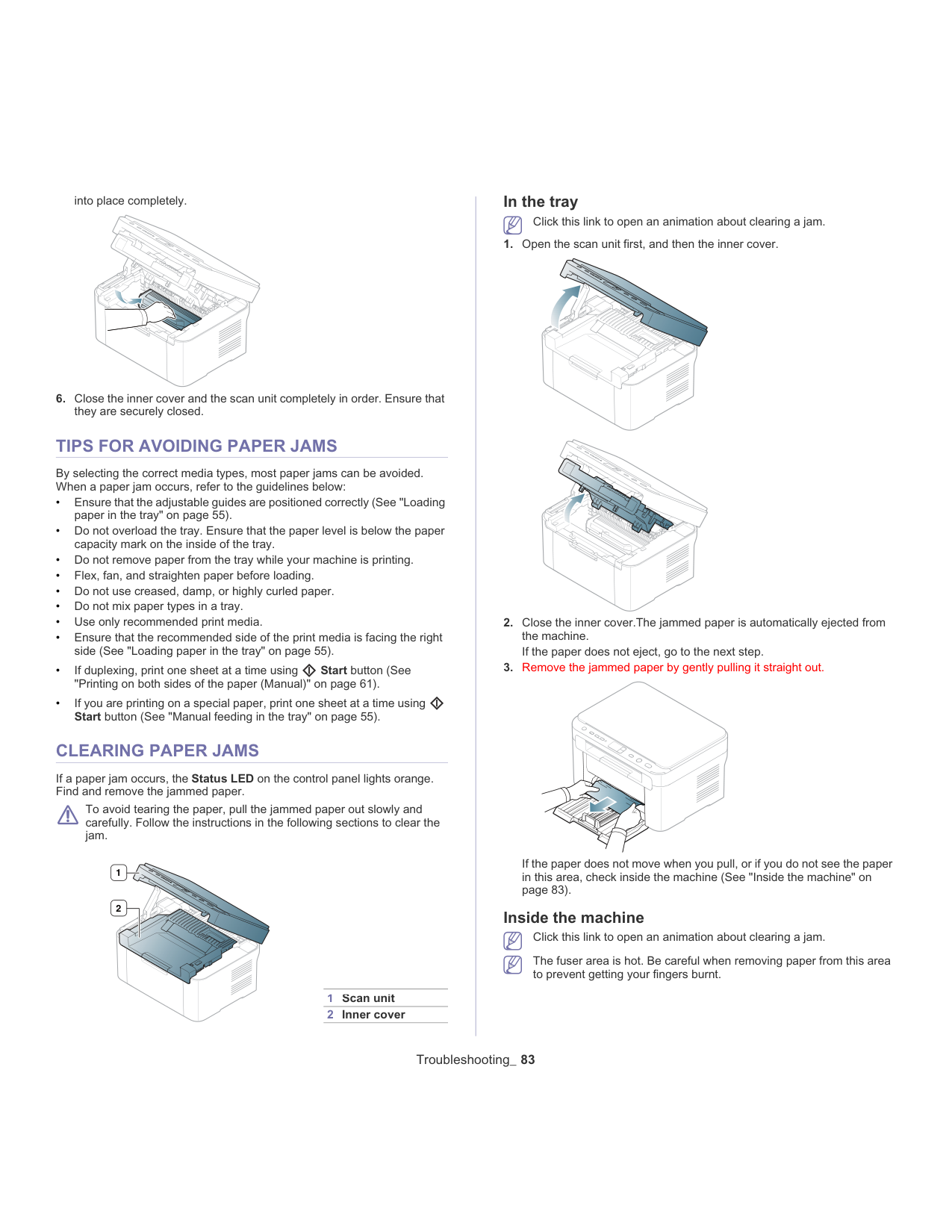

How do I clear a paper jam inside the machine?

Do not use tweezers or sharp metal objects when removing jammed paper, as this can damage the machine. Be careful when removing jammed paper, as new paper has sharp edges and can cause painful cuts. Refer to the 'Clearing paper jams' section for specific steps depending on whether the jam is in the tray or inside the machine. (Pages 9 and 83)

How do I turn on Eco Print mode to save toner and paper?

Press the Eco Print button on the control panel to turn Eco Print mode on; the Eco Print LED will light up to confirm it is active. To turn off Eco Print mode, press the Eco Print button one more time. The default Eco Print option is 2-UP/Toner Save. (Page 27)

What is the maximum print speed and resolution of the SCX-3200 series?

The SCX-3200 series can print with a resolution of up to 1200 x 1200 dpi effective output. It prints A4-sized paper at up to 16 pages per minute (ppm) and letter-sized paper at up to 17 ppm. (Page 22)

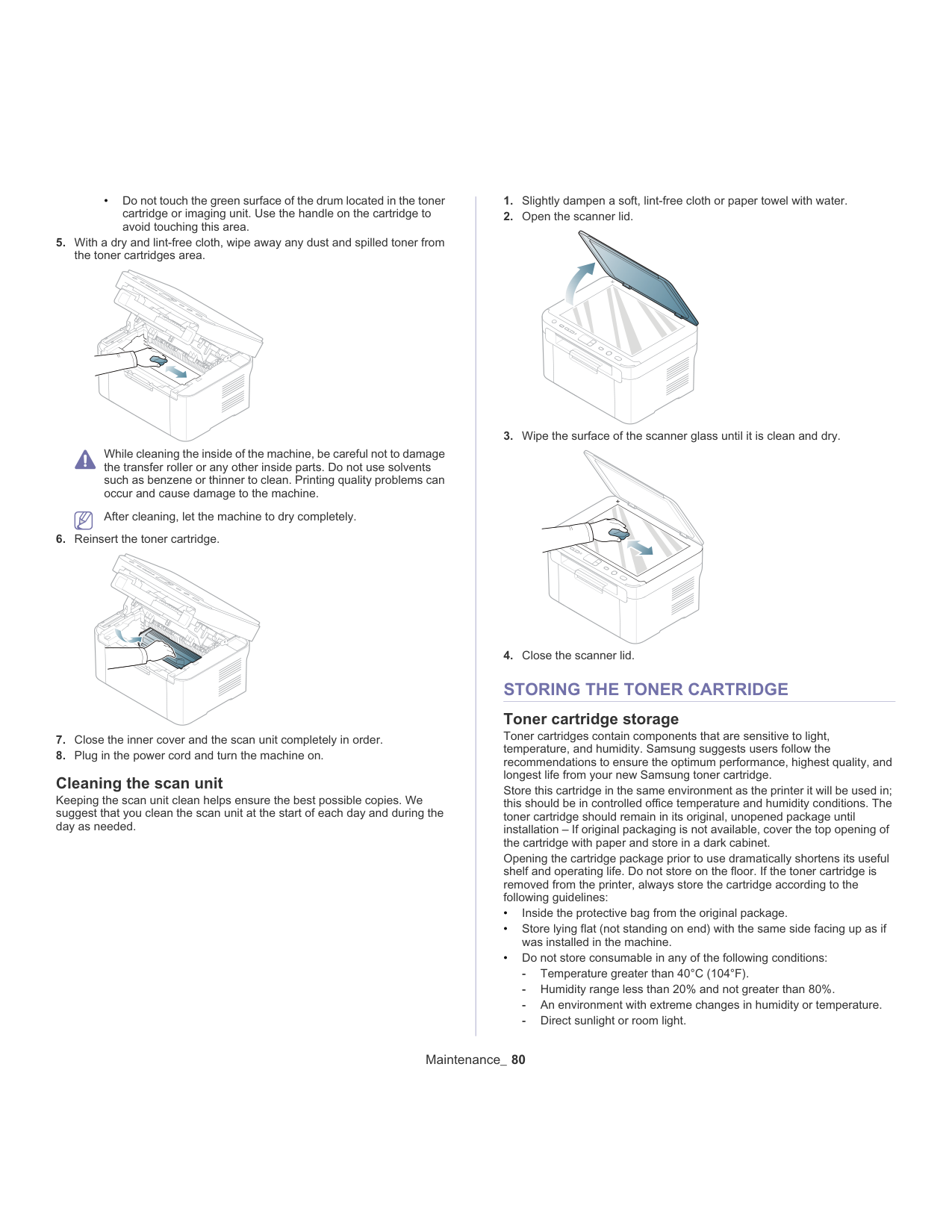

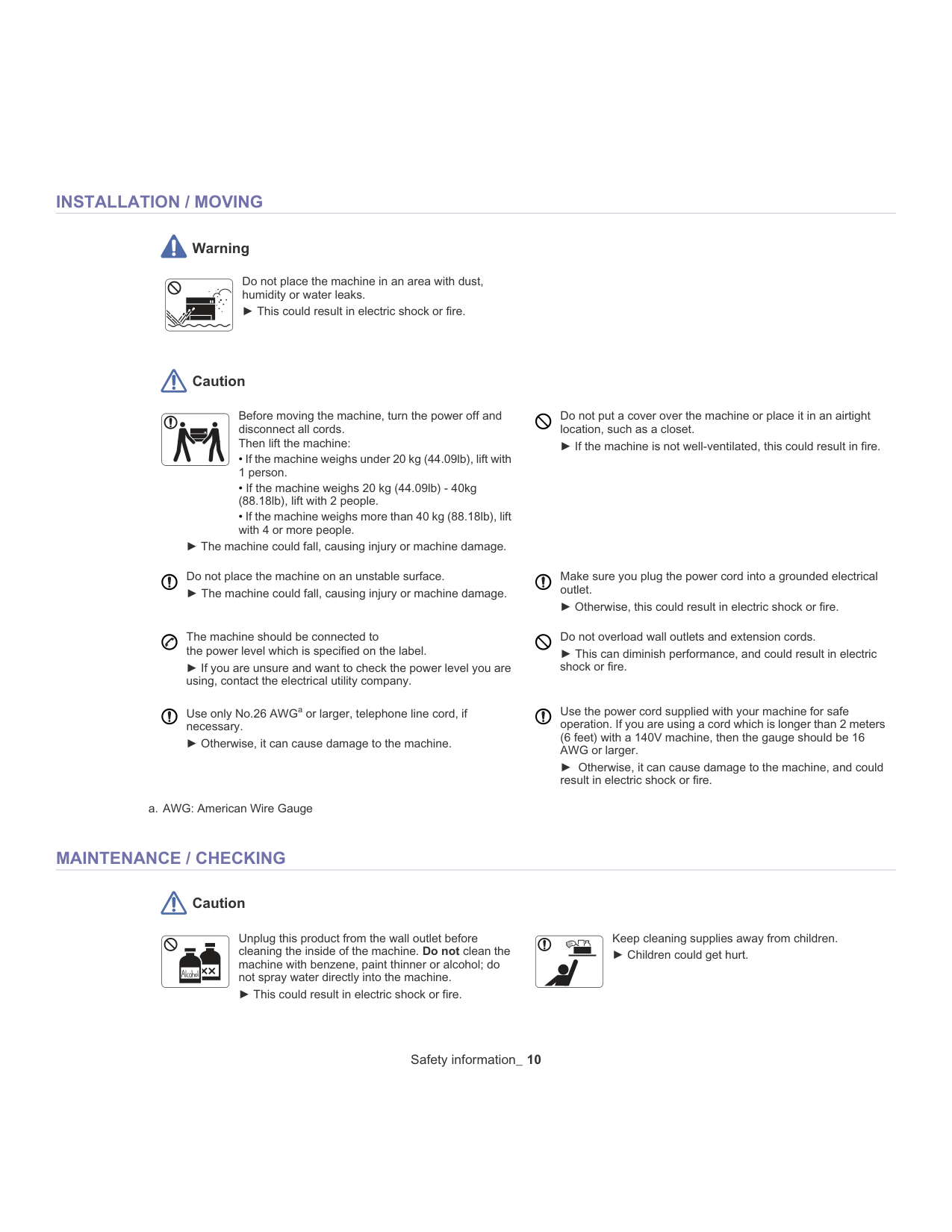

What safety precautions should I follow when cleaning the inside of the machine?

Unplug the product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner, or alcohol, and do not spray water directly into the machine, as this could result in electric shock or fire. Also, do not operate the machine while you are working inside it replacing supplies or cleaning. (Pages 10 and 11)

How do I restore factory default network settings on the SCX-3205W(K)?

The manual references restoring factory default settings as an available option under the Network Setup section for the SCX-3205W(K). This option is listed under 'Restoring factory default settings' within the wired network configuration section. You should refer to page 37 of the manual for the specific steps to complete this process. (Page 37)

How do I perform an eco printing mode on my SCX-3205W(K) Series printer?

To turn Eco Print mode on, press and hold the Eco Print button until the LED lights up. To turn it off, press once again when the LED is illuminated. The default option is 2-UP/Toner Save. (Page 27)

How do I set the IP address on my SCX-3205W(K) Series printer?

Use the SetIP program to manually configure the IP addresses for network printing and management. Follow steps in 'Setting IP address' section including finding the MAC address, entering new IP details, clicking Apply, and confirming settings printed from a report. (Page 36)

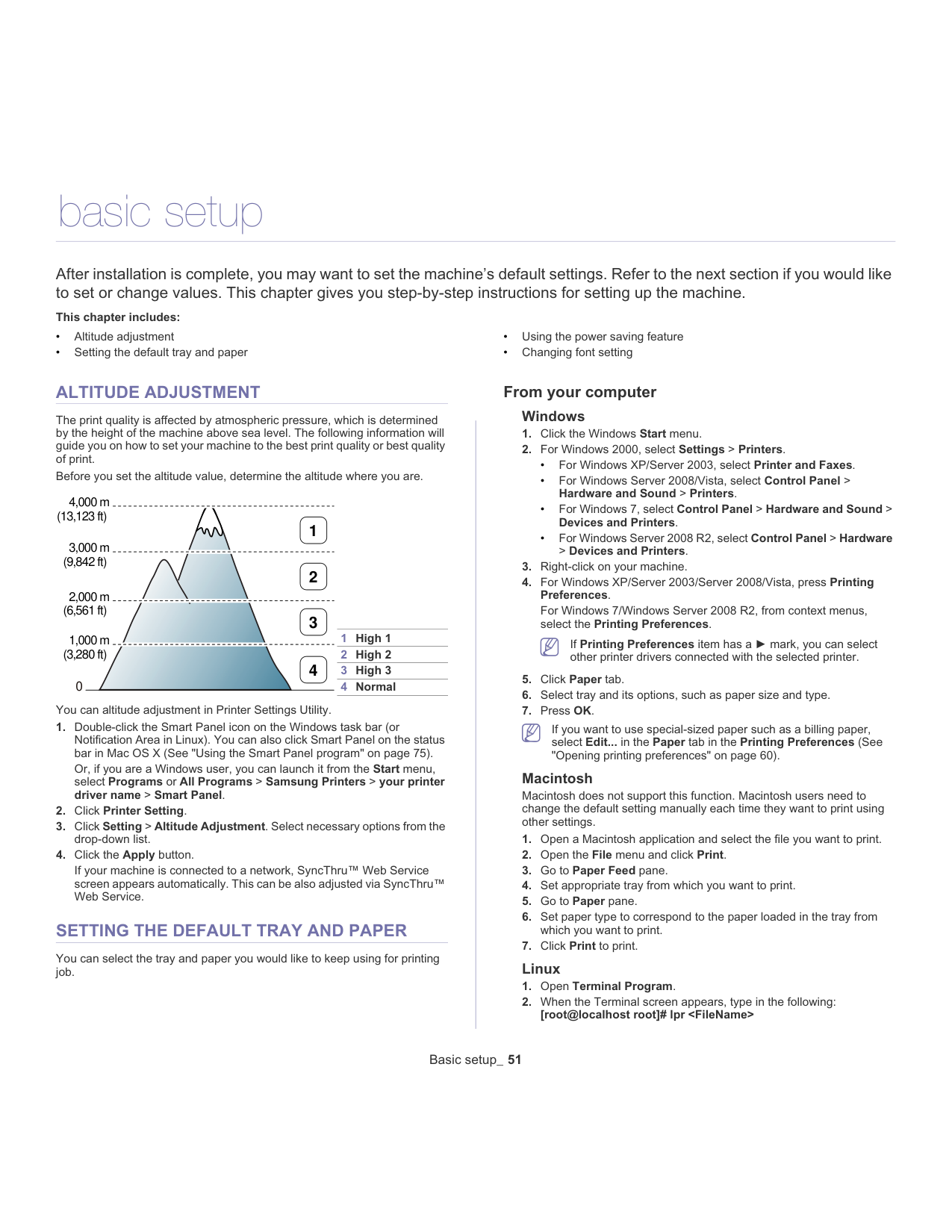

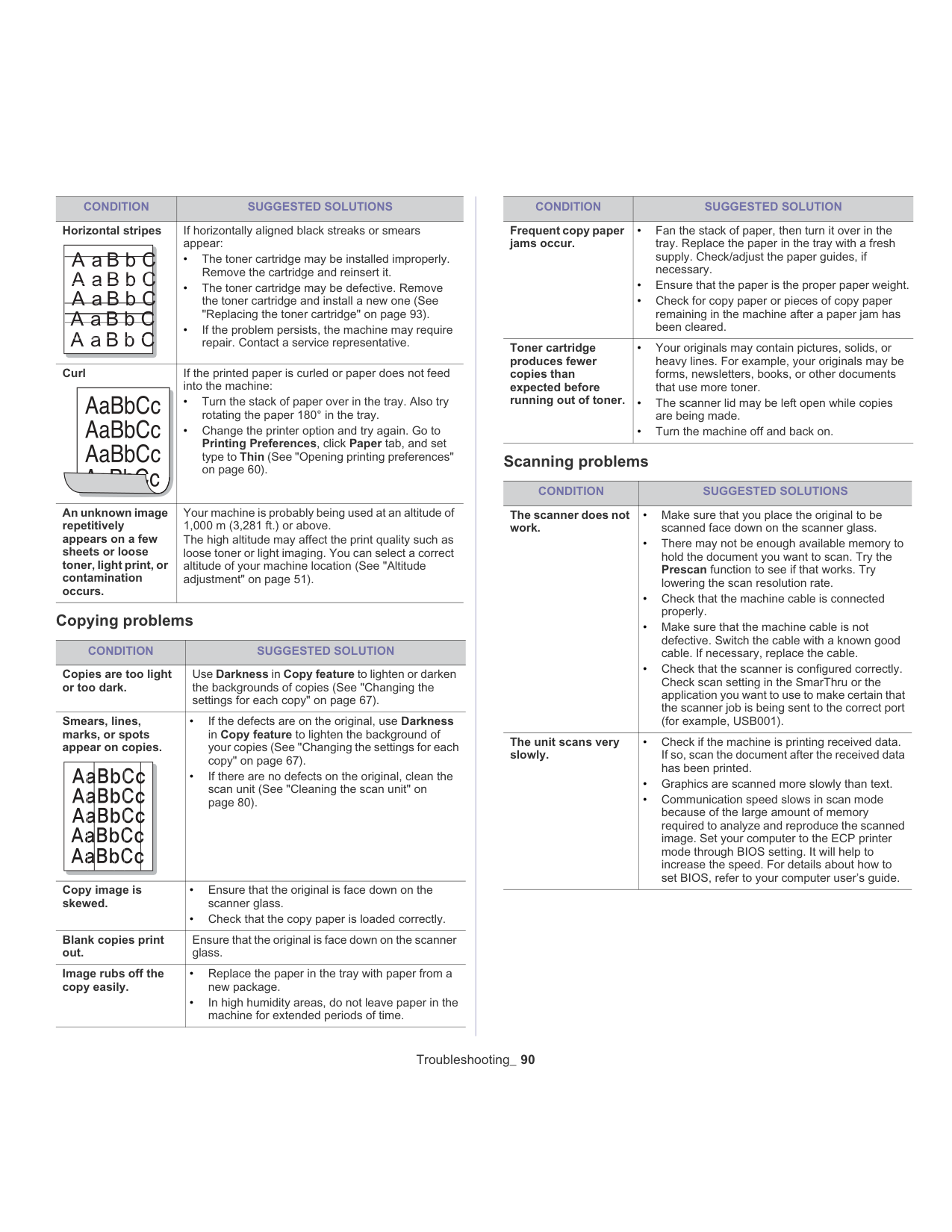

How do I adjust my SCX-3205W(K) Series printer's altitude for better performance?

For optimal printing at altitudes under 1,000 m (3,281 ft), follow the detailed steps in 'Altitude adjustment' on page 51 to set up your machine correctly. (Page 51)

How do I perform a wireless setup for SCX-3205W(K) Series printer using WPS button?

Press and hold the WPS button to start setting up the wireless network connection, then follow the instructions provided in your user guide or on-screen interface. (Page 27)

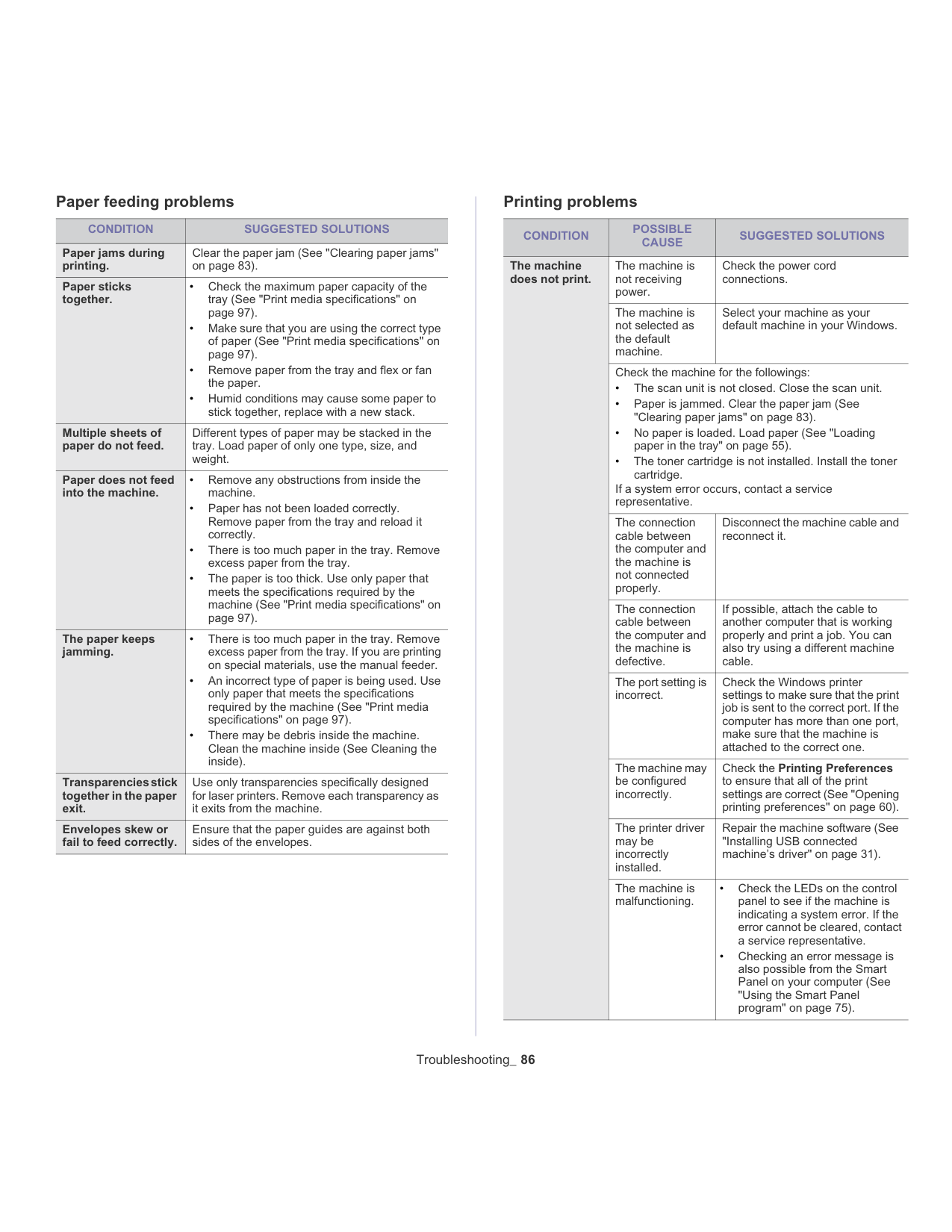

How do I troubleshoot paper jams on my Samsung SCX-3205W(K) Series printer?

If you experience a paper jam, unplug the machine from all interface connections and check that paper is properly loaded without any blockages inside the machine (Page 83).

How do I install software for my SCX-3205W(K) network printer on Windows?

To set up, first ensure your machine is connected and powered on. Insert the supplied software CD. After running Setup.exe from an appropriate drive letter or through Start Menu, select Install Now to begin installation of all necessary components including driver, TWAIN drivers for scanning, Smart Panel program monitoring tool, etc (Pages 32 & 31).

How do I set up my printer on a local network using Windows XP?

Ensure your printer and host computer are connected via USB cable. Install the machine's driver software from CD-ROM drive following instructions starting at page 31. Then share this installed printer with client computers by configuring sharing options under Printer Properties (Pages 34 & 32).

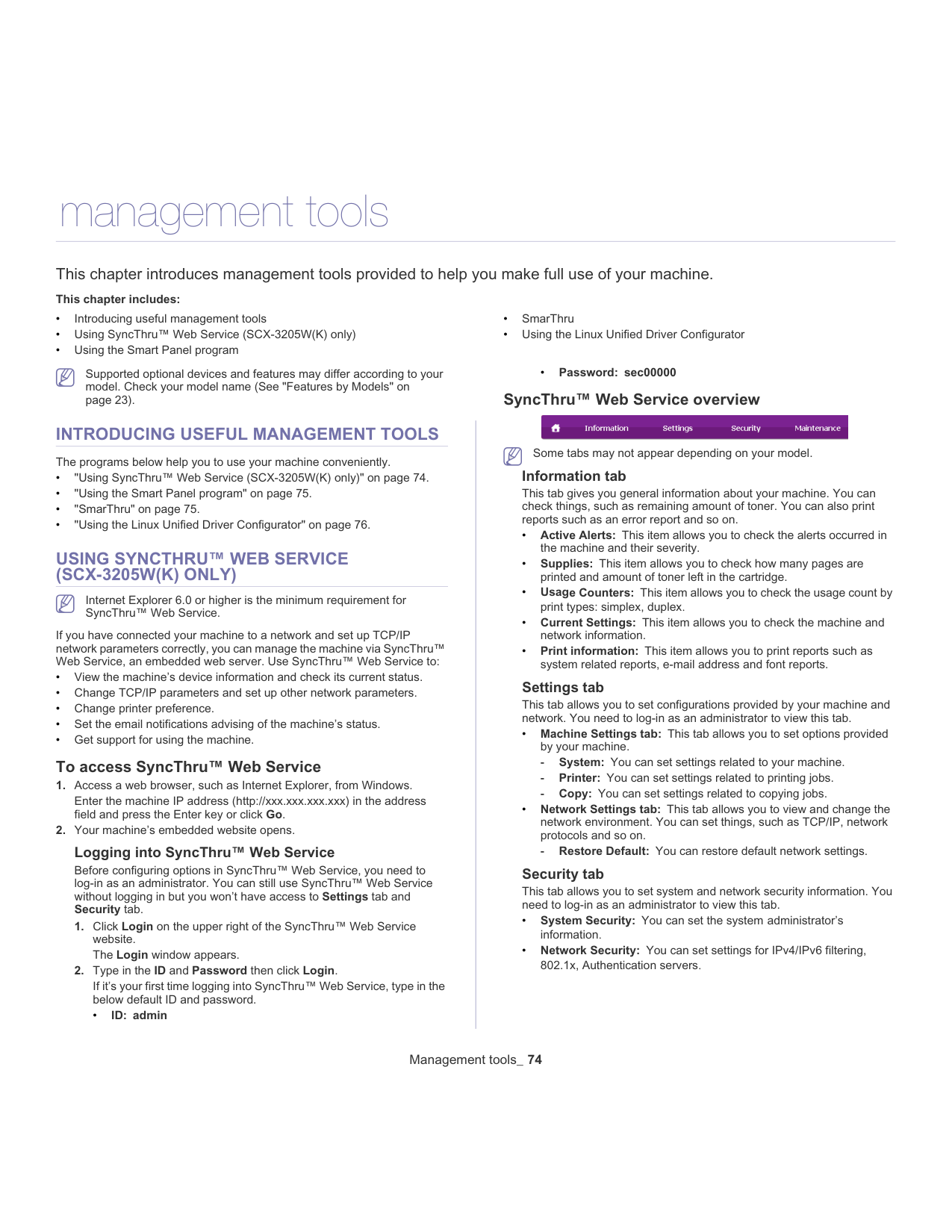

How do I manage my network printers via SyncThru Web Service?

The SyncThru Web Service allows you to configure various network parameters needed for machines on your network. Access it through your control panel and follow detailed instructions from page 74 regarding customization of settings tailored to diverse network environments.

How do I connect my printer to a wireless network using WPS button?

For wireless setup, when your machine features the Wireless button (WPS), use it for easy establishment of Wi-Fi protection and access point association without manual steps. Refer detailed procedure starting on page 41.

What does it mean when the Status LED is red on the SCX-3200?

A solid red Status LED indicates one of several issues: the inner cover is open, there is no paper in the tray, the machine has stopped due to a major error, or a toner cartridge has almost reached its estimated cartridge life. If the red LED is blinking, a small amount of toner is left in the cartridge and you should prepare a new cartridge for replacement. You may temporarily increase print quality by redistributing the toner. (Page 27)

What does an orange Status LED indicate?

An orange Status LED means a paper jam has occurred. You should refer to the paper jam clearing instructions to resolve the issue. (Page 27)

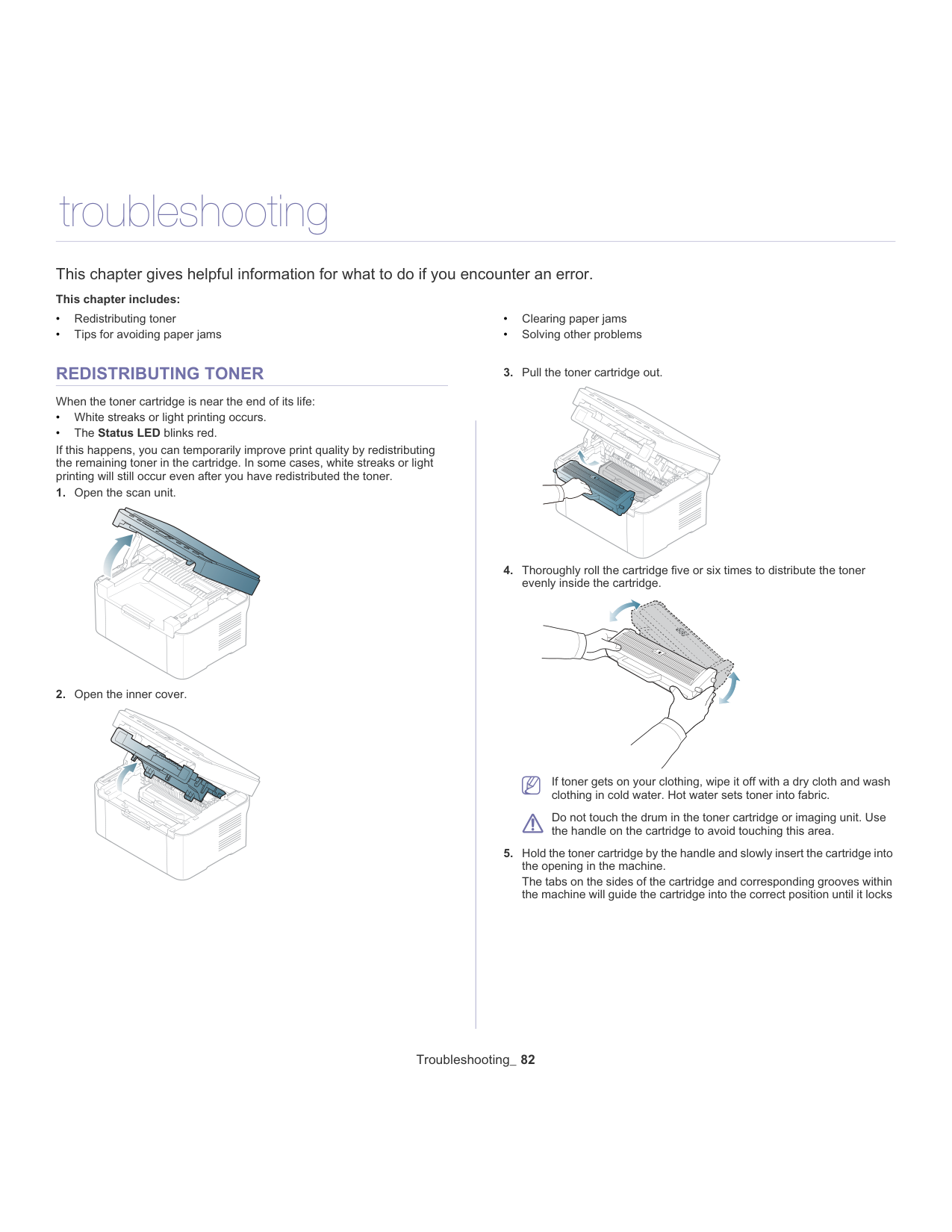

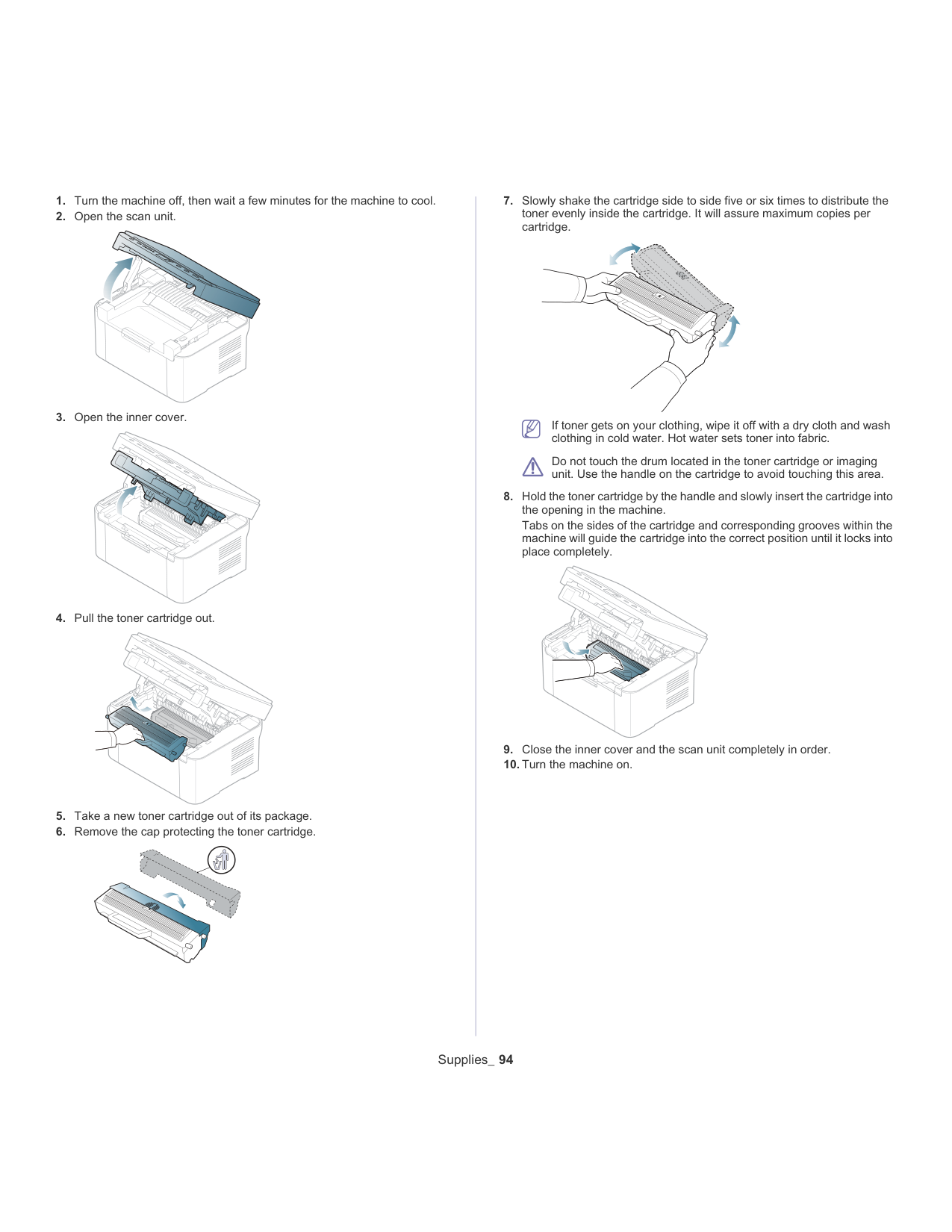

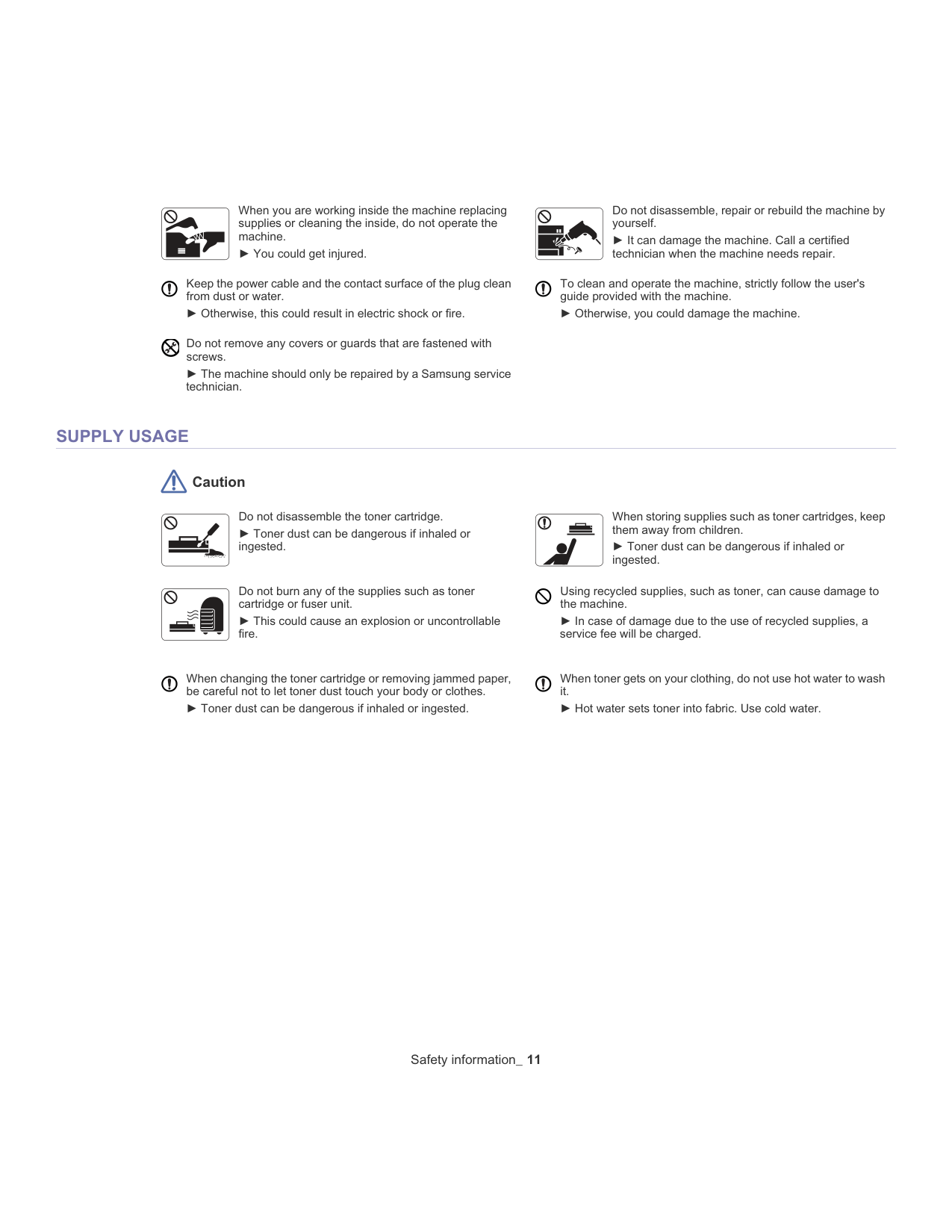

What should I do if toner gets on my clothing?

Do not use hot water to wash toner off clothing, as hot water sets toner into fabric. Use cold water instead to remove toner from clothing. (Page 11)

How do I print a configuration report from my SCX-3200 Series printer?

Press and hold the Stop/Clear button until the Status LED blinks slowly, then release to print a configuration report. (Page 29)

HP Samsung Scx 3200 Laser Multifunction Printer Series

Name: HP Samsung Scx 3200 Laser Multifunction Printer Series
Brand: HP

Page 1

SCX-3200 Series Multi-Functional Mono Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product.

Page 2

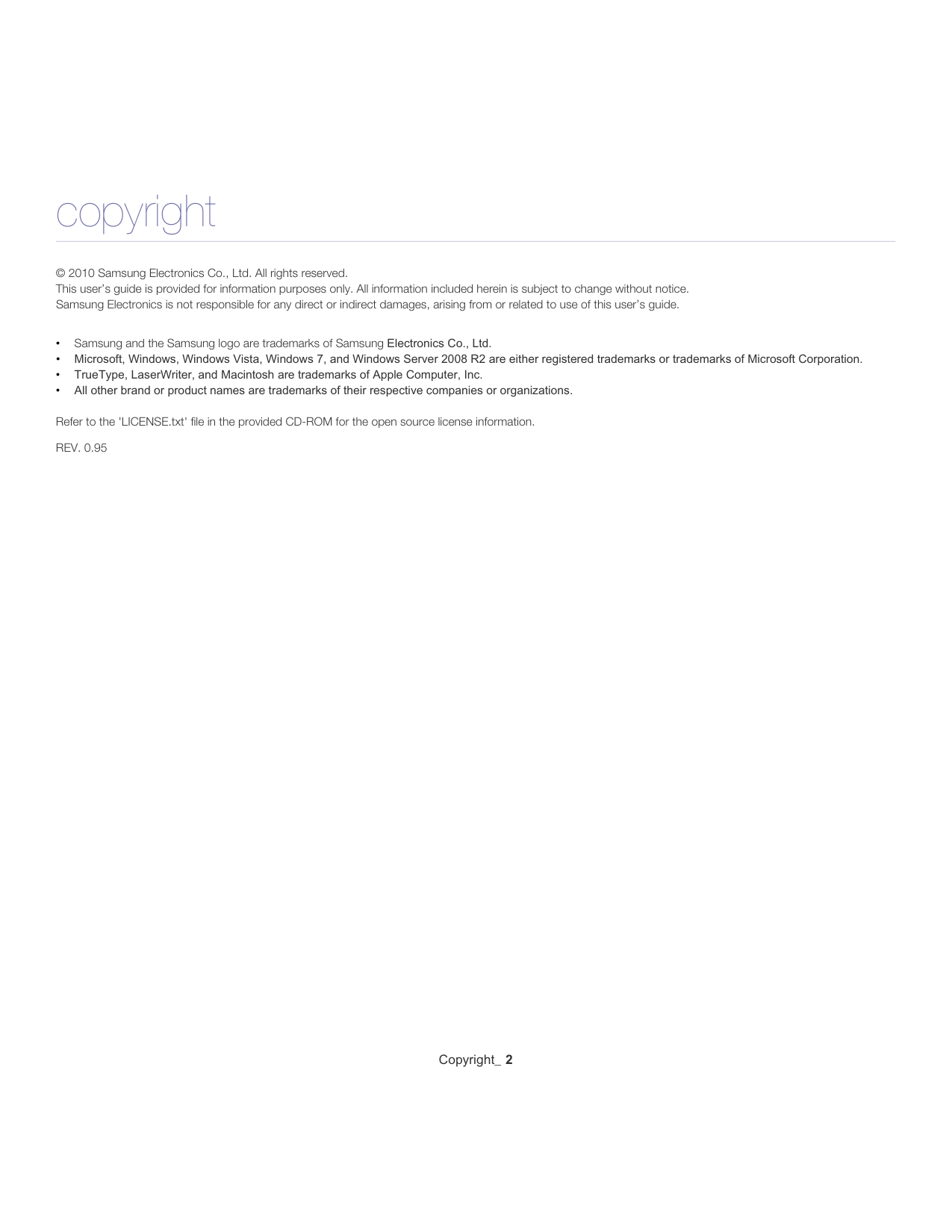

Copyright_ 2 copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved. This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide. • Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd. • Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation. • TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc. • All other brand or product names are trademarks of their respective companies or organizations. Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.

Rev. 0.95

Page 3

Page 4

Page 5

Page 6

Page 7

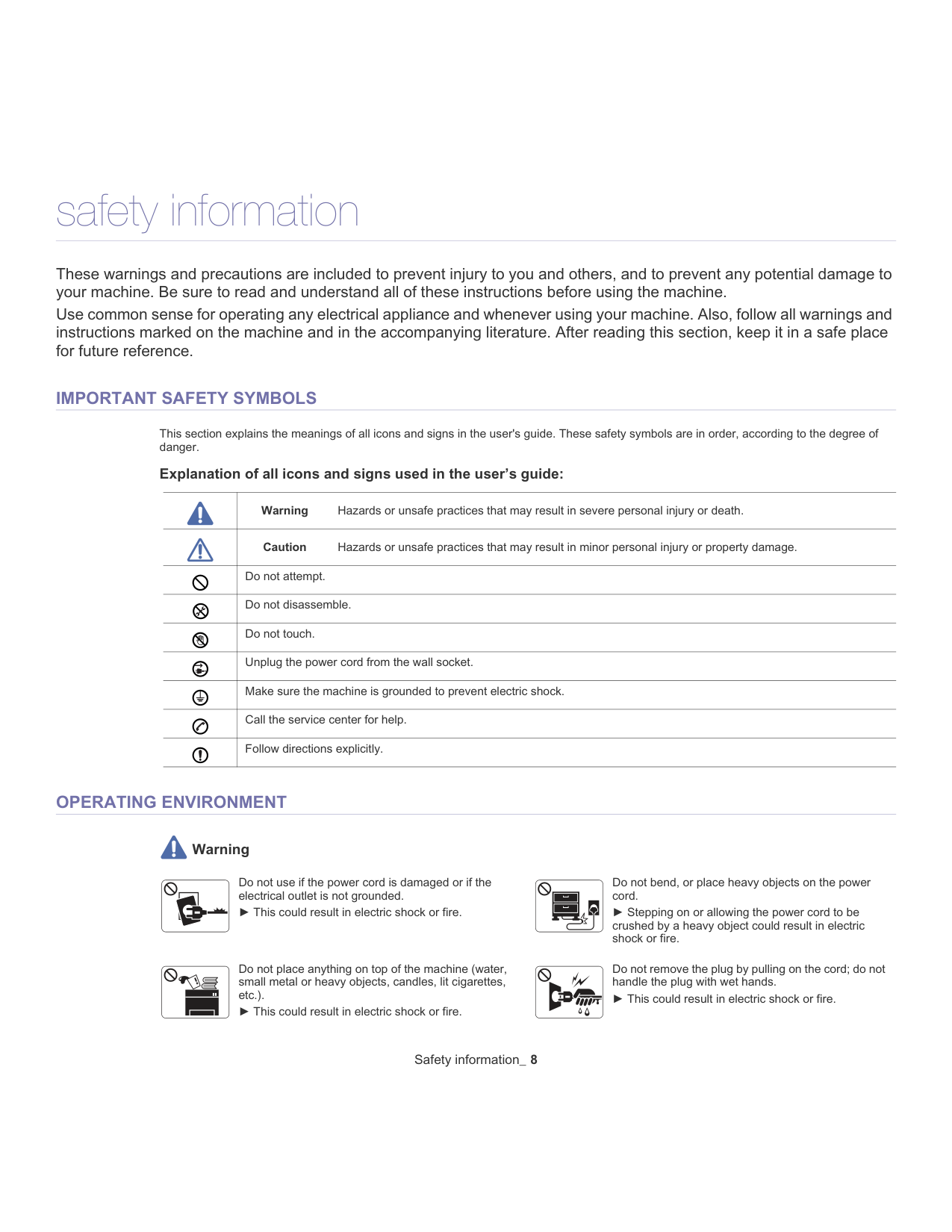

Page 8

Page 9

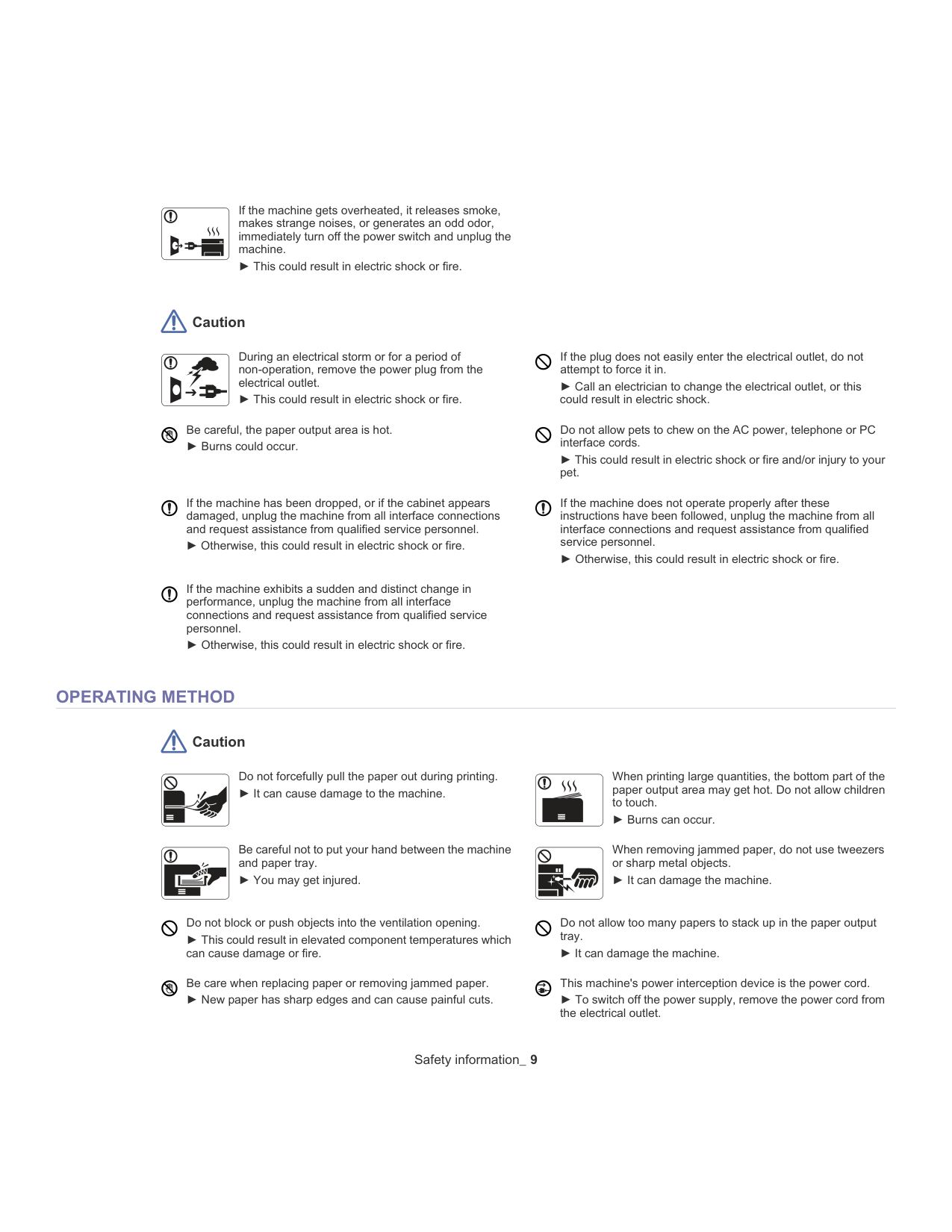

Page 10

Page 11

Page 12

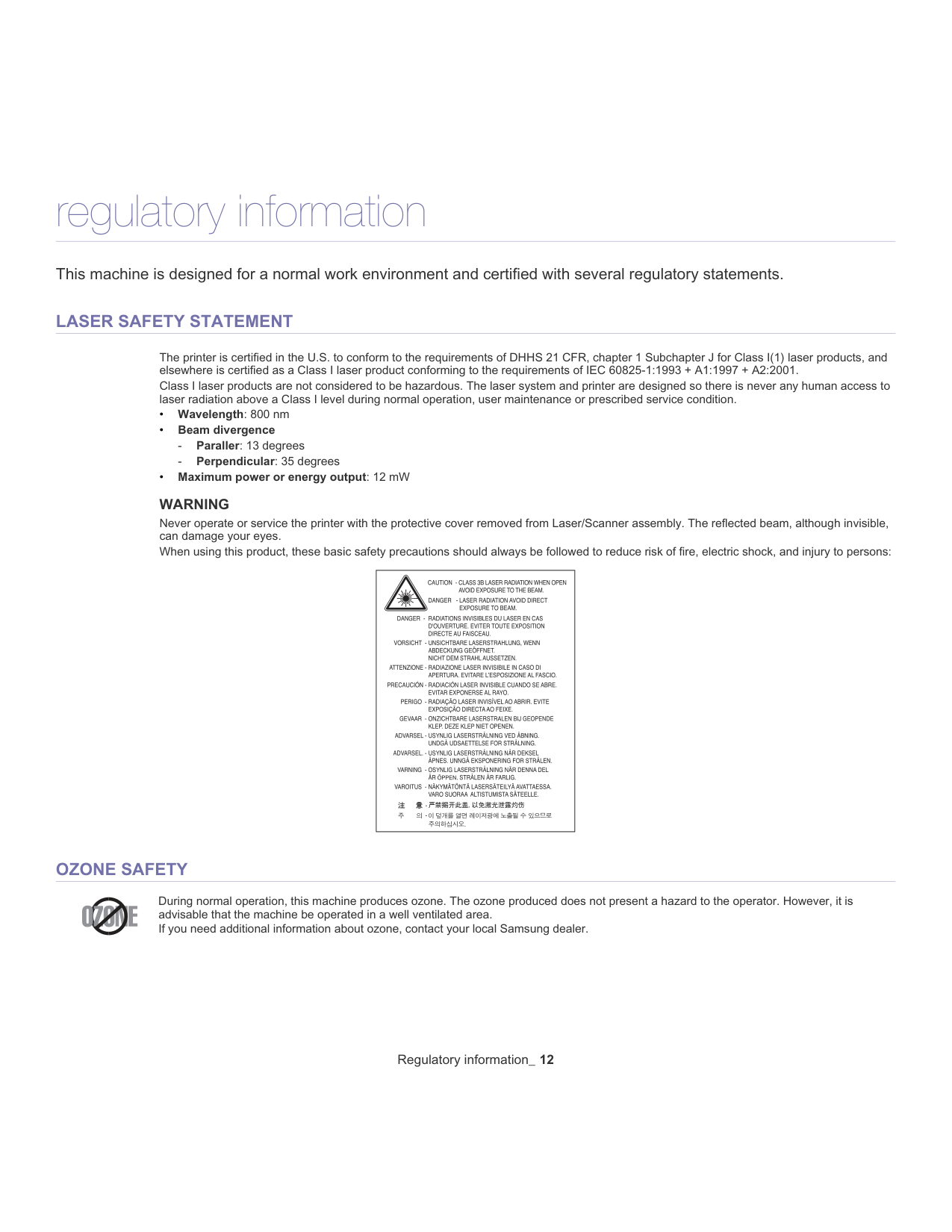

Page 13

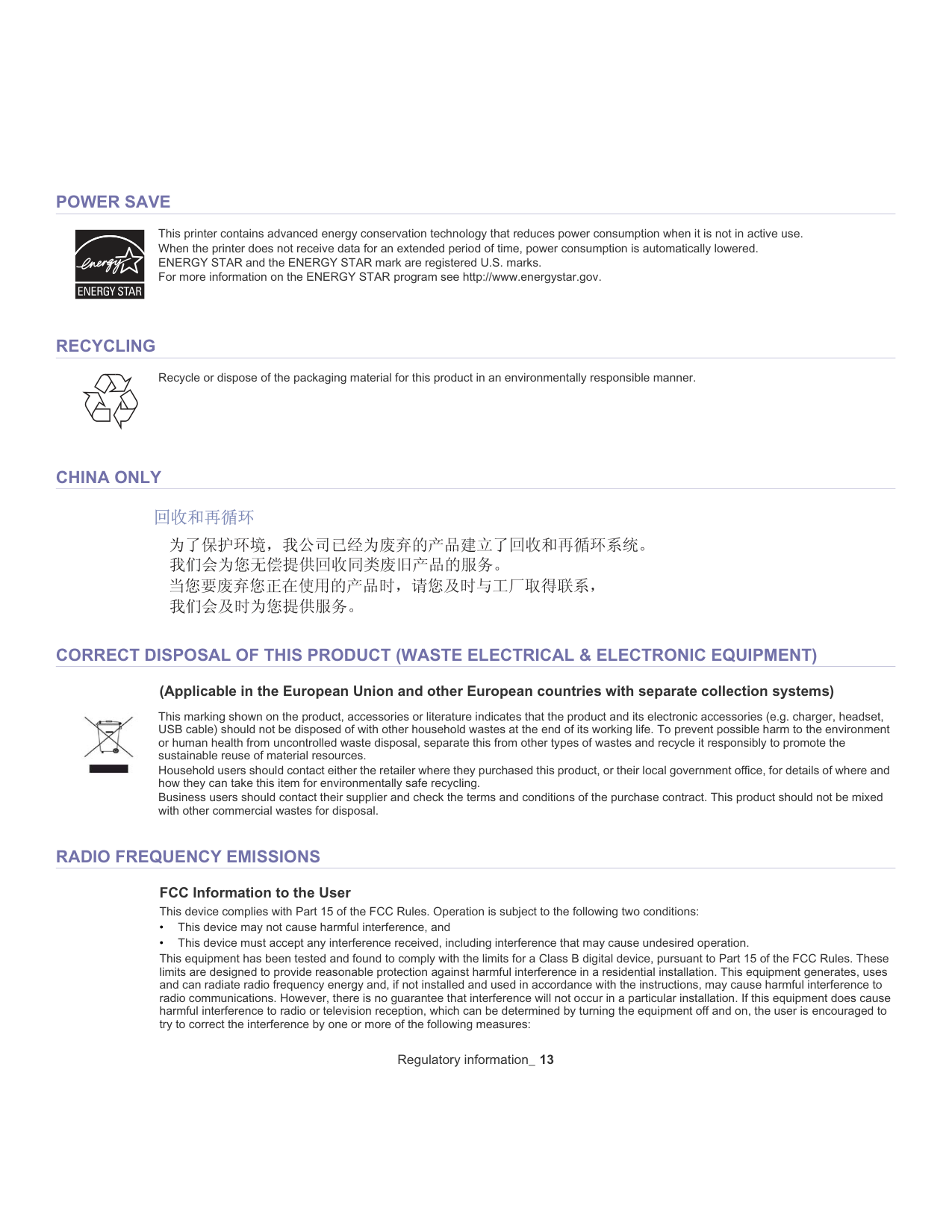

Regulatory information_ 13

Power Save

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use. When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.gov.

Recycling

Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

China Only

Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Radio Frequency Emissions

FCC Information to the User This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

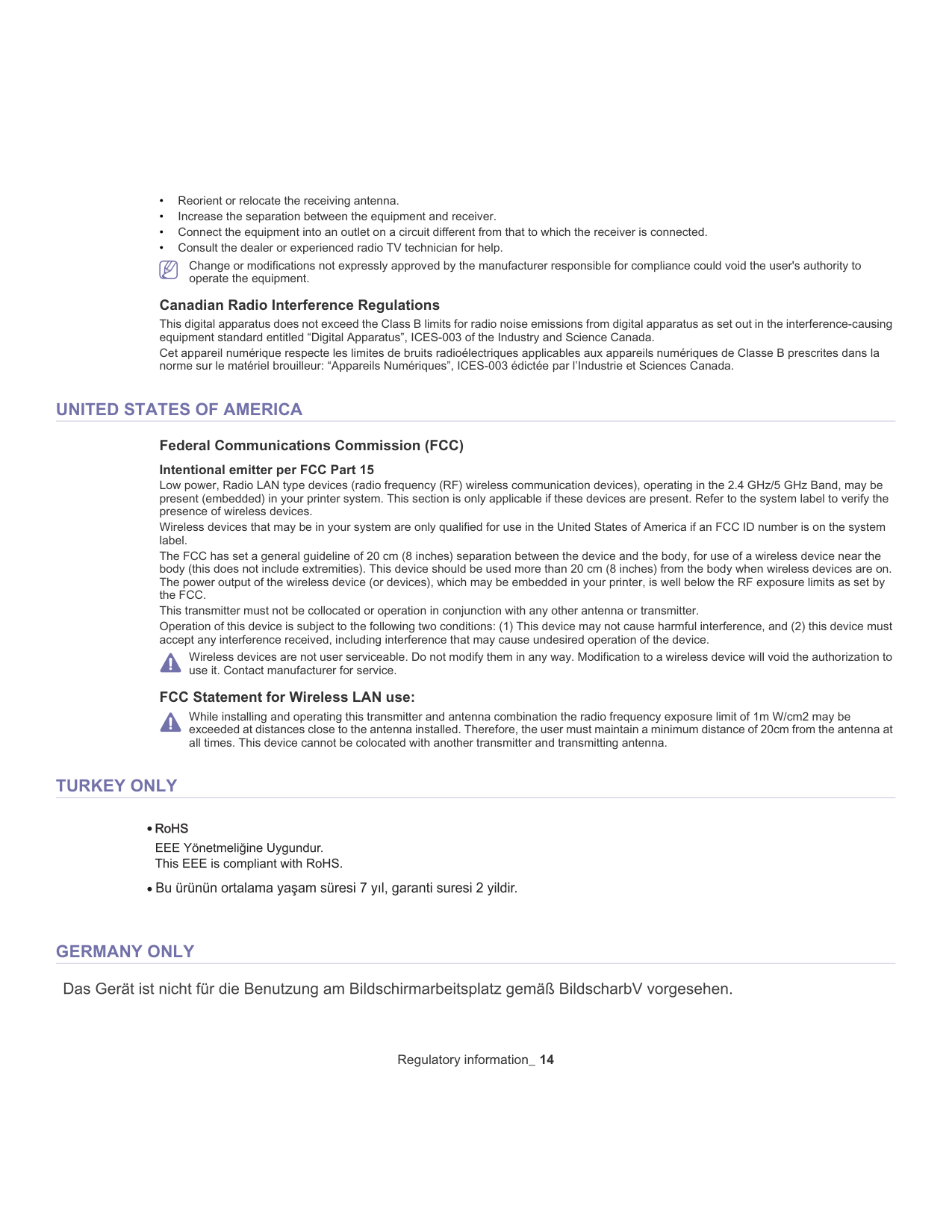

Page 14

Regulatory information_ 14 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian Radio Interference Regulations This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

United States Of America

Federal Communications Commission (FCC) Intentional emitter per FCC Part 15 Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices. Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label. The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC. This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service. FCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna.

Turkey Only

Germany Only

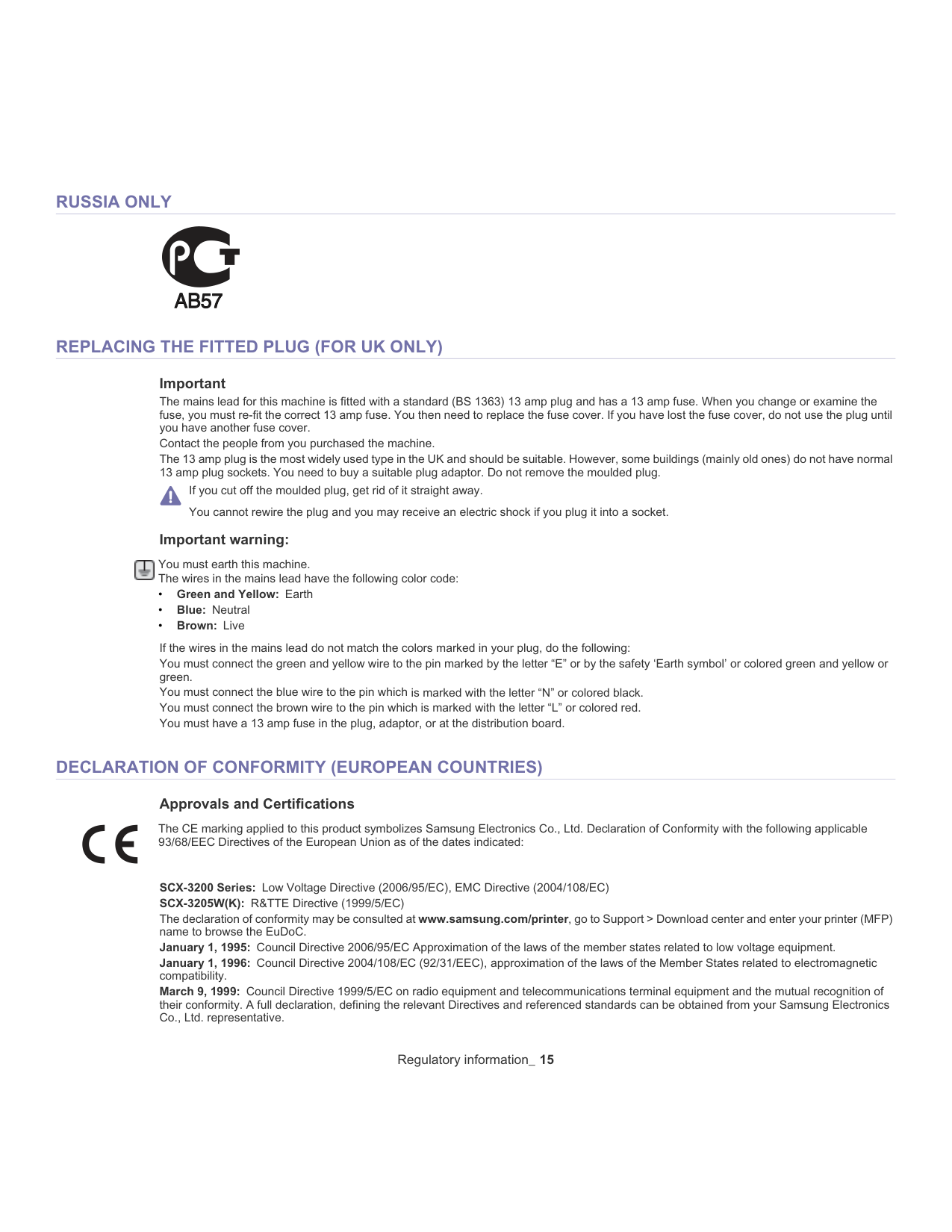

Page 15

Regulatory information_ 15

Russia Only

Replacing The Fitted Plug (For Uk Only)

Important The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine. The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away. You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: You must earth this machine. The wires in the mains lead have the following color code: • Green and Yellow: Earth • Blue: Neutral • Brown: Live If the wires in the mains lead do not match the colors marked in your plug, do the following: You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green. You must connect the blue wire to the pin which is marked with the letter “N” or colored black. You must connect the brown wire to the pin which is marked with the letter “L” or colored red. You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

Declaration Of Conformity (European Countries)

Approvals and Certifications The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated: SCX-3200 Series: Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC) SCX-3205W(K): R&TTE Directive (1999/5/EC) The declaration of conformity may be consulted at www.samsung.com/printer, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC. January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment. January 1, 1996: Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility. March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

Page 16

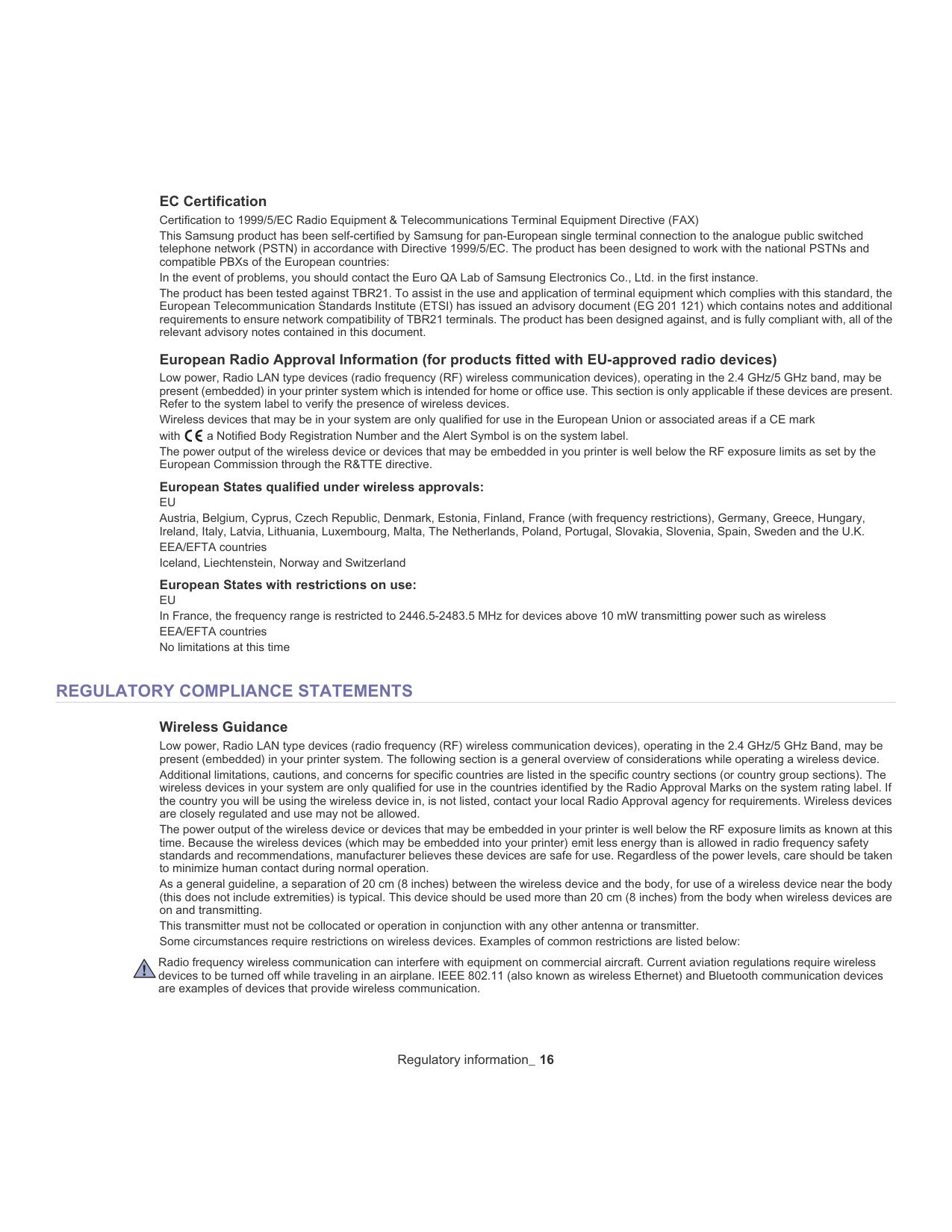

Regulatory information_ 16 EC Certification Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX) This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries: In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance. The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document. European Radio Approval Information (for products fitted with EU-approved radio devices) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices. Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label. The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive. European States qualified under wireless approvals:

Eu

Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the U.K. EEA/EFTA countries Iceland, Liechtenstein, Norway and Switzerland European States with restrictions on use:

Eu

In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless EEA/EFTA countries No limitations at this time

Regulatory Compliance Statements

Wireless Guidance Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device. Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed. The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation. As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting. This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter. Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

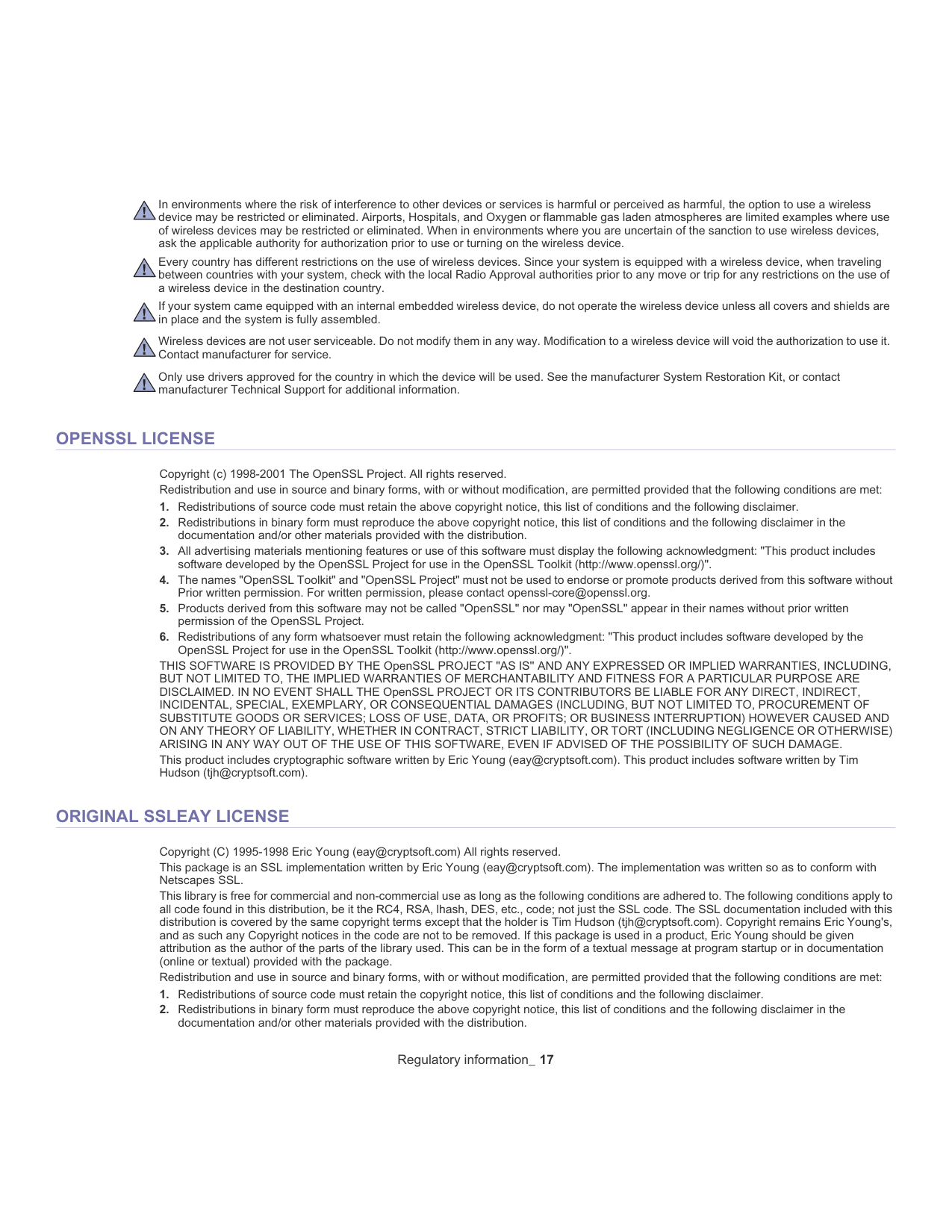

Page 17

Page 18

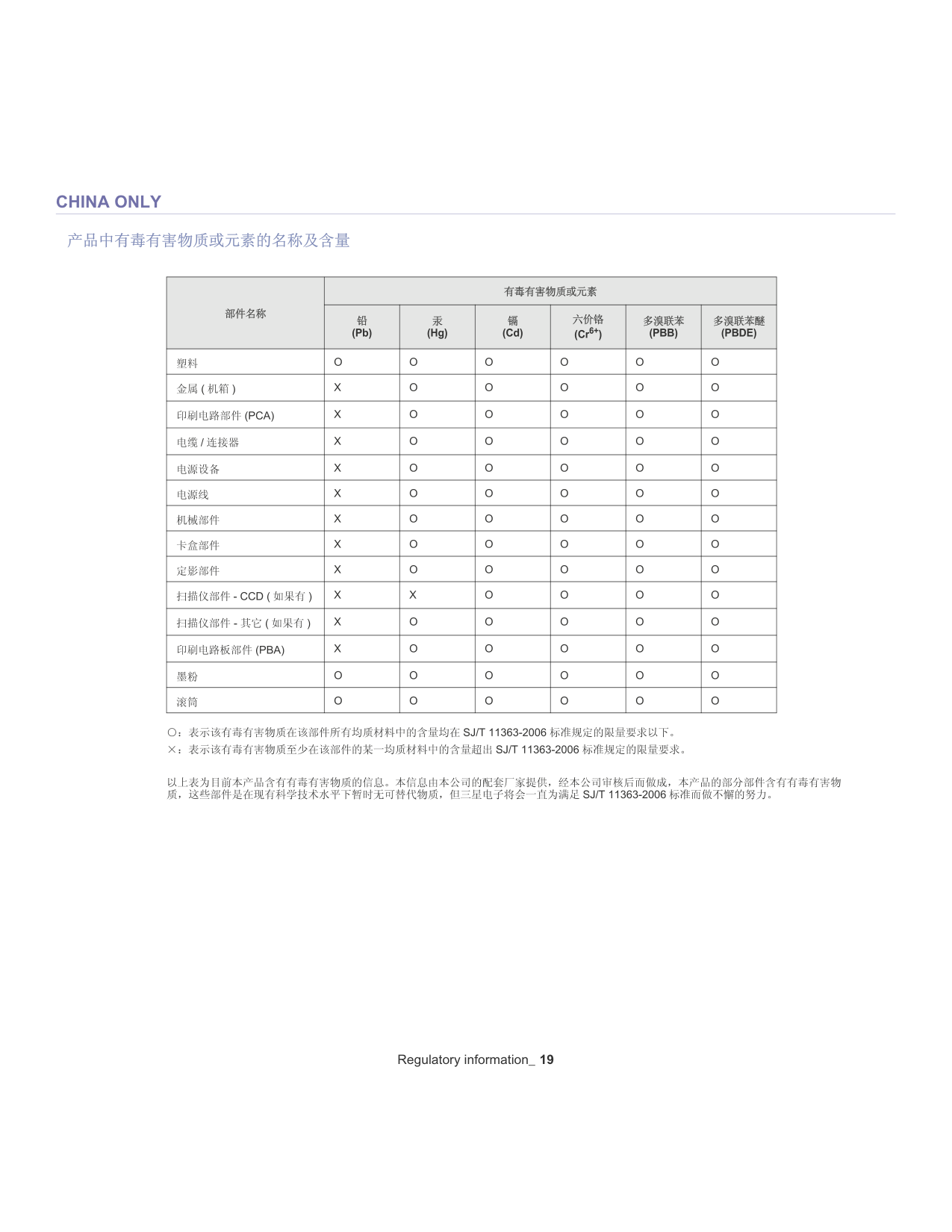

Page 19

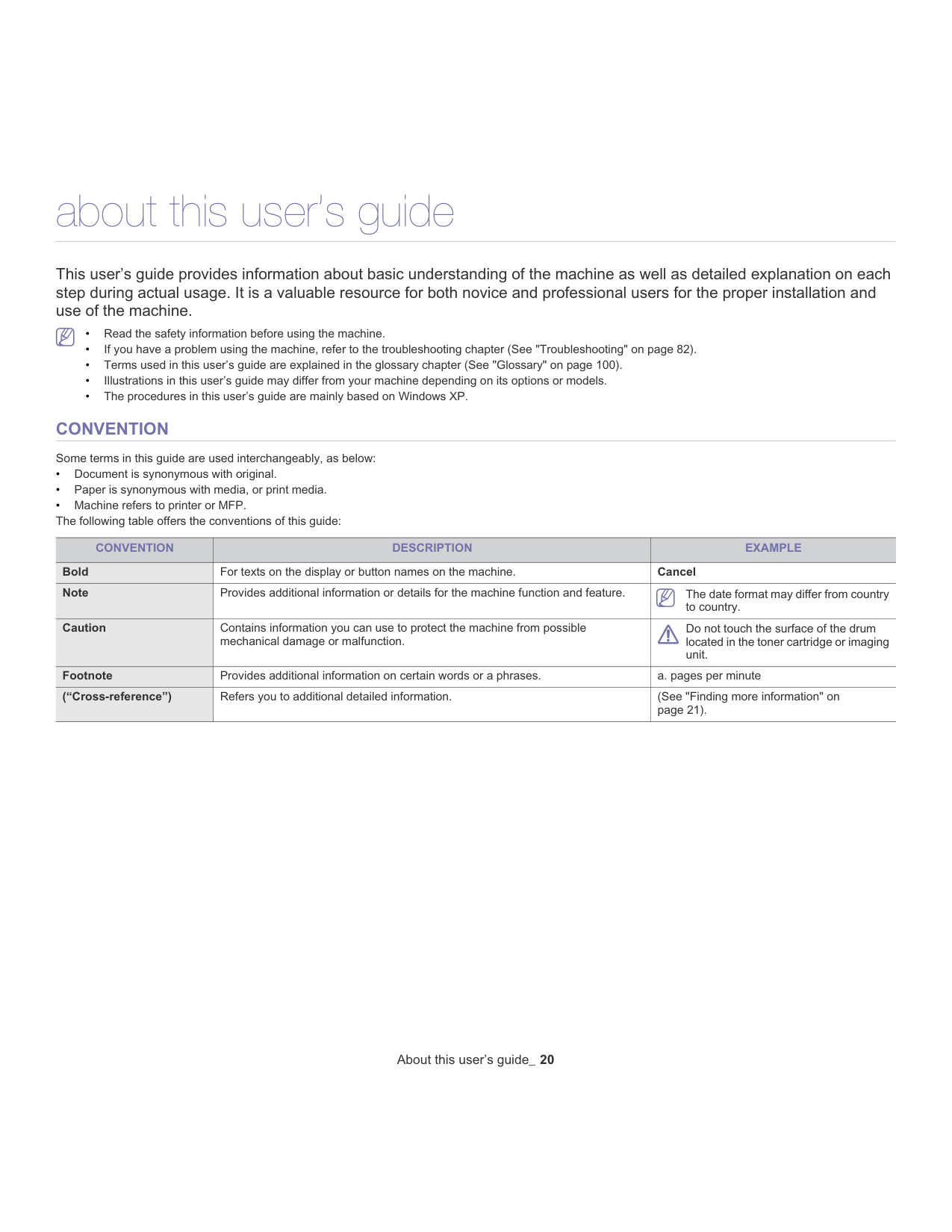

Page 20

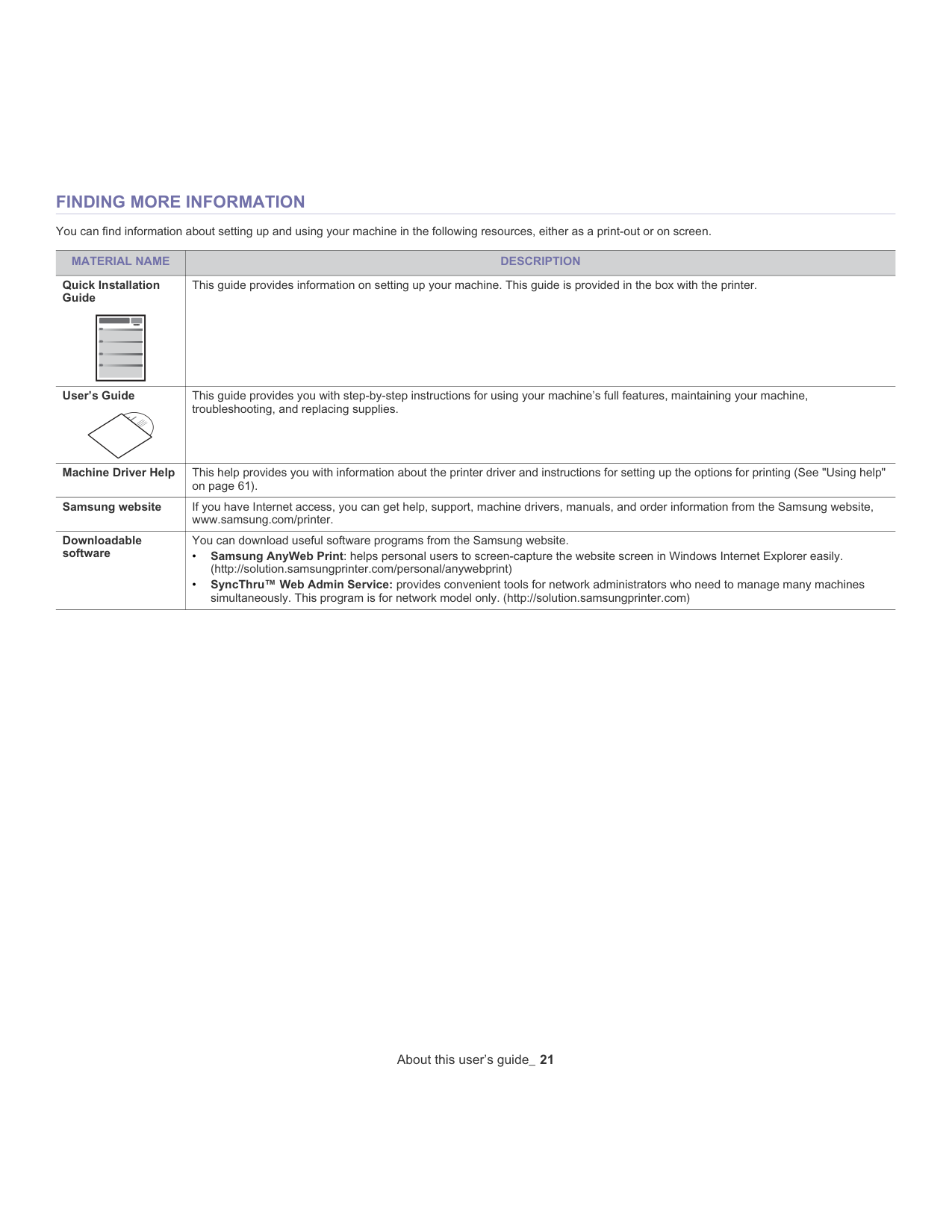

Page 21

Page 22

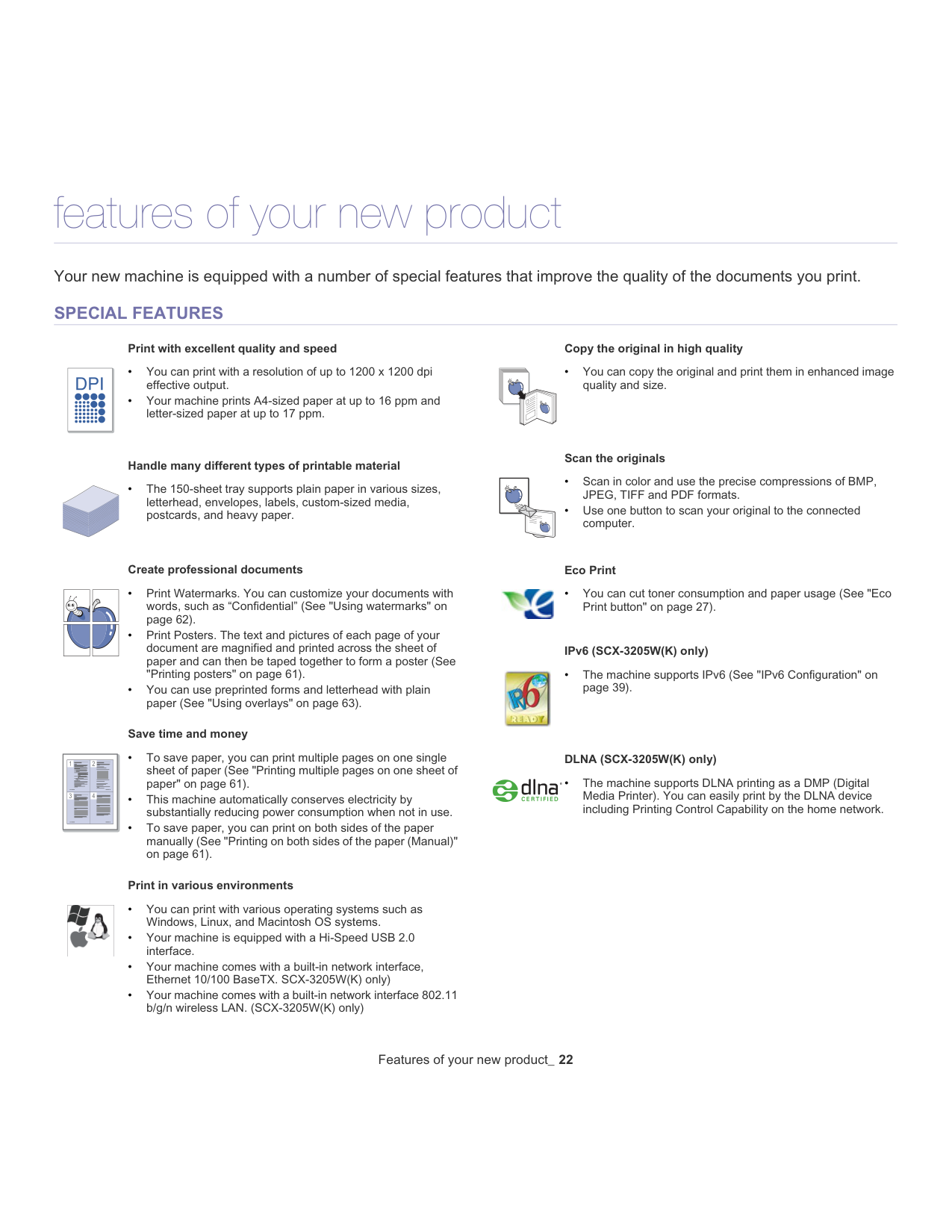

Features of your new product_ 22 features of your new product Your new machine is equipped with a number of special features that improve the quality of the documents you print.

Special Features

Print with excellent quality and speed • You can print with a resolution of up to 1200 x 1200 dpi effective output. • Your machine prints A4-sized paper at up to 16 ppm and letter-sized paper at up to 17 ppm. Handle many different types of printable material • The 150-sheet tray supports plain paper in various sizes, letterhead, envelopes, labels, custom-sized media, postcards, and heavy paper. Create professional documents • Print Watermarks. You can customize your documents with words, such as “Confidential” (See "Using watermarks" on page 62). • Print Posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and can then be taped together to form a poster (See "Printing posters" on page 61). • You can use preprinted forms and letterhead with plain paper (See "Using overlays" on page 63). Save time and money • To save paper, you can print multiple pages on one single sheet of paper (See "Printing multiple pages on one sheet of paper" on page 61). • This machine automatically conserves electricity by substantially reducing power consumption when not in use. • To save paper, you can print on both sides of the paper manually (See "Printing on both sides of the paper (Manual)" on page 61). Print in various environments • You can print with various operating systems such as Windows, Linux, and Macintosh OS systems. • Your machine is equipped with a Hi-Speed USB 2.0 interface. • Your machine comes with a built-in network interface, Ethernet 10/100 BaseTX. SCX-3205W(K) only) • Your machine comes with a built-in network interface 802.11 b/g/n wireless LAN. (SCX-3205W(K) only) Copy the original in high quality • You can copy the original and print them in enhanced image quality and size. Scan the originals • Scan in color and use the precise compressions of BMP, JPEG, TIFF and PDF formats. • Use one button to scan your original to the connected computer. Eco Print • You can cut toner consumption and paper usage (See "Eco Print button" on page 27). IPv6 (SCX-3205W(K) only) • The machine supports IPv6 (See "IPv6 Configuration" on page 39). DLNA (SCX-3205W(K) only) • The machine supports DLNA printing as a DMP (Digital Media Printer). You can easily print by the DLNA device including Printing Control Capability on the home network.

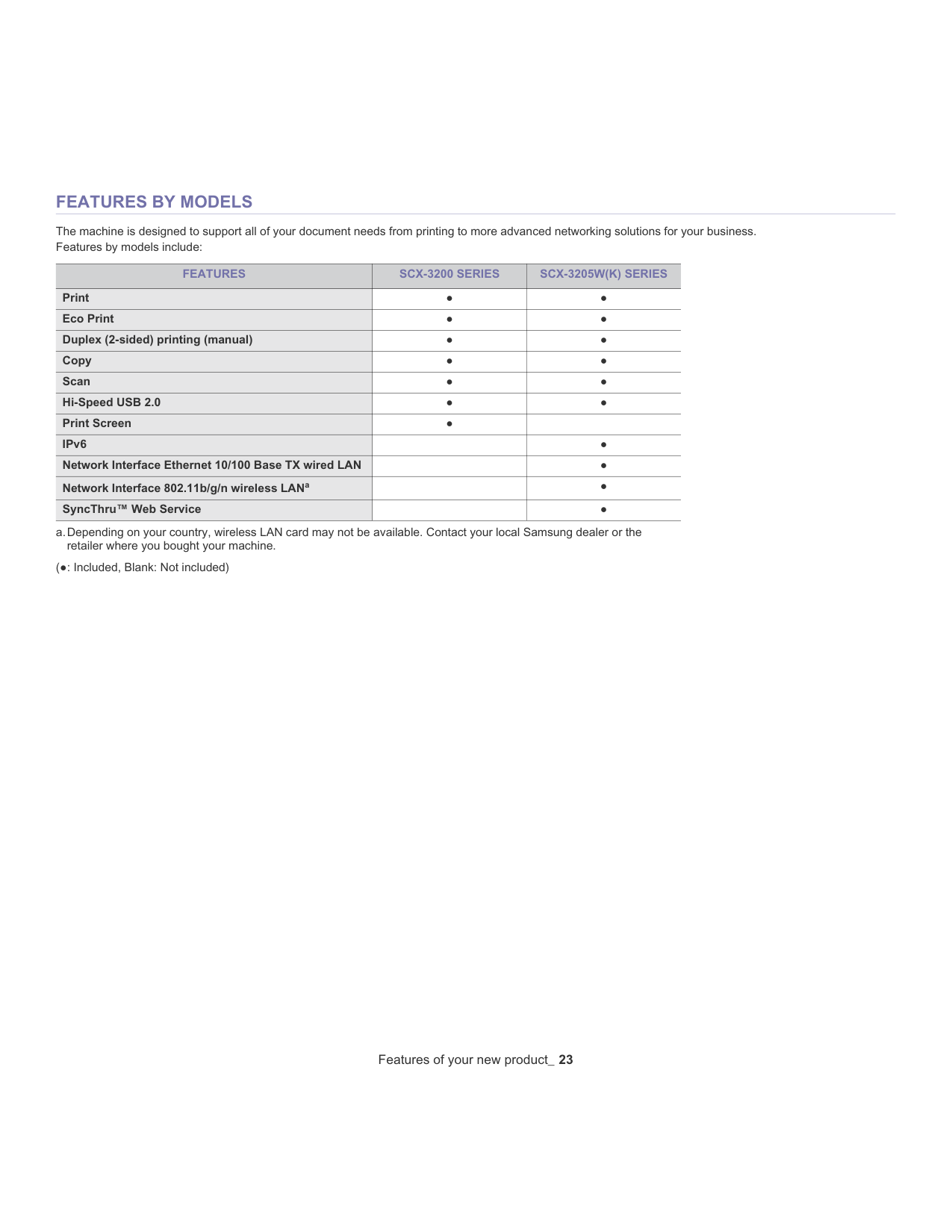

Page 23

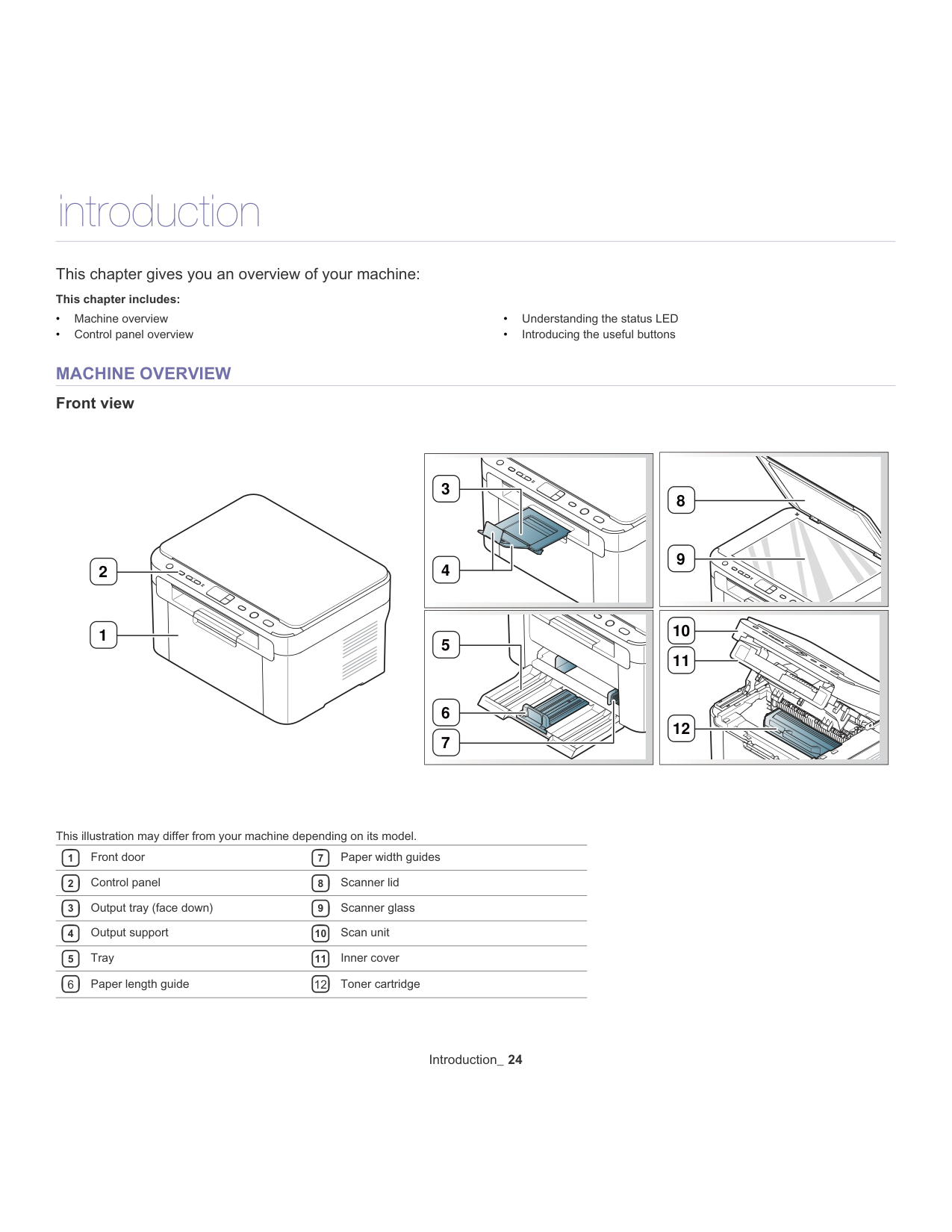

Page 24

Page 25

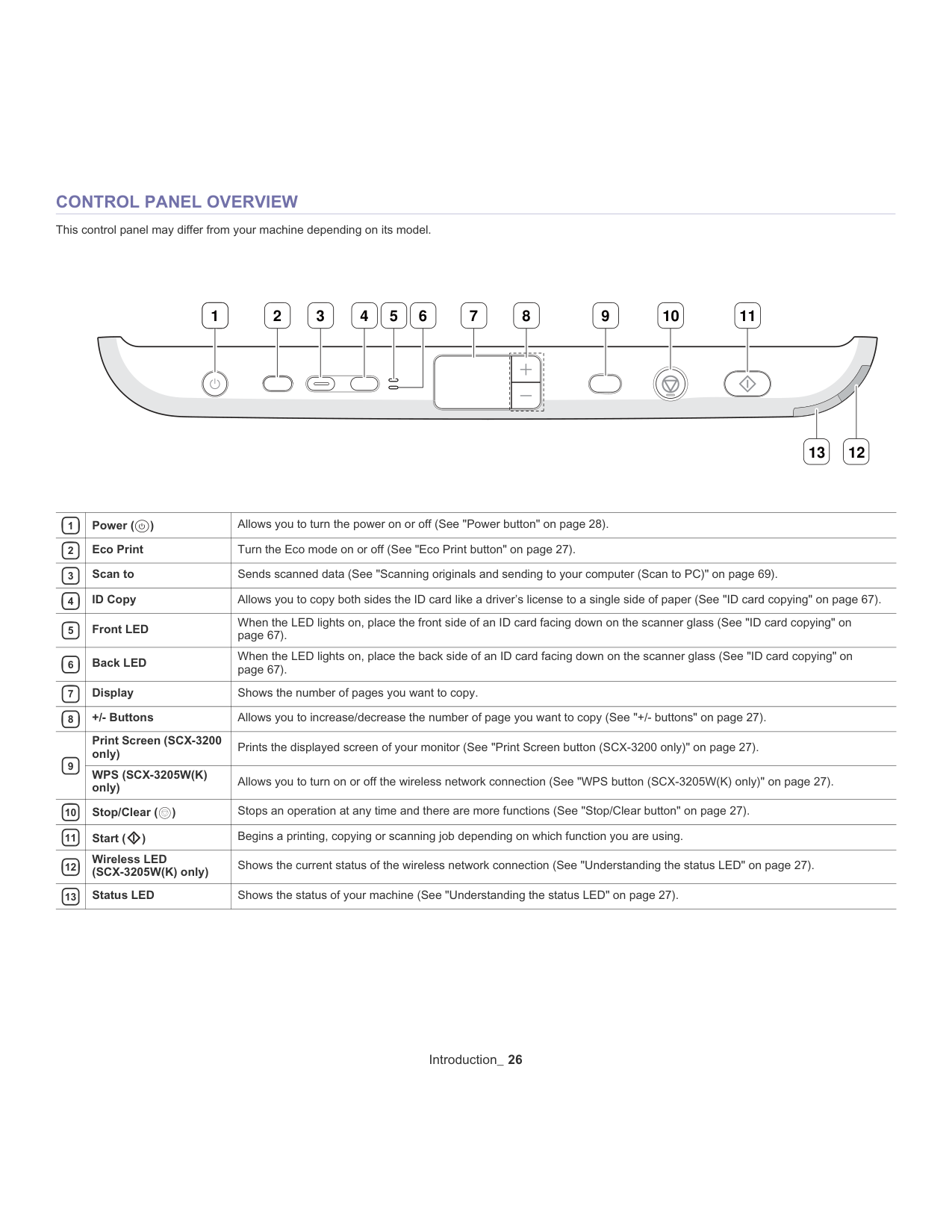

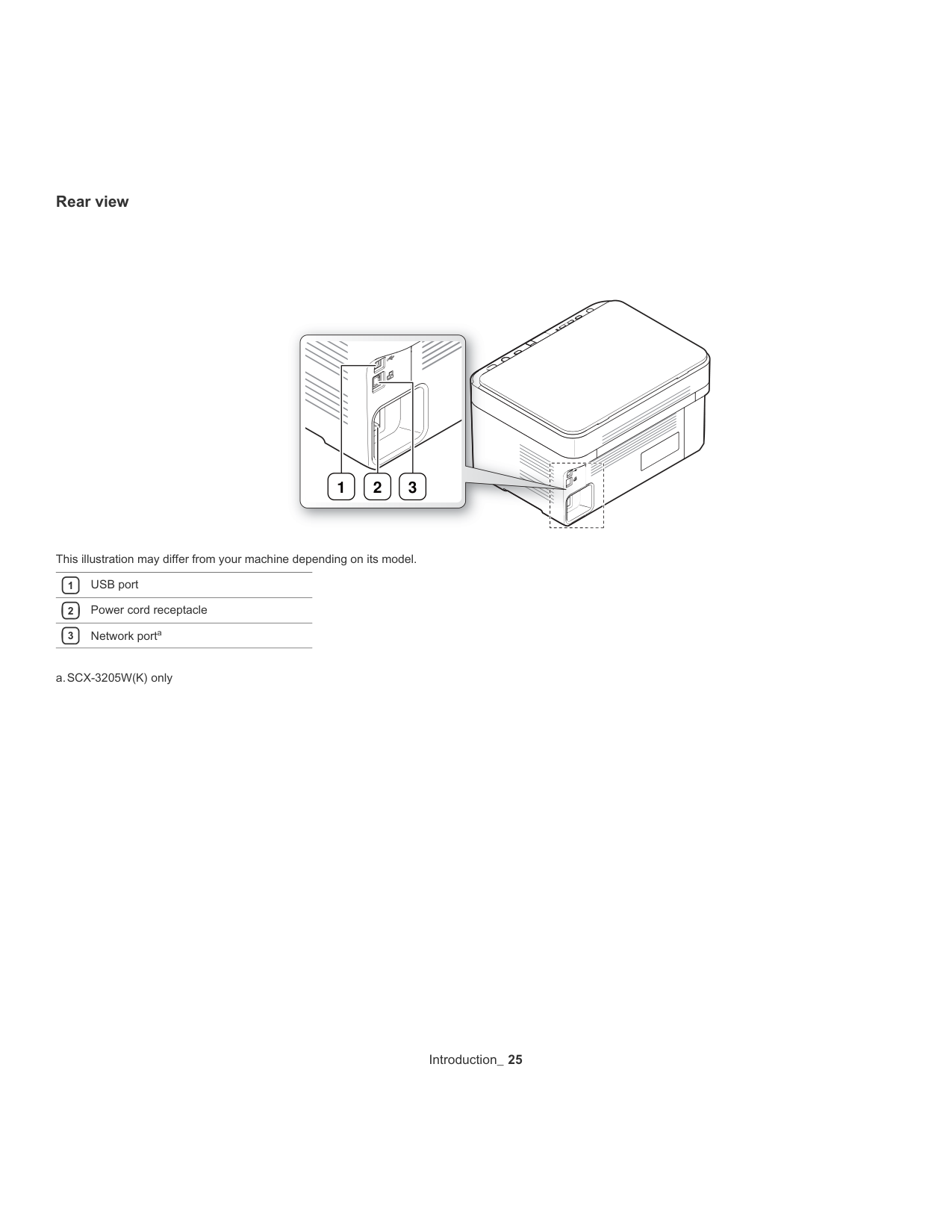

Page 26

Page 27

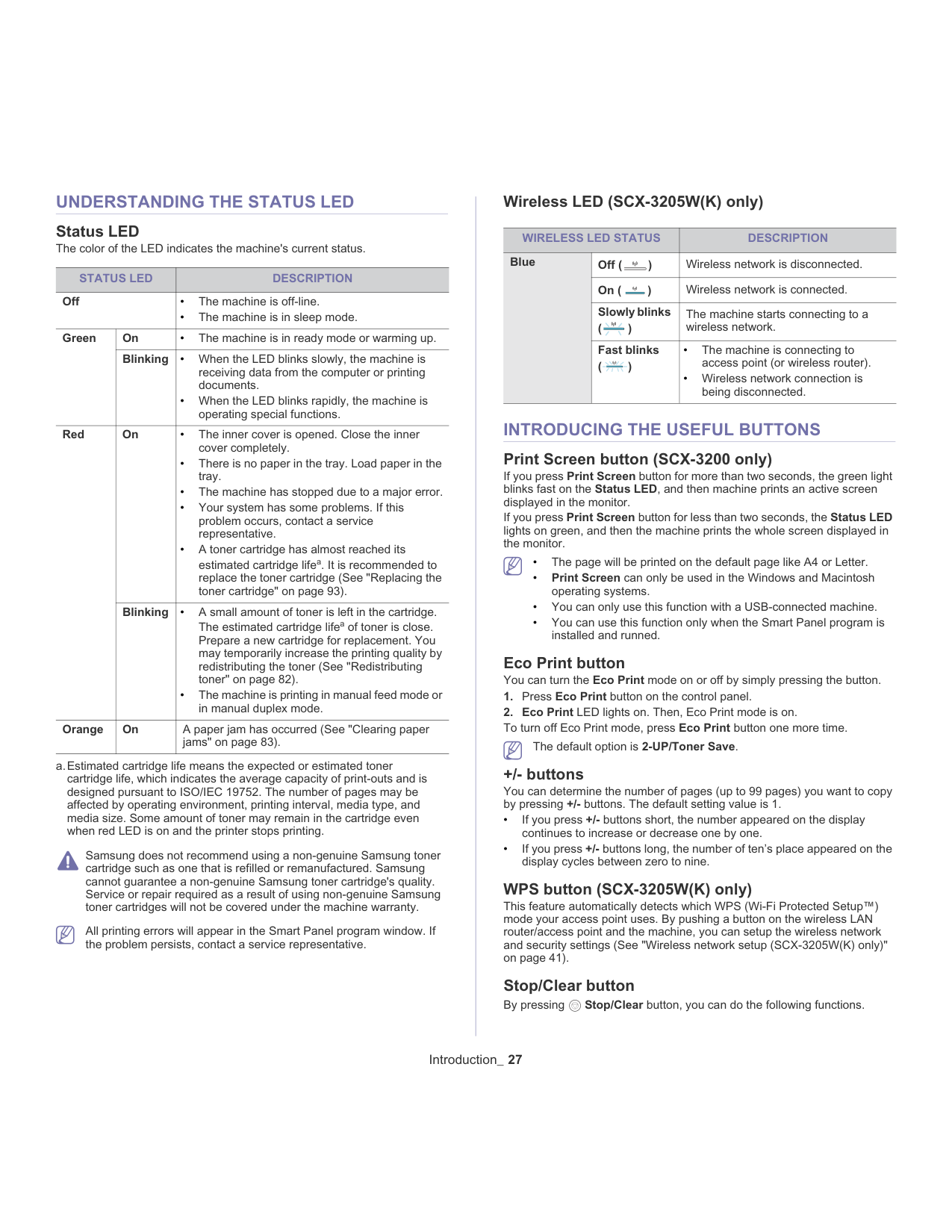

Introduction_ 27

Understanding The Status Led

Status LED The color of the LED indicates the machine's current status.

Status Led

Description

Off • The machine is off-line. • The machine is in sleep mode. Green On • The machine is in ready mode or warming up. Blinking • When the LED blinks slowly, the machine is receiving data from the computer or printing documents. • When the LED blinks rapidly, the machine is operating special functions. Red On • The inner cover is opened. Close the inner cover completely. • There is no paper in the tray. Load paper in the tray. • The machine has stopped due to a major error. • Your system has some problems. If this problem occurs, contact a service representative. • A toner cartridge has almost reached its estimated cartridge lifea a.Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, media type, and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing. . It is recommended to replace the toner cartridge (See "Replacing the toner cartridge" on page 93). Blinking • A small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (See "Redistributing toner" on page 82). • The machine is printing in manual feed mode or in manual duplex mode. Orange On A paper jam has occurred (See "Clearing paper jams" on page 83). Samsung does not recommend using a non-genuine Samsung toner cartridge such as one that is refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. All printing errors will appear in the Smart Panel program window. If the problem persists, contact a service representative. Wireless LED (SCX-3205W(K) only)

Wireless Led Status

Description

Blue Off ( ) Wireless network is disconnected. On ( ) Wireless network is connectedU Slowly blinks ( ) The machine starts connecting to a wireless network. Fast blinks ( ) • The machine is connecting to access point (or wireless router). • Wireless network connection is being disconnected.

Introducing The Useful Buttons

Print Screen button (SCX-3200 only) If you press Print Screen button for more than two seconds, the green light blinks fast on the Status LED, and then machine prints an active screen displayed in the monitor. If you press Print Screen button for less than two seconds, the Status LED lights on green, and then the machine prints the whole screen displayed in the monitor. • The page will be printed on the default page like A4 or Letter. • Print Screen can only be used in the Windows and Macintosh operating systems. • You can only use this function with a USB-connected machine. • You can use this function only when the Smart Panel program is installed and runned. Eco Print button You can turn the Eco Print mode on or off by simply pressing the button.

Press Eco Print button on the control panel.

Eco Print LED lights on. Then, Eco Print mode is on.

To turn off Eco Print mode, press Eco Print button one more time. The default option is 2-UP/Toner Save. +/- buttons You can determine the number of pages (up to 99 pages) you want to copy by pressing +/- buttons. The default setting value is 1. • If you press +/- buttons short, the number appeared on the display continues to increase or decrease one by one. • If you press +/- buttons long, the number of ten’s place appeared on the display cycles between zero to nine. WPS button (SCX-3205W(K) only) This feature automatically detects which WPS (Wi-Fi Protected Setup™) mode your access point uses. By pushing a button on the wireless LAN router/access point and the machine, you can setup the wireless network and security settings (See "Wireless network setup (SCX-3205W(K) only)" on page 41). Stop/Clear button By pressing Stop/Clear button, you can do the following functions.

Page 28

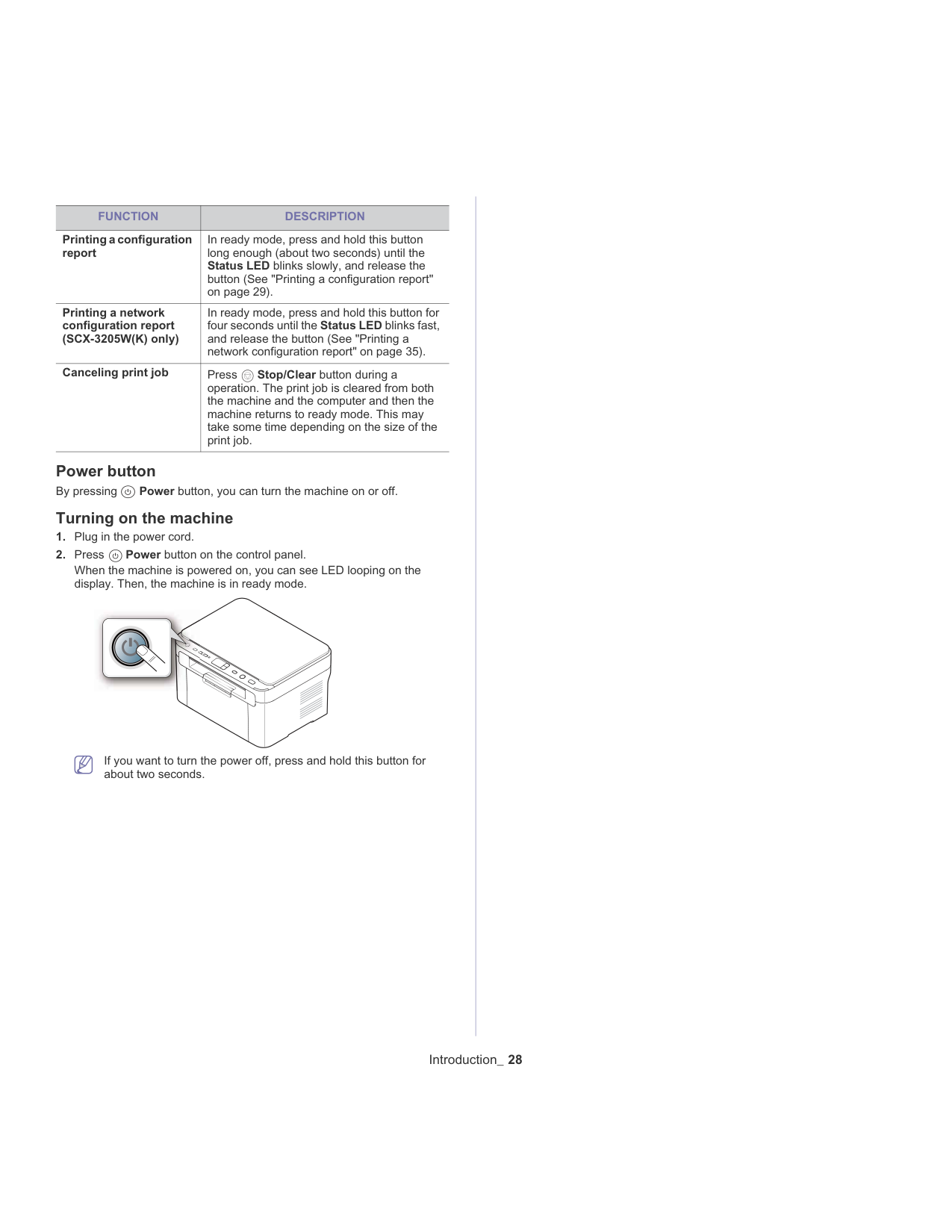

Page 29

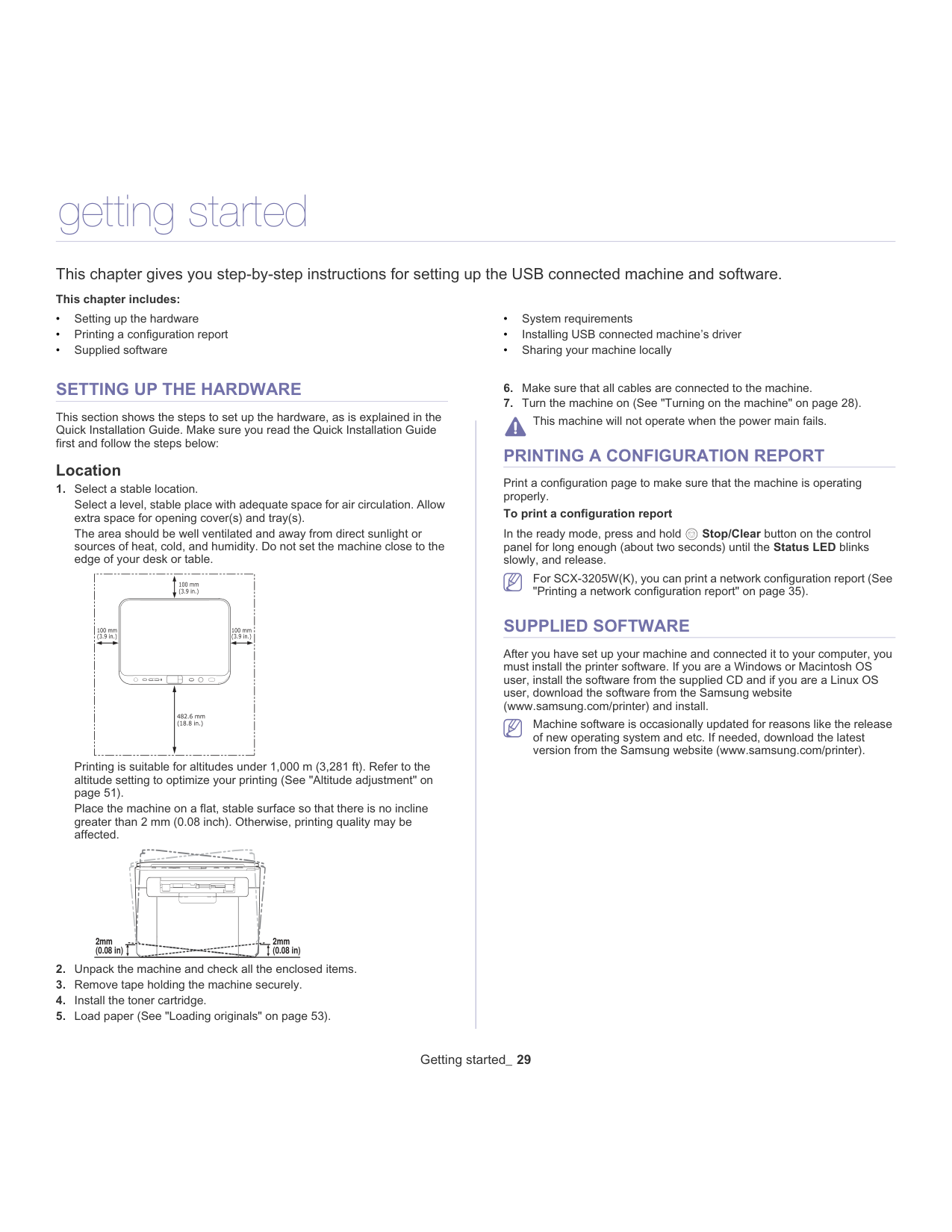

Getting started_ 29 2.getting started This chapter gives you step-by-step instructions for setting up the USB connected machine and software. This chapter includes: • Setting up the hardware • Printing a configuration report • Supplied software • System requirements • Installing USB connected machine’s driver • Sharing your machine locally

Setting Up The Hardware

This section shows the steps to set up the hardware, as is explained in the Quick Installation Guide. Make sure you read the Quick Installation Guide first and follow the steps below: Location

Select a stable location.

Select a level, stable place with adequate space for air circulation. Allow extra space for opening cover(s) and tray(s). The area should be well ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the machine close to the edge of your desk or table. Printing is suitable for altitudes under 1,000 m (3,281 ft). Refer to the altitude setting to optimize your printing (See "Altitude adjustment" on page 51). Place the machine on a flat, stable surface so that there is no incline greater than 2 mm (0.08 inch). Otherwise, printing quality may be affected. 2mm (0.08 in) 2mm (0.08 in)

Unpack the machine and check all the enclosed items.

Remove tape holding the machine securely.

Install the toner cartridge.

Load paper (See "Loading originals" on page 53).

Make sure that all cables are connected to the machine.

Turn the machine on (See "Turning on the machine" on page 28).

This machine will not operate when the power main fails.

Printing A Configuration Report

Print a configuration page to make sure that the machine is operating properly. To print a configuration report In the ready mode, press and hold Stop/Clear button on the control panel for long enough (about two seconds) until the Status LED blinks slowly, and release. For SCX-3205W(K), you can print a network configuration report (See "Printing a network configuration report" on page 35).

Supplied Software

After you have set up your machine and connected it to your computer, you must install the printer software. If you are a Windows or Macintosh OS user, install the software from the supplied CD and if you are a Linux OS user, download the software from the Samsung website (www.samsung.com/printer) and install. Machine software is occasionally updated for reasons like the release of new operating system and etc. If needed, download the latest version from the Samsung website (www.samsung.com/printer).

Page 30

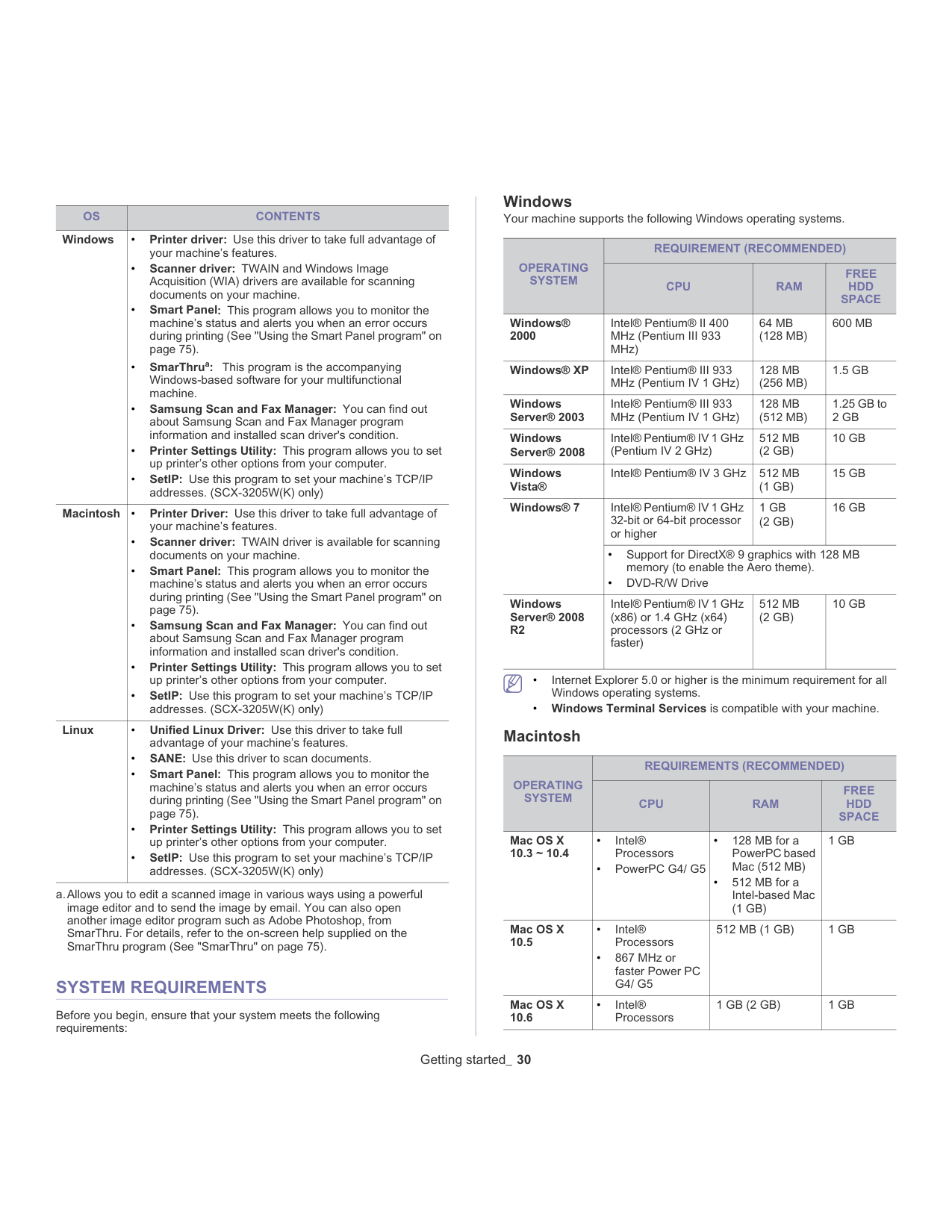

Os

Windows • Printer driver: Use this driver to take full advantage of your machine’s features. • Scanner driver: TWAIN and Windows Image Acquisition (WIA) drivers are available for scanning documents on your machine. • Smart Panel: This program allows you to monitor the machine’s status and alerts you when an error occurs during printing (See "Using the Smart Panel program" on page 75). • SmarThrua: a.Allows you to edit a scanned image in various ways using a powerful image editor and to send the image by email. You can also open another image editor program such as Adobe Photoshop, from SmarThru. For details, refer to the on-screen help supplied on the SmarThru program (See "SmarThru" on page 75). This program is the accompanying Windows-based software for your multifunctional machine. • Samsung Scan and Fax Manager: You can find out about Samsung Scan and Fax Manager program information and installed scan driver's condition. • Printer Settings Utility: This program allows you to set up printer’s other options from your computer. • SetIP: Use this program to set your machine’s TCP/IP addresses. (SCX-3205W(K) only) Macintosh • Printer Driver: Use this driver to take full advantage of your machine’s features. • Scanner driver: TWAIN driver is available for scanning documents on your machine. • Smart Panel: This program allows you to monitor the machine’s status and alerts you when an error occurs during printing (See "Using the Smart Panel program" on page 75). • Samsung Scan and Fax Manager: You can find out about Samsung Scan and Fax Manager program information and installed scan driver's condition. • Printer Settings Utility: This program allows you to set up printer’s other options from your computer. • SetIP: Use this program to set your machine’s TCP/IP addresses. (SCX-3205W(K) only) Linux • Unified Linux Driver: Use this driver to take full advantage of your machine’s features. • SANE: Use this driver to scan documents. • Smart Panel: This program allows you to monitor the machine’s status and alerts you when an error occurs during printing (See "Using the Smart Panel program" on page 75). • Printer Settings Utility: This program allows you to set up printer’s other options from your computer. • SetIP: Use this program to set your machine’s TCP/IP addresses. (SCX-3205W(K) only) Getting started_ 30

System Requirements

Before you begin, ensure that your system meets the following requirements: Windows Your machine supports the following Windows operating systems.

Operating

System

Requirement (Recommended)

Cpu

Ram

Free

Hdd

Space

Windows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz)

64 Mb

(128 Mb)

600 Mb

Windows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz)

128 Mb

(256 Mb)

1.5 Gb

Windows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz)

128 Mb

(512 Mb)

1.25 GB to

2 Gb

Windows Server®G2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz)

512 Mb

(2 Gb)

10 Gb

Windows Vista® Intel® Pentium® IV 3 GHz

512 Mb

(1 Gb)

15 Gb

Windows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher

1 Gb

(2 Gb)

16 Gb

• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme). • DVD-R/W Drive Windows Server® 2008

R2

Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster)

512 Mb

(2 Gb)

10 Gb

• Internet Explorer 5.0 or higher is the minimum requirement for all Windows operating systems. • Windows Terminal Services is compatible with your machine. Macintosh

Operating

System

Requirements (Recommended)

Cpu

Ram

Free

Hdd

Space

Mac OS X 10.3 ~ 10.4 • Intel® Processors • PowerPC G4/ G5 • 128 MB for a PowerPC based Mac (512 MB) • 512 MB for a Intel-based Mac

(1 Gb)

1 Gb

Mac OS X 10.5 • Intel® Processors • 867 MHz or faster Power PC

G4/ G5

512 Mb (1 Gb)

1 Gb

Mac OS X 10.6 • Intel® Processors

1 Gb (2 Gb)

1 Gb

Page 31

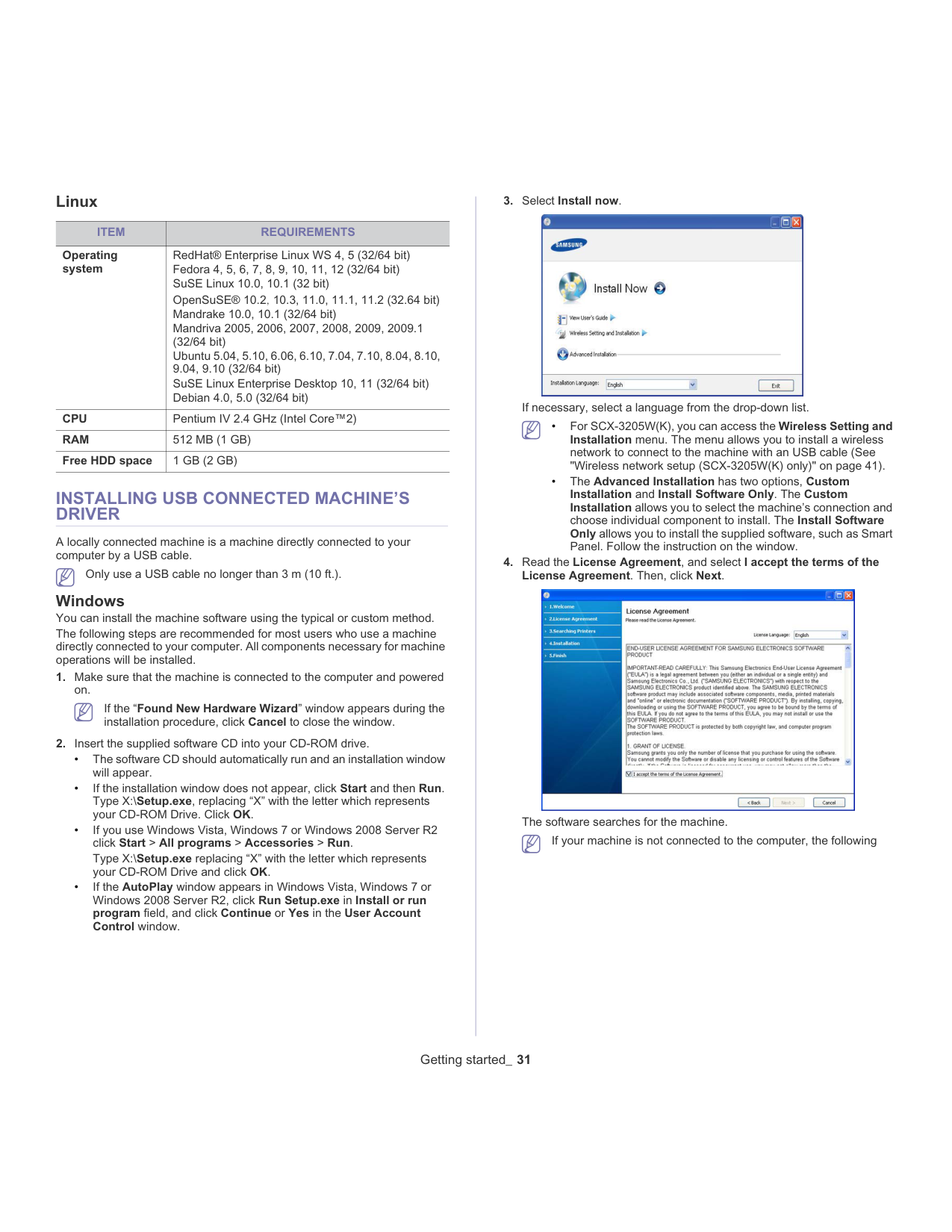

Getting started_ 31 Linux

Item

Requirements

Operating system RedHat® Enterprise Linux WS 4, 5 (32/64 bit) Fedora 4, 5, 6, 7, 8, 9, 10, 11, 12 (32/64 bit) SuSE Linux 10.0, 10.1 (32 bit) OpenSuSE® 10.2S 10.3, 11.0, 11.1, 11.2 (32.64 bit) Mandrake 10.0, 10.1 (32/64 bit) Mandriva 2005, 2006, 2007, 2008, 2009, 2009.1 (32/64 bit) Ubuntu 5.04, 5.10, 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10 (32/64 bit) SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) Debian 4.0, 5.0 (32/64 bit)

Cpu

Pentium IV 2.4 GHz (Intel Core™2)

Ram

512 Mb (1 Gb)

Free HDD space

1 Gb (2 Gb)

Installing Usb Connected Machine’S

Driver

A locally connected machine is a machine directly connected to your computer by a USB cable. Only use a USB cable no longer than 3 m (10 ft.). Windows You can install the machine software using the typical or custom method. The following steps are recommended for most users who use a machine directly connected to your computer. All components necessary for machine operations will be installed.

Make sure that the machine is connected to the computer and powered

on. If the “Found New Hardware Wizard” window appears during the installation procedure, click Cancel to close the window.

Insert the supplied software CD into your CD-ROM drive.

• The software CD should automatically run and an installation window will appear. • If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your CD-ROM Drive. Click OK. • If you use Windows Vista, Windows 7 or Windows 2008 Server R2 click Start > All programs > Accessories > Run. Type X:\Setup.exe replacing “X” with the letter which represents your CD-ROM Drive and click OK. • If the AutoPlay window appears in Windows Vista, Windows 7 or Windows 2008 Server R2, click Run Setup.exe in Install or run program field, and click Continue or Yes in the User Account Control window.

Select Install now.

If necessary, select a language from the drop-down list. • For SCX-3205W(K), you can access the Wireless Setting and Installation menu. The menu allows you to install a wireless network to connect to the machine with an USB cable (See "Wireless network setup (SCX-3205W(K) only)" on page 41). • The Advanced Installation has two options, Custom Installation and Install Software Only. The Custom Installation allows you to select the machine’s connection and choose individual component to install. The Install Software Only allows you to install the supplied software, such as Smart Panel. Follow the instruction on the window.

Read the License Agreement, and select I accept the terms of the

License Agreement. Then, click Next. The software searches for the machine. If your machine is not connected to the computer, the following

Page 32

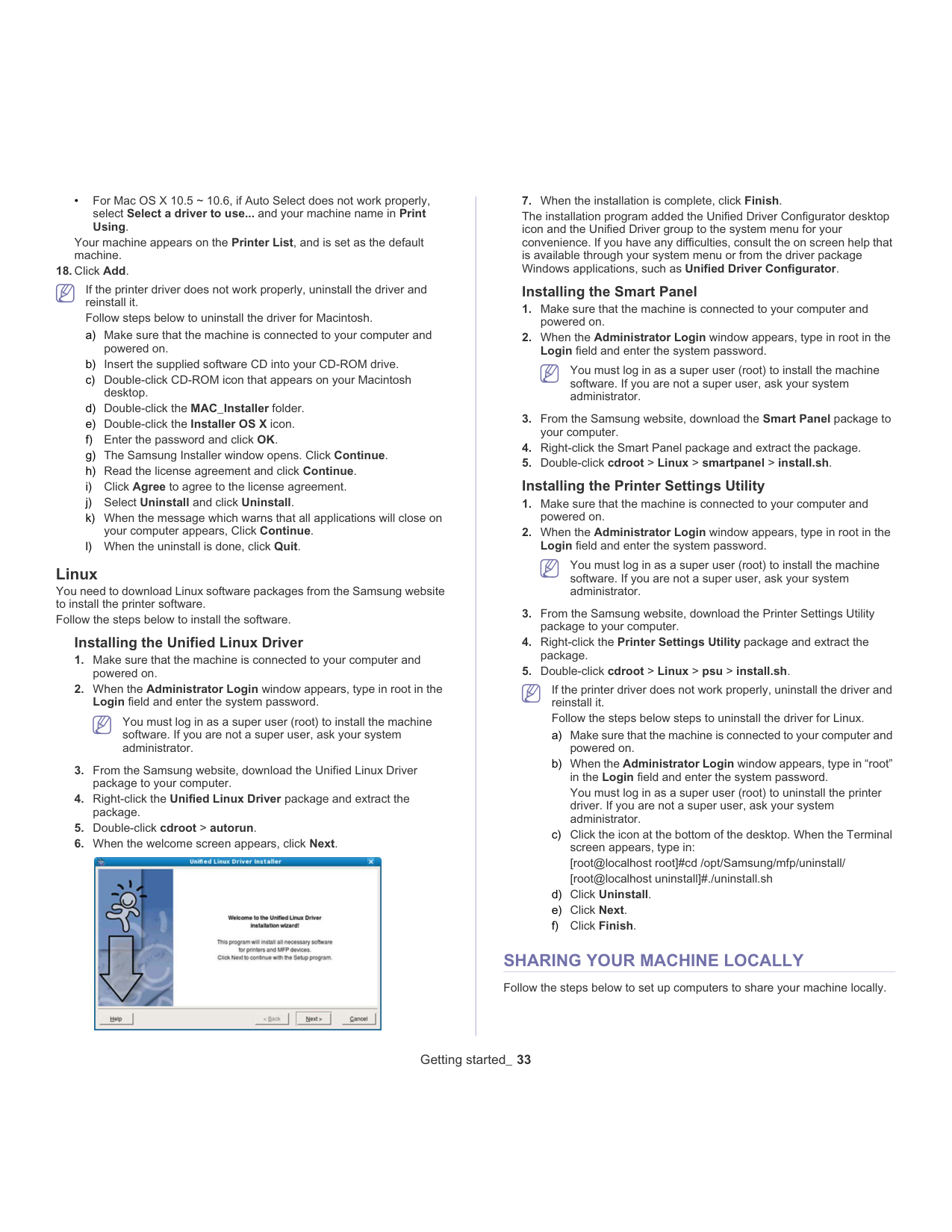

Page 33

Page 34

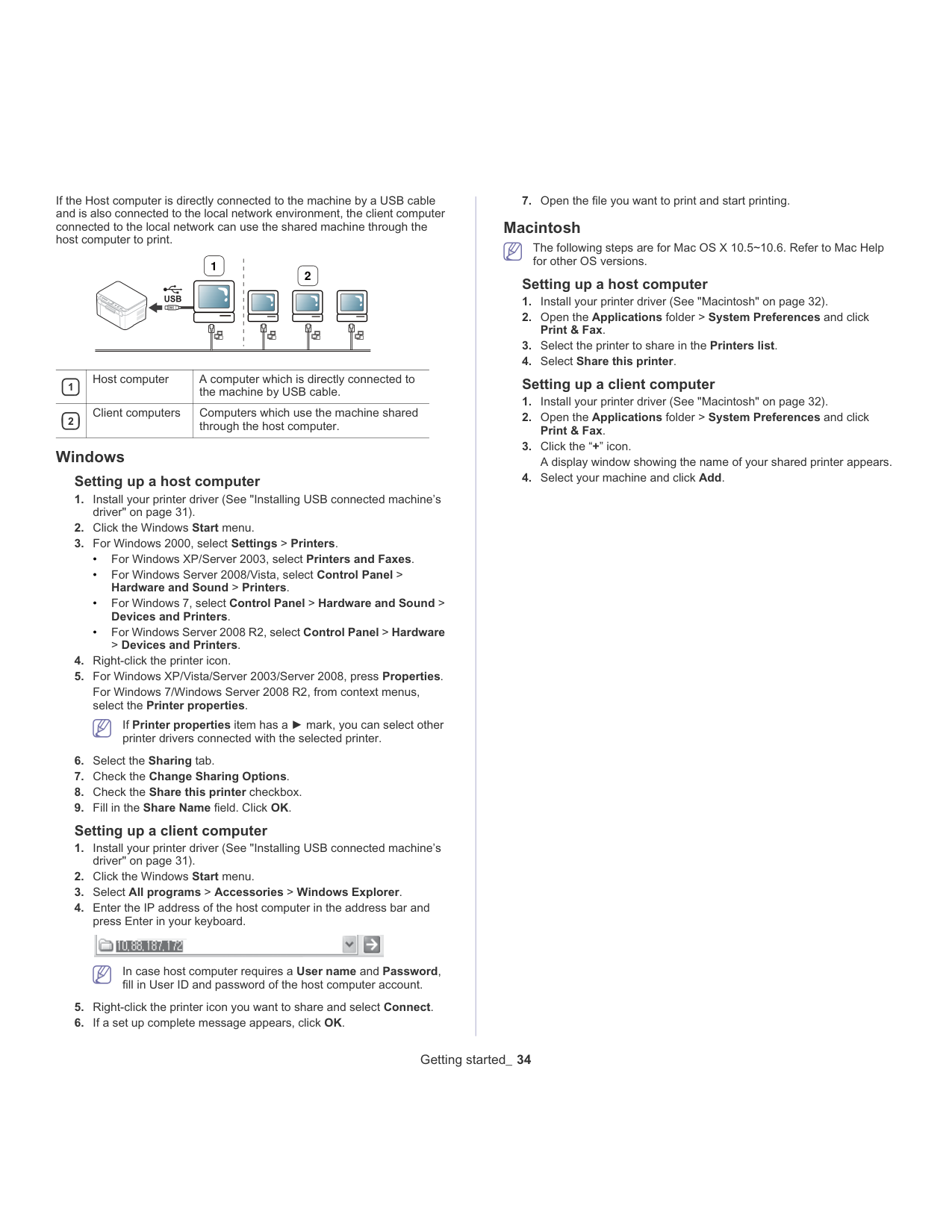

Page 35

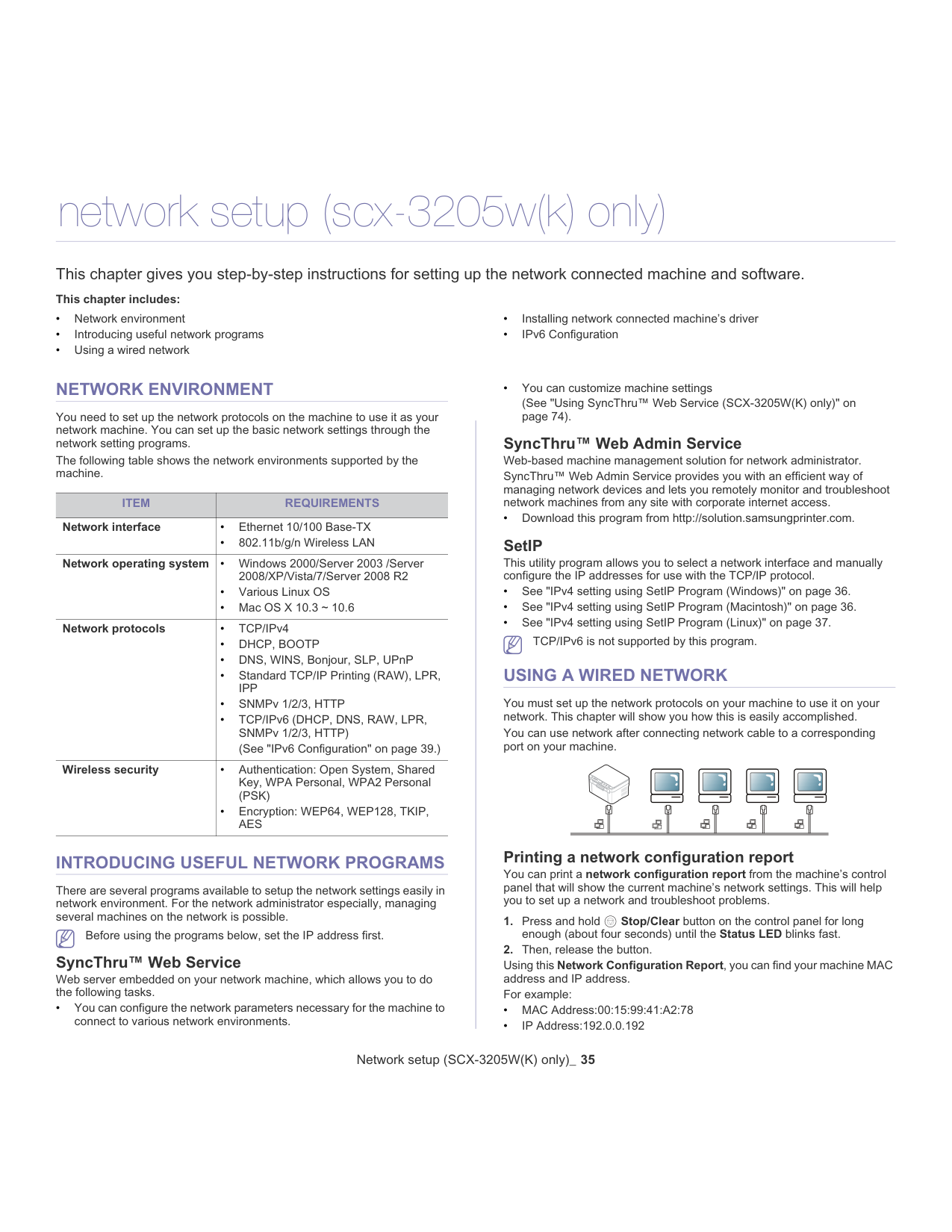

Network setup (SCX-3205W(K) only)_ 35 3.network setup (scx-3205w(k) only) This chapter gives you step-by-step instructions for setting up the network connected machine and software. This chapter includes: • Network environment • Introducing useful network programs • Using a wired network • Installing network connected machine’s driver • IPv6 Configuration

Network Environment

You need to set up the network protocols on the machine to use it as your network machine. You can set up the basic network settings through the network setting programs. The following table shows the network environments supported by the machine.

Item

Requirements

Network interface • Ethernet 10/100 Base-TX • 802.11b/g/n Wireless LAN Network operating system • Windows 2000/Server 2003 /Server 2008/XP/Vista/7/Server 2008 R2 • Various Linux OS • Mac OS X 10.3 ~ 10.6 Network protocols • TCP/IPv4 •

Dhcp, Bootp

• DNS, WINS, Bonjour, SLP, UPnP • Standard TCP/IP Printing (RAW), LPR,

Ipp

• SNMPv 1/2/3, HTTP • TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP) (See "IPv6 Configuration" on page 39.) Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal

(Psk)

• Encryption: WEP64, WEP128, TKIP,

Aes

Introducing Useful Network Programs

There are several programs available to setup the network settings easily in network environment. For the network administrator especially, managing several machines on the network is possible. Before using the programs below, set the IP address first. SyncThru™ Web Service Web server embedded on your network machine, which allows you to do the following tasks. • You can configure the network parameters necessary for the machine to connect to various network environments. • You can customize machine settings (See "Using SyncThru™ Web Service (SCX-3205W(K) only)" on page 74). SyncThru™ Web Admin Service Web-based machine management solution for network administrator. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access. • Download this program from http://solution.samsungprinter.com. SetIP This utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol. • See "IPv4 setting using SetIP Program (Windows)" on page 36. • See "IPv4 setting using SetIP Program (Macintosh)" on page 36. • See "IPv4 setting using SetIP Program (Linux)" on page 37. TCP/IPv6 is not supported by this program.

Using A Wired Network

You must set up the network protocols on your machine to use it on your network. This chapter will show you how this is easily accomplished. You can use network after connecting network cable to a corresponding port on your machine. Printing a network configuration report You can print a network configuration report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network and troubleshoot problems.

Press and hold

Stop/Clear button on the control panel for long enough (about four seconds) until the Status LED blinks fast.

Then, release the button.

Using this Network Configuration Report, you can find your machine MAC address and IP address. For example: • MAC Address:00:15:99:41:A2:78 • IP Address:192.0.0.192

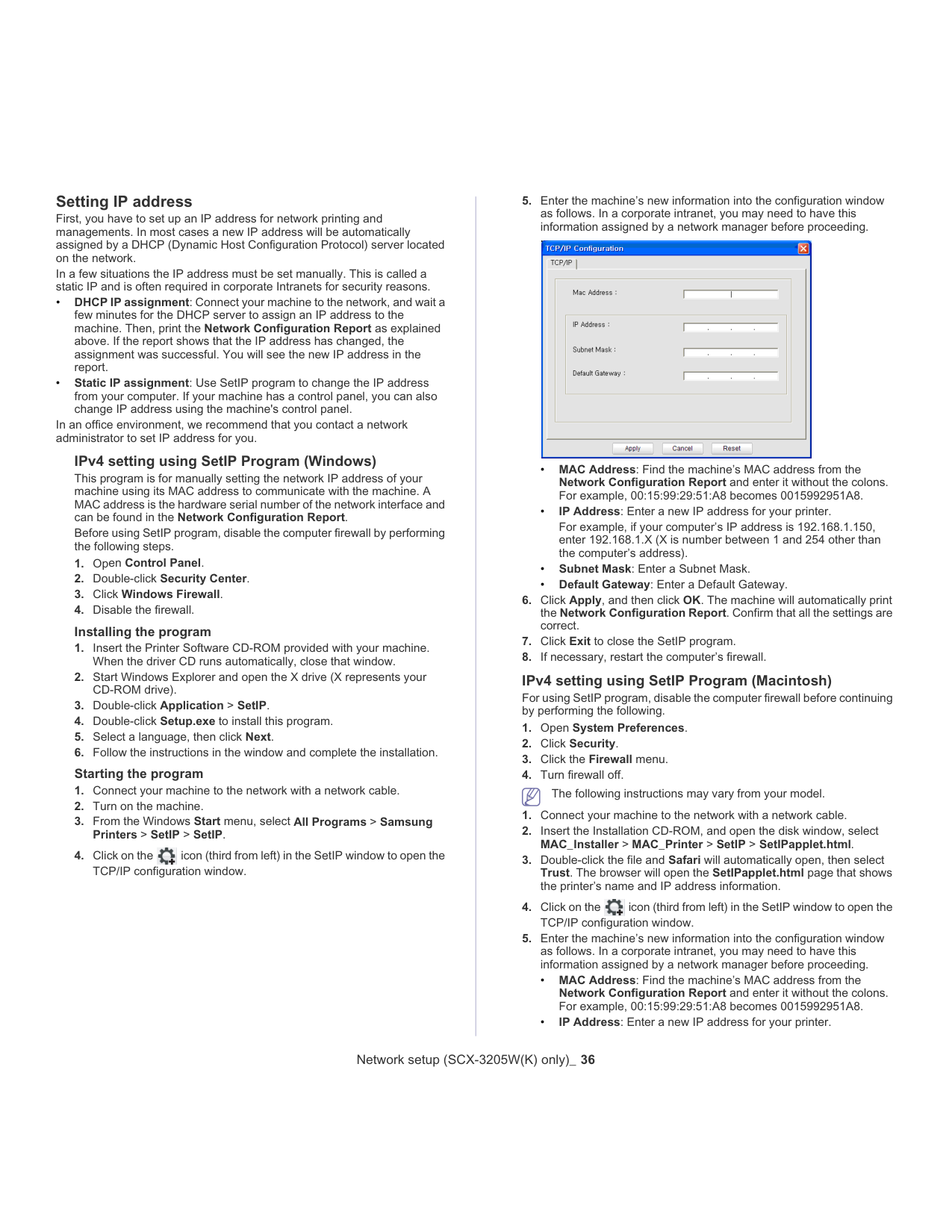

Page 36

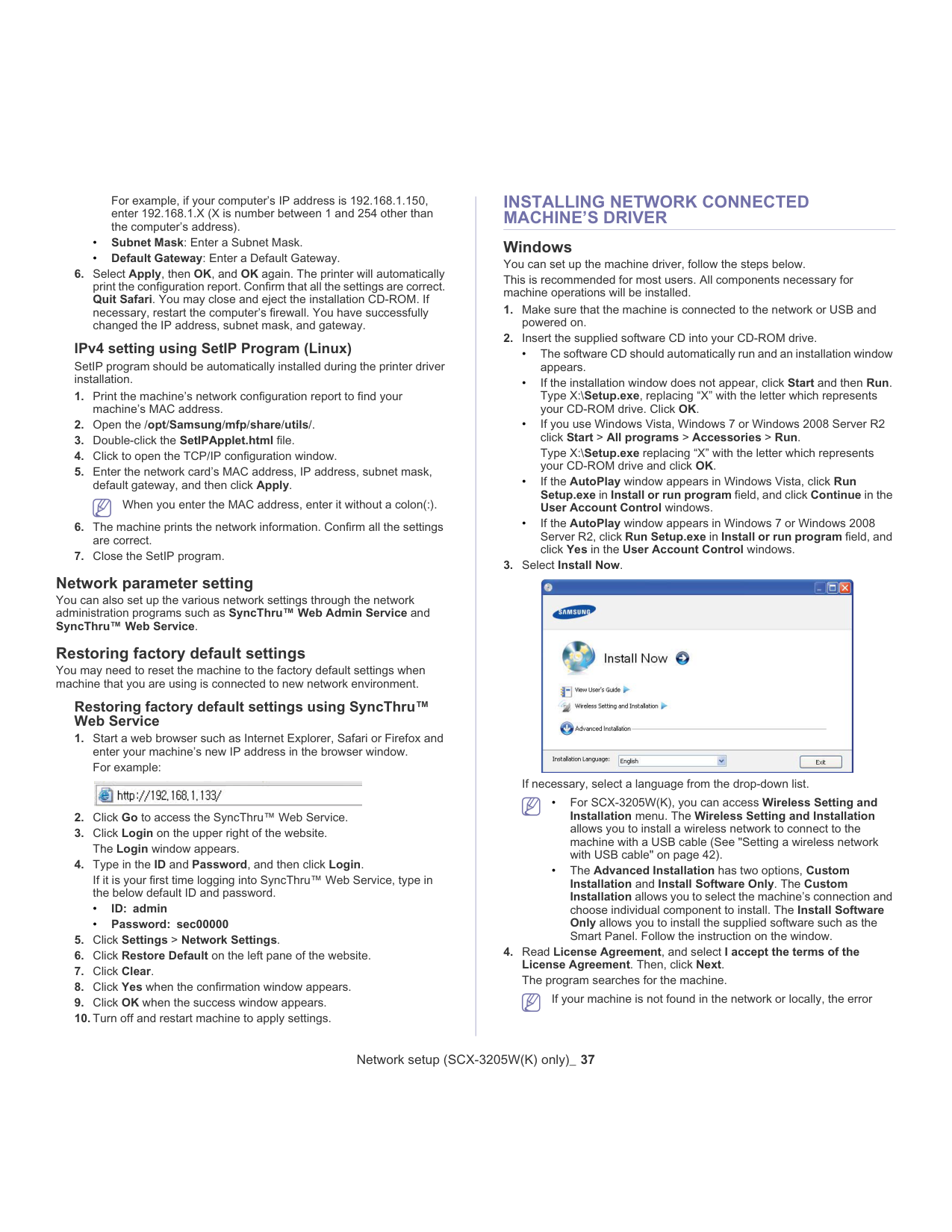

Page 37

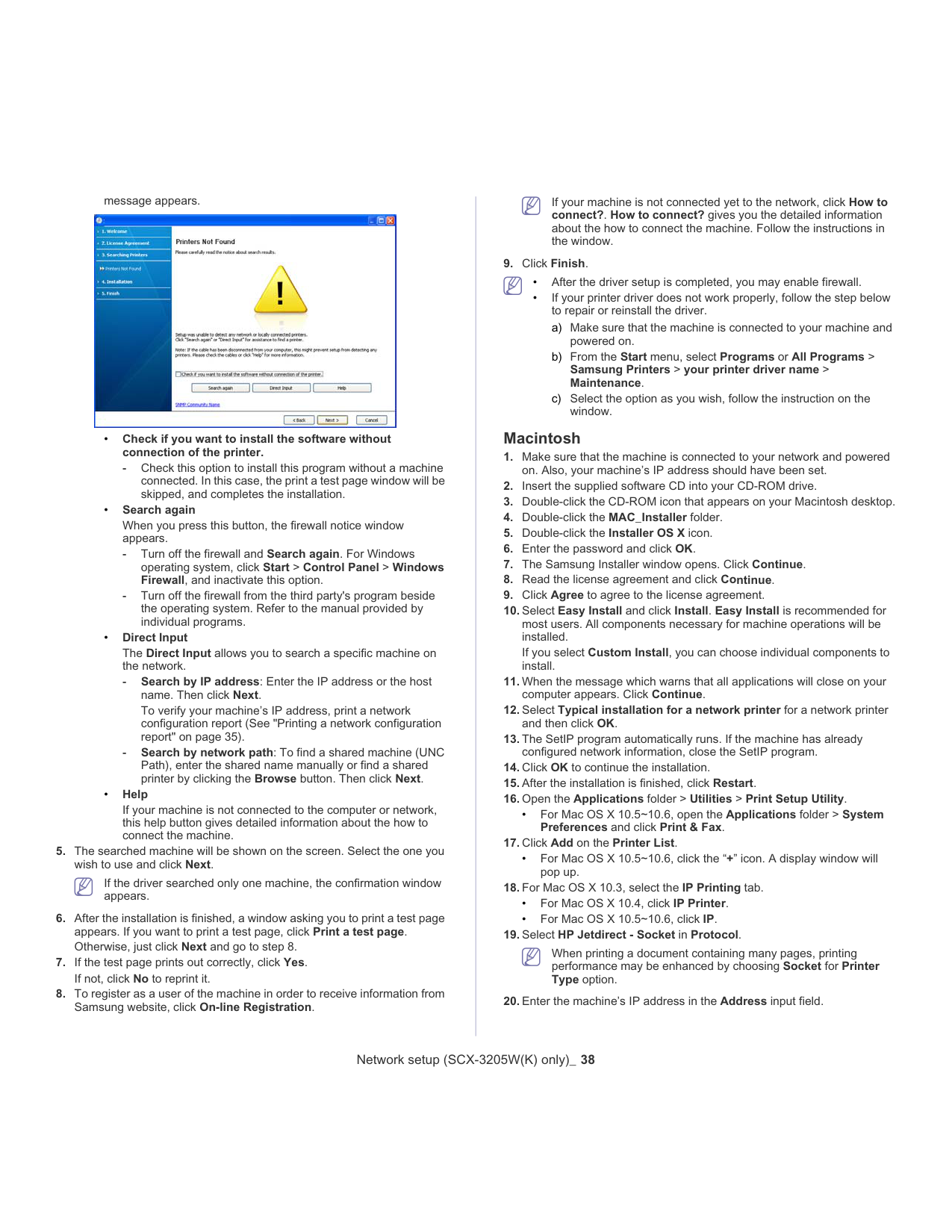

Page 38

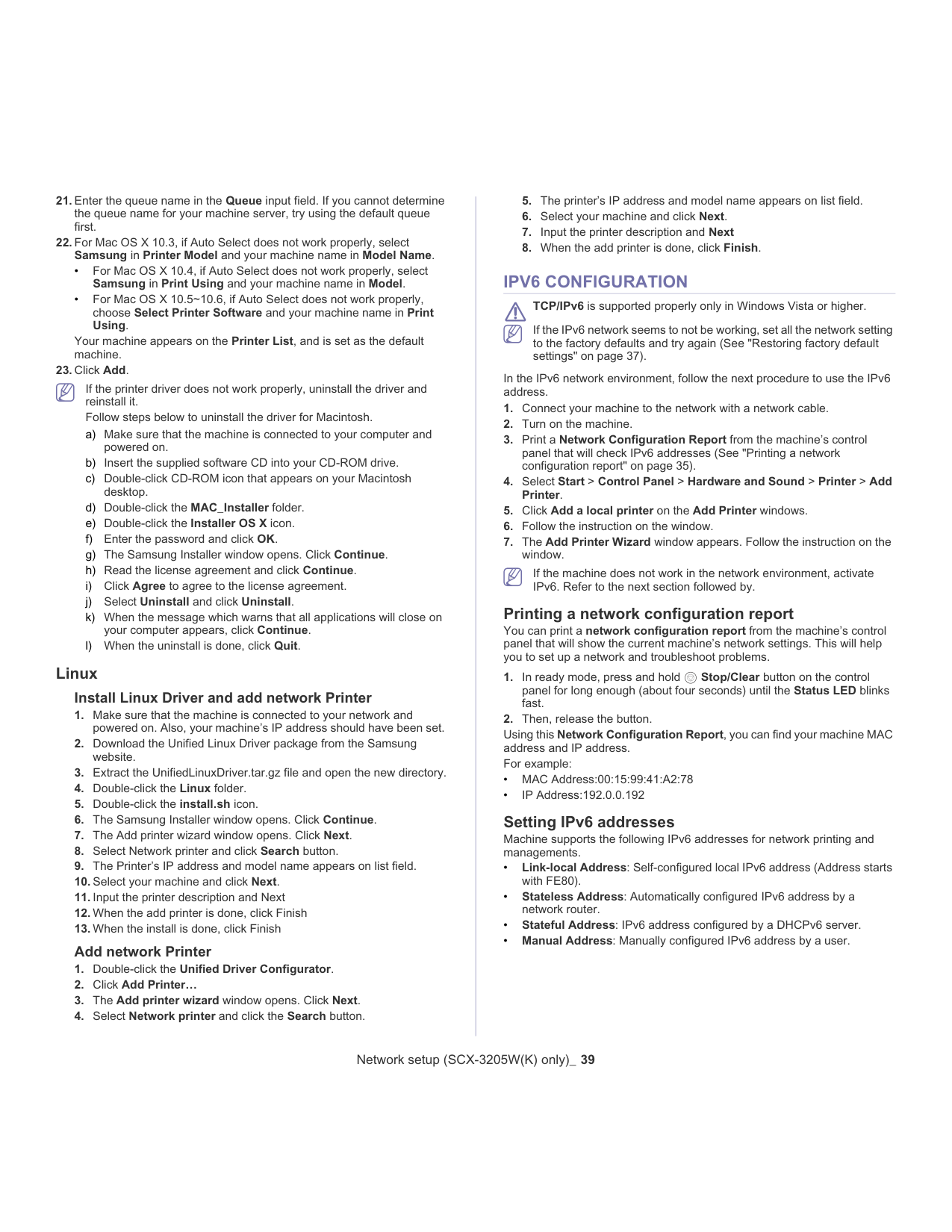

Page 39

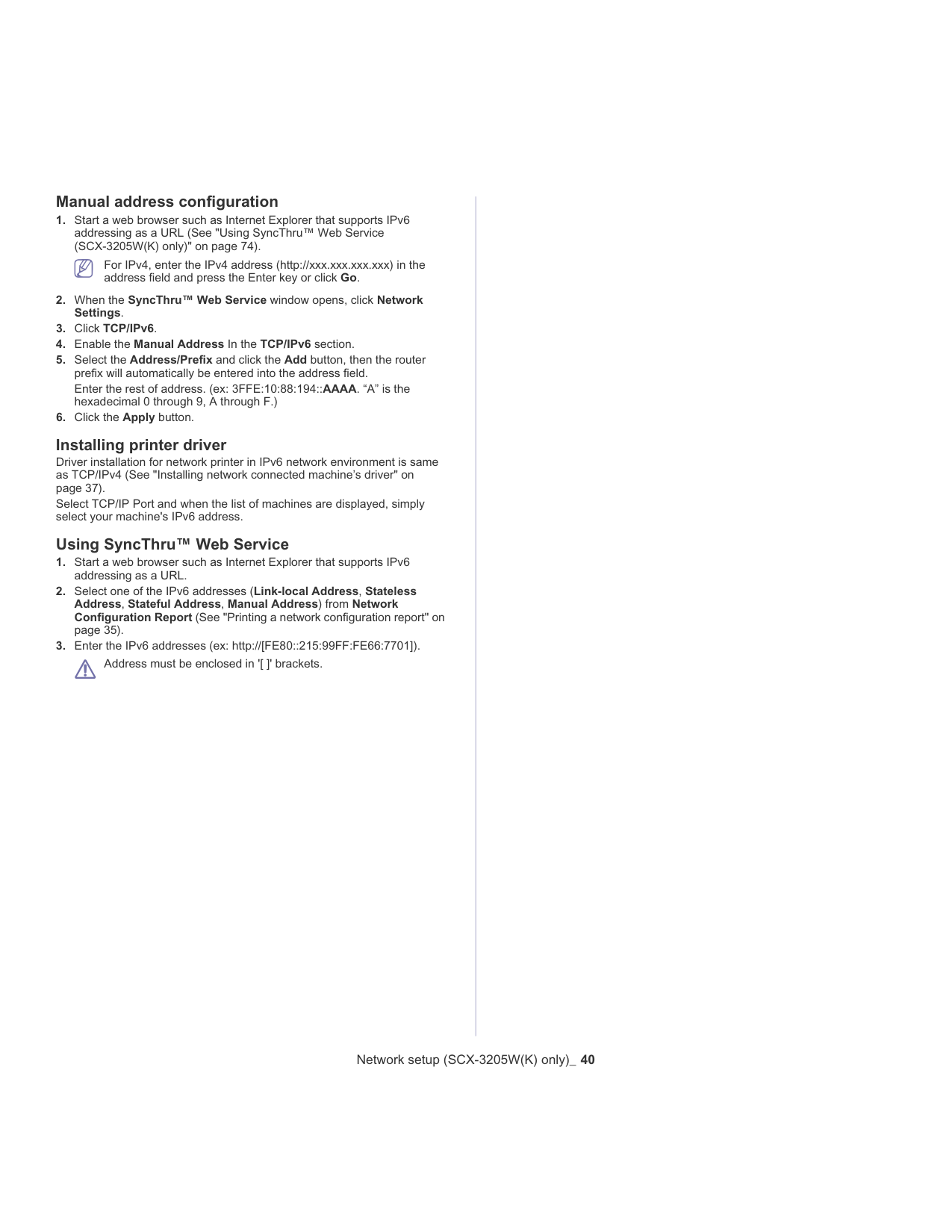

Page 40

Page 41

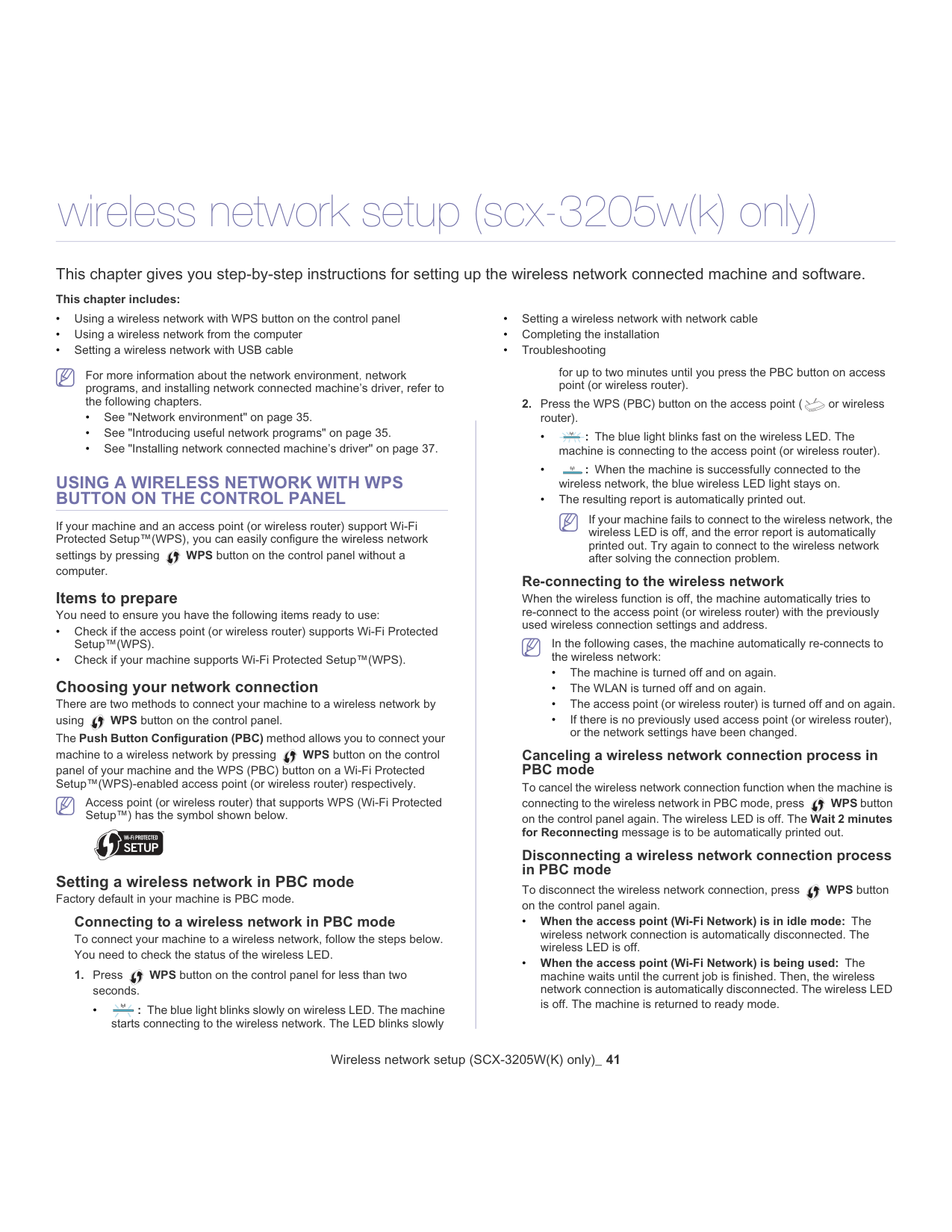

Wireless network setup (SCX-3205W(K) only)_ 41 4.wireless network setup (scx-3205w(k) only) This chapter gives you step-by-step instructions for setting up the wireless network connected machine and software. This chapter includes: • Using a wireless network with WPS button on the control panel • Using a wireless network from the computer • Setting a wireless network with USB cable • Setting a wireless network with network cable • Completing the installation • Troubleshooting For more information about the network environmentS network programs, and installing network connected machine’s driver, refer to the following chapters. • See "Network environment" on page 35. • See "Introducing useful network programs" on page 35. • See "Installing network connected machine’s driver" on page 37.

Using A Wireless Network With Wps

Button On The Control Panel

If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™(WPS), you can easily configure the wireless network settings by pressing WPS button on the control panel without a computer. Items to prepare You need to ensure you have the following items ready to use: • Check if the access point (or wireless router) supports Wi-Fi Protected Setup™(WPS). • Check if your machine supports Wi-Fi Protected Setup™(WPS). Choosing your network connection There are two methods to connect your machine to a wireless network by using WPS button on the control panel. The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing WPS button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™(WPS)-enabled access point (or wireless router) respectively. Access point (or wireless router) that supports WPS (Wi-Fi Protected Setup™) has the symbol shown below. Setting a wireless network in PBC mode Factory default in your machine is PBC mode. Connecting to a wireless network in PBC mode To connect your machine to a wireless network, follow the steps below. You need to check the status of the wireless LED.

Press

WPS button on the control panel for less than two seconds. • : The blue light blinks slowly on wireless LED. The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on access point (or wireless router).

Press the WPS (PBC) button on the access point (

or wireless router). • : The blue light blinks fast on the wireless LED. The machine is connecting to the access point (or wireless router). • : When the machine is successfully connected to the wireless network, the blue wireless LED light stays on. • The resulting report is automatically printed out. If your machine fails to connect to the wireless network, the wireless LED is off, and the error report is automatically printed out. Try again to connect to the wireless network after solving the connection problem. Re-connecting to the wireless network When the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address. In the following cases, the machine automatically re-connects to the wireless network: • The machine is turned off and on again. • The WLAN is turned off and on again. • The access point (or wireless router) is turned off and on again. • If there is no previously used access point (or wireless router), or the network settings have been changed. Canceling a wireless network connection process in PBC mode To cancel the wireless network connection function when the machine is connecting to the wireless network in PBC mode, press WPS button on the control panel again. The wireless LED is off. The Wait 2 minutes for Reconnecting message is to be automatically printed out. Disconnecting a wireless network connection process in PBC mode To disconnect the wireless network connection, press WPS button on the control panel again. • When the access point (Wi-Fi Network) is in idle mode: The wireless network connection is automatically disconnected. The wireless LED is off. • When the access point (Wi-Fi Network) is being used: The machine waits until the current job is finished. Then, the wireless network connection is automatically disconnected. The wireless LED is off. The machine is returned to ready mode.

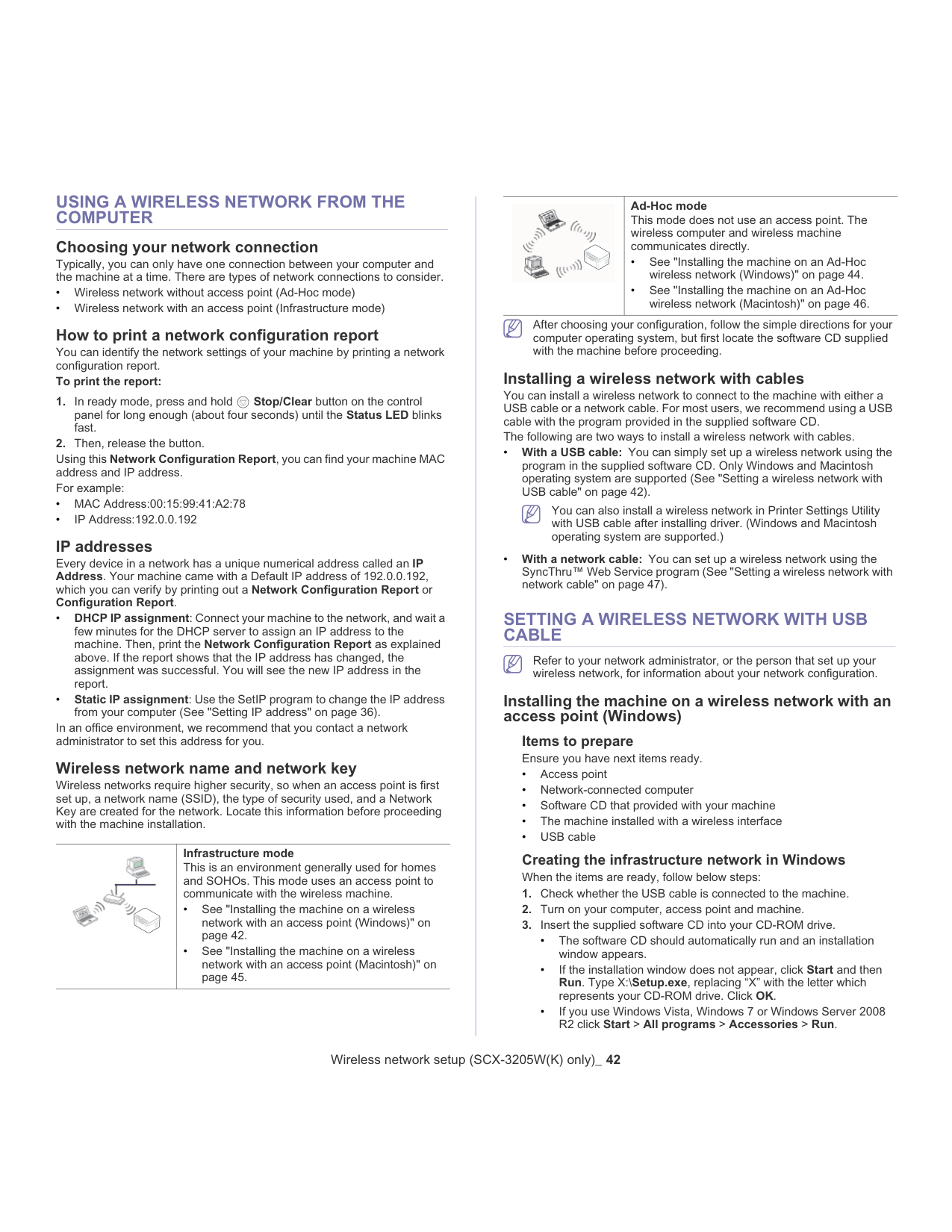

Page 42

Wireless network setup (SCX-3205W(K) only)_ 42

Using A Wireless Network From The

Computer

Choosing your network connection Typically, you can only have one connection between your computer and the machine at a time. There are types of network connections to consider. • Wireless network without access point (Ad-Hoc mode) • Wireless network with an access point (Infrastructure mode) How to print a network configuration report You can identify the network settings of your machine by printing a network configuration report. To print the report:

In ready mode, press and hold

Stop/Clear button on the control panel for long enough (about four seconds) until the Status LED blinks fast.

Then, release the button.

Using this Network Configuration Report, you can find your machine MAC address and IP address. For example: • MAC Address:00:15:99:41:A2:78 • IP Address:192.0.0.192 IP addresses Every device in a network has a unique numerical address called an IP Address. Your machine came with a Default IP address of 192.0.0.192, which you can verify by printing out a Network Configuration Report or Configuration Report. • DHCP IP assignment: Connect your machine to the network, and wait a few minutes for the DHCP server to assign an IP address to the machine. Then, print the Network Configuration Report as explained above. If the report shows that the IP address has changed, the assignment was successful. You will see the new IP address in the report. • Static IP assignment: Use the SetIP program to change the IP address from your computer (See "Setting IP address" on page 36). In an office environment, we recommend that you contact a network administrator to set this address for you. Wireless network name and network key Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Key are created for the network. Locate this information before proceeding with the machine installation. Infrastructure mode This is an environment generally used for homes and SOHOs. This mode uses an access point to communicate with the wireless machine. • See "Installing the machine on a wireless network with an access point (Windows)" on page 42. • See "Installing the machine on a wireless network with an access point (Macintosh)" on page 45. Ad-Hoc mode This mode does not use an access point. The wireless computer and wireless machine communicates directly. • See "Installing the machine on an Ad-Hoc wireless network (Windows)" on page 44. • See "Installing the machine on an Ad-Hoc wireless network (Macintosh)" on page 46. After choosing your configuration, follow the simple directions for your computer operating system, but first locate the software CD supplied with the machine before proceeding. Installing a wireless network with cables You can install a wireless network to connect to the machine with either a USB cable or a network cable. For most users, we recommend using a USB cable with the program provided in the supplied software CD. The following are two ways to install a wireless network with cables. • With a USB cable: You can simply set up a wireless network using the program in the supplied software CD. Only Windows and Macintosh operating system are supported (See "Setting a wireless network with USB cable" on page 42). You can also install a wireless network in Printer Settings Utility with USB cable after installing driver. (Windows and Macintosh operating system are supported.) • With a network cable: You can set up a wireless network using the SyncThru™ Web Service program (See "Setting a wireless network with network cable" on page 47).

Setting A Wireless Network With Usb

Cable

Refer to your network administrator, or the person that set up your wireless network, for information about your network configuration. Installing the machine on a wireless network with an access point (Windows) Items to prepare Ensure you have next items ready. • Access point • Network-connected computer • Software CD that provided with your machine • The machine installed with a wireless interface • USB cable Creating the infrastructure network in Windows When the items are ready, follow below steps:

Check whether the USB cable is connected to the machine.

Turn on your computer, access point and machine.

Insert the supplied software CD into your CD-ROM drive.

• The software CD should automatically run and an installation window appears. • If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your CD-ROM drive. Click OK. • If you use Windows Vista, Windows 7 or Windows Server 2008 R2 click Start > All programs > Accessories > Run.

Page 43

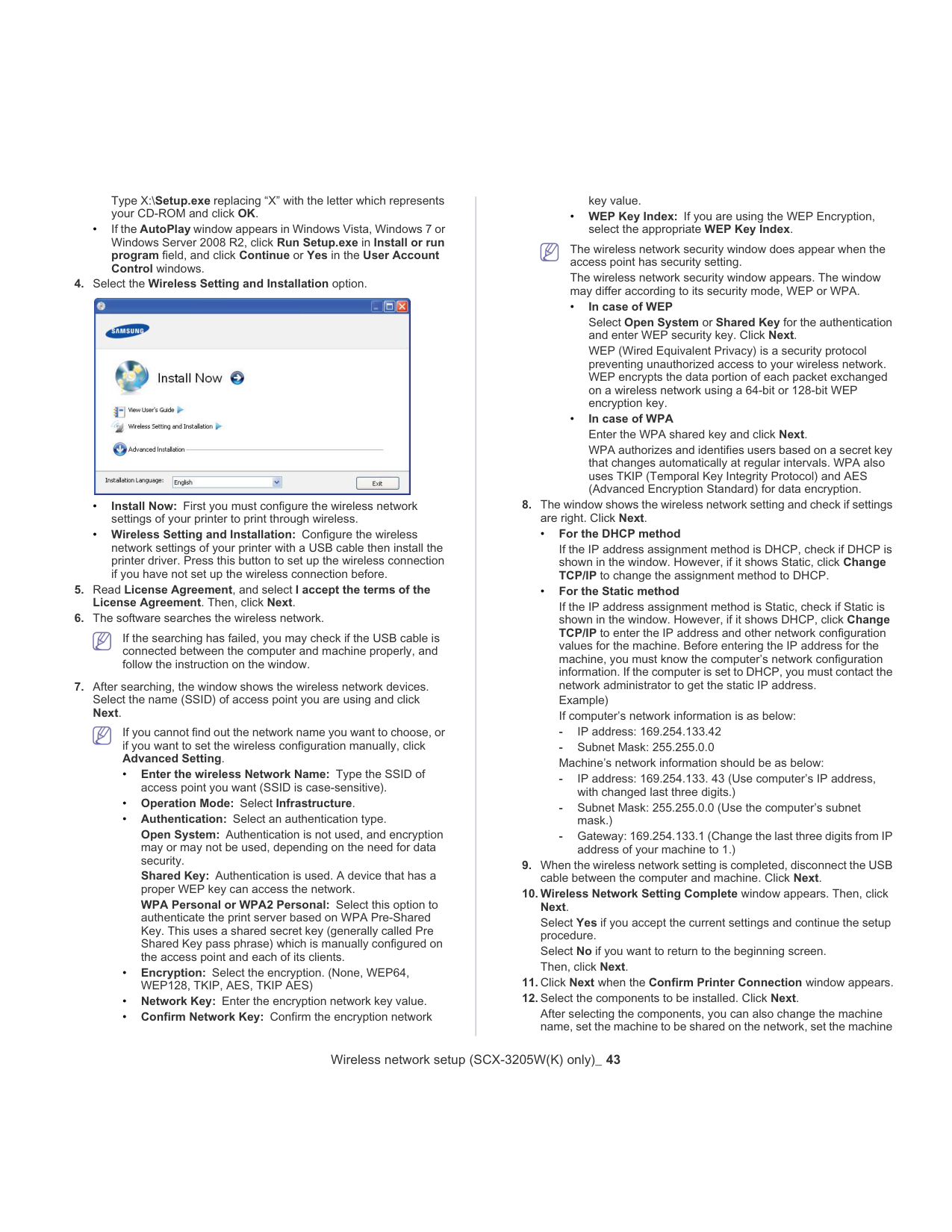

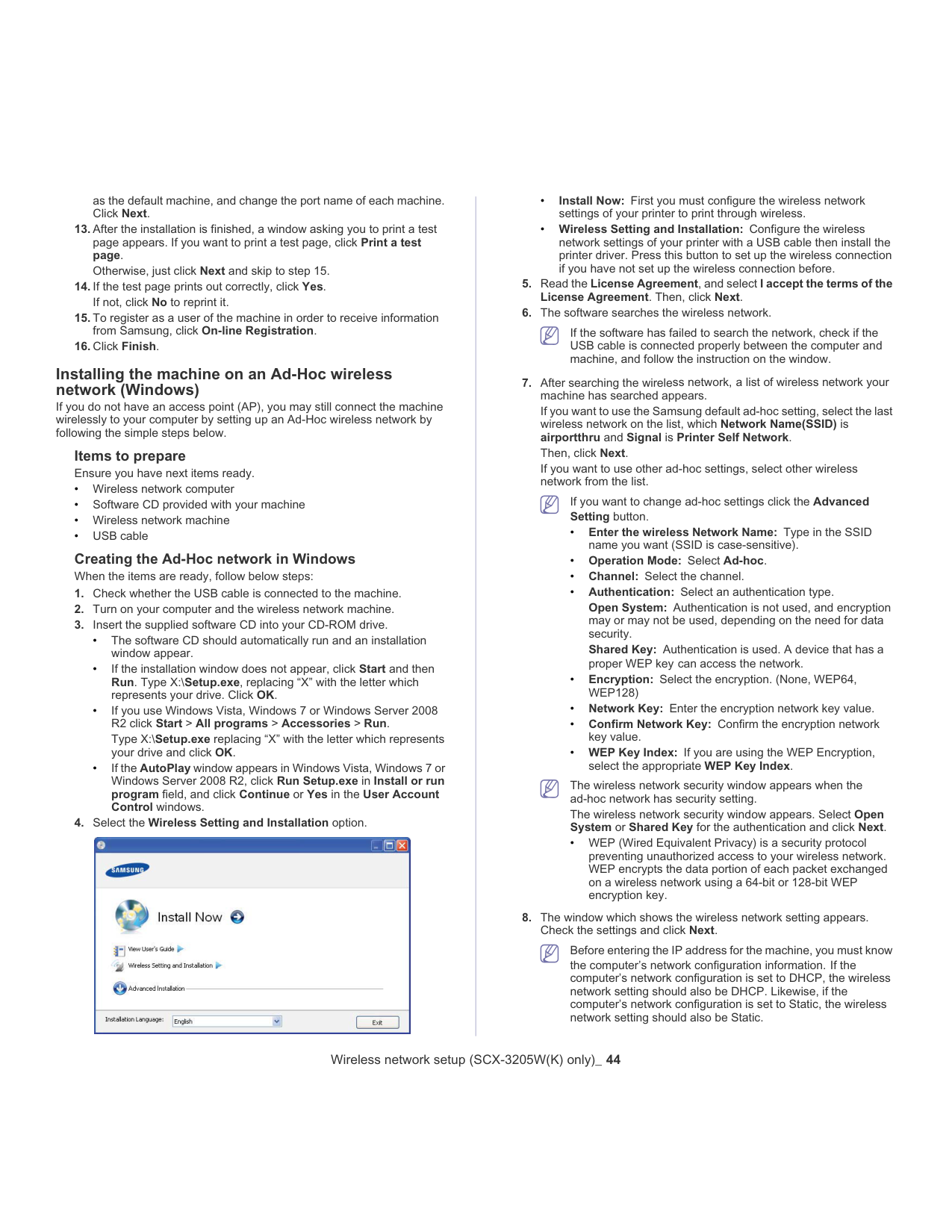

Page 44

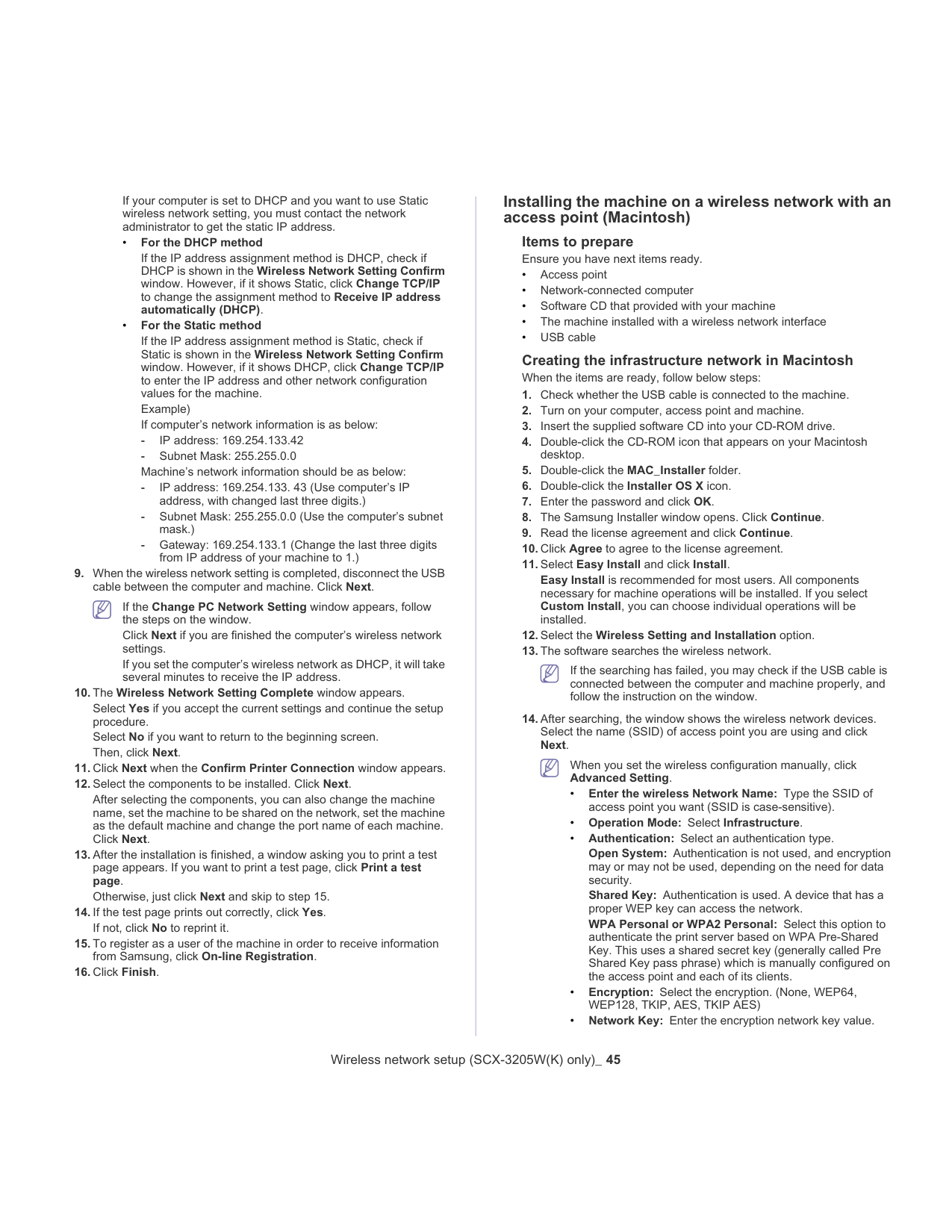

Page 45

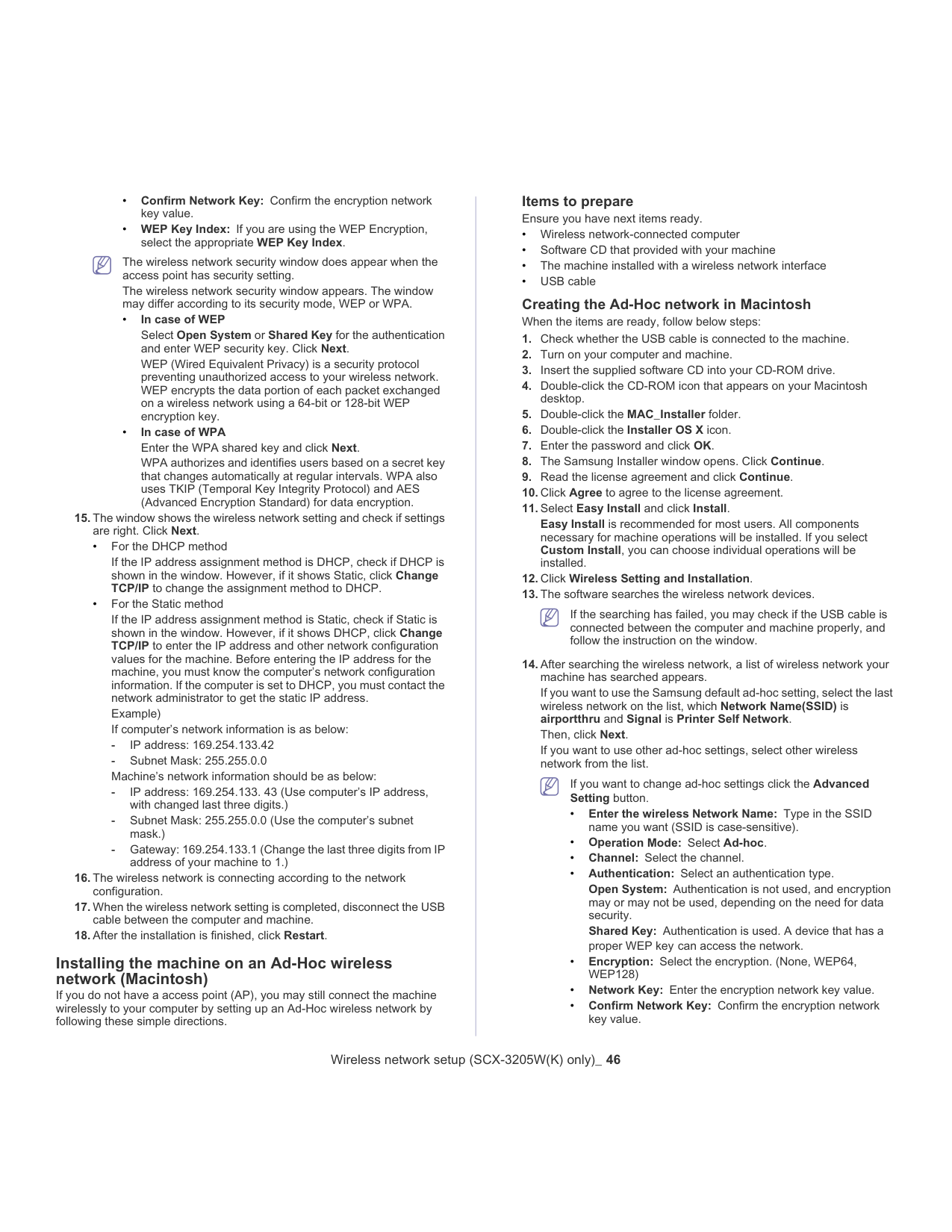

Page 46

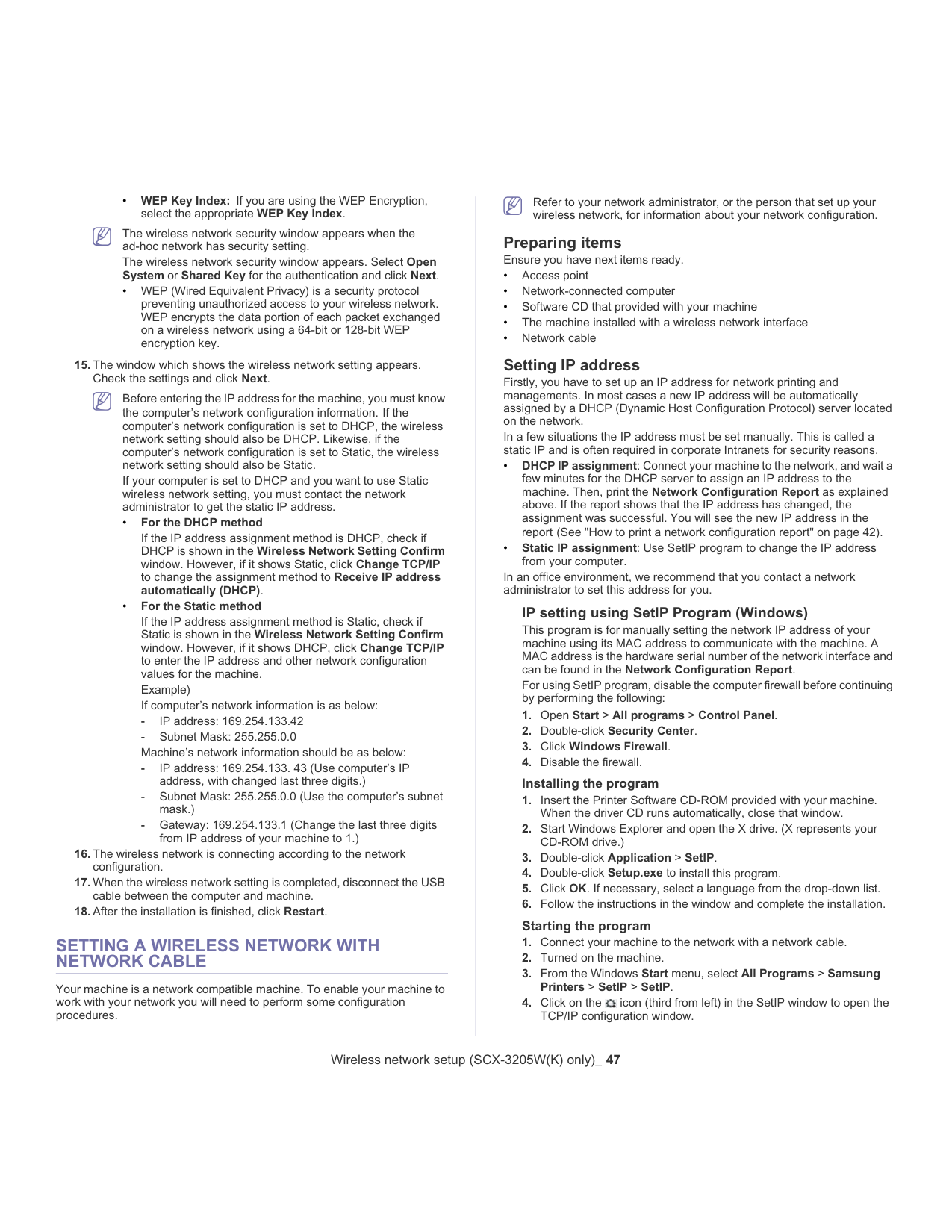

Page 47

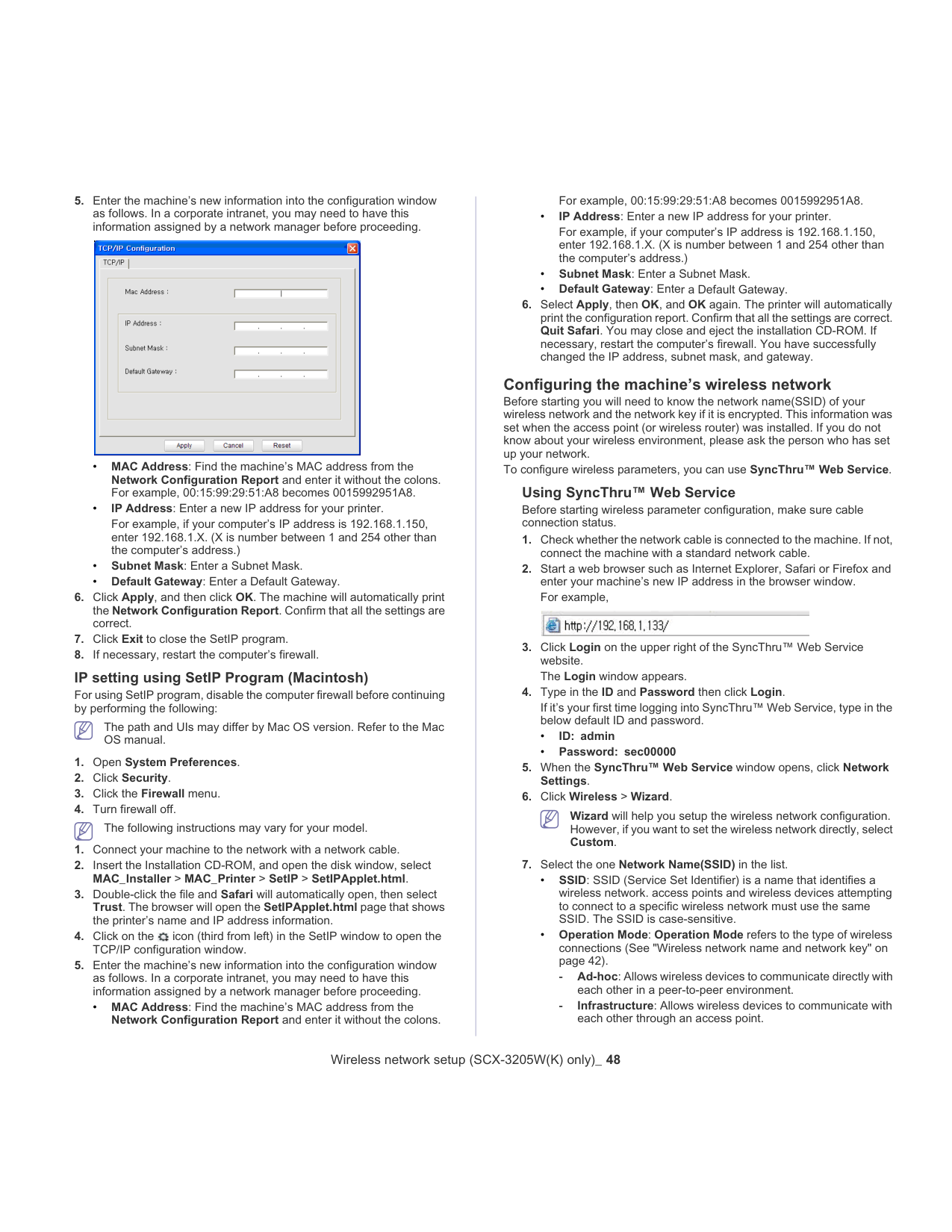

Page 48

Page 49

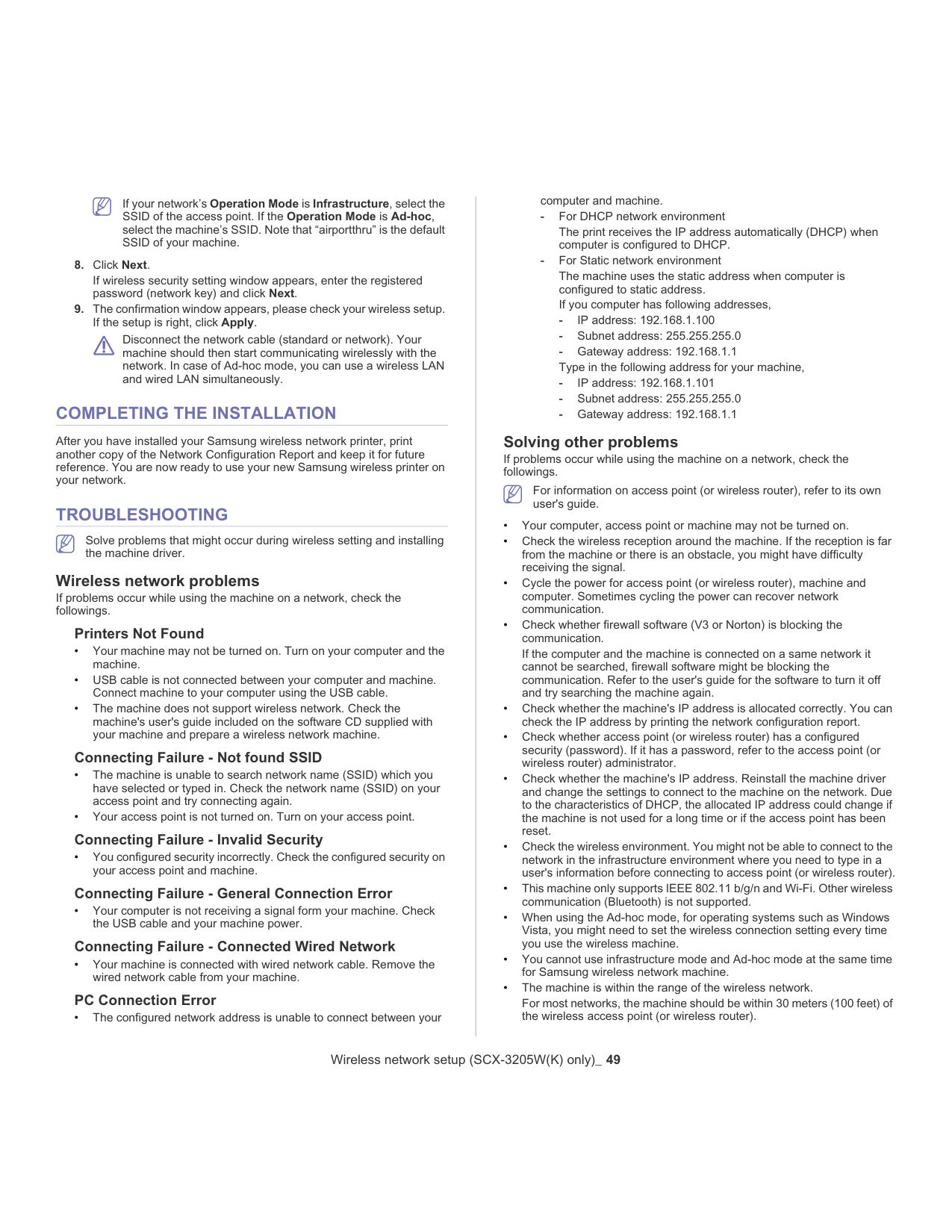

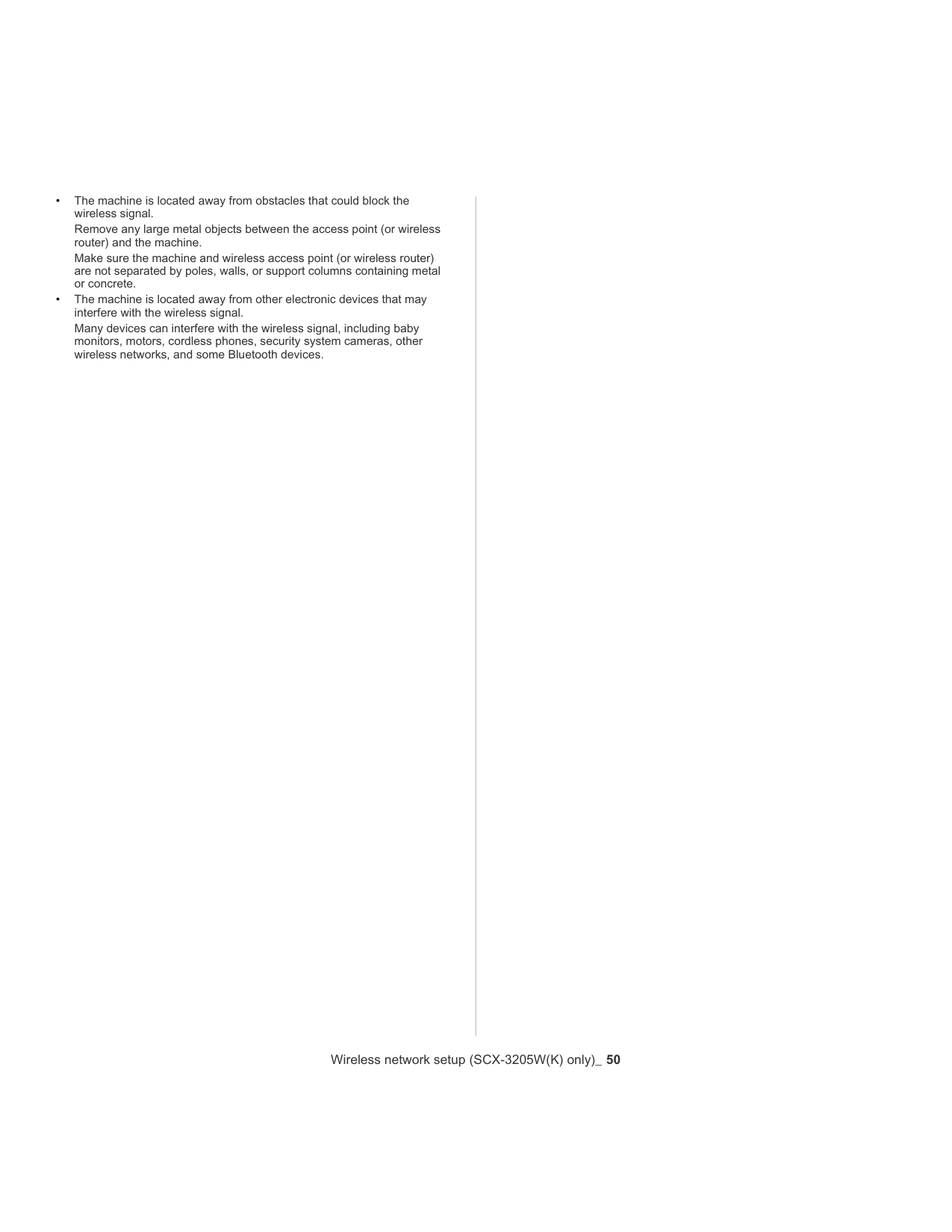

Page 50

Page 51

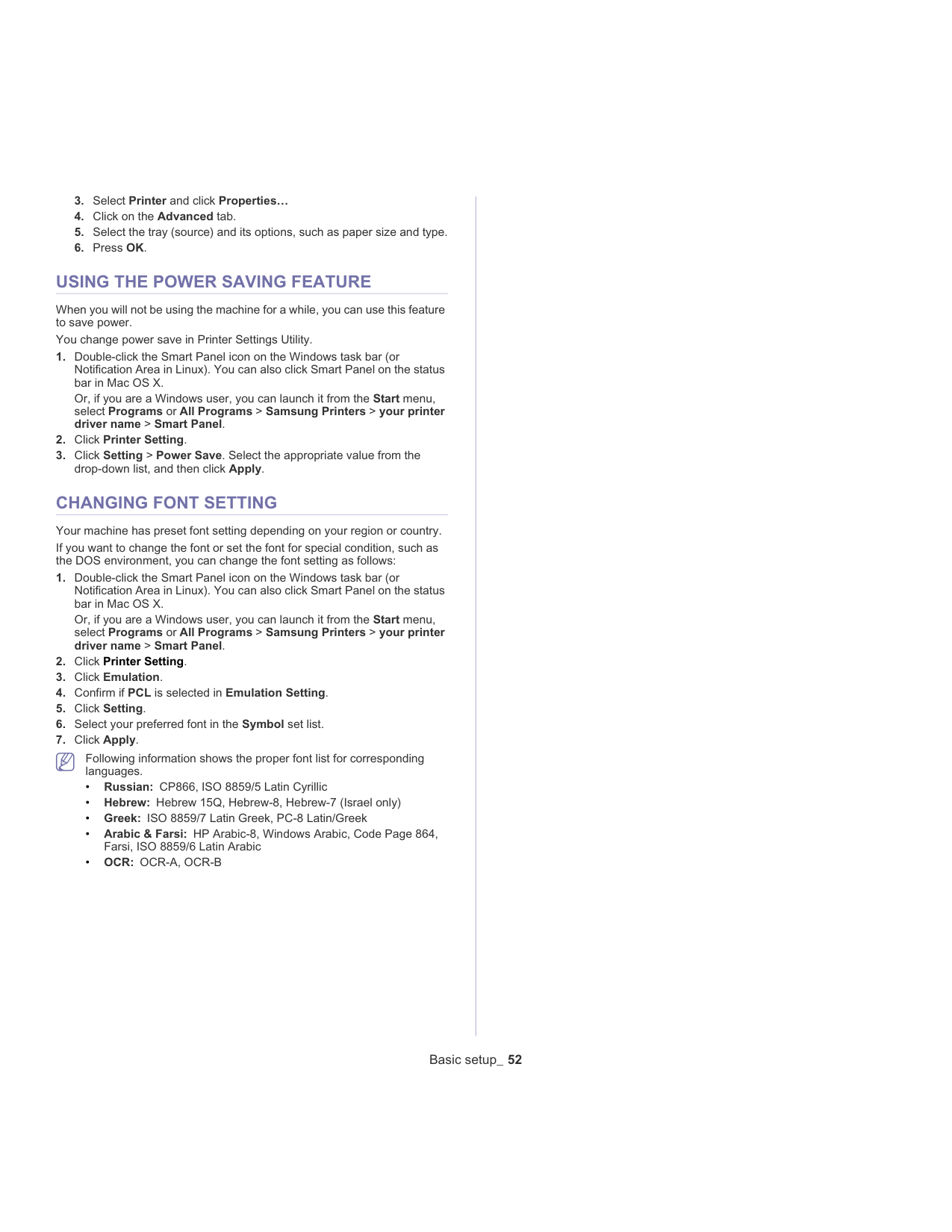

Page 52

Page 53

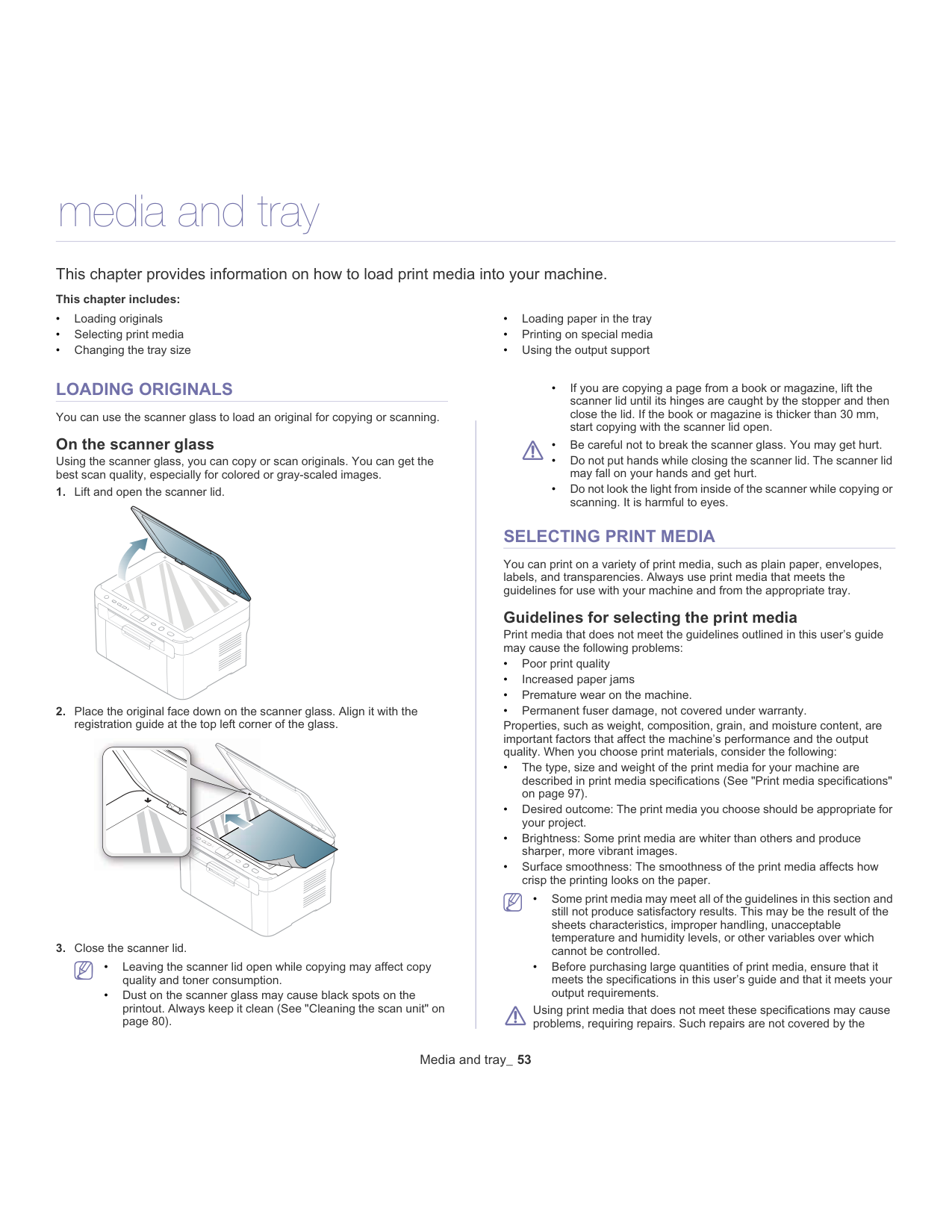

Media and tray_ 53 6.media and tray This chapter provides information on how to load print media into your machine. This chapter includes: • Loading originals • Selecting print media • Changing the tray size • Loading paper in the tray • Printing on special media • Using the output support

Loading Originals

You can use the scanner glass to load an original for copying or scanning. On the scanner glass Using the scanner glass, you can copy or scan originals. You can get the best scan quality, especially for colored or gray-scaled images.

Lift and open the scanner lid.

Place the original face down on the scanner glass. Align it with the

registration guide at the top left corner of the glass.

Close the scanner lid.

• Leaving the scanner lid open while copying may affect copy quality and toner consumption. • Dust on the scanner glass may cause black spots on the printout. Always keep it clean (See "Cleaning the scan unit" on page 80). • If you are copying a page from a book or magazine, lift the scanner lid until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm, start copying with the scanner lid open. • Be careful not to break the scanner glass. You may get hurt. • Do not put hands while closing the scanner lid. The scanner lid may fall on your hands and get hurt. • Do not look the light from inside of the scanner while copying or scanning. It is harmful to eyes.

Selecting Print Media

You can print on a variety of print media, such as plain paper, envelopes, labels, and transparencies. Always use print media that meets the guidelines for use with your machine and from the appropriate tray. Guidelines for selecting the print media Print media that does not meet the guidelines outlined in this user’s guide may cause the following problems: • Poor print quality • Increased paper jams • Premature wear on the machine. • Permanent fuser damage, not covered under warranty. Properties, such as weight, composition, grain, and moisture content, are important factors that affect the machine’s performance and the output quality. When you choose print materials, consider the following: • The type, size and weight of the print media for your machine are described in print media specifications (See "Print media specifications" on page 97). • Desired outcome: The print media you choose should be appropriate for your project. • Brightness: Some print media are whiter than others and produce sharper, more vibrant images. • Surface smoothness: The smoothness of the print media affects how crisp the printing looks on the paper. • Some print media may meet all of the guidelines in this section and still not produce satisfactory results. This may be the result of the sheets characteristics, improper handling, unacceptable temperature and humidity levels, or other variables over which cannot be controlled. • Before purchasing large quantities of print media, ensure that it meets the specifications in this user’s guide and that it meets your output requirements. Using print media that does not meet these specifications may cause problems, requiring repairs. Such repairs are not covered by the

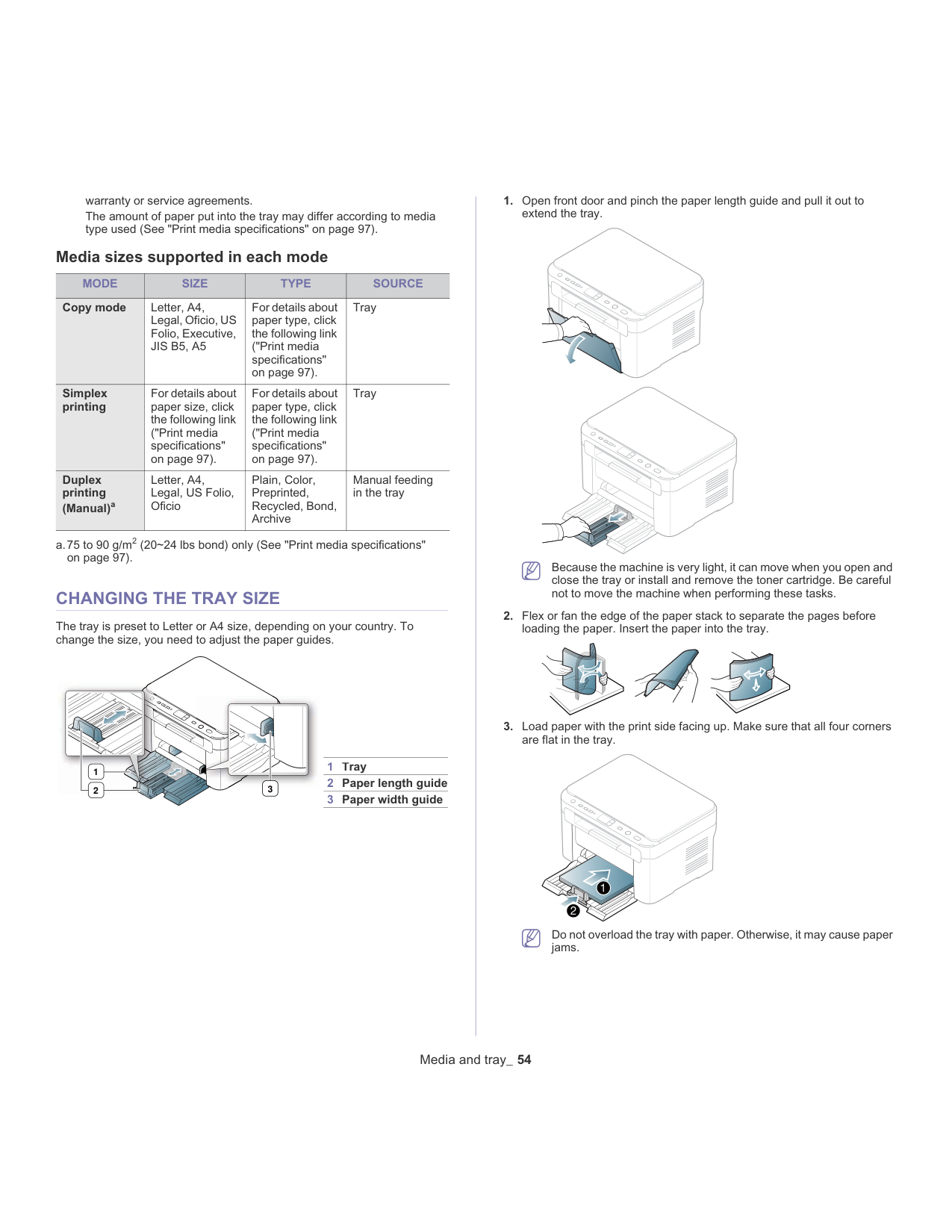

Page 54

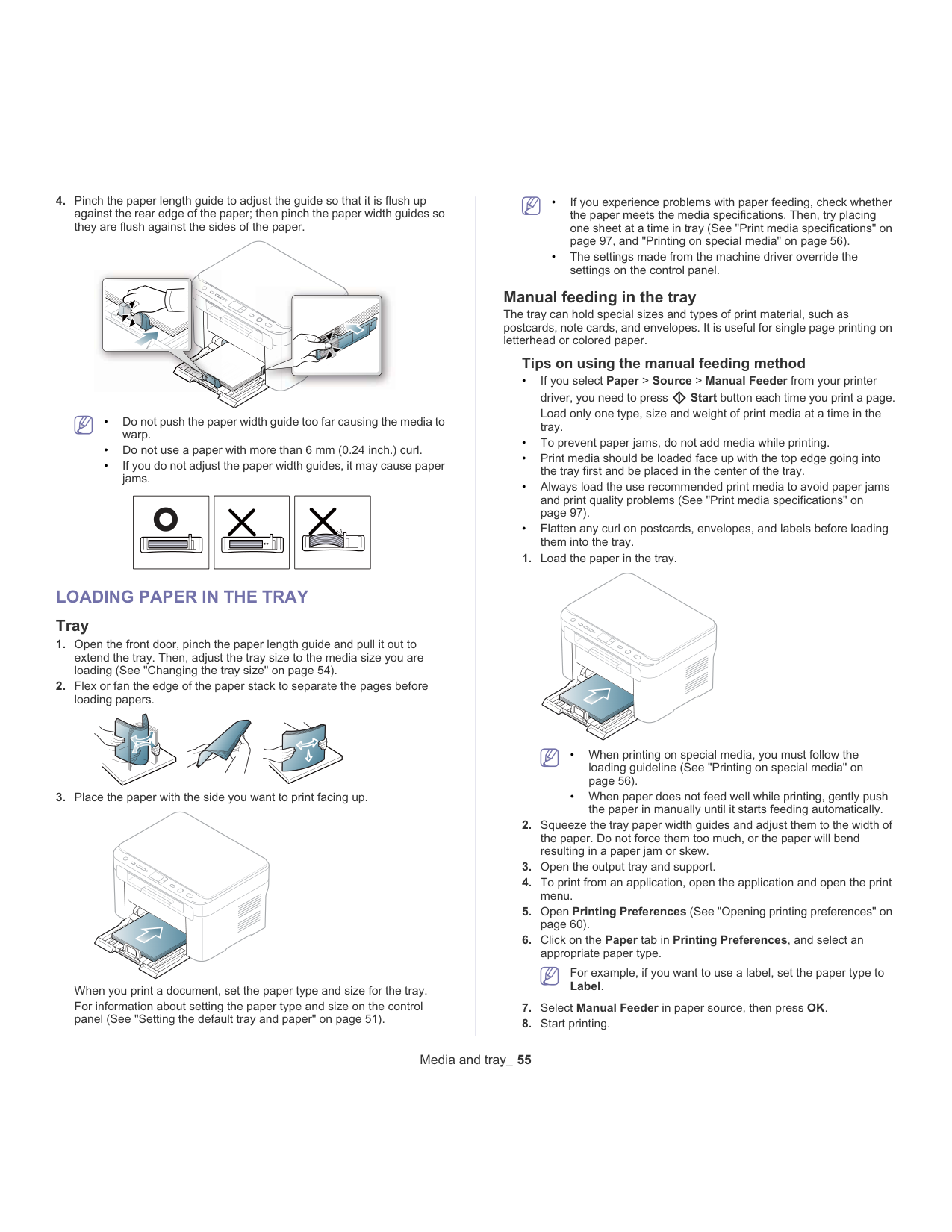

Page 55

Page 56

Media and tray_ 56 If you are printing multiple pages, load the next sheet after the first page prints out, and press Start button. Repeat this step for every page to be printed.

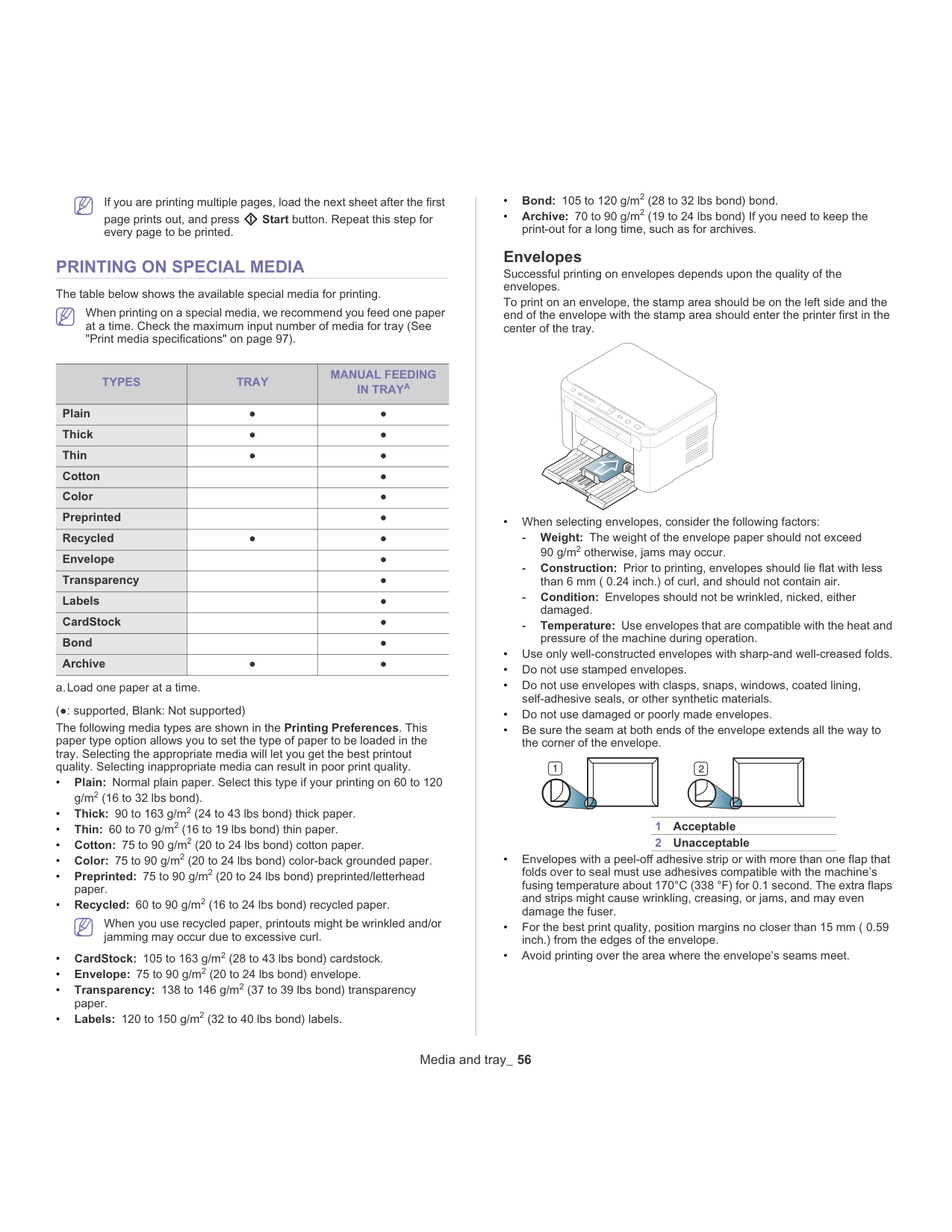

Printing On Special Media

The table below shows the available special media for printing. When printing on a special media, we recommend you feed one paper at a time. Check the maximum input number of media for tray (See "Print media specifications" on page 97).

Types

Tray

Manual Feeding

In Traya

a.Load one paper at a time. Plain

Ɣ

Thick

Ɣ

Thin

Ɣ

Cotton

Ɣ

Color

Ɣ

Preprinted

Ɣ

Recycled

Ɣ

Envelope

Ɣ

Transparency

Ɣ

Labels

Ɣ

CardStock

Ɣ

Bond

Ɣ

(Ɣ: supported, Blank: Not supported) The following media types are shown in the Printing Preferences. This paper type option allows you to set the type of paper to be loaded in the tray. Selecting the appropriate media will let you get the best printout quality. Selecting inappropriate media can result in poor print quality. • Plain: Normal plain paper. Select this type if your printing on 60 to 120 g/m2 (16 to 32 lbs bond). • Thick: 90 to 163 g/m2 (24 to 43 lbs bond) thick paper. • Thin: 60 to 70 g/m2 (16 to 19 lbs bond) thin paper. • Cotton: 75 to 90 g/m2 (20 to 24 lbs bond) cotton paper. • Color: 75 to 90 g/m2 (20 to 24 lbs bond) color-back grounded paper. • Preprinted: 75 to 90 g/m2 (20 to 24 lbs bond) preprinted/letterhead paper. • Recycled: 60 to 90 g/m2 (16 to 24 lbs bond) recycled paper. When you use recycled paper, printouts might be wrinkled and/or jamming may occur due to excessive curl. • CardStock: 105 to 163 g/m2 (28 to 43 lbs bond) cardstock. • Envelope: 75 to 90 g/m2 (20 to 24 lbs bond) envelope. • Transparency: 138 to 146 g/m2 (37 to 39 lbs bond) transparency paper. • Labels: 120 to 150 g/m2 (32 to 40 lbs bond) labels. • Bond: 105 to 120 g/m2 (28 to 32 lbs bond) bond. • Archive: 70 to 90 g/m2 (19 to 24 lbs bond) If you need to keep the print-out for a long time, such as for archives. Envelopes Successful printing on envelopes depends upon the quality of the envelopes. To print on an envelope, the stamp area should be on the left side and the end of the envelope with the stamp area should enter the printer first in the center of the tray. • When selecting envelopes, consider the following factors:

Weight: The weight of the envelope paper should not exceed

90 g/m2 otherwise, jams may occur.

Construction: Prior to printing, envelopes should lie flat with less

than 6 mm ( 0.24 inch.) of curl, and should not contain air.

Condition: Envelopes should not be wrinkled, nicked, either

damaged.

Temperature: Use envelopes that are compatible with the heat and

pressure of the machine during operation. • Use only well-constructed envelopes with sharp-and well-creased folds. • Do not use stamped envelopes. • Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials. • Do not use damaged or poorly made envelopes. • Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope. 1 Acceptable 2 Unacceptable • Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature about 170°C (338 °F) for 0.1 second. The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser. • For the best print quality, position margins no closer than 15 mm ( 0.59 inch.) from the edges of the envelope. • Avoid printing over the area where the envelope’s seams meet.

Page 57

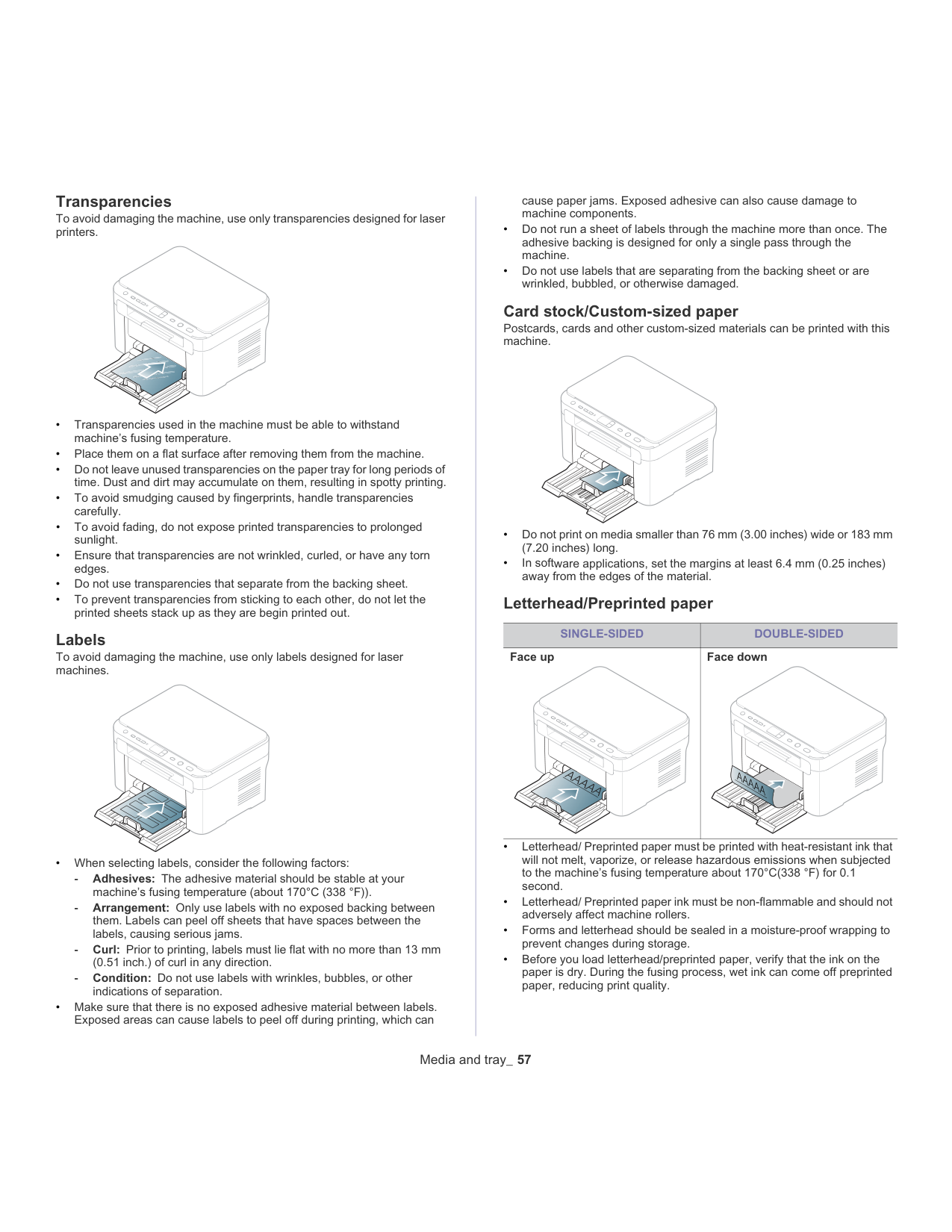

Media and tray_ 57 Transparencies To avoid damaging the machine, use only transparencies designed for laser printers. • Transparencies used in the machine must be able to withstand machine’s fusing temperature. • Place them on a flat surface after removing them from the machine. • Do not leave unused transparencies on the paper tray for long periods of time. Dust and dirt may accumulate on them, resulting in spotty printing. • To avoid smudging caused by fingerprints, handle transparencies carefully. • To avoid fading, do not expose printed transparencies to prolonged sunlight. • Ensure that transparencies are not wrinkled, curled, or have any torn edges. • Do not use transparencies that separate from the backing sheet. • To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are begin printed out. Labels To avoid damaging the machine, use only labels designed for laser machines. • When selecting labels, consider the following factors:

Adhesives: The adhesive material should be stable at your

machine’s fusing temperature (about 170°C (338 °F)).

Arrangement: Only use labels with no exposed backing between

them. Labels can peel off sheets that have spaces between the labels, causing serious jams.

Curl: Prior to printing, labels must lie flat with no more than 13 mm

(0.51 inch.) of curl in any direction.

Condition: Do not use labels with wrinkles, bubbles, or other

indications of separation. • Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components. • Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine. • Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged. Card stock/Custom-sized paper Postcards, cards and other custom-sized materials can be printed with this machine. • Do not print on media smaller than 76 mm (3.00 inches) wide or 183 mm (7.20 inches) long. • In software applications, set the margins at least 6.4 mm (0.25 inches) away from the edges of the material. Letterhead/Preprinted paper

Single-Sided

Double-Sided

Face up Face down • Letterhead/ Preprinted paper must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature about 170°C(338 °F) for 0.1 second. • Letterhead/ Preprinted paper ink must be non-flammable and should not adversely affect machine rollers. • Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage. • Before you load letterhead/preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

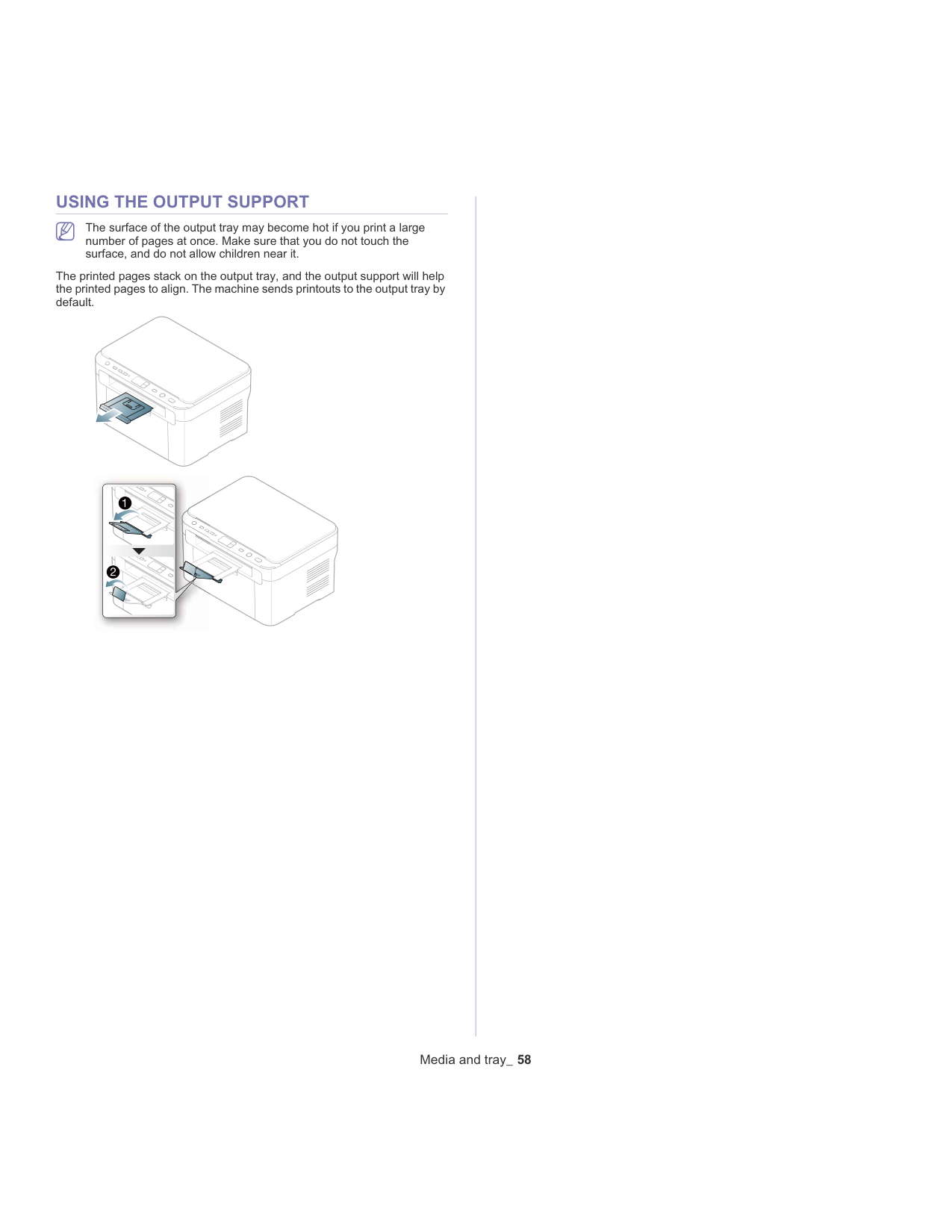

Page 58

Page 59

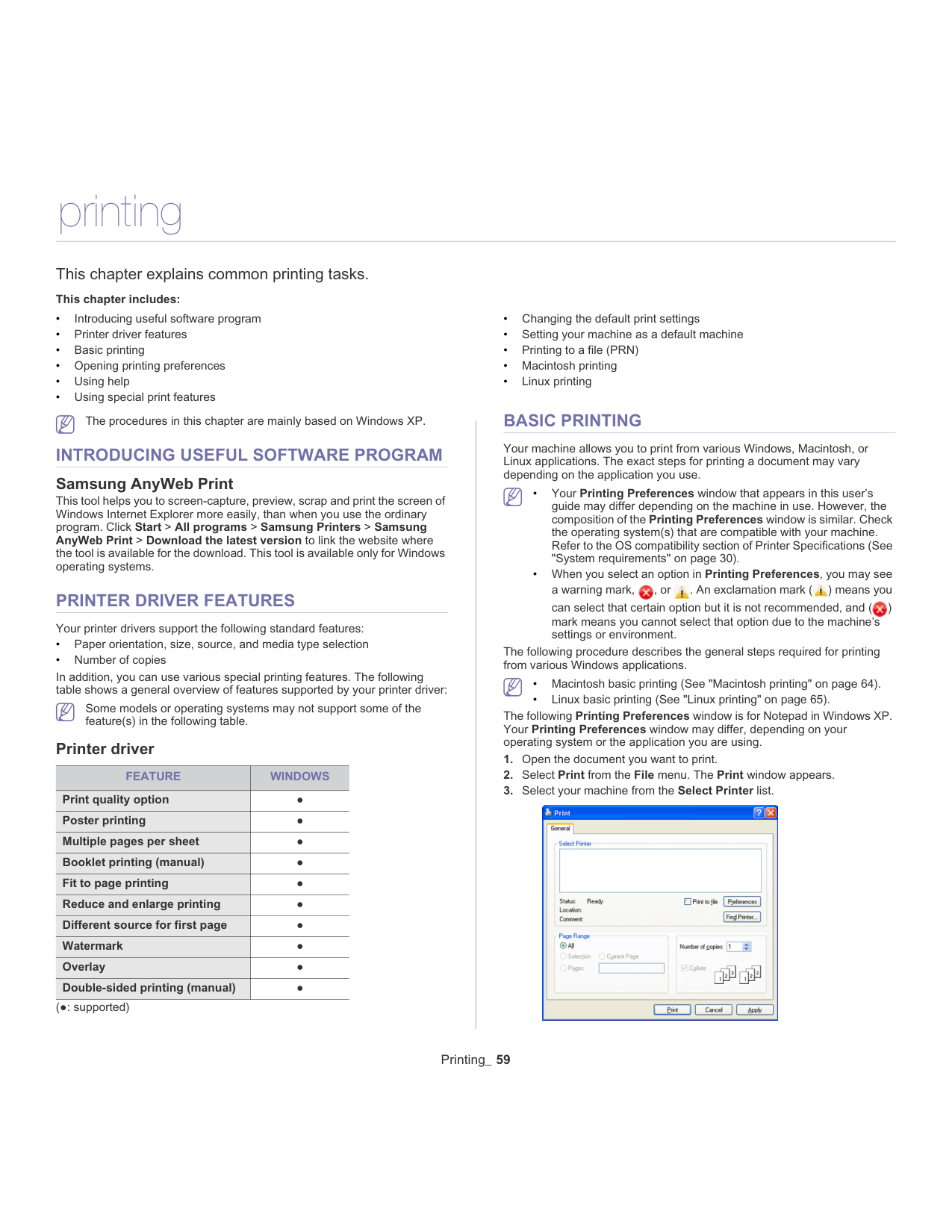

Printing_ 59 7.printing This chapter explains common printing tasks. This chapter includes: • Introducing useful software program • Printer driver features • Basic printing • Opening printing preferences • Using help • Using special print features • Changing the default print settings • Setting your machine as a default machine • Printing to a file (PRN) • Macintosh printing • Linux printing The procedures in this chapter are mainly based on Windows XP.

Introducing Useful Software Program

Samsung AnyWeb Print This tool helps you to screen-capture, preview, scrap and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program. Click Start > All programs > Samsung Printers > Samsung AnyWeb Print > Download the latest version to link the website where the tool is available for the download. This tool is available only for Windows operating systems.

Printer Driver Features

Your printer drivers support the following standard features: • Paper orientation, size, source, and media type selection • Number of copies In addition, you can use various special printing features. The following table shows a general overview of features supported by your printer driver: Some models or operating systems may not support some of the feature(s) in the following table. Printer driver

Feature

Windows

Print quality option

Ɣ

Poster printing

Ɣ

Multiple pages per sheet

Ɣ

Booklet printing (manual)

Ɣ

Fit to page printing

Ɣ

Reduce and enlarge printing

Ɣ

Different source for first page

Ɣ

Watermark

Ɣ

Overlay

Ɣ

Double-sided printing (manual)

Ɣ

(Ɣ: supported)

Basic Printing

Your machine allows you to print from various Windows, Macintosh, or Linux applications. The exact steps for printing a document may vary depending on the application you use. • Your Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar. Check the operating system(s) that are compatible with your machine. Refer to the OS compatibility section of Printer Specifications (See "System requirements" on page 30). • When you select an option in Printing Preferences, you may see a warning mark, , or . An exclamation mark ( ) means you can select that certain option but it is not recommended, and ( ) mark means you cannot select that option due to the machine’s settings or environment. The following procedure describes the general steps required for printing from various Windows applications. • Macintosh basic printing (See "Macintosh printing" on page 64). • Linux basic printing (See "Linux printing" on page 65). The following Printing Preferences window is for Notepad in Windows XP. Your Printing Preferences window may differ, depending on your operating system or the application you are using.

Open the document you want to print.

Select Print from the File menu. The Print window appears.

Select your machine from the Select Printer list.

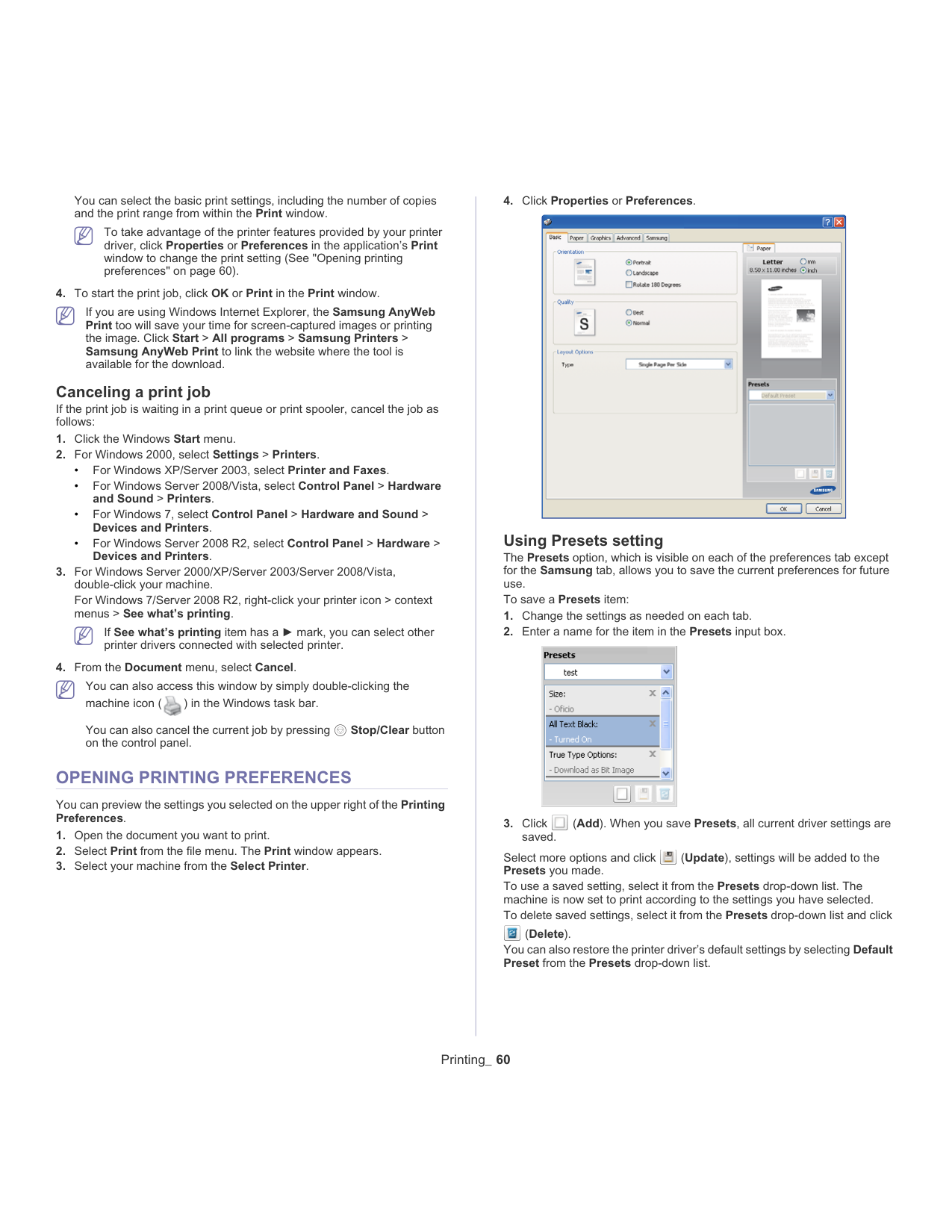

Page 60

Page 61

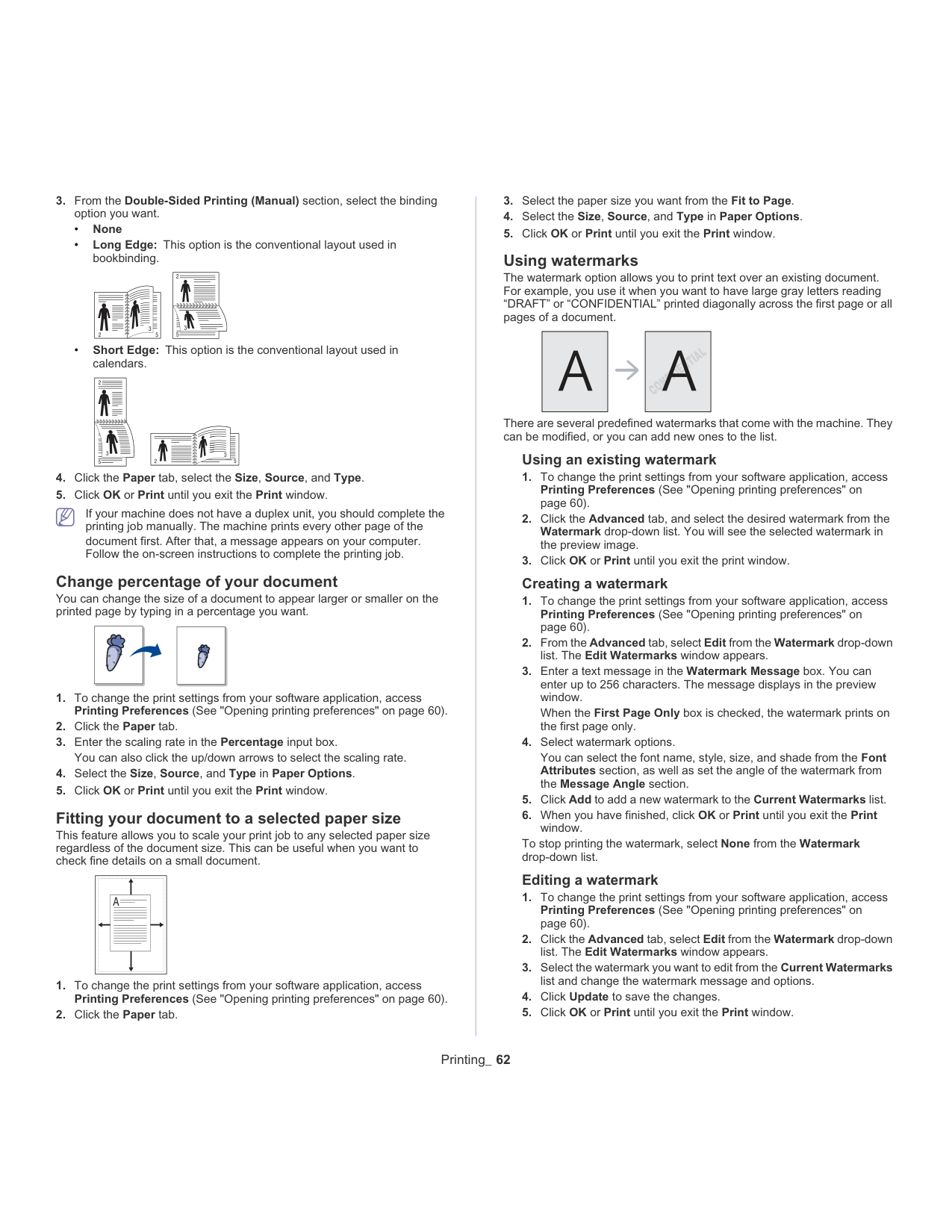

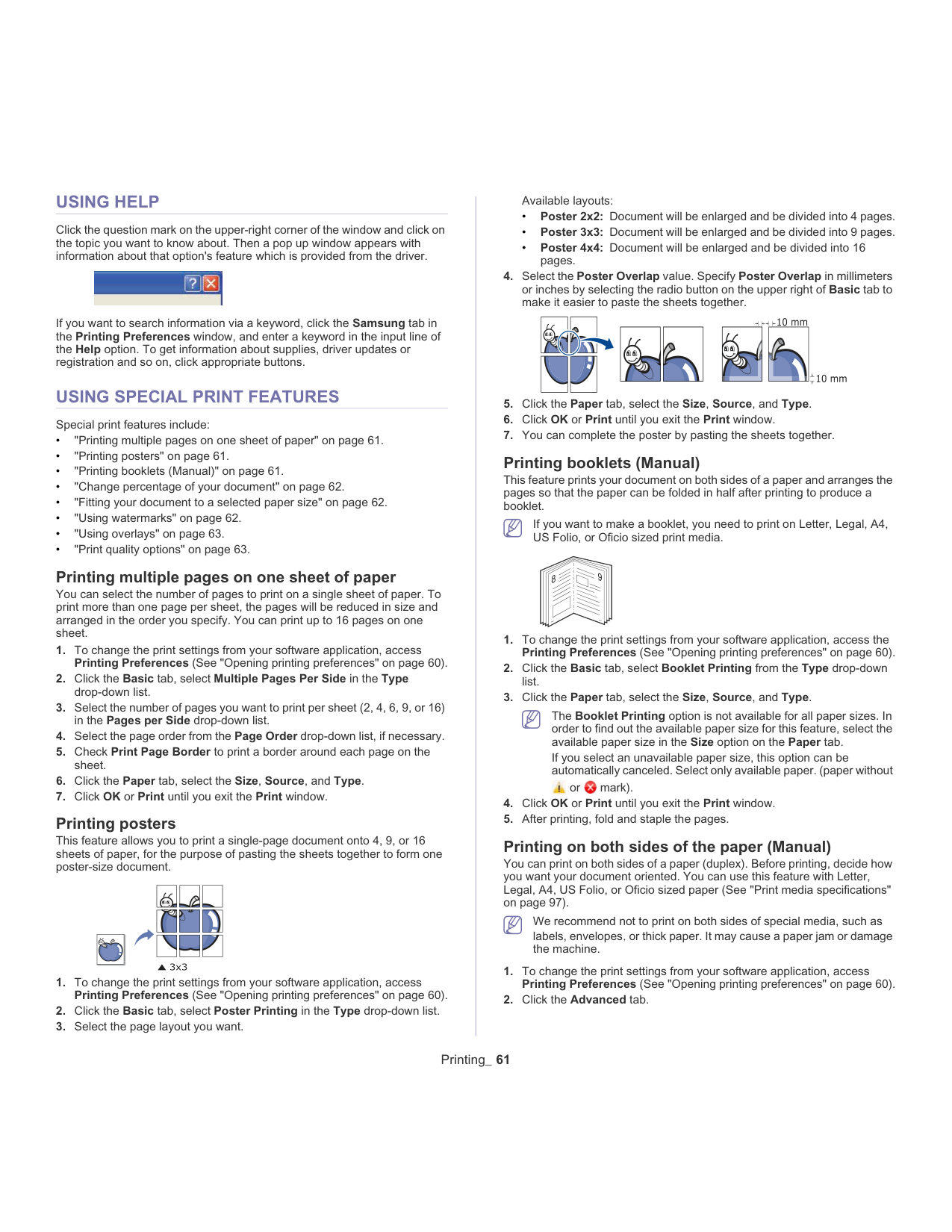

Page 62

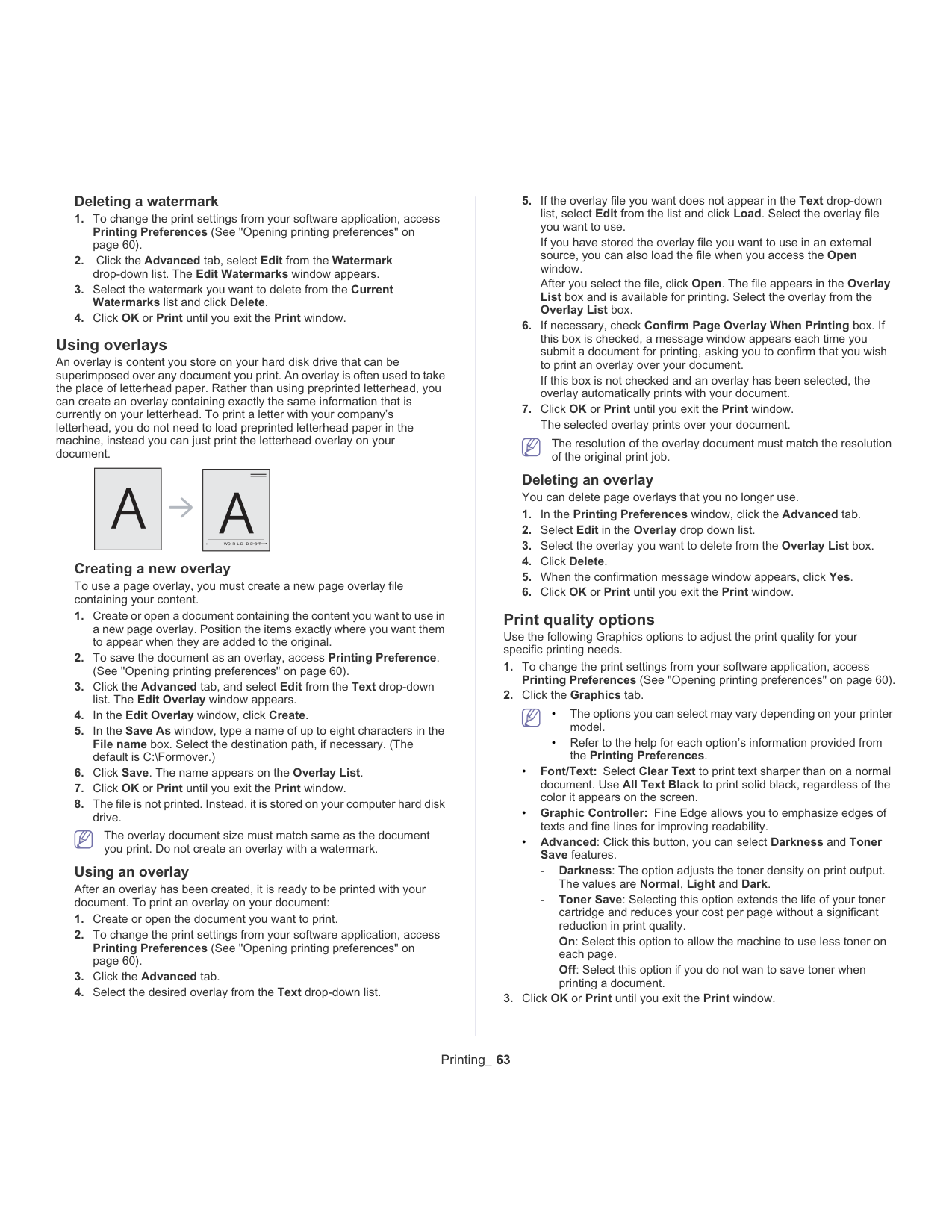

Page 63

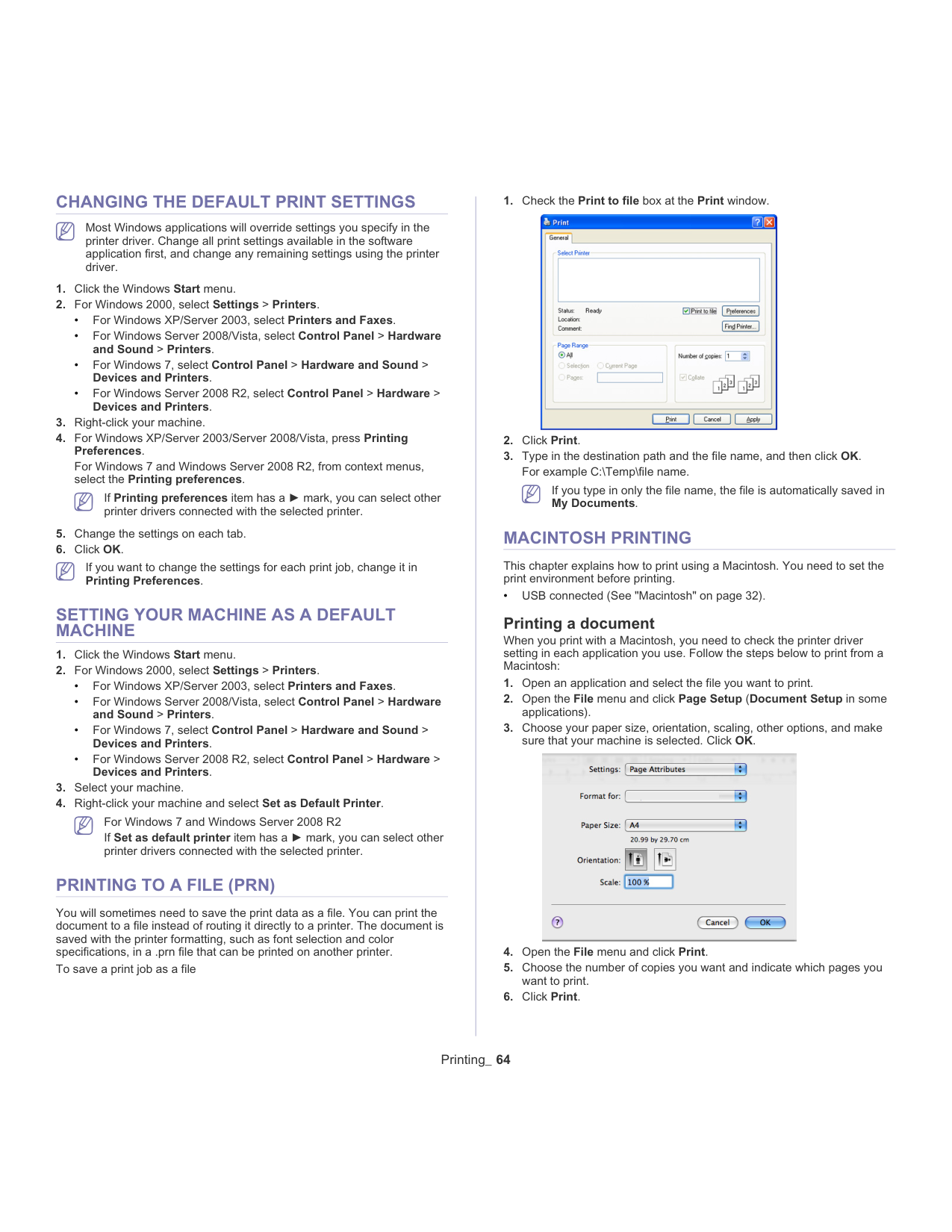

Page 64

Page 65

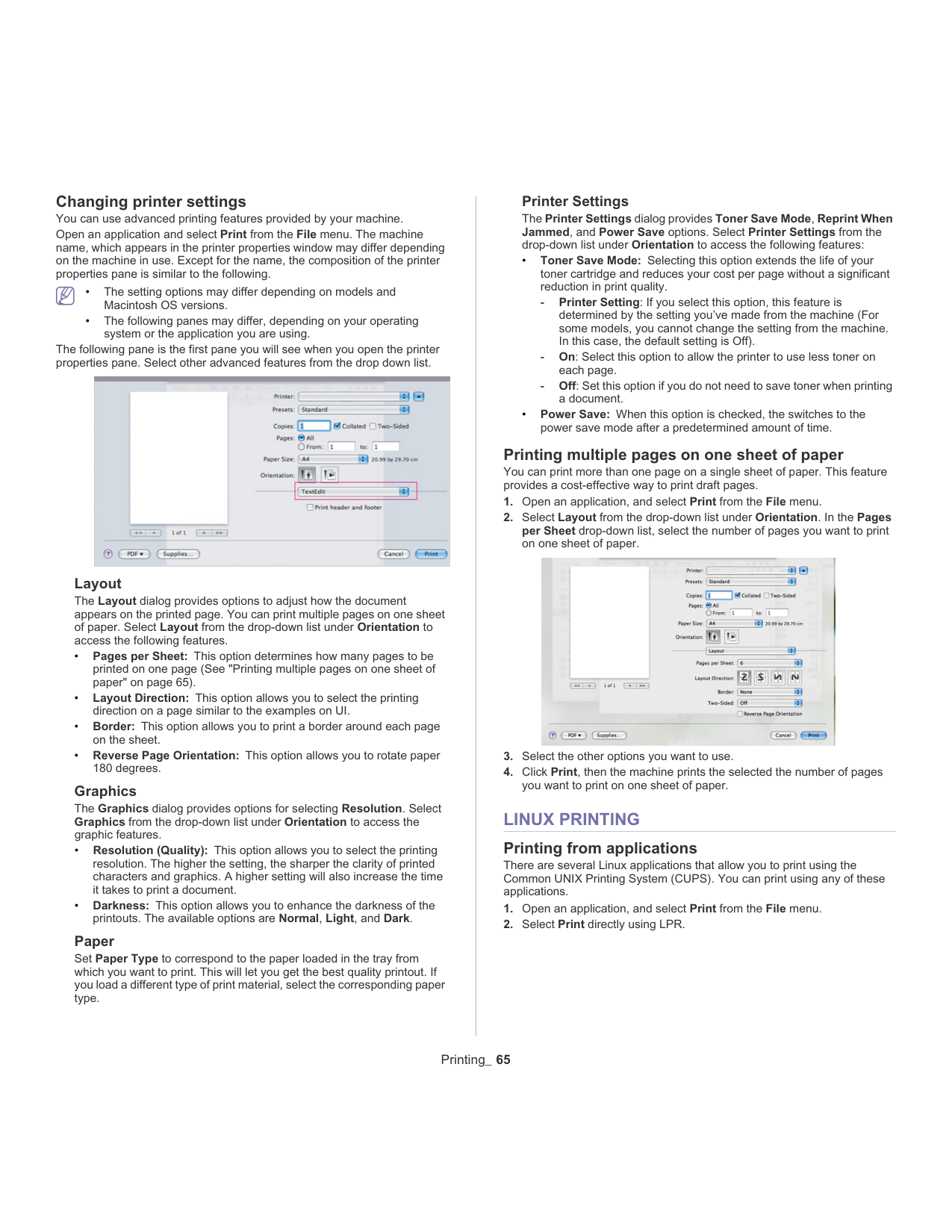

Printing_ 65 Changing printer settings You can use advanced printing features provided by your machine. Open an application and select Print from the File menu. The machine name, which appears in the printer properties window may differ depending on the machine in use. Except for the name, the composition of the printer properties pane is similar to the following. • The setting options may differ depending on models and Macintosh OS versions. • The following panes may differ, depending on your operating system or the application you are using. The following pane is the first pane you will see when you open the printer properties pane. Select other advanced features from the drop down list. Layout The Layout dialog provides options to adjust how the document appears on the printed page. You can print multiple pages on one sheet of paper. Select Layout from the drop-down list under Orientation to access the following features. • Pages per Sheet: This option determines how many pages to be printed on one page (See "Printing multiple pages on one sheet of paper" on page 65). • Layout Direction: This option allows you to select the printing direction on a page similar to the examples on UI. • Border: This option allows you to print a border around each page on the sheet. • Reverse Page Orientation: This option allows you to rotate paper 180 degrees. Graphics The Graphics dialog provides options for selecting Resolution. Select Graphics from the drop-down list under Orientation to access the graphic features. • Resolution (Quality): This option allows you to select the printing resolution. The higher the setting, the sharper the clarity of printed characters and graphics. A higher setting will also increase the time it takes to print a document. • Darkness: This option allows you to enhance the darkness of the printouts. The available options are Normal, Light, and Dark. Paper Set Paper Type to correspond to the paper loaded in the tray from which you want to print. This will let you get the best quality printout. If you load a different type of print material, select the corresponding paper type. Printer Settings The Printer Settings dialog provides Toner Save Mode, Reprint When Jammed, and Power Save options. Select Printer Settings from the drop-down list under Orientation to access the following features: • Toner Save Mode: Selecting this option extends the life of your toner cartridge and reduces your cost per page without a significant reduction in print quality.

Printer Setting: If you select this option, this feature is

determined by the setting you’ve made from the machine (For some models, you cannot change the setting from the machine. In this case, the default setting is Off).

On: Select this option to allow the printer to use less toner on

each page.

Off: Set this option if you do not need to save toner when printing

a document. • Power Save: When this option is checked, the switches to the power save mode after a predetermined amount of time. Printing multiple pages on one sheet of paper You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft pages.

Open an application, and select Print from the File menu.

Select Layout from the drop-down list under Orientation. In the Pages

per Sheet drop-down list, select the number of pages you want to print on one sheet of paper.

Select the other options you want to use.

Click Print, then the machine prints the selected the number of pages

you want to print on one sheet of paper.

Linux Printing

Printing from applications There are several Linux applications that allow you to print using the Common UNIX Printing System (CUPS). You can print using any of these applications.

Open an application, and select Print from the File menu.

Select Print directly using LPR.

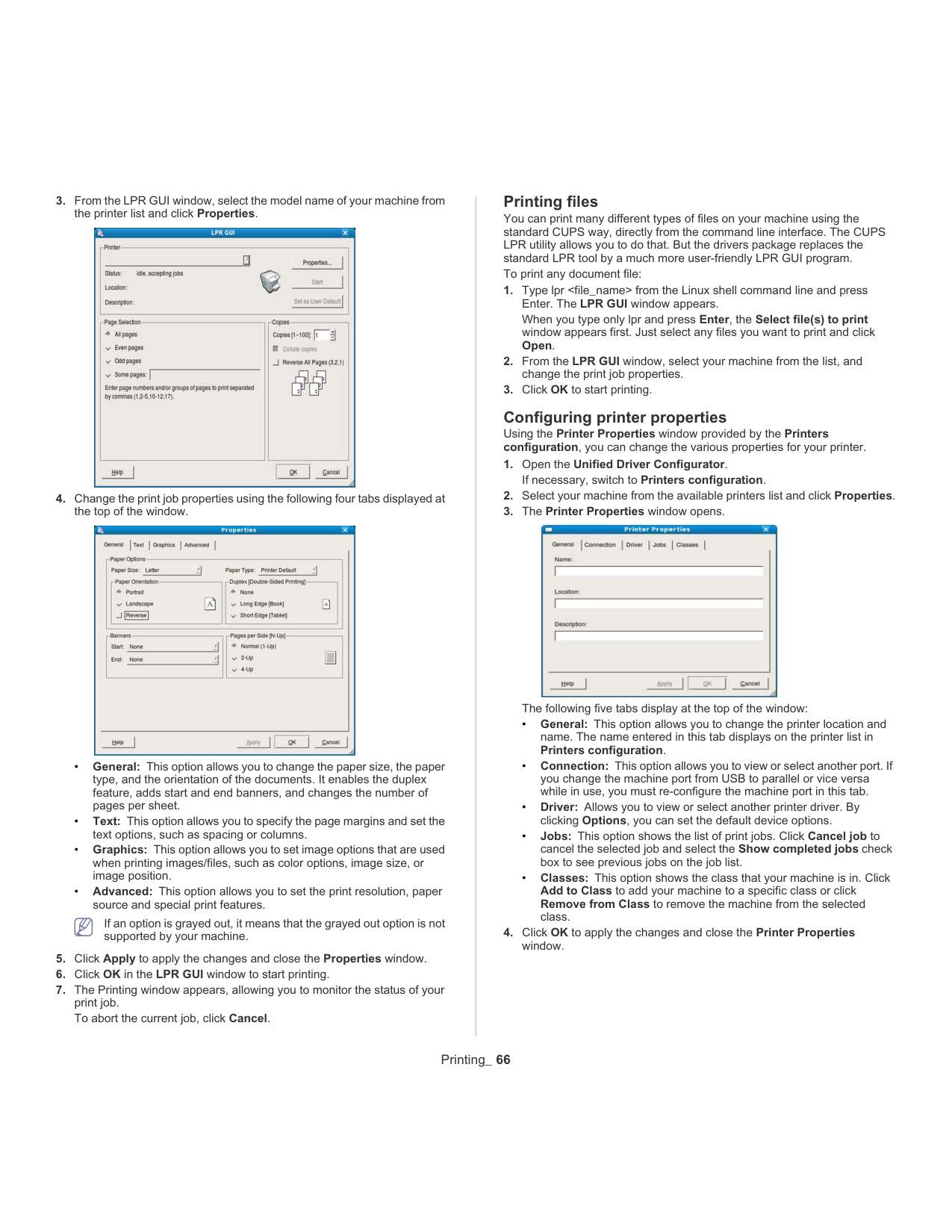

Page 66

Page 67

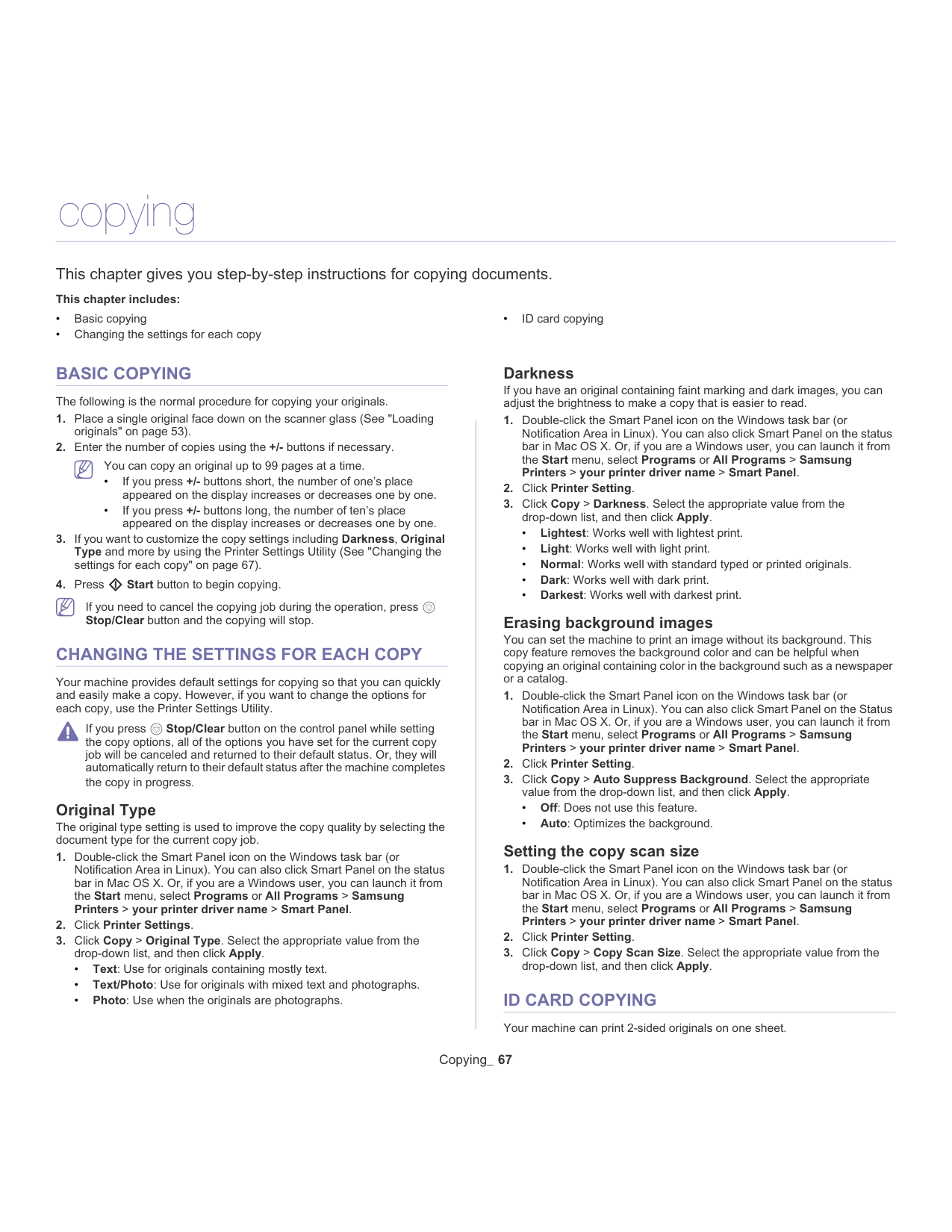

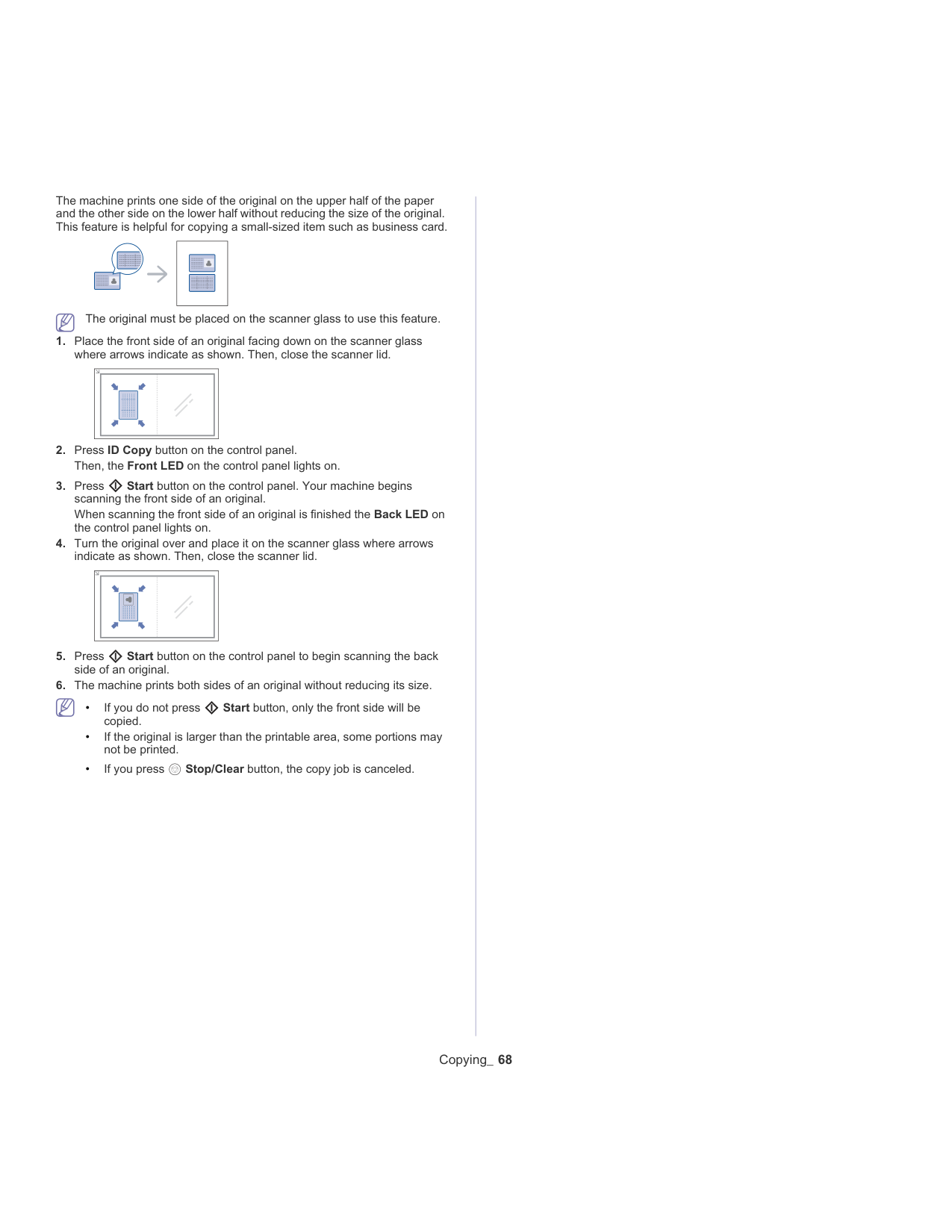

Page 68

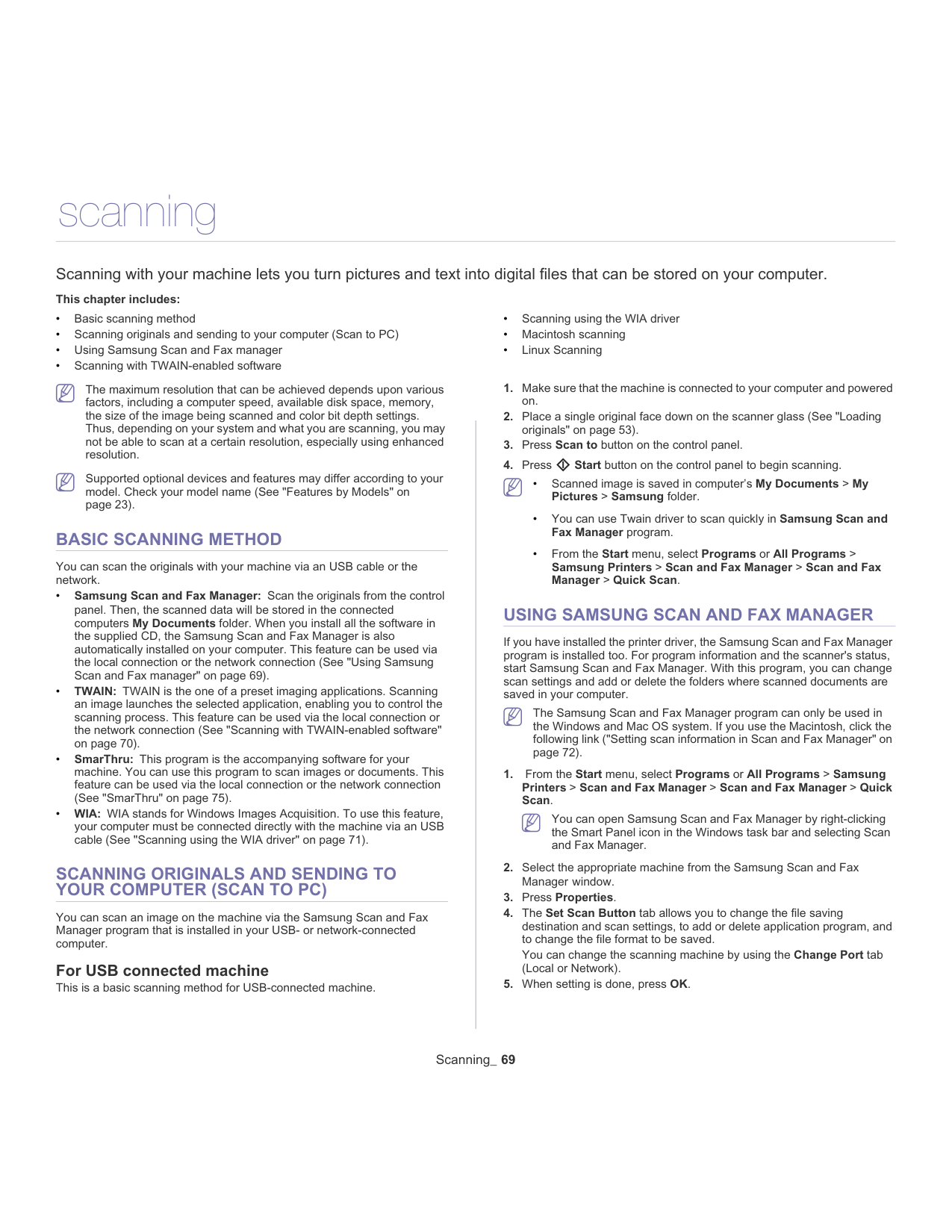

Page 69

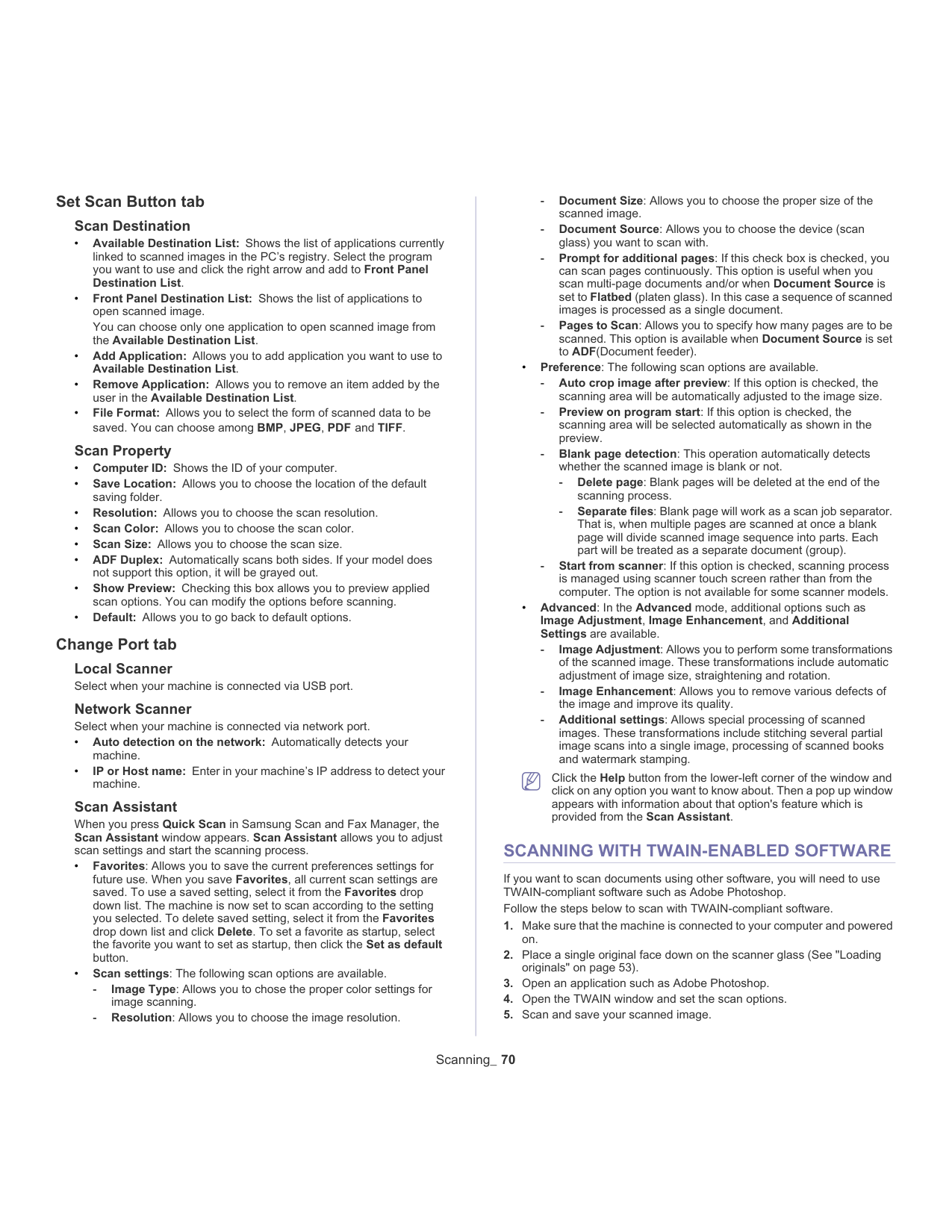

Page 70

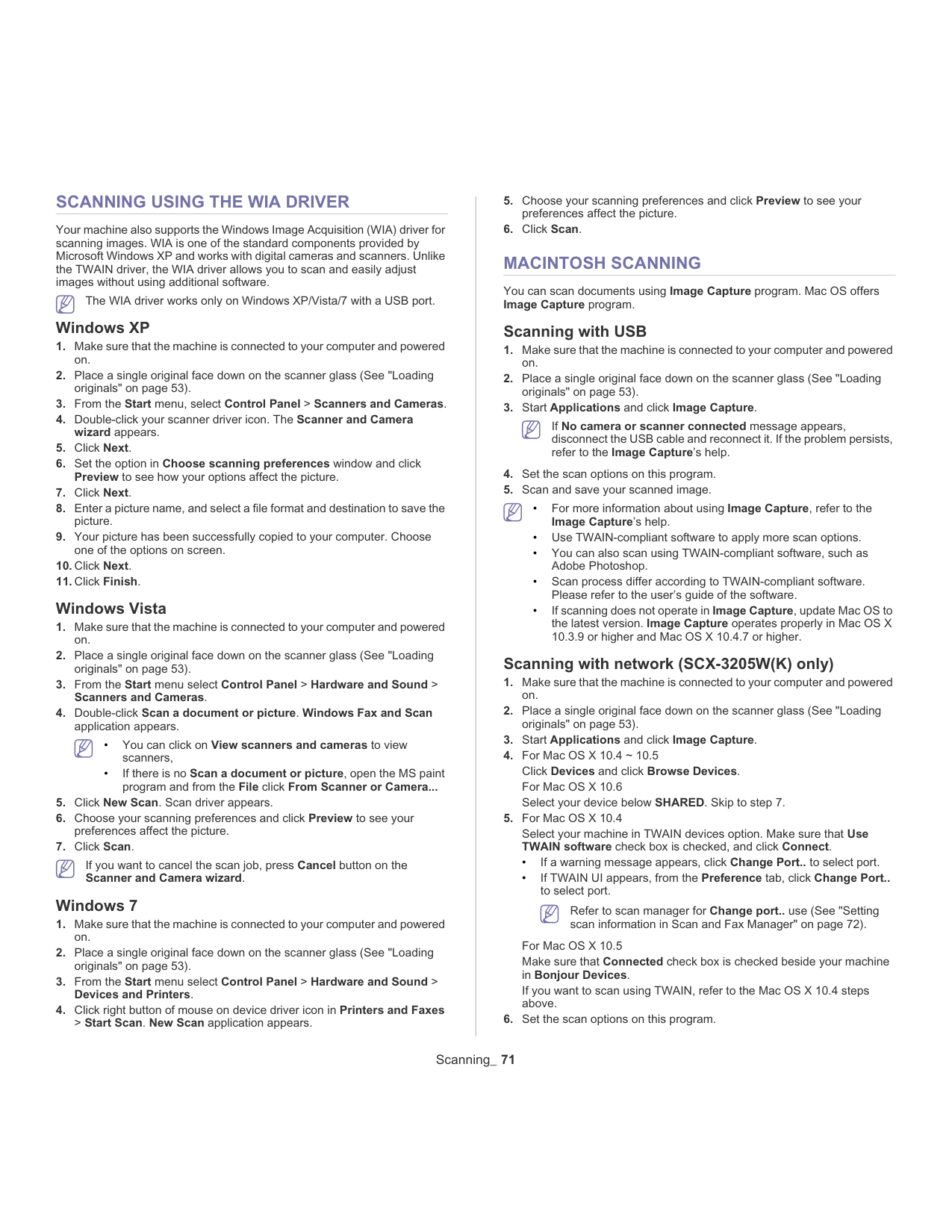

Page 71

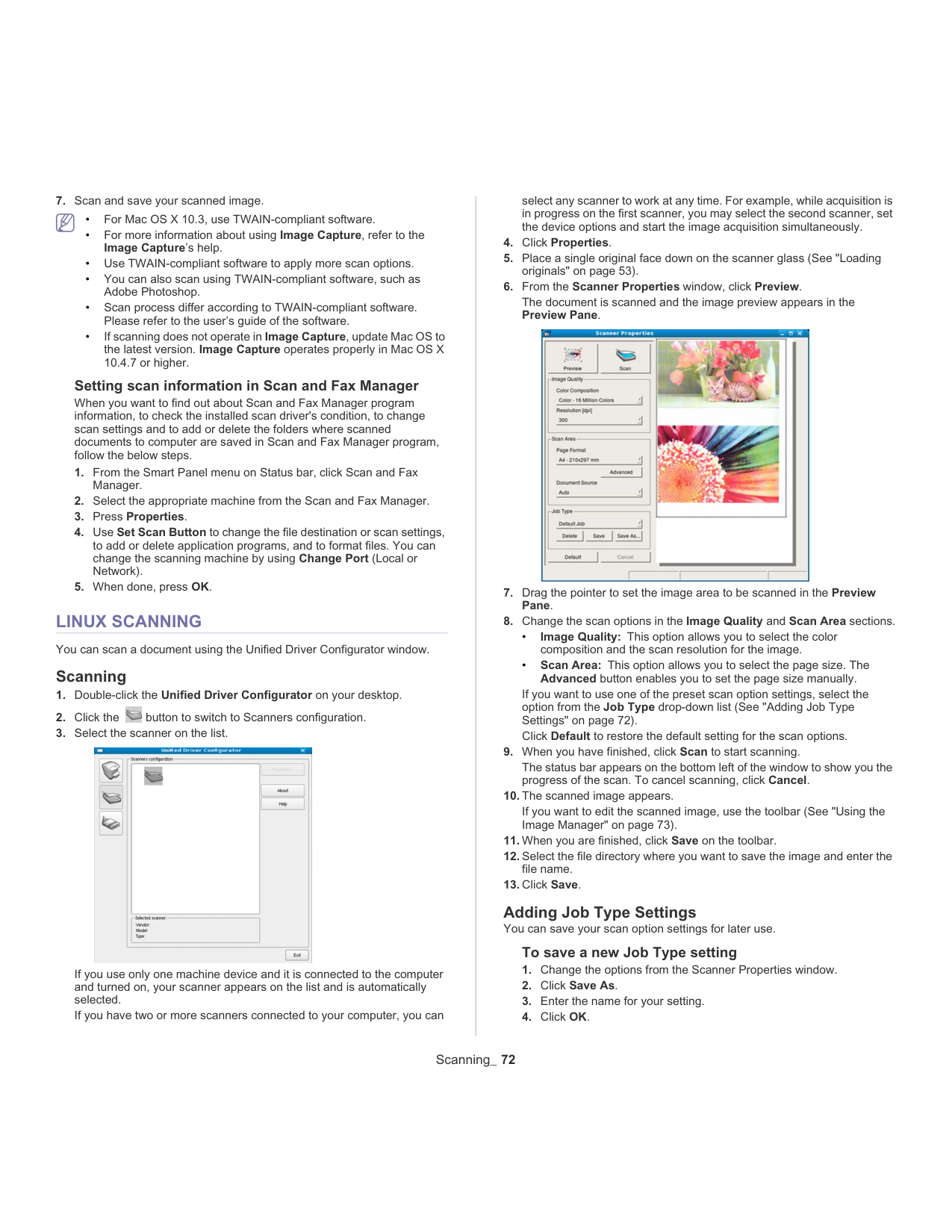

Page 72

Page 73

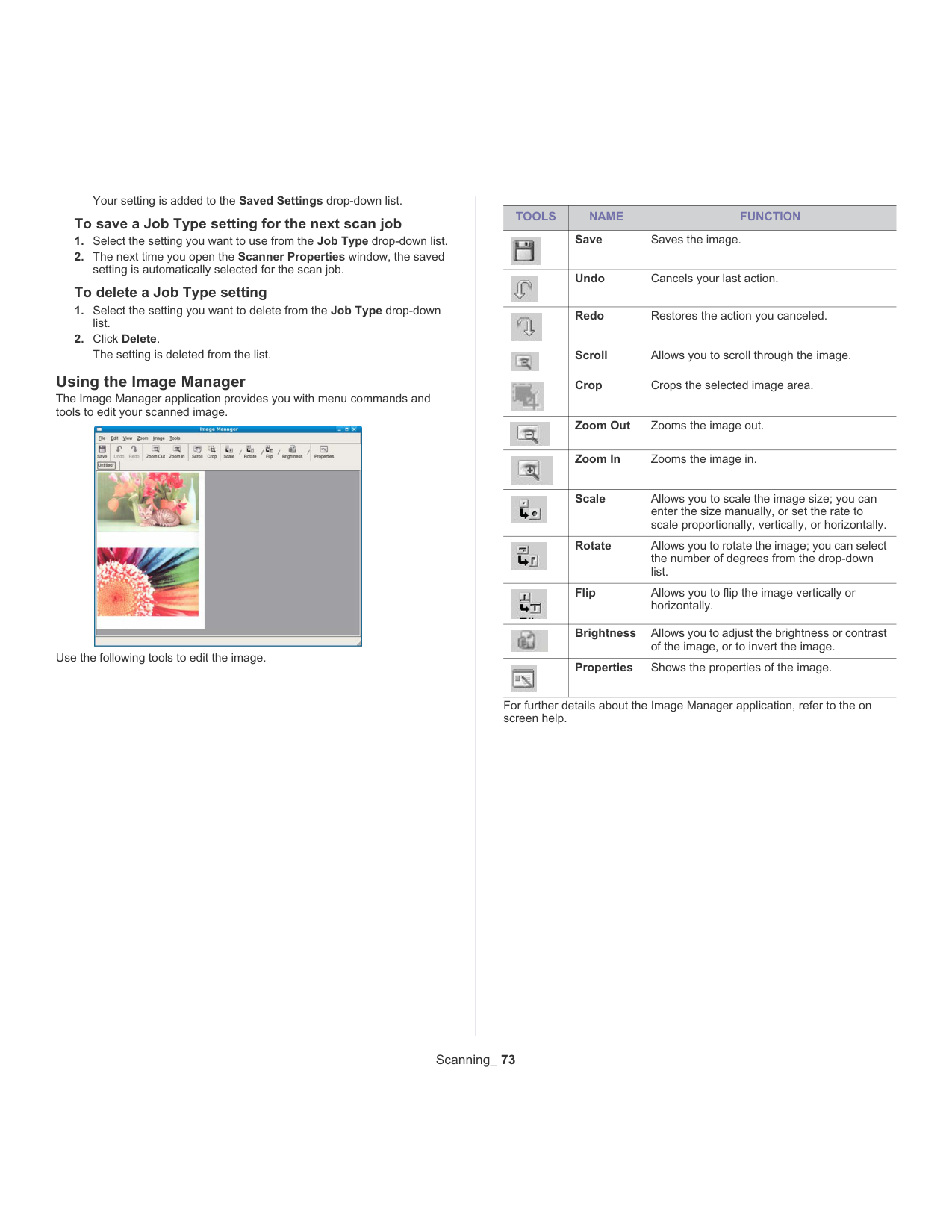

Page 74

Management tools_ 74 10.management tools This chapter introduces management tools provided to help you make full use of your machine. This chapter includes: • Introducing useful management tools • Using SyncThru™ Web Service (SCX-3205W(K) only) • Using the Smart Panel program • SmarThru • Using the Linux Unified Driver Configurator Supported optional devices and features may differ according to your model. Check your model name (See "Features by Models" on page 23).

Introducing Useful Management Tools

The programs below help you to use your machine conveniently. • "Using SyncThru™ Web Service (SCX-3205W(K) only)" on page 74. • "Using the Smart Panel program" on page 75. • "SmarThru" on page 75. • "Using the Linux Unified Driver Configurator" on page 76.

Using Syncthru™ Web Service

(Scx-3205W(K) Only)

Internet Explorer 6.0 or higher is the minimum requirement for SyncThru™ Web Service. If you have connected your machine to a network and set up TCP/IP network parameters correctly, you can manage the machine via SyncThru™ Web Service, an embedded web server. Use SyncThru™ Web Service to: • View the machine’s device information and check its current status. • Change TCP/IP parameters and set up other network parameters. • Change printer preference. • Set the email notifications advising of the machine’s status. • Get support for using the machine. To access SyncThru™ Web Service

Access a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.

Your machine’s embedded website opens.

Logging into SyncThru™ Web Service Before configuring options in SyncThru™ Web Service, you need to log-in as an administrator. You can still use SyncThru™ Web Service without logging in but you won’t have access to Settings tab and Security tab.

Click Login on the upper right of the SyncThru™ Web Service

website. The Login window appears.

Type in the ID and Password then click Login.

If it’s your first time logging into SyncThru™ Web Service, type in the below default ID and password. • ID: admin • Password: sec00000 SyncThru™ Web Service overview Some tabs may not appear depending on your model. Information tab This tab gives you general information about your machine. You can check things, such as remaining amount of toner. You can also print reports such as an error report and so on. • Active Alerts: This item allows you to check the alerts occurred in the machine and their severity. • Supplies: This item allows you to check how many pages are printed and amount of toner left in the cartridge. • Usage Counters: This item allows you to check the usage count by print types: simplex, duplexU • Current Settings: This item allows you to check the machine and network information. • Print information: This item allows you to print reports such as system related reports, e-mail address and font reports. Settings tab This tab allows you to set configurations provided by your machine and network. You need to log-in as an administrator to view this tab. • Machine Settings tab: This tab allows you to set options provided by your machine.

System: You can set settings related to your machine.

Printer: You can set settings related to printing jobs.

Copy: You can set settings related to copying jobs.

• Network Settings tab: This tab allows you to view and change the network environment. You can set things, such as TCP/IP, network protocols and so on.

Restore Default: You can restore default network settings.

Security tab This tab allows you to set system and network security information. You need to log-in as an administrator to view this tab. • System Security: You can set the systemGadministrator’s informationU • Network Security: You can set settings for IPv4/IPv6 filtering, 802.1x, Authentication serversU

Page 75

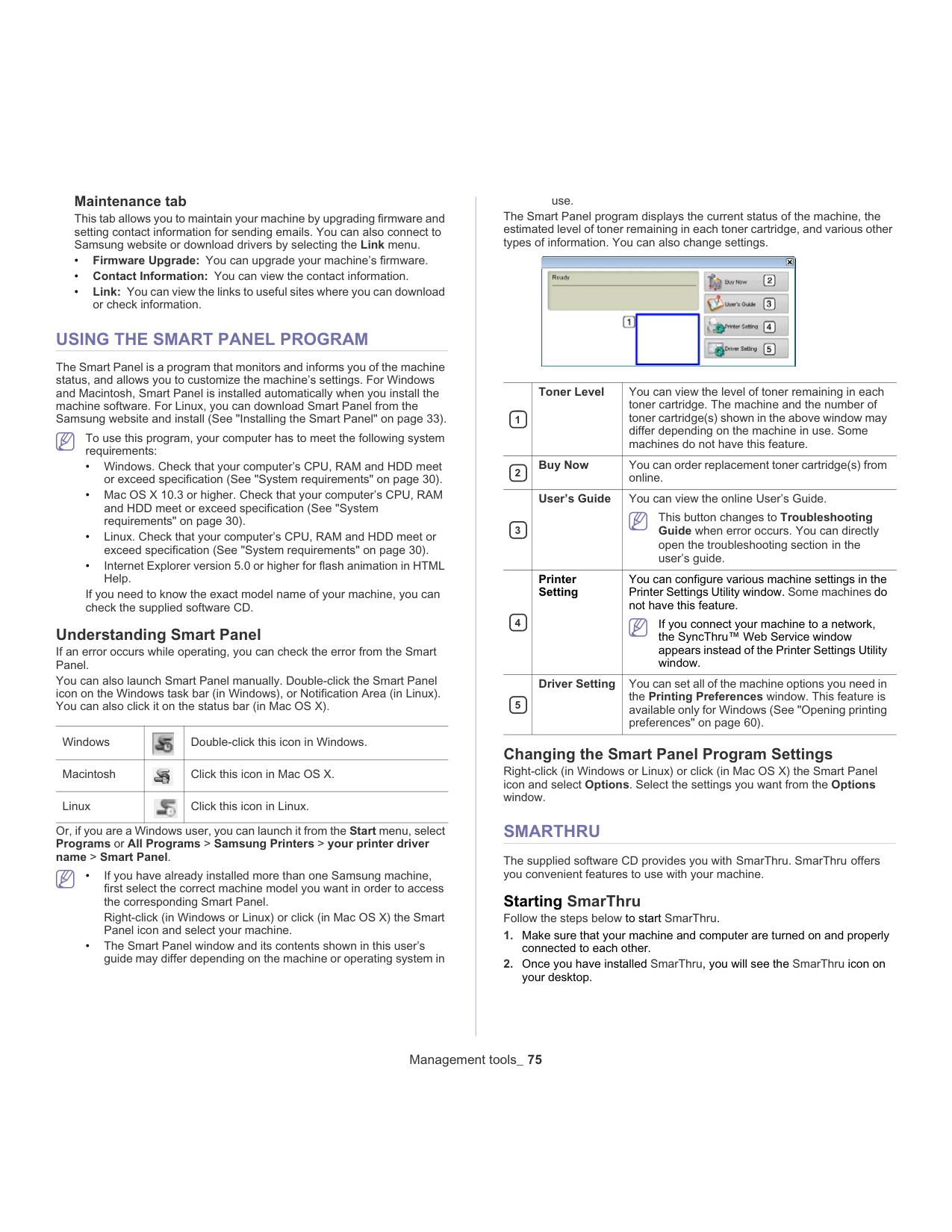

Management tools_ 75 Maintenance tab This tab allows you to maintain your machine by upgrading firmware and setting contact information for sending emails. You can also connect to Samsung website or download drivers by selecting the Link menu. • Firmware Upgrade: You can upgrade your machine’s firmware. • Contact Information: You can view the contact information. • Link: You can view the links to useful sites where you can download or check information.

Using The Smart Panel Program

The Smart Panel is a program that monitors and informs you of the machine status, and allows you to customize the machine’s settings. For Windows and Macintosh, Smart Panel is installed automatically when you install the machine software. For Linux, you can download Smart Panel from the Samsung website and install (See "Installing the Smart Panel" on page 33). To use this program, your computer has to meet the following system requirements: • Windows. Check that your computer’s CPU, RAM and HDD meet or exceed specification (See "System requirements" on page 30). • Mac OS X 10.3 or higher. Check that your computer’s CPU, RAM and HDD meet or exceed specification (See "System requirements" on page 30). • Linux. Check that your computer’s CPU, RAM and HDD meet or exceed specification (See "System requirements" on page 30). • Internet Explorer version 5.0 or higher for flash animation in HTML Help. If you need to know the exact model name of your machine, you can check the supplied software CD. Understanding Smart Panel If an error occurs while operating, you can check the error from the Smart Panel. You can also launch Smart Panel manually. Double-click the Smart Panel icon on the Windows task bar (in Windows), or Notification Area (in Linux). You can also click it on the status bar (in Mac OS X). Windows Double-click this icon in Windows. Macintosh Click this icon in Mac OS X. Linux Click this icon in Linux. Or, if you are a Windows user, you can launch it from the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Smart Panel. • If you have already installed more than one Samsung machine, first select the correct machine model you want in order to access the corresponding Smart Panel. Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel icon and select your machine. • The Smart Panel window and its contents shown in this user’s guide may differ depending on the machine or operating system in use. The Smart Panel program displays the current status of the machine, the estimated level of toner remaining in each toner cartridge, and various other types of information. You can also change settings. 1 Toner Level You can view the level of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. Some machines do not have this feature. 2 Buy Now You can order replacement toner cartridge(s) from online. 3 User’s Guide You can view the online User’s Guide. This button changes to Troubleshooting Guide when error occurs. You can directly open the troubleshooting sectionGin the user’s guide. 4 Printer Setting You can configure various machine settings in the Printer Settings Utility window. Some machines do not have this feature. If you connect your machine to a network, the SyncThru™ Web Service window appears instead of the Printer Settings Utility window. 5 Driver Setting You can set all of the machine options you need in the Printing Preferences window. This feature is available only for Windows (See "Opening printing preferences" on page 60). Changing the Smart Panel Program Settings Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel icon and select Options. Select the settings you want from the Options window.

Smarthru

The supplied software CD provides you withGSmarThru. SmarThruGoffers you convenient features to use with your machine. Starting SmarThru Follow the steps below to start SmarThru.

Make sure that your machine and computer are turned on and properly

connected to each other.

Once you have installed SmarThru, you will see the SmarThru icon on

your desktop.

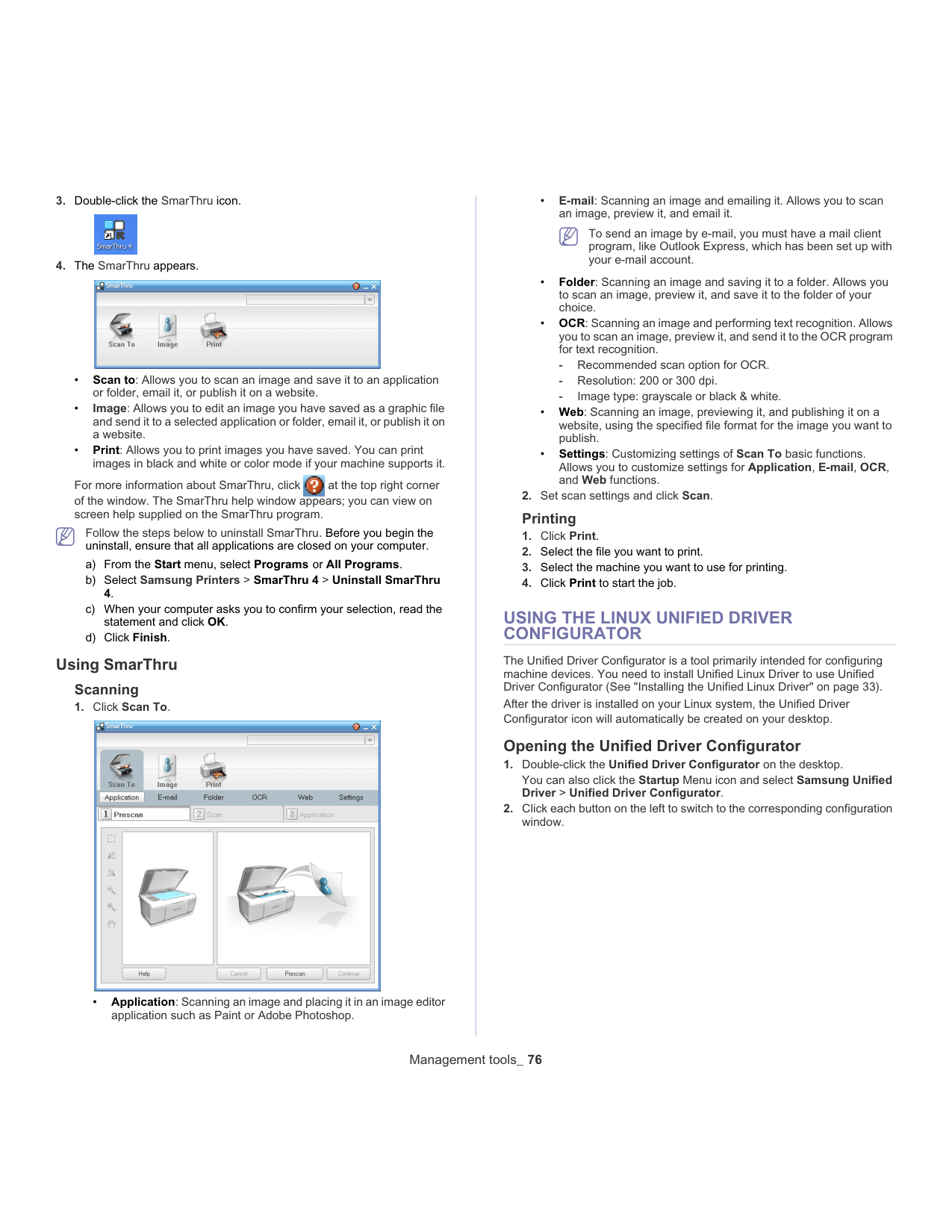

Page 76

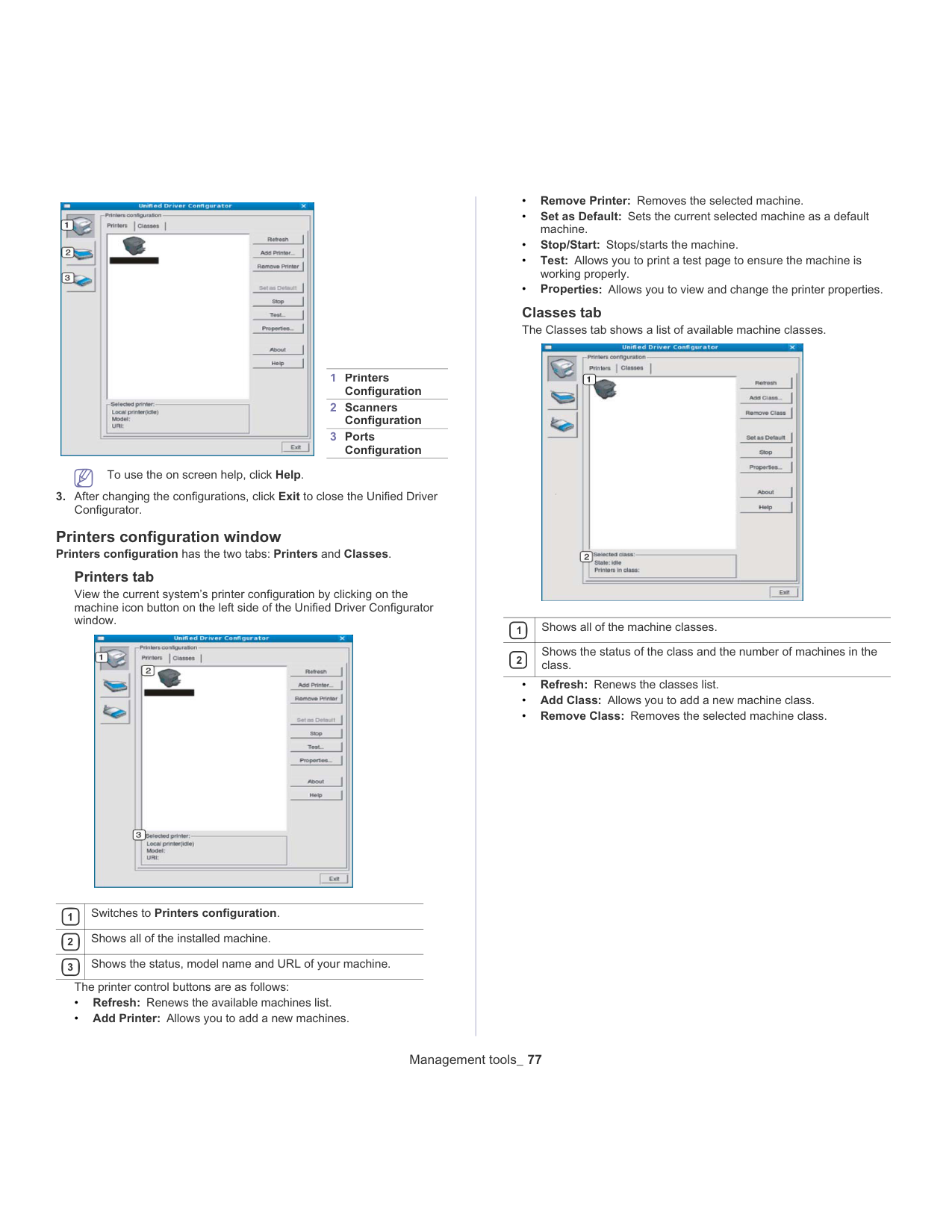

Page 77

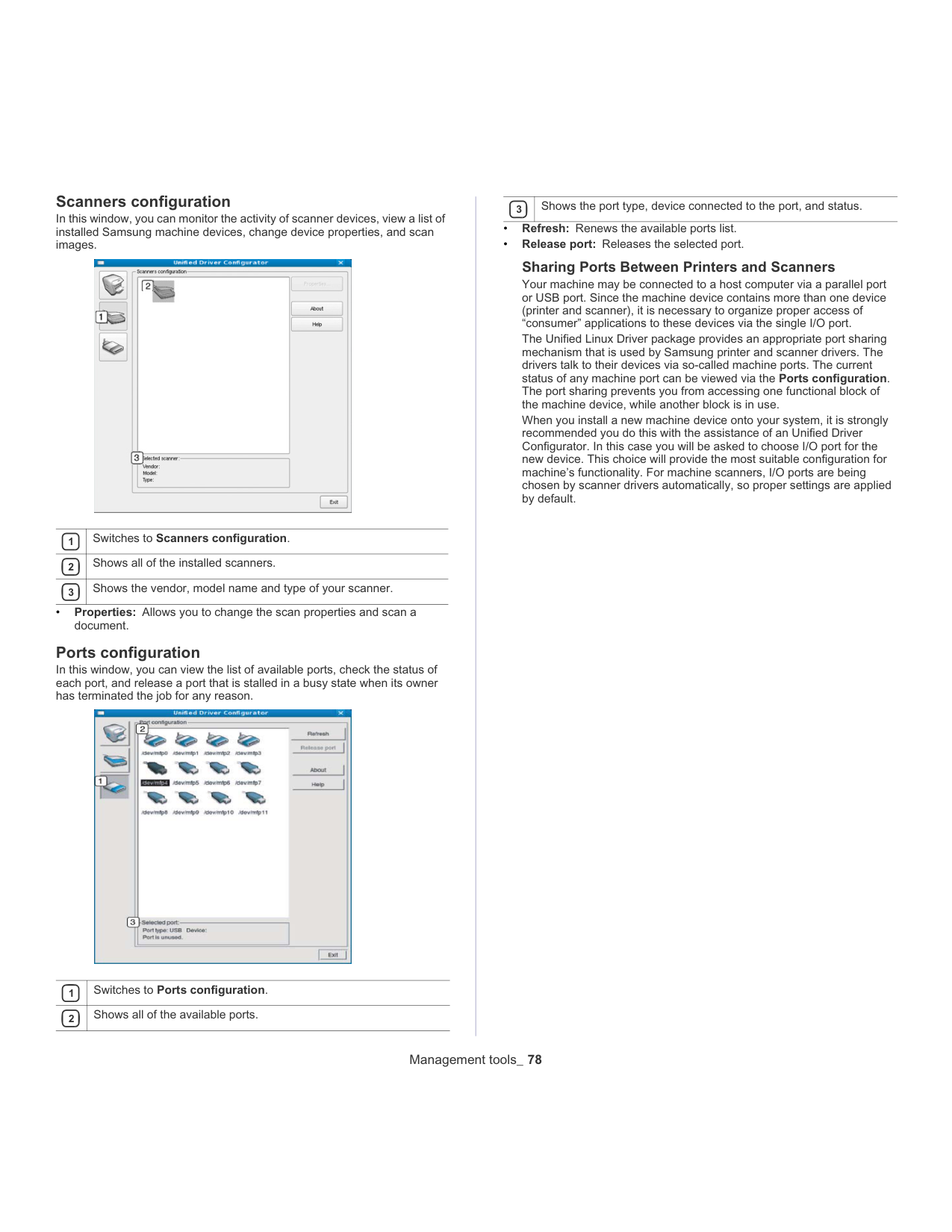

Page 78

Page 79

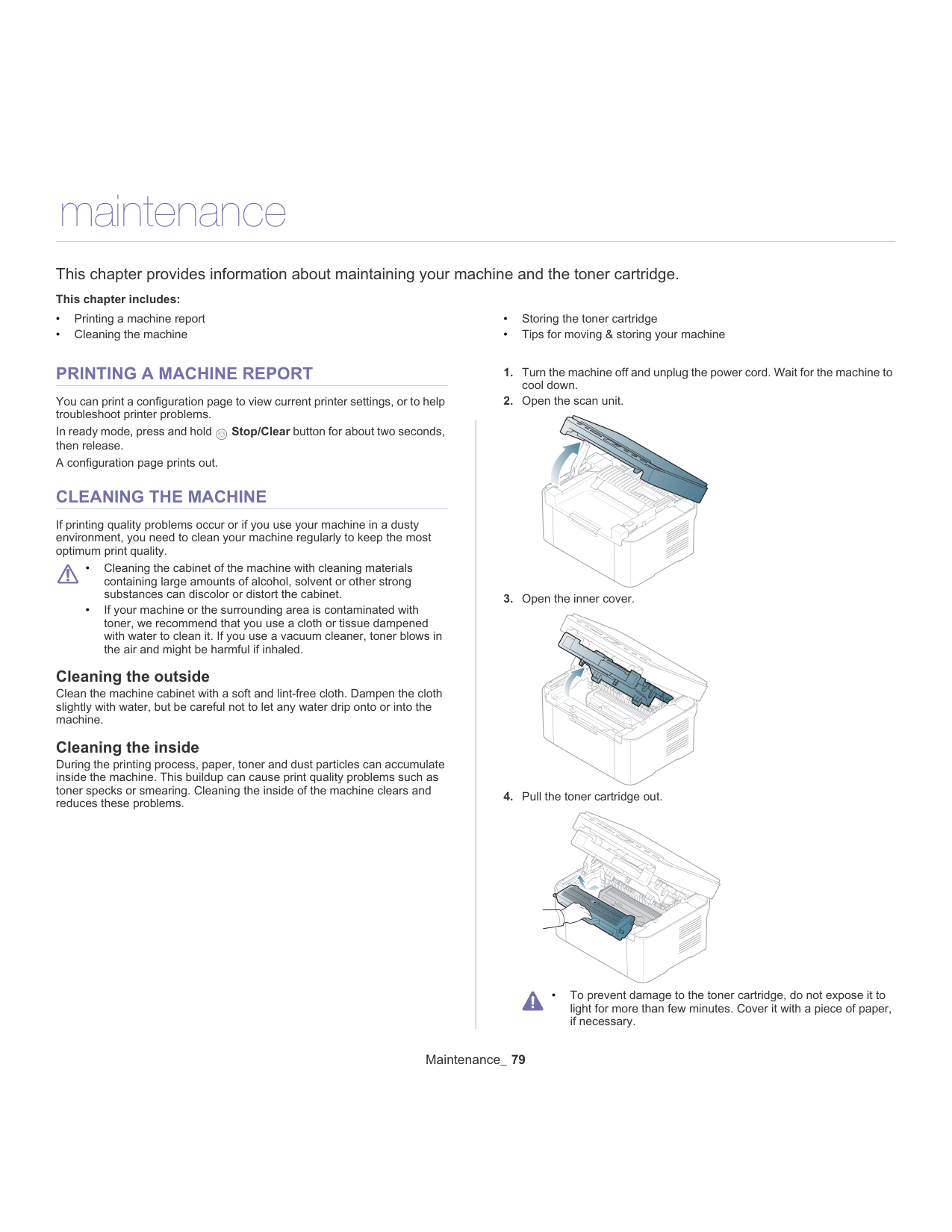

Page 80

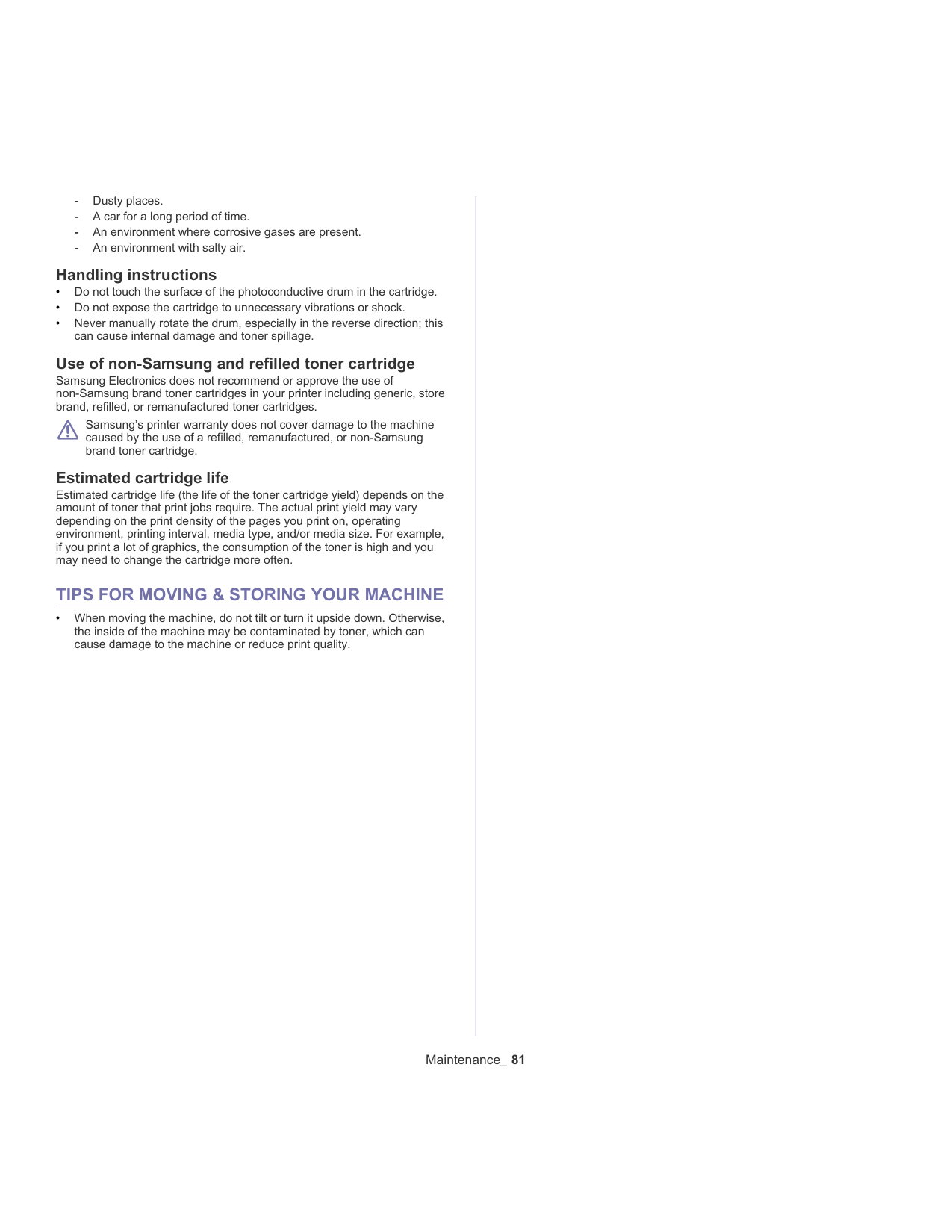

Page 81

Page 82

Page 83

Page 84

Page 85

Page 86

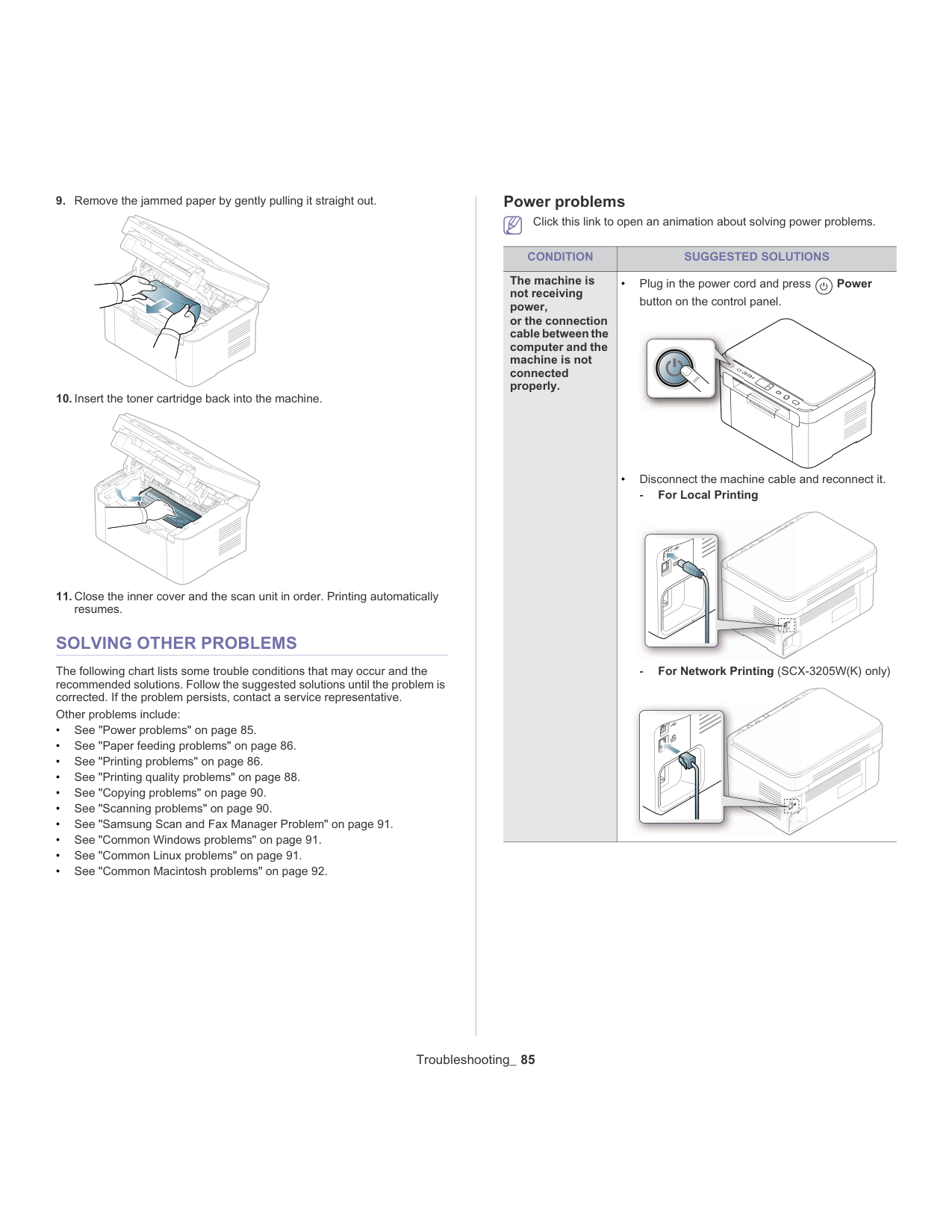

Troubleshooting_ 86 Paper feeding problems

Condition

Possible

Cause

Condition

Possible

Cause

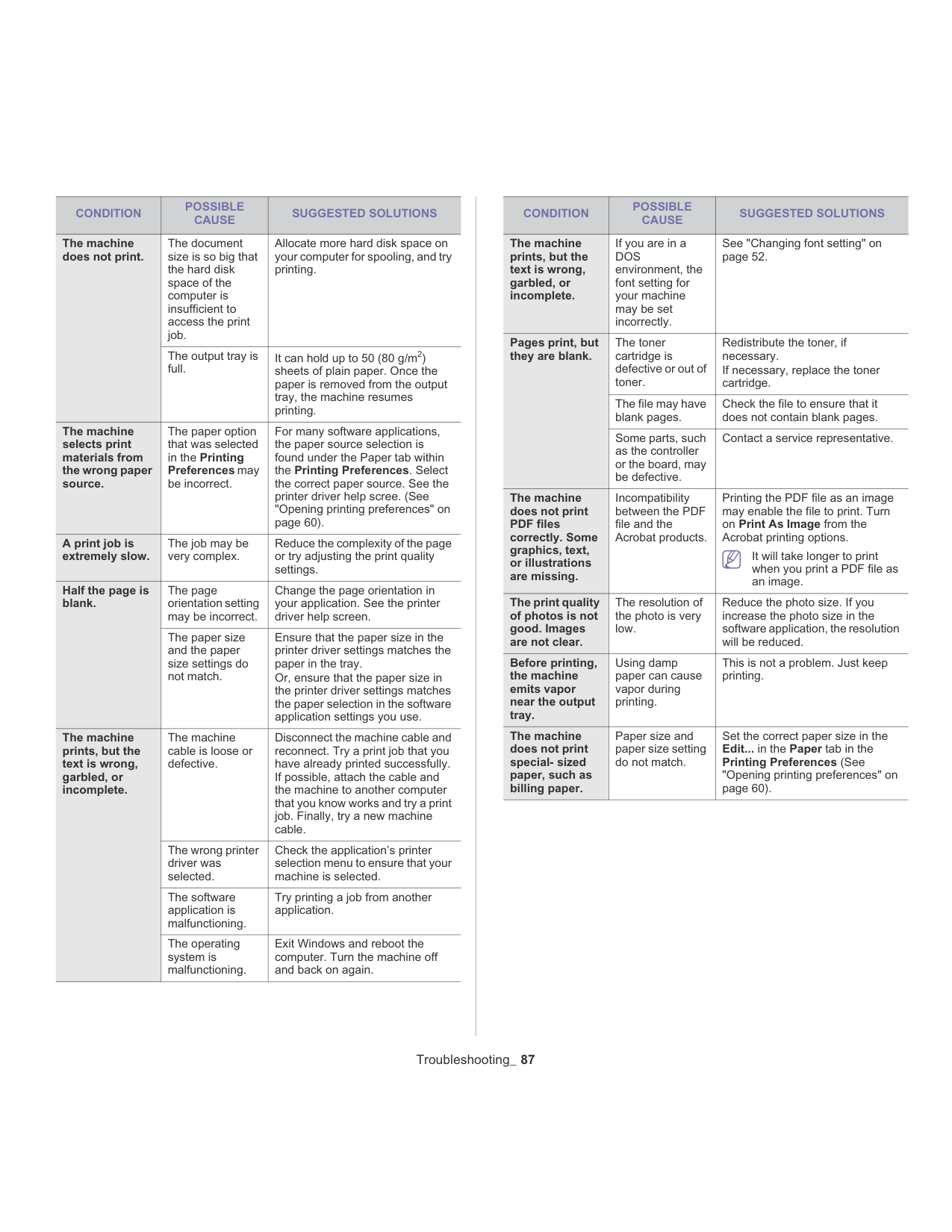

Dos

environment, the font setting for your machine may be set incorrectly. See "Changing font setting" on page 52. Pages print, but they are blank. The toner cartridge is defective or out of toner. Redistribute the toner, if necessary. If necessary, replace the toner cartridge. The file may have blank pages. Check the file to ensure that it does not contain blank pages. Some parts, such as the controller or the board, may be defective. Contact a service representative. The machine does not print PDF files correctly. Some graphics, text, or illustrations are missing. Incompatibility between the PDF file and the Acrobat products. Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. The print quality of photos is not good. Images are not clear. The resolution of the photo is very low. Reduce the photo size. If you increase the photo size in the software application, the resolution will be reduced. Before printing, the machine emits vapor near the output tray. Using damp paper can cause vapor during printing. This is not a problem. Just keep printing. The machine does not print special- sized paper, such as billing paper. Paper size and paper size setting do not match. Set the correct paper size in the Edit... in the Paper tab in the Printing Preferences (See "Opening printing preferences" on page 60).

Condition

Possible

Cause

Condition

G

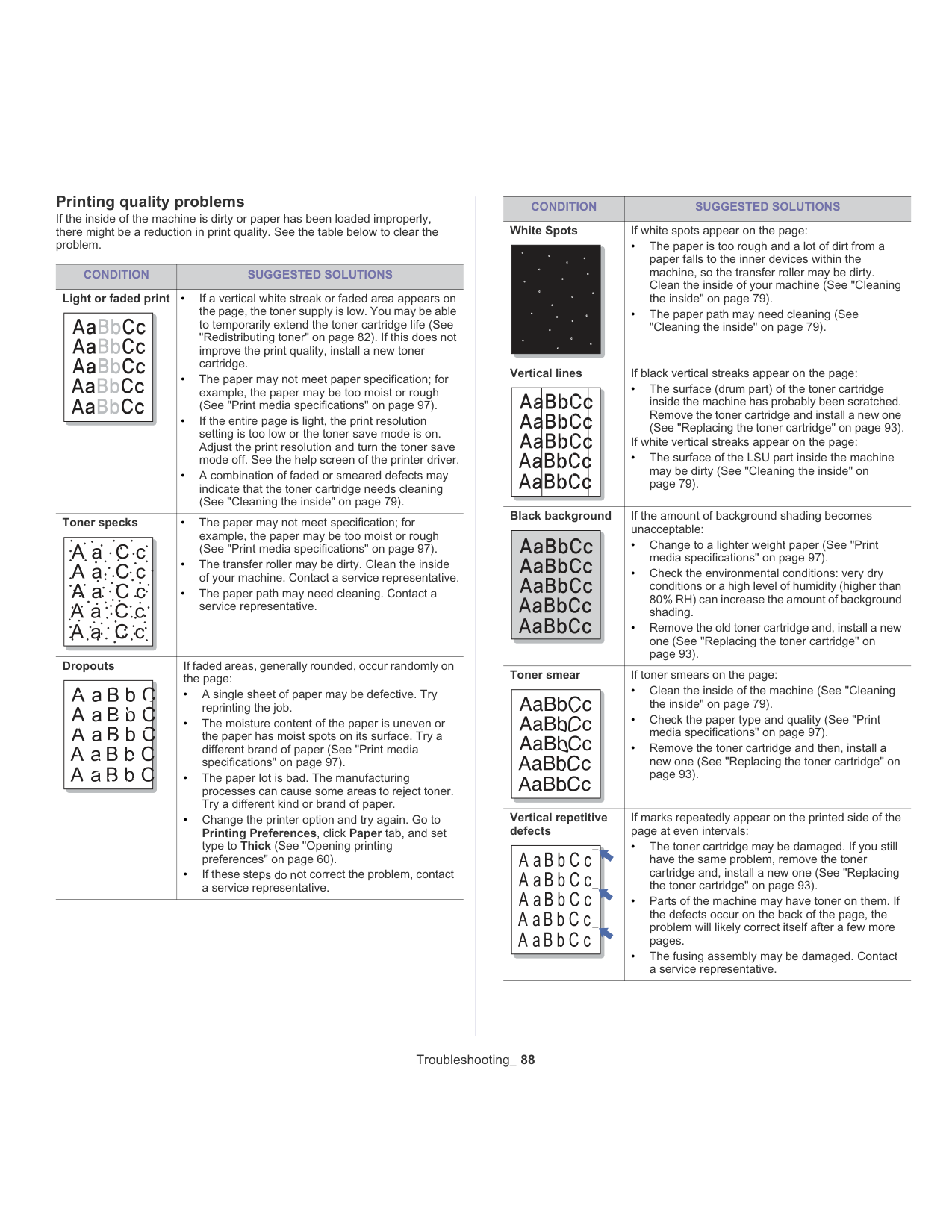

If black vertical streaks appear on the page: • The surface (drum part) of the toner cartridge inside the machine has probably been scratched. Remove the toner cartridge and install a new one (See "Replacing the toner cartridge" on page 93). If white vertical streaks appear on the page: • The surface of the LSU part inside the machine may be dirty (See "Cleaning the inside" on page 79). Black background If the amount of background shading becomes unacceptable: • Change to a lighter weight paper (See "Print media specifications" on page 97). • Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount of background shading. • Remove the old toner cartridge and, install a new one (See "Replacing the toner cartridge" on page 93). Toner smear If toner smears on the page: • Clean the inside of the machine (See "Cleaning the inside" on page 79). • Check the paper type and quality (See "Print media specifications" on page 97). • Remove the toner cartridge and then, install a new one (See "Replacing the toner cartridge" on page 93). Vertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals: • The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (See "Replacing the toner cartridge" on page 93). • Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages. • The fusing assembly may be damaged. Contact a service representative.

Condition

A

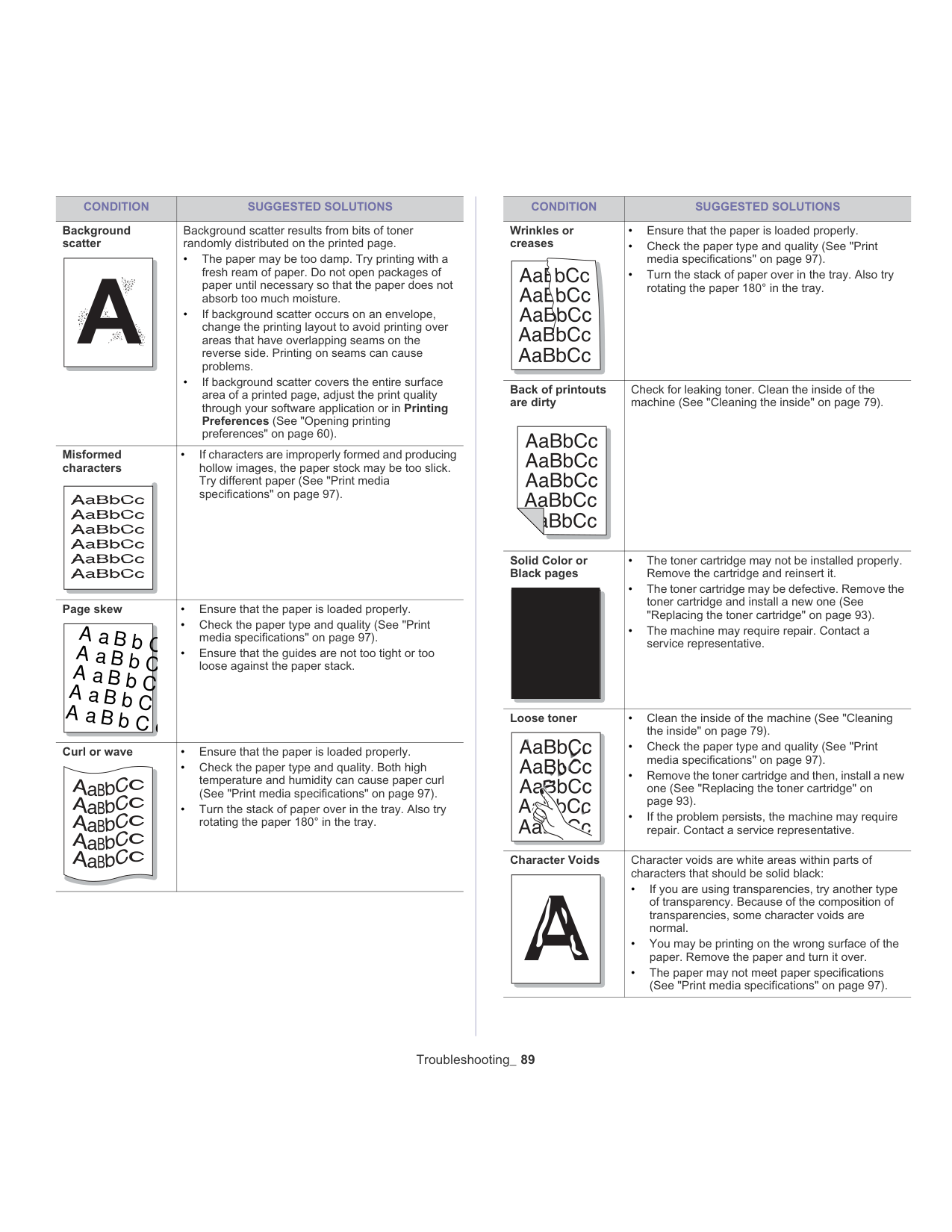

Background scatter results from bits of toner randomly distributed on the printed page. • The paper may be too damp. Try printing with a fresh ream of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture. • If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems. • If background scatter covers the entire surface area of a printed page, adjust the print quality through your software application or in Printing Preferences (See "Opening printing preferences" on page 60). Misformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper (See "Print media specifications" on page 97). Page skew A a B b C A a B b C A a B b C A a B b C A a B b C c • Ensure that the paper is loaded properly. • Check the paper type and quality (See "Print media specifications" on page 97). • Ensure that the guides are not too tight or too loose against the paper stack. Curl or wave • Ensure that the paper is loaded properly. • Check the paper type and quality. Both high temperature and humidity can cause paper curl (See "Print media specifications" on page 97). • Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Condition

A

• The toner cartridge may not be installed properly. Remove the cartridge and reinsert it. • The toner cartridge may be defective. Remove the toner cartridge and install a new one (See "Replacing the toner cartridge" on page 93). • The machine may require repair. Contact a service representative. Loose toner • Clean the inside of the machine (See "Cleaning the inside" on page 79). • Check the paper type and quality (See "Print media specifications" on page 97). • Remove the toner cartridge and then, install a new one (See "Replacing the toner cartridge" on page 93). • If the problem persists, the machine may require repair. Contact a service representative. Character Voids

A

Character voids are white areas within parts of characters that should be solid black: • If you are using transparencies, try another type of transparency. Because of the composition of transparencies, some character voids are normal. • You may be printing on the wrong surface of the paper. Remove the paper and turn it over. • The paper may not meet paper specifications (See "Print media specifications" on page 97).

Condition

G

• If the defects are on the original, use Darkness in Copy feature to lighten the background of your copies (See "Changing the settings for each copy" on page 67). • If there are no defects on the original, clean the scan unit (See "Cleaning the scan unit" on page 80). Copy image is skewed. • Ensure that the original is face down on the scanner glass. • Check that the copy paper is loaded correctly. Blank copies print out. Ensure that the original is face down on the scanner glass. Image rubs off the copy easily. • Replace the paper in the tray with paper from a new package. • In high humidity areas, do not leave paper in the machine for extended periods of time. Frequent copy paper jams occur. • Fan the stack of paper, then turn it over in the tray. Replace the paper in the tray with a fresh supply. Check/adjust the paper guides, if necessary. • Ensure that the paper is the proper paper weight. • Check for copy paper or pieces of copy paper remaining in the machine after a paper jam has been cleared. Toner cartridge produces fewer copies than expected before running out of toner. • Your originals may contain pictures, solids, or heavy lines. For example, your originals may be forms, newsletters, books, or other documents that use more toner. • The scanner lid may be left open while copies are being made. • Turn the machine off and back on. Scanning problems Horizontal stripes A a B b C A a B b C A a B b C A a B b C A a B b C If horizontally aligned black streaks or smears appear: • The toner cartridge may be installed improperly. Remove the cartridge and reinsert it. • The toner cartridge may be defective. Remove the toner cartridge and install a new one (See "Replacing the toner cartridge" on page 93). • If the problem persists, the machine may require repair. Contact a service representative. Curl If the printed paper is curled or paper does not feed into the machine: • Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray. • Change the printer option and try again. Go to Printing Preferences, click Paper tab, and set type to Thin (See "Opening printing preferences" on page 60). An unknown image repetitively appears on a few sheets or loose toner, light print, or contamination occurs. Your machine is probably being used at an altitude of 1,000 m (3,281 ft.) or above. The high altitude may affect the print quality such as loose toner or light imaging. You can select a correct altitude of your machine location (See "Altitude adjustment" on page 51).

Condition

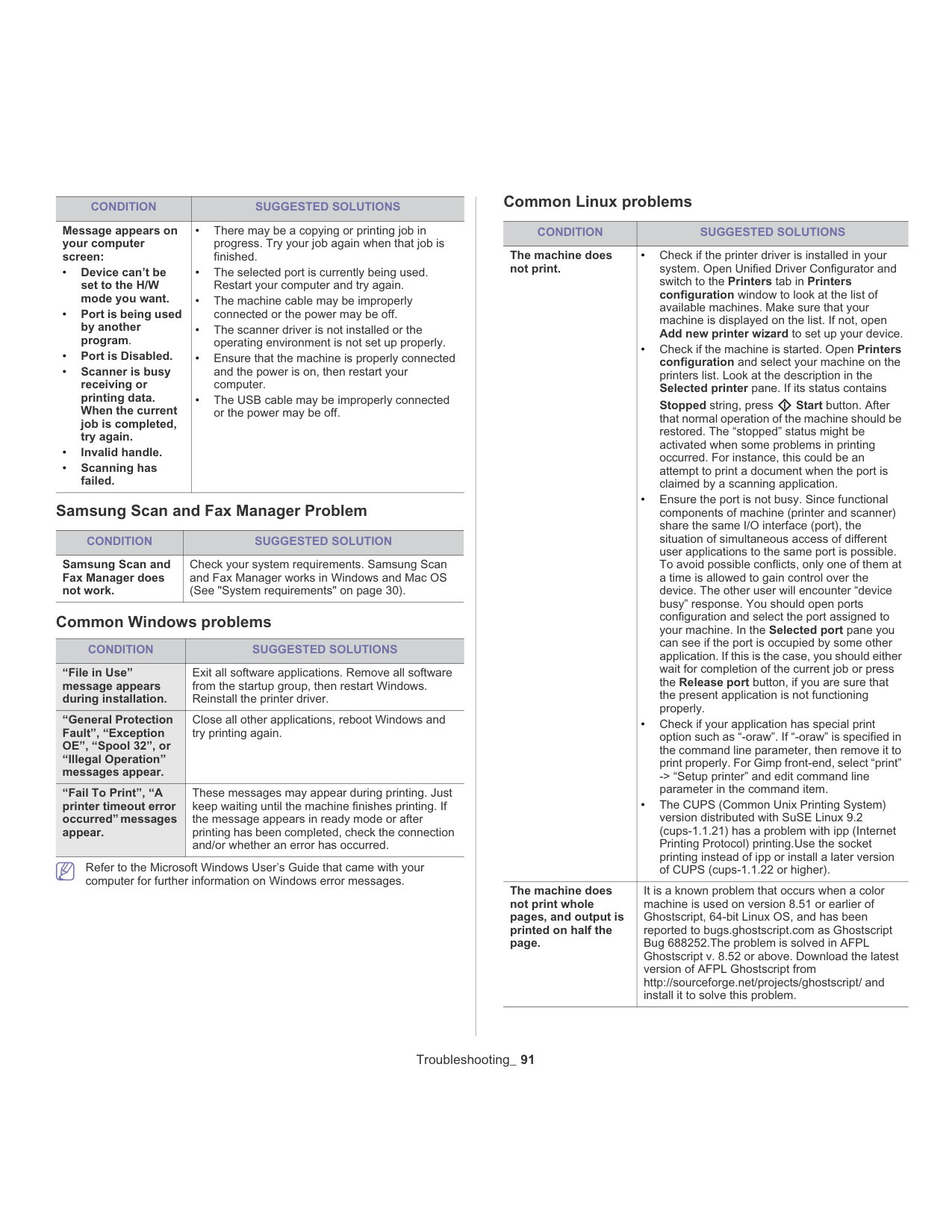

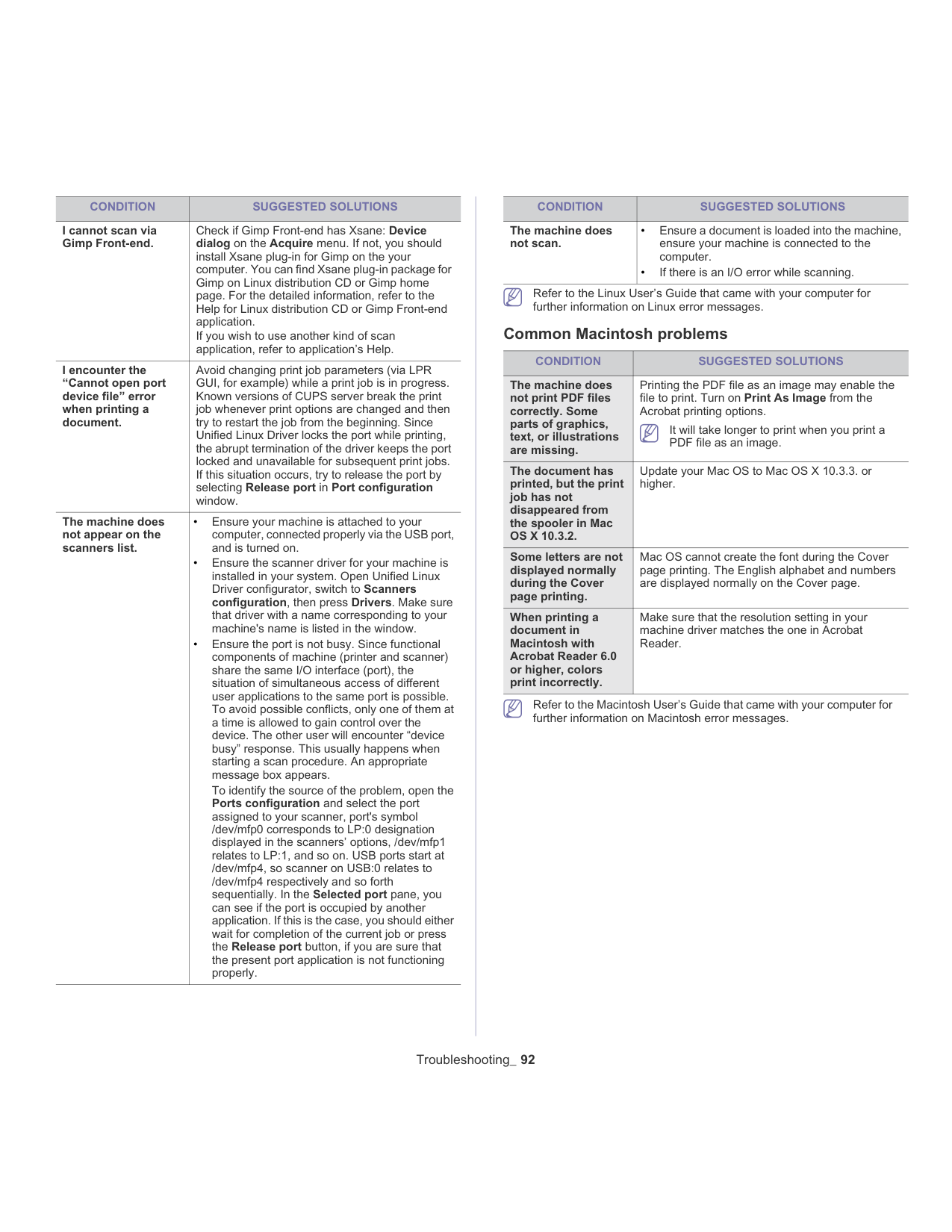

Os X 10.3.2.

Update your Mac OS to Mac OS X 10.3.3. or higher. Some letters are not displayed normally during the Cover page printing. Mac OS cannot create the font during the Cover page printing. The English alphabet and numbers are displayed normally on the Cover page. When printing a document in Macintosh with Acrobat Reader 6.0 or higher, colors print incorrectly. Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader. Refer to the Macintosh User’s Guide that came with your computer for further information on Macintosh error messages. I cannot scan via Gimp Front-end. Check if Gimp Front-end has Xsane: Device dialog on the Acquire menu. If not, you should install Xsane plug-in for Gimp on the your computer. You can find Xsane plug-in package for Gimp on Linux distribution CD or Gimp home page. For the detailed information, refer to the Help for Linux distribution CD or Gimp Front-end application. If you wish to use another kind of scan application, refer to application’s Help. I encounter the “Cannot open port device file” error when printing a document. Avoid changing print job parameters (via LPR GUI, for example) while a print job is in progress. Known versions of CUPS server break the print job whenever print options are changed and then try to restart the job from the beginning. Since Unified Linux Driver locks the port while printing, the abrupt termination of the driver keeps the port locked and unavailable for subsequent print jobs. If this situation occurs, try to release the port by selecting Release port in Port configuration window. The machine does not appear on the scanners list. • Ensure your machine is attached to your computer, connected properly via the USB port, and is turned on. • Ensure the scanner driver for your machine is installed in your system. Open Unified Linux Driver configurator, switch to Scanners configuration, then press Drivers. Make sure that driver with a name corresponding to your machine's name is listed in the window. • Ensure the port is not busy. Since functional components of machine (printer and scanner) share the same I/O interface (port), the situation of simultaneous access of different user applications to the same port is possible. To avoid possible conflicts, only one of them at a time is allowed to gain control over the device. The other user will encounter “device busy” response. This usually happens when starting a scan procedure. An appropriate message box appears. To identify the source of the problem, open the Ports configuration and select the port assigned to your scanner, port's symbol /dev/mfp0 corresponds to LP:0 designation displayed in the scanners’ options, /dev/mfp1 relates to LP:1, and so on. USB ports start at /dev/mfp4, so scanner on USB:0 relates to /dev/mfp4 respectively and so forth sequentially. In the Selected port pane, you can see if the port is occupied by another application. If this is the case, you should either wait for completion of the current job or press the Release port button, if you are sure that the present port application is not functioning properly.

Condition

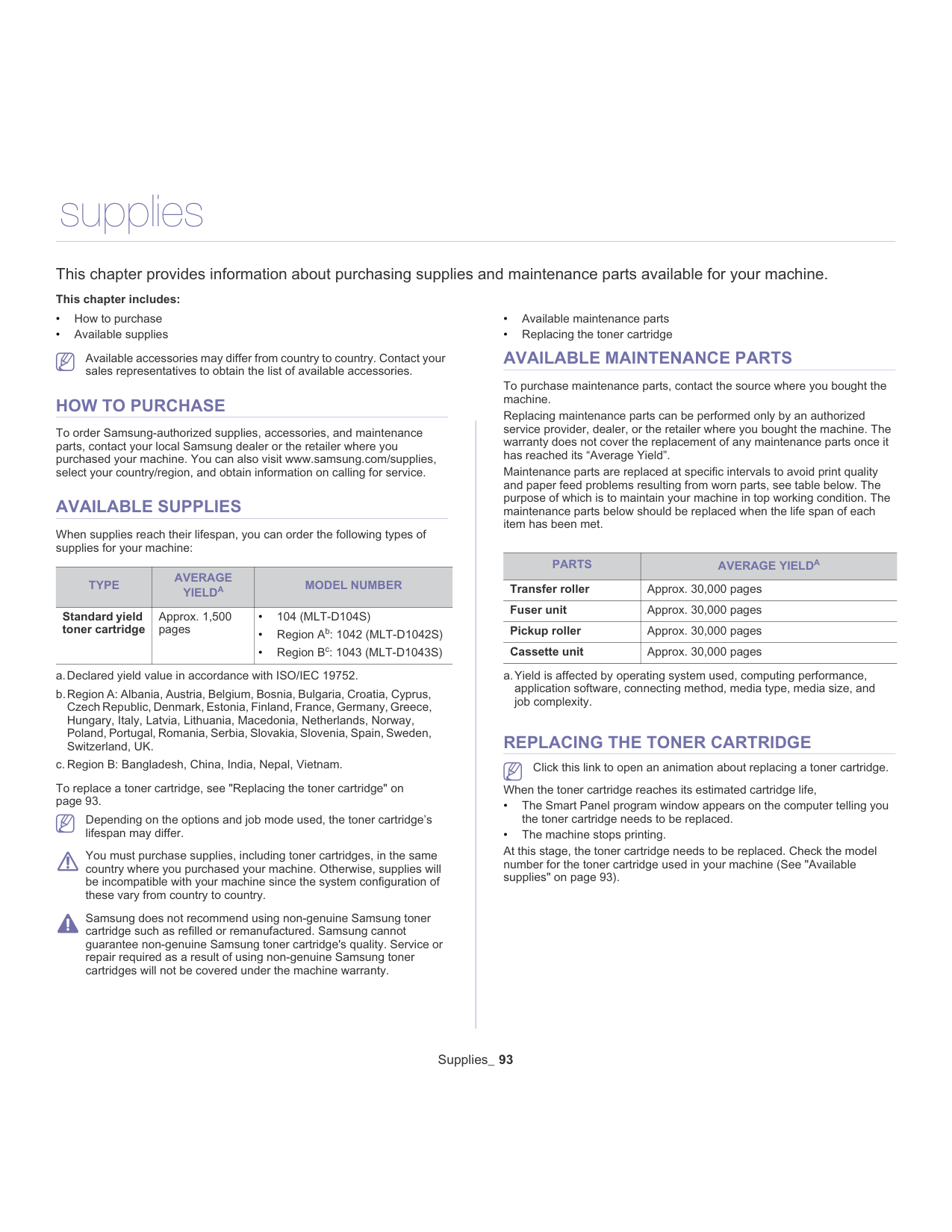

How To Purchase

To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, select your country/region, and obtain information on calling for service.

Available Supplies

When supplies reach their lifespan, you can order the following types of supplies for your machine:

Type

Average

Yielda

a.Declared yield value in accordance with ISO/IEC 19752. Standard yield toner cartridge Approx. 1,500 pages •

104 (Mlt-D104S)

• Region Ab: 1042 (MLT-D1042S) b.Region A: Albania, Austria, Belgium, Bosnia, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Italy, Latvia, Lithuania, Macedonia, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, UK. • Region Bc: 1043 (MLT-D1043S) c. Region B: Bangladesh, China, India, Nepal, Vietnam. To replace a toner cartridge, see "Replacing the toner cartridge" on page 93. Depending on the options and job mode used, the toner cartridge’s lifespan may differ. You must purchase supplies, including toner cartridges, in the same country where you purchased your machine. Otherwise, supplies will be incompatible with your machine since the system configuration of these vary from country to country. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty.

Available Maintenance Parts

To purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average Yield”. Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.

Parts

Average Yielda

a.Yield is affected by operating system used, computing performance, application software, connecting method, media type, media size, and job complexity. Transfer roller Approx. 30,000 pages Fuser unit Approx. 30,000 pages Pickup roller Approx. 30,000 pages Cassette unit Approx. 30,000 pages

Replacing The Toner Cartridge

Click this link to open an animation about replacing a toner cartridge. When the toner cartridge reaches its estimated cartridge life, • The Smart Panel program window appears on the computer telling you the toner cartridge needs to be replaced. • The machine stops printing. At this stage, the toner cartridge needs to be replaced. Check the model number for the toner cartridge used in your machine (See "Available supplies" on page 93).
