Name: HP Scanjet Pro 2500 F1 Flatbed Scanner
Brand: HP

Question 1

How do I reset the HP ScanJet Pro 2500 F1 scanner?

Accepted Answer

To reset the scanner, close the HP Scan Software and HP Scanner Tools Utility, then press the Power button to turn off the scanner and disconnect the power supply. Wait 30 seconds, then reconnect the power supply and press the Power button to turn the scanner back on. A reset is needed when error messages such as 'Scanner initialization failed' or 'Scanner not found' appear and a simple power cycle did not resolve the issue. (Page 42)

Question 2

What is the maximum paper capacity of the Automatic Document Feeder (ADF)?

Accepted Answer

The ADF input tray holds a maximum of 50 sheets of 75 g/m2 (20 lb) paper. When using heavier paper, the maximum capacity is decreased. Supported paper sizes range from a minimum of 148 x 89 mm (5.8 x 3.5 in) to a maximum of 3100 x 216 mm (122 x 8.5 in). (Page 14)

Question 3

How do I clean the scanner glass on the HP ScanJet Pro 2500 F1?

Accepted Answer

Lift up the document feeder, then use a clean lint-free cloth moistened with water or glass cleaner to thoroughly clean the flatbed scanner glass. Do not spray glass cleaner directly on the scanner glass as this might cause permanent damage. Dry the scanner glass completely with a dry, soft, lint-free cloth before turning the scanner back on. (Page 27)

Question 4

What cleaning products should I avoid when cleaning the scanner?

Accepted Answer

Do not use cleaners that contain abrasives, acetone, benzene, or carbon tetrachloride, as these chemicals can damage the scanning glass and scanning strips. Avoid using isopropyl alcohol as it can leave streaks on the glass and scanning strips. Use only glass cleaner or clean water applied to a lint-free cloth. (Page 27)

Question 5

Why does my scanner keep turning off automatically?

Accepted Answer

By default, the scanner will enter Sleep Mode after 15 minutes of inactivity and will turn off automatically after two hours of inactivity to conserve power. On Windows, you can change these defaults by opening the HP Scanner Tools Utility, clicking the Settings tab, and selecting the appropriate Sleep Mode and Auto-Off settings. On Mac OS X, use HP Utility to change these defaults. (Page 51)

Question 6

How do I clear a paper jam in the HP ScanJet Pro 2500 F1?

Accepted Answer

Remove any pages from the document feeder, then pull up the document feeder hatch to open it. Remove the originals or any obstructions from the paper path, including any visible debris such as paper, staples, or clips. Check the output tray and lift the input tray to confirm no paper remains in the path, then close the document feeder hatch and reload the originals to scan again. (Page 44)

Question 7

How often should the roller kit be replaced on the HP ScanJet Pro 2500 F1?

Accepted Answer

HP recommends replacing the pickup module and separation roller every 30,000 scans. Replacement is also recommended when the Maintenance Recommended dialog in the HP Scanner Tools Utility indicates they are due for maintenance, or if the scanner experiences repeated document jams. The roller replacement kit (part number L2748A#101) is a consumable and is not covered under warranty or standard service agreements. (Page 34)

Question 8

What are the operating environment requirements for the HP ScanJet Pro 2500 F1?

Accepted Answer

The scanner should be operated at temperatures between 10° to 35°C (50° to 95°F) with a relative humidity of 10% to 80% noncondensing. For storage, the temperature range is -40° to 65°C (-40° to 149°F) with humidity up to 90% at 0° to 65°C. The required power supply is rated 100–240V~ with a DC output of 24 Vdc, 1.5 A, 36 W. (Page 7)

Question 9

What should I do if my scanned images have streaks or appear fuzzy?

Accepted Answer

If scanned images have streaks or scratches, check that the originals are clean and unwrinkled, and clean the scanner glass and ADF scanning strips. If images are fuzzy, check for obstructions in the scanner paper path, ensure the paper width guides are positioned appropriately, and verify that the original document itself is not fuzzy. Smudges on the scanning strips are a common cause of fuzzy or streaked scans. (Page 47)

Question 10

How do I reset the scanner?

Accepted Answer

To reset the scanner, turn off the device and unplug the power supply. Wait for 30 seconds, then reconnect the power supply and turn the scanner back on. (Page 51)

Question 11

How can I troubleshoot a paper jam issue?

Accepted Answer

To clear a paper jam, open the document feeder hatch to remove any pages from it and ensure no visible obstructions or debris are present in the paper path. (Page 46)

Question 12

What is the procedure for factory resetting the scanner?

Accepted Answer

Press the Power button to turn off the scanner, disconnect power supply and USB cables. After 30 seconds, reconnect cables and turn on the scanner using the Power button. (Pages 51 & 42)

Question 13

How do you clean the scanner glass?

Accepted Answer

Use a soft lint-free cloth or one sprayed with non-abrasive glass cleaner to wipe the flatbed scanner glass thoroughly. Then use another dry cloth to ensure there are no streaks left on the glass. (Page 28)

Question 14

How do I install and configure the scanning software for Windows?

Accepted Answer

First, use HP’S all-inclusive help guide at www.hp.com/support to ensure correct installation of software updates. Then download and install drivers automatically or from the CD provided by HP. (Page 14)

Question 15

What types of documents should NOT be loaded into the ADF?

Accepted Answer

The following document types should not be loaded into the ADF as they may cause paper jams or damage: wrinkled, creased, curled, or torn documents, documents with paper clips or staples, carbon paper, coated paper, extremely thin or translucent paper, paper with adhesive notes or flags, photos, overhead transparencies, and pages with wet substances such as glue or correction fluid. For fragile documents such as photos, place the document face down on the flatbed scanner glass instead. (Page 11)

Question 16

How do I adjust sleep mode and auto-off settings?

Accepted Answer

For Windows users: Open HP Scanner Tools Utility, select Settings tab and choose appropriate values from Sleep Mode and Auto-Off options to change the default settings. (Page 52)

Question 17

How do I handle paper jams when scanning multiple pages?

Accepted Answer

For multi-page scans causing jams or misfeeds, check if all rollers are in place and the feeder hatch is closed. Scanning damp documents can cause jams; ensure they are dry before using them for scans. (Page 48)

Question 18

How do I use scan shortcuts on my HP Scanjet Pro 2500 f1?

Accepted Answer

Press the Toggle button to choose a shortcut option and select from choices including PDF creation, email sending or image capture. The chosen tool will be displayed by the corresponding LED indicator. (Page 8)

Question 19

How do I use OCR software in HP Scanjet Pro 2500 f1?

Accepted Answer

Use HP Scan Software’s Create new scan shortcut option to define settings for Optical Character Recognition tasks and ensure the correct file type is selected such as PDF format. (Page 20)

Question 20

How do I handle paper feeding issues while using the ADF?

Accepted Answer

If papers are not feeding properly, ensure items loaded follow required guidelines and that no staples or self-adhesive notes interfere. Adjust guides to touch edges of documents precisely. (Page 46)

Question 21

How do I connect the USB cable to start using the HP ScanJet Pro 2500 f1 flatbed scanner on a Mac?

Accepted Answer

Connect the USB cable now after the software installation is successful. Ensure you have downloaded and installed the scanner software from www.hp.com/support before connecting the cable.

Question 22

What are the steps to install the scanner software on a Mac?

Accepted Answer

To install the scanner software for your Mac, go to www.hp.com/support, select Drivers & Downloads, search for your scanner model number, choose your operating system, and click the Download button to download the installer.

Question 23

What should I do if the LED on the power supply case is not lit when connecting the scanner?

Accepted Answer

Check all electrical connections and make sure there are no loose or damaged cables. Ensure that the outlet works properly and that the green LED on the power supply unit lights up.

Question 24

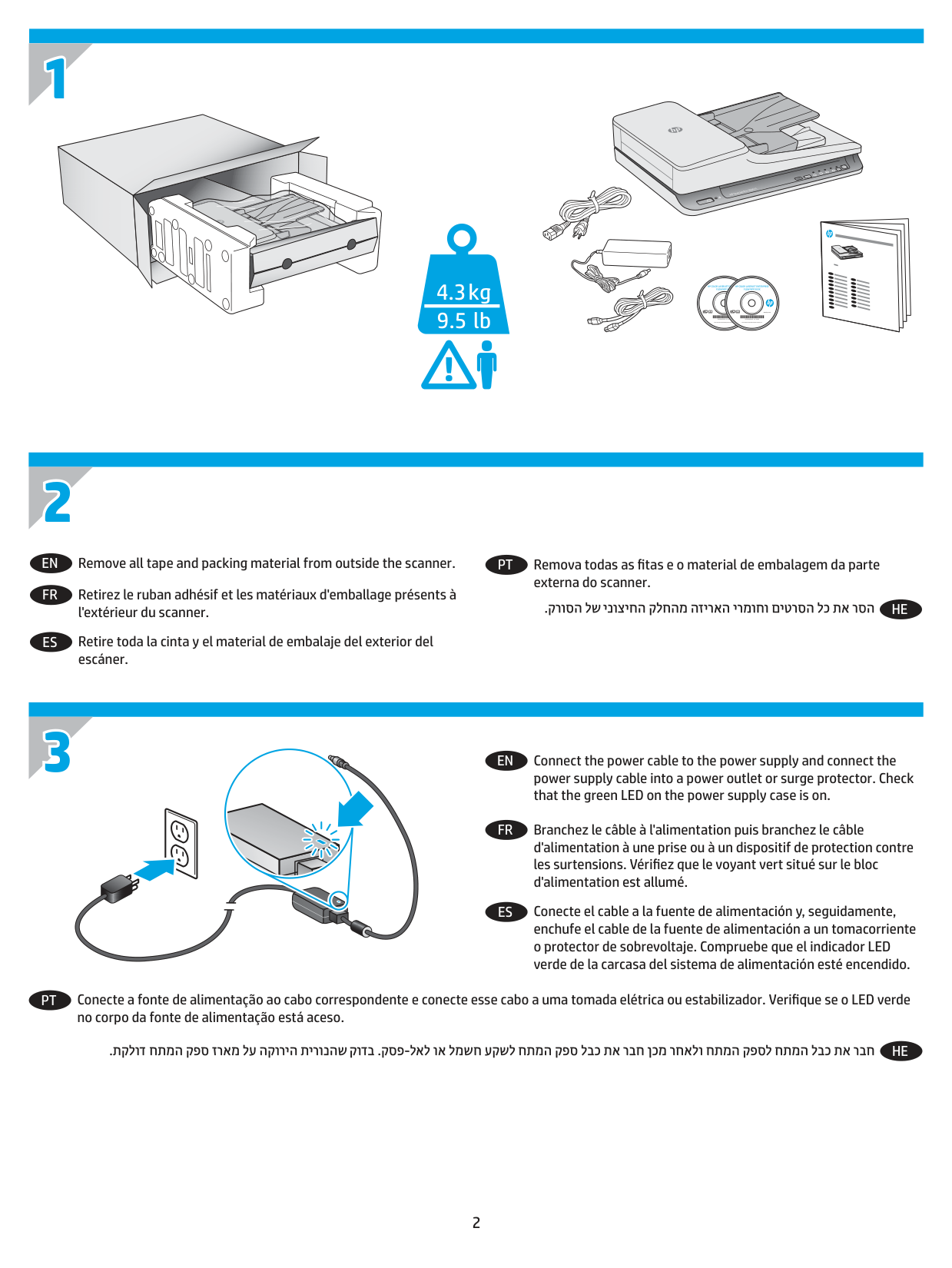

How do I safely remove any packaging material from outside the scanner?

Accepted Answer

Remove all tape and packing material from the exterior of the scanner before attempting to set it up. Ensure no debris remains that could interfere with its operation or damage the device.

Question 25

How do I properly connect the power supply cable when setting up my HP ScanJet Pro 2500 f1 flatbed scanner?

Accepted Answer

First, plug the power supply into a power outlet or surge protector. Once confirmed that the green LED on the power supply case is lit, connect it to the back of the device and press the Power button.

Question 26

Where can I find information regarding the regulatory model number for my HP ScanJet Pro 2500 f1 scanner?

Accepted Answer

Additional regulatory information about your scanner, including the Regulatory Model Number (SHNGD-1402), is found in the Warranty and Legal Guide available on page 8 of the documentation.

Question 27

What should I do if I encounter an error during software installation?

Accepted Answer

Refer to the scanner User Guide or visit www.hp.com/support for troubleshooting steps and further information regarding software installation issues.

Question 28

What measures should I take to protect the scanner during installation?

Accepted Answer

Protect the external surfaces of the scanner by ensuring that no packing material is left inside after opening and before connecting all cables.

Question 29

Is there legal documentation available for regulatory compliance regarding my HP ScanJet Pro 2500 f1 flatbed scanner?

Accepted Answer

For legal regulations such as the Regulatory Model Number, refer to the Warranty and Legal Guide provided in your manual.
