HP ZBook Firefly 14 G7 Mobile Workstation
Right
7 Clickpad
1All units have a SIM card slot and icon but units that do not support WWAN are shipped with a non-removable SIM slot plug
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Overview DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 1

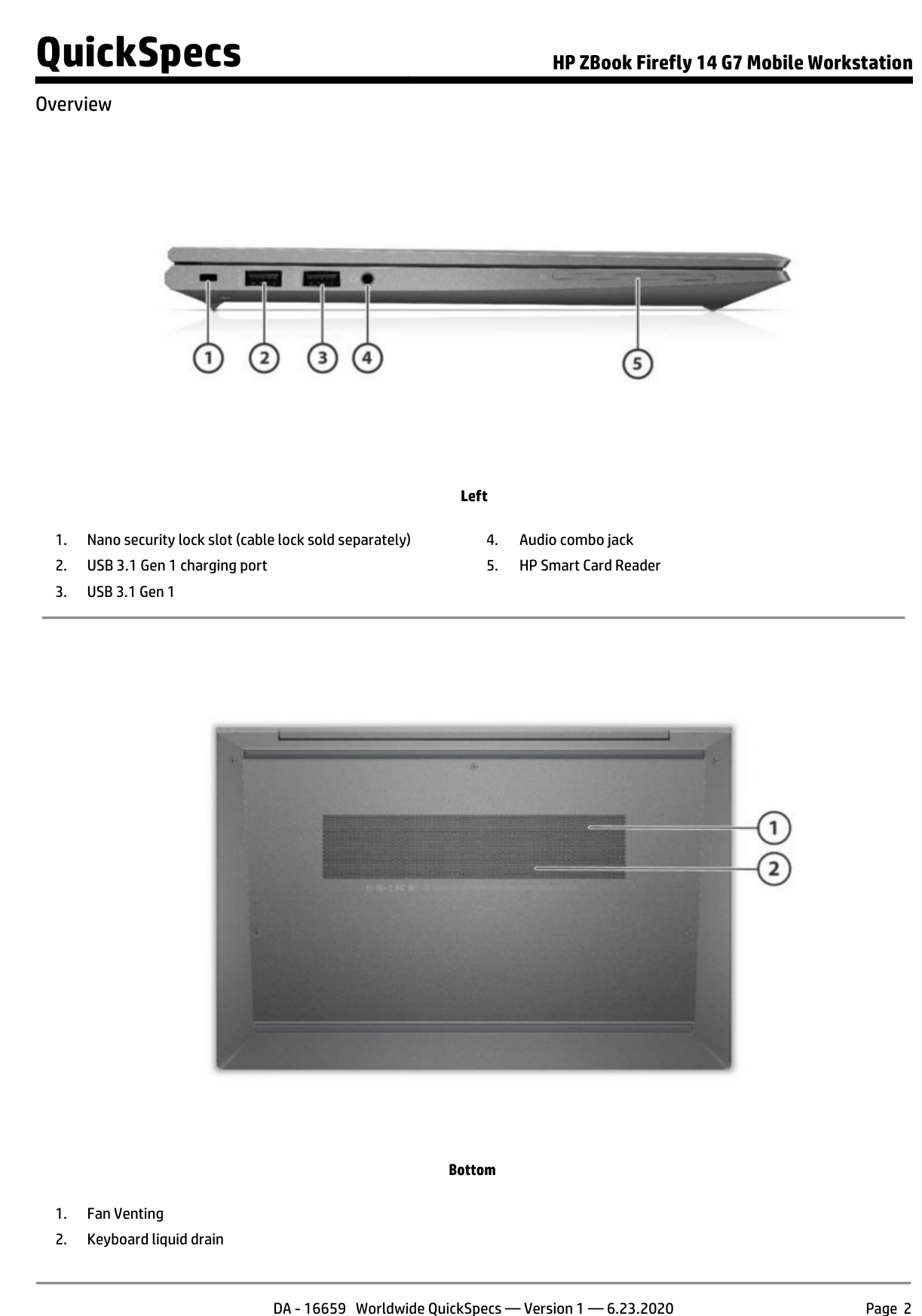

Left
Bottom
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Overview DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 2

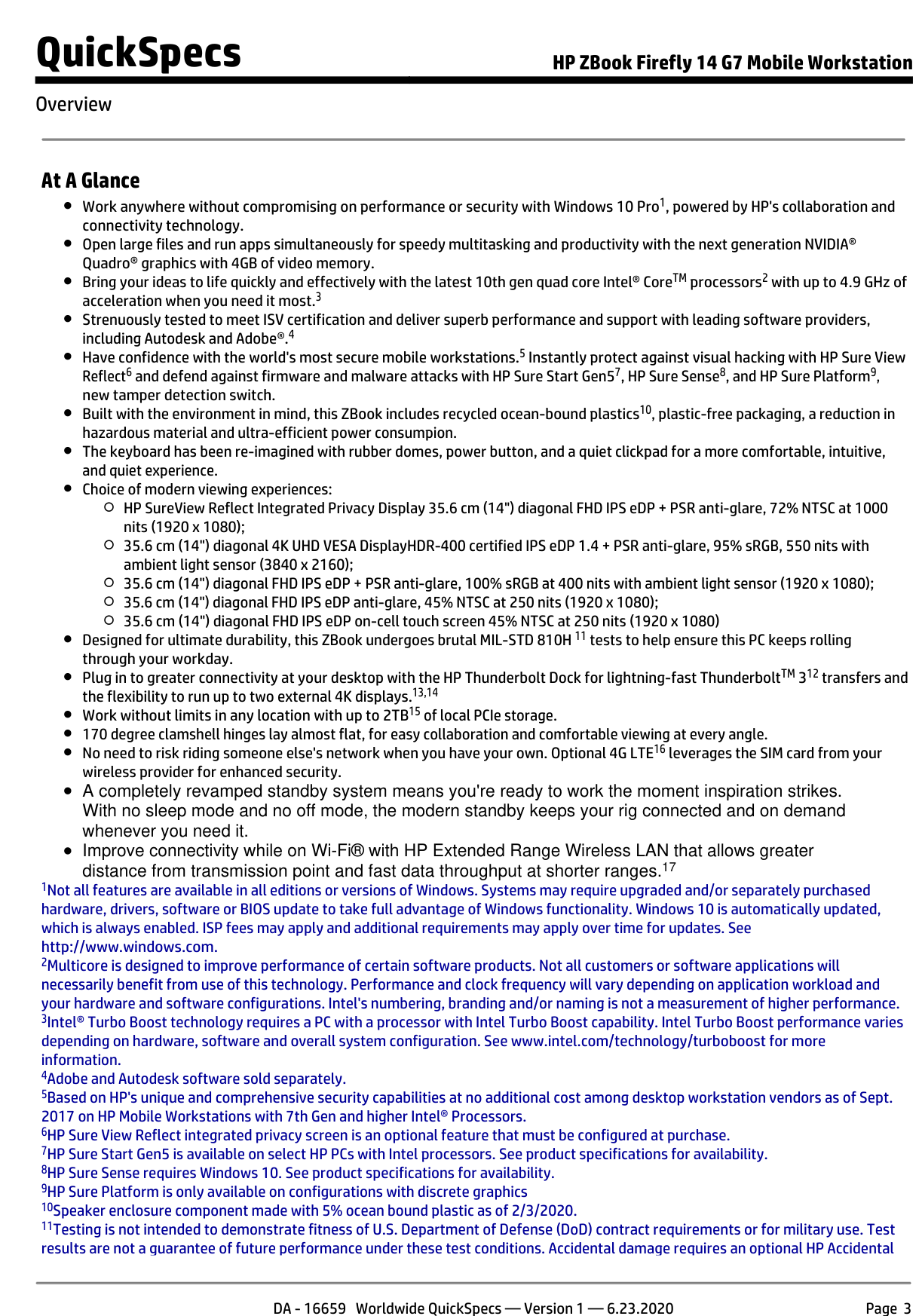

At A Glance Work anywhere without compromising on performance or security with Windows 10 Pro1, powered by HP's collaboration and connectivity technology. Open large files and run apps simultaneously for speedy multitasking and productivity with the next generation NVIDIA® Quadro® graphics with 4GB of video memory. Bring your ideas to life quickly and effectively with the latest 10th gen quad core Intel® CoreTM processors2 with up to 4.9 GHz of acceleration when you need it most.3 Strenuously tested to meet ISV certification and deliver superb performance and support with leading software providers, including Autodesk and Adobe®.4 Have confidence with the world's most secure mobile workstations.5 Instantly protect against visual hacking with HP Sure View Reflect6 and defend against firmware and malware attacks with HP Sure Start Gen57, HP Sure Sense8, and HP Sure Platform9, new tamper detection switch. Built with the environment in mind, this ZBook includes recycled ocean-bound plastics10, plastic-free packaging, a reduction in hazardous material and ultra-efficient power consumpion. The keyboard has been re-imagined with rubber domes, power button, and a quiet clickpad for a more comfortable, intuitive, and quiet experience. Choice of modern viewing experiences: HP SureView Reflect Integrated Privacy Display 35.6 cm (14") diagonal FHD IPS eDP + PSR anti-glare, 72% NTSC at 1000 nits (1920 x 1080); 35.6 cm (14") diagonal 4K UHD VESA DisplayHDR-400 certified IPS eDP 1.4 + PSR anti-glare, 95% sRGB, 550 nits with ambient light sensor (3840 x 2160); 35.6 cm (14") diagonal FHD IPS eDP + PSR anti-glare, 100% sRGB at 400 nits with ambient light sensor (1920 x 1080); 35.6 cm (14") diagonal FHD IPS eDP anti-glare, 45% NTSC at 250 nits (1920 x 1080); 35.6 cm (14") diagonal FHD IPS eDP on-cell touch screen 45% NTSC at 250 nits (1920 x 1080) Designed for ultimate durability, this ZBook undergoes brutal MIL-STD 810H 11 tests to help ensure this PC keeps rolling through your workday. Plug in to greater connectivity at your desktop with the HP Thunderbolt Dock for lightning-fast ThunderboltTM 312 transfers and the flexibility to run up to two external 4K displays.13,14 Work without limits in any location with up to 2TB15 of local PCIe storage. 170 degree clamshell hinges lay almost flat, for easy collaboration and comfortable viewing at every angle. No need to risk riding someone else's network when you have your own. Optional 4G LTE16 leverages the SIM card from your wireless provider for enhanced security. A completely revamped standby system means you're ready to work the moment inspiration strikes. With no sleep mode and no off mode, the modern standby keeps your rig connected and on demand whenever you need it. Improve connectivity while on Wi-Fi® with HP Extended Range Wireless LAN that allows greater distance from transmission point and fast data throughput at shorter ranges.17 1Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com. 2Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel's numbering, branding and/or naming is not a measurement of higher performance. 3Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance varies depending on hardware, software and overall system configuration. See www.intel.com/technology/turboboost for more information. 4Adobe and Autodesk software sold separately. 5Based on HP's unique and comprehensive security capabilities at no additional cost among desktop workstation vendors as of Sept. 2017 on HP Mobile Workstations with 7th Gen and higher Intel® Processors. 6HP Sure View Reflect integrated privacy screen is an optional feature that must be configured at purchase. 7HP Sure Start Gen5 is available on select HP PCs with Intel processors. See product specifications for availability. 8HP Sure Sense requires Windows 10. See product specifications for availability. 9HP Sure Platform is only available on configurations with discrete graphics 10Speaker enclosure component made with 5% ocean bound plastic as of 2/3/2020. 11Testing is not intended to demonstrate fitness of U.S. Department of Defense (DoD) contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP Accidental QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Overview DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 3

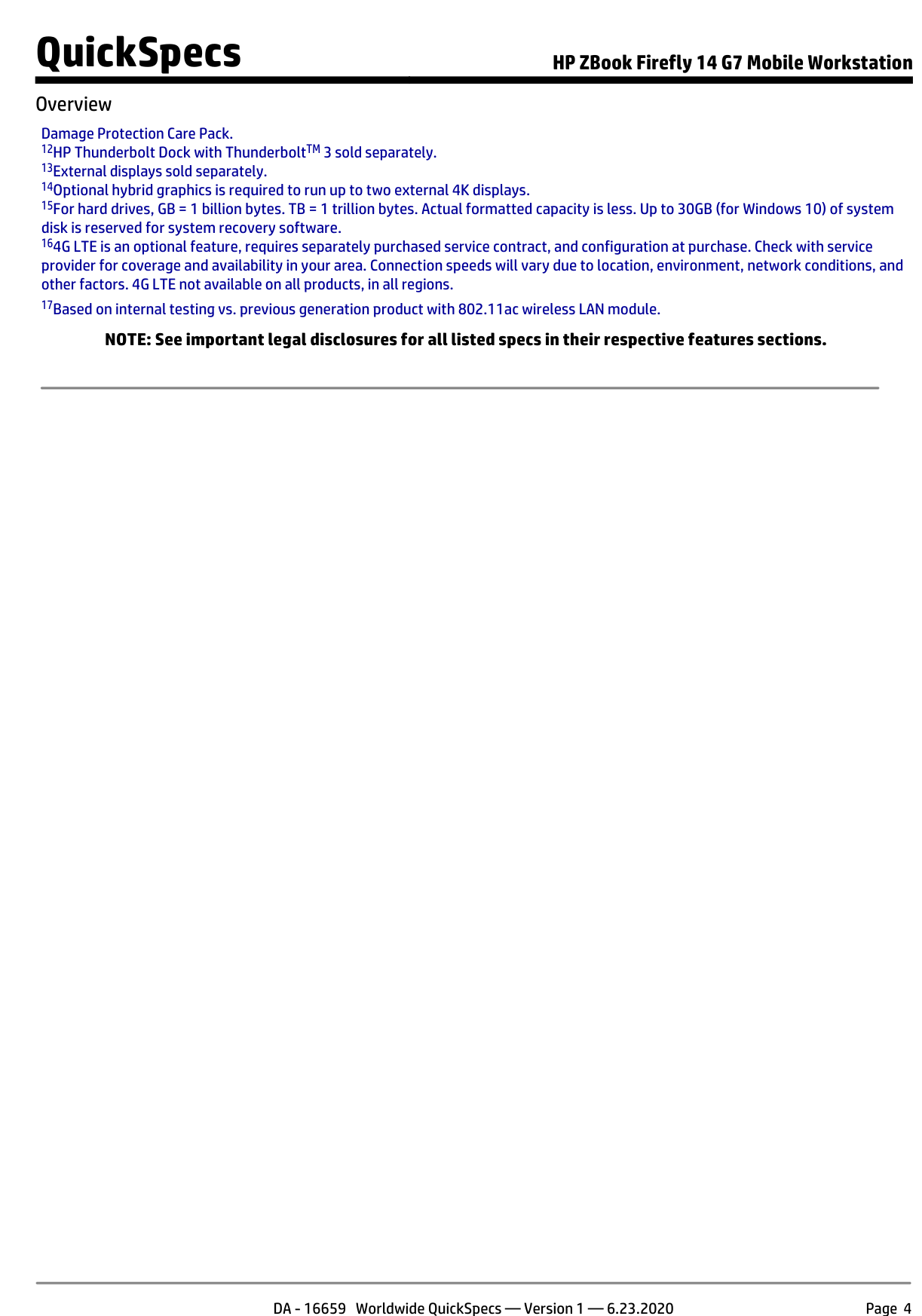

Damage Protection Care Pack. 12HP Thunderbolt Dock with ThunderboltTM 3 sold separately. 13External displays sold separately. 14Optional hybrid graphics is required to run up to two external 4K displays. 15For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB (for Windows 10) of system disk is reserved for system recovery software. 164G LTE is an optional feature, requires separately purchased service contract, and configuration at purchase. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions. 17Based on internal testing vs. previous generation product with 802.11ac wireless LAN module. NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Overview DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 4

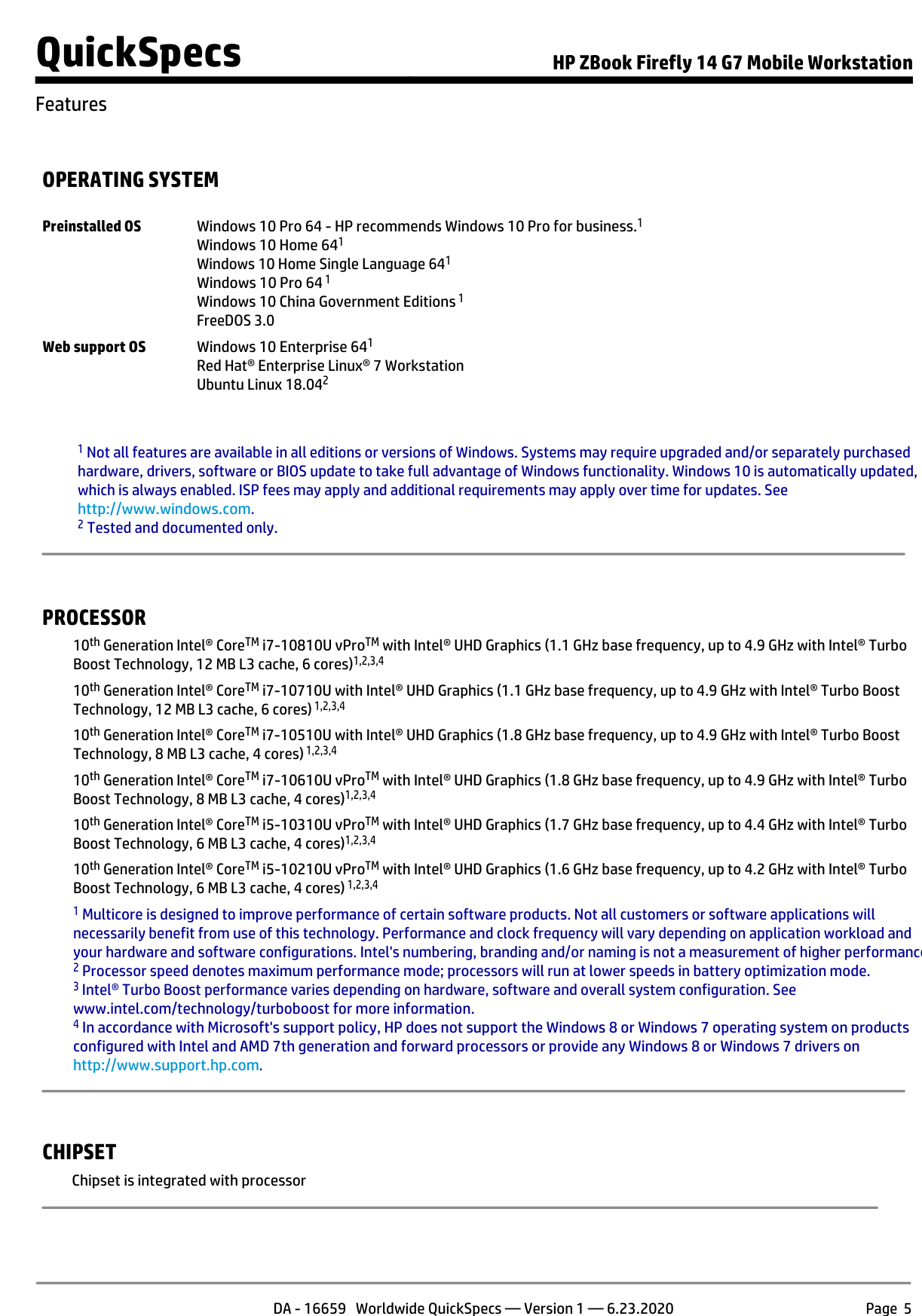

Operating System
Preinstalled OS Windows 10 Pro 64 - HP recommends Windows 10 Pro for business.1 Windows 10 Home 641 Windows 10 Home Single Language 641 Windows 10 Pro 64 1 Windows 10 China Government Editions 1 FreeDOS 3.0 Web support OS Windows 10 Enterprise 641 Red Hat® Enterprise Linux® 7 Workstation Ubuntu Linux 18.042
1 Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com. 2 Tested and documented only.
Processor
10th Generation Intel® CoreTM i7-10810U vProTM with Intel® UHD Graphics (1.1 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)1,2,3,4
10th Generation Intel® CoreTM i7-10710U with Intel® UHD Graphics (1.1 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores) 1,2,3,4
10th Generation Intel® CoreTM i7-10510U with Intel® UHD Graphics (1.8 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores) 1,2,3,4
10th Generation Intel® CoreTM i7-10610U vProTM with Intel® UHD Graphics (1.8 GHz base frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores)1,2,3,4
10th Generation Intel® CoreTM i5-10310U vProTM with Intel® UHD Graphics (1.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores)1,2,3,4
10th Generation Intel® CoreTM i5-10210U vProTM with Intel® UHD Graphics (1.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores) 1,2,3,4
1 Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel's numbering, branding and/or naming is not a measurement of higher performance 2 Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode. 3 Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See www.intel.com/technology/turboboost for more information. 4 In accordance with Microsoft's support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on http://www.support.hp.com.
Chipset
Chipset is integrated with processor
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 5

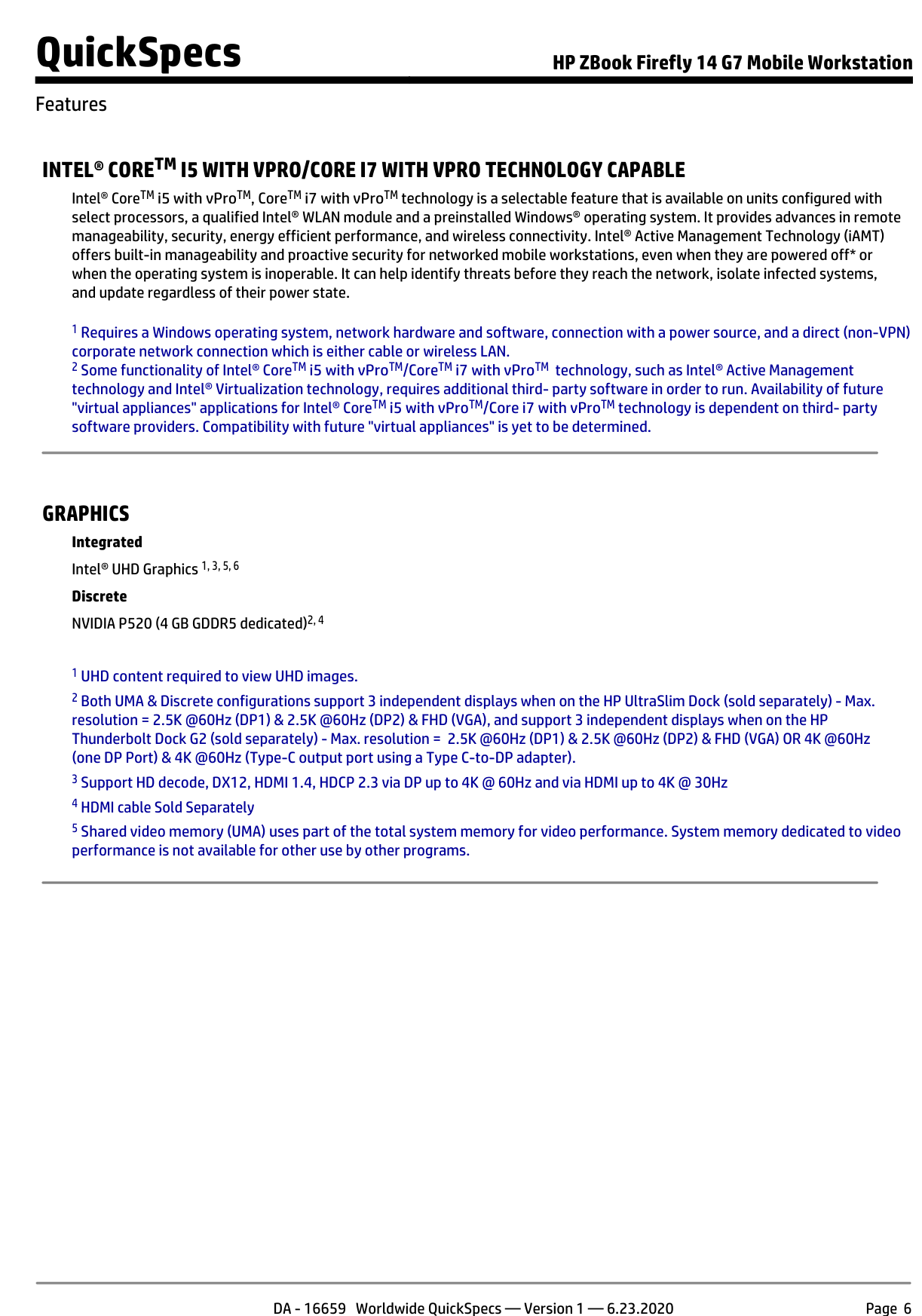

Intel® Coretm I5 With Vpro/Core I7 With Vpro Technology Capable
Intel® CoreTM i5 with vProTM, CoreTM i7 with vProTM technology is a selectable feature that is available on units configured with select processors, a qualified Intel® WLAN module and a preinstalled Windows® operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel® Active Management Technology (iAMT) offers built-in manageability and proactive security for networked mobile workstations, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update regardless of their power state.
1 Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN. 2 Some functionality of Intel® CoreTM i5 with vProTM/CoreTM i7 with vProTM technology, such as Intel® Active Management technology and Intel® Virtualization technology, requires additional third- party software in order to run. Availability of future "virtual appliances" applications for Intel® CoreTM i5 with vProTM/Core i7 with vProTM technology is dependent on third- party software providers. Compatibility with future "virtual appliances" is yet to be determined.
Graphics
Integrated
Intel® UHD Graphics 1, 3, 5, 6
Discrete
NVIDIA P520 (4 GB GDDR5 dedicated)2, 4
1 UHD content required to view UHD images. 2 Both UMA & Discrete configurations support 3 independent displays when on the HP UltraSlim Dock (sold separately) - Max. resolution = 2.5K @60Hz (DP1) & 2.5K @60Hz (DP2) & FHD (VGA), and support 3 independent displays when on the HP Thunderbolt Dock G2 (sold separately) - Max. resolution = 2.5K @60Hz (DP1) & 2.5K @60Hz (DP2) & FHD (VGA) OR 4K @60Hz (one DP Port) & 4K @60Hz (Type-C output port using a Type C-to-DP adapter). 3 Support HD decode, DX12, HDMI 1.4, HDCP 2.3 via DP up to 4K @ 60Hz and via HDMI up to 4K @ 30Hz 4 HDMI cable Sold Separately 5 Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by other programs.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 6

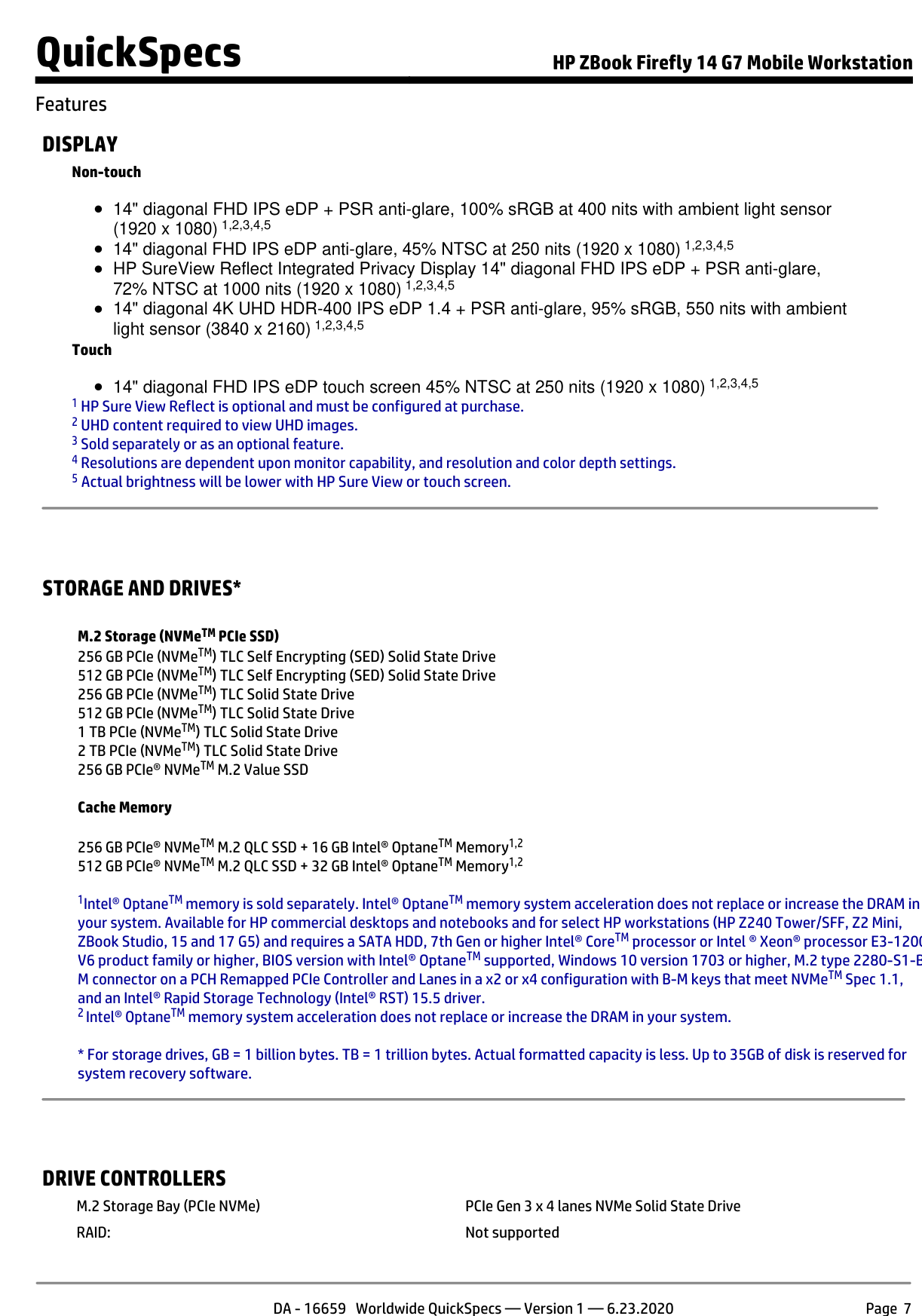

Display
Non-touch 14" diagonal FHD IPS eDP + PSR anti-glare, 100% sRGB at 400 nits with ambient light sensor (1920 x 1080) 1,2,3,4,5 14" diagonal FHD IPS eDP anti-glare, 45% NTSC at 250 nits (1920 x 1080) 1,2,3,4,5 HP SureView Reflect Integrated Privacy Display 14" diagonal FHD IPS eDP + PSR anti-glare, 72% NTSC at 1000 nits (1920 x 1080) 1,2,3,4,5 14" diagonal 4K UHD HDR-400 IPS eDP 1.4 + PSR anti-glare, 95% sRGB, 550 nits with ambient light sensor (3840 x 2160) 1,2,3,4,5 Touch 14" diagonal FHD IPS eDP touch screen 45% NTSC at 250 nits (1920 x 1080) 1,2,3,4,5 1 HP Sure View Reflect is optional and must be configured at purchase. 2 UHD content required to view UHD images. 3 Sold separately or as an optional feature. 4 Resolutions are dependent upon monitor capability, and resolution and color depth settings. 5 Actual brightness will be lower with HP Sure View or touch screen.
Storage And Drives*
M.2 Storage (NVMeTM PCIe SSD) 256 GB PCIe (NVMeTM) TLC Self Encrypting (SED) Solid State Drive 512 GB PCIe (NVMeTM) TLC Self Encrypting (SED) Solid State Drive 256 GB PCIe (NVMeTM) TLC Solid State Drive 512 GB PCIe (NVMeTM) TLC Solid State Drive 1 TB PCIe (NVMeTM) TLC Solid State Drive 2 TB PCIe (NVMeTM) TLC Solid State Drive 256 GB PCIe® NVMeTM M.2 Value SSD
Cache Memory
256 GB PCIe® NVMeTM M.2 QLC SSD + 16 GB Intel® OptaneTM Memory1,2 512 GB PCIe® NVMeTM M.2 QLC SSD + 32 GB Intel® OptaneTM Memory1,2
1Intel® OptaneTM memory is sold separately. Intel® OptaneTM memory system acceleration does not replace or increase the DRAM in your system. Available for HP commercial desktops and notebooks and for select HP workstations (HP Z240 Tower/SFF, Z2 Mini, ZBook Studio, 15 and 17 G5) and requires a SATA HDD, 7th Gen or higher Intel® CoreTM processor or Intel ® Xeon® processor E3-1200 V6 product family or higher, BIOS version with Intel® OptaneTM supported, Windows 10 version 1703 or higher, M.2 type 2280-S1-B M connector on a PCH Remapped PCIe Controller and Lanes in a x2 or x4 configuration with B-M keys that meet NVMeTM Spec 1.1, and an Intel® Rapid Storage Technology (Intel® RST) 15.5 driver. 2 Intel® OptaneTM memory system acceleration does not replace or increase the DRAM in your system.
Drive Controllers
M.2 Storage Bay (PCIe NVMe) PCIe Gen 3 x 4 lanes NVMe Solid State Drive
Raid:
Not supportedQuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 7

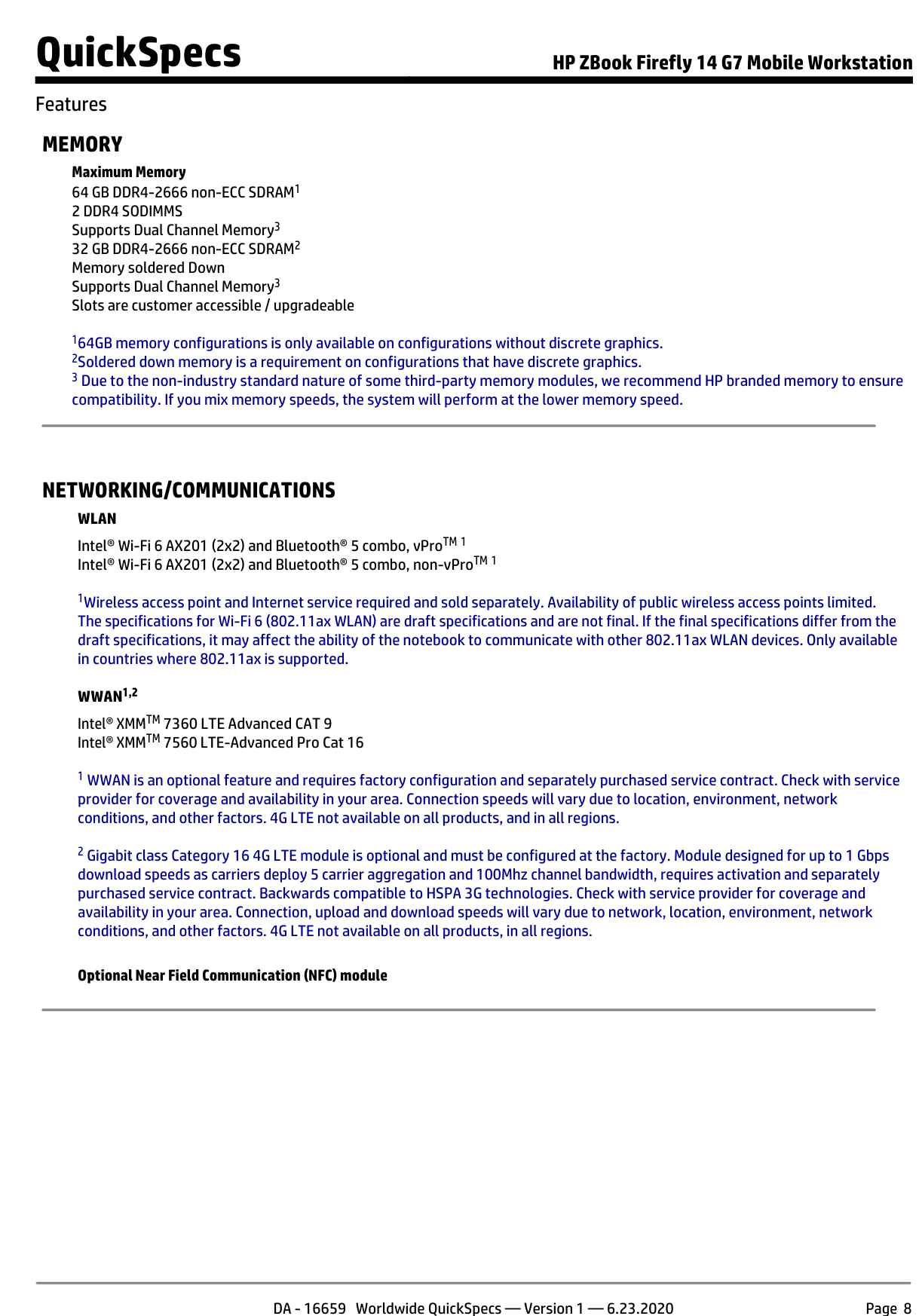

Memory
Maximum Memory 64 GB DDR4-2666 non-ECC SDRAM1
2 Ddr4 Sodimms
Supports Dual Channel Memory3 32 GB DDR4-2666 non-ECC SDRAM2 Memory soldered Down Supports Dual Channel Memory3 Slots are customer accessible / upgradeable164GB memory configurations is only available on configurations without discrete graphics. 2Soldered down memory is a requirement on configurations that have discrete graphics. 3 Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Networking/Communications
Wlan
Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo, vProTM 1 Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo, non-vProTM 11Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. The specifications for Wi-Fi 6 (802.11ax WLAN) are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax WLAN devices. Only available in countries where 802.11ax is supported.
Wwan1,2
Intel® XMMTM 7360 LTE Advanced CAT 9 Intel® XMMTM 7560 LTE-Advanced Pro Cat 161 WWAN is an optional feature and requires factory configuration and separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products, and in all regions.
2 Gigabit class Category 16 4G LTE module is optional and must be configured at the factory. Module designed for up to 1 Gbps download speeds as carriers deploy 5 carrier aggregation and 100Mhz channel bandwidth, requires activation and separately purchased service contract. Backwards compatible to HSPA 3G technologies. Check with service provider for coverage and availability in your area. Connection, upload and download speeds will vary due to network, location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.
Optional Near Field Communication (NFC) module
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 8

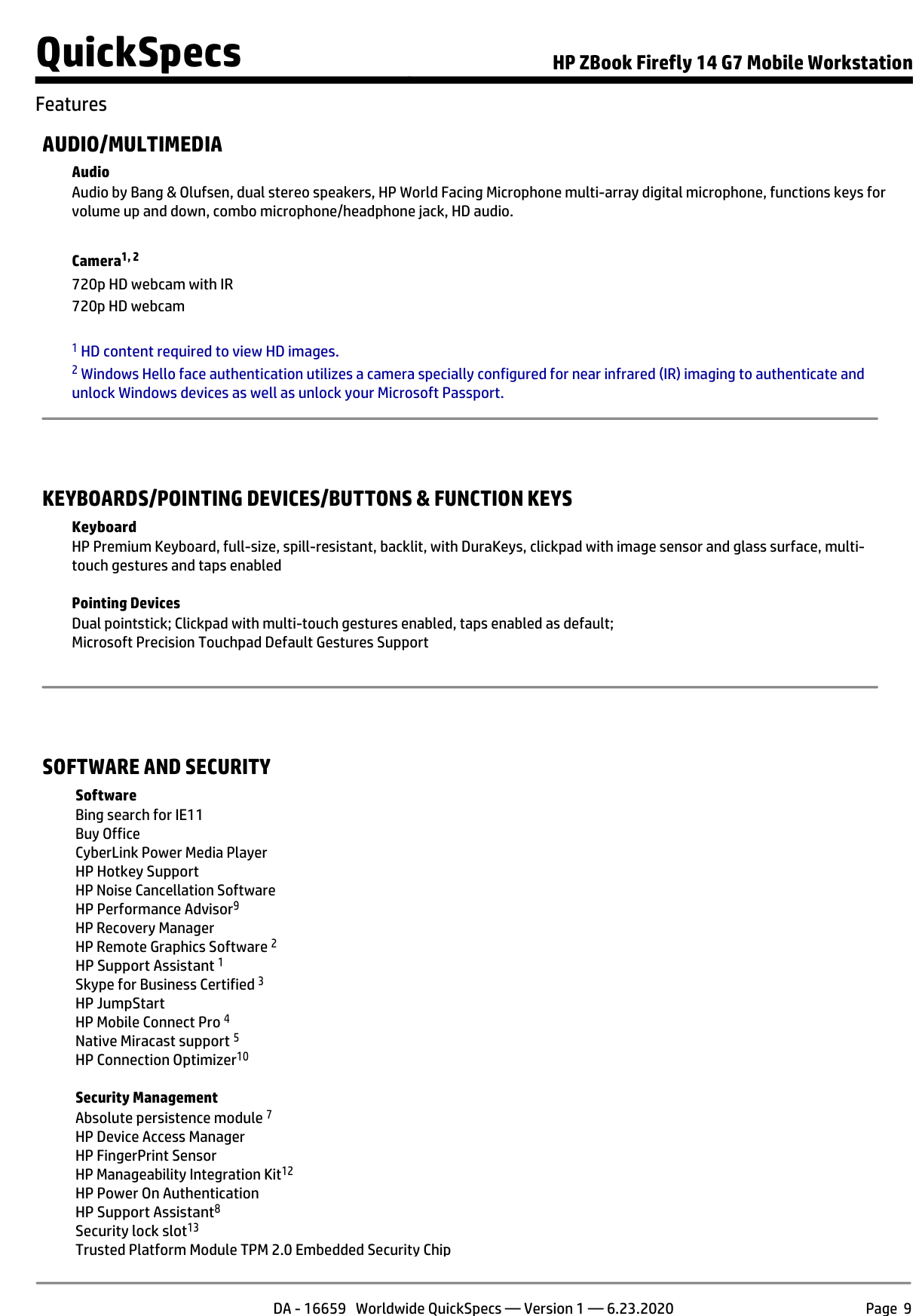

Audio/Multimedia
Audio Audio by Bang & Olufsen, dual stereo speakers, HP World Facing Microphone multi-array digital microphone, functions keys for volume up and down, combo microphone/headphone jack, HD audio.
Camera1, 2 720p HD webcam with IR 720p HD webcam
1 HD content required to view HD images. 2 Windows Hello face authentication utilizes a camera specially configured for near infrared (IR) imaging to authenticate and unlock Windows devices as well as unlock your Microsoft Passport.
Keyboards/Pointing Devices/Buttons & Function Keys
Keyboard HP Premium Keyboard, full-size, spill-resistant, backlit, with DuraKeys, clickpad with image sensor and glass surface, multi- touch gestures and taps enabled Pointing Devices Dual pointstick; Clickpad with multi-touch gestures enabled, taps enabled as default; Microsoft Precision Touchpad Default Gestures Support
Software And Security
Software Bing search for IE11 Buy Office CyberLink Power Media Player HP Hotkey Support HP Noise Cancellation Software HP Performance Advisor9 HP Recovery Manager HP Remote Graphics Software 2 HP Support Assistant 1 Skype for Business Certified 3 HP JumpStart HP Mobile Connect Pro 4 Native Miracast support 5 HP Connection Optimizer10
Security Management Absolute persistence module 7 HP Device Access Manager HP FingerPrint Sensor HP Manageability Integration Kit12 HP Power On Authentication HP Support Assistant8 Security lock slot13 Trusted Platform Module TPM 2.0 Embedded Security Chip QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 9

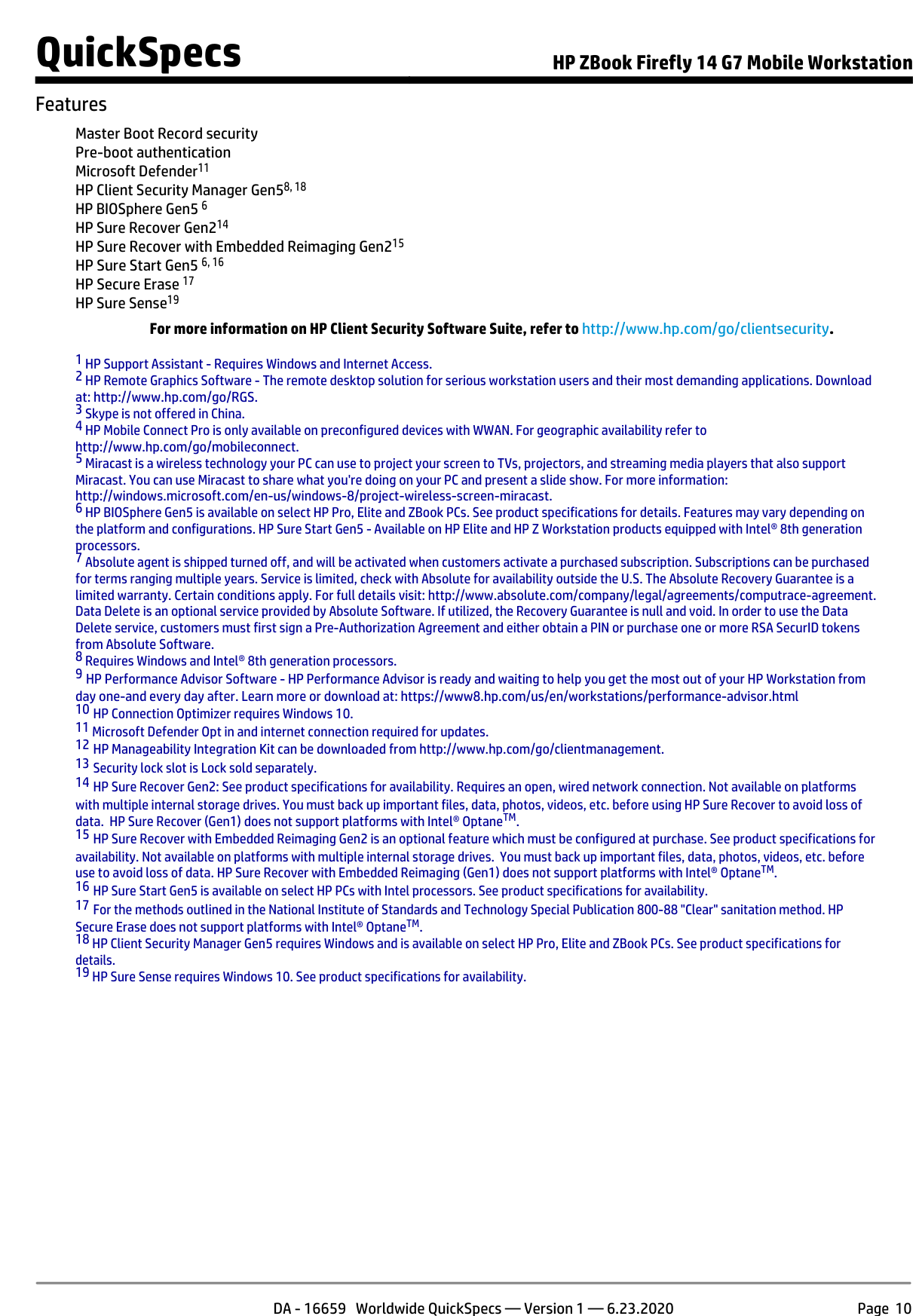

Master Boot Record security Pre-boot authentication Microsoft Defender11 HP Client Security Manager Gen58, 18 HP BIOSphere Gen5 6 HP Sure Recover Gen214 HP Sure Recover with Embedded Reimaging Gen215 HP Sure Start Gen5 6, 16 HP Secure Erase 17 HP Sure Sense19 For more information on HP Client Security Software Suite, refer to http://www.hp.com/go/clientsecurity. 1 HP Support Assistant - Requires Windows and Internet Access. 2 HP Remote Graphics Software - The remote desktop solution for serious workstation users and their most demanding applications. Download at: http://www.hp.com/go/RGS. 3 Skype is not offered in China. 4 HP Mobile Connect Pro is only available on preconfigured devices with WWAN. For geographic availability refer to http://www.hp.com/go/mobileconnect. 5 Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media players that also support Miracast. You can use Miracast to share what you're doing on your PC and present a slide show. For more information: http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast. 6 HP BIOSphere Gen5 is available on select HP Pro, Elite and ZBook PCs. See product specifications for details. Features may vary depending on the platform and configurations. HP Sure Start Gen5 - Available on HP Elite and HP Z Workstation products equipped with Intel® 8th generation processors. 7 Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software. 8 Requires Windows and Intel® 8th generation processors. 9 HP Performance Advisor Software - HP Performance Advisor is ready and waiting to help you get the most out of your HP Workstation from day one-and every day after. Learn more or download at: https://www8.hp.com/us/en/workstations/performance-advisor.html 10 HP Connection Optimizer requires Windows 10. 11 Microsoft Defender Opt in and internet connection required for updates. 13 Security lock slot is Lock sold separately. 14 HP Sure Recover Gen2: See product specifications for availability. Requires an open, wired network connection. Not available on platforms with multiple internal storage drives. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data. HP Sure Recover (Gen1) does not support platforms with Intel® OptaneTM. 15 HP Sure Recover with Embedded Reimaging Gen2 is an optional feature which must be configured at purchase. See product specifications for availability. Not available on platforms with multiple internal storage drives. You must back up important files, data, photos, videos, etc. before use to avoid loss of data. HP Sure Recover with Embedded Reimaging (Gen1) does not support platforms with Intel® OptaneTM. 16 HP Sure Start Gen5 is available on select HP PCs with Intel processors. See product specifications for availability. 17 For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel® OptaneTM. 18 HP Client Security Manager Gen5 requires Windows and is available on select HP Pro, Elite and ZBook PCs. See product specifications for details. 19 HP Sure Sense requires Windows 10. See product specifications for availability. QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 10

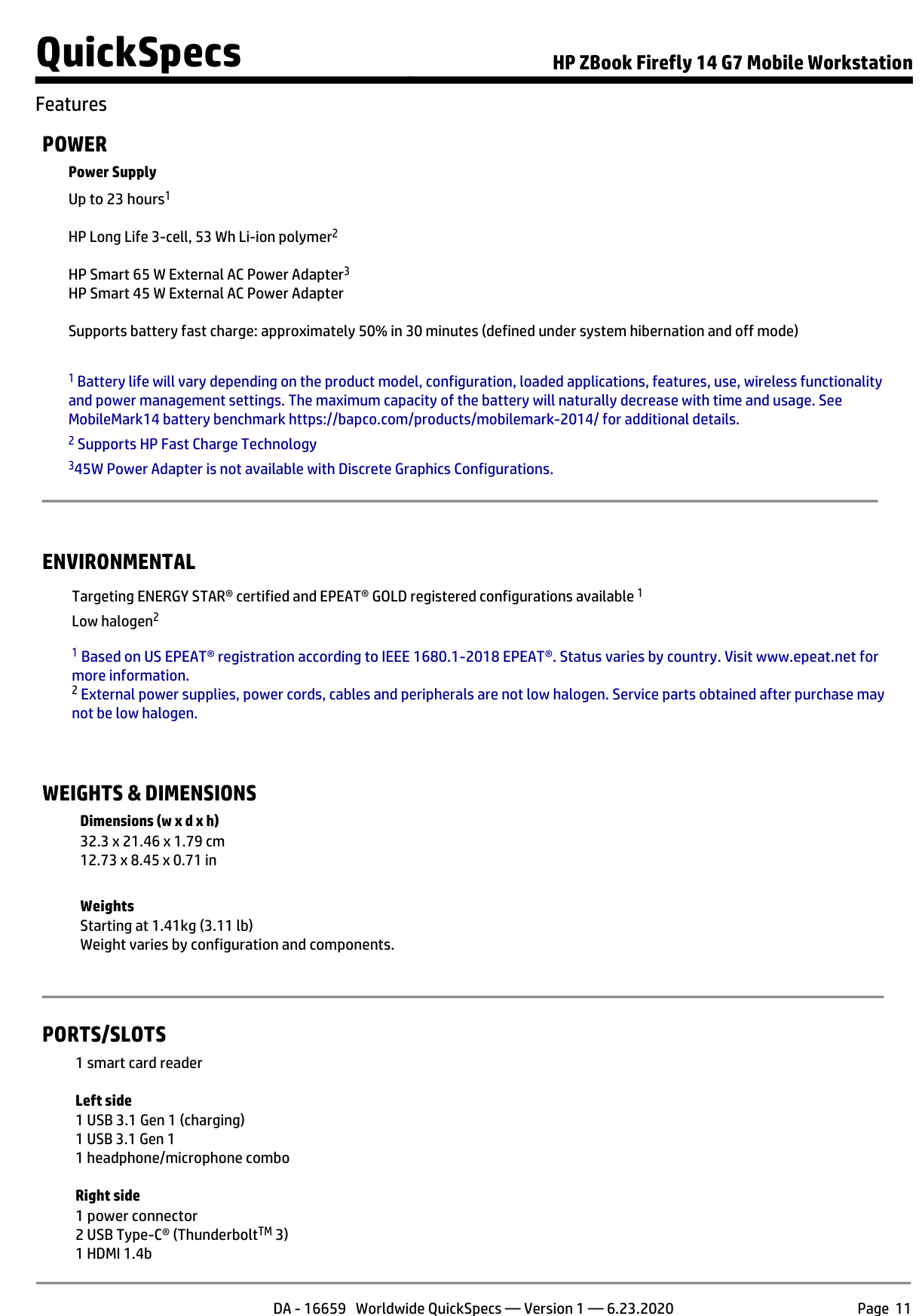

Power
Power Supply Up to 23 hours1
HP Long Life 3-cell, 53 Wh Li-ion polymer2
HP Smart 65 W External AC Power Adapter3 HP Smart 45 W External AC Power Adapter
Supports battery fast charge: approximately 50% in 30 minutes (defined under system hibernation and off mode) 1 Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See MobileMark14 battery benchmark https://bapco.com/products/mobilemark-2014/ for additional details. 2 Supports HP Fast Charge Technology 345W Power Adapter is not available with Discrete Graphics Configurations.
Environmental
Targeting ENERGY STAR® certified and EPEAT® GOLD registered configurations available 1 Low halogen2 1 Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information. 2 External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.
Weights & Dimensions
Dimensions (w x d x h) 32.3 x 21.46 x 1.79 cm 12.73 x 8.45 x 0.71 in
Weights Starting at 1.41kg (3.11 lb) Weight varies by configuration and components.
Ports/Slots
1 smart card reader
Left side 1 USB 3.1 Gen 1 (charging) 1 USB 3.1 Gen 1 1 headphone/microphone combo
Right side 1 power connector 2 USB Type-C® (ThunderboltTM 3) 1 HDMI 1.4b
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 11

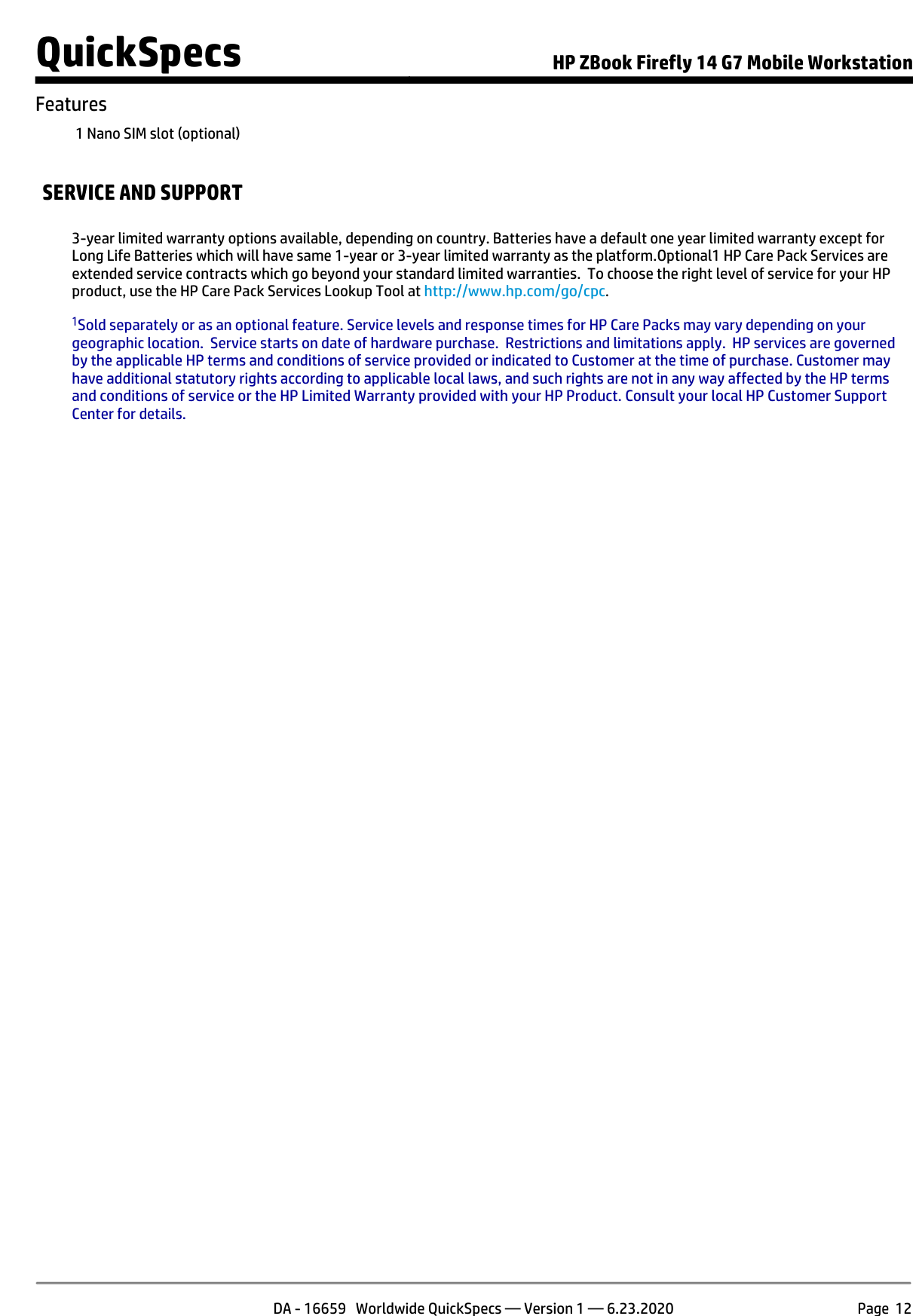

1 Nano SIM slot (optional)
Service And Support
3-year limited warranty options available, depending on country. Batteries have a default one year limited warranty except for Long Life Batteries which will have same 1-year or 3-year limited warranty as the platform.Optional1 HP Care Pack Services are extended service contracts which go beyond your standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at http://www.hp.com/go/cpc. 1Sold separately or as an optional feature. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product. Consult your local HP Customer Support Center for details. QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Features DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 12

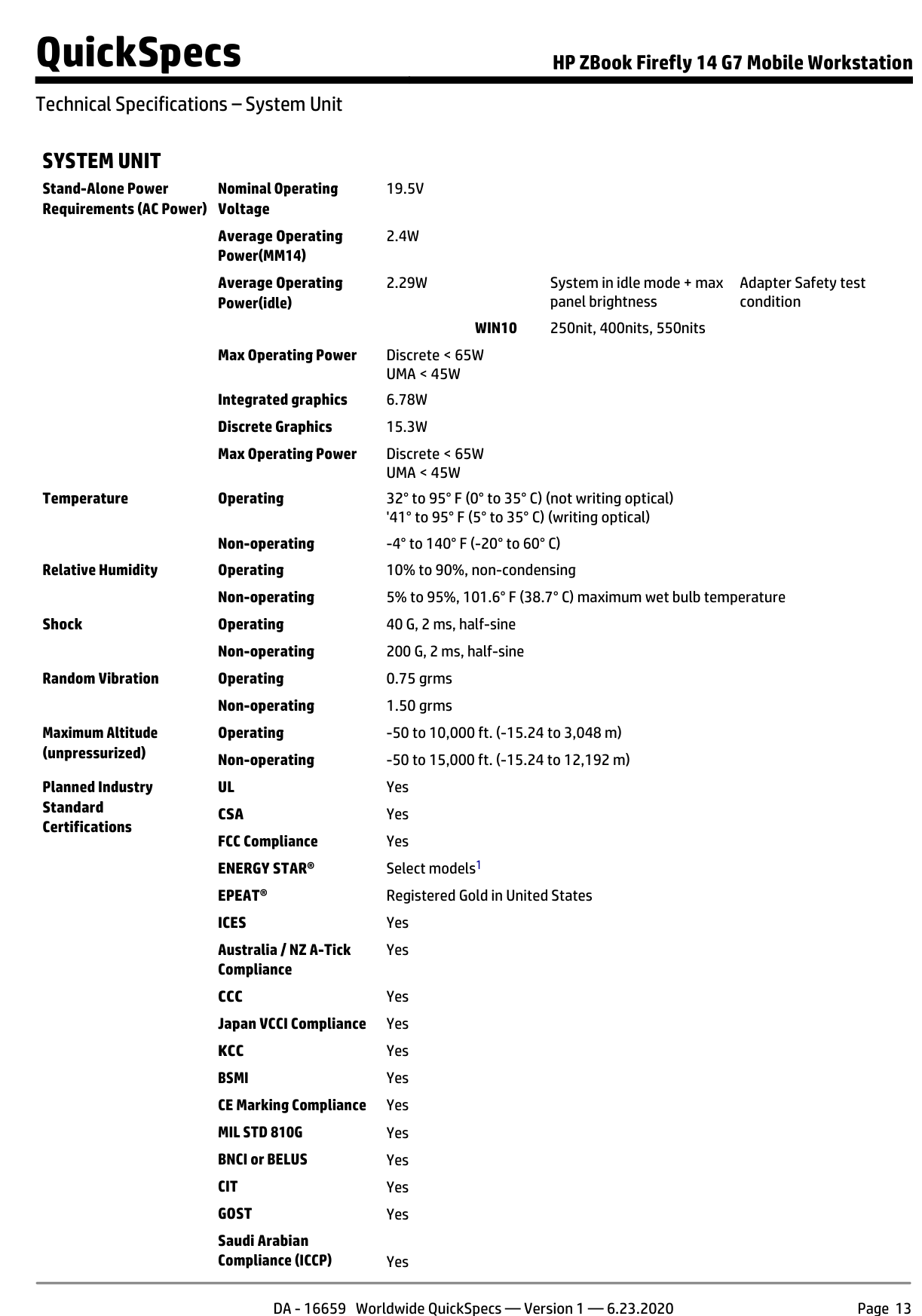

System Unit
Stand-Alone Power Requirements (AC Power) Nominal Operating Voltage19.5V
Average Operating Power(MM14)2.4W
Average Operating Power(idle)2.29W
System in idle mode + max panel brightness Adapter Safety test condition
Win10
250nit, 400nits, 550nitsMax Operating Power Discrete < 65W
Uma < 45W
Integrated graphics6.78W
Discrete Graphics15.3W
Max Operating Power Discrete < 65WUma < 45W
Temperature Operating 32° to 95° F (0° to 35° C) (not writing optical) '41° to 95° F (5° to 35° C) (writing optical) Non-operating -4° to 140° F (-20° to 60° C) Relative Humidity Operating 10% to 90%, non-condensing Non-operating 5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature Shock Operating 40 G, 2 ms, half-sine Non-operating 200 G, 2 ms, half-sine Random Vibration Operating 0.75 grms Non-operating 1.50 grms Maximum Altitude (unpressurized) Operating -50 to 10,000 ft. (-15.24 to 3,048 m) Non-operating -50 to 15,000 ft. (-15.24 to 12,192 m) Planned Industry Standard CertificationsUl
YesCsa
Yes FCC Compliance YesEnergy Star®
Select models1Epeat®
Registered Gold in United StatesIces
Yes Australia / NZ A-Tick Compliance YesCcc
Yes Japan VCCI Compliance YesKcc
YesBsmi
Yes CE Marking Compliance YesMil Std 810G
YesBNCI or BELUS Yes
Cit
YesGost
YesSaudi Arabian Compliance (ICCP) Yes QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – System Unit DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 13

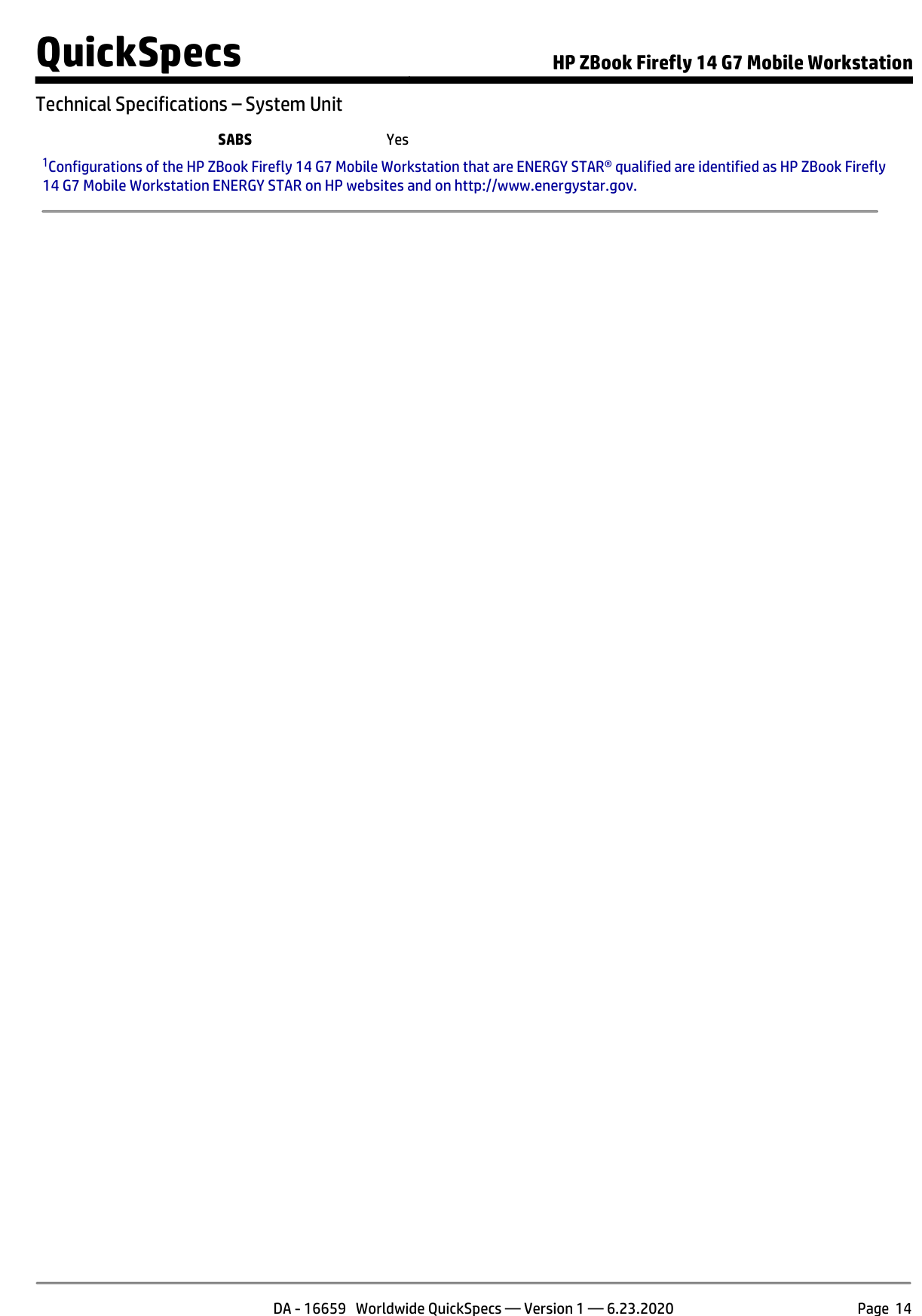

Sabs
Yes 1Configurations of the HP ZBook Firefly 14 G7 Mobile Workstation that are ENERGY STAR® qualified are identified as HP ZBook Firefly 14 G7 Mobile Workstation ENERGY STAR on HP websites and on http://www.energystar.gov.QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – System Unit DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 14

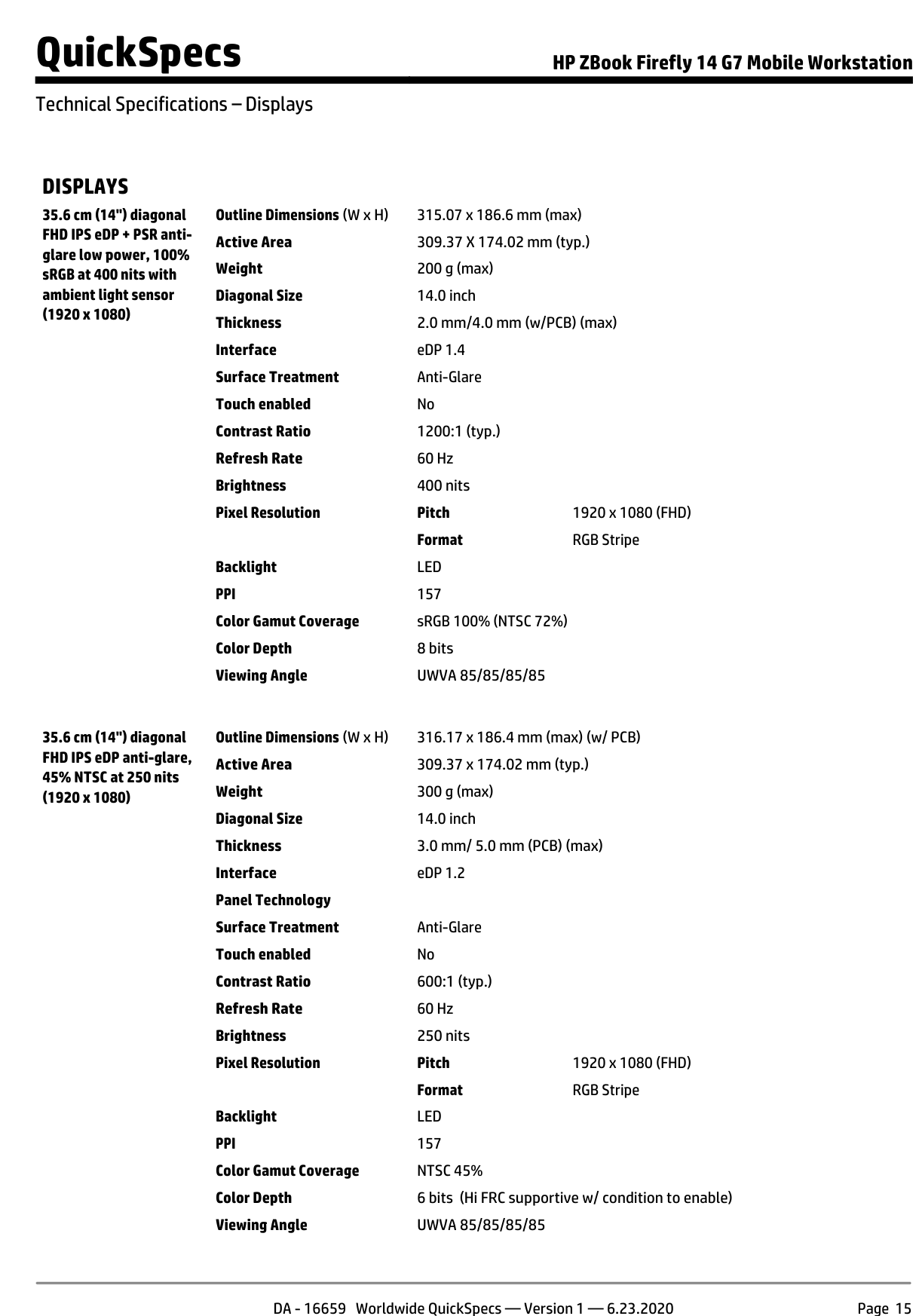

Displays
35.6 cm (14") diagonal FHD IPS eDP + PSR anti- glare low power, 100% sRGB at 400 nits with ambient light sensor (1920 x 1080) Outline Dimensions (W x H) 315.07 x 186.6 mm (max) Active Area 309.37 X 174.02 mm (typ.) Weight 200 g (max) Diagonal Size 14.0 inch Thickness 2.0 mm/4.0 mm (w/PCB) (max) Interface eDP 1.4 Surface Treatment Anti-Glare Touch enabled No Contrast Ratio 1200:1 (typ.) Refresh Rate 60 Hz Brightness 400 nits Pixel Resolution Pitch 1920 x 1080 (FHD) Format RGB Stripe BacklightLed
Ppi
157 Color Gamut Coverage sRGB 100% (NTSC 72%) Color Depth 8 bits Viewing AngleUwva 85/85/85/85
35.6 cm (14") diagonal FHD IPS eDP anti-glare, 45% NTSC at 250 nits (1920 x 1080) Outline Dimensions (W x H) 316.17 x 186.4 mm (max) (w/ PCB) Active Area 309.37 x 174.02 mm (typ.) Weight 300 g (max) Diagonal Size 14.0 inch Thickness 3.0 mm/ 5.0 mm (PCB) (max) Interface eDP 1.2 Panel Technology
Surface Treatment Anti-Glare Touch enabled No Contrast Ratio 600:1 (typ.) Refresh Rate 60 Hz Brightness 250 nits Pixel Resolution Pitch 1920 x 1080 (FHD) Format RGB Stripe Backlight
Led
Ppi
157 Color Gamut CoverageNtsc 45%
Color Depth 6 bits (Hi FRC supportive w/ condition to enable) Viewing AngleUwva 85/85/85/85
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Displays DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 15

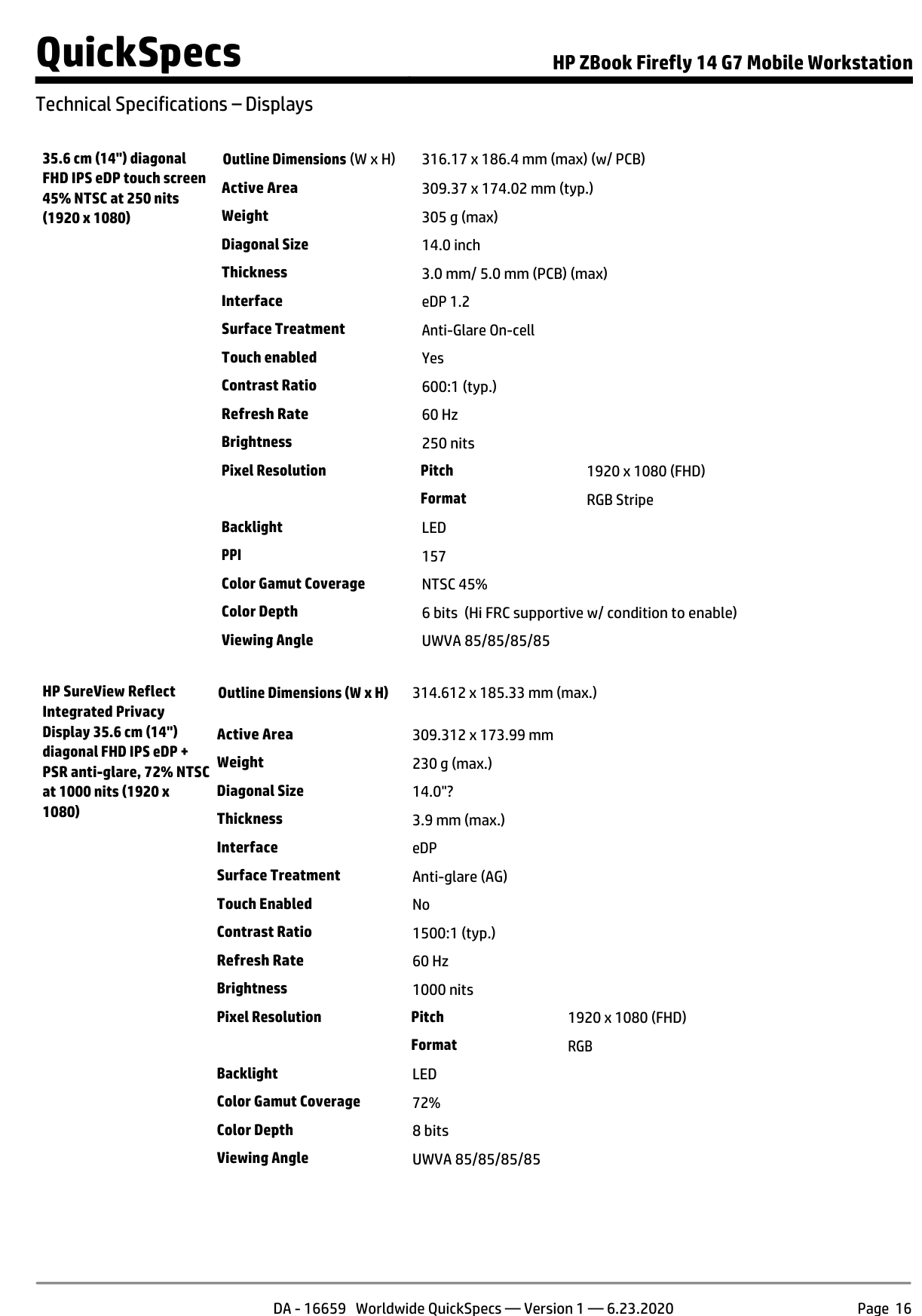

35.6 cm (14") diagonal FHD IPS eDP touch screen 45% NTSC at 250 nits (1920 x 1080) Outline Dimensions (W x H) 316.17 x 186.4 mm (max) (w/ PCB) Active Area 309.37 x 174.02 mm (typ.) Weight 305 g (max) Diagonal Size 14.0 inch Thickness 3.0 mm/ 5.0 mm (PCB) (max) Interface eDP 1.2 Surface Treatment Anti-Glare On-cell Touch enabled Yes Contrast Ratio 600:1 (typ.) Refresh Rate 60 Hz Brightness 250 nits Pixel Resolution Pitch 1920 x 1080 (FHD) Format RGB Stripe Backlight
Led
Ppi
157 Color Gamut CoverageNtsc 45%
Color Depth 6 bits (Hi FRC supportive w/ condition to enable)Viewing Angle
Uwva 85/85/85/85
HP SureView Reflect Integrated Privacy Display 35.6 cm (14") diagonal FHD IPS eDP + PSR anti-glare, 72% NTSC at 1000 nits (1920 x 1080) Outline Dimensions (W x H) 314.612 x 185.33 mm (max.) Active Area 309.312 x 173.99 mm Weight 230 g (max.) Diagonal Size 14.0"? Thickness 3.9 mm (max.) Interface eDP Surface Treatment Anti-glare (AG) Touch Enabled No Contrast Ratio 1500:1 (typ.) Refresh Rate 60 Hz Brightness 1000 nits Pixel Resolution Pitch 1920 x 1080 (FHD) Format
Rgb
BacklightLed
Color Gamut Coverage 72% Color Depth 8 bitsViewing Angle
Uwva 85/85/85/85
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Displays DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 16

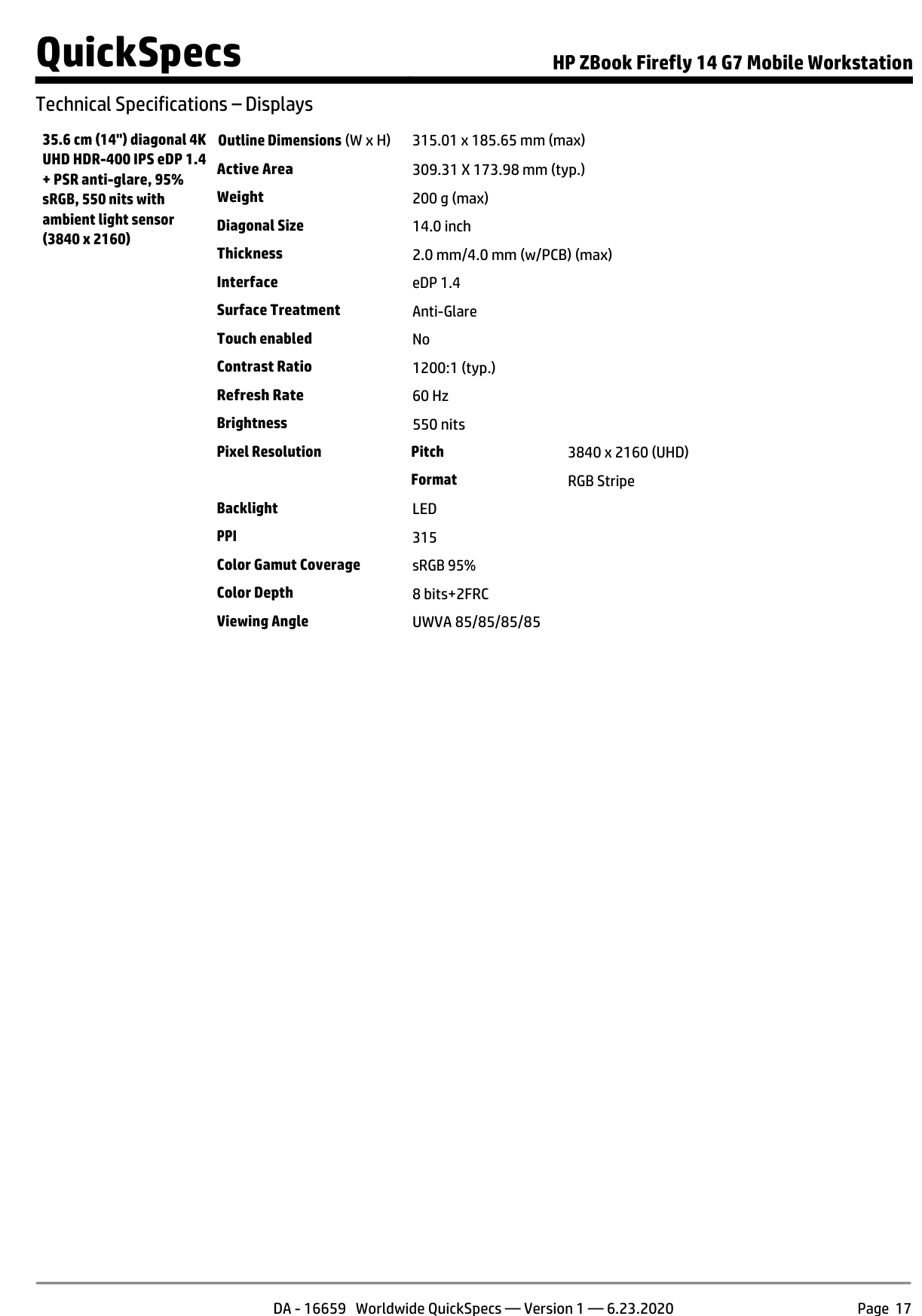

35.6 cm (14") diagonal 4K UHD HDR-400 IPS eDP 1.4 + PSR anti-glare, 95% sRGB, 550 nits with ambient light sensor (3840 x 2160) Outline Dimensions (W x H) 315.01 x 185.65 mm (max) Active Area 309.31 X 173.98 mm (typ.) Weight 200 g (max) Diagonal Size 14.0 inch Thickness 2.0 mm/4.0 mm (w/PCB) (max) Interface eDP 1.4 Surface Treatment Anti-Glare Touch enabled No Contrast Ratio 1200:1 (typ.) Refresh Rate 60 Hz Brightness 550 nits Pixel Resolution Pitch 3840 x 2160 (UHD) Format RGB Stripe Backlight
Led
Ppi
315 Color Gamut Coverage sRGB 95% Color Depth 8 bits+2FRCViewing Angle
Uwva 85/85/85/85
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Displays DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 17

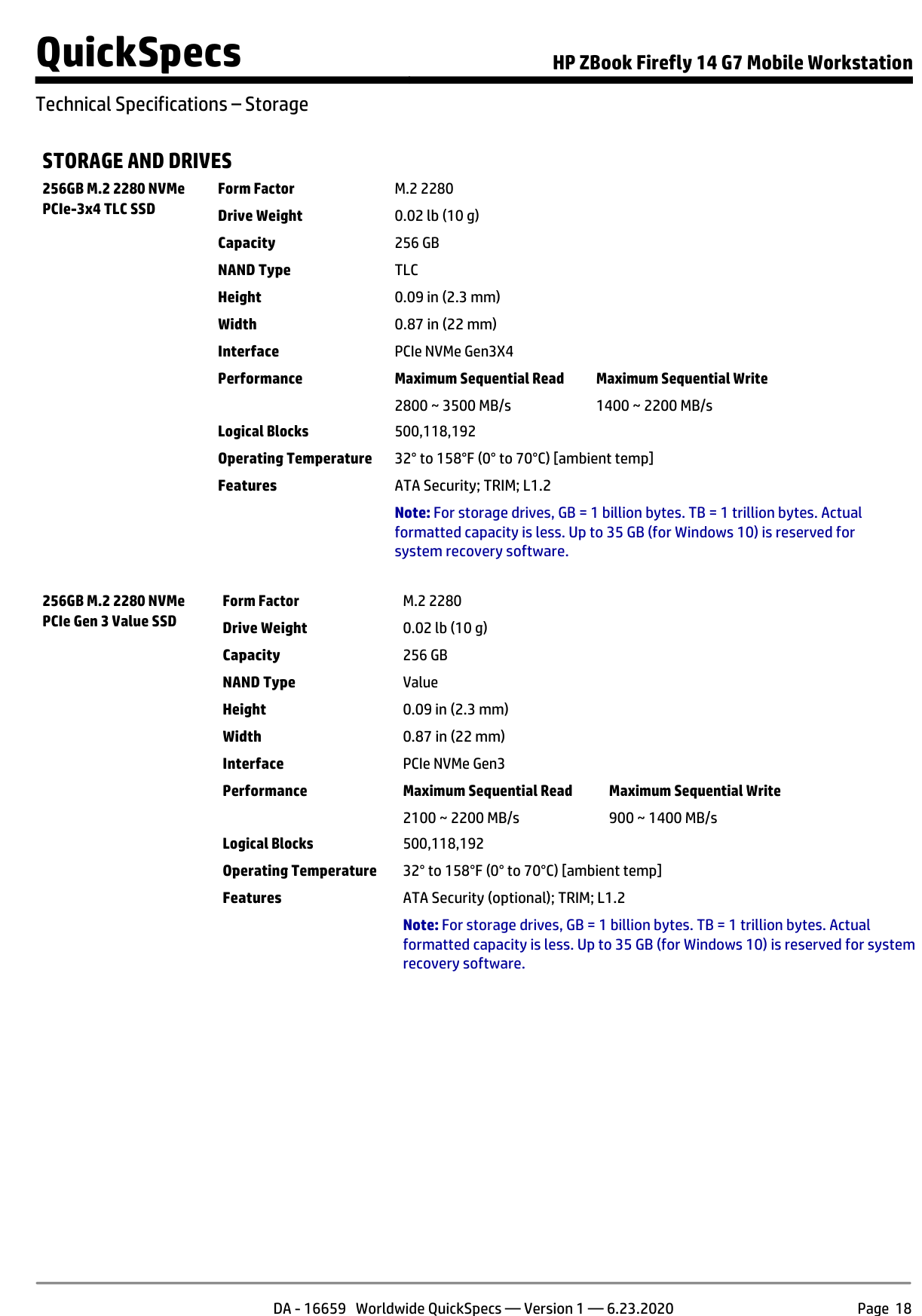

Storage And Drives
256GB M.2 2280 NVMe PCIe-3x4 TLC SSD Form FactorM.2 2280
Drive Weight 0.02 lb (10 g) Capacity256 Gb
NAND TypeTlc
Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X4 Performance Maximum Sequential Read Maximum Sequential Write 2800 ~ 3500 MB/s 1400 ~ 2200 MB/s Logical Blocks 500,118,192 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security; TRIM; L1.2Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
256GB M.2 2280 NVMe PCIe Gen 3 Value SSD Form Factor
M.2 2280
Drive Weight 0.02 lb (10 g) Capacity256 Gb
NAND Type Value Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3 Performance Maximum Sequential Read Maximum Sequential Write2100 ~ 2200 MB/s 900 ~ 1400 MB/s
Logical Blocks 500,118,192 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security (optional); TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Storage DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 18

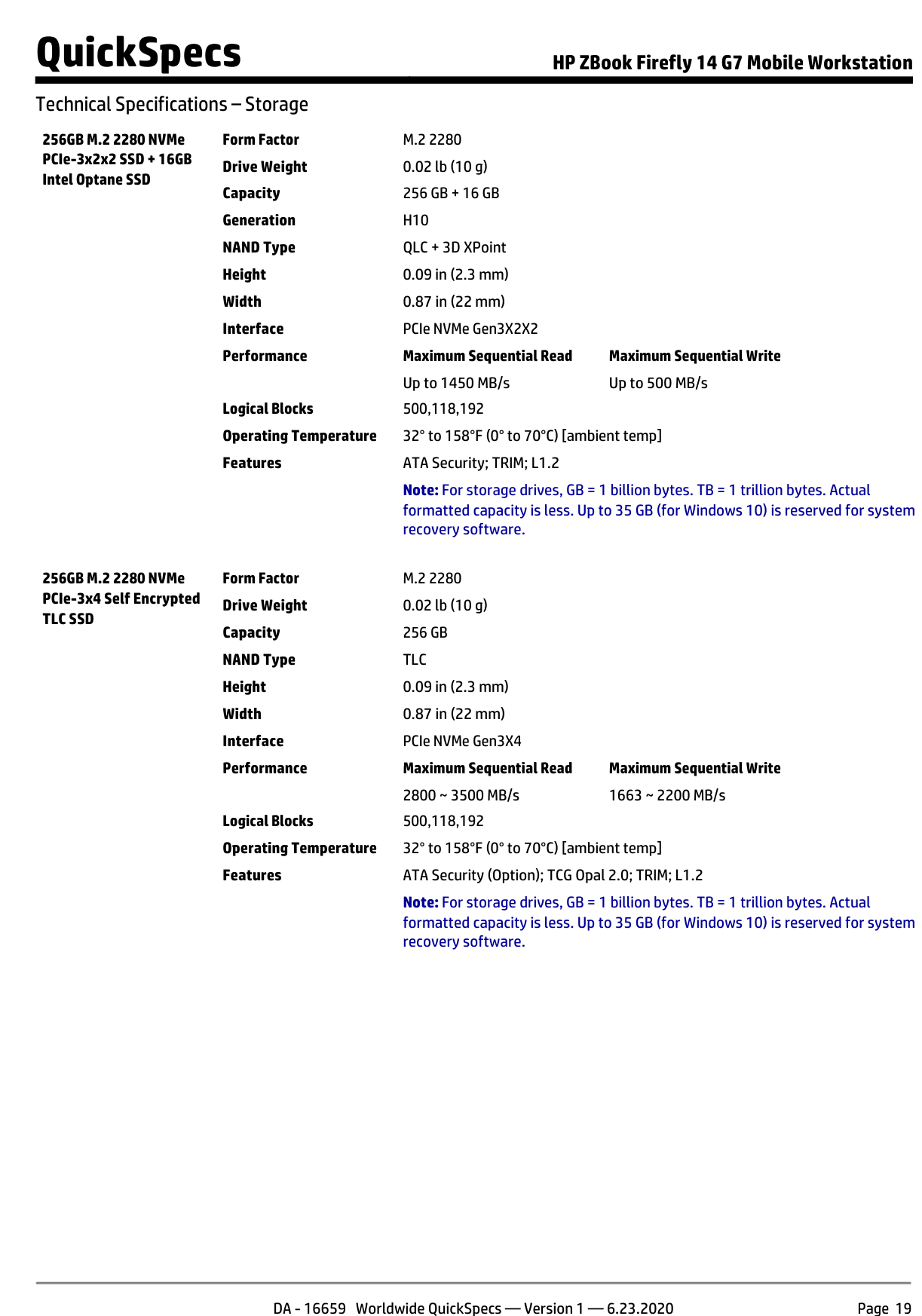

256GB M.2 2280 NVMe PCIe-3x2x2 SSD + 16GB Intel Optane SSD Form Factor
M.2 2280
Drive Weight 0.02 lb (10 g) Capacity256 Gb + 16 Gb
GenerationH10
NAND Type QLC + 3D XPoint Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X2X2 Performance Maximum Sequential Read Maximum Sequential WriteUp to 1450 MB/s Up to 500 MB/s
Logical Blocks 500,118,192 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security; TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
256GB M.2 2280 NVMe PCIe-3x4 Self Encrypted
Tlc Ssd
Form FactorM.2 2280
Drive Weight 0.02 lb (10 g) Capacity256 Gb
NAND TypeTlc
Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X4 Performance Maximum Sequential Read Maximum Sequential Write2800 ~ 3500 MB/s 1663 ~ 2200 MB/s
Logical Blocks 500,118,192 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Storage DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 19

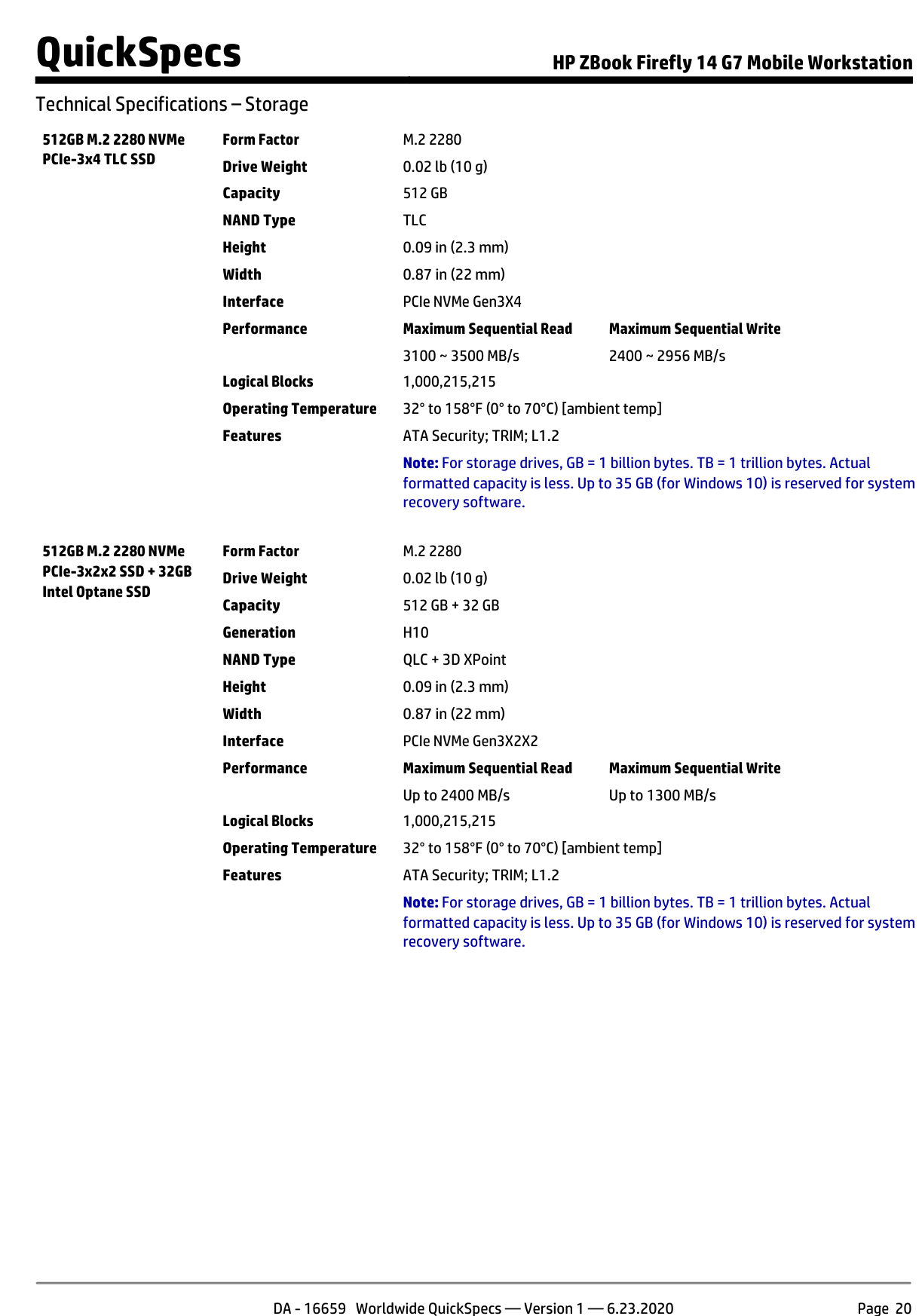

512GB M.2 2280 NVMe PCIe-3x4 TLC SSD Form Factor
M.2 2280
Drive Weight 0.02 lb (10 g) Capacity512 Gb
NAND TypeTlc
Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X4 Performance Maximum Sequential Read Maximum Sequential Write3100 ~ 3500 MB/s 2400 ~ 2956 MB/s
Logical Blocks 1,000,215,215 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security; TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
512GB M.2 2280 NVMe PCIe-3x2x2 SSD + 32GB Intel Optane SSD Form Factor
M.2 2280
Drive Weight 0.02 lb (10 g) Capacity512 Gb + 32 Gb
GenerationH10
NAND Type QLC + 3D XPoint Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X2X2 Performance Maximum Sequential Read Maximum Sequential WriteUp to 2400 MB/s Up to 1300 MB/s
Logical Blocks 1,000,215,215 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security; TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Storage DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 20

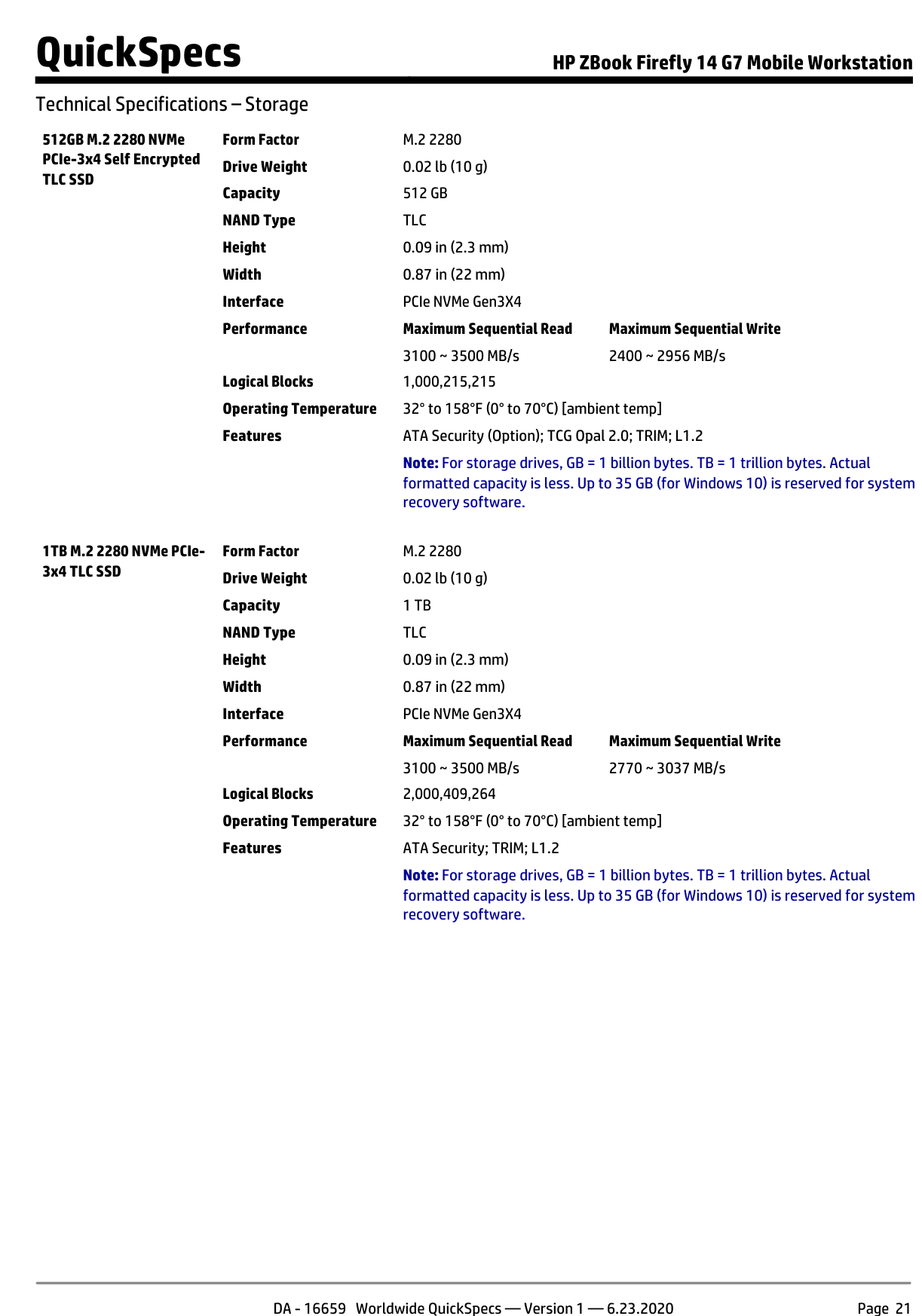

512GB M.2 2280 NVMe PCIe-3x4 Self Encrypted
Tlc Ssd
Form FactorM.2 2280
Drive Weight 0.02 lb (10 g) Capacity512 Gb
NAND TypeTlc
Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X4 Performance Maximum Sequential Read Maximum Sequential Write3100 ~ 3500 MB/s 2400 ~ 2956 MB/s
Logical Blocks 1,000,215,215 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
1TB M.2 2280 NVMe PCIe- 3x4 TLC SSD Form Factor
M.2 2280
Drive Weight 0.02 lb (10 g) Capacity1 Tb
NAND TypeTlc
Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X4 Performance Maximum Sequential Read Maximum Sequential Write3100 ~ 3500 MB/s 2770 ~ 3037 MB/s
Logical Blocks 2,000,409,264 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security; TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Storage DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 21

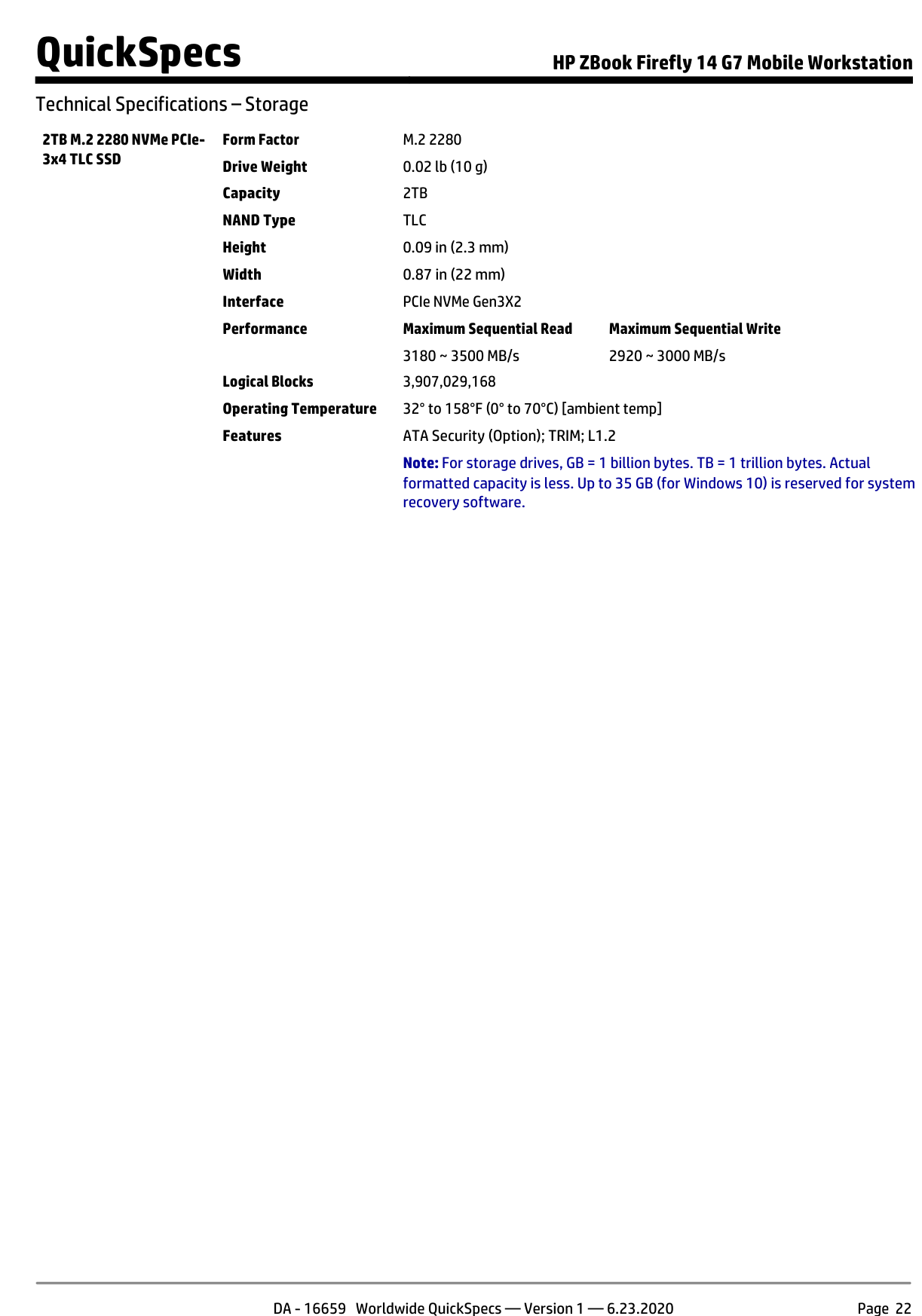

2TB M.2 2280 NVMe PCIe- 3x4 TLC SSD Form Factor
M.2 2280
Drive Weight 0.02 lb (10 g) Capacity2Tb
NAND TypeTlc
Height 0.09 in (2.3 mm) Width 0.87 in (22 mm) Interface PCIe NVMe Gen3X2 Performance Maximum Sequential Read Maximum Sequential Write3180 ~ 3500 MB/s 2920 ~ 3000 MB/s
Logical Blocks 3,907,029,168 Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp] Features ATA Security (Option); TRIM; L1.2
Note: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35 GB (for Windows 10) is reserved for system recovery software.
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Storage DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 22

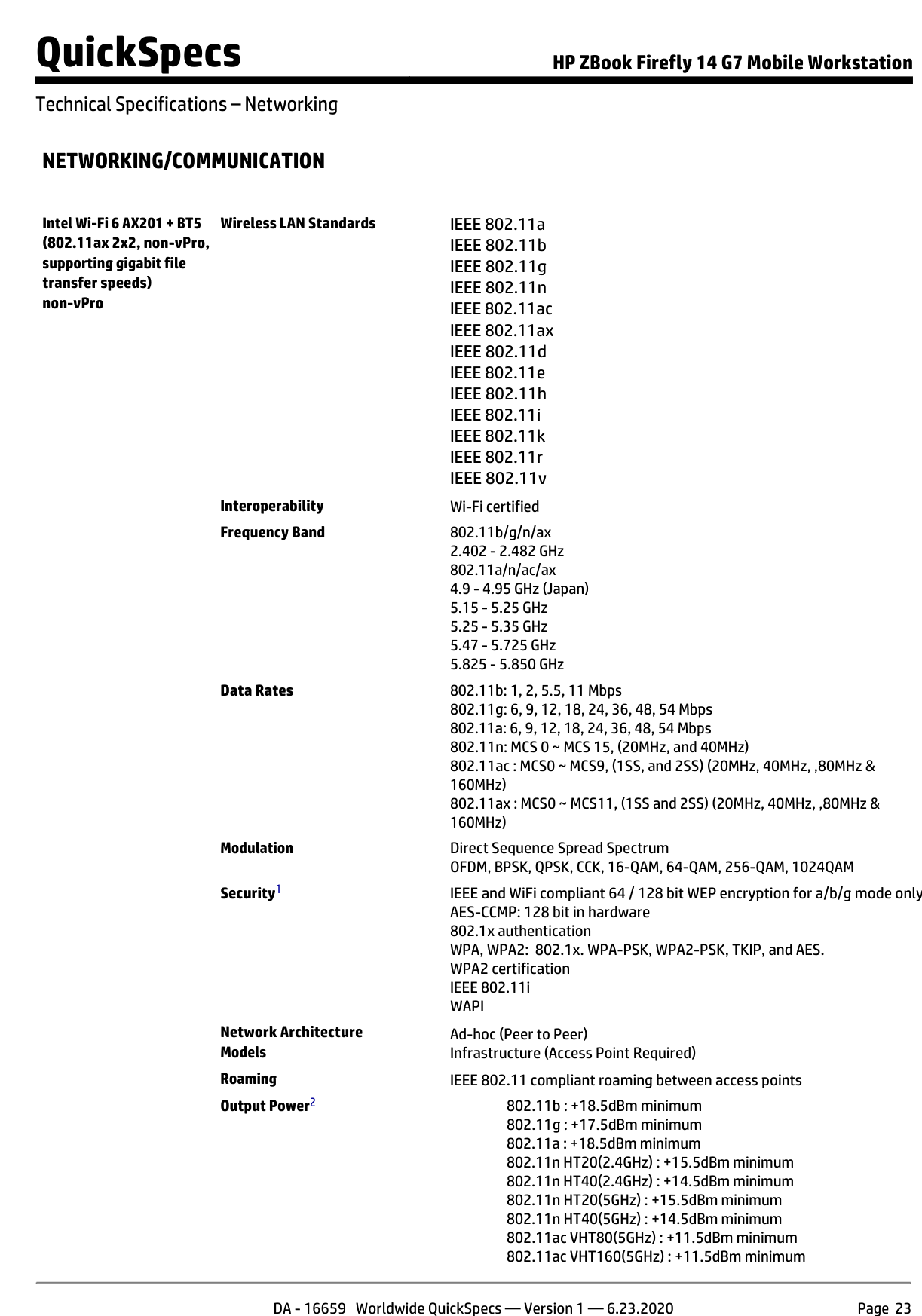

Networking/Communication
Intel Wi-Fi 6 AX201 + BT5 (802.11ax 2x2, non-vPro, supporting gigabit file transfer speeds) non-vPro Wireless LAN Standards IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v Interoperability Wi-Fi certified Frequency Band 802.11b/g/n/ax 2.402 - 2.482 GHz 802.11a/n/ac/ax 4.9 - 4.95 GHz (Japan) 5.15 - 5.25 GHz 5.25 - 5.35 GHz 5.47 - 5.725 GHz 5.825 - 5.850 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz) 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz) 802.11ax : MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz) Modulation Direct Sequence Spread Spectrum
Ofdm, Bpsk, Qpsk, Cck, 16-Qam, 64-Qam, 256-Qam, 1024Qam
Security1 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only AES-CCMP: 128 bit in hardware 802.1x authentication WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES. WPA2 certification IEEE 802.11iWapi
Network Architecture Models Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Roaming IEEE 802.11 compliant roaming between access points Output Power2 802.11b : +18.5dBm minimum 802.11g : +17.5dBm minimum 802.11a : +18.5dBm minimum 802.11n HT20(2.4GHz) : +15.5dBm minimum 802.11n HT40(2.4GHz) : +14.5dBm minimum 802.11n HT20(5GHz) : +15.5dBm minimum 802.11n HT40(5GHz) : +14.5dBm minimum 802.11ac VHT80(5GHz) : +11.5dBm minimum 802.11ac VHT160(5GHz) : +11.5dBm minimum QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 23
802.11ax HT40(2.4GHz) : +10dBm minimum 802.11ax VHT160(5GHz) : +10dBm minimum Power Consumption Transmit mode 2.0 W Receive mode 1.6 W Idle mode (PSP) 180 mW (WLAN Associated) Idle mode 50 mW (WLAN unassociated) Connected Standby 10mW Radio disabled 8 mW Power Management ACPI and PCI Express compliant power management 802.11 compliant power saving mode Receiver Sensitivity3 802.11b, 1Mbps : -93.5dBm maximum 802.11b, 11Mbps : -84dBm maximum 802.11a/g, 6Mbps : -86dBm maximum 802.11a/g, 54Mbps : -72dBm maximum 802.11n, MCS07 : -67dBm maximum 802.11n, MCS15 : -64dBm maximum 802.11ac, MCS0 : -84dBm maximum 802.11ac, MCS9 : -59dBm maximum 802.11ax, MCS11(HT40): -59dBm maximum 802.11ax, MCS11(VHT160): -58.5dBm maximum Antenna Type High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications Form Factor PCI-Express M.2 MiniCard with CNVi Interface Dimensions
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology Frequency Band 2402 to 2480 MHz Number of Available Channels Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH) Data Rates and Throughput Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5) Transmit Power The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR. Power Consumption Peak (Tx): 330 mW Peak (Rx): 230 mW Selective Suspend: 17 mW QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 24
Bluetooth Software Supported Link Topology Microsoft Windows Bluetooth Software Power Management Microsoft Windows ACPI, and USB Bus Support Certifications FCC (47 CFR) Part 15C, Section 15.247 & 15.249 Power Management Certifications
Ets 300 328, Ets 300 826
Low Voltage Directive IEC950 UL, CSA, and CE Mark Bluetooth Profiles Supported BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 -Link Layer Privacy LE Privacy 1.2 -Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)Intel Wi-Fi 6 AX201 + BT5 (802.11ax 2x2, vPro, supporting gigabit file transfer speeds) vPro Wireless LAN Standards IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v Interoperability Wi-Fi certified Frequency Band 802.11b/g/n/ax 2.402 - 2.482 GHz 802.11a/n/ac/ax 4.9 - 4.95 GHz (Japan) 5.15 - 5.25 GHz 5.25 - 5.35 GHz 5.47 - 5.725 GHz 5.825 - 5.850 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz) 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz) 802.11ax : MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz) QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 25
Modulation Direct Sequence Spread Spectrum
Ofdm, Bpsk, Qpsk, Cck, 16-Qam, 64-Qam, 256-Qam
, 1024Qam
Security1 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only AES-CCMP: 128 bit in hardware 802.1x authentication WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES. WPA2 certification IEEE 802.11iWapi
Network Architecture Models Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Roaming IEEE 802.11 compliant roaming between access points Output Power2 802.11b : +18.5dBm minimum 802.11g : +17.5dBm minimum 802.11a : +18.5dBm minimum 802.11n HT20(2.4GHz) : +15.5dBm minimum 802.11n HT40(2.4GHz) : +14.5dBm minimum 802.11n HT20(5GHz) : +15.5dBm minimum 802.11n HT40(5GHz) : +14.5dBm minimum 802.11ac VHT80(5GHz) : +11.5dBm minimum 802.11ac VHT160(5GHz) : +11.5dBm minimum 802.11ax HT40(2.4GHz) : +10dBm minimum 802.11ax VHT160(5GHz) : +10dBm minimum Power Consumption Transmit mode :2.0 W Receive mode :1.6 W Idle mode (PSP) 180 mW (WLAN Associated) Idle mode :50 mW (WLAN unassociated) Connected Standby/Modern Standby: 10mW Radio disabled: 8 mW Power Management ACPI and PCI Express compliant power management 802.11 compliant power saving mode Receiver Sensitivity3 802.11b, 1Mbps : -93.5dBm maximum 802.11b, 11Mbps : -84dBm maximum 802.11a/g, 6Mbps : -86dBm maximum 802.11a/g, 54Mbps : -72dBm maximum 802.11n, MCS07 : -67dBm maximum 802.11n, MCS15 : -64dBm maximum 802.11ac, MCS0 : -84dBm maximum 802.11ac, MCS9 : -59dBm maximum 802.11ax, MCS11(HT40): -59dBm maximum 802.11ax, MCS11(VHT160): -58.5dBm maximum Antenna Type High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications Form Factor PCI-Express M.2 MiniCard with CNVi Interface Dimensions
Humidity Operating Non-operating 10% to 90% (non-condensing) 5% to 95% (non-condensing) Altitude Operating Non- operating 0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m) LED Activity LED Amber - Radio OFF; LED White - Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology
Frequency Band 2402 to 2480 MHz Number of Available Channels Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH) Data Rates and Throughput Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5) Transmit Power The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR. Power Consumption Peak (Tx): 330 mW Peak (Rx): 230 mW Selective Suspend: 17 mW Bluetooth Software Supported Link Topology Microsoft Windows Bluetooth Software Power Management Microsoft Windows ACPI, and USB Bus Support Certifications FCC (47 CFR) Part 15C, Section 15.247 & 15.249 Power Management Certifications
Ets 300 328, Ets 300 826
Low Voltage Directive IEC950 UL, CSA, and CE Mark Bluetooth Profiles Supported BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 -Link Layer Privacy LE Privacy 1.2 -Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)Security & Manageability Intel® vProTM support with appropriate Intel® chipset components
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 27
Intel® XMMTM 7360 LTE-Advanced CAT9 (Pandora)* Technology/Operating bands FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 1400 (Band 11), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower), 850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1400 (Band 21), 850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30), 1700/2100 (Band 66). TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band 41). HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz Wireless protocol standards 3GPP Release 11 LTE Specification CAT.9, DL 60MHz BW throughput up to 450Mbps; UL 20MHz throughput up to 50Mbps WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
Gps
Standalone, A-GPS (MS-A, MS-B) GPS bands 1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098 MHz Maximum data rates LTE: 450 Mbps (Download), 50 Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21Mbps (Download), 5.76 Mbps (Upload) Maximum output power LTE: 23 dBm HSPA+: 23.5 dBm Maximum power consumption LTE: 1,200 mA (peak); 900 mA (average) HSPA+: 1,100 mA (peak); 800 mA (average) Form Factor M.2, 3042-S3 Key B Weight 5.8 g Dimensions (Length x Width x Thickness) 42 x 30 x 2.3 mmIntel® XMMTM 7560 LTE-Advanced Pro DL CAT16 (Phuket)* Technology/Operating bands FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 14 upper), 700 (Band 17 lower), 850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1900 (Band 25), 850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30), 1700/2100 (Band 66). TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band 41), 3500 (Band 42), 5200 (Band 46 RX only) HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz Wireless protocol standards 3GPP Release 12 LTE Specification DL-CAT.16, DL 100MHz BW throughput up to 978Mbps; UL-CAT.7 20MHz throughput up to 75Mbps WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
Gps
Standalone, A-GPS (MS-A, MS-B) GPS Bands 1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098 MHz Maximum Data Rates LTE: 978 Mbps (Download), 75 Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21Mbps (Download), 5.76 Mbps (Upload) Maximum Output Power LTE: 23 dBm in all band except B41 LTE B41 HPUE = 26dBm HSPA+: 23.5 dBm QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 28
Maximum Power Consumption LTE: 1,200 mA (peak); 900 mA (average) HSPA+: 1,100 mA (peak); 800 mA (average) Form Factor M.2, 3042-S3 Key B Weight 6 g Dimensions (Length x Width x Thickness) 42 x 30 x 2.3 mm
Near Field Communications Controller (optional)
Dimensions (L x W x H) Module 25 mm by 10 mm by 2.0 mm Chipset
Npc100
System interfaceI2C
NFC RF standardsIso/Iec 14443 A
Iso/Iec 14443 B
Iso/Iec 15693
Iso/Iec 18092
ECMA-340 NFCIP-1 Target and InitiatorEcma-320 Nfcip-2
NFC Forum Support Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2 Reader (PCD-VCD) Mode(1)Iso/Iec 14443 A
Iso/Iec 14443 B
Iso/Iec 15693
Mifare 1K
Mifare 4K
MIFARE DESFire FeliCa Jewel and Topaz cards Card Emulation (PICC- VICC) Mode(1)Iso/Iec 14443 A
ISO/IEC 14443 B and B'Mifare
FeliCa Frequency 13.56 MHz NFC Modes Supported Reader/Writer, Peer-to-Peer Raw RF Data Rates 106, 212, 424, 848 kbps Operating temperature 0°C to 70°C Storage temperature -20°C to 125°C Humidity 10-90% operating 5-95% non-operating Supply Operating voltage 4.35 to 5.25 Volts I/O Voltage 1.8V or 3.3V Power Consumption Booster enable,Vbat= 3.3V,
Vcc_Boost = 5V)
Mode Power Consumption, Polling 7.3 mA QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 29

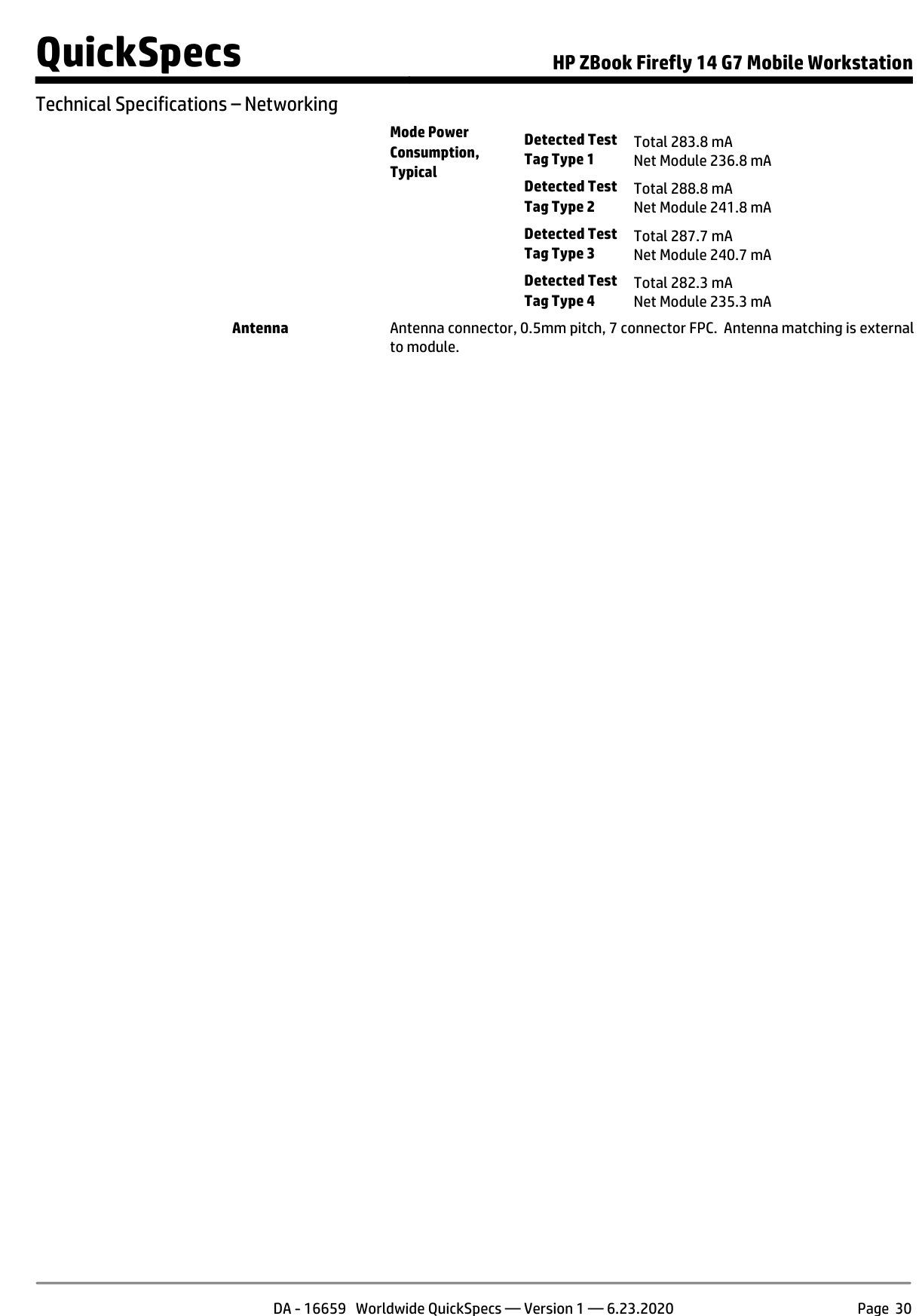

Mode Power Consumption, Typical Detected Test Tag Type 1 Total 283.8 mA Net Module 236.8 mA Detected Test Tag Type 2 Total 288.8 mA Net Module 241.8 mA Detected Test Tag Type 3 Total 287.7 mA Net Module 240.7 mA Detected Test Tag Type 4 Total 282.3 mA Net Module 235.3 mA Antenna Antenna connector, 0.5mm pitch, 7 connector FPC. Antenna matching is external to module. QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Networking DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 30
Power
HP 45W Smart AC Adapter (nPFC Standard Barrel 4.5mm Right Angle 1.8m Dimensions 95x45x26.8mm Weight unit: 200g +/- 10g Input Input Efficiency 87.74 % at 115 Vac and 88.4 % at 230Vac Input frequency range 47 ~ 63 Hz Input AC current Max. 1.4 A at 90 Vac Output Output power
45W
DC output19.5V
Hold-up time 5ms at 115 Vac input Output current limit<8.0A
Connector 4.5mm Barrel Type Environmental Design Operating temperature 32° to 95° F (0° to 35° C) Non-operating (storage) temperature -4° to 185° F (-20° to 85° C) Altitude 0 to 16,400 ft (0 to 5,000 m) Humidity 20% to 95% Storage Humidity 10% to 95% EMI and Safety Certifications Eg: *CE Mark - full compliance with LVD and EMC directivesHP 45W Smart AC Adapter (nPFC Standard Barrel 4.5mm Right Angle 1.8m 2prong) Dimensions 95x45x26.8mm Weight unit: 200g +/- 10g Input Input Efficiency 87.74 % at 115 Vac and 88.4 % at 230Vac Input frequency range 47 to 63 Hz Input AC current Max. 1.4 A at 90 Vac Output Output power
45W
DC output19.5V
Hold-up time 5ms at 115 Vac input Output current limit<8.0A
Connector 4.5mm Barrel Type Environmental Design Operating temperature 32° to 95° F (0° to 35° C) Non-operating (storage) temperature -4° to 185° F (-20° to 85° C) Altitude 0 to 16,400 ft (0 to 5000m) Humidity 20% to 95% QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Power DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 31
Storage Humidity 10% to 95% EMI and Safety Certifications Eg: *CE Mark - full compliance with LVD and EMC directives

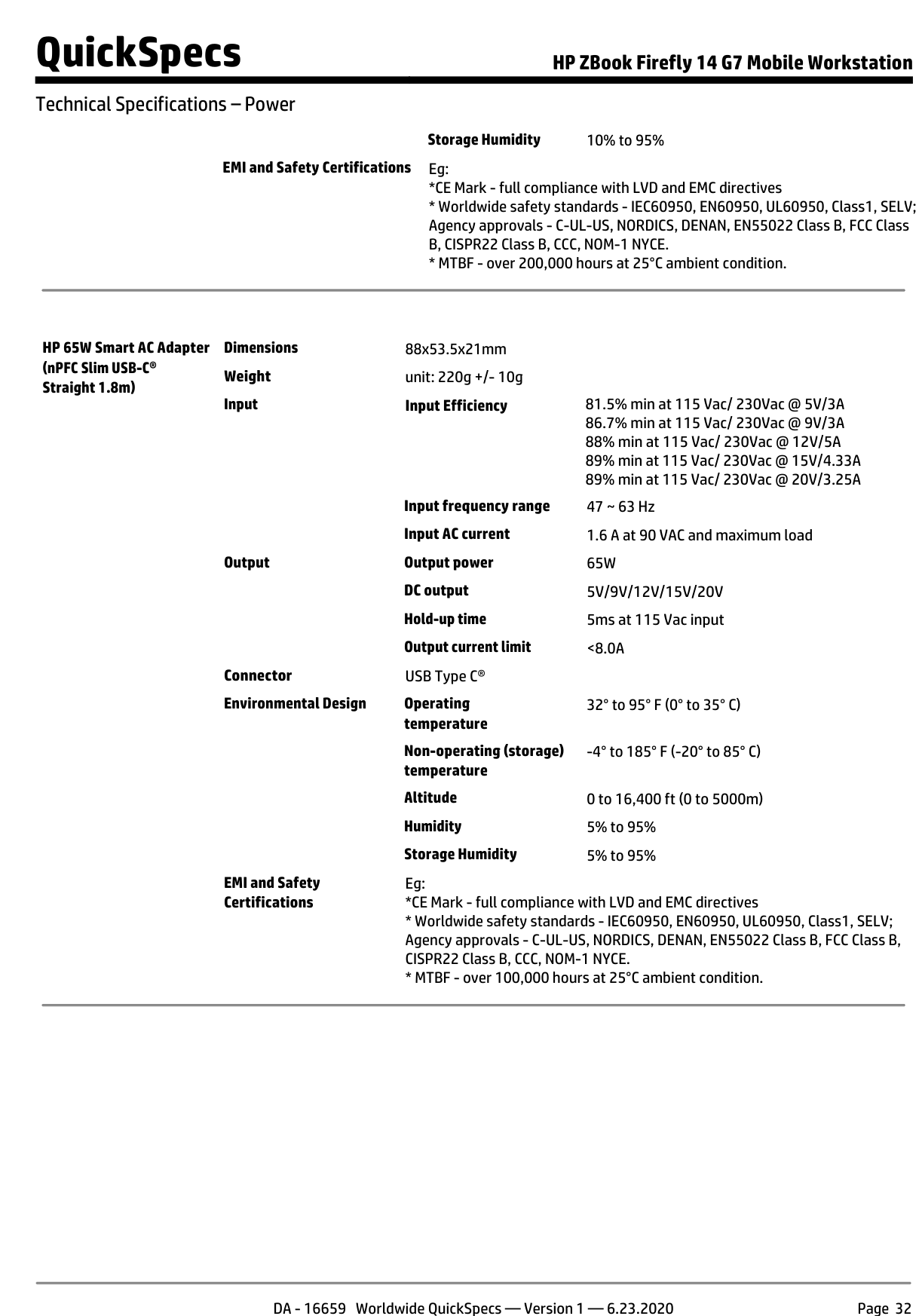

HP 65W Smart AC Adapter (nPFC Slim USB-C® Straight 1.8m) Dimensions 88x53.5x21mm Weight unit: 220g +/- 10g Input Input Efficiency 81.5% min at 115 Vac/ 230Vac @ 5V/3A 86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A 89% min at 115 Vac/ 230Vac @ 20V/3.25A Input frequency range 47 ~ 63 Hz Input AC current 1.6 A at 90 VAC and maximum load Output Output power
65W
DC output5V/9V/12V/15V/20V
Hold-up time 5ms at 115 Vac input Output current limit<8.0A
Connector USB Type C® Environmental Design Operating temperature 32° to 95° F (0° to 35° C) Non-operating (storage) temperature -4° to 185° F (-20° to 85° C) Altitude 0 to 16,400 ft (0 to 5000m) Humidity 5% to 95% Storage Humidity 5% to 95% EMI and Safety Certifications Eg: *CE Mark - full compliance with LVD and EMC directivesQuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Power DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 32
HP 65W Smart AC Adapter (nPFC Standard USB-C® Straight 1.8m) Dimensions 90.0x51x28.5mm Weight unit: 250g +/- 10g Input Input Efficiency 81.5% min at 115 Vac/ 230Vac @ 5V/3A 86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A 89% min at 115 Vac/ 230Vac @ 20V/3.25A Input frequency range 47 ~ 63 Hz Input AC current 1.6 A at 90 VAC and maximum load Output Output power
65W
DC output5V/9V/12V/15V/20V
Hold-up time 5ms at 115 Vac input Output current limit 8.0A Max. ConnectorUsb Type C®
Environmental Design Operating temperature 32° to 95° F (0° to 35° C) Non-operating (storage) temperature -4° to 185° F (-20° to 85° C) Altitude 0 to 16,400 ft (0 to 5000m) Humidity 20% to 95% Storage Humidity 10% to 95% EMI and Safety Certifications Eg: "CE Mark - full compliance with LVD and EMC directives *Worldwide safety standards -IEC60950, EN60950, UL60950, UL62368, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. *MTBF - over 200,000 hours at 25°C ambient condition.HP 65W Smart AC Adapter (nPFC Standard Barrel 4.5mm for Emerging Markets) Dimensions 102x55x30mm Weight unit: 250g +/- 10g Input Input Efficiency 88.0 % at 115 Vac and 89.0 % at 230Vac Input frequency range 47 ~ 63 Hz Input AC current Max. 1.7 A at 90 Vac Output Output power
65W
DC output19.5V
Hold-up time 5ms at 115 Vac input Output current limit<11.0A
Connector 4.5mm Barrel Type Environmental Design Operating temperature 32oF to 95oF (0oto 35oC) Non-operating (storage) temperature -4oF to 185oF (-20oto 85oC) Altitude 0 to 16,400 ft (0 to 5,000 m) Humidity 20% to 95% QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Power DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 33
Storage Humidity 10% to 95% EMI and Safety Certifications Eg: *CE Mark - full compliance with LVD and EMC directives
HP 65W Smart AC Adapter (nPFC Standard Barrel 4.5mm Right Angle 1.8m) Dimensions 90x51x28.5mm Weight unit: 230g +/- 10g Input Input Efficiency 88.0 % at 115 Vac and 89.0 % at 230Vac Input frequency range 47 ~ 63 Hz Input AC current Max. 1.7 A at 90 Vac Output Output power
65W
DC output19.5V
Hold-up time 5ms at 115 Vac input Output current limit<11.0A
Connector 4.5mm Barrel Type Environmental Design Operating temperature 32° to 95° F (0° to 35° C) Non-operating (storage) temperature -4° to 185° F (-20° to 85° C) Altitude 0 to 16,400 ft (0 to 5,000 m) Humidity 20% to 95% Storage Humidity 10% to 95% EMI and Safety Certifications Eg: *CE Mark - full compliance with LVD and EMC directivesHP 3-cell Long Life Li-Ion (53 WHr) supporting HP Fast Charge Dimensions (H x W x L) 7.3 x 52.9 x 267.11mm ( 0.287 x 2.082 x 10.516 inch) Weight 0.205kg (0.45 lb) Cells/Type 3cell Lithium-Ion Polymer cell / 645180 Energy Voltage
11.55V
Amp-hour capacity 4.59Ah Watt-hour capacity 53Wh Temperature Operating (Charging) 32° to 122° F (0° to 50° C) Operating (Discharging) 14° to 140° F (-10° to 60° C) Fuel Gauge LEDNa
Warranty Depends on system offering Optional Travel Battery Available No QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Power DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 34
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Power DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 35

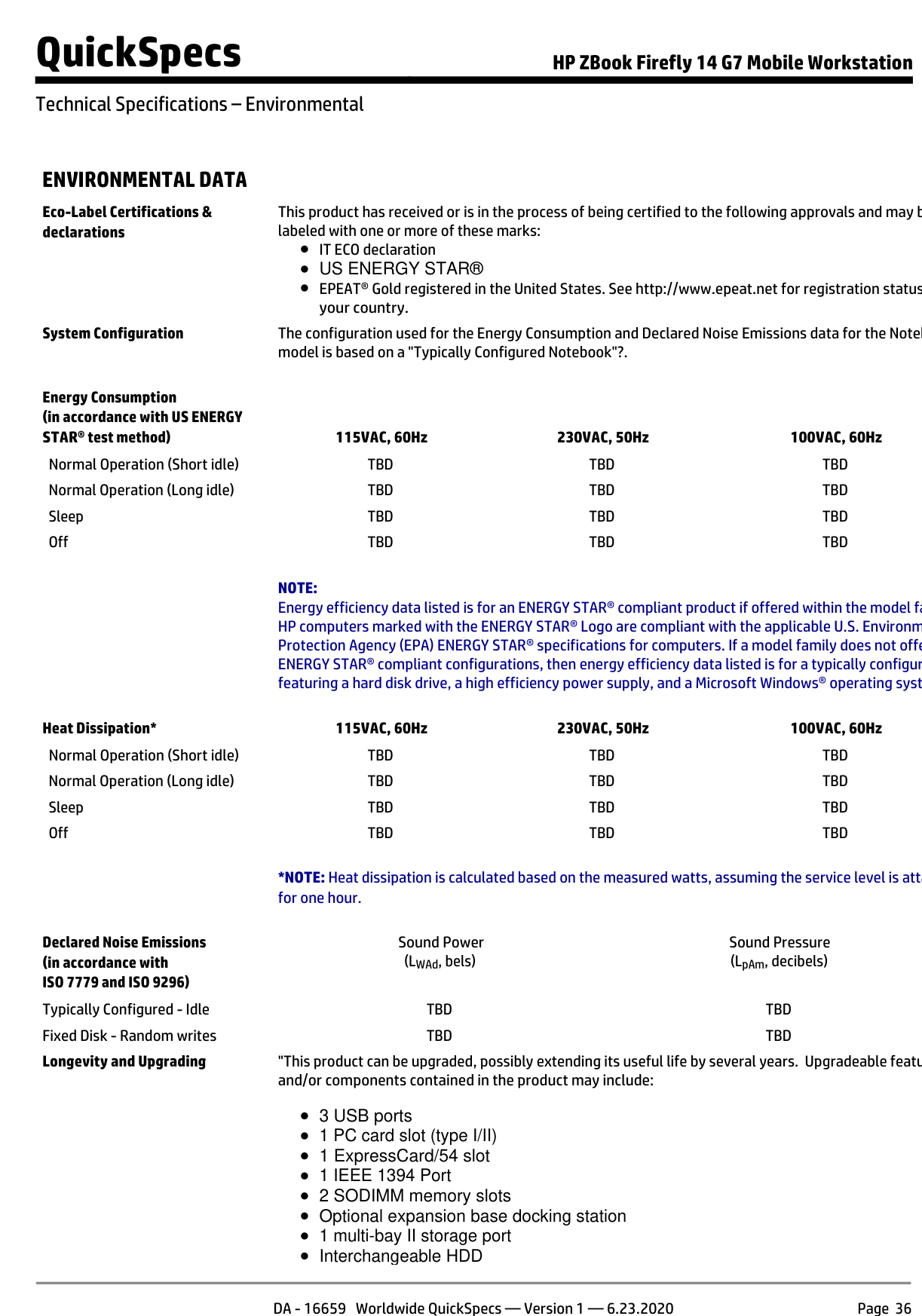

Environmental Data
Eco-Label Certifications & declarations This product has received or is in the process of being certified to the following approvals and may b labeled with one or more of these marks: IT ECO declarationUs Energy Star®
EPEAT® Gold registered in the United States. See http://www.epeat.net for registration status your country. System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the Noteb model is based on a "Typically Configured Notebook"?.Energy Consumption (in accordance with US ENERGY STAR® test method) 115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz Normal Operation (Short idle)
Tbd
Tbd
Tbd
Normal Operation (Long idle)Tbd
Tbd
Tbd
SleepTbd
Tbd
Tbd
OffTbd
Tbd
Tbd
Note:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model fa HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environm Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offe ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configur featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating systHeat Dissipation* 115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz Normal Operation (Short idle)
Tbd
Tbd
Tbd
Normal Operation (Long idle)Tbd
Tbd
Tbd
SleepTbd
Tbd
Tbd
OffTbd
Tbd
Tbd
*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is atta for one hour.
Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296) Sound Power (LWAd, bels)
Sound Pressure (LpAm, decibels)
Typically Configured - Idle
Tbd
Tbd
Fixed Disk - Random writesTbd
Tbd
Longevity and Upgrading "This product can be upgraded, possibly extending its useful life by several years. Upgradeable featu and/or components contained in the product may include: 3 USB ports 1 PC card slot (type I/II) 1 ExpressCard/54 slot 1 IEEE 1394 Port 2 SODIMM memory slots Optional expansion base docking station 1 multi-bay II storage port Interchangeable HDD QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Environmental DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 36

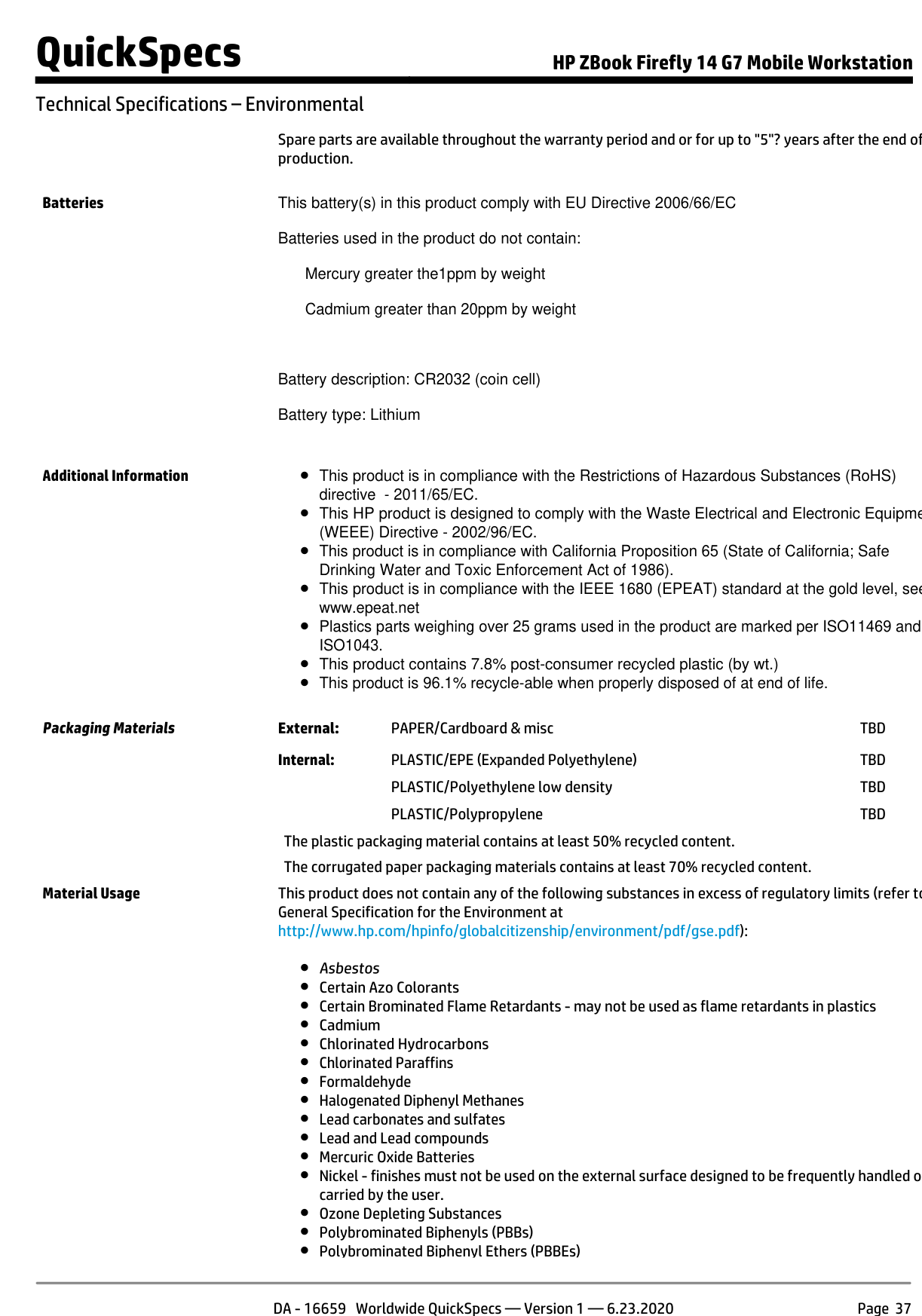

Spare parts are available throughout the warranty period and or for up to "5"? years after the end of production.
Batteries This battery(s) in this product comply with EU Directive 2006/66/EC Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight
Battery description: CR2032 (coin cell) Battery type: Lithium
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2011/65/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipme (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the gold level, see www.epeat.net Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
Iso1043.
This product contains 7.8% post-consumer recycled plastic (by wt.) This product is 96.1% recycle-able when properly disposed of at end of life.Packaging Materials External: PAPER/Cardboard & misc
Tbd
Internal: PLASTIC/EPE (Expanded Polyethylene)
Tbd
PLASTIC/Polyethylene low density
Tbd
PLASTIC/Polypropylene
Tbd
The plastic packaging material contains at least 50% recycled content. The corrugated paper packaging materials contains at least 70% recycled content. Material Usage This product does not contain any of the following substances in excess of regulatory limits (refer to General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf): Asbestos Certain Azo Colorants Certain Brominated Flame Retardants - may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel - finishes must not be used on the external surface designed to be frequently handled o carried by the user. Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Environmental DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 37

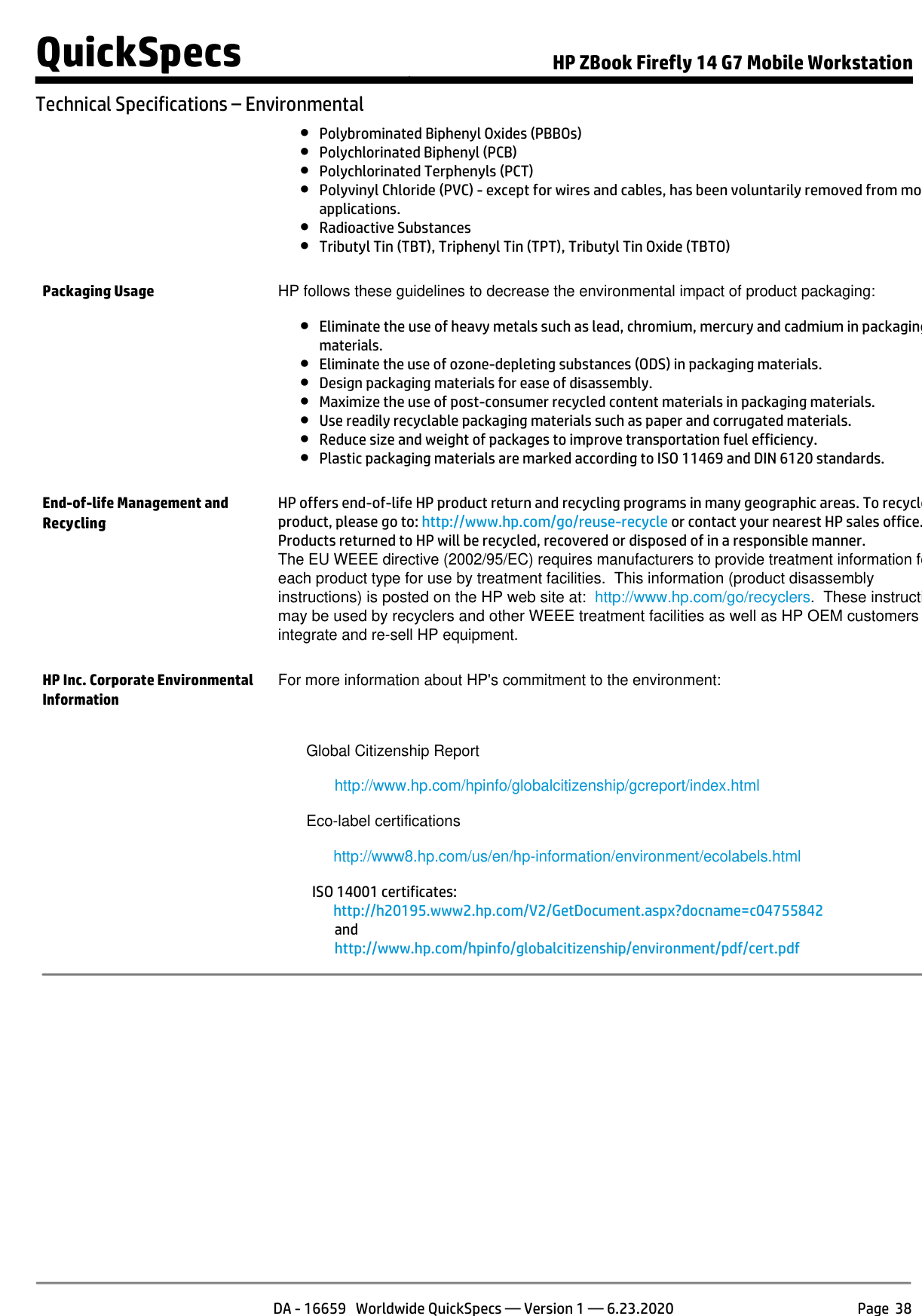

Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) - except for wires and cables, has been voluntarily removed from mo applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage HP follows these guidelines to decrease the environmental impact of product packaging: Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management and Recycling HP offers end-of-life HP product return and recycling programs in many geographic areas. To recycle product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information fo each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the HP web site at: http://www.hp.com/go/recyclers. These instruct may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers integrate and re-sell HP equipment.
HP Inc. Corporate Environmental Information For more information about HP's commitment to the environment:
Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html ISO 14001 certificates: http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755842 and http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation Technical Specifications – Environmental DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 38

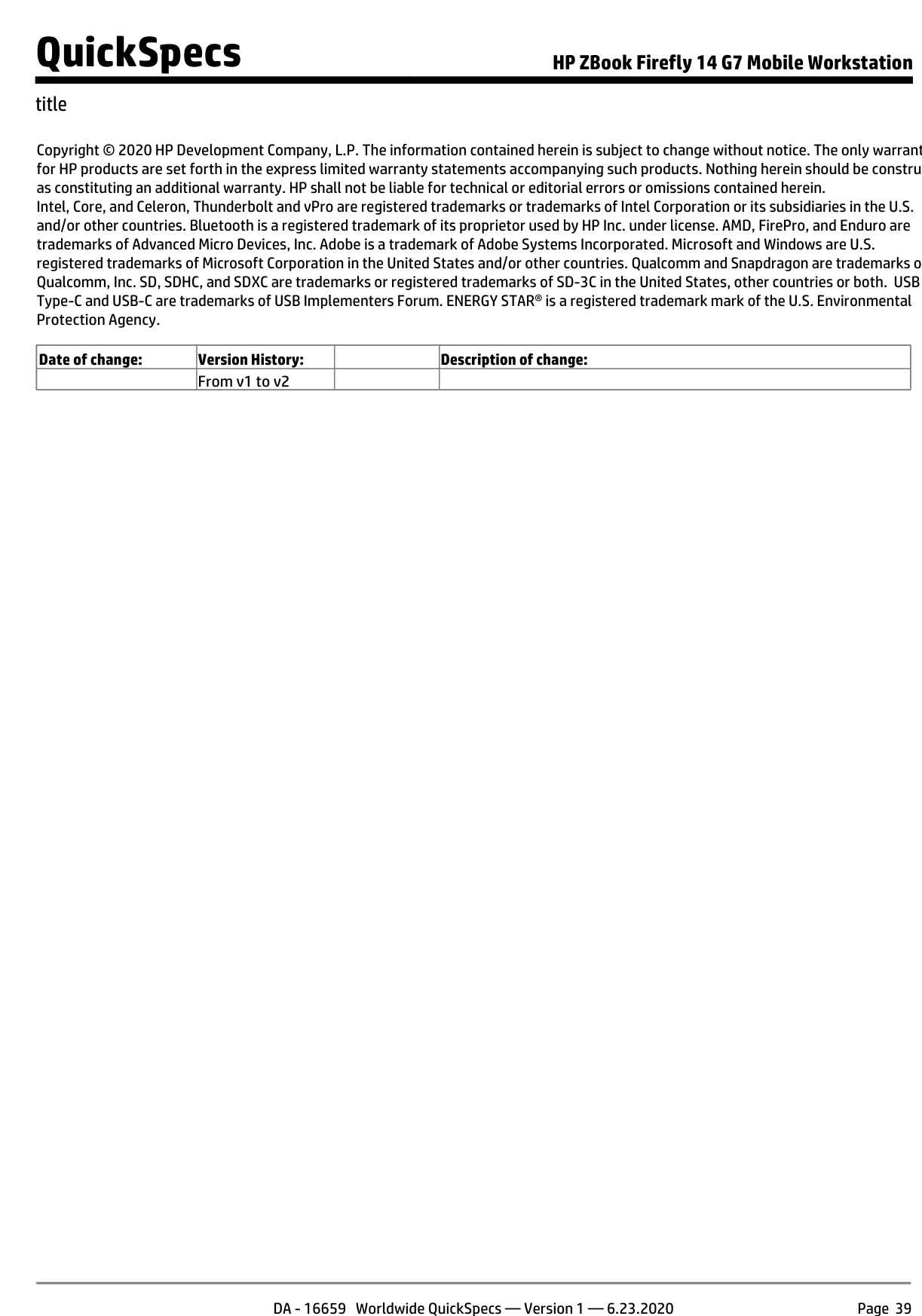

Copyright © 2020 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warrant for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be constru as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Intel, Core, and Celeron, Thunderbolt and vPro are registered trademarks or trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a registered trademark of its proprietor used by HP Inc. under license. AMD, FirePro, and Enduro are trademarks of Advanced Micro Devices, Inc. Adobe is a trademark of Adobe Systems Incorporated. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation in the United States and/or other countries. Qualcomm and Snapdragon are trademarks o Qualcomm, Inc. SD, SDHC, and SDXC are trademarks or registered trademarks of SD-3C in the United States, other countries or both. USB Type-C and USB-C are trademarks of USB Implementers Forum. ENERGY STAR® is a registered trademark mark of the U.S. Environmental Protection Agency.
Date of change: Version History:
Description of change:
From v1 to v2
QuickSpecs HP ZBook Firefly 14 G7 Mobile Workstation title DA - 16659 Worldwide QuickSpecs — Version 1 — 6.23.2020 Page 39
