Full Manual
36 pages
Interactive Part Locator
HP ZBook Fury 15 G7 Mobile Workstation
Welcome to the interactive part locator for the HP ZBook Fury 15 G7 Mobile Workstation
Here’s how to use it… External Views (Click the link to navigate to the views) On this page you will find large icons of each of the external views of this product. To view a specific view in greater detail, simply click that view. Parts List (Click the link to navigate to the parts) On this page, you will find a list of all of the replaceable parts for this product. To view a specific part and its location in the product, click the part name in the list.
That’s it! On every page there is a link that brings you back to either the External Views or the Parts List, enabling you to navigate to whatever view or part you wish to review.
Back to Welcome page
|| |---|
Front

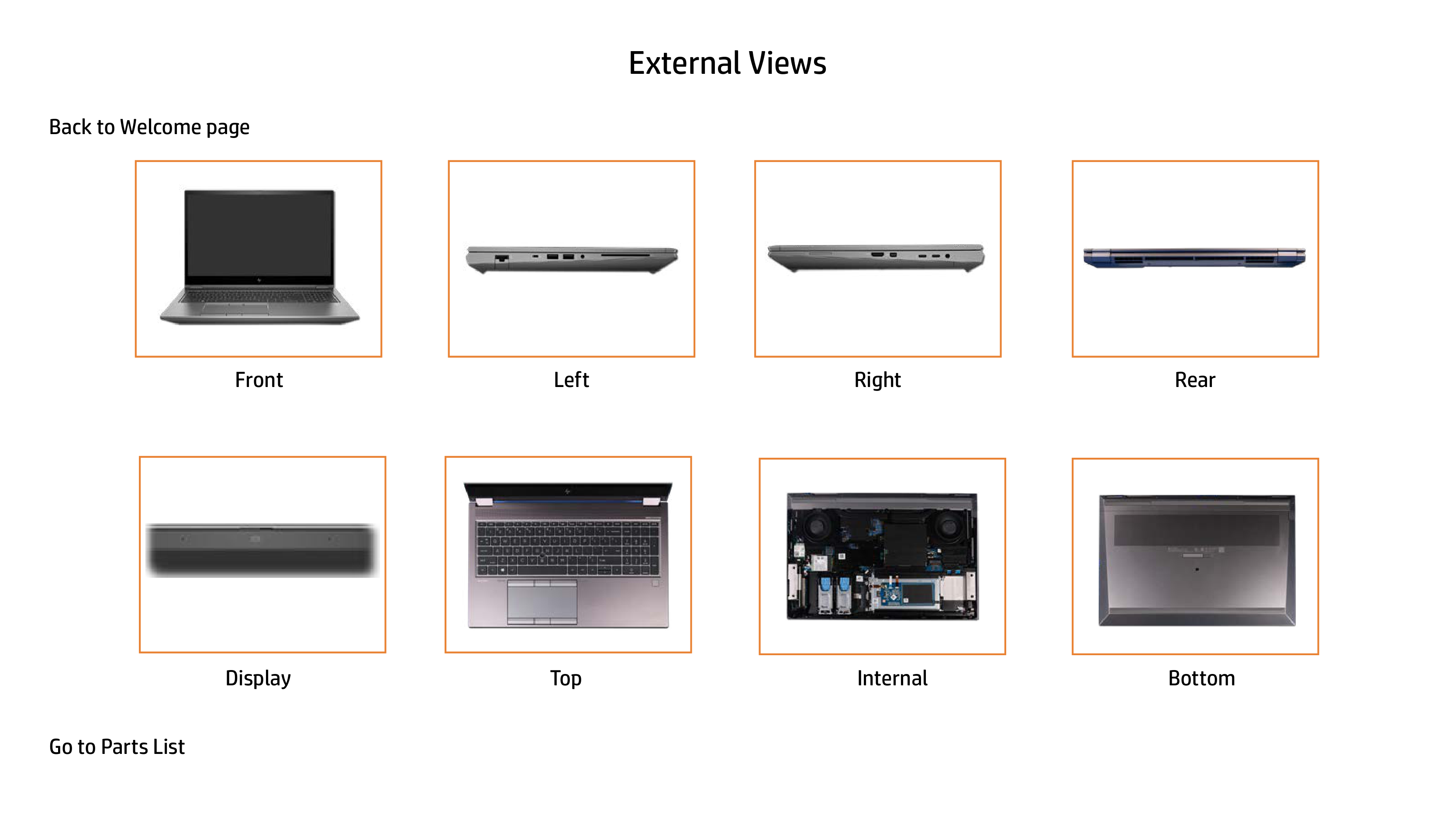

External Views
|| |---|
Left
|| |---|
Right
|| |---|
Display
|| |---|
Top
|| |---|
Internal
||
|---|
Rear
|| |---|
Bottom
Back to External Views

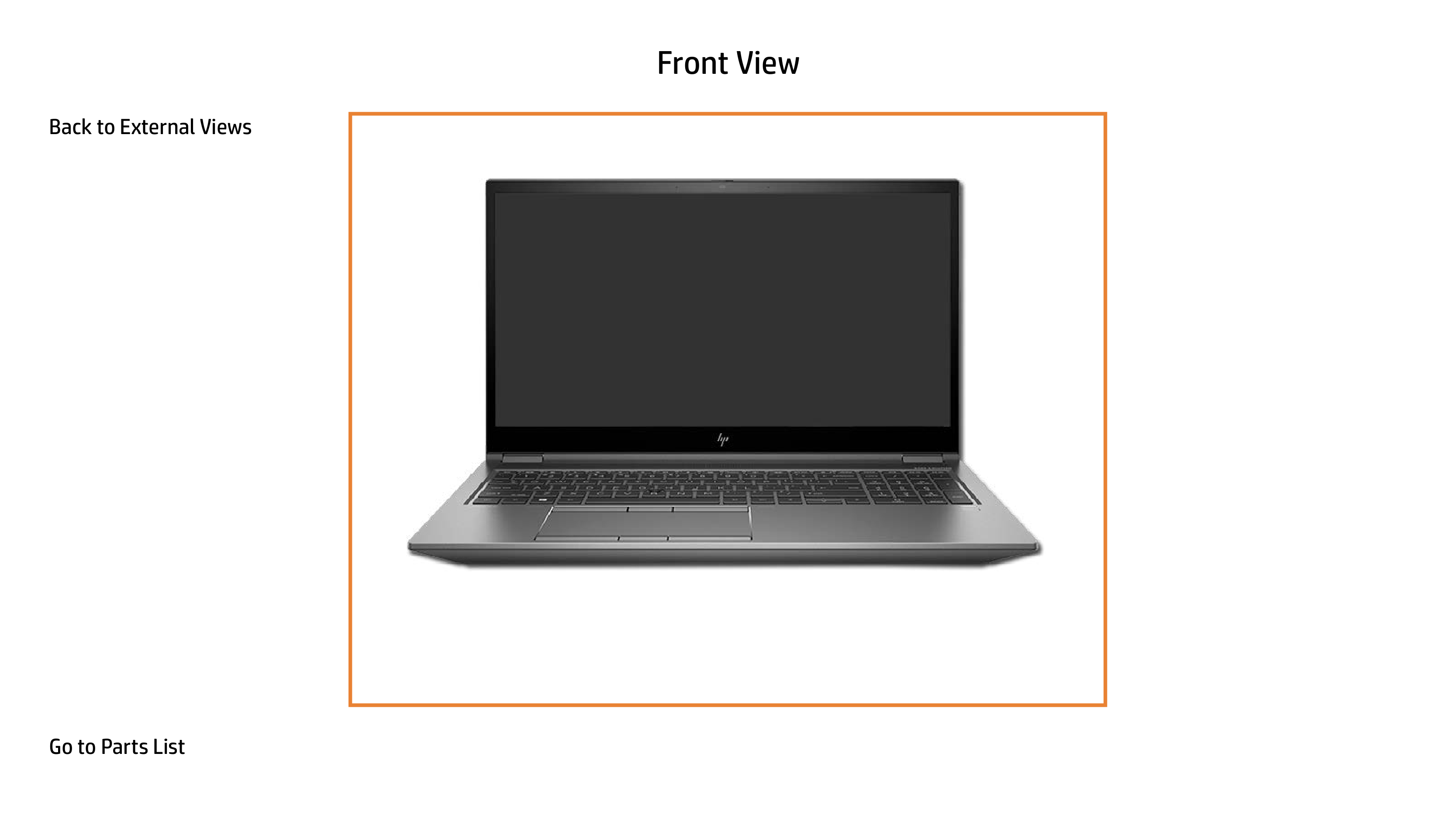

Front View
|| |---|
Back to External Views

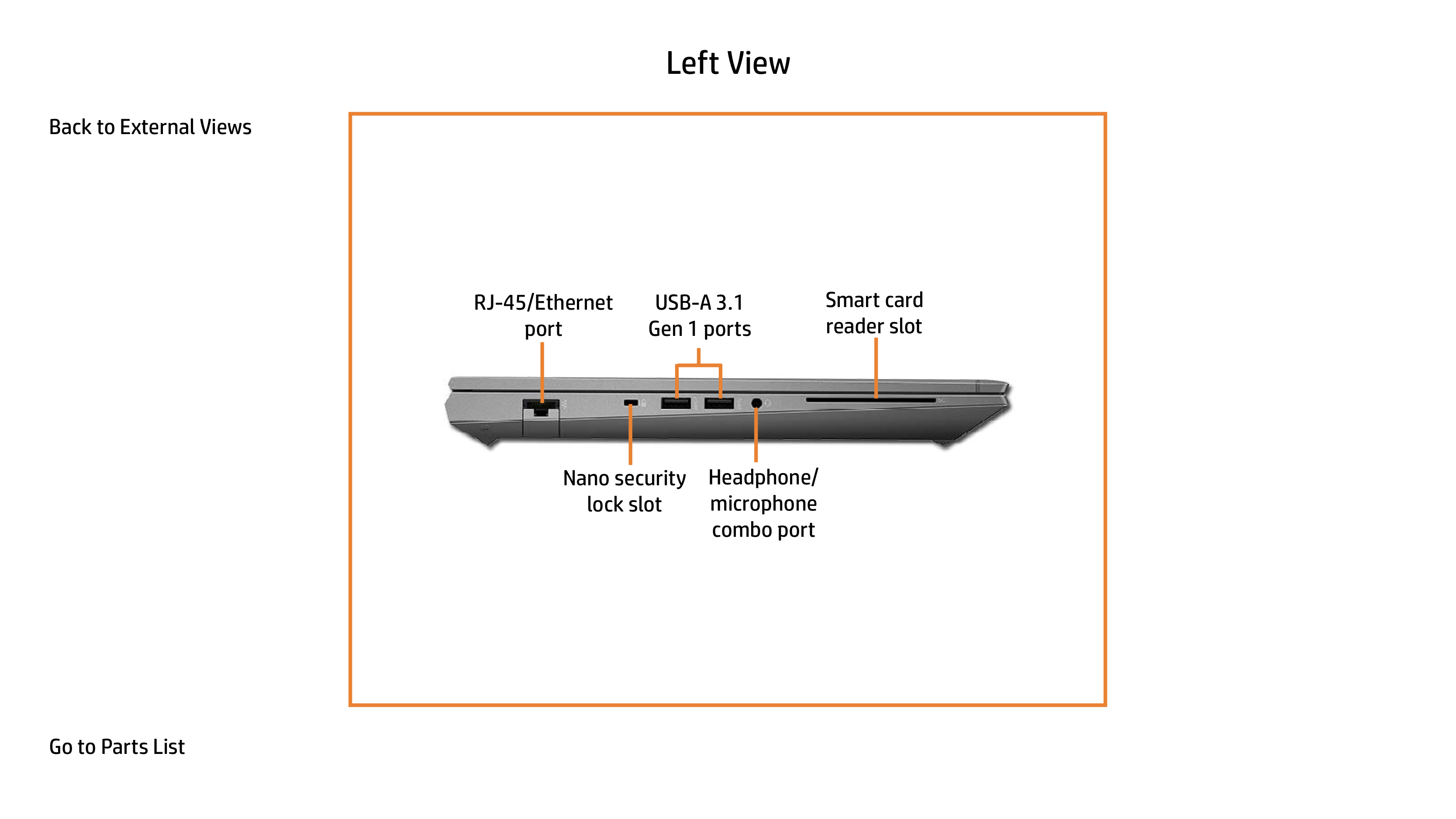

Left View
|
RJ-45/Ethernet port
Nano security lock slot
Headphone/ microphone combo port
Smart card reader slot
USB-A 3.1 Gen 1 ports
| |---|
Back to External Views

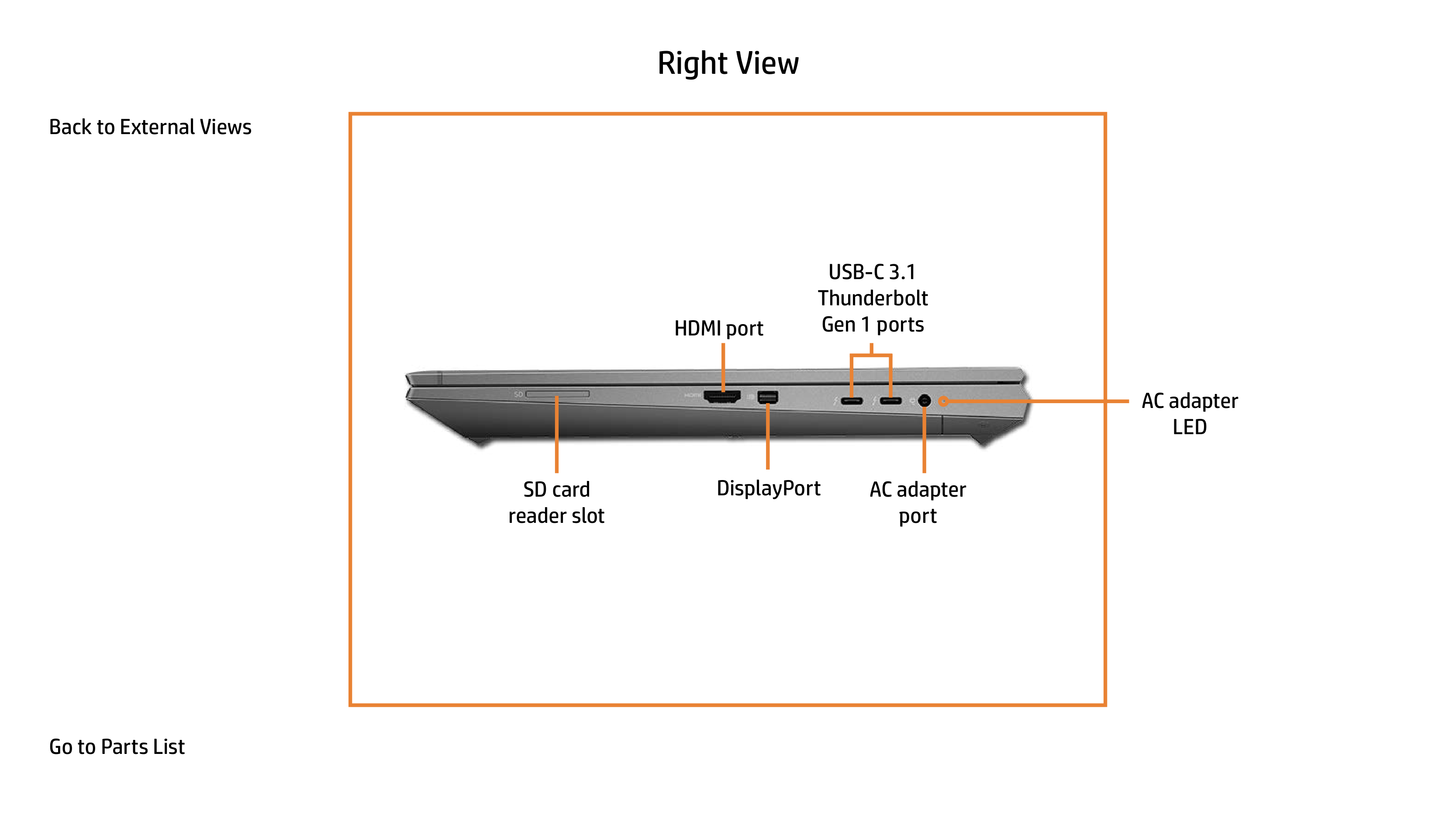

Right View
USB-C 3.1 Thunderbolt Gen 1 ports
HDMI port
DisplayPort
SD card reader slot
AC adapter port
AC adapter LED
Back to External Views

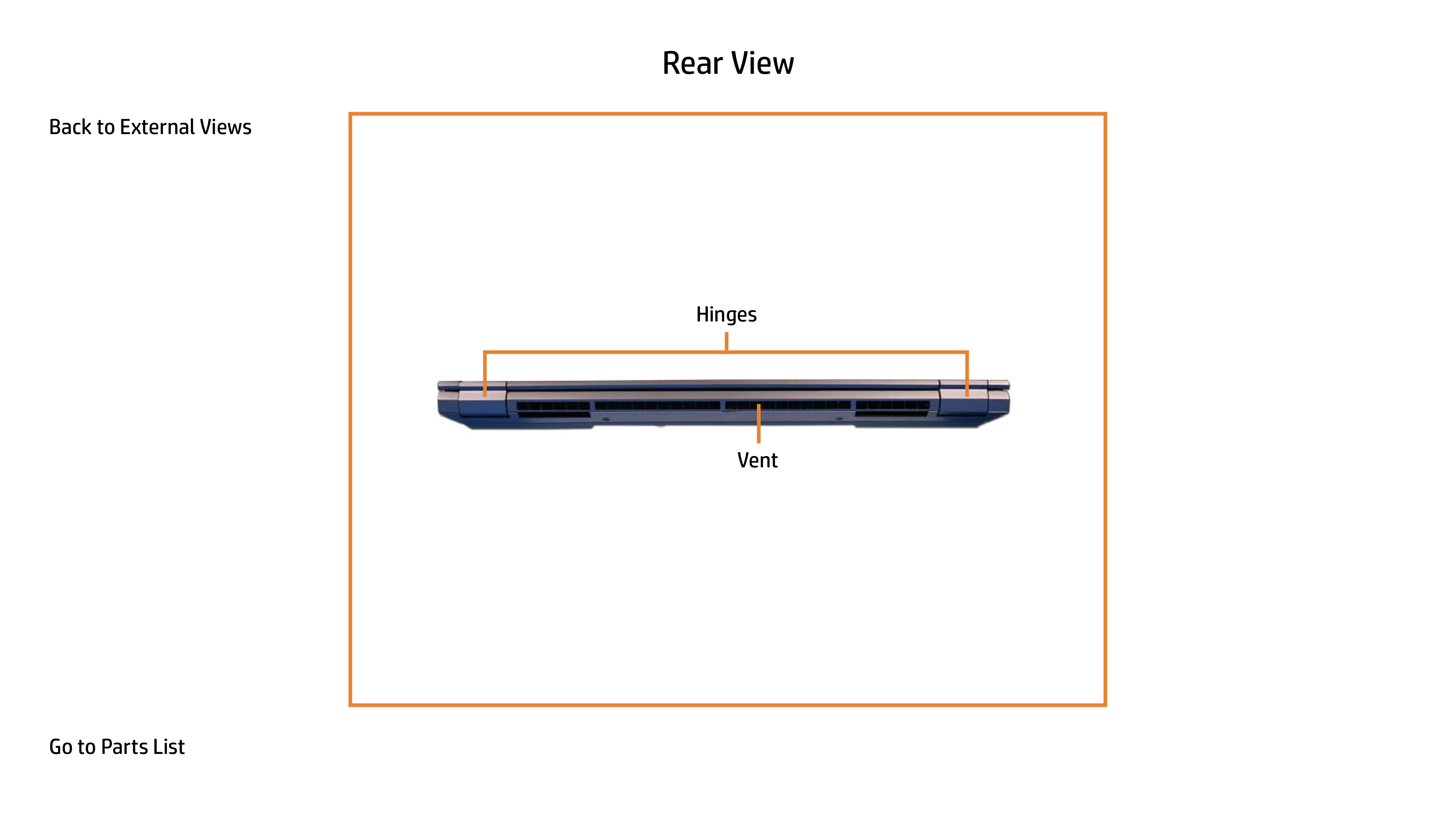

Rear View
|
Hinges
Vent
| |---|
Back to External Views
Volume mute key
Microphone mute key Caps lock key and LED
fn key

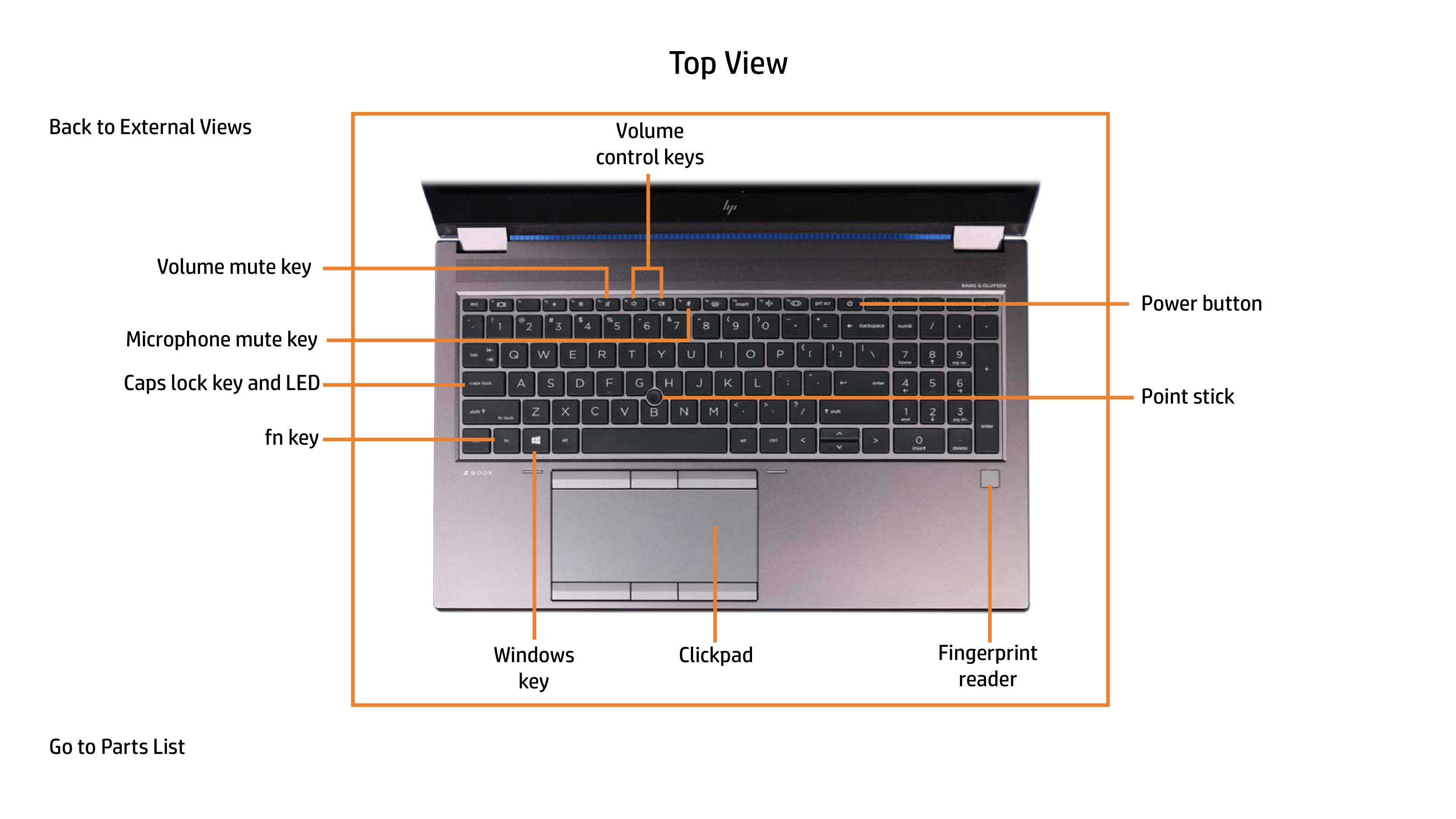

Top View
Volume control keys
| | | |---|---| | | |
Windows key
Clickpad
Fingerprint reader
Power button
Point stick
Back to External Views

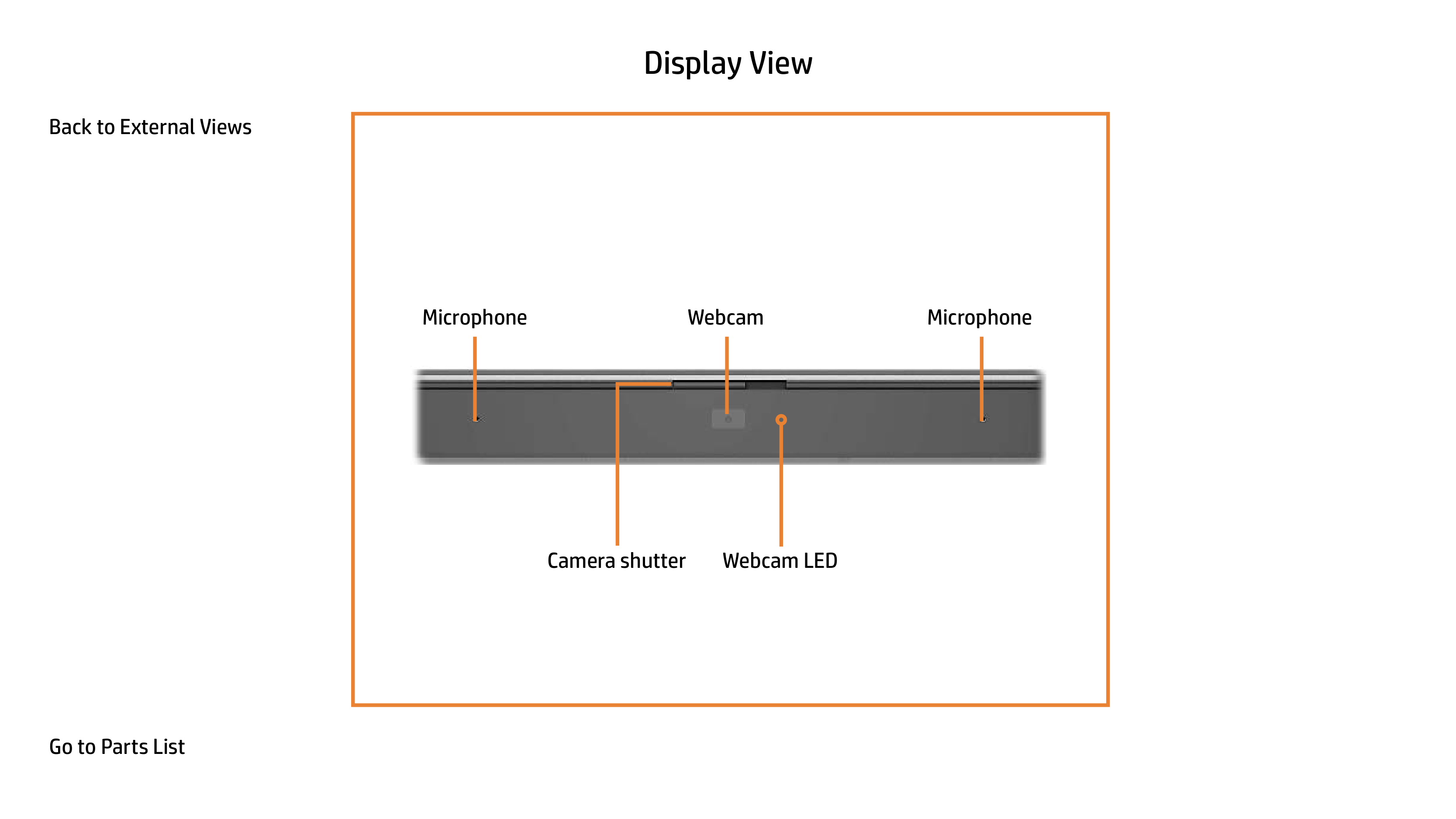

Display View
|
Webcam LED
Microphone Webcam Microphone
Camera shutter
| |---|
Back to External Views
System board
Wireless LAN module
Wireless WAN module

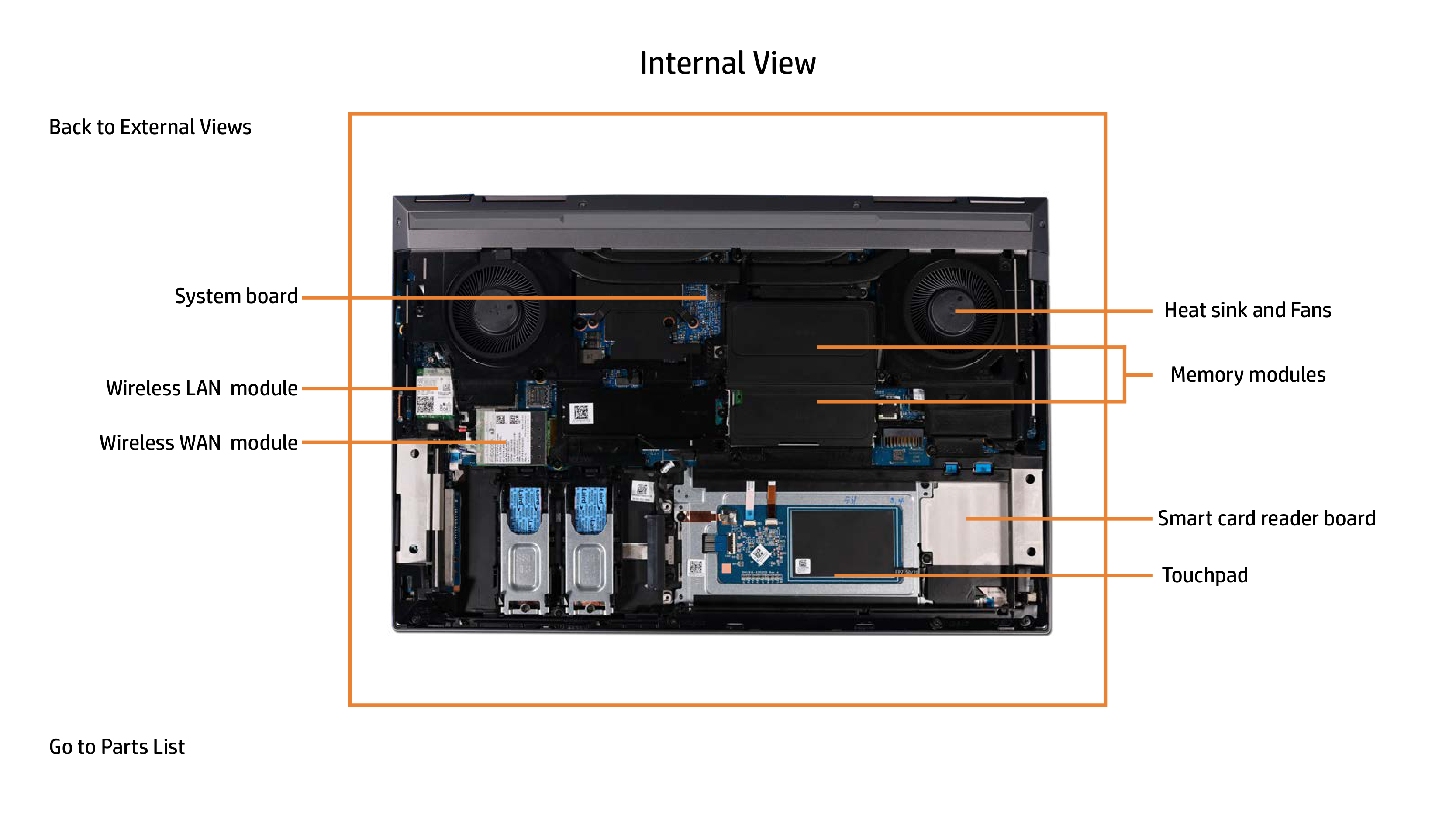

Internal View
Heat sink and Fans
Memory modules
Smart card reader board
Touchpad
Back to External Views
Service tag

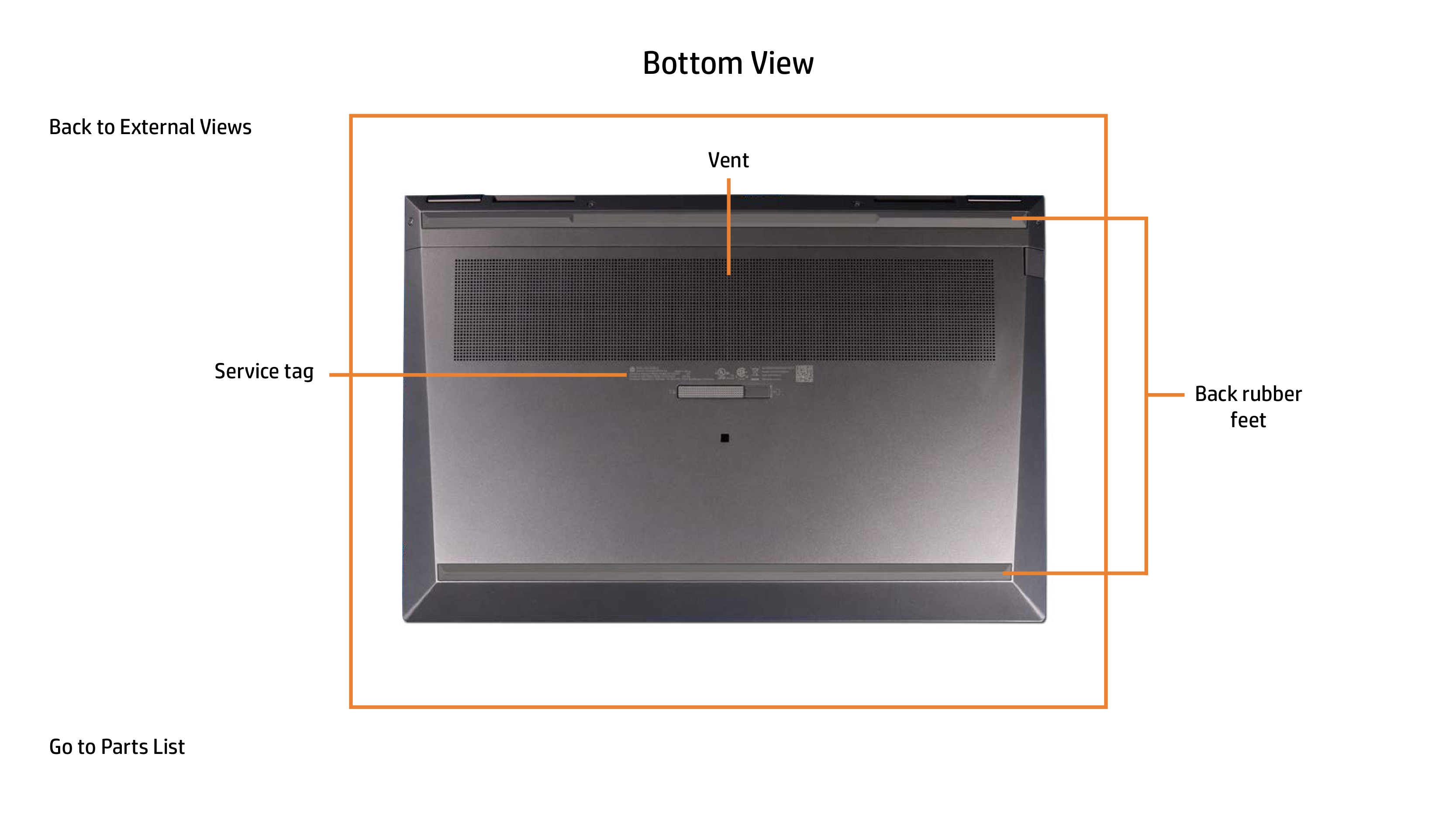

Bottom View
Vent
Back rubber feet

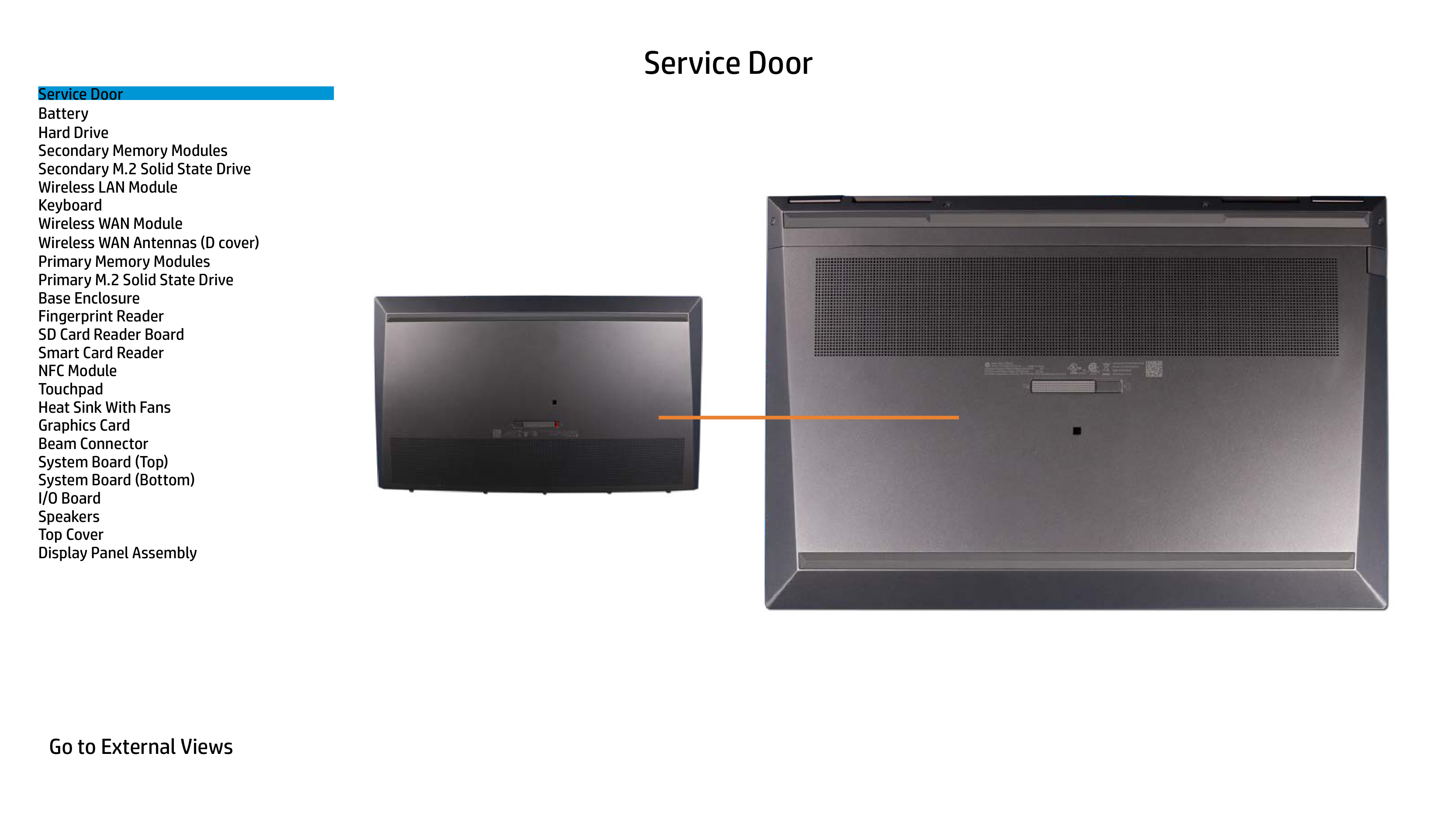

Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly
Service Door
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

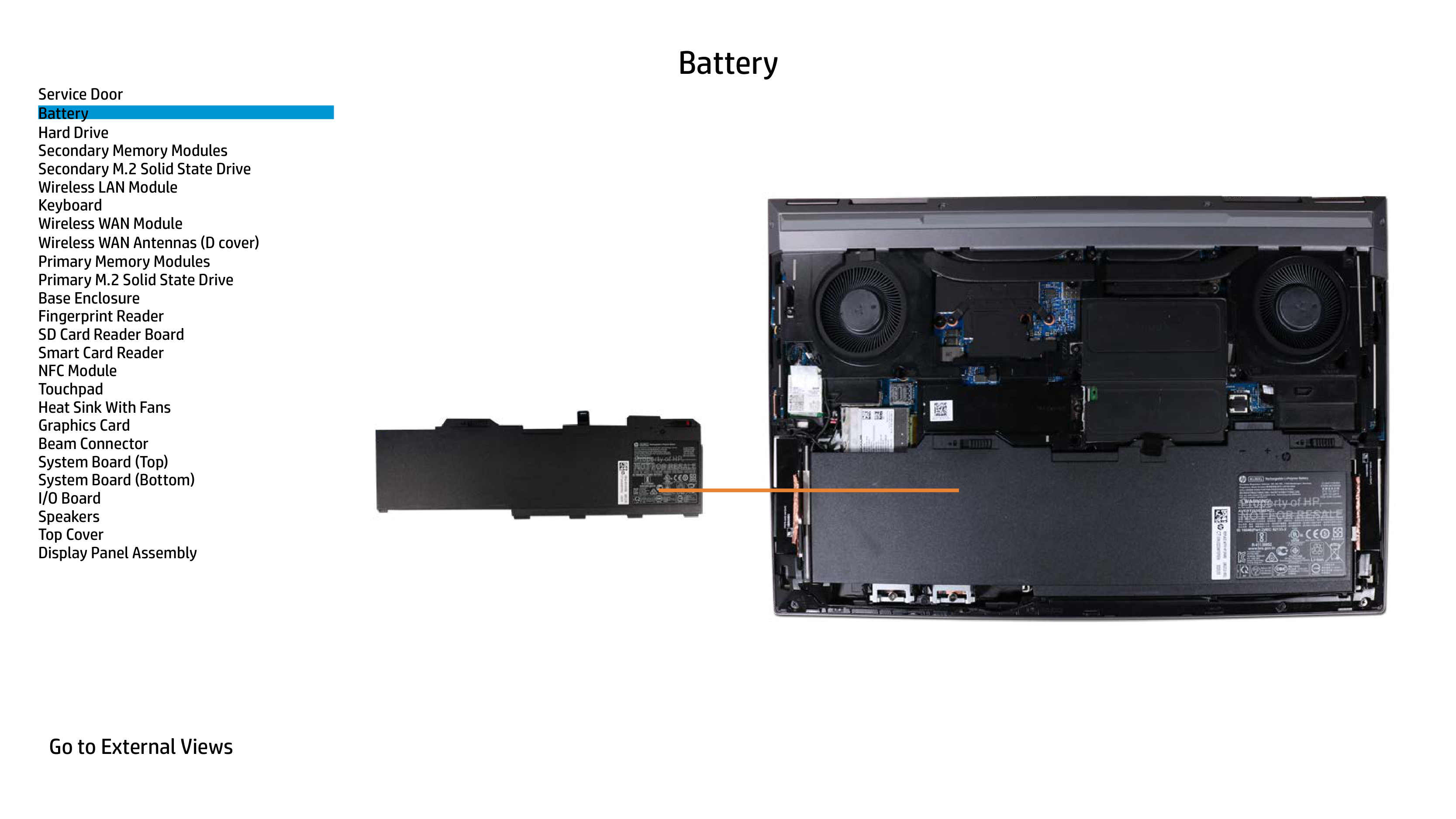

Battery
Service Door
Battery Secondary Memory Modules Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader SD Card Reader Board NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

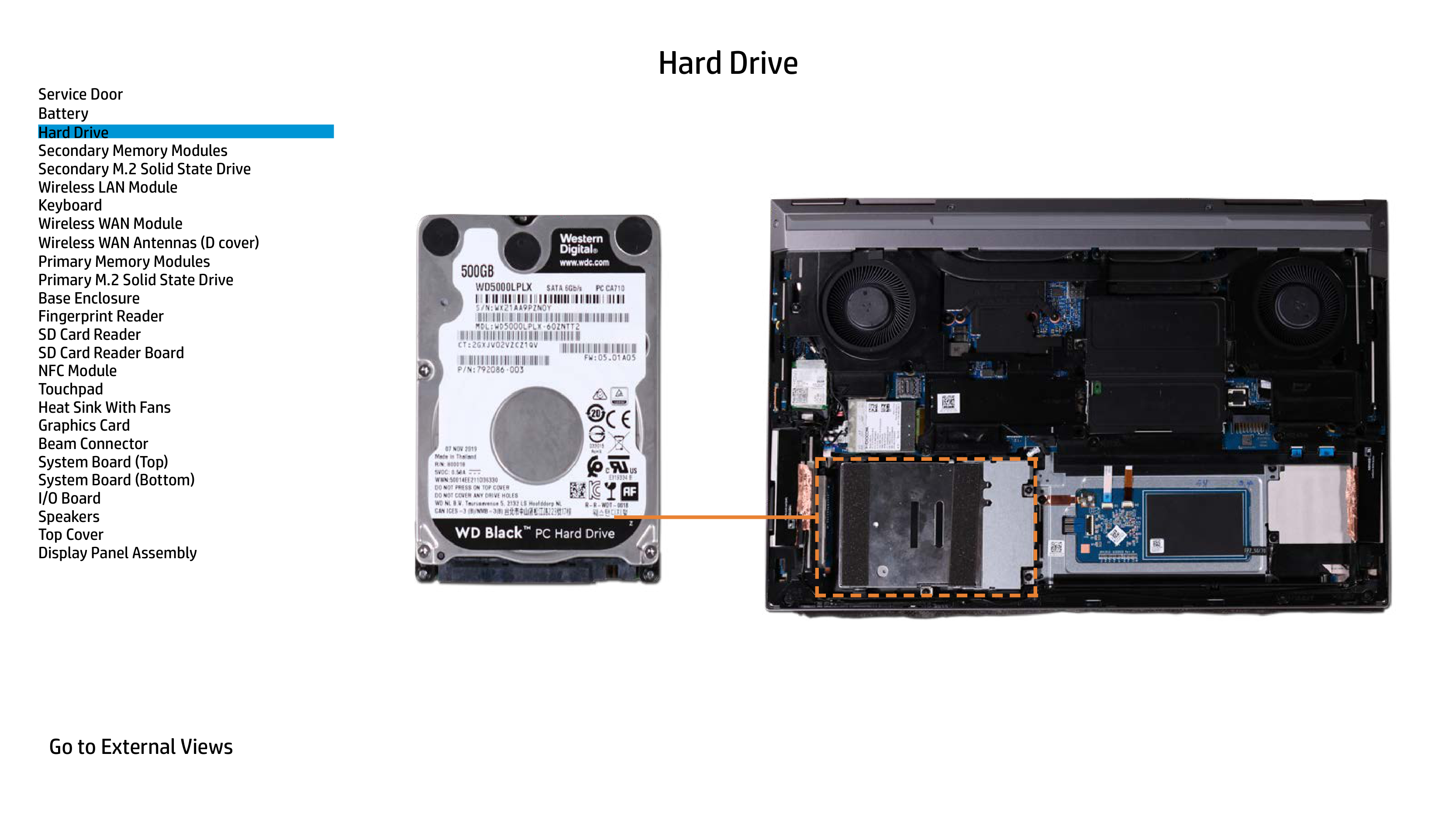

Hard Drive
Wireless WAN Antennas (D cover)
Hard Drive
| | | |---|---| | | |
Service Door
Battery Secondary Memory Modules Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly
Hard Drive
Wireless WAN Antennas (D cover)

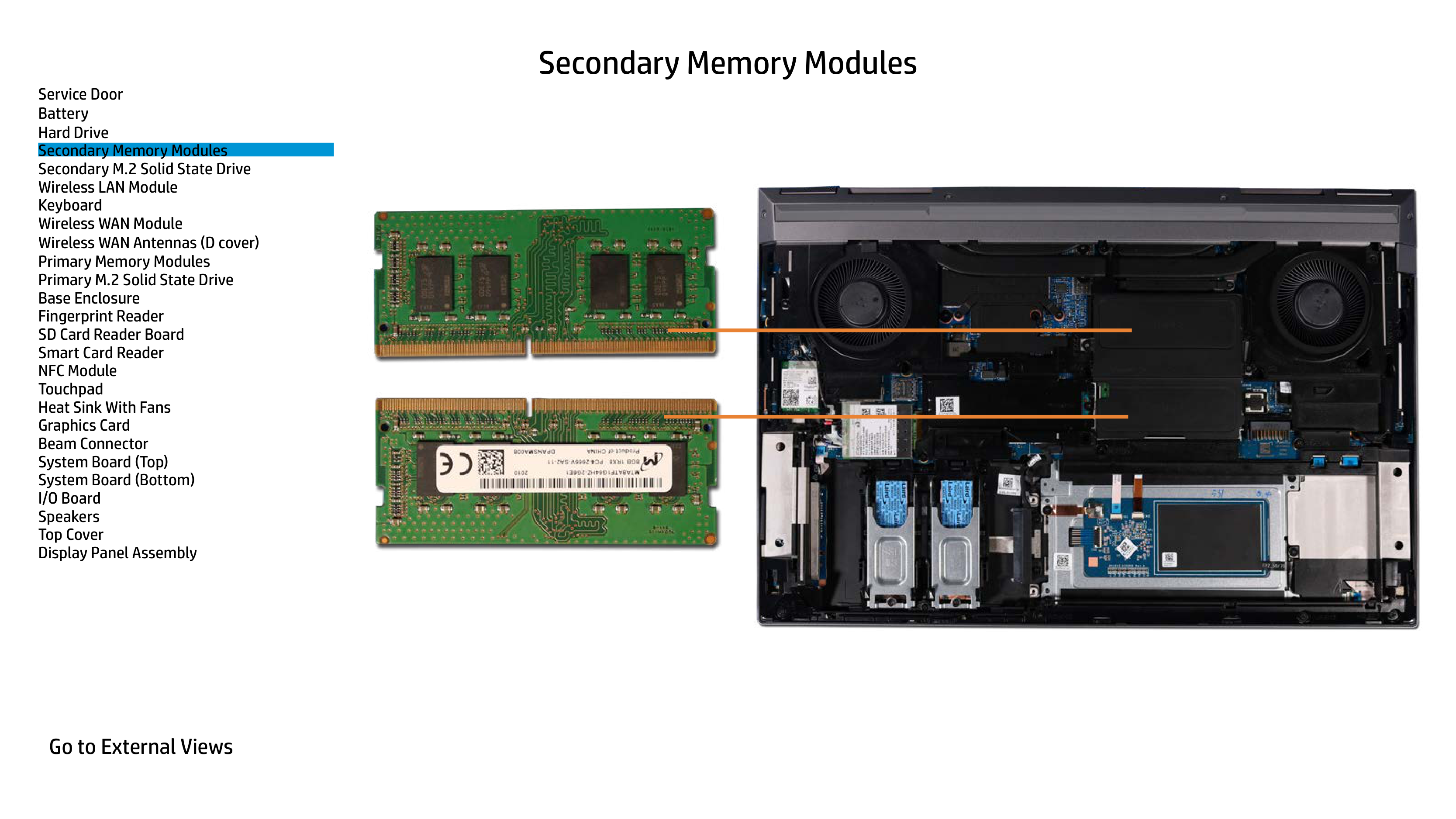

Secondary Memory Modules
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

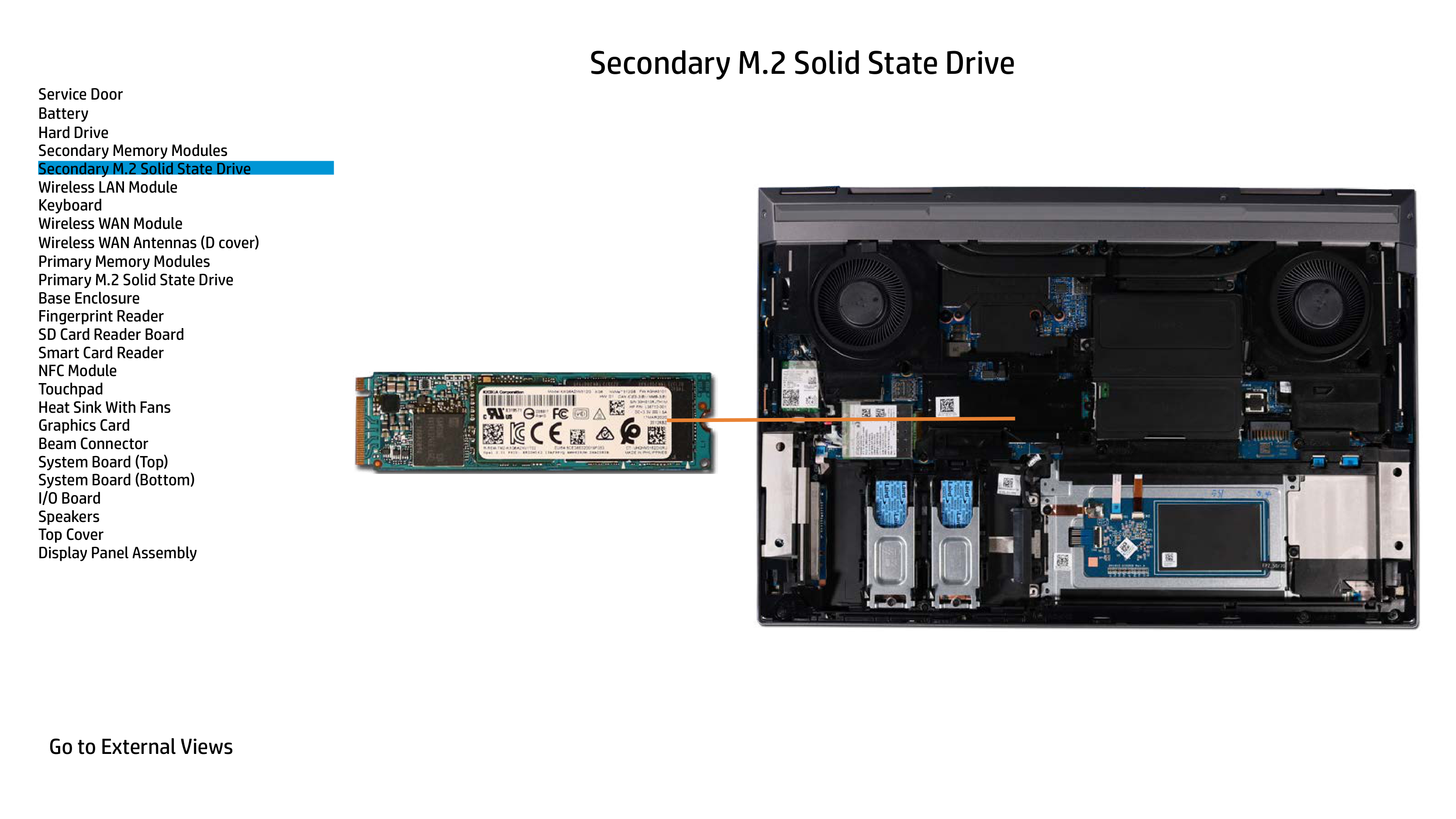

Secondary M.2 Solid State Drive
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

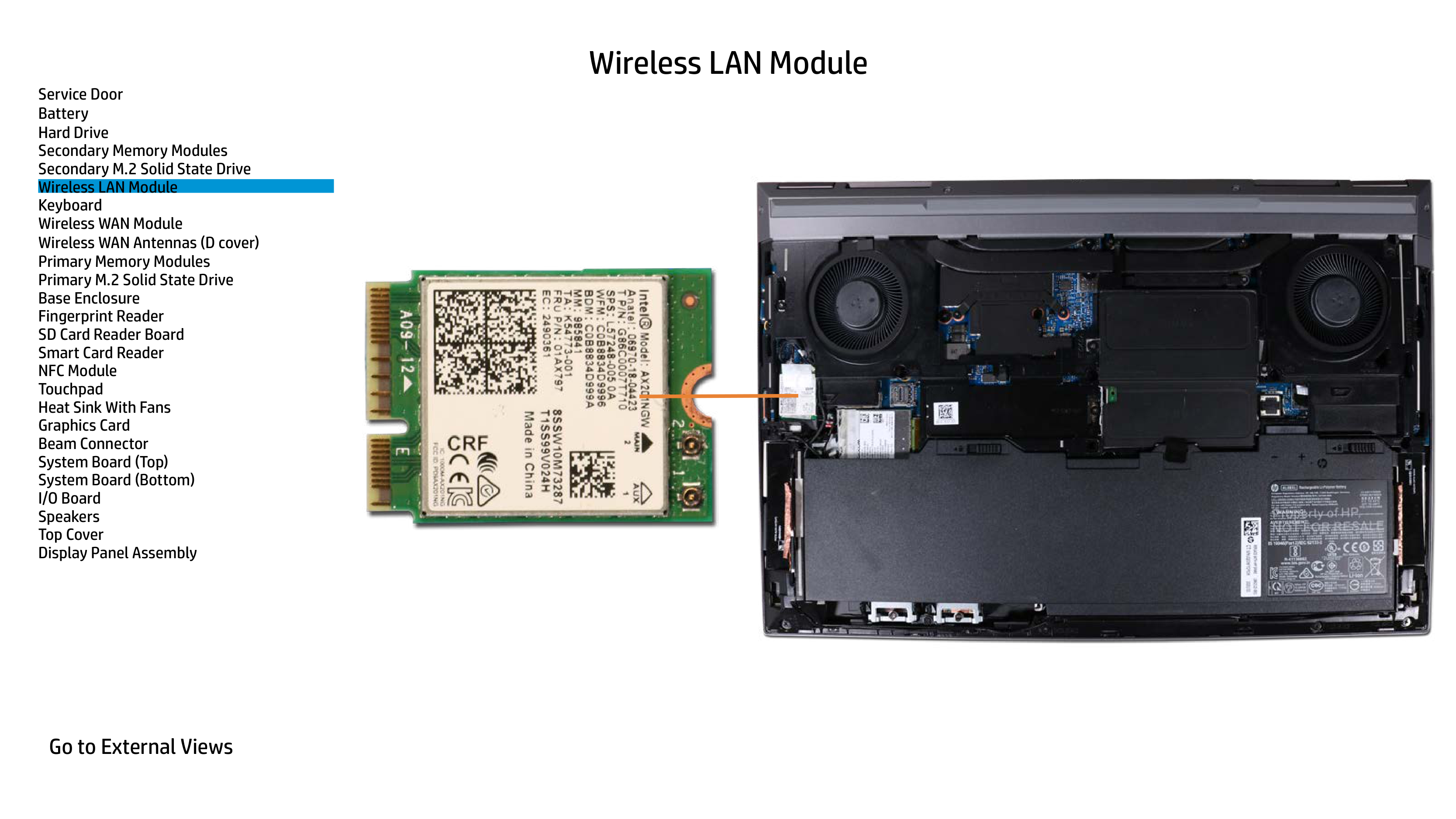

Wireless LAN Module
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

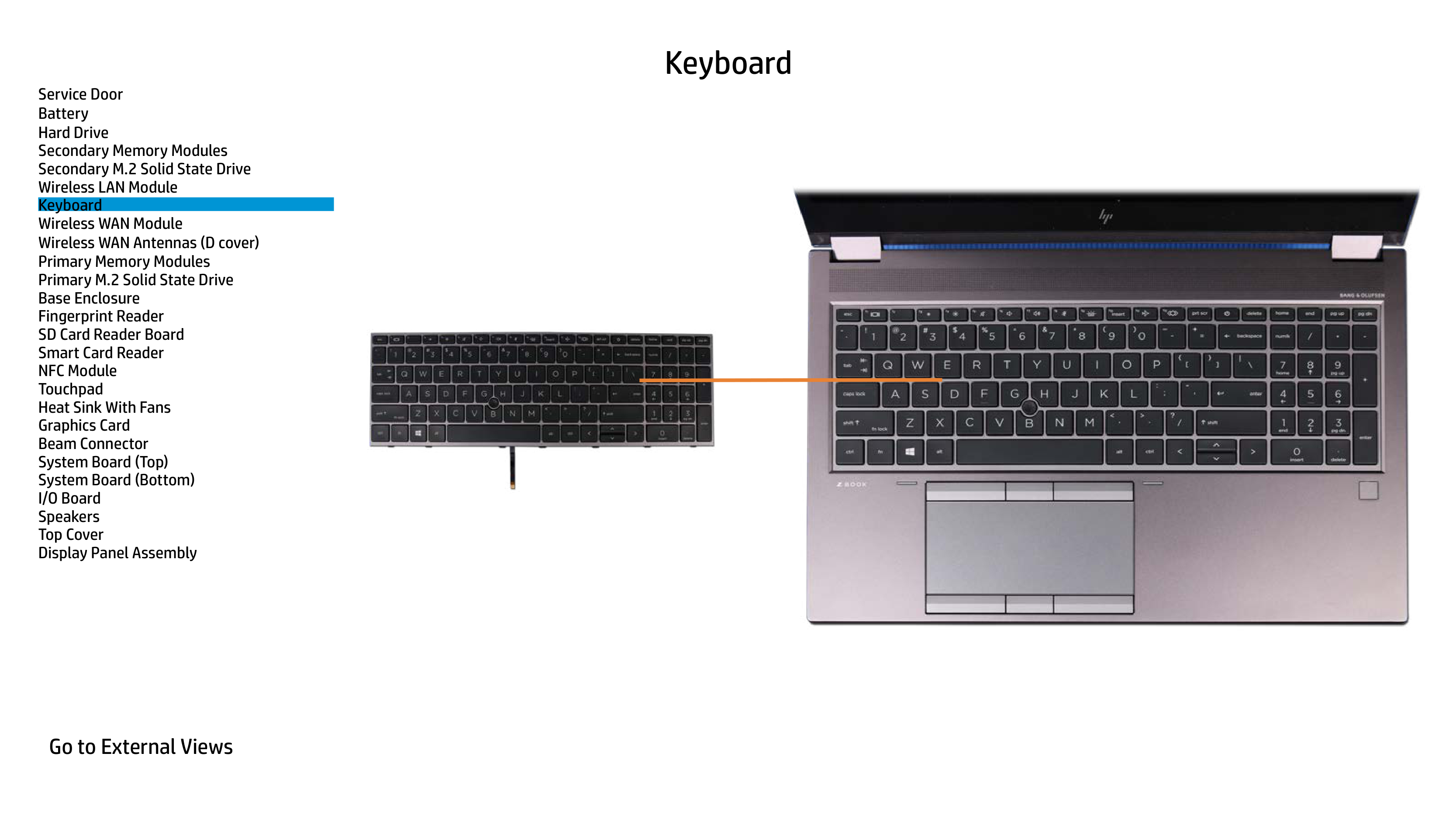

Keyboard
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

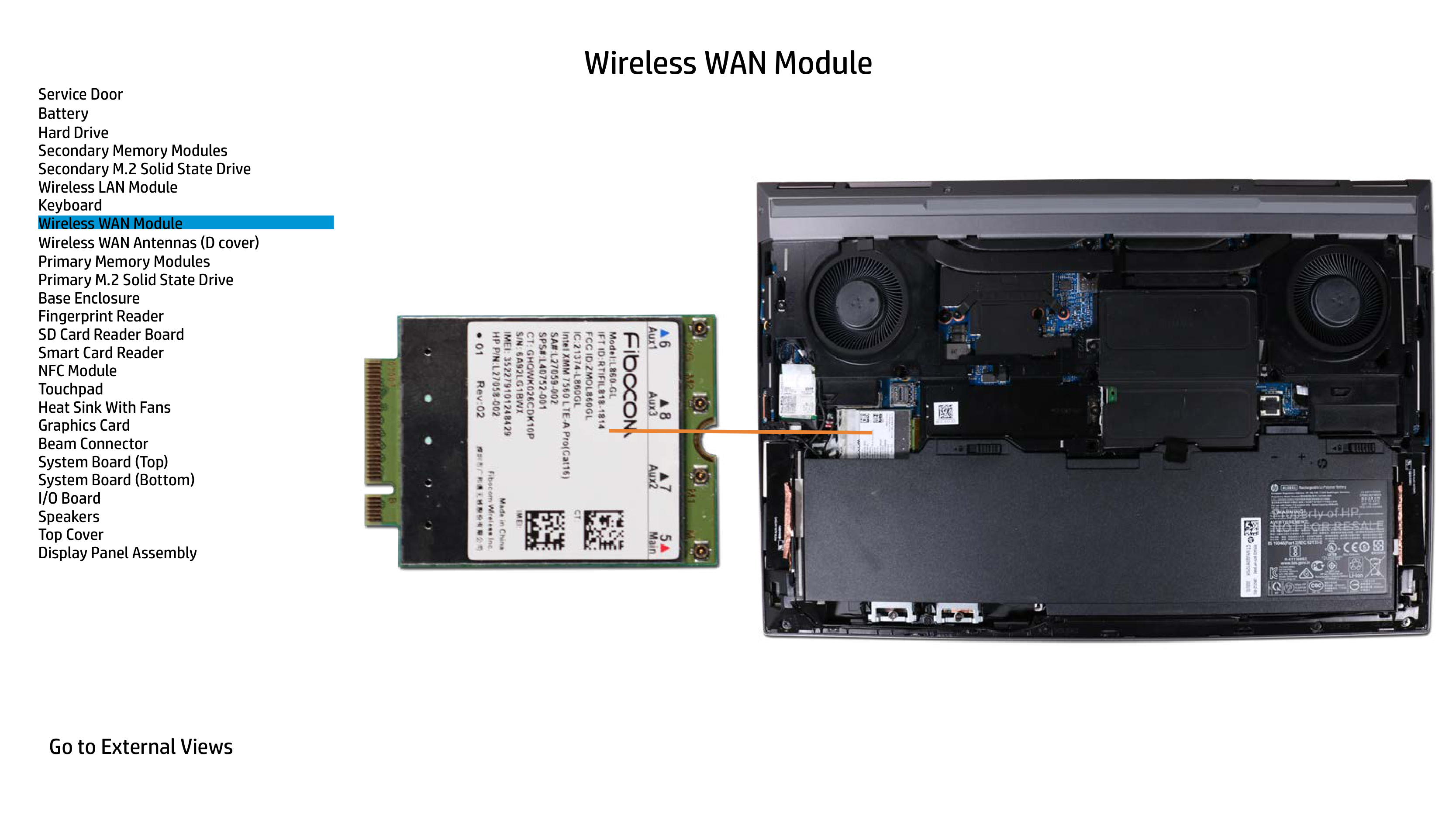

Wireless WAN Module
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

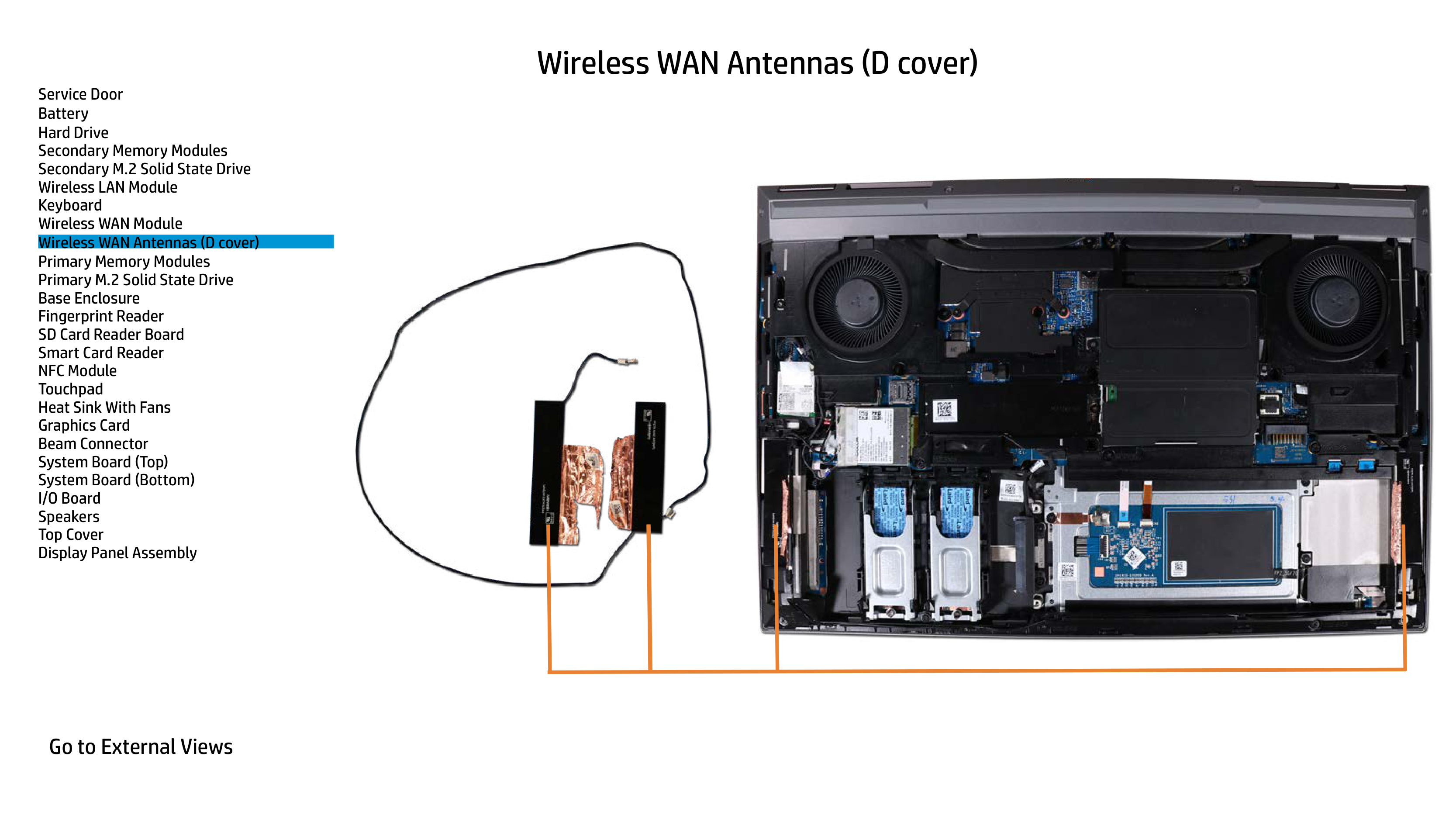

Wireless WAN Antennas (D cover)
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

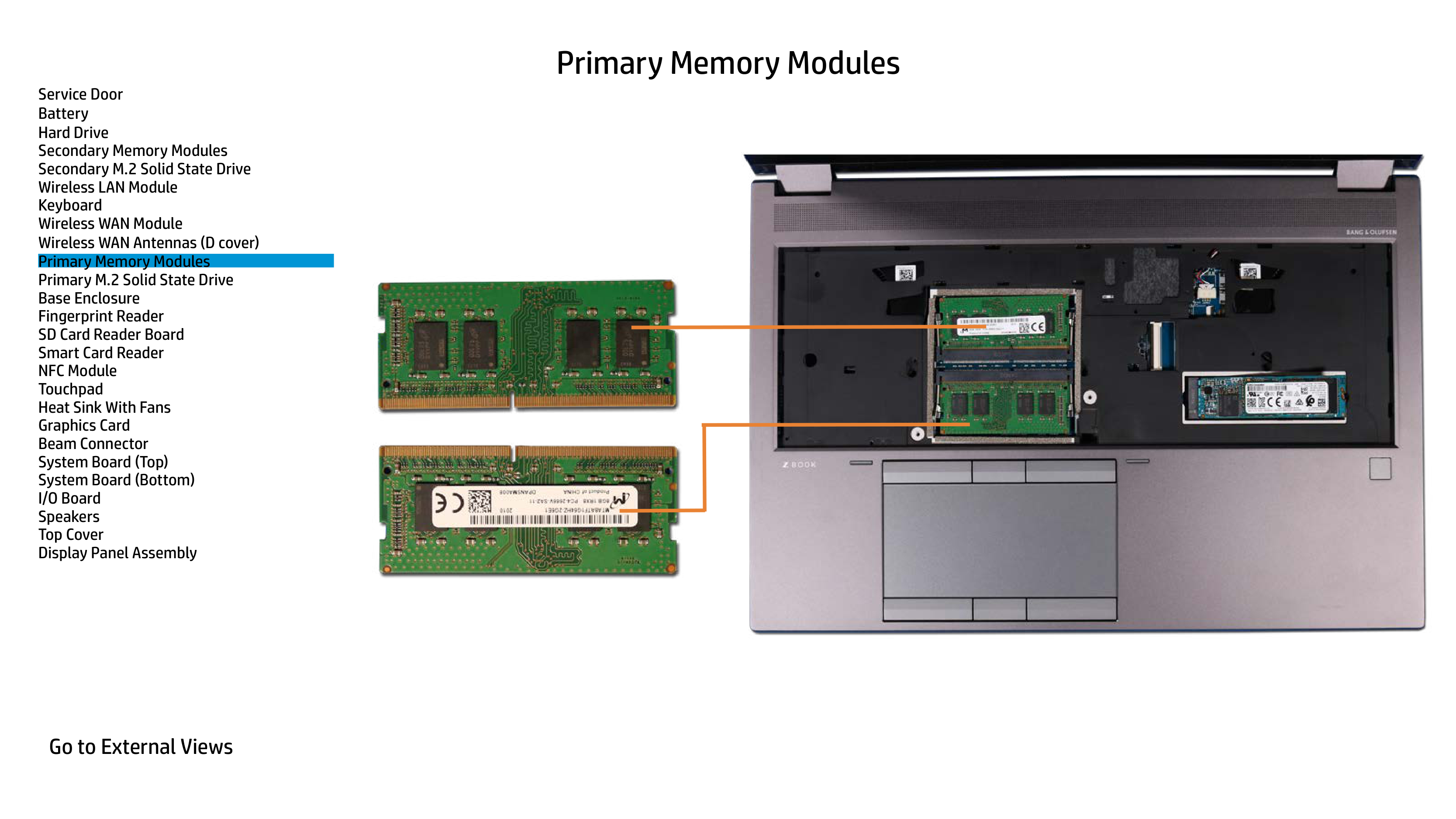

Primary Memory Modules
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

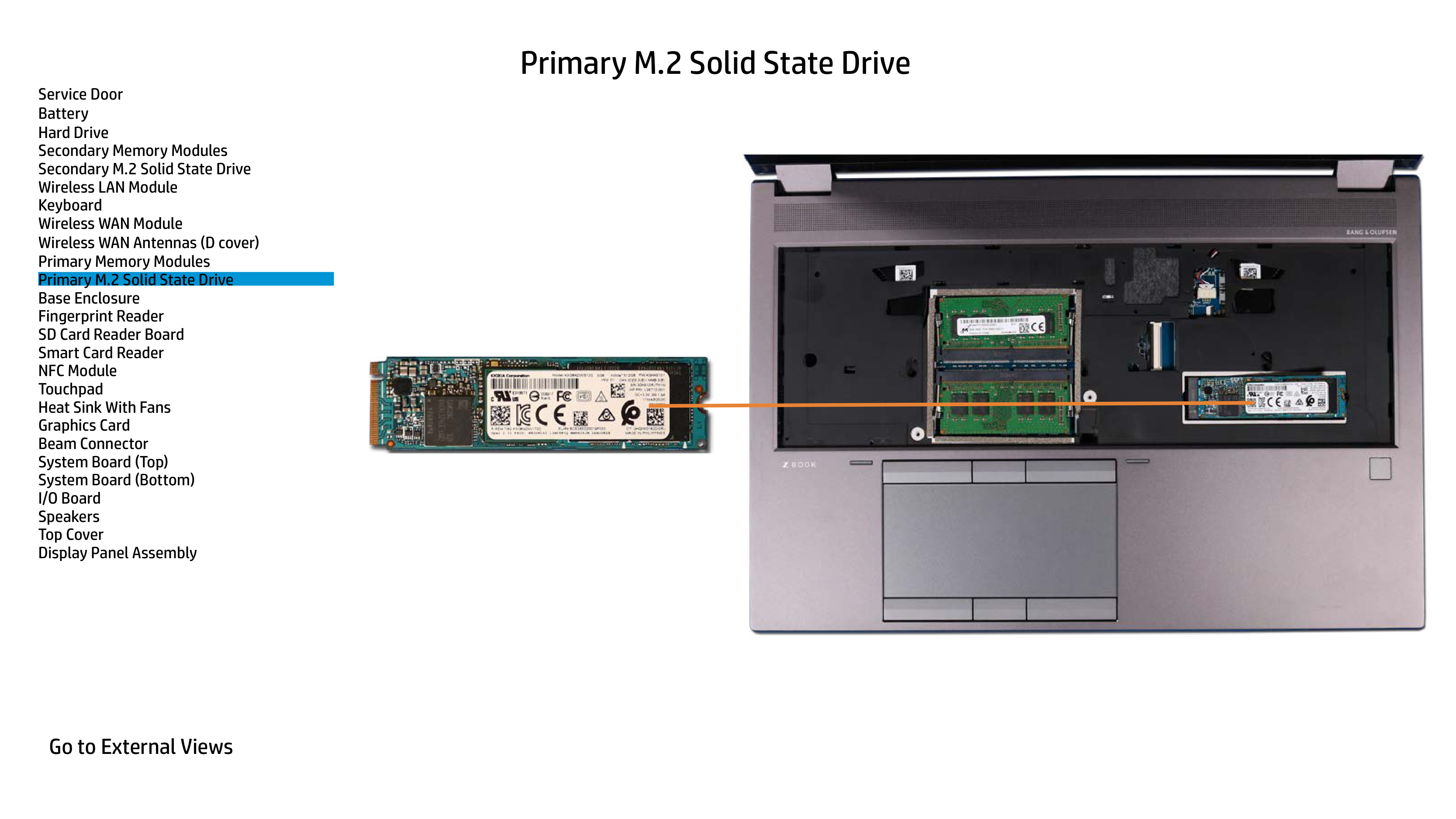

Primary M.2 Solid State Drive
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

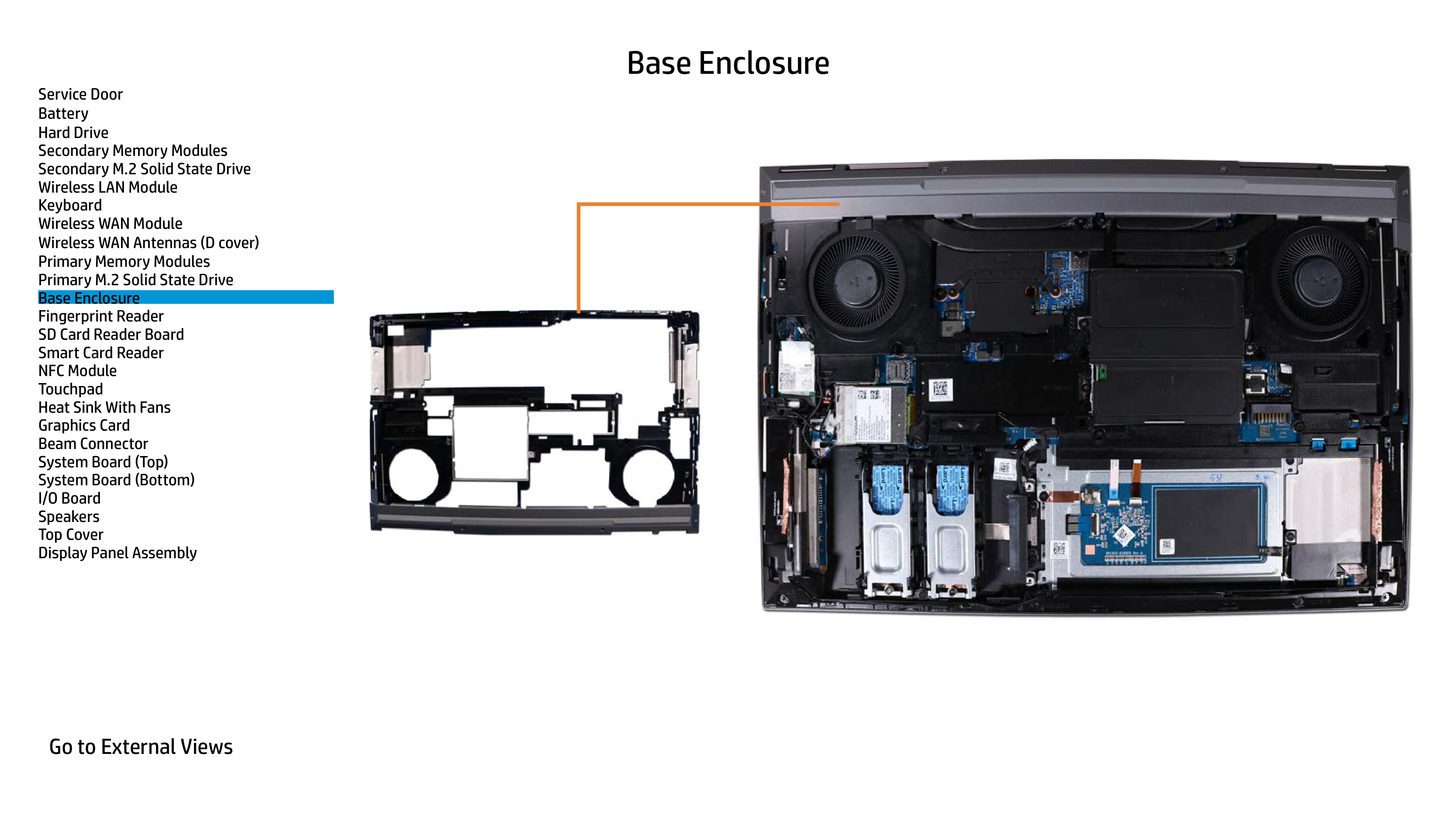

Base Enclosure
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

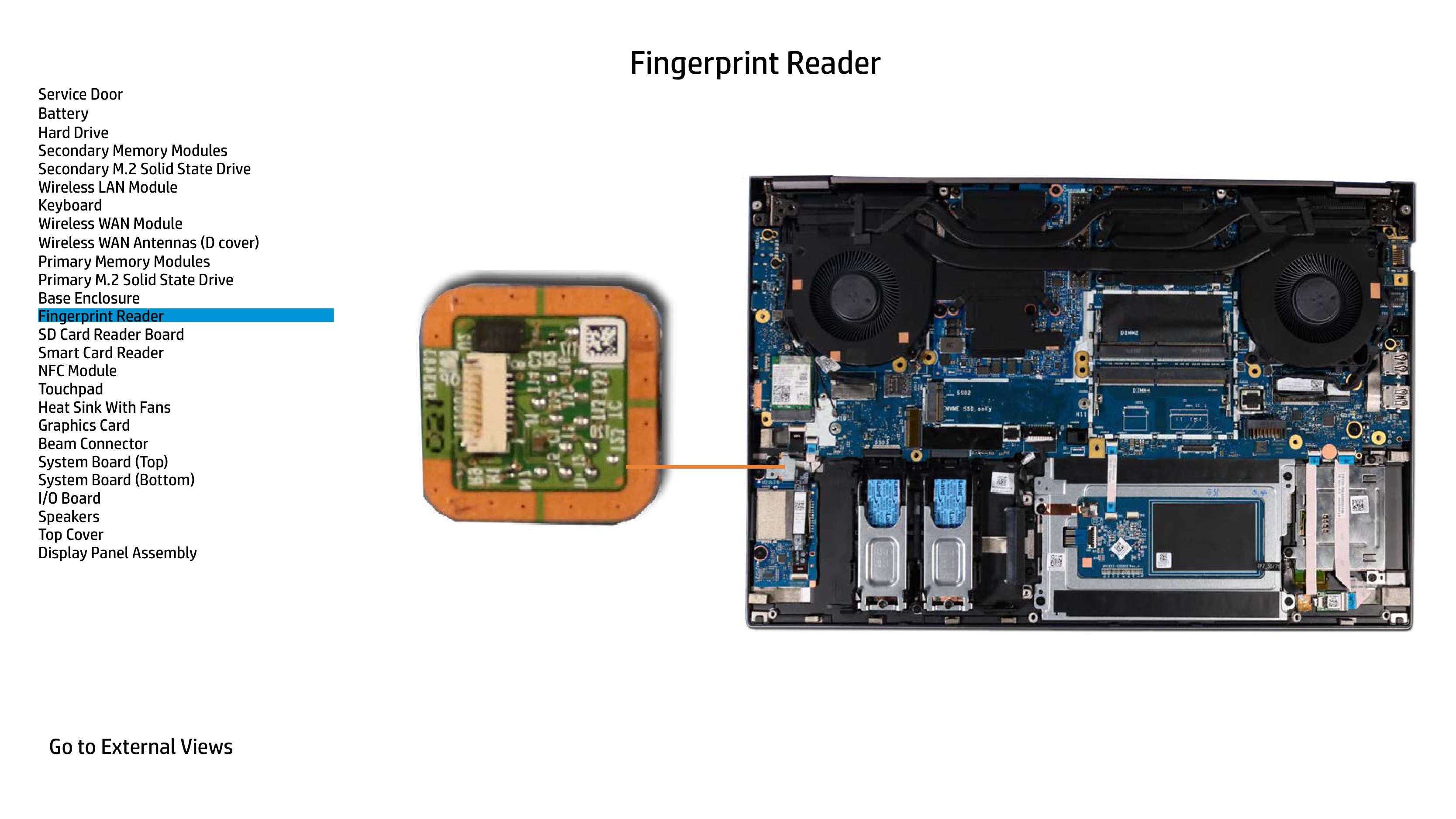

Fingerprint Reader
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

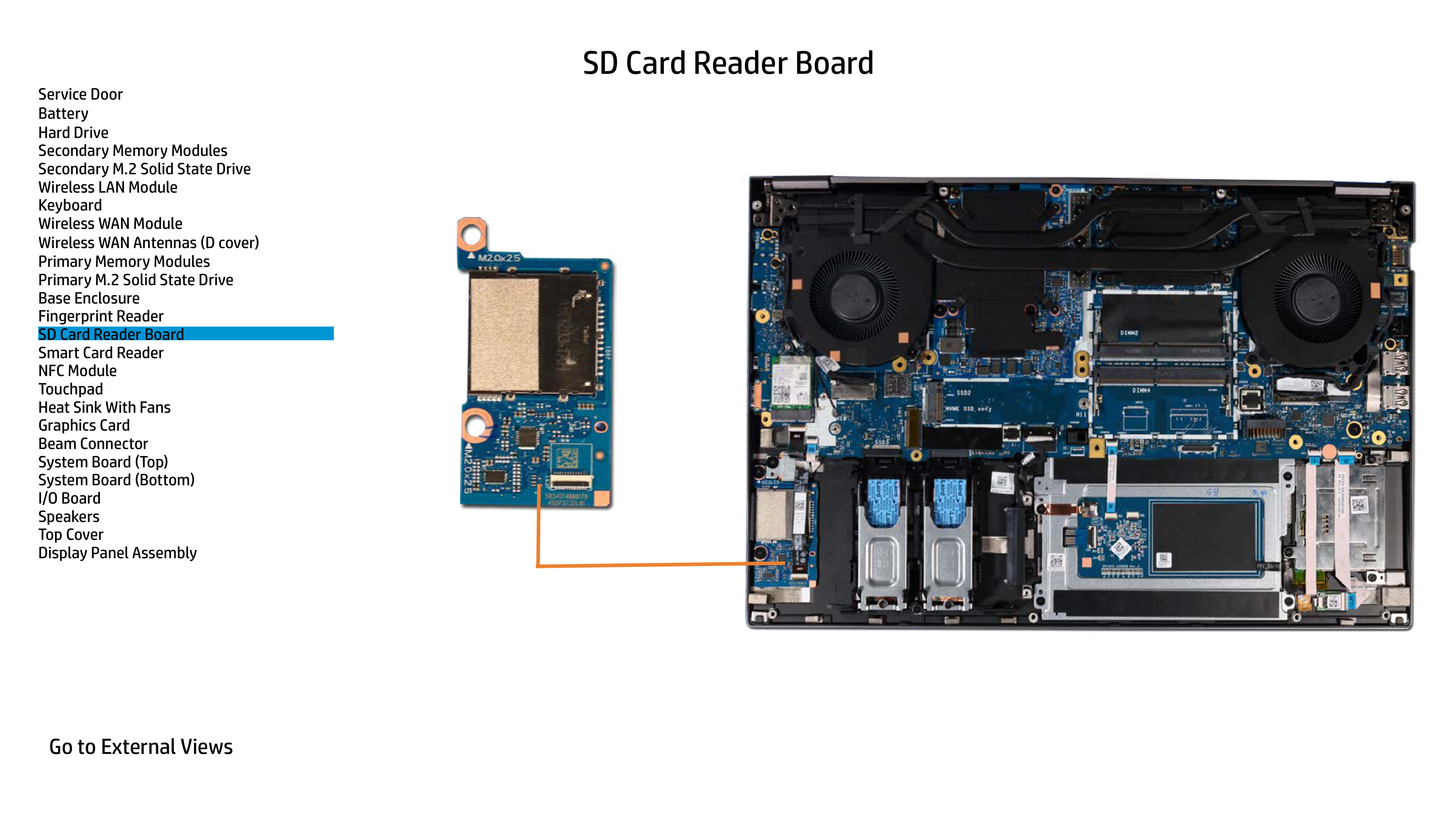

SD Card Reader Board
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

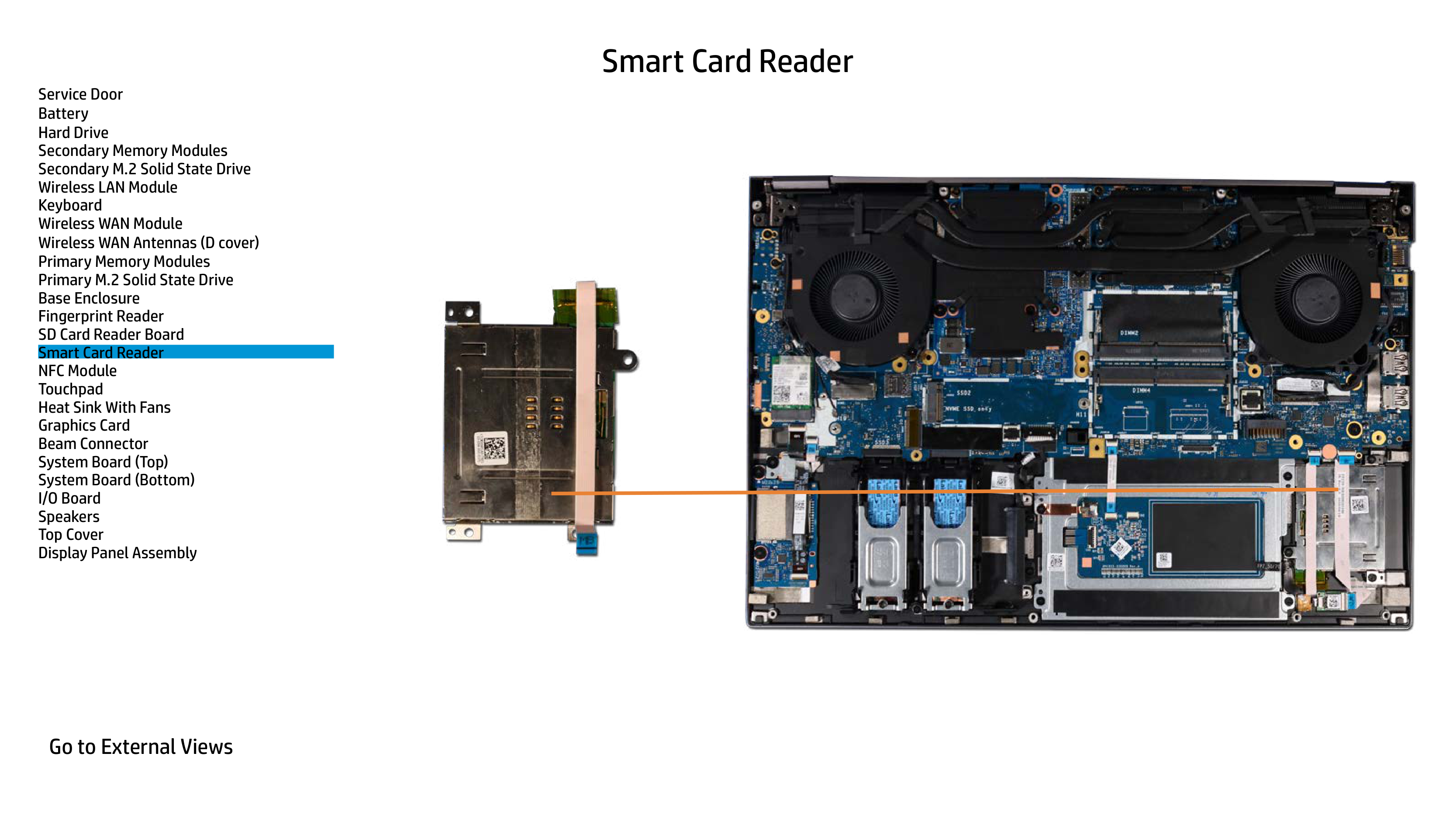

Smart Card Reader
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

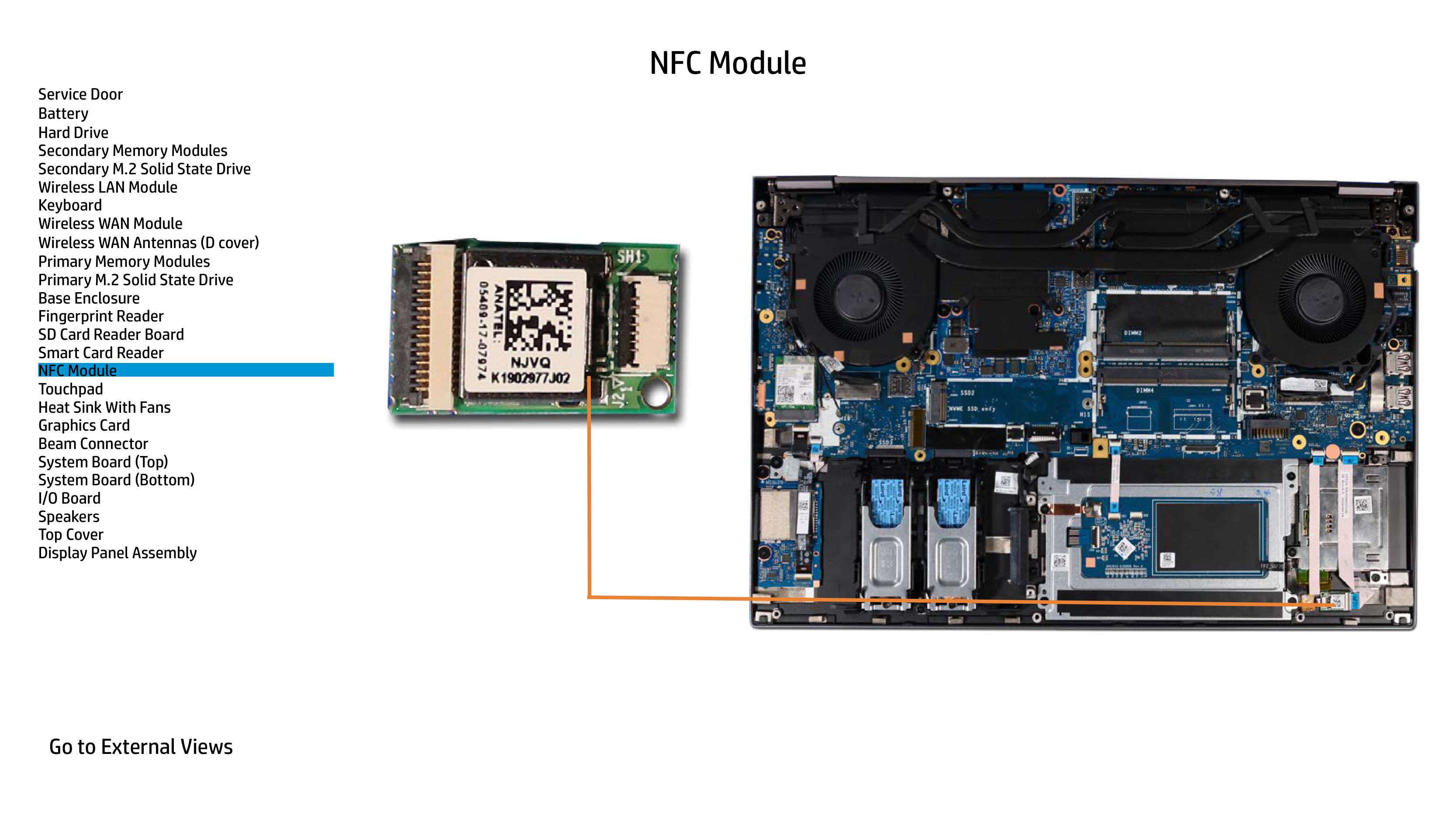

NFC Module
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

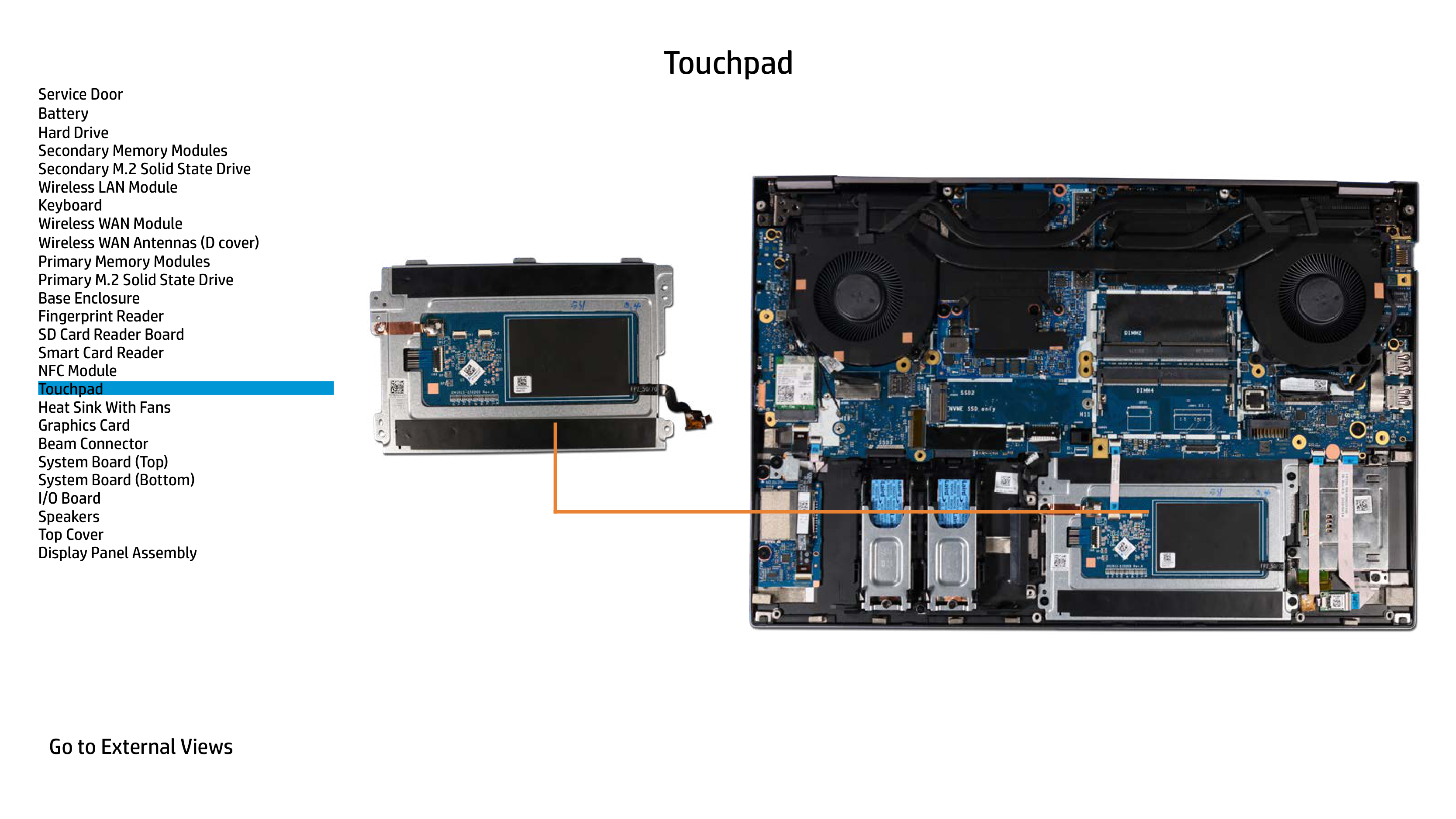

Touchpad
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

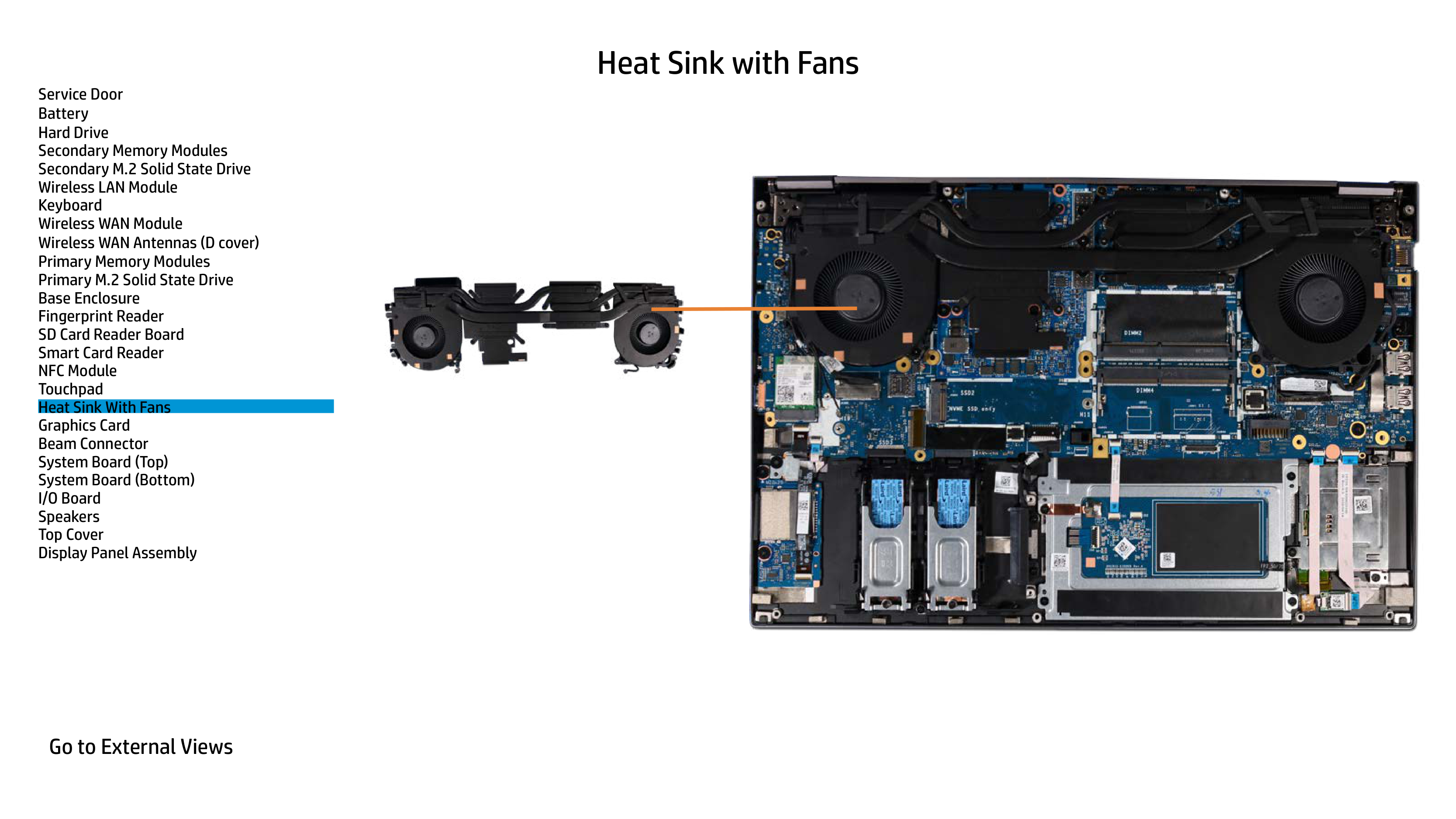

Heat Sink with Fans
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

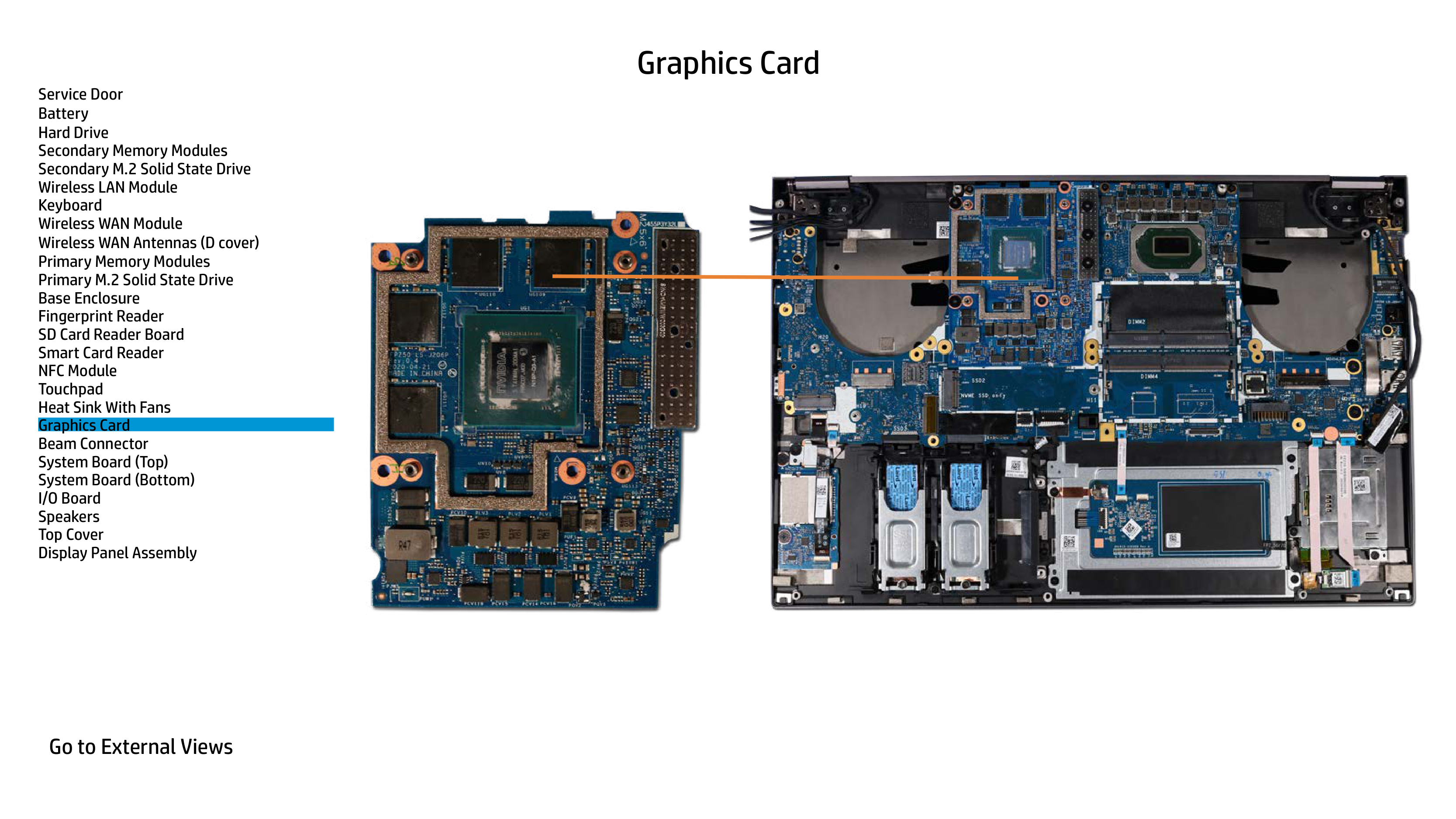

Graphics Card
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

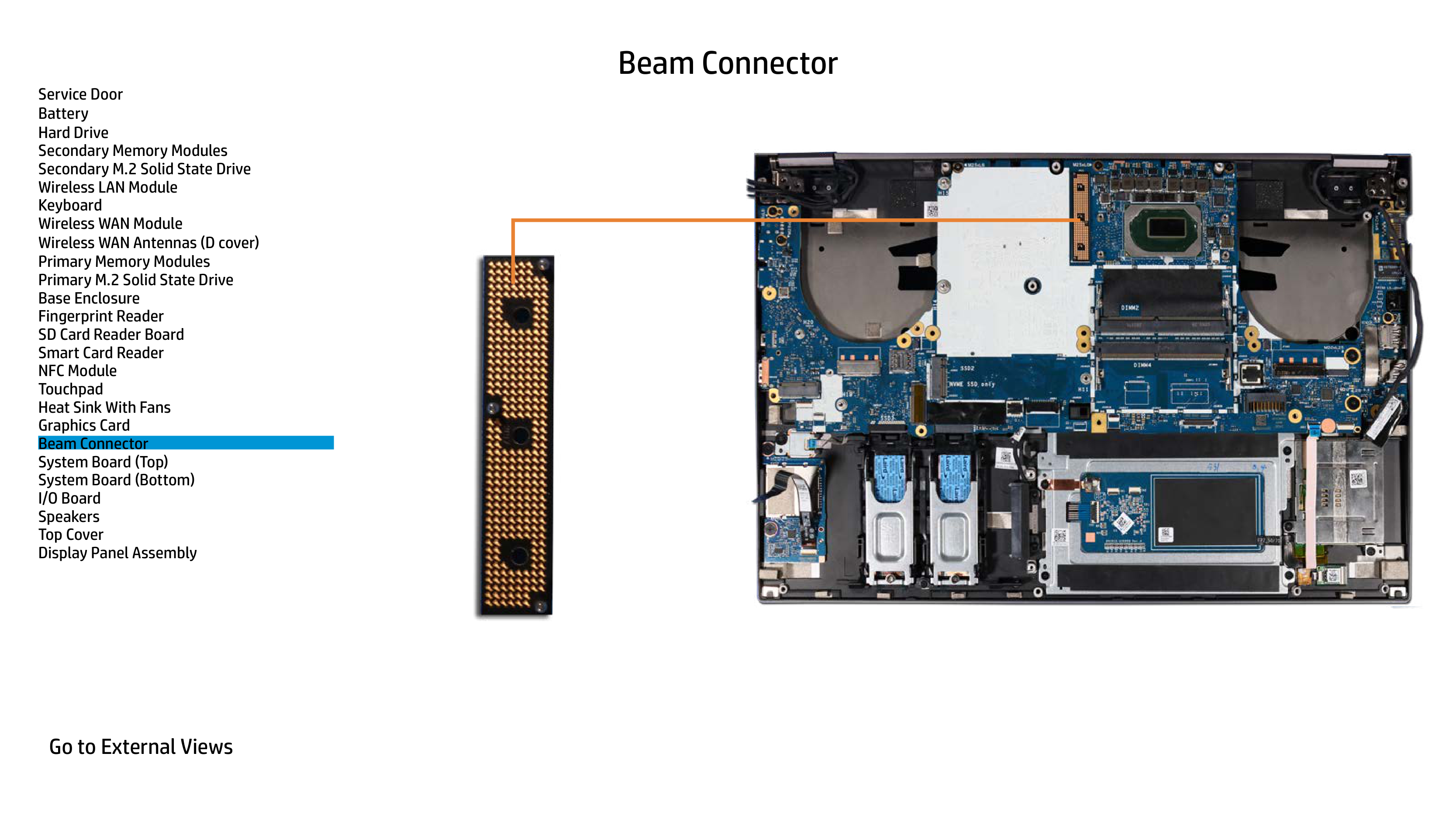

Beam Connector
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

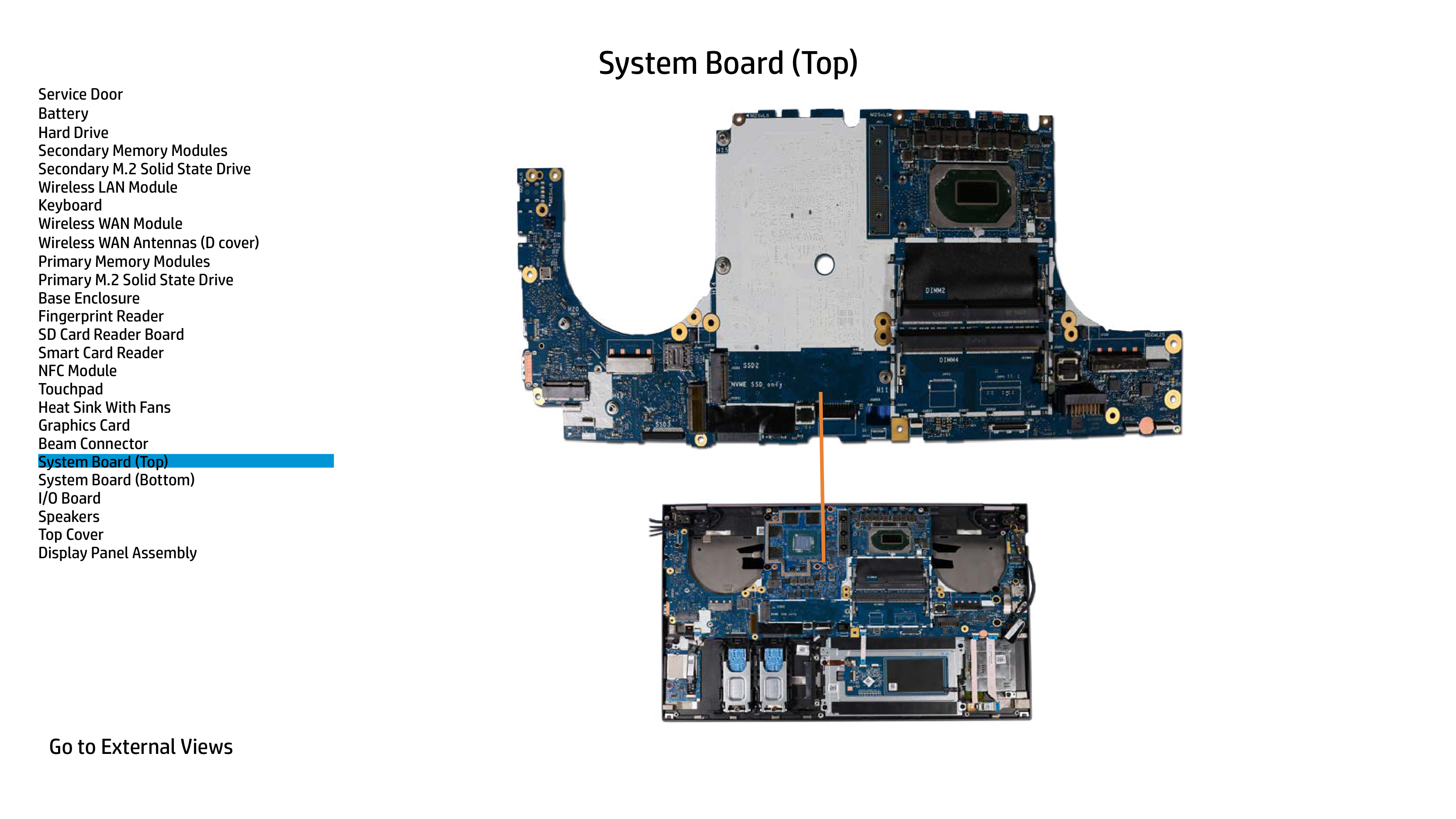

System Board (Top)
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

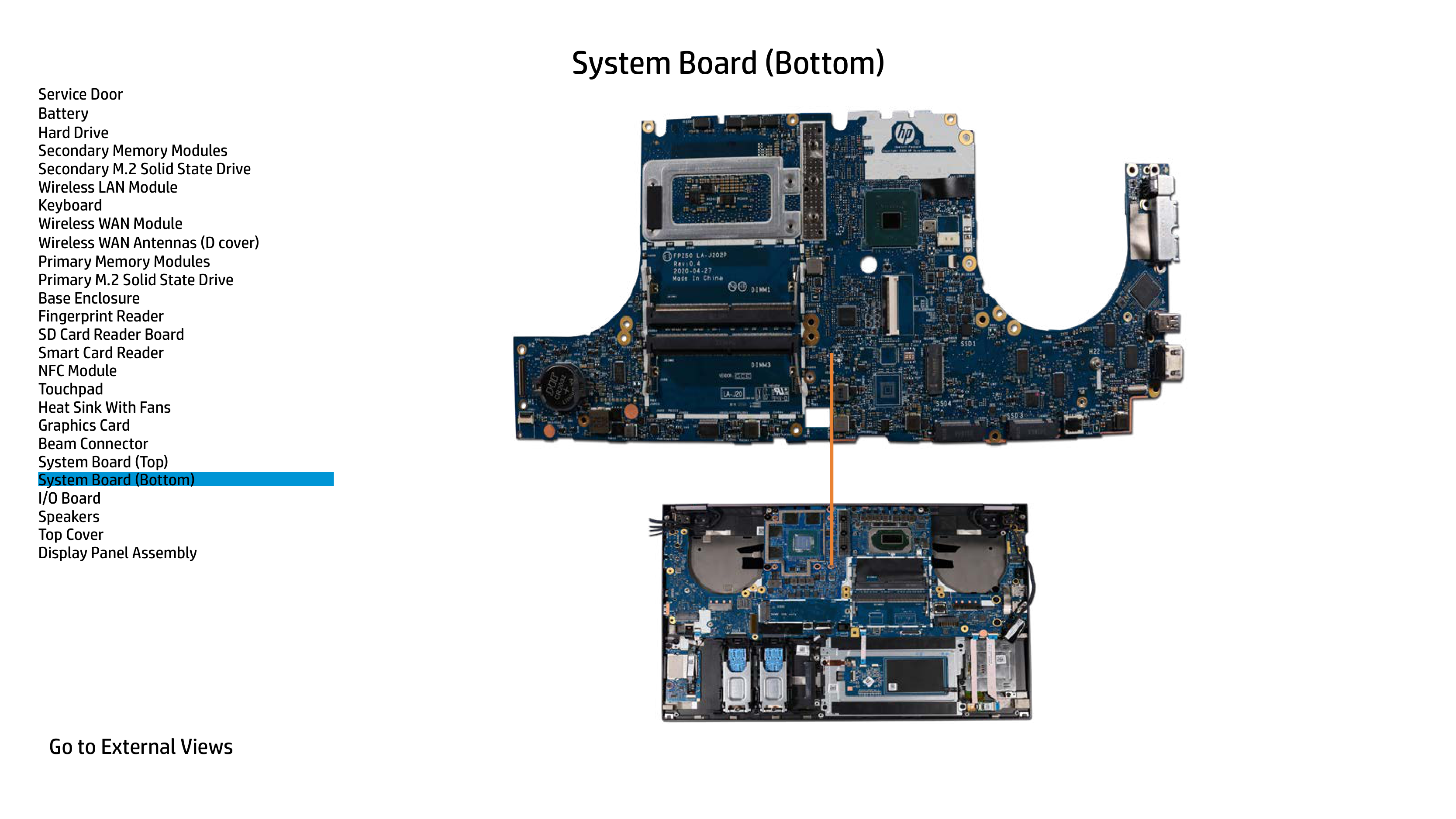

System Board (Bottom)
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

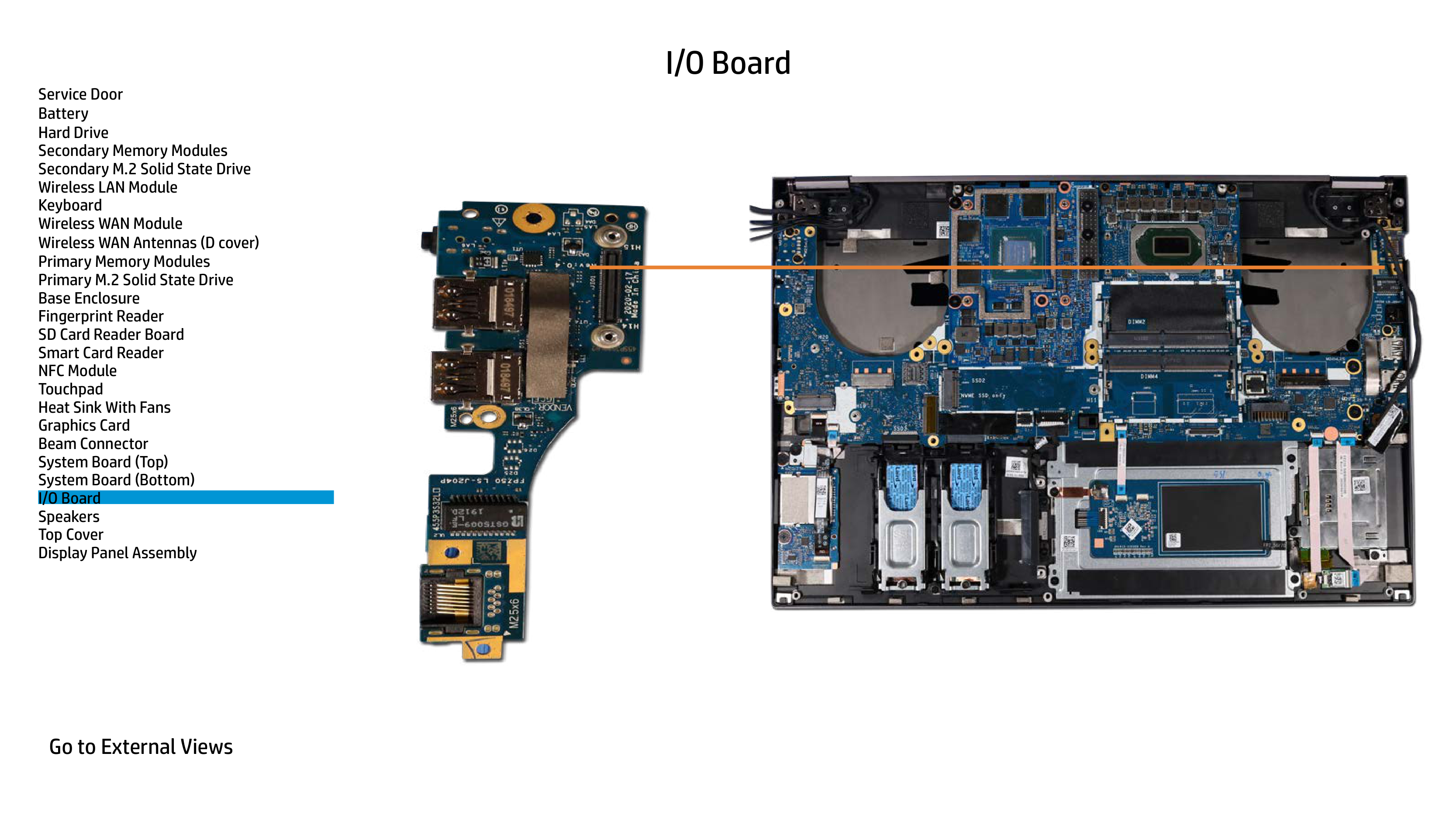

I/O Board
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

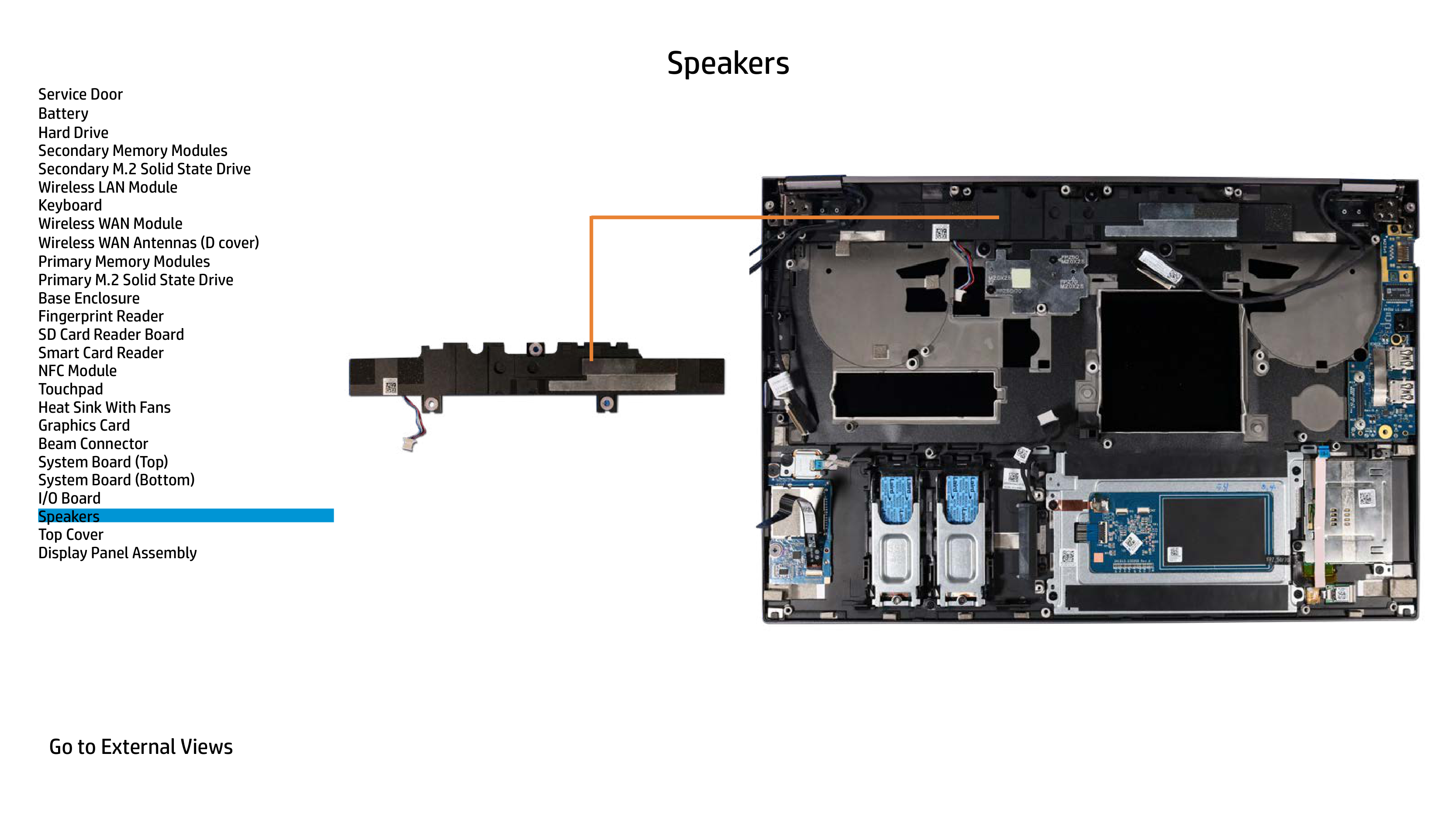

Speakers
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

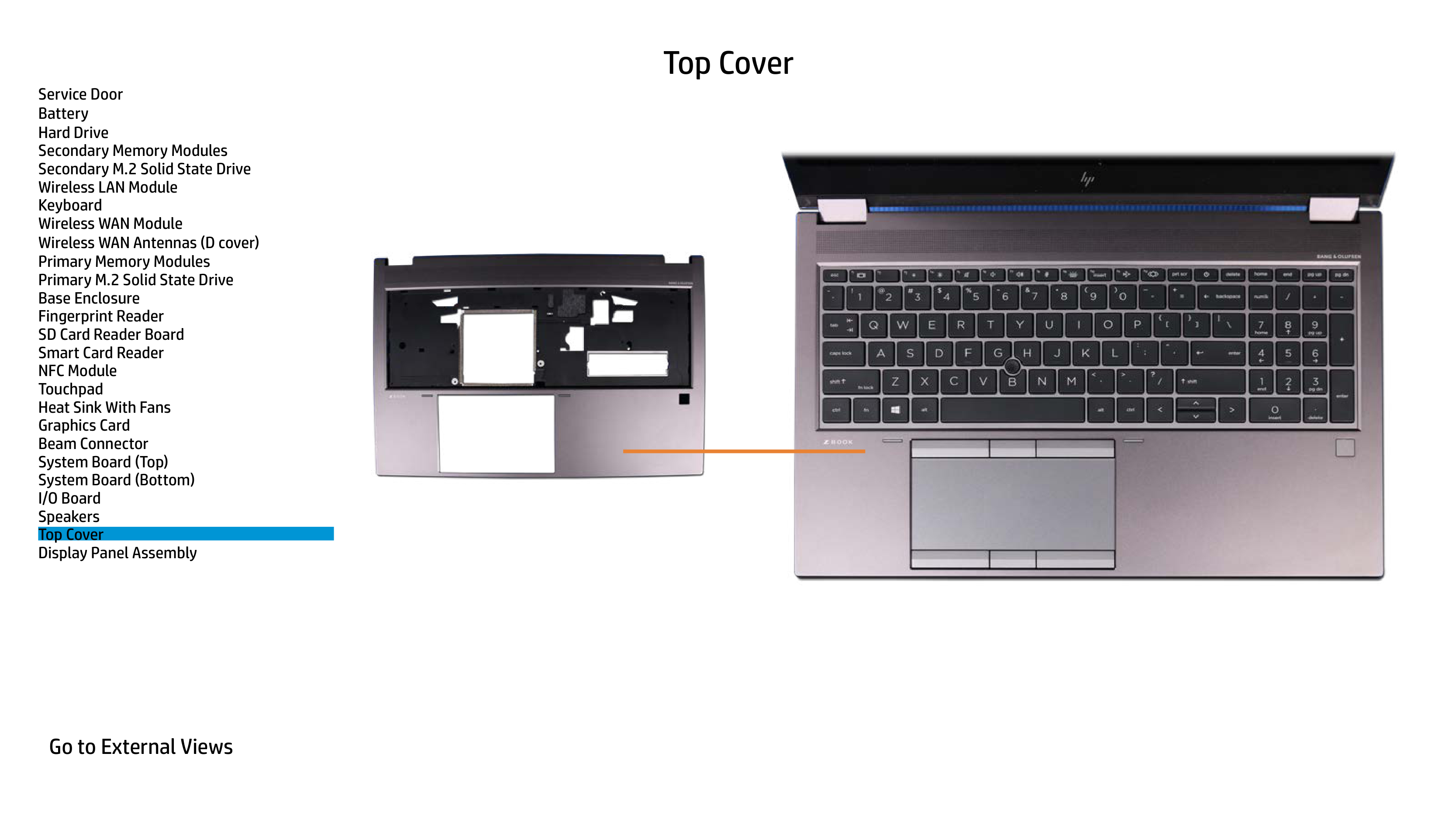

Top Cover
Service Door
Battery
Hard Drive Secondary Memory Modules
Secondary M.2 Solid State Drive Wireless LAN Module Keyboard Wireless WAN Module
Wireless WAN Antennas (D cover)
Primary Memory Modules Primary M.2 Solid State Drive Base Enclosure Fingerprint Reader SD Card Reader Board Smart Card Reader NFC Module Touchpad Heat Sink With Fans Graphics Card Beam Connector System Board (Top) System Board (Bottom) I/O Board Speakers Top Cover Display Panel Assembly

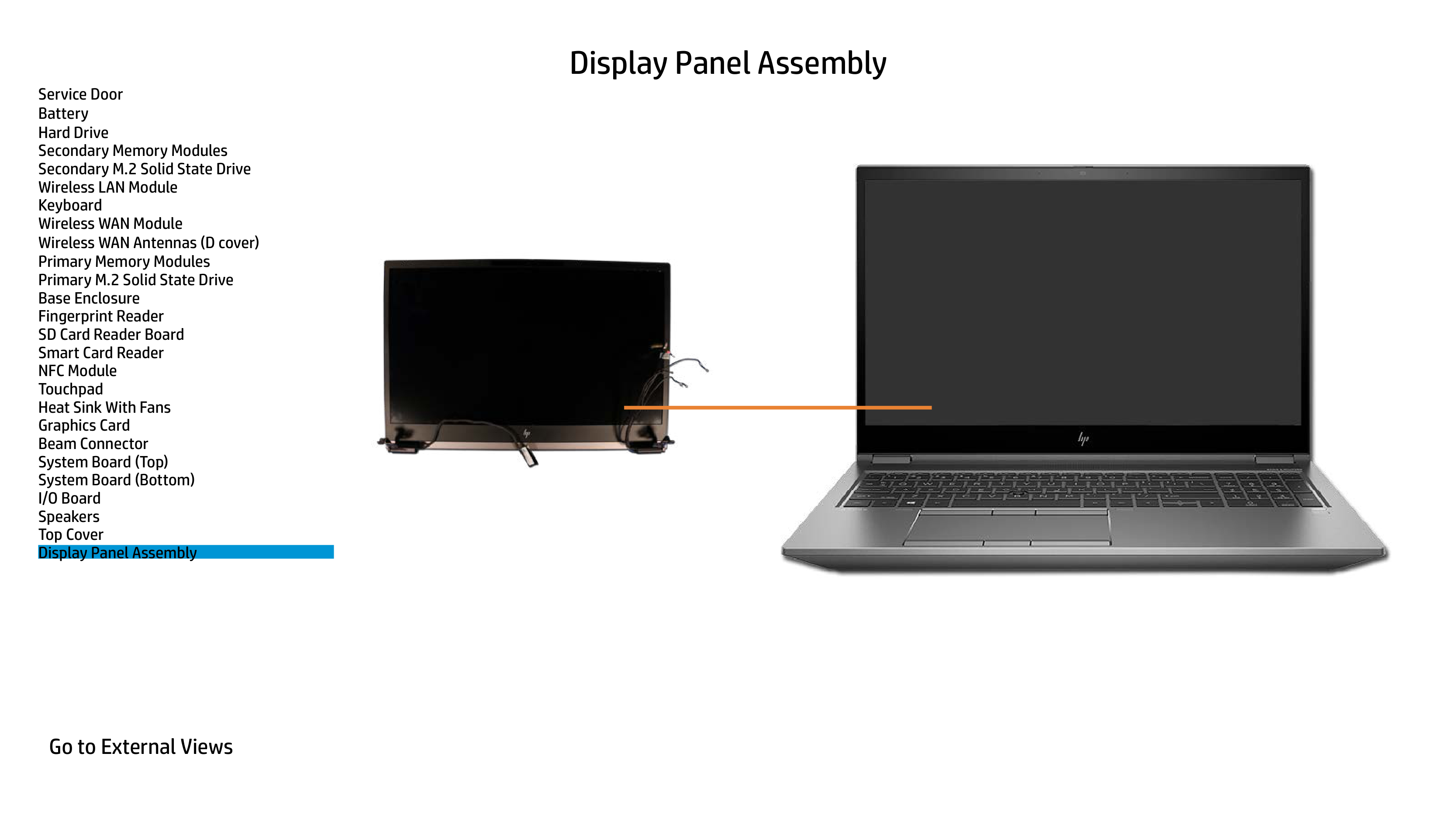

Display Panel Assembly
