8 totalWhat are the dimensions of the Huawei HG8145v5?
The dimensions of the Huawei HG8145v5 Optical Network Terminal Router (Ont) are 230 mm x 190 mm x 30 mm (excluding the support).
What power supply does the Huawei HG8145v5 require?
The system power supply for the Huawei HG8145v5 is 11–14 V DC, requiring an input voltage of 100-240 V AC at 50–60 Hz.
What ports does the Huawei HG8145v5 have?
The Huawei HG8145v5 Optical Network Terminal Router has 4GE+2.4G/5G Wi-Fi and includes two USB ports.
How much does the Huawei HG8145v5 weigh?
The weight of the Huawei HG8145v5 router is about 500 grams.
What are the temperature and humidity operating conditions for Huawei HG8145v5?
The Huawei HG8145v5 operates within a temperature range of 0°C to +40°C and a relative humidity range of 5% RH to 95% (noncondensing).
What functions does the WLAN feature provide on Huawei HG8145v5?
The WiFi features include IEEE 802.11 b/g/n for 2.4 GHz, and IEEE 802.11 a/n/ac for 5 GHz bands with an antenna gain of 2 dBi, WMM support, multiple SSIDs, and WPS function.
Full Manual
41 pages

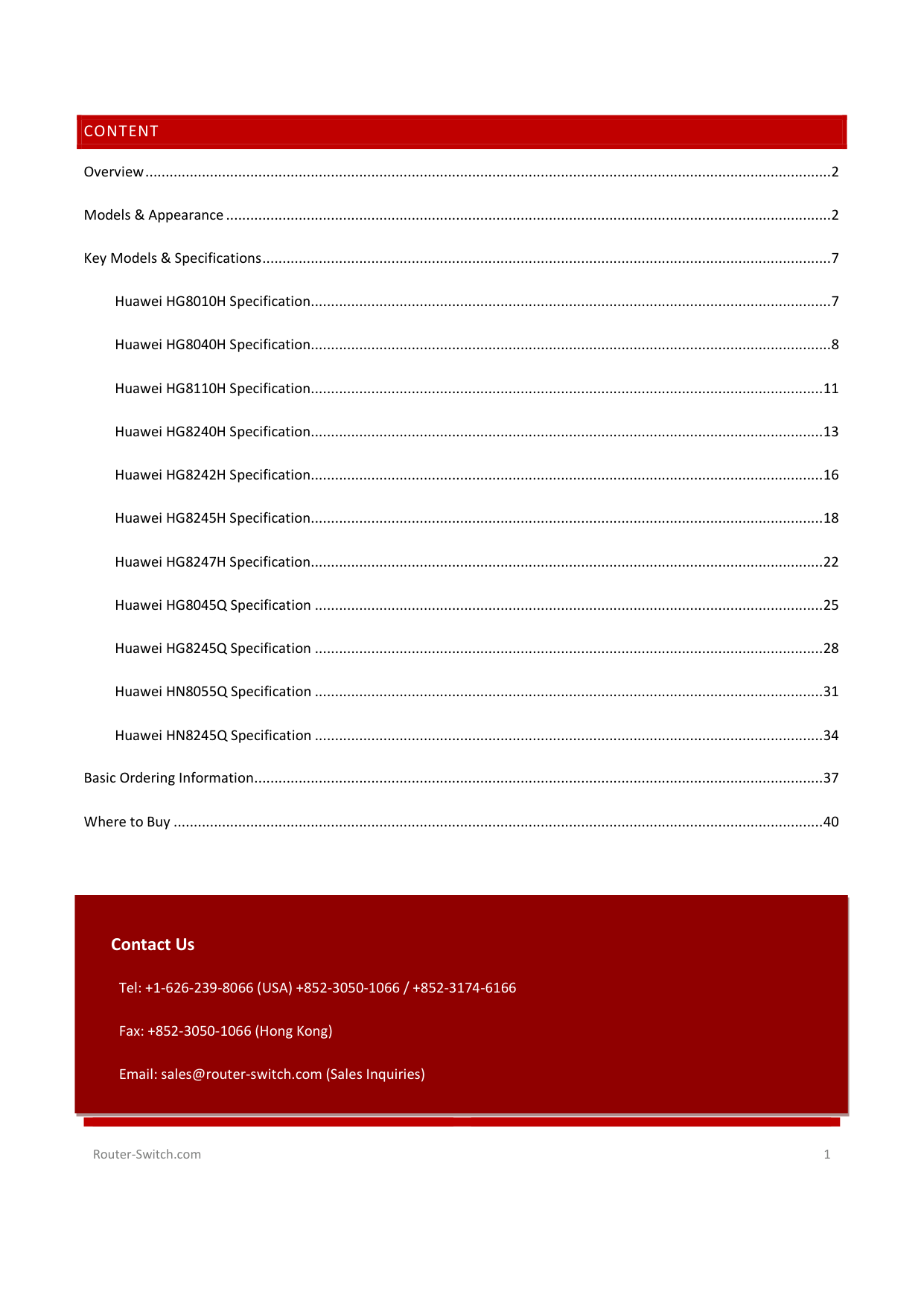

Huawei ONT Products Datasheet
Overview..........................................................................................................................................................................2
Models & Appearance......................................................................................................................................................2
Key Models & Specifications.............................................................................................................................................7
Huawei HG8010H Specification.................................................................................................................................7
Huawei HG8040H Specification.................................................................................................................................8
Huawei HG8110H Specification...............................................................................................................................11

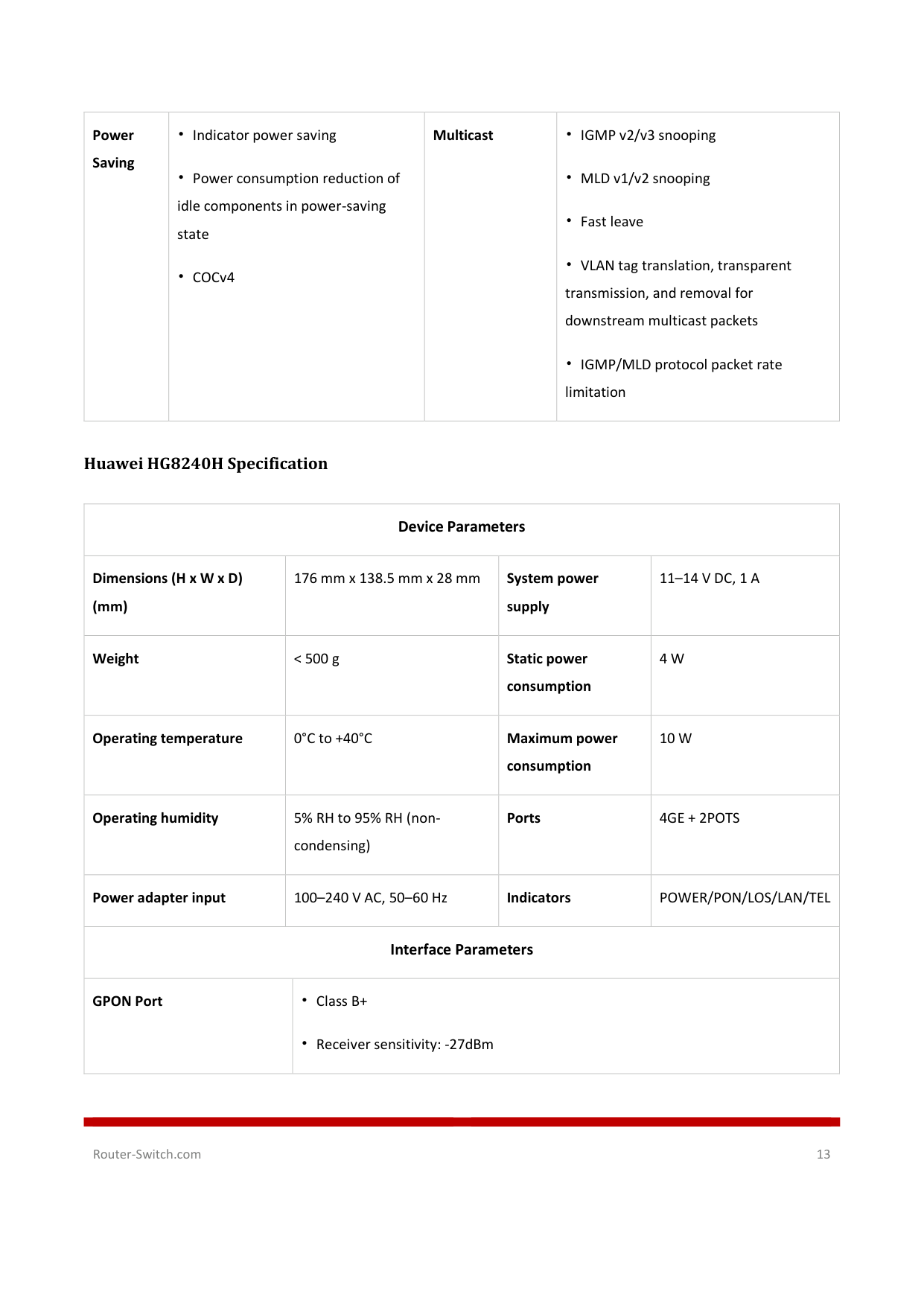

Huawei HG8240H Specification...............................................................................................................................13

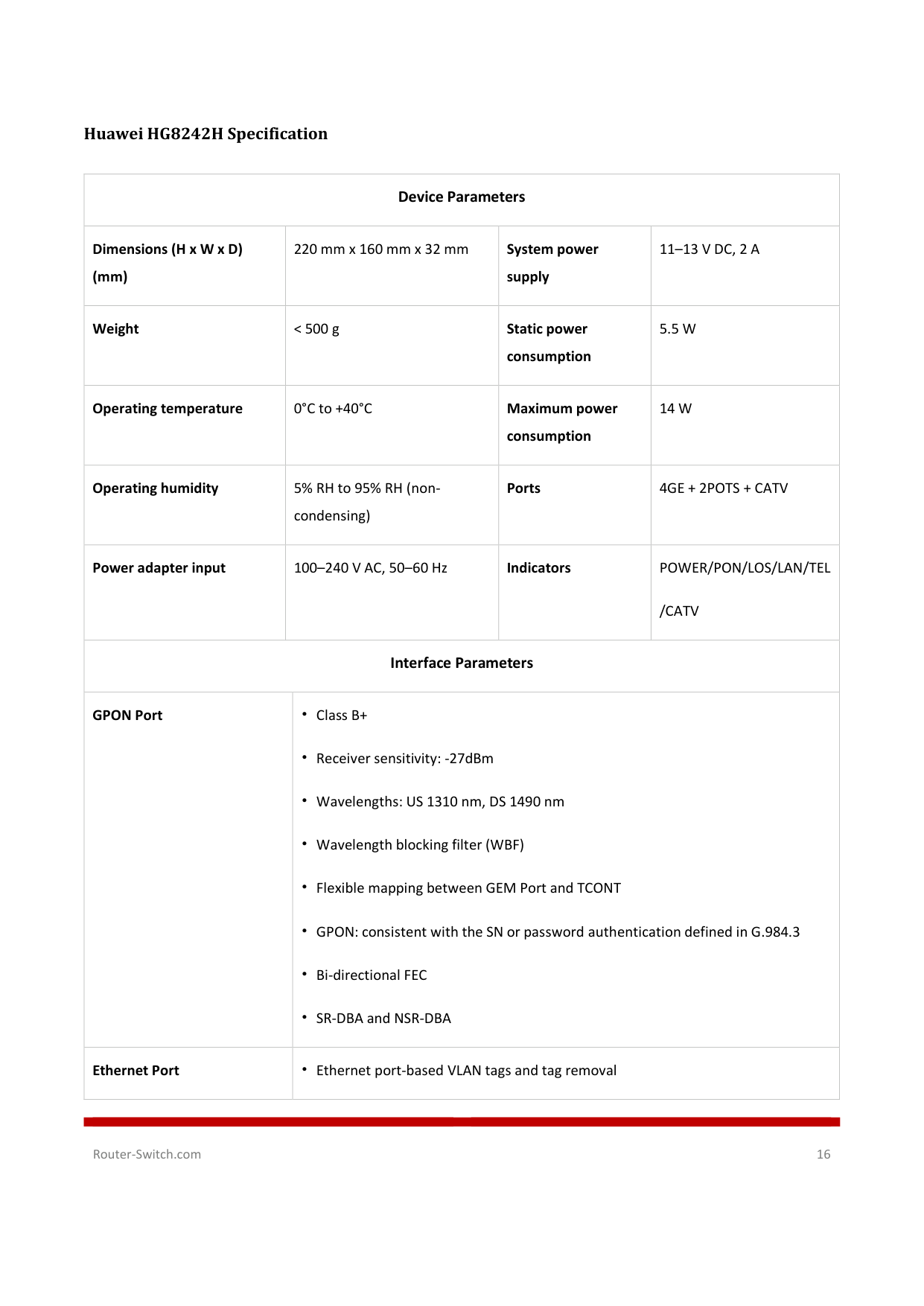

Huawei HG8242H Specification...............................................................................................................................16

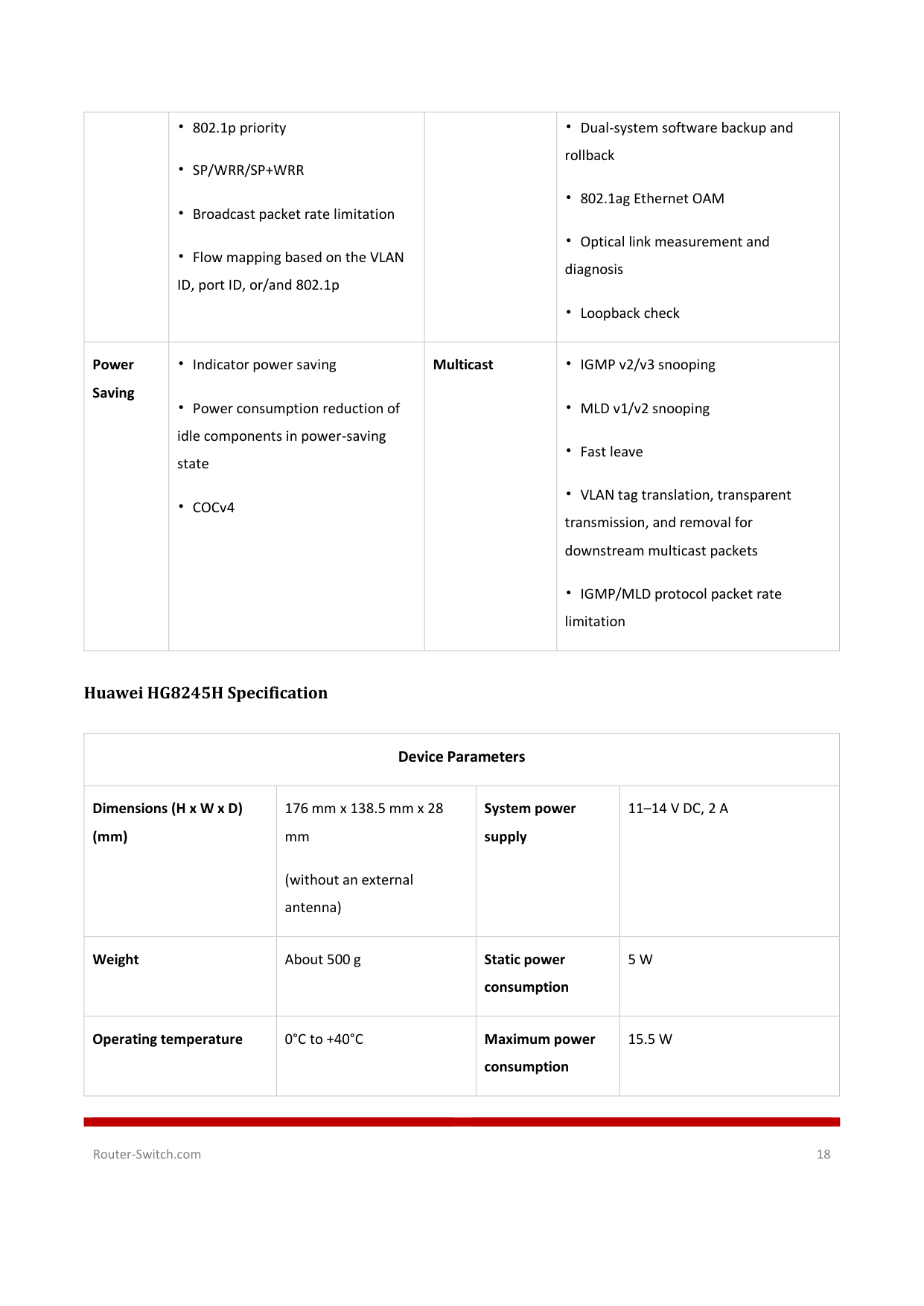

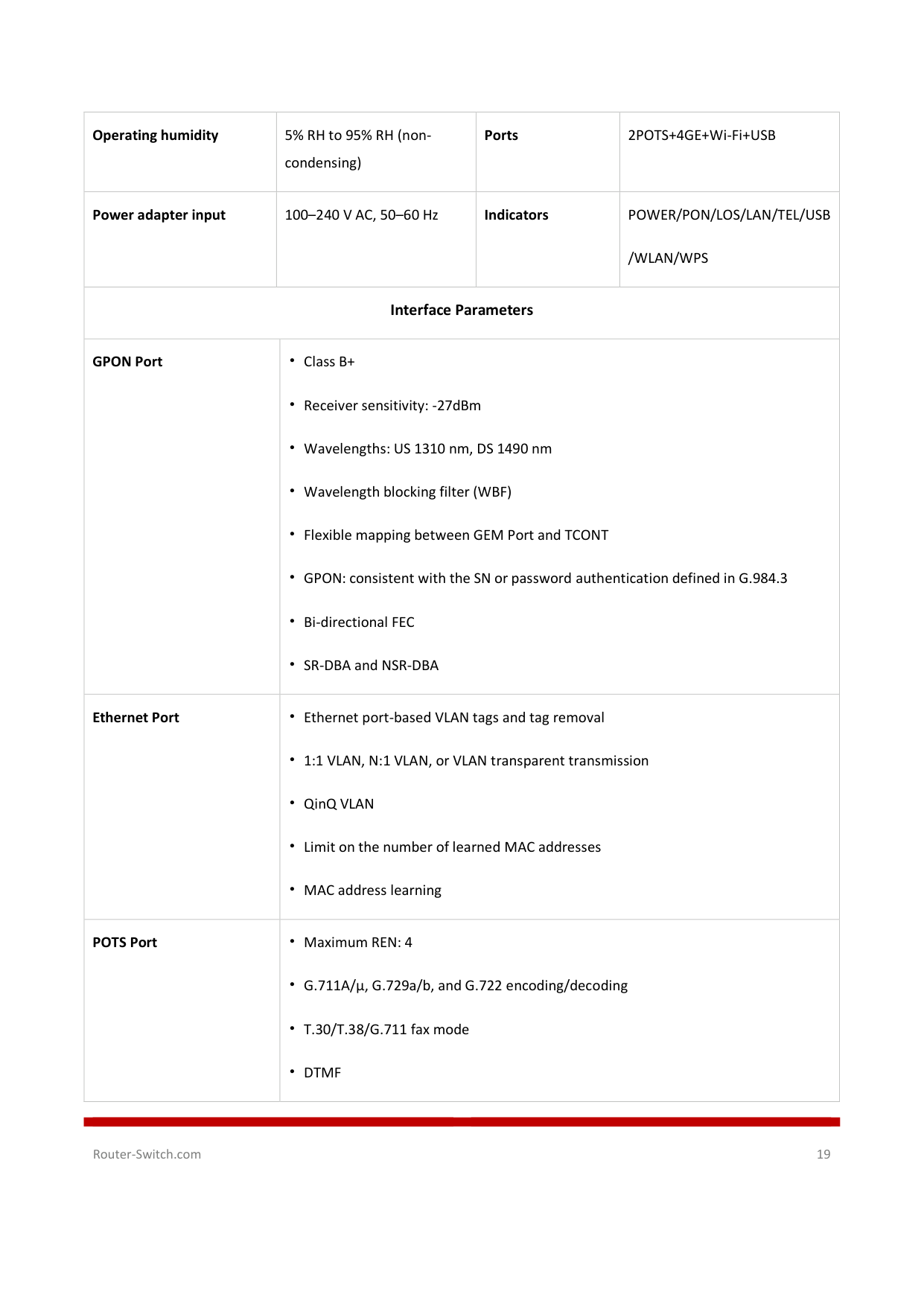

Huawei HG8245H Specification...............................................................................................................................18

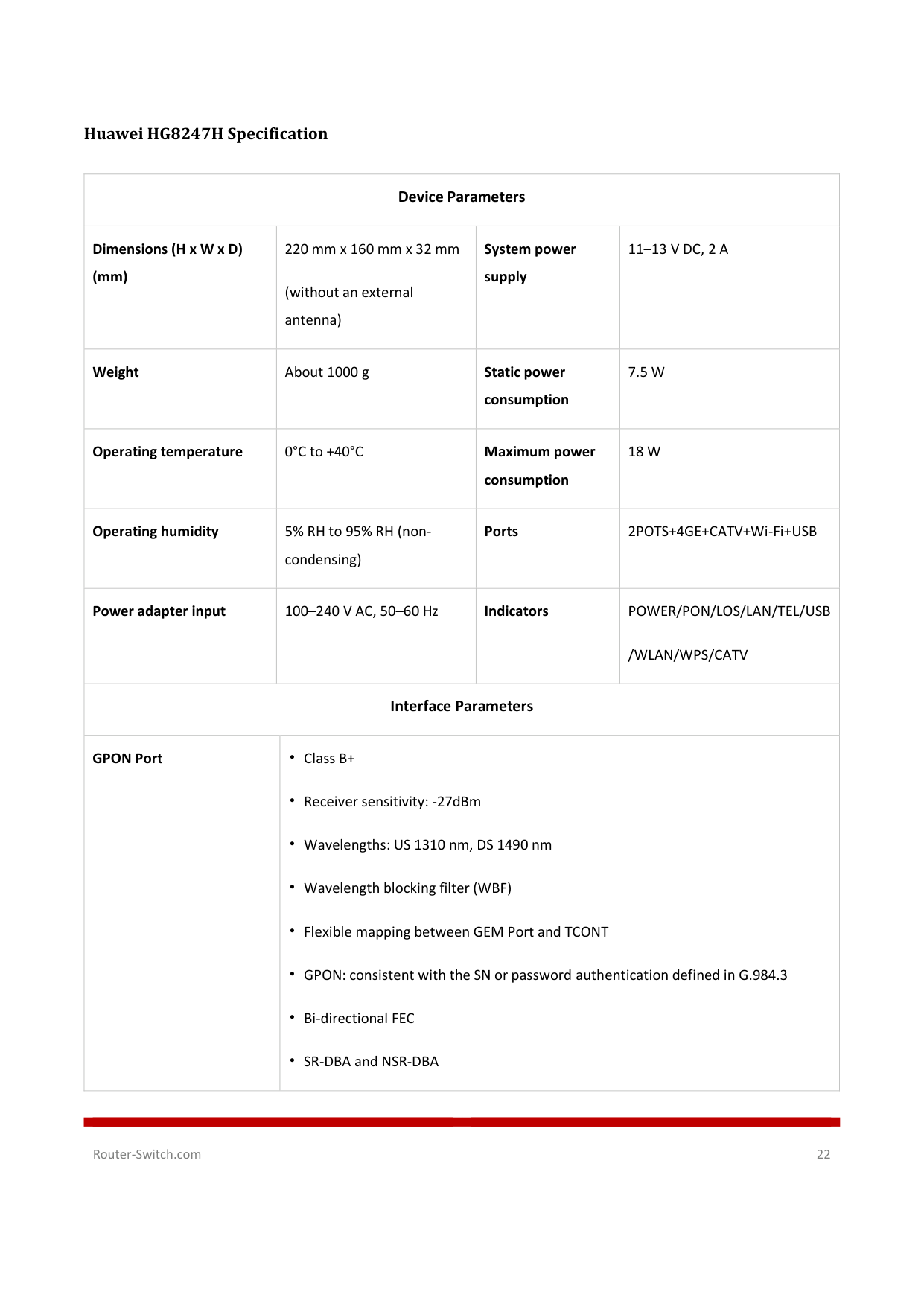

Huawei HG8247H Specification...............................................................................................................................22

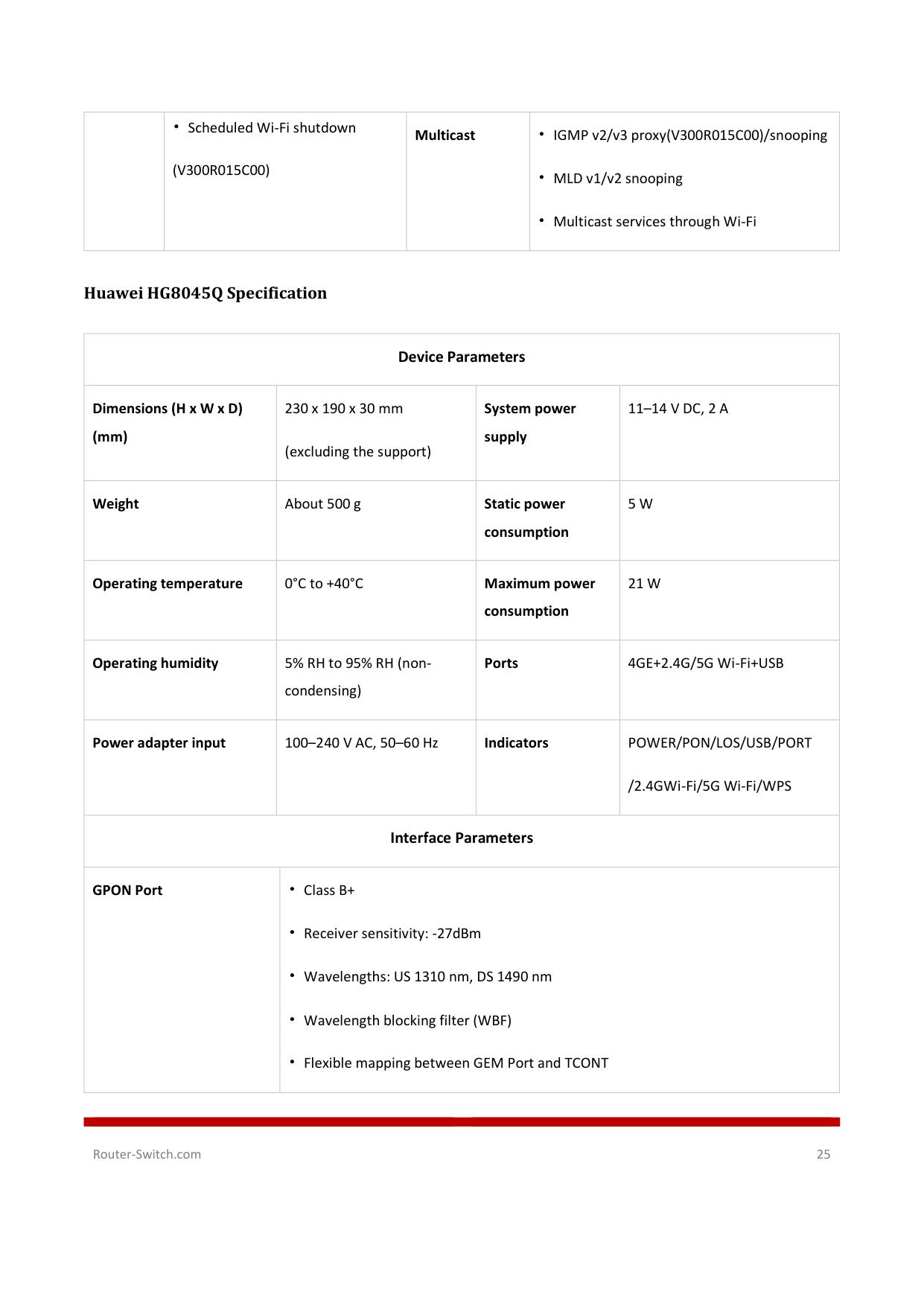

Huawei HG8045Q Specification ..............................................................................................................................25

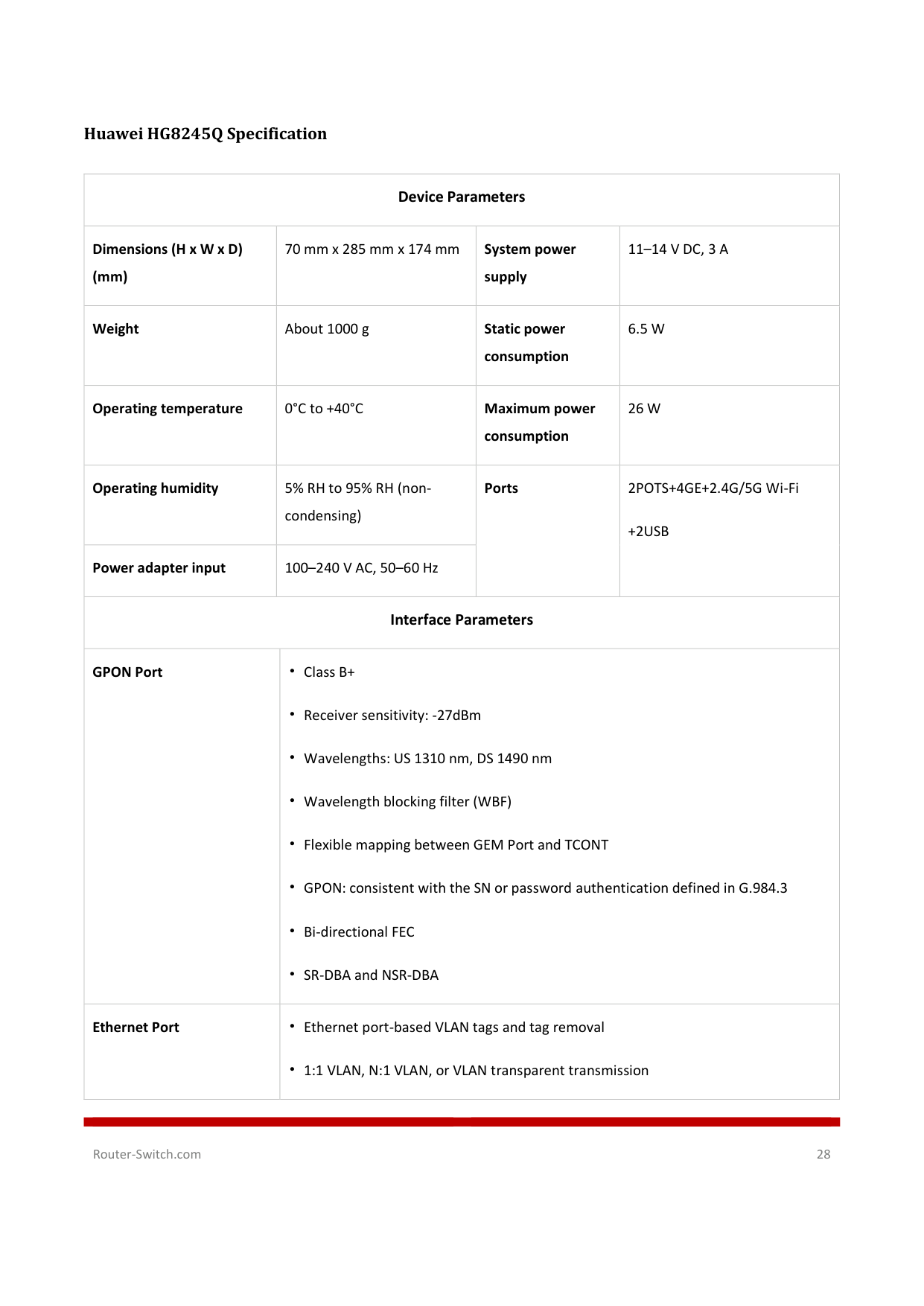

Huawei HG8245Q Specification ..............................................................................................................................28

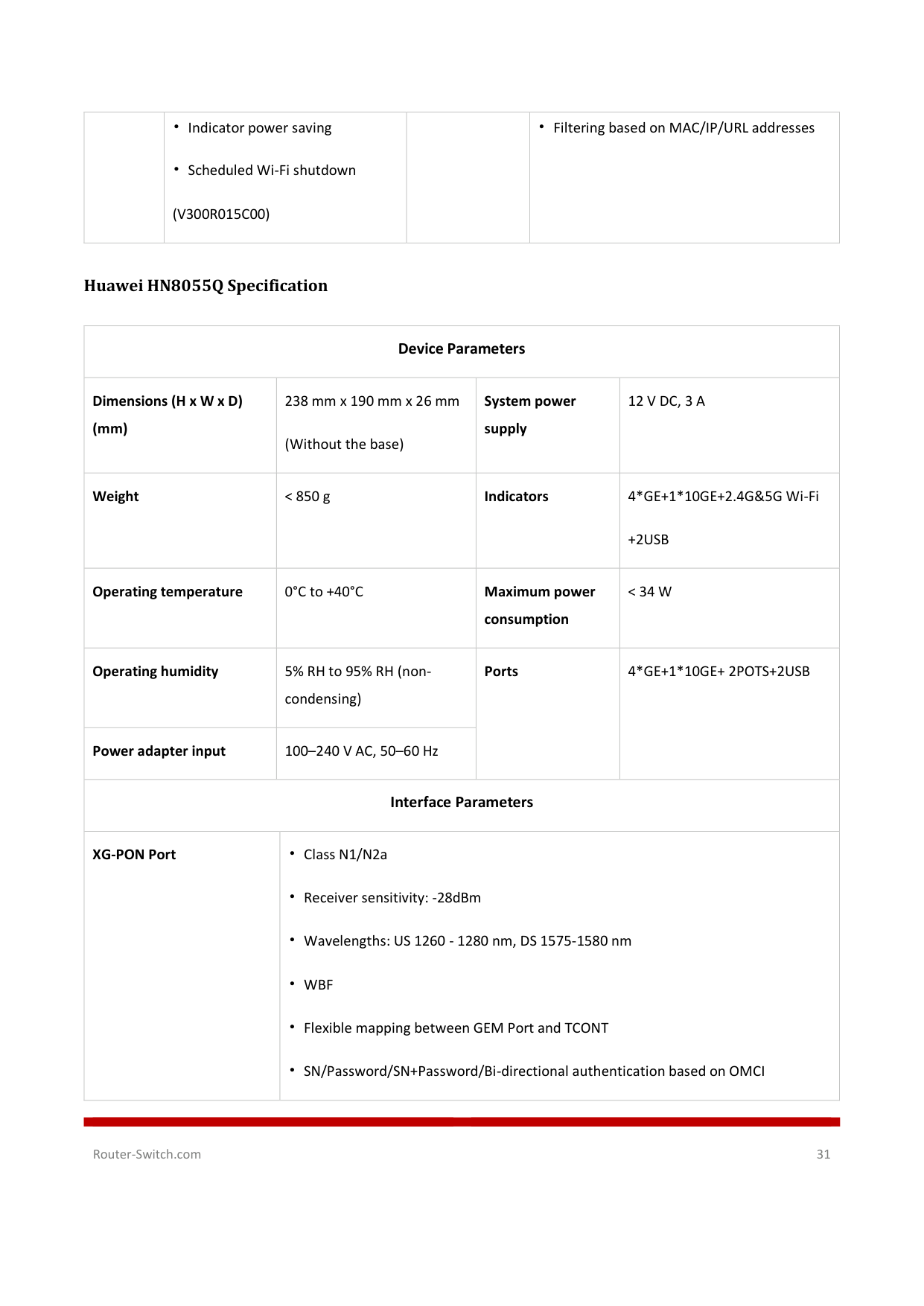

Huawei HN8055Q Specification ..............................................................................................................................31

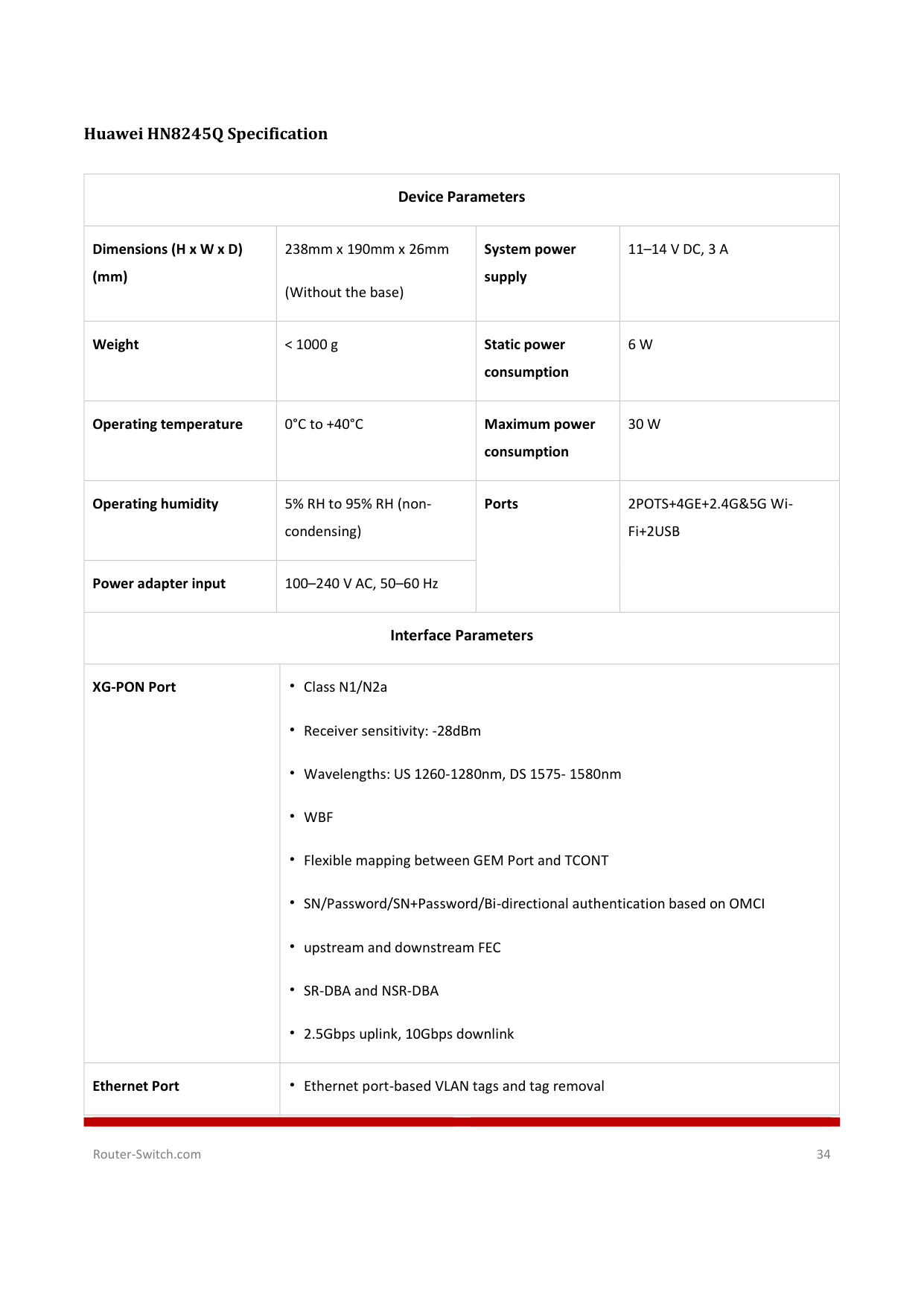

Huawei HN8245Q Specification ..............................................................................................................................34

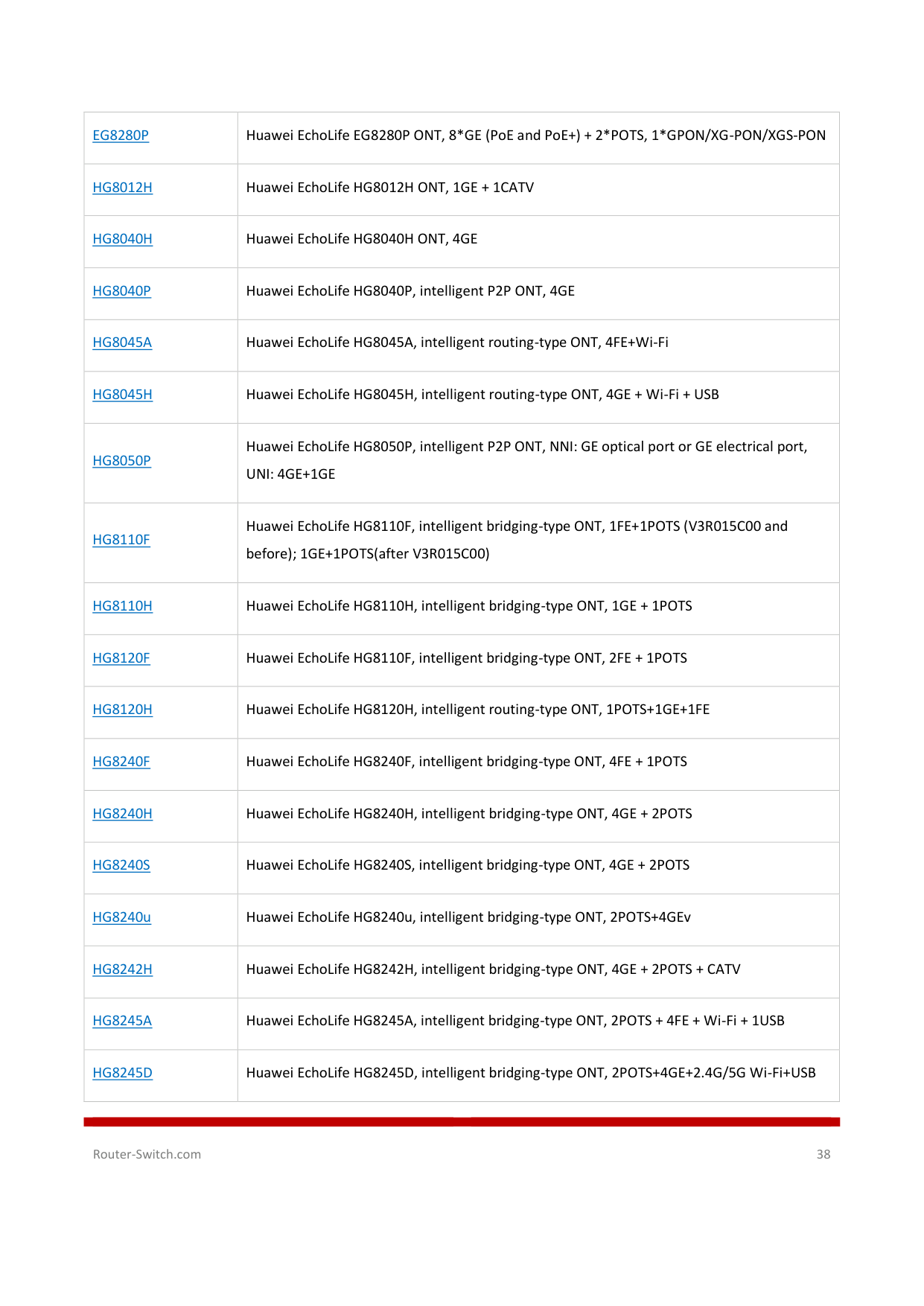

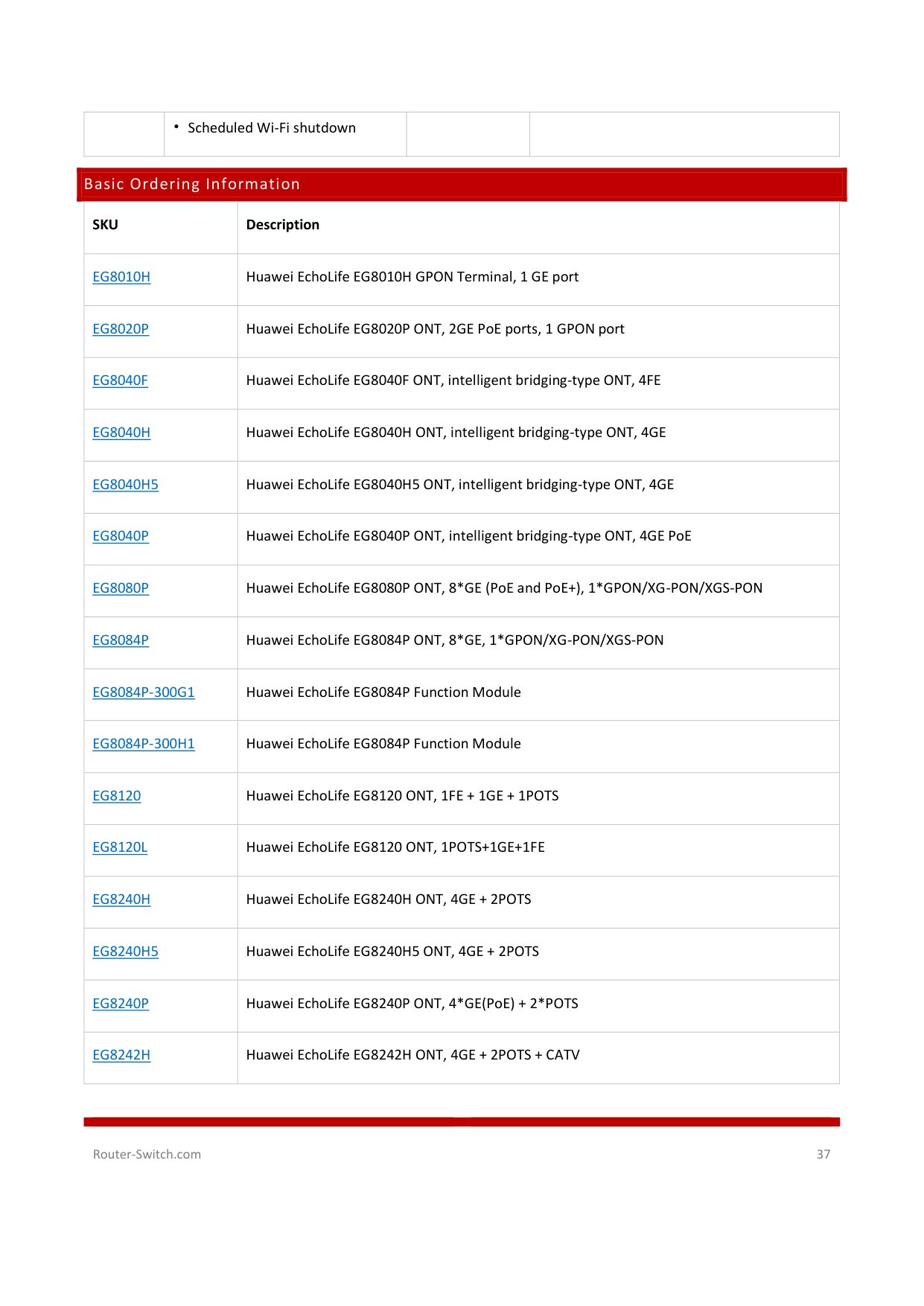

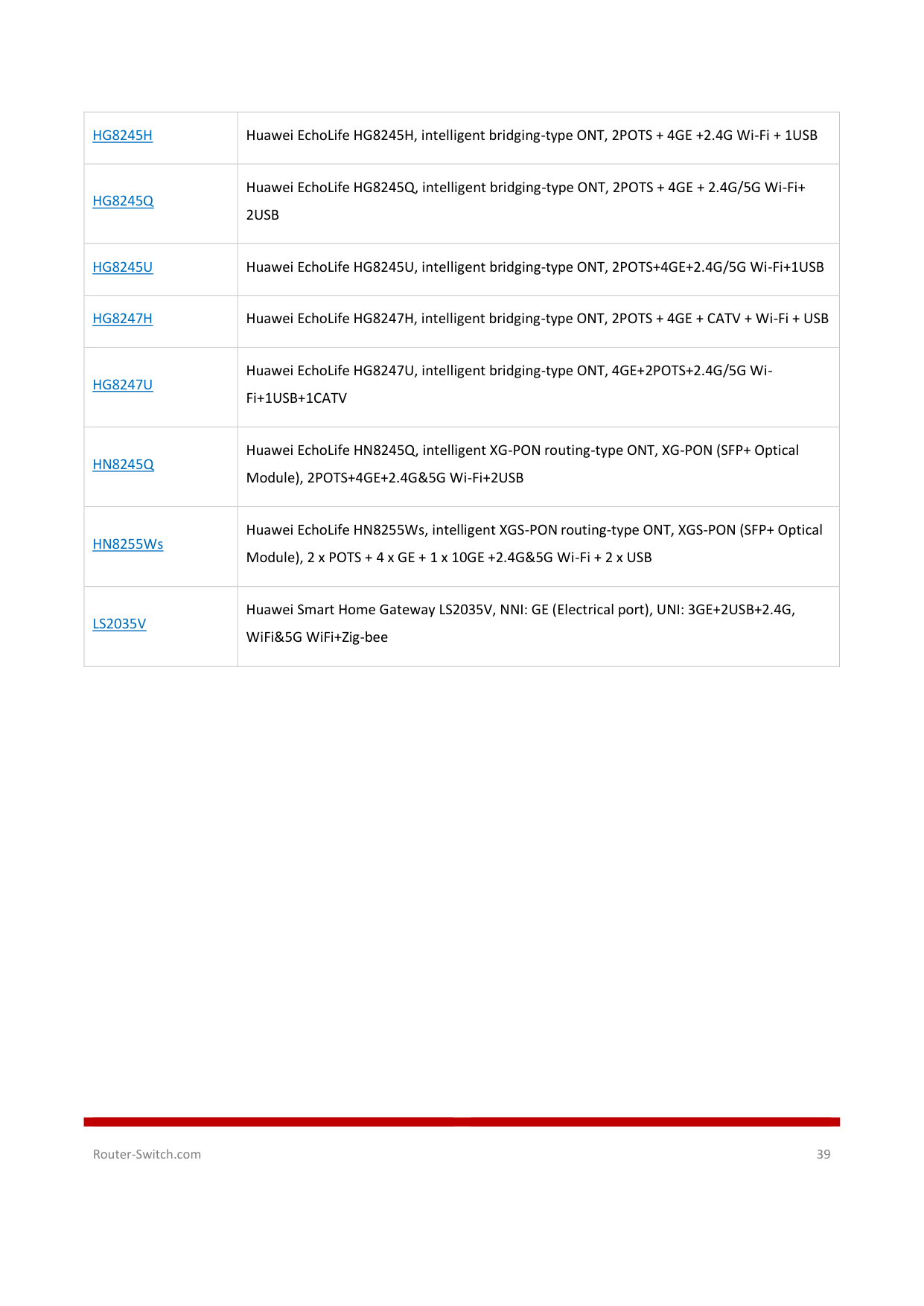

Basic Ordering Information.............................................................................................................................................37

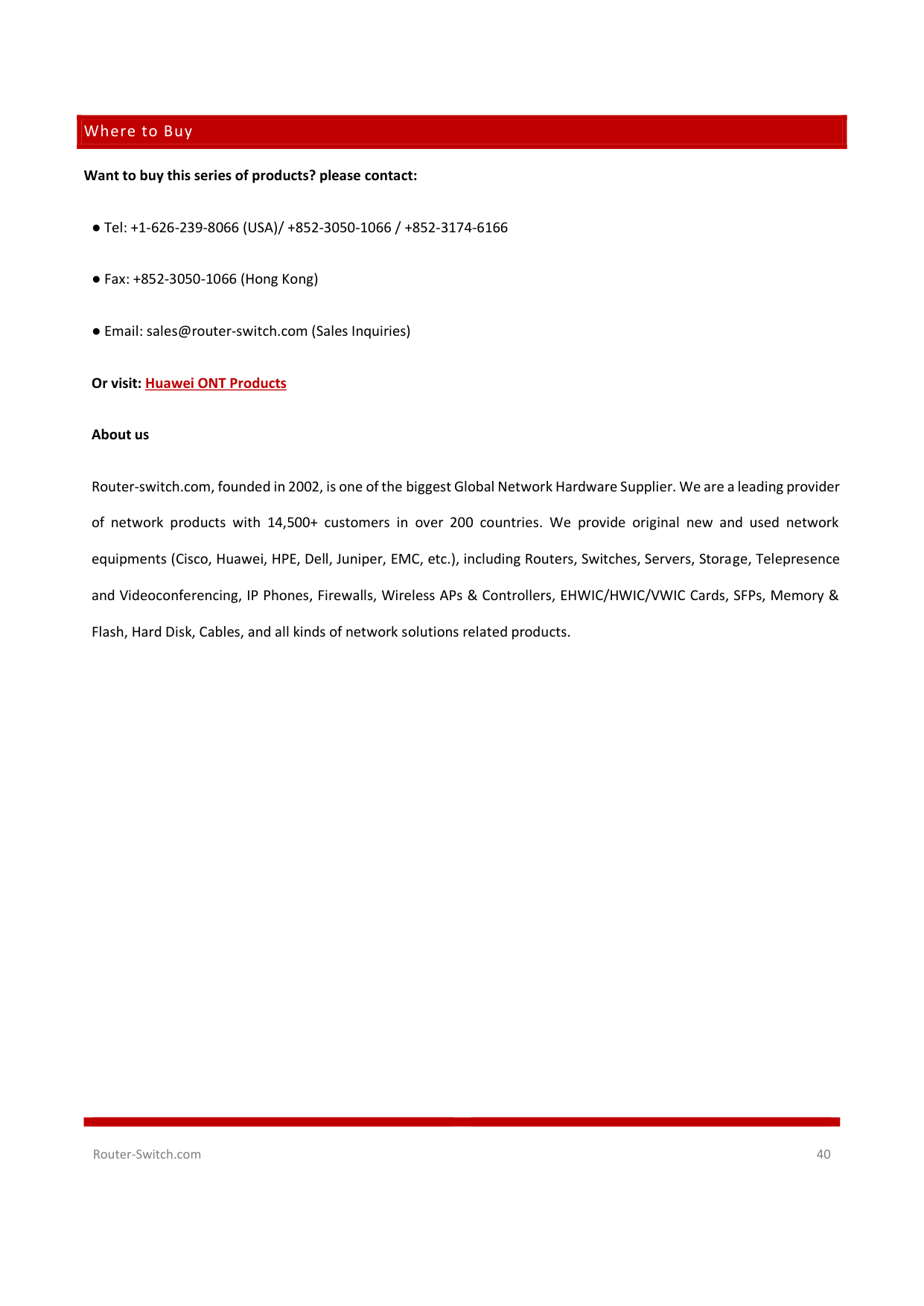

Where to Buy .................................................................................................................................................................40
Contact Us
Tel: +1-626-239-8066 (USA) +852-3050-1066 / +852-3174-6166
Fax: +852-3050-1066 (Hong Kong)
Email: sales@router-switch.com (Sales Inquiries)

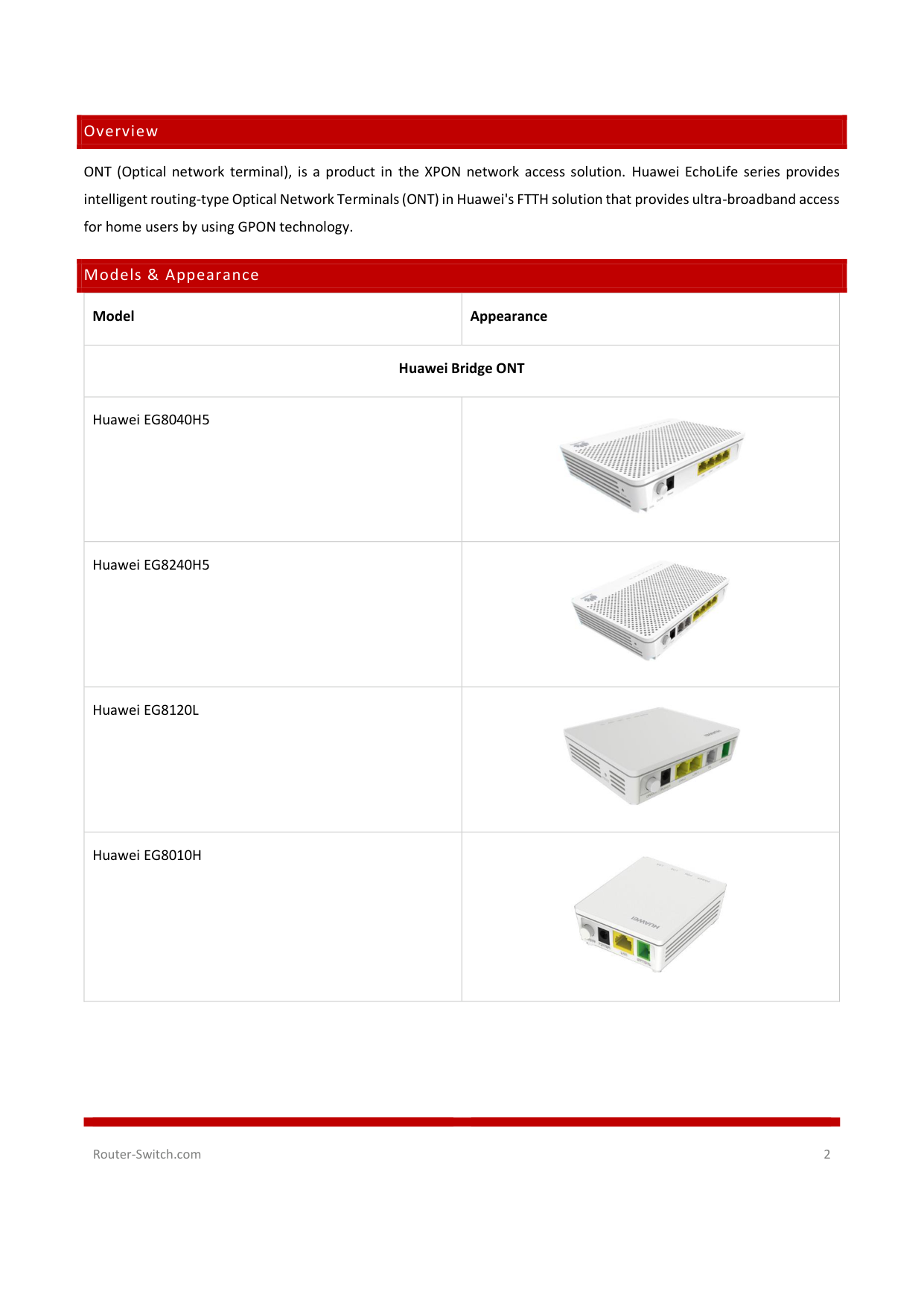

###### ONT (Optical network terminal), is a product in the XPON network access solution. Huawei EchoLife series provides intelligent routing-type Optical Network Terminals (ONT) in Huawei's FTTH solution that provides ultra-broadband access for home users by using GPON technology.
|Models & Appearance|Models & Appearance| |---|---| |Model|Appearance| |Huawei Bridge ONT|Huawei Bridge ONT| |Huawei EG8040H5|| |Huawei EG8240H5|| |Huawei EG8120L|| |Huawei EG8010H||
|Huawei EG8040H|| |---|---|

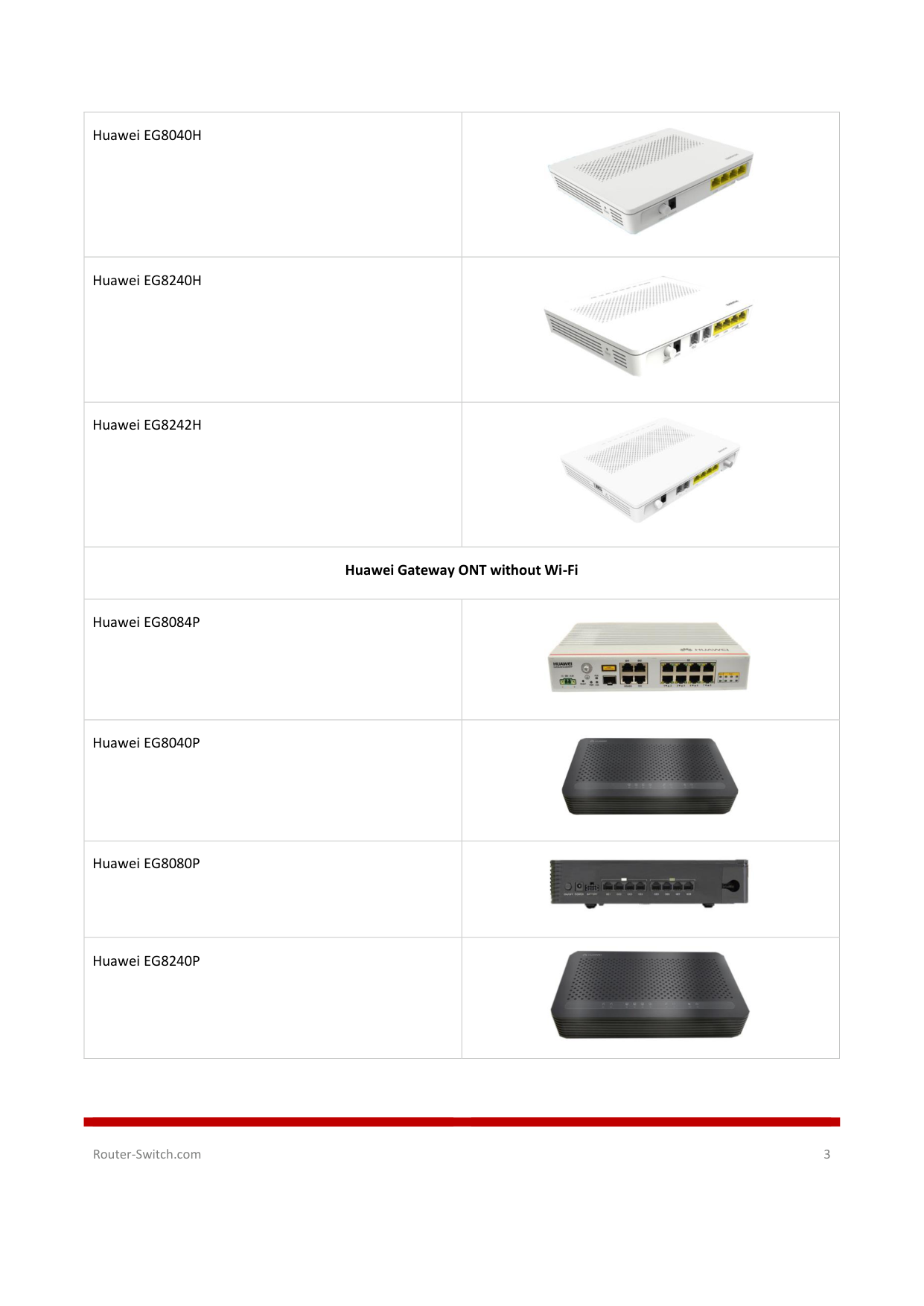

|Huawei EG8240H|| |Huawei EG8242H|| |Huawei Gateway ONT without Wi-Fi|Huawei Gateway ONT without Wi-Fi| |Huawei EG8084P|| |Huawei EG8040P|| |Huawei EG8080P|| |Huawei EG8240P||

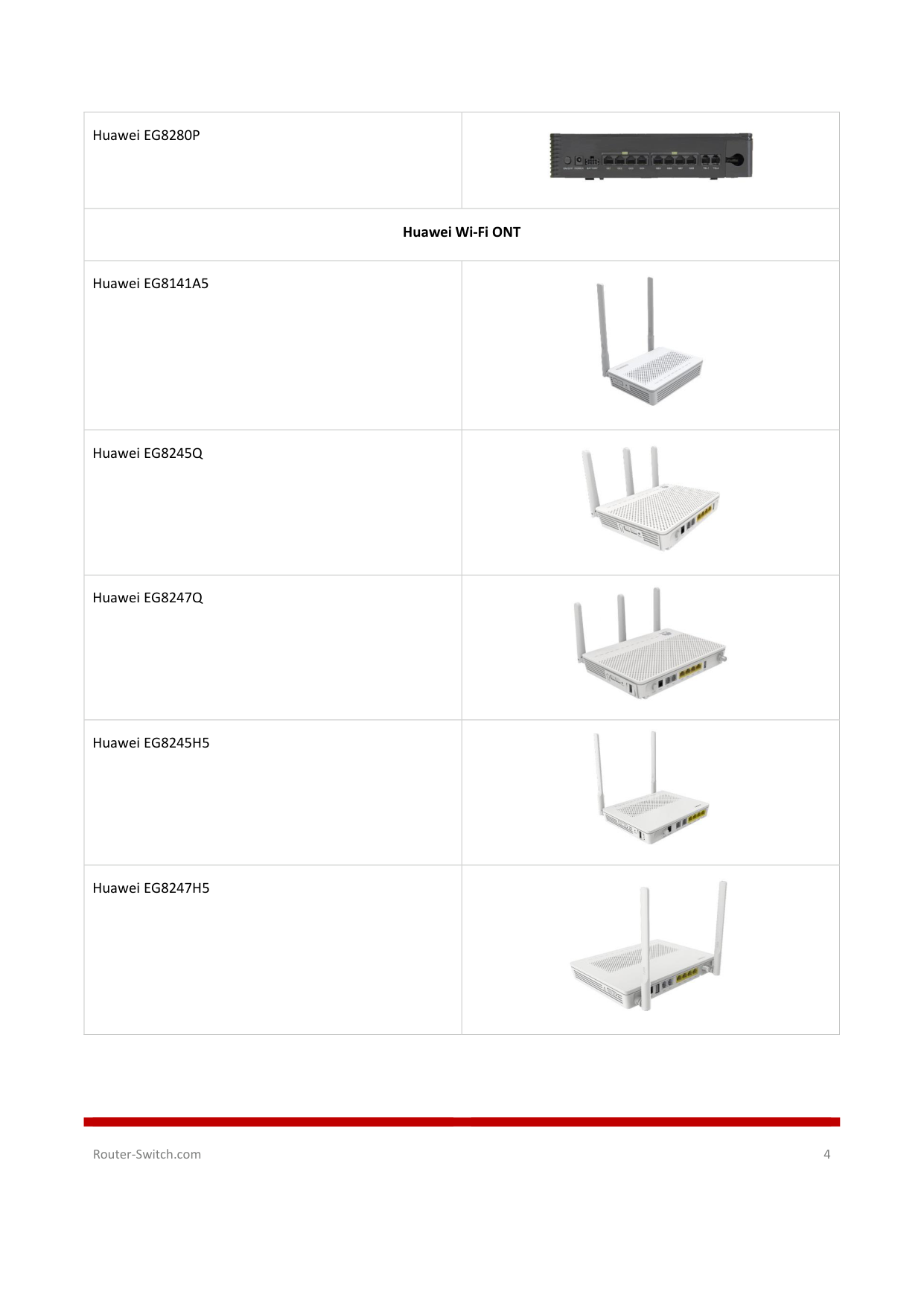

|Huawei EG8280P|| |---|---| |Huawei Wi-Fi ONT|Huawei Wi-Fi ONT|
|Huawei EG8141A5|| |Huawei EG8245Q|| |Huawei EG8247Q|| |Huawei EG8245H5|| |Huawei EG8247H5||

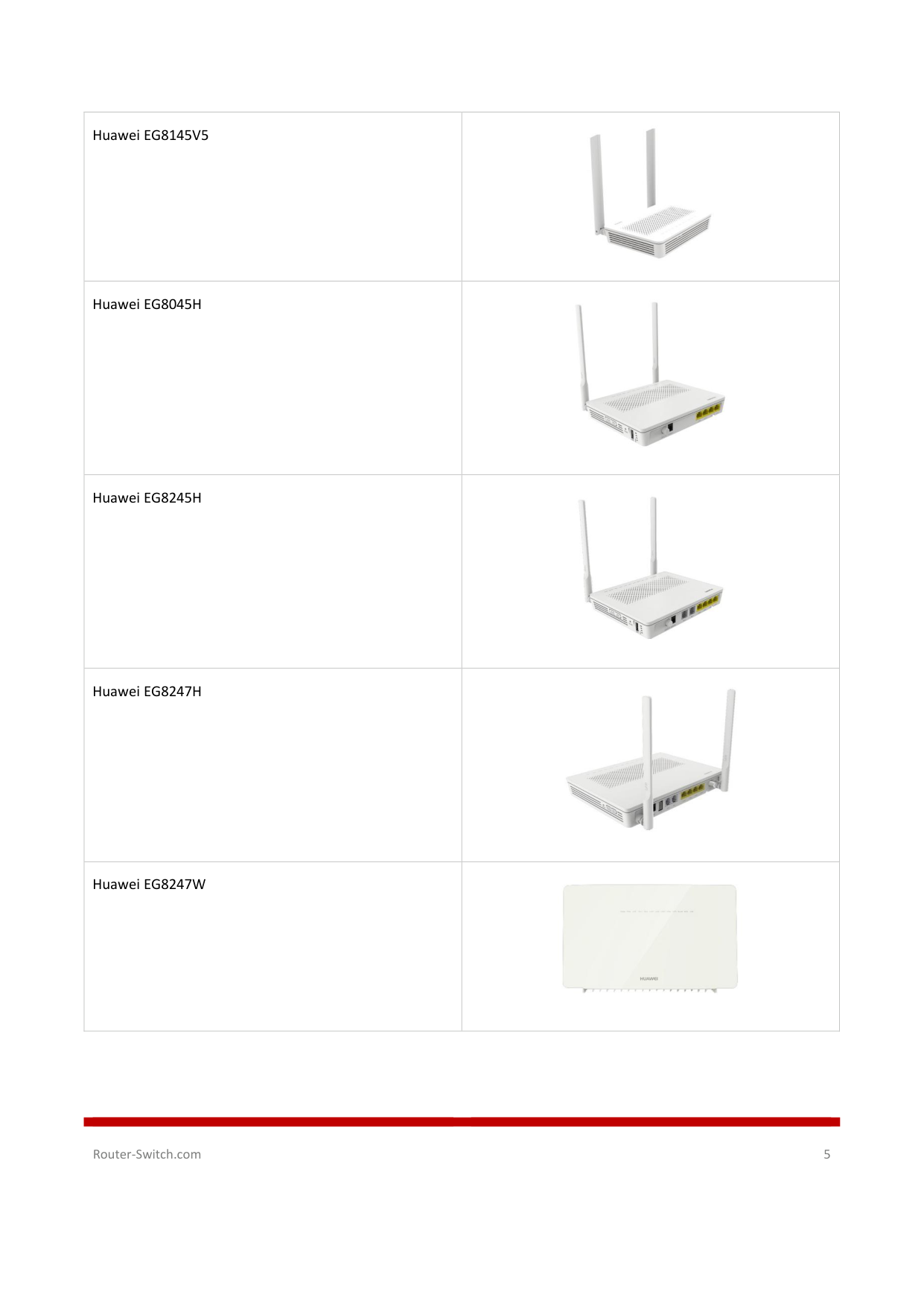

|Huawei EG8145V5|| |---|---| |Huawei EG8045H|| |Huawei EG8245H|| |Huawei EG8247H||
|Huawei EG8247W||

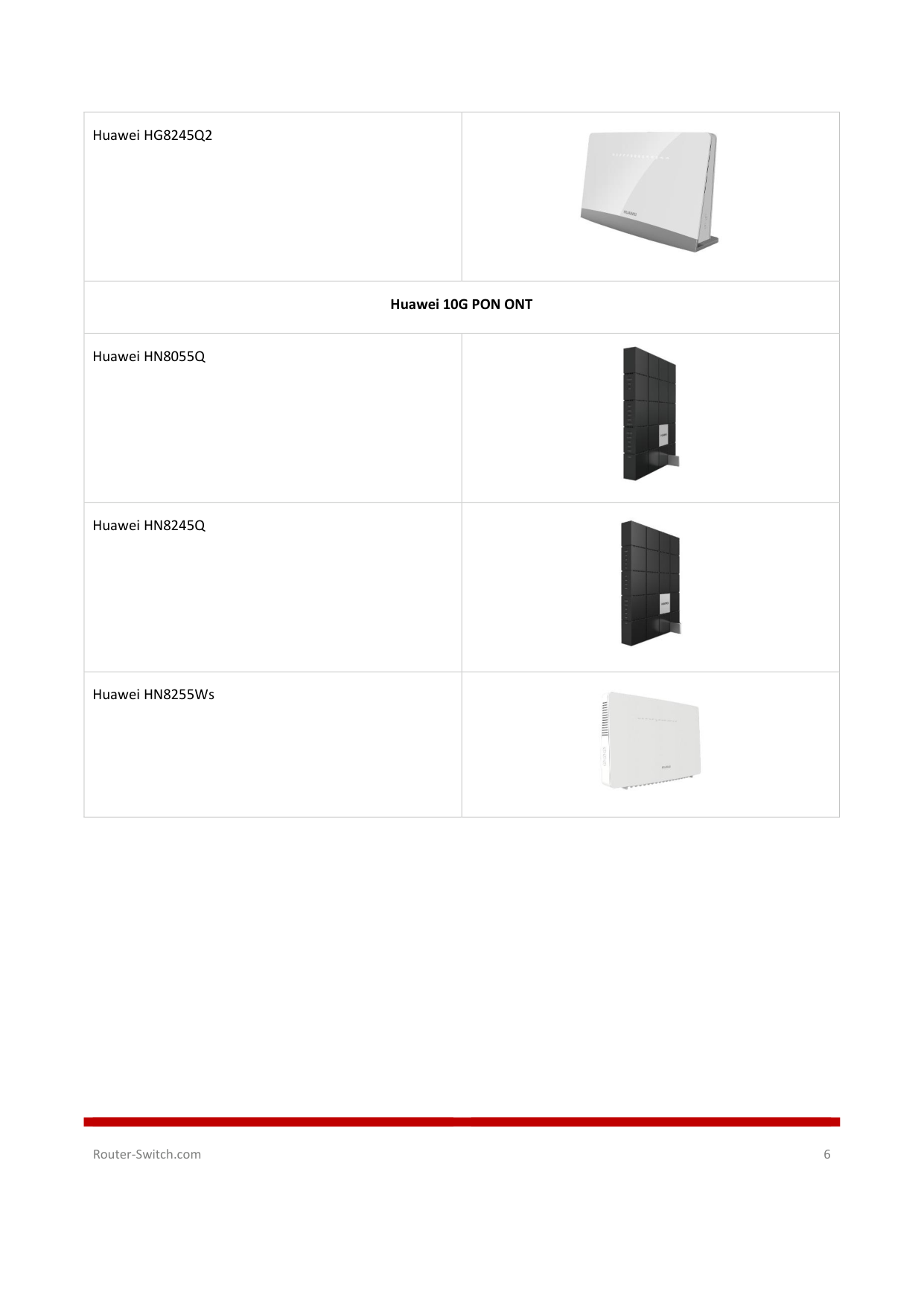

|Huawei HG8245Q2|| |---|---| |Huawei 10G PON ONT|Huawei 10G PON ONT| |Huawei HN8055Q|| |Huawei HN8245Q|| |Huawei HN8255Ws||
|Key Models & Specifications|
|---|

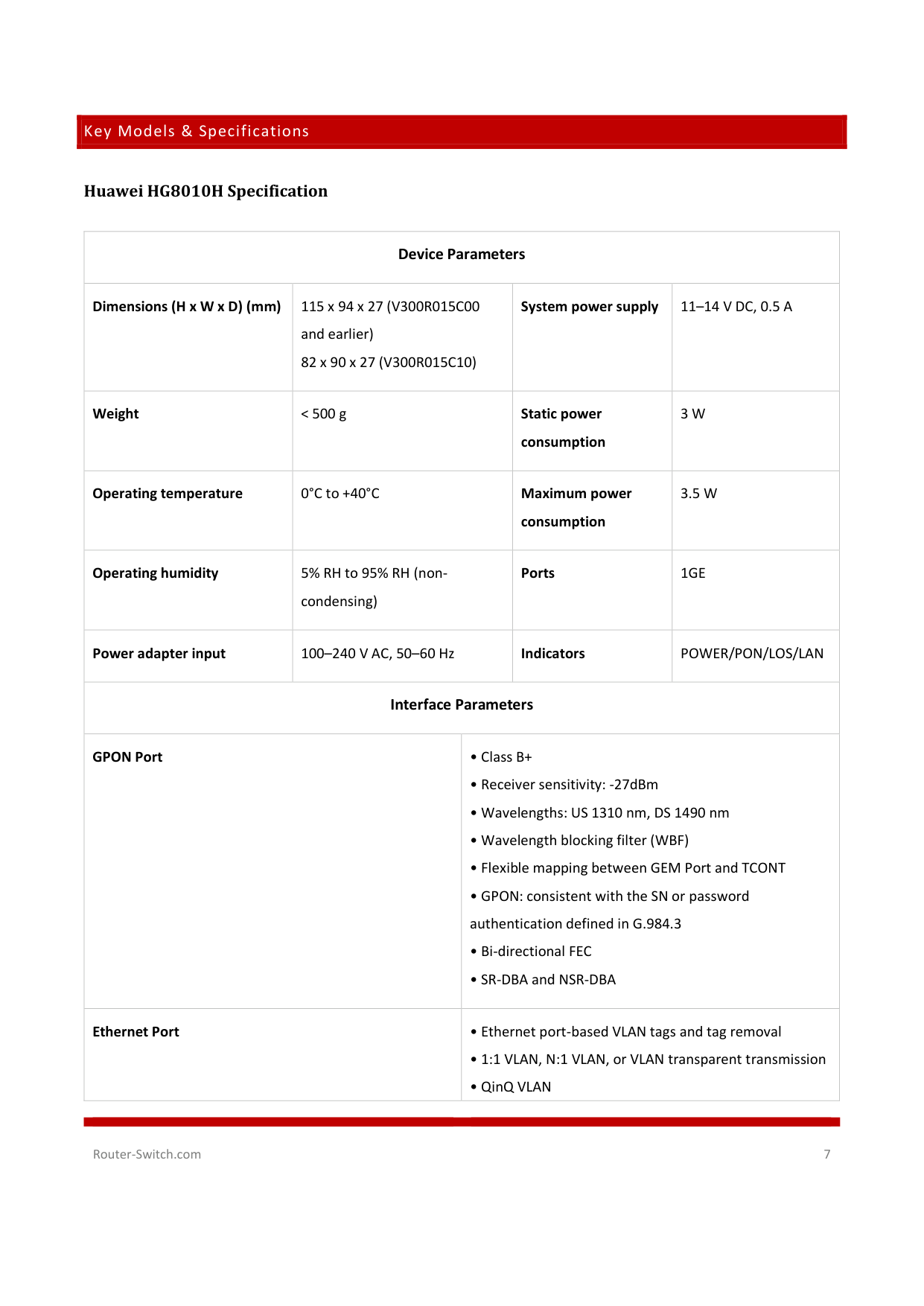

Huawei HG8010H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)|115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)|System power supply|11–14 V DC, 0.5 A| |Weight|< 500 g|< 500 g|Static power consumption|3 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|3.5 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|1GE| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN|
|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
|
| | | |• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2
|• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2
| |---|---|---|---|---| |Product Function|Product Function|Product Function|Product Function|Product Function| |Smart O&M|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
|Security|Security|• MAC address filtering| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
|Common O&M|Common O&M|• OMCI/Web UI
• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
| |Power Saving|• Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCv4
|Multicast|Multicast|• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
|

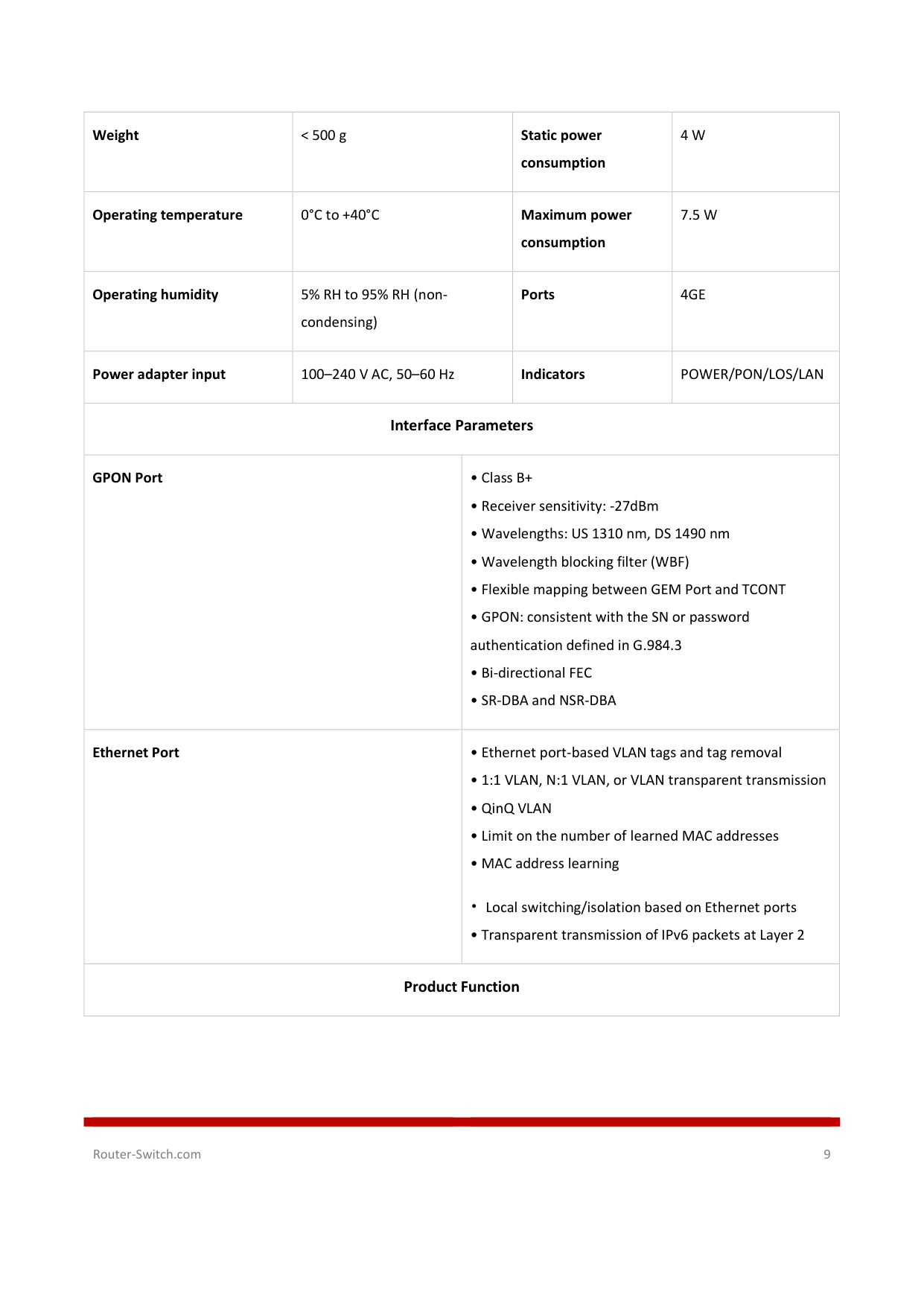

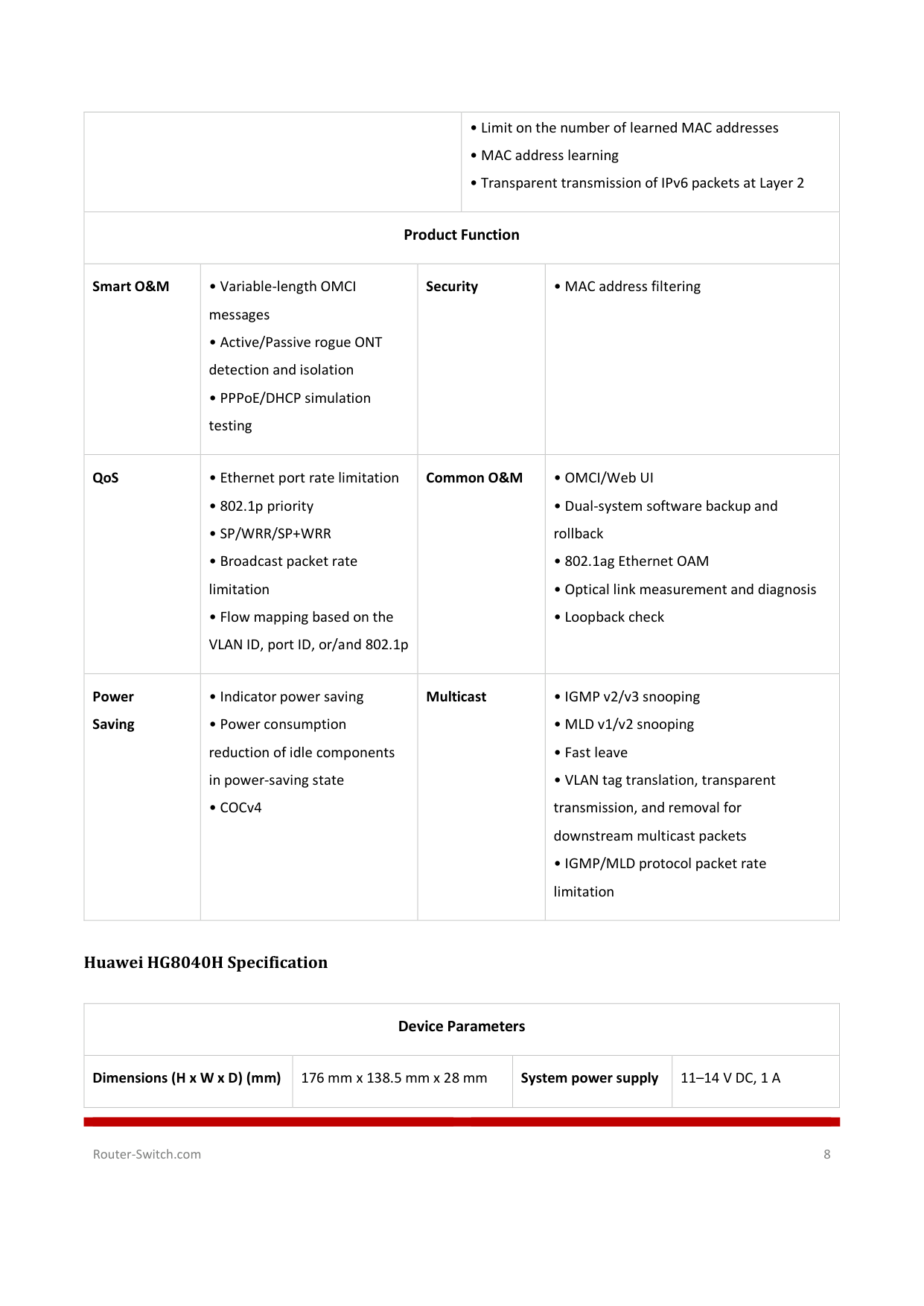

Huawei HG8040H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---| |Dimensions (H x W x D) (mm)|176 mm x 138.5 mm x 28 mm|System power supply|11–14 V DC, 1 A|
|Weight|< 500 g|< 500 g|Static power consumption|4 W| |---|---|---|---|---| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|7.5 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|4GE|
|Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
| |Product Function|Product Function|Product Function|Product Function|Product Function|

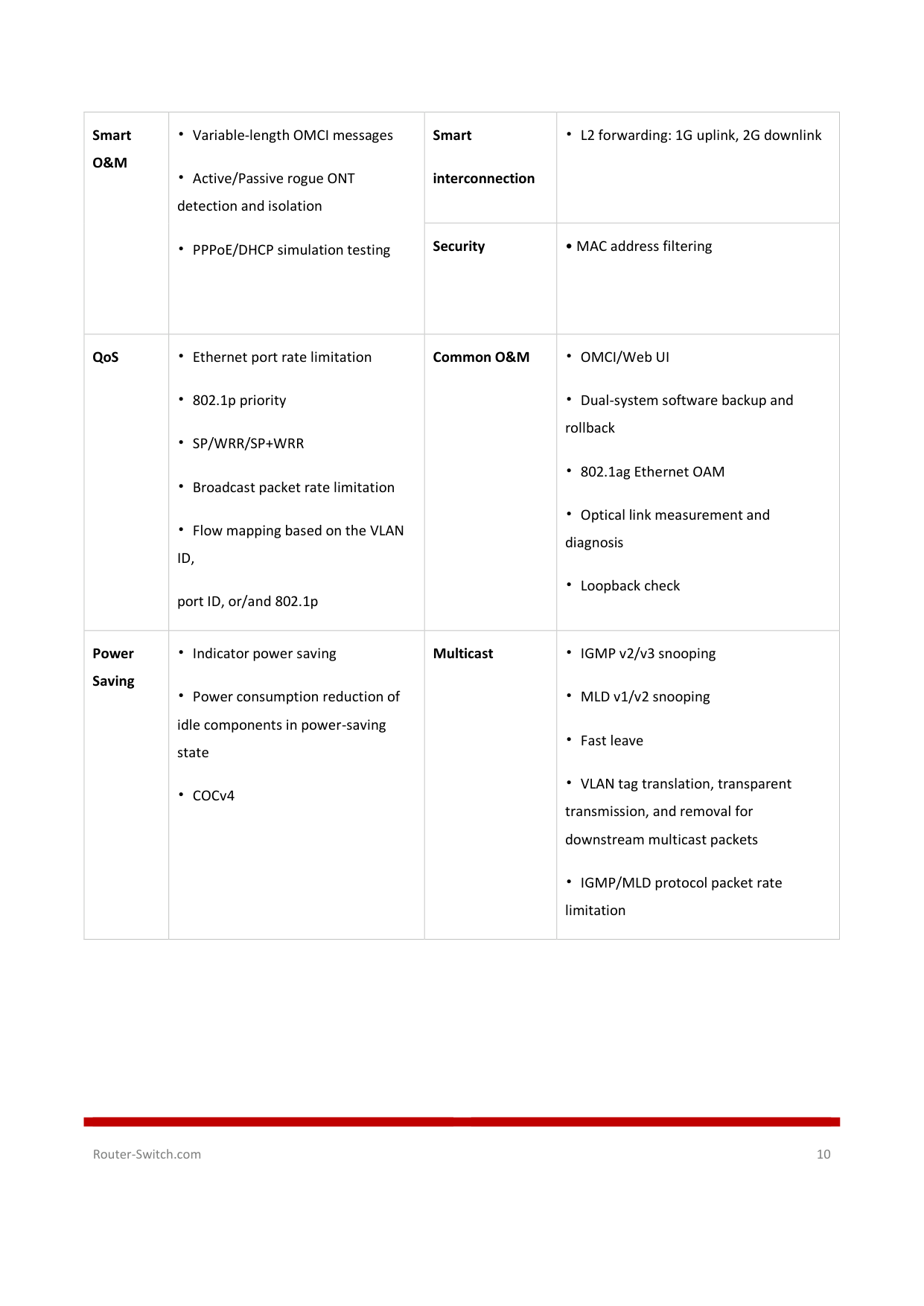

|Smart O&M
|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
|Smart
interconnection|• L2 forwarding: 1G uplink, 2G downlink| |---|---|---|---| |Smart O&M
|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
|Security|• MAC address filtering| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID,
port ID, or/and 802.1p|Common O&M|• OMCI/Web UI
• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
| |Power Saving|• Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCv4
|Multicast|• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
|

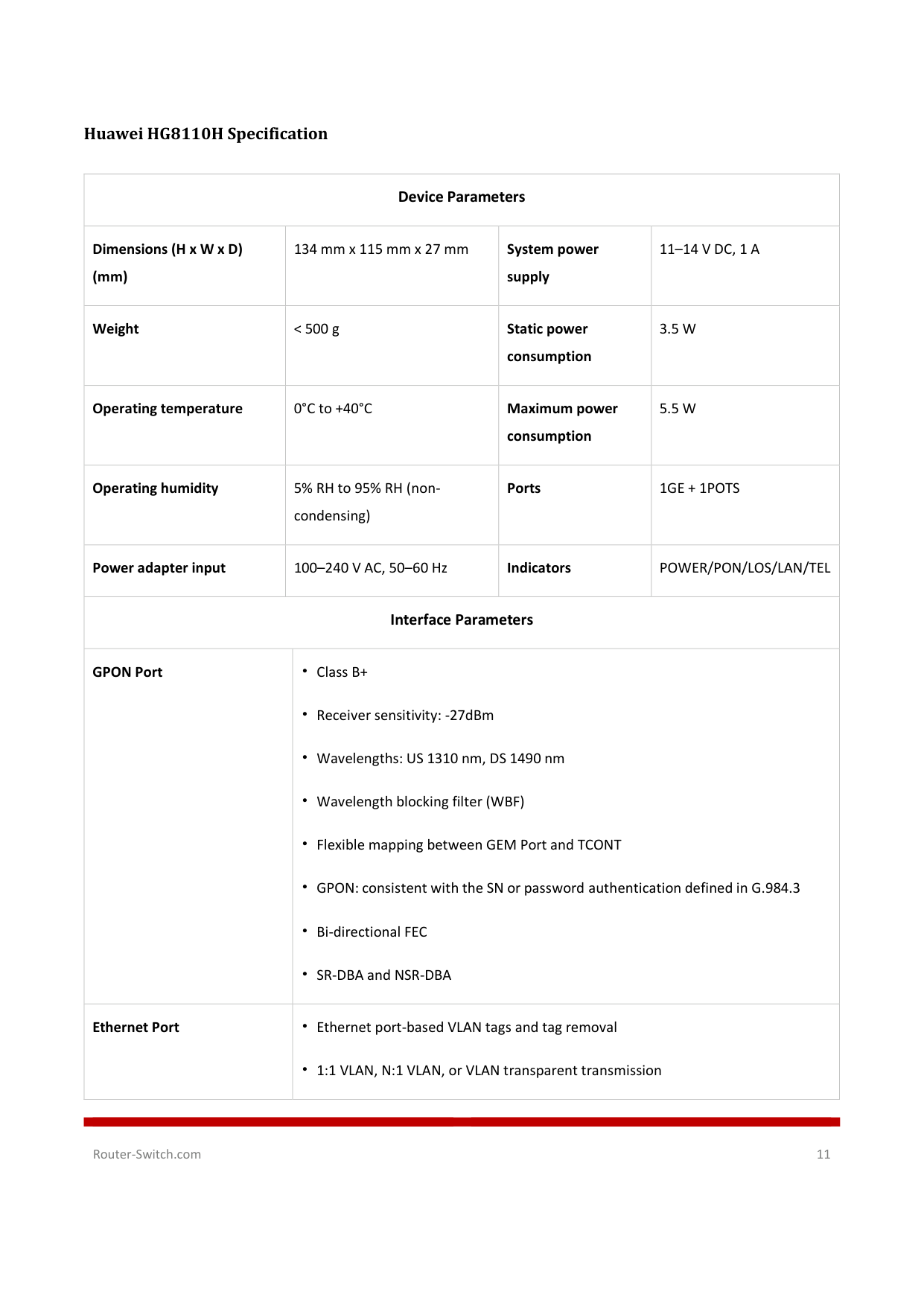

Huawei HG8110H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|134 mm x 115 mm x 27 mm|134 mm x 115 mm x 27 mm|System power supply|11–14 V DC, 1 A| |Weight|< 500 g|< 500 g|Static power consumption|3.5 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|5.5 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|1GE + 1POTS| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN/TEL| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|
|GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
|
| | |• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2
|• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2
|• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2

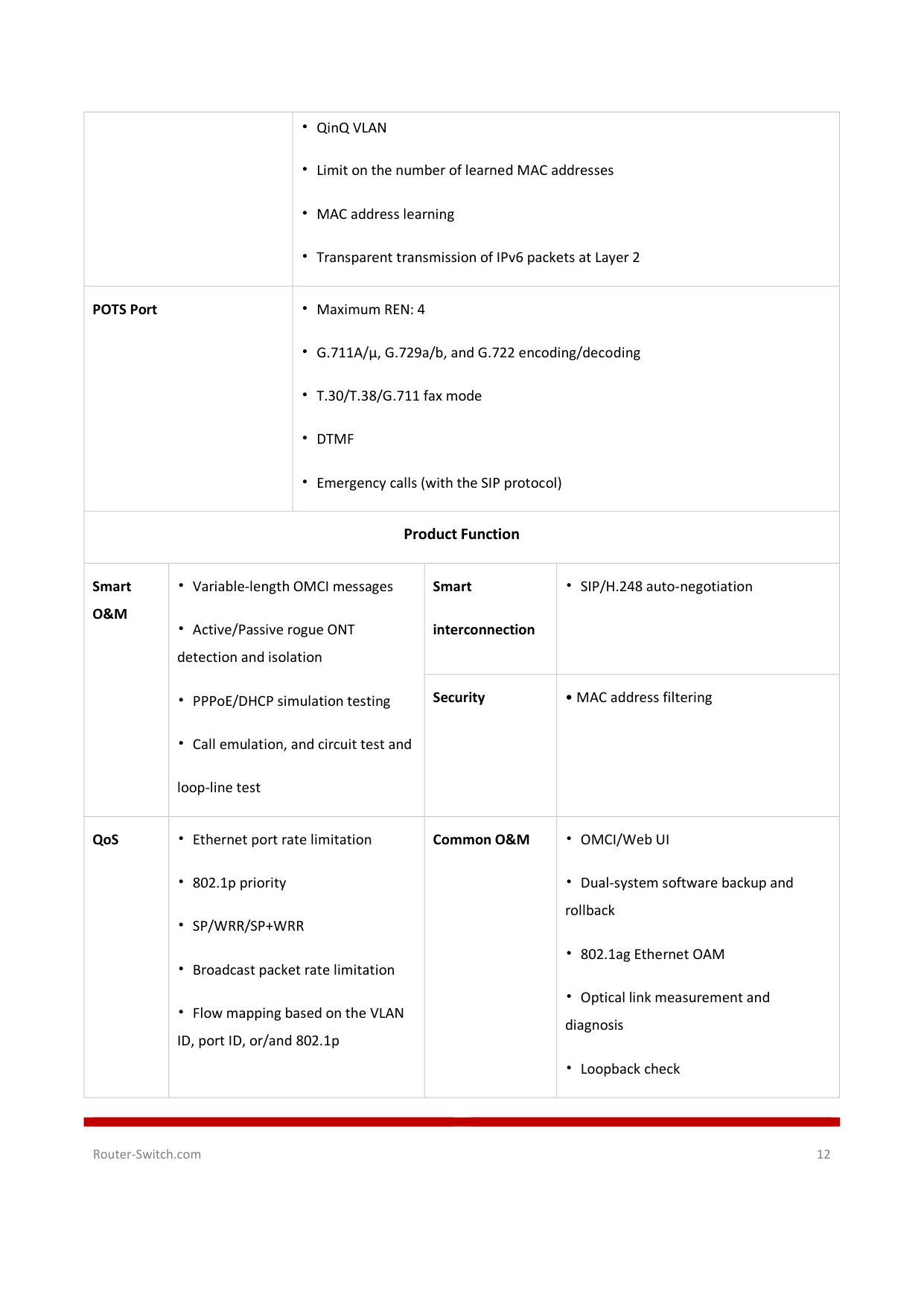

| |---|---|---|---|---| |POTS Port|POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
| |Product Function|Product Function|Product Function|Product Function|Product Function| |Smart O&M|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test|Smart
interconnection|• SIP/H.248 auto-negotiation| |Smart O&M|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test|Security|• MAC address filtering| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
|Common O&M|• OMCI/Web UI
• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
|
|Power Saving|• Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCv4
|Multicast|• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
| |---|---|---|---|
Huawei HG8240H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|176 mm x 138.5 mm x 28 mm|176 mm x 138.5 mm x 28 mm|System power supply|11–14 V DC, 1 A| |Weight|< 500 g|< 500 g|Static power consumption|4 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|10 W|
|Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|4GE + 2POTS| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN/TEL| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
|• Class B+
• Receiver sensitivity: -27dBm
|• Class B+
• Receiver sensitivity: -27dBm
|
| | |• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |---|---|---|---|---| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
| |POTS Port|POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
| |Product Function|Product Function|Product Function|Product Function|Product Function| |Smart O&M|Variable-length OMCI messages|Variable-length OMCI messages|Smart
interconnection|• SIP/H.248 auto-negotiation|
| |• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Security|• MAC address filtering| |---|---|---|---| | |• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Smart
Service|• Association of one account with two POTS ports
• L2 forwarding: 1G uplink, 2G downlink
| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
|Common O&M|• OMCI/Web UI
• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
| |Power Saving|• Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCv4
|Multicast|• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
|
Huawei HG8242H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters|
|---|---|---|---|---| |Dimensions (H x W x D) (mm)|220 mm x 160 mm x 32 mm|220 mm x 160 mm x 32 mm|System power supply|11–13 V DC, 2 A| |Weight|< 500 g|< 500 g|Static power consumption|5.5 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|14 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|4GE + 2POTS + CATV| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN/TEL
/CATV| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal|• Ethernet port-based VLAN tags and tag removal|• Ethernet port-based VLAN tags and tag removal|
| | |• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Local switching/isolation based on Ethernet ports
• Transparent transmission of IPv6 packets at Layer 2
|
|---|---|---|---|---| |POTS Port|POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
| |CATV Port|CATV Port|• Bandwidth 54-870 MHz
• Output resistance 75 ohms
|• Bandwidth 54-870 MHz
• Output resistance 75 ohms
|• Bandwidth 54-870 MHz
• Output resistance 75 ohms
| |Product Function|Product Function|Product Function|Product Function|Product Function| |Smart O&M|Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Smart
interconnection|• SIP/H.248 auto-negotiation| |Smart O&M|Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Security|• MAC address filtering| |Smart O&M|Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Call emulation, and circuit test and
loop-line test
|Smart
Service|• Association of one account with two POTS ports
• L2 forwarding: 1G uplink, 2G downlink
| |QoS|• Ethernet port rate limitation|• Ethernet port rate limitation|Common O&M|• OMCI/Web UI|
| |• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
| |• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
| |---|---|---|---|
|Power Saving|• Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCv4
|Multicast|• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
|
Huawei HG8245H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---| |Dimensions (H x W x D) (mm)|176 mm x 138.5 mm x 28 mm
(without an external antenna)|System power supply|11–14 V DC, 2 A| |Weight|About 500 g|Static power consumption|5 W| |Operating temperature|0°C to +40°C|Maximum power consumption|15.5 W|
|Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|2POTS+4GE+Wi-Fi+USB| |---|---|---|---|---| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN/TEL/USB
/WLAN/WPS| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
| |POTS Port|POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
|
| | |• Emergency calls (with the SIP protocol)|• Emergency calls (with the SIP protocol)|• Emergency calls (with the SIP protocol)| |---|---|---|---|---| |USB Port|USB Port|• USB2.0
• FTP-based network storage
|• USB2.0
• FTP-based network storage
|• USB2.0
• FTP-based network storage
|
|WLAN|WLAN|IEEE 802.11 b/g/n
• 2 x 2 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
|IEEE 802.11 b/g/n
• 2 x 2 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
|IEEE 802.11 b/g/n
• 2 x 2 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
| |Product Function|Product Function|Product Function|Product Function|Product Function| |Smart O&M|• IPTV video quality diagnosis (V300R015C10)
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
|• IPTV video quality diagnosis (V300R015C10)
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
|Smart
interconnection|• Smart Wi-Fi coverage (V300R015C10)
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control (V300R015C00)
• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
|

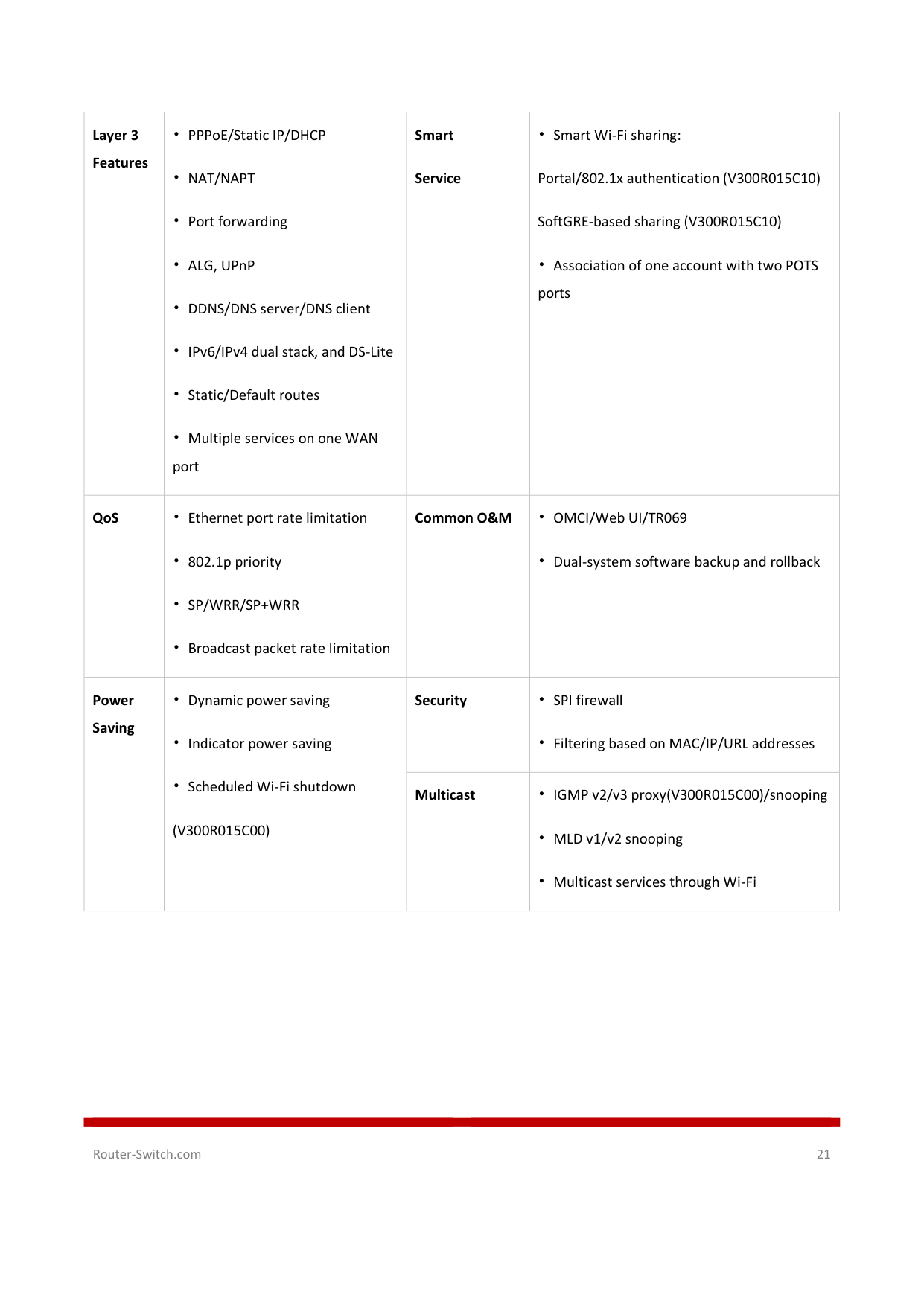

|Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Smart
Service|• Smart Wi-Fi sharing:
Portal/802.1x authentication (V300R015C10)
SoftGRE-based sharing (V300R015C10)
• Association of one account with two POTS ports
| |---|---|---|---| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
|Common O&M|• OMCI/Web UI/TR069
• Dual-system software backup and rollback
| |Power Saving|• Dynamic power saving
• Indicator power saving
• Scheduled Wi-Fi shutdown
(V300R015C00)|Security|• SPI firewall
• Filtering based on MAC/IP/URL addresses
| |Power Saving|• Dynamic power saving
• Indicator power saving
• Scheduled Wi-Fi shutdown
(V300R015C00)|Multicast|• IGMP v2/v3 proxy(V300R015C00)/snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi
|
Huawei HG8247H Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|220 mm x 160 mm x 32 mm
(without an external antenna)|220 mm x 160 mm x 32 mm
(without an external antenna)|System power supply|11–13 V DC, 2 A| |Weight|About 1000 g|About 1000 g|Static power consumption|7.5 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|18 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|2POTS+4GE+CATV+Wi-Fi+USB| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/LAN/TEL/USB
/WLAN/WPS/CATV| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|

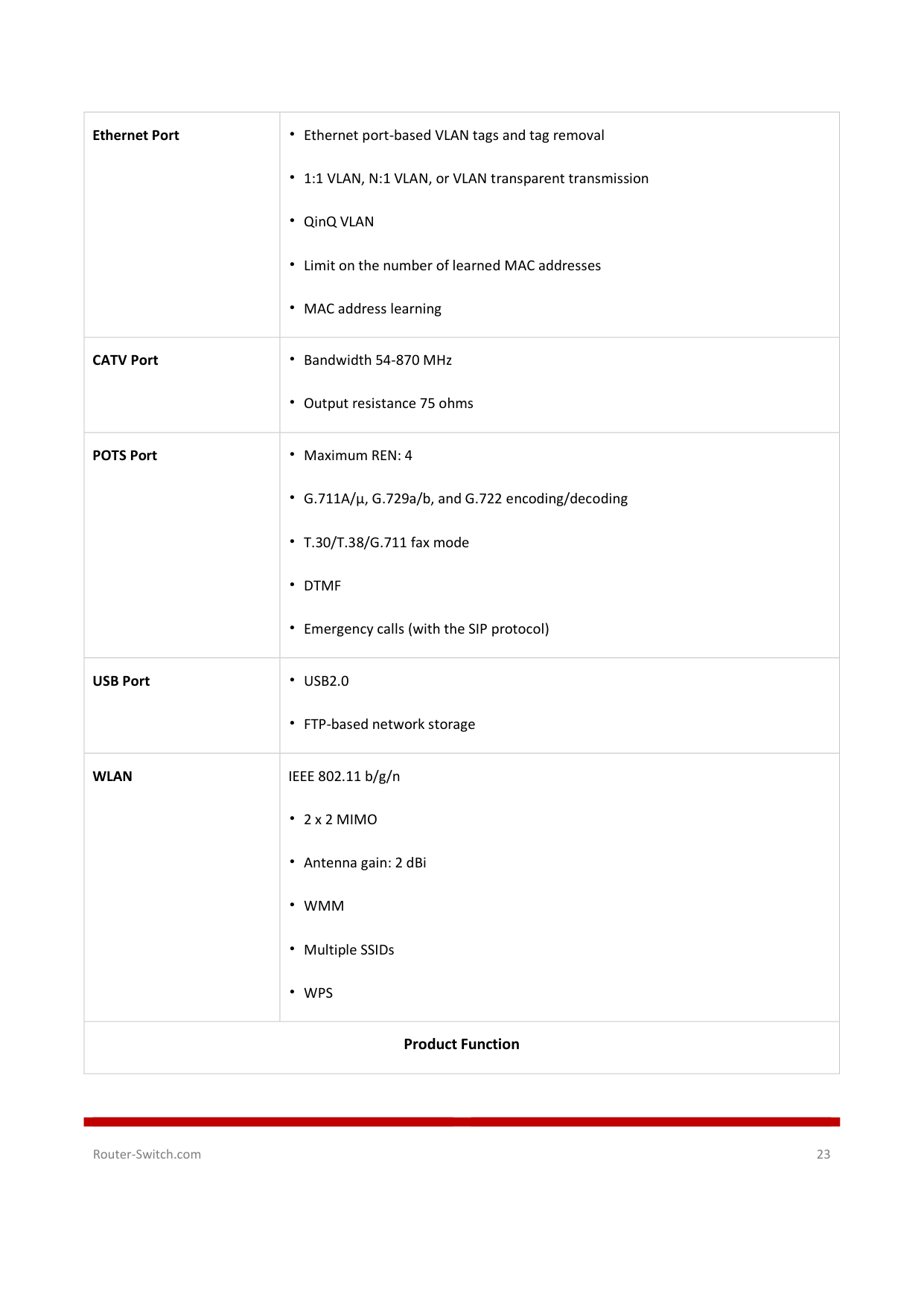

|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
| |---|---| |CATV Port|• Bandwidth 54-870 MHz
• Output resistance 75 ohms
| |POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
| |USB Port|• USB2.0
• FTP-based network storage
| |WLAN|IEEE 802.11 b/g/n
• 2 x 2 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
| |Product Function|Product Function|

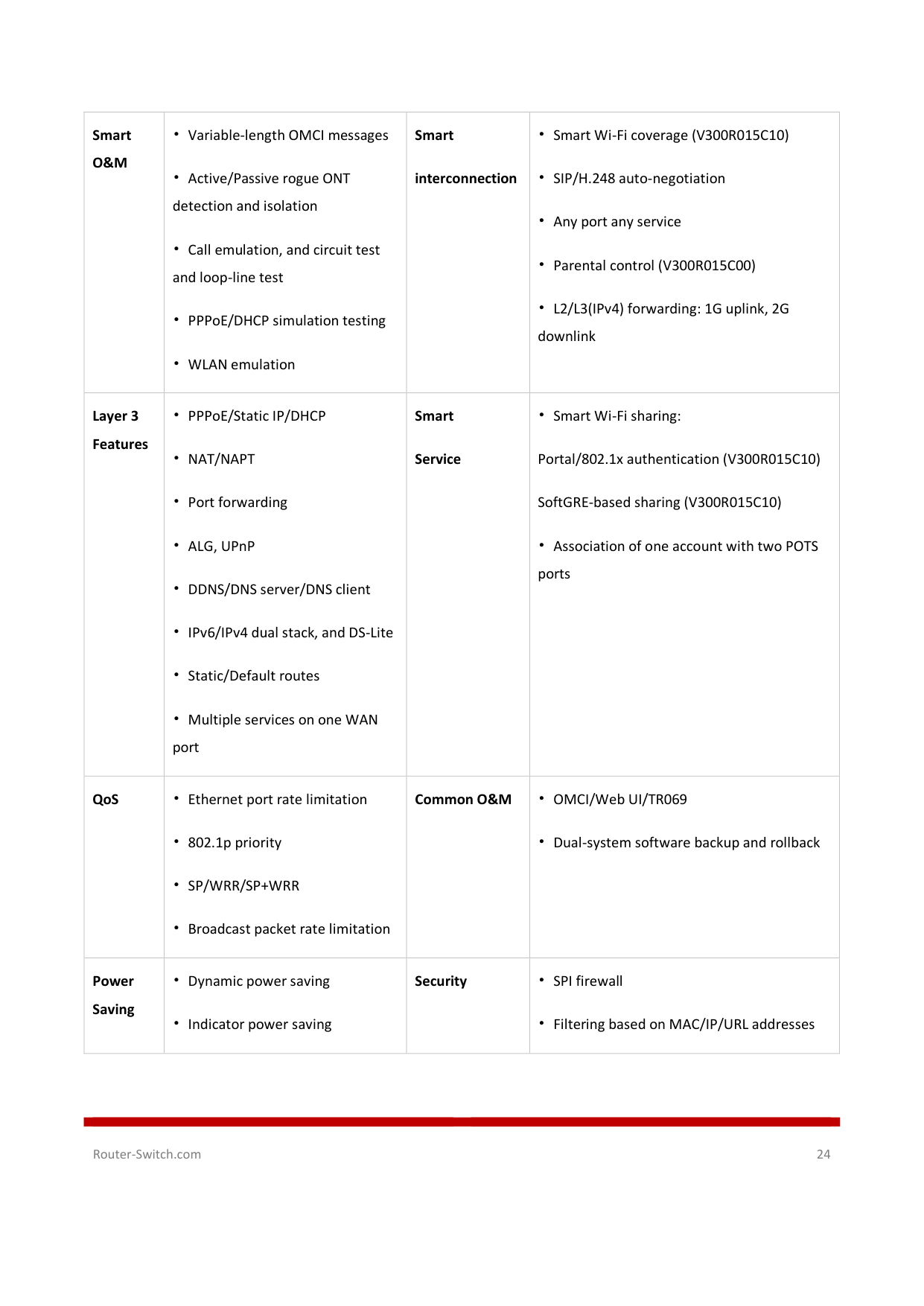

|Smart O&M|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
|Smart
interconnection|• Smart Wi-Fi coverage (V300R015C10)
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control (V300R015C00)
• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
| |---|---|---|---|
|Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Smart
Service|• Smart Wi-Fi sharing:
Portal/802.1x authentication (V300R015C10)
SoftGRE-based sharing (V300R015C10)
• Association of one account with two POTS ports
| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
|Common O&M|• OMCI/Web UI/TR069
• Dual-system software backup and rollback
| |Power Saving|• Dynamic power saving
• Indicator power saving
|Security|• SPI firewall
• Filtering based on MAC/IP/URL addresses
|
| |• Scheduled Wi-Fi shutdown
(V300R015C00)|Multicast|• IGMP v2/v3 proxy(V300R015C00)/snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi
| |---|---|---|---|
Huawei HG8045Q Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters|
|---|---|---|---|---| |Dimensions (H x W x D) (mm)|230 x 190 x 30 mm
(excluding the support)|230 x 190 x 30 mm
(excluding the support)|System power supply|11–14 V DC, 2 A| |Weight|About 500 g|About 500 g|Static power consumption|5 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|21 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|4GE+2.4G/5G Wi-Fi+USB| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Indicators|POWER/PON/LOS/USB/PORT
/2.4GWi-Fi/5G Wi-Fi/WPS| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
|
| |• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |---|---|
|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
| |USB Port|• USB2.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA DMS/UPnP AV (media server)
| |WLAN|• 802.11 b/g/n (2.4G)
• 802.11 a/n/ac (5G)
• 3 x 3 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
• 2.4G/5G concurrent
• Air interface rate: 450 Mbit/s (2.4G); 1300 Mbit/s (5G)
| |Product Function|Product Function|

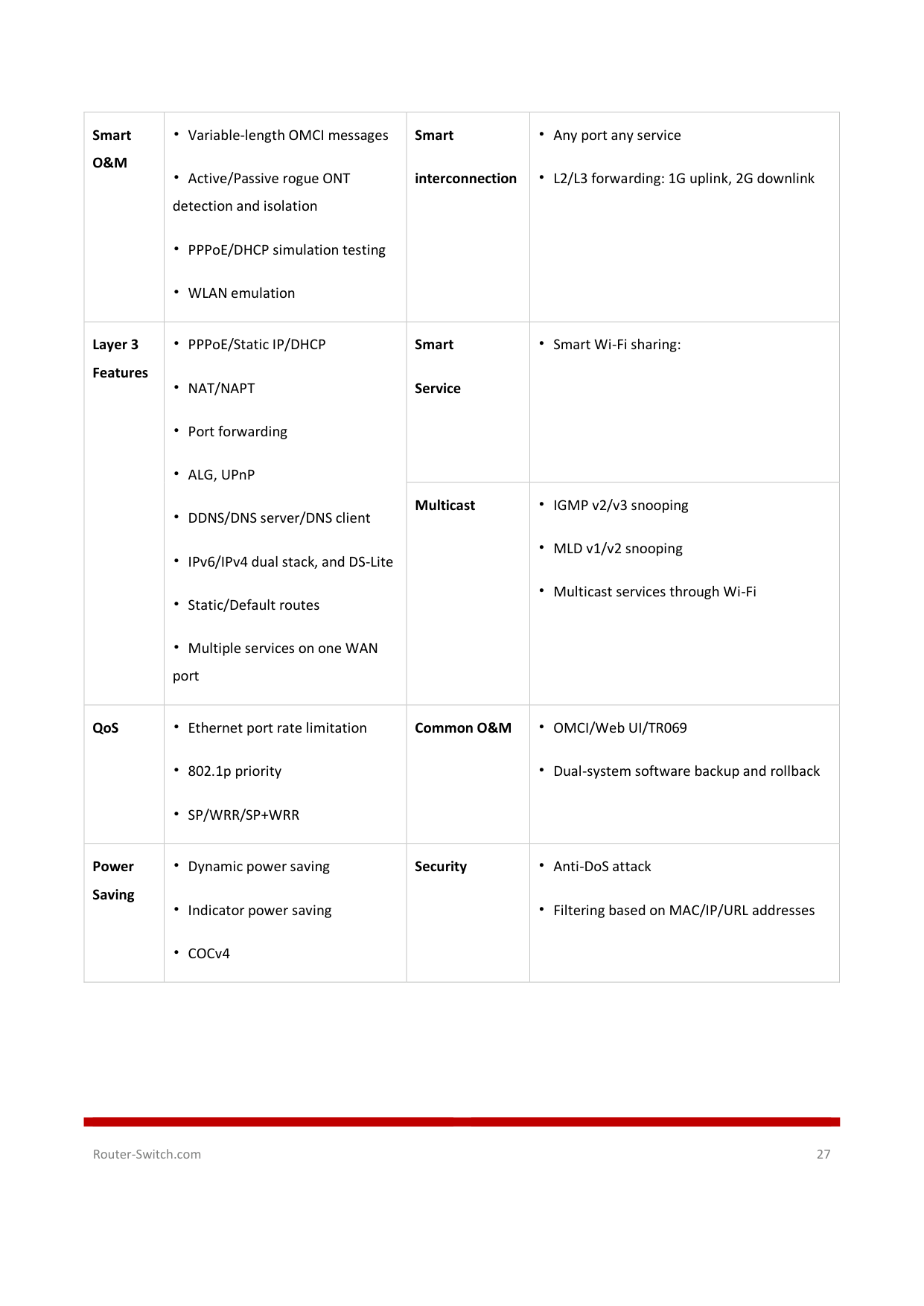

|Smart O&M|• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• WLAN emulation
|Smart
interconnection|• Any port any service
• L2/L3 forwarding: 1G uplink, 2G downlink
| |---|---|---|---| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Smart
Service|• Smart Wi-Fi sharing:| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Multicast|• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi
| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
|Common O&M|• OMCI/Web UI/TR069
• Dual-system software backup and rollback
| |Power Saving|• Dynamic power saving
• Indicator power saving
• COCv4
|Security|• Anti-DoS attack
• Filtering based on MAC/IP/URL addresses
|
Huawei HG8245Q Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|70 mm x 285 mm x 174 mm|70 mm x 285 mm x 174 mm|System power supply|11–14 V DC, 3 A| |Weight|About 1000 g|About 1000 g|Static power consumption|6.5 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|26 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|2POTS+4GE+2.4G/5G Wi-Fi
+2USB
| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Ports|2POTS+4GE+2.4G/5G Wi-Fi
+2USB
| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|
|GPON Port|GPON Port|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
|• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
|

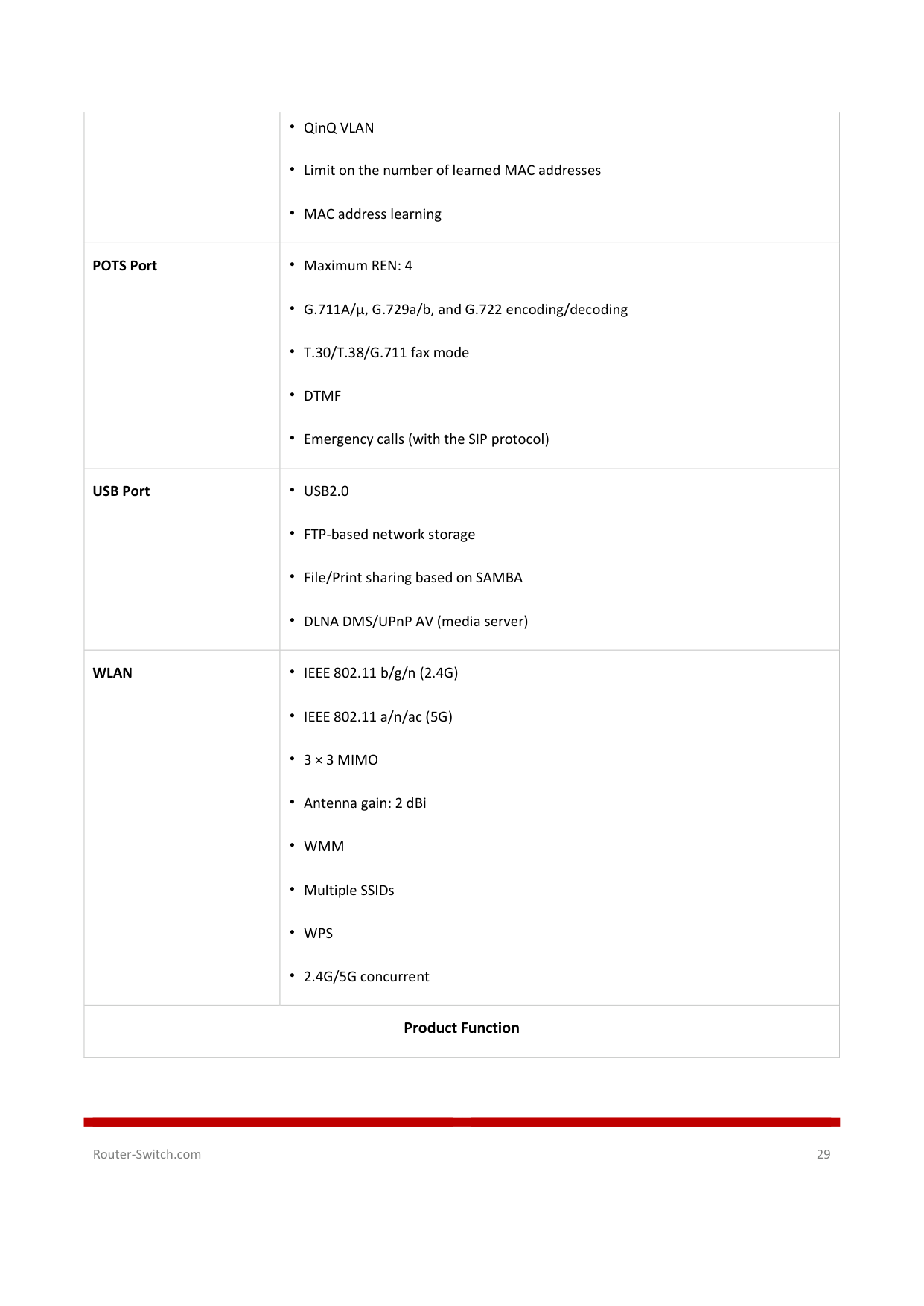

| |• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
| |---|---| |POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
| |USB Port|• USB2.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA DMS/UPnP AV (media server)
| |WLAN|• IEEE 802.11 b/g/n (2.4G)
• IEEE 802.11 a/n/ac (5G)
• 3 × 3 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
• 2.4G/5G concurrent
| |Product Function|Product Function|

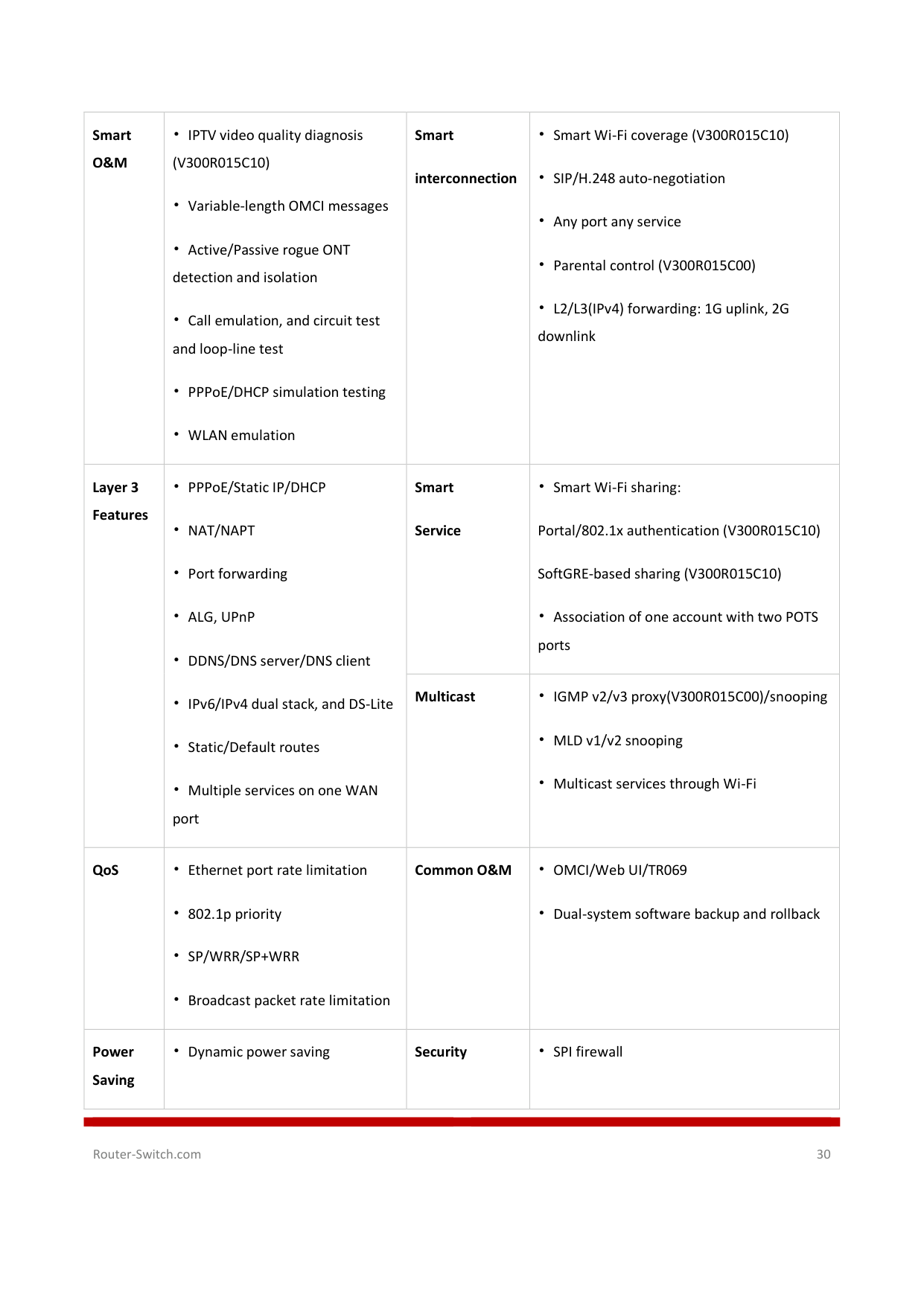

|Smart O&M|• IPTV video quality diagnosis (V300R015C10)
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
|Smart
interconnection|• Smart Wi-Fi coverage (V300R015C10)
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control (V300R015C00)
• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
| |---|---|---|---| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Smart
Service|• Smart Wi-Fi sharing:
Portal/802.1x authentication (V300R015C10)
SoftGRE-based sharing (V300R015C10)
• Association of one account with two POTS ports
| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Multicast|• IGMP v2/v3 proxy(V300R015C00)/snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi
| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
|Common O&M|• OMCI/Web UI/TR069
• Dual-system software backup and rollback
| |Power Saving|• Dynamic power saving|Security|• SPI firewall|
| |• Indicator power saving
• Scheduled Wi-Fi shutdown
(V300R015C00)| |• Filtering based on MAC/IP/URL addresses| |---|---|---|---|
Huawei HN8055Q Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|238 mm x 190 mm x 26 mm
(Without the base)|238 mm x 190 mm x 26 mm
(Without the base)|System power supply|12 V DC, 3 A| |Weight|< 850 g|< 850 g|Indicators|4*GE+1*10GE+2.4G&5G Wi-Fi
+2USB| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|< 34 W| |Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports|4*GE+1*10GE+ 2POTS+2USB| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Ports|4*GE+1*10GE+ 2POTS+2USB| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |XG-PON Port|XG-PON Port|• Class N1/N2a
• Receiver sensitivity: -28dBm
• Wavelengths: US 1260 - 1280 nm, DS 1575-1580 nm
• WBF
• Flexible mapping between GEM Port and TCONT
• SN/Password/SN+Password/Bi-directional authentication based on OMCI
|• Class N1/N2a
• Receiver sensitivity: -28dBm
• Wavelengths: US 1260 - 1280 nm, DS 1575-1580 nm
• WBF
• Flexible mapping between GEM Port and TCONT
• SN/Password/SN+Password/Bi-directional authentication based on OMCI
|• Class N1/N2a
• Receiver sensitivity: -28dBm
• Wavelengths: US 1260 - 1280 nm, DS 1575-1580 nm
• WBF
• Flexible mapping between GEM Port and TCONT
• SN/Password/SN+Password/Bi-directional authentication based on OMCI
|

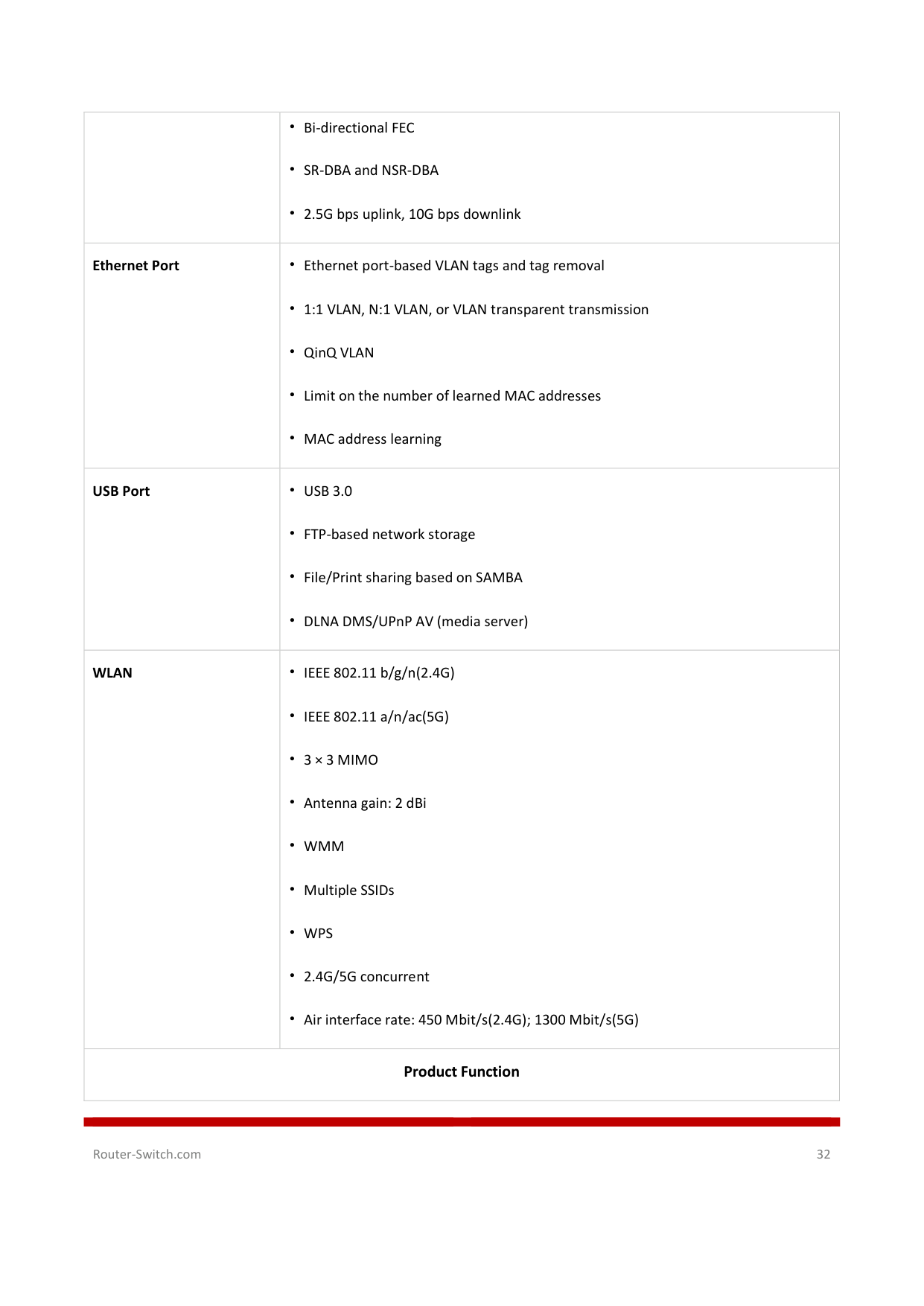

| |• Bi-directional FEC
• SR-DBA and NSR-DBA
• 2.5G bps uplink, 10G bps downlink
| |---|---| |Ethernet Port|• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
| |USB Port|• USB 3.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA DMS/UPnP AV (media server)
| |WLAN|• IEEE 802.11 b/g/n(2.4G)
• IEEE 802.11 a/n/ac(5G)
• 3 × 3 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
• 2.4G/5G concurrent
• Air interface rate: 450 Mbit/s(2.4G); 1300 Mbit/s(5G)
| |Product Function|Product Function|

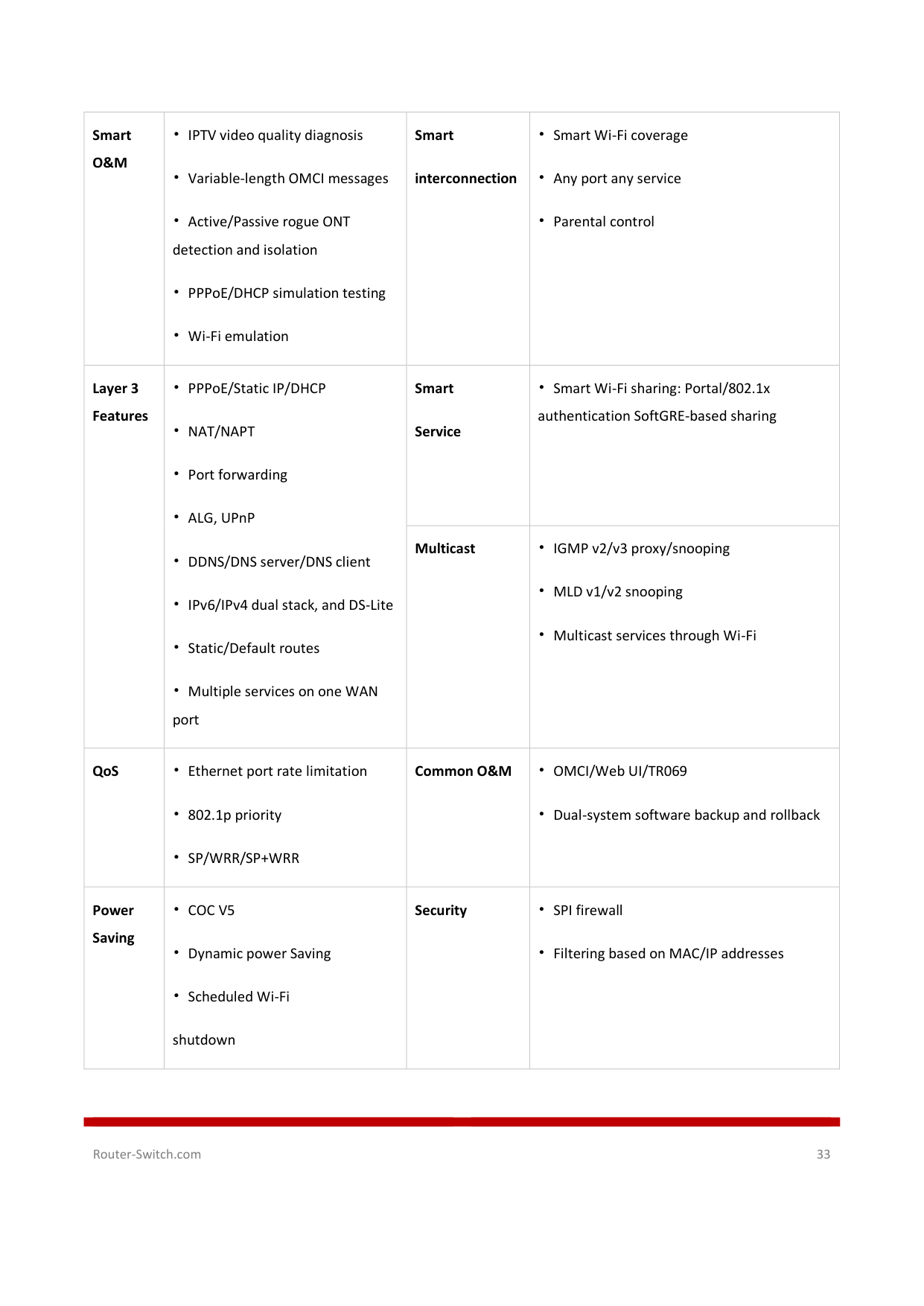

|Smart O&M|• IPTV video quality diagnosis
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
• Wi-Fi emulation
|Smart
interconnection|• Smart Wi-Fi coverage
• Any port any service
• Parental control
| |---|---|---|---| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Smart
Service|• Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing|
|Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Multicast|• IGMP v2/v3 proxy/snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi
| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
|Common O&M|• OMCI/Web UI/TR069
• Dual-system software backup and rollback
| |Power Saving|• COC V5
• Dynamic power Saving
• Scheduled Wi-Fi
shutdown|Security|• SPI firewall
• Filtering based on MAC/IP addresses
|
Huawei HN8245Q Specification
|Device Parameters|Device Parameters|Device Parameters|Device Parameters|Device Parameters| |---|---|---|---|---| |Dimensions (H x W x D) (mm)|238mm x 190mm x 26mm
(Without the base)|238mm x 190mm x 26mm
(Without the base)|System power supply|11–14 V DC, 3 A| |Weight|< 1000 g|< 1000 g|Static power consumption|6 W| |Operating temperature|0°C to +40°C|0°C to +40°C|Maximum power consumption|30 W|
|Operating humidity|5% RH to 95% RH (noncondensing)|5% RH to 95% RH (noncondensing)|Ports
|2POTS+4GE+2.4G&5G WiFi+2USB| |Power adapter input|100–240 V AC, 50–60 Hz|100–240 V AC, 50–60 Hz|Ports
|2POTS+4GE+2.4G&5G WiFi+2USB| |Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters|Interface Parameters| |XG-PON Port|XG-PON Port|• Class N1/N2a
• Receiver sensitivity: -28dBm
• Wavelengths: US 1260-1280nm, DS 1575- 1580nm
• WBF
• Flexible mapping between GEM Port and TCONT
• SN/Password/SN+Password/Bi-directional authentication based on OMCI
• upstream and downstream FEC
• SR-DBA and NSR-DBA
• 2.5Gbps uplink, 10Gbps downlink
|• Class N1/N2a
• Receiver sensitivity: -28dBm
• Wavelengths: US 1260-1280nm, DS 1575- 1580nm
• WBF
• Flexible mapping between GEM Port and TCONT
• SN/Password/SN+Password/Bi-directional authentication based on OMCI
• upstream and downstream FEC
• SR-DBA and NSR-DBA
• 2.5Gbps uplink, 10Gbps downlink
|• Class N1/N2a
• Receiver sensitivity: -28dBm
• Wavelengths: US 1260-1280nm, DS 1575- 1580nm
• WBF
• Flexible mapping between GEM Port and TCONT
• SN/Password/SN+Password/Bi-directional authentication based on OMCI
• upstream and downstream FEC
• SR-DBA and NSR-DBA
• 2.5Gbps uplink, 10Gbps downlink
| |Ethernet Port|Ethernet Port|• Ethernet port-based VLAN tags and tag removal|• Ethernet port-based VLAN tags and tag removal|• Ethernet port-based VLAN tags and tag removal|

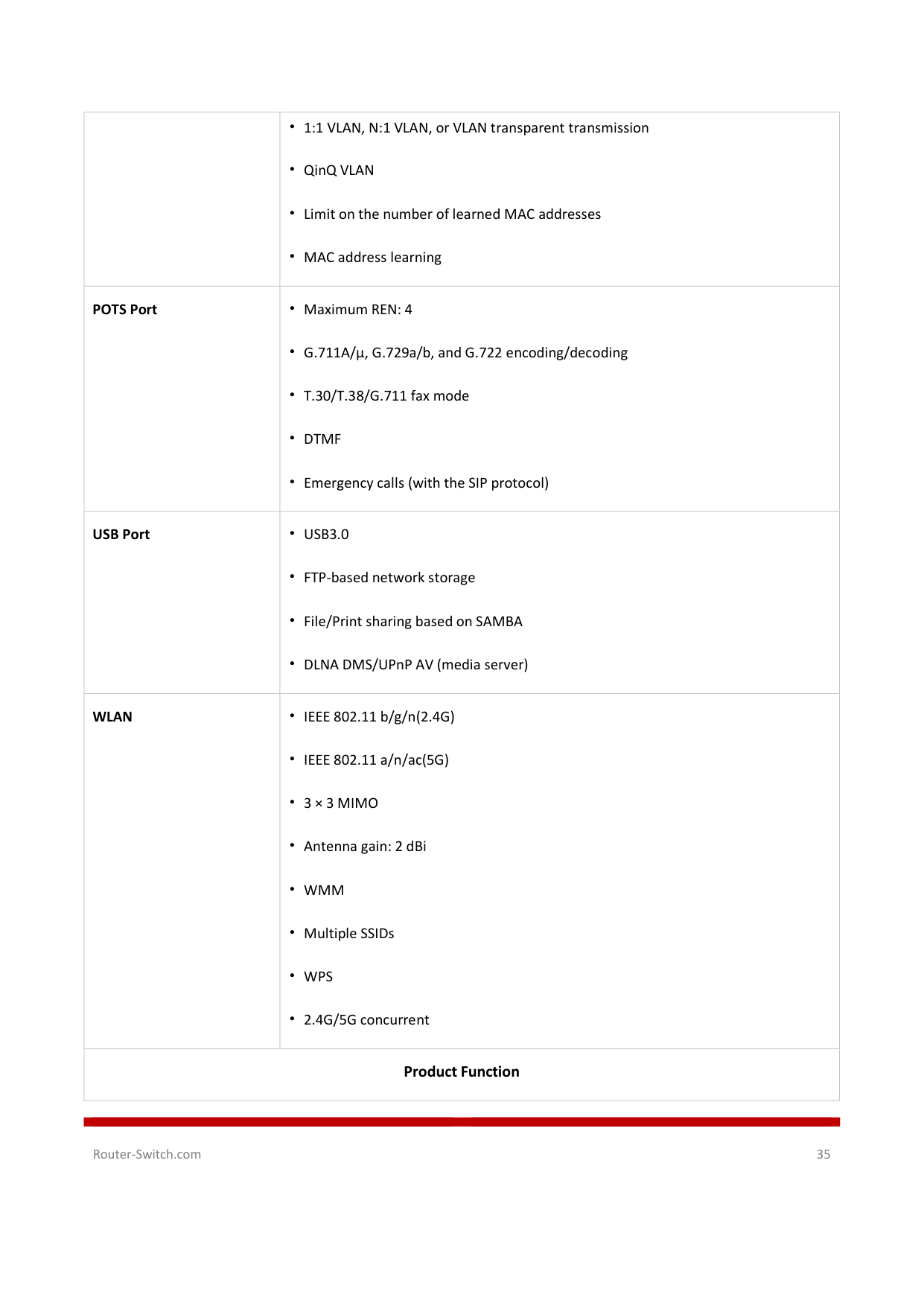

| |• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
| |---|---| |POTS Port|• Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
| |USB Port|• USB3.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA DMS/UPnP AV (media server)
| |WLAN|• IEEE 802.11 b/g/n(2.4G)
• IEEE 802.11 a/n/ac(5G)
• 3 × 3 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
• 2.4G/5G concurrent
|
|Product Function|Product Function|

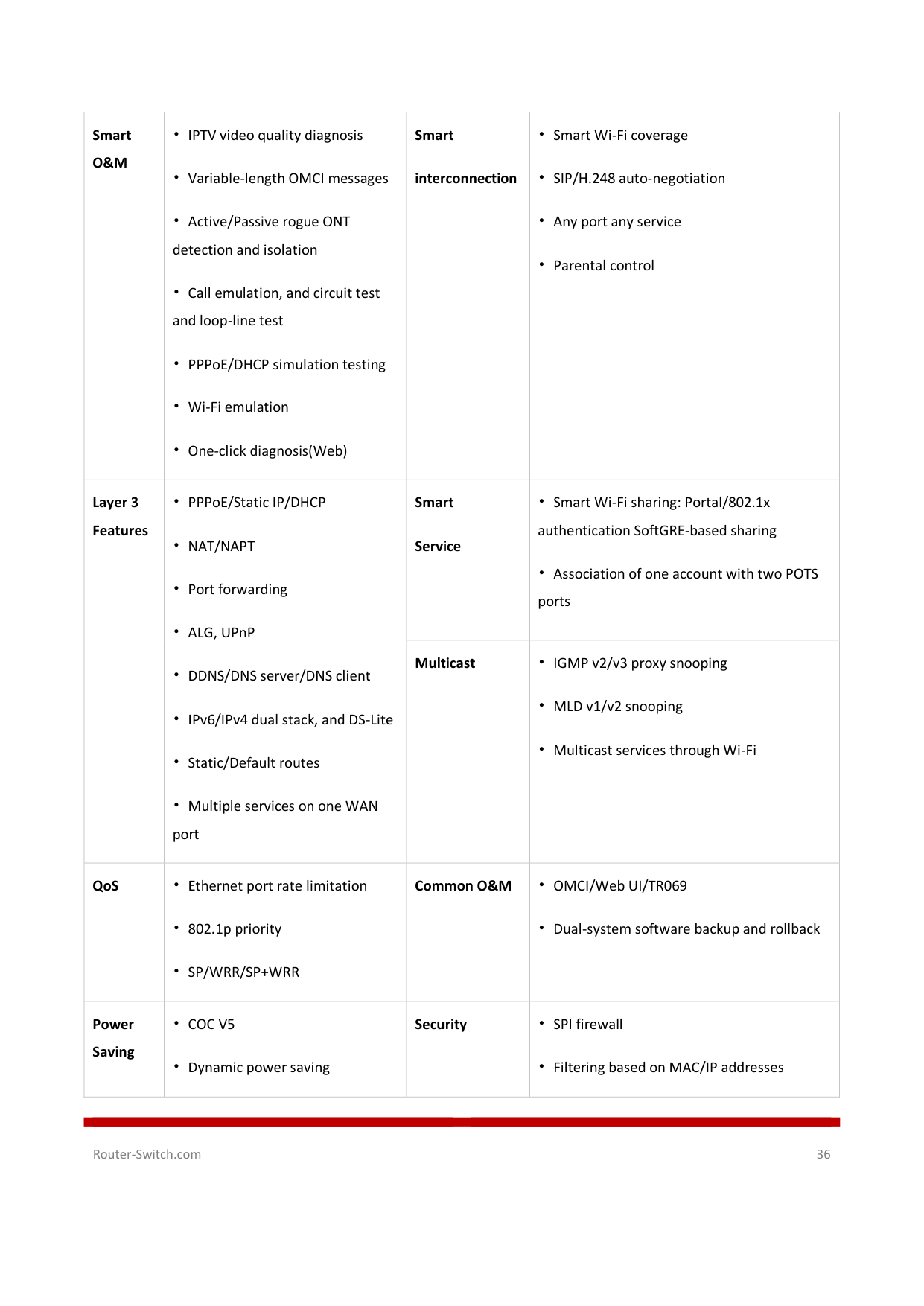

|Smart O&M|• IPTV video quality diagnosis
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• Wi-Fi emulation
• One-click diagnosis(Web)
|Smart
interconnection|• Smart Wi-Fi coverage
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control
| |---|---|---|---| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Smart
Service|• Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing
• Association of one account with two POTS ports
| |Layer 3 Features|• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
|Multicast|• IGMP v2/v3 proxy snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi
| |QoS|• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
|Common O&M|• OMCI/Web UI/TR069
• Dual-system software backup and rollback
| |Power Saving|• COC V5
• Dynamic power saving
|Security|• SPI firewall
• Filtering based on MAC/IP addresses
|
| |• Scheduled Wi-Fi shutdown| | |
|---|---|---|---|
|Basic Ordering Information|Basic Ordering Information| |---|---| |SKU|Description| |EG8010H
|Huawei EchoLife EG8010H GPON Terminal, 1 GE port| |EG8020P
|Huawei EchoLife EG8020P ONT, 2GE PoE ports, 1 GPON port| |EG8040F
|Huawei EchoLife EG8040F ONT, intelligent bridging-type ONT, 4FE| |EG8040H
|Huawei EchoLife EG8040H ONT, intelligent bridging-type ONT, 4GE| |EG8040H5
|Huawei EchoLife EG8040H5 ONT, intelligent bridging-type ONT, 4GE| |EG8040P
|Huawei EchoLife EG8040P ONT, intelligent bridging-type ONT, 4GE PoE|
|EG8080P
|Huawei EchoLife EG8080P ONT, 8*GE (PoE and PoE+), 1*GPON/XG-PON/XGS-PON| |EG8084P
|Huawei EchoLife EG8084P ONT, 8*GE, 1*GPON/XG-PON/XGS-PON| |EG8084P-300G1
|Huawei EchoLife EG8084P Function Module| |EG8084P-300H1
|Huawei EchoLife EG8084P Function Module| |EG8120
|Huawei EchoLife EG8120 ONT, 1FE + 1GE + 1POTS| |EG8120L
|Huawei EchoLife EG8120 ONT, 1POTS+1GE+1FE| |EG8240H
|Huawei EchoLife EG8240H ONT, 4GE + 2POTS| |EG8240H5
|Huawei EchoLife EG8240H5 ONT, 4GE + 2POTS| |EG8240P
|Huawei EchoLife EG8240P ONT, 4*GE(PoE) + 2*POTS| |EG8242H
|Huawei EchoLife EG8242H ONT, 4GE + 2POTS + CATV|
|EG8280P
|Huawei EchoLife EG8280P ONT, 8*GE (PoE and PoE+) + 2*POTS, 1*GPON/XG-PON/XGS-PON| |---|---| |HG8012H
|Huawei EchoLife HG8012H ONT, 1GE + 1CATV| |HG8040H
|Huawei EchoLife HG8040H ONT, 4GE| |HG8040P
|Huawei EchoLife HG8040P, intelligent P2P ONT, 4GE| |HG8045A
|Huawei EchoLife HG8045A, intelligent routing-type ONT, 4FE+Wi-Fi| |HG8045H
|Huawei EchoLife HG8045H, intelligent routing-type ONT, 4GE + Wi-Fi + USB| |HG8050P
|Huawei EchoLife HG8050P, intelligent P2P ONT, NNI: GE optical port or GE electrical port, UNI: 4GE+1GE| |HG8110F
|Huawei EchoLife HG8110F, intelligent bridging-type ONT, 1FE+1POTS (V3R015C00 and before); 1GE+1POTS(after V3R015C00)| |HG8110H
|Huawei EchoLife HG8110H, intelligent bridging-type ONT, 1GE + 1POTS| |HG8120F
|Huawei EchoLife HG8110F, intelligent bridging-type ONT, 2FE + 1POTS| |HG8120H
|Huawei EchoLife HG8120H, intelligent routing-type ONT, 1POTS+1GE+1FE|
|HG8240F
|Huawei EchoLife HG8240F, intelligent bridging-type ONT, 4FE + 1POTS| |HG8240H
|Huawei EchoLife HG8240H, intelligent bridging-type ONT, 4GE + 2POTS| |HG8240S
|Huawei EchoLife HG8240S, intelligent bridging-type ONT, 4GE + 2POTS| |HG8240u
|Huawei EchoLife HG8240u, intelligent bridging-type ONT, 2POTS+4GEv| |HG8242H
|Huawei EchoLife HG8242H, intelligent bridging-type ONT, 4GE + 2POTS + CATV| |HG8245A
|Huawei EchoLife HG8245A, intelligent bridging-type ONT, 2POTS + 4FE + Wi-Fi + 1USB| |HG8245D
|Huawei EchoLife HG8245D, intelligent bridging-type ONT, 2POTS+4GE+2.4G/5G Wi-Fi+USB|
|HG8245H
|Huawei EchoLife HG8245H, intelligent bridging-type ONT, 2POTS + 4GE +2.4G Wi-Fi + 1USB| |---|---| |HG8245Q
|Huawei EchoLife HG8245Q, intelligent bridging-type ONT, 2POTS + 4GE + 2.4G/5G Wi-Fi+ 2USB|
|HG8245U
|Huawei EchoLife HG8245U, intelligent bridging-type ONT, 2POTS+4GE+2.4G/5G Wi-Fi+1USB| |HG8247H
|Huawei EchoLife HG8247H, intelligent bridging-type ONT, 2POTS + 4GE + CATV + Wi-Fi + USB| |HG8247U
|Huawei EchoLife HG8247U, intelligent bridging-type ONT, 4GE+2POTS+2.4G/5G WiFi+1USB+1CATV| |HN8245Q
|Huawei EchoLife HN8245Q, intelligent XG-PON routing-type ONT, XG-PON (SFP+ Optical Module), 2POTS+4GE+2.4G&5G Wi-Fi+2USB| |HN8255Ws
|Huawei EchoLife HN8255Ws, intelligent XGS-PON routing-type ONT, XGS-PON (SFP+ Optical Module), 2 x POTS + 4 x GE + 1 x 10GE +2.4G&5G Wi-Fi + 2 x USB| |LS2035V
|Huawei Smart Home Gateway LS2035V, NNI: GE (Electrical port), UNI: 3GE+2USB+2.4G, WiFi&5G WiFi+Zig-bee|
|Where to Buy| |---|
##### Want to buy this series of products? please contact:
Or visit: Huawei ONT Products
About us
Router-switch.com, founded in 2002, is one of the biggest Global Network Hardware Supplier. We are a leading provider of network products with 14,500+ customers in over 200 countries. We provide original new and used network equipments (Cisco, Huawei, HPE, Dell, Juniper, EMC, etc.), including Routers, Switches, Servers, Storage, Telepresence and Videoconferencing, IP Phones, Firewalls, Wireless APs & Controllers, EHWIC/HWIC/VWIC Cards, SFPs, Memory & Flash, Hard Disk, Cables, and all kinds of network solutions related products.
