Ask AI
— answers from the official manualAnswers from the official manual.
Common questions
Common Questions
10 totalHow do I set up the ERGO M575 Trackball with a USB receiver?
Plug the Logi Bolt Receiver into an open USB port on your computer, then place the trackball near your computer and press the Pair button to connect. (Page 2)
How do I pair the ERGO M575 Trackball using Bluetooth?
Go to your device’s settings, select Bluetooth or Wireless devices, search for Logitech BRIDGE under input devices, and follow on-screen instructions to connect. (Page 2)
What are the ergonomics of the ERGO M575 Trackball?
The ergonomic shape of the ERGO M575 Trackball is tested by users and certified by US Ergonomics to keep hands relaxed, reducing muscle activity by up to 25%. (Page 1)
How do I customize button functions on the ERGO M575 Trackball?
Install the Logi Tune app available for Windows and macOS via logitech.com/tune to assign custom functions to buttons. (Page 2)
What is the warranty period for the ERGO M575 Trackball?
The ERGO M575 Trackball comes with a standard 2-year warranty covering defects in material or workmanship. (Page 2)
What materials are used in the construction of the ERGO M575 Trackball?
The trackball is made from plastic content with up to 52% post-consumer recycled material, excluding cables and packaging. (Page 2)
Full Manual
2 pages
DATASHEET ERGO M575 Wireless Trackball for Business
ERGO M575 Trackball features a sculpted shape and smooth thumb control. Certified by US Ergonomics, it is designed to keep hands relaxed and improve forearm posture1. Get precise tracking on any surface and adjust cursor speed to your preference. Plus, customizable buttons and quiet clicks improve the work experience.

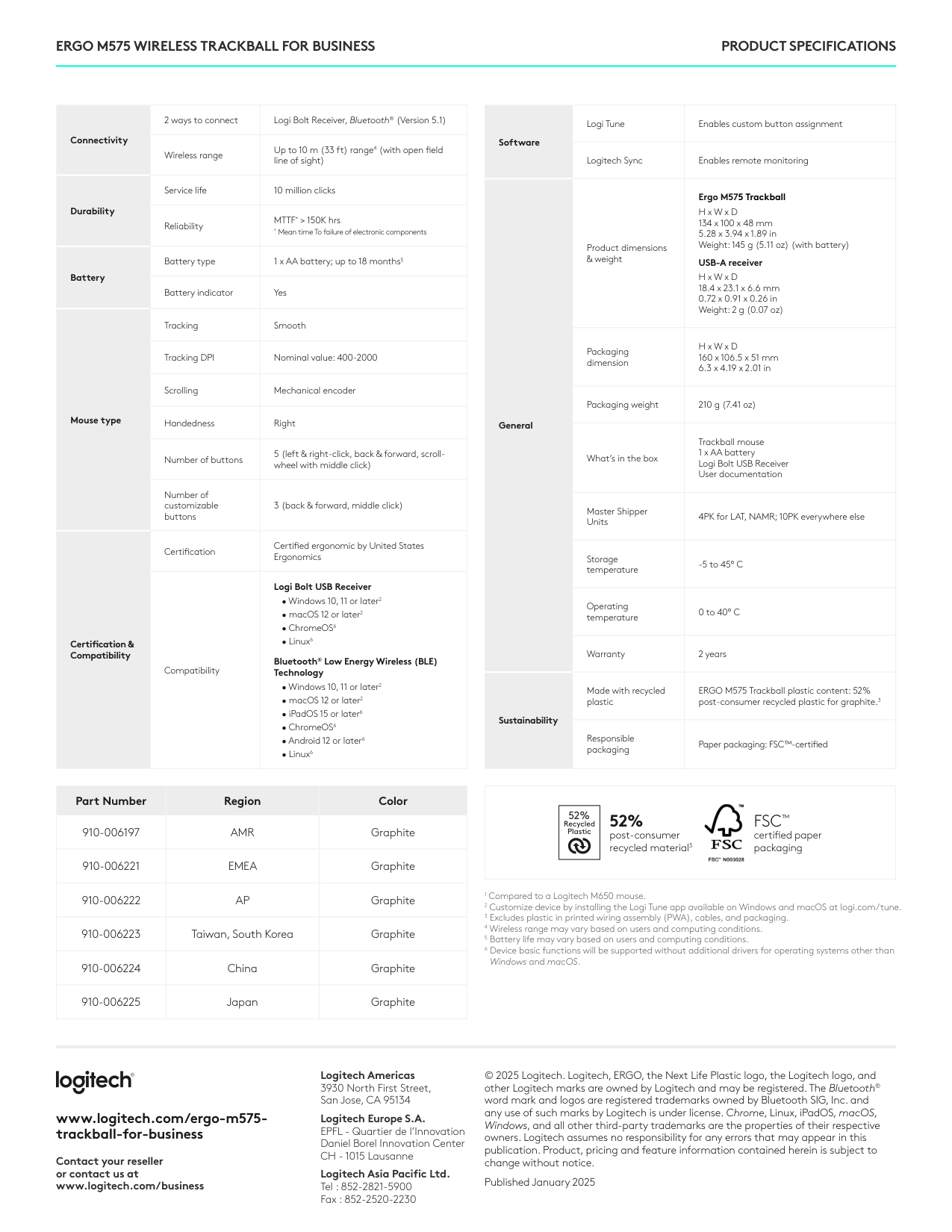

ERGO M575 WIRELESS TRACKBALL FOR BUSINESS PRODUCT SPECIFICATIONS
|Connectivity|2 ways to connect|Logi Bolt Receiver, Bluetooth® (Version 5.1)| |---|---|---| |Connectivity|Wireless range|Up to 10 m (33 ft) range4 (with open field line of sight)| |Durability|Service life|10 million clicks| |Durability|Reliability|MTTF* > 150K hrs
* Mean time To failure of electronic components| |Battery|Battery type|1 x AA battery; up to 18 months5| |Battery|Battery indicator|Yes| |Mouse type|Tracking|Smooth| |Mouse type|Tracking DPI|Nominal value: 400-2000| |Mouse type|Scrolling|Mechanical encoder| |Mouse type|Handedness|Right| |Mouse type|Number of buttons|5 (left & right-click, back & forward, scrollwheel with middle click)| |Mouse type|Number of customizable buttons|3 (back & forward, middle click)| |Certification & Compatibility|Certification|Certified ergonomic by United States Ergonomics| |Certification & Compatibility|Compatibility|Logi Bolt USB Receiver
• Windows 10, 11 or later2
• macOS 12 or later2
• ChromeOS6
• Linux6
Bluetooth® Low Energy Wireless (BLE) Technology
• Windows 10, 11 or later2
• macOS 12 or later2
• iPadOS 15 or later6
• ChromeOS6
• Android 12 or later6
• Linux6
|
|Part Number|Region|Color| |---|---|---| |910-006197|AMR|Graphite| |910-006221|EMEA|Graphite| |910-006222|AP|Graphite| |910-006223|Taiwan, South Korea|Graphite| |910-006224|China|Graphite| |910-006225|Japan|Graphite|
|Software|Logi Tune|Enables custom button assignment| |---|---|---| |Software|Logitech Sync|Enables remote monitoring| |General|Product dimensions & weight|Ergo M575 Trackball
H x W x D 134 x 100 x 48 mm 5.28 x 3.94 x 1.89 in Weight: 145 g (5.11 oz) (with battery)
USB-A receiver
H x W x D 18.4 x 23.1 x 6.6 mm 0.72 x 0.91 x 0.26 in Weight: 2 g (0.07 oz)| |General|Packaging dimension|H x W x D 160 x 106.5 x 51 mm 6.3 x 4.19 x 2.01 in| |General|Packaging weight|210 g (7.41 oz)| |General|What’s in the box|Trackball mouse 1 x AA battery Logi Bolt USB Receiver User documentation| |General|Master Shipper Units|4PK for LAT, NAMR; 10PK everywhere else| |General|Storage temperature|-5 to 45° C| |General|Operating temperature|0 to 40° C| |General|Warranty|2 years| |Sustainability|Made with recycled plastic|ERGO M575 Trackball plastic content: 52% post-consumer recycled plastic for graphite.3| |Sustainability|Responsible packaging|Paper packaging: FSC™-certified|
|52% post-consumer recycled material3
FSC™ certified paper packaging
52%| |---|
www.logitech.com/ergo-m575trackball-for-business
Contact your reseller or contact us at www.logitech.com/business
Logitech Americas 3930 North First Street, San Jose, CA 95134
Logitech Europe S.A.
EPFL - Quartier de l’Innovation Daniel Borel Innovation Center CH - 1015 Lausanne
Logitech Asia Pacific Ltd. Tel : 852-2821-5900 Fax : 852-2520-2230
© 2025 Logitech. Logitech, ERGO, the Next Life Plastic logo, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Logitech is under license. Chrome, Linux, iPadOS, macOS, Windows, and all other third-party trademarks are the properties of their respective owners. Logitech assumes no responsibility for any errors that may appear in this publication. Product, pricing and feature information contained herein is subject to change without notice. Published January 2025
