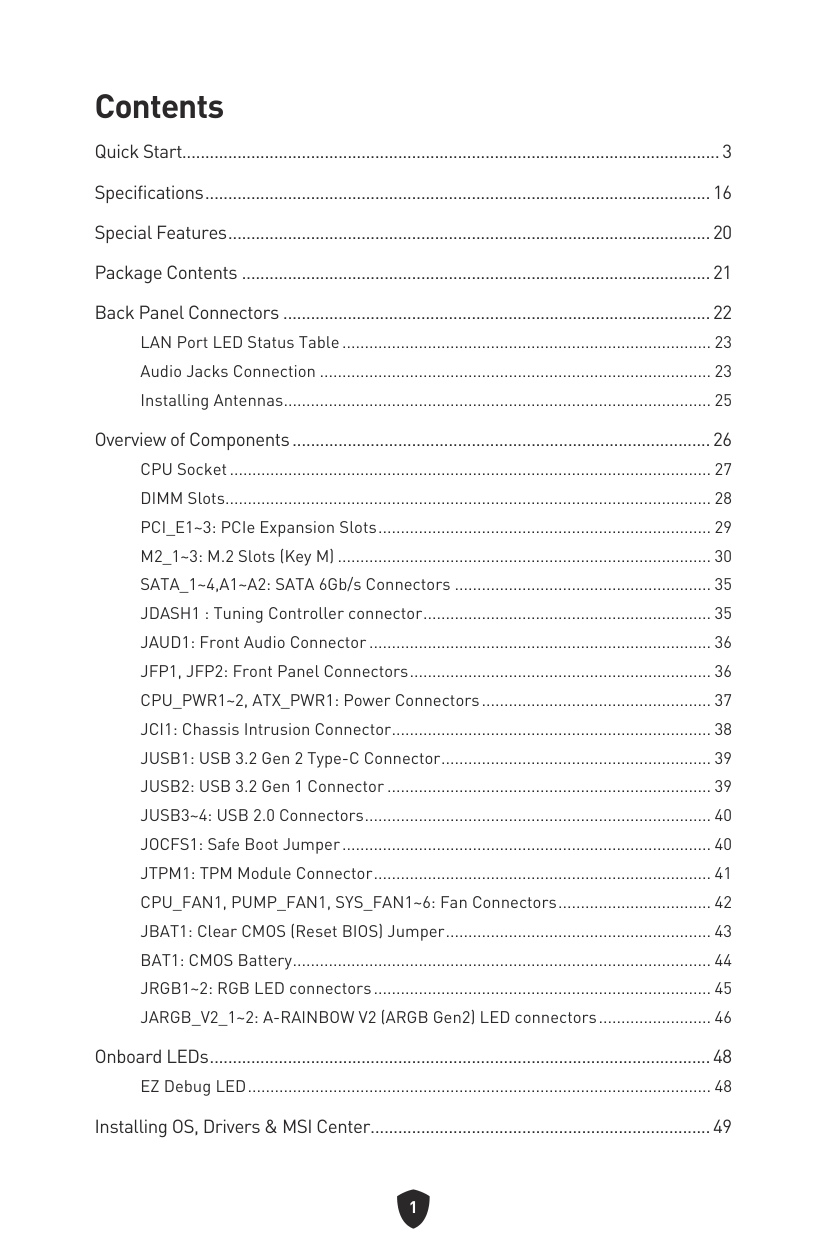

#### Contents

Quick Start.....................................................................................................................3 Specifications ..............................................................................................................16 Special Features .........................................................................................................20 Package Contents ......................................................................................................21 Back Panel Connectors .............................................................................................22

LAN Port LED Status Table .................................................................................. 23 Audio Jacks Connection ....................................................................................... 23 Installing Antennas ............................................................................................... 25

Overview of Components ...........................................................................................26 CPU Socket ........................................................................................................... 27 DIMM Slots ............................................................................................................ 28 PCI_E1~3: PCIe Expansion Slots .......................................................................... 29 M2_1~3: M.2 Slots (Key M) ................................................................................... 30 SATA_1~4,A1~A2: SATA 6Gb/s Connectors ......................................................... 35 JDASH1 : Tuning Controller connector ................................................................ 35 JAUD1: Front Audio Connector ............................................................................ 36 JFP1, JFP2: Front Panel Connectors ................................................................... 36 CPU_PWR1~2, ATX_PWR1: Power Connectors ................................................... 37 JCI1: Chassis Intrusion Connector ....................................................................... 38

Onboard LEDs .............................................................................................................48

EZ Debug LED ....................................................................................................... 48 Installing OS, Drivers & MSI Center ..........................................................................49

Installing Drivers with MSI Driver Utility Installer ............................................... 50 MSI Center ............................................................................................................ 52

UEFI BIOS ....................................................................................................................53 BIOS Setup ............................................................................................................ 54 Resetting BIOS ...................................................................................................... 55 Updating BIOS ....................................................................................................... 55

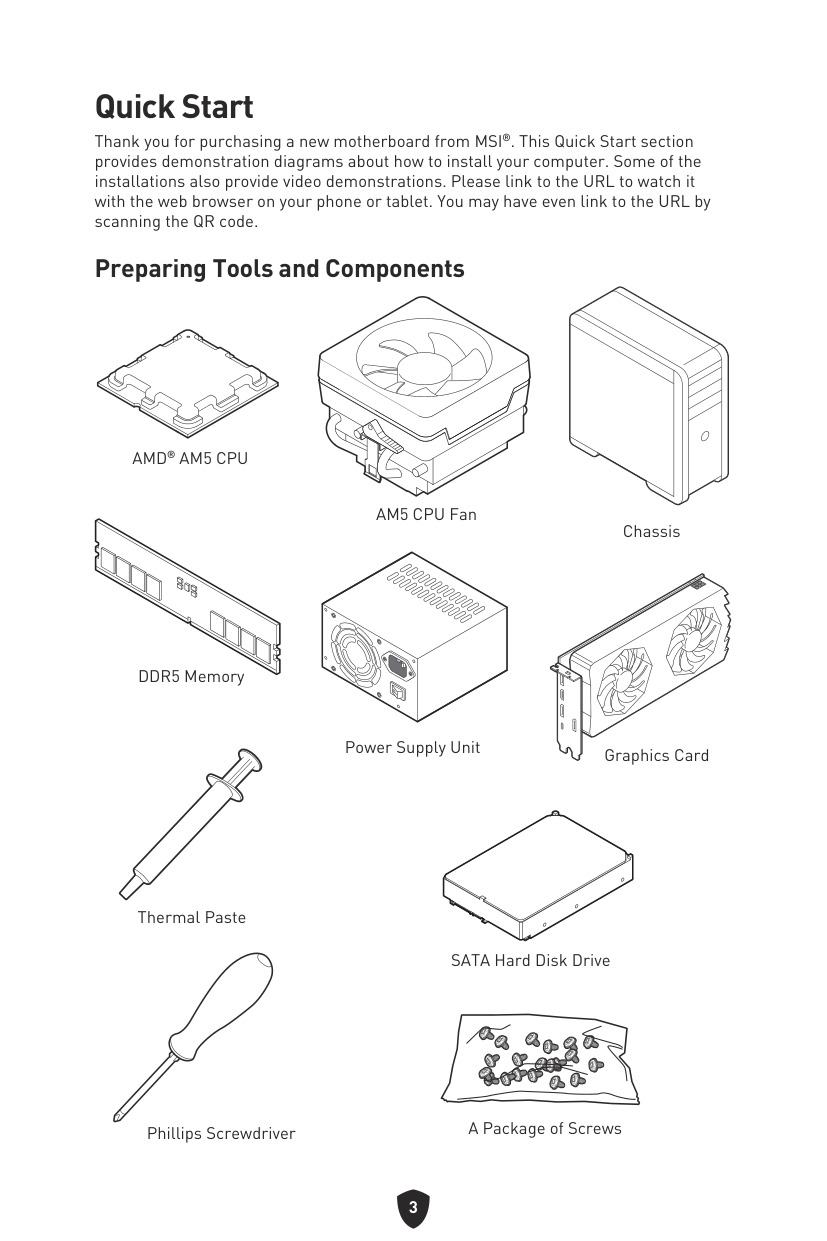

#### Quick Start

Thank you for purchasing a new motherboard from MSI®. This Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.

###### Preparing Tools and Components

AMD® AM5 CPU

AM5 CPU Fan

Chassis

DDR5 Memory

Power Supply Unit

Graphics Card

Thermal Paste

SATA Hard Disk Drive

A Package of Screws

Phillips Screwdriver

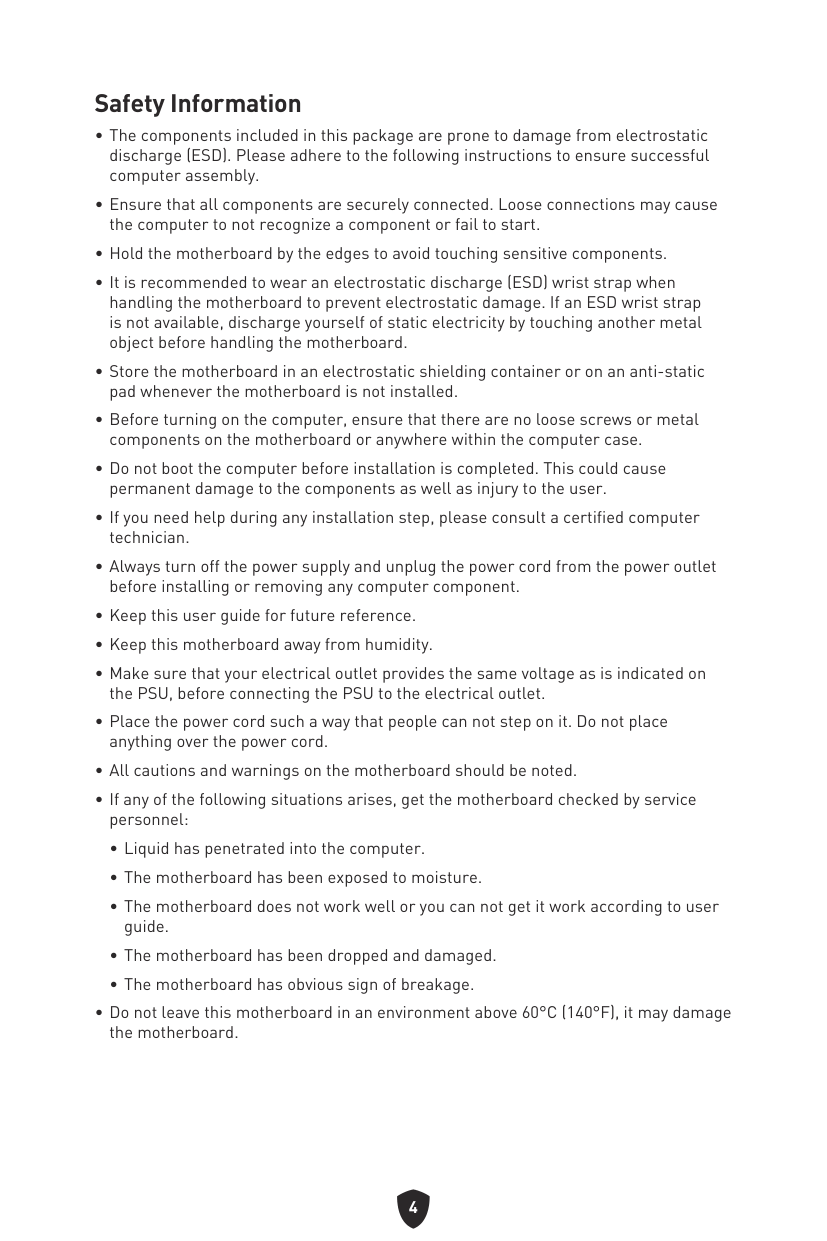

###### Safety Information

∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly.

∙ Ensure that all components are securely connected. Loose connections may cause

the computer to not recognize a component or fail to start.

∙ Hold the motherboard by the edges to avoid touching sensitive components.

∙ It is recommended to wear an electrostatic discharge (ESD) wrist strap when

handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard.

∙ Store the motherboard in an electrostatic shielding container or on an anti-static

pad whenever the motherboard is not installed.

∙ Before turning on the computer, ensure that there are no loose screws or metal

components on the motherboard or anywhere within the computer case.

∙ Do not boot the computer before installation is completed. This could cause

permanent damage to the components as well as injury to the user.

∙ If you need help during any installation step, please consult a certified computer

technician.

∙ Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing any computer component.

∙ Keep this user guide for future reference.

∙ Keep this motherboard away from humidity.

∙ Make sure that your electrical outlet provides the same voltage as is indicated on

the PSU, before connecting the PSU to the electrical outlet.

∙ Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

∙ All cautions and warnings on the motherboard should be noted.

∙ If any of the following situations arises, get the motherboard checked by service

personnel:

∙ Do not leave this motherboard in an environment above 60°C (140°F), it may damage

the motherboard.

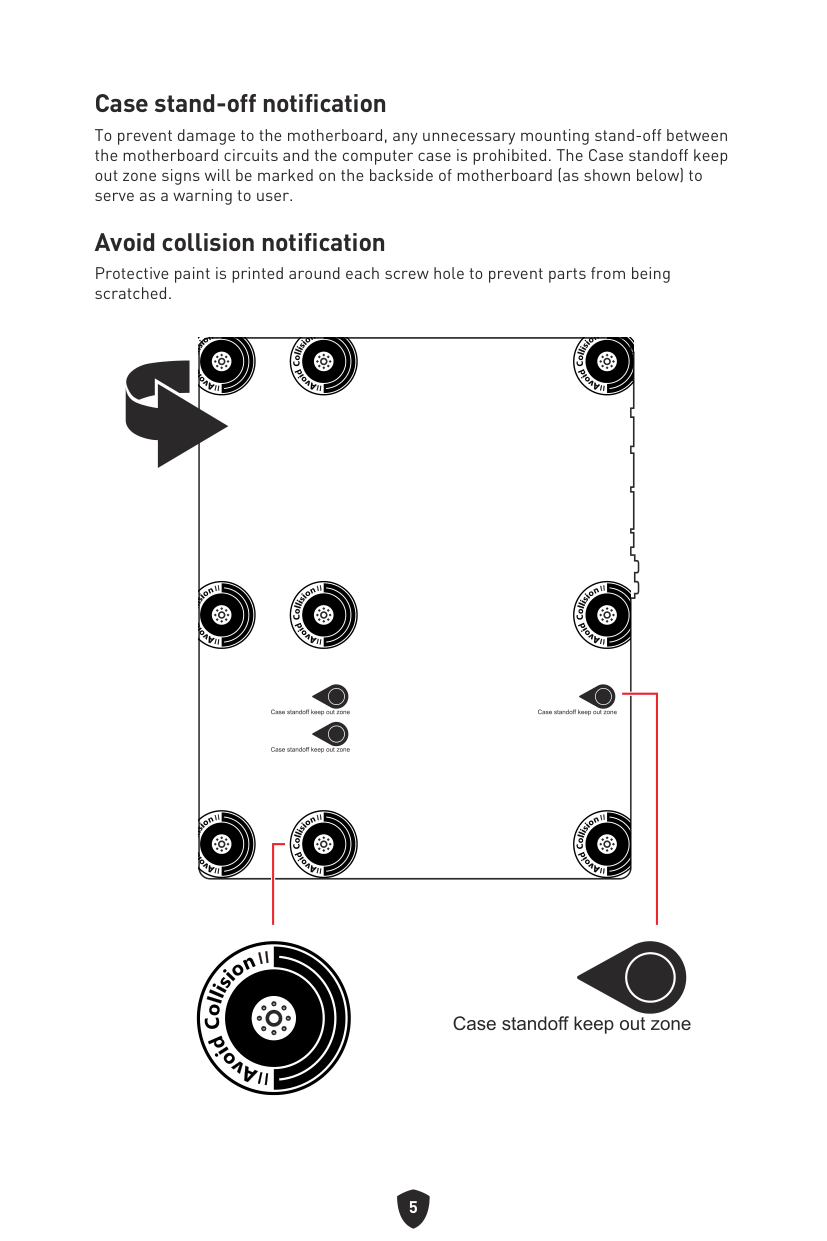

###### Case stand-off notification

To prevent damage to the motherboard, any unnecessary mounting stand-off between the motherboard circuits and the computer case is prohibited. The Case standoff keep out zone signs will be marked on the backside of motherboard (as shown below) to serve as a warning to user.

###### Avoid collision notification

Protective paint is printed around each screw hole to prevent parts from being scratched.

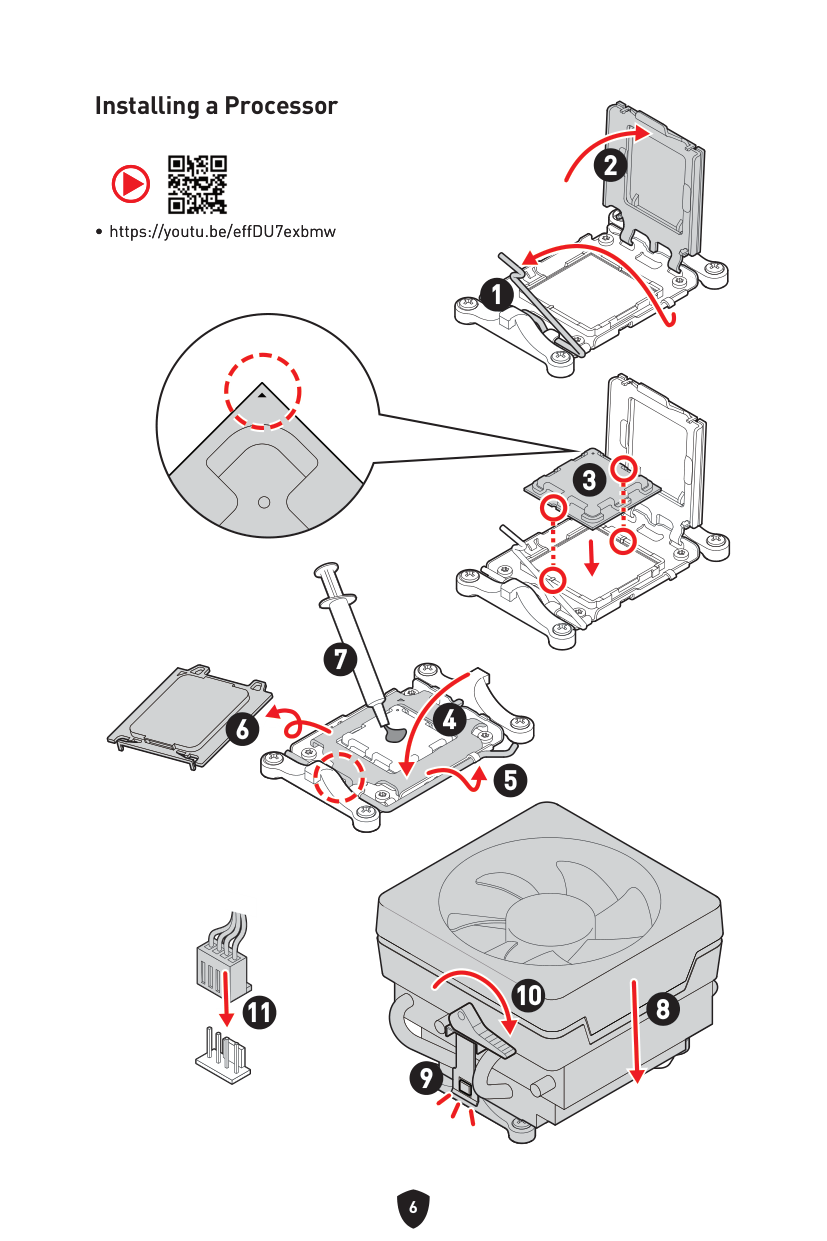

###### Installing a Processor

⚽



∙ https://youtu.be/effDU7exbmw

1

7

6 4

5

10

811

9

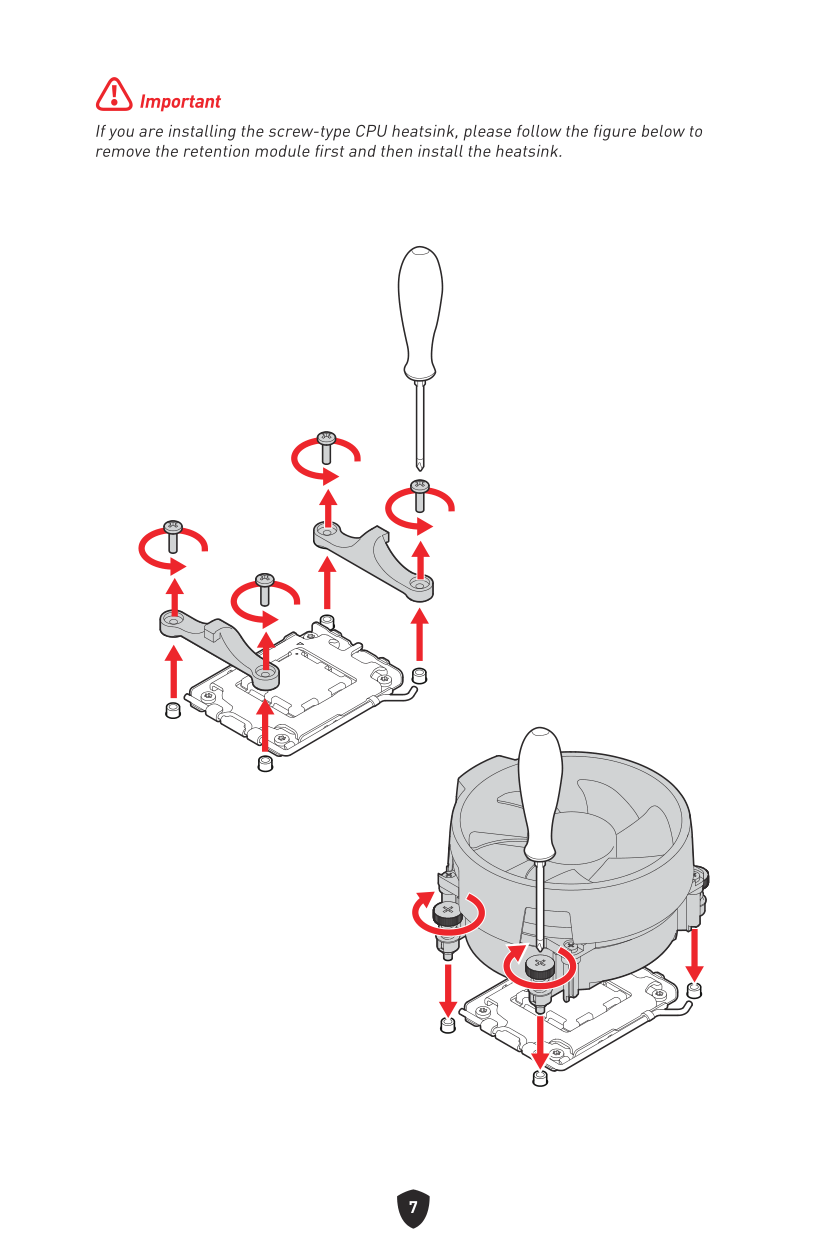

⚠Important

If you are installing the screw-type CPU heatsink, please follow the figure below to remove the retention module first and then install the heatsink.

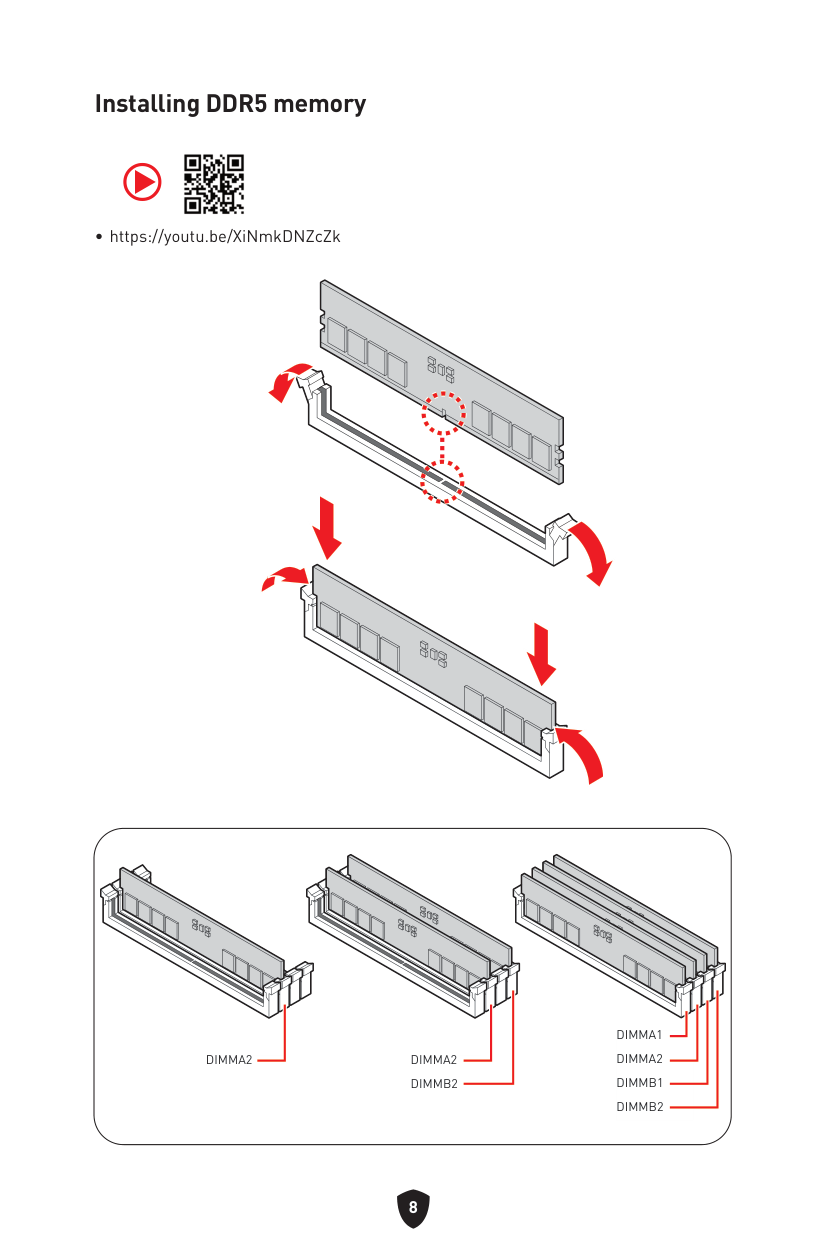

###### Installing DDR5 memory

⚽


∙ https://youtu.be/XiNmkDNZcZk

DIMMA2 DIMMA2 DIMMB2

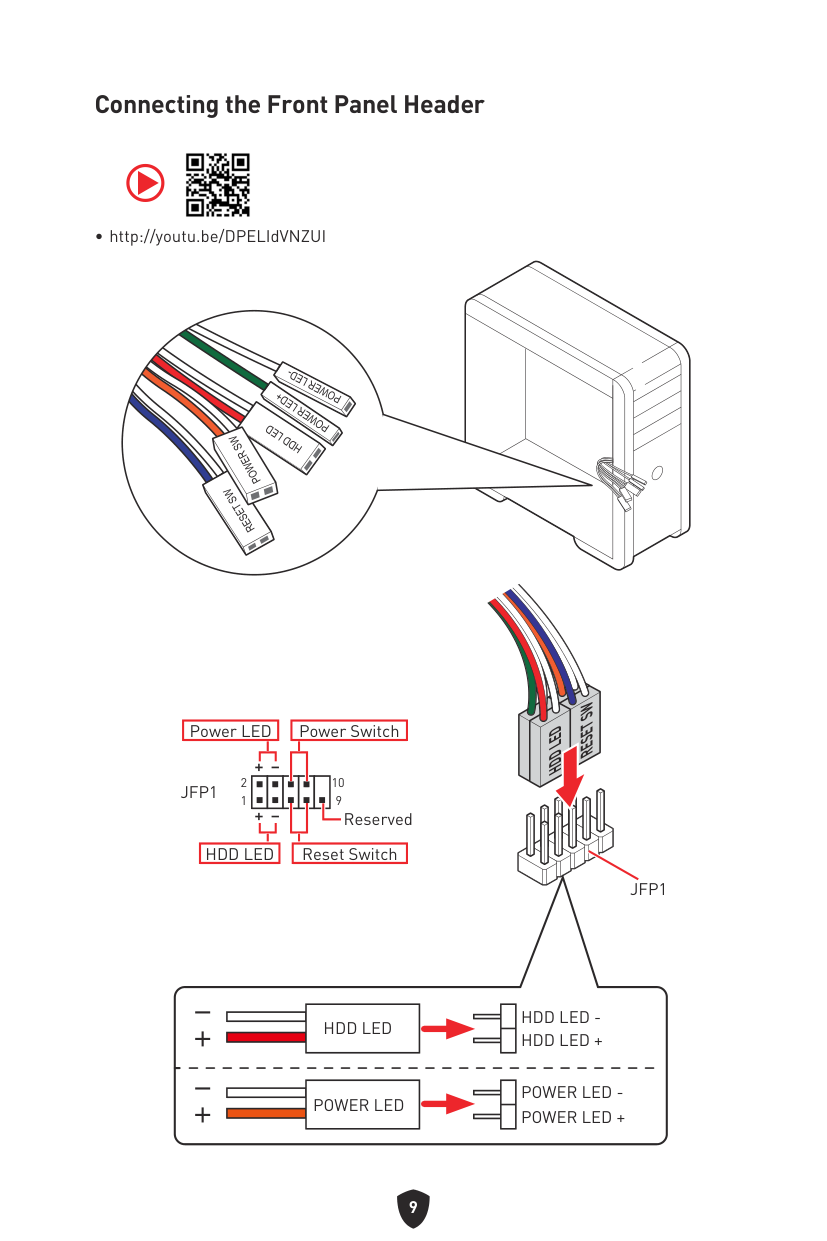

Connecting the Front Panel Header


⚽

∙ http://youtu.be/DPELIdVNZUI

POWER LED-

POWER LED+

HDD LED

POWER SW

RESET SW

Power Switch

|Power LED

| |---|

JFP1

Reserved

|HDD LED

| |---|

Reset Switch

RESET SW

HDD LED

| | | |---|---| | | |

| | |

|---|---| | | |

| | | |---|---| | | |

JFP1

| |HDD LED| |---|---| | |HDD LED| | |HDD LED|

| | | |---|---| | | | | | | | | |

HDD LED HDD LED +

POWER LED POWER LED +

| |POWER LED| |---|---| | |POWER LED| | |POWER LED|

| | | |---|---| | | | | | | | | |

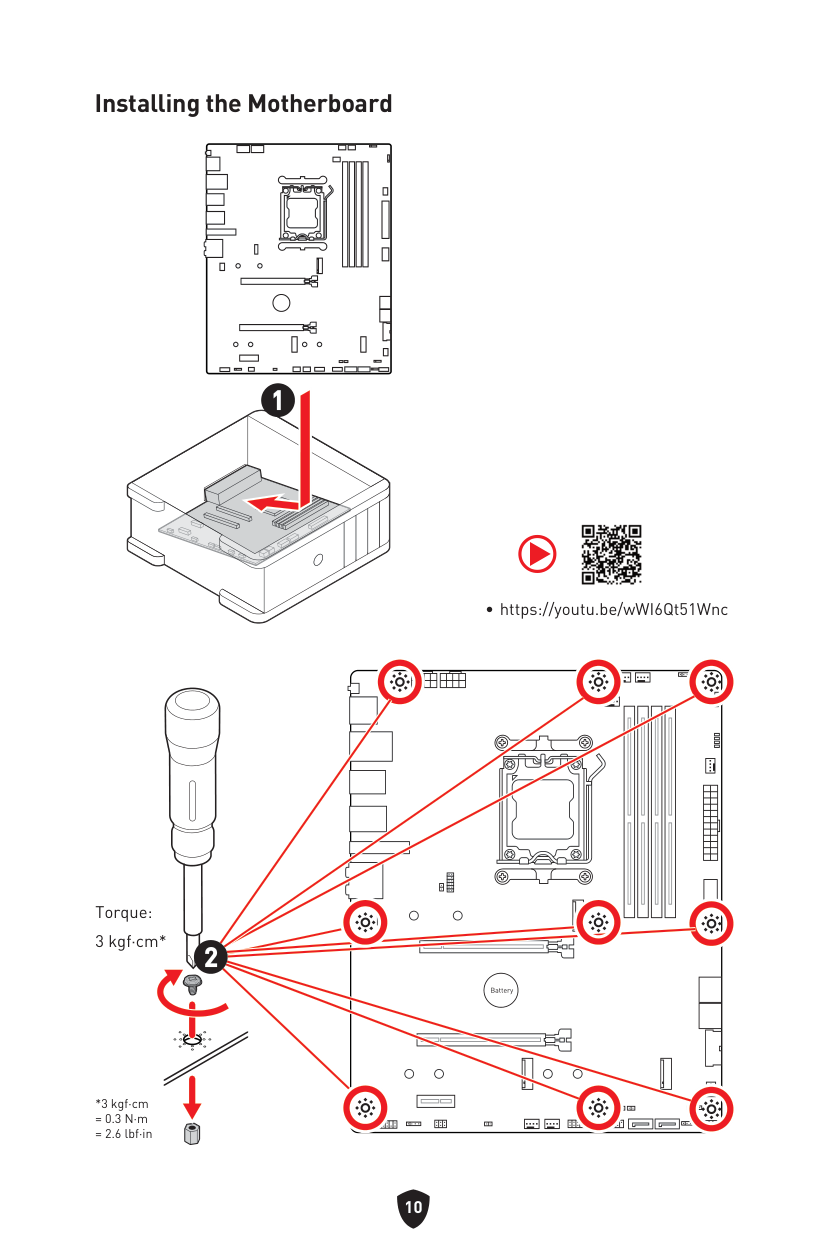

###### Installing the Motherboard

| | | | | |---|---|---|---|

####### 1

⚽


∙ https://youtu.be/wWI6Qt51Wnc

| | | | | |---|---|---|---| | | | | |

| | | | | |---|---|---|---| | | | | |

| | | |---|---|

| | |---| | |

| | | |---|---| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

| | |---| | |

Torque: 3 kgf·cm*

####### 2

*3 kgf·cm = 0.3 N·m = 2.6 lbf·in

| | | |---|---|

| | | |---|---|

| | | |---|---|

| | | | | | |---|---|---|---|---|

| | | | |---|---|---|

| | | | | | |---|---|---|---|---|

| | | | | | | | |---|---|---|---|---|---|---|

| | | | | | |---|---|---|---|---|

| | | |---|---|

| | | |---|---|

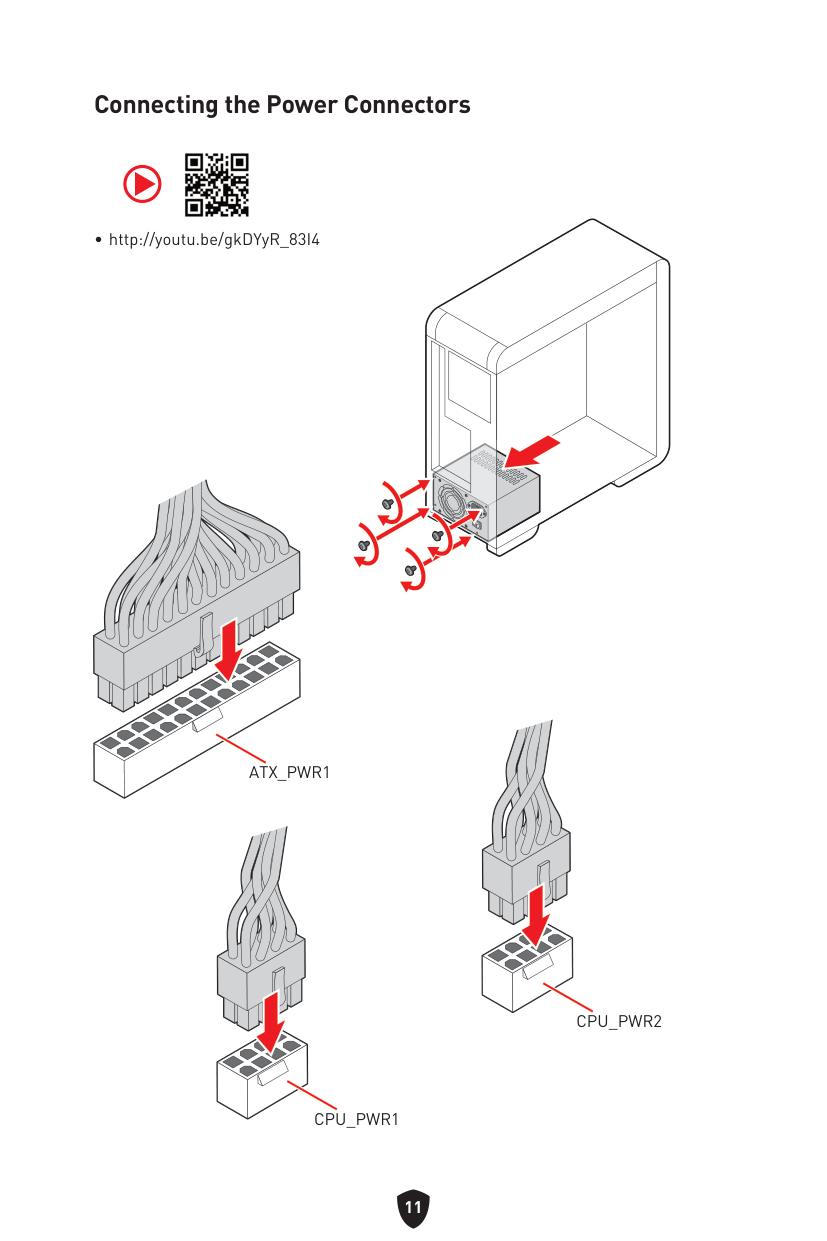

###### Connecting the Power Connectors


⚽

∙ http://youtu.be/gkDYyR_83I4

ATX_PWR1

CPU_PWR2

CPU_PWR1

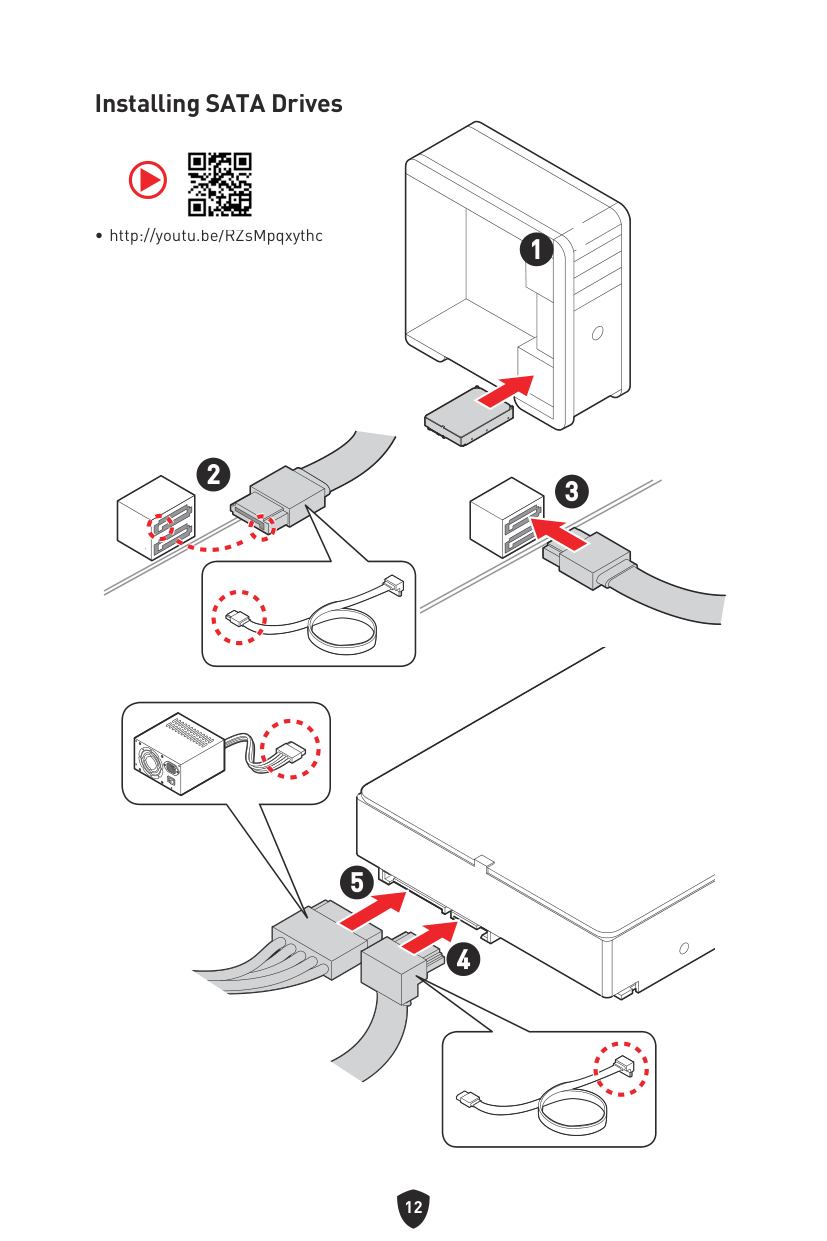

###### Installing SATA Drives


⚽

∙ http://youtu.be/RZsMpqxythc 1

2

3

5

4

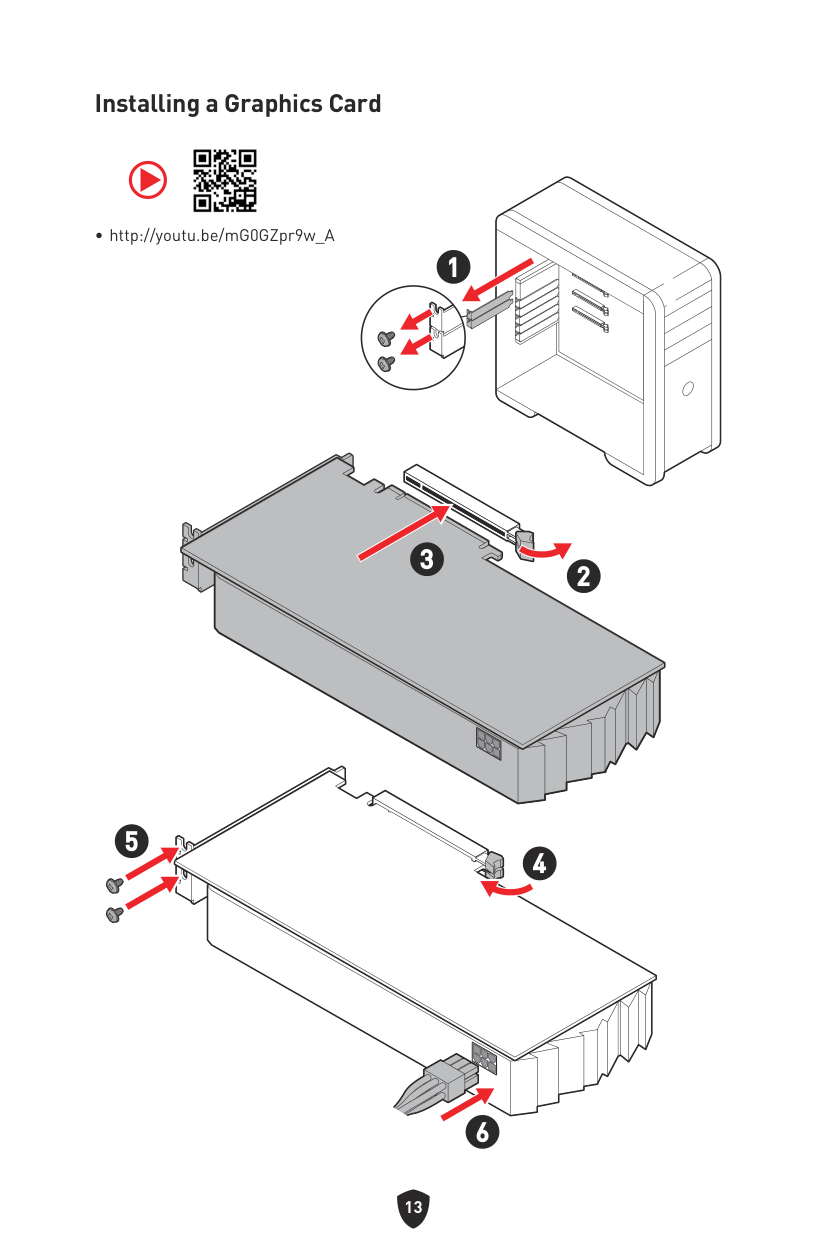

###### Installing a Graphics Card


⚽

∙ http://youtu.be/mG0GZpr9w_A

1

3

| | | |---|---| | | |

2

5

4

6

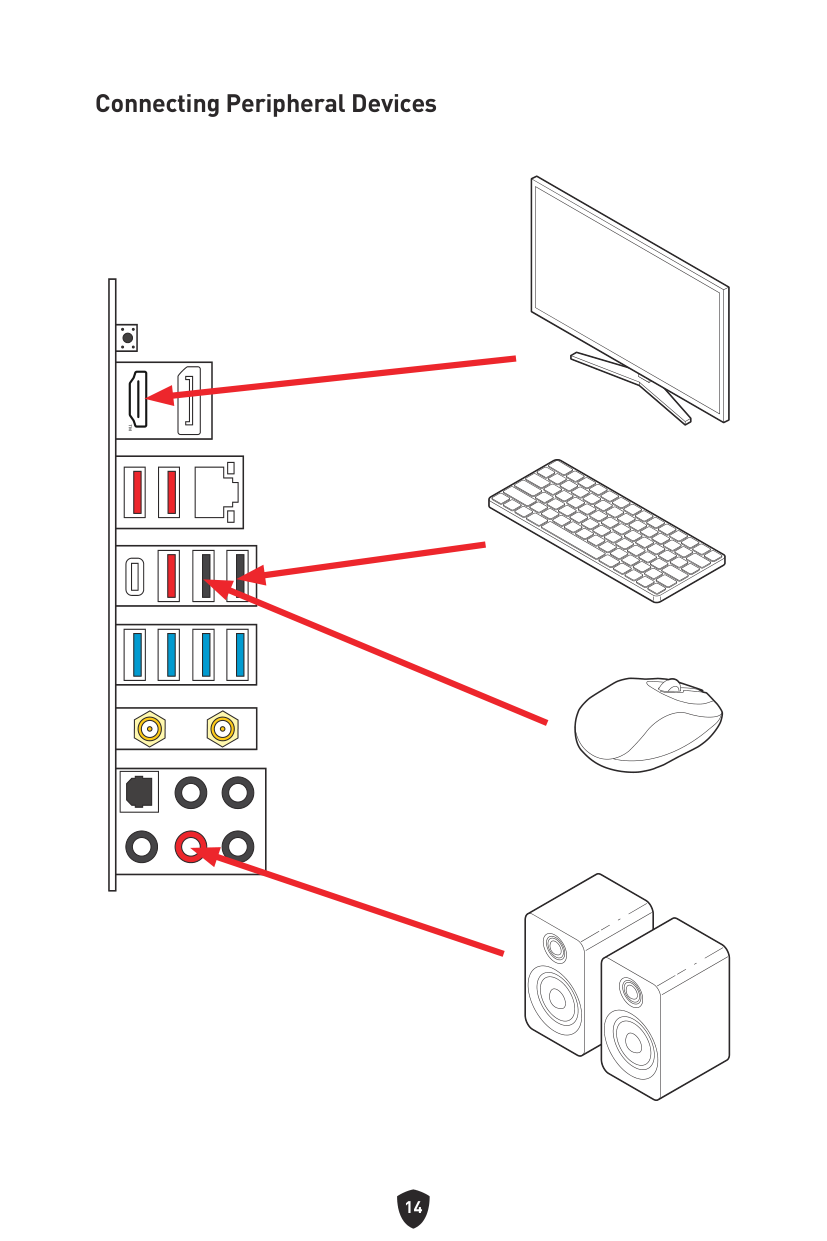

###### Connecting Peripheral Devices

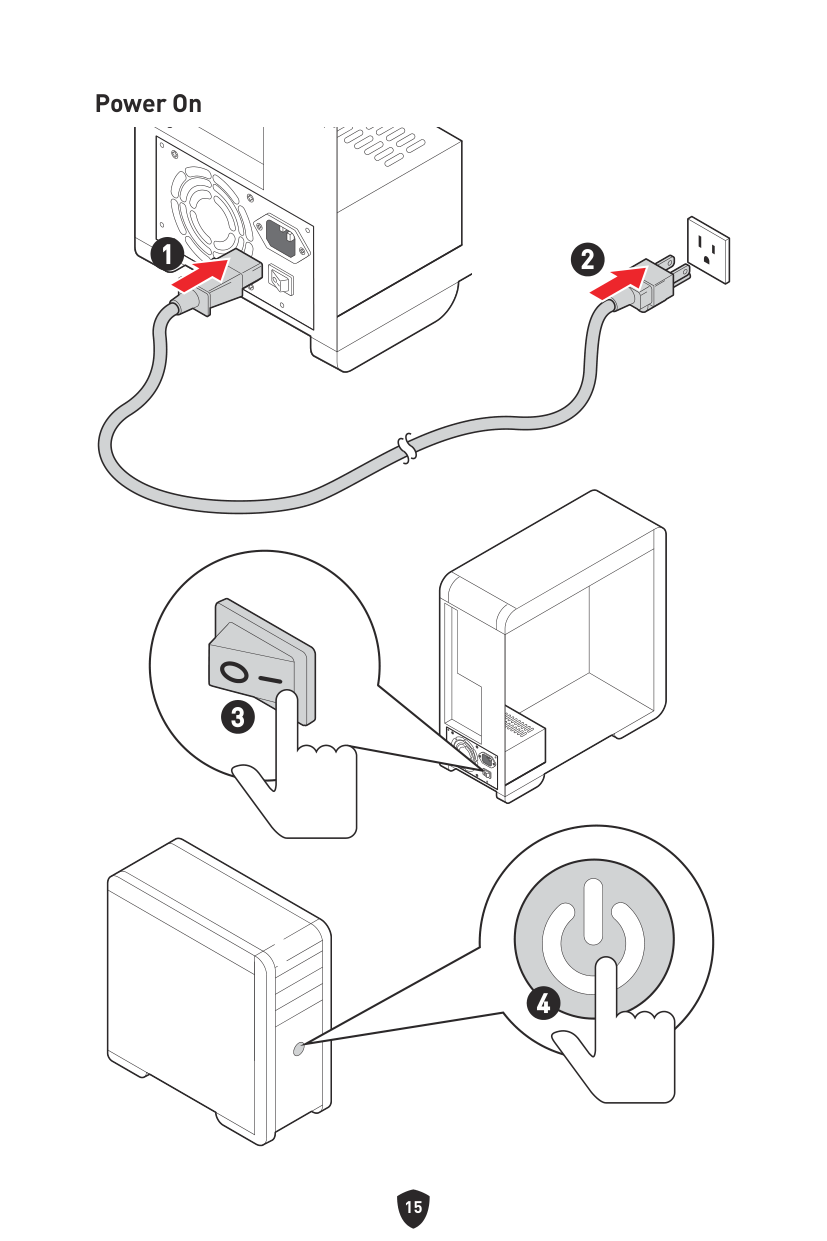

###### Power On

1 2

3

4

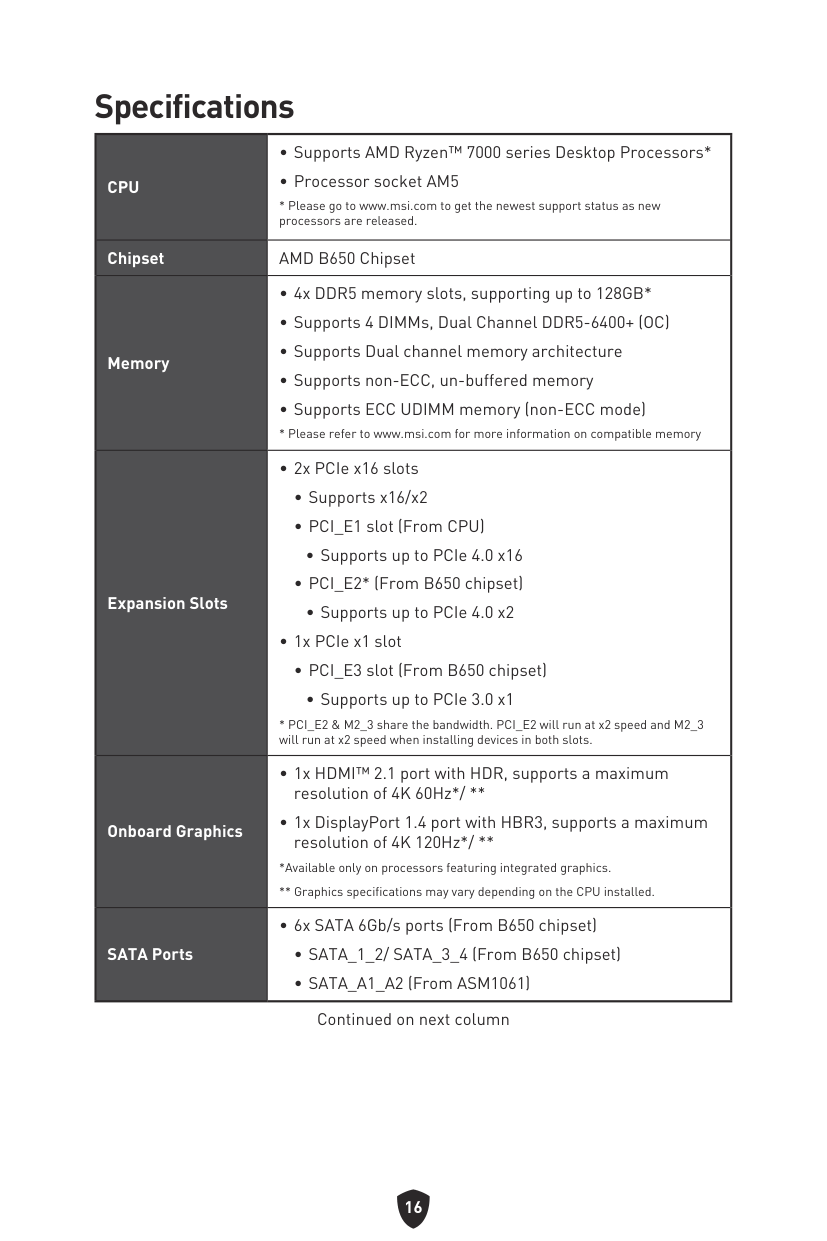

#### Specifications

|CPU|∙ Supports AMD Ryzen™ 7000 series Desktop Processors*

∙ Processor socket AM5

* Please go to www.msi.com to get the newest support status as new processors are released.| |---|---| |Chipset|AMD B650 Chipset| |Memory|∙ 4x DDR5 memory slots, supporting up to 128GB*

∙ Supports 4 DIMMs, Dual Channel DDR5-6400+ (OC)

∙ Supports Dual channel memory architecture

∙ Supports non-ECC, un-buffered memory

∙ Supports ECC UDIMM memory (non-ECC mode)

* Please refer to www.msi.com for more information on compatible memory| |Expansion Slots|∙ 2x PCIe x16 slots

• Supports x16/x2
• PCI_E1 slot (From CPU)
• Supports up to PCIe 4.0 x16
• PCI_E2* (From B650 chipset)
• Supports up to PCIe 4.0 x2


∙ 1x PCIe x1 slot

• PCI_E3 slot (From B650 chipset)
• Supports up to PCIe 3.0 x1


* PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.| |Onboard Graphics|∙ 1x HDMI™ 2.1 port with HDR, supports a maximum

resolution of 4K 60Hz*/

∙ 1x DisplayPort 1.4 port with HBR3, supports a maximum

resolution of 4K 120Hz*/

*Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
| |SATA Ports|∙ 6x SATA 6Gb/s ports (From B650 chipset)

• SATA_1_2/ SATA_3_4 (From B650 chipset)
• SATA_A1_A2 (From ASM1061)
|

Continued on next column

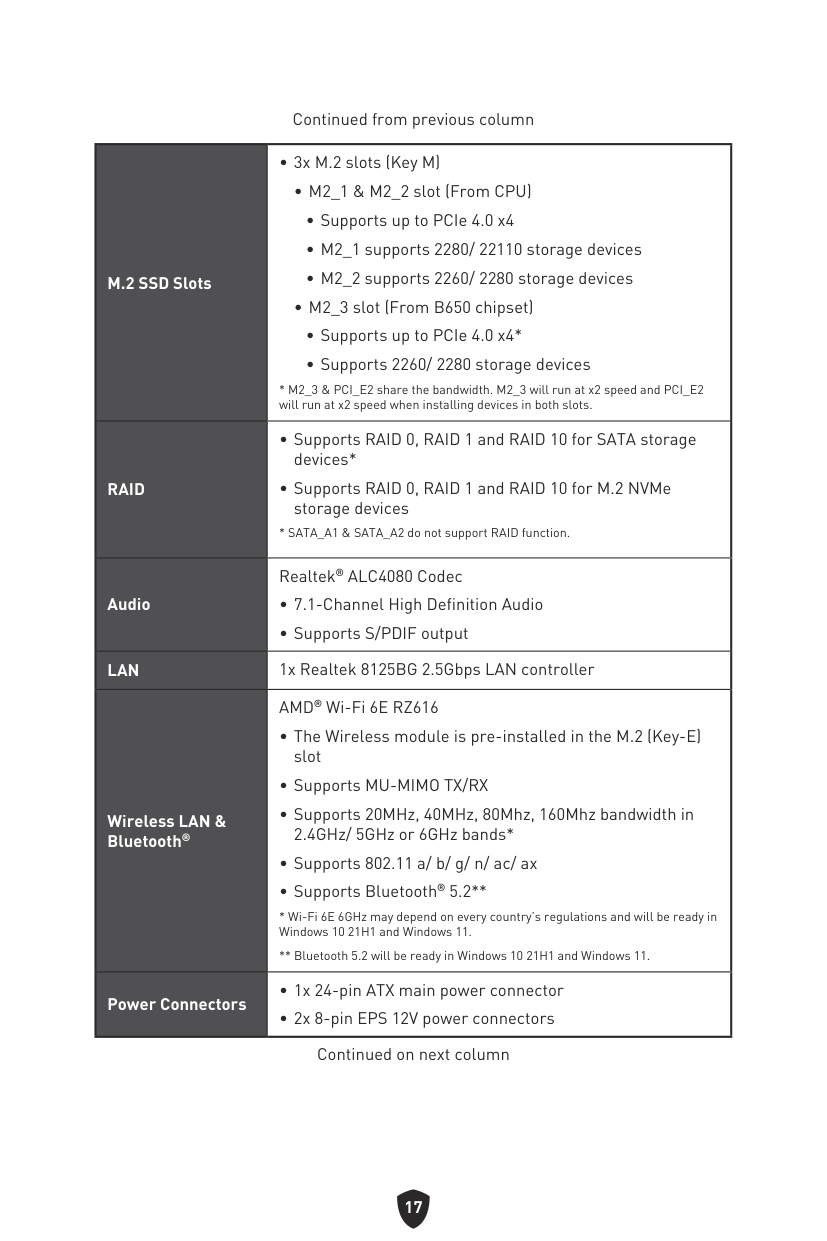

|M.2 SSD Slots|∙ 3x M.2 slots (Key M)

• M2_1 & M2_2 slot (From CPU)
• Supports up to PCIe 4.0 x4
• M2_1 supports 2280/ 22110 storage devices
• M2_2 supports 2260/ 2280 storage devices
• M2_3 slot (From B650 chipset)
• Supports up to PCIe 4.0 x4*
• Supports 2260/ 2280 storage devices


* M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.| |---|---| |RAID|∙ Supports RAID 0, RAID 1 and RAID 10 for SATA storage

devices*

∙ Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe

storage devices

* SATA_A1 & SATA_A2 do not support RAID function.| |Audio|Realtek® ALC4080 Codec

∙ 7.1-Channel High Definition Audio

∙ Supports S/PDIF output| |LAN|1x Realtek 8125BG 2.5Gbps LAN controller| |Wireless LAN & Bluetooth®|AMD® Wi-Fi 6E RZ616

∙ The Wireless module is pre-installed in the M.2 (Key-E)

slot

∙ Supports MU-MIMO TX/RX

∙ Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in

2.4GHz/ 5GHz or 6GHz bands*

∙ Supports 802.11 a/ b/ g/ n/ ac/ ax

∙ Supports Bluetooth® 5.2

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 21H1 and Windows 11.
Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11.
|

|Power Connectors|∙ 1x 24-pin ATX main power connector
∙ 2x 8-pin EPS 12V power connectors
|

########### Continued on next column

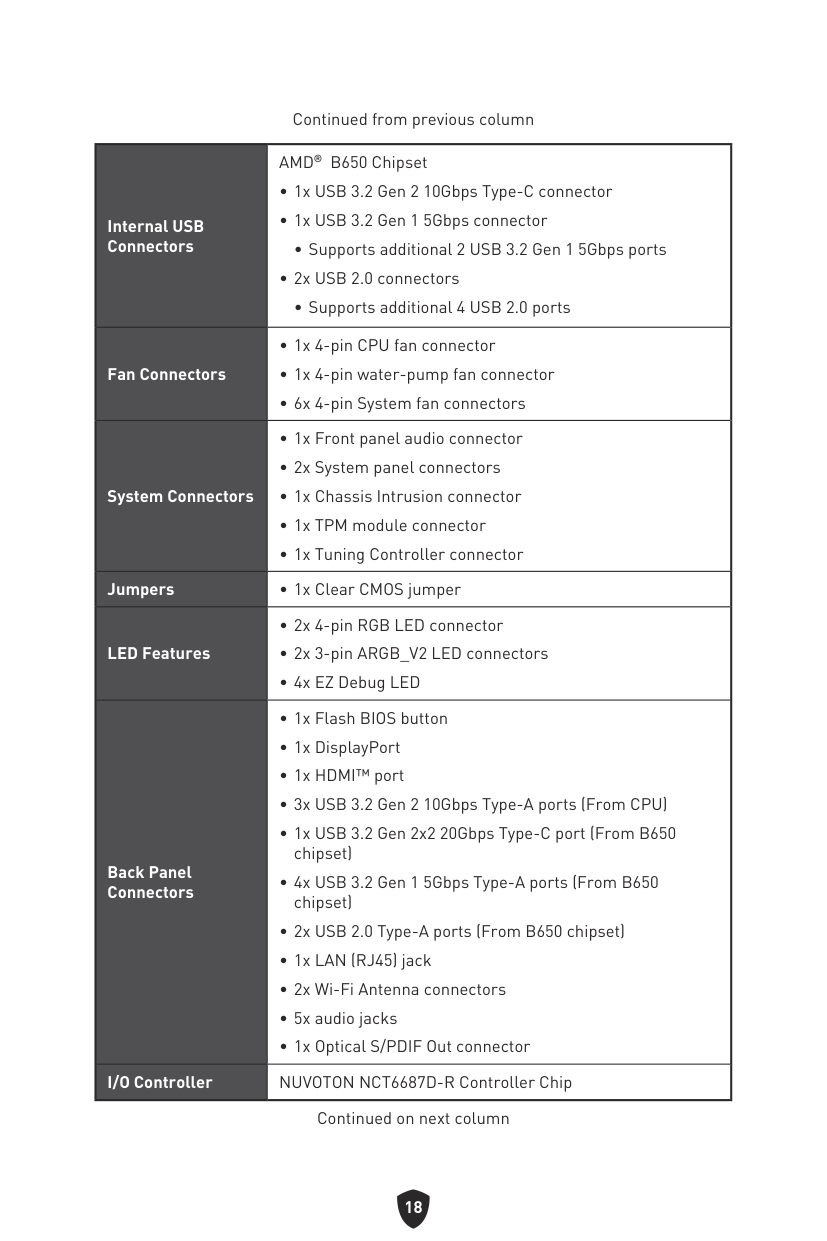

|Internal USB Connectors|AMD® B650 Chipset

∙ 1x USB 3.2 Gen 2 10Gbps Type-C connector

∙ 1x USB 3.2 Gen 1 5Gbps connector

• Supports additional 2 USB 3.2 Gen 1 5Gbps ports

∙ 2x USB 2.0 connectors


• Supports additional 4 USB 2.0 ports| |---|---| |Fan Connectors|∙ 1x 4-pin CPU fan connector

∙ 1x 4-pin water-pump fan connector

∙ 6x 4-pin System fan connectors| |System Connectors|∙ 1x Front panel audio connector
∙ 2x System panel connectors


∙ 1x Chassis Intrusion connector

∙ 1x TPM module connector

∙ 1x Tuning Controller connector| |Jumpers|∙ 1x Clear CMOS jumper| |LED Features|∙ 2x 4-pin RGB LED connector

∙ 2x 3-pin ARGB_V2 LED connectors

∙ 4x EZ Debug LED| |Back Panel Connectors|∙ 1x Flash BIOS button

∙ 1x DisplayPort

∙ 1x HDMI™ port

∙ 3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)

∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)

∙ 4x USB 3.2 Gen 1 5Gbps Type-A ports (From B650

chipset)

∙ 2x USB 2.0 Type-A ports (From B650 chipset)


∙ 5x audio jacks


∙ 1x LAN (RJ45) jack
∙ 2x Wi-Fi Antenna connectors


∙ 1x Optical S/PDIF Out connector| |I/O Controller|NUVOTON NCT6687D-R Controller Chip|

########### Continued on next column

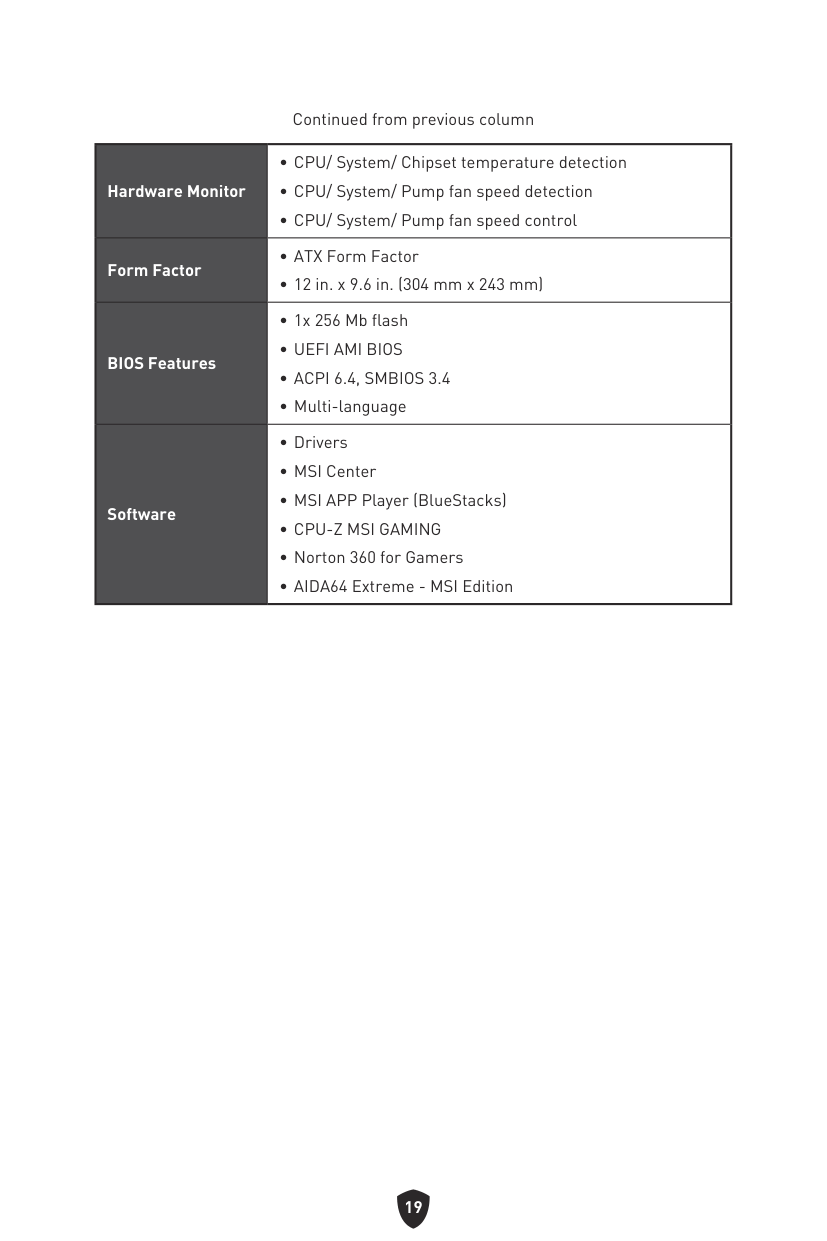

|Hardware Monitor|∙ CPU/ System/ Chipset temperature detection

∙ CPU/ System/ Pump fan speed detection

∙ CPU/ System/ Pump fan speed control| |---|---| |Form Factor|∙ ATX Form Factor

∙ 12 in. x 9.6 in. (304 mm x 243 mm)| |BIOS Features|∙ 1x 256 Mb flash

∙ UEFI AMI BIOS

∙ ACPI 6.4, SMBIOS 3.4

∙ Multi-language| |Software|∙ Drivers

∙ MSI Center

∙ MSI APP Player (BlueStacks)

∙ CPU-Z MSI GAMING

∙ Norton 360 for Gamers

∙ AIDA64 Extreme - MSI Edition|

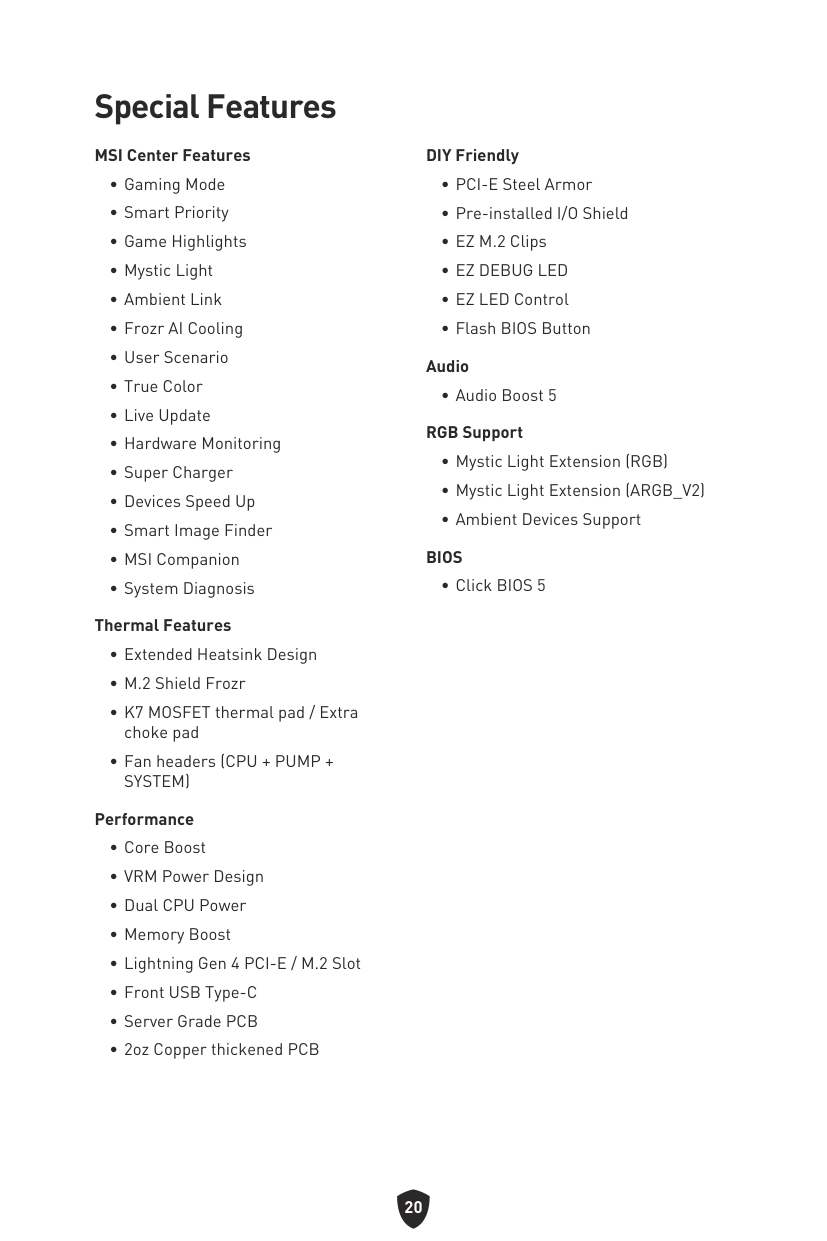

#### Special Features

########## MSI Center Features

########## Thermal Features

########## Performance

########## DIY Friendly

########## Audio

• Audio Boost 5 RGB Support

########## BIOS

• Click BIOS 5

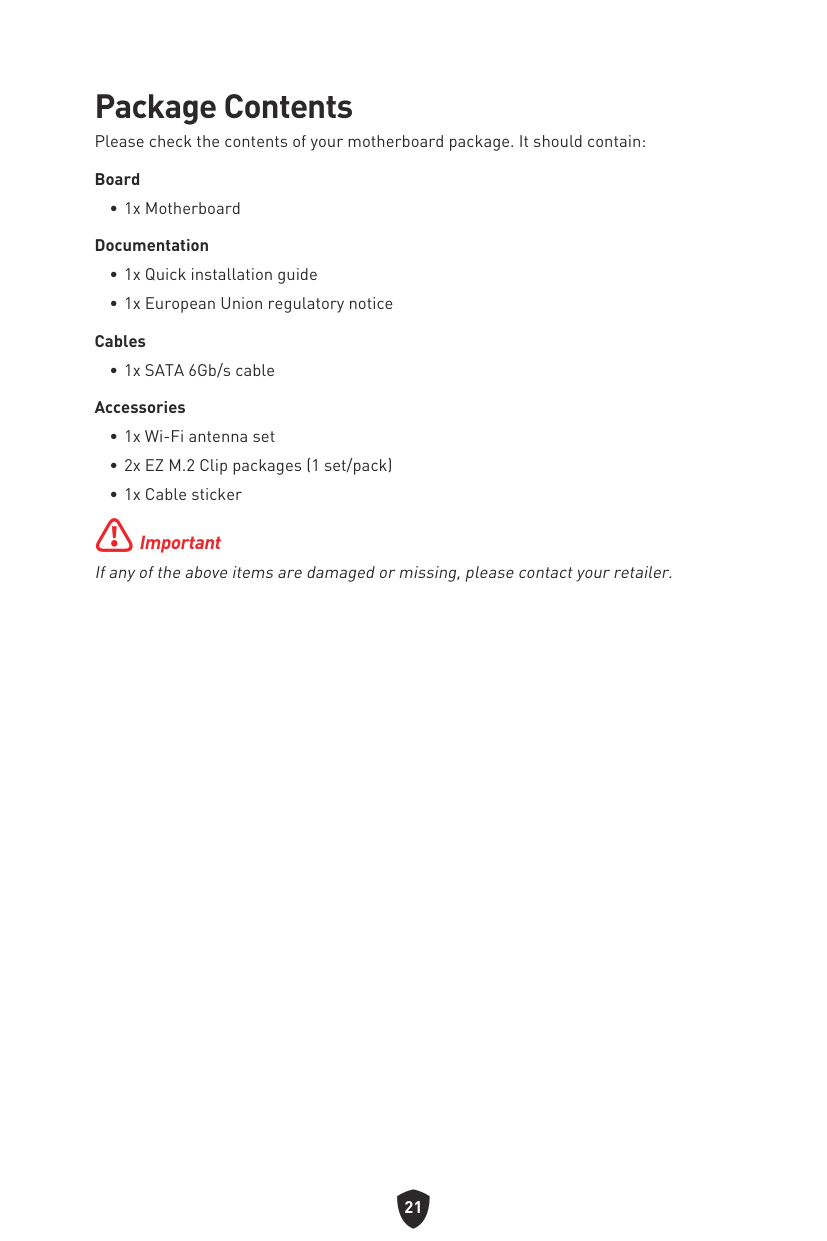

Package Contents Please check the contents of your motherboard package. It should contain: Board

• 1x Motherboard Documentation

########## Cables

• 1x SATA 6Gb/s cable Accessories

⚠Important

If any of the above items are damaged or missing, please contact your retailer.

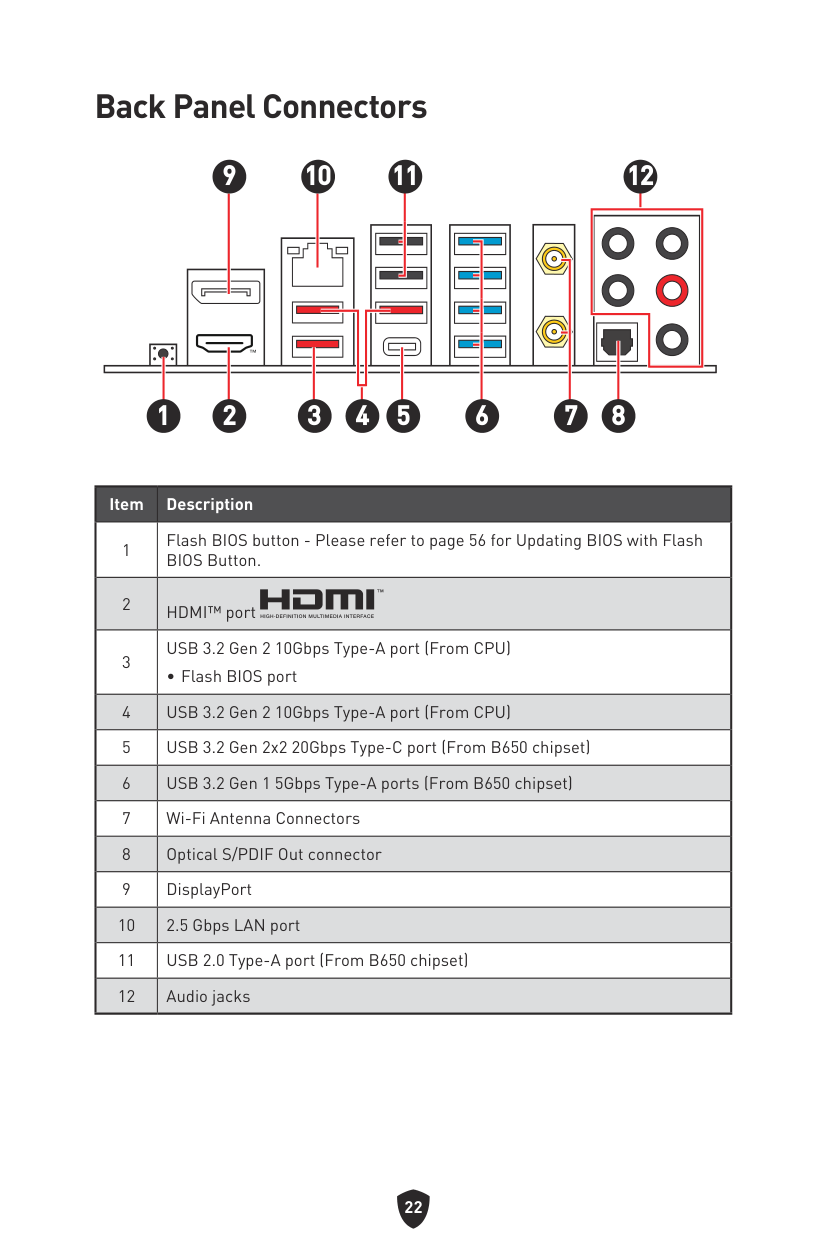

#### Back Panel Connectors

9 10

11

12

1 82

643 7

5

|Item|Description| |---|---| |1|Flash BIOS button - Please refer to page 56 for Updating BIOS with Flash BIOS Button.| |2|HDMI™ port

| |3|USB 3.2 Gen 2 10Gbps Type-A port (From CPU)

∙ Flash BIOS port|

|4|USB 3.2 Gen 2 10Gbps Type-A port (From CPU)| |5|USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)| |6|USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset)| |7|Wi-Fi Antenna Connectors| |8|Optical S/PDIF Out connector| |9|DisplayPort| |10|2.5 Gbps LAN port| |11|USB 2.0 Type-A port (From B650 chipset)| |12|Audio jacks|

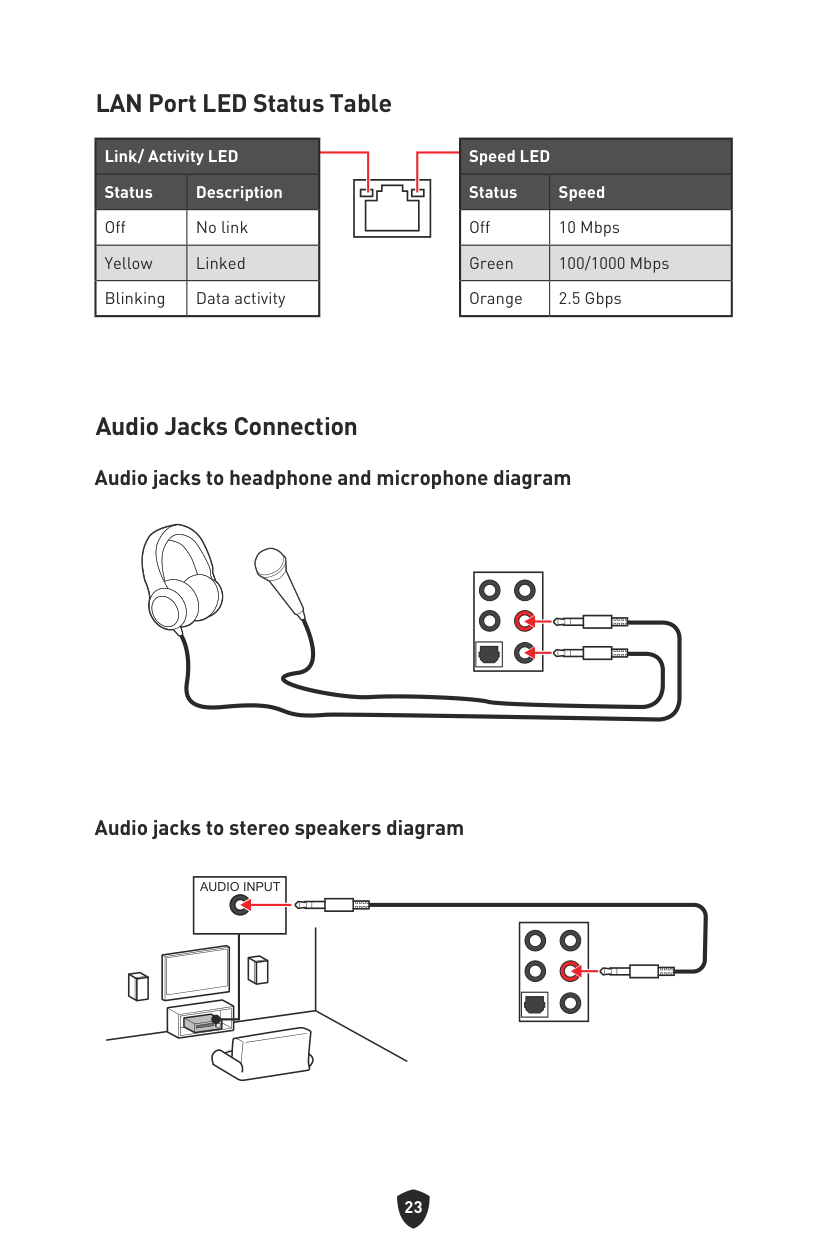

###### LAN Port LED Status Table

########## Link/ Activity LED Status Description

Speed LED Status Speed Off 10 Mbps Green 100/1000 Mbps Orange 2.5 Gbps

Off No link Yellow Linked Blinking Data activity

Audio Jacks Connection Audio jacks to headphone and microphone diagram

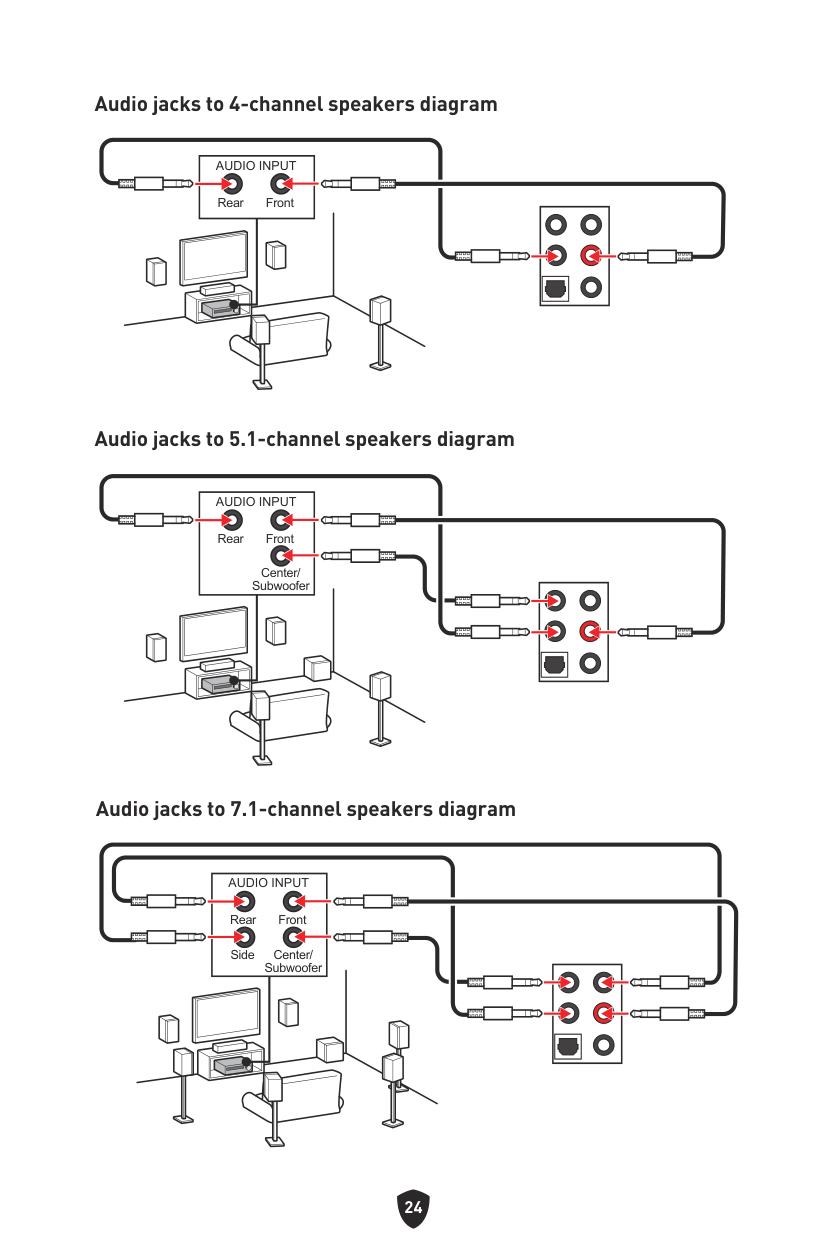

Audio jacks to stereo speakers diagram

AUDIO INPUT

| | |---|

| | | |---|---| | | |

AUDIO INPUT

Rear Front

AUDIO INPUT

Rear Front

Center/ Subwoofer

Audio jacks to 7.1-channel speakers diagram

AUDIO INPUT

Rear Front

Side Center/ Subwoofer

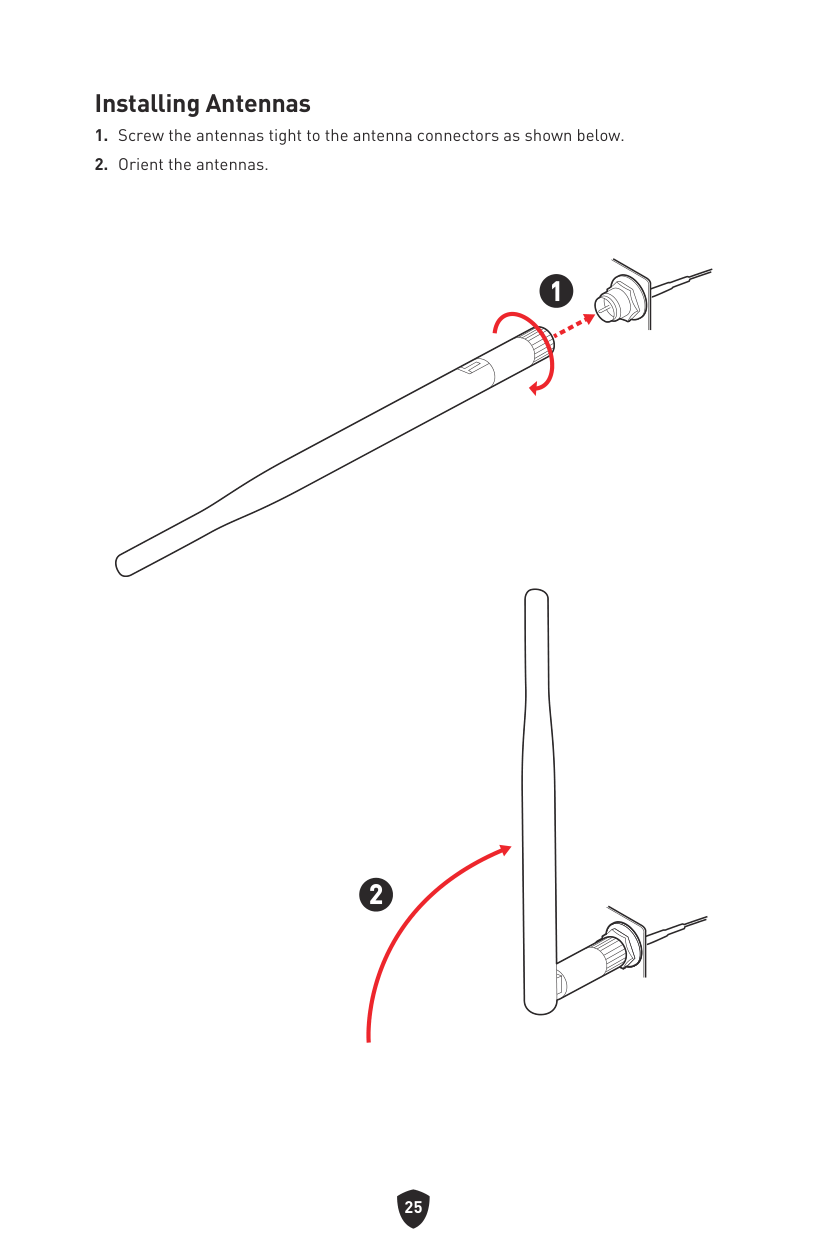

###### Installing Antennas

1

2

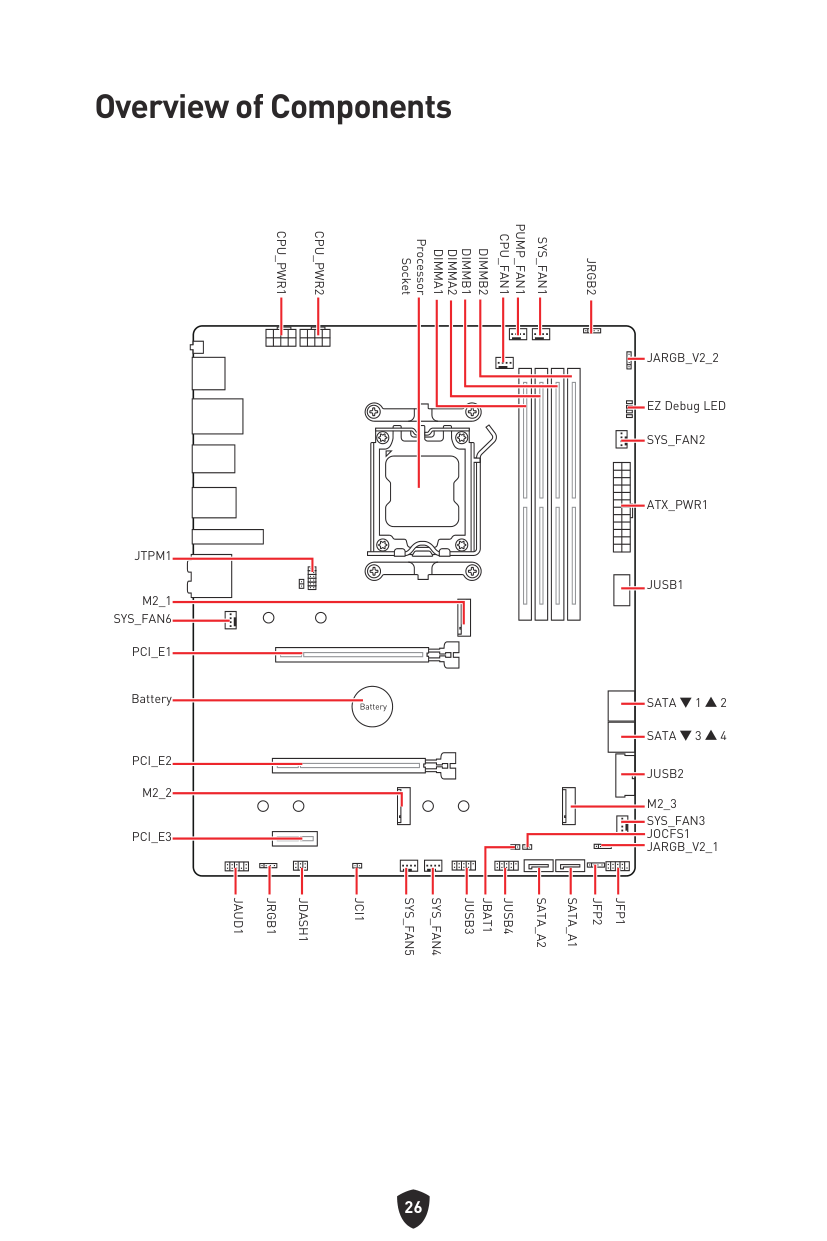

#### Overview of Components

JTPM1

M2_1 SYS_FAN6

PCI_E1

Battery

M2_2

CPU_PWR1

CPU_PWR2

PUMP_FAN1

CPU_FAN1

SYS_FAN1

Processor Socket

DIMMB2 DIMMB1

DIMMA2 DIMMA1

JRGB2

JARGB_V2_2

EZ Debug LED

ATX_PWR1

| | |---| | |

SATA▼1▲2

SATA▼3▲4

M2_3

JOCFS1

JARGB_V2_1

| | | | | | | | | | | | | | | |---|---|---|---|---|---|---|---|---|---|---|---|---|---| | | | | | | | | | | | | | | |

JAUD1

JRGB1

JDASH1

JCI1

SYS_FAN5

SYS_FAN4

JUSB3

JBAT1

JUSB4

SATA_A2

SATA_A1

JFP1

JFP2

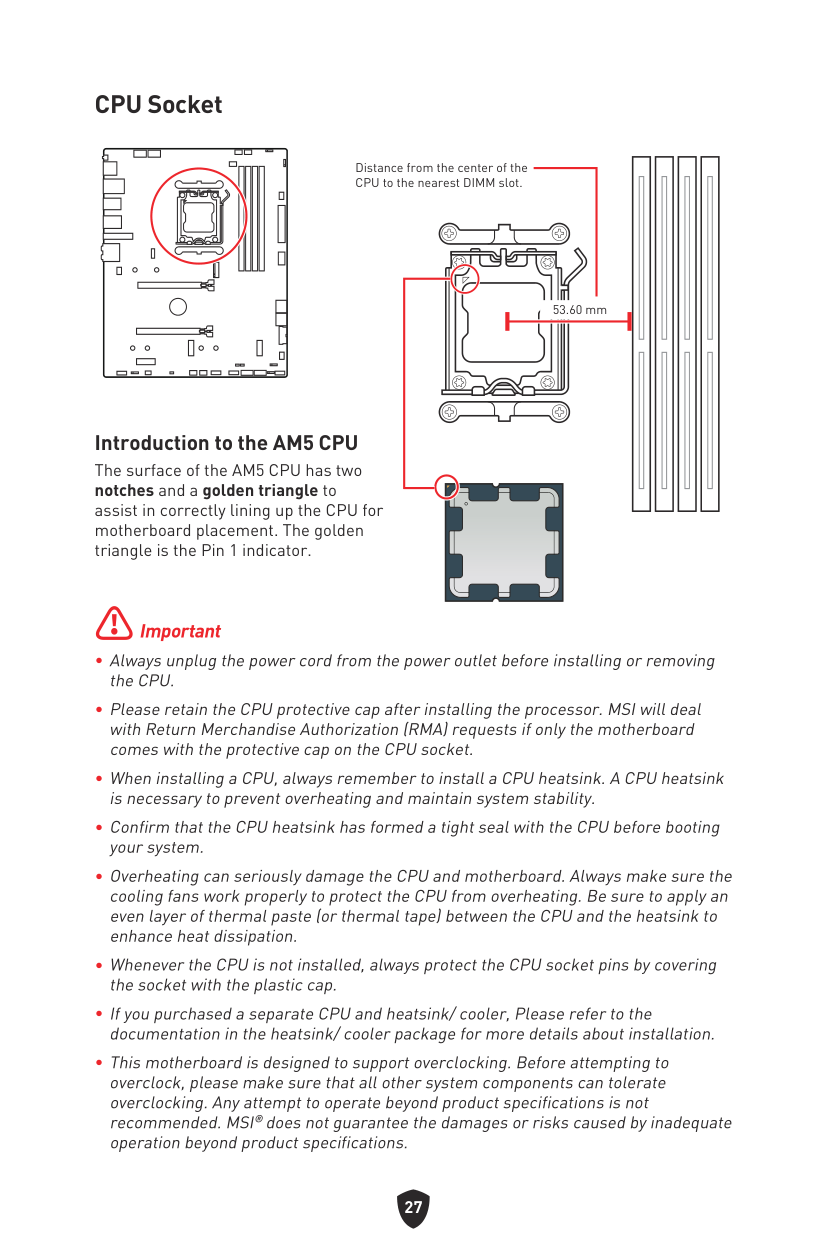

###### CPU Socket

Distance from the center of the CPU to the nearest DIMM slot.

| | | | | |---|---|---|---|

53.60 mm

Introduction to the AM5 CPU The surface of the AM5 CPU has two notches and a golden triangle to

assist in correctly lining up the CPU for motherboard placement. The golden triangle is the Pin 1 indicator.

⚠Important

∙ Always unplug the power cord from the power outlet before installing or removing

the CPU.

∙ Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.

∙ When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink

is necessary to prevent overheating and maintain system stability.

∙ Confirm that the CPU heatsink has formed a tight seal with the CPU before booting

your system.

∙ Overheating can seriously damage the CPU and motherboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

∙ Whenever the CPU is not installed, always protect the CPU socket pins by covering

the socket with the plastic cap.

∙ If you purchased a separate CPU and heatsink/ cooler, Please refer to the

documentation in the heatsink/ cooler package for more details about installation.

∙ This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI® does not guarantee the damages or risks caused by inadequate operation beyond product specifications.

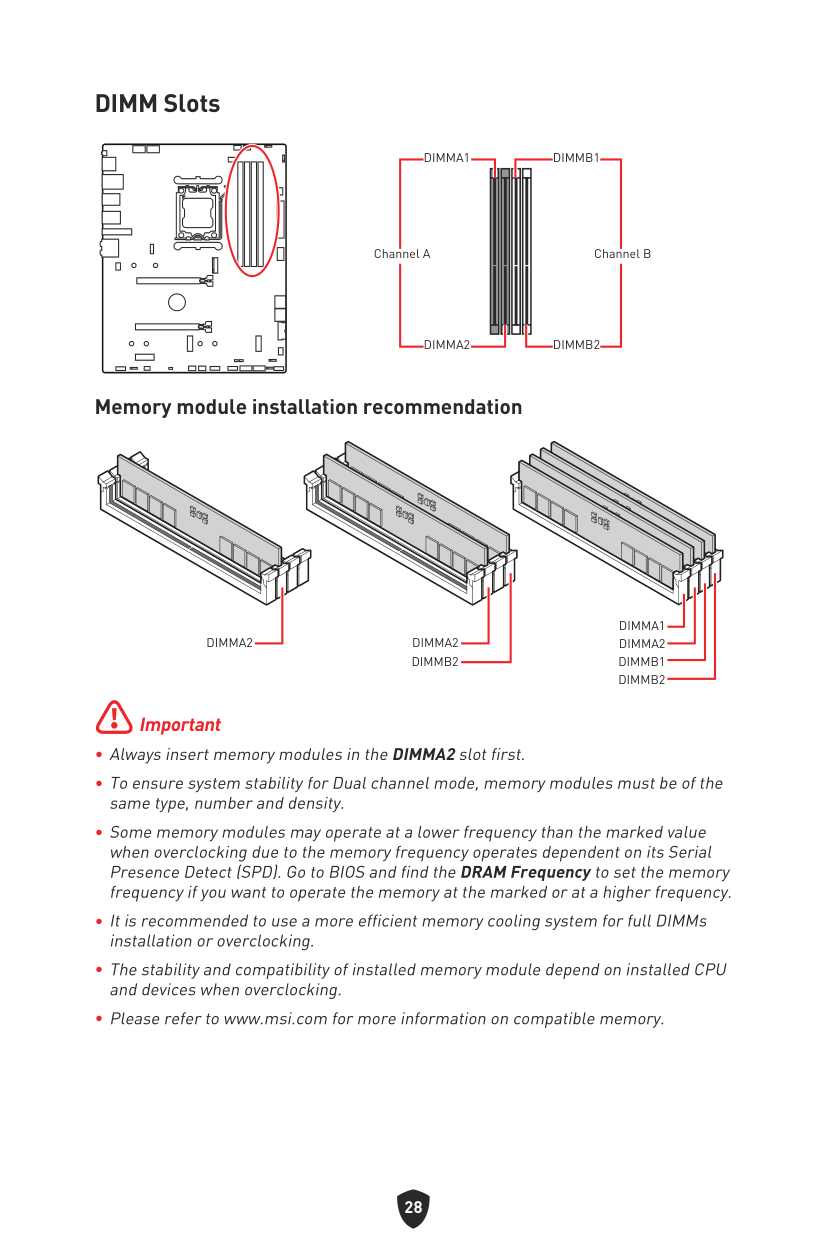

###### DIMM Slots

| | | | | |---|---|---|---|

Channel A Channel B

| | | |---|---|

######## Memory module installation recommendation

DIMMA2 DIMMA2 DIMMB2

⚠Important

∙ Always insert memory modules in theDIMMA2slot first.

∙ To ensure system stability for Dual channel mode, memory modules must be of the

same type, number and density.

∙ Some memory modules may operate at a lower frequency than the marked value when overclocking due to the memory frequency operates dependent on its Serial Presence Detect (SPD). Go to BIOS and find theDRAM Frequencyto set the memory frequency if you want to operate the memory at the marked or at a higher frequency.

∙ It is recommended to use a more efficient memory cooling system for full DIMMs

installation or overclocking.

∙ The stability and compatibility of installed memory module depend on installed CPU

and devices when overclocking.

∙ Please refer to www.msi.com for more information on compatible memory.

| | | |---|---| | | | | | | | | |

| | | | | | | | | | | | | | | | | | | | | | | |

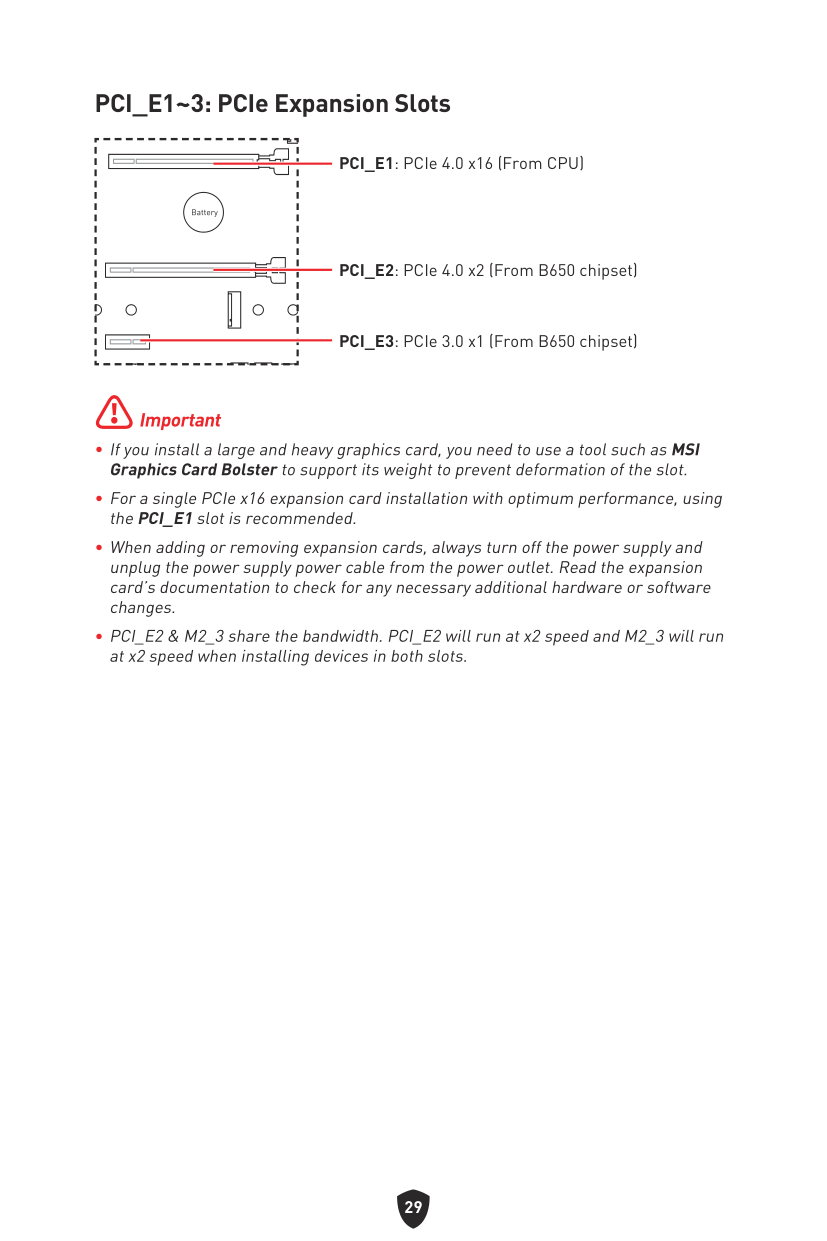

###### PCI_E1~3: PCIe Expansion Slots

| | |---| | |

| | | | | | |---|---|---|---|---|

| | | | |---|---|---| | | | | | | | | | | | | | | | |

| | | |---|---|

| | | |---|---|

| | | | | | |---|---|---|---|---|

| | | |---|---|

⚠Important

∙ If you install a large and heavy graphics card, you need to use a tool such asMSI Graphics Card Bolsterto support its weight to prevent deformation of the slot.

∙ For a single PCIe x16 expansion card installation with optimum performance, using

thePCI_E1slot is recommended.

∙ When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’s documentation to check for any necessary additional hardware or software changes.

∙ PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run

at x2 speed when installing devices in both slots.

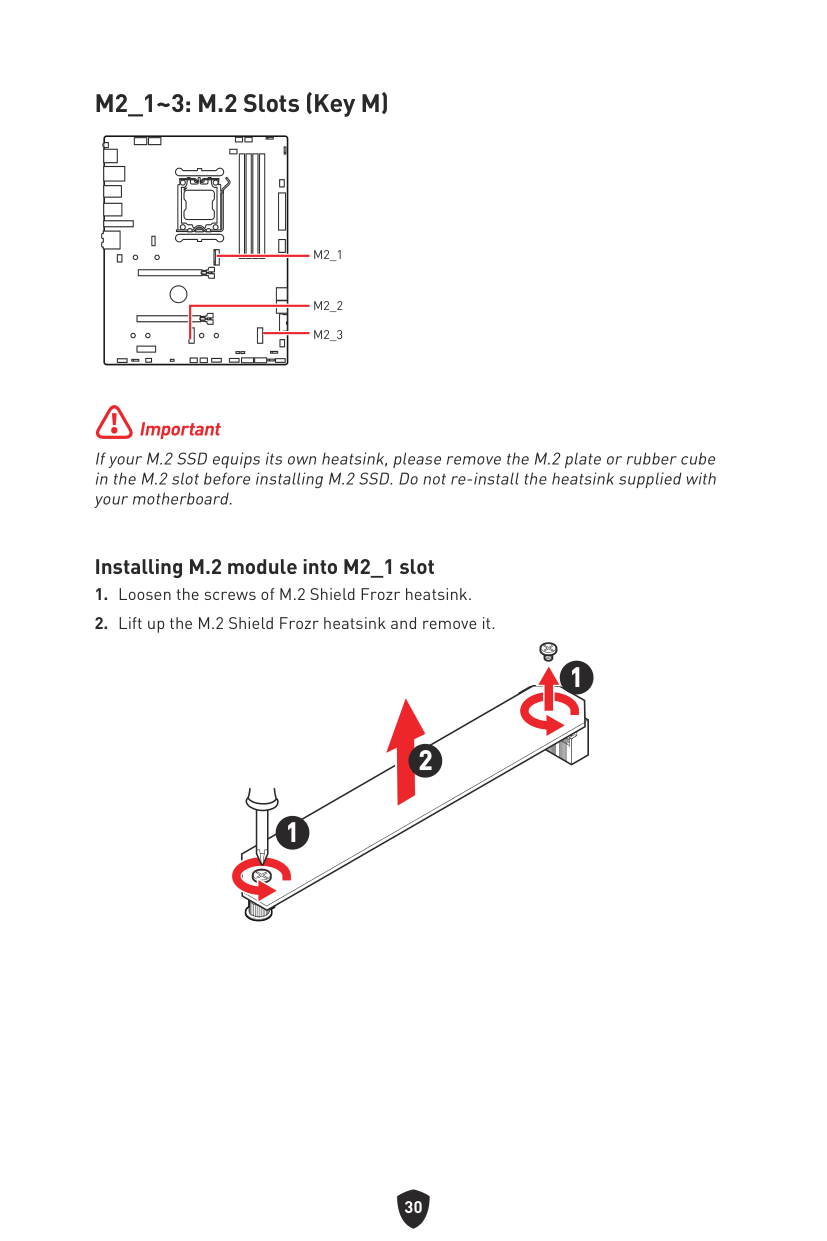

###### M2_1~3: M.2 Slots (Key M)

⚠Important

If your M.2 SSD equips its own heatsink, please remove the M.2 plate or rubber cube in the M.2 slot before installing M.2 SSD. Do not re-install the heatsink supplied with your motherboard.

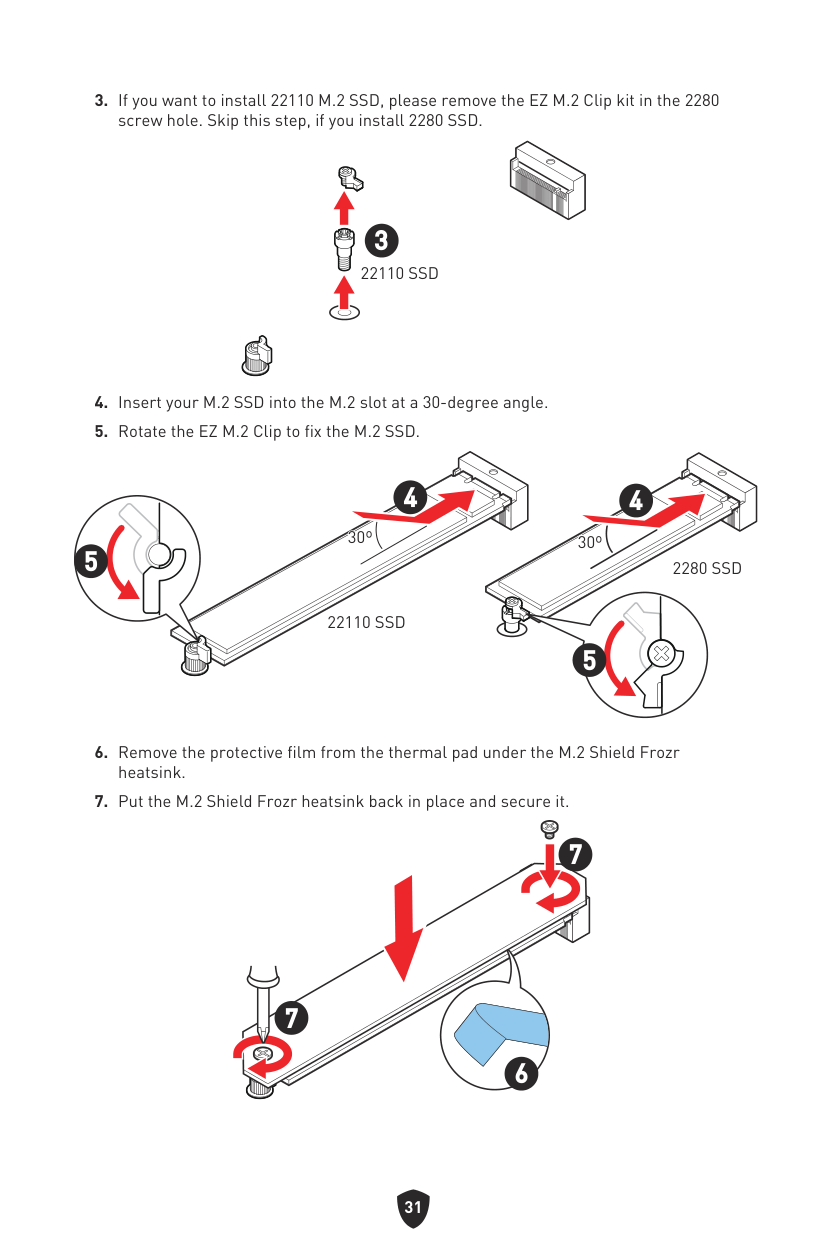

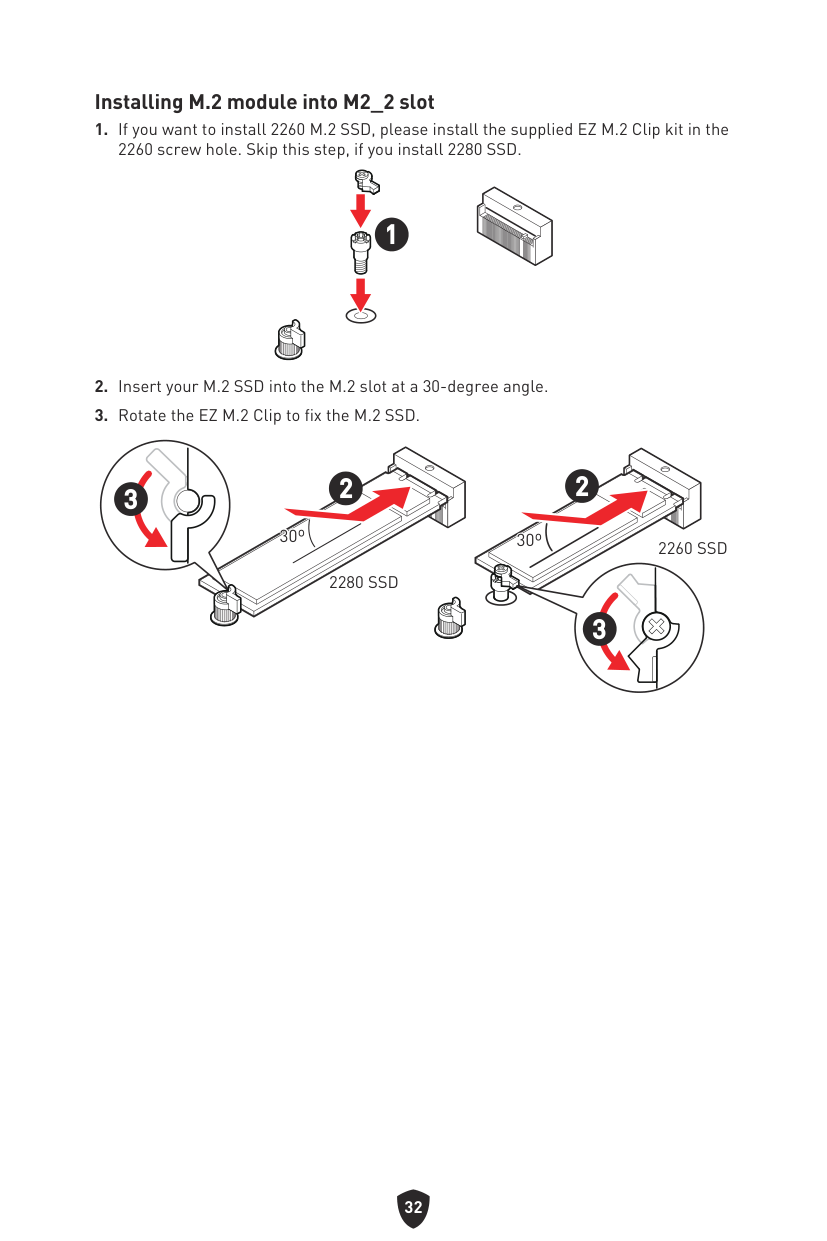

######## Installing M.2 module into M2_1 slot

1

2

1

3

22110 SSD

30º 30º

5

4 4

22110 SSD

2280 SSD

7

7

6

1

3 2 2

30º 30º

2260 SSD

2280 SSD

3

1

1

2

3

5 4 4

30º 30º

2260 SSD

2280 SSD

5

7

7

6

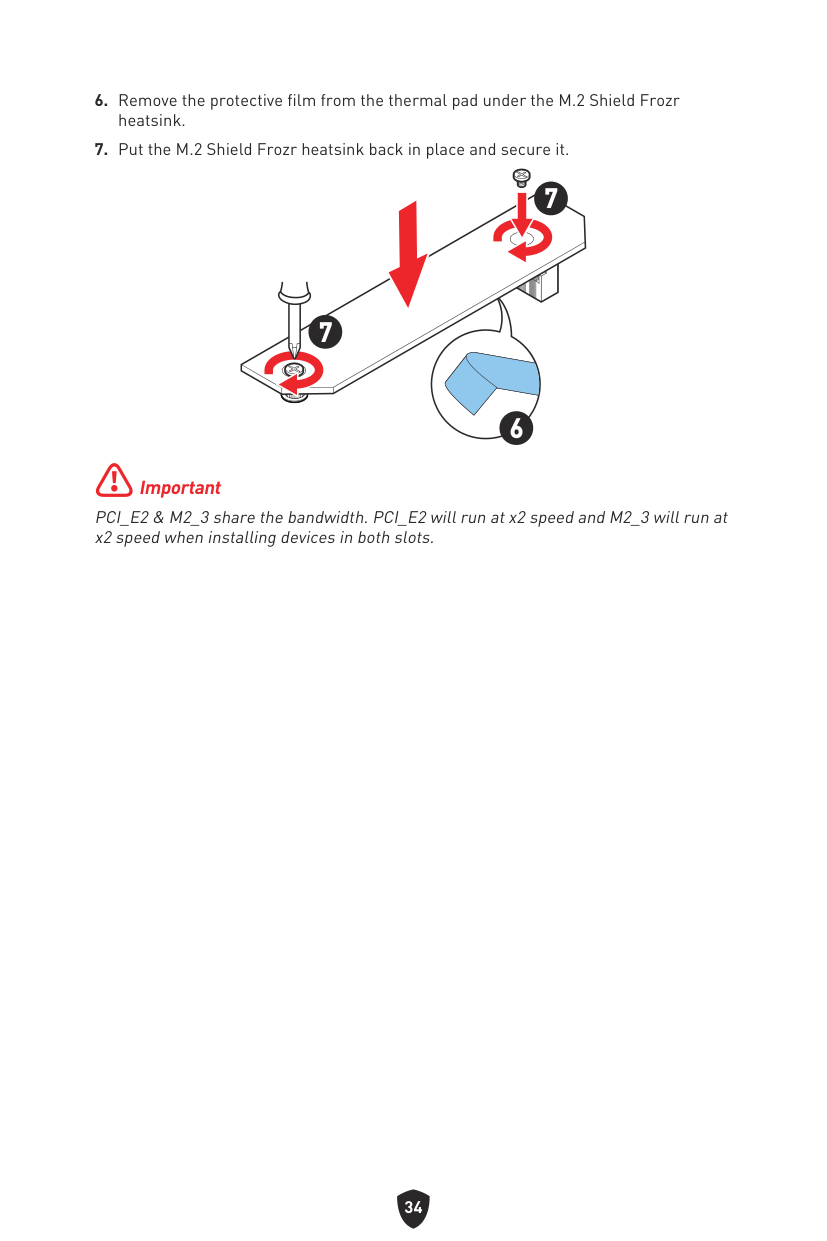

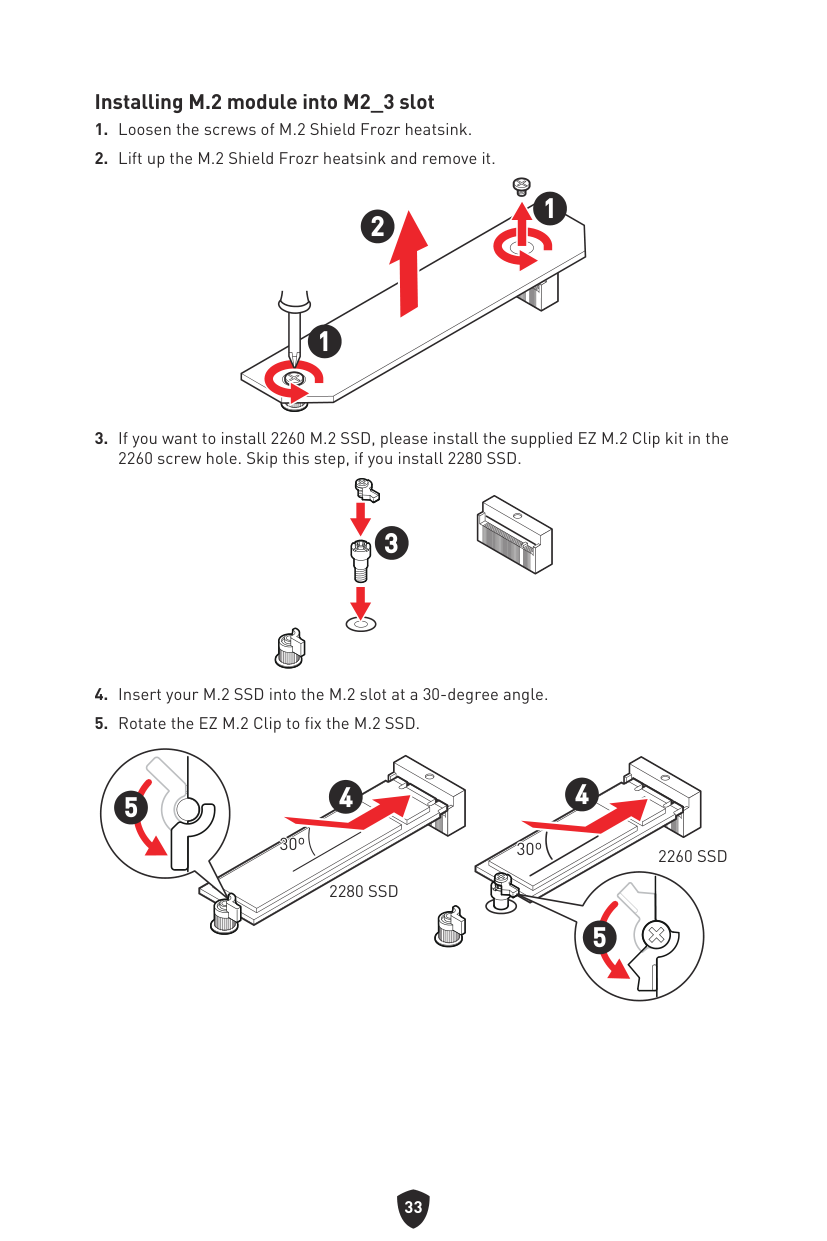

⚠Important

PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.

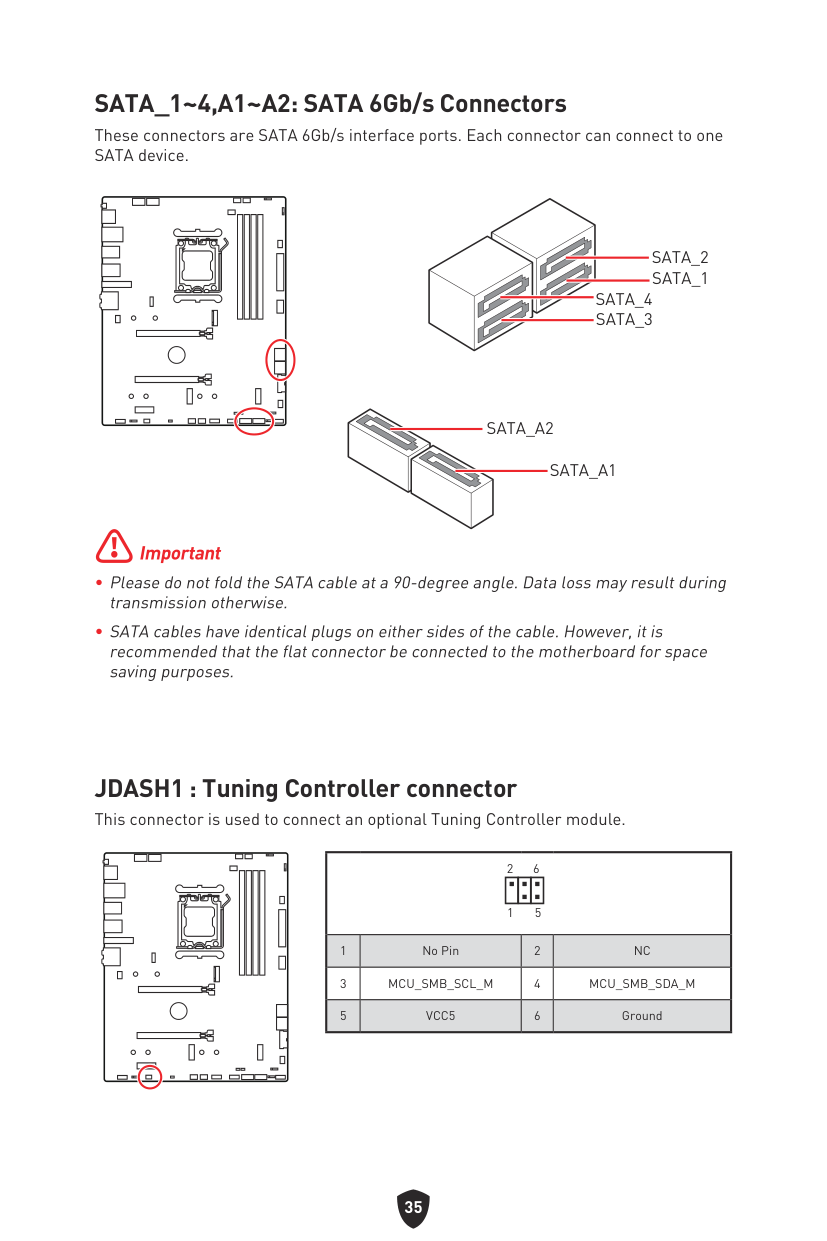

###### SATA_1~4,A1~A2: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device.

| | | | | |---|---|---|---|

| | | |---|---| | | |

SATA_2

SATA_A2

SATA_A1

⚠Important

∙ Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙ SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the motherboard for space saving purposes.

###### JDASH1 : Tuning Controller connector

This connector is used to connect an optional Tuning Controller module.

| | | | | |---|---|---|---|

|1
2 6


5|1
2 6


5|1
2 6


5|1
2 6


5| |---|---|---|---|

|1|No Pin|2|NC| |3|MCU_SMB_SCL_M|4|MCU_SMB_SDA_M| |5|VCC5|6|Ground|

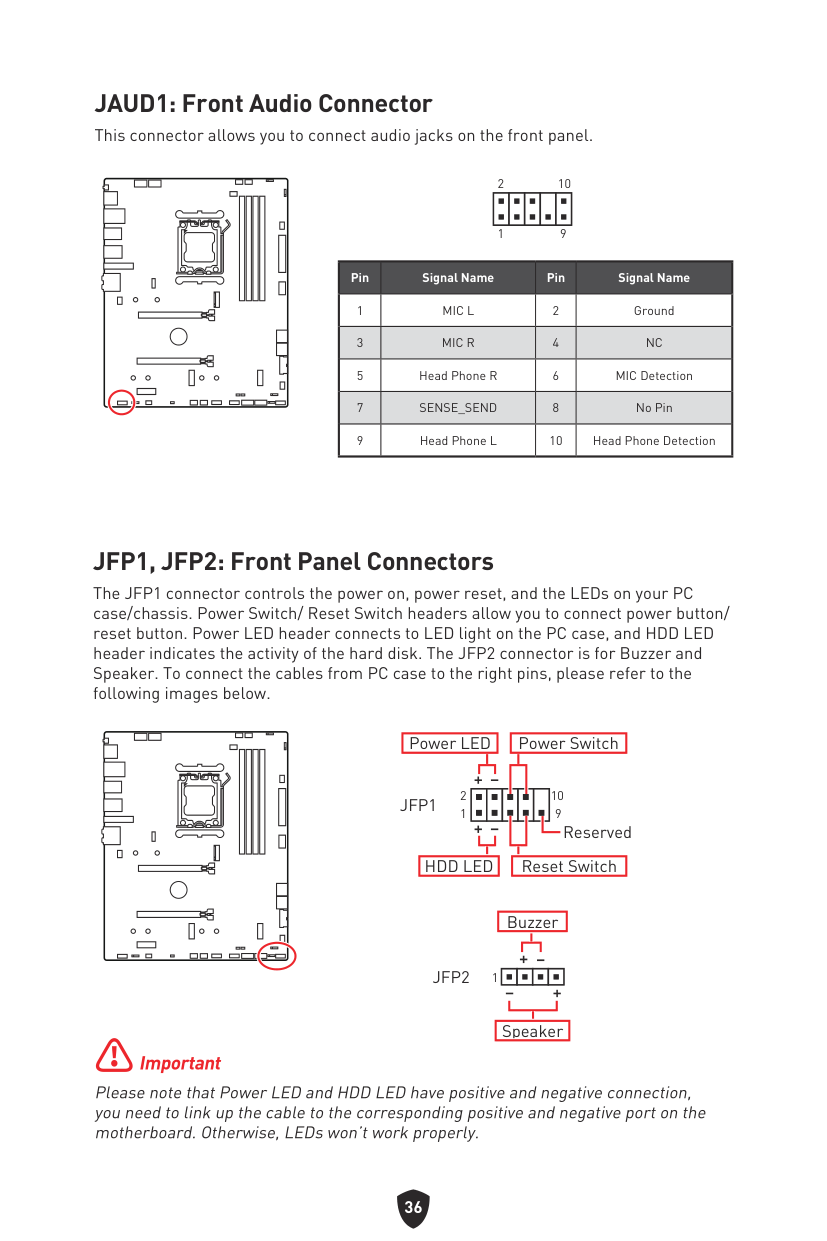

###### JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

| | | | | |---|---|---|---|

| | | | | | |---|---|---|---|---|

9

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|MIC L|2|Ground| |3|MIC R|4|NC| |5|Head Phone R|6|MIC Detection| |7|SENSE_SEND|8|No Pin| |9|Head Phone L|10|Head Phone Detection|

###### JFP1, JFP2: Front Panel Connectors

The JFP1 connector controls the power on, power reset, and the LEDs on your PC case/chassis. Power Switch/ Reset Switch headers allow you to connect power button/ reset button. Power LED header connects to LED light on the PC case, and HDD LED header indicates the activity of the hard disk. The JFP2 connector is for Buzzer and Speaker. To connect the cables from PC case to the right pins, please refer to the following images below.

Power Switch

|Power LED

| |---|

| | | | | |---|---|---|---|

JFP1

Reserved

|HDD LED| |---|

Reset Switch

|Buzzer

| |---|

1JFP2

| | | | | |---|---|---|---|

|Speaker

| |---|

⚠Important

Please note that Power LED and HDD LED have positive and negative connection, you need to link up the cable to the corresponding positive and negative port on the motherboard. Otherwise, LEDs won’t work properly.

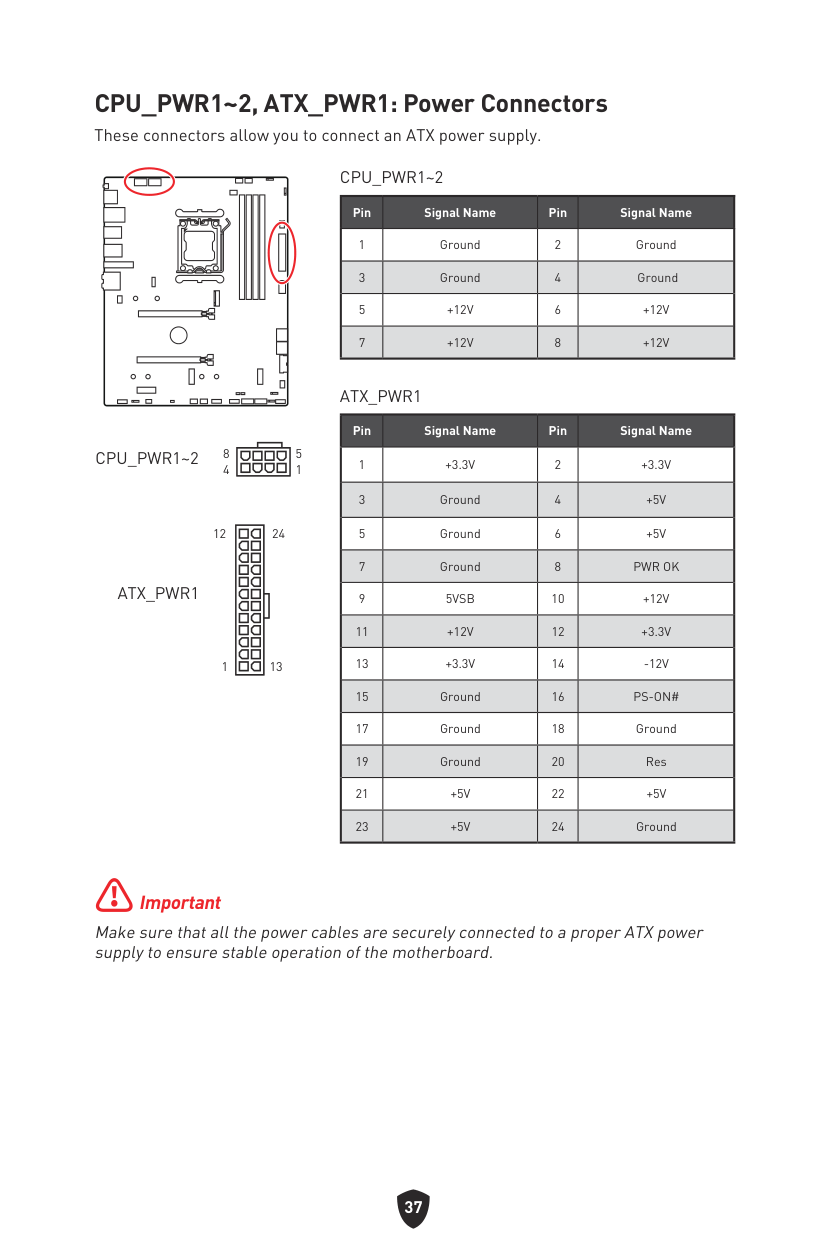

###### CPU_PWR1~2, ATX_PWR1: Power Connectors

These connectors allow you to connect an ATX power supply.

| | | | | |---|---|---|---|

| | |---|

########### 8CPU_PWR1~2

5 4 1

########### ATX_PWR1

12

24

| | |---|

131

CPU_PWR1~2

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|Ground|2|Ground| |3|Ground|4|Ground| |5|+12V|6|+12V| |7|+12V|8|+12V|

ATX_PWR1

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|+3.3V|2|+3.3V| |3|Ground|4|+5V| |5|Ground|6|+5V| |7|Ground|8|PWR OK| |9|5VSB|10|+12V| |11|+12V|12|+3.3V| |13|+3.3V|14|-12V| |15|Ground|16|PS-ON#|

|17|Ground|18|Ground| |19|Ground|20|Res| |21|+5V|22|+5V| |23|+5V|24|Ground|

⚠Important

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.

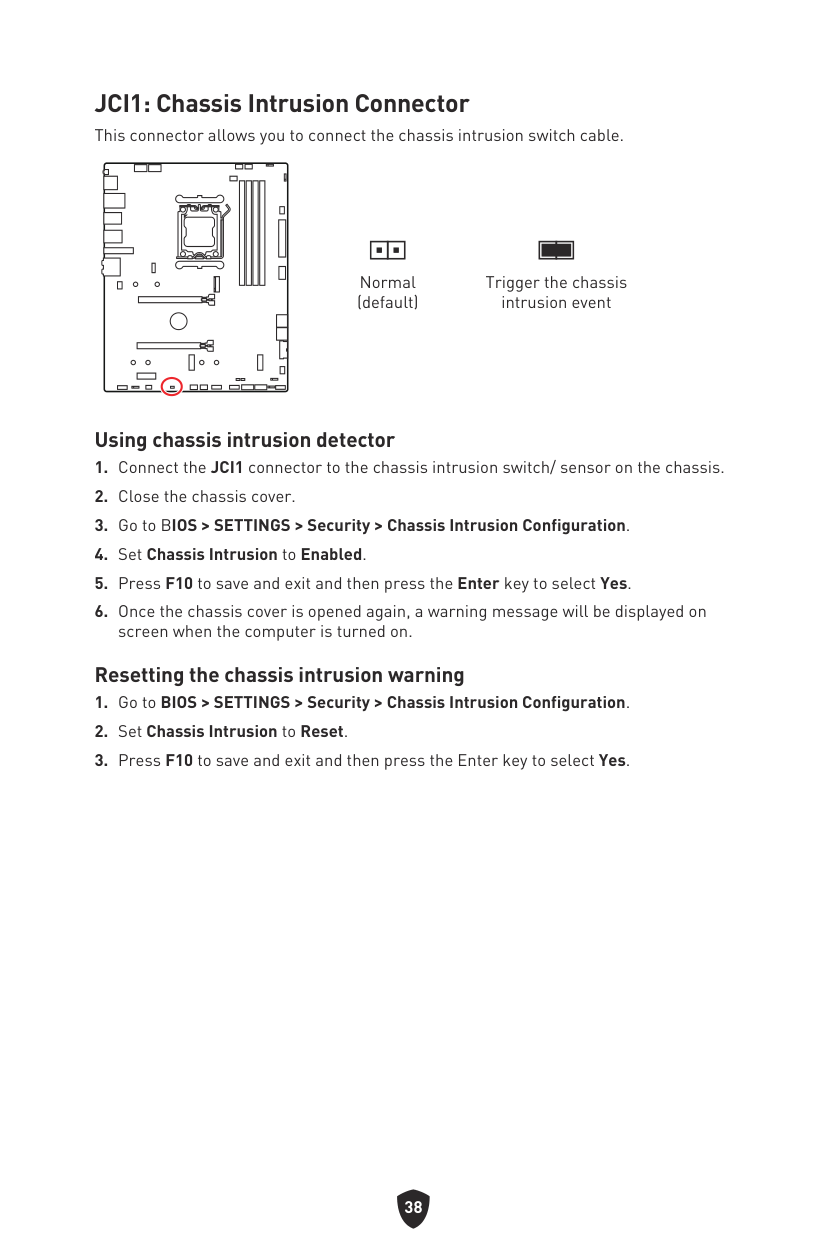

###### JCI1: Chassis Intrusion Connector

This connector allows you to connect the chassis intrusion switch cable.

| | | | | |---|---|---|---|

| | | |---|---|

Normal (default)

| | | |---|---|

Trigger the chassis intrusion event

######## Using chassis intrusion detector

######## Resetting the chassis intrusion warning

⚠Important

Note that the Power and Ground pins must be connected correctly to avoid possible damage.

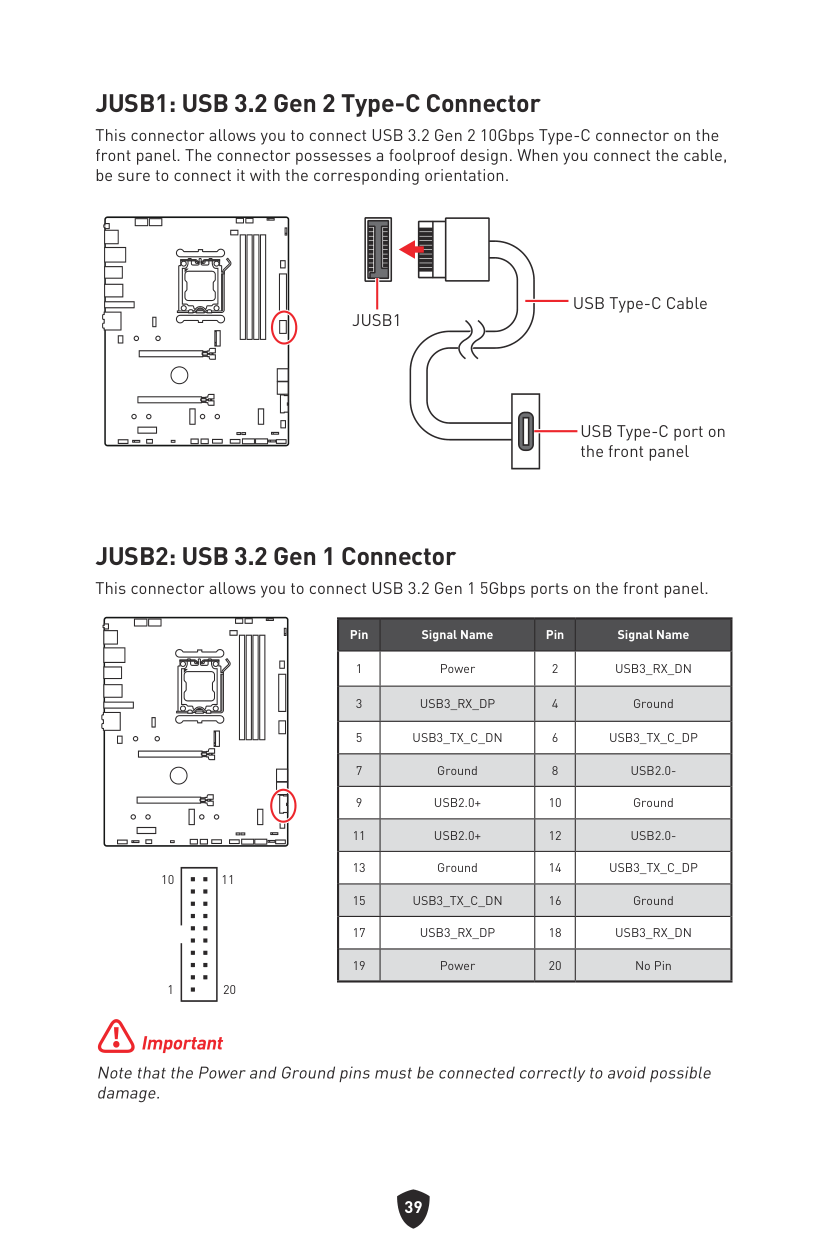

JUSB1: USB 3.2 Gen 2 Type-C Connector

| | | | | |---|---|---|---|

USB Type-C Cable

JUSB1

| | | | |---|---|---| | | | | | | | |

USB Type-C port on the front panel

###### JUSB2: USB 3.2 Gen 1 Connector

| | | | | |---|---|---|---|

10 11

1

20

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|Power|2|USB3_RX_DN| |3|USB3_RX_DP|4|Ground| |5|USB3_TX_C_DN|6|USB3_TX_C_DP| |7|Ground|8|USB2.0-| |9|USB2.0+|10|Ground| |11|USB2.0+|12|USB2.0-| |13|Ground|14|USB3_TX_C_DP| |15|USB3_TX_C_DN|16|Ground|

|17|USB3_RX_DP|18|USB3_RX_DN| |19|Power|20|No Pin|

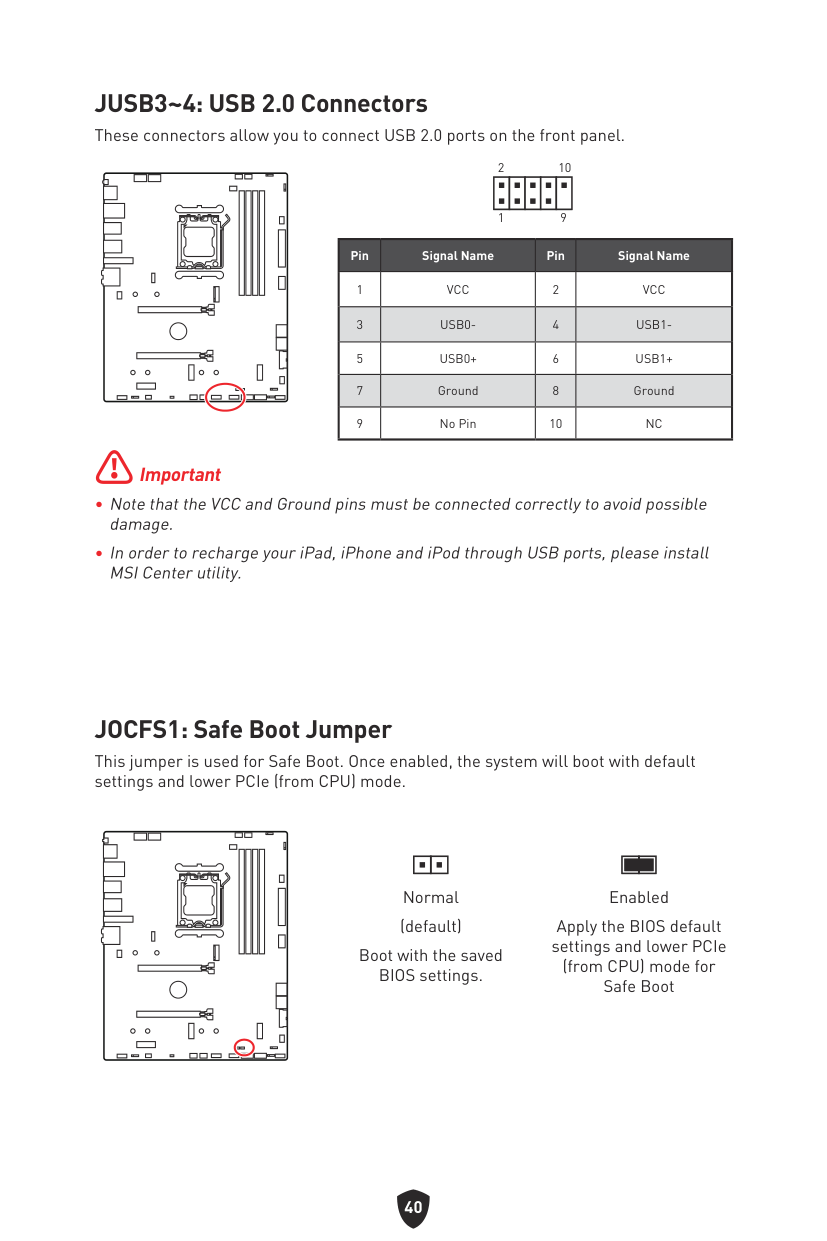

###### JUSB3~4: USB 2.0 Connectors

These connectors allow you to connect USB 2.0 ports on the front panel.

| | | | | | |---|---|---|---|---|

| | | | | |---|---|---|---|

9

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|VCC|2|VCC| |3|USB0-|4|USB1-| |5|USB0+|6|USB1+| |7|Ground|8|Ground| |9|No Pin|10|NC|

⚠Important

∙ Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

∙ In order to recharge your iPad, iPhone and iPod through USB ports, please install

MSI Center utility.

###### JOCFS1: Safe Boot Jumper

This jumper is used for Safe Boot. Once enabled, the system will boot with default settings and lower PCIe (from CPU) mode.

| | | | | |---|---|---|---|

| | | |---|---|

| | | |---|---|

Normal (default) Boot with the saved BIOS settings.

Enabled Apply the BIOS default settings and lower PCIe (from CPU) mode for Safe Boot

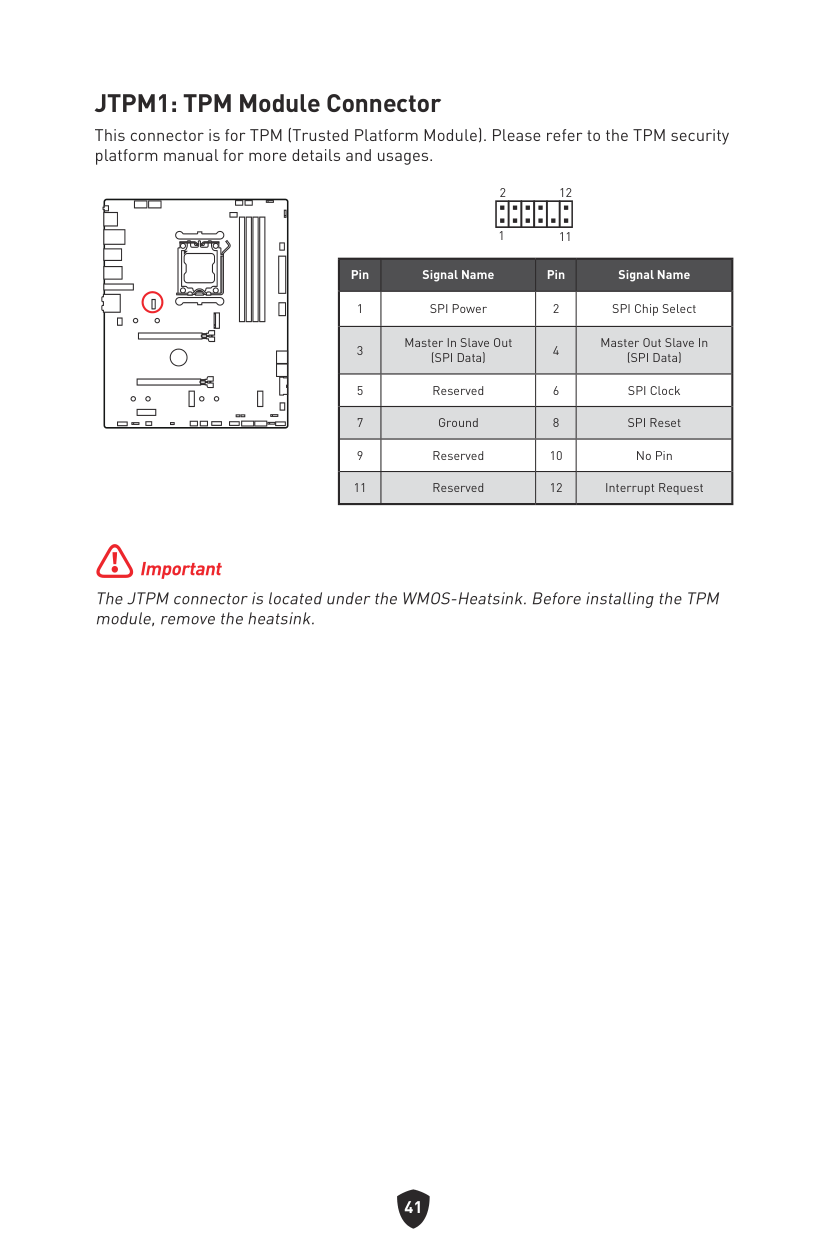

###### JTPM1: TPM Module Connector

This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

| | | | | |---|---|---|---|

| | | | | | | |---|---|---|---|---|---|

11

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|SPI Power|2|SPI Chip Select| |3|Master In Slave Out (SPI Data)|4|Master Out Slave In (SPI Data)| |5|Reserved|6|SPI Clock| |7|Ground|8|SPI Reset| |9|Reserved|10|No Pin| |11|Reserved|12|Interrupt Request|

⚠Important

The JTPM connector is located under the WMOS-Heatsink. Before installing the TPM module, remove the heatsink.

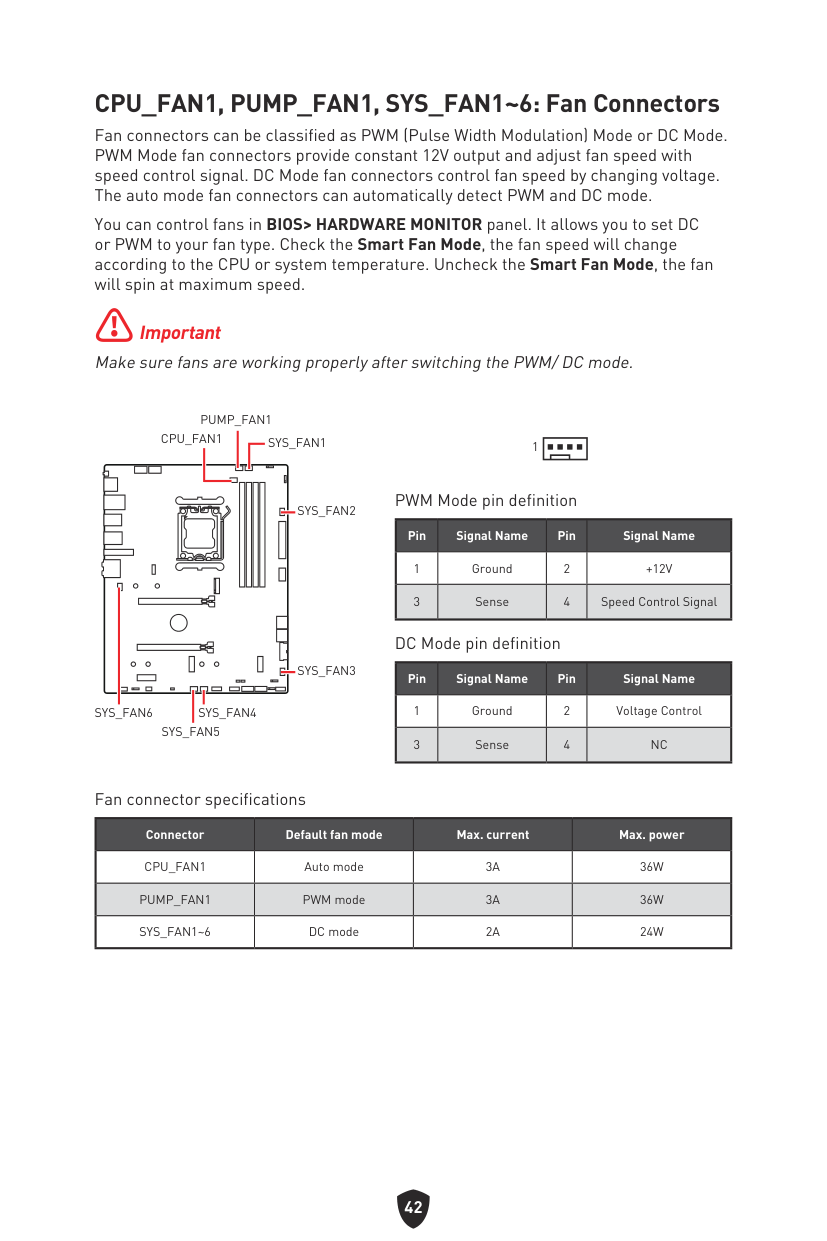

###### CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. The auto mode fan connectors can automatically detect PWM and DC mode.

You can control fans in BIOS> HARDWARE MONITOR panel. It allows you to set DC or PWM to your fan type. Check the Smart Fan Mode, the fan speed will change according to the CPU or system temperature. Uncheck the Smart Fan Mode, the fan will spin at maximum speed.

⚠Important

Make sure fans are working properly after switching the PWM/ DC mode.

PUMP_FAN1

CPU_FAN1

SYS_FAN1

| | | | | |---|---|---|---|

| | | | |---|---|---| |SYS_FAN6|SYS_FAN6|SYS_FAN4|

SYS_FAN5

1

PWM Mode pin definition

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|Ground|2|+12V| |3|Sense|4|Speed Control Signal|

DC Mode pin definition

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|Ground|2|Voltage Control| |3|Sense|4|NC|

Fan connector specifications

|Connector|Default fan mode|Max. current|Max. power| |---|---|---|---| |CPU_FAN1|Auto mode|3A|36W| |PUMP_FAN1|PWM mode|3A|36W| |SYS_FAN1~6|DC mode|2A|24W|

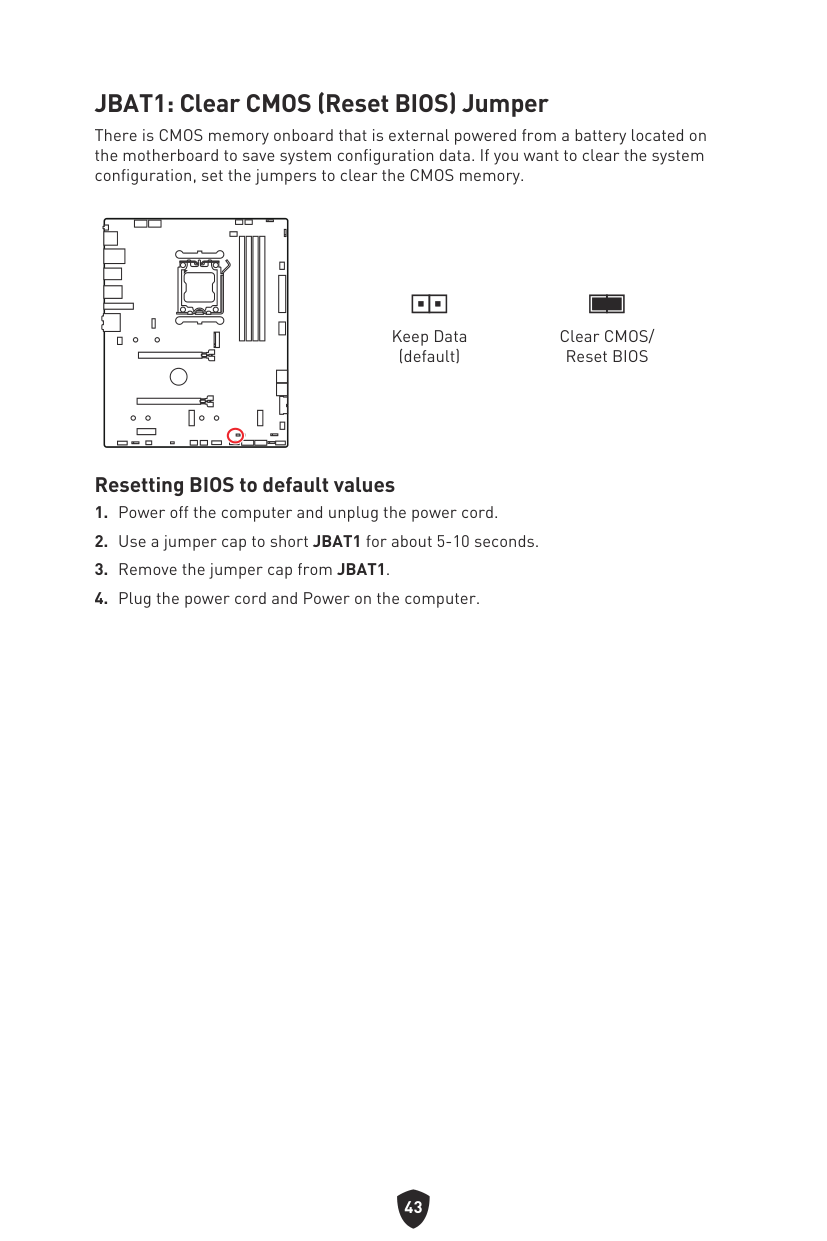

###### JBAT1: Clear CMOS (Reset BIOS) Jumper

There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory.

| | | | | |---|---|---|---|

| | |

|---|---|

Keep Data (default)

######## Resetting BIOS to default values

| | | |---|---|

Clear CMOS/ Reset BIOS

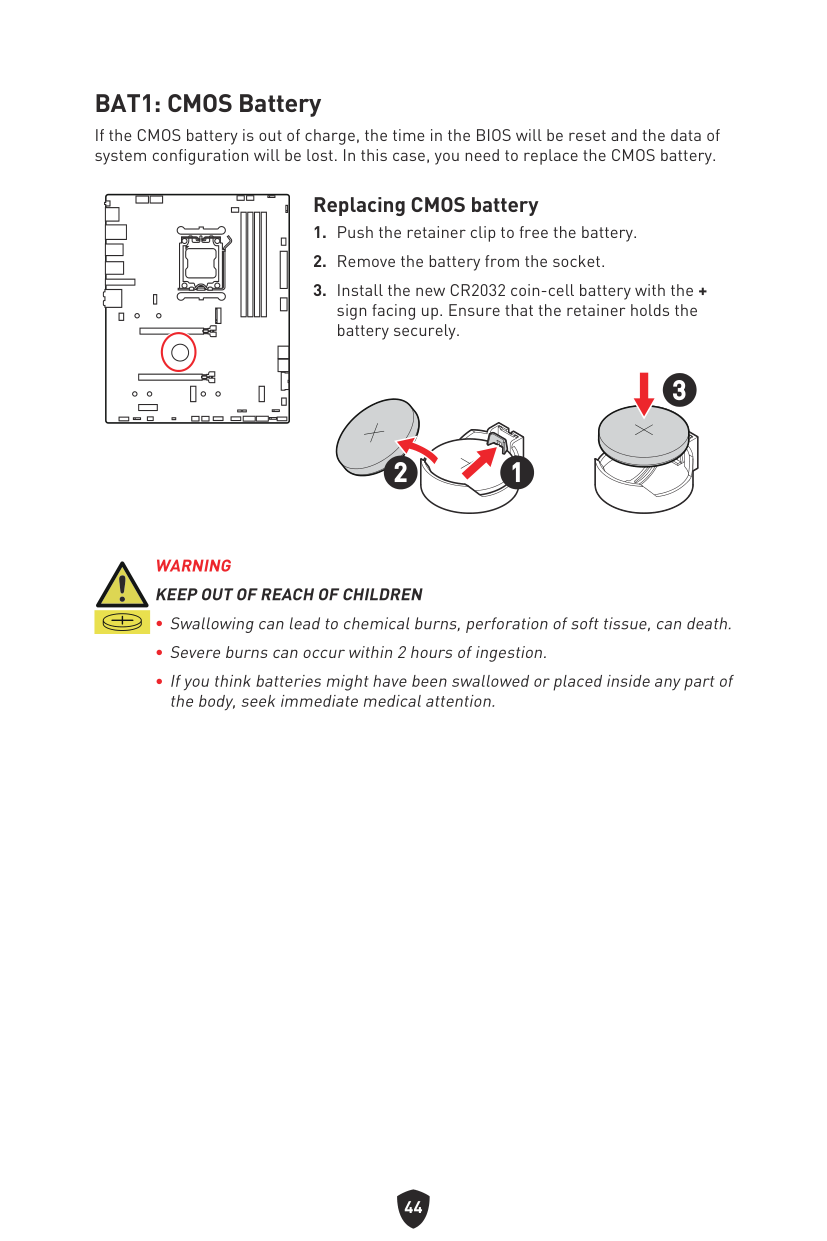

###### BAT1: CMOS Battery

If the CMOS battery is out of charge, the time in the BIOS will be reset and the data of system configuration will be lost. In this case, you need to replace the CMOS battery.

| | | | | |---|---|---|---|

######## Replacing CMOS battery

3

12

######### WARNING KEEP OUT OF REACH OF CHILDREN

∙ Swallowing can lead to chemical burns, perforation of soft tissue, can death.

∙ Severe burns can occur within 2 hours of ingestion.

∙ If you think batteries might have been swallowed or placed inside any part of

the body, seek immediate medical attention.

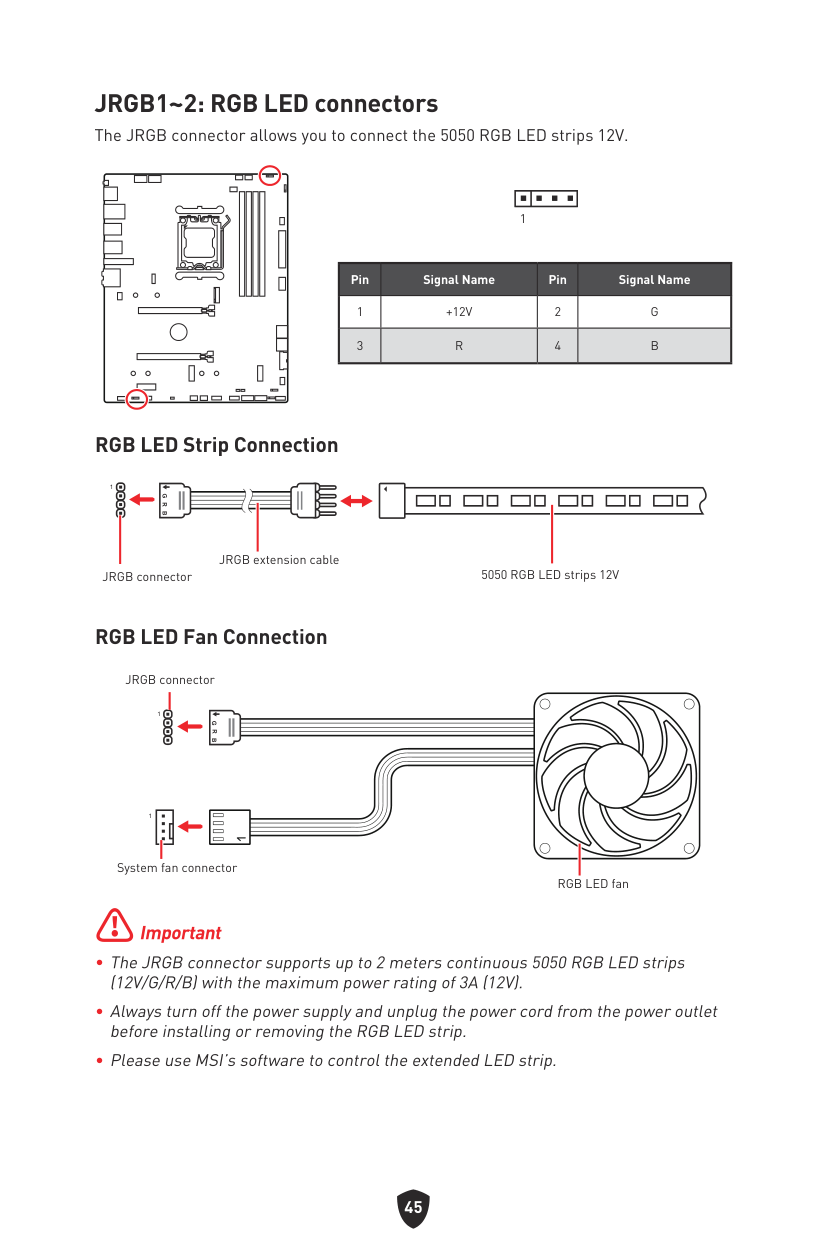

###### JRGB1~2: RGB LED connectors

The JRGB connector allows you to connect the 5050 RGB LED strips 12V.

| | | |---|---|

| | | | | |---|---|---|---|

1

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---|

|1|+12V|2|G| |3|R|4|B|

######## RGB LED Strip Connection

############# GRB

JRGB extension cable

5050 RGB LED strips 12V

JRGB connector

######## RGB LED Fan Connection

JRGB connector

1

GRB

System fan connector

RGB LED fan

⚠Important

∙ The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips

(12V/G/R/B) with the maximum power rating of 3A (12V).

∙ Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

∙ Please use MSI’s software to control the extended LED strip.

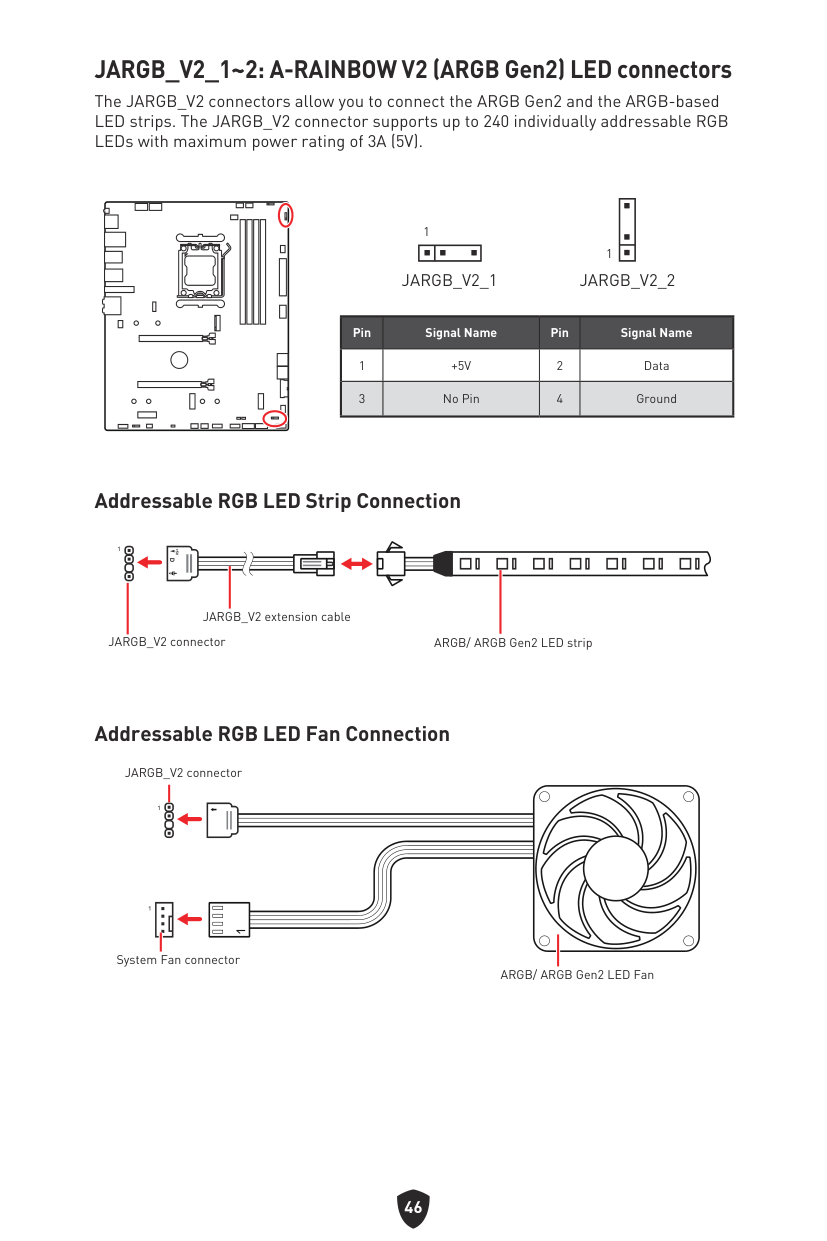

###### JARGB_V2_1~2: A-RAINBOW V2 (ARGB Gen2) LED connectors

The JARGB_V2 connectors allow you to connect the ARGB Gen2 and the ARGB-based LED strips. The JARGB_V2 connector supports up to 240 individually addressable RGB LEDs with maximum power rating of 3A (5V).

| | | | | |---|---|---|---|

| | |---| | |

1

1

| | | |---|---|

JARGB_V2_1 JARGB_V2_2

|Pin|Signal Name|Pin|Signal Name| |---|---|---|---| |1|+5V|2|Data|

|3|No Pin|4|Ground|

Addressable RGB LED Strip Connection

1

+5V

D

JARGB_V2 extension cable

JARGB_V2 connector

ARGB/ ARGB Gen2 LED strip

Addressable RGB LED Fan Connection

JARGB_V2 connector

1

1

System Fan connector

ARGB/ ARGB Gen2 LED Fan

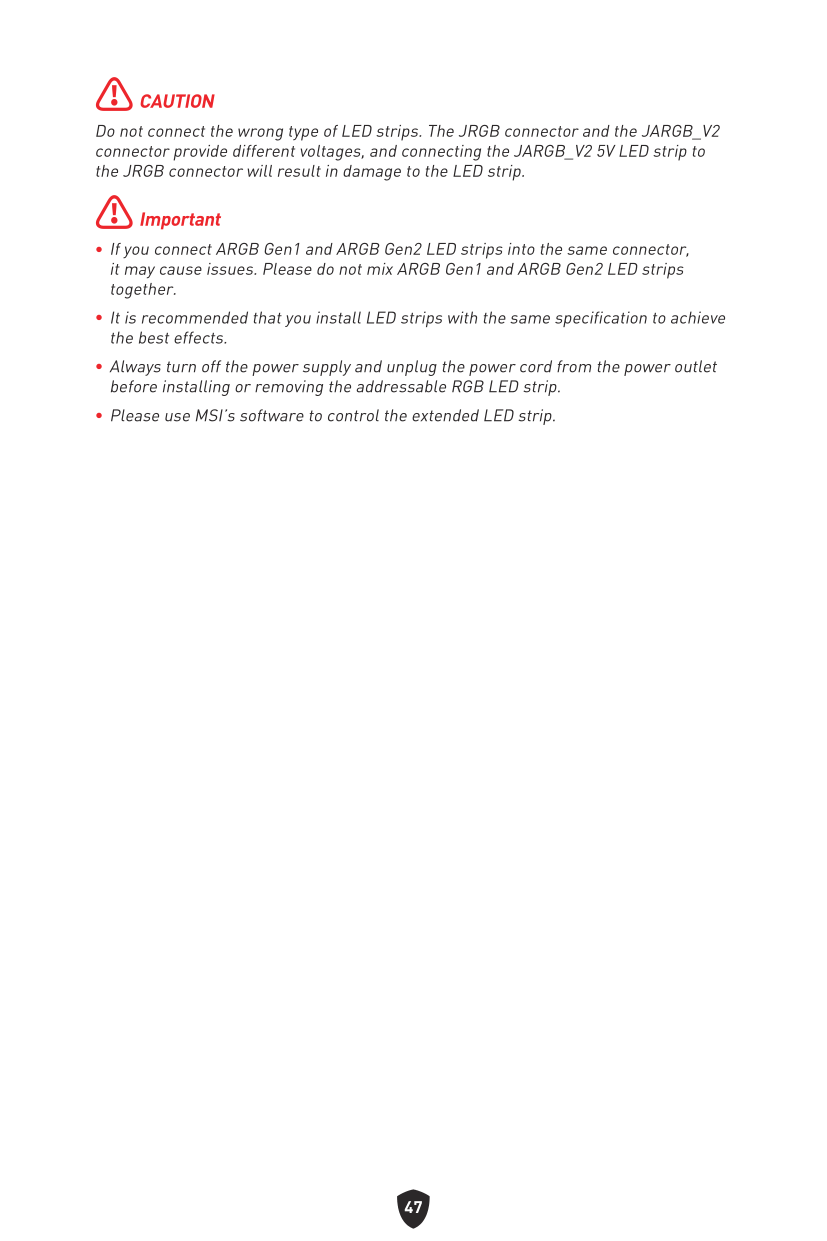

⚠CAUTION

Do not connect the wrong type of LED strips. The JRGB connector and the JARGB_V2 connector provide different voltages, and connecting the JARGB_V2 5V LED strip to the JRGB connector will result in damage to the LED strip.

⚠Important

∙ If you connect ARGB Gen1 and ARGB Gen2 LED strips into the same connector, it may cause issues. Please do not mix ARGB Gen1 and ARGB Gen2 LED strips together.

∙ It is recommended that you install LED strips with the same specification to achieve

the best effects.

∙ Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the addressable RGB LED strip.

∙ Please use MSI’s software to control the extended LED strip.

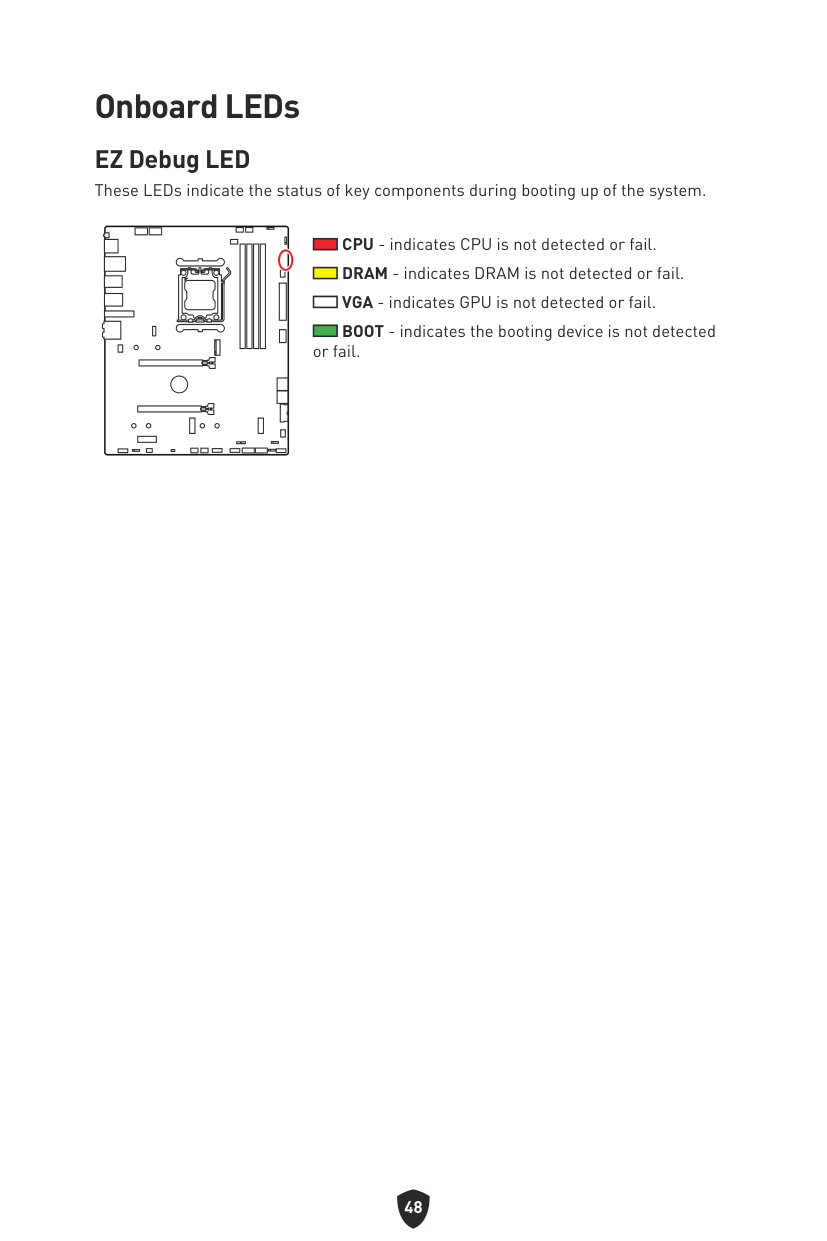

#### Onboard LEDs

###### EZ Debug LED

These LEDs indicate the status of key components during booting up of the system.

| | | | | |---|---|---|---|

CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected

| | |---|

| |

|---|

| | |---|

| | |---|

or fail.

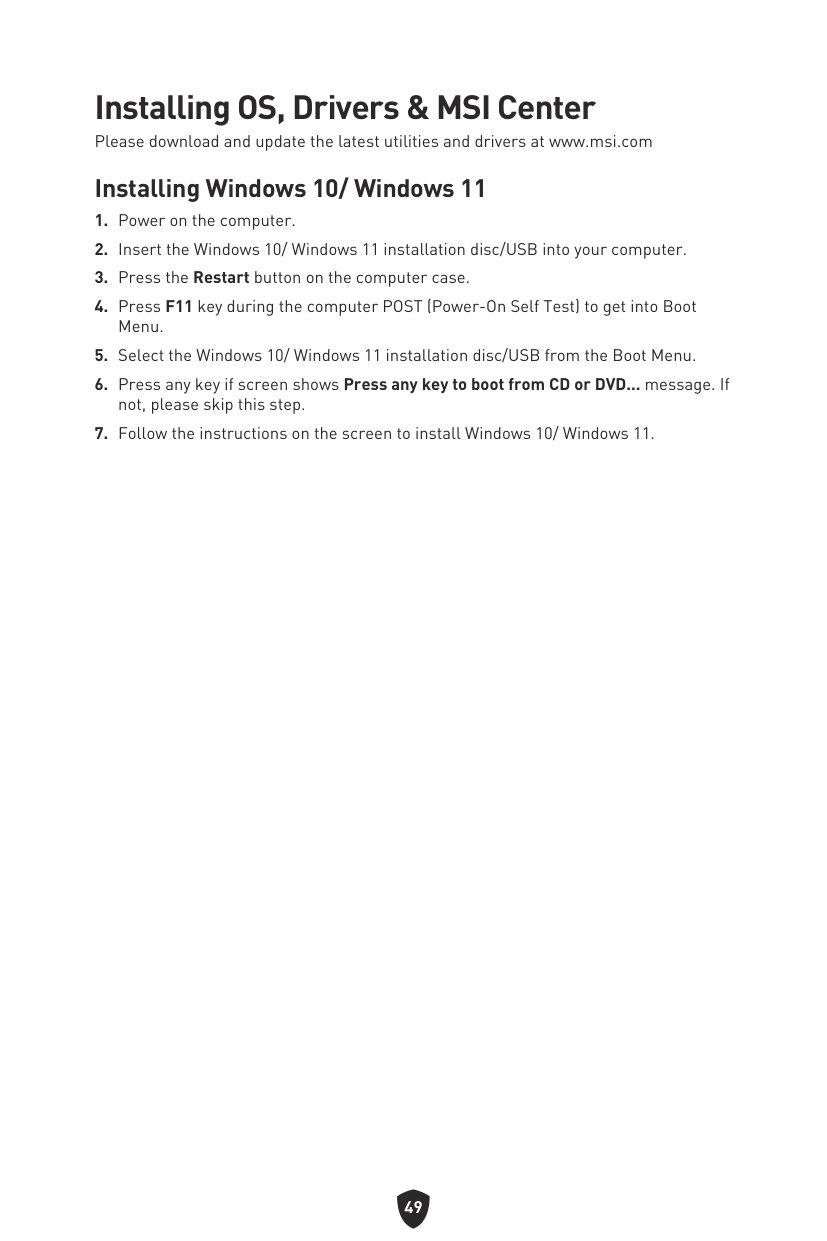

#### Installing OS, Drivers & MSI Center

Please download and update the latest utilities and drivers at www.msi.com

###### Installing Windows 10/ Windows 11

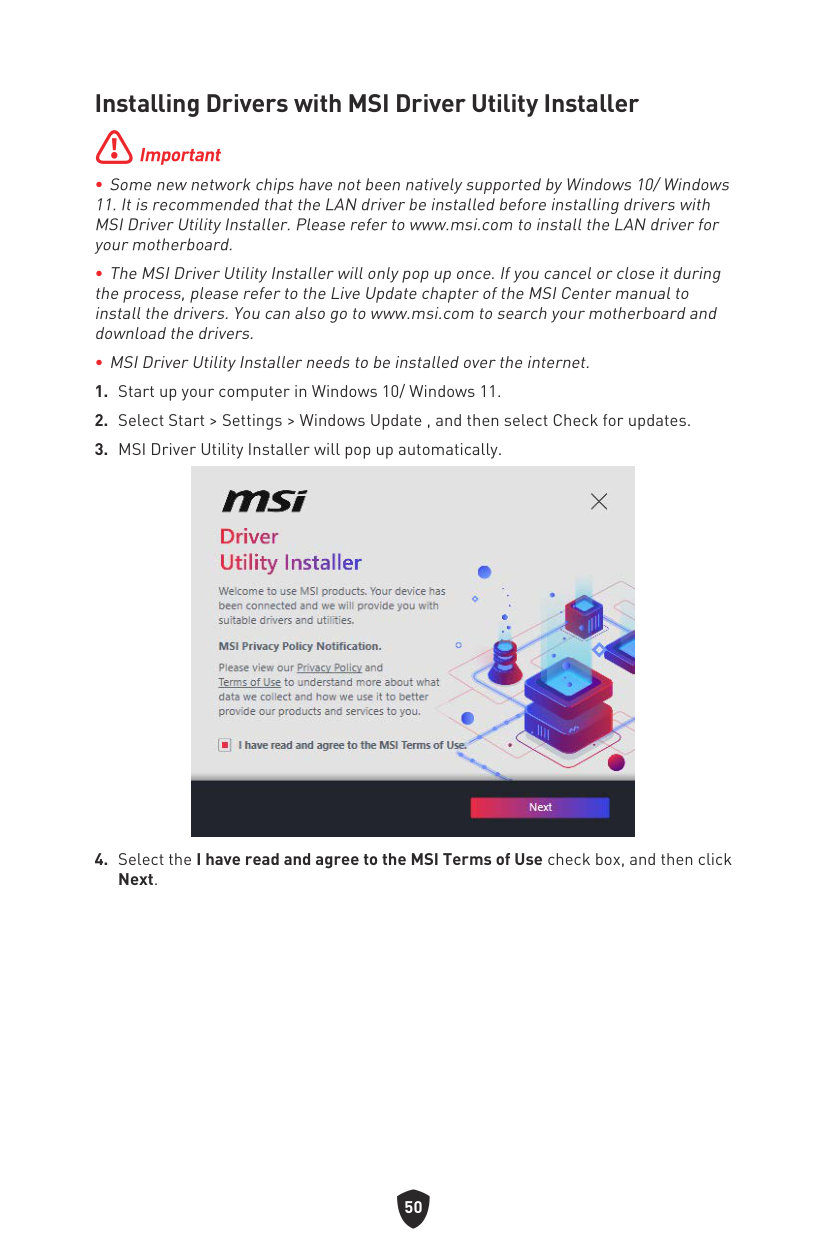

###### Installing Drivers with MSI Driver Utility Installer

⚠Important

∙ Some new network chips have not been natively supported by Windows 10/ Windows

∙ The MSI Driver Utility Installer will only pop up once. If you cancel or close it during the process, please refer to the Live Update chapter of the MSI Center manual to install the drivers. You can also go to www.msi.com to search your motherboard and download the drivers.

∙ MSI Driver Utility Installer needs to be installed over the internet.



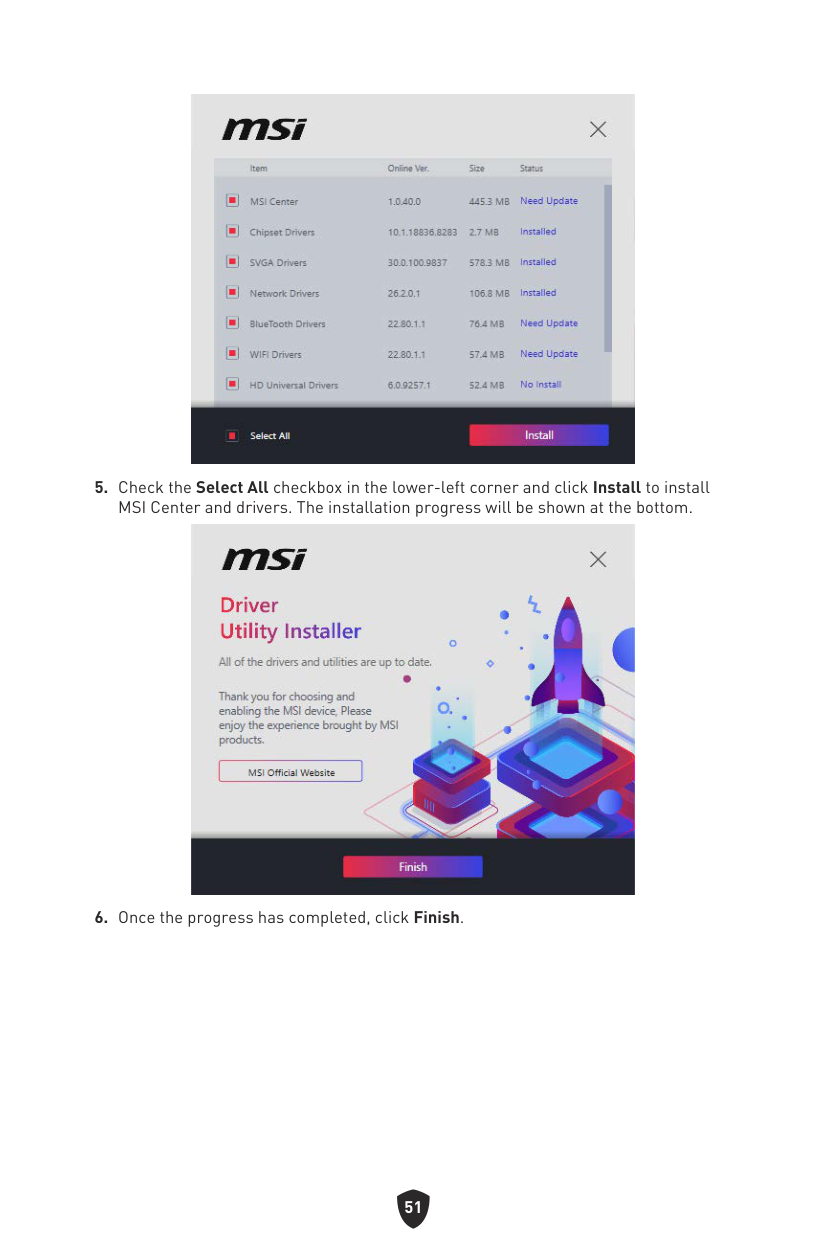

########### 5. Check the Select All checkbox in the lower-left corner and click Install to installMSI Center and drivers. The installation progress will be shown at the bottom.


########### 6. Once the progress has completed, click Finish.

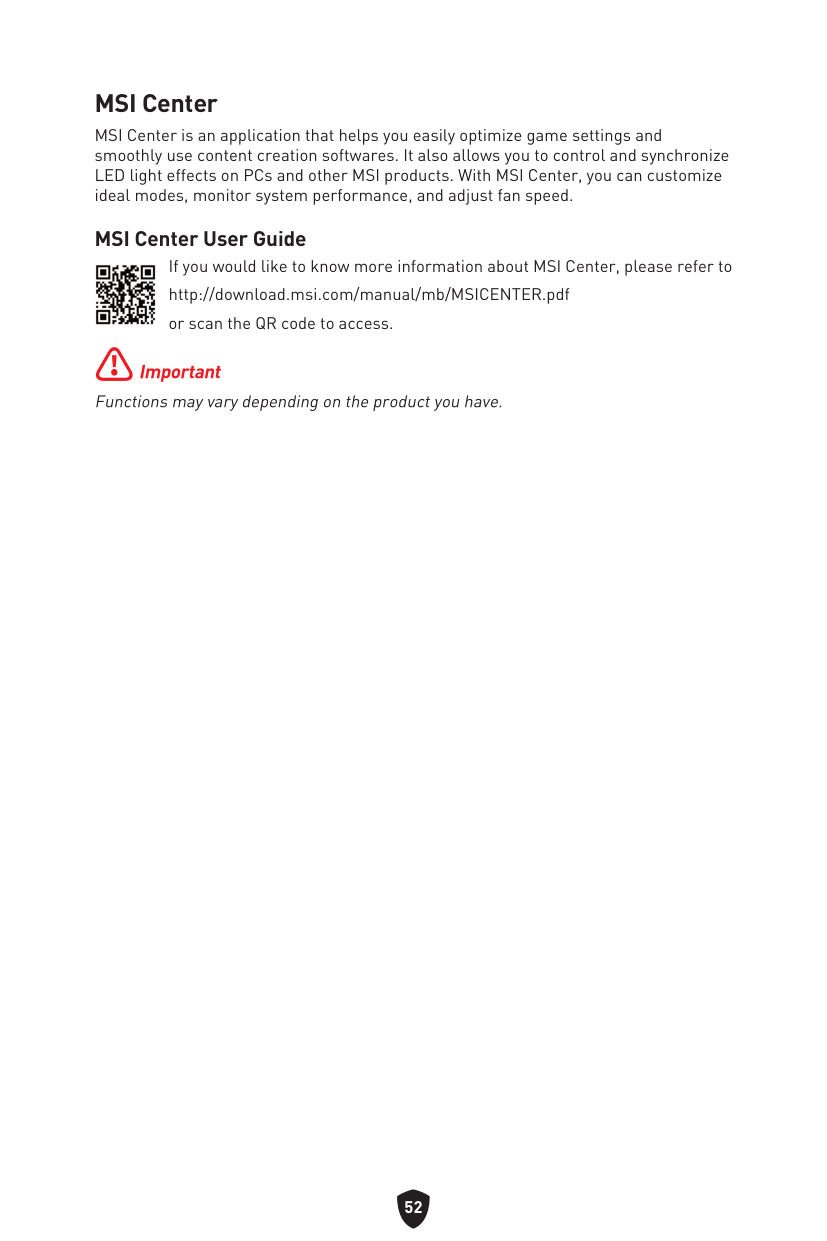

###### MSI Center

MSI Center is an application that helps you easily optimize game settings and smoothly use content creation softwares. It also allows you to control and synchronize LED light effects on PCs and other MSI products. With MSI Center, you can customize ideal modes, monitor system performance, and adjust fan speed.

MSI Center User Guide If you would like to know more information about MSI Center, please refer to http://download.msi.com/manual/mb/MSICENTER.pdf or scan the QR code to access.


⚠Important

Functions may vary depending on the product you have.

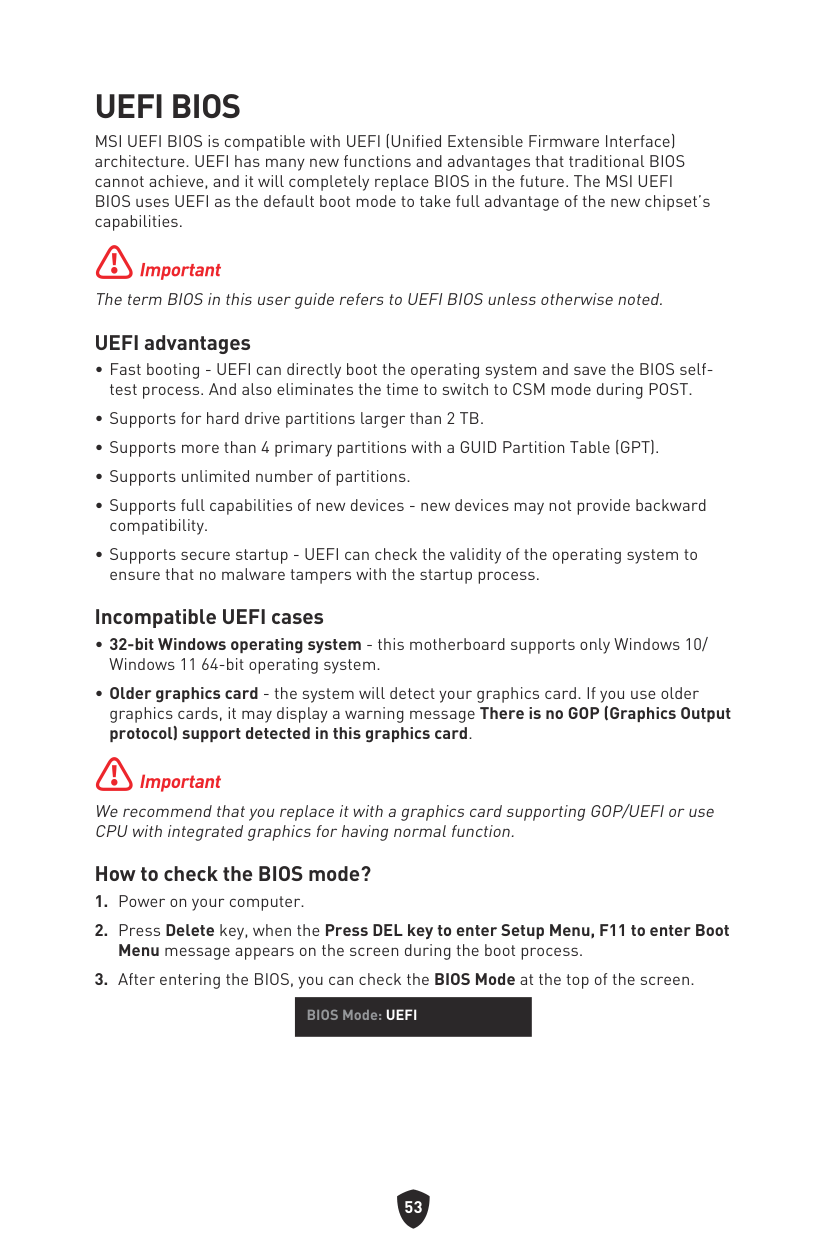

#### UEFI BIOS

MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface) architecture. UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset’s capabilities.

⚠Important The term BIOS in this user guide refers to UEFI BIOS unless otherwise noted. UEFI advantages

∙ Fast booting - UEFI can directly boot the operating system and save the BIOS selftest process. And also eliminates the time to switch to CSM mode during POST.

∙ Supports for hard drive partitions larger than 2 TB.

∙ Supports more than 4 primary partitions with a GUID Partition Table (GPT).

∙ Supports unlimited number of partitions.

∙ Supports full capabilities of new devices - new devices may not provide backward

compatibility.

∙ Supports secure startup - UEFI can check the validity of the operating system to

ensure that no malware tampers with the startup process. Incompatible UEFI cases

∙ 32-bit Windows operating system - this motherboard supports only Windows 10/

Windows 11 64-bit operating system.

∙ Older graphics card - the system will detect your graphics card. If you use older graphics cards, it may display a warning message There is no GOP (Graphics Output protocol) support detected in this graphics card.

⚠Important

We recommend that you replace it with a graphics card supporting GOP/UEFI or use CPU with integrated graphics for having normal function.

######## How to check the BIOS mode?

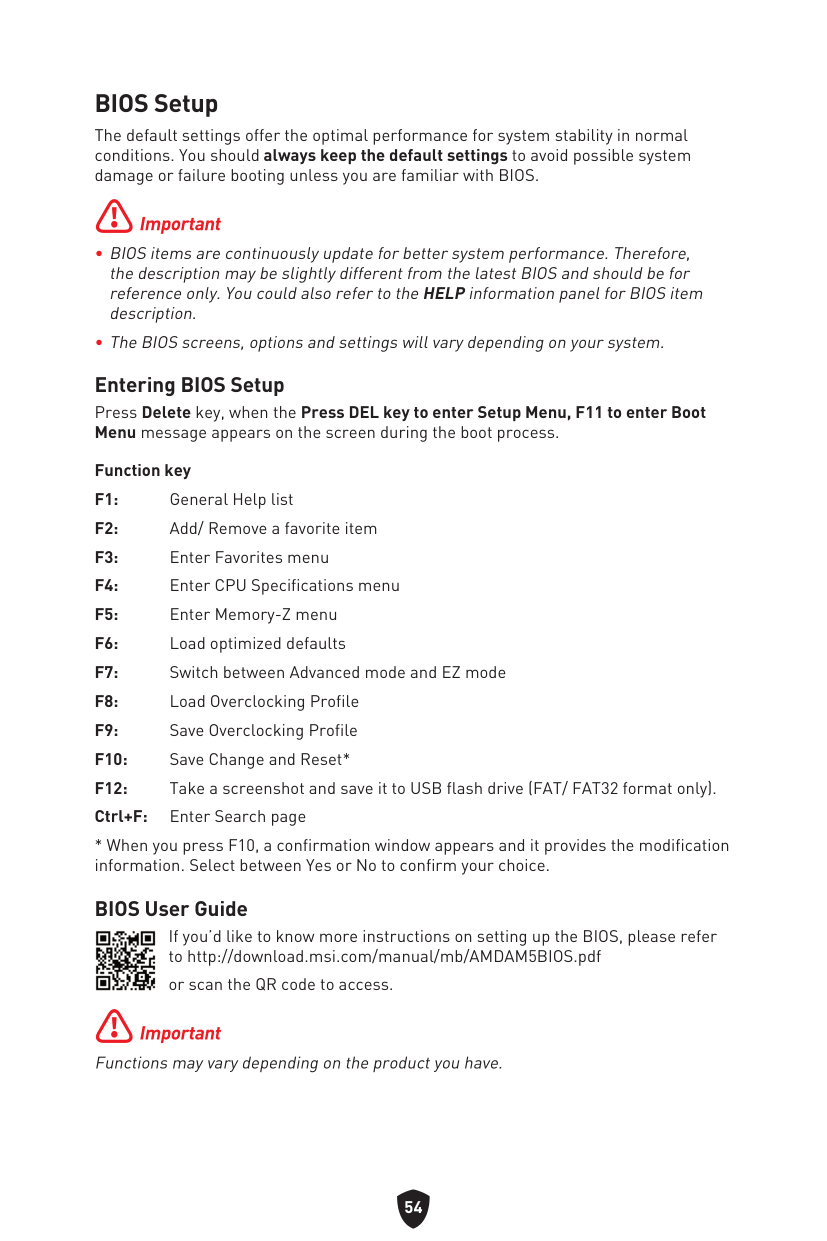

###### BIOS Setup

The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS.

⚠Important

∙ BIOS items are continuously update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be for reference only. You could also refer to theHELPinformation panel for BIOS item description.

∙ The BIOS screens, options and settings will vary depending on your system. Entering BIOS Setup Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process. Function key

BIOS User Guide If you’d like to know more instructions on setting up the BIOS, please refer to http://download.msi.com/manual/mb/AMDAM5BIOS.pdf


or scan the QR code to access.

⚠Important

Functions may vary depending on the product you have.

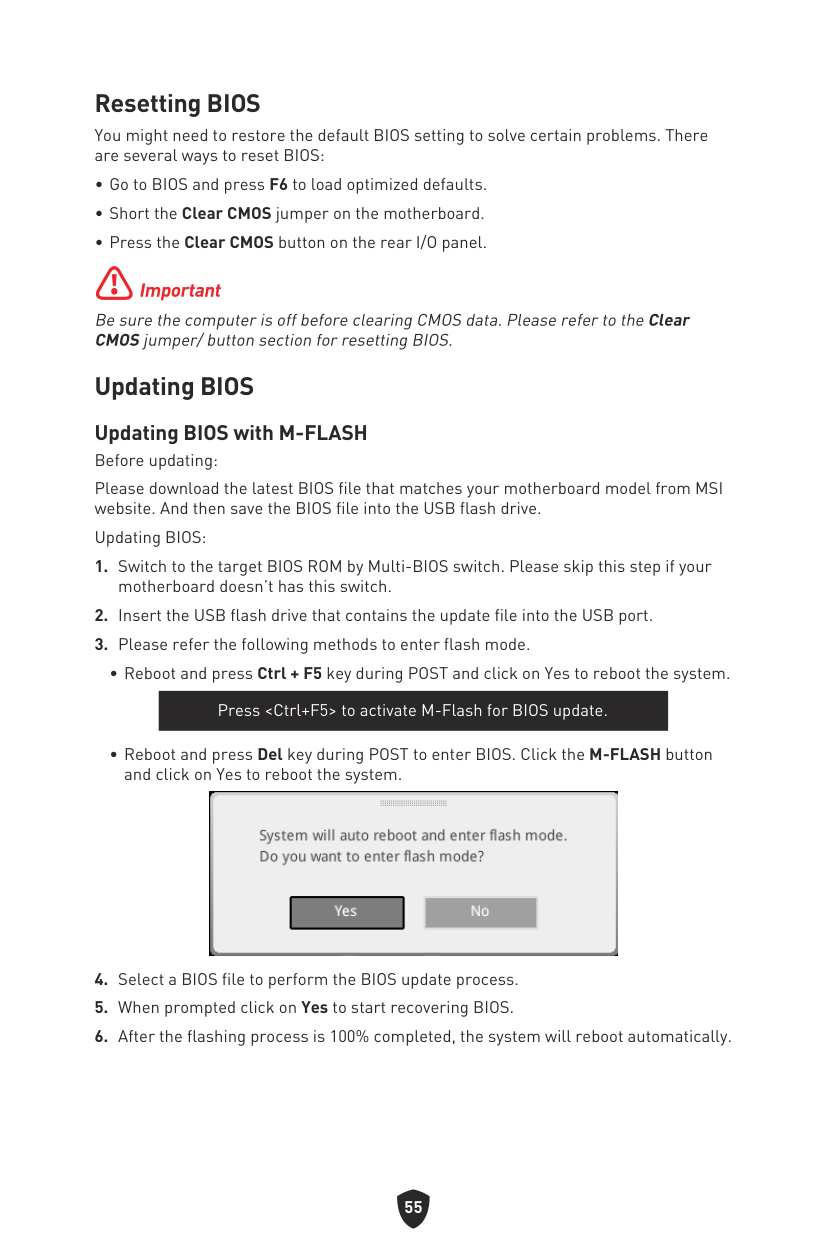

###### Resetting BIOS

You might need to restore the default BIOS setting to solve certain problems. There are several ways to reset BIOS:

∙ Go to BIOS and press F6 to load optimized defaults. ∙ Short the Clear CMOS jumper on the motherboard. ∙ Press the Clear CMOS button on the rear I/O panel.

⚠Important

Be sure the computer is off before clearing CMOS data. Please refer to theClear CMOSjumper/ button section for resetting BIOS.

Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS:


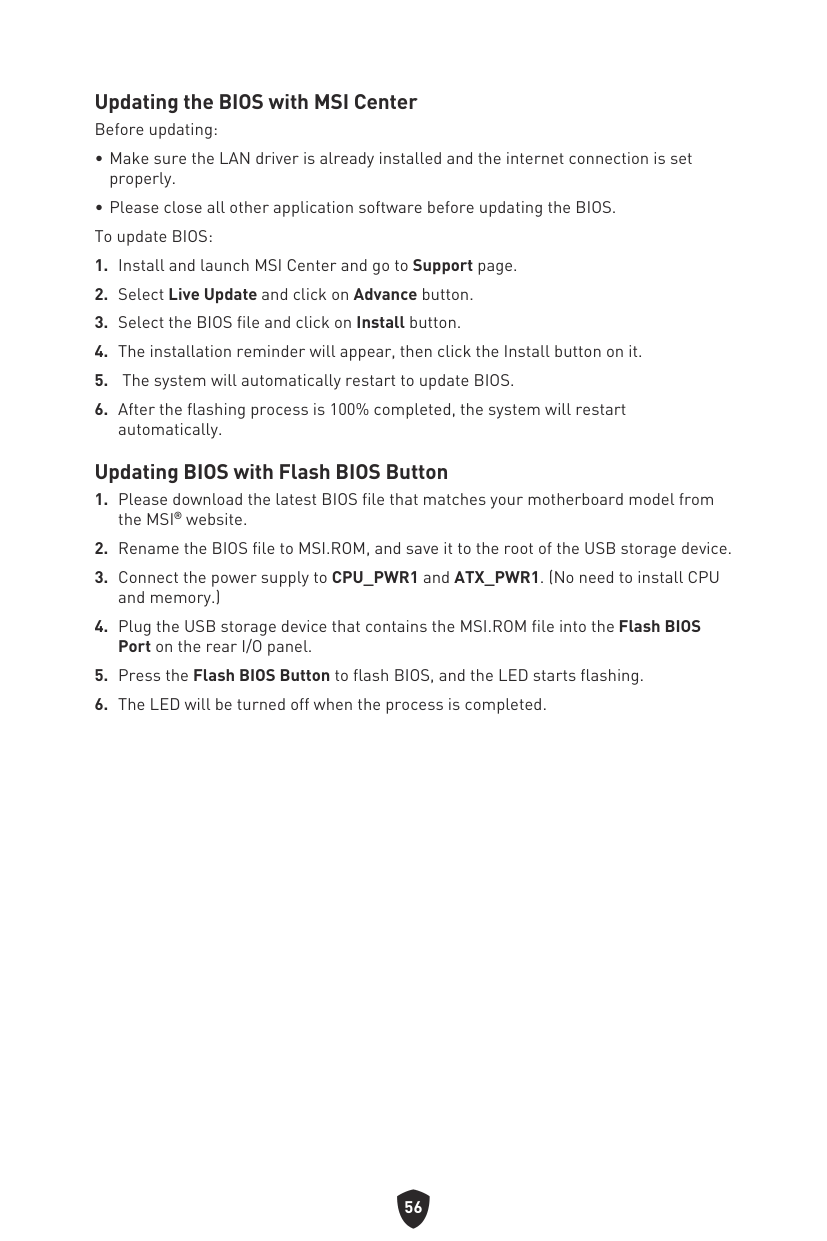

######## Updating the BIOS with MSI Center Before updating:

∙ Make sure the LAN driver is already installed and the internet connection is set

properly.

∙ Please close all other application software before updating the BIOS. To update BIOS:

######## Updating BIOS with Flash BIOS Button

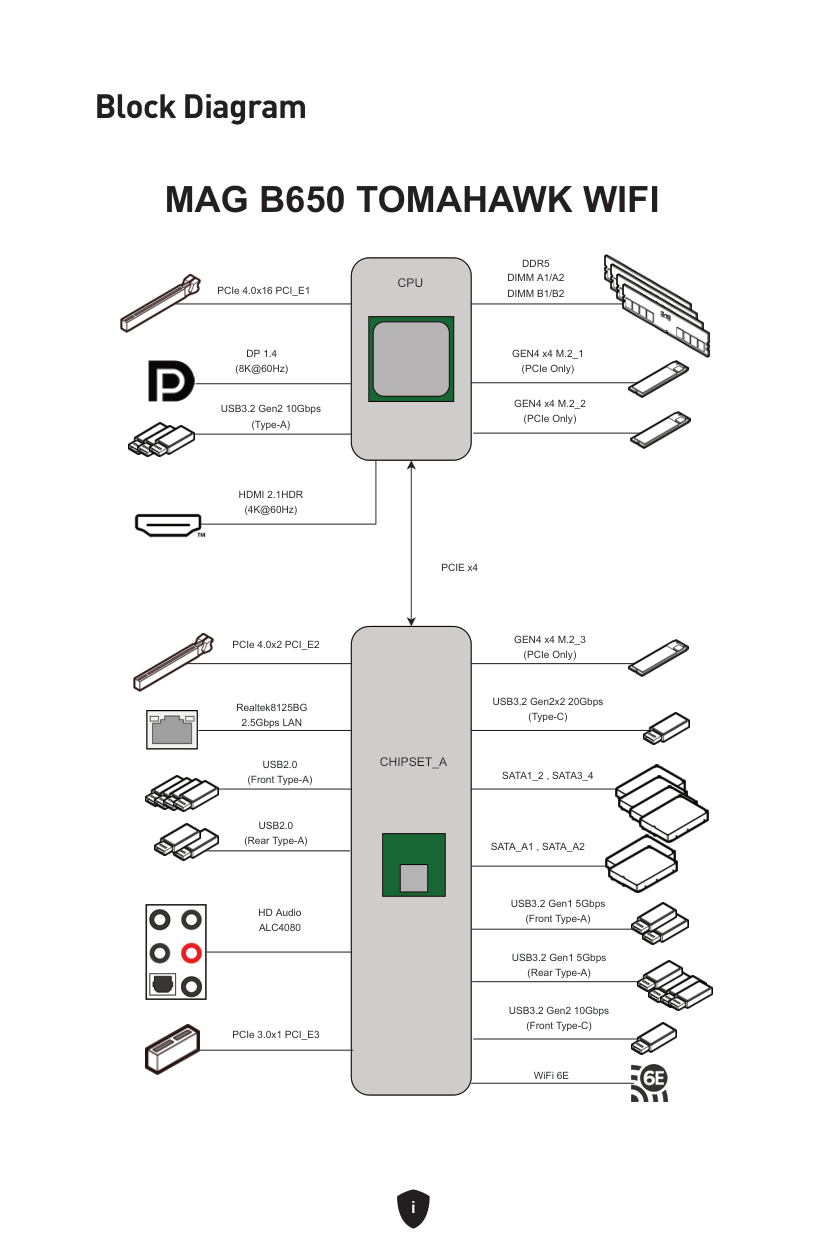

Block Diagram

MAG B650 TOMAHAWK WIFI


DDR5




############ CPU


PCIe 4.0x16 PCI_E1

DP 1.4 (8K@60Hz)

GEN4 x4 M.2_1 (PCIe Only)



GEN4 x4 M.2_2 (PCIe Only)

USB3.2 Gen2 10Gbps (Type-A)





HDMI 2.1HDR (4K@60Hz)


PCIE x4


GEN4 x4 M.2_3 (PCIe Only)

PCIe 4.0x2 PCI_E2


USB3.2 Gen2x2 20Gbps (Type-C)

Realtek8125BG 2.5Gbps LAN



############ CHIPSET_A

USB2.0 (Front Type-A)


SATA1_2 , SATA3_4








USB2.0 (Rear Type-A)



| | |---|


SATA_A1 , SATA_A2


USB3.2 Gen1 5Gbps (Front Type-A)



HD Audio ALC4080






(Front Type-C) PCIe 3.0x1 PCI_E3




WiFi 6E

i

#### Regulatory Notices

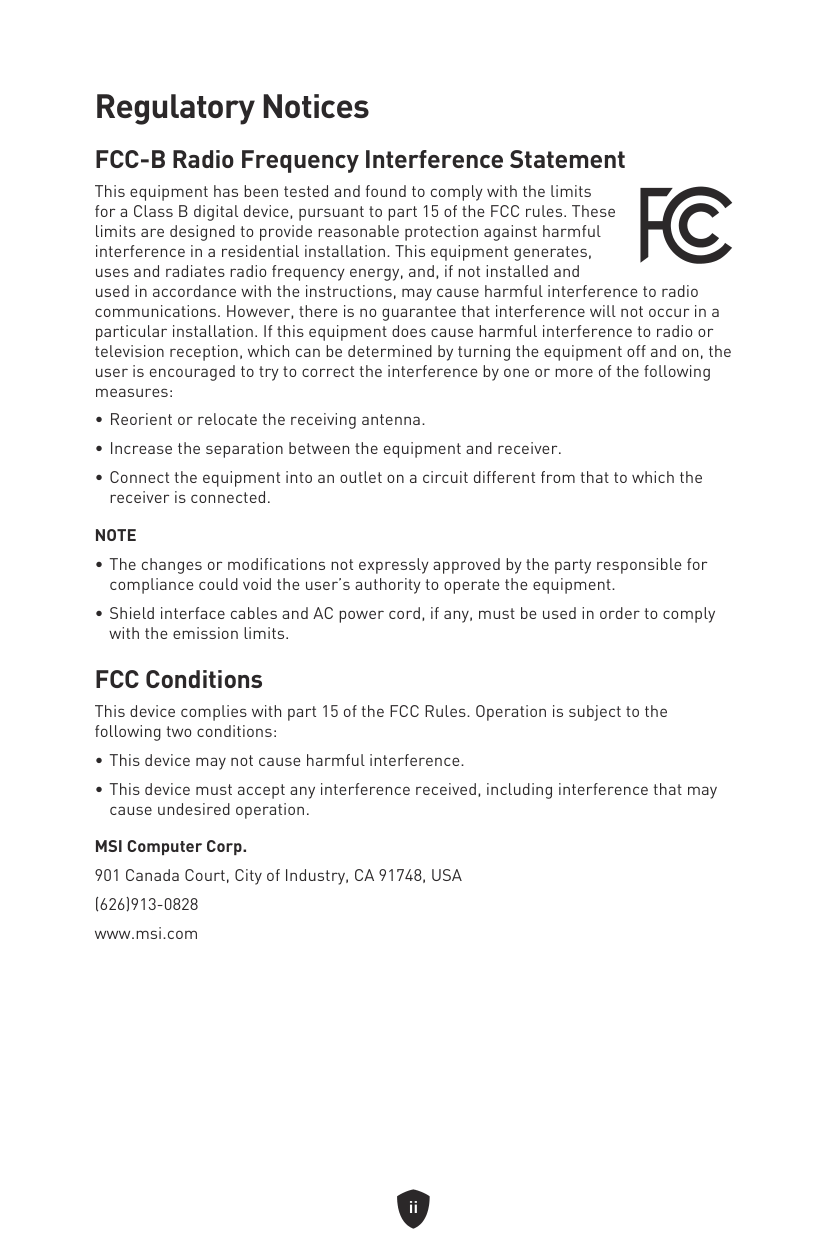

###### FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

∙ Reorient or relocate the receiving antenna.

∙ Increase the separation between the equipment and receiver.

∙ Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected. NOTE

∙ The changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

∙ Shield interface cables and AC power cord, if any, must be used in order to comply

with the emission limits.

###### FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

∙ This device may not cause harmful interference.

∙ This device must accept any interference received, including interference that may

cause undesired operation.

MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA

(626)913-0828 www.msi.com

ii

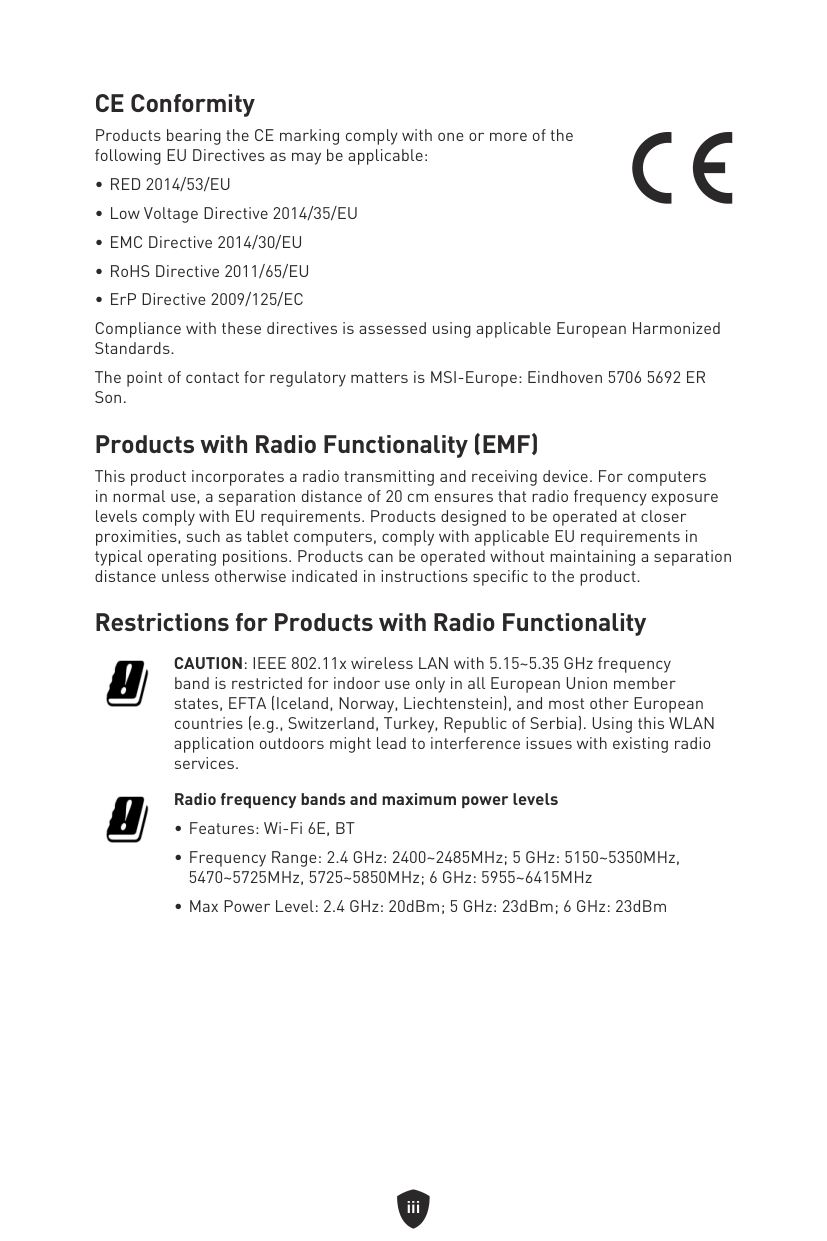

###### CE Conformity

Products bearing the CE marking comply with one or more of the following EU Directives as may be applicable:

∙ RED 2014/53/EU

∙ Low Voltage Directive 2014/35/EU

∙ EMC Directive 2014/30/EU

∙ RoHS Directive 2011/65/EU

∙ ErP Directive 2009/125/EC

Compliance with these directives is assessed using applicable European Harmonized Standards.

The point of contact for regulatory matters is MSI-Europe: Eindhoven 5706 5692 ER Son.

###### Products with Radio Functionality (EMF)

This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. Products designed to be operated at closer proximities, such as tablet computers, comply with applicable EU requirements in typical operating positions. Products can be operated without maintaining a separation distance unless otherwise indicated in instructions specific to the product.

###### Restrictions for Products with Radio Functionality



CAUTION: IEEE 802.11x wireless LAN with 5.15~5.35 GHz frequency band is restricted for indoor use only in all European Union member states, EFTA (Iceland, Norway, Liechtenstein), and most other European countries (e.g., Switzerland, Turkey, Republic of Serbia). Using this WLAN application outdoors might lead to interference issues with existing radio services.

########## Radio frequency bands and maximum power levels

∙ Features: Wi-Fi 6E, BT

∙ Frequency Range: 2.4 GHz: 2400~2485MHz; 5 GHz: 5150~5350MHz,

5470~5725MHz, 5725~5850MHz; 6 GHz: 5955~6415MHz

∙ Max Power Level: 2.4 GHz: 20dBm; 5 GHz: 23dBm; 6 GHz: 23dBm

iii

###### Wireless Radio Use

This device is restricted to indoor use when operating in the 2.4GHz, 5GHz, 6GHz frequency band.

Cet appareil doit être utilisé à l’intérieur. 당해 무선설비는 운용중 전파혼신 가능성이 있음. この製品は、周波数帯域 2.4GHz, 5GHz, 6GHz で動作しているときは、屋内においてのみ使 用可能です。

NCC無線設備警告聲明 工作頻率2.4GHz, 5GHz, 6GHz該頻段限於室內使用。 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即 停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通 信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

###### Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-003(B)/NMB-003(B)

###### Australia and New Zealand notice

This equipment incorporates a radio transmitting and receiving device. In normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with the Australian and New Zealand Standards.

###### クラスB情報技術装置

この装置は、クラスＢ情報技術装置です。この装置は、家庭環境で使用することを目的とし ていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を 引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。

VCCI-B

###### KC인증서

상호: (주)엠에스아이코리아 제품명: 메인보드 모델명: 10-7D75 제조년월: 2022년

제조자 및 제조국가: MSI/중국R-R-MSI-10-7D75

iv

###### Battery Information

########## European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

########## BSMI:

廢電池請回收 For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

########## California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

CAUTION: There is a risk of explosion, if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

###### Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://csr.msi.com/global/index

###### Environmental Policy

∙ The product has been designed to enable proper reuse of parts and

recycling and should not be thrown away at its end of life.

∙ Users should contact the local authorized point of collection for recycling

and disposing of their end-of-life products.

∙ Visit the MSI website and locate a nearby distributor for further recycling

information.

∙ Users may also reach us at gpcontdev@msi.com for information regarding proper

Disposal, Take-back, Recycling, and Disassembly of MSI products.

###### WEEE (Waste Electrical and Electronic Equipment) Statement ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be

v

discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSIbranded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen Elektro- und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS En tant qu’écologiste et afin de protéger l’environnement, MSI tient à rappeler ceci... Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits électriques et électroniques ne peuvent être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en fin de vie. MSI prendra en compte cette exigence relative au retour des produits en fin de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner localement ces matériels dans les points de collecte.

########## РУССКИЙ

Компания MSI предпринимает активные действия по защите окружающей среды, поэтому напоминаем вам, что....

В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы. MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.

ESPAÑOL MSI como empresa comprometida con la protección del medio ambiente, recomienda: Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido con los términos de recogida de sus productos vendidos en

la Unión Europea al final de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.

NEDERLANDS Om het milieu te beschermen, wil MSI u eraan herinneren dat…. De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.

########## SRPSKI

Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini, MSI mora da vas podesti da… Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.

########## POLSKI

Aby chronić nasze środowisko naturalne oraz jako firma dbająca o ekologię, MSI przypomina, że...Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.

########## TÜRKÇE

Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır: Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/ EC Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.

ČESKY Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje... Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků 2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické

výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.

########## MAGYAR

Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az MSI emlékezteti Önt, hogy ...

Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket a legközelebbi gyűjtőhelyre viheti.

ITALIANO Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che…. In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta

###### 日本JIS C 0950材質宣言

日本工業規格JIS C 0950により、2006年7月1日以降に販売される特定分野の電気および 電子機器について、製造者による含有物質の表示が義務付けられます。

https://csr.msi.com/tw/Japan-JIS-C-0950-Material-Declarations

###### India RoHS

This product complies with the “India E-waste (Management and Handling) Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Türkiye EEE yönetmeliği Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur Україна обмеження на наявність небезпечних речовин Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних речовин в електричному та електронному обладнані, затвердженого постановою Кабінету Міністрів України від 3 грудня 2008 № 1057.

###### Việt Nam RoHS

Kể từ ngày 01/12/2012, tất cả các sản phẩm do công ty MSI sản xuất tuân thủ Thông tư số 30/2011/TT-BCT quy định tạm thời về giới hạn hàm lượng cho phép của một số hóa chất độc hại có trong các sản phẩm điện, điện tử”

MS-7D75主板产品中有害物质的名称及含量

|部件名称|有害物质|有害物质|有害物质|有害物质|有害物质|有害物质| |---|---|---|---|---|---|---| |部件名称|铅 (Pb)|汞 (Hg)|镉 (Cd)|六价铬 (Cr(VI))|多溴联苯 (PBB)|多溴二苯醚 (PBDE)| |印刷电路板组件*|╳|○|○|○|○|○| |纽扣电池|○|○|○|○|○|○| |外部信号连接头|╳|○|○|○|○|○| |其他 (例: 线材等)|╳|○|○|○|○|○| |本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|本表格依据 SJ/T 11364 的规定编制。

○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要 求以下。

╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限 量要求，但所有部件都符合欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
|

限用物質含有情況標示聲明書

|設備名稱：電腦主機板|設備名稱：電腦主機板|設備名稱：電腦主機板|型號(型式)：MS-7D75|型號(型式)：MS-7D75|型號(型式)：MS-7D75|型號(型式)：MS-7D75|型號(型式)：MS-7D75| |---|---|---|---|---|---|---|---| |單元|限用物質及其化學符號|限用物質及其化學符號|限用物質及其化學符號|限用物質及其化學符號|限用物質及其化學符號|限用物質及其化學符號|限用物質及其化學符號| |單元|鉛 (Pb)|汞 (Hg)|汞 (Hg)|鎘 (Cd)|六價鉻 (Cr+6)|多溴聯苯 (PBB)|多溴二苯醚 (PBDE)| |電路板|○|○|○|○|○|○|○| |電子元件|─|○|○|○|○|○|○| |金屬機構件|─|○|○|○|○|○|○| |塑膠機構件|○|○|○|○|○|○|○| |備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含 量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
|

ix

###### Copyright and Trademarks Notice

Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.

###### Technical Support

If a problem arises with your system and no solution can be obtained from the user guide, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

∙ Visit the MSI website for technical guide, BIOS updates, driver updates, and other

information: http://www.msi.com

∙ Register your product at: http://register.msi.com

###### Revision History

∙ Version 1.0, 2022/09, First release.

x
