Raslok Hcm T1 Dispenser And Water Purifier
Ask AI
— answers from the official manualAnswers from the official manual.
Common questions
Common Questions
29 totalHow often do I need to replace the filter cartridges?
The disposable filter cartridge must be replaced every 12 months, or if any noticeable reduction in flow rate occurs, whichever comes sooner. This ensures filter effectiveness is maintained. You should also replace the filter if the filter lifespan indicator shows the flow left is less than 200L. (Page 4)

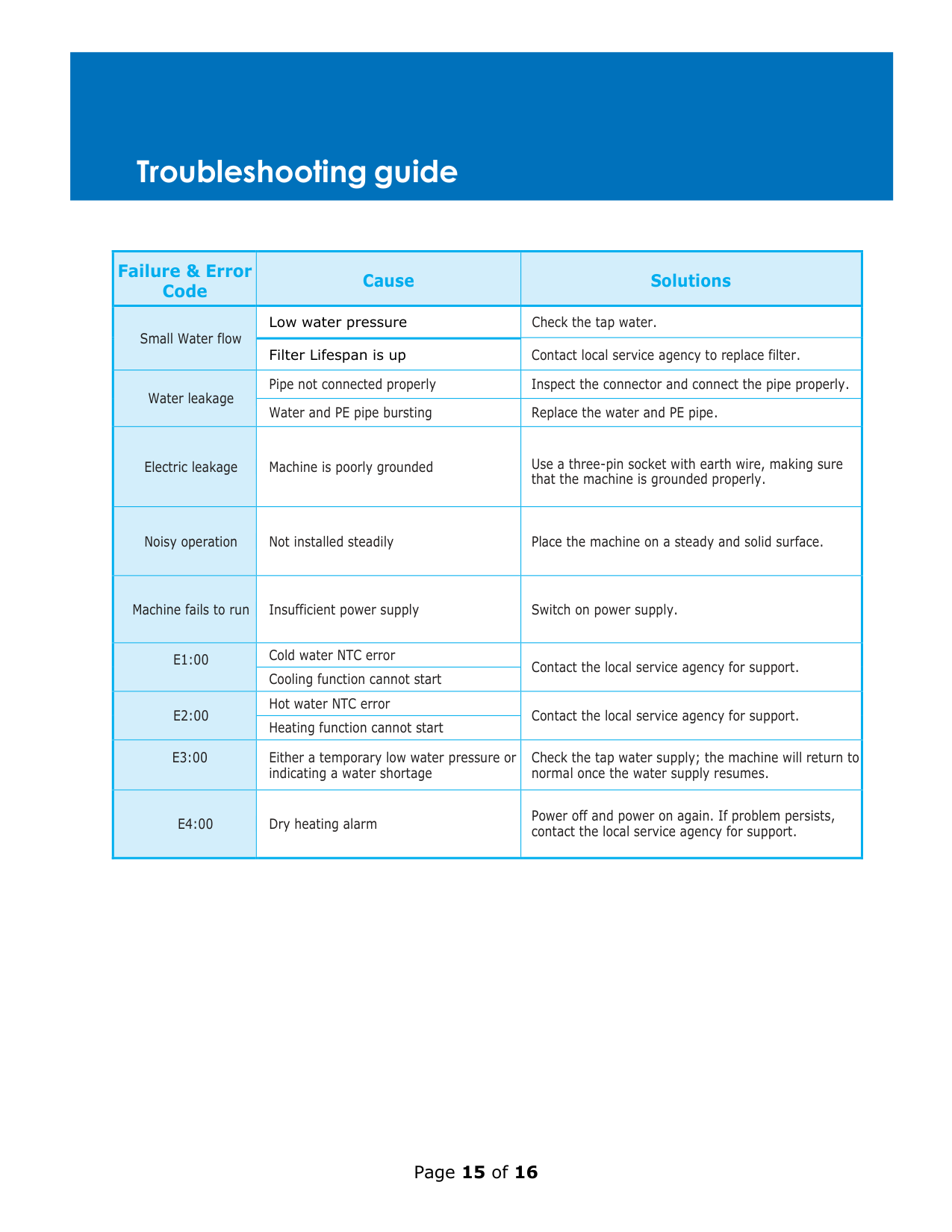

What do the error codes E1:00, E2:00, E3:00, and E4:00 mean?
E1:00 indicates a cold water NTC error that prevents the cooling function from starting, and E2:00 indicates a hot water NTC error that prevents the heating function from starting — both require contacting the local service agency. E3:00 indicates either a temporary low water pressure or water shortage, and the machine will return to normal once water supply resumes. E4:00 is a dry heating alarm; you should power off and power on again, and contact the service agency if the problem persists. (Page 15)

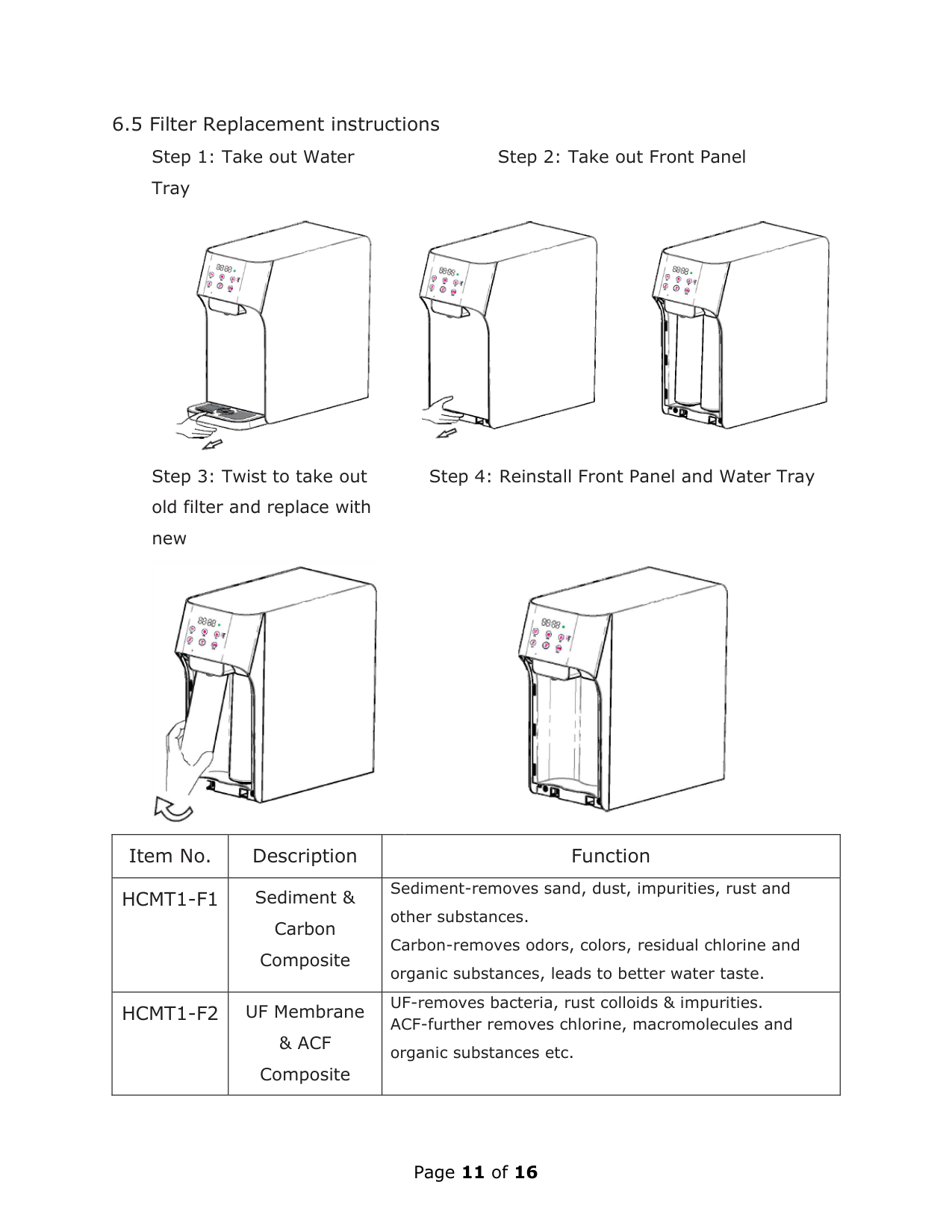

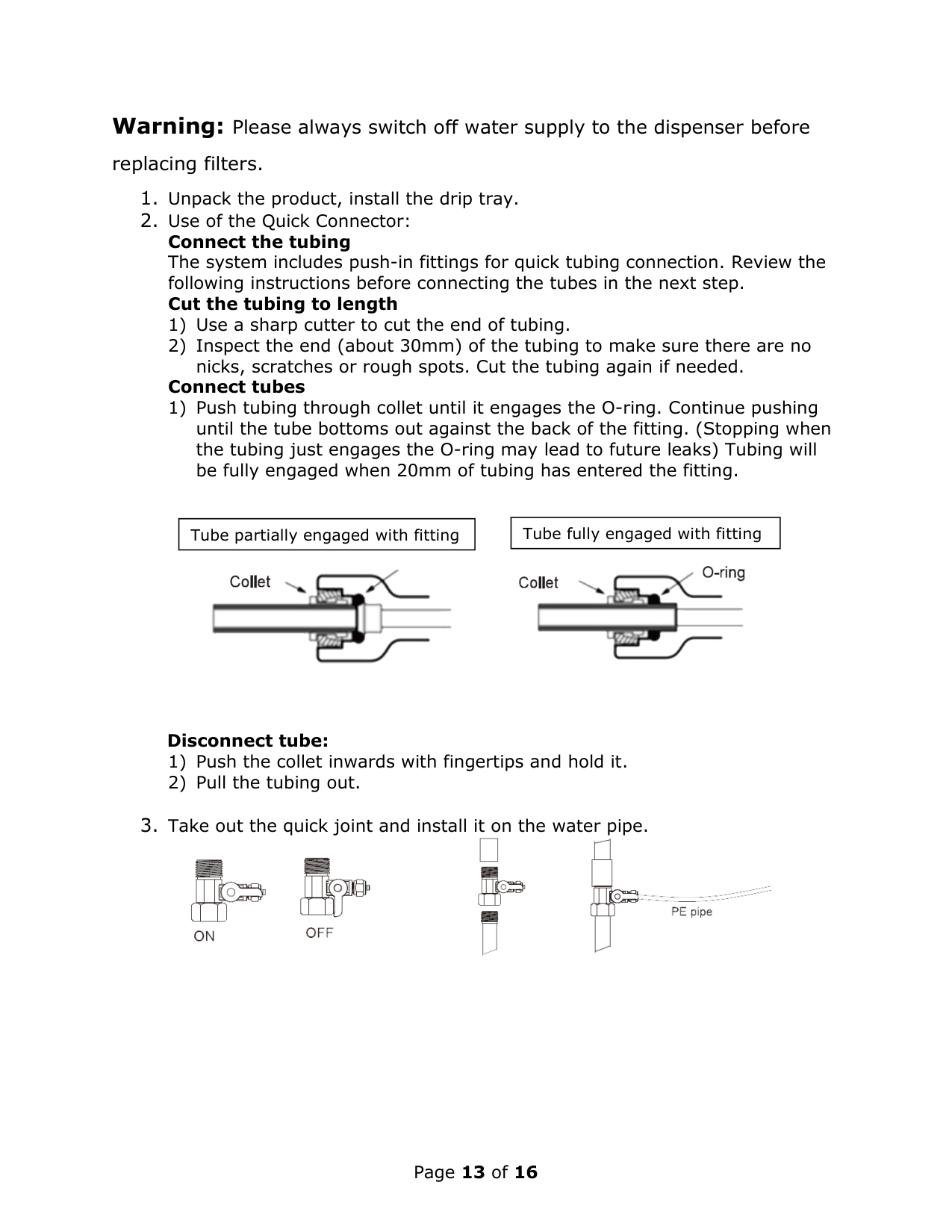

How do I replace the filters on the HCM-T1?
First, switch off the water supply to the dispenser before replacing filters. Then remove the water tray, take out the front panel, twist to remove the old filter and replace it with the new one, and finally reinstall the front panel and water tray. The machine uses two filters: the HCM-T1-F1 (Sediment & Carbon Composite) and the HCM-T1-F2 (UF Membrane & ACF Composite). (Page 11)

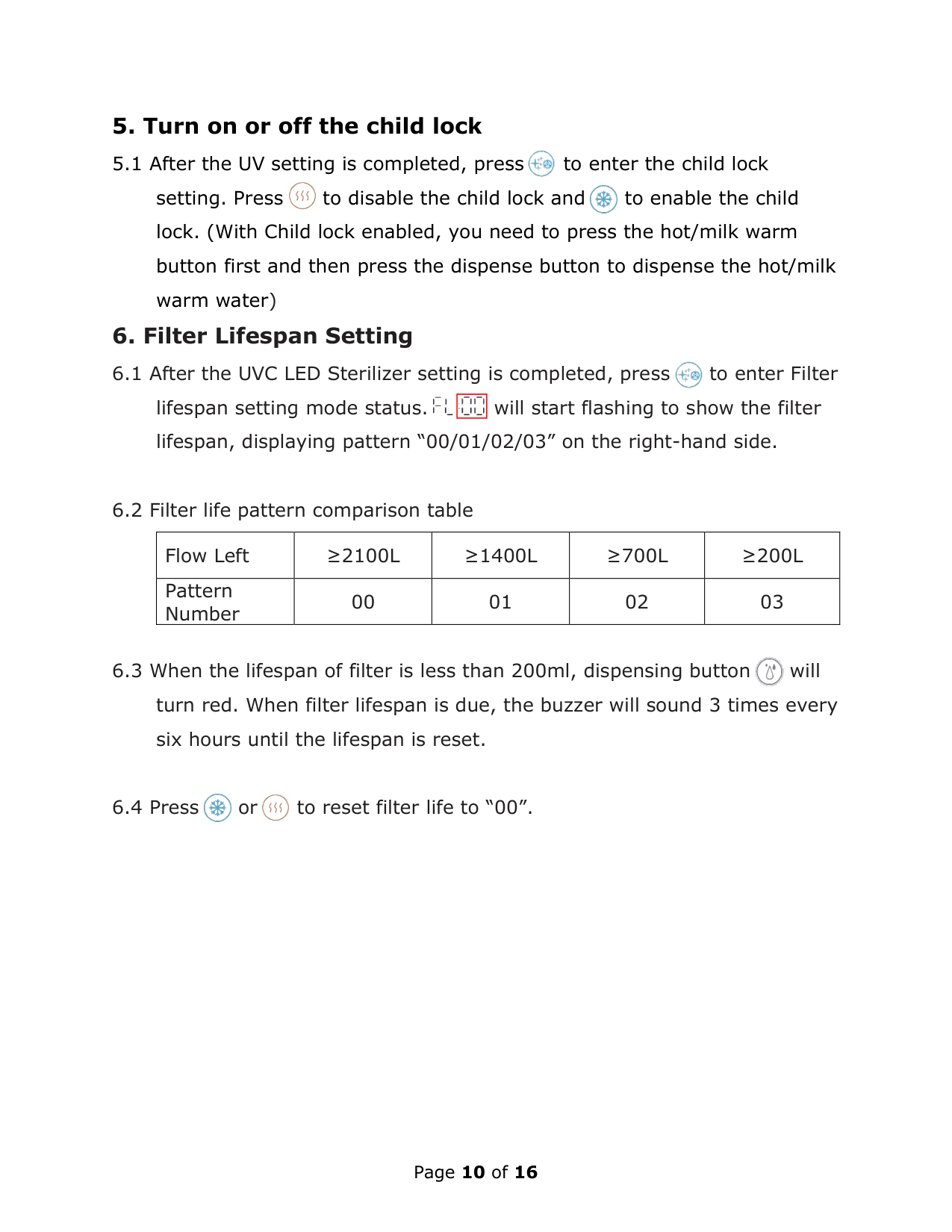

How do I reset the filter lifespan after replacing the filters?
Enter the Filter Lifespan Setting mode by navigating through the system settings menu using the setting button. Once in filter lifespan setting mode, the display will show a pattern number (00/01/02/03) indicating remaining filter life, and you can press the increase or decrease button to reset the filter life back to '00'. When the filter lifespan is due, the buzzer will sound 3 times every six hours until the lifespan is reset. (Page 10)

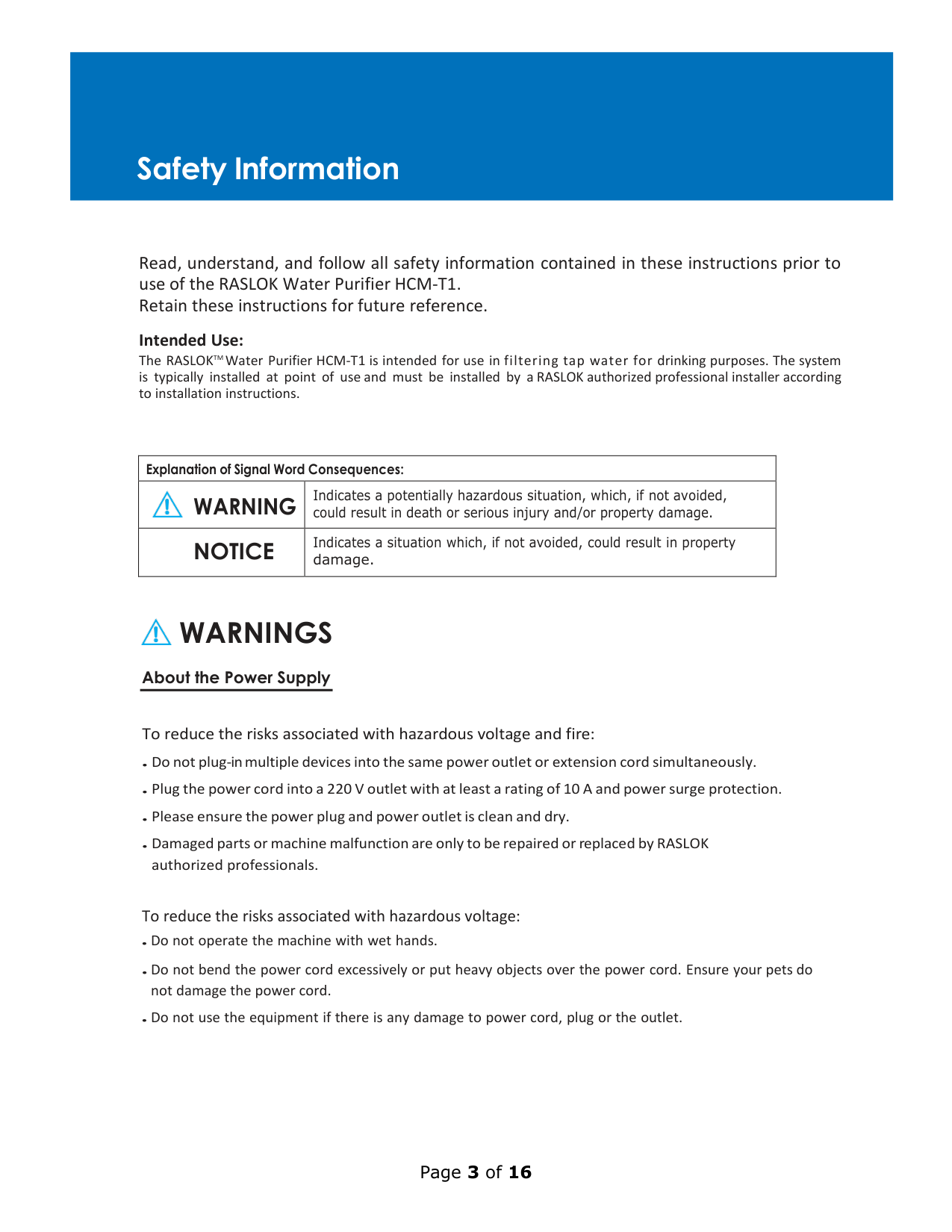

What power supply requirements does the HCM-T1 need?
The rated voltage of the HCM-T1 is AC 220V/50Hz only. The power cord must be plugged into a 220V outlet with at least a rating of 10A and power surge protection. You should also ensure the power plug and power outlet are clean and dry before use. (Pages 1, 3)
How does the child lock feature work and how do I enable or disable it?
The child lock can be enabled or disabled through the system settings menu after the UVC LED Sterilizer setting step. With child lock enabled, you need to press the hot or lukewarm button first and then press the dispense button to dispense hot or lukewarm water. To toggle the setting, press the increase button to disable and the decrease button to enable the child lock. (Page 10)
Show 23 more questions

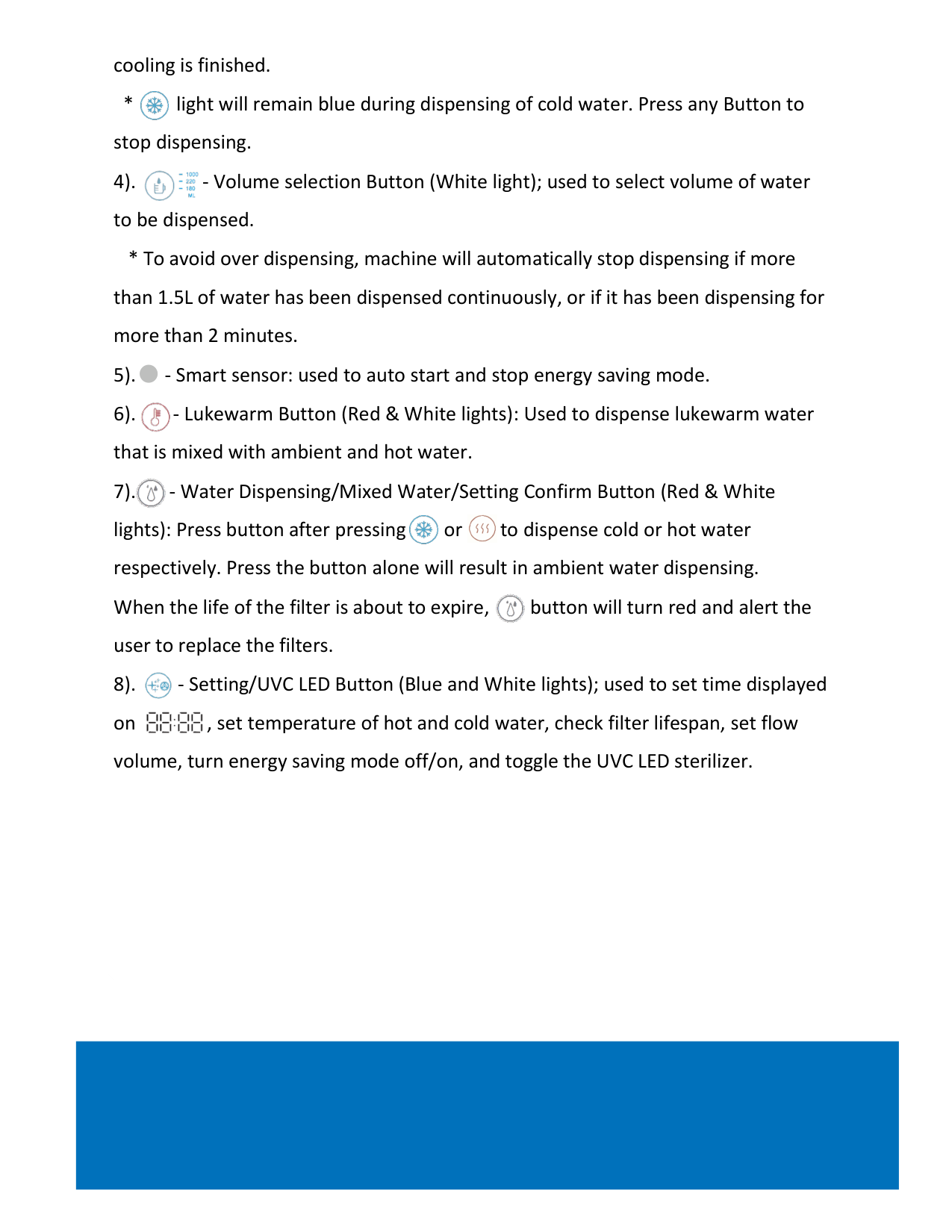

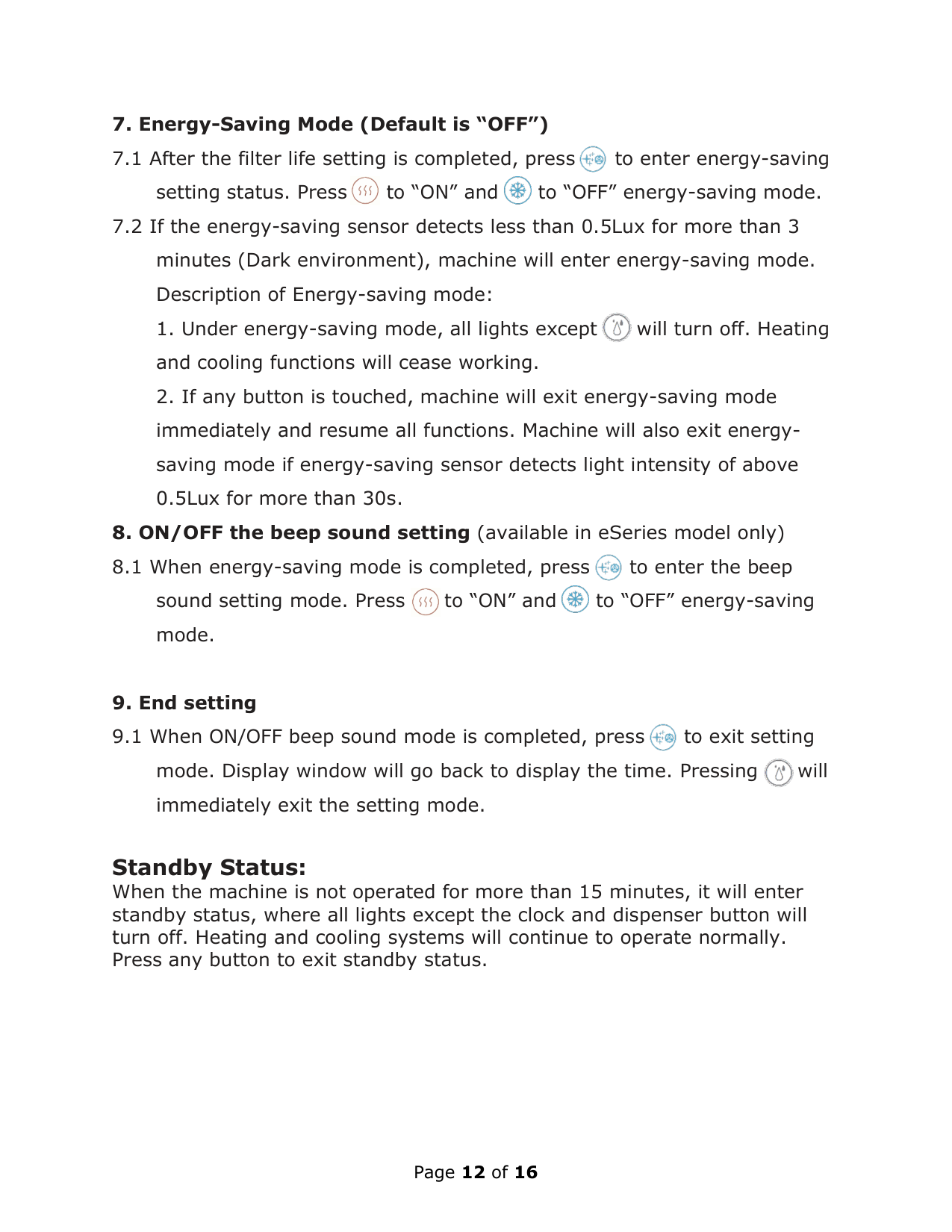

What is energy-saving mode and how does it work?

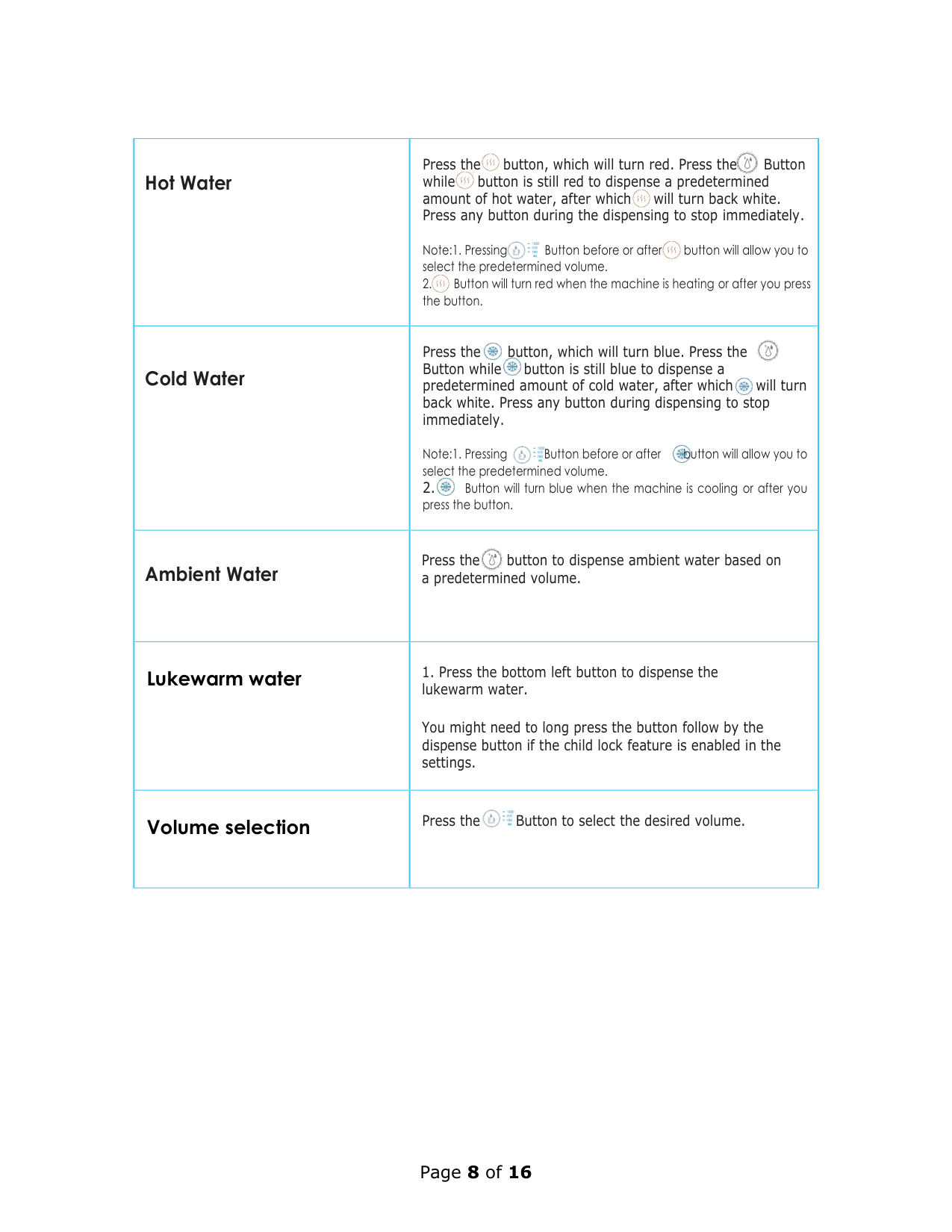

How do I dispense hot water safely, and is there an automatic shutoff?

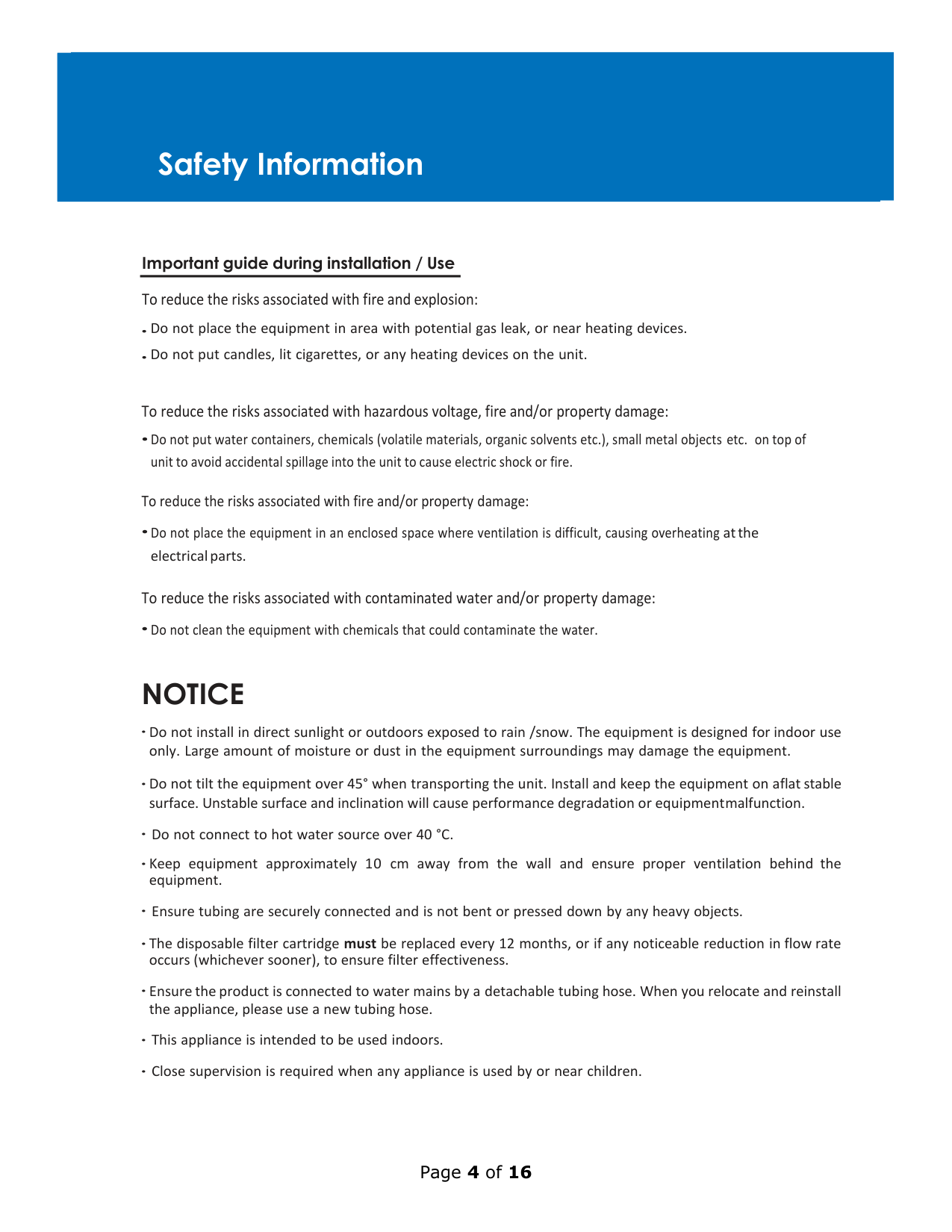

What safety precautions should I follow during installation and daily use?

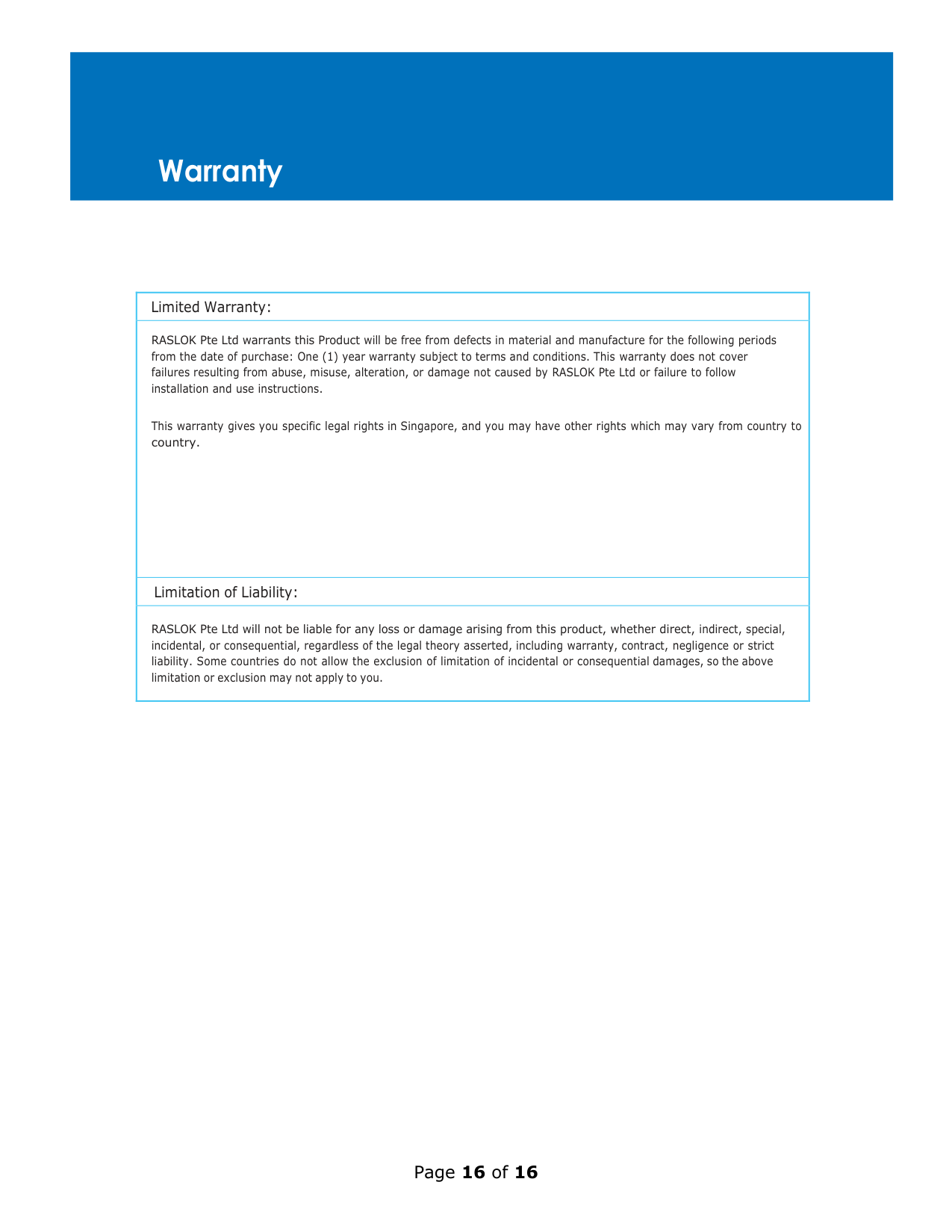

What does the warranty cover and how long does it last?
What does error code E3:00 mean?
How do I reset filter life?
What are safety precautions for installation?
How often should I replace the filters?
What do I do if water is leaking from the pipe?
How can I enable or disable energy-saving mode?
What is the water flow pattern number associated with specific filter lifespans?
What should I do if no air is blowing from my air purifier?
How can I adjust the sensitivity of the air quality sensor?
How often do I need to clean or replace the Pre-filter?
What does an unhealthy air quality indicator color mean?
How do I clean the Air Quality Sensor Cover properly?
Can I use this air purifier in a commercial setting?
What fan speed settings does the device offer?
How do I set up the app connection with my Airmega?
How do I reset the filter replacement indicator?
How do I set the clock/time on my unit?
What should I do if the machine fails to run?
How do I replace the filter in my air purifier?
Full Manual
21 pages
User Manual of Product 1:
Express Water - ROALK10DCG Reverse Osmosis Alkaline Water Filtration System – 10 Stage RO Water Filter with Faucet and Tank – Under Sink Water Filter – with Alkaline Filter for Added Essential Minerals – 100 GPD
User Manual of Product 2:
Express Water – 3 Year Reverse Osmosis System Replacement Filter Set – 23 Filters with 50 GPD RO Membrane, Carbon GAC, ACB, PAC Filters, Sediment SED Filters – 10 inch Size Water Filters
#### Coway Air Purifier Airmega AP-1512HHS (AP-1519P)
FEATURES
####### 1. Excellent air purification performance
The True HEPA filter is capable of trapping airborne allergens and contaminants down to 0.3 microns. The unit’s filter system has been optimized to remove indoor pollutants fast and effectively.
####### 2. Air quality indicator
It shows the indoor air pollution level measured by the dust sensor. The color of air quality indicator changes according to the indoor air pollution level in real time (Blue → Dark Purple → Red).
####### 3. Filter replacement indicator
The product checks the filter replacement cycle and turns on the relevant indicator, improving customer convenience with regard to filter replacement.
####### 4. Mobile Application
The Coway Airmega mobile app gives you the freedom. To control your air purifier through your mobile device, anywhere you have an internet connection.
DEAR CUSTOMERS
Thank you for using the Coway air purifier. Please read the user’s manual to use and maintain the product correctly. If you encounter a problem while using the product, you may easily solve the problem by referring to the user’s manual. As this manual contains the product warranty card, please keep it in a safe place.
####### CONTENTS
FOR INFORMATION
| 03 | SAFETY INFORMATION Danger Warning Caution
| 07 | PARTS NAME | 09 | AIR PURIFICATION PROCESS
HOW TO USE
MAINTENANCE
| 15 | CLEANING METHOD Product Filter
| 17 | FILTER REPLACEMENT
OTHERS
FEATURES / CONTENTSCoway
1
DANGER : Failing to follow the precautions below may result in serious injury or even death.
SAFETY PRECAUTIONS | DangerFor Information
3
WARNING : Failing to follow the precautions below may result in considerable physical injury or property damage.
CAUTION : Failing to follow the precautions below may result in slight physical injury or property damage.
SAFETY PRECAUTIONS|Warning | CautionFor Information
READ AND SAVE THESE INSTRUCTIONS
5
PARTS NAME
####### Front / Rear
Operation / Indication part
Air quality indicator
Air quality sensor
Front cover
Handle
Air outlet
Power cord
Operation / Indication part
| | | |---|---| | | |
| | |Air quality indicator| |---|---|---| | | | |
Good: Blue
Unhealthy: Dark purple
Very unhealthy: Red
##### PARTS NAMEFor Information
7
AIR PURIFICATION PROCESS
The Max2 filter (an activated carbon filter plus True HEPA filter) effectively traps odor and harmful gas to keep your place fresh and odor-free. It also removes fine dust and cigarette smoke up to 99.97%.
| | | | |---|---|---| | | | | | | | |
BEFORE USE
####### PLEASE CHECK BEFORE USE!
The product is for 120 V~, 60 Hz only. Make sure to connect the power plug to a grounded electric outlet (120 V~, 60 Hz) dedicated to the product.
FILTER INSTALLATION
Tips
▶ Order of filters : Max2 filter(True HEPA Activated Carbon) Pre-filter
| | | | |---|---|---| | | | | | | | |
| | | |---|---| | | | | | | | | |
| | | |---|---| | | | | | | | | |
##### How to UseAIR PURIFICATION PROCESS / BEFORE USE
9
INDICATORS AND BUTTONS
####### INDICATION PART
3 Filter replacement indicator2Eco mode indicator 1 Speed indicator
4 Wi-Fi indicator
5
Air quality indicator
######### 1 Speed indicator
######### 2 Eco mode indicator
It shows the current fan speed. Each indicator is turned on as per its airflow speed.
It turns on when Eco mode is activated.
######### 4 Wi-Fi indicator
######### 3 Filter replacement indicator
When Wi-Fi connection is completed, the indicator is turned on.
Replace the filter when this indicator is on. Refer to filter replacement cycle for each filter.
######### 5 Air quality indicator
It displays the current pollution level of the room.
##### How to UseINDICATORS AND BUTTONS
####### OPERATION PART
5 Wi-Fi button
3 LED Light button
2 Speed button
4 Filter Reset button
1 Power button
1 Power button Use this button to turn the air purifier on or off. ∗ To power off, press and hold the power button for one second.
2 Speed button Use this button to adjust the fan speed. Available settings for the fan speed are Auto → 1 → 2 → 3 → ECO.
######### 3 LED Light button
4 Filter Reset button When the filter replacement indicator is turned on, replace the corresponding filter and hold the RESET button for 2 seconds to reset.
Use this button to turn on or off the air quality indicating light.
5 Wi-Fi button Touch this button to connect to a Wi-Fi network.
HOW TO USE
▶Auto mode Automatically optimizes the speed setting 1 through 3 based on the level of indoor air quality detected by dust sensor. This mode is recommended for general users.
▶ Eco mode When no pollution is detected for 30 minutes, the fan will automatically stop to save energy consumption. So this special feature will help cut down electricity cost.
ADJUST AIR QUALITY SENSOR
##### How to Use
When the product is shipped out, the air quality sensor is set to standard sensitivity. If the pollution level stays at the highest level after 2 hours of operation or stays at the lowest level for more than 1 hour when the air does not seem clean, users can adjust the sensitivity of the air quality sensor as follows.
2 seconds
HOW TO USE / ADJUST AIR QUALITY SENSOR
|Speed 1|Speed 2|Speed 3| |---|---|---| |Sensitive|Standard|Insensitive|
∗ High sensitivity: If the air purifier indicates a pollution level of 1 for longer
than one hour when the actual pollution level is higher. ∗ Low sensitivity: If the air purifier continues to indicate the highest pollution
level even after running the air purifier for more than two hours.
2 seconds

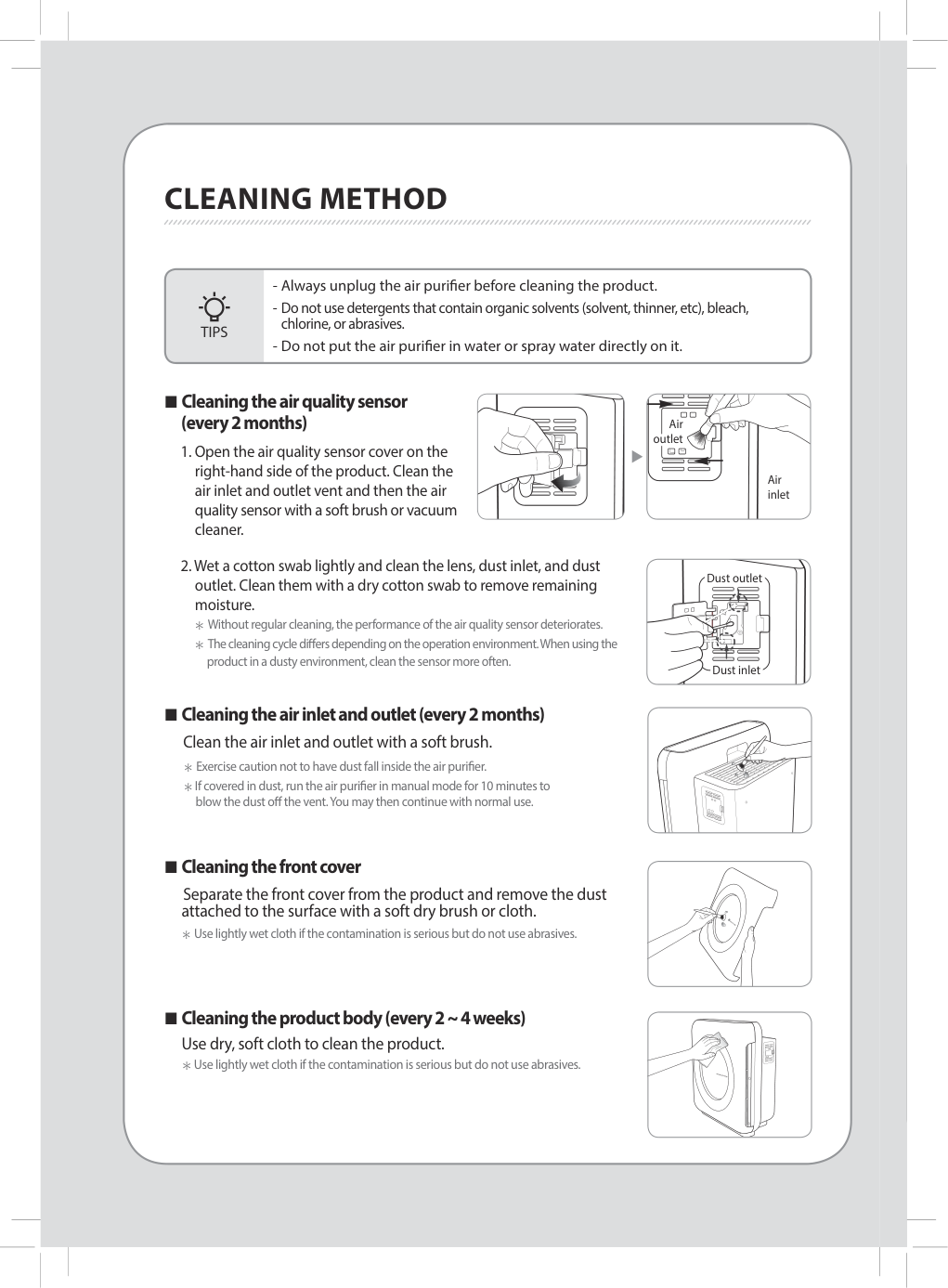

CLEANING METHOD
TIPS
| | | |---|---| | | | | | |
######## ■ Cleaning the air quality sensor(every 2 months)
Air outlet
Air inlet
2.Wet a cotton swab lightly and clean the lens, dust inlet, and dust outlet. Clean them with a dry cotton swab to remove remaining moisture. ∗ Without regular cleaning, the performance of the air quality sensor deteriorates. ∗ The cleaning cycle differs depending on the operation environment. When using the
Dust outlet
product in a dusty environment, clean the sensor more often.
Dust inlet
######## ■ Cleaning the air inlet and outlet (every 2 months)Clean the air inlet and outlet with a soft brush.
∗ Exercise caution not to have dust fall inside the air purifier. ∗ If covered in dust, run the air purifier in manual mode for 10 minutes to blow the dust off the vent. You may then continue with normal use.
######## ■ Cleaning the front cover
Separate the front cover from the product and remove the dust attached to the surface with a soft dry brush or cloth. ∗ Use lightly wet cloth if the contamination is serious but do not use abrasives.
######## ■ Cleaning the product body (every 2 ~ 4 weeks)
Use dry, soft cloth to clean the product. ∗Use lightly wet cloth if the contamination is serious but do not use abrasives.
TIPS

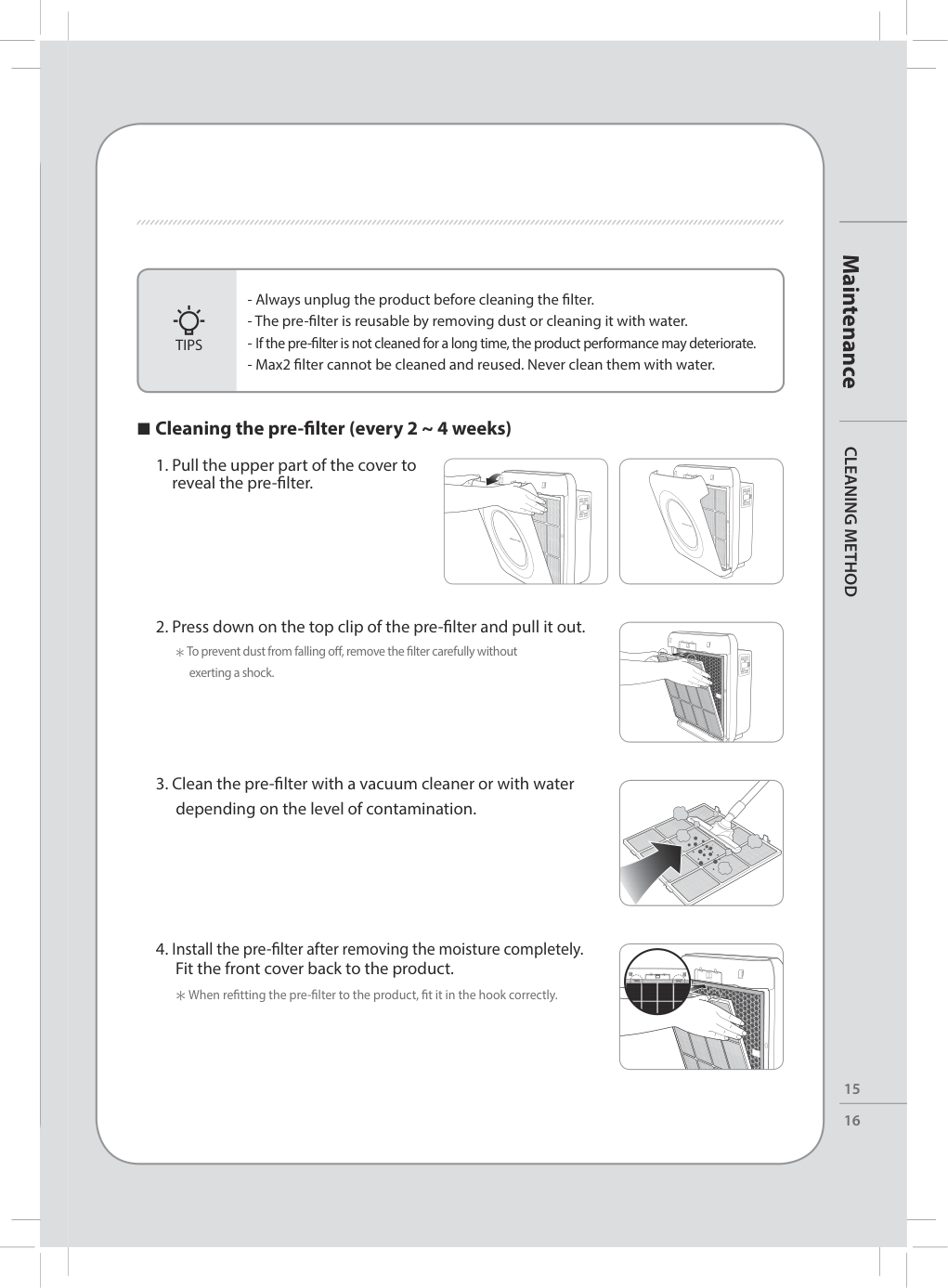

######## ■ Cleaning the pre-filter (every 2 ~ 4 weeks)
exerting a shock.
| | | | |---|---|---| | | | | | | | |
| | | |---|---| | | | | | | | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---|
| | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | | | | |---|---|---|---|---| | | | | | |
##### CLEANING METHODMaintenance

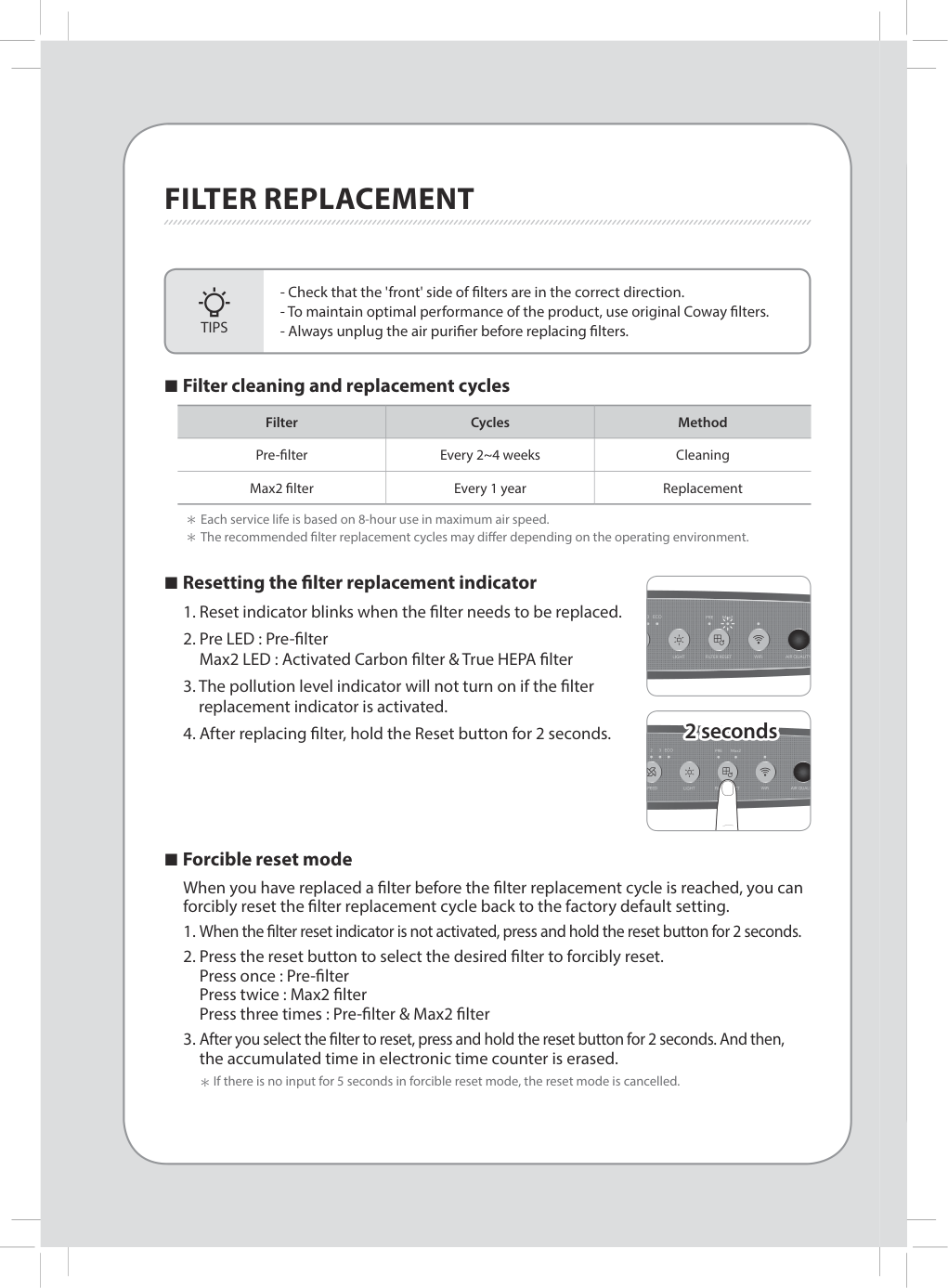

FILTER REPLACEMENT
TIPS
|Filter|Cycles|Method| |---|---|---| |Pre-filter|Every 2~4 weeks|Cleaning| |Max2 filter|Every 1 year|Replacement|
∗ Each service life is based on 8-hour use in maximum air speed. ∗ The recommended filter replacement cycles may differ depending on the operating environment.
###### 2 seconds
######## ■ Forcible reset mode
When you have replaced a filter before the filter replacement cycle is reached, you can forcibly reset the filter replacement cycle back to the factory default setting.

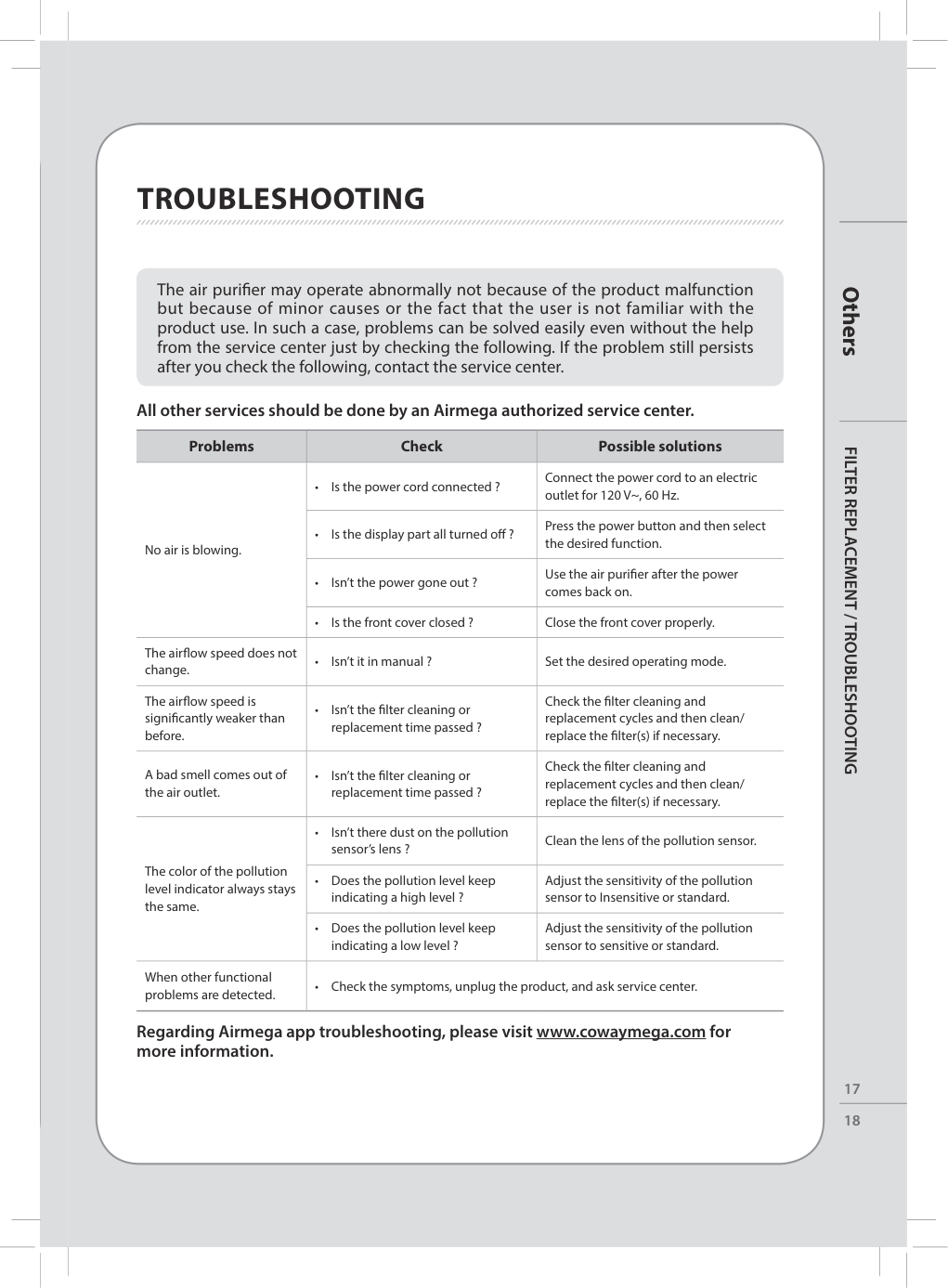

TROUBLESHOOTING
The air purifier may operate abnormally not because of the product malfunction but because of minor causes or the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the service center just by checking the following. If the problem still persists after you check the following, contact the service center.
All other services should be done by an Airmega authorized service center.
|Problems|Check|Possible solutions| |---|---|---| |No air is blowing.|• Is the power cord connected ?|Connect the power cord to an electric outlet for 120 V~, 60 Hz.| |No air is blowing.|• Is the display part all turned off ?|Press the power button and then select the desired function.| |No air is blowing.|• Isn’t the power gone out ?|Use the air purifier after the power comes back on.| |No air is blowing.|• Is the front cover closed ?|Close the front cover properly.| |The airflow speed does not change.|• Isn’t it in manual ?|Set the desired operating mode.| |The airflow speed is significantly weaker than before.|• Isn’t the filter cleaning or replacement time passed ?|Check the filter cleaning and replacement cycles and then clean/ replace the filter(s) if necessary.| |A bad smell comes out of the air outlet.|• Isn’t the filter cleaning or replacement time passed ?|Check the filter cleaning and replacement cycles and then clean/ replace the filter(s) if necessary.| |The color of the pollution level indicator always stays the same.|• Isn’t there dust on the pollution sensor’s lens ?|Clean the lens of the pollution sensor.| |The color of the pollution level indicator always stays the same.|• Does the pollution level keep indicating a high level ?|Adjust the sensitivity of the pollution sensor to Insensitive or standard.| |The color of the pollution level indicator always stays the same.|• Does the pollution level keep indicating a low level ?|Adjust the sensitivity of the pollution sensor to sensitive or standard.| |When other functional problems are detected.|• Check the symptoms, unplug the product, and ask service center.|• Check the symptoms, unplug the product, and ask service center.|
Regarding Airmega app troubleshooting, please visit www.cowaymega.com for more information.
FILTER REPLACEMENT / TROUBLESHOOTINGOthers

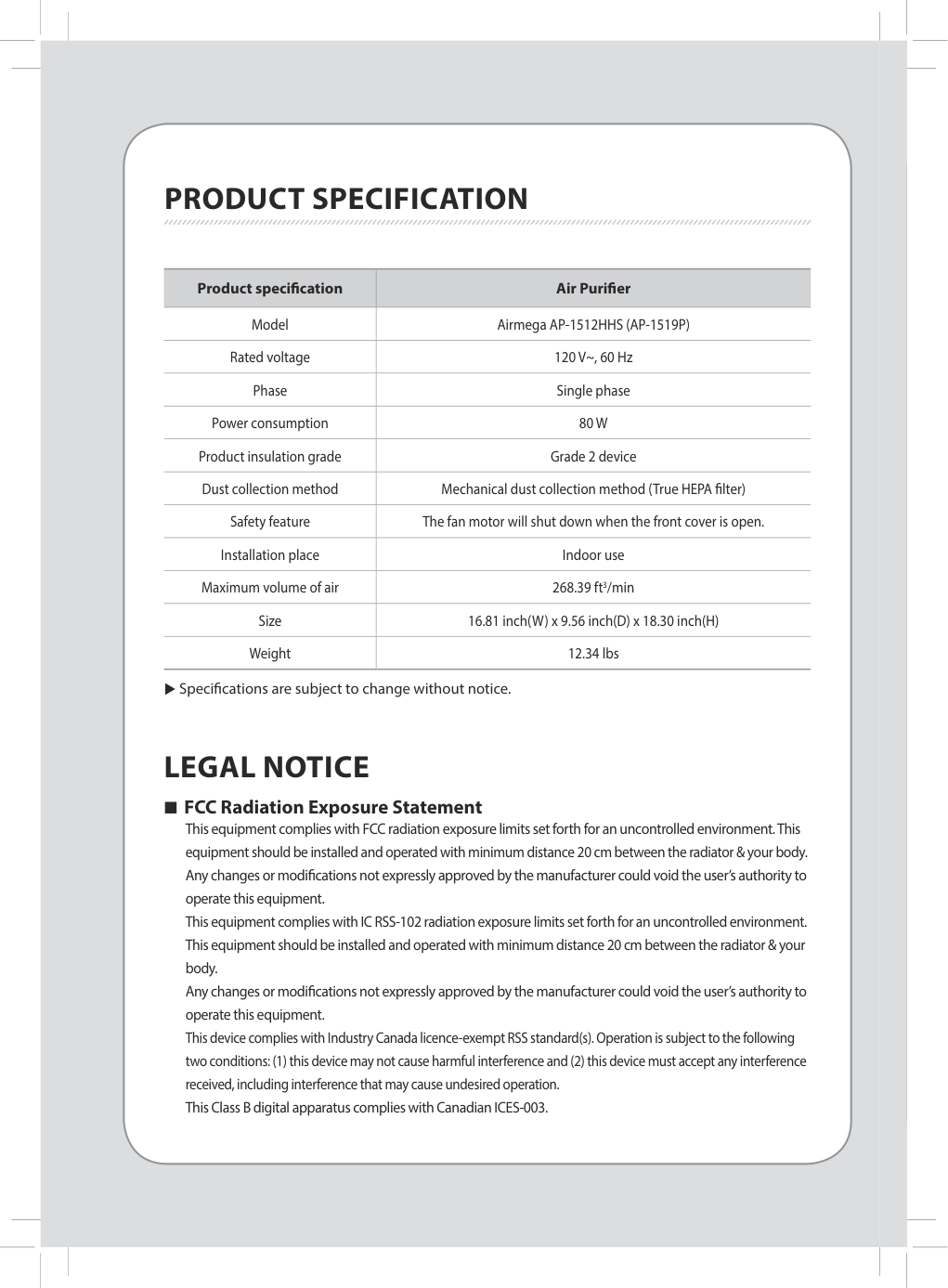

PRODUCT SPECIFICATION
|Product specification|Air Purifier| |---|---| |Model|Airmega AP-1512HHS (AP-1519P)| |Rated voltage|120 V~, 60 Hz| |Phase|Single phase| |Power consumption|80 W| |Product insulation grade|Grade 2 device| |Dust collection method|Mechanical dust collection method (True HEPA filter)| |Safety feature|The fan motor will shut down when the front cover is open.| |Installation place|Indoor use| |Maximum volume of air|268.39 ft3/min| |Size|16.81 inch(W) x 9.56 inch(D) x 18.30 inch(H)| |Weight|12.34 lbs|
▶ Specifications are subject to change without notice.
LEGAL NOTICE
######## ■FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003.
