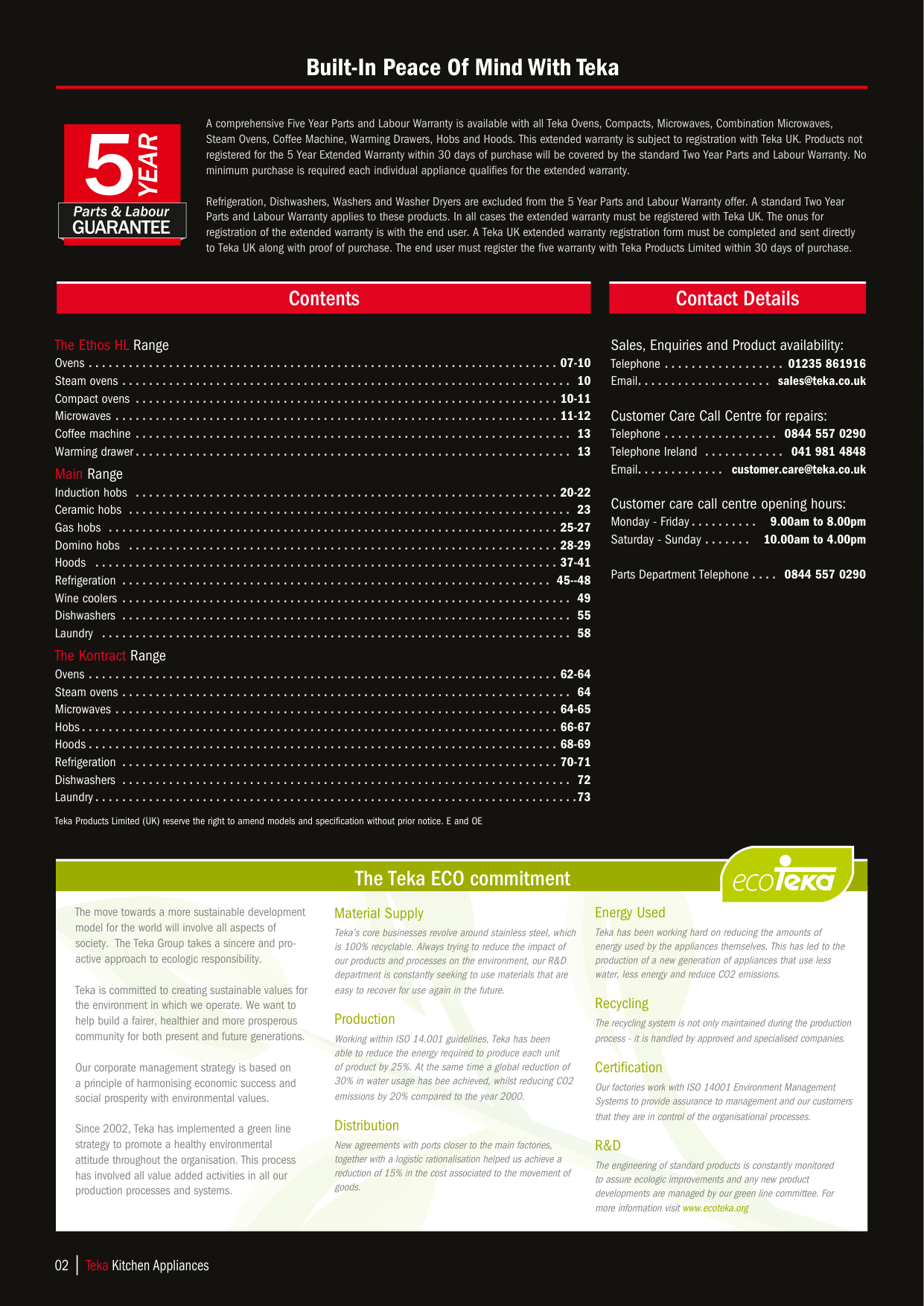

#### Built-In Peace Of Mind With Teka

A comprehensive Five Year Parts and Labour Warranty is available with all Teka Ovens, Compacts, Microwaves, Combination Microwaves, Steam Ovens, Coffee Machine, Warming Drawers, Hobs and Hoods. This extended warranty is subject to registration with Teka UK. Products not registered for the 5 Year Extended Warranty within 30 days of purchase will be covered by the standard Two Year Parts and Labour Warranty. No minimum purchase is required each individual appliance qualifies for the extended warranty.

Refrigeration, Dishwashers, Washers and Washer Dryers are excluded from the 5 Year Parts and Labour Warranty offer. A standard Two Year Parts and Labour Warranty applies to these products. In all cases the extended warranty must be registered with Teka UK. The onus for registration of the extended warranty is with the end user. A Teka UK extended warranty registration form must be completed and sent directly to Teka UK along with proof of purchase. The end user must register the five warranty with Teka Products Limited within 30 days of purchase.

##### Contents

Contact Details

The Ethos HL Range

Sales, Enquiries and Product availability:

Ovens 07-10 Steam ovens 10 Compact ovens 10-11 Microwaves 11-12 Coffee machine 13 Warming drawer 13

Telephone 01235 861916 Email sales@teka co uk

Customer Care Call Centre for repairs:

Telephone 0844 557 0290 Telephone Ireland 041 981 4848 Email customer care@teka co uk

Main Range

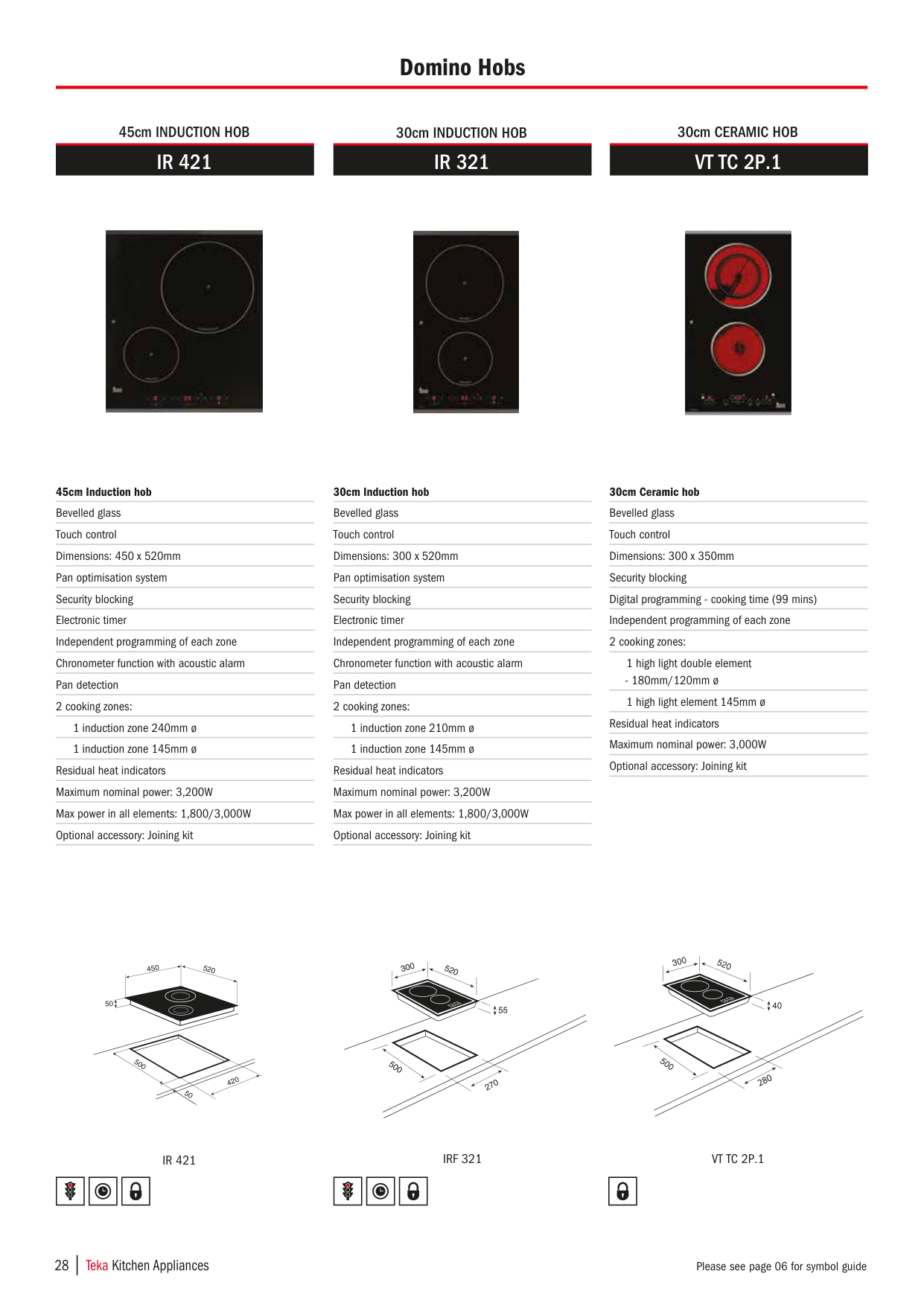

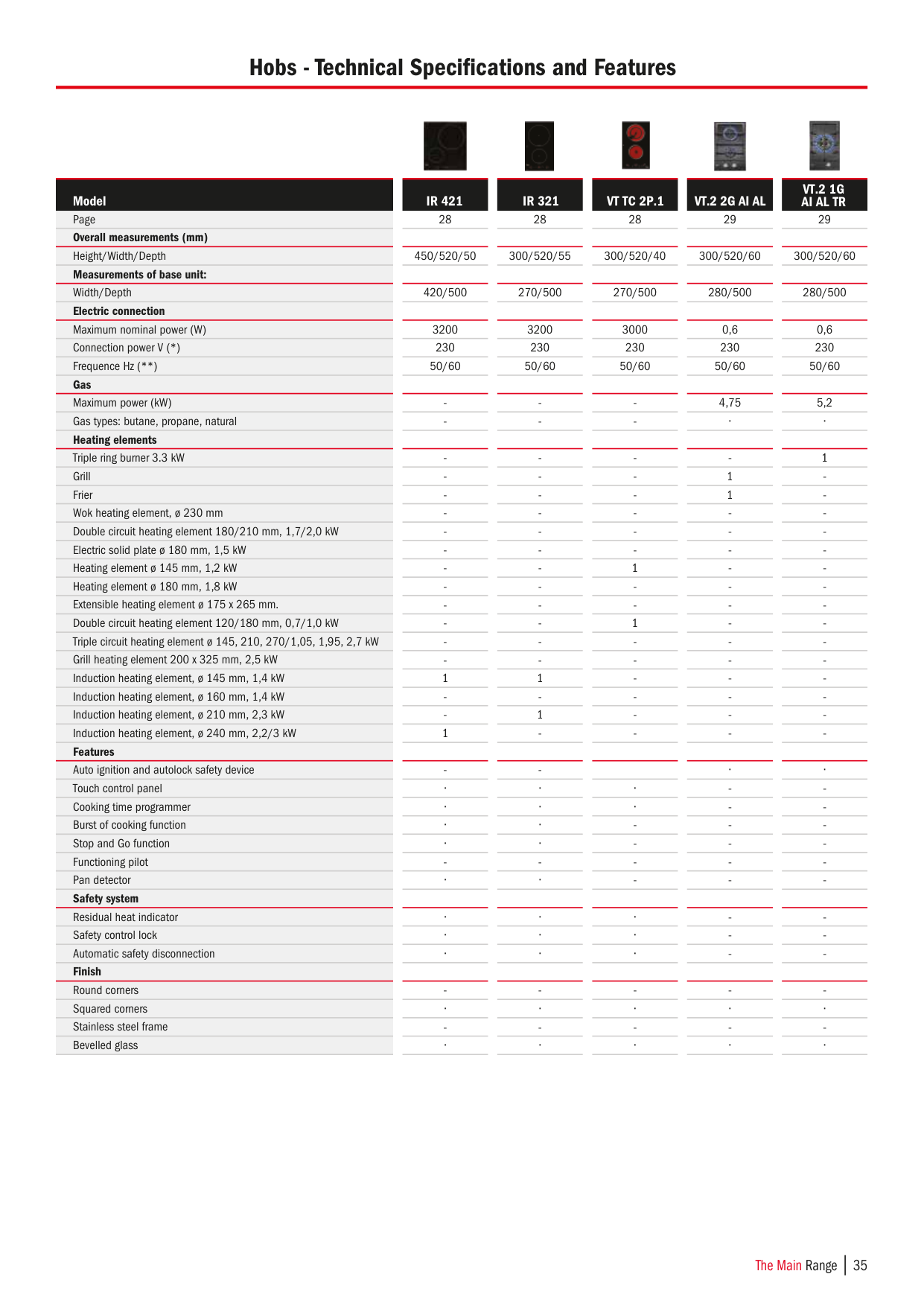

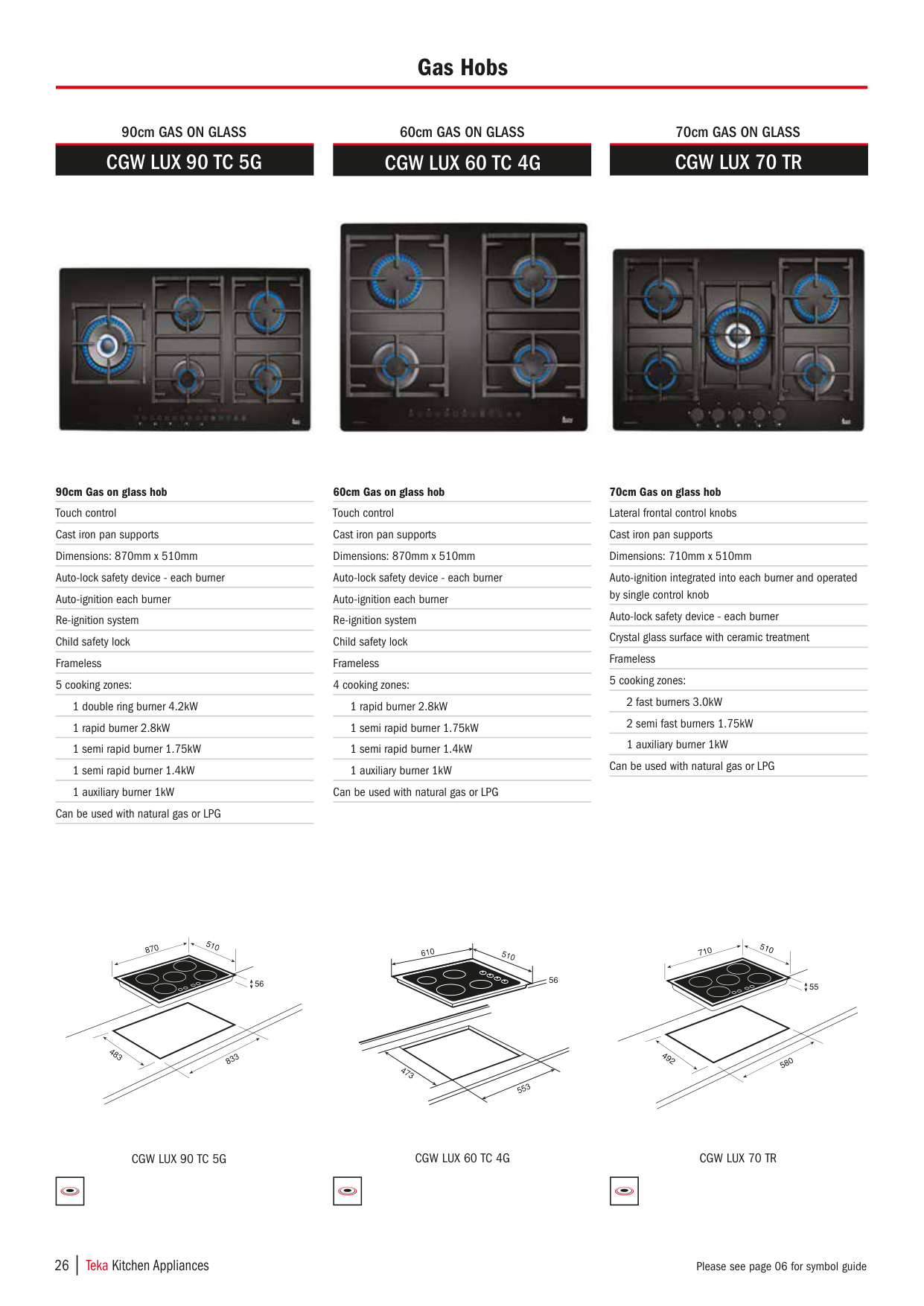

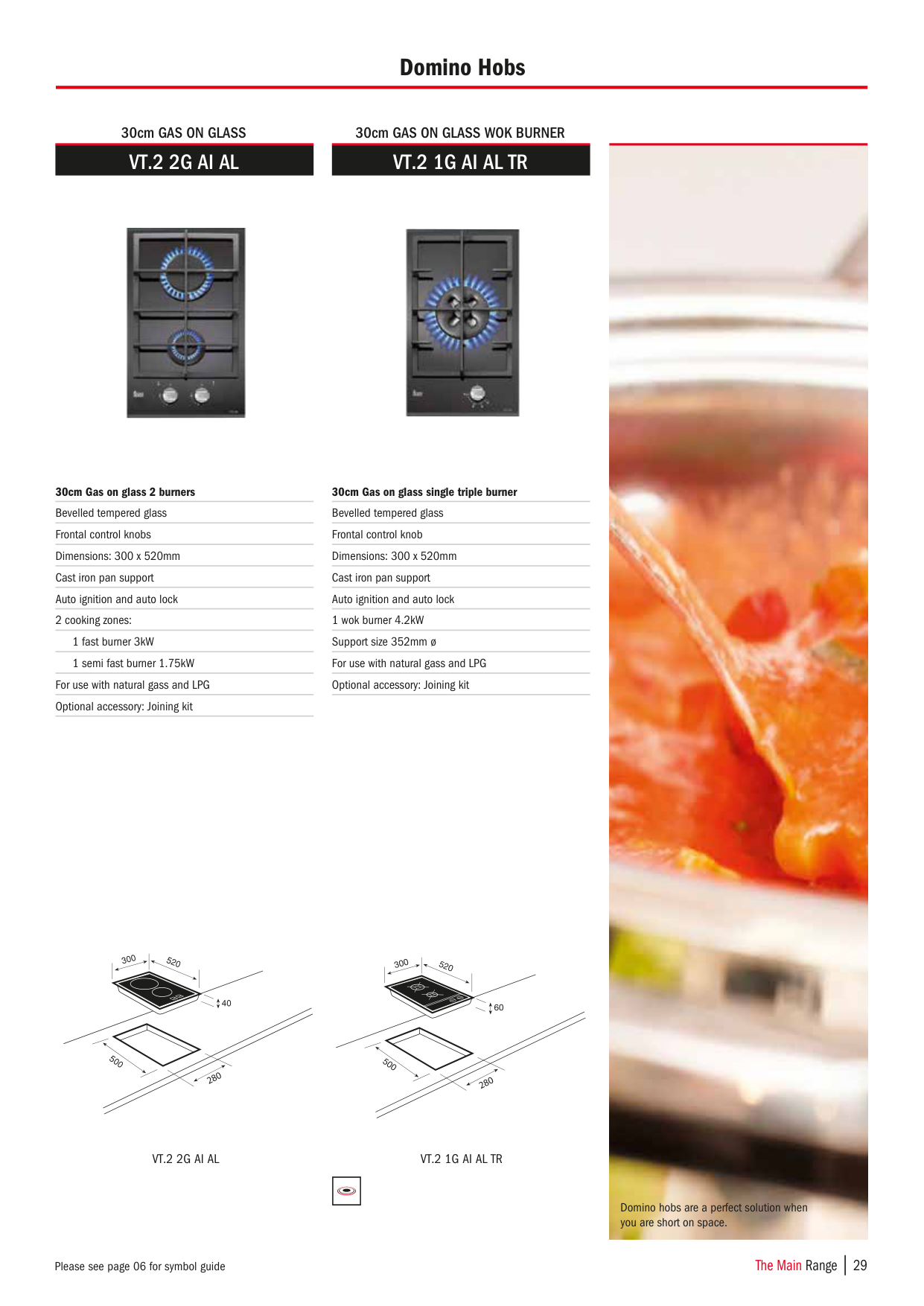

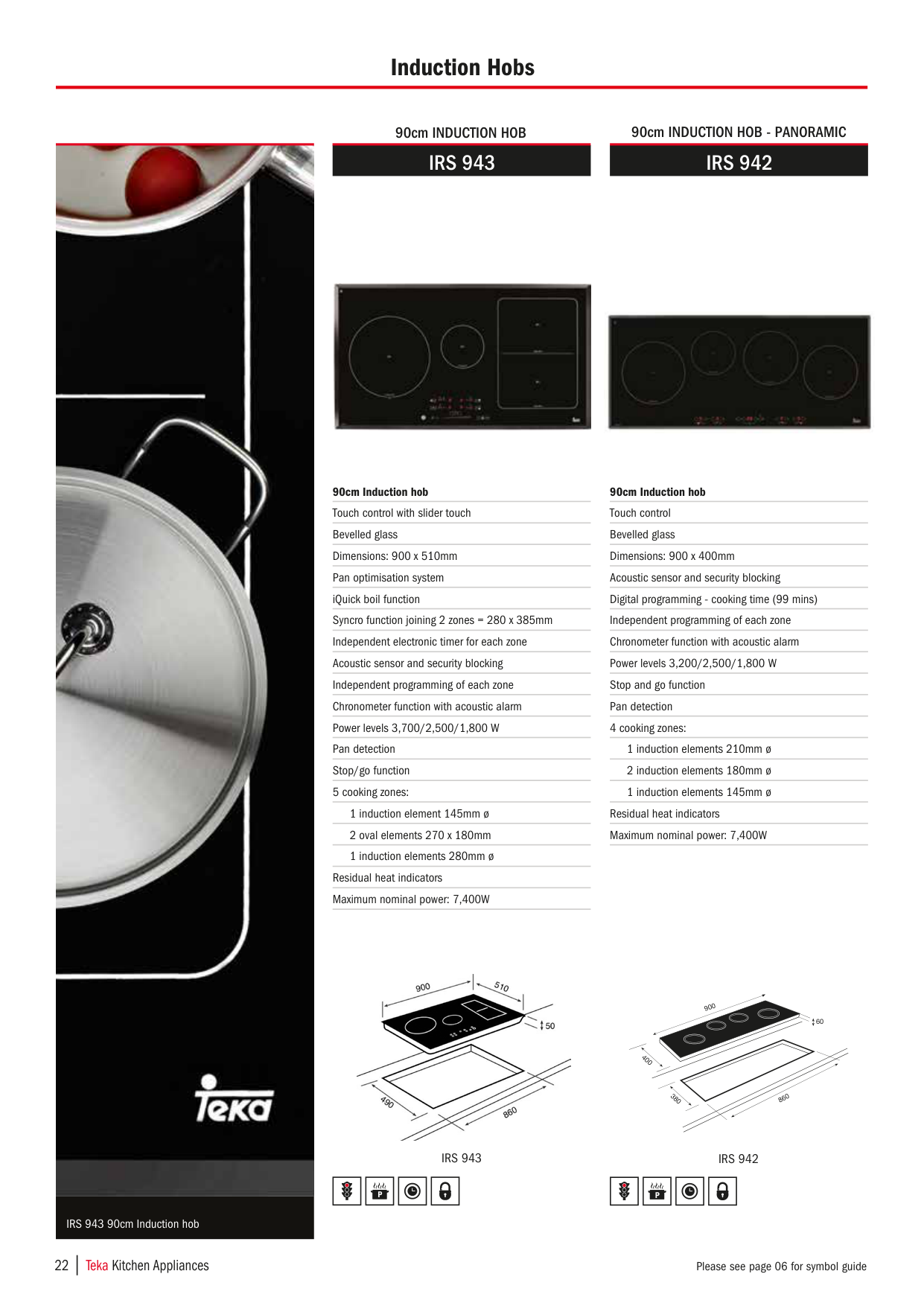

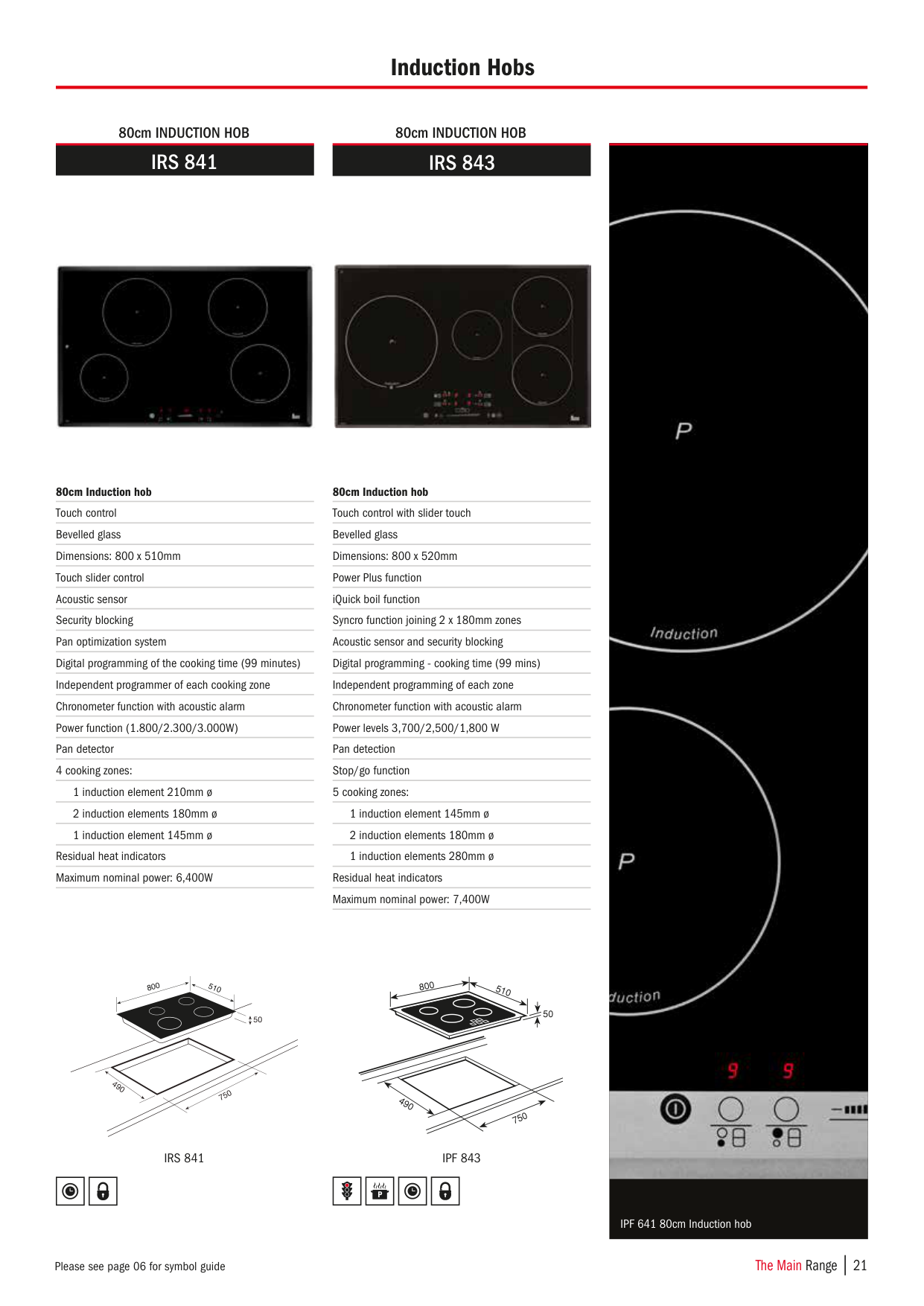

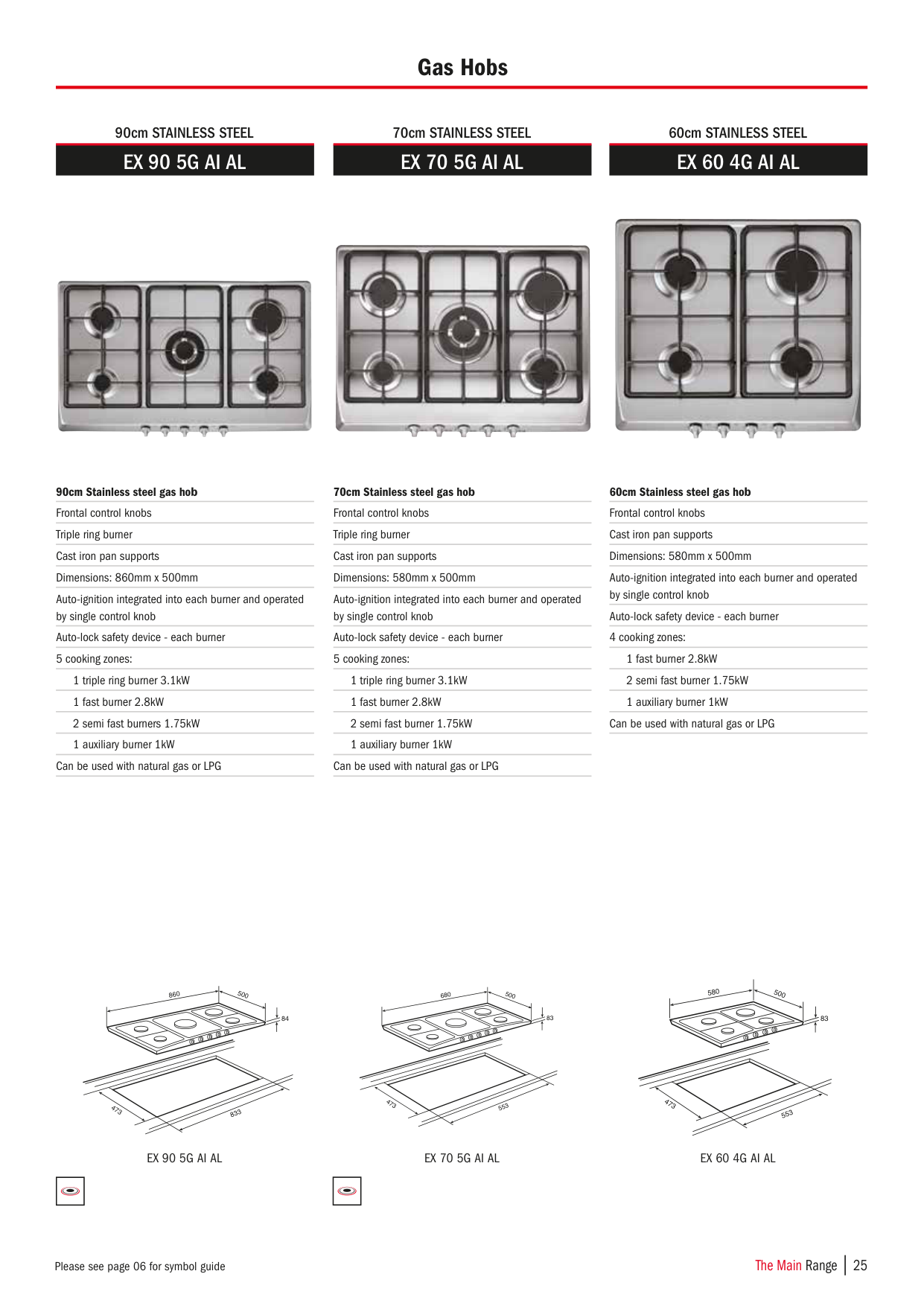

Induction hobs 20-22 Ceramic hobs 23 Gas hobs 25-27 Domino hobs 28-29 Hoods 37-41 Refrigeration 45--48 Wine coolers 49 Dishwashers 55 Laundry 58

Customer care call centre opening hours:

Monday - Friday 9 00am to 8 00pm Saturday - Sunday 10 00am to 4 00pm

Parts Department Telephone 0844 557 0290

The Kontract Range

Ovens 62-64 Steam ovens 64 Microwaves 64-65 Hobs 66-67 Hoods 68-69 Refrigeration 70-71 Dishwashers 72 Laundry 73

Teka Products Limited (UK) reserve the right to amend models and specification without prior notice. E and OE

The Teka ECO commitment

Energy Used

Material Supply Teka’s core businesses revolve around stainless steel, which is 100% recyclable. Always trying to reduce the impact of our products and processes on the environment, our R&D department is constantly seeking to use materials that are easy to recover for use again in the future.

The move towards a more sustainable development model for the world will involve all aspects of society. The Teka Group takes a sincere and proactive approach to ecologic responsibility.

Teka has been working hard on reducing the amounts of energy used by the appliances themselves. This has led to the production of a new generation of appliances that use less water, less energy and reduce CO2 emissions.

Teka is committed to creating sustainable values for the environment in which we operate. We want to help build a fairer, healthier and more prosperous community for both present and future generations.

Recycling The recycling system is not only maintained during the production process - it is handled by approved and specialised companies.

Production Working within ISO 14.001 guidelines, Teka has been able to reduce the energy required to produce each unit of product by 25%. At the same time a global reduction of 30% in water usage has bee achieved, whilst reducing CO2 emissions by 20% compared to the year 2000.

Certification Our factories work with ISO 14001 Environment Management Systems to provide assurance to management and our customers that they are in control of the organisational processes.

Our corporate management strategy is based on a principle of harmonising economic success and social prosperity with environmental values.

Distribution

Since 2002, Teka has implemented a green line strategy to promote a healthy environmental attitude throughout the organisation. This process has involved all value added activities in all our production processes and systems.

R&D The engineering of standard products is constantly monitored to assure ecologic improvements and any new product developments are managed by our green line committee. For more information visitwww.ecoteka.org

New agreements with ports closer to the main factories, together with a logistic rationalisation helped us achieve a reduction of 15% in the cost associated to the movement of goods.

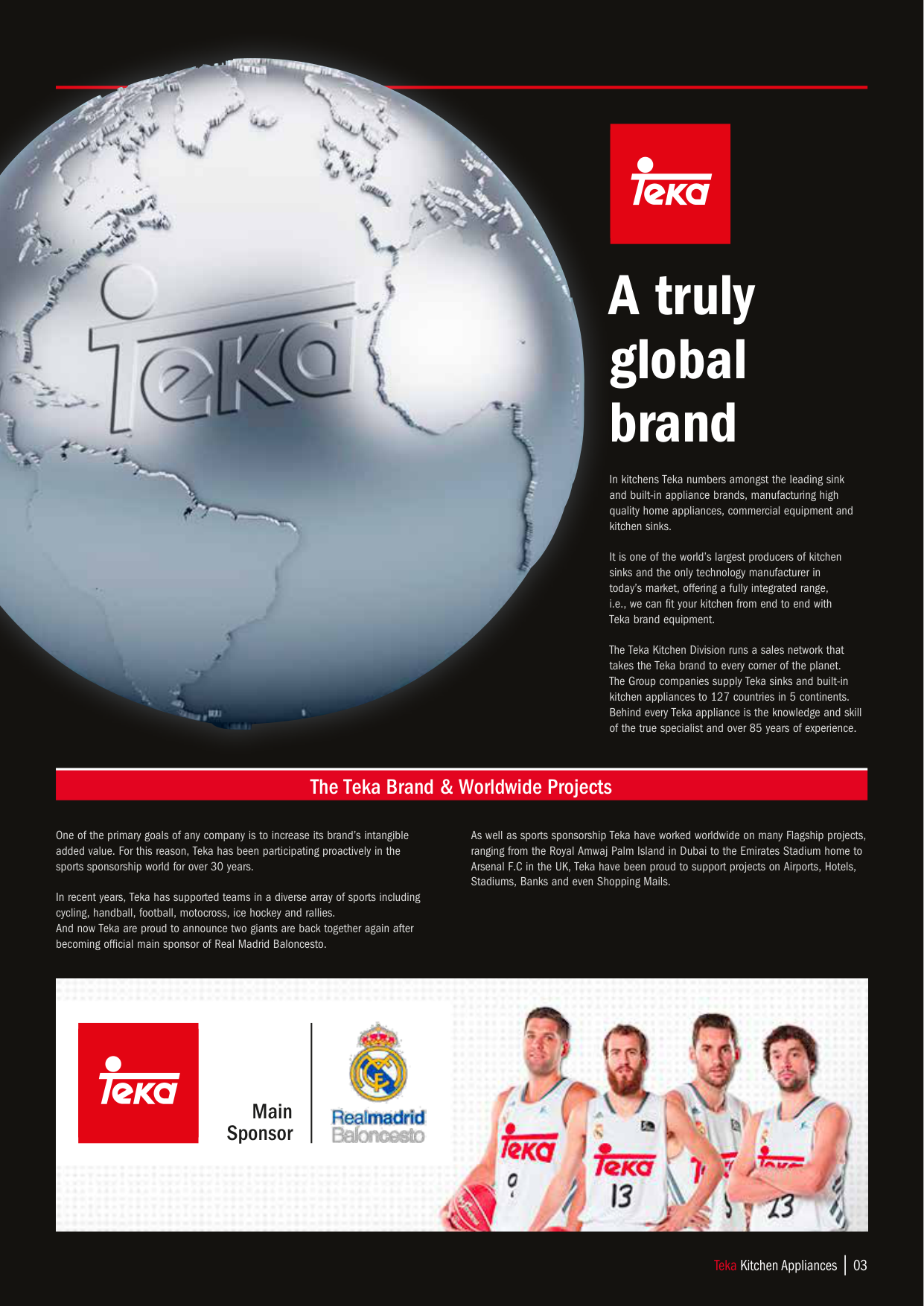

A truly global brand In kitchens Teka numbers amongst the leading sink and built-in appliance brands, manufacturing high quality home appliances, commercial equipment and kitchen sinks. It is one of the world’s largest producers of kitchen sinks and the only technology manufacturer in today’s market, offering a fully integrated range, i.e., we can fit your kitchen from end to end with Teka brand equipment. The Teka Kitchen Division runs a sales network that takes the Teka brand to every corner of the planet. The Group companies supply Teka sinks and built-in kitchen appliances to 127 countries in 5 continents. Behind every Teka appliance is the knowledge and skill of the true specialist and over 85 years of experience.

##### The Teka Brand & Worldwide Projects

One of the primary goals of any company is to increase its brand’s intangible added value. For this reason, Teka has been participating proactively in the sports sponsorship world for over 30 years.

In recent years, Teka has supported teams in a diverse array of sports including cycling, handball, football, motocross, ice hockey and rallies. And now Teka are proud to announce two giants are back together again after becoming official main sponsor of Real Madrid Baloncesto.

As well as sports sponsorship Teka have worked worldwide on many Flagship projects, ranging from the Royal Amwaj Palm Island in Dubai to the Emirates Stadium home to Arsenal F.C in the UK, Teka have been proud to support projects on Airports, Hotels, Stadiums, Banks and even Shopping Mails.



##### Main Sponsor

Teka Kitchen Appliances | 03



The Ethos HL Range

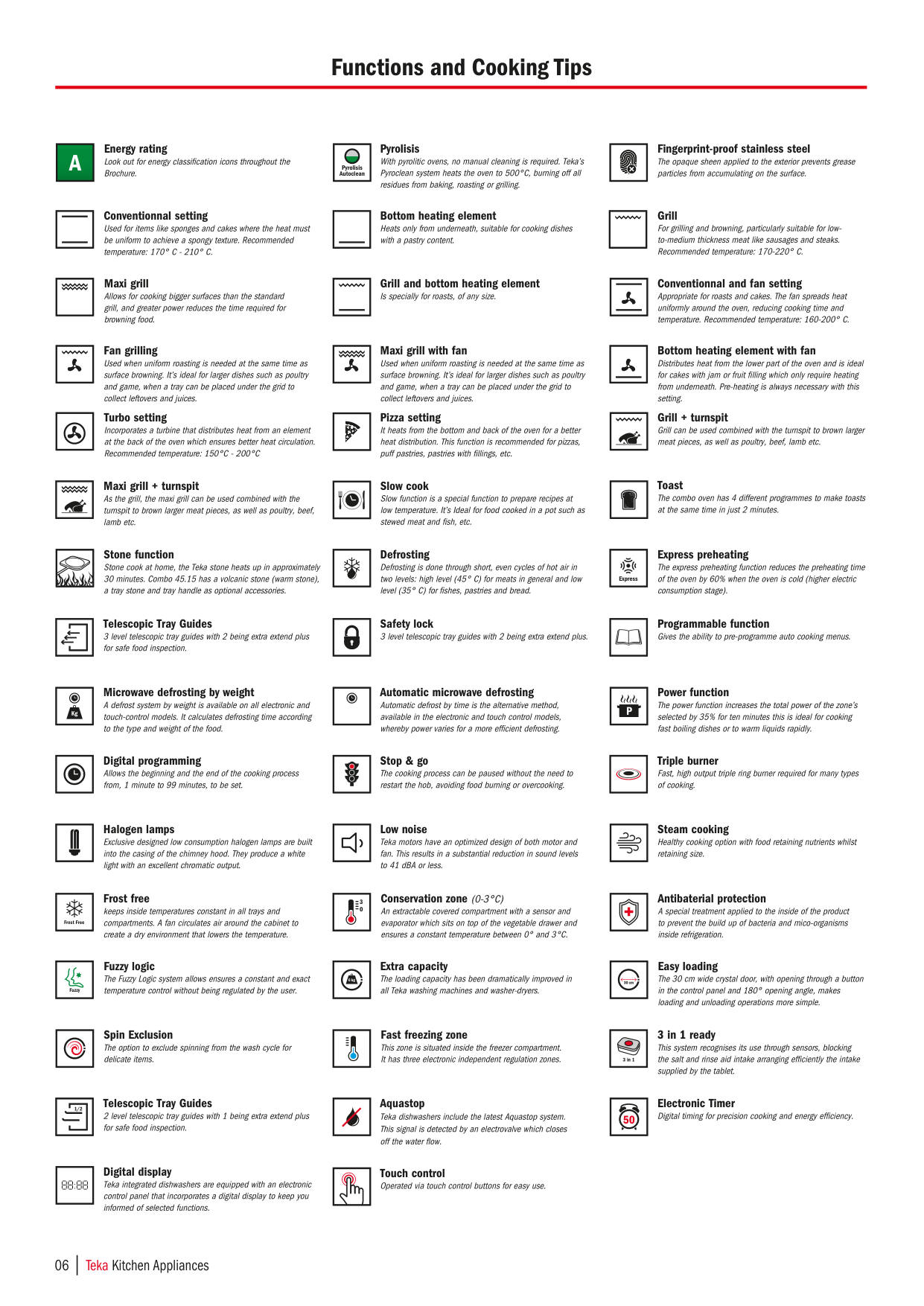

#### Functions and Cooking Tips

|A| |---|

Energy rating Look out for energy classification icons throughout the Brochure.

| | |---|

Conventionnal setting Used for items like sponges and cakes where the heat must be uniform to achieve a spongy texture. Recommended temperature: 170° C - 210° C.

|Pyrolisis Autoclean| |---|

Pyrolisis With pyrolitic ovens, no manual cleaning is required. Teka’s Pyroclean system heats the oven to 500°C, burning off all residues from baking, roasting or grilling.

| | |---|

Bottom heating element Heats only from underneath, suitable for cooking dishes with a pastry content.

| | |---|

############### Maxi grill

Allows for cooking bigger surfaces than the standard grill, and greater power reduces the time required for browning food.

| | |---|

############### Grill and bottom heating element Is specially for roasts, of any size.

| | |---|

| | |---|

Fan grilling Used when uniform roasting is needed at the same time as surface browning. It’s ideal for larger dishes such as poultry and game, when a tray can be placed under the grid to collect leftovers and juices.

Turbo setting Incorporates a turbine that distributes heat from an element at the back of the oven which ensures better heat circulation. Recommended temperature: 150°C - 200°C

| | |---|

| | |---|

Maxi grill with fan Used when uniform roasting is needed at the same time as surface browning. It’s ideal for larger dishes such as poultry and game, when a tray can be placed under the grid to collect leftovers and juices.

############### Pizza setting

It heats from the bottom and back of the oven for a better heat distribution. This function is recommended for pizzas, puff pastries, pastries with fillings, etc.

| | |---|

Maxi grill + turnspit As the grill, the maxi grill can be used combined with the turnspit to brown larger meat pieces, as well as poultry, beef, lamb etc.

| | |---|

Slow cook Slow function is a special function to prepare recipes at low temperature. It’s Ideal for food cooked in a pot such as stewed meat and fish, etc.

| | |---|

############### Stone function

Stone cook at home, the Teka stone heats up in approximately 30 minutes. Combo 45.15 has a volcanic stone (warm stone), a tray stone and tray handle as optional accessories.

| | |---|

Defrosting Defrosting is done through short, even cycles of hot air in two levels: high level (45° C) for meats in general and low level (35° C) for fishes, pastries and bread.

| | |---|

Fingerprint-proof stainless steel The opaque sheen applied to the exterior prevents grease particles from accumulating on the surface.

| | |---|

############### Grill

For grilling and browning, particularly suitable for lowto-medium thickness meat like sausages and steaks. Recommended temperature: 170-220° C.

| | |---|

Conventionnal and fan setting Appropriate for roasts and cakes. The fan spreads heat uniformly around the oven, reducing cooking time and temperature. Recommended temperature: 160-200° C.

| | |---|

| | |---|

Bottom heating element with fan Distributes heat from the lower part of the oven and is ideal for cakes with jam or fruit filling which only require heating from underneath. Pre-heating is always necessary with this setting.

Grill + turnspit Grill can be used combined with the turnspit to brown larger meat pieces, as well as poultry, beef, lamb etc.

| | |---|

Toast The combo oven has 4 different programmes to make toasts at the same time in just 2 minutes.

|Express

| |---|

Express preheating The express preheating function reduces the preheating time of the oven by 60% when the oven is cold (higher electric consumption stage).

| | |---|

Telescopic Tray Guides 3 level telescopic tray guides with 2 being extra extend plus for safe food inspection.

| | |---|

Safety lock 3 level telescopic tray guides with 2 being extra extend plus.

| | |---|

Programmable function Gives the ability to pre-programme auto cooking menus.

|Kg

| |---|

Microwave defrosting by weight A defrost system by weight is available on all electronic and touch-control models. It calculates defrosting time according to the type and weight of the food.

| | |---|

Automatic microwave defrosting Automatic defrost by time is the alternative method, available in the electronic and touch control models, whereby power varies for a more efficient defrosting.

| | |---|

Digital programming Allows the beginning and the end of the cooking process from, 1 minute to 99 minutes, to be set.

| | |---|

Stop & go The cooking process can be paused without the need to restart the hob, avoiding food burning or overcooking.

| | |---|

Halogen lamps Exclusive designed low consumption halogen lamps are built into the casing of the chimney hood. They produce a white light with an excellent chromatic output.

| | |---|

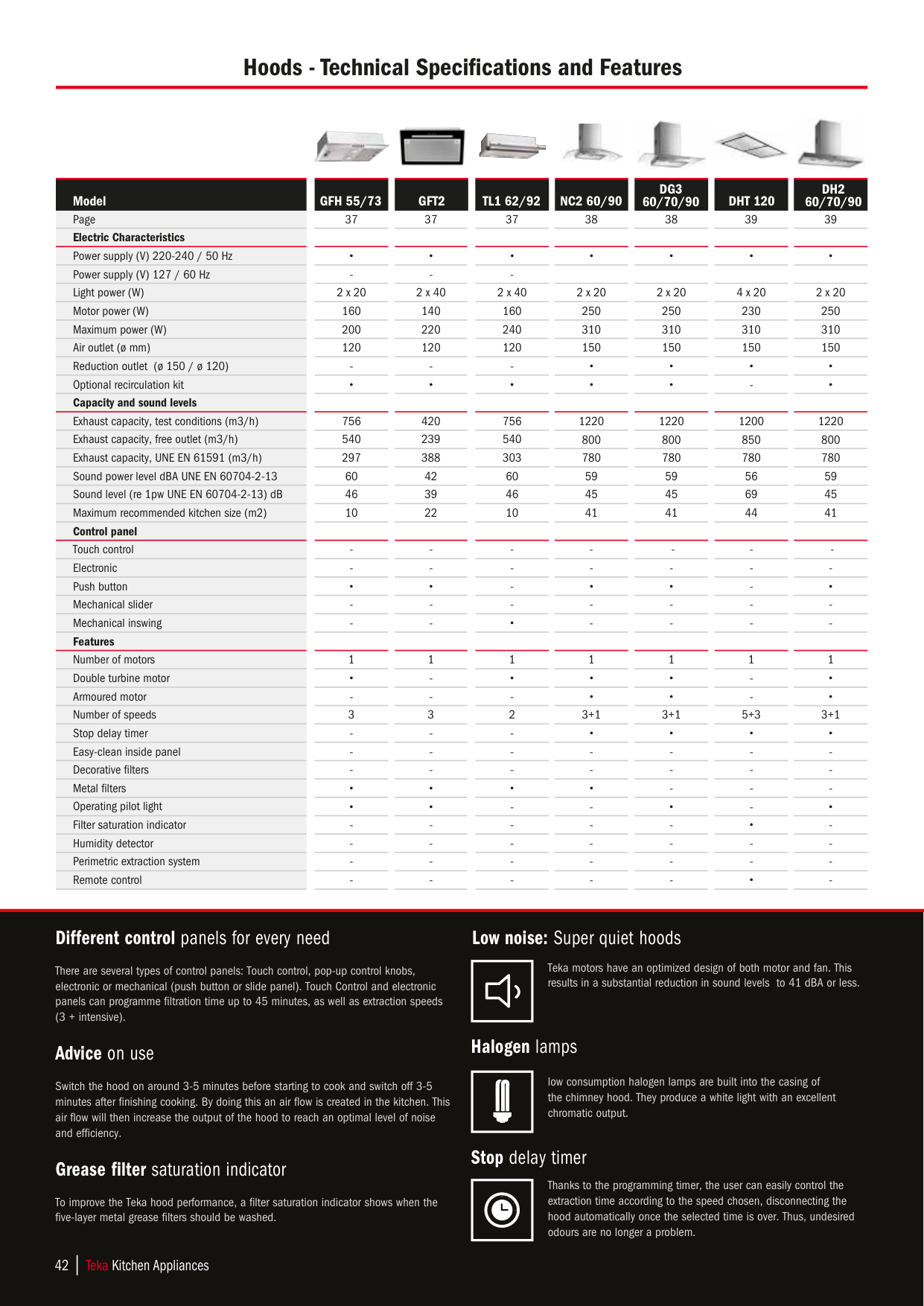

############### Low noise

Teka motors have an optimized design of both motor and fan. This results in a substantial reduction in sound levels to 41 dBA or less.

|Frost Free| |---|

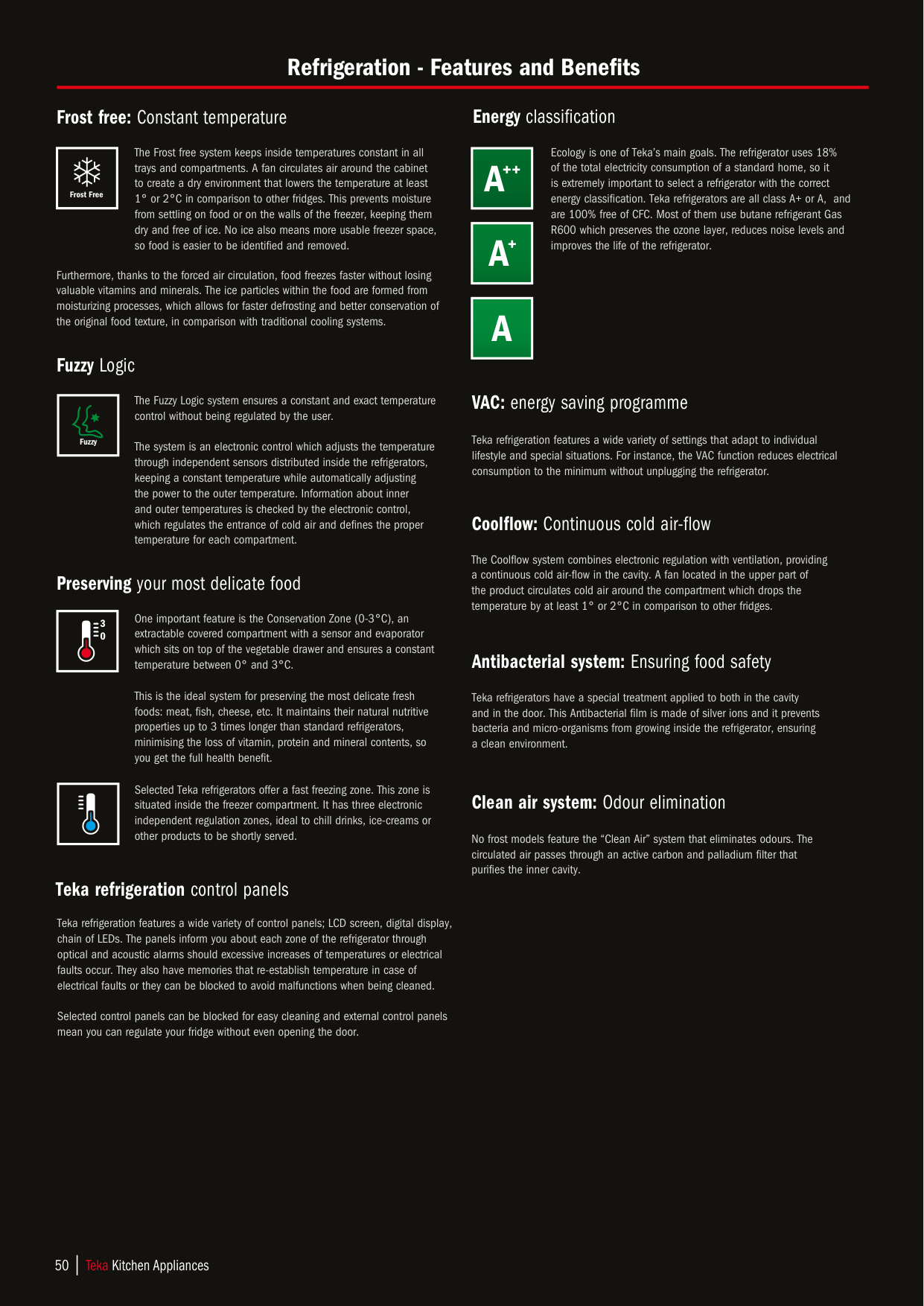

Frost free keeps inside temperatures constant in all trays and compartments. A fan circulates air around the cabinet to create a dry environment that lowers the temperature.

|Fuzzy| |---|

Fuzzy logic The Fuzzy Logic system allows ensures a constant and exact temperature control without being regulated by the user.

|0

3

| |---|

Conservation zone (0-3°C) An extractable covered compartment with a sensor and evaporator which sits on top of the vegetable drawer and ensures a constant temperature between 0° and 3°C.

|6kg| |---|

Extra capacity The loading capacity has been dramatically improved in all Teka washing machines and washer-dryers.

| | |---|

Spin Exclusion The option to exclude spinning from the wash cycle for delicate items.

| | |---|

############### Fast freezing zone

This zone is situated inside the freezer compartment. It has three electronic independent regulation zones.

||1/2| |---| | | | | | |---|

Telescopic Tray Guides 2 level telescopic tray guides with 1 being extra extend plus for safe food inspection.

| | |---|

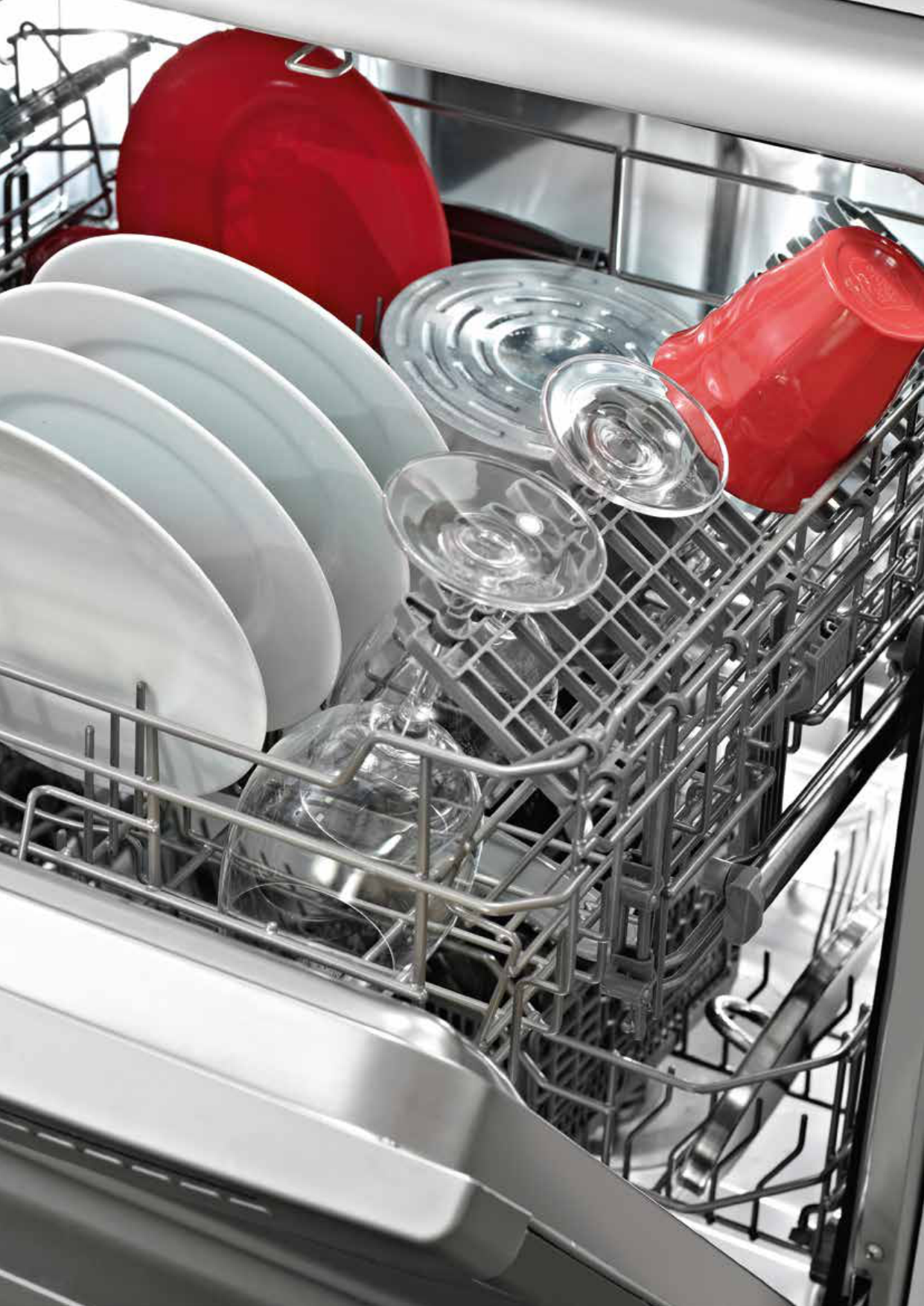

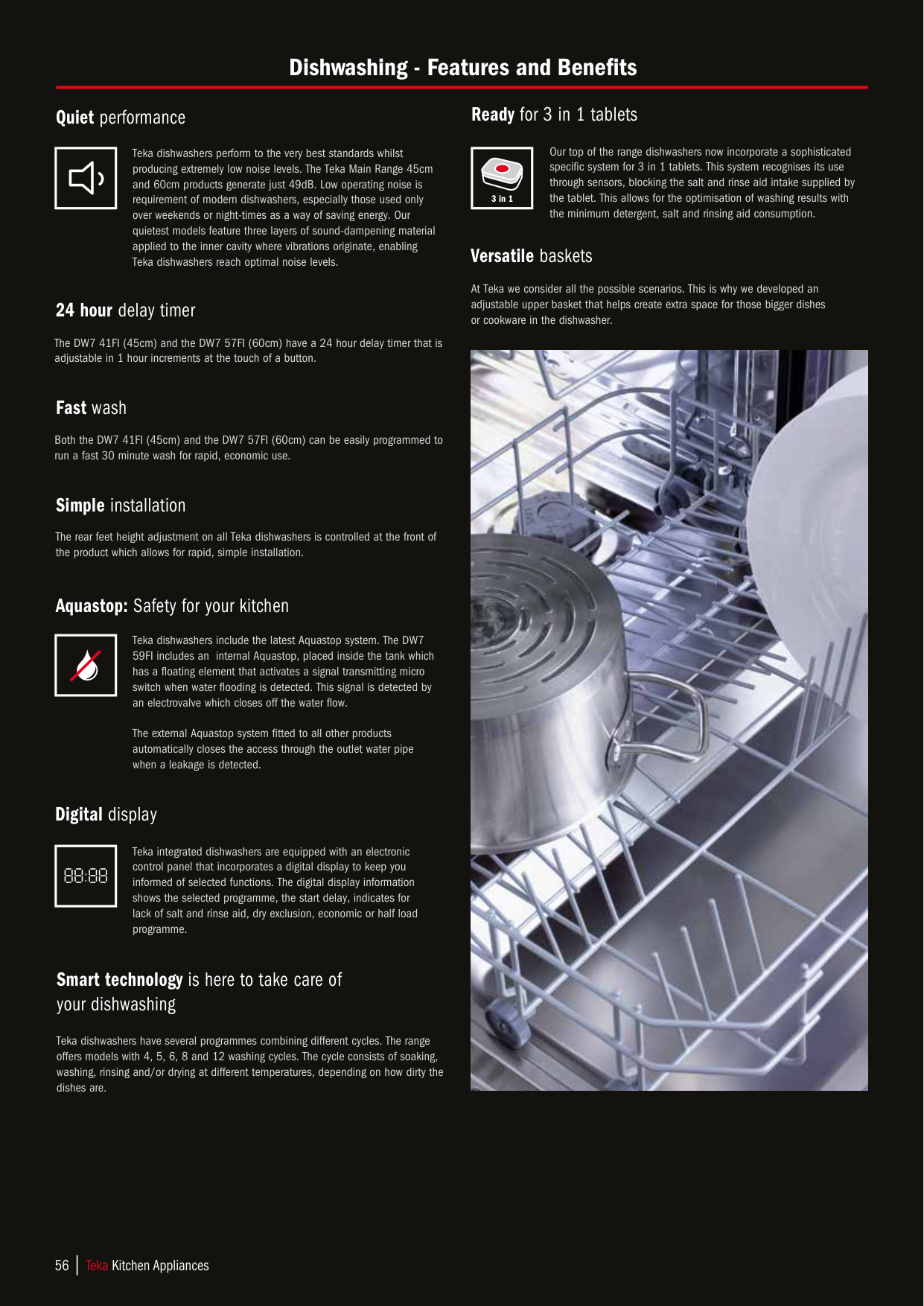

Digital display Teka integrated dishwashers are equipped with an electronic control panel that incorporates a digital display to keep you informed of selected functions.

| | |---|

############### Aquastop

Teka dishwashers include the latest Aquastop system. This signal is detected by an electrovalve which closes off the water flow.

| | |---|

Touch control Operated via touch control buttons for easy use.

|P| |---|

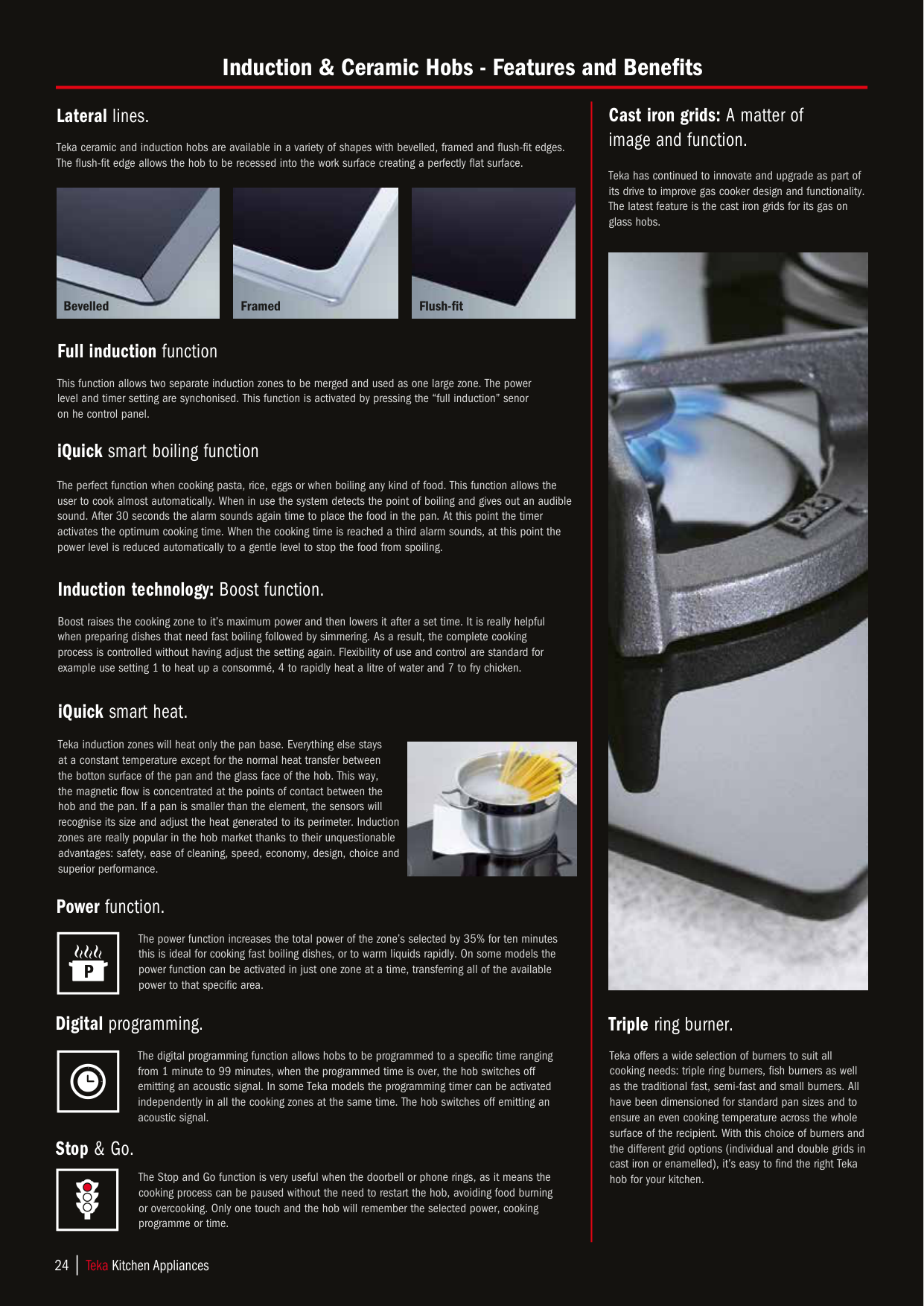

Power function The power function increases the total power of the zone’s selected by 35% for ten minutes this is ideal for cooking fast boiling dishes or to warm liquids rapidly.

| | |---|

Triple burner Fast, high output triple ring burner required for many types of cooking.

| | |---|

Steam cooking Healthy cooking option with food retaining nutrients whilst retaining size.

|+| |---|

############### Antibaterial protection

A special treatment applied to the inside of the product to prevent the build up of bacteria and mico-organisms inside refrigeration.

|30cm

| |---|

Easy loading The 30 cm wide crystal door, with opening through a button in the control panel and 180° opening angle, makes loading and unloading operations more simple.

|3 in 1| |---|

3 in 1 ready This system recognises its use through sensors, blocking the salt and rinse aid intake arranging efficiently the intake supplied by the tablet.

|50| |---|

Electronic Timer Digital timing for precision cooking and energy efficiency.

06 | TekaKitchen Appliances

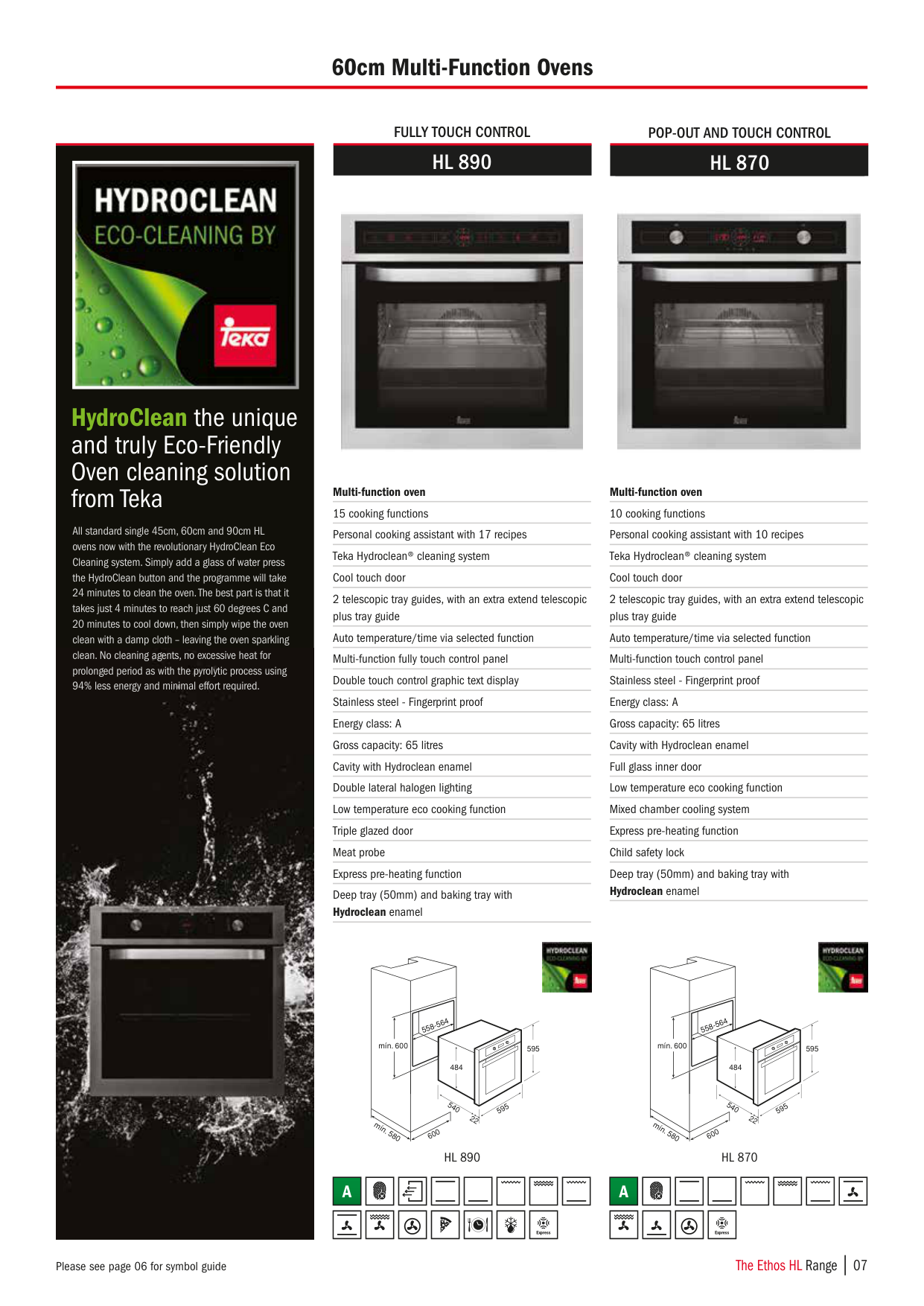

#### 60cm Multi-Function Ovens

FULLY TOUCH CONTROL

POP-OUT AND TOUCH CONTROL

HL 890

HX 760 EHL 870

|| |---|



HydroClean the unique and truly Eco-Friendly Oven cleaning solution from Teka

Multi-function oven 15 cooking functions Personal cooking assistant with 17 recipes Teka Hydroclean® cleaning system Cool touch door 2 telescopic tray guides, with an extra extend telescopic plus tray guide Auto temperature/time via selected function Multi-function fully touch control panel Double touch control graphic text display Stainless steel - Fingerprint proof Energy class: A Gross capacity: 65 litres Cavity with Hydroclean enamel Double lateral halogen lighting Low temperature eco cooking function Triple glazed door Meat probe Express pre-heating function Deep tray (50mm) and baking tray with Hydroclean enamel

Multi-function oven 10 cooking functions Personal cooking assistant with 10 recipes Teka Hydroclean® cleaning system Cool touch door 2 telescopic tray guides, with an extra extend telescopic plus tray guide Auto temperature/time via selected function Multi-function touch control panel Stainless steel - Fingerprint proof Energy class: A Gross capacity: 65 litres Cavity with Hydroclean enamel Full glass inner door Low temperature eco cooking function Mixed chamber cooling system Express pre-heating function Child safety lock Deep tray (50mm) and baking tray with Hydroclean enamel

All standard single 45cm, 60cm and 90cm HL ovens now with the revolutionary HydroClean Eco Cleaning system. Simply add a glass of water press the HydroClean button and the programme will take 24 minutes to clean the oven. The best part is that it takes just 4 minutes to reach just 60 degrees C and 20 minutes to cool down, then simply wipe the oven clean with a damp cloth – leaving the oven sparkling clean. No cleaning agents, no excessive heat for prolonged period as with the pyrolytic process using 94% less energy and minimal effort required.




558-564

558-564

mín. 600

mín. 600

595

595

484

484

540

540

595 22

595 22

mín. 580

mín. 580

600

600

HL 890

HL 870

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

|Express

| |---|

| | |---|

| | |---|

| | |---|

|Express

| |---|

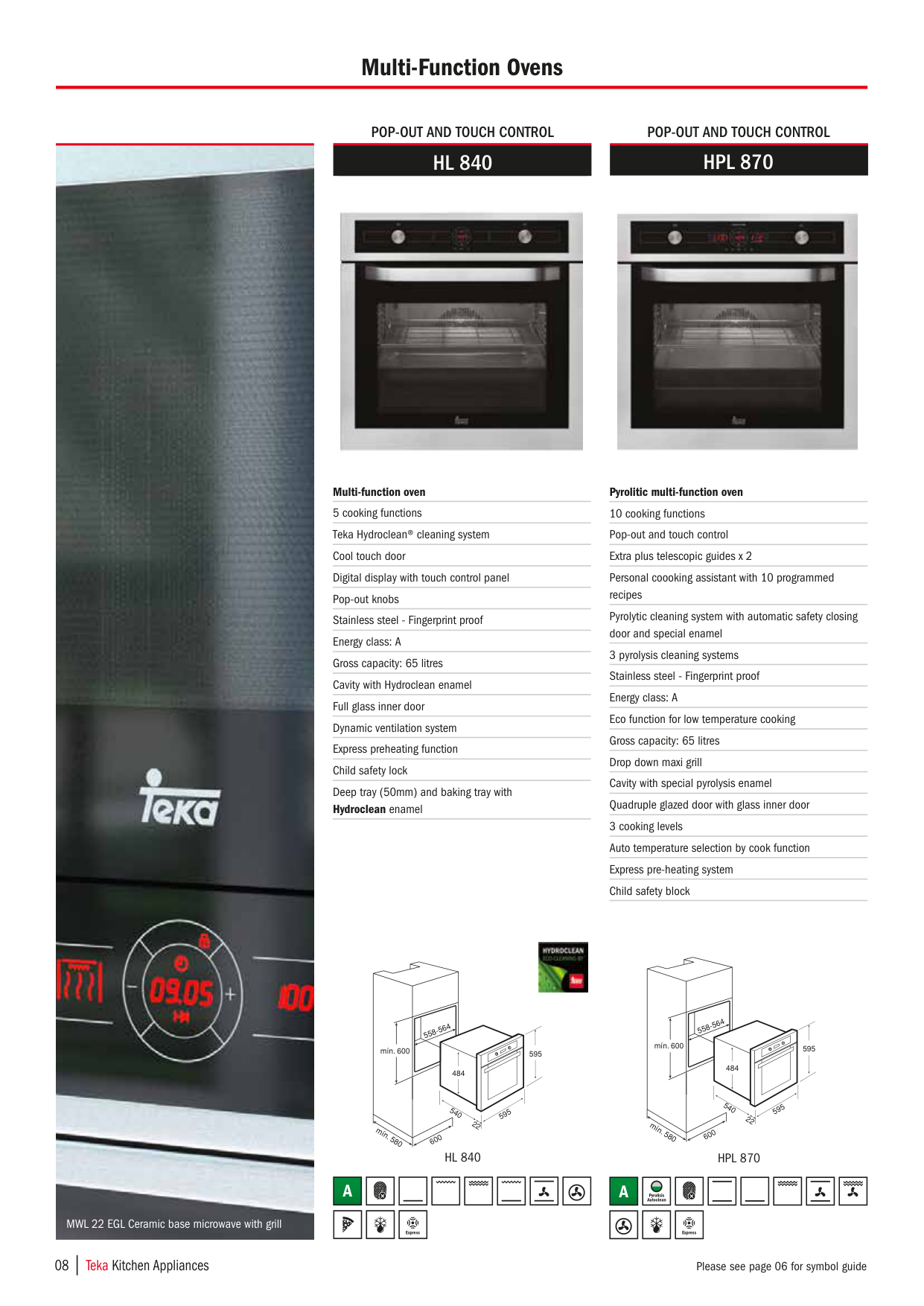

#### Multi-Function Ovens


MWL 22 EGL Ceramic base microwave with grill

POP-OUT AND TOUCH CONTROL

HX 760 EHL 840


Multi-function oven 5 cooking functions Teka Hydroclean® cleaning system Cool touch door Digital display with touch control panel Pop-out knobs Stainless steel - Fingerprint proof Energy class: A Gross capacity: 65 litres Cavity with Hydroclean enamel Full glass inner door Dynamic ventilation system Express preheating function Child safety lock Deep tray (50mm) and baking tray with Hydroclean enamel


558-564

mín. 600

595

484

540

595 22

mín. 580

600

HL 840

|A|

|---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

|Express

| |---|

POP-OUT AND TOUCH CONTROL

HPL 870


Pyrolitic multi-function oven 10 cooking functions Pop-out and touch control Extra plus telescopic guides x 2 Personal coooking assistant with 10 programmed recipes Pyrolytic cleaning system with automatic safety closing door and special enamel 3 pyrolysis cleaning systems Stainless steel - Fingerprint proof Energy class: A Eco function for low temperature cooking Gross capacity: 65 litres Drop down maxi grill Cavity with special pyrolysis enamel Quadruple glazed door with glass inner door 3 cooking levels Auto temperature selection by cook function Express pre-heating system Child safety block

558-564

mín. 600

595

484

540

595 22

mín. 580

600

HPL 870

|A| |---|

|Pyrolisis Autoclean| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

|Express

| |---|

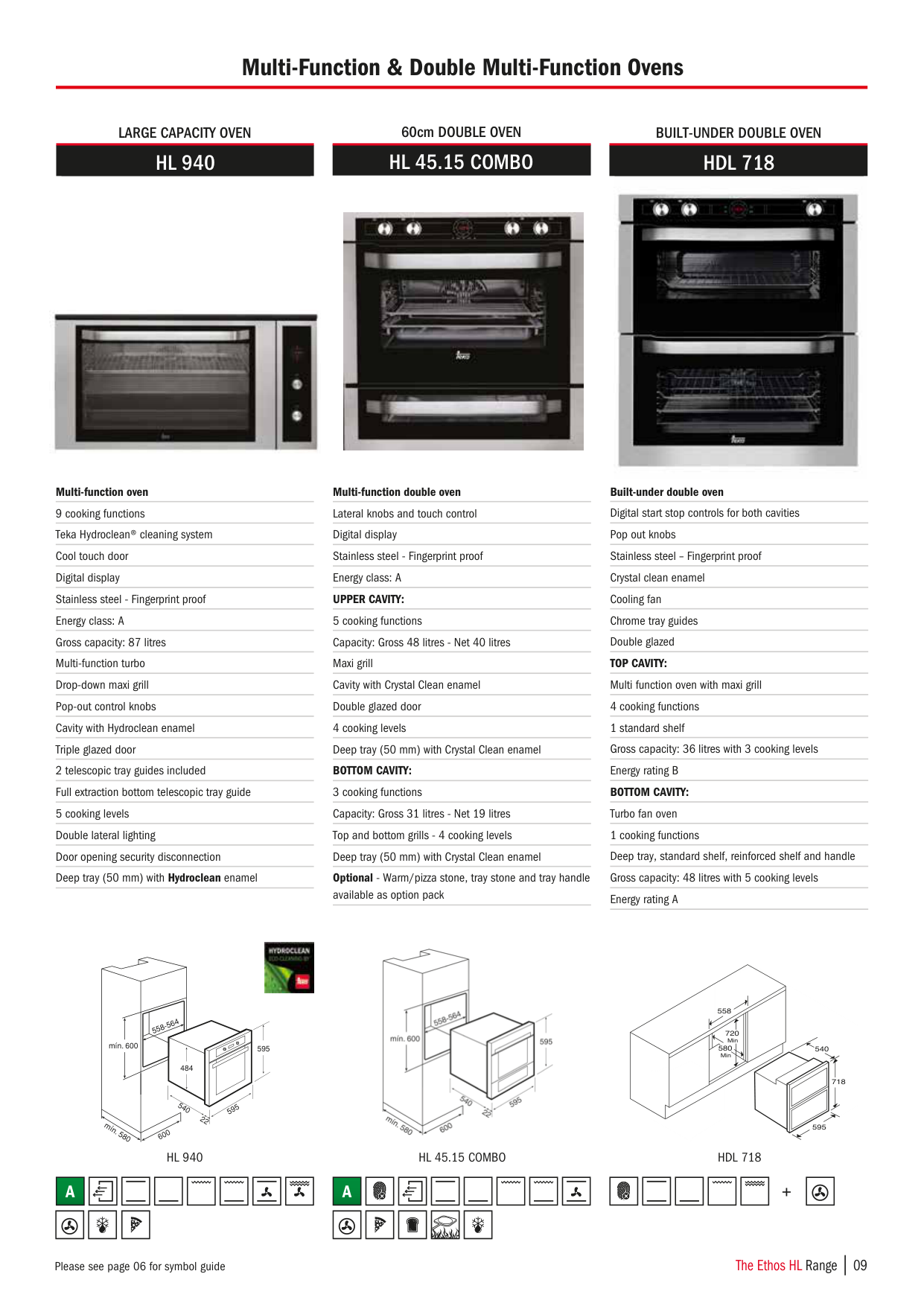

#### Multi-Function & Double Multi-Function Ovens

60cm DOUBLE OVEN

LARGE CAPACITY OVEN

BUILT-UNDER DOUBLE OVEN

HL 45.15 COMBO

HX 760 EHL 940

HX 760 EHDL 718




Built-under double oven Digital start stop controls for both cavities Pop out knobs Stainless steel – Fingerprint proof Crystal clean enamel Cooling fan Chrome tray guides Double glazed TOP CAVITY: Multi function oven with maxi grill 4 cooking functions 1 standard shelf Gross capacity: 36 litres with 3 cooking levels Energy rating B BOTTOM CAVITY: Turbo fan oven 1 cooking functions Deep tray, standard shelf, reinforced shelf and handle Gross capacity: 48 litres with 5 cooking levels Energy rating A

Multi-function oven 9 cooking functions Teka Hydroclean® cleaning system Cool touch door Digital display Stainless steel - Fingerprint proof Energy class: A Gross capacity: 87 litres Multi-function turbo Drop-down maxi grill Pop-out control knobs Cavity with Hydroclean enamel Triple glazed door

Multi-function double oven Lateral knobs and touch control Digital display Stainless steel - Fingerprint proof Energy class: A UPPER CAVITY: 5 cooking functions Capacity: Gross 48 litres - Net 40 litres Maxi grill Cavity with Crystal Clean enamel Double glazed door 4 cooking levels Deep tray (50 mm) with Crystal Clean enamel BOTTOM CAVITY: 3 cooking functions Capacity: Gross 31 litres - Net 19 litres Top and bottom grills - 4 cooking levels Deep tray (50 mm) with Crystal Clean enamel Optional - Warm/pizza stone, tray stone and tray handle available as option pack


558-564

mín. 600

595

484

540

595 22

mín. 580

600

HL 940

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|


558

720 Min

580 Min

540

718

595

HL 45.15 COMBO HDL 718

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

+

| | |---|

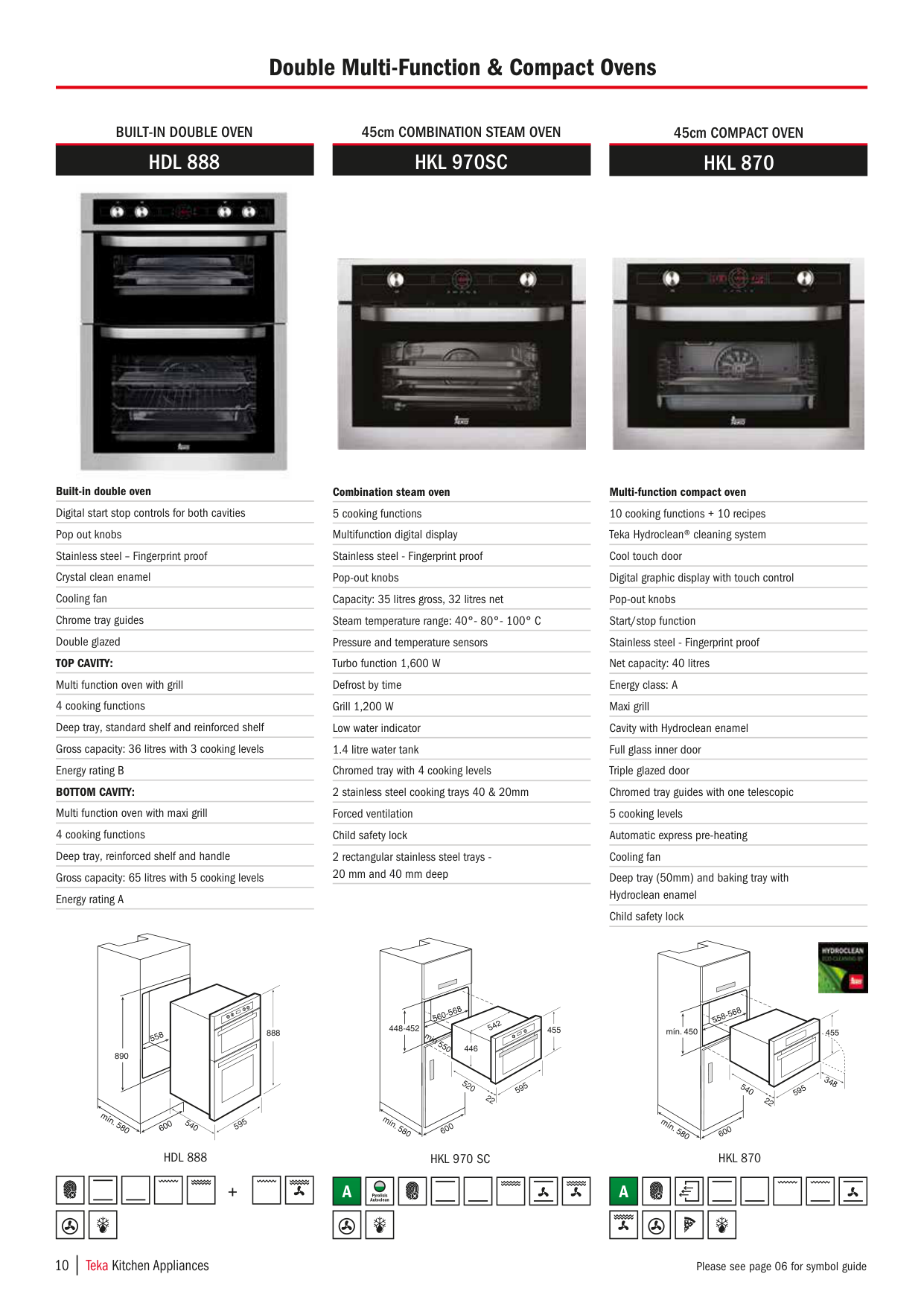

#### Double Multi-Function & Compact Ovens

BUILT-IN DOUBLE OVEN

HDL 888


Built-in double oven Digital start stop controls for both cavities Pop out knobs Stainless steel – Fingerprint proof Crystal clean enamel Cooling fan Chrome tray guides Double glazed TOP CAVITY: Multi function oven with grill

888

558

890

mín. 580

595

540

600

############# HDL 888

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

+

| | |---|

| | |---|

45cm COMPACT OVEN45cm COMBINATION STEAM OVEN

##### HKL 870HKL 970SC



Combination steam oven 5 cooking functions Multifunction digital display Stainless steel - Fingerprint proof Pop-out knobs Capacity: 35 litres gross, 32 litres net Steam temperature range: 40°- 80°- 100° C Pressure and temperature sensors Turbo function 1,600 W Defrost by time Grill 1,200 W Low water indicator 1.4 litre water tank Chromed tray with 4 cooking levels 2 stainless steel cooking trays 40 & 20mm Forced ventilation Child safety lock 2 rectangular stainless steel trays 20 mm and 40 mm deep

Multi-function compact oven 10 cooking functions + 10 recipes Teka Hydroclean® cleaning system Cool touch door Digital graphic display with touch control Pop-out knobs Start/stop function Stainless steel - Fingerprint proof Net capacity: 40 litres Energy class: A Maxi grill Cavity with Hydroclean enamel Full glass inner door Triple glazed door Chromed tray guides with one telescopic 5 cooking levels Automatic express pre-heating Cooling fan Deep tray (50mm) and baking tray with Hydroclean enamel Child safety lock


558-568

560-568

542

448-452

mín. 450

455

455

min 550

446

348

520

595 22

540

595 22

mín. 580

mín. 580

600

600

HKL 870HKL 970 SC

|A| |---|

|Pyrolisis Autoclean| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

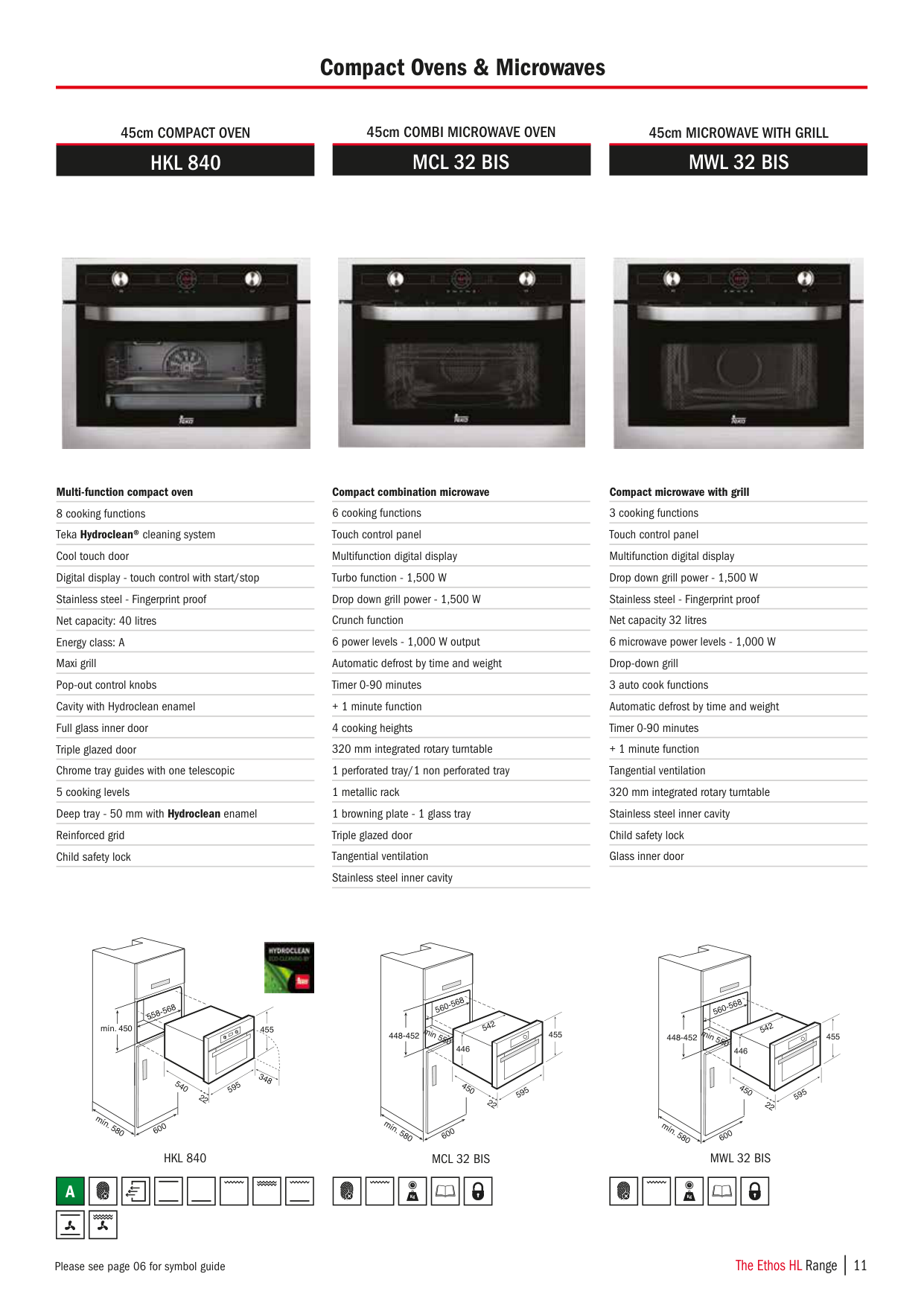

#### Compact Ovens & Microwaves

45cm COMPACT OVEN

##### HKL 840

########## 45cm MICROWAVE WITH GRILL45cm COMBI MICROWAVE OVEN

##### MWL 32 BISMCL 32 BIS




Multi-function compact oven 8 cooking functions Teka Hydroclean® cleaning system Cool touch door Digital display - touch control with start/stop Stainless steel - Fingerprint proof Net capacity: 40 litres Energy class: A Maxi grill Pop-out control knobs Cavity with Hydroclean enamel Full glass inner door Triple glazed door Chrome tray guides with one telescopic

Compact combination microwave 6 cooking functions Touch control panel Multifunction digital display Turbo function - 1,500 W Drop down grill power - 1,500 W Crunch function 6 power levels - 1,000 W output Automatic defrost by time and weight Timer 0-90 minutes + 1 minute function 4 cooking heights 320 mm integrated rotary turntable 1 perforated tray/1 non perforated tray 1 metallic rack 1 browning plate - 1 glass tray Triple glazed door Tangential ventilation Stainless steel inner cavity

Compact microwave with grill 3 cooking functions Touch control panel Multifunction digital display Drop down grill power - 1,500 W Stainless steel - Fingerprint proof Net capacity 32 litres 6 microwave power levels - 1,000 W Drop-down grill 3 auto cook functions Automatic defrost by time and weight Timer 0-90 minutes + 1 minute function Tangential ventilation 320 mm integrated rotary turntable Stainless steel inner cavity Child safety lock Glass inner door


558-568

mín. 450

455

348

540

595 22

mín. 580

600

HKL 840

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

560-568

560-568

542

542

min 550

min 550

455

448-452

455

448-452

446

446

450

450

595 22

595 22

mín. 580

mín. 580

600

600

MWL 32 BISMCL 32 BIS

| | |---|

| | |---|

|Kg

| |---|

| | |---|

| | |---|

| | |---|

| | |---|

|Kg

| |---|

| | |---|

| | |---|

The Ethos HL Range | 11Please see page 06 for symbol guide

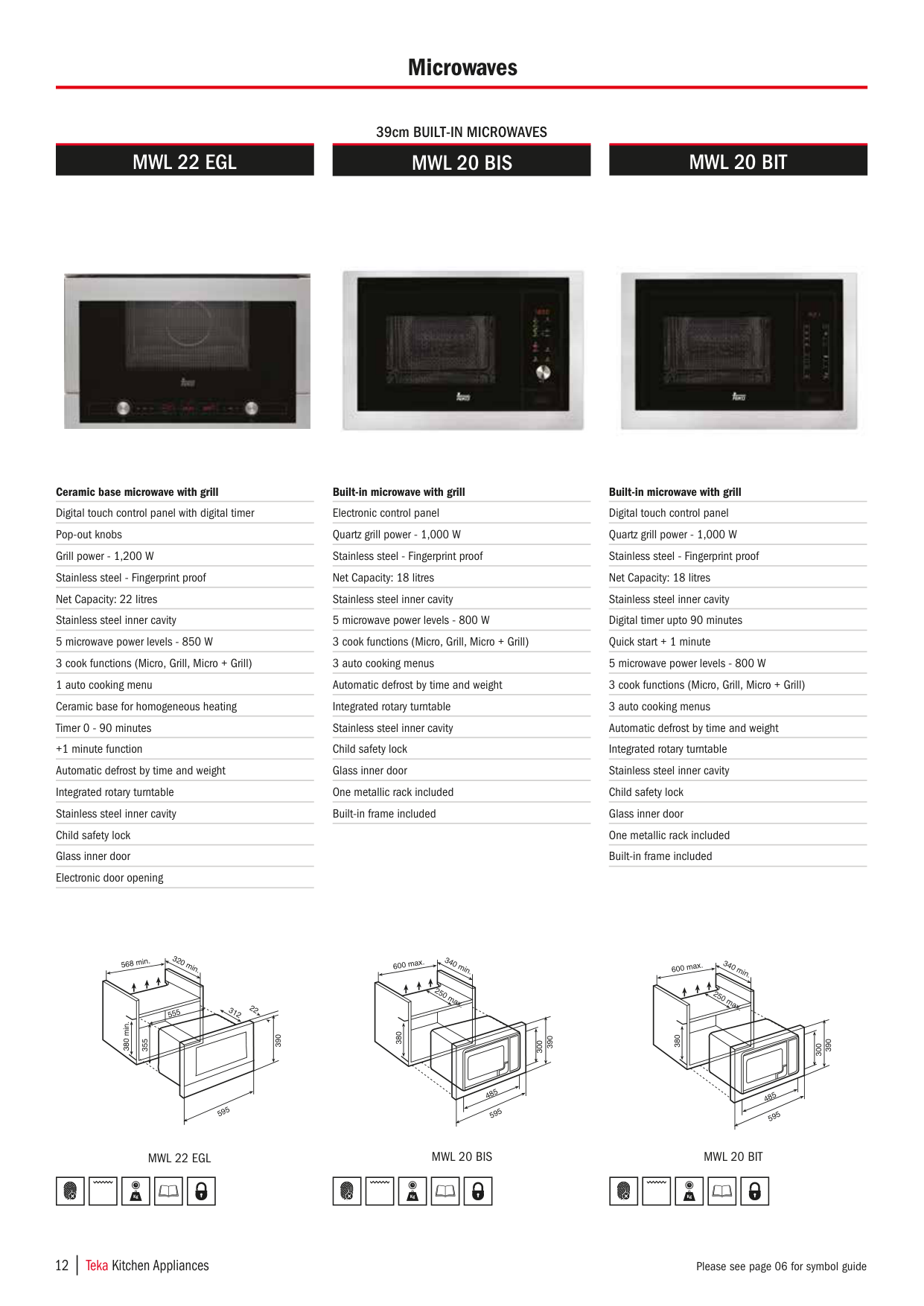

#### Microwaves

########## 39cm BUILT-IN MICROWAVES

##### MWL 20 BITMWL 20 BISMWL 22 EGL




Ceramic base microwave with grill Digital touch control panel with digital timer Pop-out knobs Grill power - 1,200 W Stainless steel - Fingerprint proof Net Capacity: 22 litres Stainless steel inner cavity

+1 minute function Automatic defrost by time and weight Integrated rotary turntable Stainless steel inner cavity Child safety lock Glass inner door Electronic door opening

Built-in microwave with grill Electronic control panel Quartz grill power - 1,000 W Stainless steel - Fingerprint proof Net Capacity: 18 litres Stainless steel inner cavity 5 microwave power levels - 800 W 3 cook functions (Micro, Grill, Micro + Grill) 3 auto cooking menus Automatic defrost by time and weight Integrated rotary turntable Stainless steel inner cavity Child safety lock Glass inner door One metallic rack included Built-in frame included

Built-in microwave with grill Digital touch control panel Quartz grill power - 1,000 W Stainless steel - Fingerprint proof Net Capacity: 18 litres Stainless steel inner cavity Digital timer upto 90 minutes Quick start + 1 minute 5 microwave power levels - 800 W 3 cook functions (Micro, Grill, Micro + Grill) 3 auto cooking menus Automatic defrost by time and weight Integrated rotary turntable Stainless steel inner cavity Child safety lock Glass inner door One metallic rack included Built-in frame included

320 min.

min.

568

22312

555

380 min.

390

355

595

340 min.

600max.

250 max.

380

390 300

485

595

MWL 20 BISMWL 22 EGL

| | |---|

| | |---|

|Kg

| |---|

| | |---|

| | |---|

| | |---|

| | |---|

|Kg

| |---|

| | |---|

| | |---|

340 min.

600max.

250 max.

380

390 300

485

595

MWL 20 BIT

| | |---|

| | |---|

|Kg

| |---|

| | |---|

| | |---|

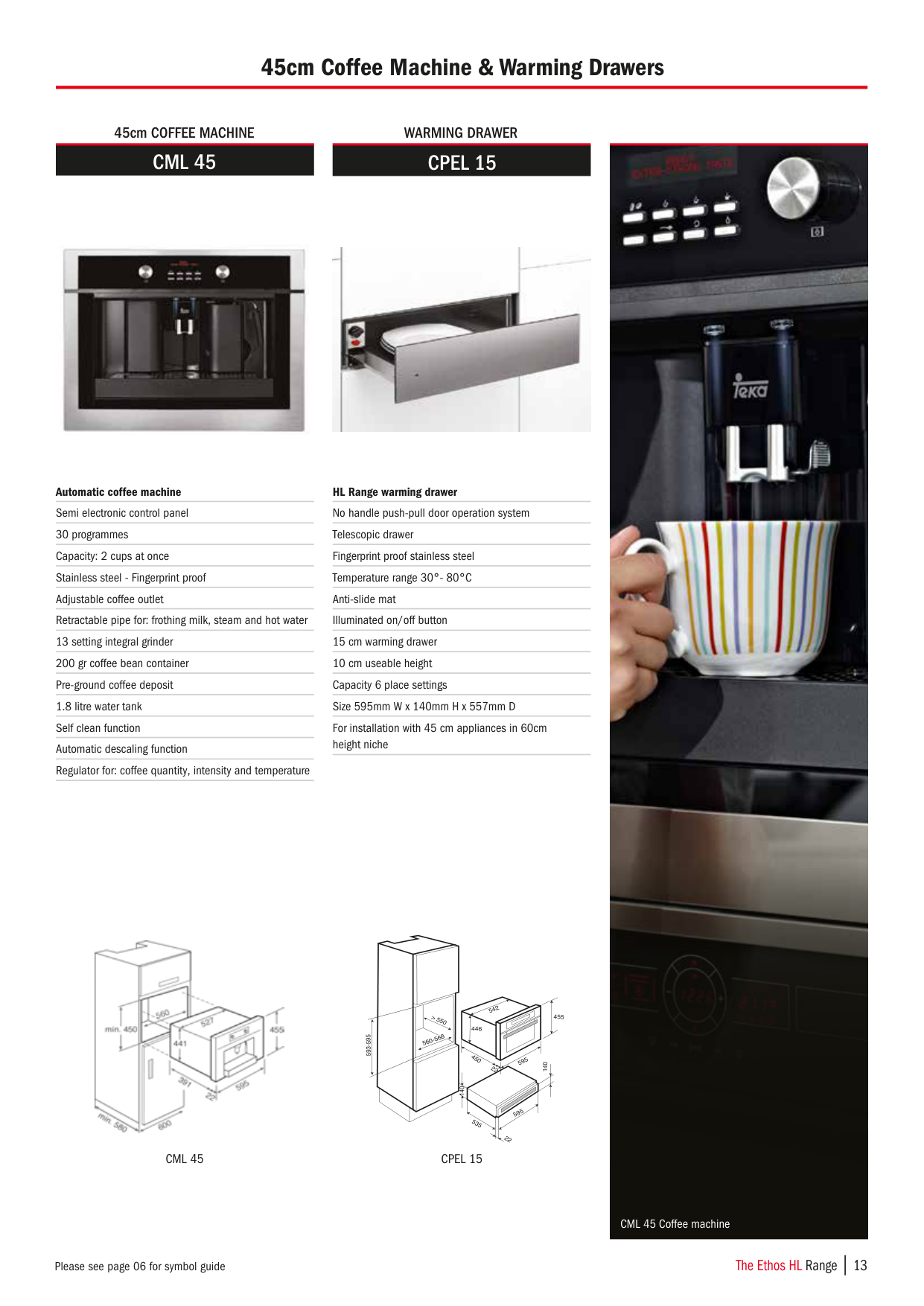

#### 45cm Coffee Machine & Warming Drawers

45cm COFFEE MACHINE

WARMING DRAWER

CML 45 CPEL 15



Automatic coffee machine Semi electronic control panel 30 programmes Capacity: 2 cups at once Stainless steel - Fingerprint proof Adjustable coffee outlet Retractable pipe for: frothing milk, steam and hot water

HL Range warming drawer No handle push-pull door operation system Telescopic drawer Fingerprint proof stainless steel Temperature range 30°- 80°C Anti-slide mat Illuminated on/off button 15 cm warming drawer 10 cm useable height Capacity 6 place settings Size 595mm W x 140mm H x 557mm D For installation with 45 cm appliances in 60cm height niche


542

455

>

550 560-568

446

593-595

450

595

140

22

140

595

535

22

CML 45 CPEL 15


Please see page 06 for symbol guide

CML 45 Coffee machine

The Ethos HL Range | 13

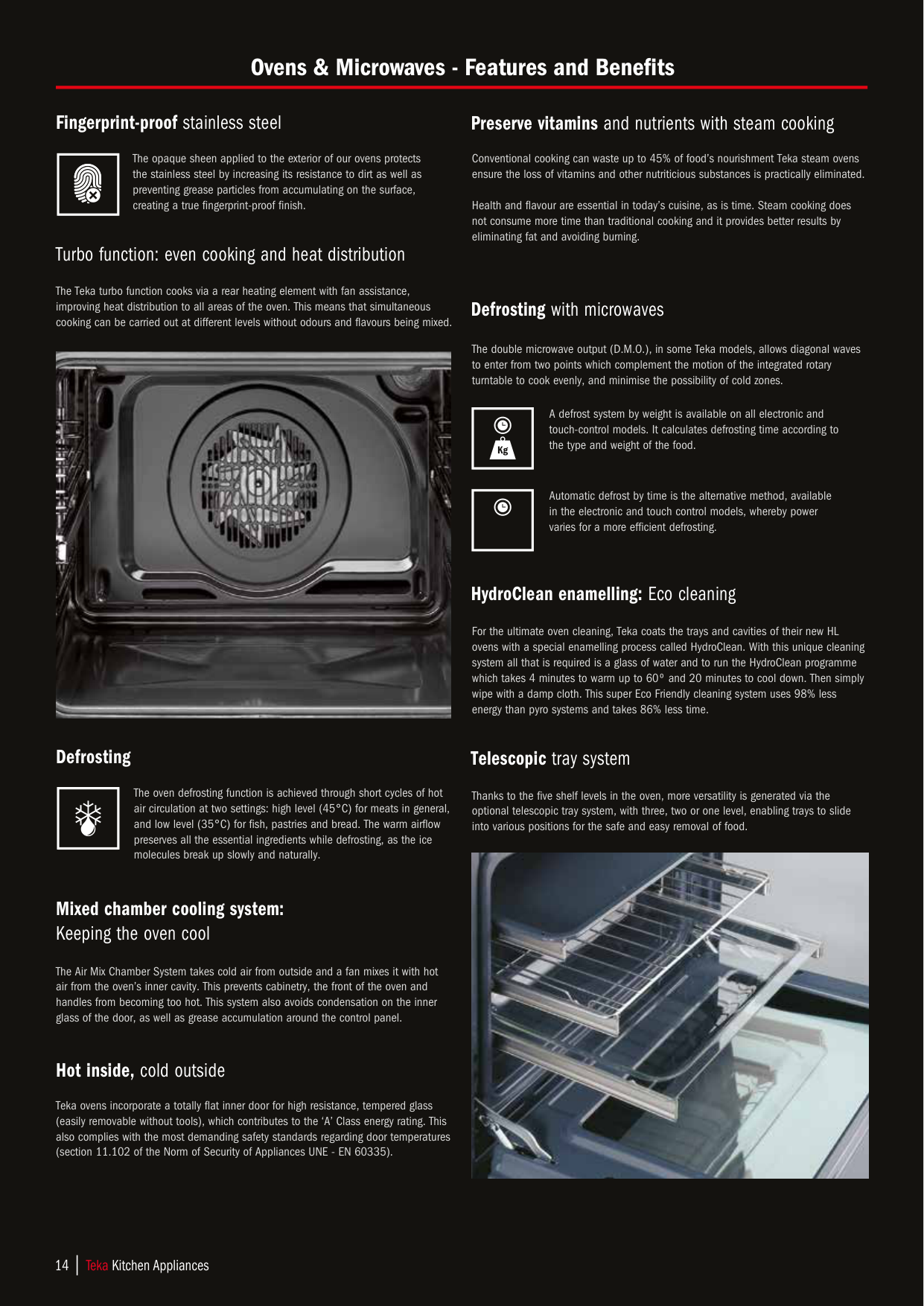

#### Ovens & Microwaves - Features and Benefits

###### Fingerprint-proof stainless steel

| | |---|

The opaque sheen applied to the exterior of our ovens protects the stainless steel by increasing its resistance to dirt as well as preventing grease particles from accumulating on the surface, creating a true fingerprint-proof finish.

Turbo function: even cooking and heat distribution

####### Preserve vitamins and nutrients with steam cooking

Conventional cooking can waste up to 45% of food’s nourishment Teka steam ovens ensure the loss of vitamins and other nutriticious substances is practically eliminated.

Health and flavour are essential in today’s cuisine, as is time. Steam cooking does not consume more time than traditional cooking and it provides better results by eliminating fat and avoiding burning.

The Teka turbo function cooks via a rear heating element with fan assistance, improving heat distribution to all areas of the oven. This means that simultaneous cooking can be carried out at different levels without odours and flavours being mixed.


####### Defrosting with microwaves

The double microwave output (D.M.O.), in some Teka models, allows diagonal waves to enter from two points which complement the motion of the integrated rotary turntable to cook evenly, and minimise the possibility of cold zones.

|Kg

| |---|

A defrost system by weight is available on all electronic and touch-control models. It calculates defrosting time according to the type and weight of the food.

| | |---|

Automatic defrost by time is the alternative method, available in the electronic and touch control models, whereby power varies for a more efficient defrosting.

###### HydroClean enamelling: Eco cleaning

For the ultimate oven cleaning, Teka coats the trays and cavities of their new HL ovens with a special enamelling process called HydroClean. With this unique cleaning system all that is required is a glass of water and to run the HydroClean programme which takes 4 minutes to warm up to 60º and 20 minutes to cool down. Then simply wipe with a damp cloth. This super Eco Friendly cleaning system uses 98% less energy than pyro systems and takes 86% less time.

###### Defrosting

| | |---|

The oven defrosting function is achieved through short cycles of hot air circulation at two settings: high level (45°C) for meats in general, and low level (35°C) for fish, pastries and bread. The warm airflow preserves all the essential ingredients while defrosting, as the ice molecules break up slowly and naturally.

###### Mixed chamber cooling system: Keeping the oven cool

The Air Mix Chamber System takes cold air from outside and a fan mixes it with hot air from the oven’s inner cavity. This prevents cabinetry, the front of the oven and handles from becoming too hot. This system also avoids condensation on the inner glass of the door, as well as grease accumulation around the control panel.

Hot inside, cold outside

Teka ovens incorporate a totally flat inner door for high resistance, tempered glass (easily removable without tools), which contributes to the ‘A’ Class energy rating. This also complies with the most demanding safety standards regarding door temperatures (section 11.102 of the Norm of Security of Appliances UNE - EN 60335).

Telescopic tray system

Thanks to the five shelf levels in the oven, more versatility is generated via the optional telescopic tray system, with three, two or one level, enabling trays to slide into various positions for the safe and easy removal of food.

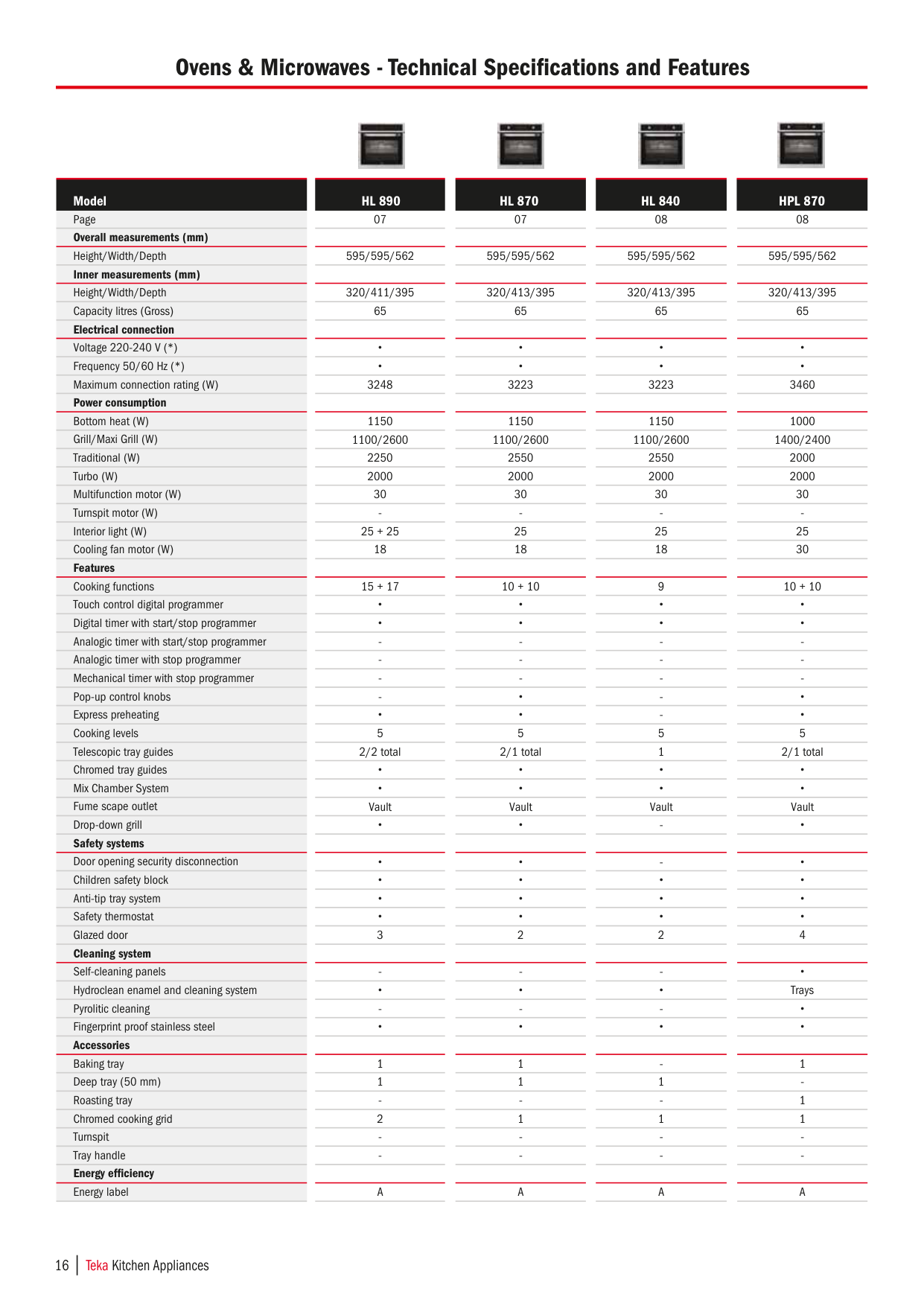

############ Model

############ HL 890

############ HL 840HL 870 07

Page Overall measurements (mm) Height/Width/Depth Inner measurements (mm) Height/Width/Depth Capacity litres (Gross) Electrical connection Voltage 220-240 V (*) Frequency 50/60 Hz (*) Maximum connection rating (W) Power consumption Bottom heat (W) Grill/Maxi Grill (W) Traditional (W) Turbo (W) Multifunction motor (W) Turnspit motor (W) Interior light (W) Cooling fan motor (W) Features Cooking functions Touch control digital programmer Digital timer with start/stop programmer Analogic timer with start/stop programmer Analogic timer with stop programmer Mechanical timer with stop programmer Pop-up control knobs Express preheating Cooking levels Telescopic tray guides Chromed tray guides Mix Chamber System Fume scape outlet Drop-down grill Safety systems Door opening security disconnection Children safety block Anti-tip tray system Safety thermostat Glazed door Cleaning system Self-cleaning panels Hydroclean enamel and cleaning system Pyrolitic cleaning Fingerprint proof stainless steel Accessories Baking tray Deep tray (50 mm) Roasting tray Chromed cooking grid Turnspit Tray handle Energy efficiency Energy label

07

08

595/595/562

595/595/562

595/595/562

320/411/395 65

320/413/395 65

320/413/395 65

• • 3248

• • 3223

• • 3223

1150 1100/2600 2250 2000 30 25 + 25 18

1150 1100/2600 2550 2000 30 25 18

1150 1100/2600 2550 2000 30 25 18

15 + 17 • • • 5 2/2 total • • Vault •

10 + 10 • • • • 5 2/1 total • • Vault •

9 • • 5 1 • • Vault -

• • • • 3

• • • • 2

• •

• •

1

1 1 1 -

A

A


############ HPL 870

08

595/595/562

320/413/395 65

• • 3460

1000 1400/2400 2000 2000 30 25 30

10 + 10 • • • • 5 2/1 total • • Vault •

1 1 1 -

A

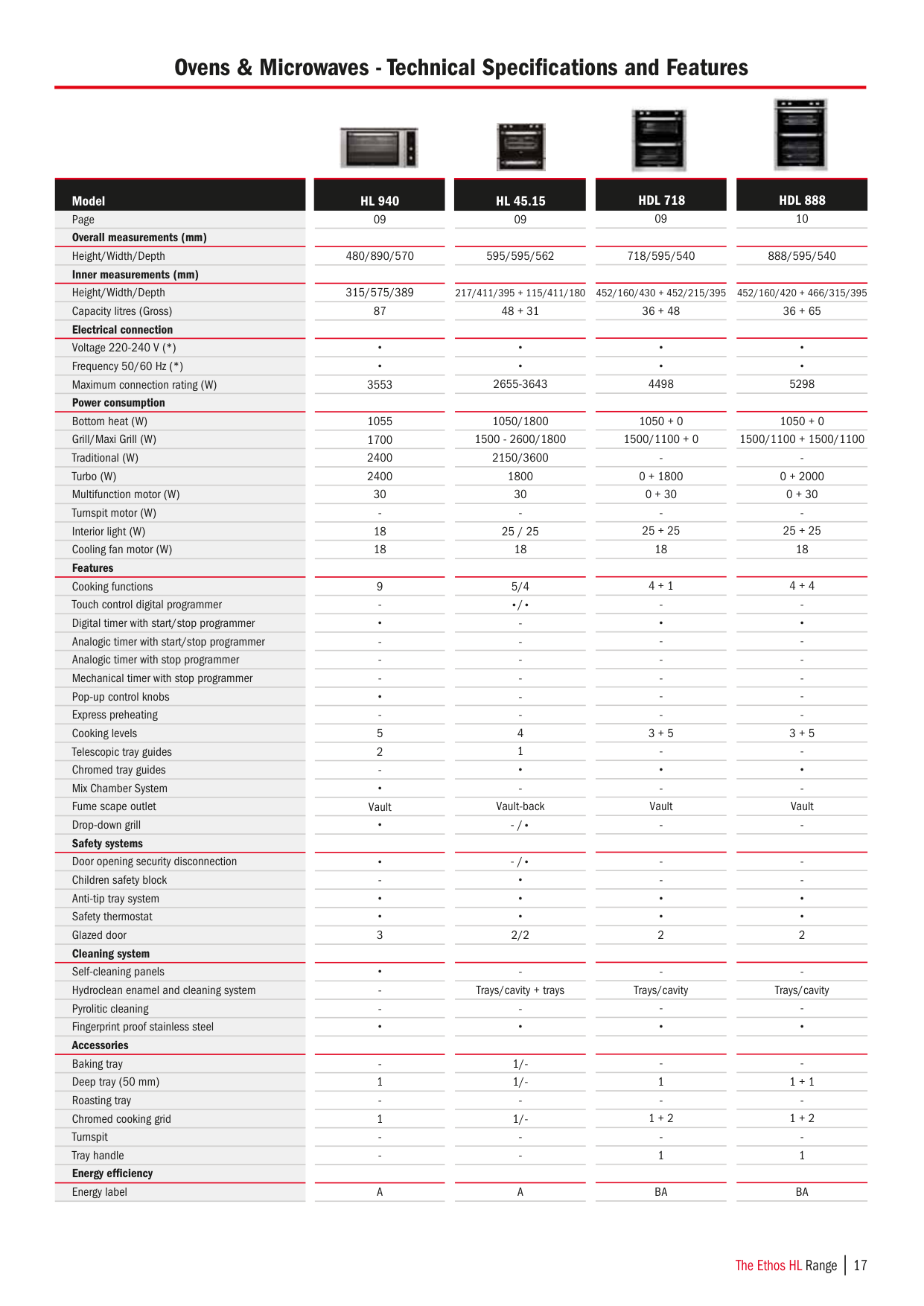

############ Model HL 45 15 HDL 718 HDL 888

############ HL 940

09

10

09

Page Overall measurements (mm) Height/Width/Depth Inner measurements (mm) Height/Width/Depth Capacity litres (Gross) Electrical connection Voltage 220-240 V (*) Frequency 50/60 Hz (*) Maximum connection rating (W) Power consumption Bottom heat (W) Grill/Maxi Grill (W) Traditional (W) Turbo (W) Multifunction motor (W) Turnspit motor (W) Interior light (W) Cooling fan motor (W) Features Cooking functions Touch control digital programmer Digital timer with start/stop programmer Analogic timer with start/stop programmer Analogic timer with stop programmer Mechanical timer with stop programmer Pop-up control knobs Express preheating Cooking levels Telescopic tray guides Chromed tray guides Mix Chamber System Fume scape outlet Drop-down grill Safety systems Door opening security disconnection Children safety block Anti-tip tray system Safety thermostat Glazed door Cleaning system Self-cleaning panels Hydroclean enamel and cleaning system Pyrolitic cleaning Fingerprint proof stainless steel Accessories Baking tray Deep tray (50 mm) Roasting tray Chromed cooking grid Turnspit Tray handle Energy efficiency Energy label

09

718/595/540

888/595/540

595/595/562

480/890/570

315/575/389 87

452/160/420 + 466/315/395 36 + 65

452/160/430 + 452/215/395 36 + 48

217/411/395 + 115/411/180 48 + 31

• • 4498

• • 5298

• • 2655-3643

• • 3553

1050 + 0 1500/1100 + 0 0 + 1800 0 + 30 25 + 25 18

1050 + 0 1500/1100 + 1500/1100 0 + 2000 0 + 30 25 + 25 18

1050/1800 1500 - 2600/1800 2150/3600 1800 30 25 / 25 18

1055 1700 2400 2400 30 18 18

4 + 1 • 3 + 5 • Vault -

4 + 4 • 3 + 5 • Vault -

5/4 •/• 4 1 • Vault-back

9 • • 5 2 • Vault •

• • • 2/2

Trays/cavity + trays

################ •

1 1 -

-

1

BA

BA

A

A

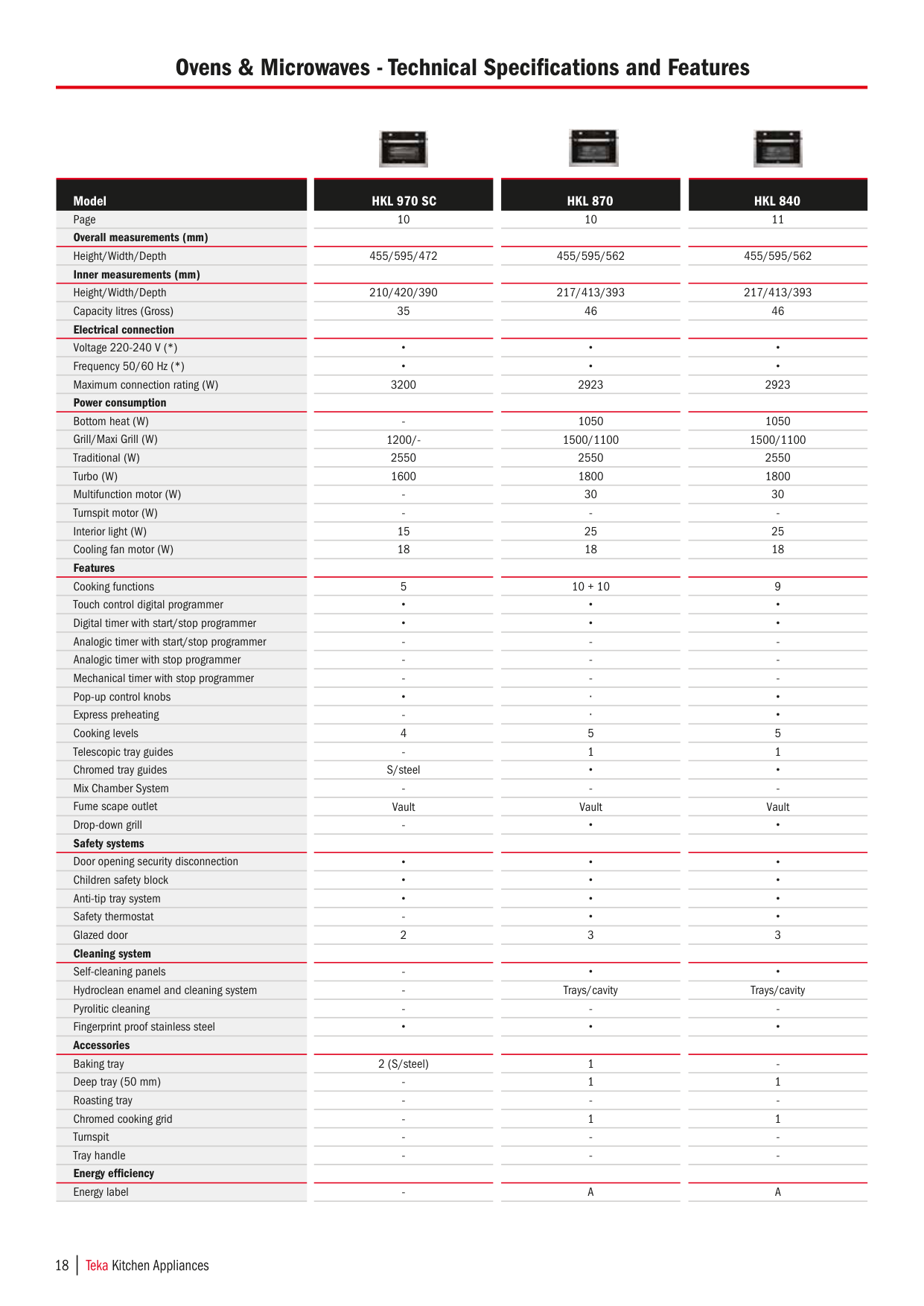

############ Model

############ HKL 970 SC HKL 870 HKL 840

Page Overall measurements (mm) Height/Width/Depth Inner measurements (mm) Height/Width/Depth Capacity litres (Gross) Electrical connection Voltage 220-240 V (*) Frequency 50/60 Hz (*) Maximum connection rating (W) Power consumption Bottom heat (W) Grill/Maxi Grill (W) Traditional (W) Turbo (W) Multifunction motor (W) Turnspit motor (W) Interior light (W) Cooling fan motor (W) Features Cooking functions Touch control digital programmer Digital timer with start/stop programmer Analogic timer with start/stop programmer Analogic timer with stop programmer Mechanical timer with stop programmer Pop-up control knobs Express preheating Cooking levels Telescopic tray guides Chromed tray guides Mix Chamber System Fume scape outlet Drop-down grill Safety systems Door opening security disconnection Children safety block Anti-tip tray system Safety thermostat Glazed door Cleaning system Self-cleaning panels Hydroclean enamel and cleaning system Pyrolitic cleaning Fingerprint proof stainless steel Accessories Baking tray Deep tray (50 mm) Roasting tray Chromed cooking grid Turnspit Tray handle Energy efficiency Energy label

11

10

10

455/595/562

455/595/472

455/595/562

217/413/393 46

210/420/390 35

217/413/393 46

• • 2923

• • 3200

• • 2923

1050 1500/1100 2550 1800 30 25 18

1200/2550 1600 15 18

1050 1500/1100 2550 1800 30 25 18

9 • • • • 5 1 • Vault •

5 • • • 4 S/steel Vault -

10 + 10 • • • • 5 1 • Vault •

• • • 2

•

1 1 -

2 (S/steel) -

1 1 1 -

A






############ Model

############ MWL 32 BIS

############ MCL 32 BIS MWL 22 EGL MWL 20 BIS MWL 20 BIT

11

12

Page Overall measurements (mm) Height/Width/Depth Inner measurements (mm) Height/Width/Depth Gross/Net capacity litres Electrical connection Power supply 220-240 V (*) Frequency 50 Hz (*) Mwo power (W) Grill power (W) Max. nominal power (W) Features Installation system Stainless steel inner cavity Microwave plus drop down grill/quartz Touch control panel Electronic control panel Electromechanical control panel Integrated rotary turntable Ceramic base 30 seconds quick start 1 minute quick start Power levels Defrosting by time Defrosting by weight Frame Cooking functions Cooking memories Auto cook functions Fingerprint proof stainless steel Minute minder (minutes) Safety systems Children safety block Integrated quartz grill Drop-down grill Security thermostat Forced air ventilation Accesories Grid Glass tray Browning plate

11

12

12

455/595/472

390/595/334

455/595/472

390/595/325

390/595/340

210/420/390 38/32

220/350/280 25/22

210/420/390 38/32

210/305/280 20/18

210/305/305 -/20

230 • 800 1000 1200

• • 1000 1500 3300

• • 850 1200 850

• • 1000 1500 3400

• • 800 1000 1200

Full built-in • •/• • 32 cm • 6 • • 3 3 • 90

Full built-in • •/• • • • • 6 • • 3 3 1 • 90

Full built-in • •/• 32 cm • 6 • • 6 3 • 90

Built-in • -/• • 24 cm • 5 • • Included 3 3 3 • 90

Built-in • -/• • 24 cm • 5 • • Included 3 3 3 • 90

• • • •

• • • • •

• • • •

• • • •

• • • •

2 •

1 -

1 • •

1 -

1 -

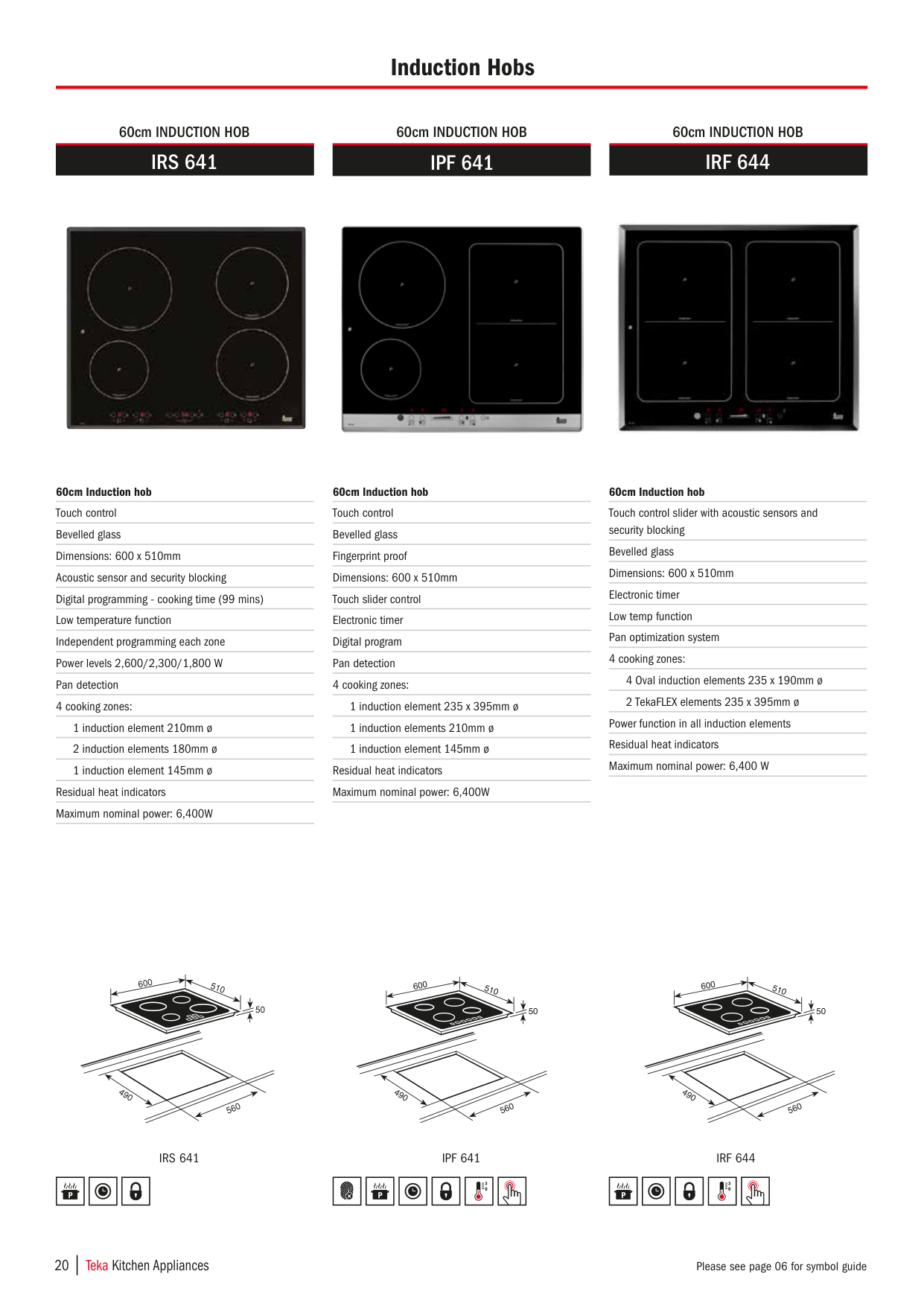

########## 60cm INDUCTION HOB

########## 60cm INDUCTION HOB

########## 60cm INDUCTION HOB

##### IRF 644IPF 641IRS 641




60cm Induction hob Touch control Bevelled glass Dimensions: 600 x 510mm Acoustic sensor and security blocking Digital programming - cooking time (99 mins) Low temperature function Independent programming each zone Power levels 2,600/2,300/1,800 W Pan detection

Residual heat indicators Maximum nominal power: 6,400W

60cm Induction hob Touch control Bevelled glass Fingerprint proof Dimensions: 600 x 510mm Touch slider control Electronic timer Digital program Pan detection 4 cooking zones:

1 induction element 235 x 395mm ø 1 induction elements 210mm ø 1 induction element 145mm ø

Residual heat indicators Maximum nominal power: 6,400W

60cm Induction hob Touch control slider with acoustic sensors and security blocking Bevelled glass Dimensions: 600 x 510mm Electronic timer Low temp function Pan optimization system 4 cooking zones:

4 Oval induction elements 235 x 190mm ø 2 TekaFLEX elements 235 x 395mm ø

Power function in all induction elements Residual heat indicators Maximum nominal power: 6,400 W

600

510

50

490

560

IRS 641

|P| |---|

| | |---|

| | |---|

600

510

50

490

560

IPF 641

| | |---|

|P| |---|

| | |---|

| | |---|

|0

3

| |---|

| | |---|

600

510

50

490

560

IRF 644

|P| |---|

| | |---|

| | |---|

|0

3

| |---|

| | |---|

80cm INDUCTION HOB

80cm INDUCTION HOB

IRS 841 IRS 843



80cm Induction hob Touch control Bevelled glass Dimensions: 800 x 510mm Touch slider control Acoustic sensor Security blocking Pan optimization system Digital programming of the cooking time (99 minutes) Independent programmer of each cooking zone Chronometer function with acoustic alarm Power function (1.800/2.300/3.000W) Pan detector

Residual heat indicators Maximum nominal power: 6,400W

80cm Induction hob Touch control with slider touch Bevelled glass Dimensions: 800 x 520mm Power Plus function iQuick boil function Syncro function joining 2 x 180mm zones Acoustic sensor and security blocking Digital programming - cooking time (99 mins) Independent programming of each zone Chronometer function with acoustic alarm Power levels 3,700/2,500/1,800 W Pan detection Stop/go function 5 cooking zones:

Residual heat indicators Maximum nominal power: 7,400W

800

510

50

490

750

| | |---|

| | |---|

IRS 841

800

510

50

490

750

IPF 843

| | |---|

|P| |---|

| | |---|

| | |---|


IPF 641 80cm Induction hob


IRS 943 90cm Induction hob

90cm INDUCTION HOB

IRS 943

90cm INDUCTION HOB - PANORAMIC

IRS 942



90cm Induction hob Touch control with slider touch Bevelled glass Dimensions: 900 x 510mm Pan optimisation system iQuick boil function Syncro function joining 2 zones = 280 x 385mm Independent electronic timer for each zone Acoustic sensor and security blocking Independent programming of each zone Chronometer function with acoustic alarm Power levels 3,700/2,500/1,800 W Pan detection Stop/go function 5 cooking zones:

Residual heat indicators Maximum nominal power: 7,400W

90cm Induction hob Touch control Bevelled glass Dimensions: 900 x 400mm Acoustic sensor and security blocking Digital programming - cooking time (99 mins) Independent programming of each zone Chronometer function with acoustic alarm Power levels 3,200/2,500/1,800 W Stop and go function Pan detection 4 cooking zones:

Residual heat indicators Maximum nominal power: 7,400W


IRS 943

| | |---|

|P| |---|

| | |---|

| | |---|

900

60

400

860 380

IRS 942

| | |---|

|P| |---|

| | |---|

| | |---|

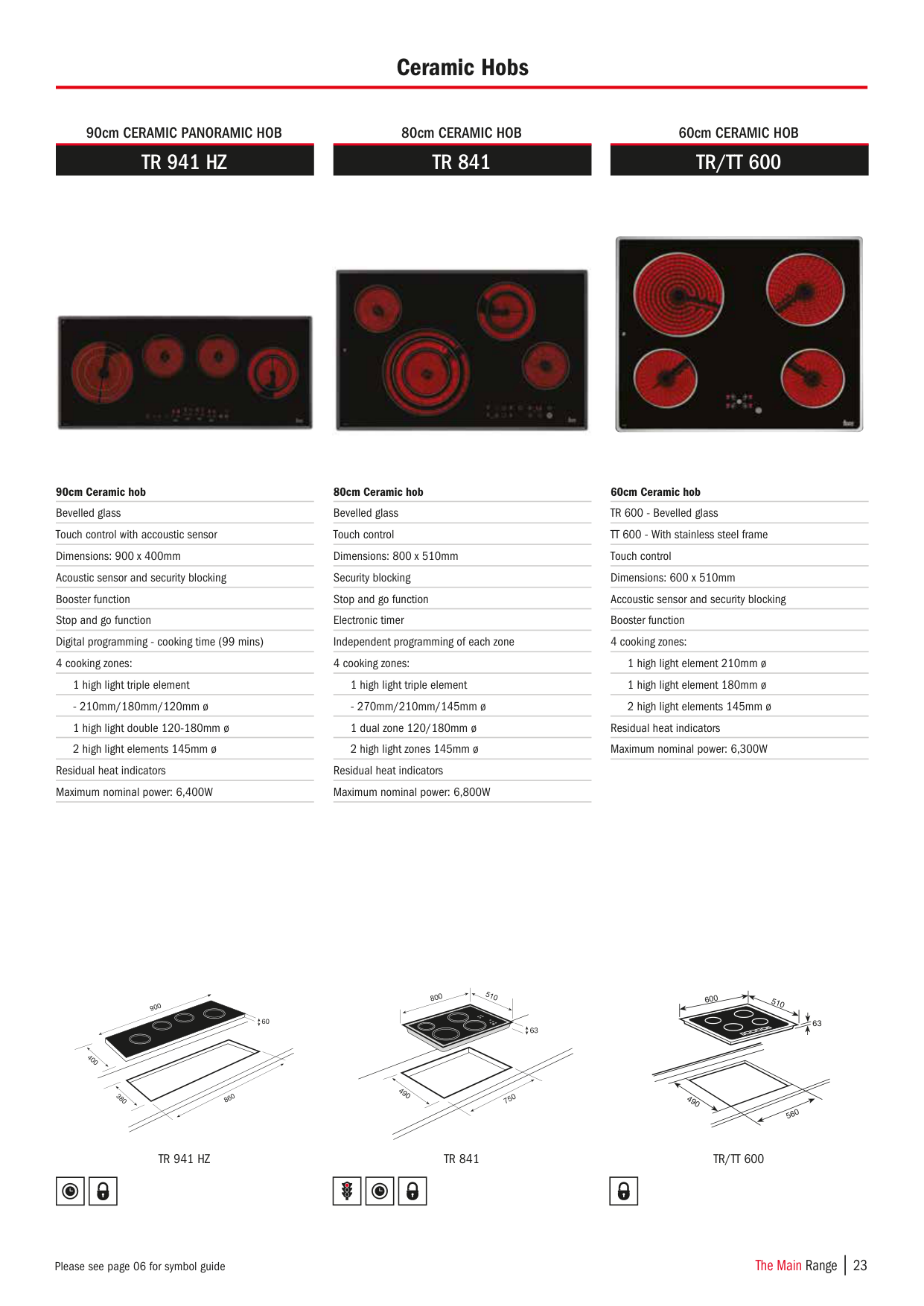

#### Ceramic Hobs

90cm CERAMIC PANORAMIC HOB

80cm CERAMIC HOB

60cm CERAMIC HOB

##### TR 941 HZ

##### TR 841

##### TR/TT 600




90cm Ceramic hob Bevelled glass Touch control with accoustic sensor Dimensions: 900 x 400mm Acoustic sensor and security blocking Booster function Stop and go function Digital programming - cooking time (99 mins)

Residual heat indicators Maximum nominal power: 6,400W

80cm Ceramic hob Bevelled glass Touch control Dimensions: 800 x 510mm Security blocking Stop and go function Electronic timer Independent programming of each zone 4 cooking zones:

1 high light triple element

Residual heat indicators Maximum nominal power: 6,800W

60cm Ceramic hob TR 600 - Bevelled glass TT 600 - With stainless steel frame Touch control Dimensions: 600 x 510mm Accoustic sensor and security blocking Booster function 4 cooking zones:

1 high light element 210mm ø

Residual heat indicators Maximum nominal power: 6,300W

900

60

400

860 380

| | |---|

| | |---|

TR 941 HZ

510

800

63

490

750

| | |---|

| | |---|

| | |---|

TR 841

600

510

63

490

560

| | |---|

TR/TT 600




#### Induction & Ceramic Hobs - Features and Benefits

Cast iron grids: A matter of image and function.

###### Lateral lines.

Teka ceramic and induction hobs are available in a variety of shapes with bevelled, framed and flush-fit edges. The flush-fit edge allows the hob to be recessed into the work surface creating a perfectly flat surface.

Teka has continued to innovate and upgrade as part of its drive to improve gas cooker design and functionality. The latest feature is the cast iron grids for its gas on glass hobs.


Bevelled Framed Flush-fit

###### Full induction function

This function allows two separate induction zones to be merged and used as one large zone. The power level and timer setting are synchonised. This function is activated by pressing the “full induction” senor on he control panel.

####### iQuick smart boiling function

The perfect function when cooking pasta, rice, eggs or when boiling any kind of food. This function allows the user to cook almost automatically. When in use the system detects the point of boiling and gives out an audible sound. After 30 seconds the alarm sounds again time to place the food in the pan. At this point the timer activates the optimum cooking time. When the cooking time is reached a third alarm sounds, at this point the power level is reduced automatically to a gentle level to stop the food from spoiling.

###### Induction technology: Boost function.

Boost raises the cooking zone to it’s maximum power and then lowers it after a set time. It is really helpful when preparing dishes that need fast boiling followed by simmering. As a result, the complete cooking process is controlled without having adjust the setting again. Flexibility of use and control are standard for example use setting 1 to heat up a consommé, 4 to rapidly heat a litre of water and 7 to fry chicken.


iQuick smart heat.

Teka induction zones will heat only the pan base. Everything else stays at a constant temperature except for the normal heat transfer between the botton surface of the pan and the glass face of the hob. This way, the magnetic flow is concentrated at the points of contact between the hob and the pan. If a pan is smaller than the element, the sensors will recognise its size and adjust the heat generated to its perimeter. Induction zones are really popular in the hob market thanks to their unquestionable advantages: safety, ease of cleaning, speed, economy, design, choice and superior performance.


Power function.

The power function increases the total power of the zone’s selected by 35% for ten minutes this is ideal for cooking fast boiling dishes, or to warm liquids rapidly. On some models the power function can be activated in just one zone at a time, transferring all of the available power to that specific area.

|P| |---|

####### Digital programming.

Triple ring burner.

Teka offers a wide selection of burners to suit all cooking needs: triple ring burners, fish burners as well as the traditional fast, semi-fast and small burners. All have been dimensioned for standard pan sizes and to ensure an even cooking temperature across the whole surface of the recipient. With this choice of burners and the different grid options (individual and double grids in cast iron or enamelled), it’s easy to find the right Teka hob for your kitchen.

The digital programming function allows hobs to be programmed to a specific time ranging from 1 minute to 99 minutes, when the programmed time is over, the hob switches off emitting an acoustic signal. In some Teka models the programming timer can be activated independently in all the cooking zones at the same time. The hob switches off emitting an acoustic signal.

| | |---|

Stop & Go.

| | |---|

The Stop and Go function is very useful when the doorbell or phone rings, as it means the cooking process can be paused without the need to restart the hob, avoiding food burning or overcooking. Only one touch and the hob will remember the selected power, cooking programme or time.

24 | TekaKitchen Appliances

90cm STAINLESS STEEL

70cm STAINLESS STEEL

60cm STAINLESS STEEL

##### EX 90 5G AI AL

##### EX 70 5G AI AL

##### EX 60 4G AI AL




90cm Stainless steel gas hob Frontal control knobs Triple ring burner Cast iron pan supports Dimensions: 860mm x 500mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner

Can be used with natural gas or LPG

70cm Stainless steel gas hob Frontal control knobs Triple ring burner Cast iron pan supports Dimensions: 580mm x 500mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner 5 cooking zones:

1 triple ring burner 3.1kW

Can be used with natural gas or LPG

60cm Stainless steel gas hob Frontal control knobs Cast iron pan supports Dimensions: 580mm x 500mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner 4 cooking zones:

Can be used with natural gas or LPG

500

860

84

473

833

| | |---|

EX 90 5G AI AL

500

680

83

473

553

| | |---|

EX 70 5G AI AL

580

500

83

473

553

EX 60 4G AI AL

########## 90cm GAS ON GLASS

##### CGW LUX 90 TC 5G

########## 60cm GAS ON GLASS

########## 70cm GAS ON GLASS

##### CGW LUX 70 TRCGW LUX 60 TC 4G




90cm Gas on glass hob Touch control Cast iron pan supports Dimensions: 870mm x 510mm Auto-lock safety device - each burner Auto-ignition each burner Re-ignition system Child safety lock Frameless

Can be used with natural gas or LPG

60cm Gas on glass hob Touch control Cast iron pan supports Dimensions: 870mm x 510mm Auto-lock safety device - each burner Auto-ignition each burner Re-ignition system Child safety lock Frameless 4 cooking zones:

1 rapid burner 2.8kW 1 semi rapid burner 1.75kW 1 semi rapid burner 1.4kW 1 auxiliary burner 1kW

Can be used with natural gas or LPG

70cm Gas on glass hob Lateral frontal control knobs Cast iron pan supports Dimensions: 710mm x 510mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner Crystal glass surface with ceramic treatment Frameless 5 cooking zones:

2 fast burners 3.0kW 2 semi fast burners 1.75kW 1 auxiliary burner 1kW

Can be used with natural gas or LPG

510

870

56

483

833

610

510

56

473

553

510

710

55

492

580

| | |---|

CGW LUX 90 TC 5G

| | |---|

CGW LUX 60 TC 4G

| | |---|

CGW LUX 70 TR

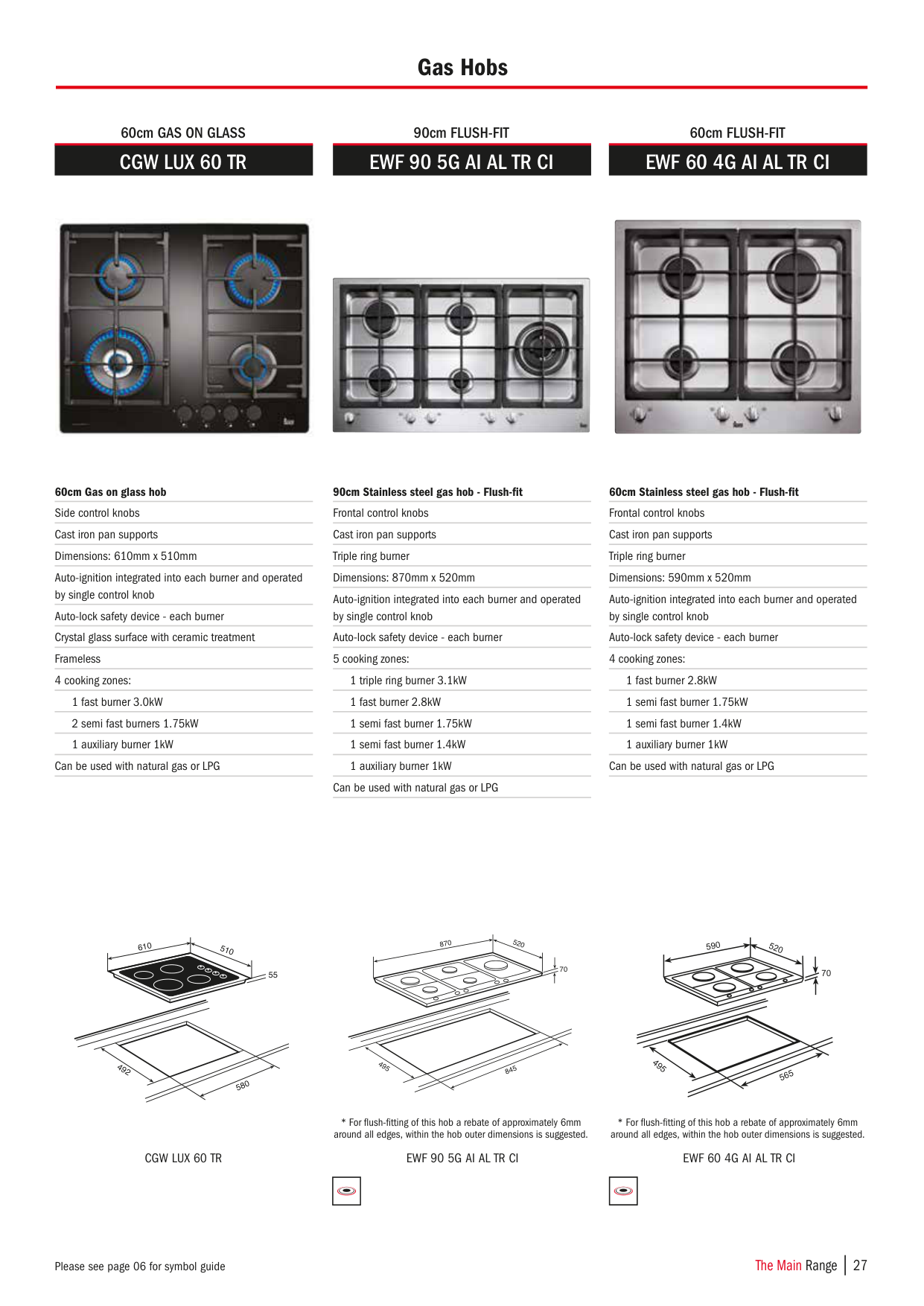

60cm GAS ON GLASS

##### CGW LUX 60 TR

90cm FLUSH-FIT

60cm FLUSH-FIT

##### EWF 90 5G AI AL TR CI

##### EWF 60 4G AI AL TR CI




60cm Gas on glass hob Side control knobs Cast iron pan supports Dimensions: 610mm x 510mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner Crystal glass surface with ceramic treatment Frameless

Can be used with natural gas or LPG

90cm Stainless steel gas hob - Flush-fit Frontal control knobs Cast iron pan supports Triple ring burner Dimensions: 870mm x 520mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner 5 cooking zones:

1 triple ring burner 3.1kW 1 fast burner 2.8kW 1 semi fast burner 1.75kW 1 semi fast burner 1.4kW 1 auxiliary burner 1kW

Can be used with natural gas or LPG

60cm Stainless steel gas hob - Flush-fit Frontal control knobs Cast iron pan supports Triple ring burner Dimensions: 590mm x 520mm Auto-ignition integrated into each burner and operated by single control knob Auto-lock safety device - each burner 4 cooking zones:

1 fast burner 2.8kW 1 semi fast burner 1.75kW 1 semi fast burner 1.4kW 1 auxiliary burner 1kW

Can be used with natural gas or LPG

610

510

55

492

580

CGW LUX 60 TR

520

870

70

495

845

EWF 90 5G AI AL TR CI

| | |---|

590

520

70

495

565

############# EWF 60 4G AI AL TR CI

| | |---|

########## 45cm INDUCTION HOB

##### IR 421

30cm INDUCTION HOB

##### IR 321

########## 30cm CERAMIC HOB

##### VT TC 2P.1




45cm Induction hob Bevelled glass Touch control Dimensions: 450 x 520mm Pan optimisation system Security blocking Electronic timer Independent programming of each zone Chronometer function with acoustic alarm Pan detection

Residual heat indicators Maximum nominal power: 3,200W Max power in all elements: 1,800/3,000W Optional accessory: Joining kit

30cm Induction hob Bevelled glass Touch control Dimensions: 300 x 520mm Pan optimisation system Security blocking Electronic timer Independent programming of each zone Chronometer function with acoustic alarm Pan detection 2 cooking zones:

1 induction zone 210mm ø 1 induction zone 145mm ø

Residual heat indicators Maximum nominal power: 3,200W Max power in all elements: 1,800/3,000W Optional accessory: Joining kit

30cm Ceramic hob Bevelled glass Touch control Dimensions: 300 x 350mm Security blocking Digital programming - cooking time (99 mins) Independent programming of each zone 2 cooking zones:

1 high light double element

Residual heat indicators Maximum nominal power: 3,000W Optional accessory: Joining kit

300

520

40

500

| | |---|

| | |---|

| | |---|

IR 421

| | |---|

| | |---|

| | |---|

IRF 321

| | |---|

VT TC 2P.1

30cm GAS ON GLASS

##### VT.2 2G AI AL


30cm Gas on glass 2 burners Bevelled tempered glass Frontal control knobs Dimensions: 300 x 520mm Cast iron pan support Auto ignition and auto lock

For use with natural gass and LPG Optional accessory: Joining kit

300

520

40

500

VT.2 2G AI AL

30cm GAS ON GLASS WOK BURNER

##### VT.2 1G AI AL TR


30cm Gas on glass single triple burner Bevelled tempered glass Frontal control knob Dimensions: 300 x 520mm Cast iron pan support Auto ignition and auto lock 1 wok burner 4.2kW Support size 352mm ø For use with natural gass and LPG Optional accessory: Joining kit

| | |---|

VT.2 1G AI AL TR


Domino hobs are a perfect solution when you are short on space.

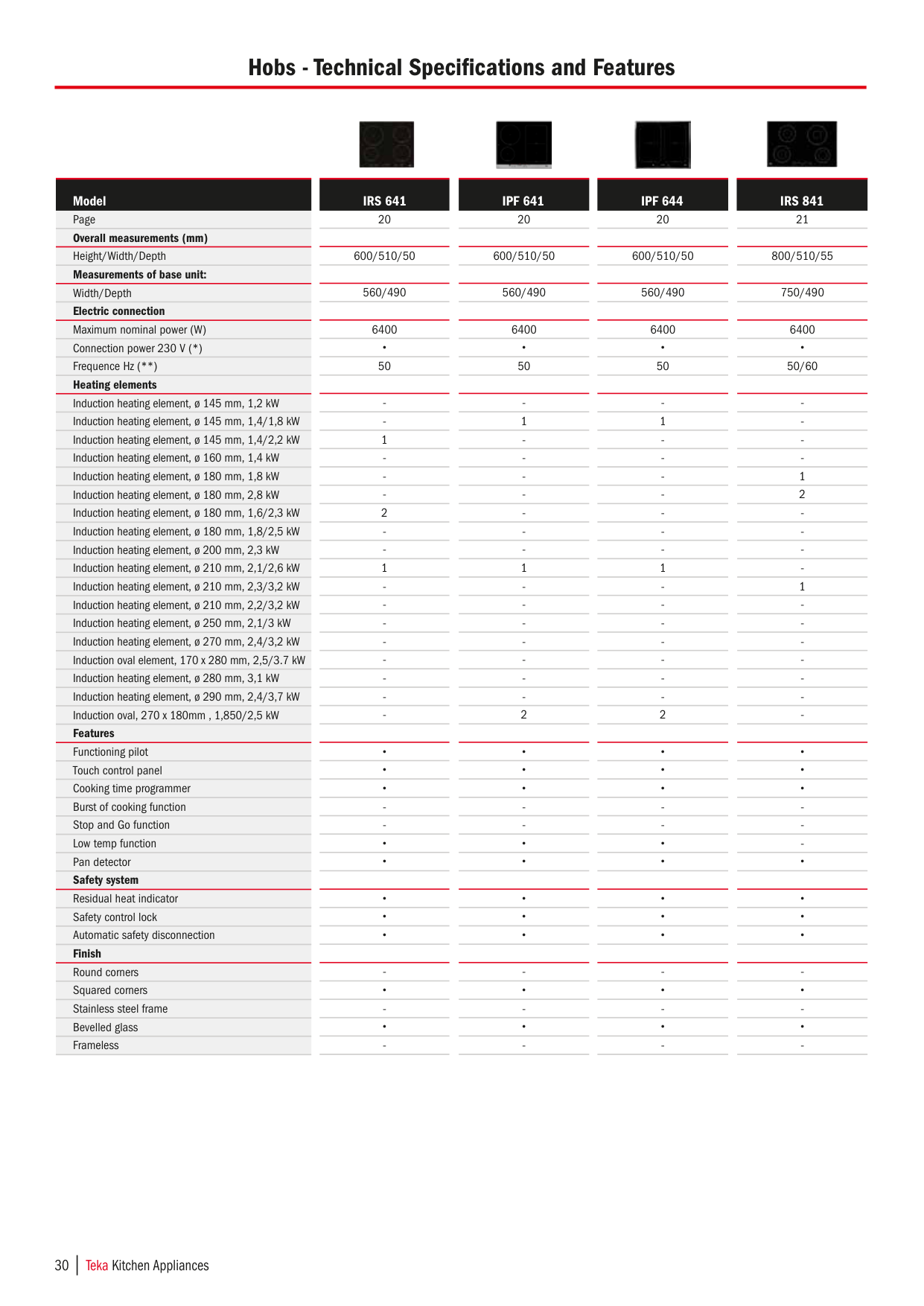

############ Model

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit: Width/Depth Electric connection Maximum nominal power (W) Connection power 230 V (*) Frequence Hz (**) Heating elements Induction heating element, ø 145 mm, 1,2 kW





############ IRS 641

############ IRS 841

############ IPF 644IPF 641 20

20

20

21

600/510/50

560/490

6400 • 50

600/510/50

560/490

6400 • 50

1 -

600/510/50

560/490

6400 • 50

1 -

800/510/55

750/490

6400 • 50/60

• • -

• • -

• • -

• • -

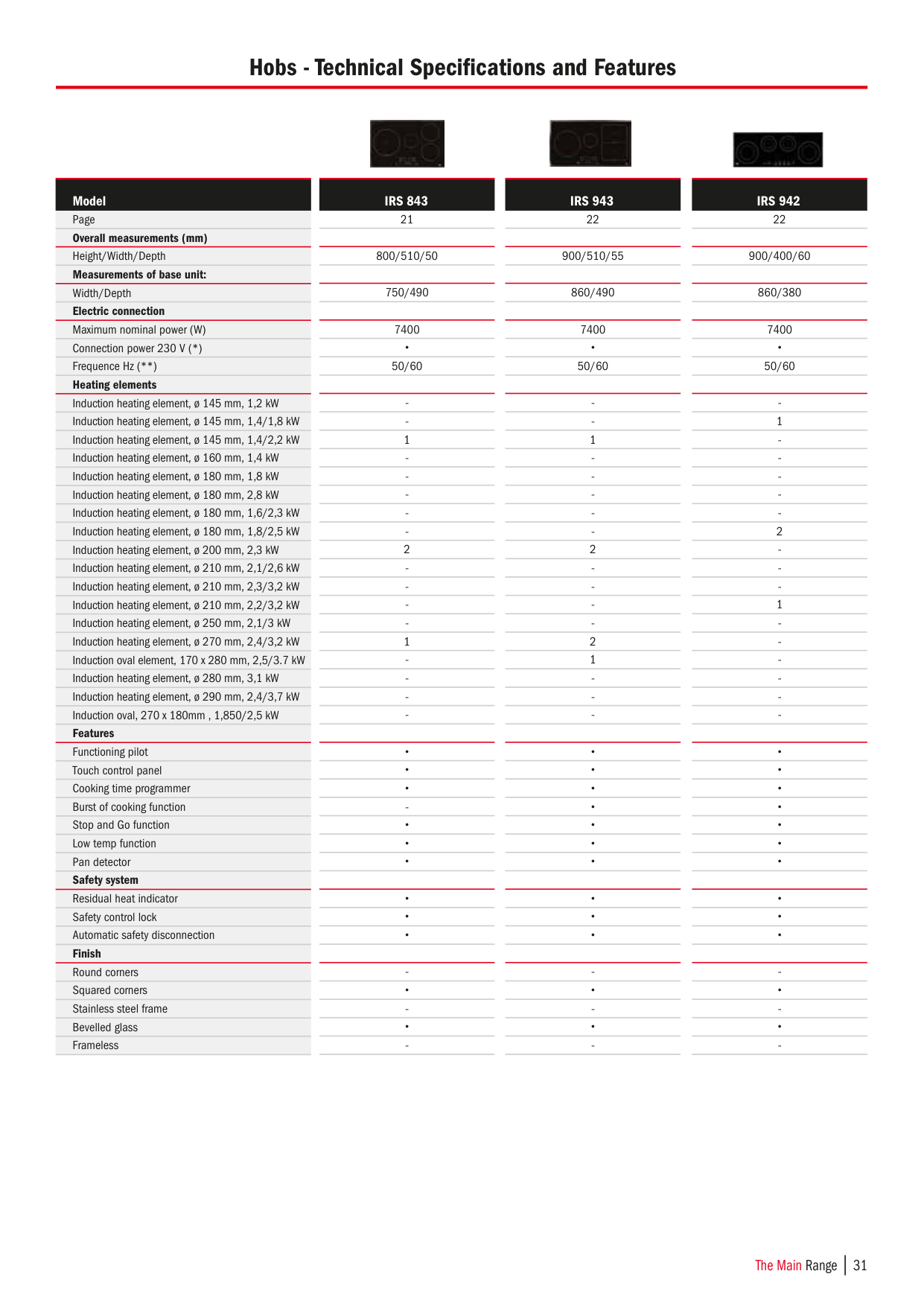

############ Model

############ IRS 843

############ IRS 942

############ IRS 943 21

22

22

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit: Width/Depth Electric connection Maximum nominal power (W) Connection power 230 V (*) Frequence Hz (**) Heating elements Induction heating element, ø 145 mm, 1,2 kW Induction heating element, ø 145 mm, 1,4/1,8 kW Induction heating element, ø 145 mm, 1,4/2,2 kW Induction heating element, ø 160 mm, 1,4 kW Induction heating element, ø 180 mm, 1,8 kW Induction heating element, ø 180 mm, 2,8 kW Induction heating element, ø 180 mm, 1,6/2,3 kW Induction heating element, ø 180 mm, 1,8/2,5 kW Induction heating element, ø 200 mm, 2,3 kW

800/510/50

900/510/55

900/400/60

750/490

860/490

860/380

7400 • 50/60

7400 • 50/60

7400 • 50/60

1 -

Induction heating element, ø 210 mm, 2,3/3,2 kW

• • -

• • -

• • -


############ Model

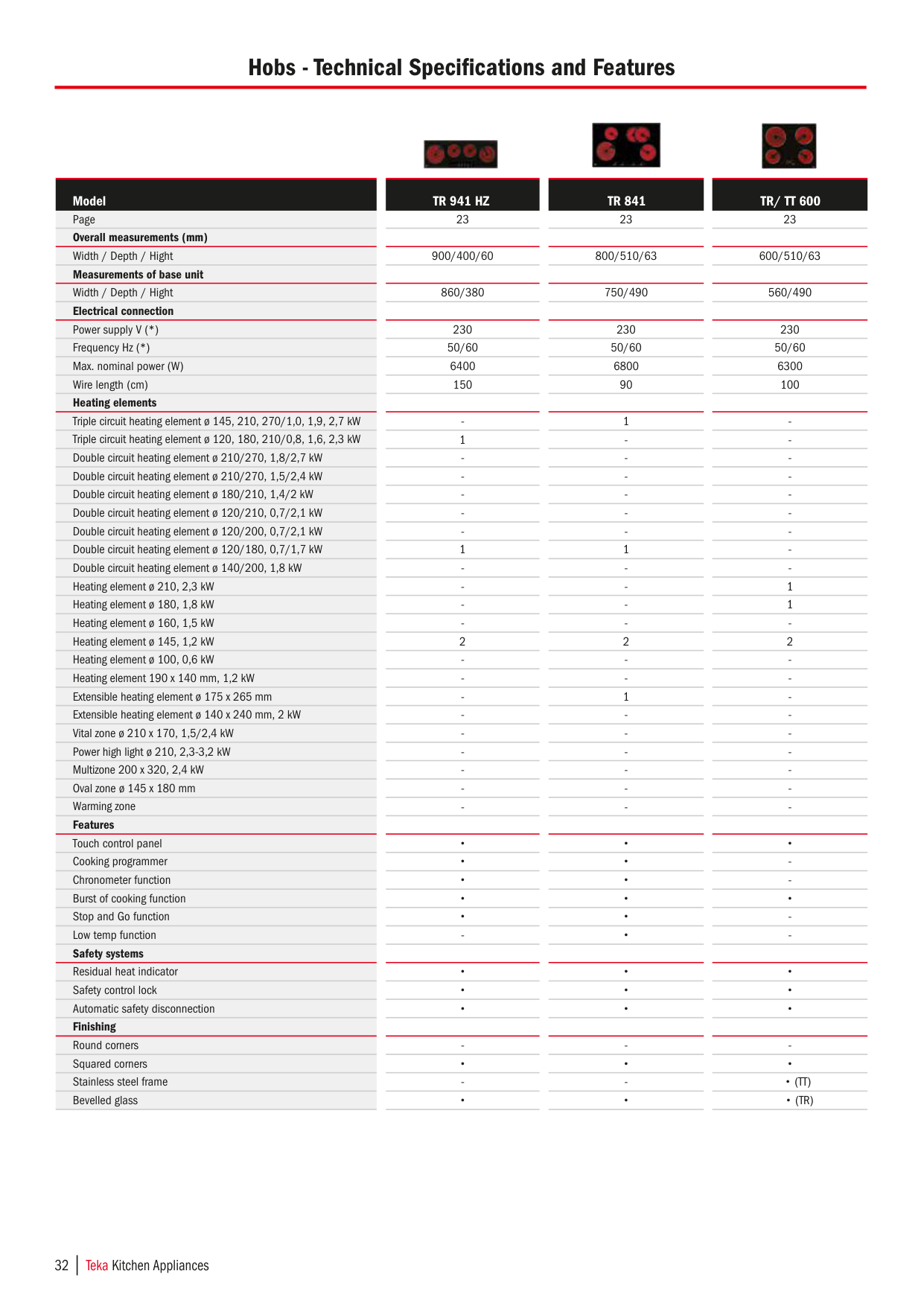

############ TR 941 HZ

23

Page Overall measurements (mm) Width / Depth / Hight Measurements of base unit Width / Depth / Hight Electrical connection Power supply V (*) Frequency Hz (*) Max. nominal power (W) Wire length (cm) Heating elements Triple circuit heating element ø 145, 210, 270/1,0, 1,9, 2,7 kW Triple circuit heating element ø 120, 180, 210/0,8, 1,6, 2,3 kW Double circuit heating element ø 210/270, 1,8/2,7 kW Double circuit heating element ø 210/270, 1,5/2,4 kW Double circuit heating element ø 180/210, 1,4/2 kW Double circuit heating element ø 120/210, 0,7/2,1 kW Double circuit heating element ø 120/200, 0,7/2,1 kW Double circuit heating element ø 120/180, 0,7/1,7 kW Double circuit heating element ø 140/200, 1,8 kW Heating element ø 210, 2,3 kW Heating element ø 180, 1,8 kW Heating element ø 160, 1,5 kW Heating element ø 145, 1,2 kW Heating element ø 100, 0,6 kW Heating element 190 x 140 mm, 1,2 kW Extensible heating element ø 175 x 265 mm Extensible heating element ø 140 x 240 mm, 2 kW Vital zone ø 210 x 170, 1,5/2,4 kW Power high light ø 210, 2,3-3,2 kW Multizone 200 x 320, 2,4 kW Oval zone ø 145 x 180 mm Warming zone Features Touch control panel Cooking programmer Chronometer function Burst of cooking function Stop and Go function Low temp function Safety systems Residual heat indicator Safety control lock Automatic safety disconnection Finishing Round corners Squared corners Stainless steel frame Bevelled glass

900/400/60

860/380

230 50/60 6400 150

• •



############ TR 841

############ TR/ TT 600 23

23

800/510/63

750/490

230 50/60 6800 90

1 -

1 -

600/510/63

560/490

230 50/60 6300 100

• •

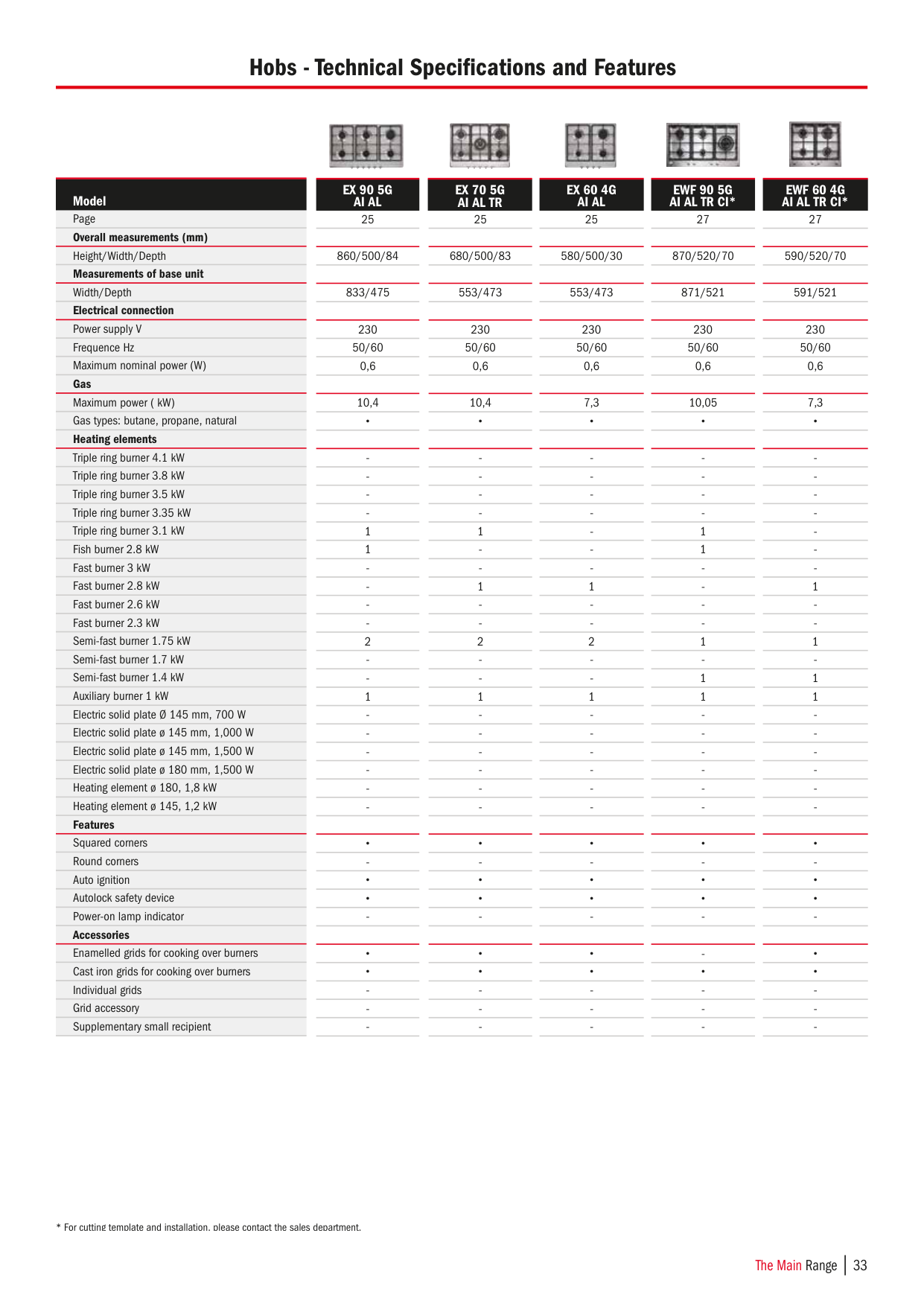

############ Model

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit Width/Depth Electrical connection Power supply V Frequence Hz Maximum nominal power (W) Gas Maximum power ( kW) Gas types: butane, propane, natural Heating elements Triple ring burner 4.1 kW Triple ring burner 3.8 kW Triple ring burner 3.5 kW Triple ring burner 3.35 kW Triple ring burner 3.1 kW Fish burner 2.8 kW Fast burner 3 kW Fast burner 2.8 kW Fast burner 2.6 kW Fast burner 2.3 kW Semi-fast burner 1.75 kW Semi-fast burner 1.7 kW Semi-fast burner 1.4 kW Auxiliary burner 1 kW Electric solid plate Ø 145 mm, 700 W Electric solid plate ø 145 mm, 1,000 W Electric solid plate ø 145 mm, 1,500 W Electric solid plate ø 180 mm, 1,500 W Heating element ø 180, 1,8 kW Heating element ø 145, 1,2 kW Features Squared corners Round corners Auto ignition Autolock safety device Power-on lamp indicator Accessories Enamelled grids for cooking over burners Cast iron grids for cooking over burners Individual grids Grid accessory Supplementary small recipient


EX 90 5G AI AL

25

860/500/84

833/475

230 50/60

10,4 •

1 -


EX 70 5G AI AL TR

25

680/500/83

553/473

230 50/60

10,4 •


EX 60 4G AI AL

25

580/500/30

553/473

230 50/60

7,3 •

1 -


EWF 90 5G AI AL TR CI*

27

230 50/60

10,05 •

1 1 1 -

• • • -

• -


EWF 60 4G AI AL TR CI*

27

230 50/60

7,3 •

1 1 1 -

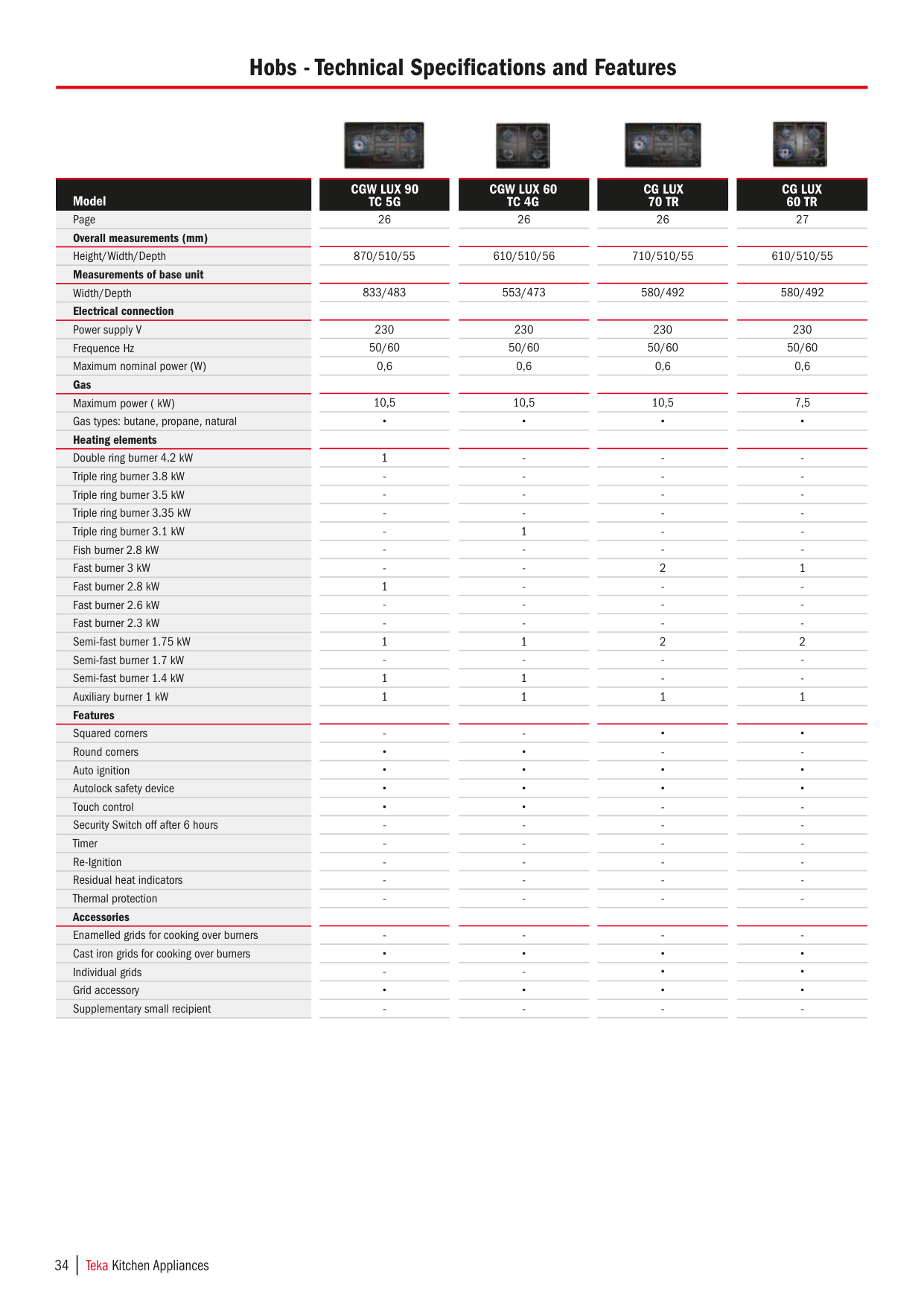

############ Model

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit Width/Depth Electrical connection Power supply V Frequence Hz Maximum nominal power (W) Gas Maximum power ( kW) Gas types: butane, propane, natural Heating elements Double ring burner 4.2 kW Triple ring burner 3.8 kW Triple ring burner 3.5 kW Triple ring burner 3.35 kW Triple ring burner 3.1 kW Fish burner 2.8 kW Fast burner 3 kW Fast burner 2.8 kW Fast burner 2.6 kW Fast burner 2.3 kW Semi-fast burner 1.75 kW Semi-fast burner 1.7 kW Semi-fast burner 1.4 kW Auxiliary burner 1 kW Features Squared corners Round corners Auto ignition Autolock safety device Touch control Security Switch off after 6 hours Timer Re-Ignition Residual heat indicators Thermal protection Accessories Enamelled grids for cooking over burners Cast iron grids for cooking over burners Individual grids Grid accessory Supplementary small recipient





CGW LUX 90 TC 5G

CG LUX 70 TR

CG LUX 60 TR

CGW LUX 60 TC 4G

26

26

26

27

870/510/55

833/483

230 50/60

10,5 •

610/510/56

553/473

230 50/60

10,5 •

710/510/55

580/492

230 50/60

10,5 •

2 2 -

• • • -

• • • -

610/510/55

580/492

230 50/60

7,5 •

1

• • • -

• • • -




############ Model VT TC 2P 1IR 321IR 421

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit: Width/Depth Electric connection Maximum nominal power (W) Connection power V (*) Frequence Hz (**) Gas Maximum power (kW) Gas types: butane, propane, natural Heating elements Triple ring burner 3.3 kW Grill Frier Wok heating element, ø 230 mm Double circuit heating element 180/210 mm, 1,7/2,0 kW Electric solid plate ø 180 mm, 1,5 kW Heating element ø 145 mm, 1,2 kW Heating element ø 180 mm, 1,8 kW Extensible heating element ø 175 x 265 mm. Double circuit heating element 120/180 mm, 0,7/1,0 kW Triple circuit heating element ø 145, 210, 270/1,05, 1,95, 2,7 kW Grill heating element 200 x 325 mm, 2,5 kW Induction heating element, ø 145 mm, 1,4 kW Induction heating element, ø 160 mm, 1,4 kW Induction heating element, ø 210 mm, 2,3 kW Induction heating element, ø 240 mm, 2,2/3 kW Features Auto ignition and autolock safety device Touch control panel Cooking time programmer Burst of cooking function Stop and Go function Functioning pilot Pan detector Safety system Residual heat indicator Safety control lock Automatic safety disconnection Finish Round corners Squared corners Stainless steel frame Bevelled glass

28

28

28

450/520/50

300/520/55

300/520/40

420/500

270/500

270/500

3200 230 50/60

3200 230 50/60

3000 230 50/60

• • •

• • •

• •

• •

• •



############ VT 2 1G AI AL TRVT 2 2G AI AL

29

29

300/520/60

300/520/60

280/500

280/500

0,6 230 50/60

0,6 230 50/60

4,75 •

5,2 •

1


########### Teka

#### Telescopic and Integrated Extraction Hoods

CANOPY HOODS

CANOPY HOODS

TELESCOPIC HOOD

GFH 55/73

HX 760 EGFT2

HX 760 ETL1 62/92




73cm and 55cm Integrated hood Push button control Double turbine motor Extraction capabilities:

Test conditions - 756m3/h Free outlet - 540m3/h UNE-EN-61591 - 297m3/h

Recommended for kitchens up to 10m2

55cm Canopy Hood Push button control Double turbine motor Extraction capabilities:

Test conditions - 182m3/h Free outlet - 239m3/h UNE.EN-Q591 - 388m3/h

Recommended for kitchens up to 10m2 3 Speeds LED Bar Stainless Steel Aluminum filters Sound level UNE.EN-60704-2-13

90cm and 60cm Telescopic hood Inswing control Double turbine motor Extraction capabilities:

Test conditions - 756m3/h Free outlet - 540m3/h UNE-EN-61591 - 303m3/h

Recommended for kitchens up to 10m2 2 speeds Candle type lamps Metal filters Removable front panel Stainless steel Automatic switch on/off Sound level (UNE-EN 60704-2-13) - 46bBA

289

503/683

172

10

550/730

310

GFH 55/73

515

275

132

75

172

175

275

550

310

GFT2

600/900

125

77

184 77

280

559/859 280

142

280

600/900

413

24

TL1 62/92

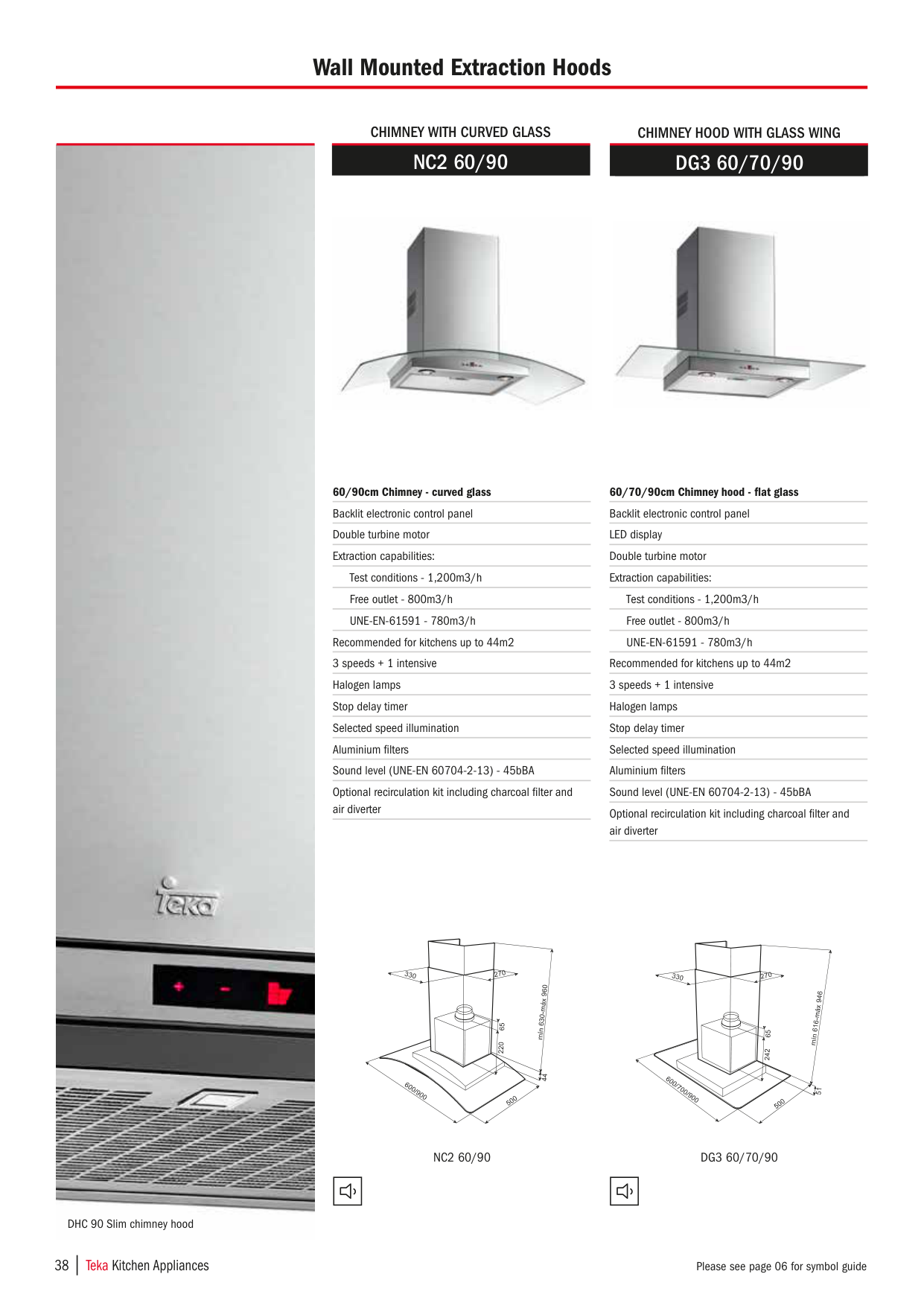

#### Wall Mounted Extraction Hoods


DHC 90 Slim chimney hood

CHIMNEY WITH CURVED GLASS

CHIMNEY HOOD WITH GLASS WING

NC2 60/90

HX 760 EDG3 60/70/90



60/90cm Chimney - curved glass Backlit electronic control panel Double turbine motor Extraction capabilities:

Test conditions - 1,200m3/h Free outlet - 800m3/h UNE-EN-61591 - 780m3/h

Recommended for kitchens up to 44m2 3 speeds + 1 intensive Halogen lamps Stop delay timer Selected speed illumination Aluminium filters Sound level (UNE-EN 60704-2-13) - 45bBA Optional recirculation kit including charcoal filter and air diverter

60/70/90cm Chimney hood - flat glass Backlit electronic control panel LED display Double turbine motor Extraction capabilities:

Test conditions - 1,200m3/h Free outlet - 800m3/h UNE-EN-61591 - 780m3/h

Recommended for kitchens up to 44m2 3 speeds + 1 intensive Halogen lamps Stop delay timer Selected speed illumination Aluminium filters Sound level (UNE-EN 60704-2-13) - 45bBA Optional recirculation kit including charcoal filter and air diverter

| | |---|

NC2 60/90

| | |---|

DG3 60/70/90

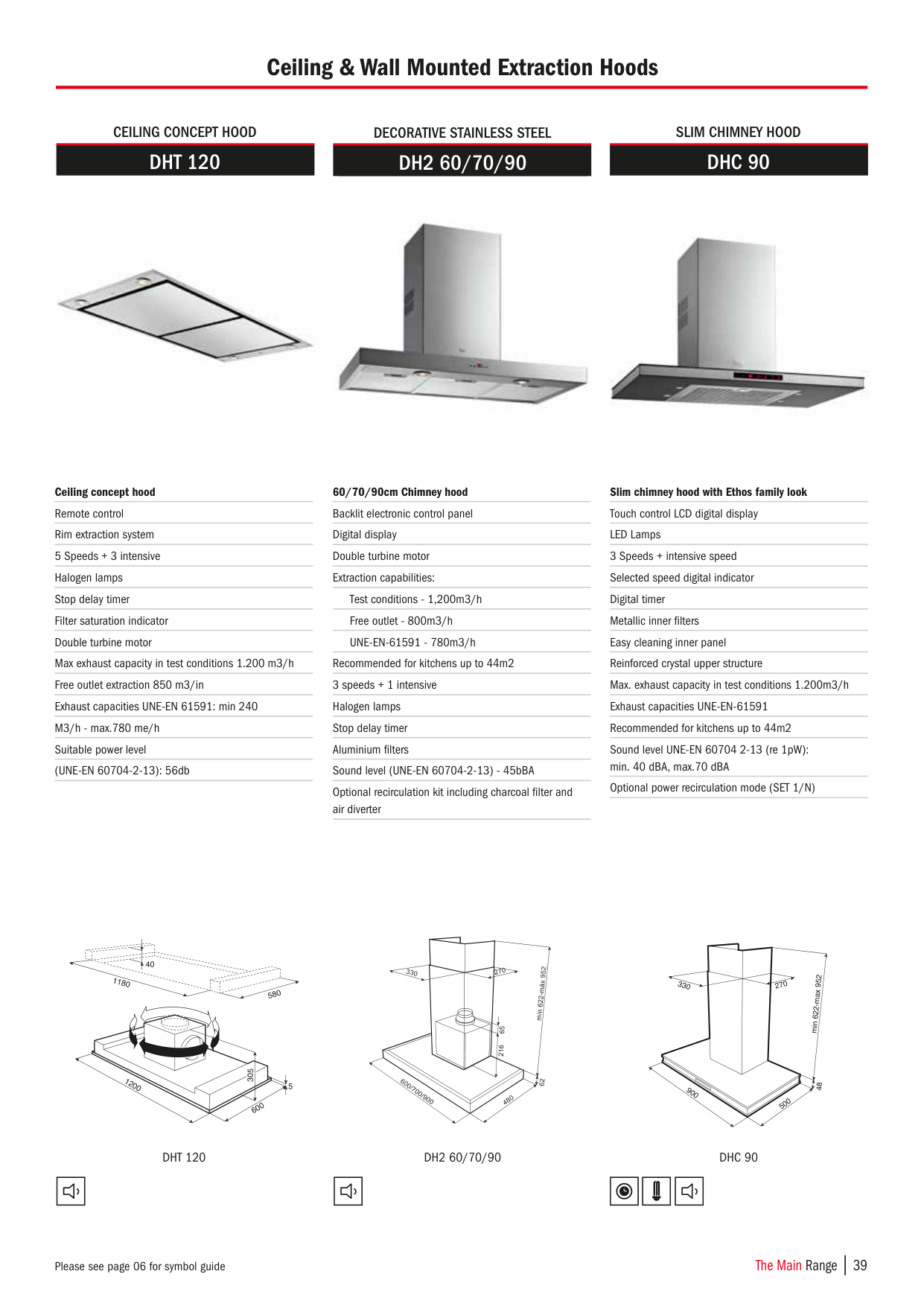

#### Ceiling & Wall Mounted Extraction Hoods

CEILING CONCEPT HOOD

DHT 120

DECORATIVE STAINLESS STEEL

HX 760 EDH2 60/70/90

SLIM CHIMNEY HOOD

DHC 90




Ceiling concept hood Remote control Rim extraction system

40

1180

580

305

1200

5

600

60/70/90cm Chimney hood Backlit electronic control panel Digital display Double turbine motor Extraction capabilities:

Test conditions - 1,200m3/h Free outlet - 800m3/h UNE-EN-61591 - 780m3/h

Recommended for kitchens up to 44m2 3 speeds + 1 intensive Halogen lamps Stop delay timer Aluminium filters Sound level (UNE-EN 60704-2-13) - 45bBA Optional recirculation kit including charcoal filter and air diverter

Slim chimney hood with Ethos family look Touch control LCD digital display LED Lamps 3 Speeds + intensive speed Selected speed digital indicator Digital timer Metallic inner filters Easy cleaning inner panel Reinforced crystal upper structure Max. exhaust capacity in test conditions 1.200m3/h Exhaust capacities UNE-EN-61591 Recommended for kitchens up to 44m2 Sound level UNE-EN 60704 2-13 (re 1pW): min. 40 dBA, max.70 dBA Optional power recirculation mode (SET 1/N)

min 622-max 952

270 330

48

900

500

| | |---|

DHT 120

| | |---|

DH2 60/70/90

| | |---|

| | |---|

| | |---|

DHC 90

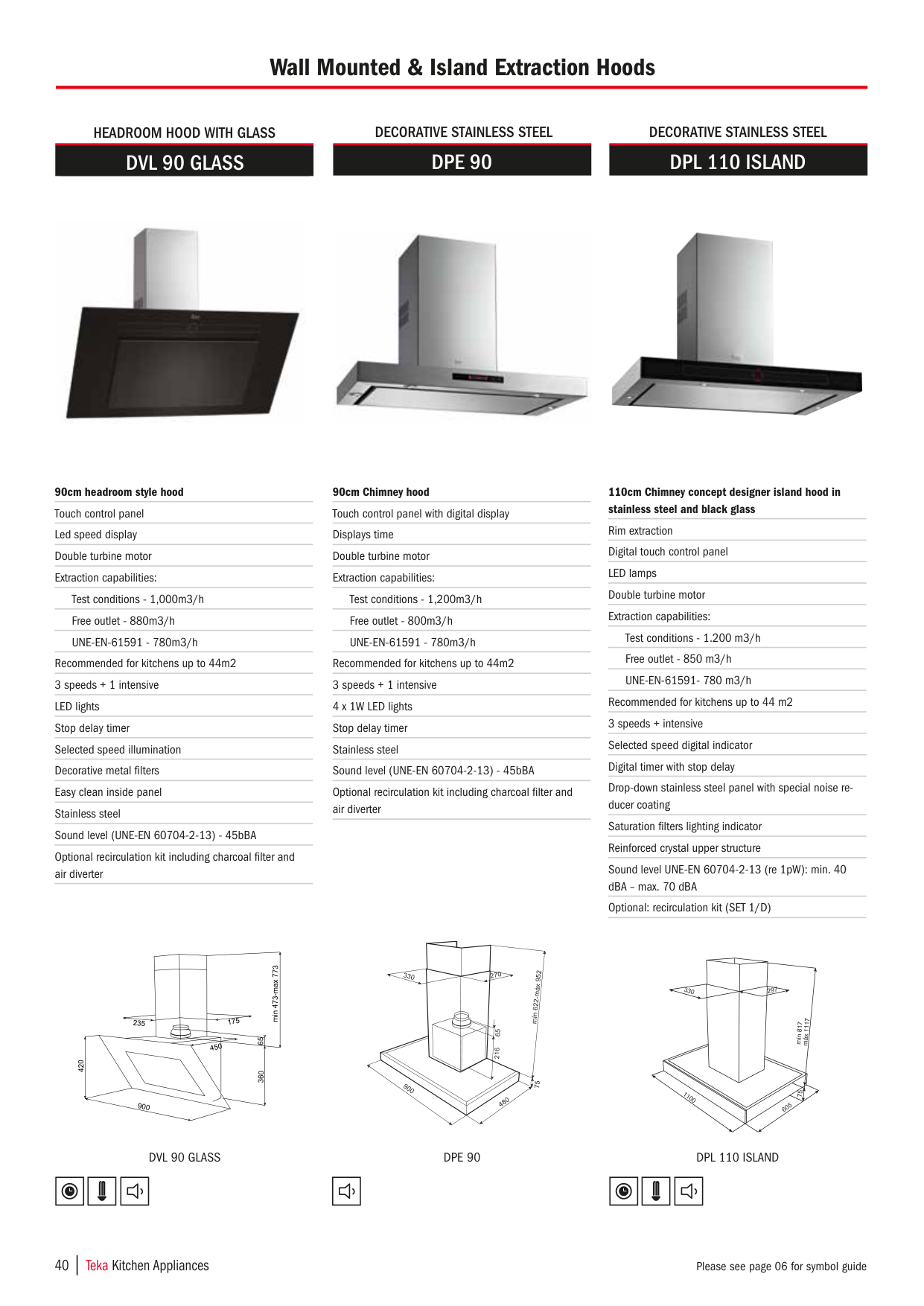

#### Wall Mounted & Island Extraction Hoods

DECORATIVE STAINLESS STEEL

HEADROOM HOOD WITH GLASS

DPE 90

HX 760 EDVL 90 GLASS

DECORATIVE STAINLESS STEEL

##### DPL 110 ISLAND




90cm headroom style hood Touch control panel Led speed display Double turbine motor Extraction capabilities:

90cm Chimney hood Touch control panel with digital display Displays time Double turbine motor Extraction capabilities:

Test conditions - 1,000m3/h Free outlet - 880m3/h UNE-EN-61591 - 780m3/h

Test conditions - 1,200m3/h Free outlet - 800m3/h UNE-EN-61591 - 780m3/h

Recommended for kitchens up to 44m2

Recommended for kitchens up to 44m2

Optional recirculation kit including charcoal filter and air diverter

Optional recirculation kit including charcoal filter and air diverter

3

min 473-max 77

175

235

65

450

0

42

0

36

900

############# DVL 90 GLASS

| | |---|

| | |---|

| | |---|

| | |---|

DPE 90

110cm Chimney concept designer island hood in stainless steel and black glass

Rim extraction Digital touch control panel LED lamps Double turbine motor Extraction capabilities:

Test conditions - 1.200 m3/h Free outlet - 850 m3/h UNE-EN-61591- 780 m3/h

Recommended for kitchens up to 44 m2 3 speeds + intensive Selected speed digital indicator Digital timer with stop delay Drop-down stainless steel panel with special noise reducer coating Saturation filters lighting indicator Reinforced crystal upper structure Sound level UNE-EN 60704-2-13 (re 1pW): min. 40 dBA – max. 70 dBA Optional: recirculation kit (SET 1/D)

DPL 110 ISLAND

| | |---|

| | |---|

| | |---|

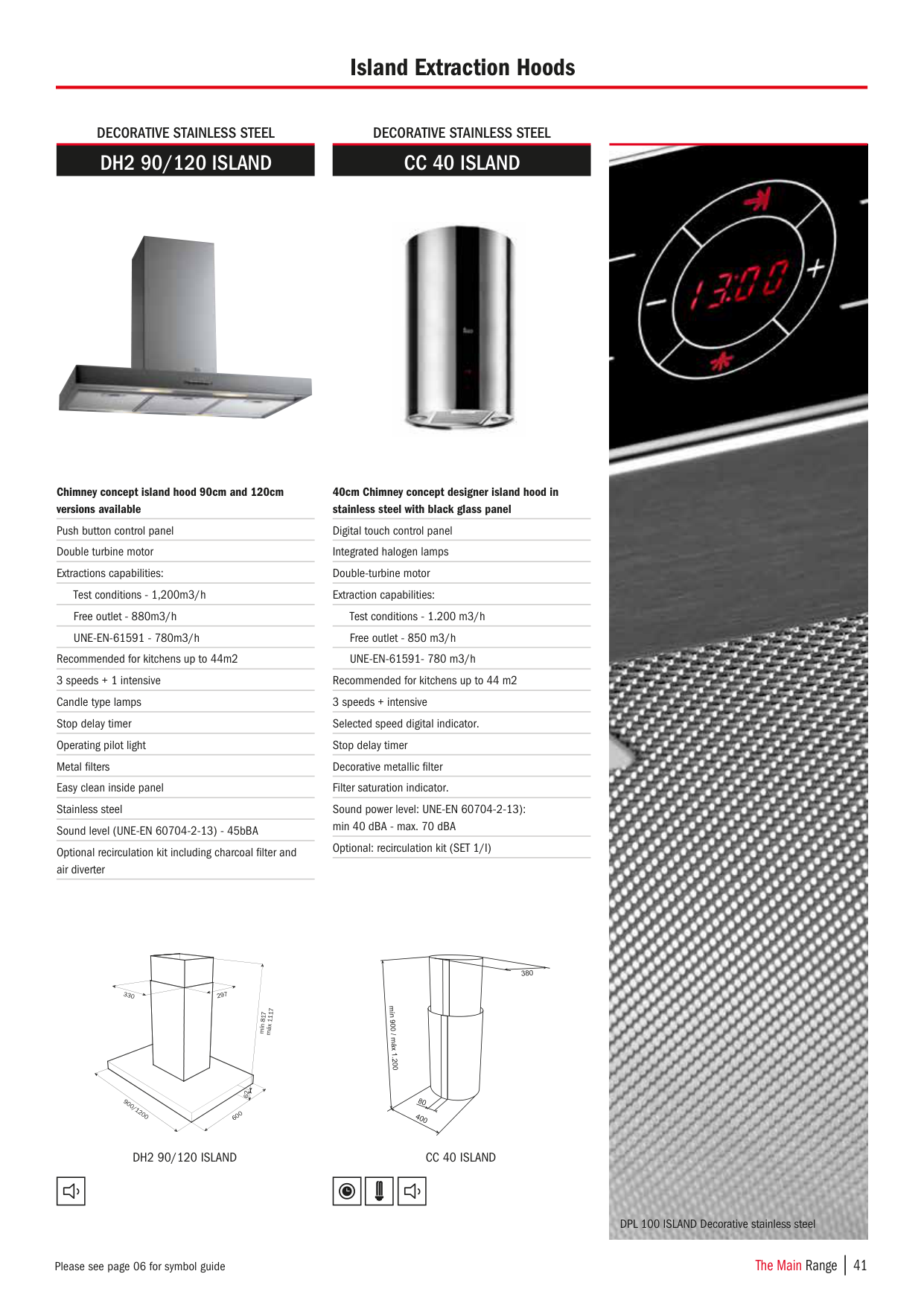

#### Island Extraction Hoods

DECORATIVE STAINLESS STEEL

##### DH2 90/120 ISLAND

DECORATIVE STAINLESS STEEL

##### CC 40 ISLAND



Chimney concept island hood 90cm and 120cm versions available

Push button control panel Double turbine motor Extractions capabilities:

Test conditions - 1,200m3/h Free outlet - 880m3/h UNE-EN-61591 - 780m3/h

Recommended for kitchens up to 44m2

Optional recirculation kit including charcoal filter and air diverter

40cm Chimney concept designer island hood in stainless steel with black glass panel

Digital touch control panel Integrated halogen lamps Double-turbine motor Extraction capabilities:

Test conditions - 1.200 m3/h Free outlet - 850 m3/h UNE-EN-61591- 780 m3/h

Recommended for kitchens up to 44 m2 3 speeds + intensive Selected speed digital indicator. Stop delay timer Decorative metallic filter Filter saturation indicator. Sound power level: UNE-EN 60704-2-13): min 40 dBA - max. 70 dBA Optional: recirculation kit (SET 1/I)

297

330

7 mín

111

17

8

máx

62

600 900/1200

| |

|---|

DH2 90/120 ISLAND

mín 900 / máx 1.20 0

############# CC 40 ISLAND

| | |---|

| | |---|

| | |---|


DPL 100 ISLAND Decorative stainless steel





############ Model TL1 62/92GFH 55/73GFT2

############ NC2 60/90 37

37

38

Page Electric Characteristics Power supply (V) 220-240 / 50 Hz Power supply (V) 127 / 60 Hz Light power (W) Motor power (W) Maximum power (W) Air outlet (ø mm) Reduction outlet (ø 150 / ø 120) Optional recirculation kit Capacity and sound levels Exhaust capacity, test conditions (m3/h) Exhaust capacity, free outlet (m3/h) Exhaust capacity, UNE EN 61591 (m3/h) Sound power level dBA UNE EN 60704-2-13 Sound level (re 1pw UNE EN 60704-2-13) dB Maximum recommended kitchen size (m2) Control panel Touch control Electronic Push button Mechanical slider Mechanical inswing Features Number of motors Double turbine motor Armoured motor Number of speeds Stop delay timer Easy-clean inside panel Decorative filters Metal filters Operating pilot light Filter saturation indicator Humidity detector Perimetric extraction system Remote control

37

• 2 x 20 160 200 120 •

################ •

• 2 x 40 140 220 120 •

• 2 x 40 160 240 120 •

2 x 20 250 310 150 • •

756 540 297 60 46 10

420 239 388 42 39 22

756 540 303 60 46 10

1220 800 780 59 45 41

• -

• -

• -

• -

1 • 3 • • -

1 3 • • -

1 • • 3+1 • • -




############ DG3 60/70/90

############ DH2 60/70/90 38

############ DHT 120

39

39

################ •

################ •

################ •

2 x 20 250 310 150 • •

4 x 20 230 310 150 • -

2 x 20 250 310 150 • •

1220 800 780 59 45 41

1200 850 780 56 69 44

1220 800 780 59 45 41

• -

1 • • 3+1 • • -

1 5+3 • • •

1 • • 3+1 • • -

####### Different control panels for every need

There are several types of control panels: Touch control, pop-up control knobs, electronic or mechanical (push button or slide panel). Touch Control and electronic panels can programme filtration time up to 45 minutes, as well as extraction speeds (3 + intensive).

####### Advice on use

Switch the hood on around 3-5 minutes before starting to cook and switch off 3-5 minutes after finishing cooking. By doing this an air flow is created in the kitchen. This air flow will then increase the output of the hood to reach an optimal level of noise and efficiency.

####### Grease filter saturation indicator

To improve the Teka hood performance, a filter saturation indicator shows when the five-layer metal grease filters should be washed.

####### 42 | Teka Kitchen Appliances

Low noise: Super quiet hoods

| | |---|

Teka motors have an optimized design of both motor and fan. This results in a substantial reduction in sound levels to 41 dBA or less.

###### Halogen lamps

| | |---|

low consumption halogen lamps are built into the casing of the chimney hood. They produce a white light with an excellent chromatic output.

Stop delay timer

| | |---|

Thanks to the programming timer, the user can easily control the extraction time according to the speed chosen, disconnecting the hood automatically once the selected time is over. Thus, undesired odours are no longer a problem.

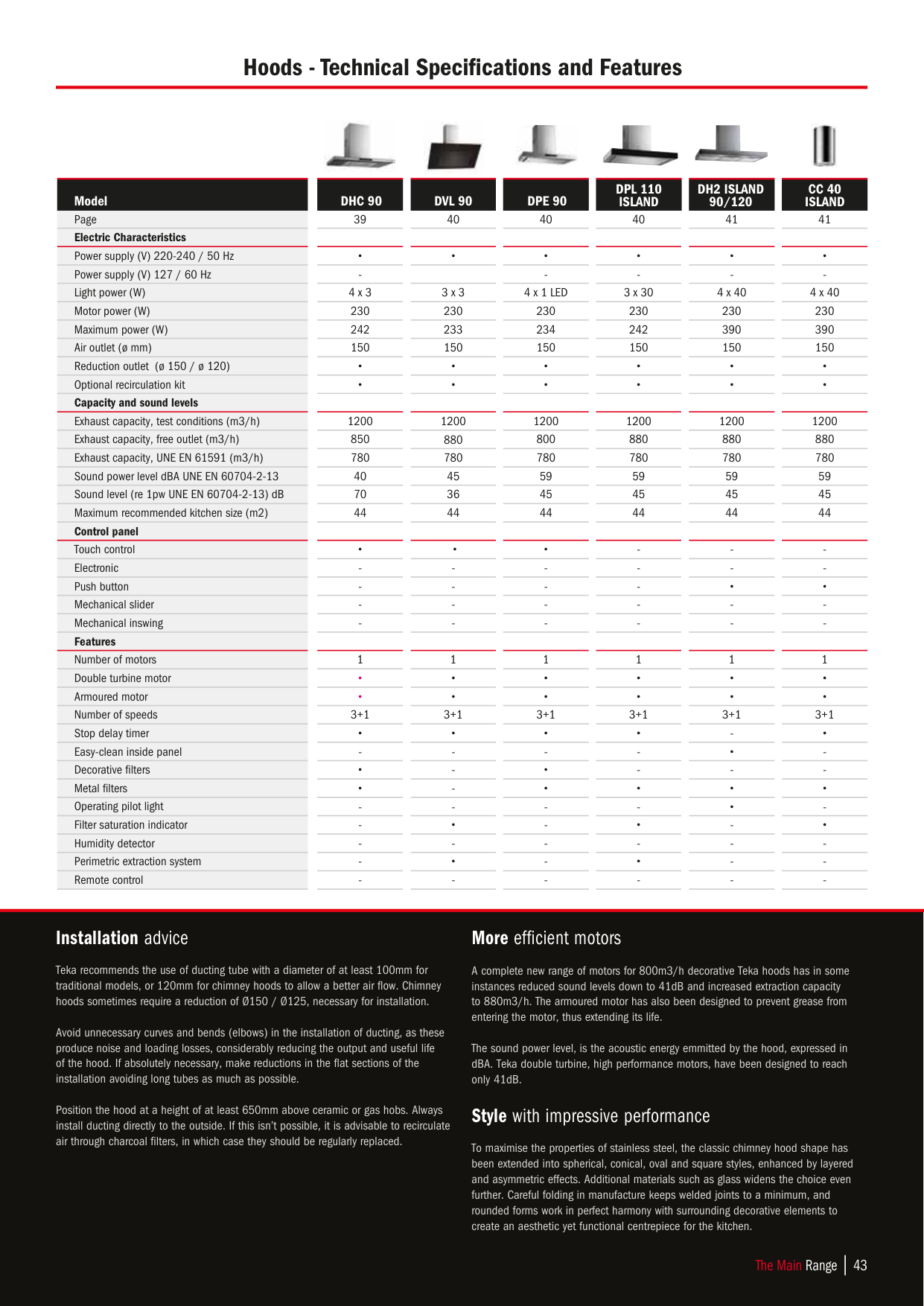

############ Model

Page Electric Characteristics Power supply (V) 220-240 / 50 Hz Power supply (V) 127 / 60 Hz Light power (W) Motor power (W) Maximum power (W) Air outlet (ø mm) Reduction outlet (ø 150 / ø 120) Optional recirculation kit Capacity and sound levels Exhaust capacity, test conditions (m3/h) Exhaust capacity, free outlet (m3/h) Exhaust capacity, UNE EN 61591 (m3/h) Sound power level dBA UNE EN 60704-2-13 Sound level (re 1pw UNE EN 60704-2-13) dB Maximum recommended kitchen size (m2) Control panel Touch control Electronic Push button Mechanical slider Mechanical inswing Features Number of motors Double turbine motor Armoured motor Number of speeds Stop delay timer Easy-clean inside panel Decorative filters Metal filters Operating pilot light Filter saturation indicator Humidity detector Perimetric extraction system Remote control




############ DHC 90

DPE 90DVL 90

40

39

40

################ •

• 4 x 3 230 242 150 • •

• 4 x 1 LED 230 234 150 • •

3 x 3 230 233 150 • •

1200 850 780 40 70 44

1200 800 780 59 45 44

1200 880 780 45 36 44

• -

• -

•

1 • • 3+1 • • • -

1 • • 3+1 • • • -




DPL 110 ISLAND

DH2 ISLAND 90/120

CC 40 ISLAND

40

41

41

• 3 x 30 230 242 150 • •

• 4 x 40 230 390 150 • •

• 4 x 40 230 390 150 • •

1200 880 780 59 45 44

1200 880 780 59 45 44

1200 880 780 59 45 44

• -

1 • • 3+1 • • • • -

1 • • 3+1 • • • -

1 • • 3+1 • • • -

###### Installation advice

More efficient motors

Teka recommends the use of ducting tube with a diameter of at least 100mm for traditional models, or 120mm for chimney hoods to allow a better air flow. Chimney hoods sometimes require a reduction of Ø150 / Ø125, necessary for installation.

Avoid unnecessary curves and bends (elbows) in the installation of ducting, as these produce noise and loading losses, considerably reducing the output and useful life of the hood. If absolutely necessary, make reductions in the flat sections of the installation avoiding long tubes as much as possible.

A complete new range of motors for 800m3/h decorative Teka hoods has in some instances reduced sound levels down to 41dB and increased extraction capacity to 880m3/h. The armoured motor has also been designed to prevent grease from entering the motor, thus extending its life.

The sound power level, is the acoustic energy emmitted by the hood, expressed in dBA. Teka double turbine, high performance motors, have been designed to reach only 41dB.

Position the hood at a height of at least 650mm above ceramic or gas hobs. Always install ducting directly to the outside. If this isn’t possible, it is advisable to recirculate air through charcoal filters, in which case they should be regularly replaced.

####### Style with impressive performance

To maximise the properties of stainless steel, the classic chimney hood shape has been extended into spherical, conical, oval and square styles, enhanced by layered and asymmetric effects. Additional materials such as glass widens the choice even further. Careful folding in manufacture keeps welded joints to a minimum, and rounded forms work in perfect harmony with surrounding decorative elements to create an aesthetic yet functional centrepiece for the kitchen.

The Main Range | 43

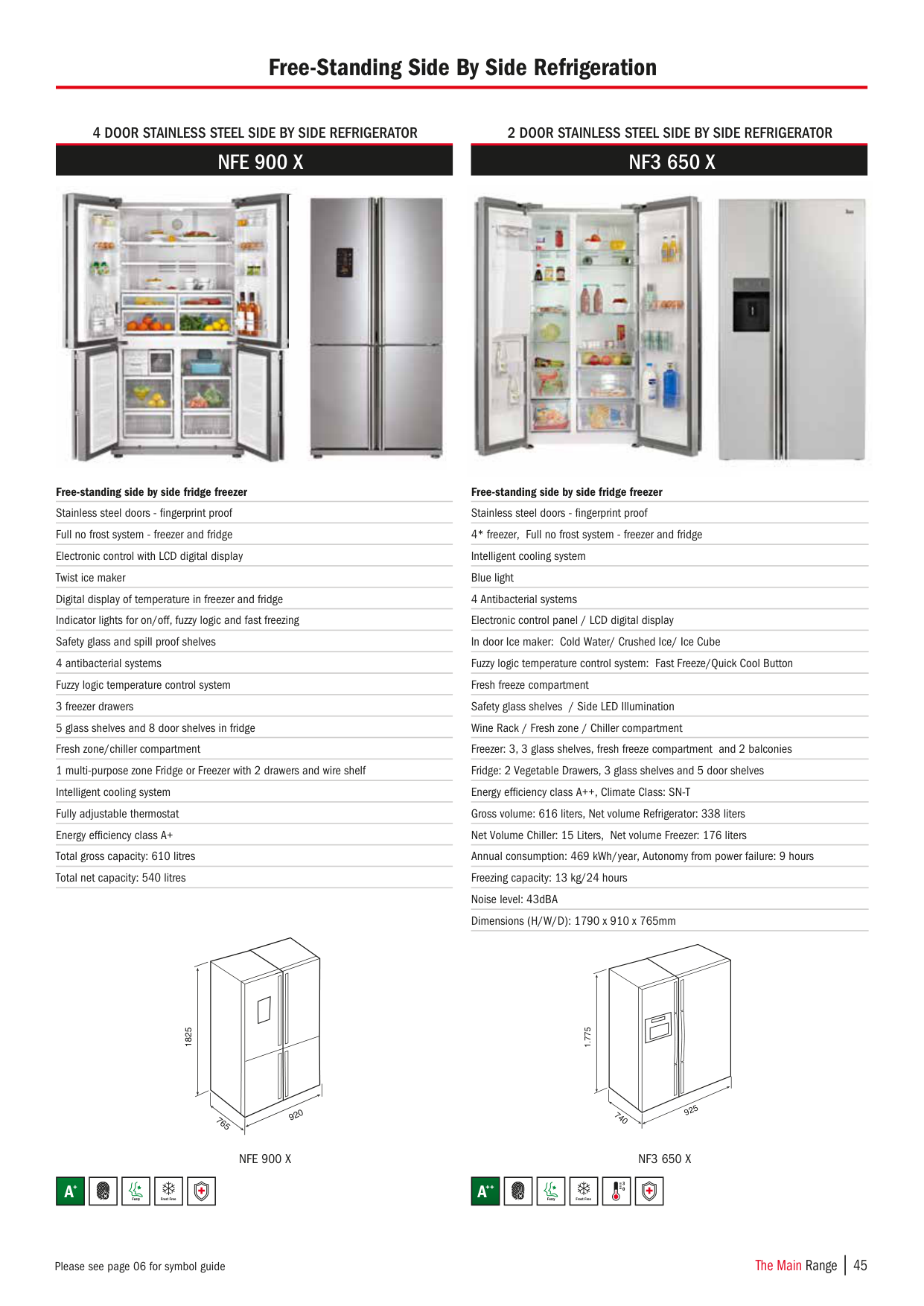

#### Free-Standing Side By Side Refrigeration

4 DOOR STAINLESS STEEL SIDE BY SIDE REFRIGERATOR

##### NFE 900 X



Free-standing side by side fridge freezer Stainless steel doors - fingerprint proof Full no frost system - freezer and fridge Electronic control with LCD digital display Twist ice maker Digital display of temperature in freezer and fridge Indicator lights for on/off, fuzzy logic and fast freezing Safety glass and spill proof shelves

1825

920

765

2 DOOR STAINLESS STEEL SIDE BY SIDE REFRIGERATOR

##### NF3 650 X



Free-standing side by side fridge freezer Stainless steel doors - fingerprint proof 4* freezer, Full no frost system - freezer and fridge Intelligent cooling system Blue light 4 Antibacterial systems Electronic control panel / LCD digital display In door Ice maker: Cold Water/ Crushed Ice/ Ice Cube Fuzzy logic temperature control system: Fast Freeze/Quick Cool Button Fresh freeze compartment Safety glass shelves / Side LED Illumination Wine Rack / Fresh zone / Chiller compartment Freezer: 3, 3 glass shelves, fresh freeze compartment and 2 balconies Fridge: 2 Vegetable Drawers, 3 glass shelves and 5 door shelves Energy efficiency class A++, Climate Class: SN-T Gross volume: 616 liters, Net volume Refrigerator: 338 liters Net Volume Chiller: 15 Liters, Net volume Freezer: 176 liters Annual consumption: 469 kWh/year, Autonomy from power failure: 9 hours Freezing capacity: 13 kg/24 hours Noise level: 43dBA Dimensions (H/W/D): 1790 x 910 x 765mm

1.775

925

740

|A

+| |---|

| | |---|

|Fuzzy| |---|

|Frost Free| |---|

|+| |---|

NFE 900 X

NF3 650 X

|A

++| |---|

| | |---|

|Fuzzy| |---|

|Frost Free| |---|

|0

3

| |---|

|+| |---|

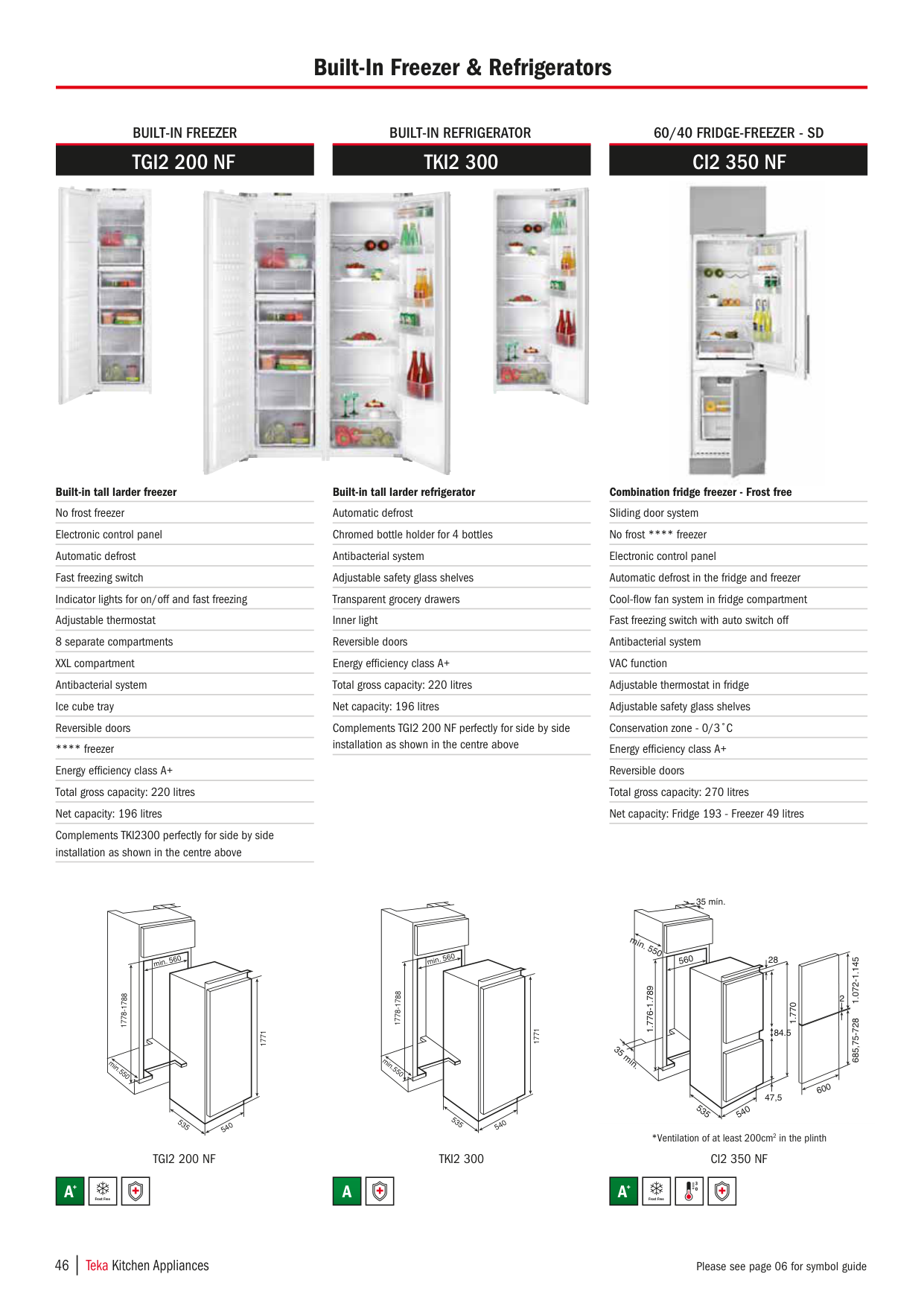

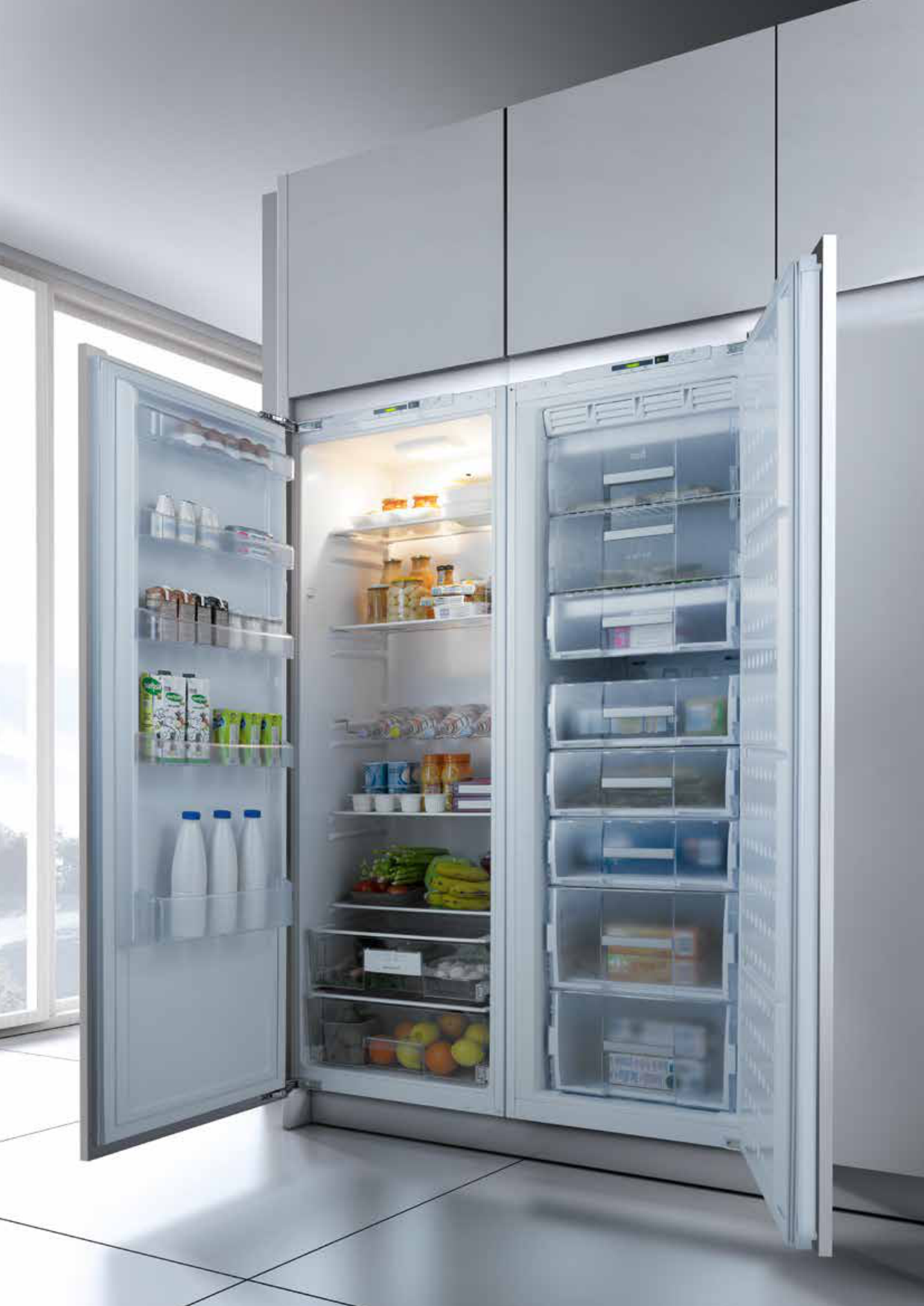

#### Built-In Freezer & Refrigerators

BUILT-IN FREEZER

BUILT-IN REFRIGERATOR

##### TGI2 200 NF

##### TKI2 300





Built-in tall larder freezer No frost freezer Electronic control panel Automatic defrost Fast freezing switch Indicator lights for on/off and fast freezing Adjustable thermostat 8 separate compartments XXL compartment Antibacterial system Ice cube tray Reversible doors

Built-in tall larder refrigerator Automatic defrost Chromed bottle holder for 4 bottles Antibacterial system Adjustable safety glass shelves Transparent grocery drawers Inner light Reversible doors Energy efficiency class A+ Total gross capacity: 220 litres Net capacity: 196 litres Complements TGI2 200 NF perfectly for side by side installation as shown in the centre above

**** freezer Energy efficiency class A+ Total gross capacity: 220 litres Net capacity: 196 litres Complements TKI2300 perfectly for side by side installation as shown in the centre above

60/40 FRIDGE-FREEZER - SD

##### CI2 350 NF


Combination fridge freezer - Frost free Sliding door system No frost **** freezer Electronic control panel Automatic defrost in the fridge and freezer Cool-flow fan system in fridge compartment Fast freezing switch with auto switch off Antibacterial system VAC function Adjustable thermostat in fridge Adjustable safety glass shelves Conservation zone - 0/3˚C Energy efficiency class A+ Reversible doors Total gross capacity: 270 litres Net capacity: Fridge 193 - Freezer 49 litres

min.560

1778-1788

1771

min.550

540 535

TGI2 200 NF

|A

+| |---|

|Frost Free| |---|

|+| |---|

min.560

1778-1788

1771

min.550

540 535

|A| |---|

|+| |---|

############# TKI2 300

35 mín.

mín. 550

560

28

84.5

1.776-1.789

1.770

35 mín.

600

47,5

540 535

*Ventilation of at least 200cm2 in the plinth

############# CI2 350 NF

|A

+| |---|

|Frost Free| |---|

|0

3

| |---|

|+| |---|

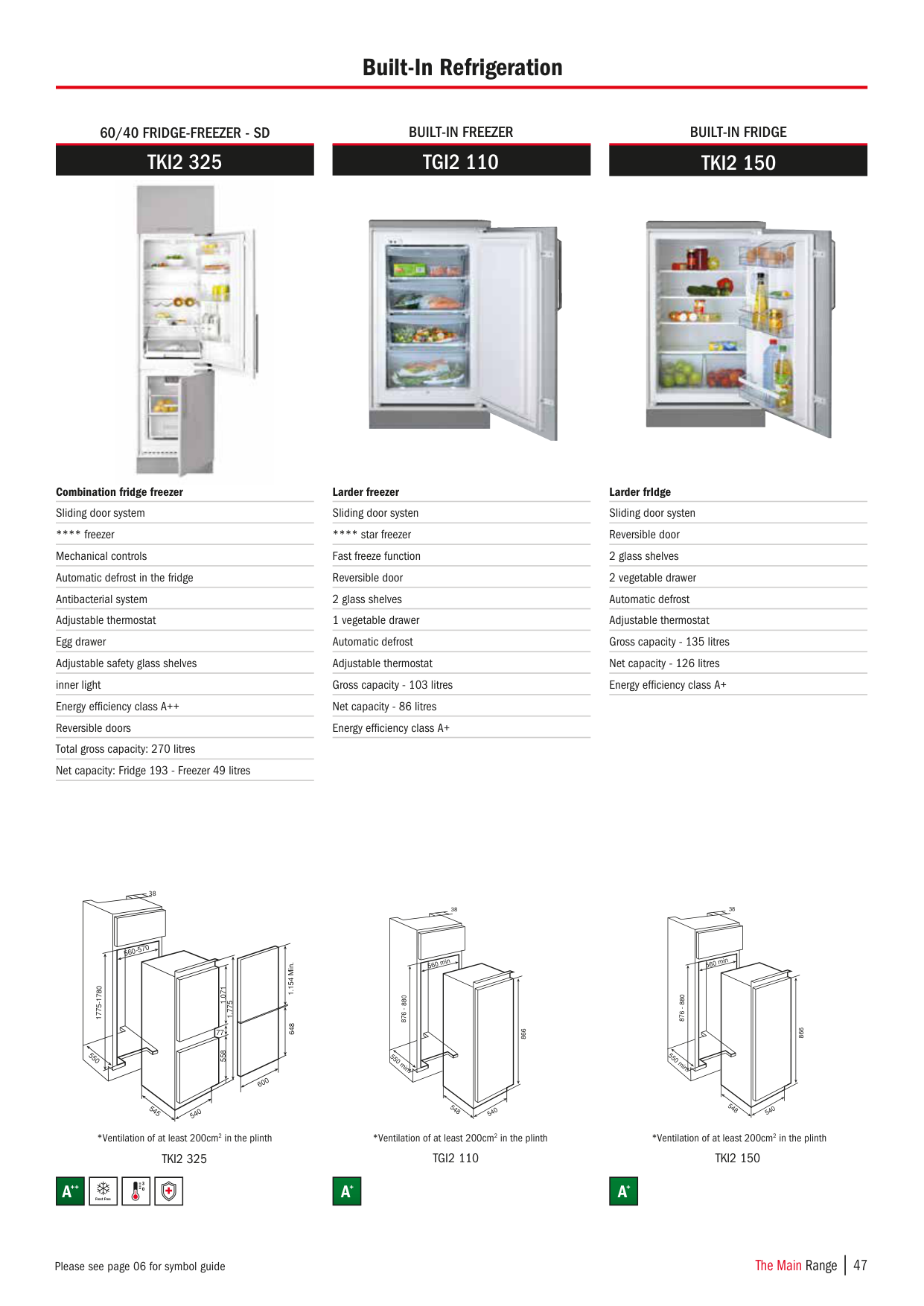

#### Built-In Refrigeration

60/40 FRIDGE-FREEZER - SD

##### TKI2 325


Combination fridge freezer Sliding door system

**** freezer Mechanical controls Automatic defrost in the fridge Antibacterial system Adjustable thermostat Egg drawer Adjustable safety glass shelves inner light Energy efficiency class A++ Reversible doors Total gross capacity: 270 litres Net capacity: Fridge 193 - Freezer 49 litres

########## BUILT-IN FREEZER

########## BUILT-IN FRIDGE

##### TKI2 150TGI2 110



Larder freezer Sliding door systen

**** star freezer Fast freeze function Reversible door 2 glass shelves

Larder frIdge Sliding door systen Reversible door 2 glass shelves 2 vegetable drawer Automatic defrost Adjustable thermostat Gross capacity - 135 litres Net capacity - 126 litres Energy efficiency class A+

38

560-570

1.154 Min.648

1775-1780

1.071

1.775

77

558

550

600

540 545

*Ventilation of at least 200cm2 in the plinth

############# TKI2 325

|A

++| |---|

|Frost Free| |---|

|0

3

| |---|

|+| |---|

38

560 min

876 - 880

866

550 min

540 548

38

560 min

876 - 880

866

550 min

540 548

################## *Ventilation of at least 200cm2 in the plinth*Ventilation of at least 200cm2in the plinth

TGI2 110

TKI2 150

|A

+| |---|

|A

+| |---|

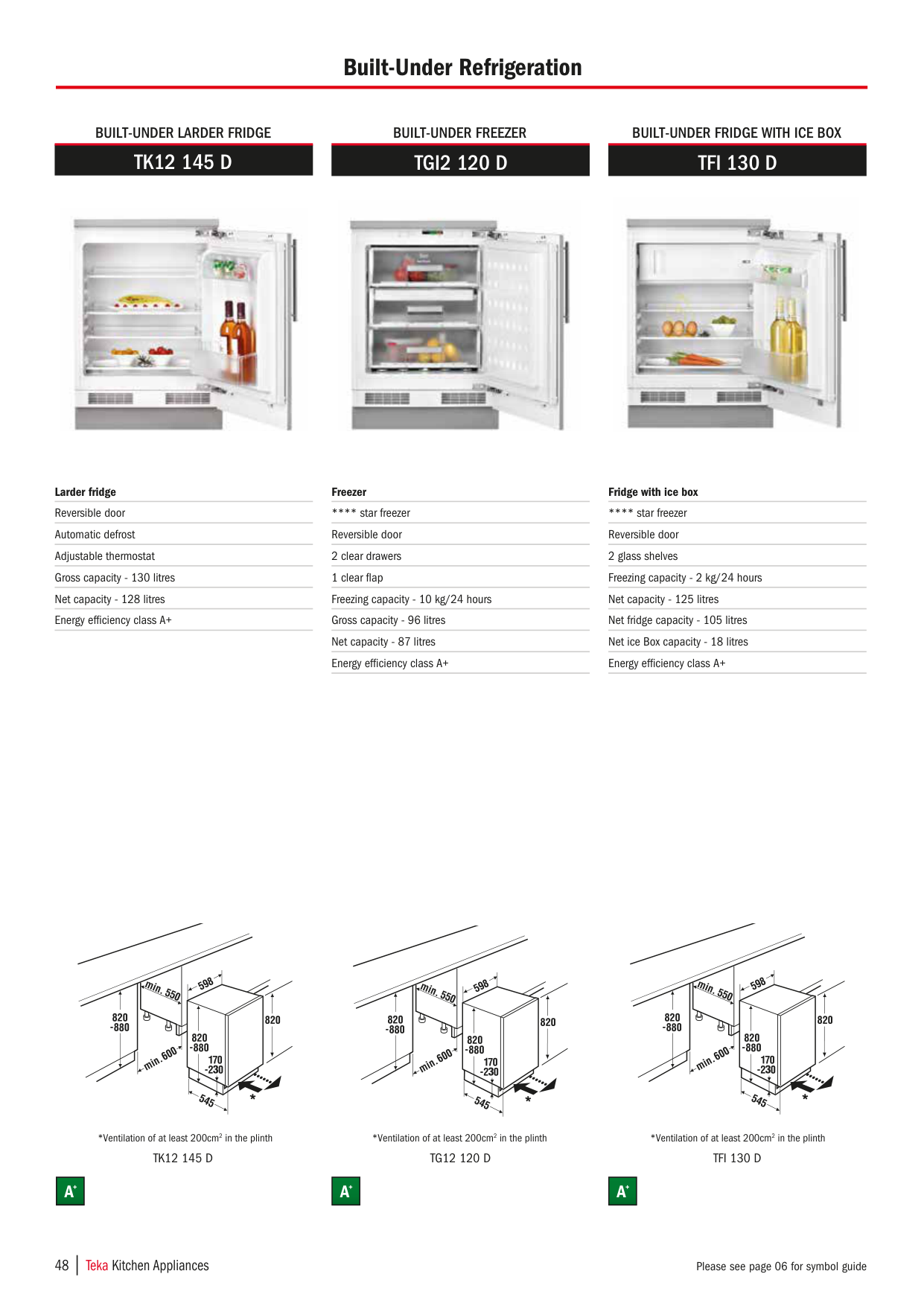

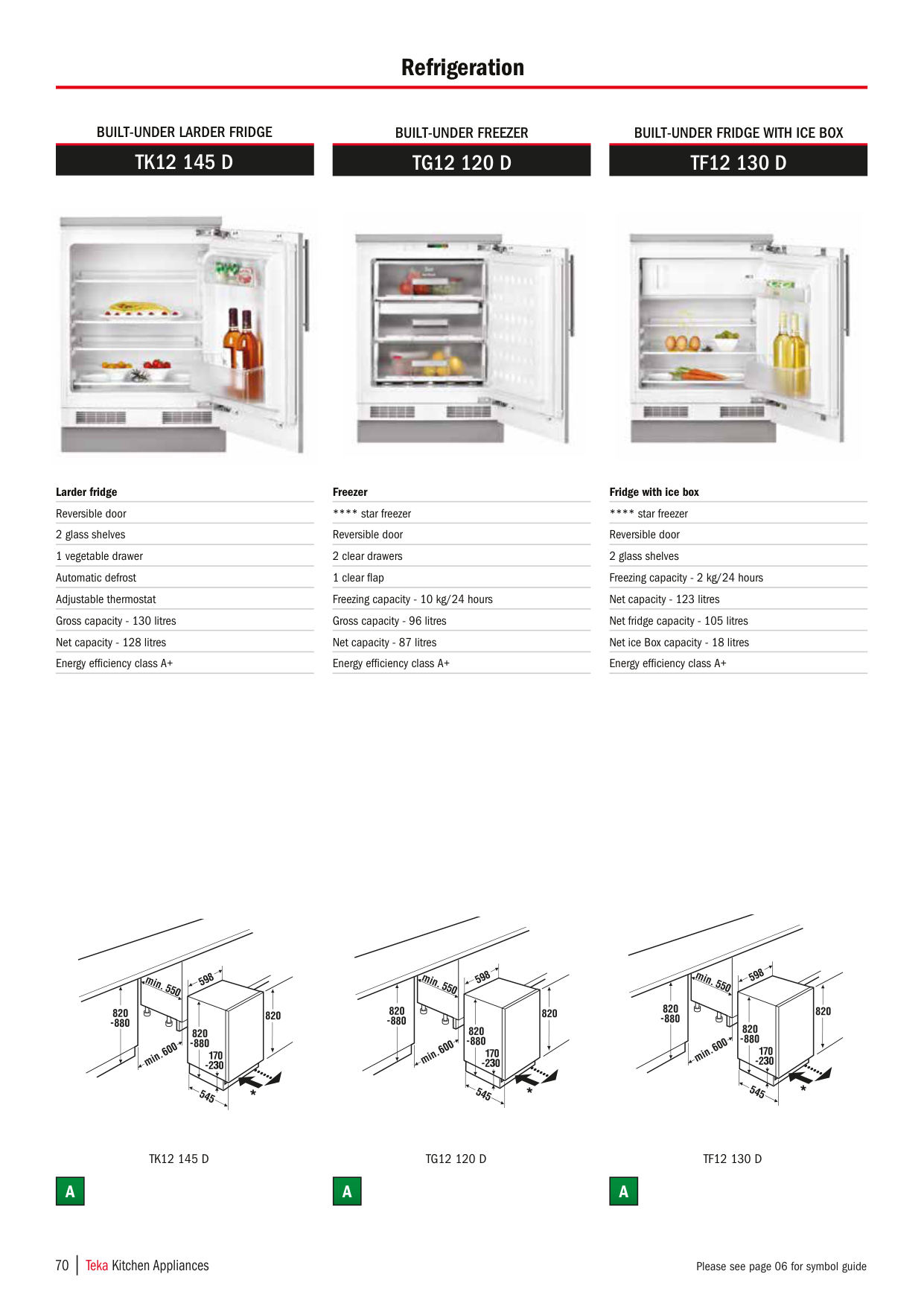

#### Built-Under Refrigeration

BUILT-UNDER LARDER FRIDGE

BUILT-UNDER FREEZER

BUILT-UNDER FRIDGE WITH ICE BOX

TK12 145 D TGI2 120 D

TFI 130 D




Larder fridge Reversible door Automatic defrost Adjustable thermostat Gross capacity - 130 litres Net capacity - 128 litres Energy efficiency class A+

############### Freezer

**** star freezer Reversible door

Fridge with ice box

**** star freezer Reversible door 2 glass shelves Freezing capacity - 2 kg/24 hours Net capacity - 125 litres Net fridge capacity - 105 litres Net ice Box capacity - 18 litres Energy efficiency class A+

|A

+| |---|

*Ventilation of at least 200cm2 in the plinth*Ventilation of at least 200cm2in the plinth *Ventilation of at least 200cm2 in the plinth

TK12 145 D TG12 120 D

TFI 130 D

|A

+| |---|

|A

+| |---|

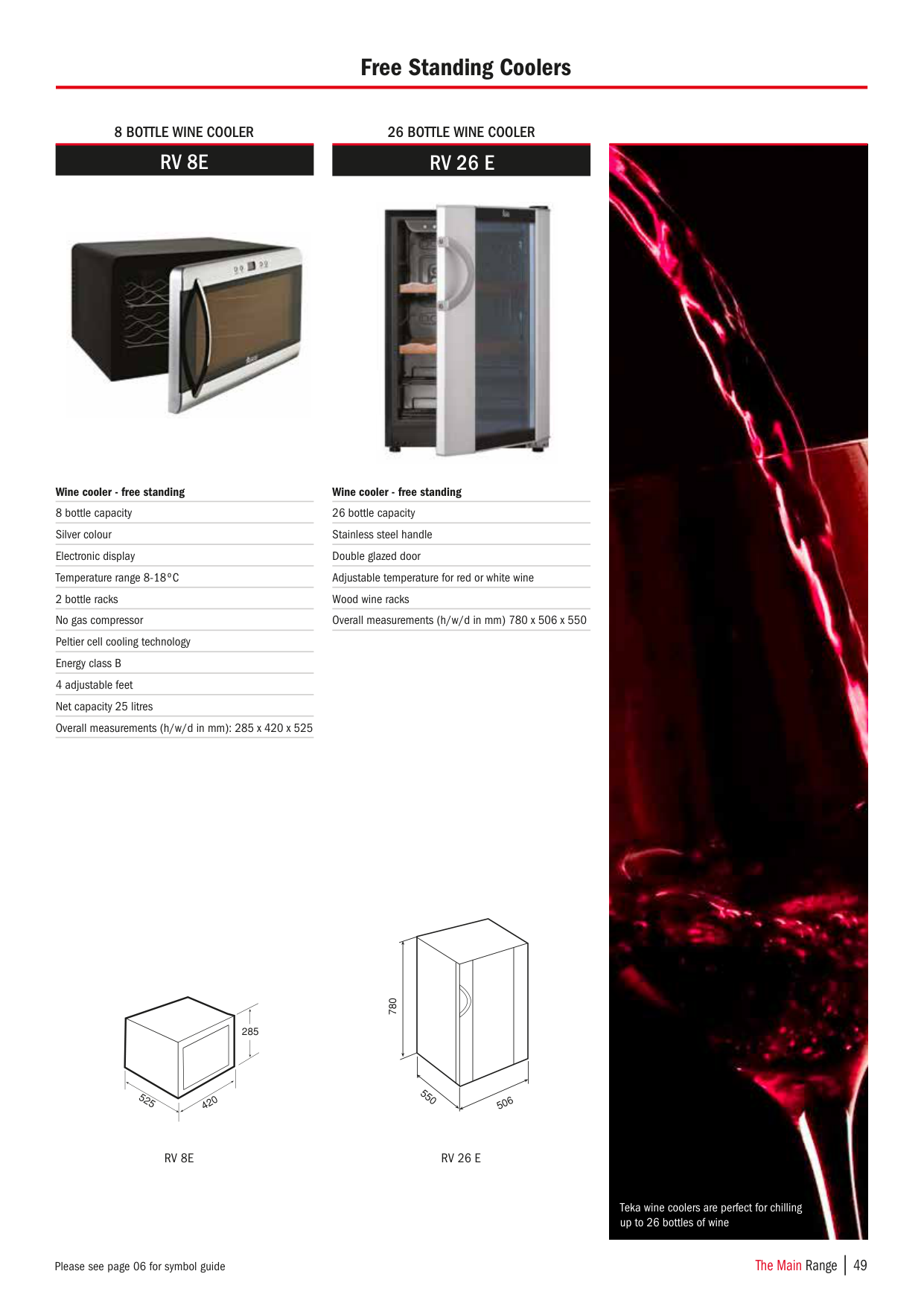

#### Free Standing Coolers

########## 8 BOTTLE WINE COOLER

########## 26 BOTTLE WINE COOLER

##### RV 26 ERV 8E



Wine cooler - free standing 8 bottle capacity Silver colour Electronic display Temperature range 8-18ºC

Wine cooler - free standing 26 bottle capacity Stainless steel handle Double glazed door Adjustable temperature for red or white wine Wood wine racks Overall measurements (h/w/d in mm) 780 x 506 x 550

285

525

420

RV 8E

780

550

506

RV 26 E


Teka wine coolers are perfect for chilling up to 26 bottles of wine

#### Refrigeration - Features and Benefits

####### Frost free: Constant temperature

####### Energy classification

|Frost Free| |---|

The Frost free system keeps inside temperatures constant in all trays and compartments. A fan circulates air around the cabinet to create a dry environment that lowers the temperature at least 1° or 2°C in comparison to other fridges. This prevents moisture from settling on food or on the walls of the freezer, keeping them dry and free of ice. No ice also means more usable freezer space, so food is easier to be identified and removed.

Furthermore, thanks to the forced air circulation, food freezes faster without losing valuable vitamins and minerals. The ice particles within the food are formed from moisturizing processes, which allows for faster defrosting and better conservation of the original food texture, in comparison with traditional cooling systems.

###### Fuzzy Logic

|Fuzzy| |---|

The Fuzzy Logic system ensures a constant and exact temperature control without being regulated by the user.

The system is an electronic control which adjusts the temperature through independent sensors distributed inside the refrigerators, keeping a constant temperature while automatically adjusting the power to the outer temperature. Information about inner and outer temperatures is checked by the electronic control, which regulates the entrance of cold air and defines the proper temperature for each compartment.

####### Preserving your most delicate food

|0

3

| |---|

One important feature is the Conservation Zone (0-3°C), an extractable covered compartment with a sensor and evaporator which sits on top of the vegetable drawer and ensures a constant temperature between 0° and 3°C.

This is the ideal system for preserving the most delicate fresh foods: meat, fish, cheese, etc. It maintains their natural nutritive properties up to 3 times longer than standard refrigerators, minimising the loss of vitamin, protein and mineral contents, so you get the full health benefit.

|A

++| |---|

|A

+| |---|

|A| |---|

Ecology is one of Teka’s main goals. The refrigerator uses 18% of the total electricity consumption of a standard home, so it is extremely important to select a refrigerator with the correct energy classification. Teka refrigerators are all class A+ or A, and are 100% free of CFC. Most of them use butane refrigerant Gas R600 which preserves the ozone layer, reduces noise levels and improves the life of the refrigerator.

VAC: energy saving programme

Teka refrigeration features a wide variety of settings that adapt to individual lifestyle and special situations. For instance, the VAC function reduces electrical consumption to the minimum without unplugging the refrigerator.

Coolflow: Continuous cold air-flow

The Coolflow system combines electronic regulation with ventilation, providing a continuous cold air-flow in the cavity. A fan located in the upper part of the product circulates cold air around the compartment which drops the temperature by at least 1° or 2°C in comparison to other fridges.

Antibacterial system: Ensuring food safety

Teka refrigerators have a special treatment applied to both in the cavity and in the door. This Antibacterial film is made of silver ions and it prevents bacteria and micro-organisms from growing inside the refrigerator, ensuring a clean environment.

| | |---|

Selected Teka refrigerators offer a fast freezing zone. This zone is situated inside the freezer compartment. It has three electronic independent regulation zones, ideal to chill drinks, ice-creams or other products to be shortly served.

Teka refrigeration control panels

Teka refrigeration features a wide variety of control panels; LCD screen, digital display, chain of LEDs. The panels inform you about each zone of the refrigerator through optical and acoustic alarms should excessive increases of temperatures or electrical faults occur. They also have memories that re-establish temperature in case of electrical faults or they can be blocked to avoid malfunctions when being cleaned.

Selected control panels can be blocked for easy cleaning and external control panels mean you can regulate your fridge without even opening the door.

###### Clean air system: Odour elimination

No frost models feature the “Clean Air” system that eliminates odours. The circulated air passes through an active carbon and palladium filter that purifies the inner cavity.

50 | Teka Kitchen Appliances

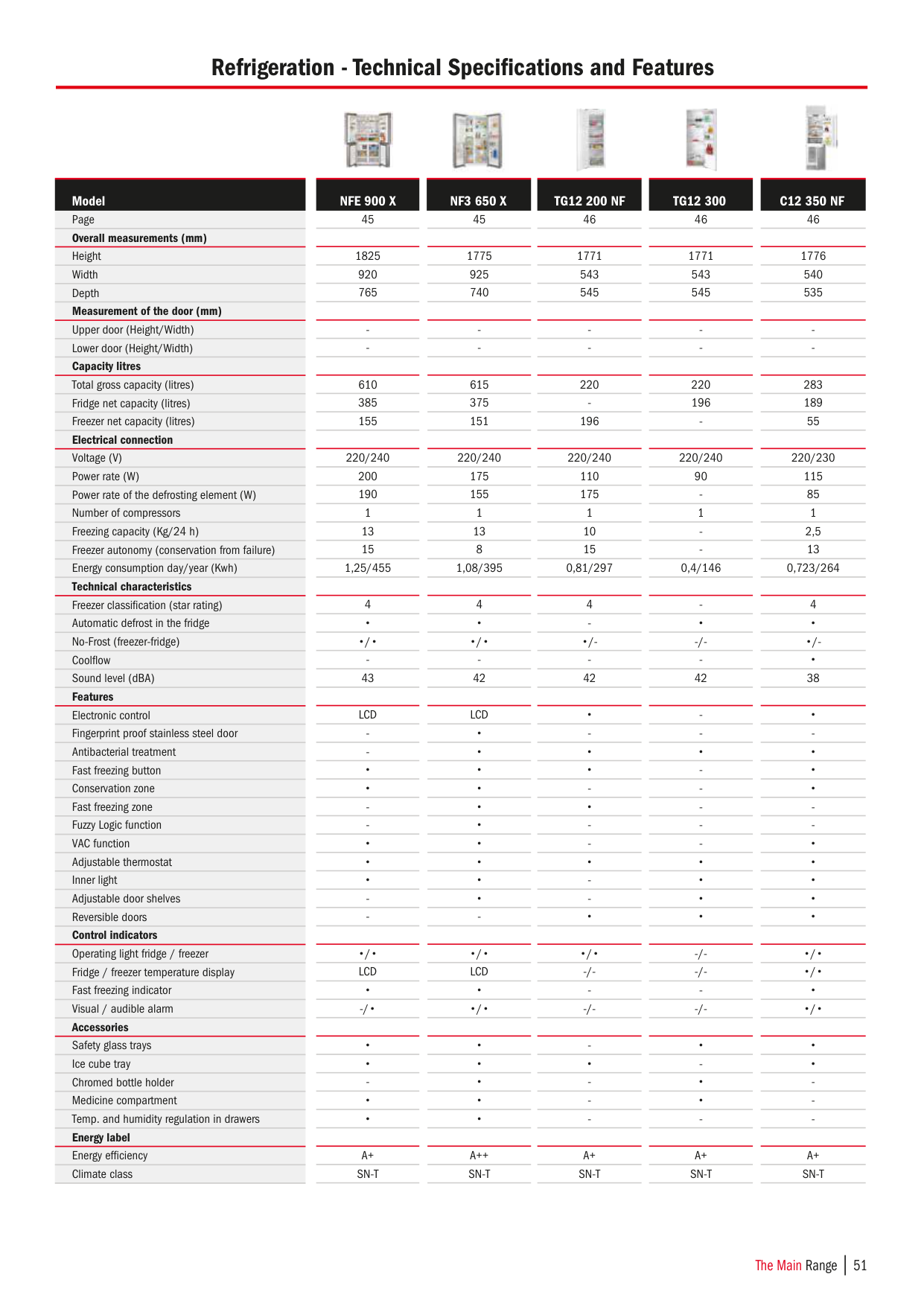

############ Model

Page Overall measurements (mm) Height Width Depth Measurement of the door (mm)

Upper door (Height/Width) Lower door (Height/Width) Capacity litres

Total gross capacity (litres) Fridge net capacity (litres) Freezer net capacity (litres) Electrical connection Voltage (V) Power rate (W) Power rate of the defrosting element (W) Number of compressors Freezing capacity (Kg/24 h) Freezer autonomy (conservation from failure) Energy consumption day/year (Kwh) Technical characteristics Freezer classification (star rating) Automatic defrost in the fridge No-Frost (freezer-fridge) Coolflow Sound level (dBA) Features Electronic control Fingerprint proof stainless steel door Antibacterial treatment Fast freezing button Conservation zone Fast freezing zone Fuzzy Logic function VAC function Adjustable thermostat Inner light Adjustable door shelves Reversible doors Control indicators Operating light fridge / freezer Fridge / freezer temperature display Fast freezing indicator Visual / audible alarm Accessories Safety glass trays Ice cube tray Chromed bottle holder Medicine compartment Temp. and humidity regulation in drawers Energy label Energy efficiency Climate class

############ NF3 650 X

############ NFE 900 X TG12 200 NF TG12 300 C12 350 NF

45

46

45

46

46

1825 920 765

220/240 200 190 1 13 15 1,25/455

4 • •/• 43

LCD • • • • • -

•/• LCD • -/•

• • • •

A+ SN-T

1775 925 740

220/240 175 155 1 13 8 1,08/395

4 • •/• 42

LCD • • • • • • • • • • -

•

• • • • •

A++ SN-T

1771 543 545

220/240 110 175 1 10 15 0,81/297

4 •/42

• • • • • •

•/•

• -

A+ SN-T

1771 543 545

220/240 90 1 0,4/146

• • • -

A+ SN-T

1776 540 535

220/230 115 85

0,723/264

4 • •/• 38

•

A+ SN-T

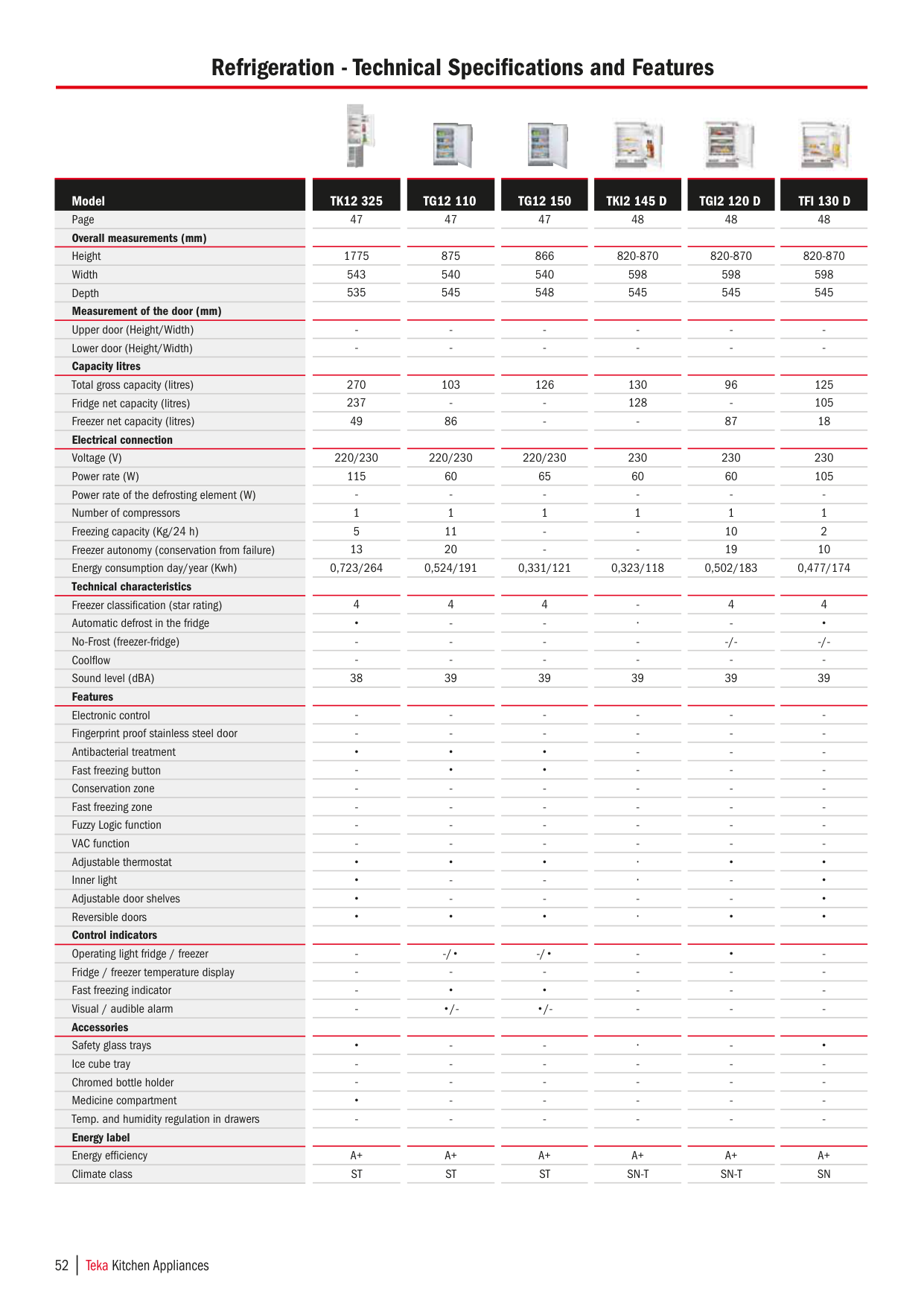

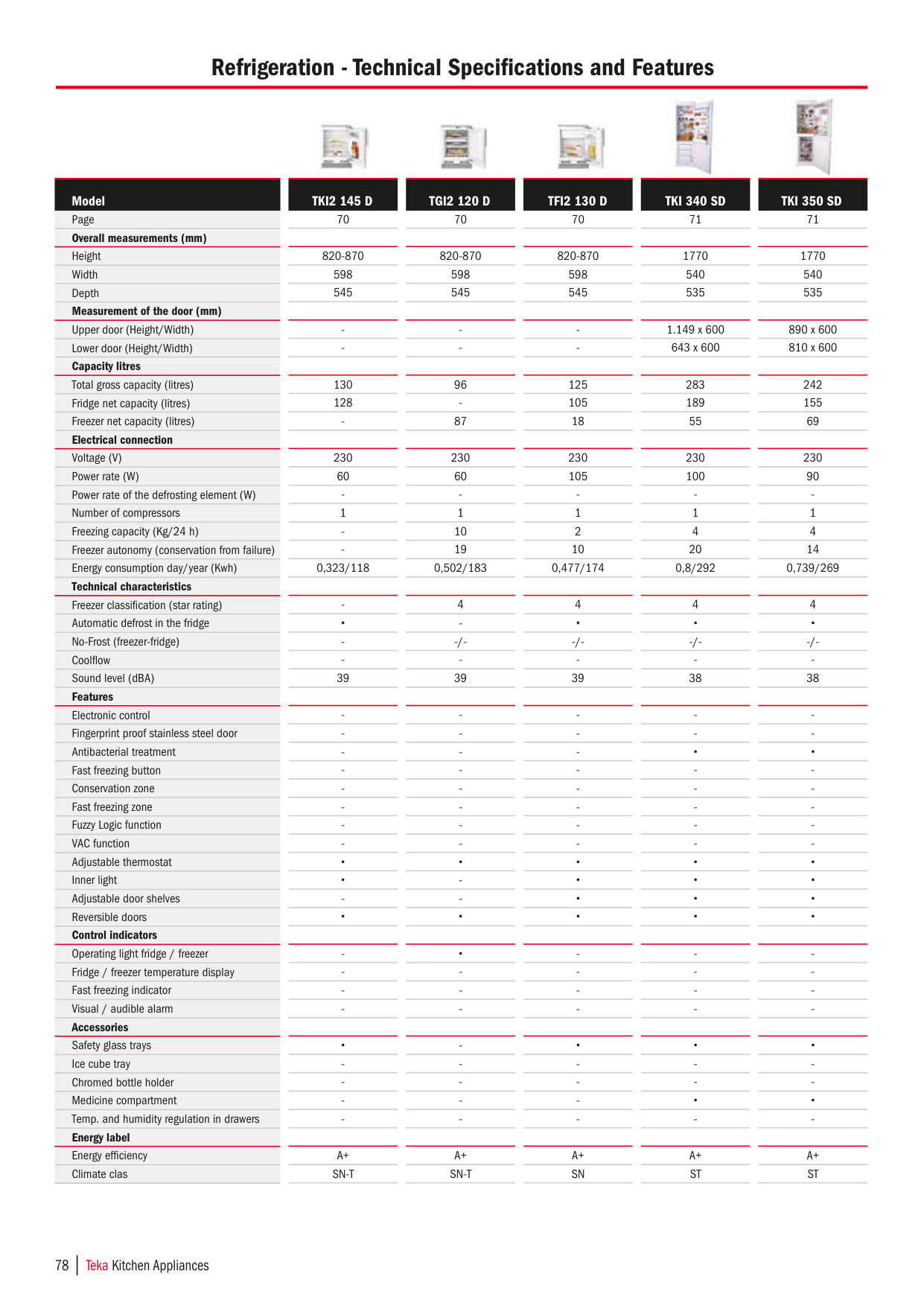

############ Model

Page Overall measurements (mm) Height Width Depth Measurement of the door (mm)

Upper door (Height/Width) Lower door (Height/Width) Capacity litres

Total gross capacity (litres) Fridge net capacity (litres) Freezer net capacity (litres) Electrical connection Voltage (V) Power rate (W) Power rate of the defrosting element (W) Number of compressors Freezing capacity (Kg/24 h) Freezer autonomy (conservation from failure) Energy consumption day/year (Kwh) Technical characteristics Freezer classification (star rating) Automatic defrost in the fridge No-Frost (freezer-fridge) Coolflow Sound level (dBA) Features Electronic control Fingerprint proof stainless steel door Antibacterial treatment Fast freezing button Conservation zone Fast freezing zone Fuzzy Logic function VAC function Adjustable thermostat Inner light Adjustable door shelves Reversible doors Control indicators Operating light fridge / freezer Fridge / freezer temperature display Fast freezing indicator Visual / audible alarm Accessories Safety glass trays Ice cube tray Chromed bottle holder Medicine compartment Temp. and humidity regulation in drawers Energy label Energy efficiency Climate class







############ TG12 110

############ TK12 325 TG12 150 TFI 130 DTGI2 120 D

############ TKI2 145 D

47

47

47

48

48

48

875 540 545

866 540 548

1775 543 535

820-870 598 545

820-870 598 545

820-870 598 545

103 86

126 -

270 237 49

130 128 -

96 87

125 105 18

220/230 60 1 11 20 0,524/191

220/230 65 1 0,331/121

220/230 115 1 5 13 0,723/264

230 60 1 0,323/118

230 60 1 10 19 0,502/183

230 105 -

0,477/174

4 39

4 39

4 • 38

4 -/39

4 • -/39

• • • •

• • • •

• •

-/• • •/-

-/• • •/-

• -

• -

• -

A+ ST

A+ ST

A+ ST

A+ SN-T

A+ SN-T

A+ SN

52 | TekaKitchen Appliances



############ Model RV 26 E

############ RV 8E

49

Page Overall measurements (mm) Height Width Depth Net weight Electrical connection Total (Gross) Fridge (Net) Capacity (number of bottles) Electrical connection Voltage (V) Nominal power (W) Energy daily consumption (kWh/day) Annual energy consumption (kWh/year) Technical features Noise level (dBA) Gas type Climatic calcification Features Electronic control Stainless steel door handle Hidden evaporation Inner light Mobile shelves Adjustable (feet/rear) Temperature control (Red wine 13oC - 16oC) Temperature control (Red wine 5oC - 16oC) Temperature control (Red wine 7oC - 16oC) Optical alarm Adjustable shelves Number of shelves Aluminum and glass door Energy class Energetic class (2)

49

285 420 525 9

780 506 550 34

25 23 8

85 83 26

220-240 100 0,35 162

220-240 100 0,52 190

30 R600s -

42 R600s -

• • • • • •/• • • • • • 2 •

• • • • • •/• • • • • • 2 •

B

B

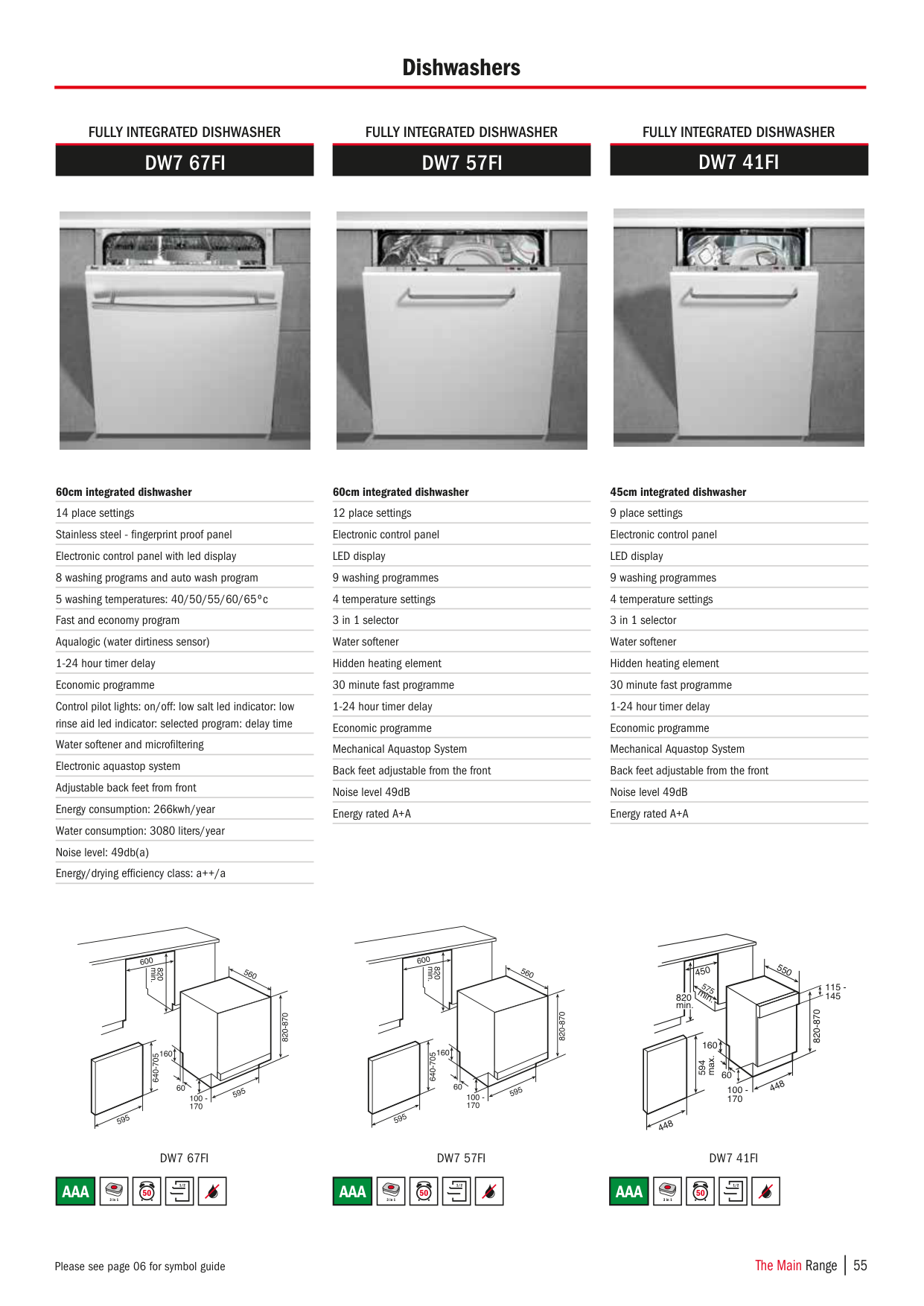

#### Dishwashers

FULLY INTEGRATED DISHWASHER

FULLY INTEGRATED DISHWASHER

########## FULLY INTEGRATED DISHWASHER

##### DW7 41FI

DW7 67FI

DW7 57FI




############### 60cm integrated dishwasher

60cm integrated dishwasher 12 place settings Electronic control panel LED display 9 washing programmes 4 temperature settings 3 in 1 selector Water softener Hidden heating element 30 minute fast programme 1-24 hour timer delay Economic programme Mechanical Aquastop System Back feet adjustable from the front Noise level 49dB Energy rated A+A

45cm integrated dishwasher 9 place settings Electronic control panel LED display 9 washing programmes 4 temperature settings 3 in 1 selector Water softener Hidden heating element 30 minute fast programme 1-24 hour timer delay Economic programme Mechanical Aquastop System Back feet adjustable from the front Noise level 49dB Energy rated A+A

Control pilot lights: on/off: low salt led indicator: low rinse aid led indicator: selected program: delay time Water softener and microfiltering Electronic aquastop system Adjustable back feet from front Energy consumption: 266kwh/year Water consumption: 3080 liters/year Noise level: 49db(a) Energy/drying efficiency class: a++/a

DW7 67FI

|AAA| |---|

|3 in 1| |---|

|50| |---|

||1/2| |---| | | | | | |---|

| | |---|

DW7 57FI

|AAA| |---|

|3 in 1| |---|

|50| |---|

||1/2| |---| | | | | | |---|

| | |---|

550

450

115 145

575 min.

820 min.

820-870

160

max.

594

60

448

100 170

448

DW7 41FI

|AAA| |---|

|3 in 1| |---|

|50| |---|

||1/2| |---| | | | | | |---|

| | |---|

Please see page 06 for symbol guide

The Main Range | 55

#### Dishwashing - Features and Benefits

Quiet performance

Ready for 3 in 1 tablets

| | |---|

Teka dishwashers perform to the very best standards whilst producing extremely low noise levels. The Teka Main Range 45cm and 60cm products generate just 49dB. Low operating noise is requirement of modern dishwashers, especially those used only over weekends or night-times as a way of saving energy. Our quietest models feature three layers of sound-dampening material applied to the inner cavity where vibrations originate, enabling Teka dishwashers reach optimal noise levels.

24 hour delay timer

The DW7 41FI (45cm) and the DW7 57FI (60cm) have a 24 hour delay timer that is adjustable in 1 hour increments at the touch of a button.

####### Fast wash

Both the DW7 41FI (45cm) and the DW7 57FI (60cm) can be easily programmed to run a fast 30 minute wash for rapid, economic use.

####### Simple installation

The rear feet height adjustment on all Teka dishwashers is controlled at the front of the product which allows for rapid, simple installation.

####### Aquastop: Safety for your kitchen

| | |---|

Teka dishwashers include the latest Aquastop system. The DW7 59FI includes an internal Aquastop, placed inside the tank which has a floating element that activates a signal transmitting micro switch when water flooding is detected. This signal is detected by an electrovalve which closes off the water flow.

The external Aquastop system fitted to all other products automatically closes the access through the outlet water pipe when a leakage is detected.

Digital display

| | |---|

Teka integrated dishwashers are equipped with an electronic control panel that incorporates a digital display to keep you informed of selected functions. The digital display information shows the selected programme, the start delay, indicates for lack of salt and rinse aid, dry exclusion, economic or half load programme.

Smart technology is here to take care of your dishwashing

Teka dishwashers have several programmes combining different cycles. The range offers models with 4, 5, 6, 8 and 12 washing cycles. The cycle consists of soaking, washing, rinsing and/or drying at different temperatures, depending on how dirty the dishes are.

|3 in 1| |---|

Our top of the range dishwashers now incorporate a sophisticated specific system for 3 in 1 tablets. This system recognises its use through sensors, blocking the salt and rinse aid intake supplied by the tablet. This allows for the optimisation of washing results with the minimum detergent, salt and rinsing aid consumption.

###### Versatile baskets

At Teka we consider all the possible scenarios. This is why we developed an adjustable upper basket that helps create extra space for those bigger dishes or cookware in the dishwasher.


####### 56 | Teka Kitchen Appliances

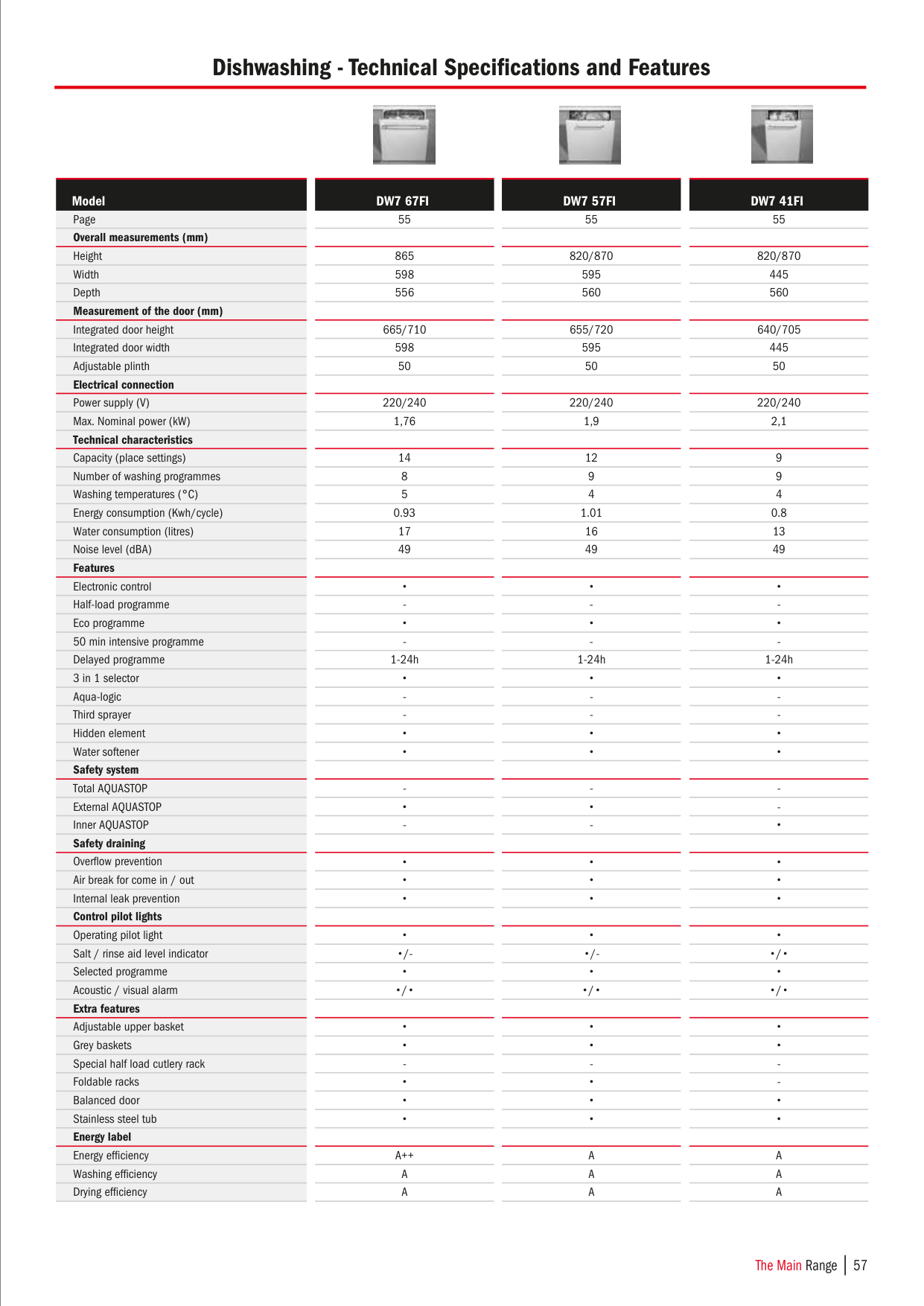

#### Dishwashing - Technical Specifications and Features




############ Model

Page Overall measurements (mm) Height Width Depth Measurement of the door (mm) Integrated door height Integrated door width Adjustable plinth Electrical connection Power supply (V) Max. Nominal power (kW) Technical characteristics Capacity (place settings) Number of washing programmes Washing temperatures (°C) Energy consumption (Kwh/cycle) Water consumption (litres) Noise level (dBA) Features Electronic control Half-load programme Eco programme 50 min intensive programme Delayed programme 3 in 1 selector Aqua-logic Third sprayer Hidden element Water softener Safety system Total AQUASTOP External AQUASTOP Inner AQUASTOP Safety draining Overflow prevention Air break for come in / out Internal leak prevention Control pilot lights Operating pilot light Salt / rinse aid level indicator Selected programme Acoustic / visual alarm Extra features Adjustable upper basket Grey baskets Special half load cutlery rack Foldable racks Balanced door Stainless steel tub Energy label Energy efficiency Washing efficiency Drying efficiency

############ DW7 67FI

############ DW7 41FI 55

############ DW7 57FI

55

55

865 598 556

665/710 598 50

220/240 1,76

14 8 5 0.93 17 49

820/870 595 560

655/720 595 50

220/240 1,9

12 9 4 1.01 16 49

820/870 445 560

640/705 445 50

220/240 2,1

9 9 4 0.8 13 49

• • 1-24h • • •

• -

• • •

•

•

• • • • •

A++ A A

• • 1-24h • • •

• -

• • •

•

•

• • • • •

A A A

• • 1-24h • • •

•

• • •

•

•

• • • •

A A A

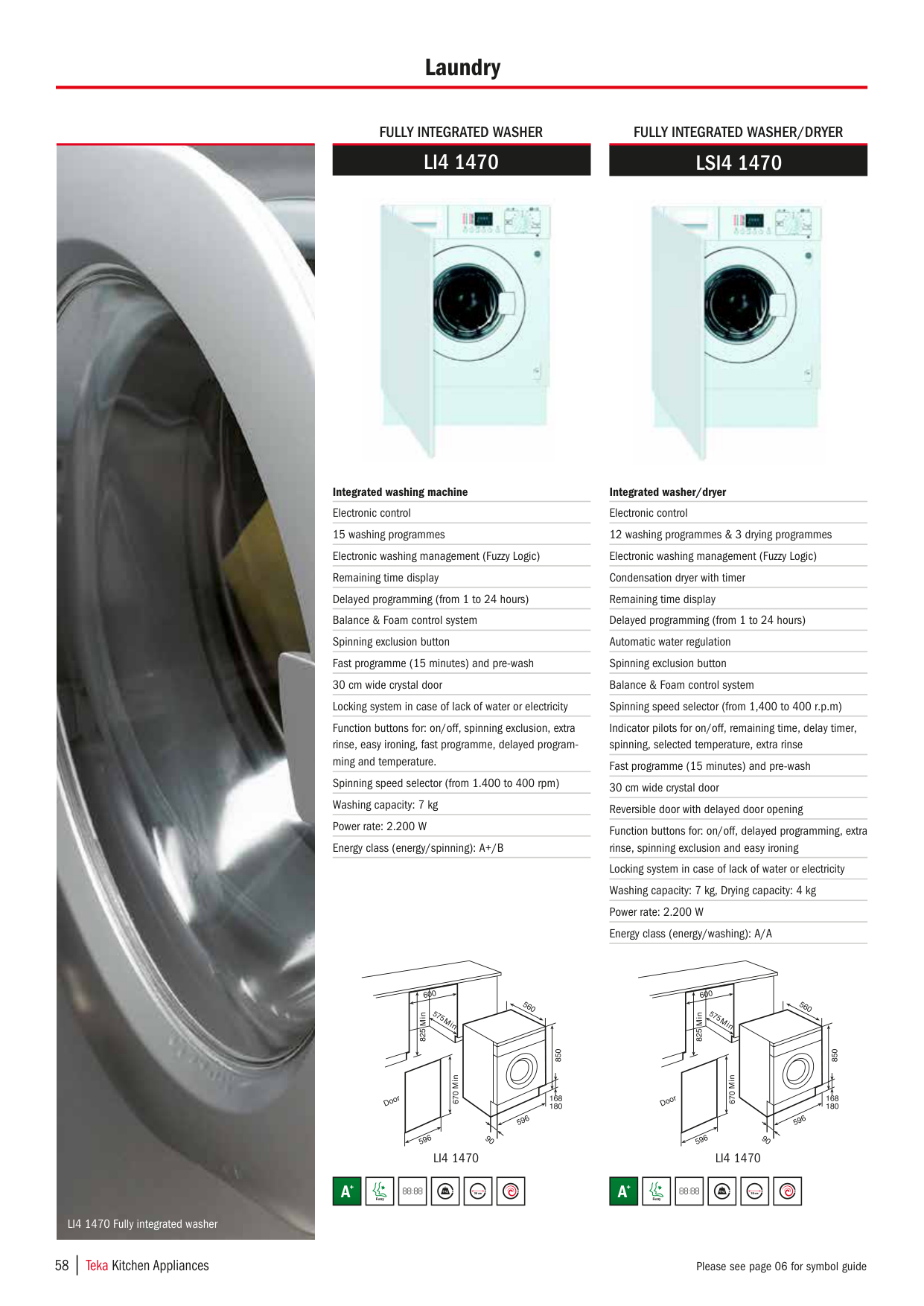

#### Laundry


LI4 1470 Fully integrated washer

58 | TekaKitchen Appliances

########## FULLY INTEGRATED WASHER

##### LI4 1470


Integrated washing machine Electronic control 15 washing programmes Electronic washing management (Fuzzy Logic) Remaining time display Delayed programming (from 1 to 24 hours) Balance & Foam control system Spinning exclusion button Fast programme (15 minutes) and pre-wash 30 cm wide crystal door Locking system in case of lack of water or electricity Function buttons for: on/off, spinning exclusion, extra rinse, easy ironing, fast programme, delayed programming and temperature. Spinning speed selector (from 1.400 to 400 rpm) Washing capacity: 7 kg Power rate: 2.200 W Energy class (energy/spinning): A+/B

575

Door

############# LI4 1470

|A

+| |---|

|Fuzzy| |---|

| | |---|

|6kg| |---|

|30cm

| |---|

| | |---|

FULLY INTEGRATED WASHER/DRYER

LSI4 1470


Integrated washer/dryer Electronic control 12 washing programmes & 3 drying programmes Electronic washing management (Fuzzy Logic) Condensation dryer with timer Remaining time display Delayed programming (from 1 to 24 hours) Automatic water regulation Spinning exclusion button Balance & Foam control system Spinning speed selector (from 1,400 to 400 r.p.m) Indicator pilots for on/off, remaining time, delay timer, spinning, selected temperature, extra rinse Fast programme (15 minutes) and pre-wash 30 cm wide crystal door Reversible door with delayed door opening Function buttons for: on/off, delayed programming, extra rinse, spinning exclusion and easy ironing Locking system in case of lack of water or electricity Washing capacity: 7 kg, Drying capacity: 4 kg Power rate: 2.200 W Energy class (energy/washing): A/A

575

Door

LI4 1470

|A

+| |---|

|Fuzzy| |---|

| | |---|

|6kg| |---|

|30cm

| |---|

| | |---|

Please see page 06 for symbol guide

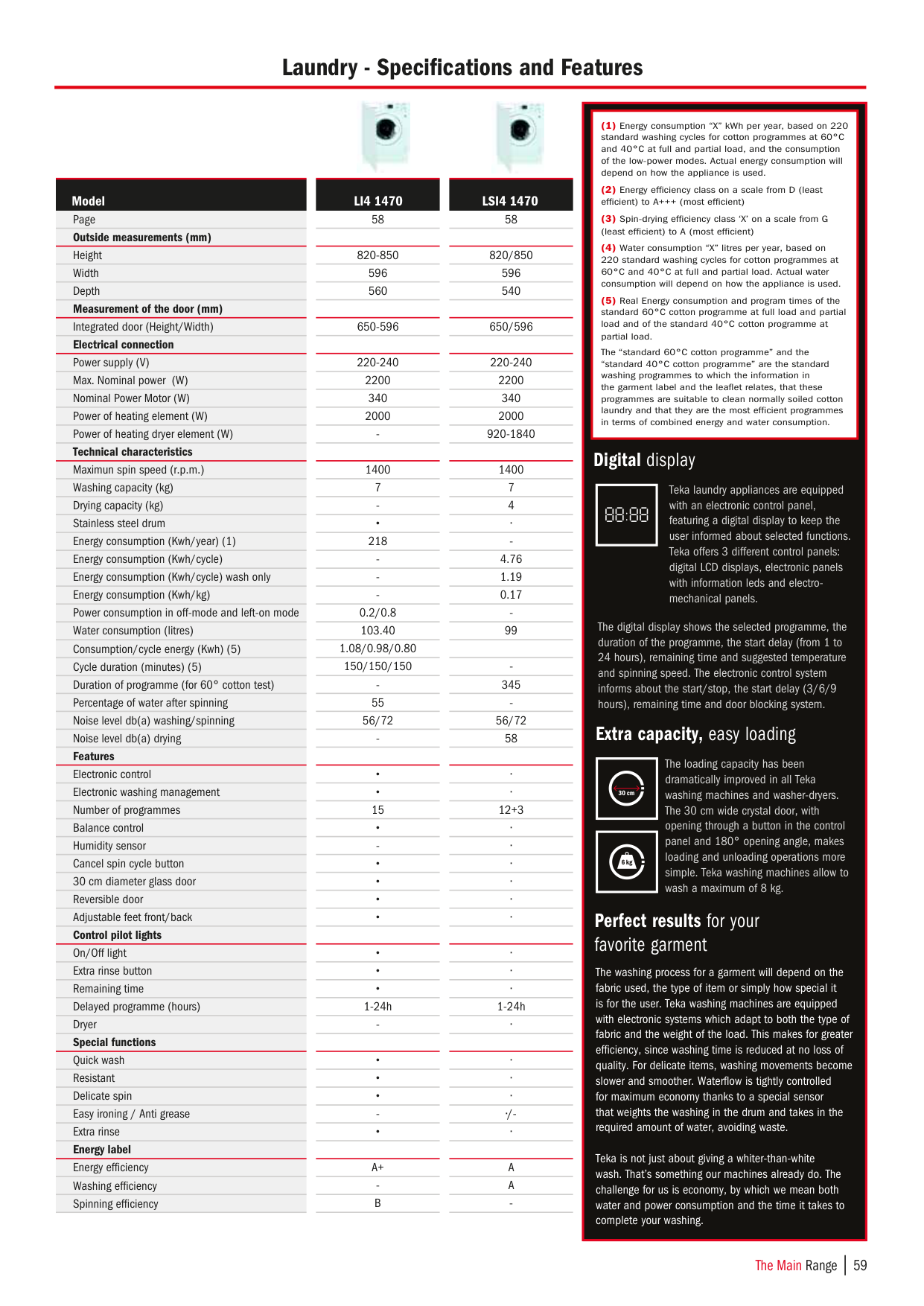

#### Laundry - Specifications and Features

############ Model

Page Outside measurements (mm) Height Width Depth Measurement of the door (mm) Integrated door (Height/Width) Electrical connection Power supply (V) Max. Nominal power (W) Nominal Power Motor (W) Power of heating element (W) Power of heating dryer element (W) Technical characteristics Maximun spin speed (r.p.m.) Washing capacity (kg) Drying capacity (kg) Stainless steel drum Energy consumption (Kwh/year) (1) Energy consumption (Kwh/cycle) Energy consumption (Kwh/cycle) wash only Energy consumption (Kwh/kg) Power consumption in off-mode and left-on mode Water consumption (litres) Consumption/cycle energy (Kwh) (5) Cycle duration (minutes) (5) Duration of programme (for 60° cotton test) Percentage of water after spinning Noise level db(a) washing/spinning Noise level db(a) drying Features Electronic control Electronic washing management Number of programmes Balance control Humidity sensor Cancel spin cycle button 30 cm diameter glass door Reversible door Adjustable feet front/back Control pilot lights On/Off light Extra rinse button Remaining time Delayed programme (hours) Dryer Special functions Quick wash Resistant Delicate spin Easy ironing / Anti grease Extra rinse Energy label Energy efficiency Washing efficiency Spinning efficiency


############ LI4 1470

58

820-850 596 560

650-596

220-240 2200 340 2000 -

1400 7 • 218 0.2/0.8 103.40 1.08/0.98/0.80 150/150/150 -


############ LSI4 1470

58

820/850 596 540

650/596

220-240 2200 340 2000 920-1840

1400 7 4 • 4.76 1.19 0.17 99

345 56/72 58

A A -

|(1) Energy consumption “X” kWh per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
(2) Energy efficiency class on a scale from D (least efficient) to A+++ (most efficient)
(3) Spin-drying efficiency class ‘X’ on a scale from G (least efficient) to A (most efficient)
(4) Water consumption “X” litres per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
(5) Real Energy consumption and program times of the standard 60°C cotton programme at full load and partial load and of the standard 40°C cotton programme at partial load.


The “standard 60°C cotton programme” and the “standard 40°C cotton programme” are the standard washing programmes to which the information in the garment label and the leaflet relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.| |---|

Digital display

| | |---|

Teka laundry appliances are equipped with an electronic control panel, featuring a digital display to keep the user informed about selected functions. Teka offers 3 different control panels: digital LCD displays, electronic panels with information leds and electromechanical panels.

The digital display shows the selected programme, the duration of the programme, the start delay (from 1 to 24 hours), remaining time and suggested temperature and spinning speed. The electronic control system informs about the start/stop, the start delay (3/6/9 hours), remaining time and door blocking system.

###### Extra capacity, easy loading

The loading capacity has been dramatically improved in all Teka washing machines and washer-dryers. The 30 cm wide crystal door, with opening through a button in the control panel and 180° opening angle, makes loading and unloading operations more simple. Teka washing machines allow to wash a maximum of 8 kg.

|30cm

| |---|

|6kg| |---|

Perfect results for your favorite garment

The washing process for a garment will depend on the fabric used, the type of item or simply how special it is for the user. Teka washing machines are equipped with electronic systems which adapt to both the type of fabric and the weight of the load. This makes for greater efficiency, since washing time is reduced at no loss of quality. For delicate items, washing movements become slower and smoother. Waterflow is tightly controlled for maximum economy thanks to a special sensor that weights the washing in the drum and takes in the required amount of water, avoiding waste.

Teka is not just about giving a whiter-than-white wash. That’s something our machines already do. The challenge for us is economy, by which we mean both water and power consumption and the time it takes to complete your washing.


The Kontract Range

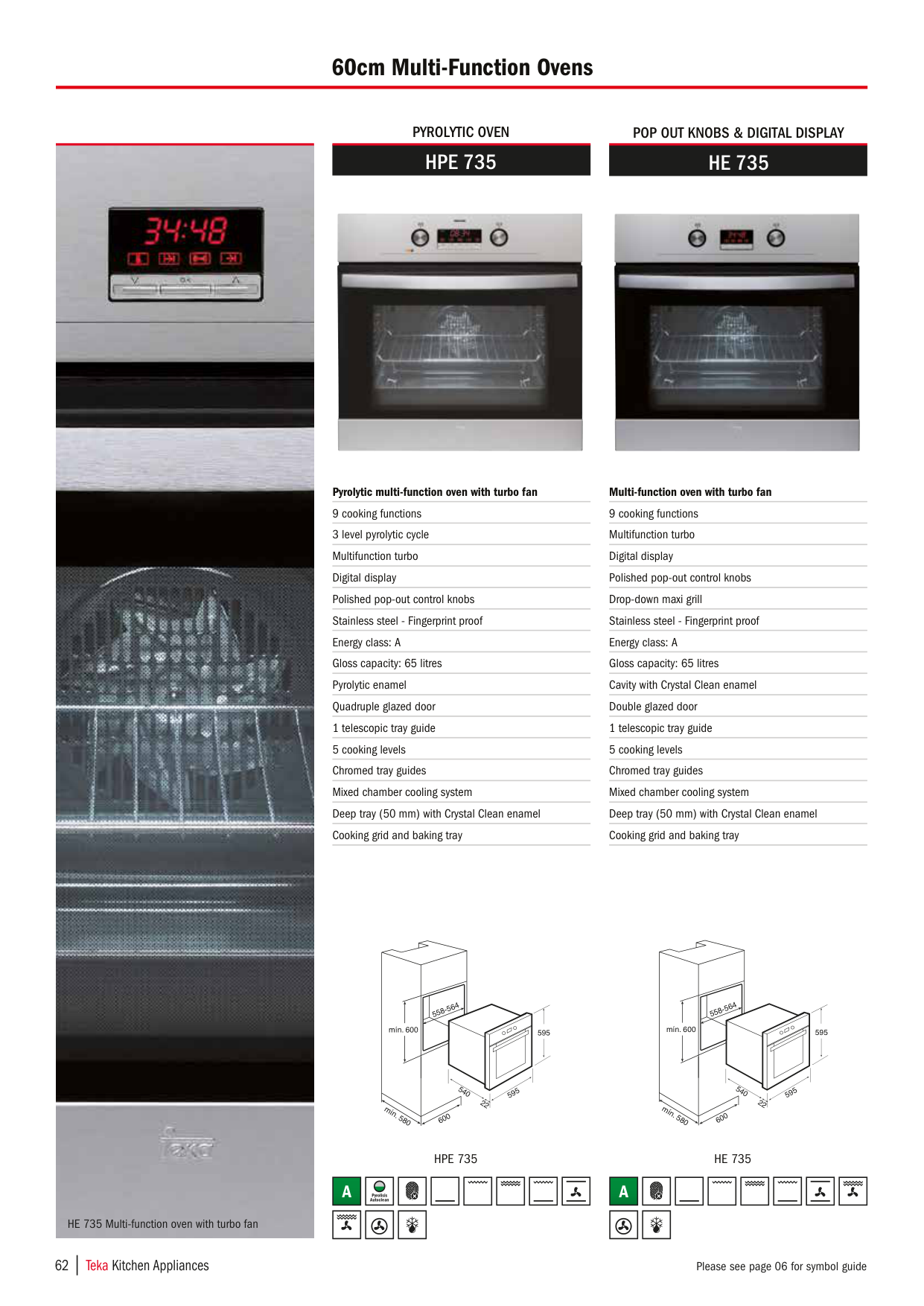

POP OUT KNOBS & DIGITAL DISPLAYPYROLYTIC OVEN

##### HE 735HPE 735



Pyrolytic multi-function oven with turbo fan 9 cooking functions 3 level pyrolytic cycle Multifunction turbo Digital display Polished pop-out control knobs Stainless steel - Fingerprint proof Energy class: A Gloss capacity: 65 litres Pyrolytic enamel Quadruple glazed door 1 telescopic tray guide 5 cooking levels Chromed tray guides Mixed chamber cooling system Deep tray (50 mm) with Crystal Clean enamel Cooking grid and baking tray

Multi-function oven with turbo fan 9 cooking functions Multifunction turbo Digital display Polished pop-out control knobs Drop-down maxi grill Stainless steel - Fingerprint proof Energy class: A Gloss capacity: 65 litres Cavity with Crystal Clean enamel Double glazed door 1 telescopic tray guide 5 cooking levels Chromed tray guides Mixed chamber cooling system Deep tray (50 mm) with Crystal Clean enamel Cooking grid and baking tray

558-564

558-564

mín. 600

mín. 600

595

595

540

540

595 22

595 22

mín. 580

mín. 580

600

600

HPE 735

HE 735

|A| |---|

|Pyrolisis Autoclean| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

HE 735 Multi-function oven with turbo fan

LATERAL KNOBS & DIGITAL DISPLAY

LATERAL KNOBS

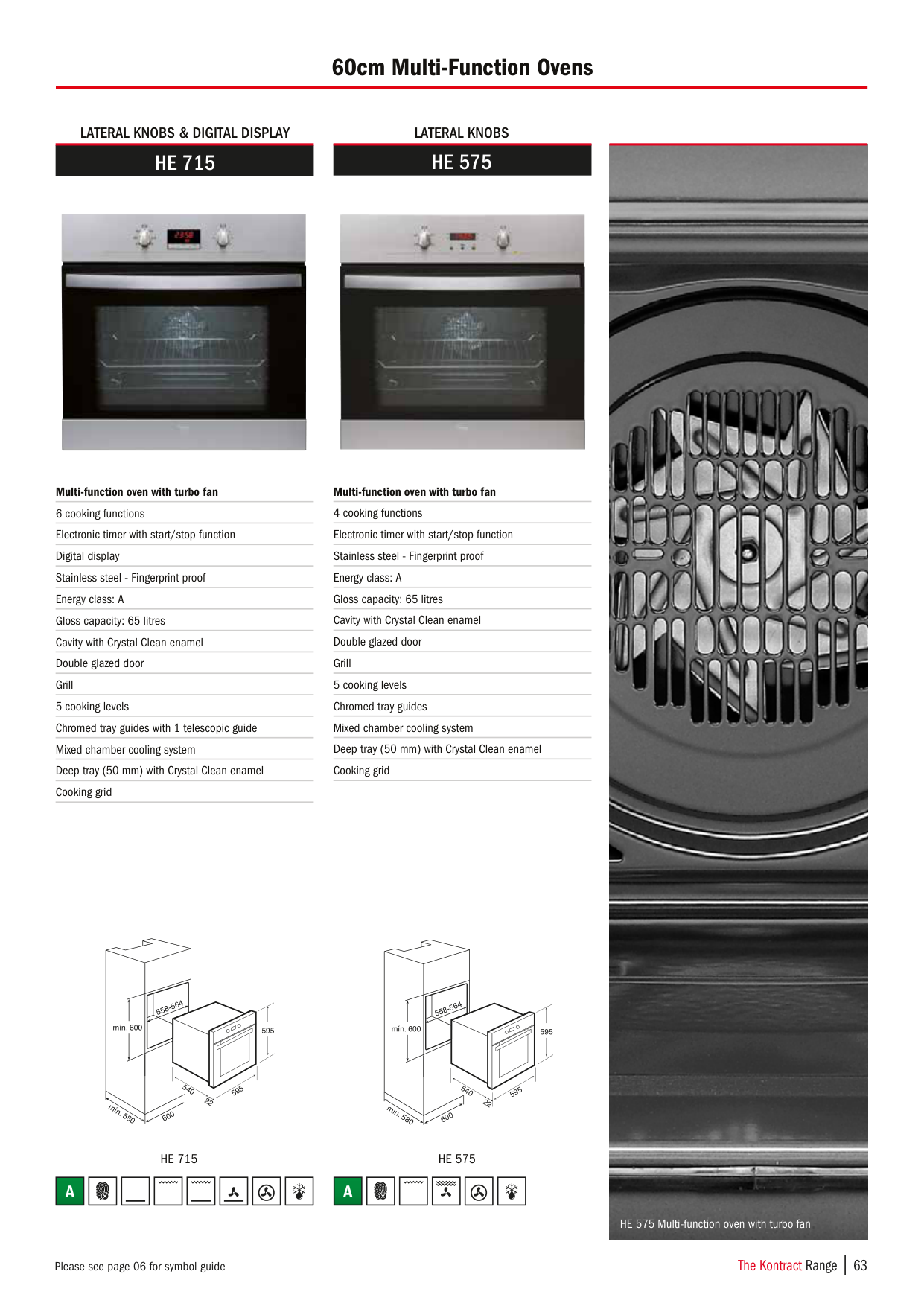

##### HE 575

##### HE 715



############### Multi-function oven with turbo fan

############### Multi-function oven with turbo fan

558-564

558-564

mín. 600

mín. 600

595

595

540

595 22

540

595 22

mín. 580

mín. 580

600

600

HE 715

HE 575

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| |

|---|

|A| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

HE 575 Multi-function oven with turbo fan

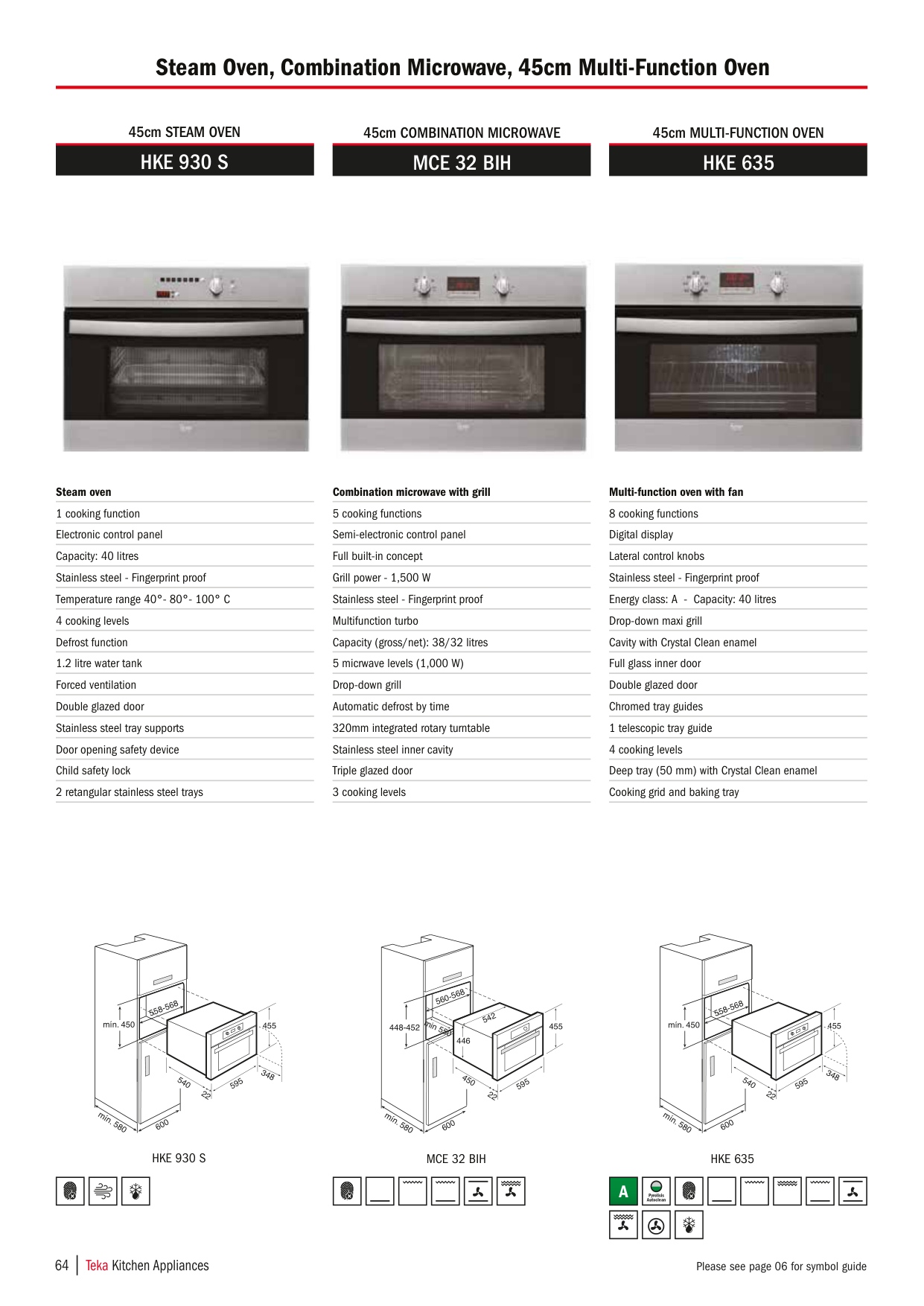

#### Steam Oven, Combination Microwave, 45cm Multi-Function Oven

45cm COMBINATION MICROWAVE45cm STEAM OVEN

##### MCE 32 BIHHKE 930 S

45cm MULTI-FUNCTION OVEN

##### HKE 635




############### Steam oven

4 cooking levels Defrost function 1.2 litre water tank Forced ventilation Double glazed door Stainless steel tray supports Door opening safety device Child safety lock

Combination microwave with grill 5 cooking functions Semi-electronic control panel Full built-in concept Grill power - 1,500 W Stainless steel - Fingerprint proof Multifunction turbo Capacity (gross/net): 38/32 litres 5 micrwave levels (1,000 W) Drop-down grill Automatic defrost by time 320mm integrated rotary turntable Stainless steel inner cavity Triple glazed door 3 cooking levels

Multi-function oven with fan 8 cooking functions Digital display Lateral control knobs Stainless steel - Fingerprint proof Energy class: A - Capacity: 40 litres Drop-down maxi grill Cavity with Crystal Clean enamel Full glass inner door Double glazed door Chromed tray guides 1 telescopic tray guide 4 cooking levels Deep tray (50 mm) with Crystal Clean enamel Cooking grid and baking tray

558-568

mín. 450

455

348

540

595 22

mín. 580

600

560-568

542

min 550

455

448-452

446

450

595 22

mín. 580

600

558-568

mín. 450

455

348

540

595 22

mín. 580

600

HKE 930 S MCE 32 BIH

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

HKE 635

|A| |---|

|Pyrolisis Autoclean| |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

| | |---|

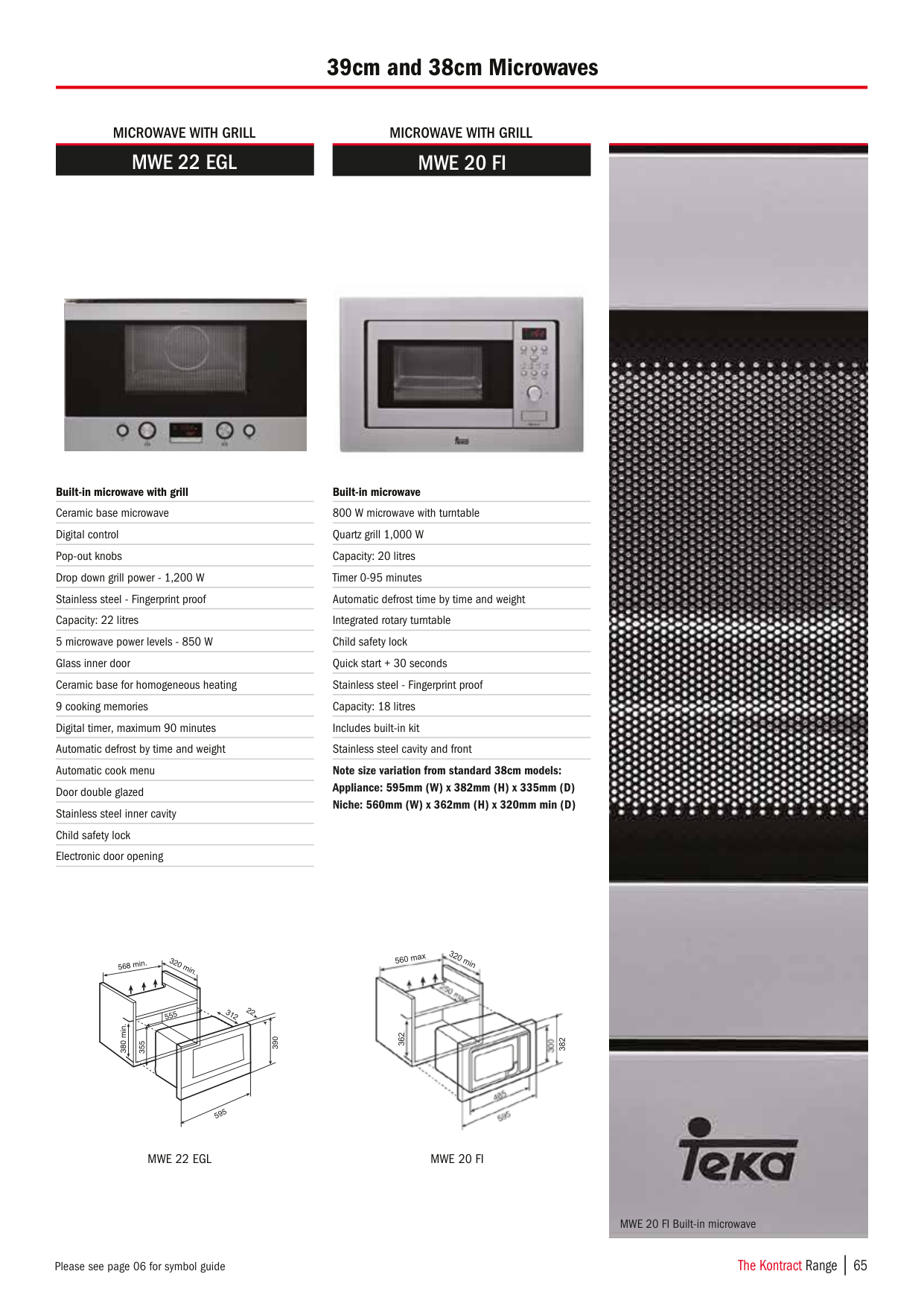

#### 39cm and 38cm Microwaves

MICROWAVE WITH GRILL

MICROWAVE WITH GRILL

MWE 22 EGL MWE 20 FI



Built-in microwave with grill Ceramic base microwave Digital control Pop-out knobs Drop down grill power - 1,200 W Stainless steel - Fingerprint proof Capacity: 22 litres

Built-in microwave 800 W microwave with turntable Quartz grill 1,000 W Capacity: 20 litres Timer 0-95 minutes Automatic defrost time by time and weight Integrated rotary turntable Child safety lock Quick start + 30 seconds Stainless steel - Fingerprint proof Capacity: 18 litres Includes built-in kit Stainless steel cavity and front

Note size variation from standard 38cm models: Appliance: 595mm (W) x 382mm (H) x 335mm (D) Niche: 560mm (W) x 362mm (H) x 320mm min (D)


320 min.

min.

568

22312

555

380 min.

362

390

355

595

############# MWE 22 EGL MWE 20 FI

MWE 20 FI Built-in microwave

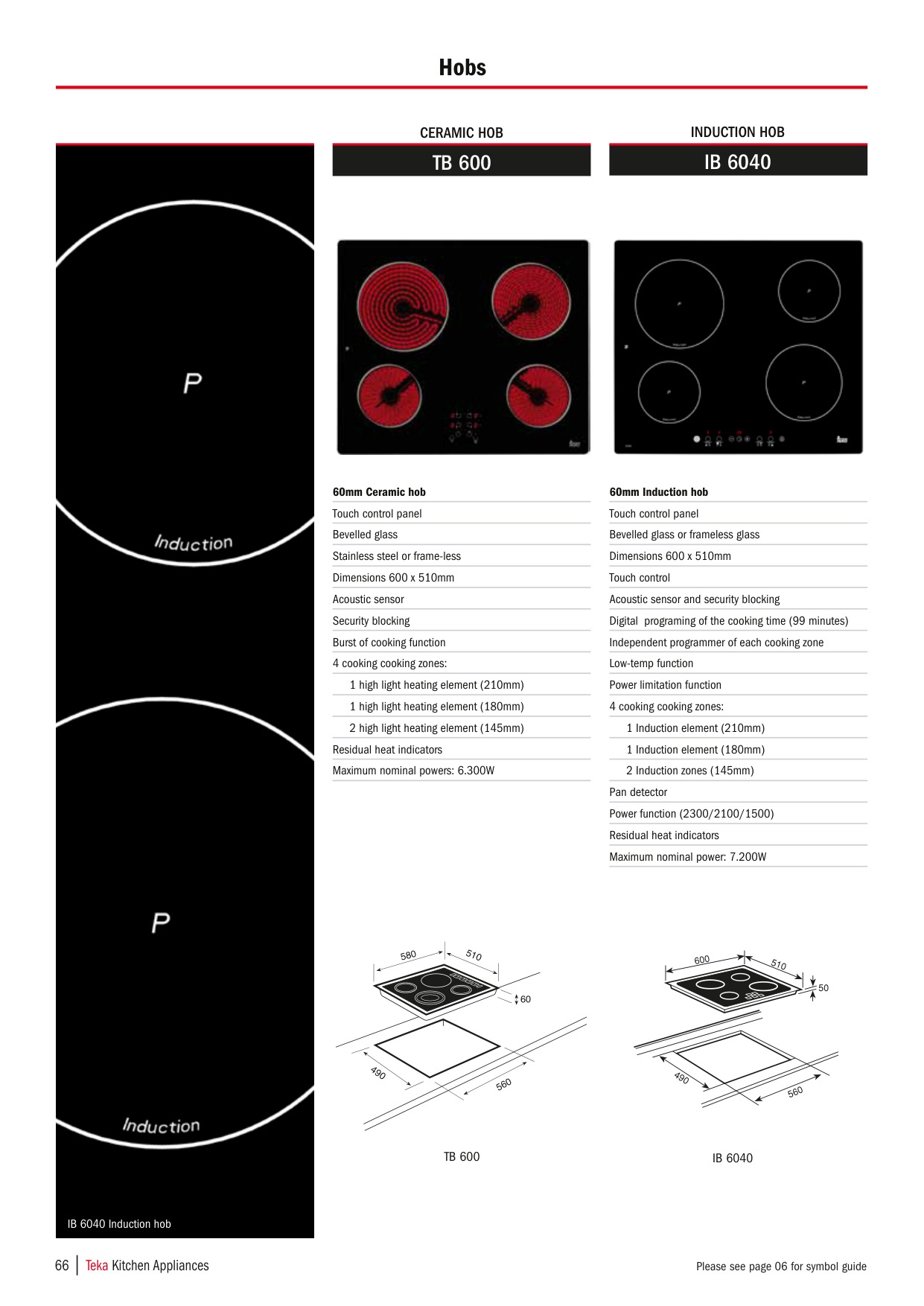

CERAMIC HOB


##### TB 600


60mm Ceramic hob Touch control panel Bevelled glass Stainless steel or frame-less Dimensions 600 x 510mm Acoustic sensor Security blocking Burst of cooking function 4 cooking cooking zones:

1 high light heating element (210mm)

Residual heat indicators Maximum nominal powers: 6.300W

510

580

60

490

560

TB 600

IB 6040 Induction hob

INDUCTION HOB

##### IB 6040


60mm Induction hob Touch control panel Bevelled glass or frameless glass Dimensions 600 x 510mm Touch control Acoustic sensor and security blocking Digital programing of the cooking time (99 minutes) Independent programmer of each cooking zone Low-temp function Power limitation function 4 cooking cooking zones:

1 Induction element (210mm)

Pan detector Power function (2300/2100/1500) Residual heat indicators Maximum nominal power: 7.200W

600

510

50

490

560

############# IB 6040

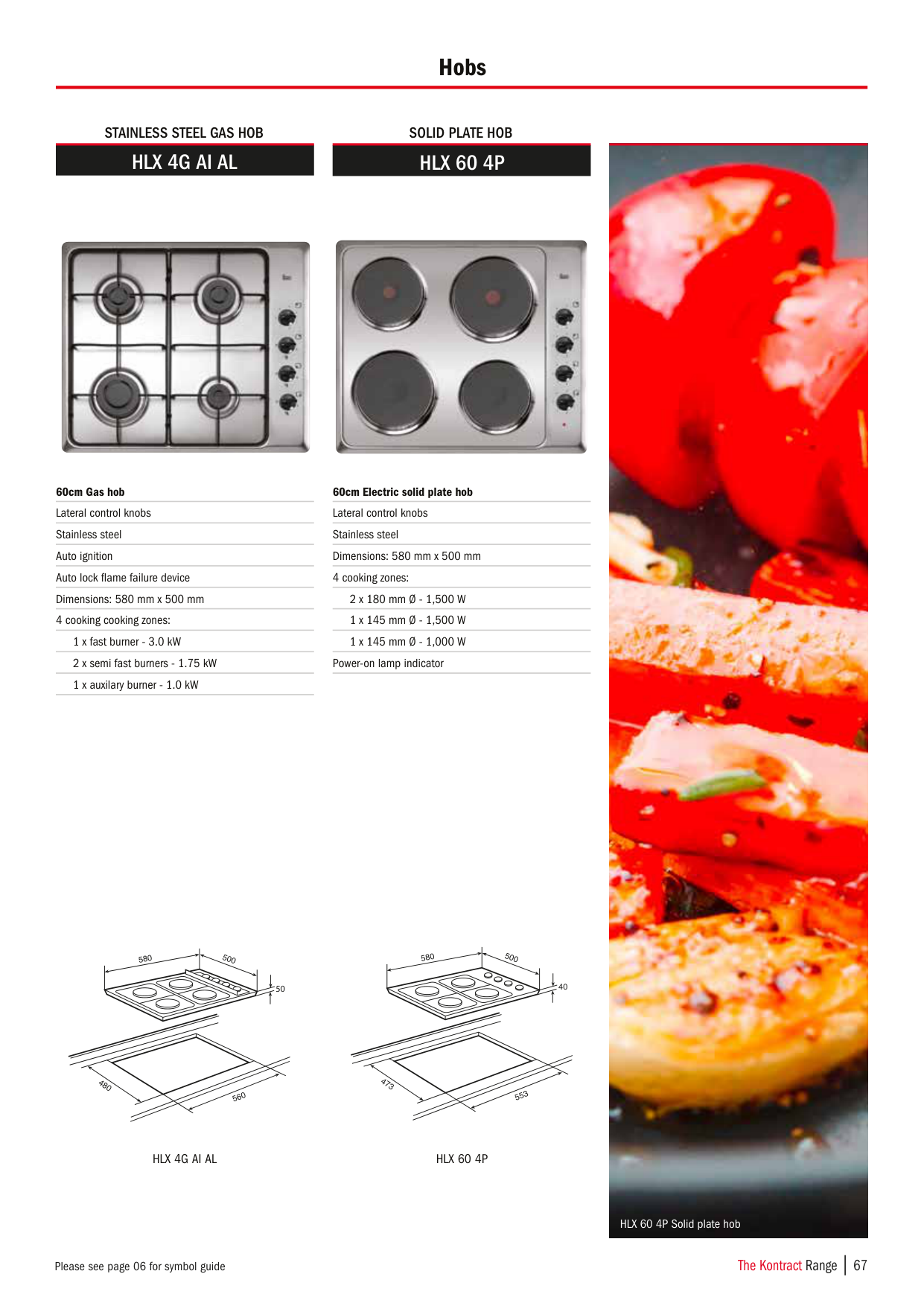

STAINLESS STEEL GAS HOB

########## SOLID PLATE HOB

##### HLX 4G AI AL HLX 60 4P



60cm Gas hob Lateral control knobs Stainless steel Auto ignition Auto lock flame failure device Dimensions: 580 mm x 500 mm

60cm Electric solid plate hob Lateral control knobs Stainless steel Dimensions: 580 mm x 500 mm 4 cooking zones:

2 x 180 mm Ø - 1,500 W 1 x 145 mm Ø - 1,500 W 1 x 145 mm Ø - 1,000 W

Power-on lamp indicator

500

580

50

480

560

500

580

40

473

553

############# HLX 4G AI AL HLX 60 4P


HLX 60 4P Solid plate hob

INTEGRATED HOODINTEGRATED HOOD

##### GFH 55NR1 89

TELESCOPIC HOOD

##### TL1 62




60cm Swing front integrated hood Slider control White in colour Double turnbine motor Extraction capabilities:

Test conditions - 530m3/h Free outlet - 318m3/h UNE-EN-61591 - 284m3/h

55cm Tradition integrated hood Push button control panel Stainless steel Double turbine motor Extractions capabilities:

Test conditions - 756 m3/h Free outlet - 540 m3/h UNE-EN-61591 - 297m3/h

3 speeds Integrated halogen lights Operating pilot light Integrated installation Metal grease filters Sound level (UNE-EN 60704-2-12) - 46bBA 550 mm wide

60cm Traditional telescopic hood Mechanical control panel Stainless steel Double turbine motor Extraction capabilities:

Test conditions - 756 m3/h Free outlet - 540 m3/h UNE-EN-61591 - 303m3/h

2 speeds Candle type lights Operating pilot light Removable front panel Metal grease filters Sound level (UNE-EN 60704-2-12) - 46bBA Automatic switch on/off 600 mm wide

600

125

77

2 motores

184 77

280

280

142

559

280/300/310

413

600

24

NR1 89 GFH 55 TL1 62

########## WALL MOUNTED CHIMNEY HOODS

##### DBB 60/70/90

WALL MOUNTED CHIMNEY HOODS

##### HX 760 EDGE 60/70/90

WALL MOUNTED CHIMNEY HOODS

##### DJE 60/70/90




Decorative chimney hood Available in 60cm, 70cm and 90cm Push button control panel Double turbine motor Extraction capabilities:

Test conditions - 700m3/h Free outlet - 475m3/h UNE-EN-61591 - 405m3/h

Recommended for kitchens up to 25m2

Optional recirculation kit including charcoal filter and air diverter

Glass wing decorative chimney hood Available in 60cm and 90cm Push button control panel Double turbine motor Extraction capabilities:

Test conditions - 700m3/h Free outlet - 475m3/h UNE-EN-61591 - 405m3/h

Recommended for kitchens up to 25m2 3 speeds Halogen lamps Stop delay timer Metal grease filters Sound level (UNE-EN 60704-2-13) - 44bBA Optional recirculation kit including charcoal filter and air diverter

Decorative chimney hood Available in 60cm, 70 cm and 90cm Push button control panel Double turbine motor Extraction capabilities:

Test conditions - 700m3/h Free outlet - 475m3/h UNE-EN-61591 - 405m3/h

Recommended for kitchens up to 27m2 3 speeds 2 x 20W halogen lamps Metal grease filters Sound level (UNE-EN 60704-2-13) - 53bBA Optional recirculation kit including charcoal filter and air diverter

175 235

70máx 800

mín 4

259

600/700/900

480

330

270

máx 946mín 6

16

600/700/900

51

500

270

330

máx 952

mín 622

62

600/700/900

480

############# DBB 60/70/90 DGE 60/70/90 DJE 60/70/90

BUILT-UNDER FREEZERBUILT-UNDER LARDER FRIDGE

TG12 120 DTK12 145 D

BUILT-UNDER FRIDGE WITH ICE BOX

##### TF12 130 D



Larder fridge Reversible door

############### Freezer

**** star freezer Reversible door 2 clear drawers 1 clear flap Freezing capacity - 10 kg/24 hours Gross capacity - 96 litres Net capacity - 87 litres Energy efficiency class A+


############### Fridge with ice box

**** star freezer Reversible door 2 glass shelves Freezing capacity - 2 kg/24 hours Net capacity - 123 litres Net fridge capacity - 105 litres Net ice Box capacity - 18 litres Energy efficiency class A+

|A| |---|

TK12 145 D TF12 130 DTG12 120 D

|A| |---|

|A| |---|


60/40 FRIDGE-FREEZER - SD

50/50 FRIDGE-FREEZER - SD

TKI 340 SD

HX 760 ETKI 350 SD



60/40 Combination fridge freezer Sliding door system Automatic defrost in refrigerator section Adjustable thermostat in refrigerator Cool flow fan in refrigerator section Indicator light for: On/off Indicator light for: Freezer temp and fast freeze Adjustable safety glass shelves Anti-bacterial system Reversible doors

50/50 Combination fridge freezer Sliding door system Automatic defrost in refrigerator section Adjustable thermostat in refrigerator Cool flow fan in refrigerator section Indicator light for: On/off Indicator light for: Freezer temp and fast freeze Adjustable safety glass shelves Anti-bacterial system Reversible doors 4 clear fronted freezer drawers Total capacity - 224 litres net Capacity - Fridge 155 litres - Freezer 69 litres Energy efficiency class A+

Picture above for illustration purposes only, this model now has clear drawer fronts and varies slightly on the fridge interior.

Picture above for illustration purposes only, this model now varies slightly on the fridge interior.



*Ventilation of at least 200cm2 in the plinth *Ventilation of at least 200cm2 in the plinth

TKI 340 SD TKI 350 SD

|A

+| |---|

|Frost Free| |---|

|0

3

| |---|

|+| |---|

|A

+| |---|

|Frost Free| |---|

|0

3

| |---|

|+| |---|

#### Dishwashing


DW1 455 F1 Fully integrated dishwasher

FULLY INTEGRATED DISHWASHERFULLY INTEGRATED DISHWASHER

##### DW1 455 FIDW1 605 FI



60cm integrated dishwasher 12 place settings Electronic control panel LED display 6 washing programmes 5 temperature settings 3 in 1 selector Water softener Hidden heating element 30 minute fast programme Eco programme Timer delay with 4 settings Back feet adjustable from the front Noise level 49dB Energy rated A+/A/A

45cm integrated dishwasher 9 place settings Electronic control panel LED display 9 washing programmes 4 temperature settings 3 in 1 selector Water softener Hidden heating element 30 minute fast programme 1-24 hour timer delay Economic programme Mechanical Aquastop System Back feet adjustable from the front Noise level 49dB Energy rated A/A/A


############# DW1 605 F1 DW1 455 F1

#### Laundry

FULLY INTEGRATED WASHER

LI2 1260


Integrated washing machine Colour white Electronic digital display 11 washing programmes Delay timer programming from 1-24 hours Extra rinse, rinse hold and intensive programmes Stainless steel drum Spinning speeds 400 to 1,200 rpm Indicator lights for: Extra rinse, intensive, remaining time, stop delay, spinning, selected temperature, start/pause 32cm wide crystal door Washing capacity - 6 kg Noise level (washing/spinning) 57/75dBA Water consumption - 108 litres/cycle Energy consumption - 166kWh/year Washing energy efficiency class A++ Spinning energy efficiency class B


############# LI2 1260

|A

+| |---|

| | |---|

|kg| |---|

| | |---|

FULLY INTEGRATED WASHER/DRYER

HX 760 ELS12 1260


Integrated washer/dryer Colour white Electronic digital display 8 washing programmes 2 drying programmes 15 minute fast wash programme Delay timer programming from 1-24 hours Extra rinse, rinse hold and intensive programmes Stainless steel drum Spinning speeds 400 to 1,200 rpm Indicator lights for: Extra rinse, intensive, remaining time, stop delay, spinning, selected temperature, start/pause 32cm wide crystal door Washing capacity - 6 kg / Drying capacity - 3 kg Noise level (washing/spinning/drying) 57/75/57dBA Water consumption - 108 litres/cycle Energy consumption - 4.84kWh/year Energy efficiency class B/A/B


############# LS12 1260

|A| |---|

| | |---|

|6kg| |---|

| | |---|


LS12 1260 Fully integrated washer/dryer

#### Ovens - Technical Specifications and Features

############ Model

Page Overall measurements (mm) Height/Width/Depth Inner measurements (mm) Height/Width/Depth Capacity litres (Gross) Electrical connection Voltage 220-240 V (*) Frequency 50/60 Hz (*) Maximum connection rating (W) Power consumption Bottom heat (W) Grill/Maxi Grill (W) Traditional (W) Turbo (W) Multifunction motor (W) Turnspit motor (W) Interior light (W) Cooling fan motor (W) Features Cooking functions Touch control digital programmer Digital timer with start/stop programmer Analogue timer with start/stop programmer Analogue timer with stop programmer Mechanical timer with stop programmer Pop-up control knobs Express preheating Cooking levels Telescopic tray guides Chromed tray guides Mix Chamber System Fume scape outlet Drop-down grill Safety systems Door opening security disconnection Children safety block Anti-tip tray system Safety thermostat Glazed door Cleaning system Self-cleaning panels Crystal clean enamel Pyrolitic cleaning Fingerprint proof stainless steel Accessories Baking tray Deep tray (50 mm) Roasting tray Chromed cooking grid Turnspit Tray handle Energy efficiency Energy label




############ HE 735

############ HPE 735 HE 715

62

63

62

595/595/562

595/595/562

595/595/562

319/413/397 56

319/413/397 56

319/413/397 56

• • 2693

• • 2693

• • 3460

1150 1500/2600 2250 2000 30 25 18

1150 1400 2550 2000 30 25 18

1150 1500/2600 2250 2000 30 25 18

9 • • 5 1 • • Vault •

6 • 5 1 • • Vault -

9 • • 5 1 • • Vault -

1 1 1 -

1 1 1 -

A

A

A




############ HE 575

############ HKE 930 S

############ HKE 635

63

64

64

595/595/562

455/595/472

595/455/472

319/413/397 56

210/420/390 35

420/210/390 35

230 • 2693

• •/1500

• • 2673

• -

15 25

1050 1100/2600 2150 2000 30 25 18

1 • 4 S/steel Vault -

8 • • 3 1 • • Vault -

2 (S/steel) -

1 1 1 -

A

#### Microwaves and Hobs - Technical Specifications and Features




############ Model

MCE 32 BIH

############ MWE 20 FI 65

############ MWE 22 EGL

64

65

Page Overall measurements (mm) Height/Width/Depth Inner measurements (mm) Height/Width/Depth Net capacity litres Electrical connection Power supply 220-240 V (*) Frequency 50 Hz (*) Mwo power (W) Grill power (W) Max. nominal power (W) Features Installation system Stainless steel inner cavity Microwave plus grill Touch control panel Electronic control panel Electromechanical control panel Integrated rotary turntable Ceramic base 30 seconds quick start 1 minute quick start Power levels Defrosting by time Defrosting by weight Frame Cooking functions Cooking memories Auto cook functions Fingerprint proof stainless steel Minute minder (minutes) Safety systems Children safety block Integrated quartz grill Drop-down grill Security thermostat Forced air ventilation Accesories Grid Glass tray Browning plate

455/595/542

390/595/334

382/595/335

210/420/390 32

220/350/280 22

218/295/315 20

• • 1000 1500 3400

• • 850 1200 1200

• • 800 1000 1200

Built-in • • • 32 cm -

Built-in • • • • • 5 • • 3 • 90

Built-in • • • 24 cm 5 • Included 3/1 • 60

• -

• • •

•

1 -

1 -

1 -


############ Model

############ TB 600

66

Page Overall measurements (mm) Width / Depth / Hight Measurements of base unit Width / Depth / Hight Electrical connection Power supply V (*) Frequency Hz (*) Max. nominal power (W) Wire length (cm) Heating elements Triple circuit heating element ø 145, 210, 270/1,0, 1,9, 2,7 kW Triple circuit heating element ø 120, 180, 210/0,8, 1,6, 2,3 kW Double circuit heating element ø 210/270, 1,8/2,7 kW Double circuit heating element ø 210/270, 1,5/2,4 kW Double circuit heating element ø 180/210, 1,4/2 kW Double circuit heating element ø 120/210, 0,7/2,1 kW Double circuit heating element ø 120/200, 0,7/2,1 kW Double circuit heating element ø 120/180, 0,7/1,7 kW Double circuit heating element ø 140/200, 1,8 kW High light ø 210, 2,1 kW High light ø 180, 1,8 kW High light ø 160, 1,5 kW High light ø 145, 1,2 kW High light ø 100, 1,2 kW Extensible heating element ø 175 x 265 mm Extensible heating element ø 140 x 240 mm, 2 kW Vital zone ø 210 x 170, 1,5/2,4 kW Power high light ø 210, 2,3-3,2 kW Multizone 200 x 320, 2,4 kW Oval zone ø 145 x 180 mm Warming zone Features Touch control panel Cooking programmer Chronometer function Burst of cooking function Stop and Go function Low temp function Safety systems Residual heat indicator Safety control lock Automatic safety disconnection Finishing Round corners Squared corners Stainless steel frame Bevelled glass Frameless

600/510/63

560/490

220/240 50/60 6300 100

1

• •

#### Hobs - Technical Specifications and Features

############ Model

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit: Width/Depth Electric connection Maximum nominal power (W) Connection power 230 V (*) Frequence Hz (**) Heating elements Induction heating element, ø 145 mm, 1,2/1,5 kW Induction heating element, ø 145 mm, 1,4/1,8 kW Induction heating element, ø 145 mm, 1,1/1,8 kW Induction heating element, ø 160 mm, 1,4/2,0 kW Induction heating element, ø 160 mm, 1,8 kW Induction heating element, ø 180 mm, 2,8 kW



############ Model

############ IB 6040

############ HLX 4G AI AL 66

67

Page Overall measurements (mm) Height/Width/Depth Measurements of base unit Width/Depth Electrical connection Power supply V Frequence Hz Maximum nominal power (W) Gas Maximum power ( kW) Gas types: butane, propane, natural Heating elements Triple ring burner 4.1 kW Triple ring burner 3.8 kW Triple ring burner 3.5 kW Triple ring burner 3.35 kW Triple ring burner 3.1 kW Fish burner 2.8 kW Fast burner 3 kW Fast burner 2.8 kW Fast burner 2.6 kW Fast burner 2.3 kW Semi-fast burner 1.75 kW Semi-fast burner 1.7 kW Semi-fast burner 1.3 kW Auxiliary burner 1 kW Electric solid plate Ø 145 mm, 700 W Electric solid plate ø 145 mm, 1,000 W Electric solid plate ø 145 mm, 1,500 W Electric solid plate ø 180 mm, 1,500 W Heating element ø 180, 1,8 kW Heating element ø 145, 1,2 kW Features Squared corners Round corners Auto ignition Autolock safety device Power-on lamp indicator Accessories Enamelled grids for cooking over burners Cast iron grids for cooking over burners Individual grids Grid accessory Supplementary small recipient

600/500/45

600/510/50

582/492

560/490

220/240 50

7200 • 50/60

7,5 •

2 1 1 -

1 -

• • • •

• • •

•


############ HLX 60 4P

67

580/500/40

553/473

230 50/60 5500

• •

############ Model

Page Electric Characteristics Power supply (V) 220-240 / 50 Hz Power supply (V) 127 / 60 Hz Light power (W) Motor power (W) Maximum power (W) Air outlet (ø mm) Reduction outlet (ø 150 / ø 120) Optional recirculation kit Capacity and sound levels Exhaust capacity, test conditions (m3/h) Exhaust capacity, free outlet (m3/h) Exhaust capacity, UNE EN 61591 (m3/h) Sound power level dBA UNE EN 60704-2-13 Sound level (re 1pw UNE EN 60704-2-13) dB Maximum recommended kitchen size (m2) Control panel Touch control Electronic Push button Mechanical slider Mechanical inswing Features Number of motors Double turbine motor Armoured motor Number of speeds Stop delay timer Easy-clean inside panel Decorative filters Metal filters Operating pilot light Filter saturation indicator Humidity detector Perimetric extraction system Remote control







DGE 90/70/60

DBB 90/70/60 68

DJE 90/70/60

NR1 89

TL1 62GFH 55

68

68

69

69

69

• 2 x 40 160 200 120 •

• 2 x 40 125 300 120 •

• 2 x 40 160 240 120 •

• 2 x 40 115 195 150 • •

• 2 x 20 115 155 150 • •

• 2 x 20 115 155 150 • •

756 540 297 60 46 10

530 318 284 68 50 10

756 540 297 60 46 10

700 475 405 65 54 25

700 475 405 65 54 25

700 475 437 65 54 25

•

•

• -

• -

• -

• -

1 • 3 • -

1 • 3 • -

1 • • 3 • • -

1 • • 3 • • -

1 • • 3 • • -

#### Refrigeration - Technical Specifications and Features






############ Model

Page Overall measurements (mm) Height Width Depth Measurement of the door (mm)

Upper door (Height/Width) Lower door (Height/Width) Capacity litres

Total gross capacity (litres) Fridge net capacity (litres) Freezer net capacity (litres) Electrical connection Voltage (V) Power rate (W) Power rate of the defrosting element (W) Number of compressors Freezing capacity (Kg/24 h) Freezer autonomy (conservation from failure) Energy consumption day/year (Kwh) Technical characteristics Freezer classification (star rating) Automatic defrost in the fridge No-Frost (freezer-fridge) Coolflow Sound level (dBA) Features Electronic control Fingerprint proof stainless steel door Antibacterial treatment Fast freezing button Conservation zone Fast freezing zone Fuzzy Logic function VAC function Adjustable thermostat Inner light Adjustable door shelves Reversible doors Control indicators Operating light fridge / freezer Fridge / freezer temperature display Fast freezing indicator Visual / audible alarm Accessories Safety glass trays Ice cube tray Chromed bottle holder Medicine compartment Temp. and humidity regulation in drawers Energy label Energy efficiency Climate clas

############ TGI2 120 D

############ TKI2 145 D TFI2 130 D TKI 350 SD

############ TKI 340 SD

70

70

70

71

71

820-870 598 545

230 60 1 0,323/118

• -

A+ SN-T

820-870 598 545

230 60 1 10 19 0,502/183

4 -/39

• •

• -

820-870 598 545

230 105 1 2 10 0,477/174

4 • -/39

• -

A+ SN

1770 540 535

1.149 x 600 643 x 600

283 189 55

230 100 1 4 20 0,8/292

4 • -/38

• • -

A+ ST

1770 540 535

890 x 600 810 x 600

242 155 69

230 90 1 4 14 0,739/269

4 • -/38

• • -

A+ ST

#### Laundry - Technical Specifications and Features

############ Model

Page Overall measurements (mm) Height Width Depth Measurement of the door (mm) Integrated door height Integrated door width Adjustable plinth Electrical connection Power supply (V) Max. Nominal power (kW) Technical characteristics Capacity (place settings) Number of washing programmes Washing temperatures (°C) Energy consumption (Kwh/cycle) Water consumption (litres) Noise level (dBA) Features Electronic control Half-load programme Eco programme 50 min intensive programme Delayed programme 3 in 1 selector Aqua-logic Third sprayer Hidden element Water softener Safety system Total AQUASTOP External AQUASTOP Inner AQUASTOP Safety draining Overflow prevention Air break for come in / out Internal leak prevention Control pilot lights Operating pilot light Salt / rinse aid level indicator Selected programme Acoustic / visual alarm Extra features Adjustable upper basket Grey baskets Special half load cutlery rack Foldable racks Balanced door Stainless steel tub Energy label Energy efficiency Washing efficiency Drying efficiency


############ DW1 605 FI

72

820/870 595 550

680/710 595 48

220/240 1,9

12 6 5 0,99 11 49

• • 1-24h • • •

• -

• • •

•

•

• • • • •

A++ A A



############ Model

############ DW1 455 FI

############ LI2 1260 72

73

Page Outside measurements (mm) Height Width Depth Measurement of the door (mm) Integrated door (Height/Width) Electrical connection Power supply (V) Max. Nominal power (kW) Power of heating element (kW) Power of drying resistance (W) Technical characteristics Maximun spin speed (r.p.m.) Washing capacity (kg) Drying capacity (kg) Stainless steel drum Energy consumption (Kwh/cycle) Water consumption (litres) Features Electronic control Fuzzy Logic function Number of programmes Delayed door opening Automatic water regulation Spinning exclusion 30 cm wide crystal door Reversible door Condenser dryer Stainless steel door Control pilot lights On/Off light Extra rinse button Remaining time Delayed programme (hours) Dryer Full deposit Dryer timer (minutes) Special functions Fast programme Delicate fabrics Resistant fabrics Delicate spin Easy ironing/ Rinse hold Extra rinse button Energy label Energy efficiency Washing efficiency Spinning efficiency

820/870 445 540

825 595 535

680/705 445 50

650/596

220/240 2 1,8 -

220/240 2,1

0,8

1200 6 • 0.81 108

• • 1-24h • • •

•

• • •

• • • -/• •

•

•

• • • •

A++ A C

A++ A A


############ LSI2 1260

73

825 595 535

650/596

220/240 2,0 1,8 1,0

1200 6 3 • 0.931/4.84 108

B A B
