|www.Source1Parts.com|P3HU - UPFLOW/HORIZONTAL NATURAL GAS FURNACES - (80%)
(STYLES A & B, INCLUDING LOW NOX)|P3HU - UPFLOW/HORIZONTAL NATURAL GAS FURNACES - (80%)
(STYLES A & B, INCLUDING LOW NOX)| |---|---|---| |HVAC SERVICE PARTS|Supersedes: 035-14231-000 Rev. A (0603)|035-14231-000 Rev. B (1203)|
1 of 12
2838
41
3729
2
8 23 12
11
39
4
25
7 35
10
9
22
24
17 19
21 13 1
32
16 15
27 3
30 26

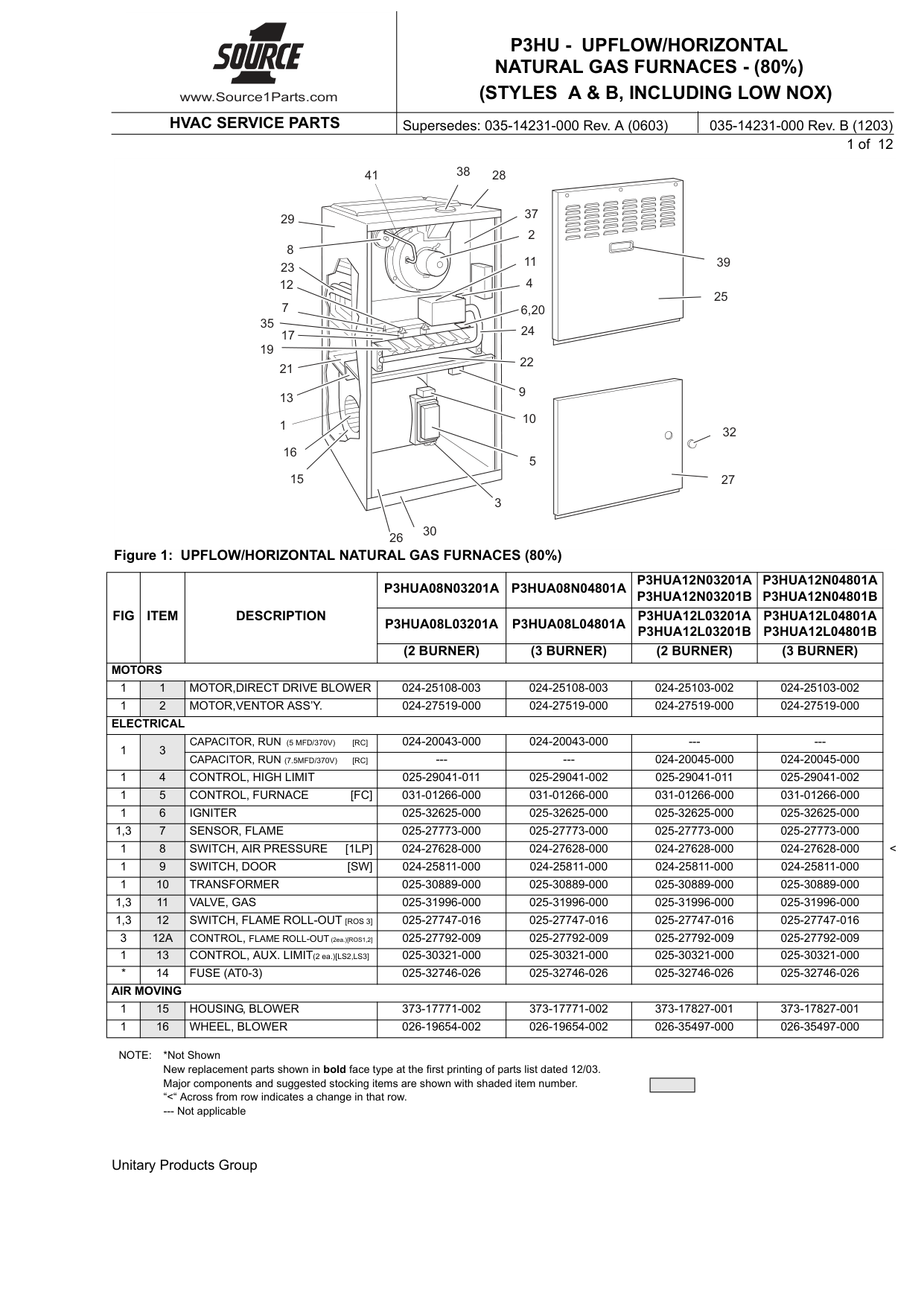

##### Figure 1: UPFLOW/HORIZONTAL NATURAL GAS FURNACES (80%)
|FIG|ITEM|DESCRIPTION|P3HUA08N03201A|P3HUA08N04801A|P3HUA12N03201A
P3HUA12N03201B
|P3HUA12N04801A
P3HUA12N04801B
| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUA08L03201A|P3HUA08L04801A|P3HUA12L03201A
P3HUA12L03201B
|P3HUA12L04801A
P3HUA12L04801B
| |FIG|ITEM|DESCRIPTION|(2 BURNER)|(3 BURNER)|(2 BURNER)|(3 BURNER)| |MOTORS|MOTORS|MOTORS|MOTORS|MOTORS|MOTORS|MOTORS| |1|1|MOTOR,DIRECT DRIVE BLOWER|024-25108-003|024-25108-003|024-25103-002|024-25103-002| |1|2|MOTOR,VENTOR ASS’Y.|024-27519-000|024-27519-000|024-27519-000|024-27519-000| |ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL| |1|3|CAPACITOR, RUN (5 MFD/370V) [RC]|024-20043-000|024-20043-000|---|---| |1|3|CAPACITOR, RUN (7.5MFD/370V) [RC]|---|---|024-20045-000|024-20045-000| |1|4|CONTROL, HIGH LIMIT|025-29041-011|025-29041-002|025-29041-011|025-29041-002| |1|5|CONTROL, FURNACE [FC]|031-01266-000|031-01266-000|031-01266-000|031-01266-000| |1|6|IGNITER|025-32625-000|025-32625-000|025-32625-000|025-32625-000| |1,3|7|SENSOR, FLAME|025-27773-000|025-27773-000|025-27773-000|025-27773-000| |1|8|SWITCH, AIR PRESSURE [1LP]|024-27628-000|024-27628-000|024-27628-000|024-27628-000| |1|9|SWITCH, DOOR [SW]|024-25811-000|024-25811-000|024-25811-000|024-25811-000| |1|10|TRANSFORMER|025-30889-000|025-30889-000|025-30889-000|025-30889-000| |1,3|11|VALVE, GAS|025-31996-000|025-31996-000|025-31996-000|025-31996-000| |1,3|12|SWITCH, FLAME ROLL-OUT [ROS 3]|025-27747-016|025-27747-016|025-27747-016|025-27747-016| |3|12A|CONTROL, FLAME ROLL-OUT(2ea.)[ROS1,2]|025-27792-009|025-27792-009|025-27792-009|025-27792-009| |1|13|CONTROL, AUX. LIMIT(2 ea.)[LS2,LS3]|025-30321-000|025-30321-000|025-30321-000|025-30321-000| |*|14|FUSE (AT0-3)|025-32746-026|025-32746-026|025-32746-026|025-32746-026| |AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING| |1|15|HOUSING, BLOWER|373-17771-002|373-17771-002|373-17827-001|373-17827-001| |1|16|WHEEL, BLOWER|026-19654-002|026-19654-002|026-35497-000|026-35497-000|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not applicable
| | |---|
2838
41
3729
2
8 23 12
11
39
4
25
7 35
10
9
22
24
17 19
21 13 1
32
16 15
27 3
30 26

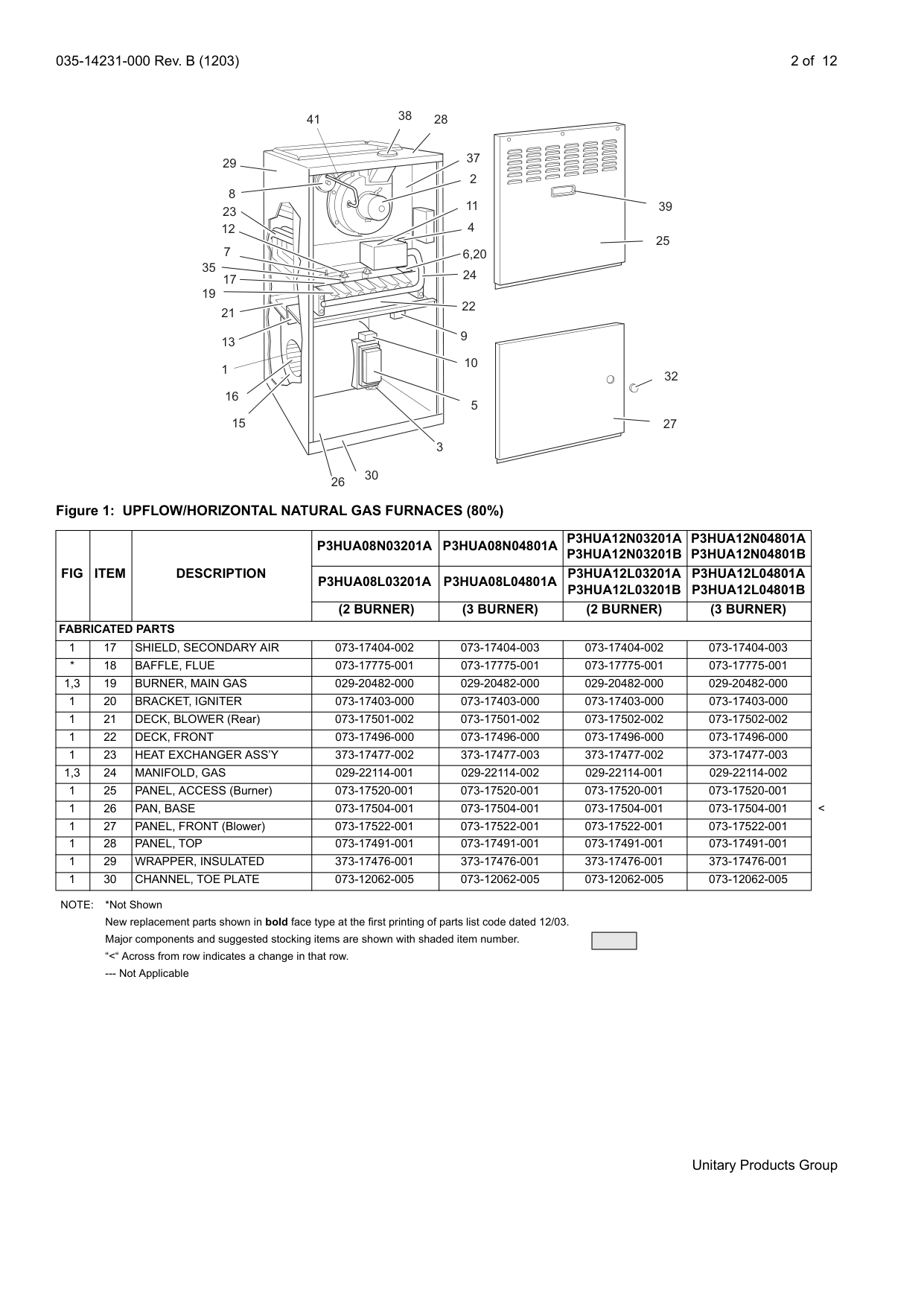

##### Figure 1: UPFLOW/HORIZONTAL NATURAL GAS FURNACES (80%)
|FIG|ITEM|DESCRIPTION|P3HUA08N03201A|P3HUA08N04801A|P3HUA12N03201A
P3HUA12N03201B
|P3HUA12N04801A
P3HUA12N04801B
| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUA08L03201A|P3HUA08L04801A|P3HUA12L03201A
P3HUA12L03201B
|P3HUA12L04801A
P3HUA12L04801B
| |FIG|ITEM|DESCRIPTION|(2 BURNER)|(3 BURNER)|(2 BURNER)|(3 BURNER)| |FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS| |1|17|SHIELD, SECONDARY AIR|073-17404-002|073-17404-003|073-17404-002|073-17404-003| |*|18|BAFFLE, FLUE|073-17775-001|073-17775-001|073-17775-001|073-17775-001| |1,3|19|BURNER, MAIN GAS|029-20482-000|029-20482-000|029-20482-000|029-20482-000| |1|20|BRACKET, IGNITER|073-17403-000|073-17403-000|073-17403-000|073-17403-000| |1|21|DECK, BLOWER (Rear)|073-17501-002|073-17501-002|073-17502-002|073-17502-002| |1|22|DECK, FRONT|073-17496-000|073-17496-000|073-17496-000|073-17496-000| |1|23|HEAT EXCHANGER ASS’Y|373-17477-002|373-17477-003|373-17477-002|373-17477-003| |1,3|24|MANIFOLD, GAS|029-22114-001|029-22114-002|029-22114-001|029-22114-002| |1|25|PANEL, ACCESS (Burner)|073-17520-001|073-17520-001|073-17520-001|073-17520-001| |1|26|PAN, BASE|073-17504-001|073-17504-001|073-17504-001|073-17504-001| |1|27|PANEL, FRONT (Blower)|073-17522-001|073-17522-001|073-17522-001|073-17522-001| |1|28|PANEL, TOP|073-17491-001|073-17491-001|073-17491-001|073-17491-001| |1|29|WRAPPER, INSULATED|373-17476-001|373-17476-001|373-17476-001|373-17476-001| |1|30|CHANNEL, TOE PLATE|073-12062-005|073-12062-005|073-12062-005|073-12062-005|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list code dated 12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|
| | |---| | | | |
12A
#### 11
1219
3524
| | | |---|---| | | | | | |
7
36

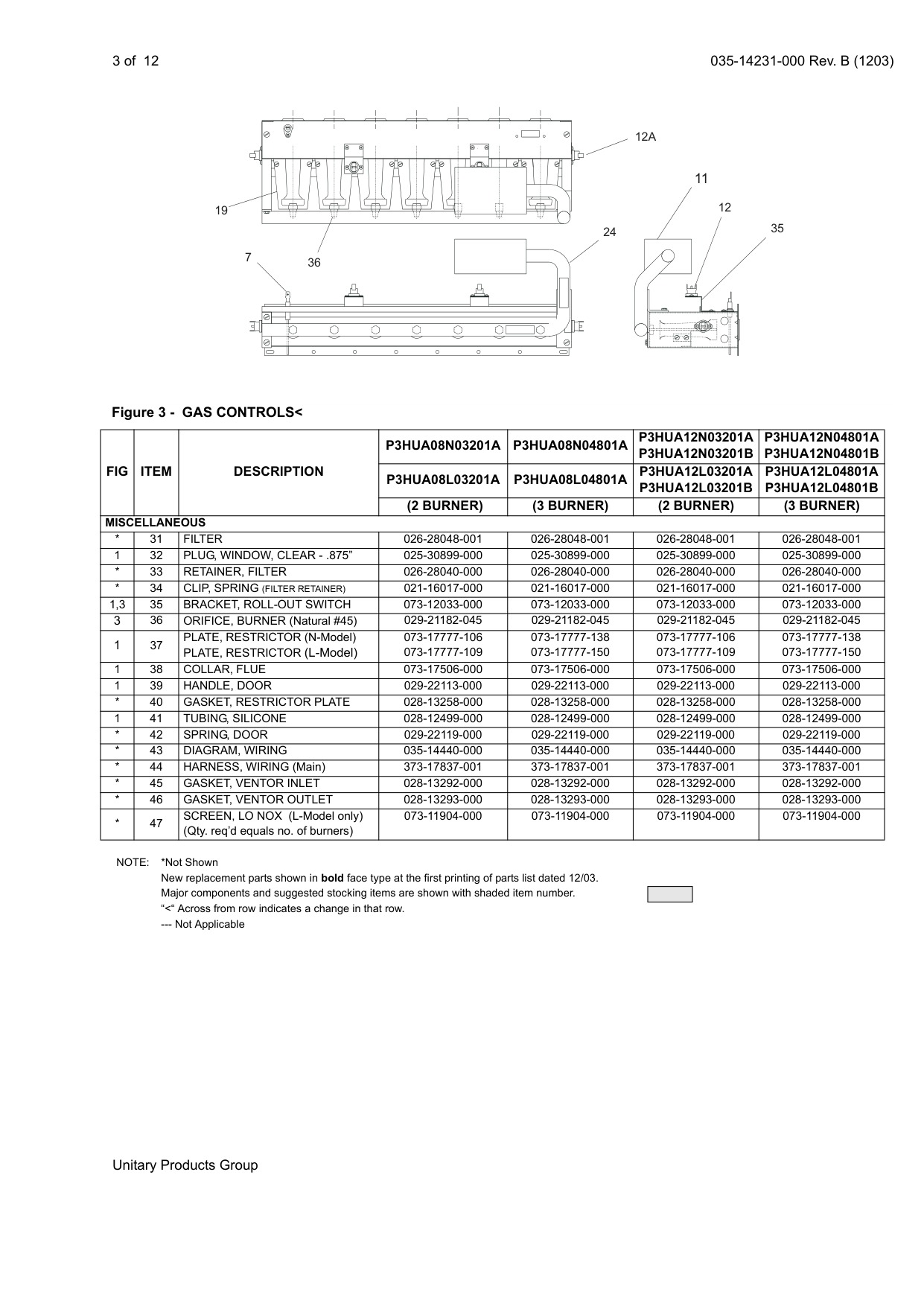

##### Figure 3 - GAS CONTROLS<
|FIG|ITEM|DESCRIPTION|P3HUA08N03201A|P3HUA08N04801A|P3HUA12N03201A
P3HUA12N03201B
|P3HUA12N04801A
P3HUA12N04801B
| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUA08L03201A|P3HUA08L04801A|P3HUA12L03201A
P3HUA12L03201B
|P3HUA12L04801A
P3HUA12L04801B
| |FIG|ITEM|DESCRIPTION|(2 BURNER)|(3 BURNER)|(2 BURNER)|(3 BURNER)| |MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS| |*|31|FILTER|026-28048-001|026-28048-001|026-28048-001|026-28048-001| |1|32|PLUG, WINDOW, CLEAR - .875”|025-30899-000|025-30899-000|025-30899-000|025-30899-000| |*|33|RETAINER, FILTER|026-28040-000|026-28040-000|026-28040-000|026-28040-000| |*|34|CLIP, SPRING (FILTER RETAINER)|021-16017-000|021-16017-000|021-16017-000|021-16017-000| |1,3|35|BRACKET, ROLL-OUT SWITCH|073-12033-000|073-12033-000|073-12033-000|073-12033-000| |3|36|ORIFICE, BURNER (Natural #45)|029-21182-045|029-21182-045|029-21182-045|029-21182-045| |1|37|PLATE, RESTRICTOR (N-Model) PLATE, RESTRICTOR (L-Model)|073-17777-106 073-17777-109|073-17777-138 073-17777-150|073-17777-106 073-17777-109|073-17777-138 073-17777-150| |1|38|COLLAR, FLUE|073-17506-000|073-17506-000|073-17506-000|073-17506-000| |1|39|HANDLE, DOOR|029-22113-000|029-22113-000|029-22113-000|029-22113-000| |*|40|GASKET, RESTRICTOR PLATE|028-13258-000|028-13258-000|028-13258-000|028-13258-000| |1|41|TUBING, SILICONE|028-12499-000|028-12499-000|028-12499-000|028-12499-000| |*|42|SPRING, DOOR|029-22119-000|029-22119-000|029-22119-000|029-22119-000| |*|43|DIAGRAM, WIRING|035-14440-000|035-14440-000|035-14440-000|035-14440-000| |*|44|HARNESS, WIRING (Main)|373-17837-001|373-17837-001|373-17837-001|373-17837-001| |*|45|GASKET, VENTOR INLET|028-13292-000|028-13292-000|028-13292-000|028-13292-000| |*|46|GASKET, VENTOR OUTLET|028-13293-000|028-13293-000|028-13293-000|028-13293-000| |*|4|7 SCREEN, LO NOX (L-Model only) (Qty. req’d equals no. of burners)|073-11904-000|073-11904-000|073-11904-000|073-11904-000|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|
2838
41
3729
2
8 23 12
11
4
7 35
17 19
21 13 1
6,20
24
22
9
10
39
25
32
16 15
5
27 3
30 26

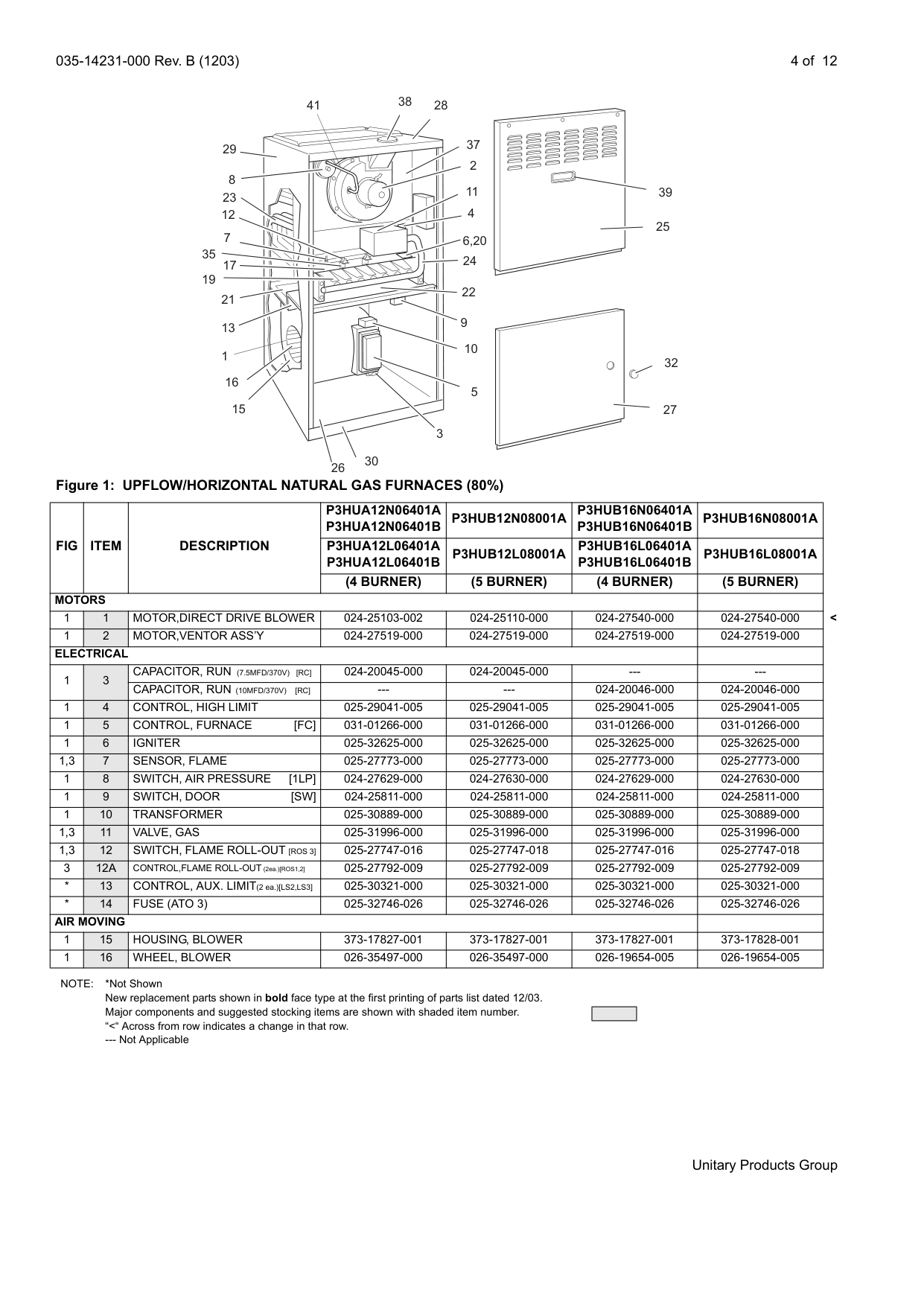

##### Figure 1: UPFLOW/HORIZONTAL NATURAL GAS FURNACES (80%)
|FIG|ITEM|DESCRIPTION|P3HUA12N06401A
P3HUA12N06401B
|P3HUB12N08001A|P3HUB16N06401A
P3HUB16N06401B
|P3HUB16N08001A| |---|---|---|---|---|---|---|
|FIG|ITEM|DESCRIPTION|P3HUA12L06401A
P3HUA12L06401B
|P3HUB12L08001A|P3HUB16L06401A
P3HUB16L06401B
|P3HUB16L08001A| |FIG|ITEM|DESCRIPTION|(4 BURNER)|(5 BURNER)|(4 BURNER)|(5 BURNER)| |MOTORS|MOTORS|MOTORS|MOTORS|MOTORS|MOTORS| | |1|1|MOTOR,DIRECT DRIVE BLOWER|024-25103-002|024-25110-000|024-27540-000|024-27540-000| |1|2|MOTOR,VENTOR ASS’Y|024-27519-000|024-27519-000|024-27519-000|024-27519-000| |ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL| | |1|3|CAPACITOR, RUN (7.5MFD/370V) [RC]|024-20045-000|024-20045-000|---|---| |1|3|CAPACITOR, RUN (10MFD/370V) [RC]|---|---|024-20046-000|024-20046-000| |1|4|CONTROL, HIGH LIMIT|025-29041-005|025-29041-005|025-29041-005|025-29041-005| |1|5|CONTROL, FURNACE [FC]|031-01266-000|031-01266-000|031-01266-000|031-01266-000| |1|6|IGNITER|025-32625-000|025-32625-000|025-32625-000|025-32625-000| |1,3|7|SENSOR, FLAME|025-27773-000|025-27773-000|025-27773-000|025-27773-000| |1|8|SWITCH, AIR PRESSURE [1LP]|024-27629-000|024-27630-000|024-27629-000|024-27630-000| |1|9|SWITCH, DOOR [SW]|024-25811-000|024-25811-000|024-25811-000|024-25811-000| |1|10|TRANSFORMER|025-30889-000|025-30889-000|025-30889-000|025-30889-000| |1,3|11|VALVE, GAS|025-31996-000|025-31996-000|025-31996-000|025-31996-000| |1,3|12|SWITCH, FLAME ROLL-OUT [ROS 3]|025-27747-016|025-27747-018|025-27747-016|025-27747-018| |3|12A|CONTROL,FLAME ROLL-OUT (2ea.)[ROS1,2]|025-27792-009|025-27792-009|025-27792-009|025-27792-009| |*|13|CONTROL, AUX. LIMIT(2 ea.)[LS2,LS3]|025-30321-000|025-30321-000|025-30321-000|025-30321-000| |*|14|FUSE (ATO 3)|025-32746-026|025-32746-026|025-32746-026|025-32746-026| |AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING| | |1|15|HOUSING, BLOWER|373-17827-001|373-17827-001|373-17827-001|373-17828-001| |1|16|WHEEL, BLOWER|026-35497-000|026-35497-000|026-19654-005|026-19654-005|
####### <
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|
26
3 30

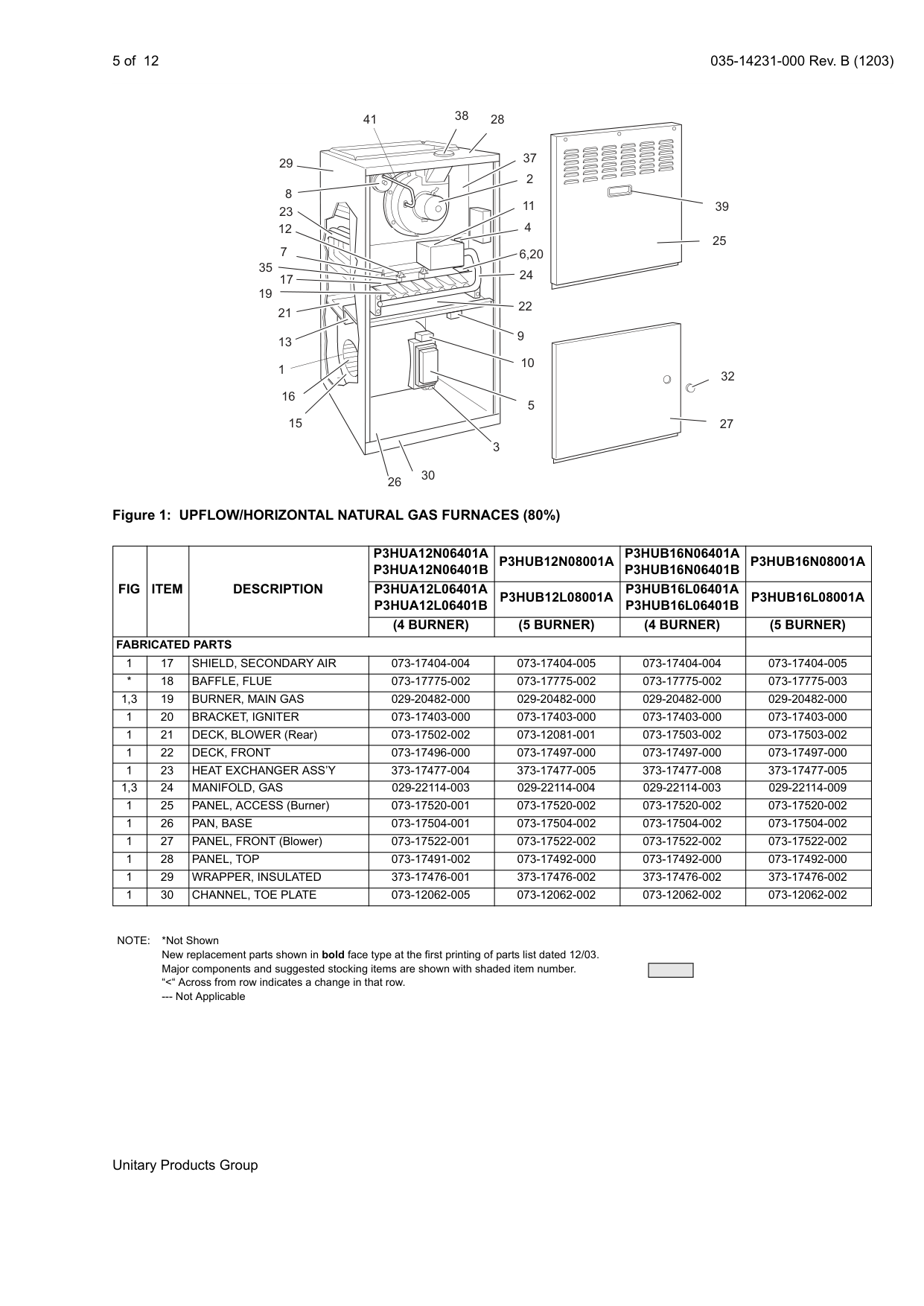

##### Figure 1: UPFLOW/HORIZONTAL NATURAL GAS FURNACES (80%)
|FIG|ITEM|DESCRIPTION|P3HUA12N06401A
P3HUA12N06401B
|P3HUB12N08001A|P3HUB16N06401A
P3HUB16N06401B
|P3HUB16N08001A| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUA12L06401A
P3HUA12L06401B
|P3HUB12L08001A|P3HUB16L06401A
P3HUB16L06401B
|P3HUB16L08001A| |FIG|ITEM|DESCRIPTION|(4 BURNER)|(5 BURNER)|(4 BURNER)|(5 BURNER)| |FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS| | |1|17|SHIELD, SECONDARY AIR|073-17404-004|073-17404-005|073-17404-004|073-17404-005| |*|18|BAFFLE, FLUE|073-17775-002|073-17775-002|073-17775-002|073-17775-003| |1,3|19|BURNER, MAIN GAS|029-20482-000|029-20482-000|029-20482-000|029-20482-000| |1|20|BRACKET, IGNITER|073-17403-000|073-17403-000|073-17403-000|073-17403-000| |1|21|DECK, BLOWER (Rear)|073-17502-002|073-12081-001|073-17503-002|073-17503-002| |1|22|DECK, FRONT|073-17496-000|073-17497-000|073-17497-000|073-17497-000| |1|23|HEAT EXCHANGER ASS’Y|373-17477-004|373-17477-005|373-17477-008|373-17477-005| |1,3|24|MANIFOLD, GAS|029-22114-003|029-22114-004|029-22114-003|029-22114-009| |1|25|PANEL, ACCESS (Burner)|073-17520-001|073-17520-002|073-17520-002|073-17520-002| |1|26|PAN, BASE|073-17504-001|073-17504-002|073-17504-002|073-17504-002| |1|27|PANEL, FRONT (Blower)|073-17522-001|073-17522-002|073-17522-002|073-17522-002|
|1|28|PANEL, TOP|073-17491-002|073-17492-000|073-17492-000|073-17492-000| |1|29|WRAPPER, INSULATED|373-17476-001|373-17476-002|373-17476-002|373-17476-002| |1|30|CHANNEL, TOE PLATE|073-12062-005|073-12062-002|073-12062-002|073-12062-002|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 12/03. Major components and suggested stocking items are shown with shaded item number.
| | |---|
| | |---| | | | |
12A
#### 11
1219
3524
| | | |---|---| | | | | | |
7
36

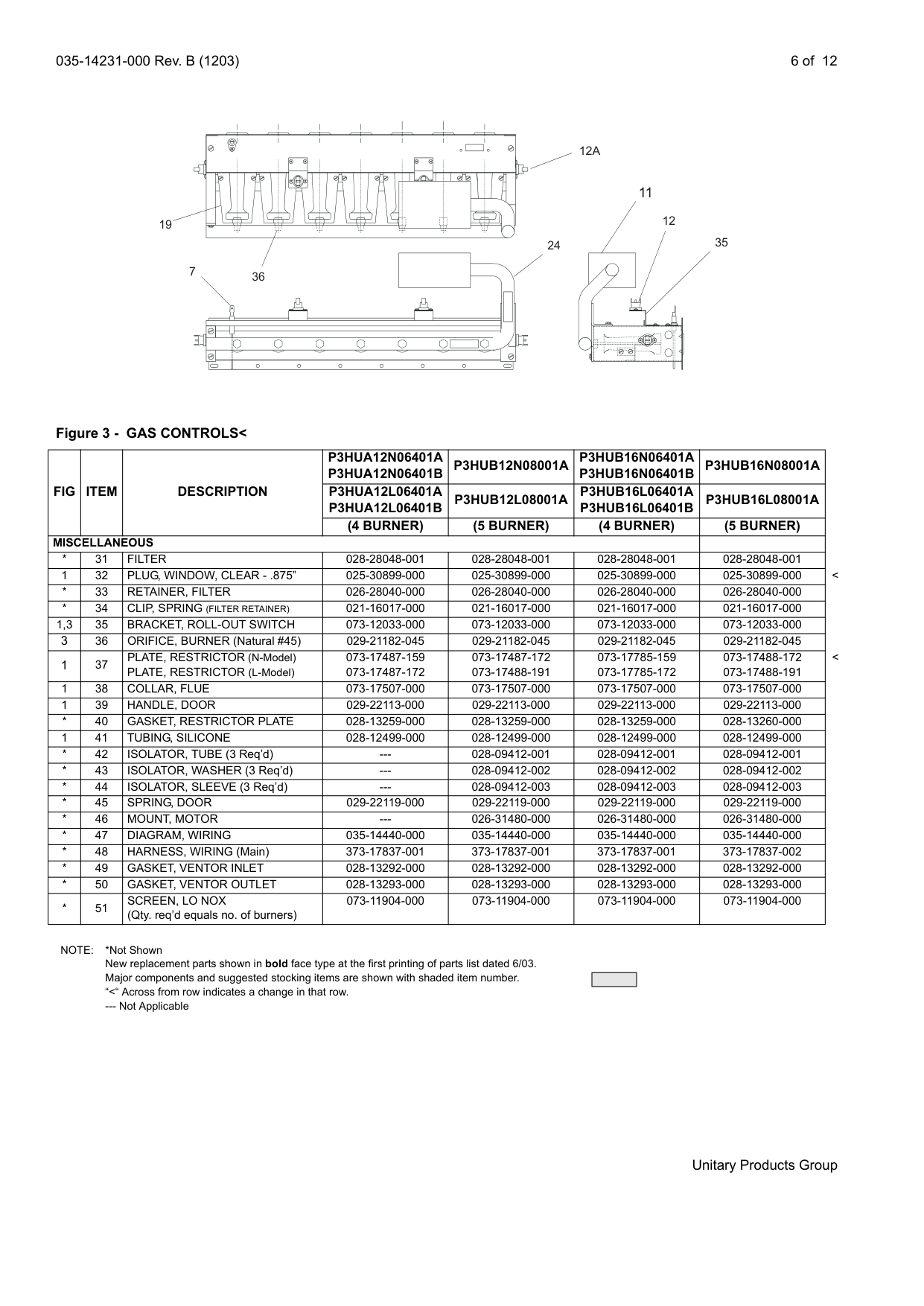

##### Figure 3 - GAS CONTROLS<
|FIG|ITEM|DESCRIPTION|P3HUA12N06401A
P3HUA12N06401B
|P3HUB12N08001A|P3HUB16N06401A
P3HUB16N06401B
|P3HUB16N08001A| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUA12L06401A
P3HUA12L06401B
|P3HUB12L08001A|P3HUB16L06401A
P3HUB16L06401B
|P3HUB16L08001A| |FIG|ITEM|DESCRIPTION|(4 BURNER)|(5 BURNER)|(4 BURNER)|(5 BURNER)| |MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS| | |*|31|FILTER|028-28048-001|028-28048-001|028-28048-001|028-28048-001| |1|32|PLUG, WINDOW, CLEAR - .875”|025-30899-000|025-30899-000|025-30899-000|025-30899-000| |*|33|RETAINER, FILTER|026-28040-000|026-28040-000|026-28040-000|026-28040-000| |*|34|CLIP, SPRING (FILTER RETAINER)|021-16017-000|021-16017-000|021-16017-000|021-16017-000| |1,3|35|BRACKET, ROLL-OUT SWITCH|073-12033-000|073-12033-000|073-12033-000|073-12033-000| |3|36|ORIFICE, BURNER (Natural #45)|029-21182-045|029-21182-045|029-21182-045|029-21182-045| |1|37|PLATE, RESTRICTOR (N-Model) PLATE, RESTRICTOR (L-Model)|073-17487-159 073-17487-172|073-17487-172
073-17488-191
|073-17785-159 073-17785-172|073-17488-172 073-17488-191| |1|38|COLLAR, FLUE|073-17507-000|073-17507-000|073-17507-000|073-17507-000| |1|39|HANDLE, DOOR|029-22113-000|029-22113-000|029-22113-000|029-22113-000| |*|40|GASKET, RESTRICTOR PLATE|028-13259-000|028-13259-000|028-13259-000|028-13260-000| |1|41|TUBING, SILICONE|028-12499-000|028-12499-000|028-12499-000|028-12499-000| |*|42|ISOLATOR, TUBE (3 Req’d)|---|028-09412-001|028-09412-001|028-09412-001| |*|43|ISOLATOR, WASHER (3 Req’d)|---|028-09412-002|028-09412-002|028-09412-002| |*|44|ISOLATOR, SLEEVE (3 Req’d)|---|028-09412-003|028-09412-003|028-09412-003| |*|45|SPRING, DOOR|029-22119-000|029-22119-000|029-22119-000|029-22119-000|
|*|46|MOUNT, MOTOR|---|026-31480-000|026-31480-000|026-31480-000| |*|47|DIAGRAM, WIRING|035-14440-000|035-14440-000|035-14440-000|035-14440-000| |*|48|HARNESS, WIRING (Main)|373-17837-001|373-17837-001|373-17837-001|373-17837-002| |*|49|GASKET, VENTOR INLET|028-13292-000|028-13292-000|028-13292-000|028-13292-000| |*|50|GASKET, VENTOR OUTLET|028-13293-000|028-13293-000|028-13293-000|028-13293-000| |*|5|1 SCREEN, LO NOX (Qty. req’d equals no. of burners)|073-11904-000|073-11904-000|073-11904-000|073-11904-000|
<
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 6/03. Major components and suggested stocking items are shown with shaded item number.
| | |---|
26
3 30

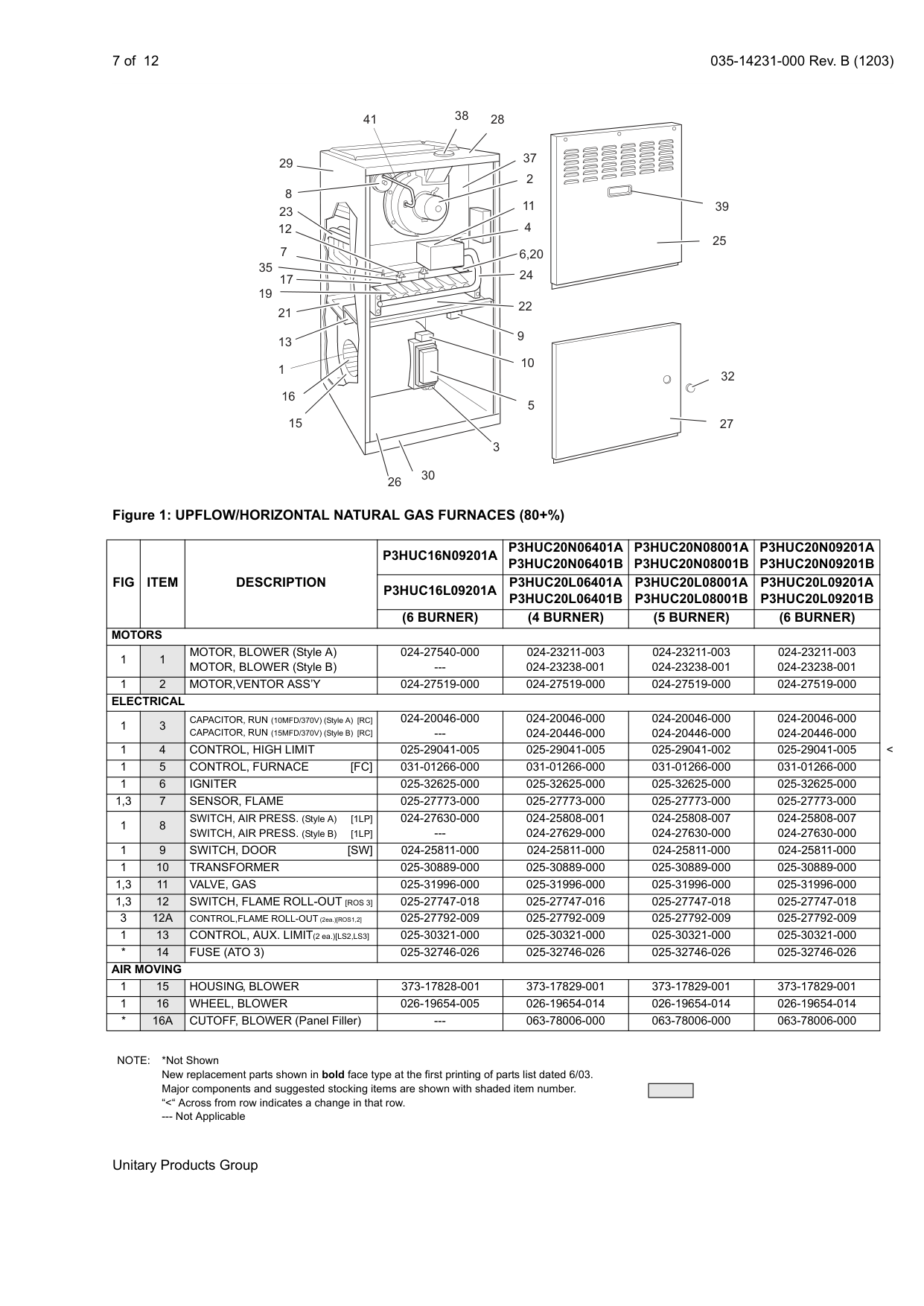

##### Figure 1: UPFLOW/HORIZONTAL NATURAL GAS FURNACES (80+%)
|FIG|ITEM|DESCRIPTION|P3HUC16N09201A|P3HUC20N06401A
P3HUC20N06401B
|P3HUC20N08001A
P3HUC20N08001B
|P3HUC20N09201A
P3HUC20N09201B
| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUC16L09201A|P3HUC20L06401A
P3HUC20L06401B
|P3HUC20L08001A
P3HUC20L08001B
|P3HUC20L09201A
P3HUC20L09201B
| |FIG|ITEM|DESCRIPTION|(6 BURNER)|(4 BURNER)|(5 BURNER)|(6 BURNER)| |MOTORS|MOTORS|MOTORS|MOTORS|MOTORS|MOTORS|MOTORS| |1|1|MOTOR, BLOWER (Style A)
MOTOR, BLOWER (Style B)
|024-27540-000 ---|024-23211-003 024-23238-001|024-23211-003 024-23238-001|024-23211-003 024-23238-001| |1|2|MOTOR,VENTOR ASS’Y|024-27519-000|024-27519-000|024-27519-000|024-27519-000| |ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL| |1|3|CAPACITOR, RUN (10MFD/370V) (Style A) [RC] CAPACITOR, RUN (15MFD/370V) (Style B) [RC]|024-20046-000 ---|024-20046-000 024-20446-000|024-20046-000 024-20446-000|024-20046-000 024-20446-000| |1|4|CONTROL, HIGH LIMIT|025-29041-005|025-29041-005|025-29041-002|025-29041-005| |1|5|CONTROL, FURNACE [FC]|031-01266-000|031-01266-000|031-01266-000|031-01266-000| |1|6|IGNITER|025-32625-000|025-32625-000|025-32625-000|025-32625-000| |1,3|7|SENSOR, FLAME|025-27773-000|025-27773-000|025-27773-000|025-27773-000| |1|8|SWITCH, AIR PRESS. (Style A) [1LP]
SWITCH, AIR PRESS. (Style B) [1LP]
|024-27630-000 ---|024-25808-001 024-27629-000|024-25808-007 024-27630-000|024-25808-007 024-27630-000| |1|9|SWITCH, DOOR [SW]|024-25811-000|024-25811-000|024-25811-000|024-25811-000| |1|10|TRANSFORMER|025-30889-000|025-30889-000|025-30889-000|025-30889-000| |1,3|11|VALVE, GAS|025-31996-000|025-31996-000|025-31996-000|025-31996-000| |1,3|12|SWITCH, FLAME ROLL-OUT [ROS 3]|025-27747-018|025-27747-016|025-27747-018|025-27747-018| |3|12A|CONTROL,FLAME ROLL-OUT (2ea.)[ROS1,2]|025-27792-009|025-27792-009|025-27792-009|025-27792-009| |1|13|CONTROL, AUX. LIMIT(2 ea.)[LS2,LS3]|025-30321-000|025-30321-000|025-30321-000|025-30321-000| |*|14|FUSE (ATO 3)|025-32746-026|025-32746-026|025-32746-026|025-32746-026| |AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING| |1|15|HOUSING, BLOWER|373-17828-001|373-17829-001|373-17829-001|373-17829-001| |1|16|WHEEL, BLOWER|026-19654-005|026-19654-014|026-19654-014|026-19654-014| |*|16A|CUTOFF, BLOWER (Panel Filler)|---|063-78006-000|063-78006-000|063-78006-000|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 6/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|
2838
41
3729
2
8 23 12
11
4
7 35
17 19
21 13 1
6,20
24
22
9
10
39
25
32
16 15
5
27 3
30 26

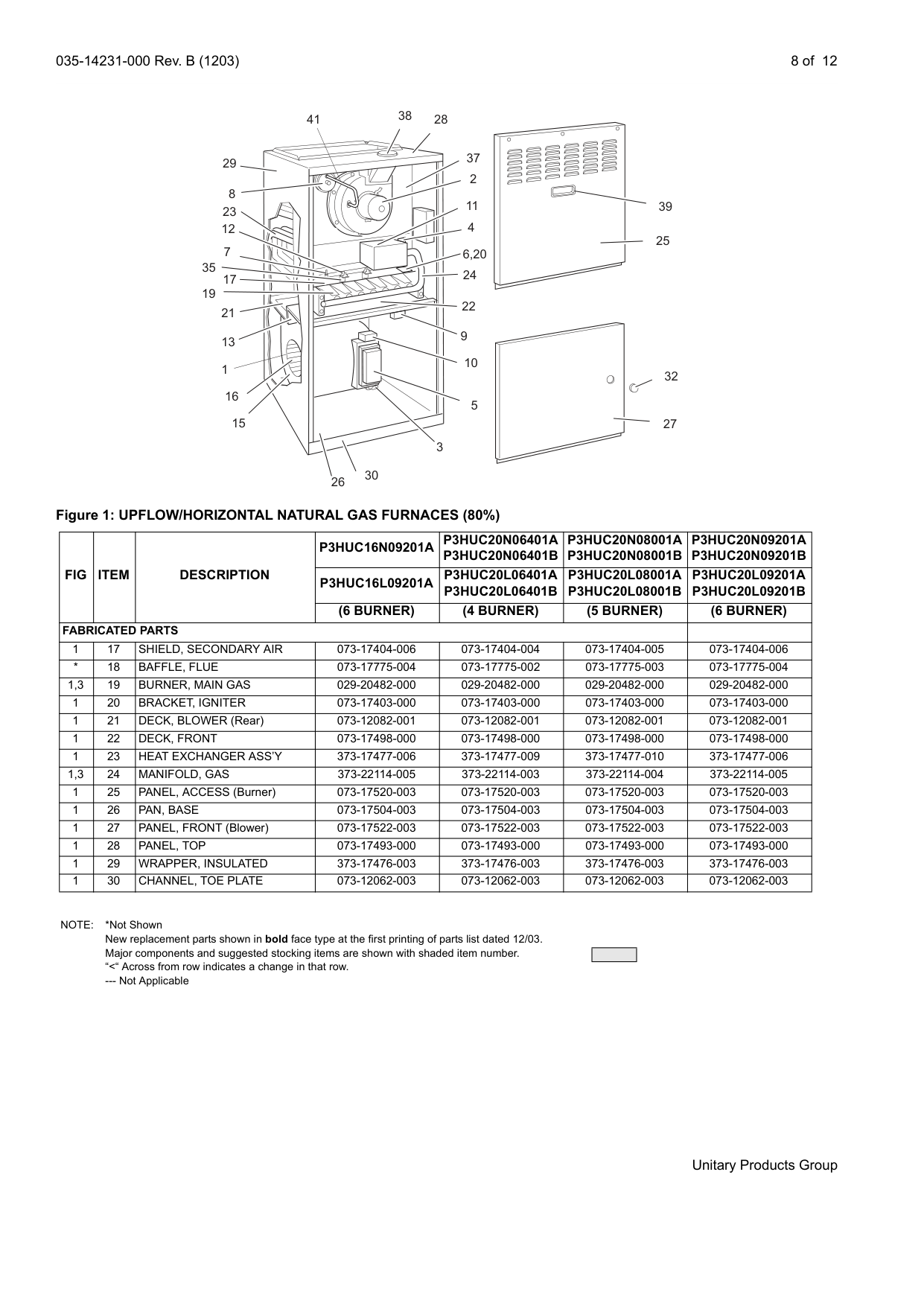

##### Figure 1: UPFLOW/HORIZONTAL NATURAL GAS FURNACES (80%)
|FIG|ITEM|DESCRIPTION|P3HUC16N09201A|P3HUC20N06401A
P3HUC20N06401B
|P3HUC20N08001A
P3HUC20N08001B
|P3HUC20N09201A
P3HUC20N09201B
| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUC16L09201A|P3HUC20L06401A
P3HUC20L06401B
|P3HUC20L08001A
P3HUC20L08001B
|P3HUC20L09201A
P3HUC20L09201B
| |FIG|ITEM|DESCRIPTION|(6 BURNER)|(4 BURNER)|(5 BURNER)|(6 BURNER)| |FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS| | |1|17|SHIELD, SECONDARY AIR|073-17404-006|073-17404-004|073-17404-005|073-17404-006| |*|18|BAFFLE, FLUE|073-17775-004|073-17775-002|073-17775-003|073-17775-004| |1,3|19|BURNER, MAIN GAS|029-20482-000|029-20482-000|029-20482-000|029-20482-000| |1|20|BRACKET, IGNITER|073-17403-000|073-17403-000|073-17403-000|073-17403-000| |1|21|DECK, BLOWER (Rear)|073-12082-001|073-12082-001|073-12082-001|073-12082-001| |1|22|DECK, FRONT|073-17498-000|073-17498-000|073-17498-000|073-17498-000|
|1|23|HEAT EXCHANGER ASS’Y|373-17477-006|373-17477-009|373-17477-010|373-17477-006| |1,3|24|MANIFOLD, GAS|373-22114-005|373-22114-003|373-22114-004|373-22114-005| |1|25|PANEL, ACCESS (Burner)|073-17520-003|073-17520-003|073-17520-003|073-17520-003| |1|26|PAN, BASE|073-17504-003|073-17504-003|073-17504-003|073-17504-003| |1|27|PANEL, FRONT (Blower)|073-17522-003|073-17522-003|073-17522-003|073-17522-003| |1|28|PANEL, TOP|073-17493-000|073-17493-000|073-17493-000|073-17493-000| |1|29|WRAPPER, INSULATED|373-17476-003|373-17476-003|373-17476-003|373-17476-003| |1|30|CHANNEL, TOE PLATE|073-12062-003|073-12062-003|073-12062-003|073-12062-003|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|
| | |---| | | | |
12A
#### 11
1219
3524
| | | |---|---| | | | | | |
7
36

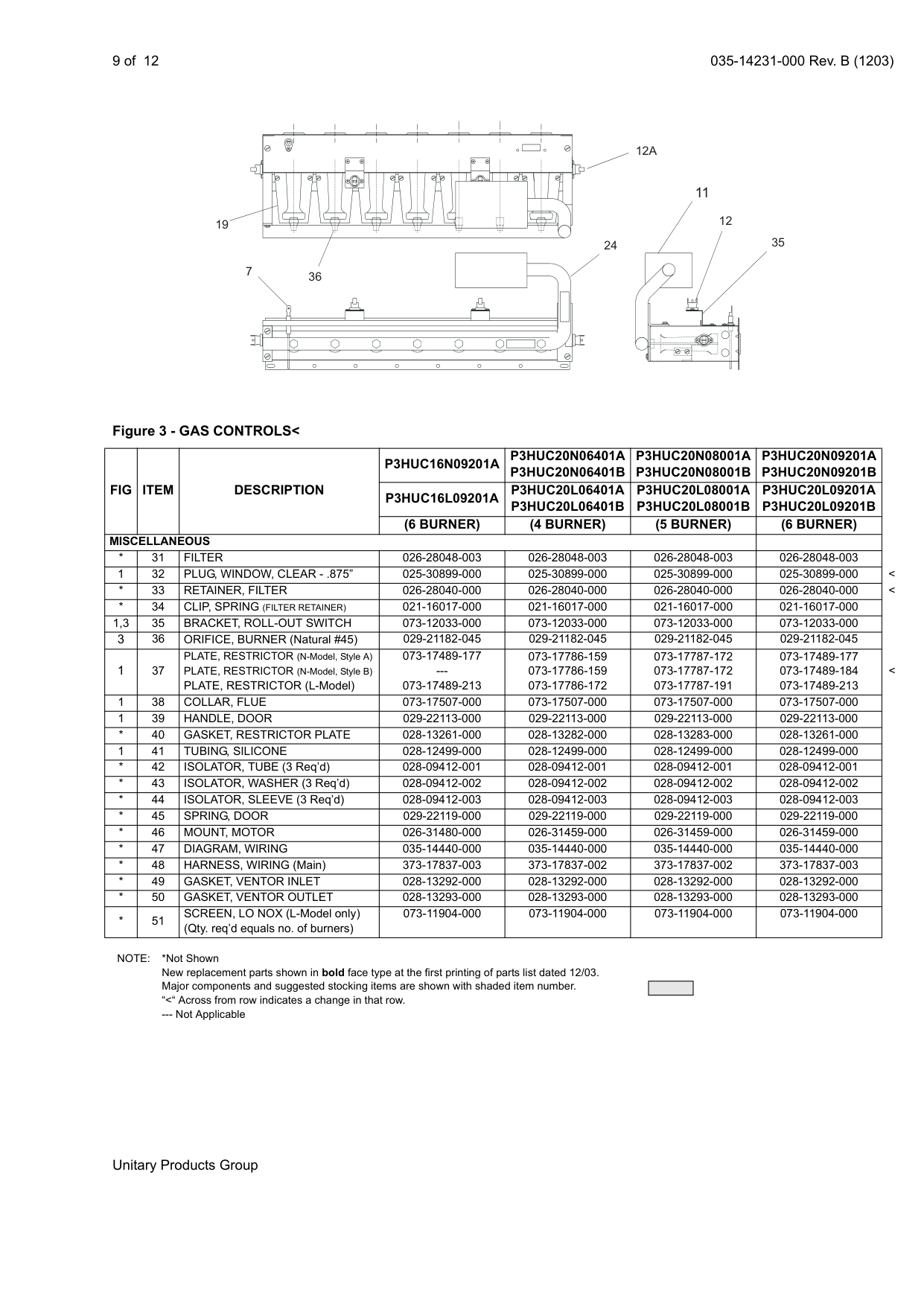

##### Figure 3 - GAS CONTROLS<
|FIG|ITEM|DESCRIPTION|P3HUC16N09201A|P3HUC20N06401A
P3HUC20N06401B
|P3HUC20N08001A
P3HUC20N08001B
|P3HUC20N09201A
P3HUC20N09201B
| |---|---|---|---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUC16L09201A|P3HUC20L06401A
P3HUC20L06401B
|P3HUC20L08001A
P3HUC20L08001B
|P3HUC20L09201A
P3HUC20L09201B
| |FIG|ITEM|DESCRIPTION|(6 BURNER)|(4 BURNER)|(5 BURNER)|(6 BURNER)| |MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS|MISCELLANEOUS| | |*|31|FILTER|026-28048-003|026-28048-003|026-28048-003|026-28048-003| |1|32|PLUG, WINDOW, CLEAR - .875”|025-30899-000|025-30899-000|025-30899-000|025-30899-000| |*|33|RETAINER, FILTER|026-28040-000|026-28040-000|026-28040-000|026-28040-000| |*|34|CLIP, SPRING (FILTER RETAINER)|021-16017-000|021-16017-000|021-16017-000|021-16017-000| |1,3|35|BRACKET, ROLL-OUT SWITCH|073-12033-000|073-12033-000|073-12033-000|073-12033-000| |3|36|ORIFICE, BURNER (Natural #45)|029-21182-045|029-21182-045|029-21182-045|029-21182-045| |1|37|PLATE, RESTRICTOR (N-Model, Style A)
PLATE, RESTRICTOR (N-Model, Style B) PLATE, RESTRICTOR (L-Model)
|073-17489-177 --073-17489-213|073-17786-159 073-17786-159 073-17786-172|073-17787-172 073-17787-172 073-17787-191|073-17489-177 073-17489-184 073-17489-213| |1|38|COLLAR, FLUE|073-17507-000|073-17507-000|073-17507-000|073-17507-000|
|1|39|HANDLE, DOOR|029-22113-000|029-22113-000|029-22113-000|029-22113-000| |*|40|GASKET, RESTRICTOR PLATE|028-13261-000|028-13282-000|028-13283-000|028-13261-000| |1|41|TUBING, SILICONE|028-12499-000|028-12499-000|028-12499-000|028-12499-000| |*|42|ISOLATOR, TUBE (3 Req’d)|028-09412-001|028-09412-001|028-09412-001|028-09412-001| |*|43|ISOLATOR, WASHER (3 Req’d)|028-09412-002|028-09412-002|028-09412-002|028-09412-002| |*|44|ISOLATOR, SLEEVE (3 Req’d)|028-09412-003|028-09412-003|028-09412-003|028-09412-003| |*|45|SPRING, DOOR|029-22119-000|029-22119-000|029-22119-000|029-22119-000| |*|46|MOUNT, MOTOR|026-31480-000|026-31459-000|026-31459-000|026-31459-000| |*|47|DIAGRAM, WIRING|035-14440-000|035-14440-000|035-14440-000|035-14440-000| |*|48|HARNESS, WIRING (Main)|373-17837-003|373-17837-002|373-17837-002|373-17837-003| |*|49|GASKET, VENTOR INLET|028-13292-000|028-13292-000|028-13292-000|028-13292-000| |*|50|GASKET, VENTOR OUTLET|028-13293-000|028-13293-000|028-13293-000|028-13293-000| |*|5|1 SCREEN, LO NOX (L-Model only) (Qty. req’d equals no. of burners)|073-11904-000|073-11904-000|073-11904-000|073-11904-000|
<
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated 12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|

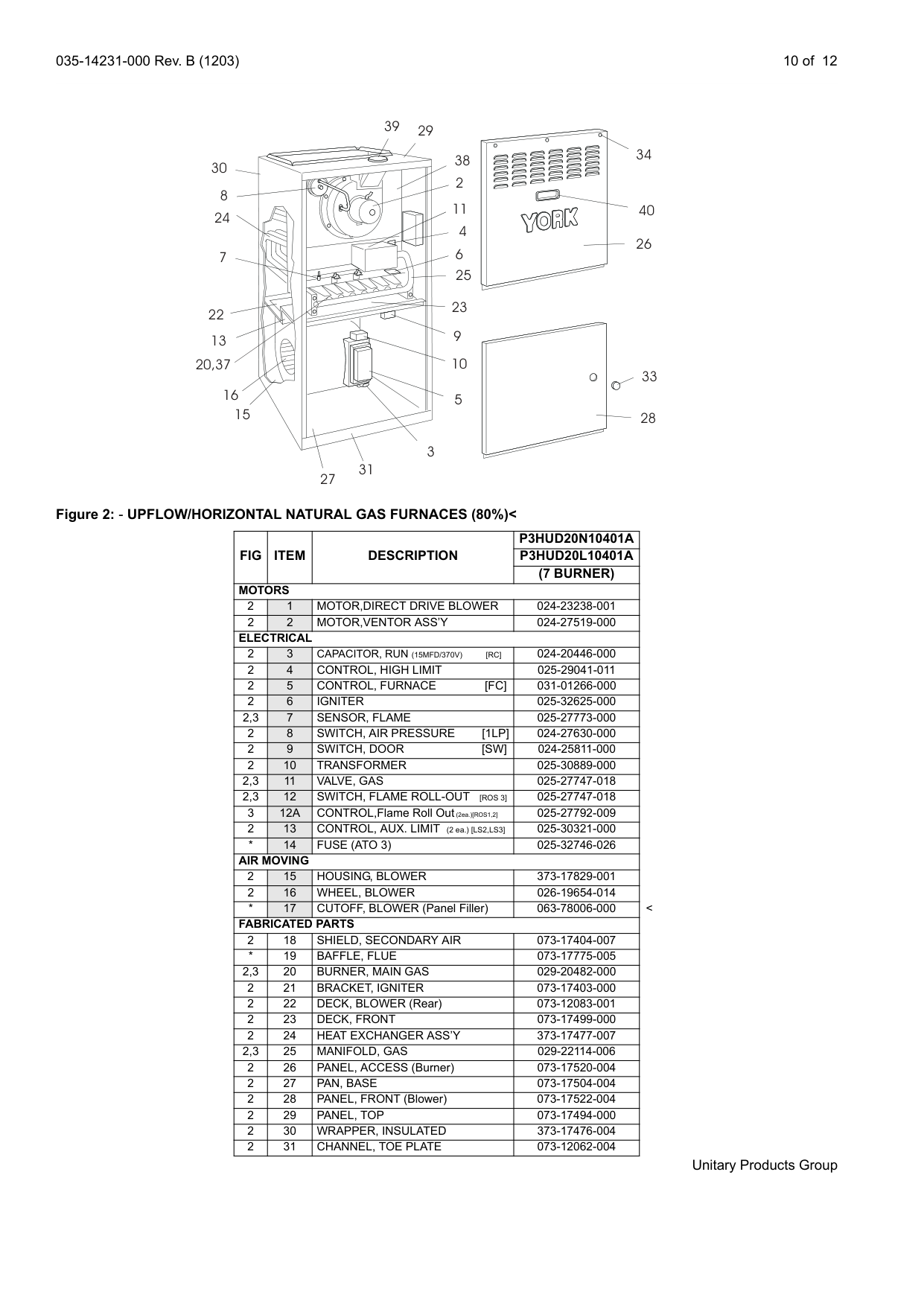

30 8 24
7
22
13
20,37
39 29
38 2 11
23
28
40 26
27
3 31
|FIG|ITEM|DESCRIPTION|P3HUD20N10401A| |---|---|---|---| |FIG|ITEM|DESCRIPTION|P3HUD20L10401A| |FIG|ITEM|DESCRIPTION|(7 BURNER)| |MOTORS|MOTORS|MOTORS|MOTORS| |2|1|MOTOR,DIRECT DRIVE BLOWER|024-23238-001| |2|2|MOTOR,VENTOR ASS’Y|024-27519-000| |ELECTRICAL|ELECTRICAL|ELECTRICAL|ELECTRICAL| |2|3|CAPACITOR, RUN (15MFD/370V) [RC]|024-20446-000| |2|4|CONTROL, HIGH LIMIT|025-29041-011| |2|5|CONTROL, FURNACE [FC]|031-01266-000| |2|6|IGNITER|025-32625-000| |2,3|7|SENSOR, FLAME|025-27773-000| |2|8|SWITCH, AIR PRESSURE [1LP]|024-27630-000| |2|9|SWITCH, DOOR [SW]|024-25811-000| |2|10|TRANSFORMER|025-30889-000| |2,3|11|VALVE, GAS|025-27747-018| |2,3|12|SWITCH, FLAME ROLL-OUT [ROS 3]|025-27747-018| |3|12A|CONTROL,Flame Roll Out(2ea.)[ROS1,2]|025-27792-009| |2|13|CONTROL, AUX. LIMIT (2 ea.) [LS2,LS3]|025-30321-000| |*|14|FUSE (ATO 3)|025-32746-026| |AIR MOVING|AIR MOVING|AIR MOVING|AIR MOVING| |2|15|HOUSING, BLOWER|373-17829-001| |2|16|WHEEL, BLOWER|026-19654-014| |*|17|CUTOFF, BLOWER (Panel Filler)|063-78006-000| |FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS|FABRICATED PARTS| |2|18|SHIELD, SECONDARY AIR|073-17404-007| |*|19|BAFFLE, FLUE|073-17775-005| |2,3|20|BURNER, MAIN GAS|029-20482-000| |2|21|BRACKET, IGNITER|073-17403-000| |2|22|DECK, BLOWER (Rear)|073-12083-001| |2|23|DECK, FRONT|073-17499-000| |2|24|HEAT EXCHANGER ASS’Y|373-17477-007| |2,3|25|MANIFOLD, GAS|029-22114-006| |2|26|PANEL, ACCESS (Burner)|073-17520-004| |2|27|PAN, BASE|073-17504-004| |2|28|PANEL, FRONT (Blower)|073-17522-004| |2|29|PANEL, TOP|073-17494-000| |2|30|WRAPPER, INSULATED|373-17476-004| |2|31|CHANNEL, TOE PLATE|073-12062-004|
|FIG|ITEM|DESCRIPTION|P3HUD20N10401A| |---|---|---|---|
|FIG|ITEM|DESCRIPTION|P3HUD20L10401A| |FIG|ITEM|DESCRIPTION|(7 BURNER)| |MISCELLANOUS|MISCELLANOUS|MISCELLANOUS|MISCELLANOUS| |*|32|FILTER|026-28048-001| |2|33|PLUG, WINDOW, CLEAR - .875”|025-30899-000| |*|34|RETAINER, FILTER|026-28040-000| |*|35|CLIP, SPRING (FILTER RETAINER)|021-16017-000| |2,3|36|BRACKET, ROLL-OUT SWITCH|073-12033-000| |2|37|ORIFICE, BURNER (Natural #45)|029-21182-045| |2|3|8
PLATE, RESTRICTOR (N-Model) PLATE, RESTRICTOR (L-Model)|073-17490-194 073-17490-213| |2|39|COLLAR, FLUE|073-17507-000| |2|40|HANDLE, DOOR|029-22113-000| |*|41|GASKET, RESTRICTOR PLATE|028-13262-000| |2|42|TUBING, SILICONE|028-12499-000| |*|43|ISOLATOR, TUBE (3 Req’d)|028-09412-001| |*|44|ISOLATOR, WASHER (3 Req’d)|028-09412-002| |*|45|ISOLATOR, SLEEVE (3 Req’d)|028-09412-003| |*|46|SPRING, DOOR|029-22119-000| |*|47|MOUNT, MOTOR|026-31459-000| |*|48|DIAGRAM, WIRING|035-14440-000| |*|49|HARNESS, WIRING (Main)|373-17838-003| |*|50|GASKET, VENTOR INLET|028-13292-000| |*|51|GASKET, VENTOR OUTLET|028-13293-000| |*|5|2 SCREEN, LO NOX (L-Model only) (Qty. req’d equals no. of burners)|073-11904-000|
NOTE: *Not Shown New replacement parts shown in bold face type at the first printing of parts list dated12/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row.
--- Not Applicable
| | |---|
|FIELD INSTALLED ACCESSORIES - NON-ELECTRICAL|FIELD INSTALLED ACCESSORIES - NON-ELECTRICAL|FIELD INSTALLED ACCESSORIES - NON-ELECTRICAL| |---|---|---| |MODEL NO.|DESCRIPTION|USED WITH| |1NP0347|PROPANE (LP) CONVERSION KIT|ALL MODELS EXCEPT P3HUDN048, 092 AND 104| |1NP0348|PROPANE (LP) CONVERSION KIT|P3HUDN048, 092 AND 104 ONLY| |1PS0301|HIGH ALTITUDE KIT (Does not include orifices)|ALL MODELS| |1PS0302|HIGH ALTITUDE KIT (Does not include orifices)|ALL MODELS| |1PS0311|HIGH ALTITUDE KIT (Does not include orifices)|ALL MODELS| |1PS0312|HIGH ALTITUDE KIT (Does not include orifices)|ALL MODELS| |1SR0302|EXTERNAL FILTER RACK- WITH FILTER (6-PACK)|ALL MODELS| |1BR0305|FILTER RACK WITH HIGH VELOCITY FILTER FOR HORIZONTAL APPLICATION OR EXTENRAL ACCESS UPFLOW BOTTOM RETURN|14 1/2” CABINETS| |1BR0302|FILTER RACK WITH HIGH VELOCITY FILTER FOR HORIZONTAL APPLICATION OR EXTENRAL ACCESS UPFLOW BOTTOM RETURN|17 1/2” CABINETS| |1BR0303|FILTER RACK WITH HIGH VELOCITY FILTER FOR HORIZONTAL APPLICATION OR EXTENRAL ACCESS UPFLOW BOTTOM RETURN|21 CABINETS| |1BR0304|FILTER RACK WITH HIGH VELOCITY FILTER FOR HORIZONTAL APPLICATION OR EXTENRAL ACCESS UPFLOW BOTTOM RETURN|24 1/2” CABINETS <|

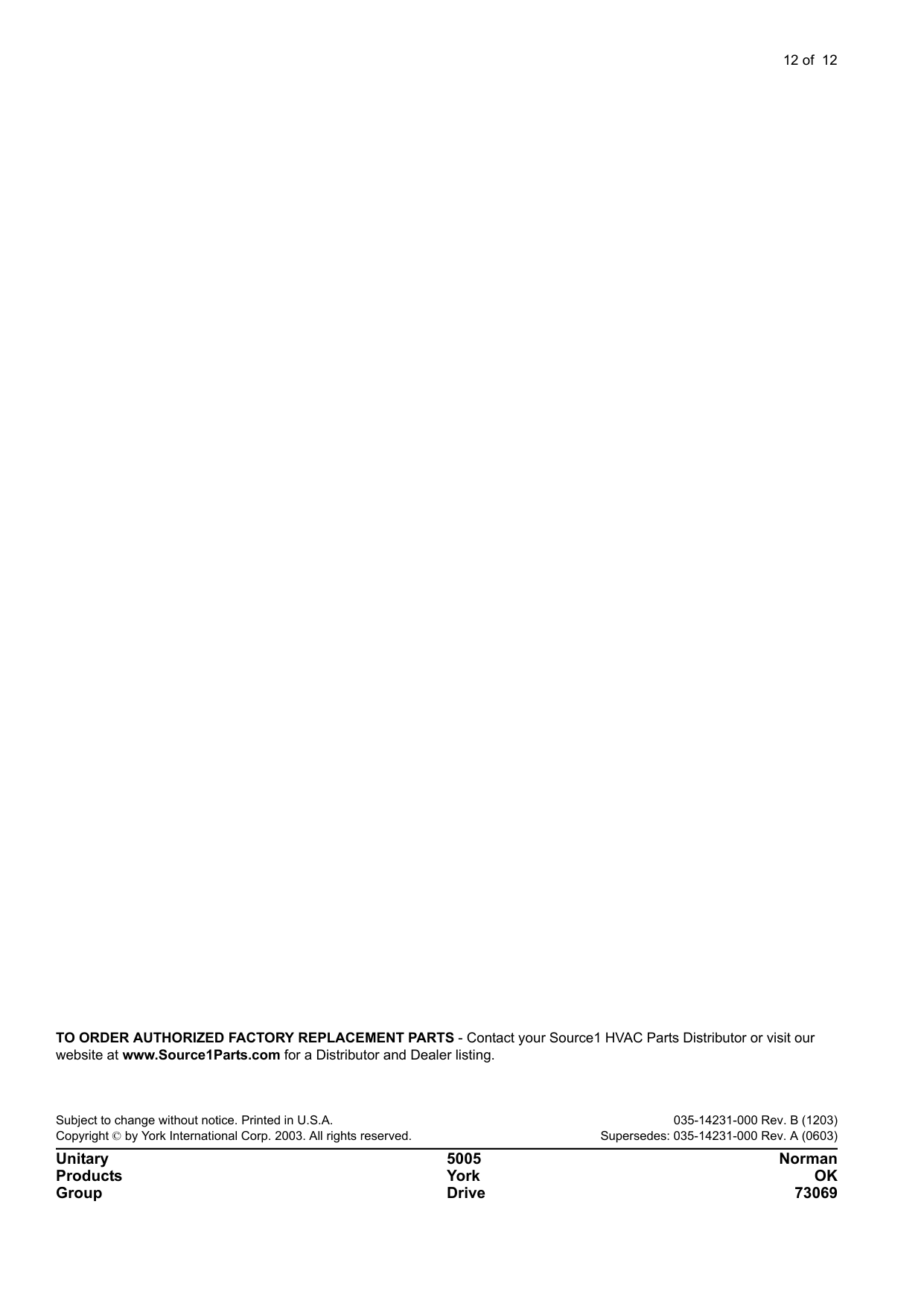

12 of 12
TO ORDER AUTHORIZED FACTORY REPLACEMENT PARTS - Contact your Source1 HVAC Parts Distributor or visit our website at www.Source1Parts.com for a Distributor and Dealer listing.
Subject to change without notice. Printed in U.S.A. 035-14231-000 Rev. B (1203) Copyright © by York International Corp. 2003. All rights reserved. Supersedes: 035-14231-000 Rev. A (0603)
