Wahl 9685 200 All IN One Rechargeable Grooming Trimmer

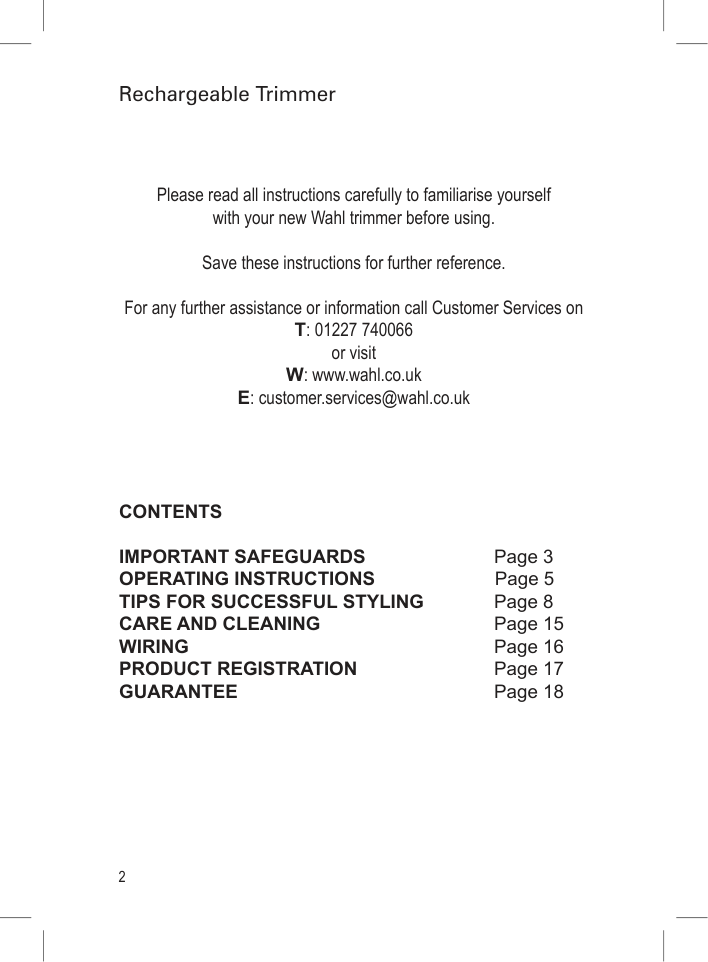

Rechargeable Trimmer Instructions

Please read all instructions carefully to familiarise yourself with your new Wahl trimmer before using.

Save these instructions for further reference. For any further assistance or information call Customer Services on T: 01227 740066 or visit W: www.wahl.co.uk E: customer.services@wahl.co.uk

CONTENTS

IMPORTANT SAFEGUARDS Page 3 OPERATING INSTRUCTIONS Page 5 TIPS FOR SUCCESSFUL STYLING Page 8 CARE AND CLEANING Page 15 WIRING Page 16 PRODUCT REGISTRATION Page 17 GUARANTEE Page 18

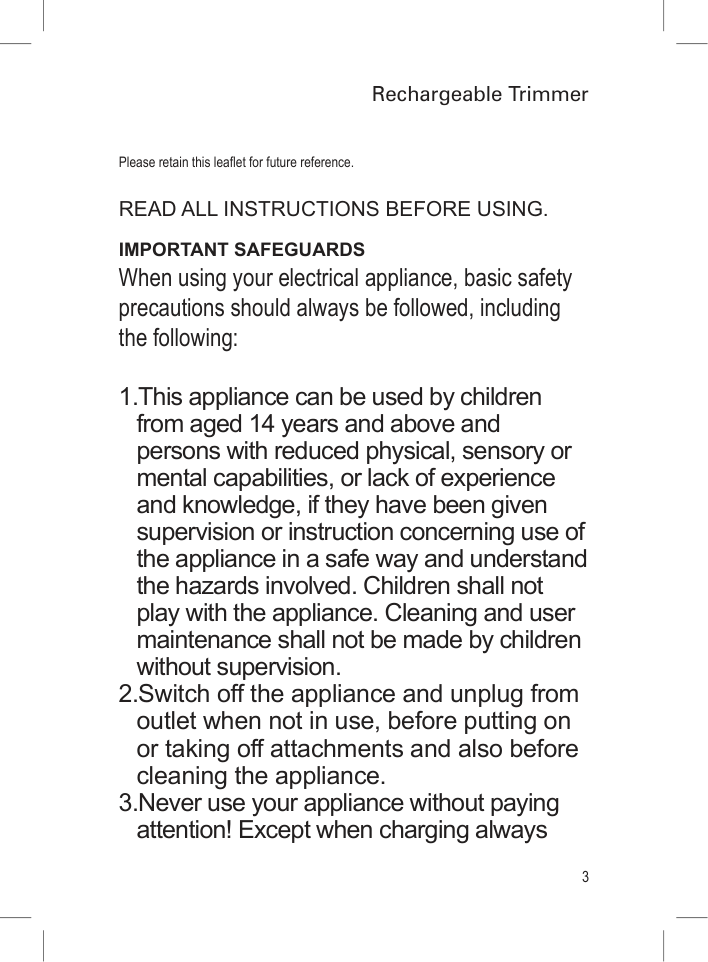

Please retain this leaflet for future reference. READ ALL INSTRUCTIONS BEFORE USING. IMPORTANT SAFEGUARDS When using your electrical appliance, basic safety precautions should always be followed, including the following:

|WARNING: KEEP THE APPLIANCE DRY| |---|

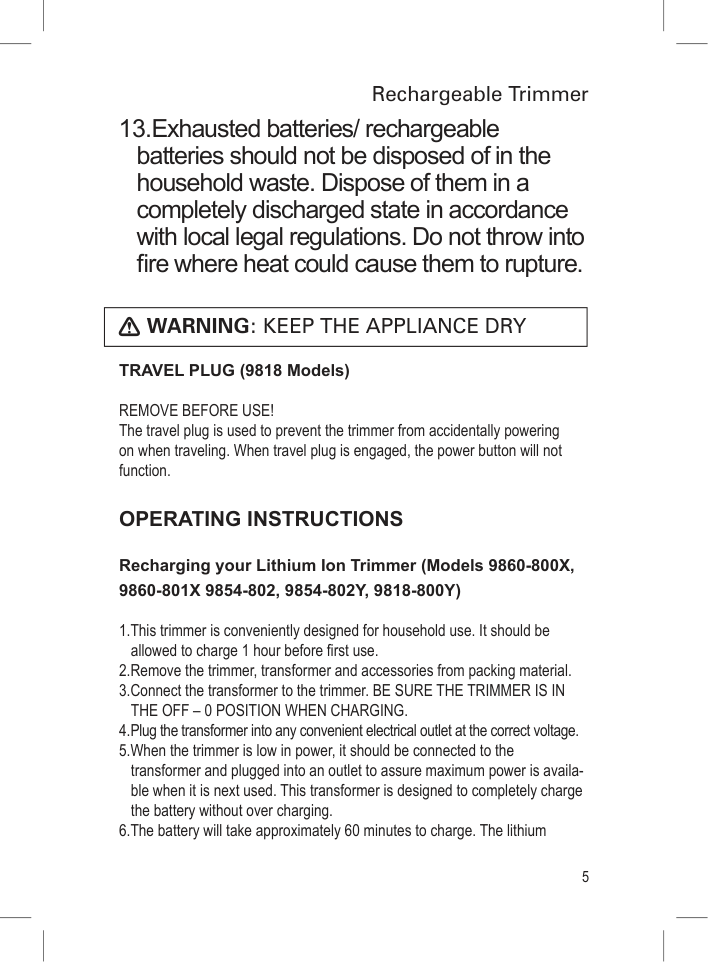

TRAVEL PLUG (9818 Models)

REMOVE BEFORE USE! The travel plug is used to prevent the trimmer from accidentally powering on when traveling. When travel plug is engaged, the power button will not function.

OPERATING INSTRUCTIONS

Recharging your Lithium Ion Trimmer (Models 9860-800X, 9860-801X 9854-802, 9854-802Y, 9818-800Y)

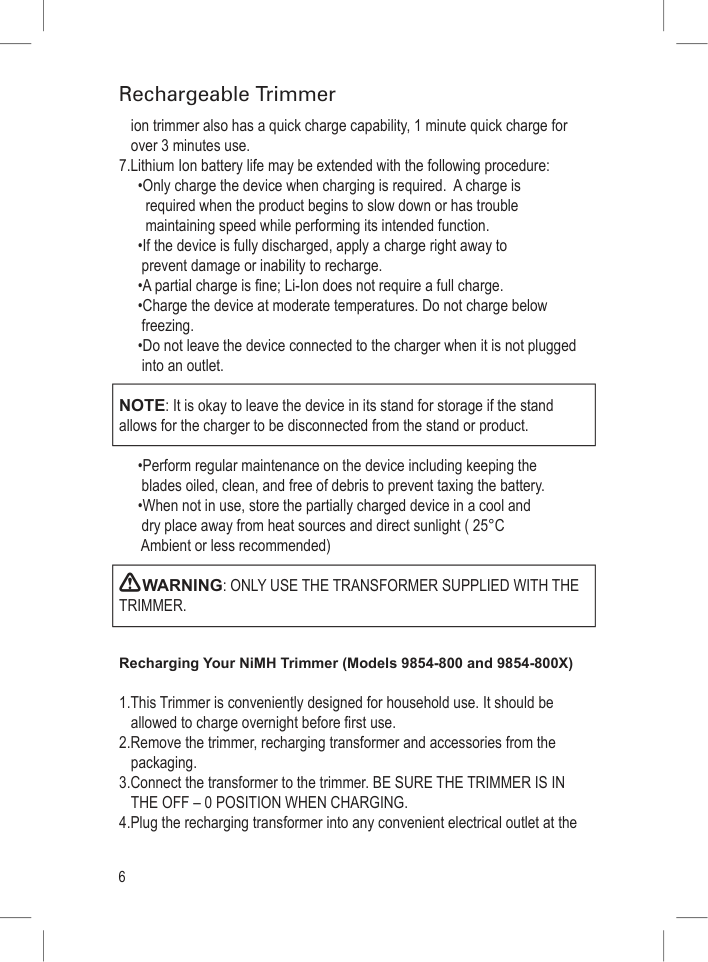

|NOTE: It is okay to leave the device in its stand for storage if the stand allows for the charger to be disconnected from the stand or product.| |---|

|WARNING: ONLY USE THE TRANSFORMER SUPPLIED WITH THE TRIMMER.| |---|

Recharging Your NiMH Trimmer (Models 9854-800 and 9854-800X)

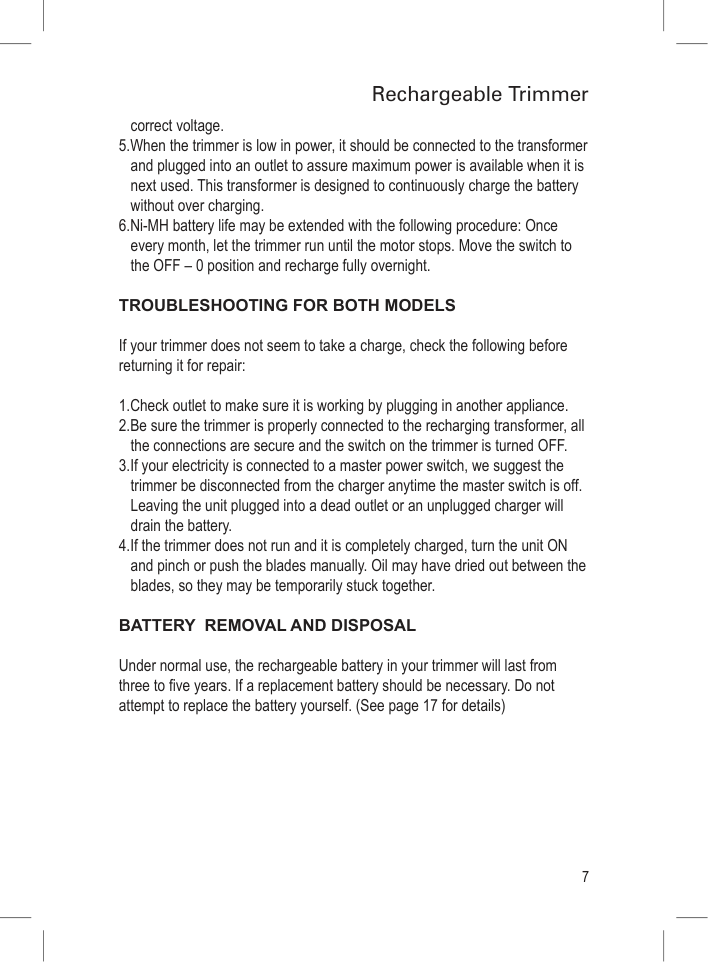

#### TROUBLESHOOTING FOR BOTH MODELS

If your trimmer does not seem to take a charge, check the following before returning it for repair:

#### BATTERY REMOVAL AND DISPOSAL

Under normal use, the rechargeable battery in your trimmer will last from three to five years. If a replacement battery should be necessary. Do not attempt to replace the battery yourself. (See page 17 for details)

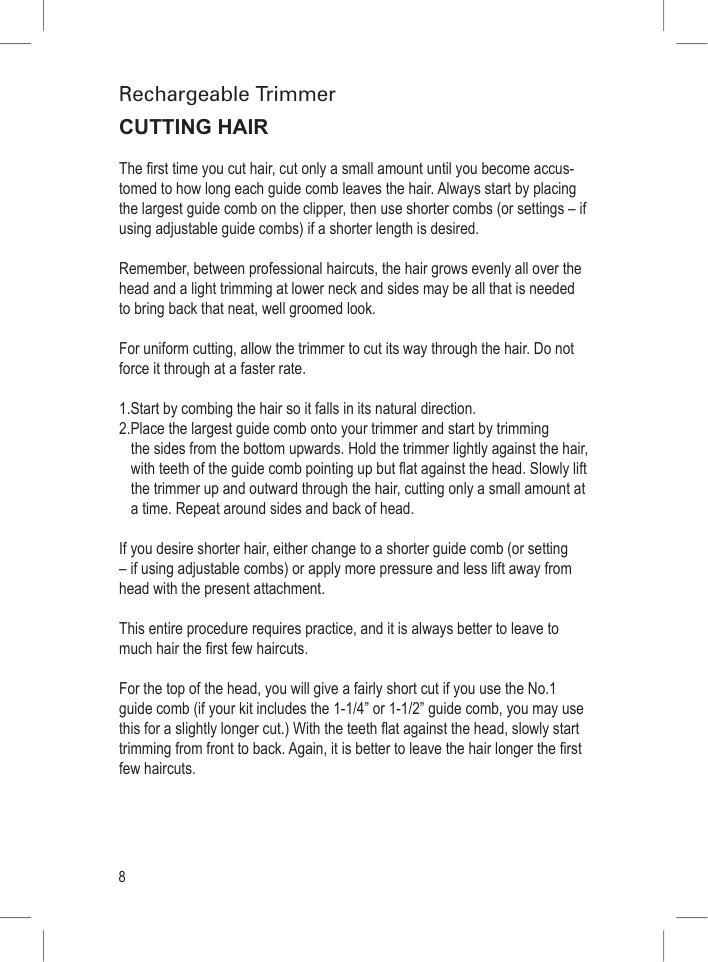

CUTTING HAIR

The first time you cut hair, cut only a small amount until you become accustomed to how long each guide comb leaves the hair. Always start by placing the largest guide comb on the clipper, then use shorter combs (or settings – if using adjustable guide combs) if a shorter length is desired.

Remember, between professional haircuts, the hair grows evenly all over the head and a light trimming at lower neck and sides may be all that is needed to bring back that neat, well groomed look.

For uniform cutting, allow the trimmer to cut its way through the hair. Do not force it through at a faster rate.

If you desire shorter hair, either change to a shorter guide comb (or setting

– if using adjustable combs) or apply more pressure and less lift away from head with the present attachment.

This entire procedure requires practice, and it is always better to leave to much hair the first few haircuts.

For the top of the head, you will give a fairly short cut if you use the No.1 guide comb (if your kit includes the 1-1/4” or 1-1/2” guide comb, you may use this for a slightly longer cut.) With the teeth flat against the head, slowly start trimming from front to back. Again, it is better to leave the hair longer the first few haircuts.

#### FADE CUT using a T-Blade

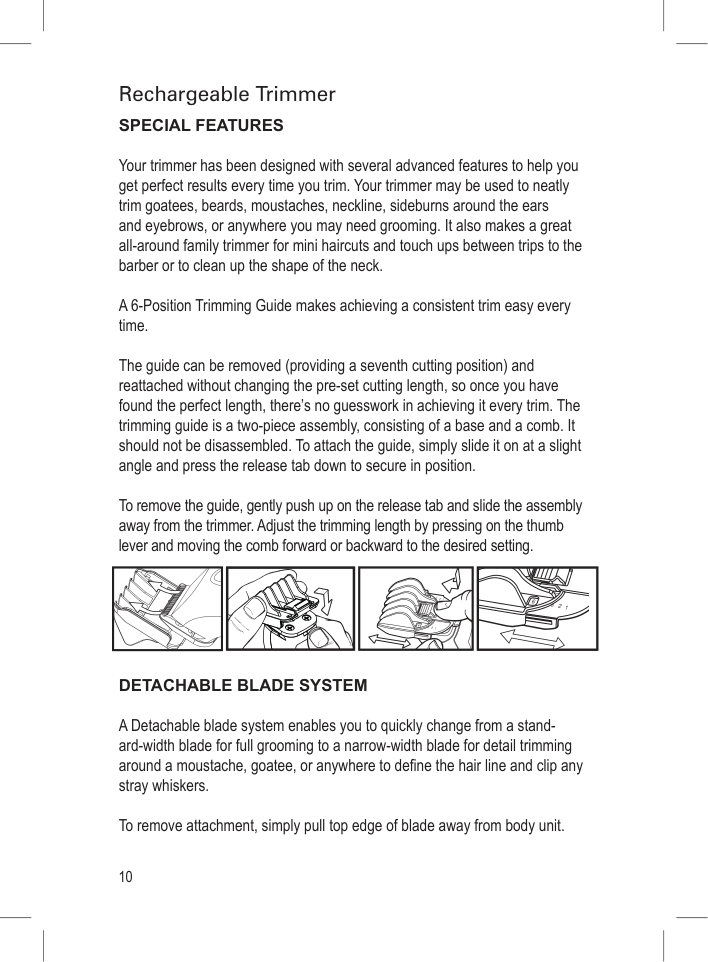

#### SPECIAL FEATURES

Your trimmer has been designed with several advanced features to help you get perfect results every time you trim. Your trimmer may be used to neatly trim goatees, beards, moustaches, neckline, sideburns around the ears and eyebrows, or anywhere you may need grooming. It also makes a great all-around family trimmer for mini haircuts and touch ups between trips to the barber or to clean up the shape of the neck.

A 6-Position Trimming Guide makes achieving a consistent trim easy every time.

The guide can be removed (providing a seventh cutting position) and reattached without changing the pre-set cutting length, so once you have found the perfect length, there’s no guesswork in achieving it every trim. The trimming guide is a two-piece assembly, consisting of a base and a comb. It should not be disassembled. To attach the guide, simply slide it on at a slight angle and press the release tab down to secure in position.

To remove the guide, gently push up on the release tab and slide the assembly away from the trimmer. Adjust the trimming length by pressing on the thumb lever and moving the comb forward or backward to the desired setting.

| | | | |---|---|---|

| | | |

#### DETACHABLE BLADE SYSTEM

A Detachable blade system enables you to quickly change from a standard-width blade for full grooming to a narrow-width blade for detail trimming around a moustache, goatee, or anywhere to define the hair line and clip any stray whiskers.

To remove attachment, simply pull top edge of blade away from body unit.

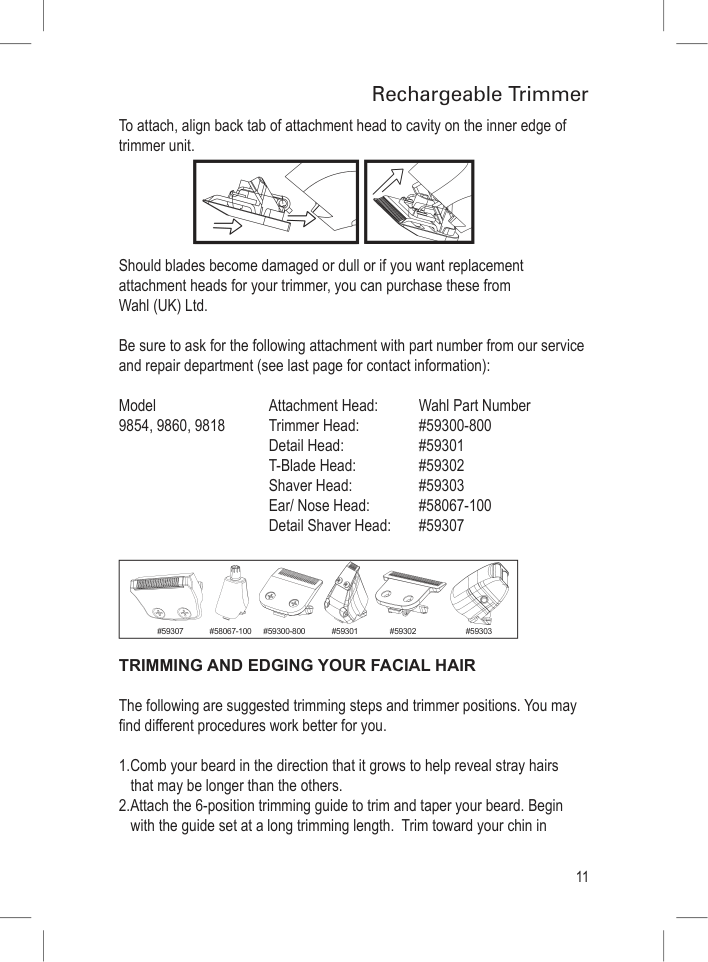

To attach, align back tab of attachment head to cavity on the inner edge of trimmer unit.

| | | |---|---| | | |

| | | | |---|---|---| | | | |

Should blades become damaged or dull or if you want replacement attachment heads for your trimmer, you can purchase these from Wahl (UK) Ltd.

Be sure to ask for the following attachment with part number from our service and repair department (see last page for contact information):

Model Attachment Head: Wahl Part Number 9854, 9860, 9818 Trimmer Head: #59300-800

Detail Head: #59301 T-Blade Head: #59302 Shaver Head: #59303 Ear/ Nose Head: #58067-100 Detail Shaver Head: #59307

|#59307 #58067-100 #59300-800 #59302#59301 #59303| |---|

#### TRIMMING AND EDGING YOUR FACIAL HAIR

The following are suggested trimming steps and trimmer positions. You may find different procedures work better for you.

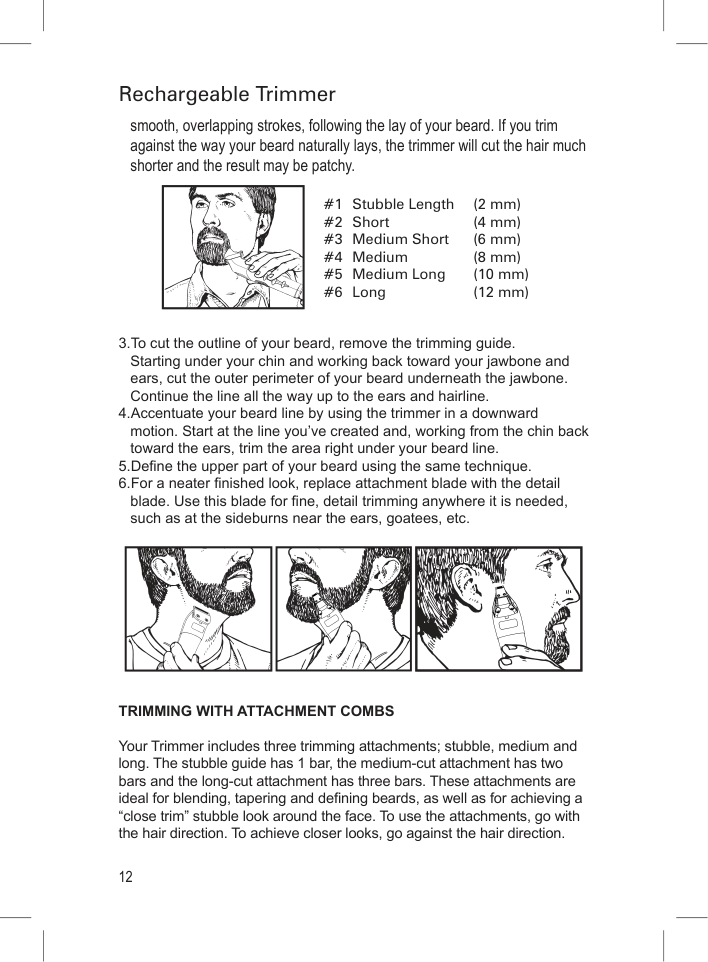

smooth, overlapping strokes, following the lay of your beard. If you trim against the way your beard naturally lays, the trimmer will cut the hair much shorter and the result may be patchy.

| | |---|

###### TRIMMING WITH ATTACHMENT COMBS

Your Trimmer includes three trimming attachments; stubble, medium and long. The stubble guide has 1 bar, the medium-cut attachment has two bars and the long-cut attachment has three bars. These attachments are ideal for blending, tapering and defining beards, as well as for achieving a “close trim” stubble look around the face. To use the attachments, go with the hair direction. To achieve closer looks, go against the hair direction.

|1 2 3| |---|

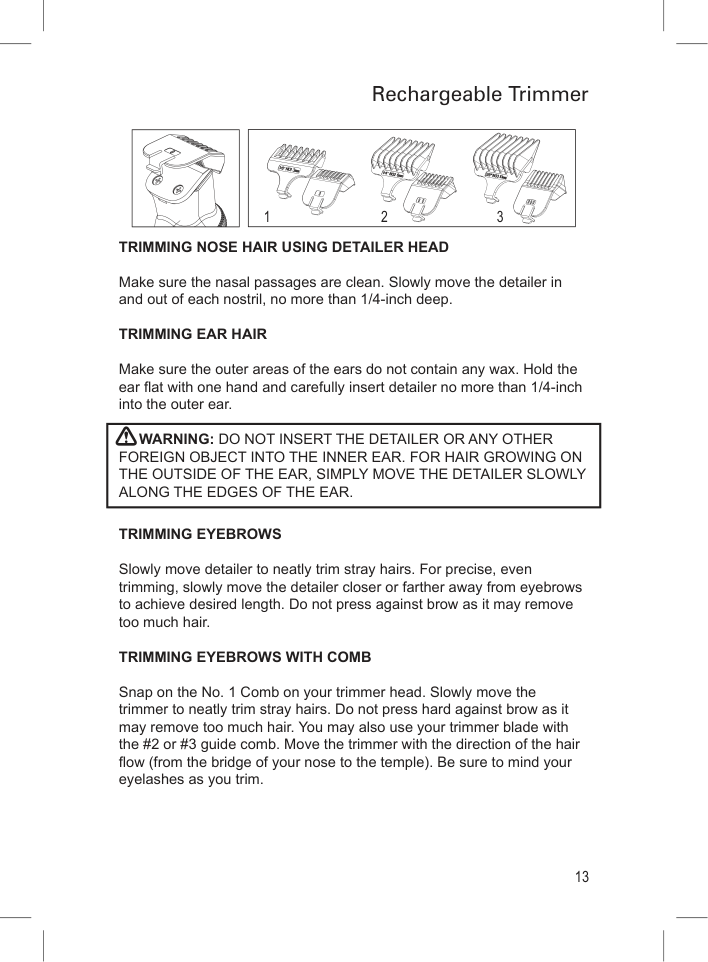

###### TRIMMING NOSE HAIR USING DETAILER HEAD

Make sure the nasal passages are clean. Slowly move the detailer in and out of each nostril, no more than 1/4-inch deep.

###### TRIMMING EAR HAIR

Make sure the outer areas of the ears do not contain any wax. Hold the ear flat with one hand and carefully insert detailer no more than 1/4-inch into the outer ear.

|WARNING: DO NOT INSERT THE DETAILER OR ANY OTHER FOREIGN OBJECT INTO THE INNER EAR. FOR HAIR GROWING ON THE OUTSIDE OF THE EAR, SIMPLY MOVE THE DETAILER SLOWLY ALONG THE EDGES OF THE EAR.| |---|

###### TRIMMING EYEBROWS

Slowly move detailer to neatly trim stray hairs. For precise, even trimming, slowly move the detailer closer or farther away from eyebrows to achieve desired length. Do not press against brow as it may remove too much hair.

###### TRIMMING EYEBROWS WITH COMB

Snap on the No. 1 Comb on your trimmer head. Slowly move the trimmer to neatly trim stray hairs. Do not press hard against brow as it may remove too much hair. You may also use your trimmer blade with the #2 or #3 guide comb. Move the trimmer with the direction of the hair flow (from the bridge of your nose to the temple). Be sure to mind your eyelashes as you trim.

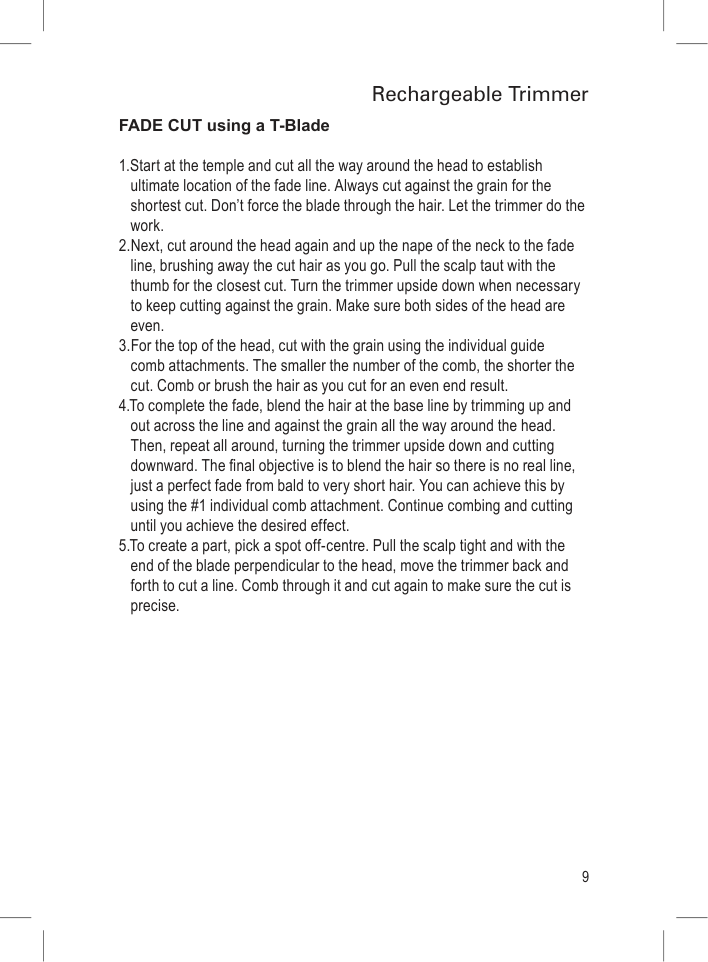

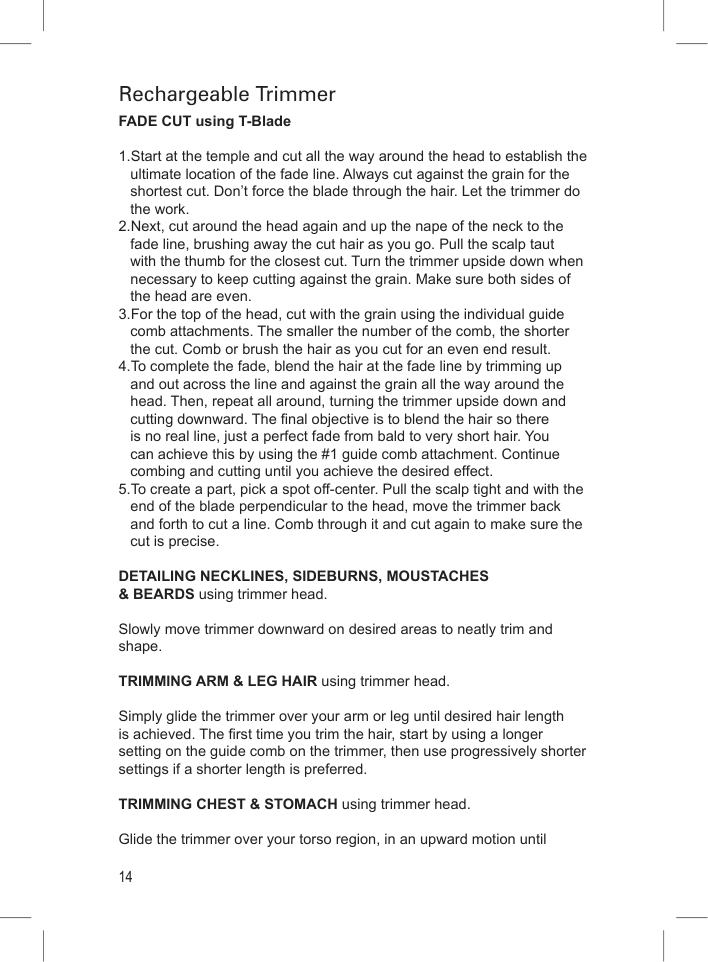

FADE CUT using T-Blade 1.Start at the temple and cut all the way around the head to establish the ultimate location of the fade line. Always cut against the grain for the shortest cut. Don’t force the blade through the hair. Let the trimmer do the work.

5.To create a part, pick a spot off-center. Pull the scalp tight and with the end of the blade perpendicular to the head, move the trimmer back and forth to cut a line. Comb through it and cut again to make sure the cut is precise.

###### DETAILING NECKLINES, SIDEBURNS, MOUSTACHES & BEARDS using trimmer head.

Slowly move trimmer downward on desired areas to neatly trim and shape.

###### TRIMMING ARM & LEG HAIR using trimmer head.

Simply glide the trimmer over your arm or leg until desired hair length is achieved. The first time you trim the hair, start by using a longer setting on the guide comb on the trimmer, then use progressively shorter settings if a shorter length is preferred.

TRIMMING CHEST & STOMACH using trimmer head. Glide the trimmer over your torso region, in an upward motion until

desired hair length is achieved. For tight, scratch-free trimming, use the #1 guide comb.

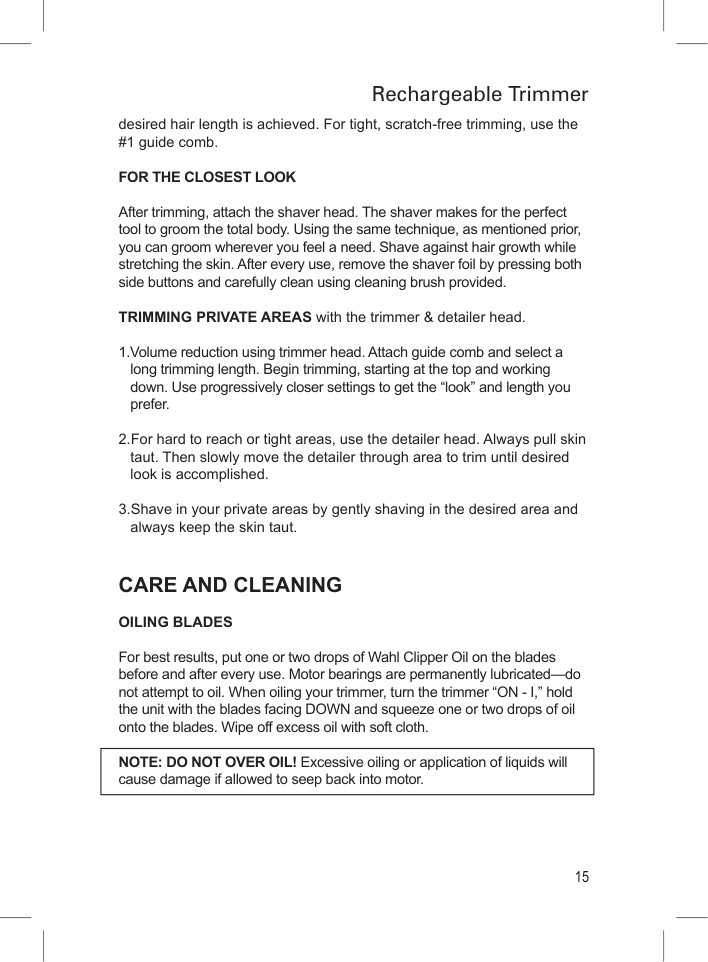

###### FOR THE CLOSEST LOOK

After trimming, attach the shaver head. The shaver makes for the perfect tool to groom the total body. Using the same technique, as mentioned prior, you can groom wherever you feel a need. Shave against hair growth while stretching the skin. After every use, remove the shaver foil by pressing both side buttons and carefully clean using cleaning brush provided.

TRIMMING PRIVATE AREAS with the trimmer & detailer head.

CARE AND CLEANING OILING BLADES

For best results, put one or two drops of Wahl Clipper Oil on the blades before and after every use. Motor bearings are permanently lubricated—do not attempt to oil. When oiling your trimmer, turn the trimmer “ON - I,” hold the unit with the blades facing DOWN and squeeze one or two drops of oil onto the blades. Wipe off excess oil with soft cloth.

|NOTE: DO NOT OVER OIL! Excessive oiling or application of liquids will cause damage if allowed to seep back into motor.| |---|

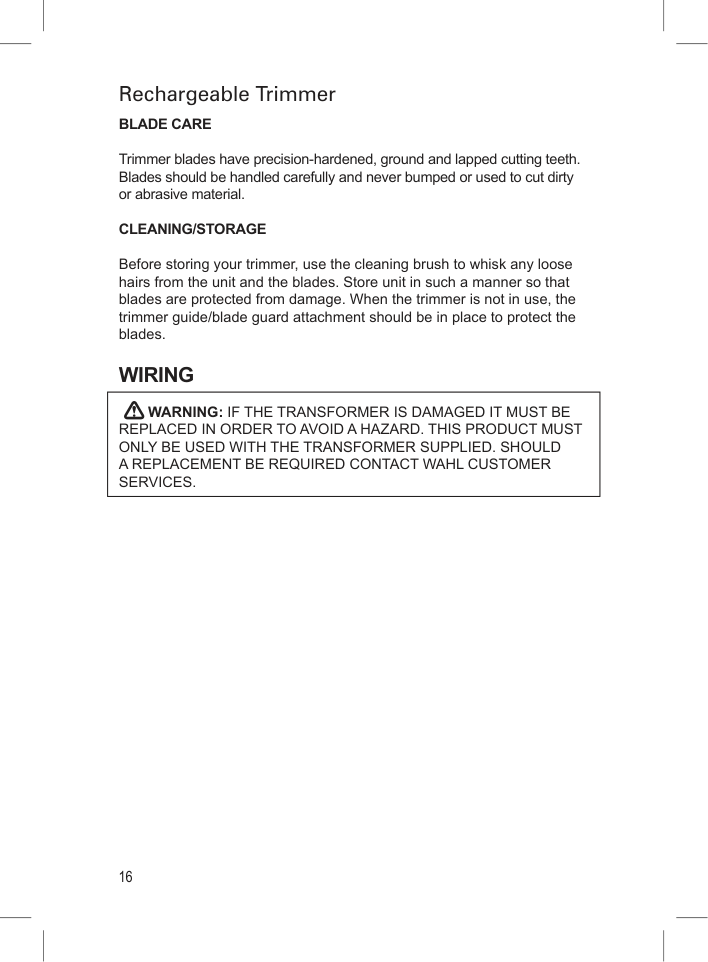

###### BLADE CARE

Trimmer blades have precision-hardened, ground and lapped cutting teeth. Blades should be handled carefully and never bumped or used to cut dirty or abrasive material.

###### CLEANING/STORAGE

Before storing your trimmer, use the cleaning brush to whisk any loose hairs from the unit and the blades. Store unit in such a manner so that blades are protected from damage. When the trimmer is not in use, the trimmer guide/blade guard attachment should be in place to protect the blades.

WIRING

|WARNING: IF THE TRANSFORMER IS DAMAGED IT MUST BE REPLACED IN ORDER TO AVOID A HAZARD. THIS PRODUCT MUST ONLY BE USED WITH THE TRANSFORMER SUPPLIED. SHOULD A REPLACEMENT BE REQUIRED CONTACT WAHL CUSTOMER SERVICES.| |---|

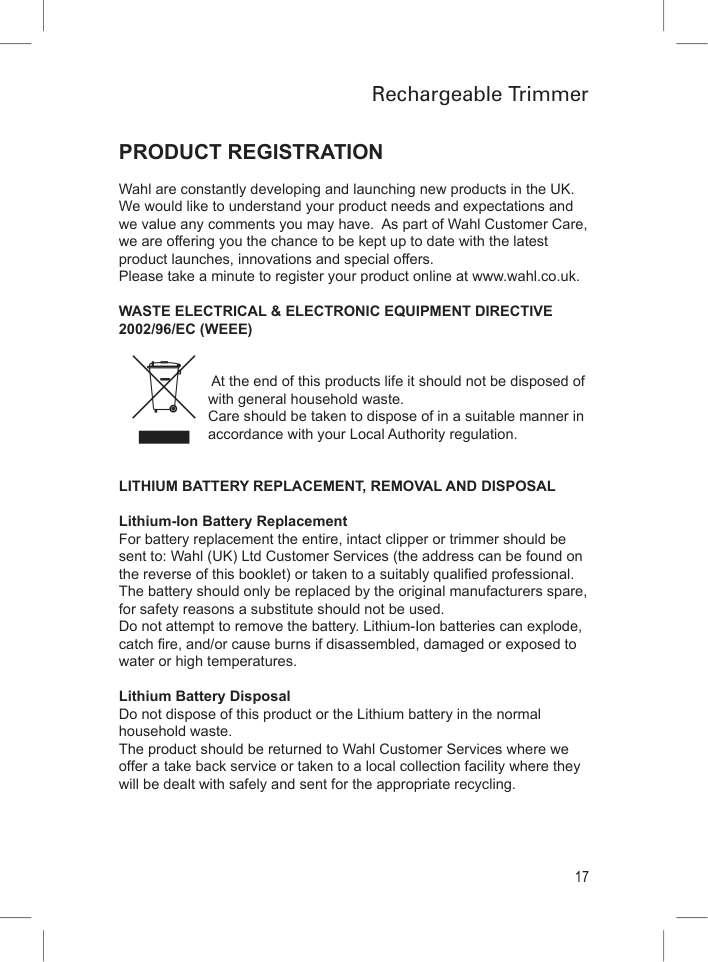

PRODUCT REGISTRATION

Wahl are constantly developing and launching new products in the UK. We would like to understand your product needs and expectations and we value any comments you may have. As part of Wahl Customer Care, we are offering you the chance to be kept up to date with the latest product launches, innovations and special offers. Please take a minute to register your product online at www.wahl.co.uk.

###### WASTE ELECTRICAL & ELECTRONIC EQUIPMENT DIRECTIVE 2002/96/EC (WEEE)

At the end of this products life it should not be disposed of with general household waste. Care should be taken to dispose of in a suitable manner in accordance with your Local Authority regulation.

LITHIUM BATTERY REPLACEMENT, REMOVAL AND DISPOSAL Lithium-Ion Battery Replacement For battery replacement the entire, intact clipper or trimmer should be sent to: Wahl (UK) Ltd Customer Services (the address can be found on the reverse of this booklet) or taken to a suitably qualified professional. The battery should only be replaced by the original manufacturers spare, for safety reasons a substitute should not be used. Do not attempt to remove the battery. Lithium-Ion batteries can explode, catch fire, and/or cause burns if disassembled, damaged or exposed to water or high temperatures. Lithium Battery Disposal Do not dispose of this product or the Lithium battery in the normal household waste. The product should be returned to Wahl Customer Services where we offer a take back service or taken to a local collection facility where they will be dealt with safely and sent for the appropriate recycling.

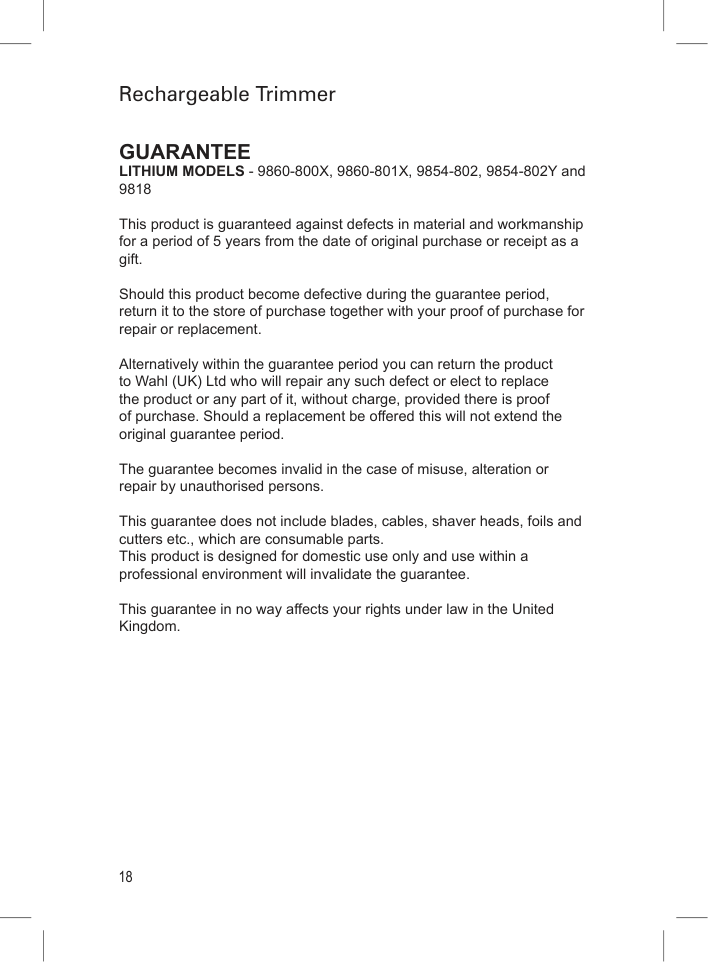

LITHIUM MODELS - 9860-800X, 9860-801X, 9854-802, 9854-802Y and 9818 This product is guaranteed against defects in material and workmanship for a period of 5 years from the date of original purchase or receipt as a gift. Should this product become defective during the guarantee period, return it to the store of purchase together with your proof of purchase for repair or replacement. Alternatively within the guarantee period you can return the product to Wahl (UK) Ltd who will repair any such defect or elect to replace the product or any part of it, without charge, provided there is proof of purchase. Should a replacement be offered this will not extend the original guarantee period. The guarantee becomes invalid in the case of misuse, alteration or repair by unauthorised persons. This guarantee does not include blades, cables, shaver heads, foils and cutters etc., which are consumable parts. This product is designed for domestic use only and use within a professional environment will invalidate the guarantee. This guarantee in no way affects your rights under law in the United Kingdom.

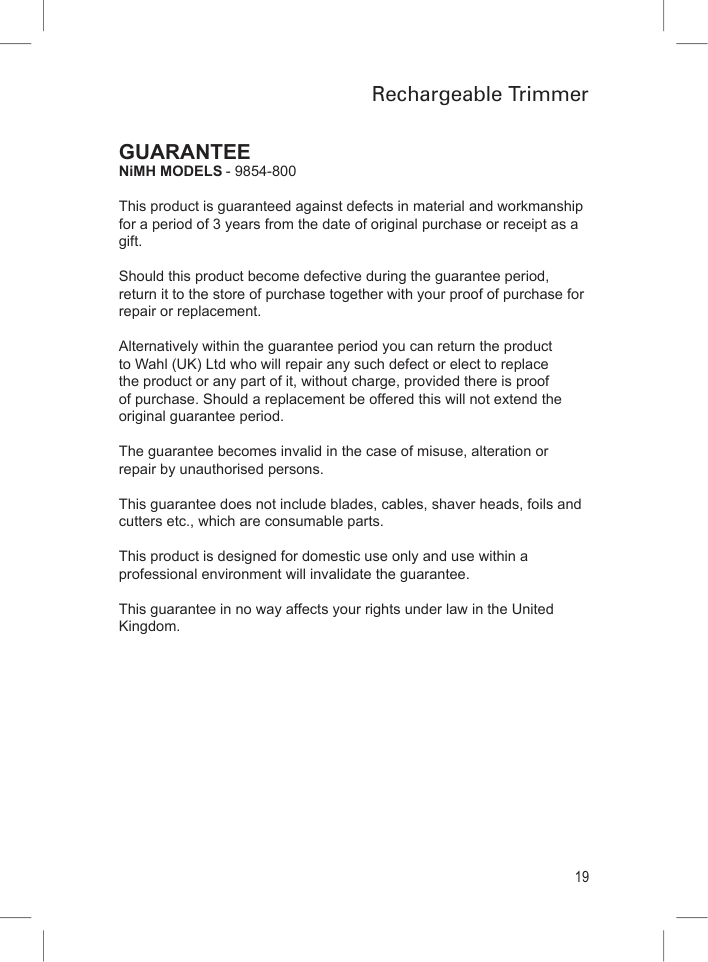

###### NiMH MODELS - 9854-800

This product is guaranteed against defects in material and workmanship for a period of 3 years from the date of original purchase or receipt as a gift.

Should this product become defective during the guarantee period, return it to the store of purchase together with your proof of purchase for repair or replacement.

Alternatively within the guarantee period you can return the product to Wahl (UK) Ltd who will repair any such defect or elect to replace the product or any part of it, without charge, provided there is proof of purchase. Should a replacement be offered this will not extend the original guarantee period.

The guarantee becomes invalid in the case of misuse, alteration or repair by unauthorised persons.

This guarantee does not include blades, cables, shaver heads, foils and cutters etc., which are consumable parts.

This product is designed for domestic use only and use within a professional environment will invalidate the guarantee.

This guarantee in no way affects your rights under law in the United Kingdom.

WAHL (UK) LIMITED HERNE BAY TRADE PARK, SEA STREET HERNE BAY KENT CT6 8JZ.

CUSTOMER SERVICES T: 01227 740066 www.wahl.co.uk

Form No. ZB333 Rev1 05/15
