40 V String Trimmer

Item #0506886

Model #Kst 120X-06

Français p. 20 Español p. 39 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST, Monday - Friday.

Attach Your Receipt Here

Serial Number Purchase Date KOBALT® and the K Design® are registered trademarks of LF, LLC. All Rights Reserved.

kobalttools.com 2

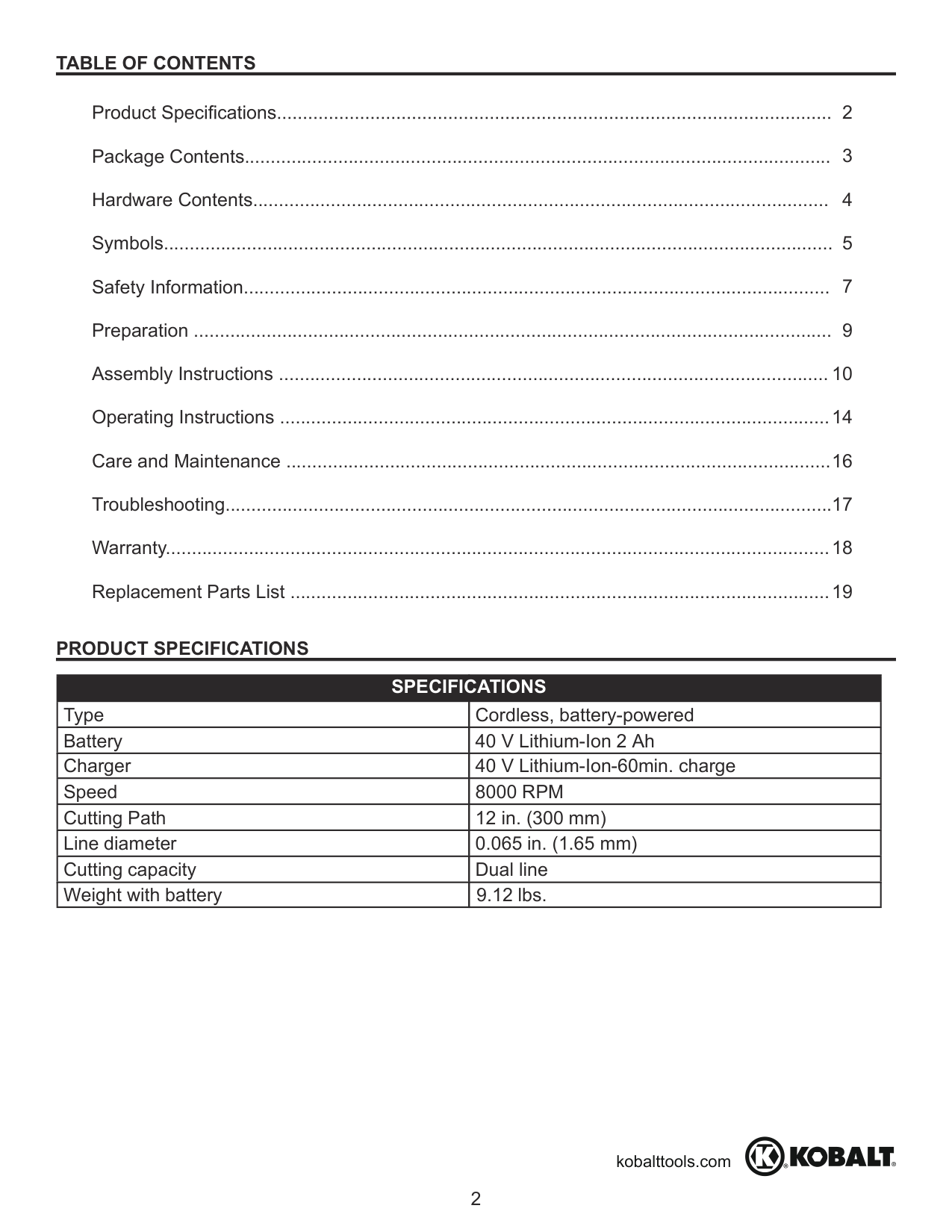

Table Of Contents

Product Specifications

Package Contents................................................................................................................. Hardware Contents............................................................................................................... Symbols................................................................................................................................. Safety Information................................................................................................................. Preparation ........................................................................................................................... Assembly Instructions .......................................................................................................... Operating Instructions .......................................................................................................... Care and Maintenance ......................................................................................................... Troubleshooting..................................................................................................................... Warranty................................................................................................................................ Replacement Parts List ........................................................................................................ 2 3 4 5 7 9 10 14 16 17 18 19 Type Battery Speed Cutting Path Line diameter Cutting capacity Cordless, battery-powered 40 V Lithium-Ion 2 Ah

8000 Rpm

12 in. (300 mm) 0.065 in. (1.65 mm) Dual line

Specifications

Weight with battery 9.12 lbs. Charger 40 V Lithium-Ion-60min. charge

kobalttools.com 3

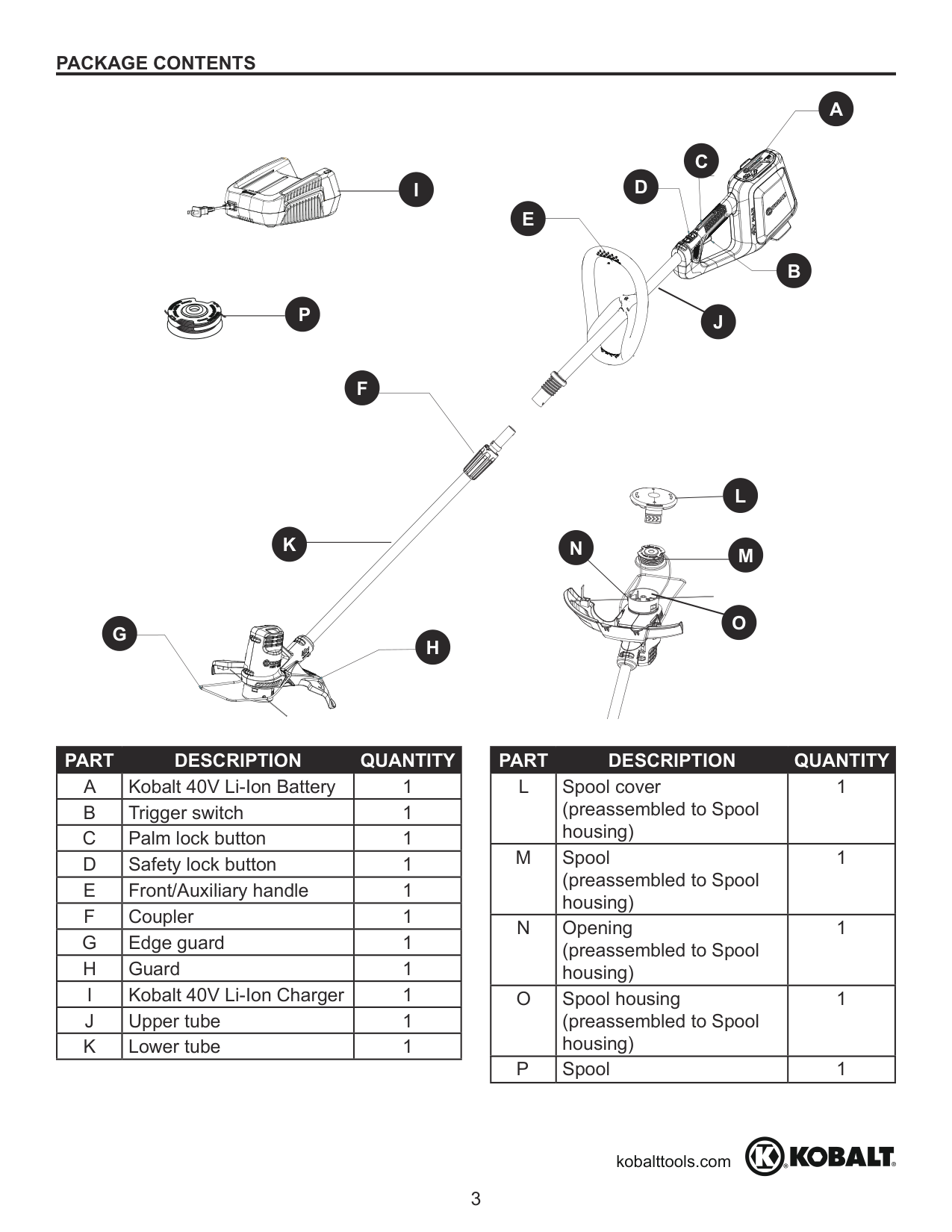

Package Contents

A

C

B

D

E

F

I

G

K

H

L

M

O

N

Part

Description

Quantity

A

Kobalt 40V Li-Ion Battery 1

B

Trigger switch 1

C

Palm lock button 1

D

Safety lock button 1

E

Front/Auxiliary handle 1

F

Coupler 1

G

Edge guard 1

H

Guard 1

I

Kobalt 40V Li-Ion Charger 1

J

Upper tube 1

K

Lower tube 1

Part

Description

Quantity

L

Spool cover (preassembled to Spool housing) 1

M

Spool (preassembled to Spool housing) 1

N

Opening (preassembled to Spool housing) 1

O

Spool housing (preassembled to Spool housing) 1

J

P

P

Spool 1

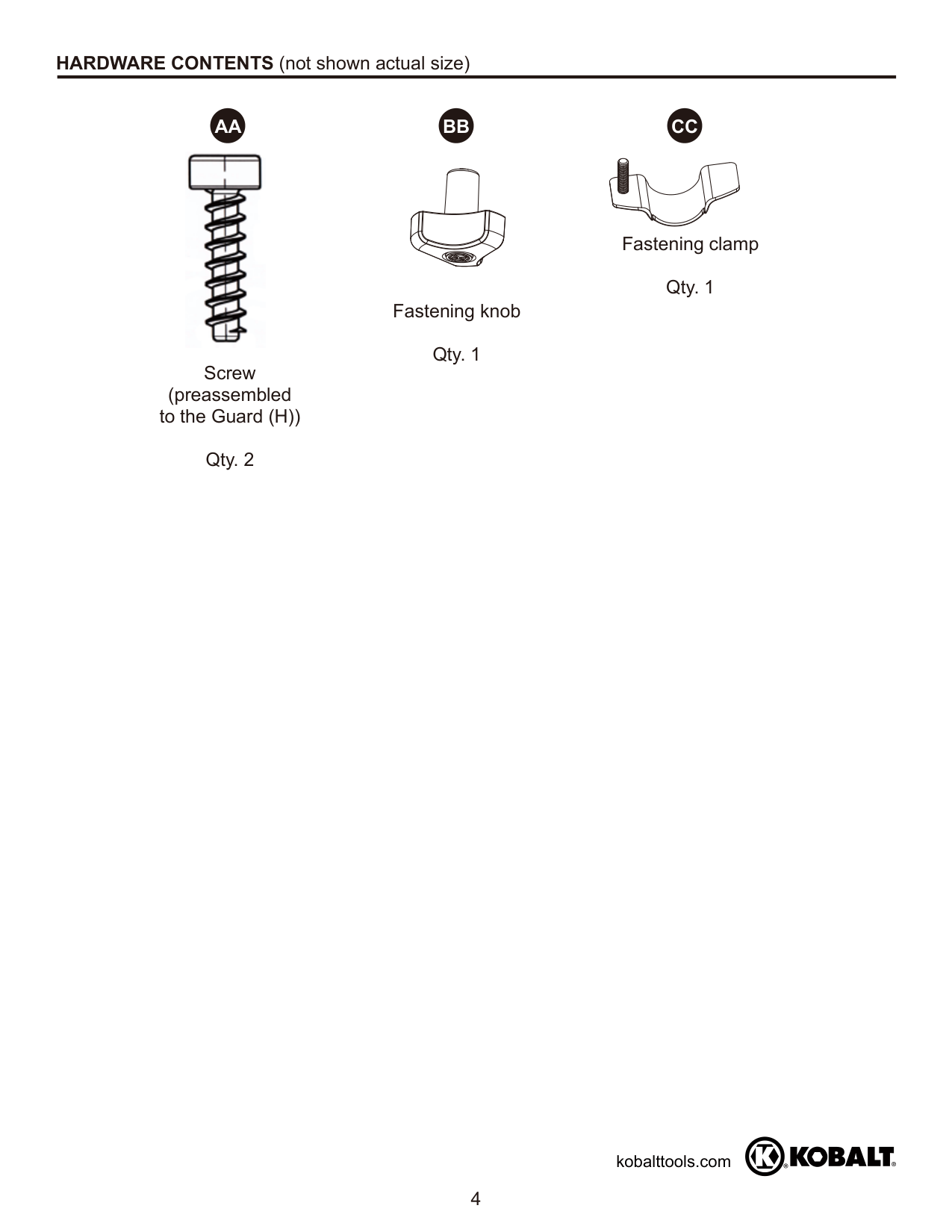

kobalttools.com 4 HARDWARE CONTENTS (not shown actual size) Screw (preassembled to the Guard (H)) Qty. 2 Fastening knob Qty. 1 Fastening clamp Qty. 1

Aa

Bb

Cc

kobalttools.com 5

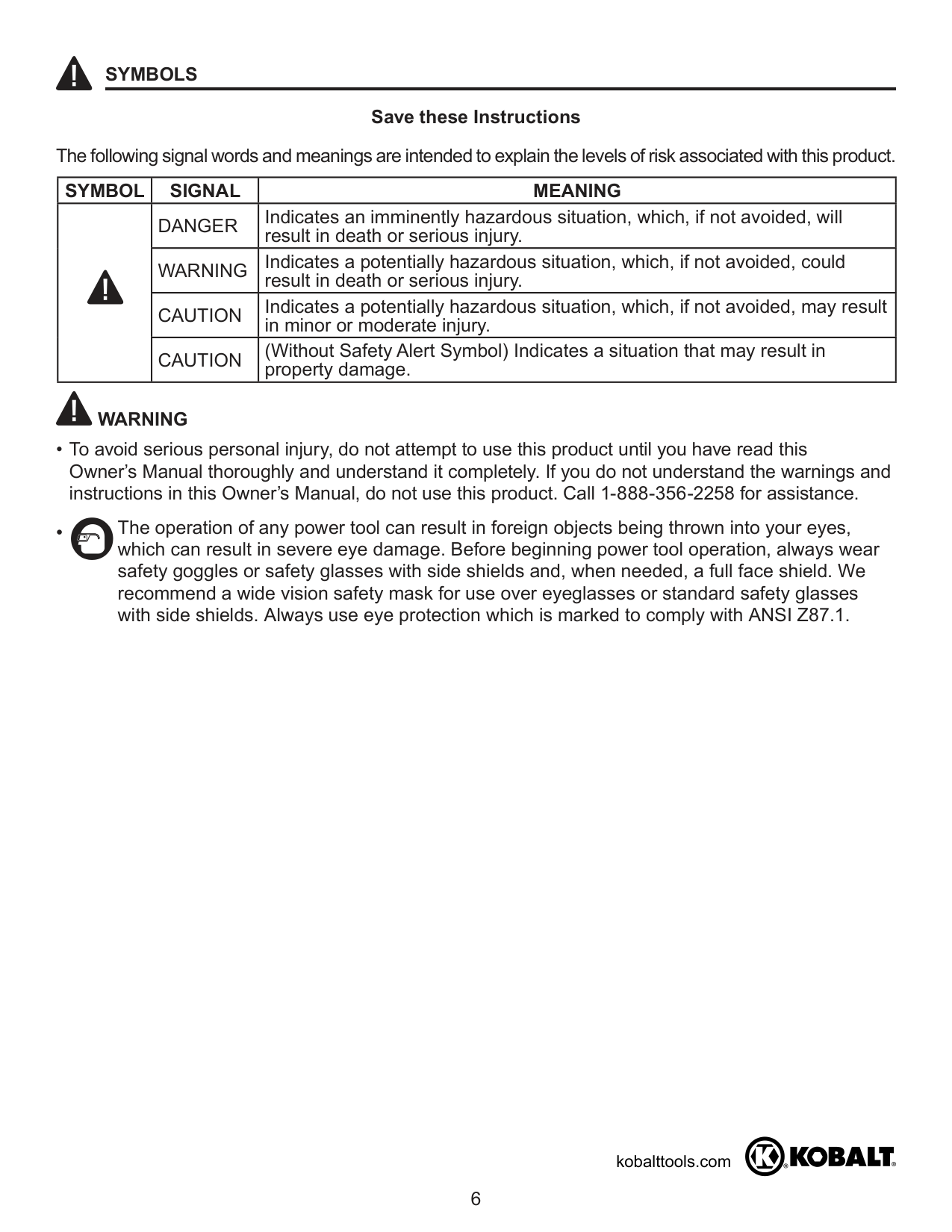

Symbols

Designation

Explanation

V

Volts Voltage

A

Amperes Current Hz Hertz Frequency (cycles per second)

W

Watts Power min Minutes Time Alternating Current Type of current Direct Current Type or a characteristic of current Class II Construction Double-insulated construction no No Load Speed Rational speed, at no load /min Per Minute Revolutions, strokes, surface speed, orbits, etc., per minute. Wet Conditions Alert Do not expose to rain or use in damp locations. Read the Operator’s Manual To reduce the risk of injury, user must read and understand operator’s manual before using this product. Eye Protection Wear eye protection with side shields that are marked to comply with ANSI Z87.1 when operating this equipment. Safety Alert Precautions that involve your safety. Long Hair Failure to keep long hair away from the air inlet could result in personal injury. Loose Clothing Failure to keep loose clothing from being drawn into air intake could result in personal injury. Keep Bystanders Away Keep all bystanders at least 50 ft. away.

Symbols

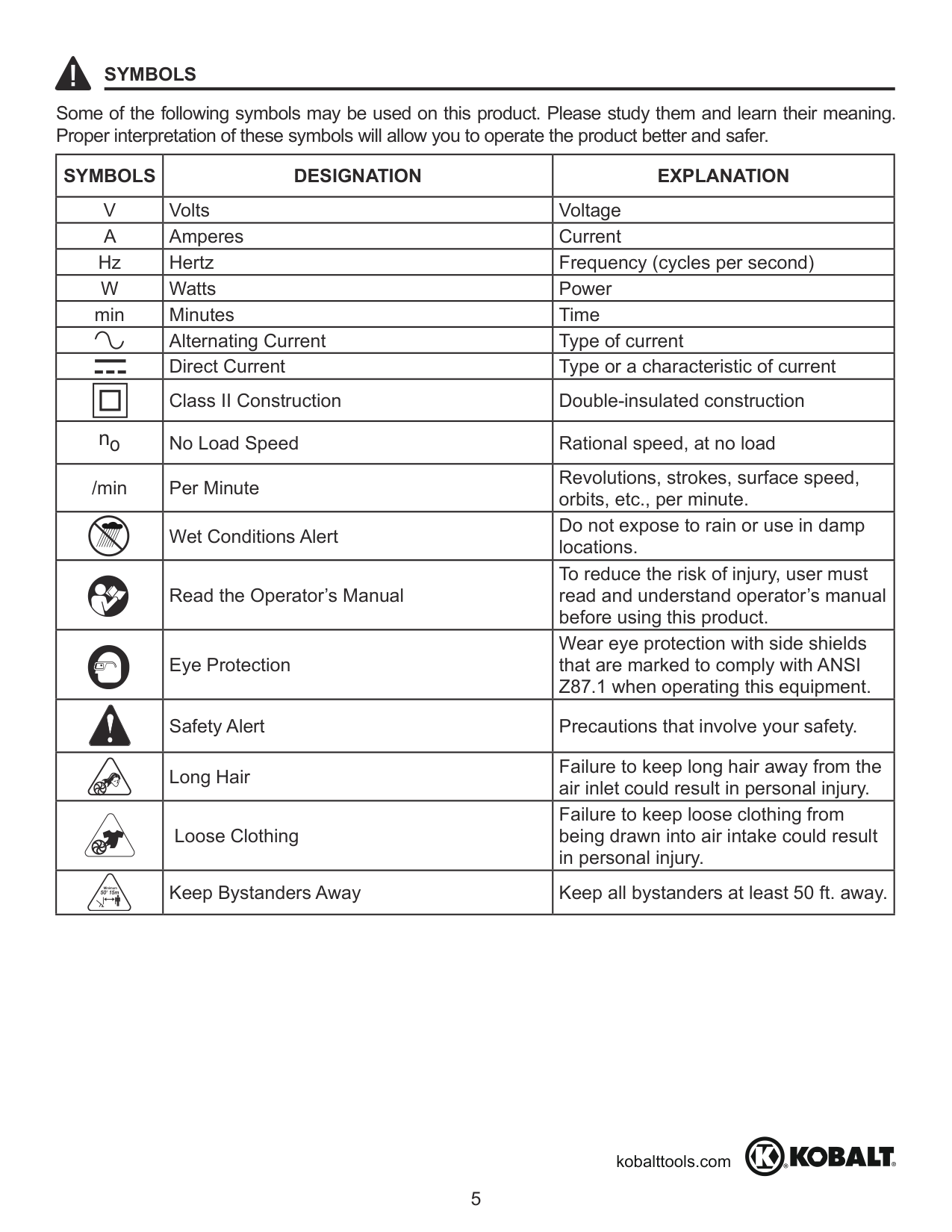

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

kobalttools.com 6

Symbol

Signal

Meaning

Danger

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

Warning

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

Caution

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

Caution

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

To avoid serious personal injury, do not attempt to use this product until you have read this

Owner’s Manual thoroughly and understand it completely. If you do not understand the warnings and instructions in this Owner’s Manual, do not use this product. Call 1-888-356-2258 for assistance. The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend a wide vision safety mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

Symbols

The following signal words and meanings are intended to explain the levels of risk associated with this product. Save these Instructions

Warning

kobalttools.com 7

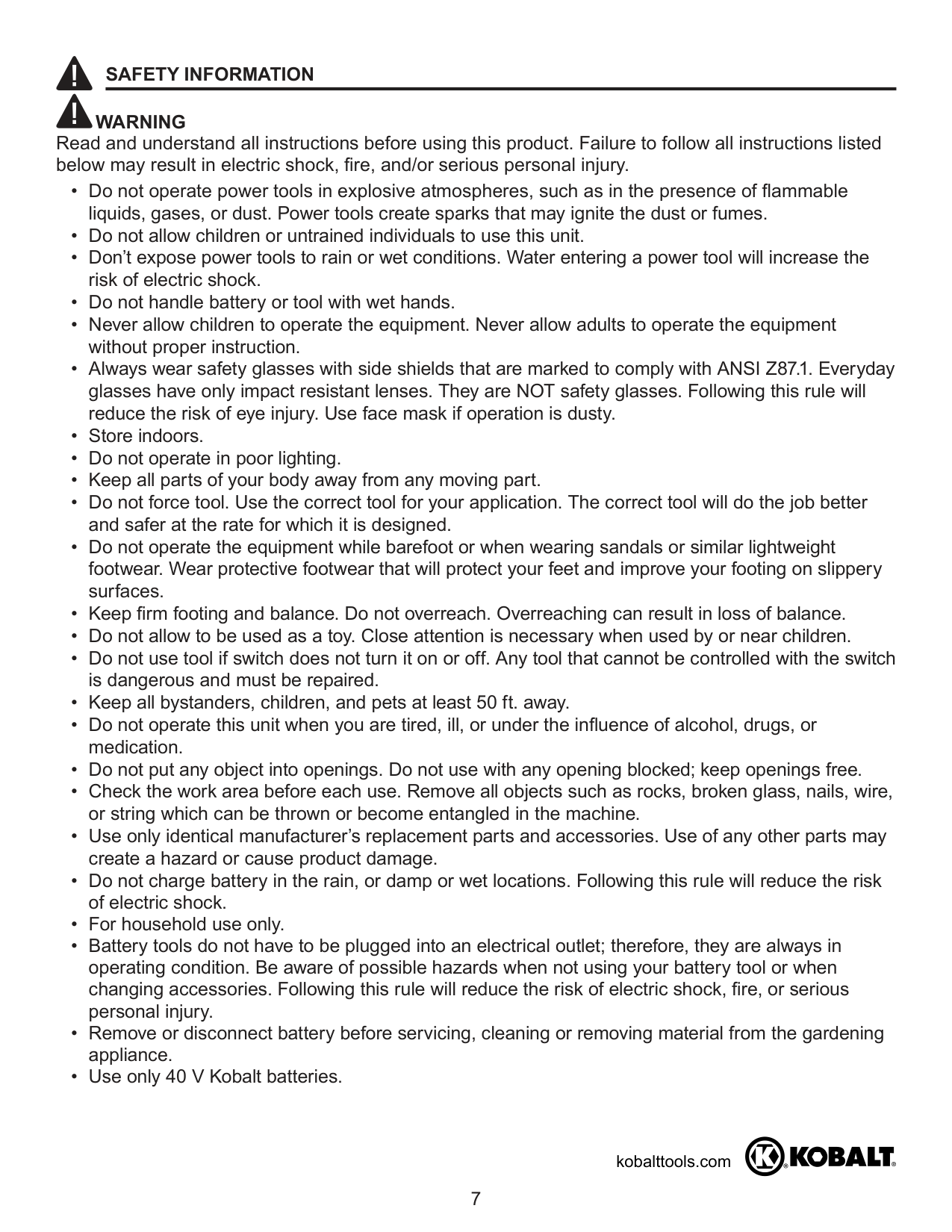

Safety Information

Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases, or dust. Power tools create sparks that may ignite the dust or fumes.

Do not allow children or untrained individuals to use this unit.

Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase the

risk of electric shock.

Do not handle battery or tool with wet hands.

Never allow children to operate the equipment. Never allow adults to operate the equipment

without proper instruction.

Always wear safety glasses with side shields that are marked to comply with ANSI Z87.1. Everyday

glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if operation is dusty.

Store indoors.

Do not operate in poor lighting.

Keep all parts of your body away from any moving part.

Do not force tool. Use the correct tool for your application. The correct tool will do the job better

and safer at the rate for which it is designed.

Do not operate the equipment while barefoot or when wearing sandals or similar lightweight

footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance.

Do not allow to be used as a toy. Close attention is necessary when used by or near children.

Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch

is dangerous and must be repaired.

Keep all bystanders, children, and pets at least 50 ft. away.

Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or

medication.

Do not put any object into openings. Do not use with any opening blocked; keep openings free.

Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire,

or string which can be thrown or become entangled in the machine.

Use only identical manufacturer’s replacement parts and accessories. Use of any other parts may

create a hazard or cause product damage.

Do not charge battery in the rain, or damp or wet locations. Following this rule will reduce the risk

of electric shock.

For household use only.

Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in

operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.

Remove or disconnect battery before servicing, cleaning or removing material from the gardening

appliance.

Use only 40 V Kobalt batteries.

Warning

kobalttools.com 8

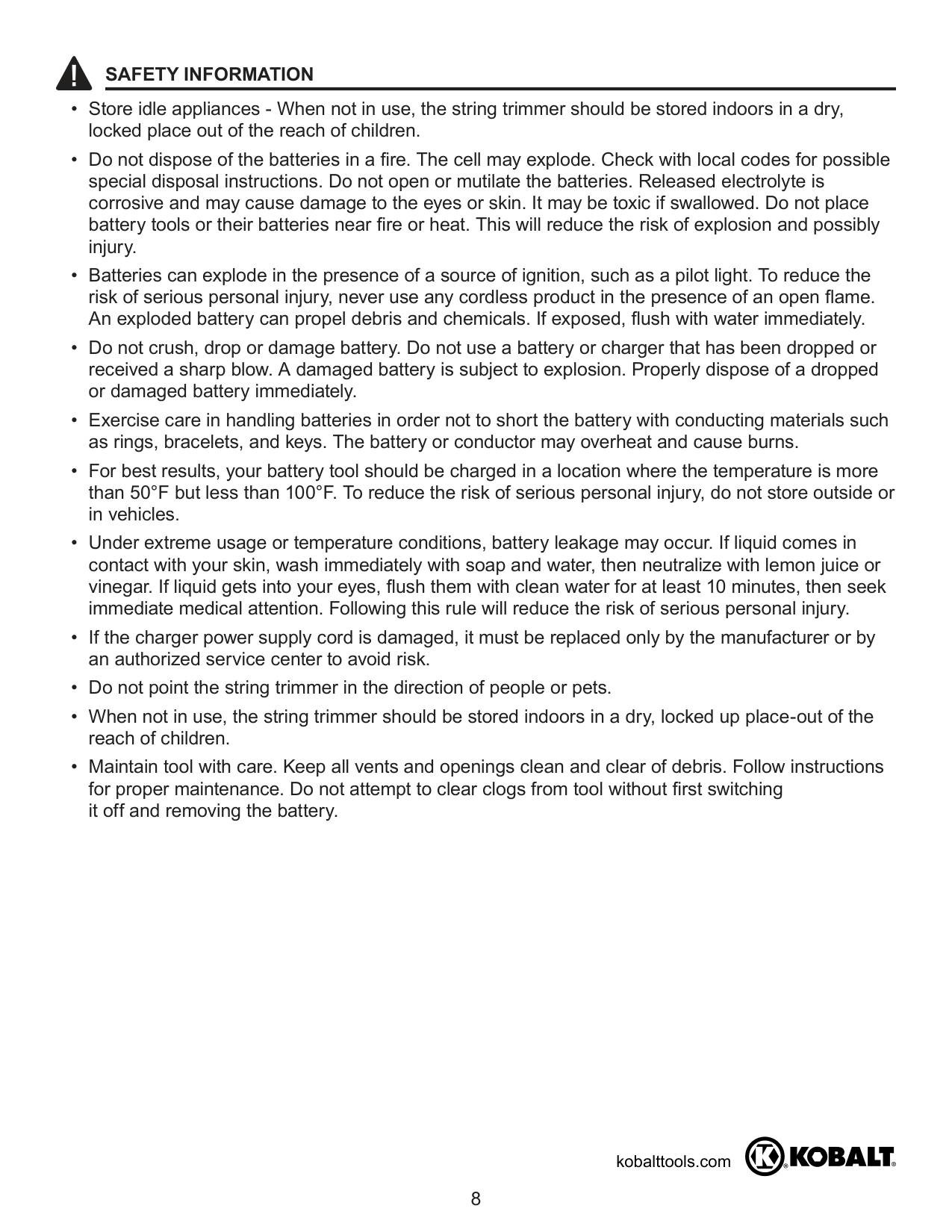

Safety Information

Store idle appliances - When not in use, the string trimmer should be stored indoors in a dry,

locked place out of the reach of children.

Do not dispose of the batteries in a fire. The cell may explode. Check with local codes for possible

special disposal instructions. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.

Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the

risk of serious personal injury, never use any cordless product in the presence of an open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.

Do not crush, drop or damage battery. Do not use a battery or charger that has been dropped or

received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.

Exercise care in handling batteries in order not to short the battery with conducting materials such

as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

For best results, your battery tool should be charged in a location where the temperature is more

than 50°F but less than 100°F. To reduce the risk of serious personal injury, do not store outside or in vehicles.

Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in

contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.

If the charger power supply cord is damaged, it must be replaced only by the manufacturer or by

an authorized service center to avoid risk.

Do not point the string trimmer in the direction of people or pets.

When not in use, the string trimmer should be stored indoors in a dry, locked up place-out of the

reach of children.

Maintain tool with care. Keep all vents and openings clean and clear of debris. Follow instructions

for proper maintenance. Do not attempt to clear clogs from tool without first switching it off and removing the battery.

kobalttools.com 9

Safety Information

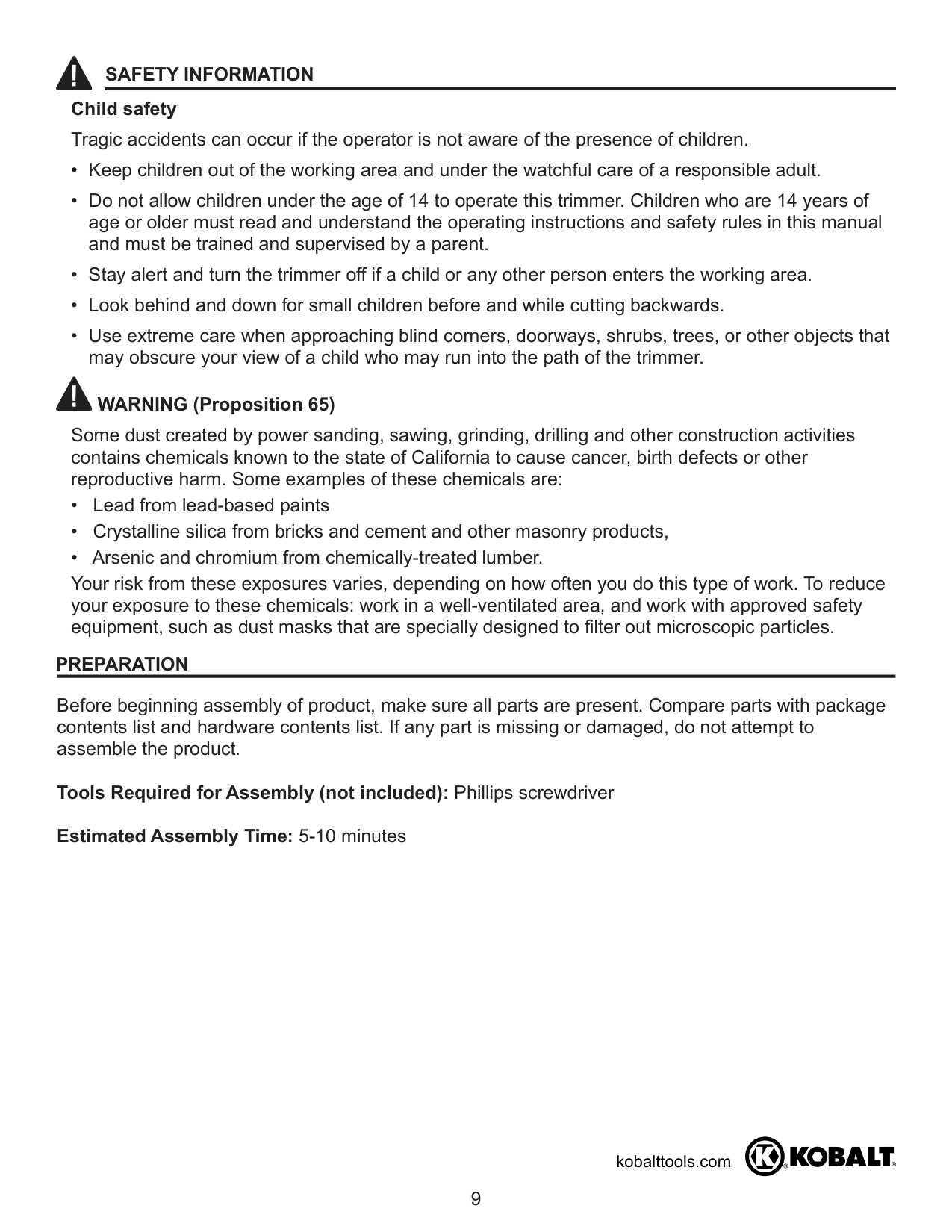

Child safety Tragic accidents can occur if the operator is not aware of the presence of children.

Keep children out of the working area and under the watchful care of a responsible adult.

Do not allow children under the age of 14 to operate this trimmer. Children who are 14 years of

age or older must read and understand the operating instructions and safety rules in this manual and must be trained and supervised by a parent.

Stay alert and turn the trimmer off if a child or any other person enters the working area.

Look behind and down for small children before and while cutting backwards.

Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that

may obscure your view of a child who may run into the path of the trimmer. WARNING (Proposition 65) Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints

Crystalline silica from bricks and cement and other masonry products,

Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

Preparation

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Tools Required for Assembly (not included): Phillips screwdriver Estimated Assembly Time: 5-10 minutes

kobalttools.com 10

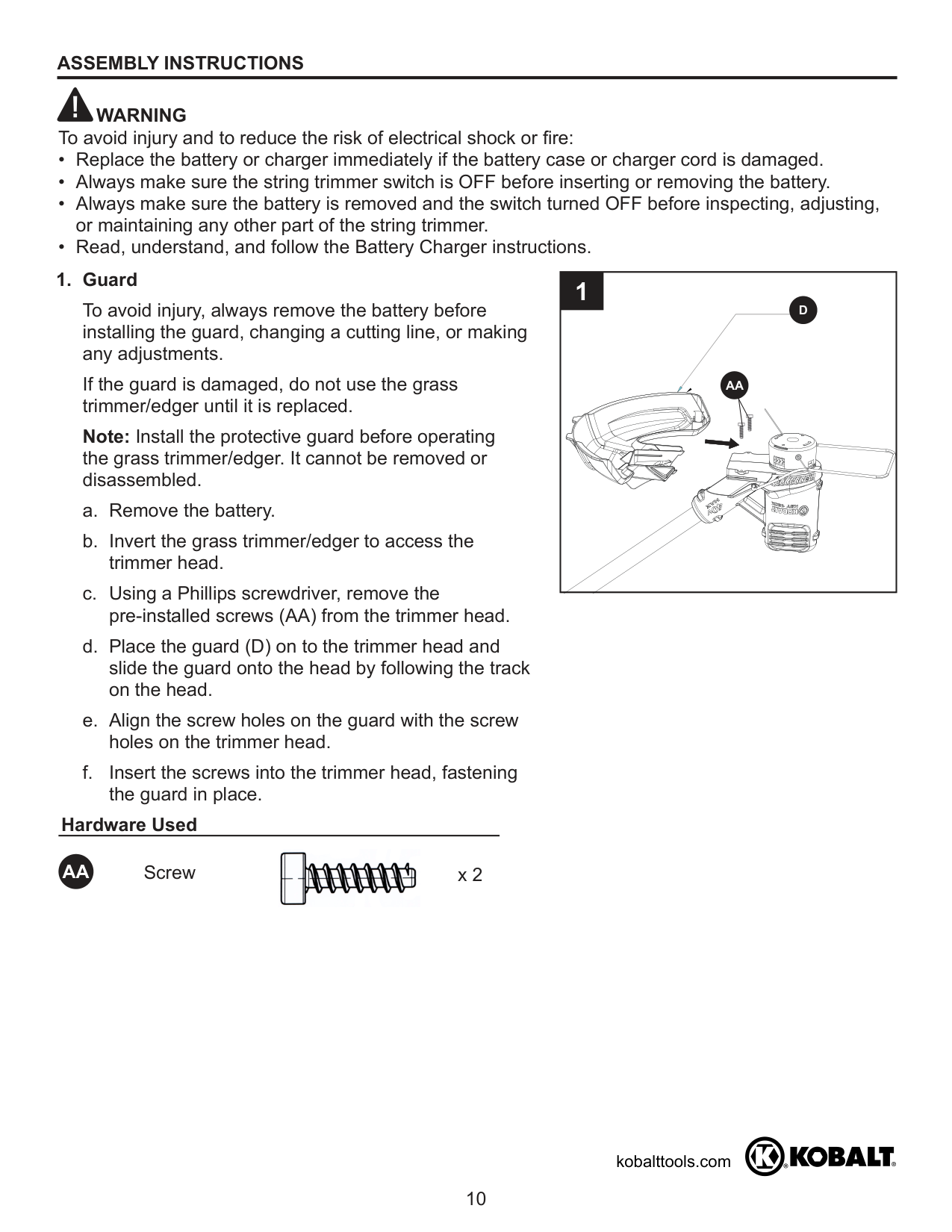

Assembly Instructions

To avoid injury and to reduce the risk of electrical shock or fire:

Replace the battery or charger immediately if the battery case or charger cord is damaged.

Always make sure the string trimmer switch is OFF before inserting or removing the battery.

Always make sure the battery is removed and the switch turned OFF before inspecting, adjusting,

or maintaining any other part of the string trimmer.

Read, understand, and follow the Battery Charger instructions.

Guard

To avoid injury, always remove the battery before installing the guard, changing a cutting line, or making any adjustments.

If the guard is damaged, do not use the grass trimmer/edger until it is replaced.

Note: Install the protective guard before operating the grass trimmer/edger. It cannot be removed or disassembled. a. Remove the battery. b. Invert the grass trimmer/edger to access the trimmer head. c. Using a Phillips screwdriver, remove the pre-installed screws (AA) from the trimmer head. d. Place the guard (D) on to the trimmer head and slide the guard onto the head by following the track on the head. e. Align the screw holes on the guard with the screw holes on the trimmer head. f. Insert the screws into the trimmer head, fastening the guard in place. 1 1

D

Aa

Warning

Hardware Used Screw x 2

Aa

kobalttools.com 11

Assembly Instructions

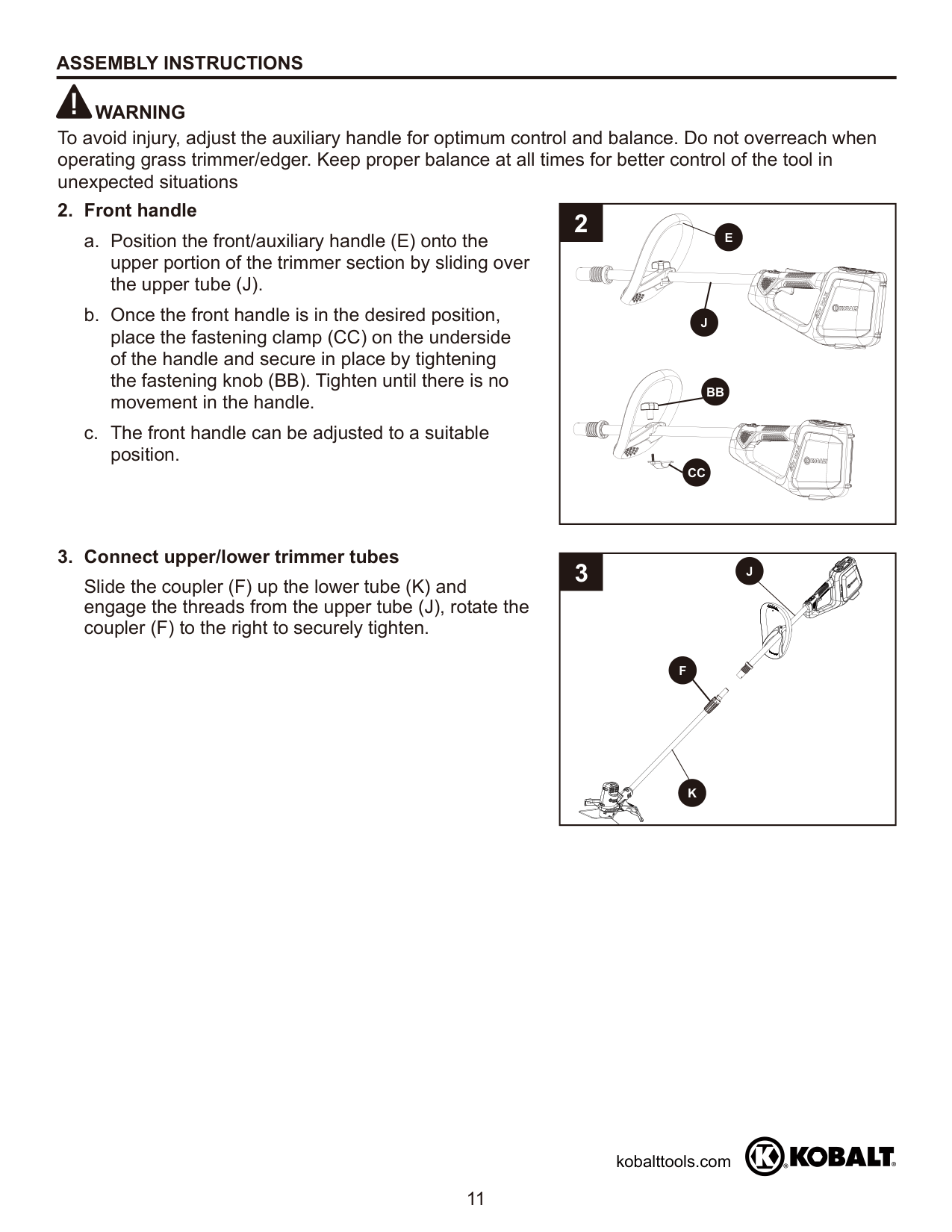

To avoid injury, adjust the auxiliary handle for optimum control and balance. Do not overreach when operating grass trimmer/edger. Keep proper balance at all times for better control of the tool in unexpected situations

Front handle

a. Position the front/auxiliary handle (E) onto the upper portion of the trimmer section by sliding over the upper tube (J). b. Once the front handle is in the desired position, place the fastening clamp (CC) on the underside of the handle and secure in place by tightening the fastening knob (BB). Tighten until there is no movement in the handle. c. The front handle can be adjusted to a suitable position.

Connect upper/lower trimmer tubes

Slide the coupler (F) up the lower tube (K) and engage the threads from the upper tube (J), rotate the coupler (F) to the right to securely tighten. 2 3

Warning

E

J

K

J

F

Bb

Cc

kobalttools.com 12

Assembly Instructions

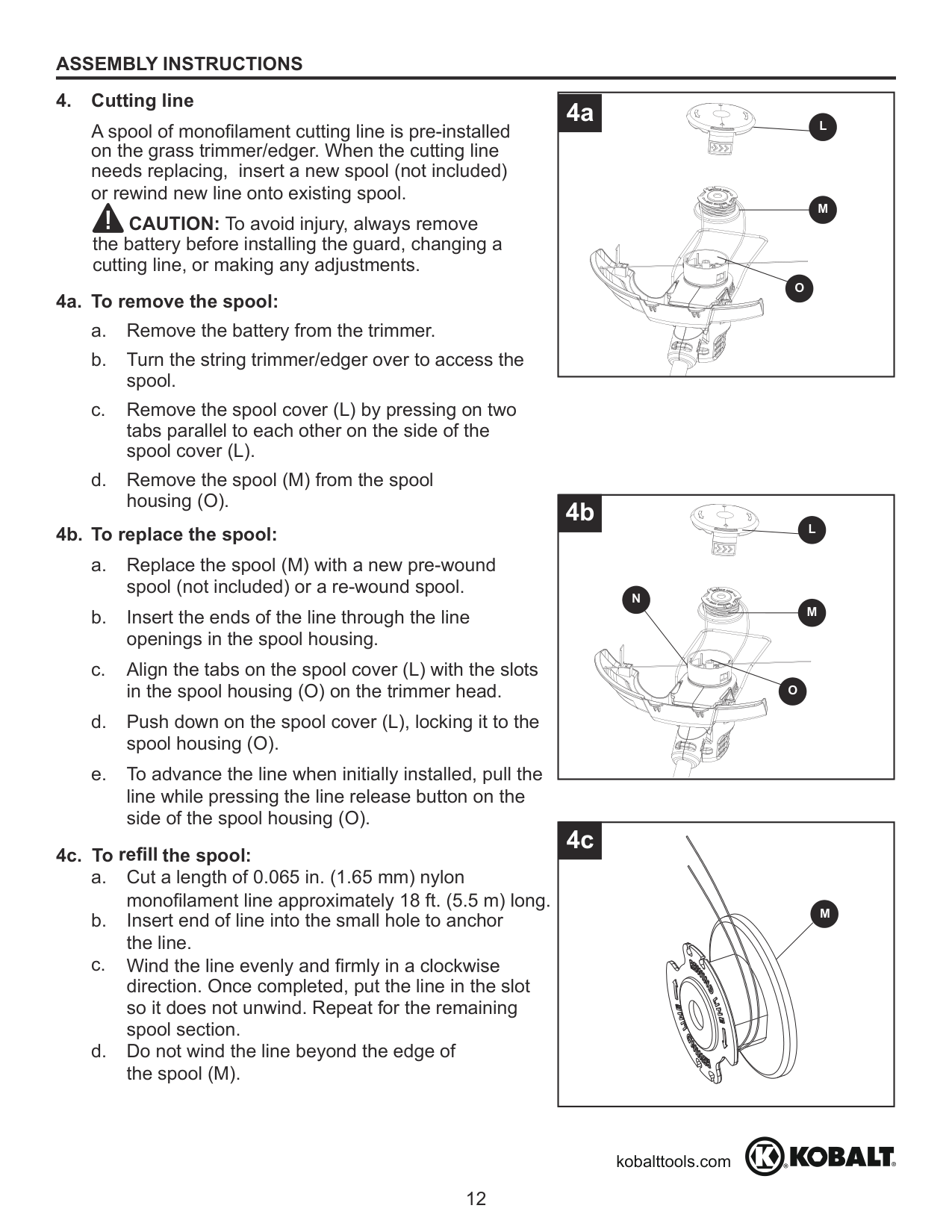

4b. To replace the spool: a. Replace the spool (M) with a new pre-wound spool (not included) or a re-wound spool. b. Insert the ends of the line through the line openings in the spool housing. c. Align the tabs on the spool cover (L) with the slots in the spool housing (O) on the trimmer head. d. Push down on the spool cover (L), locking it to the spool housing (O). e. To advance the line when initially installed, pull the line while pressing the line release button on the side of the spool housing (O). 4c. To the spool: a. Cut a length of 0.065 in. (1.65 mm) nylon b. Insert end of line into the small hole to anchor the line. c. direction. Once completed, put the line in the slot so it does not unwind. Repeat for the remaining spool section. d. Do not wind the line beyond the edge of the spool (M).

M

O

L

4a 4b 4c

Cutting line

on the grass trimmer/edger. When the cutting line needs replacing, insert a new spool (not included) or rewind new line onto existing spool. CAUTION: To avoid injury, always remove the battery before installing the guard, changing a cutting line, or making any adjustments. 4a. To remove the spool: a. Remove the battery from the trimmer. b. Turn the string trimmer/edger over to access the spool. c. Remove the spool cover (L) by pressing on two tabs parallel to each other on the side of the spool cover (L). d. Remove the spool (M) from the spool housing (O).

M

O

L

N

M

kobalttools.com 13

Assembly Instructions

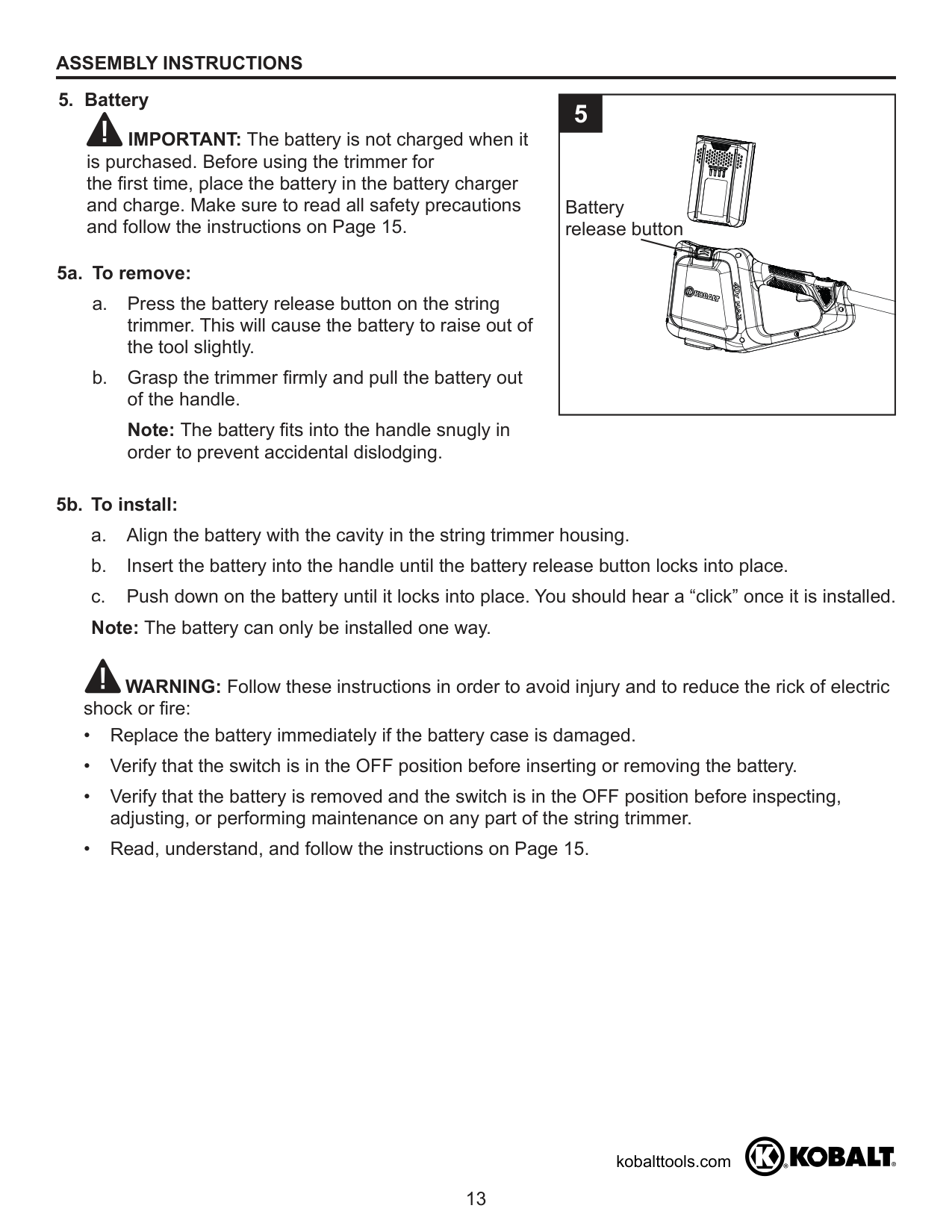

5b. To install: a. Align the battery with the cavity in the string trimmer housing. b. Insert the battery into the handle until the battery release button locks into place. c. Push down on the battery until it locks into place. You should hear a “click” once it is installed. Note: The battery can only be installed one way. WARNING: Follow these instructions in order to avoid injury and to reduce the rick of electric shock or fire:

Replace the battery immediately if the battery case is damaged.

Verify that the switch is in the OFF position before inserting or removing the battery.

Verify that the battery is removed and the switch is in the OFF position before inspecting,

adjusting, or performing maintenance on any part of the string trimmer.

Read, understand, and follow the instructions on Page 15.

5

Battery

5a. To remove: a. Press the battery release button on the string trimmer. This will cause the battery to raise out of the tool slightly. b. Grasp the trimmer firmly and pull the battery out of the handle.

Note: The battery fits into the handle snugly in order to prevent accidental dislodging. IMPORTANT: The battery is not charged when it is purchased. Before using the trimmer for the first time, place the battery in the battery charger and charge. Make sure to read all safety precautions and follow the instructions on Page 15. Battery release button

kobalttools.com 14

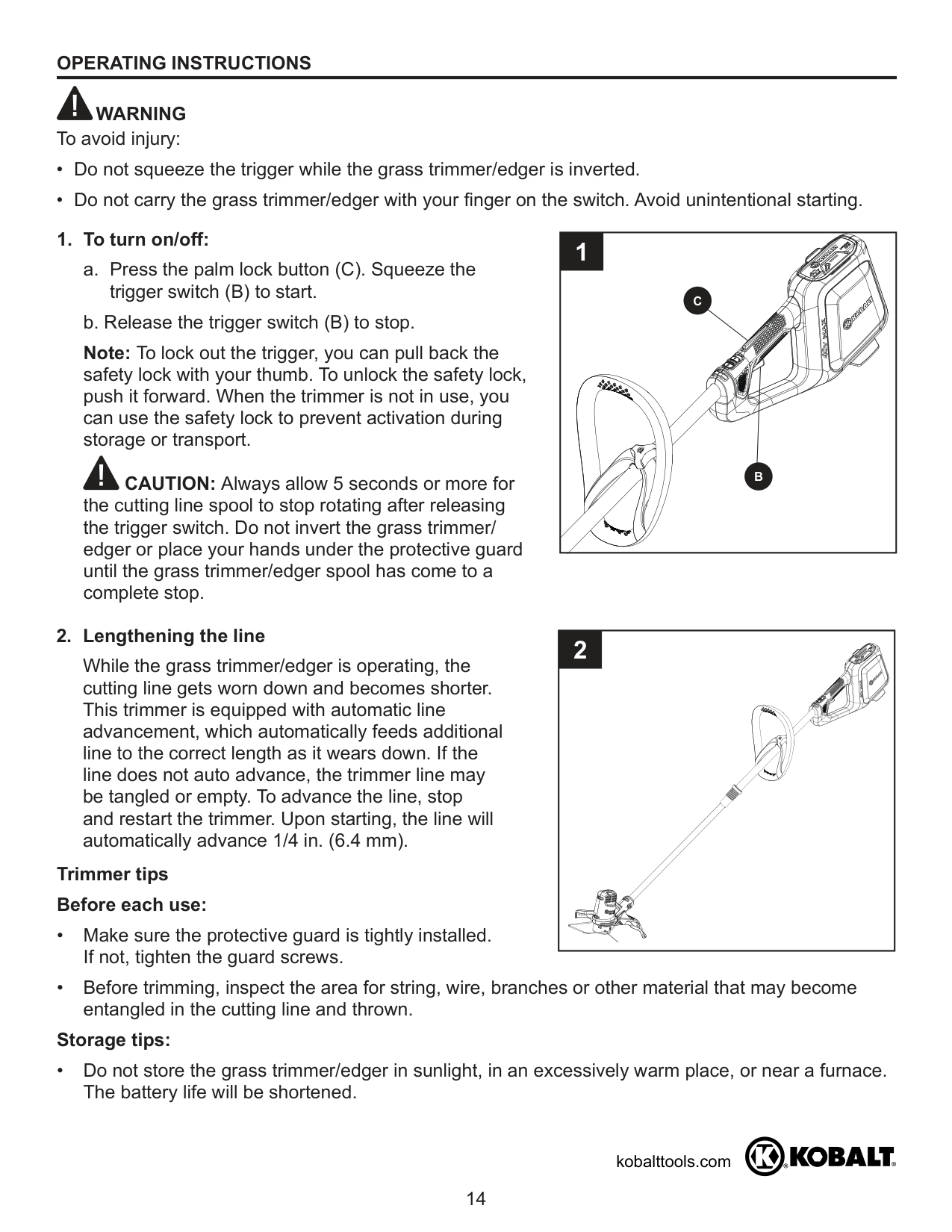

To turn on/off:

a. Press the palm lock button (C). Squeeze the trigger switch (B) to start. b. Release the trigger switch (B) to stop.

Note: To lock out the trigger, you can pull back the safety lock with your thumb. To unlock the safety lock, push it forward. When the trimmer is not in use, you can use the safety lock to prevent activation during storage or transport.

Operating Instructions

To avoid injury:

Do not squeeze the trigger while the grass trimmer/edger is inverted.

Do not carry the grass trimmer/edger with your finger on the switch. Avoid unintentional starting.

CAUTION: Always allow 5 seconds or more for the cutting line spool to stop rotating after releasing the trigger switch. Do not invert the grass trimmer/ edger or place your hands under the protective guard until the grass trimmer/edger spool has come to a complete stop.

Warning

1

Lengthening the line

While the grass trimmer/edger is operating, the cutting line gets worn down and becomes shorter. This trimmer is equipped with automatic line advancement, which automatically feeds additional line to the correct length as it wears down. If the line does not auto advance, the trimmer line may be tangled or empty. To advance the line, stop and restart the trimmer. Upon starting, the line will automatically advance 1/4 in. (6.4 mm). Trimmer tips Before each use:

Make sure the protective guard is tightly installed.

If not, tighten the guard screws.

Before trimming, inspect the area for string, wire, branches or other material that may become

entangled in the cutting line and thrown. Storage tips:

Do not store the grass trimmer/edger in sunlight, in an excessively warm place, or near a furnace.

The battery life will be shortened. 2

C

B

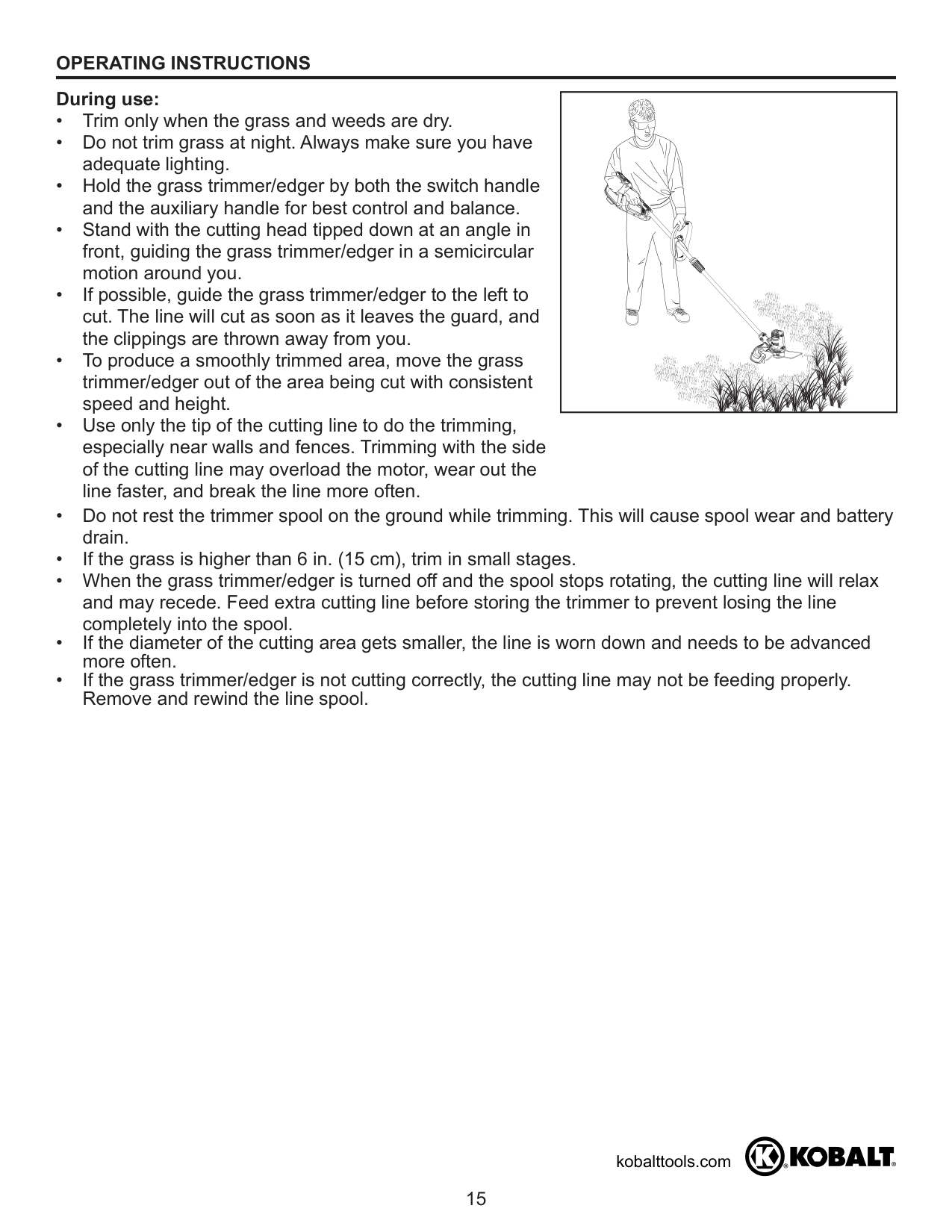

kobalttools.com 15 During use:

Trim only when the grass and weeds are dry.

Do not trim grass at night. Always make sure you have

adequate lighting.

Hold the grass trimmer/edger by both the switch handle

and the auxiliary handle for best control and balance.

Stand with the cutting head tipped down at an angle in

front, guiding the grass trimmer/edger in a semicircular motion around you.

If possible, guide the grass trimmer/edger to the left to

cut. The line will cut as soon as it leaves the guard, and the clippings are thrown away from you.

To produce a smoothly trimmed area, move the grass

trimmer/edger out of the area being cut with consistent speed and height.

Use only the tip of the cutting line to do the trimming,

especially near walls and fences. Trimming with the side of the cutting line may overload the motor, wear out the line faster, and break the line more often.

Do not rest the trimmer spool on the ground while trimming. This will cause spool wear and battery

drain.

If the grass is higher than 6 in. (15 cm), trim in small stages.

When the grass trimmer/edger is turned off and the spool stops rotating, the cutting line will relax

and may recede. Feed extra cutting line before storing the trimmer to prevent losing the line completely into the spool.

If the diameter of the cutting area gets smaller, the line is worn down and needs to be advanced

more often.

If the grass trimmer/edger is not cutting correctly, the cutting line may not be feeding properly.

Remove and rewind the line spool.

Operating Instructions

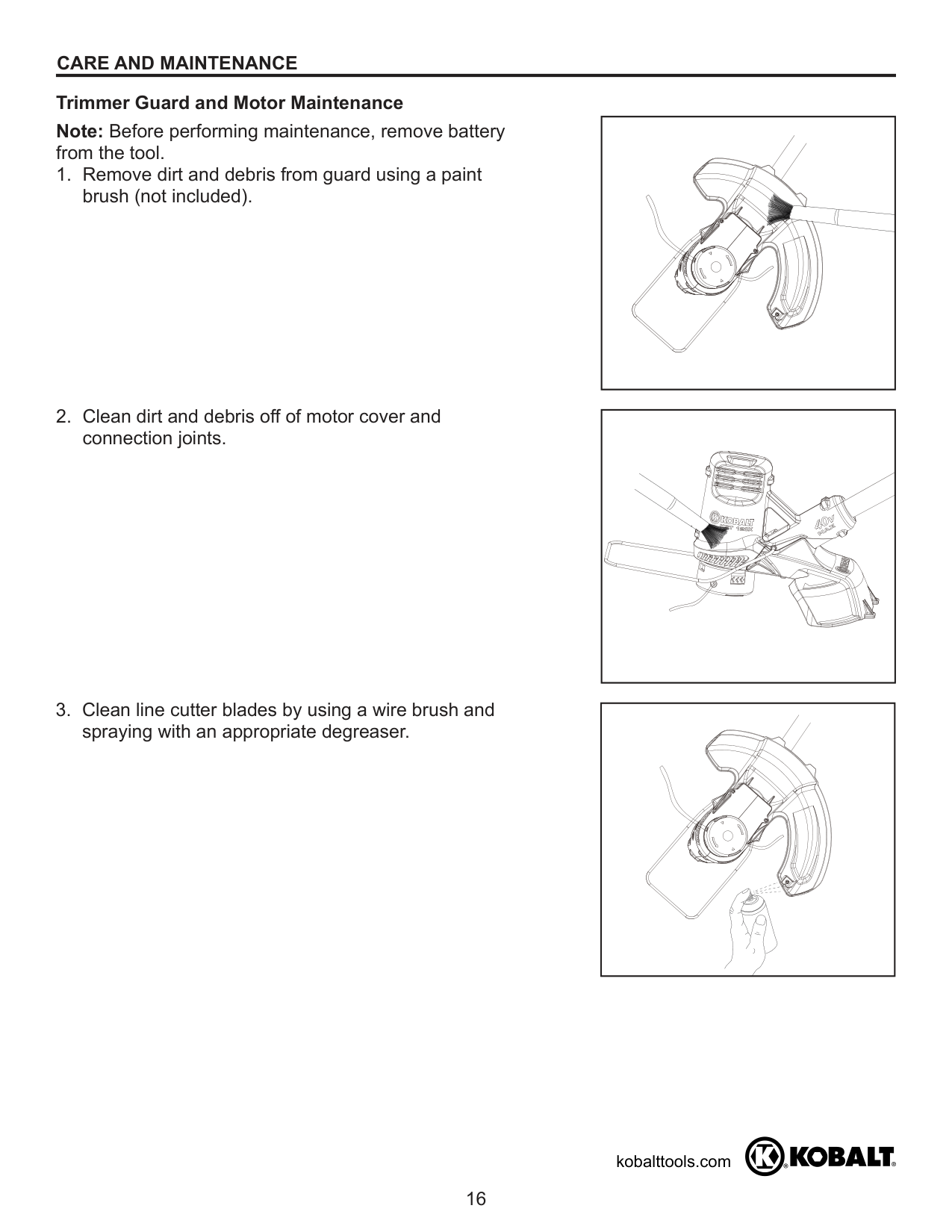

kobalttools.com 16 Note: Before performing maintenance, remove battery from the tool.

Remove dirt and debris from guard using a paint

brush (not included).

Clean dirt and debris off of motor cover and

connection joints. Trimmer Guard and Motor Maintenance

Care And Maintenance

Clean line cutter blades by using a wire brush and

spraying with an appropriate degreaser.

kobalttools.com 17

Care And Maintenance

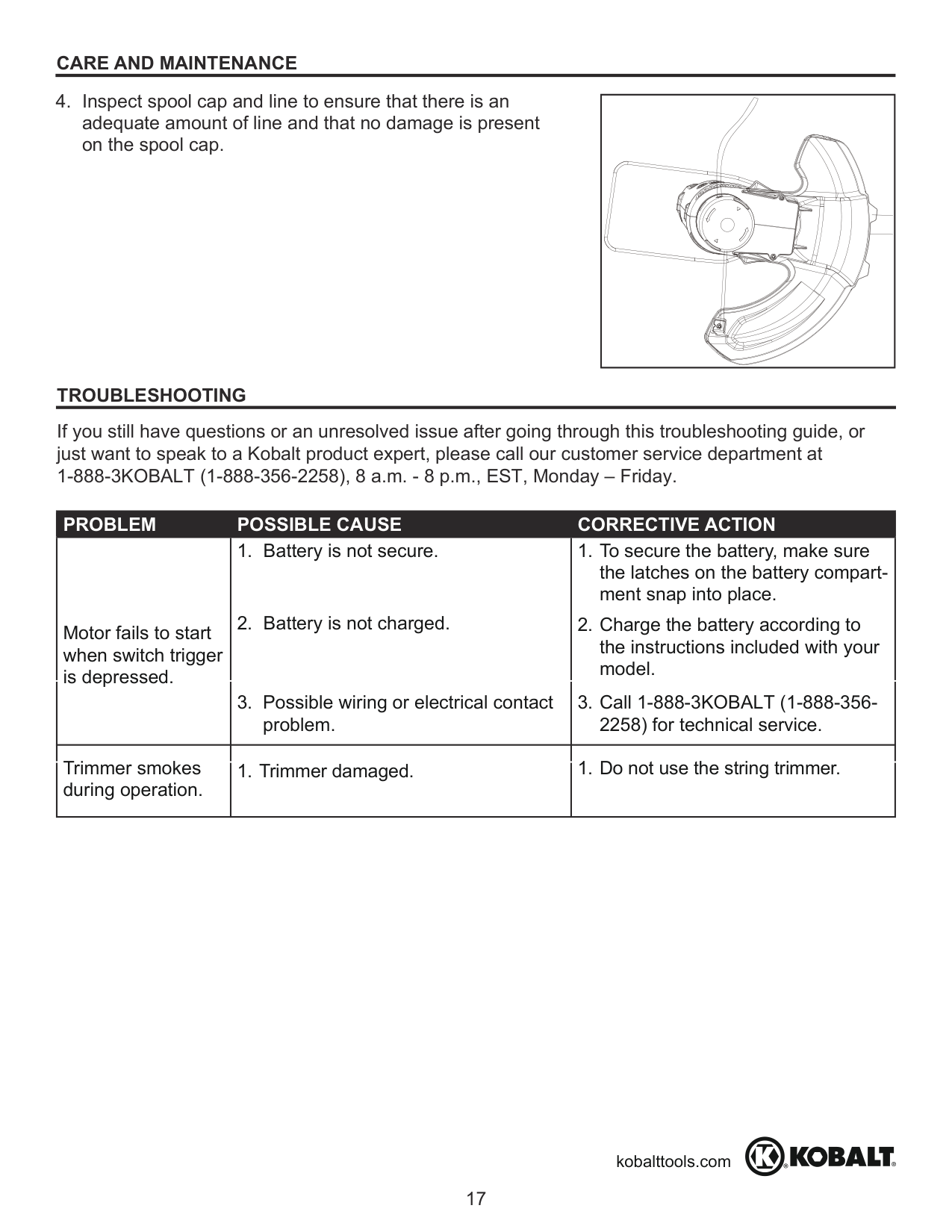

Inspect spool cap and line to ensure that there is an

adequate amount of line and that no damage is present on the spool cap.

Troubleshooting

Problem

Possible Cause

Corrective Action

Motor fails to start when switch trigger is depressed.

Battery is not secure.

Battery is not charged.

To secure the battery, make sure

the latches on the battery compart- ment snap into place.

Charge the battery according to

the instructions included with your model.

Possible wiring or electrical contact

problem.

Call 1-888-3KOBALT (1-888-356-

2258) for technical service.

Trimmer smokes during operation.

Trimmer damaged.

Do not use the string trimmer.

If you still have questions or an unresolved issue after going through this troubleshooting guide, or just want to speak to a Kobalt product expert, please call our customer service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST, Monday – Friday.

kobalttools.com 18

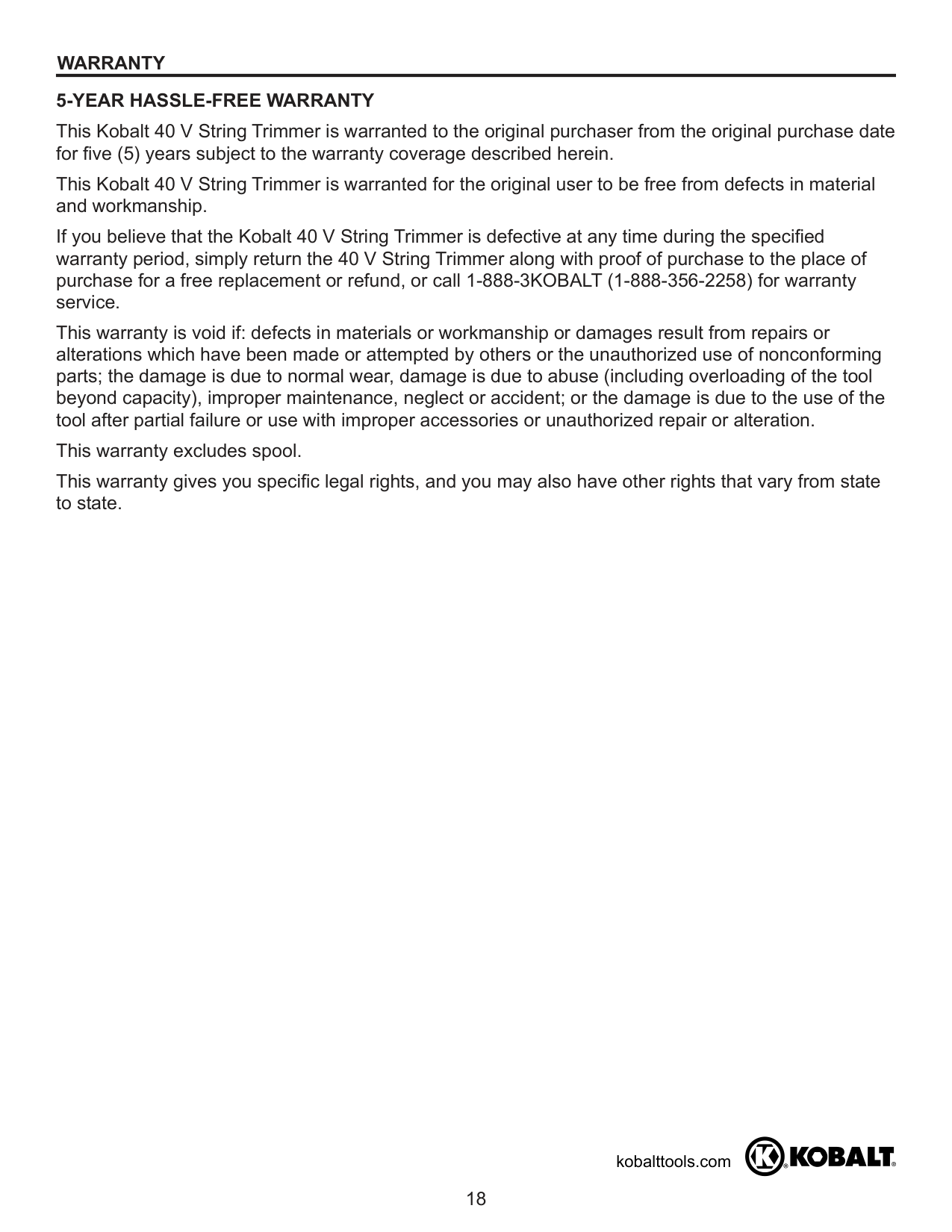

Warranty

5-Year Hassle-Free Warranty

This Kobalt 40 V String Trimmer is warranted to the original purchaser from the original purchase date for five (5) years subject to the warranty coverage described herein. This Kobalt 40 V String Trimmer is warranted for the original user to be free from defects in material and workmanship. If you believe that the Kobalt 40 V String Trimmer is defective at any time during the specified warranty period, simply return the 40 V String Trimmer along with proof of purchase to the place of purchase for a free replacement or refund, or call 1-888-3KOBALT (1-888-356-2258) for warranty service. This warranty is void if: defects in materials or workmanship or damages result from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts; the damage is due to normal wear, damage is due to abuse (including overloading of the tool beyond capacity), improper maintenance, neglect or accident; or the damage is due to the use of the tool after partial failure or use with improper accessories or unauthorized repair or alteration. This warranty excludes spool. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

kobalttools.com 19

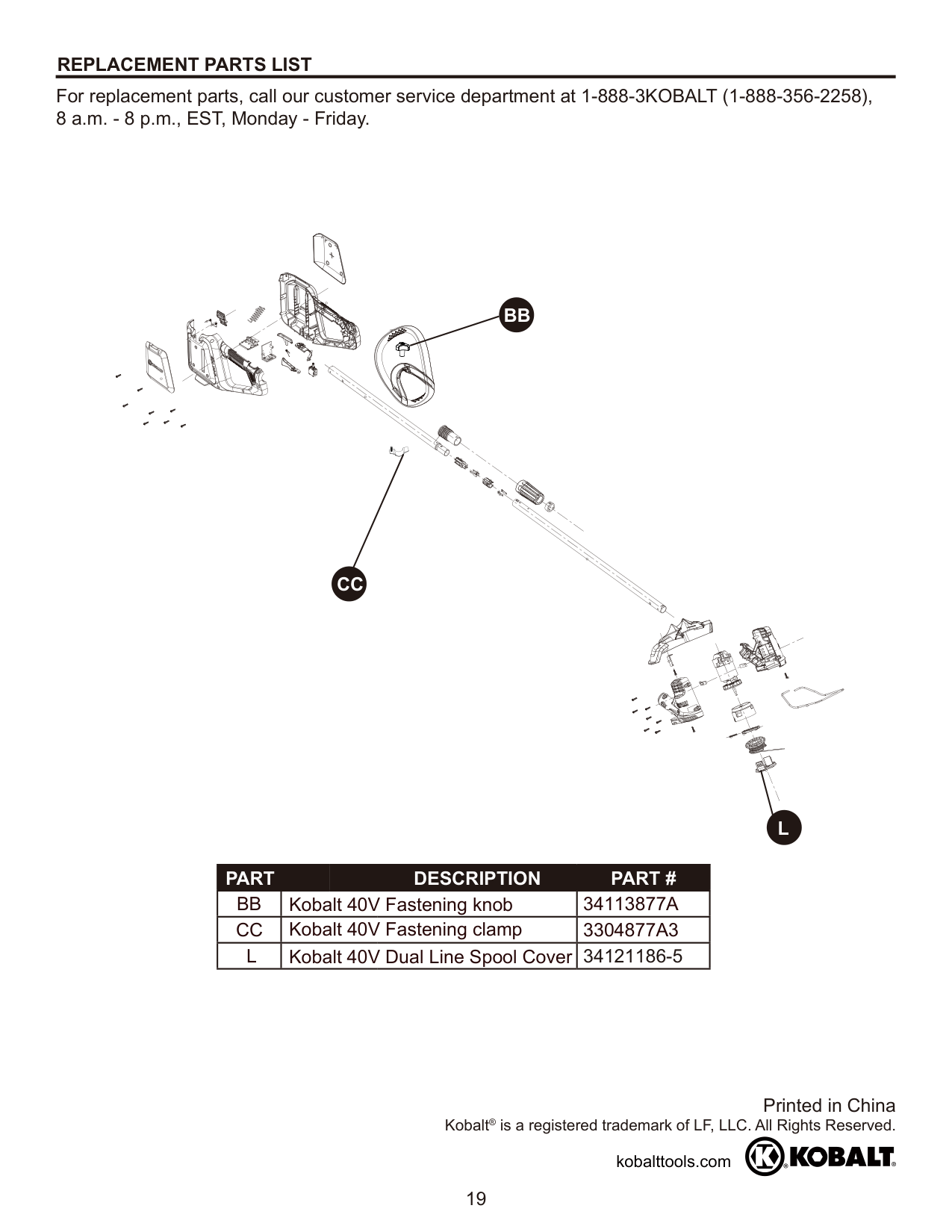

Replacement Parts List

For replacement parts, call our customer service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST, Monday - Friday.

Bb

Cc

L

Printed in China Kobalt® is a registered trademark of LF, LLC. All Rights Reserved.

Part

Description

Part #

Bb

34113877A

Cc

3304877A3

L

34121186-5 Kobalt 40V Fastening knob Kobalt 40V Fastening clamp Kobalt 40V Dual Line Spool Cover
