Ariens Deluxe 28

DELUXE SERIES SNO-THRO

®

OPERATOR’S MANUAL MANUEL DU UTILISATEUR

#### MODELS

E10

ENGLISH

FRANÇAIS

30219300A • 9/24 PRINTED IN USA

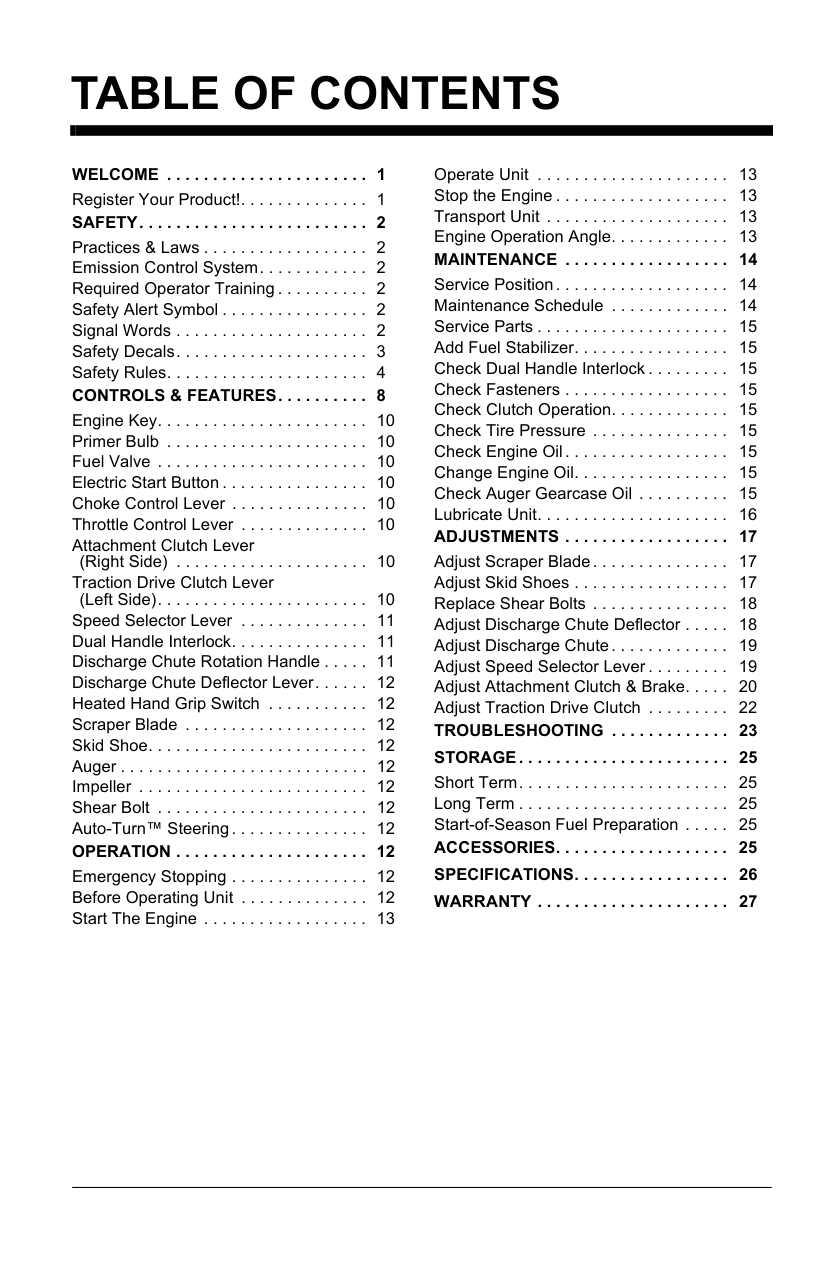

TABLE OF CONTENTS

WELCOME . . . . . . . . . . . . . . . . . . . . . . 1 Register Your Product!. . . . . . . . . . . . . . 1 SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . 2 Practices & Laws . . . . . . . . . . . . . . . . . . 2 Emission Control System. . . . . . . . . . . . 2 Required Operator Training . . . . . . . . . . 2 Safety Alert Symbol . . . . . . . . . . . . . . . . 2 Signal Words . . . . . . . . . . . . . . . . . . . . . 2 Safety Decals. . . . . . . . . . . . . . . . . . . . . 3 Safety Rules. . . . . . . . . . . . . . . . . . . . . . 4 CONTROLS & FEATURES. . . . . . . . . . 8

Engine Key. . . . . . . . . . . . . . . . . . . . . . . 10 Primer Bulb . . . . . . . . . . . . . . . . . . . . . . 10 Fuel Valve . . . . . . . . . . . . . . . . . . . . . . . 10 Electric Start Button . . . . . . . . . . . . . . . . 10 Choke Control Lever . . . . . . . . . . . . . . . 10 Throttle Control Lever . . . . . . . . . . . . . . 10 Attachment Clutch Lever

(Right Side) . . . . . . . . . . . . . . . . . . . . . 10 Traction Drive Clutch Lever

(Left Side). . . . . . . . . . . . . . . . . . . . . . . 10 Speed Selector Lever . . . . . . . . . . . . . . 11 Dual Handle Interlock. . . . . . . . . . . . . . . 11 Discharge Chute Rotation Handle . . . . . 11 Discharge Chute Deflector Lever. . . . . . 12 Heated Hand Grip Switch . . . . . . . . . . . 12 Scraper Blade . . . . . . . . . . . . . . . . . . . . 12 Skid Shoe. . . . . . . . . . . . . . . . . . . . . . . . 12 Auger . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Impeller . . . . . . . . . . . . . . . . . . . . . . . . . 12 Shear Bolt . . . . . . . . . . . . . . . . . . . . . . . 12 Auto-Turn™ Steering. . . . . . . . . . . . . . . 12 OPERATION . . . . . . . . . . . . . . . . . . . . . 12 Emergency Stopping . . . . . . . . . . . . . . . 12 Before Operating Unit . . . . . . . . . . . . . . 12 Start The Engine . . . . . . . . . . . . . . . . . . 13

Operate Unit . . . . . . . . . . . . . . . . . . . . . 13 Stop the Engine . . . . . . . . . . . . . . . . . . . 13 Transport Unit . . . . . . . . . . . . . . . . . . . . 13 Engine Operation Angle. . . . . . . . . . . . . 13 MAINTENANCE . . . . . . . . . . . . . . . . . . 14 Service Position. . . . . . . . . . . . . . . . . . . 14 Maintenance Schedule . . . . . . . . . . . . . 14 Service Parts . . . . . . . . . . . . . . . . . . . . . 15 Add Fuel Stabilizer. . . . . . . . . . . . . . . . . 15 Check Dual Handle Interlock . . . . . . . . . 15 Check Fasteners . . . . . . . . . . . . . . . . . . 15 Check Clutch Operation. . . . . . . . . . . . . 15 Check Tire Pressure . . . . . . . . . . . . . . . 15 Check Engine Oil. . . . . . . . . . . . . . . . . . 15 Change Engine Oil. . . . . . . . . . . . . . . . . 15 Check Auger Gearcase Oil . . . . . . . . . . 15 Lubricate Unit. . . . . . . . . . . . . . . . . . . . . 16 ADJUSTMENTS . . . . . . . . . . . . . . . . . . 17 Adjust Scraper Blade. . . . . . . . . . . . . . . 17 Adjust Skid Shoes . . . . . . . . . . . . . . . . . 17 Replace Shear Bolts . . . . . . . . . . . . . . . 18 Adjust Discharge Chute Deflector . . . . . 18 Adjust Discharge Chute. . . . . . . . . . . . . 19 Adjust Speed Selector Lever . . . . . . . . . 19 Adjust Attachment Clutch & Brake. . . . . 20 Adjust Traction Drive Clutch . . . . . . . . . 22 TROUBLESHOOTING . . . . . . . . . . . . . 23 STORAGE. . . . . . . . . . . . . . . . . . . . . . . 25 Short Term. . . . . . . . . . . . . . . . . . . . . . . 25 Long Term . . . . . . . . . . . . . . . . . . . . . . . 25 Start-of-Season Fuel Preparation . . . . . 25 ACCESSORIES. . . . . . . . . . . . . . . . . . . 25 SPECIFICATIONS. . . . . . . . . . . . . . . . . 26 WARRANTY . . . . . . . . . . . . . . . . . . . . . 27

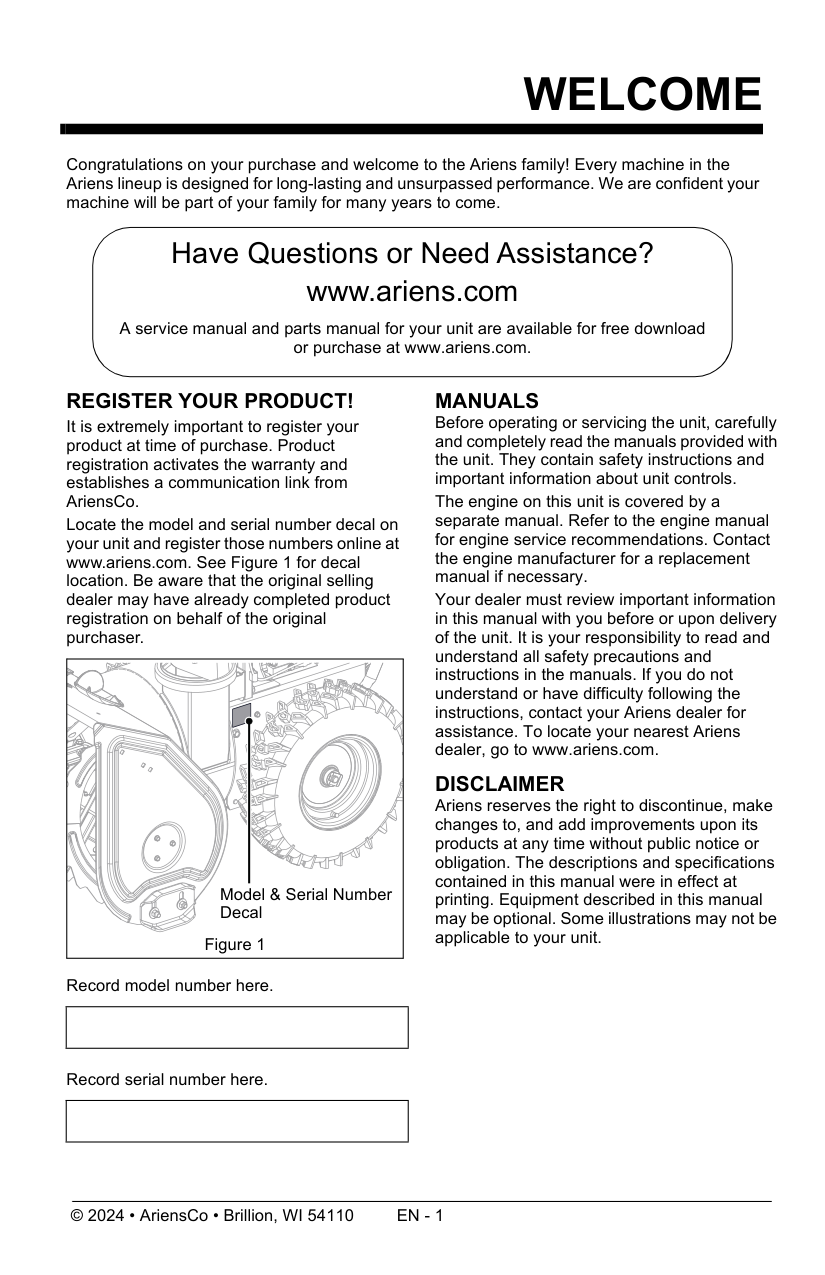

WELCOME

Congratulations on your purchase and welcome to the Ariens family! Every machine in the Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your machine will be part of your family for many years to come.

Have Questions or Need Assistance? www.ariens.com A service manual and parts manual for your unit are available for free download or purchase at www.ariens.com.

REGISTER YOUR PRODUCT! It is extremely important to register your product at time of purchase. Product registration activates the warranty and establishes a communication link from AriensCo.

Locate the model and serial number decal on your unit and register those numbers online at www.ariens.com. See Figure 1 for decal location. Be aware that the original selling dealer may have already completed product registration on behalf of the original purchaser.

|Model & Serial Number Decal

Figure 1| |---|

Record model number here.

Record serial number here.

MANUALS Before operating or servicing the unit, carefully and completely read the manuals provided with the unit. They contain safety instructions and important information about unit controls. The engine on this unit is covered by a separate manual. Refer to the engine manual for engine service recommendations. Contact the engine manufacturer for a replacement manual if necessary.

Your dealer must review important information in this manual with you before or upon delivery of the unit. It is your responsibility to read and understand all safety precautions and instructions in the manuals. If you do not understand or have difficulty following the instructions, contact your Ariens dealer for assistance. To locate your nearest Ariens dealer, go to www.ariens.com.

DISCLAIMER Ariens reserves the right to discontinue, make changes to, and add improvements upon its products at any time without public notice or obligation. The descriptions and specifications contained in this manual were in effect at printing. Equipment described in this manual may be optional. Some illustrations may not be applicable to your unit.

EN - 1© 2024 • AriensCo • Brillion, WI 54110

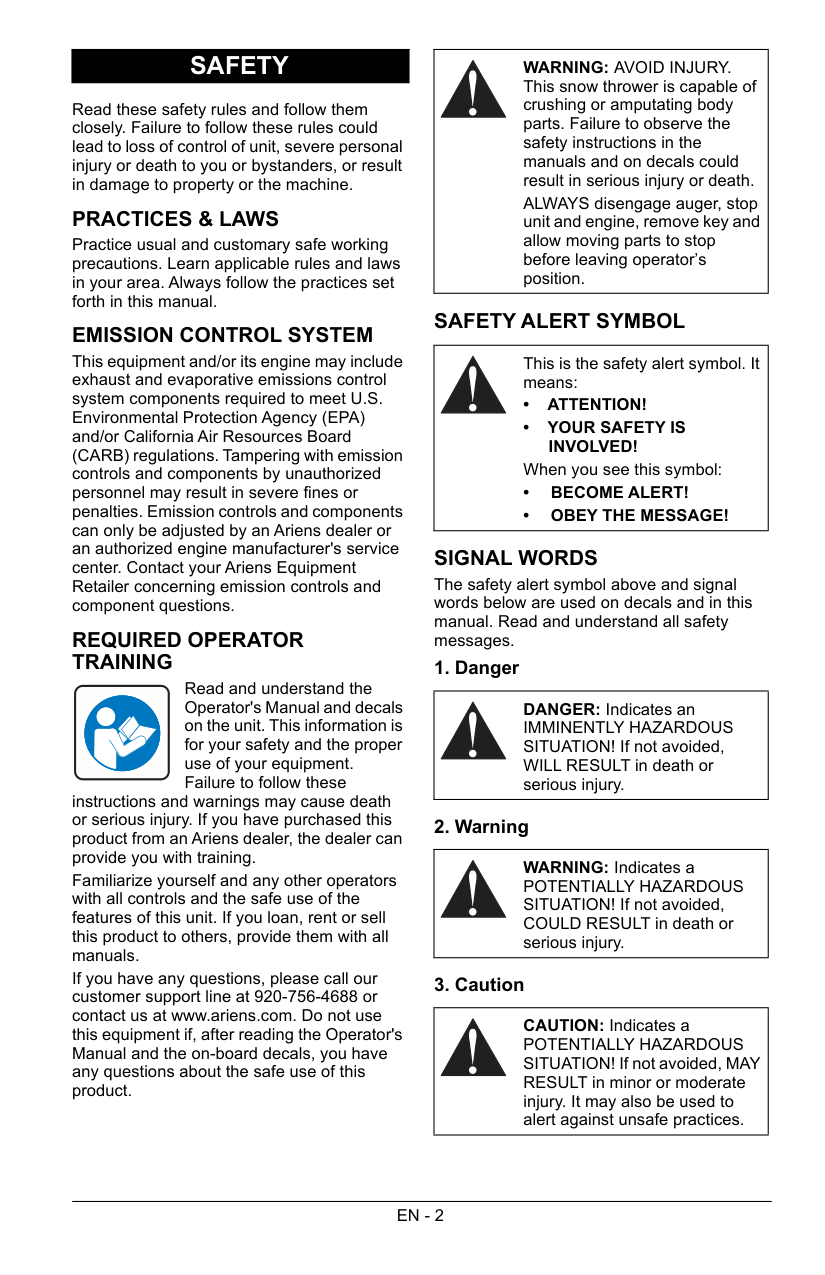

|SAFETY| |---|

Read these safety rules and follow them closely. Failure to follow these rules could lead to loss of control of unit, severe personal injury or death to you or bystanders, or result in damage to property or the machine.

###### PRACTICES & LAWS

Practice usual and customary safe working precautions. Learn applicable rules and laws in your area. Always follow the practices set forth in this manual.

EMISSION CONTROL SYSTEM This equipment and/or its engine may include exhaust and evaporative emissions control system components required to meet U.S. Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB) regulations. Tampering with emission controls and components by unauthorized personnel may result in severe fines or penalties. Emission controls and components can only be adjusted by an Ariens dealer or an authorized engine manufacturer's service center. Contact your Ariens Equipment Retailer concerning emission controls and component questions.

###### REQUIRED OPERATOR TRAINING

Read and understand the Operator's Manual and decals on the unit. This information is for your safety and the proper use of your equipment. Failure to follow these

instructions and warnings may cause death or serious injury. If you have purchased this product from an Ariens dealer, the dealer can provide you with training. Familiarize yourself and any other operators with all controls and the safe use of the features of this unit. If you loan, rent or sell this product to others, provide them with all manuals.

If you have any questions, please call our customer support line at 920-756-4688 or contact us at www.ariens.com. Do not use this equipment if, after reading the Operator's Manual and the on-board decals, you have any questions about the safe use of this product.

|WARNING: AVOID INJURY. This snow thrower is capable of crushing or amputating body parts. Failure to observe the safety instructions in the manuals and on decals could result in serious injury or death. ALWAYS disengage auger, stop unit and engine, remove key and allow moving parts to stop before leaving operator’s position.| |---|

###### SAFETY ALERT SYMBOL

|This is the safety alert symbol. It means:

• ATTENTION!
• YOUR SAFETY IS INVOLVED! When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
| |---|

SIGNAL WORDS The safety alert symbol above and signal words below are used on decals and in this manual. Read and understand all safety messages.

|DANGER: Indicates an IMMINENTLY HAZARDOUS SITUATION! If not avoided, WILL RESULT in death or serious injury.| |---|

|WARNING: Indicates a POTENTIALLY HAZARDOUS SITUATION! If not avoided, COULD RESULT in death or serious injury.| |---|

|CAUTION: Indicates a POTENTIALLY HAZARDOUS SITUATION! If not avoided, MAY RESULT in minor or moderate injury. It may also be used to alert against unsafe practices.| |---|

####### 4. Notice

NOTICE: Indicates information or procedures that are considered important but not hazard related. If not followed, property damage could result.

####### 5. Important

IMPORTANT: Indicates general reference information worthy of special attention.

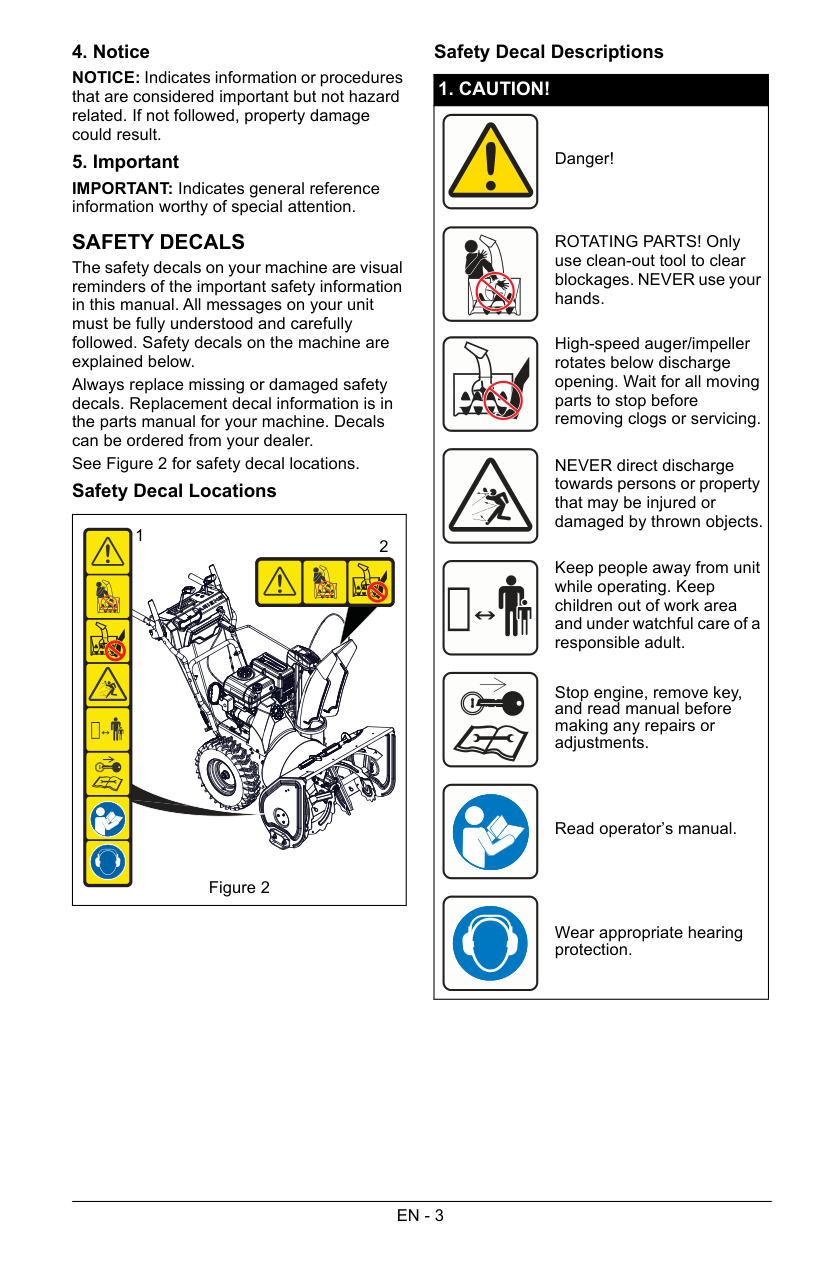

SAFETY DECALS The safety decals on your machine are visual reminders of the important safety information in this manual. All messages on your unit must be fully understood and carefully followed. Safety decals on the machine are explained below. Always replace missing or damaged safety decals. Replacement decal information is in the parts manual for your machine. Decals can be ordered from your dealer.

|2

1

Figure 2| |---|

####### Safety Decal Descriptions

|1. CAUTION!| |---| |Danger!

ROTATING PARTS! Only use clean-out tool to clear blockages. NEVER use your hands.

High-speed auger/impeller rotates below discharge opening. Wait for all moving parts to stop before removing clogs or servicing.

NEVER direct discharge towards persons or property that may be injured or damaged by thrown objects.

Keep people away from unit while operating. Keep children out of work area and under watchful care of a responsible adult.

Stop engine, remove key, and read manual before making any repairs or adjustments.

Read operator’s manual.

Wear appropriate hearing protection.

|

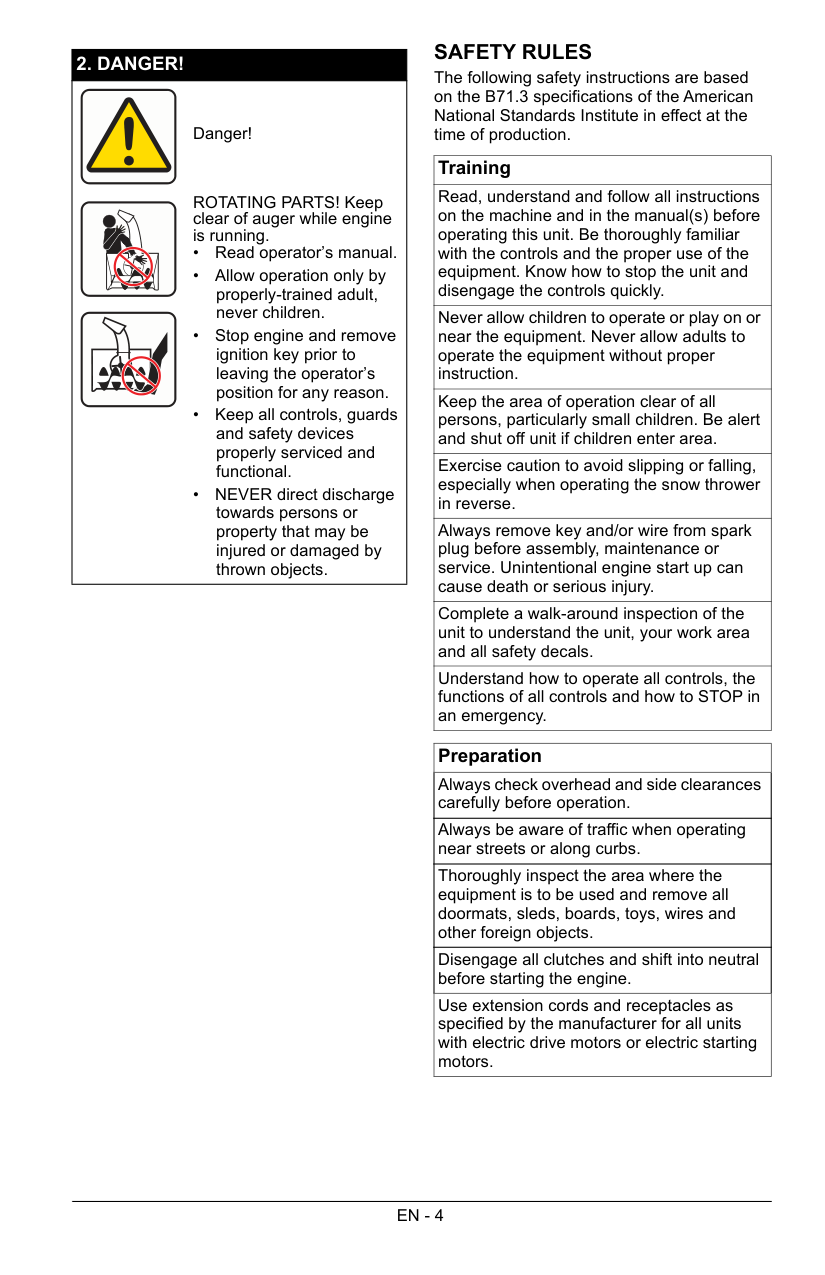

|2. DANGER!| |---| |Danger!

ROTATING PARTS! Keep clear of auger while engine is running.

• Read operator’s manual.
• Allow operation only by properly-trained adult, never children.
• Stop engine and remove ignition key prior to leaving the operator’s position for any reason.
• Keep all controls, guards and safety devices properly serviced and functional.
• NEVER direct discharge towards persons or property that may be injured or damaged by thrown objects.


|

SAFETY RULES The following safety instructions are based on the B71.3 specifications of the American National Standards Institute in effect at the time of production.

|Training| |---| |Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.| |Never allow children to operate or play on or near the equipment. Never allow adults to operate the equipment without proper instruction.| |Keep the area of operation clear of all persons, particularly small children. Be alert and shut off unit if children enter area.| |Exercise caution to avoid slipping or falling, especially when operating the snow thrower in reverse.| |Always remove key and/or wire from spark plug before assembly, maintenance or service. Unintentional engine start up can cause death or serious injury.| |Complete a walk-around inspection of the unit to understand the unit, your work area and all safety decals.| |Understand how to operate all controls, the functions of all controls and how to STOP in an emergency.|

|Preparation|

|---| |Always check overhead and side clearances carefully before operation.| |Always be aware of traffic when operating near streets or along curbs.| |Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, toys, wires and other foreign objects.| |Disengage all clutches and shift into neutral before starting the engine.| |Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors.|

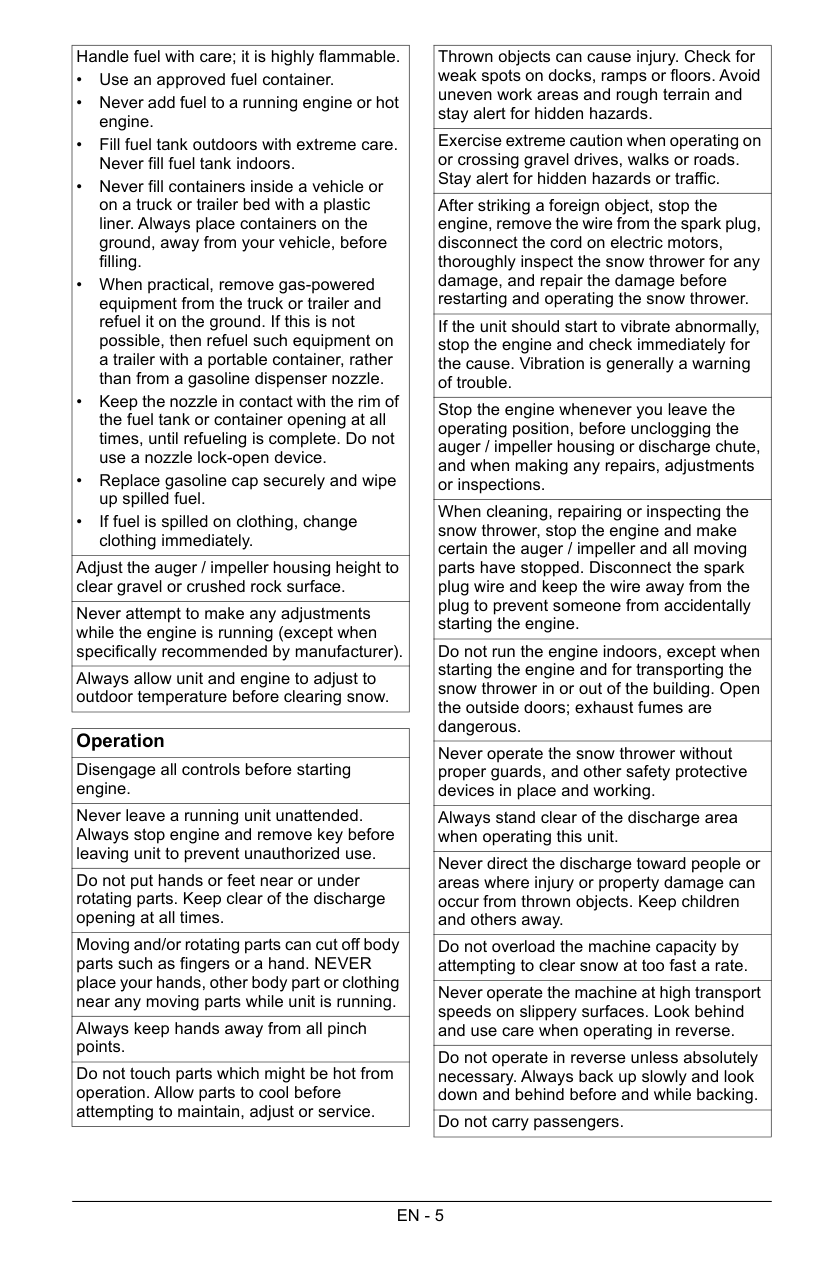

|Handle fuel with care; it is highly flammable.

• Use an approved fuel container.
• Never add fuel to a running engine or hot engine.
• Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
• Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground, away from your vehicle, before filling.
• When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times, until refueling is complete. Do not use a nozzle lock-open device.
• Replace gasoline cap securely and wipe up spilled fuel.
• If fuel is spilled on clothing, change clothing immediately.
| |---| |Adjust the auger / impeller housing height to clear gravel or crushed rock surface.| |Never attempt to make any adjustments while the engine is running (except when specifically recommended by manufacturer).| |Always allow unit and engine to adjust to outdoor temperature before clearing snow.|

####### Operation

Disengage all controls before starting engine.

Never leave a running unit unattended. Always stop engine and remove key before leaving unit to prevent unauthorized use.

Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

Moving and/or rotating parts can cut off body parts such as fingers or a hand. NEVER place your hands, other body part or clothing near any moving parts while unit is running.

Always keep hands away from all pinch points.

Do not touch parts which might be hot from operation. Allow parts to cool before attempting to maintain, adjust or service.

|Thrown objects can cause injury. Check for weak spots on docks, ramps or floors. Avoid uneven work areas and rough terrain and stay alert for hidden hazards.| |---| |Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden hazards or traffic.| |After striking a foreign object, stop the engine, remove the wire from the spark plug, disconnect the cord on electric motors, thoroughly inspect the snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.| |If the unit should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.| |Stop the engine whenever you leave the operating position, before unclogging the auger / impeller housing or discharge chute, and when making any repairs, adjustments or inspections.| |When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the auger / impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the plug to prevent someone from accidentally starting the engine.| |Do not run the engine indoors, except when starting the engine and for transporting the snow thrower in or out of the building. Open the outside doors; exhaust fumes are dangerous.| |Never operate the snow thrower without proper guards, and other safety protective devices in place and working.|

|Always stand clear of the discharge area when operating this unit.| |Never direct the discharge toward people or areas where injury or property damage can occur from thrown objects. Keep children and others away.| |Do not overload the machine capacity by attempting to clear snow at too fast a rate.| |Never operate the machine at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.| |Do not operate in reverse unless absolutely necessary. Always back up slowly and look down and behind before and while backing.| |Do not carry passengers.|

|Disengage attachment when not in use and when traveling from one work area to another.| |---| |Disengage power to the auger / impeller when snow thrower is transported or not in use.| |Use only attachments and accessories approved by the manufacturer of the snow thrower (such as wheel weights, counterweights or cabs).| |This product is equipped with an internal combustion engine. Do not use unit on or near any unimproved, forest-covered or brush-covered land unless exhaust system is equipped with a spark arrester meeting applicable local, state or federal laws. A spark arrester, if used, must be maintained in effective working order by operator.| |Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.| |Never operate unit after or during the use of medication, drugs or alcohol. Safe operation requires complete and unimpaired attention at all times.| |Never allow anyone to operate this unit when their alertness or coordination is impaired.| |Never touch a hot engine or muffler.| |Avoid contact with sharp edges; sharp edges can cut.| |Do not throw snow higher than necessary.|

####### Clearing a Clogged Discharge Chute

Hand contact with the rotating auger / impeller inside the discharge chute is the most common cause of injury associated with snow throwers. Never use your hand to clean out the discharge chute.

To clear the chute:

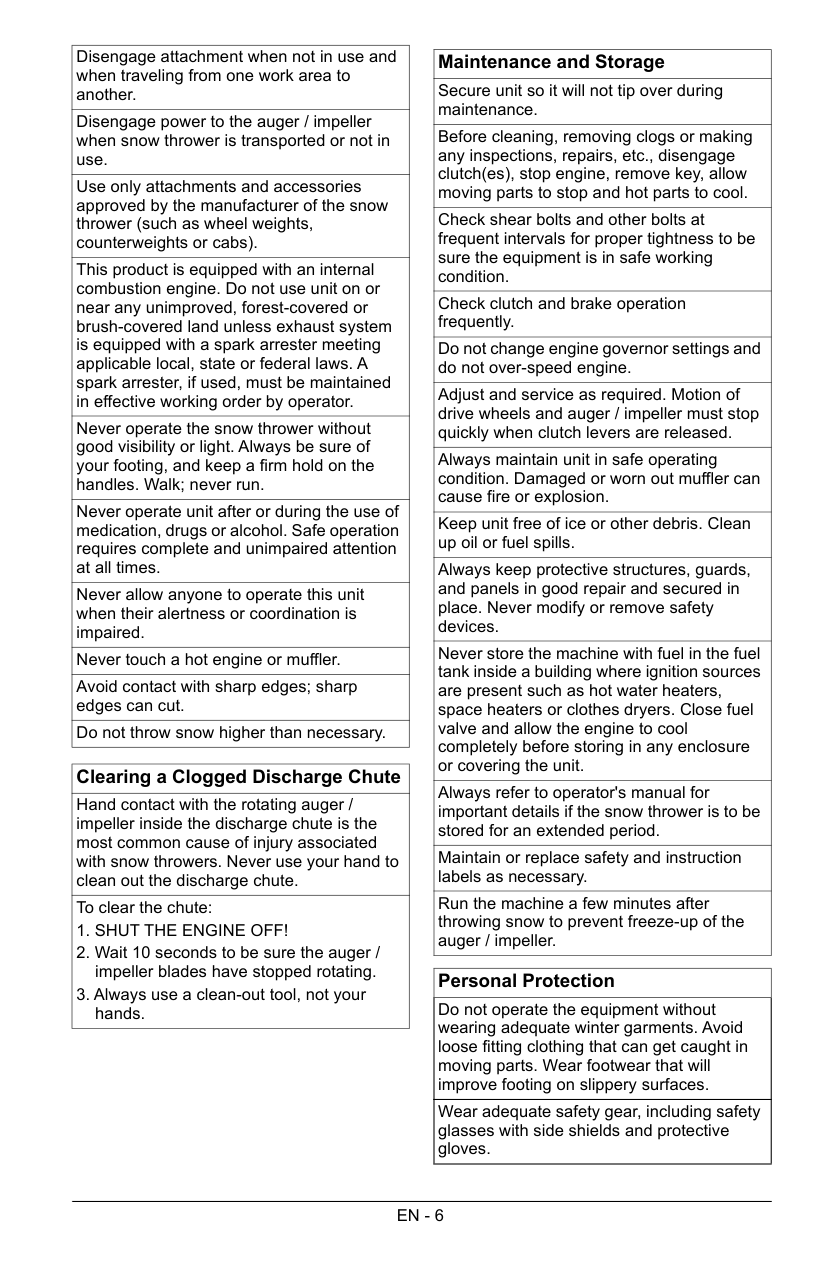

|Maintenance and Storage| |---| |Secure unit so it will not tip over during maintenance.| |Before cleaning, removing clogs or making any inspections, repairs, etc., disengage clutch(es), stop engine, remove key, allow moving parts to stop and hot parts to cool.| |Check shear bolts and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.| |Check clutch and brake operation frequently.|

|Do not change engine governor settings and do not over-speed engine.| |Adjust and service as required. Motion of drive wheels and auger / impeller must stop quickly when clutch levers are released.| |Always maintain unit in safe operating condition. Damaged or worn out muffler can cause fire or explosion.| |Keep unit free of ice or other debris. Clean up oil or fuel spills.| |Always keep protective structures, guards, and panels in good repair and secured in place. Never modify or remove safety devices.| |Never store the machine with fuel in the fuel tank inside a building where ignition sources are present such as hot water heaters, space heaters or clothes dryers. Close fuel valve and allow the engine to cool completely before storing in any enclosure or covering the unit.| |Always refer to operator's manual for important details if the snow thrower is to be stored for an extended period.| |Maintain or replace safety and instruction labels as necessary.| |Run the machine a few minutes after throwing snow to prevent freeze-up of the auger / impeller.|

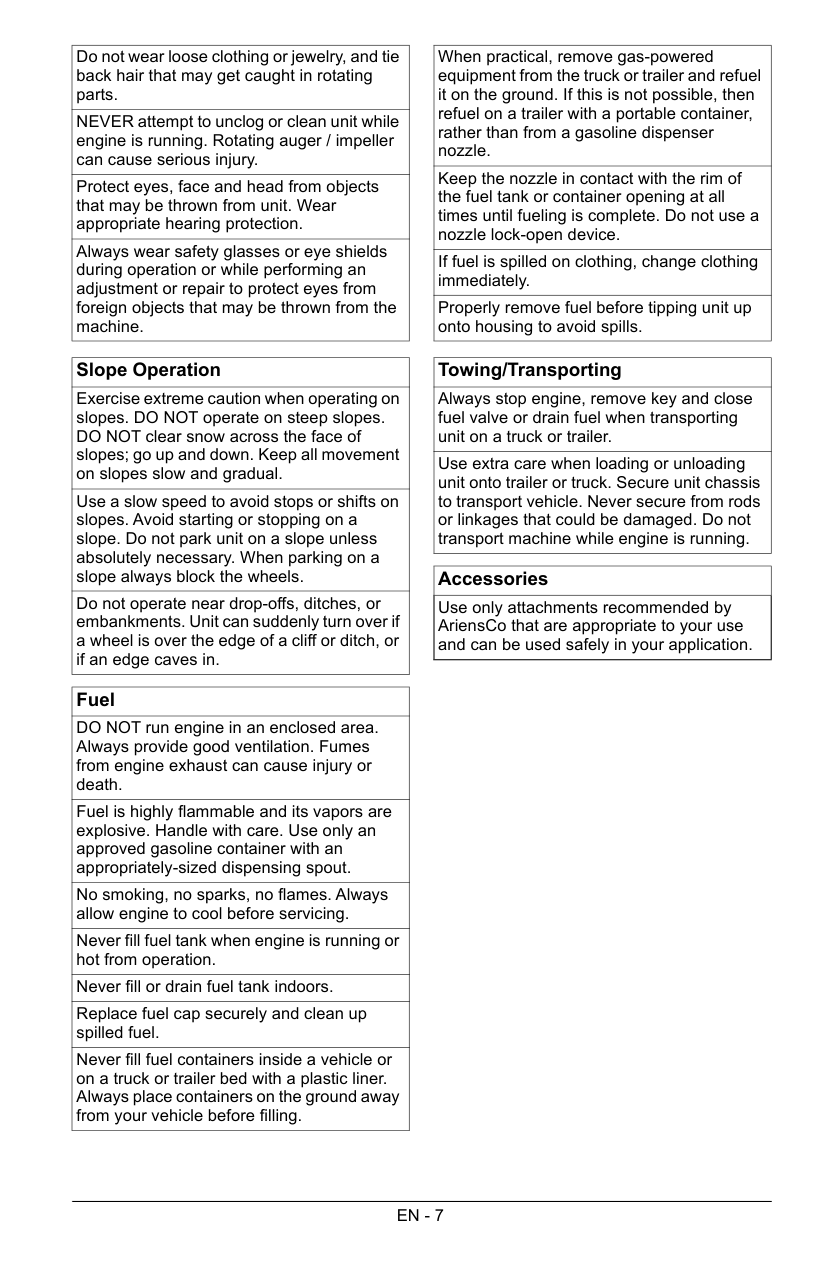

|Personal Protection| |---| |Do not operate the equipment without wearing adequate winter garments. Avoid loose fitting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.| |Wear adequate safety gear, including safety glasses with side shields and protective gloves.|

|Do not wear loose clothing or jewelry, and tie back hair that may get caught in rotating parts.| |---| |NEVER attempt to unclog or clean unit while engine is running. Rotating auger / impeller can cause serious injury.| |Protect eyes, face and head from objects that may be thrown from unit. Wear appropriate hearing protection.| |Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.|

|Slope Operation| |---| |Exercise extreme caution when operating on slopes. DO NOT operate on steep slopes. DO NOT clear snow across the face of slopes; go up and down. Keep all movement on slopes slow and gradual.| |Use a slow speed to avoid stops or shifts on slopes. Avoid starting or stopping on a slope. Do not park unit on a slope unless absolutely necessary. When parking on a slope always block the wheels.| |Do not operate near drop-offs, ditches, or embankments. Unit can suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.|

|Fuel| |---| |DO NOT run engine in an enclosed area. Always provide good ventilation. Fumes from engine exhaust can cause injury or death.| |Fuel is highly flammable and its vapors are explosive. Handle with care. Use only an approved gasoline container with an appropriately-sized dispensing spout.| |No smoking, no sparks, no flames. Always allow engine to cool before servicing.| |Never fill fuel tank when engine is running or hot from operation.| |Never fill or drain fuel tank indoors.|

|Replace fuel cap securely and clean up spilled fuel.| |Never fill fuel containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.|

|When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel on a trailer with a portable container, rather than from a gasoline dispenser nozzle.| |---| |Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.| |If fuel is spilled on clothing, change clothing immediately.| |Properly remove fuel before tipping unit up onto housing to avoid spills.|

|Towing/Transporting| |---| |Always stop engine, remove key and close fuel valve or drain fuel when transporting unit on a truck or trailer.| |Use extra care when loading or unloading unit onto trailer or truck. Secure unit chassis to transport vehicle. Never secure from rods or linkages that could be damaged. Do not transport machine while engine is running.|

|Accessories| |---| |Use only attachments recommended by AriensCo that are appropriate to your use and can be used safely in your application.|

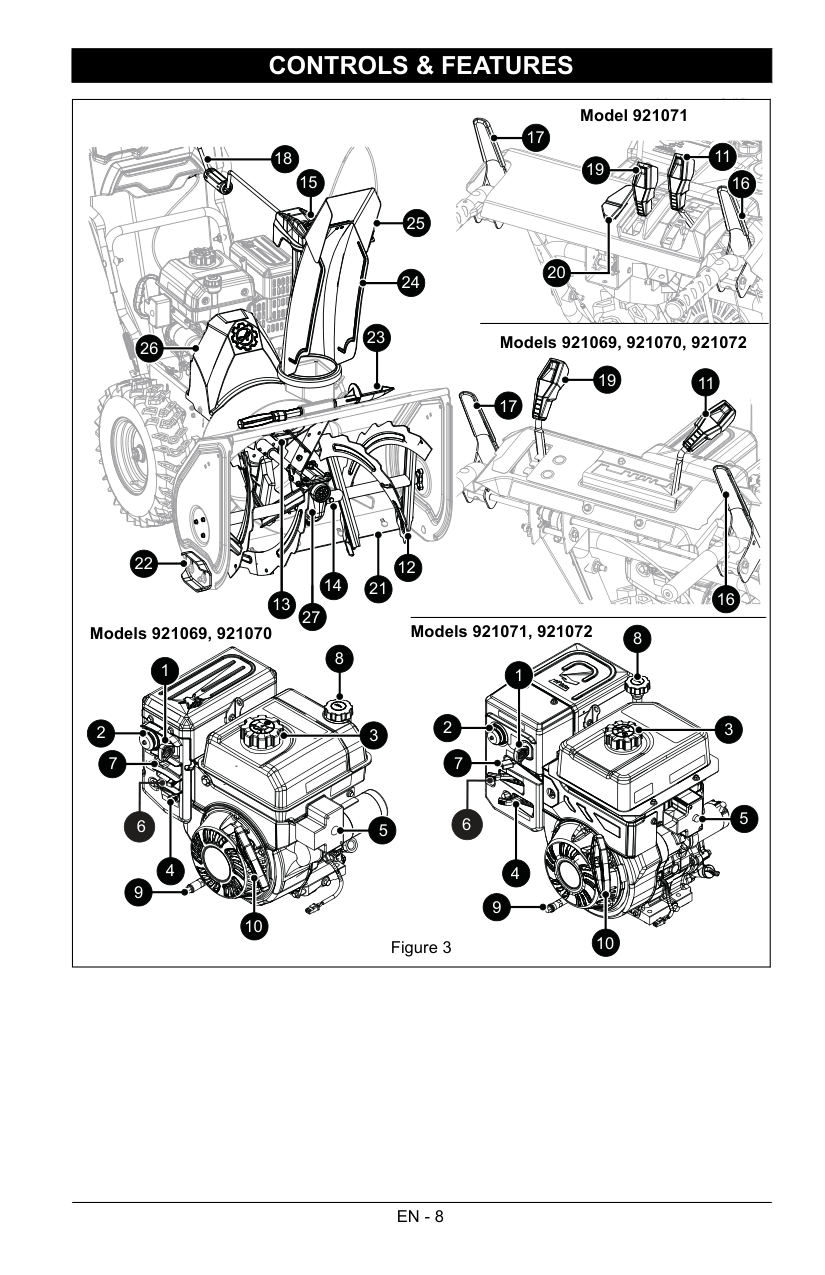

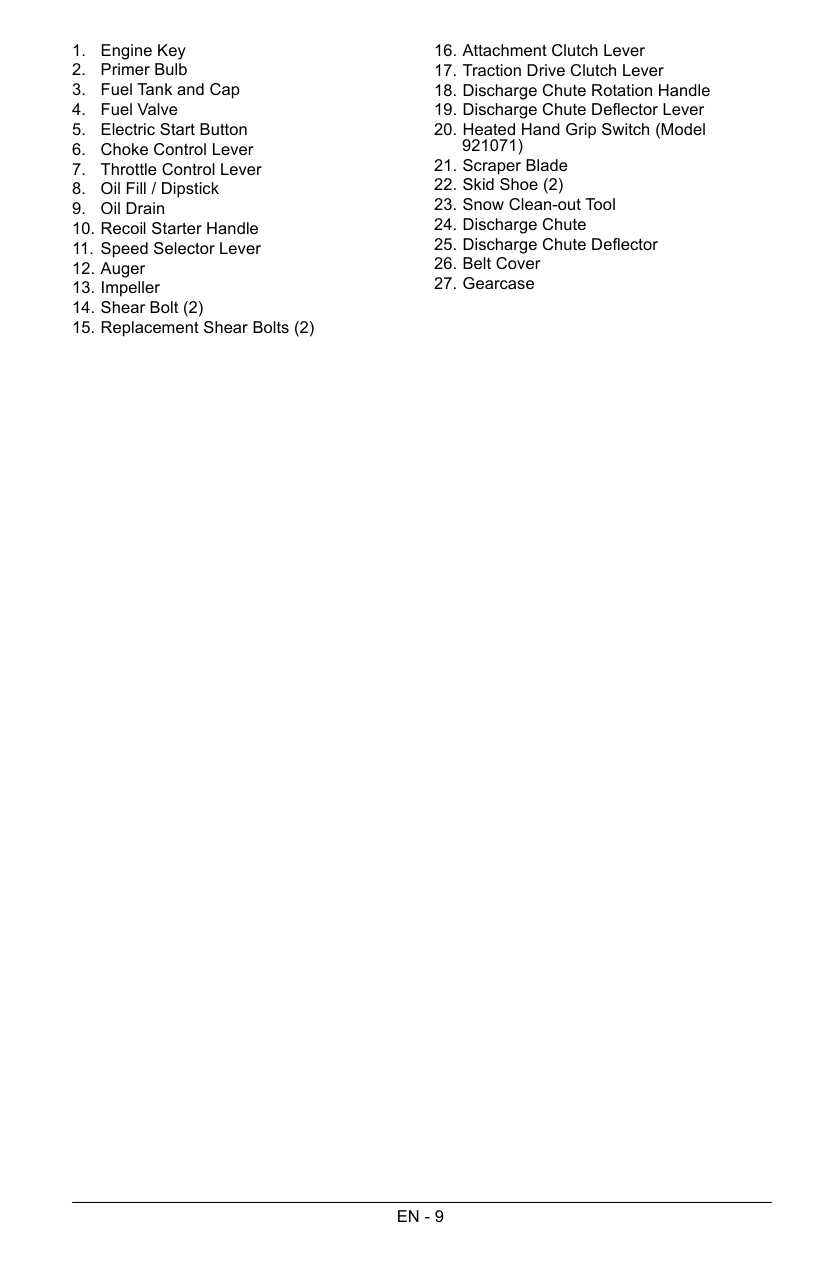

##### CONTROLS & FEATURES

18

15

25

17

######## Model 921071

19

11

16

24

20

26

23

######## Models 921069, 921070, 921072

17

1119

22

13

######## Models 921069, 921070

1

14

27

8

12

21

16

######## Models 921071, 921072

8

1

2

7

3

2

7

3

6

9

4

10

5

6

Figure 3

4

9

10

5

WARNING: Read and understand the Safety section before proceeding.

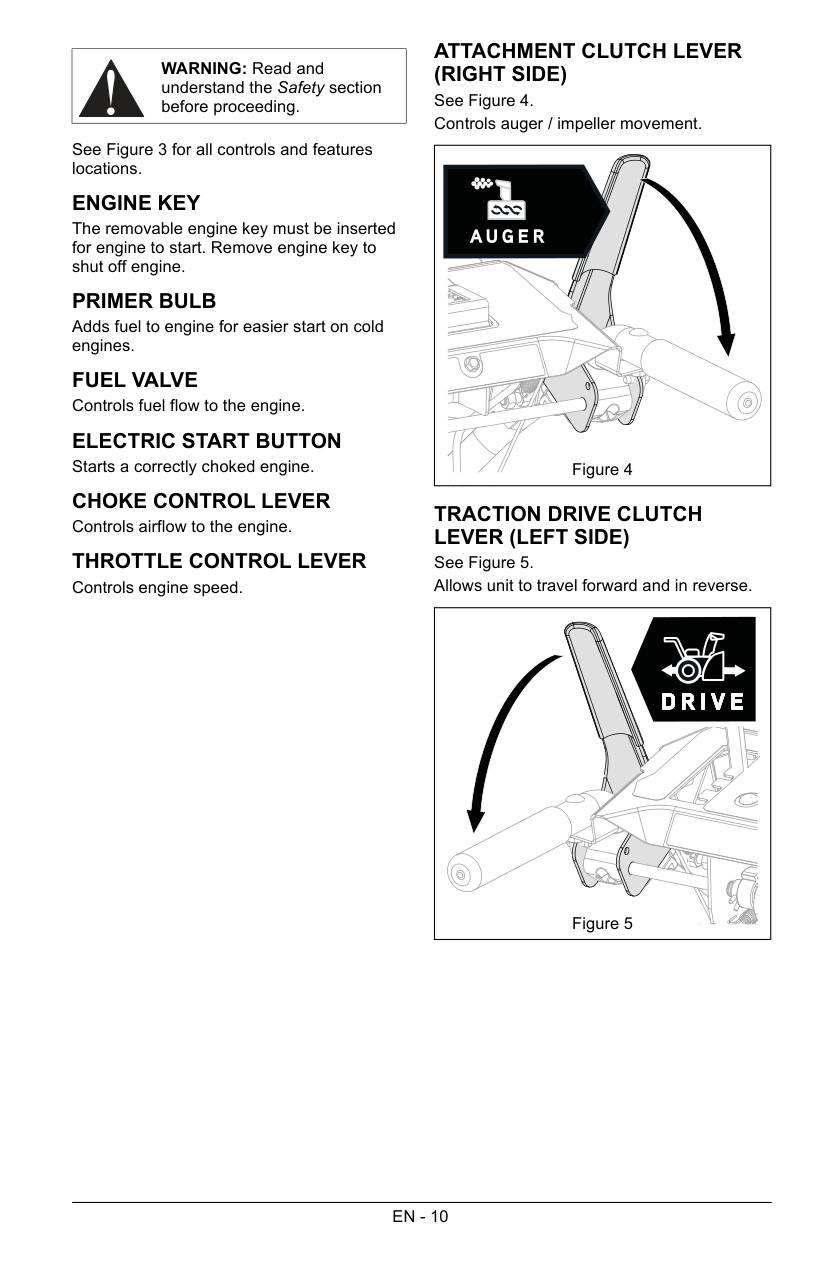

ENGINE KEY The removable engine key must be inserted for engine to start. Remove engine key to shut off engine.

###### PRIMER BULB

Adds fuel to engine for easier start on cold engines.

FUEL VALVE Controls fuel flow to the engine.

ELECTRIC START BUTTON Starts a correctly choked engine.

CHOKE CONTROL LEVER Controls airflow to the engine.

THROTTLE CONTROL LEVER Controls engine speed.

ATTACHMENT CLUTCH LEVER (RIGHT SIDE)

TRACTION DRIVE CLUTCH LEVER (LEFT SIDE)

|Figure 4| |---|

|Figure 5| |---|

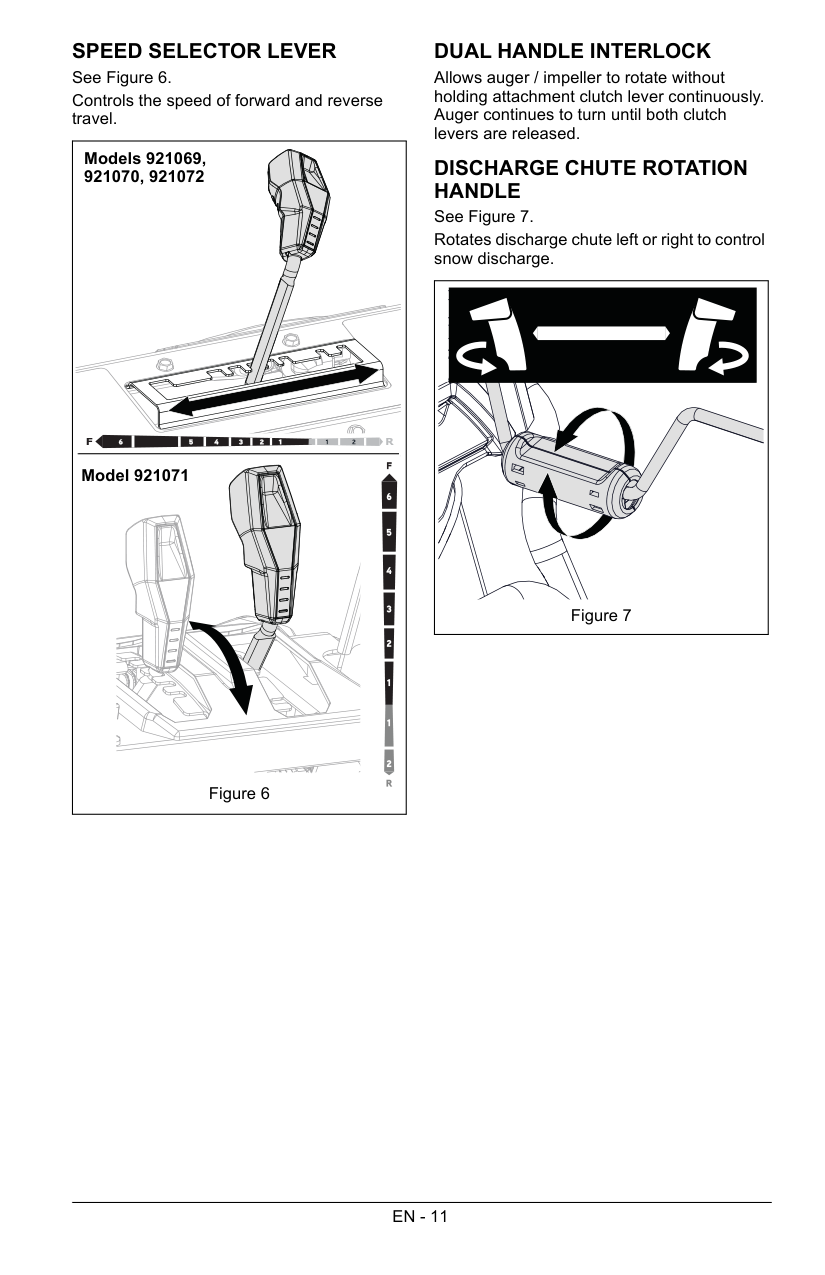

SPEED SELECTOR LEVER See Figure 6. Controls the speed of forward and reverse travel.

|F R

Figure 6

Models 921069, 921070, 921072

Model 921071| |---|

###### DUAL HANDLE INTERLOCK

Allows auger / impeller to rotate without holding attachment clutch lever continuously. Auger continues to turn until both clutch levers are released.

###### DISCHARGE CHUTE ROTATION HANDLE

See Figure 7. Rotates discharge chute left or right to control snow discharge.

|Figure 7| |---|

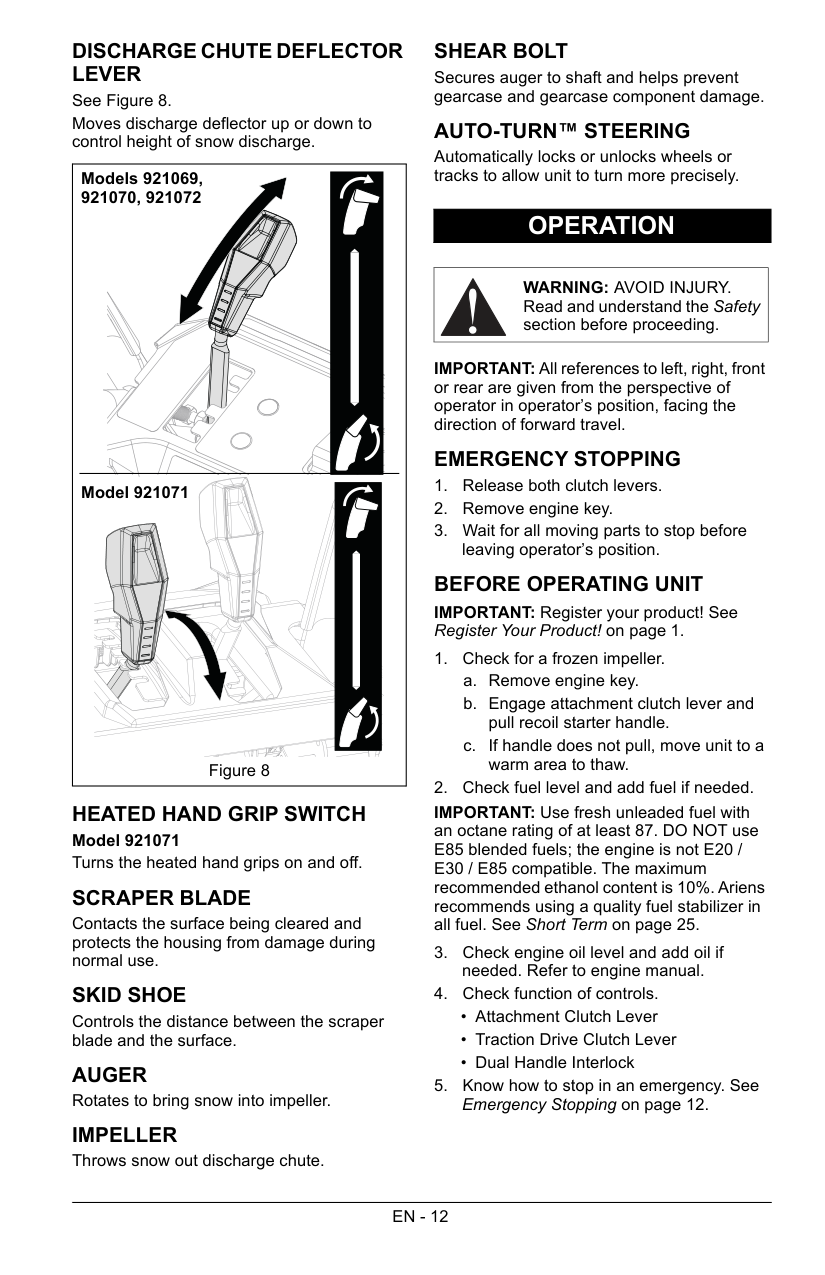

###### DISCHARGE CHUTE DEFLECTOR LEVER

Moves discharge deflector up or down to control height of snow discharge.

|Figure 8

Model 921071

Models 921069, 921070, 921072| |---|

HEATED HAND GRIP SWITCH Model 921071 Turns the heated hand grips on and off.

SCRAPER BLADE Contacts the surface being cleared and protects the housing from damage during normal use.

###### SKID SHOE

Controls the distance between the scraper blade and the surface.

AUGER Rotates to bring snow into impeller.

IMPELLER Throws snow out discharge chute.

###### SHEAR BOLT

Secures auger to shaft and helps prevent gearcase and gearcase component damage.

AUTO-TURN™ STEERING Automatically locks or unlocks wheels or tracks to allow unit to turn more precisely.

|OPERATION| |---|

WARNING: AVOID INJURY. Read and understand the Safety section before proceeding.

IMPORTANT: All references to left, right, front or rear are given from the perspective of operator in operator’s position, facing the direction of forward travel.

###### EMERGENCY STOPPING

BEFORE OPERATING UNIT IMPORTANT: Register your product! See Register Your Product! on page 1.

IMPORTANT: Use fresh unleaded fuel with an octane rating of at least 87. DO NOT use E85 blended fuels; the engine is not E20 / E30 / E85 compatible. The maximum recommended ethanol content is 10%. Ariens recommends using a quality fuel stabilizer in all fuel. See Short Term on page 25.

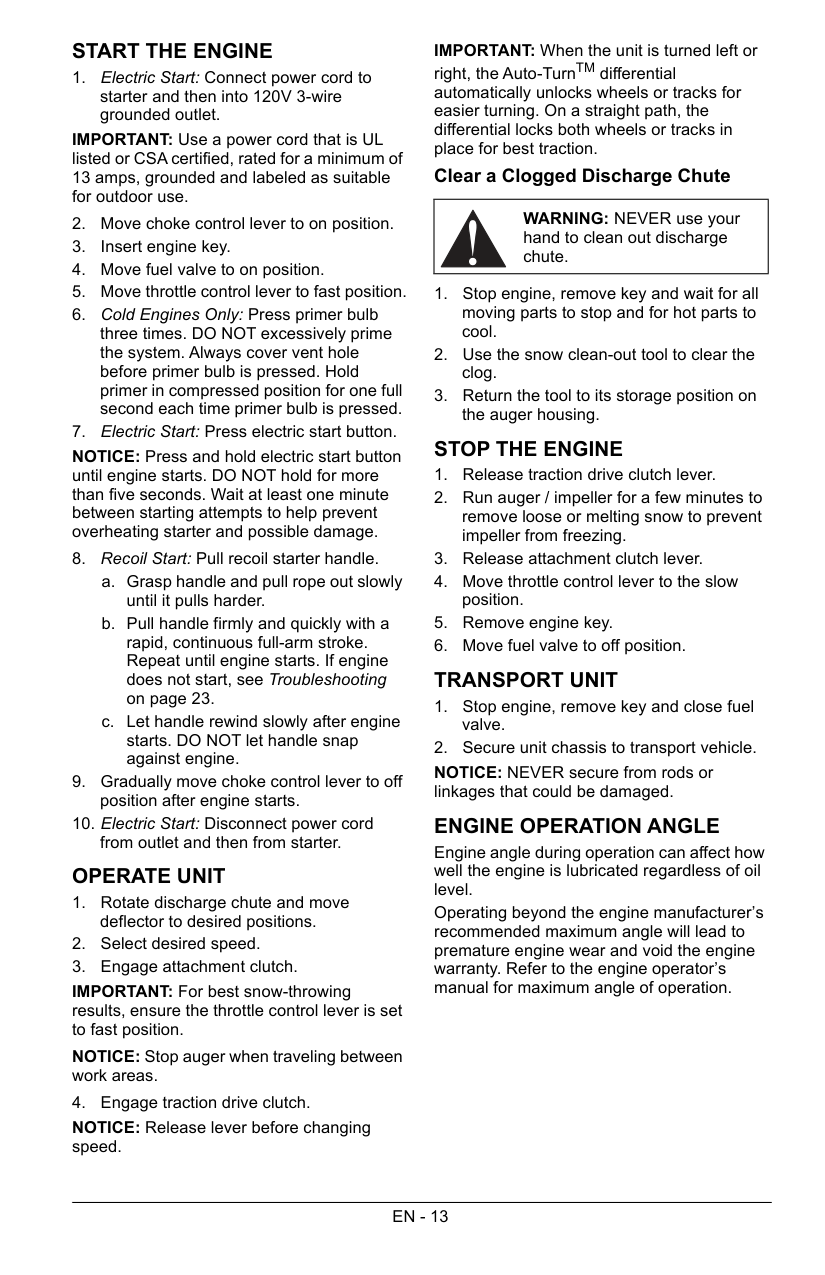

###### START THE ENGINE

IMPORTANT: Use a power cord that is UL listed or CSA certified, rated for a minimum of 13 amps, grounded and labeled as suitable for outdoor use.

NOTICE: Press and hold electric start button until engine starts. DO NOT hold for more than five seconds. Wait at least one minute between starting attempts to help prevent overheating starter and possible damage.

###### OPERATE UNIT

IMPORTANT: For best snow-throwing results, ensure the throttle control lever is set to fast position.

NOTICE: Stop auger when traveling between work areas.

NOTICE: Release lever before changing speed.

IMPORTANT: When the unit is turned left or right, the Auto-TurnTM differential automatically unlocks wheels or tracks for easier turning. On a straight path, the differential locks both wheels or tracks in place for best traction. Clear a Clogged Discharge Chute

|WARNING: NEVER use your hand to clean out discharge chute.| |---|

###### STOP THE ENGINE

NOTICE: NEVER secure from rods or linkages that could be damaged.

ENGINE OPERATION ANGLE Engine angle during operation can affect how well the engine is lubricated regardless of oil level. Operating beyond the engine manufacturer’s recommended maximum angle will lead to premature engine wear and void the engine warranty. Refer to the engine operator’s manual for maximum angle of operation.

|MAINTENANCE| |---|

|WARNING: Read and understand the Safety section before proceeding.|

|---|

Your Ariens dealer can provide service and adjustments to keep your unit operating at peak efficiency. Contact an authorized engine manufacturer’s service center for engine service.

###### SERVICE POSITION

|WARNING: AVOID INJURY. Properly remove fuel before tipping unit up onto housing to avoid spills. (Refer to engine manual for instructions.) Make sure unit is secure and will not tip.| |---|

|Figure 9| |---|

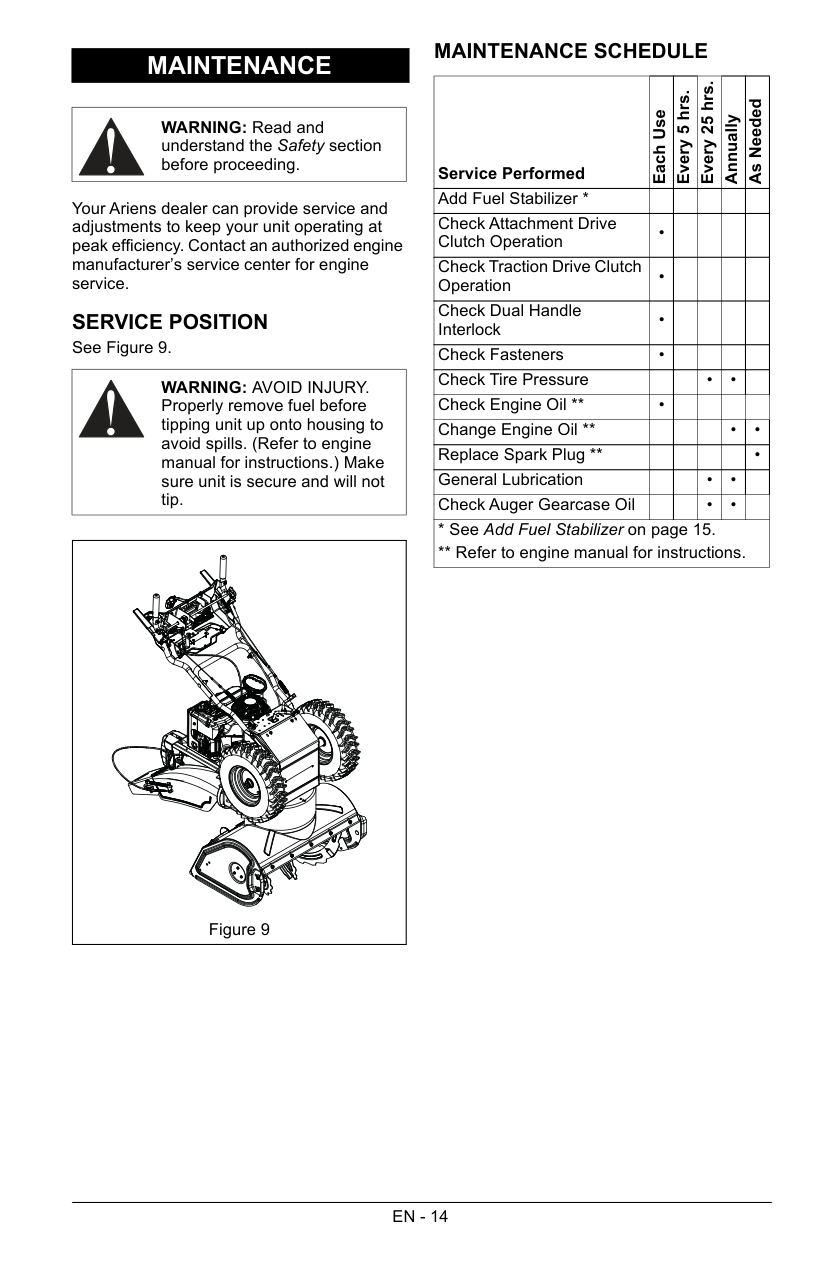

MAINTENANCE SCHEDULE

|Service Performed|Each Use|Every 5 hrs.|Every 25 hrs.|Annually|As Needed| |---|---|---|---|---|---| |Add Fuel Stabilizer *| | | | | | |Check Attachment Drive Clutch Operation|•| | | | | |Check Traction Drive Clutch Operation|•| | | | | |Check Dual Handle Interlock|•| | | | | |Check Fasteners|•| | | | | |Check Tire Pressure| | |•|•| | |Check Engine Oil **|•| | | | | |Change Engine Oil **| | | |•|•| |Replace Spark Plug **| | | | |•| |General Lubrication| | |•|•| | |Check Auger Gearcase Oil| | |•|•| | |* See Add Fuel Stabilizer on page 15.
Refer to engine manual for instructions.
|* See Add Fuel Stabilizer on page 15.
Refer to engine manual for instructions.
|* See Add Fuel Stabilizer on page 15.
Refer to engine manual for instructions.
|* See Add Fuel Stabilizer on page 15.
Refer to engine manual for instructions.
|* See Add Fuel Stabilizer on page 15.
Refer to engine manual for instructions.
|* See Add Fuel Stabilizer on page 15.
Refer to engine manual for instructions.
|

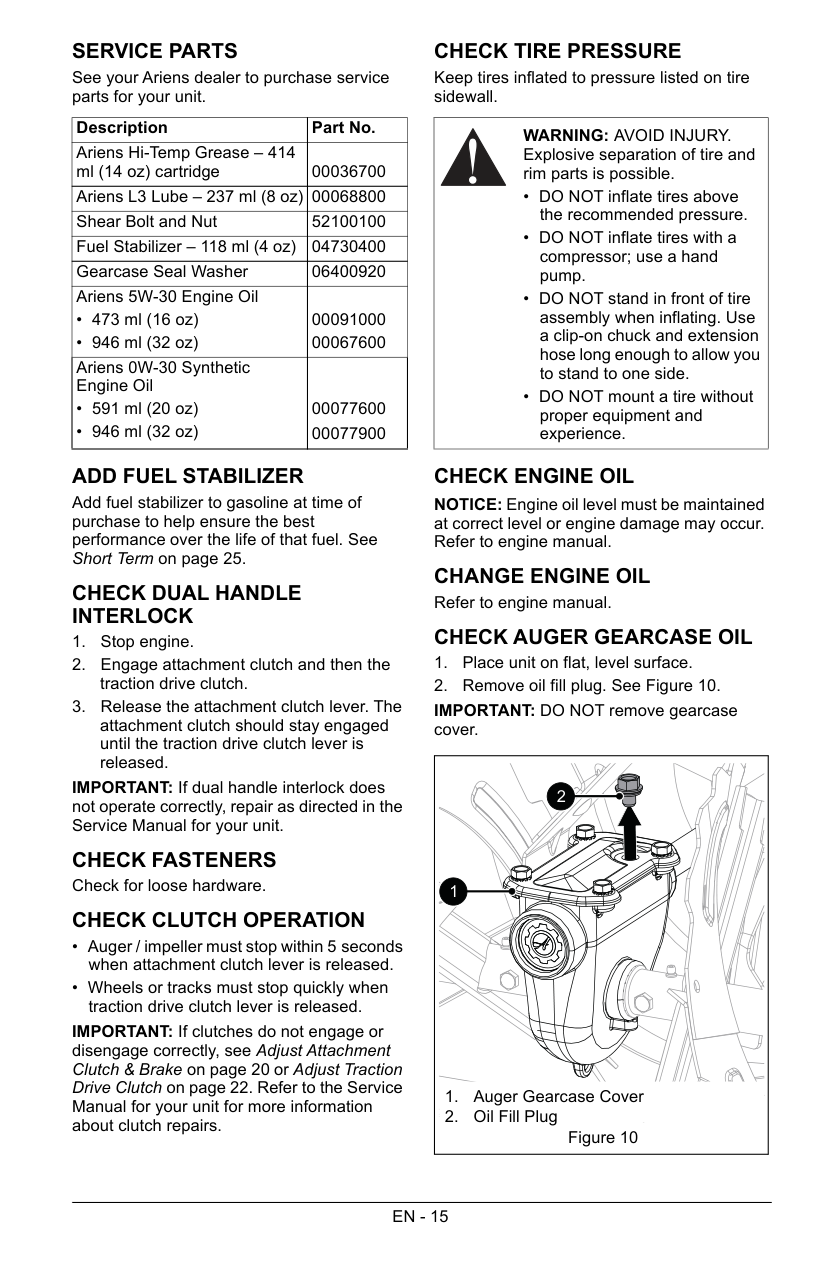

###### SERVICE PARTS

See your Ariens dealer to purchase service parts for your unit.

|Description|Part No.| |---|---| |Ariens Hi-Temp Grease – 414 ml (14 oz) cartridge|00036700| |Ariens L3 Lube – 237 ml (8 oz)|00068800| |Shear Bolt and Nut|52100100| |Fuel Stabilizer – 118 ml (4 oz)|04730400| |Gearcase Seal Washer|06400920| |Ariens 5W-30 Engine Oil

• 473 ml (16 oz)
• 946 ml (32 oz)
|00091000 00067600| |Ariens 0W-30 Synthetic Engine Oil

• 591 ml (20 oz)
• 946 ml (32 oz)
|00077600 00077900|

###### ADD FUEL STABILIZER

Add fuel stabilizer to gasoline at time of purchase to help ensure the best performance over the life of that fuel. See Short Term on page 25.

###### CHECK DUAL HANDLE INTERLOCK

IMPORTANT: If dual handle interlock does not operate correctly, repair as directed in the Service Manual for your unit.

CHECK FASTENERS Check for loose hardware.

CHECK CLUTCH OPERATION

IMPORTANT: If clutches do not engage or disengage correctly, see Adjust Attachment Clutch & Brake on page 20 or Adjust Traction Drive Clutch on page 22. Refer to the Service Manual for your unit for more information about clutch repairs.

###### CHECK TIRE PRESSURE

Keep tires inflated to pressure listed on tire sidewall.

|WARNING: AVOID INJURY. Explosive separation of tire and rim parts is possible.

• DO NOT inflate tires above the recommended pressure.
• DO NOT inflate tires with a compressor; use a hand pump.
• DO NOT stand in front of tire assembly when inflating. Use a clip-on chuck and extension hose long enough to allow you to stand to one side.
• DO NOT mount a tire without proper equipment and experience.
| |---|

###### CHECK ENGINE OIL

NOTICE: Engine oil level must be maintained at correct level or engine damage may occur. Refer to engine manual.

CHANGE ENGINE OIL Refer to engine manual.

CHECK AUGER GEARCASE OIL

IMPORTANT: DO NOT remove gearcase cover.

|1. Auger Gearcase Cover
2. Oil Fill Plug Figure 10


1

2| |---|

IMPORTANT: Ariens recommends using only Ariens L3 synthetic severe duty gear lube (see Service Parts on page 15). Using other lubricants will not automatically void unit warranty, but the warranty will not cover damage caused by using unauthorized lubricants.

NOTICE: DO NOT over torque. Measurements are given in pound force inches (lb-in) and not pound force foot (lb-ft). Incorrect torquing and failure to install or correctly torque oil fill plug may void gearcase warranty.

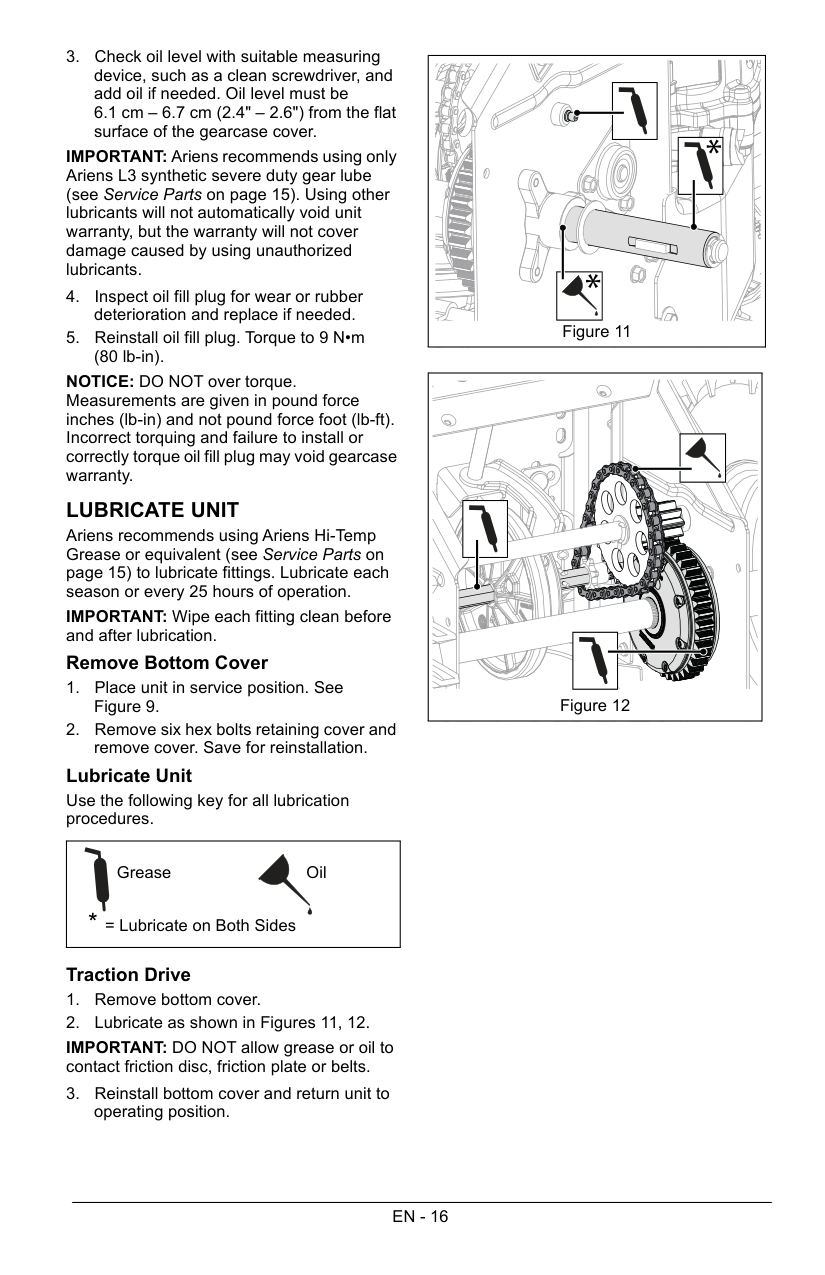

LUBRICATE UNIT Ariens recommends using Ariens Hi-Temp Grease or equivalent (see Service Parts on page 15) to lubricate fittings. Lubricate each season or every 25 hours of operation. IMPORTANT: Wipe each fitting clean before and after lubrication. Remove Bottom Cover

Lubricate Unit Use the following key for all lubrication procedures.

|* = Lubricate on Both Sides

Grease Oil

| |---|

####### Traction Drive

IMPORTANT: DO NOT allow grease or oil to contact friction disc, friction plate or belts.

|Figure 11|Figure 11| |---|---| | | |

| | | |---|---| | | |

Figure 12

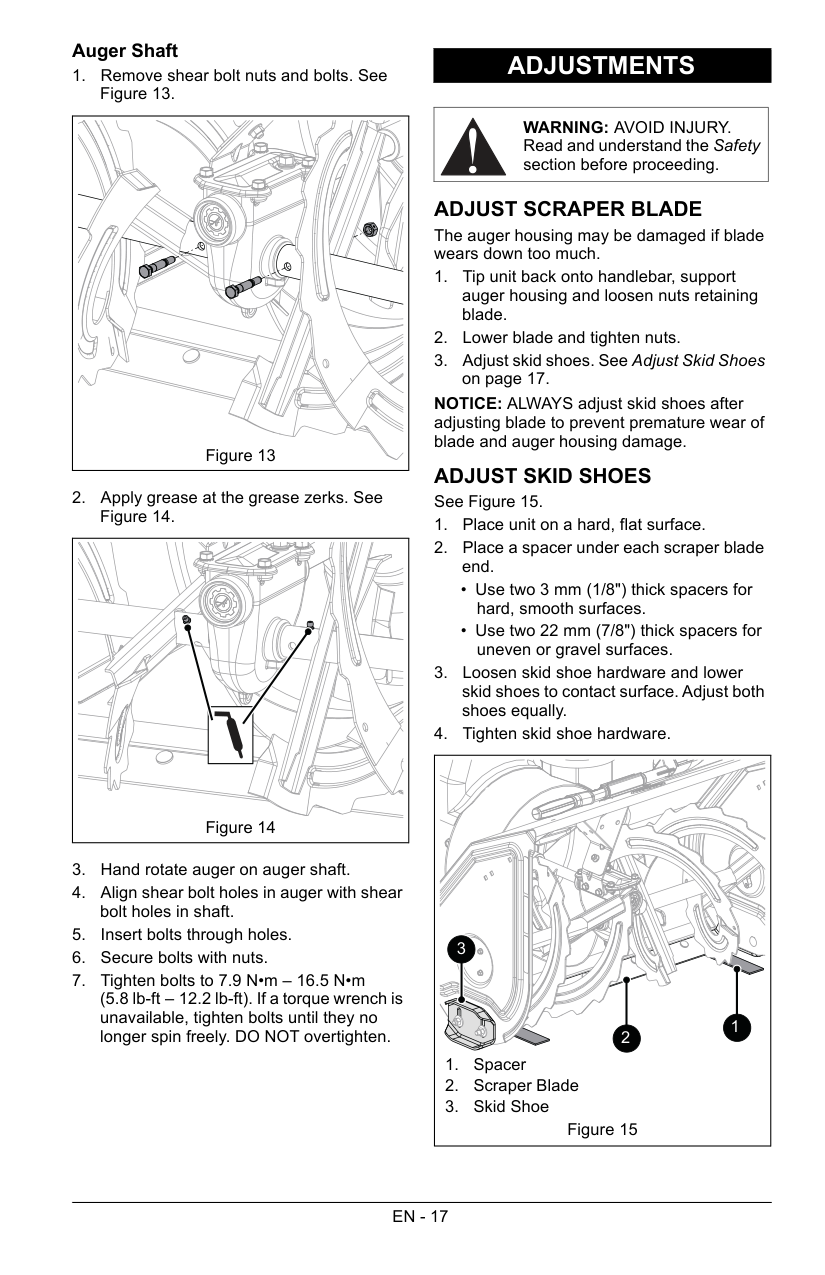

####### Auger Shaft

|Figure 13| |---|

|Figure 14| |---|

|ADJUSTMENTS| |---|

|WARNING: AVOID INJURY. Read and understand the Safety section before proceeding.| |---|

ADJUST SCRAPER BLADE The auger housing may be damaged if blade wears down too much.

NOTICE: ALWAYS adjust skid shoes after adjusting blade to prevent premature wear of blade and auger housing damage.

###### ADJUST SKID SHOES See Figure 15.

|Figure 15

1. Spacer
2. Scraper Blade
3. Skid Shoe


1 2

3| |---|

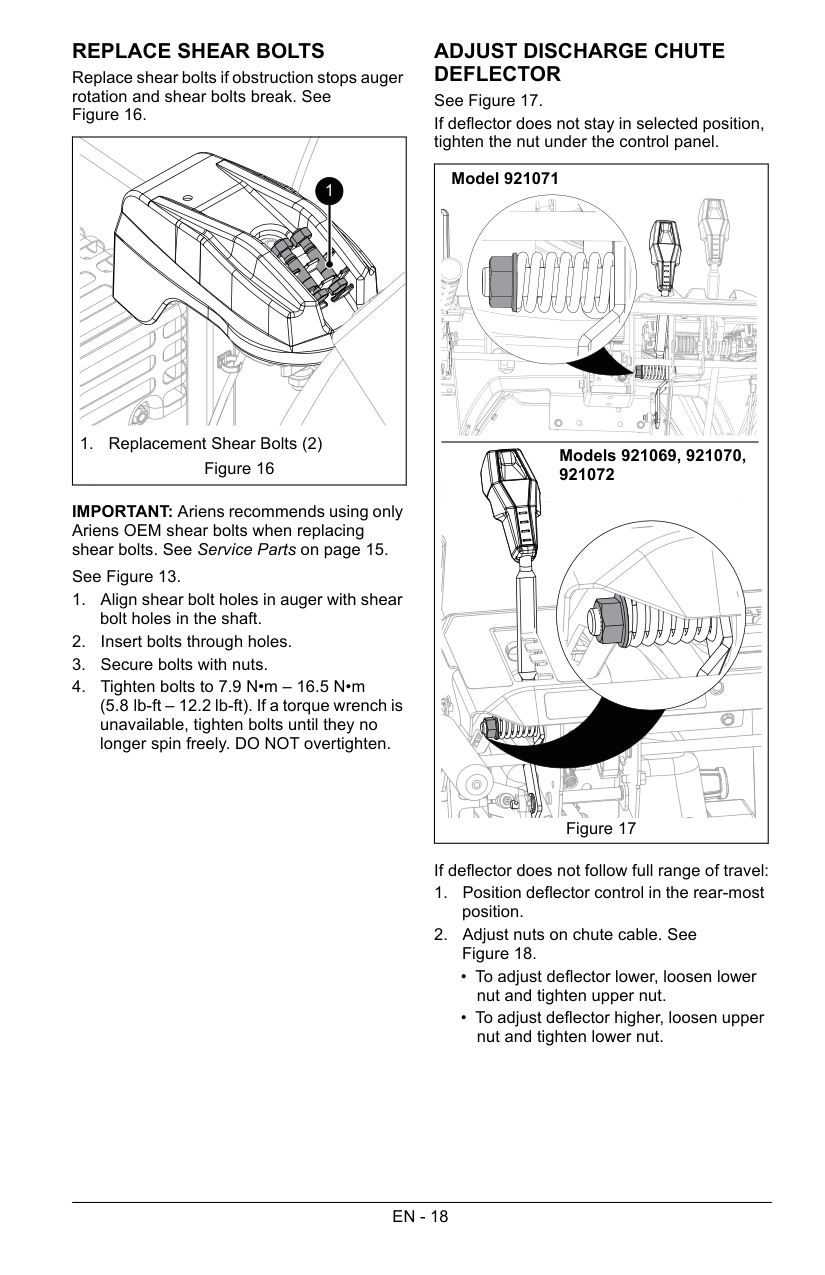

###### REPLACE SHEAR BOLTS

Replace shear bolts if obstruction stops auger rotation and shear bolts break. See Figure 16.

1

Figure 16

IMPORTANT: Ariens recommends using only Ariens OEM shear bolts when replacing shear bolts. See Service Parts on page 15.

See Figure 13.

###### ADJUST DISCHARGE CHUTE DEFLECTOR

See Figure 17. If deflector does not stay in selected position, tighten the nut under the control panel.

|Figure 17

Model 921071

Models 921069, 921070, 921072| |---|

If deflector does not follow full range of travel:

|Figure 18

1. Chute Cable
2. Upper Adjustment Nut
3. Lower Adjustment Nut


1

2

3| |---|

ADJUST DISCHARGE CHUTE See Figure 19. If discharge chute does not stay in selected position, tighten nut on carriage bolt.

|Figure 19

| |---|

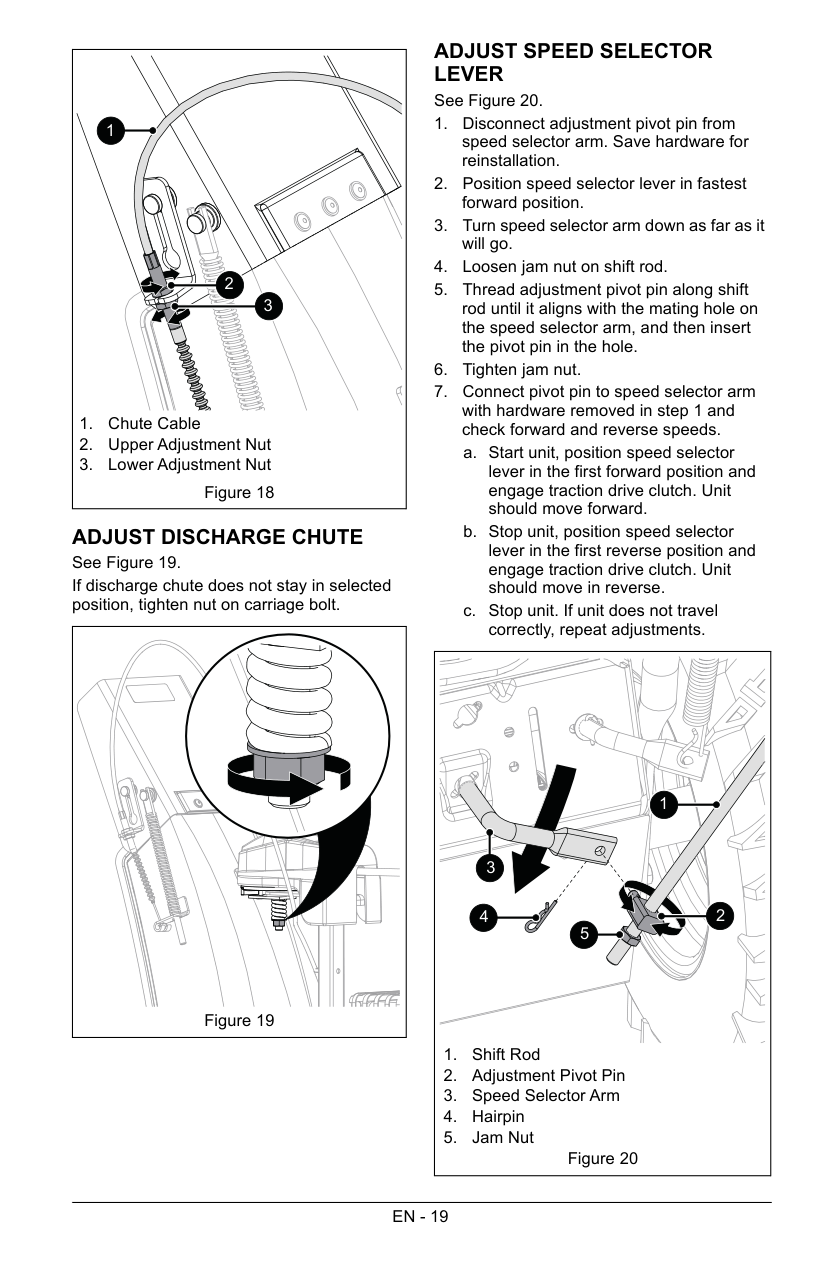

###### ADJUST SPEED SELECTOR LEVER See Figure 20.

|1. Shift Rod
2. Adjustment Pivot Pin
3. Speed Selector Arm
4. Hairpin
5. Jam Nut Figure 20


4

3

1

2 5| |---|

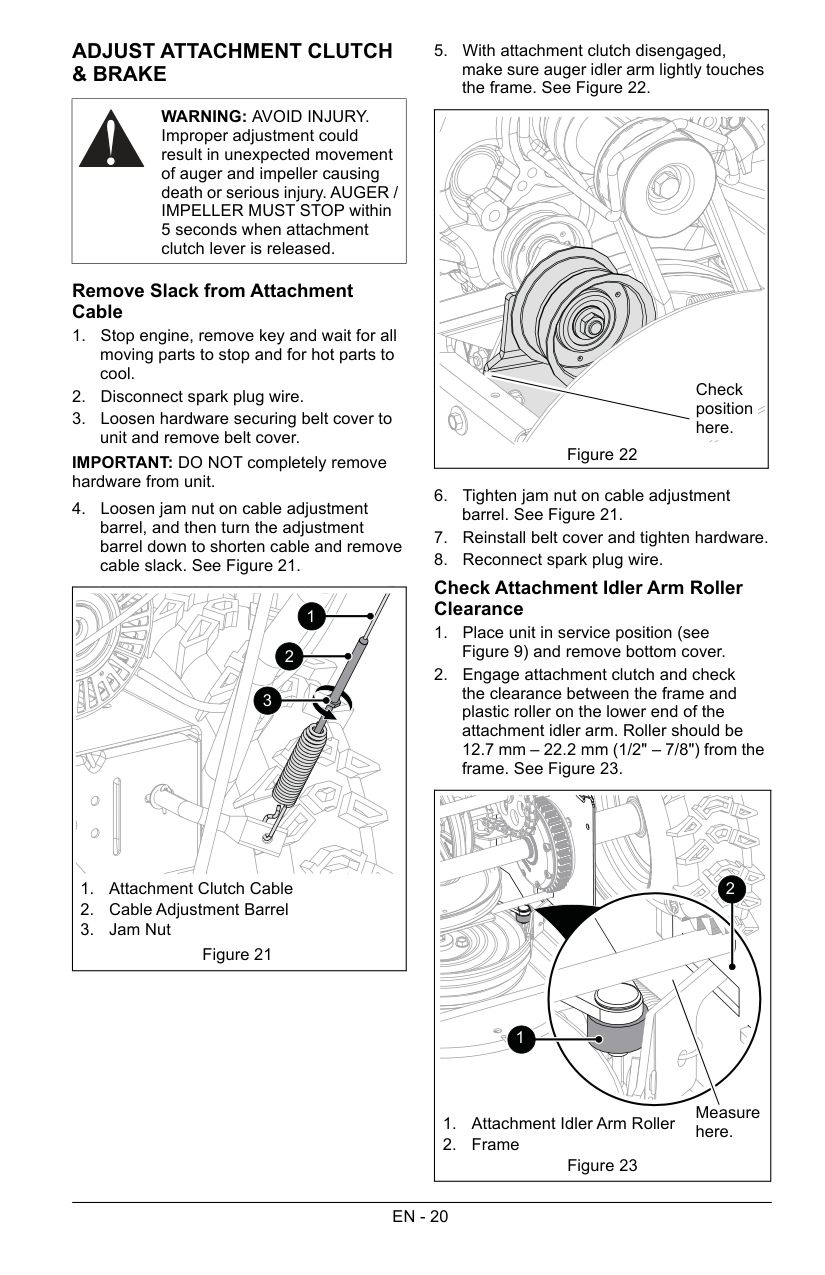

###### ADJUST ATTACHMENT CLUTCH & BRAKE

WARNING: AVOID INJURY. Improper adjustment could result in unexpected movement of auger and impeller causing death or serious injury. AUGER / IMPELLER MUST STOP within 5 seconds when attachment clutch lever is released.

####### Remove Slack from Attachment Cable

IMPORTANT: DO NOT completely remove hardware from unit.

1

2

3

Figure 21

|Check position here.| |---|

Figure 22

####### Check Attachment Idler Arm Roller Clearance

|Figure 23

Measure here.1. Attachment Idler Arm Roller

2. Frame

2

1| |---|

• If roller is 12.7 mm – 22.2 mm (1/2" – 7/8") from frame, no further adjustment is required.

See Figure 24.

|2

1

3

|1. Idler| |---|

2. Belt
3. Pulley Figure 24
| |---|

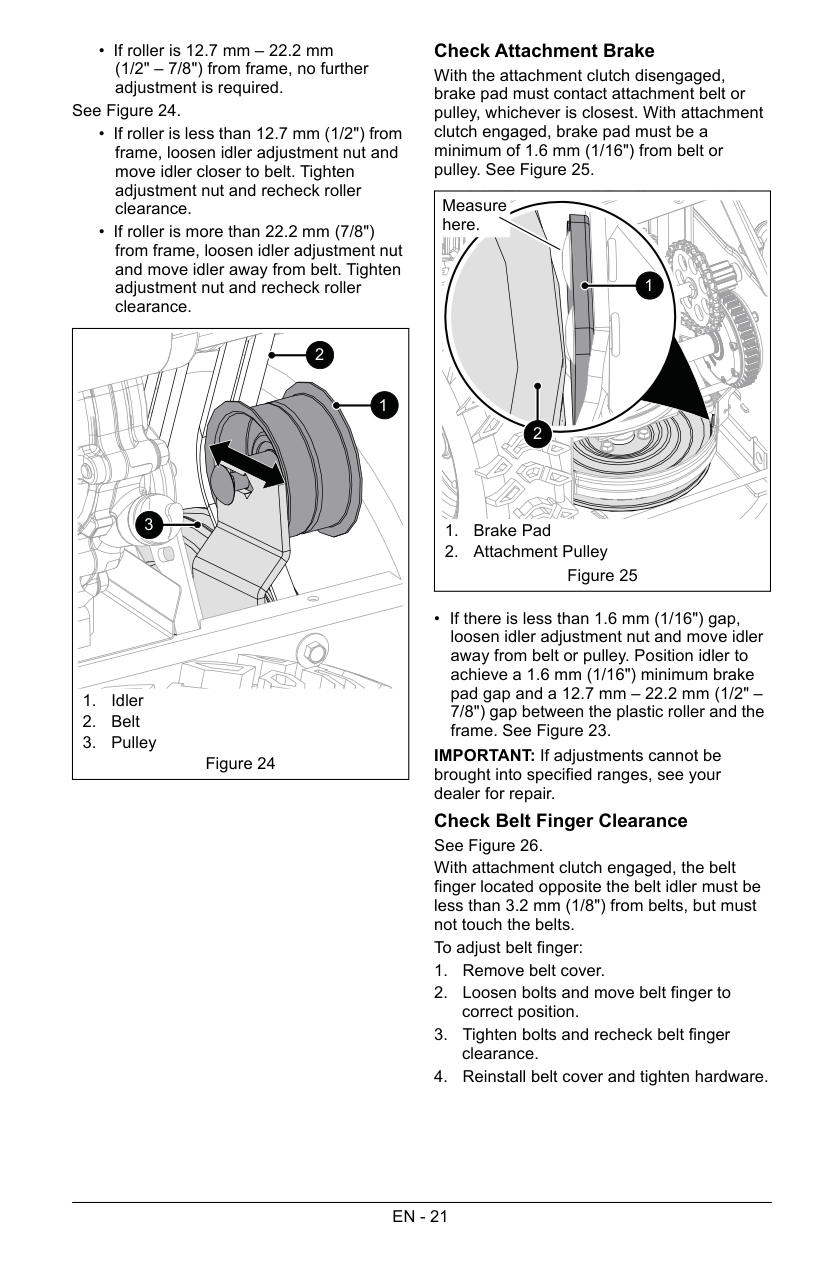

Check Attachment Brake With the attachment clutch disengaged, brake pad must contact attachment belt or pulley, whichever is closest. With attachment clutch engaged, brake pad must be a minimum of 1.6 mm (1/16") from belt or pulley. See Figure 25.

Measure here.

| | | |---|---|

| | |

1

2

Figure 25

• If there is less than 1.6 mm (1/16") gap, loosen idler adjustment nut and move idler away from belt or pulley. Position idler to achieve a 1.6 mm (1/16") minimum brake pad gap and a 12.7 mm – 22.2 mm (1/2" – 7/8") gap between the plastic roller and the frame. See Figure 23.

IMPORTANT: If adjustments cannot be brought into specified ranges, see your dealer for repair.

Check Belt Finger Clearance See Figure 26. With attachment clutch engaged, the belt finger located opposite the belt idler must be less than 3.2 mm (1/8") from belts, but must not touch the belts. To adjust belt finger:

| | |---| |Measure

| |here.Figure 26|

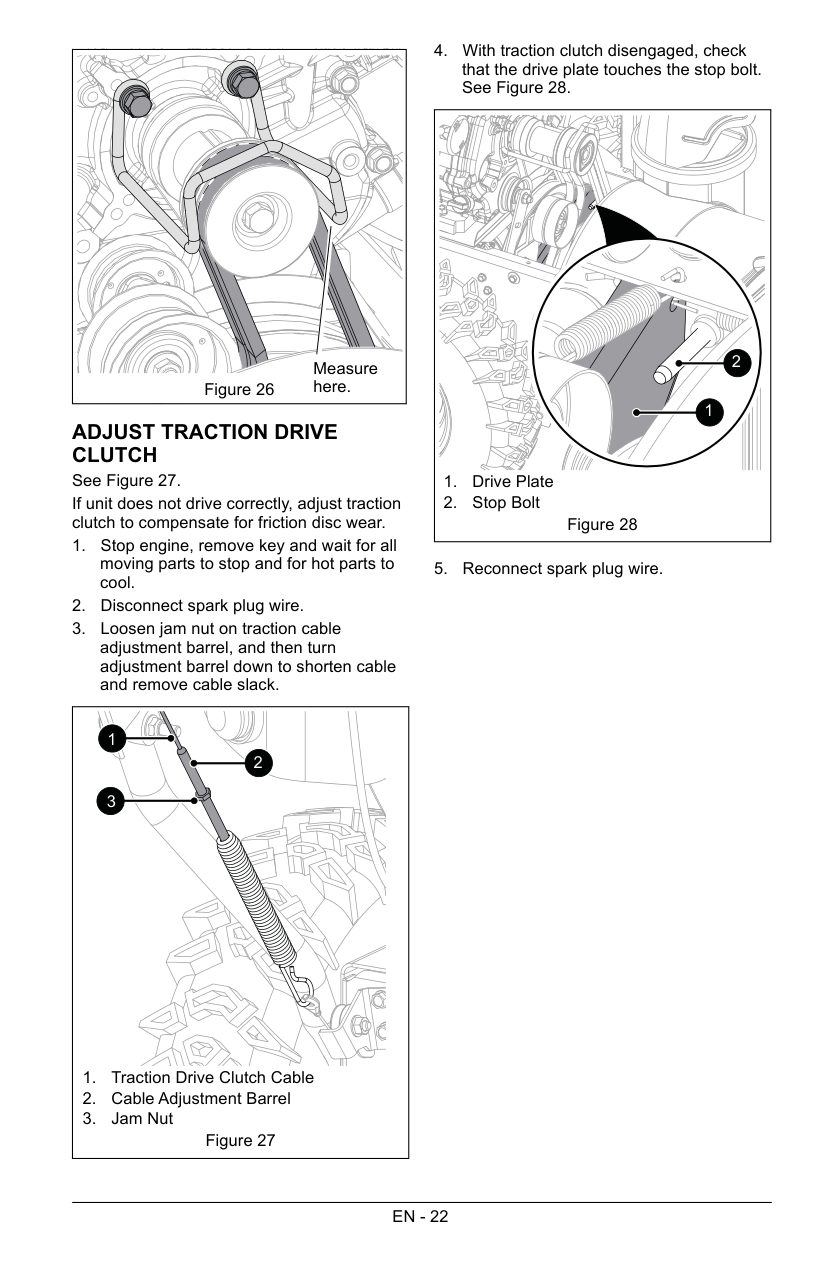

###### ADJUST TRACTION DRIVE CLUTCH

See Figure 27. If unit does not drive correctly, adjust traction clutch to compensate for friction disc wear.

|Figure 27

1. Traction Drive Clutch Cable
2. Cable Adjustment Barrel
3. Jam Nut


3

2

1| |---|

|Figure 28

1. Drive Plate
2. Stop Bolt


1

2| |---|

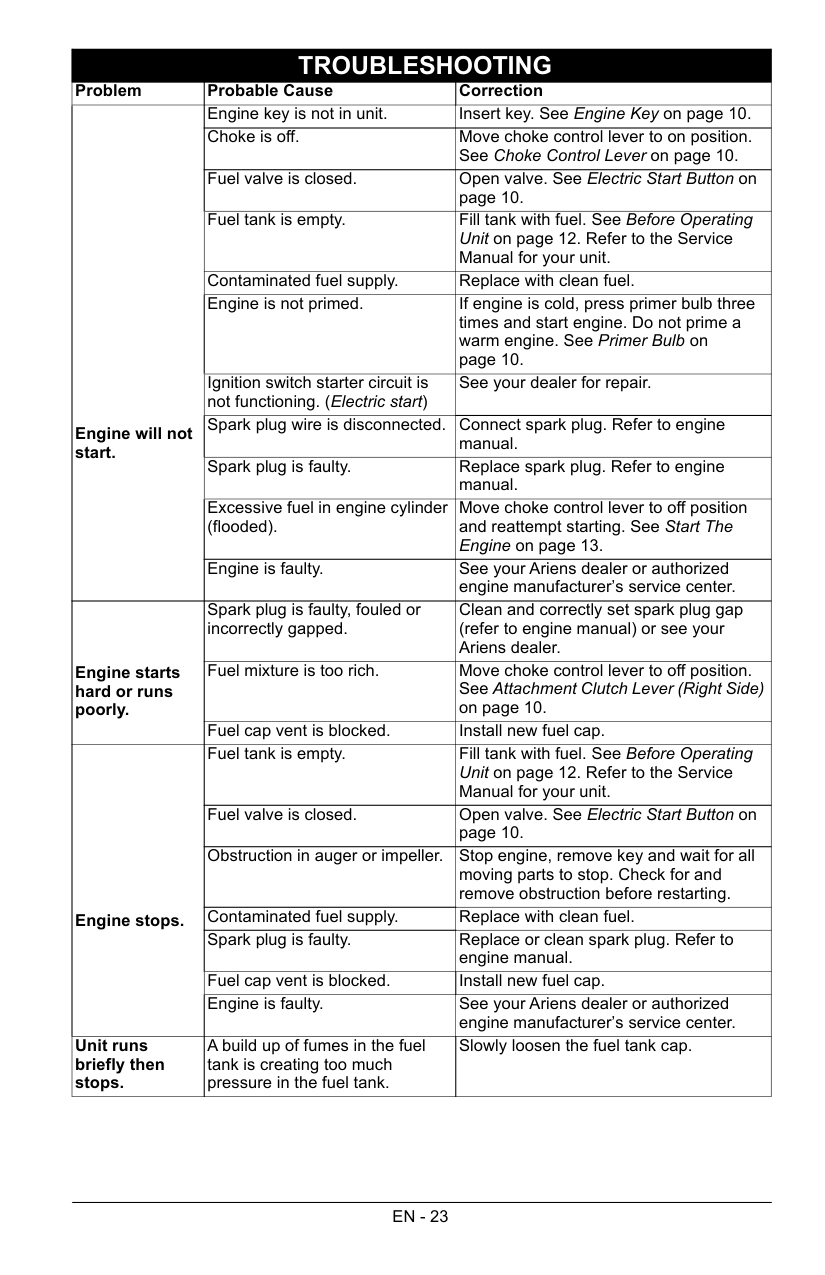

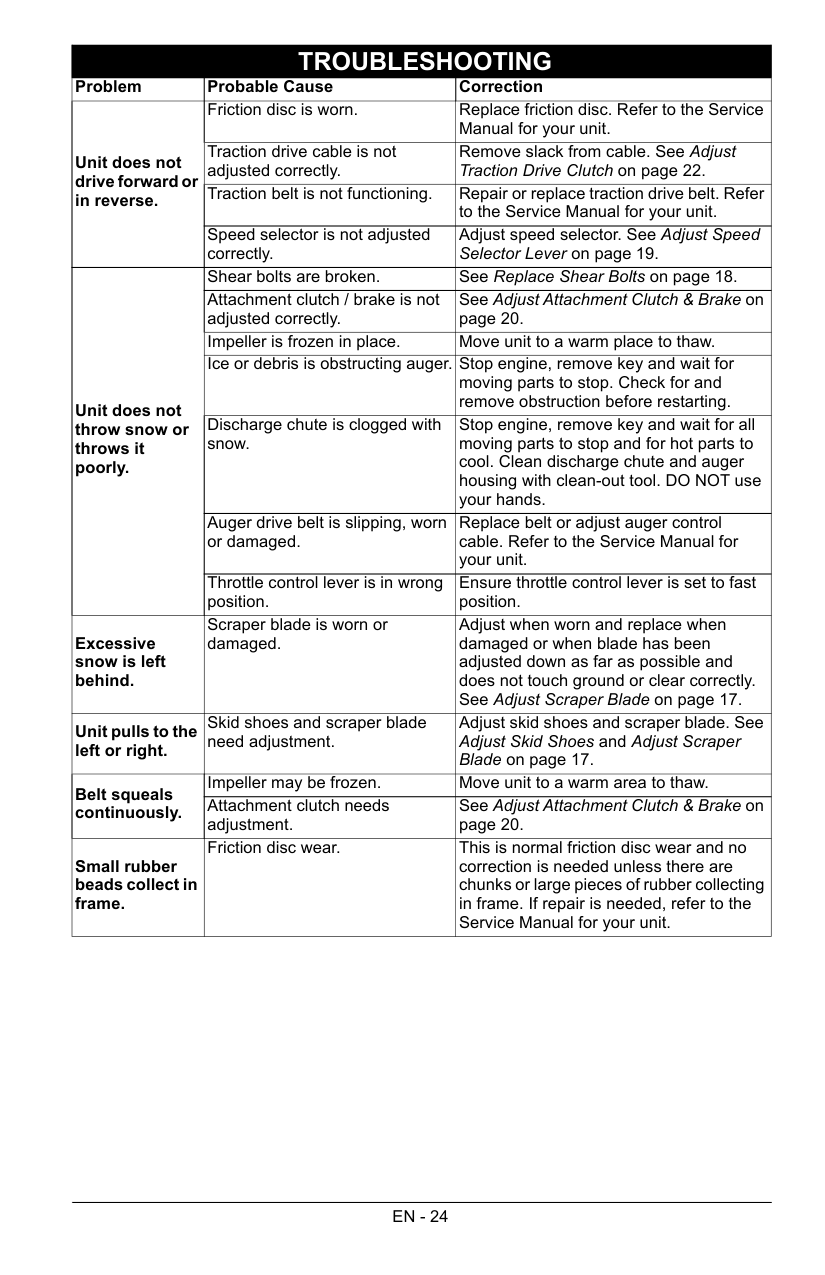

|TROUBLESHOOTING|TROUBLESHOOTING|TROUBLESHOOTING| |---|---|---| |Problem|Probable Cause|Correction| |Engine will not start.|Engine key is not in unit.|Insert key. See Engine Key on page 10.| |Engine will not start.|Choke is off.|Move choke control lever to on position. See Choke Control Lever on page 10.| |Engine will not start.|Fuel valve is closed.|Open valve. See Electric Start Button on page 10.| |Engine will not start.|Fuel tank is empty.|Fill tank with fuel. See Before Operating Unit on page 12. Refer to the Service Manual for your unit.| |Engine will not start.|Contaminated fuel supply.|Replace with clean fuel.| |Engine will not start.|Engine is not primed.|If engine is cold, press primer bulb three times and start engine. Do not prime a warm engine. See Primer Bulb on page 10.| |Engine will not start.|Ignition switch starter circuit is not functioning. (Electric start)|See your dealer for repair.| |Engine will not start.|Spark plug wire is disconnected.|Connect spark plug. Refer to engine manual.| |Engine will not start.|Spark plug is faulty.|Replace spark plug. Refer to engine manual.| |Engine will not start.|Excessive fuel in engine cylinder (flooded).|Move choke control lever to off position and reattempt starting. See Start The Engine on page 13.| |Engine will not start.|Engine is faulty.|See your Ariens dealer or authorized engine manufacturer’s service center.| |Engine starts hard or runs poorly.|Spark plug is faulty, fouled or incorrectly gapped.|Clean and correctly set spark plug gap (refer to engine manual) or see your Ariens dealer.| |Engine starts hard or runs poorly.|Fuel mixture is too rich.|Move choke control lever to off position. See Attachment Clutch Lever (Right Side) on page 10.| |Engine starts hard or runs poorly.|Fuel cap vent is blocked.|Install new fuel cap.| |Engine stops.|Fuel tank is empty.|Fill tank with fuel. See Before Operating Unit on page 12. Refer to the Service Manual for your unit.| |Engine stops.|Fuel valve is closed.|Open valve. See Electric Start Button on page 10.| |Engine stops.|Obstruction in auger or impeller.|Stop engine, remove key and wait for all moving parts to stop. Check for and remove obstruction before restarting.| |Engine stops.|Contaminated fuel supply.|Replace with clean fuel.| |Engine stops.|Spark plug is faulty.|Replace or clean spark plug. Refer to engine manual.| |Engine stops.|Fuel cap vent is blocked.|Install new fuel cap.| |Engine stops.|Engine is faulty.|See your Ariens dealer or authorized engine manufacturer’s service center.|

|Unit runs briefly then stops.|A build up of fumes in the fuel tank is creating too much pressure in the fuel tank.|Slowly loosen the fuel tank cap.|

|TROUBLESHOOTING|TROUBLESHOOTING|TROUBLESHOOTING| |---|---|---| |Problem|Probable Cause|Correction| |Unit does not drive forward or in reverse.|Friction disc is worn.|Replace friction disc. Refer to the Service Manual for your unit.| |Unit does not drive forward or in reverse.|Traction drive cable is not adjusted correctly.|Remove slack from cable. See Adjust Traction Drive Clutch on page 22.| |Unit does not drive forward or in reverse.|Traction belt is not functioning.|Repair or replace traction drive belt. Refer to the Service Manual for your unit.| |Unit does not drive forward or in reverse.|Speed selector is not adjusted correctly.|Adjust speed selector. See Adjust Speed Selector Lever on page 19.| |Unit does not throw snow or throws it poorly.|Shear bolts are broken.|See Replace Shear Bolts on page 18.| |Unit does not throw snow or throws it poorly.|Attachment clutch / brake is not adjusted correctly.|See Adjust Attachment Clutch & Brake on page 20.| |Unit does not throw snow or throws it poorly.|Impeller is frozen in place.|Move unit to a warm place to thaw.| |Unit does not throw snow or throws it poorly.|Ice or debris is obstructing auger.|Stop engine, remove key and wait for moving parts to stop. Check for and remove obstruction before restarting.| |Unit does not throw snow or throws it poorly.|Discharge chute is clogged with snow.|Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool. Clean discharge chute and auger housing with clean-out tool. DO NOT use your hands.| |Unit does not throw snow or throws it poorly.|Auger drive belt is slipping, worn or damaged.|Replace belt or adjust auger control cable. Refer to the Service Manual for your unit.| |Unit does not throw snow or throws it poorly.|Throttle control lever is in wrong position.|Ensure throttle control lever is set to fast position.| |Excessive snow is left behind.|Scraper blade is worn or damaged.|Adjust when worn and replace when damaged or when blade has been adjusted down as far as possible and does not touch ground or clear correctly. See Adjust Scraper Blade on page 17.| |Unit pulls to the left or right.|Skid shoes and scraper blade need adjustment.|Adjust skid shoes and scraper blade. See Adjust Skid Shoes and Adjust Scraper Blade on page 17.| |Belt squeals continuously.|Impeller may be frozen.|Move unit to a warm area to thaw.| |Belt squeals continuously.|Attachment clutch needs adjustment.|See Adjust Attachment Clutch & Brake on page 20.| |Small rubber beads collect in frame.|Friction disc wear.|This is normal friction disc wear and no correction is needed unless there are chunks or large pieces of rubber collecting in frame. If repair is needed, refer to the Service Manual for your unit.|

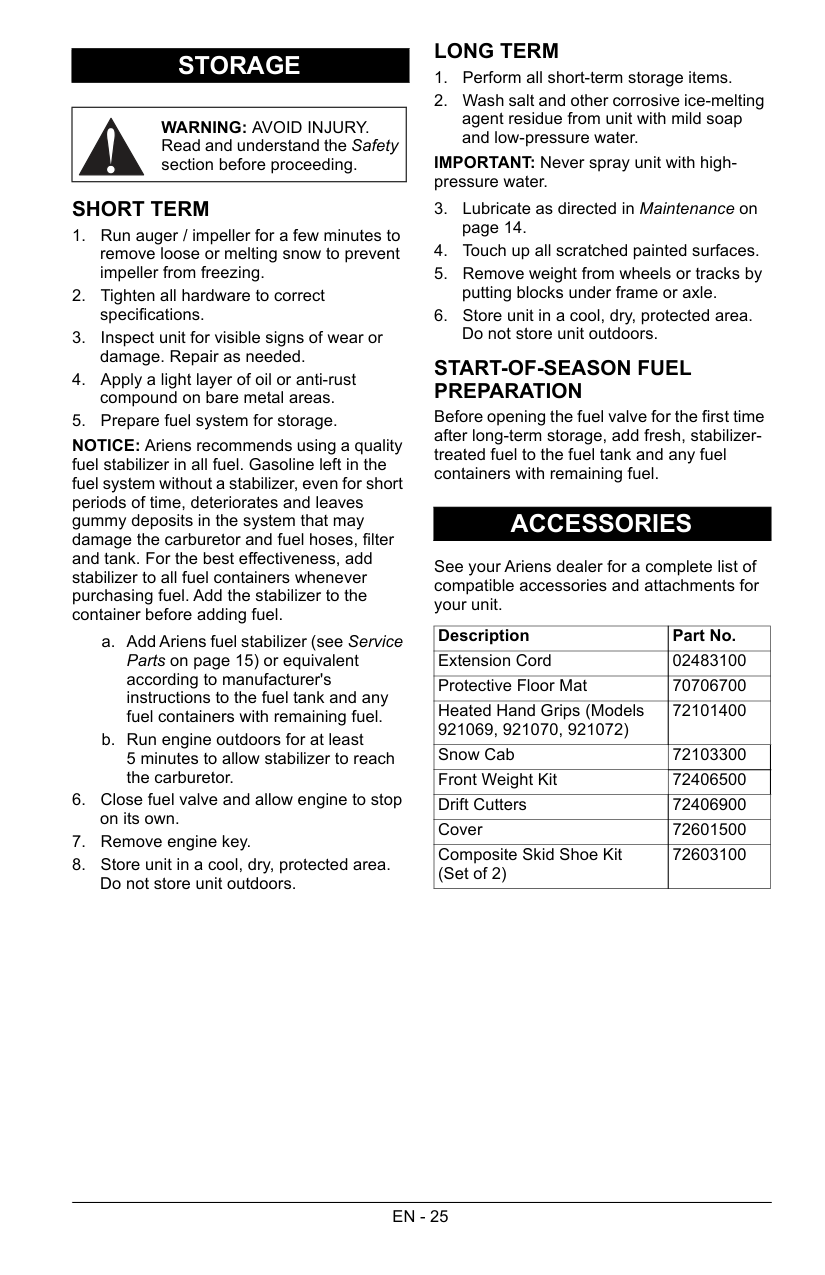

|STORAGE| |---|

|WARNING: AVOID INJURY. Read and understand the Safety section before proceeding.| |---|

###### SHORT TERM

NOTICE: Ariens recommends using a quality fuel stabilizer in all fuel. Gasoline left in the fuel system without a stabilizer, even for short periods of time, deteriorates and leaves gummy deposits in the system that may damage the carburetor and fuel hoses, filter and tank. For the best effectiveness, add stabilizer to all fuel containers whenever purchasing fuel. Add the stabilizer to the container before adding fuel.

###### LONG TERM

IMPORTANT: Never spray unit with highpressure water.

###### START-OF-SEASON FUEL PREPARATION

Before opening the fuel valve for the first time after long-term storage, add fresh, stabilizertreated fuel to the fuel tank and any fuel containers with remaining fuel.

|ACCESSORIES| |---|

See your Ariens dealer for a complete list of compatible accessories and attachments for your unit.

|Description|Part No.| |---|---|

|Extension Cord|02483100| |Protective Floor Mat|70706700| |Heated Hand Grips (Models 921069, 921070, 921072)|72101400| |Snow Cab|72103300| |Front Weight Kit|72406500| |Drift Cutters|72406900| |Cover|72601500| |Composite Skid Shoe Kit (Set of 2)|72603100|

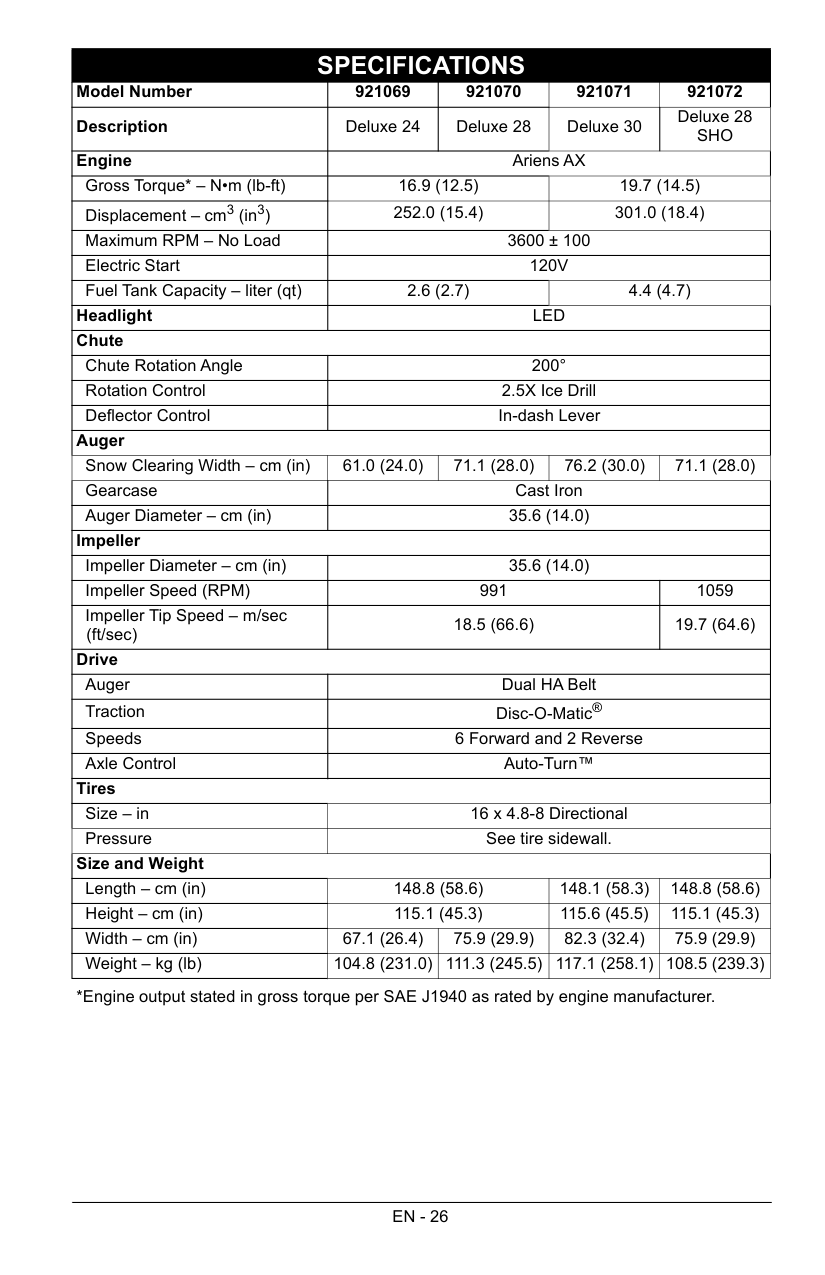

|SPECIFICATIONS|SPECIFICATIONS|SPECIFICATIONS|SPECIFICATIONS|SPECIFICATIONS| |---|---|---|---|---| |Model Number|921069|921070|921071|921072| |Description|Deluxe 24|Deluxe 28|Deluxe 30|Deluxe 28 SHO| |Engine|Ariens AX|Ariens AX|Ariens AX|Ariens AX| |Gross Torque* – N•m (lb-ft)|16.9 (12.5)|16.9 (12.5)|19.7 (14.5)|19.7 (14.5)| |Displacement – cm3 (in3)|252.0 (15.4)|252.0 (15.4)|301.0 (18.4)|301.0 (18.4)| |Maximum RPM – No Load|3600 ± 100|3600 ± 100|3600 ± 100|3600 ± 100| |Electric Start|120V|120V|120V|120V| |Fuel Tank Capacity – liter (qt)|2.6 (2.7)|2.6 (2.7)|4.4 (4.7)|4.4 (4.7)| |Headlight|LED|LED|LED|LED| |Chute|Chute|Chute|Chute|Chute| |Chute Rotation Angle|200°|200°|200°|200°| |Rotation Control|2.5X Ice Drill|2.5X Ice Drill|2.5X Ice Drill|2.5X Ice Drill| |Deflector Control|In-dash Lever|In-dash Lever|In-dash Lever|In-dash Lever| |Auger|Auger|Auger|Auger|Auger| |Snow Clearing Width – cm (in)|61.0 (24.0)|71.1 (28.0)|76.2 (30.0)|71.1 (28.0)| |Gearcase|Cast Iron|Cast Iron|Cast Iron|Cast Iron| |Auger Diameter – cm (in)|35.6 (14.0)|35.6 (14.0)|35.6 (14.0)|35.6 (14.0)| |Impeller|Impeller|Impeller|Impeller|Impeller| |Impeller Diameter – cm (in)|35.6 (14.0)|35.6 (14.0)|35.6 (14.0)|35.6 (14.0)| |Impeller Speed (RPM)|991|991|991|1059| |Impeller Tip Speed – m/sec (ft/sec)|18.5 (66.6)|18.5 (66.6)|18.5 (66.6)|19.7 (64.6)| |Drive|Drive|Drive|Drive|Drive| |Auger|Dual HA Belt|Dual HA Belt|Dual HA Belt|Dual HA Belt| |Traction|Disc-O-Matic®|Disc-O-Matic®|Disc-O-Matic®|Disc-O-Matic®| |Speeds|6 Forward and 2 Reverse|6 Forward and 2 Reverse|6 Forward and 2 Reverse|6 Forward and 2 Reverse| |Axle Control|Auto-Turn™|Auto-Turn™|Auto-Turn™|Auto-Turn™|

|Tires|Tires|Tires|Tires|Tires| |Size – in|16 x 4.8-8 Directional|16 x 4.8-8 Directional|16 x 4.8-8 Directional|16 x 4.8-8 Directional| |Pressure|See tire sidewall.|See tire sidewall.|See tire sidewall.|See tire sidewall.| |Size and Weight|Size and Weight|Size and Weight|Size and Weight|Size and Weight| |Length – cm (in)|148.8 (58.6)|148.8 (58.6)|148.1 (58.3)|148.8 (58.6)| |Height – cm (in)|115.1 (45.3)|115.1 (45.3)|115.6 (45.5)|115.1 (45.3)| |Width – cm (in)|67.1 (26.4)|75.9 (29.9)|82.3 (32.4)|75.9 (29.9)| |Weight – kg (lb)|104.8 (231.0)|111.3 (245.5)|117.1 (258.1)|108.5 (239.3)|

######### *Engine output stated in gross torque per SAE J1940 as rated by engine manufacturer.

#### Outdoor Power Equipment Limited Warranty

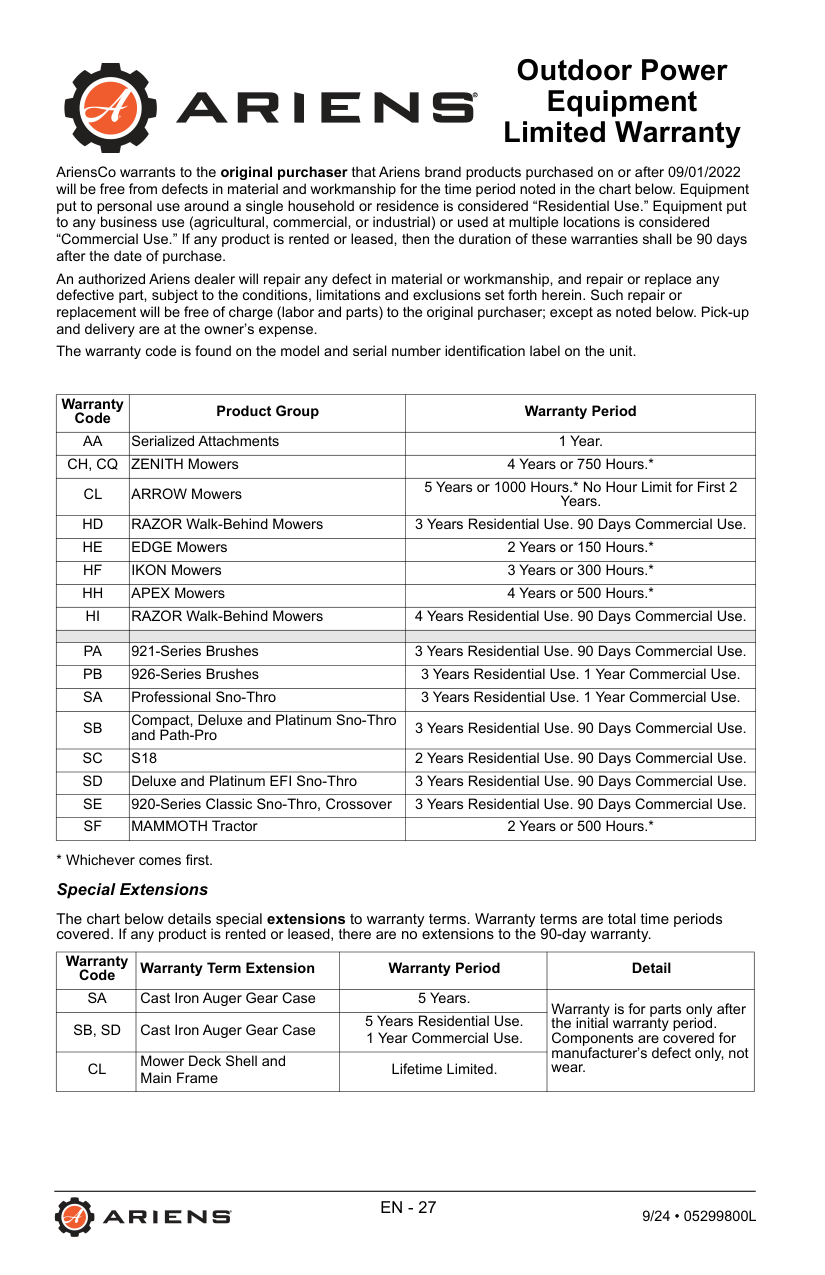

AriensCo warrants to the original purchaser that Ariens brand products purchased on or after 09/01/2022 will be free from defects in material and workmanship for the time period noted in the chart below. Equipment put to personal use around a single household or residence is considered “Residential Use.” Equipment put to any business use (agricultural, commercial, or industrial) or used at multiple locations is considered “Commercial Use.” If any product is rented or leased, then the duration of these warranties shall be 90 days after the date of purchase.

An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser; except as noted below. Pick-up and delivery are at the owner’s expense.

The warranty code is found on the model and serial number identification label on the unit.

|Warranty Code|Product Group|Warranty Period| |---|---|---| |AA|Serialized Attachments|1 Year.| |CH, CQ|ZENITH Mowers|4 Years or 750 Hours.*| |CL|ARROW Mowers|5 Years or 1000 Hours.* No Hour Limit for First 2 Years.| |HD|RAZOR Walk-Behind Mowers|3 Years Residential Use. 90 Days Commercial Use.| |HE|EDGE Mowers|2 Years or 150 Hours.*| |HF|IKON Mowers|3 Years or 300 Hours.*| |HH|APEX Mowers|4 Years or 500 Hours.*| |HI|RAZOR Walk-Behind Mowers|4 Years Residential Use. 90 Days Commercial Use.| | | | | |PA|921-Series Brushes|3 Years Residential Use. 90 Days Commercial Use.| |PB|926-Series Brushes|3 Years Residential Use. 1 Year Commercial Use.| |SA|Professional Sno-Thro|3 Years Residential Use. 1 Year Commercial Use.| |SB|Compact, Deluxe and Platinum Sno-Thro and Path-Pro|3 Years Residential Use. 90 Days Commercial Use.| |SC|S18|2 Years Residential Use. 90 Days Commercial Use.| |SD|Deluxe and Platinum EFI Sno-Thro|3 Years Residential Use. 90 Days Commercial Use.| |SE|920-Series Classic Sno-Thro, Crossover|3 Years Residential Use. 90 Days Commercial Use.|

|SF|MAMMOTH Tractor|2 Years or 500 Hours.*|

The chart below details special extensions to warranty terms. Warranty terms are total time periods covered. If any product is rented or leased, there are no extensions to the 90-day warranty.

|Warranty Code|Warranty Term Extension|Warranty Period|Detail| |---|---|---|---| |SA|Cast Iron Auger Gear Case|5 Years.|Warranty is for parts only after the initial warranty period. Components are covered for manufacturer’s defect only, not wear.| |SB, SD|Cast Iron Auger Gear Case|5 Years Residential Use. 1 Year Commercial Use.|Warranty is for parts only after the initial warranty period. Components are covered for manufacturer’s defect only, not wear.| |CL|Mower Deck Shell and Main Frame|Lifetime Limited.|Warranty is for parts only after the initial warranty period. Components are covered for manufacturer’s defect only, not wear.|

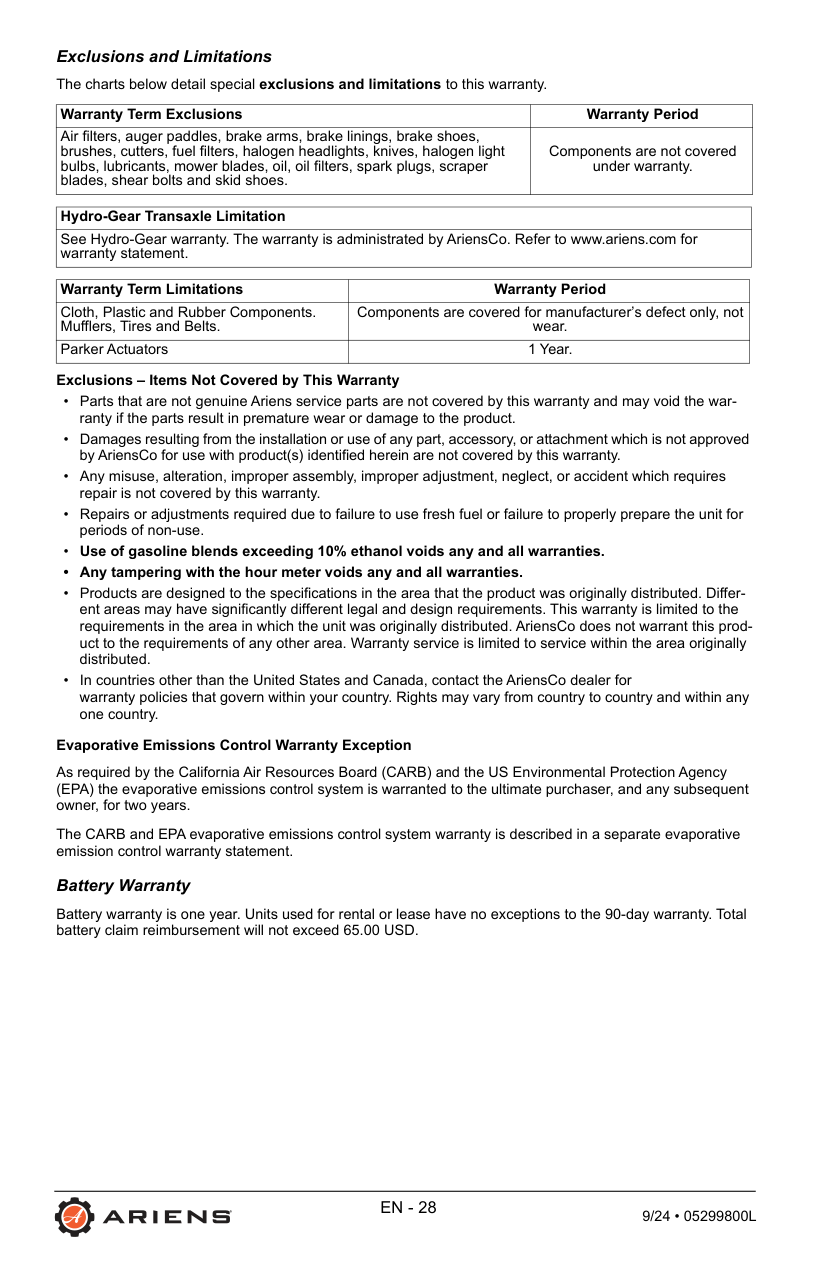

Exclusions and Limitations The charts below detail special exclusions and limitations to this warranty.

|Warranty Term Exclusions|Warranty Period| |---|---| |Air filters, auger paddles, brake arms, brake linings, brake shoes, brushes, cutters, fuel filters, halogen headlights, knives, halogen light bulbs, lubricants, mower blades, oil, oil filters, spark plugs, scraper blades, shear bolts and skid shoes.|Components are not covered under warranty.|

|Hydro-Gear Transaxle Limitation| |---| |See Hydro-Gear warranty. The warranty is administrated by AriensCo. Refer to www.ariens.com for warranty statement.|

|Warranty Term Limitations|Warranty Period| |---|---| |Cloth, Plastic and Rubber Components. Mufflers, Tires and Belts.|Components are covered for manufacturer’s defect only, not wear.| |Parker Actuators|1 Year.|

Exclusions – Items Not Covered by This Warranty

########## Evaporative Emissions Control Warranty Exception

As required by the California Air Resources Board (CARB) and the US Environmental Protection Agency (EPA) the evaporative emissions control system is warranted to the ultimate purchaser, and any subsequent owner, for two years.

The CARB and EPA evaporative emissions control system warranty is described in a separate evaporative emission control warranty statement.

######## Battery Warranty

Battery warranty is one year. Units used for rental or lease have no exceptions to the 90-day warranty. Total battery claim reimbursement will not exceed 65.00 USD.

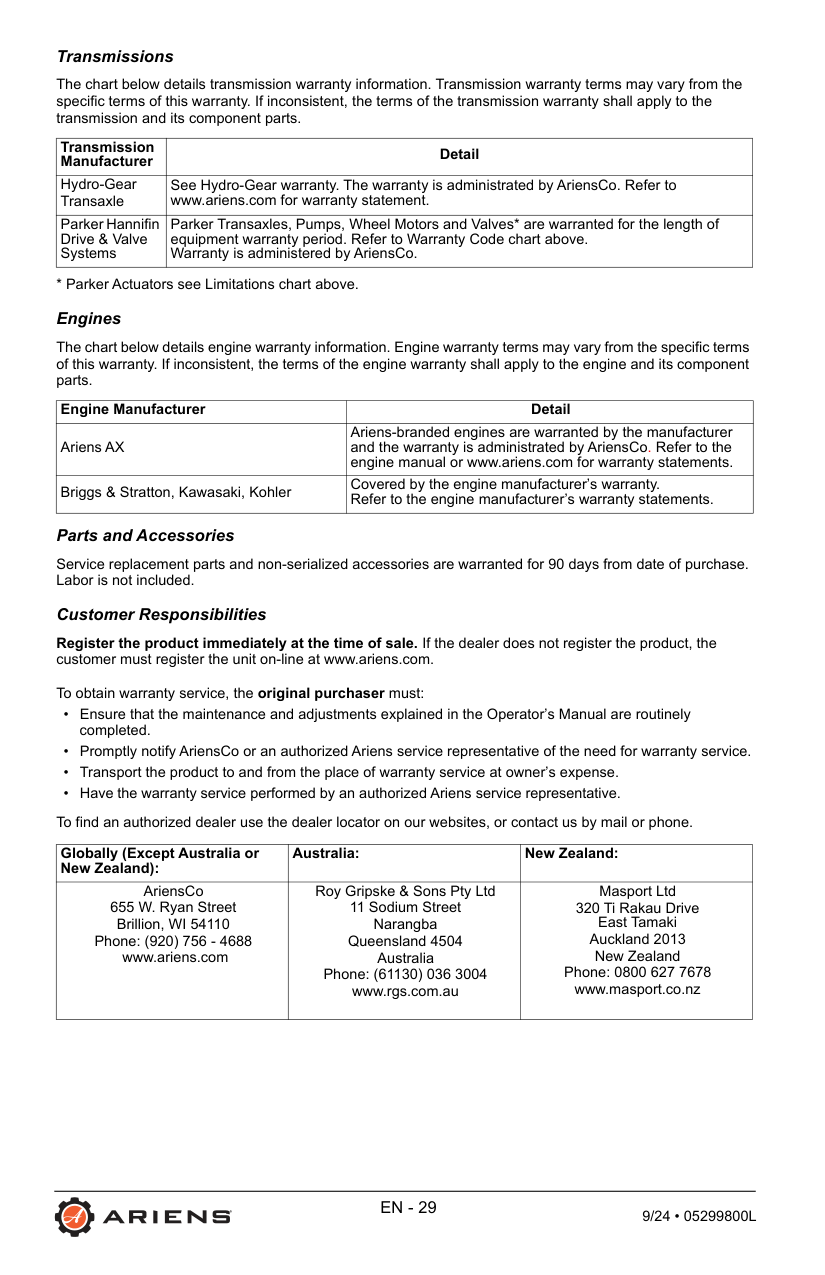

######## Transmissions

The chart below details transmission warranty information. Transmission warranty terms may vary from the specific terms of this warranty. If inconsistent, the terms of the transmission warranty shall apply to the transmission and its component parts.

|Transmission Manufacturer|Detail| |---|---| |Hydro-Gear Transaxle|See Hydro-Gear warranty. The warranty is administrated by AriensCo. Refer to www.ariens.com for warranty statement.| |Parker Hannifin Drive & Valve Systems|Parker Transaxles, Pumps, Wheel Motors and Valves* are warranted for the length of equipment warranty period. Refer to Warranty Code chart above. Warranty is administered by AriensCo.|

The chart below details engine warranty information. Engine warranty terms may vary from the specific terms of this warranty. If inconsistent, the terms of the engine warranty shall apply to the engine and its component parts.

|Engine Manufacturer|Detail| |---|---| |Ariens AX|Ariens-branded engines are warranted by the manufacturer and the warranty is administrated by AriensCo. Refer to the engine manual or www.ariens.com for warranty statements.| |Briggs & Stratton, Kawasaki, Kohler|Covered by the engine manufacturer’s warranty. Refer to the engine manufacturer’s warranty statements.|

######## Parts and Accessories

Service replacement parts and non-serialized accessories are warranted for 90 days from date of purchase. Labor is not included.

Customer Responsibilities Register the product immediately at the time of sale. If the dealer does not register the product, the customer must register the unit on-line at www.ariens.com. To obtain warranty service, the original purchaser must:

To find an authorized dealer use the dealer locator on our websites, or contact us by mail or phone.

|Globally (Except Australia or New Zealand):|Australia:|New Zealand:| |---|---|---| |AriensCo 655 W. Ryan Street Brillion, WI 54110 Phone: (920) 756 - 4688 www.ariens.com|Roy Gripske & Sons Pty Ltd 11 Sodium Street Narangba Queensland 4504 Australia Phone: (61130) 036 3004 www.rgs.com.au|Masport Ltd 320 Ti Rakau Drive East Tamaki Auckland 2013 New Zealand Phone: 0800 627 7678 www.masport.co.nz|

######## Disclaimer

AriensCo may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating the AriensCo to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.

######## Limitation of Remedy and Damages

AriensCo liability under this warranty, and under any implied warranty that may exist, is limited to repair of any defect in workmanship, and repair or replacement of any defective part. AriensCo shall not be liable for incidental, special, or consequential damages (including lost profits). Some states do not allow the exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

AriensCo shall not be held liable for damages, including premature wear and tear, or injuries caused by installation of unauthorized parts and accessories or for parts and accessories not installed by an authorized Ariens dealer.

######## Australian Consumer Law

The following applies solely to warranties subject to Subsection 102(1) of the Australian Consumer Law: Our goods come with guarantees that cannot be excluded by the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and failure does not amount to a major failure.

######## Disclaimer of Further Warranty

AriensCo makes no warranty, express or implied, other than what is expressly made in this warranty. If the law of your state provides that an implied warranty of merchantability, or an implied warranty of fitness for particular purpose, or any other implied warranty, applies to AriensCo, then any such implied warranty is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from region to region.

655 WEST RYAN ST. BRILLION, WI 54110

WWW.ARIENS.COM


PARTS.ARIENS.COM

|| |---|


N

T

I

R

E

P

D
