10 totalHow do I enter the BIOS setup on the PRIME H610M-A D4?
Press the Delete or F2 key during the Power-On Self Test (POST) to enter BIOS Setup at startup. If you miss the POST window, you can also press Ctrl+Alt+Delete simultaneously, press the reset button on the chassis, or power the system off and back on, then press Delete. The BIOS supports both EZ Mode and Advanced Mode, switchable via the F7 hotkey. (Page 2-2)
How do I update the BIOS using ASUS EZ Flash 3?
Insert a FAT 32/16 formatted USB flash drive containing the latest BIOS file into a USB port, then enter Advanced Mode in BIOS and navigate to the Tool menu to select ASUS EZ Flash 3 Utility. Use the arrow keys to locate the USB drive and BIOS file, then press Enter to begin the update. Do NOT shut down or reset the system during the update process, as this can cause boot failure. (Page 2-3)
What should I do if the BIOS gets corrupted or fails to update properly?
Use the ASUS CrashFree BIOS 3 utility to recover the corrupted BIOS. Download the latest BIOS file from https://www.asus.com/support/, rename it to ASUS.CAP or PH610MA.CAP, copy it to a USB flash drive, and insert it while turning on the system. The utility will automatically detect and load the file into ASUS EZ Flash 3 to restore the BIOS. (Page 2-4)
How do I clear the CMOS to reset BIOS settings on the PRIME H610M-A D4?
To clear the CMOS, turn off the computer and unplug the power cord, then use a metal object such as a screwdriver to short the two pins on the Clear CMOS (CLRTC) header. Plug the power cord back in, turn on the computer, and hold the Delete key during boot to re-enter data in BIOS setup. If that does not work, remove the onboard battery, short the pins again, then reinstall the battery. (Page 1-4)
What type and maximum amount of RAM does the PRIME H610M-A D4 support?
The motherboard supports up to 64GB of DDR4 memory across two DIMM slots, with speeds of DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC Unbuffered. It features dual-channel memory architecture and supports Intel Extreme Memory Profile (XMP). Do not install DDR, DDR2, or DDR3 modules, as the DDR4 slot is notched differently. (Page vi)
What CPUs are compatible with the PRIME H610M-A D4 motherboard?
The motherboard uses an Intel Socket LGA1700 and supports 12th Gen Intel Core, Pentium Gold, and Celeron processors. It also supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, though the latter depends on the specific CPU type. Do not install CPUs designed for LGA1155, LGA1156, LGA1151, or LGA1200 sockets, as they are incompatible. (Page 1-8)
Show 4 more questions
Full Manual
33 pages
ii
E19123

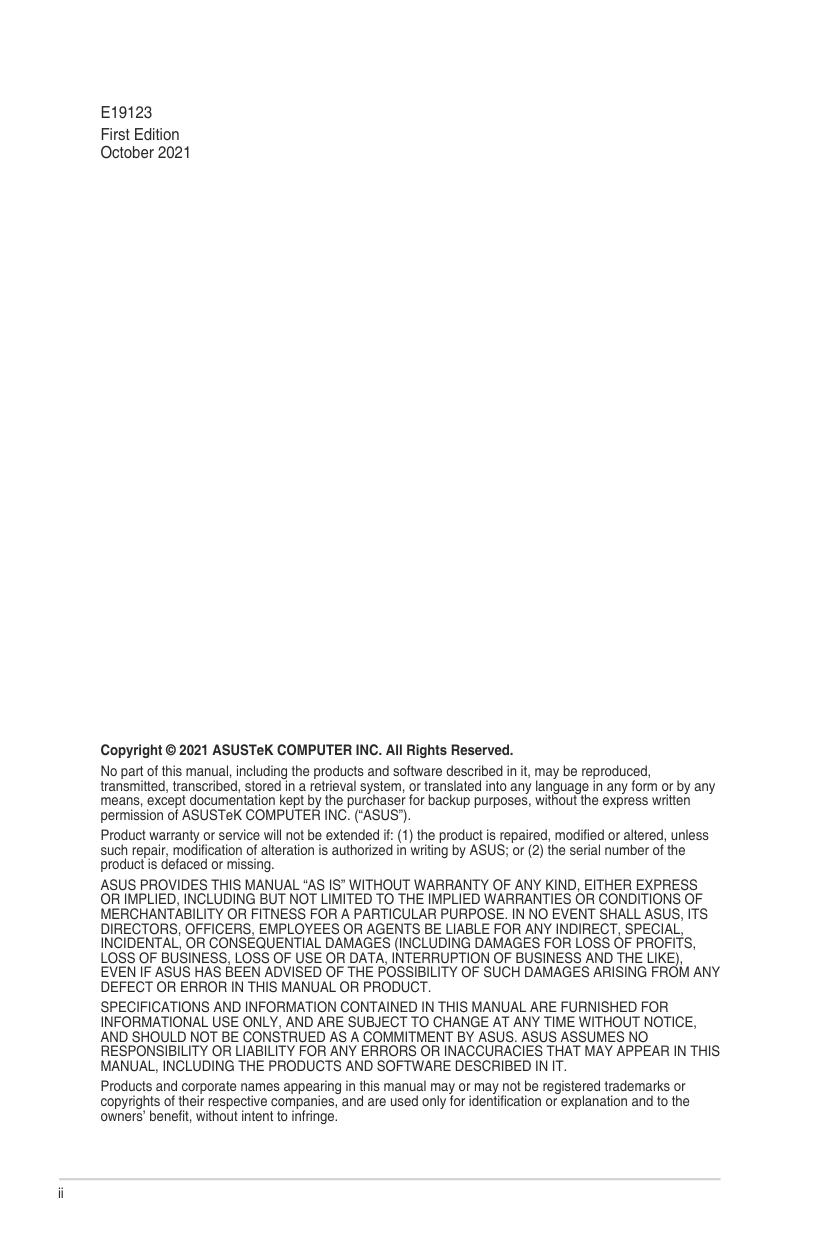

First Edition October 2021 Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.Asus Provides This Manual “As Is” Without Warranty Of Any Kind, Either Express
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITSDirectors, Officers, Employees Or Agents Be Liable For Any Indirect, Special,
Incidental, Or Consequential Damages (Including Damages For Loss Of Profits,
Loss Of Business, Loss Of Use Or Data, Interruption Of Business And The Like),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANYDefect Or Error In This Manual Or Product.
Specifications And Information Contained In This Manual Are Furnished For
Informational Use Only, And Are Subject To Change At Any Time Without Notice,
And Should Not Be Construed As A Commitment By Asus. Asus Assumes No
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THISManual, Including The Products And Software Described In It.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.iii Contents Safety information....................................................................................................... iv About this guide........................................................................................................... v Package contents........................................................................................................ vi PRIME H610M-E D4 specifications summary........................................................... vi Chapter 1 Product Introduction 1.1 Before you proceed.......................................................................................1-1 1.2 Motherboard overview..................................................................................1-1 1.3 Central Processing Unit (CPU).....................................................................1-8 1.4 System memory...........................................................................................1-10 Chapter 2 BIOS Information 2.1 Knowing BIOS................................................................................................2-1 2.2 BIOS Setup program.....................................................................................2-2 2.3 ASUS EZ Flash 3...........................................................................................2-3 2.4 ASUS CrashFree BIOS 3...............................................................................2-4 Appendix Notices...................................................................................................................... A-1 Warranty.................................................................................................................... A-6 ASUS contact information....................................................................................... A-8 Service and Support................................................................................................ A-8

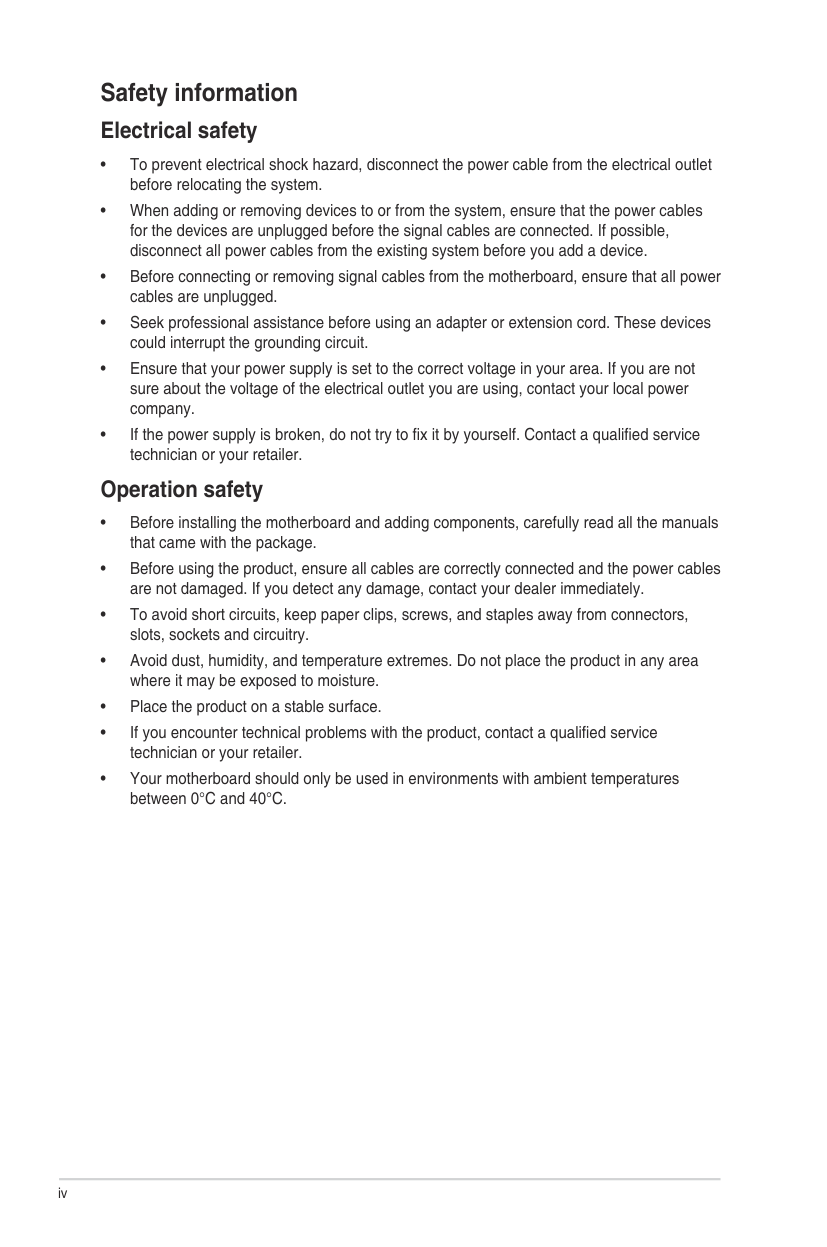

iv Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. • Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged. • Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit. • Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. Operation safety • Before installing the motherboard and adding components, carefully read all the manuals that came with the package. • Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry. • Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture. • Place the product on a stable surface. • If you encounter technical problems with the product, contact a qualified service technician or your retailer. • Your motherboard should only be used in environments with ambient temperatures between 0°C and 40°C.

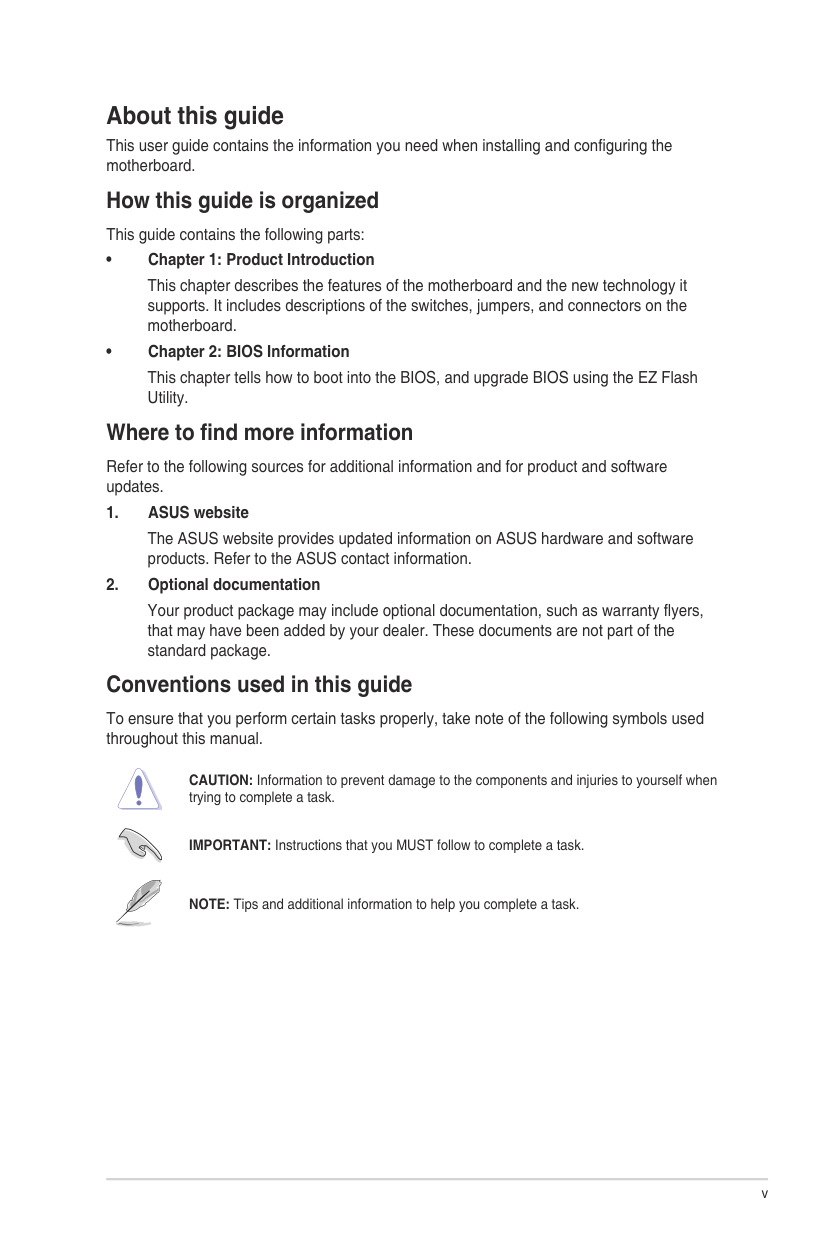

v About this guide This user guide contains the information you need when installing and configuring the motherboard. How this guide is organized This guide contains the following parts: • Chapter 1: Product Introduction This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard. • Chapter 2: BIOS Information This chapter tells how to boot into the BIOS, and upgrade BIOS using the EZ Flash Utility. Where to find more information Refer to the following sources for additional information and for product and software updates.

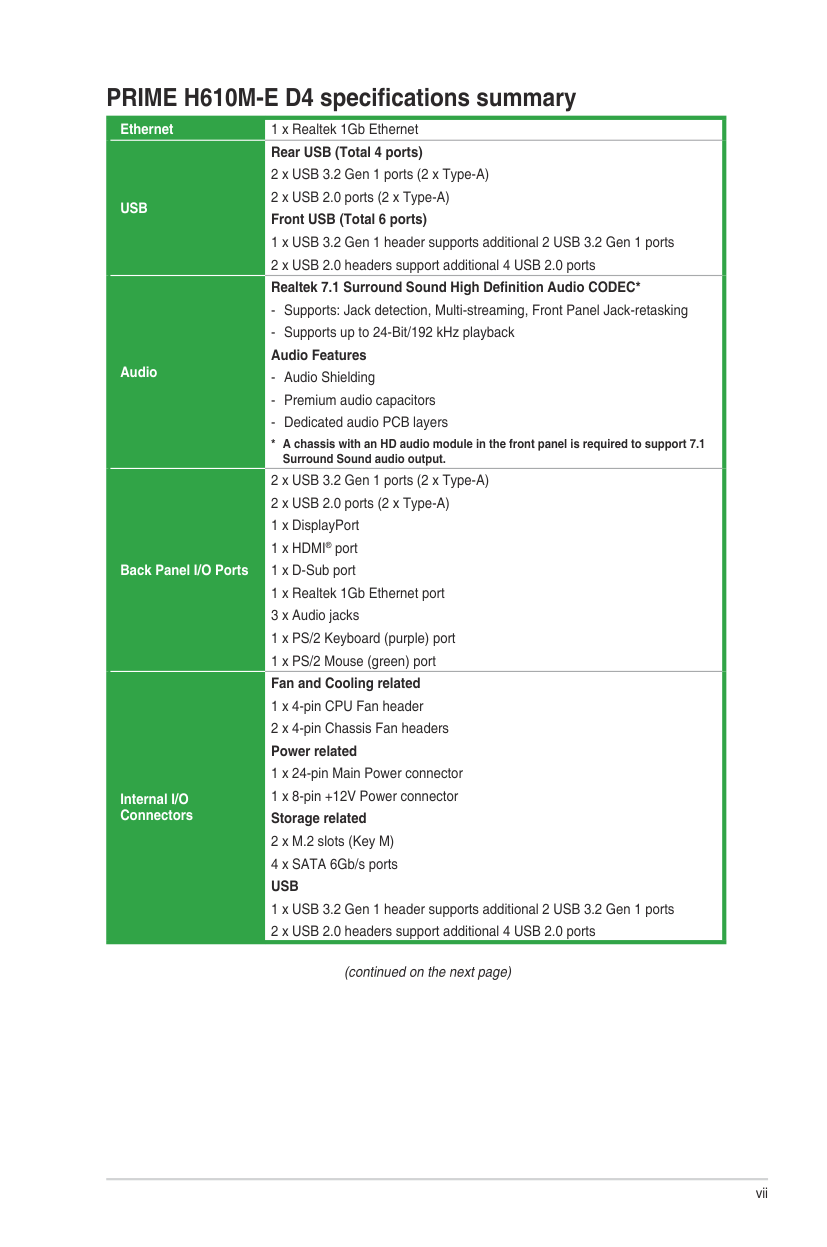

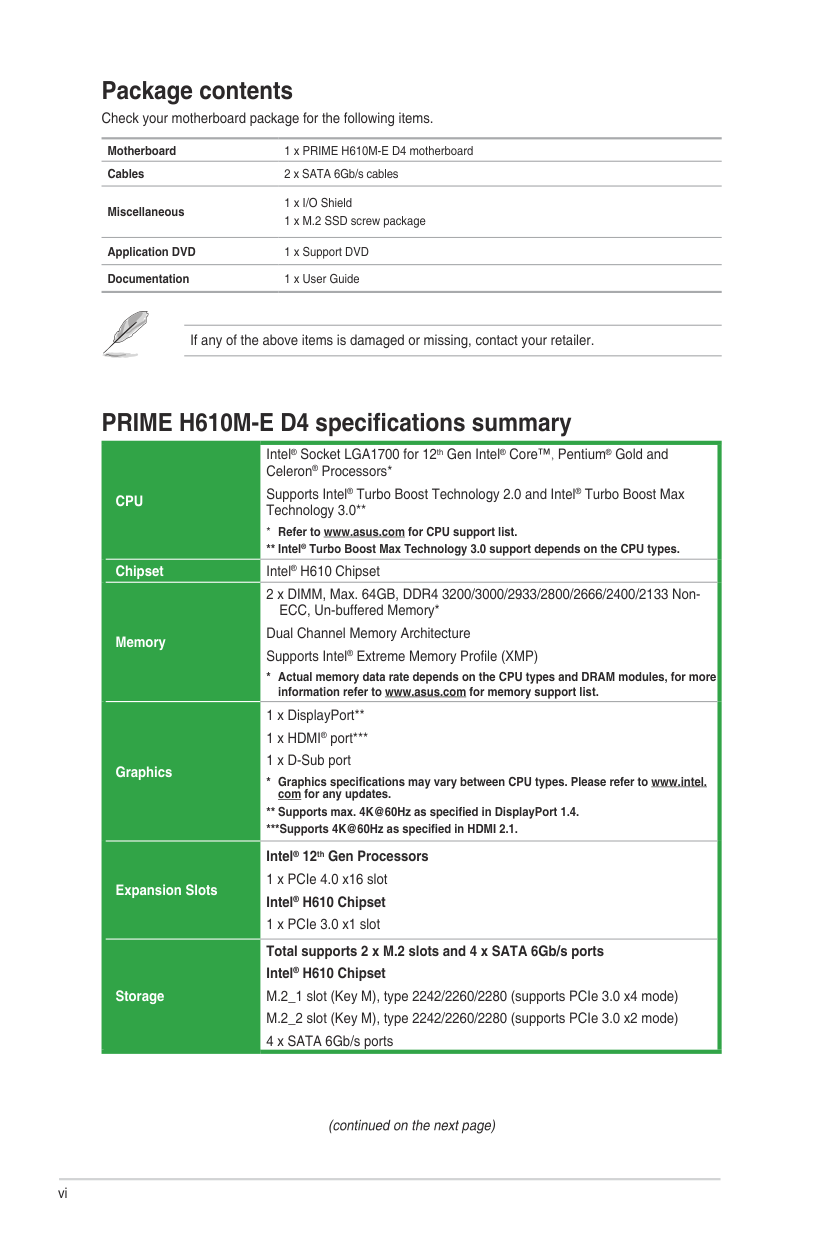

vi PRIME H610M-E D4 specifications summary
Cpu
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**vii PRIME H610M-E D4 specifications summary Ethernet 1 x Realtek 1Gb Ethernet
Usb
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*Usb

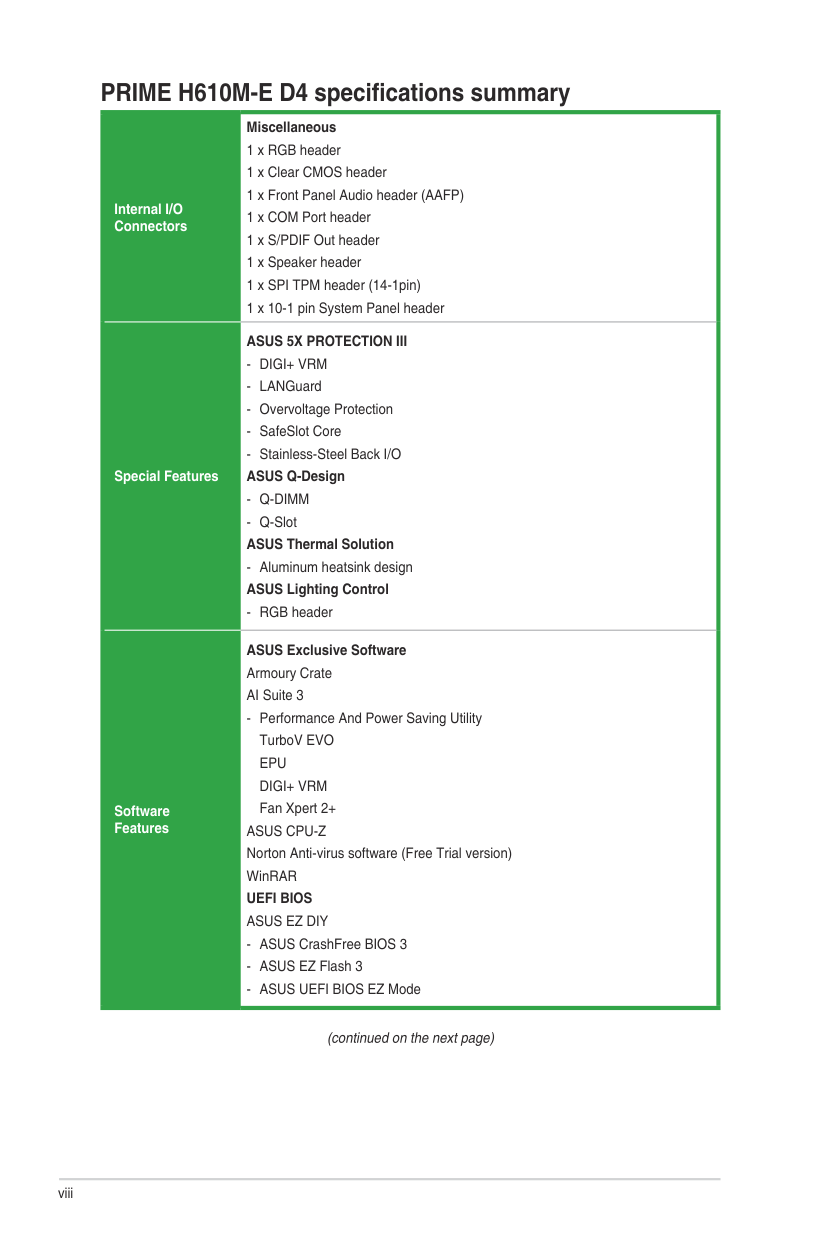

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports (continued on the next page)viii PRIME H610M-E D4 specifications summary Internal I/O Connectors Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features
Asus 5X Protection Iii
- Digi+ Vrm
- Q-Dimm
Epu
Digi+ Vrm
Fan Xpert 2+Asus Cpu-Z
Norton Anti-virus software (Free Trial version) WinRARUefi Bios
Asus Ez Diy
ix PRIME H610M-E D4 specifications summary
Bios

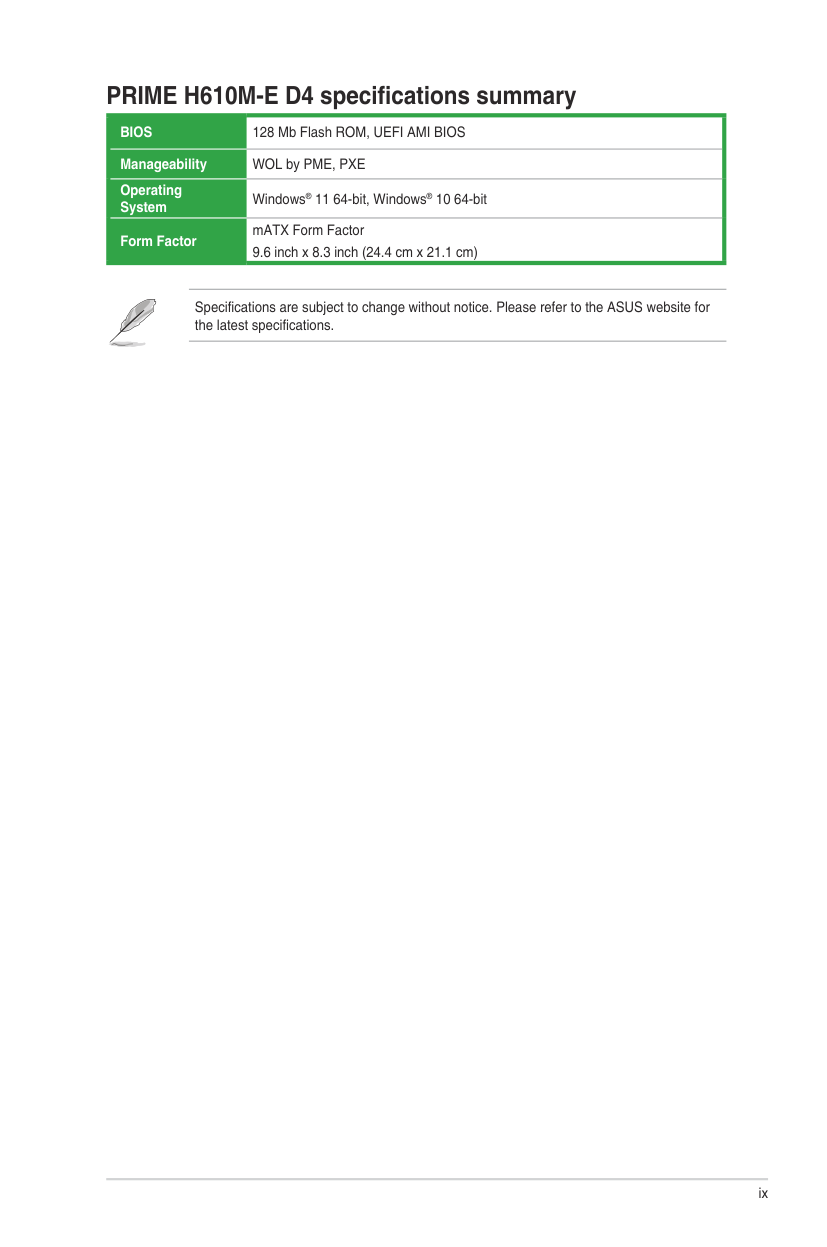

128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm) Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications.1-1 Product Introduction 1.1 Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components. 1.2 Motherboard overview Place this side towards the rear of the chassis
Atx_12V
Pciex16(G4)
Pciex1(G3)
Speaker
Tpm
128MbBios
Clrtc
F_Panel
Spdif_Out
Rgb_Header
Com_Debug
Usb_56
Usb_78
U32G1_34
Aafp
Com
Atx_Pwr
Cpu_Fan
Cha_Fan2
Battery
Cha_Fan1
SuperI/O
24.4cm(9.6in) DDR4 DIMM_A1 (64bit, 288-pin module) 2280 2260 2242 2280 2260 2242 DDR4 DIMM_B1 (64bit, 288-pin module)Audio
Kbms
Hdmi
Dp
Vga
U32G1_12
21.1cm(8.3in)Sata6G_1
Sata6G_2
Sata6G_3
Sata6G_4
Intel®H610
M.2_1(Socket3)
M.2_1(Socket3)
M.2_2(Socket3)
M.2_2(Socket3)
Pcie
Sata
3.0 X4
X
Pcie
Sata
3.0 X2
X
Audio CodecDigi+
Vrm
Lga1700
EthernetLan_Usb_914

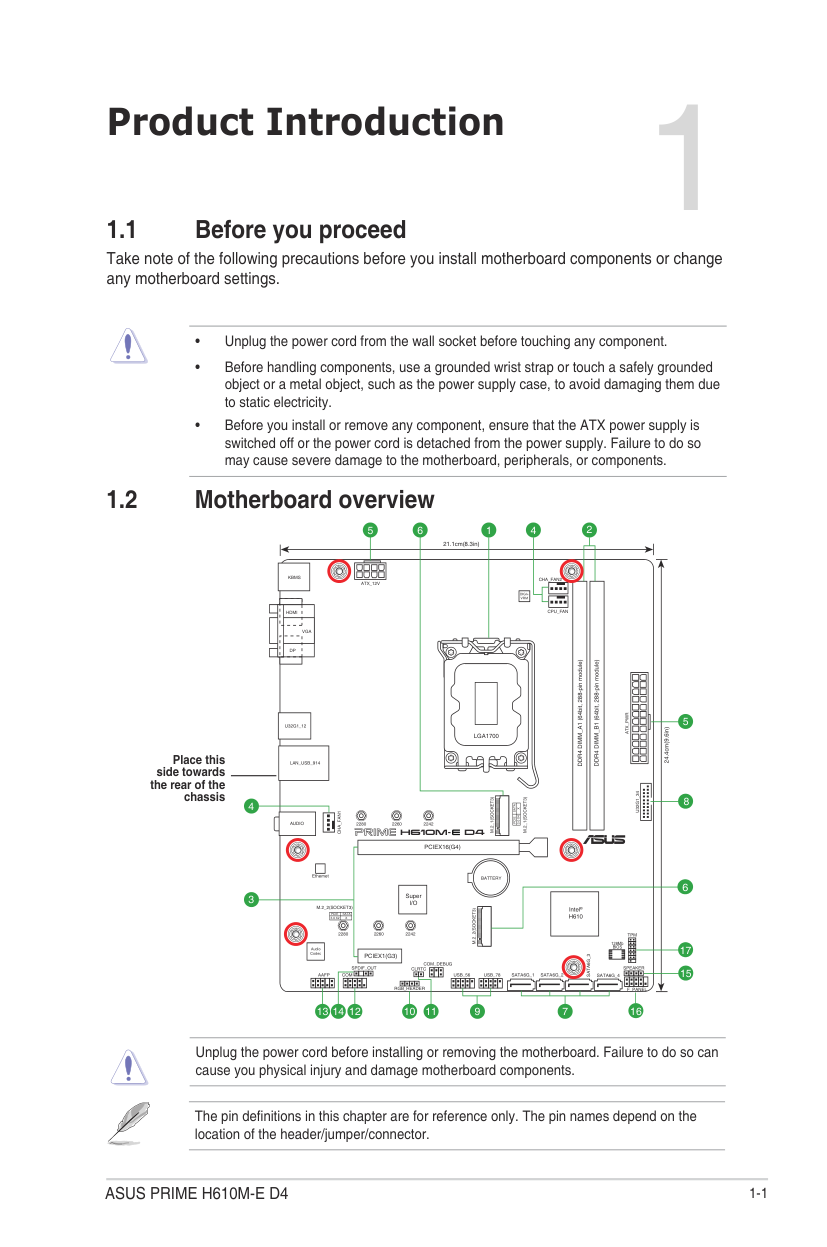

6 5 1 2 4 16 10 7 13 11 14 12 17 6 5 3 4 9 8 15 1 Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components. The pin definitions in this chapter are for reference only. The pin names depend on the location of the header/jumper/connector.Asus Prime H610M-E D4

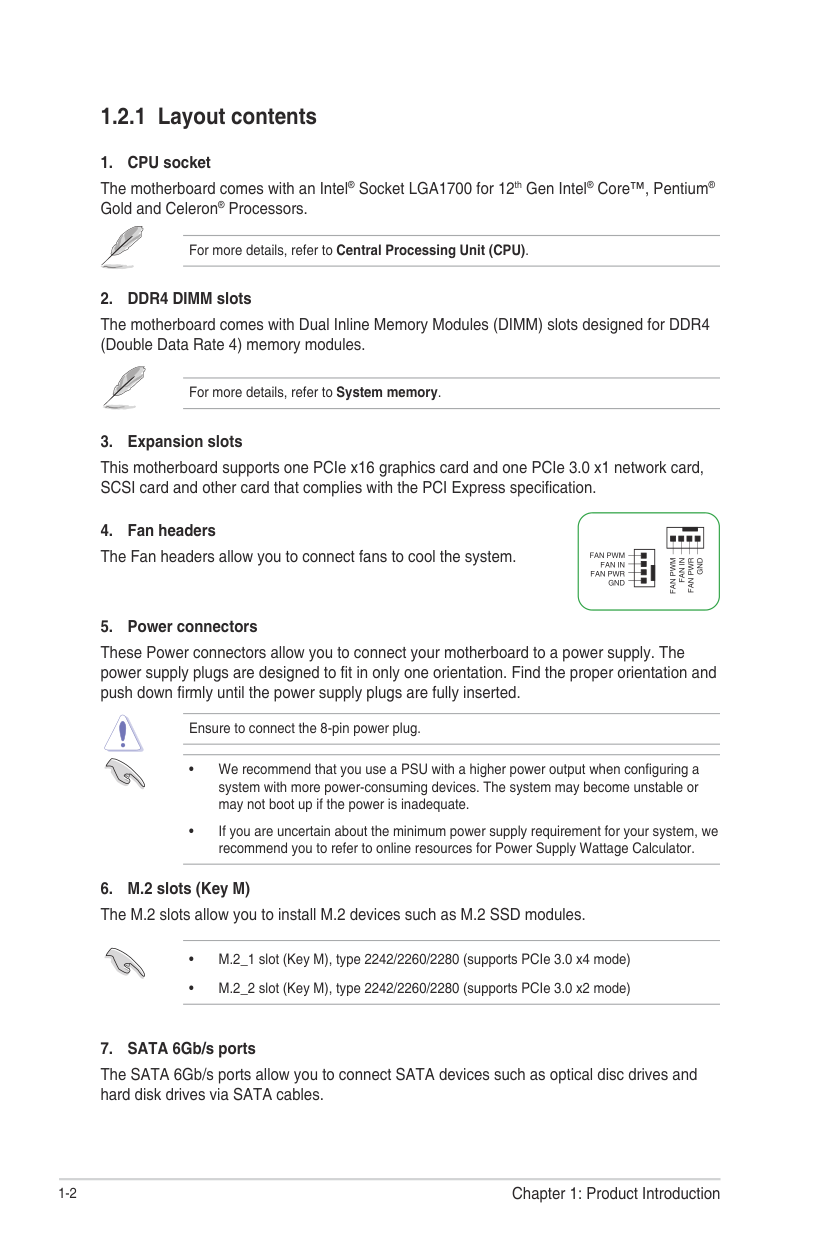

Chapter 1: Product Introduction1-2 1.2.1 Layout contents
Fan Pwm
Fan In
Fan Pwr
Gnd
Fan Pwm
Fan In
Fan Pwr
Gnd
Chapter 1: Product Introduction1-3
Usb3+5V
IntA_P1_SSRX- IntA_P1_SSRX+Gnd
IntA_P1_SSTX- IntA_P1_SSTX+Gnd
IntA_P1_D- IntA_P1_D+Gnd
Pin 1
Usb3+5V
IntA_P2_SSRX- IntA_P2_SSRX+Gnd
IntA_P2_SSTX- IntA_P2_SSTX+Gnd
IntA_P2_D- IntA_P2_D+Pin 1
Usb+5V
Usb_P5-
Usb_P5+
Gnd
Nc
Usb+5V
Usb_P6-
Usb_P6+
Gnd

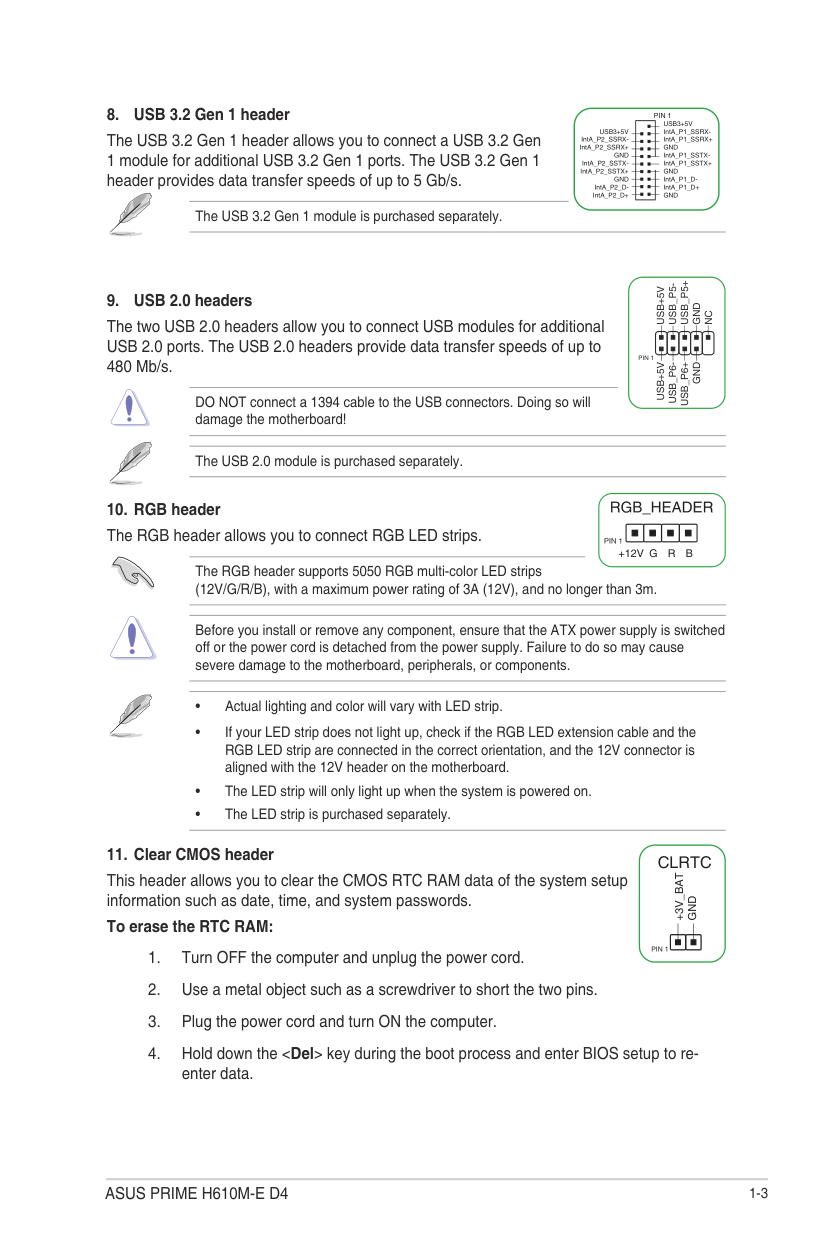

Clrtc
+3V_Bat
Gnd
Pin 1
Asus Prime H610M-E D4
1-4 If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
Pin 1

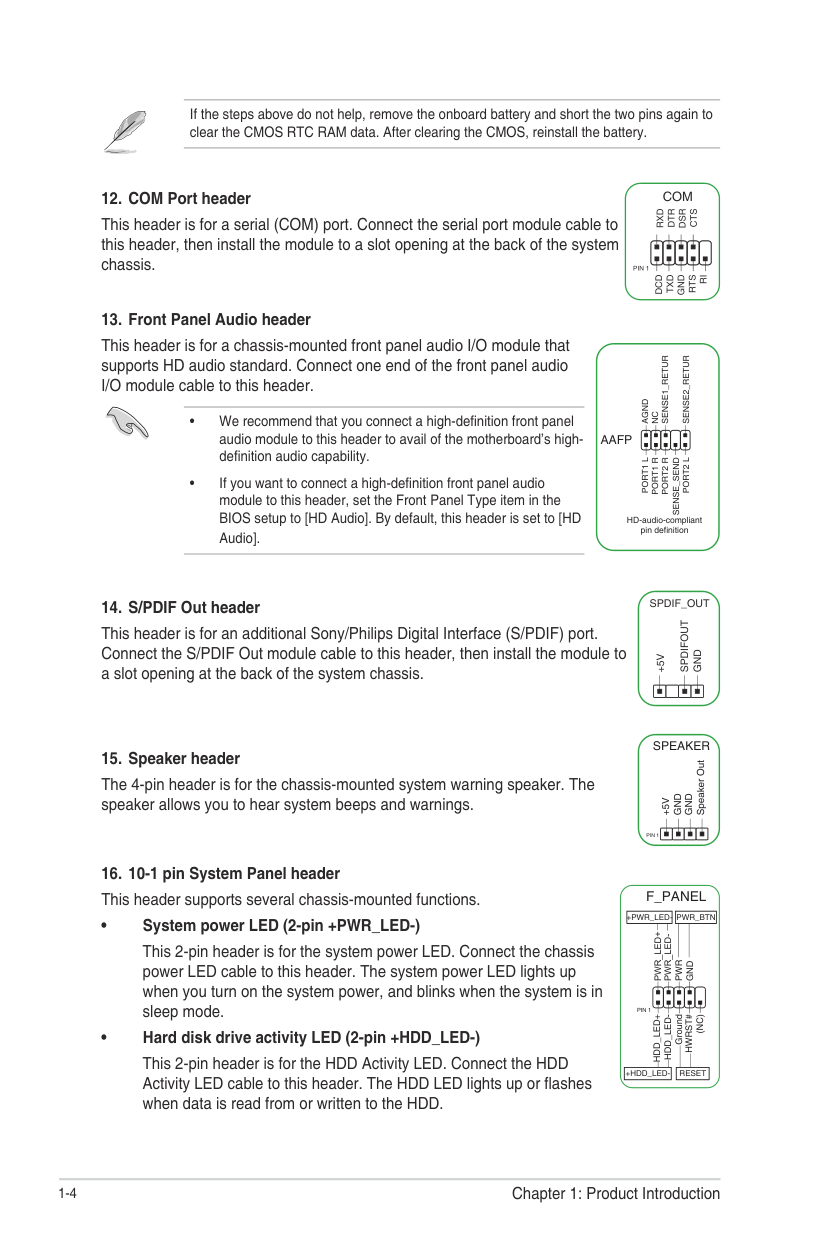

Com
Dcd
Txd
Gnd
Rts
Ri
Rxd
Dtr
Dsr
Cts
Aafp
Agnd
Nc
Sense1_Retur
Sense2_Retur
Port1 L
Port1 R
Port2 R
Sense_Send
Port2 L
HD-audio-compliant pin definitionSpdif_Out
+5V
Spdifout
Gnd
+5V
Gnd
Gnd
Speaker OutSpeaker
Pin 1
Pin 1
Pwr_Btn
Pwr_Led+
Pwr_Led-
Pwr
Gnd
Hdd_Led+
Hdd_Led-
GroundHwrst#
(Nc)
F_Panel
+Pwr_Led-
+Hdd_Led-
Reset

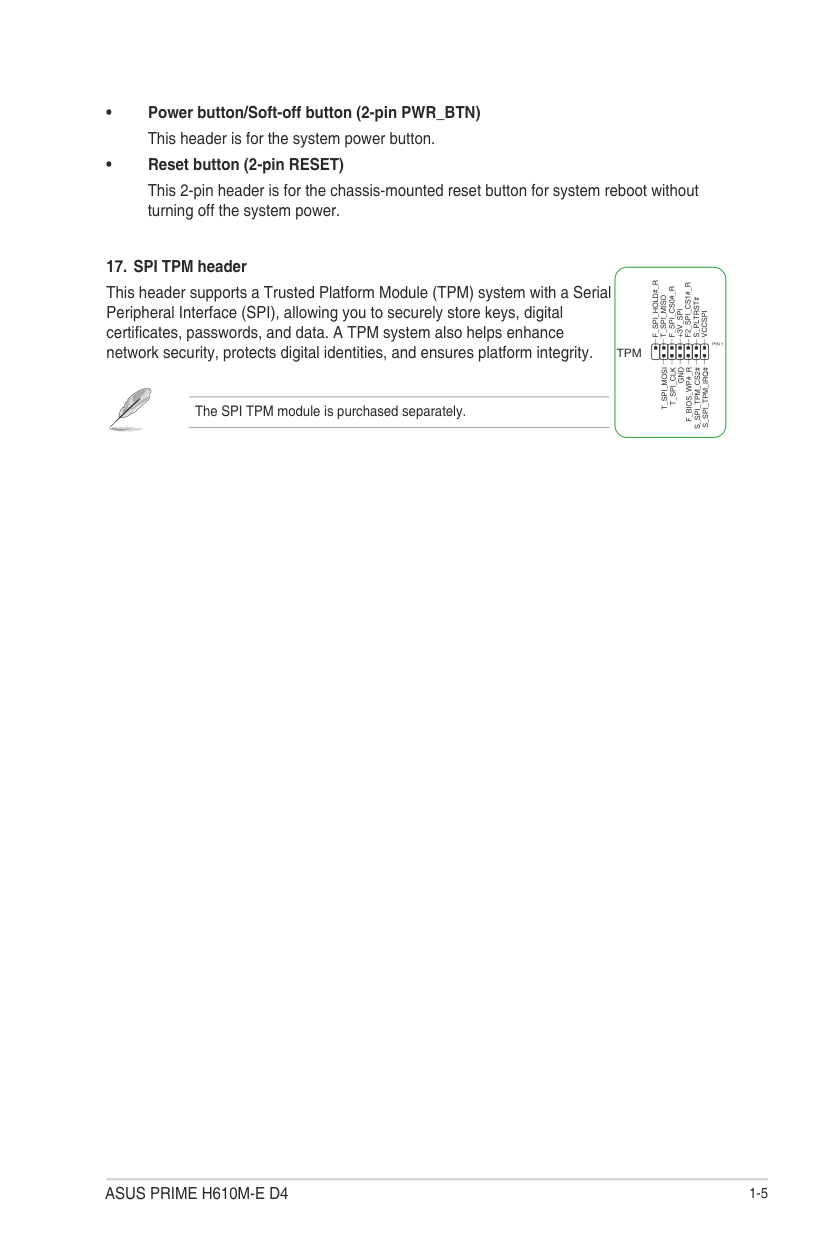

Chapter 1: Product Introduction1-5 • Power button/Soft-off button (2-pin PWR_BTN) This header is for the system power button. • Reset button (2-pin RESET)
This 2-pin header is for the chassis-mounted reset button for system reboot without turning off the system power.
Tpm
Pin 1
T_Spi_Mosi
T_Spi_Clk
Gnd
F_Bios_Wp#_R
S_Spi_Tpm_Cs2#
S_Spi_Tpm_Irq#
F_Spi_Hold#_R
T_Spi_Miso
F_Spi_Cs0#_R
+3V_Spi
F2_Spi_Cs1#_R
S_Pltrst#
Vccspi
Asus Prime H610M-E D4
1-6

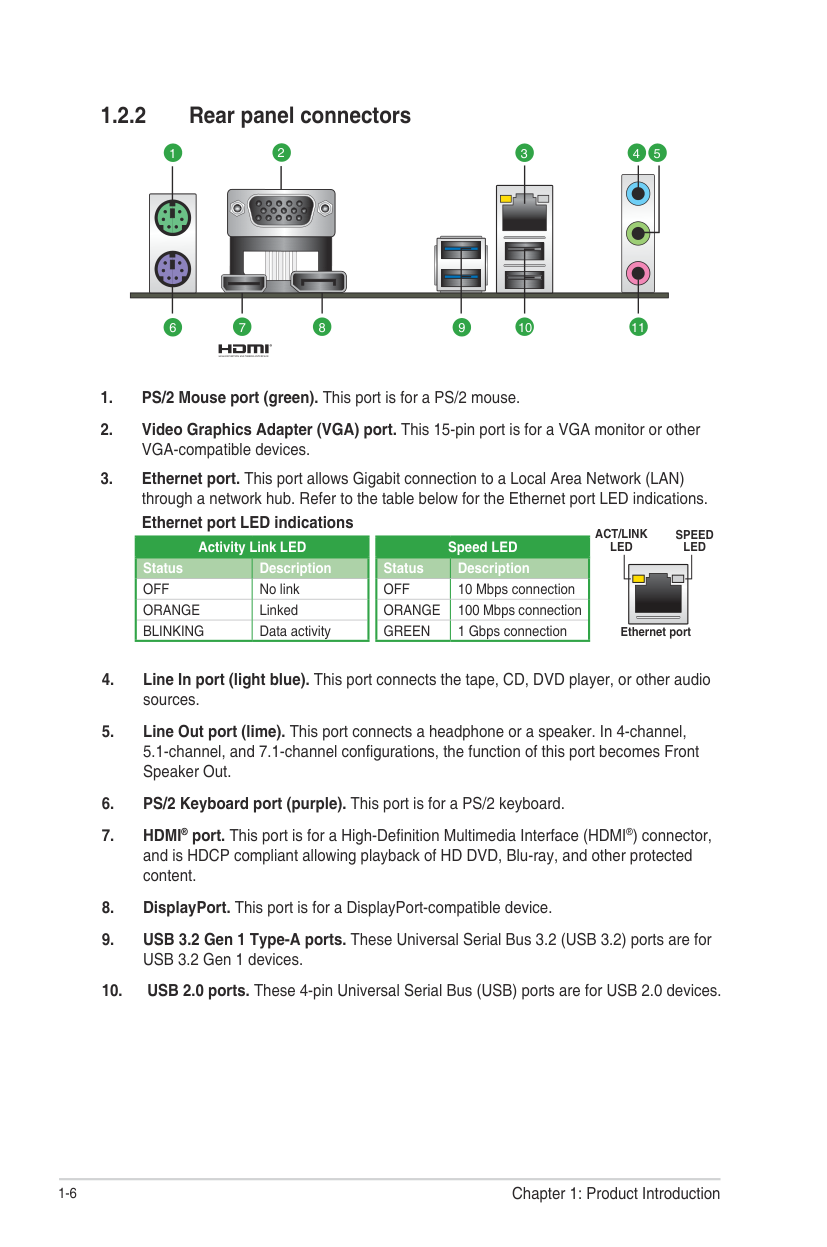

Ethernet port LED indications Speed LED Status Description
Off
10 Mbps connectionOrange
100 Mbps connectionGreen
1 Gbps connection Ethernet portAct/Link
Led
Speed
Led
Activity Link LED Status DescriptionOff
No linkOrange
LinkedBlinking
Data activity Chapter 1: Product Introduction1-7

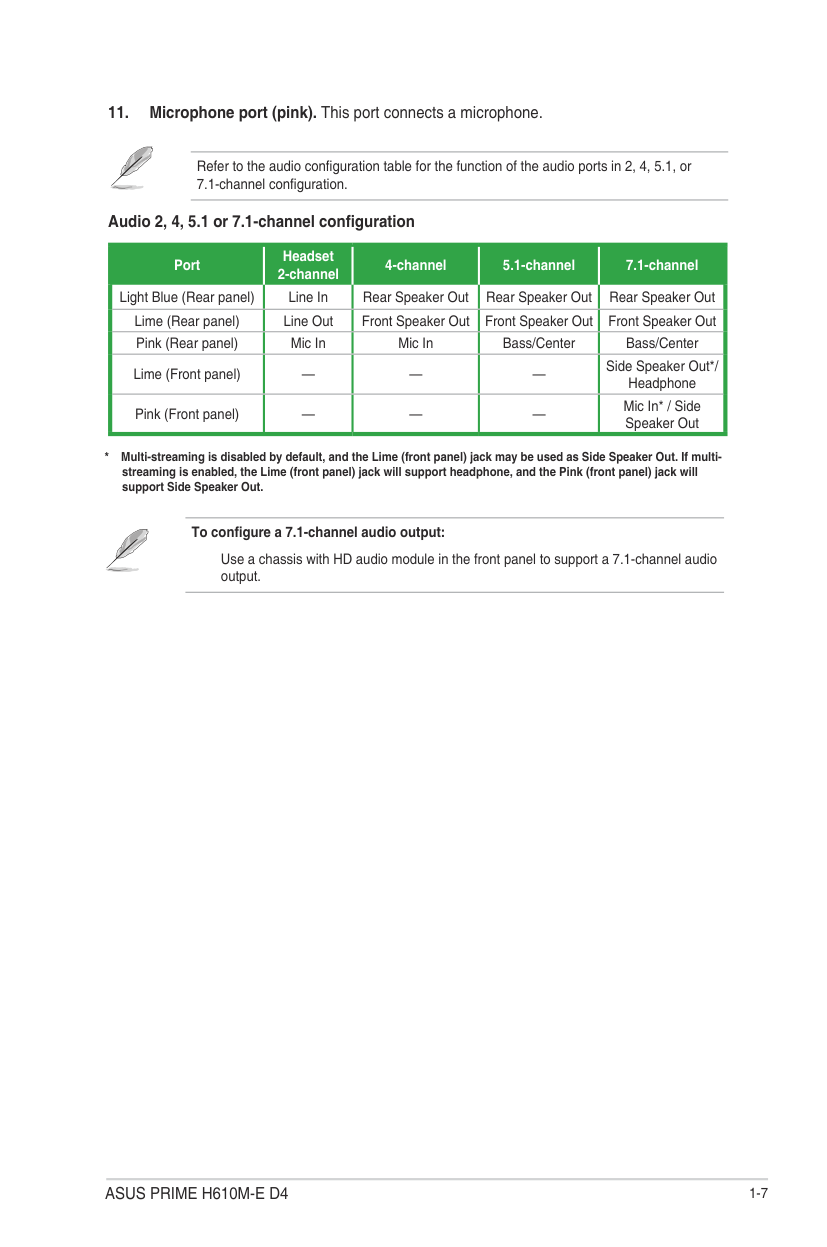

Use a chassis with HD audio module in the front panel to support a 7.1-channel audio output.
Asus Prime H610M-E D4

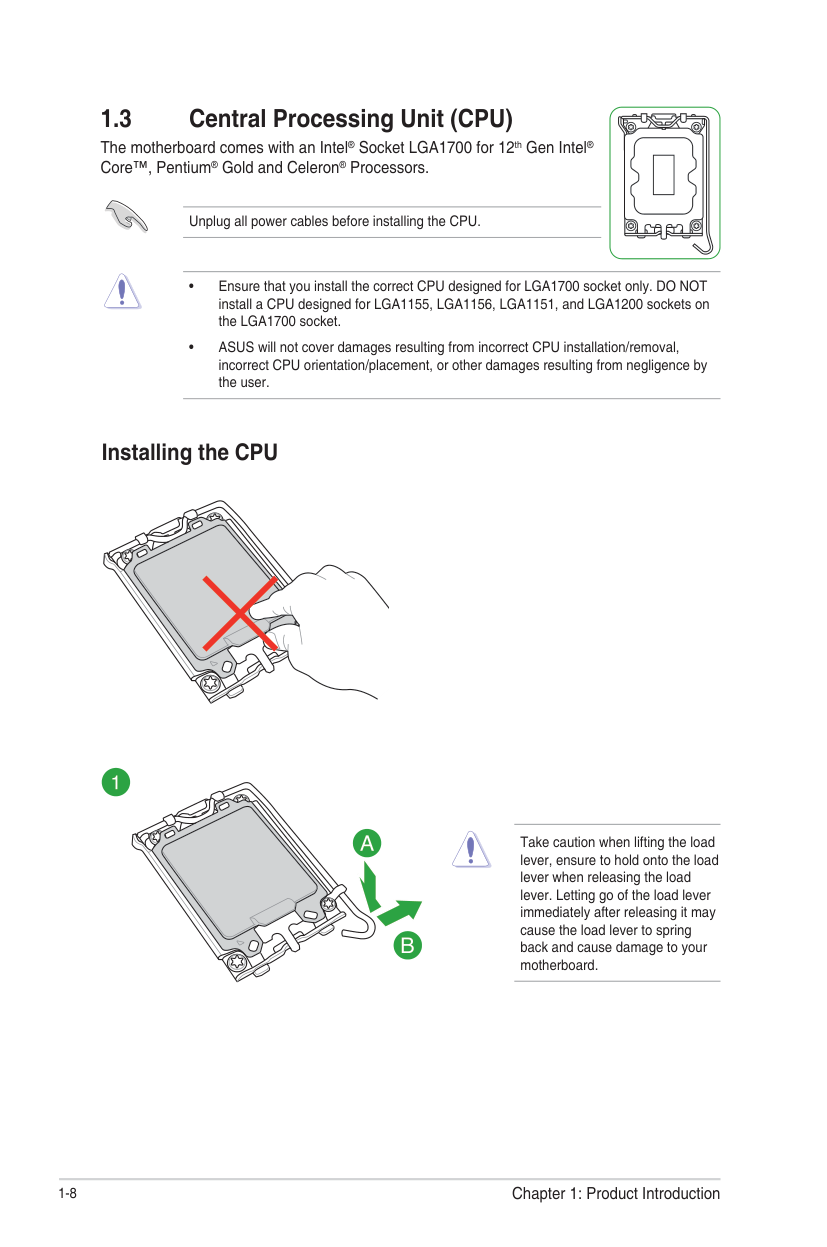

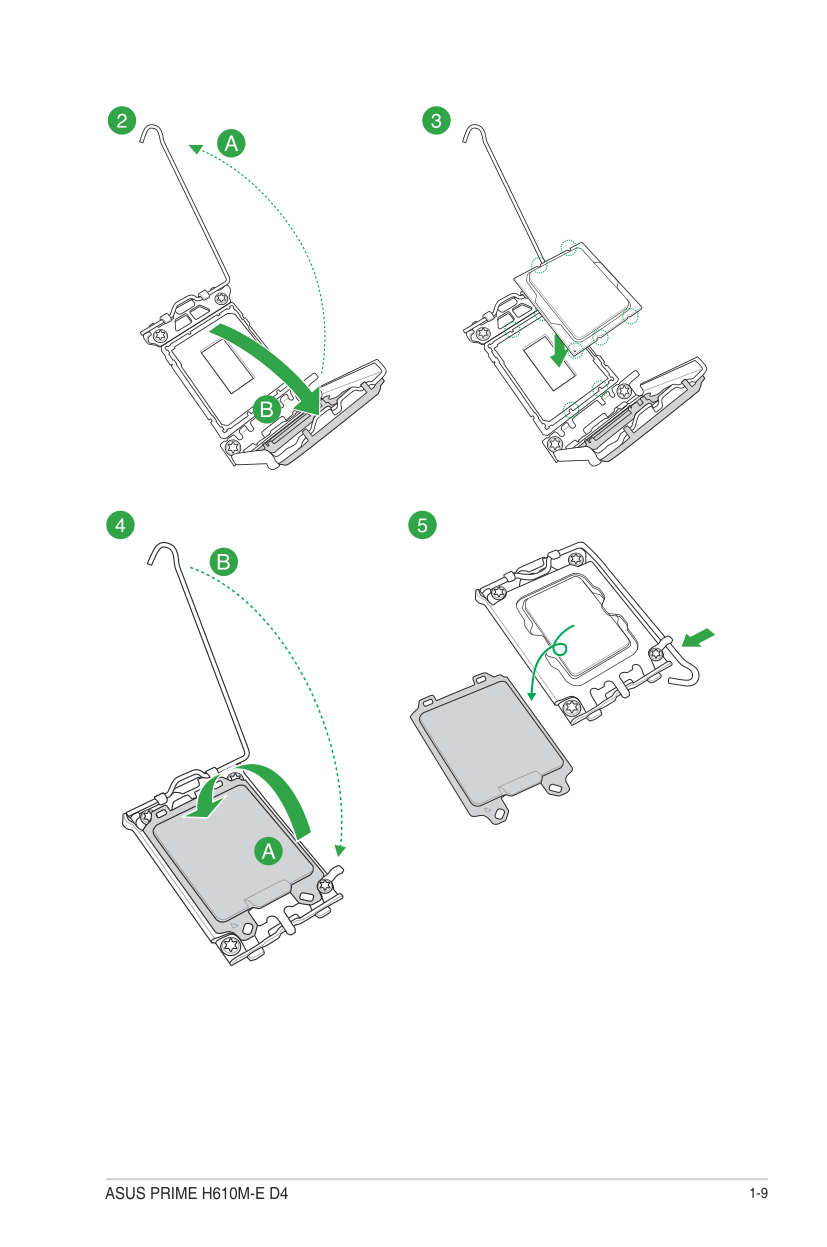

1-8 1.3 Central Processing Unit (CPU) The motherboard comes with an Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Unplug all power cables before installing the CPU. • Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT install a CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU Take caution when lifting the load lever, ensure to hold onto the load lever when releasing the load lever. Letting go of the load lever immediately after releasing it may cause the load lever to spring back and cause damage to your motherboard. Chapter 1: Product Introduction

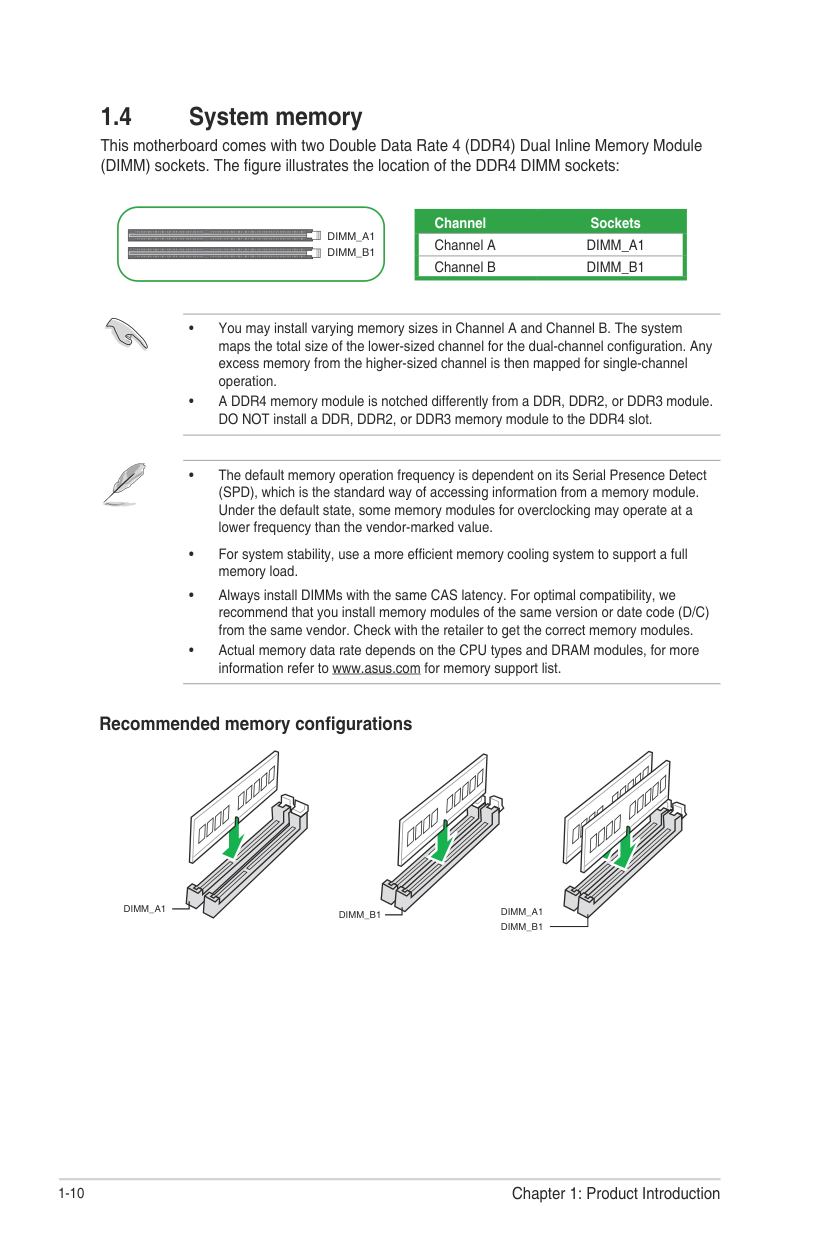

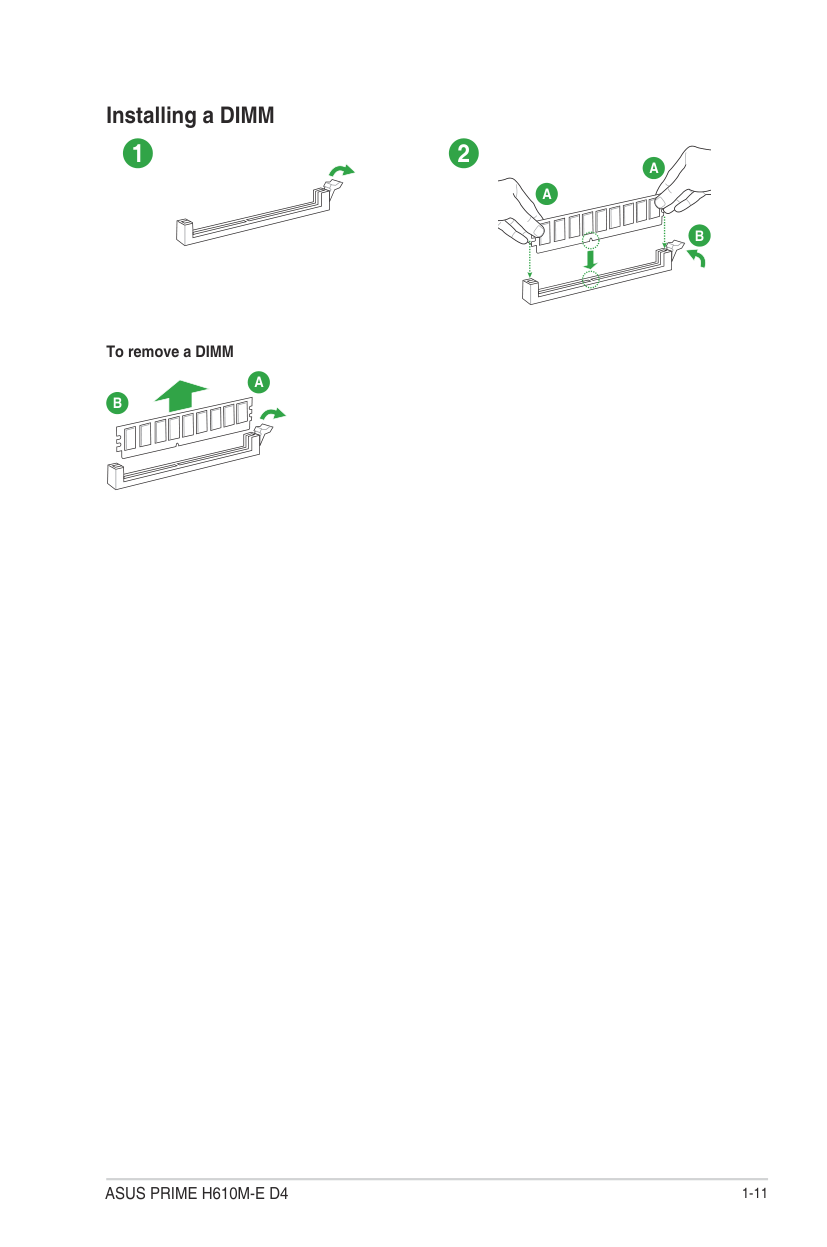

1-10 1.4 System memory This motherboard comes with two Double Data Rate 4 (DDR4) Dual Inline Memory Module (DIMM) sockets. The figure illustrates the location of the DDR4 DIMM sockets:
Channel Sockets Channel A
Dimm_A1
Channel BDimm_B1
• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation. • A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot. • The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. • For system stability, use a more efficient memory cooling system to support a full memory load. • Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules. • Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.Dimm_B1
Dimm_A1
Recommended memory configurationsDimm_A1
Dimm_B1
Dimm_B1
Dimm_A1

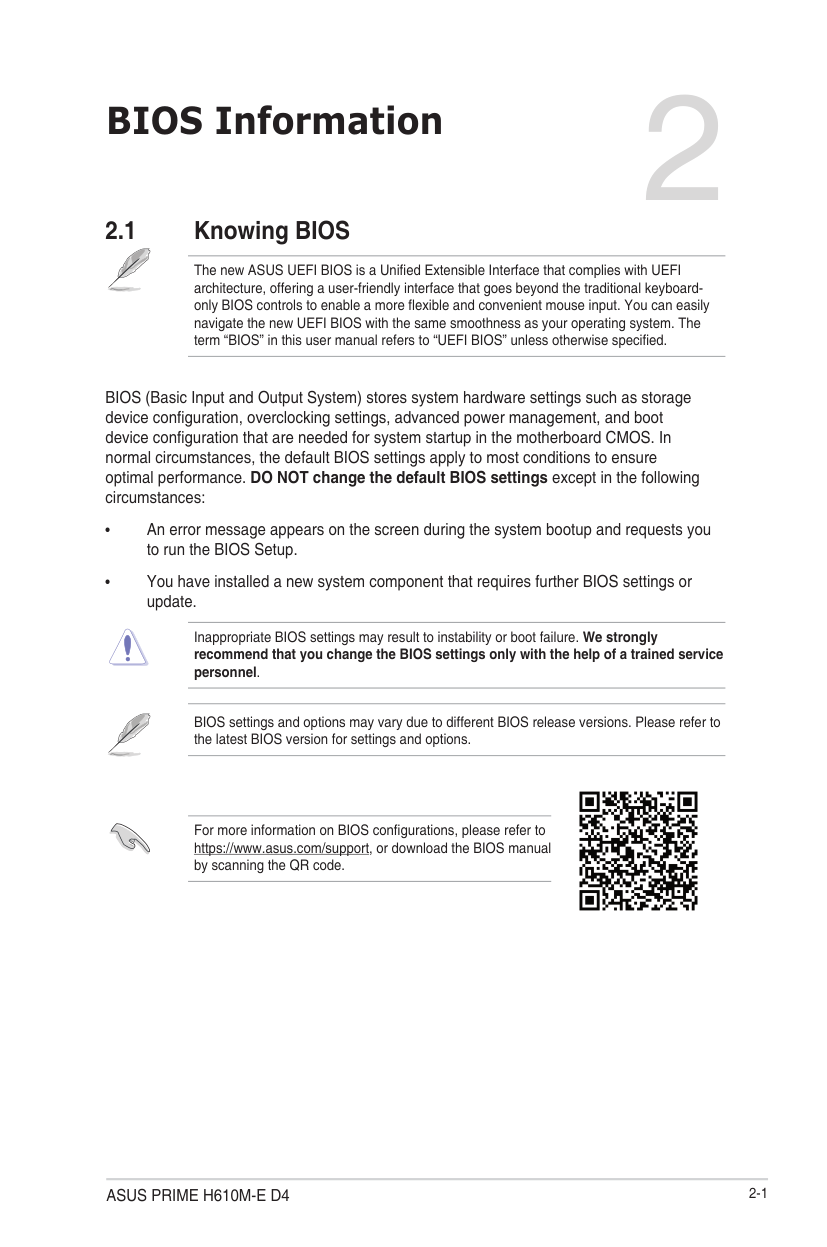

Chapter 1: Product Introduction2-1 2.1 Knowing BIOS The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. The term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specified. BIOS (Basic Input and Output System) stores system hardware settings such as storage device configuration, overclocking settings, advanced power management, and boot device configuration that are needed for system startup in the motherboard CMOS. In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. DO NOT change the default BIOS settings except in the following circumstances: • An error message appears on the screen during the system bootup and requests you to run the BIOS Setup. • You have installed a new system component that requires further BIOS settings or update. Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel. BIOS settings and options may vary due to different BIOS release versions. Please refer to the latest BIOS version for settings and options. For more information on BIOS configurations, please refer to https://www.asus.com/support, or download the BIOS manual by scanning the QR code. BIOS Information 2
Asus Prime H610M-E D4

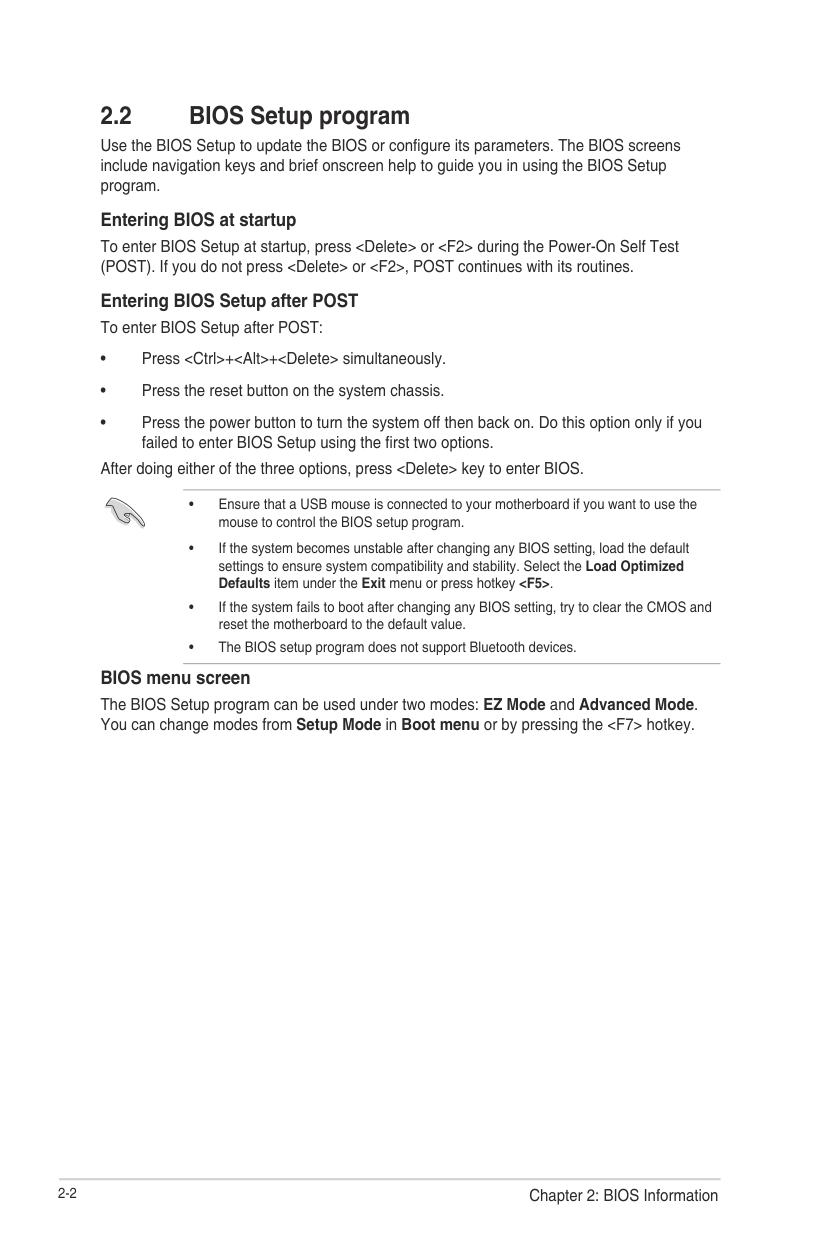

2-2 2.2 BIOS Setup program Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program. Entering BIOS at startup To enter BIOS Setup at startup, press

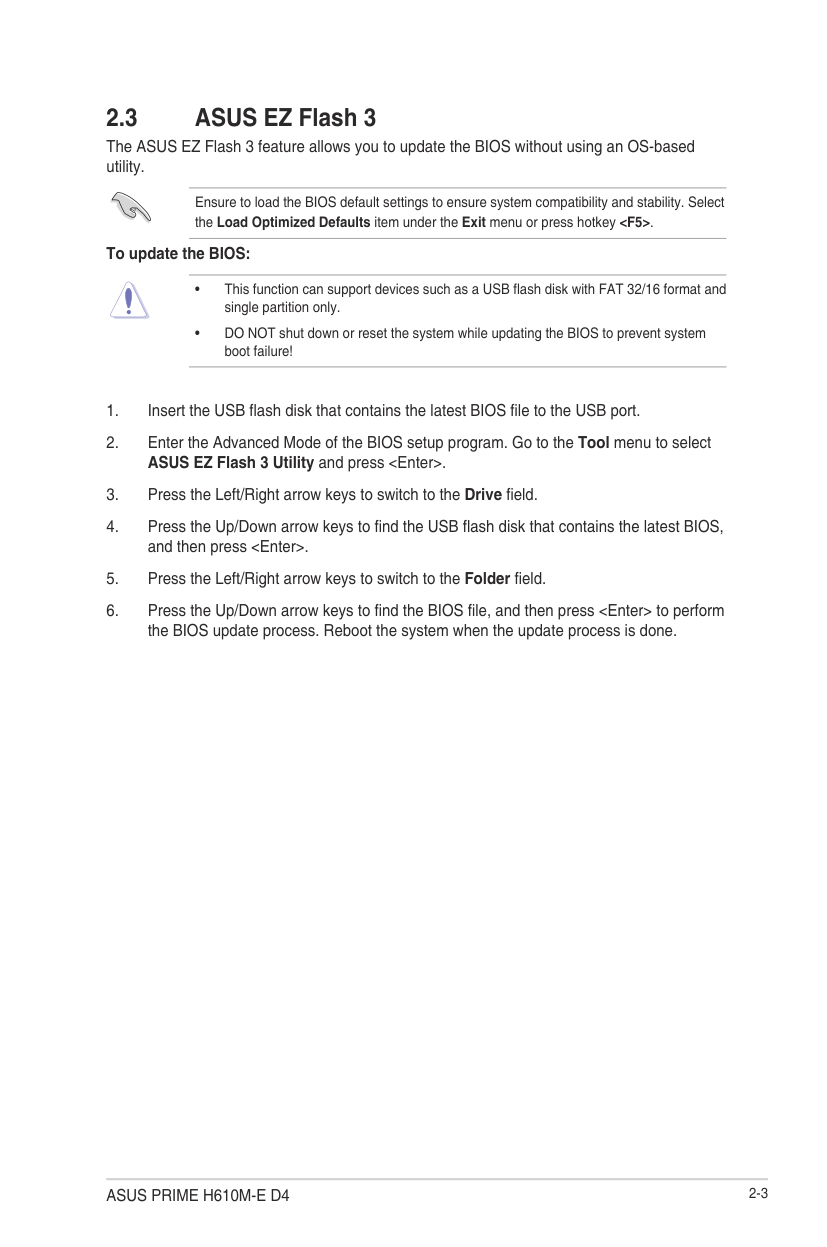

2-3 2.3 ASUS EZ Flash 3 The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS‑based utility. Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey Asus Prime H610M-E D4

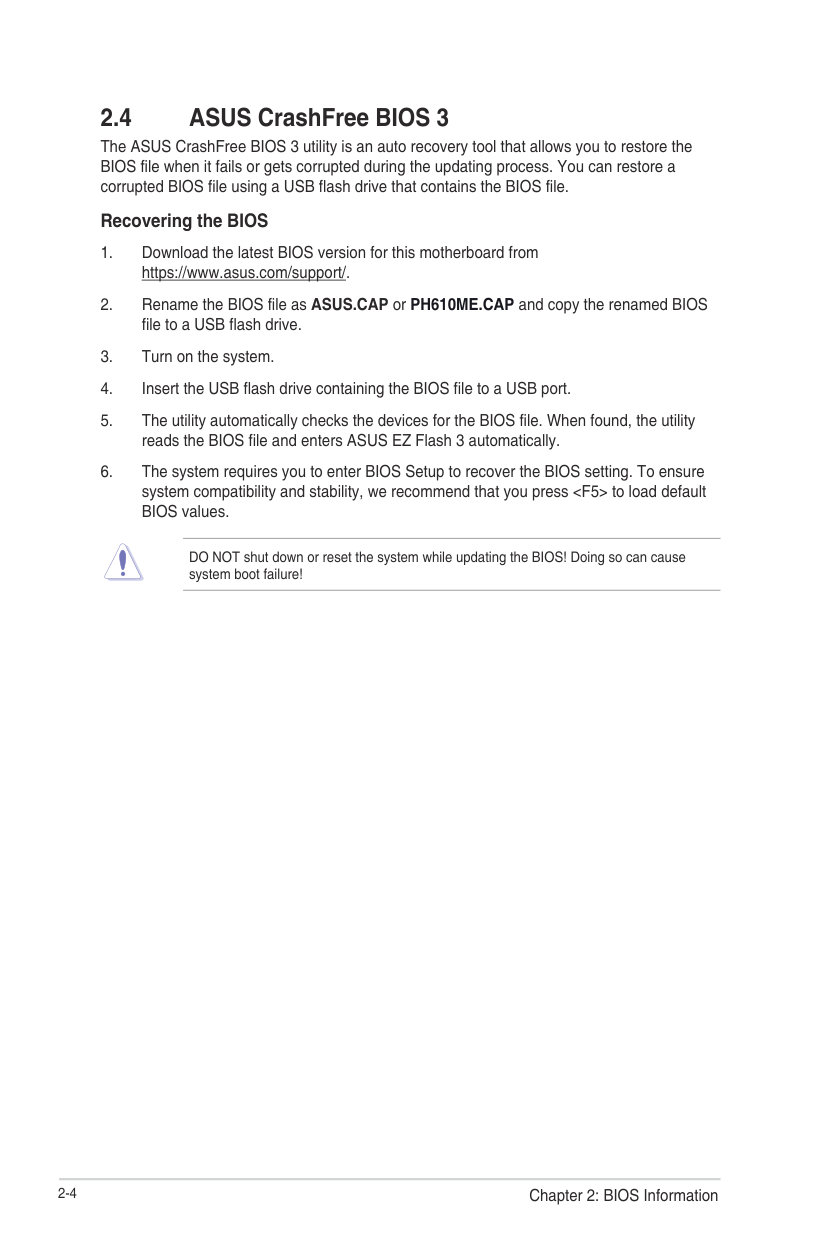

2-4 2.4 ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file. Recovering the BIOS
