Common questions
Common Questions
27 totalWhat is the minimum clearance between the cooktop surface and an exhaust hood?
The minimum clearance between the cooktop surface and the lower edge of the exhaust hood is 30" (762 mm). This clearance must be maintained for safe operation. (Page 2)
How close to the rear wall and counter front can the cooktop be installed?
The minimum distance from the counter front is 2 1/4", and the minimum distance from the rear wall is 2". These clearances must be maintained to ensure proper installation. (Page 1)
Can the NIT8661UC be installed above a wall oven?
Yes, the cooktop can be installed above a built-in wall oven. However, there must be a minimum 1" (26 mm) clearance between the bottom of the cooktop and the top of the oven. The installation dimensions are based on a standard countertop height of 36" with a 4 3/4" toe kick including base plate. (Page 2)
What is the AutoChef® feature on the NIT8661UC?
AutoChef® by Bosch has 11 levels and is designed to heat and monitor the temperature of your pan, automatically adjusting to ensure perfect cooking results. It maintains consistent pan temperature throughout the cooking process. (Page 1)
Does the NIT8661UC cooktop have an automatic shut-off feature?
Yes, the cooktop has an automatic time limitation feature that will shut off a cooking zone if it has been in use for a long period of time without any changes, depending on the heat setting selected. This is a built-in safety feature to prevent unattended cooking hazards. (Page 1)
How does the residual heat indicator work on the NIT8661UC?
The cooktop displays an 'H' to indicate a zone is hot to the touch and an 'h' to indicate it is warm. This residual heat indication takes the guesswork out of safety after cooking. (Page 1)
Show 21 more questions
How much clearance is needed between the cooktop and the rear wall?
Can the NIT8661UC cooktop be installed above a wall oven?
What is the minimum clearance required between the cooktop surface and an exhaust hood?
What is SpeedBoost and how fast can it boil water?
What is the AutoChef® feature on the NIT8661UC cooktop?
Will the cooktop automatically shut off if left on for too long?
What is the center cooking element size and power output on the NIT8661UC?
What are the power specifications for the NIT8661UC cooktop?
What is the residual heat indication feature?
How fast can the NIT8661UC boil water?
What is the minimum distance required between the cooktop and the rear wall?
What does AutoChef® by Bosch do?
What are the electrical requirements for installing the NIT8661UC cooktop?
What are the required cutout dimensions for the NIT8661UC cooktop?
What is the SpeedBoost® feature and how fast can it boil water?
What is the Favorite button feature on the NIT8661UC cooktop?
What is the minimum clearance required between the cooktop and a wall oven installed below it?
What are the required cutout dimensions for installing the NIT8661UC?
How does the triple-ring center element work?
What is the Favorite button feature on this cooktop?
What happens with the automatic time limitation feature?
Full Manual
2 pages
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST). Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty. For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904 © BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH. 12/24
Nit8661Uc
Black Bosch 800 Series 36" induction cooktop transfers energy to heat your pan directly, making cooking faster and more energy efficient. Features & Benefits AutoChef® by Bosch has 11 levels, to heat & monitor the temperature of your pan, and adjust automatically to ensure perfect results. Triple-ring element efficiently and automatically adjusts to the size of your cookware from 9" up to 13". Favorite button – one touch for your two most used cooking settings. Select on Home Connect app, and use a long or short press directly on your cooktop. Automatic time limitation will shut off your cooktop if the cooking zone has been in use for a long period of time without any changes, depending on your heat setting. Boil 2 cups of water in less than 2 minutes with SpeedBoost®. Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety. 36" Induction Cooktop 800 Series – Black NIT8661UC Technical Details Watts8,320 / 9,600 W
Circuit breaker40 A
Volts208 / 240 V
Frequency 60 Hz Plug type No Plug Power cord length 37" Energy source Electric Dimensions & Weight Overall appliance dimensions (HxWxD) 4 1/8" x 37" x 21 1/4" Required cutout size (HxWxD) 4 1/8" x 34 7/8" x 20" Minimum distance from counter front 2 1/4" Minimum distance from rear wall 2" Net weight 50 lbs Element Performance Power of Front Left heating element1,800 W
Power of Front Left heating element (in boost)3,100 W
Power of Back Left heating element1,800 W
Power of Back Left heating element (in boost)3,100 W
Power of Center heating element 2,200 / 2,600 /3,300 W
Power of Center heating element (in boost) 3,600 / 3,600 /3,600 W
Power of Back Right heating element1,400 W
Power of Back Right heating element (in boost)2,200 W
Power of Front Right heating element2,200 W
Power of Front Right heating element (in boost)3,600 W
Burners with booster All Element Size Dimension of Front Left heating element 7" Dimension of Back Left heating element 7" Dimension of Center heating element 9" / 11" /13" Triple-ring Dimension of Back Right heating element 6" Dimension of Front Right heating element 9"

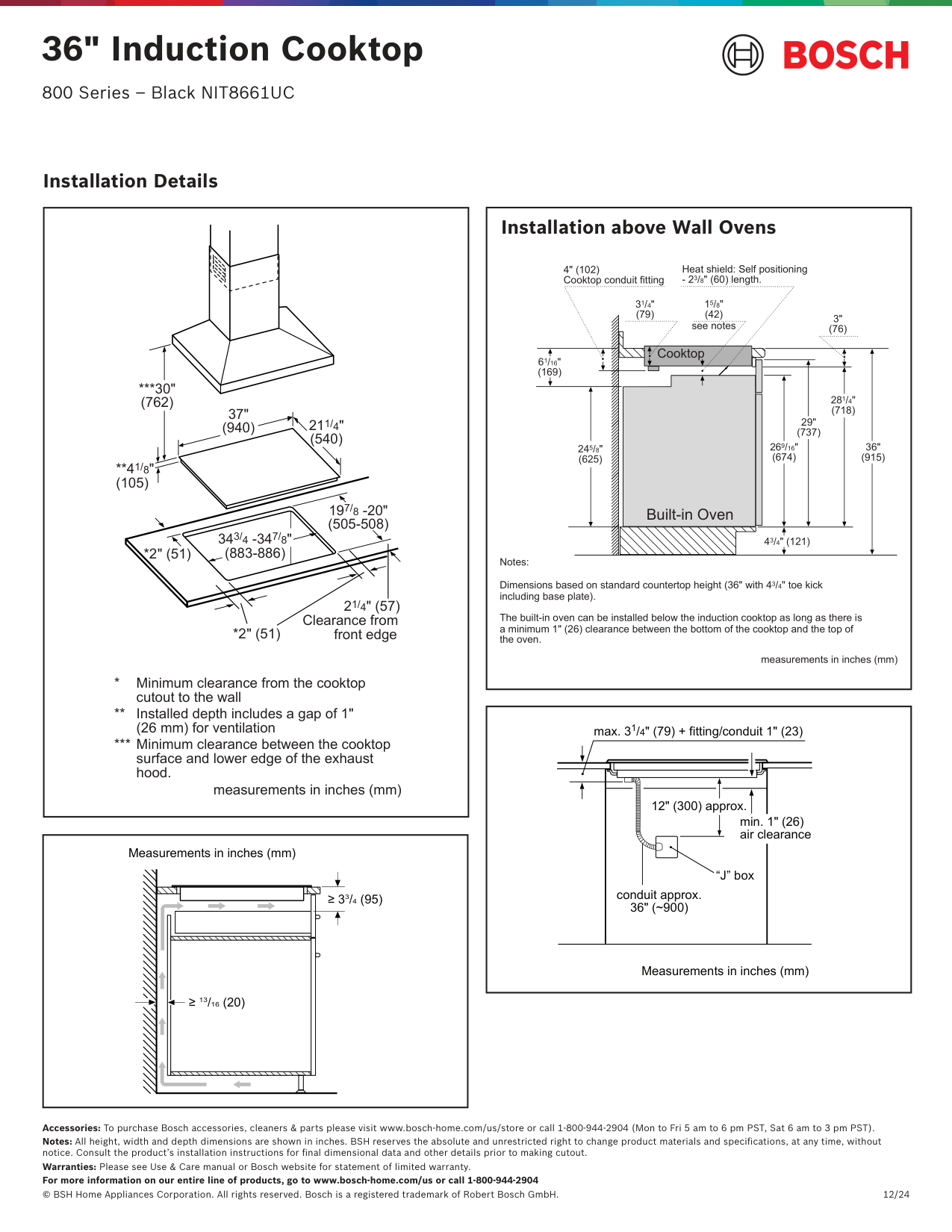

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST). Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty. For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904 © BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH. 12/24 Installation Details 36" Induction Cooktop 800 Series – Black NIT8661UC measurements in inches (mm) Minimum clearance from the cooktop cutout to the wall Installed depth includes a gap of 1" (26 mm) for ventilation Minimum clearance between the cooktop surface and lower edge of the exhaust hood. Clearance from front edge
24 5 / 8 " (625)
4 3 / 4 " (121)
6 1 / 16 " (169)
3" (76)
3 1 / 4 " (79)
26 9 / 16 " (674)
29" (737)
36" (915)
28 1 / 4 " (718) measurements in inches (mm) Measurements in inches (mm) 12" (300) approx. min. 1" (26) air clearance “J” box conduit approx. 36" (~900) max. 31/4" (79) + fitting/conduit 1" (23) Measurements in inches (mm) ≥ 33/4 (95) ≥ 13/16 (20)
