9 totalHow do I set up the CB8 2K camera?
Start by downloading the EZVIZ App, then follow these steps: (1) Connect the camera to your Wi-Fi network via the app. (2) Mount the camera in a suitable location with clear views as needed.
What is the battery life of the CB8 2K?
The CB8 2K can provide up to 210 days of battery life (10400 mAh), though this may vary based on usage frequency and environmental factors.
Can I use a solar panel with the CB8 2K?
Yes, you can connect your CB8 2K to an optional EZVIZ Solar Panel for constant power without worrying about frequent recharges or low battery concerns.
How do I enable active defense on the camera?
Once the Active Defense feature is enabled via the EZVIZ app, upon detecting a moving person, the camera will activate its siren and flash spotlights to deter intruders.
How much can the camera pan and tilt?
The CB8 2K has a panoramic coverage with horizontal tilting angles of 340° and vertical movements up to an angle of 65°.
Does the camera support microSD card storage?
Yes, the CB8 2K supports a local micro-SD card with a maximum capacity of 256 GB for storing recorded videos locally.
Full Manual
11 pages
CB8
Battery-Powered Pan & Tilt Wi-Fi Camera
###### No blind spot, no hard setup
The CB2 2K camera shows what an easy home camera truly looks like - 100% wire-free to go anywhere, motorized to take in 360-degree field-of-view, and smart enough to provide automated home protection. Features like person detection, auto-tracking, color night vision make the CB8 2K deliver same or even better performance when compared with its wired equivalent, while the camera completely ditches the complex installation of an outdoor camera. By working with the optional solar power panel, the CB8 2K can be a camera that you set and forget.
Up to 210 Days of Battery Life¹ (10400 mAh)
2K Resolution
360° Panoramic Coverage
Smart Human Motion Detection
Color Night Vision
Active Defense
Weatherproof Design
Auto-Tracking
Smart Integration with Google Assistant & Amazon Alexa
Works with EZVIZ Solar Panel for Battery Charging3
Two-Way Talk
Customizable Voice Alerts
Supports MicroSD Card2 (Up to 256 GB)

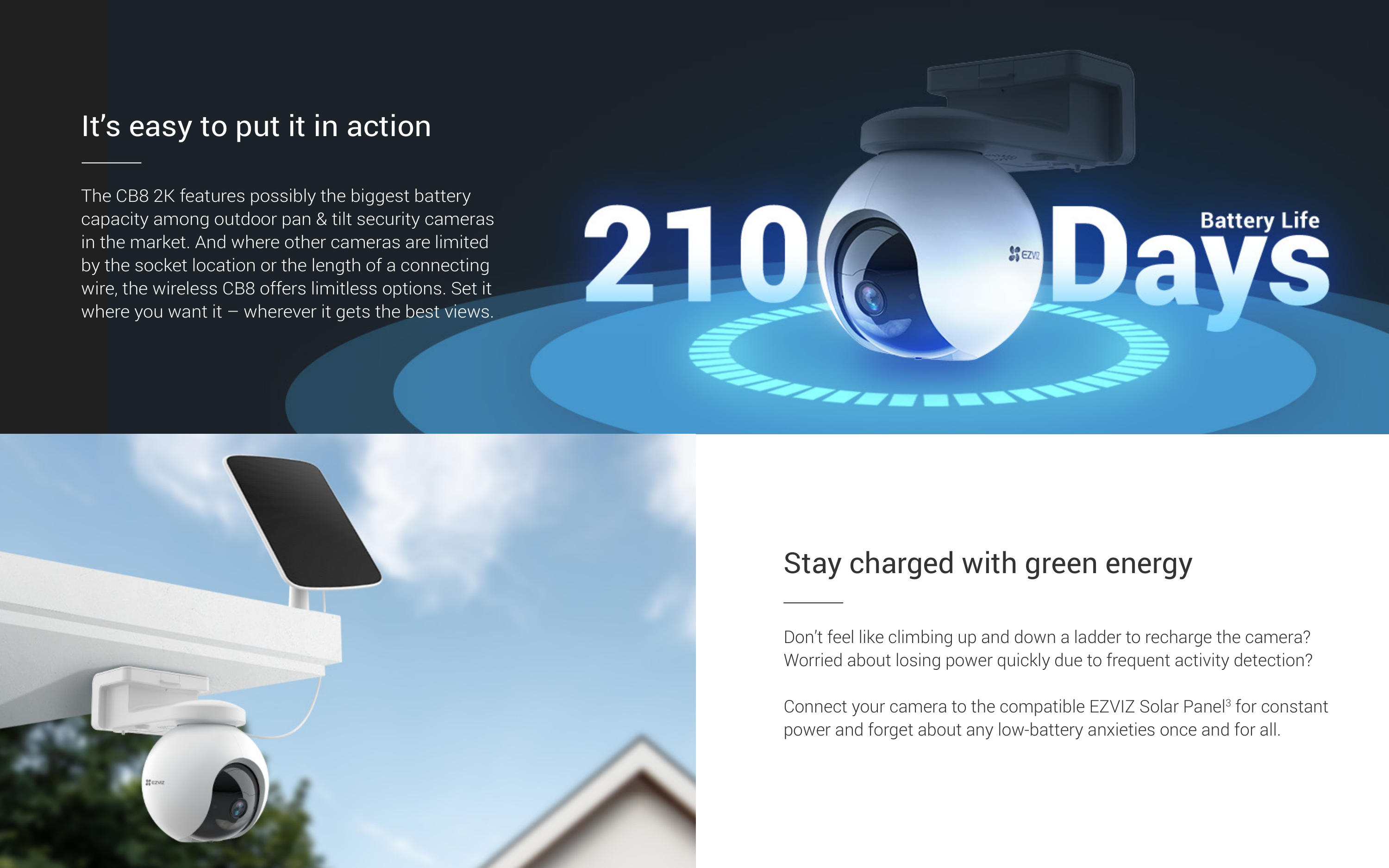

##### It’s easy to put it in action
The CB8 2K features possibly the biggest battery capacity among outdoor pan & tilt security cameras in the market. And where other cameras are limited by the socket location or the length of a connecting wire, the wireless CB8 offers limitless options. Set it where you want it – wherever it gets the best views.
##### Stay charged with green energy
Don’t feel like climbing up and down a ladder to recharge the camera? Worried about losing power quickly due to frequent activity detection?
Connect your camera to the compatible EZVIZ Solar Panel3 for constant power and forget about any low-battery anxieties once and for all.

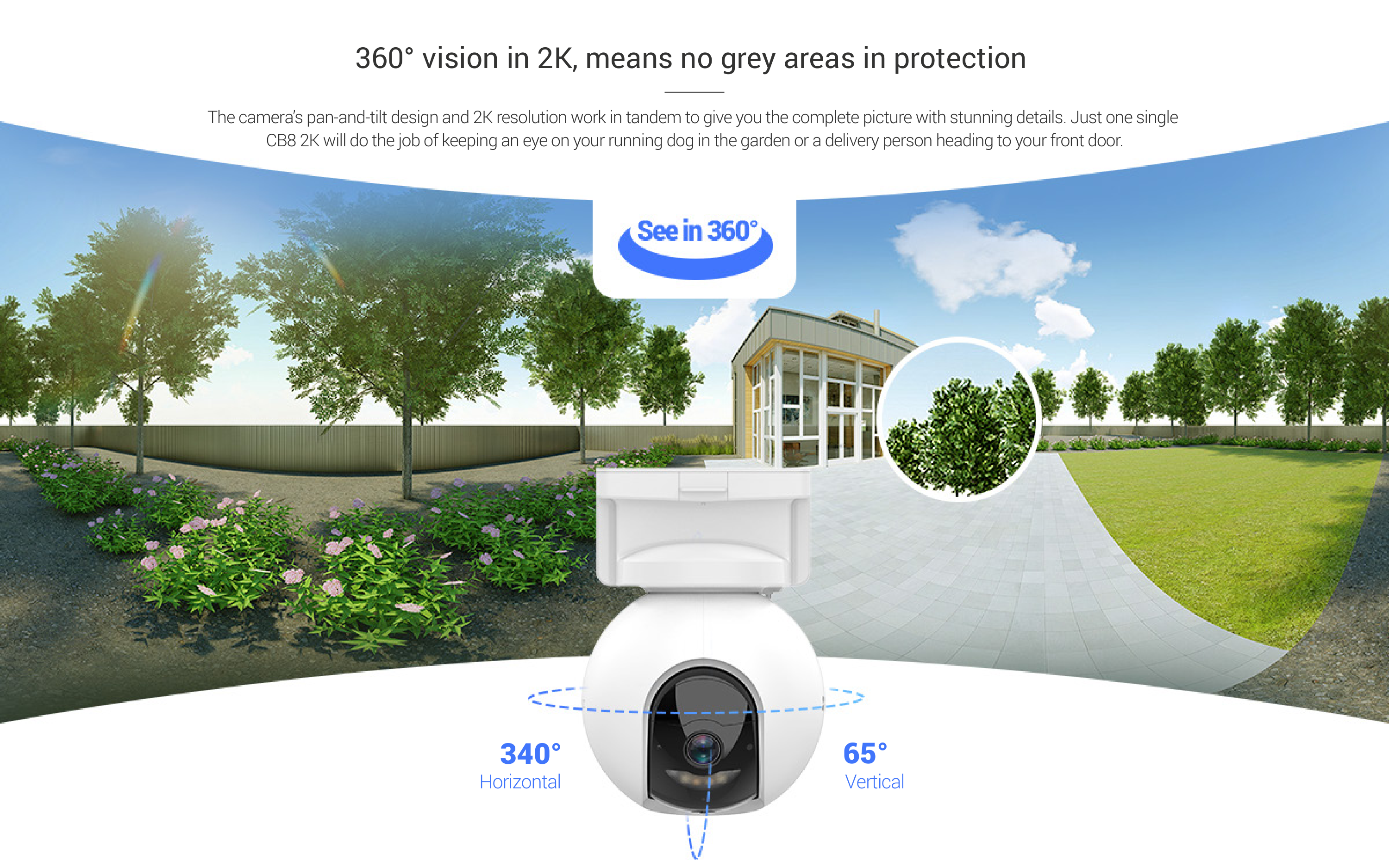

##### 360° vision in 2K, means no grey areas in protection
The camera’s pan-and-tilt design and 2K resolution work in tandem to give you the complete picture with stunning details. Just one single CB8 2K will do the job of keeping an eye on your running dog in the garden or a delivery person heading to your front door.
#### 65°
#### 340°
Vertical
Horizontal

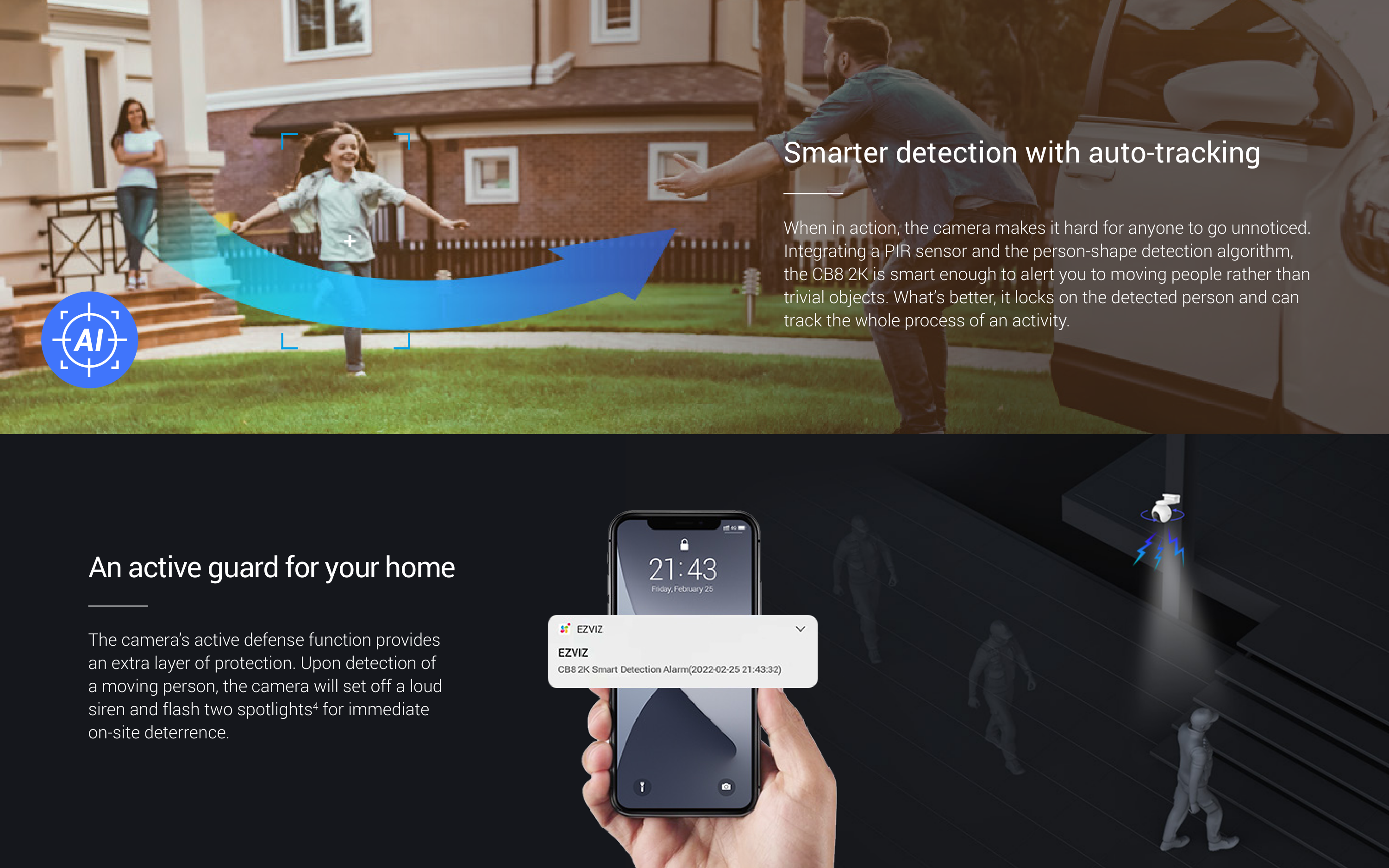

##### Smarter detection with auto-tracking
When in action, the camera makes it hard for anyone to go unnoticed. Integrating a PIR sensor and the person-shape detection algorithm, the CB8 2K is smart enough to alert you to moving people rather than trivial objects. What’s better, it locks on the detected person and can track the whole process of an activity.
An active guard for your home
The camera’s active defense function provides an extra layer of protection. Upon detection of a moving person, the camera will set off a loud siren and flash two spotlights4 for immediate on-site deterrence.

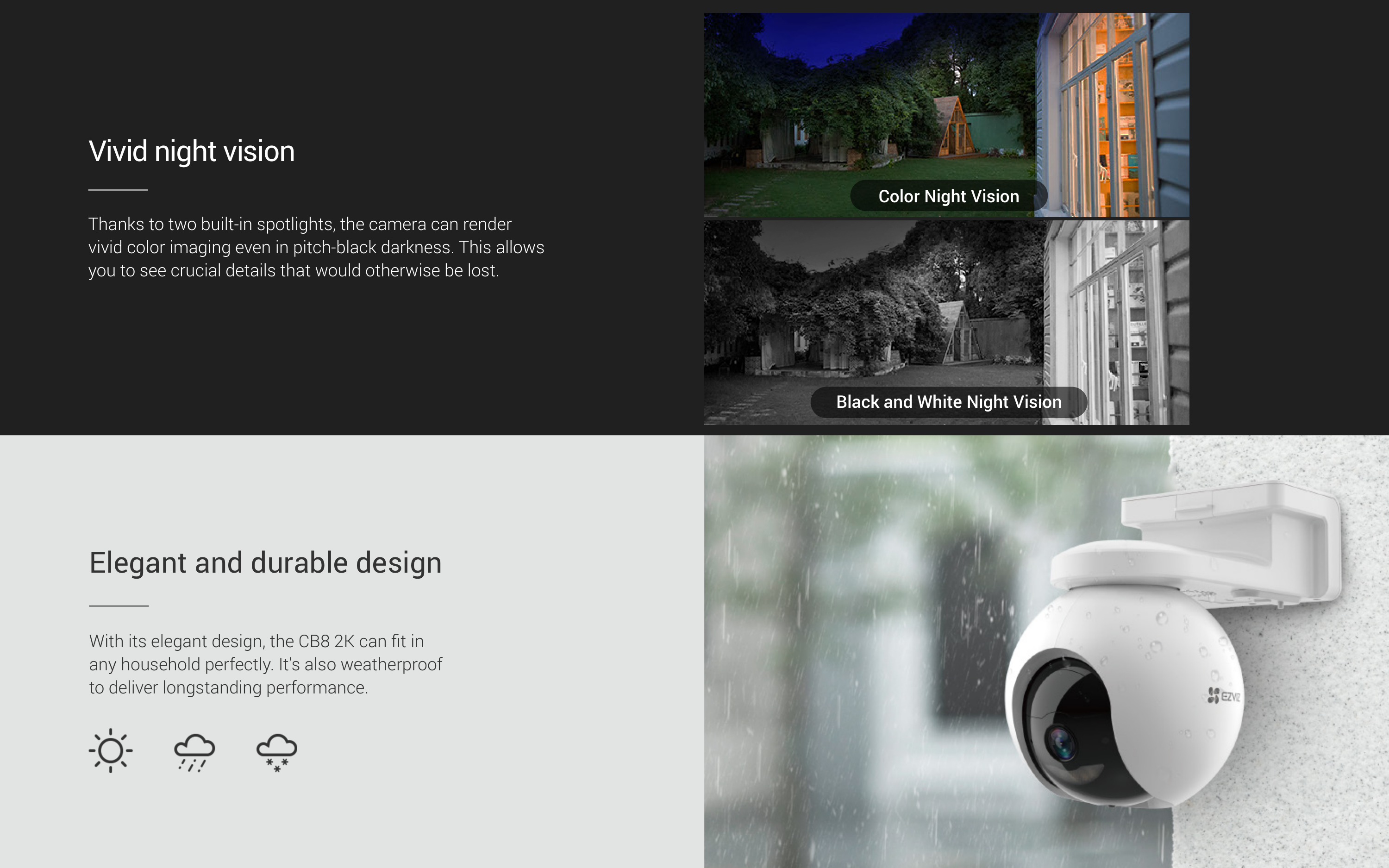

##### Vivid night vision
Color Night Vision
Thanks to two built-in spotlights, the camera can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost.
Black and White Night Vision
Elegant and durable design
With its elegant design, the CB8 2K can fit in any household perfectly. It’s also weatherproof to deliver longstanding performance.

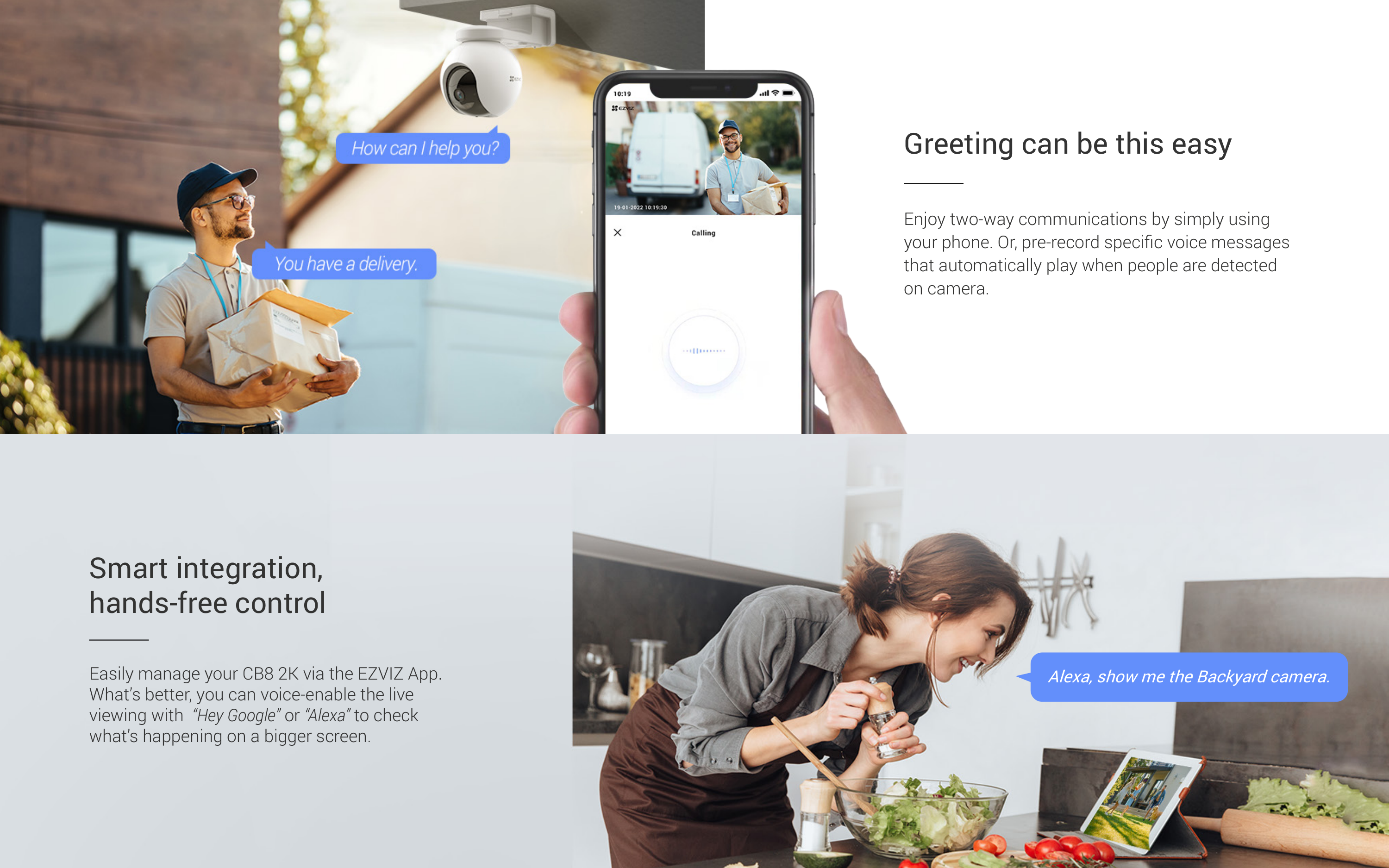

##### Greeting can be this easy
Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages that automatically play when people are detected on camera.
##### Smart integration, hands-free control
Easily manage your CB8 2K via the EZVIZ App. What’s better, you can voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.
Alexa, show me the Backyard camera.

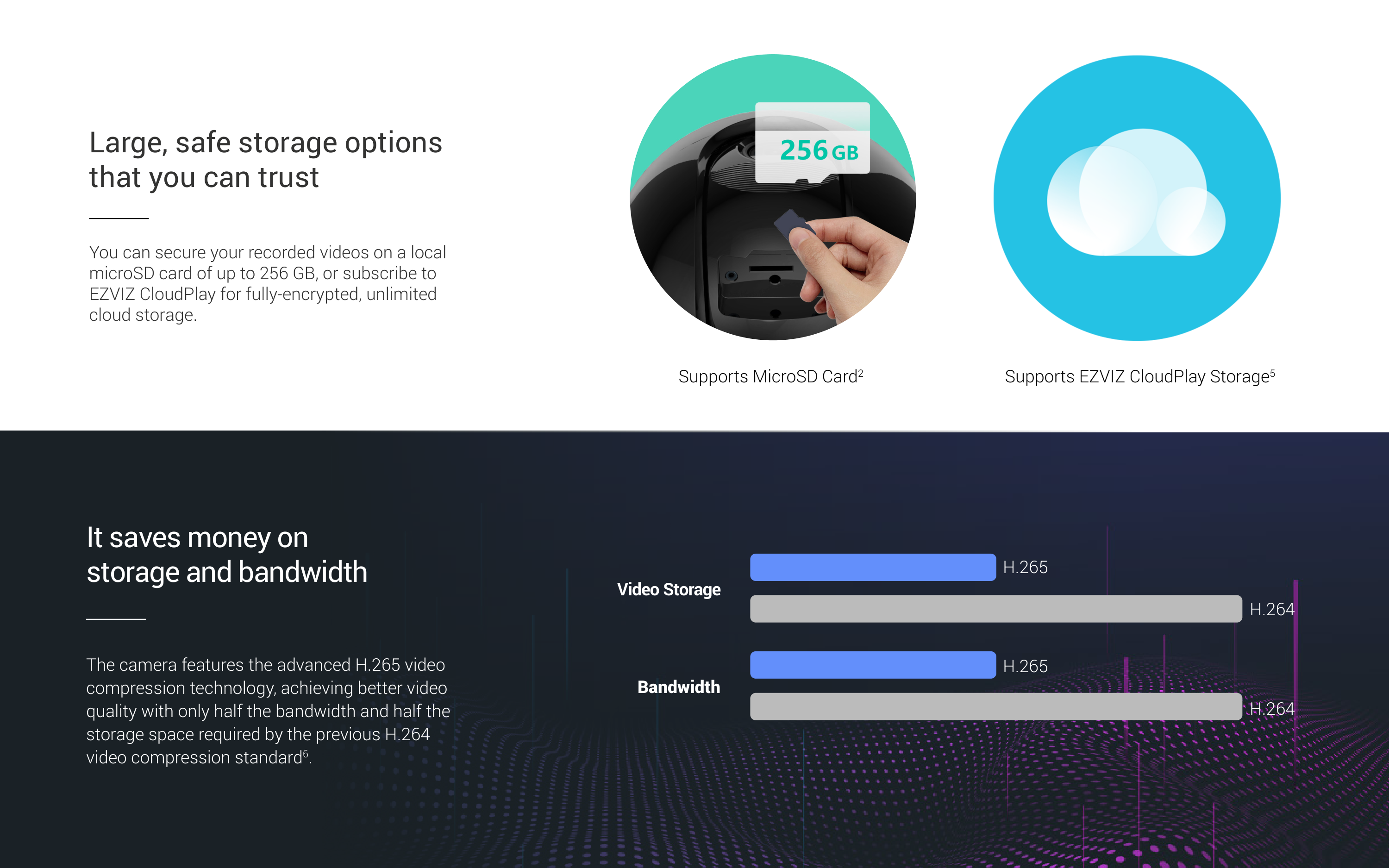

##### Large, safe storage options that you can trust
You can secure your recorded videos on a local microSD card of up to 256 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted, unlimited cloud storage.
Supports MicroSD Card2 Supports EZVIZ CloudPlay Storage5
##### It saves money on storage and bandwidth
H.265
Video Storage
H.264
The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space required by the previous H.264 video compression standard6.
H.265
Bandwidth

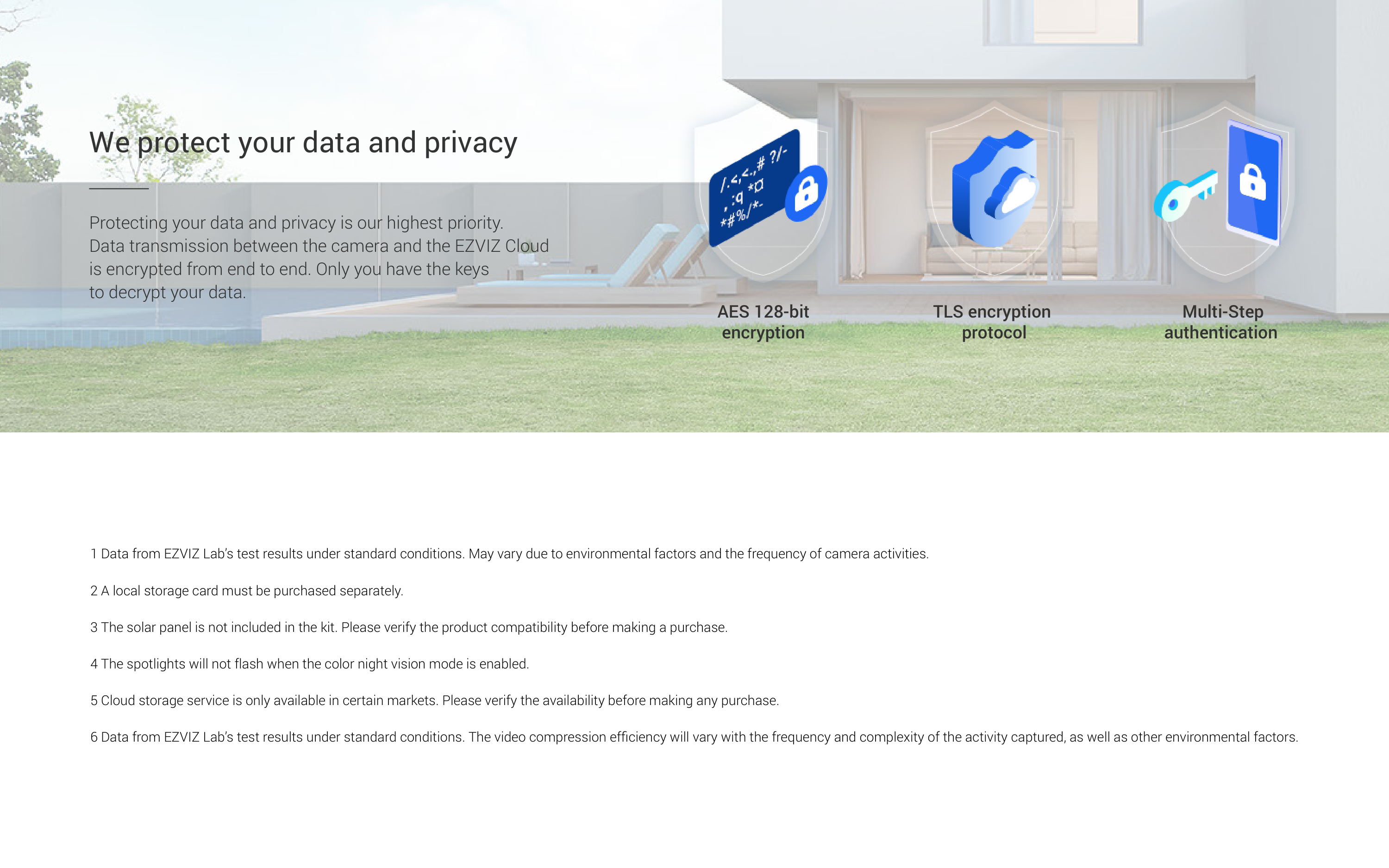

##### We protect your data and privacy
Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
####### AES 128-bit TLS encryption Multi-Step

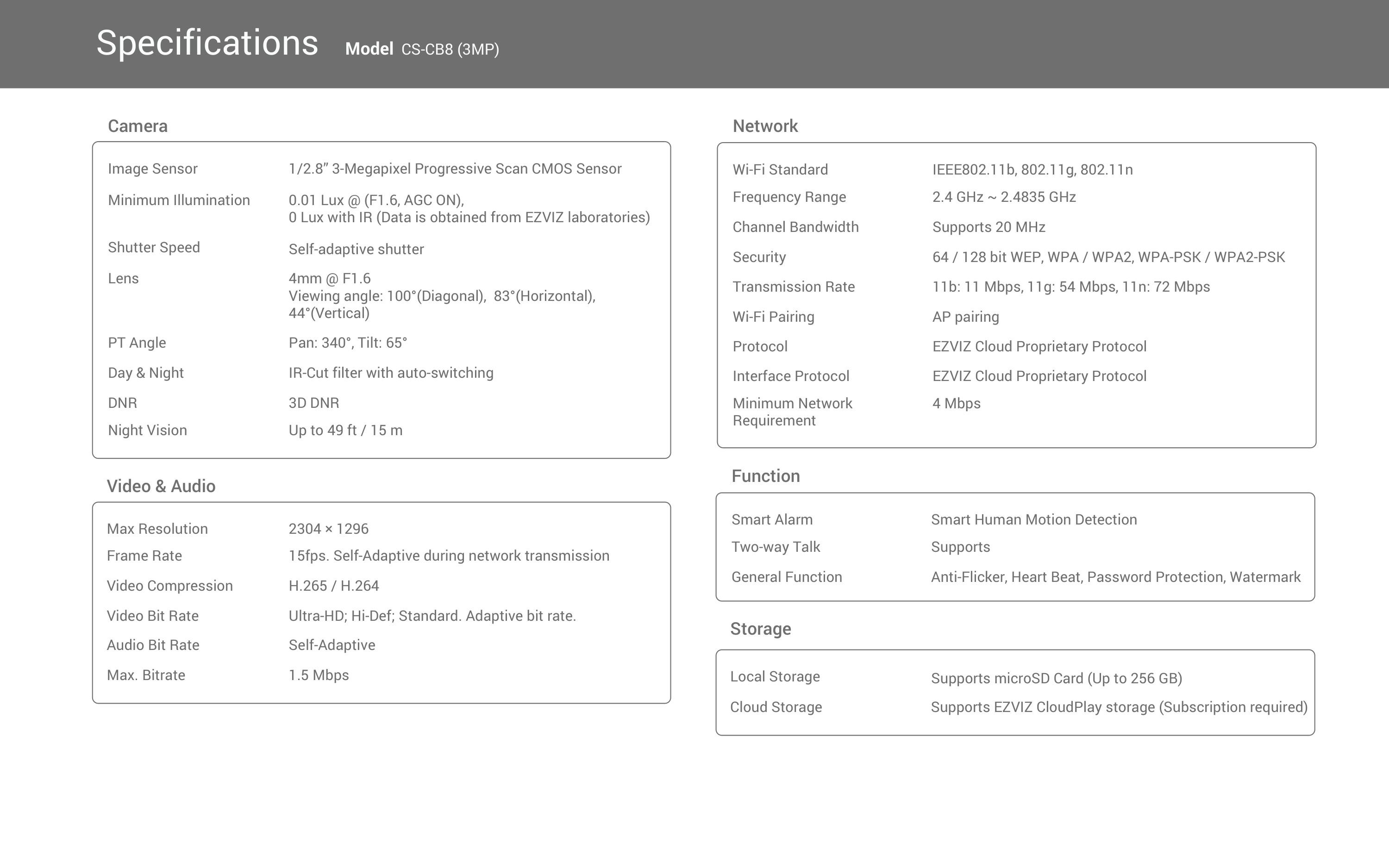

####### Camera
Image Sensor 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @ (F1.6, AGC ON),
0 Lux with IR (Data is obtained from EZVIZ laboratories) Shutter Speed Self-adaptive shutter
Lens
4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)
PT Angle Pan: 340°, Tilt: 65°
Day & Night IR-Cut filter with auto-switching
3D DNR Night Vision Up to 49 ft / 15 m
DNR
####### Video & Audio
Max Resolution 2304 × 1296 Frame Rate 15fps. Self-Adaptive during network transmission Video Compression H.265 / H.264 Video Bit Rate Ultra-HD; Hi-Def; Standard. Adaptive bit rate. Audio Bit Rate Self-Adaptive Max. Bitrate 1.5 Mbps
####### Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth Supports 20 MHz Security 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Transmission Rate Wi-Fi Pairing
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps AP pairing
Protocol EZVIZ Cloud Proprietary Protocol Interface Protocol EZVIZ Cloud Proprietary Protocol Minimum Network Requirement
4 Mbps
####### Function
Smart Alarm Smart Human Motion Detection Two-way Talk Supports General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
####### Storage
Local Storage Supports microSD Card (Up to 256 GB) Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)

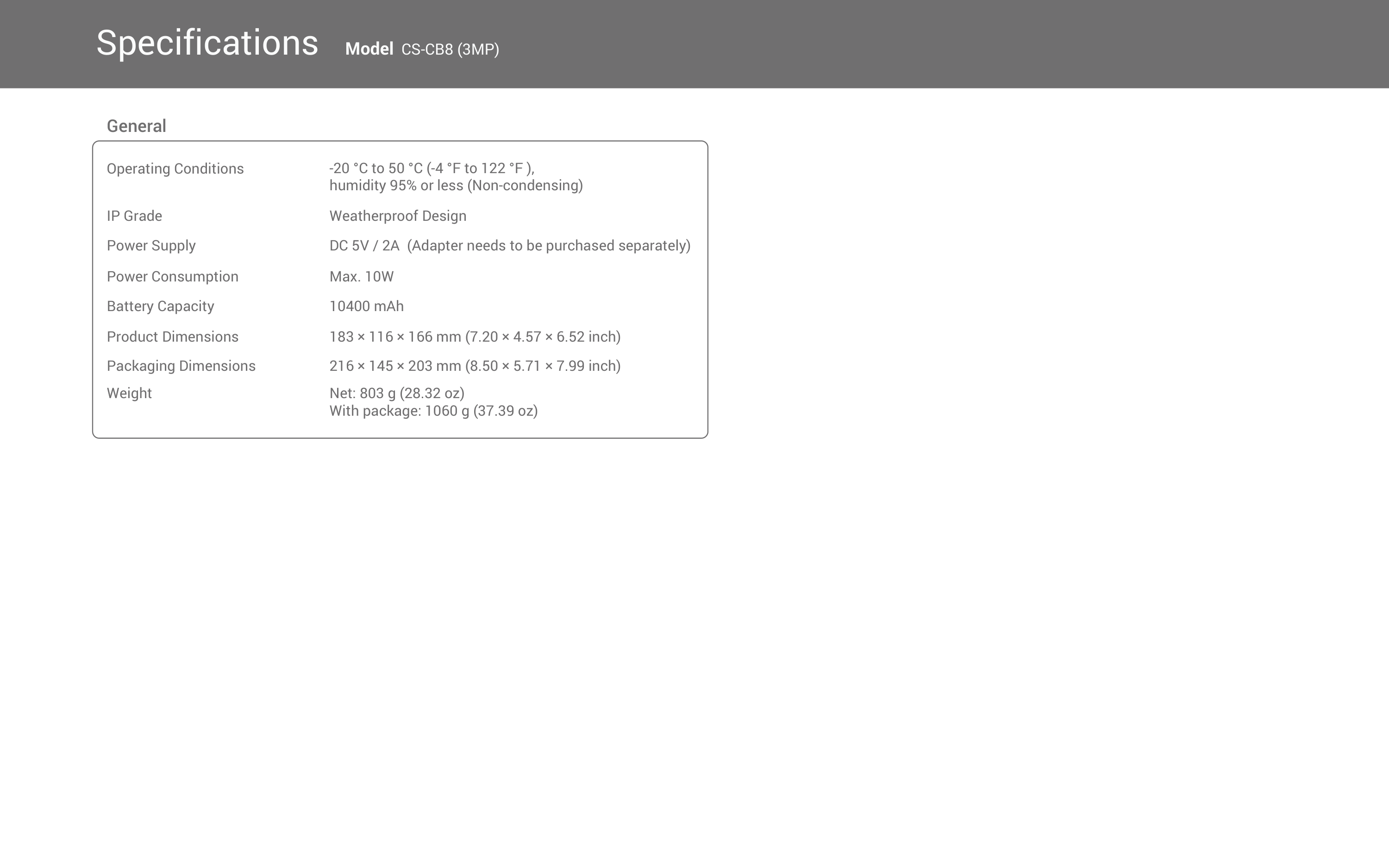

####### General
Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F ),
humidity 95% or less (Non-condensing) IP Grade Weatherproof Design
Power Supply DC 5V / 2A (Adapter needs to be purchased separately)
Power Consumption Max. 10W
Battery Capacity 10400 mAh
Product Dimensions 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)
Packaging Dimensions 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)
Weight Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz)

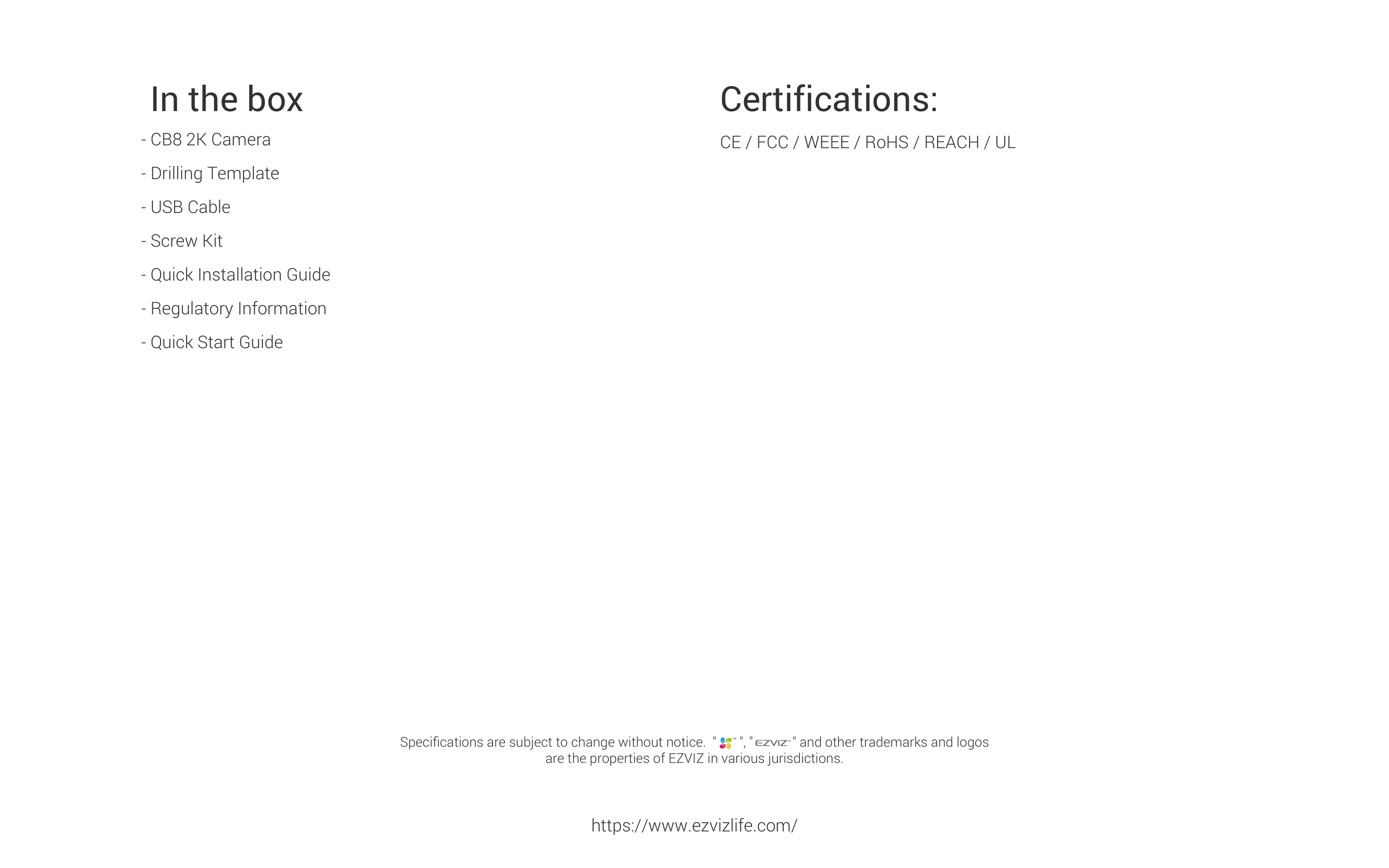

In the box
Certifications:
CE / FCC / WEEE / RoHS / REACH / UL
Specifications are subject to change without notice. " ", " " and other trademarks and logos are the properties of EZVIZ in various jurisdictions.
