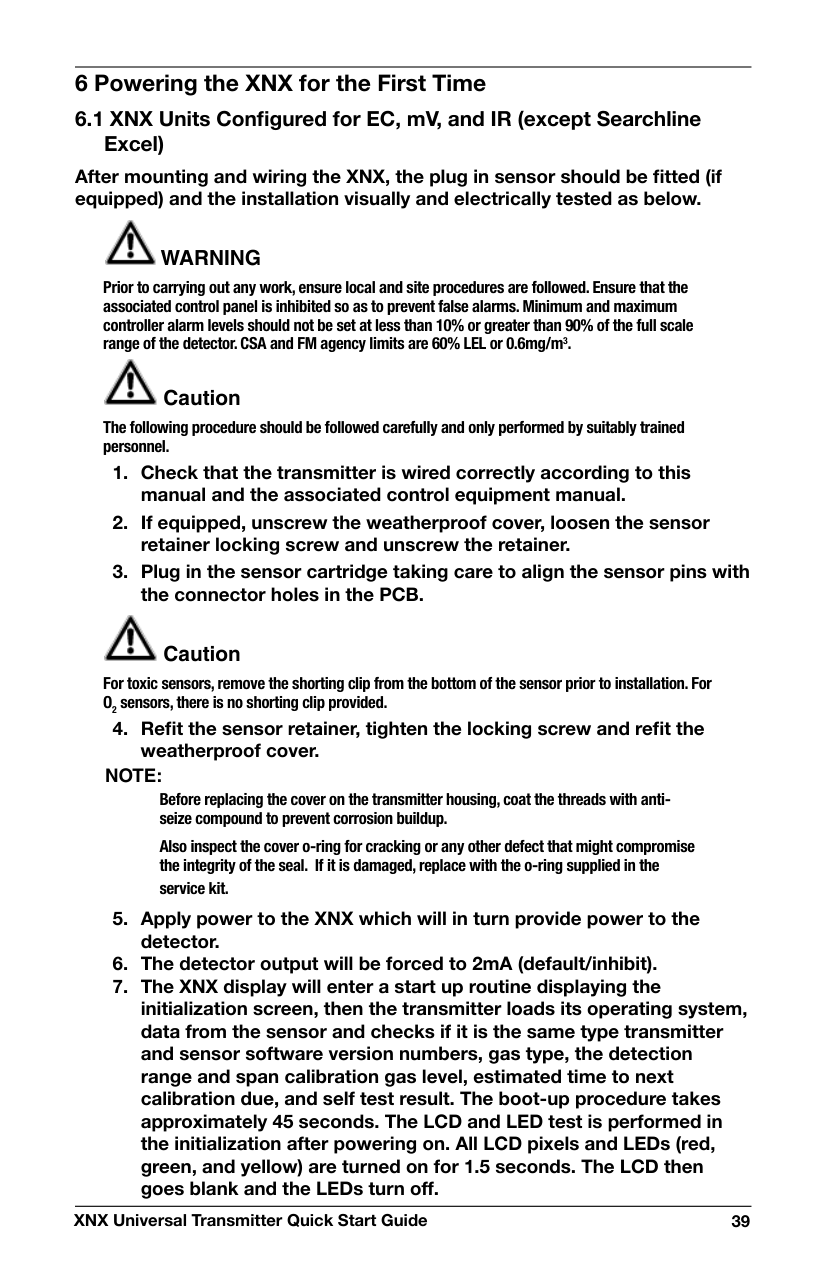

10 totalHow do I initialize and power up an XNX unit for the first time?
After mounting and wiring, the sensor should be fitted (if equipped), and installation visually tested. Apply power to the XNX, which will force the detector output to 2mA (default/inhibit) while going through startup routines displaying initialization and general status screens. This process lasts approximately 45 seconds before entering normal monitoring mode.

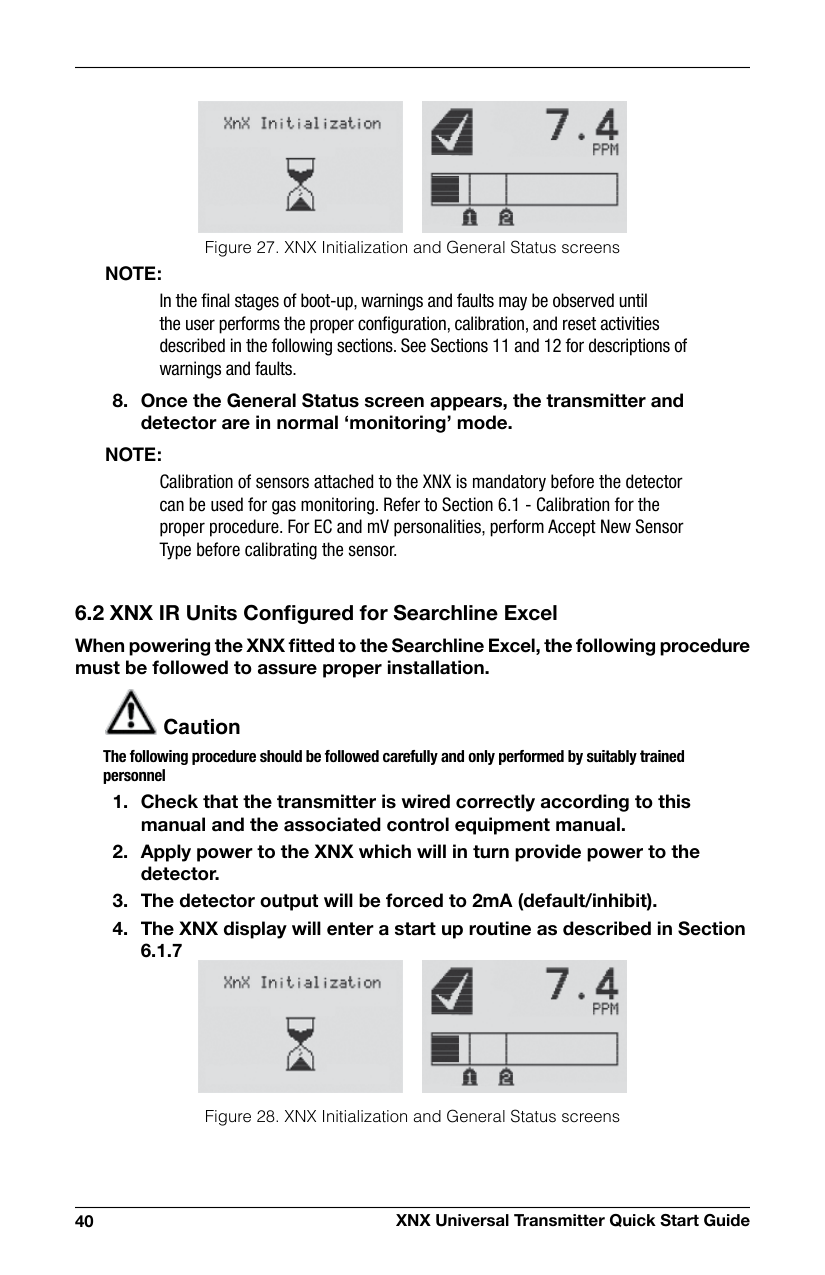

What is the procedure for powering up an XNX unit with a Searchline Excel sensor?
First, ensure proper wiring according to the manual and control equipment guide. After applying power to the XNX transmitter, it forces the detector output to 2mA (default/inhibit) during startup routines displayed on initialization screens. Complete the setup by performing a soft reset from the Calibration Menu.

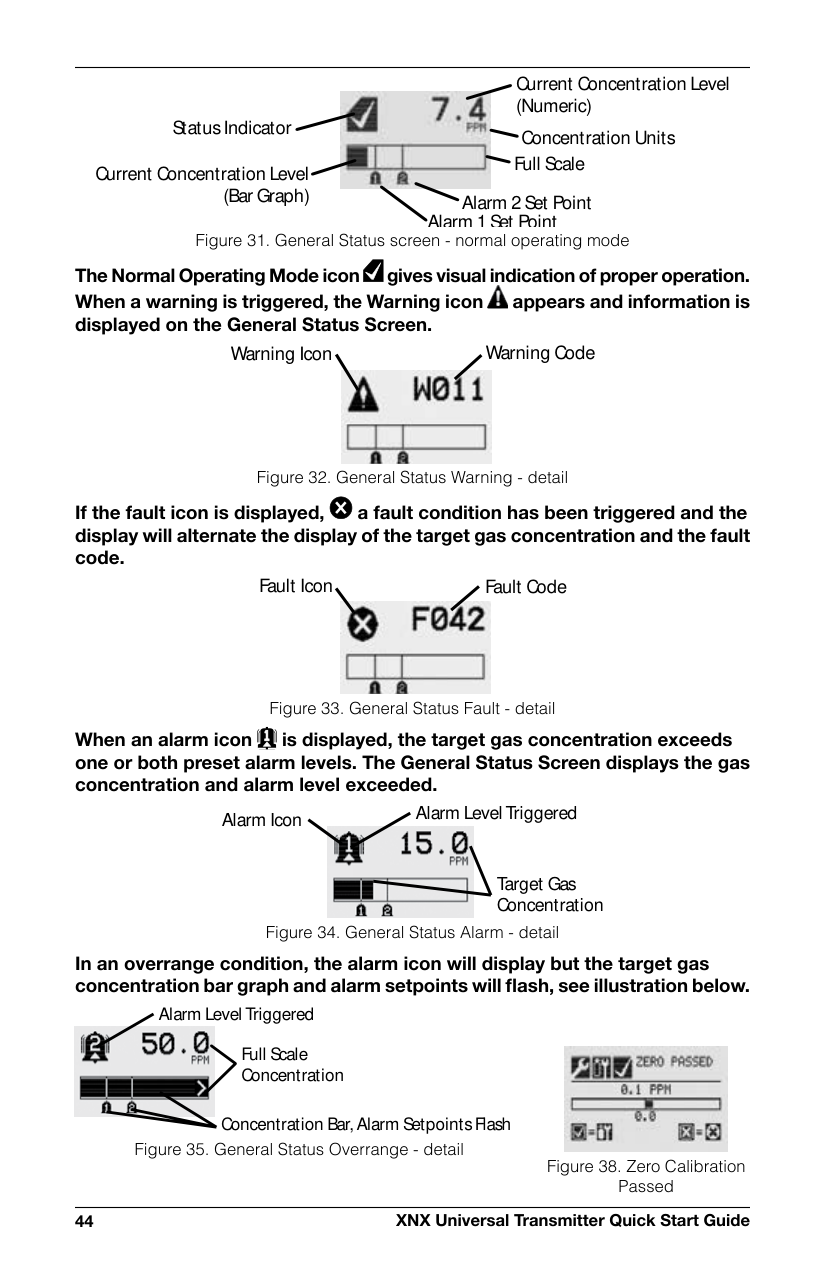

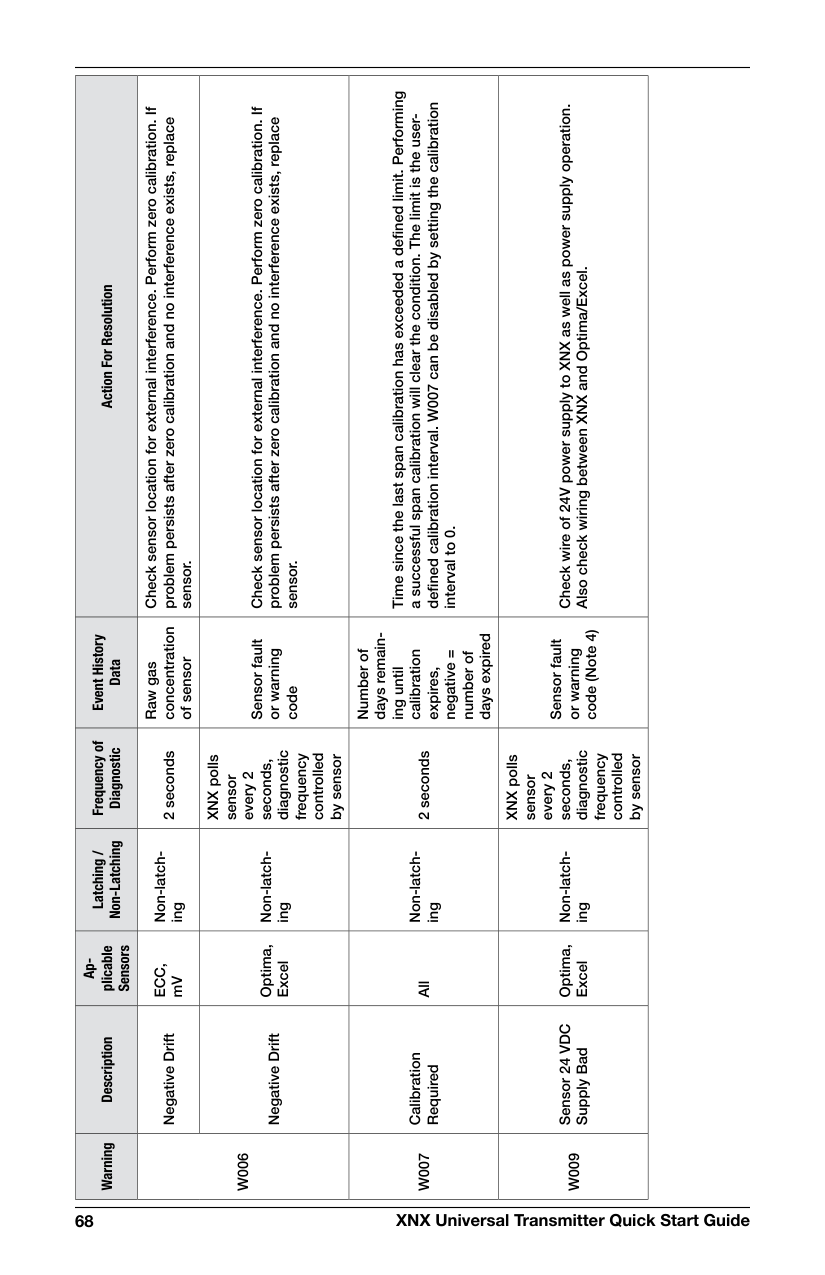

What should I do if my XNX unit shows warning or fault messages after powering it up for the first time?
In final stages of startup, warnings and faults may appear until proper configuration and calibration are performed. These activities include resetting any displayed faults on the General Status screen by following subsequent sections of the guide.

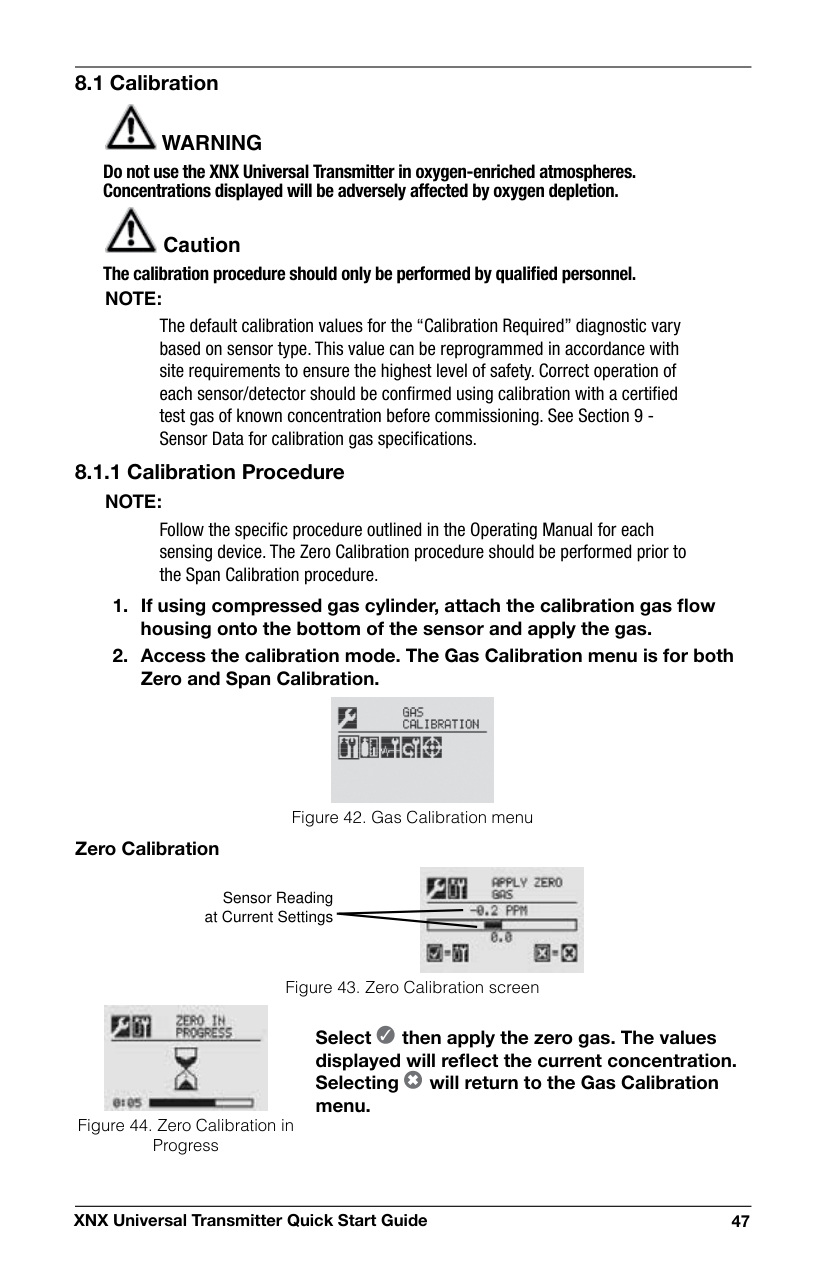

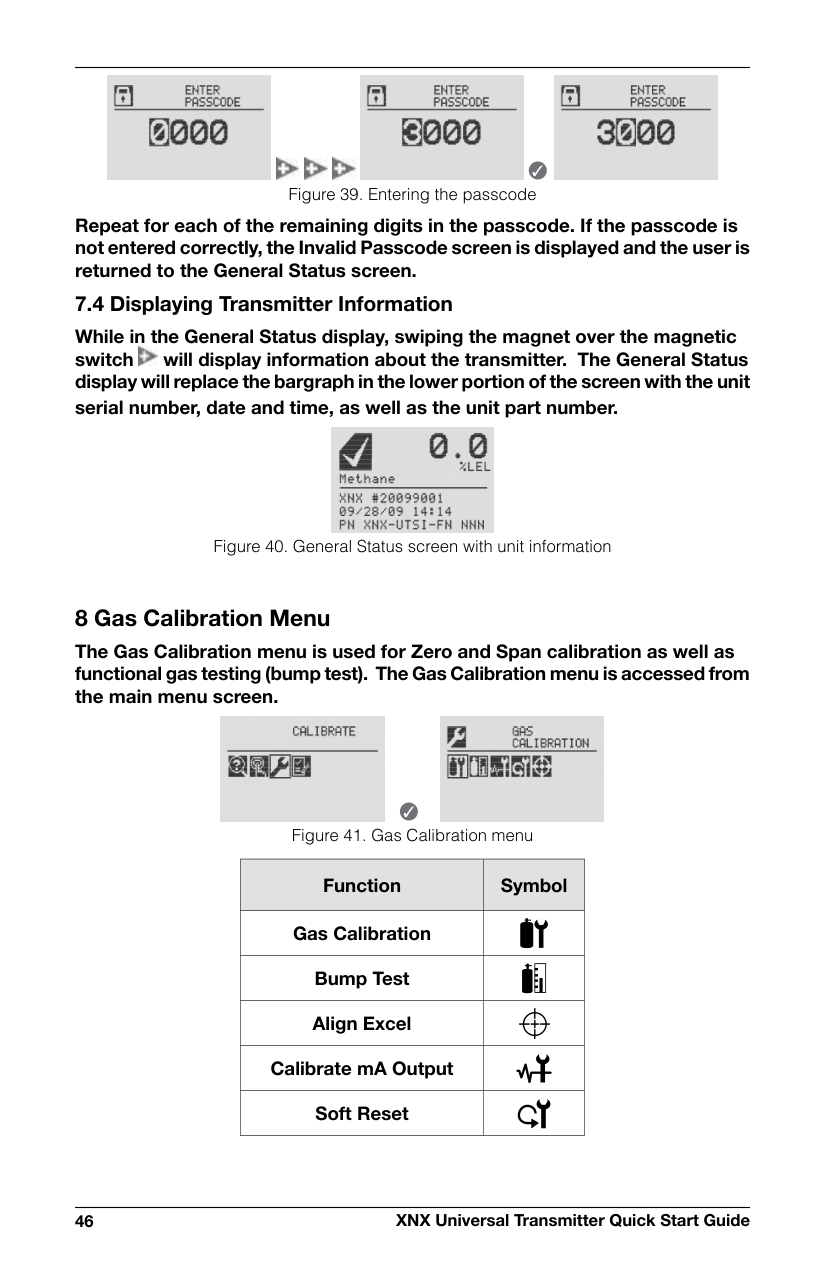

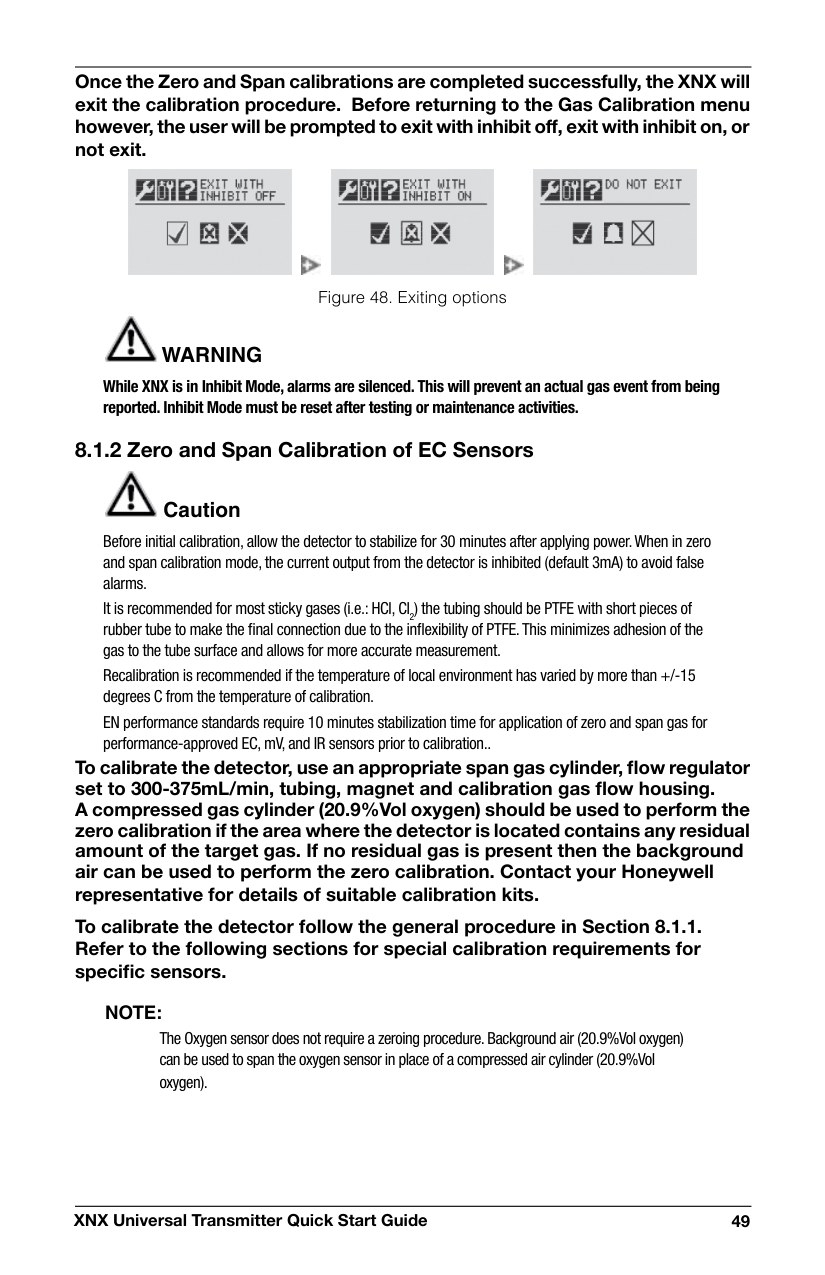

How do I perform calibration for XNX Universal Transmitter sensors?
To perform zero and span calibrations, access the Gas Calibration menu. Apply appropriate calibration gas cylinder with flow regulator tubing to perform a zero calibration first, followed by span calibration if needed. A successful calibration sequence will show Zero and Span Passed screens.

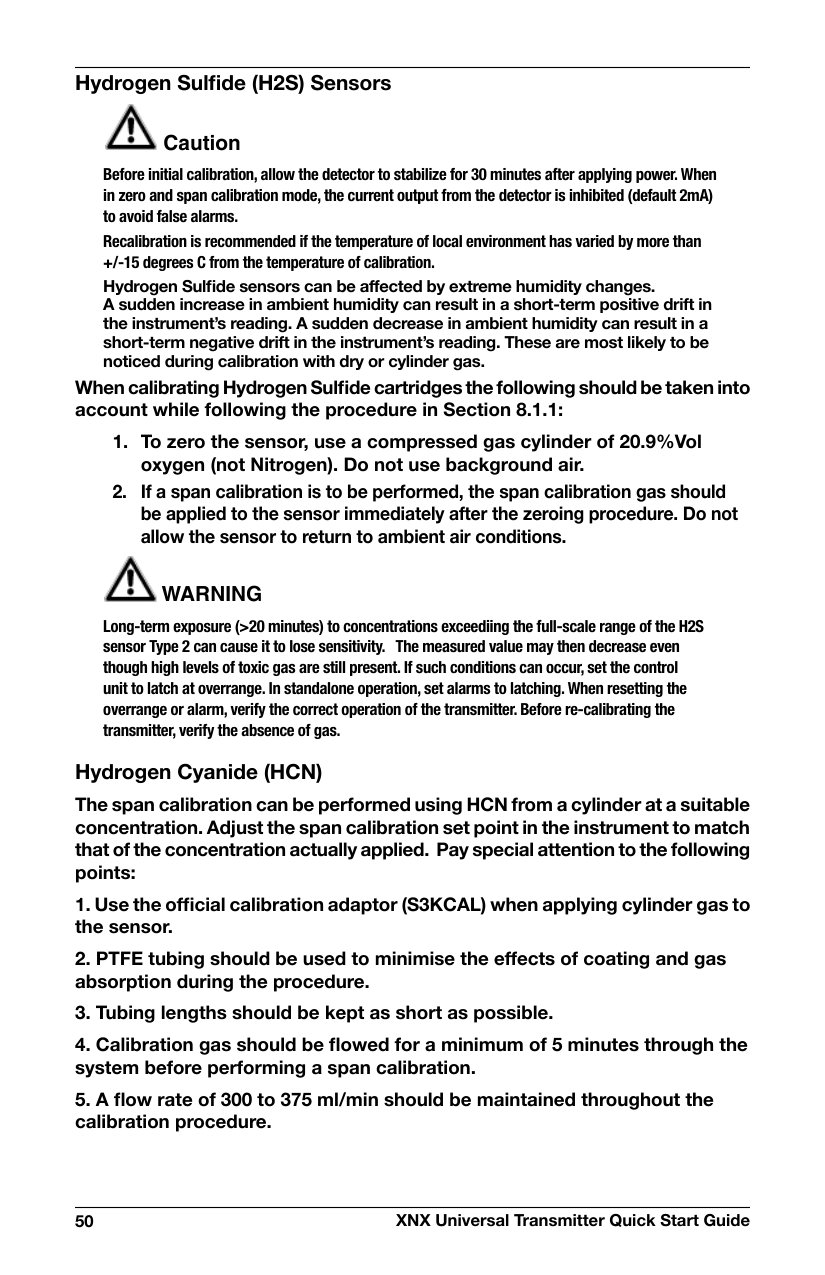

What special precautions are there for calibrating H2S sensors in XNX?
Prior to the initial zeroing, allow the detector to stabilize for 30 minutes after applying power. Use a compressed gas cylinder of 20.9%Vol oxygen (not nitrogen) and immediately proceed with span calibration without letting the sensor return to ambient air.

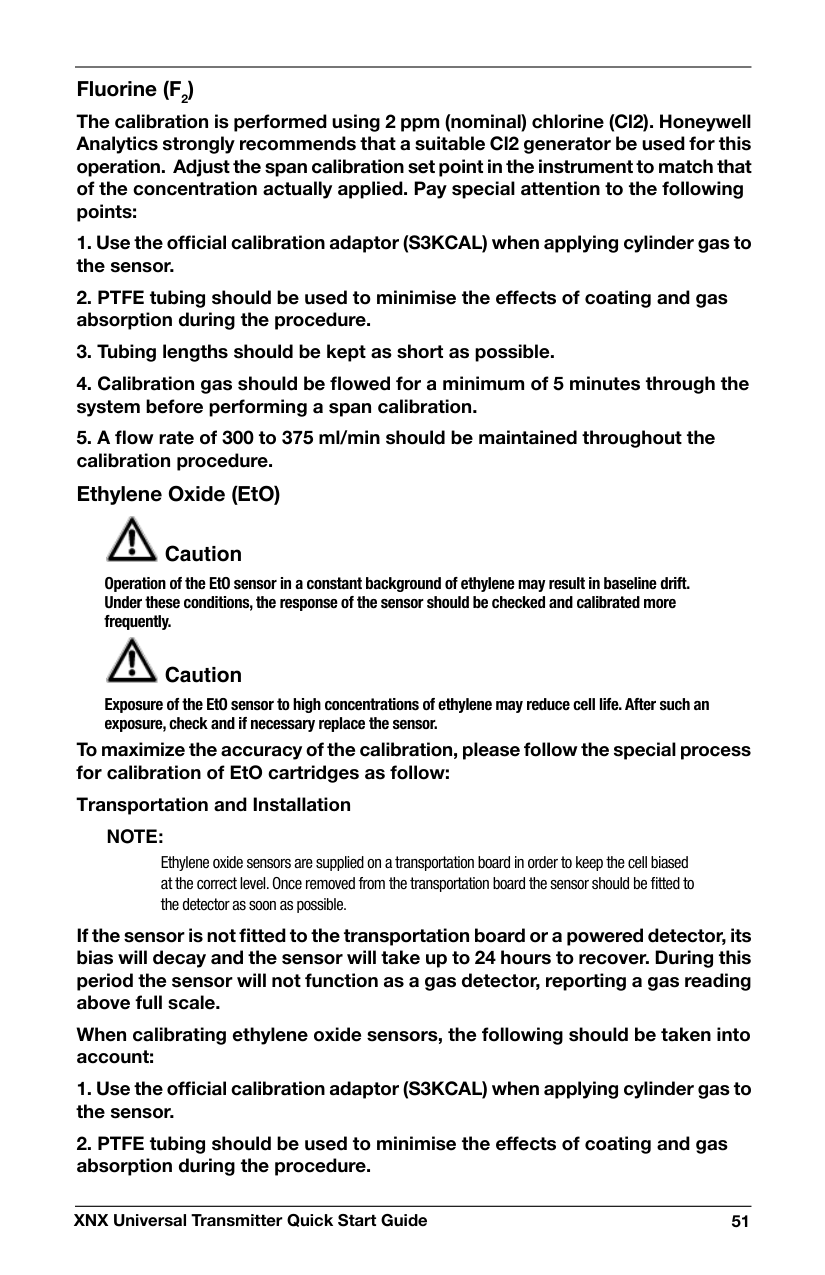

How do I perform zero only calibration on EtO sensors in XNX?
For zero-only calibration in clean ambient air or clean humidified air (not nitrogen), apply clean dry air for 5 minutes, then follow the detector's instructions to confirm zero calibration. No span calibration is required.
Show 4 more questions
How do I install a remote EC sensor using XNX Universal Transmitter?

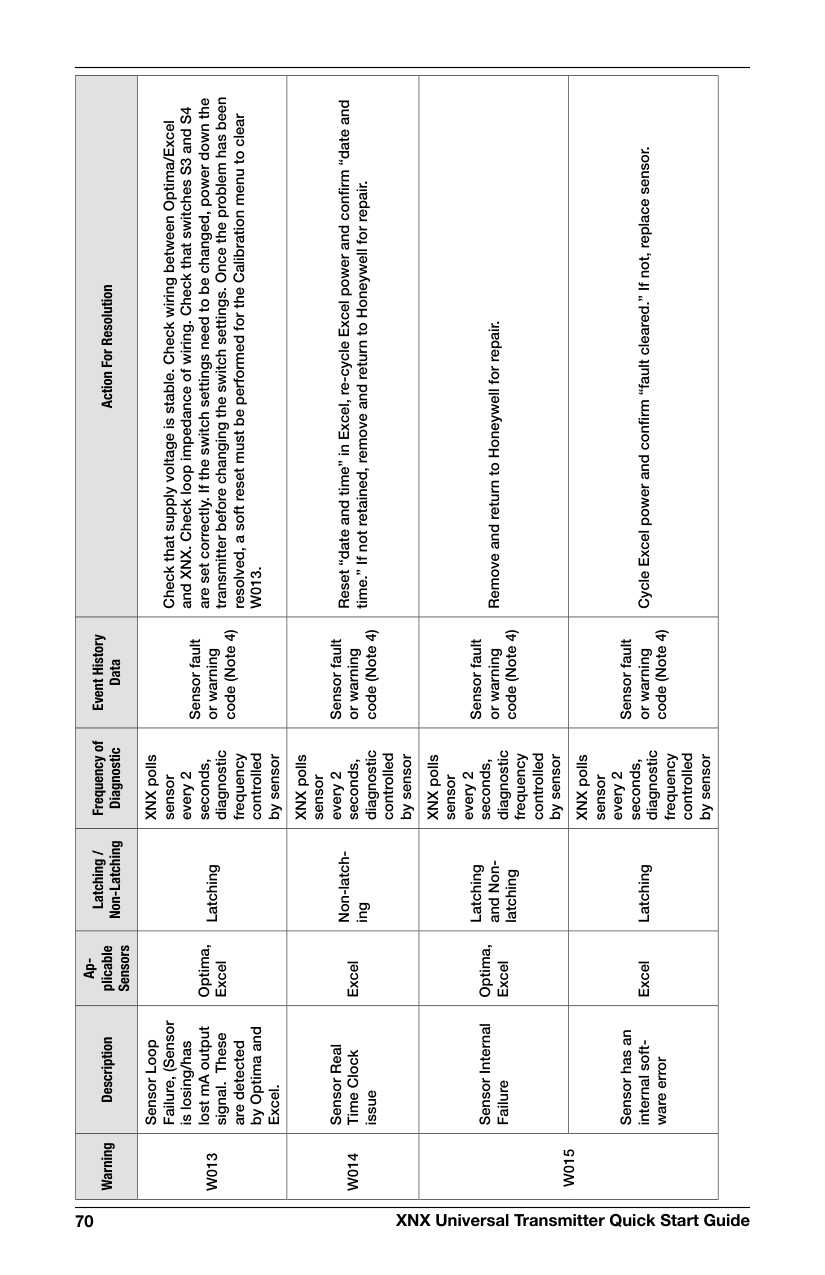

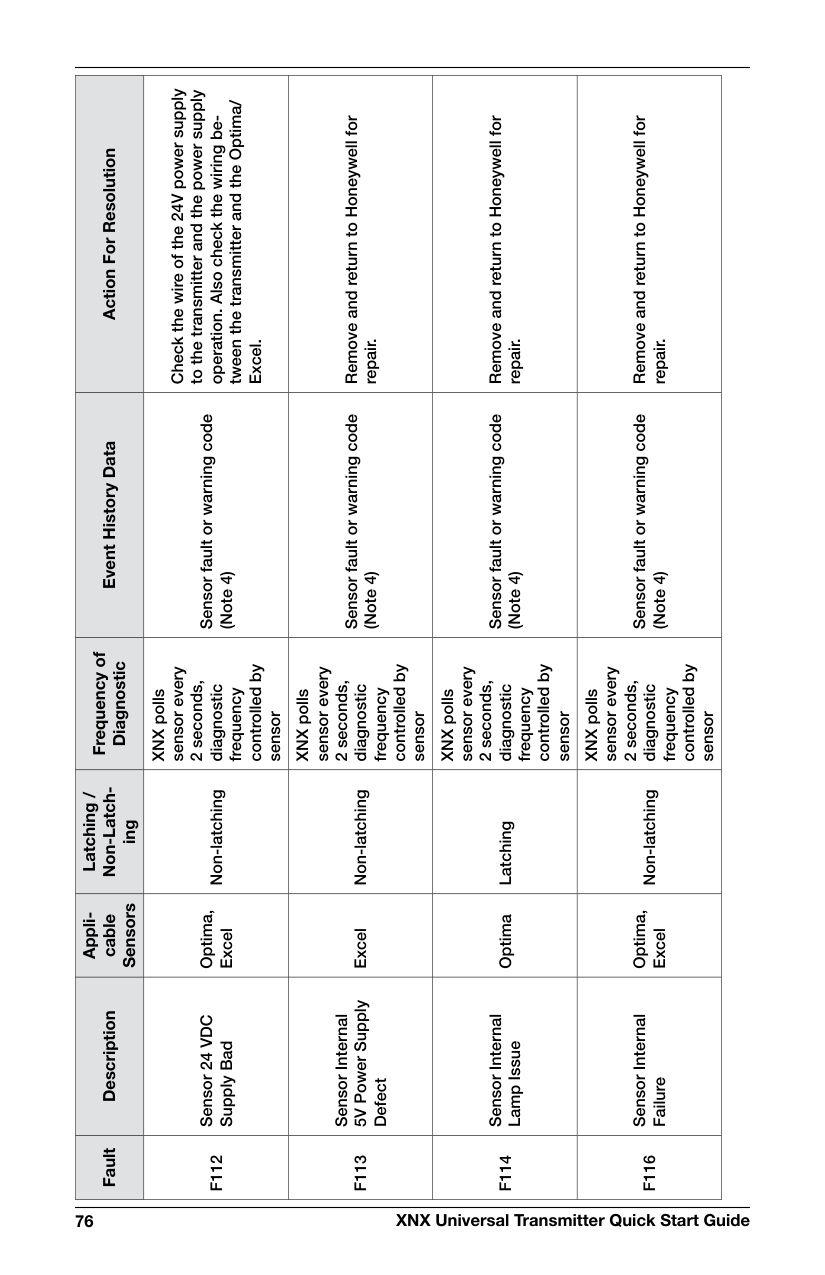

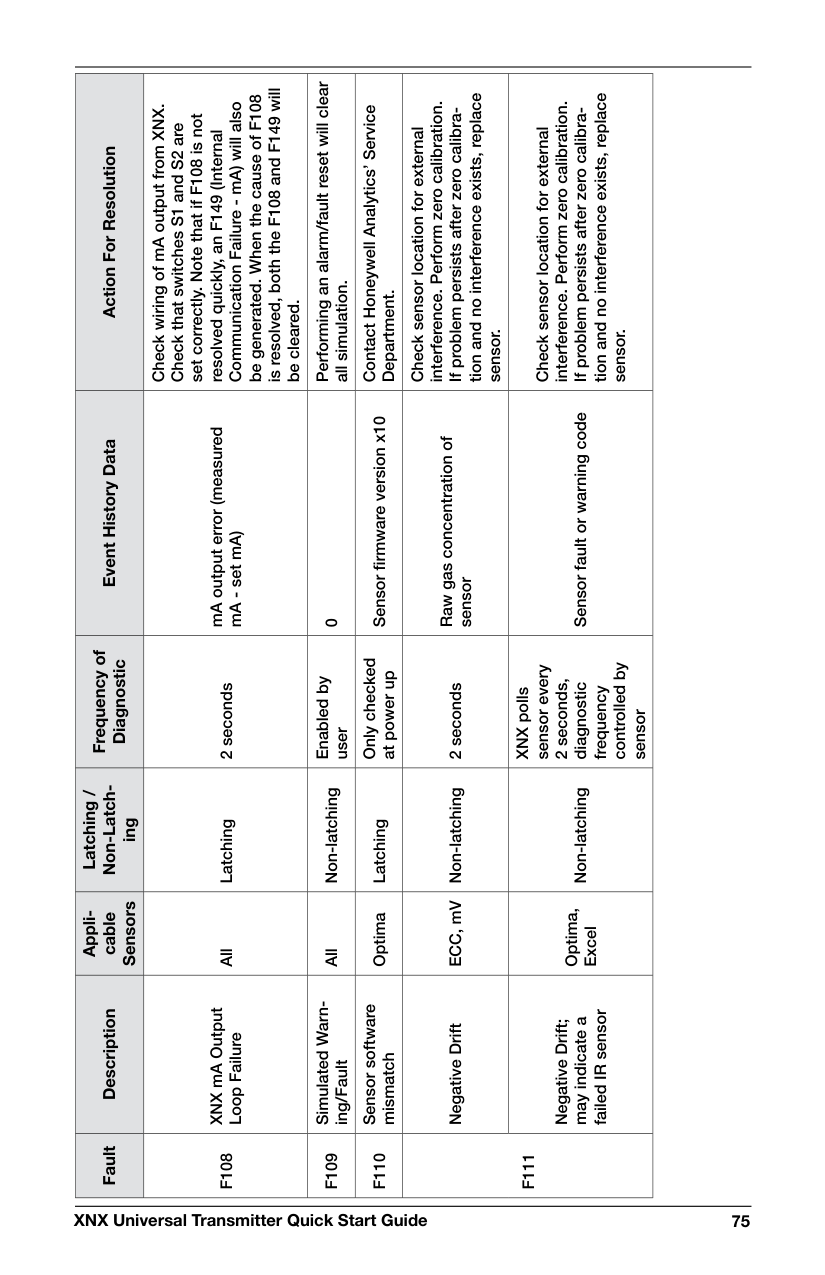

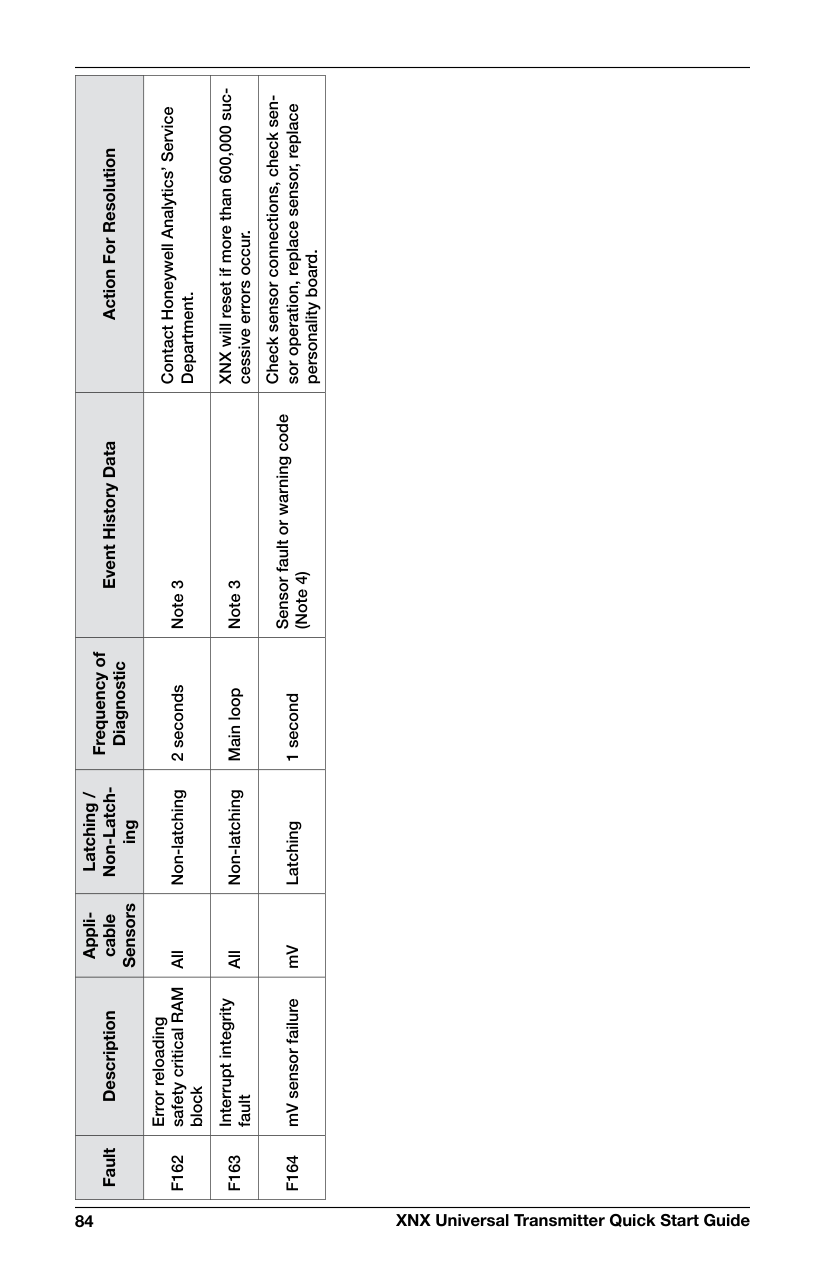

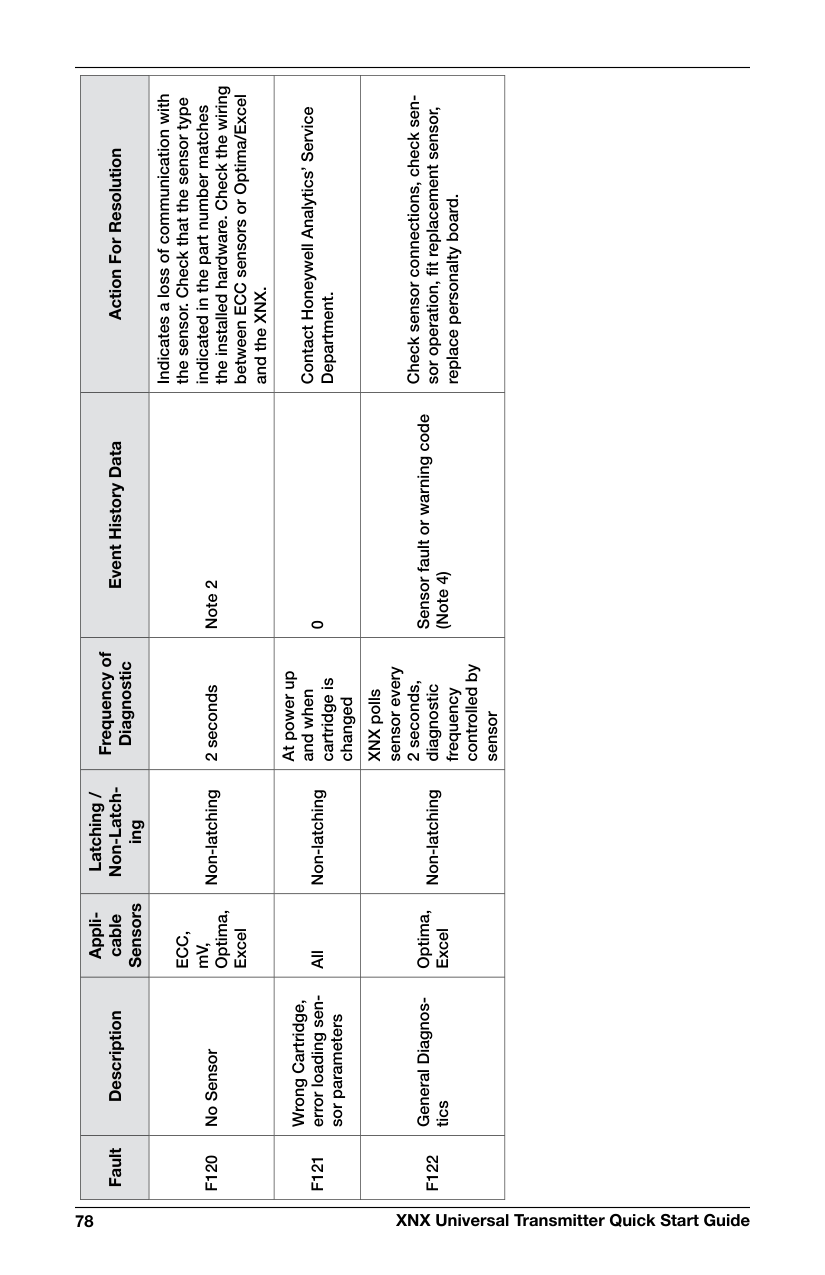

How should I handle faults indicated on the XNX Universal Transmitter front panel?

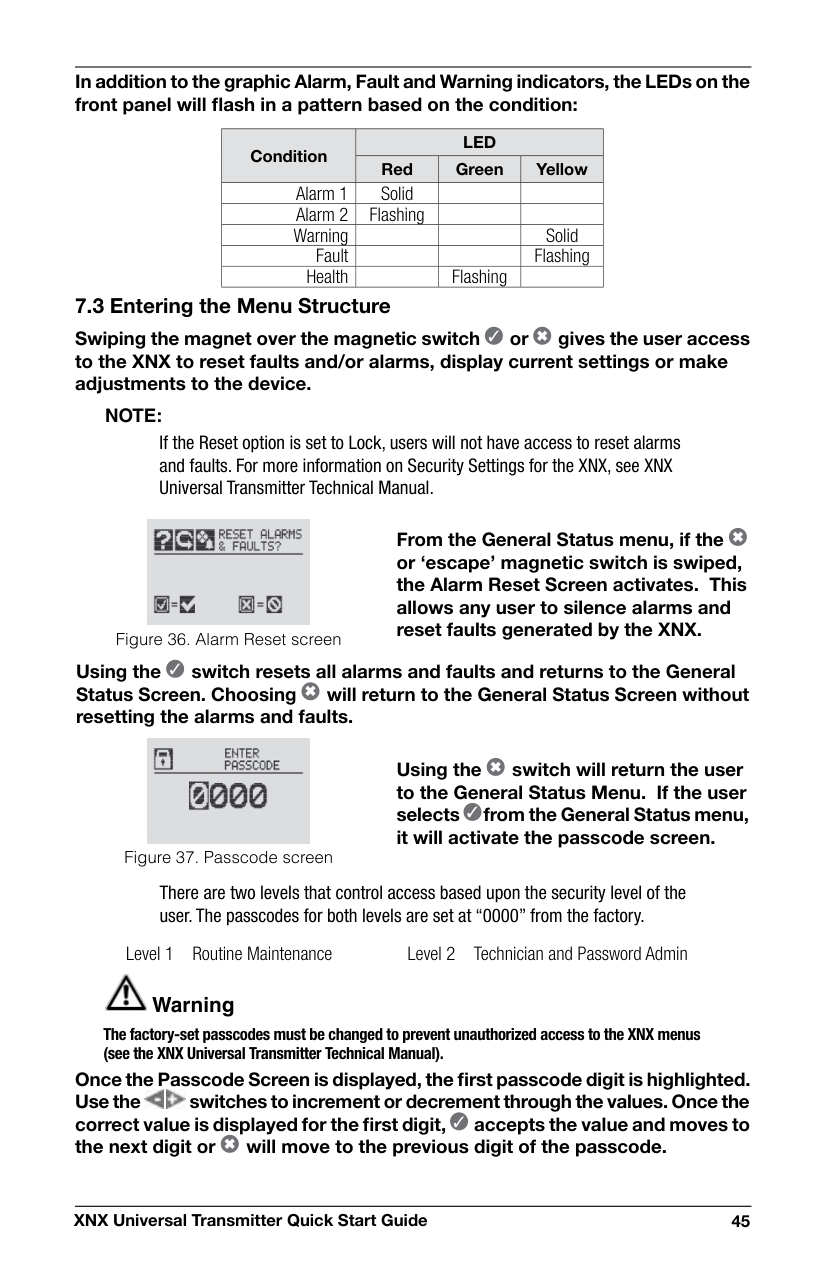

How do I access information about the XNX Universal Transmitter while in General Status mode?
How do I reset faults and alarms on an XNX Universal Transmitter?
Full Manual
102 pages
XNX® Universal Transmitter Quick Start Guide
This page is intentionally left blank

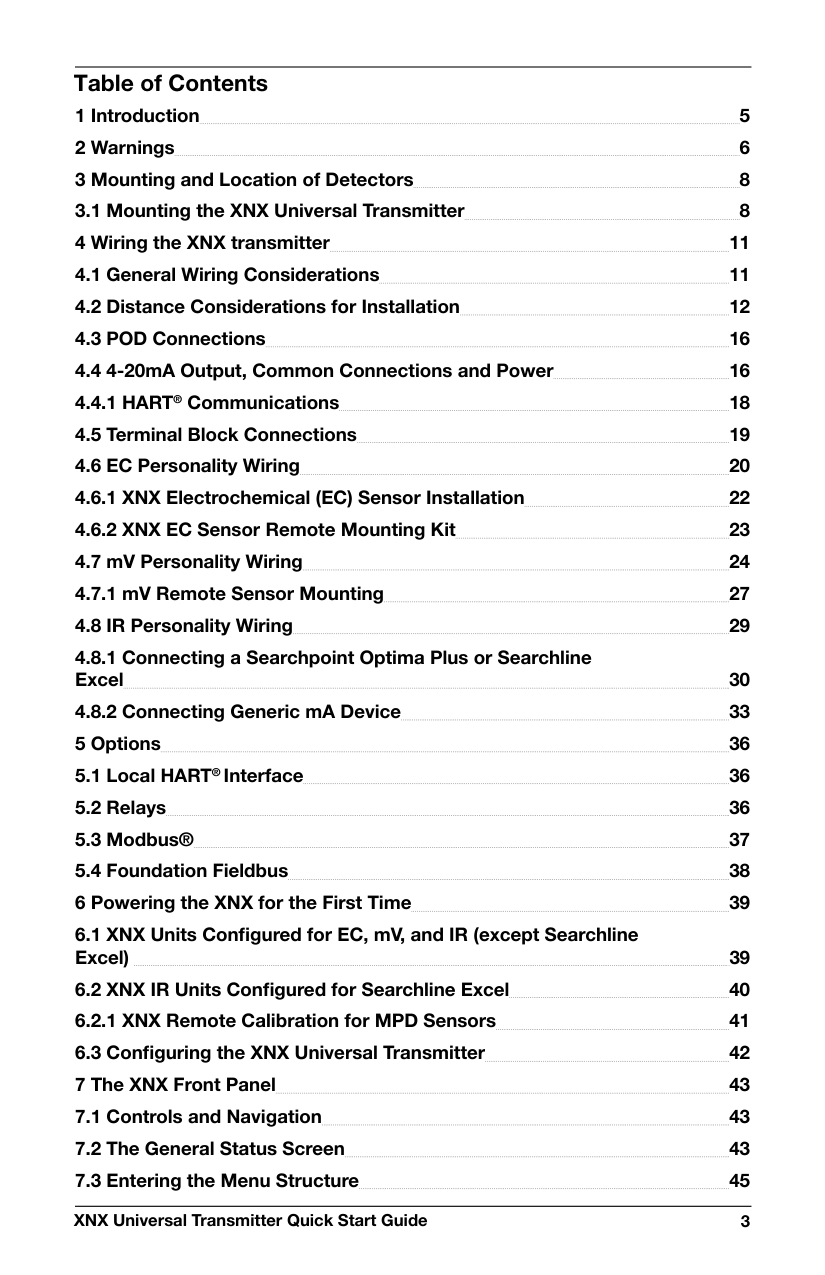

XNX Universal Transmitter Quick Start Guide 3 Table of Contents 1 Introduction 5 2 Warnings 6 3 Mounting and Location of Detectors 8 3.1 Mounting the XNX Universal Transmitter 8 4 Wiring the XNX transmitter 11 4.1 General Wiring Considerations 11 4.2 Distance Considerations for Installation 12 4.3 POD Connections 16 4.4 4-20mA Output, Common Connections and Power 16 4.4.1 HART® Communications 18 4.5 Terminal Block Connections 19 4.6 EC Personality Wiring 20 4.6.1 XNX Electrochemical (EC) Sensor Installation 22 4.6.2 XNX EC Sensor Remote Mounting Kit 23 4.7 mV Personality Wiring 24 4.7.1 mV Remote Sensor Mounting 27 4.8 IR Personality Wiring 29 4.8.1 Connecting a Searchpoint Optima Plus or Searchline
Excel 30 4.8.2 Connecting Generic mA Device 33 5 Options 36 5.1 Local HART® Interface 36 5.2 Relays 36 5.3 Modbus® 37 5.4 Foundation Fieldbus 38 6 Powering the XNX for the First Time 39 6.1 XNX Units Configured for EC, mV, and IR (except Searchline
Excel) 39 6.2 XNX IR Units Configured for Searchline Excel 40 6.2.1 XNX Remote Calibration for MPD Sensors 41 6.3 Configuring the XNX Universal Transmitter 42 7 The XNX Front Panel 43 7.1 Controls and Navigation 43 7.2 The General Status Screen 43 7.3 Entering the Menu Structure 45

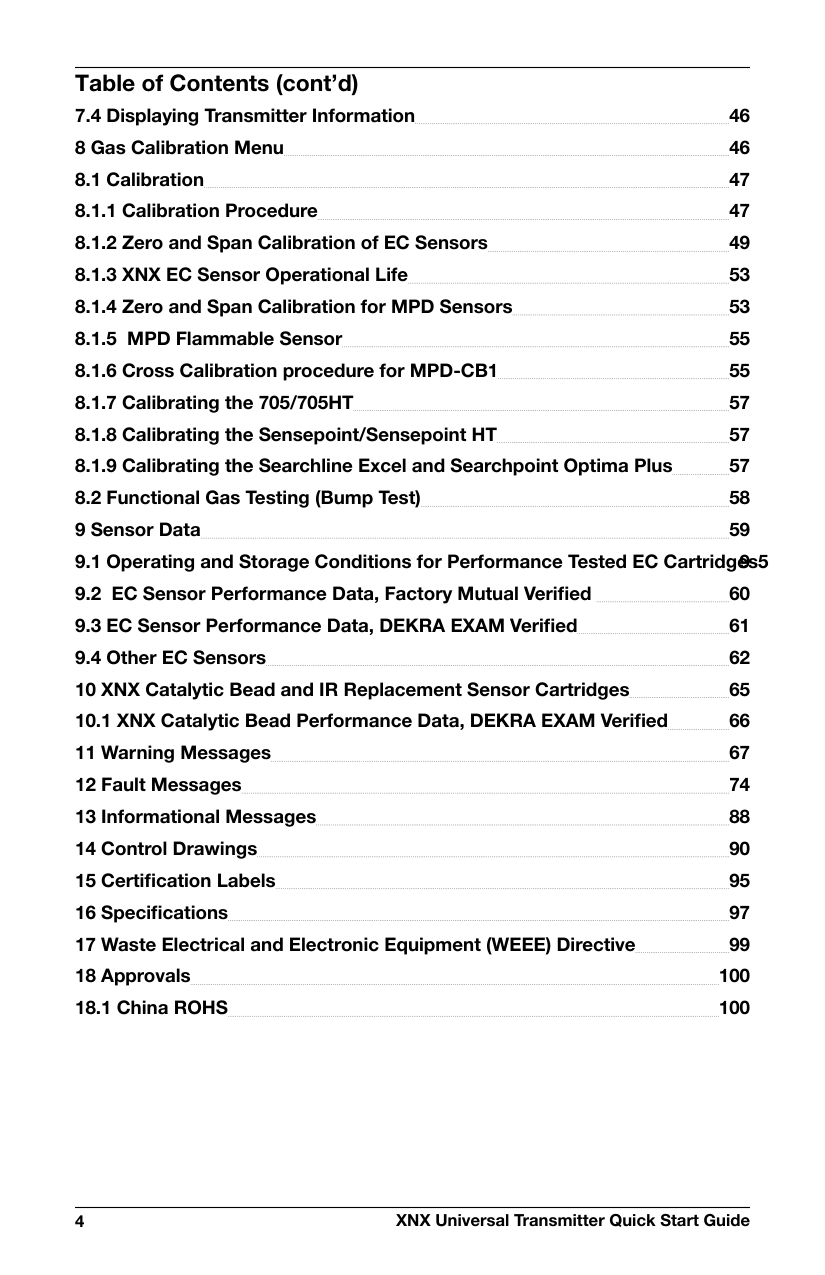

XNX Universal Transmitter Quick Start Guide 4 Table of Contents (cont’d) 7.4 Displaying Transmitter Information 46 8 Gas Calibration Menu 46 8.1 Calibration 47 8.1.1 Calibration Procedure 47 8.1.2 Zero and Span Calibration of EC Sensors 49 8.1.3 XNX EC Sensor Operational Life 53 8.1.4 Zero and Span Calibration for MPD Sensors 53 8.1.5 MPD Flammable Sensor 55 8.1.6 Cross Calibration procedure for MPD-CB1 55 8.1.7 Calibrating the 705/705HT 57 8.1.8 Calibrating the Sensepoint/Sensepoint HT 57 8.1.9 Calibrating the Searchline Excel and Searchpoint Optima Plus 57 8.2 Functional Gas Testing (Bump Test) 58 9 Sensor Data 59 9.1 Operating and Storage Conditions for Performance Tested EC Cartridges5 9 9.2 EC Sensor Performance Data, Factory Mutual Verified 60 9.3 EC Sensor Performance Data, DEKRA EXAM Verified 61 9.4 Other EC Sensors 62 10 XNX Catalytic Bead and IR Replacement Sensor Cartridges 65 10.1 XNX Catalytic Bead Performance Data, DEKRA EXAM Verified 66 11 Warning Messages 67 12 Fault Messages 74 13 Informational Messages 88 14 Control Drawings 90 15 Certification Labels 95 16 Specifications 97 17 Waste Electrical and Electronic Equipment (WEEE) Directive 99 18 Approvals 100 18.1 China ROHS 100

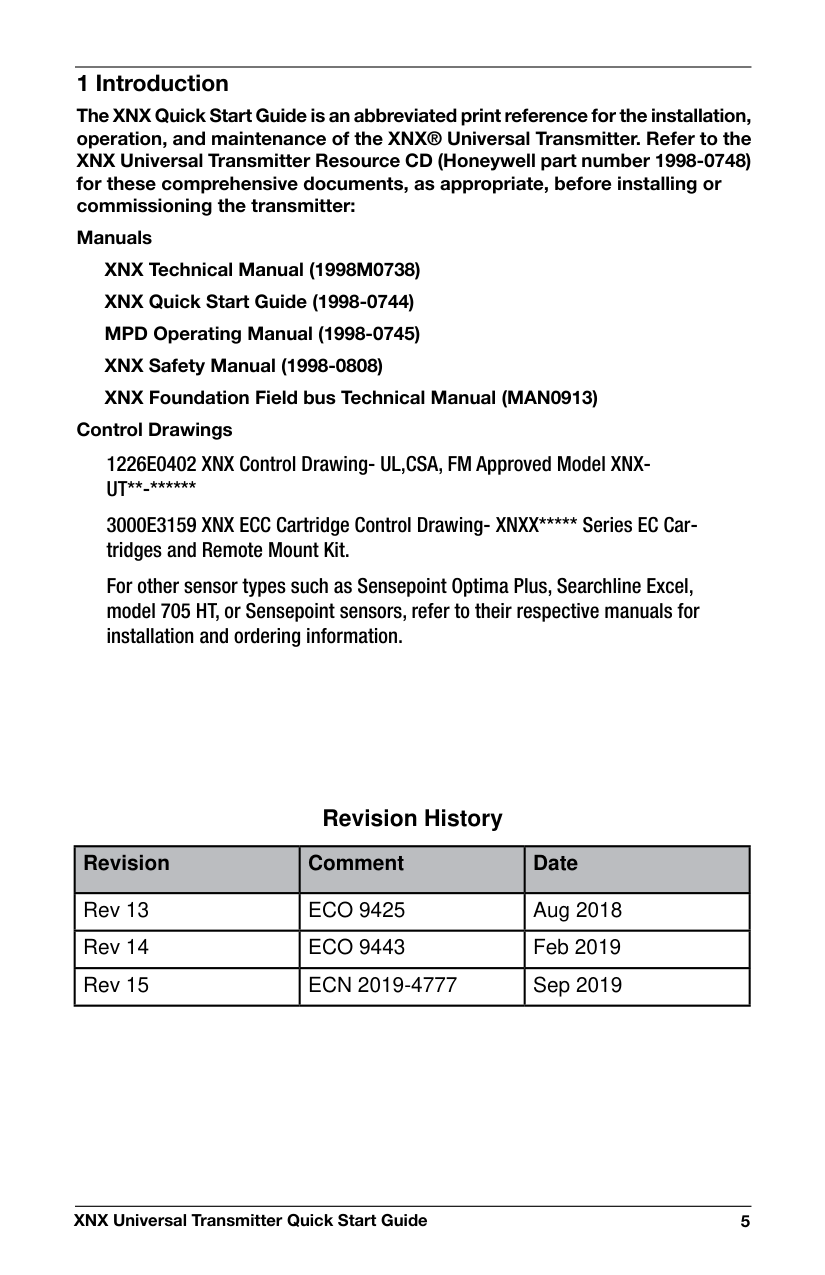

XNX Universal Transmitter Quick Start Guide 5 1 Introduction The XNX Quick Start Guide is an abbreviated print reference for the installation, operation, and maintenance of the XNX® Universal Transmitter. Refer to the XNX Universal Transmitter Resource CD (Honeywell part number 1998-0748) for these comprehensive documents, as appropriate, before installing or commissioning the transmitter: Manuals XNX Technical Manual (1998M0738) XNX Quick Start Guide (1998-0744) MPD Operating Manual (1998-0745) XNX Safety Manual (1998-0808) XNX Foundation Field bus Technical Manual (MAN0913) Control Drawings 1226E0402 XNX Control Drawing- UL,CSA, FM Approved Model XNX-
Ut-****

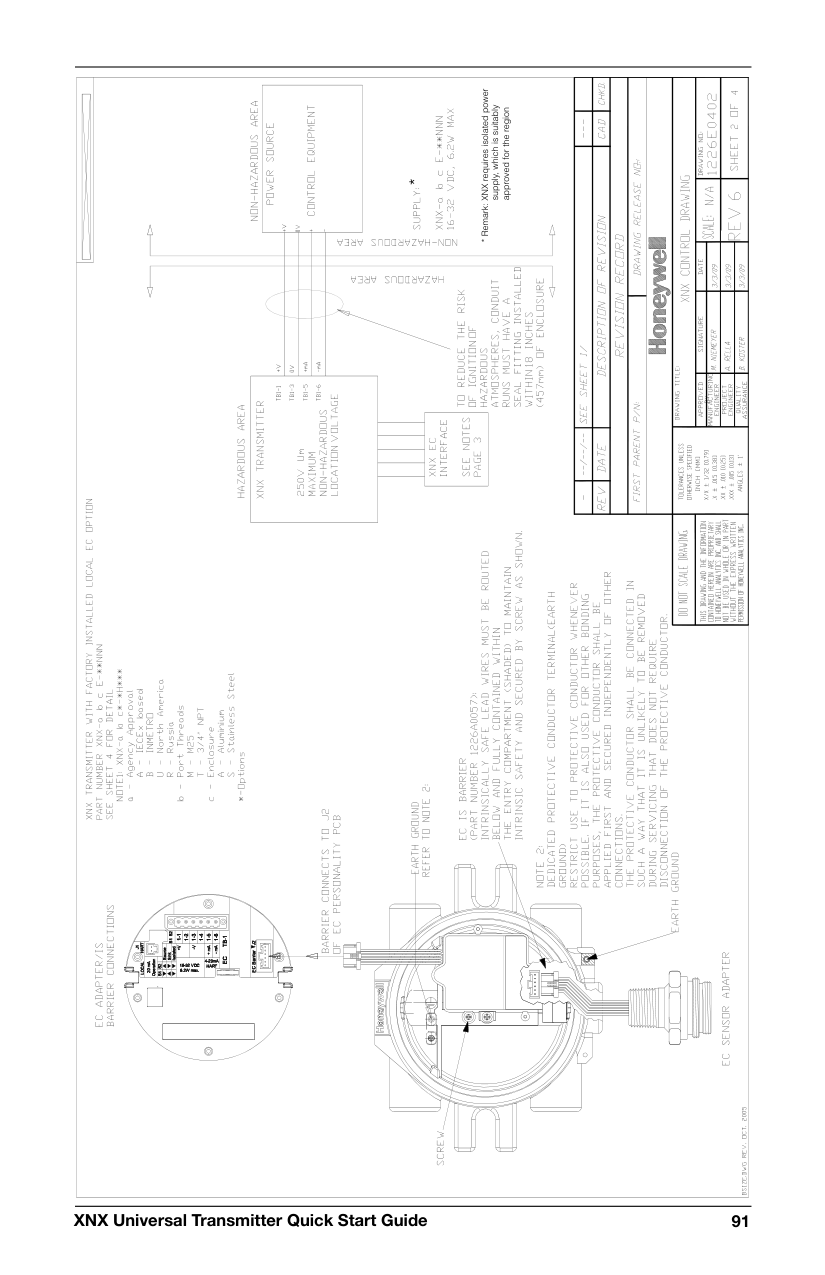

3000E3159 XNX ECC Cartridge Control Drawing- XNXX* Series EC Car- tridges and Remote Mount Kit. For other sensor types such as Sensepoint Optima Plus, Searchline Excel, model 705 HT, or Sensepoint sensors, refer to their respective manuals for installation and ordering information. Revision History Revision Comment Date Rev 13Eco 9425
Aug 2018 Rev 14Eco 9443
Feb 2019 Rev 15Ecn 2019-4777
Sep 2019

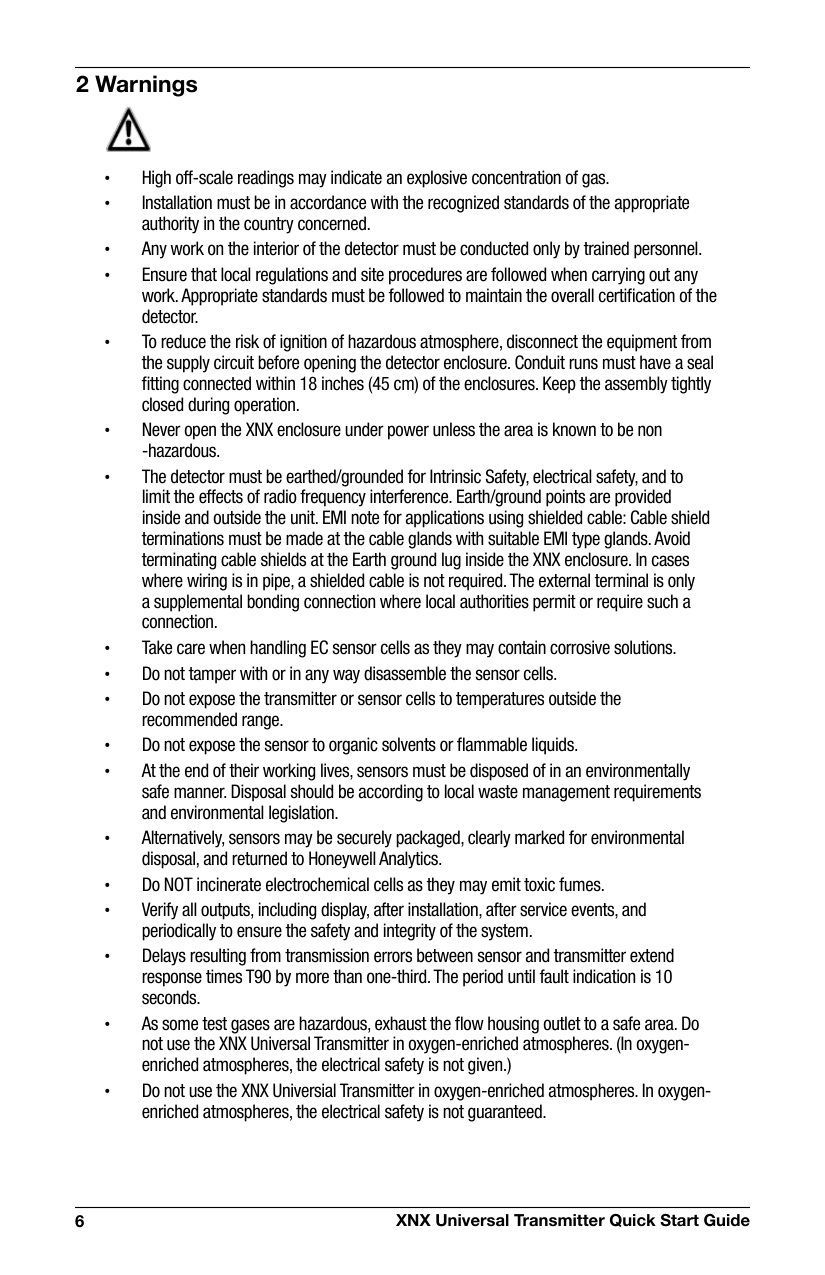

XNX Universal Transmitter Quick Start Guide 6 2 Warnings •• High off-scale readings may indicate an explosive concentration of gas. •• Installation must be in accordance with the recognized standards of the appropriate authority in the country concerned. •• Any work on the interior of the detector must be conducted only by trained personnel. •• Ensure that local regulations and site procedures are followed when carrying out any work. Appropriate standards must be followed to maintain the overall certification of the detector. •• To reduce the risk of ignition of hazardous atmosphere, disconnect the equipment from the supply circuit before opening the detector enclosure. Conduit runs must have a seal fitting connected within 18 inches (45 cm) of the enclosures. Keep the assembly tightly closed during operation. •• Never open the XNX enclosure under power unless the area is known to be non -hazardous. •• The detector must be earthed/grounded for Intrinsic Safety, electrical safety, and to limit the effects of radio frequency interference. Earth/ground points are provided inside and outside the unit. EMI note for applications using shielded cable: Cable shield terminations must be made at the cable glands with suitable EMI type glands. Avoid terminating cable shields at the Earth ground lug inside the XNX enclosure. In cases where wiring is in pipe, a shielded cable is not required. The external terminal is only a supplemental bonding connection where local authorities permit or require such a connection. •• Take care when handling EC sensor cells as they may contain corrosive solutions. •• Do not tamper with or in any way disassemble the sensor cells. •• Do not expose the transmitter or sensor cells to temperatures outside the recommended range. •• Do not expose the sensor to organic solvents or flammable liquids. •• At the end of their working lives, sensors must be disposed of in an environmentally safe manner. Disposal should be according to local waste management requirements and environmental legislation. •• Alternatively, sensors may be securely packaged, clearly marked for environmental disposal, and returned to Honeywell Analytics. •• Do NOT incinerate electrochemical cells as they may emit toxic fumes. •• Verify all outputs, including display, after installation, after service events, and periodically to ensure the safety and integrity of the system. •• Delays resulting from transmission errors between sensor and transmitter extend response times T90 by more than one-third. The period until fault indication is 10 seconds. •• As some test gases are hazardous, exhaust the flow housing outlet to a safe area. Do not use the XNX Universal Transmitter in oxygen-enriched atmospheres. (In oxygen- enriched atmospheres, the electrical safety is not given.) •• Do not use the XNX Universial Transmitter in oxygen-enriched atmospheres. In oxygen- enriched atmospheres, the electrical safety is not guaranteed.

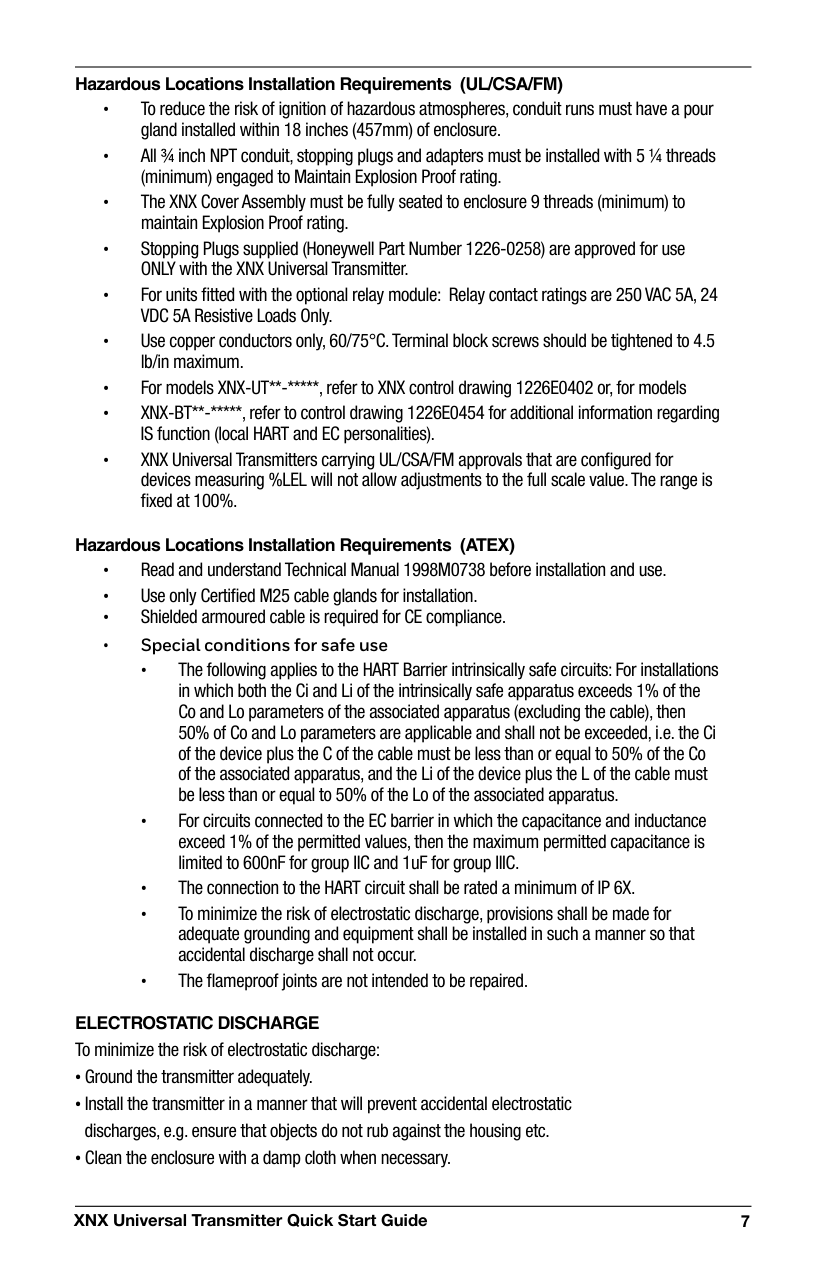

XNX Universal Transmitter Quick Start Guide 7 Hazardous Locations Installation Requirements (UL/CSA/FM) •• To reduce the risk of ignition of hazardous atmospheres, conduit runs must have a pour gland installed within 18 inches (457mm) of enclosure. •• All ¾ inch NPT conduit, stopping plugs and adapters must be installed with 5 ¼ threads (minimum) engaged to Maintain Explosion Proof rating. •• The XNX Cover Assembly must be fully seated to enclosure 9 threads (minimum) to maintain Explosion Proof rating. •• Stopping Plugs supplied (Honeywell Part Number 1226-0258) are approved for use ONLY with the XNX Universal Transmitter. •• For units fitted with the optional relay module: Relay contact ratings are 250 VAC 5A, 24 VDC 5A Resistive Loads Only. •• Use copper conductors only, 60/75°C. Terminal block screws should be tightened to 4.5 lb/in maximum. •• For models XNX-UT-***, refer to XNX control drawing 1226E0402 or, for models •• XNX-BT-***, refer to control drawing 1226E0454 for additional information regarding IS function (local HART and EC personalities). •• XNX Universal Transmitters carrying UL/CSA/FM approvals that are configured for devices measuring %LEL will not allow adjustments to the full scale value. The range is fixed at 100%. Hazardous Locations Installation Requirements (ATEX) •• Read and understand Technical Manual 1998M0738 before installation and use. •• Use only Certified M25 cable glands for installation. •• Shielded armoured cable is required for CE compliance. •• Special conditions for safe use •• The following applies to the HART Barrier intrinsically safe circuits: For installations in which both the Ci and Li of the intrinsically safe apparatus exceeds 1% of the Co and Lo parameters of the associated apparatus (excluding the cable), then 50% of Co and Lo parameters are applicable and shall not be exceeded, i.e. the Ci of the device plus the C of the cable must be less than or equal to 50% of the Co of the associated apparatus, and the Li of the device plus the L of the cable must be less than or equal to 50% of the Lo of the associated apparatus. •• For circuits connected to the EC barrier in which the capacitance and inductance exceed 1% of the permitted values, then the maximum permitted capacitance is limited to 600nF for group IIC and 1uF for group IIIC. •• The connection to the HART circuit shall be rated a minimum of IP 6X. •• To minimize the risk of electrostatic discharge, provisions shall be made for adequate grounding and equipment shall be installed in such a manner so that accidental discharge shall not occur. •• The flameproof joints are not intended to be repaired.
Electrostatic Discharge
To minimize the risk of electrostatic discharge:

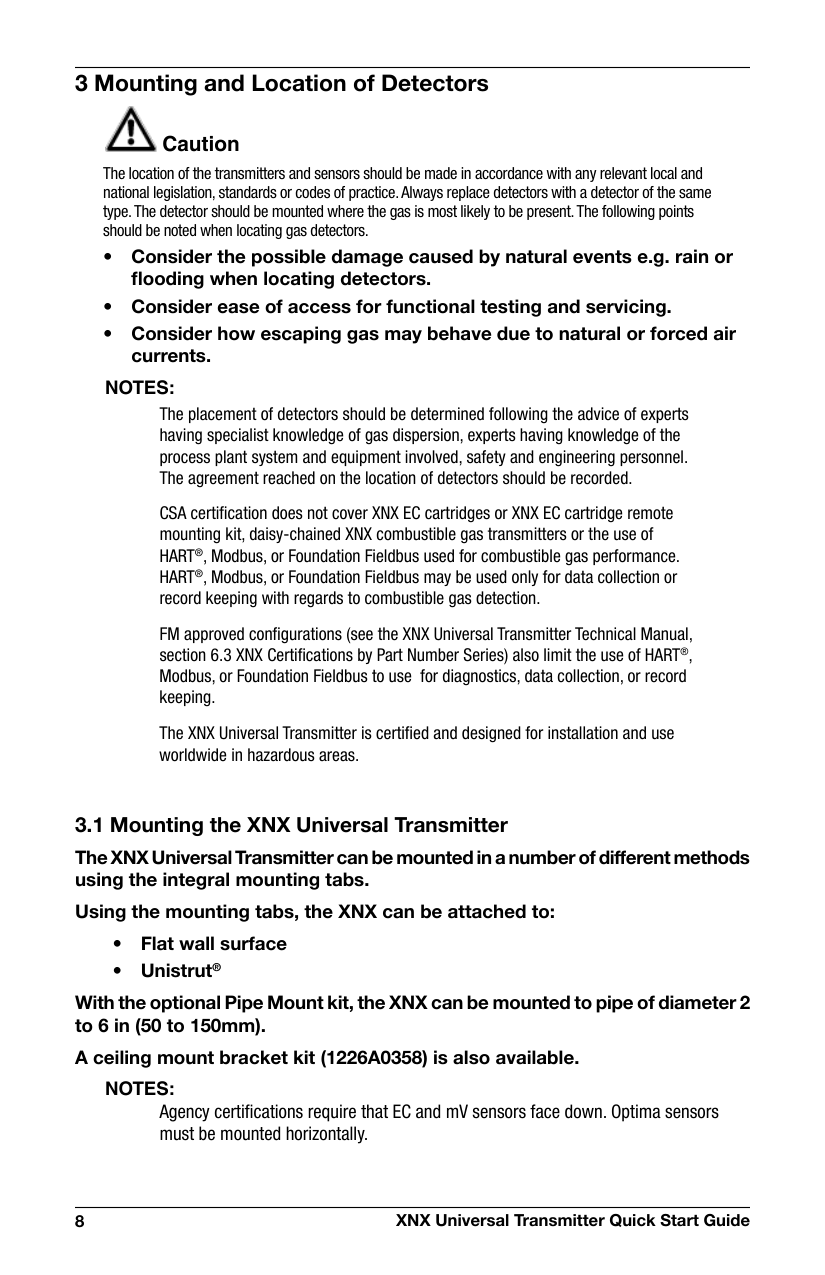

XNX Universal Transmitter Quick Start Guide 8 3 Mounting and Location of Detectors Caution The location of the transmitters and sensors should be made in accordance with any relevant local and national legislation, standards or codes of practice. Always replace detectors with a detector of the same type. The detector should be mounted where the gas is most likely to be present. The following points should be noted when locating gas detectors.
Notes:
The placement of detectors should be determined following the advice of experts having specialist knowledge of gas dispersion, experts having knowledge of the process plant system and equipment involved, safety and engineering personnel. The agreement reached on the location of detectors should be recorded. CSA certification does not cover XNX EC cartridges or XNX EC cartridge remote mounting kit, daisy-chained XNX combustible gas transmitters or the use of HART®, Modbus, or Foundation Fieldbus used for combustible gas performance. HART®, Modbus, or Foundation Fieldbus may be used only for data collection or record keeping with regards to combustible gas detection. FM approved configurations (see the XNX Universal Transmitter Technical Manual, section 6.3 XNX Certifications by Part Number Series) also limit the use of HART®, Modbus, or Foundation Fieldbus to use for diagnostics, data collection, or record keeping. The XNX Universal Transmitter is certified and designed for installation and use worldwide in hazardous areas. 3.1 Mounting the XNX Universal Transmitter The XNX Universal Transmitter can be mounted in a number of different methods using the integral mounting tabs. Using the mounting tabs, the XNX can be attached to:Notes:
Agency certifications require that EC and mV sensors face down. Optima sensors must be mounted horizontally.

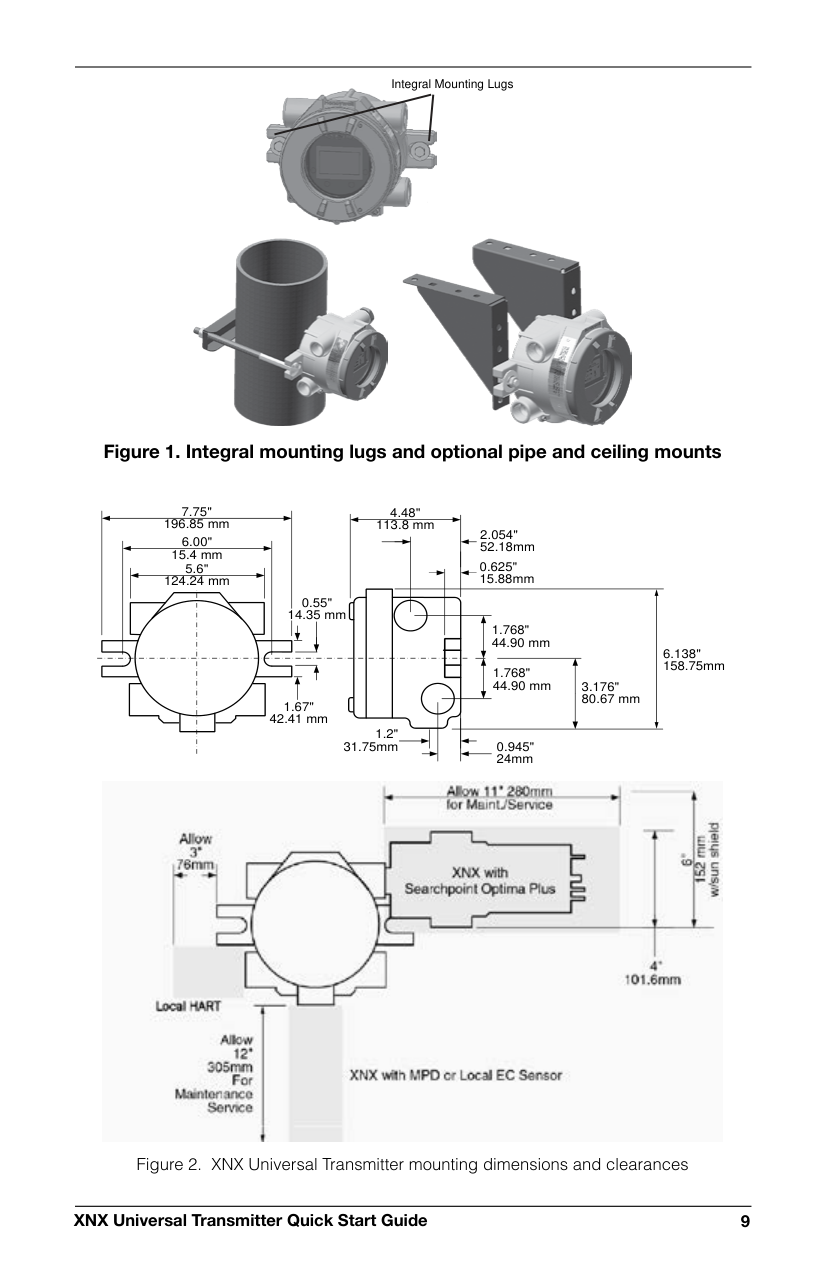

XNX Universal Transmitter Quick Start Guide 9 Integral Mounting Lugs
Figure 1. Integral mounting lugs and optional pipe and ceiling mounts 1.67" 42.41 mm 5.6" 124.24 mm 6.00" 15.4 mm 7.75" 196.85 mm 4.48" 113.8 mm 0.625" 15.88mm 2.054" 52.18mm 0.945" 24mm 1.2" 31.75mm 1.768" 44.90 mm 3.176" 80.67 mm 1.768" 44.90 mm 0.55" 14.35 mm 6.138" 158.75mm Figure 2. XNX Universal Transmitter mounting dimensions and clearances

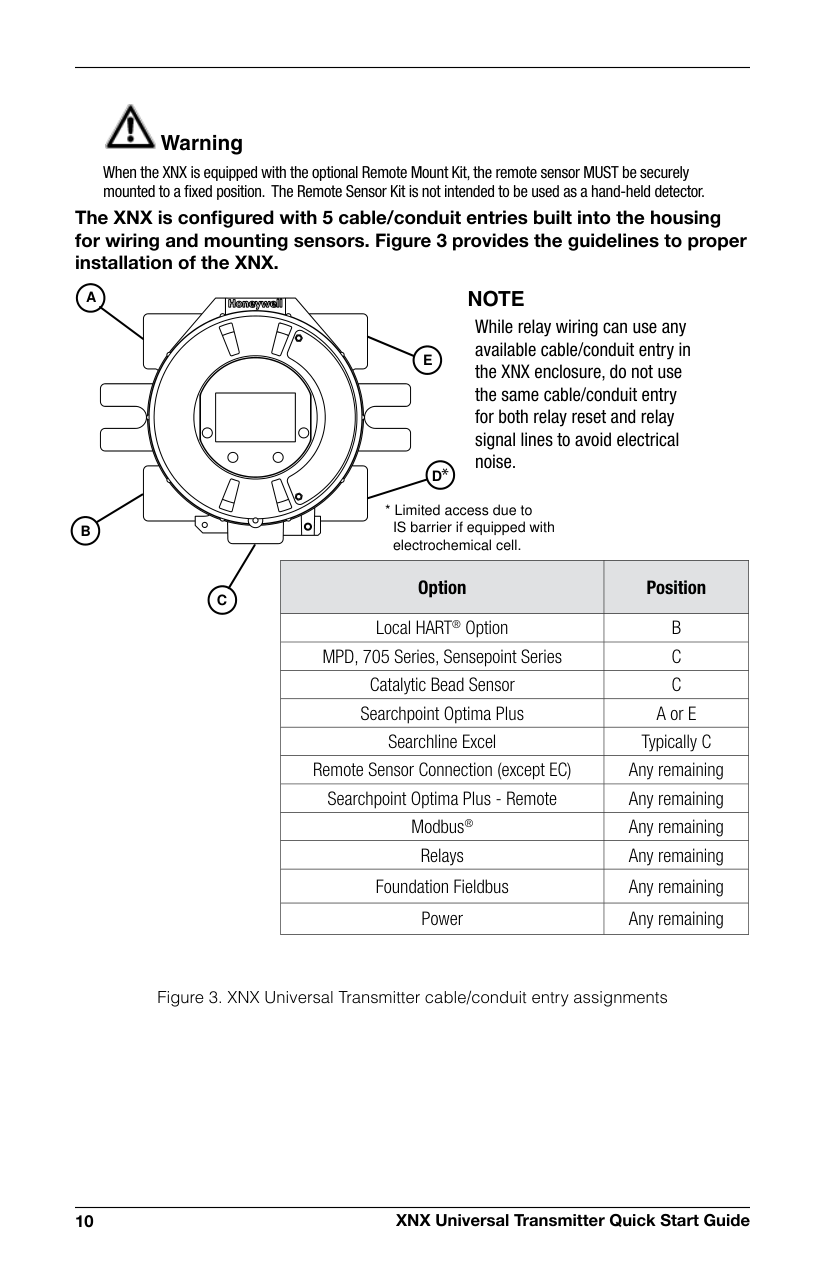

XNX Universal Transmitter Quick Start Guide 10 Warning When the XNX is equipped with the optional Remote Mount Kit, the remote sensor MUST be securely mounted to a fixed position. The Remote Sensor Kit is not intended to be used as a hand-held detector. The XNX is configured with 5 cable/conduit entries built into the housing for wiring and mounting sensors. Figure 3 provides the guidelines to proper installation of the XNX.
Note
While relay wiring can use any available cable/conduit entry in the XNX enclosure, do not use the same cable/conduit entry for both relay reset and relay signal lines to avoid electrical noise. Option Position Local HART® OptionB
MPD, 705 Series, Sensepoint SeriesC
Catalytic Bead SensorC
Searchpoint Optima Plus A or E Searchline Excel Typically C Remote Sensor Connection (except EC) Any remaining Searchpoint Optima Plus - Remote Any remaining Modbus® Any remaining Relays Any remaining Foundation Fieldbus Any remaining Power Any remainingA
E
D
B
C

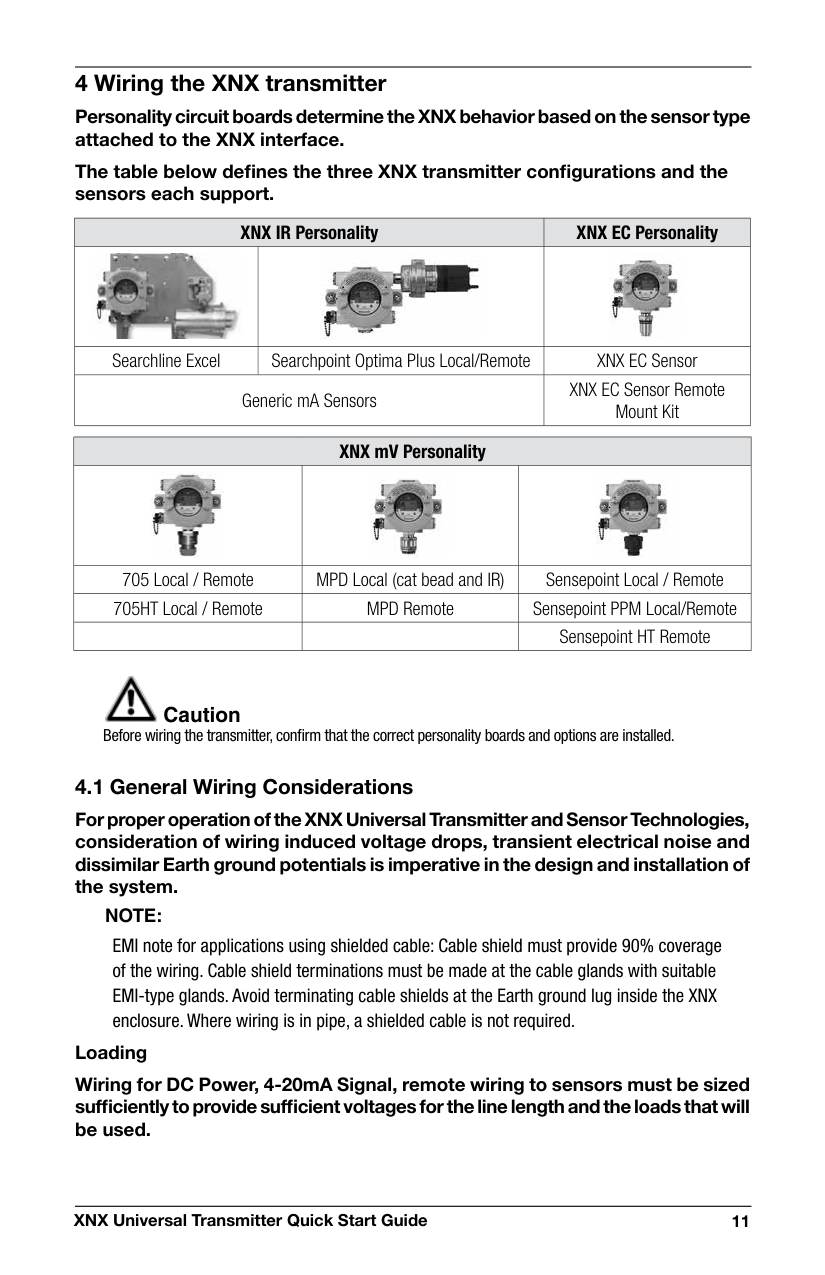

XNX Universal Transmitter Quick Start Guide 11 4 Wiring the XNX transmitter Personality circuit boards determine the XNX behavior based on the sensor type attached to the XNX interface. The table below defines the three XNX transmitter configurations and the sensors each support. XNX IR Personality XNX EC Personality
Searchline Excel Searchpoint Optima Plus Local/Remote XNX EC Sensor Generic mA Sensors XNX EC Sensor Remote Mount Kit XNX mV Personality 705 Local / Remote MPD Local (cat bead and IR) Sensepoint Local / Remote 705HT Local / Remote MPD Remote Sensepoint PPM Local/Remote Sensepoint HT Remote Caution Before wiring the transmitter, confirm that the correct personality boards and options are installed. 4.1 General Wiring Considerations For proper operation of the XNX Universal Transmitter and Sensor Technologies, consideration of wiring induced voltage drops, transient electrical noise and dissimilar Earth ground potentials is imperative in the design and installation of the system.
Note:
EMI note for applications using shielded cable: Cable shield must provide 90% coverage of the wiring. Cable shield terminations must be made at the cable glands with suitable EMI-type glands. Avoid terminating cable shields at the Earth ground lug inside the XNX enclosure. Where wiring is in pipe, a shielded cable is not required. Loading Wiring for DC Power, 4-20mA Signal, remote wiring to sensors must be sized sufficiently to provide sufficient voltages for the line length and the loads that will be used.

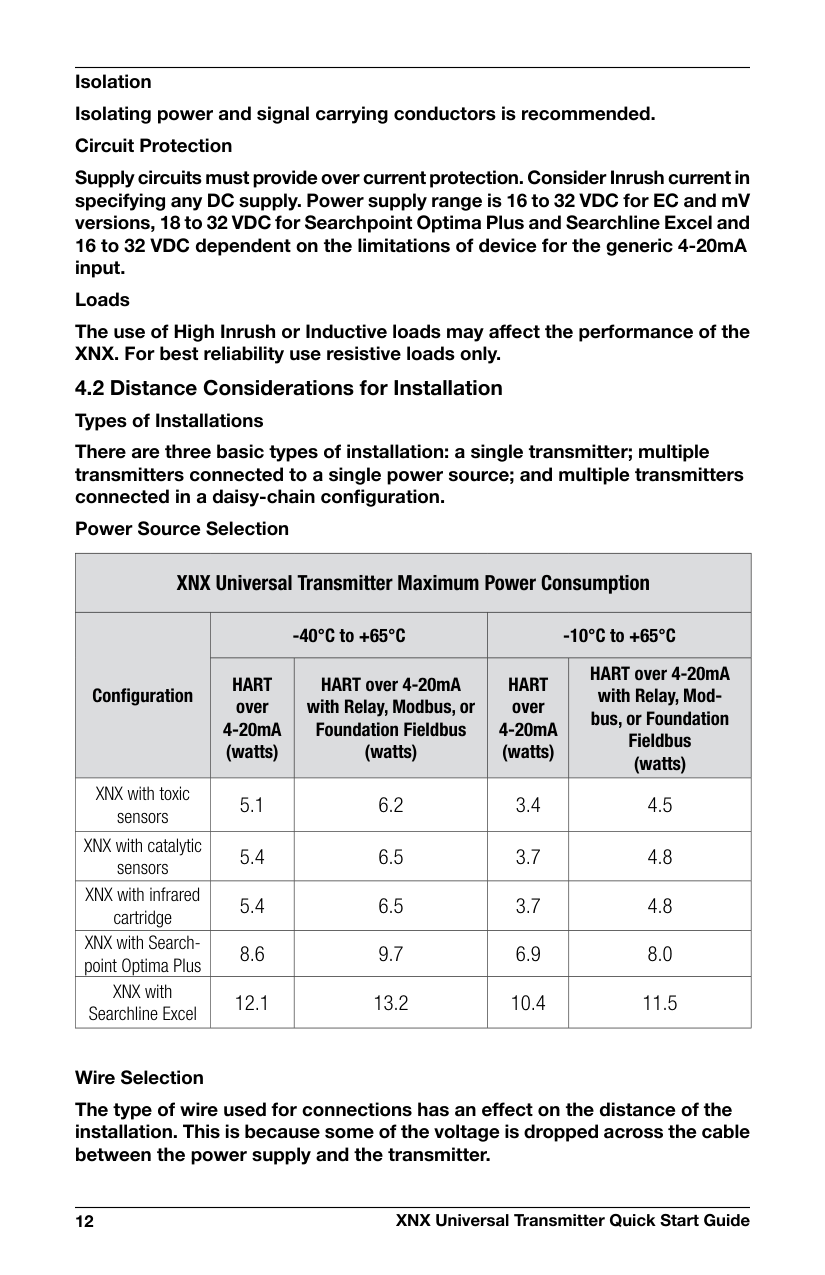

XNX Universal Transmitter Quick Start Guide 12 Isolation Isolating power and signal carrying conductors is recommended. Circuit Protection Supply circuits must provide over current protection. Consider Inrush current in specifying any DC supply. Power supply range is 16 to 32 VDC for EC and mV versions, 18 to 32 VDC for Searchpoint Optima Plus and Searchline Excel and 16 to 32 VDC dependent on the limitations of device for the generic 4-20mA input. Loads The use of High Inrush or Inductive loads may affect the performance of the XNX. For best reliability use resistive loads only. 4.2 Distance Considerations for Installation Types of Installations There are three basic types of installation: a single transmitter; multiple transmitters connected to a single power source; and multiple transmitters connected in a daisy-chain configuration. Power Source Selection XNX Universal Transmitter Maximum Power Consumption Configuration -40°C to +65°C -10°C to +65°C
Hart
over 4-20mA (watts) HART over 4-20mA with Relay, Modbus, or Foundation Fieldbus (watts)Hart
over 4-20mA (watts) HART over 4-20mA with Relay, Mod- bus, or Foundation Fieldbus (watts) XNX with toxic sensors 5.1 6.2 3.4 4.5 XNX with catalytic sensors 5.4 6.5 3.7 4.8 XNX with infrared cartridge 5.4 6.5 3.7 4.8 XNX with Search- point Optima Plus 8.6 9.7 6.9 8.0 XNX with Searchline Excel 12.1 13.2 10.4 11.5 Wire Selection The type of wire used for connections has an effect on the distance of the installation. This is because some of the voltage is dropped across the cable between the power supply and the transmitter.

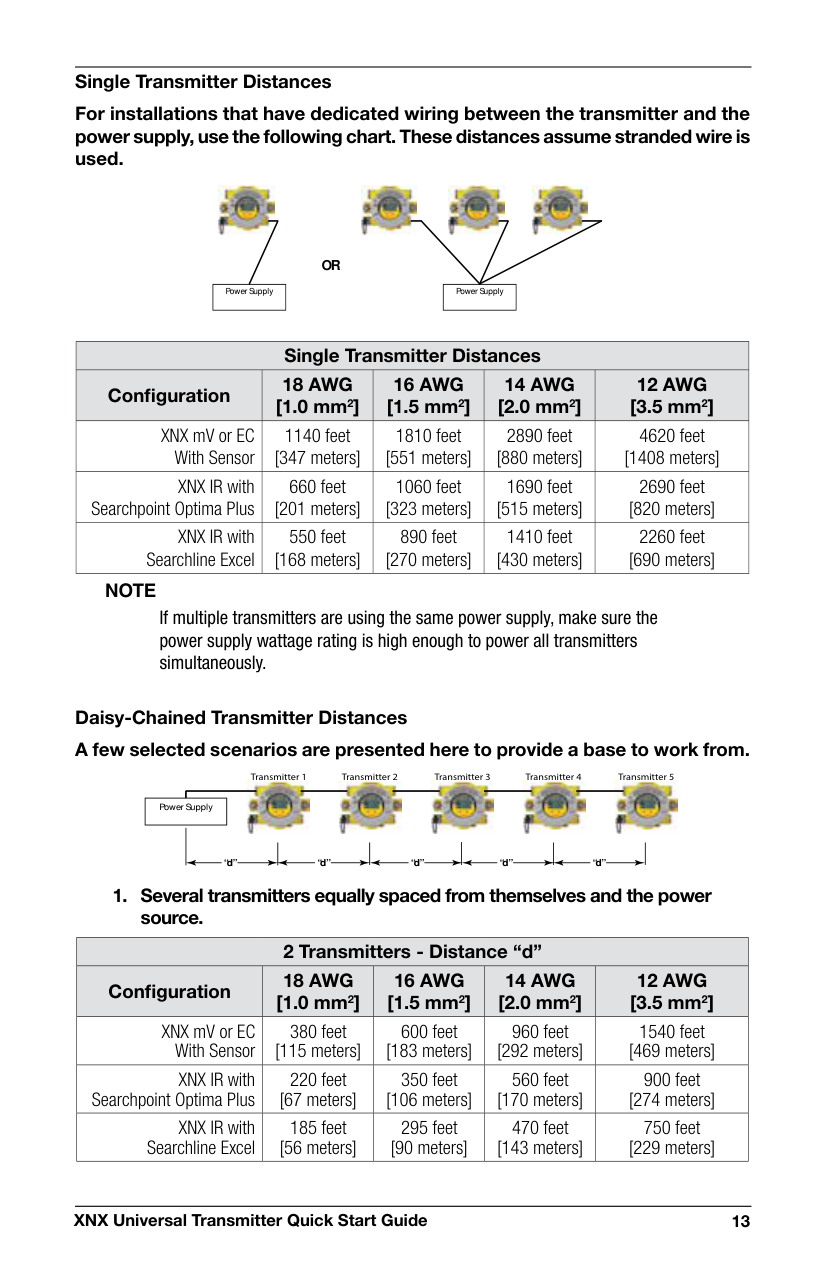

XNX Universal Transmitter Quick Start Guide 13 Single Transmitter Distances For installations that have dedicated wiring between the transmitter and the power supply, use the following chart. These distances assume stranded wire is used. Power Supply Power Supply
Or
Single Transmitter Distances Configuration18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 1140 feet [347 meters] 1810 feet [551 meters] 2890 feet [880 meters] 4620 feet [1408 meters] XNX IR with Searchpoint Optima Plus 660 feet [201 meters] 1060 feet [323 meters] 1690 feet [515 meters] 2690 feet [820 meters] XNX IR with Searchline Excel 550 feet [168 meters] 890 feet [270 meters] 1410 feet [430 meters] 2260 feet [690 meters]Note
If multiple transmitters are using the same power supply, make sure the power supply wattage rating is high enough to power all transmitters simultaneously. Daisy-Chained Transmitter Distances A few selected scenarios are presented here to provide a base to work from. Power Supply “d” “d” “d” “d” “d” Transmitter 1 Transmitter 2 Transmitter 3 Transmitter 4 Transmitter 518 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 380 feet [115 meters] 600 feet [183 meters] 960 feet [292 meters] 1540 feet [469 meters] XNX IR with Searchpoint Optima Plus 220 feet [67 meters] 350 feet [106 meters] 560 feet [170 meters] 900 feet [274 meters] XNX IR with Searchline Excel 185 feet [56 meters] 295 feet [90 meters] 470 feet [143 meters] 750 feet [229 meters]

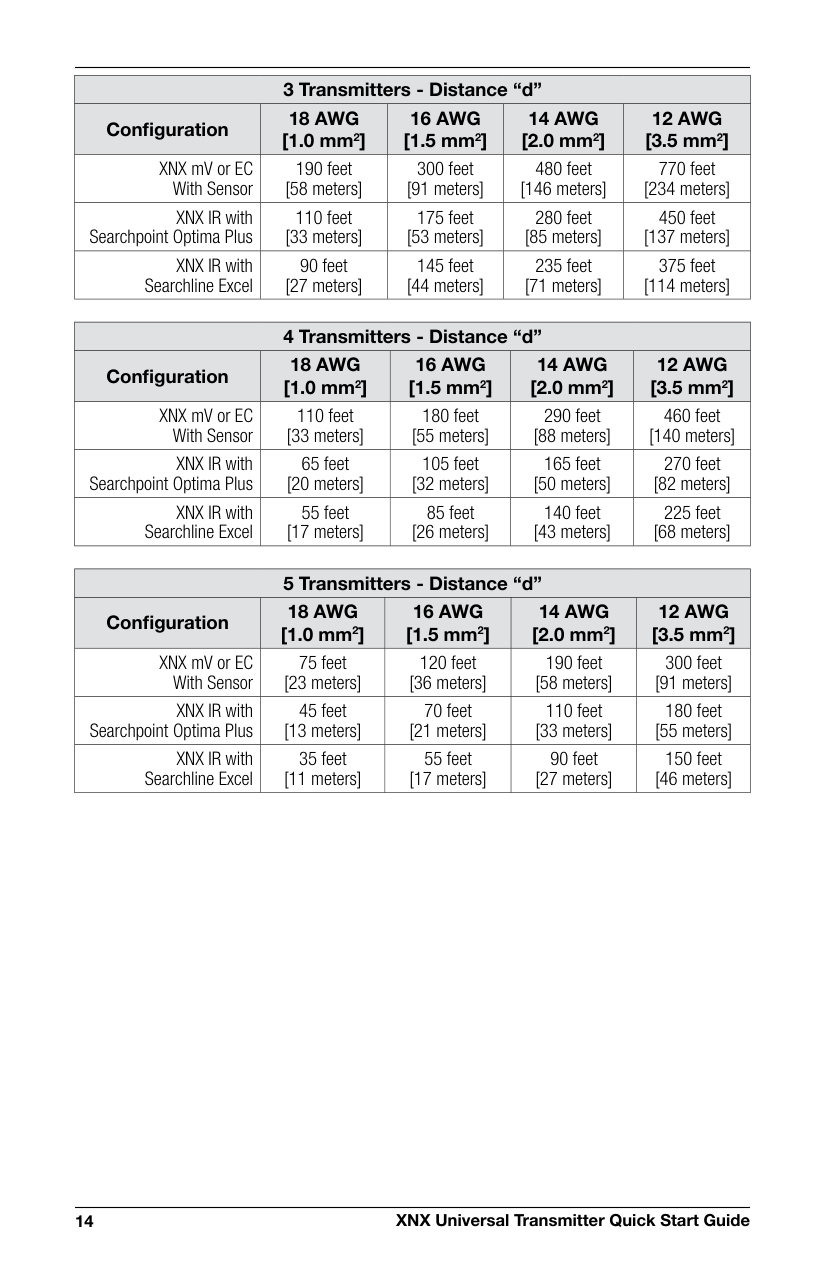

XNX Universal Transmitter Quick Start Guide 14 3 Transmitters - Distance “d” Configuration
18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 190 feet [58 meters] 300 feet [91 meters] 480 feet [146 meters] 770 feet [234 meters] XNX IR with Searchpoint Optima Plus 110 feet [33 meters] 175 feet [53 meters] 280 feet [85 meters] 450 feet [137 meters] XNX IR with Searchline Excel 90 feet [27 meters] 145 feet [44 meters] 235 feet [71 meters] 375 feet [114 meters] 4 Transmitters - Distance “d” Configuration18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 110 feet [33 meters] 180 feet [55 meters] 290 feet [88 meters] 460 feet [140 meters] XNX IR with Searchpoint Optima Plus 65 feet [20 meters] 105 feet [32 meters] 165 feet [50 meters] 270 feet [82 meters] XNX IR with Searchline Excel 55 feet [17 meters] 85 feet [26 meters] 140 feet [43 meters] 225 feet [68 meters] 5 Transmitters - Distance “d” Configuration18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 75 feet [23 meters] 120 feet [36 meters] 190 feet [58 meters] 300 feet [91 meters] XNX IR with Searchpoint Optima Plus 45 feet [13 meters] 70 feet [21 meters] 110 feet [33 meters] 180 feet [55 meters] XNX IR with Searchline Excel 35 feet [11 meters] 55 feet [17 meters] 90 feet [27 meters] 150 feet [46 meters]

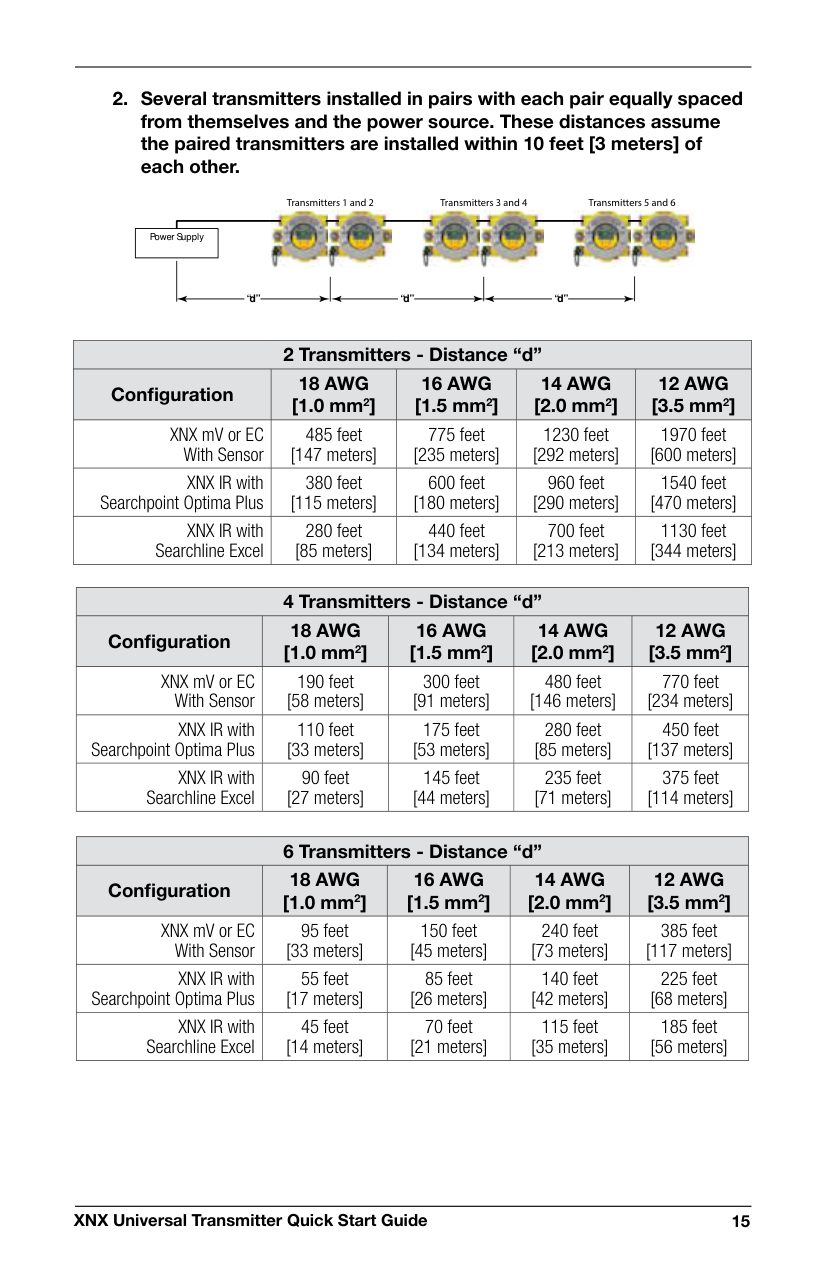

XNX Universal Transmitter Quick Start Guide 15
18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 485 feet [147 meters] 775 feet [235 meters] 1230 feet [292 meters] 1970 feet [600 meters] XNX IR with Searchpoint Optima Plus 380 feet [115 meters] 600 feet [180 meters] 960 feet [290 meters] 1540 feet [470 meters] XNX IR with Searchline Excel 280 feet [85 meters] 440 feet [134 meters] 700 feet [213 meters] 1130 feet [344 meters] 4 Transmitters - Distance “d” Configuration18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 190 feet [58 meters] 300 feet [91 meters] 480 feet [146 meters] 770 feet [234 meters] XNX IR with Searchpoint Optima Plus 110 feet [33 meters] 175 feet [53 meters] 280 feet [85 meters] 450 feet [137 meters] XNX IR with Searchline Excel 90 feet [27 meters] 145 feet [44 meters] 235 feet [71 meters] 375 feet [114 meters] 6 Transmitters - Distance “d” Configuration18 Awg
[1.0 mm2]16 Awg
[1.5 mm2]14 Awg
[2.0 mm2]12 Awg
[3.5 mm2] XNX mV or EC With Sensor 95 feet [33 meters] 150 feet [45 meters] 240 feet [73 meters] 385 feet [117 meters] XNX IR with Searchpoint Optima Plus 55 feet [17 meters] 85 feet [26 meters] 140 feet [42 meters] 225 feet [68 meters] XNX IR with Searchline Excel 45 feet [14 meters] 70 feet [21 meters] 115 feet [35 meters] 185 feet [56 meters]

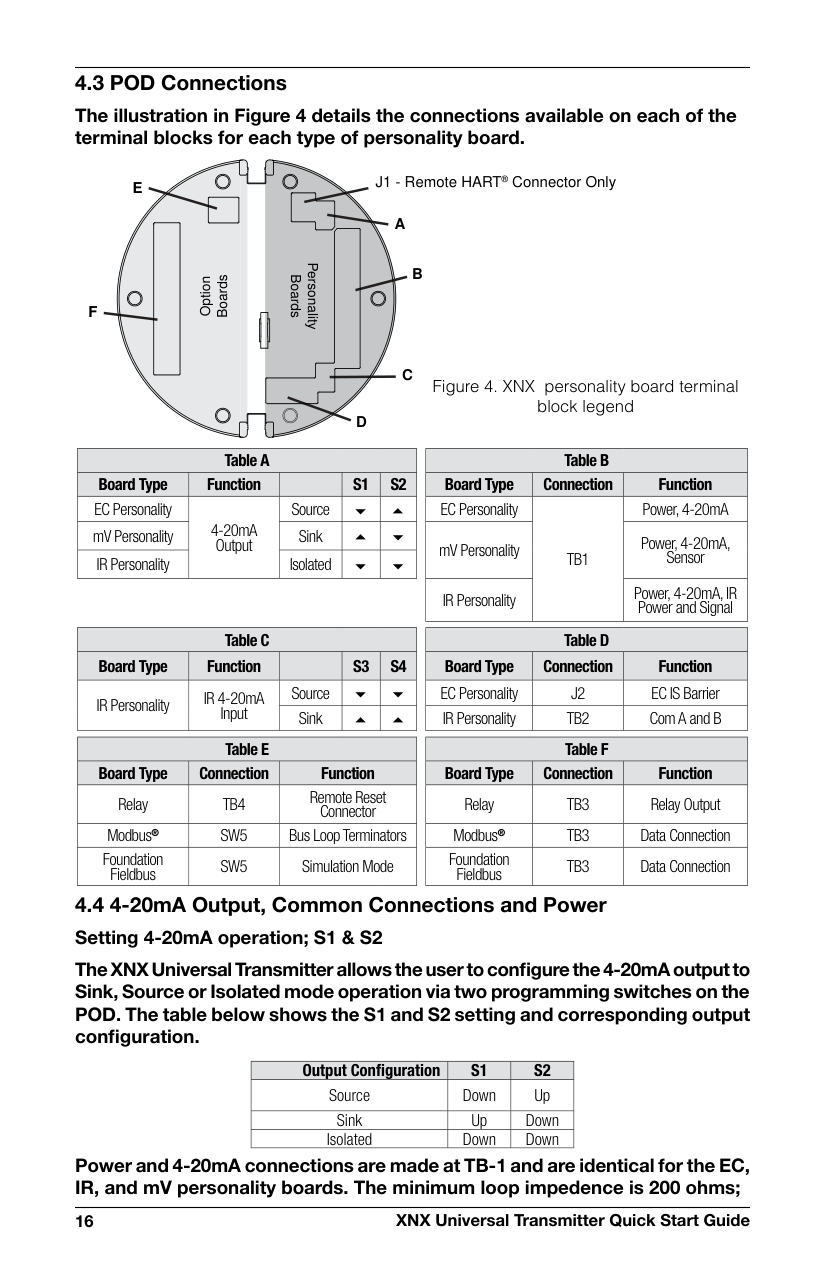

XNX Universal Transmitter Quick Start Guide 16 4.3 POD Connections The illustration in Figure 4 details the connections available on each of the terminal blocks for each type of personality board. J1 - Remote HART® Connector Only Personality Boards Option Boards
A
B
C
D
E
F
Figure 4. XNX personality board terminal block legend Table A Table B Board Type FunctionS1
S2
Board Type Connection Function EC Personality 4-20mA Output Source EC PersonalityTb1
Power, 4-20mA mV Personality Sink mV Personality Power, 4-20mA, Sensor IR Personality Isolated IR Personality Power, 4-20mA, IR Power and Signal Table C Table D Board Type FunctionS3
S4
Board Type Connection Function IR Personality IR 4-20mA Input Source 6 6 EC PersonalityJ2
EC IS Barrier Sink 5 5 IR PersonalityTb2
Com A and B Table E Table F Board Type Connection Function Board Type Connection Function RelayTb4
Remote Reset Connector RelayTb3
Relay Output Modbus®Sw5
Bus Loop Terminators Modbus®Tb3
Data Connection Foundation FieldbusSw5
Simulation Mode Foundation FieldbusTb3
Data Connection 4.4 4-20mA Output, Common Connections and Power Setting 4-20mA operation; S1 & S2 The XNX Universal Transmitter allows the user to configure the 4-20mA output to Sink, Source or Isolated mode operation via two programming switches on the POD. The table below shows the S1 and S2 setting and corresponding output configuration. Output ConfigurationS1
S2
Source Down Up Sink Up Down Isolated Down Down Power and 4-20mA connections are made at TB-1 and are identical for the EC, IR, and mV personality boards. The minimum loop impedence is 200 ohms;

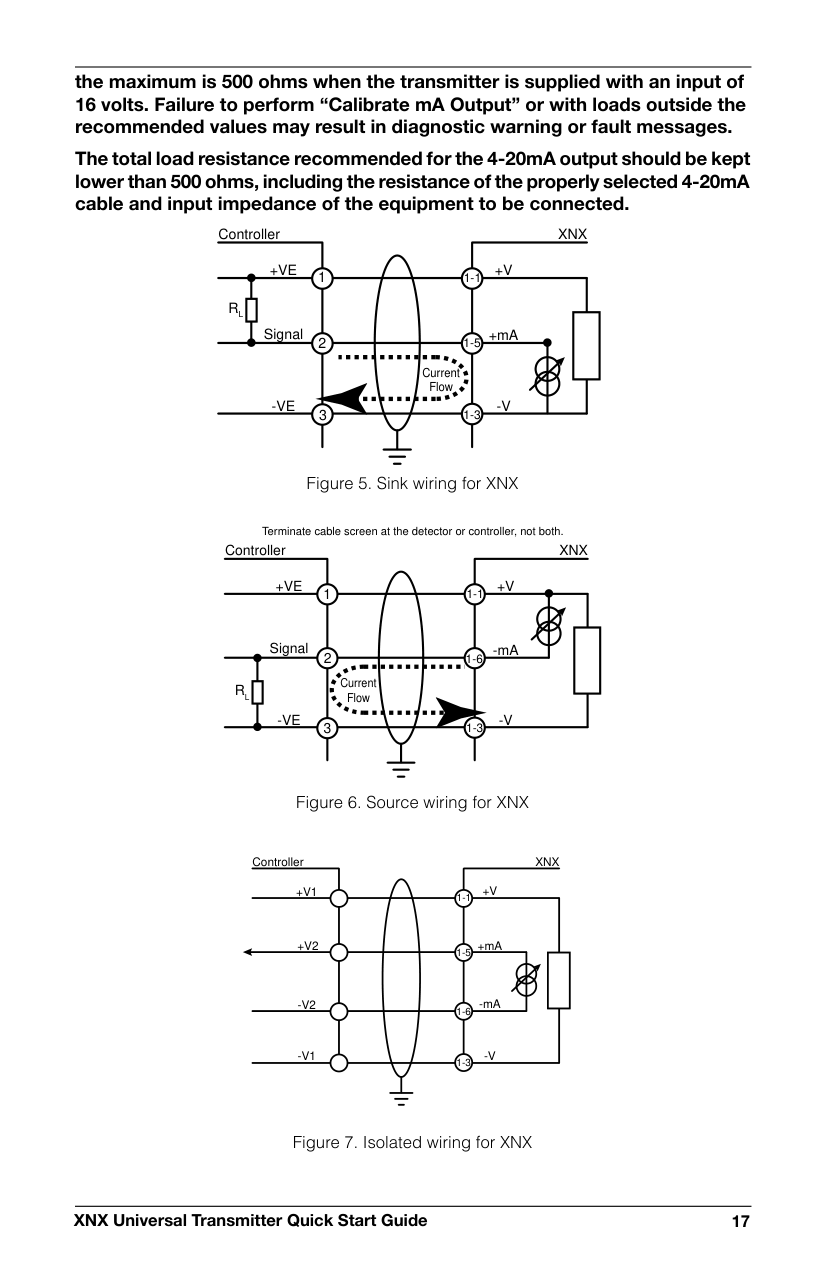

XNX Universal Transmitter Quick Start Guide 17 the maximum is 500 ohms when the transmitter is supplied with an input of 16 volts. Failure to perform “Calibrate mA Output” or with loads outside the recommended values may result in diagnostic warning or fault messages. The total load resistance recommended for the 4-20mA output should be kept lower than 500 ohms, including the resistance of the properly selected 4-20mA cable and input impedance of the equipment to be connected. Controller
+Ve
Signal-Ve
Rl
1 2 3 1-1 1-5 1-3+V
+mA-V
Xnx
Current Flow Figure 5. Sink wiring for XNX XNX Source Configuration Controller+Ve
Signal-Ve
Rl
1 2 3 1-1 1-6 1-3+V
-mA-V
Xnx
Current Flow Terminate cable screen at the detector or controller, not both. Figure 6. Source wiring for XNX Controller+V1
+V2
-V2
1-1 1-5 1-6+V
+mA-V
Xnx
1-3 -mA-V1
XNX Isolated Configuration Figure 7. Isolated wiring for XNX

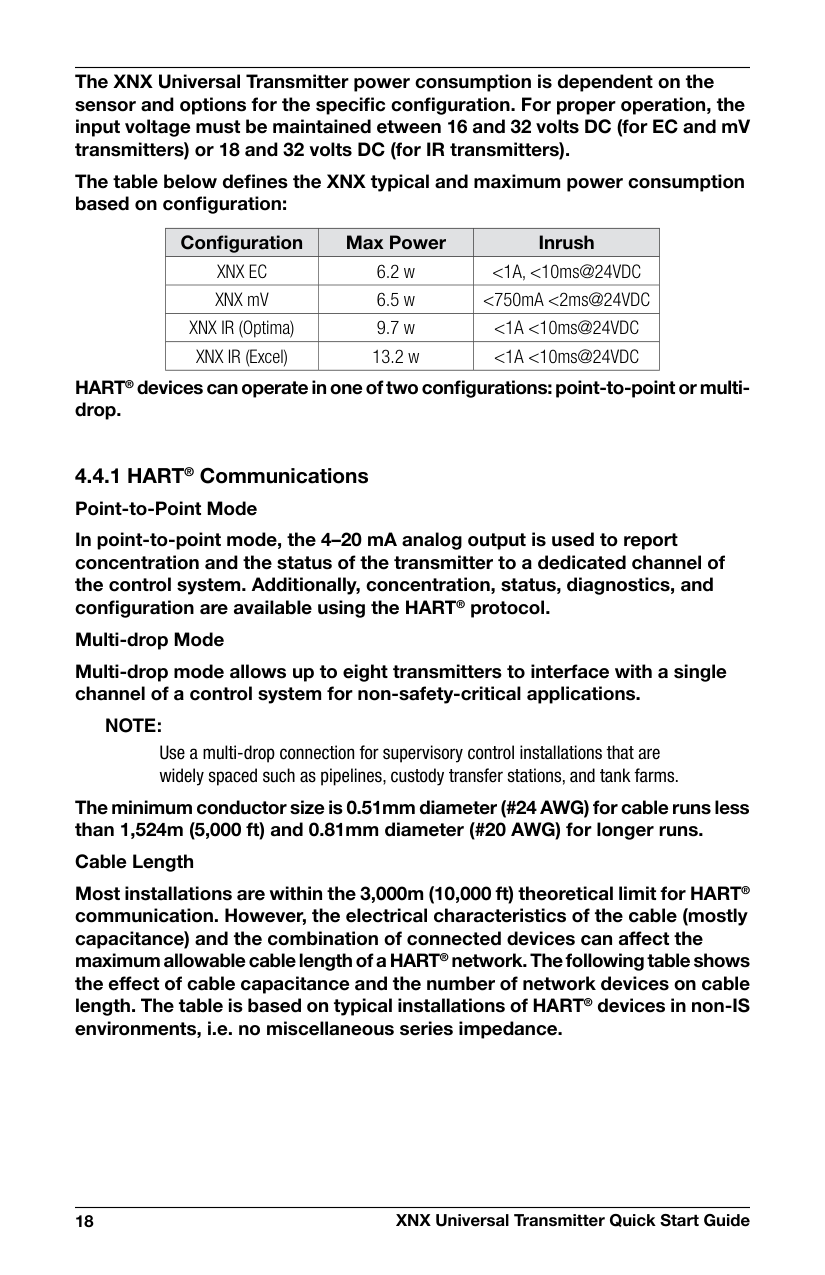

XNX Universal Transmitter Quick Start Guide 18 The XNX Universal Transmitter power consumption is dependent on the sensor and options for the specific configuration. For proper operation, the input voltage must be maintained etween 16 and 32 volts DC (for EC and mV transmitters) or 18 and 32 volts DC (for IR transmitters). The table below defines the XNX typical and maximum power consumption based on configuration: Configuration Max Power Inrush
Xnx Ec
6.2 w <1A, <10ms@24VDC XNX mV 6.5 w <750mA <2ms@24VDC XNX IR (Optima) 9.7 w <1A <10ms@24VDC XNX IR (Excel) 13.2 w <1A <10ms@24VDC HART® devices can operate in one of two configurations: point-to-point or multi- drop. 4.4.1 HART® Communications Point-to-Point Mode In point-to-point mode, the 4–20 mA analog output is used to report concentration and the status of the transmitter to a dedicated channel of the control system. Additionally, concentration, status, diagnostics, and configuration are available using the HART® protocol. Multi-drop Mode Multi-drop mode allows up to eight transmitters to interface with a single channel of a control system for non-safety-critical applications.Note:
Use a multi-drop connection for supervisory control installations that are widely spaced such as pipelines, custody transfer stations, and tank farms. The minimum conductor size is 0.51mm diameter (#24 AWG) for cable runs less than 1,524m (5,000 ft) and 0.81mm diameter (#20 AWG) for longer runs. Cable Length Most installations are within the 3,000m (10,000 ft) theoretical limit for HART® communication. However, the electrical characteristics of the cable (mostly capacitance) and the combination of connected devices can affect the maximum allowable cable length of a HART® network. The following table shows the effect of cable capacitance and the number of network devices on cable length. The table is based on typical installations of HART® devices in non-IS environments, i.e. no miscellaneous series impedance.

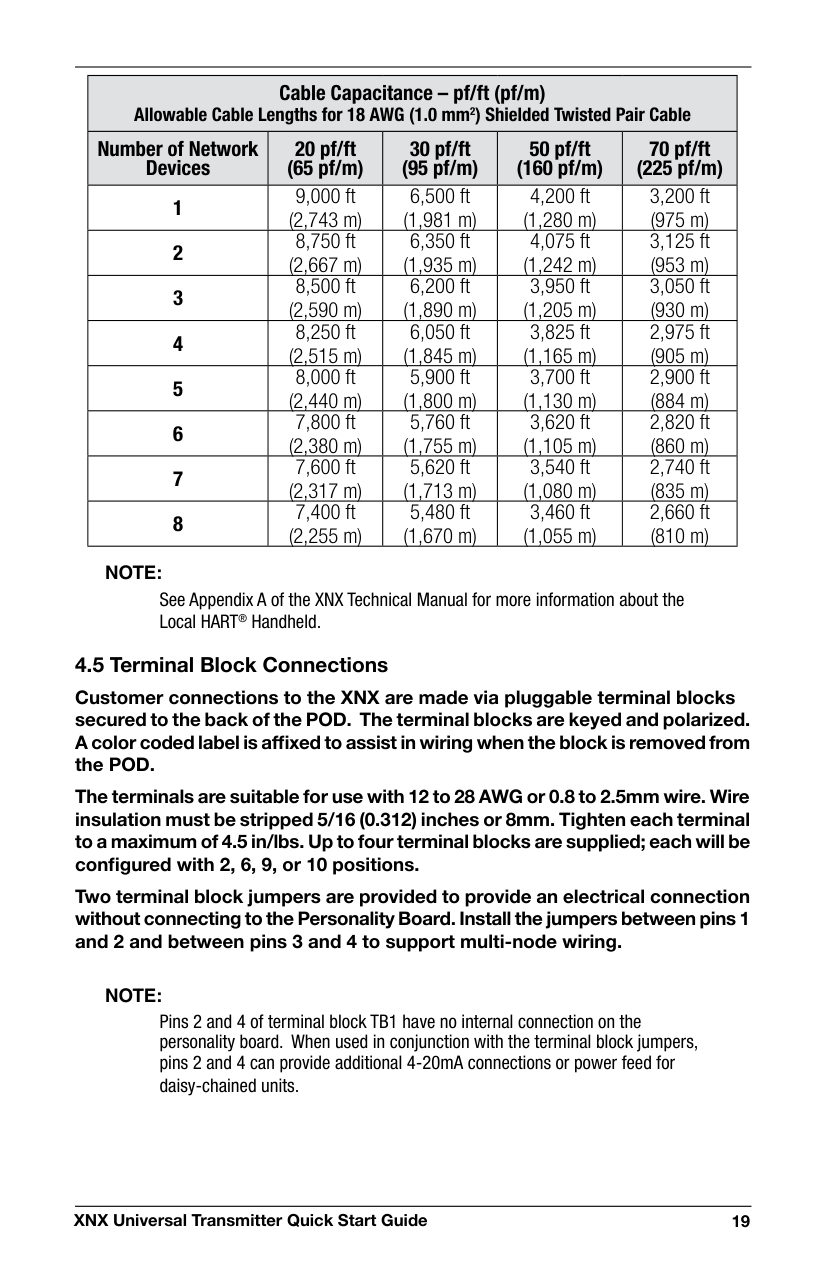

XNX Universal Transmitter Quick Start Guide 19 Cable Capacitance – pf/ft (pf/m) Allowable Cable Lengths for 18 AWG (1.0 mm2) Shielded Twisted Pair Cable Number of Network Devices 20 pf/ft (65 pf/m) 30 pf/ft (95 pf/m) 50 pf/ft (160 pf/m) 70 pf/ft (225 pf/m) 1 9,000 ft (2,743 m) 6,500 ft (1,981 m) 4,200 ft (1,280 m) 3,200 ft (975 m) 2 8,750 ft (2,667 m) 6,350 ft (1,935 m) 4,075 ft (1,242 m) 3,125 ft (953 m) 3 8,500 ft (2,590 m) 6,200 ft (1,890 m) 3,950 ft (1,205 m) 3,050 ft (930 m) 4 8,250 ft (2,515 m) 6,050 ft (1,845 m) 3,825 ft (1,165 m) 2,975 ft (905 m) 5 8,000 ft (2,440 m) 5,900 ft (1,800 m) 3,700 ft (1,130 m) 2,900 ft (884 m) 6 7,800 ft (2,380 m) 5,760 ft (1,755 m) 3,620 ft (1,105 m) 2,820 ft (860 m) 7 7,600 ft (2,317 m) 5,620 ft (1,713 m) 3,540 ft (1,080 m) 2,740 ft (835 m) 8 7,400 ft (2,255 m) 5,480 ft (1,670 m) 3,460 ft (1,055 m) 2,660 ft (810 m)
Note:
See Appendix A of the XNX Technical Manual for more information about the Local HART® Handheld. 4.5 Terminal Block Connections Customer connections to the XNX are made via pluggable terminal blocks secured to the back of the POD. The terminal blocks are keyed and polarized. A color coded label is affixed to assist in wiring when the block is removed from the POD. The terminals are suitable for use with 12 to 28 AWG or 0.8 to 2.5mm wire. Wire insulation must be stripped 5/16 (0.312) inches or 8mm. Tighten each terminal to a maximum of 4.5 in/lbs. Up to four terminal blocks are supplied; each will be configured with 2, 6, 9, or 10 positions. Two terminal block jumpers are provided to provide an electrical connection without connecting to the Personality Board. Install the jumpers between pins 1 and 2 and between pins 3 and 4 to support multi-node wiring.Note:
Pins 2 and 4 of terminal block TB1 have no internal connection on the personality board. When used in conjunction with the terminal block jumpers, pins 2 and 4 can provide additional 4-20mA connections or power feed for daisy-chained units.
XNX Universal Transmitter Quick Start Guide 20 TB-1 Terminal Block Terminal Block Jumper
Out

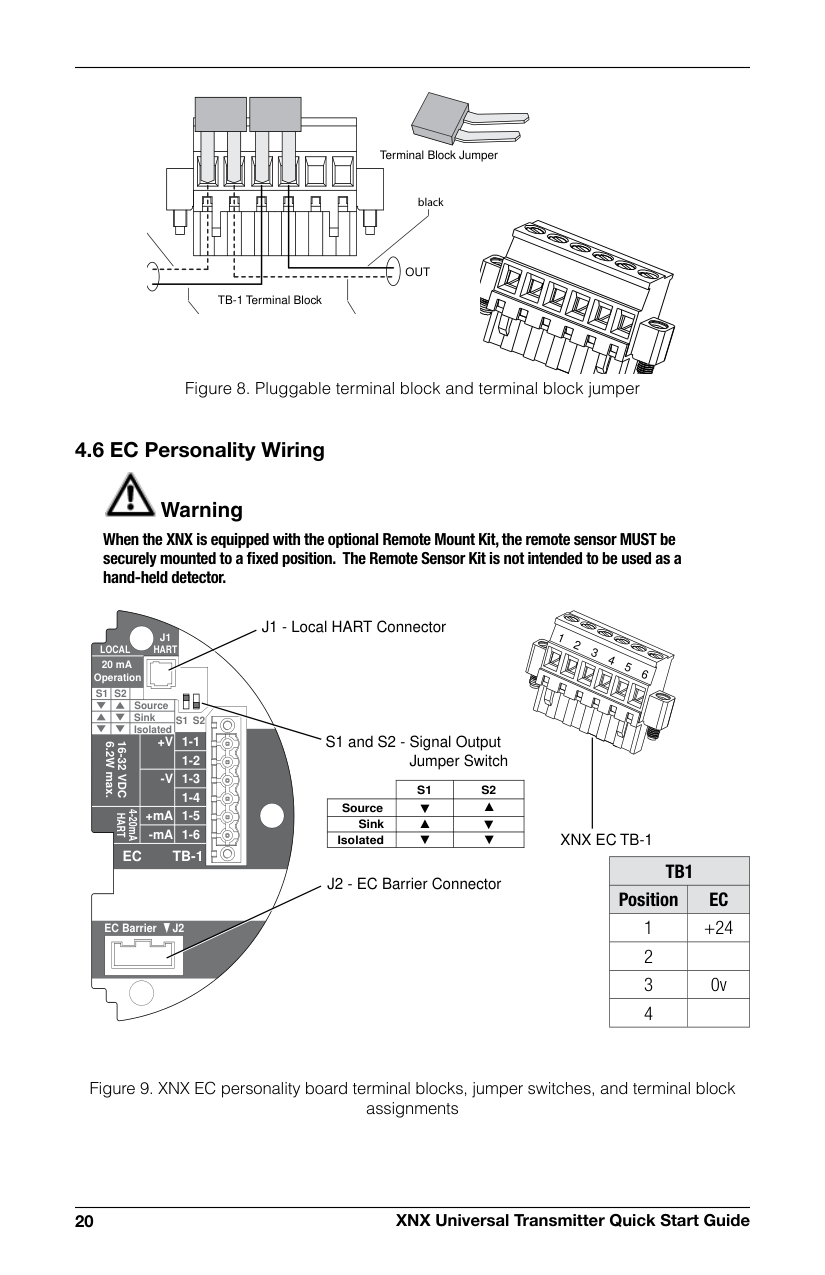

black Figure 8. Pluggable terminal block and terminal block jumper 4.6 EC Personality Wiring Warning When the XNX is equipped with the optional Remote Mount Kit, the remote sensor MUST be securely mounted to a fixed position. The Remote Sensor Kit is not intended to be used as a hand-held detector. J1 - Local HART Connector S1 and S2 - Signal Output Jumper Switch ▼ ▼ ▲S2
S1
Isolated ▼ Sink ▼ ▲ Source J2 - EC Barrier ConnectorHart
20 mA OperationLocal
J1
S1
S1
Source Sink IsolatedS2
S2
EC BarrierJ2
+V 1-1
Ec Tb-1
4-20mAHart
16-32 Vdc
6.2W max. 1-2-V 1-3
1-4 +mA 1-5 -mA 1-6 1 2 3 4 5 6Xnx Ec Tb-1
Figure 9. XNX EC personality board terminal blocks, jumper switches, and terminal block assignmentsTb1
PositionEc
1 +24 2 3 0v 4
XNX Universal Transmitter Quick Start Guide 21

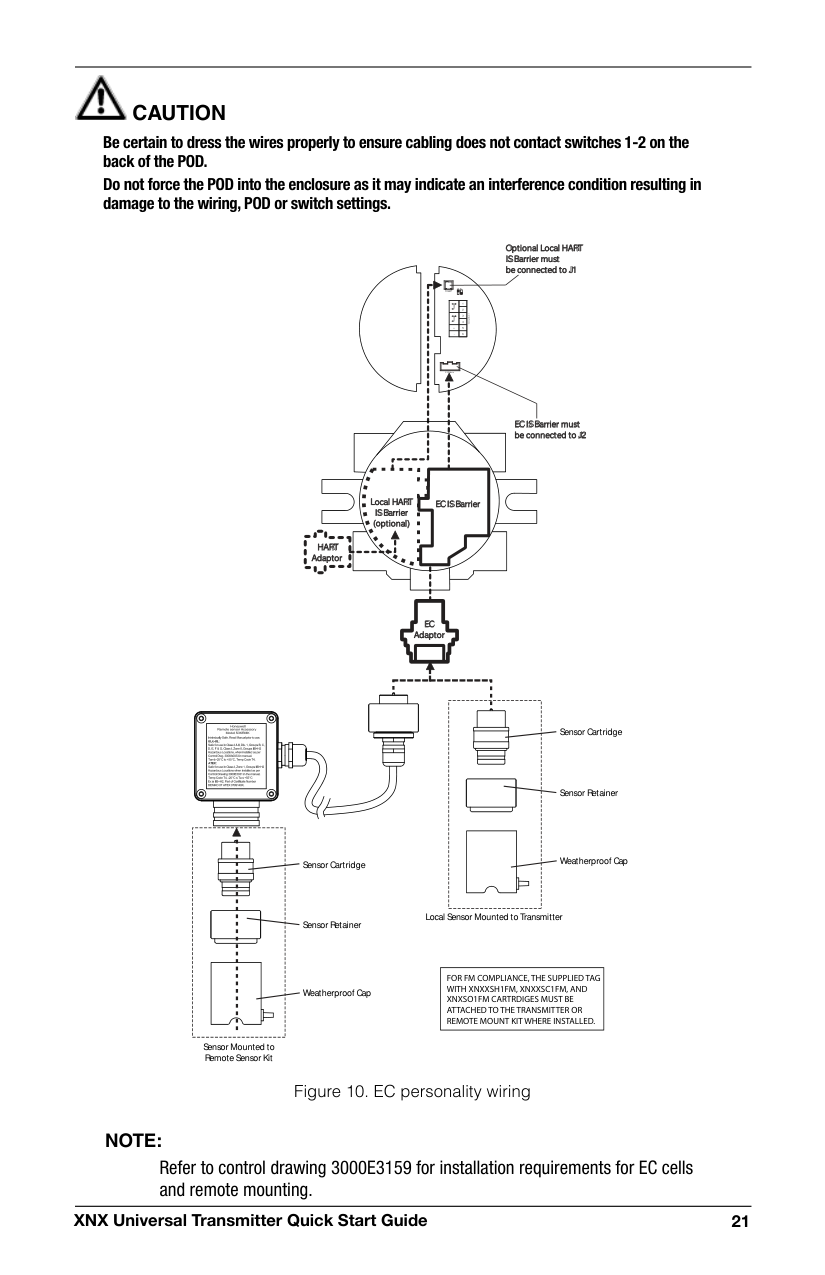

Caution
Be certain to dress the wires properly to ensure cabling does not contact switches 1-2 on the back of the POD. Do not force the POD into the enclosure as it may indicate an interference condition resulting in damage to the wiring, POD or switch settings.Ec
Adaptor Optional Local HART IS Barrier must be connected to J1 EC IS Barrier must be connected to J2 4 3 2 1J1 Hart
S1 S2
J2 EC Barrier Terminal Block 1 Local HART IS Barrier (optional)Hart
Adaptor EC IS Barrier Sensor Cartridge Weatherproof Cap Sensor Retainer Sensor Cartridge Weatherproof Cap Sensor Retainer Local Sensor Mounted to Transmitter Sensor Mounted to Remote Sensor KitFor Fm Compliance, The Supplied Tag
With Xnxxsh1Fm, Xnxxsc1Fm, And
Xnxso1Fm Cartrdiges Must Be
Attached To The Transmitter Or
Remote Mount Kit Where Installed.
Figure 10. EC personality wiringNote:
Refer to control drawing 3000E3159 for installation requirements for EC cells and remote mounting.

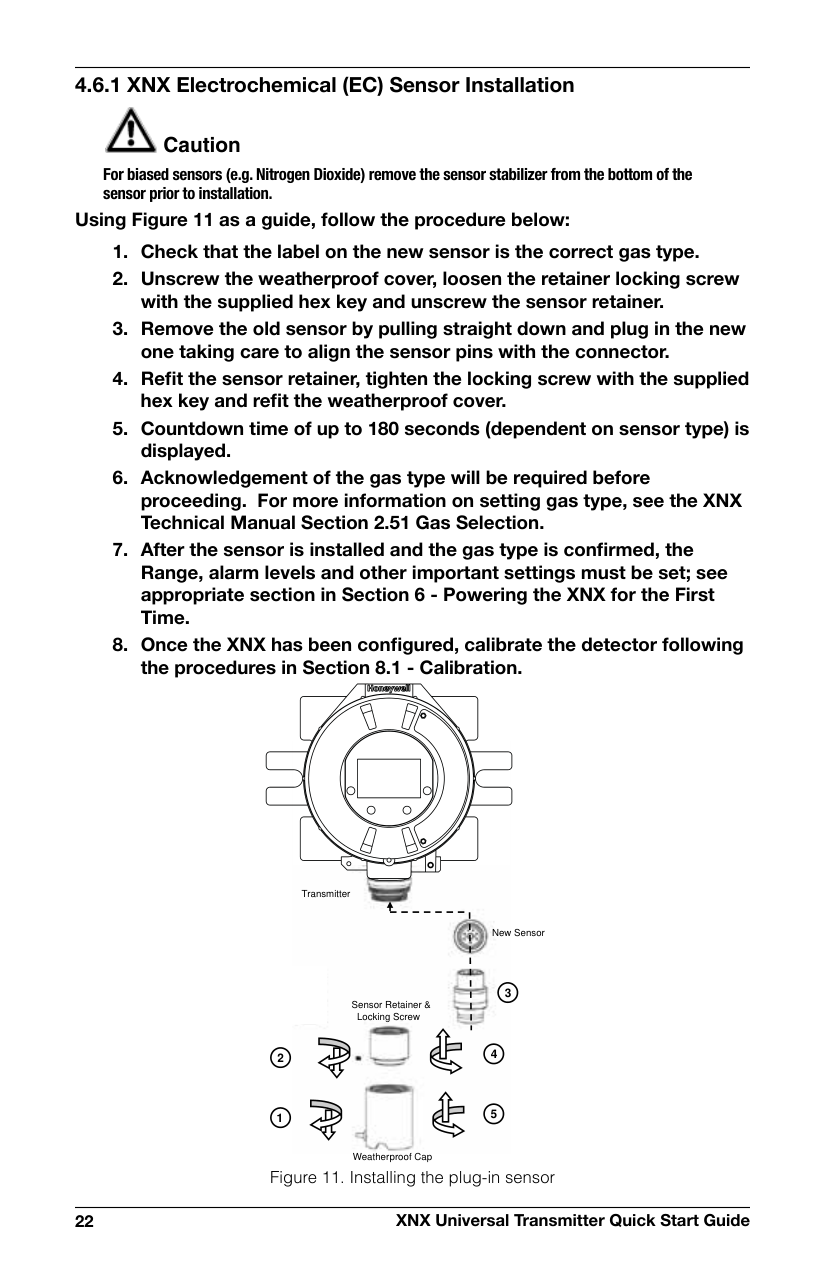

XNX Universal Transmitter Quick Start Guide 22 4.6.1 XNX Electrochemical (EC) Sensor Installation Caution For biased sensors (e.g. Nitrogen Dioxide) remove the sensor stabilizer from the bottom of the sensor prior to installation. Using Figure 11 as a guide, follow the procedure below:

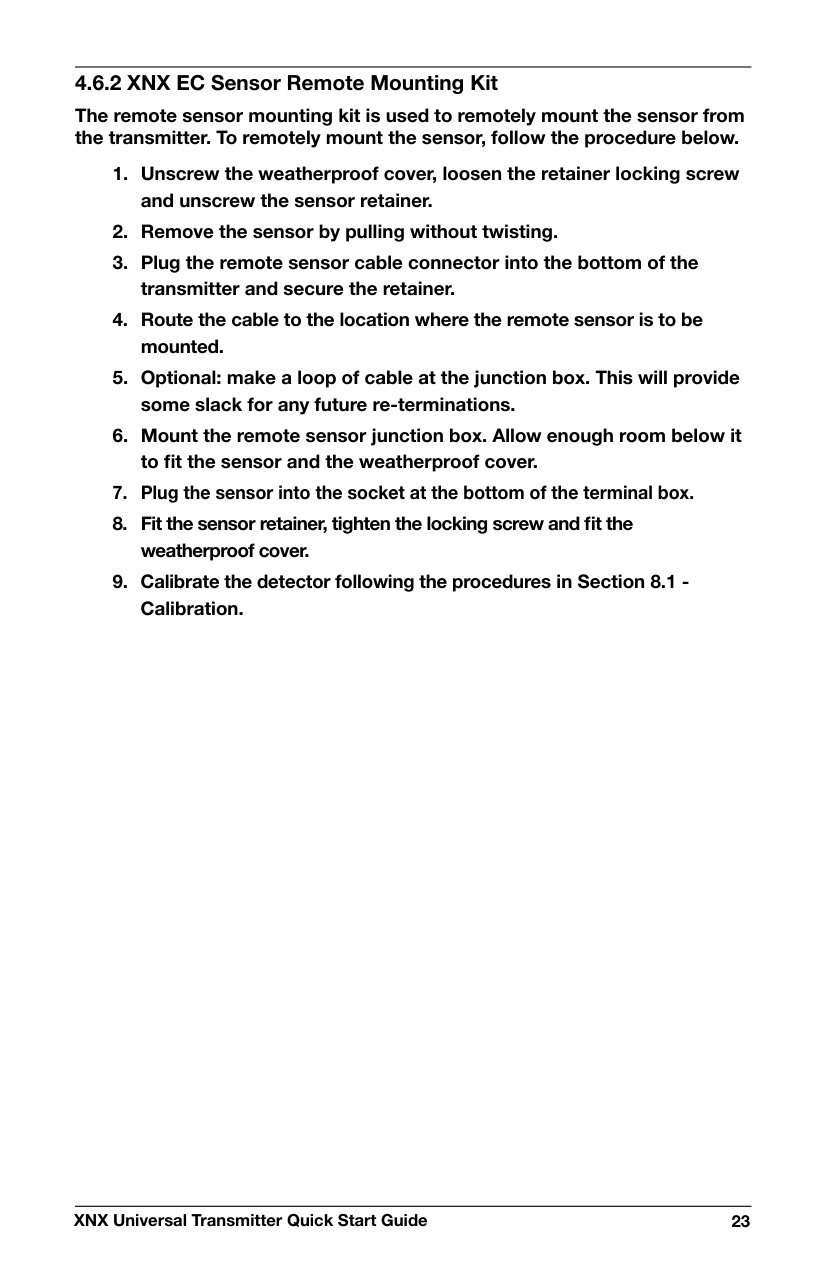

XNX Universal Transmitter Quick Start Guide 23 4.6.2 XNX EC Sensor Remote Mounting Kit The remote sensor mounting kit is used to remotely mount the sensor from the transmitter. To remotely mount the sensor, follow the procedure below.

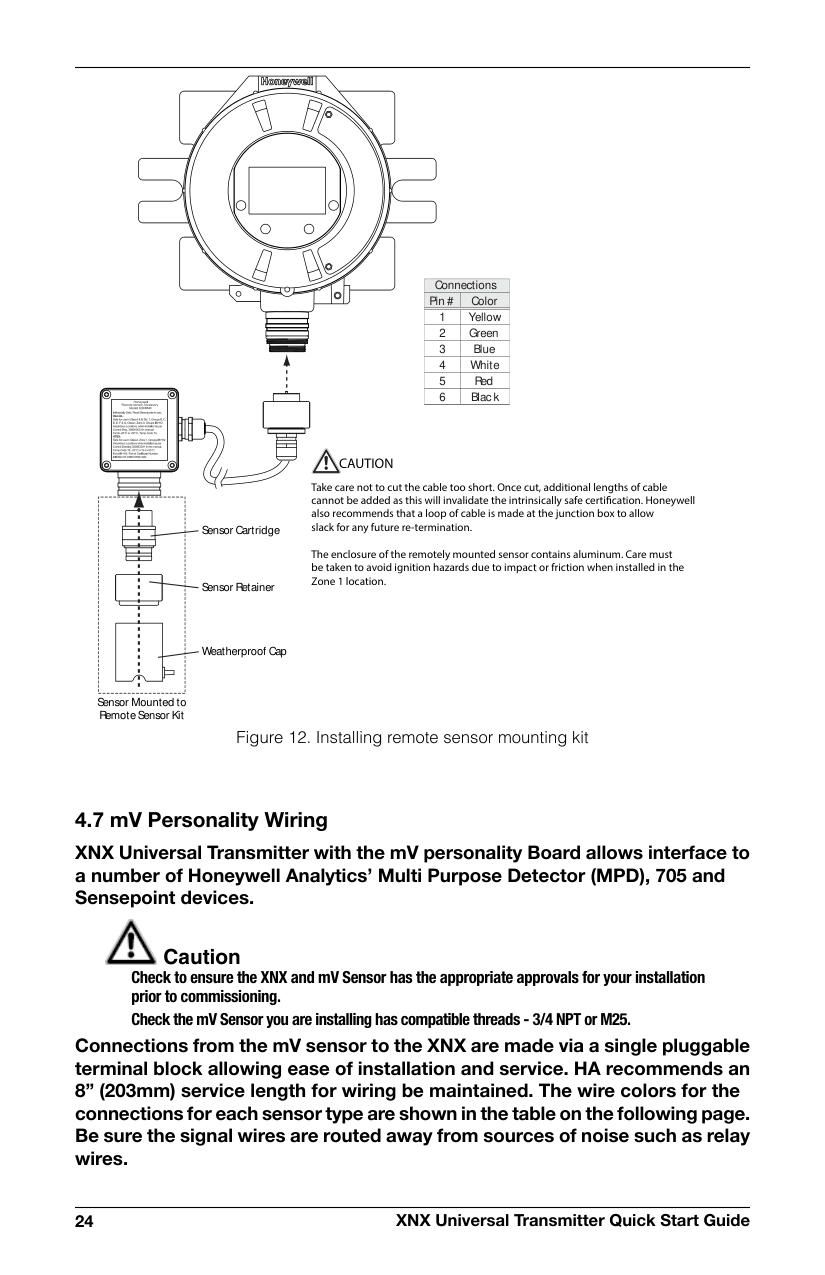

XNX Universal Transmitter Quick Start Guide 24 Connections Pin # Color 1 Yellow 2 Green 3 Blue 4 White 5 Red 6 Blac k Sensor Cartridge Weatherproof Cap Sensor Retainer Sensor Mounted to Remote Sensor Kit
Caution
Take care not to cut the cable too short. Once cut, additional lengths of cable cannot be added as this will invalidate the intrinsically safe certification. Honeywell also recommends that a loop of cable is made at the junction box to allow slack for any future re-termination. The enclosure of the remotely mounted sensor contains aluminum. Care must be taken to avoid ignition hazards due to impact or friction when installed in the Zone 1 location. All cable entry devices and blanking elements shall be certified in type of explosion protection flameproof enclosure “Ex e”, suitable for the conditions of use and correctly installed. Figure 12. Installing remote sensor mounting kit 4.7 mV Personality Wiring XNX Universal Transmitter with the mV personality Board allows interface to a number of Honeywell Analytics’ Multi Purpose Detector (MPD), 705 and Sensepoint devices. Caution Check to ensure the XNX and mV Sensor has the appropriate approvals for your installation prior to commissioning. Check the mV Sensor you are installing has compatible threads - 3/4 NPT or M25. Connections from the mV sensor to the XNX are made via a single pluggable terminal block allowing ease of installation and service. HA recommends an 8” (203mm) service length for wiring be maintained. The wire colors for the connections for each sensor type are shown in the table on the following page. Be sure the signal wires are routed away from sources of noise such as relay wires.
XNX Universal Transmitter Quick Start Guide 25

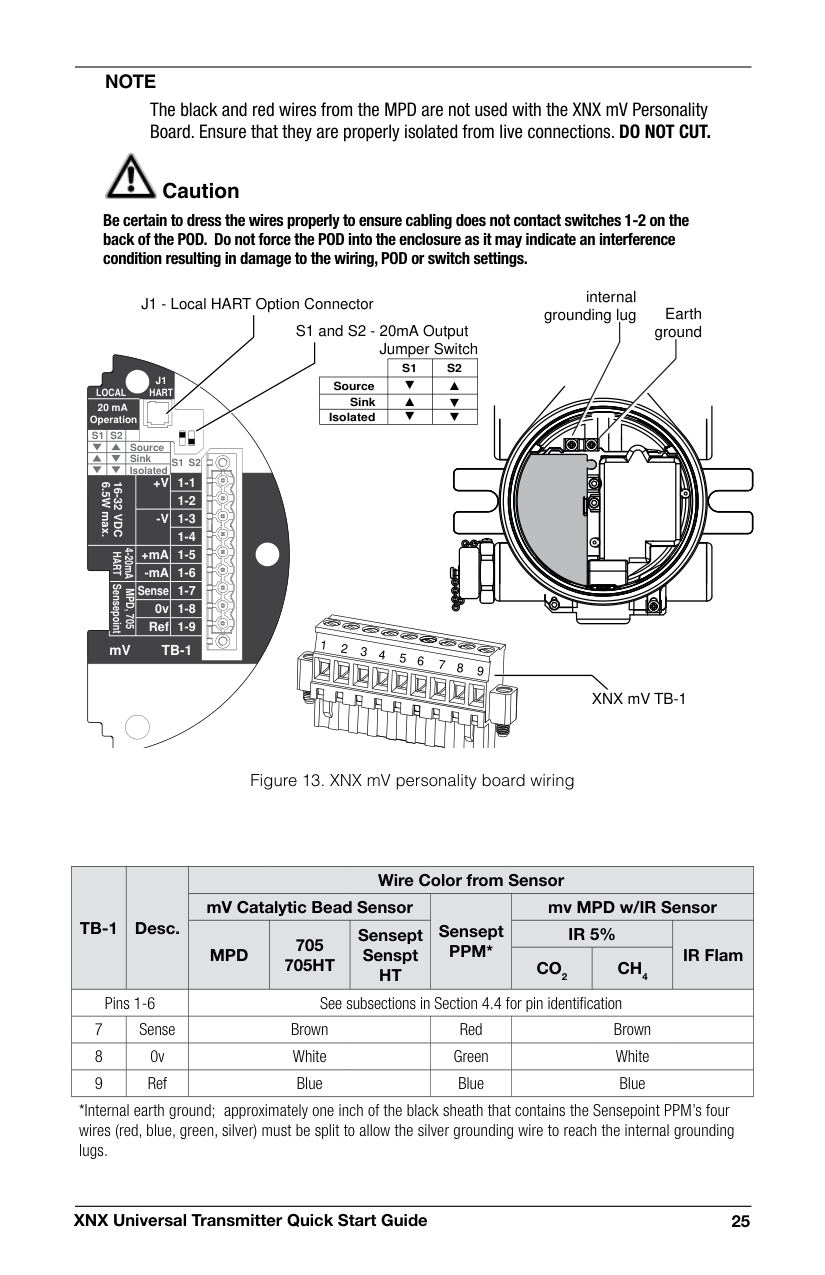

Note
The black and red wires from the MPD are not used with the XNX mV Personality Board. Ensure that they are properly isolated from live connections. DO NOT CUT. Caution Be certain to dress the wires properly to ensure cabling does not contact switches 1-2 on the back of the POD. Do not force the POD into the enclosure as it may indicate an interference condition resulting in damage to the wiring, POD or switch settings.Hart
20 mA OperationLocal
J1
S1
+V 1-1
mV TB-1Mpd, 705
Sensepoint 4-20mAHart
16-32 Vdc
6.5W max. 1-2-V 1-3
1-4 +mA 1-5 -mA 1-6 Sense 1-7 0v 1-8 Ref 1-9S1
Source Sink IsolatedS2
S2
J1 - Local HART Option Connector 1 2 3 4 5 6 7 8 9 internal grounding lug S1 and S2 - 20mA Output Jumper SwitchS2
S1
▼ ▼ Isolated ▲ Sink ▼ Source ▼ ▲ XNX mV TB-1 Earth ground Figure 13. XNX mV personality board wiringTB-1 Desc. Wire Color from Sensor mV Catalytic Bead Sensor Sensept
Ppm*
mv MPD w/IR SensorMpd
705705Ht
Sensept SensptHt
Ir 5%
IR FlamCo2
Ch4
Pins 1-6 See subsections in Section 4.4 for pin identification 7 Sense Brown Red Brown 8 0v White Green White 9 Ref Blue Blue Blue *Internal earth ground; approximately one inch of the black sheath that contains the Sensepoint PPM’s four wires (red, blue, green, silver) must be split to allow the silver grounding wire to reach the internal grounding lugs.

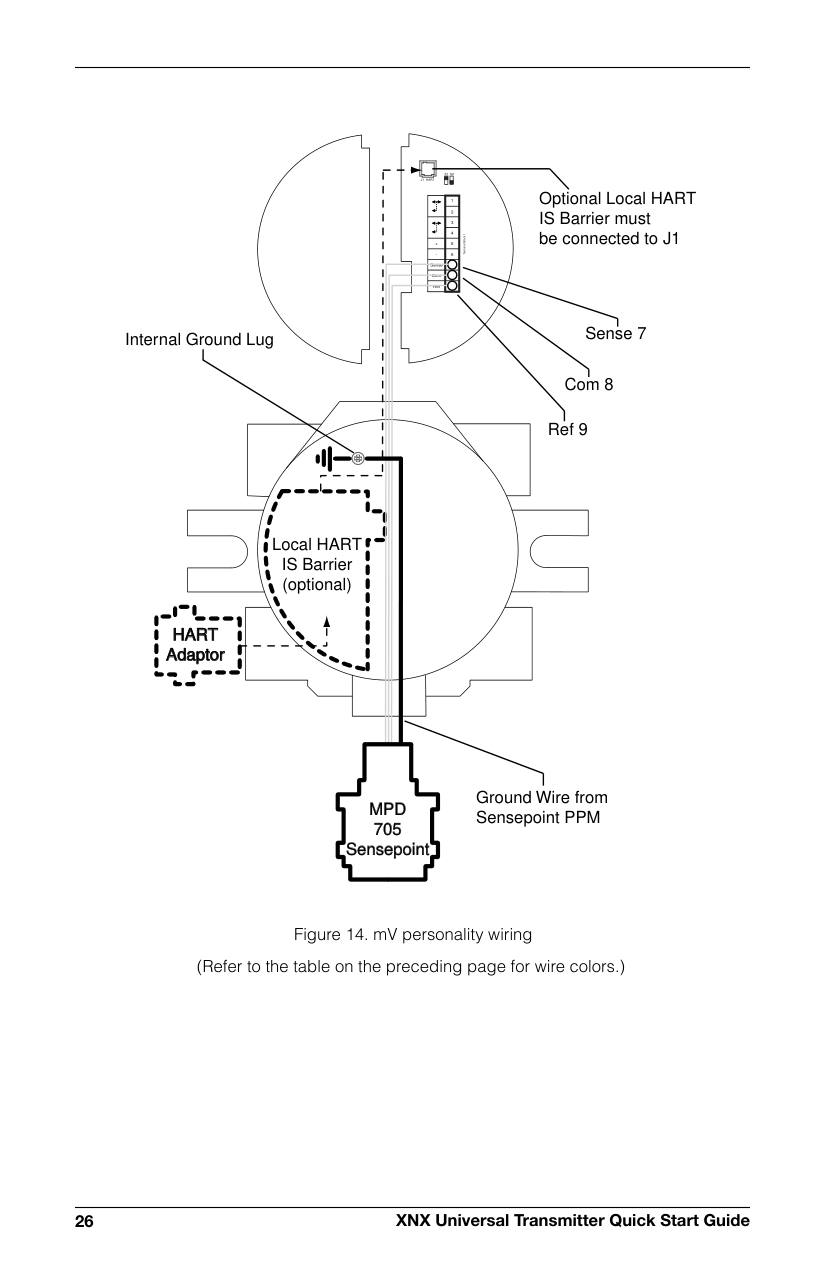

XNX Universal Transmitter Quick Start Guide 26 4 3 2 1 Ref + 9 8 7 6 5
J1 Hart
S1 S2
Terminal Block 1 Com SenseHart
Adaptor Optional Local HART IS Barrier must be connected to J1 Ground Wire from Sensepoint PPM Internal Ground LugMpd
705 Sensepoint Sense 7 Com 8 Ref 9 Figure 14. mV personality wiring (Refer to the table on the preceding page for wire colors.)

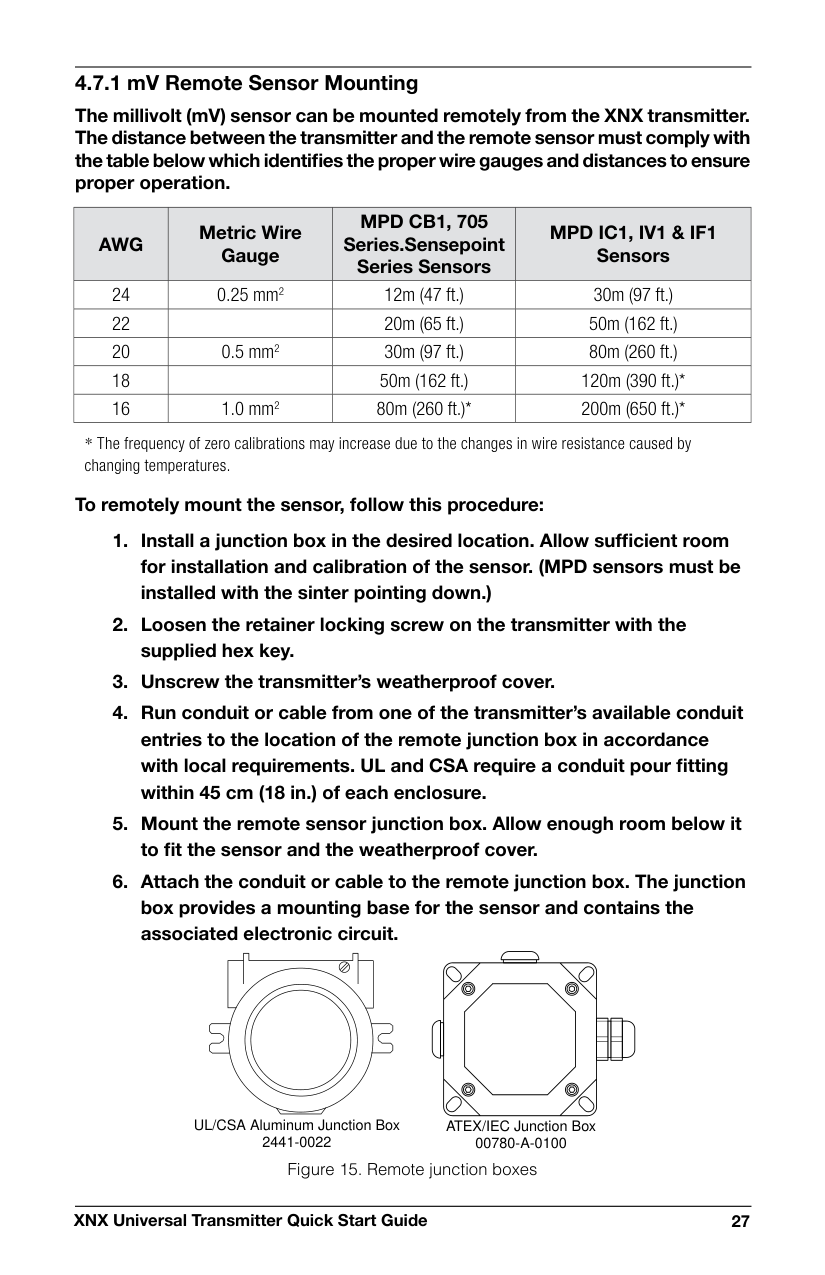

XNX Universal Transmitter Quick Start Guide 27 4.7.1 mV Remote Sensor Mounting The millivolt (mV) sensor can be mounted remotely from the XNX transmitter. The distance between the transmitter and the remote sensor must comply with the table below which identifies the proper wire gauges and distances to ensure proper operation.
Awg
Metric Wire GaugeMpd Cb1, 705
Series.Sensepoint Series SensorsMpd Ic1, Iv1 & If1
Sensors 24 0.25 mm2 12m (47 ft.) 30m (97 ft.) 22 20m (65 ft.) 50m (162 ft.) 20 0.5 mm2 30m (97 ft.) 80m (260 ft.) 18 50m (162 ft.) 120m (390 ft.)* 16 1.0 mm2 80m (260 ft.)* 200m (650 ft.)*00780-A-0100
Figure 15. Remote junction boxes

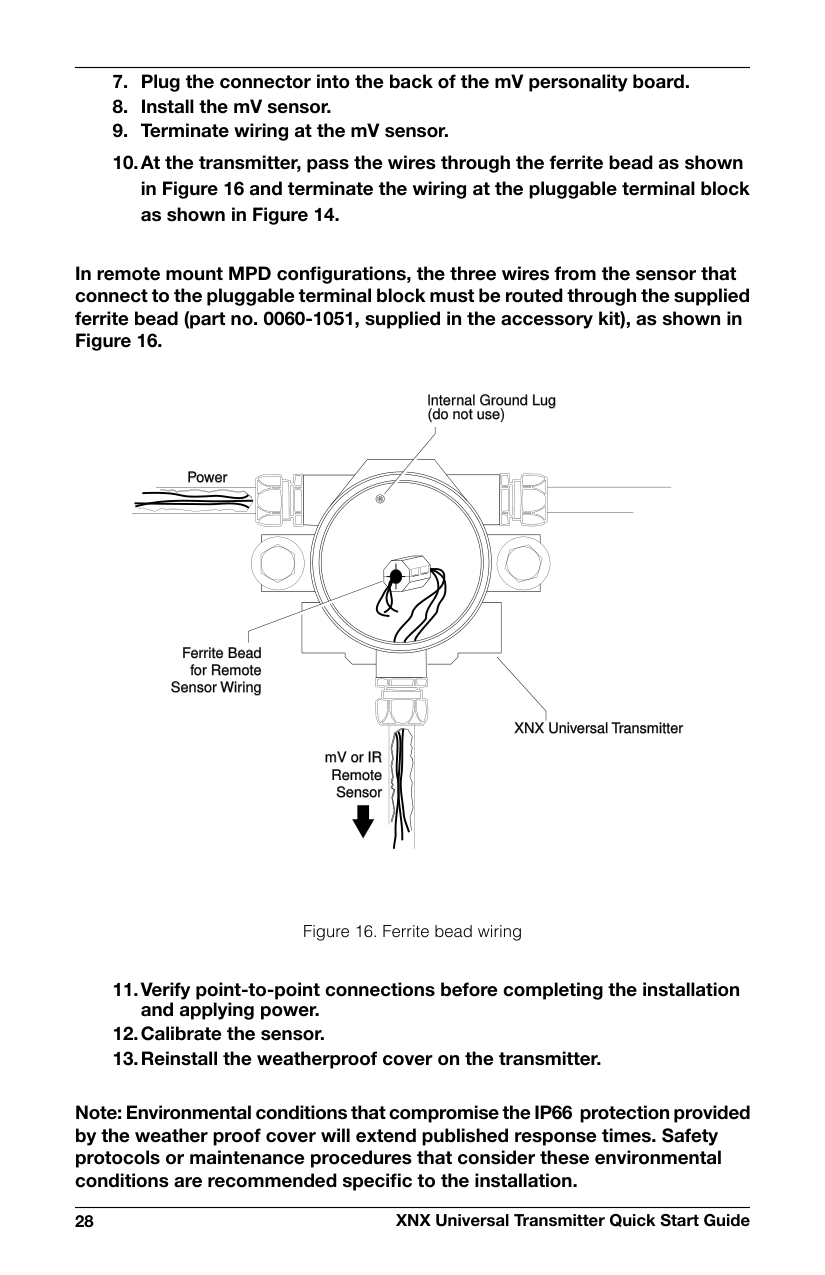

XNX Universal Transmitter Quick Start Guide 28
XNX Universal Transmitter Quick Start Guide 29

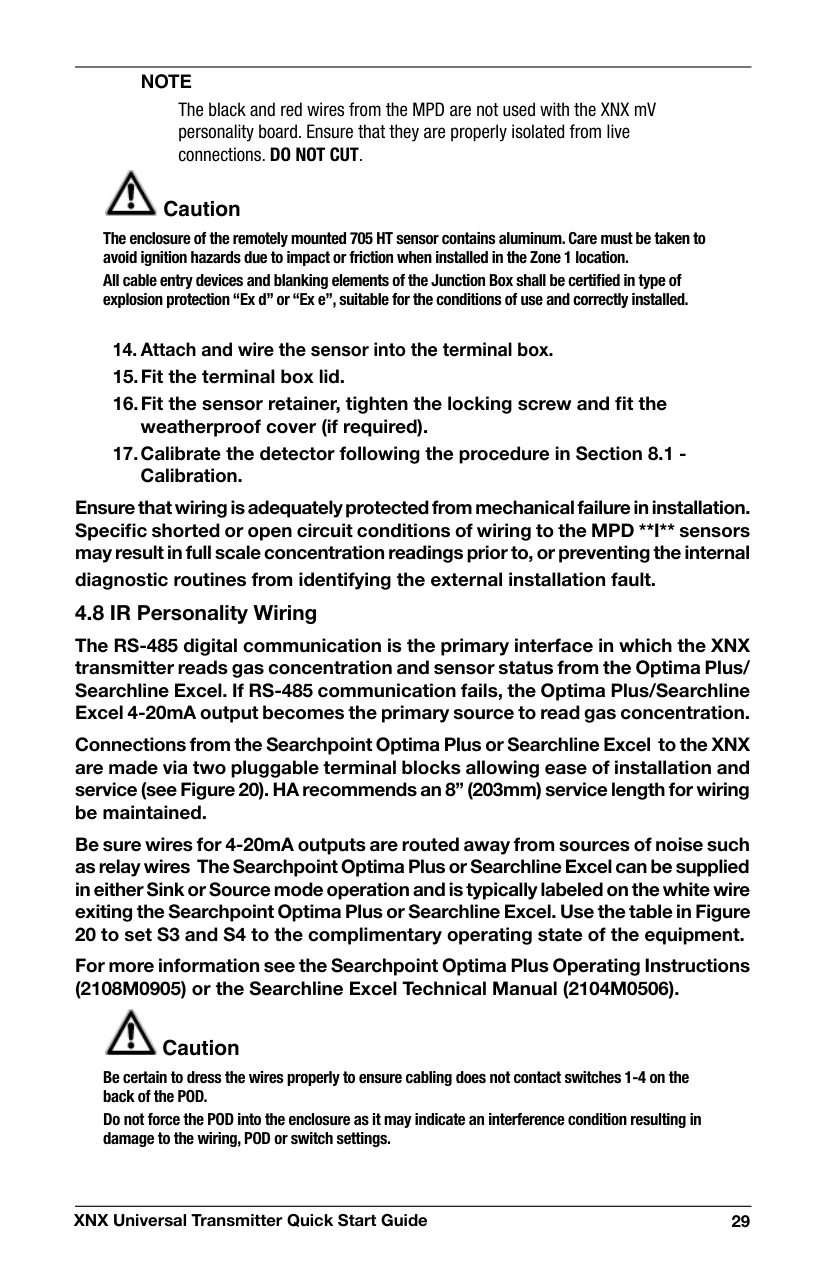

Note
The black and red wires from the MPD are not used with the XNX mV personality board. Ensure that they are properly isolated from live connections. DO NOT CUT. Caution The enclosure of the remotely mounted 705 HT sensor contains aluminum. Care must be taken to avoid ignition hazards due to impact or friction when installed in the Zone 1 location. All cable entry devices and blanking elements of the Junction Box shall be certified in type of explosion protection “Ex d” or “Ex e”, suitable for the conditions of use and correctly installed.

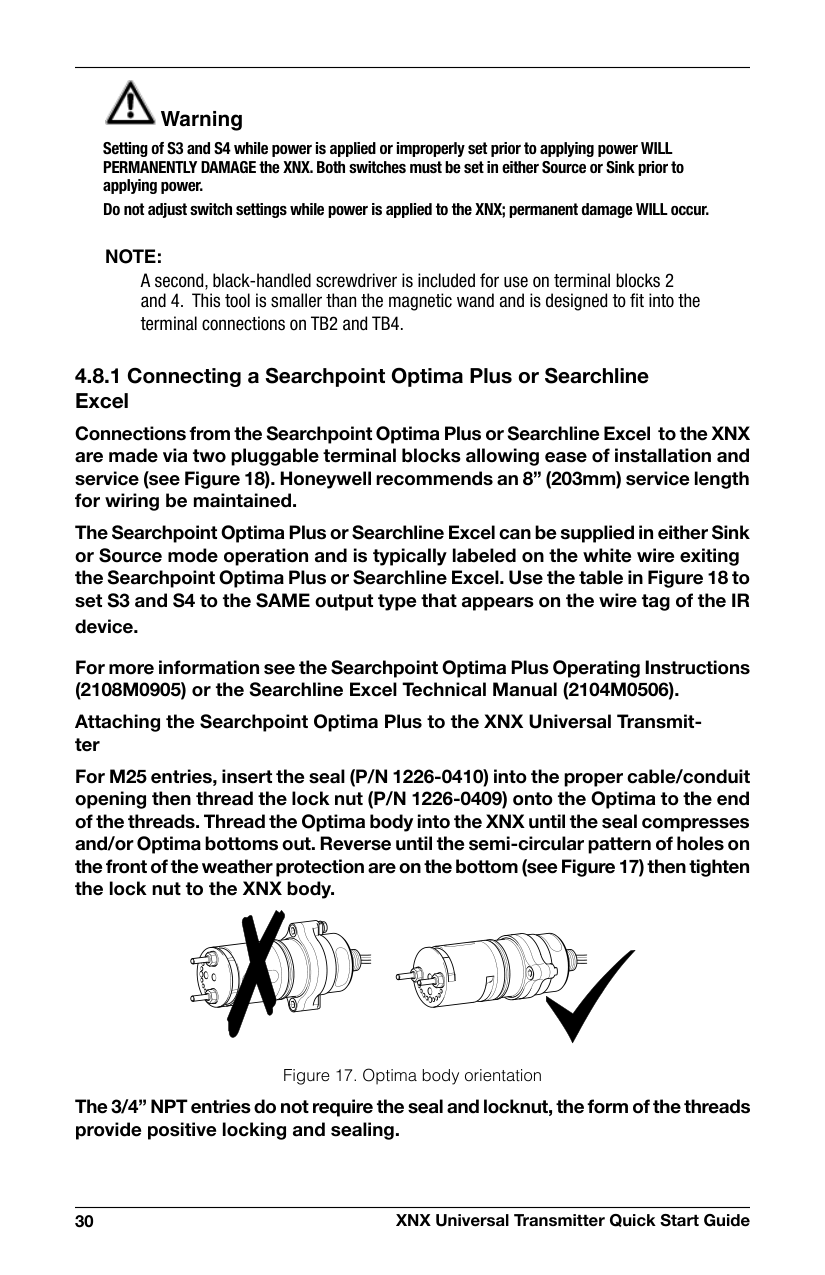

XNX Universal Transmitter Quick Start Guide 30 Warning Setting of S3 and S4 while power is applied or improperly set prior to applying power WILL PERMANENTLY DAMAGE the XNX. Both switches must be set in either Source or Sink prior to applying power. Do not adjust switch settings while power is applied to the XNX; permanent damage WILL occur.
Note:
A second, black-handled screwdriver is included for use on terminal blocks 2 and 4. This tool is smaller than the magnetic wand and is designed to fit into the terminal connections on TB2 and TB4. 4.8.1 Connecting a Searchpoint Optima Plus or SearchlineExcel Connections from the Searchpoint Optima Plus or Searchline Excel to the XNX are made via two pluggable terminal blocks allowing ease of installation and service (see Figure 18). Honeywell recommends an 8” (203mm) service length for wiring be maintained. The Searchpoint Optima Plus or Searchline Excel can be supplied in either Sink or Source mode operation and is typically labeled on the white wire exiting the Searchpoint Optima Plus or Searchline Excel. Use the table in Figure 18 to set S3 and S4 to the SAME output type that appears on the wire tag of the IR device. For more information see the Searchpoint Optima Plus Operating Instructions (2108M0905) or the Searchline Excel Technical Manual (2104M0506). Attaching the Searchpoint Optima Plus to the XNX Universal Transmit- ter For M25 entries, insert the seal (P/N 1226-0410) into the proper cable/conduit opening then thread the lock nut (P/N 1226-0409) onto the Optima to the end of the threads. Thread the Optima body into the XNX until the seal compresses and/or Optima bottoms out. Reverse until the semi-circular pattern of holes on the front of the weather protection are on the bottom (see Figure 17) then tighten the lock nut to the XNX body. Figure 17. Optima body orientation The 3/4” NPT entries do not require the seal and locknut, the form of the threads provide positive locking and sealing.

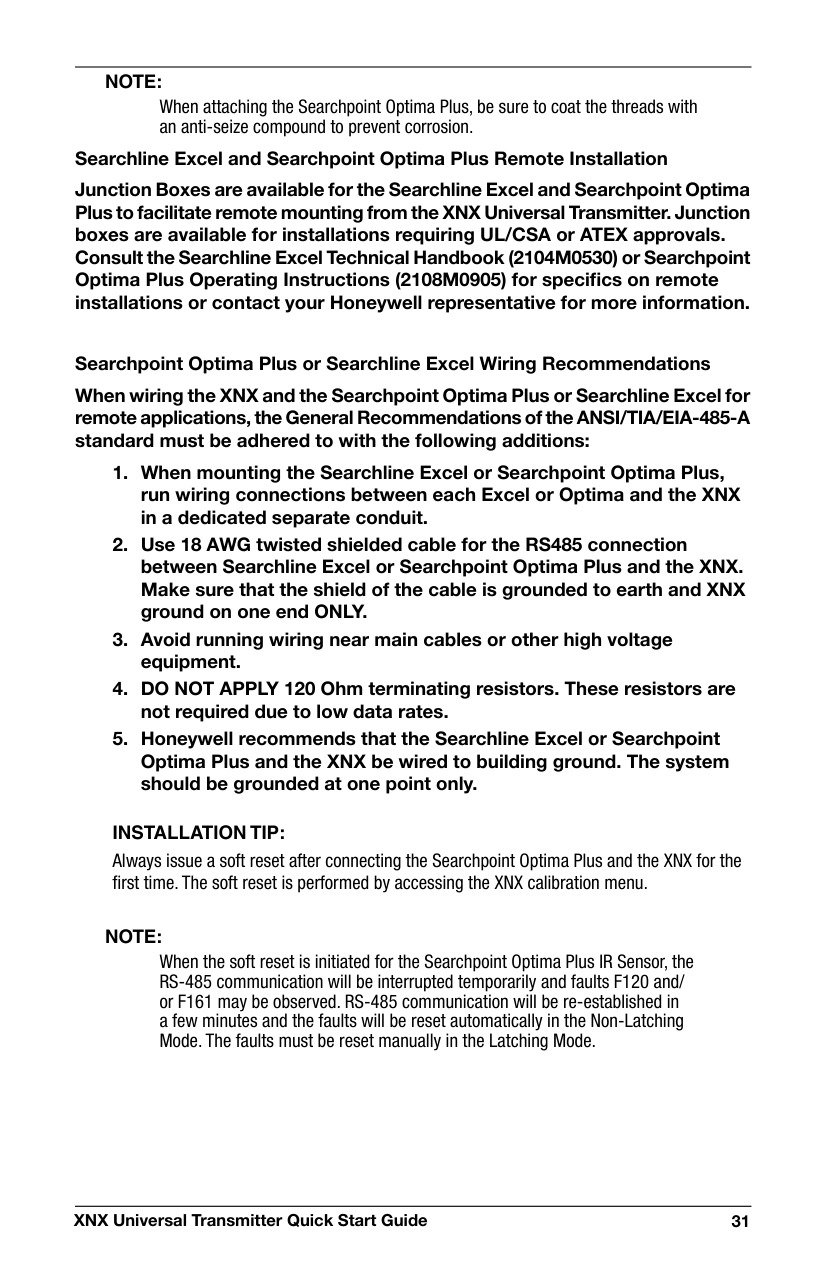

XNX Universal Transmitter Quick Start Guide 31
Note:
When attaching the Searchpoint Optima Plus, be sure to coat the threads with an anti-seize compound to prevent corrosion. Searchline Excel and Searchpoint Optima Plus Remote Installation Junction Boxes are available for the Searchline Excel and Searchpoint Optima Plus to facilitate remote mounting from the XNX Universal Transmitter. Junction boxes are available for installations requiring UL/CSA or ATEX approvals. Consult the Searchline Excel Technical Handbook (2104M0530) or Searchpoint Optima Plus Operating Instructions (2108M0905) for specifics on remote installations or contact your Honeywell representative for more information. Searchpoint Optima Plus or Searchline Excel Wiring Recommendations When wiring the XNX and the Searchpoint Optima Plus or Searchline Excel for remote applications, the General Recommendations of the ANSI/TIA/EIA-485-A standard must be adhered to with the following additions:Installation Tip:
Always issue a soft reset after connecting the Searchpoint Optima Plus and the XNX for the first time. The soft reset is performed by accessing the XNX calibration menu.Note:
When the soft reset is initiated for the Searchpoint Optima Plus IR Sensor, the RS-485 communication will be interrupted temporarily and faults F120 and/ or F161 may be observed. RS-485 communication will be re-established in a few minutes and the faults will be reset automatically in the Non-Latching Mode. The faults must be reset manually in the Latching Mode.

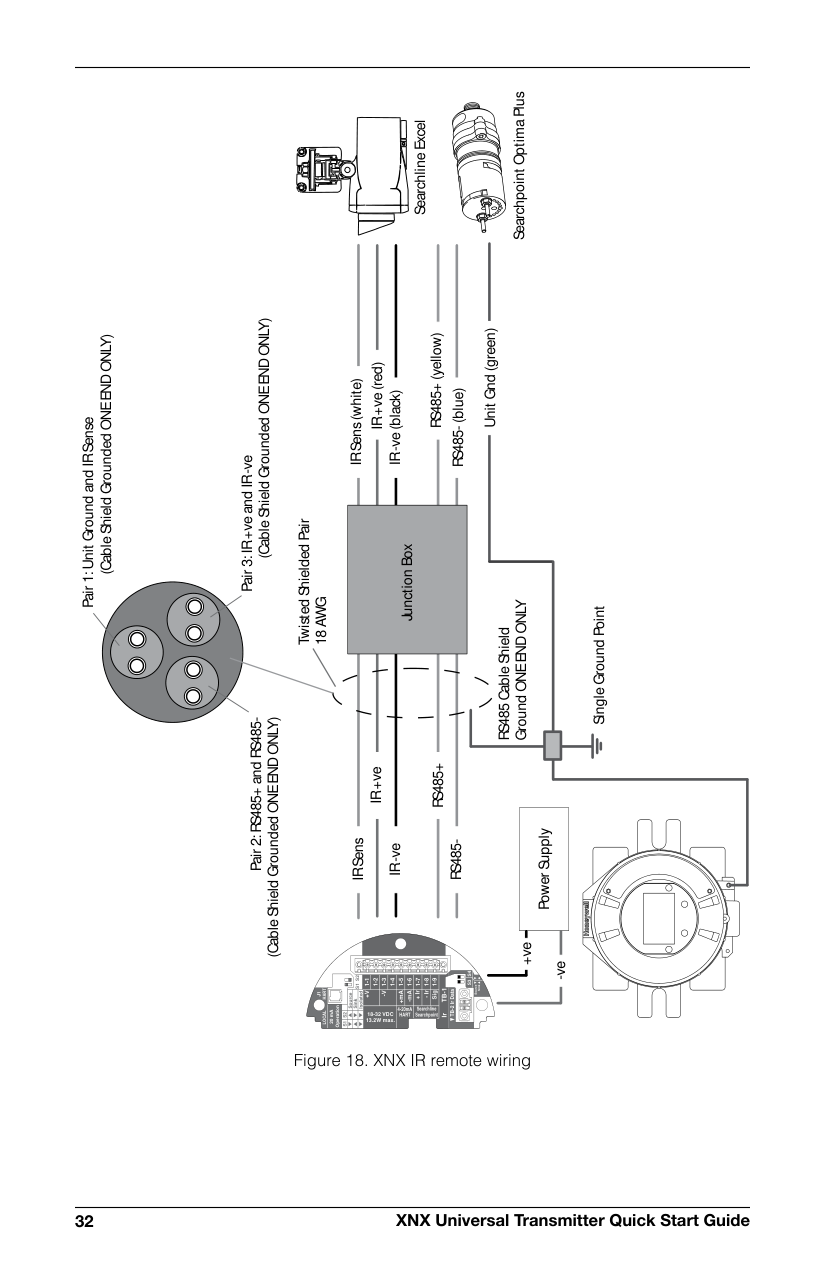

XNX Universal Transmitter Quick Start Guide 32
Hart
20 mA OperationLocal
J1
S1
+V 1-1
Searchline Searchpoint 4-20mAHart
18-32 Vdc
13.2W max. 1-2-V 1-3
1-4 +mA 1-5 -mA 1-6 1-7S1
Source Sink IsolatedS2
S2
Ir TB-1 TB-2 Ir DataS3
Source SinkS4
IR Sens (white) IR +ve (red) IR -ve (black) RS485+ (yellow) RS485- (blue) IR Sens IR +ve IR -veRs485+
Rs485-
Twisted Shielded Pair18 Awg
Single Ground Point RS485 Cable Shield Ground ONE END ONLY Power Supply +ve -ve Junction Box Searchline Excel Searchpoint Optima Plus Pair 1: Unit Ground and IR Sense (Cable Shield Grounded ONE END ONLY) Pair 2: RS485+ and RS485- (Cable Shield Grounded ONE END ONLY) Pair 3: IR +ve and IR -ve (Cable Shield Grounded ONE END ONLY) Unit Gnd (green) Figure 18. XNX IR remote wiring

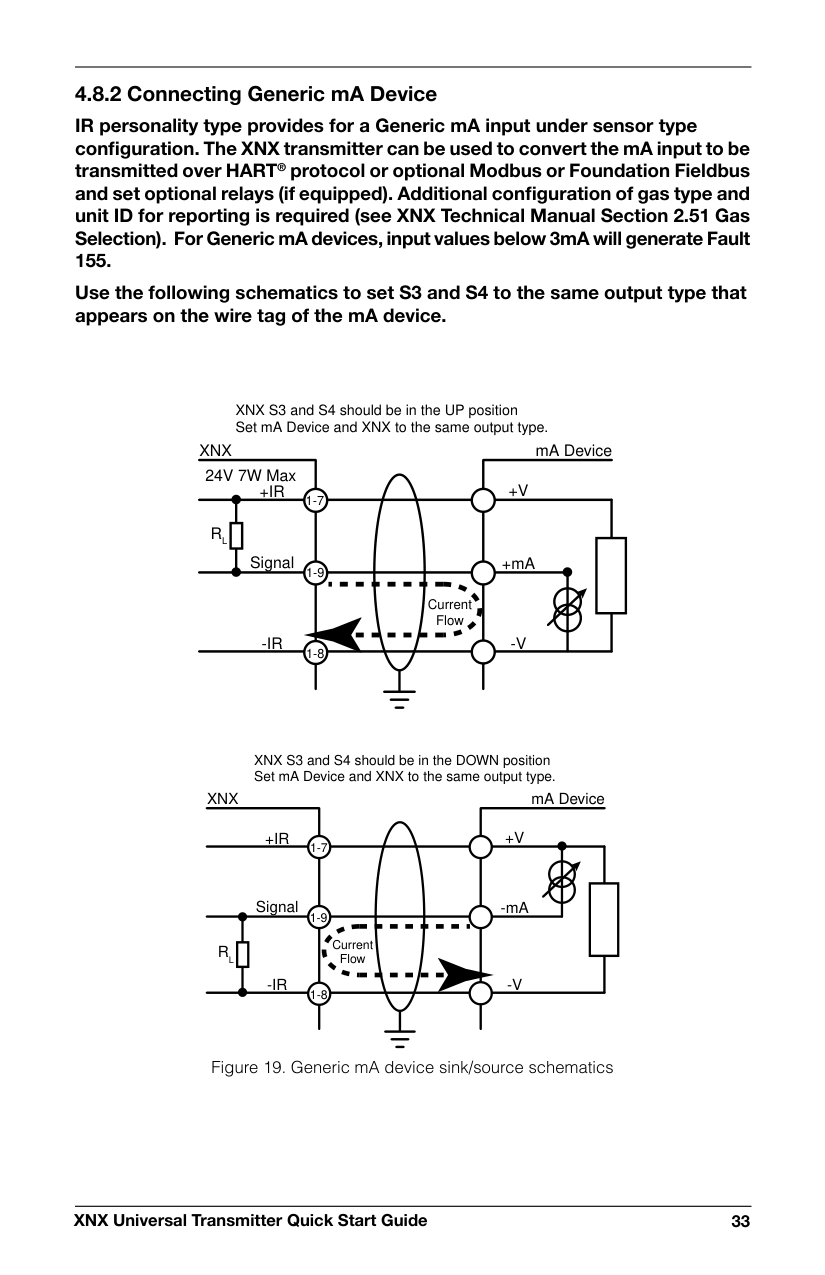

XNX Universal Transmitter Quick Start Guide 33 4.8.2 Connecting Generic mA Device IR personality type provides for a Generic mA input under sensor type configuration. The XNX transmitter can be used to convert the mA input to be transmitted over HART® protocol or optional Modbus or Foundation Fieldbus and set optional relays (if equipped). Additional configuration of gas type and unit ID for reporting is required (see XNX Technical Manual Section 2.51 Gas Selection). For Generic mA devices, input values below 3mA will generate Fault
Xnx
+Ir
Signal-Ir
Rl
1-7 1-9 1-8+V
+mA-V
mA Device Current Flow 24V 7W Max XNX S3 and S4 should be in the UP position Set mA Device and XNX to the same output type.Xnx
+Ir
Signal-Ir
Rl
1-7 1-9 1-8+V
-mA-V
mA Device Current Flow XNX S3 and S4 should be in the DOWN position Set mA Device and XNX to the same output type. Figure 19. Generic mA device sink/source schematics

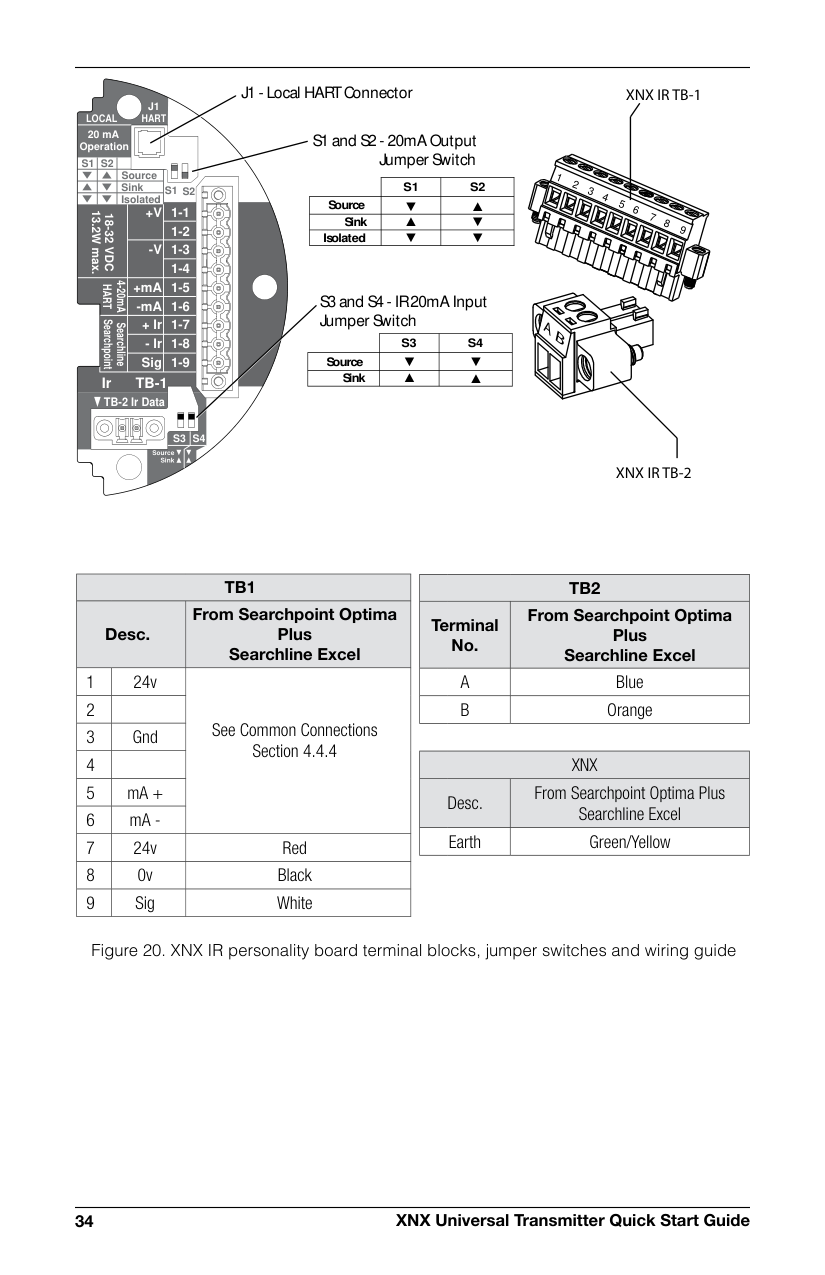

XNX Universal Transmitter Quick Start Guide 34
Hart
20 mA OperationLocal
J1
S1
+V 1-1
Searchline Searchpoint 4-20mAHart
18-32 Vdc
13.2W max. 1-2-V 1-3
1-4 +mA 1-5 -mA 1-6 1-7S1
Source Sink IsolatedS2
S2
Ir TB-1 TB-2 Ir DataS3
Source SinkS4
▼ ▼ ▲ ▼ ▼ ▲S2
S1
Isolated Sink Source J1 - Local HART Connector S1 and S2 - 20mA Output Jumper Switch S3 and S4 - IR 20mA Input Jumper Switch ▼ ▲ ▼ ▲S4
S3
Sink Source 1 2 3 4 5 6 7 8 9Xnx Ir Tb-1
Xnx Ir Tb-2
Tb2
Terminal No. From Searchpoint Optima Plus Searchline ExcelA
BlueB
OrangeXnx
Desc. From Searchpoint Optima Plus Searchline Excel Earth Green/YellowTb1
Desc. From Searchpoint Optima Plus Searchline Excel 1 24v See Common Connections Section 4.4.4 2 3 Gnd 4 5 mA + 6 mA - 7 24v Red 8 0v Black 9 Sig White Figure 20. XNX IR personality board terminal blocks, jumper switches and wiring guide

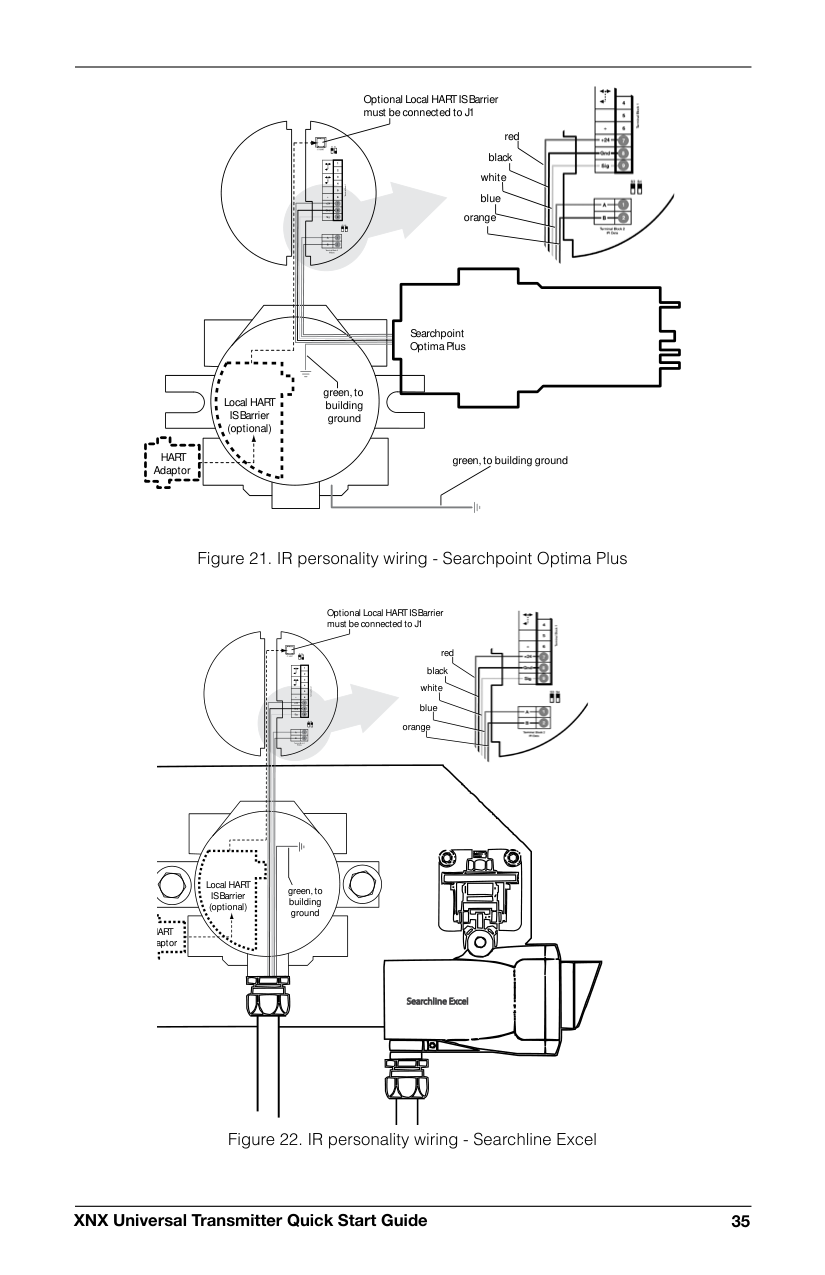

XNX Universal Transmitter Quick Start Guide 35
Local HART IS Barrier (optional)
Hart
Adaptor Optional Local HART IS Barrier must be connected to J1 Searchpoint Optima Plus 4 3 2 1 Sig Gnd +24 + 9 8 7 6 5J1 Hart
S1 S2
Terminal Block 1B
A
2 1 Terminal Block 2 IR DataS3 S4
green, to building ground green, to building ground red black white orange blue Figure 21. IR personality wiring - Searchpoint Optima Plus Optional Local HART IS Barrier must be connected to J1Local HART IS Barrier (optional) 4 3 2 1 Sig Gnd +24 + 9 7 6 5
J1 Hart
S1 S2
Terminal Block 1B
A
1 2 Terminal Block 2 IR DataS3 S4
8Art
aptor Searchline Excel green, to building ground red black white orange blue Figure 22. IR personality wiring - Searchline Excel

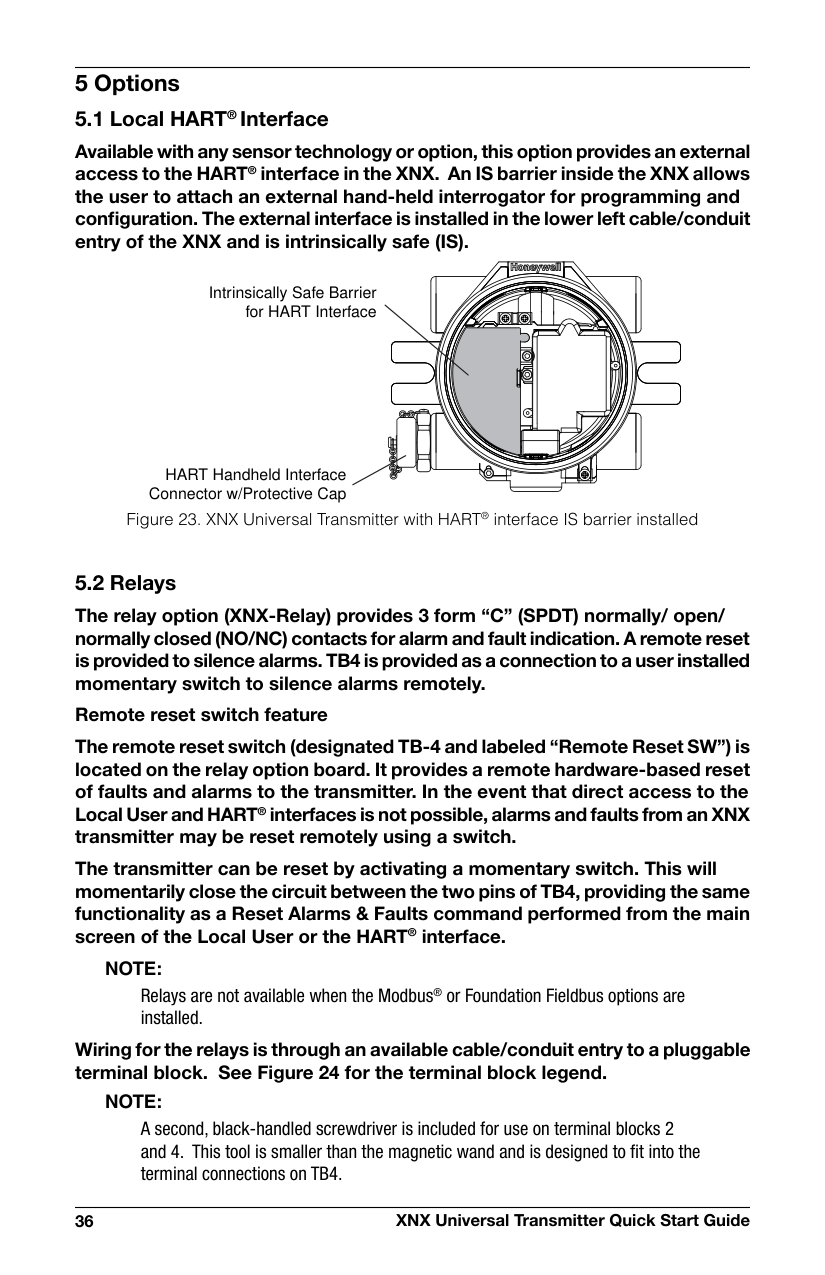

XNX Universal Transmitter Quick Start Guide 36 5 Options 5.1 Local HART® Interface Available with any sensor technology or option, this option provides an external access to the HART® interface in the XNX. An IS barrier inside the XNX allows the user to attach an external hand-held interrogator for programming and configuration. The external interface is installed in the lower left cable/conduit entry of the XNX and is intrinsically safe (IS). Intrinsically Safe Barrier for HART Interface HART Handheld Interface Connector w/Protective Cap Figure 23. XNX Universal Transmitter with HART® interface IS barrier installed 5.2 Relays The relay option (XNX-Relay) provides 3 form “C” (SPDT) normally/ open/ normally closed (NO/NC) contacts for alarm and fault indication. A remote reset is provided to silence alarms. TB4 is provided as a connection to a user installed momentary switch to silence alarms remotely. Remote reset switch feature The remote reset switch (designated TB-4 and labeled “Remote Reset SW”) is located on the relay option board. It provides a remote hardware-based reset of faults and alarms to the transmitter. In the event that direct access to the Local User and HART® interfaces is not possible, alarms and faults from an XNX transmitter may be reset remotely using a switch. The transmitter can be reset by activating a momentary switch. This will momentarily close the circuit between the two pins of TB4, providing the same functionality as a Reset Alarms & Faults command performed from the main screen of the Local User or the HART® interface.
Note:
Relays are not available when the Modbus® or Foundation Fieldbus options are installed. Wiring for the relays is through an available cable/conduit entry to a pluggable terminal block. See Figure 24 for the terminal block legend.Note:
A second, black-handled screwdriver is included for use on terminal blocks 2 and 4. This tool is smaller than the magnetic wand and is designed to fit into the terminal connections on TB4.
XNX Universal Transmitter Quick Start Guide 37 Warning: Power externally supplied. Disconnect at source prior to servicing. 3-5 3-4 3-3 3-2 3-1 3-6 3-7 3-8 3-9
C
Nc
Tb4
Remote Reset SW Relay Ratings250Vac 5A
24Vdc 5A
No
C
Nc
No
Nc
C
No
Fault Level 2 Level 1Tb-3 Relay
TB3 Relay Connections Warning: Power externally supplied, disconnect at source prior to servicing Relay Contact Ratings: 250 VAC 5 amps 24 VDC 5 amps RelayTb3
1Nc
2C
3No
4Nc
5C
6No
7Nc
8C
9No
Tb4
1 1 2 2 1 2 3 4 5 6 7 8 9Tb3
1 2Tb4

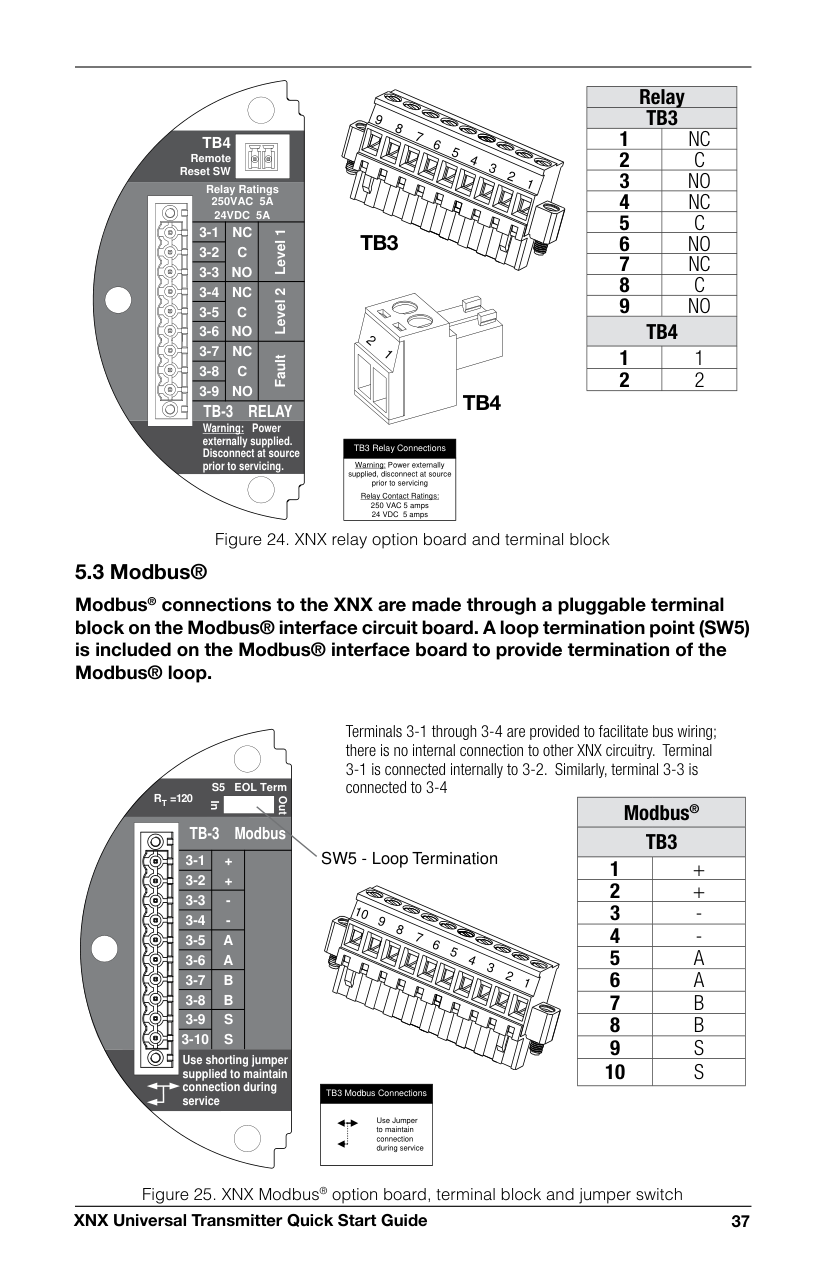

Figure 24. XNX relay option board and terminal block 5.3 Modbus® Modbus® connections to the XNX are made through a pluggable terminal block on the Modbus® interface circuit board. A loop termination point (SW5) is included on the Modbus® interface board to provide termination of the Modbus® loop. Terminals 3-1 through 3-4 are provided to facilitate bus wiring; there is no internal connection to other XNX circuitry. Terminal 3-1 is connected internally to 3-2. Similarly, terminal 3-3 is connected to 3-4 3-5 3-4 3-3 3-2 3-1 3-6 3-7 3-8 3-9 3-10A
A
B
B
S
TB-3 ModbusS
Use shorting jumper supplied to maintain connection during service S5 EOL Term Out InRt =120
TB3 Modbus Connections Use Jumper to maintain connection during service SW5 - Loop Termination Modbus®Tb3
1 + 2 + 3A
6A
7B
8B
9S
10S
1 2 3 4 5 6 7 8 9 10 Figure 25. XNX Modbus® option board, terminal block and jumper switch

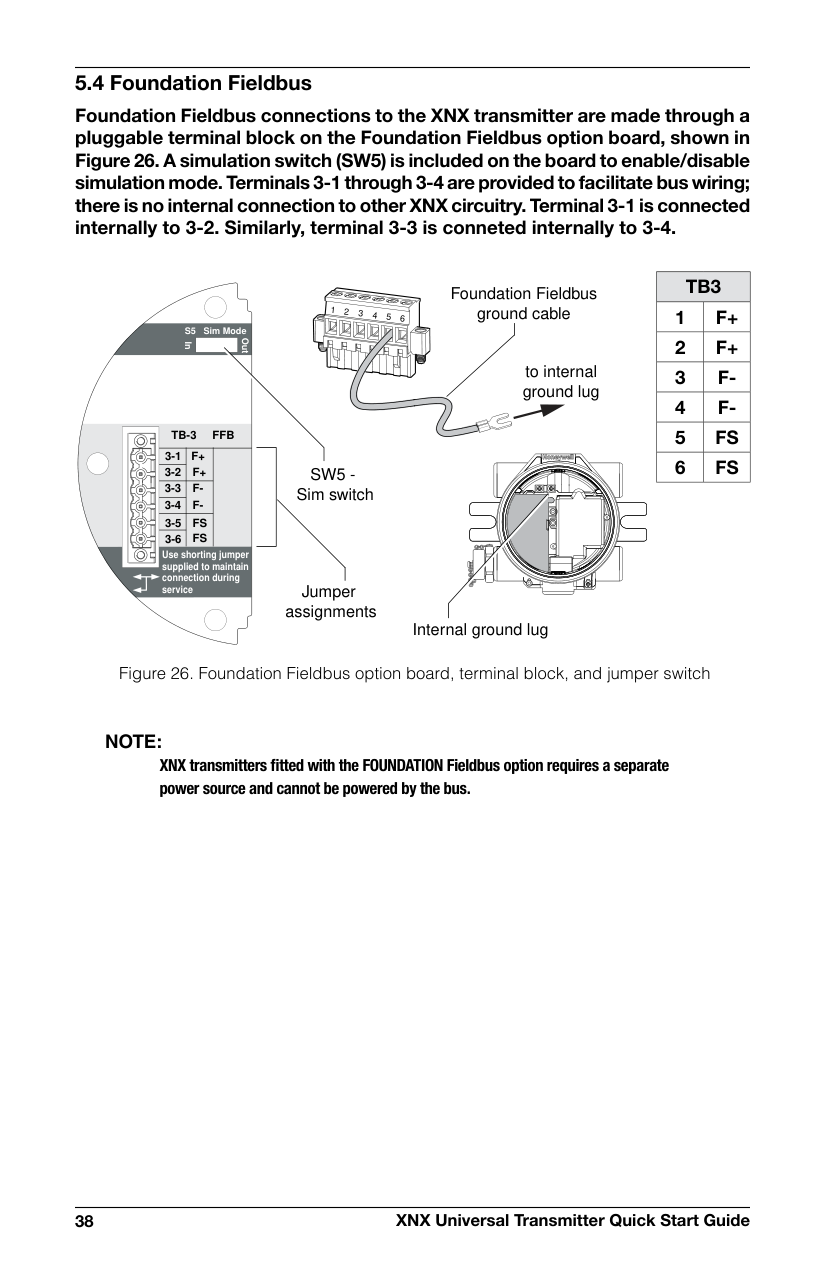

XNX Universal Transmitter Quick Start Guide 38 5.4 Foundation Fieldbus Foundation Fieldbus connections to the XNX transmitter are made through a pluggable terminal block on the Foundation Fieldbus option board, shown in Figure 26. A simulation switch (SW5) is included on the board to enable/disable simulation mode. Terminals 3-1 through 3-4 are provided to facilitate bus wiring; there is no internal connection to other XNX circuitry. Terminal 3-1 is connected internally to 3-2. Similarly, terminal 3-3 is conneted internally to 3-4. + + TB-3 Modbus Use shorting jumper supplied to maintain connection during service S5 Sim Mode Out In 3-1 3-2 3-3 3-4 3-5 3-6
F+
F+
F-
F-
Fs
Fs
Tb-3 Ffb
Jumper assignments 1 2 3 4 5 6to internal ground lug
Sw5 -
Sim switch Internal ground lug Foundation Fieldbus ground cable Figure 26. Foundation Fieldbus option board, terminal block, and jumper switchNote:
XNX transmitters fitted with the FOUNDATION Fieldbus option requires a separate power source and cannot be powered by the bus.Tb3
1F+
2F+
3F-
4F-
5Fs
6Fs
XNX Universal Transmitter Quick Start Guide 39 6 Powering the XNX for the First Time 6.1 XNX Units Configured for EC, mV, and IR (except Searchline
Excel) After mounting and wiring the XNX, the plug in sensor should be fitted (if equipped) and the installation visually and electrically tested as below.
Warning
Prior to carrying out any work, ensure local and site procedures are followed. Ensure that the associated control panel is inhibited so as to prevent false alarms. Minimum and maximum controller alarm levels should not be set at less than 10% or greater than 90% of the full scale range of the detector. CSA and FM agency limits are 60% LEL or 0.6mg/m3. Caution The following procedure should be followed carefully and only performed by suitably trained personnel.Note:
Before replacing the cover on the transmitter housing, coat the threads with anti- seize compound to prevent corrosion buildup. Also inspect the cover o-ring for cracking or any other defect that might compromise the integrity of the seal. If it is damaged, replace with the o-ring supplied in the service kit.
XNX Universal Transmitter Quick Start Guide 40
Figure 27. XNX Initialization and General Status screens
Note:
In the final stages of boot-up, warnings and faults may be observed until the user performs the proper configuration, calibration, and reset activities described in the following sections. See Sections 11 and 12 for descriptions of warnings and faults.Note:
Calibration of sensors attached to the XNX is mandatory before the detector can be used for gas monitoring. Refer to Section 6.1 - Calibration for the proper procedure. For EC and mV personalities, perform Accept New Sensor Type before calibrating the sensor. 6.2 XNX IR Units Configured for Searchline Excel When powering the XNX fitted to the Searchline Excel, the following procedure must be followed to assure proper installation. Caution The following procedure should be followed carefully and only performed by suitably trained personnelFigure 28. XNX Initialization and General Status screens

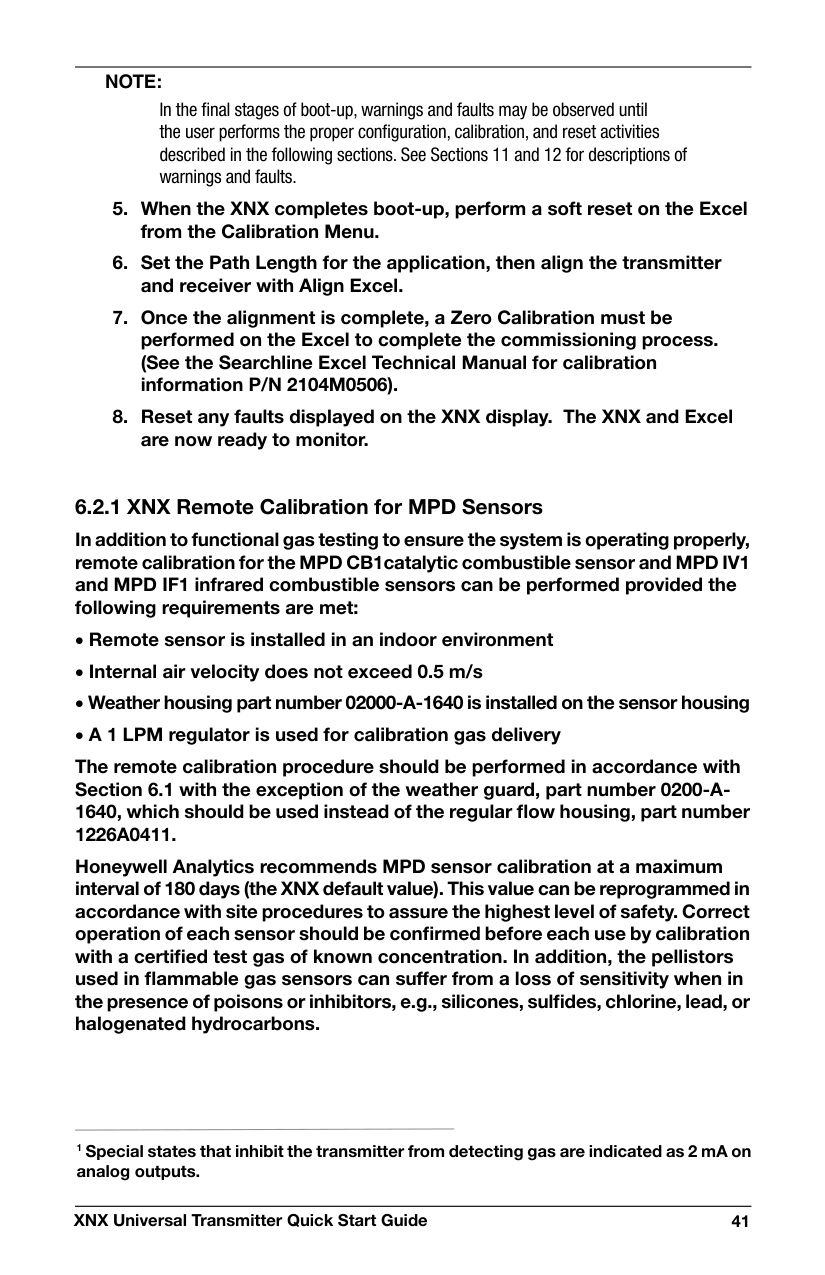

XNX Universal Transmitter Quick Start Guide 41
Note:
In the final stages of boot-up, warnings and faults may be observed until the user performs the proper configuration, calibration, and reset activities described in the following sections. See Sections 11 and 12 for descriptions of warnings and faults.1226A0411.
Honeywell Analytics recommends MPD sensor calibration at a maximum interval of 180 days (the XNX default value). This value can be reprogrammed in accordance with site procedures to assure the highest level of safety. Correct operation of each sensor should be confirmed before each use by calibration with a certified test gas of known concentration. In addition, the pellistors used in flammable gas sensors can suffer from a loss of sensitivity when in the presence of poisons or inhibitors, e.g., silicones, sulfides, chlorine, lead, or halogenated hydrocarbons.1 Special states that inhibit the transmitter from detecting gas are indicated as 2 mA on analog outputs.

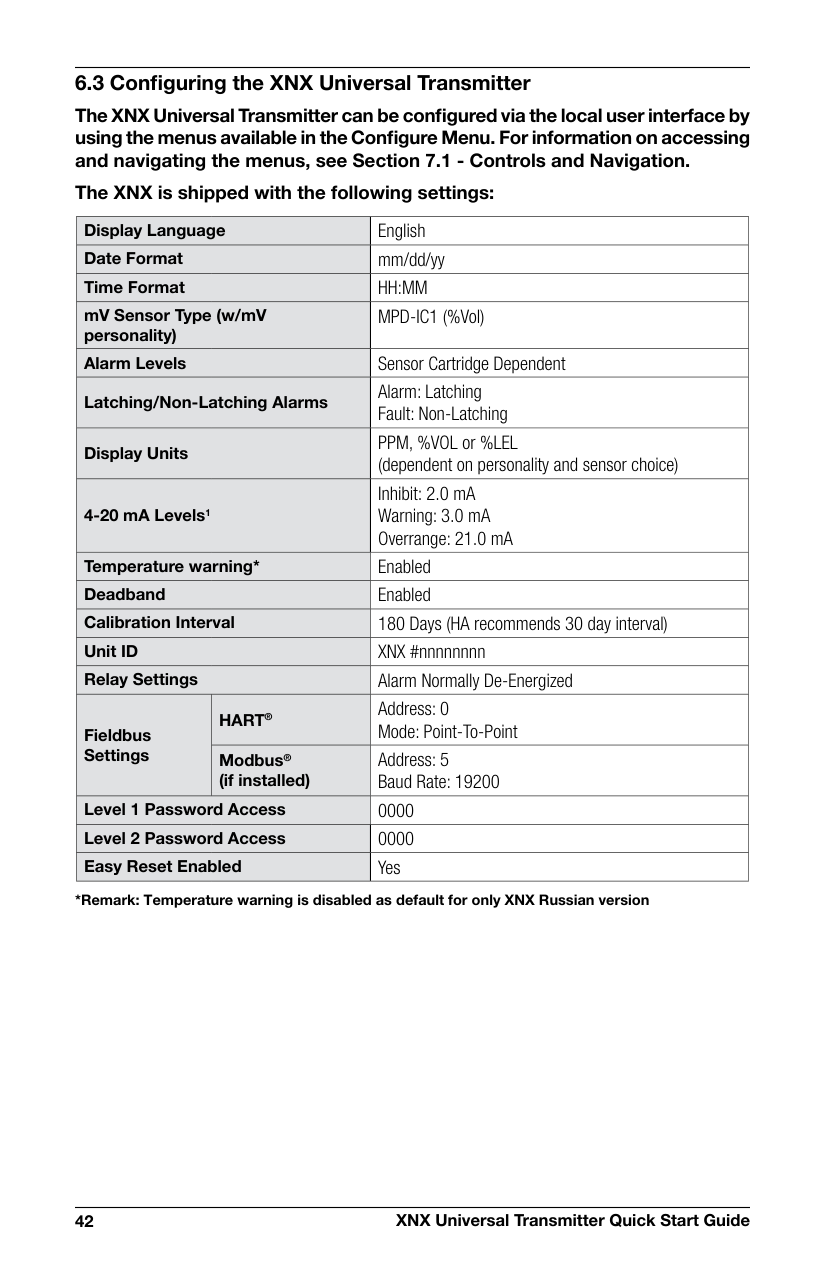

XNX Universal Transmitter Quick Start Guide 42 6.3 Configuring the XNX Universal Transmitter The XNX Universal Transmitter can be configured via the local user interface by using the menus available in the Configure Menu. For information on accessing and navigating the menus, see Section 7.1 - Controls and Navigation. The XNX is shipped with the following settings: Display Language English Date Format mm/dd/yy Time Format
Hh:Mm
mV Sensor Type (w/mV personality) MPD-IC1 (%Vol) Alarm Levels Sensor Cartridge Dependent Latching/Non-Latching Alarms Alarm: Latching Fault: Non-Latching Display Units PPM, %VOL or %LEL (dependent on personality and sensor choice) 4-20 mA Levels1 Inhibit: 2.0 mA Warning: 3.0 mA Overrange: 21.0 mA Temperature warning* Enabled Deadband Enabled Calibration Interval 180 Days (HA recommends 30 day interval) Unit ID XNX #nnnnnnnn Relay Settings Alarm Normally De-Energized Fieldbus SettingsHart®
Address: 0 Mode: Point-To-Point Modbus® (if installed) Address: 5 Baud Rate: 19200 Level 1 Password Access 0000 Level 2 Password Access 0000 Easy Reset Enabled Yes *Remark: Temperature warning is disabled as default for only XNX Russian version

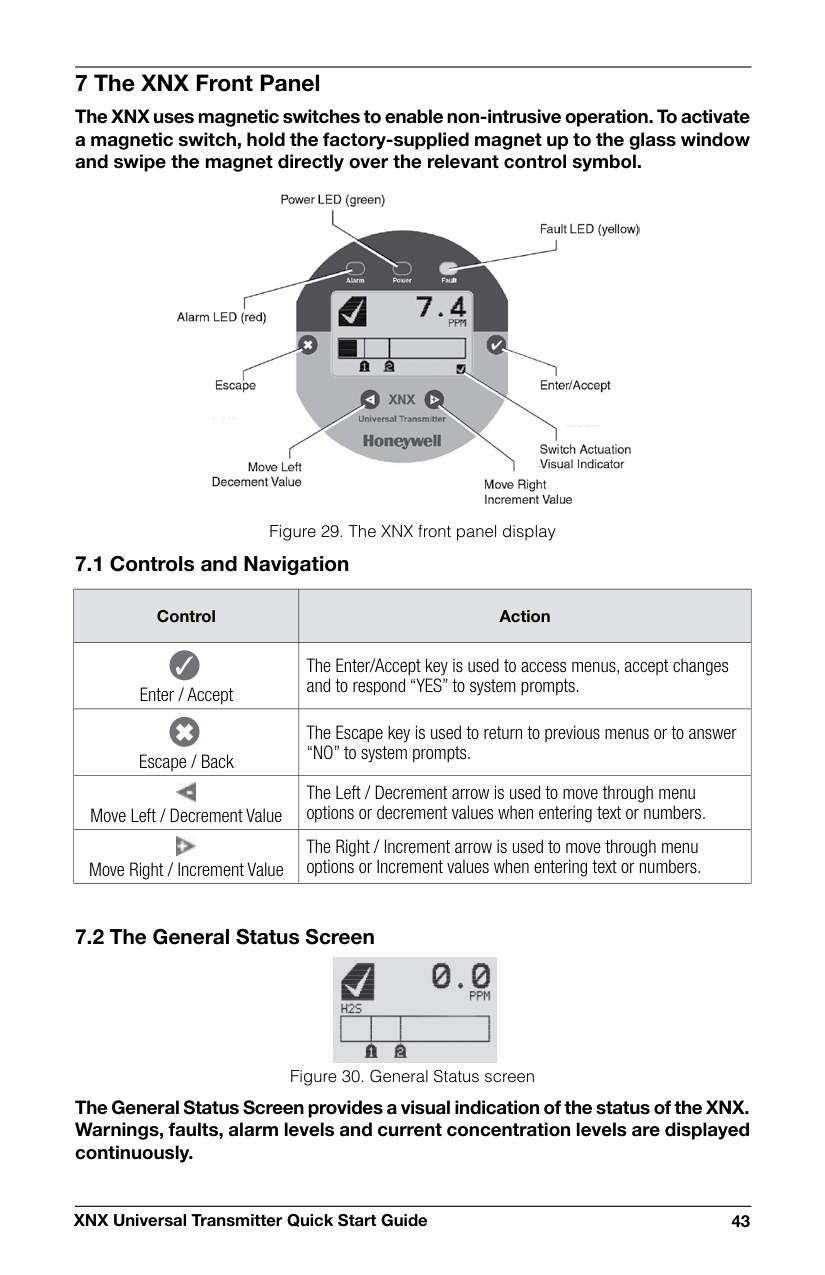

XNX Universal Transmitter Quick Start Guide 43 7 The XNX Front Panel The XNX uses magnetic switches to enable non-intrusive operation. To activate a magnetic switch, hold the factory-supplied magnet up to the glass window and swipe the magnet directly over the relevant control symbol. Figure 29. The XNX front panel display 7.1 Controls and Navigation Control Action ✓ Enter / Accept The Enter/Accept key is used to access menus, accept changes and to respond “YES” to system prompts. ✖ Escape / Back The Escape key is used to return to previous menus or to answer “NO” to system prompts. Move Left / Decrement Value The Left / Decrement arrow is used to move through menu options or decrement values when entering text or numbers. Move Right / Increment Value The Right / Increment arrow is used to move through menu options or Increment values when entering text or numbers. 7.2 The General Status Screen
Figure 30. General Status screen The General Status Screen provides a visual indication of the status of the XNX. Warnings, faults, alarm levels and current concentration levels are displayed continuously.
XNX Universal Transmitter Quick Start Guide 44 Status Indicator Current Concentration Level (Numeric) Alarm 2 Set Point Alarm 1 Set Point Current Concentration Level (Bar Graph) Full Scale Concentration Units Figure 31. General Status screen - normal operating mode The Normal Operating Mode icon gives visual indication of proper operation. When a warning is triggered, the Warning icon appears and information is displayed on the General Status Screen. Warning Code Warning Icon Figure 32. General Status Warning - detail If the fault icon is displayed, a fault condition has been triggered and the display will alternate the display of the target gas concentration and the fault code. Fault Code Fault Icon Figure 33. General Status Fault - detail When an alarm icon is displayed, the target gas concentration exceeds one or both preset alarm levels. The General Status Screen displays the gas concentration and alarm level exceeded. Target Gas Concentration Alarm Icon Alarm Level Triggered Figure 34. General Status Alarm - detail In an overrange condition, the alarm icon will display but the target gas concentration bar graph and alarm setpoints will flash, see illustration below. Full Scale Concentration Alarm Level Triggered Concentration Bar, Alarm Setpoints Flash Figure 35. General Status Overrange - detail Figure 38. Zero Calibration Passed
XNX Universal Transmitter Quick Start Guide 45 In addition to the graphic Alarm, Fault and Warning indicators, the LEDs on the front panel will flash in a pattern based on the condition: Condition
Led
Red Green Yellow Alarm 1 Solid Alarm 2 Flashing Warning Solid Fault Flashing Health Flashing 7.3 Entering the Menu Structure Swiping the magnet over the magnetic switch ✓ or ✖ gives the user access to the XNX to reset faults and/or alarms, display current settings or make adjustments to the device.Note:
If the Reset option is set to Lock, users will not have access to reset alarms and faults. For more information on Security Settings for the XNX, see XNX Universal Transmitter Technical Manual. Figure 36. Alarm Reset screen From the General Status menu, if the ✖ or ‘escape’ magnetic switch is swiped, the Alarm Reset Screen activates. This allows any user to silence alarms and reset faults generated by the XNX. Using the ✓ switch resets all alarms and faults and returns to the General Status Screen. Choosing ✖ will return to the General Status Screen without resetting the alarms and faults. Figure 37. Passcode screen Using the ✖ switch will return the user to the General Status Menu. If the user selects ✓from the General Status menu, it will activate the passcode screen. There are two levels that control access based upon the security level of the user. The passcodes for both levels are set at “0000” from the factory. Level 1 Routine Maintenance Level 2 Technician and Password Admin Warning The factory-set passcodes must be changed to prevent unauthorized access to the XNX menus (see the XNX Universal Transmitter Technical Manual). Once the Passcode Screen is displayed, the first passcode digit is highlighted. Use theswitches to increment or decrement through the values. Once the correct value is displayed for the first digit, ✓ accepts the value and moves to the next digit or ✖ will move to the previous digit of the passcode.
XNX Universal Transmitter Quick Start Guide 46
✓ Figure 39. Entering the passcode Repeat for each of the remaining digits in the passcode. If the passcode is not entered correctly, the Invalid Passcode screen is displayed and the user is returned to the General Status screen. 7.4 Displaying Transmitter Information While in the General Status display, swiping the magnet over the magnetic switch will display information about the transmitter. The General Status display will replace the bargraph in the lower portion of the screen with the unit serial number, date and time, as well as the unit part number. Figure 40. General Status screen with unit information 8 Gas Calibration Menu The Gas Calibration menu is used for Zero and Span calibration as well as functional gas testing (bump test). The Gas Calibration menu is accessed from the main menu screen. ✓ Figure 41. Gas Calibration menu Function Symbol Gas Calibration Bump Test Align Excel Calibrate mA Output Soft Reset
XNX Universal Transmitter Quick Start Guide 47 8.1 Calibration
Warning
Do not use the XNX Universal Transmitter in oxygen-enriched atmospheres. Concentrations displayed will be adversely affected by oxygen depletion. Caution The calibration procedure should only be performed by qualified personnel.Note:
The default calibration values for the “Calibration Required” diagnostic vary based on sensor type. This value can be reprogrammed in accordance with site requirements to ensure the highest level of safety. Correct operation of each sensor/detector should be confirmed using calibration with a certified test gas of known concentration before commissioning. See Section 9 - Sensor Data for calibration gas specifications. 8.1.1 Calibration ProcedureNote:
Follow the specific procedure outlined in the Operating Manual for each sensing device. The Zero Calibration procedure should be performed prior to the Span Calibration procedure.

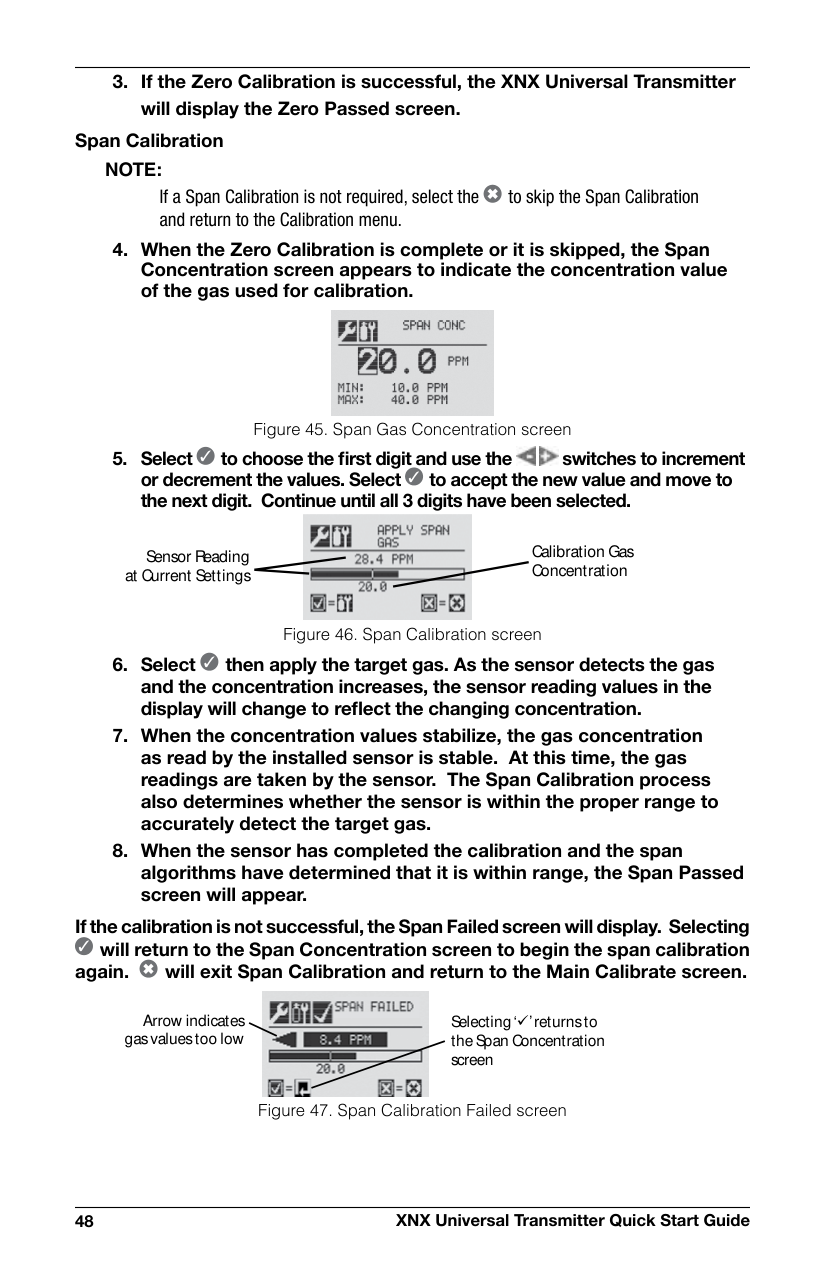

XNX Universal Transmitter Quick Start Guide 48
Note:
If a Span Calibration is not required, select the ✖ to skip the Span Calibration and return to the Calibration menu.switches to increment or decrement the values. Select ✓ to accept the new value and move to the next digit. Continue until all 3 digits have been selected. Sensor Reading at Current Settings Calibration Gas Concentration Figure 46. Span Calibration screen
XNX Universal Transmitter Quick Start Guide 49 Once the Zero and Span calibrations are completed successfully, the XNX will exit the calibration procedure. Before returning to the Gas Calibration menu however, the user will be prompted to exit with inhibit off, exit with inhibit on, or not exit.
Figure 48. Exiting options
Warning
While XNX is in Inhibit Mode, alarms are silenced. This will prevent an actual gas event from being reported. Inhibit Mode must be reset after testing or maintenance activities. 8.1.2 Zero and Span Calibration of EC Sensors Caution Before initial calibration, allow the detector to stabilize for 30 minutes after applying power. When in zero and span calibration mode, the current output from the detector is inhibited (default 3mA) to avoid false alarms. It is recommended for most sticky gases (i.e.: HCl, Cl2) the tubing should be PTFE with short pieces of rubber tube to make the final connection due to the inflexibility of PTFE. This minimizes adhesion of the gas to the tube surface and allows for more accurate measurement. Recalibration is recommended if the temperature of local environment has varied by more than +/-15 degrees C from the temperature of calibration. EN performance standards require 10 minutes stabilization time for application of zero and span gas for performance-approved EC, mV, and IR sensors prior to calibration.. To calibrate the detector, use an appropriate span gas cylinder, flow regulator set to 300-375mL/min, tubing, magnet and calibration gas flow housing. A compressed gas cylinder (20.9%Vol oxygen) should be used to perform the zero calibration if the area where the detector is located contains any residual amount of the target gas. If no residual gas is present then the background air can be used to perform the zero calibration. Contact your Honeywell representative for details of suitable calibration kits. To calibrate the detector follow the general procedure in Section 8.1.1. Refer to the following sections for special calibration requirements for specific sensors.Note:
The Oxygen sensor does not require a zeroing procedure. Background air (20.9%Vol oxygen) can be used to span the oxygen sensor in place of a compressed air cylinder (20.9%Vol oxygen).
XNX Universal Transmitter Quick Start Guide 50 Hydrogen Sulfide (H2S) Sensors Caution Before initial calibration, allow the detector to stabilize for 30 minutes after applying power. When in zero and span calibration mode, the current output from the detector is inhibited (default 2mA) to avoid false alarms. Recalibration is recommended if the temperature of local environment has varied by more than +/-15 degrees C from the temperature of calibration. Hydrogen Sulfide sensors can be affected by extreme humidity changes. A sudden increase in ambient humidity can result in a short-term positive drift in the instrument’s reading. A sudden decrease in ambient humidity can result in a short-term negative drift in the instrument’s reading. These are most likely to be noticed during calibration with dry or cylinder gas. When calibrating Hydrogen Sulfide cartridges the following should be taken into account while following the procedure in Section 8.1.1:
Warning
Long-term exposure (>20 minutes) to concentrations exceediing the full-scale range of the H2S sensor Type 2 can cause it to lose sensitivity. The measured value may then decrease even though high levels of toxic gas are still present. If such conditions can occur, set the control unit to latch at overrange. In standalone operation, set alarms to latching. When resetting the overrange or alarm, verify the correct operation of the transmitter. Before re-calibrating the transmitter, verify the absence of gas. Hydrogen Cyanide (HCN) The span calibration can be performed using HCN from a cylinder at a suitable concentration. Adjust the span calibration set point in the instrument to match that of the concentration actually applied. Pay special attention to the following points:
XNX Universal Transmitter Quick Start Guide 51 Fluorine (F2) The calibration is performed using 2 ppm (nominal) chlorine (Cl2). Honeywell Analytics strongly recommends that a suitable Cl2 generator be used for this operation. Adjust the span calibration set point in the instrument to match that of the concentration actually applied. Pay special attention to the following points:
Note:
Ethylene oxide sensors are supplied on a transportation board in order to keep the cell biased at the correct level. Once removed from the transportation board the sensor should be fitted to the detector as soon as possible. If the sensor is not fitted to the transportation board or a powered detector, its bias will decay and the sensor will take up to 24 hours to recover. During this period the sensor will not function as a gas detector, reporting a gas reading above full scale. When calibrating ethylene oxide sensors, the following should be taken into account:

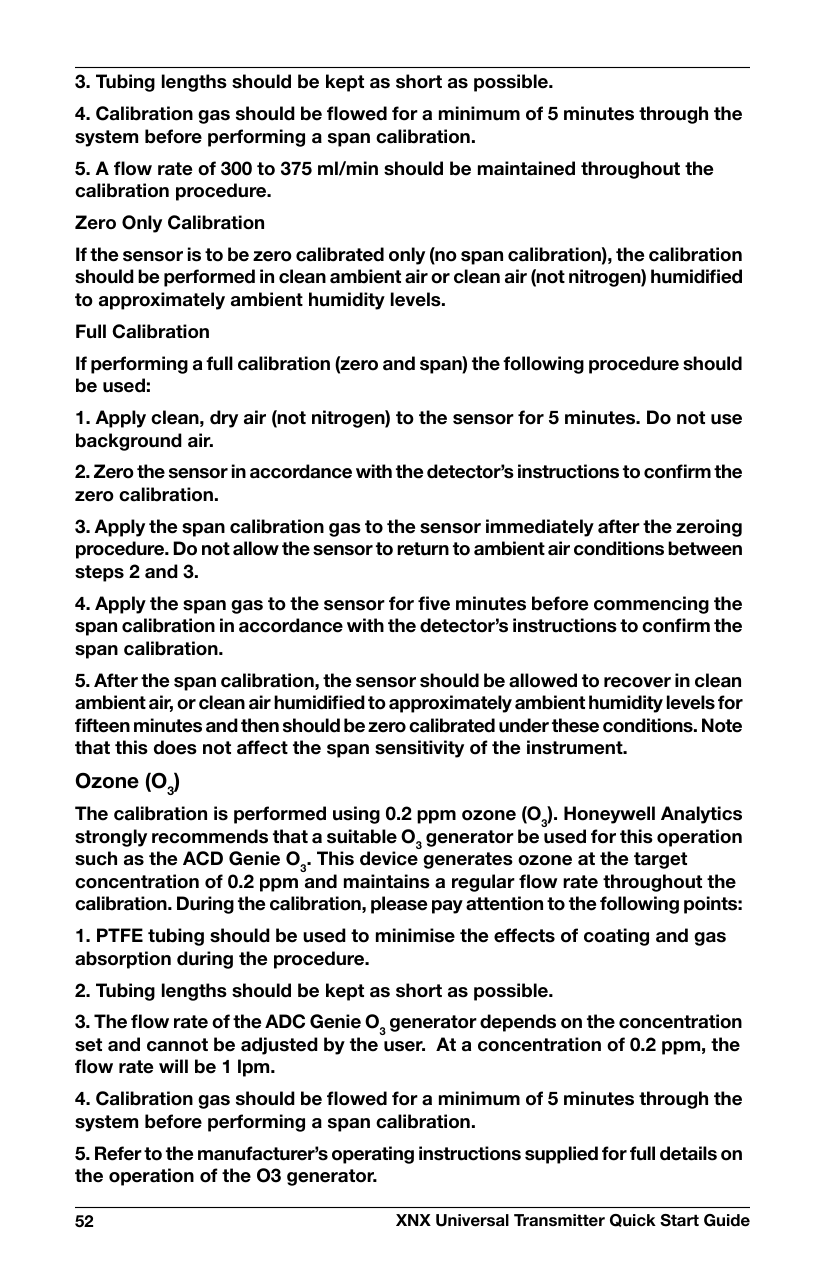

XNX Universal Transmitter Quick Start Guide 52

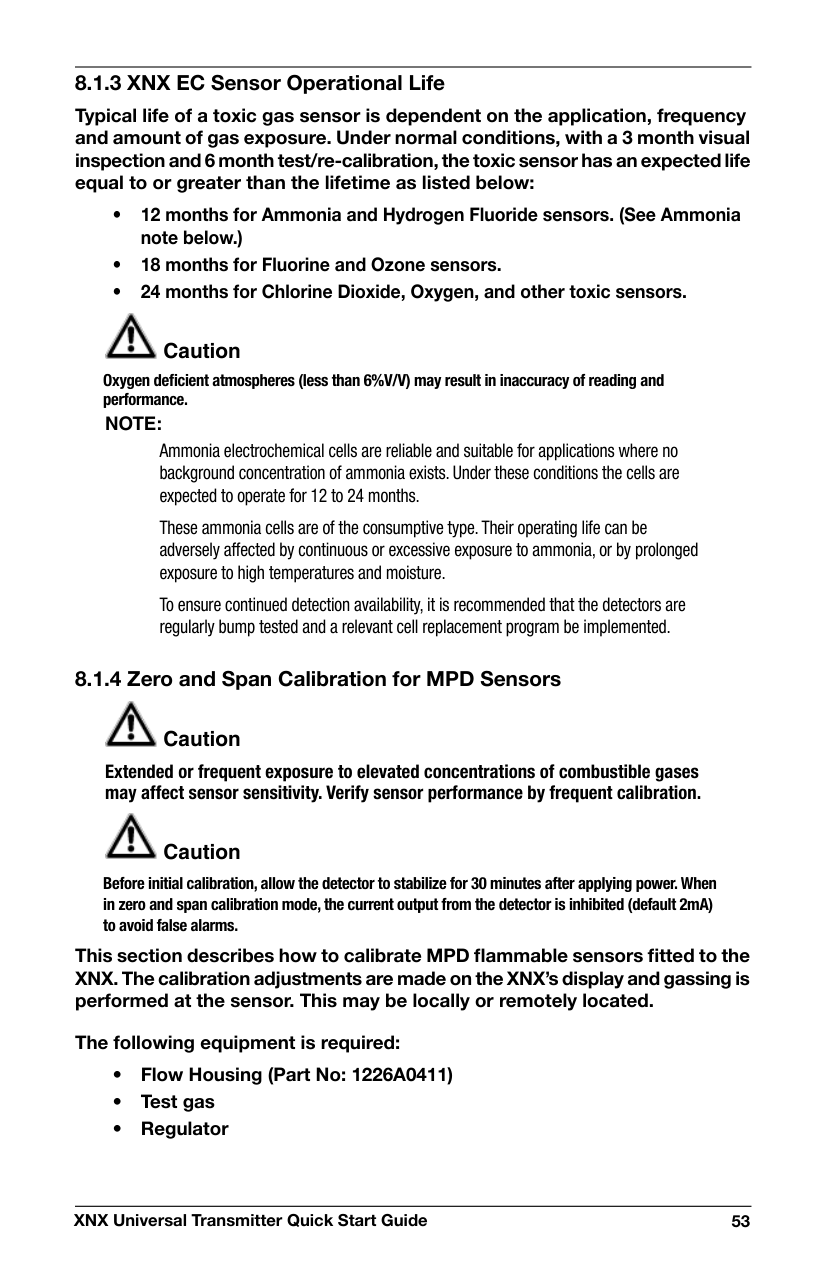

XNX Universal Transmitter Quick Start Guide 53 8.1.3 XNX EC Sensor Operational Life Typical life of a toxic gas sensor is dependent on the application, frequency and amount of gas exposure. Under normal conditions, with a 3 month visual inspection and 6 month test/re-calibration, the toxic sensor has an expected life equal to or greater than the lifetime as listed below:
Note:
Ammonia electrochemical cells are reliable and suitable for applications where no background concentration of ammonia exists. Under these conditions the cells are expected to operate for 12 to 24 months. These ammonia cells are of the consumptive type. Their operating life can be adversely affected by continuous or excessive exposure to ammonia, or by prolonged exposure to high temperatures and moisture. To ensure continued detection availability, it is recommended that the detectors are regularly bump tested and a relevant cell replacement program be implemented. 8.1.4 Zero and Span Calibration for MPD Sensors Caution Extended or frequent exposure to elevated concentrations of combustible gases may affect sensor sensitivity. Verify sensor performance by frequent calibration. Caution Before initial calibration, allow the detector to stabilize for 30 minutes after applying power. When in zero and span calibration mode, the current output from the detector is inhibited (default 2mA) to avoid false alarms. This section describes how to calibrate MPD flammable sensors fitted to the XNX. The calibration adjustments are made on the XNX’s display and gassing is performed at the sensor. This may be locally or remotely located. The following equipment is required:

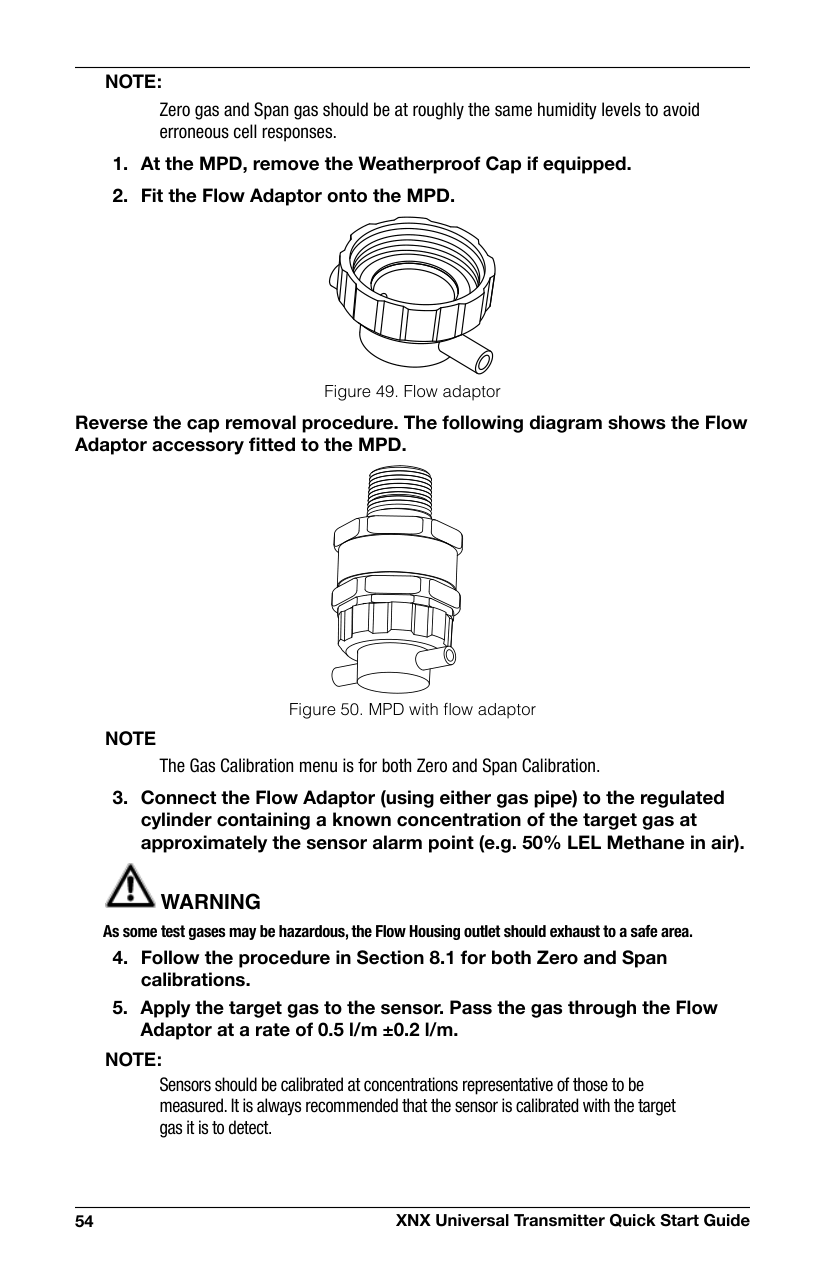

XNX Universal Transmitter Quick Start Guide 54
Note:
Zero gas and Span gas should be at roughly the same humidity levels to avoid erroneous cell responses.Note
The Gas Calibration menu is for both Zero and Span Calibration.Warning
As some test gases may be hazardous, the Flow Housing outlet should exhaust to a safe area.Note:
Sensors should be calibrated at concentrations representative of those to be measured. It is always recommended that the sensor is calibrated with the target gas it is to detect.

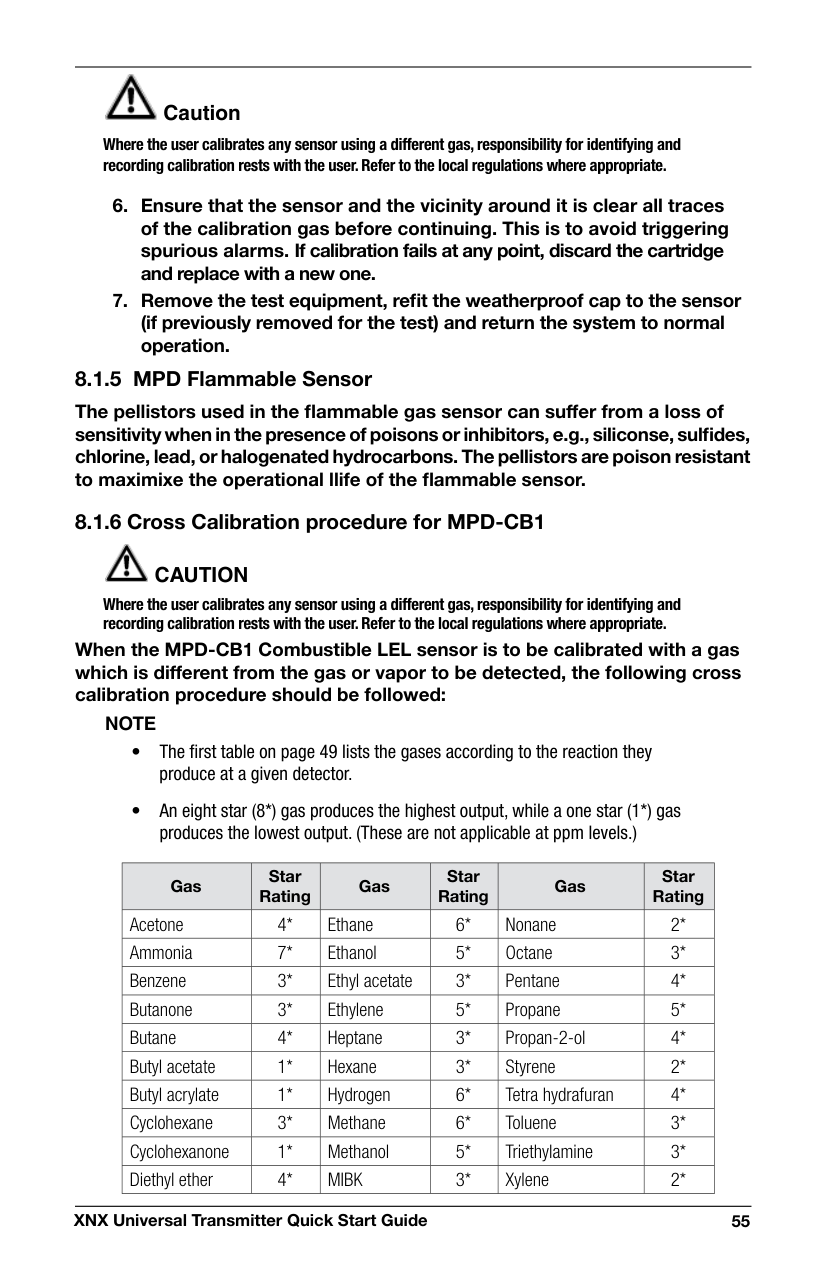

XNX Universal Transmitter Quick Start Guide 55 Caution Where the user calibrates any sensor using a different gas, responsibility for identifying and recording calibration rests with the user. Refer to the local regulations where appropriate.
Caution
Where the user calibrates any sensor using a different gas, responsibility for identifying and recording calibration rests with the user. Refer to the local regulations where appropriate. When the MPD-CB1 Combustible LEL sensor is to be calibrated with a gas which is different from the gas or vapor to be detected, the following cross calibration procedure should be followed:Note
Mibk
3* Xylene 2*

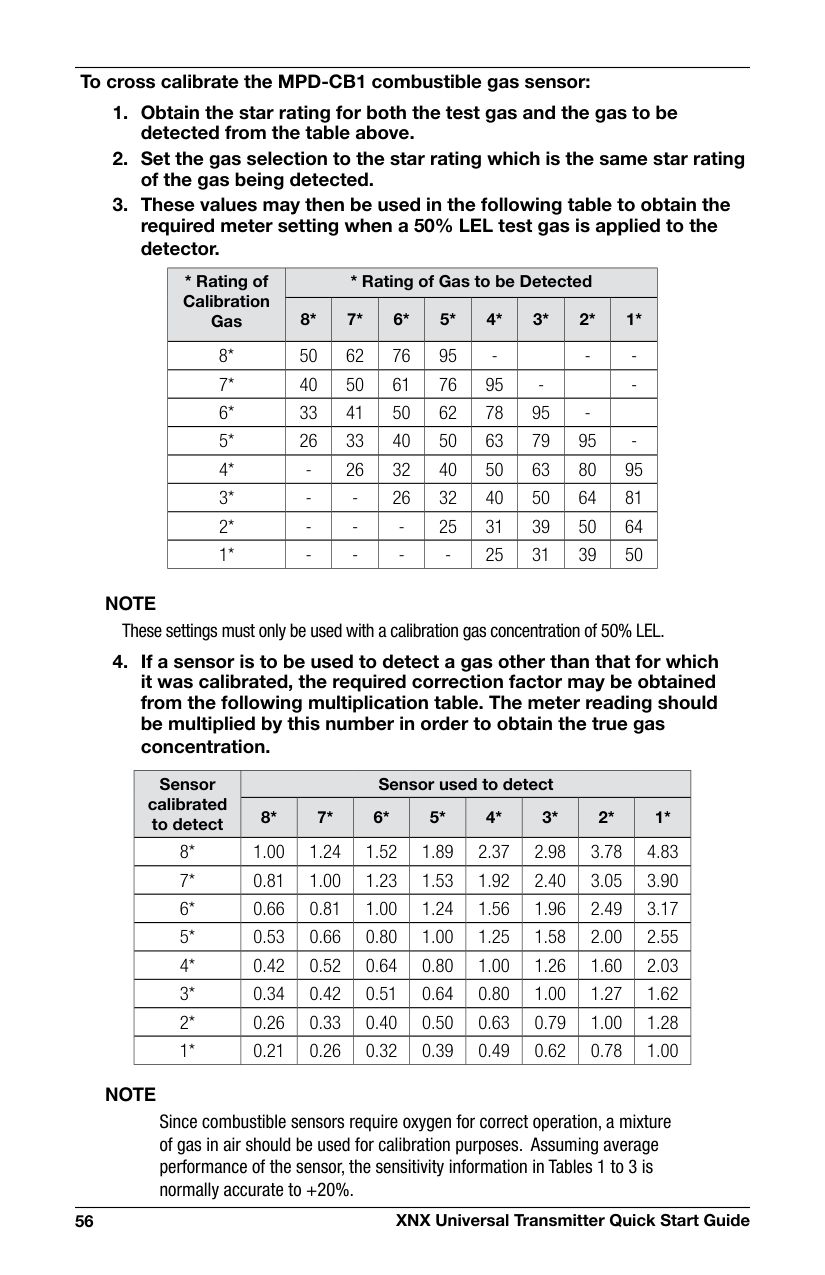

XNX Universal Transmitter Quick Start Guide 56 To cross calibrate the MPD-CB1 combustible gas sensor:
Note
These settings must only be used with a calibration gas concentration of 50% LEL.Note
Since combustible sensors require oxygen for correct operation, a mixture of gas in air should be used for calibration purposes. Assuming average performance of the sensor, the sensitivity information in Tables 1 to 3 is normally accurate to +20%.

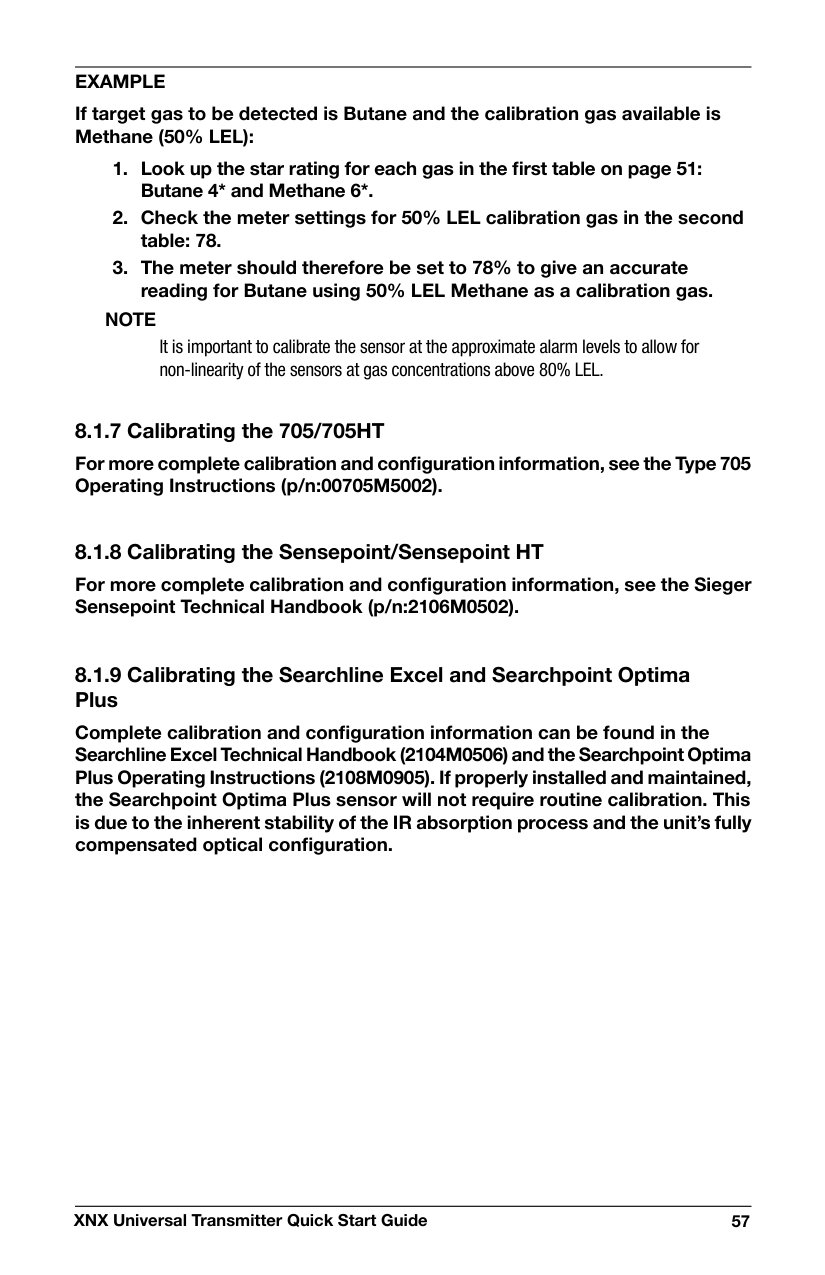

XNX Universal Transmitter Quick Start Guide 57
Example
If target gas to be detected is Butane and the calibration gas available is Methane (50% LEL):Note
It is important to calibrate the sensor at the approximate alarm levels to allow for non-linearity of the sensors at gas concentrations above 80% LEL. 8.1.7 Calibrating the 705/705HT For more complete calibration and configuration information, see the Type 705 Operating Instructions (p/n:00705M5002). 8.1.8 Calibrating the Sensepoint/Sensepoint HT For more complete calibration and configuration information, see the Sieger Sensepoint Technical Handbook (p/n:2106M0502). 8.1.9 Calibrating the Searchline Excel and Searchpoint Optima Plus Complete calibration and configuration information can be found in the Searchline Excel Technical Handbook (2104M0506) and the Searchpoint Optima Plus Operating Instructions (2108M0905). If properly installed and maintained, the Searchpoint Optima Plus sensor will not require routine calibration. This is due to the inherent stability of the IR absorption process and the unit’s fully compensated optical configuration.

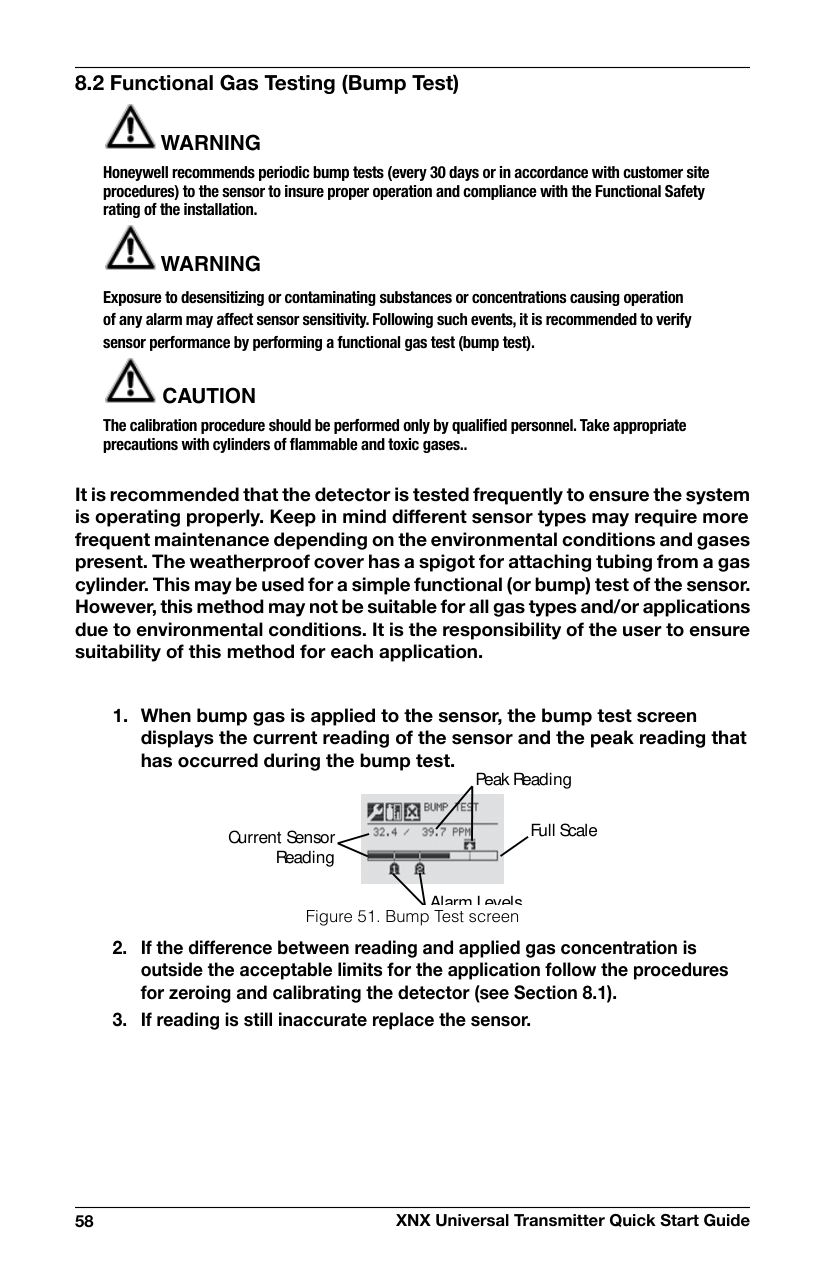

XNX Universal Transmitter Quick Start Guide 58 8.2 Functional Gas Testing (Bump Test)
Warning
Honeywell recommends periodic bump tests (every 30 days or in accordance with customer site procedures) to the sensor to insure proper operation and compliance with the Functional Safety rating of the installation.Warning
Exposure to desensitizing or contaminating substances or concentrations causing operation of any alarm may affect sensor sensitivity. Following such events, it is recommended to verify sensor performance by performing a functional gas test (bump test).Caution
The calibration procedure should be performed only by qualified personnel. Take appropriate precautions with cylinders of flammable and toxic gases.. It is recommended that the detector is tested frequently to ensure the system is operating properly. Keep in mind different sensor types may require more frequent maintenance depending on the environmental conditions and gases present. The weatherproof cover has a spigot for attaching tubing from a gas cylinder. This may be used for a simple functional (or bump) test of the sensor. However, this method may not be suitable for all gas types and/or applications due to environmental conditions. It is the responsibility of the user to ensure suitability of this method for each application.
XNX Universal Transmitter Quick Start Guide 59 9 Sensor Data 9.1 Operating and Storage Conditions for Performance Tested EC Cartridges Gas Cartridge P/N Operating Pressure Operating Air Speed Warm-up Time (minimum) Storage Conditions* Temperature Pressure Humidity Time**
O2
OxygenXnxxso1Ss
80 kPa ~ 120 kPa 0 ~ 6 m/sec 60 sec. 0 to 20°C, 32 to 68°F 80 to 120 KPa 5 to 95% RH 6 monthsXnxxso1Fm
H2S
Hydrogen SulfideXnxxsh1Ss
80 kPa ~ 120 kPa 0 ~ 6 m/sec 60 sec. 0 to 20°C, 32 to 68°F 70 to 110 KPa 30 to 70% RH 6 monthsXnxxsh1Fm
H2S (High) Hydrogen SulfideXnxxsh2Ss
80 kPa ~ 120 kPa 0 ~ 6 m/sec 60 sec. 0 to 20°C, 32 to 68°F 70 to 110 KPa 30 to 70% RH 6 monthsCo
Carbon MonoxideXnxxsc1Ss
80 kPa ~ 120 kPa 0 ~ 6 m/sec 60 sec. 0 to 20°C, 32 to 68°F 70 to 110 KPa 30 to 70% RH 6 monthsXnxxsc1Fm
*Store in sealed packages **Check cartridge certificates
XNX Universal Transmitter Quick Start Guide 60 9.2 EC Sensor Performance Data, Factory Mutual Verified Gas Cartridge P/N Selectable Full Scale Range (Display and 4-20mA Full Scale) Default Range Range Incre- ments Lower Alarm Limit Lower Detec- tion Limit Lower Explo- sive Limit (% Vol) Zero Deviation Selectable Cal Gas Range Default Cal Point Response Time (T50) sec Response Time
(T90)
sec Accuracy Operating Temperature Operating Humidity Min Max MinRh
MaxRh
O2
OxygenXnxxso1Fm
n/a 23.0% Vol n/a 5.0%Vol 5% Vol n/a n/a 20.9 %Vol (fixed) 20.9 %Vol T20 <10 <30 <+/-0.5 %Vol-30°C /
-34°F
55°C /
131°F
15% 90%H2S
Hydrogen SulfideXnxxsh1Fm
10.0 to 50.0 ppm 15.0 ppm 0.1 ppm 5.0 ppm 1.5 ppm n/a -2.5 ppm 30 to 70% of the selected full scale range 10 ppm <20 <30 2 ppm or 10% of reading, whichever is greater-40°C /
-40°F
55°C /
131°F
15% 90%Co
Carbon Monoxide XNXXSC1FM1 100 to 1000 ppm 300 ppm 100 ppm 30 ppm 15 ppm na/ -25 ppm 100 ppm <15 <30 See footnote 1-40°C /
-40°F
55°C /
131°F
15% 90%Footnotes:

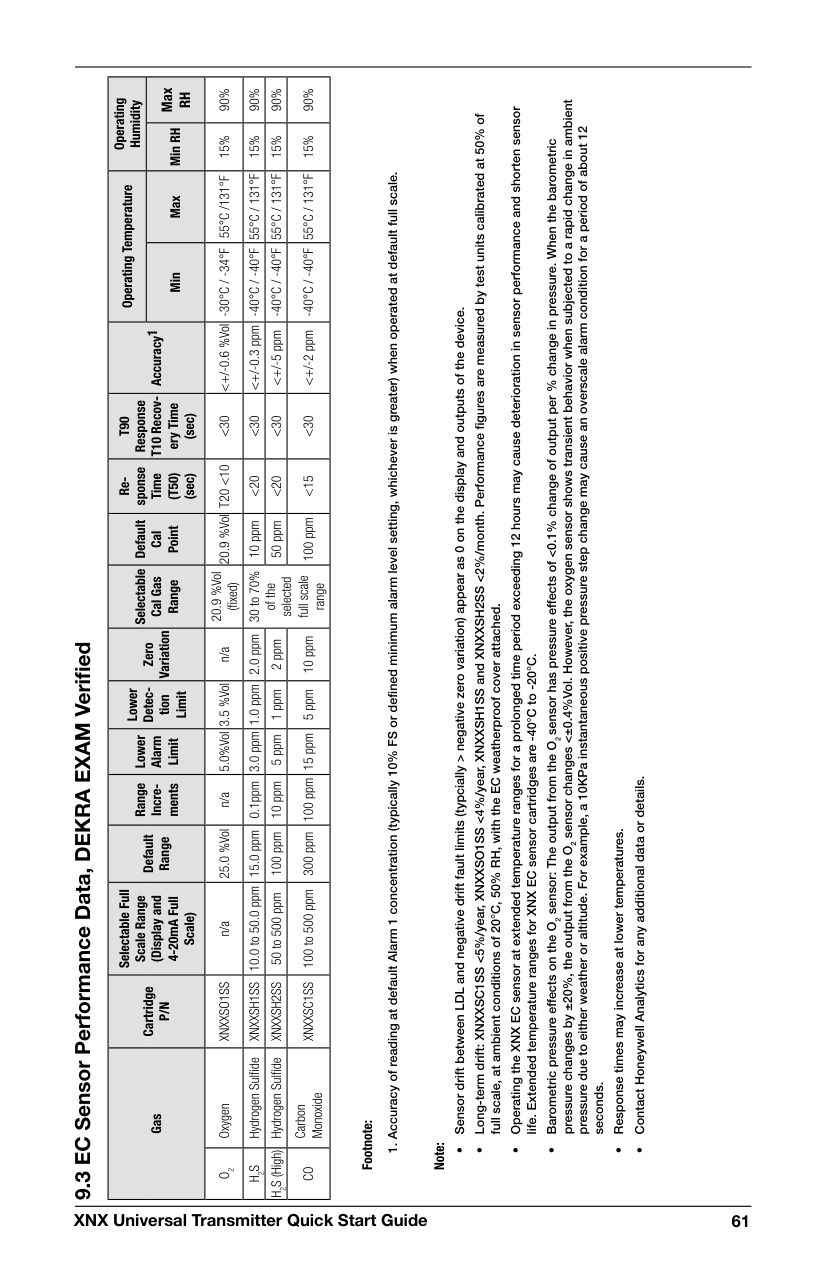

XNX Universal Transmitter Quick Start Guide 61 9.3 EC Sensor Performance Data, DEKRA EXAM Verified Gas Cartridge
P/N
Selectable Full Scale Range (Display and 4-20mA Full Scale) Default Range Range Incre- ments Lower Alarm Limit Lower Detec- tion Limit Zero Variation Selectable Cal Gas Range Default Cal Point Re- sponse Time(T50)
(sec)T90
Response T10 Recov- ery Time (sec) Accuracy1 Operating Temperature Operating Humidity Min Max Min RH MaxRh
O2
OxygenXnxxso1Ss
n/a 25.0 %Vol n/a 5.0%Vol 3.5 %Vol n/a 20.9 %Vol (fixed) 20.9 %Vol T20 <10 <30 <+/-0.6 %Vol -30°C / -34°F 55°C /131°F 15% 90%H2S
Hydrogen Sulfide XNXXSH1SS 10.0 to 50.0 ppm 15.0 ppm 0.1ppm 3.0 ppm 1.0 ppm 2.0 ppm 30 to 70% of the selected full scale range 10 ppm <20 <30 <+/-0.3 ppm -40°C / -40°F 55°C / 131°F 15% 90% H2S (High) Hydrogen SulfideXnxxsh2Ss
50 to 500 ppm 100 ppm 10 ppm 5 ppm 1 ppm 2 ppm 50 ppm <20 <30 <+/-5 ppm-40°C / -40°F 55°C / 131°F
15% 90%Co
Carbon MonoxideXnxxsc1Ss
100 to 500 ppm 300 ppm 100 ppm 15 ppm 5 ppm 10 ppm 100 ppm <15 <30 <+/-2 ppm-40°C / -40°F 55°C / 131°F
15% 90%Footnote:

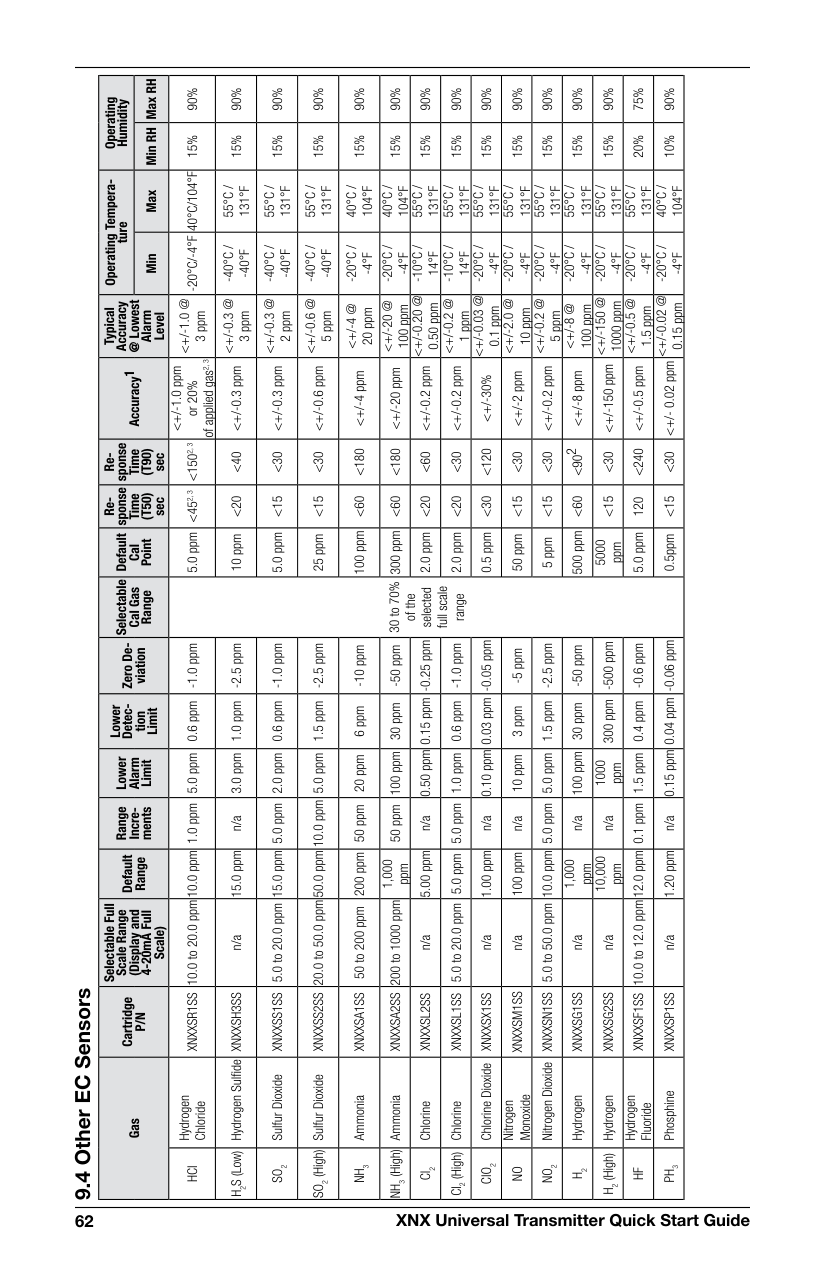

XNX Universal Transmitter Quick Start Guide 62 9.4 Other EC Sensors Gas Cartridge
P/N
Selectable Full Scale Range (Display and 4-20mA Full Scale) Default Range Range Incre- ments Lower Alarm Limit Lower Detec- tion Limit Zero De- viation Selectable Cal Gas Range Default Cal Point Re- sponse Time(T50)
sec Re- sponse Time(T90)
sec Accuracy1 Typical Accuracy @ Lowest Alarm Level Operating Tempera- ture Operating Humidity Min Max Min RH Max RH HCl Hydrogen Chloride XNXXSR1SS 10.0 to 20.0 ppm 10.0 ppm 1.0 ppm 5.0 ppm 0.6 ppm -1.0 ppm 30 to 70% of the selected full scale range 5.0 ppm <452, 3 <1502, 3 <+/-1.0 ppm or 20% of applied gas2, 3 <+/-1.0 @ 3 ppm-20°C/-4°F 40°C/104°F
15% 90% H2S (Low) Hydrogen Sulfide XNXXSH3SS n/a 15.0 ppm n/a 3.0 ppm 1.0 ppm -2.5 ppm 10 ppm <20 <40 <+/-0.3 ppm <+/-0.3 @ 3 ppm-40°C /
-40°F
55°C /
131°F
15% 90%So2
Sulfur Dioxide XNXXSS1SS 5.0 to 20.0 ppm 15.0 ppm 5.0 ppm 2.0 ppm 0.6 ppm -1.0 ppm 5.0 ppm <15 <30 <+/-0.3 ppm <+/-0.3 @ 2 ppm-40°C /
-40°F
55°C /
131°F
15% 90% SO2 (High) Sulfur Dioxide XNXXSS2SS 20.0 to 50.0 ppm 50.0 ppm 10.0 ppm 5.0 ppm 1.5 ppm -2.5 ppm 25 ppm <15 <30 <+/-0.6 ppm <+/-0.6 @ 5 ppm-40°C /
-40°F
55°C /
131°F
15% 90%Nh3
AmmoniaXnxxsa1Ss
50 to 200 ppm 200 ppm 50 ppm 20 ppm 6 ppm -10 ppm 100 ppm <60 <180 <+/-4 ppm <+/-4 @ 20 ppm-20°C /
-4°F
40°C /
104°F
15% 90% NH3 (High) Ammonia XNXXSA2SS 200 to 1000 ppm 1,000 ppm 50 ppm 100 ppm 30 ppm -50 ppm 300 ppm <60 <180 <+/-20 ppm <+/-20 @ 100 ppm-20°C /
-4°F
40°C /
104°F
15% 90% Cl2 ChlorineXnxxsl2Ss
n/a 5.00 ppm n/a 0.50 ppm 0.15 ppm -0.25 ppm 2.0 ppm <20 <60 <+/-0.2 ppm <+/-0.20 @ 0.50 ppm-10°C /
14°F
55°C /
131°F
15% 90% Cl2 (High) Chlorine XNXXSL1SS 5.0 to 20.0 ppm 5.0 ppm 5.0 ppm 1.0 ppm 0.6 ppm -1.0 ppm 2.0 ppm <20 <30 <+/-0.2 ppm <+/-0.2 @ 1 ppm-10°C /
14°F
55°C /
131°F
15% 90% ClO2 Chlorine DioxideXnxxsx1Ss
n/a 1.00 ppm n/a 0.10 ppm 0.03 ppm -0.05 ppm 0.5 ppm <30 <120 <+/-30% <+/-0.03 @ 0.1 ppm-20°C /
-4°F
55°C /
131°F
15% 90%No
Nitrogen MonoxideXnxxsm1Ss
n/a 100 ppm n/a 10 ppm 3 ppm -5 ppm 50 ppm <15 <30 <+/-2 ppm <+/-2.0 @ 10 ppm-20°C /
-4°F
55°C /
131°F
15% 90%No2
Nitrogen Dioxide XNXXSN1SS 5.0 to 50.0 ppm 10.0 ppm 5.0 ppm 5.0 ppm 1.5 ppm -2.5 ppm 5 ppm <15 <30 <+/-0.2 ppm <+/-0.2 @ 5 ppm-20°C /
-4°F
55°C /
131°F
15% 90%H2
HydrogenXnxxsg1Ss
n/a 1,000 ppm n/a 100 ppm 30 ppm -50 ppm 500 ppm <60 <902 <+/-8 ppm <+/-8 @ 100 ppm-20°C /
-4°F
55°C /
131°F
15% 90% H2 (High) HydrogenXnxxsg2Ss
n/a 10,000 ppm n/a 1000 ppm 300 ppm -500 ppm 5000 ppm <15 <30 <+/-150 ppm <+/-150 @ 1000 ppm-20°C /
-4°F
55°C /
131°F
15% 90%Hf
Hydrogen Fluoride XNXXSF1SS 10.0 to 12.0 ppm 12.0 ppm 0.1 ppm 1.5 ppm 0.4 ppm -0.6 ppm 5.0 ppm 120 <240 <+/-0.5 ppm <+/-0.5 @ 1.5 ppm-20°C /
-4°F
55°C /
131°F
20% 75%Ph3
PhosphineXnxxsp1Ss
n/a 1.20 ppm n/a 0.15 ppm 0.04 ppm -0.06 ppm 0.5ppm <15 <30 <+/- 0.02 ppm <+/-0.02 @ 0.15 ppm-20°C /
-4°F
40°C /
104°F
10% 90%

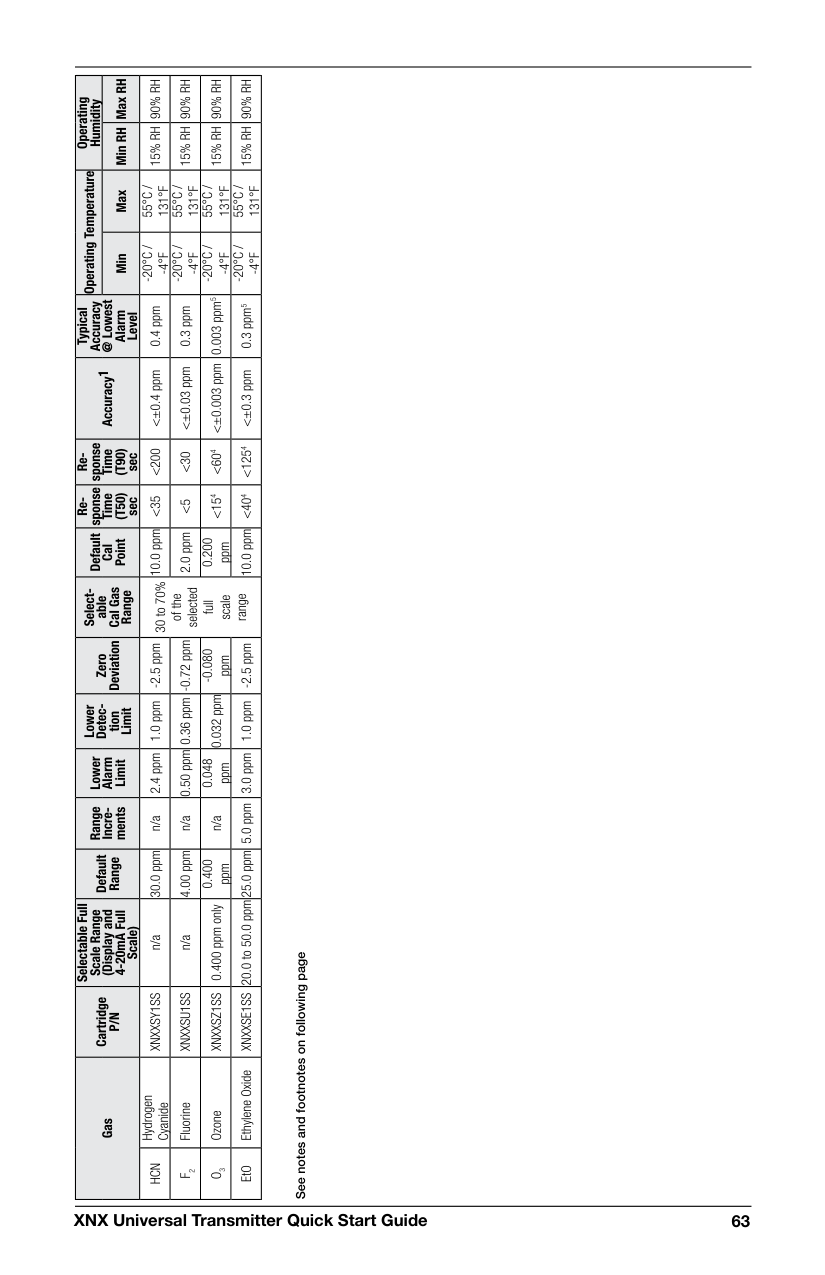

XNX Universal Transmitter Quick Start Guide 63 Gas Cartridge
P/N
Selectable Full Scale Range (Display and 4-20mA Full Scale) Default Range Range Incre- ments Lower Alarm Limit Lower Detec- tion Limit Zero Deviation Select- able Cal Gas Range Default Cal Point Re- sponse Time(T50)
sec Re- sponse Time(T90)
sec Accuracy1 Typical Accuracy @ Lowest Alarm Level Operating Temperature Operating Humidity Min Max Min RH Max RHHcn
Hydrogen CyanideXnxxsy1Ss
n/a 30.0 ppm n/a 2.4 ppm 1.0 ppm -2.5 ppm 30 to 70% of the selected full scale range 10.0 ppm <35 <200 <±0.4 ppm 0.4 ppm-20°C /
-4°F
55°C /
131°F
15% Rh 90% Rh
F2
FluorineXnxxsu1Ss
n/a 4.00 ppm n/a 0.50 ppm 0.36 ppm -0.72 ppm 2.0 ppm <5 <30 <±0.03 ppm 0.3 ppm-20°C /
-4°F
55°C /
131°F
15% Rh 90% Rh
O3
OzoneXnxxsz1Ss
0.400 ppm only 0.400 ppm n/a 0.048 ppm 0.032 ppm -0.080 ppm 0.200 ppm <154 <604 <±0.003 ppm 0.003 ppm5-20°C /
-4°F
55°C /
131°F
15% Rh 90% Rh
EtO Ethylene Oxide XNXXSE1SS 20.0 to 50.0 ppm 25.0 ppm 5.0 ppm 3.0 ppm 1.0 ppm -2.5 ppm 10.0 ppm <404 <1254 <±0.3 ppm 0.3 ppm5-20°C /
-4°F
55°C /
131°F
15% Rh 90% Rh
See notes and footnotes on following page

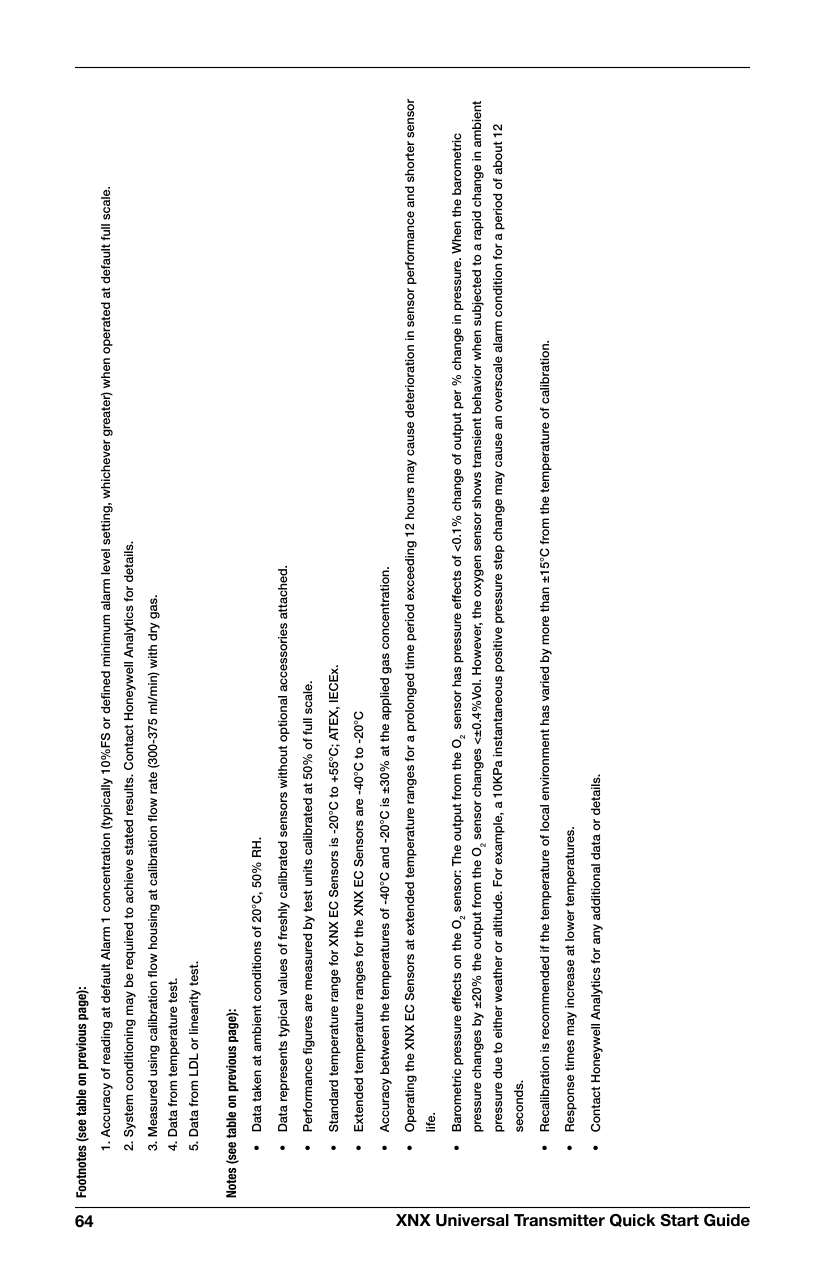

XNX Universal Transmitter Quick Start Guide 64 Footnotes (see table on previous page):

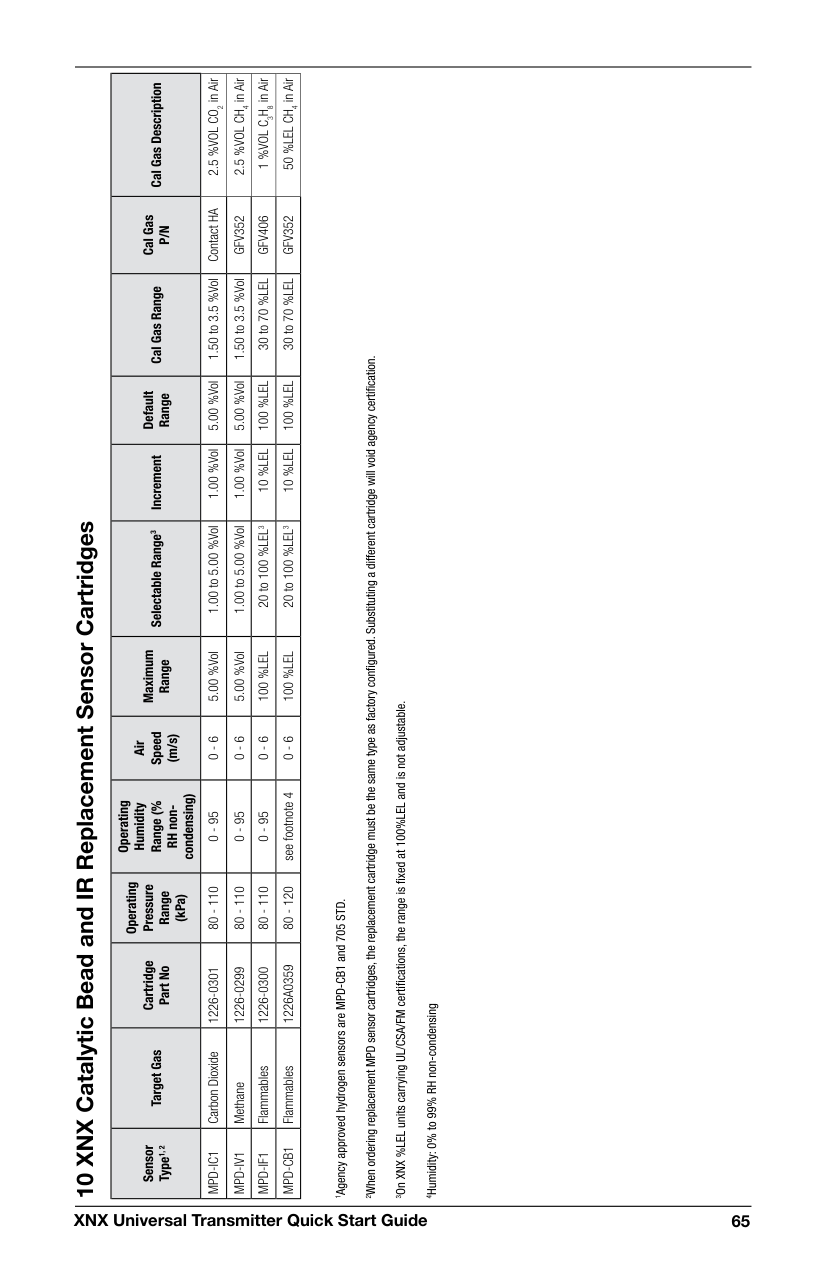

XNX Universal Transmitter Quick Start Guide 65 10 XNX Catalytic Bead and IR Replacement Sensor Cartridges Sensor Type1, 2 Target Gas Cartridge Part No Operating Pressure Range (kPa) Operating Humidity Range (% RH non- condensing) Air Speed (m/s) Maximum Range Selectable Range3 Increment Default Range Cal Gas Range Cal Gas
P/N
Cal Gas DescriptionMpd-Ic1
Carbon Dioxide 1226-0301 80 - 110 0 - 95 0 - 6 5.00 %Vol 1.00 to 5.00 %Vol 1.00 %Vol 5.00 %Vol 1.50 to 3.5 %Vol Contact HA 2.5 %VOL CO2 in AirMpd-Iv1
Methane 1226-0299 80 - 110 0 - 95 0 - 6 5.00 %Vol 1.00 to 5.00 %Vol 1.00 %Vol 5.00 %Vol 1.50 to 3.5 %VolGfv352
2.5 %VOL CH4 in AirMpd-If1
Flammables 1226-0300 80 - 110 0 - 95 0 - 6100 %Lel
20 to 100 %LEL310 %Lel
100 %Lel
30 to 70 %LELGfv406
1 %VOL C3H8 in AirMpd-Cb1
Flammables1226A0359
80 - 120 see footnote 4 0 - 6100 %Lel
20 to 100 %LEL310 %Lel
100 %Lel
30 to 70 %LELGfv352
50 %LEL CH4 in Air 1Agency approved hydrogen sensors are MPD-CB1 and 705 STD. 2When ordering replacement MPD sensor cartridges, the replacement cartridge must be the same type as factory configured. Substituting a different cartridge will void agency certification. 3On XNX %LEL units carrying UL/CSA/FM certifications, the range is fixed at 100%LEL and is not adjustable. 4Humidity: 0% to 99% RH non-condensing

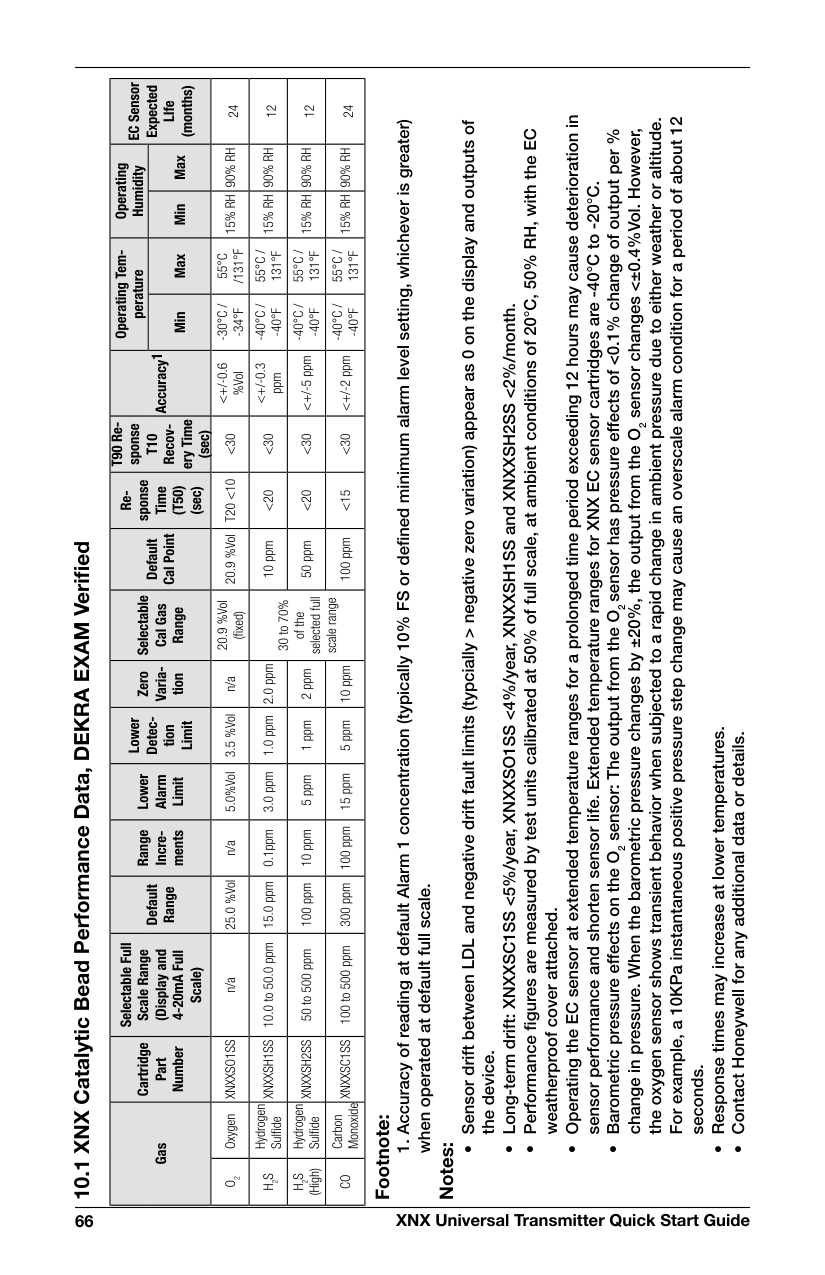

XNX Universal Transmitter Quick Start Guide 66 10.1 XNX Catalytic Bead Performance Data, DEKRA EXAM Verified Footnote:
(T50)
(sec) T90 Re- sponseT10
Recov- ery Time (sec) Accuracy1 Operating Tem- perature Operating Humidity EC Sensor Expected LIfe (months) Min Max Min MaxO2
OxygenXnxxso1Ss
n/a 25.0 %Vol n/a 5.0%Vol 3.5 %Vol n/a 20.9 %Vol (fixed) 20.9 %VolT20 <10
<30 <+/-0.6 %Vol-30°C /
-34°F
55°C
/131°F
15% Rh 90% Rh
24H2S
Hydrogen SulfideXnxxsh1Ss
10.0 to 50.0 ppm 15.0 ppm 0.1ppm 3.0 ppm 1.0 ppm 2.0 ppm 30 to 70% of the selected full scale range 10 ppm <20 <30 <+/-0.3 ppm-40°C /
-40°F
55°C /
131°F
15% Rh 90% Rh
12H2S
(High) Hydrogen SulfideXnxxsh2Ss
50 to 500 ppm 100 ppm 10 ppm 5 ppm 1 ppm 2 ppm 50 ppm <20 <30 <+/-5 ppm-40°C /
-40°F
55°C /
131°F
15% Rh 90% Rh
12Co
Carbon Monoxide XNXXSC1SS 100 to 500 ppm 300 ppm 100 ppm 15 ppm 5 ppm 10 ppm 100 ppm <15 <30 <+/-2 ppm-40°C /
-40°F
55°C /
131°F
15% Rh 90% Rh
24

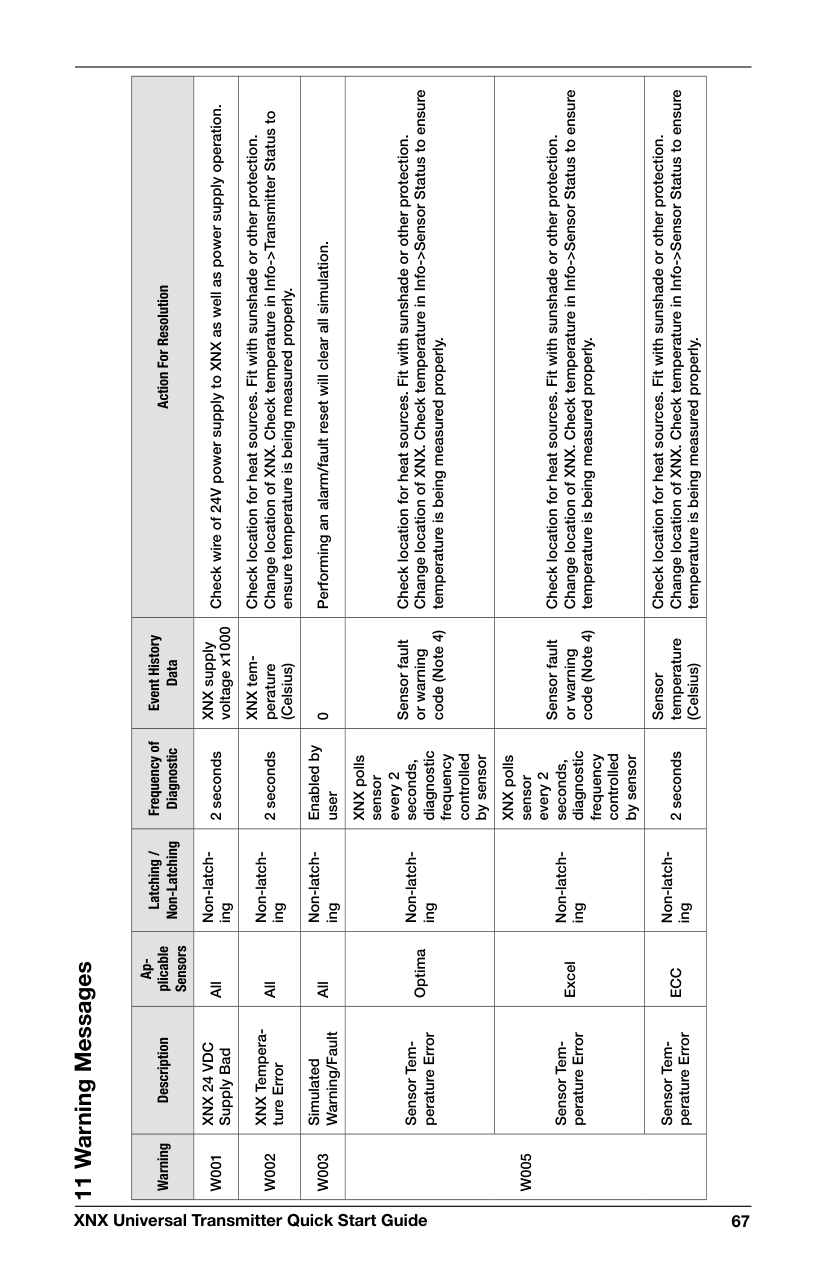

XNX Universal Transmitter Quick Start Guide 67 11 Warning Messages Warning Description Ap- plicable Sensors Latching / Non-Latching Frequency of Diagnostic Event History Data Action For Resolution
W001
Xnx 24 Vdc
Supply Bad All Non-latch- ing 2 seconds XNX supply voltage x1000 Check wire of 24V power supply to XNX as well as power supply operation.W002
XNX Tempera- ture Error All Non-latch- ing 2 seconds XNX tem- perature (Celsius) Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Transmitter Status to ensure temperature is being measured properly.W003
Simulated Warning/Fault All Non-latch- ing Enabled by user 0 Performing an alarm/fault reset will clear all simulation.W005
Sensor Tem- perature Error Optima Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Sensor Status to ensure temperature is being measured properly. Sensor Tem- perature Error Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Sensor Status to ensure temperature is being measured properly. Sensor Tem- perature ErrorEcc
Non-latch- ing 2 seconds Sensor temperature (Celsius) Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Sensor Status to ensure temperature is being measured properly.
XNX Universal Transmitter Quick Start Guide 68 Warning Description Ap- plicable Sensors Latching / Non-Latching Frequency of Diagnostic Event History Data Action For Resolution
W006
Negative DriftEcc,
mV Non-latch- ing 2 seconds Raw gas concentration of sensor Check sensor location for external interference. Perform zero calibration. If problem persists after zero calibration and no interference exists, replace sensor. Negative Drift Optima, Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code Check sensor location for external interference. Perform zero calibration. If problem persists after zero calibration and no interference exists, replace sensor.W007
Calibration Required All Non-latch- ing 2 seconds Number of days remain- ing until calibration expires, negative = number of days expired Time since the last span calibration has exceeded a defined limit. Performing a successful span calibration will clear the condition. The limit is the user- defined calibration interval. W007 can be disabled by setting the calibration interval to 0.W009
Sensor 24 VDC Supply Bad Optima, Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check wire of 24V power supply to XNX as well as power supply operation. Also check wiring between XNX and Optima/Excel.

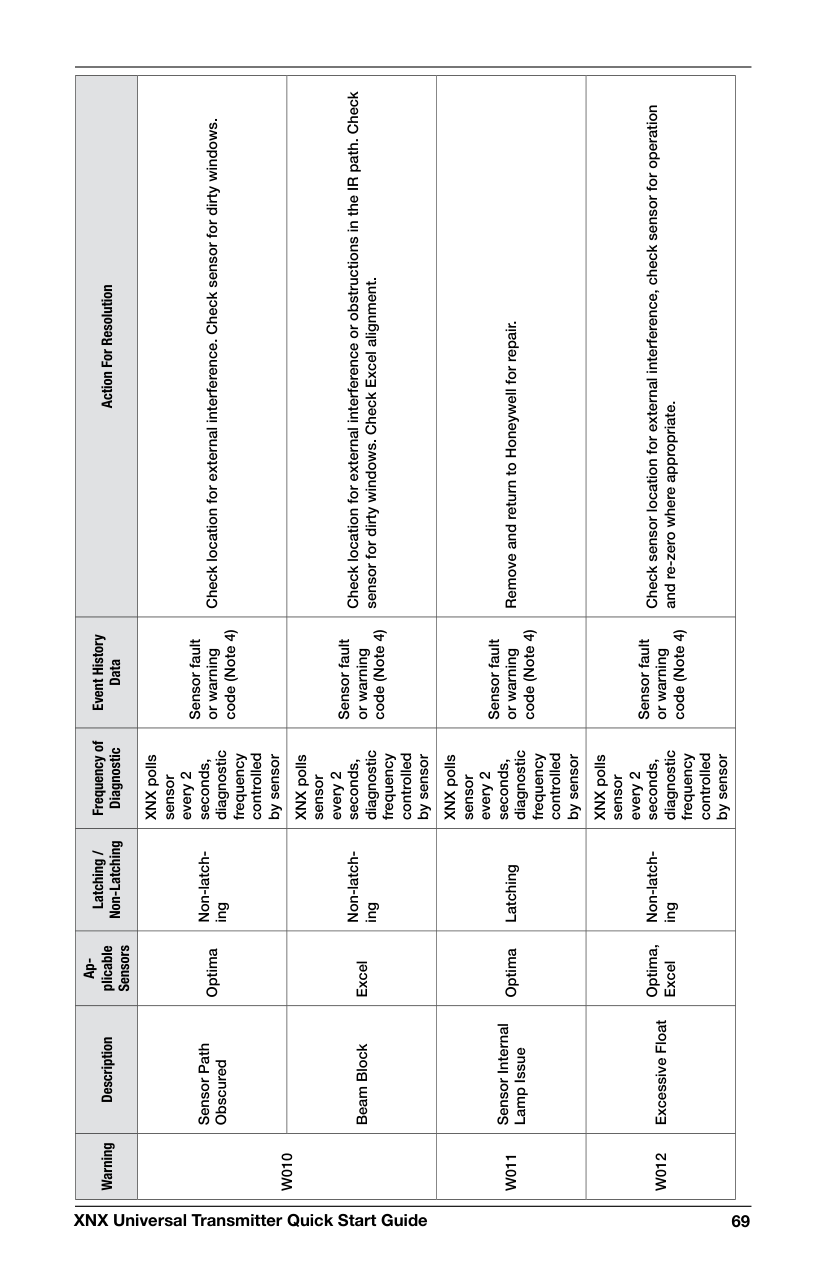

XNX Universal Transmitter Quick Start Guide 69 Warning Description Ap- plicable Sensors Latching / Non-Latching Frequency of Diagnostic Event History Data Action For Resolution
W010
Sensor Path Obscured Optima Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for external interference. Check sensor for dirty windows. Beam Block Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for external interference or obstructions in the IR path. Check sensor for dirty windows. Check Excel alignment.W011
Sensor Internal Lamp Issue Optima Latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Remove and return to Honeywell for repair.W012
Excessive Float Optima, Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check sensor location for external interference, check sensor for operation and re-zero where appropriate.
XNX Universal Transmitter Quick Start Guide 70 Warning Description Ap- plicable Sensors Latching / Non-Latching Frequency of Diagnostic Event History Data Action For Resolution
W013
Sensor Loop Failure, (Sensor is losing/has lost mA output signal. These are detected by Optima and Excel. Optima, Excel Latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check that supply voltage is stable. Check wiring between Optima/Excel and XNX. Check loop impedance of wiring. Check that switches S3 and S4 are set correctly. If the switch settings need to be changed, power down the transmitter before changing the switch settings. Once the problem has been resolved, a soft reset must be performed for the Calibration menu to clearW013.
W014
Sensor Real Time Clock issue Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic controlled by sensor Sensor fault or warning code (Note 4) Reset “date and time” in Excel, re-cycle Excel power and confirm “date and time.” If not retained, remove and return to Honeywell for repair.W015
Sensor Internal Failure Optima, Excel Latching and Non- latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Remove and return to Honeywell for repair. Sensor has an internal soft- ware error Excel Latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Cycle Excel power and confirm “fault cleared.” If not, replace sensor.

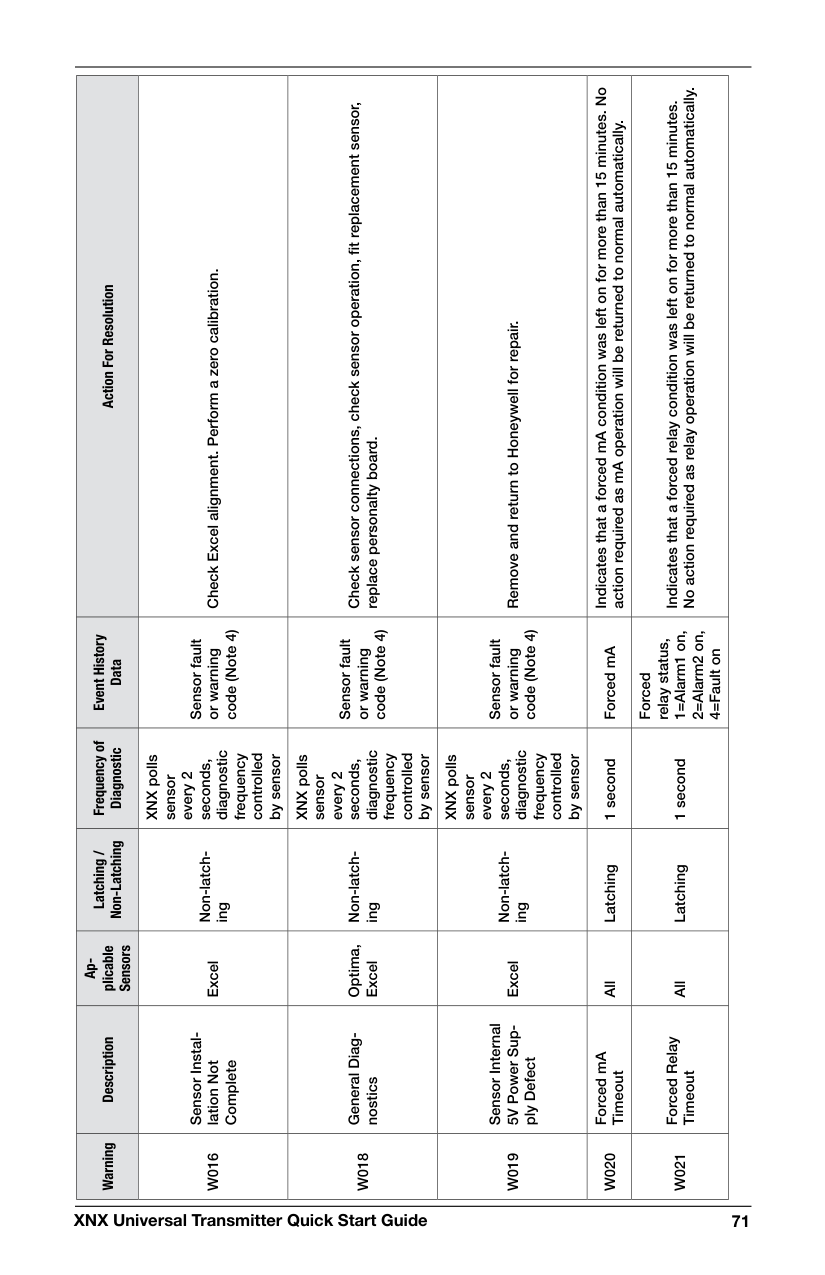

XNX Universal Transmitter Quick Start Guide 71 Warning Description Ap- plicable Sensors Latching / Non-Latching Frequency of Diagnostic Event History Data Action For Resolution
W016
Sensor Instal- lation Not Complete Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check Excel alignment. Perform a zero calibration.W018
General Diag- nostics Optima, Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check sensor connections, check sensor operation, fit replacement sensor, replace personalty board.W019
Sensor Internal 5V Power Sup- ply Defect Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Remove and return to Honeywell for repair.W020
Forced mA Timeout All Latching 1 second Forced mA Indicates that a forced mA condition was left on for more than 15 minutes. No action required as mA operation will be returned to normal automatically.W021
Forced Relay Timeout All Latching 1 second Forced relay status, 1=Alarm1 on, 2=Alarm2 on, 4=Fault on Indicates that a forced relay condition was left on for more than 15 minutes. No action required as relay operation will be returned to normal automatically.

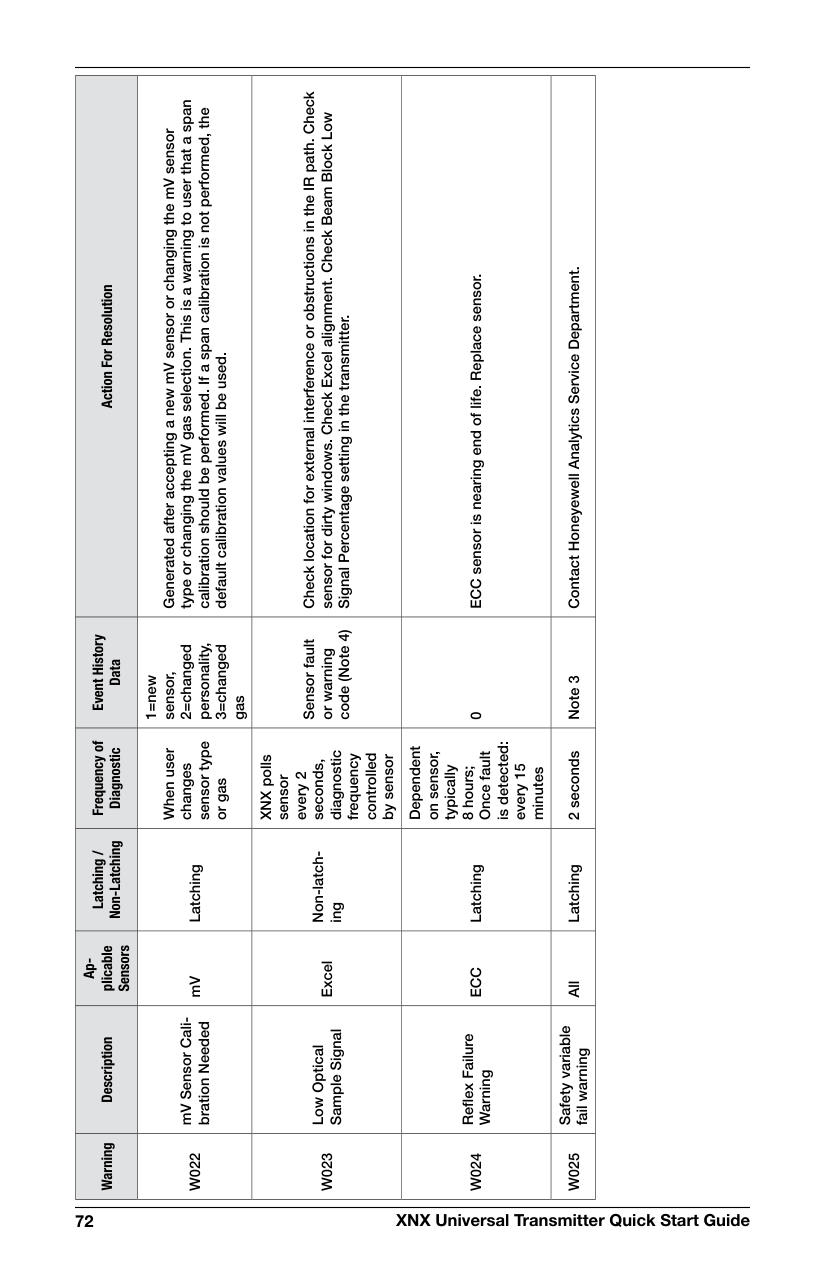

XNX Universal Transmitter Quick Start Guide 72 Warning Description Ap- plicable Sensors Latching / Non-Latching Frequency of Diagnostic Event History Data Action For Resolution
W022
mV Sensor Cali- bration Needed mV Latching When user changes sensor type or gas 1=new sensor, 2=changed personality, 3=changed gas Generated after accepting a new mV sensor or changing the mV sensor type or changing the mV gas selection. This is a warning to user that a span calibration should be performed. If a span calibration is not performed, the default calibration values will be used.W023
Low Optical Sample Signal Excel Non-latch- ing XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for external interference or obstructions in the IR path. Check sensor for dirty windows. Check Excel alignment. Check Beam Block Low Signal Percentage setting in the transmitter.W024
Reflex Failure WarningEcc
Latching Dependent on sensor, typically 8 hours; Once fault is detected: every 15 minutes 0 ECC sensor is nearing end of life. Replace sensor.W025
Safety variable fail warning All Latching 2 seconds Note 3 Contact Honeyewell Analytics Service Department.

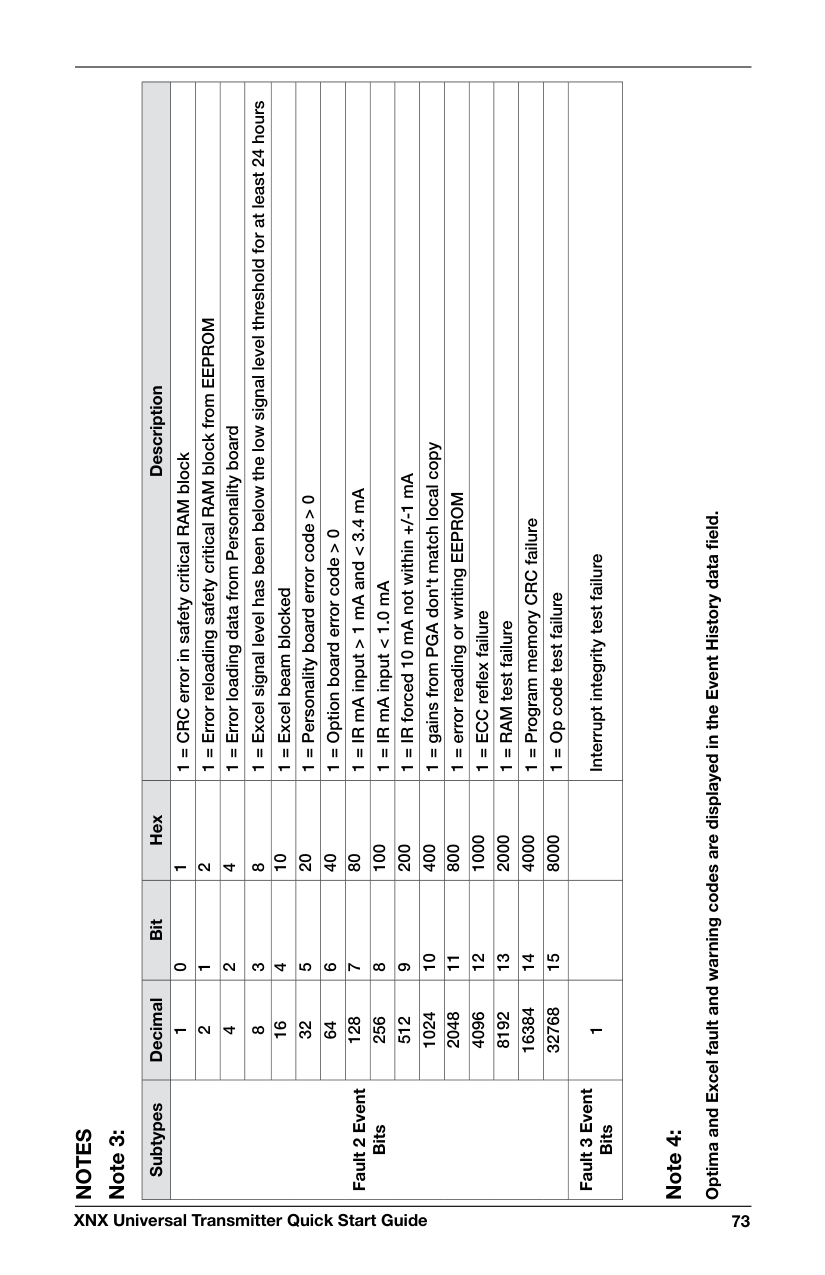

XNX Universal Transmitter Quick Start Guide 73
Notes
Note 3: Subtypes Decimal Bit Hex Description Fault 2 Event Bits 1 0 1 1 = CRC error in safety critical RAM block 2 1 2 1 = Error reloading safety critical RAM block from EEPROM 4 2 4 1 = Error loading data from Personality board 8 3 8 1 = Excel signal level has been below the low signal level threshold for at least 24 hours 16 4 10 1 = Excel beam blocked 32 5 20 1 = Personality board error code > 0 64 6 40 1 = Option board error code > 0 128 7 80 1 = IR mA input > 1 mA and < 3.4 mA 256 8 100 1 = IR mA input < 1.0 mA 512 9 200 1 = IR forced 10 mA not within +/-1 mA 1024 10 400 1 = gains from PGA don't match local copy 2048 11 800 1 = error reading or writing EEPROM 4096 12 1000 1 = ECC reflex failure 8192 13 2000 1 = RAM test failure 16384 14 4000 1 = Program memory CRC failure 32768 15 8000 1 = Op code test failure Fault 3 Event Bits 1 Interrupt integrity test failure Note 4: Optima and Excel fault and warning codes are displayed in the Event History data field.

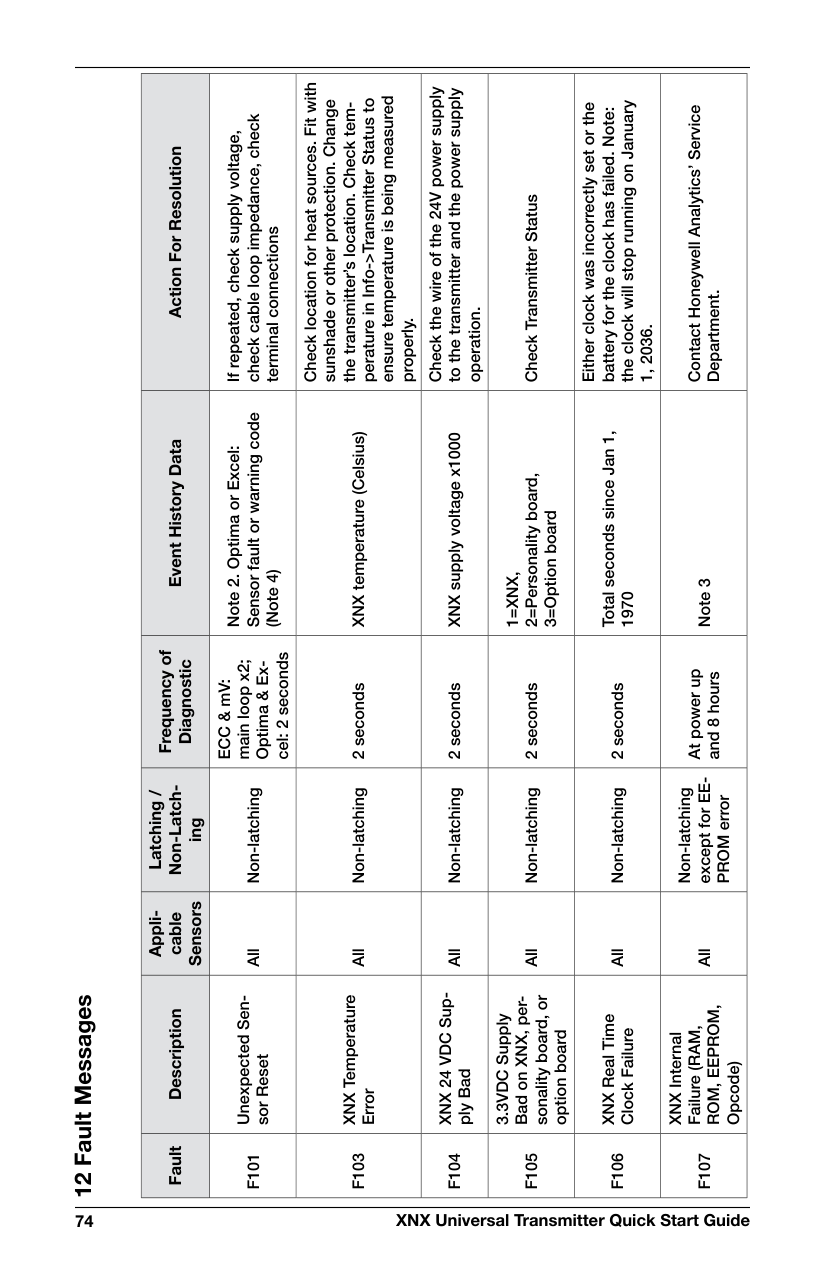

XNX Universal Transmitter Quick Start Guide 74 12 Fault Messages Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F101
Unexpected Sen- sor Reset All Non-latching ECC & mV: main loop x2; Optima & Ex- cel: 2 seconds Note 2. Optima or Excel: Sensor fault or warning code (Note 4) If repeated, check supply voltage, check cable loop impedance, check terminal connectionsF103
XNX Temperature Error All Non-latching 2 seconds XNX temperature (Celsius) Check location for heat sources. Fit with sunshade or other protection. Change the transmitter’s location. Check tem- perature in Info->Transmitter Status to ensure temperature is being measured properly.F104
XNX 24 VDC Sup- ply Bad All Non-latching 2 seconds XNX supply voltage x1000 Check the wire of the 24V power supply to the transmitter and the power supply operation.F105
3.3VDC Supply Bad on XNX, per- sonality board, or option board All Non-latching 2 seconds1=Xnx,
2=Personality board, 3=Option board Check Transmitter StatusF106
XNX Real Time Clock Failure All Non-latching 2 seconds Total seconds since Jan 1, 1970 Either clock was incorrectly set or the battery for the clock has failed. Note: the clock will stop running on January 1, 2036.F107
XNX Internal Failure (RAM,Rom, Eeprom,
Opcode) All Non-latching except for EE- PROM error At power up and 8 hours Note 3 Contact Honeywell Analytics’ Service Department.
XNX Universal Transmitter Quick Start Guide 75 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F108
XNX mA Output Loop Failure All Latching 2 seconds mA output error (measured mA - set mA) Check wiring of mA output from XNX. Check that switches S1 and S2 are set correctly. Note that if F108 is not resolved quickly, an F149 (Internal Communication Failure - mA) will also be generated. When the cause of F108 is resolved, both the F108 and F149 will be cleared.F109
Simulated Warn- ing/Fault All Non-latching Enabled by user 0 Performing an alarm/fault reset will clear all simulation.F110
Sensor software mismatch Optima Latching Only checked at power up Sensor firmware version x10 Contact Honeywell Analytics’ Service Department.F111
Negative Drift ECC, mV Non-latching 2 seconds Raw gas concentration of sensor Check sensor location for external interference. Perform zero calibration. If problem persists after zero calibra- tion and no interference exists, replace sensor. Negative Drift; may indicate a failed IR sensor Optima, Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code Check sensor location for external interference. Perform zero calibration. If problem persists after zero calibra- tion and no interference exists, replace sensor.
XNX Universal Transmitter Quick Start Guide 76 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F112
Sensor 24 VDC Supply Bad Optima, Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check the wire of the 24V power supply to the transmitter and the power supply operation. Also check the wiring be- tween the transmitter and the Optima/ Excel.F113
Sensor Internal 5V Power Supply Defect Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Remove and return to Honeywell for repair.F114
Sensor Internal Lamp Issue Optima Latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Remove and return to Honeywell for repair.F116
Sensor Internal Failure Optima, Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Remove and return to Honeywell for repair.
XNX Universal Transmitter Quick Start Guide 77 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution

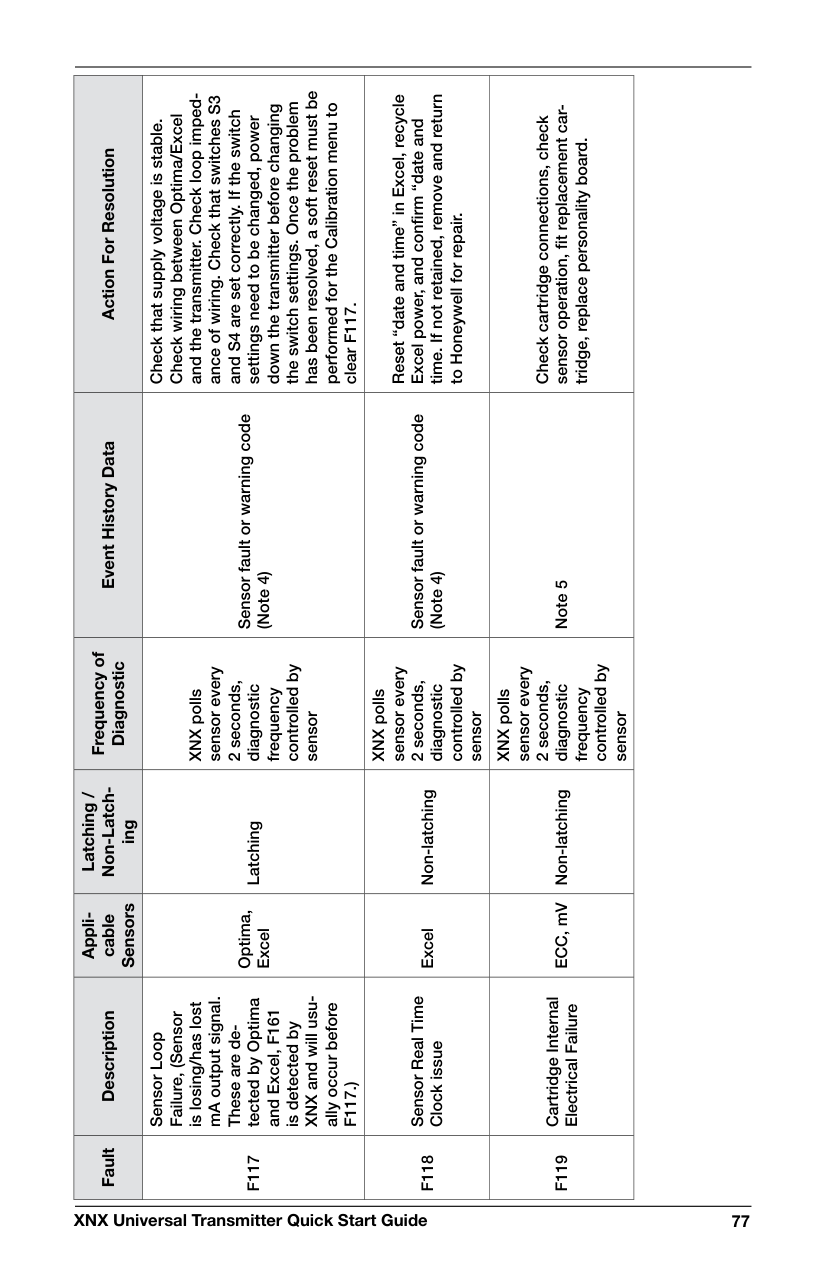

F117
Sensor Loop Failure, (Sensor is losing/has lost mA output signal. These are de- tected by Optima and Excel, F161 is detected by XNX and will usu- ally occur beforeF117.)
Optima, Excel Latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check that supply voltage is stable. Check wiring between Optima/Excel and the transmitter. Check loop imped- ance of wiring. Check that switches S3 and S4 are set correctly. If the switch settings need to be changed, power down the transmitter before changing the switch settings. Once the problem has been resolved, a soft reset must be performed for the Calibration menu to clear F117.F118
Sensor Real Time Clock issue Excel Non-latching XNX polls sensor every 2 seconds, diagnostic controlled by sensor Sensor fault or warning code (Note 4) Reset “date and time” in Excel, recycle Excel power, and confirm “date and time. If not retained, remove and return to Honeywell for repair.F119
Cartridge Internal Electrical Failure ECC, mV Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Note 5 Check cartridge connections, check sensor operation, fit replacement car- tridge, replace personality board.
XNX Universal Transmitter Quick Start Guide 78 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F120
No SensorEcc,
mV, Optima, Excel Non-latching 2 seconds Note 2 Indicates a loss of communication with the sensor. Check that the sensor type indicated in the part number matches the installed hardware. Check the wiring between ECC sensors or Optima/Excel and the XNX.F121
Wrong Cartridge, error loading sen- sor parameters All Non-latching At power up and when cartridge is changed 0 Contact Honeywell Analytics’ Service Department.F122
General Diagnos- tics Optima, Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check sensor connections, check sen- sor operation, fit replacement sensor, replace personalty board.

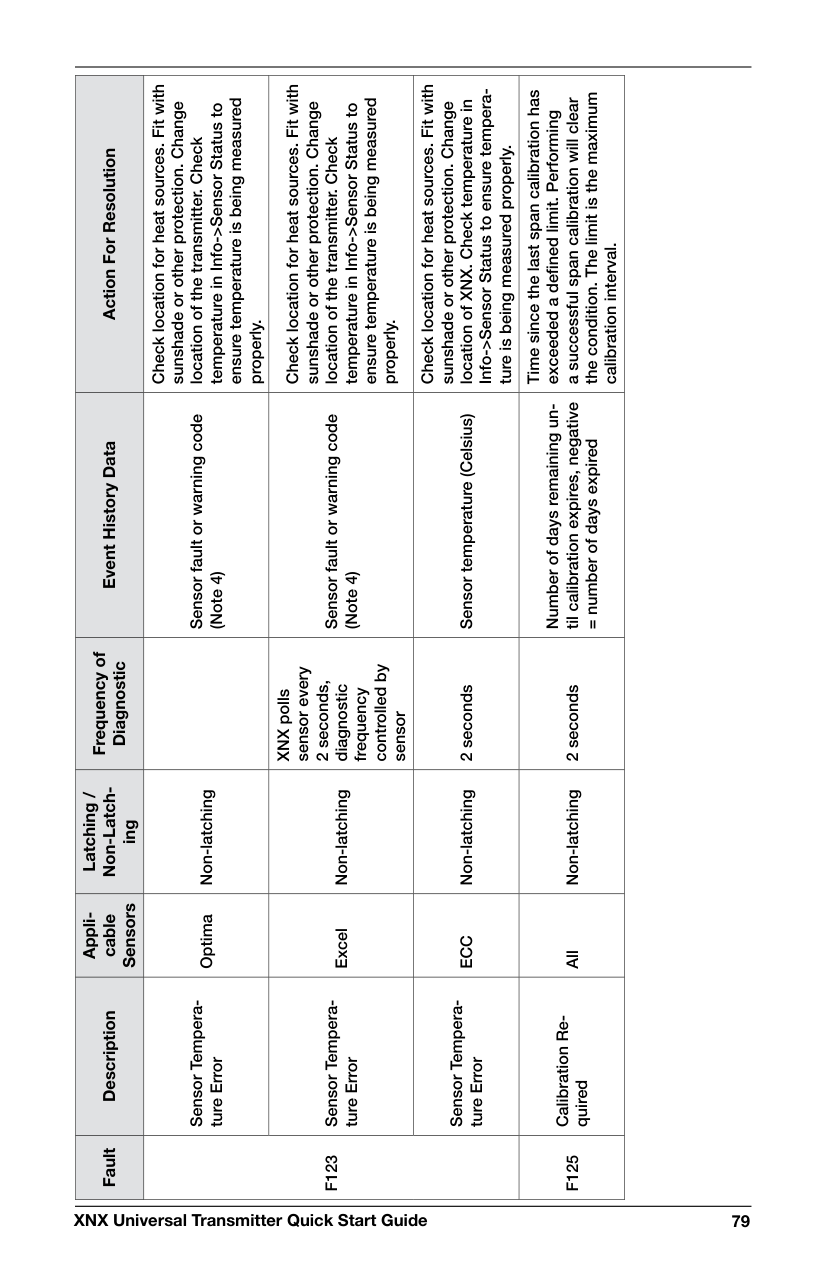

XNX Universal Transmitter Quick Start Guide 79 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F123
Sensor Tempera- ture Error Optima Non-latching Sensor fault or warning code (Note 4) Check location for heat sources. Fit with sunshade or other protection. Change location of the transmitter. Check temperature in Info->Sensor Status to ensure temperature is being measured properly. Sensor Tempera- ture Error Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for heat sources. Fit with sunshade or other protection. Change location of the transmitter. Check temperature in Info->Sensor Status to ensure temperature is being measured properly. Sensor Tempera- ture ErrorEcc
Non-latching 2 seconds Sensor temperature (Celsius) Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Sensor Status to ensure tempera- ture is being measured properly.F125
Calibration Re- quired All Non-latching 2 seconds Number of days remaining un- til calibration expires, negative = number of days expired Time since the last span calibration has exceeded a defined limit. Performing a successful span calibration will clear the condition. The limit is the maximum calibration interval.

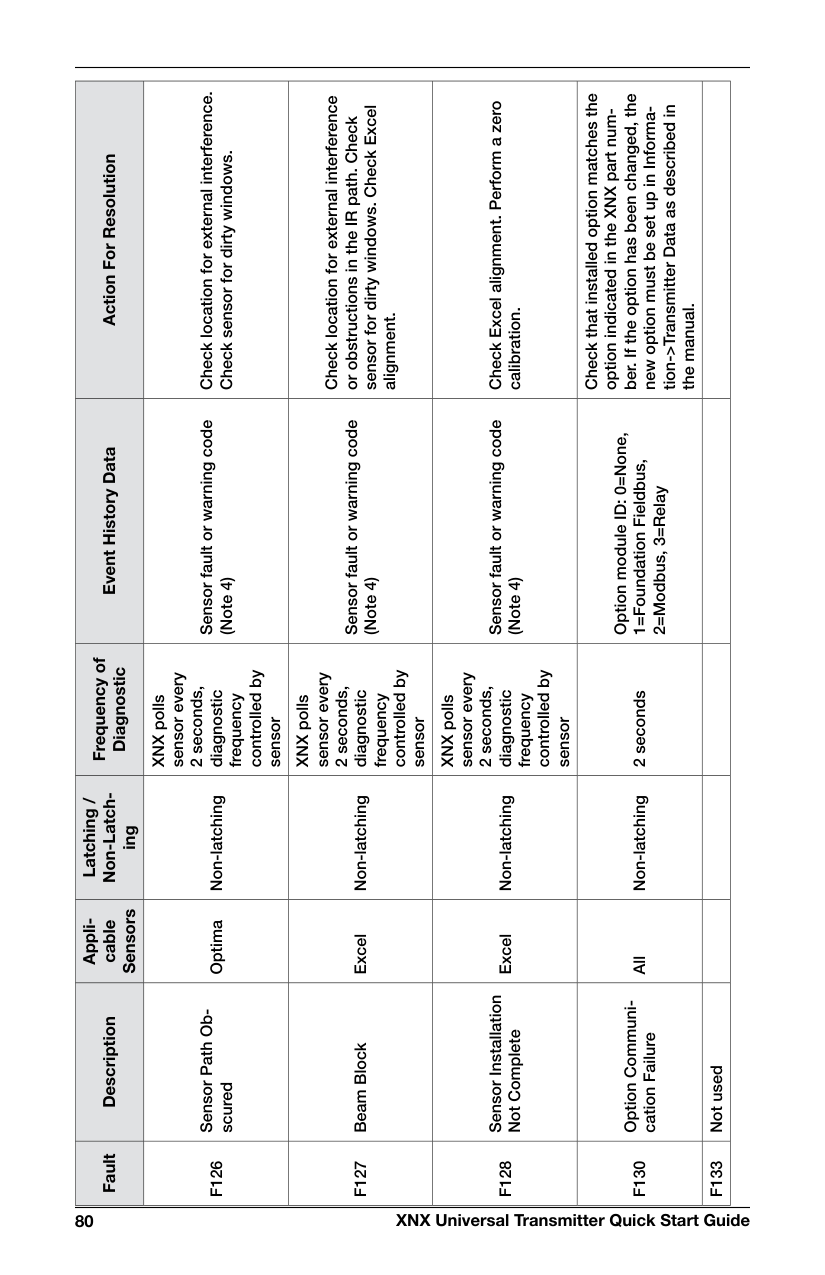

XNX Universal Transmitter Quick Start Guide 80 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F126
Sensor Path Ob- scured Optima Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for external interference. Check sensor for dirty windows.F127
Beam Block Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check location for external interference or obstructions in the IR path. Check sensor for dirty windows. Check Excel alignment.F128
Sensor Installation Not Complete Excel Non-latching XNX polls sensor every 2 seconds, diagnostic frequency controlled by sensor Sensor fault or warning code (Note 4) Check Excel alignment. Perform a zero calibration.F130
Option Communi- cation Failure All Non-latching 2 seconds Option module ID: 0=None, 1=Foundation Fieldbus, 2=Modbus, 3=Relay Check that installed option matches the option indicated in the XNX part num- ber. If the option has been changed, the new option must be set up in Informa- tion->Transmitter Data as described in the manual.F133
Not used

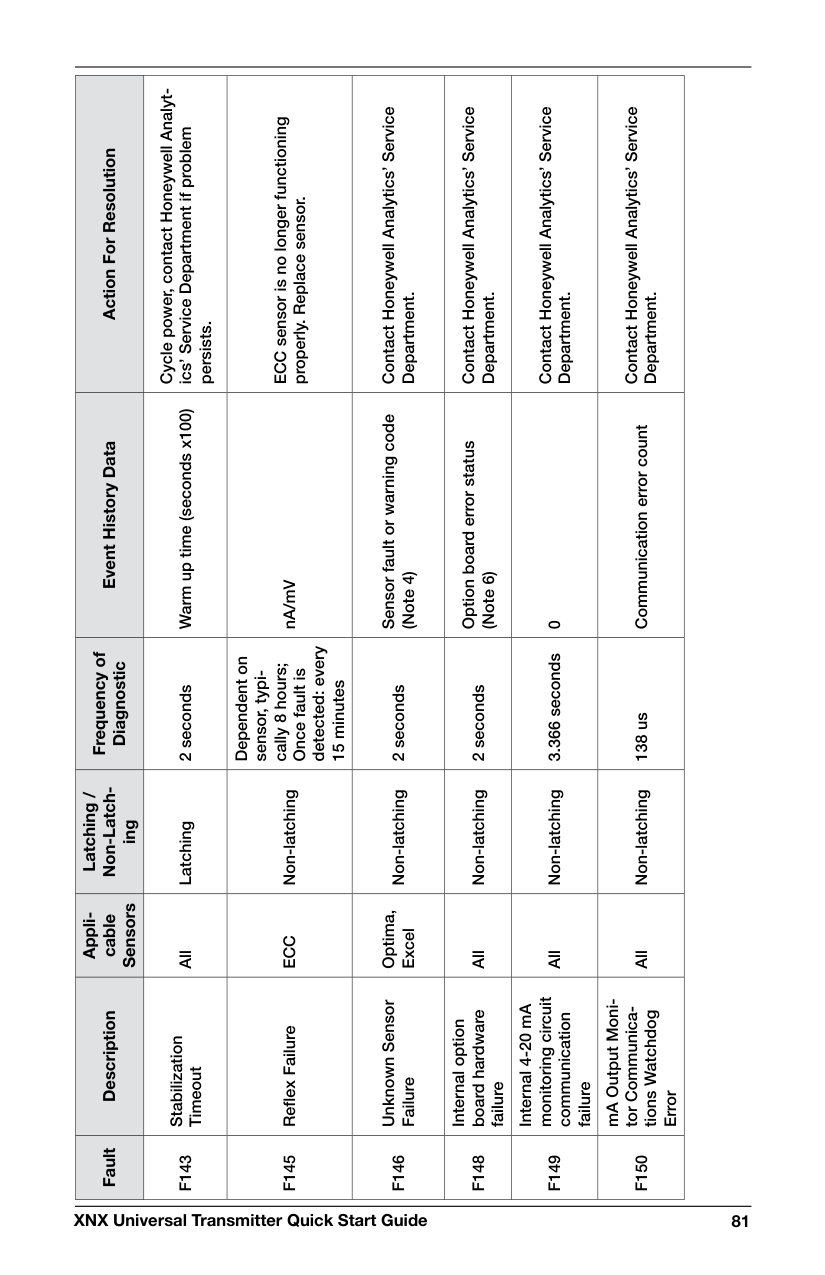

XNX Universal Transmitter Quick Start Guide 81 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F143
Stabilization Timeout All Latching 2 seconds Warm up time (seconds x100) Cycle power, contact Honeywell Analyt- ics’ Service Department if problem persists.F145
Reflex FailureEcc
Non-latching Dependent on sensor, typi- cally 8 hours; Once fault is detected: every 15 minutes nA/mV ECC sensor is no longer functioning properly. Replace sensor.F146
Unknown Sensor Failure Optima, Excel Non-latching 2 seconds Sensor fault or warning code (Note 4) Contact Honeywell Analytics’ Service Department.F148
Internal option board hardware failure All Non-latching 2 seconds Option board error status (Note 6) Contact Honeywell Analytics’ Service Department.F149
Internal 4-20 mA monitoring circuit communication failure All Non-latching 3.366 seconds 0 Contact Honeywell Analytics’ Service Department.F150
mA Output Moni- tor Communica- tions Watchdog Error All Non-latching 138 us Communication error count Contact Honeywell Analytics’ Service Department.

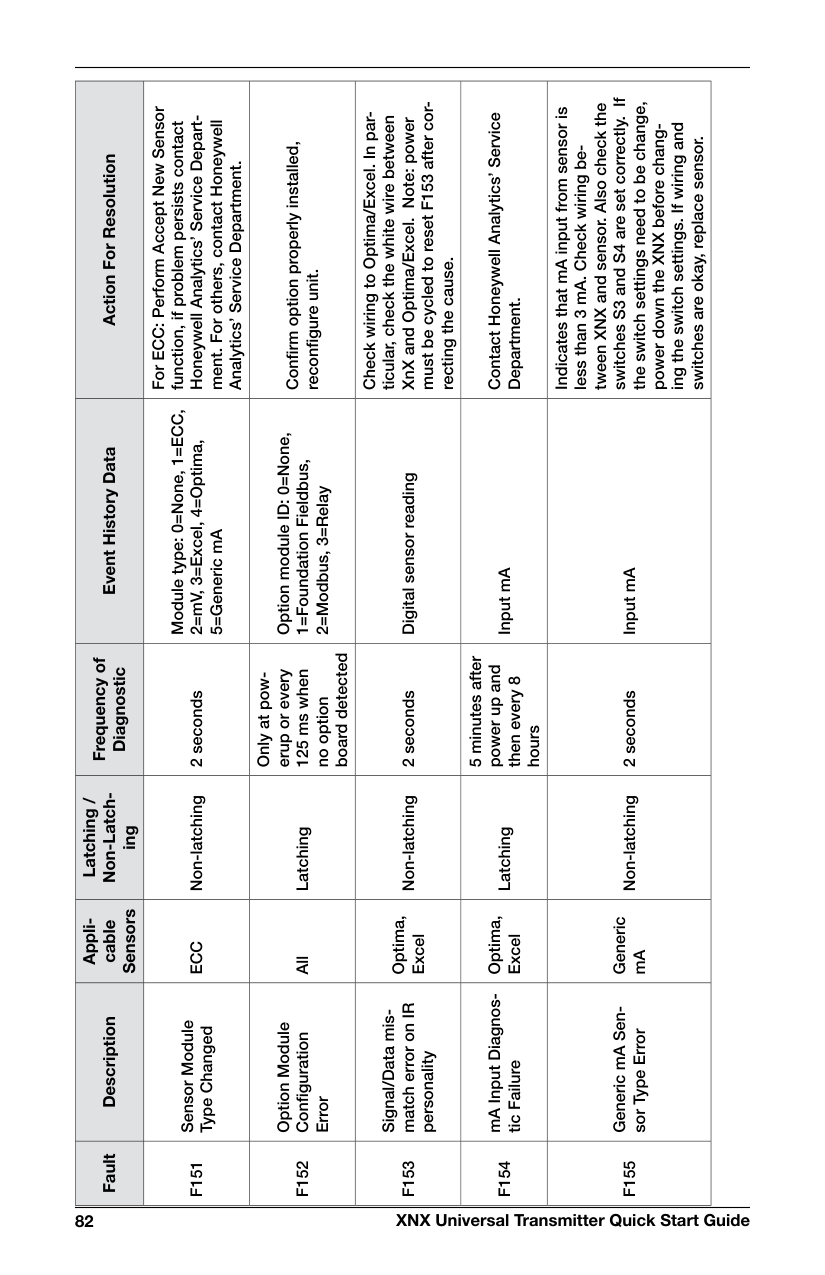

XNX Universal Transmitter Quick Start Guide 82 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F151
Sensor Module Type ChangedEcc
Non-latching 2 seconds Module type: 0=None, 1=ECC, 2=mV, 3=Excel, 4=Optima, 5=Generic mA For ECC: Perform Accept New Sensor function, if problem persists contact Honeywell Analytics’ Service Depart- ment. For others, contact Honeywell Analytics’ Service Department.F152
Option Module Configuration Error All Latching Only at pow- erup or every 125 ms when no option board detected Option module ID: 0=None, 1=Foundation Fieldbus, 2=Modbus, 3=Relay Confirm option properly installed, reconfigure unit.F153
Signal/Data mis- match error on IR personality Optima, Excel Non-latching 2 seconds Digital sensor reading Check wiring to Optima/Excel. In par- ticular, check the white wire between XnX and Optima/Excel. Note: power must be cycled to reset F153 after cor- recting the cause.F154
mA Input Diagnos- tic Failure Optima, Excel Latching 5 minutes after power up and then every 8 hours Input mA Contact Honeywell Analytics’ Service Department.F155
Generic mA Sen- sor Type Error Generic mA Non-latching 2 seconds Input mA Indicates that mA input from sensor is less than 3 mA. Check wiring be- tween XNX and sensor. Also check the switches S3 and S4 are set correctly. If the switch settings need to be change, power down the XNX before chang- ing the switch settings. If wiring and switches are okay, replace sensor.

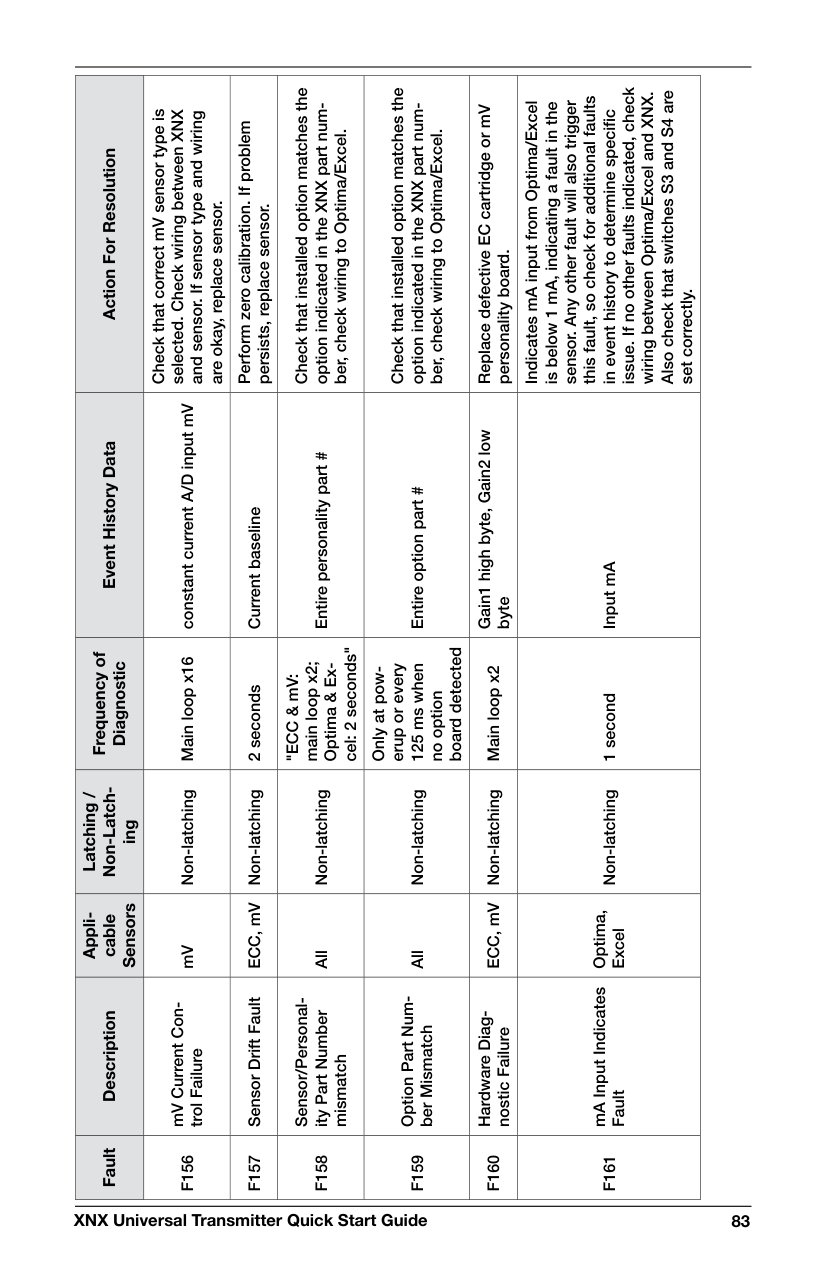

XNX Universal Transmitter Quick Start Guide 83 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F156
mV Current Con- trol Failure mV Non-latching Main loop x16 constant current A/D input mV Check that correct mV sensor type is selected. Check wiring between XNX and sensor. If sensor type and wiring are okay, replace sensor.F157
Sensor Drift Fault ECC, mV Non-latching 2 seconds Current baseline Perform zero calibration. If problem persists, replace sensor.F158
Sensor/Personal- ity Part Number mismatch All Non-latching "ECC & mV: main loop x2; Optima & Ex- cel: 2 seconds" Entire personality part # Check that installed option matches the option indicated in the XNX part num- ber, check wiring to Optima/Excel.F159
Option Part Num- ber Mismatch All Non-latching Only at pow- erup or every 125 ms when no option board detected Entire option part # Check that installed option matches the option indicated in the XNX part num- ber, check wiring to Optima/Excel.F160
Hardware Diag- nostic Failure ECC, mV Non-latching Main loop x2 Gain1 high byte, Gain2 low byte Replace defective EC cartridge or mV personality board.F161
mA Input Indicates Fault Optima, Excel Non-latching 1 second Input mA Indicates mA input from Optima/Excel is below 1 mA, indicating a fault in the sensor. Any other fault will also trigger this fault, so check for additional faults in event history to determine specific issue. If no other faults indicated, check wiring between Optima/Excel and XNX. Also check that switches S3 and S4 are set correctly.
XNX Universal Transmitter Quick Start Guide 84 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution
F162
Error reloading safety critical RAM block All Non-latching 2 seconds Note 3 Contact Honeywell Analytics’ Service Department.F163
Interrupt integrity fault All Non-latching Main loop Note 3 XNX will reset if more than 600,000 suc- cessive errors occur.F164
mV sensor failure mV Latching 1 second Sensor fault or warning code (Note 4) Check sensor connections, check sen- sor operation, replace sensor, replace personality board.
XNX Universal Transmitter Quick Start Guide 85 Fault Description Appli- cable Sensors Latching / Non-Latch- ing Frequency of Diagnostic Event History Data Action For Resolution

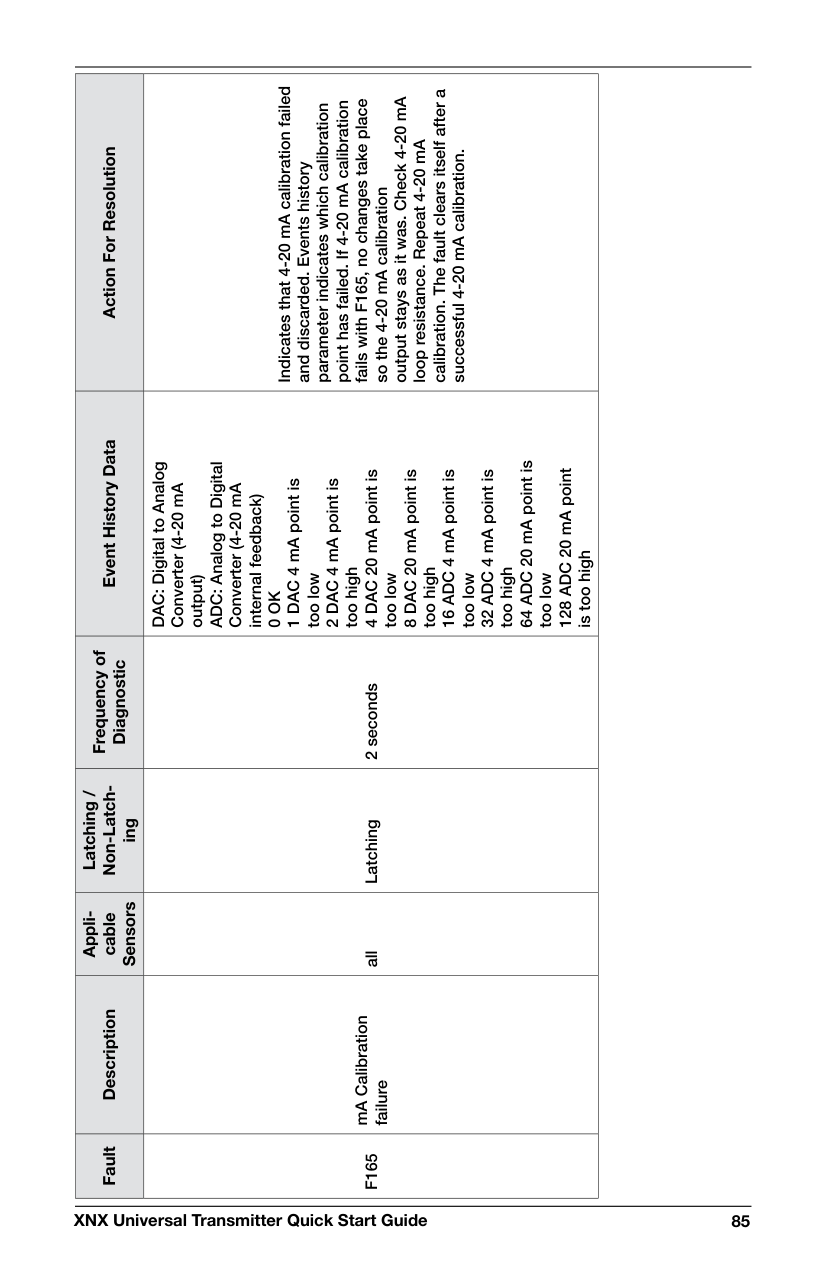

F165
mA Calibration failure all Latching 2 seconds DAC: Digital to Analog Converter (4-20 mA output) ADC: Analog to Digital Converter (4-20 mA internal feedback)0 Ok
1 DAC 4 mA point is too low 2 DAC 4 mA point is too high 4 DAC 20 mA point is too low 8 DAC 20 mA point is too high 16 ADC 4 mA point is too low 32 ADC 4 mA point is too high 64 ADC 20 mA point is too low 128 ADC 20 mA point is too high Indicates that 4-20 mA calibration failed and discarded. Events history parameter indicates which calibration point has failed. If 4-20 mA calibration fails with F165, no changes take place so the 4-20 mA calibration output stays as it was. Check 4-20 mA loop resistance. Repeat 4-20 mA calibration. The fault clears itself after a successful 4-20 mA calibration.
XNX Universal Transmitter Quick Start Guide 86 Notes Note 2:

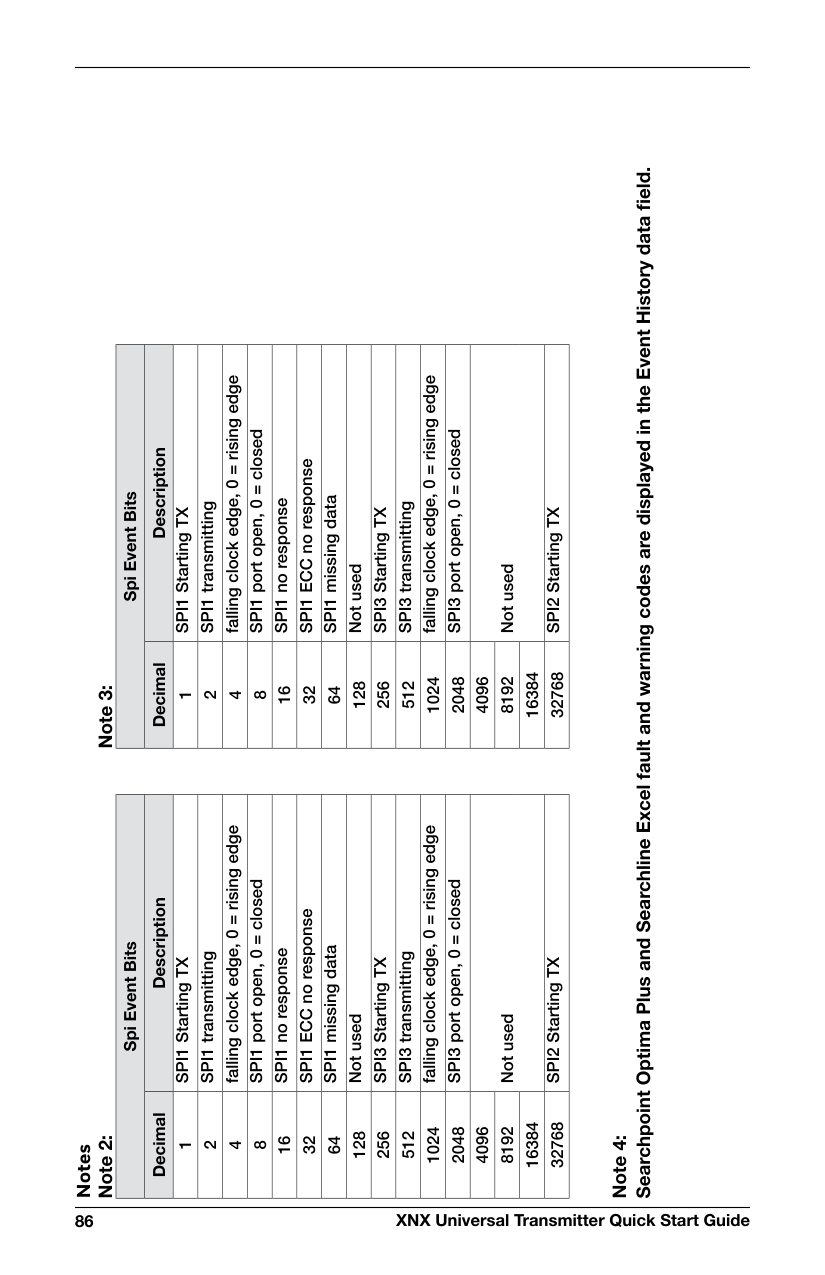

Note 3: Spi Event Bits Decimal Description 1 SPI1 Starting TX 2 SPI1 transmitting 4 falling clock edge, 0 = rising edge 8 SPI1 port open, 0 = closed 16 SPI1 no response 32 SPI1 ECC no response 64 SPI1 missing data 128 Not used 256 SPI3 Starting TX 512 SPI3 transmitting 1024 falling clock edge, 0 = rising edge 2048 SPI3 port open, 0 = closed 4096 Not used 8192 16384 32768 SPI2 Starting TX
Spi Event Bits Decimal Description 1 SPI1 Starting TX 2 SPI1 transmitting 4 falling clock edge, 0 = rising edge 8 SPI1 port open, 0 = closed 16 SPI1 no response 32 SPI1 ECC no response 64 SPI1 missing data 128 Not used 256 SPI3 Starting TX 512 SPI3 transmitting 1024 falling clock edge, 0 = rising edge 2048 SPI3 port open, 0 = closed 4096 Not used 8192 16384 32768 SPI2 Starting TX Note 4: Searchpoint Optima Plus and Searchline Excel fault and warning codes are displayed in the Event History data field.

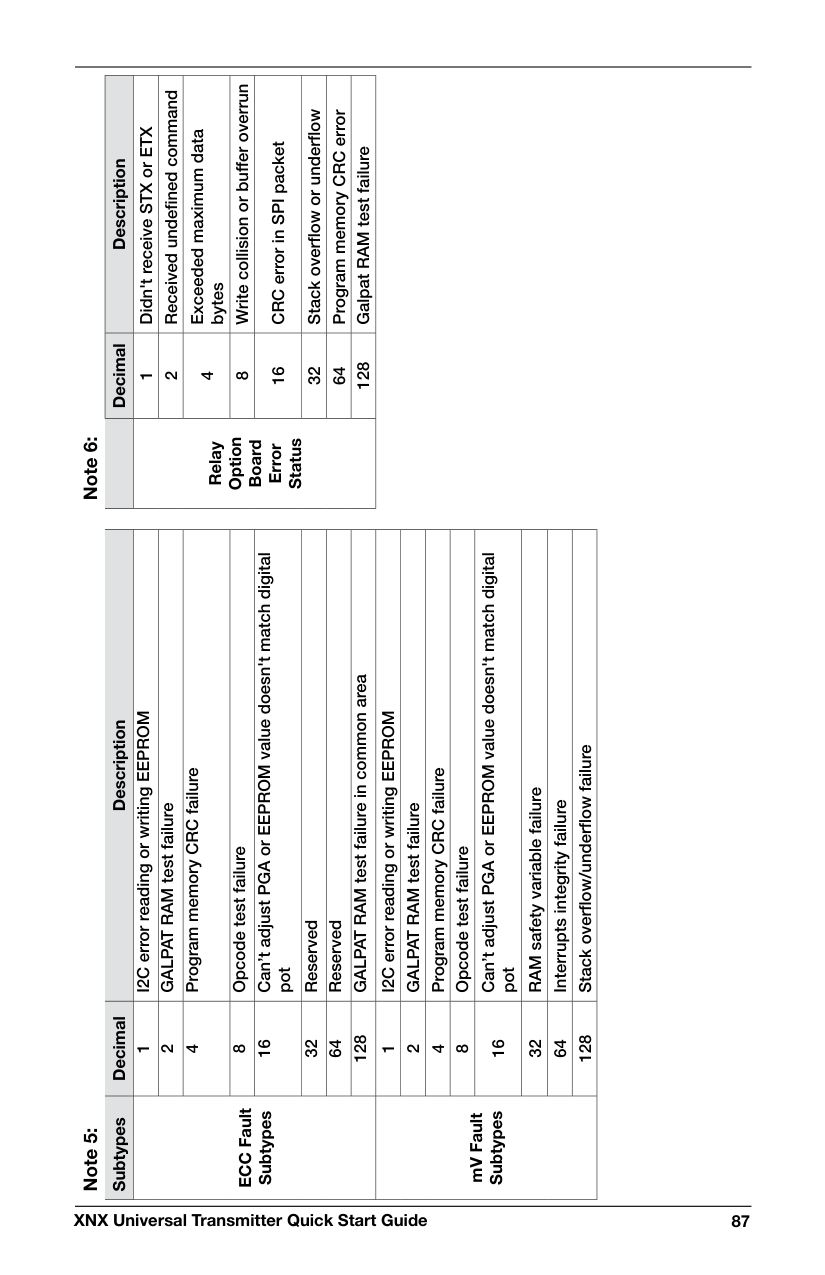

XNX Universal Transmitter Quick Start Guide 87 Note 5: Note 6: Subtypes Decimal Description Decimal Description ECC Fault Subtypes 1 I2C error reading or writing EEPROM Relay Option Board Error Status 1 Didn't receive STX or ETX 2 GALPAT RAM test failure 2 Received undefined command 4 Program memory CRC failure 4 Exceeded maximum data bytes 8 Opcode test failure 8 Write collision or buffer overrun 16 Can’t adjust PGA or EEPROM value doesn't match digital pot 16 CRC error in SPI packet 32 Reserved 32 Stack overflow or underflow 64 Reserved 64 Program memory CRC error 128 GALPAT RAM test failure in common area 128 Galpat RAM test failure mV Fault Subtypes 1 I2C error reading or writing EEPROM 2 GALPAT RAM test failure 4 Program memory CRC failure 8 Opcode test failure 16 Can’t adjust PGA or EEPROM value doesn't match digital pot 32 RAM safety variable failure 64 Interrupts integrity failure 128 Stack overflow/underflow failure

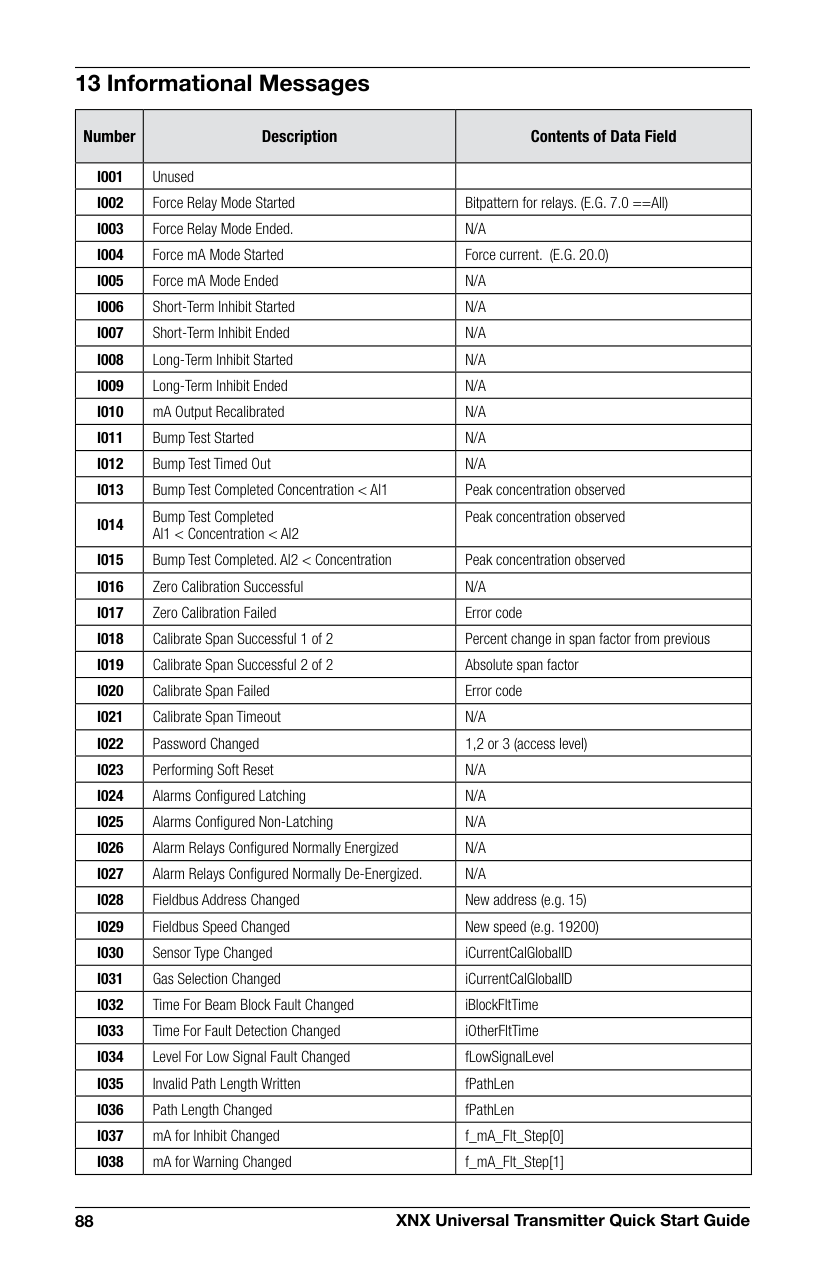

XNX Universal Transmitter Quick Start Guide 88 13 Informational Messages Number Description Contents of Data Field
I001
UnusedI002
Force Relay Mode Started Bitpattern for relays. (E.G. 7.0 ==All)I003
Force Relay Mode Ended.N/A
I004
Force mA Mode Started Force current. (E.G. 20.0)I005
Force mA Mode EndedN/A
I006
Short-Term Inhibit StartedN/A
I007
Short-Term Inhibit EndedN/A
I008
Long-Term Inhibit StartedN/A
I009
Long-Term Inhibit EndedN/A
I010
mA Output RecalibratedN/A
I011
Bump Test StartedN/A
I012
Bump Test Timed OutN/A
I013
Bump Test Completed Concentration < Al1 Peak concentration observedI014
Bump Test Completed Al1 < Concentration < Al2 Peak concentration observedI015
Bump Test Completed. Al2 < Concentration Peak concentration observedI016
Zero Calibration SuccessfulN/A
I017
Zero Calibration Failed Error codeI018
Calibrate Span Successful 1 of 2 Percent change in span factor from previousI019
Calibrate Span Successful 2 of 2 Absolute span factorI020
Calibrate Span Failed Error codeI021
Calibrate Span TimeoutN/A
I022
Password Changed 1,2 or 3 (access level)I023
Performing Soft ResetN/A
I024
Alarms Configured LatchingN/A
I025
Alarms Configured Non-LatchingN/A
I026
Alarm Relays Configured Normally EnergizedN/A
I027
Alarm Relays Configured Normally De-Energized.N/A
I028
Fieldbus Address Changed New address (e.g. 15)I029
Fieldbus Speed Changed New speed (e.g. 19200)I030
Sensor Type Changed iCurrentCalGlobalIDI031
Gas Selection Changed iCurrentCalGlobalIDI032
Time For Beam Block Fault Changed iBlockFltTimeI033
Time For Fault Detection Changed iOtherFltTimeI034
Level For Low Signal Fault Changed fLowSignalLevelI035
Invalid Path Length Written fPathLenI036
Path Length Changed fPathLenI037
mA for Inhibit Changed f_mA_Flt_Step[0]I038
mA for Warning Changed f_mA_Flt_Step[1]

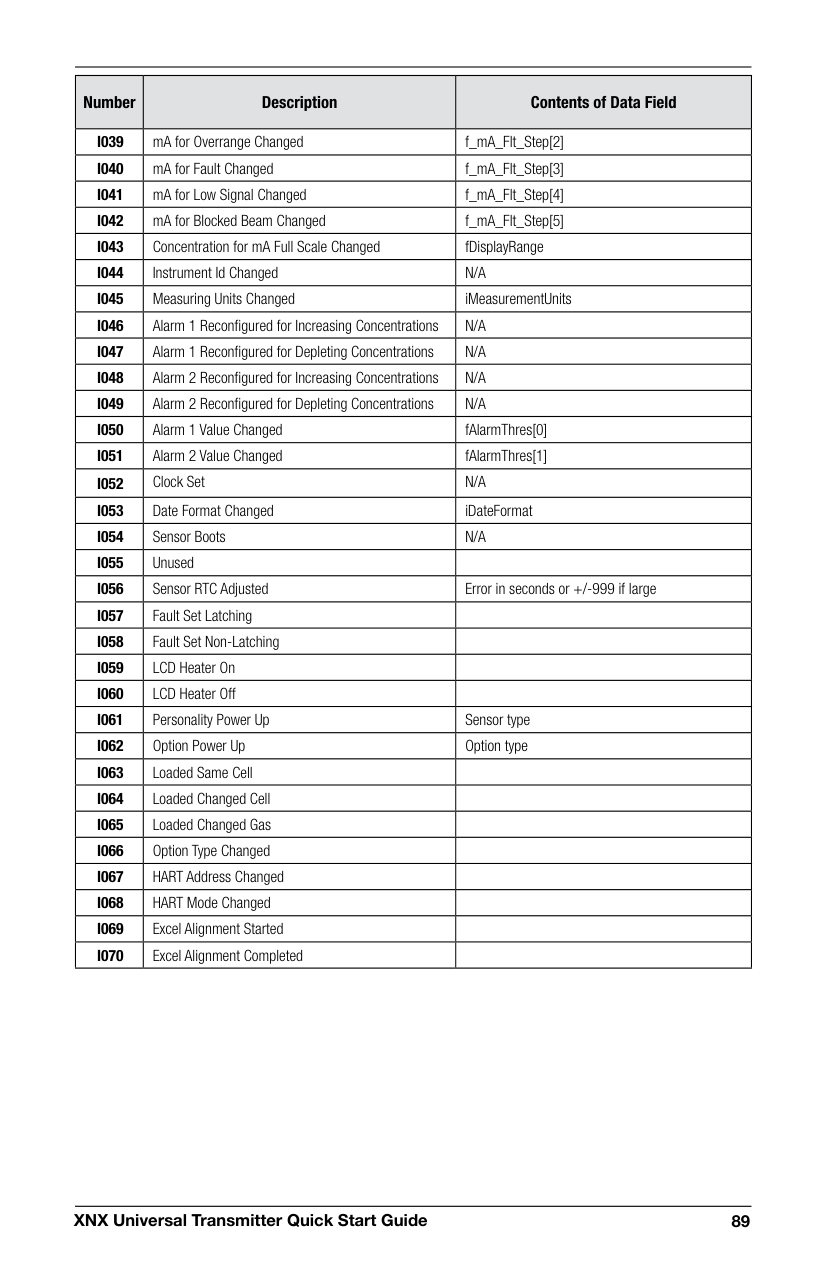

XNX Universal Transmitter Quick Start Guide 89 Number Description Contents of Data Field
I039
mA for Overrange Changed f_mA_Flt_Step[2]I040
mA for Fault Changed f_mA_Flt_Step[3]I041
mA for Low Signal Changed f_mA_Flt_Step[4]I042
mA for Blocked Beam Changed f_mA_Flt_Step[5]I043
Concentration for mA Full Scale Changed fDisplayRangeI044
Instrument Id ChangedN/A
I045
Measuring Units Changed iMeasurementUnitsI046
Alarm 1 Reconfigured for Increasing ConcentrationsN/A
I047
Alarm 1 Reconfigured for Depleting ConcentrationsN/A
I048
Alarm 2 Reconfigured for Increasing ConcentrationsN/A
I049
Alarm 2 Reconfigured for Depleting ConcentrationsN/A
I050
Alarm 1 Value Changed fAlarmThres[0]I051
Alarm 2 Value Changed fAlarmThres[1]I052
Clock SetN/A
I053
Date Format Changed iDateFormatI054
Sensor BootsN/A
I055
UnusedI056
Sensor RTC Adjusted Error in seconds or +/-999 if largeI057
Fault Set LatchingI058
Fault Set Non-LatchingI059
LCD Heater OnI060
LCD Heater OffI061
Personality Power Up Sensor typeI062
Option Power Up Option typeI063
Loaded Same CellI064
Loaded Changed CellI065
Loaded Changed GasI066
Option Type ChangedI067
HART Address ChangedI068
HART Mode ChangedI069
Excel Alignment StartedI070
Excel Alignment Completed

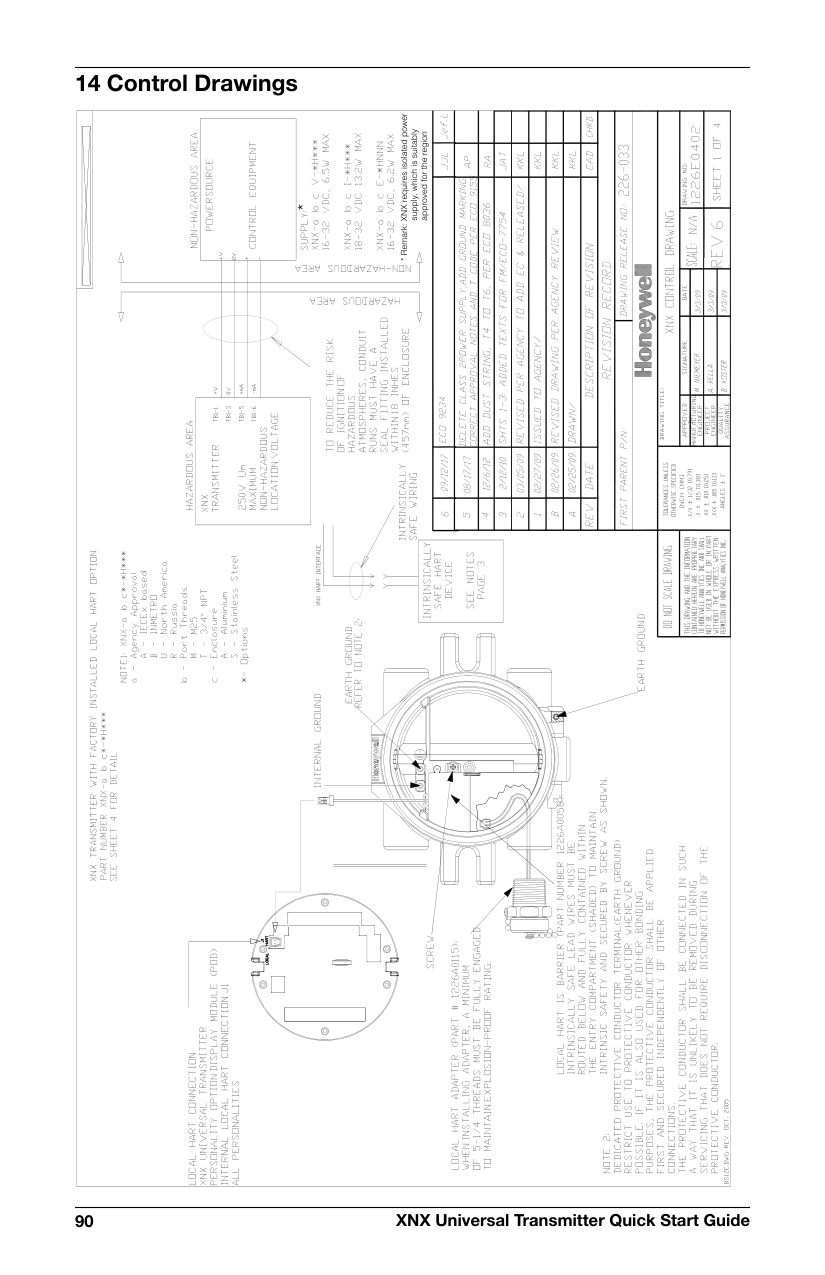

XNX Universal Transmitter Quick Start Guide 90 14 Control Drawings
XNX Universal Transmitter Quick Start Guide 91

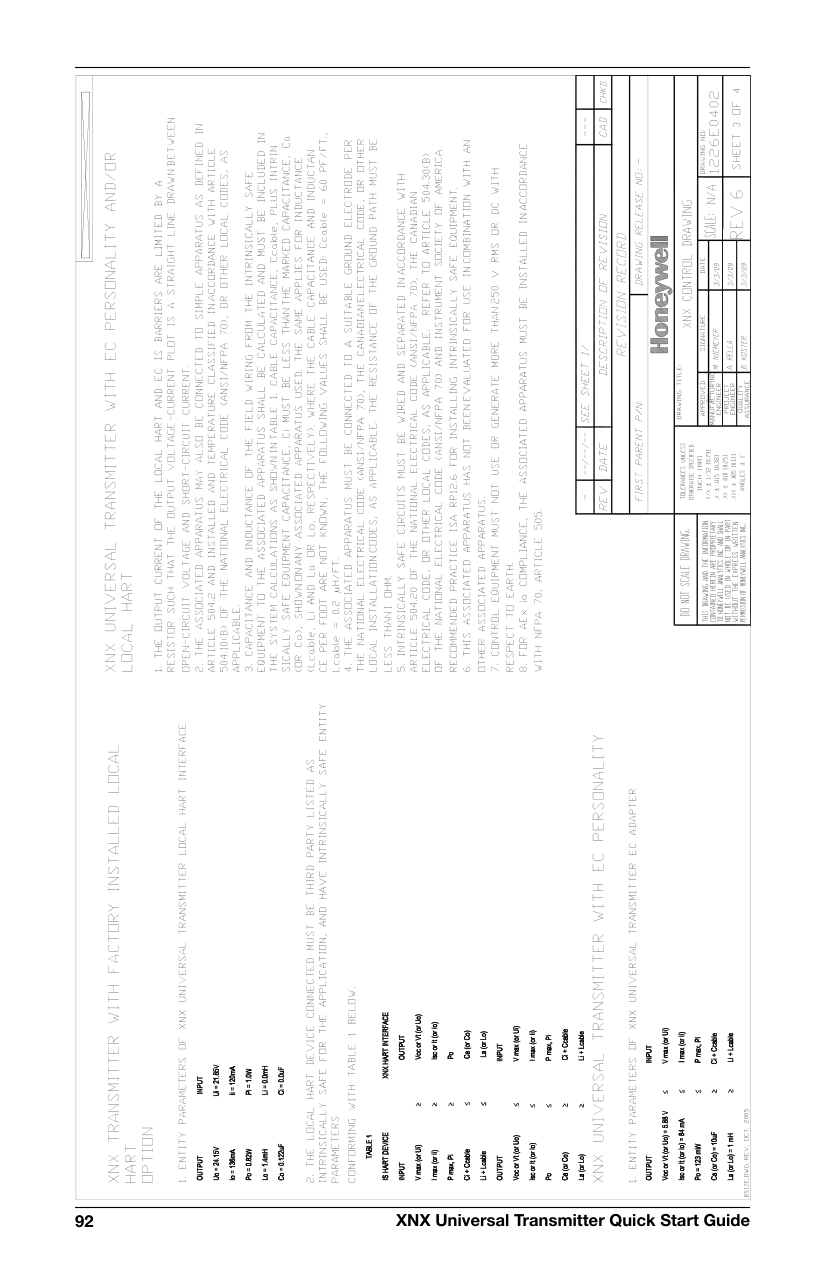

XNX Universal Transmitter Quick Start Guide 92

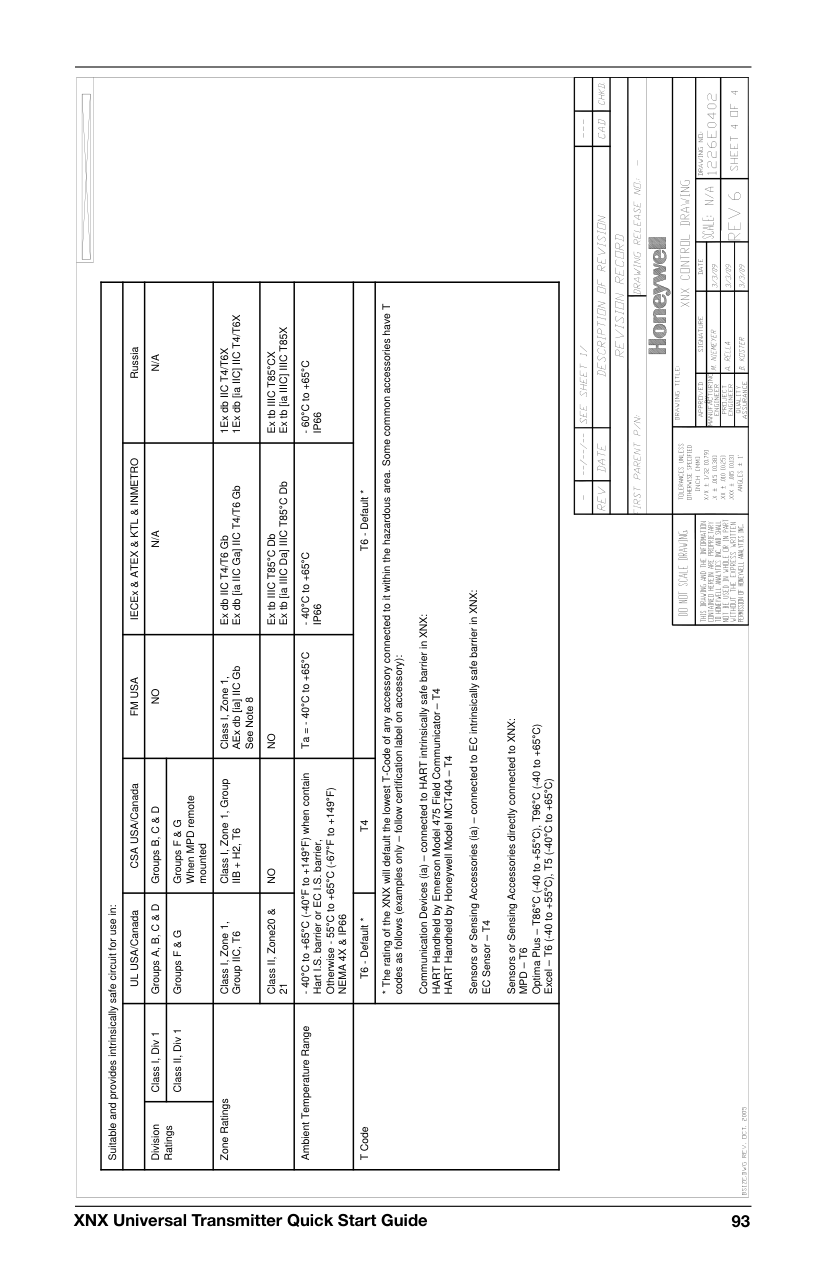

XNX Universal Transmitter Quick Start Guide 93 Suitable and provides intrinsically safe circuit for use in: UL USA/Canada CSA USA/Canada
Fm Usa
IECEx & ATEX & KTL & INMETRO Russia Division Ratings Class I, Div 1 Groups A, B, C & D Groups B, C & DNo
N/A
N/A
Class II, Div 1 Groups F & G Groups F & G When MPD remote mounted Zone Ratings Class I, Zone 1, Group IIC, T6 Class I, Zone 1, GroupIib + H2, T6
Class I, Zone 1, AEx db [ia] IIC Gb See Note 8 Ex db IIC T4/T6 Gb Ex db [ia IIC Ga] IIC T4/T6 Gb 1Ex db IIC T4/T6X 1Ex db [ia IIC] IIC T4/T6X Class II, Zone20 & 21No
No
Ex tb IIIC T85°C Db Ex tb [ia IIIC Da] IIIC T85°C Db Ex tb IIIC T85°CX Ex tb [ia IIIC] IIIC T85X Ambient Temperature RangeNema 4X & Ip66
Ta = - 40°C to +65°CIp66
Ip66
T Code T6 - Default *T4
T6 - Default *Mpd – T6
Optima Plus – T86°C (-40 to +55°C), T96°C (-40 to +65°C) Excel – T6 (-40 to +55°C), T5 (-40°C to +65°C)

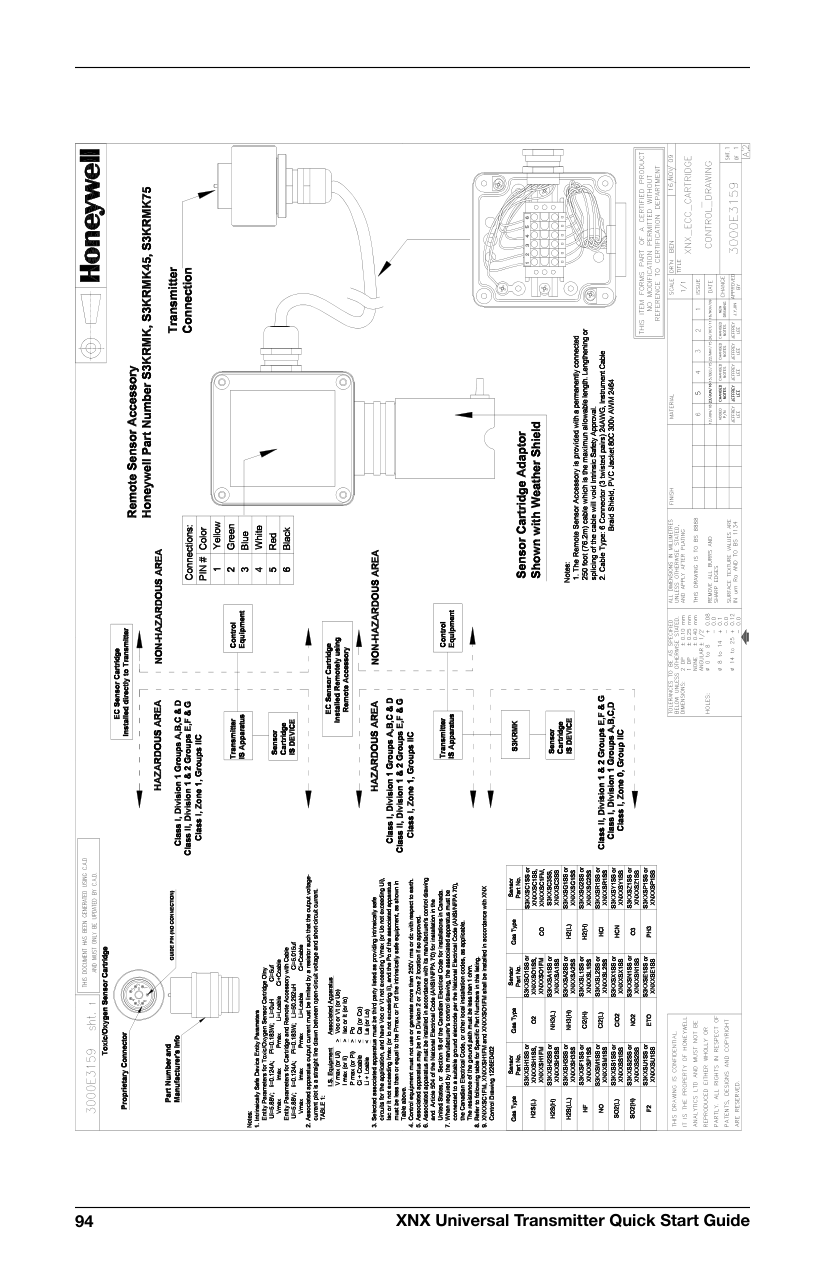

XNX Universal Transmitter Quick Start Guide 94

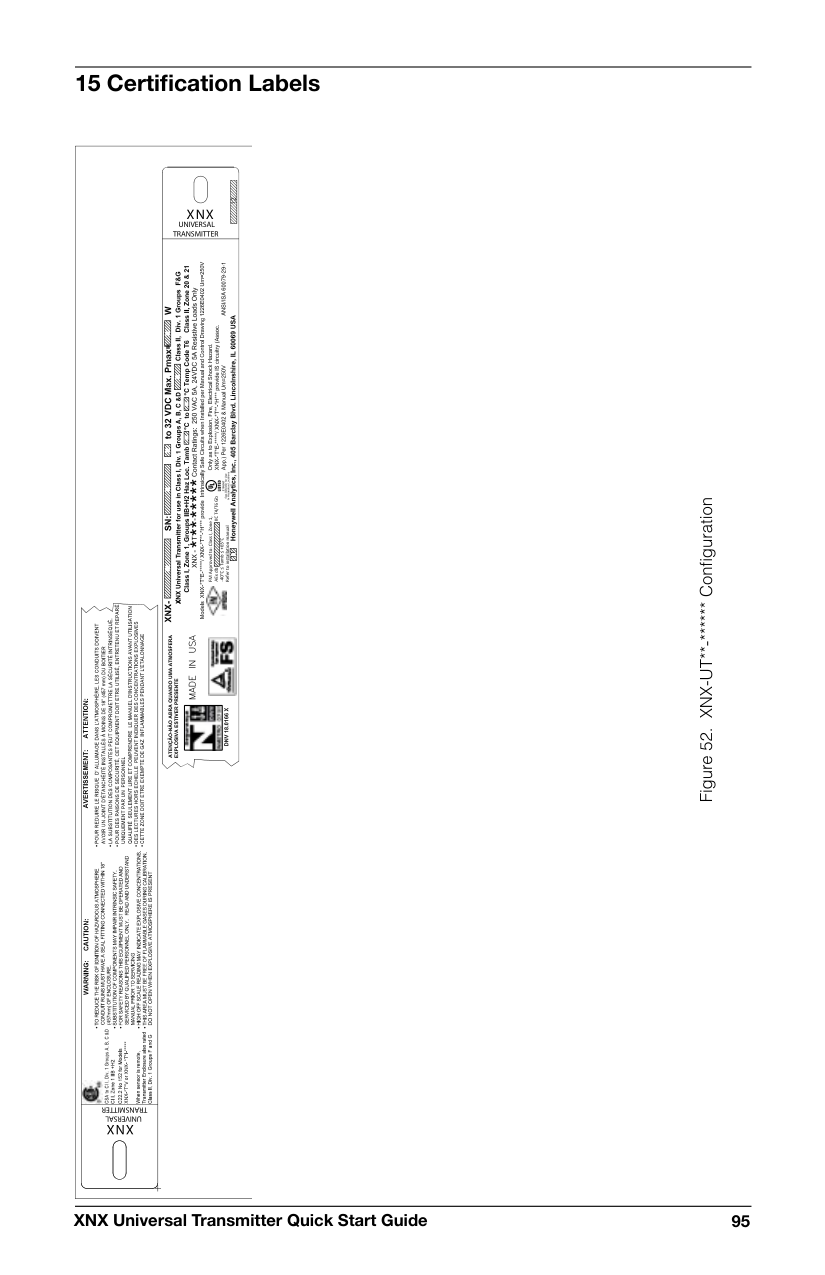

XNX Universal Transmitter Quick Start Guide 95 Figure 52. XNX-UT-**** Configuration
Xnx
Universal
Transmitter
Xnx
Universal
Transmitter
Ansi/Isa 60079-29-1
E186567
Gas Detector for Use In Hazardous Locations XNX Universal Transmitter for use in Class I, Div. 1 Groups A, B, C &D 15 Certification Labels

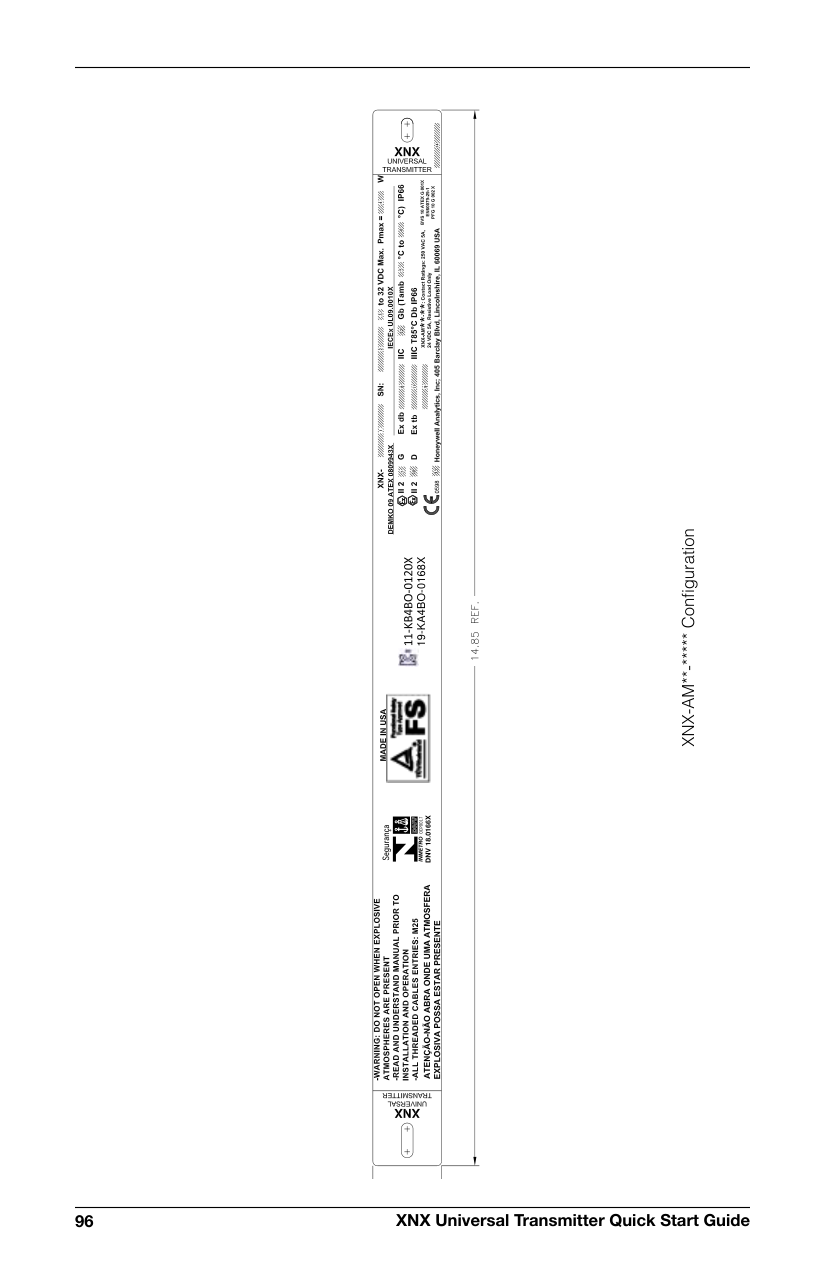

XNX Universal Transmitter Quick Start Guide 96 XNX-AM-*** Configuration 0598
Dnv 18.0166X
19-Ka4Bo-0168X

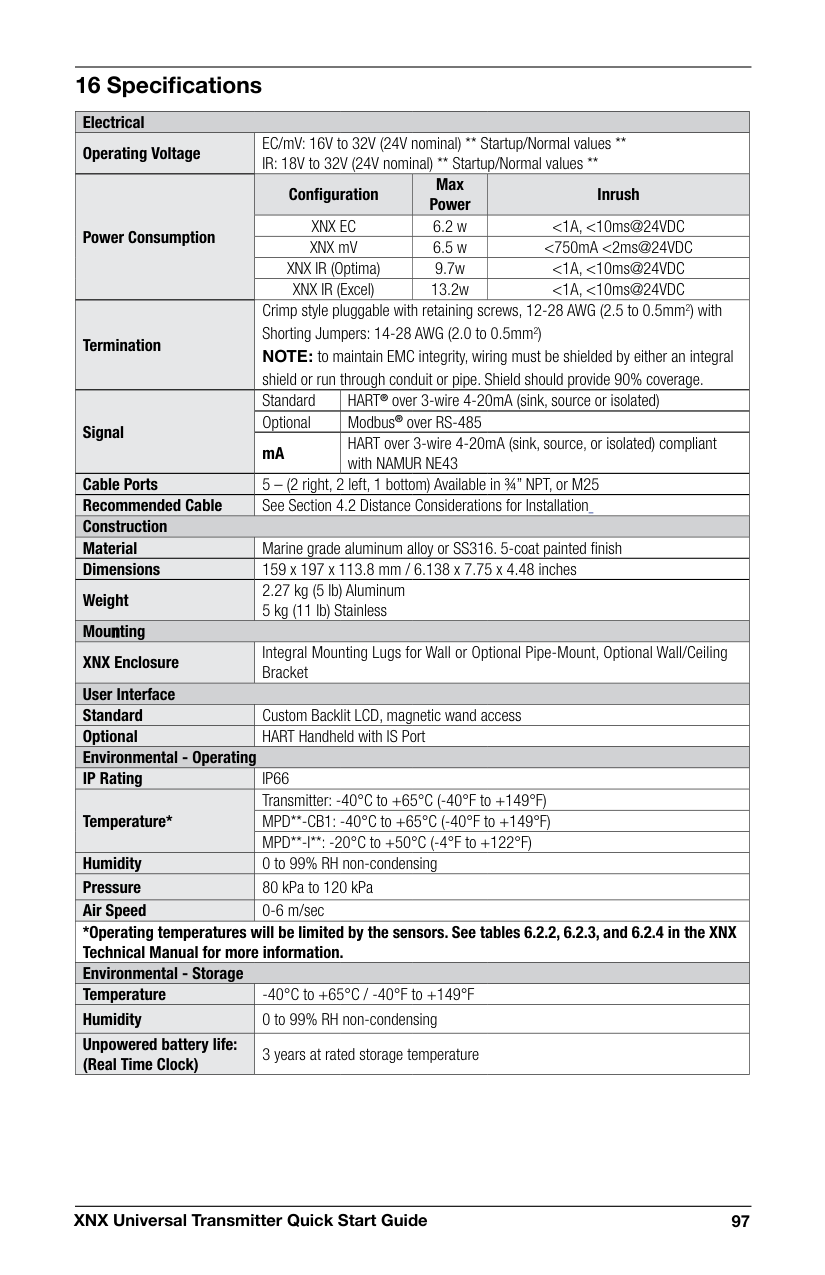

XNX Universal Transmitter Quick Start Guide 97 16 Specifications Electrical Operating Voltage EC/mV: 16V to 32V (24V nominal) Startup/Normal values IR: 18V to 32V (24V nominal) Startup/Normal values Power Consumption Configuration Max Power Inrush
Xnx Ec
6.2 w <1A, <10ms@24VDC XNX mV 6.5 w <750mA <2ms@24VDC XNX IR (Optima) 9.7w <1A, <10ms@24VDC XNX IR (Excel) 13.2w <1A, <10ms@24VDC Termination Crimp style pluggable with retaining screws, 12-28 AWG (2.5 to 0.5mm2) with Shorting Jumpers: 14-28 AWG (2.0 to 0.5mm2) NOTE: to maintain EMC integrity, wiring must be shielded by either an integral shield or run through conduit or pipe. Shield should provide 90% coverage. Signal Standard HART® over 3-wire 4-20mA (sink, source or isolated) Optional Modbus® over RS-485 mA HART over 3-wire 4-20mA (sink, source, or isolated) compliant with NAMUR NE43 Cable Ports 5 – (2 right, 2 left, 1 bottom) Available in ¾” NPT, or M25 Recommended Cable See Section 4.2 Distance Considerations for Installation Construction Material Marine grade aluminum alloy or SS316. 5-coat painted finish Dimensions 159 x 197 x 113.8 mm / 6.138 x 7.75 x 4.48 inches Weight 2.27 kg (5 lb) Aluminum 5 kg (11 lb) Stainless Mounting XNX Enclosure Integral Mounting Lugs for Wall or Optional Pipe-Mount, Optional Wall/Ceiling Bracket User Interface Standard Custom Backlit LCD, magnetic wand access Optional HART Handheld with IS Port Environmental - Operating IP RatingIp66
Temperature* Transmitter: -40°C to +65°C (-40°F to +149°F) MPD**-CB1: -40°C to +65°C (-40°F to +149°F) MPD-I: -20°C to +50°C (-4°F to +122°F) Humidity 0 to 99% RH non-condensing Pressure 80 kPa to 120 kPa Air Speed 0-6 m/sec *Operating temperatures will be limited by the sensors. See tables 6.2.2, 6.2.3, and 6.2.4 in the XNX Technical Manual for more information. Environmental - Storage Temperature -40°C to +65°C / -40°F to +149°F Humidity 0 to 99% RH non-condensing Unpowered battery life: (Real Time Clock) 3 years at rated storage temperature

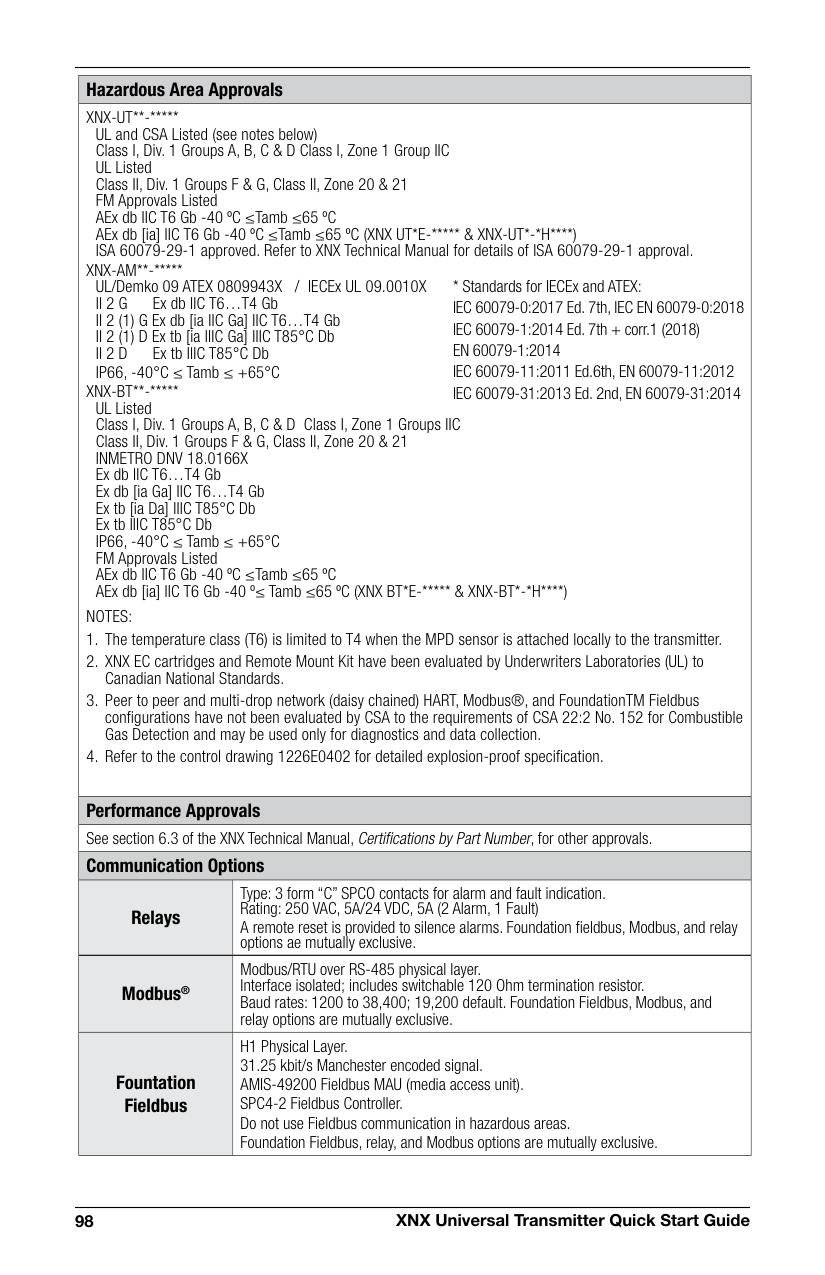

XNX Universal Transmitter Quick Start Guide 98 Hazardous Area Approvals
Xnx-Ut-***
UL and CSA Listed (see notes below) Class I, Div. 1 Groups A, B, C & D Class I, Zone 1 Group IIC UL Listed Class II, Div. 1 Groups F & G, Class II, Zone 20 & 21 FM Approvals Listed AEx db IIC T6 Gb -40 ºC ≤Tamb ≤65 ºC AEx db [ia] IIC T6 Gb -40 ºC ≤Tamb ≤65 ºC (XNX UT*E-* & XNX-UT*-*H****) ISA 60079-29-1 approved. Refer to XNX Technical Manual for details of ISA 60079-29-1 approval.Xnx-Am-***
UL/Demko 09 ATEX 0809943X / IECEx UL 09.0010X II 2 G Ex db IIC T6…T4 Gb II 2 (1) G Ex db [ia IIC Ga] IIC T6…T4 Gb II 2 (1) D Ex tb [ia IIIC Ga] IIIC T85°C Db II 2 D Ex tb IIIC T85°C Db IP66, -40°C ≤ Tamb ≤ +65°CXnx-Bt-***
UL Listed Class I, Div. 1 Groups A, B, C & D Class I, Zone 1 Groups IIC Class II, Div. 1 Groups F & G, Class II, Zone 20 & 21Inmetro Dnv 18.0166X
Ex db IIC T6…T4 Gb Ex db [ia Ga] IIC T6…T4 Gb Ex tb [ia Da] IIIC T85°C Db Ex tb IIIC T85°C Db IP66, -40°C ≤ Tamb ≤ +65°C FM Approvals Listed AEx db IIC T6 Gb -40 ºC ≤Tamb ≤65 ºC AEx db [ia] IIC T6 Gb -40 º≤ Tamb ≤65 ºC (XNX BT*E-* & XNX-BT*-*H****)Notes:
En 60079-1:2014
IEC 60079-11:2011 Ed.6th, EN 60079-11:2012 IEC 60079-31:2013 Ed. 2nd, EN 60079-31:2014

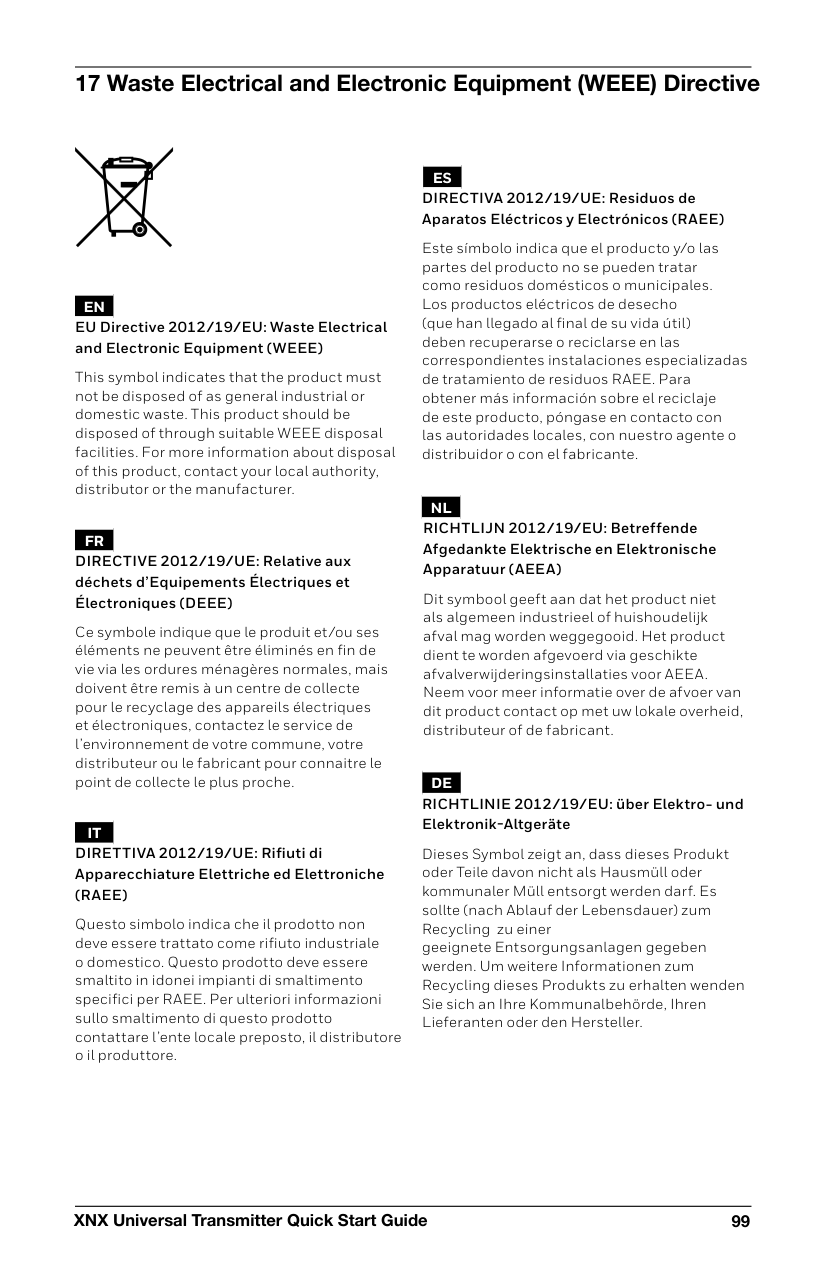

XNX Universal Transmitter Quick Start Guide 99 17 Waste Electrical and Electronic Equipment (WEEE) Directive EU Directive 2012/19/EU: Waste Electrical and Electronic Equipment (WEEE) This symbol indicates that the product must not be disposed of as general industrial or domestic waste. This product should be disposed of through suitable WEEE disposal facilities. For more information about disposal of this product, contact your local authority, distributor or the manufacturer.
En
DIRECTIVA 2012/19/UE: Residuos de Aparatos Eléctricos y Electrónicos (RAEE) Este símbolo indica que el producto y/o las partes del producto no se pueden tratar como residuos domésticos o municipales. Los productos eléctricos de desecho (que han llegado al final de su vida útil) deben recuperarse o reciclarse en las correspondientes instalaciones especializadas de tratamiento de residuos RAEE. Para obtener más información sobre el reciclaje de este producto, póngase en contacto con las autoridades locales, con nuestro agente o distribuidor o con el fabricante.Es
DIRECTIVE 2012/19/UE: Relative aux déchets d’Equipements Électriques et Électroniques (DEEE) Ce symbole indique que le produit et/ou ses éléments ne peuvent être éliminés en fin de vie via les ordures ménagères normales, mais doivent être remis à un centre de collecte pour le recyclage des appareils électriques et électroniques, contactez le service de l’environnement de votre commune, votre distributeur ou le fabricant pour connaitre le point de collecte le plus proche.Fr
RICHTLIJN 2012/19/EU: Betreffende Afgedankte Elektrische en Elektronische Apparatuur (AEEA) Dit symbool geeft aan dat het product niet als algemeen industrieel of huishoudelijk afval mag worden weggegooid. Het product dient te worden afgevoerd via geschikte afvalverwijderingsinstallaties voor AEEA. Neem voor meer informatie over de afvoer van dit product contact op met uw lokale overheid, distributeur of de fabricant.Nl
DIRETTIVA 2012/19/UE: Rifiuti di Apparecchiature Elettriche ed Elettroniche(Raee)
Questo simbolo indica che il prodotto non deve essere trattato come rifiuto industriale o domestico. Questo prodotto deve essere smaltito in idonei impianti di smaltimento specifici per RAEE. Per ulteriori informazioni sullo smaltimento di questo prodotto contattare l’ente locale preposto, il distributore o il produttore.It
RICHTLINIE 2012/19/EU: über Elektro- und Elektronik-Altgeräte Dieses Symbol zeigt an, dass dieses Produkt oder Teile davon nicht als Hausmüll oder kommunaler Müll entsorgt werden darf. Es sollte (nach Ablauf der Lebensdauer) zum Recycling zu einer geeignete Entsorgungsanlagen gegeben werden. Um weitere Informationen zum Recycling dieses Produkts zu erhalten wenden Sie sich an Ihre Kommunalbehörde, Ihren Lieferanten oder den Hersteller.De

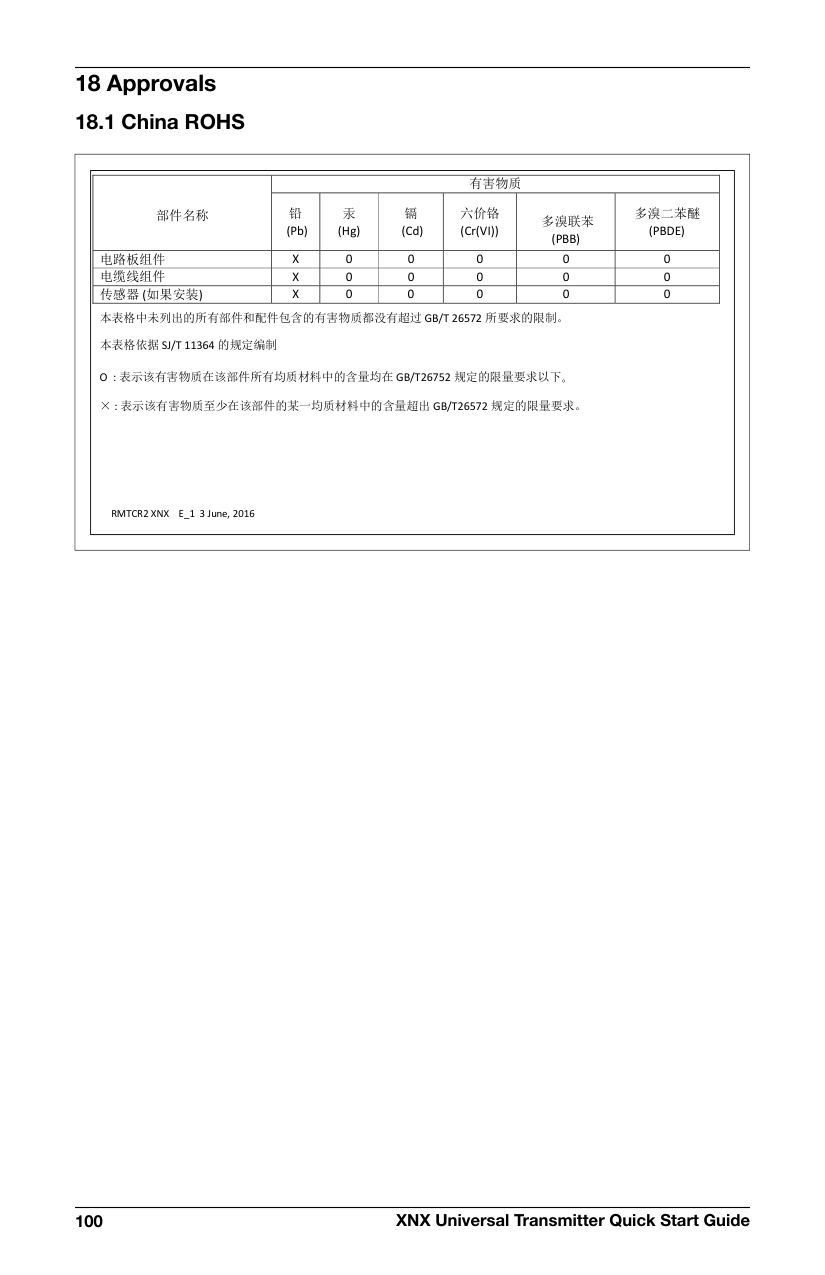

XNX Universal Transmitter Quick Start Guide 100 18 Approvals 18.1 China ROHS
部件名称 有害物质 铅 (Pb) 汞 (Hg) 镉 (Cd) 六价铬 (Cr(VI))
多溴联苯
(Pbb)
多溴二苯醚(Pbde)
电路板组件X
0 0 0 0 0 电缆线组件X
0 0 0 0 0 传感器 (如果安装)X
0 0 0 0 0本表格中未列出的所有部件和配件包含的有害物质都没有超过Gb/T 26572 所要求的限制。
本表格依据 Sj/T 11364 的规定编制
O : 表示该有害物质在该部件所有均质材料中的含量均在Gb/T26752 规定的限量要求以下。
× : 表示该有害物质至少在该部件的某一均质材料中的含量超出Gb/T26572 规定的限量要求。
RMTCR2 XNX E_1 3 June, 2016
