Kenmore Microwave Oven

##### Use & Care Guide Manual de Uso y Cuidado English / Español

Models/Modelos: 790.48893*, 790.48883*

Kenmore Elite®

Convection Microwave Oven

Microondas de convección

P/N A06822402 Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.kenmore.com www.sears.com

TM

############# TINSLB023MRR2

###### Table of Contents

Kenmore Elite Warranty ........................................................................2 Product Record ........................................................................................2 Serial Plate Location ..............................................................................2 IMPORTANT SAFETY INSTRUCTIONS ............................................3-4 GROUNDING INSTRUCTIONS ...........................................................5 Microwave Features ...............................................................................6 Microwave Oven Important Information ........................................7-9 Control Pad Features ............................................................................10 Control Pad Settings & Microwave Menu Label ...............................11

Getting Started ..................................................................................... 12 Manual Operation ................................................................................ 13 Microwave Operating Instructions ................................................14-18 Convection Microwave Operating Instructions .......................... 19-23 Microwave General Care & Cleaning .............................................. 24 Before You Call .....................................................................................25 Specifications ....................................................................................... 26 Sears Service ........................................................................................ 27

###### Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Kenmore Elite Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair. This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes. This warranty covers only defects in material and workmanship. Sears will NOT pay for:

Disclaimer of implied warranties; limitation of remedies Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179 - Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

Product Record In this space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on the serial plate.

###### Serial Plate Location

You will find the model and serial number printed on the serial plate. The serial plate is located along the interior side trim and visible when the microwave door is opened.

| | |---|

Remember to record the serial number for future reference.

####### Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This symbol will help alert you to situations that may cause bodily injury or property damage.

|PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life.

• Do Not Attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Do Not Place any object between the microwave oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do Not Operate the microwave oven if it is damaged. It is particularly important that the microwave oven door close properly and that there is no damage to the: 1. door (bent); 2. hinges and latches (broken or loosened); 3. door seals and sealing surfaces.
• The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel.


| |---|

| | |---| |When using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

• READ ALL instructions before using the appliance.
• READ AND FOLLOW the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” above.
• This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 5.
• Install or locate this appliance only in accordance with the provided installation instructions.
• Some products such as whole eggs and sealed containers - for example, closed jars - are able to explode and SHOULD NOT be HEATED in this oven.


• Use this appliance ONLY for its intended use as described in this manual. DO NOT use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
• As with any appliance, CLOSE SUPERVISION is necessary when used by CHILDREN or INFIRM PERSONS.
• DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
• This appliance, including power cord, must be serviced ONLY by qualified service personnel. Contact nearest Kenmore Authorized Servicer for examination, repair or adjustment.
• DO NOT cover or block any vents or openings on the oven.
• DO NOT store or use this appliance outdoors.
|

| | |---| |• DO NOT use this product near waterfor example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
• DO NOT immerse cord or plug in water.
• Keep cord AWAY from HEATED surfaces.
• DO NOT let cord hang over edge of table or counter.


• Review the door cleaning instructions on page 24.
• DO NOT mount over a sink.
• DO NOT store anything directly on top of the appliance surface when the appliance is in operation.
|

| | |---| |To reduce the risk of fire in the oven cavity:

• DO NOT overcook food. Carefully attend to appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking.
• Remove wire twist-ties from paper or plastic bags before placing bag in oven.
• If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel.
• DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity when not in use.


Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from

the Convection Microwave Oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

• DO NOT overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• DO NOT use straight-sided containers with narrow necks. Use a wide-mouthed container.
• After heating, allow the container to stand in the Convection Microwave Oven at least for 20 seconds before removing the container.
• Use extreme care when inserting a spoon or other utensil into the container.


If the oven light fails, consult a Kenmore Authorized Servicer.|

#### SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCES

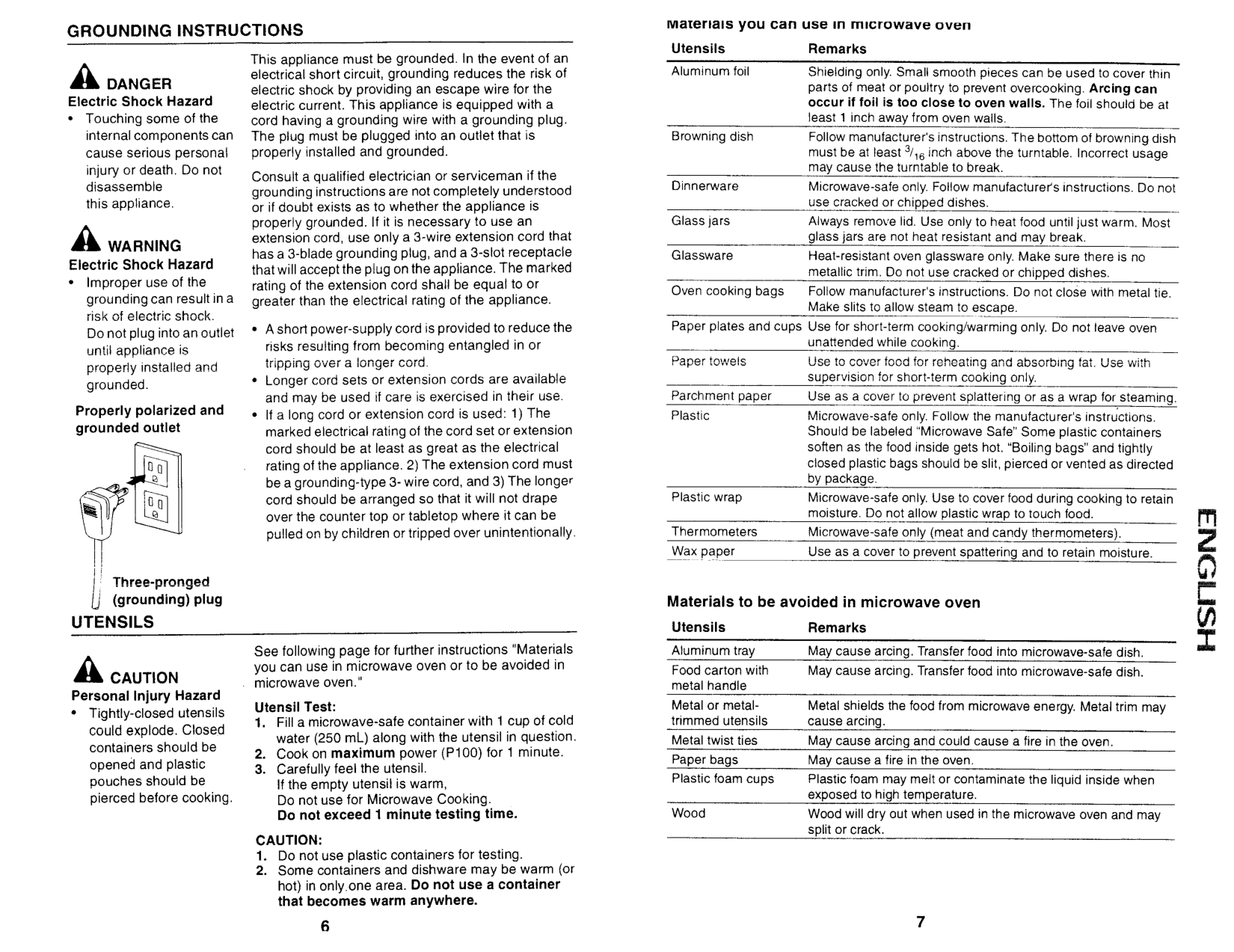

#### GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

| | |---|

Improper use of the grounding plug can result in a risk of electric shock.

####### ELECTRICAL REQUIREMENTS

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided.

The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

A short power-supply cord is provided to reduce risk of becoming entangled in or tripping over a longer cord. DO NOT USE AN EXTENSION CORD. If the power supply cord is too short, have a qualified electrician or serviceperson install an outlet near the appliance.

######## Notes:

####### FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A. ONLY)

This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:

The manufacturer is not responsible for any radio or television interference caused by unauthorized modification to this microwave oven. It is the responsibility of the user to correct such interference.

###### Microwave Features

Note: The features of your oven will vary according to model.

YOUR MICROWAVE OVEN FEATURES AT A GLANCE

13

1

2

11

12 14

|9| |---|

10

3

8

6

| | | | | |---|---|---|---| | | | | |

7

|ACCESSORIES

The accessories 17 and 18 are designed especially for use in the microwave oven for convection, turbo or broil cooking only. DO NOT USE FOR MICROWAVE ONLY COOKING. Do not substitute similar types or racks for these specially designed ones.

High rack (Baking rack) – for convection and turbo bake.

• This rack is placed on the turntable for two-level cooking, such as layer cakes, muffins, etc.

Low rack (Broiling rack) – for convection, broiling or turbo roast.

• Place on the turntable and use for roasting or broiling to allow juices to drain away from food.


| |---|

###### Microwave Oven Important Information

######### ABOUT YOUR MICROWAVE OVEN

This Use and Care Manual is valuable: read it carefully and always save it for reference.

A good microwave cookbook is a valuable asset. Check it for microwave cooking principles, techniques, hints and recipes. NEVER use the microwave oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the microwave oven. The turntable will turn both clockwise and counterclockwise. ALWAYS have food in the microwave oven when it is on to absorb the microwave energy. When using the microwave oven at power levels below 100%, you may hear the magnetron cycling on and off. It is normal for the exterior of the microwave oven to be warm to the touch when cooking or reheating. Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the microwave oven. Generally, covered foods will not cause as much condensation as uncovered ones. Ventilation openings must not be blocked. The microwave oven is for food preparation only. It should not be used to dry clothes or newspapers. Your Convection Microwave Oven is rated 900 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time setting elapses and add time accordingly.

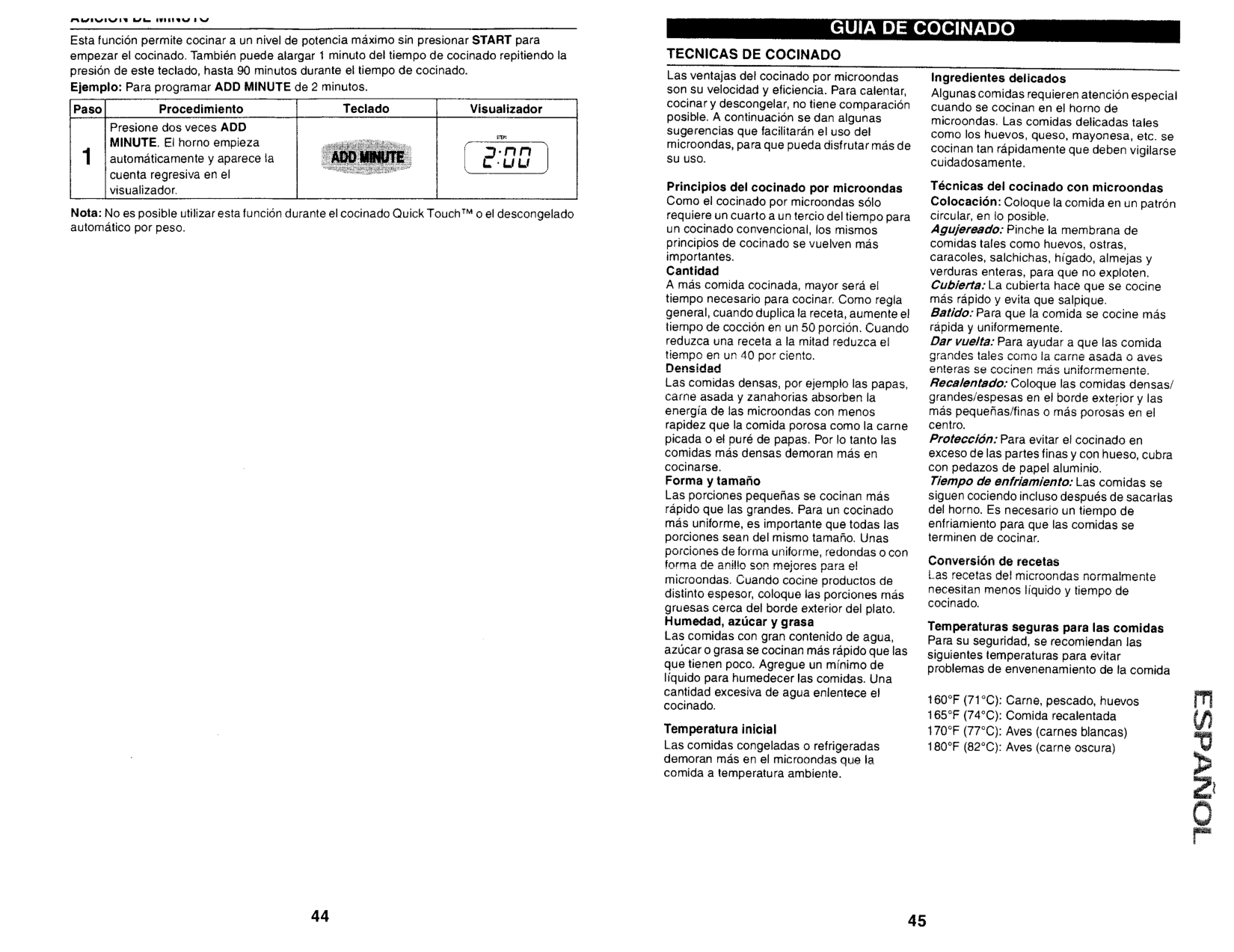

######### ABOUT MICROWAVE COOKING

######### ABOUT FOODS

######### ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new microwave oven. Make sure the utensil does not touch the interior walls during cooking.

Use these utensils for safe microwave cooking and reheating:

Should you wish to check if a dish is safe for microwaving, place the empty dish in the microwave oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

########## The following coverings are ideal:

########## How to use aluminum foil in your microwave oven:

Should you have questions about utensils or coverings, check a good microwave cookbook or follow recipe suggestions.

ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining correct doneness and assure you that foods have been cooked to safe temperatures. Sears is not responsible for any damage to the microwave oven when accessories are used.

######### ABOUT CHILDREN AND THE MICROWAVE

Children should use the microwave oven with a supervising person very near to them or in the same room.

At no time should anyone be allowed to lean or push down on the microwave oven door.

Children should be taught all safety precautions: use potholders, remove coverings carefully, pay special attention to packages that crisp food because they may be extra hot.

Don’t assume that because a child has mastered one cooking skill he/she can cook everything.

Children need to learn that the microwave oven is not a toy.

######### ABOUT SAFETY

• Check foods to see that they are cooked to the United States Department of Agriculture’s recommended temperatures.

160°F For fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen prepared food.

165°F For leftover, ready-to-reheat refrigerated, and

deli and carry-out “fresh” food. 170°F White meat of poultry. 175°F Dark meat of poultry.

To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave oven use.





###### Control Pad Features

1 7

2 83 9

4 10 13511 14612

15

###### Control Pad Settings & Microwave Menu Label

######### Microwave oven menu label

| | | | | |---|---|---|---| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

Refer to the menu label when using select options which have pre-programed foods items. Microwave oven display will light as a reminder to see menu label and select food number.

###### Getting Started

######### SETTING CLOCK AT POWER UP

You will be prompted to enter the time of day in the event of a power failure or when you first provide electric power to your appliance.

If an invalid time of day is entered, the clock automatically goes to 12.00. Press Clock , then re-enter a valid time of day and press START .

Select the Clock key to modify the time of day during other situations such as day light savings.

######### TIMER SET/OFF

• Suppose you want to time a 3-minute long distance phone call.

|3:00| |---|

######### PREHEAT TEMPERATURE DISPLAY

Once a cooking feature has been started in one of the ovens, the control will display the actual oven temperature while preheating. Once the oven reaches the oven set temperature only the oven set temperature will display.

The preheat temperature display is available with the Conv Bake mode.

######### OVEN LOCK OUT

The Oven Lock Out prevents unwanted oven operation such as by small children. The oven can be set so that the control panel is deactivated or locked.

To lock, press and hold STOP for 3 seconds. To unlock, press and hold STOP for 3 seconds.

|LOCKED|

|---|

######### ACCENT LIGHT

Your appliance includes a decorative Accent light centered horizontally across the touch-sensitive control panel. The Accent light comes with a theatre style intensity feature that slowly increases brightness at turn on and slowly fades when turning off.

When the Accent light is off, the light is in automatic mode. This means the Accent light will turn on automatically when an oven or Timer has been activated. The Accent light will turn off automatically when these functions are no longer active.

When the Accent light is OFF, it may be manually turned ON by pressing the Accent Light keypad once. When the Accent light has been manually turned on, it will remain on until manually turned off by pressing the Accent Light keypad again. The brightness of the Accent light may also be adjusted.

See example below to adjust Accent light brightness:

###### Manual Operation

######### TIME COOK

Your Microwave Oven can be programmed up to 99 minutes 99 seconds (99:99). Always enter the seconds after the minutes, even if they are both zeros.

• Suppose you want to cook for 5 minutes at 100%.

|ENTER| |---|

|COOK| |---|

|TIME| |---|

|5:00| |---|

######### TO SET POWER LEVEL

Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.

• Suppose you want to cook for 5 minutes at 70%.

|5:00| |---|

Power level Common words for power levels 100 High 90 80 70 Medium High 60 50 Medium 40 30 Med Low/ Defrost 20 10 Low

######### MANUAL DEFROST

If the food that you wish to defrost is not listed on the Defrost chart or is above or below the limits in the “Amount” column on the Defrost chart, you need to defrost manually.

You can defrost any frozen food, either raw or previously cooked, by using Power level 30. Follow the exact procedure found under Time cooking. Estimate defrosting time and lower your power level to 30%.

For either raw or previously cooked frozen food the rule of thumb is approximately 5 minutes per pound. For example, defrost 5 minutes for 1 pound of frozen spaghetti sauce.

Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on power level 30 until totally defrosted.

When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave-safe dish.

• Suppose you want to defrost for 5 minutes.

|5:00| |---|

###### Microwave Operating Instructions

######### SENSOR MODES

The sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power level for various foods and quantities. Popcorn, Sensor Cook and Sensor Reheat are part of the Sensor Modes.

########## Using Sensor Modes:

When the sensor detects the vapor emitted from the food, remainder of cooking time will appear. Door may be opened when remaining cooking time appears on the display. At this time, you may stir or season food, as desired.

Be careful when removing any covering to allow steam to escape away from you.

######### POPCORN

You can cook popcorn by touching a quick pad (Popcorn). You don’t need to calculate cooking time or power level.

• Suppose you want to pop a 3.5 oz. bag of popcorn.

|REGULAR| |---|

,

|SELECT| |---|

|SIZE| |---|

|PRESS| |---|

|1 OR 2| |---|

|REGULAR| |---|

|Amount| |---|

|Procedure| |---| |Use only popcorn packaged for the microwave. Try several brands to decide which you like. Do not try to pop unpopped kernels. This sensor works well with most brands of microwave popcorn. You may wish to try several and choose your favorite. Pop only one bag at a time. Unfold the bag and place in oven according to directions.|

########## NOTES

The final result will vary according to the food condition (e.g. initial temperature, shape, quality). Check food for temperature after heating. If additional time is needed, continue to heat manually.

This mode can be programmed with More or less time adjustment. Touch the Power Level pad once or twice before touching START pad.

######### COVERING FOODS

Some foods cook better when covered. Use the cover recommended in the food charts.

######### SENSOR COOK

You can cook many foods by touching the Sensor Cook pad and the food number. You don’t need to calculate cooking time or power level.

• Suppose you want to cook baked potato.

|PRESS| |---|

|0 - 9| |---|

|BAKED| |---|

|POTATO| |---|

########## NOTES

########## Food Amount Procedure

0.25 - 2 lb 0.25 - 2 lb 0.25 - 2 lb 0.25 - 2 lb

Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tendercrisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

0.25 - 2 lb 2 - 4 pcs. 0.25 - 2 lb 0.25 - 2 lb 1 - 2

Place in casserole. Add 1-4 tbsp. water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

########## Rice Water Size of casserole dish

.5 cup 1 cup 1.5 quart

1.5 cups 3 cups 2.5 or 3 quart

########## Food Amount Procedure

cooked, remove from the dish and place on paper towel to absorb any bit of fat there is. Allow it to sit for about 1 minute to cool. The bacon will be crispy and delicious.

######### AUTO DEFROST

Auto Defrost automatically defrosts all the foods found in the chart below and also see menu label for selections.

• Suppose you want to defrost a 2.0 pound steak.

|PRESS| |---|

|1 - 6| |---|

|STEAK| |---|

|CHOPS| |---|

|FISH| |---|

|0.5 LB| |---|

|2.0 LB| |---|

.

After defrost cycle ends, let stand, covered.

########## NOTES

########## Food Amount Default Procedure

0.5 - 4 lb 0.5 lb After each stage, rearrange and if there are warm or thawed portions, shield with small flat pieces of aluminum foil. Remove any meat or fish that is almost defrosted. Let stand, covered, for 10 to 20 minutes.

0.5 - 3 lb 0.5 lb After each stage, rearrange pieces or remove portions should they become warm or thawed. Let stand, covered, for 10 to 20 minutes.

AUTO COOK Your oven has convenient pads to assist with meal preparation. The Auto Cook settings will automatically compute the correct cooking time and microwave power level for foods shown in the following charts.

######### NOTES

• Suppose you want to melt 1/2 cup of butter.

|PRESS| |---|

|1 - 4| |---|

########## 1. Press Auto Cook.

|MELT| |---|

|SOFTEN| |---|

########### 2. Press 3 for Melt, Soften.

|PRESS| |---|

|1 - 4| |---|

########### 3. Press START to confirm.

|BUTTER| |---|

########### 4. Press 3 for Butter.

|2 TBSP| |---|

|SELECT| |---|

|AMOUNT| |---|

########### 5. Press START to confirm.

,

|PRESS| |---|

|1 OR 2| |---|

|1/2 CUP| |---|

########### 6. Press 2 for 1/2 cup.

########## 7. Press START .Food Amount Default Procedure

1 slice Use this setting to reheat refrigerated leftover pizza, 1 slice is approximately 1/8th of a 12-inch pizza or 1/12th of a 16-inch pizza. If possible, place on paper towel on a microwave-safe rack.

1 pint

DO NOT COVER.

3 oz 8 oz

3 oz Touch number 1 for 3 oz. Touch number 2 for 8 oz.

2 tbsp

Use a Pyrex measuring cup. Cover with plastic wrap. Touch number 1 for 2 tbsp. Touch number 2 for 1/2 cup.

1 square Touch number 1 for 1 cup of chips. Touch number 2 for 1 square.

1 (6 - 8 oz) N/A Use for frozen microwave pizza. Remove from package and unwrap. Follow package directions for use of package and/or silver crisping disc.

3 - 4 oz N/A Use for frozen french fries, cheese sticks, appetizers etc. Remove from outer package. Follow package directions for how to wrap or cover. Be careful when removing from the oven as snack may be very hot.

5 - 6 oz N/A Use for frozen french fries, cheese sticks, appetizers etc. Remove from outer package. Follow package directions for how to wrap or cover. Be careful when removing from the oven as snack may be very hot.

0.3 - 1 lb 0.4 lb Place frozen chicken nuggets on a flat plate allowing space between each, cover food with paper towel. Enter weight and touch START. After cooking, open door, rearrange, close door and touch START. Let stand, covered, for 1 to 3 minutes.

6 - 8 oz N/A Use this pad for frozen, convenience foods. It will give satisfactory results for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand, covered for 1 to 3 minutes.

######### REHEAT

The reheat pad includes two different ways of reheating your favorite meals.

The sensor reheat detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the reheat times and power level for various foods and quantities. Refer to the sensor modes section for more informations.

The auto reheat settings automatically computes the correct warming and heating time and microwave power level for foods shown in the chart below.

• Suppose you want to heat 2 fresh rolls or muffins.

|PRESS| |---|

|1 OR 2| |---|

########## 1. Press Reheat.

|AUTO| |---|

|REHEAT| |---|

########### 2. Press number 2 for auto reheat.

######### 1. SENSOR REHEAT

|PRESS| |---|

|1 - 3| |---|

|FRESH| |---|

|ROLLS OR| |---|

|MUFFINS| |---|

|1 PCS| |---|

|2 PCS| |---|

Amount Procedure

4 - 36 oz Place in dish or casserole slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids with larger quantities of more dense foods such as stews. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very hot. If not, continue to heat with variable power and time.

######### 2. AUTO REHEATFood Amount Default Procedure

########## 1. Fresh Rolls/Muffins

1 - 10 1 Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items should be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel. For refrigerated rolls or muffins, it may be necessary to double the entered amount to ensure the proper serving temperature. For example, enter quantity of 2 for 1 refrigerated muffin. Touch desired number to select quantity and touch START.

########## 2. Frozen Rolls/Muffins

1 - 10 1 Use this pad to warm frozen rolls, muffins, biscuits, bagels, etc. Large items should be considered as 2 or 3 regular size. Arrange on plate, cover with paper towel. Touch desired number to select quantity and touch START.

########### 3. Pasta 1 - 6cups

1 cup Use this pad to reheat refrigerated canned or homemade pasta with sauce. For room temperature pastas, use Less option. Pasta without sauce double the quantity per setting. For example, measure 2 cups of cooked noodles and program for 1 cup. Cover with lid or plastic wrap. Enter the desired number of cups and touch START. After cooking, let stand, covered, 2 to 3 minutes.

###### Convection Microwave Operating Instructions

######### CONVECTION COOKING

During convection heating, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly.

This section gives you specific convection cooking instructions and procedures.

The oven should not be used without the turntable in place, and it should never be restricted so that it cannot rotate. You may remove the turntable when preheating the oven and when preparing food to be cooked directly on the turntable.

The oven cabinet, cavity, door, turntable, turntable support, racks and dishes will become hot. To PREVENT BURNS, use thick oven gloves when removing the food or turntable from the oven.

######### TO SET TEMPERATURE LEVEL IN CONVECTION COOKING

There are ten preset temperature levels.

Using lower temperature levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.

|Temperature numeric pad|Preset temperature level| |---|---| |1|100 ˚F| |2|150 ˚F| |3|275 ˚F| |4|300 ˚F| |5|325 ˚F| |6|350 ˚F| |7|375 ˚F| |8|400 ˚F| |9|425 ˚F| |0|450 ˚F|

######### CONVECTION BAKE

• Suppose you want to cook at 375˚F for 20 minutes.

|350°| |---|

,

|SELECT| |---|

|TEMP| |---|

|PRESS| |---|

|0 - 9| |---|

|375°| |---|

|ENTER| |---|

|COOK| |---|

|TIME| |---|

|20:00| |---|

######### CONVECTION ROAST

Use convection roast setting for steaks, chops, chicken pieces and many other foods. Only actual cooking time is entered; the temperature is set at 450˚F and cannot be changed.

• Suppose you want to preheat and broil a steak for 15 minutes.

|450°|

|---|

|ENTER| |---|

|COOK| |---|

|TIME| |---|

,

########## 1. Press Conv Roast.

########### 2. Enter cooking time by pressing the number pads 1 5 0 0.

|15:00| |---|

########### 3. Press START to confirm.NOTE

The oven will reach the roast temperature in 7 to 10 minutes depending on temperature of room and available power.

There are three options in Auto Conv: 1. Auto Bake, 2. Auto Roast and 3. Auto Broil. Refer to menu label on microwave oven for quick reference.

########## 1. AUTO BAKE

Auto Bake automatically bakes cakes, brownies, muffins and french fries.

• Suppose you want to bake a bundt cake.

|PRESS| |---|

|1 - 3| |---|

|BAKE| |---|

|PRESS| |---|

|1 - 4| |---|

|BUNDT| |---|

|CAKE| |---|

######### NOTES

The oven cabinet, cavity, door, turntable, turntable support, racks and dishes will become hot. To PREVENT BURNS, use thick oven gloves when removing the food or turntable from the oven.

########## Setting/Food Amount Default Rack Procedure

N/A 1 pizza pan No rack 2 pizza pans High

Ideal for refrigerated cookie dough. Prepare according to package or recipe directions and place on a greased and floured 12-inch pizza pan. Cookies should be approximately 1/3-inch thick and 2-inches in diameter for best results. When the oven has reached the cooking temperature, it will prompt you to place food in the oven. Place food in the oven and press START to begin cooking. Cool before serving.

1 or 2 muffin pans

N/A 1 pan No rack 2 pans High

Ideal for packaged muffin mix or your own recipe for 6-12 medium size muffins. Prepare according to package or recipe directions and place in muffin pan. When the oven has reached the cooking temperature, it will prompt you to place food in the oven. Place food in the oven and press START to begin cooking.

3 oz 1 pizza pan No rack 2 pizza pans High

Use frozen prepared french fries. No preheat is required for the french fries baking procedure. Place french fries on pizza pan. For shoestring potatoes, touch Power Level pad twice to enter less time before touching START pad.

1 or 2 pizza pans

For more than 12 oz use 2 pans

########## 2. AUTO ROAST

Auto Roast automatically roasts chicken, turkey, turkey breast or pork.

• Suppose you want to roast a 3.0 pound chicken.

|PRESS| |---|

|1 - 3| |---|

########## 1. Press Auto Conv.

|ROAST| |---|

########## 2. Press 2 for 2. Auto Roast.

|PRESS| |---|

|1 - 4| |---|

########### 3. Press START .

|CHICKEN| |---|

########### 4. Press number 1 for chicken.

The oven cabinet, cavity, door, turntable, turntable support, racks and dishes will become hot. To PREVENT BURNS, use thick oven gloves when removing the food or turntable from the oven.

|2.5 LB| |---|

########### 5. Press START .

|3.0 LB| |---|

########### 6. Enter weight by touching the number pads 3 0.

########### 7. Press START .

After Roast cycle ends, a long tone will sound. Follow the indicated message.

########## Setting/Food Amount Default Rack Procedure

########## 3. AUTO BROIL

Auto Broil automatically broils hamburgers, chicken pieces, steaks and fish steaks.

• Suppose you want to broil 2 hamburgers.

|PRESS| |---|

|1 - 3| |---|

########## 1. Press Auto Conv.

|BROIL| |---|

########## 2. Press 3 for 3. Auto Broil.

|PRESS| |---|

|1 - 4| |---|

########### 3. Press START .

########### 4. Select desired setting.Ex: for hamburgers, press number 1.

The oven cabinet, cavity, door, turntable, turntable support, racks and dishes will become hot. To PREVENT BURNS, use thick oven gloves when removing the food or turntable from the oven.

|HAM-| |---|

|BURGERS| |---|

|1 PIECE| |---|

########### 5. Press START .

|2 PIECES| |---|

########### 6. Press number pad 2 to enter quantity.

Follow information in display for cooking information. For well done or rare burgers, touch Power Level pad to select More for well done or Less for rare. See More/Less Time Adjustment.

|HAM-| |---|

|BURGERS| |---|

########### 7. Press START .

After broil preheat cycle ends, the oven will stop and directions will be displayed. Follow the indicated message. Open the door and place hamburgers into oven. Close the door.

|CAUTION| |---|

|OVEN HOT| |---|

########### 8. Press START .

########## Setting/Food Amount Default Rack Procedure

1 piece Low Use this setting to broil hamburger patties. Place on low rack.

0.5 - 3.5 lb 0.5 lb Low Arrange pieces on low rack. After cooking, let stand, 3-5 minutes. Dark meat should be 180°F, and white meat should be 170°F.

######### TURBO COOKING

This oven has two pre-programmed settings that make it easy to cook with both convection heat and microwave automatically.

Oven temperature

Microwave power

Turbo Roast 300˚F 30% Turbo Bake 325˚F 10%

With the exception of those foods that cook best by convection heating alone, most foods are well suited to mix cooking using either Turbo Bake or Turbo Roast.

The marriage of these two cooking methods produces juicy meats, moist and tender cakes and fine textured breads, all with just the right amount of browning and crispness.

The temperatures can be changed; however, the microwave power cannot.

The oven temperature can be changed from 100˚F to 450˚F. When the display says SELECT TEMP, touch desired temperature pad. Ex: Turbo Roast pad, 7. The temperature will change to 375˚F automatically.

• Suppose you want to bake a cake at 350˚F for 25 minutes on Turbo Bake.

|325°| |---|

|SELECT| |---|

|TEMP| |---|

|PRESS| |---|

|0 - 9| |---|

,

########## 1. Press Turbo Bake.

|350°| |---|

########### 2. Select temperature by pressing a number pad 6.

|ENTER| |---|

|COOK| |---|

|TIME| |---|

########### 3. Press START .

########### 4. Enter cooking time by pressing the number pads 2 5 0 0.

|25:00| |---|

########## 5. Press START .NOTE

If you do not want to change the temperature in step 1, omit step 2 and continue the cooking from step 3.

######### PREHEAT

Your oven can be programmed to combine preheating and convection cooking operations. You can preheat to the same temperature as the convection temperature or change to a higher or lower temperature.

• Suppose you want to preheat to 375˚F, and then cook 25 minutes at 375˚F convection.

|350°| |---|

,

|SELECT| |---|

|TEMP| |---|

|PRESS| |---|

|0 - 9| |---|

|375°| |---|

|SELECT| |---|

|TEMP| |---|

|PRESS| |---|

|0-9| |---|

|350°| |---|

,

|SELECT| |---|

|TEMP| |---|

|PRESS| |---|

|0 - 9| |---|

|375°| |---|

|25:00| |---|

######### MORE OR LESS TIME ADJUSTMENT

Should you discover that you like any of the Sensor Modes, Auto Cook, Auto Reheat or Auto Defrost slightly more done, touch the Power Level pad once after touching your choice of pads or before touching START pad. The display will show MORE.

Should you discover that you like any of the Sensor Modes, Auto Cooks, Auto Reheat or Auto Defrost slightly less done, touch the Power Level pad twice after touching your choice of pads or before touching START pad. The display will show LESS.

QUICK START Quick start is a short-cut method to set time for 1-9 minutes at power level 100 - high.

• Suppose you want to heat a cup of soup for two minutes. Press number 2 on the numeric pad. The oven will start automatically after 2 seconds, beep and then turn off automatically when finished.

ADD 30 SEC Add 30 Sec provides a convenient way to extend cooking time by 30 seconds while the oven timer is counting down. It will add 30 seconds to the time shown each time the pad is touched.

This pad may also be used as a quick start for 30 seconds of cooking. No need to touch START, the oven will start automatically.

###### Microwave General Care & Cleaning

######### Disconnect the power cord before cleaning or leave the door open to inactivate the oven during cleaning.

######### Exterior

Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

######### Door

Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

######### Touch Control Panel

Care should be taken in cleaning the touch control panel. If the control panel becomes soiled, open the Microwave Oven door before cleaning. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close door and touch STOP .

######### Interior — After Microwave Cooking

Cleaning is easy because little heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, wipe with a soft cloth and warm water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use baking soda or a mild soap; rinse thoroughly with hot water.

######### Waveguide Cover

The waveguide cover is made from mica which requires special care. Keep the waveguide cover clean to assure good oven performance. Carefully wipe with a damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. Do not remove the waveguide cover.

######### Odor Removal

Occasionally, a cooking odor may remain in the oven. To remove, combine 1 cup water, grated peel and juice of 1 lemon and several whole cloves in a 2-cup glass measuring cup. Boil for several minutes using 100% power. Allow to set in oven until cool. Wipe interior with a soft cloth.

######### Turntable/Turntable Support/Racks

The turntable, turntable support and racks can be removed for easy cleaning. Wash them in mild, sudsy water; for stubborn stains use a mild cleanser and a non-abrasive scouring sponge. They are also dishwasher-proof. Use top rack of dishwasher for turntable support.

Foods with high acidity, such as tomatoes or lemons, will cause the porcelain enamel turntable to discolor. Do not cook highly acidic foods directly on the turntable; if spills occur, wipe up immediately.

The turntable motor shaft is not sealed, so excess water or spills should not be allowed to stand in this area.

######### Interior — After Convection

Spatters may occur because of moisture and grease. Wash immediately after use with hot, soapy water. Rinse and polish dry. Harder to remove spatters may occur if oven is not thoroughly cleaned or if there is long time/ high temperature cooking. If so, you may wish to purchase an oven cleaner pad with liquid cleaner within it — not a soap filled steel pad for use on stainless steel or porcelain surfaces.

Follow manufacturer’s directions carefully and be especially cautious not to get any of the liquid cleaner in the perforations on the wall or ceiling or any door surfaces.

Rinse thoroughly and polish dry. After cleaning the interior thoroughly, residual grease may be removed from the interior ducts and heater by simply operating the oven on 450˚F for 20 minutes without food. Ventilate the room if necessary.

###### Before You Call

Please check the following before calling for service: Place one cup of water in a glass measuring cup in the oven and close the door securely. Operate the oven for one minute at HIGH 100%.

YES _____ NO _____

If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit breaker. If they are functioning properly, CONTACT YOUR NEAREST KENMORE AUTHORIZED SERVICER.

A Convection Microwave Oven should never be serviced by a “do-it-yourself” repair person.

###### Specifications

AC Line Voltage:

######### 790.48892 / 790.48883

UL Rating: Single phase 120V, 60Hz, Ac only CSA Rating: Single phase 117V, 60Hz, Ac only

AC Power Required:

UL Rating: 1.55 Kw, 13.0 amps CSA Rating: 1.5 Kw, 13.0 amps

Output Power:*

Microwave 900 watts Convection 1450 watts

Frequency: 2450 MHz

Outside Dimensions:

790.48893: 27" (W) x 21-3/4" (H) x 20-3/4" (D) 790.48883: 30" (W) x 21-3/4” (H) x 20-3/4” (D)

Cavity Dimensions:**

Oven Capacity:

Weight:

790.48893: 16-5/32" (W) x 9-21/32" (H) x 16-5/32" (D) 790.48883: 16-5/32" (W) x 9-21/32" (H) x 16-5/32" (D)

790.48893: 1.5 Cu. Ft. 790.48883: 1.5 Cu. Ft.

790.48893: Approx. 84 lbs 790.48883: Approx. 86 lbs

In compliance with standards set by: FCC - Federal Communications Commission Authorized. DHHS - Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J.


| | | | |---|---|---| | | | |
