Whirlpool Magicook 20 L Elite B

®

MICROWAVE OVEN

###### Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301.

or visit our website at... www.whirlpool.com

Table of Contents .......................................2

W10389942B

######## Model WMC20005

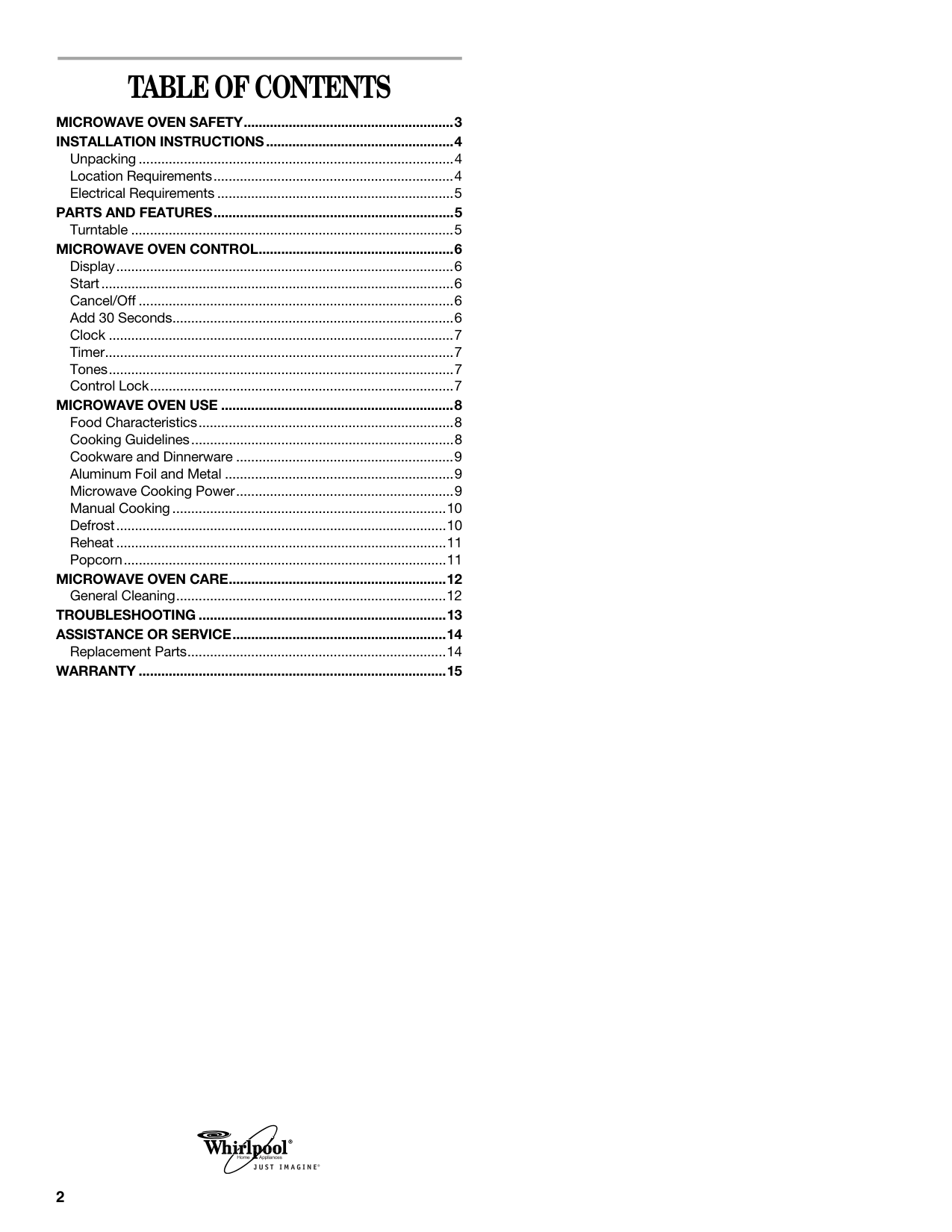

TABLE OF CONTENTS

########### MICROWAVE OVEN SAFETY........................................................3 INSTALLATION INSTRUCTIONS..................................................4

Unpacking ....................................................................................4 Location Requirements................................................................4 Electrical Requirements ...............................................................5

PARTS AND FEATURES................................................................5 Turntable ......................................................................................5

MICROWAVE OVEN CONTROL....................................................6 Display..........................................................................................6 Start..............................................................................................6 Cancel/Off ....................................................................................6 Add 30 Seconds...........................................................................6 Clock ............................................................................................7 Timer.............................................................................................7 Tones............................................................................................7 Control Lock.................................................................................7

MICROWAVE OVEN USE ..............................................................8 Food Characteristics....................................................................8 Cooking Guidelines......................................................................8 Cookware and Dinnerware ..........................................................9 Aluminum Foil and Metal .............................................................9 Microwave Cooking Power..........................................................9 Manual Cooking.........................................................................10 Defrost........................................................................................10 Reheat ........................................................................................11 Popcorn......................................................................................11

MICROWAVE OVEN CARE..........................................................12

General Cleaning........................................................................12 TROUBLESHOOTING ..................................................................13 ASSISTANCE OR SERVICE.........................................................14

Replacement Parts.....................................................................14 WARRANTY ..................................................................................15

®

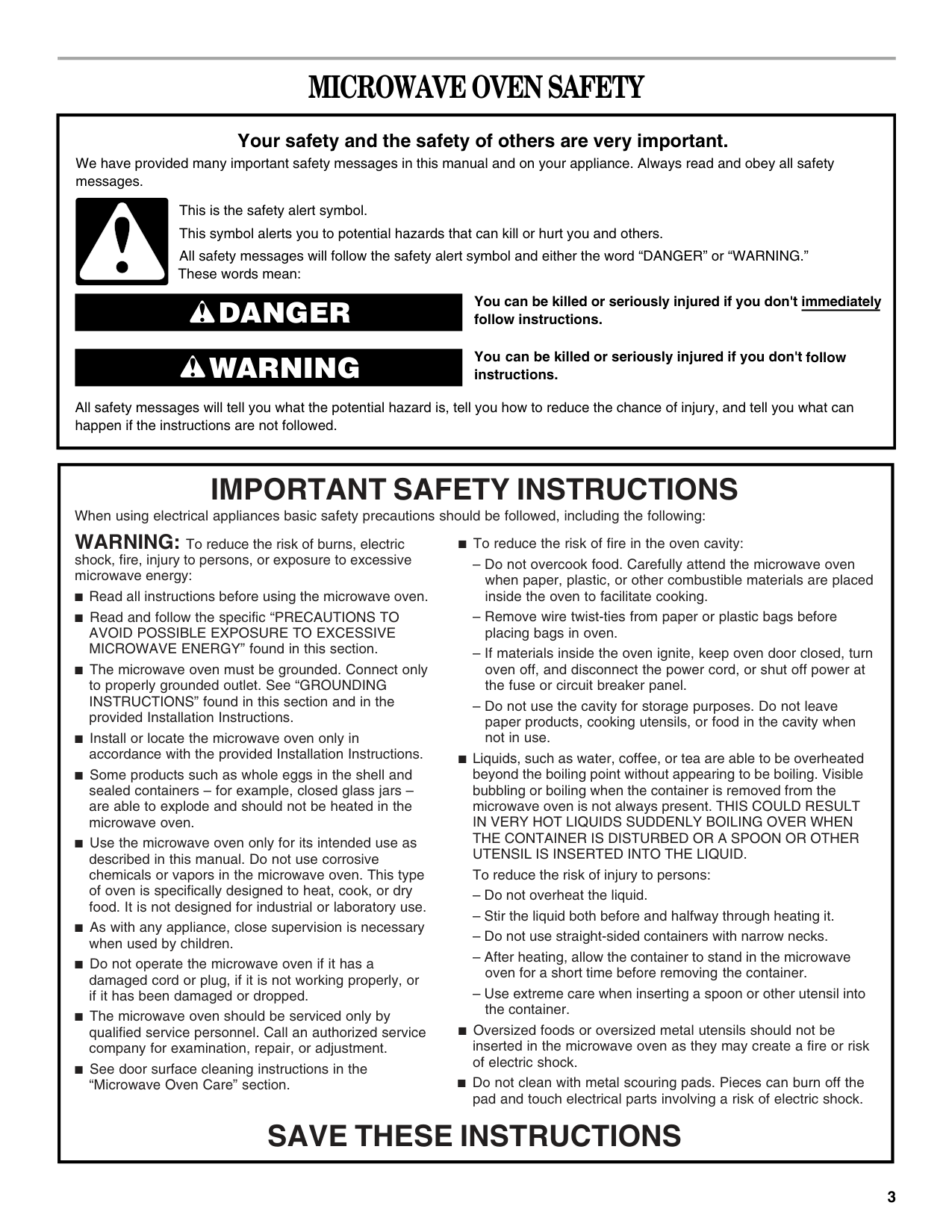

MICROWAVE OVEN SAFETY

|You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

follow instructions.

instructions.

DANGER WARNING

| |---|

|When using electrical appliances basic safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

■ Read all instructions before using the microwave oven.
■ Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section.
■ The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section and in the provided Installation Instructions.
■ Install or locate the microwave oven only in accordance with the provided Installation Instructions.
■ Some products such as whole eggs in the shell and sealed containers – for example, closed glass jars – are able to explode and should not be heated in the microwave oven.
■ Use the microwave oven only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
■ As with any appliance, close supervision is necessary when used by children.
■ Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
■ The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.
■ See door surface cleaning instructions in the “Microwave Oven Care” section.


■ To reduce the risk of fire in the oven cavity:

– Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
– Remove wire twist-ties from paper or plastic bags before placing bags in oven.
– If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.


■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

– Do not overheat the liquid.
– Stir the liquid both before and halfway through heating it.
– Do not use straight-sided containers with narrow necks.
– After heating, allow the container to stand in the microwave oven for a short time before removing the container.
– Use extreme care when inserting a spoon or other utensil into the container.


■ Oversized foods or oversized metal utensils should not be inserted in the microwave oven as they may create a fire or risk of electric shock.
■ Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.
| |---|

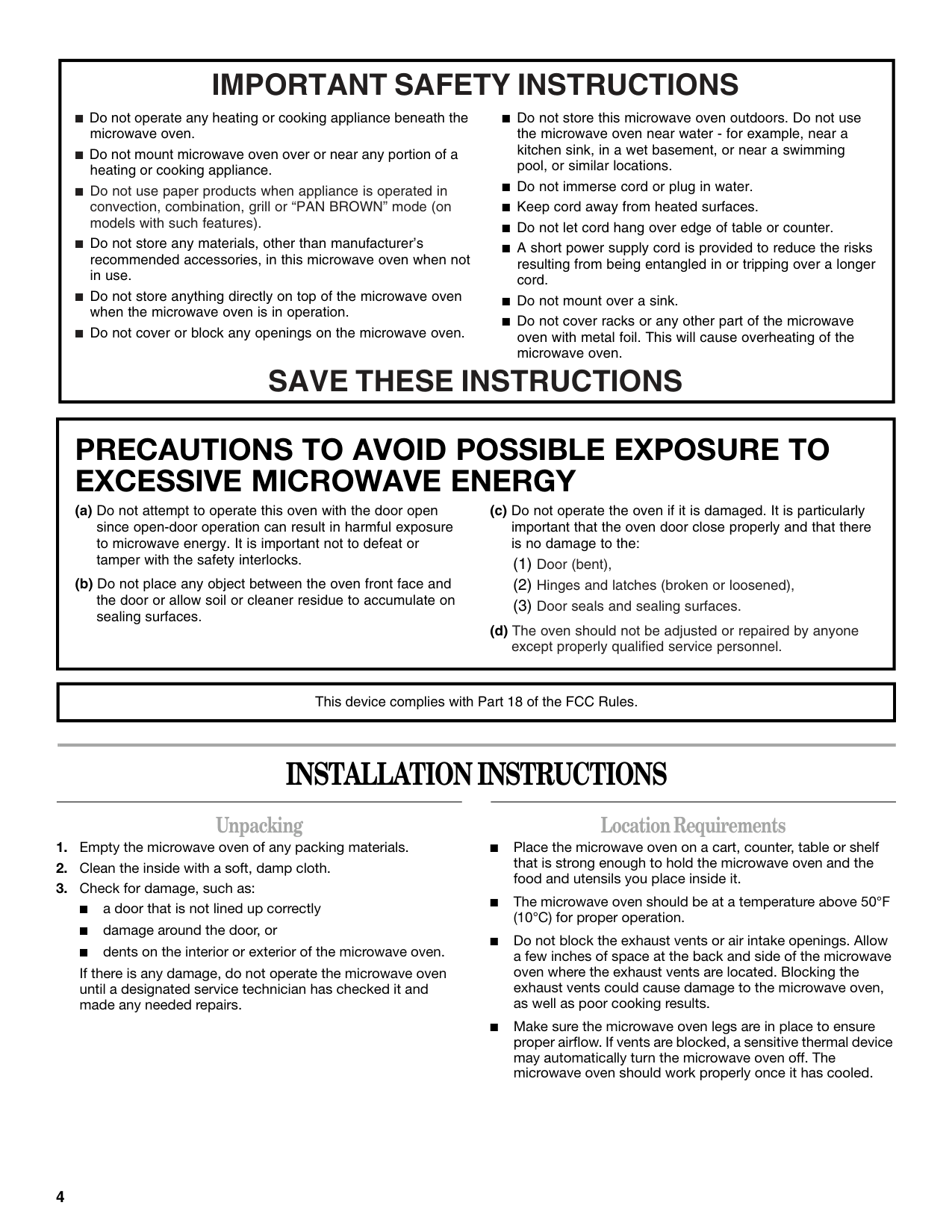

|IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Do not operate any heating or cooking appliance beneath the microwave oven.
■ Do not mount microwave oven over or near any portion of a heating or cooking appliance.
■ Do not use paper products when appliance is operated in convection, combination, grill or “PAN BROWN” mode (on models with such features).
■ Do not store any materials, other than manufacturer’s recommended accessories, in this microwave oven when not in use.
■ Do not store anything directly on top of the microwave oven when the microwave oven is in operation.
■ Do not cover or block any openings on the microwave oven.


■ Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, or similar locations.
■ Do not immerse cord or plug in water.
■ Keep cord away from heated surfaces.
■ Do not let cord hang over edge of table or counter.
■ A short power supply cord is provided to reduce the risks resulting from being entangled in or tripping over a longer cord.
■ Do not mount over a sink.
■ Do not cover racks or any other part of the microwave oven with metal foil. This will cause overheating of the microwave oven.
| |---|

|PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.


(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.


(d) The oven should not be adjusted or repaired by anyone


except properly qualified service personnel.| |---|

|This device complies with Part 18 of the FCC Rules.| |---|

INSTALLATION INSTRUCTIONS

####### Unpacking

If there is any damage, do not operate the microwave oven until a designated service technician has checked it and made any needed repairs.

####### Location Requirements

####### Electrical Requirements

########### Recommended:

|WARNING| |---|

|Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.|

|GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ For all cord connected appliances: The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.| |---|

Observe all governing codes and ordinances. Required:

■ A 120 Volt, 60 Hz, AC only, 15- or 20-amp electrical supply

with a fuse or circuit breaker.

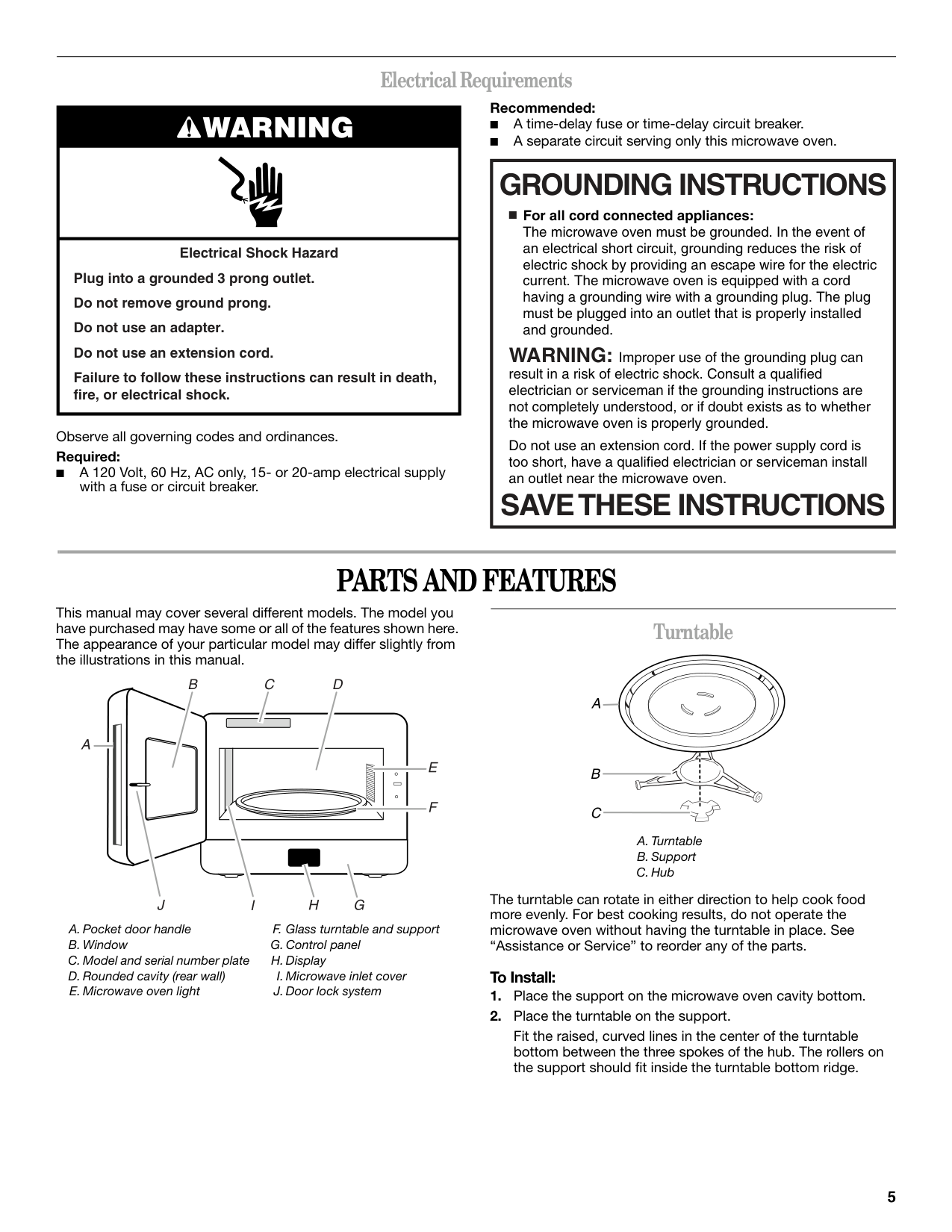

PARTS AND FEATURES

This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual.

####### Turntable

C

BD

A

The turntable can rotate in either direction to help cook food more evenly. For best cooking results, do not operate the microwave oven without having the turntable in place. See “Assistance or Service” to reorder any of the parts.

G

J I H

######### To Install:

Fit the raised, curved lines in the center of the turntable bottom between the three spokes of the hub. The rollers on the support should fit inside the turntable bottom ridge.

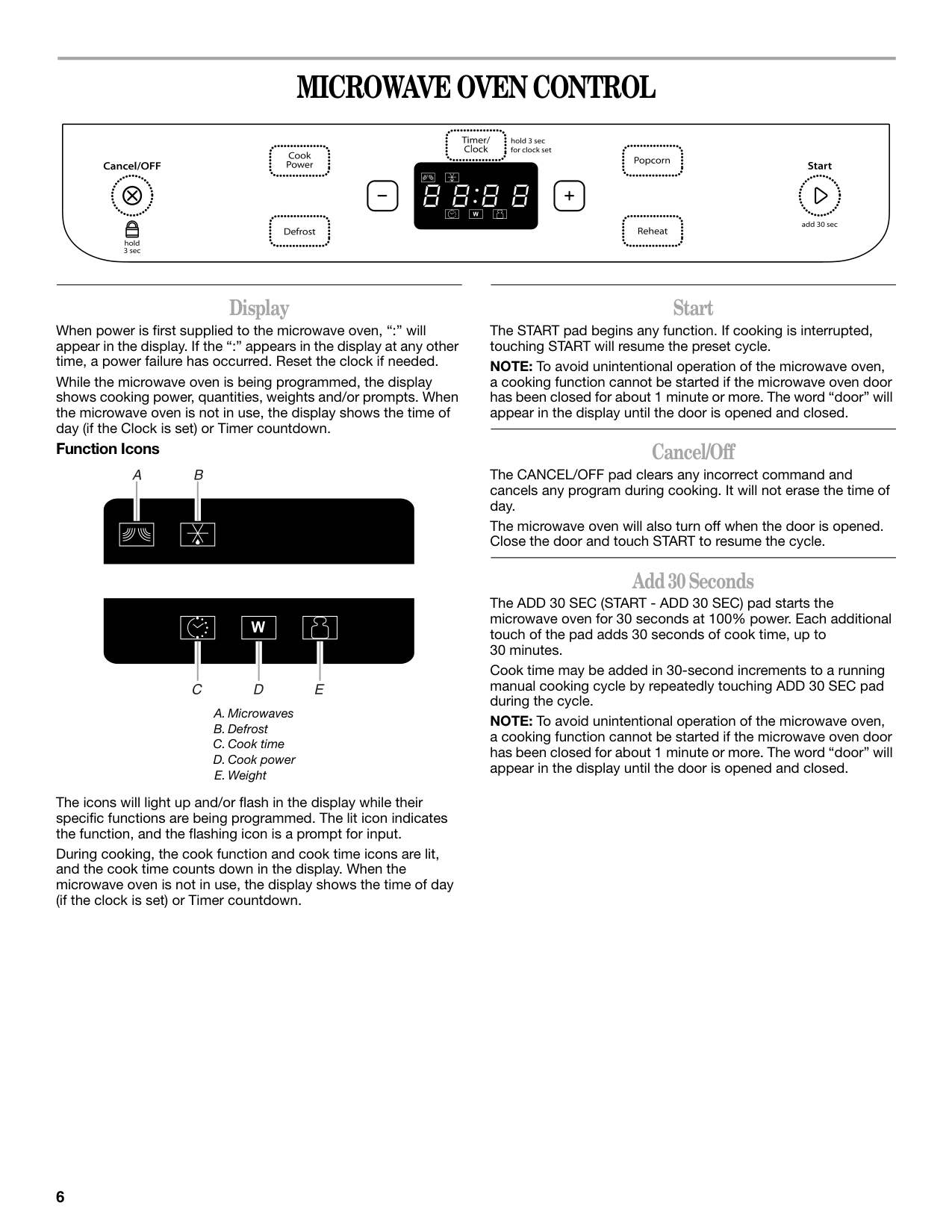

MICROWAVE OVEN CONTROL

l

|W| |---|

Display When power is first supplied to the microwave oven, “:” will appear in the display. If the “:” appears in the display at any other time, a power failure has occurred. Reset the clock if needed. While the microwave oven is being programmed, the display shows cooking power, quantities, weights and/or prompts. When the microwave oven is not in use, the display shows the time of day (if the Clock is set) or Timer countdown. Function Icons

AB

|W| |---|

| | | | |

|---|---|---|---| | | | | |

CDE

The icons will light up and/or flash in the display while their specific functions are being programmed. The lit icon indicates the function, and the flashing icon is a prompt for input. During cooking, the cook function and cook time icons are lit, and the cook time counts down in the display. When the microwave oven is not in use, the display shows the time of day (if the clock is set) or Timer countdown.

Start The START pad begins any function. If cooking is interrupted, touching START will resume the preset cycle. NOTE: To avoid unintentional operation of the microwave oven,

a cooking function cannot be started if the microwave oven door has been closed for about 1 minute or more. The word “door” will appear in the display until the door is opened and closed.

Cancel/Off The CANCEL/OFF pad clears any incorrect command and cancels any program during cooking. It will not erase the time of day. The microwave oven will also turn off when the door is opened. Close the door and touch START to resume the cycle.

Add 30 Seconds The ADD 30 SEC (START - ADD 30 SEC) pad starts the microwave oven for 30 seconds at 100% power. Each additional touch of the pad adds 30 seconds of cook time, up to 30 minutes.

Cook time may be added in 30-second increments to a running manual cooking cycle by repeatedly touching ADD 30 SEC pad during the cycle.

NOTE: To avoid unintentional operation of the microwave oven,

a cooking function cannot be started if the microwave oven door has been closed for about 1 minute or more. The word “door” will appear in the display until the door is opened and closed.

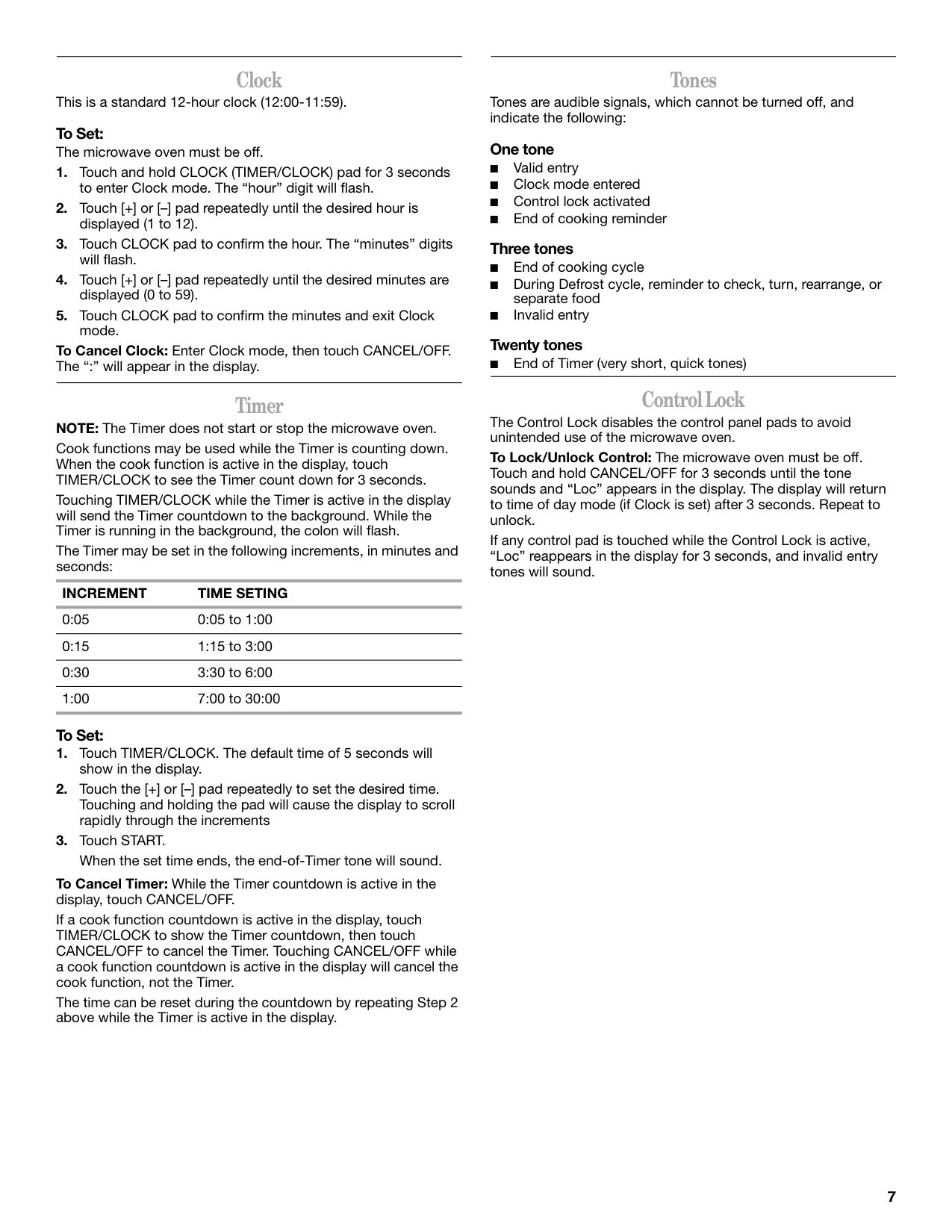

Clock This is a standard 12-hour clock (12:00-11:59). To Set: The microwave oven must be off.

To Cancel Clock: Enter Clock mode, then touch CANCEL/OFF. The “:” will appear in the display.

Timer NOTE: The Timer does not start or stop the microwave oven. Cook functions may be used while the Timer is counting down. When the cook function is active in the display, touch TIMER/CLOCK to see the Timer count down for 3 seconds. Touching TIMER/CLOCK while the Timer is active in the display will send the Timer countdown to the background. While the Timer is running in the background, the colon will flash. The Timer may be set in the following increments, in minutes and seconds:

########### INCREMENT TIME SETING

0:05 0:05 to 1:00 0:15 1:15 to 3:00

######### To Set:

To Cancel Timer: While the Timer countdown is active in the display, touch CANCEL/OFF. If a cook function countdown is active in the display, touch TIMER/CLOCK to show the Timer countdown, then touch CANCEL/OFF to cancel the Timer. Touching CANCEL/OFF while a cook function countdown is active in the display will cancel the cook function, not the Timer. The time can be reset during the countdown by repeating Step 2 above while the Timer is active in the display.

Tones Tones are audible signals, which cannot be turned off, and indicate the following:

######### One tone

Control Lock The Control Lock disables the control panel pads to avoid unintended use of the microwave oven. To Lock/Unlock Control: The microwave oven must be off. Touch and hold CANCEL/OFF for 3 seconds until the tone sounds and “Loc” appears in the display. The display will return to time of day mode (if Clock is set) after 3 seconds. Repeat to unlock. If any control pad is touched while the Control Lock is active, “Loc” reappears in the display for 3 seconds, and invalid entry tones will sound.

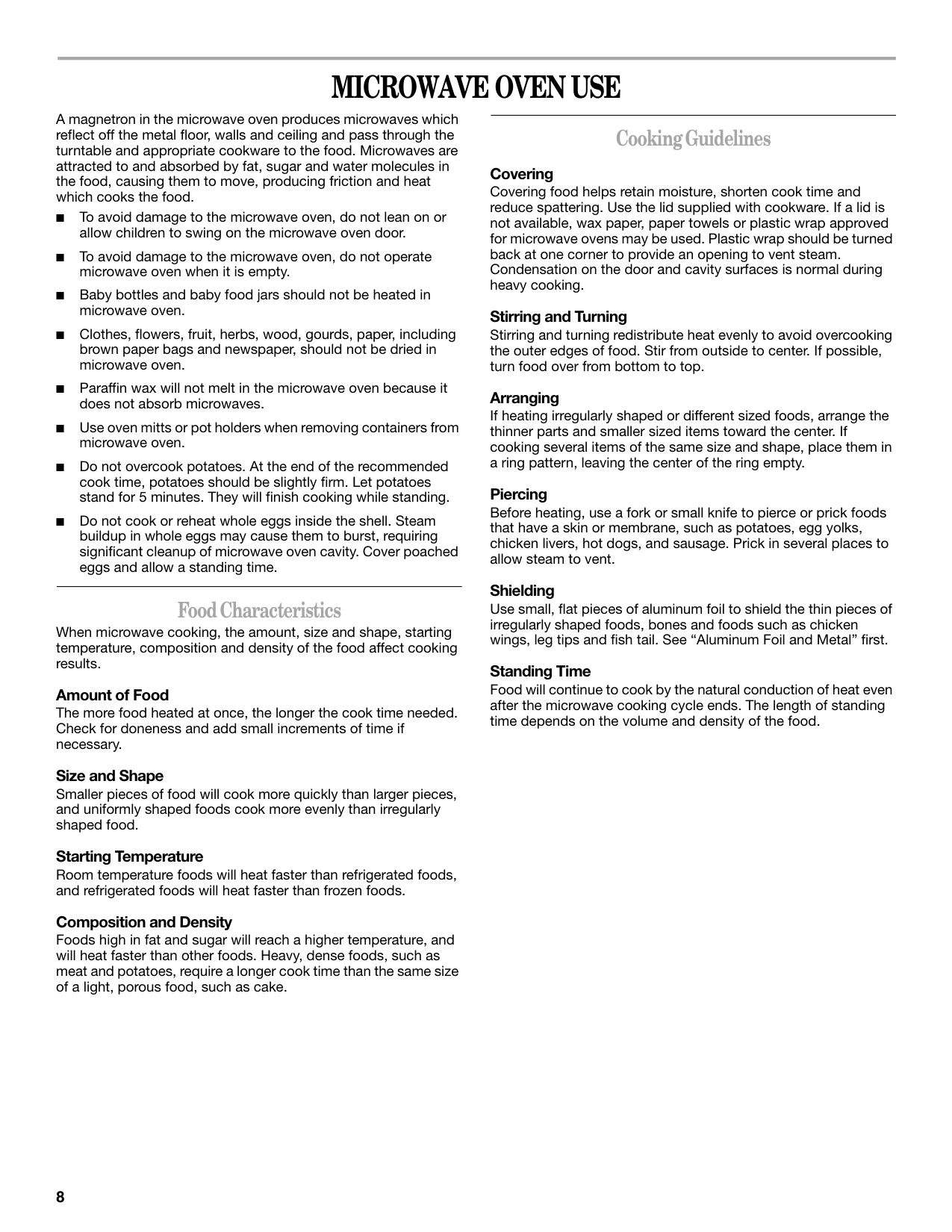

MICROWAVE OVEN USE

A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food.

####### Cooking Guidelines

Covering Covering food helps retain moisture, shorten cook time and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking.

Stirring and Turning Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top.

Arranging If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty.

Piercing Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent.

Shielding Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and fish tail. See “Aluminum Foil and Metal” first.

Food Characteristics When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results.

Standing Time Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food.

Amount of Food The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary.

Size and Shape Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food.

Starting Temperature Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods.

Composition and Density Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake.

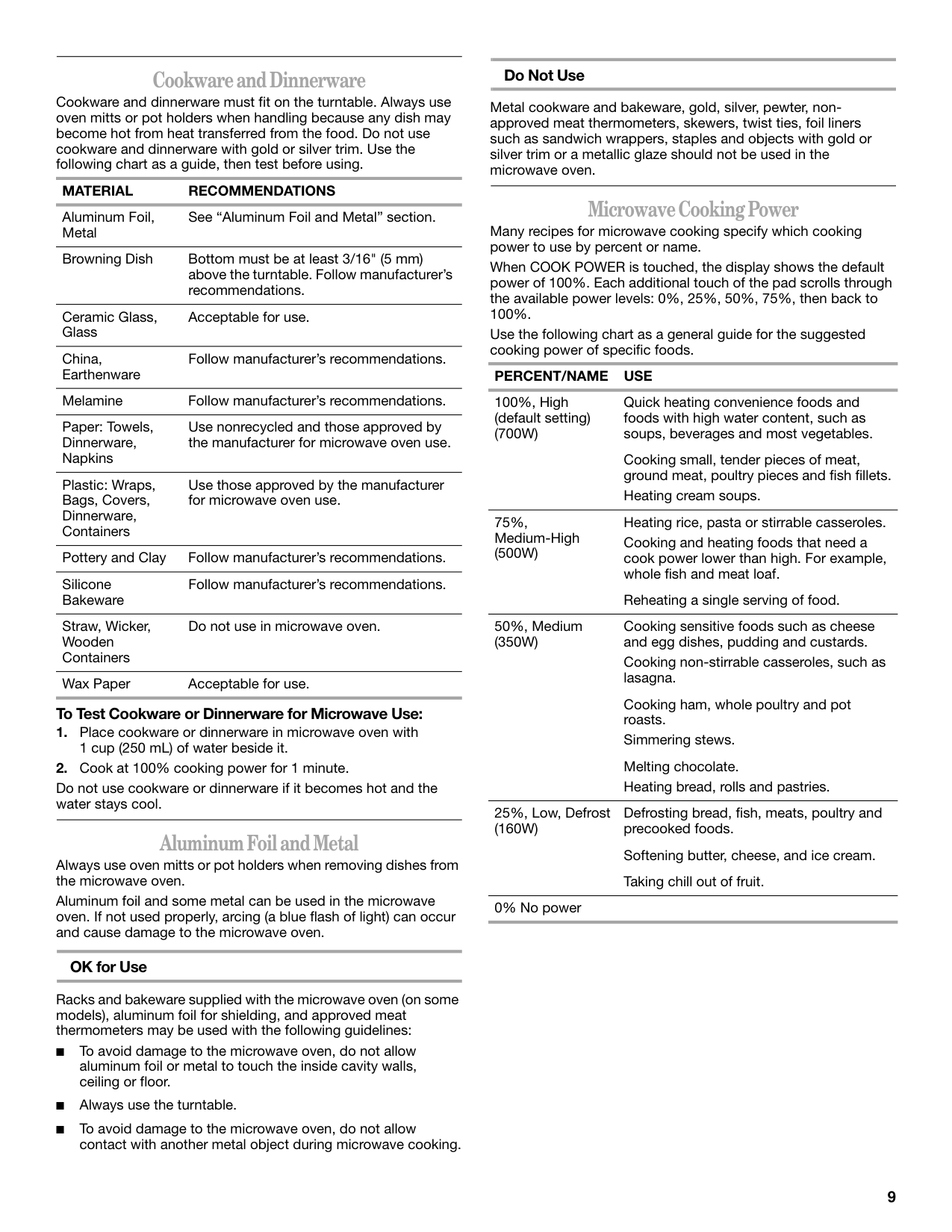

Cookware and Dinnerware Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using.

########### MATERIAL RECOMMENDATIONS

Aluminum Foil, Metal

See “Aluminum Foil and Metal” section.

Browning Dish Bottom must be at least 3/16" (5 mm) above the turntable. Follow manufacturer’s recommendations.

Ceramic Glass, Glass

Acceptable for use.

China, Earthenware

Follow manufacturer’s recommendations.

Melamine Follow manufacturer’s recommendations. Paper: Towels, Dinnerware, Napkins

Use nonrecycled and those approved by the manufacturer for microwave oven use.

Plastic: Wraps, Bags, Covers, Dinnerware, Containers

Use those approved by the manufacturer for microwave oven use.

Pottery and Clay Follow manufacturer’s recommendations. Silicone Bakeware

Follow manufacturer’s recommendations.

Do not use in microwave oven.

Straw, Wicker, Wooden Containers

Wax Paper Acceptable for use.

######### To Test Cookware or Dinnerware for Microwave Use:

Do not use cookware or dinnerware if it becomes hot and the water stays cool.

Aluminum Foil and Metal Always use oven mitts or pot holders when removing dishes from the microwave oven. Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven.

######### OK for Use

Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines:

######### Do Not Use

Metal cookware and bakeware, gold, silver, pewter, nonapproved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven.

Microwave Cooking Power Many recipes for microwave cooking specify which cooking power to use by percent or name. When COOK POWER is touched, the display shows the default power of 100%. Each additional touch of the pad scrolls through the available power levels: 0%, 25%, 50%, 75%, then back to 100%. Use the following chart as a general guide for the suggested cooking power of specific foods.

########### PERCENT/NAME USE

Quick heating convenience foods and foods with high water content, such as soups, beverages and most vegetables.

100%, High (default setting) (700W)

Cooking small, tender pieces of meat, ground meat, poultry pieces and fish fillets. Heating cream soups.

75%, Medium-High (500W)

Heating rice, pasta or stirrable casseroles. Cooking and heating foods that need a cook power lower than high. For example, whole fish and meat loaf.

Reheating a single serving of food.

50%, Medium (350W)

Cooking sensitive foods such as cheese and egg dishes, pudding and custards.

Cooking non-stirrable casseroles, such as lasagna.

Cooking ham, whole poultry and pot roasts. Simmering stews.

Melting chocolate. Heating bread, rolls and pastries.

25%, Low, Defrost (160W)

Defrosting bread, fish, meats, poultry and precooked foods.

Softening butter, cheese, and ice cream. Taking chill out of fruit.

0% No power

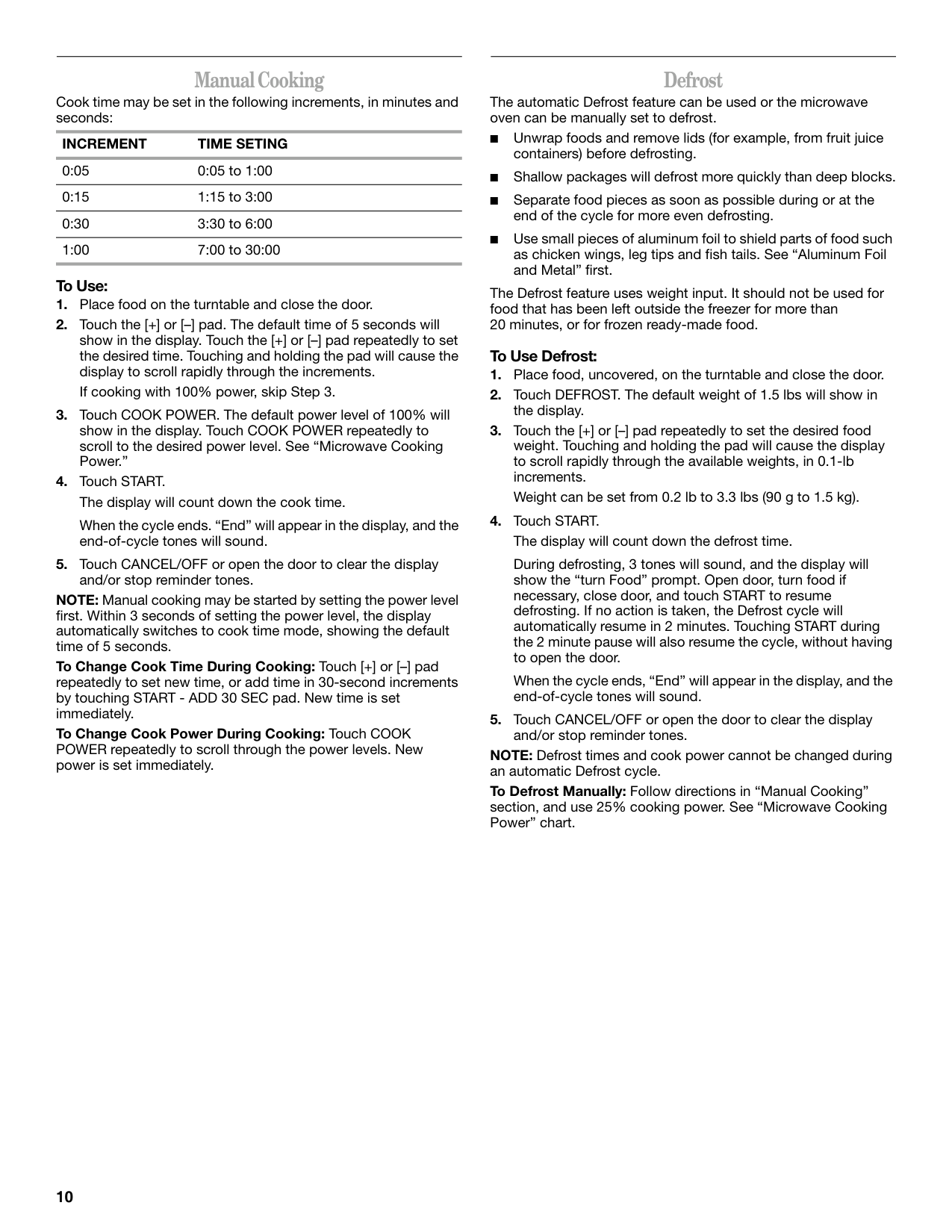

Manual Cooking Cook time may be set in the following increments, in minutes and seconds:

########### INCREMENT TIME SETING

0:05 0:05 to 1:00 0:15 1:15 to 3:00

######### To Use:

When the cycle ends. “End” will appear in the display, and the end-of-cycle tones will sound.

NOTE: Manual cooking may be started by setting the power level first. Within 3 seconds of setting the power level, the display automatically switches to cook time mode, showing the default time of 5 seconds. To Change Cook Time During Cooking: Touch [+] or [–] pad repeatedly to set new time, or add time in 30-second increments by touching START - ADD 30 SEC pad. New time is set immediately. To Change Cook Power During Cooking: Touch COOK POWER repeatedly to scroll through the power levels. New power is set immediately.

Defrost The automatic Defrost feature can be used or the microwave oven can be manually set to defrost.

The Defrost feature uses weight input. It should not be used for food that has been left outside the freezer for more than 20 minutes, or for frozen ready-made food.

######### To Use Defrost:

During defrosting, 3 tones will sound, and the display will show the “turn Food” prompt. Open door, turn food if necessary, close door, and touch START to resume defrosting. If no action is taken, the Defrost cycle will automatically resume in 2 minutes. Touching START during the 2 minute pause will also resume the cycle, without having to open the door.

When the cycle ends, “End” will appear in the display, and the end-of-cycle tones will sound.

NOTE: Defrost times and cook power cannot be changed during an automatic Defrost cycle. To Defrost Manually: Follow directions in “Manual Cooking” section, and use 25% cooking power. See “Microwave Cooking Power” chart.

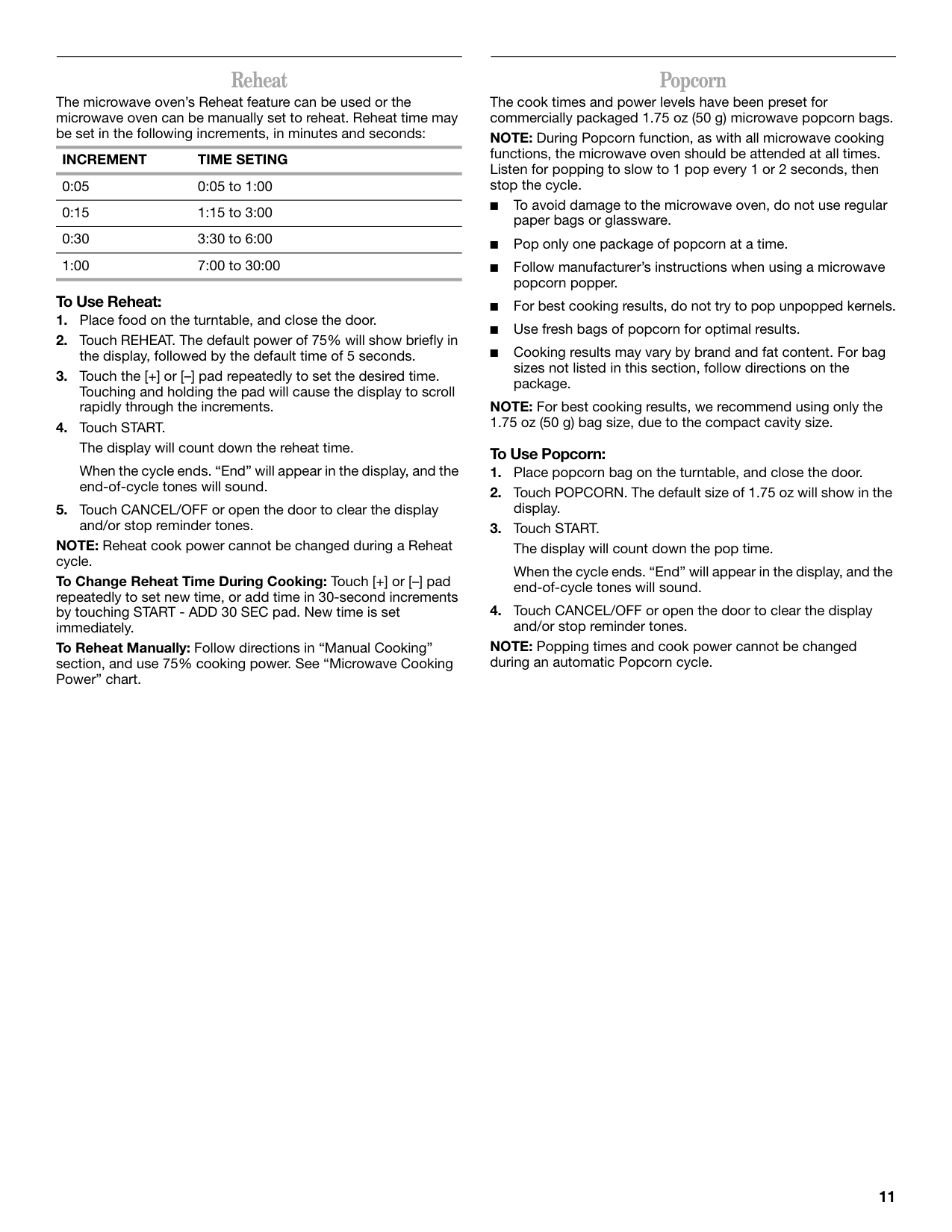

Reheat The microwave oven’s Reheat feature can be used or the microwave oven can be manually set to reheat. Reheat time may be set in the following increments, in minutes and seconds:

########### INCREMENT TIME SETING

0:05 0:05 to 1:00 0:15 1:15 to 3:00

######### To Use Reheat:

When the cycle ends. “End” will appear in the display, and the end-of-cycle tones will sound.

NOTE: Reheat cook power cannot be changed during a Reheat cycle.

To Change Reheat Time During Cooking: Touch [+] or [–] pad repeatedly to set new time, or add time in 30-second increments by touching START - ADD 30 SEC pad. New time is set immediately. To Reheat Manually: Follow directions in “Manual Cooking” section, and use 75% cooking power. See “Microwave Cooking Power” chart.

Popcorn The cook times and power levels have been preset for commercially packaged 1.75 oz (50 g) microwave popcorn bags.

NOTE: During Popcorn function, as with all microwave cooking

functions, the microwave oven should be attended at all times. Listen for popping to slow to 1 pop every 1 or 2 seconds, then stop the cycle.

NOTE: For best cooking results, we recommend using only the 1.75 oz (50 g) bag size, due to the compact cavity size.

######### To Use Popcorn:

When the cycle ends. “End” will appear in the display, and the end-of-cycle tones will sound.

NOTE: Popping times and cook power cannot be changed during an automatic Popcorn cycle.

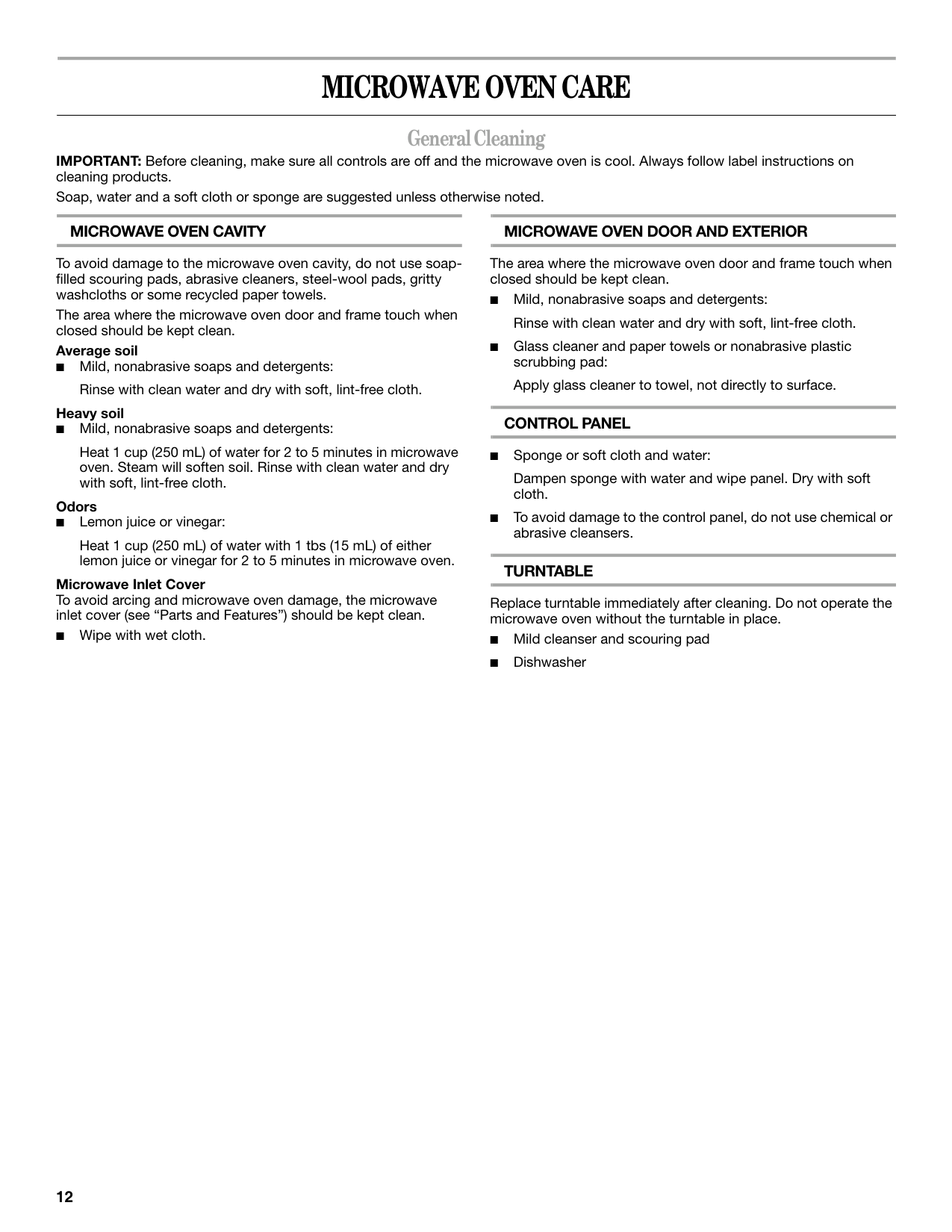

MICROWAVE OVEN CARE

General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested unless otherwise noted.

######### MICROWAVE OVEN CAVITY

To avoid damage to the microwave oven cavity, do not use soapfilled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some recycled paper towels. The area where the microwave oven door and frame touch when closed should be kept clean. Average soil

■ Mild, nonabrasive soaps and detergents:

Rinse with clean water and dry with soft, lint-free cloth. Heavy soil

■ Mild, nonabrasive soaps and detergents:

Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth.

########### Odors

■ Lemon juice or vinegar:

Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave oven.

Microwave Inlet Cover To avoid arcing and microwave oven damage, the microwave inlet cover (see “Parts and Features”) should be kept clean.

######### MICROWAVE OVEN DOOR AND EXTERIOR

The area where the microwave oven door and frame touch when closed should be kept clean.

CONTROL PANEL

Dampen sponge with water and wipe panel. Dry with soft cloth.

######### TURNTABLE

Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place.

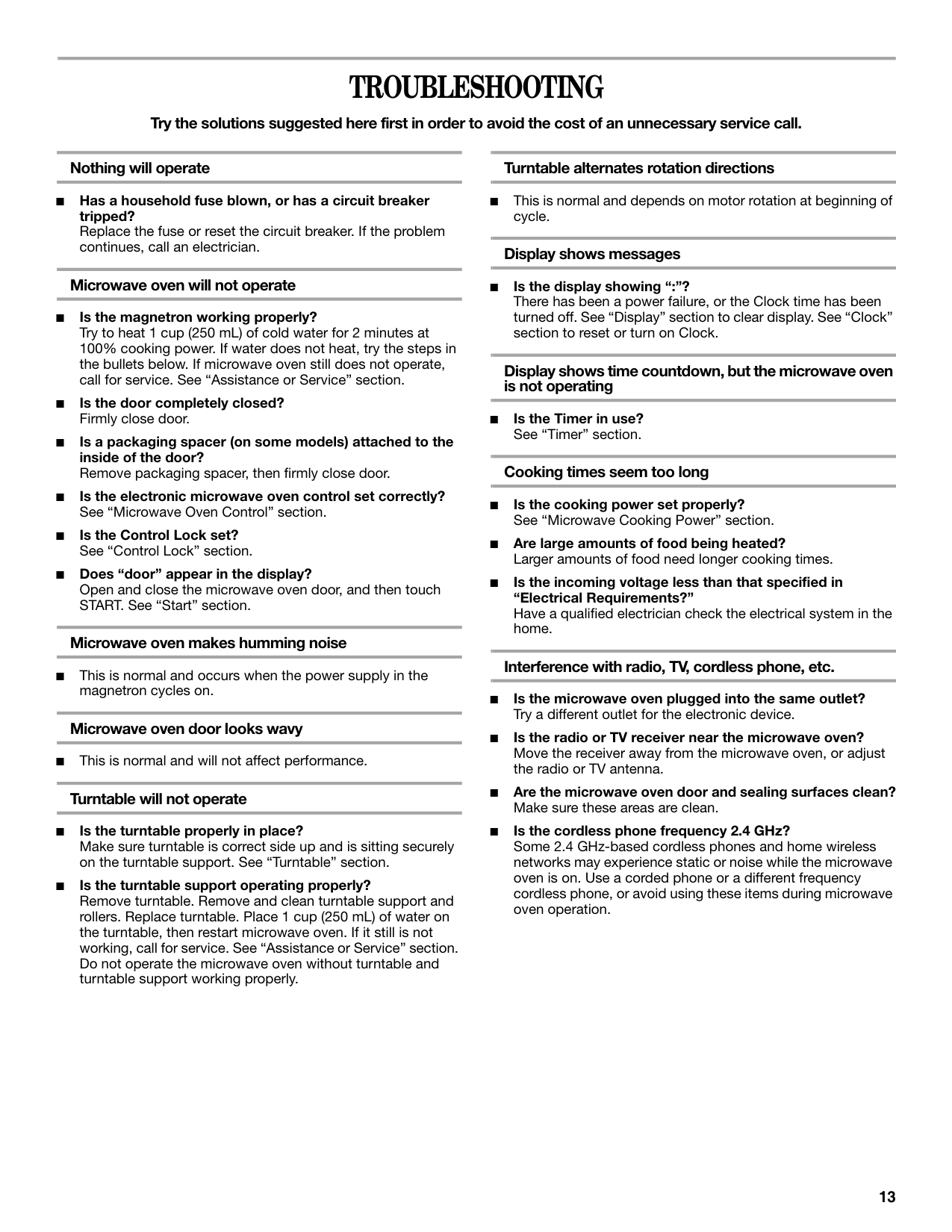

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Nothing will operate

Microwave oven will not operate

Microwave oven makes humming noise

Microwave oven door looks wavy

######### Turntable alternates rotation directions

Display shows messages

Display shows time countdown, but the microwave oven is not operating

Cooking times seem too long

Interference with radio, TV, cordless phone, etc.

ASSISTANCE OR SERVICE

For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

If you need replacement parts If you need to order replacement parts, we recommend that you use only FSP

Please include a daytime phone number in your correspondence.

replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance. To locate FSP

replacement parts. FSP

®

®

####### Replacement Parts

Glass Turntable Part Number W10398722

Turntable Support/Roller Assembly Part Number W10398732

replacement parts in your area, call us or your nearest Whirlpool designated service center.

®

Turntable Hub Part Number W10398734

In the U.S.A. Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Cleaning Supplies

Heavy Duty Degreaser Part Number 31552

All-Purpose Appliance Cleaner Part Number 31682

######### Our consultants provide assistance with:

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

WHIRLPOOL

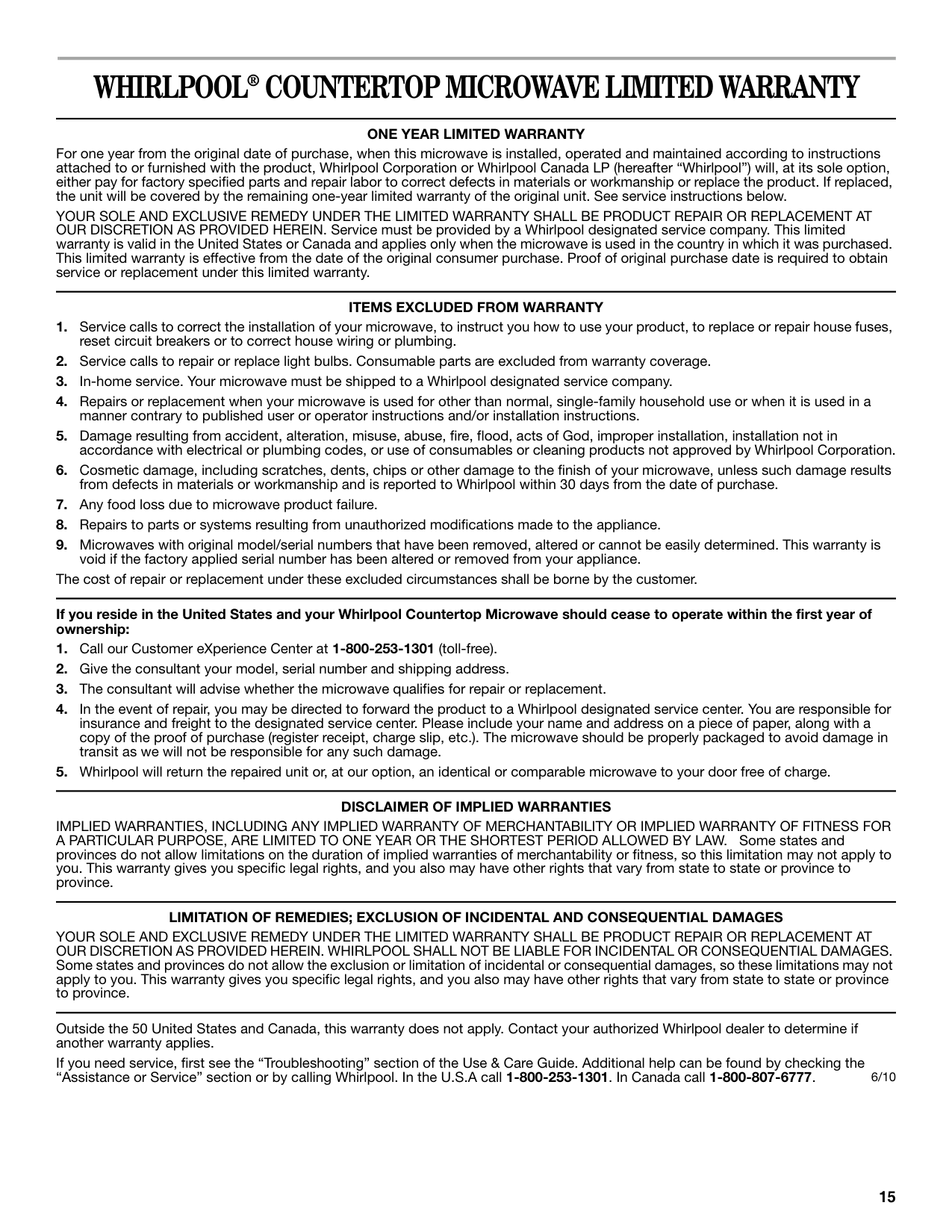

COUNTERTOP MICROWAVE LIMITED WARRANTY

®

########### ONE YEAR LIMITED WARRANTY

For one year from the original date of purchase, when this microwave is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will, at its sole option, either pay for factory specified parts and repair labor to correct defects in materials or workmanship or replace the product. If replaced, the unit will be covered by the remaining one-year limited warranty of the original unit. See service instructions below.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid in the United States or Canada and applies only when the microwave is used in the country in which it was purchased. This limited warranty is effective from the date of the original consumer purchase. Proof of original purchase date is required to obtain service or replacement under this limited warranty.

########### ITEMS EXCLUDED FROM WARRANTY

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

If you reside in the United States and your Whirlpool Countertop Microwave should cease to operate within the first year of ownership:

########### DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

########### LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of the Use & Care Guide. Additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A call 1-800-253-1301. In Canada call 1-800-807-6777. 6/10

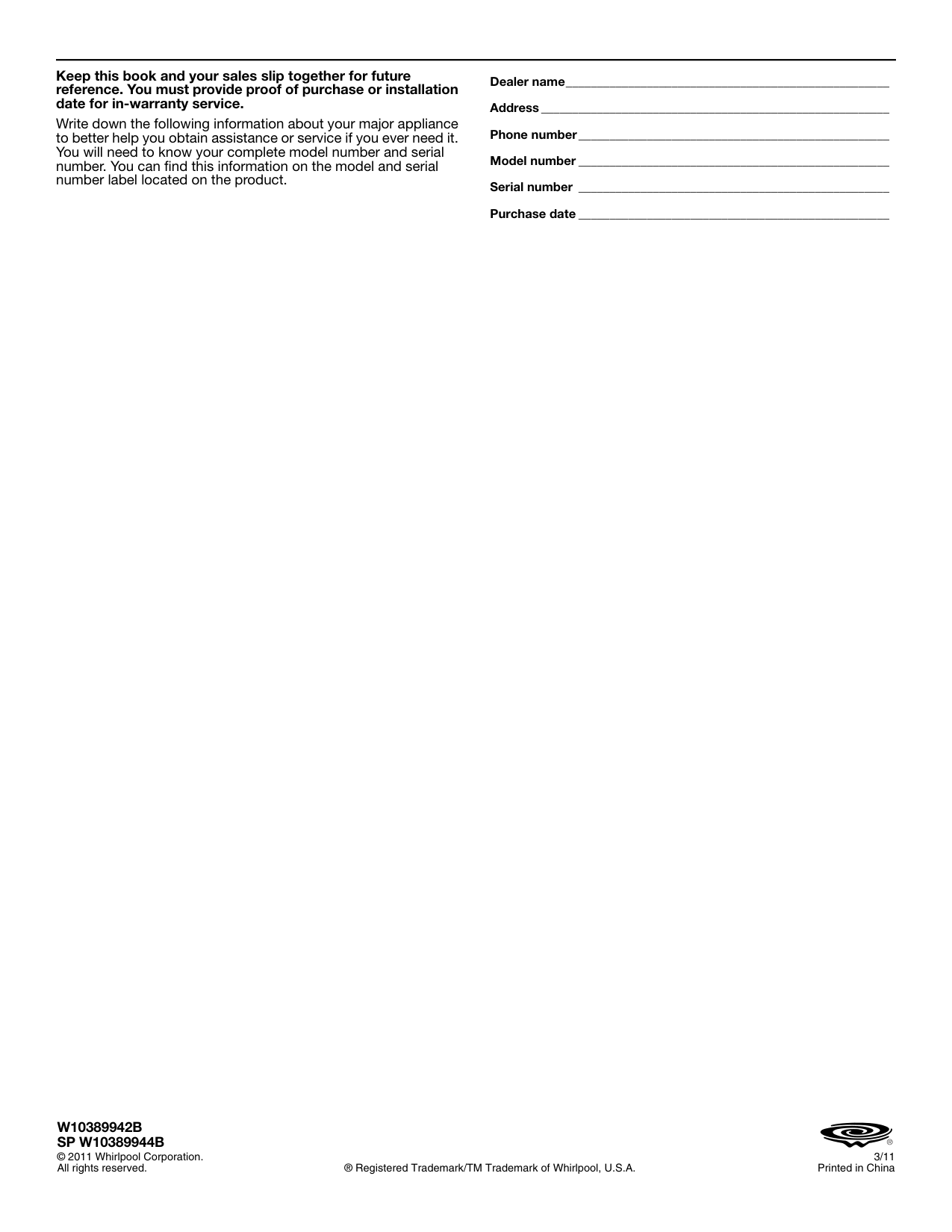

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Dealer name____________________________________________________ Address________________________________________________________ Phone number__________________________________________________ Model number __________________________________________________ Serial number __________________________________________________ Purchase date __________________________________________________

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

########### W10389942B SP W10389944B

© 2011 Whirlpool Corporation. All rights reserved. ® Registered Trademark/TM Trademark of Whirlpool, U.S.A.

3/11 Printed in China
