Logitech MX Master 3S Mouse

User Manual of Product 1:

Logitech MX Master 3S - Wireless Performance Mouse with Ultra-fast Scrolling, Ergo, 8K DPI, Track on Glass, Quiet Clicks, USB-C, Bluetooth, Windows, Linux, Chrome - Pale Grey

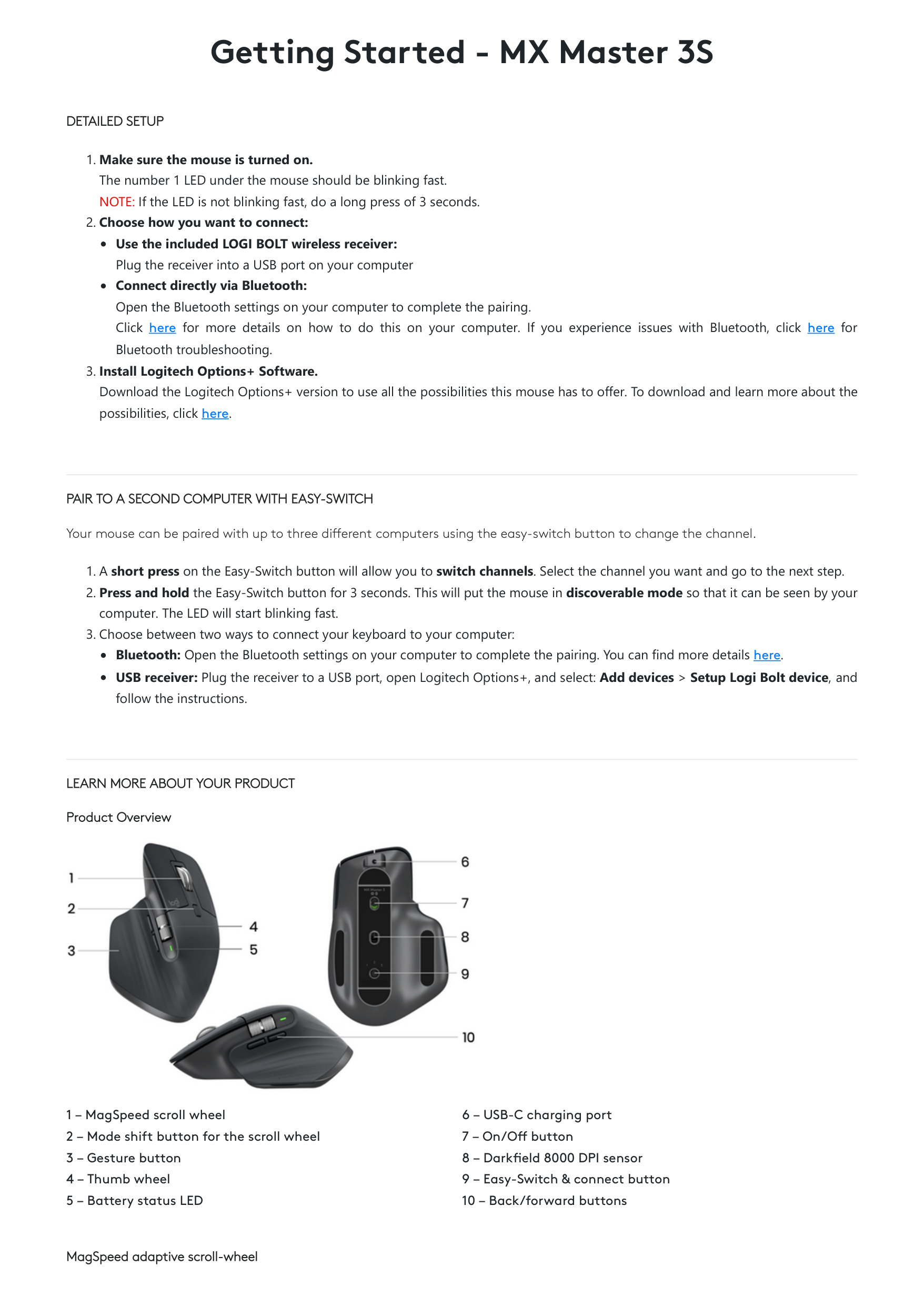

Getting Started - MX Master 3S

DETAILED SETUP

Use the included LOGI BOLT wireless receiver: Plug the receiver into a USB port on your computer

Connect directly via Bluetooth: Open the Bluetooth settings on your computer to complete the pairing. Click here for more details on how to do this on your computer. If you experience issues with Bluetooth, click here for Bluetooth troubleshooting.

PAIR TO A SECOND COMPUTER WITH EASY-SWITCH

Your mouse can be paired with up to three di erent computers using the easy-switch button to change the channel.

Bluetooth: Open the Bluetooth settings on your computer to complete the pairing. You can find more details here.

USB receiver: Plug the receiver to a USB port, open Logitech Options+, and select: Add devices > Setup Logi Bolt device, and follow the instructions.

LEARN MORE ABOUT YOUR PRODUCT

Product Overview

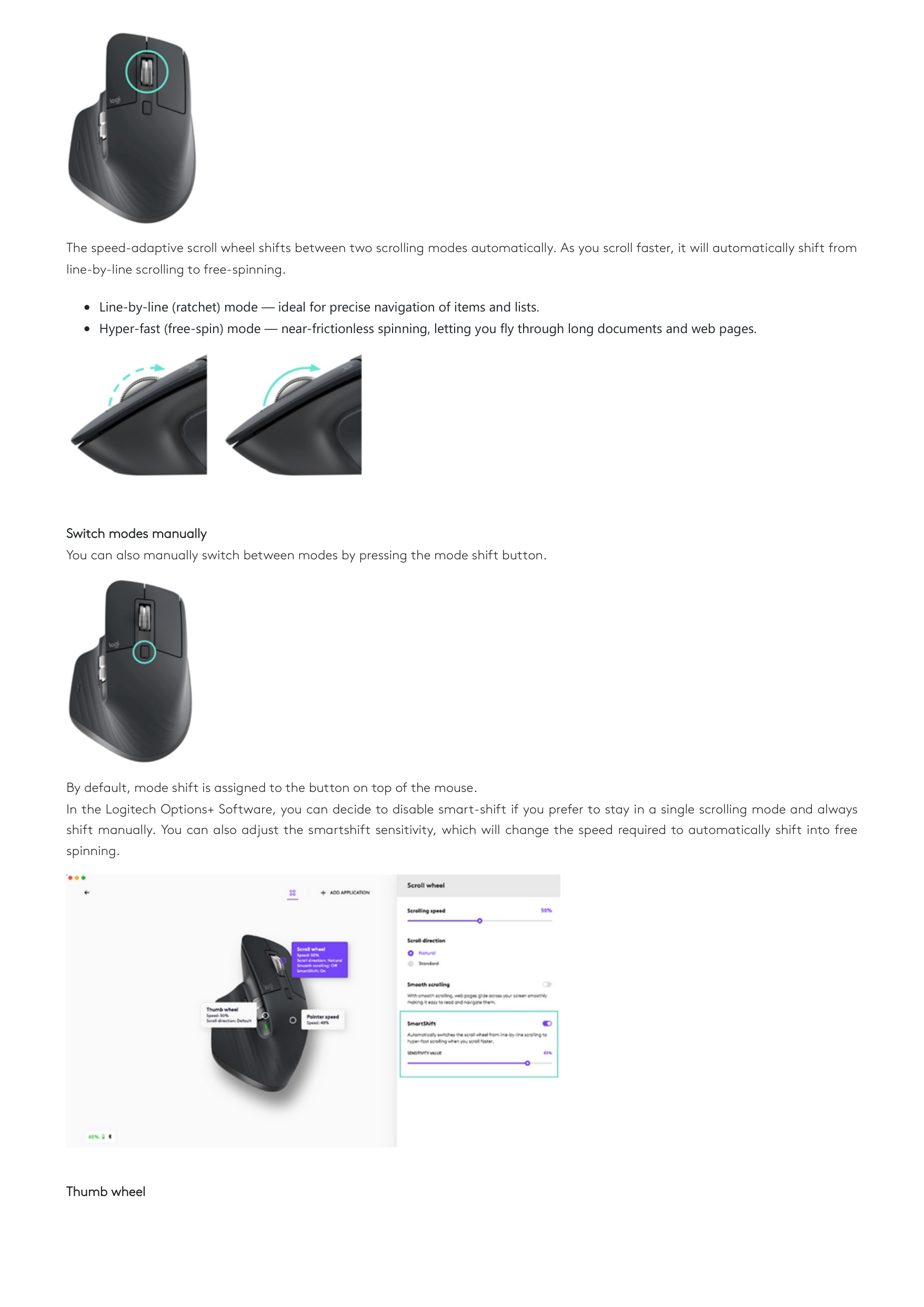

MagSpeed adaptive scroll-wheel


The speed-adaptive scroll wheel shifts between two scrolling modes automatically. As you scroll faster, it will automatically shift from line-by-line scrolling to free-spinning.

Line-by-line (ratchet) mode — ideal for precise navigation of items and lists.

Hyper-fast (free-spin) mode — near-frictionless spinning, letting you fly through long documents and web pages.


Switch modes manually You can also manually switch between modes by pressing the mode shift button.


By default, mode shift is assigned to the button on top of the mouse. In the Logitech Options+ Software, you can decide to disable smart-shift if you prefer to stay in a single scrolling mode and always shift manually. You can also adjust the smartshift sensitivity, which will change the speed required to automatically shift into free spinning.

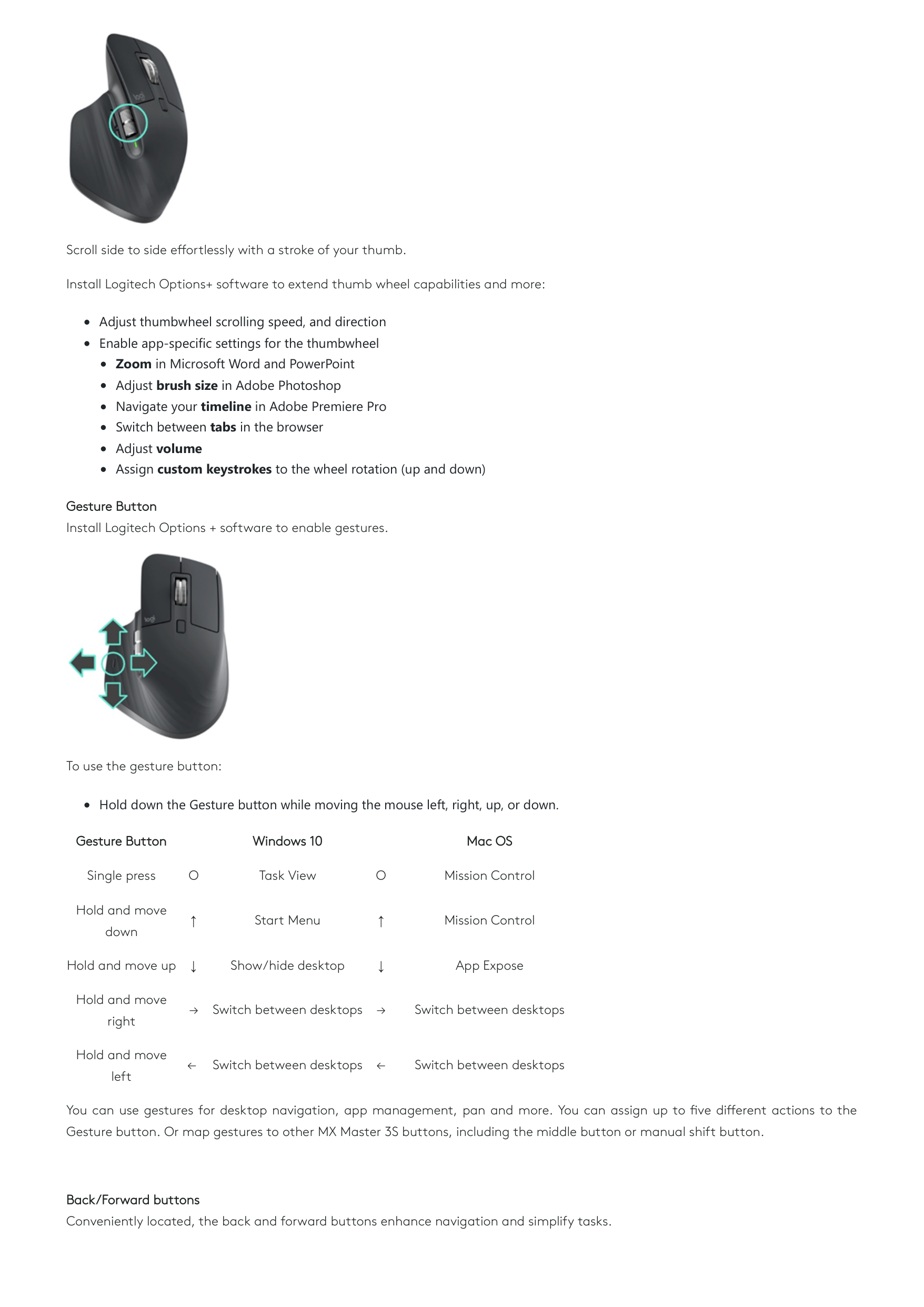

Thumb wheel


Scroll side to side e ortlessly with a stroke of your thumb.

Install Logitech Options+ software to extend thumb wheel capabilities and more:

Adjust thumbwheel scrolling speed, and direction

Enable app-specific settings for the thumbwheel

Zoom in Microsoft Word and PowerPoint

Adjust brush size in Adobe Photoshop

Navigate your timeline in Adobe Premiere Pro

Switch between tabs in the browser

Adjust volume

#### Assign custom keystrokes to the wheel rotation (up and down)

Gesture Button Install Logitech Options + software to enable gestures.


To use the gesture button:

#### Hold down the Gesture button while moving the mouse left, right, up, or down.

Gesture Button Windows 10 Mac OS

Single press O Task View O Mission Control

Hold and move down

↑ Start Menu ↑ Mission Control

Hold and move up ↓ Show/hide desktop ↓ App Expose

Hold and move right

Hold and move left

→ Switch between desktops → Switch between desktops

← Switch between desktops ← Switch between desktops

You can use gestures for desktop navigation, app management, pan and more. You can assign up to ve di erent actions to the Gesture button. Or map gestures to other MX Master 3S buttons, including the middle button or manual shift button.

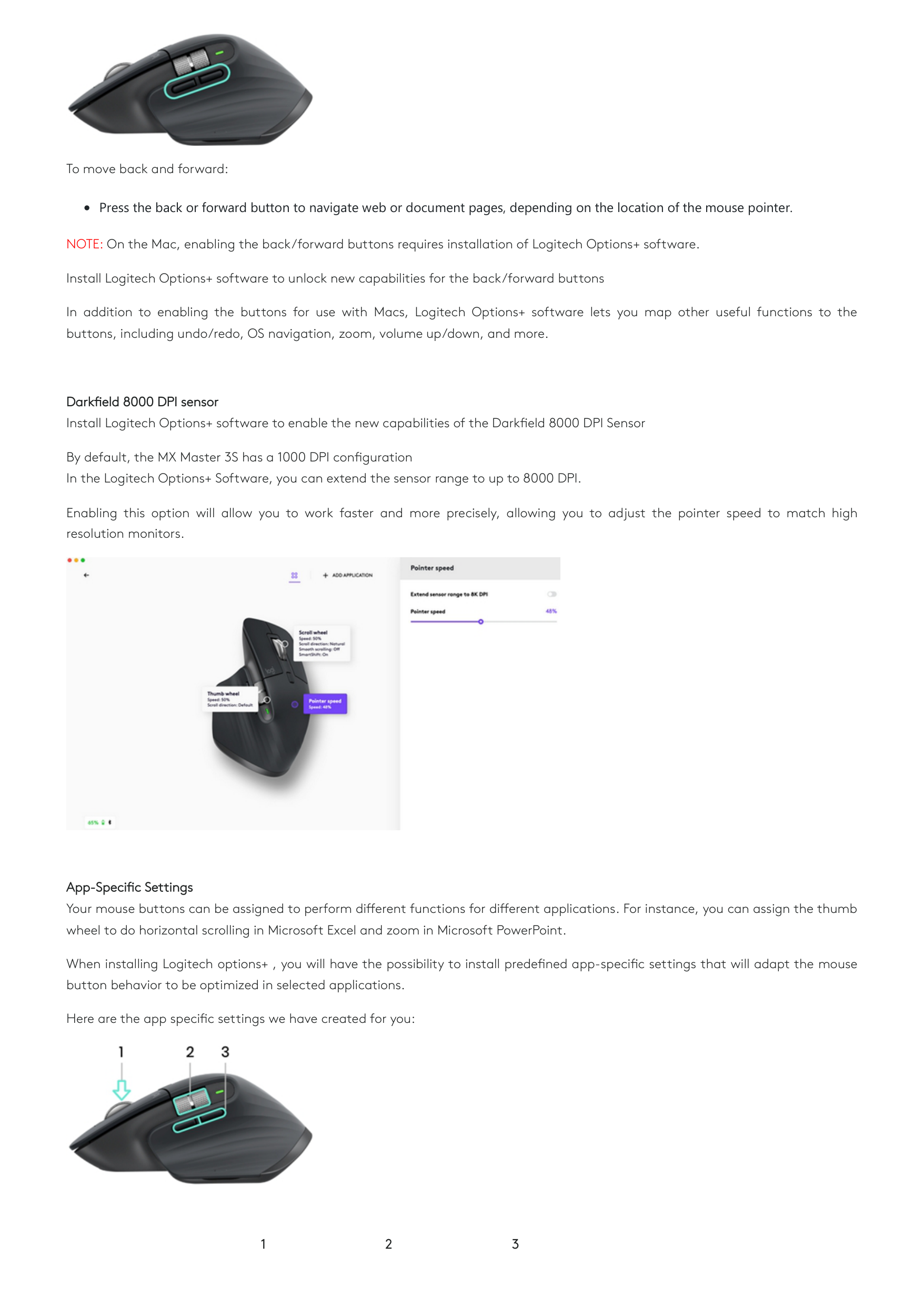

Back/Forward buttons Conveniently located, the back and forward buttons enhance navigation and simplify tasks.


To move back and forward:

#### Press the back or forward button to navigate web or document pages, depending on the location of the mouse pointer.

NOTE: On the Mac, enabling the back/forward buttons requires installation of Logitech Options+ software.

Install Logitech Options+ software to unlock new capabilities for the back/forward buttons

In addition to enabling the buttons for use with Macs, Logitech Options+ software lets you map other useful functions to the buttons, including undo/redo, OS navigation, zoom, volume up/down, and more.

Dark eld 8000 DPI sensor Install Logitech Options+ software to enable the new capabilities of the Dark eld 8000 DPI Sensor

By default, the MX Master 3S has a 1000 DPI con guration In the Logitech Options+ Software, you can extend the sensor range to up to 8000 DPI.

Enabling this option will allow you to work faster and more precisely, allowing you to adjust the pointer speed to match high resolution monitors.


App-Speci c Settings Your mouse buttons can be assigned to perform di erent functions for di erent applications. For instance, you can assign the thumb wheel to do horizontal scrolling in Microsoft Excel and zoom in Microsoft PowerPoint.

When installing Logitech options+ , you will have the possibility to install prede ned app-speci c settings that will adapt the mouse button behavior to be optimized in selected applications.

Here are the app speci c settings we have created for you:


1 2 3

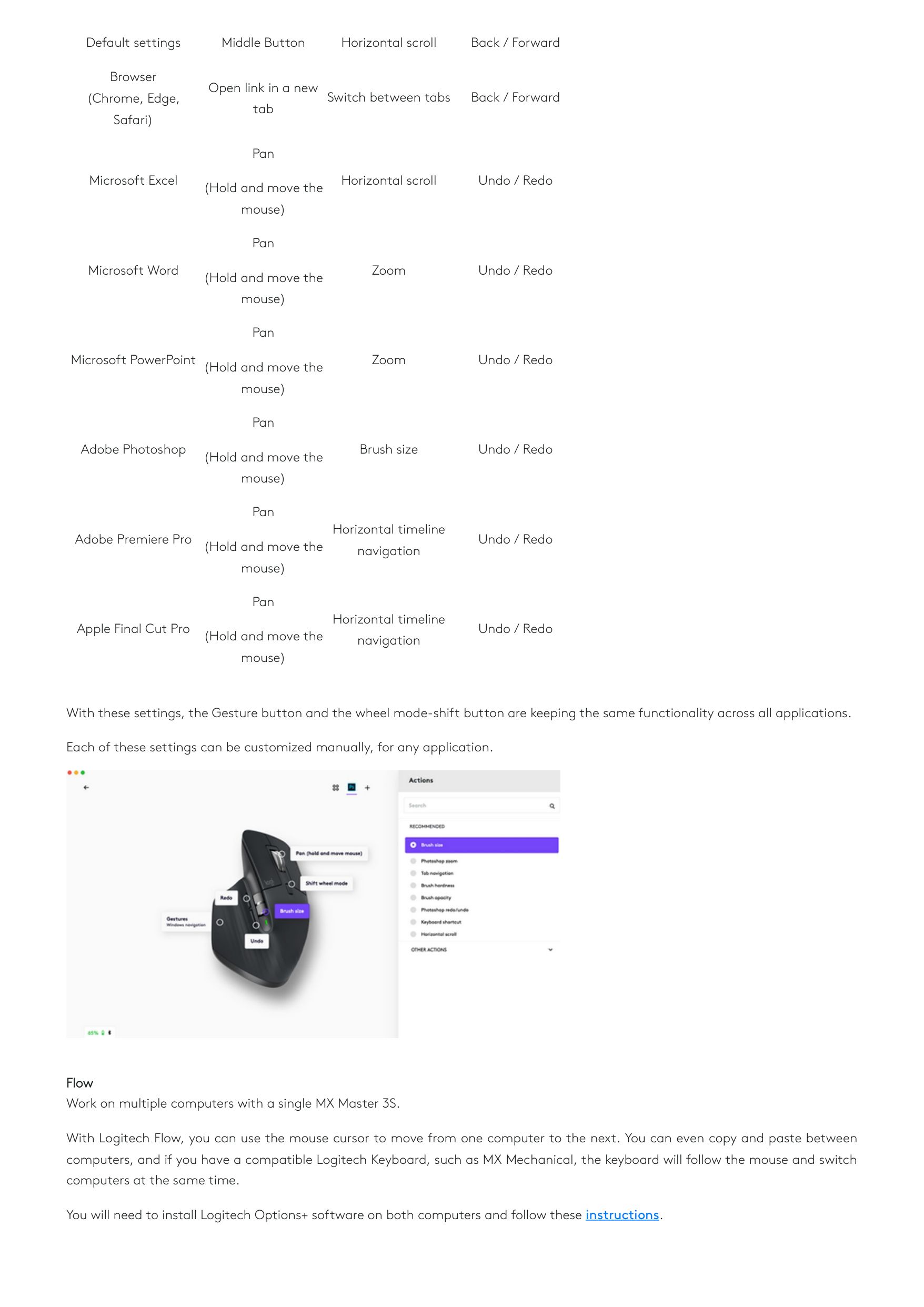

Default settings Middle Button Horizontal scroll Back / Forward

Browser (Chrome, Edge, Safari)

Microsoft Excel

Open link in a new tab

Switch between tabs Back / Forward

Pan

(Hold and move the mouse)

Horizontal scroll Undo / Redo

Microsoft Word

Pan

(Hold and move the mouse)

Zoom Undo / Redo

Pan

Microsoft PowerPoint

(Hold and move the mouse)

Zoom Undo / Redo

Adobe Photoshop

Pan

(Hold and move the mouse)

Brush size Undo / Redo

Adobe Premiere Pro

Pan

(Hold and move the mouse)

Horizontal timeline navigation

Apple Final Cut Pro

Pan

(Hold and move the mouse)

Horizontal timeline navigation

Undo / Redo

Undo / Redo

With these settings, the Gesture button and the wheel mode-shift button are keeping the same functionality across all applications.

Each of these settings can be customized manually, for any application.


Flow Work on multiple computers with a single MX Master 3S.

With Logitech Flow, you can use the mouse cursor to move from one computer to the next. You can even copy and paste between computers, and if you have a compatible Logitech Keyboard, such as MX Mechanical, the keyboard will follow the mouse and switch computers at the same time.

You will need to install Logitech Options+ software on both computers and follow these instructions.

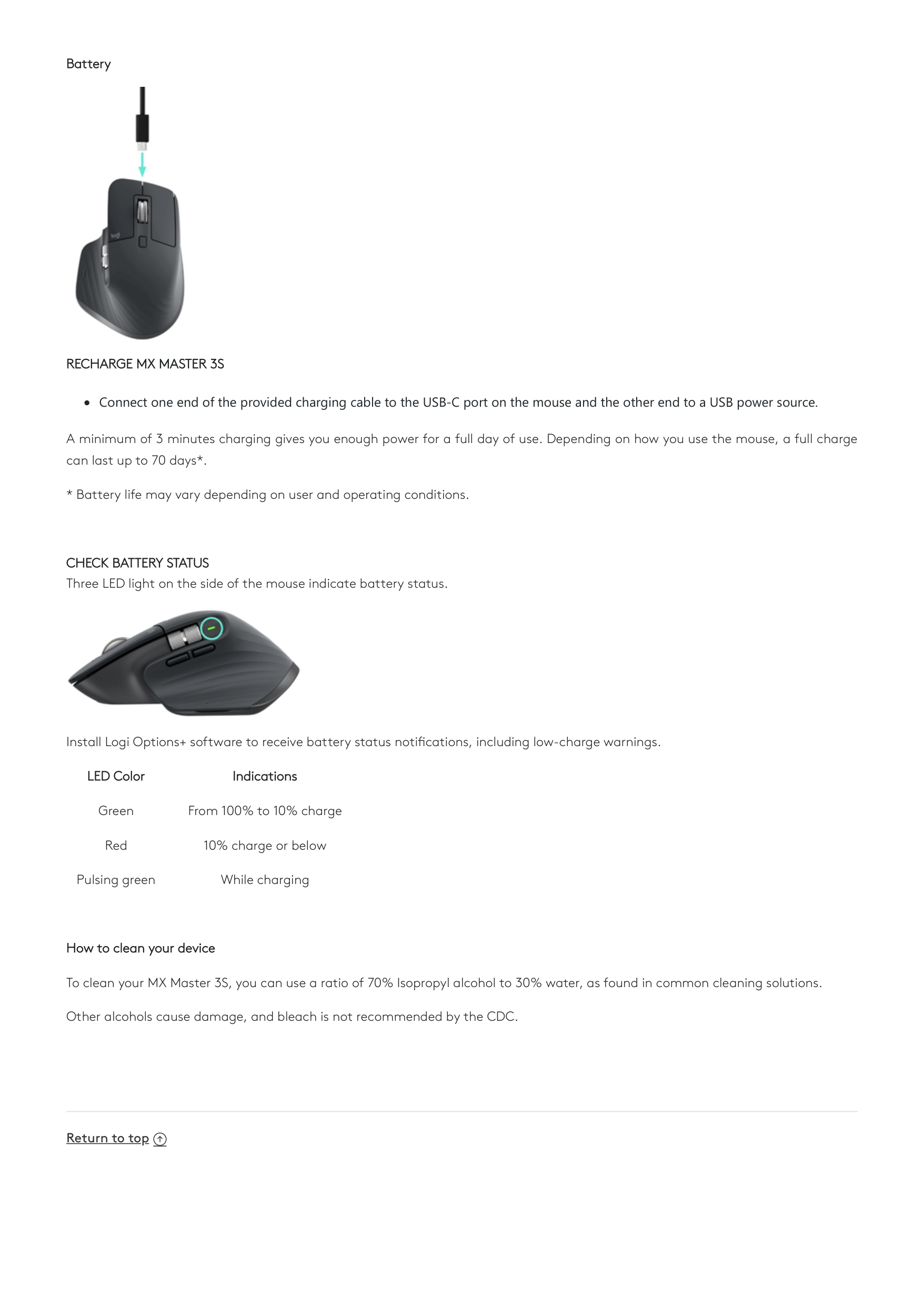

Battery


RECHARGE MX MASTER 3S

Connect one end of the provided charging cable to the USB-C port on the mouse and the other end to a USB power source.

A minimum of 3 minutes charging gives you enough power for a full day of use. Depending on how you use the mouse, a full charge can last up to 70 days*.

CHECK BATTERY STATUS Three LED light on the side of the mouse indicate battery status.


Install Logi Options+ software to receive battery status noti cations, including low-charge warnings.

LED Color Indications

Green From 100% to 10% charge

Red 10% charge or below

Pulsing green While charging

How to clean your device

To clean your MX Master 3S, you can use a ratio of 70% Isopropyl alcohol to 30% water, as found in common cleaning solutions.

Other alcohols cause damage, and bleach is not recommended by the CDC.
