Omron M2 Basic Automatic Upper Arm Blood Pressure Monitor
Ask AI
— answers from the official manualAnswers from the official manual.
Common questions
Common Questions
10 total 1
What does an error message mean when my cuff is underinflated?
If your blood pressure monitor displays an error due to an underinflated cuff, ensure correct application of the arm cuff and re-read the instructions in section 3.4 for proper use. (Page 23)
2
What should I do if my measurements are extremely low or high?
Ensure that the arm cuff is applied correctly and tightly, avoid movement or talking during measurement, and remove any interfering clothing. Refer to sections 3.2 and 3.3 for detailed instructions on correct application. (Page 25)
3
What is the purpose of the Memory Function?
The unit automatically stores your last measurement values for blood pressure and pulse rate in its memory, which can be reviewed by pressing and holding the O/I START button until results are displayed. (Page 20)
4
How do I inflate the cuff manually?
Press and hold the O/I START button to start inflation, press again when desired pressure is reached up to a maximum of 30 to 40 mmHg above suspected systolic pressure. Do not exceed 299 mmHg or an error will be displayed. (Page 19)
5
What is the maintenance procedure for this device?
Avoid extreme temperatures, humidity, and vibrations. Fold cuffs gently without excessive bending. Do not inflate above 299 mmHg or disassemble the unit under any circumstances; clean with a soft cloth only. (Page 27)
6
How can I avoid inaccurate blood pressure readings?
Ensure proper sitting posture, remove tight clothing from upper arm, and relax in a quiet environment at least 30 minutes post activity or meals before measurement. Movement and talking during the measurement will yield inaccurate results. (Page 12-13)
Full Manual
34 pages
Page 1
Digital Automatic Blood Pressure Monitor Model M2 Basic
En
De
Im-Hem-7116-E(V)-03-05/2012
5331307-2C
12E1131
Page 2

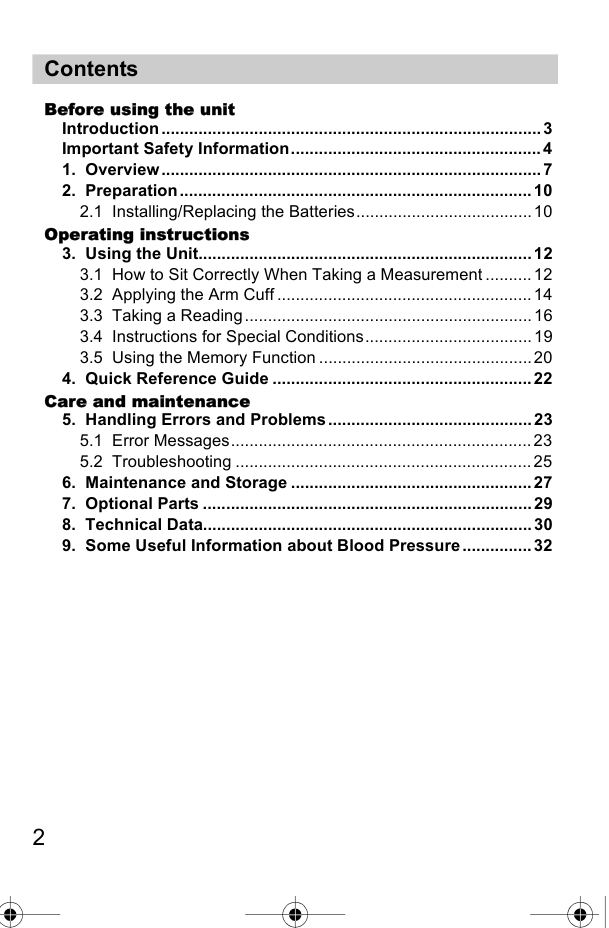

2 Contents Before using the unit Introduction..................................................................................3 Important Safety Information......................................................4
Page 3
3
En

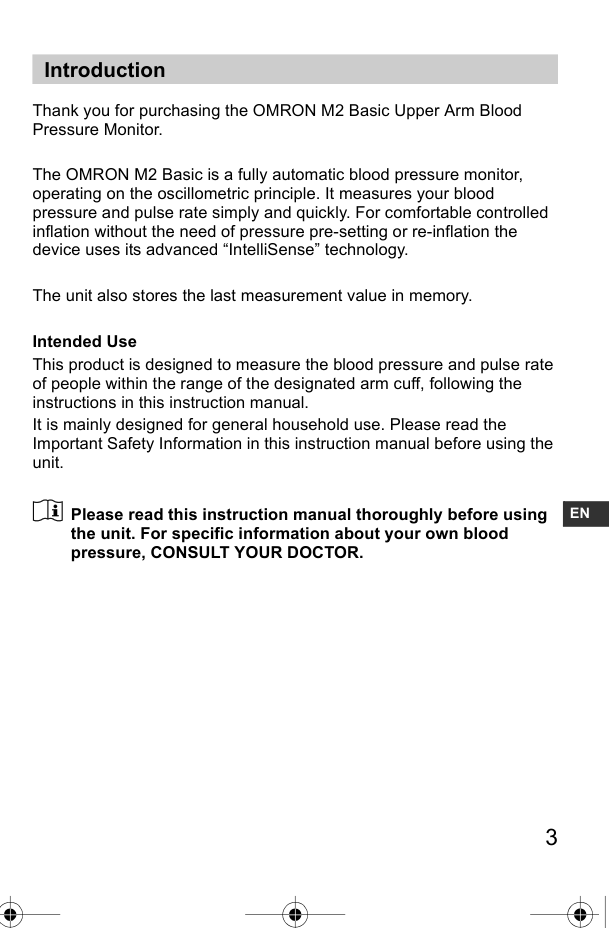

Introduction Thank you for purchasing the OMRON M2 Basic Upper Arm Blood Pressure Monitor. The OMRON M2 Basic is a fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. For comfortable controlled inflation without the need of pressure pre-setting or re-inflation the device uses its advanced “IntelliSense” technology. The unit also stores the last measurement value in memory. Intended Use This product is designed to measure the blood pressure and pulse rate of people within the range of the designated arm cuff, following the instructions in this instruction manual. It is mainly designed for general household use. Please read the Important Safety Information in this instruction manual before using the unit. Please read this instruction manual thoroughly before using the unit. For specific information about your own blood pressure, CONSULT YOUR DOCTOR. Before using the unit Page 4

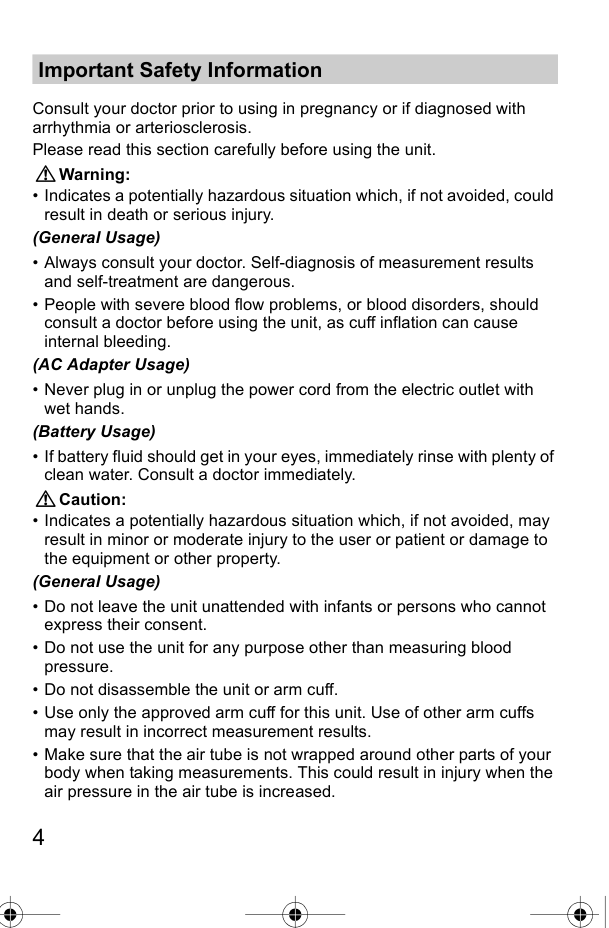

4 Important Safety Information Important Safety Information Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis. Please read this section carefully before using the unit. Warning:
Page 5

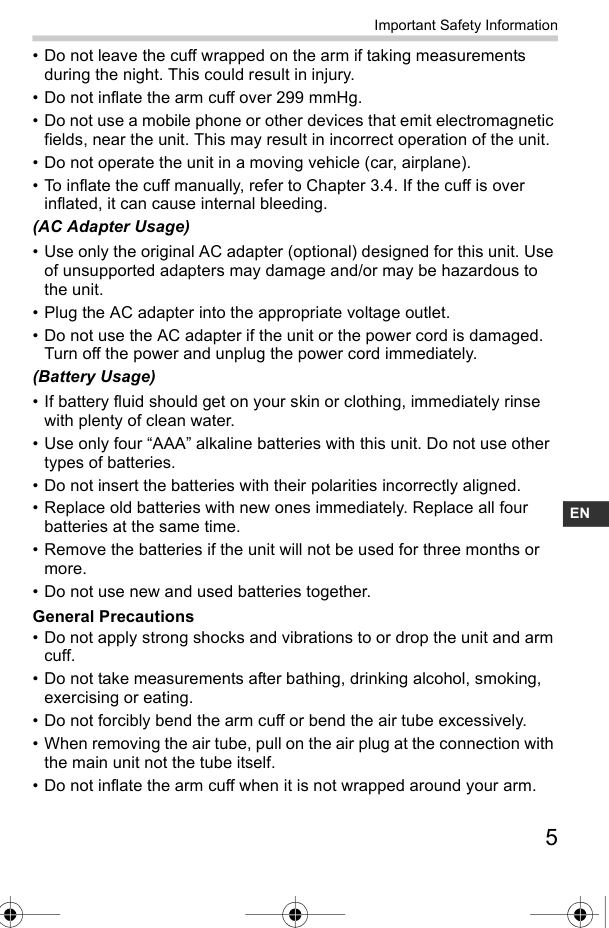

5 Important Safety Information
En
Page 6

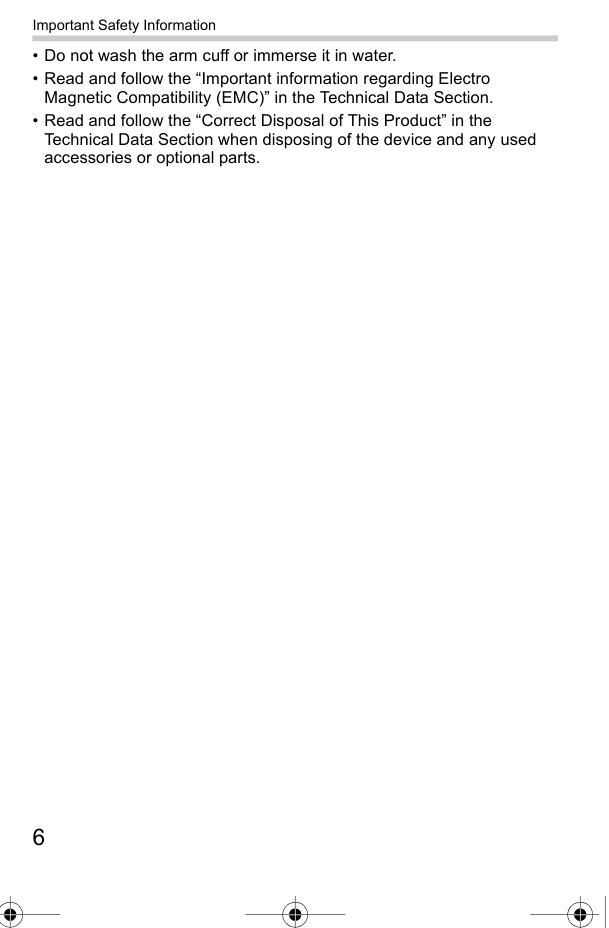

6 Important Safety Information
Page 7

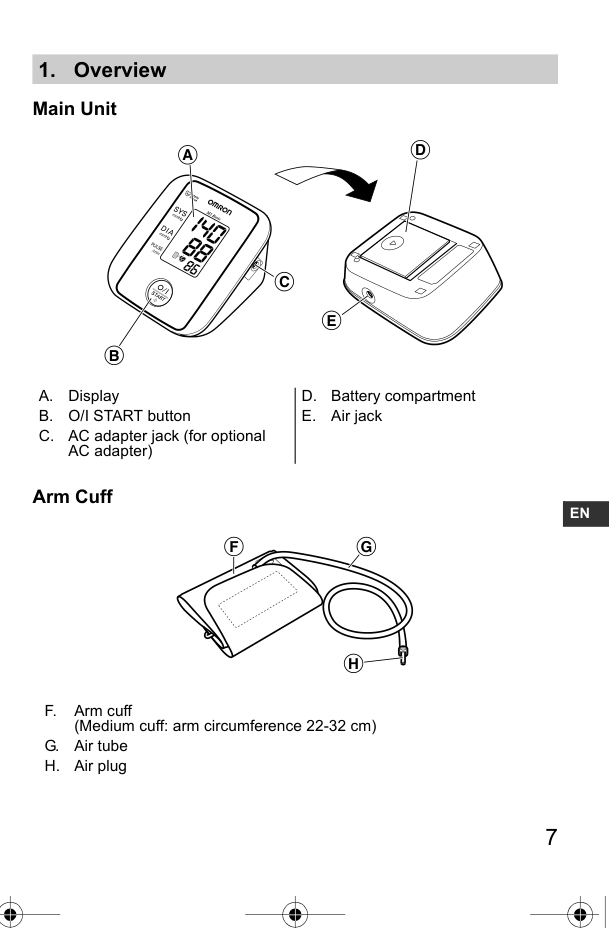

7 1.Overview
En
A.
DisplayB.
O/I START buttonC.
AC adapter jack (for optional AC adapter)D.
Battery compartmentE.
Air jackF.
Arm cuff (Medium cuff: arm circumference 22-32 cm)G.
Air tubeH.
Air plugA
B
D
E
C
G
F
H
Page 8

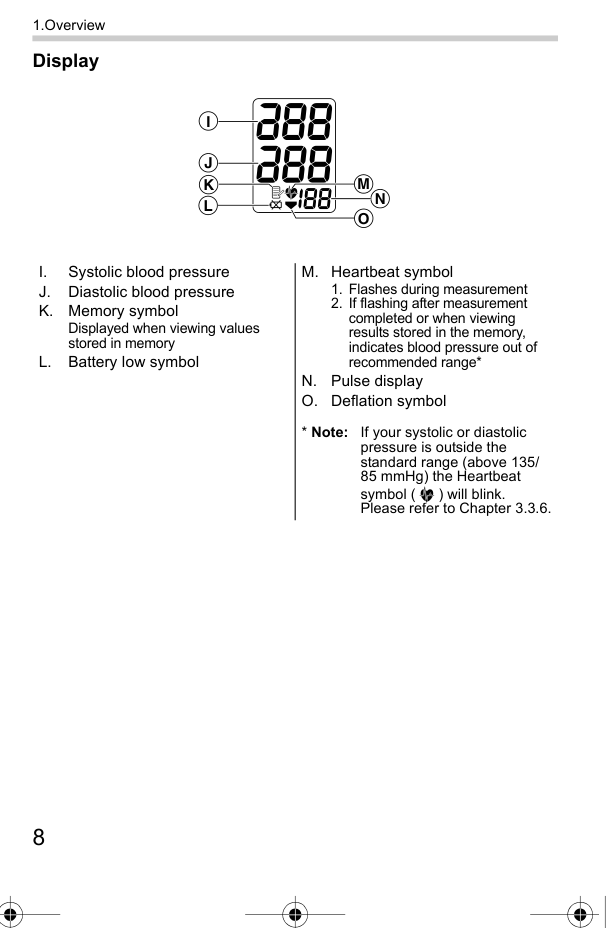

8 1.Overview Display
I.
Systolic blood pressureJ.
Diastolic blood pressureK.
Memory symbol Displayed when viewing values stored in memoryL.
Battery low symbol M. Heartbeat symbolN.
Pulse displayO.
Deflation symbolI
J
L
K
N
M
O
Page 9
9 1.Overview
En
Package Contents (others)P.
Four “AAA” alkaline (LR03) batteriesP
Page 10

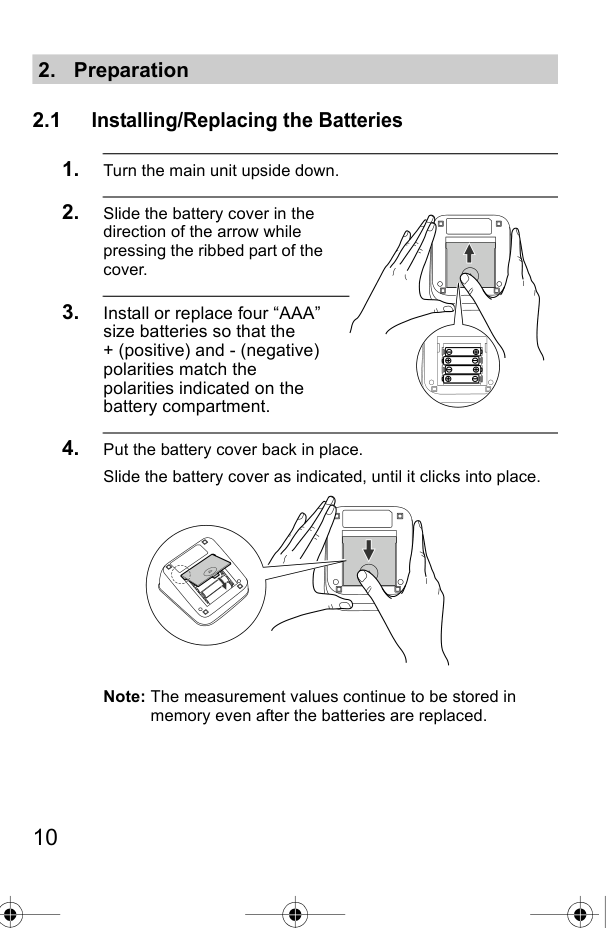

10 2.Preparation
Page 11
11 2.Preparation
En

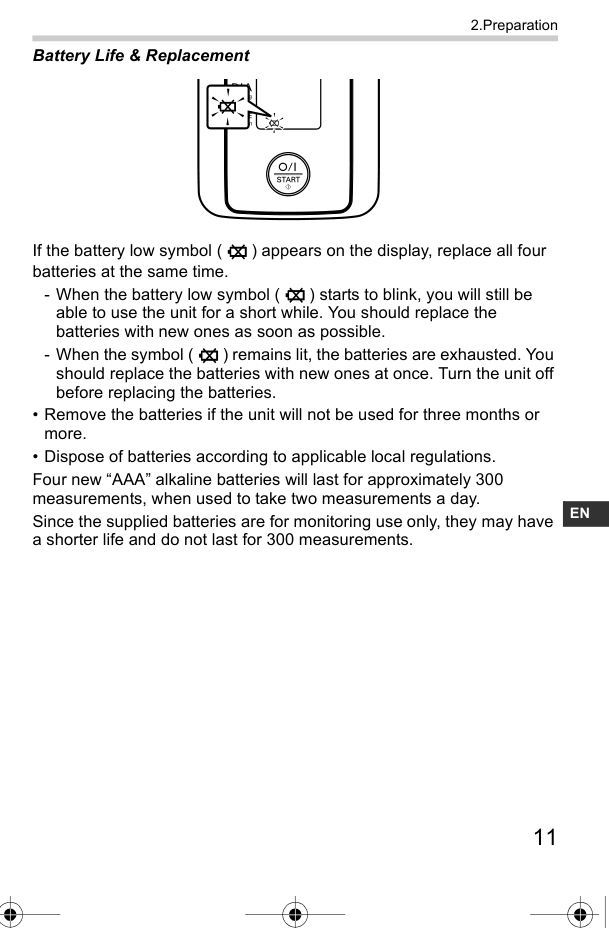

Battery Life & Replacement If the battery low symbol ( ) appears on the display, replace all four batteries at the same time. Page 12

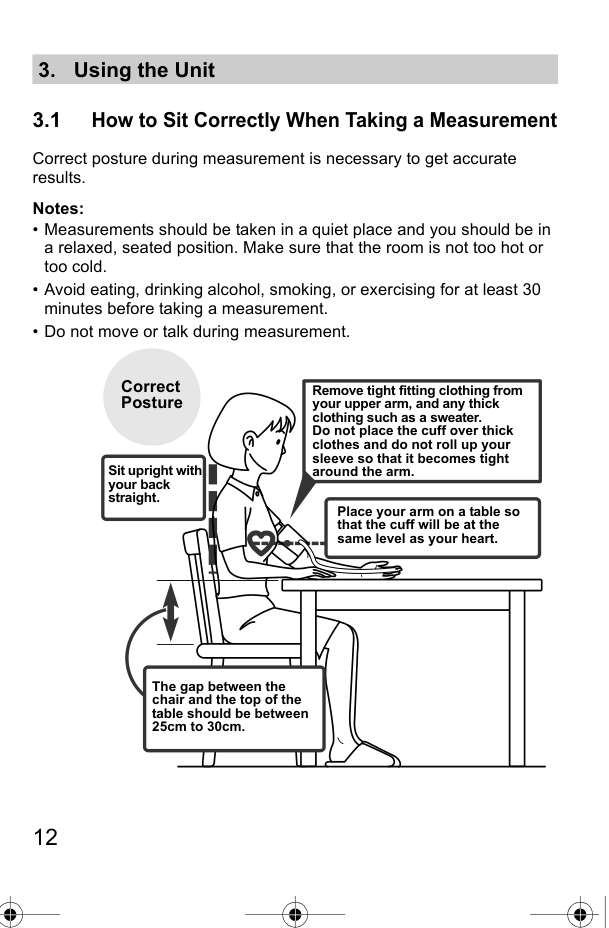

12 3.Using the Unit
Page 13
13 3.Using the Unit
En

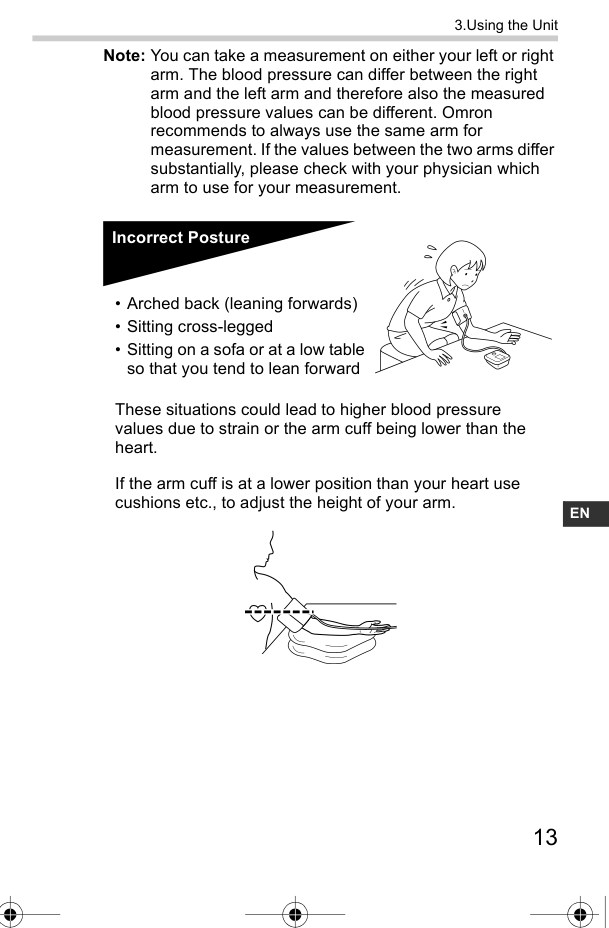

Note: You can take a measurement on either your left or right arm. The blood pressure can differ between the right arm and the left arm and therefore also the measured blood pressure values can be different. Omron recommends to always use the same arm for measurement. If the values between the two arms differ substantially, please check with your physician which arm to use for your measurement. Incorrect Posture These situations could lead to higher blood pressure values due to strain or the arm cuff being lower than the heart. If the arm cuff is at a lower position than your heart use cushions etc., to adjust the height of your arm. Page 14

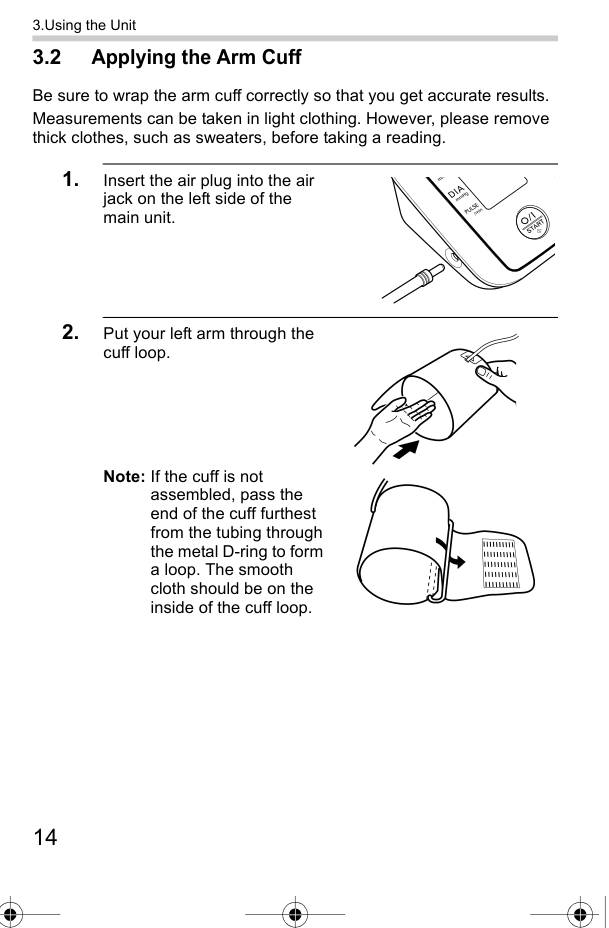

14 3.Using the Unit 3.2 Applying the Arm Cuff Be sure to wrap the arm cuff correctly so that you get accurate results. Measurements can be taken in light clothing. However, please remove thick clothes, such as sweaters, before taking a reading.
Page 15
15 3.Using the Unit
En
Firmly.

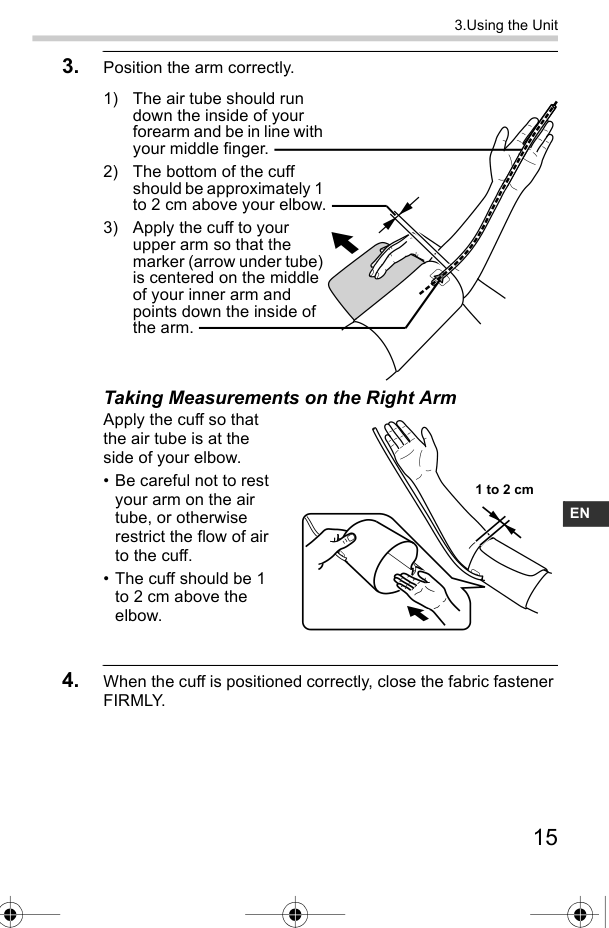

1) The air tube should run down the inside of your forearm and be in line with your middle finger. 2) The bottom of the cuff should be approximately 1 to 2 cm above your elbow. 3) Apply the cuff to your upper arm so that the marker (arrow under tube) is centered on the middle of your inner arm and points down the inside of the arm. 1 to 2 cm Page 16

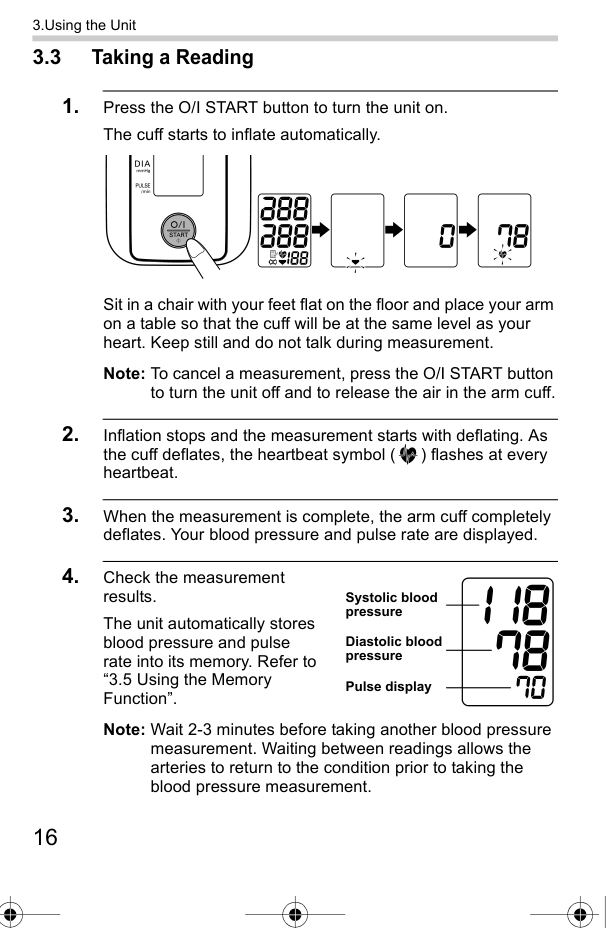

16 3.Using the Unit 3.3 Taking a Reading
Page 17
17 3.Using the Unit
En

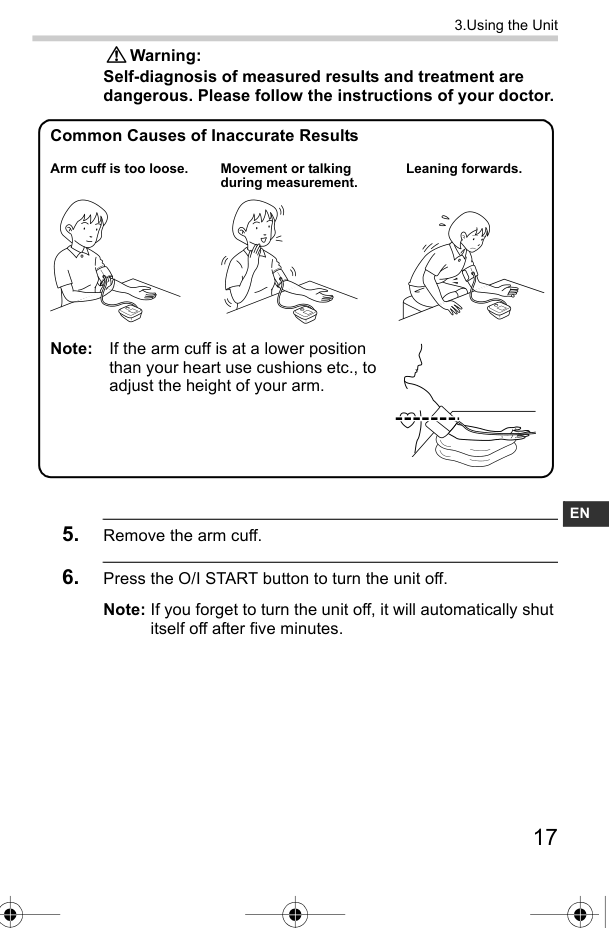

Warning: Self-diagnosis of measured results and treatment are dangerous. Please follow the instructions of your doctor. Page 18

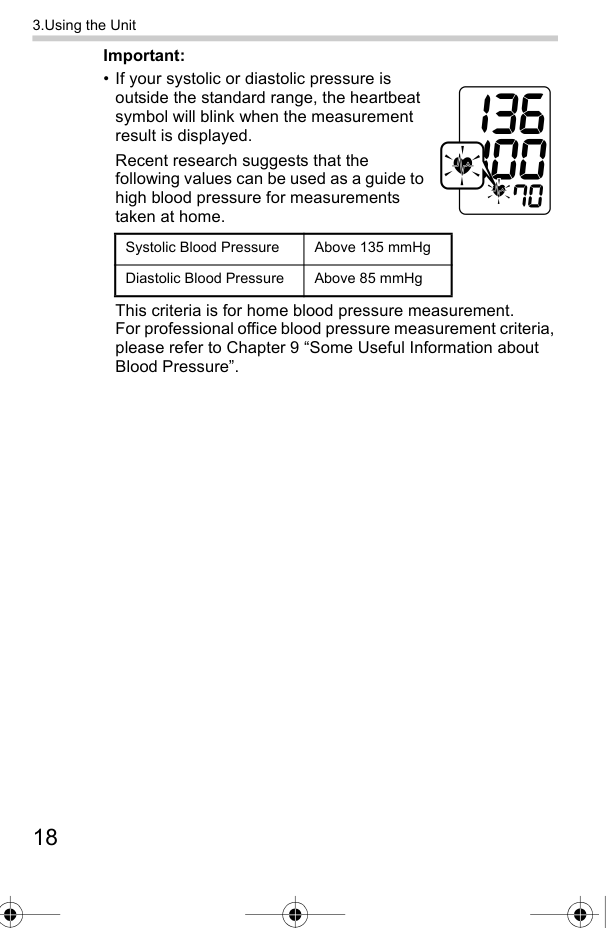

18 3.Using the Unit Important:
Page 19
19 3.Using the Unit
En

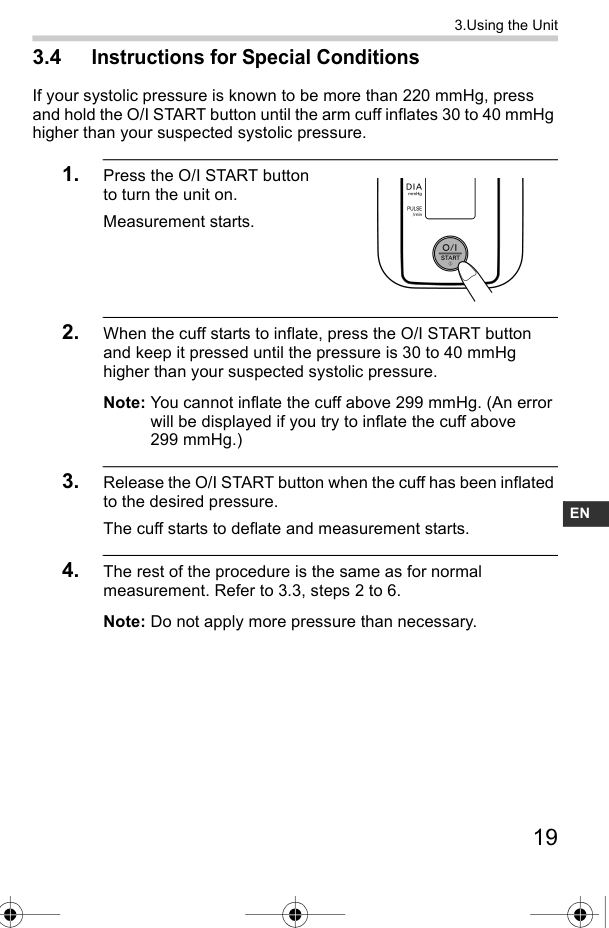

3.4 Instructions for Special Conditions If your systolic pressure is known to be more than 220 mmHg, press and hold the O/I START button until the arm cuff inflates 30 to 40 mmHg higher than your suspected systolic pressure. Page 20

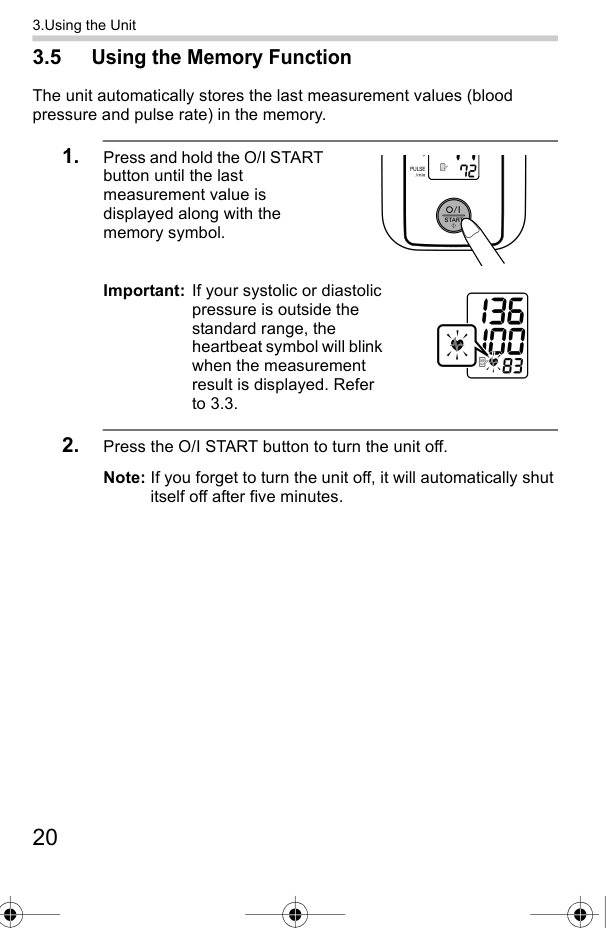

20 3.Using the Unit 3.5 Using the Memory Function The unit automatically stores the last measurement values (blood pressure and pulse rate) in the memory.
Page 21
21 3.Using the Unit
En

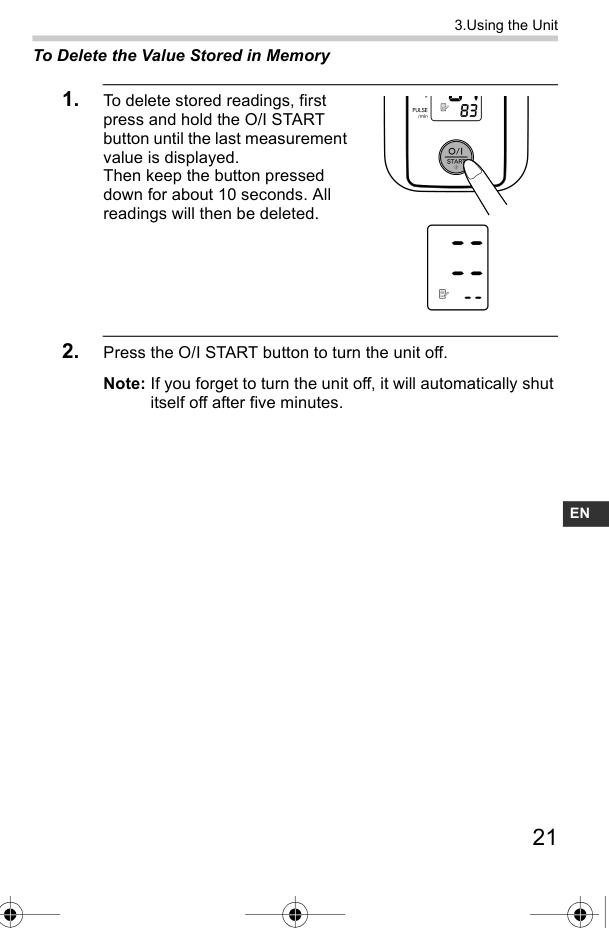

To Delete the Value Stored in Memory Page 22

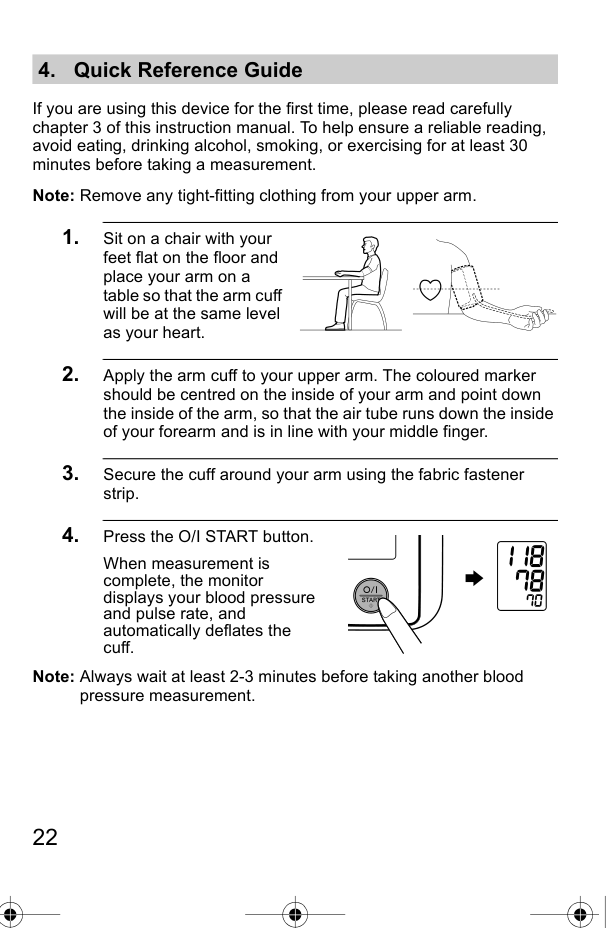

22 4.Quick Reference Guide
Page 23

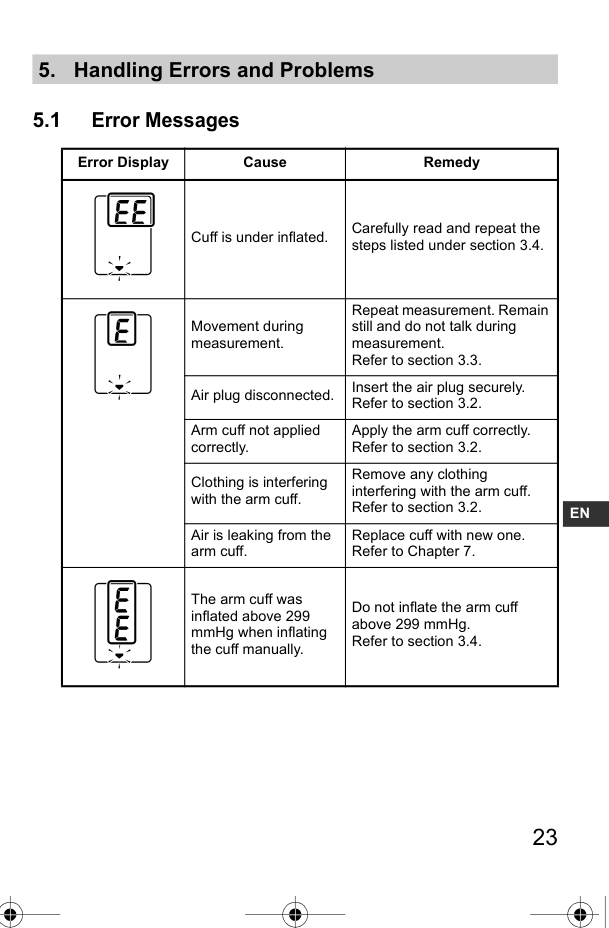

23 5.Handling Errors and Problems
En
Page 24

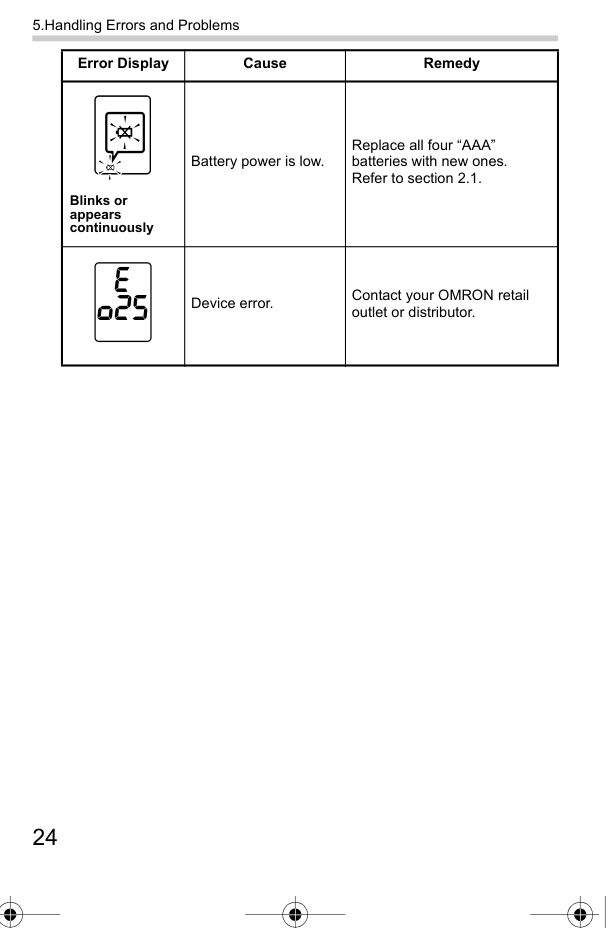

24 5.Handling Errors and Problems Battery power is low. Replace all four “AAA” batteries with new ones. Refer to section 2.1. Device error. Contact your OMRON retail outlet or distributor. Error Display Cause Remedy Blinks or appears continuously
Page 25
25 5.Handling Errors and Problems
En

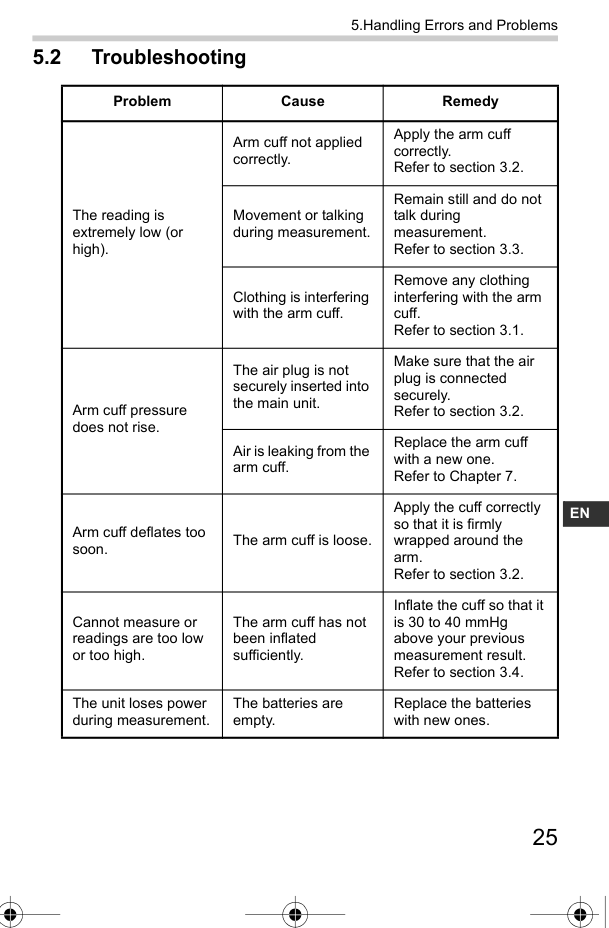

5.2 Troubleshooting Problem Cause Remedy The reading is extremely low (or high). Arm cuff not applied correctly. Apply the arm cuff correctly. Refer to section 3.2. Movement or talking during measurement. Remain still and do not talk during measurement. Refer to section 3.3. Clothing is interfering with the arm cuff. Remove any clothing interfering with the arm cuff. Refer to section 3.1. Arm cuff pressure does not rise. The air plug is not securely inserted into the main unit. Make sure that the air plug is connected securely. Refer to section 3.2. Air is leaking from the arm cuff. Replace the arm cuff with a new one. Refer to Chapter 7. Arm cuff deflates too soon. The arm cuff is loose. Apply the cuff correctly so that it is firmly wrapped around the arm. Refer to section 3.2. Cannot measure or readings are too low or too high. The arm cuff has not been inflated sufficiently. Inflate the cuff so that it is 30 to 40 mmHg above your previous measurement result. Refer to section 3.4. The unit loses power during measurement. The batteries are empty. Replace the batteries with new ones. Page 26

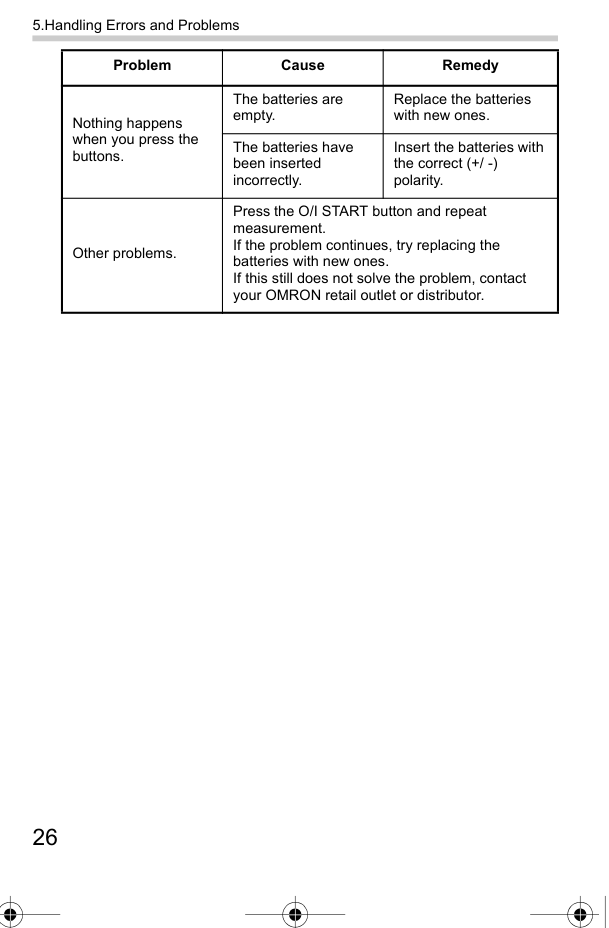

26 5.Handling Errors and Problems Nothing happens when you press the buttons. The batteries are empty. Replace the batteries with new ones. The batteries have been inserted incorrectly. Insert the batteries with the correct (+/ -) polarity. Other problems. Press the O/I START button and repeat measurement. If the problem continues, try replacing the batteries with new ones. If this still does not solve the problem, contact your OMRON retail outlet or distributor. Problem Cause Remedy
Page 27

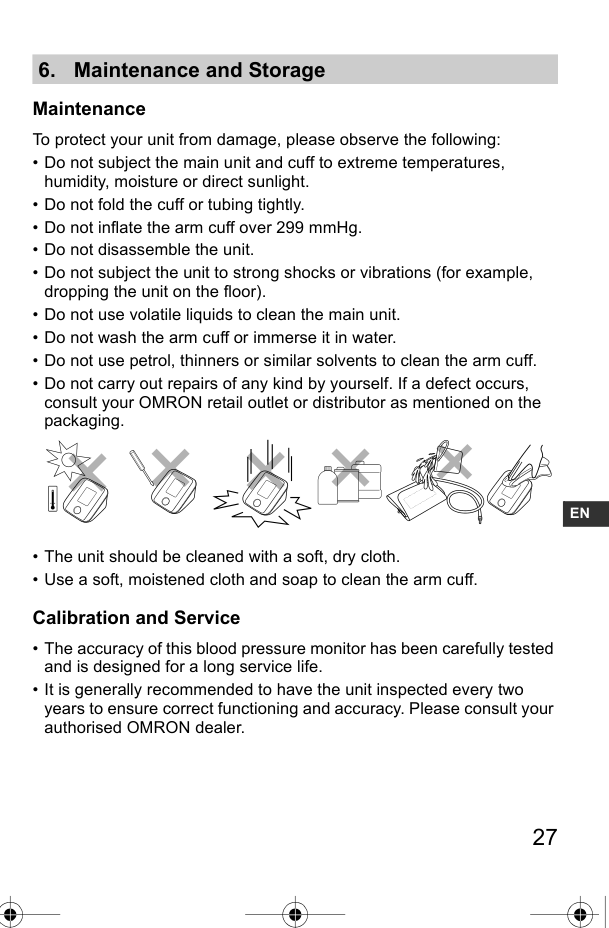

27 6.Maintenance and Storage
En
Page 28

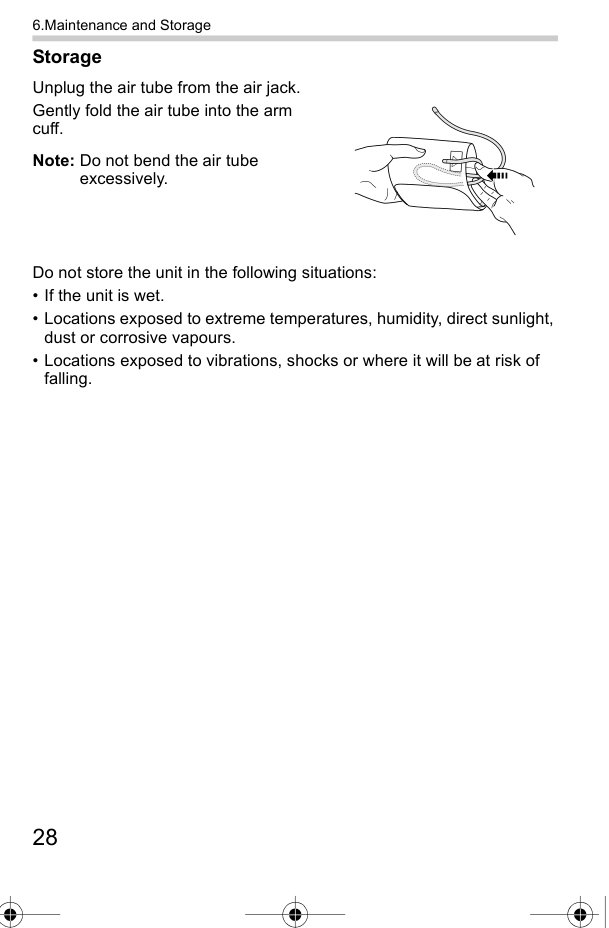

28 6.Maintenance and Storage Storage Unplug the air tube from the air jack. Gently fold the air tube into the arm cuff. Note: Do not bend the air tube excessively. Do not store the unit in the following situations:
Page 29

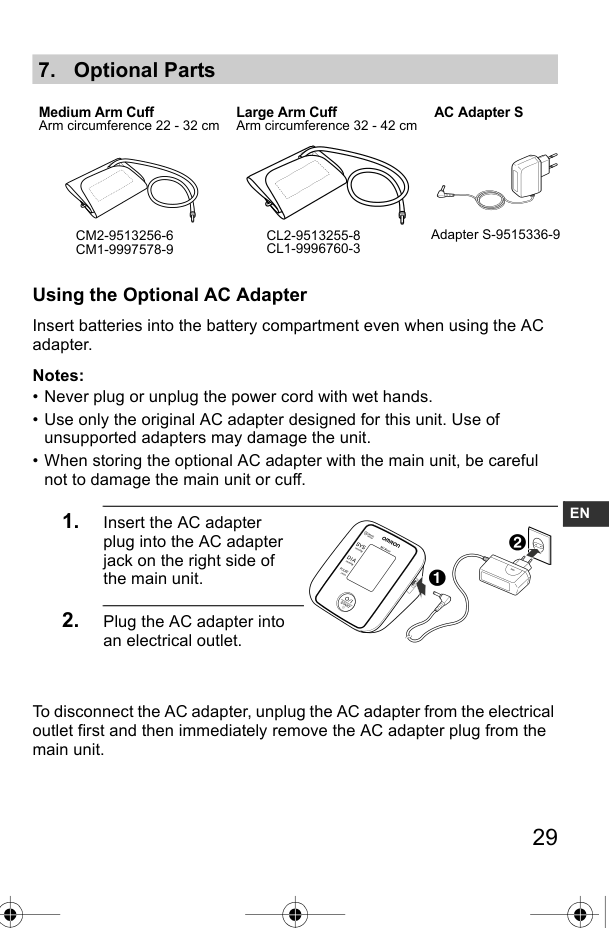

29 7.Optional Parts
En
Cm2-9513256-6
Cm1-9997578-9
Cl2-9513255-8
Cl1-9996760-3
Adapter S-9515336-9 Page 30

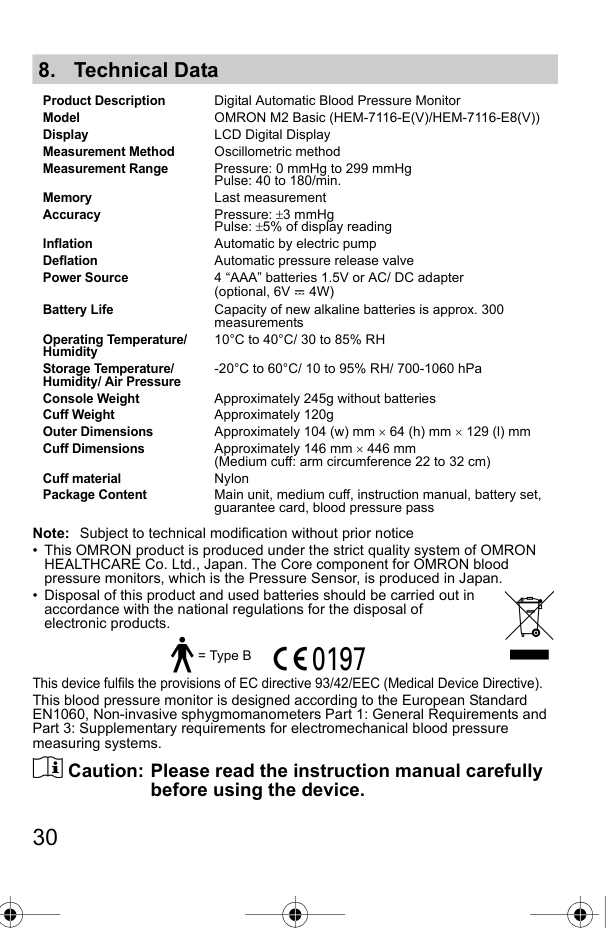

30 8.Technical Data
4W)
Battery Life Capacity of new alkaline batteries is approx. 300 measurements Operating Temperature/ Humidity 10°C to 40°C/ 30 to 85% RH Storage Temperature/ Humidity/ Air Pressure -20°C to 60°C/ 10 to 95% RH/ 700-1060 hPa Console Weight Approximately 245g without batteries Cuff Weight Approximately 120g Outer Dimensions Approximately 104 (w) mm 64 (h) mm 129 (l) mm Cuff Dimensions Approximately 146 mm 446 mm (Medium cuff: arm circumference 22 to 32 cm) Cuff material Nylon Package Content Main unit, medium cuff, instruction manual, battery set, guarantee card, blood pressure pass = Type B Page 31
31 8.Technical Data
En

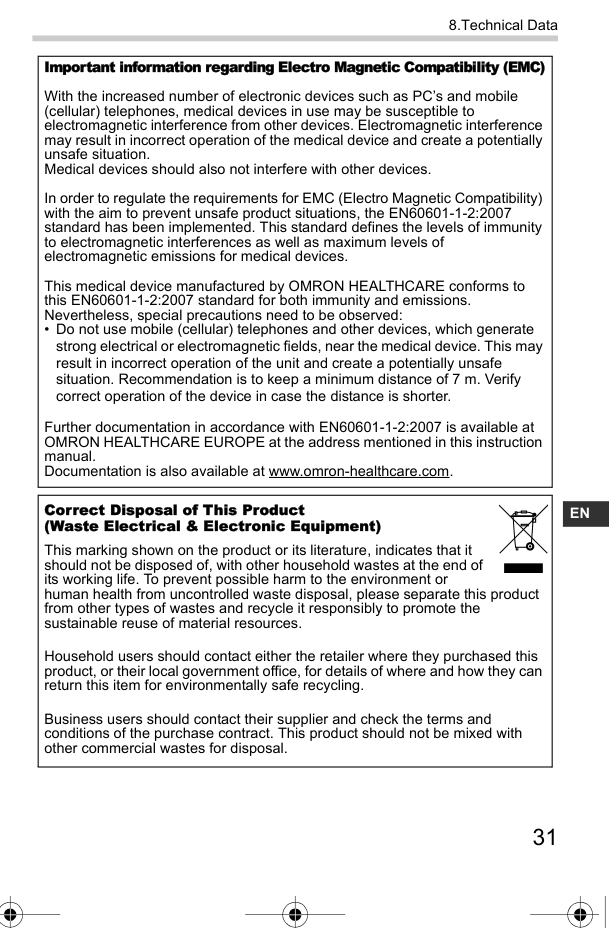

This marking shown on the product or its literature, indicates that it should not be disposed of, with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this product from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can return this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Important information regarding Electro Magnetic Compatibility (EMC) With the increased number of electronic devices such as PC’s and mobile (cellular) telephones, medical devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic interference may result in incorrect operation of the medical device and create a potentially unsafe situation. Medical devices should also not interfere with other devices. In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to prevent unsafe product situations, the EN60601-1-2:2007 standard has been implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: Page 32

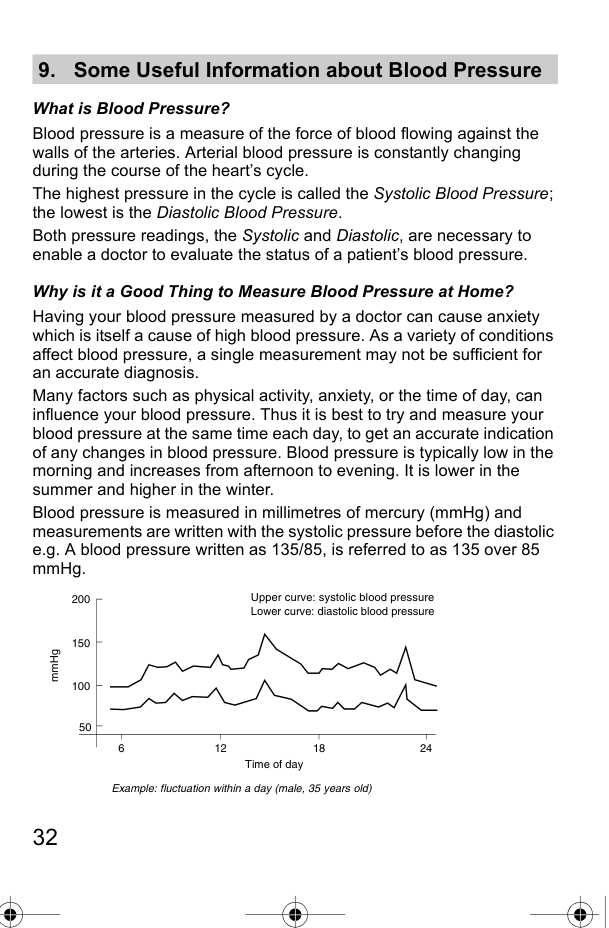

32 9.Some Useful Information about Blood Pressure
Page 33
33 9.Some Useful Information about Blood Pressure
En

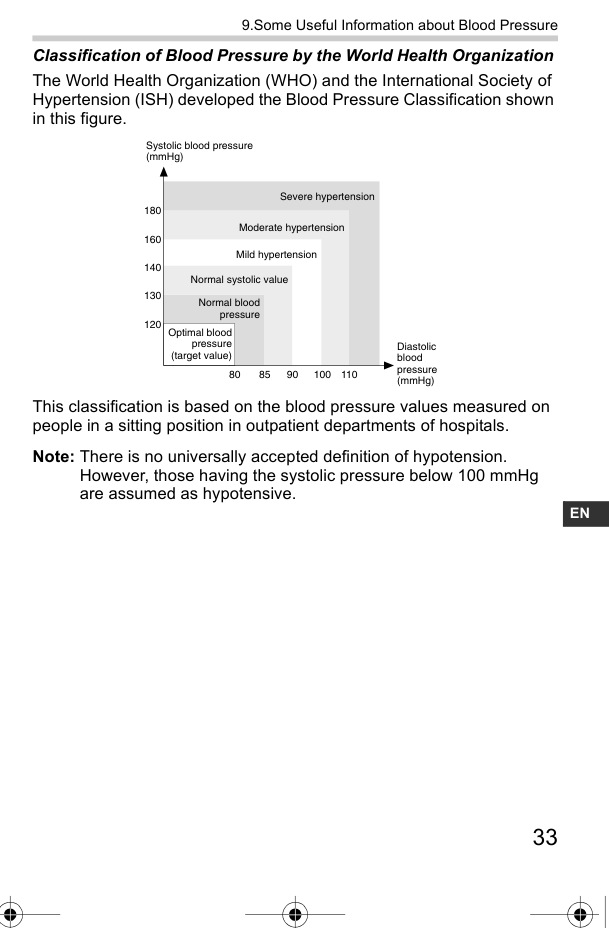

Classification of Blood Pressure by the World Health Organization The World Health Organization (WHO) and the International Society of Hypertension (ISH) developed the Blood Pressure Classification shown in this figure. This classification is based on the blood pressure values measured on people in a sitting position in outpatient departments of hospitals. Note: There is no universally accepted definition of hypotension. However, those having the systolic pressure below 100 mmHg are assumed as hypotensive. 80 180 160 140 130 120 85 90 100 110 Diastolic blood pressure (mmHg) Systolic blood pressure (mmHg) Severe hypertension Moderate hypertension Mild hypertension Normal systolic value Normal blood pressure Optimal blood pressure (target value) Page 34

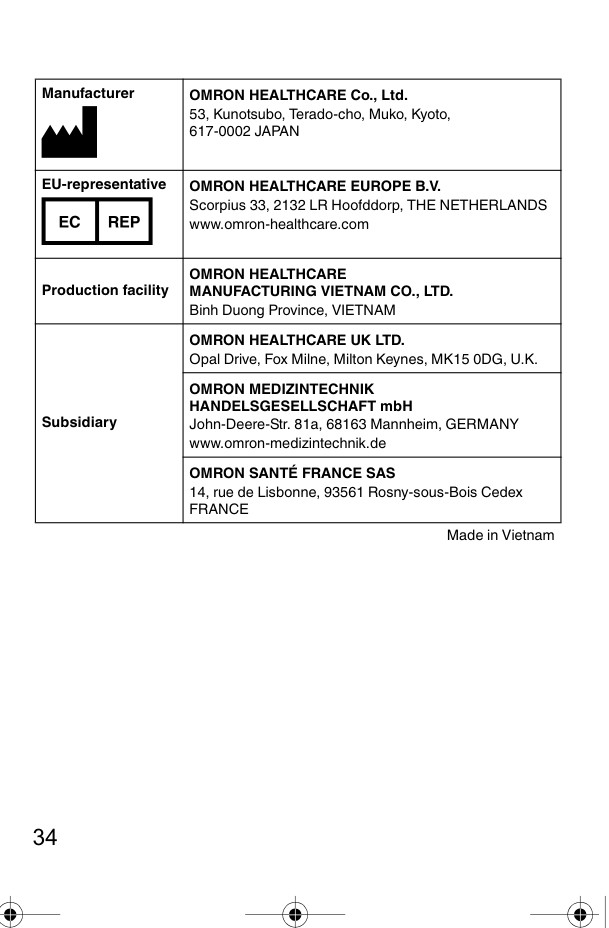

34 Manufacturer OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto,
