Full Manual
10 pages
Automatic Washer
Models:
WTW5000DW2 (White) 08/07/2018 © 2018 Whirlpool Corporation Part No. W11294817 Rev. A

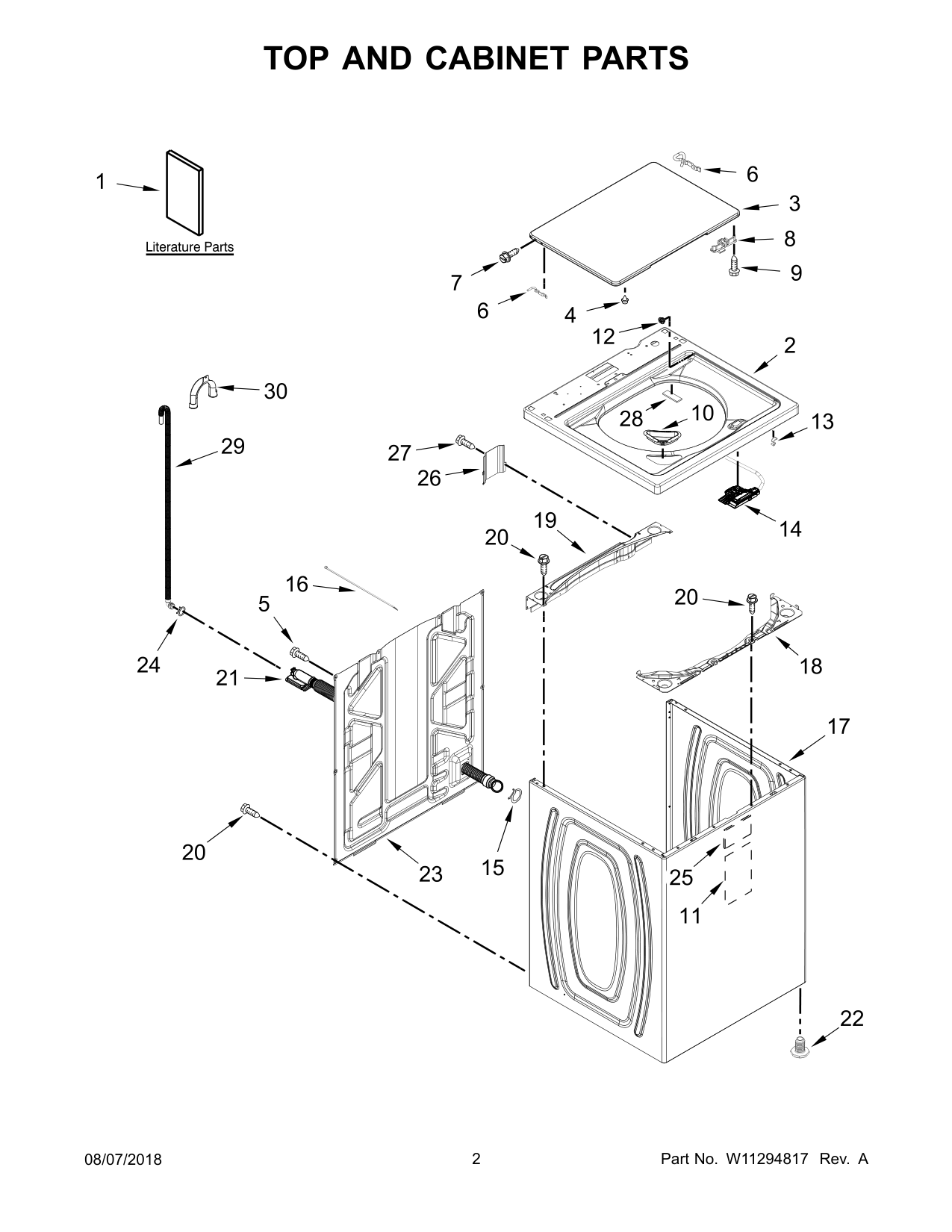

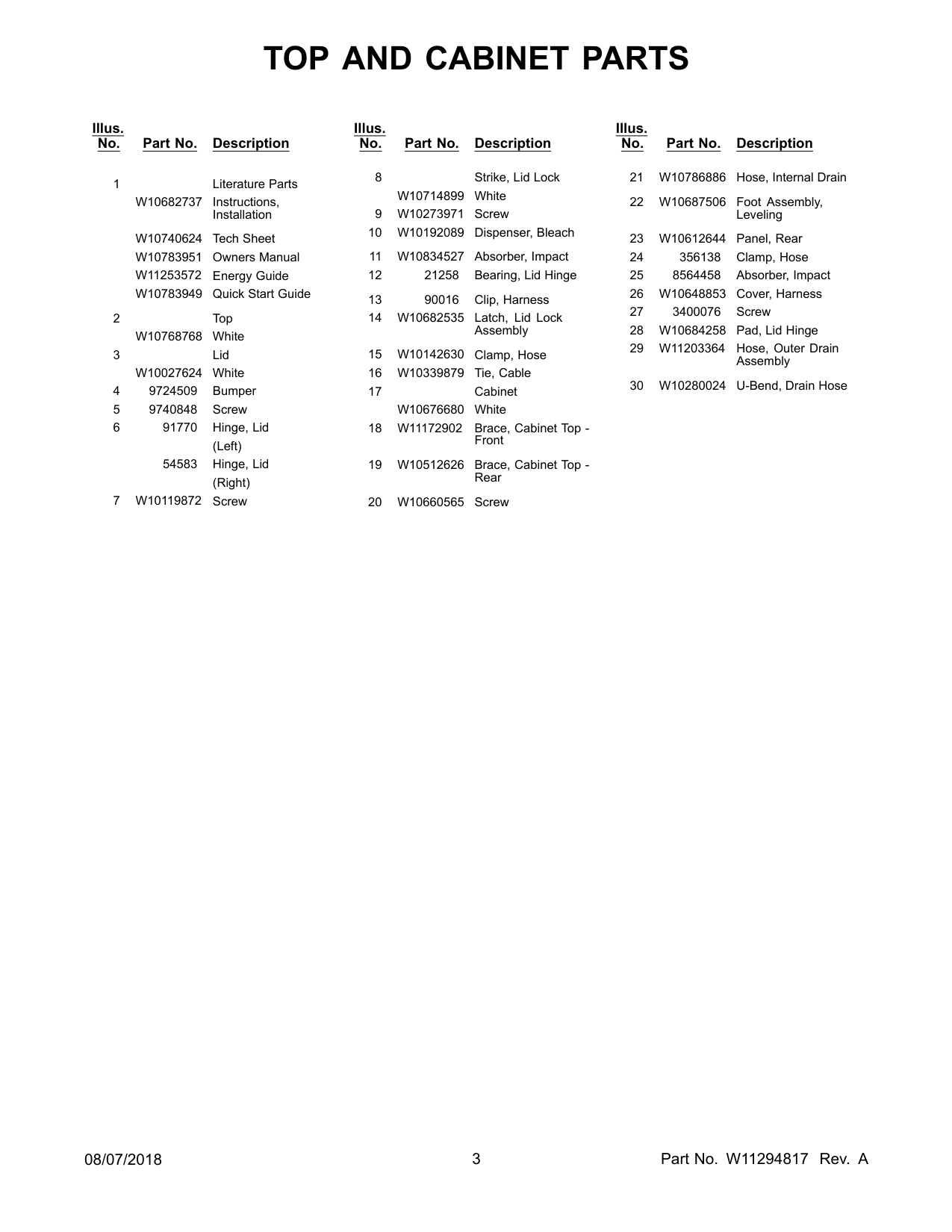

Top And Cabinet Parts
08/07/2018 2 Part No. W11294817 Rev. A
Top And Cabinet Parts
Illus. No. Part No. Description 1 Literature PartsW10682737
Instructions, InstallationW10740624
Tech SheetW10783951
Owners ManualW11253572
Energy GuideW10783949
Quick Start Guide 2 TopW10768768
White 3 LidW10027624
White 4 9724509 Bumper 5 9740848 Screw 6 91770 Hinge, Lid (Left) 54583 Hinge, Lid (Right) 7W10119872
Screw Illus. No. Part No. Description 8 Strike, Lid LockW10714899
White 9W10273971
Screw 10W10192089
Dispenser, Bleach 11W10834527
Absorber, Impact 12 21258 Bearing, Lid Hinge 13 90016 Clip, Harness 14W10682535
Latch, Lid Lock Assembly 15W10142630
Clamp, Hose 16W10339879
Tie, Cable 17 CabinetW10676680
White 18W11172902
Brace, Cabinet Top - Front 19W10512626
Brace, Cabinet Top - Rear 20W10660565
Screw Illus. No. Part No. Description 21W10786886
Hose, Internal Drain 22W10687506
Foot Assembly, Leveling 23W10612644
Panel, Rear 24 356138 Clamp, Hose 25 8564458 Absorber, Impact 26W10648853
Cover, Harness 27 3400076 Screw 28W10684258
Pad, Lid Hinge 29W11203364
Hose, Outer Drain Assembly 30W10280024
U-Bend, Drain Hose 08/07/2018 3 Part No. W11294817 Rev. A

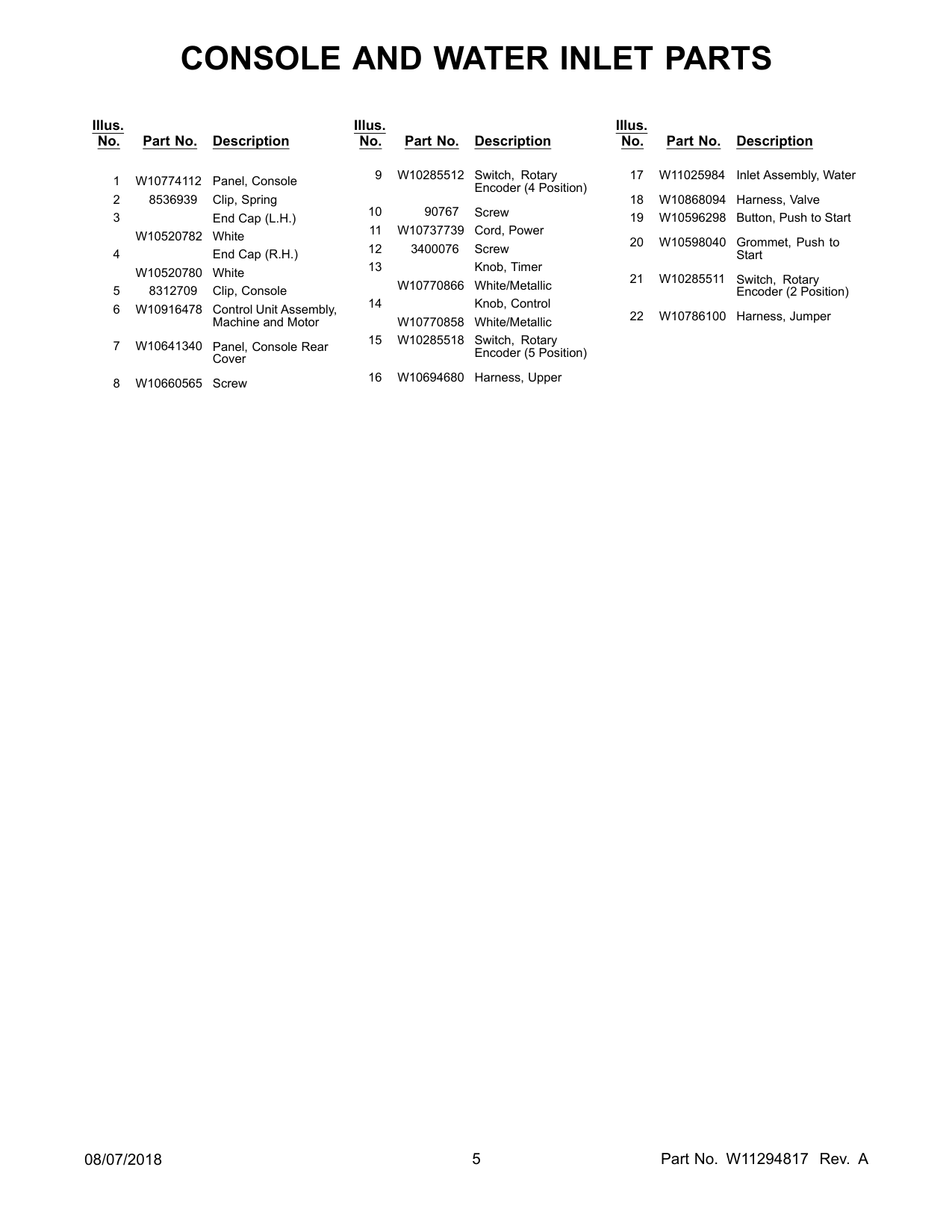

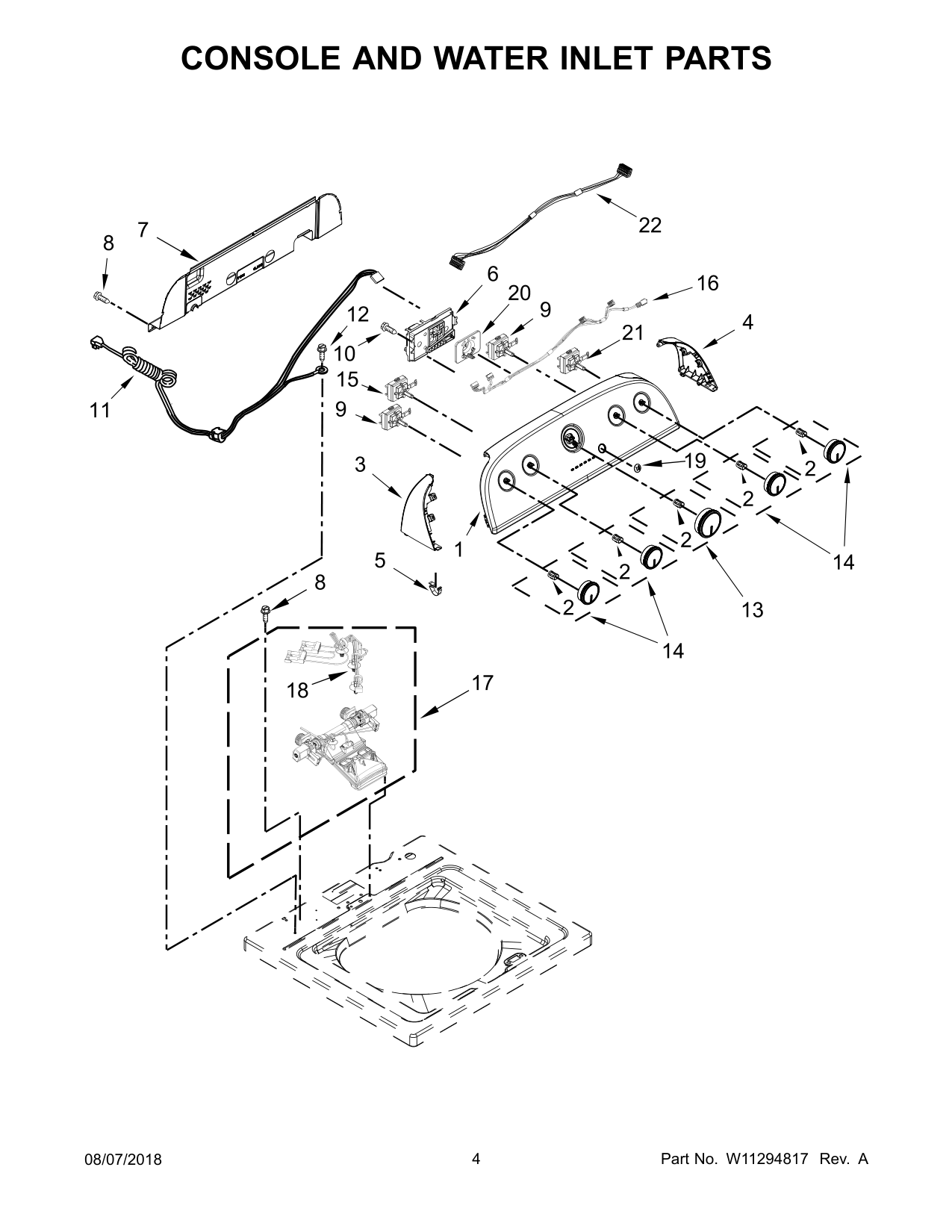

Console And Water Inlet Parts
08/07/2018 4 Part No. W11294817 Rev. A
Console And Water Inlet Parts
Illus. No. Part No. Description 1W10774112
Panel, Console 2 8536939 Clip, Spring 3 End Cap (L.H.)W10520782
White 4 End Cap (R.H.)W10520780
White 5 8312709 Clip, Console 6W10916478
Control Unit Assembly, Machine and Motor 7W10641340
Panel, Console Rear Cover 8W10660565
Screw Illus. No. Part No. Description 9W10285512
Switch, Rotary Encoder (4 Position) 10 90767 Screw 11W10737739
Cord, Power 12 3400076 Screw 13 Knob, TimerW10770866
White/Metallic 14 Knob, ControlW10770858
White/Metallic 15W10285518
Switch, Rotary Encoder (5 Position) 16W10694680
Harness, Upper Illus. No. Part No. Description 17W11025984
Inlet Assembly, Water 18W10868094
Harness, Valve 19W10596298
Button, Push to Start 20W10598040
Grommet, Push to Start 21W10285511
Switch, Rotary Encoder (2 Position) 22W10786100
Harness, Jumper 08/07/2018 5 Part No. W11294817 Rev. A

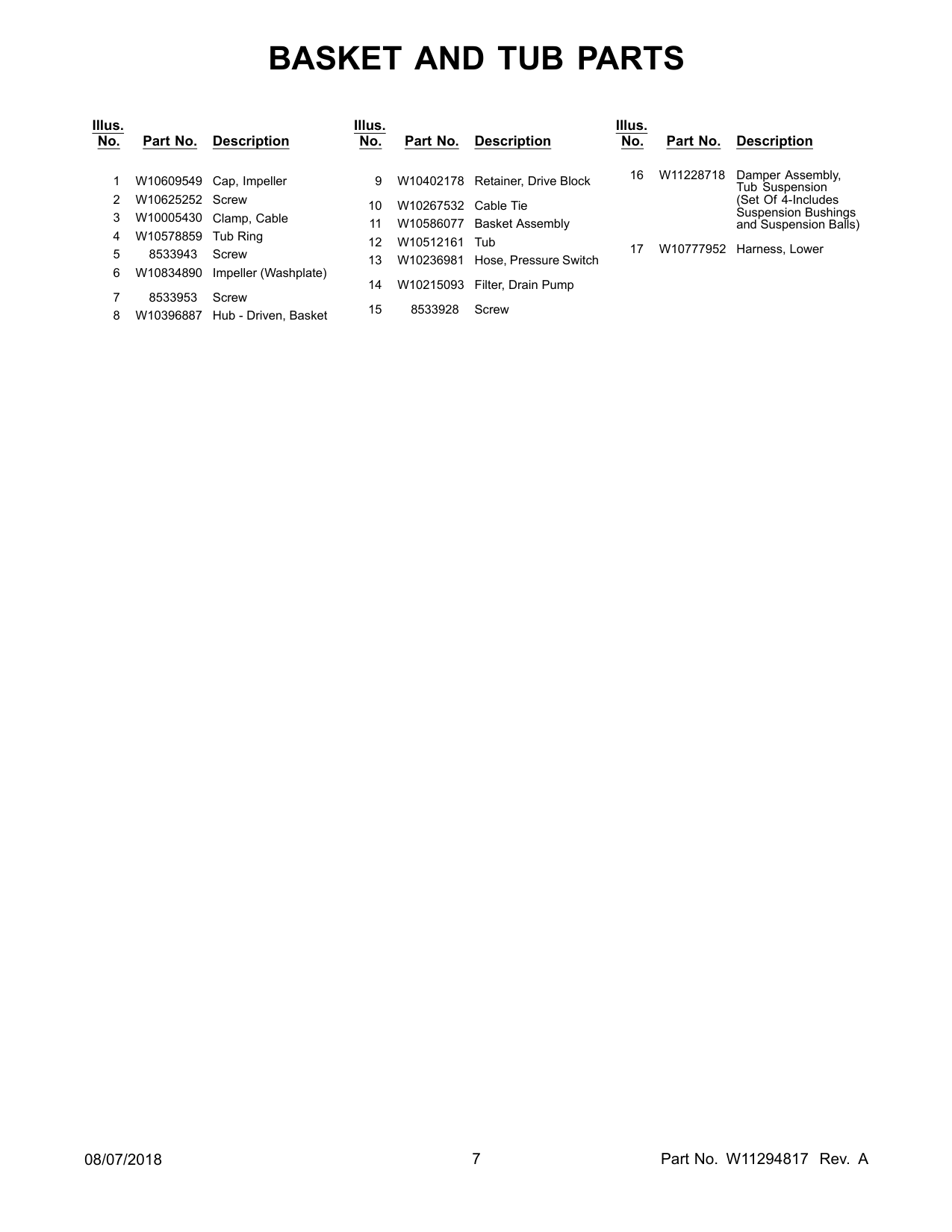

Basket And Tub Parts
08/07/2018 6 Part No. W11294817 Rev. A

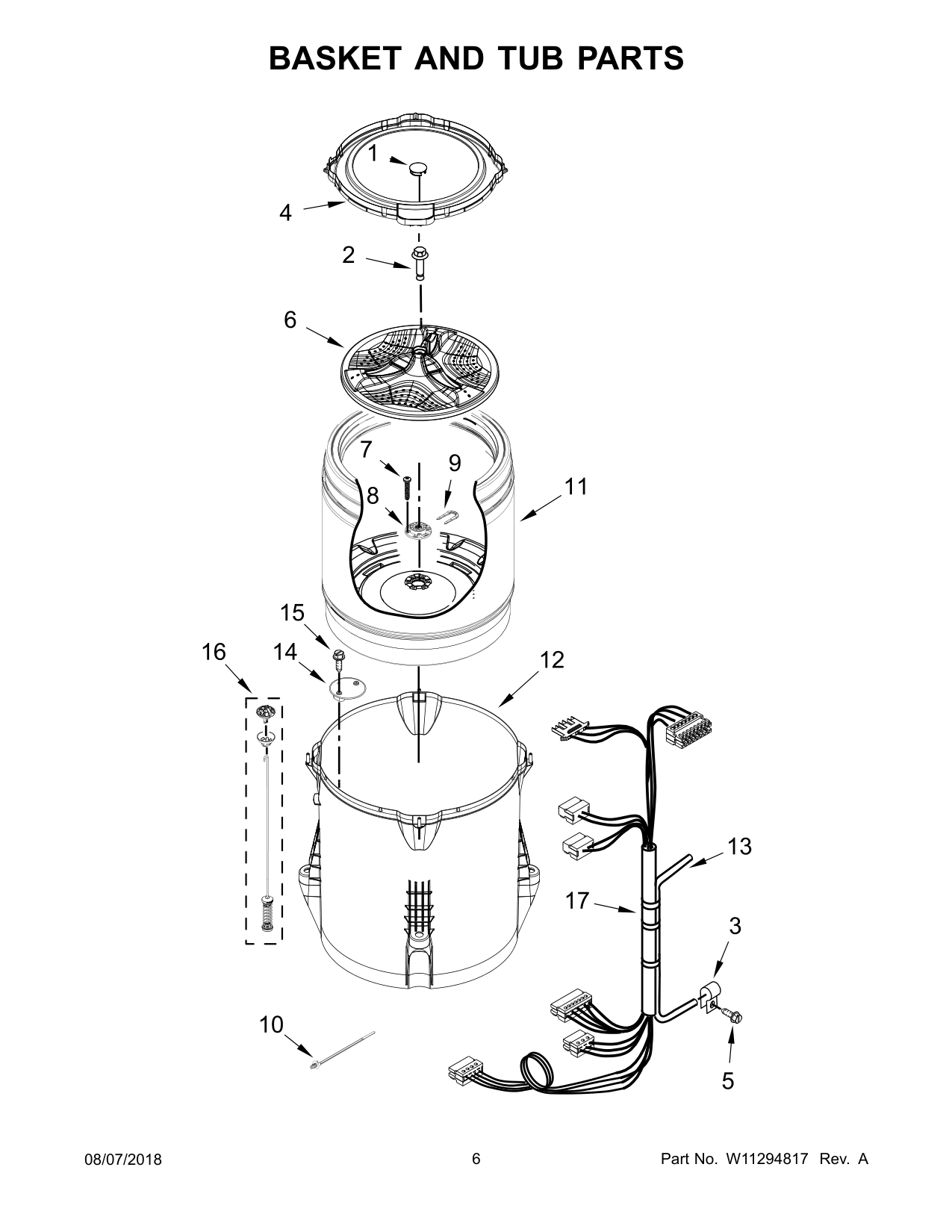

Basket And Tub Parts
Illus. No. Part No. Description 1W10609549
Cap, Impeller 2W10625252
Screw 3W10005430
Clamp, Cable 4W10578859
Tub Ring 5 8533943 Screw 6W10834890
Impeller (Washplate) 7 8533953 Screw 8W10396887
Hub - Driven, Basket Illus. No. Part No. Description 9W10402178
Retainer, Drive Block 10W10267532
Cable Tie 11W10586077
Basket Assembly 12W10512161
Tub 13W10236981
Hose, Pressure Switch 14W10215093
Filter, Drain Pump 15 8533928 Screw Illus. No. Part No. Description 16W11228718
Damper Assembly, Tub Suspension (Set Of 4-Includes Suspension Bushings and Suspension Balls) 17W10777952
Harness, Lower 08/07/2018 7 Part No. W11294817 Rev. A

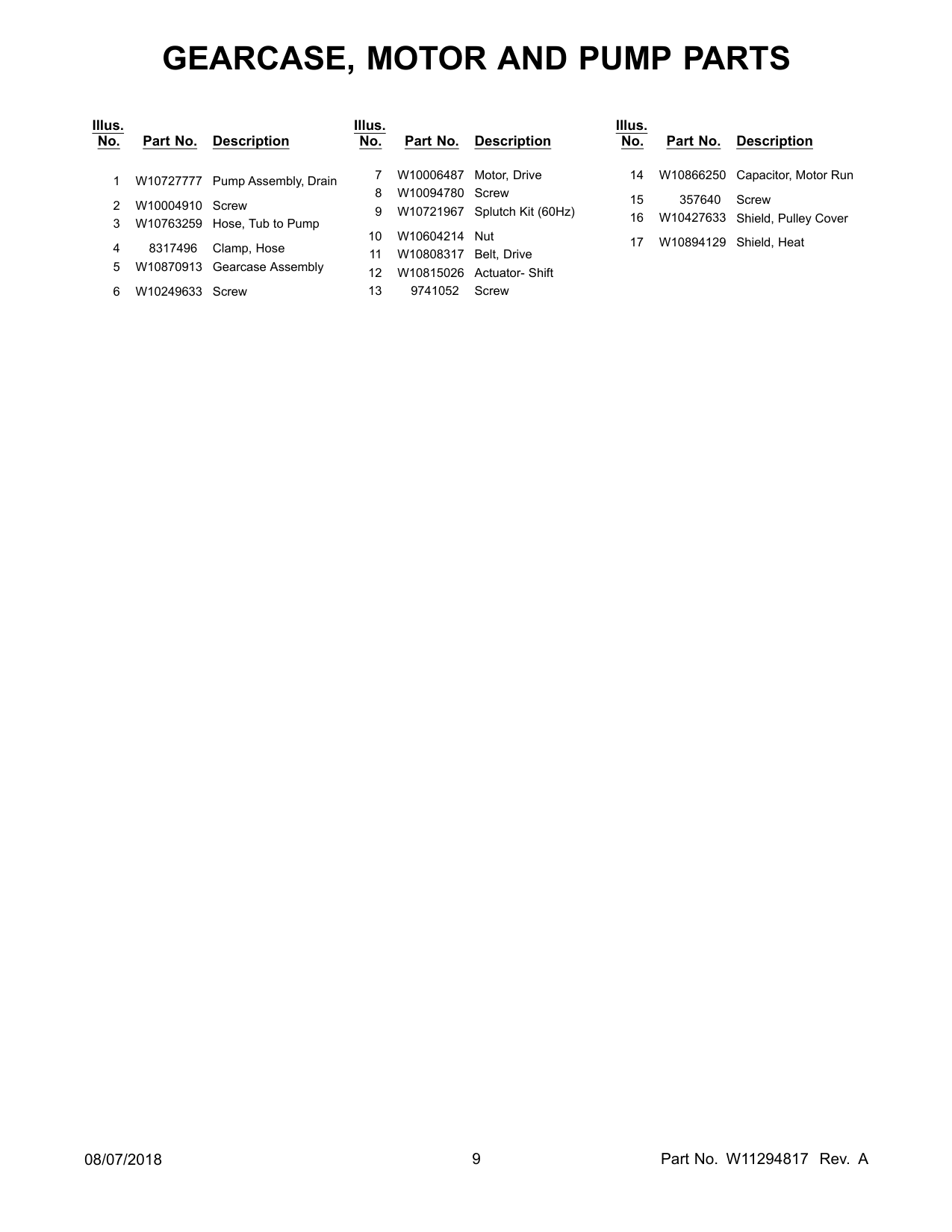

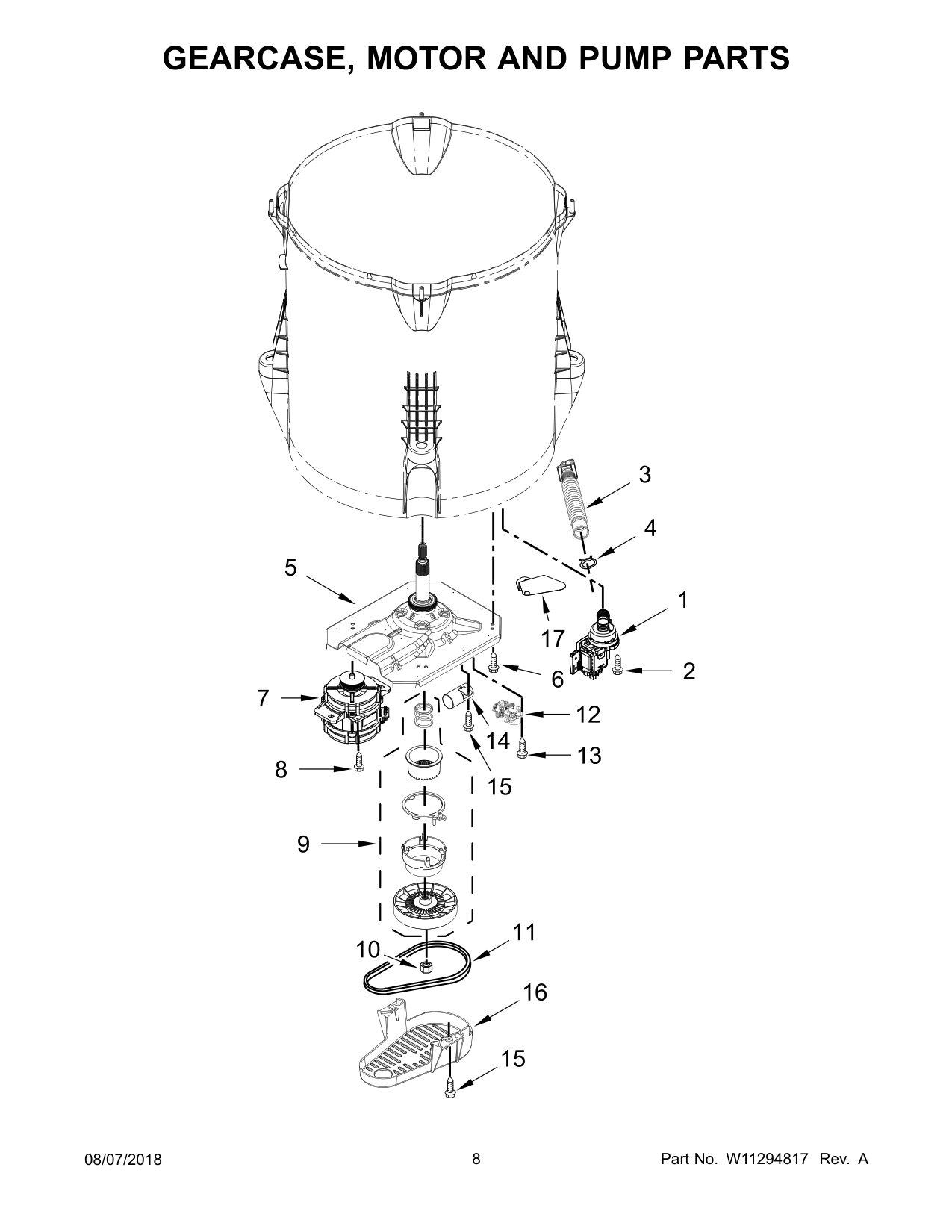

Gearcase, Motor And Pump Parts
08/07/2018 8 Part No. W11294817 Rev. A
Gearcase, Motor And Pump Parts
Illus. No. Part No. Description 1W10727777
Pump Assembly, Drain 2W10004910
Screw 3W10763259
Hose, Tub to Pump 4 8317496 Clamp, Hose 5W10870913
Gearcase Assembly 6W10249633
Screw Illus. No. Part No. Description 7W10006487
Motor, Drive 8W10094780
Screw 9W10721967
Splutch Kit (60Hz) 10W10604214
Nut 11W10808317
Belt, Drive 12W10815026
Actuator- Shift 13 9741052 Screw Illus. No. Part No. Description 14W10866250
Capacitor, Motor Run 15 357640 Screw 16W10427633
Shield, Pulley Cover 17W10894129

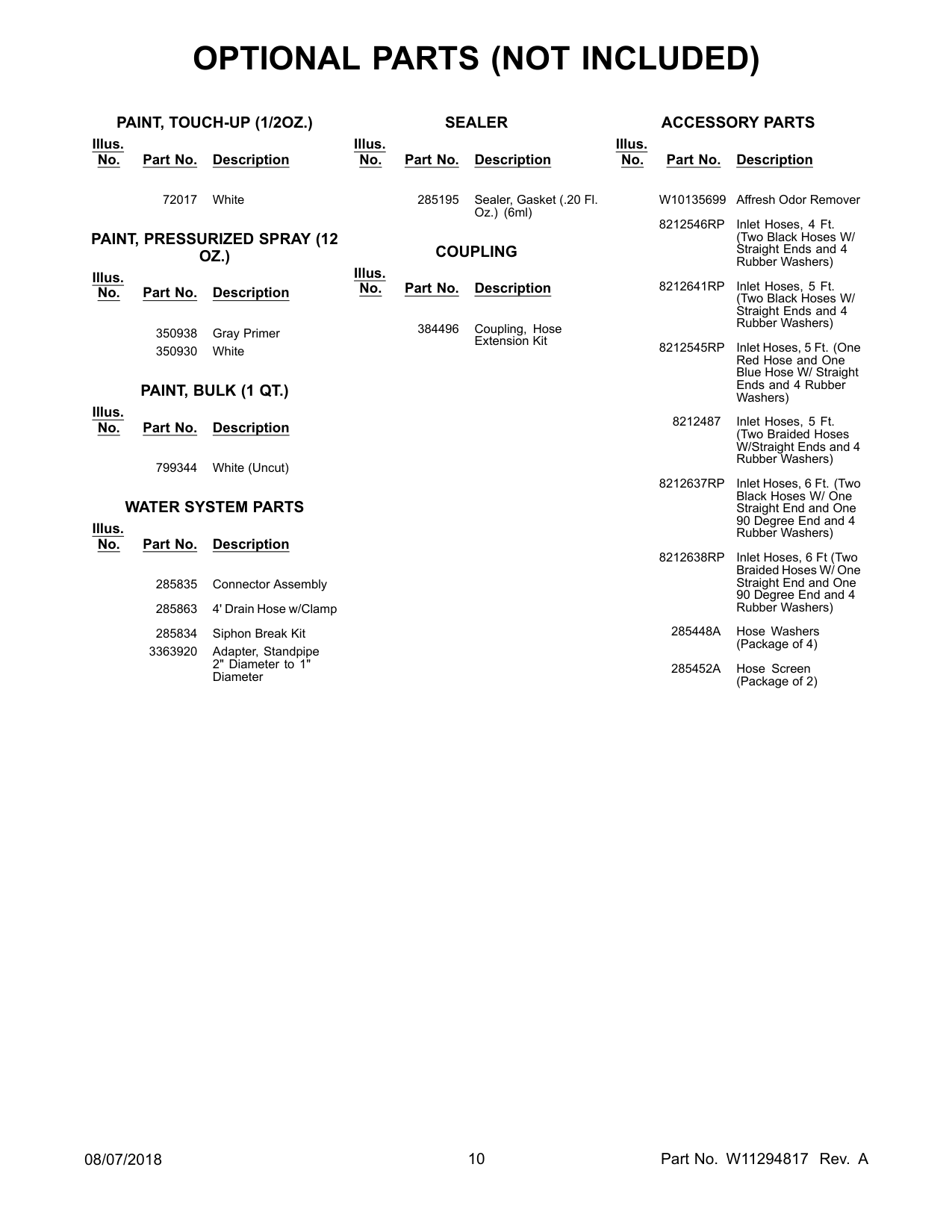

Shield, Heat 08/07/2018 9 Part No. W11294817 Rev. A
