ii

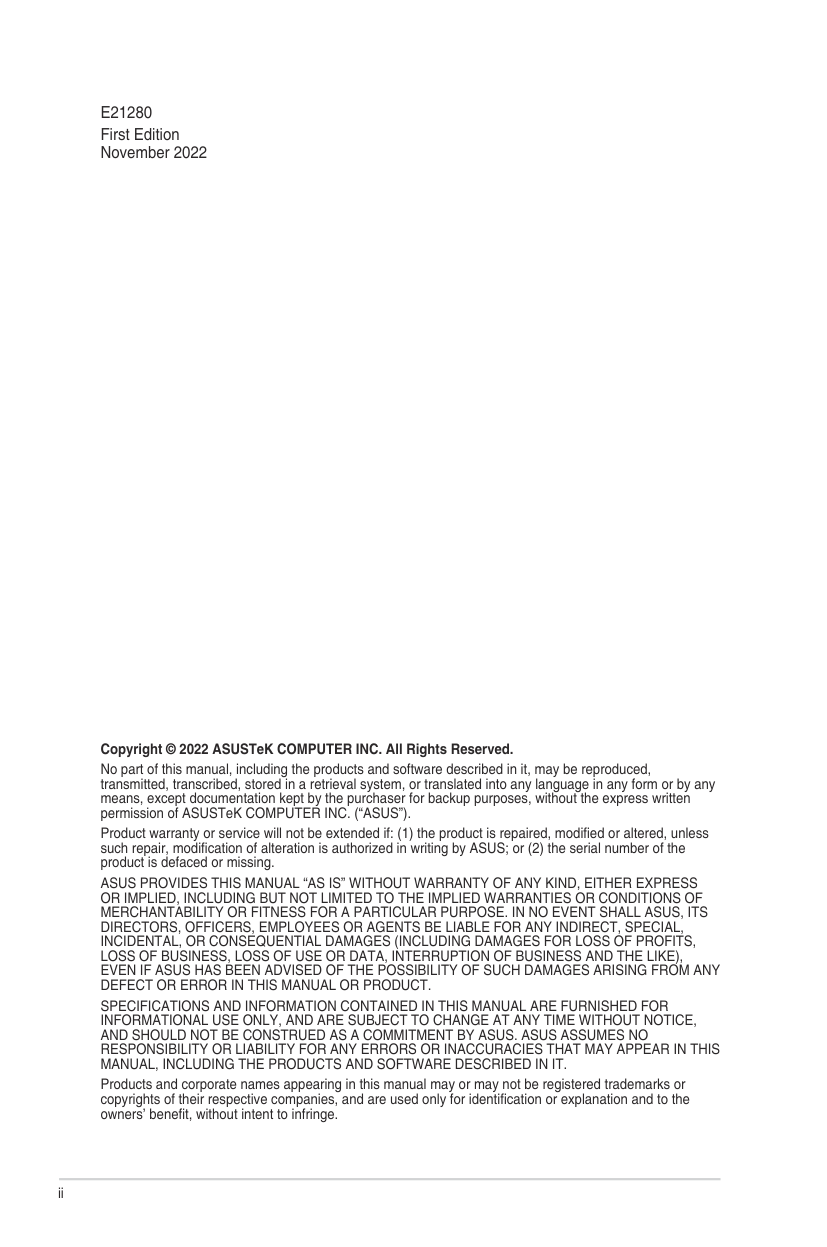

E21280
First Edition November 2022 Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.Asus Provides This Manual “As Is” Without Warranty Of Any Kind, Either Express
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITSDirectors, Officers, Employees Or Agents Be Liable For Any Indirect, Special,
Incidental, Or Consequential Damages (Including Damages For Loss Of Profits,
Loss Of Business, Loss Of Use Or Data, Interruption Of Business And The Like),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANYDefect Or Error In This Manual Or Product.
Specifications And Information Contained In This Manual Are Furnished For
Informational Use Only, And Are Subject To Change At Any Time Without Notice,
And Should Not Be Construed As A Commitment By Asus. Asus Assumes No
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THISManual, Including The Products And Software Described In It.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.iii Contents Safety information....................................................................................................... iv About this guide........................................................................................................... v Package contents........................................................................................................ vi TUF GAMING H770-PRO WIFI specifications summary.......................................... vi Chapter 1: Product Introduction 1.1 Before you proceed.......................................................................................1-1 1.2 Motherboard overview..................................................................................1-2 1.3 Central Processing Unit (CPU).....................................................................1-9 1.4 System memory...........................................................................................1-11 1.5 M.2 installation.............................................................................................1-13 1.6 Wi-Fi antennas installation.........................................................................1-19 Chapter 2: BIOS and RAID Support 2.1 Knowing BIOS................................................................................................2-1 2.2 BIOS Setup program.....................................................................................2-2 2.3 ASUS EZ Flash 3...........................................................................................2-3 2.4 ASUS CrashFree BIOS 3...............................................................................2-4 2.5 RAID configurations......................................................................................2-5 Appendix Notices...................................................................................................................... A-1 Warranty.................................................................................................................... A-8 ASUS contact information..................................................................................... A-10 Service and Support.............................................................................................. A-10

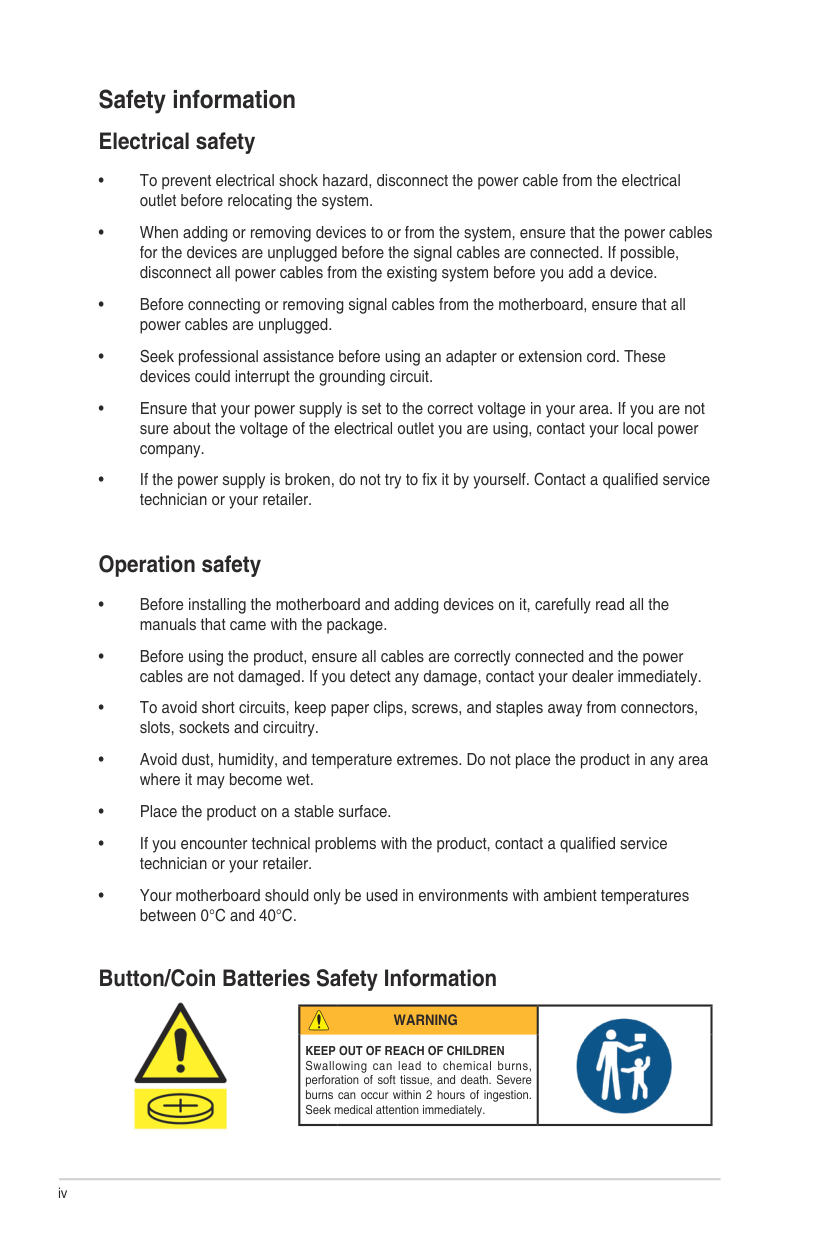

iv Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. • Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged. • Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit. • Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. Operation safety • Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package. • Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry. • Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet. • Place the product on a stable surface. • If you encounter technical problems with the product, contact a qualified service technician or your retailer. • Your motherboard should only be used in environments with ambient temperatures between 0°C and 40°C. Button/Coin Batteries Safety Information
Warning
Keep Out Of Reach Of Children
Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.v About this guide This user guide contains the information you need when installing and configuring the motherboard. How this guide is organized This guide contains the following parts: • Chapter 1: Product Introduction This chapter describes the features of the motherboard and the new technology it supports. It includes description of the switches, jumpers, and connectors on the motherboard. • Chapter 2: BIOS and RAID Support This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility and support on RAID. Where to find more information Refer to the following sources for additional information and for product and software updates.

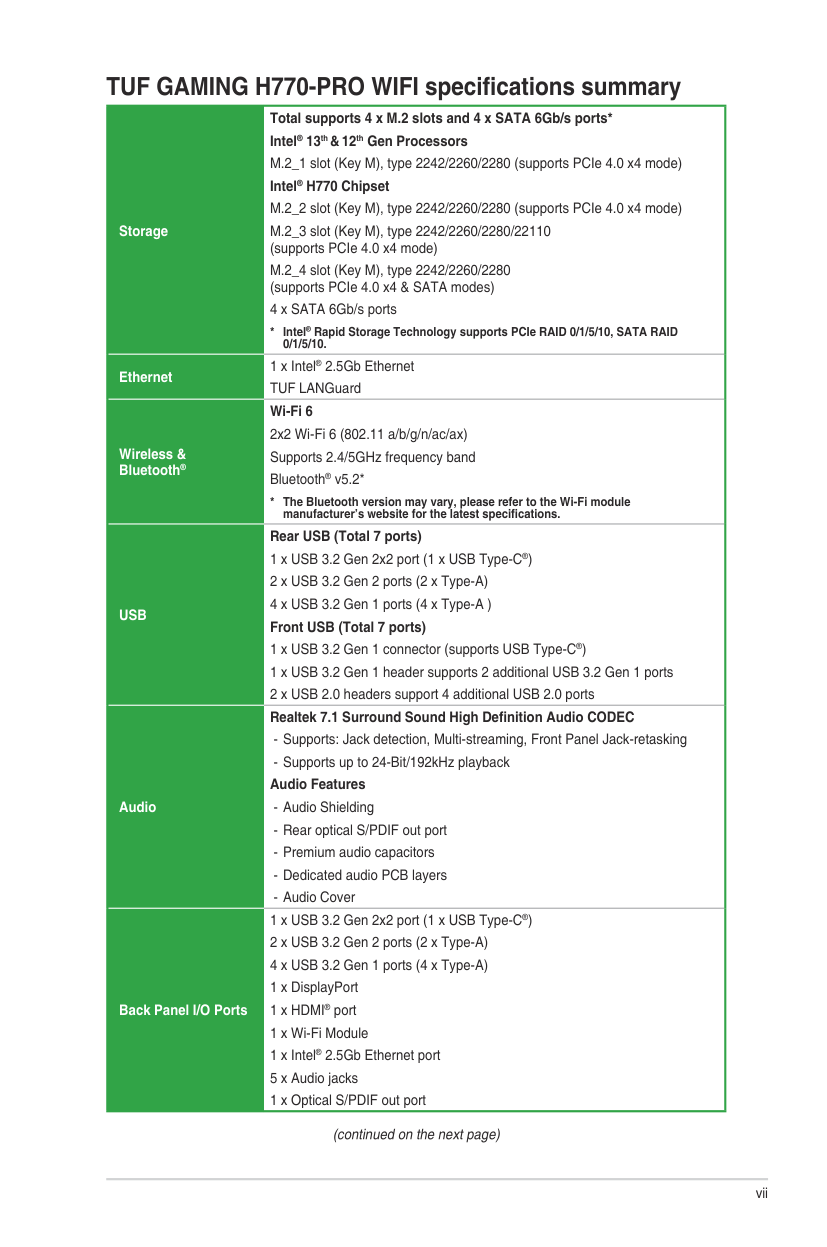

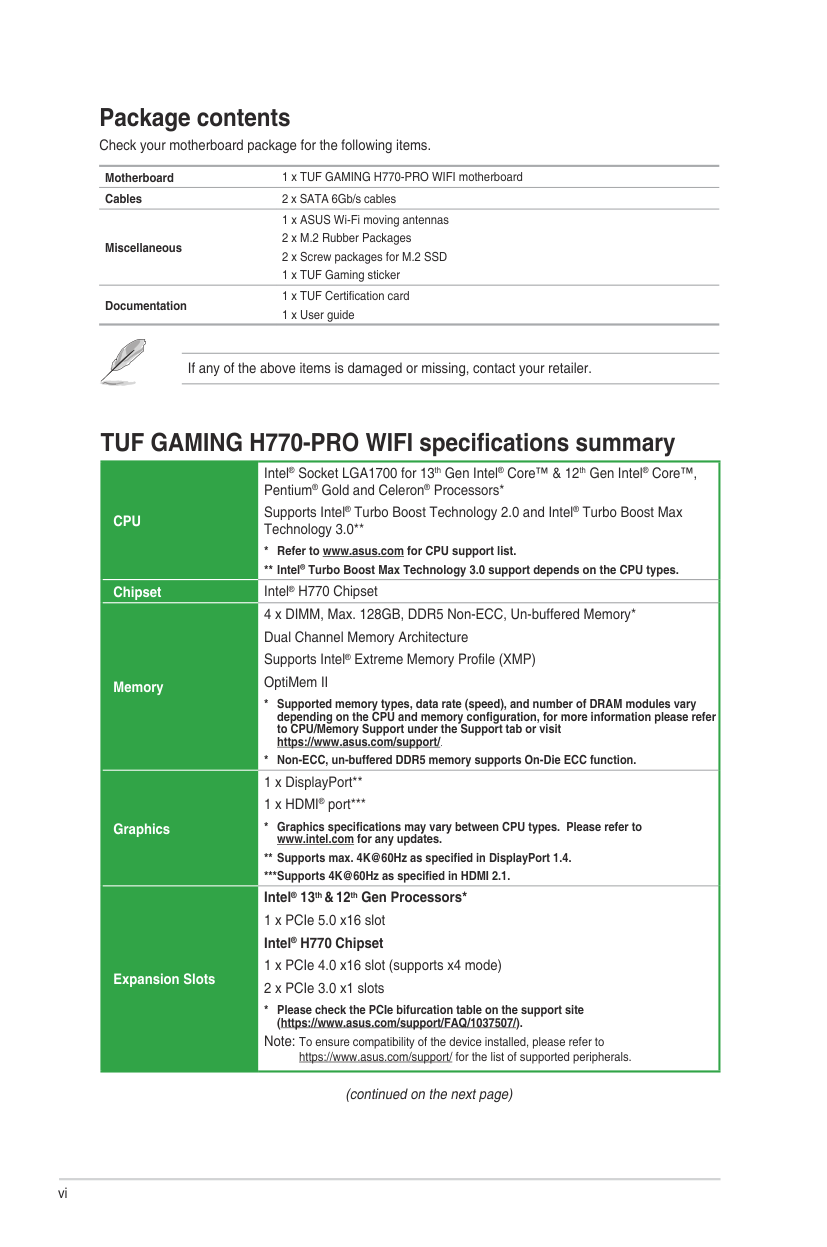

vi TUF GAMING H770-PRO WIFI specifications summary
Cpu
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**vii TUF GAMING H770-PRO WIFI specifications summary Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Usb
Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A ) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODECviii TUF GAMING H770-PRO WIFI specifications summary Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Usb
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special FeaturesAsus Tuf Protection
- Q-Dimm
Asus Ez Diy

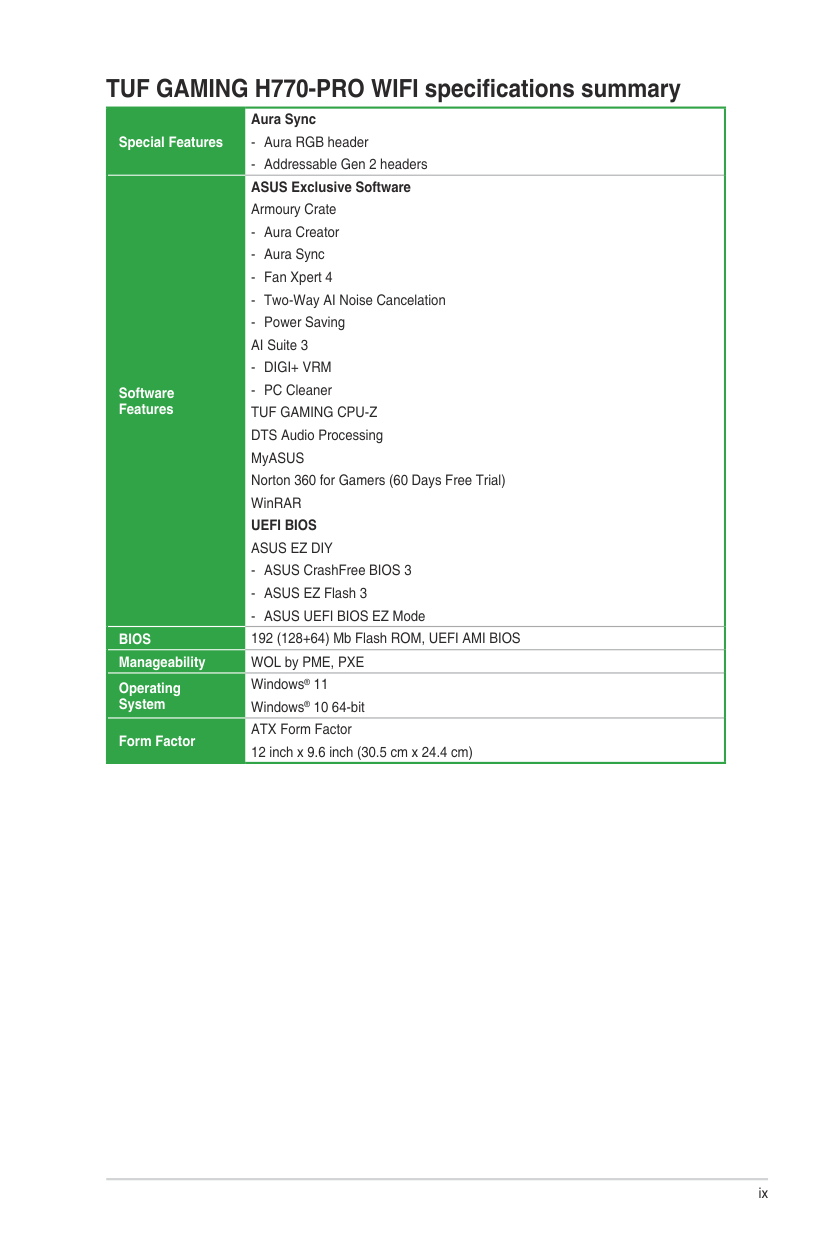

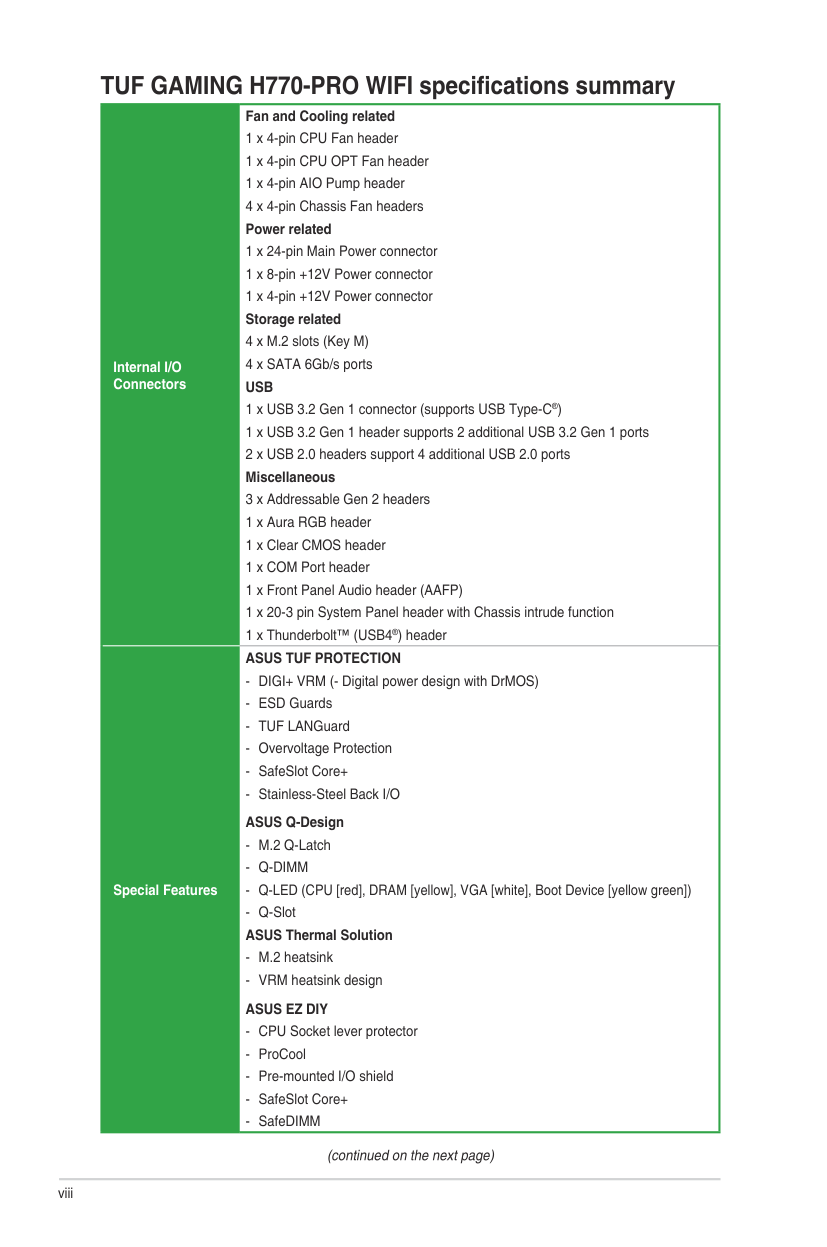

ix TUF GAMING H770-PRO WIFI specifications summary Special Features Aura Sync
- Digi+ Vrm
Tuf Gaming Cpu-Z
DTS Audio Processing MyASUS Norton 360 for Gamers (60 Days Free Trial) WinRARUefi Bios
Asus Ez Diy
Bios
192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 11 Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)x • Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. • MyASUS offers a variety of support features such as helping to troubleshoot issues, optimizing product performance, integrating ASUS software, and recovery drive creation. Please scan the QR Code for installation guide and FAQ. • For more information on downloading and installing drivers and utilities for your motherboard, please scan the QR code below:
1-1 1
Tuf Gaming H770-Pro Wifi

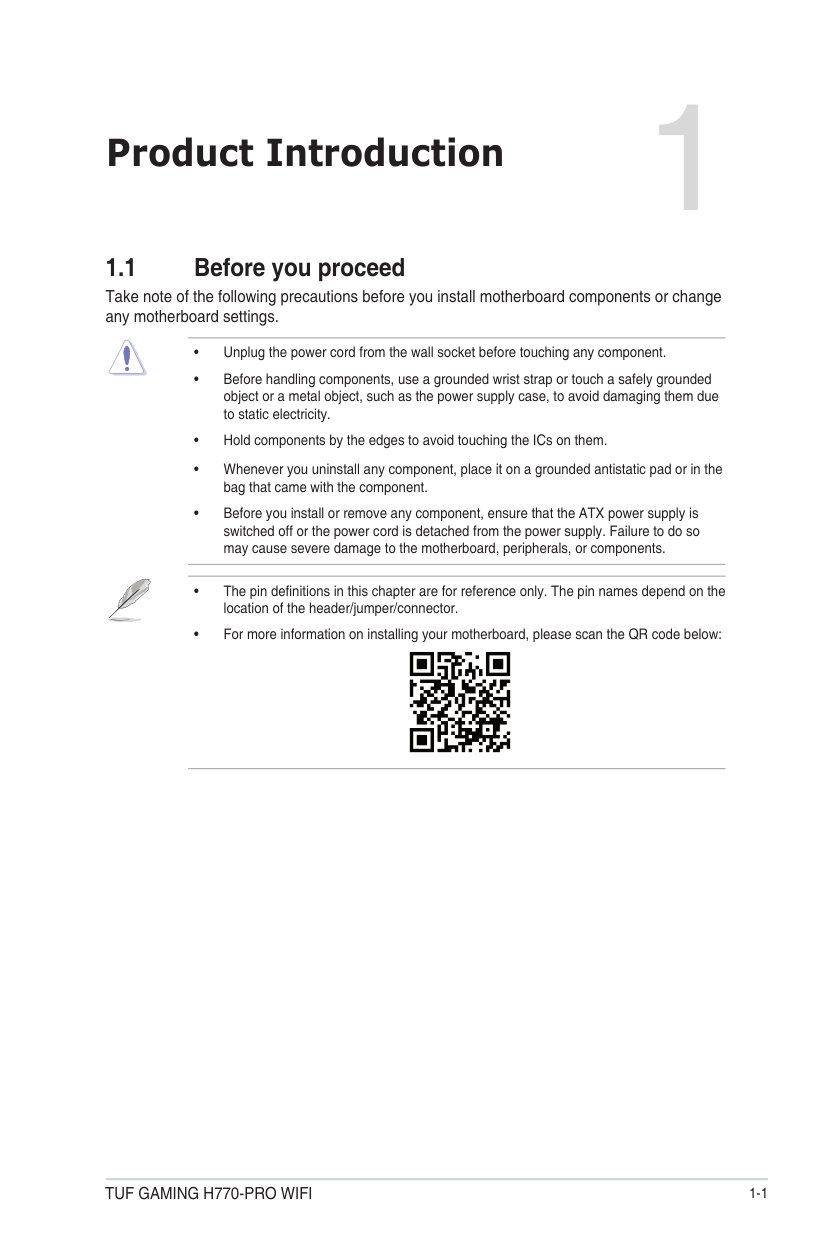

Product Introduction 1.1 Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Hold components by the edges to avoid touching the ICs on them. • Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component. • Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components. • The pin definitions in this chapter are for reference only. The pin names depend on the location of the header/jumper/connector. • For more information on installing your motherboard, please scan the QR code below:1-2 Chapter 1: Product Introduction 1.2 Motherboard overview Place this side towards the rear of the chassis DDR5 DIMM_A1 (64bit, 288-pin module) DDR5 DIMM_A2 (64bit, 288-pin module) DDR5 DIMM_B1 (64bit, 288-pin module) DDR5 DIMM_B2 (64bit, 288-pin module)
Lga1700
Cha_Fan1
Cpu_Fan
Aio_Pump
Cpu_Opt
Com_Debug
M.2_3(Socket3)
M.2_4(Socket3)
M.2_2(Socket3)
M.2_1(Socket3)
Panel
Aafp
Com
Atx_12V_1
Atx_Pwr
U32G1_78
U32G1_C9
Intel®H770
Intel EthernetBattery
Hdmi_Dp
Audio
M.2(Wifi)
SuperI/O
2280 2260 2242M.2_2(Socket3)
Pcie
Sata
Irst
4.0 X4
V
X
M.2_4(Socket3)
M.2_3(Socket3)
Pcie
Sata
Irst
4.0 X4
V
V
Pcie
Sata
Irst
4.0 X4
V
X
2280 22110 2260 2242 2280 2260 2242 2280 2260 2242Pciex1(G3)_2
Pciex1(G3)_1
Pciex16(G4)
Pciex16(G5)
Usb_1011
Usb_1213
Audio CodecU32G2X2_C1
U32G1_E34
Lan_U32G2_34
U32G1_E12
30.5cm(12in)Sata6G_3 Sata6G_4
Sata6G_1
Sata6G_2
128MbBios
64MbBios
Tb_Header
Rgb_Header
Add_Gen 2_1
Add_Gen 2_2
Add_Gen 2_3
Atx_12V_2
Digi+
Vrm
Cha_Fan3
Cha_Fan4
Cha_Fan2
Clrtc
24.4cm(9.6in)Cpu
Dram
Vga
Boot
M.2_1(Socket3)
Pcie
Sata
Irst
4.0 X4
V
X

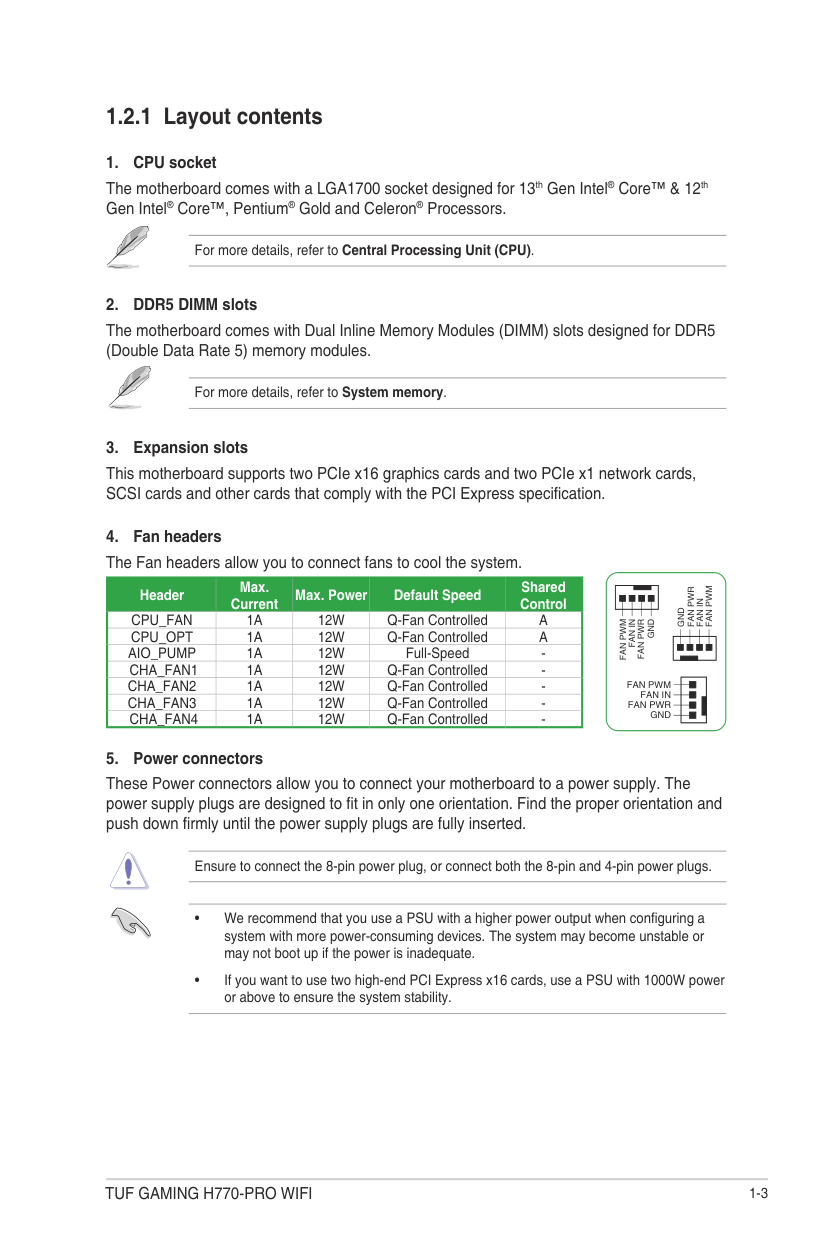

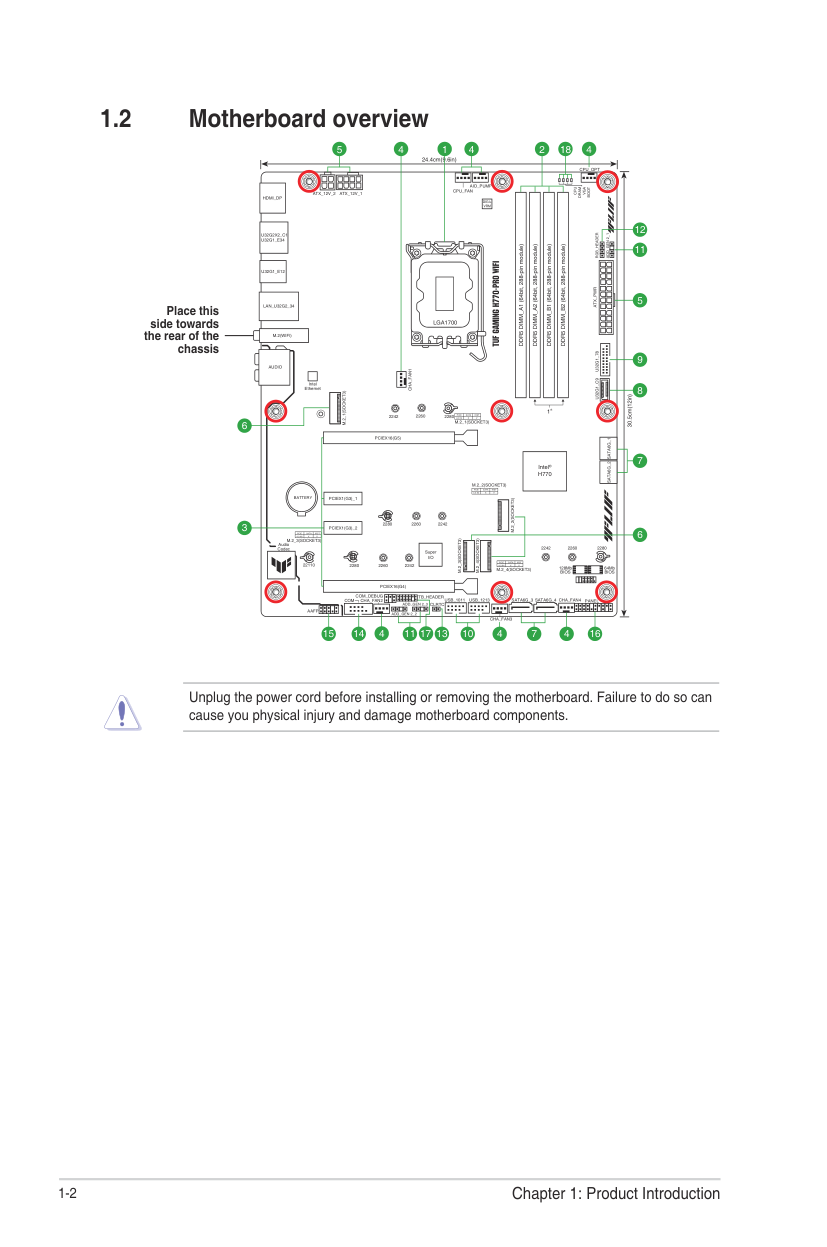

1 st 8 9 7 6 5 11 12 4 17 11 14 15 3 5 2 1 4 18 4 13 16 4 7 10 4 4 6 Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.1-3 1.2.1 Layout contents
Cpu_Fan
1A
12W
Q-Fan ControlledA
Cpu_Opt
1A
12W
Q-Fan ControlledA
Aio_Pump
1A
12W
Full-SpeedCha_Fan1
1A
12W
Q-Fan ControlledCha_Fan2
1A
12W
Q-Fan ControlledCha_Fan3
1A
12W
Q-Fan ControlledCha_Fan4
1A
12W
Q-Fan ControlledFan Pwm
Fan In
Fan Pwr
Gnd
Gnd
Fan Pwr
Fan In
Fan Pwm
Fan Pwm
Fan In
Fan Pwr
Gnd
Tuf Gaming H770-Pro Wifi
1-4

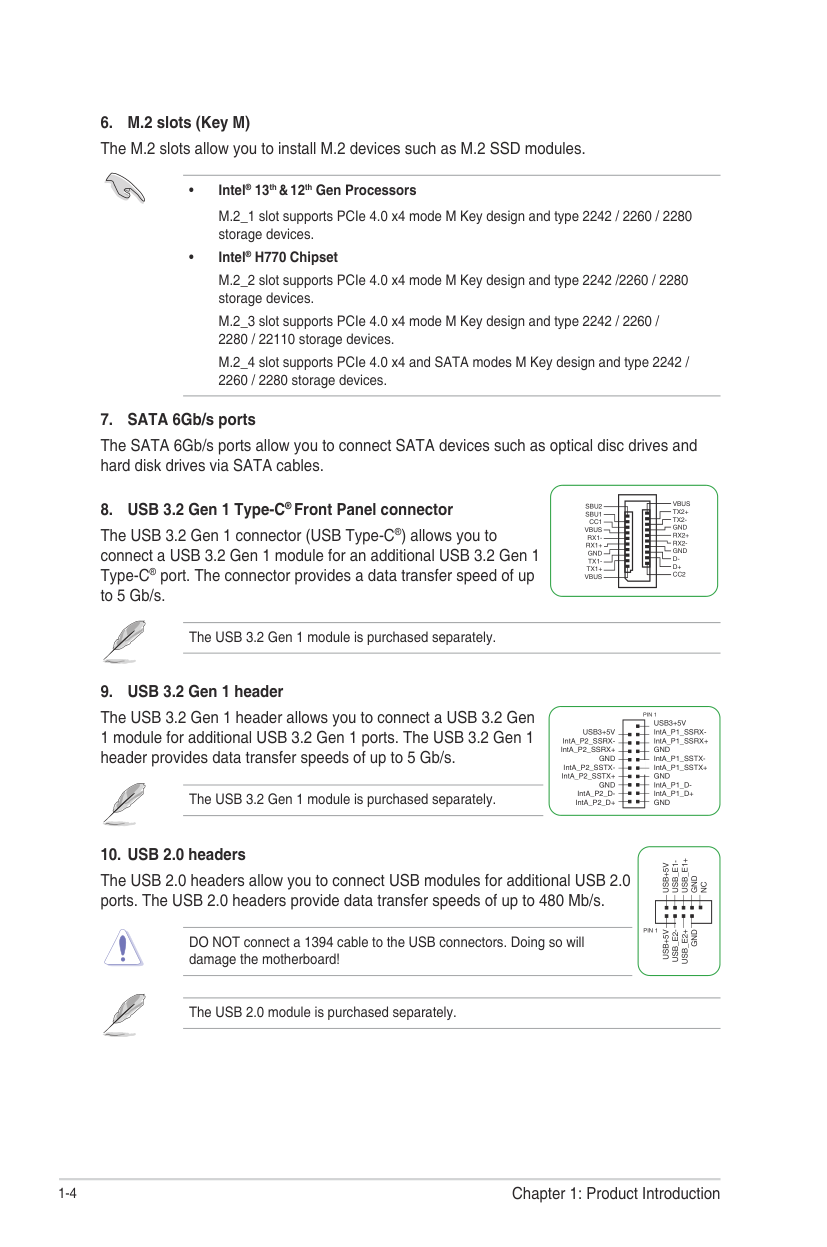

M.2_1 slot supports PCIe 4.0 x4 mode M Key design and type 2242 / 2260 / 2280 storage devices. • Intel® H770 Chipset
M.2_2 slot supports PCIe 4.0 x4 mode M Key design and type 2242 /2260 / 2280 storage devices.
M.2_3 slot supports PCIe 4.0 x4 mode M Key design and type 2242 / 2260 / 2280 / 22110 storage devices.
M.2_4 slot supports PCIe 4.0 x4 and SATA modes M Key design and type 2242 / 2260 / 2280 storage devices.
Sbu2
Sbu1
Cc1
Vbus
Rx1-
Rx1+
Gnd
Tx1-
Tx1+
Vbus
Vbus
Tx2+
Tx2-
Gnd
Rx2+
Rx2-
Gnd
D-
D+
Cc2
Usb3+5V
IntA_P1_SSRX- IntA_P1_SSRX+Gnd
IntA_P1_SSTX- IntA_P1_SSTX+Gnd
IntA_P1_D- IntA_P1_D+Gnd
Pin 1
Usb3+5V
IntA_P2_SSRX- IntA_P2_SSRX+Gnd
IntA_P2_SSTX- IntA_P2_SSTX+Gnd
IntA_P2_D- IntA_P2_D+Usb+5V
Usb_E1-
Usb_E1+
Gnd
Nc
Usb+5V
Usb_E2-
Usb_E2+
Gnd
Pin 1
Chapter 1: Product Introduction1-5

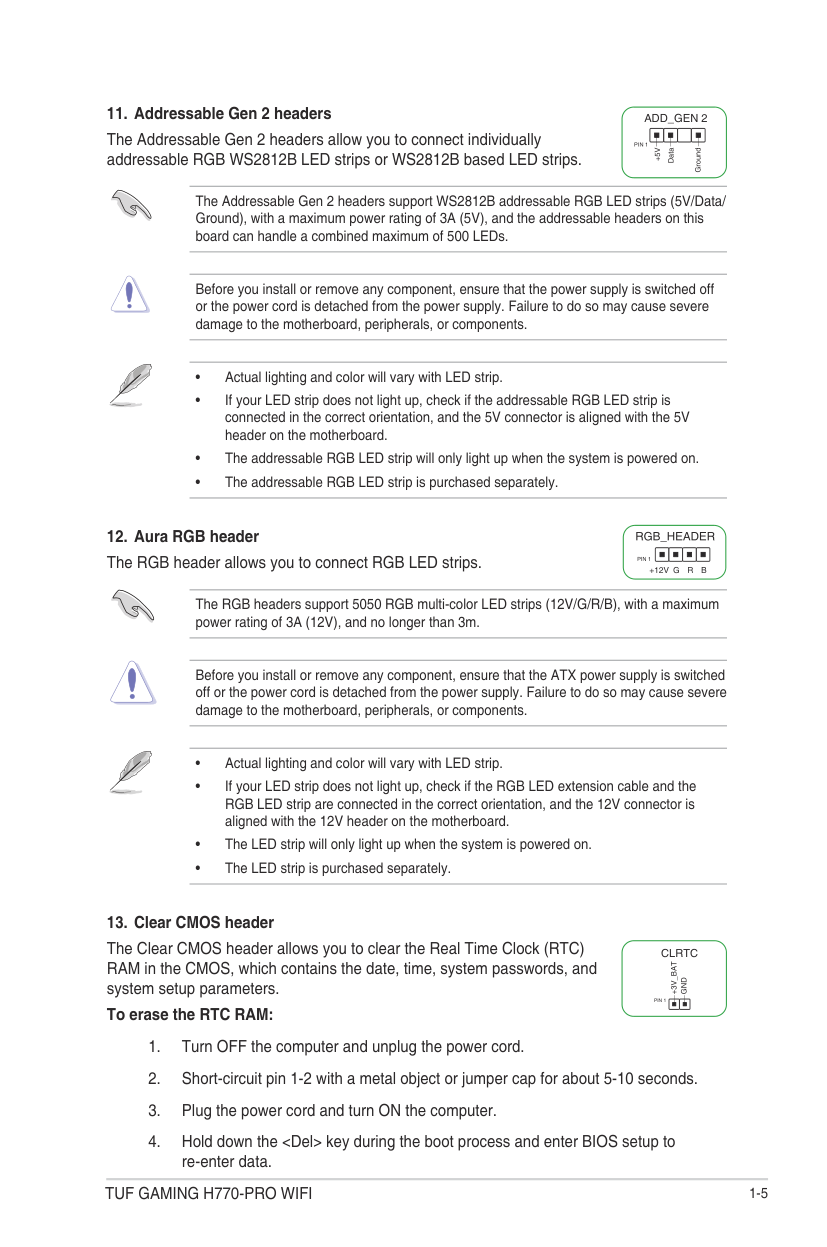

Add_Gen 2
+5V
Data GroundPin 1
Clrtc
+3V_Bat
Gnd
Pin 1
Tuf Gaming H770-Pro Wifi

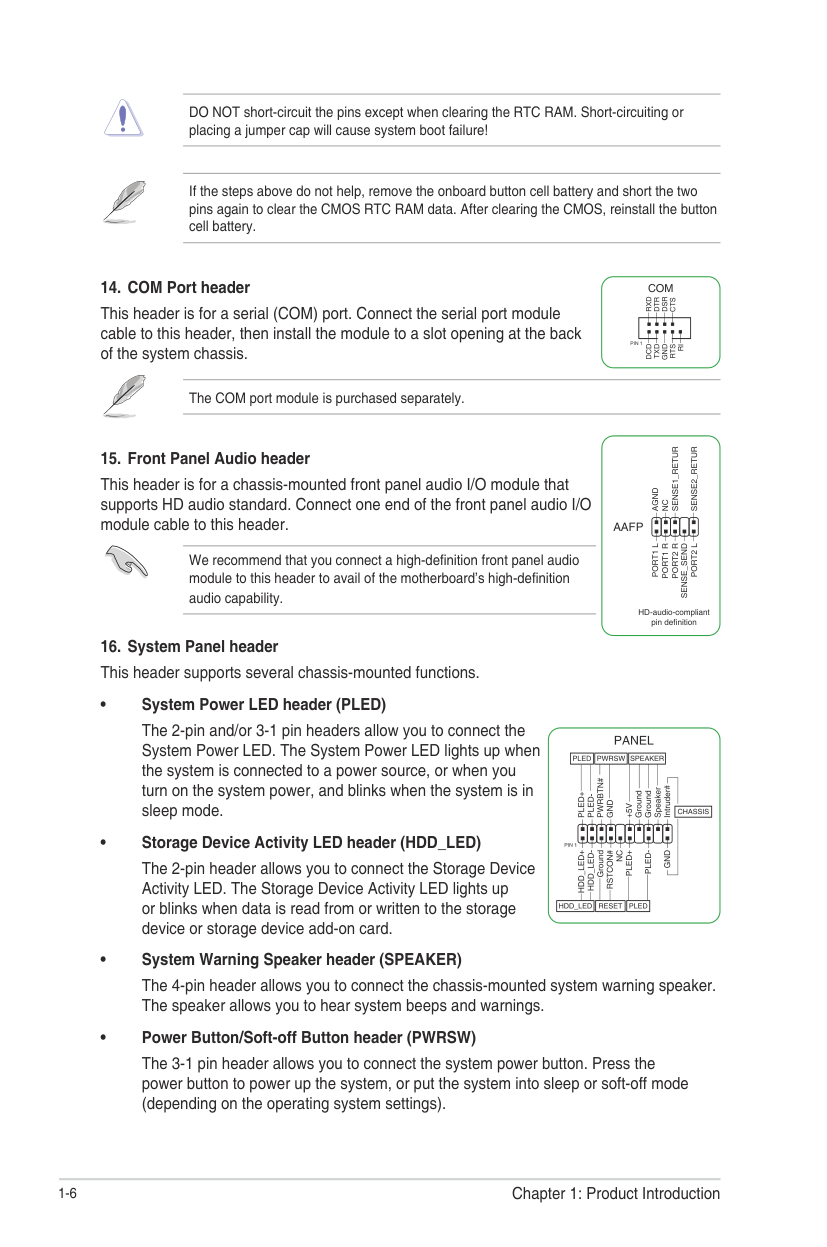

1-6 DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or placing a jumper cap will cause system boot failure! If the steps above do not help, remove the onboard button cell battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button cell battery.
Com
Pin 1
Dcd
Txd
Gnd
Rts
Ri
Rxd
Dtr
Dsr
Cts
Aafp
Agnd
Nc
Sense1_Retur
Sense2_Retur
Port1 L
Port1 R
Port2 R
Sense_Send
Port2 L

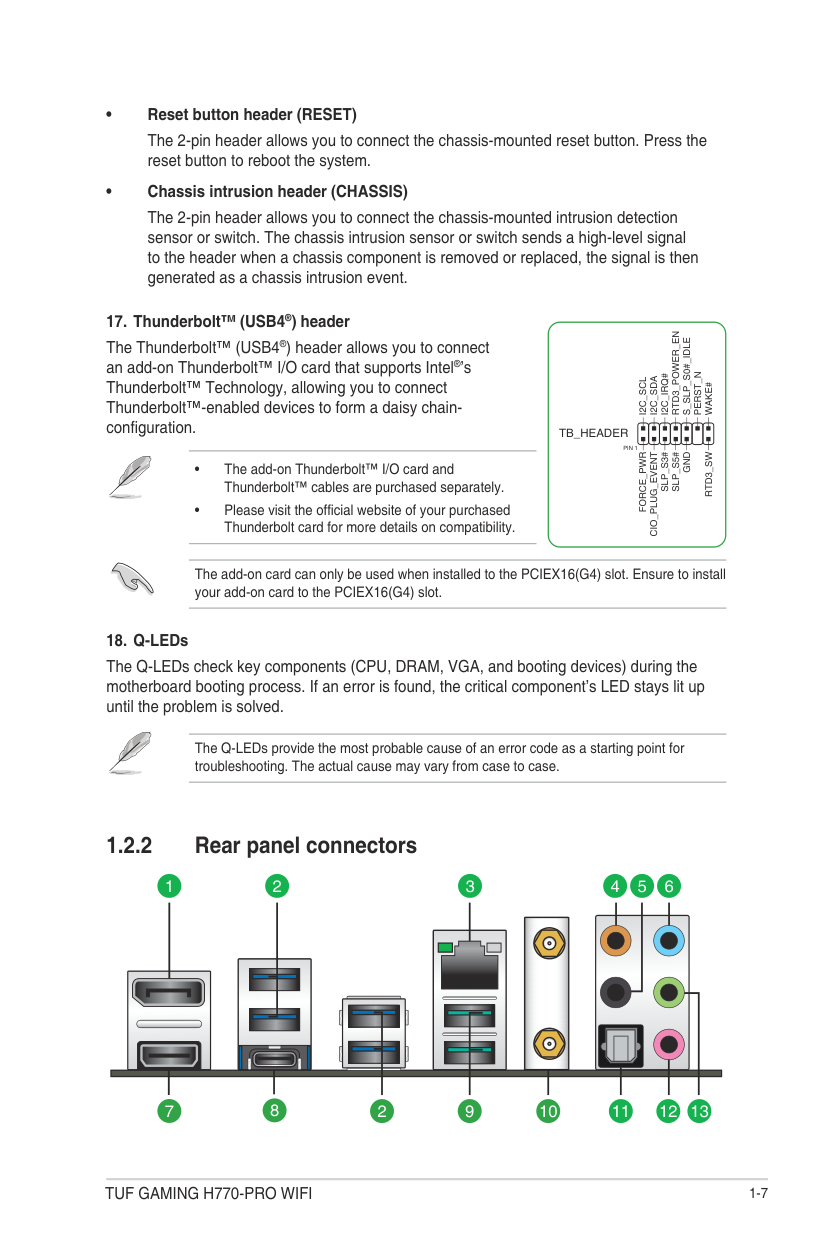

HD-audio-compliant pin definition Chapter 1: Product Introduction1-7 1.2.2 Rear panel connectors 7 10 11 12 13 4 1 2 3 5 6 8 2 9 • Reset button header (RESET) The 2-pin header allows you to connect the chassis-mounted reset button. Press the reset button to reboot the system. • Chassis intrusion header (CHASSIS) The 2-pin header allows you to connect the chassis-mounted intrusion detection sensor or switch. The chassis intrusion sensor or switch sends a high-level signal to the header when a chassis component is removed or replaced, the signal is then generated as a chassis intrusion event.
Pin 1
Force_Pwr
Cio_Plug_Event
Slp_S3#
Slp_S5#
Gnd
Rtd3_Sw
I2C_Scl
I2C_Sda
I2C_Irq#
Rtd3_Power_En
S_Slp_S0#_Idle
Perst_N
Wake#
Tb_Header
Tuf Gaming H770-Pro Wifi
1-8

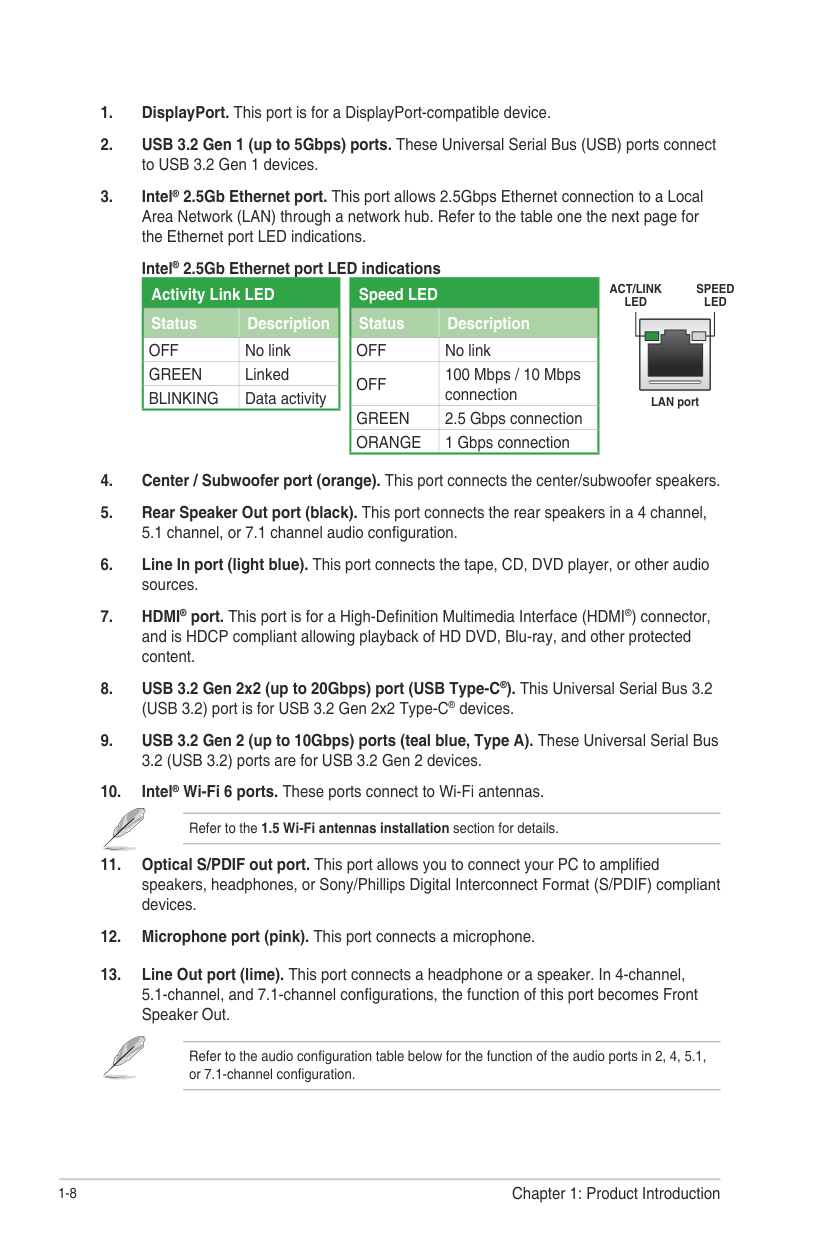

Act/Link
Led
Speed
Led
LAN port Speed LED Status DescriptionOff
No linkOff
100 Mbps / 10 Mbps connectionGreen
2.5 Gbps connectionOrange
1 Gbps connection Activity Link LED Status DescriptionOff
No linkGreen
LinkedBlinking

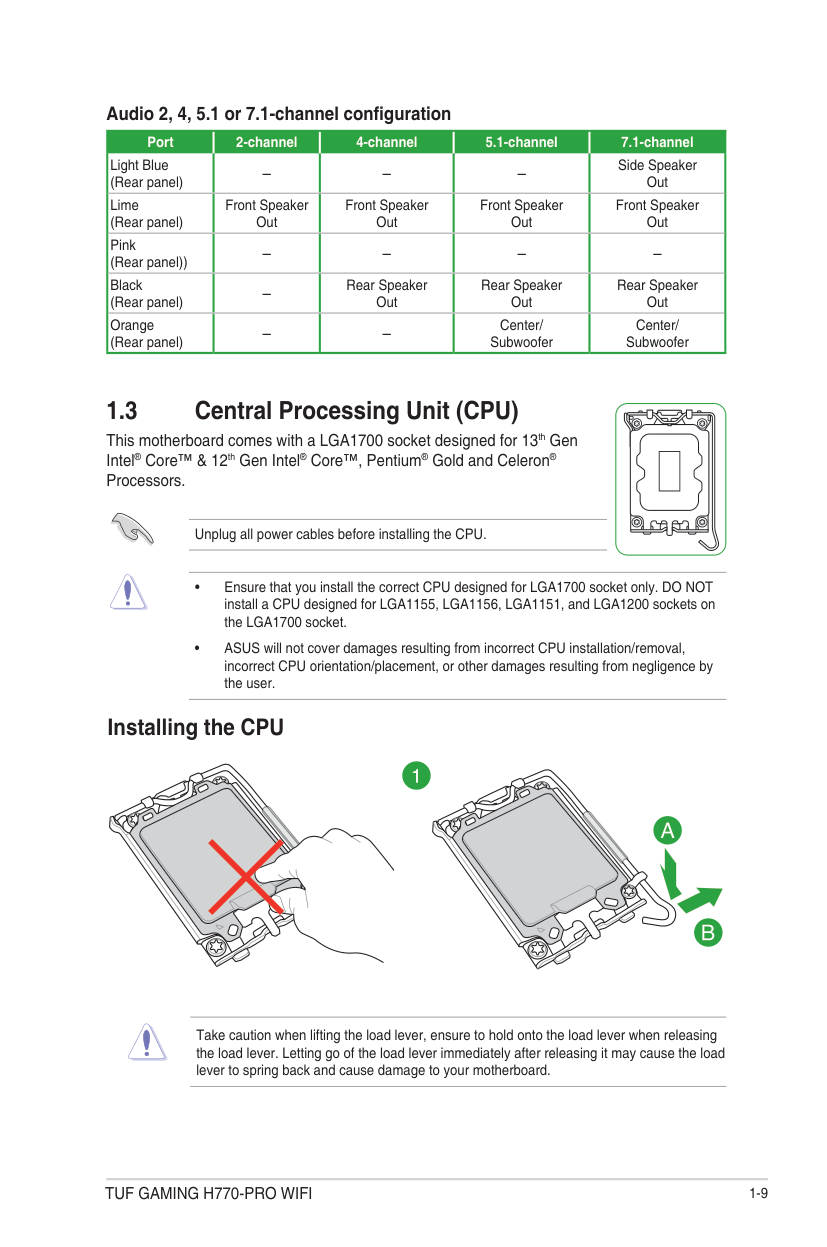

Data activity1-9 Audio 2, 4, 5.1 or 7.1-channel configuration Port 2-channel 4-channel 5.1-channel 7.1-channel Light Blue (Rear panel) – – – Side Speaker Out Lime (Rear panel) Front Speaker Out Front Speaker Out Front Speaker Out Front Speaker Out Pink (Rear panel)) – – – – Black (Rear panel) – Rear Speaker Out Rear Speaker Out Rear Speaker Out Orange (Rear panel) – – Center/ Subwoofer Center/ Subwoofer 1.3 Central Processing Unit (CPU) This motherboard comes with a LGA1700 socket designed for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Unplug all power cables before installing the CPU. • Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT install a CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU Take caution when lifting the load lever, ensure to hold onto the load lever when releasing the load lever. Letting go of the load lever immediately after releasing it may cause the load lever to spring back and cause damage to your motherboard.
Tuf Gaming H770-Pro Wifi

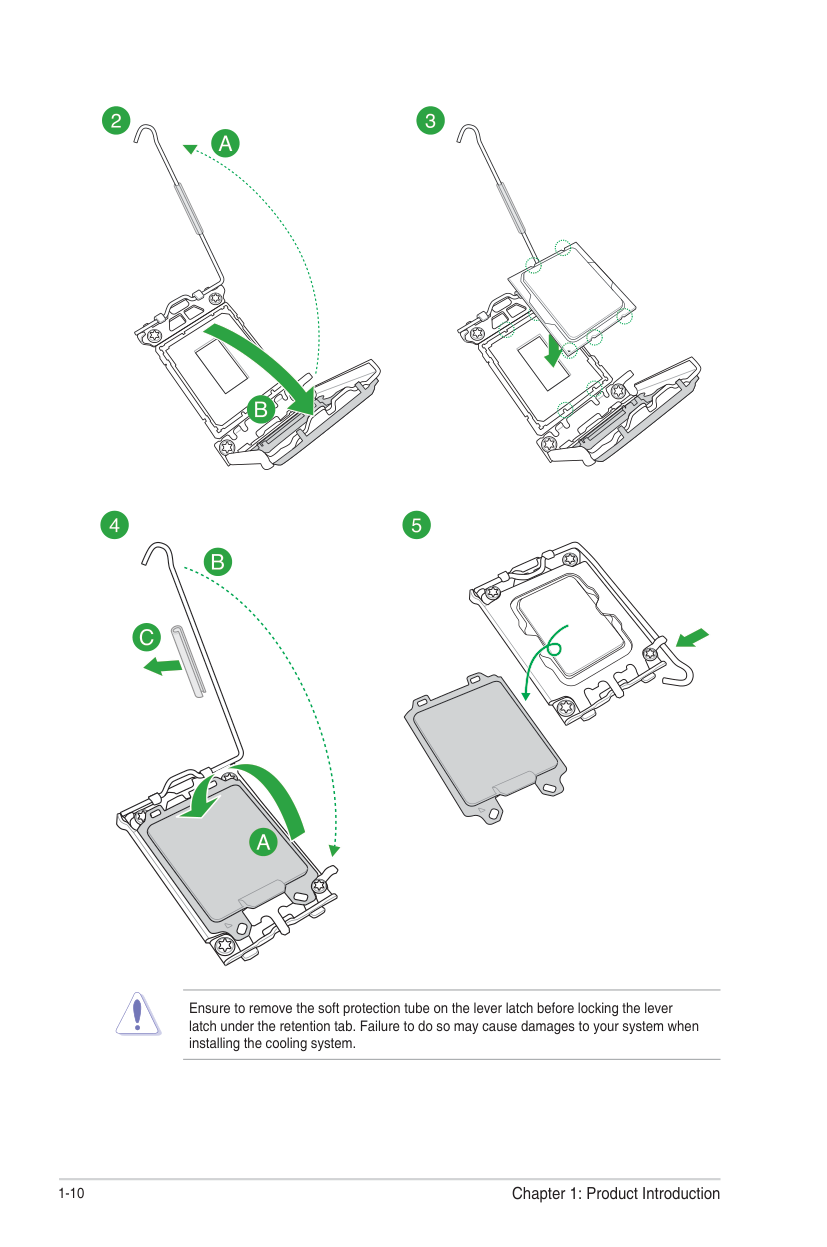

1-10 Ensure to remove the soft protection tube on the lever latch before locking the lever latch under the retention tab. Failure to do so may cause damages to your system when installing the cooling system. Chapter 1: Product Introduction

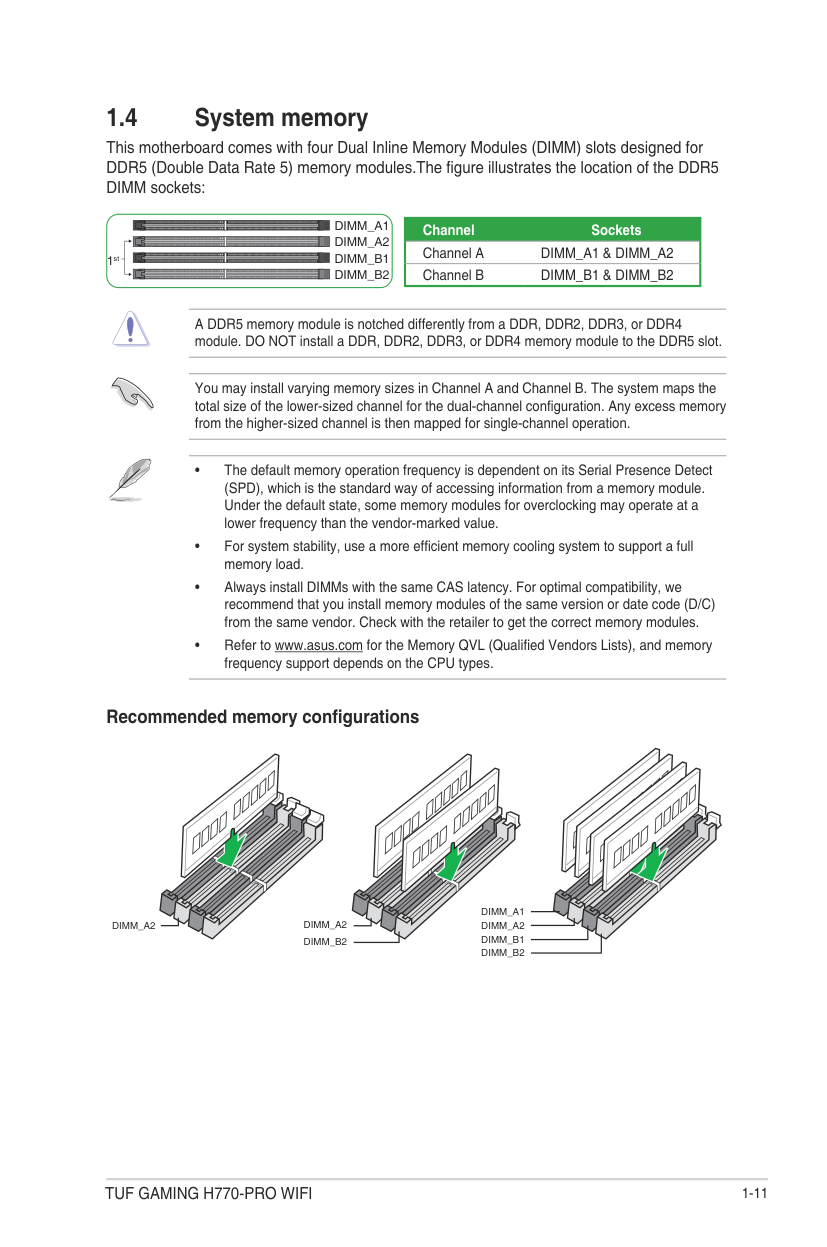

1-11 1.4 System memory This motherboard comes with four Dual Inline Memory Modules (DIMM) slots designed for DDR5 (Double Data Rate 5) memory modules.The figure illustrates the location of the DDR5 DIMM sockets:
Dimm_A1
Dimm_A2
Dimm_B1
Dimm_B2
1st Channel Sockets Channel ADimm_A1 & Dimm_A2
Channel BDimm_B1 & Dimm_B2
A DDR5 memory module is notched differently from a DDR, DDR2, DDR3, or DDR4 module. DO NOT install a DDR, DDR2, DDR3, or DDR4 memory module to the DDR5 slot. You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation. • The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. • For system stability, use a more efficient memory cooling system to support a full memory load. • Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules. • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Recommended memory configurationsDimm_A2
Dimm_B2
Dimm_A2
Dimm_A1
Dimm_A2
Dimm_B1
Dimm_B2
Tuf Gaming H770-Pro Wifi

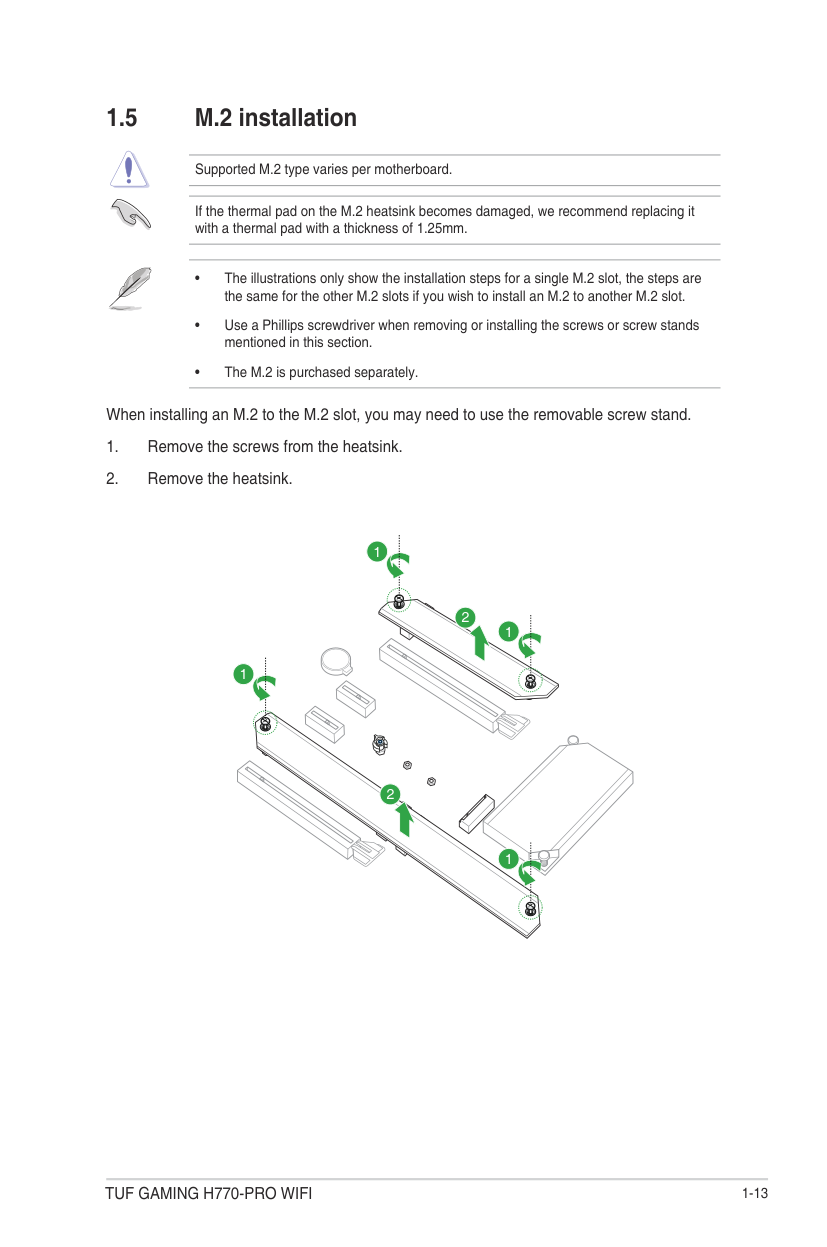

1-13 1.5 M.2 installation Supported M.2 type varies per motherboard. If the thermal pad on the M.2 heatsink becomes damaged, we recommend replacing it with a thermal pad with a thickness of 1.25mm. • The illustrations only show the installation steps for a single M.2 slot, the steps are the same for the other M.2 slots if you wish to install an M.2 to another M.2 slot. • Use a Phillips screwdriver when removing or installing the screws or screw stands mentioned in this section. • The M.2 is purchased separately. When installing an M.2 to the M.2 slot, you may need to use the removable screw stand.
2 2 1 1 1 1
Tuf Gaming H770-Pro Wifi
1-14

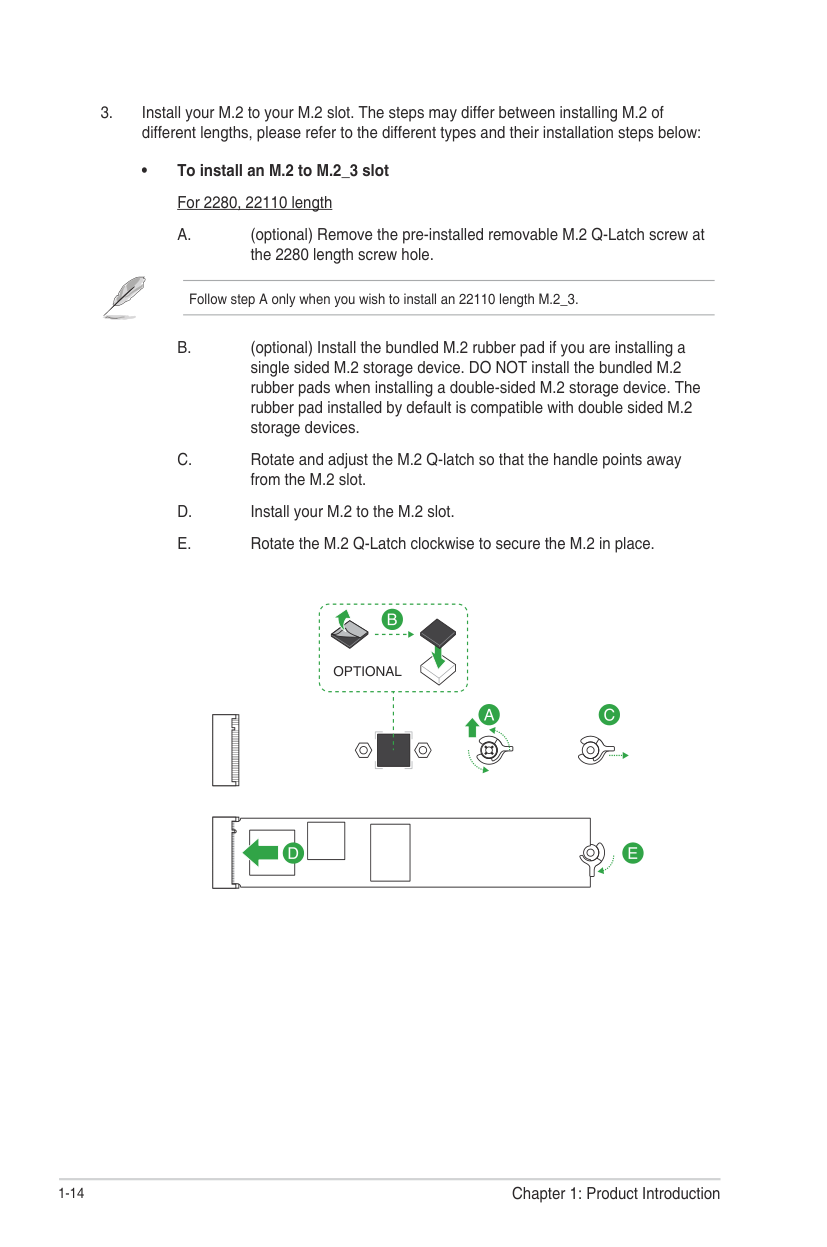

For 2280, 22110 length
A.
(optional) Remove the pre-installed removable M.2 Q-Latch screw at the 2280 length screw hole. Follow step A only when you wish to install an 22110 length M.2_3.B.
(optional) Install the bundled M.2 rubber pad if you are installing a single sided M.2 storage device. DO NOT install the bundled M.2 rubber pads when installing a double-sided M.2 storage device. The rubber pad installed by default is compatible with double sided M.2 storage devices.C.
Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.D.
Install your M.2 to the M.2 slot.E.
Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.Optional
Chapter 1: Product Introduction1-15

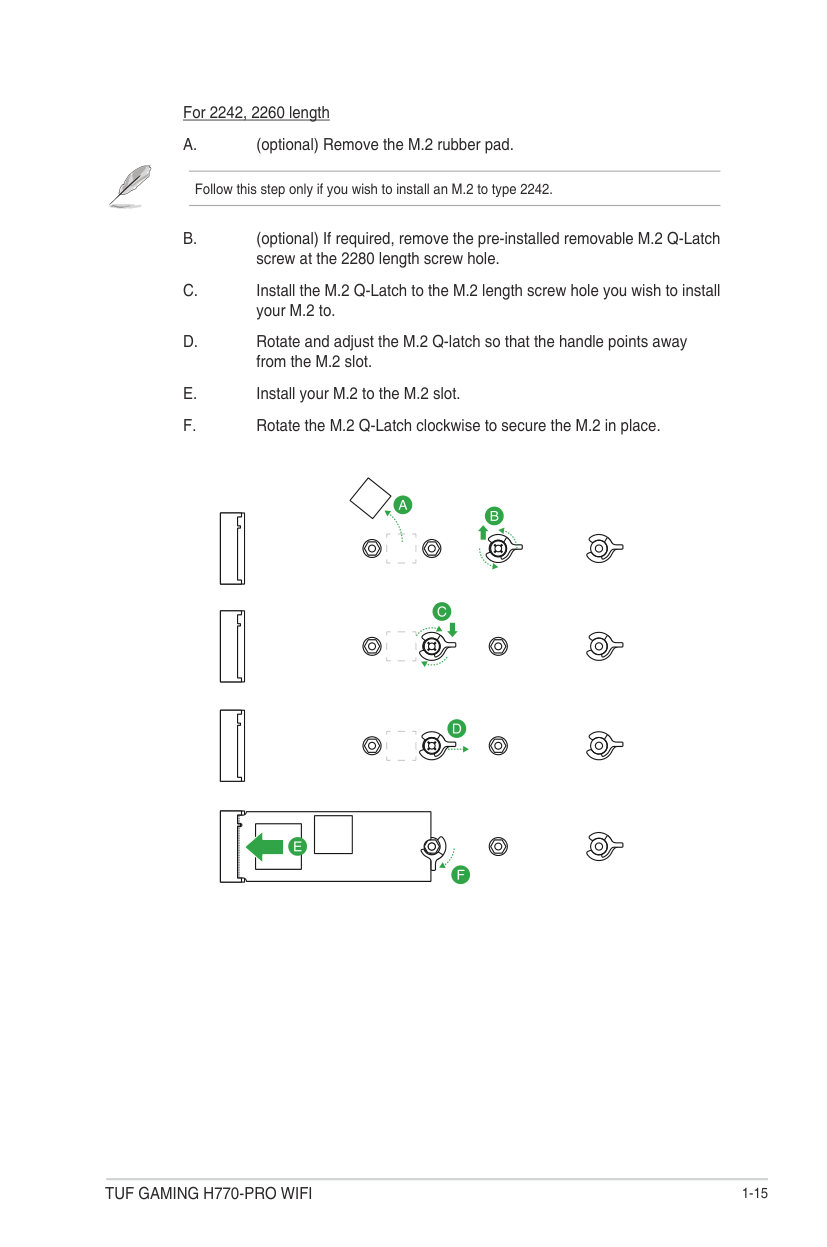

For 2242, 2260 length
A.
(optional) Remove the M.2 rubber pad. Follow this step only if you wish to install an M.2 to type 2242.B.
(optional) If required, remove the pre-installed removable M.2 Q-Latch screw at the 2280 length screw hole.C.
Install the M.2 Q-Latch to the M.2 length screw hole you wish to install your M.2 to.D.
Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.E.
Install your M.2 to the M.2 slot.F.
Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.Tuf Gaming H770-Pro Wifi
1-16
Optional

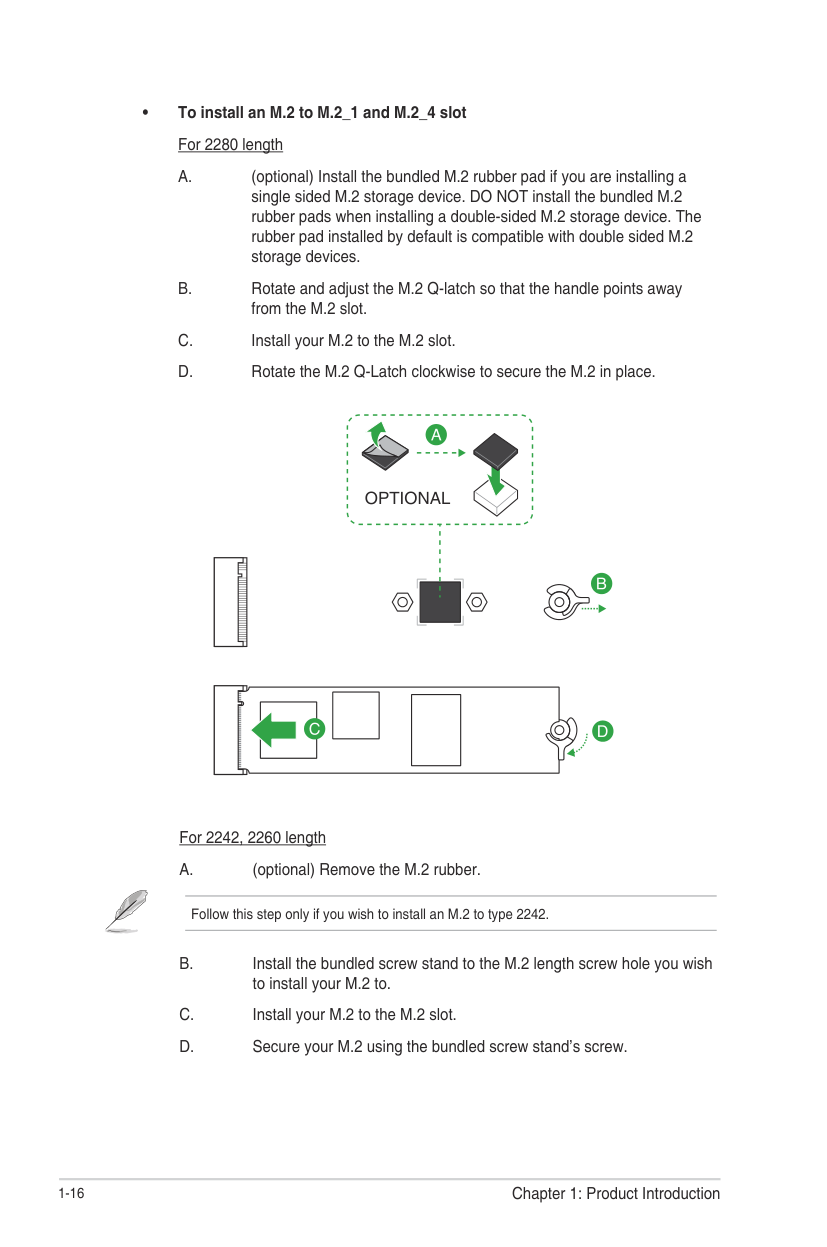

• To install an M.2 to M.2_1 and M.2_4 slotFor 2280 length
A.
(optional) Install the bundled M.2 rubber pad if you are installing a single sided M.2 storage device. DO NOT install the bundled M.2 rubber pads when installing a double-sided M.2 storage device. The rubber pad installed by default is compatible with double sided M.2 storage devices.B.
Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.C.
Install your M.2 to the M.2 slot.D.
Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.For 2242, 2260 length
A.
(optional) Remove the M.2 rubber. Follow this step only if you wish to install an M.2 to type 2242.B.
Install the bundled screw stand to the M.2 length screw hole you wish to install your M.2 to.C.
Install your M.2 to the M.2 slot.D.

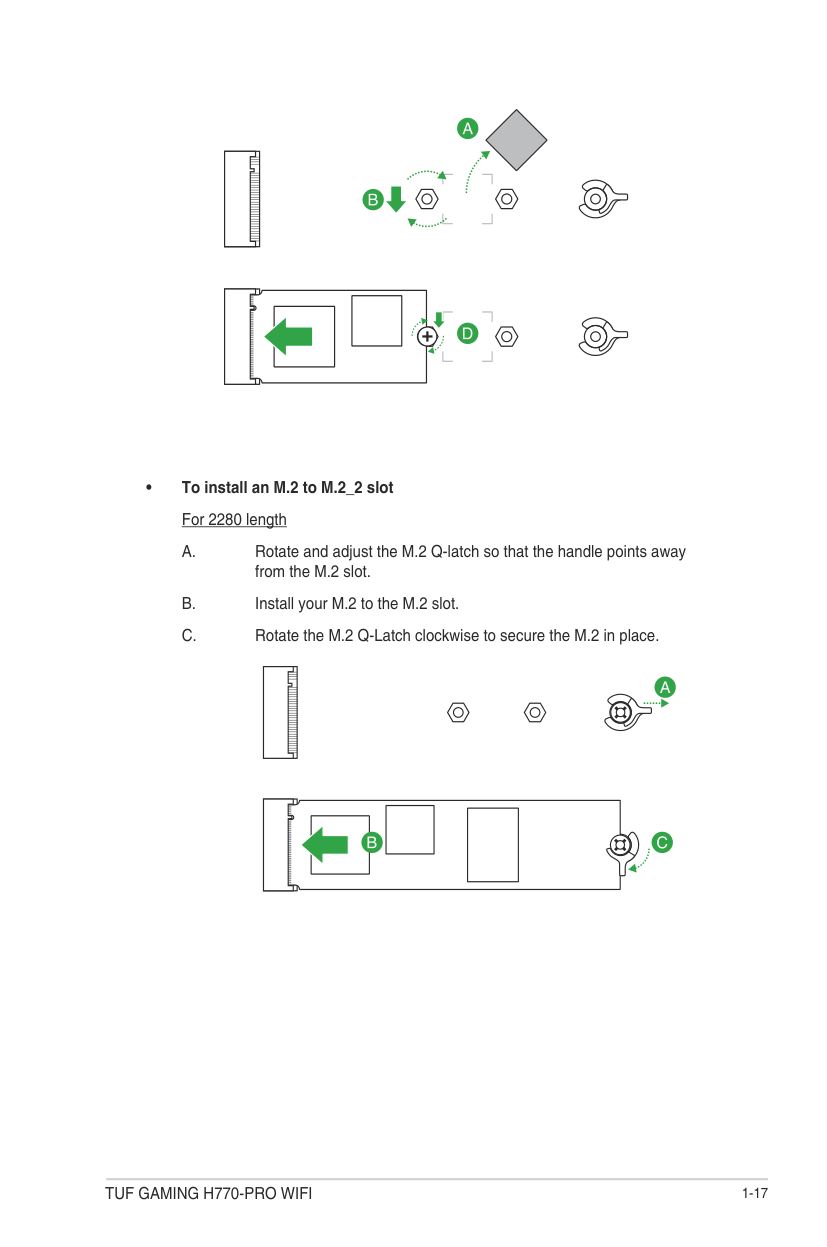

Secure your M.2 using the bundled screw stand’s screw. Chapter 1: Product Introduction1-17 • To install an M.2 to M.2_2 slot
For 2280 length
A.
Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.B.
Install your M.2 to the M.2 slot.C.
Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.Tuf Gaming H770-Pro Wifi
1-18

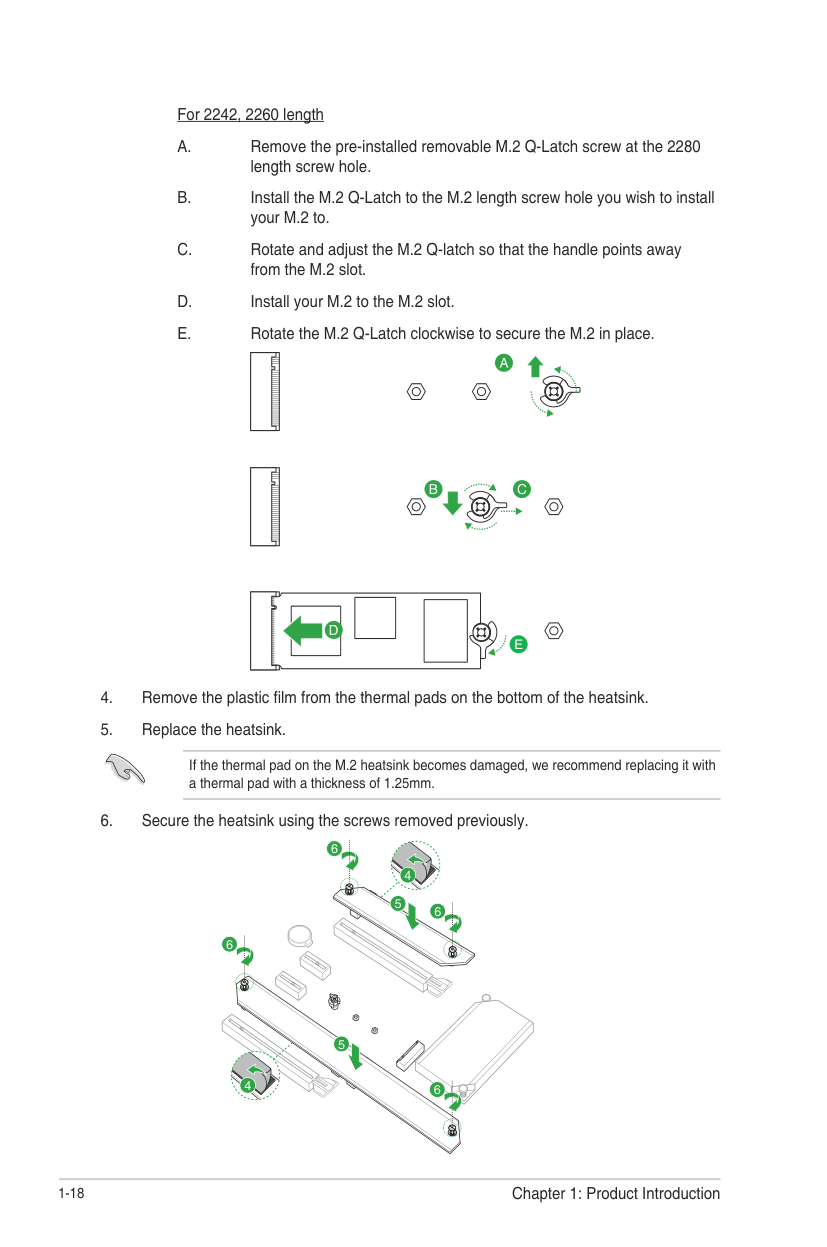

For 2242, 2260 length
A.
Remove the pre-installed removable M.2 Q-Latch screw at the 2280 length screw hole.B.
Install the M.2 Q-Latch to the M.2 length screw hole you wish to install your M.2 to.C.
Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.D.
Install your M.2 to the M.2 slot.E.

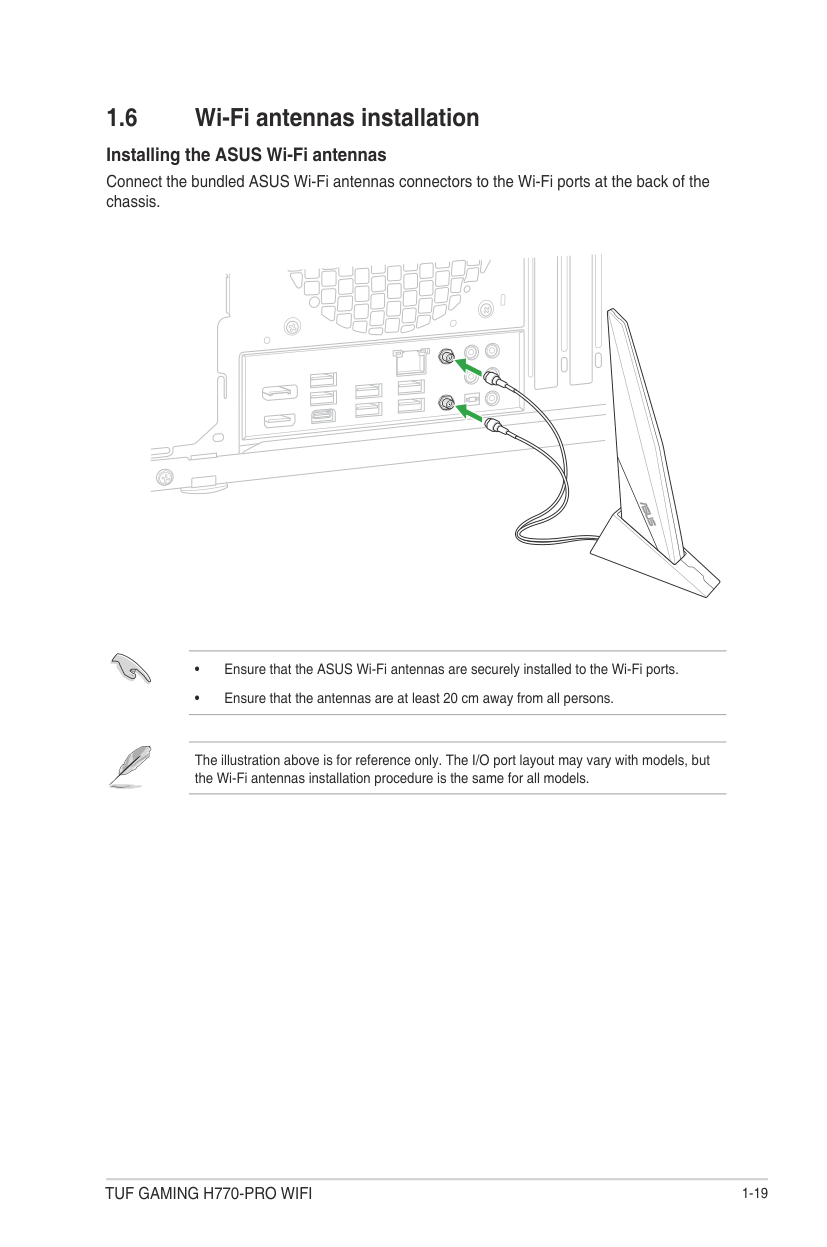

Rotate the M.2 Q-Latch clockwise to secure the M.2 in place. Chapter 1: Product Introduction1-19 1.6 Wi-Fi antennas installation Installing the ASUS Wi-Fi antennas Connect the bundled ASUS Wi-Fi antennas connectors to the Wi-Fi ports at the back of the chassis. • Ensure that the ASUS Wi-Fi antennas are securely installed to the Wi-Fi ports. • Ensure that the antennas are at least 20 cm away from all persons. The illustration above is for reference only. The I/O port layout may vary with models, but the Wi-Fi antennas installation procedure is the same for all models.
Tuf Gaming H770-Pro Wifi

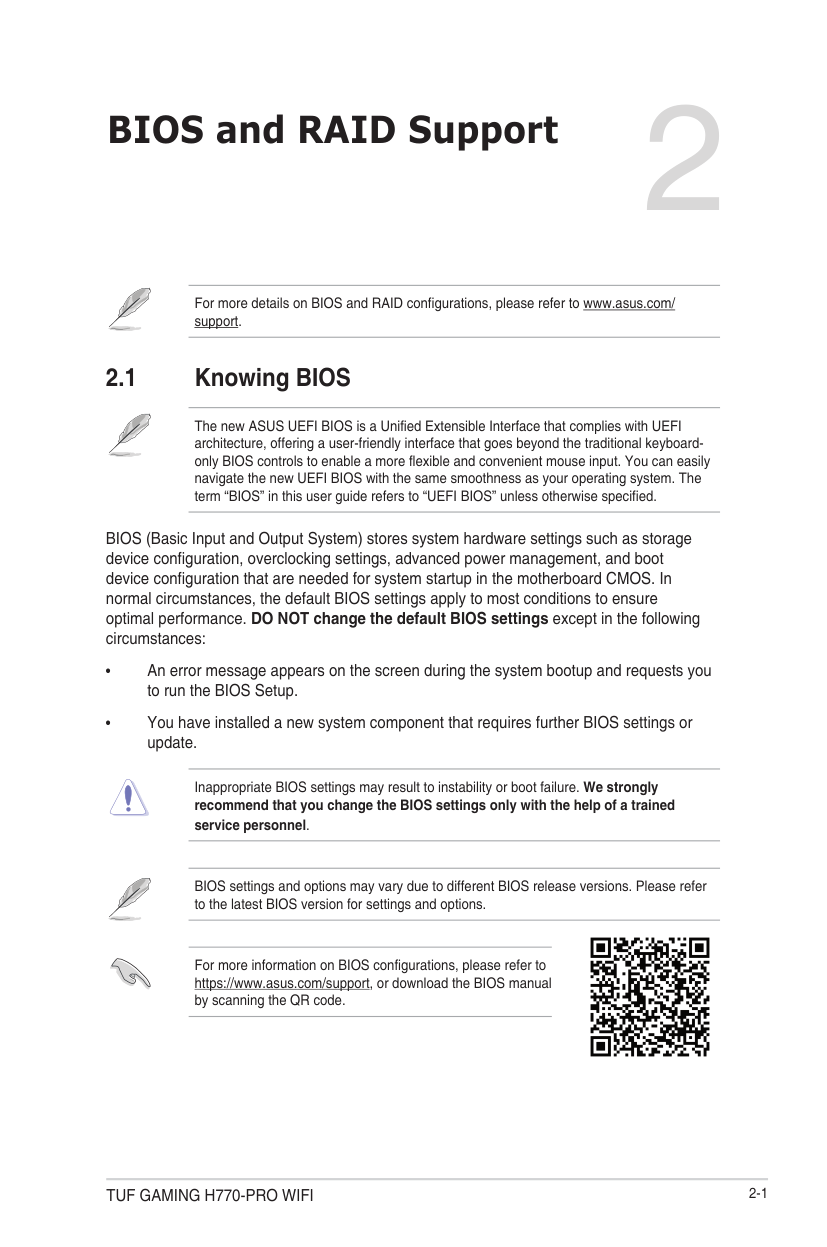

2-1 BIOS and RAID Support 2 For more details on BIOS and RAID configurations, please refer to www.asus.com/ support. 2.1 Knowing BIOS The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. The term “BIOS” in this user guide refers to “UEFI BIOS” unless otherwise specified. BIOS (Basic Input and Output System) stores system hardware settings such as storage device configuration, overclocking settings, advanced power management, and boot device configuration that are needed for system startup in the motherboard CMOS. In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. DO NOT change the default BIOS settings except in the following circumstances: • An error message appears on the screen during the system bootup and requests you to run the BIOS Setup. • You have installed a new system component that requires further BIOS settings or update. Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel. BIOS settings and options may vary due to different BIOS release versions. Please refer to the latest BIOS version for settings and options. For more information on BIOS configurations, please refer to https://www.asus.com/support, or download the BIOS manual by scanning the QR code.
Tuf Gaming H770-Pro Wifi

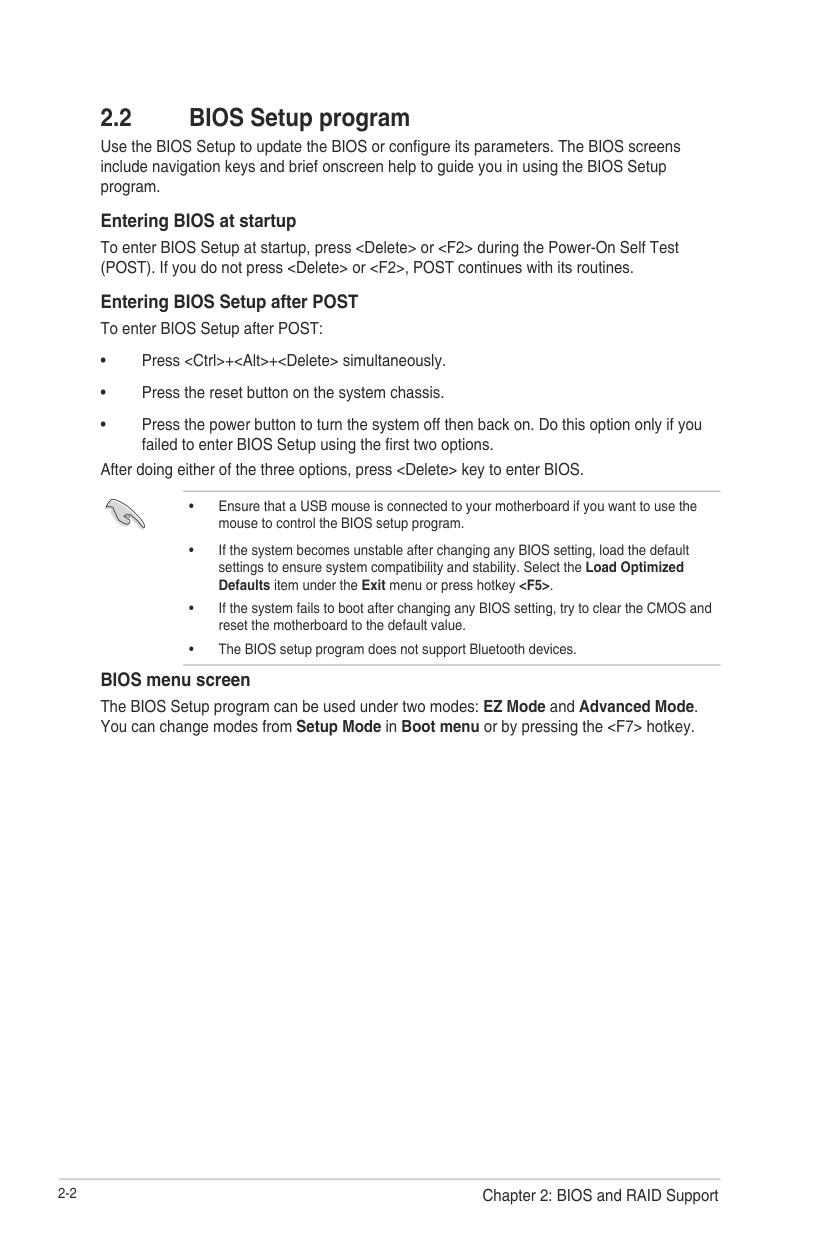

2-2 2.2 BIOS Setup program Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program. Entering BIOS at startup To enter BIOS Setup at startup, press

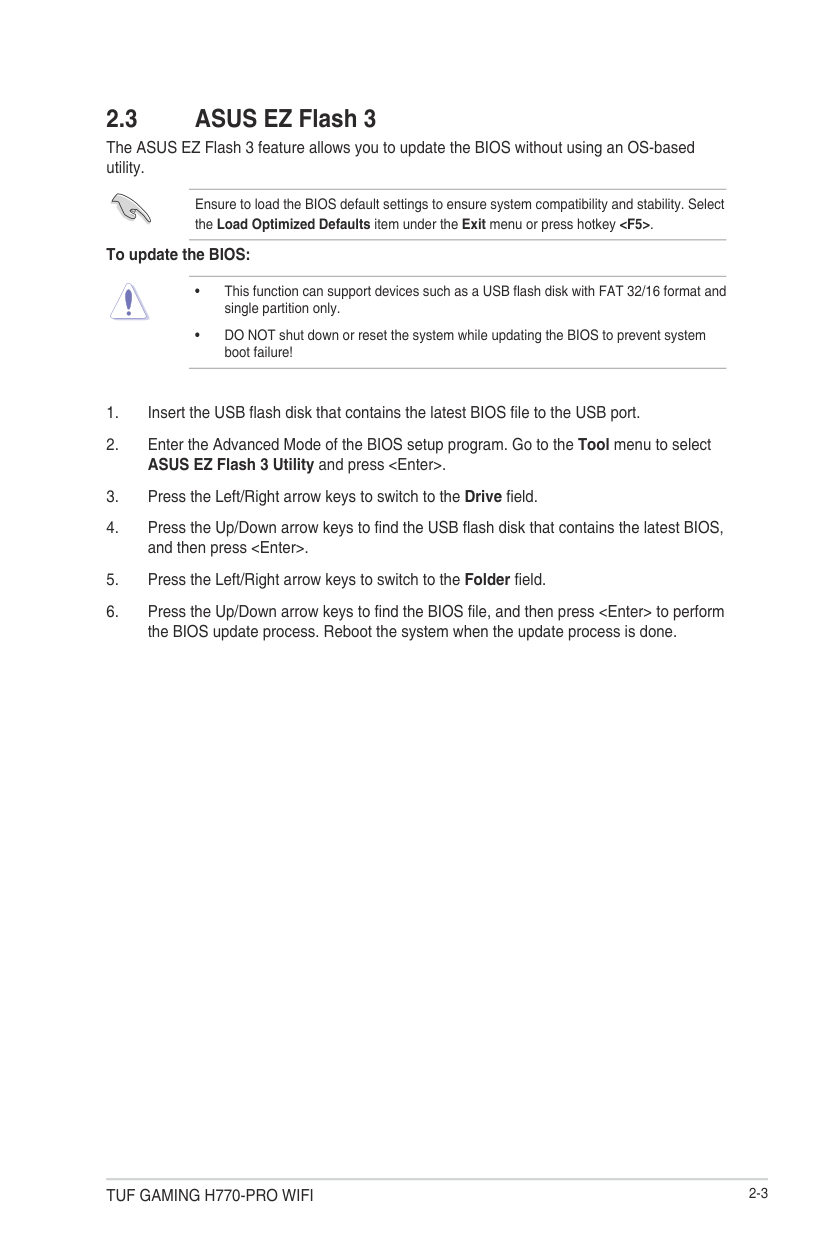

2-3 2.3 ASUS EZ Flash 3 The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS‑based utility. Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey Tuf Gaming H770-Pro Wifi

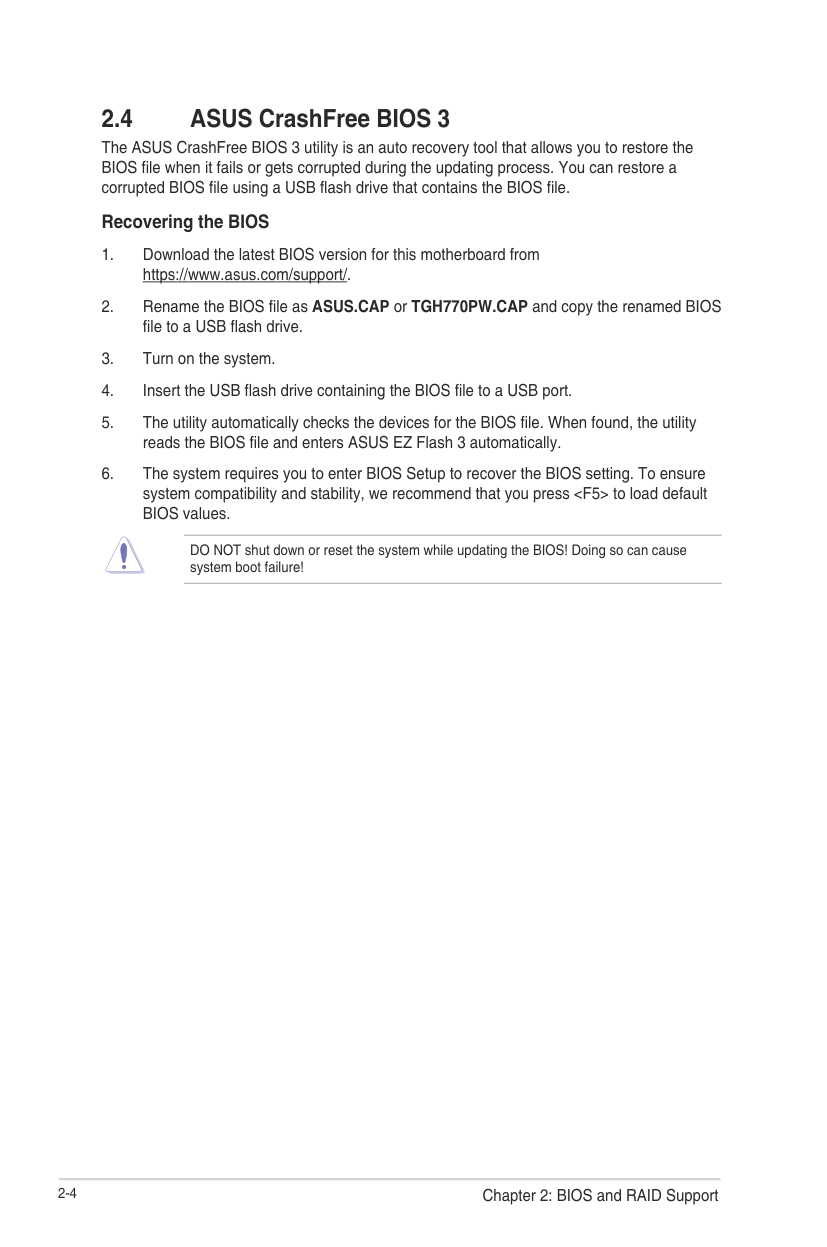

2-4 2.4 ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file. Recovering the BIOS

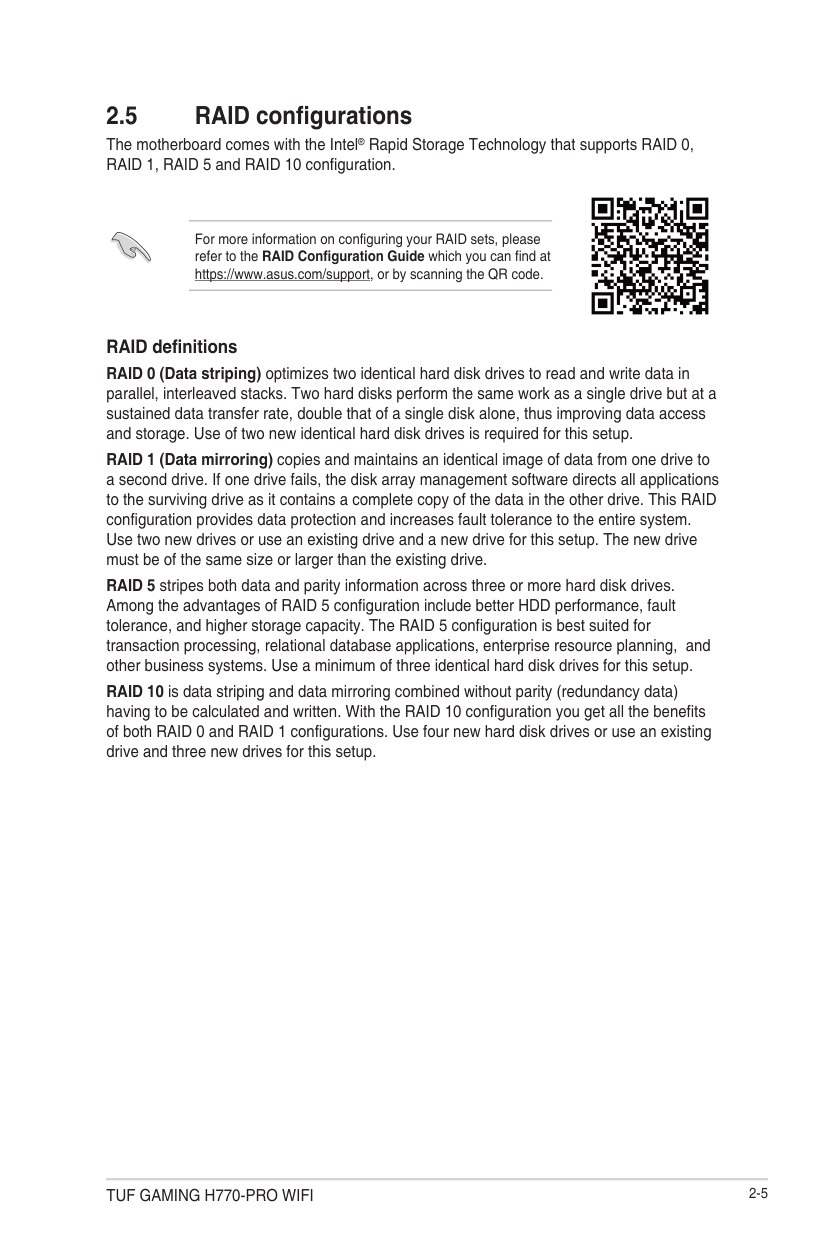

2-5 2.5 RAID configurations The motherboard comes with the Intel® Rapid Storage Technology that supports RAID 0, RAID 1, RAID 5 and RAID 10 configuration. RAID definitions RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage. Use of two new identical hard disk drives is required for this setup. RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system. Use two new drives or use an existing drive and a new drive for this setup. The new drive must be of the same size or larger than the existing drive. RAID 5 stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 configuration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best suited for transaction processing, relational database applications, enterprise resource planning, and other business systems. Use a minimum of three identical hard disk drives for this setup. RAID 10 is data striping and data mirroring combined without parity (redundancy data) having to be calculated and written. With the RAID 10 configuration you get all the benefits of both RAID 0 and RAID 1 configurations. Use four new hard disk drives or use an existing drive and three new drives for this setup. For more information on configuring your RAID sets, please refer to the RAID Configuration Guide which you can find at https://www.asus.com/support, or by scanning the QR code.
