Bestway 58486 Flowclear Sand Filter Pump
Ask AI
— answers from the official manualAnswers from the official manual.
Common questions
Common Questions
10 totalHow do I properly prepare my pool pump system for winter storage?
Unplug the filter pump, remove and discard the used Filter cartridge, detach all hoses, dry all components thoroughly, and store in a dry location out of reach of children where temperature ranges from 4–40°C (page 8).
What is the correct way to mount my flowclear sand filter pump on a pedestal or base?
The filter pump must be vertically fixed on a pedestal made of wood, concrete or similar durable material. Two holes 9mm in diameter (centred 159mm apart) must be drilled into the pedestal before securing the filter pump properly with bolts and nuts (Page 7).
What should I do if my GFCI receptacle does not work during testing?
If your GFCI plug fails to function after following the test steps, do not use the pump and contact Bestway Customer Service immediately (Page 8).
How do I factory reset the Bestway Flowclear Sand Filter Pump?
There is no specific procedure mentioned for factory resetting the pump. The manual does not provide information on a factory reset. If there are settings to be cleared, consult your local Bestway Customer Service (page 7).
What should I do if the indicator light doesn’t turn red when pressing the ‘RESET’ button during GFCI testing?
If the indicator light does not turn red after pressing the ‘RESET’ button, it indicates that the test has failed. Do not use the pump and contact your local Bestway Customer Service (Page 8).
How do I check and maintain the ground-fault circuit-interrupter (GFCI) plug before use?
To test the GFCI plug, insert it into a grounding type receptacle. Press the 'RESET' button; then press the 'TEST' button. The indicator should turn off to confirm proper operation. If the light does not change as expected, do not use the pump and contact Bestway Customer Service.
Show 4 more questions
What are the safety precautions when handling electrical components of the filter pump?
How should I clean and maintain the filter cartridge for my pool filter system?
What should I do if water does not begin flowing through my filter pump?
Is there a recommended frequency for replacing the filter cartridge?
Full Manual
8 pages
|#58385E
FILTER PUMP OWNER’S MANUAL www.bestwaycorp.com/support Visit Bestway YouTube channel
QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit www.bestwaycorp.com/support
TO THE STORE| |---|
###### 303021192466

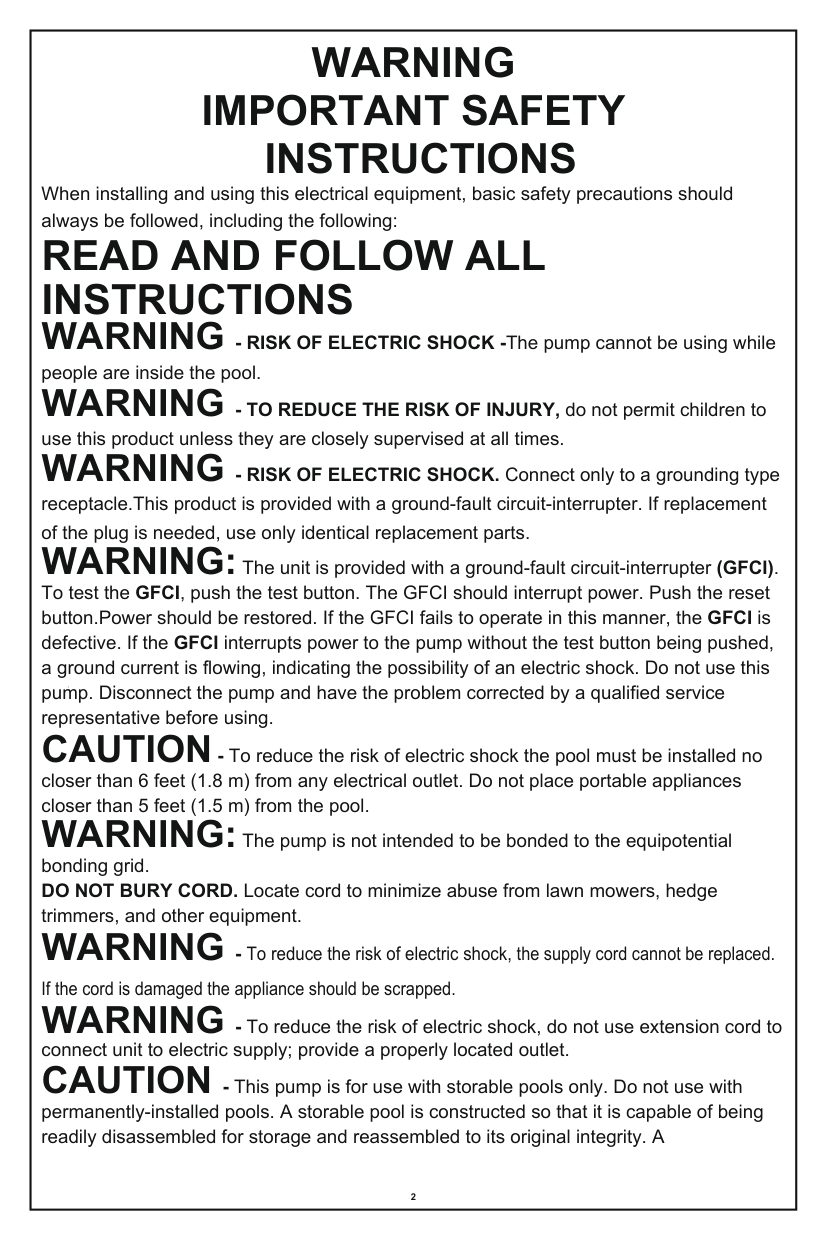

WARNING IMPORTANT SAFETY
INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL INSTRUCTIONS WARNING - RISK OF ELECTRIC SHOCK -The pump cannot be using while people are inside the pool. WARNING - TO REDUCE THE RISK OF INJURY,do not permit children to use this product unless they are closely supervised at all times. WARNING - RISK OF ELECTRIC SHOCK.Connect only to a grounding type receptacle.This product is provided with a ground-fault circuit-interrupter. If replacement of the plug is needed, use only identical replacement parts. WARNING:The unit is provided with a ground-fault circuit-interrupter(GFCI). To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button.Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by a qualified service representative before using. CAUTION-To reduce the risk of electric shock the pool must be installed no closer than 6 feet (1.8 m) from any electrical outlet. Do not place portable appliances closer than 5 feet (1.5 m) from the pool. WARNING:The pump is not intended to be bonded to the equipotential bonding grid. DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment. WARNING -To reduce the risk of electric shock, the supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped. WARNING -To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet. CAUTION -This pump is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A

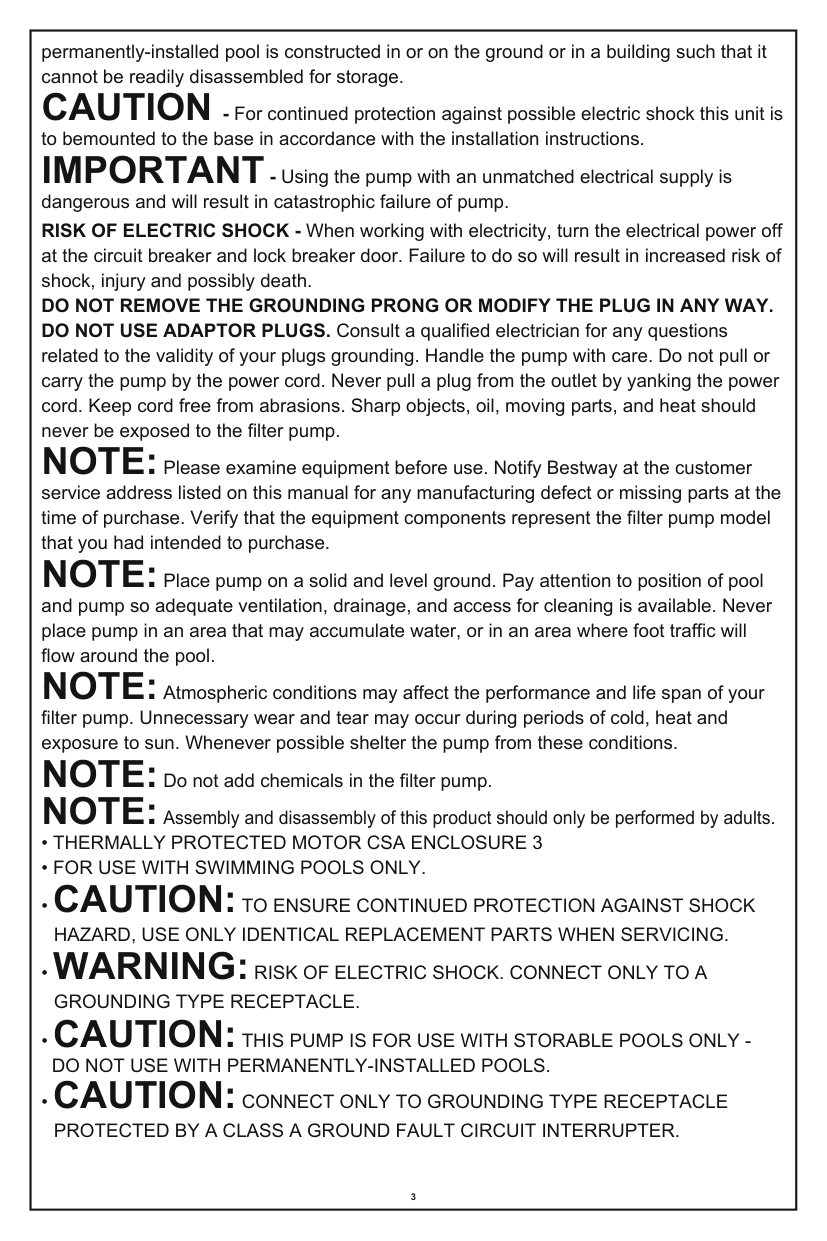

permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
CAUTION -For continued protection against possible electric shock this unit is
to bemounted to the base in accordance with the installation instructions.
IMPORTANT-Using the pump with an unmatched electrical supply is
dangerous and will result in catastrophic failure of pump.
RISK OF ELECTRIC SHOCK - When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death.
DO NOT REMOVE THE GROUNDING PRONG OR MODIFY THE PLUG IN ANY WAY. DO NOT USE ADAPTOR PLUGS. Consult a qualified electrician for any questions related to the validity of your plugs grounding. Handle the pump with care. Do not pull or carry the pump by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the filter pump.
NOTE:Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any manufacturing defect or missing parts at the time of purchase. Verify that the equipment components represent the filter pump model that you had intended to purchase.
NOTE:Place pump on a solid and level ground. Pay attention to position of pool and pump so adequate ventilation, drainage, and access for cleaning is available. Never place pump in an area that may accumulate water, or in an area where foot traffic will flow around the pool.
NOTE:Atmospheric conditions may affect the performance and life span of your filter pump. Unnecessary wear and tear may occur during periods of cold, heat and exposure to sun. Whenever possible shelter the pump from these conditions.
NOTE:Do not add chemicals in the filter pump. NOTE:Assembly and disassembly of this product should only be performed by adults.
HAZARD, USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING.
GROUNDING TYPE RECEPTACLE.
DO NOT USE WITH PERMANENTLY-INSTALLED POOLS.
PROTECTED BY A CLASS A GROUND FAULT CIRCUIT INTERRUPTER.

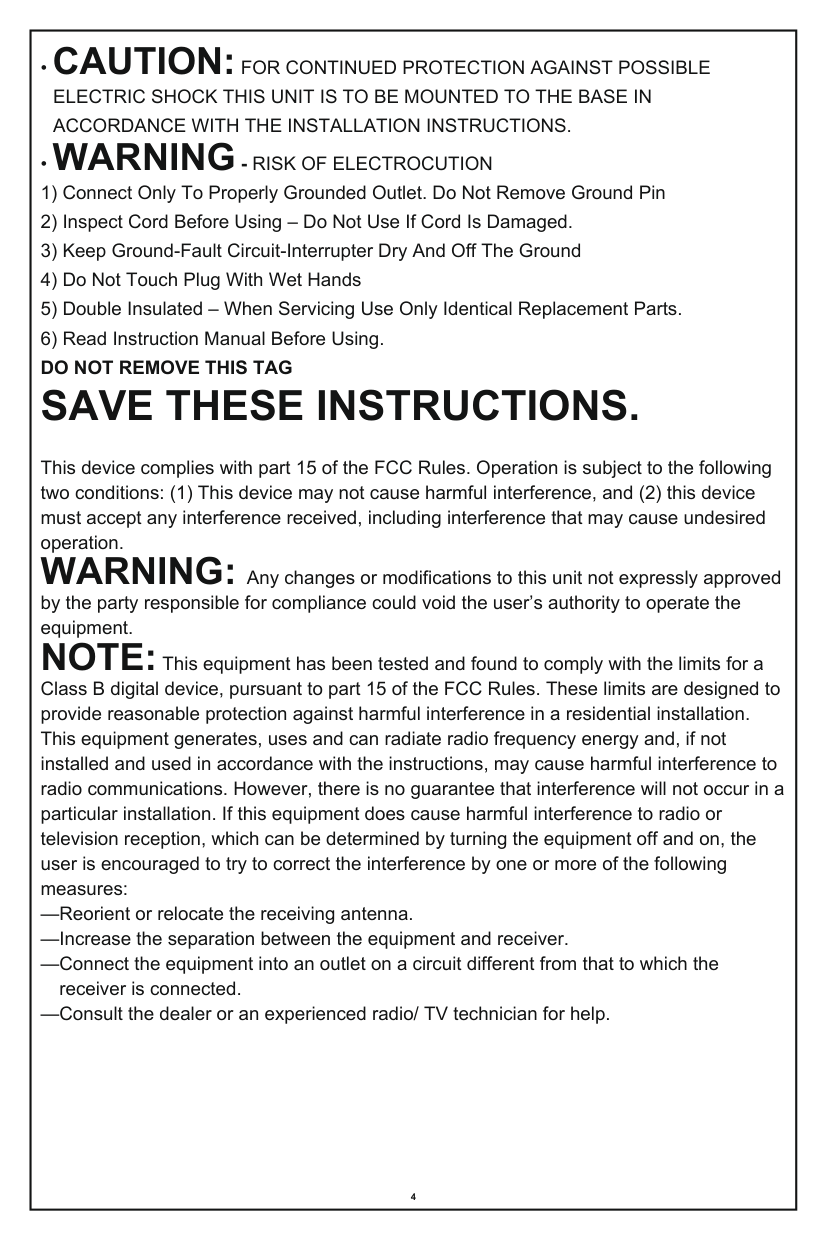

ELECTRIC SHOCK THIS UNIT IS TO BE MOUNTED TO THE BASE IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.

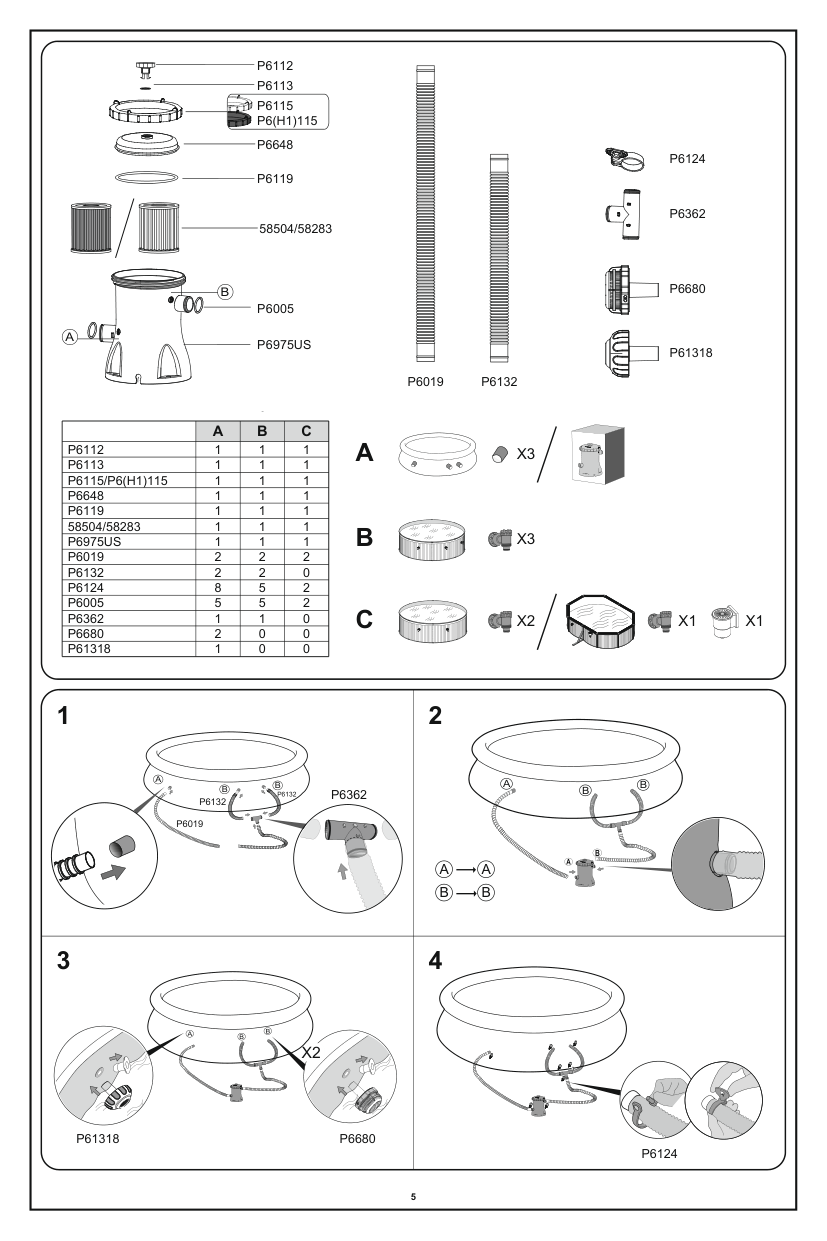

P6115 P6(H1)115
P6648
P6119
58504/58283
B
P6005
A
P6975US
| |A|B|C| |---|---|---|---| |P6112|1|1|1| |P6113|1|1|1| |P6115/P6(H1)115|1|1|1| |P6648|1|1|1| |P6119|1|1|1| |58504/58283|1|1|1| |P6975US|1|1|1| |P6019|2|2|2| |P6132|2|2|0| |P6124|8|5|2| |P6005|5|5|2| |P6362|1|1|0|
|P6680|2|0|0| |P61318|1|0|0|
| | |---| | |
P6019
| | | | | |---|---|---|---| | | | | |
| | |---| | |
| | |---| | |
P6132
X3
P6124
P6362
| | | | | |---|---|---|---| | | | | | | | | | | | | | | |
P6680
P61318
X3
X2 X1 X1
1 2
A
A
B
BB
B
P6362
P6132
P6132
P6019
B
| | | |---|---| | | |
A
| | | | |---|---|---| | | | |
| | | |---|---| | | |
| | | |---|---| | | | | | |
| | | |---|---| | | | | | |
| | | |---|---| | | |
| | | |---|---| | | |
3 4
BA
B
X2
P61318 P6680
P6124
1 2
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | | | |---|---|---|---| | | | | |
| | | |---|---| | | |
| | | |---|---| | | | | | |
| | | |---|---|
| | |
| | | |---|---| | | | | | |
BA
| | | |---|---| | | |
| | | | |---|---|---| | | | |
| | | |---|---| | | |
| | | |---|---| | | | | | |
| | | | |---|---|---| | | | |
| | | |---|---| | | | | | |
| | | |---|---| | | |
| | | |---|---| | | |
| | | | |---|---|---| | | | |
A
B
A
B
P6019 P6019
3 4
BA
BA
| | |---|
P61318 P6680
P6124
| | | | |---|---|---| | | | | |250| | |
390
159
390
159
2-M8 nut
2-M8 bolt
B

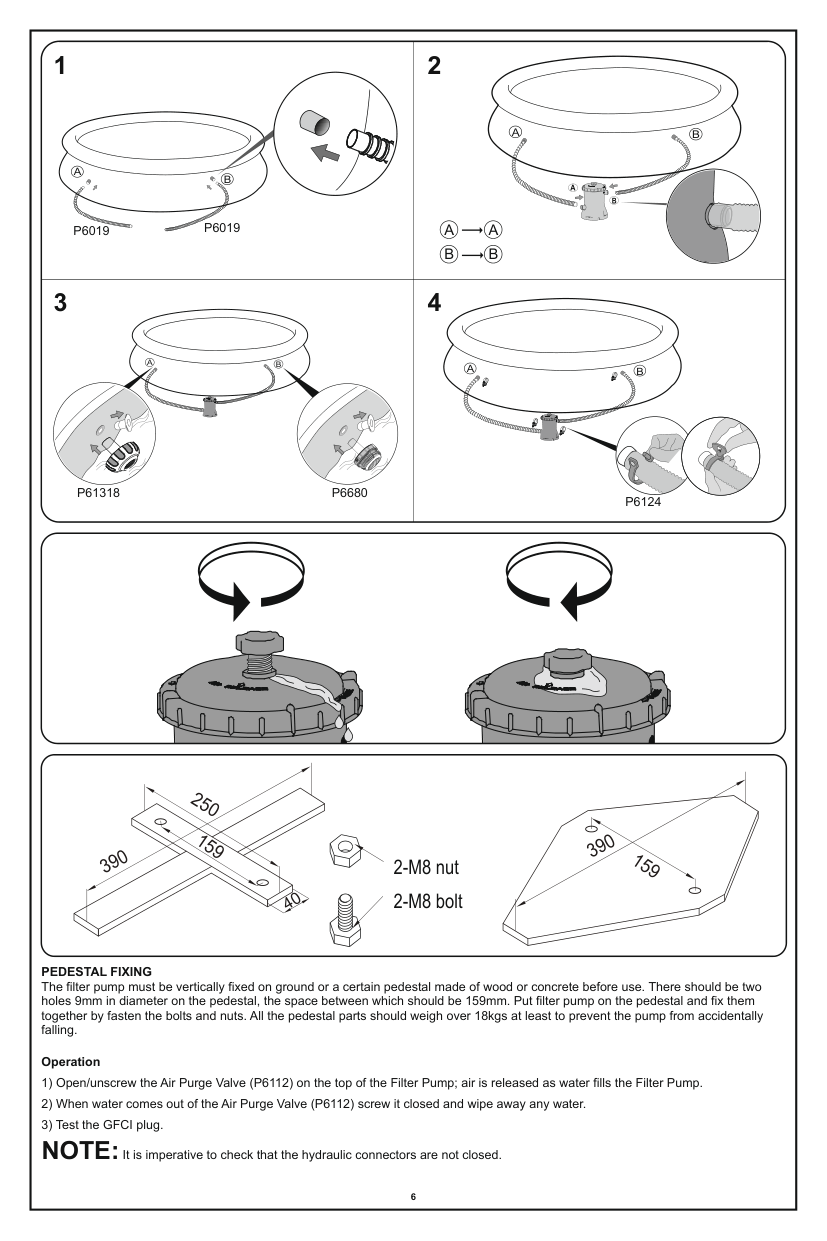

PEDESTAL FIXING The filter pump must be vertically fixed on ground or a certain pedestal made of wood or concrete before use. There should be two holes 9mm in diameter on the pedestal, the space between which should be 159mm. Put filter pump on the pedestal and fix them together by fasten the bolts and nuts. All the pedestal parts should weigh over 18kgs at least to prevent the pump from accidentally falling.
A
Operation
NOTE:It is imperative to check that the hydraulic connectors are not closed.

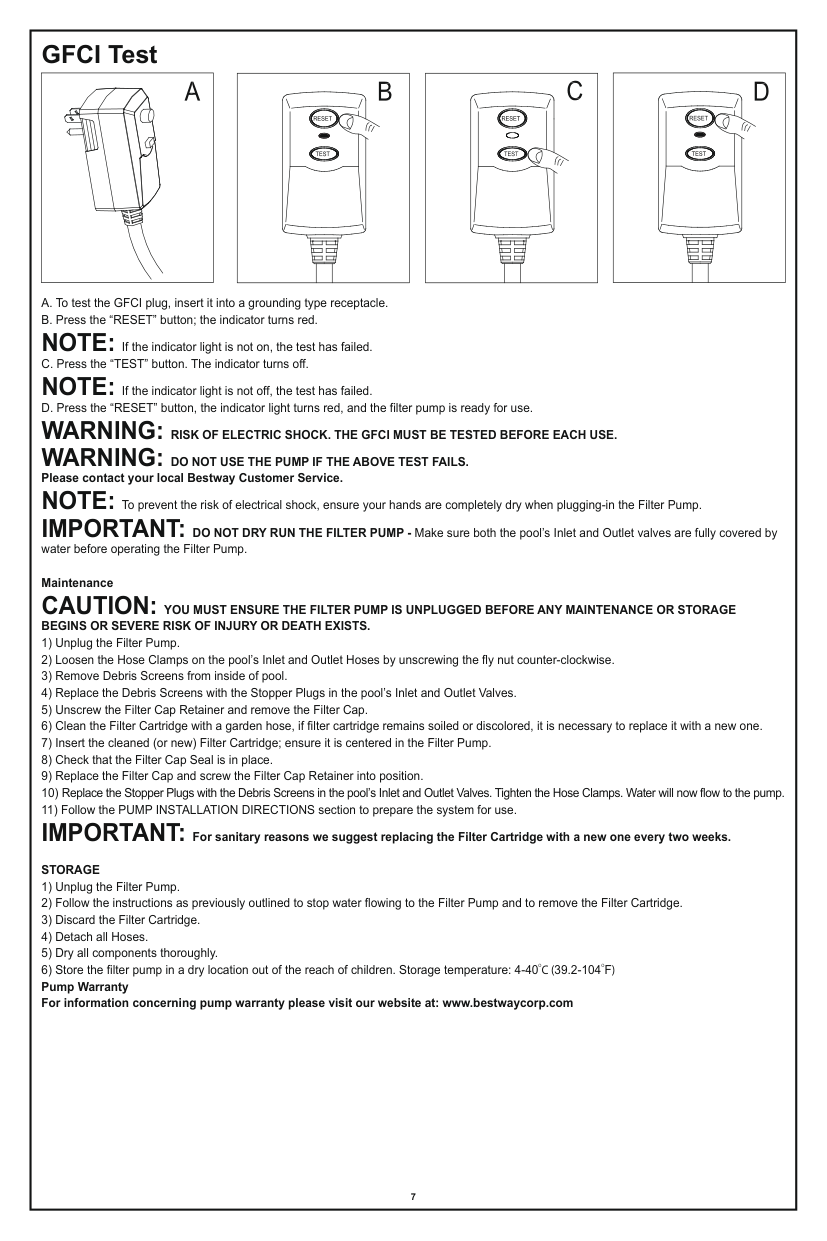

#### GFCI Test
NOTE: If the indicator light is not on, the test has failed.
NOTE: If the indicator light is not off, the test has failed.
WARNING: RISK OF ELECTRIC SHOCK. THE GFCI MUST BE TESTED BEFORE EACH USE. WARNING: DO NOT USE THE PUMP IF THE ABOVE TEST FAILS. Please contact your local Bestway Customer Service. NOTE: To prevent the risk of electrical shock, ensure your hands are completely dry when plugging-in the Filter Pump. IMPORTANT: DO NOT DRY RUN THE FILTER PUMP -Make sure both the pool’s Inlet and Outlet valves are fully covered by water before operating the Filter Pump. Maintenance CAUTION: YOU MUST ENSURE THE FILTER PUMP IS UNPLUGGED BEFORE ANY MAINTENANCE OR STORAGE BEGINS OR SEVERE RISK OF INJURY OR DEATH EXISTS.
IMPORTANT: For sanitary reasons we suggest replacing the Filter Cartridge with a new one every two weeks.
STORAGE
C (39.2-104
F)
O
O
Pump Warranty For information concerning pump warranty please visit our website at: www.bestwaycorp.com

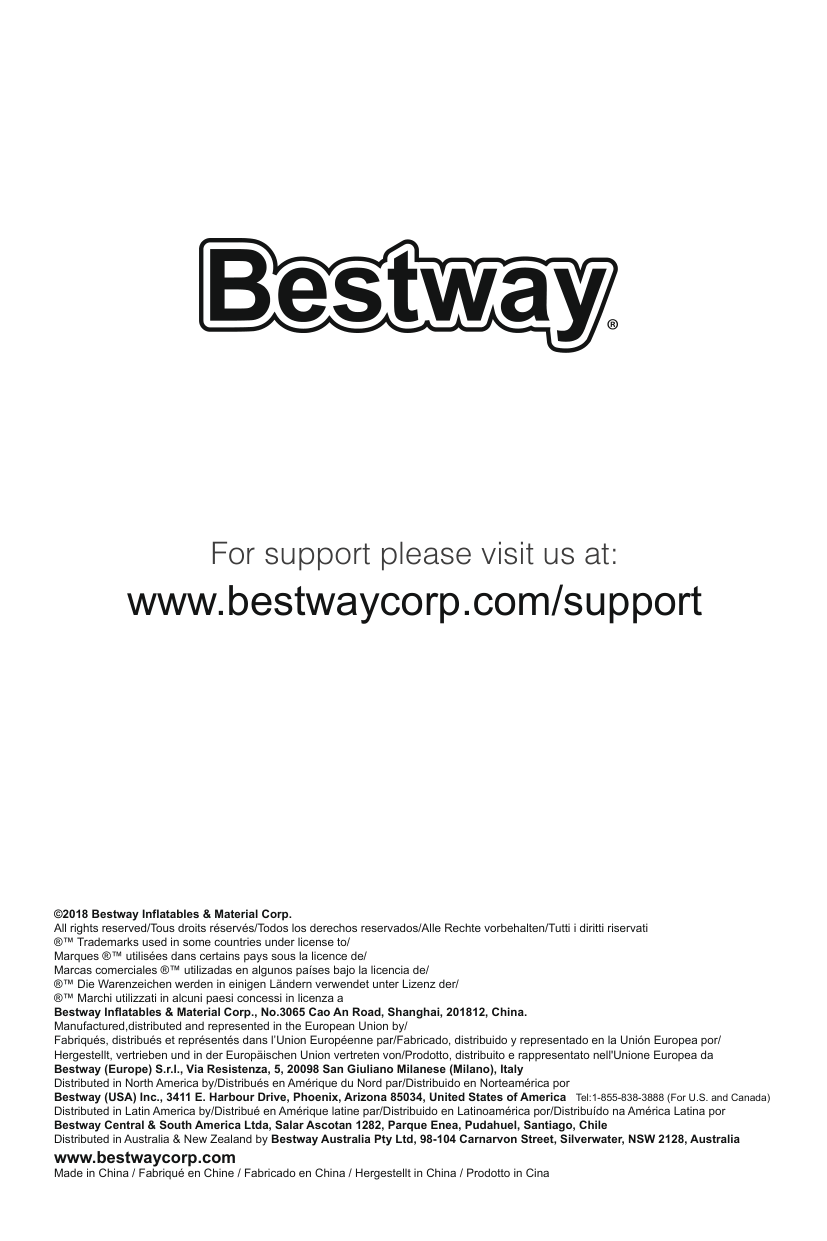

For support please visit us at:
www.bestwaycorp.com/support
©2018 Bestway Inflatables & Material Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati ®™ Trademarks used in some countries under license to/ Marques ®™ utilisées dans certains pays sous la licence de/ Marcas comerciales ®™ utilizadas en algunos países bajo la licencia de/ ®™ Die Warenzeichen werden in einigen Ländern verwendet unter Lizenz der/ ®™ Marchi utilizzati in alcuni paesi concessi in licenza a Bestway Inflatables & Material Corp., No.3065 Cao An Road, Shanghai, 201812, China. Manufactured,distributed and represented in the European Union by/ Fabriqués, distribués et représentés dans l’Union Européenne par/Fabricado, distribuido y representado en la Unión Europea por/ Hergestellt, vertrieben und in der Europäischen Union vertreten von/Prodotto, distribuito e rappresentato nell'Unione Europea da Bestway (Europe) S.r.l., Via Resistenza, 5, 20098 San Giuliano Milanese (Milano), Italy Distributed in North America by/Distribués en Amérique du Nord par/Distribuido en Norteamérica por Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America Tel:1-855-838-3888 (For U.S. and Canada) Distributed in Latin America by/Distribué en Amérique latine par/Distribuido en Latinoamérica por/Distribuído na América Latina por Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, 98-104 Carnarvon Street, Silverwater, NSW 2128, Australia
www.bestwaycorp.com Made in China / Fabriqué en Chine / Fabricado en China / Hergestellt in China / Prodotto in Cina
