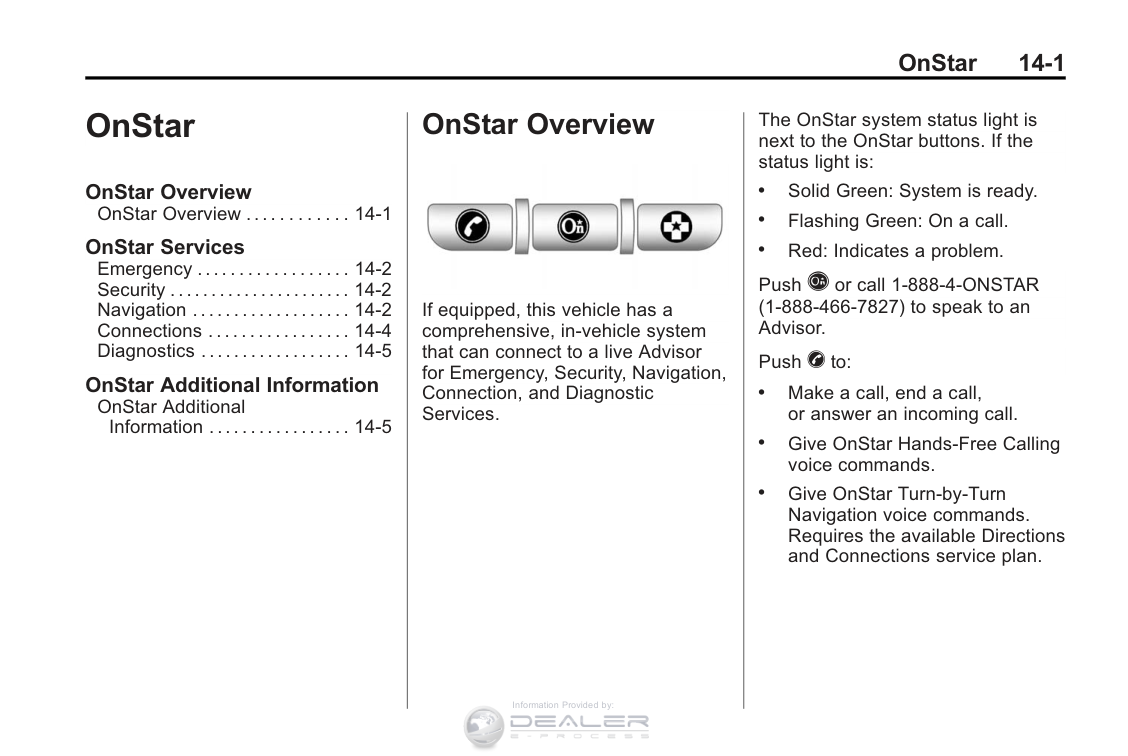

OnStar ....................... 14-1 OnStar Overview.... . . . . . . . . .14-1 OnStar Services.... ... ... ....14-2 OnStar Additional

Information..................14-5

Index ..................... i-1

###### Introduction iii

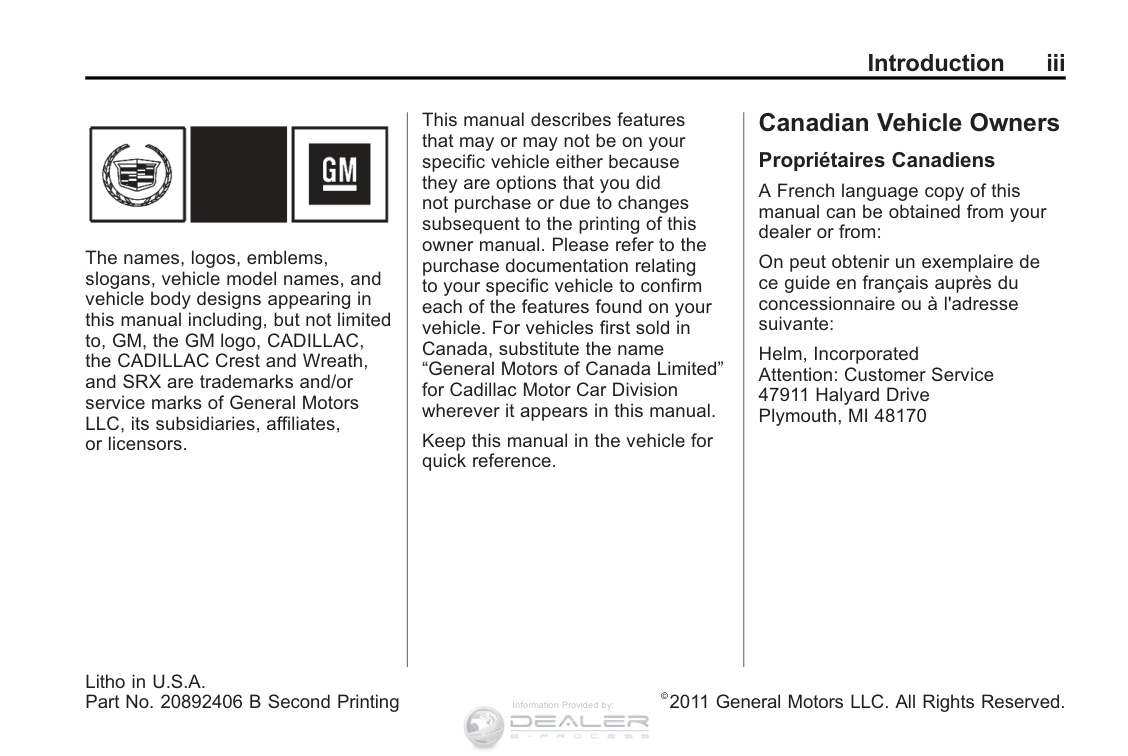

The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CADILLAC, the CADILLAC Crest and Wreath, and SRX are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.

This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Car Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference.

#### Canadian Vehicle Owners Propriétaires Canadiens

AFrenchlanguagecopyofthis manual can be obtained from your dealer or from:

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated Attention: Customer Service 47911 Halyard Drive Plymouth, MI 48170



Litho in U.S.A. Part No. 20892406 B Second Printing ©2011 General Motors LLC. All Rights Reserved.Information Provided by:

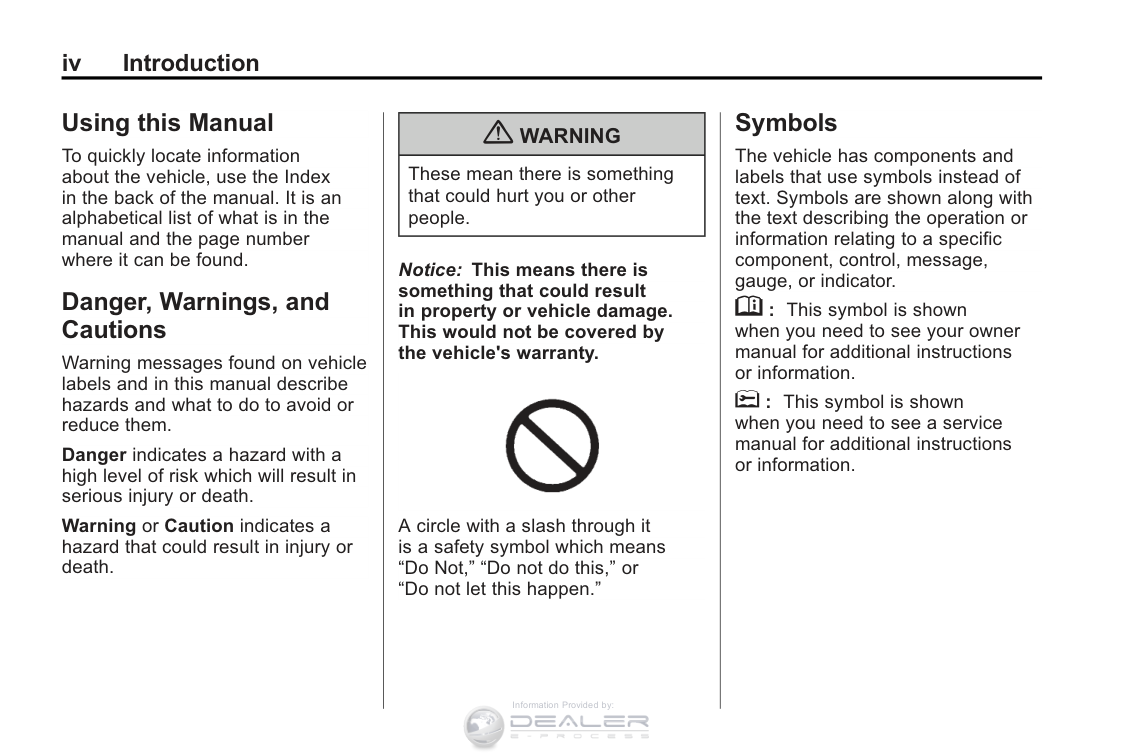

#### Using this Manual

To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

#### Danger, Warnings, and Cautions

Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them.

Danger indicates a hazard with a high level of risk which will result in serious injury or death.

Warning or Caution indicates a hazard that could result in injury or death.

|{ WARNING| |---| |These mean there is something that could hurt you or other people.|

Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.


Acirclewithaslashthroughit is a safety symbol which means “Do Not,”“Do not do this,” or “Do not let this happen.”

#### Symbols

The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator.

M : This symbol is shown when you need to see your owner manual for additional instructions or information.

###### Introduction v

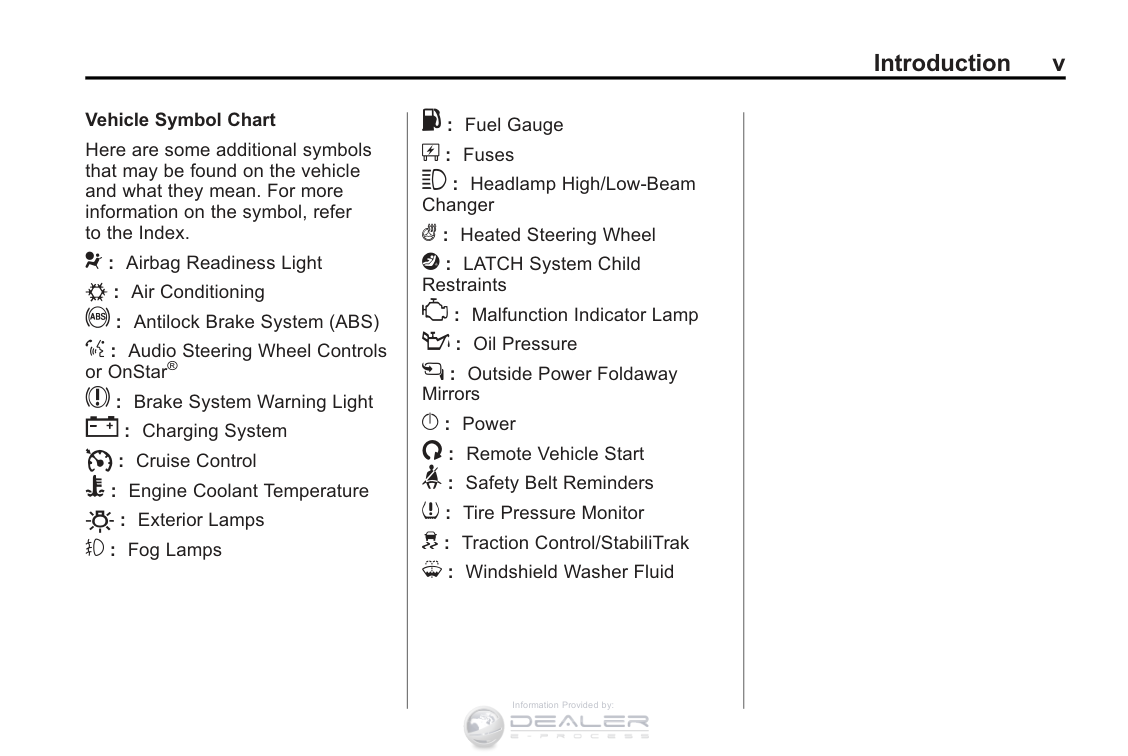

######## Vehicle Symbol Chart

Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index.

9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) % : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System

. : Fuel Gauge

+ : Fuses 3 : Headlamp High/Low-Beam Changer ( : Heated Steering Wheel j : LATCH System Child Restraints

2 NOTES

In Brief

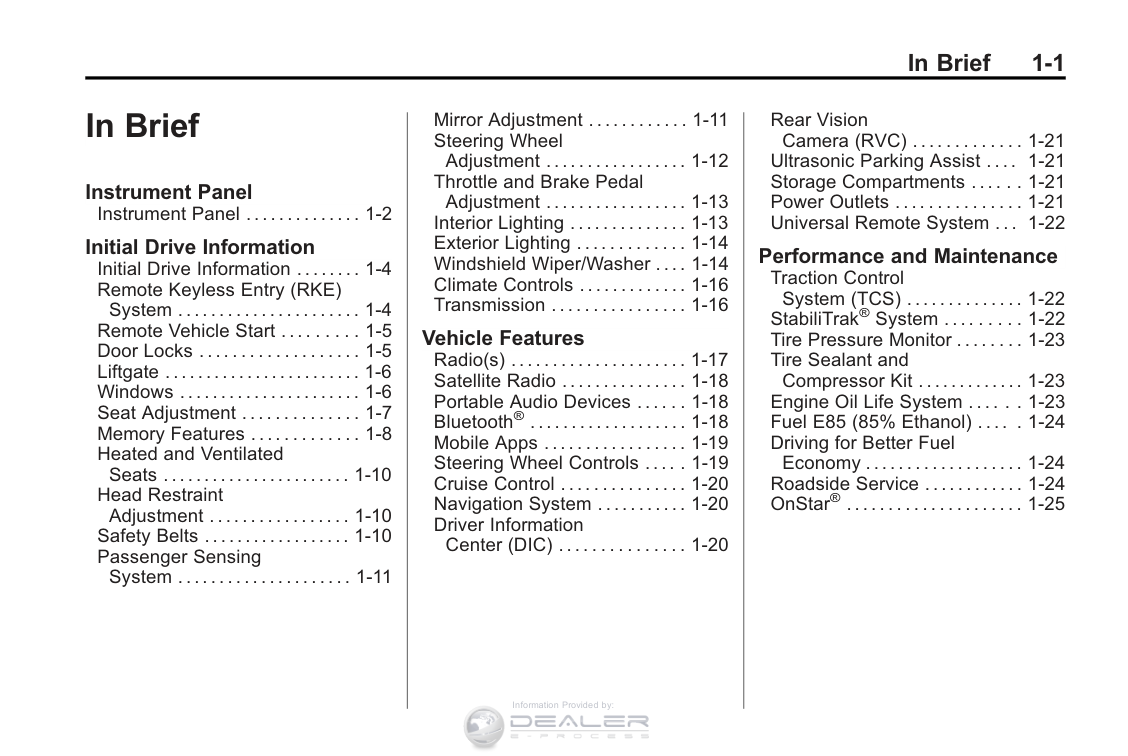

####### Instrument Panel

Instrument Panel .............. 1-2

Initial Drive Information Initial Drive Information ........ 1-4 Remote Keyless Entry (RKE)

System .... .. .. .. .. .. .. .. .. .. 1-4 Remote Vehicle Start .... . . . . . 1-5 Door Locks .... . . . . . . . . . . . . . . . 1-5 Liftgate ........................ 1-6 Windows ...................... 1-6 Seat Adjustment .... . . . . . . . . . . 1-7 Memory Features .... . . . . . . . . . 1-8 Heated and Ventilated

Seats ....................... 1-10 Head Restraint

Adjustment .... .. . .. . .. . .. .. 1-10 Safety Belts .................. 1-10 Passenger Sensing

System .... ...... ....... .... 1-11

Mirror Adjustment .... . . . . . . . . 1-11 Steering Wheel

Throttle and Brake Pedal

Interior Lighting .... . . . . . . . . . . 1-13 Exterior Lighting .... . . . . . . . . . 1-14 Windshield Wiper/Washer .... 1-14 Climate Controls .... . .. . . . . .. 1-16 Transmission . . . . . . . . . . . . . . . . 1-16

####### Vehicle Features

Radio(s) .... . . . . . . . . . . . . . . . . . 1-17 Satellite Radio .... . . . . . . . . . . . 1-18 Portable Audio Devices .... . . 1-18 Bluetooth® ...................1-18 Mobile Apps .... . . . . . . . . . . . . . 1-19 Steering Wheel Controls .... . 1-19 Cruise Control .... . . . . . . . . . . . 1-20 Navigation System ........... 1-20 Driver Information

Center (DIC) .... . . . . . . . . . . . 1-20

Rear Vision

Camera (RVC) .... . . . . . . . . . 1-21 Ultrasonic Parking Assist .... 1-21 Storage Compartments .... . . 1-21 Power Outlets .... . . . . . . . . . . . 1-21 Universal Remote System ... 1-22

####### Performance and Maintenance

Traction Control

System (TCS) .... . . . . . . . . . . 1-22 StabiliTrak® System .... . . . . . 1-22 Tire Pressure Monitor . . . . . . . . 1-23 Tire Sealant and

Compressor Kit ............. 1-23 Engine Oil Life System .... . . 1-23 Fuel E85 (85% Ethanol) .... . 1-24 Driving for Better Fuel

Economy .... . . .. . .. . . .. . . .. 1-24 Roadside Service .... .. .. .. .. 1-24 OnStar® .....................1-25

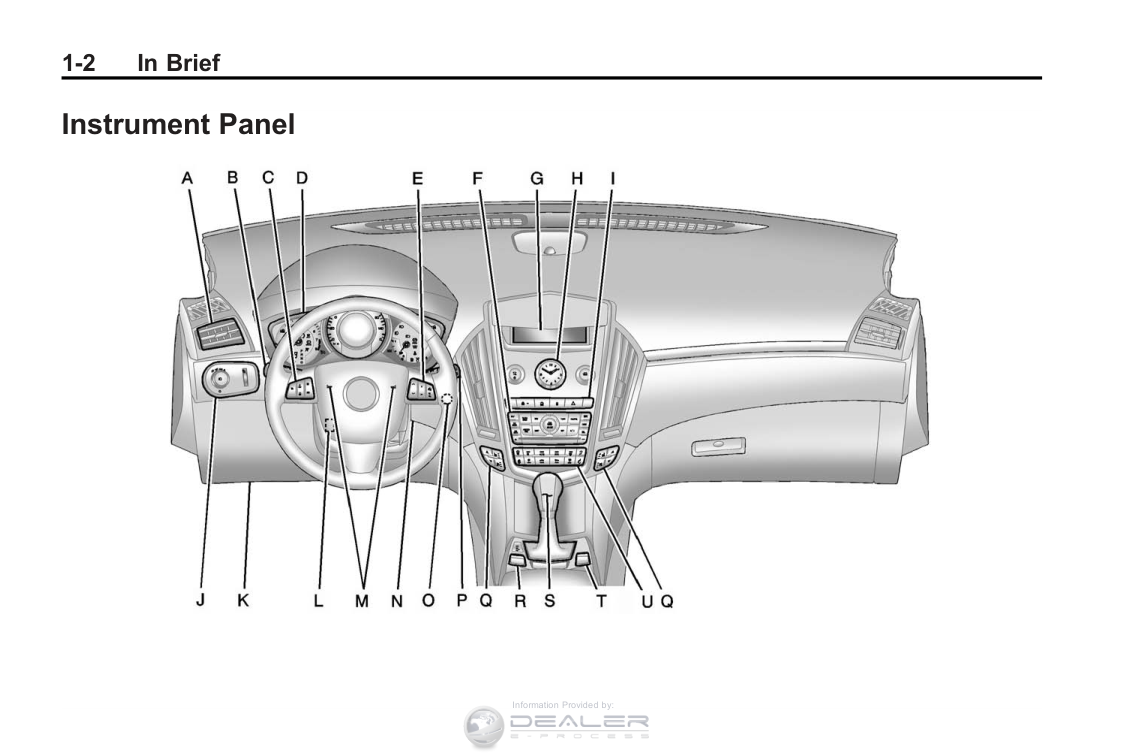

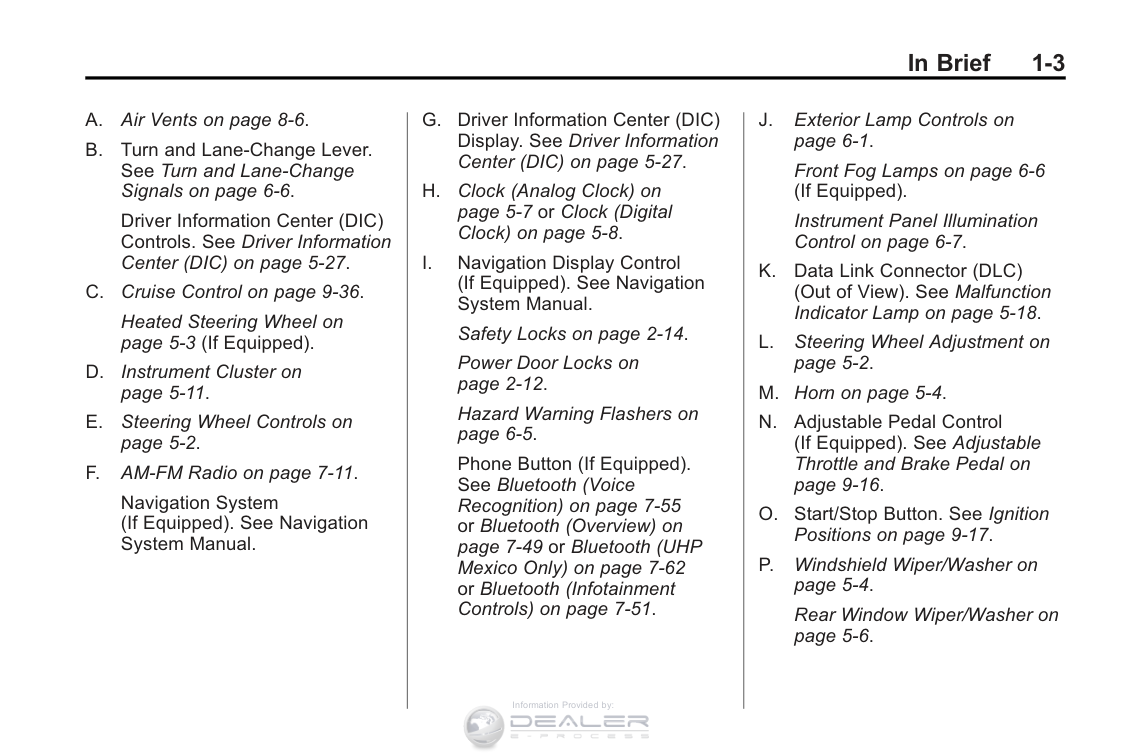

Instrument Panel


Driver Information Center (DIC) Controls. See Driver Information Center (DIC) on page 5￿27.

Heated Steering Wheel on page 5￿3 (If Equipped).

Navigation System (If Equipped). See Navigation System Manual.

Power Door Locks on page 2￿12.

Hazard Warning Flashers on

Phone Button (If Equipped). See Bluetooth (Voice

Recognition) on page 7￿55 or Bluetooth (Overview) on

Controls) on page 7￿51.

Front Fog Lamps on page 6￿6 (If Equipped).

Instrument Panel Illumination Control on page 6￿7.

Rear Window Wiper/Washer on page 5￿6.

Ultrasonic Parking Assist on page 9￿38 (If Equipped).

Economy Mode (If Equipped). See Fuel Economy Mode on page 9￿28

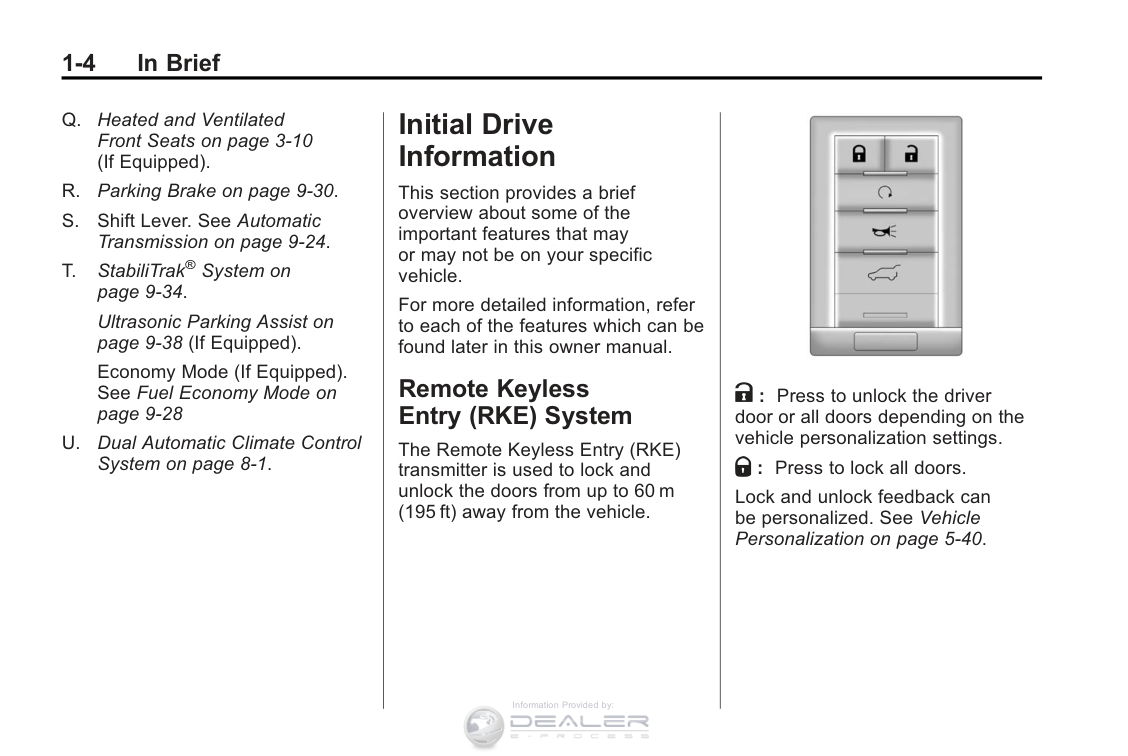

Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.

#### Remote Keyless Entry (RKE) System

The Remote Keyless Entry (RKE) transmitter is used to lock and unlock the doors from up to 60 m (195 ft) away from the vehicle.


K : Press to unlock the driver door or all doors depending on the vehicle personalization settings.

Q : Press to lock all doors.

Lock and unlock feedback can be personalized. See Vehicle Personalization on page 5￿40.

8 : Press and hold to open or close the liftgate.

L : Press and release to locate the vehicle. Press and hold L for three seconds to sound the panic alarm. Press L again or start the vehicle to cancel the panic alarm. Press the key release button near the bottom of the transmitter to remove the key. The key can be used for the driver door and the glove box. See Keys on page 2￿2 and Remote Keyless Entry (RKE) System Operation on page 2￿3.

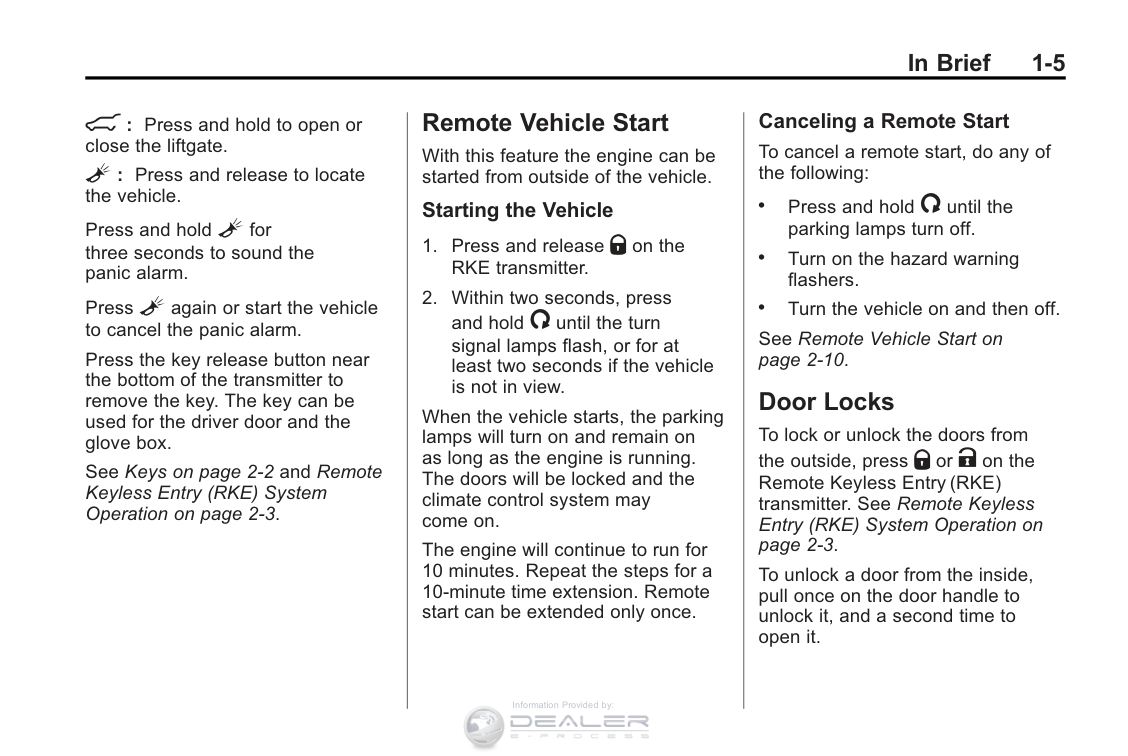

#### Remote Vehicle Start

With this feature the engine can be started from outside of the vehicle.

####### Starting the Vehicle

When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on.

The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once.

####### Canceling a Remote Start

To cancel a remote start, do any of the following:

. Press and hold / until the parking lamps turn off.

. Turn on the hazard warning flashers.

. Turn the vehicle on and then off. See Remote Vehicle Start on page 2￿10.

Door Locks To lock or unlock the doors from the outside, press Q or K on the Remote Keyless Entry (RKE) transmitter. See Remote Keyless Entry (RKE) System Operation on page 2￿3.

To unlock a door from the inside, pull once on the door handle to unlock it, and a second time to open it.

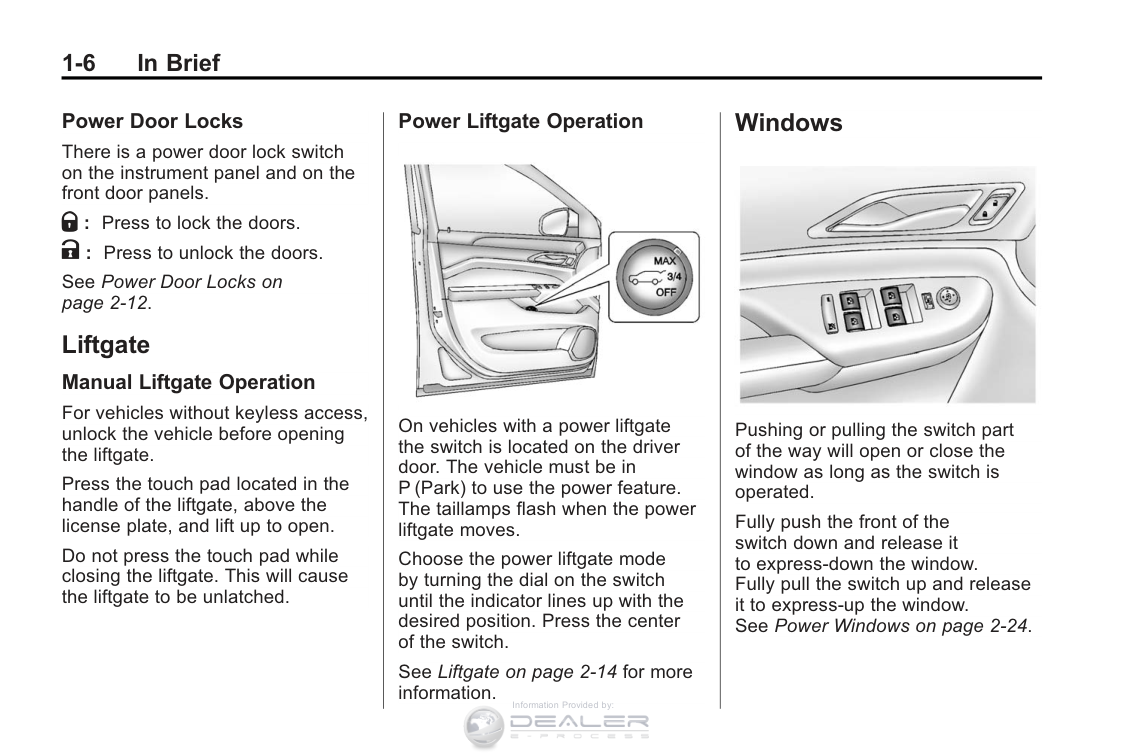

####### Power Door Locks

There is a power door lock switch on the instrument panel and on the front door panels.

Q : Press to lock the doors. K : Press to unlock the doors. See Power Door Locks on

#### Liftgate Manual Liftgate Operation

For vehicles without keyless access, unlock the vehicle before opening the liftgate.

Press the touch pad located in the handle of the liftgate, above the license plate, and lift up to open.

Do not press the touch pad while closing the liftgate. This will cause the liftgate to be unlatched.

####### Power Liftgate Operation


On vehicles with a power liftgate the switch is located on the driver door. The vehicle must be in P(Park)tousethepowerfeature. The taillamps flash when the power liftgate moves.

Choose the power liftgate mode by turning the dial on the switch until the indicator lines up with the desired position. Press the center of the switch.



See Liftgate on page 2￿14 for more information.

#### Windows


Pushing or pulling the switch part of the way will open or close the window as long as the switch is operated.

Fully push the front of the switch down and release it to express￿down the window. Fully pull the switch up and release it to express￿up the window. See Power Windows on page 2￿24.

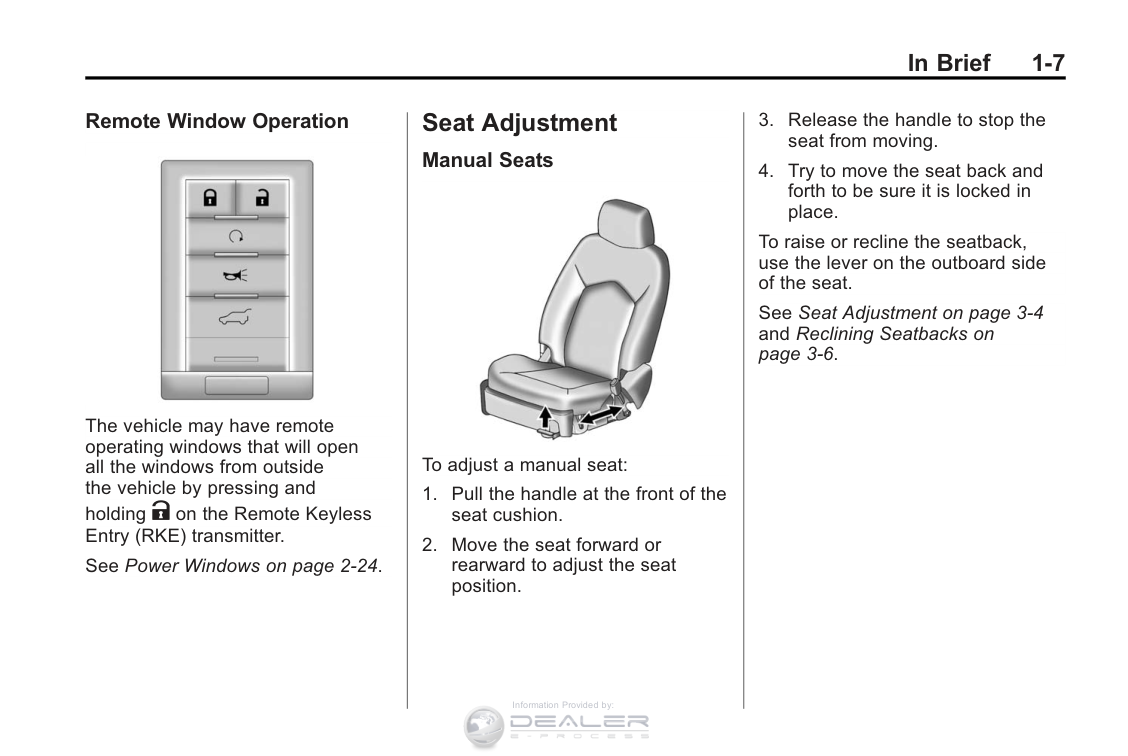

####### Remote Window Operation


The vehicle may have remote operating windows that will open all the windows from outside the vehicle by pressing and holding K on the Remote Keyless Entry (RKE) transmitter. See Power Windows on page 2￿24.

#### Seat Adjustment Manual Seats


To adjust a manual seat:

To raise or recline the seatback, use the lever on the outboard side of the seat.

See Seat Adjustment on page 3￿4 and Reclining Seatbacks on page 3￿6.

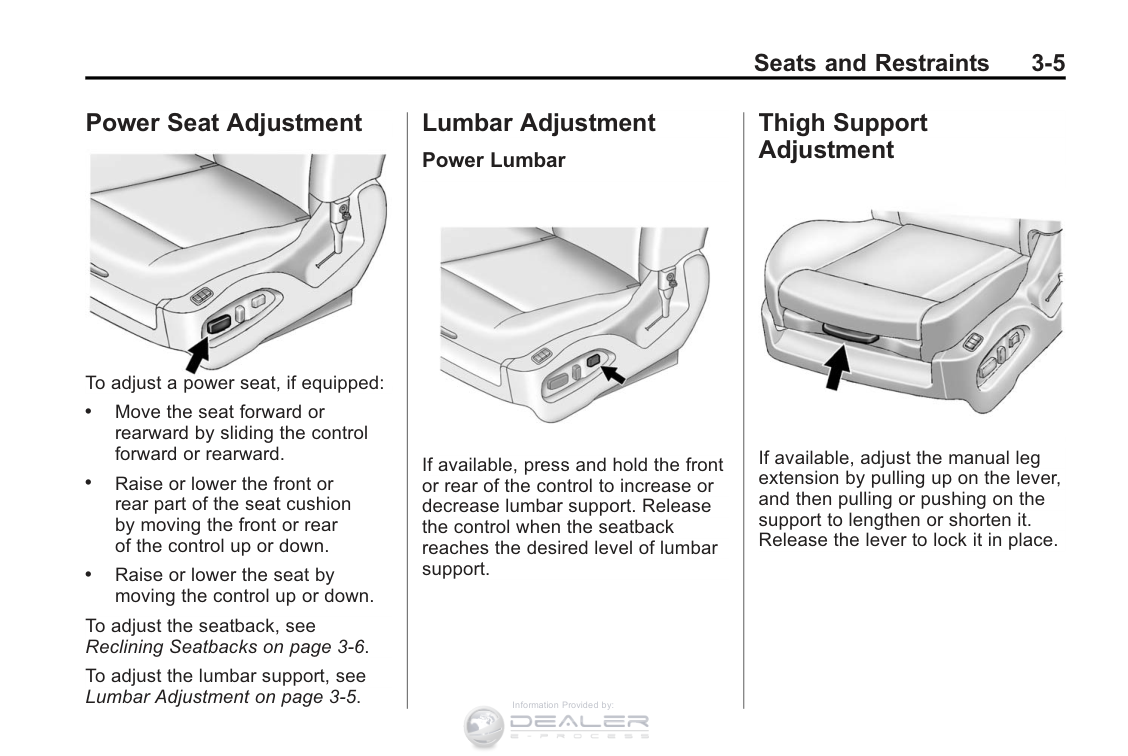

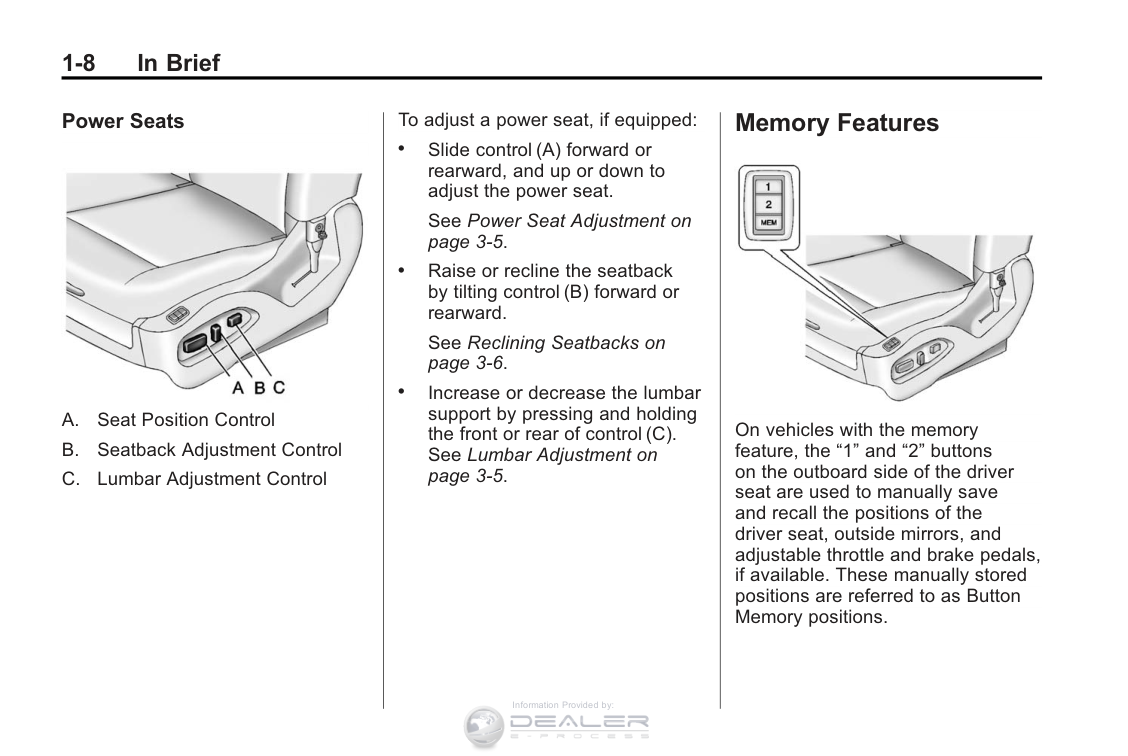

####### Power Seats


To adjust a power seat, if equipped:

. Slide control (A) forward or rearward, and up or down to adjust the power seat.

See Power Seat Adjustment on

. Raise or recline the seatback by tilting control (B) forward or rearward.

See Reclining Seatbacks on

. Increase or decrease the lumbar support by pressing and holding the front or rear of control (C). See Lumbar Adjustment on page 3￿5.

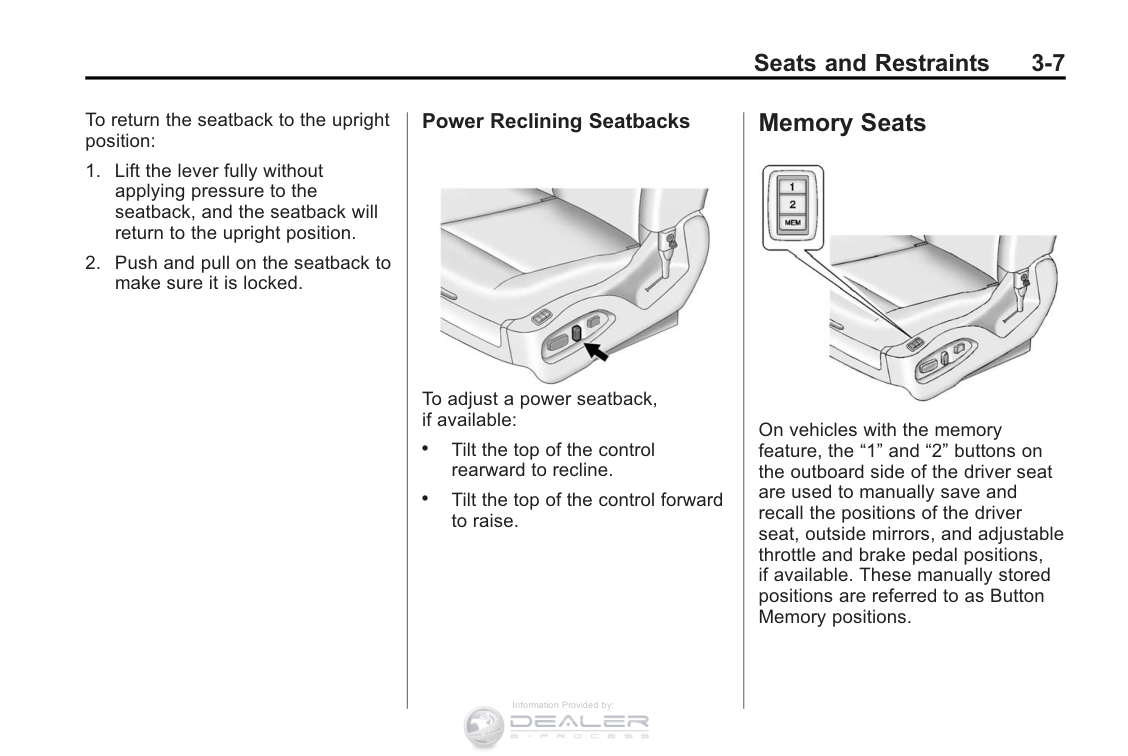

#### Memory Features


On vehicles with the memory feature, the “1” and “2” buttons on the outboard side of the driver seat are used to manually save and recall the positions of the driver seat, outside mirrors, and adjustable throttle and brake pedals, if available. These manually stored positions are referred to as Button Memory positions.

The vehicle will also automatically save driver seat, outside mirror, and adjustable throttle and brake pedal positions to the current driver Remote Keyless Entry (RKE) transmitter when the ignition is turned off. These automatically stored positions are referred to as RKE Memory positions.

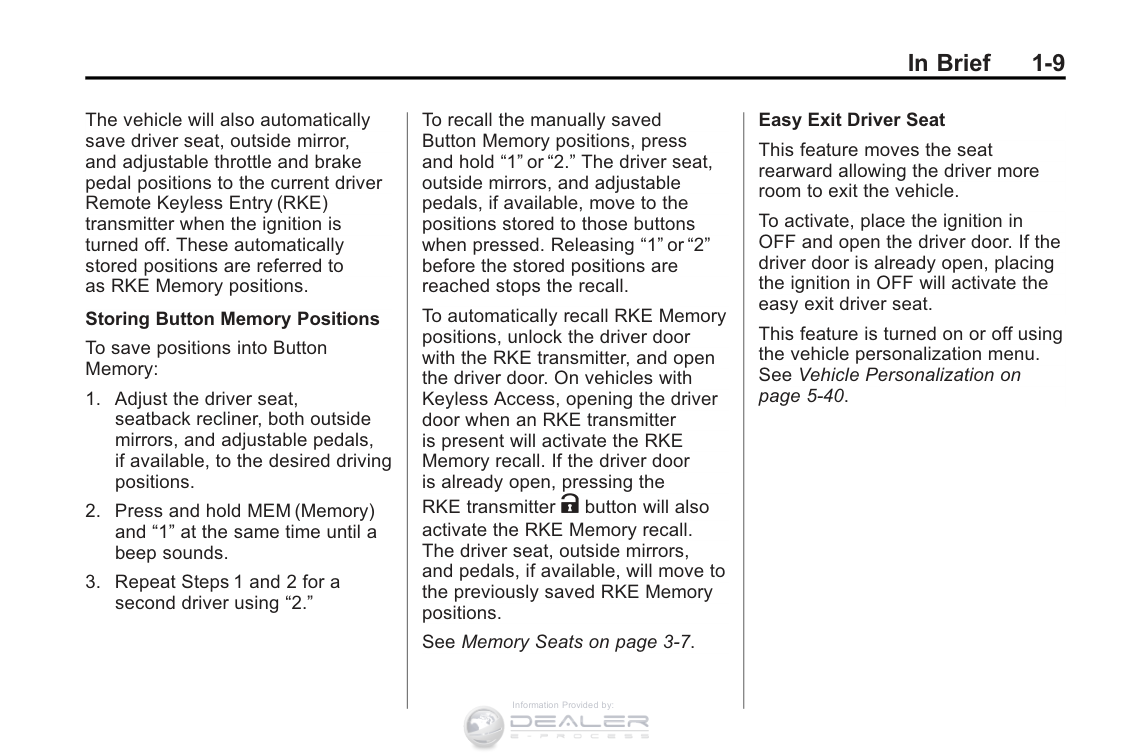

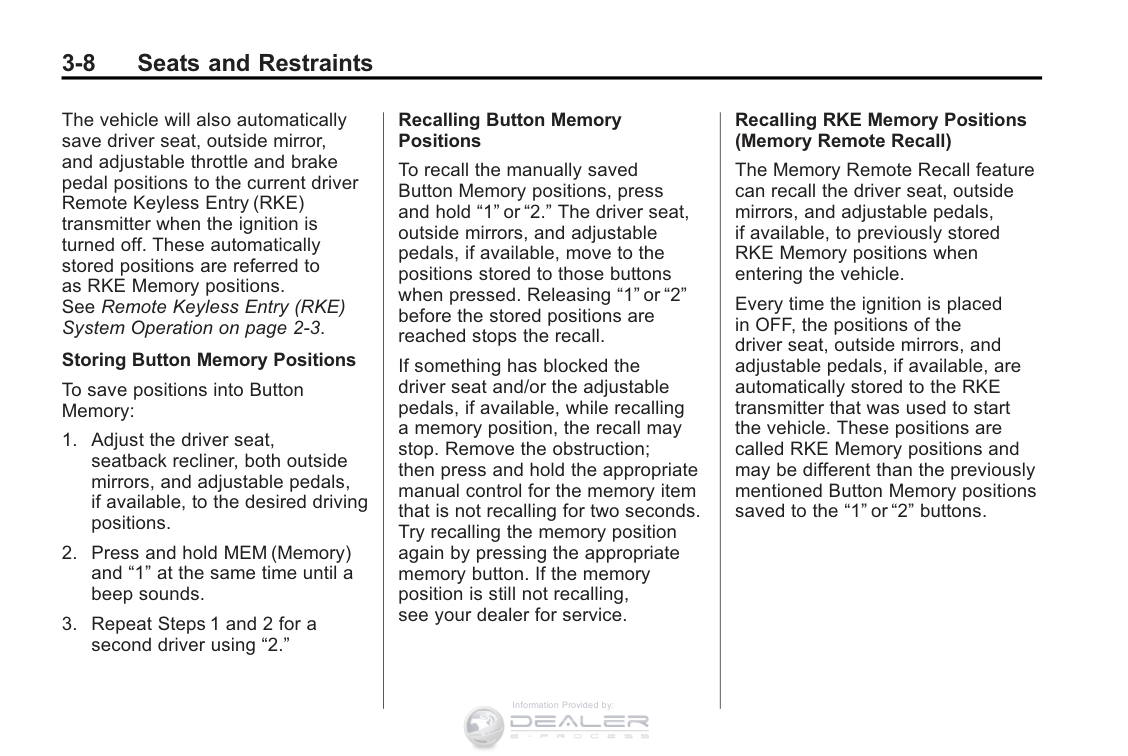

######## Storing Button Memory Positions

To save positions into Button Memory:

To recall the manually saved Button Memory positions, press and hold “1” or “2.” The driver seat, outside mirrors, and adjustable pedals, if available, move to the positions stored to those buttons when pressed. Releasing “1” or “2” before the stored positions are reached stops the recall.

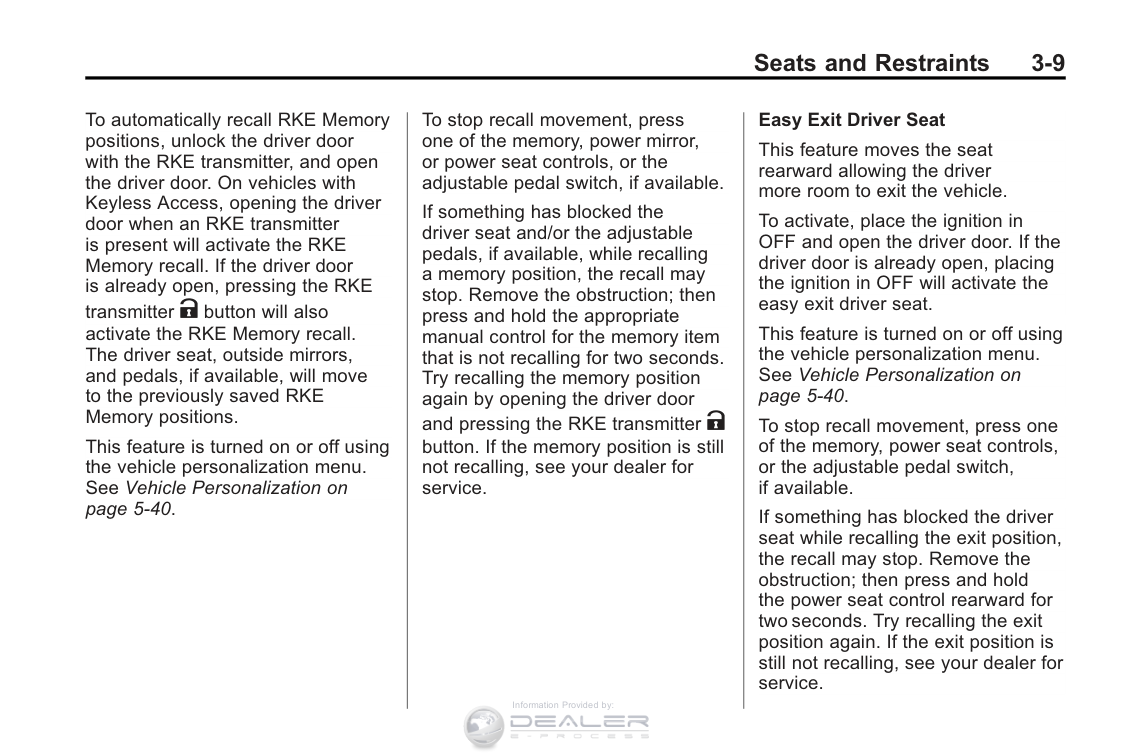

To automatically recall RKE Memory positions, unlock the driver door with the RKE transmitter, and open the driver door. On vehicles with Keyless Access, opening the driver door when an RKE transmitter is present will activate the RKE Memory recall. If the driver door is already open, pressing the RKE transmitter K button will also

activate the RKE Memory recall. The driver seat, outside mirrors, and pedals, if available, will move to the previously saved RKE Memory positions.

See Memory Seats on page 3￿7.

######## Easy Exit Driver Seat

This feature moves the seat rearward allowing the driver more room to exit the vehicle.

To activate, place the ignition in OFF and open the driver door. If the driver door is already open, placing the ignition in OFF will activate the easy exit driver seat.

This feature is turned on or off using the vehicle personalization menu. See Vehicle Personalization on page 5￿40.

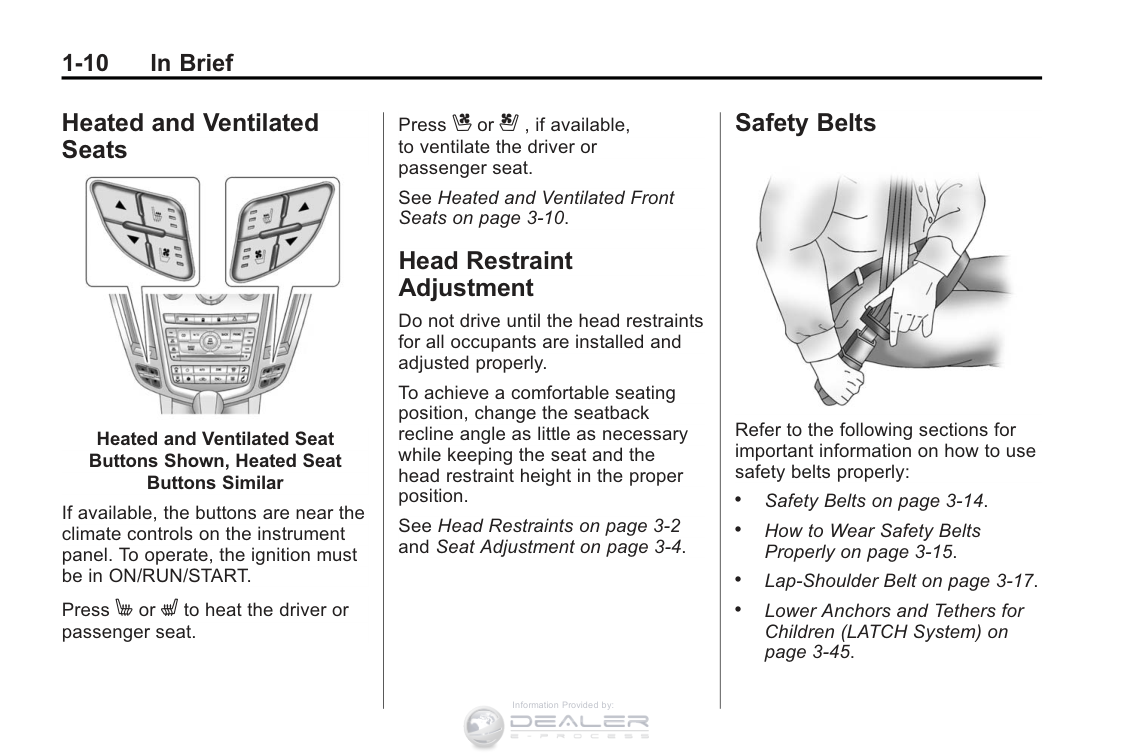

#### Heated and Ventilated Seats


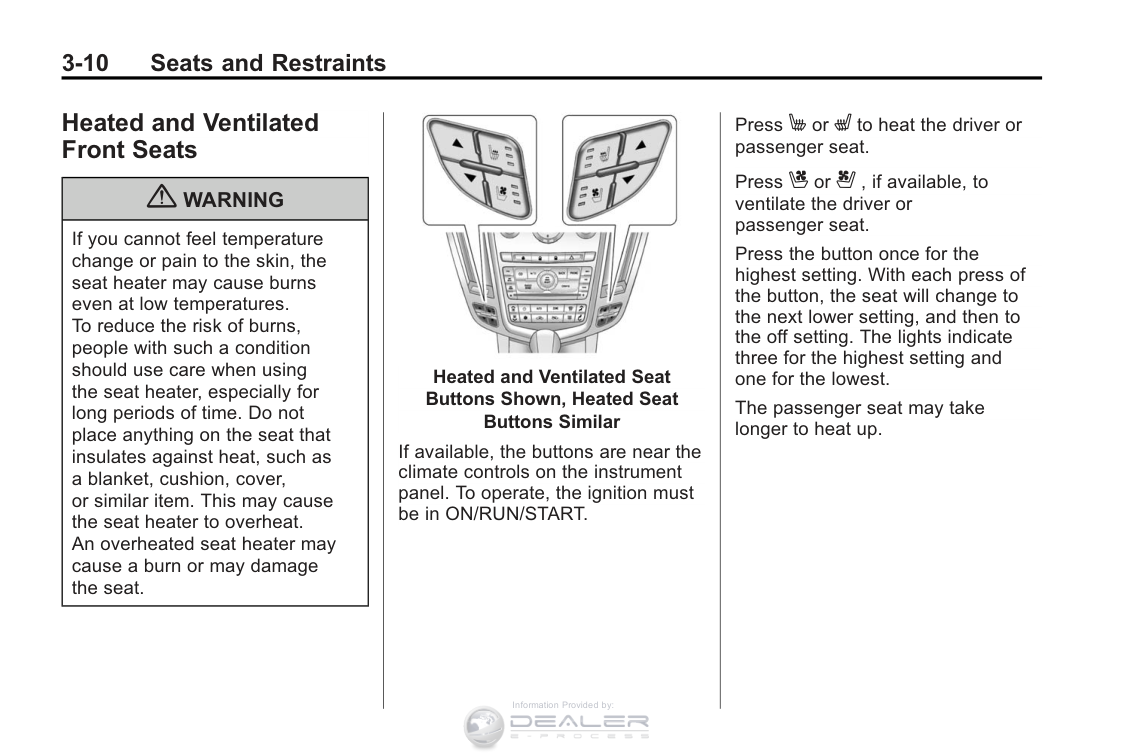

Heated and Ventilated Seat Buttons Shown, Heated Seat Buttons Similar

If available, the buttons are near the climate controls on the instrument panel. To operate, the ignition must be in ON/RUN/START.

Press M or L to heat the driver or passenger seat.

Press C or { ,ifavailable, to ventilate the driver or passenger seat.

See Heated and Ventilated Front

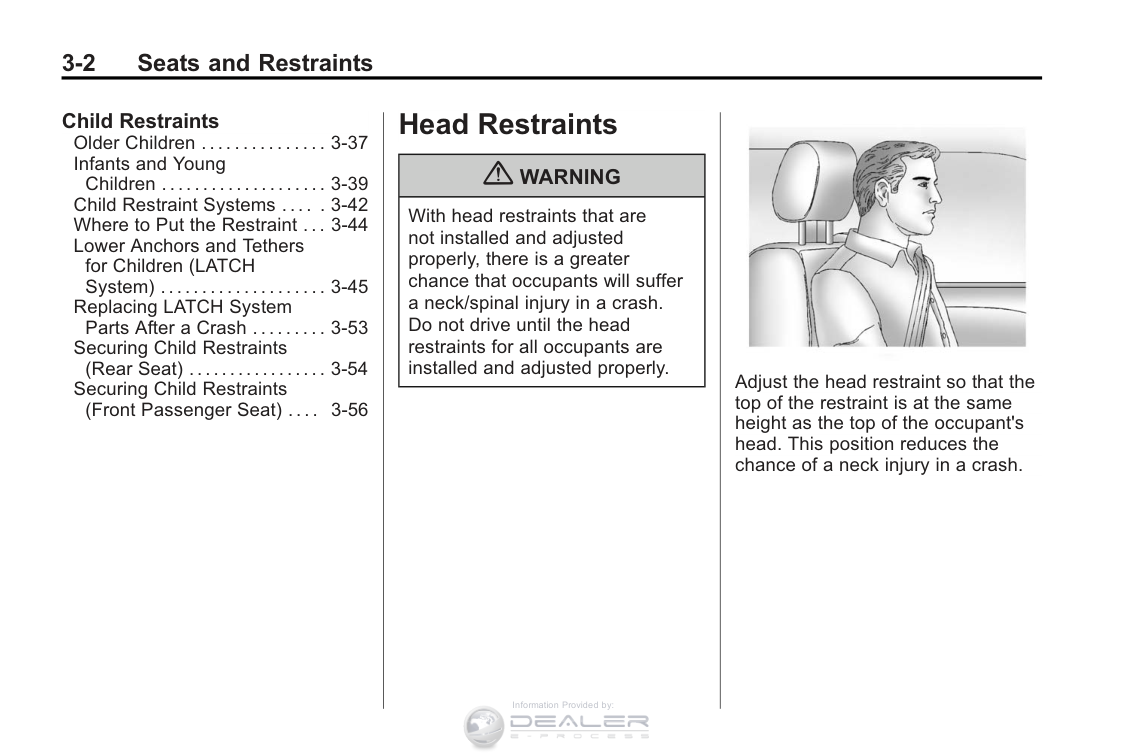

#### Seats on page 3￿10. Head Restraint Adjustment

Do not drive until the head restraints for all occupants are installed and adjusted properly.

To achieve a comfortable seating position, change the seatback recline angle as little as necessary while keeping the seat and the head restraint height in the proper position.

See Head Restraints on page 3￿2 and Seat Adjustment on page 3￿4.

#### Safety Belts


Refer to the following sections for important information on how to use safety belts properly:

. Safety Belts on page 3￿14.

. How to Wear Safety Belts Properly on page 3￿15.

. Lap-Shoulder Belt on page 3￿17.

. Lower Anchors and Tethers for Children (LATCH System) on page 3￿45.

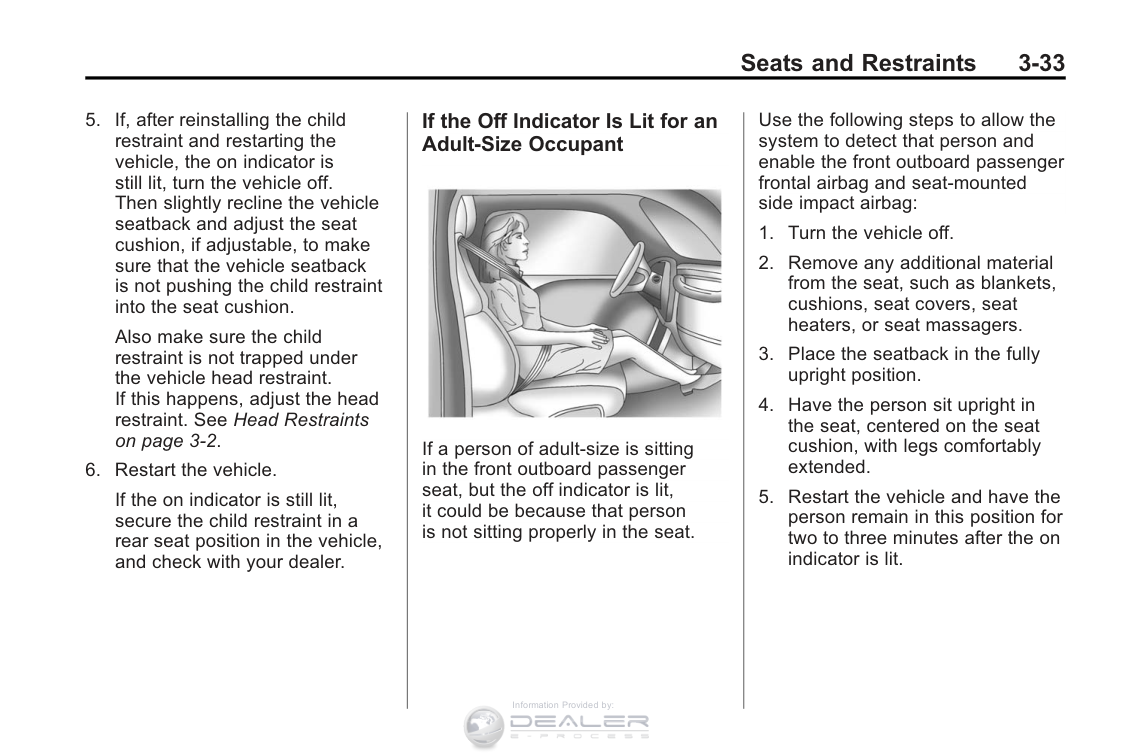

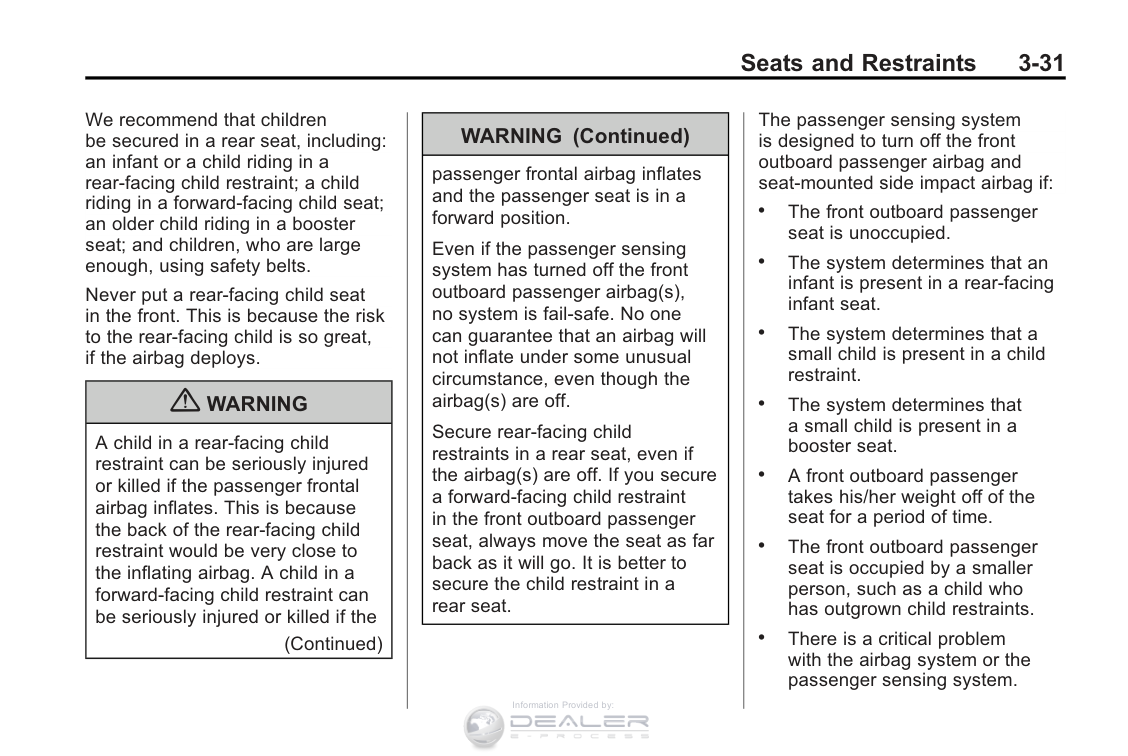

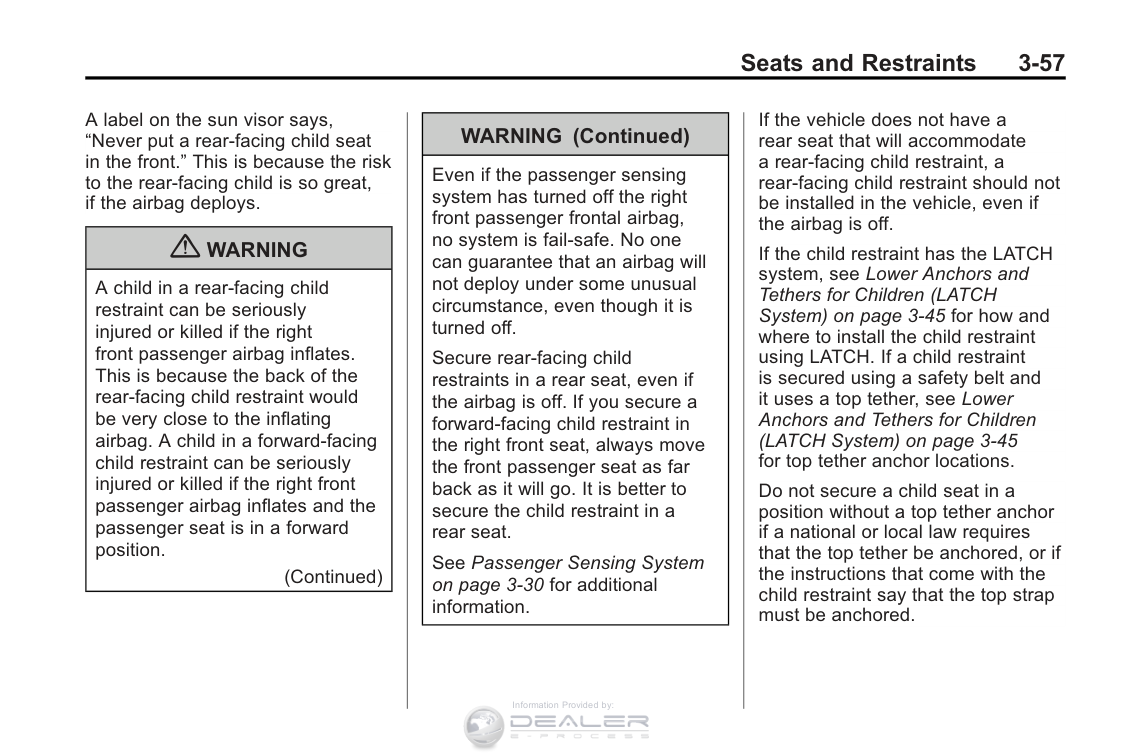

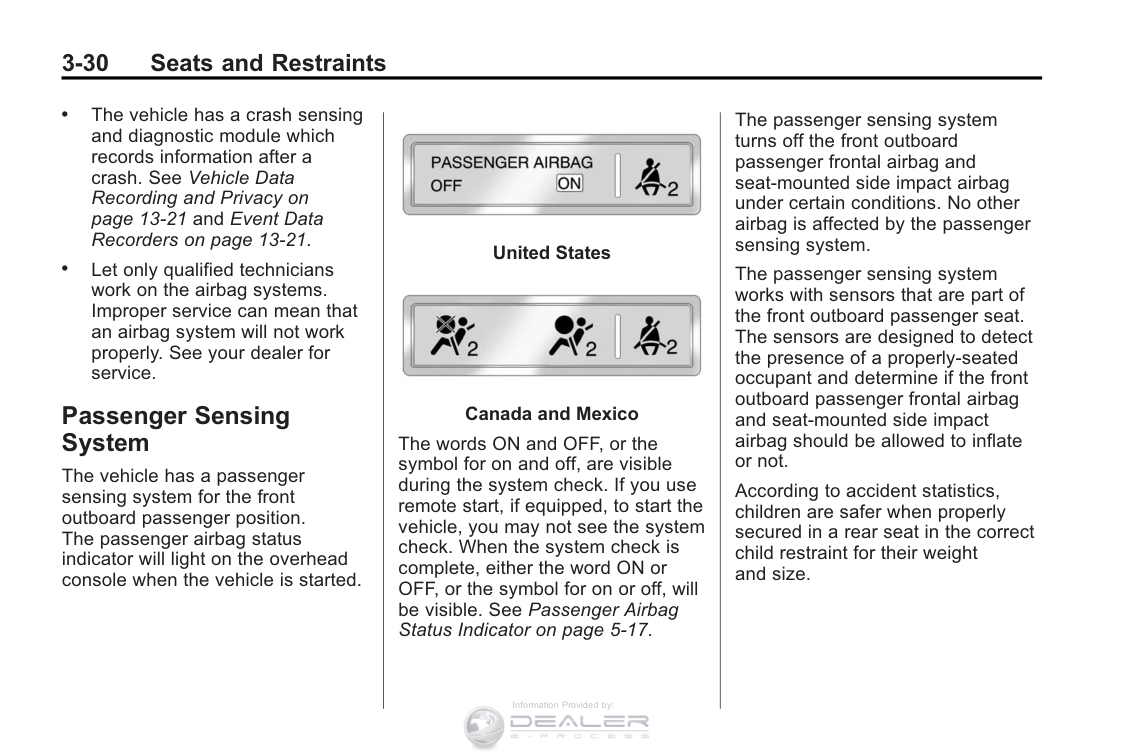

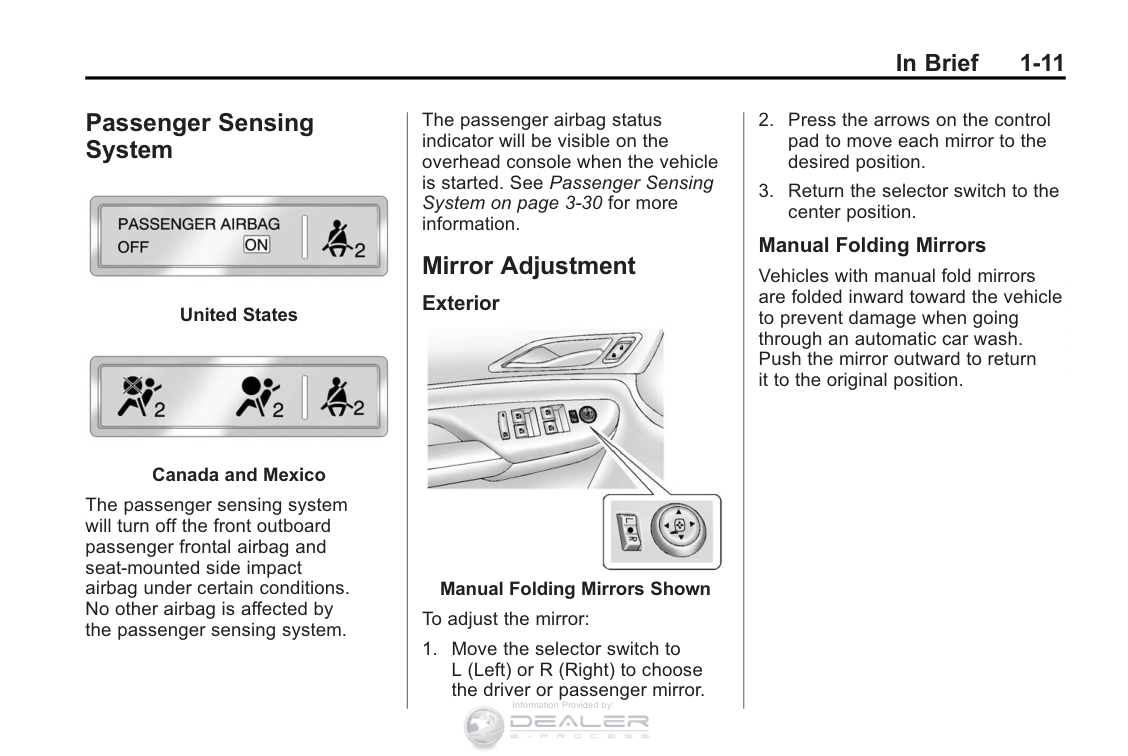

#### Passenger Sensing System


United States


Canada and Mexico

The passenger sensing system will turn off the front outboard passenger frontal airbag and seat-mounted side impact airbag under certain conditions. No other airbag is affected by the passenger sensing system.

The passenger airbag status indicator will be visible on the overhead console when the vehicle is started. See Passenger Sensing System on page 3￿30 for more information.

#### Mirror Adjustment Exterior


Manual Folding Mirrors Shown To adjust the mirror:



L(Left)orR(Right)tochoose the driver or passenger mirror.

####### Manual Folding Mirrors

Vehicles with manual fold mirrors are folded inward toward the vehicle to prevent damage when going through an automatic car wash. Push the mirror outward to return it to the original position.

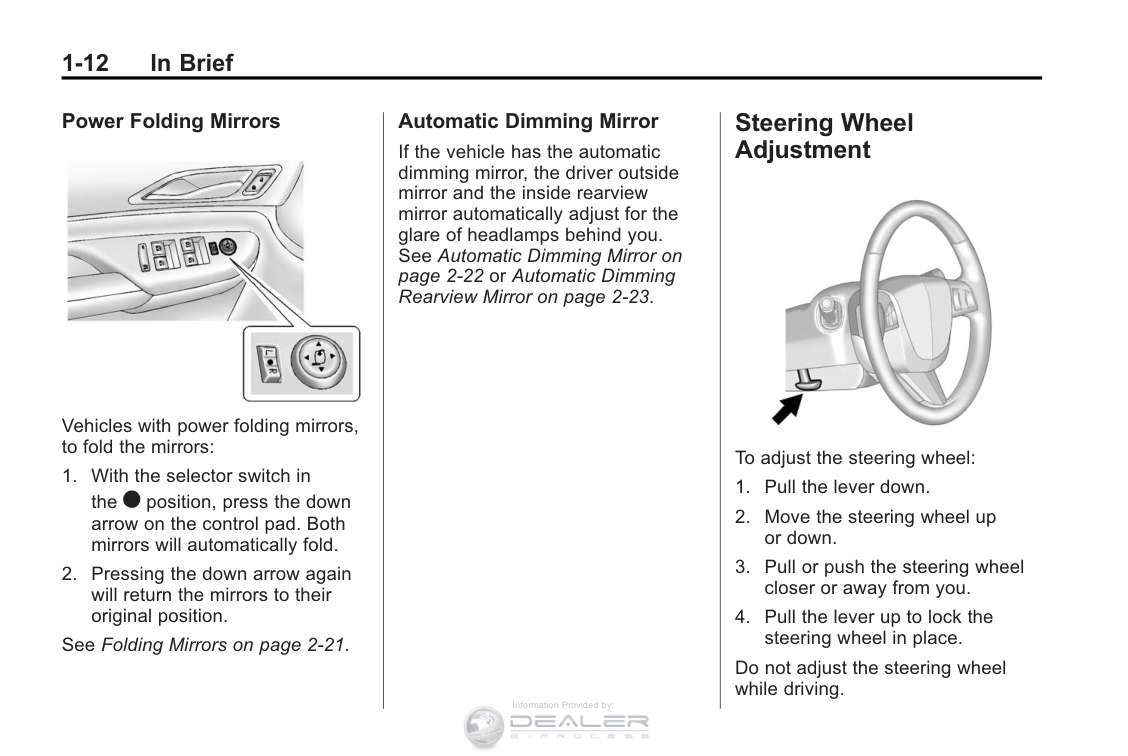

####### Power Folding Mirrors


Vehicles with power folding mirrors, to fold the mirrors:

See Folding Mirrors on page 2￿21.

Automatic Dimming Mirror If the vehicle has the automatic dimming mirror, the driver outside mirror and the inside rearview mirror automatically adjust for the glare of headlamps behind you. See Automatic Dimming Mirror on page 2￿22 or Automatic Dimming Rearview Mirror on page 2￿23.



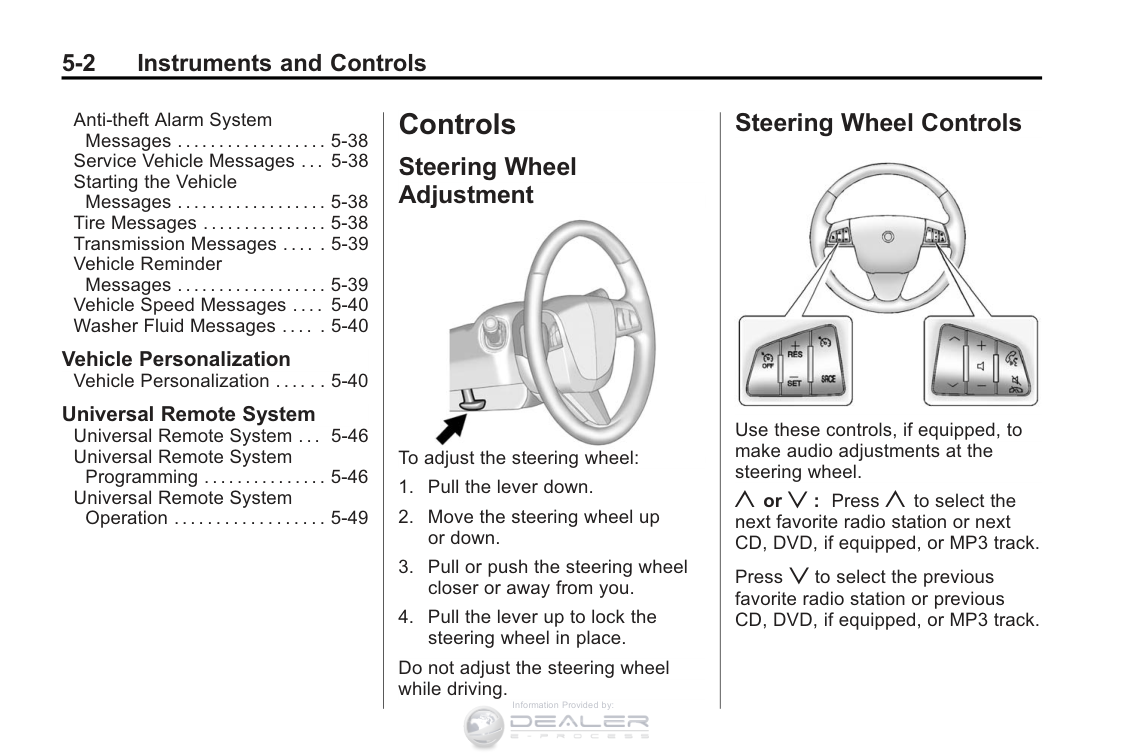

#### Steering Wheel Adjustment


To adjust the steering wheel:

Do not adjust the steering wheel while driving.

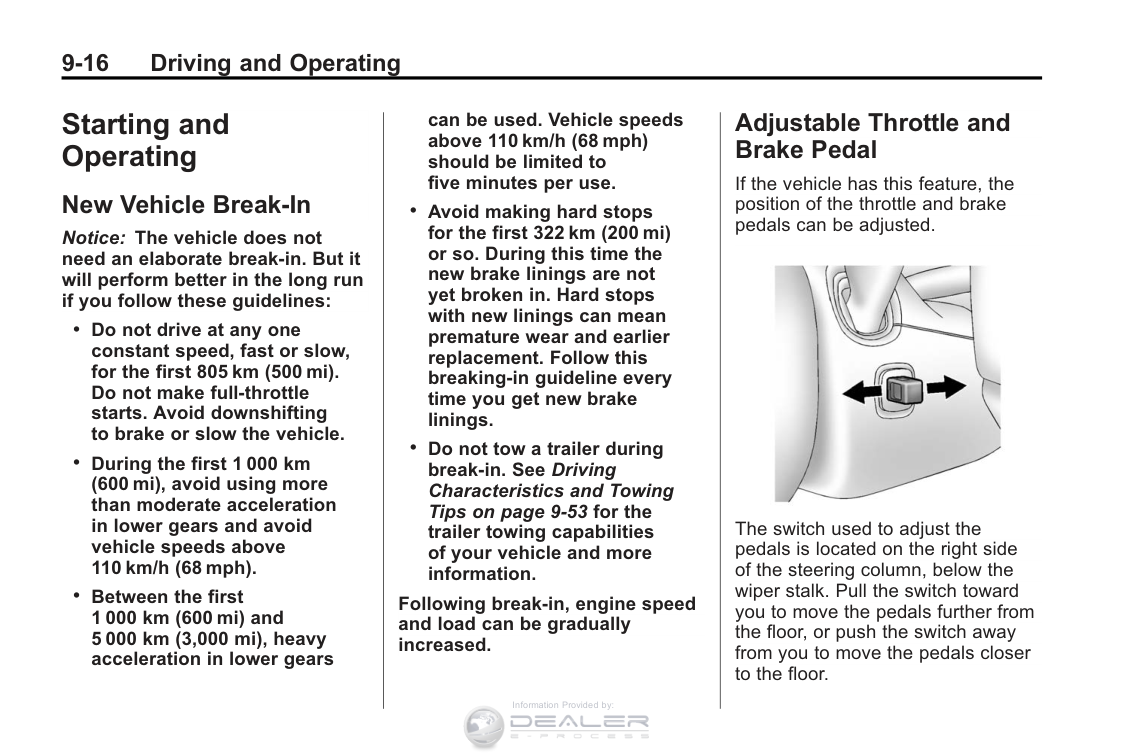

#### Throttle and Brake Pedal Adjustment

If the vehicle has this feature, the position of the throttle and brake pedals can be adjusted.

The switch used to adjust the pedals is located on the right side of the steering column, below the wiper stalk. Pull the switch toward you to move the pedals further from the floor, or push the switch away from you to move the pedals closer to the floor.

See Adjustable Throttle and Brake Pedal on page 9￿16.

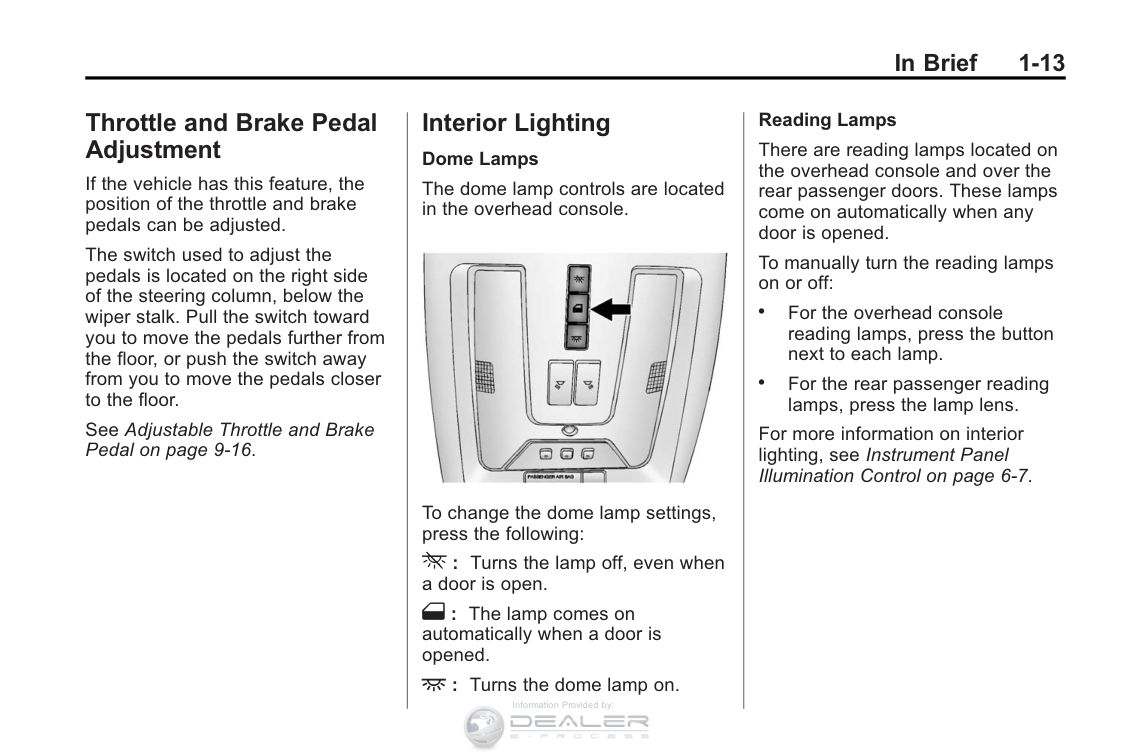

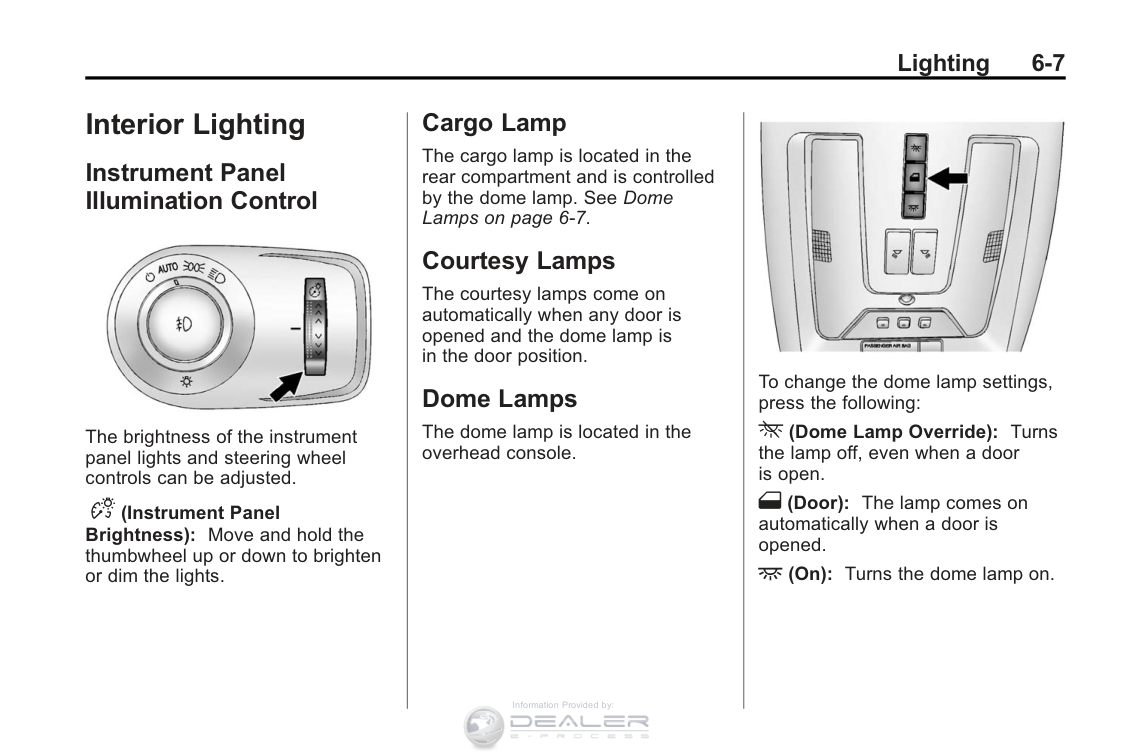

#### Interior Lighting Dome Lamps

The dome lamp controls are located in the overhead console.


To change the dome lamp settings, press the following:

1 : The lamp comes on automatically when a door is opened.



+ : Turns the dome lamp on.

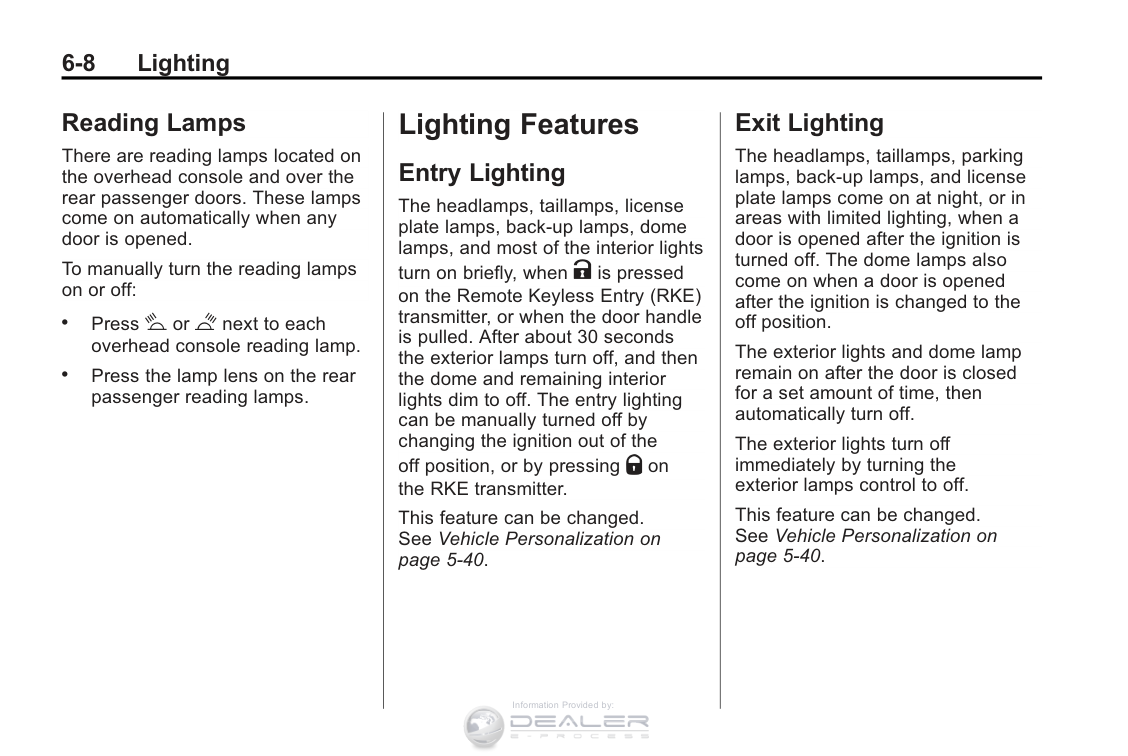

######## Reading Lamps

There are reading lamps located on the overhead console and over the rear passenger doors. These lamps come on automatically when any door is opened.

To manually turn the reading lamps on or off:

. For the overhead console reading lamps, press the button next to each lamp.

. For the rear passenger reading lamps, press the lamp lens.

For more information on interior lighting, see Instrument Panel Illumination Control on page 6￿7.

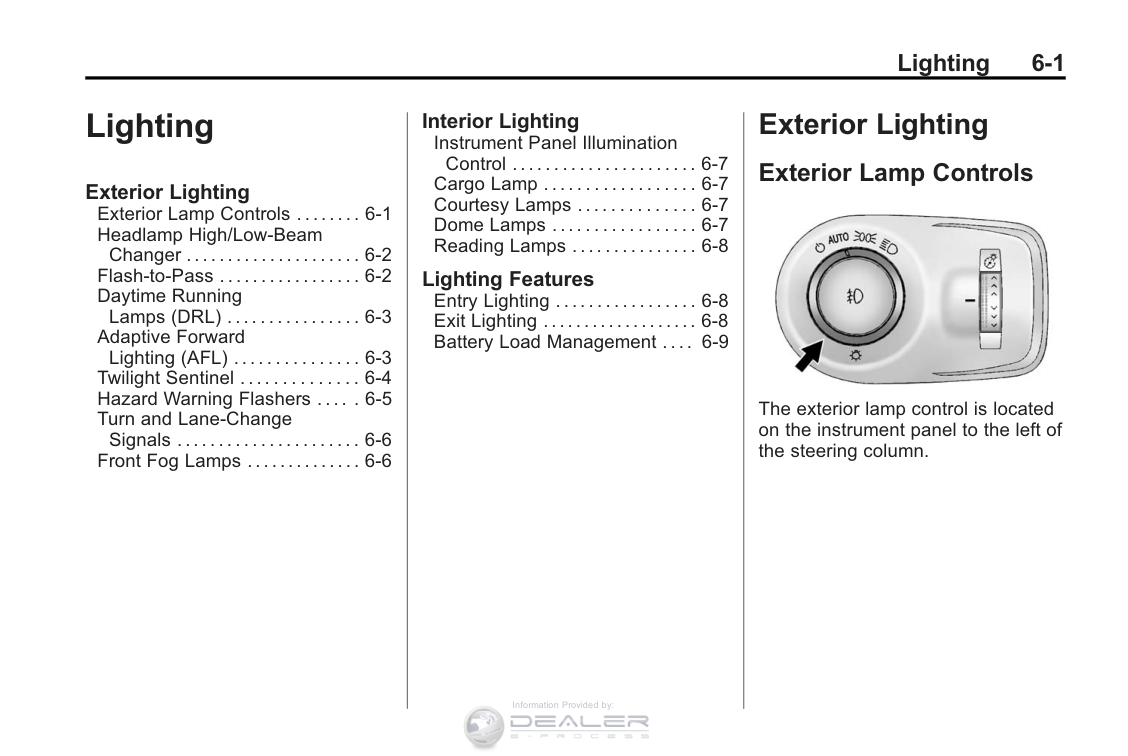

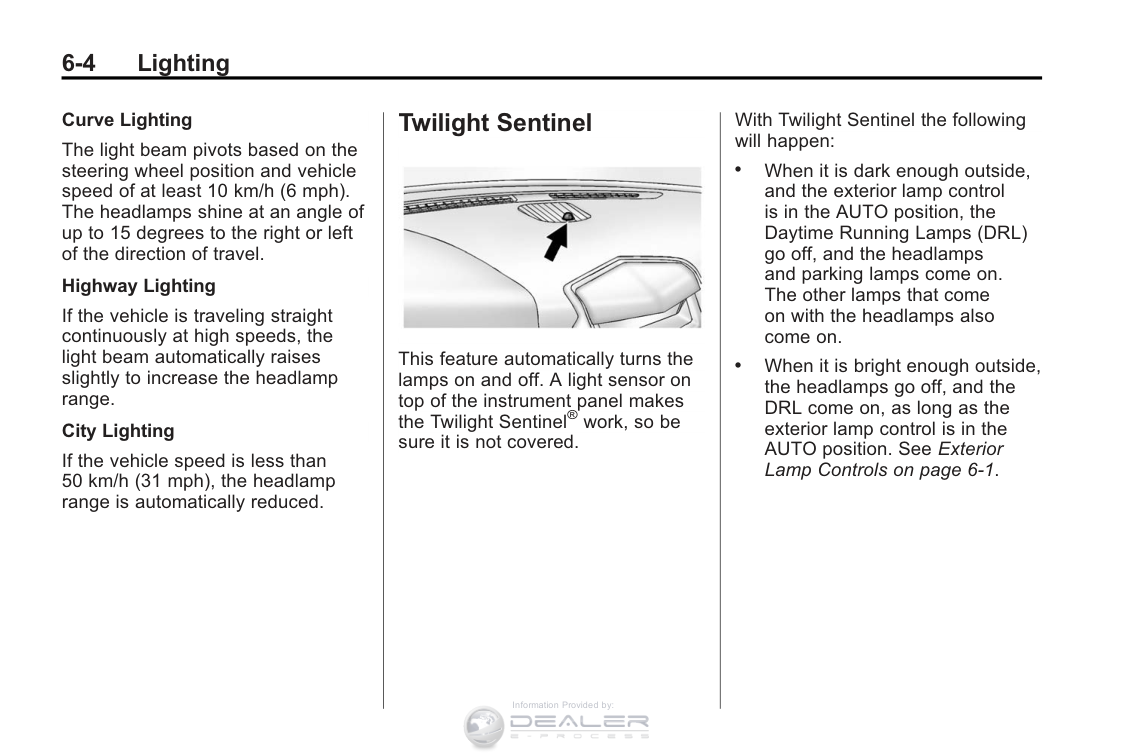

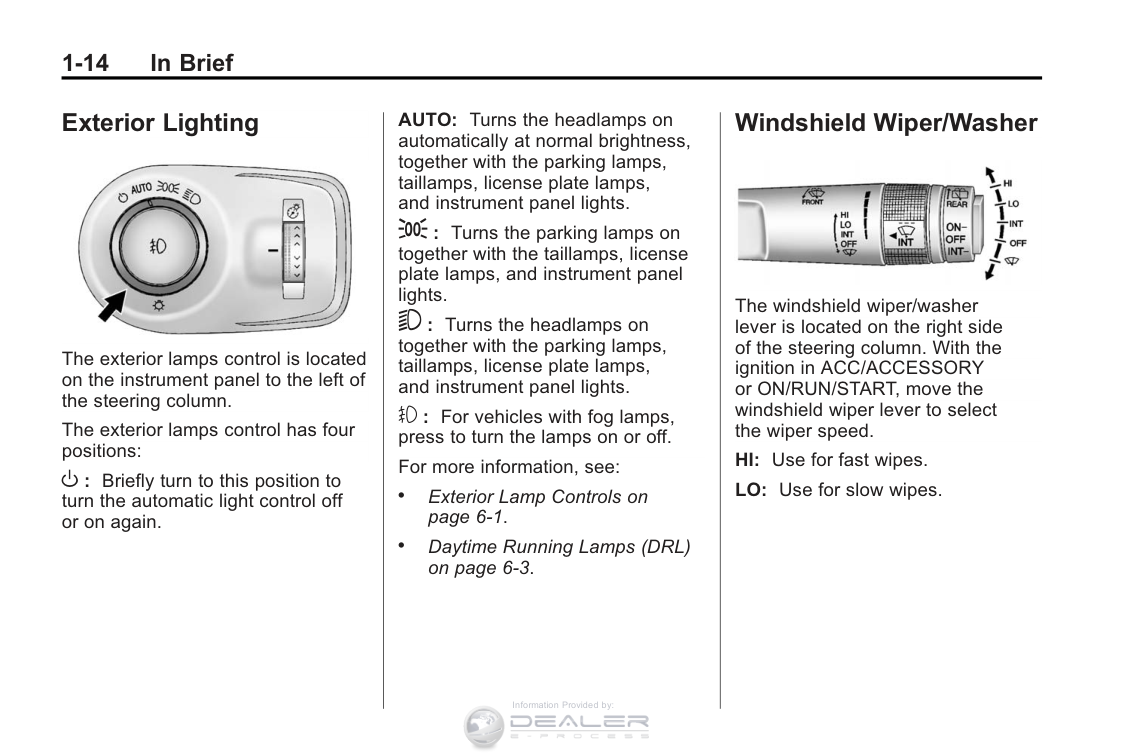

#### Exterior Lighting


The exterior lamps control is located on the instrument panel to the left of the steering column.

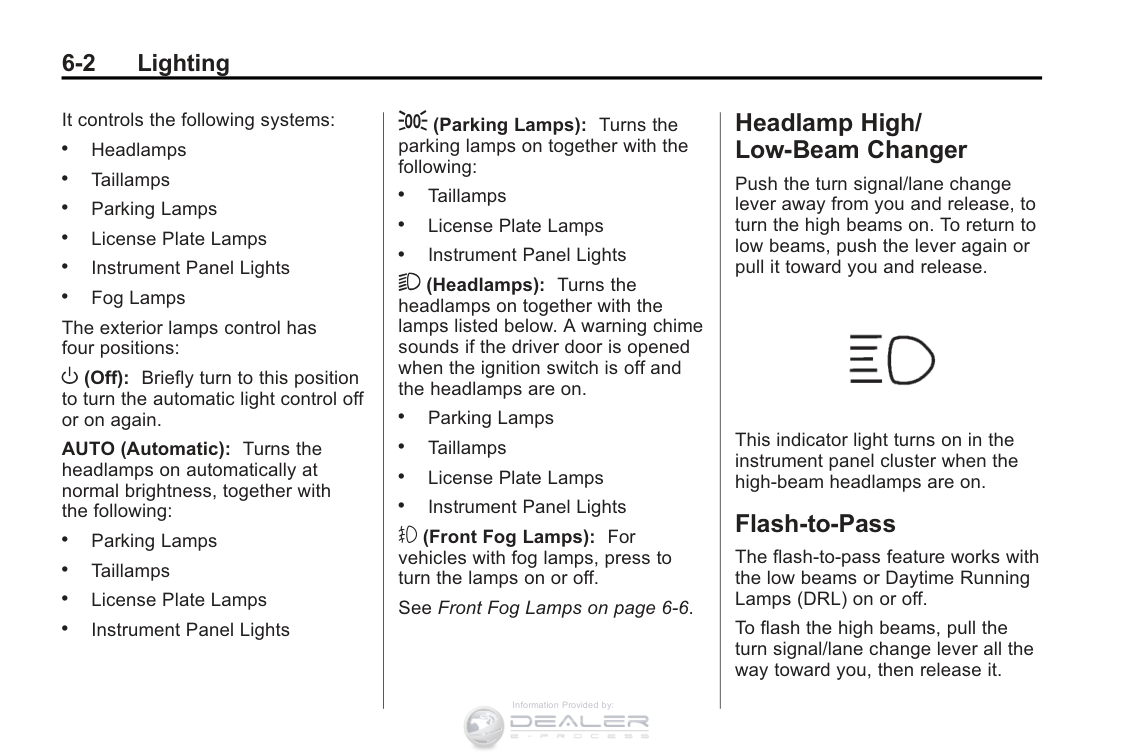

The exterior lamps control has four positions:

O : Briefly turn to this position to turn the automatic light control off or on again.

AUTO: Turns the headlamps on automatically at normal brightness, together with the parking lamps, taillamps, license plate lamps, and instrument panel lights.

; : Turns the parking lamps on together with the taillamps, license plate lamps, and instrument panel lights.

5 : Turns the headlamps on together with the parking lamps, taillamps, license plate lamps, and instrument panel lights.

: For vehicles with fog lamps, press to turn the lamps on or off.

For more information, see:

. Exterior Lamp Controls on page 6￿1.

. Daytime Running Lamps (DRL) on page 6￿3.

#### Windshield Wiper/Washer


The windshield wiper/washer lever is located on the right side of the steering column. With the ignition in ACC/ACCESSORY or ON/RUN/START, move the windshield wiper lever to select the wiper speed.

HI: Use for fast wipes. LO: Use for slow wipes.

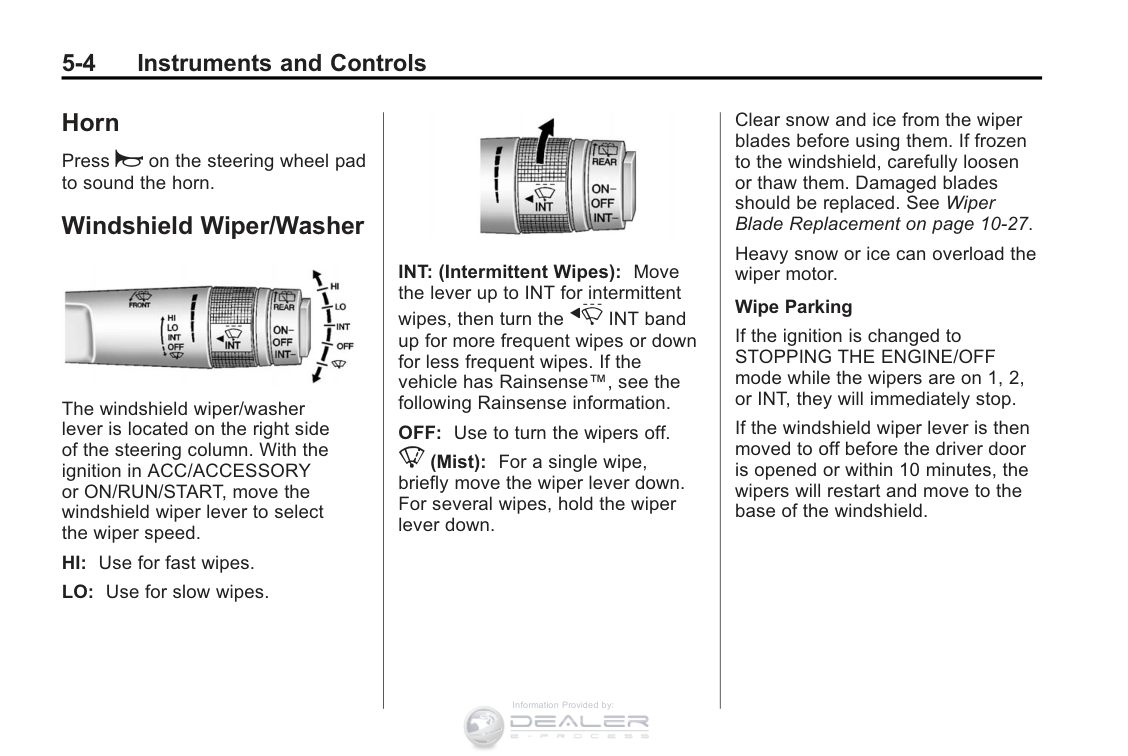

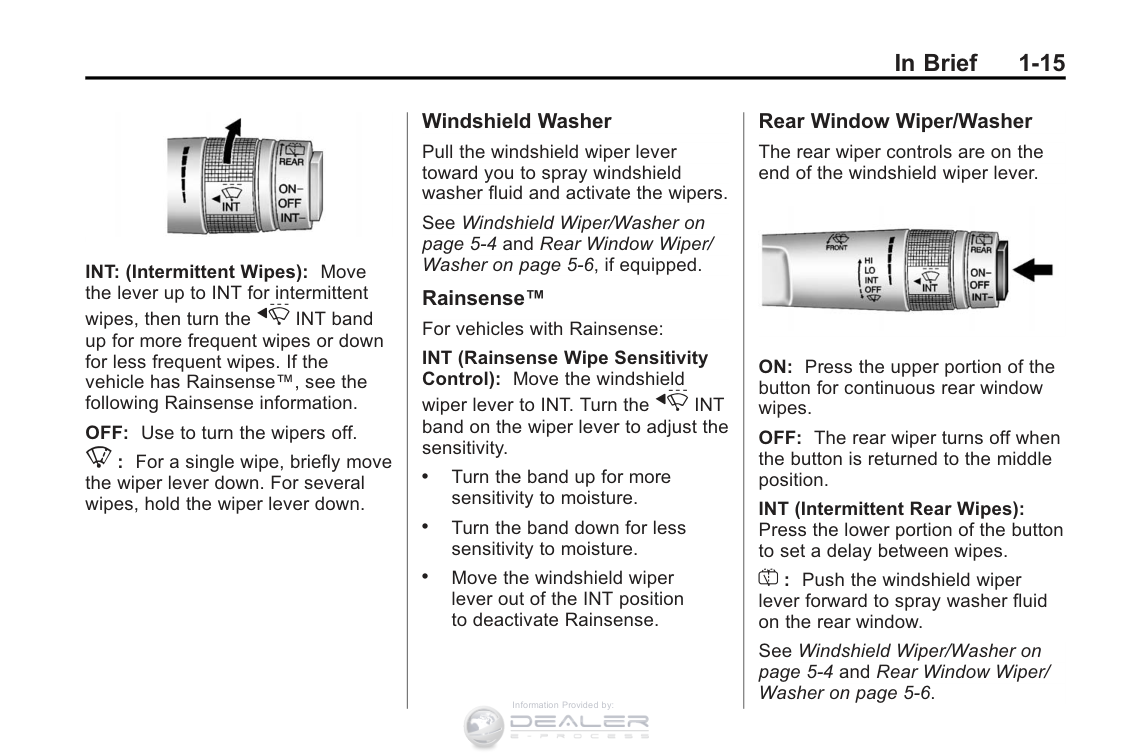

INT: (Intermittent Wipes): Move the lever up to INT for intermittent wipes, then turn the x INT band up for more frequent wipes or down for less frequent wipes. If the vehicle has Rainsense™,seethe following Rainsense information. OFF: Use to turn the wipers off. 8 : For a single wipe, briefly move

the wiper lever down. For several wipes, hold the wiper lever down.

####### Windshield Washer

Pull the windshield wiper lever toward you to spray windshield washer fluid and activate the wipers.

See Windshield Wiper/Washer on page 5￿4 and Rear Window Wiper/ Washer on page 5￿6,ifequipped.

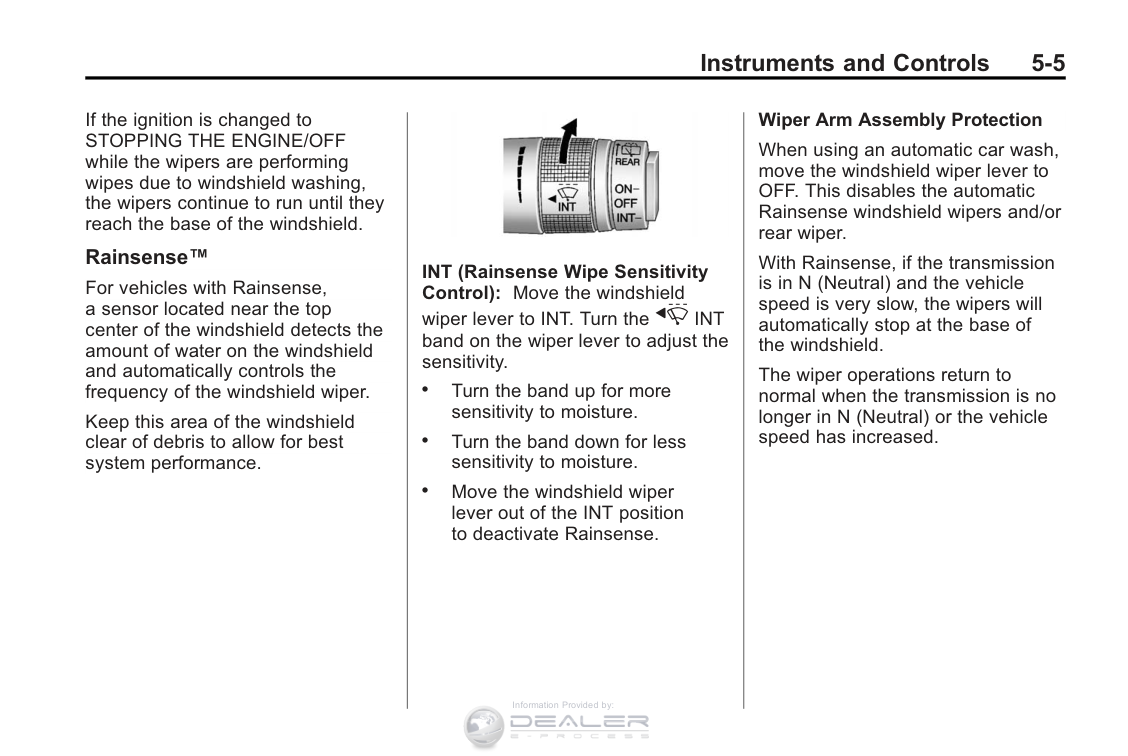

Rainsense™ For vehicles with Rainsense:

INT (Rainsense Wipe Sensitivity Control): Move the windshield

wiper lever to INT. Turn the x INT band on the wiper lever to adjust the sensitivity.

. Turn the band up for more sensitivity to moisture.

. Turn the band down for less sensitivity to moisture.

. Move the windshield wiper lever out of the INT position to deactivate Rainsense.

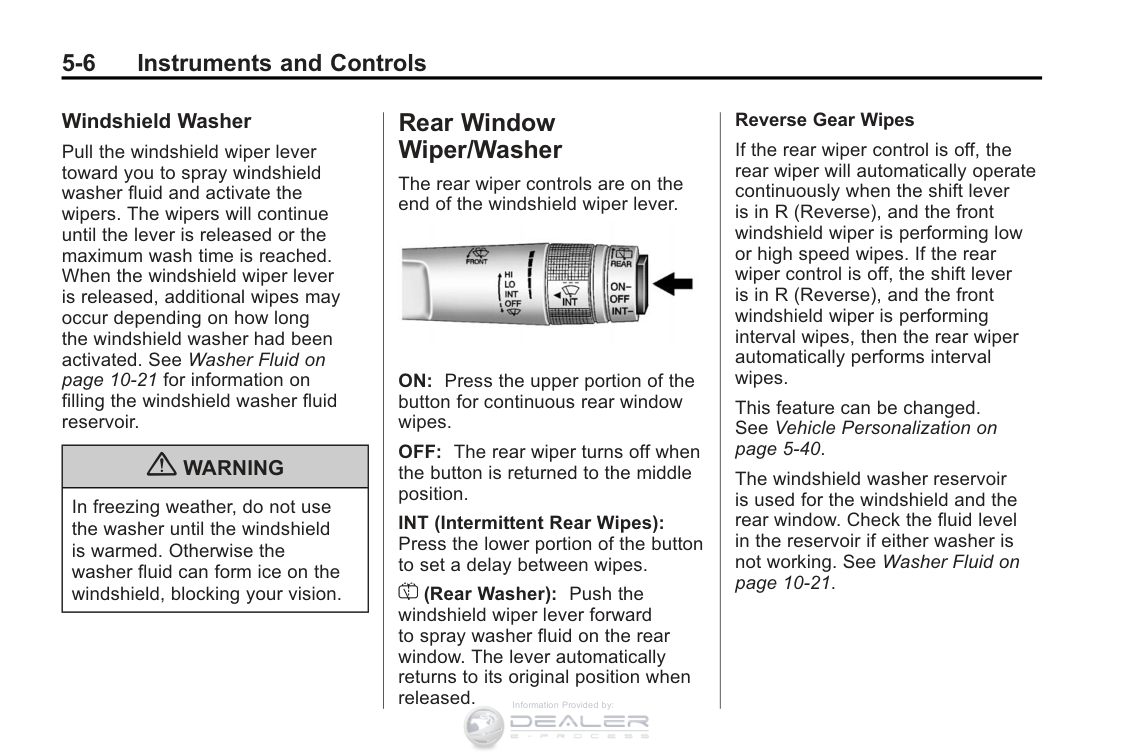

####### Rear Window Wiper/Washer

The rear wiper controls are on the end of the windshield wiper lever.


ON: Press the upper portion of the button for continuous rear window wipes.

OFF: The rear wiper turns off when the button is returned to the middle position.

INT (Intermittent Rear Wipes): Press the lower portion of the button to set a delay between wipes.

= : Push the windshield wiper lever forward to spray washer fluid on the rear window.

See Windshield Wiper/Washer on page 5￿4 and Rear Window Wiper/ Washer on page 5￿6.

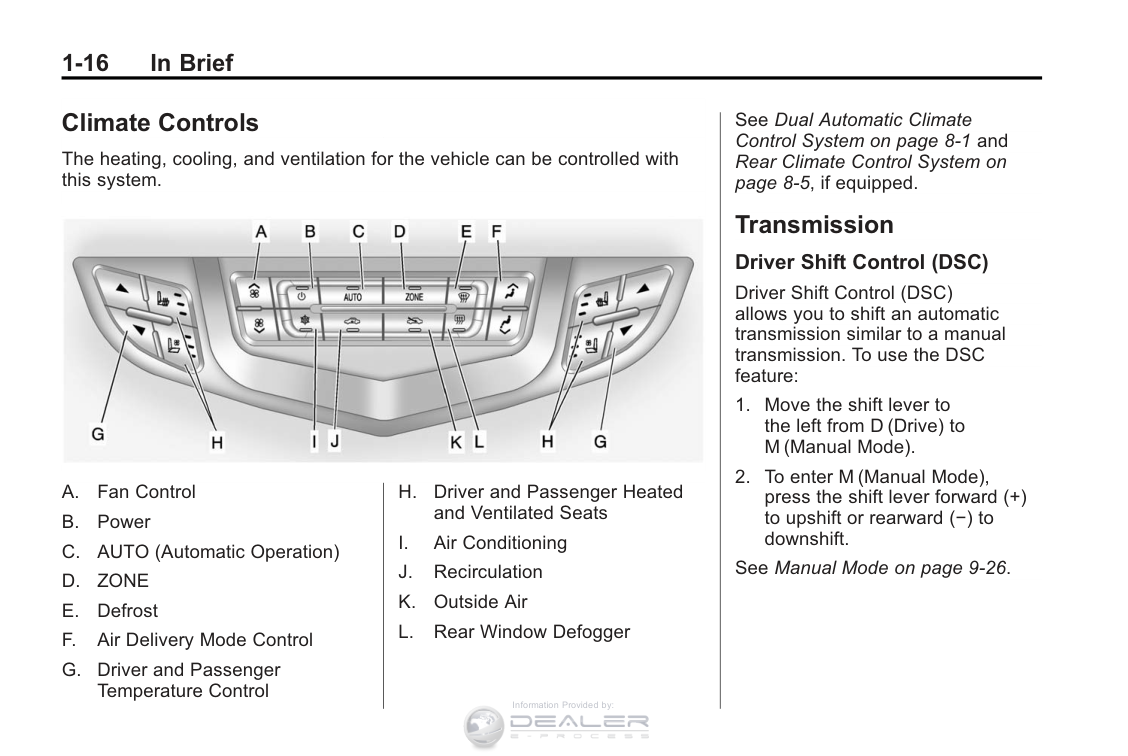

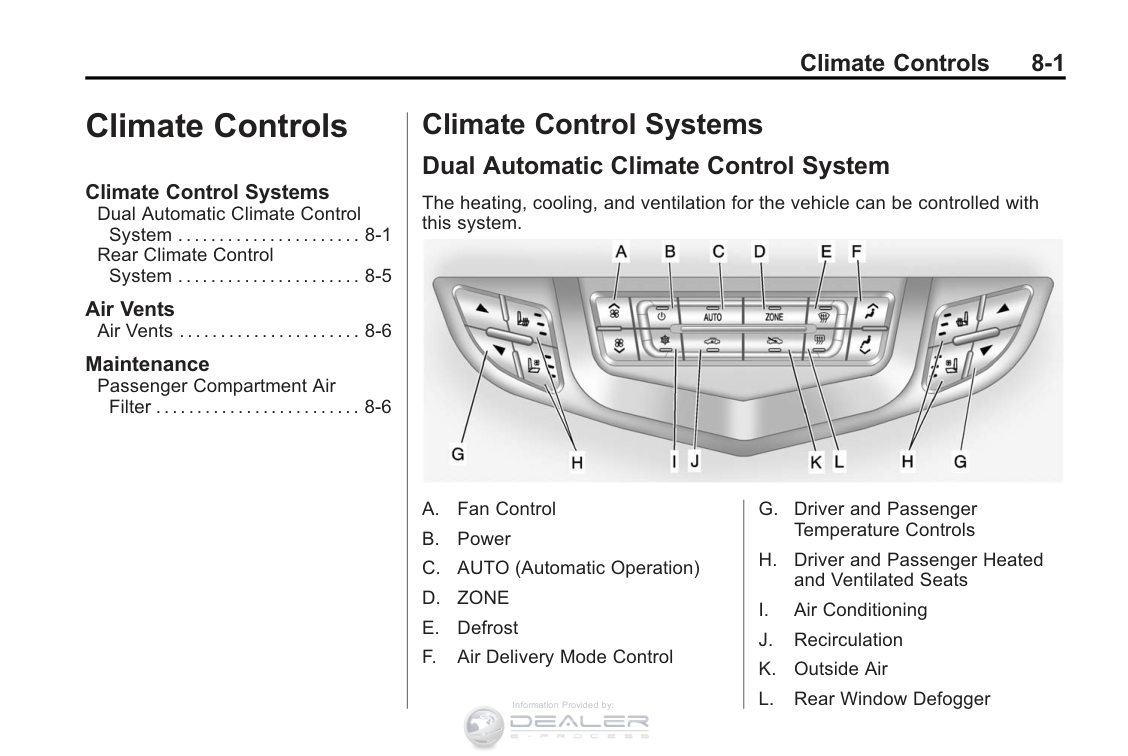

|Climate Controls| |

|---|---| | | | |he heating, cooling, and ventilation f this system.|r the vehicle can be controlled with| | | | |

A. Fan Control
B. Power
C. AUTO (Automatic Operation)
D. ZONE
E. Defrost
F. Air Delivery Mode Control
G. Driver and Passenger Temperature Control
|H. Driver and Passenger Heated and Ventilated Seats
I. Air Conditioning
J. Recirculation
K. Outside Air
L. Rear Window Defogger


Information Provided by:|



See Dual Automatic Climate

Control System on page 8￿1 and Rear Climate Control System on page 8￿5,ifequipped.

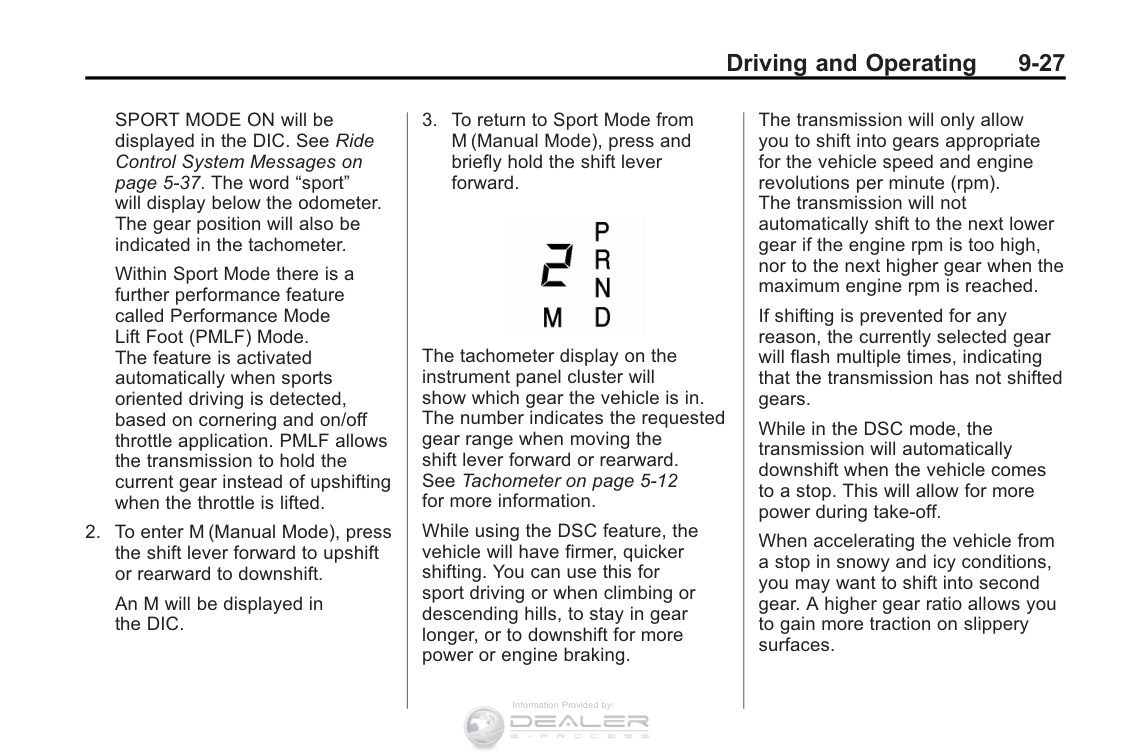

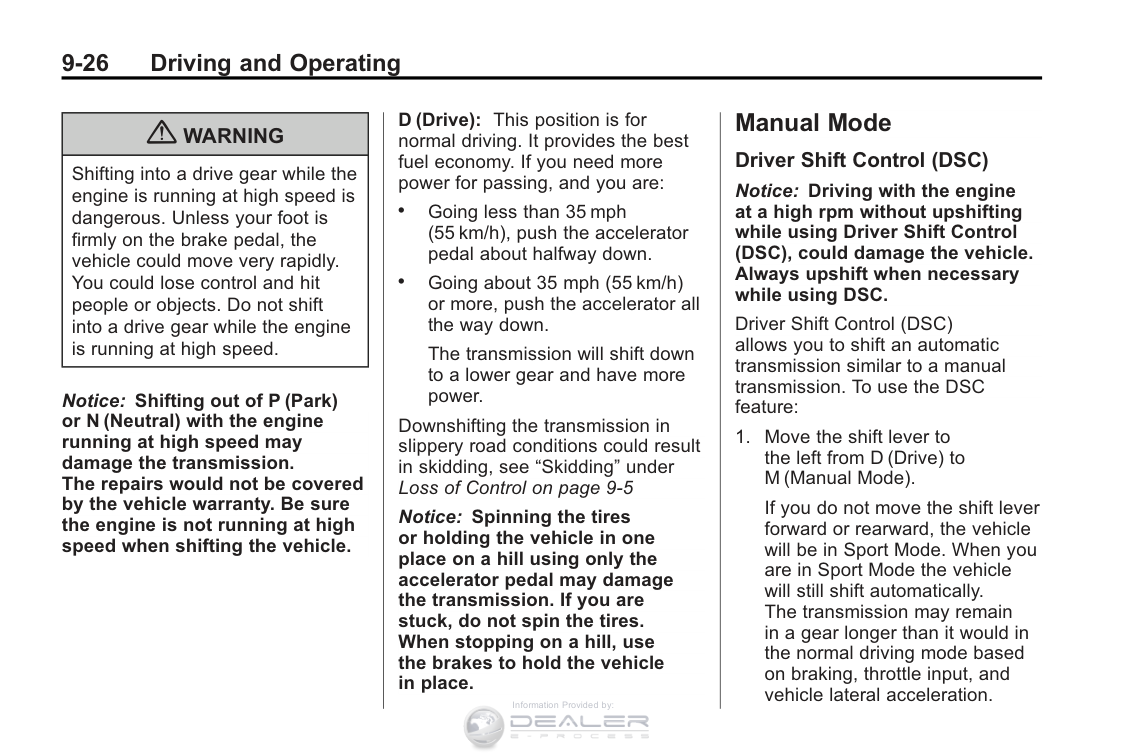

#### Transmission Driver Shift Control (DSC)

Driver Shift Control (DSC) allows you to shift an automatic transmission similar to a manual transmission. To use the DSC feature:

See Manual Mode on page 9￿26.

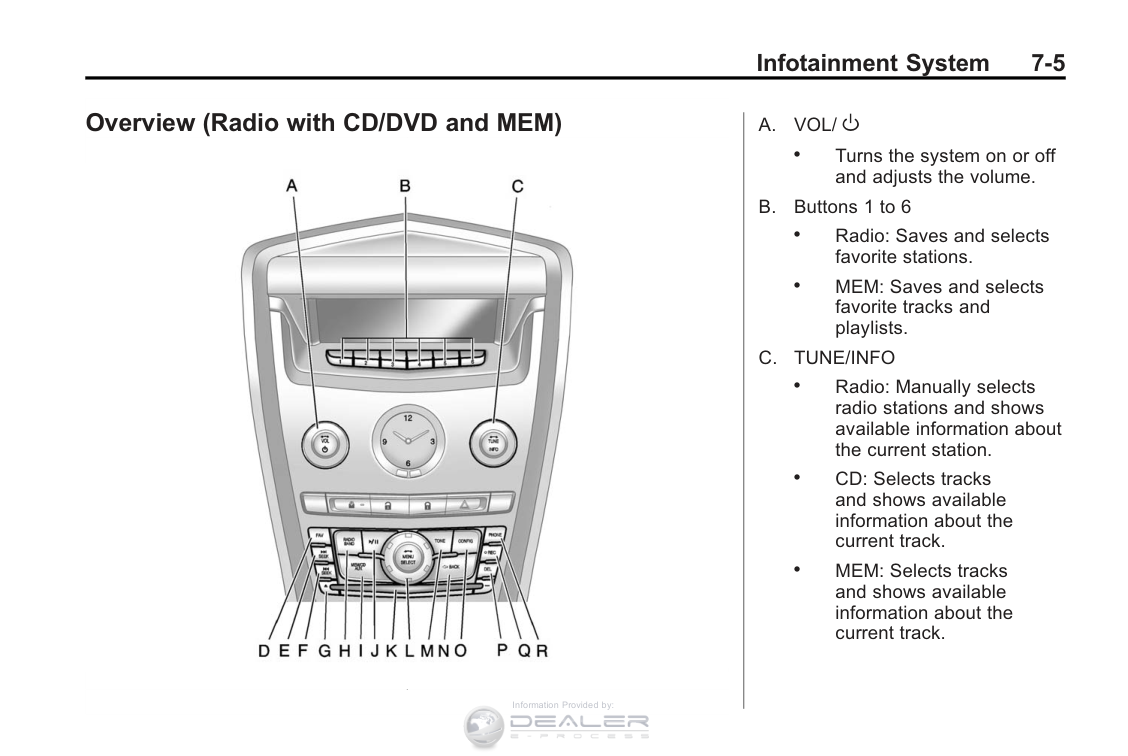

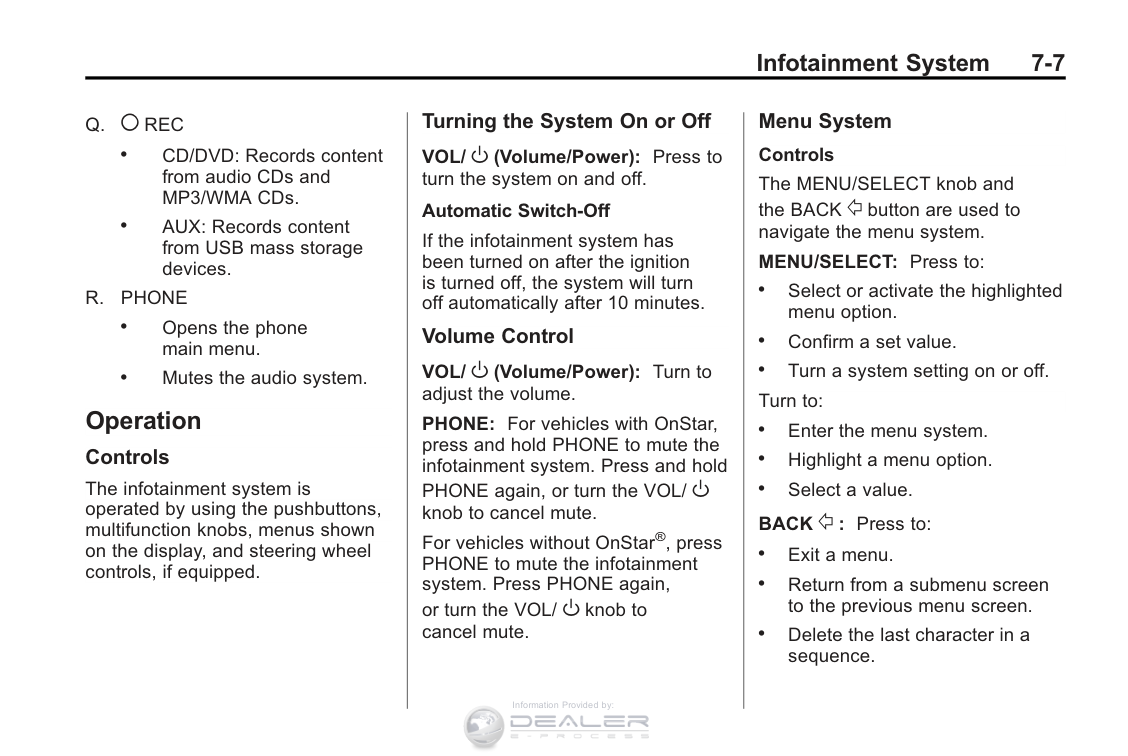

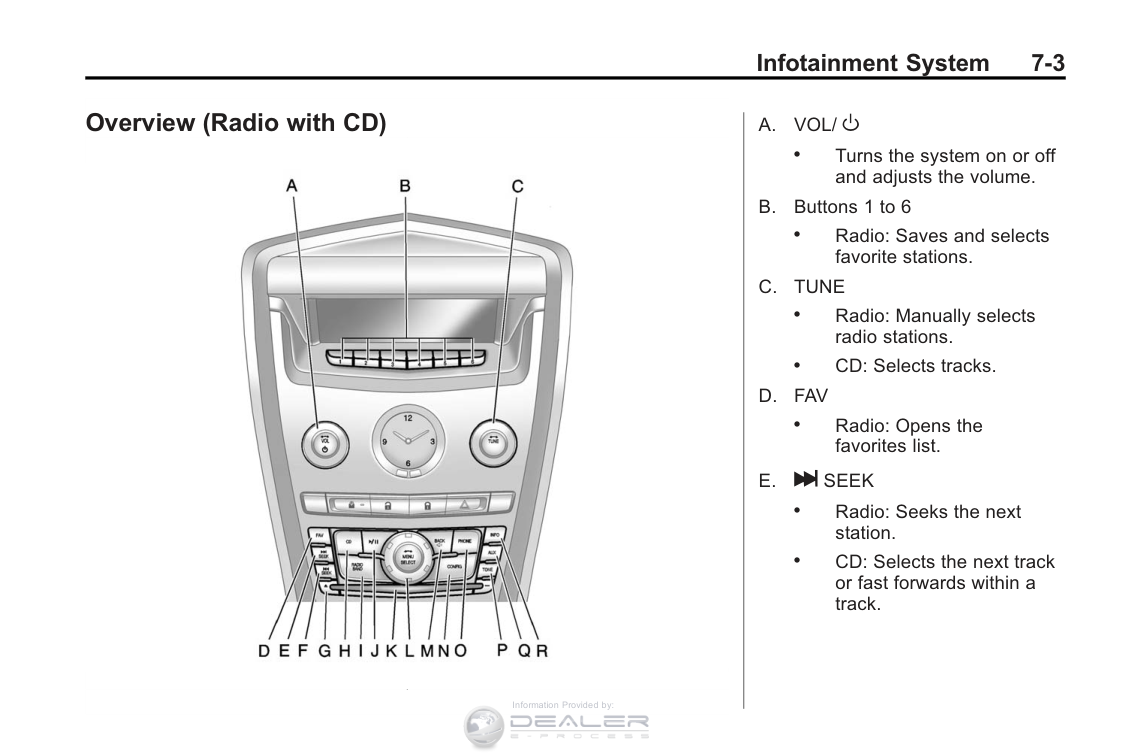

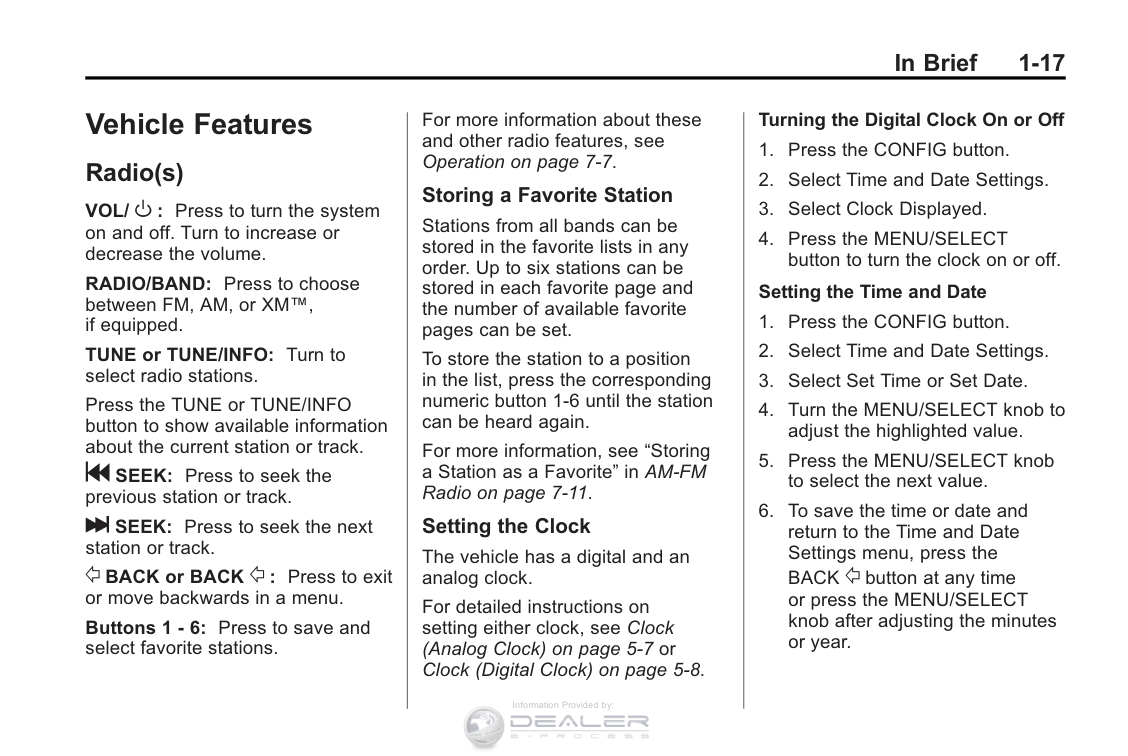

Vehicle Features Radio(s) VOL/ O : Press to turn the system

on and off. Turn to increase or decrease the volume.

RADIO/BAND: Press to choose between FM, AM, or XM™, if equipped.

TUNE or TUNE/INFO: Turn to select radio stations. Press the TUNE or TUNE/INFO button to show available information about the current station or track. g SEEK: Press to seek the previous station or track. l SEEK: Press to seek the next station or track. / BACK or BACK / : Press to exit or move backwards in a menu. Buttons 1 - 6: Press to save and select favorite stations.

For more information about these and other radio features, see Operation on page 7￿7.

####### Storing a Favorite Station

Stations from all bands can be stored in the favorite lists in any order. Up to six stations can be stored in each favorite page and the number of available favorite pages can be set.

To store the station to a position in the list, press the corresponding numeric button 1-6 until the station can be heard again.

For more information, see “Storing aStationasaFavorite” in AM-FM Radio on page 7￿11. Setting the Clock The vehicle has a digital and an analog clock. For detailed instructions on setting either clock, see Clock (Analog Clock) on page 5￿7 or Clock (Digital Clock) on page 5￿8.



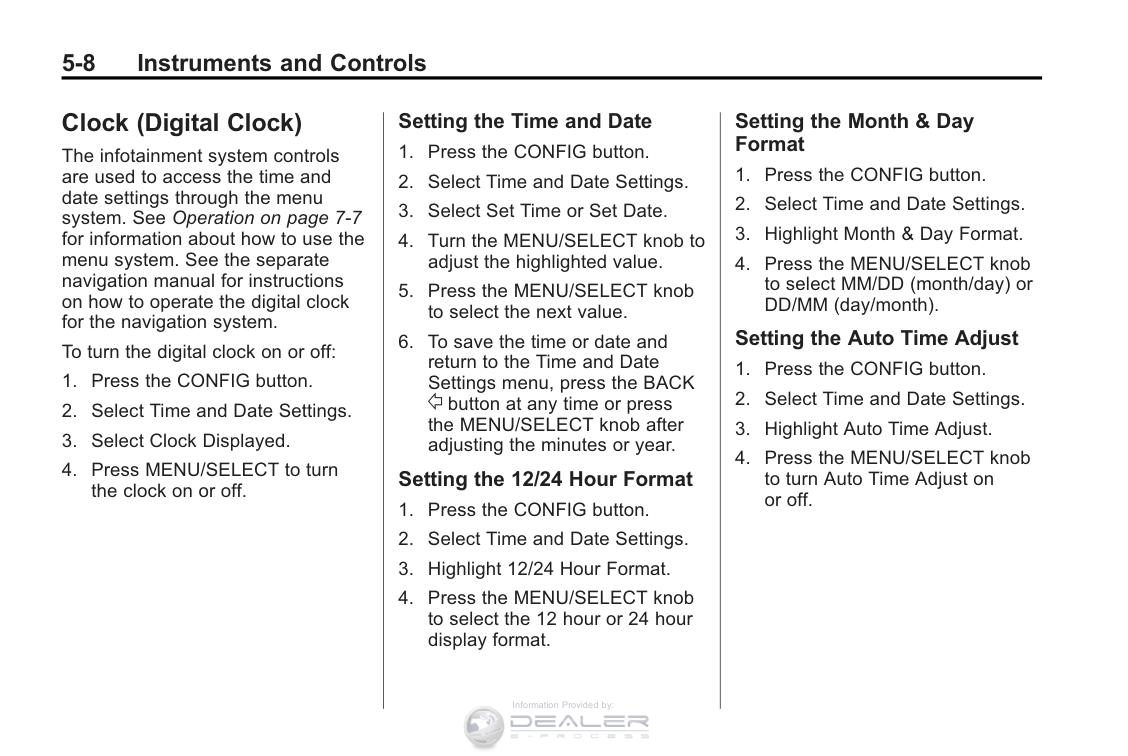

######## Turning the Digital Clock On or Off

######## Setting the Time and Date

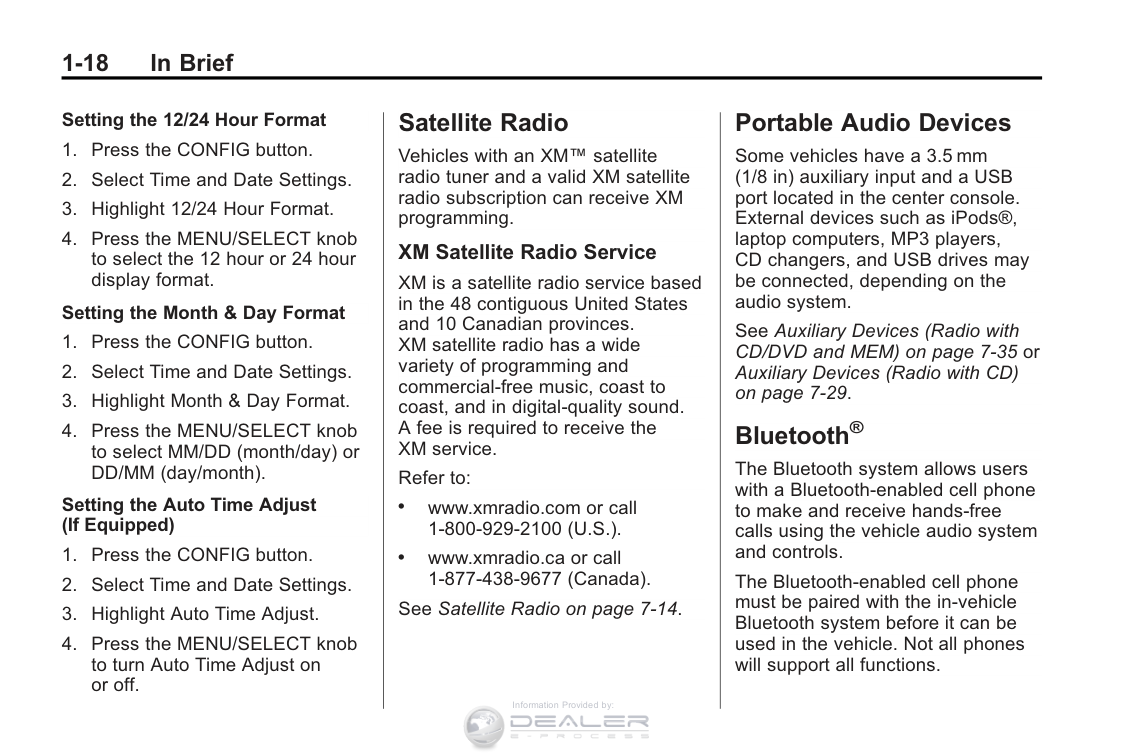

######## Setting the 12/24 Hour Format

######## Setting the Month & Day Format

Setting the Auto Time Adjust (If Equipped)

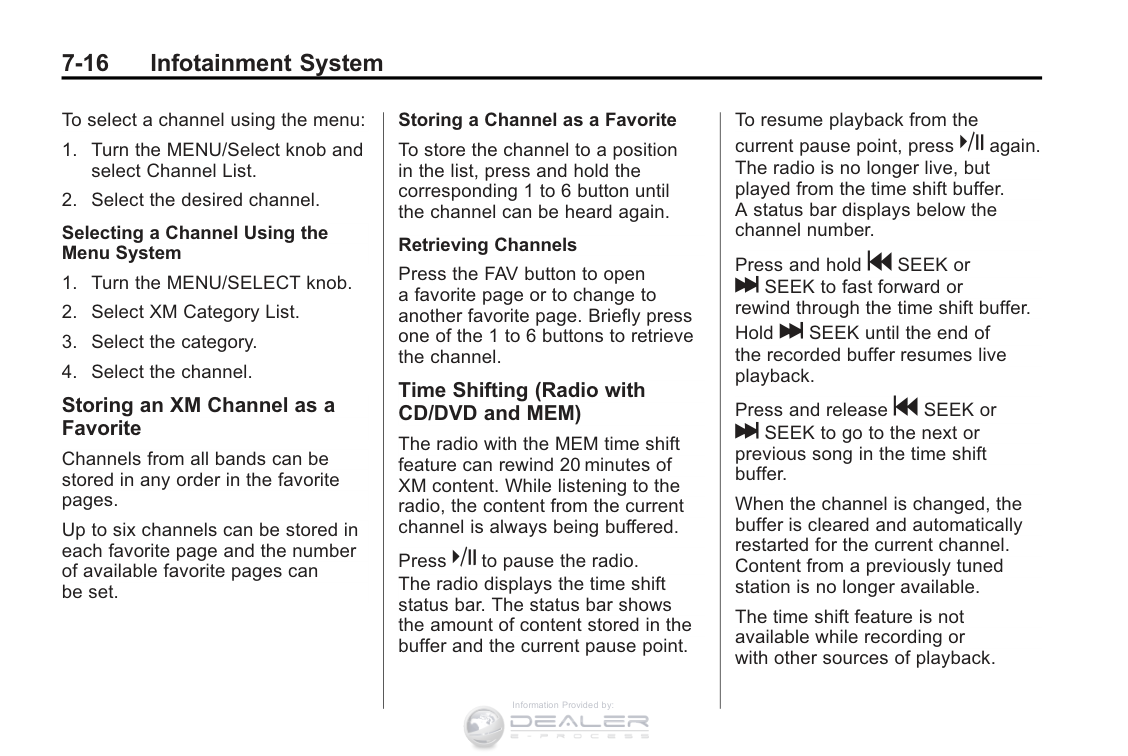

#### Satellite Radio

Vehicles with an XM™ satellite radio tuner and a valid XM satellite radio subscription can receive XM programming.

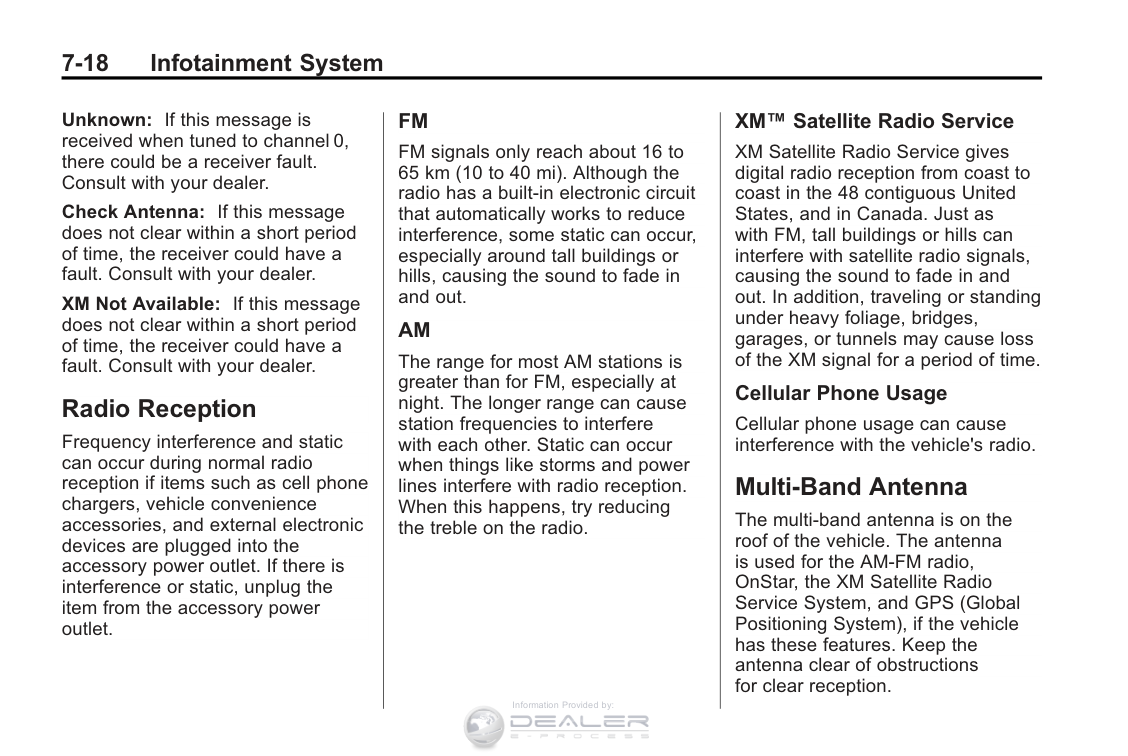

####### XM Satellite Radio Service

XM is a satellite radio service based in the 48 contiguous United States and 10 Canadian provinces. XM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound. Afeeisrequiredtoreceivethe XM service.

Refer to:

. www.xmradio.com or call

1-800-929-2100 (U.S.). . www.xmradio.ca or call

1-877-438-9677 (Canada). See Satellite Radio on page 7￿14.



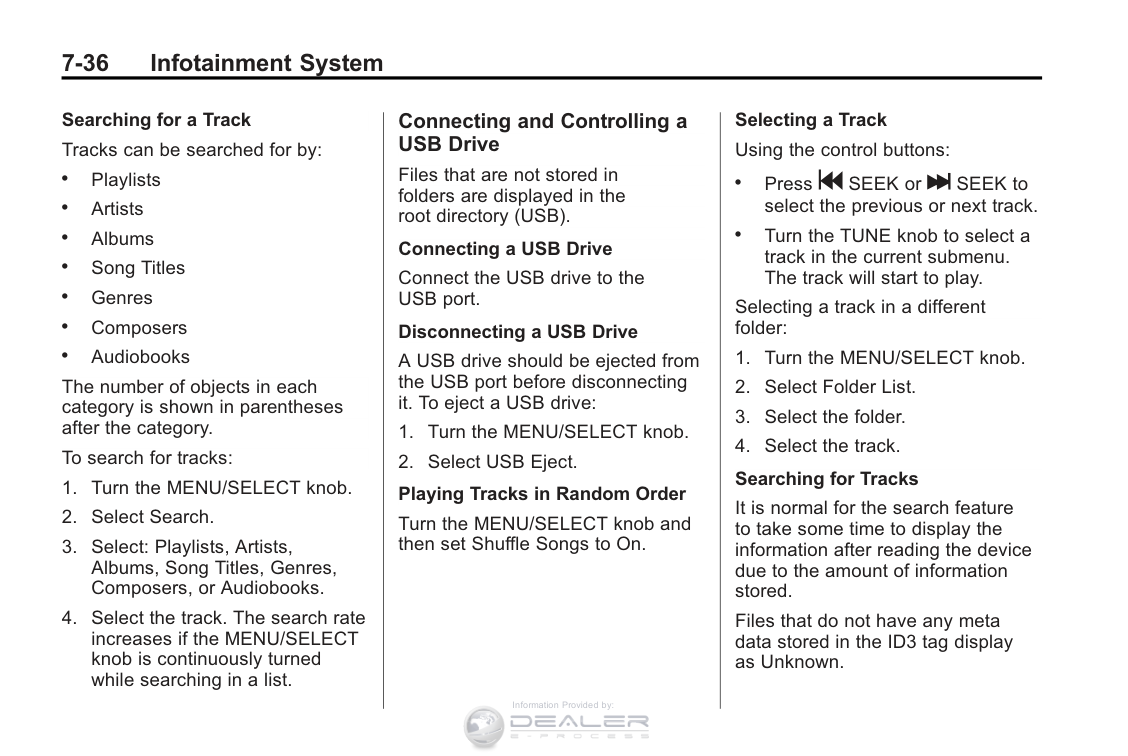

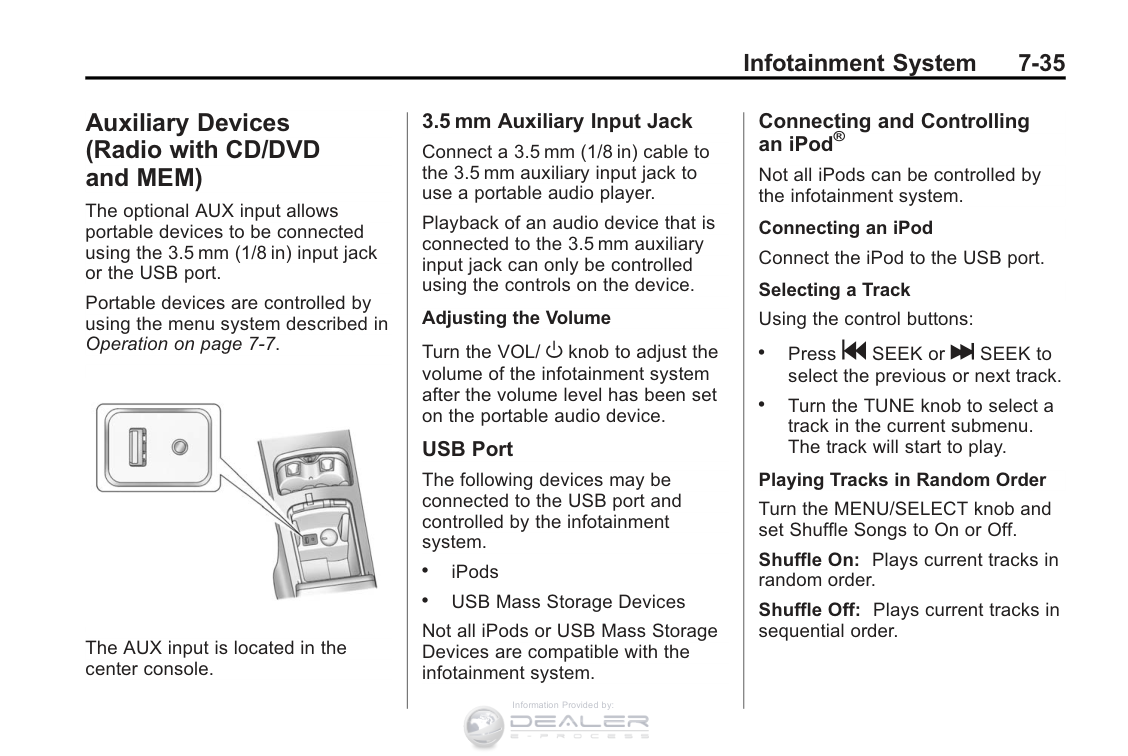

#### Portable Audio Devices

Some vehicles have a 3.5 mm (1/8 in) auxiliary input and a USB port located in the center console. External devices such as iPods®, laptop computers, MP3 players, CD changers, and USB drives may be connected, depending on the audio system.

See Auxiliary Devices (Radio with CD/DVD and MEM) on page 7￿35 or Auxiliary Devices (Radio with CD) on page 7￿29.

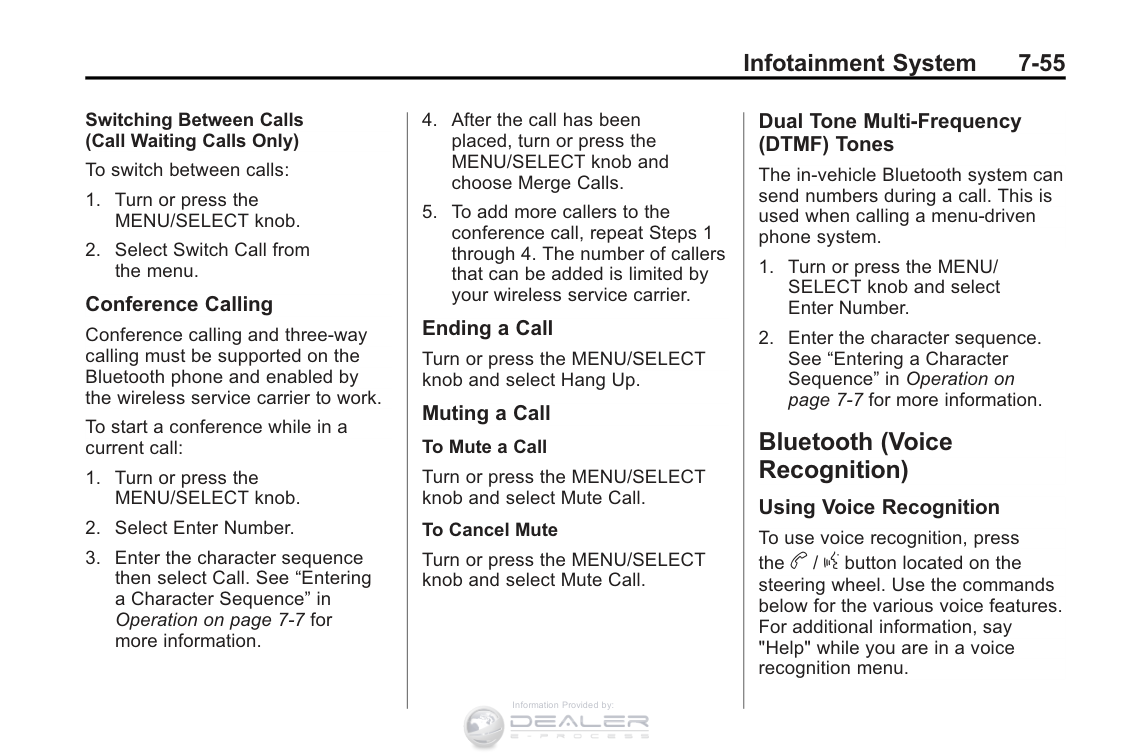

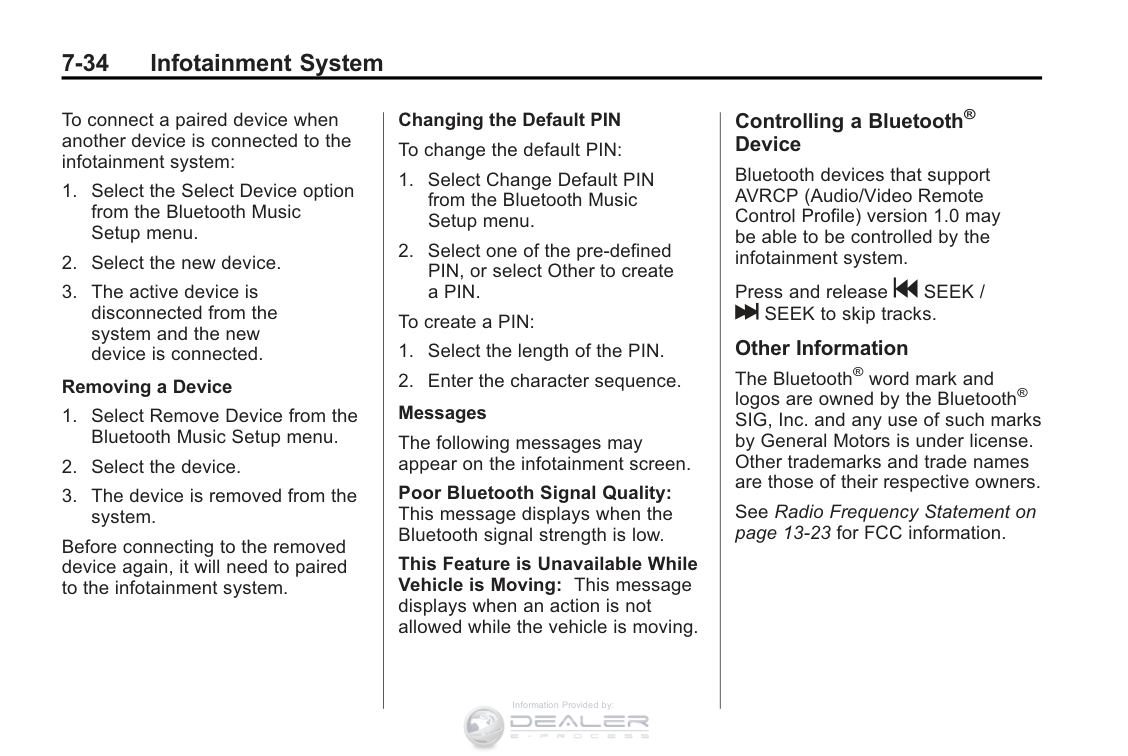

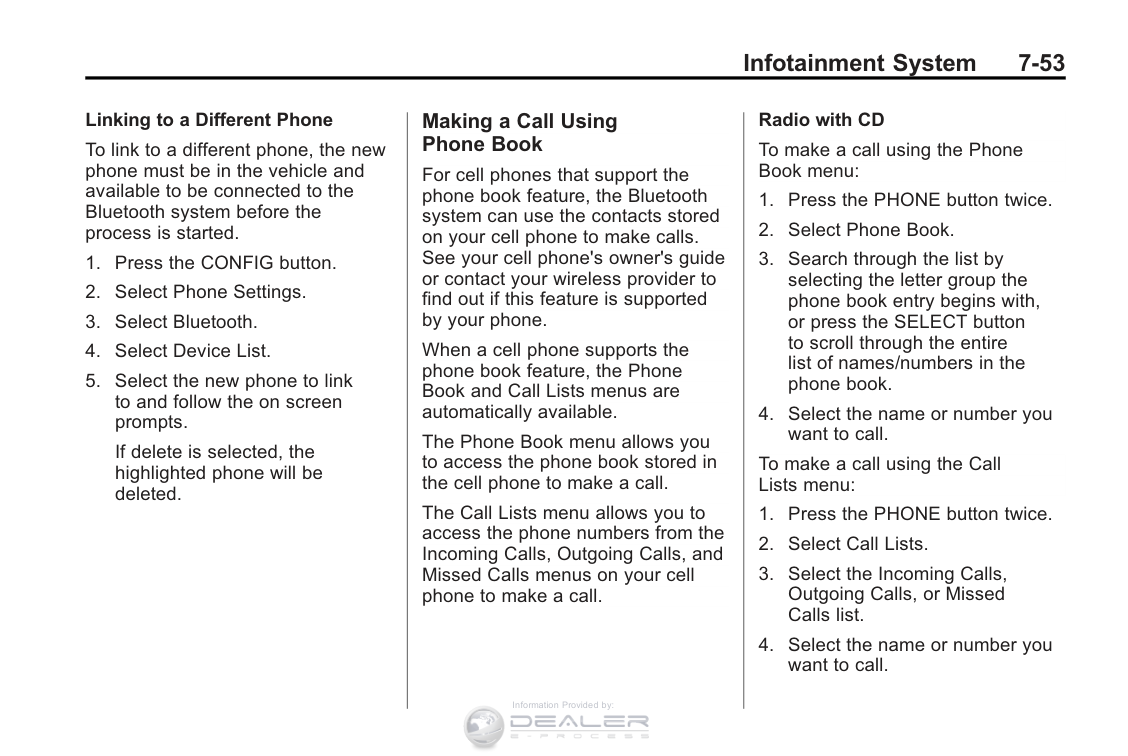

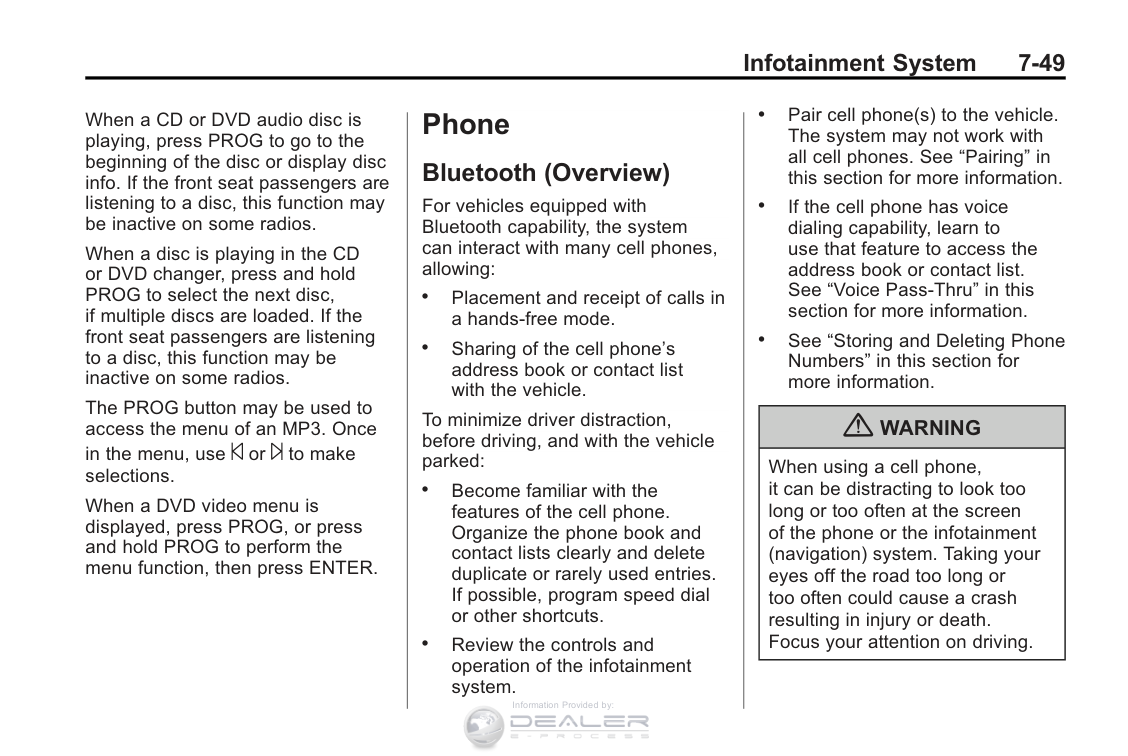

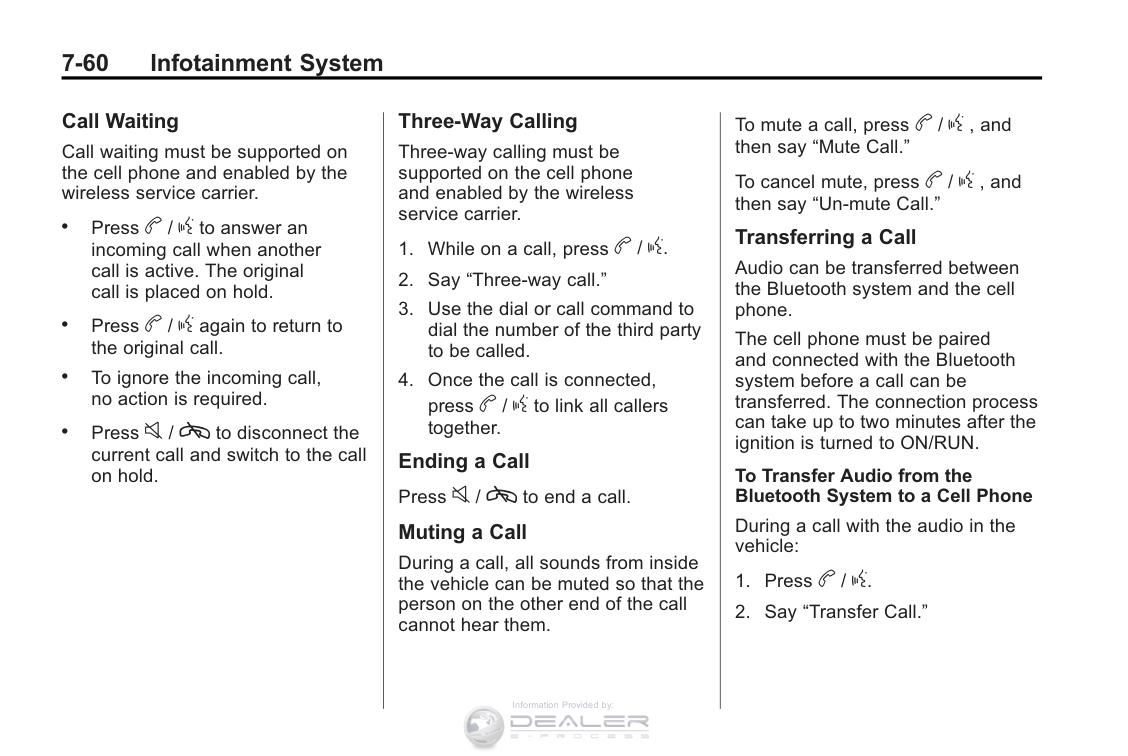

#### Bluetooth®

The Bluetooth system allows users with a Bluetooth-enabled cell phone to make and receive hands-free calls using the vehicle audio system and controls.

The Bluetooth-enabled cell phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions.

See Bluetooth (Voice Recognition) on page 7￿55 or Bluetooth (Overview) on page 7￿49 or Bluetooth (UHP Mexico Only) on page 7￿62 or Bluetooth (Infotainment Controls) on page 7￿51.

#### Mobile Apps

Mobile apps are available for download through iTunes® to then access the iPhone® App Store and Google™ Marketplace for Android™.Searchfortheappsto download. The apps are free of charge; however, the myCadillac app requires the user to link their own vehicle and OnStar MyLink requires an active OnStar subscription.

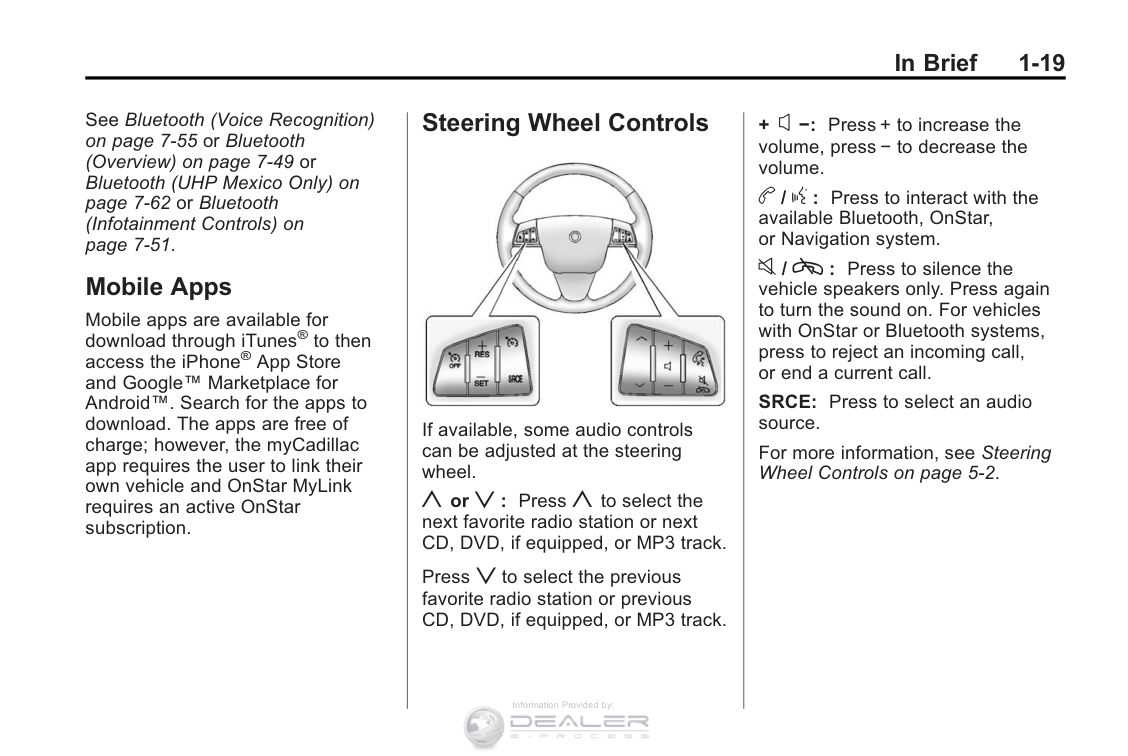

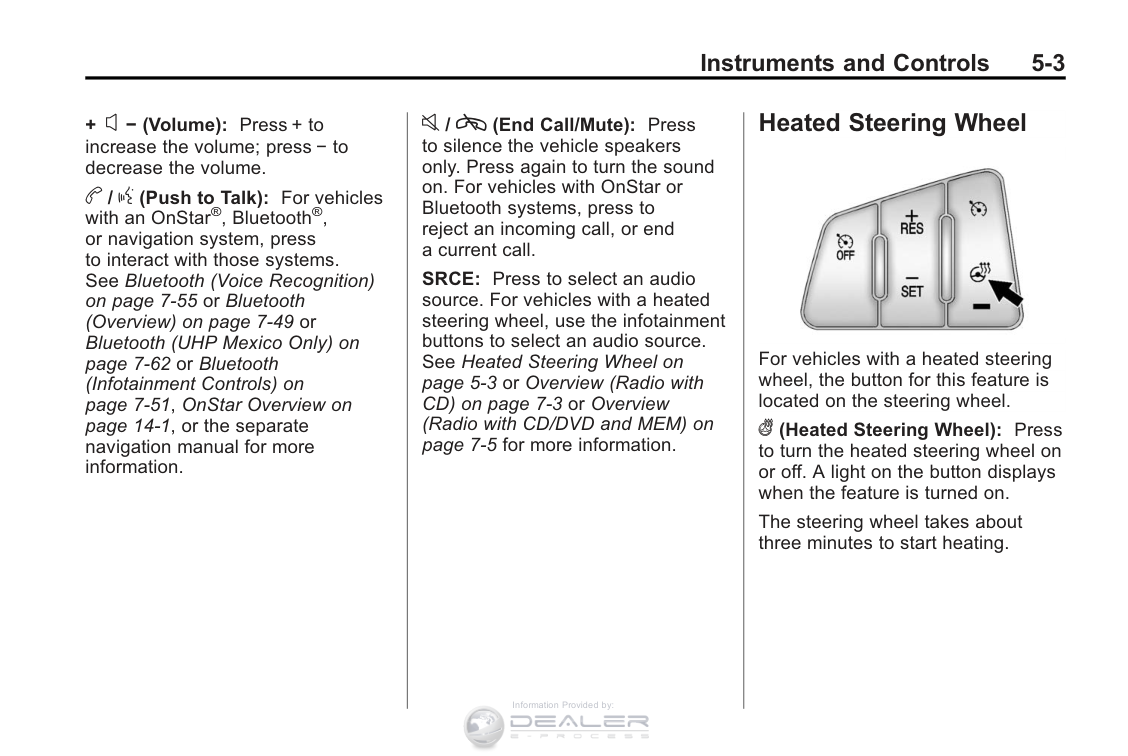

#### Steering Wheel Controls


If available, some audio controls can be adjusted at the steering wheel.

y or z : Press y to select the next favorite radio station or next CD, DVD, if equipped, or MP3 track.

Press z to select the previous favorite radio station or previous CD, DVD, if equipped, or MP3 track.

+ x −: Press + to increase the volume, press − to decrease the volume.

b / g : Press to interact with the available Bluetooth, OnStar, or Navigation system.

0 / c : Press to silence the vehicle speakers only. Press again to turn the sound on. For vehicles with OnStar or Bluetooth systems, press to reject an incoming call, or end a current call.

SRCE: Press to select an audio source. For more information, see Steering Wheel Controls on page 5￿2.

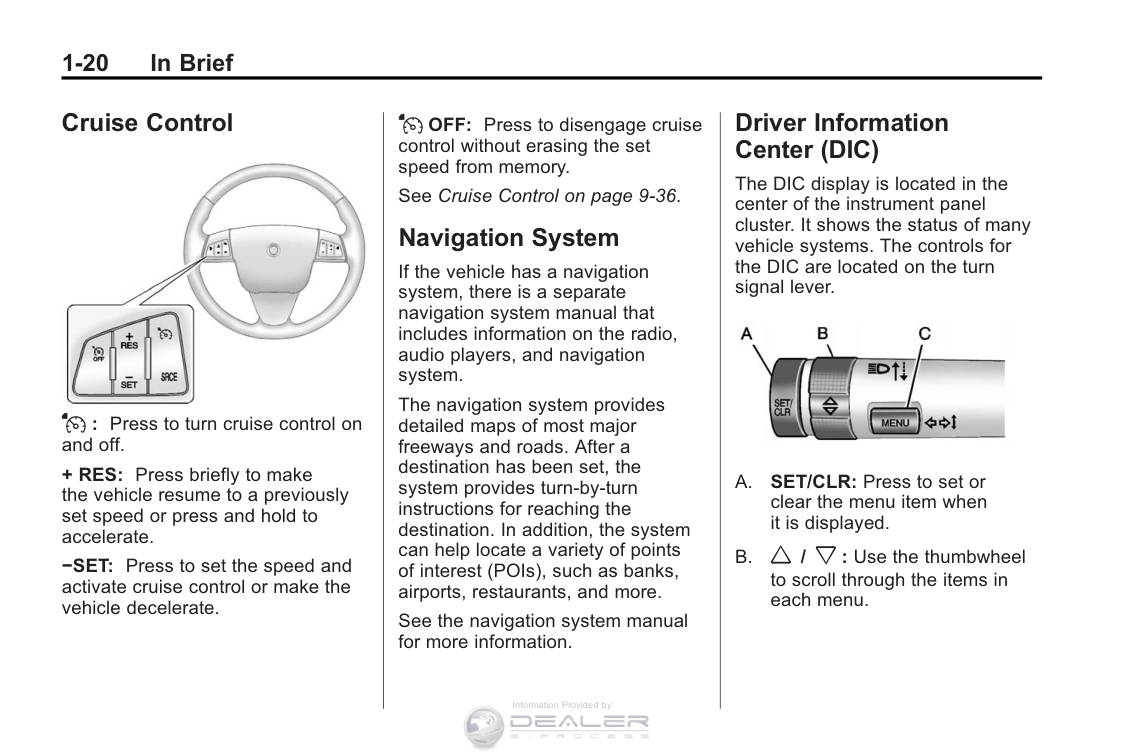

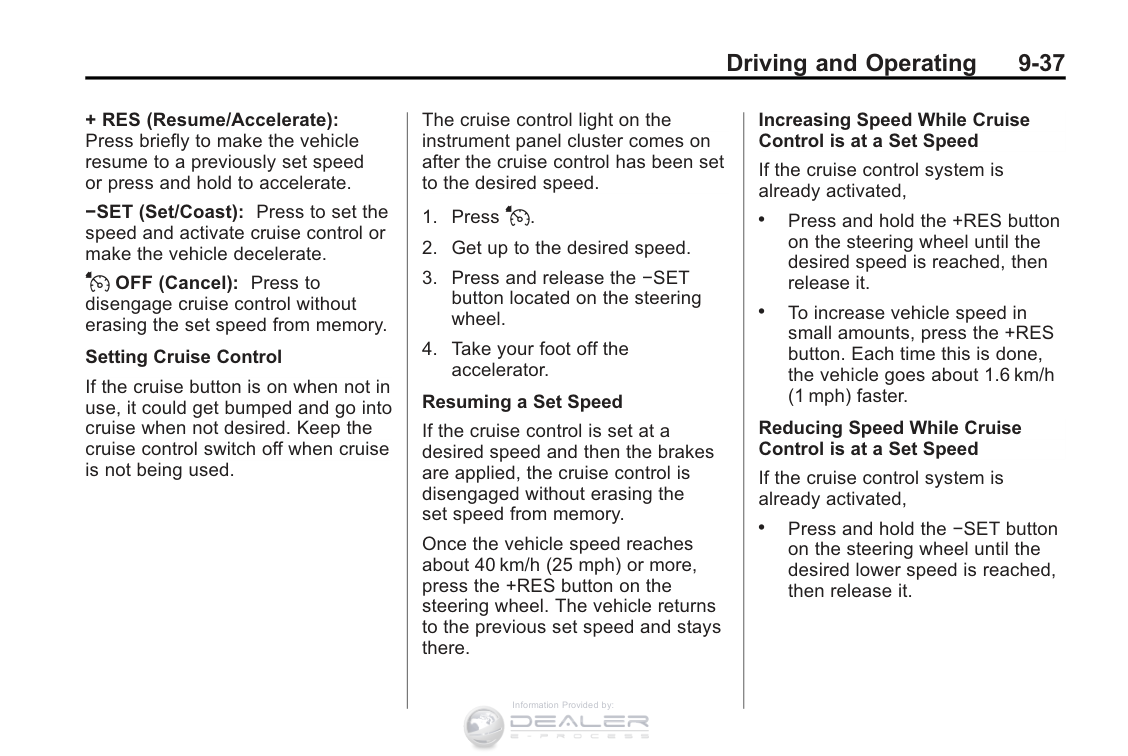

#### Cruise Control


+RES: Press briefly to make the vehicle resume to a previously set speed or press and hold to accelerate.

−SET: Press to set the speed and activate cruise control or make the vehicle decelerate.

J OFF: Press to disengage cruise control without erasing the set speed from memory.

See Cruise Control on page 9￿36. Navigation System

If the vehicle has a navigation system, there is a separate navigation system manual that includes information on the radio, audio players, and navigation system.

The navigation system provides detailed maps of most major freeways and roads. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POIs), such as banks, airports, restaurants, and more.

See the navigation system manual for more information.

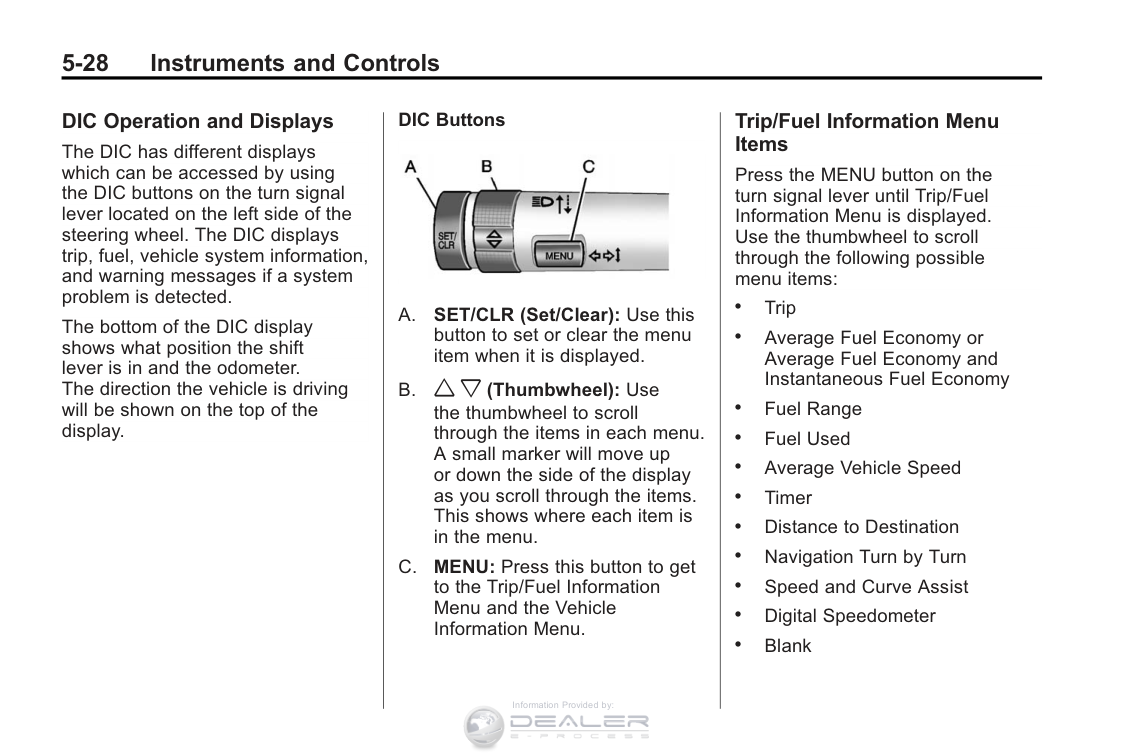

#### Driver Information Center (DIC)

The DIC display is located in the center of the instrument panel cluster. It shows the status of many vehicle systems. The controls for the DIC are located on the turn signal lever.


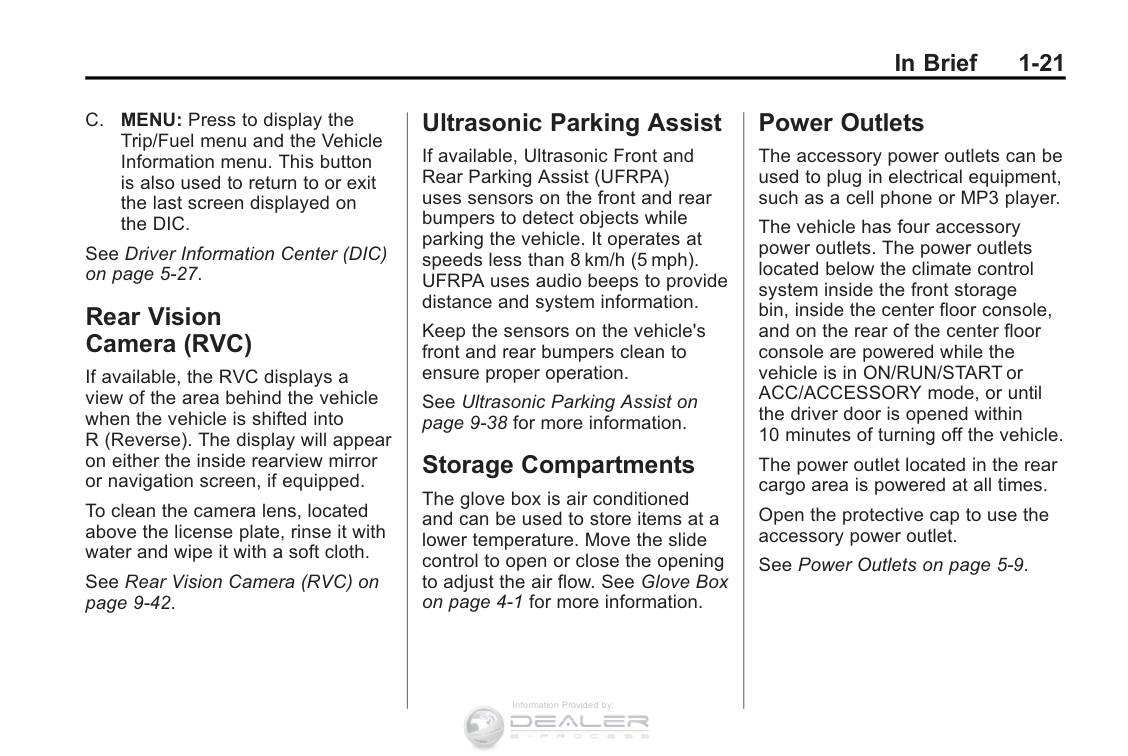

C. MENU: Press to display the Trip/Fuel menu and the Vehicle Information menu. This button is also used to return to or exit the last screen displayed on the DIC.

See Driver Information Center (DIC) on page 5￿27.

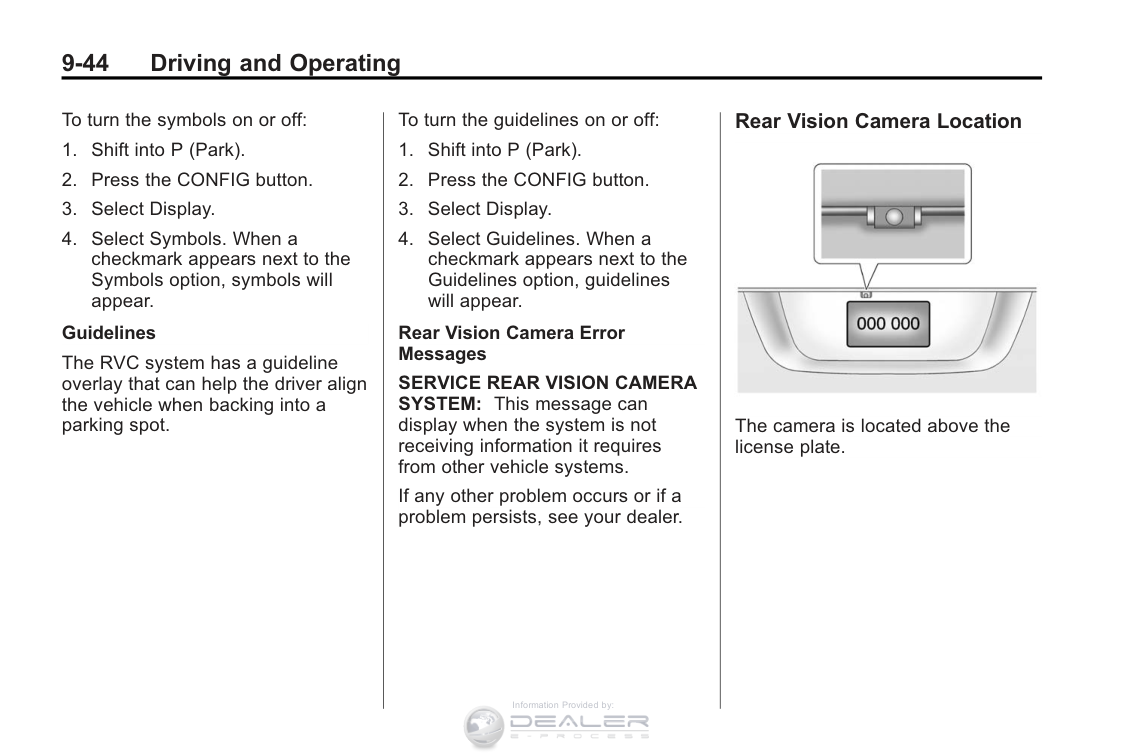

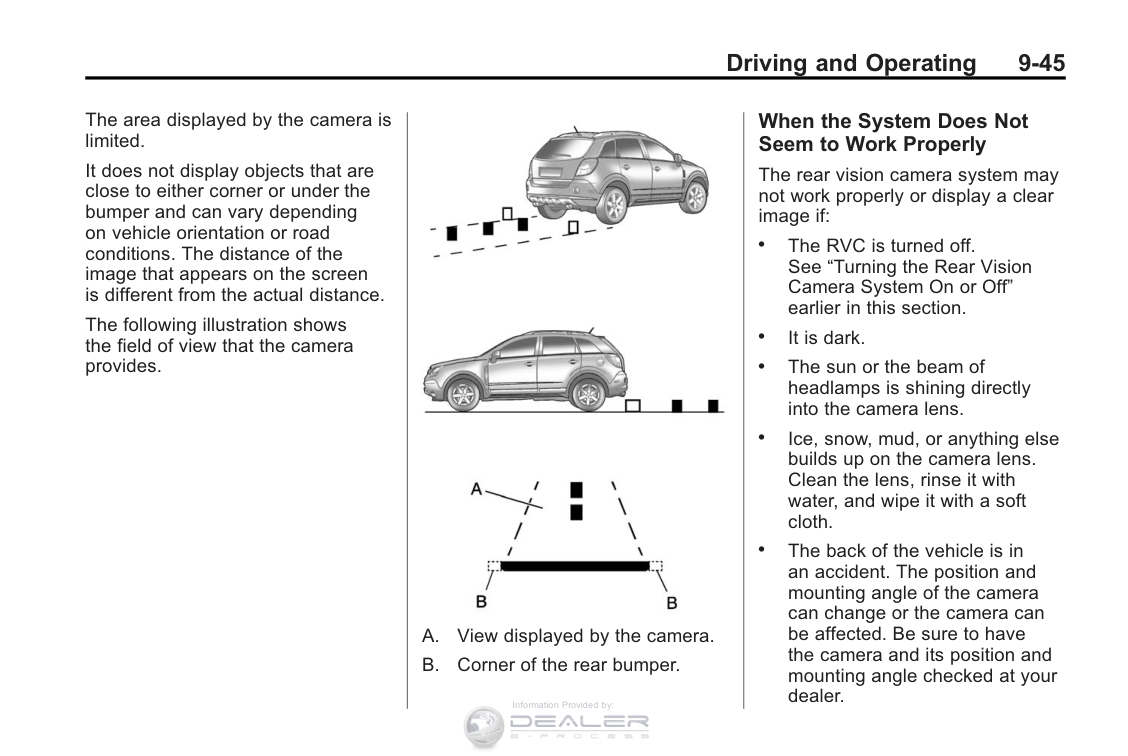

#### Rear Vision Camera (RVC)

If available, the RVC displays a view of the area behind the vehicle when the vehicle is shifted into R(Reverse).Thedisplaywillappear on either the inside rearview mirror or navigation screen, if equipped. To clean the camera lens, located above the license plate, rinse it with water and wipe it with a soft cloth. See Rear Vision Camera (RVC) on page 9￿42.

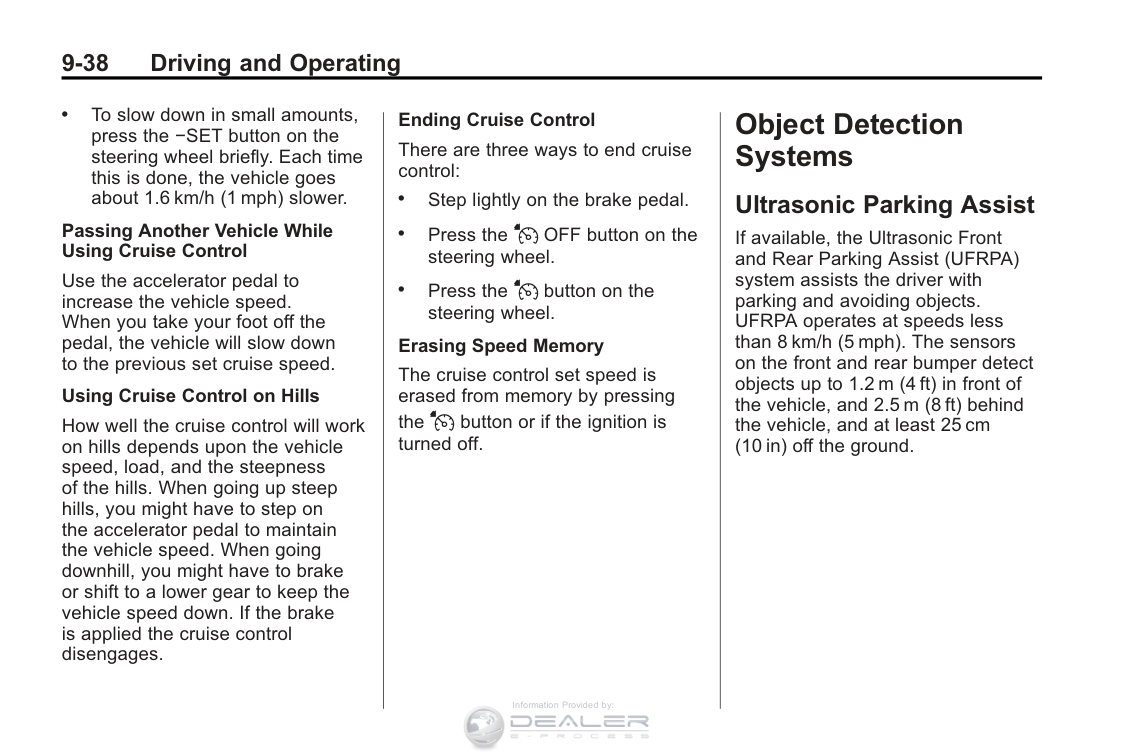

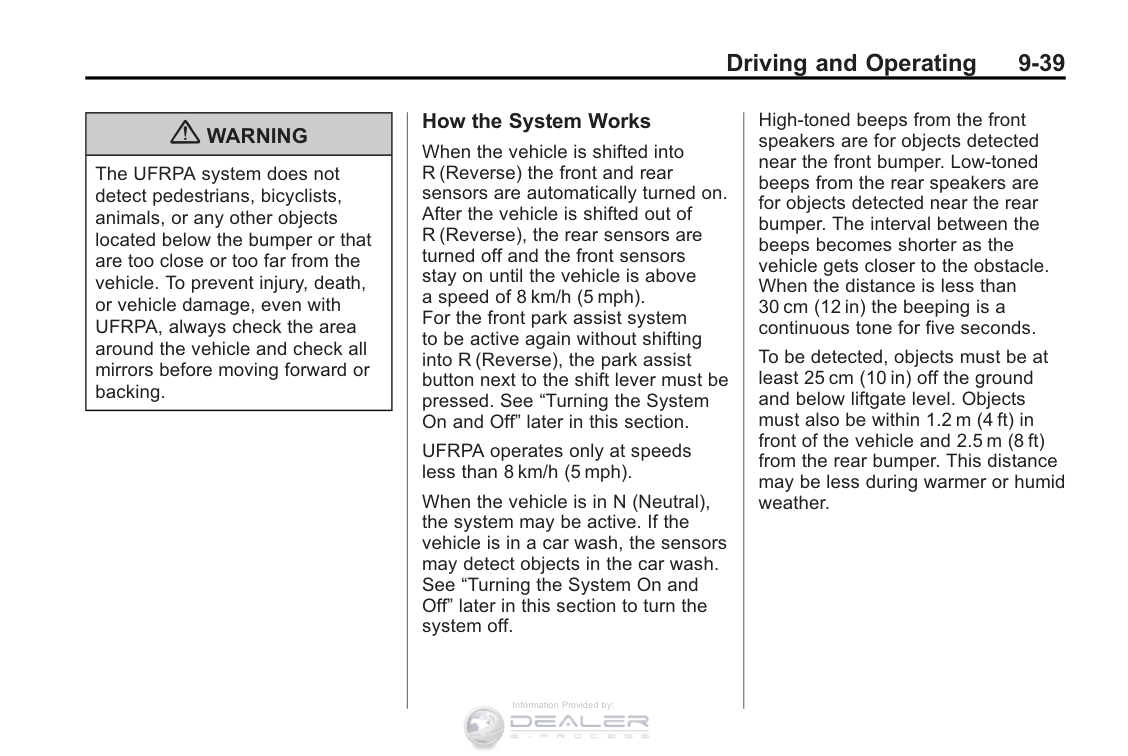

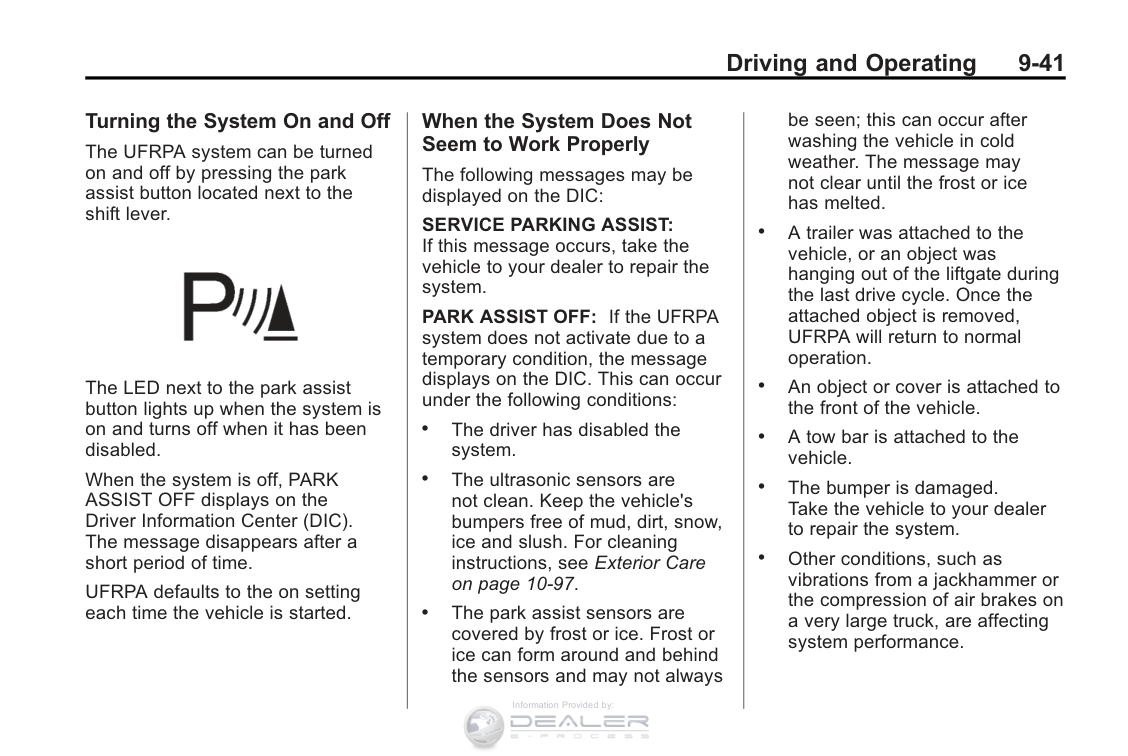

#### Ultrasonic Parking Assist

If available, Ultrasonic Front and Rear Parking Assist (UFRPA) uses sensors on the front and rear bumpers to detect objects while parking the vehicle. It operates at speeds less than 8 km/h (5 mph). UFRPA uses audio beeps to provide distance and system information.

Keep the sensors on the vehicle's front and rear bumpers clean to ensure proper operation.

See Ultrasonic Parking Assist on page 9￿38 for more information.

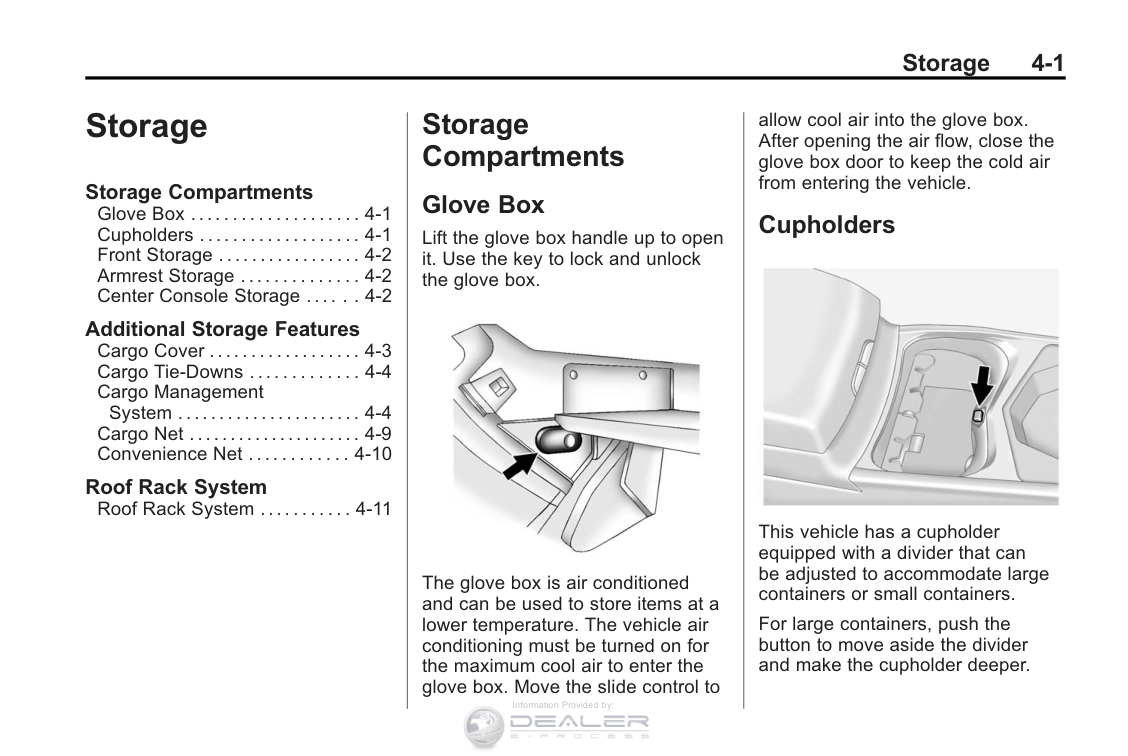

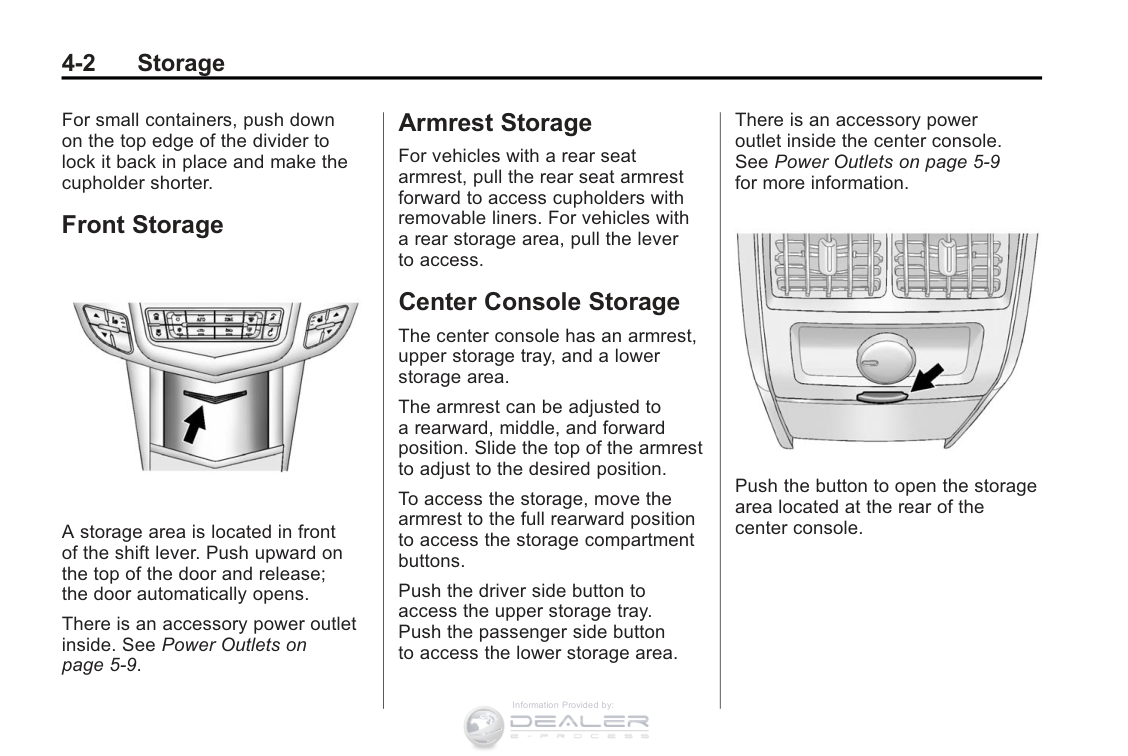

#### Storage Compartments

The glove box is air conditioned and can be used to store items at a lower temperature. Move the slide control to open or close the opening to adjust the air flow. See Glove Box on page 4￿1 for more information.

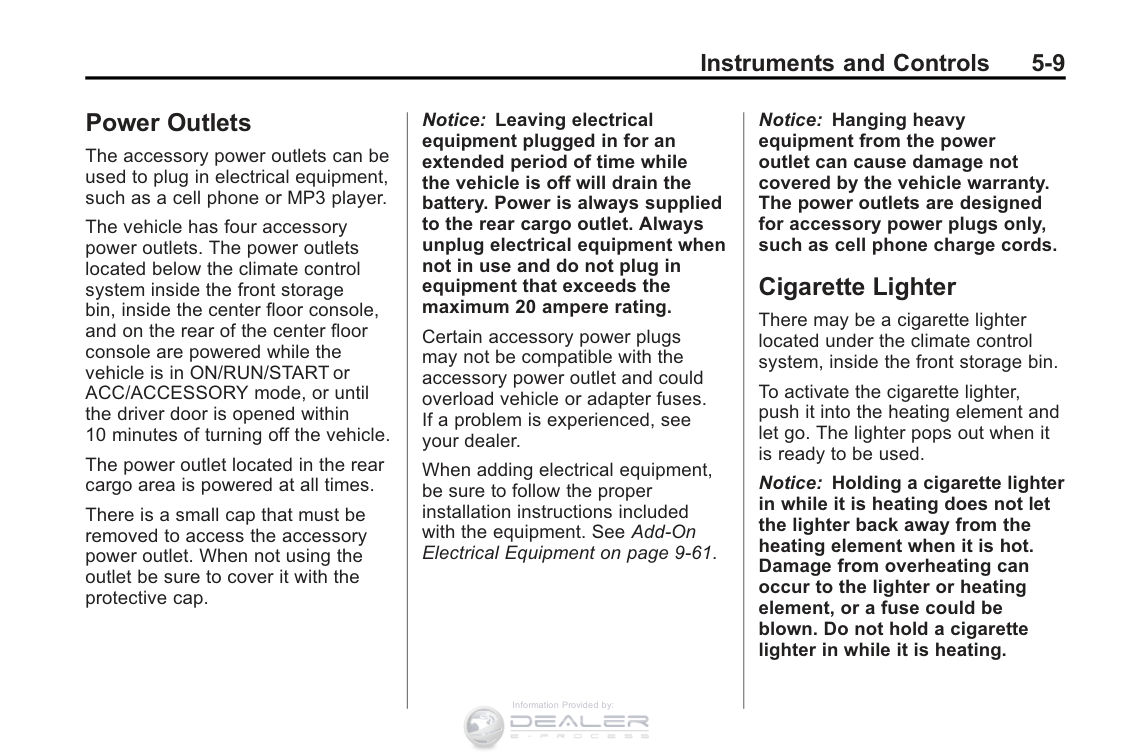

#### Power Outlets

The accessory power outlets can be used to plug in electrical equipment, such as a cell phone or MP3 player.

The vehicle has four accessory power outlets. The power outlets located below the climate control system inside the front storage bin, inside the center floor console, and on the rear of the center floor console are powered while the vehicle is in ON/RUN/START or ACC/ACCESSORY mode, or until the driver door is opened within 10 minutes of turning off the vehicle.

The power outlet located in the rear cargo area is powered at all times. Open the protective cap to use the accessory power outlet. See Power Outlets on page 5￿9.

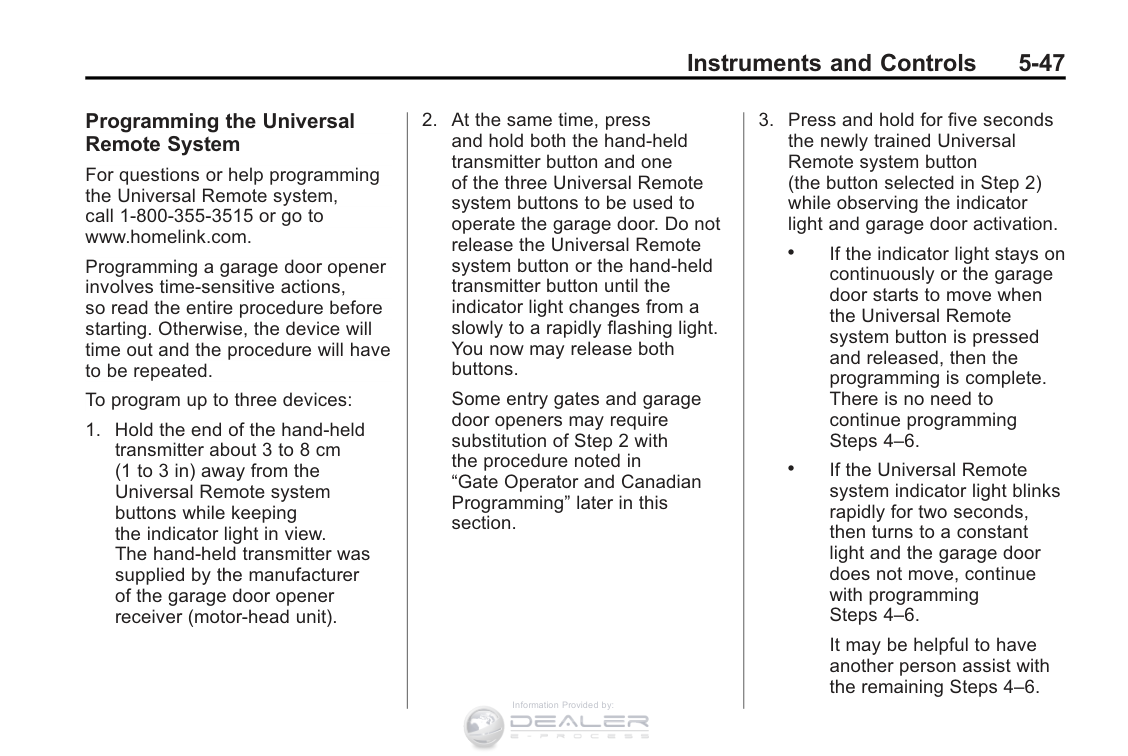

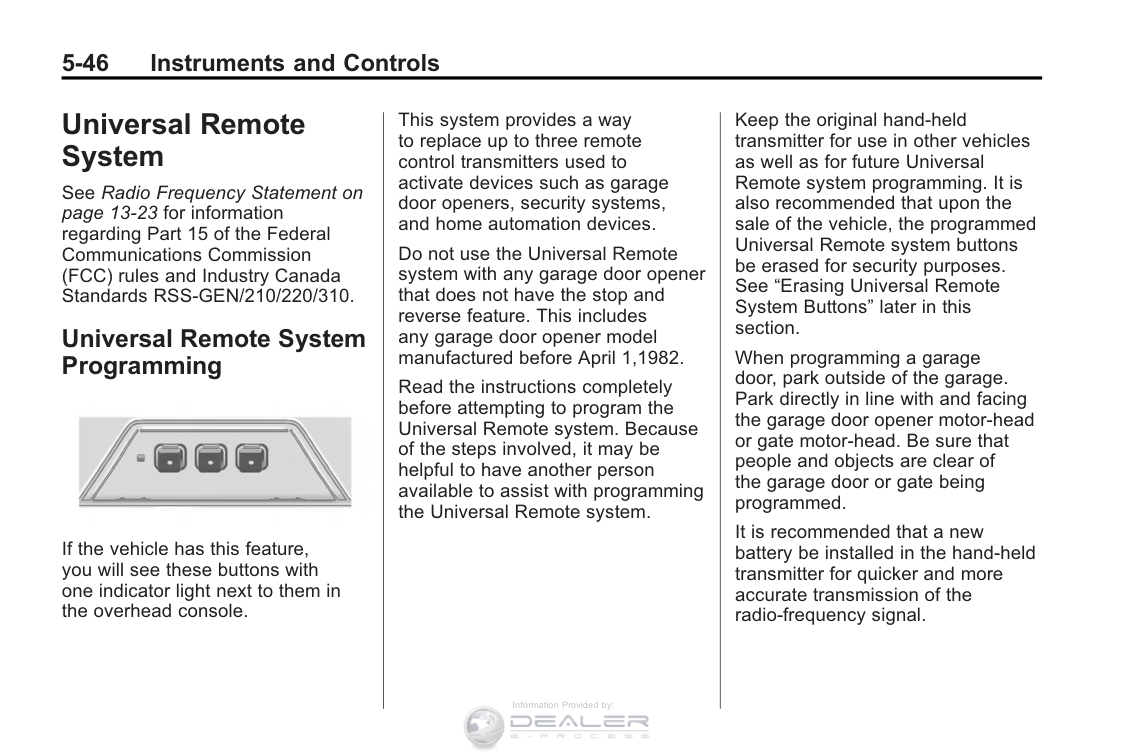

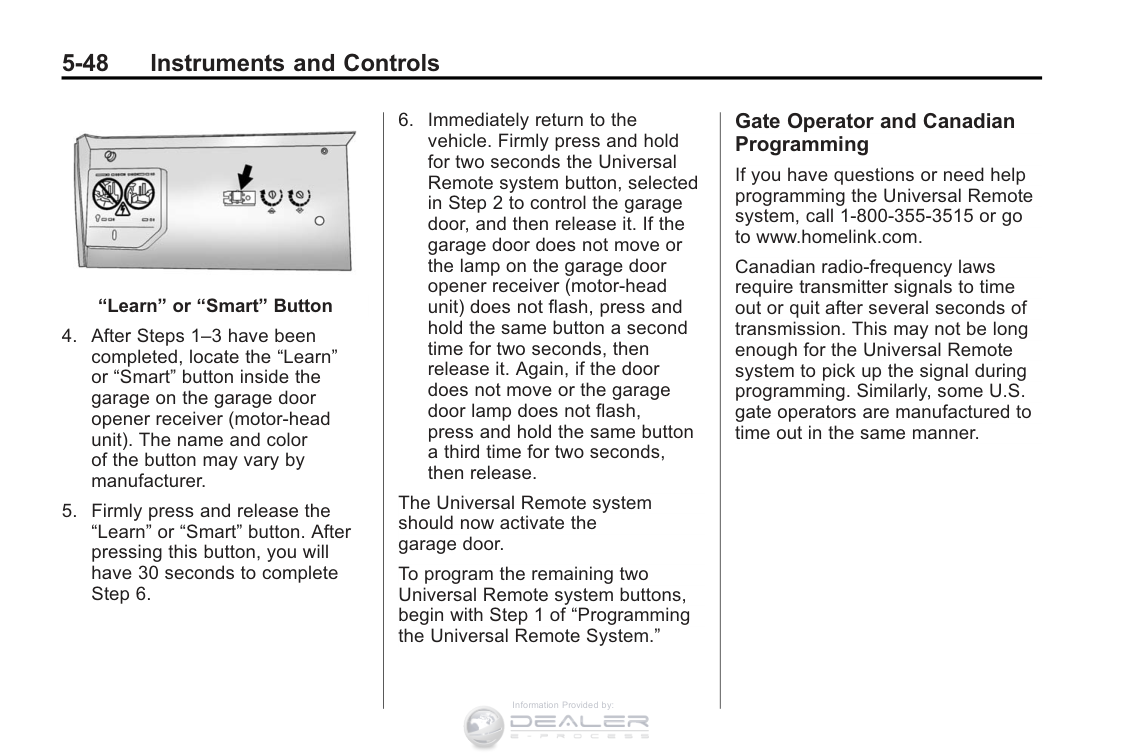

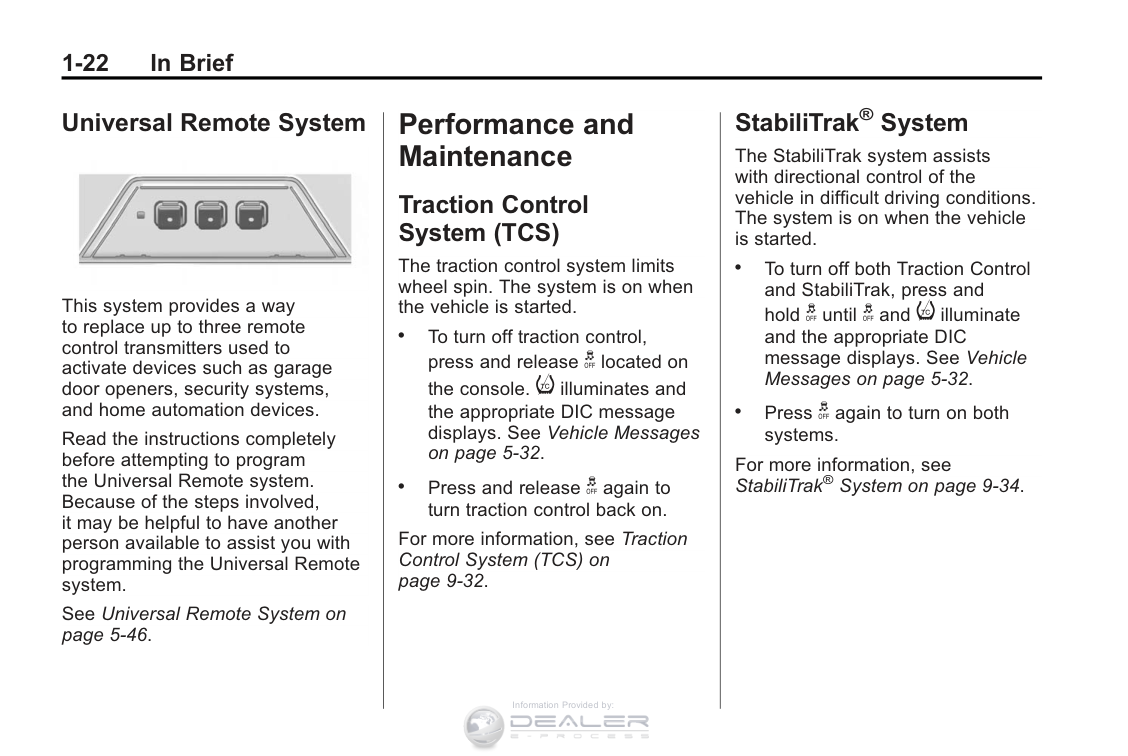

#### Universal Remote System


This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices.

Read the instructions completely before attempting to program the Universal Remote system. Because of the steps involved, it may be helpful to have another person available to assist you with programming the Universal Remote system.

See Universal Remote System on page 5￿46.

Performance and Maintenance

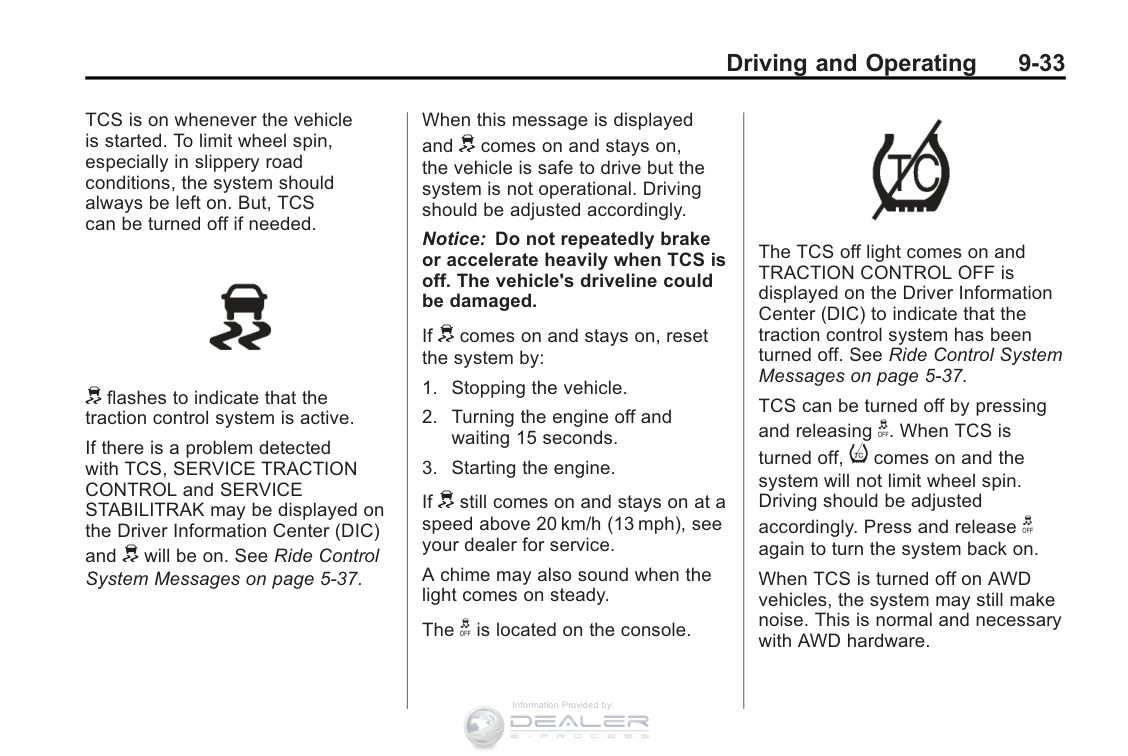

#### Traction Control System (TCS)

The traction control system limits wheel spin. The system is on when the vehicle is started.

. To turn off traction control, press and release g located on the console. i illuminates and the appropriate DIC message displays. See Vehicle Messages on page 5￿32.

. Press and release g again to turn traction control back on.

For more information, see Traction Control System (TCS) on page 9￿32.

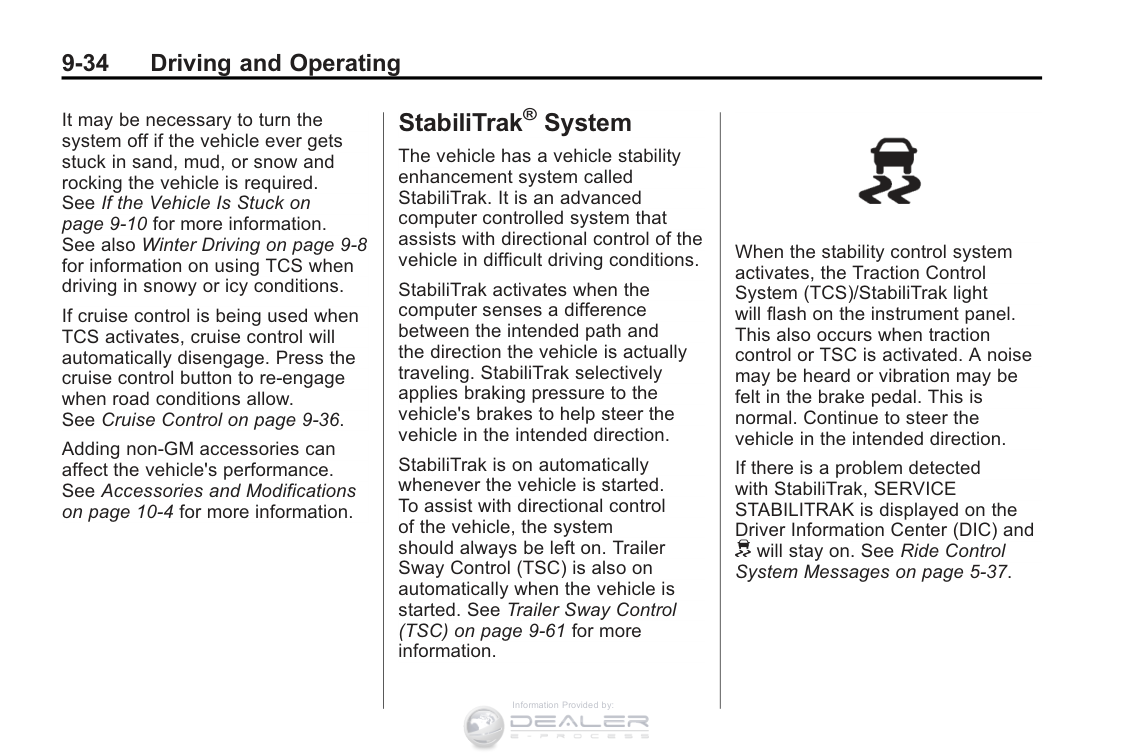

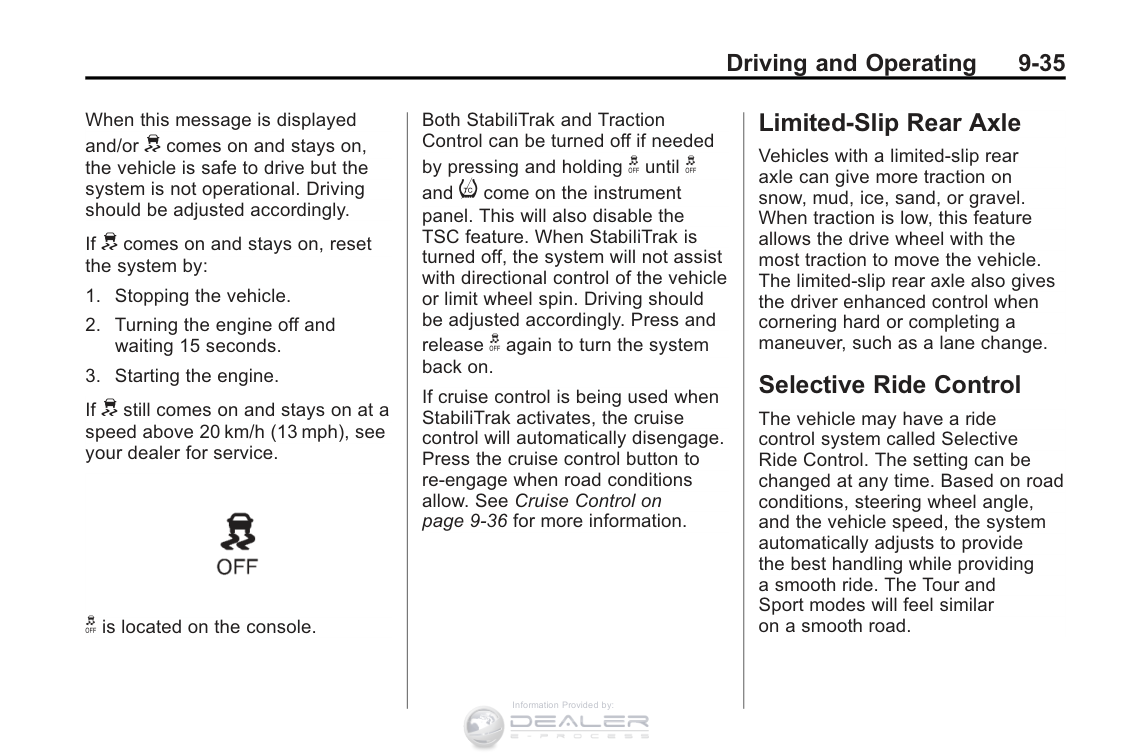

#### StabiliTrak® System

The StabiliTrak system assists with directional control of the vehicle in difficult driving conditions. The system is on when the vehicle is started.

. To turn off both Traction Control and StabiliTrak, press and hold g until g and i illuminate and the appropriate DIC message displays. See Vehicle Messages on page 5￿32.

. Press g again to turn on both

systems.

For more information, see StabiliTrak® System on page 9￿34.

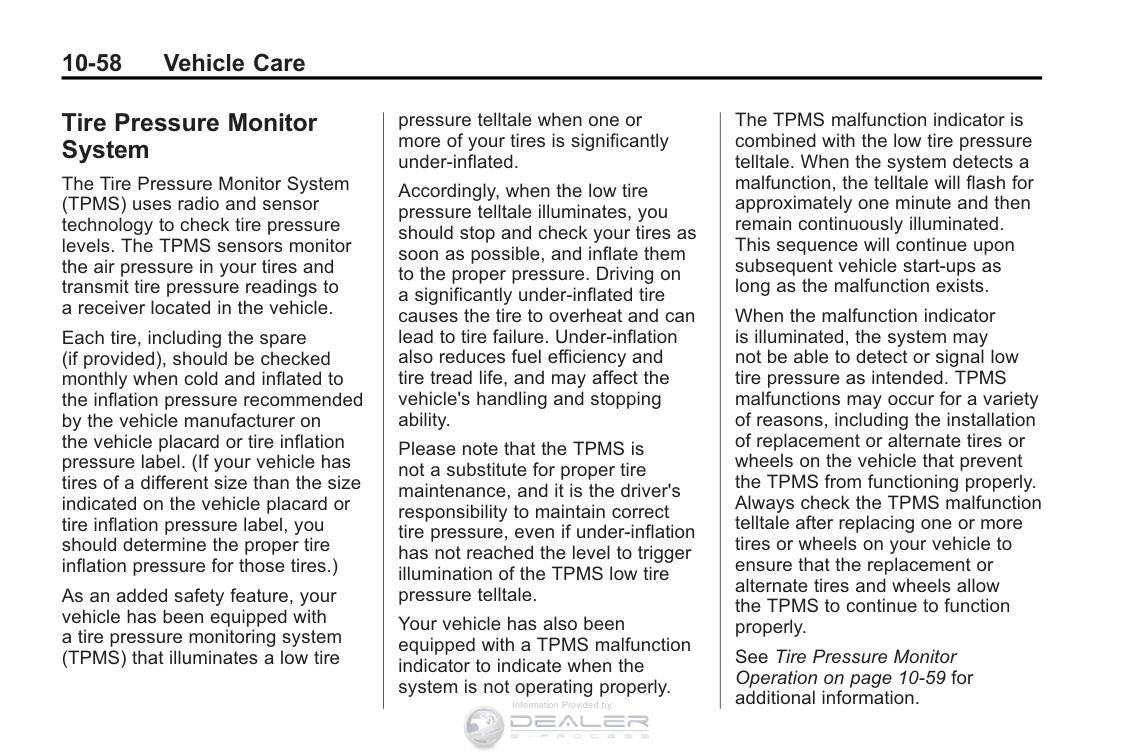

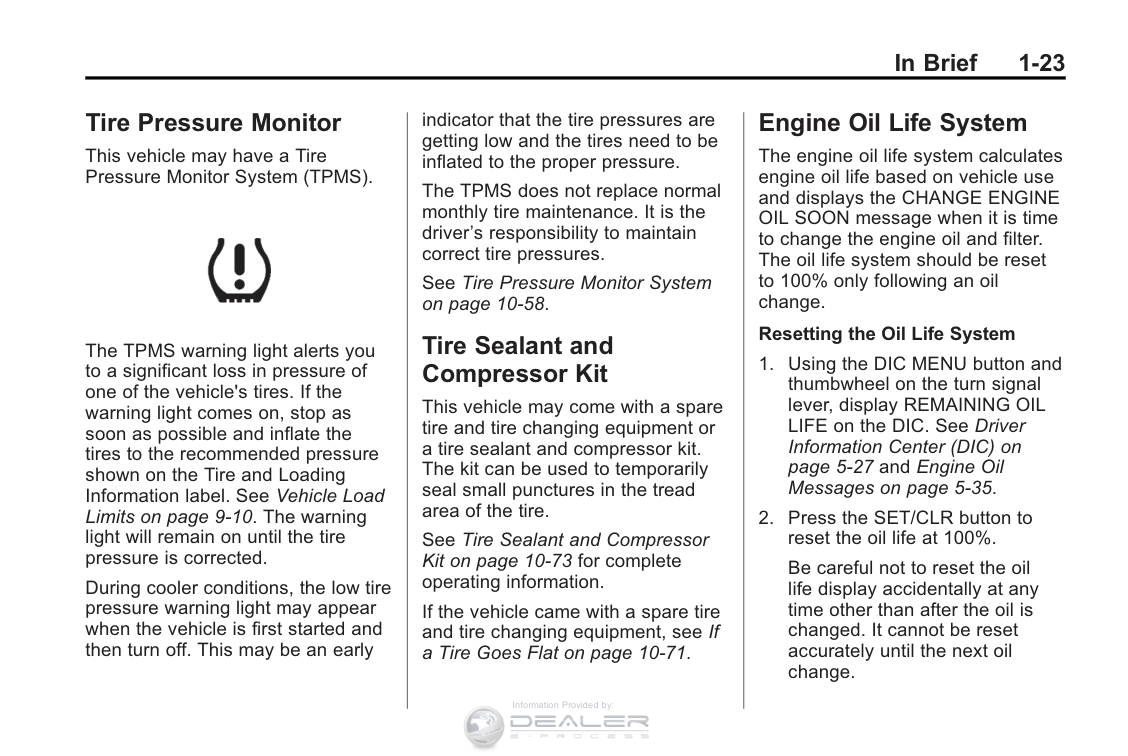

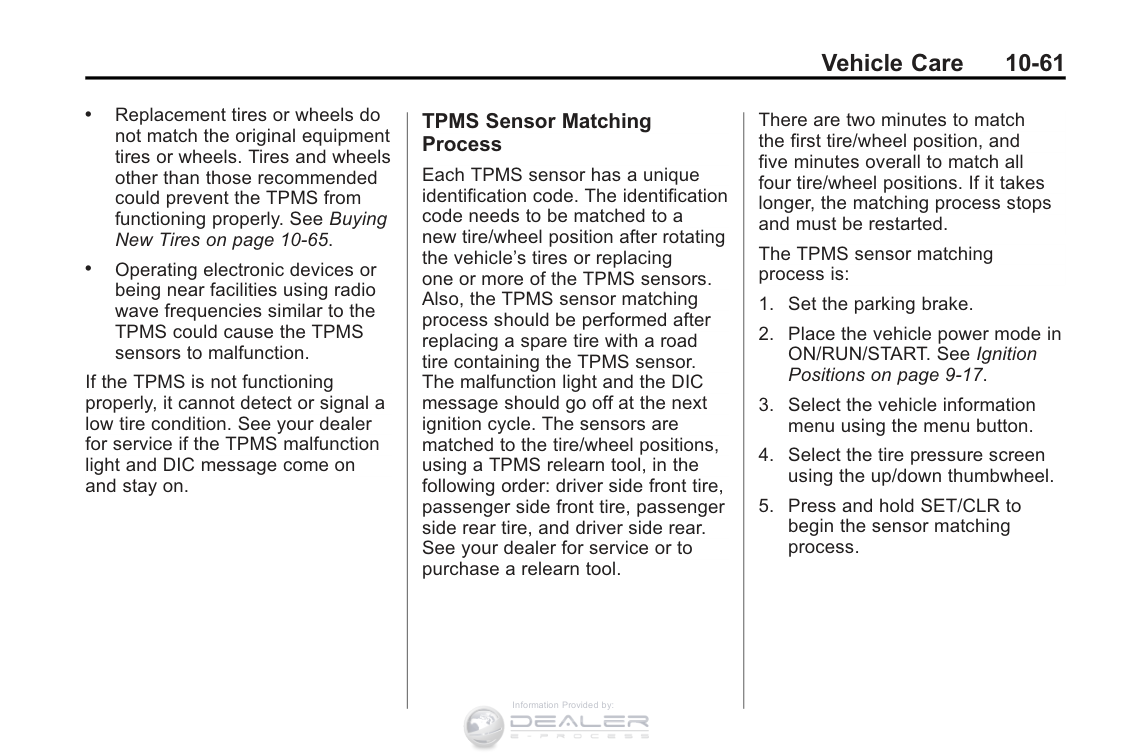

#### Tire Pressure Monitor

This vehicle may have a Tire Pressure Monitor System (TPMS).


The TPMS warning light alerts you to a significant loss in pressure of one of the vehicle's tires. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the Tire and Loading Information label. See Vehicle Load Limits on page 9￿10.Thewarning light will remain on until the tire pressure is corrected.

During cooler conditions, the low tire pressure warning light may appear when the vehicle is first started and then turn off. This may be an early

indicator that the tire pressures are getting low and the tires need to be inflated to the proper pressure.

The TPMS does not replace normal monthly tire maintenance. It is the driver’sresponsibilitytomaintain correct tire pressures.

See Tire Pressure Monitor System on page 10￿58.

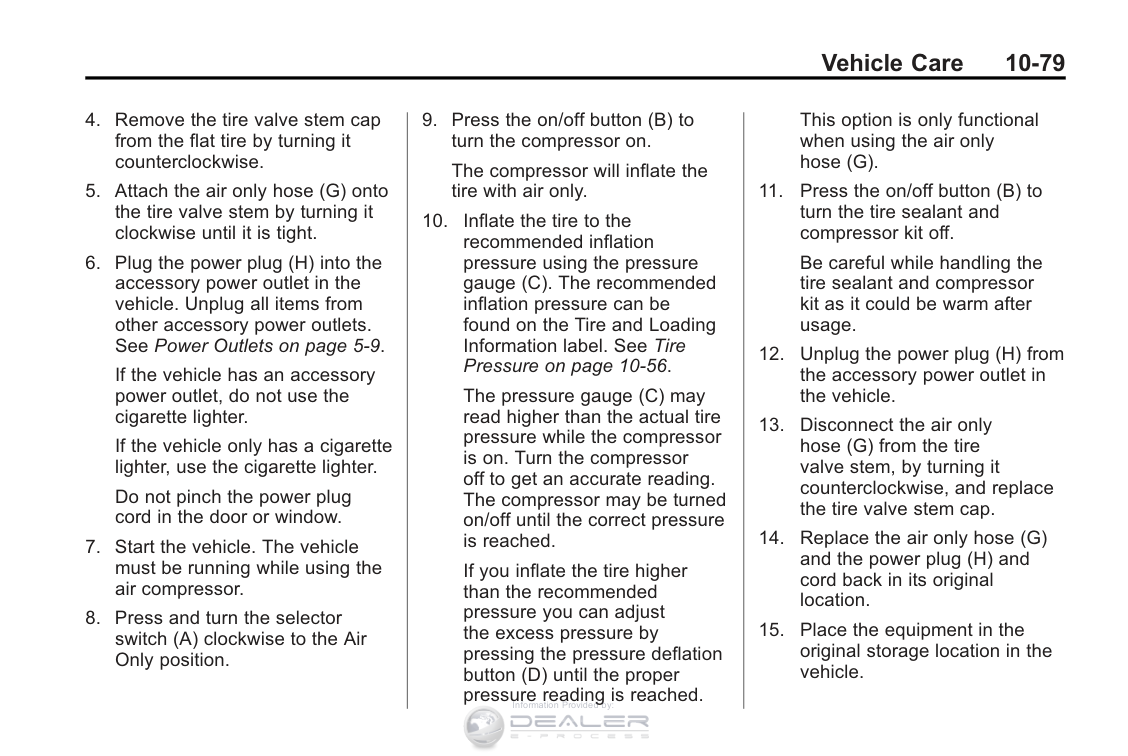

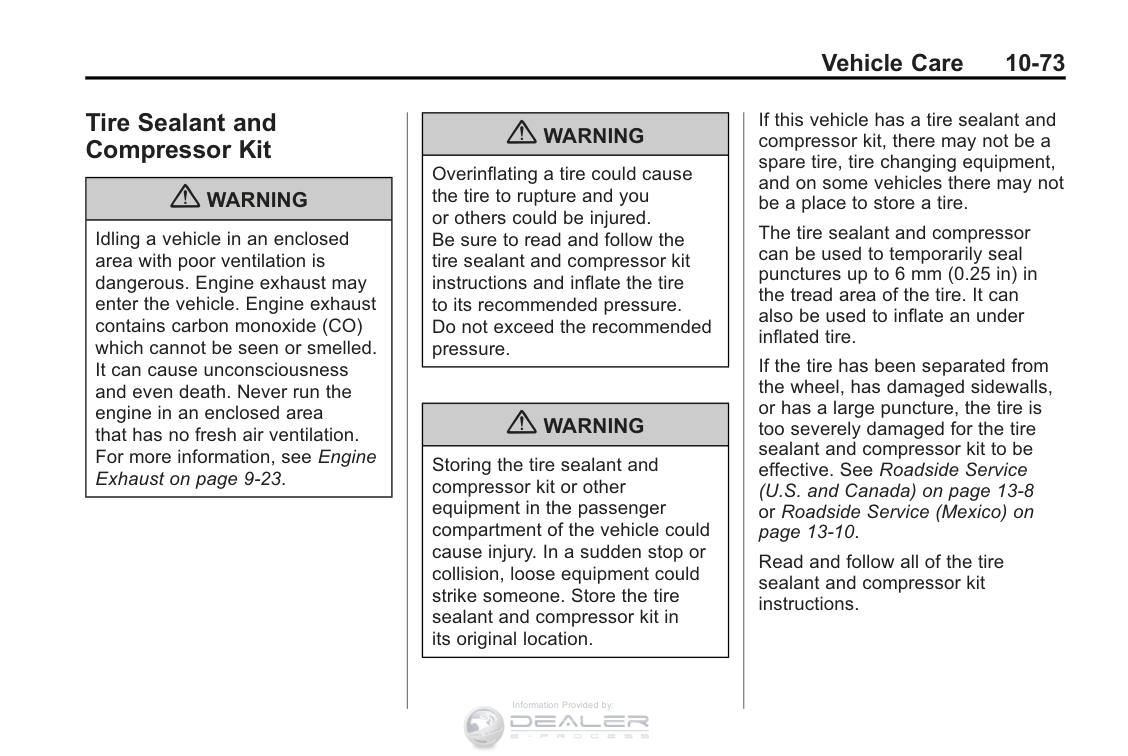

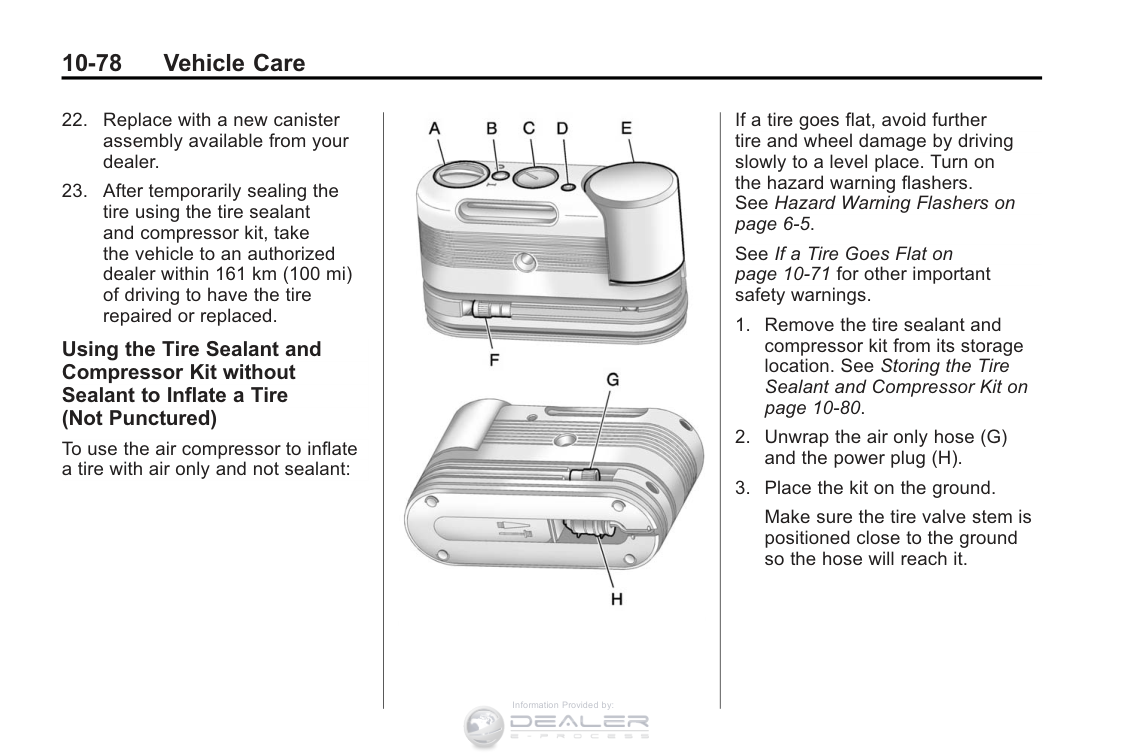

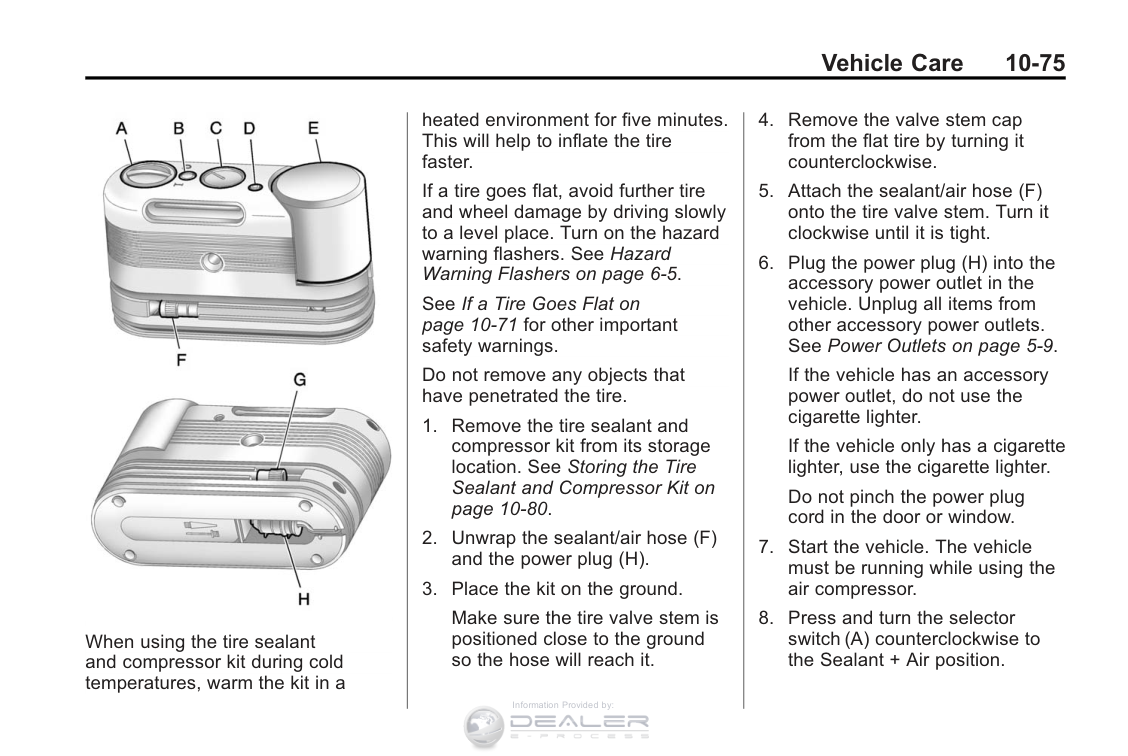

#### Tire Sealant and Compressor Kit

This vehicle may come with a spare tire and tire changing equipment or atiresealantandcompressorkit. The kit can be used to temporarily seal small punctures in the tread area of the tire.

See Tire Sealant and Compressor Kit on page 10￿73 for complete operating information.

If the vehicle came with a spare tire and tire changing equipment, see If aTireGoesFlatonpage10￿71.

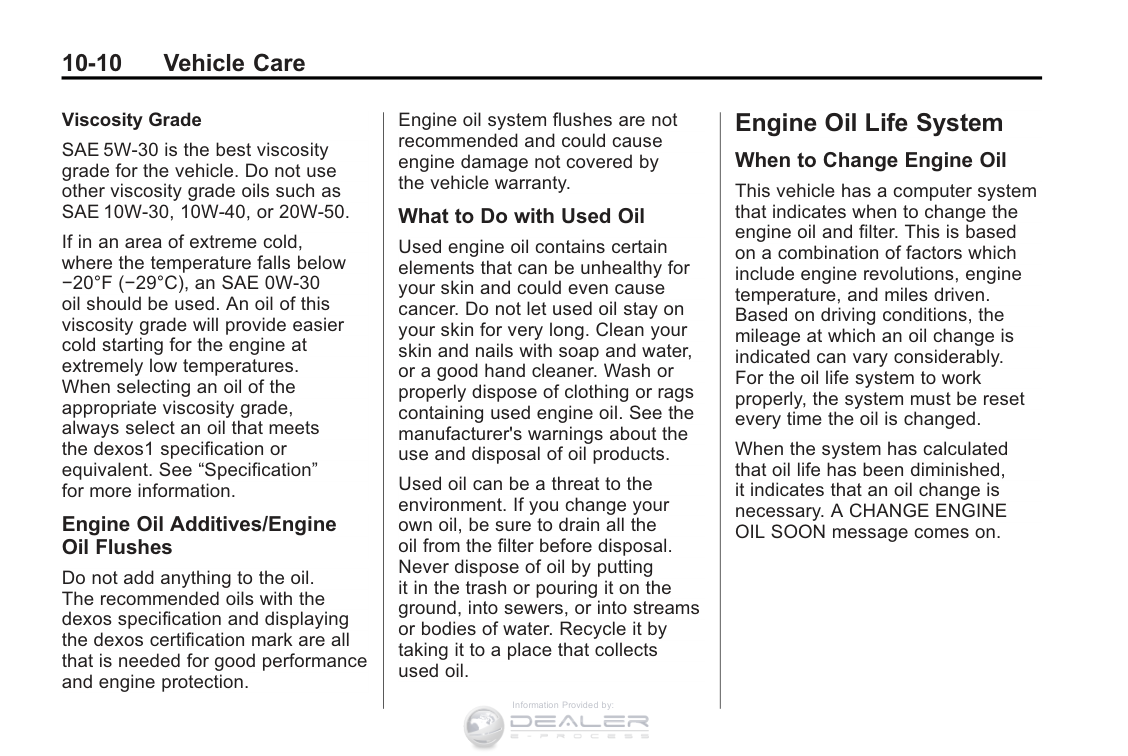

#### Engine Oil Life System

The engine oil life system calculates engine oil life based on vehicle use and displays the CHANGE ENGINE OIL SOON message when it is time to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.

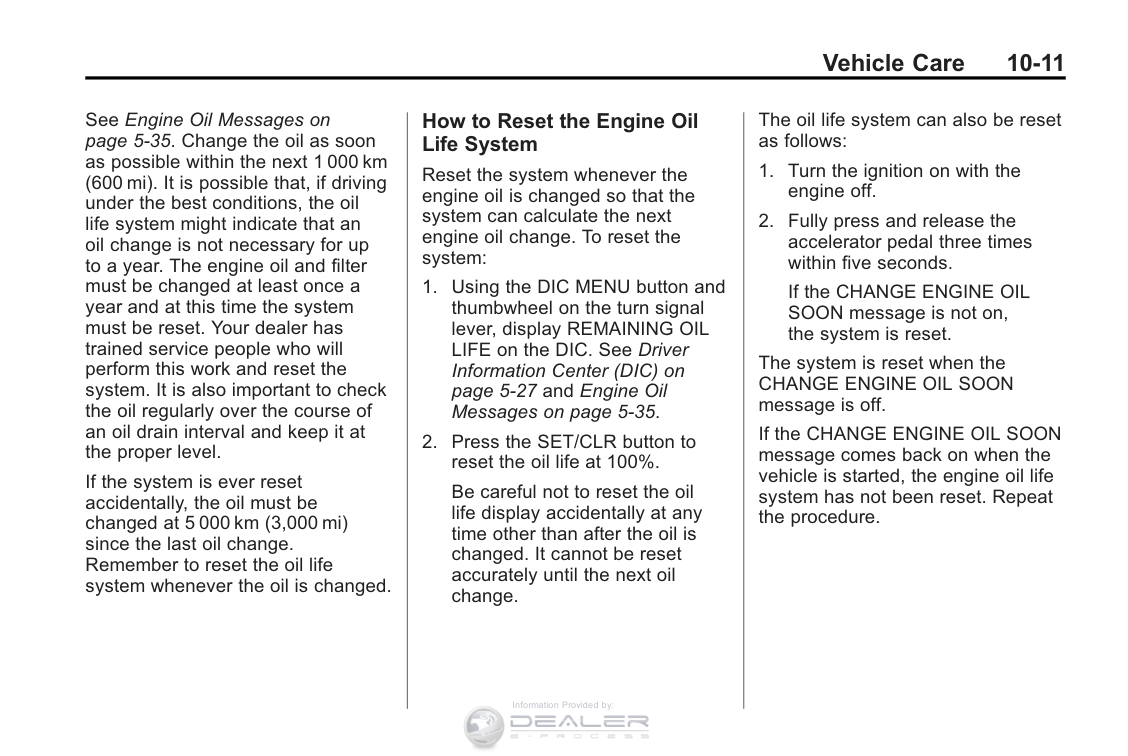

######## Resetting the Oil Life System

Be careful not to reset the oil life display accidentally at any time other than after the oil is changed. It cannot be reset accurately until the next oil change.

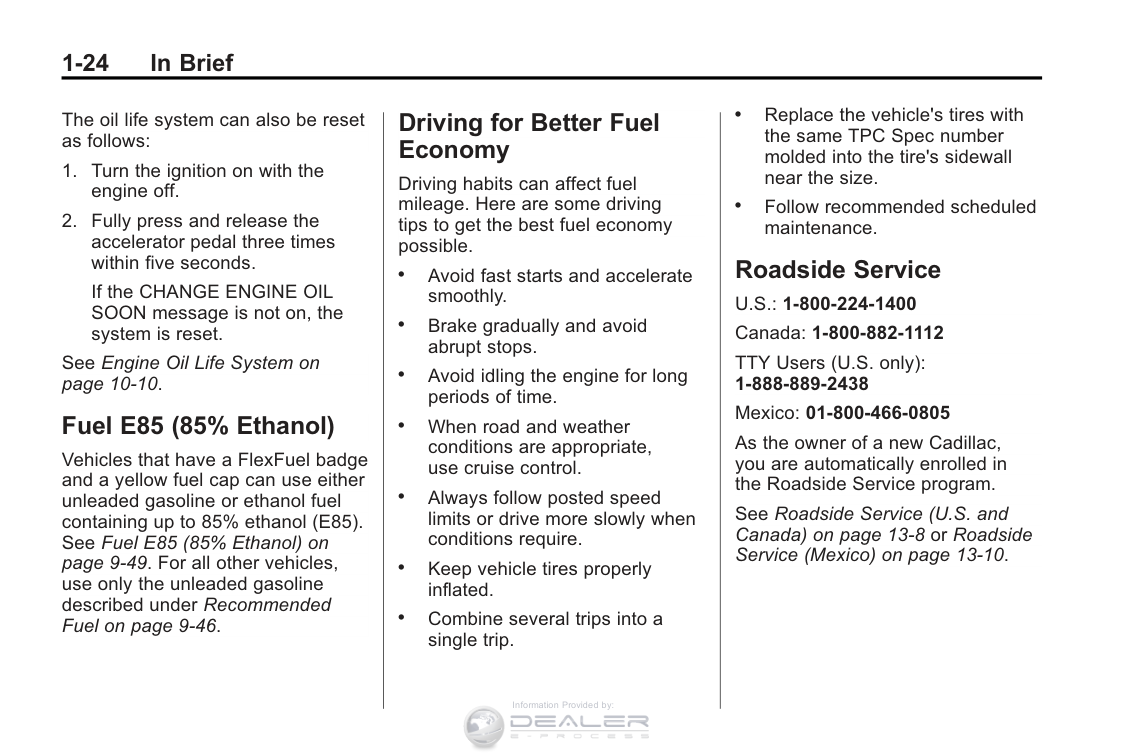

The oil life system can also be reset as follows:

If the CHANGE ENGINE OIL SOON message is not on, the system is reset.

See Engine Oil Life System on page 10￿10.

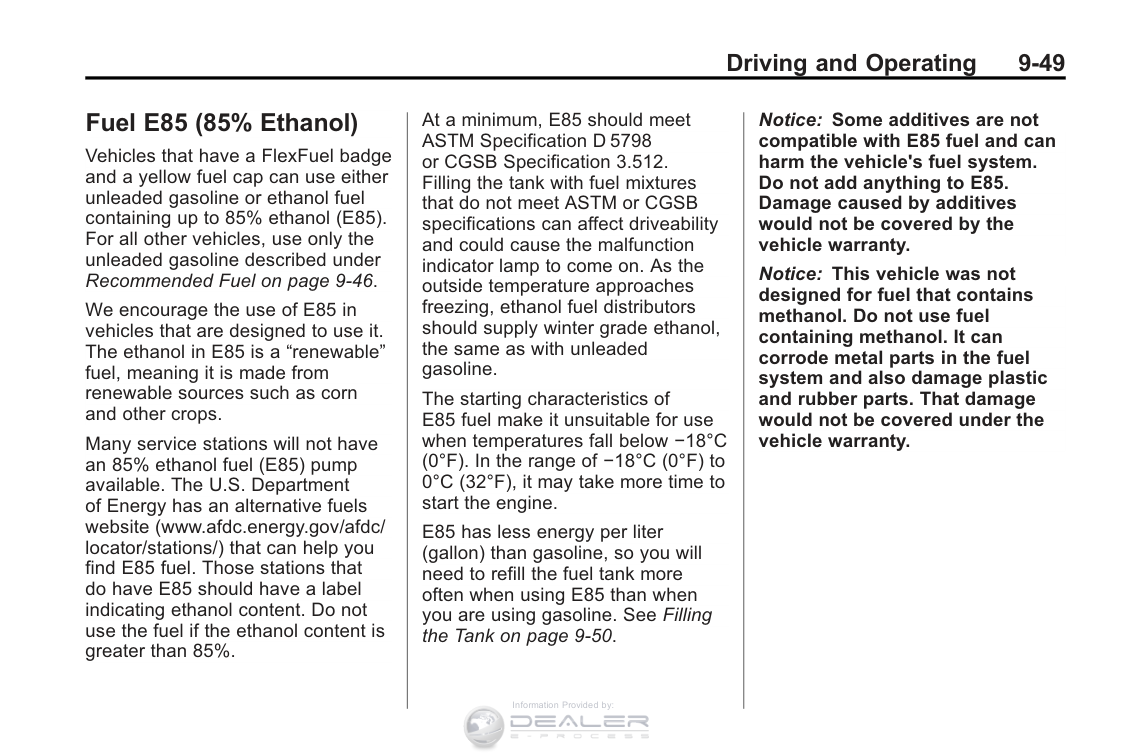

#### Fuel E85 (85% Ethanol)

Vehicles that have a FlexFuel badge and a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Fuel E85 (85% Ethanol) on

#### Driving for Better Fuel Economy

Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.

. Avoid fast starts and accelerate smoothly.

. Brake gradually and avoid abrupt stops.

. Avoid idling the engine for long periods of time.

. When road and weather conditions are appropriate, use cruise control.

. Always follow posted speed limits or drive more slowly when conditions require.

. Keep vehicle tires properly inflated.

. Combine several trips into a single trip.

. Replace the vehicle's tires with the same TPC Spec number molded into the tire's sidewall near the size.

. Follow recommended scheduled maintenance.

Roadside Service U.S.: 1-800-224-1400 Canada: 1-800-882-1112 TTY Users (U.S. only): 1-888-889-2438 Mexico: 01-800-466-0805 As the owner of a new Cadillac, you are automatically enrolled in the Roadside Service program. See Roadside Service (U.S. and Canada) on page 13￿8 or Roadside Service (Mexico) on page 13￿10.

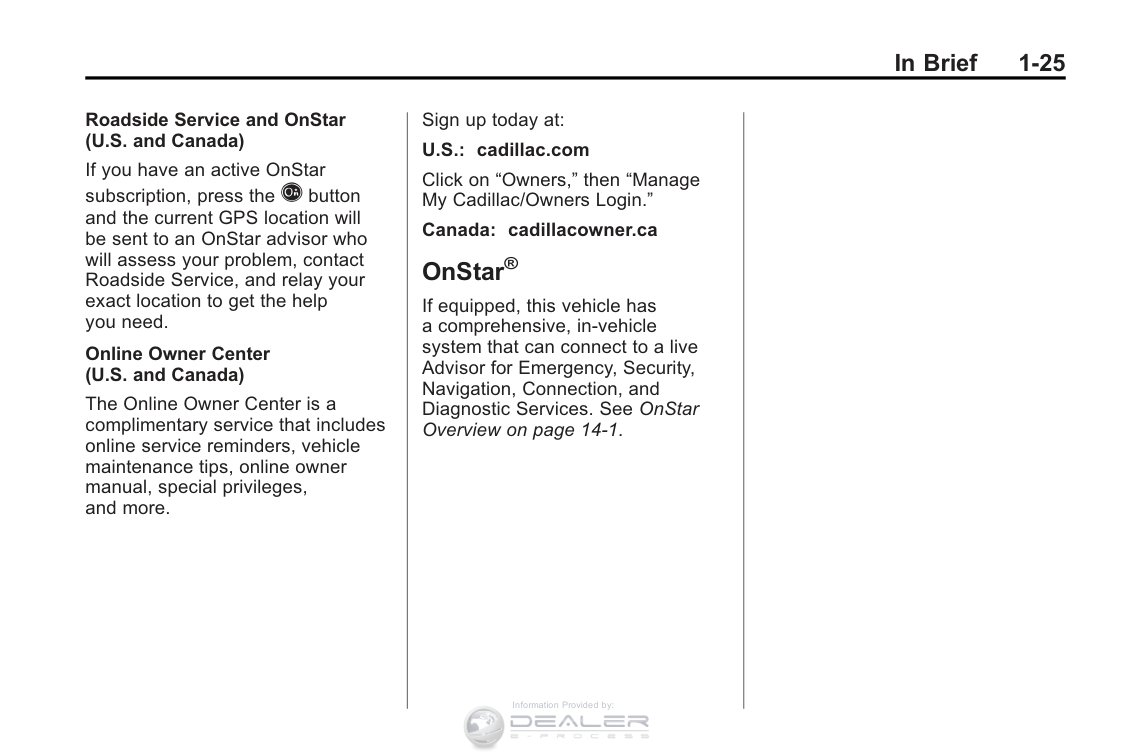

Roadside Service and OnStar (U.S. and Canada)

If you have an active OnStar subscription, press the Q button and the current GPS location will be sent to an OnStar advisor who will assess your problem, contact Roadside Service, and relay your exact location to get the help you need.

Online Owner Center (U.S. and Canada)

The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges, and more.

Sign up today at: U.S.: cadillac.com

Click on “Owners,” then “Manage My Cadillac/Owners Login.”

Canada: cadillacowner.ca OnStar®

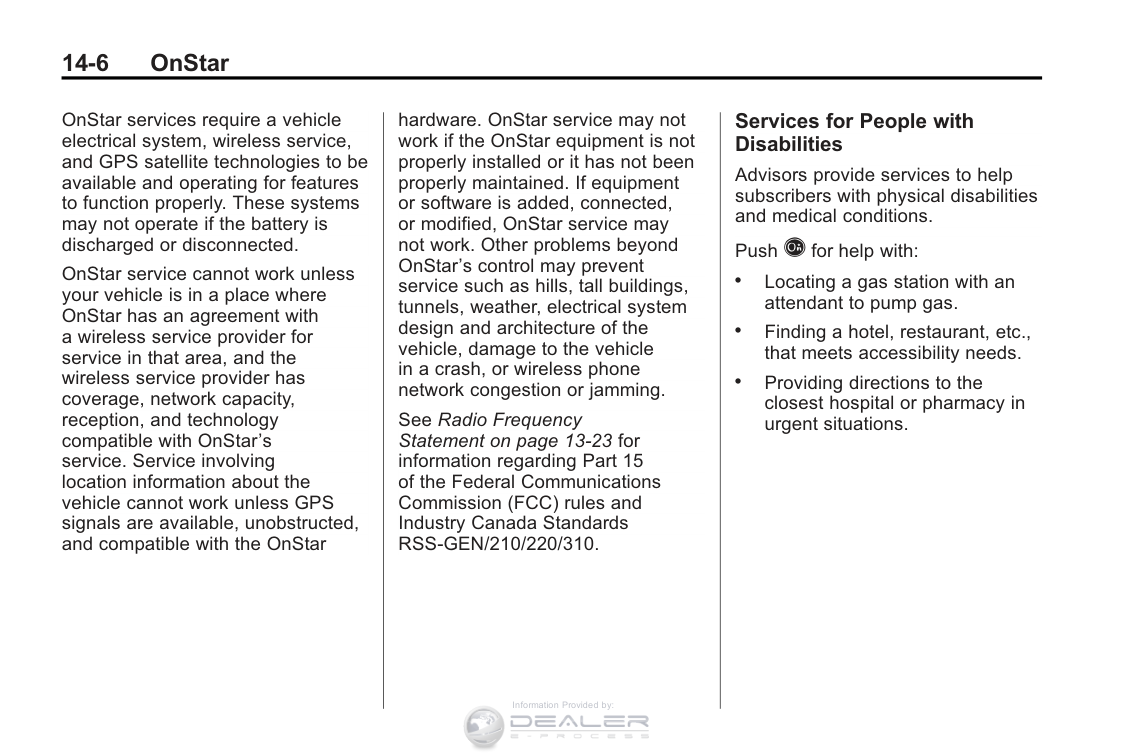

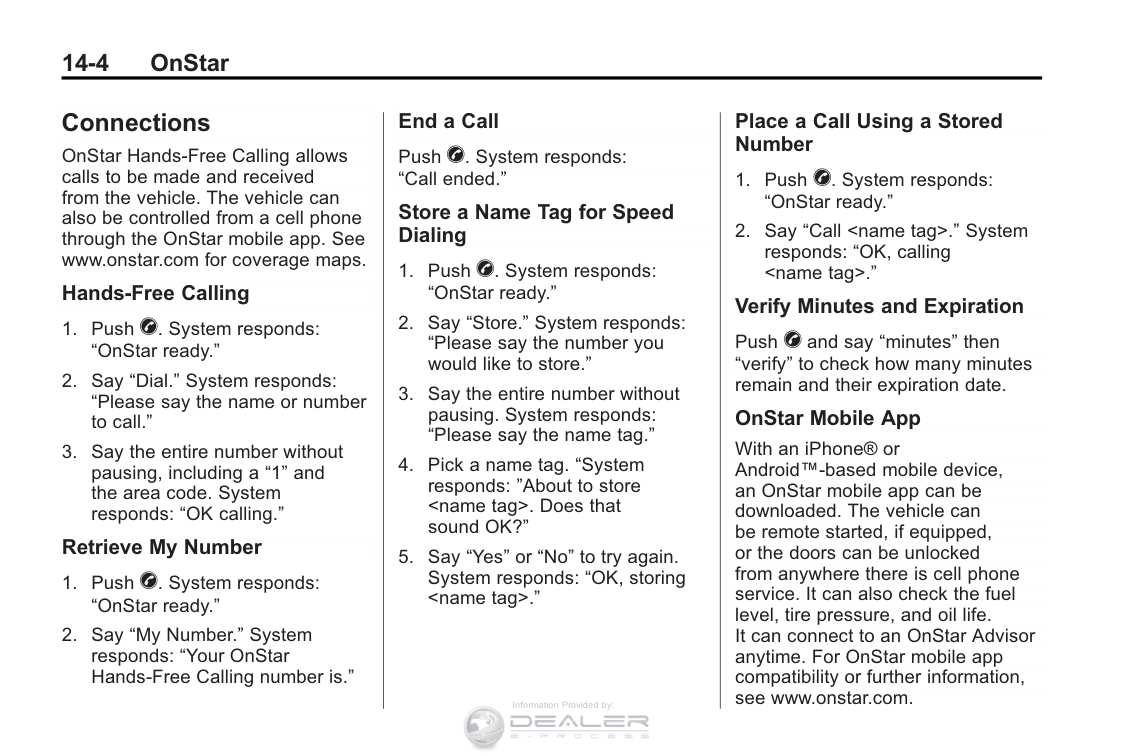

If equipped, this vehicle has acomprehensive,in-vehicle system that can connect to a live Advisor for Emergency, Security, Navigation, Connection, and Diagnostic Services. See OnStar Overview on page 14￿1.

2 NOTES

Keys, Doors, and Windows

Keys and Locks Keys ...... .................... 2-2 Remote Keyless Entry (RKE)

System .... .. .. .. .. .. .. .. .. .. 2-3 Remote Keyless Entry (RKE)

System Operation .... . . . . . . . 2-3 Remote Vehicle Start .... . . . . 2-10 Door Locks .... . . . . . . . . . . . . . . 2-12 Power Door Locks .... . . . . . . . 2-12 Safety Locks ................. 2-14

####### Doors

Liftgate .... . . . . . . . . . . . . . . . . . . 2-14 Vehicle Security

Vehicle Security . . . . . . . . . . . . . . 2-18 Anti-theft Alarm System .... . . 2-18 Immobilizer .... . . . . . . . . . . . . . . 2-19 Immobilizer Operation .... . . . 2-20

####### Exterior Mirrors

Convex Mirrors .... . . . . . . . . . . 2-21 Power Mirrors ................ 2-21 Folding Mirrors ............... 2-21 Heated Mirrors ............... 2-22 Automatic Dimming Mirror ... 2-22 Reverse Tilt Mirrors .... . . . . . . 2-23

Interior Mirrors Manual Rearview Mirror ...... 2-23 Automatic Dimming Rearview

Mirror ....................... 2-23 Windows

Windows ..................... 2-24 Power Windows .... . . . . . . . . . 2-24 Sun Visors ................... 2-27

####### Roof

Sunroof ...................... 2-27

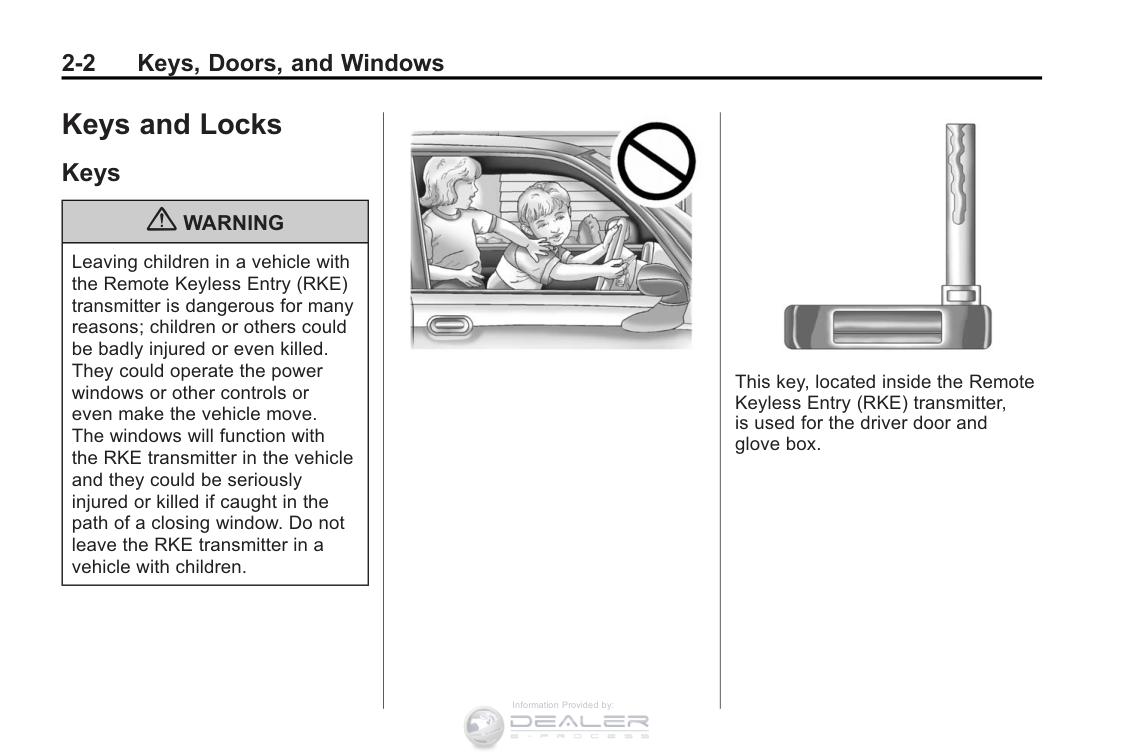

Keys and Locks Keys

|{ WARNING| |---| |Leaving children in a vehicle with the Remote Keyless Entry (RKE) transmitter is dangerous for many reasons; children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the RKE transmitter in the vehicle and they could be seriously injured or killed if caught in the path of a closing window. Do not leave the RKE transmitter in a vehicle with children.|



This key, located inside the Remote Keyless Entry (RKE) transmitter, is used for the driver door and glove box.


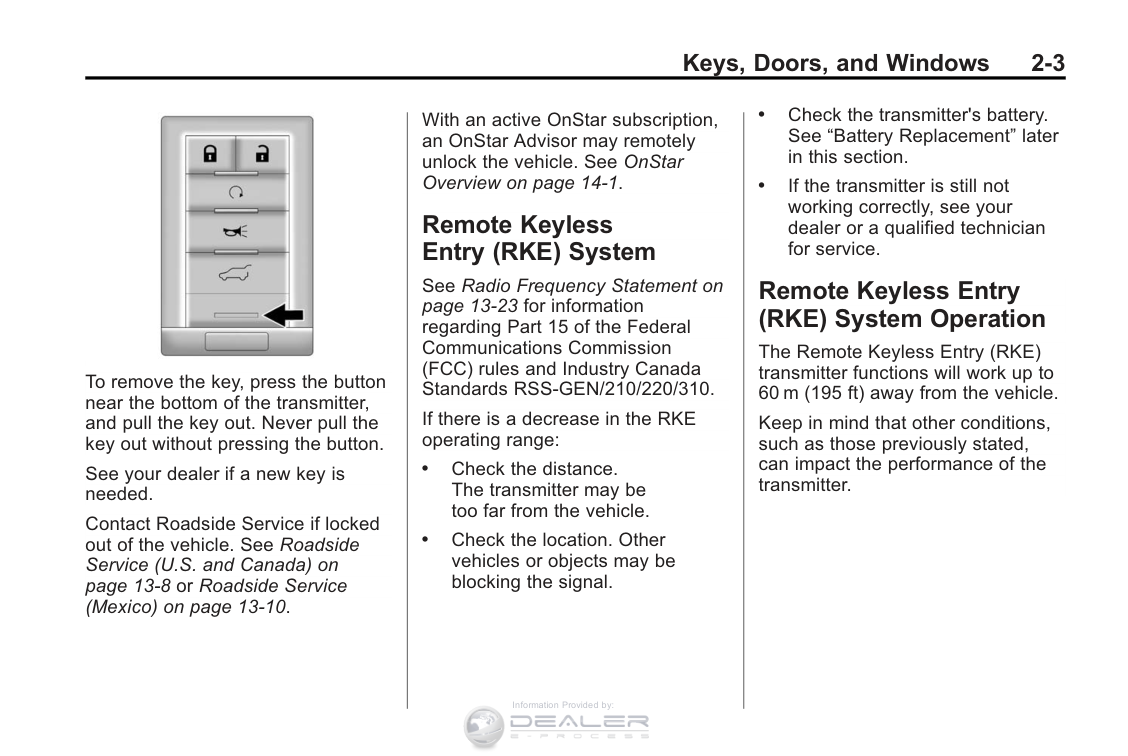

To remove the key, press the button near the bottom of the transmitter, and pull the key out. Never pull the key out without pressing the button.

See your dealer if a new key is needed.

Contact Roadside Service if locked out of the vehicle. See Roadside Service (U.S. and Canada) on page 13￿8 or Roadside Service (Mexico) on page 13￿10.

With an active OnStar subscription, an OnStar Advisor may remotely unlock the vehicle. See OnStar Overview on page 14￿1.

Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 13￿23 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310.

If there is a decrease in the RKE operating range:

. Check the distance. The transmitter may be too far from the vehicle.

. Check the location. Other vehicles or objects may be blocking the signal.

. Check the transmitter's battery. See “Battery Replacement” later in this section.

. If the transmitter is still not working correctly, see your dealer or a qualified technician for service.

#### Remote Keyless Entry (RKE) System Operation

The Remote Keyless Entry (RKE) transmitter functions will work up to 60 m (195 ft) away from the vehicle.

Keep in mind that other conditions, such as those previously stated, can impact the performance of the transmitter.


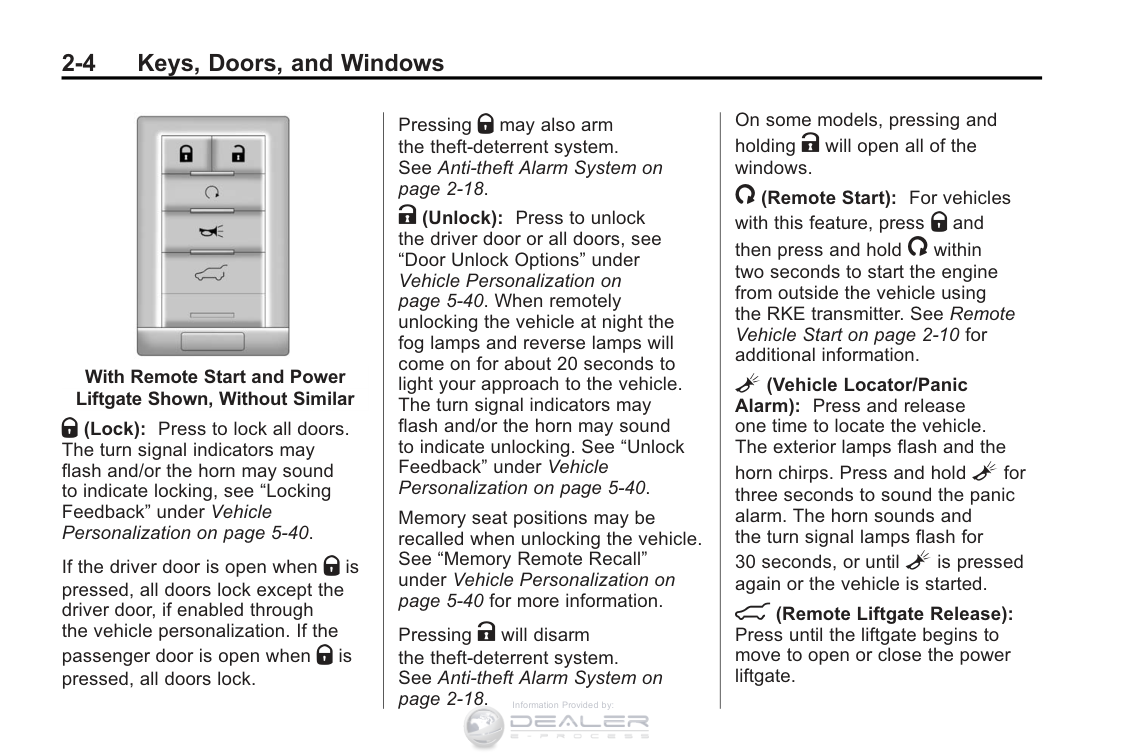

With Remote Start and Power Liftgate Shown, Without Similar

Q (Lock): Press to lock all doors. The turn signal indicators may flash and/or the horn may sound to indicate locking, see “Locking Feedback” under Vehicle Personalization on page 5￿40.

If the driver door is open when Q is pressed, all doors lock except the driver door, if enabled through the vehicle personalization. If the passenger door is open when Q is pressed, all doors lock.

Pressing Q may also arm the theft-deterrent system. See Anti-theft Alarm System on page 2￿18.

K (Unlock): Press to unlock the driver door or all doors, see “Door Unlock Options” under Vehicle Personalization on page 5￿40.Whenremotely unlocking the vehicle at night the fog lamps and reverse lamps will come on for about 20 seconds to light your approach to the vehicle. The turn signal indicators may flash and/or the horn may sound to indicate unlocking. See “Unlock Feedback” under Vehicle Personalization on page 5￿40.

Memory seat positions may be recalled when unlocking the vehicle. See “Memory Remote Recall” under Vehicle Personalization on page 5￿40 for more information.

Pressing K will disarm the theft-deterrent system. See Anti-theft Alarm System on page 2￿18.



On some models, pressing and holding K will open all of the windows. / (Remote Start): For vehicles with this feature, press Q and then press and hold / within two seconds to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 2￿10 for additional information.

L (Vehicle Locator/Panic Alarm): Press and release one time to locate the vehicle. The exterior lamps flash and the horn chirps. Press and hold L for three seconds to sound the panic alarm. The horn sounds and the turn signal lamps flash for 30 seconds, or until L is pressed again or the vehicle is started. 8 (Remote Liftgate Release): Press until the liftgate begins to move to open or close the power liftgate.

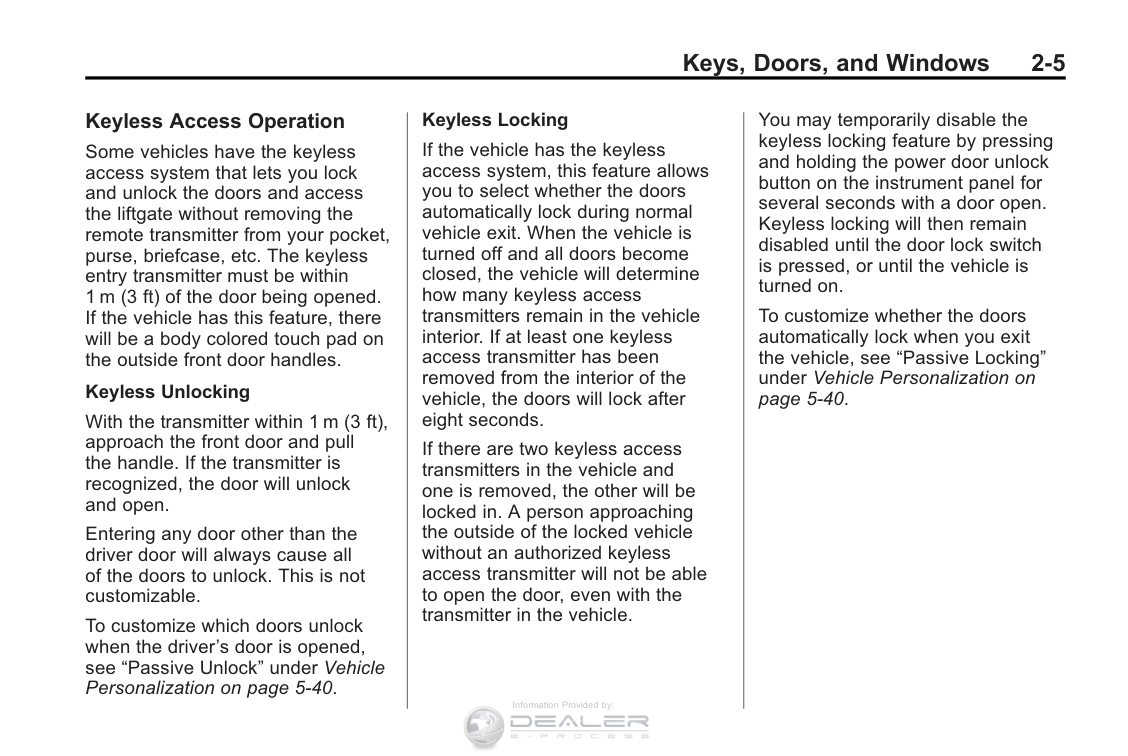

####### Keyless Access Operation

Some vehicles have the keyless access system that lets you lock and unlock the doors and access the liftgate without removing the remote transmitter from your pocket, purse, briefcase, etc. The keyless entry transmitter must be within 1m(3ft)ofthedoorbeingopened. If the vehicle has this feature, there will be a body colored touch pad on the outside front door handles.

######## Keyless Unlocking

With the transmitter within 1 m (3 ft), approach the front door and pull the handle. If the transmitter is recognized, the door will unlock and open.

Entering any door other than the driver door will always cause all of the doors to unlock. This is not customizable.

To customize which doors unlock when the driver’sdoorisopened, see “Passive Unlock” under Vehicle Personalization on page 5￿40.

######## Keyless Locking

If the vehicle has the keyless access system, this feature allows you to select whether the doors automatically lock during normal vehicle exit. When the vehicle is turned off and all doors become closed, the vehicle will determine how many keyless access transmitters remain in the vehicle interior. If at least one keyless access transmitter has been removed from the interior of the vehicle, the doors will lock after eight seconds.

If there are two keyless access transmitters in the vehicle and one is removed, the other will be locked in. A person approaching the outside of the locked vehicle without an authorized keyless access transmitter will not be able to open the door, even with the transmitter in the vehicle.



You may temporarily disable the keyless locking feature by pressing and holding the power door unlock button on the instrument panel for several seconds with a door open. Keyless locking will then remain disabled until the door lock switch is pressed, or until the vehicle is turned on.

To customize whether the doors automatically lock when you exit the vehicle, see “Passive Locking” under Vehicle Personalization on page 5￿40.

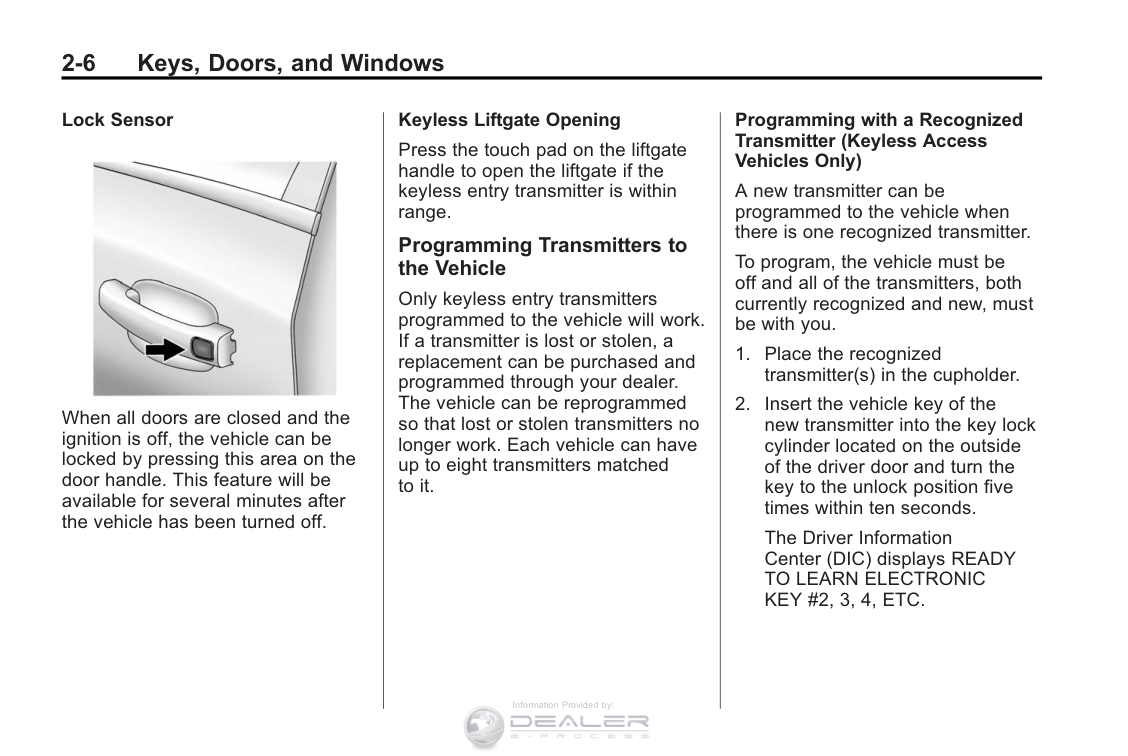

######## Lock Sensor


When all doors are closed and the ignition is off, the vehicle can be locked by pressing this area on the door handle. This feature will be available for several minutes after the vehicle has been turned off.

######## Keyless Liftgate Opening

Press the touch pad on the liftgate handle to open the liftgate if the keyless entry transmitter is within range.

####### Programming Transmitters to the Vehicle

Only keyless entry transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer. The vehicle can be reprogrammed so that lost or stolen transmitters no longer work. Each vehicle can have up to eight transmitters matched to it.

Programming with a Recognized Transmitter (Keyless Access Vehicles Only)

Anewtransmittercanbe programmed to the vehicle when there is one recognized transmitter.

To program, the vehicle must be off and all of the transmitters, both currently recognized and new, must be with you.

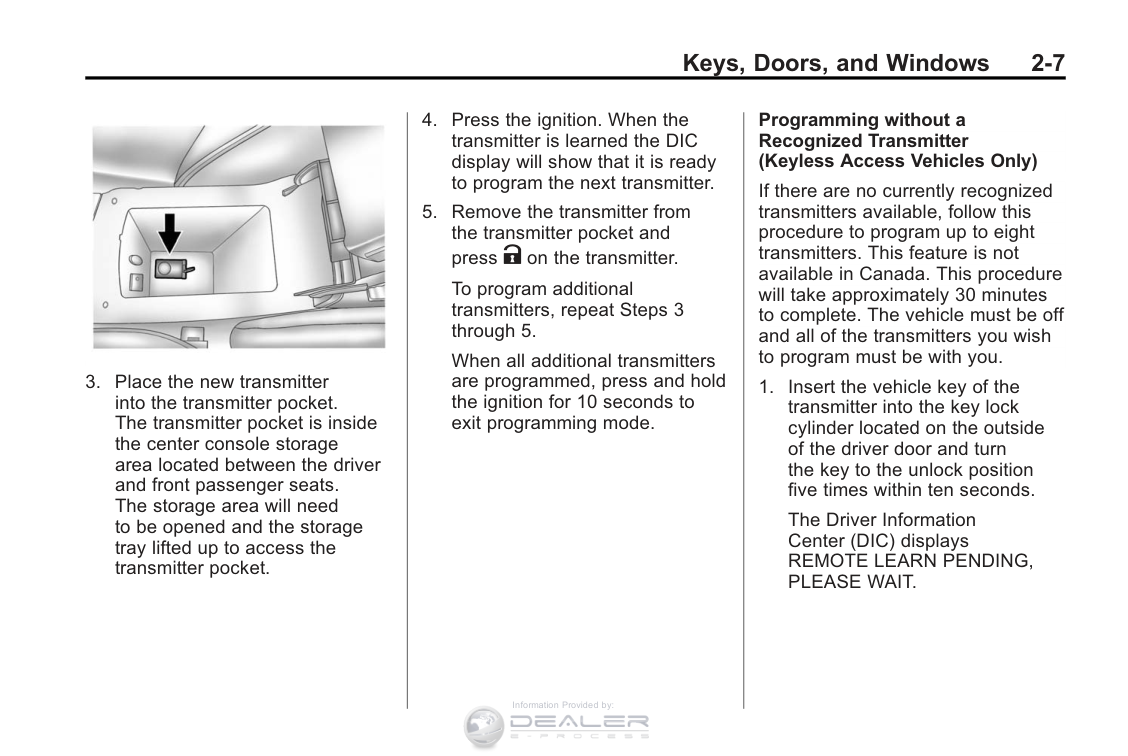

The Driver Information Center (DIC) displays READY TO LEARN ELECTRONIC KEY #2, 3, 4, ETC.


To program additional transmitters, repeat Steps 3 through 5.

When all additional transmitters are programmed, press and hold the ignition for 10 seconds to exit programming mode.

Programming without a Recognized Transmitter (Keyless Access Vehicles Only)

If there are no currently recognized transmitters available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all of the transmitters you wish to program must be with you.

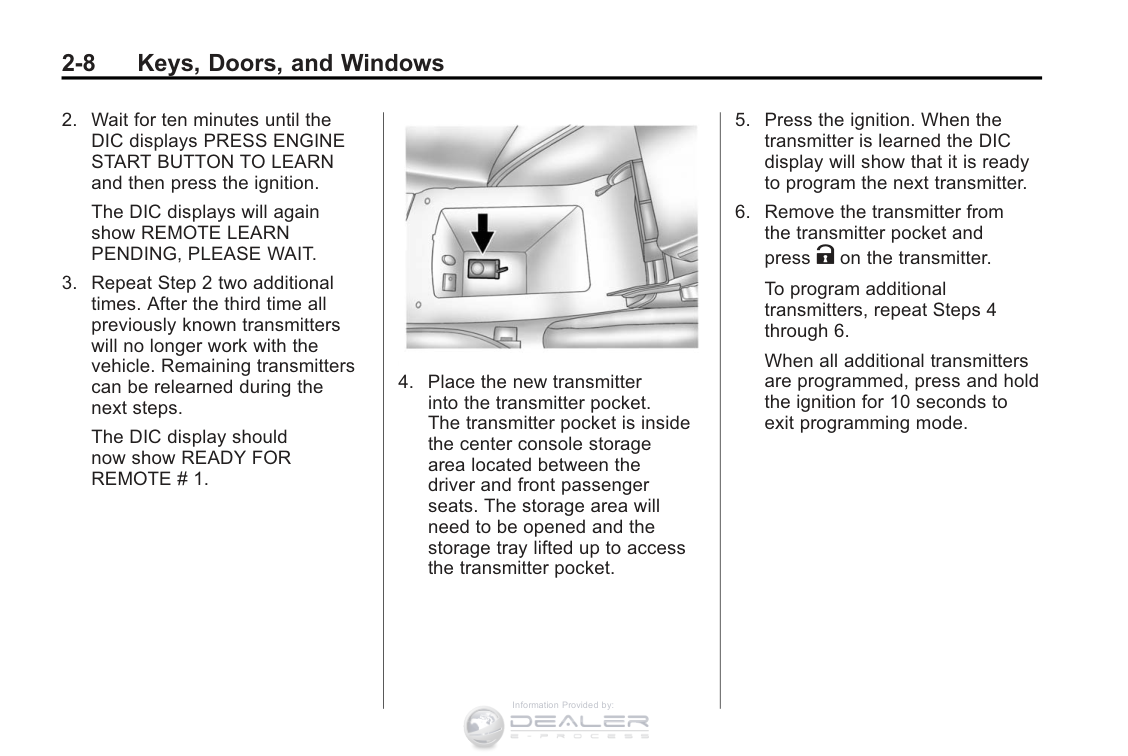

The Driver Information Center (DIC) displays REMOTE LEARN PENDING, PLEASE WAIT.

The DIC displays will again show REMOTE LEARN PENDING, PLEASE WAIT.

The DIC display should now show READY FOR REMOTE # 1.


To program additional transmitters, repeat Steps 4 through 6.

When all additional transmitters are programmed, press and hold the ignition for 10 seconds to exit programming mode.

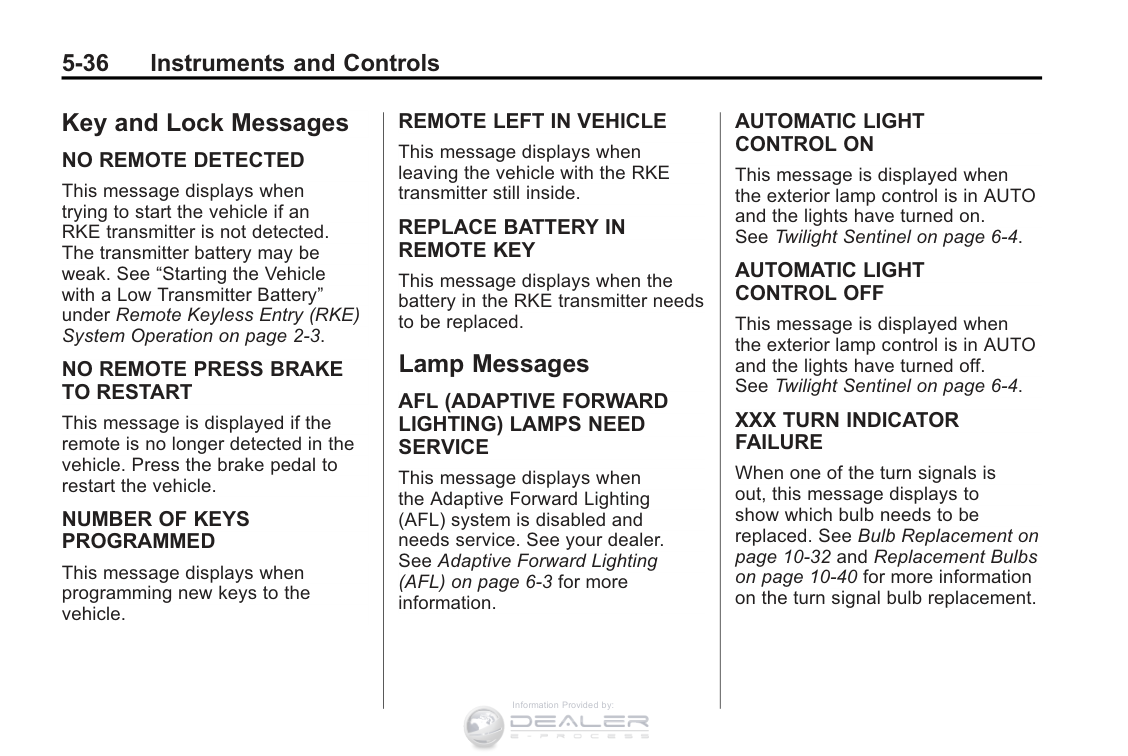

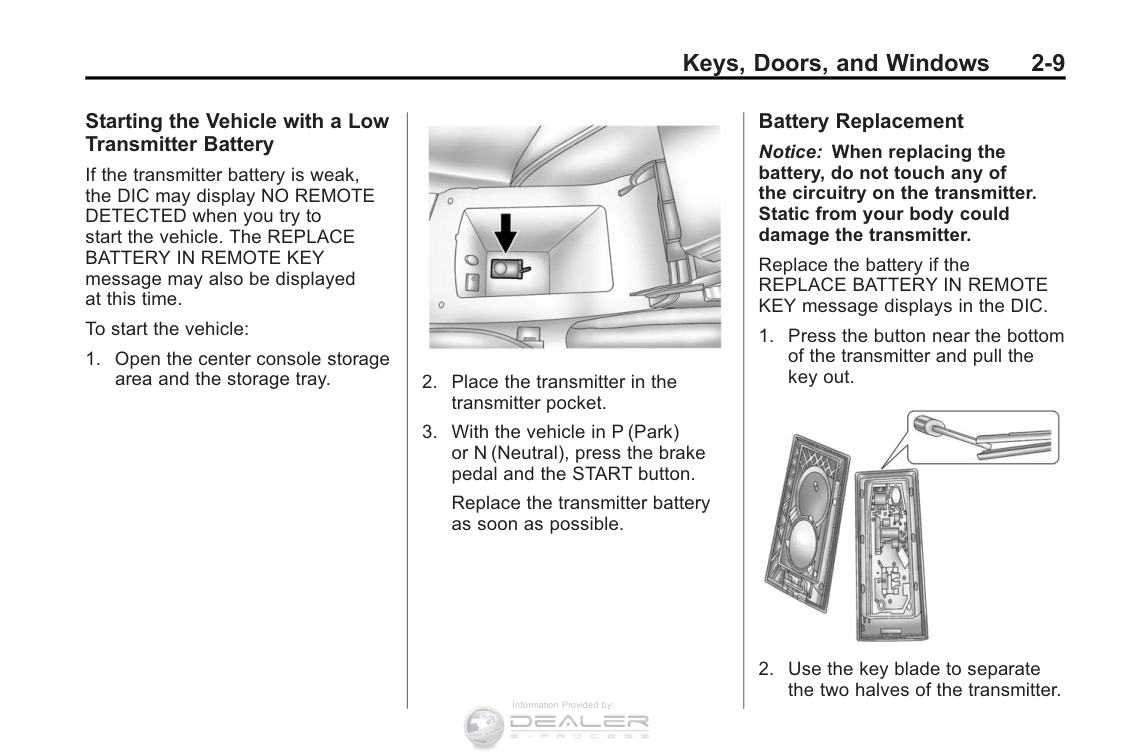

####### Starting the Vehicle with a Low Transmitter Battery


If the transmitter battery is weak, the DIC may display NO REMOTE DETECTED when you try to start the vehicle. The REPLACE BATTERY IN REMOTE KEY message may also be displayed at this time.

To start the vehicle:

Replace the transmitter battery as soon as possible.



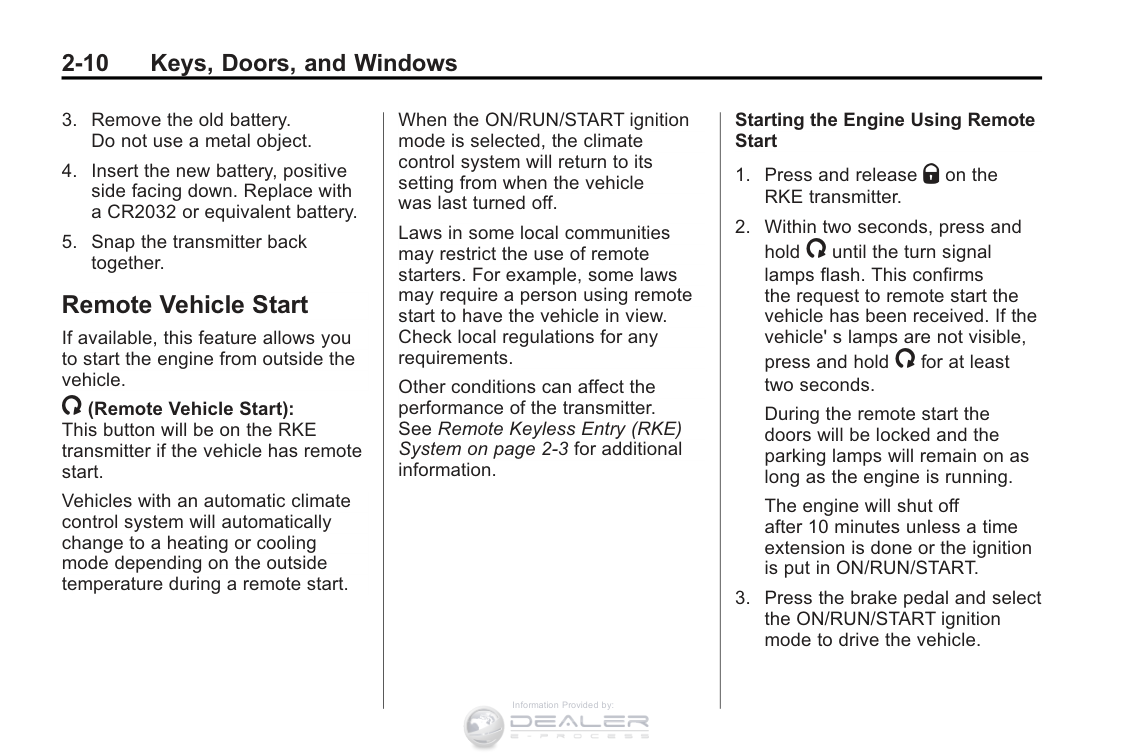

Battery Replacement Notice: When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter. Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC.


#### Remote Vehicle Start

If available, this feature allows you to start the engine from outside the vehicle.

/ (Remote Vehicle Start): This button will be on the RKE transmitter if the vehicle has remote start.

Vehicles with an automatic climate control system will automatically change to a heating or cooling mode depending on the outside temperature during a remote start.

When the ON/RUN/START ignition mode is selected, the climate control system will return to its setting from when the vehicle was last turned off.

Laws in some local communities may restrict the use of remote starters. For example, some laws may require a person using remote start to have the vehicle in view. Check local regulations for any requirements.

Other conditions can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2￿3 for additional information.

Starting the Engine Using Remote Start

During the remote start the doors will be locked and the parking lamps will remain on as long as the engine is running.

The engine will shut off after 10 minutes unless a time extension is done or the ignition is put in ON/RUN/START.

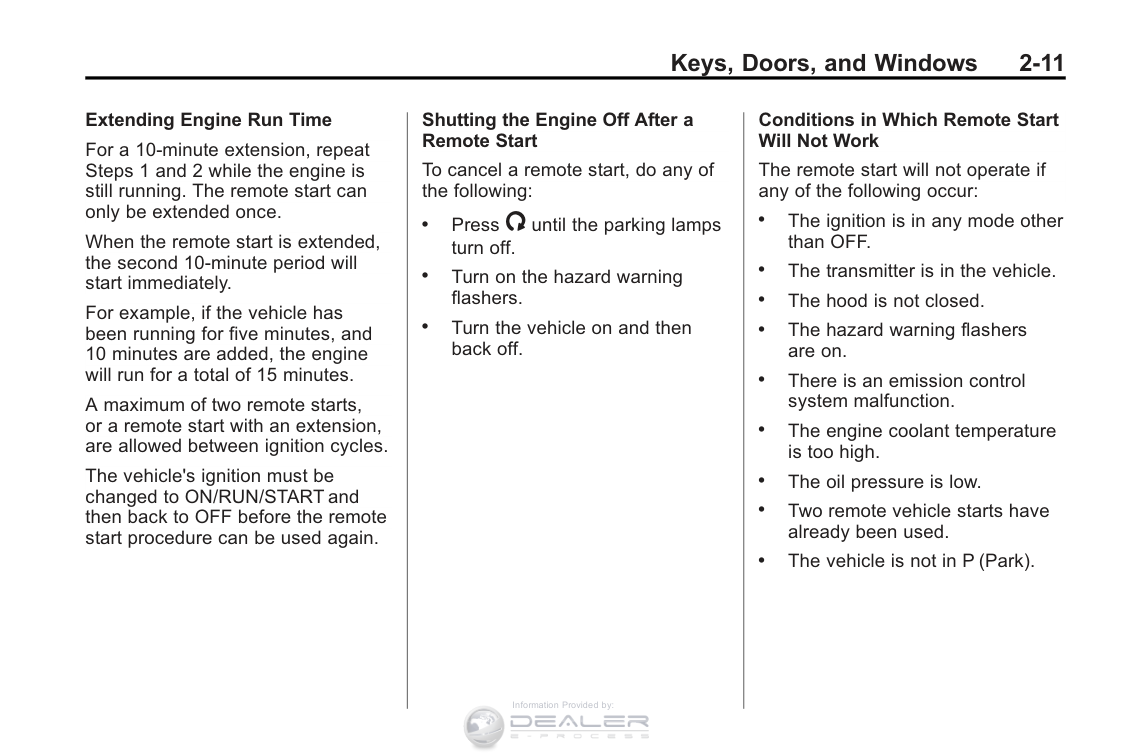

######## Extending Engine Run Time

For a 10-minute extension, repeat Steps 1 and 2 while the engine is still running. The remote start can only be extended once.

When the remote start is extended, the second 10-minute period will start immediately.

For example, if the vehicle has been running for five minutes, and 10 minutes are added, the engine will run for a total of 15 minutes.

Amaximumoftworemotestarts, or a remote start with an extension, are allowed between ignition cycles.

The vehicle's ignition must be changed to ON/RUN/START and then back to OFF before the remote start procedure can be used again.

Shutting the Engine Off After a Remote Start

To cancel a remote start, do any of the following:

. Press / until the parking lamps

turn off.

. Turn on the hazard warning flashers.

. Turn the vehicle on and then back off.

Conditions in Which Remote Start Will Not Work

The remote start will not operate if any of the following occur:

. The ignition is in any mode other than OFF.

. The transmitter is in the vehicle.

. The hood is not closed.

. The hazard warning flashers are on.

. There is an emission control system malfunction.

. The engine coolant temperature is too high.

. The oil pressure is low.

. Two remote vehicle starts have already been used.

. The vehicle is not in P (Park).

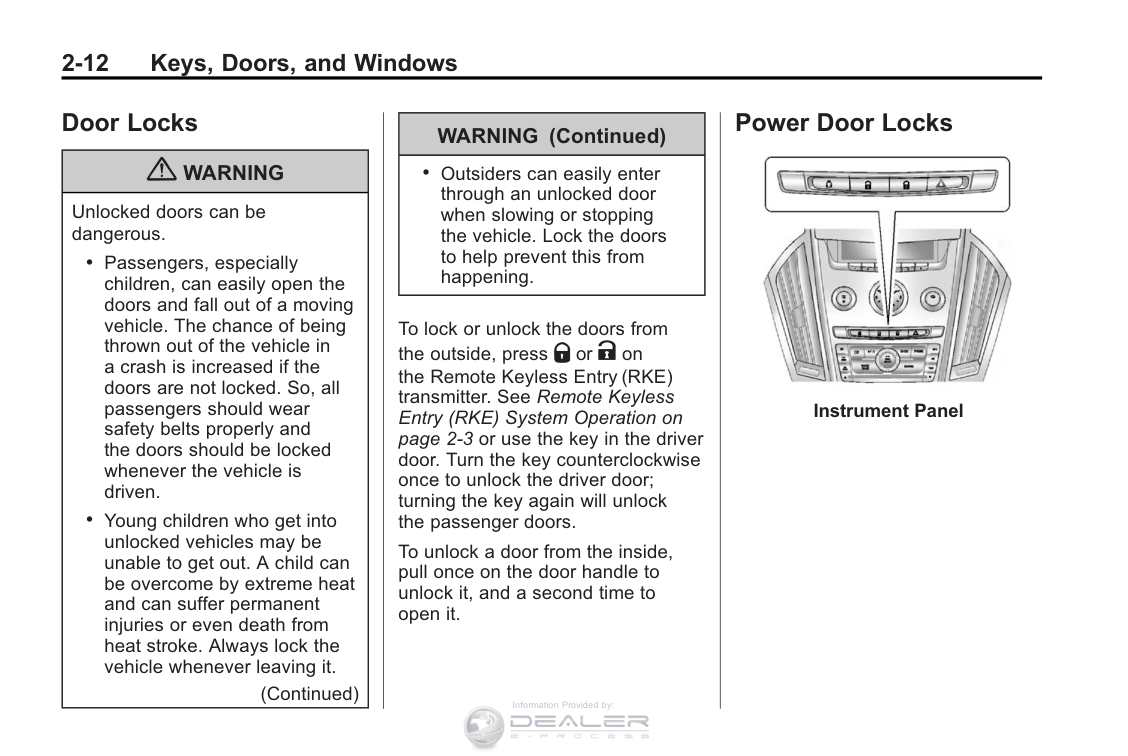

#### Door Locks

|{ WARNING| |---| |Unlocked doors can be dangerous.

. Passengers, especially children, can easily open the doors and fall out of a moving vehicle. The chance of being thrown out of the vehicle in acrashisincreasedifthe doors are not locked. So, all passengers should wear safety belts properly and the doors should be locked whenever the vehicle is driven.

. Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.

(Continued)|

|WARNING (Continued)| |---| |. Outsiders can easily enter through an unlocked door when slowing or stopping the vehicle. Lock the doors to help prevent this from happening.|

To lock or unlock the doors from the outside, press Q or K on

the Remote Keyless Entry (RKE) transmitter. See Remote Keyless Entry (RKE) System Operation on page 2￿3 or use the key in the driver door. Turn the key counterclockwise once to unlock the driver door; turning the key again will unlock the passenger doors.

To unlock a door from the inside, pull once on the door handle to unlock it, and a second time to open it.

#### Power Door Locks


Instrument Panel


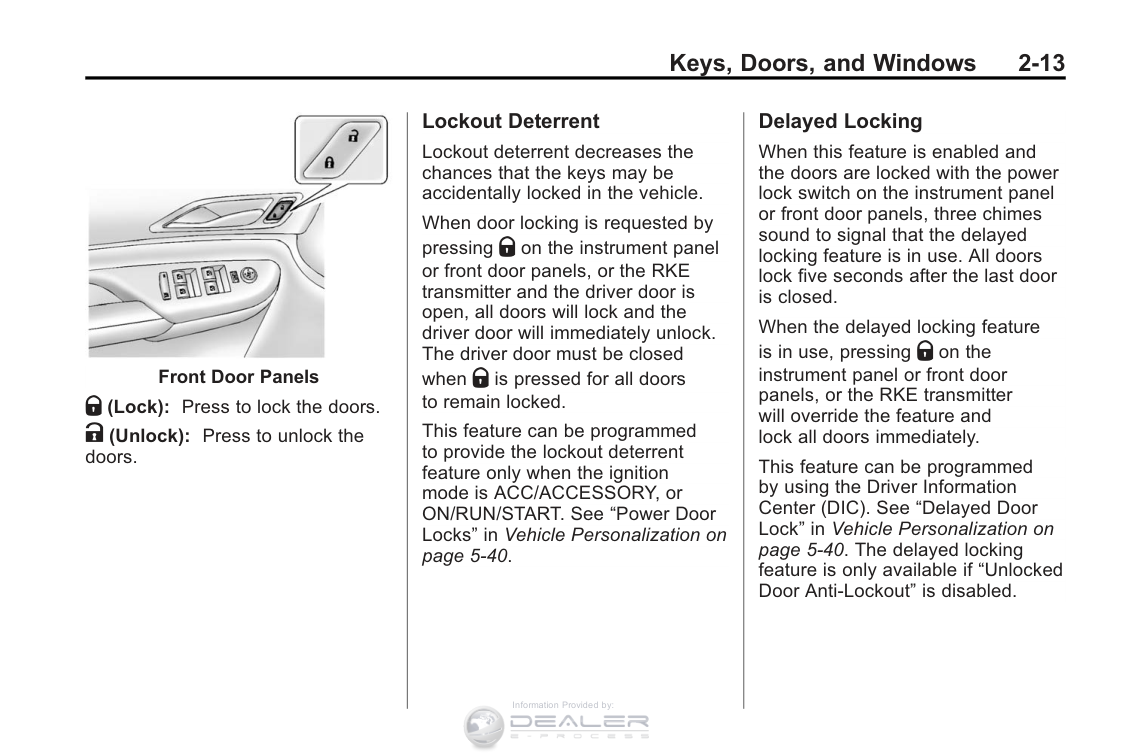

Front Door Panels Q (Lock): Press to lock the doors. K (Unlock): Press to unlock the doors.

####### Lockout Deterrent

Lockout deterrent decreases the chances that the keys may be accidentally locked in the vehicle.

When door locking is requested by pressing Q on the instrument panel or front door panels, or the RKE transmitter and the driver door is open, all doors will lock and the driver door will immediately unlock. The driver door must be closed when Q is pressed for all doors to remain locked. This feature can be programmed to provide the lockout deterrent feature only when the ignition mode is ACC/ACCESSORY, or ON/RUN/START. See “Power Door Locks” in Vehicle Personalization on page 5￿40.

####### Delayed Locking

When this feature is enabled and the doors are locked with the power lock switch on the instrument panel or front door panels, three chimes sound to signal that the delayed locking feature is in use. All doors lock five seconds after the last door is closed.

When the delayed locking feature is in use, pressing Q on the instrument panel or front door panels, or the RKE transmitter will override the feature and lock all doors immediately. This feature can be programmed by using the Driver Information Center (DIC). See “Delayed Door Lock” in Vehicle Personalization on page 5￿40.Thedelayedlocking feature is only available if “Unlocked Door Anti-Lockout” is disabled.

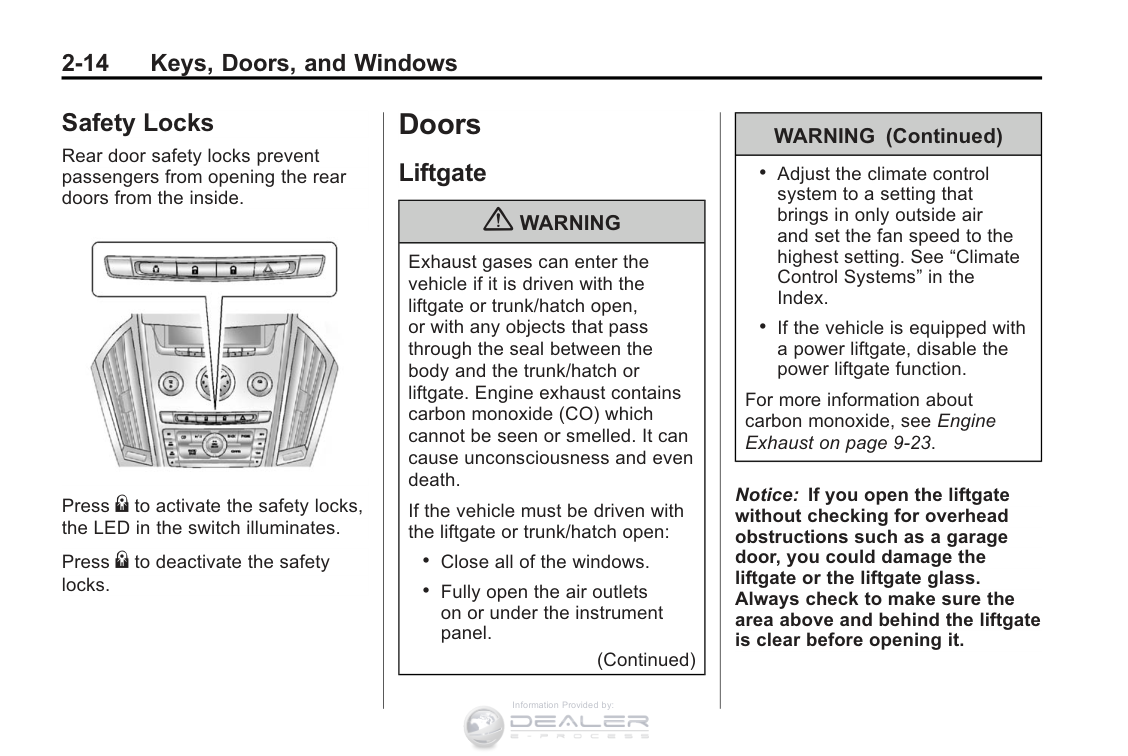

#### Safety Locks

Rear door safety locks prevent passengers from opening the rear doors from the inside.


Press { to activate the safety locks, the LED in the switch illuminates.

Press { to deactivate the safety locks.

Doors Liftgate

|{ WARNING| |---| |Exhaust gases can enter the vehicle if it is driven with the liftgate or trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death.

If the vehicle must be driven with the liftgate or trunk/hatch open:

. Close all of the windows. . Fully open the air outlets

on or under the instrument panel.

(Continued)|

|WARNING (Continued)| |---| |. Adjust the climate control system to a setting that brings in only outside air and set the fan speed to the highest setting. See “Climate Control Systems” in the Index.

. If the vehicle is equipped with apowerliftgate,disablethe power liftgate function.

For more information about carbon monoxide, see Engine Exhaust on page 9￿23.|

Notice: If you open the liftgate without checking for overhead obstructions such as a garage door, you could damage the liftgate or the liftgate glass. Always check to make sure the area above and behind the liftgate is clear before opening it.

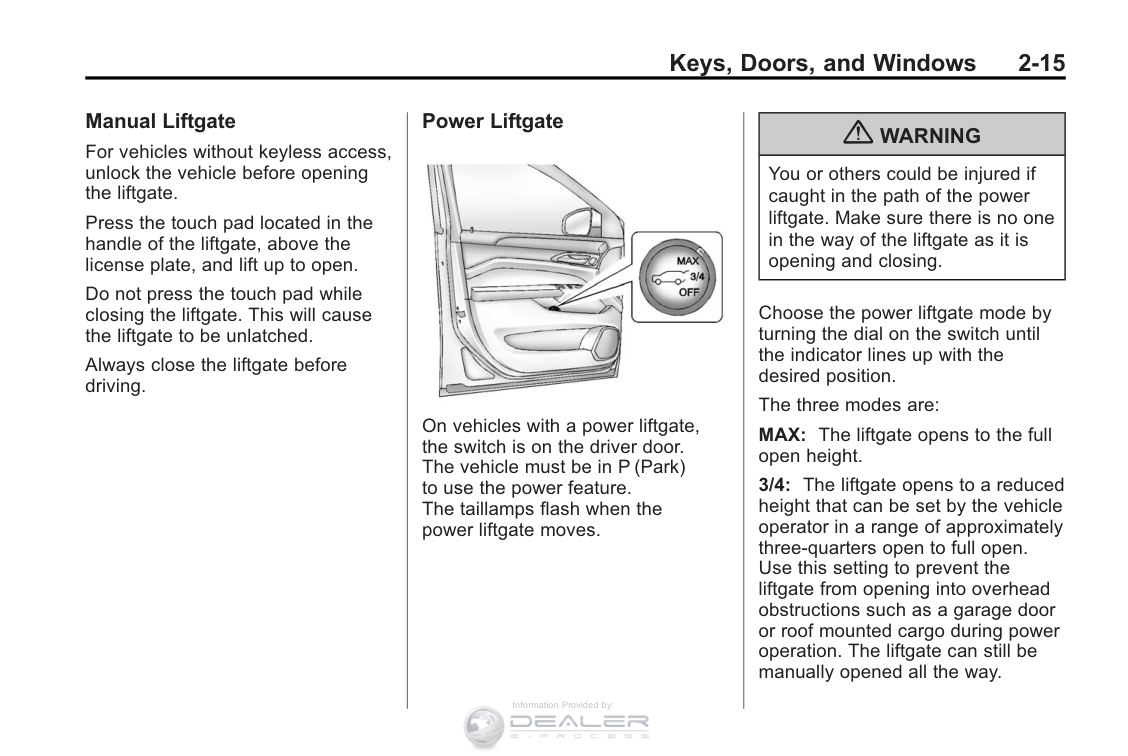

####### Manual Liftgate

For vehicles without keyless access, unlock the vehicle before opening the liftgate.

Press the touch pad located in the handle of the liftgate, above the license plate, and lift up to open.

Do not press the touch pad while closing the liftgate. This will cause the liftgate to be unlatched.

Always close the liftgate before driving.

####### Power Liftgate


On vehicles with a power liftgate, the switch is on the driver door. The vehicle must be in P (Park) to use the power feature. The taillamps flash when the power liftgate moves.



|{ WARNING| |---| |You or others could be injured if caught in the path of the power liftgate. Make sure there is no one in the way of the liftgate as it is opening and closing.|

Choose the power liftgate mode by turning the dial on the switch until the indicator lines up with the desired position.

The three modes are: MAX: The liftgate opens to the full open height.

3/4: The liftgate opens to a reduced height that can be set by the vehicle operator in a range of approximately three￿quarters open to full open. Use this setting to prevent the liftgate from opening into overhead obstructions such as a garage door or roof mounted cargo during power operation. The liftgate can still be manually opened all the way.

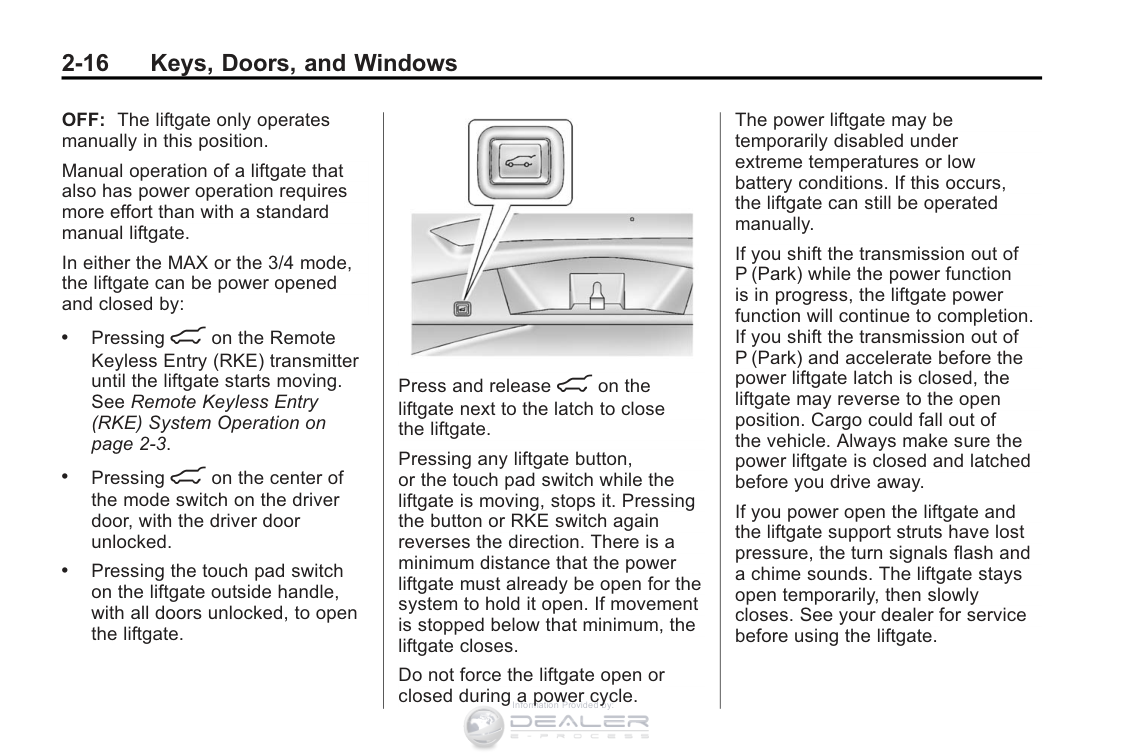

OFF: The liftgate only operates manually in this position. Manual operation of a liftgate that also has power operation requires more effort than with a standard manual liftgate. In either the MAX or the 3/4 mode, the liftgate can be power opened and closed by:

. Pressing 8 on the Remote Keyless Entry (RKE) transmitter until the liftgate starts moving. See Remote Keyless Entry (RKE) System Operation on page 2￿3.

. Pressing 8 on the center of the mode switch on the driver door, with the driver door unlocked.

. Pressing the touch pad switch on the liftgate outside handle, with all doors unlocked, to open the liftgate.


Press and release 8 on the liftgate next to the latch to close the liftgate.

Pressing any liftgate button, or the touch pad switch while the liftgate is moving, stops it. Pressing the button or RKE switch again reverses the direction. There is a minimum distance that the power liftgate must already be open for the system to hold it open. If movement is stopped below that minimum, the liftgate closes.



Do not force the liftgate open or closed during a power cycle.

The power liftgate may be temporarily disabled under extreme temperatures or low battery conditions. If this occurs, the liftgate can still be operated manually.

If you shift the transmission out of P(Park)whilethepowerfunction is in progress, the liftgate power function will continue to completion. If you shift the transmission out of P(Park)andacceleratebeforethe power liftgate latch is closed, the liftgate may reverse to the open position. Cargo could fall out of the vehicle. Always make sure the power liftgate is closed and latched before you drive away.

If you power open the liftgate and the liftgate support struts have lost pressure, the turn signals flash and achimesounds.Theliftgatestays open temporarily, then slowly closes. See your dealer for service before using the liftgate.

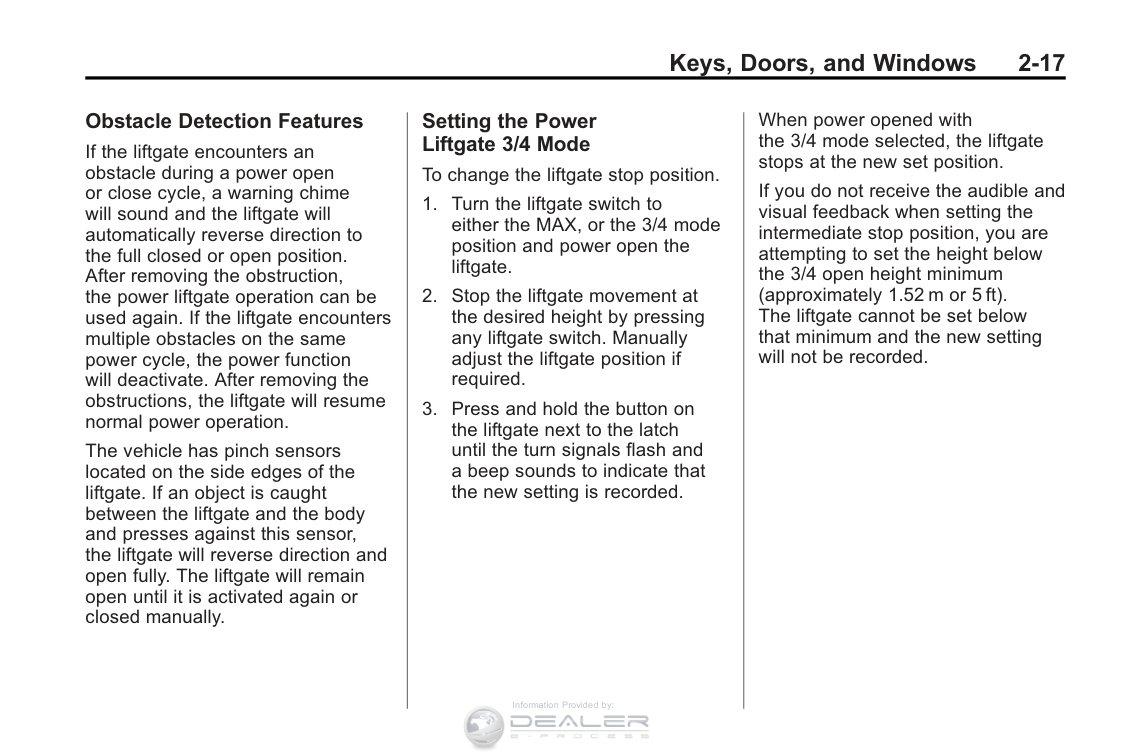

####### Obstacle Detection Features

If the liftgate encounters an obstacle during a power open or close cycle, a warning chime will sound and the liftgate will automatically reverse direction to the full closed or open position. After removing the obstruction, the power liftgate operation can be used again. If the liftgate encounters multiple obstacles on the same power cycle, the power function will deactivate. After removing the obstructions, the liftgate will resume normal power operation.

The vehicle has pinch sensors located on the side edges of the liftgate. If an object is caught between the liftgate and the body and presses against this sensor, the liftgate will reverse direction and open fully. The liftgate will remain open until it is activated again or closed manually.

####### Setting the Power Liftgate 3/4 Mode

To change the liftgate stop position.

When power opened with the 3/4 mode selected, the liftgate stops at the new set position.

If you do not receive the audible and visual feedback when setting the intermediate stop position, you are attempting to set the height below the 3/4 open height minimum (approximately 1.52 m or 5 ft). The liftgate cannot be set below that minimum and the new setting will not be recorded.

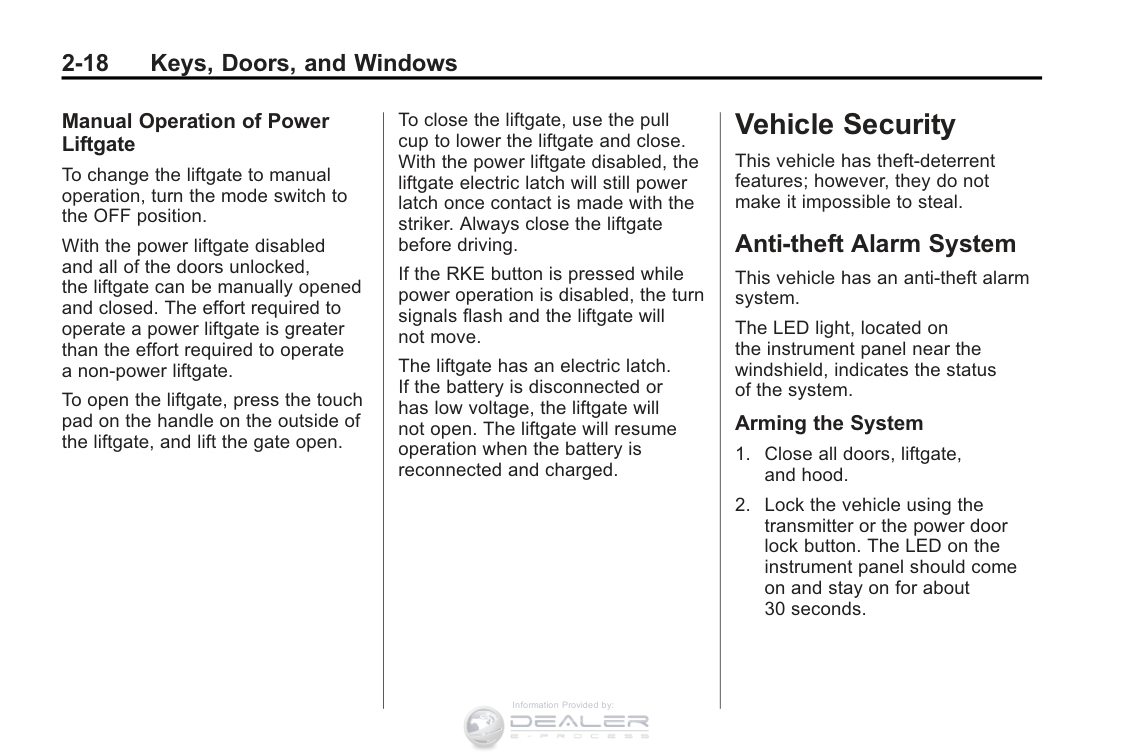

####### Manual Operation of Power Liftgate

To change the liftgate to manual operation, turn the mode switch to the OFF position.

With the power liftgate disabled and all of the doors unlocked, the liftgate can be manually opened and closed. The effort required to operate a power liftgate is greater than the effort required to operate anon-powerliftgate.

To open the liftgate, press the touch pad on the handle on the outside of the liftgate, and lift the gate open.

To close the liftgate, use the pull cup to lower the liftgate and close. With the power liftgate disabled, the liftgate electric latch will still power latch once contact is made with the striker. Always close the liftgate before driving.

If the RKE button is pressed while power operation is disabled, the turn signals flash and the liftgate will not move.

The liftgate has an electric latch. If the battery is disconnected or has low voltage, the liftgate will not open. The liftgate will resume operation when the battery is reconnected and charged.

Vehicle Security

This vehicle has theft-deterrent features; however, they do not make it impossible to steal.

#### Anti-theft Alarm System

This vehicle has an anti-theft alarm system.

The LED light, located on the instrument panel near the windshield, indicates the status of the system.

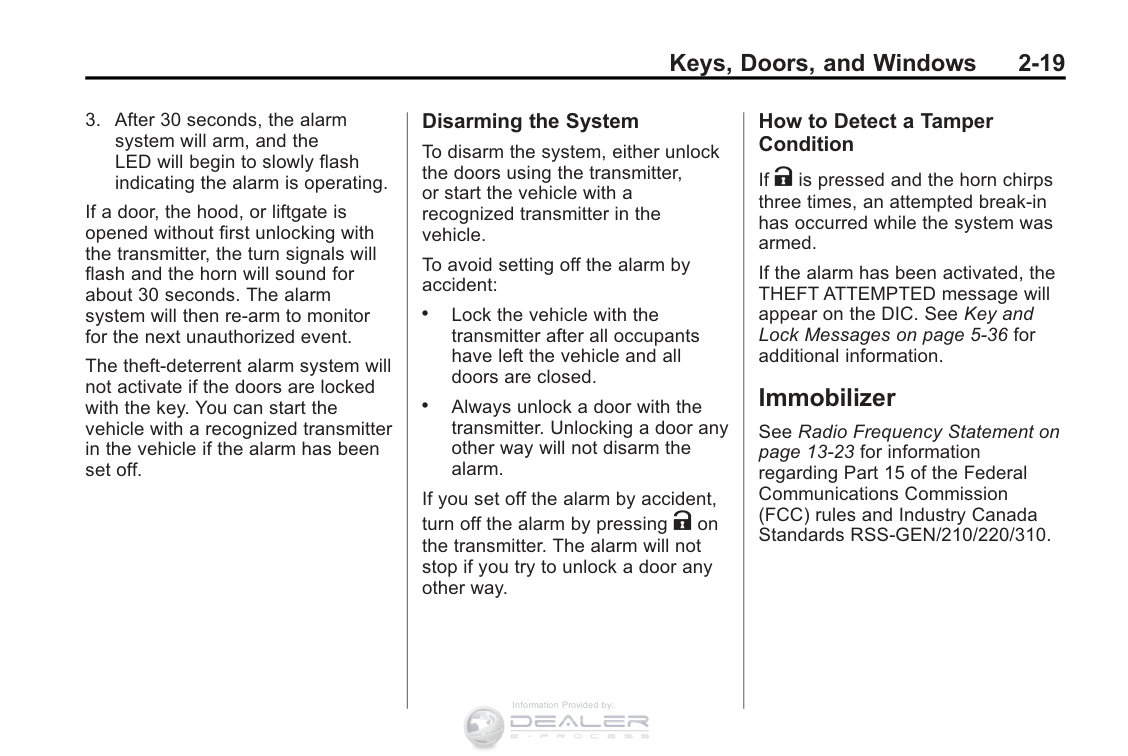

####### Arming the System

If a door, the hood, or liftgate is opened without first unlocking with the transmitter, the turn signals will flash and the horn will sound for about 30 seconds. The alarm system will then re-arm to monitor for the next unauthorized event.

The theft-deterrent alarm system will not activate if the doors are locked with the key. You can start the vehicle with a recognized transmitter in the vehicle if the alarm has been set off.

####### Disarming the System

To disarm the system, either unlock the doors using the transmitter, or start the vehicle with a recognized transmitter in the vehicle.

To avoid setting off the alarm by accident:

. Lock the vehicle with the transmitter after all occupants have left the vehicle and all doors are closed.

. Always unlock a door with the transmitter. Unlocking a door any other way will not disarm the alarm.

If you set off the alarm by accident, turn off the alarm by pressing K on the transmitter. The alarm will not stop if you try to unlock a door any other way.

####### How to Detect a Tamper Condition

If K is pressed and the horn chirps three times, an attempted break-in has occurred while the system was armed.

If the alarm has been activated, the THEFT ATTEMPTED message will appear on the DIC. See Key and Lock Messages on page 5￿36 for additional information.

Immobilizer See Radio Frequency Statement on page 13￿23 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310.

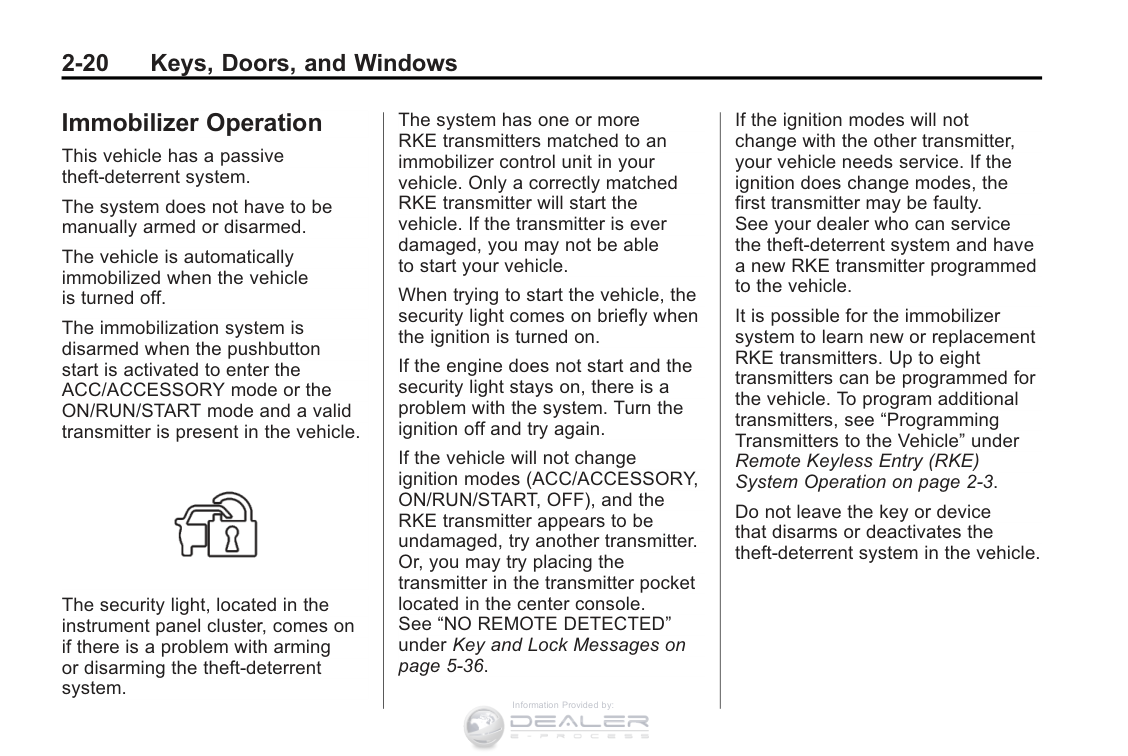

#### Immobilizer Operation

This vehicle has a passive theft-deterrent system.

The system does not have to be manually armed or disarmed.

The vehicle is automatically immobilized when the vehicle is turned off.

The immobilization system is disarmed when the pushbutton start is activated to enter the ACC/ACCESSORY mode or the ON/RUN/START mode and a valid transmitter is present in the vehicle.


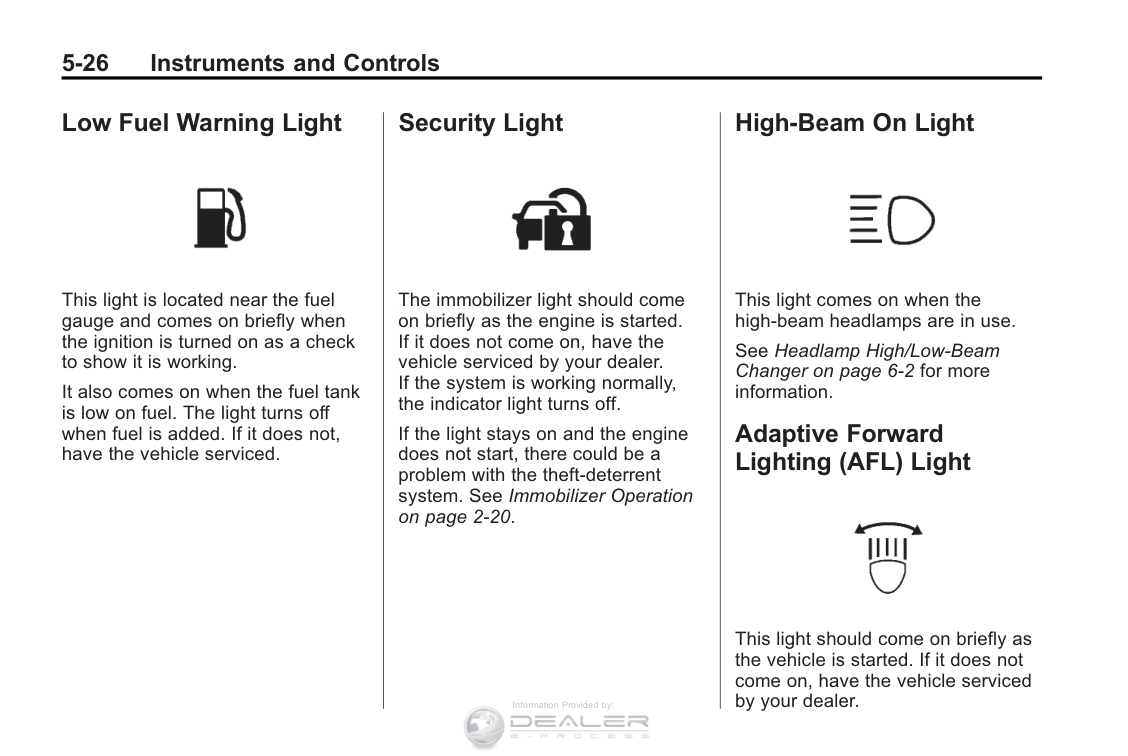

The security light, located in the instrument panel cluster, comes on if there is a problem with arming or disarming the theft-deterrent system.

The system has one or more RKE transmitters matched to an immobilizer control unit in your vehicle. Only a correctly matched RKE transmitter will start the vehicle. If the transmitter is ever damaged, you may not be able to start your vehicle.

When trying to start the vehicle, the security light comes on briefly when the ignition is turned on.

If the engine does not start and the security light stays on, there is a problem with the system. Turn the ignition off and try again.

If the vehicle will not change ignition modes (ACC/ACCESSORY, ON/RUN/START, OFF), and the RKE transmitter appears to be undamaged, try another transmitter. Or, you may try placing the transmitter in the transmitter pocket located in the center console. See “NO REMOTE DETECTED” under Key and Lock Messages on page 5￿36.



If the ignition modes will not change with the other transmitter, your vehicle needs service. If the ignition does change modes, the first transmitter may be faulty. See your dealer who can service the theft-deterrent system and have anewRKEtransmitterprogrammed to the vehicle.

It is possible for the immobilizer system to learn new or replacement RKE transmitters. Up to eight transmitters can be programmed for the vehicle. To program additional transmitters, see “Programming Transmitters to the Vehicle” under Remote Keyless Entry (RKE) System Operation on page 2￿3.

Do not leave the key or device that disarms or deactivates the theft-deterrent system in the vehicle.

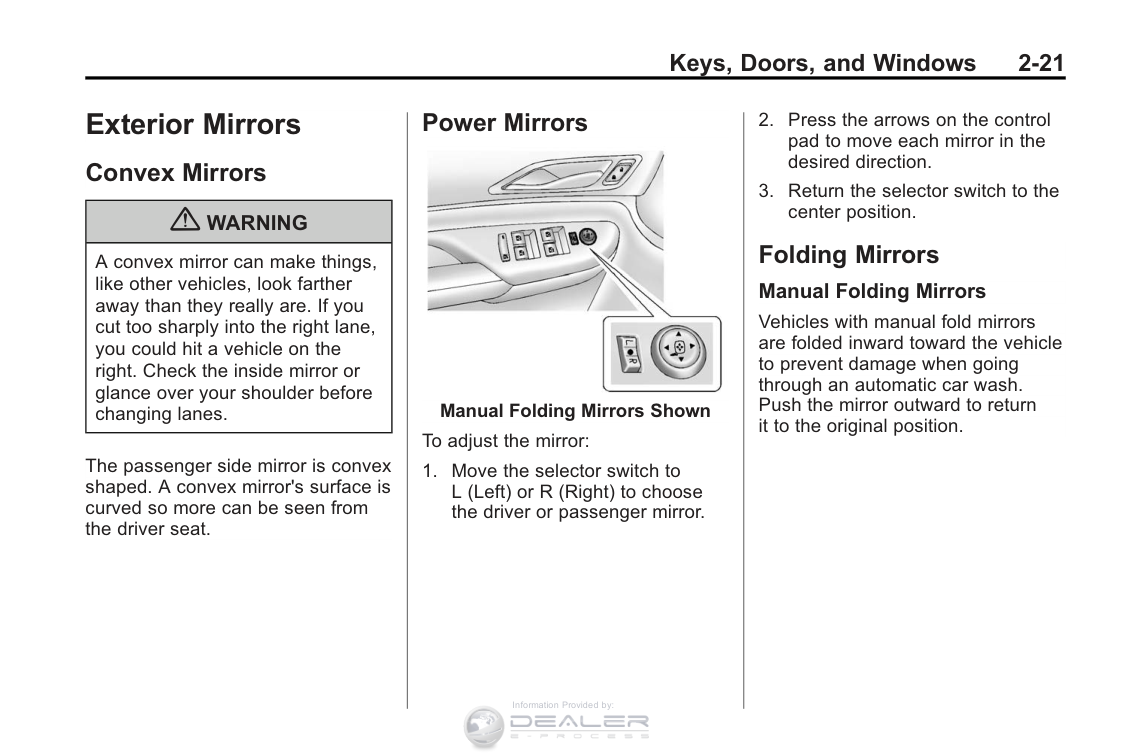

Exterior Mirrors Convex Mirrors

|{ WARNING| |---| |Aconvexmirrorcanmakethings, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.|

The passenger side mirror is convex shaped. A convex mirror's surface is curved so more can be seen from the driver seat.

#### Power Mirrors


Manual Folding Mirrors Shown To adjust the mirror:

L(Left)orR(Right)tochoose the driver or passenger mirror.

#### Folding Mirrors Manual Folding Mirrors

Vehicles with manual fold mirrors are folded inward toward the vehicle to prevent damage when going through an automatic car wash. Push the mirror outward to return it to the original position.

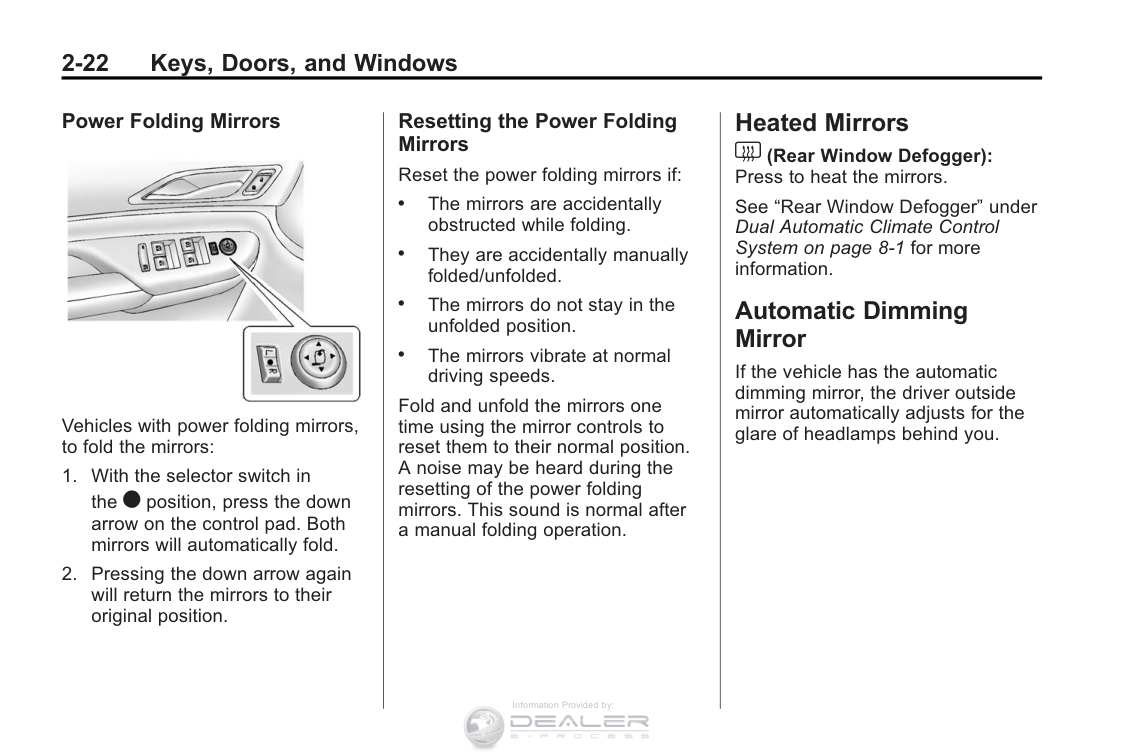

####### Power Folding Mirrors


Vehicles with power folding mirrors, to fold the mirrors:

####### Resetting the Power Folding Mirrors

Reset the power folding mirrors if:

. The mirrors are accidentally obstructed while folding.

. They are accidentally manually folded/unfolded.

. The mirrors do not stay in the unfolded position.

. The mirrors vibrate at normal driving speeds.

Fold and unfold the mirrors one time using the mirror controls to reset them to their normal position. Anoisemaybeheardduringthe resetting of the power folding mirrors. This sound is normal after amanualfoldingoperation.

Heated Mirrors 1 (Rear Window Defogger): Press to heat the mirrors. See “Rear Window Defogger” under Dual Automatic Climate Control System on page 8￿1 for more information.

#### Automatic Dimming Mirror

If the vehicle has the automatic dimming mirror, the driver outside mirror automatically adjusts for the glare of headlamps behind you.

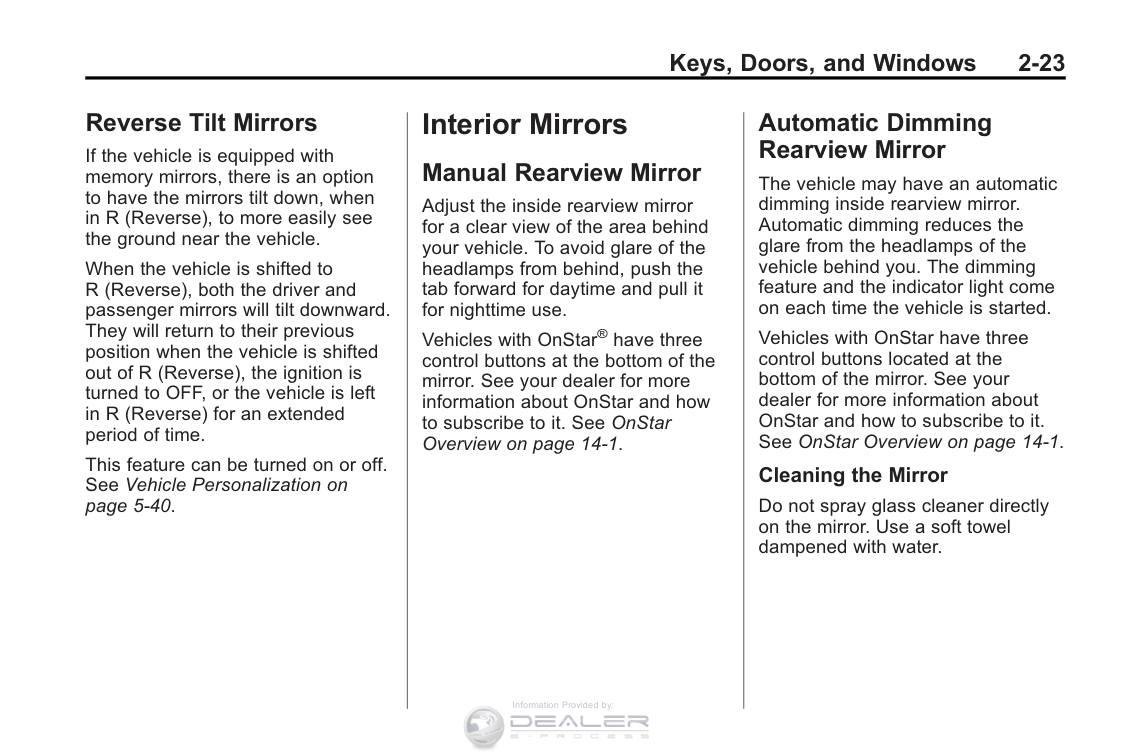

#### Reverse Tilt Mirrors

If the vehicle is equipped with memory mirrors, there is an option to have the mirrors tilt down, when in R (Reverse), to more easily see the ground near the vehicle.

When the vehicle is shifted to R(Reverse),boththedriverand passenger mirrors will tilt downward. They will return to their previous position when the vehicle is shifted out of R (Reverse), the ignition is turned to OFF, or the vehicle is left in R (Reverse) for an extended period of time.

This feature can be turned on or off. See Vehicle Personalization on page 5￿40.

Interior Mirrors Manual Rearview Mirror

Adjust the inside rearview mirror for a clear view of the area behind your vehicle. To avoid glare of the headlamps from behind, push the tab forward for daytime and pull it for nighttime use.

Vehicles with OnStar® have three control buttons at the bottom of the mirror. See your dealer for more information about OnStar and how to subscribe to it. See OnStar Overview on page 14￿1.

#### Automatic Dimming Rearview Mirror

The vehicle may have an automatic dimming inside rearview mirror. Automatic dimming reduces the glare from the headlamps of the vehicle behind you. The dimming feature and the indicator light come on each time the vehicle is started.

Vehicles with OnStar have three control buttons located at the bottom of the mirror. See your dealer for more information about OnStar and how to subscribe to it. See OnStar Overview on page 14￿1.

####### Cleaning the Mirror

Do not spray glass cleaner directly on the mirror. Use a soft towel dampened with water.

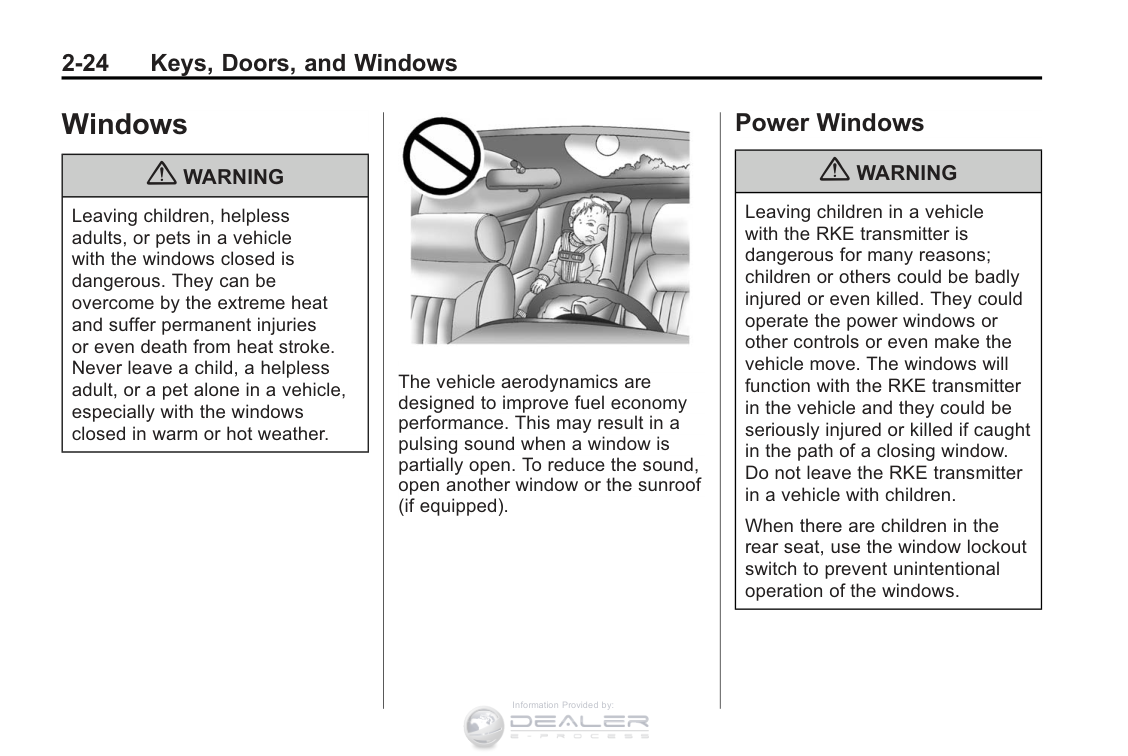

Windows

|{ WARNING| |---| |Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.|


The vehicle aerodynamics are designed to improve fuel economy performance. This may result in a pulsing sound when a window is partially open. To reduce the sound, open another window or the sunroof (if equipped).

#### Power Windows

|{ WARNING| |---| |Leaving children in a vehicle with the RKE transmitter is dangerous for many reasons; children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the RKE transmitter in the vehicle and they could be seriously injured or killed if caught in the path of a closing window. Do not leave the RKE transmitter in a vehicle with children.

When there are children in the rear seat, use the window lockout switch to prevent unintentional operation of the windows.|


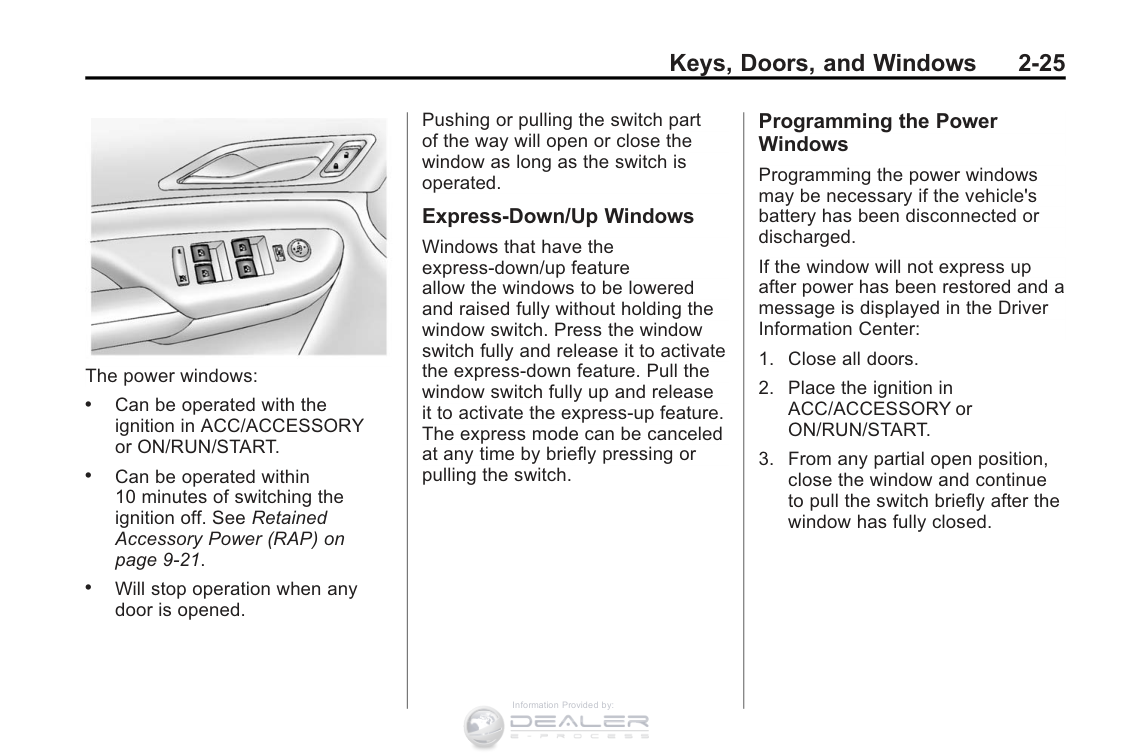

The power windows:

. Can be operated with the ignition in ACC/ACCESSORY or ON/RUN/START.

. Can be operated within 10 minutes of switching the ignition off. See Retained Accessory Power (RAP) on page 9￿21.

. Will stop operation when any door is opened.

Pushing or pulling the switch part of the way will open or close the window as long as the switch is operated.

####### Express￿Down/Up Windows

Windows that have the express￿down/up feature allow the windows to be lowered and raised fully without holding the window switch. Press the window switch fully and release it to activate the express￿down feature. Pull the window switch fully up and release it to activate the express￿up feature. The express mode can be canceled at any time by briefly pressing or pulling the switch.

####### Programming the Power Windows

Programming the power windows may be necessary if the vehicle's battery has been disconnected or discharged.

If the window will not express up after power has been restored and a message is displayed in the Driver Information Center:

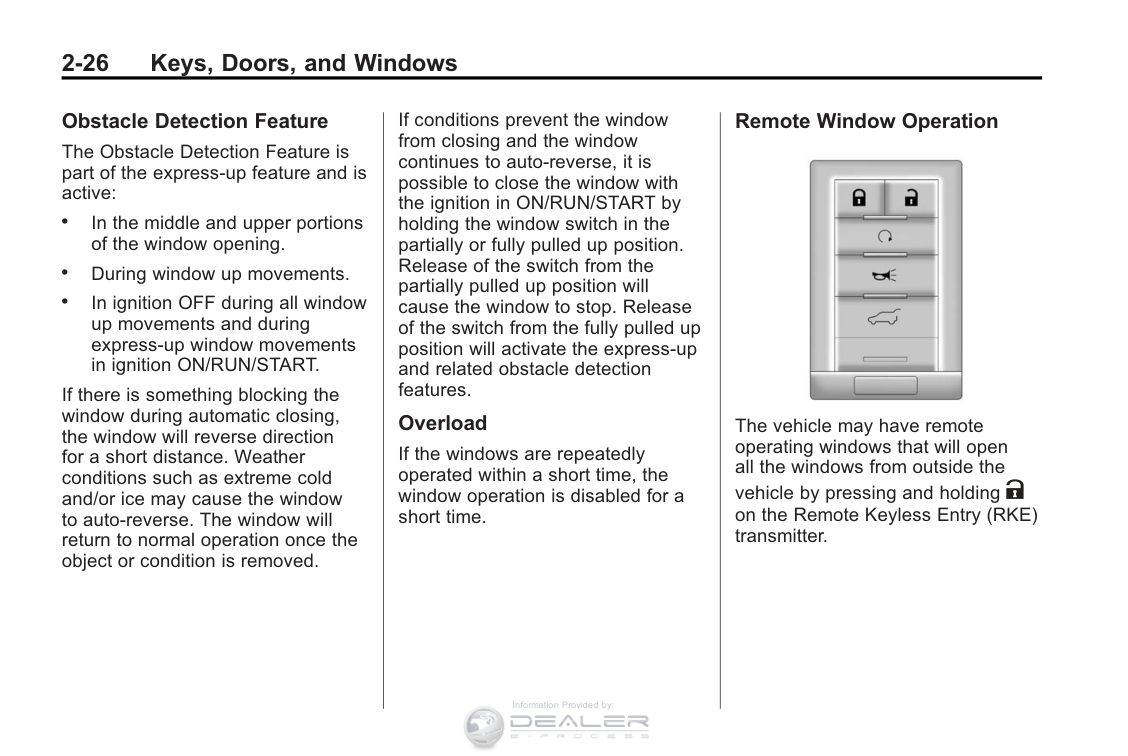

####### Obstacle Detection Feature

The Obstacle Detection Feature is part of the express-up feature and is active:

. In the middle and upper portions of the window opening.

. During window up movements.

. In ignition OFF during all window up movements and during express-up window movements in ignition ON/RUN/START.

If there is something blocking the window during automatic closing, the window will reverse direction for a short distance. Weather conditions such as extreme cold and/or ice may cause the window to auto-reverse. The window will return to normal operation once the object or condition is removed.

If conditions prevent the window from closing and the window continues to auto-reverse, it is possible to close the window with the ignition in ON/RUN/START by holding the window switch in the partially or fully pulled up position. Release of the switch from the partially pulled up position will cause the window to stop. Release of the switch from the fully pulled up position will activate the express-up and related obstacle detection features.

####### Overload

If the windows are repeatedly operated within a short time, the window operation is disabled for a short time.

####### Remote Window Operation


The vehicle may have remote operating windows that will open all the windows from outside the vehicle by pressing and holding K on the Remote Keyless Entry (RKE) transmitter.

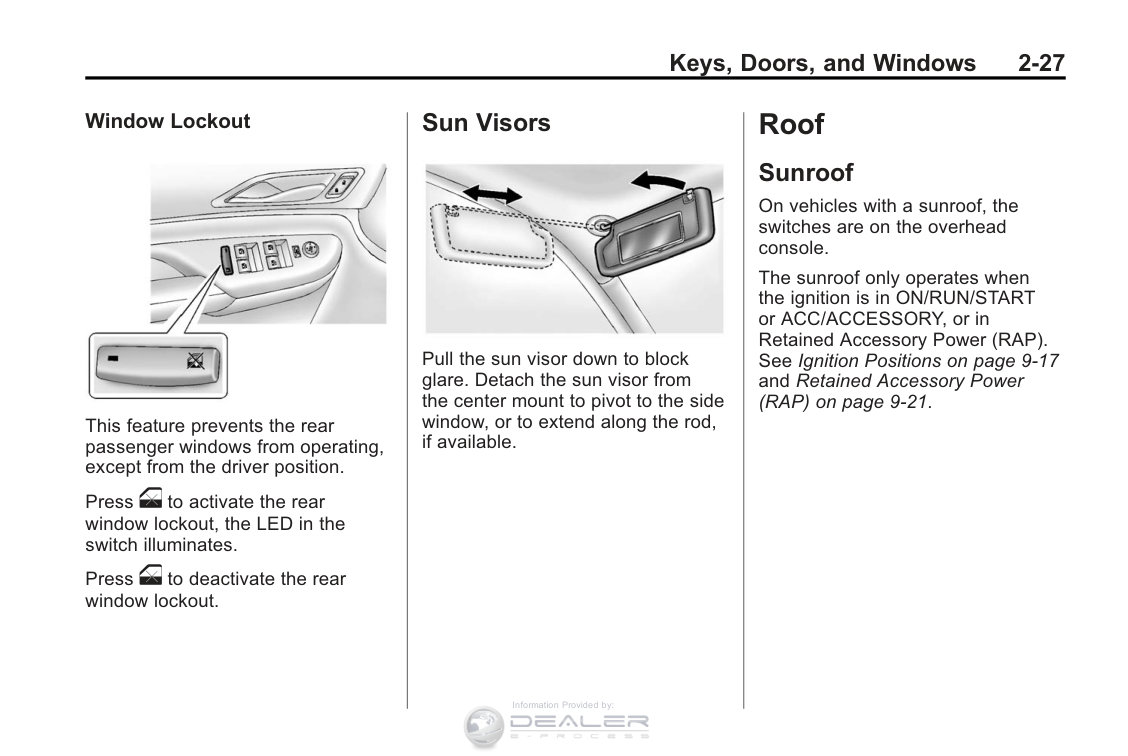

####### Window Lockout


This feature prevents the rear passenger windows from operating, except from the driver position.

Press o to activate the rear window lockout, the LED in the switch illuminates.

Press o to deactivate the rear window lockout.

#### Sun Visors


Pull the sun visor down to block glare. Detach the sun visor from the center mount to pivot to the side window, or to extend along the rod, if available.

Roof Sunroof

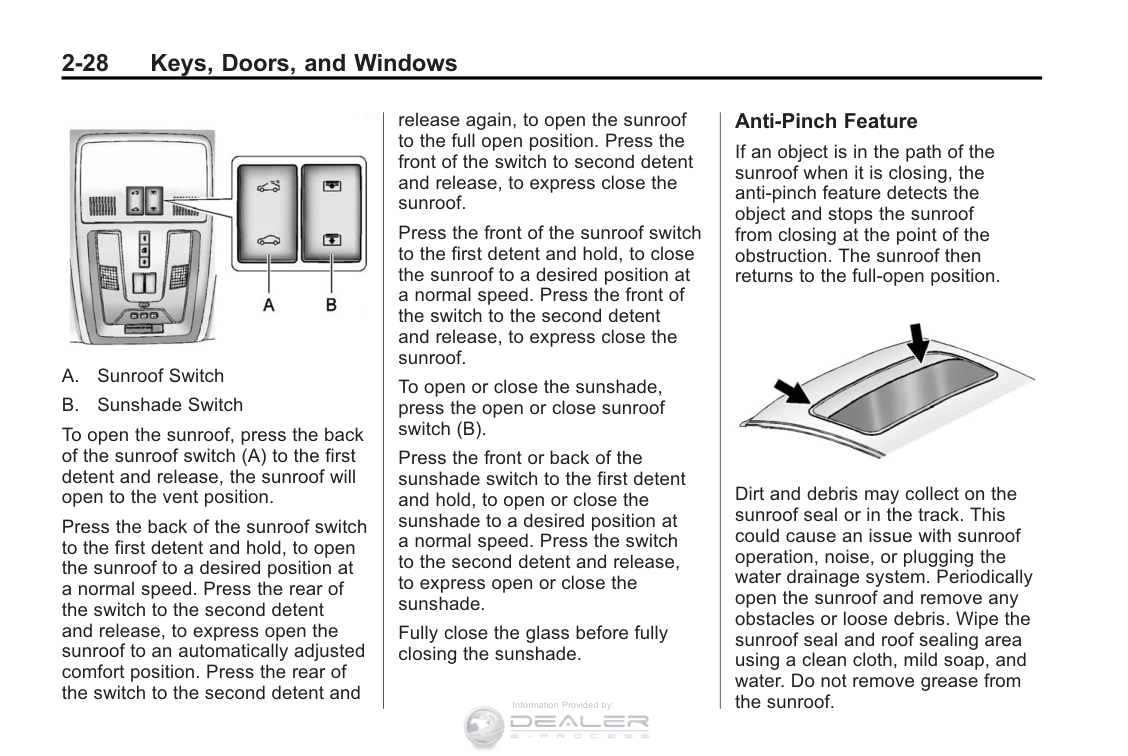

On vehicles with a sunroof, the switches are on the overhead console.

The sunroof only operates when the ignition is in ON/RUN/START or ACC/ACCESSORY, or in Retained Accessory Power (RAP). See Ignition Positions on page 9￿17 and Retained Accessory Power (RAP) on page 9￿21.


To open the sunroof, press the back of the sunroof switch (A) to the first detent and release, the sunroof will open to the vent position.

Press the back of the sunroof switch to the first detent and hold, to open the sunroof to a desired position at anormalspeed.Presstherearof the switch to the second detent and release, to express open the sunroof to an automatically adjusted comfort position. Press the rear of the switch to the second detent and

####### Anti-Pinch Feature

release again, to open the sunroof to the full open position. Press the front of the switch to second detent and release, to express close the sunroof.

If an object is in the path of the sunroof when it is closing, the anti-pinch feature detects the object and stops the sunroof from closing at the point of the obstruction. The sunroof then returns to the full-open position.

Press the front of the sunroof switch to the first detent and hold, to close the sunroof to a desired position at anormalspeed.Pressthefrontof the switch to the second detent and release, to express close the sunroof.


To open or close the sunshade, press the open or close sunroof switch (B).

Press the front or back of the sunshade switch to the first detent and hold, to open or close the sunshade to a desired position at anormalspeed.Presstheswitch to the second detent and release, to express open or close the sunshade.

Dirt and debris may collect on the sunroof seal or in the track. This could cause an issue with sunroof operation, noise, or plugging the water drainage system. Periodically open the sunroof and remove any obstacles or loose debris. Wipe the sunroof seal and roof sealing area using a clean cloth, mild soap, and water. Do not remove grease from

Fully close the glass before fully closing the sunshade.



the sunroof.Information Provided by:

Seats and Restraints

####### Head Restraints

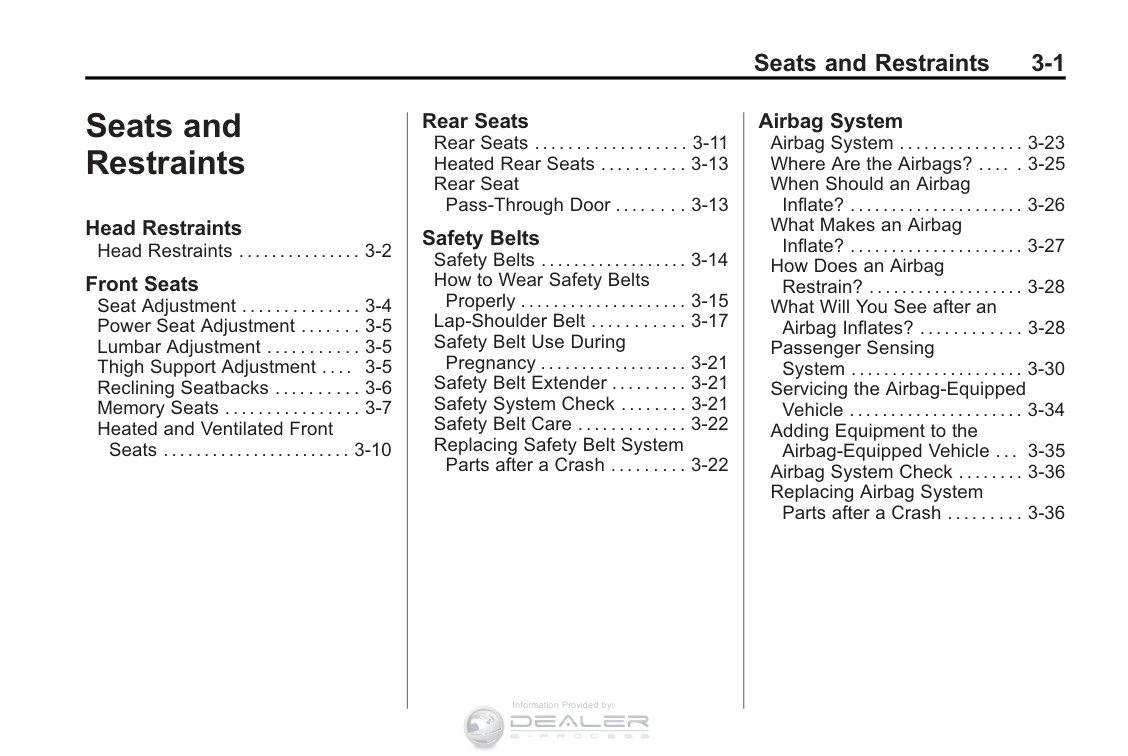

Head Restraints ............... 3-2 Front Seats

Seat Adjustment .... . . . . . . . . . . 3-4 Power Seat Adjustment .... . . . 3-5 Lumbar Adjustment .... . . . . . . . 3-5 Thigh Support Adjustment .... 3-5 Reclining Seatbacks .... . . . . . . 3-6 Memory Seats .... . . . . . . . . . . . . 3-7 Heated and Ventilated Front

Seats ....................... 3-10

####### Rear Seats

Rear Seats .... . . . . . . . . . . . . . . 3-11 Heated Rear Seats .... . . . . . . 3-13 Rear Seat

Pass-Through Door .... . . . . 3-13

Safety Belts Safety Belts .................. 3-14 How to Wear Safety Belts

Properly .... . .. . . .. . .. . .. . .. 3-15 Lap-Shoulder Belt .... . . . . . . . 3-17 Safety Belt Use During

Pregnancy .................. 3-21 Safety Belt Extender .... . . . . . 3-21 Safety System Check .... . . . . 3-21 Safety Belt Care .... . . . . . . . . . 3-22 Replacing Safety Belt System

Parts after a Crash .... . . . . . 3-22

####### Airbag System

Airbag System .... . .. . .. . .. .. 3-23 Where Are the Airbags? .... . 3-25 When Should an Airbag

What Makes an Airbag

How Does an Airbag

Restrain? ................... 3-28 What Will You See after an

Airbag Inflates? .... . . . . . . . . 3-28 Passenger Sensing

System ..................... 3-30 Servicing the Airbag-Equipped

Vehicle . . . . . . . . . . . . . . . . . . . . . 3-34 Adding Equipment to the

Airbag-Equipped Vehicle ... 3-35 Airbag System Check .... .. .. 3-36 Replacing Airbag System

Parts after a Crash .... . . . . . 3-36

Child Restraints Older Children .... . . . . . . . . . . . 3-37 Infants and Young

Children .................... 3-39 Child Restraint Systems .... . 3-42 Where to Put the Restraint ... 3-44 Lower Anchors and Tethers

for Children (LATCH System) .... .. .. . .. .. . .. .. .. 3-45

Replacing LATCH System

Parts After a Crash .... . . . . . 3-53 Securing Child Restraints

(Rear Seat) ................. 3-54 Securing Child Restraints

(Front Passenger Seat) .... 3-56

Head Restraints

|{ WARNING| |---| |With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer aneck/spinalinjuryinacrash. Do not drive until the head restraints for all occupants are installed and adjusted properly.|


Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chance of a neck injury in a crash.

####### Front Seats

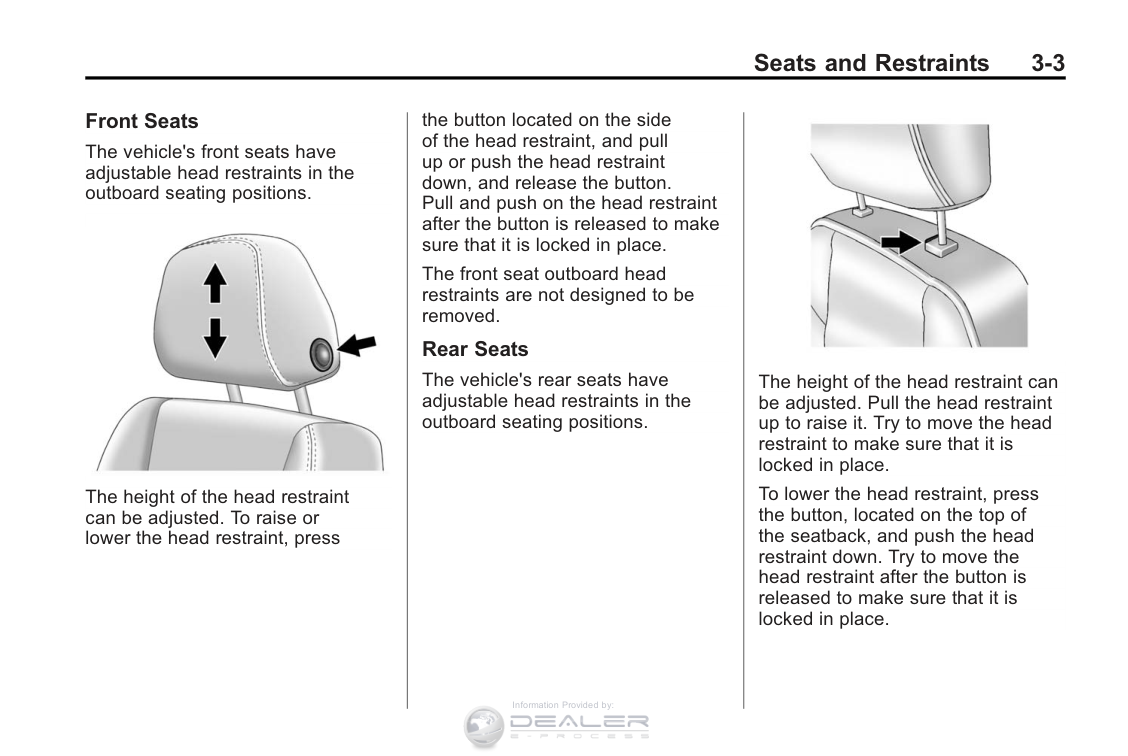

The vehicle's front seats have adjustable head restraints in the outboard seating positions.


The height of the head restraint can be adjusted. To raise or lower the head restraint, press

the button located on the side of the head restraint, and pull up or push the head restraint down, and release the button. Pull and push on the head restraint after the button is released to make sure that it is locked in place. The front seat outboard head restraints are not designed to be removed. Rear Seats

The vehicle's rear seats have adjustable head restraints in the outboard seating positions.


The height of the head restraint can be adjusted. Pull the head restraint up to raise it. Try to move the head restraint to make sure that it is locked in place.

To lower the head restraint, press the button, located on the top of the seatback, and push the head restraint down. Try to move the head restraint after the button is released to make sure that it is locked in place.


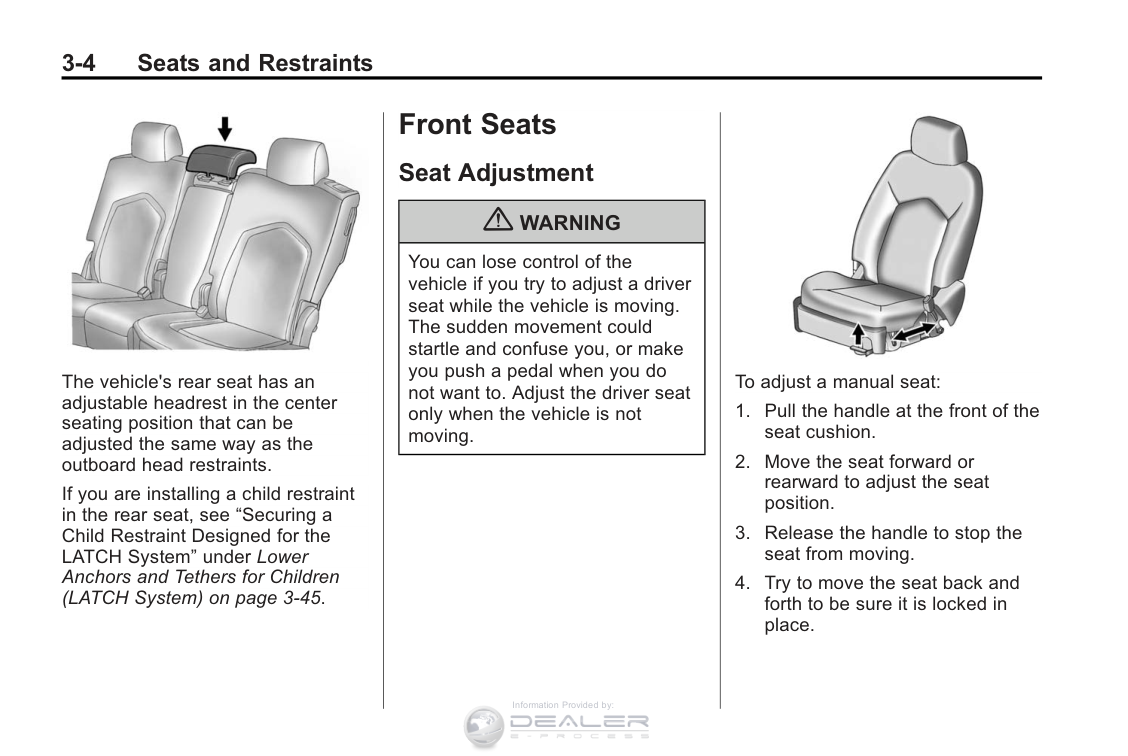

The vehicle's rear seat has an adjustable headrest in the center seating position that can be adjusted the same way as the outboard head restraints.

If you are installing a child restraint in the rear seat, see “Securing a Child Restraint Designed for the LATCH System” under Lower Anchors and Tethers for Children (LATCH System) on page 3￿45.

Front Seats Seat Adjustment

|{ WARNING| |---| |You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver seat only when the vehicle is not moving.|


To adjust a manual seat:

#### Power Seat Adjustment


To adjust a power seat, if equipped:

. Move the seat forward or rearward by sliding the control forward or rearward.

. Raise or lower the front or rear part of the seat cushion by moving the front or rear of the control up or down.

. Raise or lower the seat by moving the control up or down.

To adjust the seatback, see Reclining Seatbacks on page 3￿6.

To adjust the lumbar support, see Lumbar Adjustment on page 3￿5.

#### Lumbar Adjustment Power Lumbar


If available, press and hold the front or rear of the control to increase or decrease lumbar support. Release the control when the seatback reaches the desired level of lumbar support.

#### Thigh Support Adjustment


If available, adjust the manual leg extension by pulling up on the lever, and then pulling or pushing on the support to lengthen or shorten it. Release the lever to lock it in place.

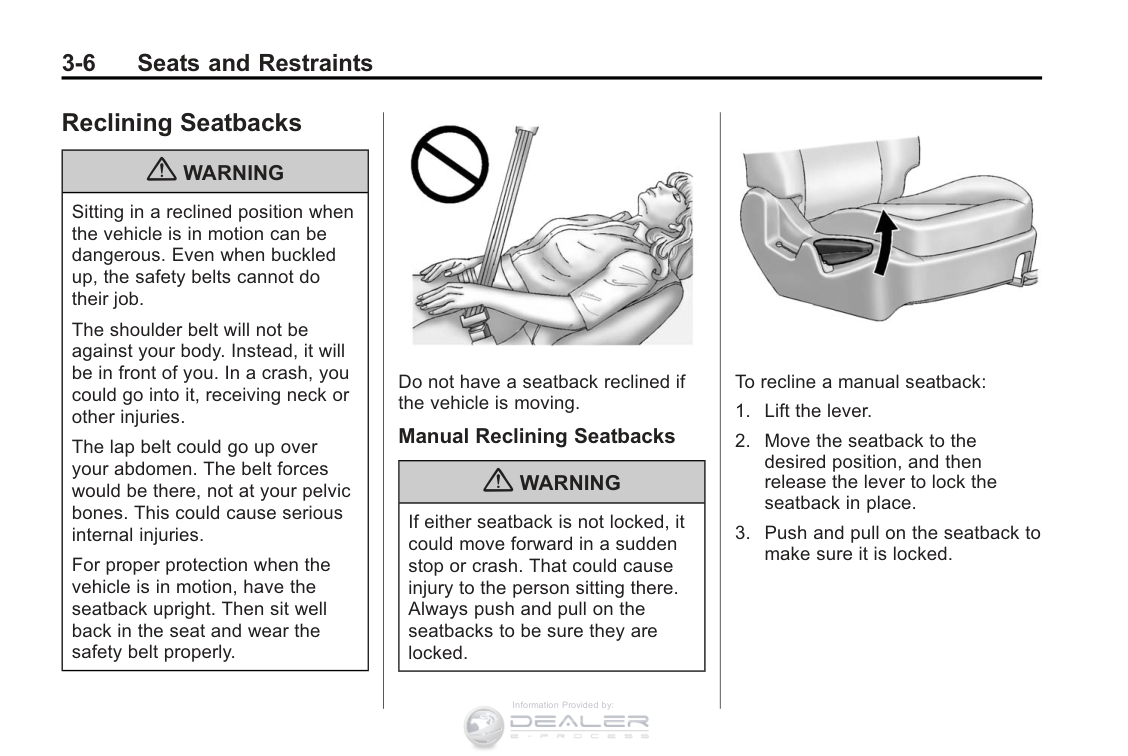

#### Reclining Seatbacks

|{ WARNING| |---| |Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the safety belts cannot do their job.

The shoulder belt will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries.

The lap belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the safety belt properly.|


Do not have a seatback reclined if the vehicle is moving.

Manual Reclining Seatbacks

|{ WARNING| |---| |If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.|


To recline a manual seatback:

To return the seatback to the upright position:

####### Power Reclining Seatbacks


To adjust a power seatback, if available:

. Tilt the top of the control rearward to recline.

. Tilt the top of the control forward to raise.

#### Memory Seats


On vehicles with the memory feature, the “1” and “2” buttons on the outboard side of the driver seat are used to manually save and recall the positions of the driver seat, outside mirrors, and adjustable throttle and brake pedal positions, if available. These manually stored positions are referred to as Button Memory positions.

The vehicle will also automatically save driver seat, outside mirror, and adjustable throttle and brake pedal positions to the current driver Remote Keyless Entry (RKE) transmitter when the ignition is turned off. These automatically stored positions are referred to

To save positions into Button Memory:

Recalling Button Memory Positions

To recall the manually saved Button Memory positions, press and hold “1” or “2.” The driver seat, outside mirrors, and adjustable pedals, if available, move to the positions stored to those buttons when pressed. Releasing “1” or “2” before the stored positions are reached stops the recall.

If something has blocked the driver seat and/or the adjustable pedals, if available, while recalling amemoryposition,therecallmay stop. Remove the obstruction; then press and hold the appropriate manual control for the memory item that is not recalling for two seconds. Try recalling the memory position again by pressing the appropriate memory button. If the memory position is still not recalling, see your dealer for service.

Recalling RKE Memory Positions (Memory Remote Recall)

The Memory Remote Recall feature can recall the driver seat, outside mirrors, and adjustable pedals, if available, to previously stored RKE Memory positions when entering the vehicle.

Every time the ignition is placed in OFF, the positions of the driver seat, outside mirrors, and adjustable pedals, if available, are automatically stored to the RKE transmitter that was used to start the vehicle. These positions are called RKE Memory positions and may be different than the previously mentioned Button Memory positions saved to the “1” or “2” buttons.

To automatically recall RKE Memory positions, unlock the driver door with the RKE transmitter, and open the driver door. On vehicles with Keyless Access, opening the driver door when an RKE transmitter is present will activate the RKE Memory recall. If the driver door is already open, pressing the RKE transmitter K button will also

activate the RKE Memory recall. The driver seat, outside mirrors, and pedals, if available, will move to the previously saved RKE Memory positions.

This feature is turned on or off using the vehicle personalization menu. See Vehicle Personalization on page 5￿40.

To stop recall movement, press one of the memory, power mirror, or power seat controls, or the adjustable pedal switch, if available.

If something has blocked the driver seat and/or the adjustable pedals, if available, while recalling amemoryposition,therecallmay stop. Remove the obstruction; then press and hold the appropriate manual control for the memory item that is not recalling for two seconds. Try recalling the memory position again by opening the driver door

and pressing the RKE transmitter K button. If the memory position is still not recalling, see your dealer for service.



######## Easy Exit Driver Seat

This feature moves the seat rearward allowing the driver more room to exit the vehicle.

To activate, place the ignition in OFF and open the driver door. If the driver door is already open, placing the ignition in OFF will activate the easy exit driver seat.

This feature is turned on or off using the vehicle personalization menu. See Vehicle Personalization on page 5￿40.

To stop recall movement, press one of the memory, power seat controls, or the adjustable pedal switch, if available.

If something has blocked the driver seat while recalling the exit position, the recall may stop. Remove the obstruction; then press and hold the power seat control rearward for two seconds. Try recalling the exit position again. If the exit position is still not recalling, see your dealer for service.

#### Heated and Ventilated Front Seats

|{ WARNING| |---| |If you cannot feel temperature change or pain to the skin, the seat heater may cause burns even at low temperatures. To reduce the risk of burns, people with such a condition should use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against heat, such as ablanket,cushion,cover, or similar item. This may cause the seat heater to overheat. An overheated seat heater may cause a burn or may damage the seat.|


Heated and Ventilated Seat Buttons Shown, Heated Seat Buttons Similar

If available, the buttons are near the climate controls on the instrument panel. To operate, the ignition must be in ON/RUN/START.

Press M or L to heat the driver or passenger seat.

Press C or { ,ifavailable,to ventilate the driver or passenger seat.

Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The lights indicate three for the highest setting and one for the lowest.

The passenger seat may take longer to heat up.

Remote Start Heated and Ventilated Seats

During a remote start, the heated or ventilated seats can be turned on automatically. They are canceled when the ignition is turned on. Press the button to use the heated or ventilated seats after the vehicle is started.

The heated or ventilated seat indicator lights on the button do not turn on during a remote start.

The temperature performance of an unoccupied seat may be reduced. This is normal.

The heated or ventilated seats will not turn on during a remote start unless they are enabled in the vehicle personalization menu. See Remote Vehicle Start on page 2￿10 and Vehicle Personalization on page 5￿40.

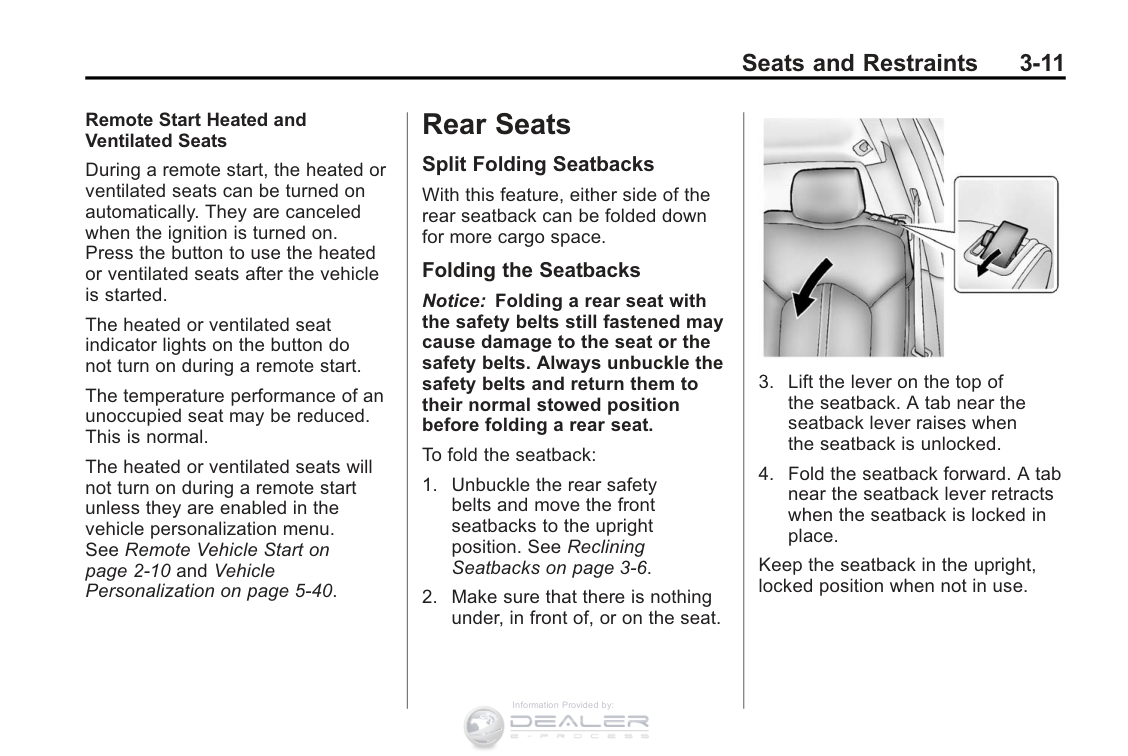

Rear Seats

####### Split Folding Seatbacks

With this feature, either side of the rear seatback can be folded down for more cargo space.

Folding the Seatbacks Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. To fold the seatback:


Keep the seatback in the upright, locked position when not in use.

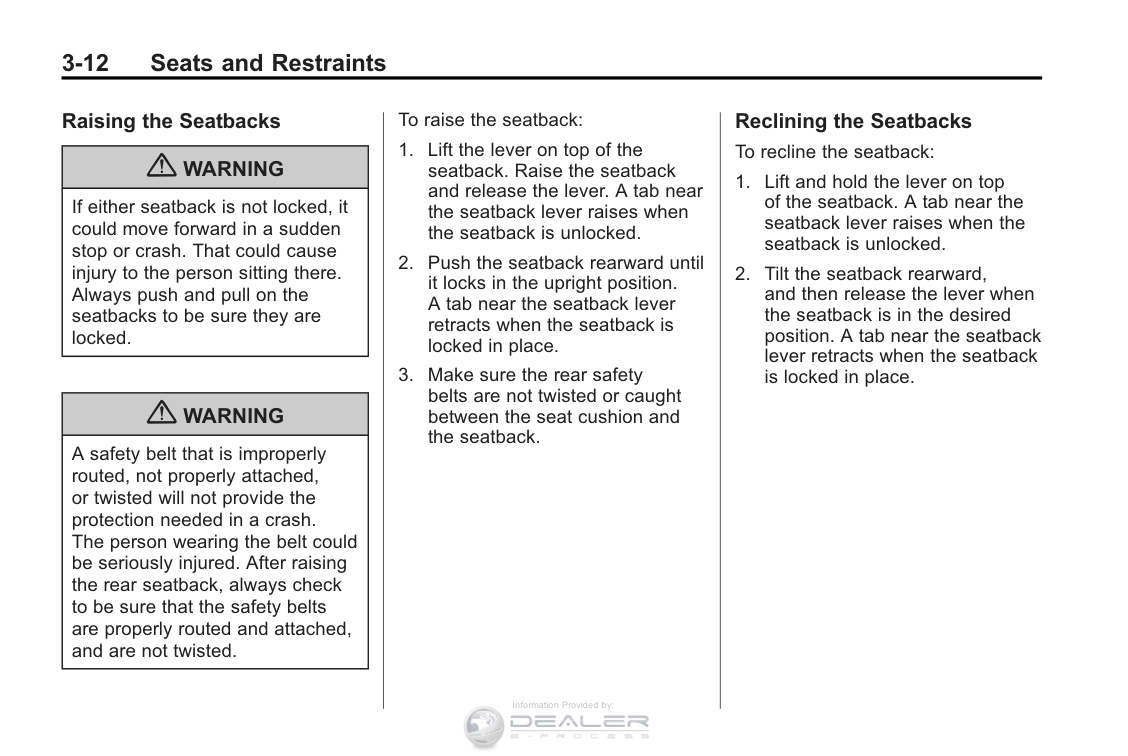

####### Raising the Seatbacks To raise the seatback:

|{ WARNING| |---| |If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.|

|{ WARNING| |---| |Asafetybeltthatisimproperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.|

####### Reclining the Seatbacks To recline the seatback:

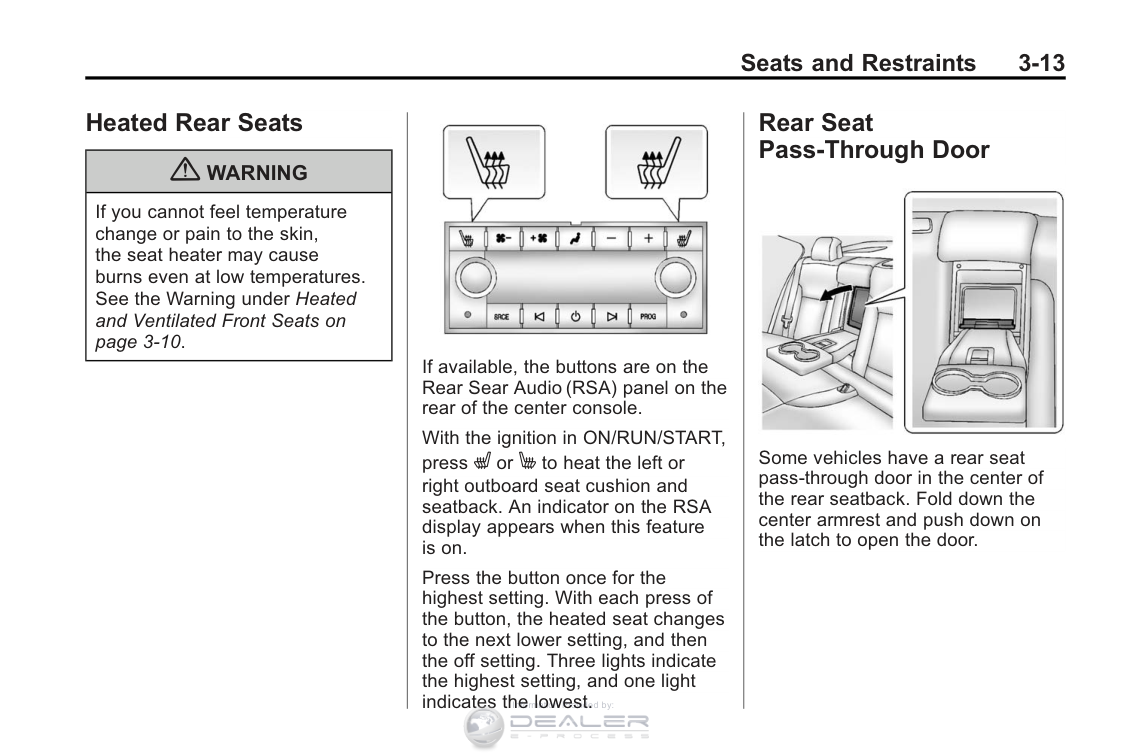

#### Heated Rear Seats

|{ WARNING| |---| |If you cannot feel temperature change or pain to the skin, the seat heater may cause burns even at low temperatures. See the Warning under Heated and Ventilated Front Seats on page 3￿10.|


If available, the buttons are on the Rear Sear Audio (RSA) panel on the rear of the center console.

With the ignition in ON/RUN/START, press L or M to heat the left or right outboard seat cushion and seatback. An indicator on the RSA display appears when this feature is on.

Press the button once for the highest setting. With each press of the button, the heated seat changes to the next lower setting, and then the off setting. Three lights indicate the highest setting, and one light indicates the lowest.



#### Rear Seat Pass-Through Door


Some vehicles have a rear seat pass-through door in the center of the rear seatback. Fold down the center armrest and push down on the latch to open the door.

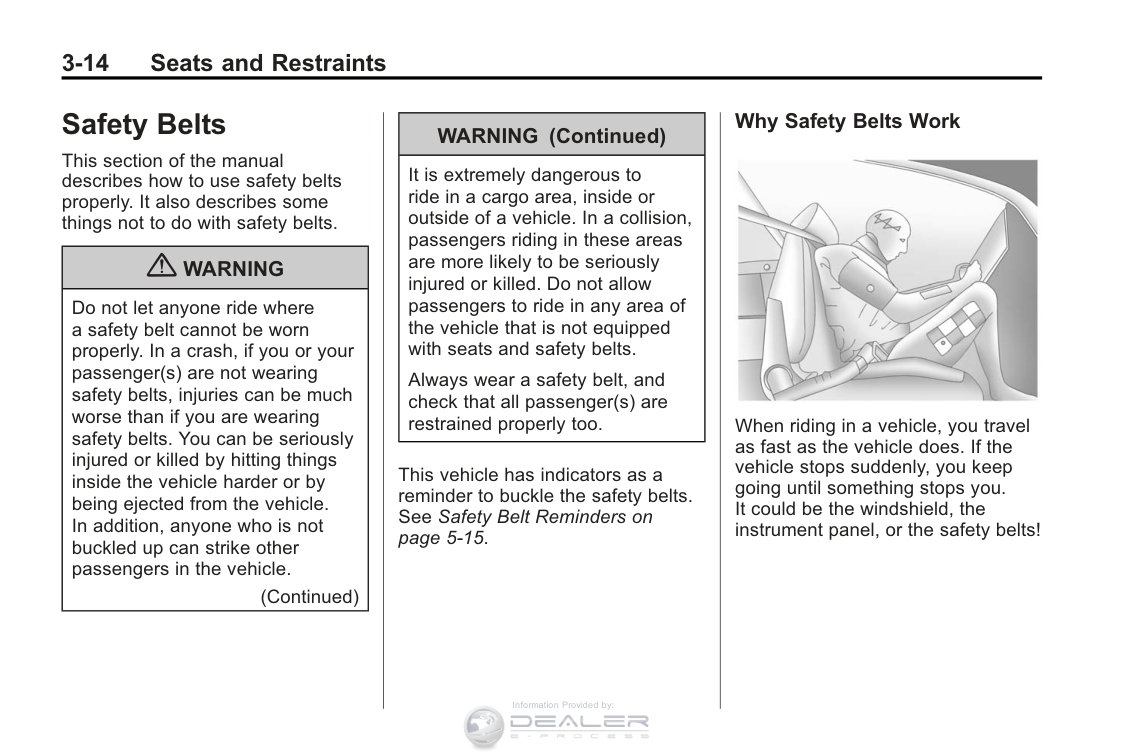

Safety Belts

This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts.

|{ WARNING| |---| |Do not let anyone ride where asafetybeltcannotbeworn properly. In a crash, if you or your passenger(s) are not wearing safety belts, injuries can be much worse than if you are wearing safety belts. You can be seriously injured or killed by hitting things inside the vehicle harder or by being ejected from the vehicle. In addition, anyone who is not buckled up can strike other passengers in the vehicle.

(Continued)|

|WARNING (Continued)| |---| |It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, passengers riding in these areas are more likely to be seriously injured or killed. Do not allow passengers to ride in any area of the vehicle that is not equipped with seats and safety belts.

Always wear a safety belt, and check that all passenger(s) are restrained properly too.|

This vehicle has indicators as a reminder to buckle the safety belts. See Safety Belt Reminders on page 5￿15.

####### Why Safety Belts Work


When riding in a vehicle, you travel as fast as the vehicle does. If the vehicle stops suddenly, you keep going until something stops you. It could be the windshield, the instrument panel, or the safety belts!

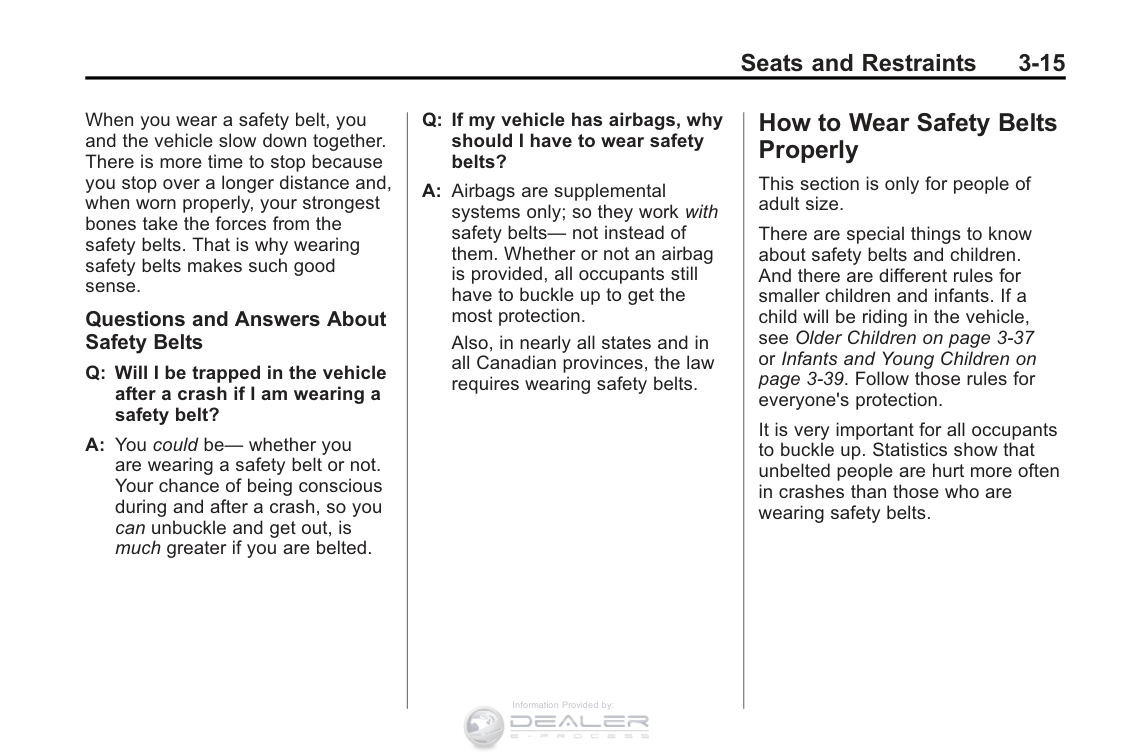

When you wear a safety belt, you and the vehicle slow down together. There is more time to stop because you stop over a longer distance and, when worn properly, your strongest bones take the forces from the safety belts. That is why wearing safety belts makes such good sense.

####### Questions and Answers About Safety Belts

Q: Will I be trapped in the vehicle after a crash if I am wearing a safety belt?

A: You could be— whether you are wearing a safety belt or not. Your chance of being conscious during and after a crash, so you can unbuckle and get out, is much greater if you are belted.

Q: If my vehicle has airbags, why should I have to wear safety belts?

A: Airbags are supplemental systems only; so they work with safety belts— not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection. Also, in nearly all states and in all Canadian provinces, the law requires wearing safety belts.

#### How to Wear Safety Belts Properly

This section is only for people of adult size.

There are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 3￿37 or Infants and Young Children on page 3￿39.Followthoserulesfor everyone's protection. It is very important for all occupants to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing safety belts.

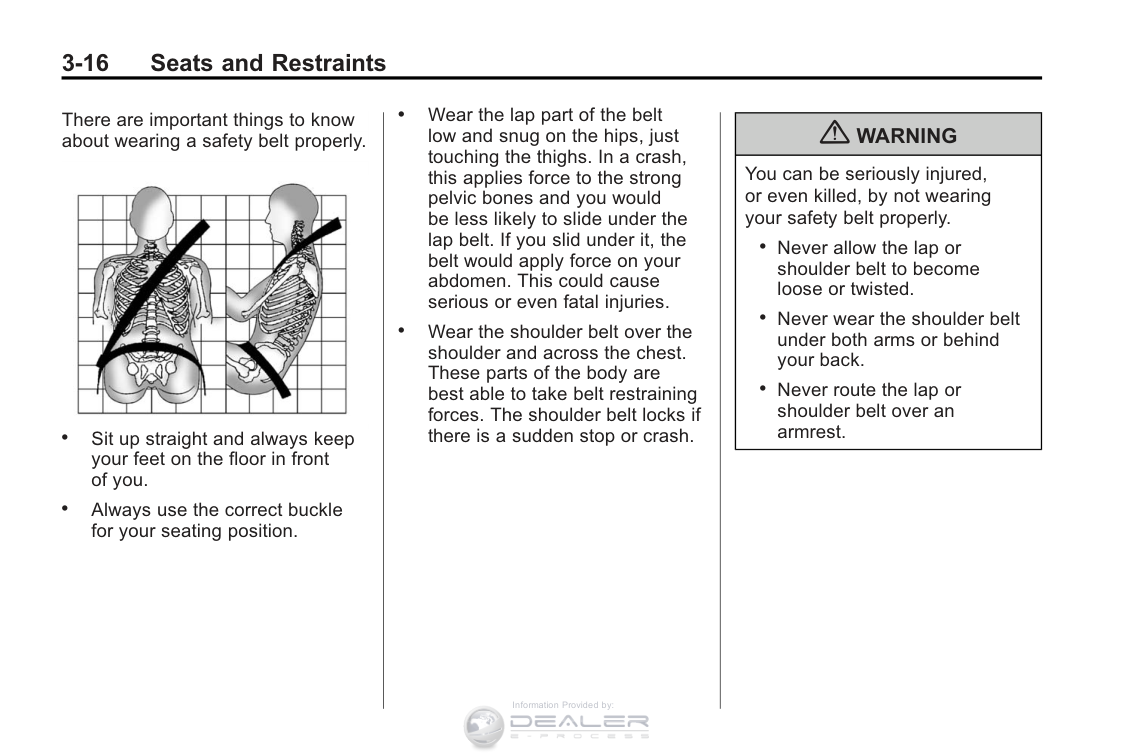

There are important things to know about wearing a safety belt properly.


. Sit up straight and always keep your feet on the floor in front of you.

. Always use the correct buckle for your seating position.

. Wear the lap part of the belt low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries.

. Wear the shoulder belt over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash.

|{ WARNING| |---| |You can be seriously injured, or even killed, by not wearing your safety belt properly.

. Never allow the lap or shoulder belt to become loose or twisted.

. Never wear the shoulder belt under both arms or behind your back.

. Never route the lap or shoulder belt over an armrest.|

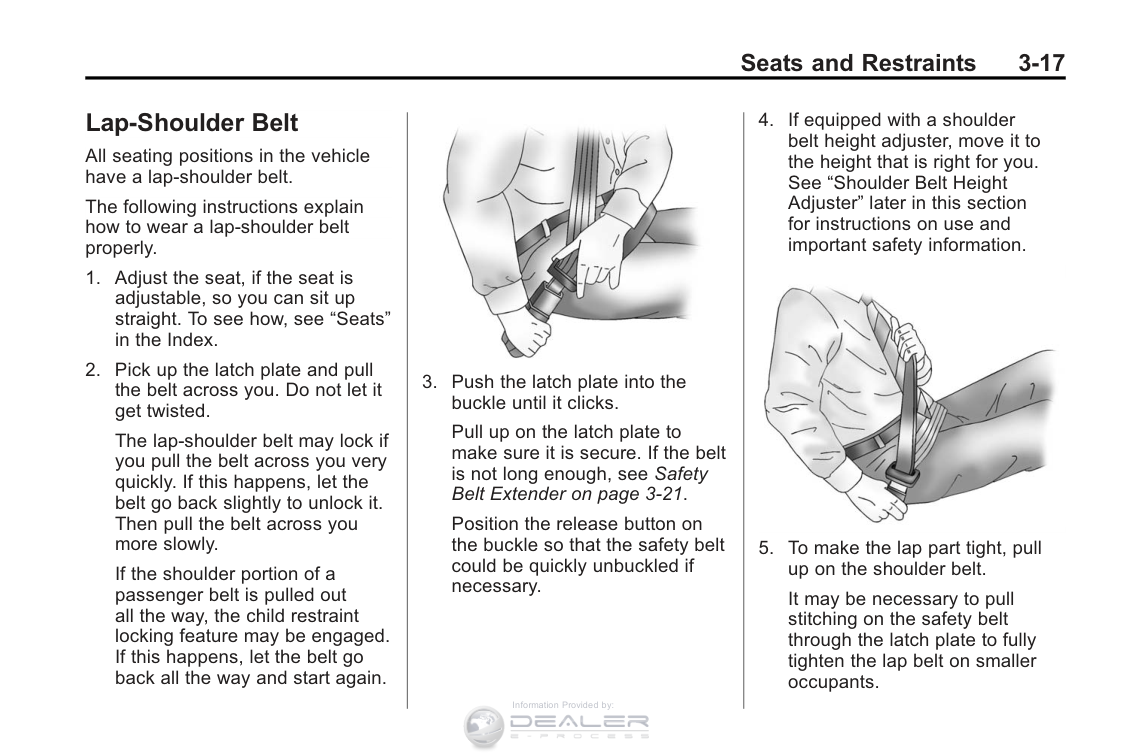

#### Lap-Shoulder Belt

All seating positions in the vehicle have a lap-shoulder belt.

The following instructions explain how to wear a lap-shoulder belt properly.

The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. If this happens, let the belt go back all the way and start again.


Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.




It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants.


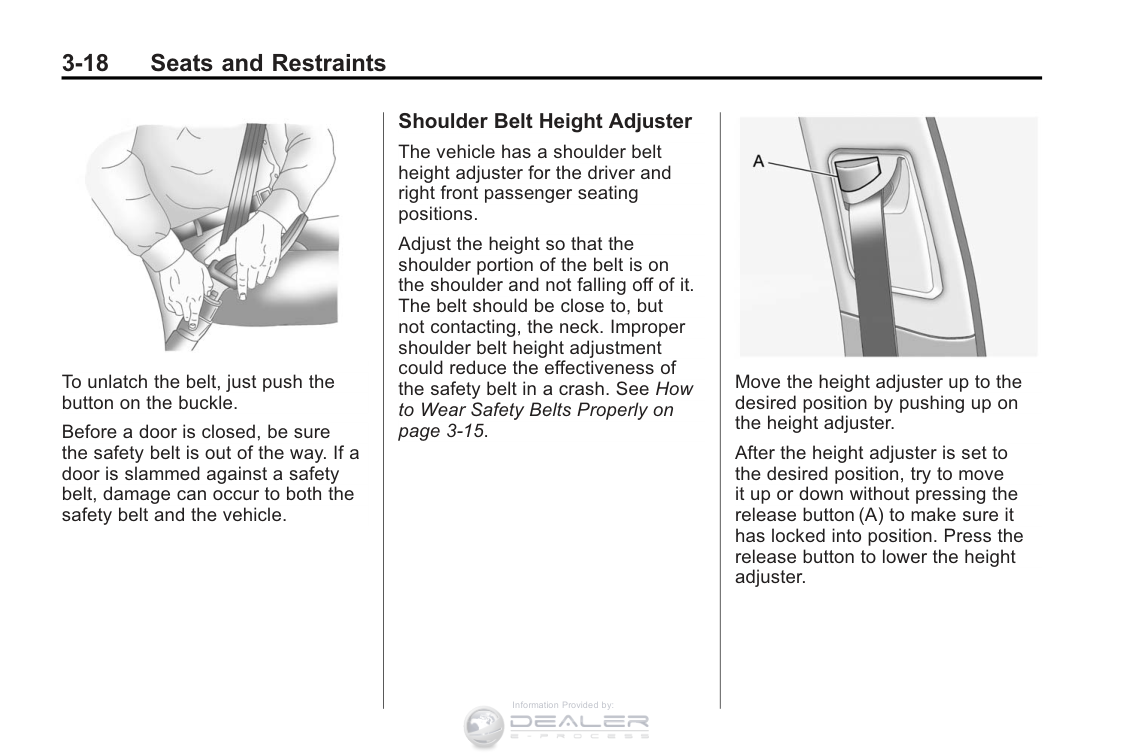

To unlatch the belt, just push the button on the buckle.

Before a door is closed, be sure the safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the safety belt and the vehicle.

####### Shoulder Belt Height Adjuster

The vehicle has a shoulder belt height adjuster for the driver and right front passenger seating positions.

Adjust the height so that the shoulder portion of the belt is on the shoulder and not falling off of it. The belt should be close to, but not contacting, the neck. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash. See How to Wear Safety Belts Properly on page 3￿15.


Move the height adjuster up to the desired position by pushing up on the height adjuster.

After the height adjuster is set to the desired position, try to move it up or down without pressing the release button (A) to make sure it has locked into position. Press the release button to lower the height adjuster.

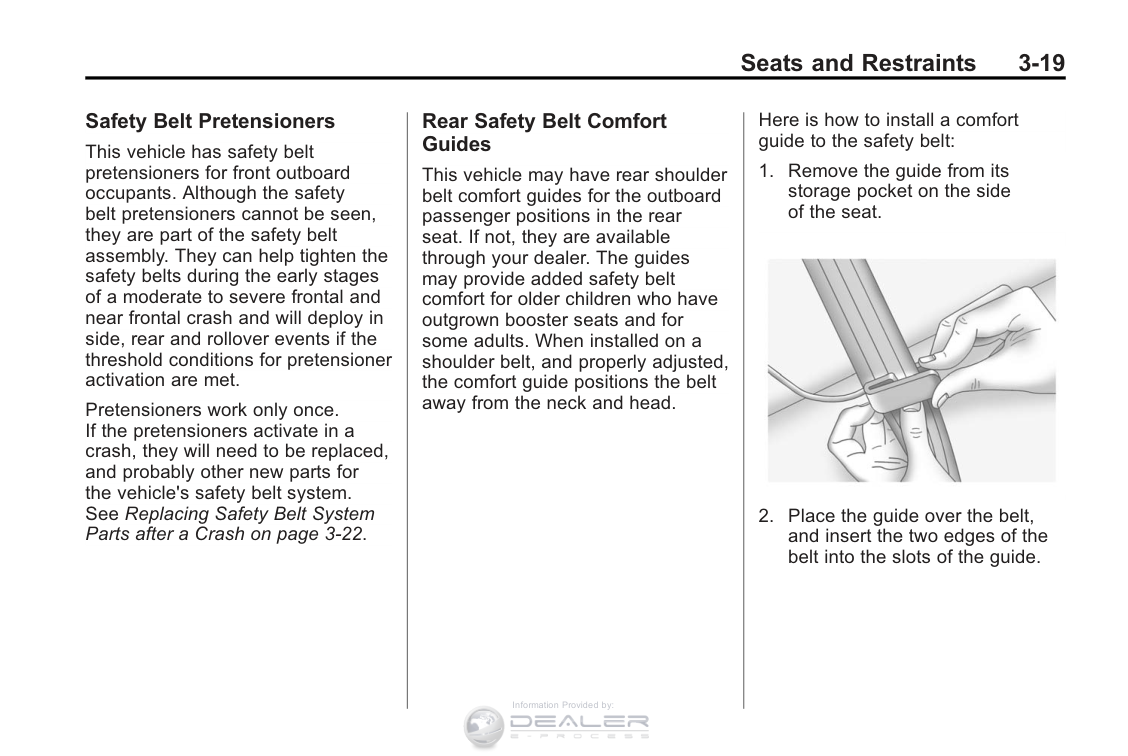

####### Safety Belt Pretensioners

This vehicle has safety belt pretensioners for front outboard occupants. Although the safety belt pretensioners cannot be seen, they are part of the safety belt assembly. They can help tighten the safety belts during the early stages of a moderate to severe frontal and near frontal crash and will deploy in side, rear and rollover events if the threshold conditions for pretensioner activation are met.

Pretensioners work only once. If the pretensioners activate in a crash, they will need to be replaced, and probably other new parts for the vehicle's safety belt system. See Replacing Safety Belt System Parts after a Crash on page 3￿22.

####### Rear Safety Belt Comfort Guides

This vehicle may have rear shoulder belt comfort guides for the outboard passenger positions in the rear seat. If not, they are available through your dealer. The guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, and properly adjusted, the comfort guide positions the belt away from the neck and head.

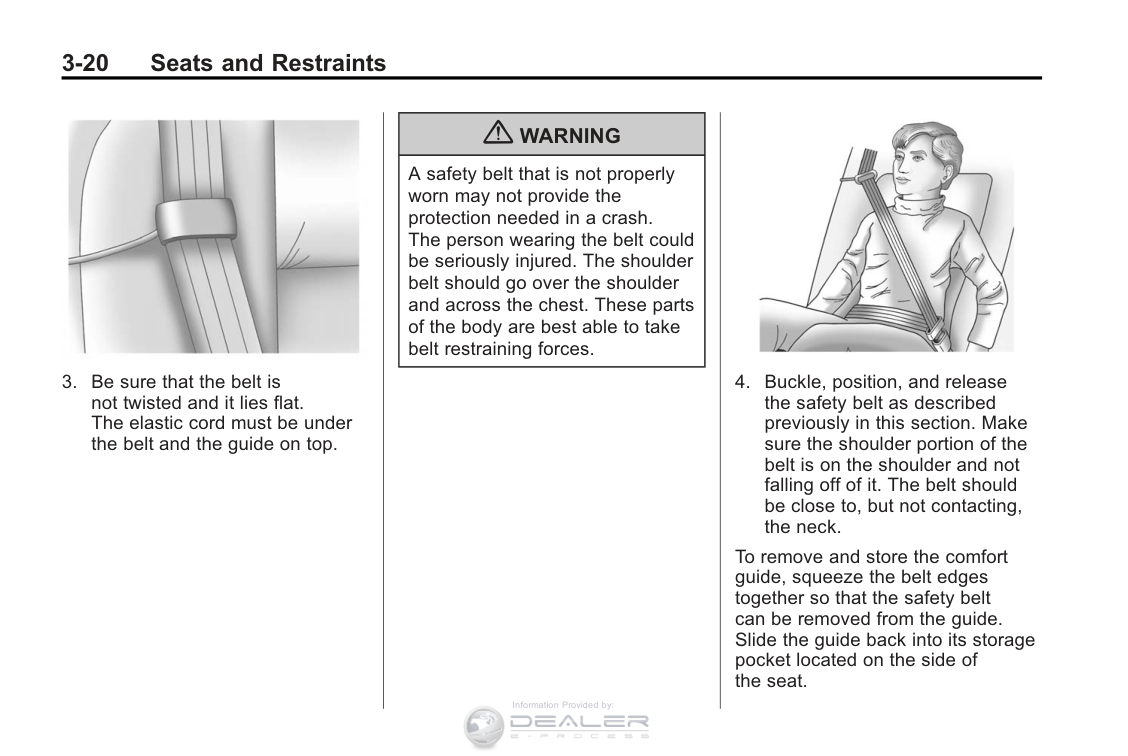

Here is how to install a comfort guide to the safety belt:



|{ WARNING| |---| |Asafetybeltthatisnotproperly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.|




To remove and store the comfort guide, squeeze the belt edges together so that the safety belt can be removed from the guide. Slide the guide back into its storage pocket located on the side of the seat.

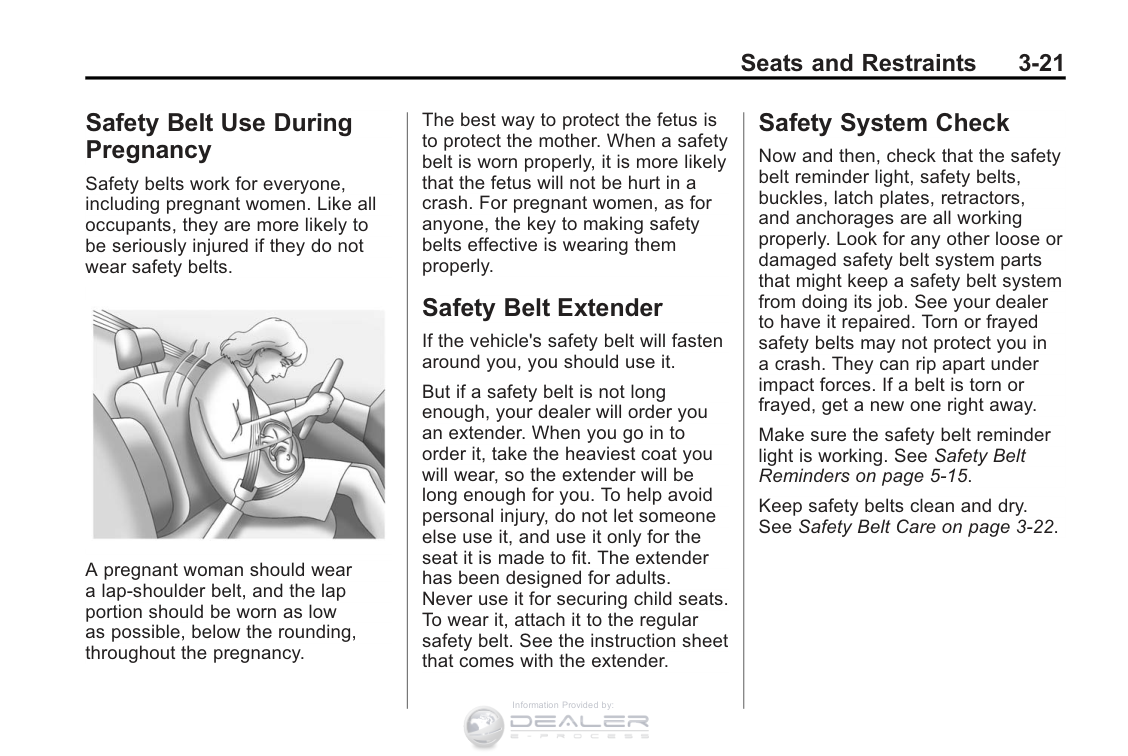

#### Safety Belt Use During Pregnancy

Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts.


Apregnantwomanshouldwear alap-shoulderbelt,andthelap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.

#### Safety Belt Extender

If the vehicle's safety belt will fasten around you, you should use it.

But if a safety belt is not long enough, your dealer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to fit. The extender has been designed for adults. Never use it for securing child seats. To wear it, attach it to the regular safety belt. See the instruction sheet that comes with the extender.

#### Safety System Check

Now and then, check that the safety belt reminder light, safety belts, buckles, latch plates, retractors, and anchorages are all working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job. See your dealer to have it repaired. Torn or frayed safety belts may not protect you in acrash.Theycanripapartunder impact forces. If a belt is torn or frayed, get a new one right away.

Make sure the safety belt reminder light is working. See Safety Belt Reminders on page 5￿15.

Keep safety belts clean and dry. See Safety Belt Care on page 3￿22.

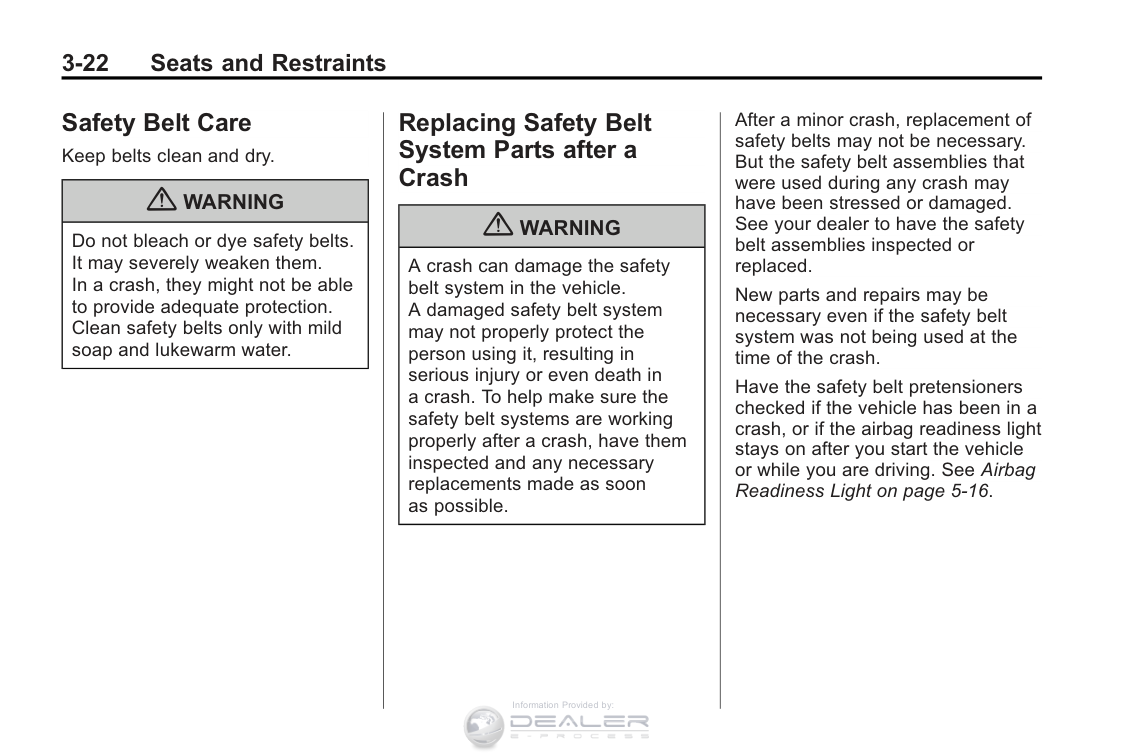

Safety Belt Care Keep belts clean and dry.

|{ WARNING| |---| |Do not bleach or dye safety belts. It may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.|

#### Replacing Safety Belt System Parts after a Crash

|{ WARNING| |---| |Acrashcandamagethesafety belt system in the vehicle. Adamagedsafetybeltsystem may not properly protect the person using it, resulting in serious injury or even death in acrash.Tohelpmakesurethe safety belt systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.|

After a minor crash, replacement of safety belts may not be necessary. But the safety belt assemblies that were used during any crash may have been stressed or damaged. See your dealer to have the safety belt assemblies inspected or replaced.

New parts and repairs may be necessary even if the safety belt system was not being used at the time of the crash.

Have the safety belt pretensioners checked if the vehicle has been in a crash, or if the airbag readiness light stays on after you start the vehicle or while you are driving. See Airbag Readiness Light on page 5￿16.

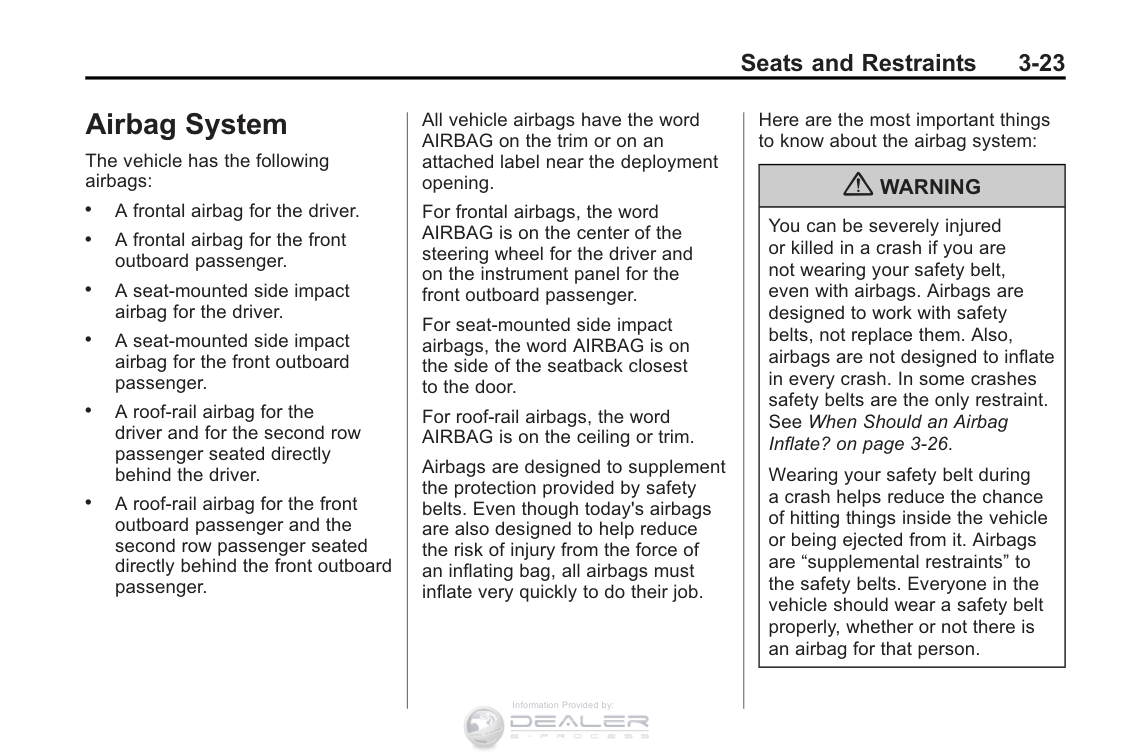

Airbag System

The vehicle has the following airbags:

. Afrontalairbagforthedriver.

. Afrontalairbagforthefront outboard passenger.

. Aseat-mountedsideimpact airbag for the driver.

. Aseat-mountedsideimpact airbag for the front outboard passenger.

. Aroof-railairbagforthe driver and for the second row passenger seated directly behind the driver.

. Aroof-railairbagforthefront outboard passenger and the second row passenger seated directly behind the front outboard passenger.

All vehicle airbags have the word AIRBAG on the trim or on an attached label near the deployment opening.

For frontal airbags, the word AIRBAG is on the center of the steering wheel for the driver and on the instrument panel for the front outboard passenger.

For seat-mounted side impact airbags, the word AIRBAG is on the side of the seatback closest to the door.

For roof-rail airbags, the word AIRBAG is on the ceiling or trim.

Airbags are designed to supplement the protection provided by safety belts. Even though today's airbags are also designed to help reduce the risk of injury from the force of an inflating bag, all airbags must inflate very quickly to do their job.

Here are the most important things to know about the airbag system:

|{ WARNING| |---| |You can be severely injured or killed in a crash if you are not wearing your safety belt, even with airbags. Airbags are designed to work with safety belts, not replace them. Also, airbags are not designed to inflate in every crash. In some crashes safety belts are the only restraint. See When Should an Airbag Inflate? on page 3￿26.

Wearing your safety belt during acrashhelpsreducethechance of hitting things inside the vehicle or being ejected from it. Airbags are “supplemental restraints” to the safety belts. Everyone in the vehicle should wear a safety belt properly, whether or not there is an airbag for that person.|

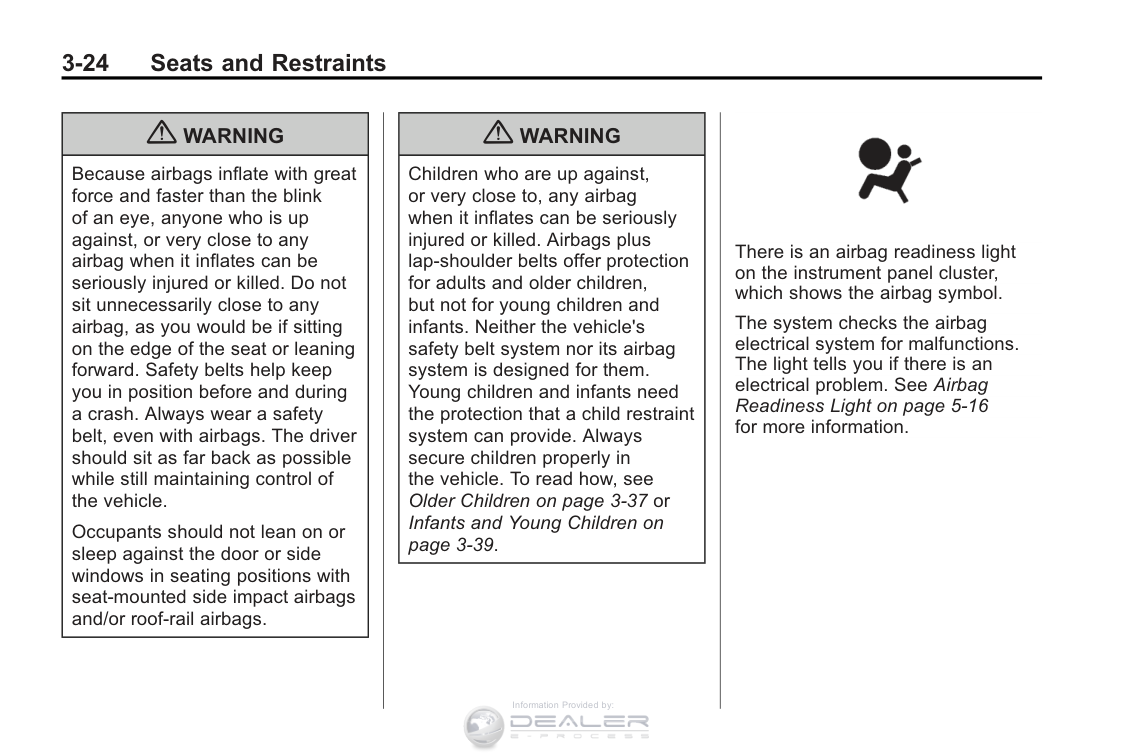

|{ WARNING| |---| |Because airbags inflate with great force and faster than the blink of an eye, anyone who is up against, or very close to any airbag when it inflates can be seriously injured or killed. Do not sit unnecessarily close to any airbag, as you would be if sitting on the edge of the seat or leaning forward. Safety belts help keep you in position before and during acrash.Alwayswearasafety belt, even with airbags. The driver should sit as far back as possible while still maintaining control of the vehicle.

Occupants should not lean on or sleep against the door or side windows in seating positions with seat-mounted side impact airbags and/or roof-rail airbags.|

|{ WARNING| |---| |Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle's safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in the vehicle. To read how, see Older Children on page 3￿37 or Infants and Young Children on page 3￿39.|


There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol.

The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 5￿16 for more information.

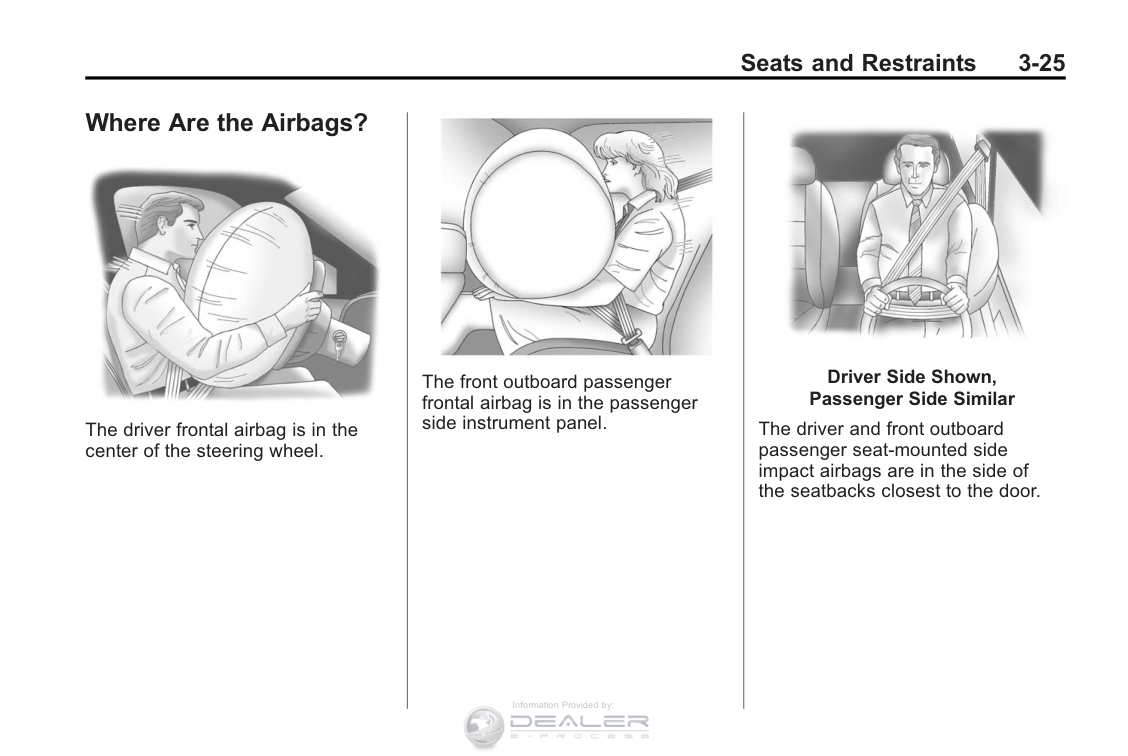

#### Where Are the Airbags?


The driver frontal airbag is in the center of the steering wheel.


The front outboard passenger frontal airbag is in the passenger side instrument panel.


Driver Side Shown, Passenger Side Similar

The driver and front outboard passenger seat-mounted side impact airbags are in the side of the seatbacks closest to the door.


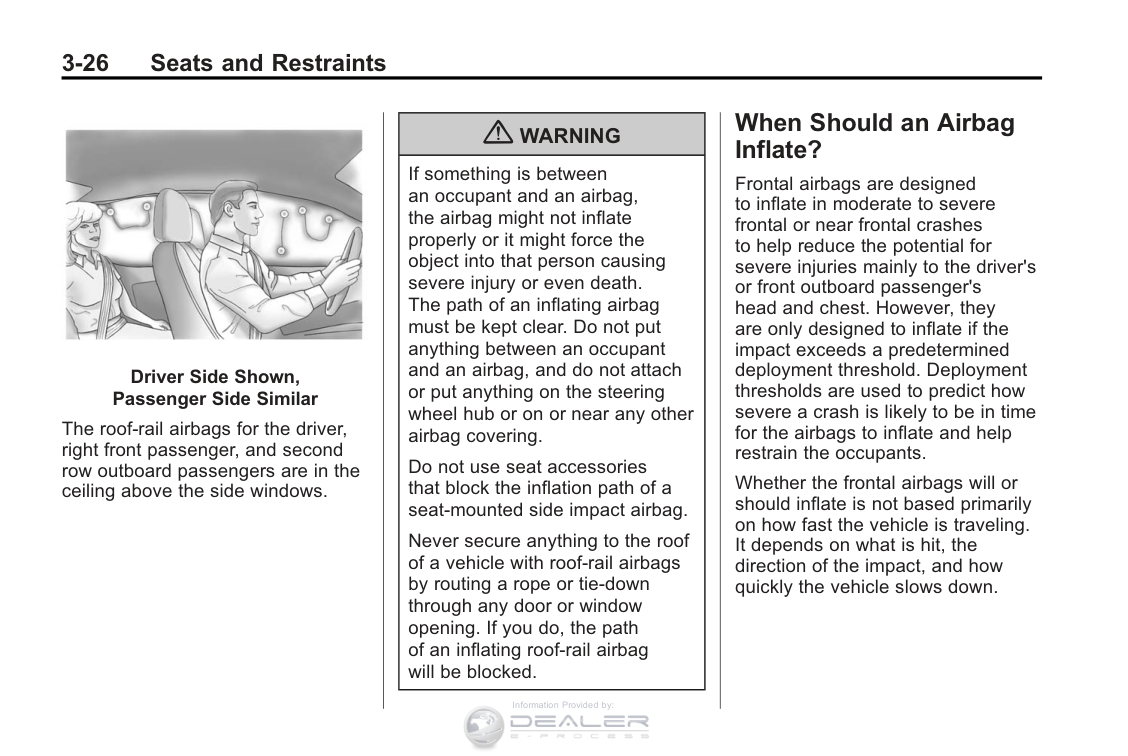

Driver Side Shown, Passenger Side Similar

The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows.

|{ WARNING| |---| |If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death. The path of an inflating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering.

Do not use seat accessories that block the inflation path of a seat-mounted side impact airbag. Never secure anything to the roof of a vehicle with roof-rail airbags by routing a rope or tie￿down through any door or window opening. If you do, the path of an inflating roof-rail airbag will be blocked.|

#### When Should an Airbag Inflate?

Frontal airbags are designed to inflate in moderate to severe frontal or near frontal crashes to help reduce the potential for severe injuries mainly to the driver's or front outboard passenger's head and chest. However, they are only designed to inflate if the impact exceeds a predetermined deployment threshold. Deployment thresholds are used to predict how severe a crash is likely to be in time for the airbags to inflate and help restrain the occupants.

Whether the frontal airbags will or should inflate is not based primarily on how fast the vehicle is traveling. It depends on what is hit, the direction of the impact, and how quickly the vehicle slows down.

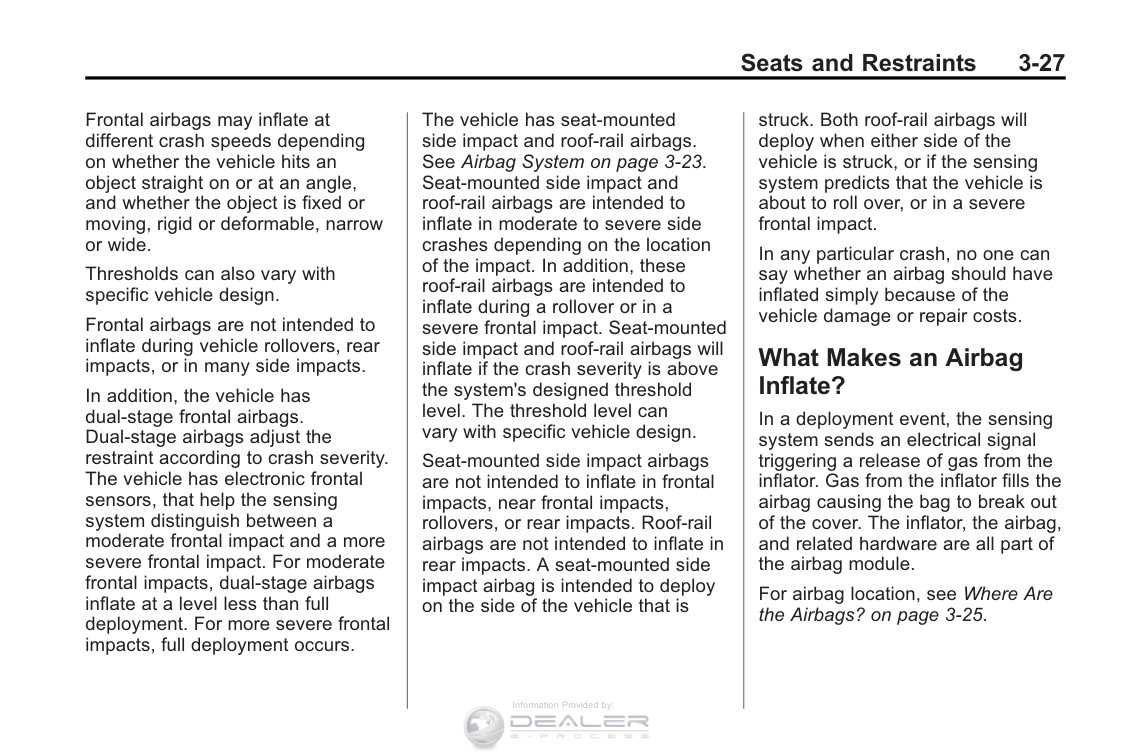

Frontal airbags may inflate at different crash speeds depending on whether the vehicle hits an object straight on or at an angle, and whether the object is fixed or moving, rigid or deformable, narrow or wide.

Thresholds can also vary with specific vehicle design.

Frontal airbags are not intended to inflate during vehicle rollovers, rear impacts, or in many side impacts.

In addition, the vehicle has dual-stage frontal airbags. Dual-stage airbags adjust the restraint according to crash severity. The vehicle has electronic frontal sensors, that help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact. For moderate frontal impacts, dual-stage airbags inflate at a level less than full deployment. For more severe frontal impacts, full deployment occurs.

The vehicle has seat-mounted side impact and roof-rail airbags. See Airbag System on page 3￿23. Seat-mounted side impact and roof-rail airbags are intended to inflate in moderate to severe side crashes depending on the location of the impact. In addition, these roof-rail airbags are intended to inflate during a rollover or in a severe frontal impact. Seat-mounted side impact and roof-rail airbags will inflate if the crash severity is above the system's designed threshold level. The threshold level can vary with specific vehicle design.

Seat-mounted side impact airbags are not intended to inflate in frontal impacts, near frontal impacts, rollovers, or rear impacts. Roof-rail airbags are not intended to inflate in rear impacts. A seat-mounted side impact airbag is intended to deploy on the side of the vehicle that is

struck. Both roof-rail airbags will deploy when either side of the vehicle is struck, or if the sensing system predicts that the vehicle is about to roll over, or in a severe frontal impact.

In any particular crash, no one can say whether an airbag should have inflated simply because of the vehicle damage or repair costs. What Makes an Airbag Inflate?

In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inflator. Gas from the inflator fills the airbag causing the bag to break out of the cover. The inflator, the airbag, and related hardware are all part of the airbag module.

For airbag location, see Where Are the Airbags? on page 3￿25.

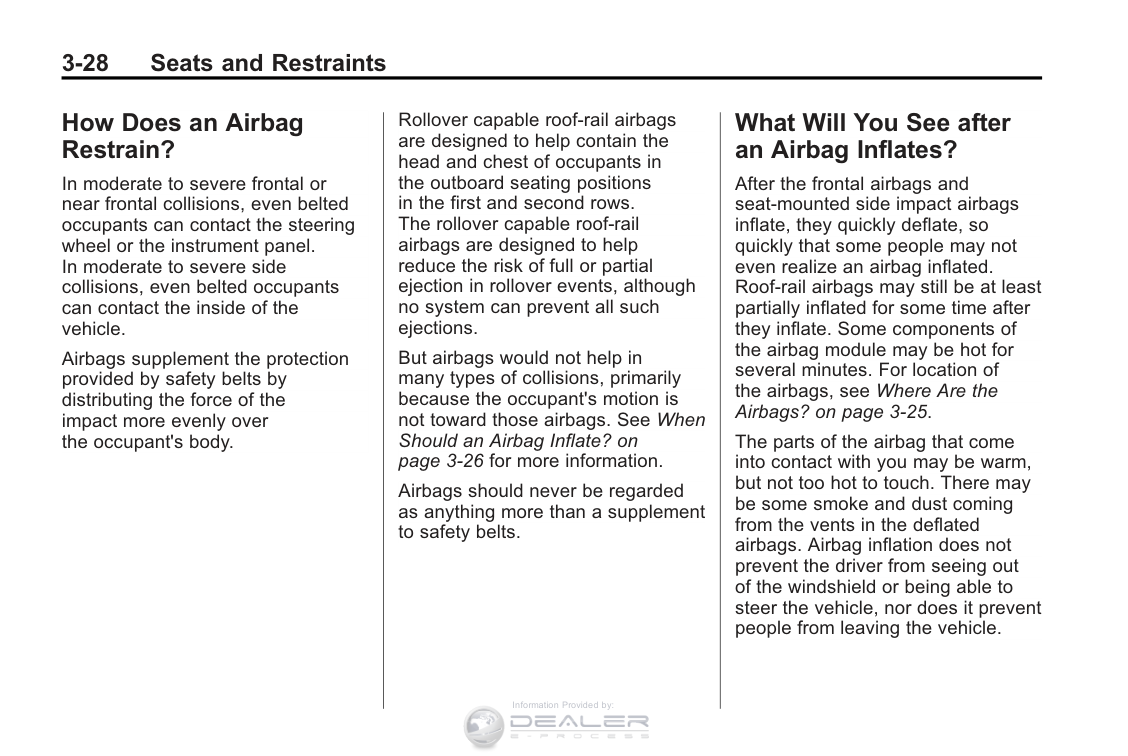

#### How Does an Airbag Restrain?

In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle.

Airbags supplement the protection provided by safety belts by distributing the force of the impact more evenly over the occupant's body.

Rollover capable roof￿rail airbags are designed to help contain the head and chest of occupants in the outboard seating positions in the first and second rows. The rollover capable roof￿rail airbags are designed to help reduce the risk of full or partial ejection in rollover events, although no system can prevent all such ejections.

But airbags would not help in many types of collisions, primarily because the occupant's motion is not toward those airbags. See When Should an Airbag Inflate? on page 3￿26 for more information.

Airbags should never be regarded as anything more than a supplement to safety belts.

#### What Will You See after an Airbag Inflates?

After the frontal airbags and seat-mounted side impact airbags inflate, they quickly deflate, so quickly that some people may not even realize an airbag inflated. Roof-rail airbags may still be at least partially inflated for some time after they inflate. Some components of the airbag module may be hot for several minutes. For location of the airbags, see Where Are the Airbags? on page 3￿25.

The parts of the airbag that come into contact with you may be warm, but not too hot to touch. There may be some smoke and dust coming from the vents in the deflated airbags. Airbag inflation does not prevent the driver from seeing out of the windshield or being able to steer the vehicle, nor does it prevent people from leaving the vehicle.

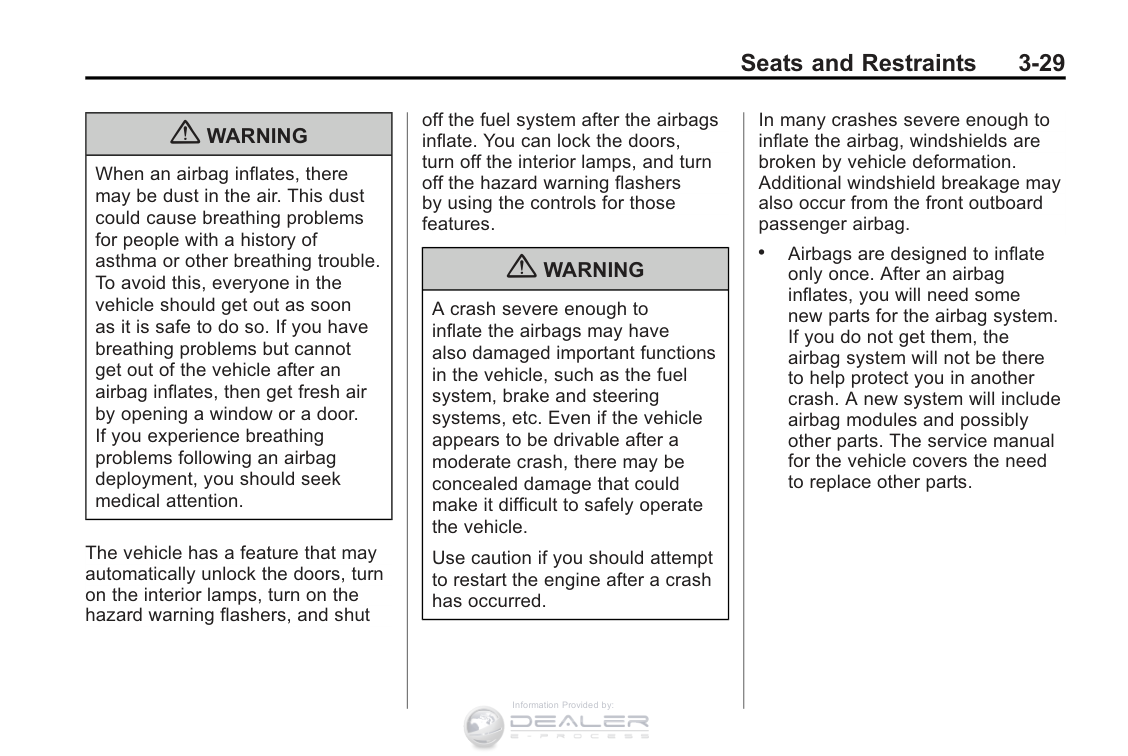

|{ WARNING| |---| |When an airbag inflates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but cannot get out of the vehicle after an airbag inflates, then get fresh air by opening a window or a door. If you experience breathing problems following an airbag deployment, you should seek medical attention.|

The vehicle has a feature that may automatically unlock the doors, turn on the interior lamps, turn on the hazard warning flashers, and shut

off the fuel system after the airbags inflate. You can lock the doors, turn off the interior lamps, and turn off the hazard warning flashers by using the controls for those features.

|{ WARNING| |---| |Acrashsevereenoughto inflate the airbags may have also damaged important functions in the vehicle, such as the fuel system, brake and steering systems, etc. Even if the vehicle appears to be drivable after a moderate crash, there may be concealed damage that could make it difficult to safely operate the vehicle.

Use caution if you should attempt to restart the engine after a crash has occurred.|

In many crashes severe enough to inflate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the front outboard passenger airbag.

. Airbags are designed to inflate only once. After an airbag inflates, you will need some new parts for the airbag system. If you do not get them, the airbag system will not be there to help protect you in another crash. A new system will include airbag modules and possibly other parts. The service manual for the vehicle covers the need to replace other parts.

. The vehicle has a crash sensing and diagnostic module which records information after a crash. See Vehicle Data Recording and Privacy on page 13￿21 and Event Data Recorders on page 13￿21.

. Let only qualified technicians work on the airbag systems. Improper service can mean that an airbag system will not work properly. See your dealer for service.

#### Passenger Sensing System

The vehicle has a passenger sensing system for the front outboard passenger position. The passenger airbag status indicator will light on the overhead console when the vehicle is started.


United States


Canada and Mexico

The words ON and OFF, or the symbol for on and off, are visible during the system check. If you use remote start, if equipped, to start the vehicle, you may not see the system check. When the system check is complete, either the word ON or OFF, or the symbol for on or off, will be visible. See Passenger Airbag Status Indicator on page 5￿17.

The passenger sensing system turns off the front outboard passenger frontal airbag and seat-mounted side impact airbag under certain conditions. No other airbag is affected by the passenger sensing system.

The passenger sensing system works with sensors that are part of the front outboard passenger seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the front outboard passenger frontal airbag and seat￿mounted side impact airbag should be allowed to inflate or not.

According to accident statistics, children are safer when properly secured in a rear seat in the correct child restraint for their weight and size.

We recommend that children be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint; a child riding in a forward-facing child seat; an older child riding in a booster seat; and children, who are large enough, using safety belts.

Never put a rear-facing child seat in the front. This is because the risk to the rear-facing child is so great, if the airbag deploys.

|{ WARNING| |---| |Achildinarear-facingchild restraint can be seriously injured or killed if the passenger frontal airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the

(Continued)|

|WARNING (Continued)| |---| |passenger frontal airbag inflates and the passenger seat is in a forward position.

Even if the passenger sensing system has turned off the front outboard passenger airbag(s), no system is fail-safe. No one can guarantee that an airbag will not inflate under some unusual circumstance, even though the airbag(s) are off.

Secure rear-facing child restraints in a rear seat, even if the airbag(s) are off. If you secure aforward-facingchildrestraint in the front outboard passenger seat, always move the seat as far back as it will go. It is better to secure the child restraint in a rear seat.|



The passenger sensing system is designed to turn off the front outboard passenger airbag and seat￿mounted side impact airbag if:

. The front outboard passenger seat is unoccupied.

. The system determines that an infant is present in a rear-facing infant seat.

. The system determines that a small child is present in a child restraint.

. The system determines that asmallchildispresentina booster seat.

. Afrontoutboardpassenger takes his/her weight off of the seat for a period of time.

. The front outboard passenger seat is occupied by a smaller person, such as a child who has outgrown child restraints.

. There is a critical problem with the airbag system or the passenger sensing system.

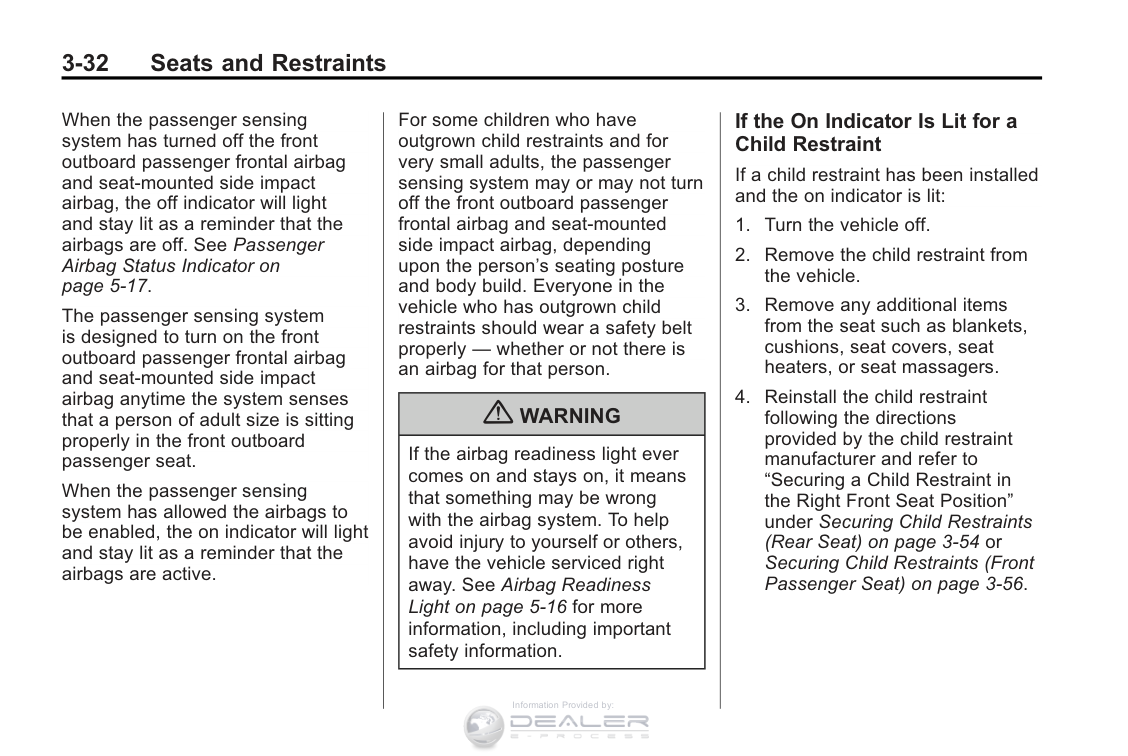

When the passenger sensing system has turned off the front outboard passenger frontal airbag and seat￿mounted side impact airbag, the off indicator will light and stay lit as a reminder that the airbags are off. See Passenger Airbag Status Indicator on page 5￿17.

The passenger sensing system is designed to turn on the front outboard passenger frontal airbag and seat￿mounted side impact airbag anytime the system senses that a person of adult size is sitting properly in the front outboard passenger seat.

When the passenger sensing system has allowed the airbags to be enabled, the on indicator will light and stay lit as a reminder that the airbags are active.

For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the front outboard passenger frontal airbag and seat-mounted side impact airbag, depending upon the person’sseatingposture and body build. Everyone in the vehicle who has outgrown child restraints should wear a safety belt properly — whether or not there is an airbag for that person.

|{ WARNING| |---| |If the airbag readiness light ever comes on and stays on, it means that something may be wrong with the airbag system. To help avoid injury to yourself or others, have the vehicle serviced right away. See Airbag Readiness Light on page 5￿16 for more information, including important safety information.|

####### If the On Indicator Is Lit for a Child Restraint

If a child restraint has been installed and the on indicator is lit:

Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint. See Head Restraints on page 3￿2.

If the on indicator is still lit, secure the child restraint in a rear seat position in the vehicle, and check with your dealer.

####### If the Off Indicator Is Lit for an Adult-Size Occupant


If a person of adult-size is sitting in the front outboard passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat.

Use the following steps to allow the system to detect that person and enable the front outboard passenger frontal airbag and seat-mounted side impact airbag:

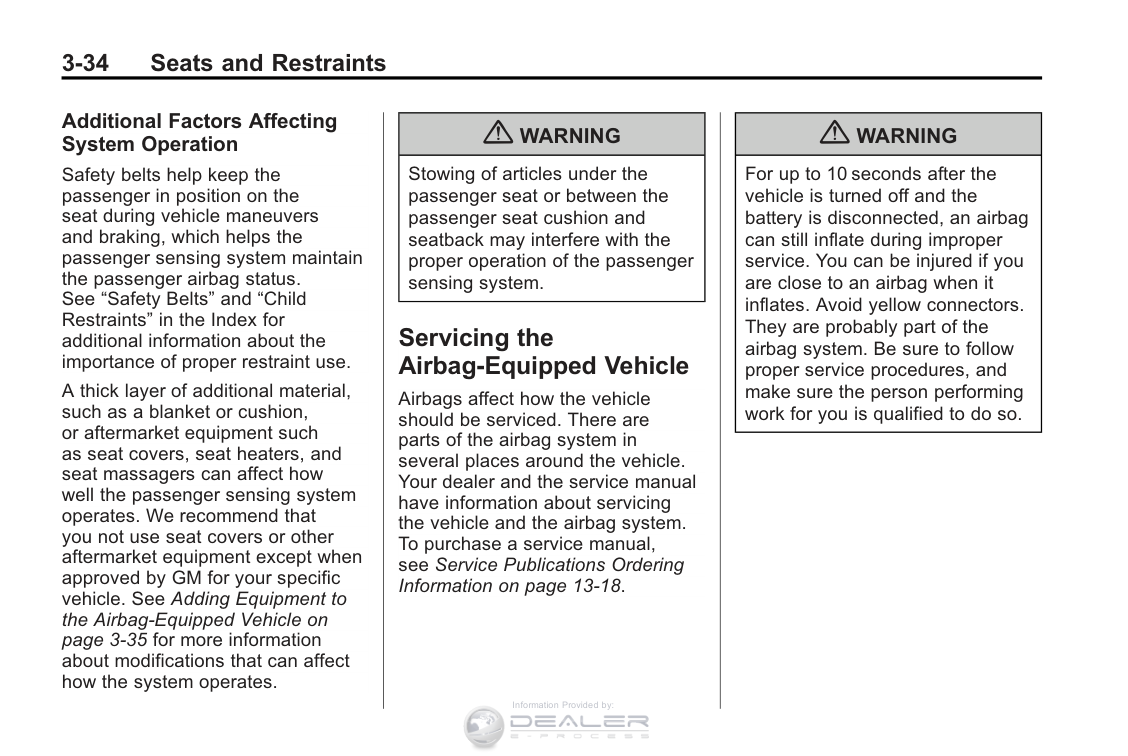

####### Additional Factors Affecting System Operation

Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.

Athicklayerofadditionalmaterial, such as a blanket or cushion, or aftermarket equipment such

|{ WARNING| |---|

|Stowing of articles under the passenger seat or between the passenger seat cushion and seatback may interfere with the proper operation of the passenger sensing system.|

#### Servicing the Airbag-Equipped Vehicle

Airbags affect how the vehicle should be serviced. There are parts of the airbag system in several places around the vehicle. Your dealer and the service manual have information about servicing the vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 13￿18.

|{ WARNING| |---| |For up to 10 seconds after the vehicle is turned off and the battery is disconnected, an airbag can still inflate during improper service. You can be injured if you are close to an airbag when it inflates. Avoid yellow connectors. They are probably part of the airbag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.|



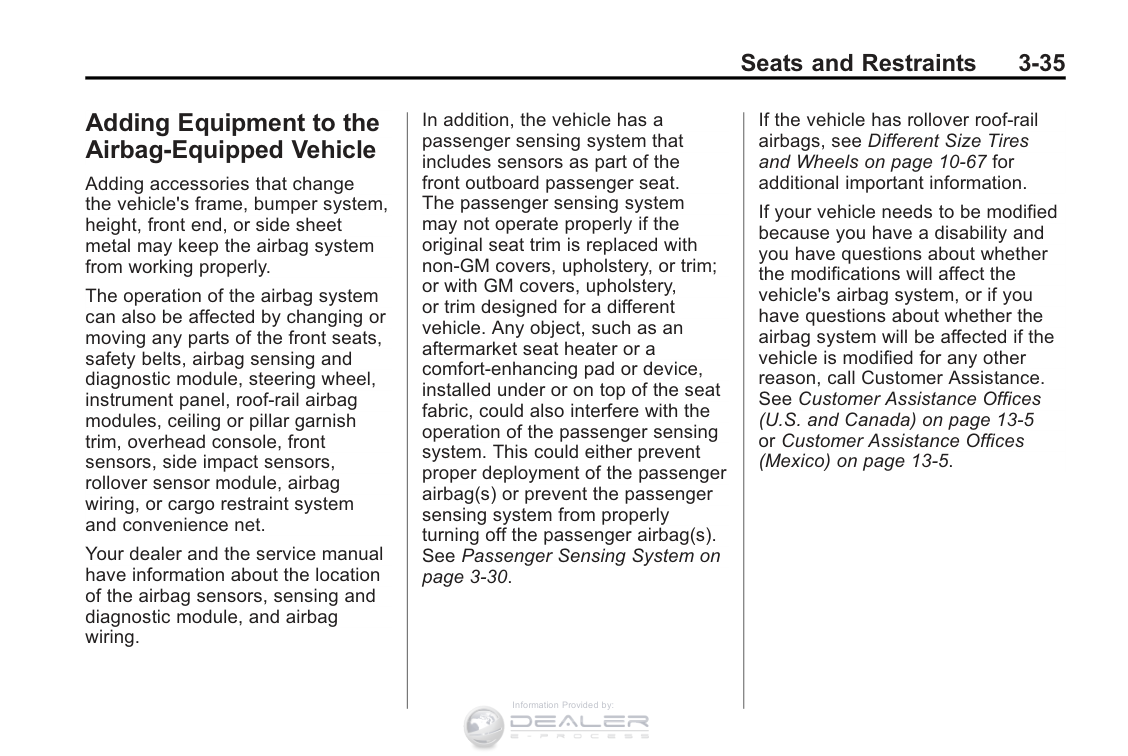

Adding Equipment to the Airbag-Equipped Vehicle Adding accessories that change the vehicle's frame, bumper system, height, front end, or side sheet metal may keep the airbag system from working properly. The operation of the airbag system can also be affected by changing or moving any parts of the front seats, safety belts, airbag sensing and diagnostic module, steering wheel, instrument panel, roof-rail airbag modules, ceiling or pillar garnish trim, overhead console, front sensors, side impact sensors, rollover sensor module, airbag wiring, or cargo restraint system and convenience net.

Your dealer and the service manual have information about the location of the airbag sensors, sensing and diagnostic module, and airbag wiring.

In addition, the vehicle has a passenger sensing system that includes sensors as part of the front outboard passenger seat. The passenger sensing system may not operate properly if the original seat trim is replaced with non-GM covers, upholstery, or trim; or with GM covers, upholstery, or trim designed for a different vehicle. Any object, such as an aftermarket seat heater or a comfort-enhancing pad or device, installed under or on top of the seat fabric, could also interfere with the operation of the passenger sensing system. This could either prevent proper deployment of the passenger airbag(s) or prevent the passenger sensing system from properly turning off the passenger airbag(s). See Passenger Sensing System on page 3￿30.

If the vehicle has rollover roof￿rail airbags, see Different Size Tires and Wheels on page 10￿67 for additional important information. If your vehicle needs to be modified because you have a disability and you have questions about whether the modifications will affect the vehicle's airbag system, or if you have questions about whether the airbag system will be affected if the vehicle is modified for any other reason, call Customer Assistance. See Customer Assistance Offices (U.S. and Canada) on page 13￿5 or Customer Assistance Offices (Mexico) on page 13￿5.

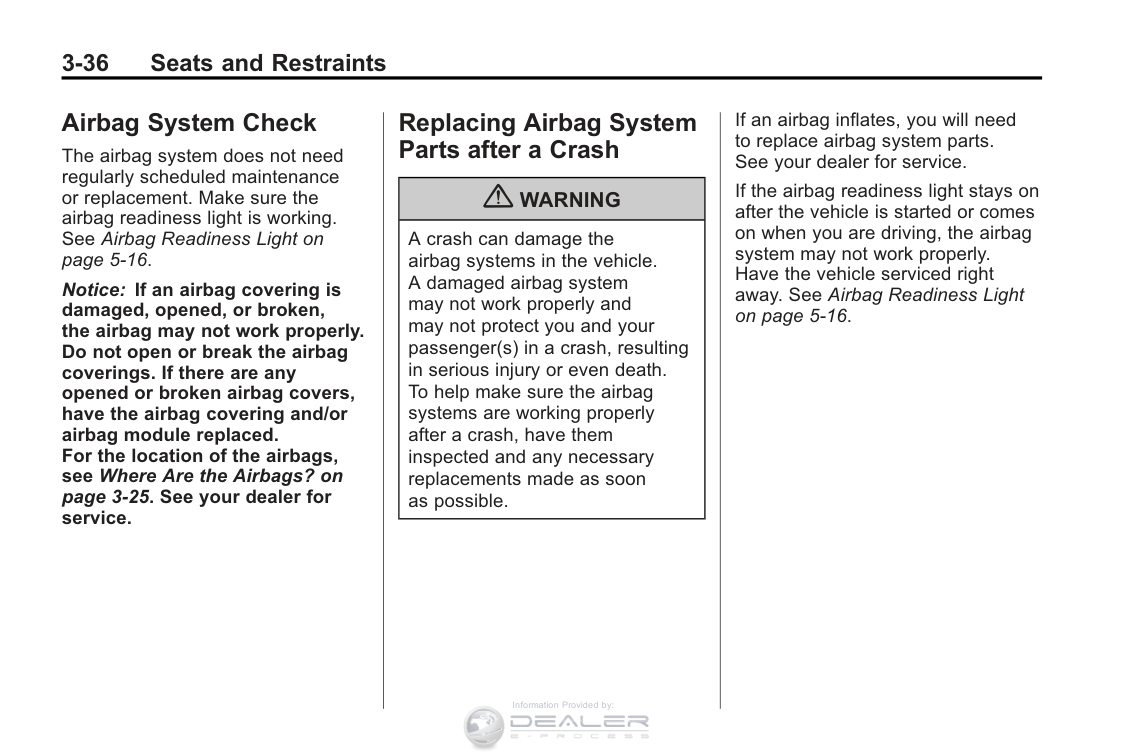

#### Airbag System Check

The airbag system does not need regularly scheduled maintenance or replacement. Make sure the airbag readiness light is working. See Airbag Readiness Light on page 5￿16.

Notice: If an airbag covering is damaged, opened, or broken, the airbag may not work properly. Do not open or break the airbag coverings. If there are any opened or broken airbag covers, have the airbag covering and/or airbag module replaced. For the location of the airbags, see Where Are the Airbags? on page 3￿25.Seeyourdealerfor service.

#### Replacing Airbag System Parts after a Crash

|{ WARNING| |---| |Acrashcandamagethe airbag systems in the vehicle. Adamagedairbagsystem may not work properly and may not protect you and your passenger(s) in a crash, resulting in serious injury or even death. To help make sure the airbag systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.|

If an airbag inflates, you will need to replace airbag system parts. See your dealer for service.

If the airbag readiness light stays on after the vehicle is started or comes on when you are driving, the airbag system may not work properly. Have the vehicle serviced right away. See Airbag Readiness Light on page 5￿16.

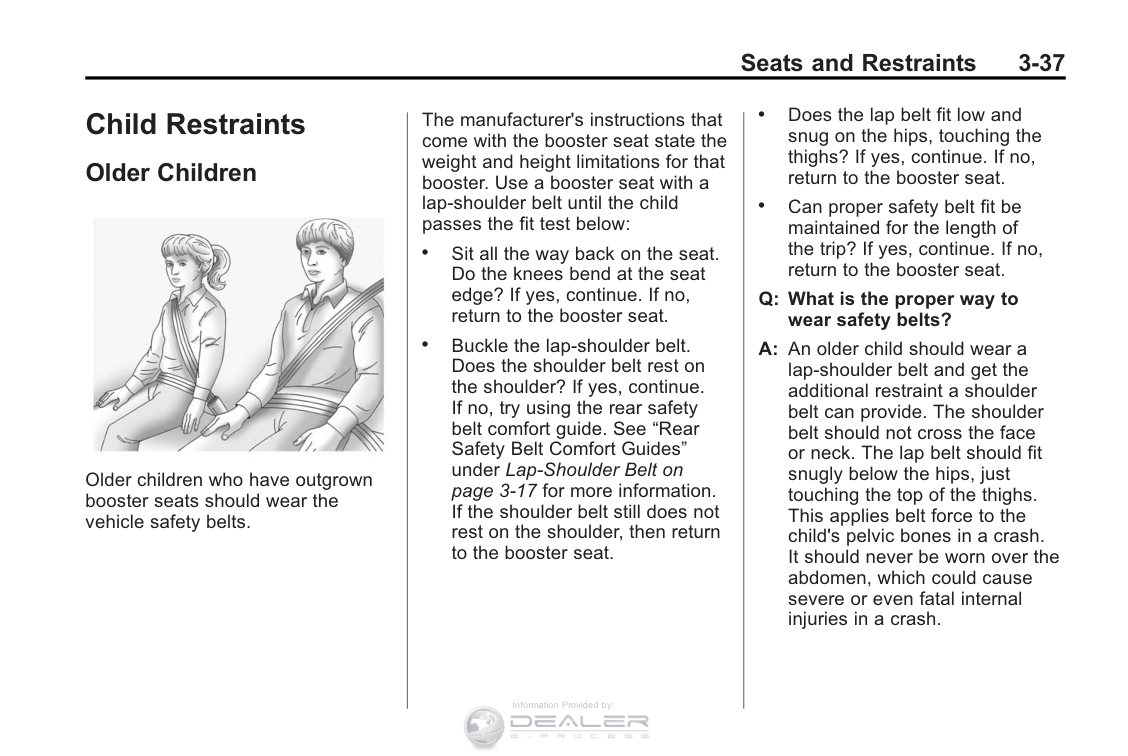

Child Restraints Older Children


Older children who have outgrown booster seats should wear the vehicle safety belts.

The manufacturer's instructions that come with the booster seat state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the fit test below:

. Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue. If no, return to the booster seat.

. Buckle the lap-shoulder belt. Does the shoulder belt rest on the shoulder? If yes, continue. If no, try using the rear safety belt comfort guide. See “Rear Safety Belt Comfort Guides” under Lap-Shoulder Belt on

page 3￿17 for more information. If the shoulder belt still does not rest on the shoulder, then return to the booster seat.

. Does the lap belt fit low and snug on the hips, touching the thighs? If yes, continue. If no, return to the booster seat.

. Can proper safety belt fit be maintained for the length of the trip? If yes, continue. If no, return to the booster seat.

Q: What is the proper way to wear safety belts?

A: An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs. This applies belt force to the child's pelvic bones in a crash. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.

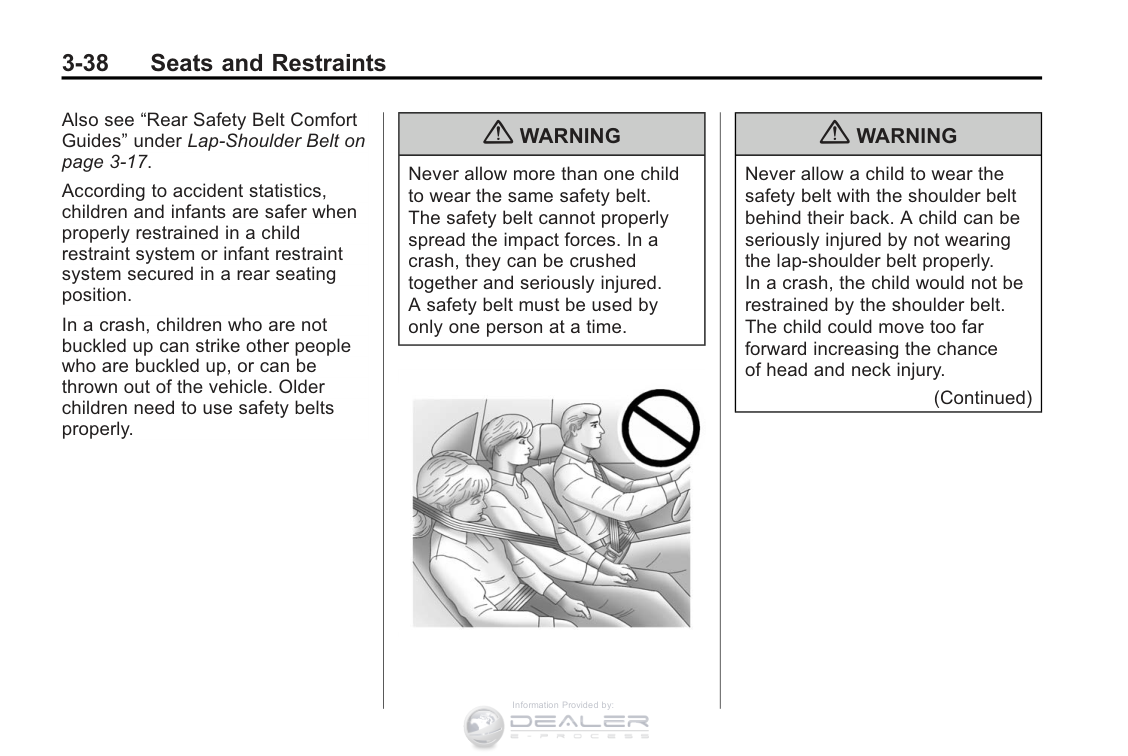

Also see “Rear Safety Belt Comfort Guides” under Lap-Shoulder Belt on page 3￿17.

According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position.

In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.

|{ WARNING| |---| |Never allow more than one child to wear the same safety belt. The safety belt cannot properly spread the impact forces. In a crash, they can be crushed together and seriously injured. Asafetybeltmustbeusedby only one person at a time.|


|{ WARNING| |---| |Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt. The child could move too far forward increasing the chance of head and neck injury.

(Continued)|

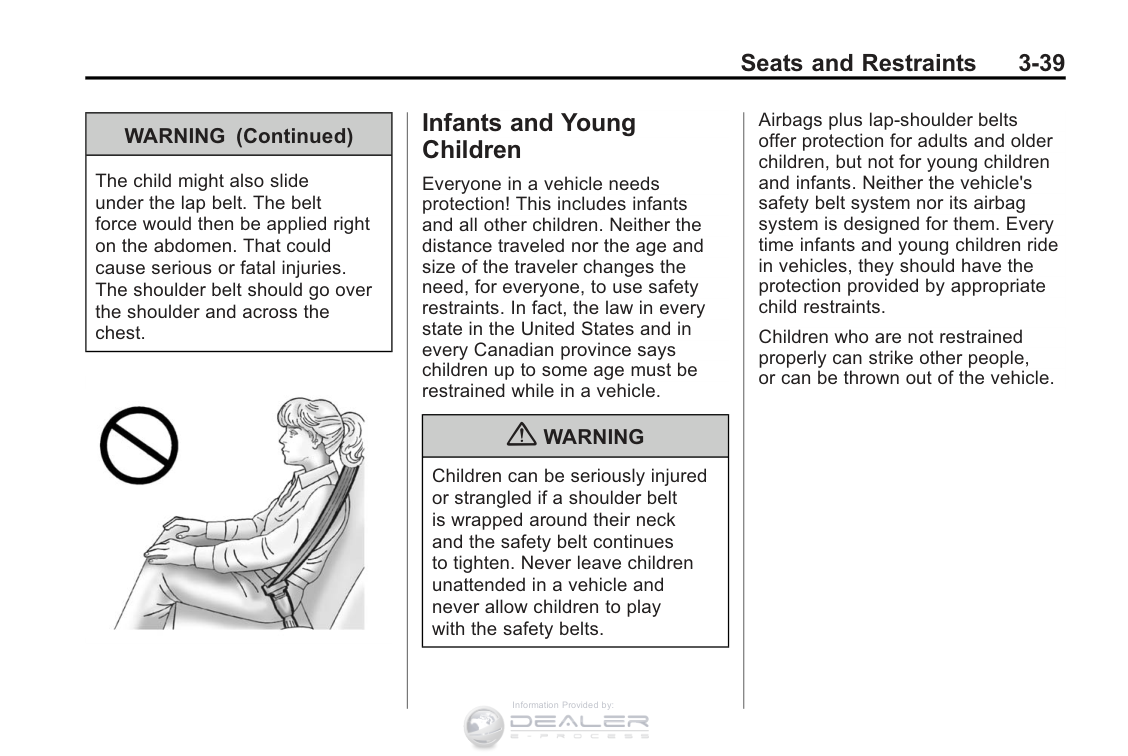

|WARNING (Continued)| |---| |The child might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest.|


#### Infants and Young Children

Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

|{ WARNING| |---| |Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Never leave children unattended in a vehicle and never allow children to play with the safety belts.|

Airbags plus lap￿shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle's safety belt system nor its airbag system is designed for them. Every time infants and young children ride in vehicles, they should have the protection provided by appropriate child restraints.

Children who are not restrained properly can strike other people, or can be thrown out of the vehicle.

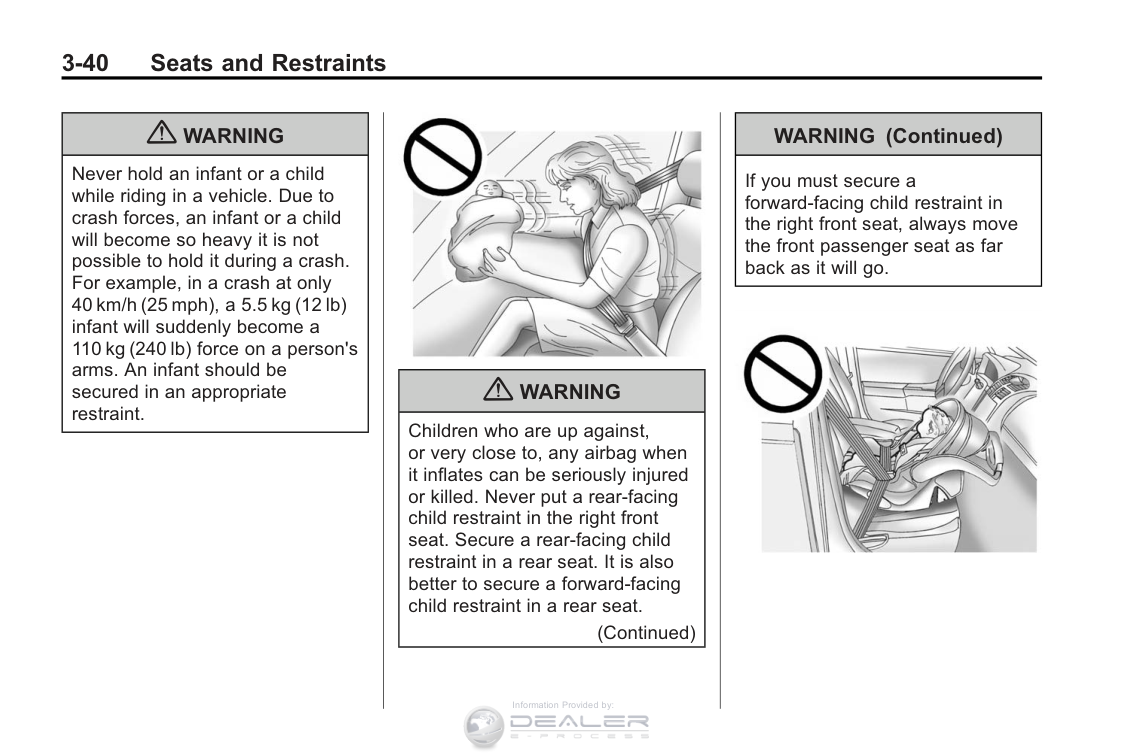

|{ WARNING| |---| |Never hold an infant or a child while riding in a vehicle. Due to crash forces, an infant or a child will become so heavy it is not possible to hold it during a crash. For example, in a crash at only 40 km/h (25 mph), a 5.5 kg (12 lb) infant will suddenly become a 110 kg (240 lb) force on a person's arms. An infant should be secured in an appropriate restraint.|


|{ WARNING| |---| |Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child restraint in a rear seat. It is also better to secure a forward-facing child restraint in a rear seat.

(Continued)|

|WARNING (Continued)| |---| |If you must secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go.|


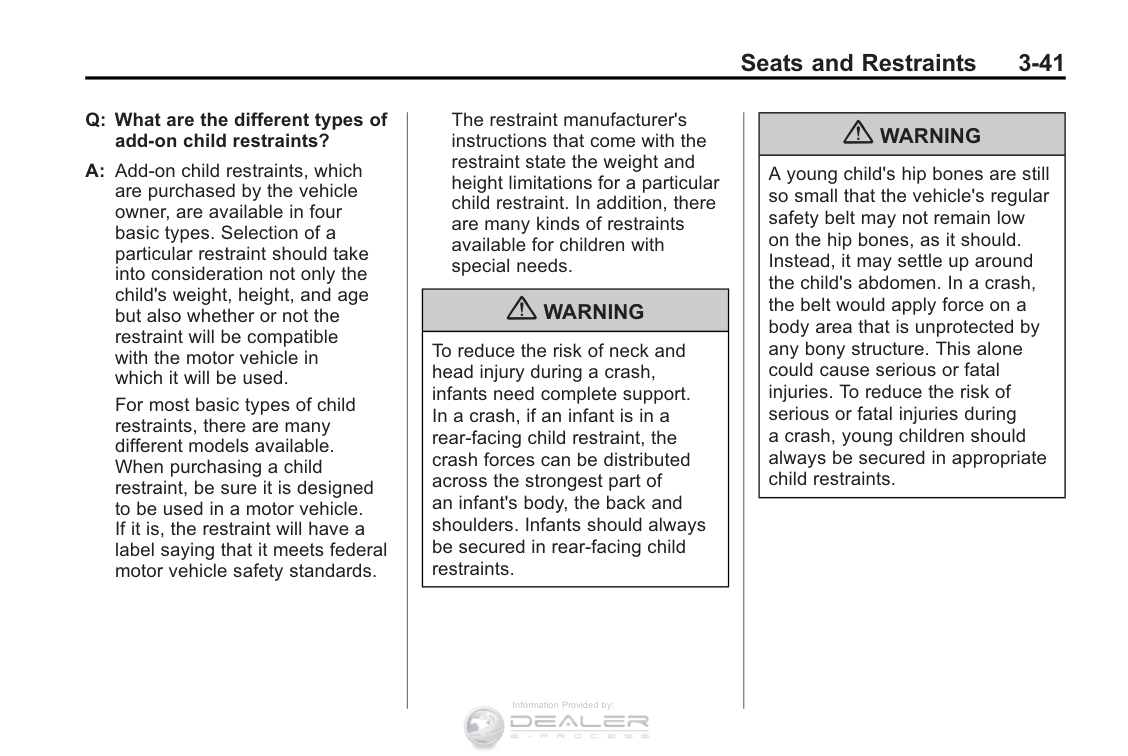

######## Q: What are the different types of

add-on child restraints? A: Add-on child restraints, which are purchased by the vehicle owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child's weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used. For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.

The restraint manufacturer's instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs.

|{ WARNING| |---| |To reduce the risk of neck and head injury during a crash, infants need complete support. In a crash, if an infant is in a rear-facing child restraint, the crash forces can be distributed across the strongest part of an infant's body, the back and shoulders. Infants should always be secured in rear-facing child restraints.|

|{ WARNING| |---| |Ayoungchild'shipbonesarestill so small that the vehicle's regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child's abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. To reduce the risk of serious or fatal injuries during acrash,youngchildrenshould always be secured in appropriate child restraints.|

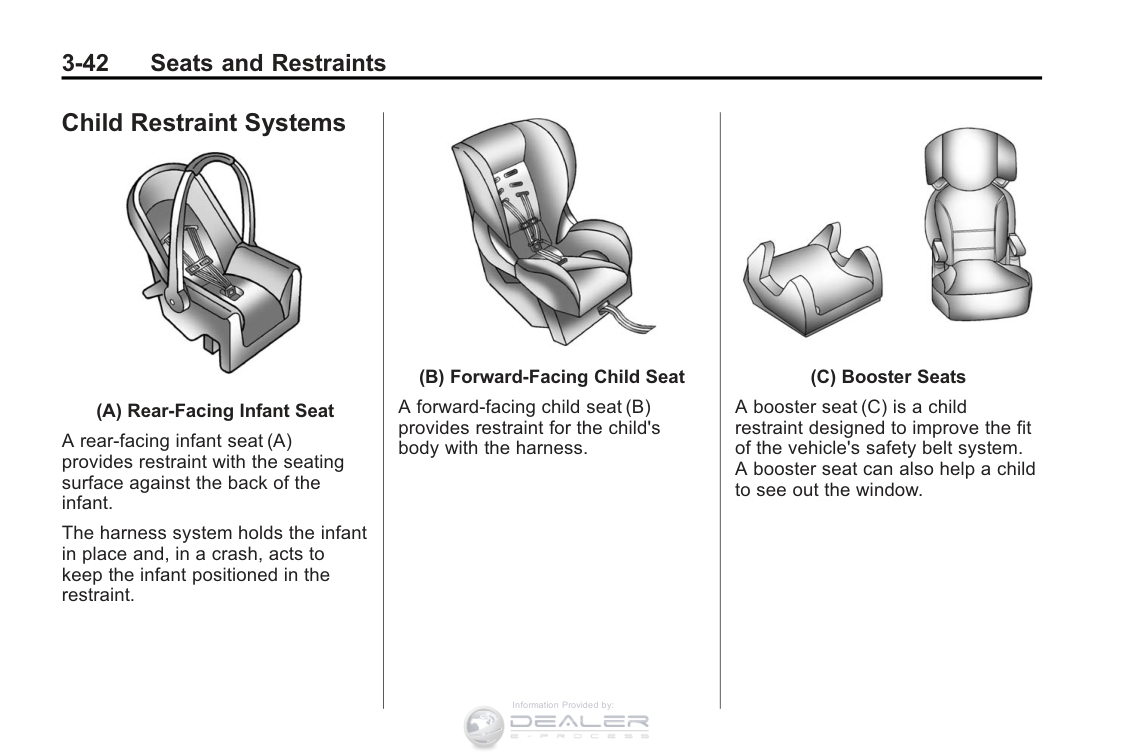

#### Child Restraint Systems


######## (A) Rear-Facing Infant Seat

Arear-facinginfantseat(A) provides restraint with the seating surface against the back of the infant.

The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.


######## (B) Forward-Facing Child Seat

Aforward-facingchildseat(B) provides restraint for the child's body with the harness.


######## (C) Booster Seats

Aboosterseat(C)isachild restraint designed to improve the fit of the vehicle's safety belt system. Aboosterseatcanalsohelpachild to see out the window.

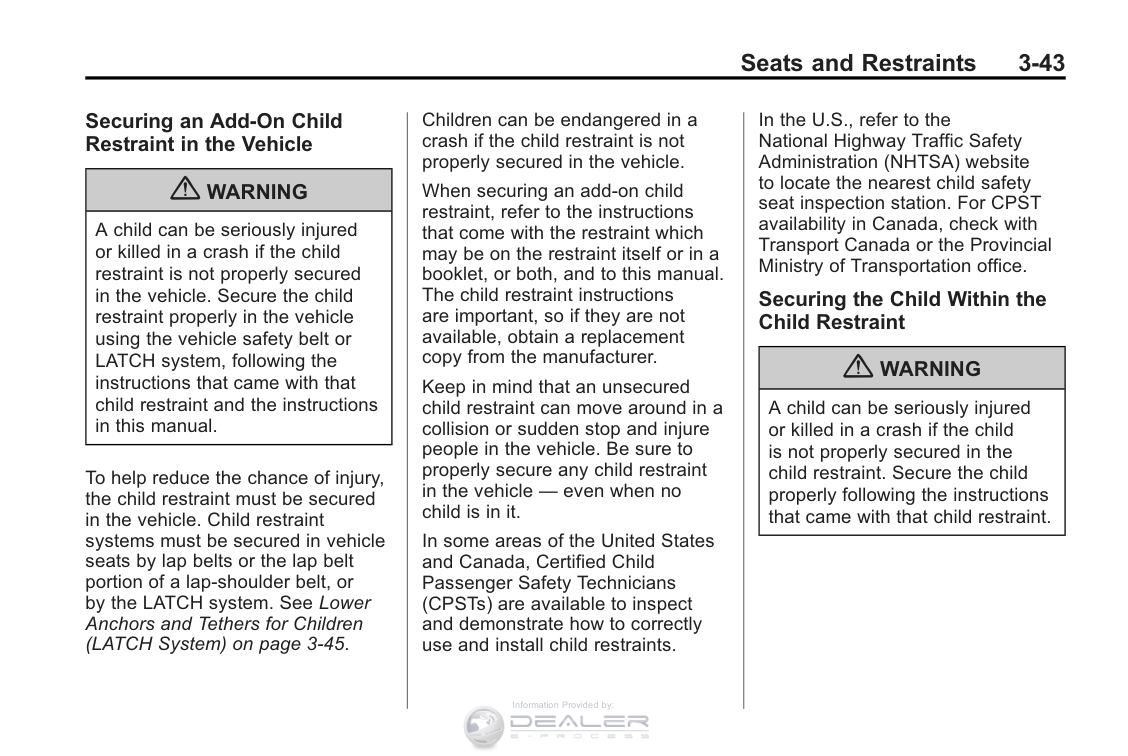

####### Securing an Add-On Child Restraint in the Vehicle

|{ WARNING| |---| |Achildcanbeseriouslyinjured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle safety belt or LATCH system, following the instructions that came with that child restraint and the instructions in this manual.|

To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system. See Lower Anchors and Tethers for Children (LATCH System) on page 3￿45.

Children can be endangered in a crash if the child restraint is not properly secured in the vehicle.

When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in the vehicle — even when no child is in it.

In some areas of the United States and Canada, Certified Child Passenger Safety Technicians (CPSTs) are available to inspect and demonstrate how to correctly use and install child restraints.

In the U.S., refer to the National Highway Traffic Safety Administration (NHTSA) website to locate the nearest child safety seat inspection station. For CPST availability in Canada, check with Transport Canada or the Provincial Ministry of Transportation office.

####### Securing the Child Within the Child Restraint

|{ WARNING| |---| |Achildcanbeseriouslyinjured or killed in a crash if the child is not properly secured in the child restraint. Secure the child properly following the instructions that came with that child restraint.|

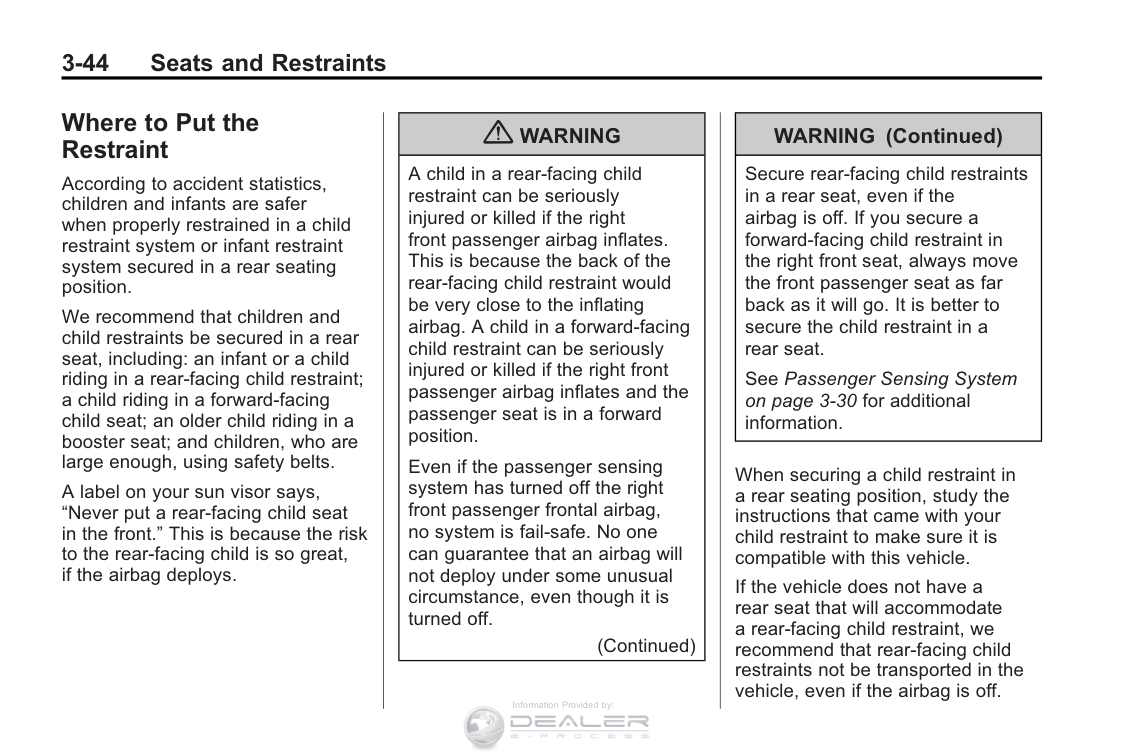

#### Where to Put the Restraint

According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position.

We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint; achildridinginaforward-facing child seat; an older child riding in a booster seat; and children, who are large enough, using safety belts.

Alabelonyoursunvisorsays, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

|{ WARNING| |---| |Achildinarear-facingchild restraint can be seriously injured or killed if the right front passenger airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates and the passenger seat is in a forward position.

Even if the passenger sensing system has turned off the right front passenger frontal airbag, no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.

(Continued)|



|WARNING (Continued)| |---|

|Secure rear-facing child restraints in a rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

See Passenger Sensing System on page 3￿30 for additional information.|

When securing a child restraint in arearseatingposition,studythe instructions that came with your child restraint to make sure it is compatible with this vehicle.

If the vehicle does not have a rear seat that will accommodate arear-facingchildrestraint,we recommend that rear-facing child restraints not be transported in the vehicle, even if the airbag is off.

Child restraints and booster seats vary considerably in size, and some may fit in certain seating positions better than others. Always make sure the child restraint is properly secured.

Depending on where you place the child restraint and the size of the child restraint, you may not be able to access adjacent safety belt assemblies or LATCH anchors for additional passengers or child restraints. Adjacent seating positions should not be used if the child restraint prevents access to or interferes with the routing of the safety belt.

Wherever you install a child restraint, be sure to secure the child restraint properly.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle — even when no child is in it.

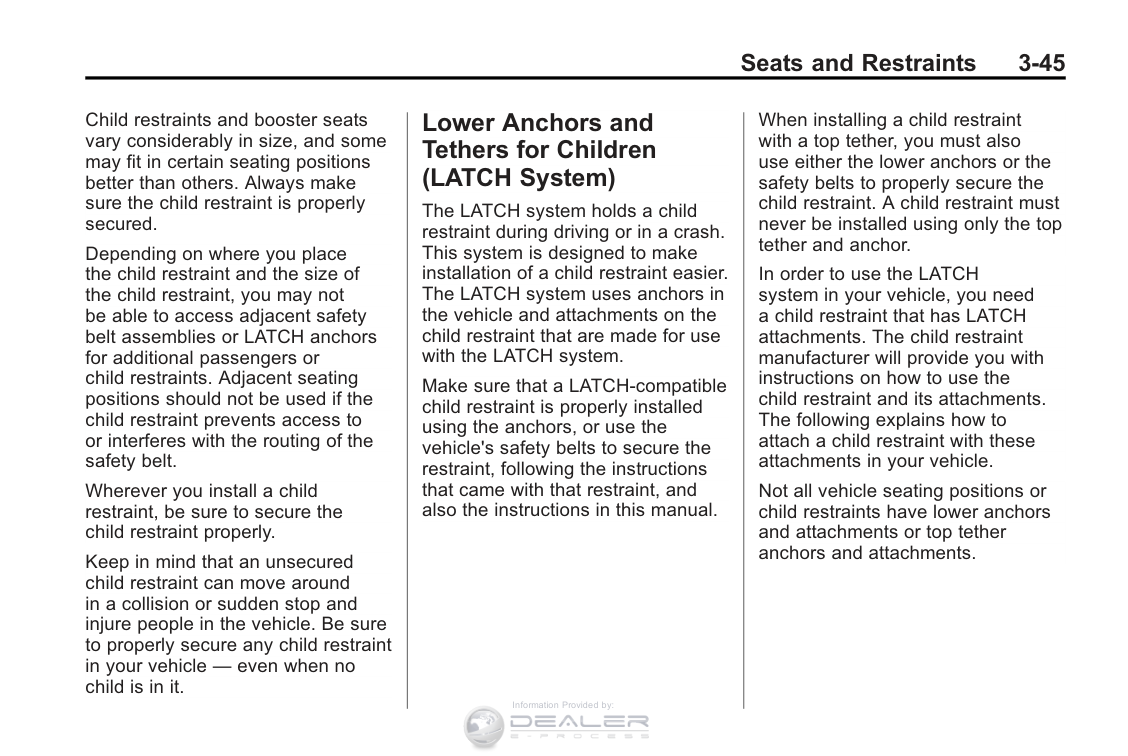

#### Lower Anchors and Tethers for Children (LATCH System)

The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.

Make sure that a LATCH-compatible child restraint is properly installed using the anchors, or use the vehicle's safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual.

When installing a child restraint with a top tether, you must also use either the lower anchors or the safety belts to properly secure the child restraint. A child restraint must never be installed using only the top tether and anchor.

In order to use the LATCH system in your vehicle, you need achildrestraintthathasLATCH attachments. The child restraint manufacturer will provide you with instructions on how to use the child restraint and its attachments. The following explains how to attach a child restraint with these attachments in your vehicle.

Not all vehicle seating positions or child restraints have lower anchors and attachments or top tether anchors and attachments.



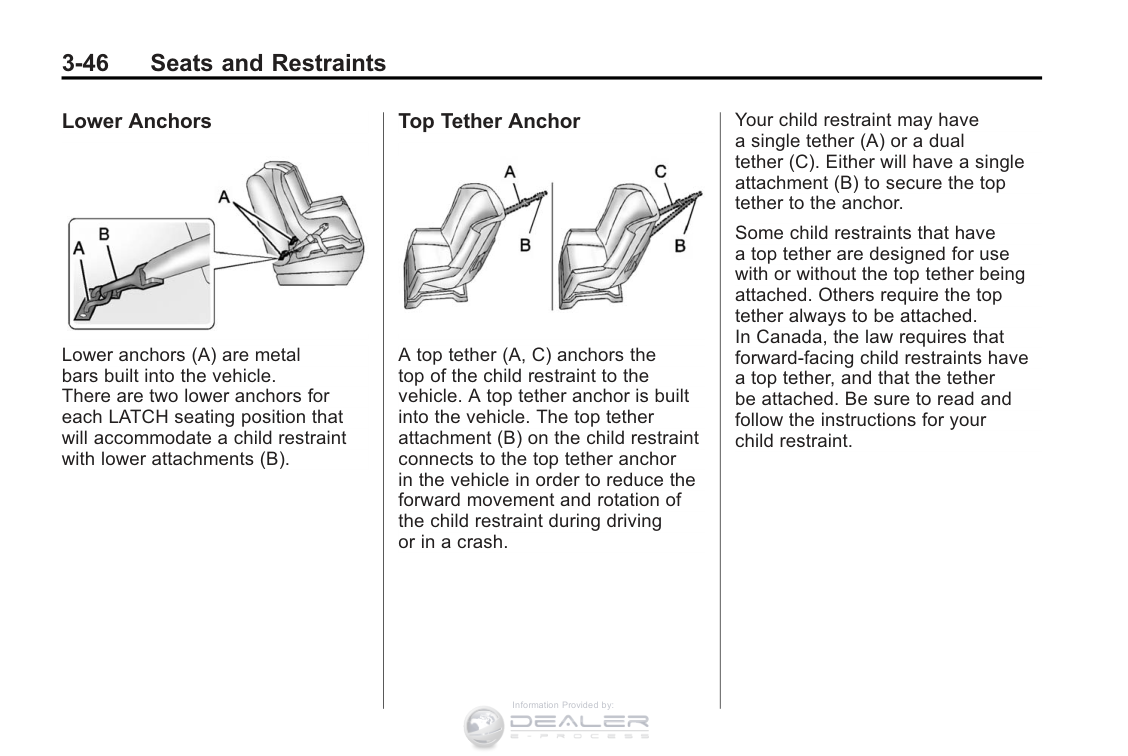

####### Lower Anchors


Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B).

####### Top Tether Anchor


Atoptether(A,C)anchorsthe top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.

Your child restraint may have asingletether(A)oradual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor.

Some child restraints that have atoptetheraredesignedforuse with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have atoptether,andthatthetether be attached. Be sure to read and follow the instructions for your child restraint.

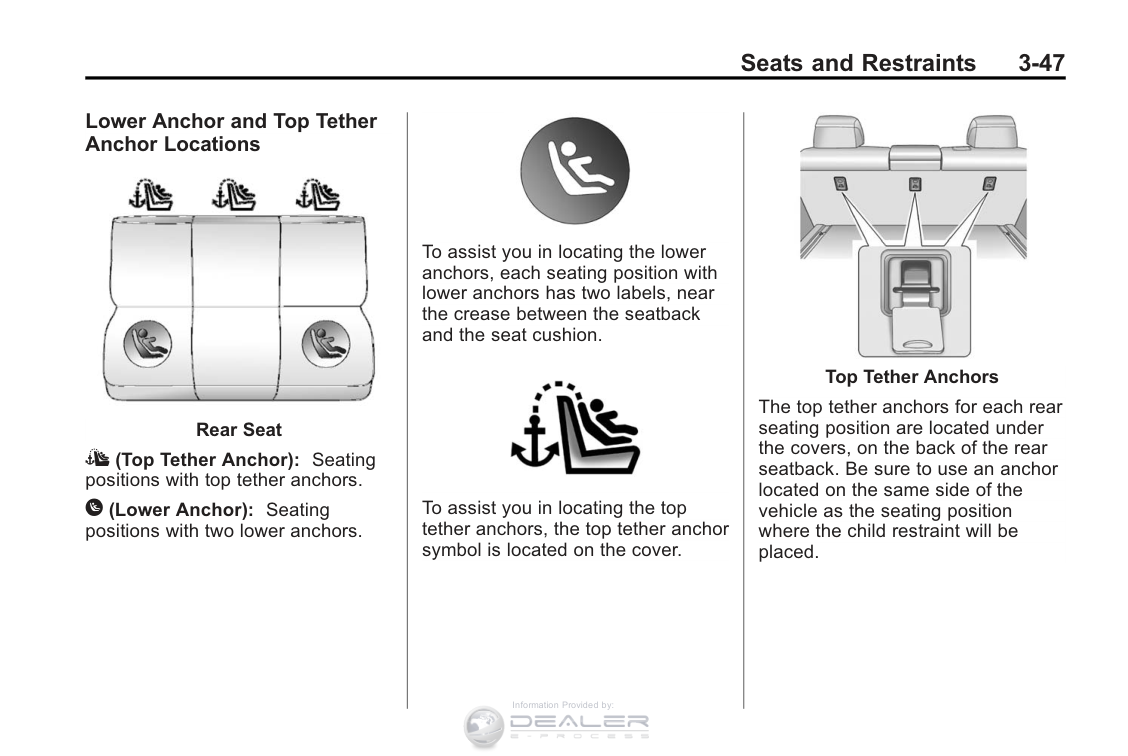

####### Lower Anchor and Top Tether Anchor Locations


######## Rear Seat

I (Top Tether Anchor): Seating positions with top tether anchors.

H (Lower Anchor): Seating positions with two lower anchors.


To assist you in locating the lower anchors, each seating position with lower anchors has two labels, near the crease between the seatback and the seat cushion.


To assist you in locating the top tether anchors, the top tether anchor symbol is located on the cover.


######## Top Tether Anchors

The top tether anchors for each rear seating position are located under the covers, on the back of the rear seatback. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.

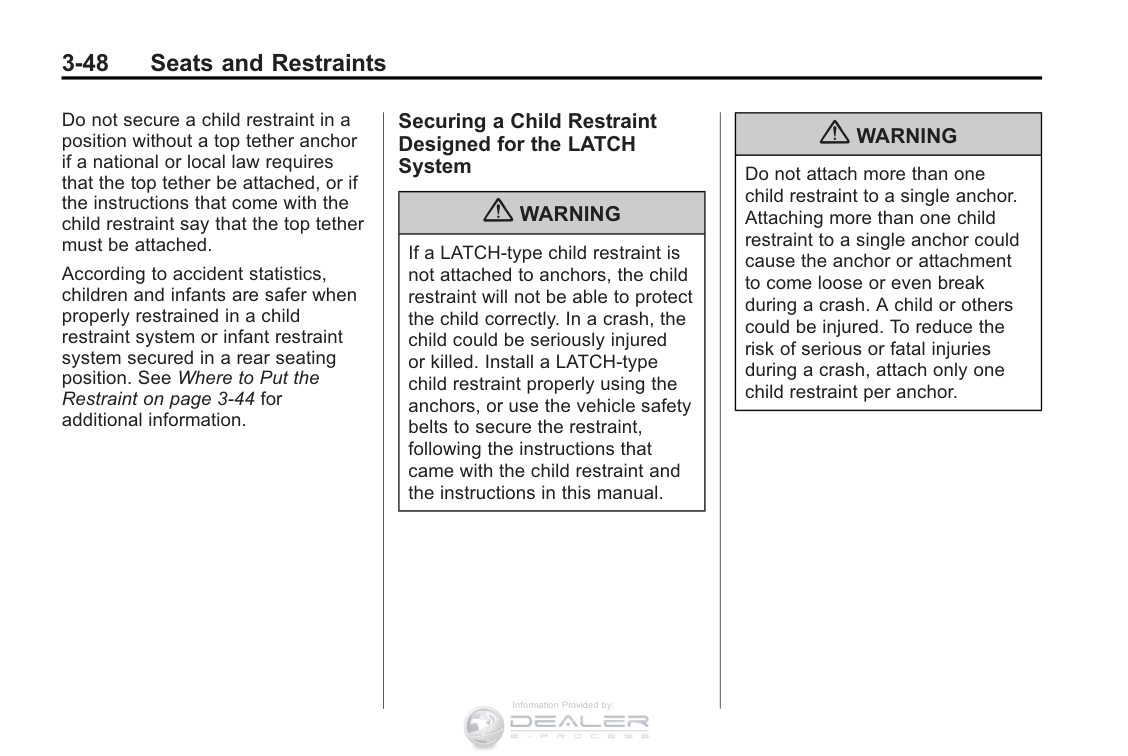

Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached.

According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. See Where to Put the Restraint on page 3￿44 for additional information.

####### Securing a Child Restraint Designed for the LATCH System

|{ WARNING| |---| |If a LATCH-type child restraint is not attached to anchors, the child restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Install a LATCH-type child restraint properly using the anchors, or use the vehicle safety belts to secure the restraint, following the instructions that came with the child restraint and the instructions in this manual.|

|{ WARNING| |---| |Do not attach more than one child restraint to a single anchor. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash. A child or others could be injured. To reduce the risk of serious or fatal injuries during a crash, attach only one child restraint per anchor.|

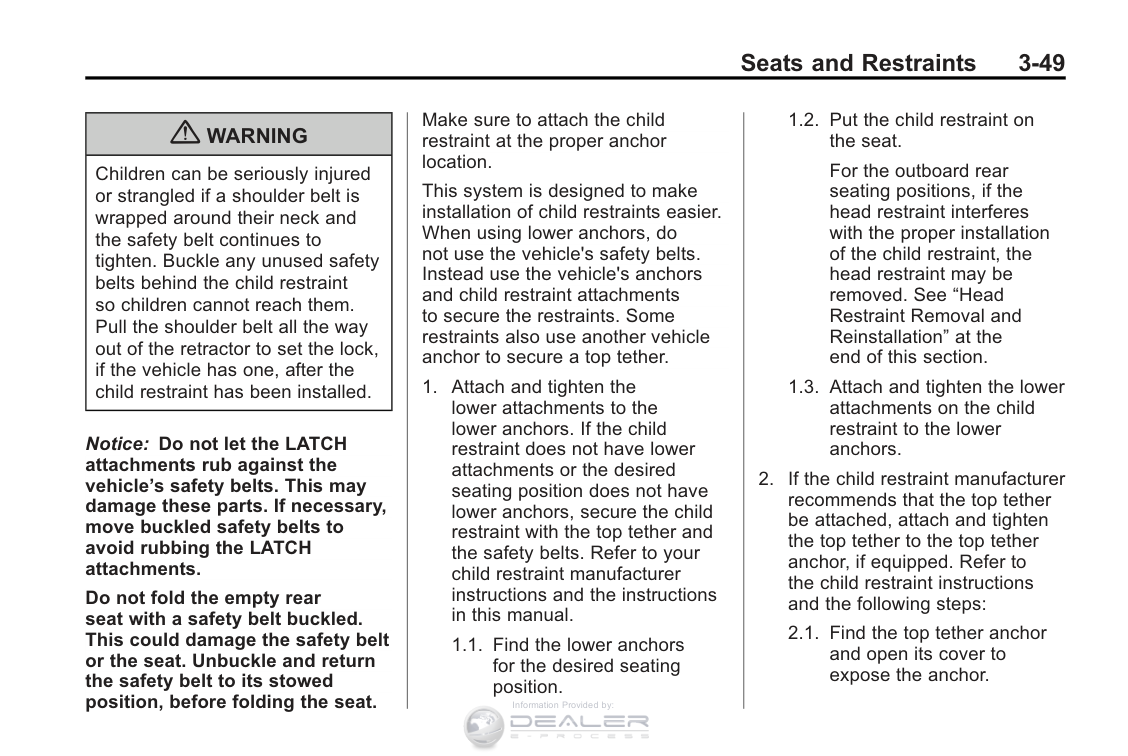

|{ WARNING| |---| |Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Buckle any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if the vehicle has one, after the child restraint has been installed.|

Notice: Do not let the LATCH attachments rub against the vehicle’ssafetybelts.Thismay damage these parts. If necessary, move buckled safety belts to avoid rubbing the LATCH attachments.

Do not fold the empty rear seat with a safety belt buckled. This could damage the safety belt or the seat. Unbuckle and return the safety belt to its stowed position, before folding the seat.

Make sure to attach the child restraint at the proper anchor location.

This system is designed to make installation of child restraints easier. When using lower anchors, do not use the vehicle's safety belts. Instead use the vehicle's anchors and child restraint attachments to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether.

1.1. Find the lower anchors for the desired seating position.



For the outboard rear seating positions, if the head restraint interferes with the proper installation of the child restraint, the head restraint may be removed. See “Head Restraint Removal and Reinstallation” at the end of this section.

2.1. Find the top tether anchor and open its cover to expose the anchor.

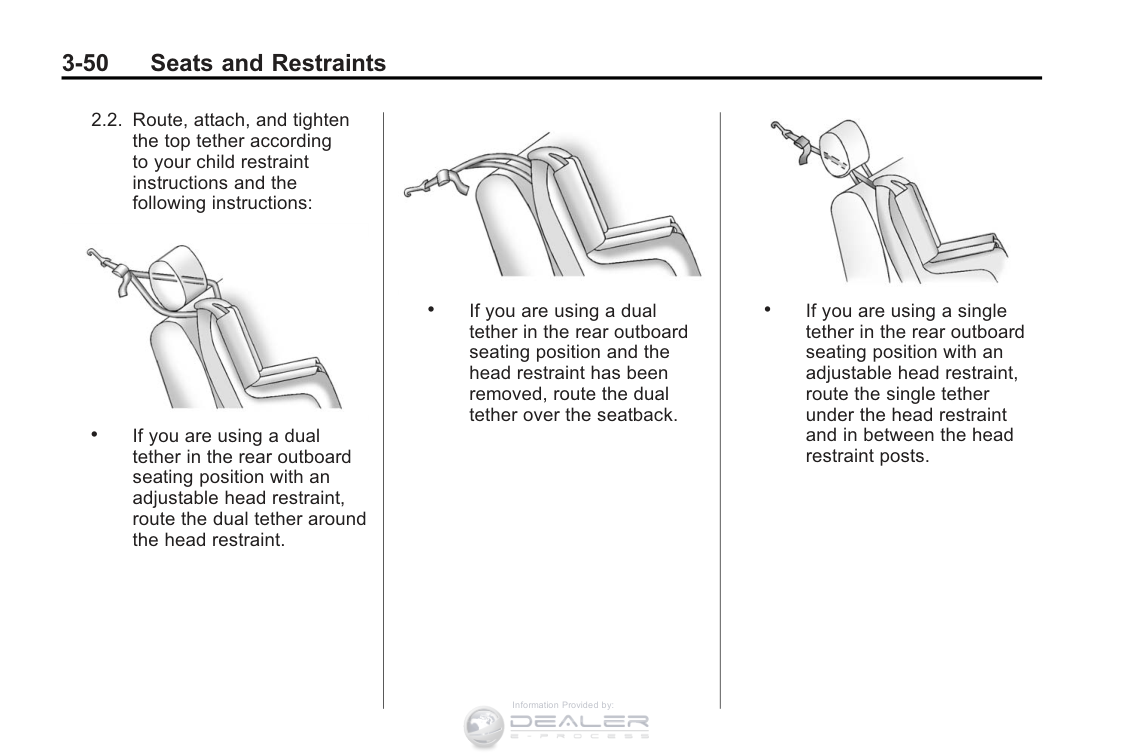

2.2. Route, attach, and tighten the top tether according to your child restraint instructions and the following instructions:


. If you are using a dual tether in the rear outboard seating position with an adjustable head restraint, route the dual tether around the head restraint.


. If you are using a dual tether in the rear outboard seating position and the head restraint has been removed, route the dual tether over the seatback.


. If you are using a single tether in the rear outboard seating position with an adjustable head restraint, route the single tether under the head restraint and in between the head restraint posts.


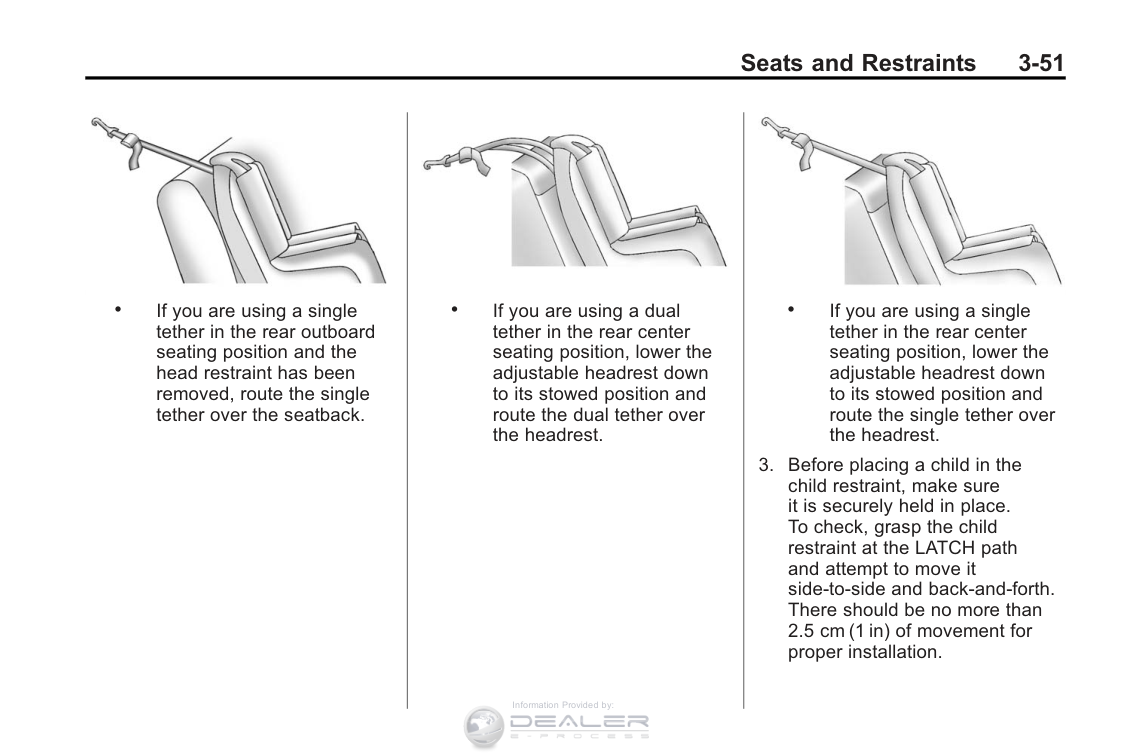

. If you are using a single tether in the rear outboard seating position and the head restraint has been removed, route the single tether over the seatback.


. If you are using a dual tether in the rear center seating position, lower the adjustable headrest down to its stowed position and route the dual tether over the headrest.


. If you are using a single tether in the rear center seating position, lower the adjustable headrest down to its stowed position and route the single tether over the headrest.

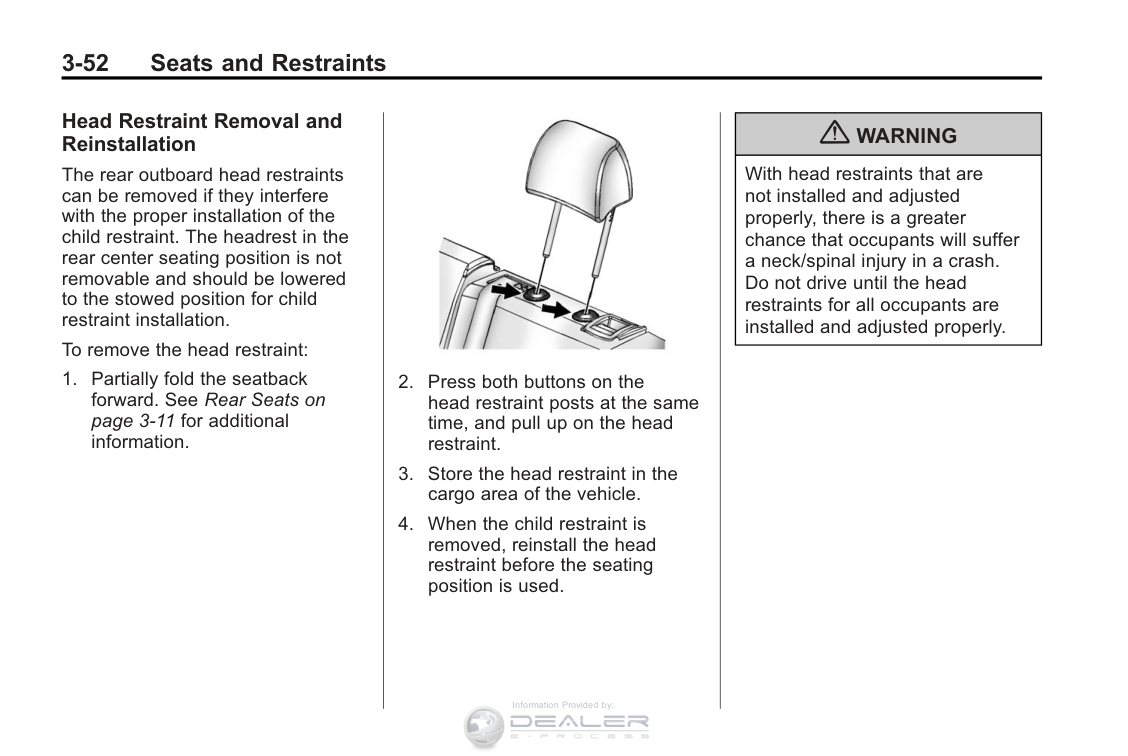

####### Head Restraint Removal and Reinstallation

The rear outboard head restraints can be removed if they interfere with the proper installation of the child restraint. The headrest in the rear center seating position is not removable and should be lowered to the stowed position for child restraint installation.

To remove the head restraint: 1. Partially fold the seatback

forward. See Rear Seats on page 3￿11 for additional information.


|{ WARNING| |---| |With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer aneck/spinalinjuryinacrash. Do not drive until the head restraints for all occupants are installed and adjusted properly.|

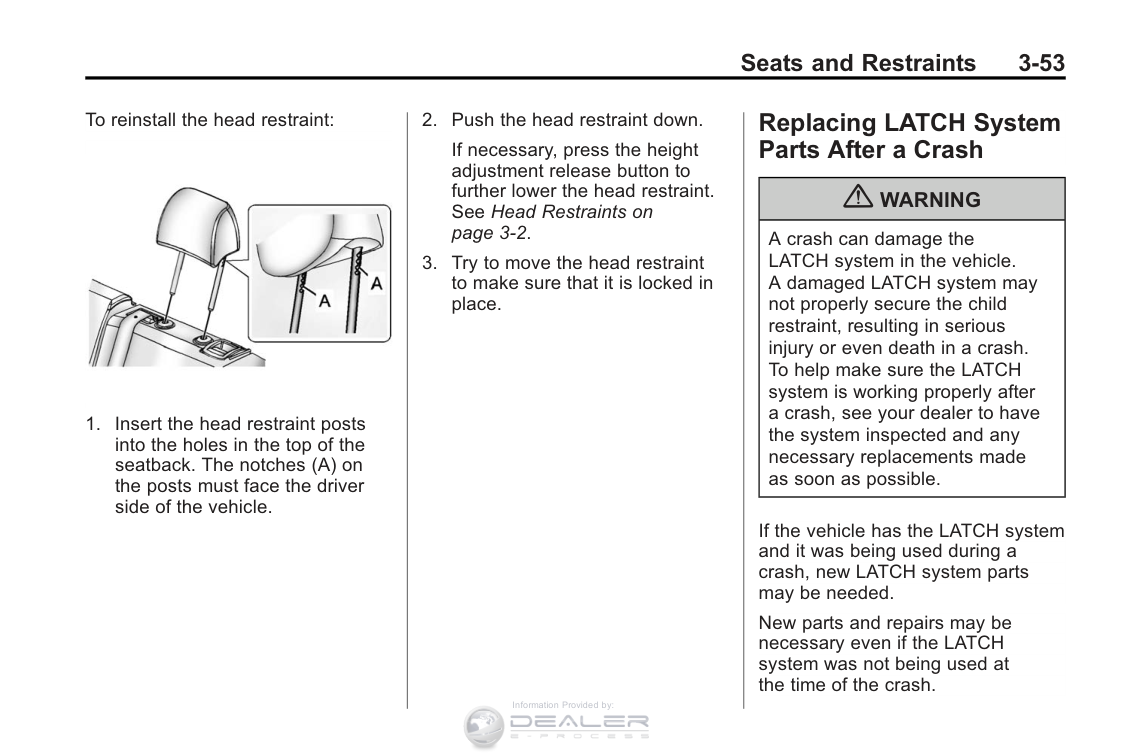

To reinstall the head restraint:


If necessary, press the height adjustment release button to further lower the head restraint. See Head Restraints on page 3￿2.



#### Replacing LATCH System Parts After a Crash

|{ WARNING| |---| |Acrashcandamagethe LATCH system in the vehicle. AdamagedLATCHsystemmay not properly secure the child restraint, resulting in serious injury or even death in a crash. To help make sure the LATCH system is working properly after acrash,seeyourdealertohave the system inspected and any necessary replacements made as soon as possible.|

If the vehicle has the LATCH system and it was being used during a crash, new LATCH system parts may be needed.

New parts and repairs may be necessary even if the LATCH system was not being used at the time of the crash.

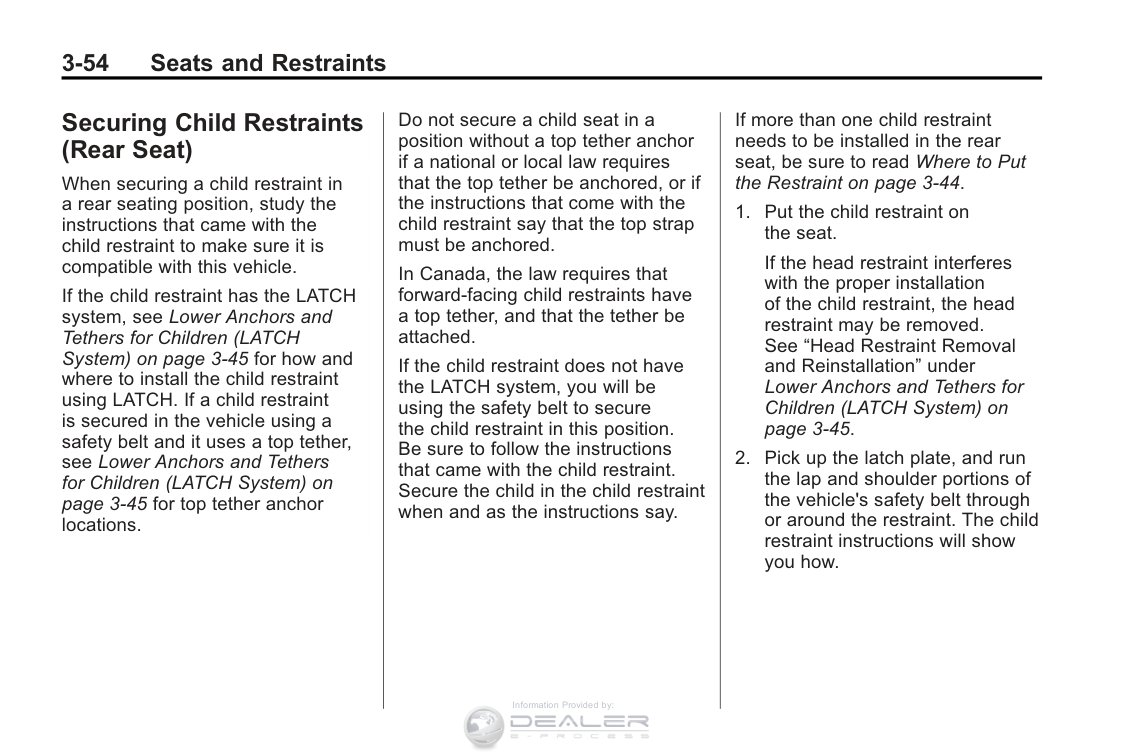

#### Securing Child Restraints (Rear Seat)

When securing a child restraint in arearseatingposition,studythe instructions that came with the child restraint to make sure it is compatible with this vehicle.

If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH System) on page 3￿45 for how and where to install the child restraint using LATCH. If a child restraint is secured in the vehicle using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH System) on page 3￿45 for top tether anchor locations.

Do not secure a child seat in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.

In Canada, the law requires that forward-facing child restraints have atoptether,andthatthetetherbe attached.

If the child restraint does not have the LATCH system, you will be using the safety belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

If more than one child restraint needs to be installed in the rear seat, be sure to read Where to Put the Restraint on page 3￿44.

If the head restraint interferes with the proper installation of the child restraint, the head restraint may be removed. See “Head Restraint Removal and Reinstallation” under Lower Anchors and Tethers for Children (LATCH System) on page 3￿45.






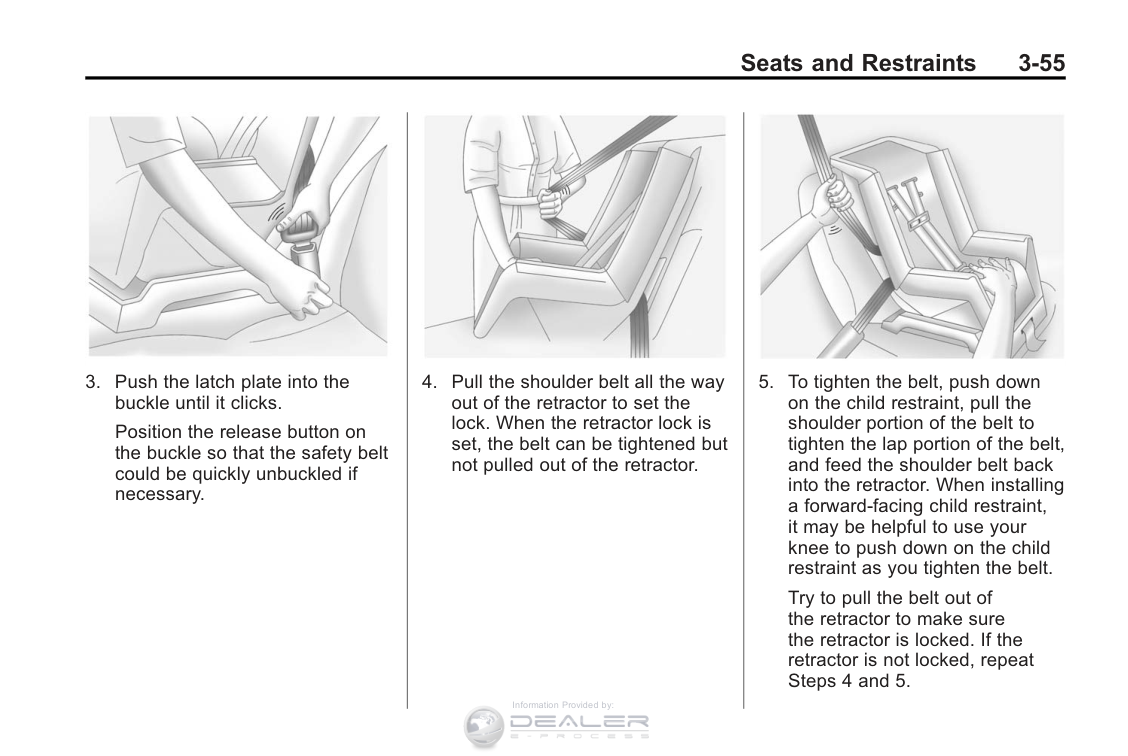

Try to pull the belt out of the retractor to make sure the retractor is locked. If the retractor is not locked, repeat Steps 4 and 5.

To remove the child restraint, unbuckle the vehicle safety belt and let it return to the stowed position. If the top tether is attached to a top tether anchor, disconnect it. If the head restraint was removed, reinstall it before the seating position is used. See “Head Restraint Removal and Reinstallation” under Lower Anchors and Tethers for Children (LATCH System) on page 3￿45 for additional information on installing the head restraint properly.

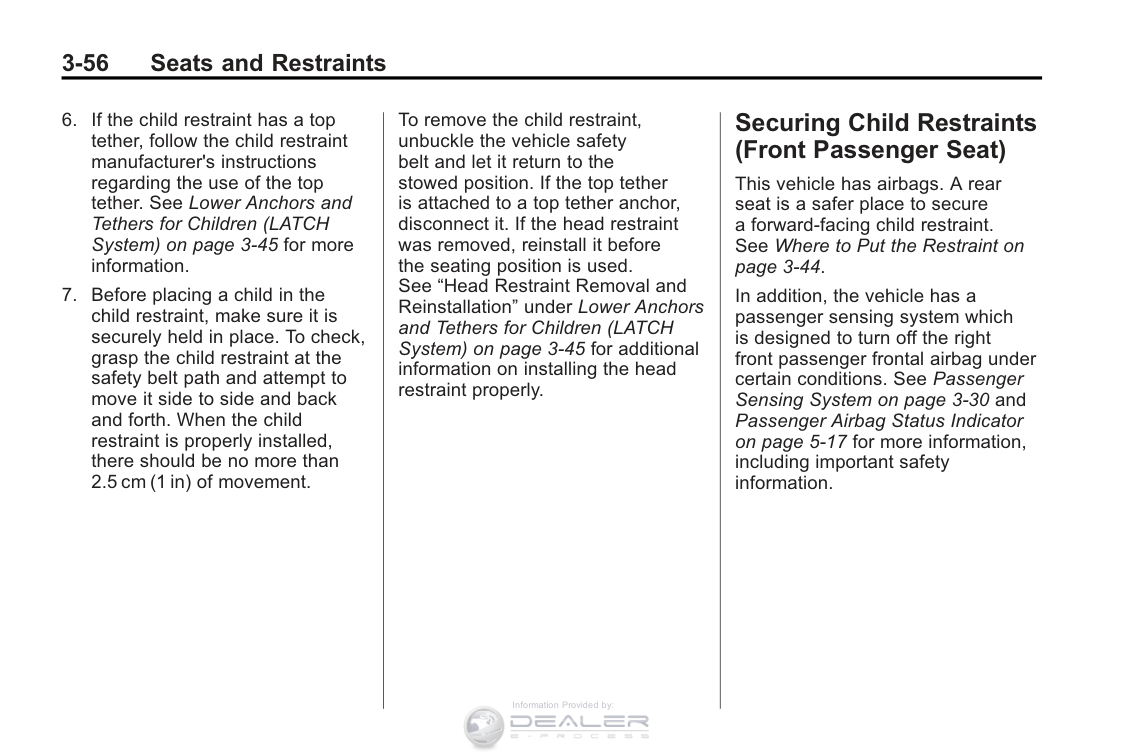

Securing Child Restraints (Front Passenger Seat) This vehicle has airbags. A rear seat is a safer place to secure aforward-facingchildrestraint. See Where to Put the Restraint on page 3￿44.

In addition, the vehicle has a passenger sensing system which is designed to turn off the right front passenger frontal airbag under certain conditions. See Passenger Sensing System on page 3￿30 and Passenger Airbag Status Indicator on page 5￿17 for more information, including important safety information.

Alabelonthesunvisorsays, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

|{ WARNING| |---| |Achildinarear-facingchild restraint can be seriously injured or killed if the right front passenger airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates and the passenger seat is in a forward position.

(Continued)|

|WARNING (Continued)| |---| |Even if the passenger sensing system has turned off the right front passenger frontal airbag, no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.

Secure rear-facing child restraints in a rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

See Passenger Sensing System on page 3￿30 for additional information.|

If the vehicle does not have a rear seat that will accommodate arear￿facing child restraint, a rear￿facing child restraint should not be installed in the vehicle, even if the airbag is off.

If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH System) on page 3￿45 for how and where to install the child restraint using LATCH. If a child restraint is secured using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH System) on page 3￿45 for top tether anchor locations.

Do not secure a child seat in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.

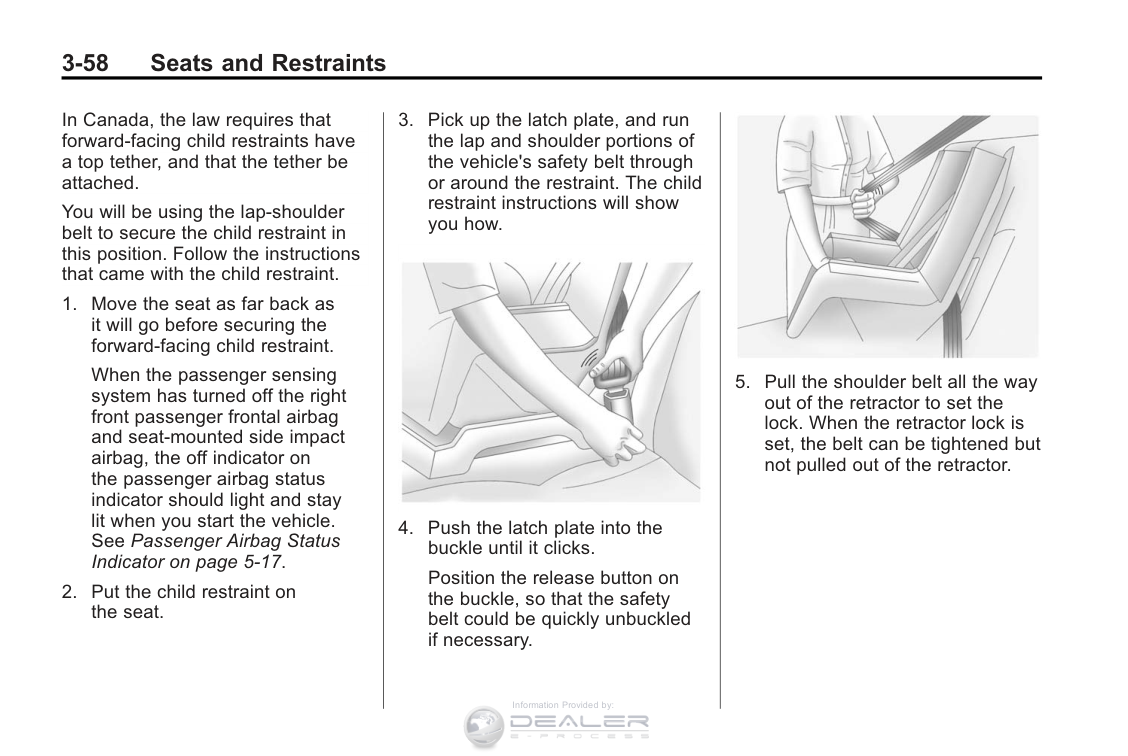

In Canada, the law requires that forward-facing child restraints have atoptether,andthatthetetherbe attached.

You will be using the lap-shoulder belt to secure the child restraint in this position. Follow the instructions that came with the child restraint.

When the passenger sensing system has turned off the right front passenger frontal airbag and seat￿mounted side impact airbag, the off indicator on the passenger airbag status indicator should light and stay lit when you start the vehicle. See Passenger Airbag Status Indicator on page 5￿17.


Position the release button on the buckle, so that the safety belt could be quickly unbuckled if necessary.



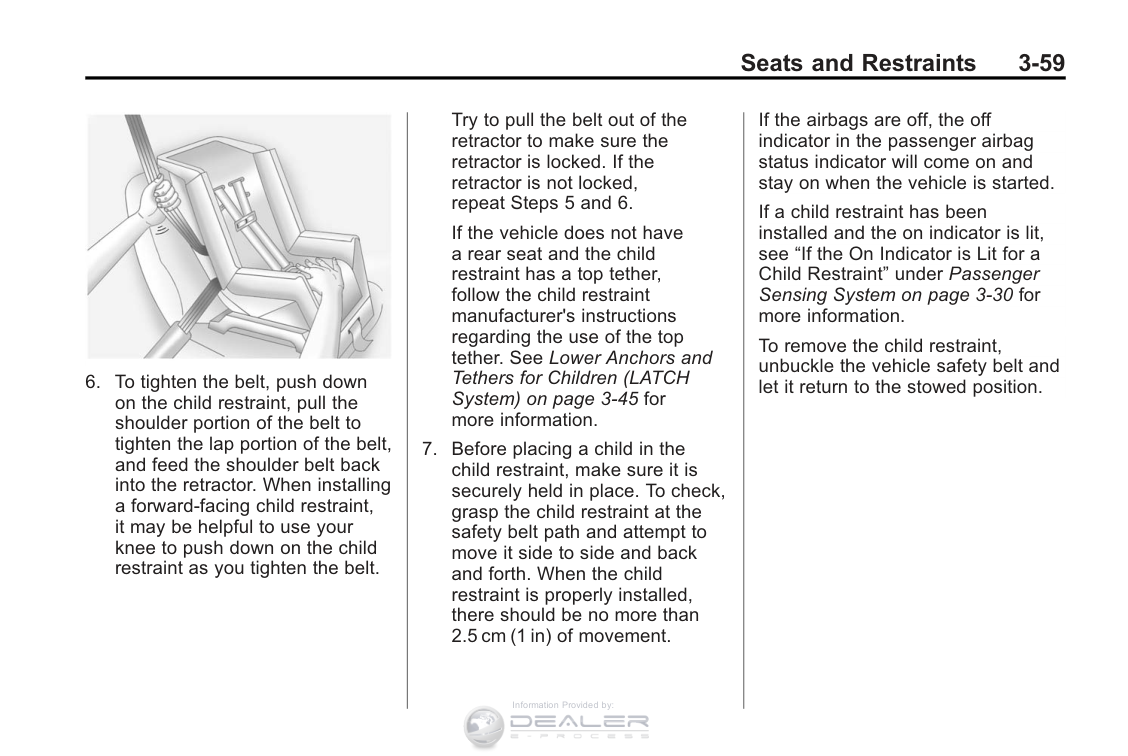

Try to pull the belt out of the retractor to make sure the retractor is locked. If the retractor is not locked, repeat Steps 5 and 6.

If the vehicle does not have arearseatandthechild restraint has a top tether, follow the child restraint manufacturer's instructions regarding the use of the top tether. See Lower Anchors and Tethers for Children (LATCH System) on page 3￿45 for more information.

If the airbags are off, the off indicator in the passenger airbag status indicator will come on and stay on when the vehicle is started.

If a child restraint has been installed and the on indicator is lit, see “If the On Indicator is Lit for a Child Restraint” under Passenger Sensing System on page 3￿30 for more information.

To remove the child restraint, unbuckle the vehicle safety belt and let it return to the stowed position.

2 NOTES

Storage

####### Storage Compartments

Glove Box .... . . . . . . . . . . . . . . . . 4-1 Cupholders .... . . . . . . . . . . . . . . . 4-1 Front Storage .... . . . . . . . . . . . . . 4-2 Armrest Storage .... . . . . . . . . . . 4-2 Center Console Storage .... . . 4-2

####### Additional Storage Features

Cargo Cover .... . . . . . . . . . . . . . . 4-3 Cargo Tie-Downs .... . . . . . . . . . 4-4 Cargo Management

System .... .. .. .. .. .. .. .. .. .. 4-4 Cargo Net ..................... 4-9 Convenience Net .... . . . . . . . . 4-10

####### Roof Rack System

Roof Rack System .... . . . . . . . 4-11

Storage Compartments

#### Glove Box

Lift the glove box handle up to open it. Use the key to lock and unlock the glove box.


The glove box is air conditioned and can be used to store items at a lower temperature. The vehicle air conditioning must be turned on for the maximum cool air to enter the glove box. Move the slide control to



allow cool air into the glove box. After opening the air flow, close the glove box door to keep the cold air from entering the vehicle.

#### Cupholders


This vehicle has a cupholder equipped with a divider that can be adjusted to accommodate large containers or small containers.

For large containers, push the button to move aside the divider and make the cupholder deeper.

For small containers, push down on the top edge of the divider to lock it back in place and make the cupholder shorter.

#### Front Storage


Astorageareaislocatedinfront of the shift lever. Push upward on the top of the door and release; the door automatically opens.

There is an accessory power outlet inside. See Power Outlets on page 5￿9.

#### Armrest Storage

For vehicles with a rear seat armrest, pull the rear seat armrest forward to access cupholders with removable liners. For vehicles with arearstoragearea,pullthelever to access.

#### Center Console Storage

The center console has an armrest, upper storage tray, and a lower storage area.

The armrest can be adjusted to arearward,middle,andforward position. Slide the top of the armrest to adjust to the desired position. To access the storage, move the armrest to the full rearward position to access the storage compartment buttons. Push the driver side button to access the upper storage tray. Push the passenger side button to access the lower storage area.

There is an accessory power outlet inside the center console. See Power Outlets on page 5￿9 for more information.


Push the button to open the storage area located at the rear of the center console.

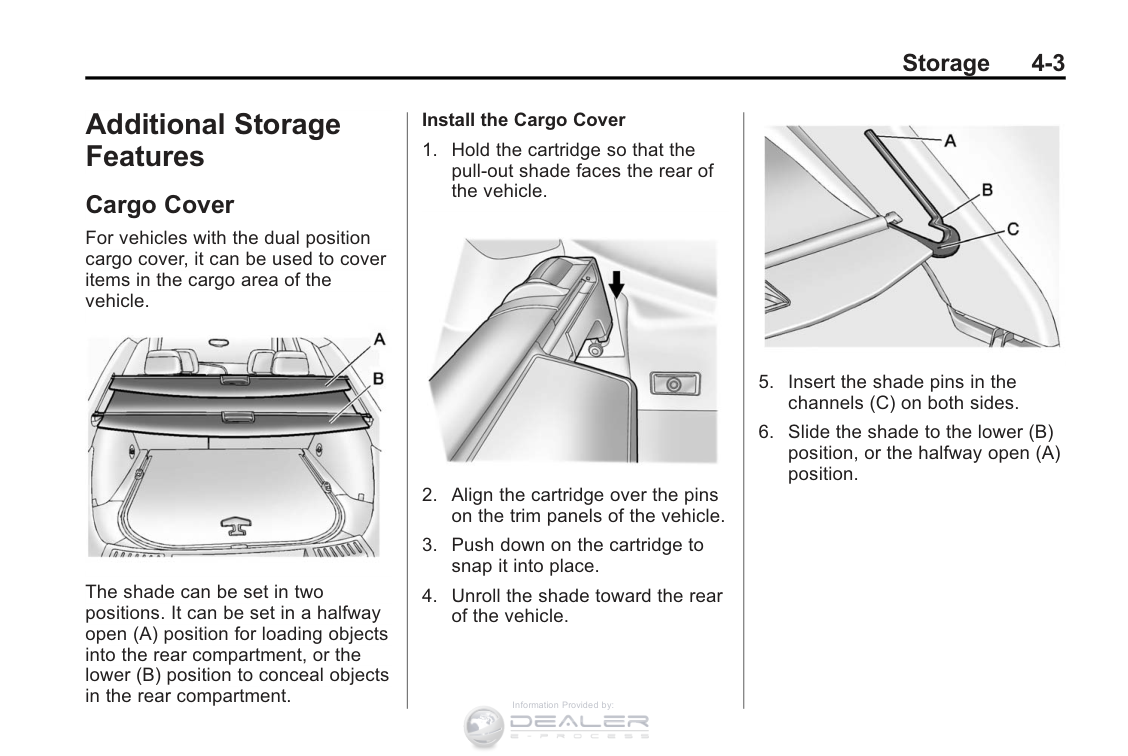

Additional Storage Features

#### Cargo Cover

For vehicles with the dual position cargo cover, it can be used to cover items in the cargo area of the vehicle.


The shade can be set in two positions. It can be set in a halfway open (A) position for loading objects into the rear compartment, or the lower (B) position to conceal objects in the rear compartment.

######## Install the Cargo Cover





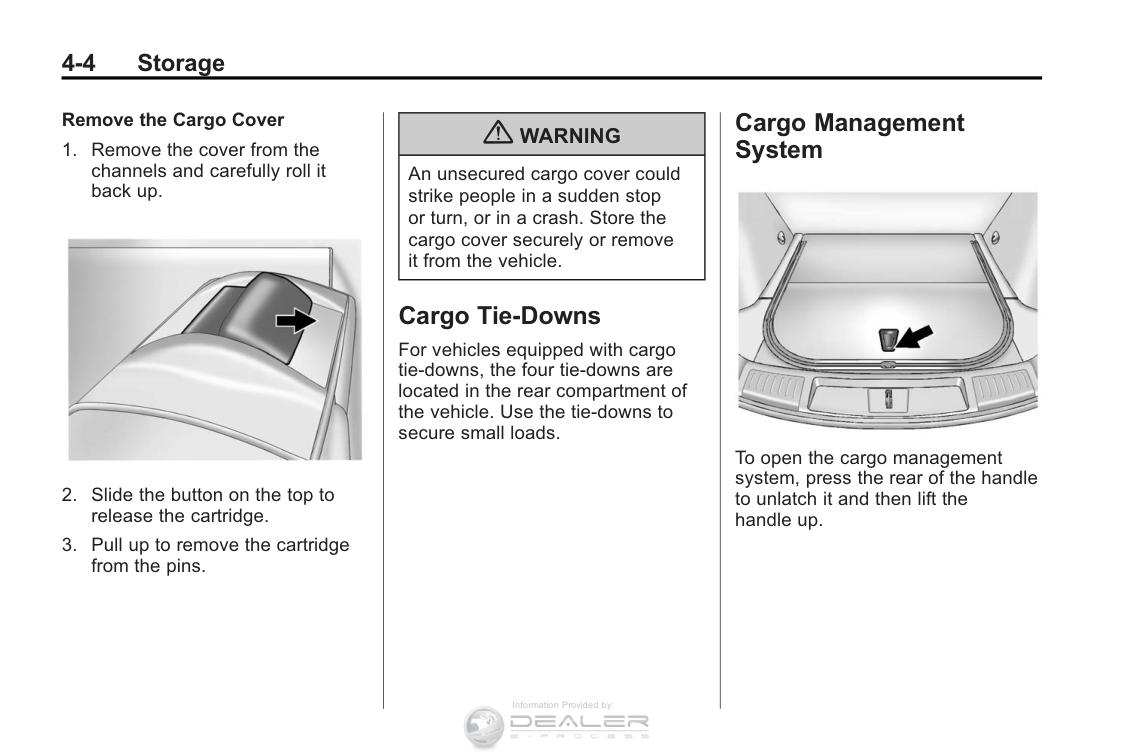

######## Remove the Cargo Cover


|{ WARNING| |---| |An unsecured cargo cover could strike people in a sudden stop or turn, or in a crash. Store the cargo cover securely or remove it from the vehicle.|

#### Cargo Tie-Downs

For vehicles equipped with cargo tie￿downs, the four tie-downs are located in the rear compartment of the vehicle. Use the tie-downs to secure small loads.

#### Cargo Management System


To open the cargo management system, press the rear of the handle to unlatch it and then lift the handle up.


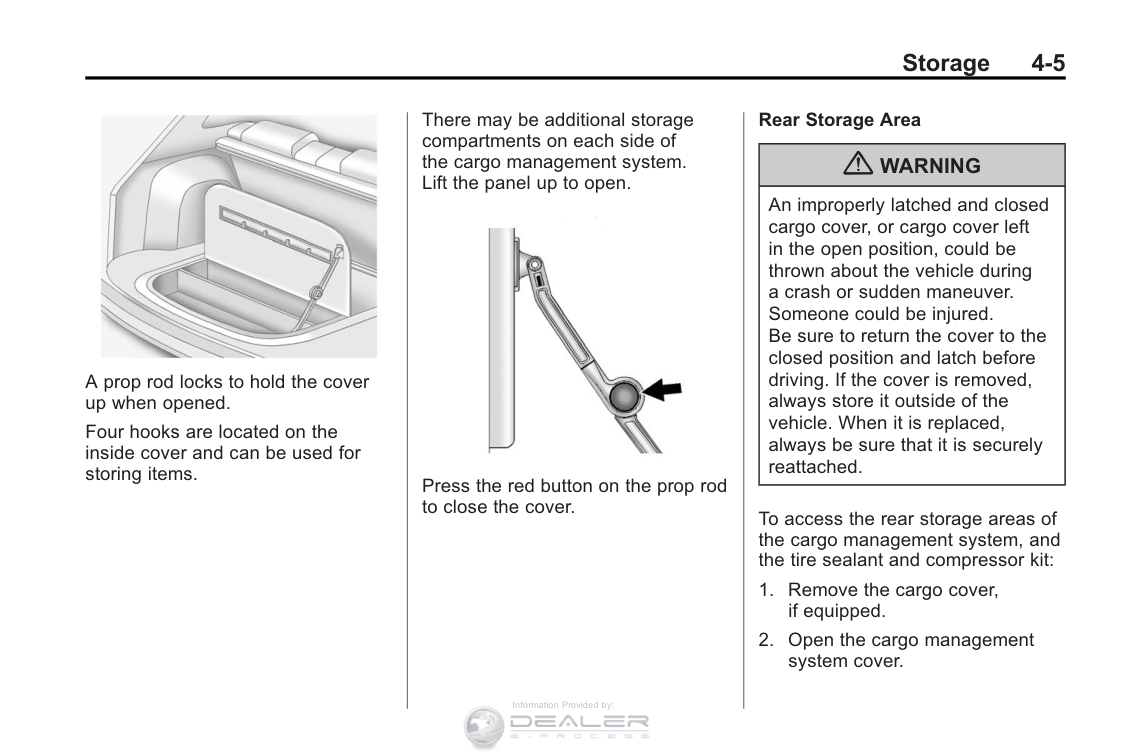

Aproprodlockstoholdthecover up when opened.

Four hooks are located on the inside cover and can be used for storing items.

There may be additional storage compartments on each side of the cargo management system. Lift the panel up to open.


Press the red button on the prop rod to close the cover.

######## Rear Storage Area

|{ WARNING| |---| |An improperly latched and closed cargo cover, or cargo cover left in the open position, could be thrown about the vehicle during acrashorsuddenmaneuver. Someone could be injured. Be sure to return the cover to the closed position and latch before driving. If the cover is removed, always store it outside of the vehicle. When it is replaced, always be sure that it is securely reattached.|

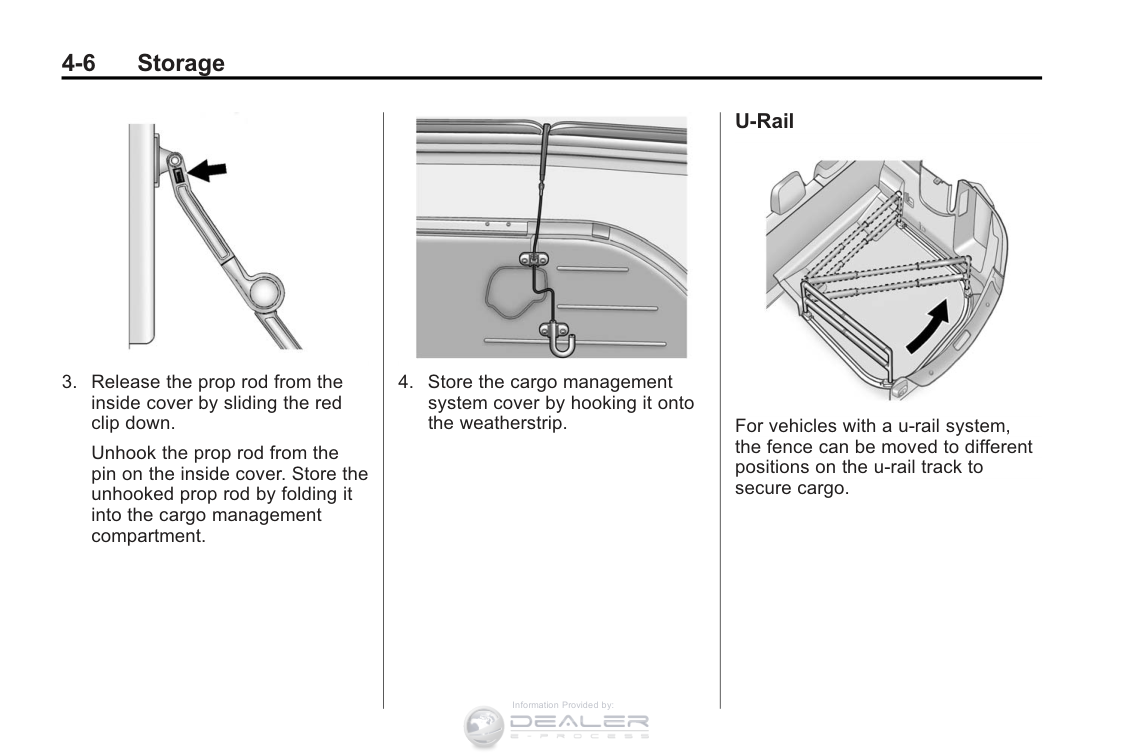

To access the rear storage areas of the cargo management system, and the tire sealant and compressor kit:


Unhook the prop rod from the pin on the inside cover. Store the unhooked prop rod by folding it into the cargo management compartment.


####### U-Rail


For vehicles with a u-rail system, the fence can be moved to different positions on the u-rail track to secure cargo.


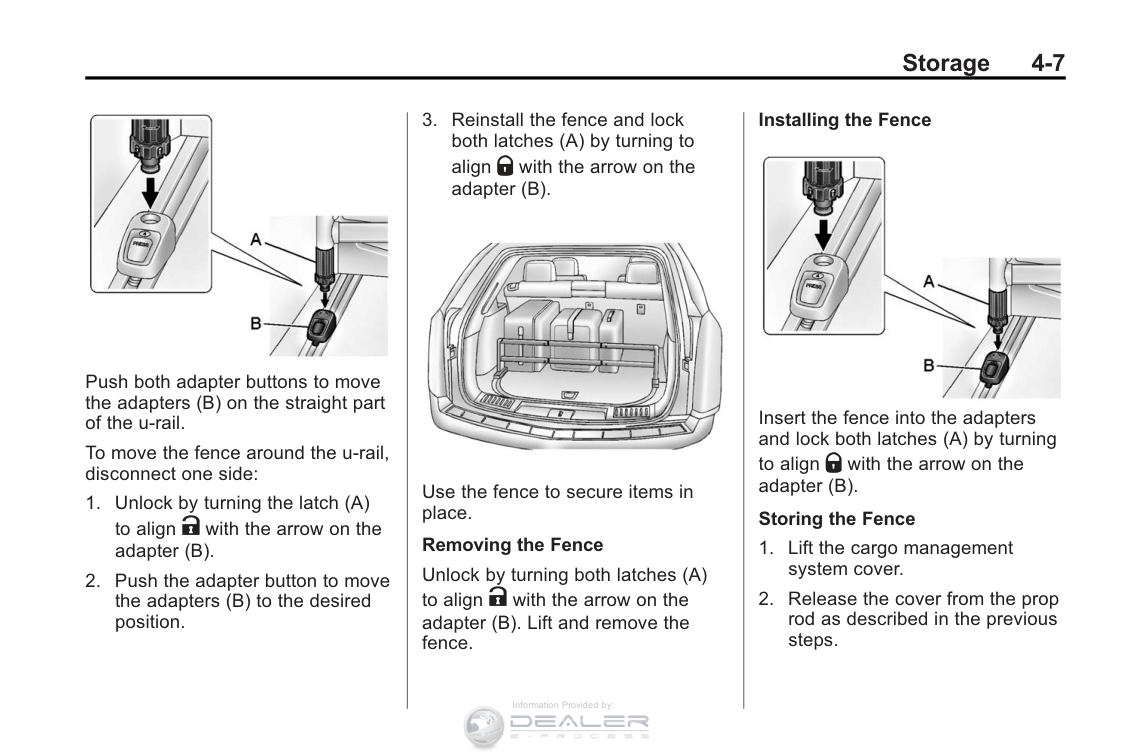

Push both adapter buttons to move the adapters (B) on the straight part of the u-rail.

To move the fence around the u-rail, disconnect one side:

both latches (A) by turning to align Q with the arrow on the adapter (B).


Use the fence to secure items in place.

Removing the Fence Unlock by turning both latches (A)

to align K with the arrow on the adapter (B). Lift and remove the fence.

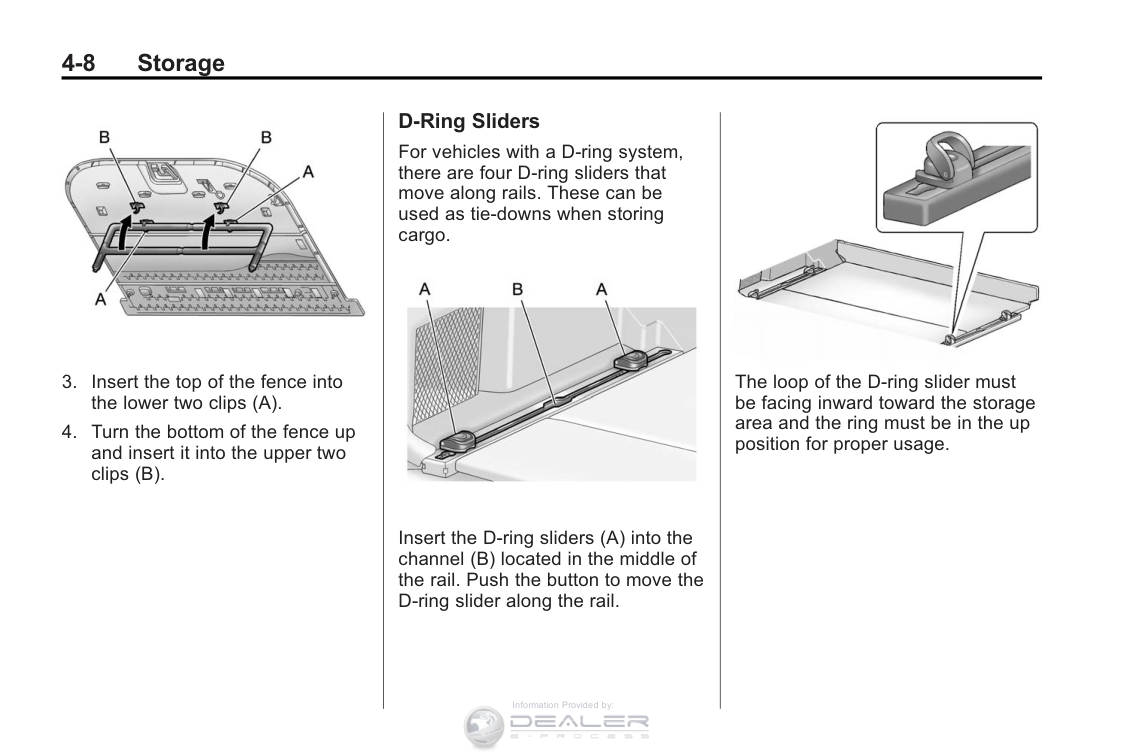

######## Installing the Fence


Insert the fence into the adapters and lock both latches (A) by turning to align Q with the arrow on the adapter (B). Storing the Fence


####### D-Ring Sliders

For vehicles with a D-ring system, there are four D-ring sliders that move along rails. These can be used as tie-downs when storing cargo.


Insert the D-ring sliders (A) into the channel (B) located in the middle of the rail. Push the button to move the D-ring slider along the rail.


The loop of the D-ring slider must be facing inward toward the storage area and the ring must be in the up position for proper usage.

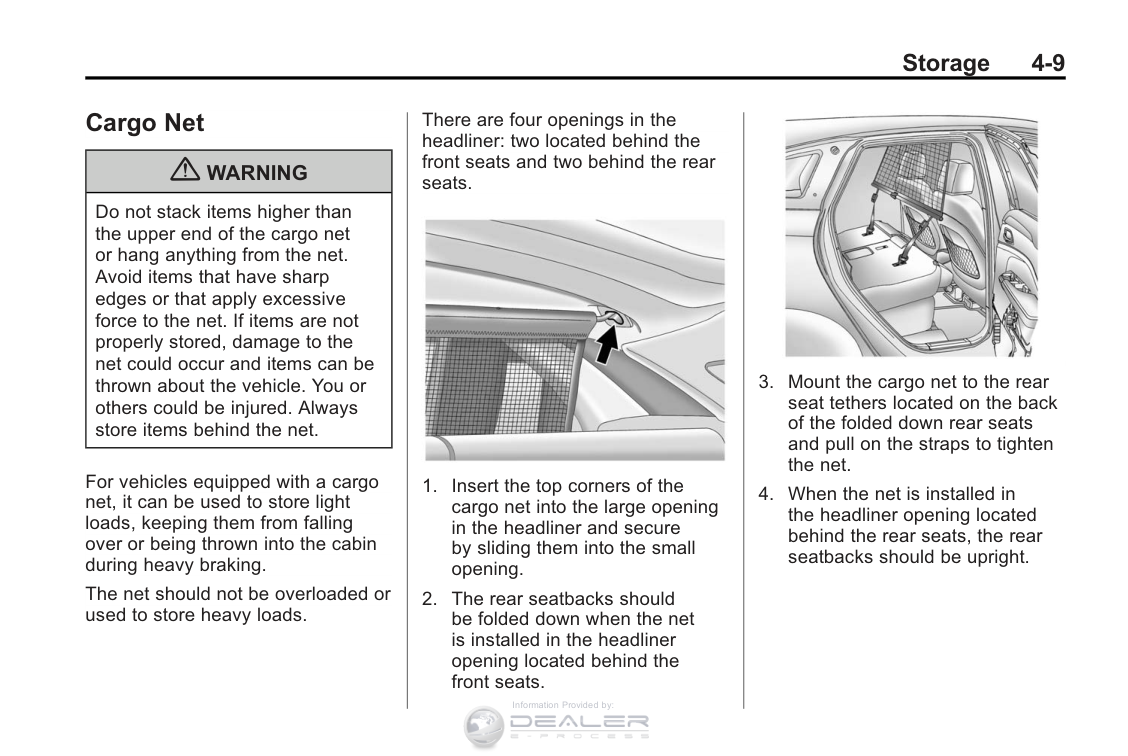

#### Cargo Net

|{ WARNING| |---|

|Do not stack items higher than the upper end of the cargo net or hang anything from the net. Avoid items that have sharp edges or that apply excessive force to the net. If items are not properly stored, damage to the net could occur and items can be thrown about the vehicle. You or others could be injured. Always store items behind the net.|

For vehicles equipped with a cargo net, it can be used to store light loads, keeping them from falling over or being thrown into the cabin during heavy braking.

The net should not be overloaded or used to store heavy loads.

There are four openings in the headliner: two located behind the front seats and two behind the rear seats.







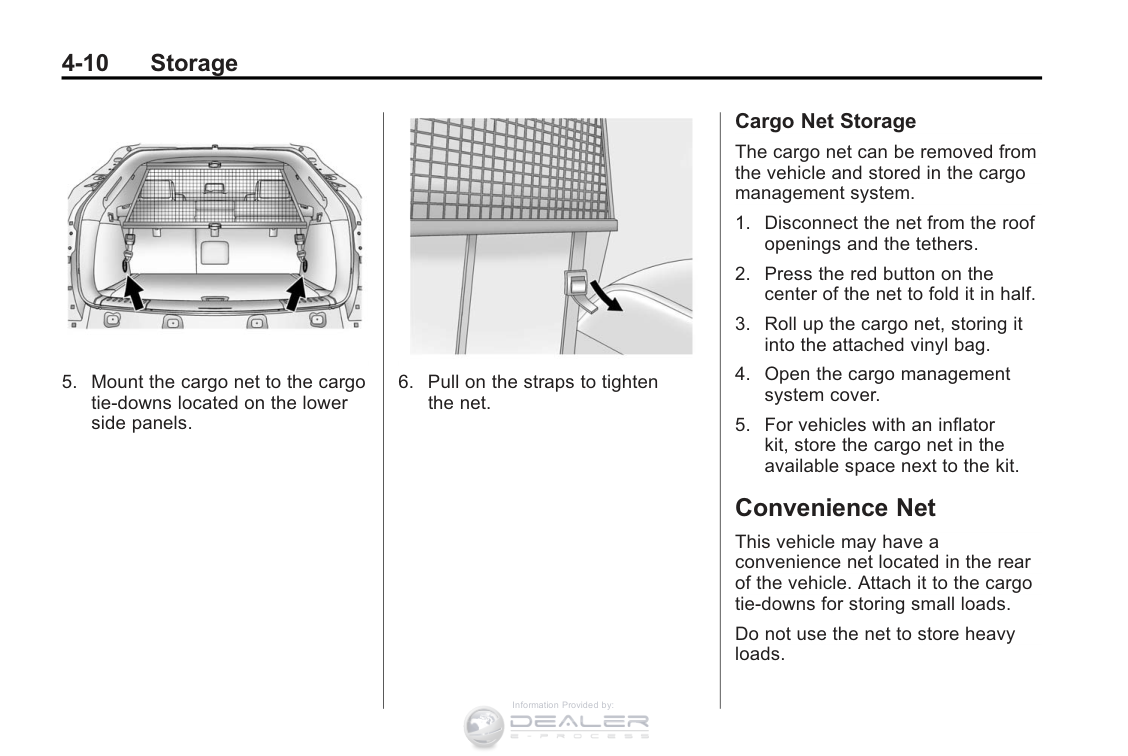

####### Cargo Net Storage

The cargo net can be removed from the vehicle and stored in the cargo management system.

Convenience Net This vehicle may have a convenience net located in the rear of the vehicle. Attach it to the cargo tie￿downs for storing small loads. Do not use the net to store heavy loads.

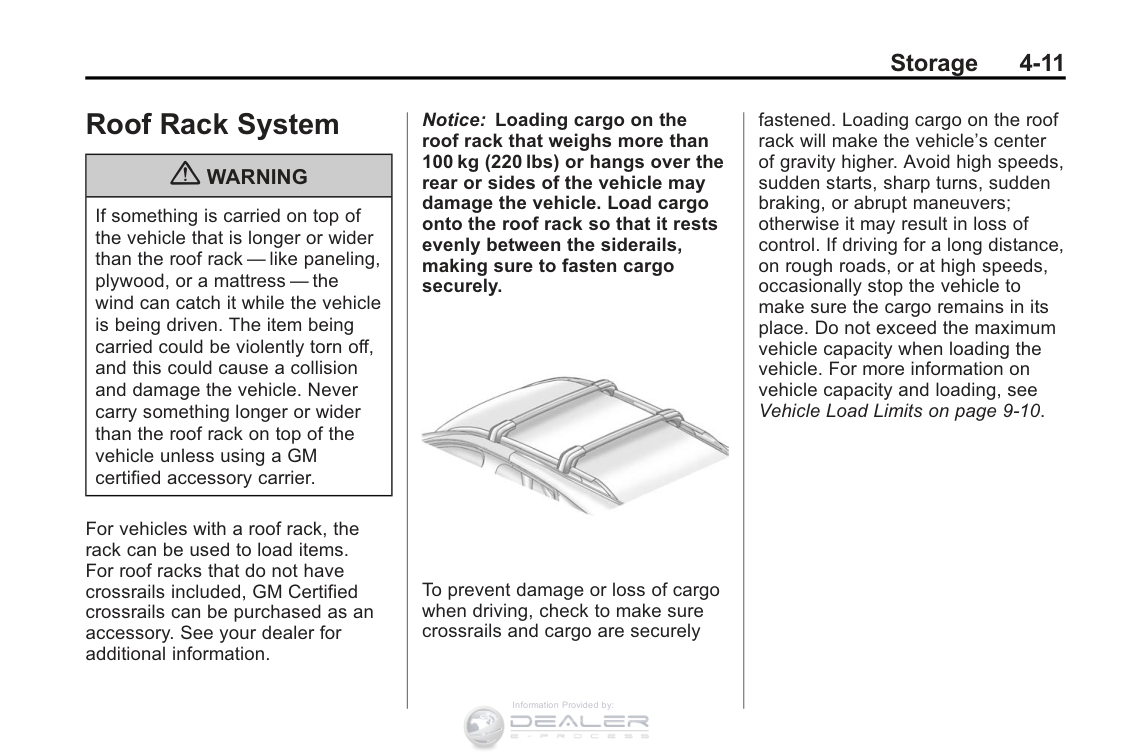

Roof Rack System

|{ WARNING| |---| |If something is carried on top of the vehicle that is longer or wider than the roof rack — like paneling, plywood, or a mattress — the wind can catch it while the vehicle is being driven. The item being carried could be violently torn off, and this could cause a collision and damage the vehicle. Never carry something longer or wider than the roof rack on top of the vehicle unless using a GM certified accessory carrier.|

For vehicles with a roof rack, the rack can be used to load items. For roof racks that do not have crossrails included, GM Certified crossrails can be purchased as an accessory. See your dealer for additional information.

Notice: Loading cargo on the roof rack that weighs more than 100 kg (220 lbs) or hangs over the rear or sides of the vehicle may damage the vehicle. Load cargo onto the roof rack so that it rests evenly between the siderails, making sure to fasten cargo securely.


To prevent damage or loss of cargo when driving, check to make sure crossrails and cargo are securely

fastened. Loading cargo on the roof rack will make the vehicle’scenter of gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking, or abrupt maneuvers; otherwise it may result in loss of control. If driving for a long distance, on rough roads, or at high speeds, occasionally stop the vehicle to make sure the cargo remains in its place. Do not exceed the maximum vehicle capacity when loading the vehicle. For more information on vehicle capacity and loading, see Vehicle Load Limits on page 9￿10.

2 NOTES

Instruments and Controls

####### Controls

Steering Wheel Adjustment ... 5-2 Steering Wheel Controls .... . . 5-2 Heated Steering Wheel .... . . . 5-3 Horn ..... . .. .. .. .. . .. .. .. . .. .. 5-4 Windshield Wiper/Washer .... . 5-4 Rear Window Wiper/

Washer . . . . . . . . . . . . . . . . . . . . . . 5-6 Headlamp Washer .... . . . . . . . . 5-7 Compass .... . . . . . . . . . . . . . . . . . 5-7 Clock (Analog Clock) .......... 5-7 Clock (Digital Clock) .... . . . . . . 5-8 Power Outlets ................. 5-9 Cigarette Lighter .... . . . . . . . . . . 5-9 Ashtrays ..................... 5-10

####### Warning Lights, Gauges, and Indicators

Warning Lights, Gauges, and

Indicators .... . . . . . . . . . . . . . . 5-10 Instrument Cluster .... . . . . . . . 5-11 Speedometer .... . . . . . . . . . . . . 5-12 Odometer .................... 5-12 Tachometer . . . . . . . . . . . . . . . . . . 5-12

Fuel Gauge .................. 5-12 Fuel Economy Gauge ........ 5-13 Engine Coolant Temperature

Gauge ...................... 5-14 Safety Belt Reminders .... . . . 5-15 Airbag Readiness Light .... . . 5-16 Passenger Airbag Status

Indicator .................... 5-17 Charging System Light .... . . 5-18 Malfunction

Indicator Lamp .... . . . . . . . . . 5-18 Brake System Warning

Light .... . . . . . . . . . . . . . . . . . . . 5-21 Electric Parking Brake

Light .... . . . . . . . . . . . . . . . . . . . 5-21 Antilock Brake System (ABS)

Warning Light . . . . . . . . . . . . . . 5-22 Traction Off Light . . . . . . . . . . . . 5-23 StabiliTrak® OFF Light .... . . . 5-23 Traction Control System

(TCS)/StabiliTrak® Light .... 5-24 Tire Pressure Light . . . . . . . . . . 5-24 Engine Oil Pressure Light .... 5-25 Fuel Economy Light .... . . . . . 5-25 Low Fuel Warning Light .... . . 5-26 Security Light .... ... .. .. .. ... 5-26 High-Beam On Light .... . . . . . 5-26 Adaptive Forward Lighting



(AFL) Light .... . . . . . . . . . . . . . 5-26

Front Fog Lamp Light .... . . . . 5-27 Lamps On Reminder .... . . . . . 5-27 Cruise Control Light .... . . . . . 5-27

####### Information Displays

Driver Information Center (DIC) .... . . . . . . . . . . . 5-27

Vehicle Messages Vehicle Messages . . . . . . . . . . . 5-32 Battery Voltage and Charging

Messages .... . .. .. .. . .. .. .. 5-32 Brake System Messages .... 5-33 Compass Messages .... . . . . . 5-33 Cruise Control Messages .... 5-33 Door Ajar Messages .... . . . . . 5-34 Engine Cooling System

Messages .... . .. .. .. . .. .. .. 5-34 Engine Oil Messages .... . . . . 5-35 Engine Power Messages .... 5-35 Fuel System Messages .... . . 5-35 Key and Lock Messages .... . 5-36 Lamp Messages .... . . . . . . . . . 5-36 Object Detection System

Messages .... . .. .. .. . .. .. .. 5-37 Ride Control System

Messages .... . .. .. .. . .. .. .. 5-37 Airbag System Messages .... 5-37 Safety Belt Messages .... . . . 5-38

Anti-theft Alarm System

Messages .... . .. .. .. . .. .. .. 5-38 Service Vehicle Messages ... 5-38 Starting the Vehicle

Tire Messages . . . . . . . . . . . . . . . 5-38 Transmission Messages . . . . . 5-39 Vehicle Reminder

Vehicle Speed Messages . . . . 5-40 Washer Fluid Messages . . . . . 5-40

####### Vehicle Personalization

Vehicle Personalization . . . . . . 5-40

Universal Remote System Universal Remote System ... 5-46 Universal Remote System

Programming ............... 5-46 Universal Remote System

Operation .... . . . . . . . . . . . . . . 5-49

Controls

#### Steering Wheel Adjustment


To adjust the steering wheel:



Do not adjust the steering wheel while driving.

#### Steering Wheel Controls


Use these controls, if equipped, to make audio adjustments at the steering wheel.

y or z : Press y to select the next favorite radio station or next CD, DVD, if equipped, or MP3 track.

Press z to select the previous favorite radio station or previous CD, DVD, if equipped, or MP3 track.

+ x − (Volume): Press + to increase the volume; press − to decrease the volume.

b / g (Push to Talk): For vehicles with an OnStar®,Bluetooth®, or navigation system, press to interact with those systems. See Bluetooth (Voice Recognition) on page 7￿55 or Bluetooth (Overview) on page 7￿49 or Bluetooth (UHP Mexico Only) on page 7￿62 or Bluetooth (Infotainment Controls) on page 7￿51, OnStar Overview on page 14￿1,ortheseparate navigation manual for more information.

0 / c (End Call/Mute): Press to silence the vehicle speakers only. Press again to turn the sound on. For vehicles with OnStar or Bluetooth systems, press to reject an incoming call, or end acurrentcall.

SRCE: Press to select an audio source. For vehicles with a heated steering wheel, use the infotainment buttons to select an audio source. See Heated Steering Wheel on page 5￿3 or Overview (Radio with CD) on page 7￿3 or Overview (Radio with CD/DVD and MEM) on page 7￿5 for more information.

#### Heated Steering Wheel


For vehicles with a heated steering wheel, the button for this feature is located on the steering wheel.

( (Heated Steering Wheel): Press to turn the heated steering wheel on or off. A light on the button displays when the feature is turned on.

The steering wheel takes about three minutes to start heating.

#### Horn

Press a on the steering wheel pad to sound the horn.

#### Windshield Wiper/Washer


The windshield wiper/washer lever is located on the right side of the steering column. With the ignition in ACC/ACCESSORY or ON/RUN/START, move the windshield wiper lever to select the wiper speed.

HI: Use for fast wipes. LO: Use for slow wipes.


INT: (Intermittent Wipes): Move the lever up to INT for intermittent wipes, then turn the x INT band up for more frequent wipes or down for less frequent wipes. If the vehicle has Rainsense™,seethe following Rainsense information. OFF: Use to turn the wipers off. 8 (Mist): For a single wipe, briefly move the wiper lever down. For several wipes, hold the wiper lever down.

Clear snow and ice from the wiper blades before using them. If frozen to the windshield, carefully loosen or thaw them. Damaged blades should be replaced. See Wiper

Blade Replacement on page 10￿27. Heavy snow or ice can overload the wiper motor.

######## Wipe Parking

If the ignition is changed to STOPPING THE ENGINE/OFF mode while the wipers are on 1, 2, or INT, they will immediately stop.

If the windshield wiper lever is then moved to off before the driver door is opened or within 10 minutes, the wipers will restart and move to the base of the windshield.

If the ignition is changed to STOPPING THE ENGINE/OFF while the wipers are performing wipes due to windshield washing, the wipers continue to run until they reach the base of the windshield.

####### Rainsense™

For vehicles with Rainsense, asensorlocatednearthetop center of the windshield detects the amount of water on the windshield and automatically controls the frequency of the windshield wiper.

Keep this area of the windshield clear of debris to allow for best system performance.


INT (Rainsense Wipe Sensitivity Control): Move the windshield

wiper lever to INT. Turn the x INT band on the wiper lever to adjust the sensitivity.

. Turn the band up for more sensitivity to moisture.

. Turn the band down for less sensitivity to moisture.

. Move the windshield wiper lever out of the INT position to deactivate Rainsense.

######## Wiper Arm Assembly Protection

When using an automatic car wash, move the windshield wiper lever to OFF. This disables the automatic Rainsense windshield wipers and/or rear wiper.

With Rainsense, if the transmission is in N (Neutral) and the vehicle speed is very slow, the wipers will automatically stop at the base of the windshield.

The wiper operations return to normal when the transmission is no longer in N (Neutral) or the vehicle speed has increased.

####### Windshield Washer

Pull the windshield wiper lever toward you to spray windshield washer fluid and activate the wipers. The wipers will continue until the lever is released or the maximum wash time is reached. When the windshield wiper lever is released, additional wipes may occur depending on how long the windshield washer had been activated. See Washer Fluid on

|{ WARNING| |---| |In freezing weather, do not use the washer until the windshield is warmed. Otherwise the washer fluid can form ice on the windshield, blocking your vision.|

#### Rear Window Wiper/Washer

The rear wiper controls are on the end of the windshield wiper lever.


ON: Press the upper portion of the button for continuous rear window wipes.

OFF: The rear wiper turns off when the button is returned to the middle position.

INT (Intermittent Rear Wipes): Press the lower portion of the button to set a delay between wipes. = (Rear Washer): Push the windshield wiper lever forward to spray washer fluid on the rear window. The lever automatically returns to its original position when released.



######## Reverse Gear Wipes

If the rear wiper control is off, the rear wiper will automatically operate continuously when the shift lever is in R (Reverse), and the front windshield wiper is performing low or high speed wipes. If the rear wiper control is off, the shift lever is in R (Reverse), and the front windshield wiper is performing interval wipes, then the rear wiper automatically performs interval wipes.

This feature can be changed. See Vehicle Personalization on page 5￿40.

The windshield washer reservoir is used for the windshield and the rear window. Check the fluid level in the reservoir if either washer is not working. See Washer Fluid on page 10￿21.

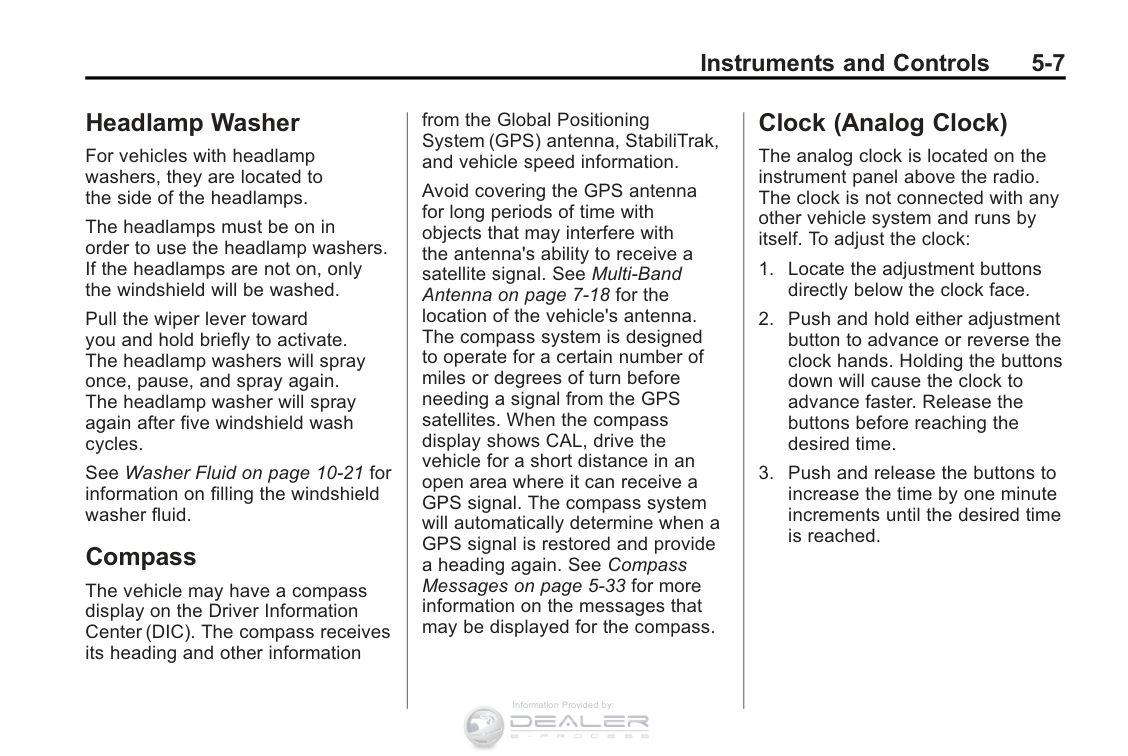

#### Headlamp Washer

For vehicles with headlamp washers, they are located to the side of the headlamps.

The headlamps must be on in order to use the headlamp washers. If the headlamps are not on, only the windshield will be washed.

Pull the wiper lever toward you and hold briefly to activate. The headlamp washers will spray once, pause, and spray again. The headlamp washer will spray again after five windshield wash cycles.

See Washer Fluid on page 10￿21 for information on filling the windshield washer fluid. Compass The vehicle may have a compass display on the Driver Information Center (DIC). The compass receives its heading and other information

from the Global Positioning System (GPS) antenna, StabiliTrak, and vehicle speed information.

Avoid covering the GPS antenna for long periods of time with objects that may interfere with the antenna's ability to receive a satellite signal. See Multi-Band Antenna on page 7￿18 for the location of the vehicle's antenna. The compass system is designed to operate for a certain number of miles or degrees of turn before needing a signal from the GPS satellites. When the compass display shows CAL, drive the vehicle for a short distance in an open area where it can receive a GPS signal. The compass system will automatically determine when a GPS signal is restored and provide aheadingagain.SeeCompass

Messages on page 5￿33 for more information on the messages that may be displayed for the compass.

#### Clock (Analog Clock)

The analog clock is located on the instrument panel above the radio. The clock is not connected with any other vehicle system and runs by itself. To adjust the clock:

#### Clock (Digital Clock)

The infotainment system controls are used to access the time and date settings through the menu system. See Operation on page 7￿7 for information about how to use the menu system. See the separate navigation manual for instructions on how to operate the digital clock for the navigation system.

To turn the digital clock on or off:

####### Setting the Time and Date

####### Setting the 12/24 Hour Format

####### Setting the Month & Day Format

####### Setting the Auto Time Adjust

#### Power Outlets

The accessory power outlets can be used to plug in electrical equipment, such as a cell phone or MP3 player.

The vehicle has four accessory power outlets. The power outlets located below the climate control system inside the front storage bin, inside the center floor console, and on the rear of the center floor console are powered while the vehicle is in ON/RUN/START or ACC/ACCESSORY mode, or until the driver door is opened within 10 minutes of turning off the vehicle.

The power outlet located in the rear cargo area is powered at all times.

There is a small cap that must be removed to access the accessory power outlet. When not using the outlet be sure to cover it with the protective cap.

Notice: Leaving electrical equipment plugged in for an extended period of time while the vehicle is off will drain the battery. Power is always supplied to the rear cargo outlet. Always unplug electrical equipment when not in use and do not plug in equipment that exceeds the maximum 20 ampere rating.

Certain accessory power plugs may not be compatible with the accessory power outlet and could overload vehicle or adapter fuses. If a problem is experienced, see your dealer.

When adding electrical equipment, be sure to follow the proper installation instructions included with the equipment. See Add-On Electrical Equipment on page 9￿61.

Notice: Hanging heavy equipment from the power outlet can cause damage not covered by the vehicle warranty. The power outlets are designed for accessory power plugs only, such as cell phone charge cords.

#### Cigarette Lighter

There may be a cigarette lighter located under the climate control system, inside the front storage bin.

To activate the cigarette lighter, push it into the heating element and let go. The lighter pops out when it is ready to be used.

Notice: Holding a cigarette lighter in while it is heating does not let the lighter back away from the heating element when it is hot. Damage from overheating can occur to the lighter or heating element, or a fuse could be blown. Do not hold a cigarette lighter in while it is heating.

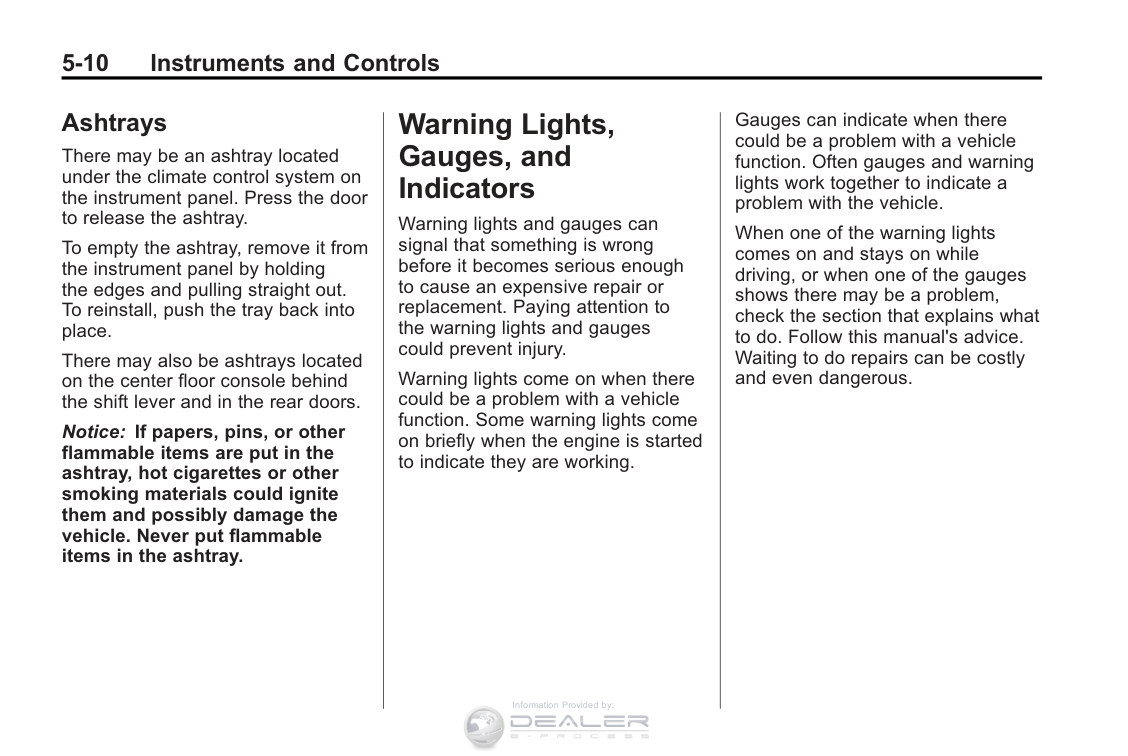

#### Ashtrays

There may be an ashtray located under the climate control system on the instrument panel. Press the door to release the ashtray.

To empty the ashtray, remove it from the instrument panel by holding the edges and pulling straight out. To reinstall, push the tray back into place.

There may also be ashtrays located on the center floor console behind the shift lever and in the rear doors.

Notice: If papers, pins, or other flammable items are put in the ashtray, hot cigarettes or other smoking materials could ignite

Warning Lights, Gauges, and Indicators

Warning lights and gauges can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to the warning lights and gauges could prevent injury.

Warning lights come on when there could be a problem with a vehicle function. Some warning lights come on briefly when the engine is started to indicate they are working.

Gauges can indicate when there could be a problem with a vehicle function. Often gauges and warning lights work together to indicate a problem with the vehicle.

When one of the warning lights comes on and stays on while driving, or when one of the gauges shows there may be a problem, check the section that explains what to do. Follow this manual's advice. Waiting to do repairs can be costly and even dangerous.

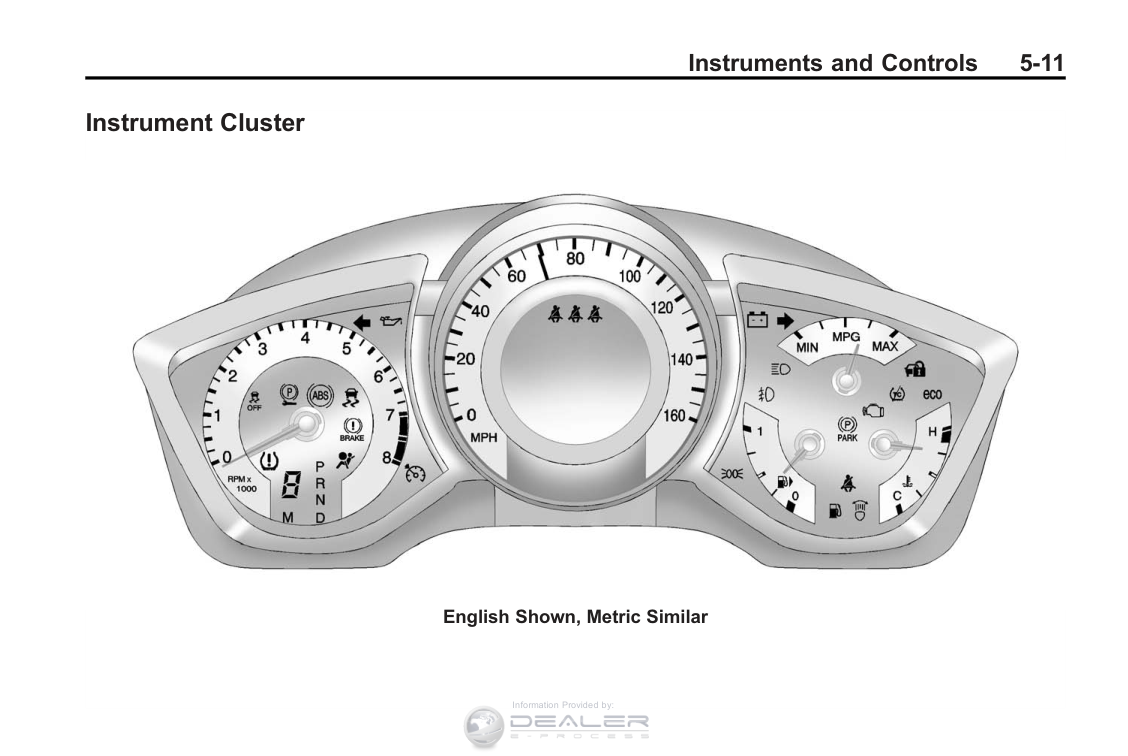

#### Instrument Cluster


English Shown, Metric Similar

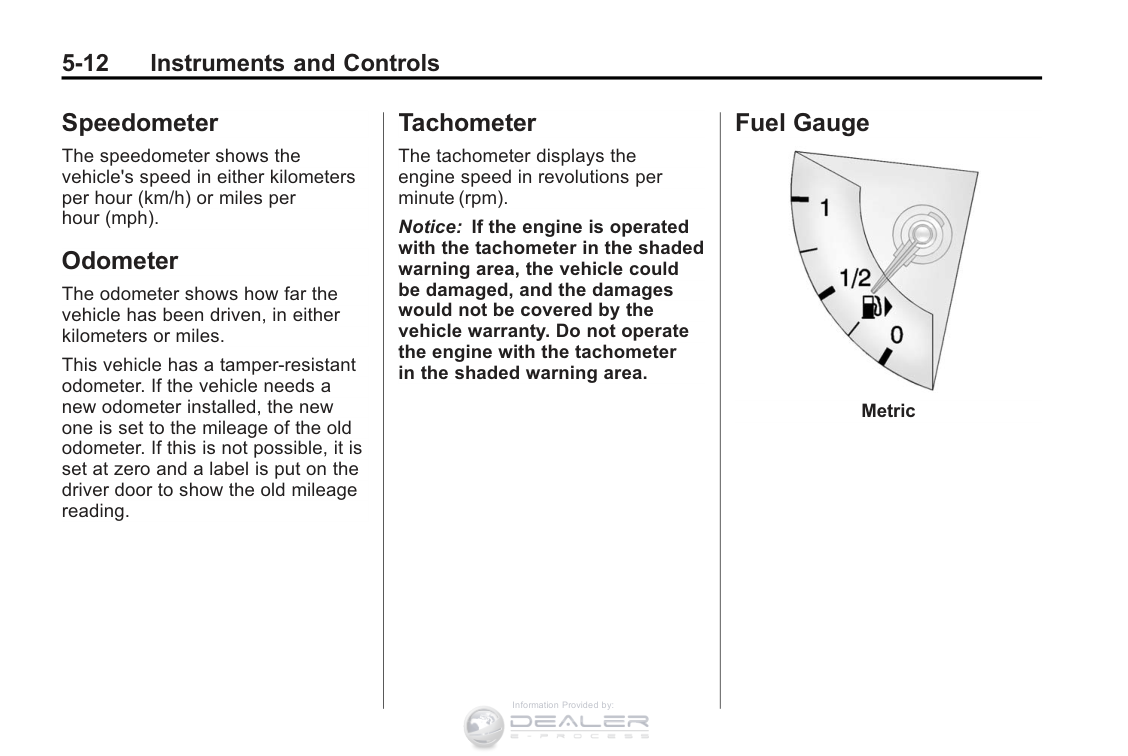

#### Speedometer

The speedometer shows the vehicle's speed in either kilometers per hour (km/h) or miles per hour (mph).

#### Odometer

The odometer shows how far the vehicle has been driven, in either kilometers or miles.

This vehicle has a tamper-resistant odometer. If the vehicle needs a new odometer installed, the new one is set to the mileage of the old odometer. If this is not possible, it is set at zero and a label is put on the driver door to show the old mileage reading.

#### Tachometer

The tachometer displays the engine speed in revolutions per minute (rpm).

Notice: If the engine is operated with the tachometer in the shaded warning area, the vehicle could be damaged, and the damages would not be covered by the vehicle warranty. Do not operate the engine with the tachometer in the shaded warning area.

#### Fuel Gauge


Metric


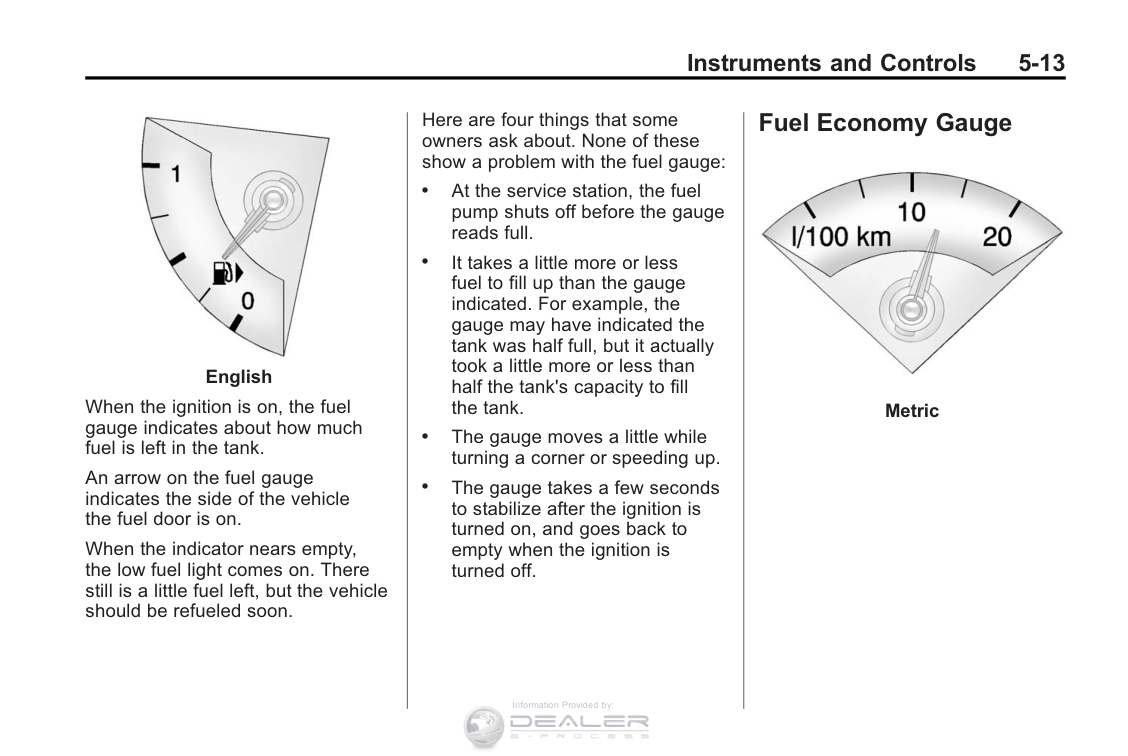

######## English

When the ignition is on, the fuel gauge indicates about how much fuel is left in the tank.

An arrow on the fuel gauge indicates the side of the vehicle the fuel door is on.

When the indicator nears empty, the low fuel light comes on. There still is a little fuel left, but the vehicle should be refueled soon.

Here are four things that some owners ask about. None of these show a problem with the fuel gauge:

. At the service station, the fuel pump shuts off before the gauge reads full.

. It takes a little more or less fuel to fill up than the gauge indicated. For example, the gauge may have indicated the tank was half full, but it actually took a little more or less than half the tank's capacity to fill the tank.

. The gauge moves a little while turning a corner or speeding up.

. The gauge takes a few seconds to stabilize after the ignition is turned on, and goes back to empty when the ignition is turned off.

#### Fuel Economy Gauge


Metric


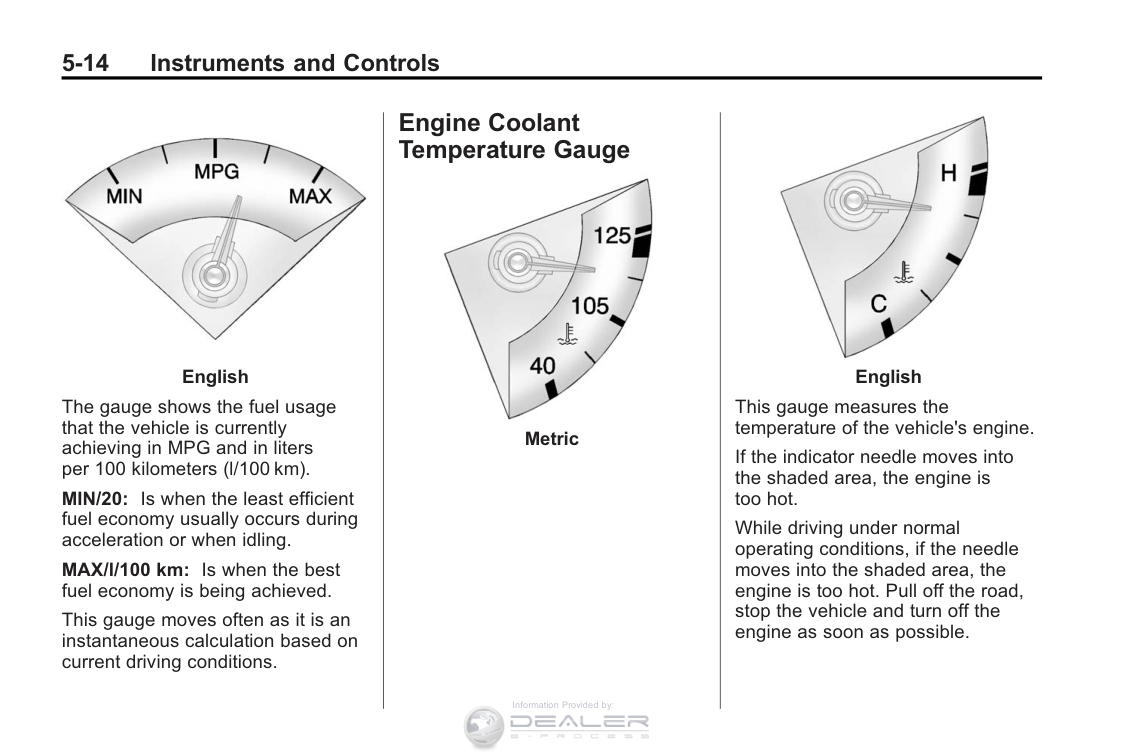

######## English

The gauge shows the fuel usage that the vehicle is currently achieving in MPG and in liters per 100 kilometers (l/100 km).

MIN/20: Is when the least efficient fuel economy usually occurs during acceleration or when idling.

MAX/l/100 km: Is when the best fuel economy is being achieved. This gauge moves often as it is an instantaneous calculation based on current driving conditions.

#### Engine Coolant Temperature Gauge


Metric


English

This gauge measures the temperature of the vehicle's engine.

If the indicator needle moves into the shaded area, the engine is too hot.

While driving under normal operating conditions, if the needle moves into the shaded area, the engine is too hot. Pull off the road, stop the vehicle and turn off the engine as soon as possible.

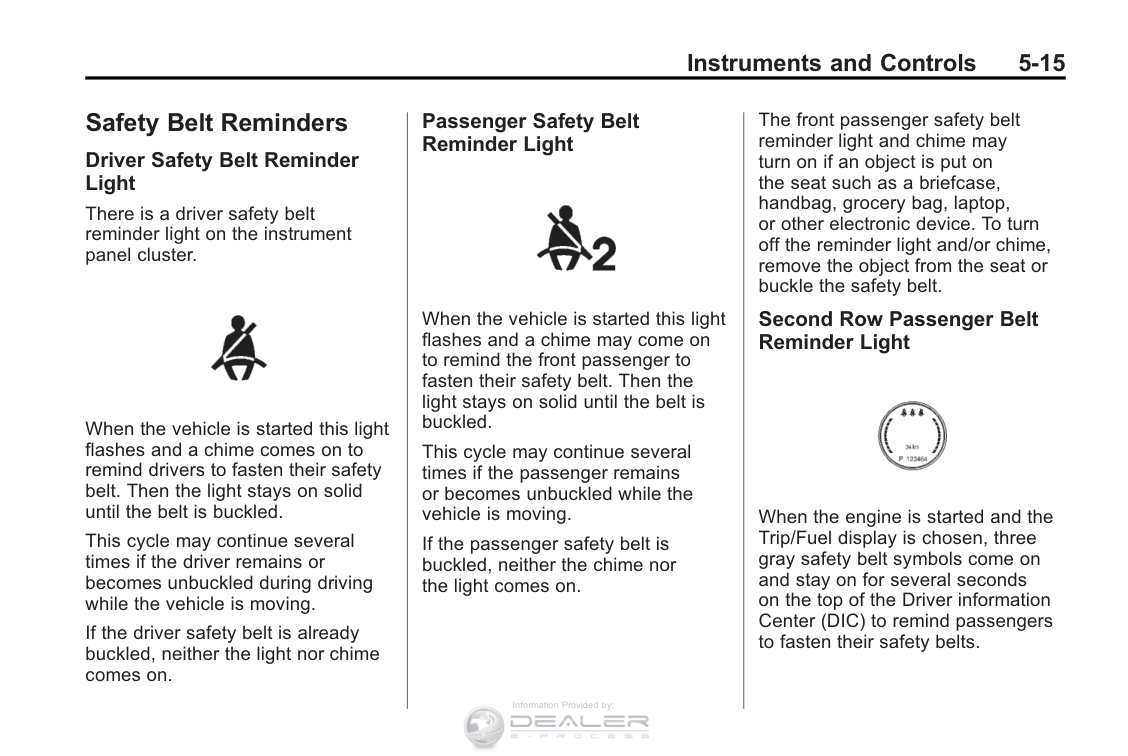

#### Safety Belt Reminders

####### Driver Safety Belt Reminder Light

There is a driver safety belt reminder light on the instrument panel cluster.


When the vehicle is started this light flashes and a chime comes on to remind drivers to fasten their safety belt. Then the light stays on solid until the belt is buckled.

This cycle may continue several times if the driver remains or becomes unbuckled during driving while the vehicle is moving.

If the driver safety belt is already buckled, neither the light nor chime comes on.

####### Passenger Safety Belt Reminder Light


When the vehicle is started this light flashes and a chime may come on to remind the front passenger to fasten their safety belt. Then the light stays on solid until the belt is buckled.

This cycle may continue several times if the passenger remains or becomes unbuckled while the vehicle is moving.

If the passenger safety belt is buckled, neither the chime nor the light comes on.



The front passenger safety belt reminder light and chime may turn on if an object is put on the seat such as a briefcase, handbag, grocery bag, laptop, or other electronic device. To turn off the reminder light and/or chime, remove the object from the seat or buckle the safety belt.

####### Second Row Passenger Belt Reminder Light


When the engine is started and the Trip/Fuel display is chosen, three gray safety belt symbols come on and stay on for several seconds on the top of the Driver information Center (DIC) to remind passengers to fasten their safety belts.

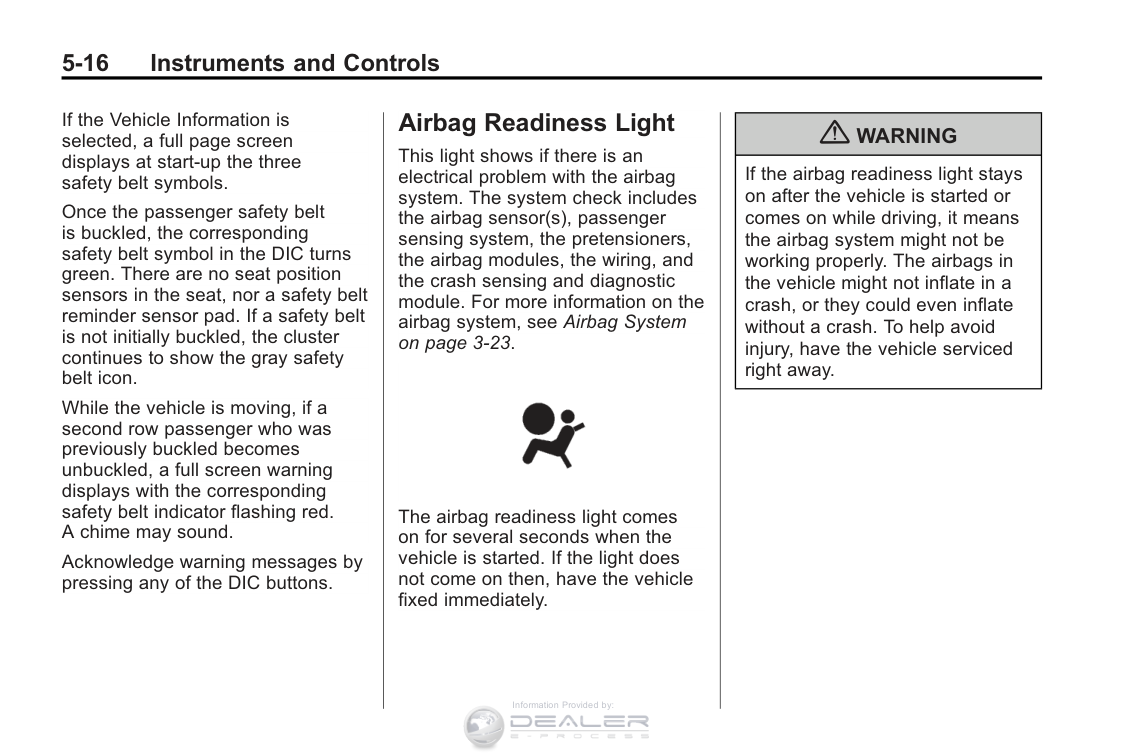

If the Vehicle Information is selected, a full page screen displays at start-up the three safety belt symbols.

Once the passenger safety belt is buckled, the corresponding safety belt symbol in the DIC turns green. There are no seat position sensors in the seat, nor a safety belt reminder sensor pad. If a safety belt is not initially buckled, the cluster continues to show the gray safety belt icon.

While the vehicle is moving, if a second row passenger who was previously buckled becomes unbuckled, a full screen warning displays with the corresponding safety belt indicator flashing red. Achimemaysound.

Acknowledge warning messages by pressing any of the DIC buttons.

#### Airbag Readiness Light

This light shows if there is an electrical problem with the airbag system. The system check includes the airbag sensor(s), passenger sensing system, the pretensioners, the airbag modules, the wiring, and the crash sensing and diagnostic module. For more information on the airbag system, see Airbag System on page 3￿23.


The airbag readiness light comes on for several seconds when the vehicle is started. If the light does not come on then, have the vehicle fixed immediately.

|{ WARNING| |---| |If the airbag readiness light stays on after the vehicle is started or comes on while driving, it means the airbag system might not be working properly. The airbags in the vehicle might not inflate in a crash, or they could even inflate without a crash. To help avoid injury, have the vehicle serviced right away.|

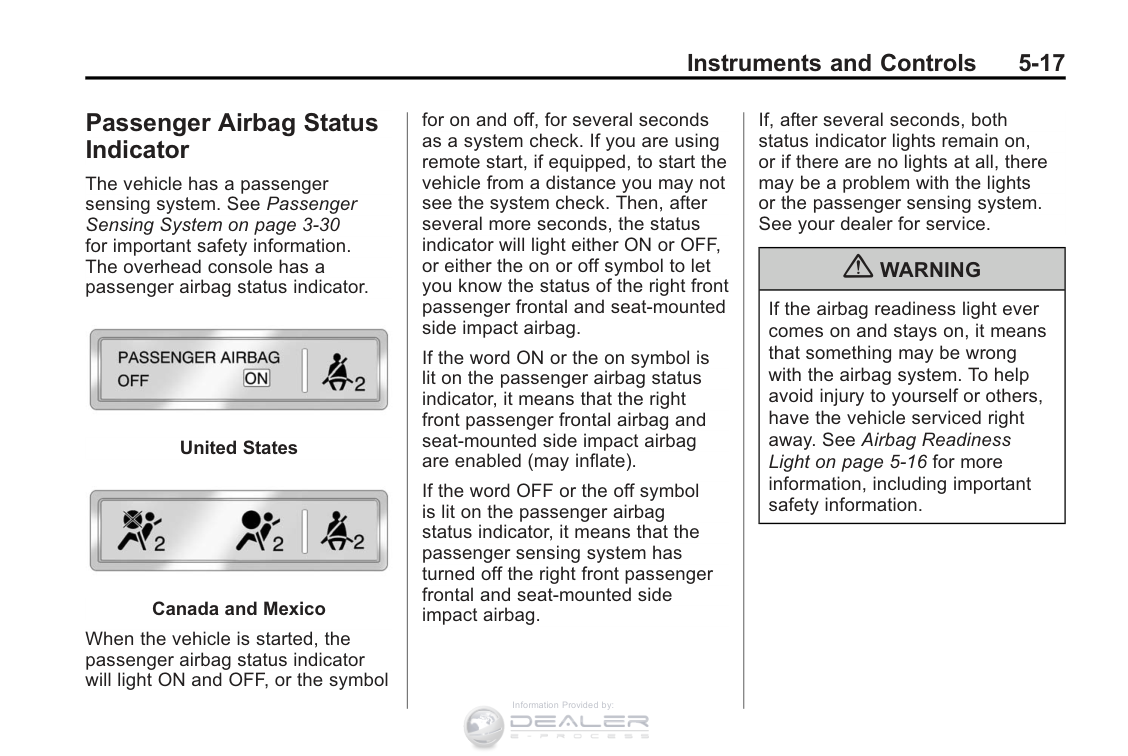

#### Passenger Airbag Status Indicator

The vehicle has a passenger sensing system. See Passenger Sensing System on page 3￿30 for important safety information. The overhead console has a passenger airbag status indicator.


United States


Canada and Mexico

When the vehicle is started, the passenger airbag status indicator will light ON and OFF, or the symbol

for on and off, for several seconds as a system check. If you are using remote start, if equipped, to start the vehicle from a distance you may not see the system check. Then, after several more seconds, the status indicator will light either ON or OFF, or either the on or off symbol to let you know the status of the right front passenger frontal and seat￿mounted side impact airbag.

If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger frontal airbag and seat￿mounted side impact airbag are enabled (may inflate).

If the word OFF or the off symbol is lit on the passenger airbag status indicator, it means that the passenger sensing system has turned off the right front passenger frontal and seat￿mounted side impact airbag.

If, after several seconds, both status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing system. See your dealer for service.

|{ WARNING| |---| |If the airbag readiness light ever comes on and stays on, it means that something may be wrong with the airbag system. To help avoid injury to yourself or others, have the vehicle serviced right away. See Airbag Readiness Light on page 5￿16 for more information, including important safety information.|



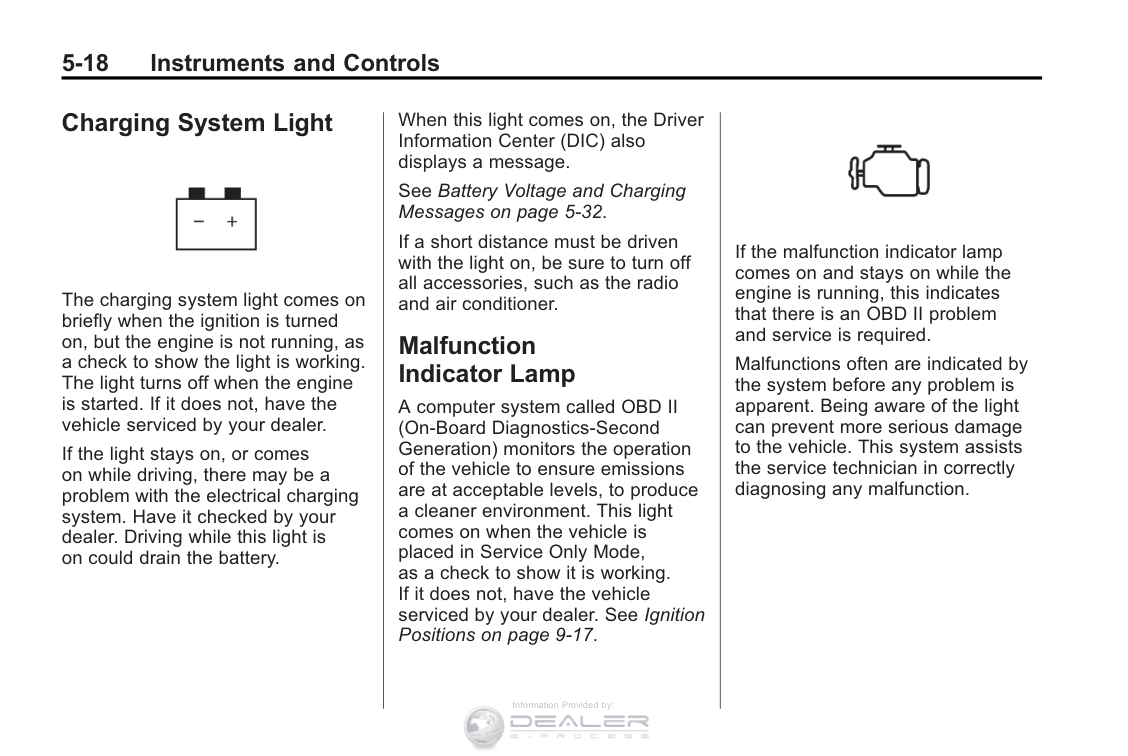

#### Charging System Light


The charging system light comes on briefly when the ignition is turned on, but the engine is not running, as achecktoshowthelightisworking. The light turns off when the engine is started. If it does not, have the vehicle serviced by your dealer.

If the light stays on, or comes on while driving, there may be a problem with the electrical charging system. Have it checked by your dealer. Driving while this light is on could drain the battery.

When this light comes on, the Driver Information Center (DIC) also displays a message.

See Battery Voltage and Charging Messages on page 5￿32.

If a short distance must be driven with the light on, be sure to turn off all accessories, such as the radio and air conditioner.

#### Malfunction Indicator Lamp

AcomputersystemcalledOBDII (On-Board Diagnostics-Second Generation) monitors the operation of the vehicle to ensure emissions are at acceptable levels, to produce acleanerenvironment.Thislight comes on when the vehicle is placed in Service Only Mode, as a check to show it is working. If it does not, have the vehicle serviced by your dealer. See Ignition Positions on page 9￿17.


If the malfunction indicator lamp comes on and stays on while the engine is running, this indicates that there is an OBD II problem and service is required.

Malfunctions often are indicated by the system before any problem is apparent. Being aware of the light can prevent more serious damage to the vehicle. This system assists the service technician in correctly diagnosing any malfunction.

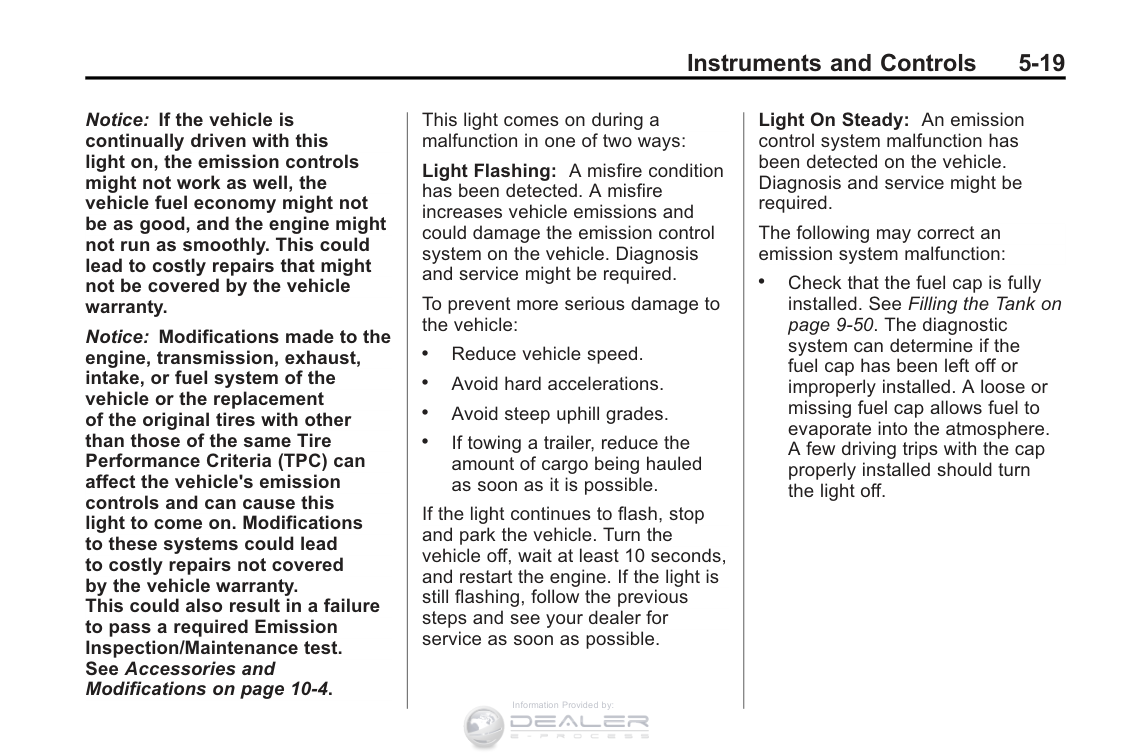

Notice: If the vehicle is continually driven with this light on, the emission controls might not work as well, the vehicle fuel economy might not be as good, and the engine might not run as smoothly. This could lead to costly repairs that might not be covered by the vehicle warranty.

Notice: Modifications made to the engine, transmission, exhaust, intake, or fuel system of the vehicle or the replacement of the original tires with other than those of the same Tire Performance Criteria (TPC) can affect the vehicle's emission controls and can cause this light to come on. Modifications to these systems could lead to costly repairs not covered by the vehicle warranty. This could also result in a failure to pass a required Emission Inspection/Maintenance test. See Accessories and Modifications on page 10￿4.

This light comes on during a malfunction in one of two ways:

Light Flashing: Amisfirecondition has been detected. A misfire increases vehicle emissions and could damage the emission control system on the vehicle. Diagnosis and service might be required.

To prevent more serious damage to the vehicle:

. Reduce vehicle speed.

. Avoid hard accelerations.

. Avoid steep uphill grades.

. If towing a trailer, reduce the amount of cargo being hauled as soon as it is possible.

If the light continues to flash, stop and park the vehicle. Turn the vehicle off, wait at least 10 seconds, and restart the engine. If the light is still flashing, follow the previous steps and see your dealer for service as soon as possible.



Light On Steady: An emission control system malfunction has been detected on the vehicle. Diagnosis and service might be required.

The following may correct an emission system malfunction:

. Check that the fuel cap is fully installed. See Filling the Tank on page 9￿50.Thediagnostic system can determine if the fuel cap has been left off or improperly installed. A loose or missing fuel cap allows fuel to evaporate into the atmosphere. Afewdrivingtripswiththecap properly installed should turn the light off.

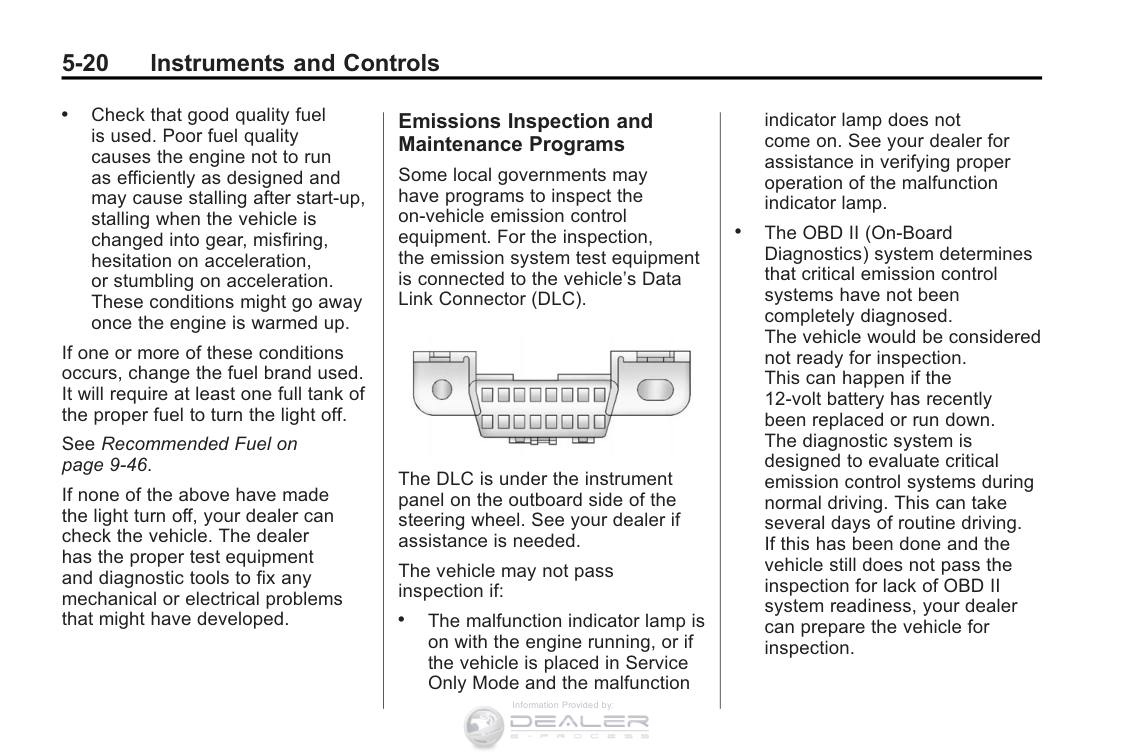

. Check that good quality fuel is used. Poor fuel quality causes the engine not to run as efficiently as designed and may cause stalling after start-up, stalling when the vehicle is changed into gear, misfiring, hesitation on acceleration, or stumbling on acceleration. These conditions might go away once the engine is warmed up.

If one or more of these conditions occurs, change the fuel brand used. It will require at least one full tank of the proper fuel to turn the light off.

See Recommended Fuel on

If none of the above have made the light turn off, your dealer can check the vehicle. The dealer has the proper test equipment and diagnostic tools to fix any mechanical or electrical problems that might have developed.

####### Emissions Inspection and Maintenance Programs

Some local governments may have programs to inspect the on-vehicle emission control equipment. For the inspection, the emission system test equipment is connected to the vehicle’sData Link Connector (DLC).


The DLC is under the instrument panel on the outboard side of the steering wheel. See your dealer if assistance is needed.

The vehicle may not pass inspection if:

. The malfunction indicator lamp is on with the engine running, or if the vehicle is placed in Service Only Mode and the malfunction



indicator lamp does not come on. See your dealer for assistance in verifying proper operation of the malfunction indicator lamp.

. The OBD II (On-Board Diagnostics) system determines that critical emission control systems have not been completely diagnosed. The vehicle would be considered not ready for inspection. This can happen if the 12-volt battery has recently been replaced or run down. The diagnostic system is designed to evaluate critical emission control systems during normal driving. This can take several days of routine driving. If this has been done and the vehicle still does not pass the inspection for lack of OBD II system readiness, your dealer can prepare the vehicle for inspection.

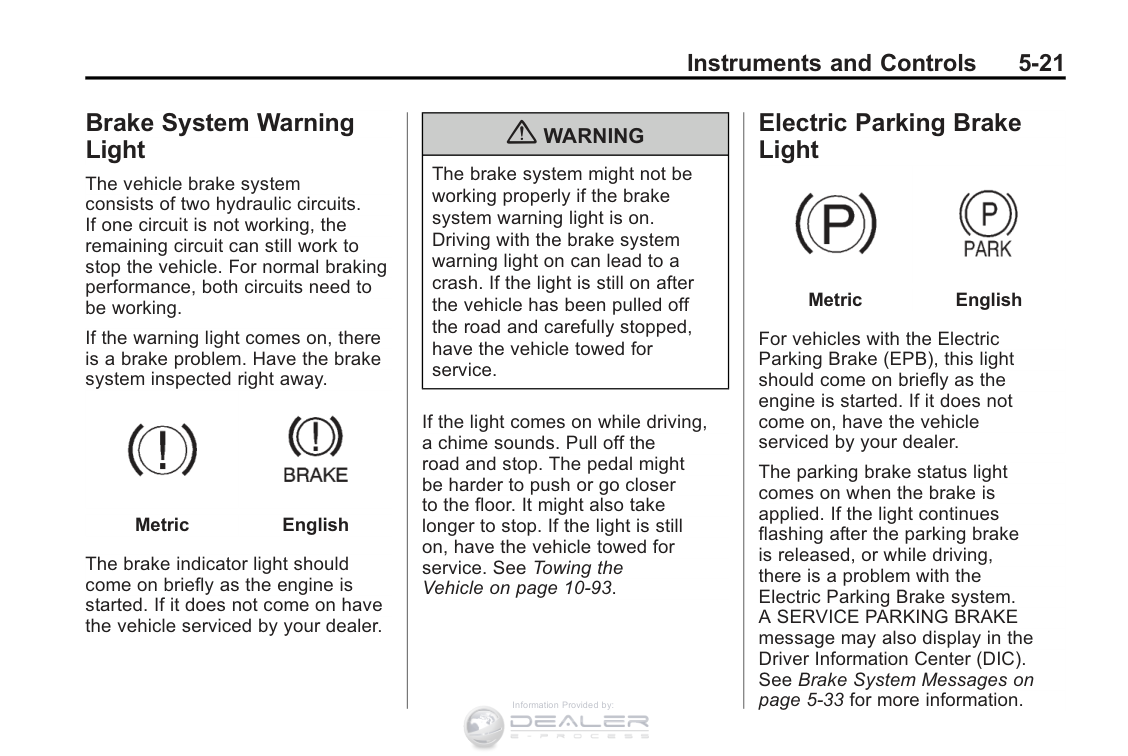

#### Brake System Warning Light

The vehicle brake system consists of two hydraulic circuits. If one circuit is not working, the remaining circuit can still work to stop the vehicle. For normal braking performance, both circuits need to be working.

If the warning light comes on, there is a brake problem. Have the brake system inspected right away.



######## Metric English

The brake indicator light should come on briefly as the engine is started. If it does not come on have the vehicle serviced by your dealer.

#### Electric Parking Brake Light

|{ WARNING| |---| |The brake system might not be working properly if the brake system warning light is on. Driving with the brake system warning light on can lead to a crash. If the light is still on after the vehicle has been pulled off the road and carefully stopped, have the vehicle towed for service.|



######## Metric English

For vehicles with the Electric Parking Brake (EPB), this light should come on briefly as the engine is started. If it does not come on, have the vehicle serviced by your dealer.

If the light comes on while driving, achimesounds.Pulloffthe road and stop. The pedal might be harder to push or go closer to the floor. It might also take longer to stop. If the light is still on, have the vehicle towed for service. See Towing the Vehicle on page 10￿93.

The parking brake status light comes on when the brake is applied. If the light continues flashing after the parking brake is released, or while driving, there is a problem with the Electric Parking Brake system. ASERVICEPARKINGBRAKE message may also display in the Driver Information Center (DIC). See Brake System Messages on



page 5￿33 for more information.Information Provided by:

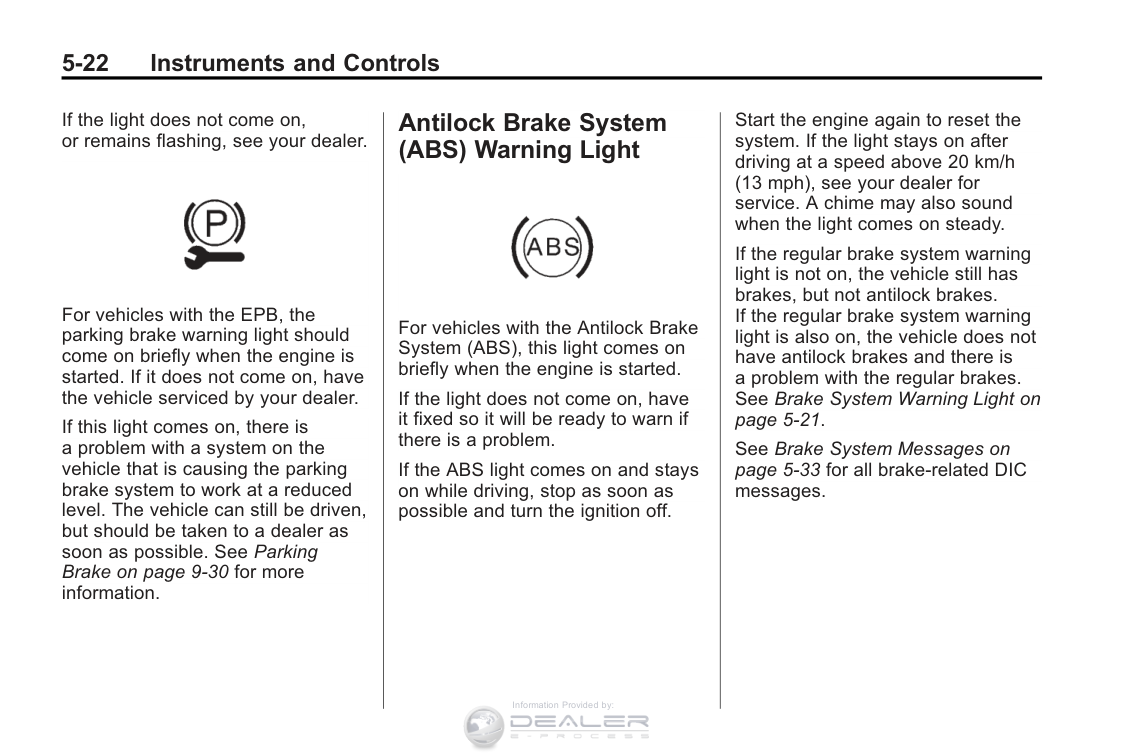

If the light does not come on, or remains flashing, see your dealer.


For vehicles with the EPB, the parking brake warning light should come on briefly when the engine is started. If it does not come on, have the vehicle serviced by your dealer.

If this light comes on, there is aproblemwithasystemonthe vehicle that is causing the parking brake system to work at a reduced level. The vehicle can still be driven, but should be taken to a dealer as soon as possible. See Parking Brake on page 9￿30 for more information.

#### Antilock Brake System (ABS) Warning Light


For vehicles with the Antilock Brake System (ABS), this light comes on briefly when the engine is started.

If the light does not come on, have it fixed so it will be ready to warn if there is a problem.

If the ABS light comes on and stays on while driving, stop as soon as possible and turn the ignition off.

Start the engine again to reset the system. If the light stays on after driving at a speed above 20 km/h (13 mph), see your dealer for service. A chime may also sound when the light comes on steady.

If the regular brake system warning light is not on, the vehicle still has brakes, but not antilock brakes. If the regular brake system warning light is also on, the vehicle does not have antilock brakes and there is aproblemwiththeregularbrakes. See Brake System Warning Light on page 5￿21.

See Brake System Messages on page 5￿33 for all brake￿related DIC messages.

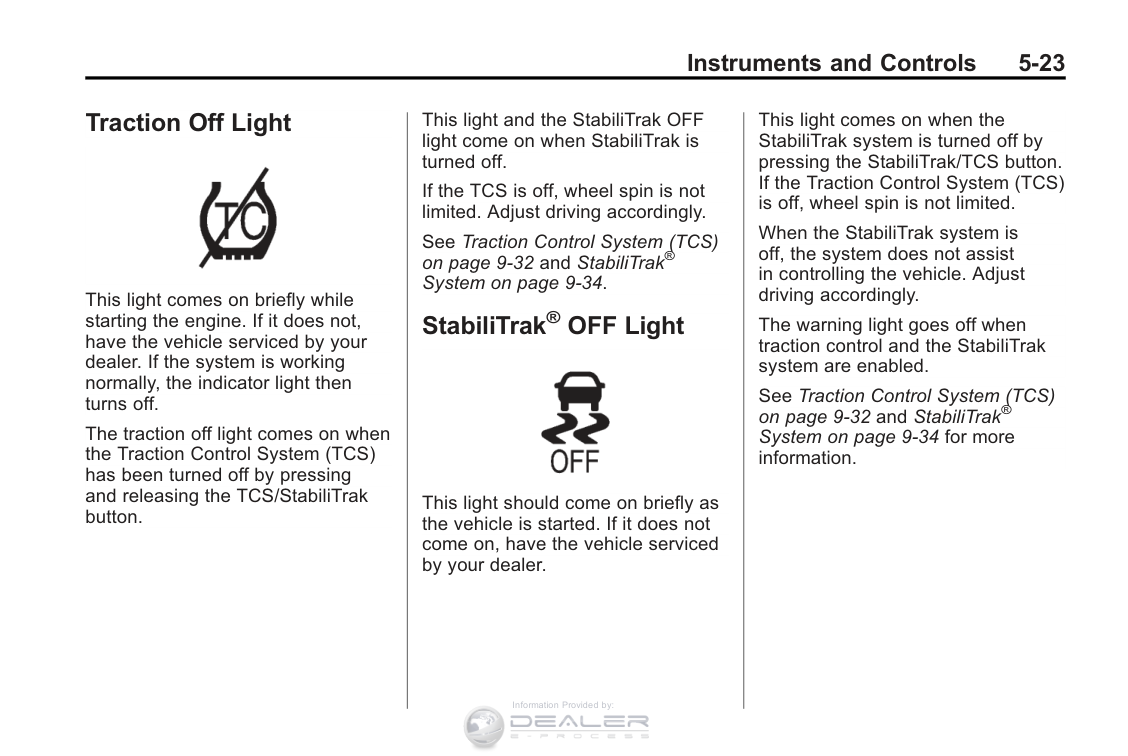

#### Traction Off Light


This light comes on briefly while starting the engine. If it does not, have the vehicle serviced by your dealer. If the system is working normally, the indicator light then turns off.

The traction off light comes on when the Traction Control System (TCS) has been turned off by pressing and releasing the TCS/StabiliTrak button.

This light and the StabiliTrak OFF light come on when StabiliTrak is turned off.

If the TCS is off, wheel spin is not limited. Adjust driving accordingly.

See Traction Control System (TCS) on page 9￿32 and StabiliTrak® System on page 9￿34.

#### StabiliTrak® OFF Light


This light should come on briefly as the vehicle is started. If it does not come on, have the vehicle serviced by your dealer.

This light comes on when the StabiliTrak system is turned off by pressing the StabiliTrak/TCS button. If the Traction Control System (TCS) is off, wheel spin is not limited. When the StabiliTrak system is off, the system does not assist in controlling the vehicle. Adjust driving accordingly. The warning light goes off when traction control and the StabiliTrak system are enabled. See Traction Control System (TCS)

on page 9￿32 and StabiliTrak® System on page 9￿34 for more information.

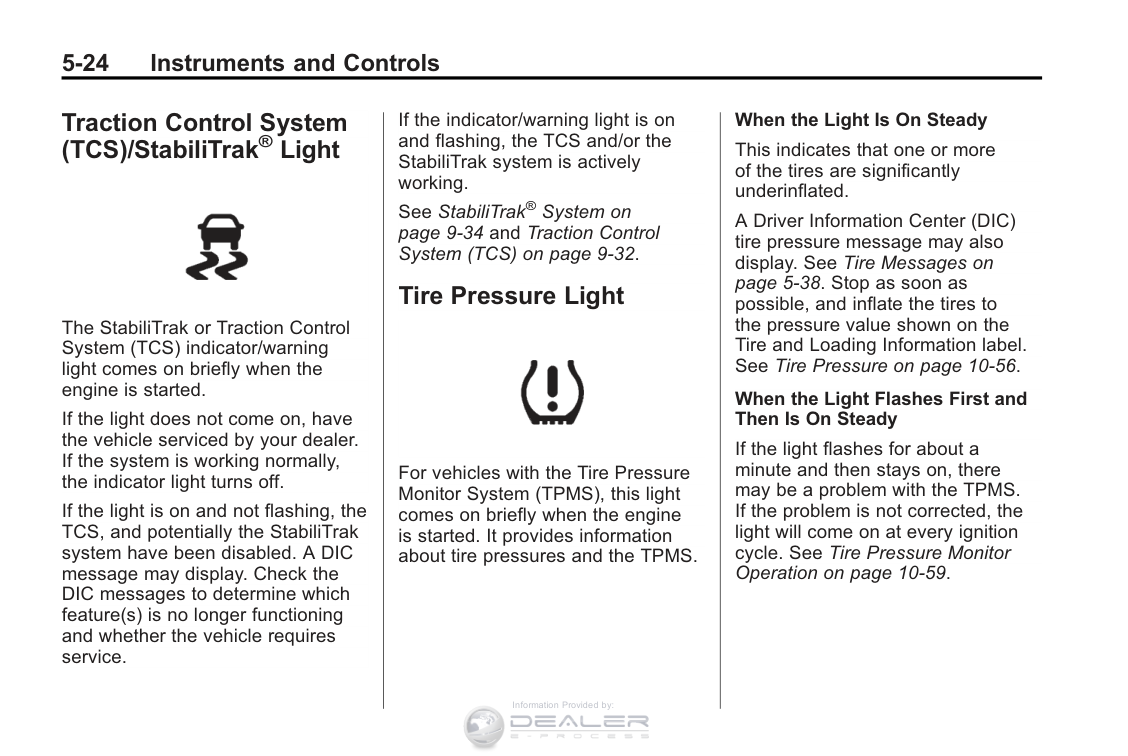

#### Traction Control System (TCS)/StabiliTrak® Light


The StabiliTrak or Traction Control System (TCS) indicator/warning light comes on briefly when the engine is started.

If the light does not come on, have the vehicle serviced by your dealer. If the system is working normally, the indicator light turns off.

If the light is on and not flashing, the TCS, and potentially the StabiliTrak system have been disabled. A DIC message may display. Check the DIC messages to determine which feature(s) is no longer functioning and whether the vehicle requires service.

If the indicator/warning light is on and flashing, the TCS and/or the StabiliTrak system is actively working.

See StabiliTrak® System on page 9￿34 and Traction Control System (TCS) on page 9￿32.

#### Tire Pressure Light


For vehicles with the Tire Pressure Monitor System (TPMS), this light comes on briefly when the engine is started. It provides information about tire pressures and the TPMS.

######## When the Light Is On Steady

This indicates that one or more of the tires are significantly underinflated.

ADriverInformationCenter(DIC) tire pressure message may also display. See Tire Messages on page 5￿38.Stopassoonas possible, and inflate the tires to the pressure value shown on the Tire and Loading Information label. See Tire Pressure on page 10￿56.

When the Light Flashes First and Then Is On Steady

If the light flashes for about a minute and then stays on, there may be a problem with the TPMS. If the problem is not corrected, the light will come on at every ignition cycle. See Tire Pressure Monitor Operation on page 10￿59.

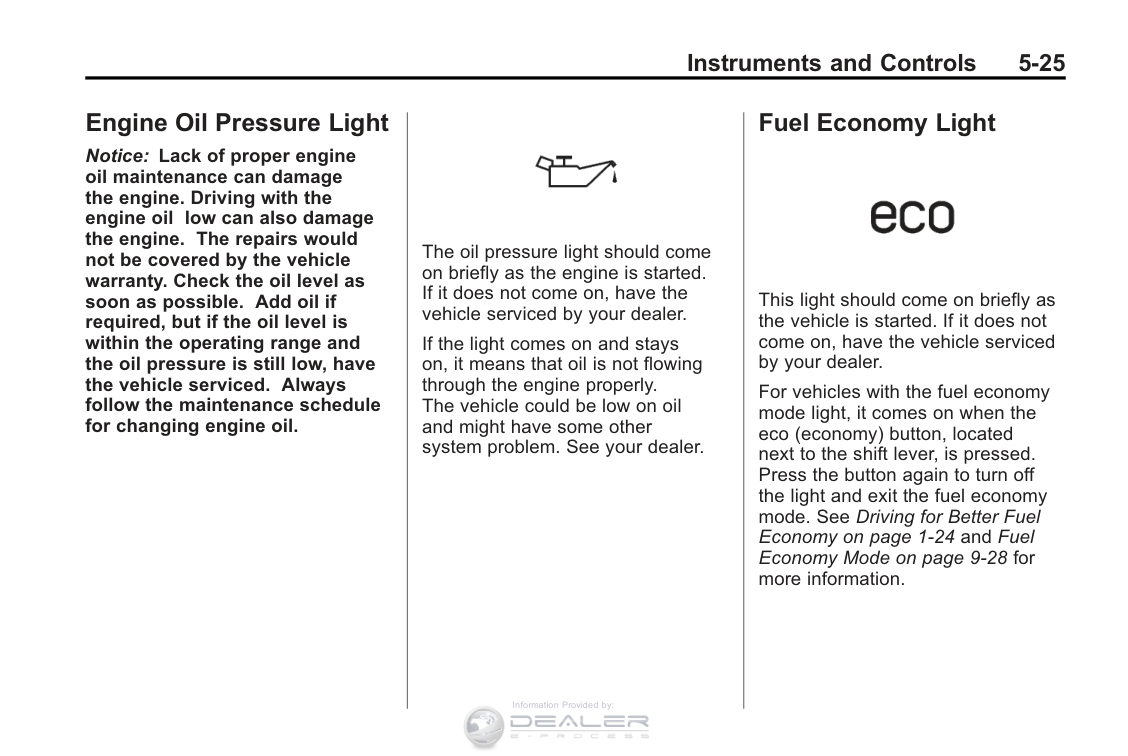

Engine Oil Pressure Light Notice: Lack of proper engine oil maintenance can damage the engine. Driving with the engine oil low can also damage the engine. The repairs would not be covered by the vehicle warranty. Check the oil level as soon as possible. Add oil if required, but if the oil level is within the operating range and the oil pressure is still low, have the vehicle serviced. Always follow the maintenance schedule for changing engine oil.


The oil pressure light should come on briefly as the engine is started. If it does not come on, have the vehicle serviced by your dealer.

If the light comes on and stays on, it means that oil is not flowing through the engine properly. The vehicle could be low on oil and might have some other system problem. See your dealer.

#### Fuel Economy Light


This light should come on briefly as the vehicle is started. If it does not come on, have the vehicle serviced by your dealer.

For vehicles with the fuel economy mode light, it comes on when the eco (economy) button, located next to the shift lever, is pressed. Press the button again to turn off the light and exit the fuel economy mode. See Driving for Better Fuel

Economy on page 1￿24 and Fuel Economy Mode on page 9￿28 for more information.

#### Low Fuel Warning Light


This light is located near the fuel gauge and comes on briefly when the ignition is turned on as a check to show it is working.

It also comes on when the fuel tank is low on fuel. The light turns off when fuel is added. If it does not, have the vehicle serviced.

#### Security Light

#### High-Beam On Light



The immobilizer light should come on briefly as the engine is started. If it does not come on, have the vehicle serviced by your dealer. If the system is working normally, the indicator light turns off.

This light comes on when the high-beam headlamps are in use.

See Headlamp High/Low-Beam Changer on page 6￿2 for more information.

#### Adaptive Forward Lighting (AFL) Light

If the light stays on and the engine does not start, there could be a problem with the theft-deterrent system. See Immobilizer Operation on page 2￿20.


This light should come on briefly as the vehicle is started. If it does not come on, have the vehicle serviced



by your dealer.Information Provided by:

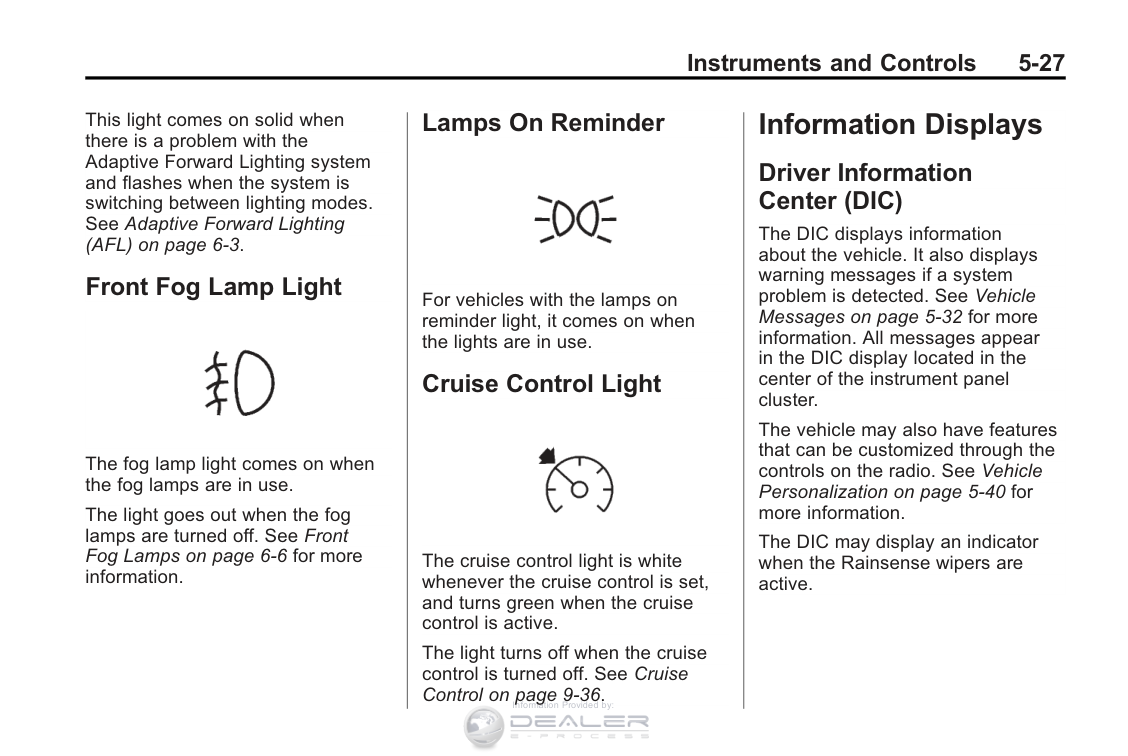

This light comes on solid when there is a problem with the Adaptive Forward Lighting system and flashes when the system is switching between lighting modes. See Adaptive Forward Lighting (AFL) on page 6￿3.

#### Front Fog Lamp Light


The fog lamp light comes on when the fog lamps are in use.

The light goes out when the fog lamps are turned off. See Front Fog Lamps on page 6￿6 for more

information.

#### Lamps On Reminder


For vehicles with the lamps on reminder light, it comes on when the lights are in use.

#### Cruise Control Light


The cruise control light is white whenever the cruise control is set, and turns green when the cruise control is active.

The light turns off when the cruise control is turned off. See Cruise Control on page 9￿36.



Information Displays

#### Driver Information Center (DIC)

The DIC displays information about the vehicle. It also displays warning messages if a system problem is detected. See Vehicle Messages on page 5￿32 for more information. All messages appear in the DIC display located in the center of the instrument panel cluster.

The vehicle may also have features that can be customized through the controls on the radio. See Vehicle

Personalization on page 5￿40 for more information. The DIC may display an indicator when the Rainsense wipers are active.

####### DIC Operation and Displays

The DIC has different displays which can be accessed by using the DIC buttons on the turn signal lever located on the left side of the steering wheel. The DIC displays trip, fuel, vehicle system information, and warning messages if a system problem is detected.

The bottom of the DIC display shows what position the shift lever is in and the odometer. The direction the vehicle is driving will be shown on the top of the display.

######## DIC Buttons


####### Trip/Fuel Information Menu Items

Press the MENU button on the turn signal lever until Trip/Fuel Information Menu is displayed. Use the thumbwheel to scroll through the following possible menu items:

. Trip

. Average Fuel Economy or Average Fuel Economy and Instantaneous Fuel Economy

. Fuel Range

. Fuel Used

. Average Vehicle Speed

. Timer

. Distance to Destination

. Navigation Turn by Turn . Speed and Curve Assist . Digital Speedometer

. Blank

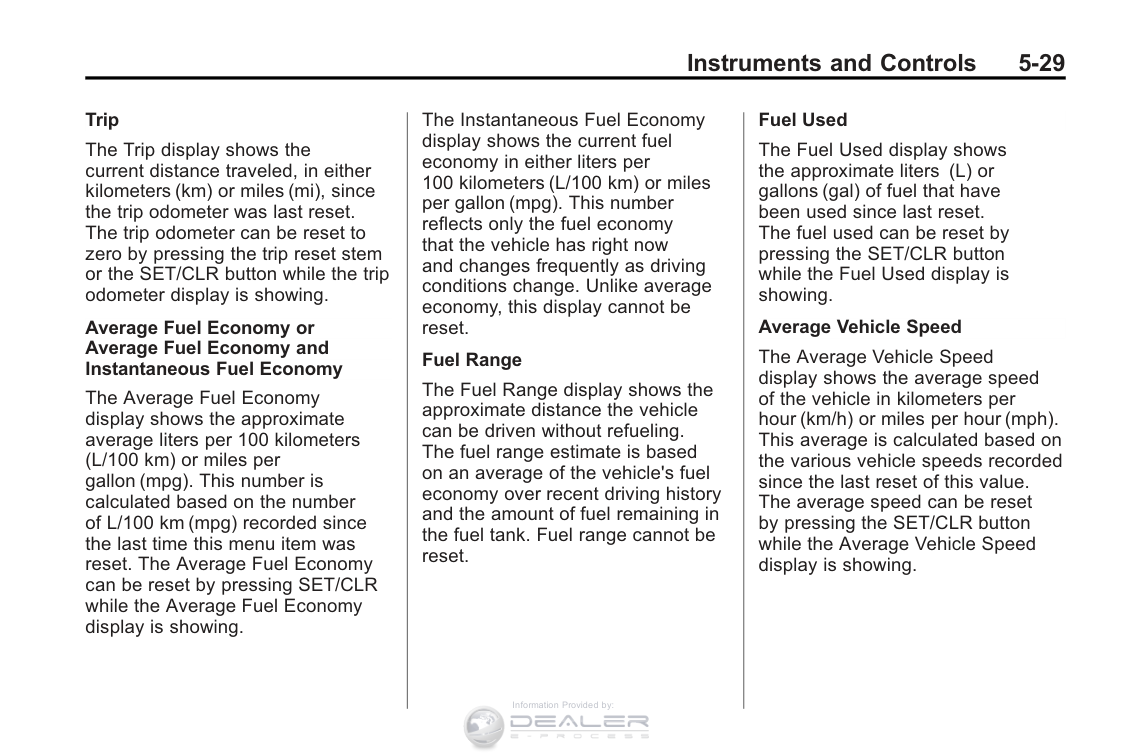

######## Trip

The Trip display shows the current distance traveled, in either kilometers (km) or miles (mi), since the trip odometer was last reset. The trip odometer can be reset to zero by pressing the trip reset stem or the SET/CLR button while the trip odometer display is showing.

Average Fuel Economy or Average Fuel Economy and Instantaneous Fuel Economy

The Average Fuel Economy display shows the approximate average liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number is calculated based on the number of L/100 km (mpg) recorded since the last time this menu item was reset. The Average Fuel Economy can be reset by pressing SET/CLR while the Average Fuel Economy display is showing.

The Instantaneous Fuel Economy display shows the current fuel economy in either liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number reflects only the fuel economy that the vehicle has right now and changes frequently as driving conditions change. Unlike average economy, this display cannot be reset.

######## Fuel Range

The Fuel Range display shows the approximate distance the vehicle can be driven without refueling. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history and the amount of fuel remaining in the fuel tank. Fuel range cannot be reset.

######## Fuel Used

The Fuel Used display shows the approximate liters (L) or gallons (gal) of fuel that have been used since last reset. The fuel used can be reset by pressing the SET/CLR button while the Fuel Used display is showing.

######## Average Vehicle Speed

The Average Vehicle Speed display shows the average speed of the vehicle in kilometers per hour (km/h) or miles per hour (mph). This average is calculated based on the various vehicle speeds recorded since the last reset of this value. The average speed can be reset by pressing the SET/CLR button while the Average Vehicle Speed display is showing.

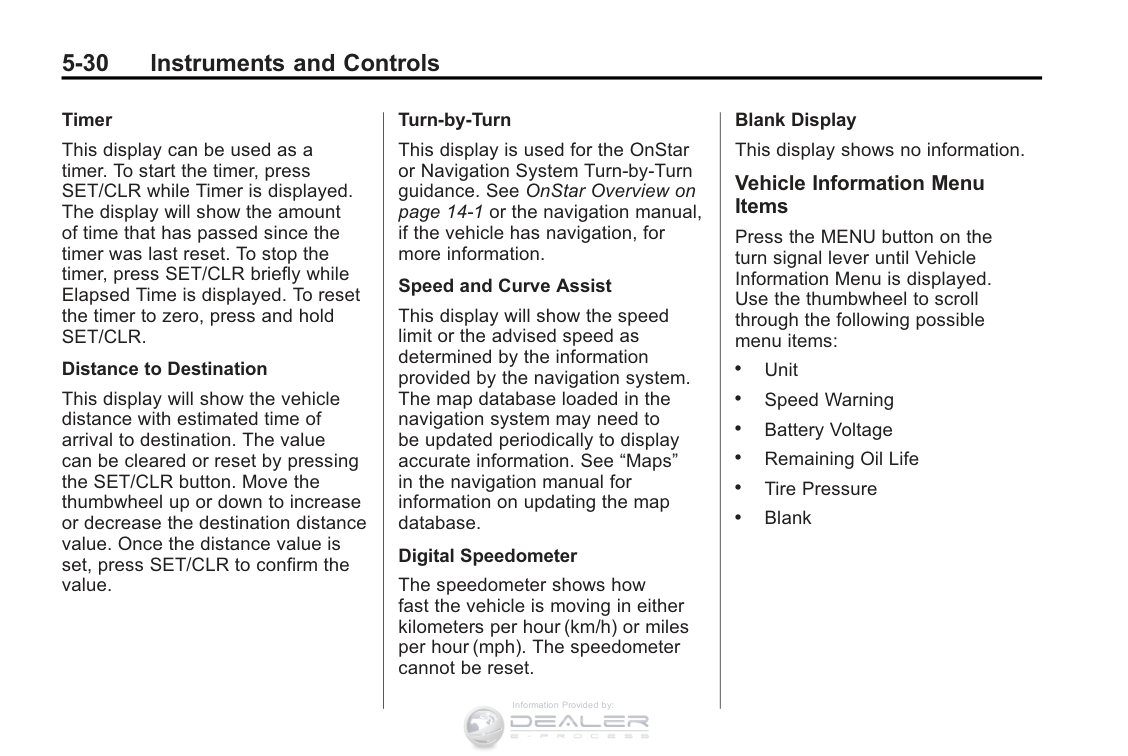

######## Timer

This display can be used as a timer. To start the timer, press SET/CLR while Timer is displayed. The display will show the amount of time that has passed since the timer was last reset. To stop the timer, press SET/CLR briefly while Elapsed Time is displayed. To reset the timer to zero, press and hold SET/CLR.

######## Distance to Destination

This display will show the vehicle distance with estimated time of arrival to destination. The value can be cleared or reset by pressing the SET/CLR button. Move the thumbwheel up or down to increase or decrease the destination distance value. Once the distance value is set, press SET/CLR to confirm the value.

######## Turn-by-Turn

This display is used for the OnStar or Navigation System Turn-by-Turn guidance. See OnStar Overview on page 14￿1 or the navigation manual,

if the vehicle has navigation, for more information.

######## Speed and Curve Assist

This display will show the speed limit or the advised speed as determined by the information provided by the navigation system. The map database loaded in the navigation system may need to be updated periodically to display accurate information. See “Maps” in the navigation manual for information on updating the map database.

######## Digital Speedometer

The speedometer shows how fast the vehicle is moving in either kilometers per hour (km/h) or miles per hour (mph). The speedometer cannot be reset.



Blank Display This display shows no information.

####### Vehicle Information Menu Items

Press the MENU button on the turn signal lever until Vehicle Information Menu is displayed. Use the thumbwheel to scroll through the following possible menu items:

. Unit

. Speed Warning . Battery Voltage . Remaining Oil Life

. Tire Pressure

. Blank

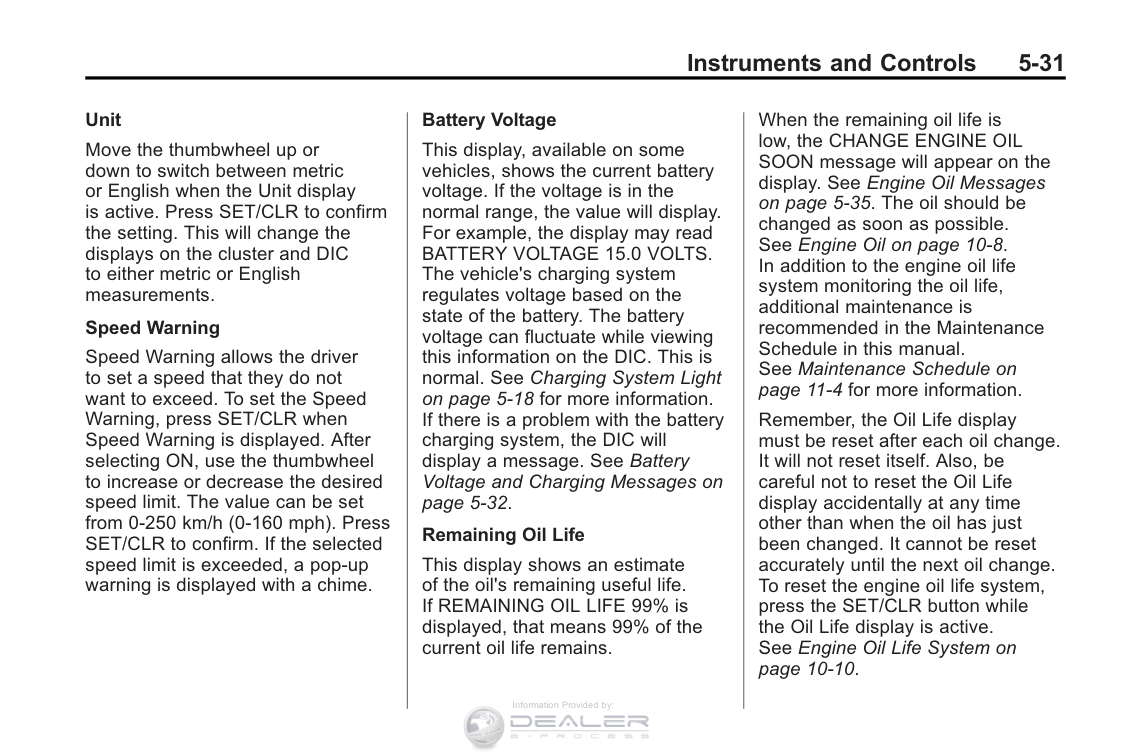

######## Unit

Move the thumbwheel up or down to switch between metric or English when the Unit display is active. Press SET/CLR to confirm the setting. This will change the displays on the cluster and DIC to either metric or English measurements.

######## Speed Warning

Speed Warning allows the driver to set a speed that they do not want to exceed. To set the Speed Warning, press SET/CLR when Speed Warning is displayed. After selecting ON, use the thumbwheel to increase or decrease the desired speed limit. The value can be set from 0-250 km/h (0-160 mph). Press SET/CLR to confirm. If the selected speed limit is exceeded, a pop-up warning is displayed with a chime.

######## Battery Voltage

This display, available on some vehicles, shows the current battery voltage. If the voltage is in the normal range, the value will display. For example, the display may read BATTERY VOLTAGE 15.0 VOLTS. The vehicle's charging system regulates voltage based on the state of the battery. The battery voltage can fluctuate while viewing this information on the DIC. This is normal. See Charging System Light on page 5￿18 for more information. If there is a problem with the battery charging system, the DIC will display a message. See Battery Voltage and Charging Messages on page 5￿32.

######## Remaining Oil Life

This display shows an estimate of the oil's remaining useful life. If REMAINING OIL LIFE 99% is displayed, that means 99% of the current oil life remains.



When the remaining oil life is low, the CHANGE ENGINE OIL SOON message will appear on the display. See Engine Oil Messages on page 5￿35.Theoilshouldbe changed as soon as possible. See Engine Oil on page 10￿8. In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule in this manual. See Maintenance Schedule on page 11￿4 for more information.

Remember, the Oil Life display must be reset after each oil change. It will not reset itself. Also, be careful not to reset the Oil Life display accidentally at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change. To reset the engine oil life system, press the SET/CLR button while the Oil Life display is active. See Engine Oil Life System on page 10￿10.

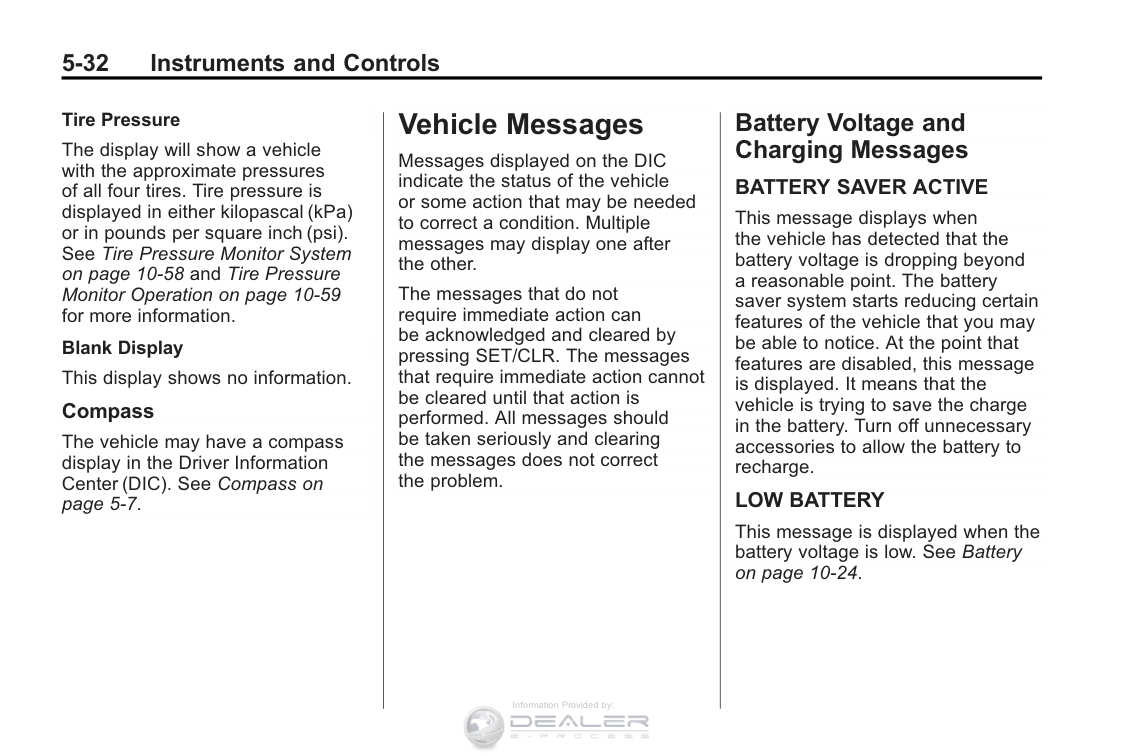

######## Tire Pressure

The display will show a vehicle with the approximate pressures of all four tires. Tire pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). See Tire Pressure Monitor System

on page 10￿58 and Tire Pressure Monitor Operation on page 10￿59 for more information.

Blank Display This display shows no information. Compass

The vehicle may have a compass display in the Driver Information Center (DIC). See Compass on page 5￿7.

Vehicle Messages

Messages displayed on the DIC indicate the status of the vehicle or some action that may be needed to correct a condition. Multiple messages may display one after the other.

The messages that do not require immediate action can be acknowledged and cleared by pressing SET/CLR. The messages that require immediate action cannot be cleared until that action is performed. All messages should be taken seriously and clearing the messages does not correct the problem.

Battery Voltage and Charging Messages

BATTERY SAVER ACTIVE

This message displays when the vehicle has detected that the battery voltage is dropping beyond areasonablepoint.Thebattery saver system starts reducing certain features of the vehicle that you may be able to notice. At the point that features are disabled, this message is displayed. It means that the vehicle is trying to save the charge in the battery. Turn off unnecessary accessories to allow the battery to recharge.

####### LOW BATTERY

This message is displayed when the battery voltage is low. See Battery on page 10￿24.



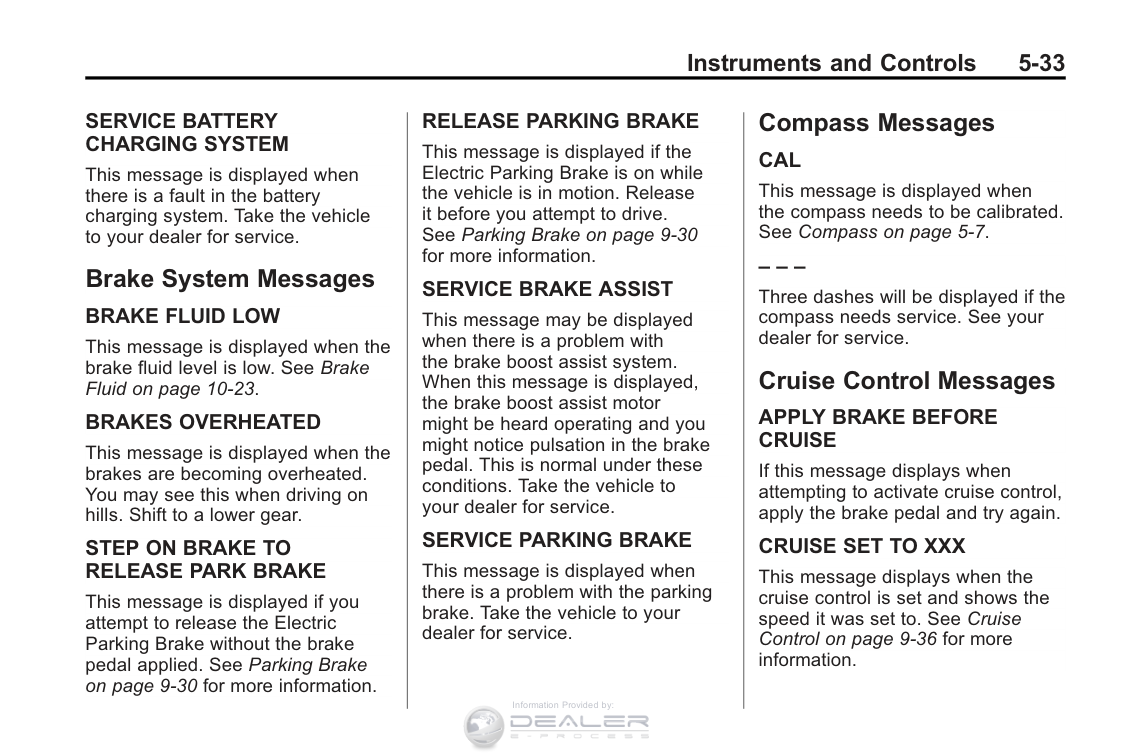

####### SERVICE BATTERY CHARGING SYSTEM

This message is displayed when there is a fault in the battery charging system. Take the vehicle to your dealer for service.

#### Brake System Messages BRAKE FLUID LOW

This message is displayed when the brake fluid level is low. See Brake Fluid on page 10￿23.

####### BRAKES OVERHEATED

This message is displayed when the brakes are becoming overheated. You may see this when driving on hills. Shift to a lower gear.

####### STEP ON BRAKE TO RELEASE PARK BRAKE

This message is displayed if you attempt to release the Electric Parking Brake without the brake pedal applied. See Parking Brake on page 9￿30 for more information.

####### RELEASE PARKING BRAKE

This message is displayed if the Electric Parking Brake is on while the vehicle is in motion. Release it before you attempt to drive. See Parking Brake on page 9￿30 for more information.

####### SERVICE BRAKE ASSIST

This message may be displayed when there is a problem with the brake boost assist system. When this message is displayed, the brake boost assist motor might be heard operating and you might notice pulsation in the brake pedal. This is normal under these conditions. Take the vehicle to your dealer for service.

SERVICE PARKING BRAKE This message is displayed when there is a problem with the parking brake. Take the vehicle to your dealer for service.



#### Compass Messages CAL

This message is displayed when the compass needs to be calibrated. See Compass on page 5￿7.

####### –––

Three dashes will be displayed if the compass needs service. See your dealer for service.

Cruise Control Messages

APPLY BRAKE BEFORE CRUISE

If this message displays when attempting to activate cruise control, apply the brake pedal and try again.

####### CRUISE SET TO XXX

This message displays when the cruise control is set and shows the speed it was set to. See Cruise Control on page 9￿36 for more information.

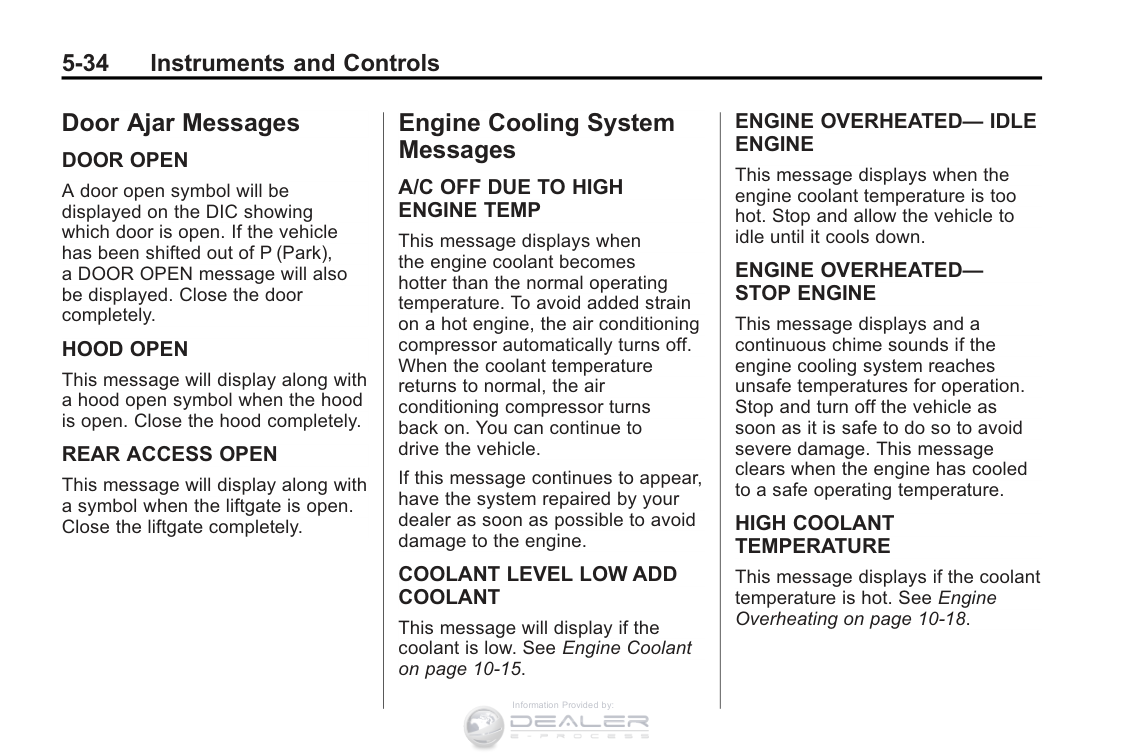

#### Door Ajar Messages DOOR OPEN

Adooropensymbolwillbe displayed on the DIC showing which door is open. If the vehicle has been shifted out of P (Park), aDOOROPENmessagewillalso be displayed. Close the door completely.

####### HOOD OPEN

This message will display along with ahoodopensymbolwhenthehood is open. Close the hood completely.

####### REAR ACCESS OPEN

This message will display along with asymbolwhentheliftgateisopen. Close the liftgate completely.

Engine Cooling System Messages

A/C OFF DUE TO HIGH ENGINE TEMP

This message displays when the engine coolant becomes hotter than the normal operating temperature. To avoid added strain on a hot engine, the air conditioning compressor automatically turns off. When the coolant temperature returns to normal, the air conditioning compressor turns back on. You can continue to drive the vehicle.

If this message continues to appear, have the system repaired by your dealer as soon as possible to avoid damage to the engine.

####### COOLANT LEVEL LOW ADD COOLANT

This message will display if the coolant is low. See Engine Coolant on page 10￿15.



####### ENGINE OVERHEATED— IDLE ENGINE

This message displays when the engine coolant temperature is too hot. Stop and allow the vehicle to idle until it cools down.

####### ENGINE OVERHEATEDSTOP ENGINE

This message displays and a continuous chime sounds if the engine cooling system reaches unsafe temperatures for operation. Stop and turn off the vehicle as soon as it is safe to do so to avoid severe damage. This message clears when the engine has cooled to a safe operating temperature.

####### HIGH COOLANT TEMPERATURE

This message displays if the coolant temperature is hot. See Engine Overheating on page 10￿18.

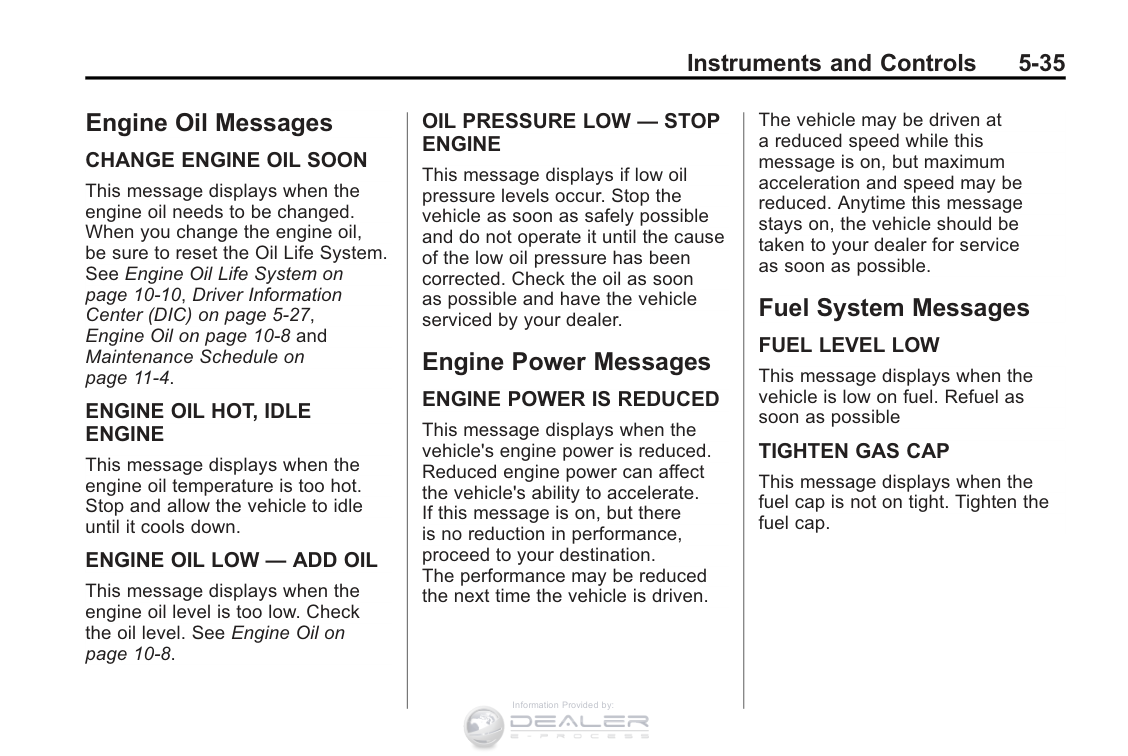

#### Engine Oil Messages CHANGE ENGINE OIL SOON

This message displays when the engine oil needs to be changed. When you change the engine oil, be sure to reset the Oil Life System. See Engine Oil Life System on

####### ENGINE OIL HOT, IDLE ENGINE

This message displays when the engine oil temperature is too hot. Stop and allow the vehicle to idle until it cools down.

####### ENGINE OIL LOW — ADD OIL

This message displays when the engine oil level is too low. Check the oil level. See Engine Oil on

page 10￿8.

####### OIL PRESSURE LOW — STOP ENGINE

This message displays if low oil pressure levels occur. Stop the vehicle as soon as safely possible and do not operate it until the cause of the low oil pressure has been corrected. Check the oil as soon as possible and have the vehicle serviced by your dealer.

#### Engine Power Messages ENGINE POWER IS REDUCED

This message displays when the vehicle's engine power is reduced. Reduced engine power can affect the vehicle's ability to accelerate. If this message is on, but there is no reduction in performance, proceed to your destination. The performance may be reduced the next time the vehicle is driven.

The vehicle may be driven at areducedspeedwhilethis message is on, but maximum acceleration and speed may be reduced. Anytime this message stays on, the vehicle should be taken to your dealer for service as soon as possible.

#### Fuel System Messages FUEL LEVEL LOW

This message displays when the vehicle is low on fuel. Refuel as soon as possible

####### TIGHTEN GAS CAP

This message displays when the fuel cap is not on tight. Tighten the fuel cap.

Key and Lock Messages NO REMOTE DETECTED This message displays when trying to start the vehicle if an RKE transmitter is not detected. The transmitter battery may be weak. See “Starting the Vehicle with a Low Transmitter Battery” under Remote Keyless Entry (RKE) System Operation on page 2￿3.

####### NO REMOTE PRESS BRAKE TO RESTART

This message is displayed if the remote is no longer detected in the vehicle. Press the brake pedal to restart the vehicle.

####### NUMBER OF KEYS PROGRAMMED

This message displays when programming new keys to the vehicle.

####### REMOTE LEFT IN VEHICLE

This message displays when leaving the vehicle with the RKE transmitter still inside.

####### REPLACE BATTERY IN REMOTE KEY

This message displays when the battery in the RKE transmitter needs to be replaced.

Lamp Messages

AFL (ADAPTIVE FORWARD LIGHTING) LAMPS NEED SERVICE

This message displays when the Adaptive Forward Lighting (AFL) system is disabled and needs service. See your dealer. See Adaptive Forward Lighting (AFL) on page 6￿3 for more information.

####### AUTOMATIC LIGHT CONTROL ON

This message is displayed when the exterior lamp control is in AUTO and the lights have turned on. See Twilight Sentinel on page 6￿4.

####### AUTOMATIC LIGHT CONTROL OFF

This message is displayed when the exterior lamp control is in AUTO and the lights have turned off. See Twilight Sentinel on page 6￿4.

####### XXX TURN INDICATOR FAILURE

When one of the turn signals is out, this message displays to show which bulb needs to be replaced. See Bulb Replacement on page 10￿32 and Replacement Bulbs on page 10￿40 for more information on the turn signal bulb replacement.

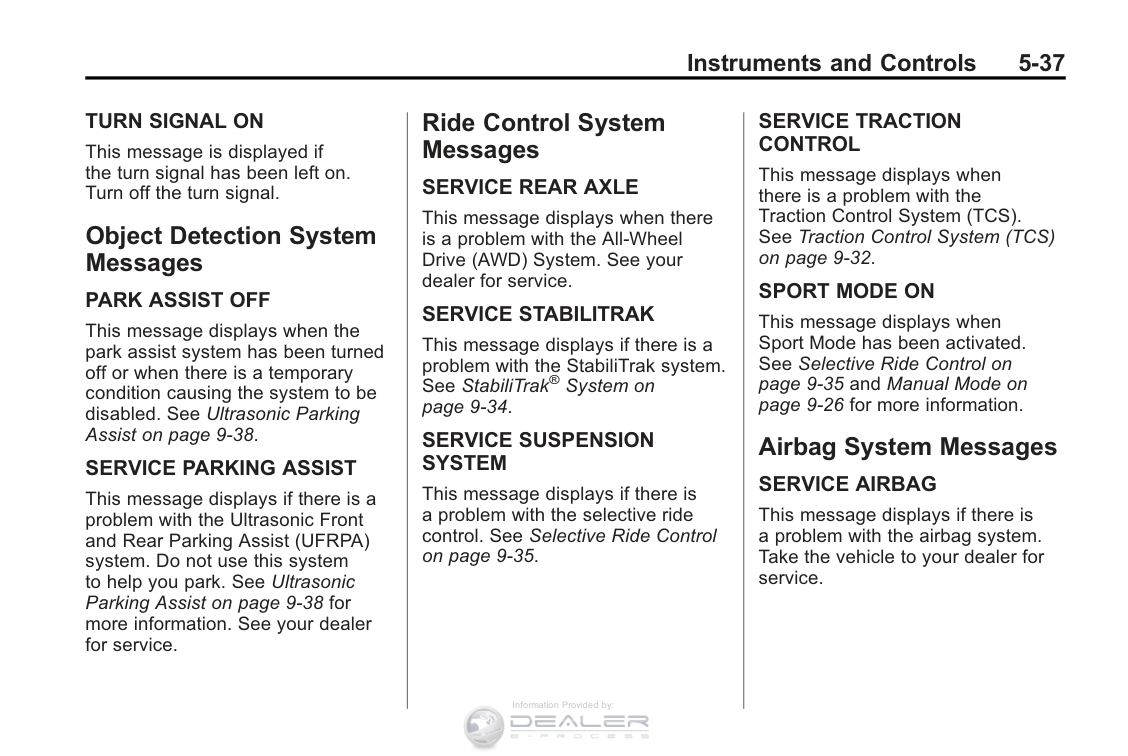

####### TURN SIGNAL ON

This message is displayed if the turn signal has been left on. Turn off the turn signal.

Object Detection System Messages

PARK ASSIST OFF

This message displays when the park assist system has been turned off or when there is a temporary condition causing the system to be disabled. See Ultrasonic Parking Assist on page 9￿38.

####### SERVICE PARKING ASSIST

This message displays if there is a problem with the Ultrasonic Front and Rear Parking Assist (UFRPA) system. Do not use this system to help you park. See Ultrasonic Parking Assist on page 9￿38 for more information. See your dealer for service.

Ride Control System Messages

SERVICE REAR AXLE

This message displays when there is a problem with the All-Wheel Drive (AWD) System. See your dealer for service.

####### SERVICE STABILITRAK

This message displays if there is a problem with the StabiliTrak system. See StabiliTrak® System on page 9￿34.

####### SERVICE SUSPENSION SYSTEM

This message displays if there is aproblemwiththeselectiveride control. See Selective Ride Control

on page 9￿35.

####### SERVICE TRACTION CONTROL

This message displays when there is a problem with the Traction Control System (TCS). See Traction Control System (TCS) on page 9￿32.

####### SPORT MODE ON

This message displays when Sport Mode has been activated. See Selective Ride Control on

page 9￿35 and Manual Mode on page 9￿26 for more information.

#### Airbag System Messages SERVICE AIRBAG

This message displays if there is aproblemwiththeairbagsystem. Take the vehicle to your dealer for service.

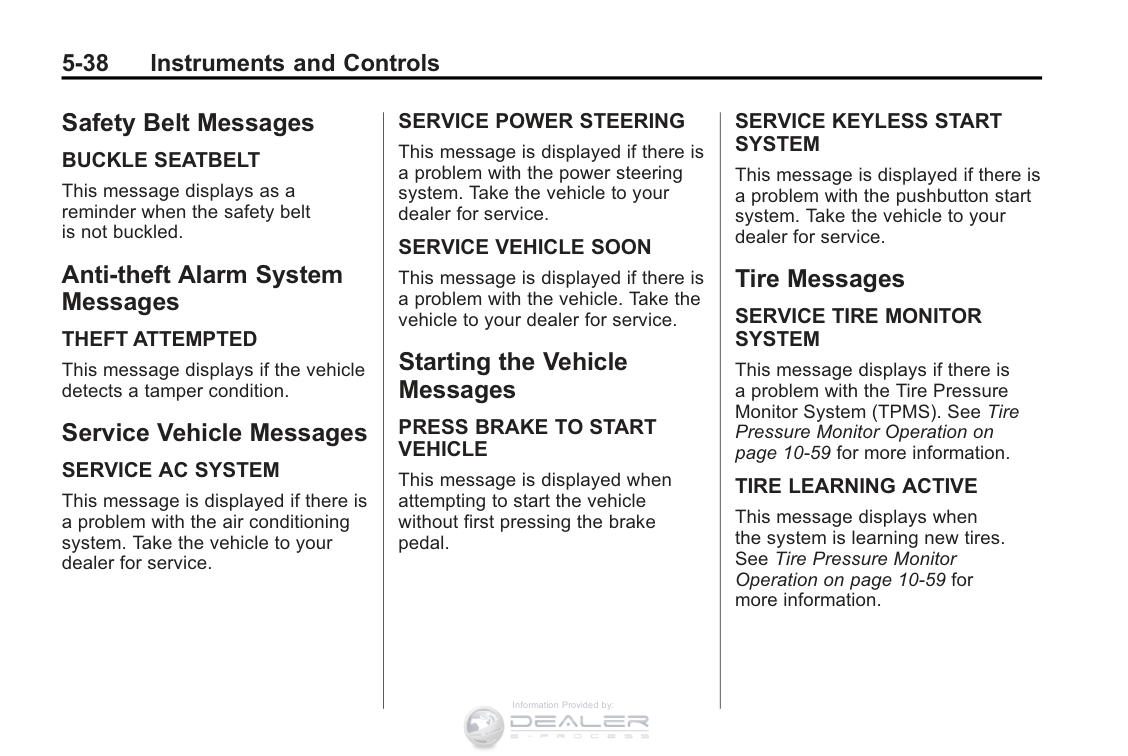

#### Safety Belt Messages BUCKLE SEATBELT

This message displays as a reminder when the safety belt is not buckled.

Anti-theft Alarm System Messages

THEFT ATTEMPTED

This message displays if the vehicle detects a tamper condition.

#### Service Vehicle Messages SERVICE AC SYSTEM

This message is displayed if there is aproblemwiththeairconditioning system. Take the vehicle to your dealer for service.

####### SERVICE POWER STEERING

This message is displayed if there is aproblemwiththepowersteering system. Take the vehicle to your dealer for service.

####### SERVICE VEHICLE SOON

This message is displayed if there is aproblemwiththevehicle.Takethe vehicle to your dealer for service.

Starting the Vehicle Messages

PRESS BRAKE TO START VEHICLE

This message is displayed when attempting to start the vehicle without first pressing the brake pedal.

####### SERVICE KEYLESS START SYSTEM

This message is displayed if there is aproblemwiththepushbuttonstart system. Take the vehicle to your dealer for service.

Tire Messages

SERVICE TIRE MONITOR SYSTEM

This message displays if there is aproblemwiththeTirePressure Monitor System (TPMS). See Tire Pressure Monitor Operation on page 10￿59 for more information.

TIRE LEARNING ACTIVE This message displays when the system is learning new tires. See Tire Pressure Monitor Operation on page 10￿59 for more information.

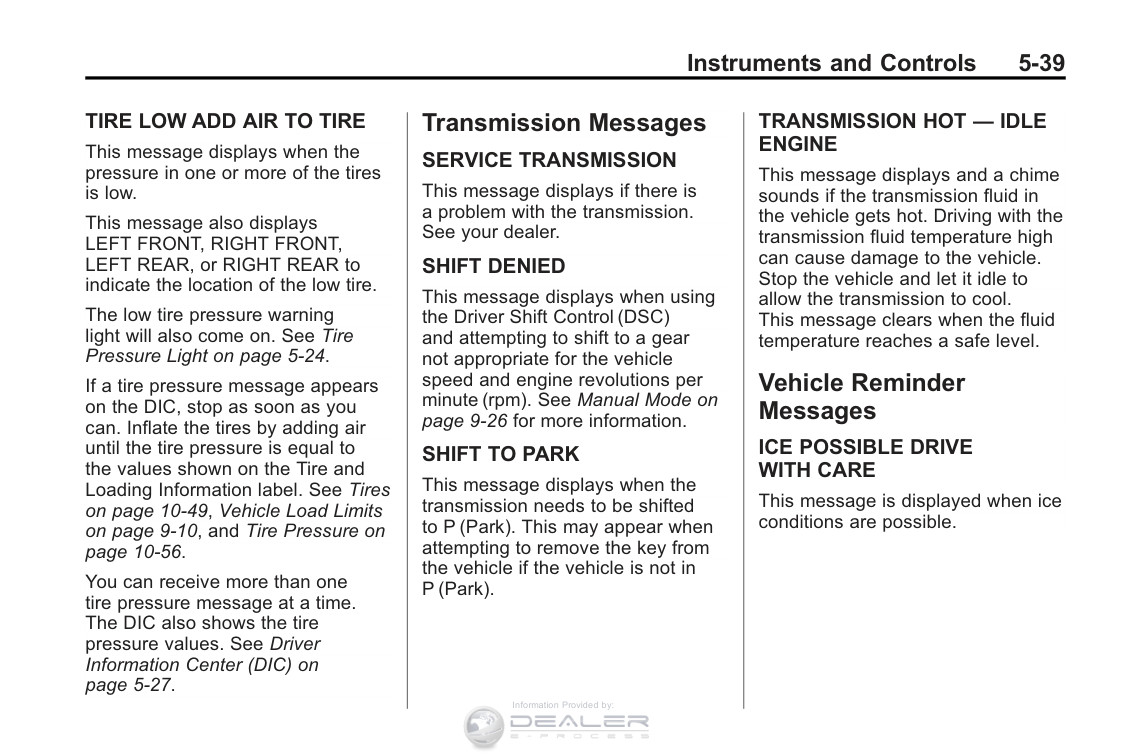

####### TIRE LOW ADD AIR TO TIRE

This message displays when the pressure in one or more of the tires is low.

This message also displays LEFT FRONT, RIGHT FRONT, LEFT REAR, or RIGHT REAR to indicate the location of the low tire.

The low tire pressure warning light will also come on. See Tire Pressure Light on page 5￿24.

If a tire pressure message appears on the DIC, stop as soon as you can. Inflate the tires by adding air until the tire pressure is equal to the values shown on the Tire and Loading Information label. See Tires

on page 10￿49, Vehicle Load Limits on page 9￿10,andTire Pressure on page 10￿56.

You can receive more than one tire pressure message at a time. The DIC also shows the tire pressure values. See Driver Information Center (DIC) on page 5￿27.

#### Transmission Messages SERVICE TRANSMISSION

This message displays if there is aproblemwiththetransmission. See your dealer.

####### SHIFT DENIED

This message displays when using the Driver Shift Control (DSC) and attempting to shift to a gear not appropriate for the vehicle speed and engine revolutions per minute (rpm). See Manual Mode on page 9￿26 for more information.

####### SHIFT TO PARK

This message displays when the transmission needs to be shifted to P (Park). This may appear when attempting to remove the key from the vehicle if the vehicle is not in P(Park).



####### TRANSMISSION HOT — IDLE ENGINE

This message displays and a chime sounds if the transmission fluid in the vehicle gets hot. Driving with the transmission fluid temperature high can cause damage to the vehicle. Stop the vehicle and let it idle to allow the transmission to cool. This message clears when the fluid temperature reaches a safe level.

Vehicle Reminder Messages

ICE POSSIBLE DRIVE WITH CARE

This message is displayed when ice conditions are possible.

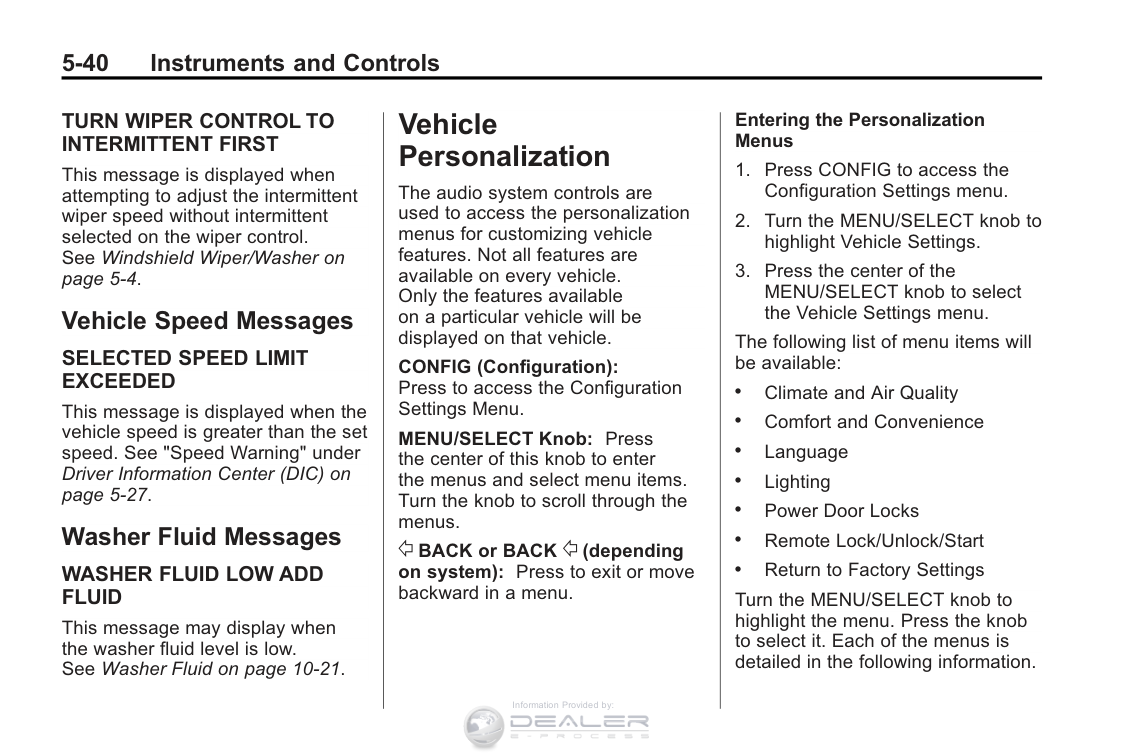

####### TURN WIPER CONTROL TO INTERMITTENT FIRST

This message is displayed when attempting to adjust the intermittent wiper speed without intermittent selected on the wiper control. See Windshield Wiper/Washer on page 5￿4.

Vehicle Speed Messages

SELECTED SPEED LIMIT EXCEEDED

This message is displayed when the vehicle speed is greater than the set speed. See "Speed Warning" under

Driver Information Center (DIC) on page 5￿27.

Washer Fluid Messages

WASHER FLUID LOW ADD FLUID

This message may display when the washer fluid level is low. See Washer Fluid on page 10￿21.

Vehicle Personalization

The audio system controls are used to access the personalization menus for customizing vehicle features. Not all features are available on every vehicle. Only the features available on a particular vehicle will be displayed on that vehicle.

CONFIG (Configuration): Press to access the Configuration Settings Menu.

MENU/SELECT Knob: Press the center of this knob to enter the menus and select menu items. Turn the knob to scroll through the menus.

/ BACK or BACK / (depending on system): Press to exit or move backward in a menu.



Entering the Personalization Menus

The following list of menu items will be available:

. Climate and Air Quality

. Comfort and Convenience

. Language

. Lighting

. Power Door Locks

. Remote Lock/Unlock/Start . Return to Factory Settings Turn the MENU/SELECT knob to highlight the menu. Press the knob to select it. Each of the menus is detailed in the following information.

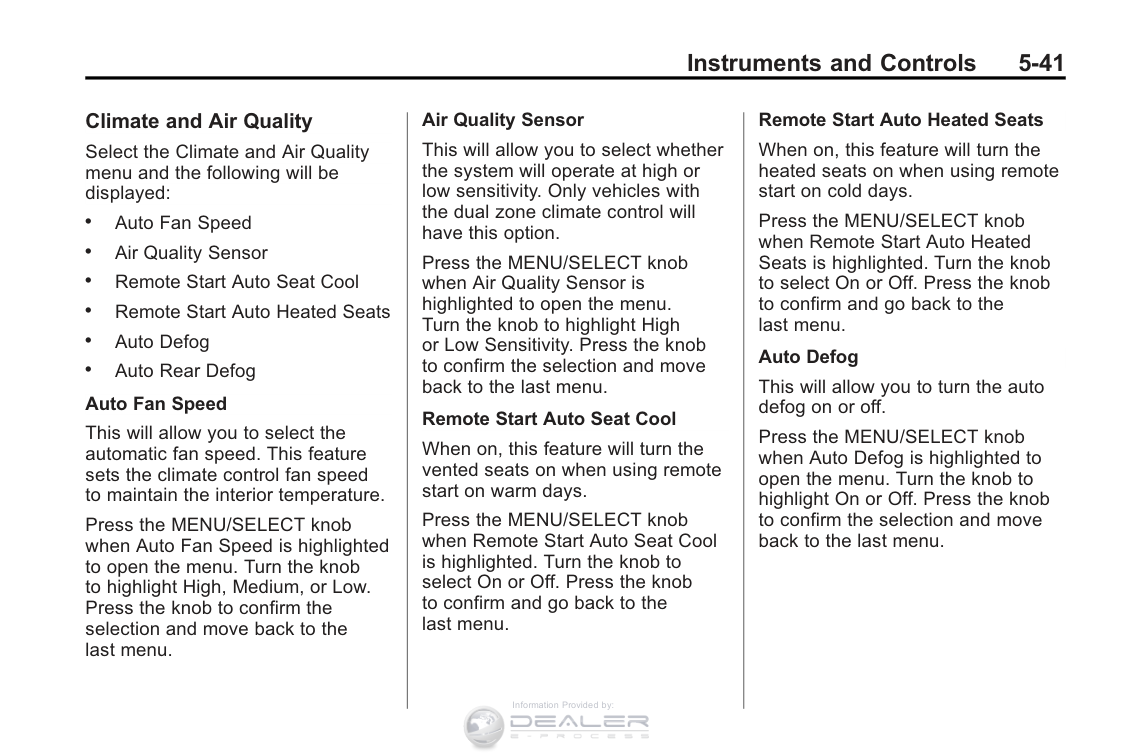

####### Climate and Air Quality

Select the Climate and Air Quality menu and the following will be displayed:

. Auto Fan Speed

. Air Quality Sensor

. Remote Start Auto Seat Cool

. Remote Start Auto Heated Seats

. Auto Defog

. Auto Rear Defog Auto Fan Speed

This will allow you to select the automatic fan speed. This feature sets the climate control fan speed to maintain the interior temperature.

Press the MENU/SELECT knob when Auto Fan Speed is highlighted to open the menu. Turn the knob to highlight High, Medium, or Low. Press the knob to confirm the selection and move back to the last menu.

######## Air Quality Sensor

This will allow you to select whether the system will operate at high or low sensitivity. Only vehicles with the dual zone climate control will have this option.

Press the MENU/SELECT knob when Air Quality Sensor is highlighted to open the menu. Turn the knob to highlight High or Low Sensitivity. Press the knob to confirm the selection and move back to the last menu.

######## Remote Start Auto Seat Cool

When on, this feature will turn the vented seats on when using remote start on warm days.

Press the MENU/SELECT knob when Remote Start Auto Seat Cool is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

Remote Start Auto Heated Seats When on, this feature will turn the heated seats on when using remote start on cold days. Press the MENU/SELECT knob when Remote Start Auto Heated Seats is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu. Auto Defog

This will allow you to turn the auto defog on or off.

Press the MENU/SELECT knob when Auto Defog is highlighted to open the menu. Turn the knob to highlight On or Off. Press the knob to confirm the selection and move back to the last menu.

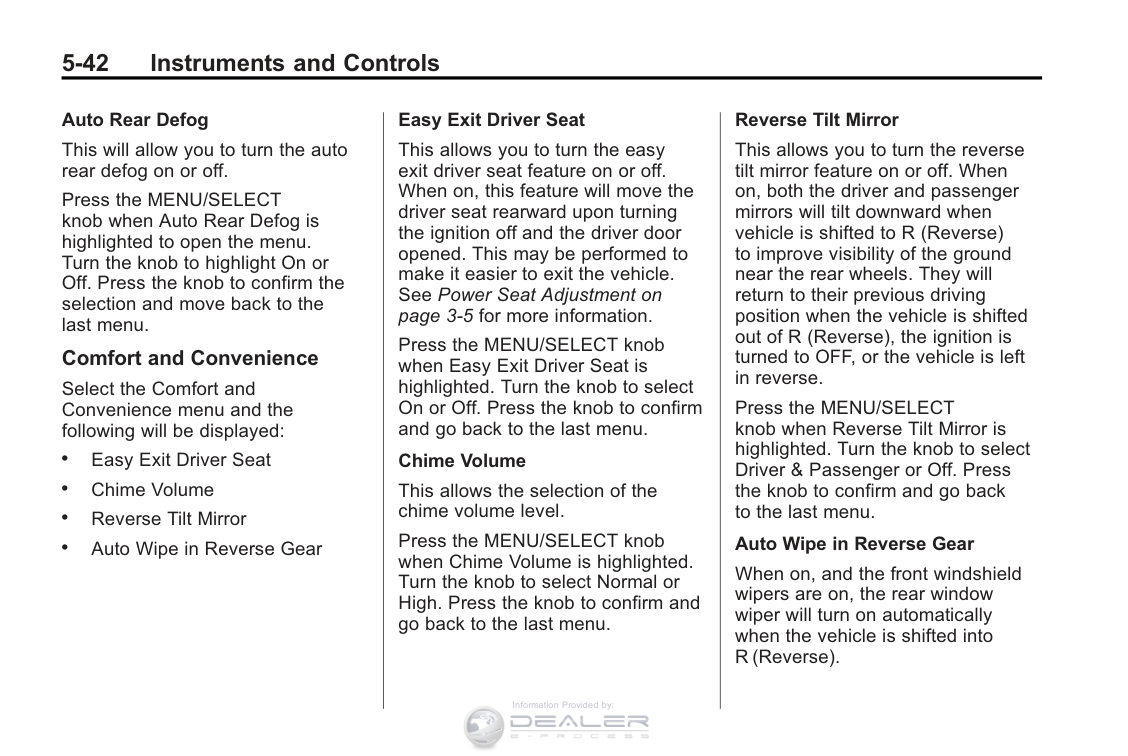

######## Auto Rear Defog

This will allow you to turn the auto rear defog on or off.

Press the MENU/SELECT knob when Auto Rear Defog is highlighted to open the menu. Turn the knob to highlight On or Off. Press the knob to confirm the selection and move back to the last menu.

####### Comfort and Convenience

Select the Comfort and Convenience menu and the following will be displayed:

. Easy Exit Driver Seat

. Chime Volume

. Reverse Tilt Mirror

. Auto Wipe in Reverse Gear

######## Easy Exit Driver Seat

This allows you to turn the easy exit driver seat feature on or off. When on, this feature will move the driver seat rearward upon turning the ignition off and the driver door opened. This may be performed to make it easier to exit the vehicle. See Power Seat Adjustment on page 3￿5 for more information.

Press the MENU/SELECT knob when Easy Exit Driver Seat is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

######## Chime Volume

This allows the selection of the chime volume level.

Press the MENU/SELECT knob when Chime Volume is highlighted. Turn the knob to select Normal or High. Press the knob to confirm and go back to the last menu.

######## Reverse Tilt Mirror

This allows you to turn the reverse tilt mirror feature on or off. When on, both the driver and passenger mirrors will tilt downward when vehicle is shifted to R (Reverse) to improve visibility of the ground near the rear wheels. They will return to their previous driving position when the vehicle is shifted out of R (Reverse), the ignition is turned to OFF, or the vehicle is left in reverse.

Press the MENU/SELECT knob when Reverse Tilt Mirror is highlighted. Turn the knob to select Driver & Passenger or Off. Press the knob to confirm and go back to the last menu.

######## Auto Wipe in Reverse Gear

When on, and the front windshield wipers are on, the rear window wiper will turn on automatically when the vehicle is shifted into R(Reverse).

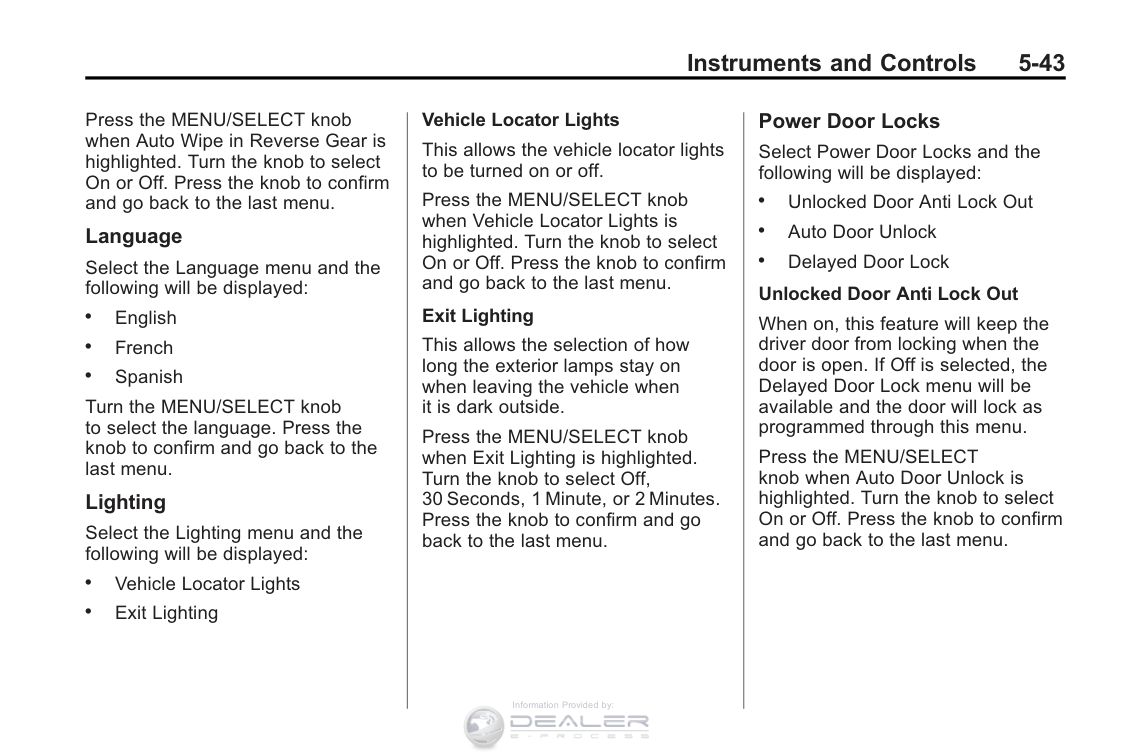

Press the MENU/SELECT knob when Auto Wipe in Reverse Gear is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

####### Language

Select the Language menu and the following will be displayed:

. English . French . Spanish

Turn the MENU/SELECT knob to select the language. Press the knob to confirm and go back to the last menu.

####### Lighting

Select the Lighting menu and the following will be displayed:

. Vehicle Locator Lights

. Exit Lighting

######## Vehicle Locator Lights

This allows the vehicle locator lights to be turned on or off.

Press the MENU/SELECT knob when Vehicle Locator Lights is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

######## Exit Lighting

This allows the selection of how long the exterior lamps stay on when leaving the vehicle when it is dark outside.

Press the MENU/SELECT knob when Exit Lighting is highlighted. Turn the knob to select Off, 30 Seconds, 1 Minute, or 2 Minutes. Press the knob to confirm and go back to the last menu.

####### Power Door Locks

Select Power Door Locks and the following will be displayed:

. Unlocked Door Anti Lock Out

. Auto Door Unlock

######## . Delayed Door Lock Unlocked Door Anti Lock Out

When on, this feature will keep the driver door from locking when the door is open. If Off is selected, the Delayed Door Lock menu will be available and the door will lock as programmed through this menu.

Press the MENU/SELECT knob when Auto Door Unlock is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

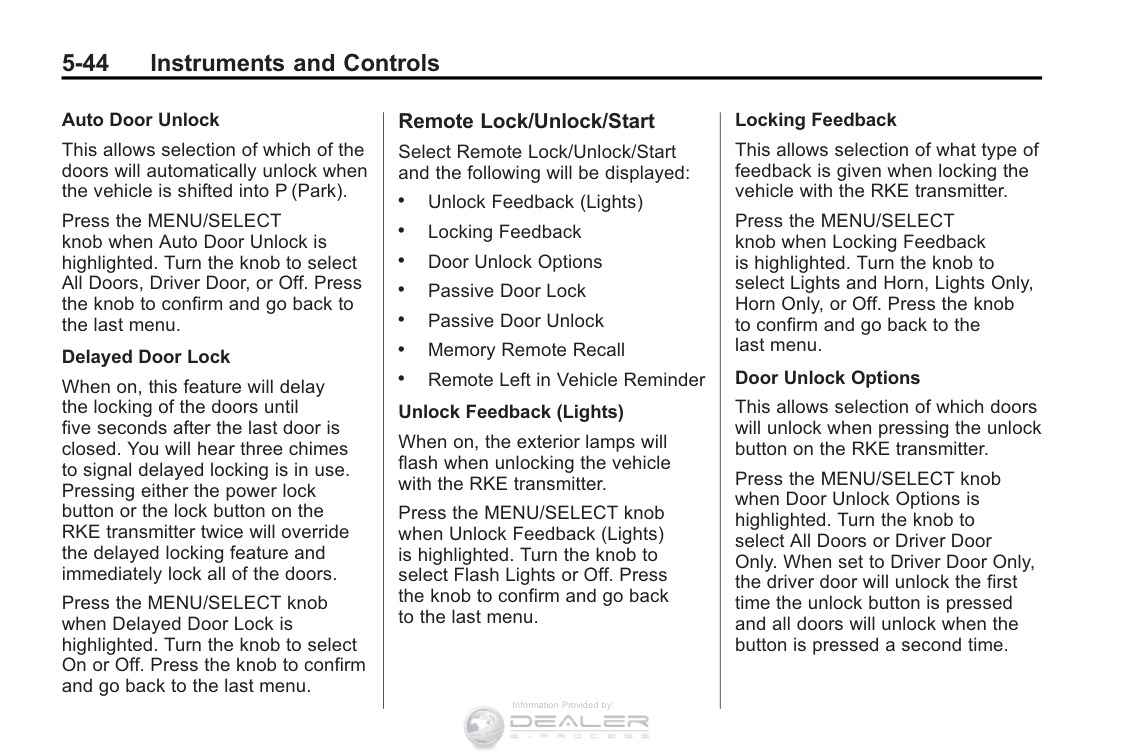

######## Auto Door Unlock

This allows selection of which of the doors will automatically unlock when the vehicle is shifted into P (Park).

Press the MENU/SELECT knob when Auto Door Unlock is highlighted. Turn the knob to select All Doors, Driver Door, or Off. Press the knob to confirm and go back to the last menu.

######## Delayed Door Lock

When on, this feature will delay the locking of the doors until five seconds after the last door is closed. You will hear three chimes to signal delayed locking is in use. Pressing either the power lock button or the lock button on the RKE transmitter twice will override the delayed locking feature and immediately lock all of the doors.

Press the MENU/SELECT knob when Delayed Door Lock is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

####### Remote Lock/Unlock/Start

Select Remote Lock/Unlock/Start and the following will be displayed:

. Unlock Feedback (Lights)

. Locking Feedback

. Door Unlock Options

. Passive Door Lock

. Passive Door Unlock

. Memory Remote Recall

. Remote Left in Vehicle Reminder Unlock Feedback (Lights)

When on, the exterior lamps will flash when unlocking the vehicle with the RKE transmitter.

Press the MENU/SELECT knob when Unlock Feedback (Lights) is highlighted. Turn the knob to select Flash Lights or Off. Press the knob to confirm and go back to the last menu.



######## Locking Feedback

This allows selection of what type of feedback is given when locking the vehicle with the RKE transmitter.

Press the MENU/SELECT knob when Locking Feedback is highlighted. Turn the knob to select Lights and Horn, Lights Only, Horn Only, or Off. Press the knob to confirm and go back to the last menu.

######## Door Unlock Options

This allows selection of which doors will unlock when pressing the unlock button on the RKE transmitter.

Press the MENU/SELECT knob when Door Unlock Options is highlighted. Turn the knob to select All Doors or Driver Door Only. When set to Driver Door Only, the driver door will unlock the first time the unlock button is pressed and all doors will unlock when the button is pressed a second time.

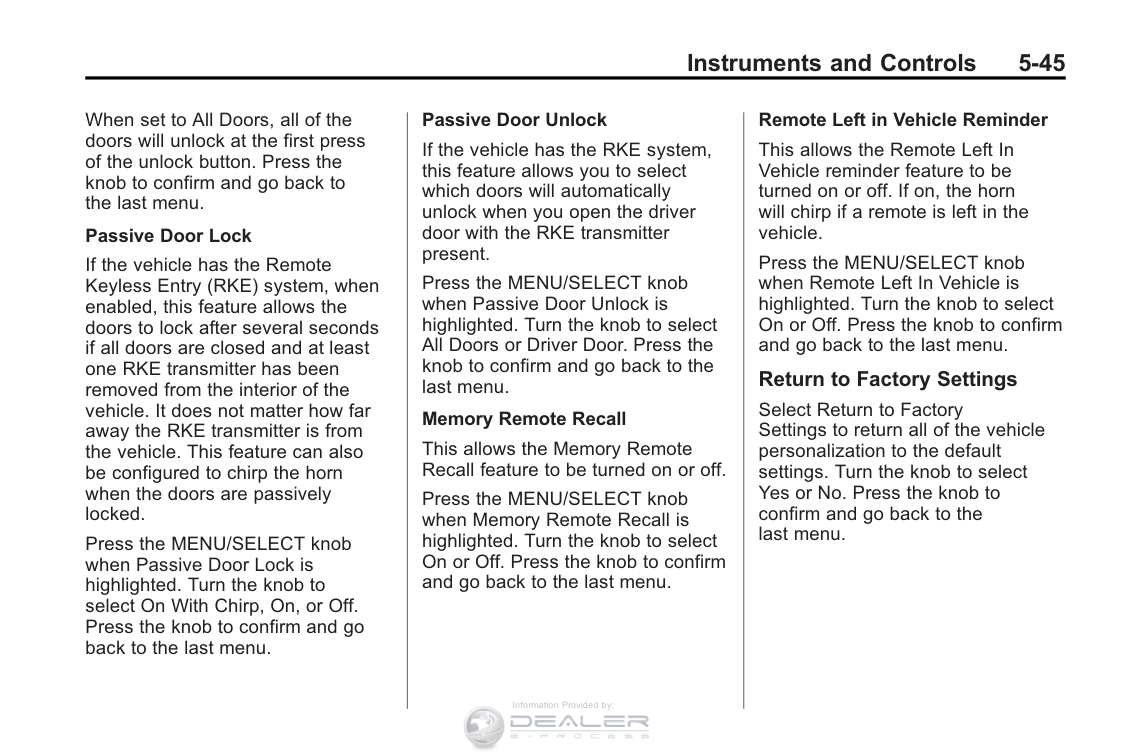

When set to All Doors, all of the doors will unlock at the first press of the unlock button. Press the knob to confirm and go back to the last menu.

######## Passive Door Lock

If the vehicle has the Remote Keyless Entry (RKE) system, when enabled, this feature allows the doors to lock after several seconds if all doors are closed and at least one RKE transmitter has been removed from the interior of the vehicle. It does not matter how far away the RKE transmitter is from the vehicle. This feature can also be configured to chirp the horn when the doors are passively locked.

Press the MENU/SELECT knob when Passive Door Lock is highlighted. Turn the knob to select On With Chirp, On, or Off. Press the knob to confirm and go back to the last menu.

######## Passive Door Unlock

If the vehicle has the RKE system, this feature allows you to select which doors will automatically unlock when you open the driver door with the RKE transmitter present.

Press the MENU/SELECT knob when Passive Door Unlock is highlighted. Turn the knob to select All Doors or Driver Door. Press the knob to confirm and go back to the last menu.

######## Memory Remote Recall

This allows the Memory Remote Recall feature to be turned on or off.

Press the MENU/SELECT knob when Memory Remote Recall is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

######## Remote Left in Vehicle Reminder

This allows the Remote Left In Vehicle reminder feature to be turned on or off. If on, the horn will chirp if a remote is left in the vehicle.

Press the MENU/SELECT knob when Remote Left In Vehicle is highlighted. Turn the knob to select On or Off. Press the knob to confirm and go back to the last menu.

####### Return to Factory Settings

Select Return to Factory Settings to return all of the vehicle personalization to the default settings. Turn the knob to select Yes or No. Press the knob to confirm and go back to the last menu.

Universal Remote System See Radio Frequency Statement on page 13￿23 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310.

#### Universal Remote System Programming


If the vehicle has this feature, you will see these buttons with one indicator light next to them in the overhead console.

This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices.

Do not use the Universal Remote system with any garage door opener that does not have the stop and reverse feature. This includes any garage door opener model manufactured before April 1,1982.

Read the instructions completely before attempting to program the Universal Remote system. Because of the steps involved, it may be helpful to have another person available to assist with programming the Universal Remote system.

Keep the original hand-held transmitter for use in other vehicles as well as for future Universal Remote system programming. It is also recommended that upon the sale of the vehicle, the programmed Universal Remote system buttons be erased for security purposes. See “Erasing Universal Remote System Buttons” later in this section.

When programming a garage door, park outside of the garage. Park directly in line with and facing the garage door opener motor-head or gate motor-head. Be sure that people and objects are clear of the garage door or gate being programmed.

It is recommended that a new battery be installed in the hand-held transmitter for quicker and more accurate transmission of the radio-frequency signal.

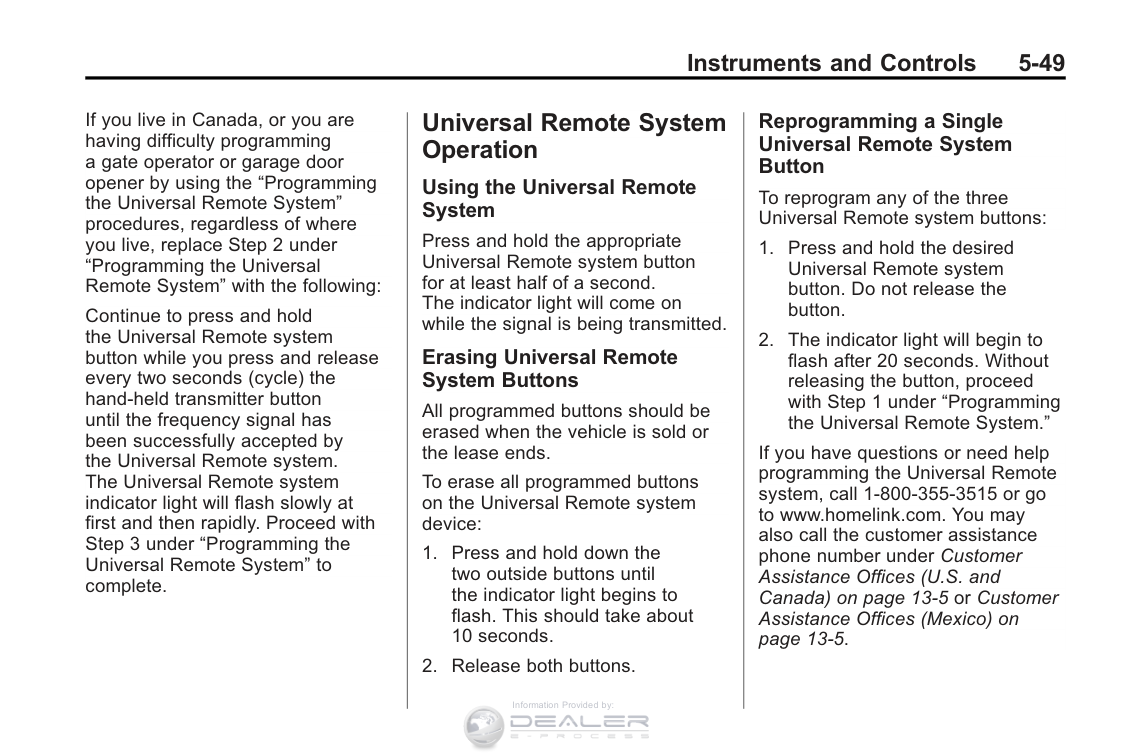

####### Programming the Universal Remote System

For questions or help programming the Universal Remote system, call 1-800-355-3515 or go to www.homelink.com.

Programming a garage door opener involves time-sensitive actions, so read the entire procedure before starting. Otherwise, the device will time out and the procedure will have to be repeated.

To program up to three devices:

Some entry gates and garage door openers may require substitution of Step 2 with the procedure noted in “Gate Operator and Canadian Programming” later in this section.



. If the indicator light stays on continuously or the garage door starts to move when the Universal Remote system button is pressed and released, then the programming is complete. There is no need to continue programming Steps 4–6.

. If the Universal Remote system indicator light blinks rapidly for two seconds, then turns to a constant light and the garage door does not move, continue with programming Steps 4–6.

It may be helpful to have another person assist with the remaining Steps 4–6.


######## “Learn” or “Smart” Button

The Universal Remote system should now activate the garage door.

To program the remaining two Universal Remote system buttons, begin with Step 1 of “Programming the Universal Remote System.”

####### Gate Operator and Canadian Programming

If you have questions or need help programming the Universal Remote system, call 1-800-355-3515 or go to www.homelink.com.

Canadian radio-frequency laws require transmitter signals to time out or quit after several seconds of transmission. This may not be long enough for the Universal Remote system to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to time out in the same manner.

If you live in Canada, or you are having difficulty programming agateoperatororgaragedoor opener by using the “Programming the Universal Remote System” procedures, regardless of where you live, replace Step 2 under “Programming the Universal Remote System” with the following: Continue to press and hold the Universal Remote system button while you press and release every two seconds (cycle) the hand-held transmitter button until the frequency signal has been successfully accepted by the Universal Remote system. The Universal Remote system indicator light will flash slowly at first and then rapidly. Proceed with Step 3 under “Programming the Universal Remote System” to complete.

#### Universal Remote System Operation

####### Using the Universal Remote System

Press and hold the appropriate Universal Remote system button for at least half of a second. The indicator light will come on while the signal is being transmitted.

####### Erasing Universal Remote System Buttons

All programmed buttons should be erased when the vehicle is sold or the lease ends.

To erase all programmed buttons on the Universal Remote system device:

####### Reprogramming a Single Universal Remote System Button

To reprogram any of the three Universal Remote system buttons:

If you have questions or need help programming the Universal Remote system, call 1-800-355-3515 or go to www.homelink.com. You may also call the customer assistance phone number under Customer Assistance Offices (U.S. and Canada) on page 13￿5 or Customer Assistance Offices (Mexico) on page 13￿5.

2 NOTES

Lighting

Exterior Lighting Exterior Lamp Controls ........ 6-1 Headlamp High/Low-Beam

Changer .... .. .. .. . .. .. .. .. .. 6-2 Flash-to-Pass ..... . . .. . . .. . . .. 6-2 Daytime Running

Lamps (DRL) .... . . . . . . . . . . . . 6-3 Adaptive Forward

Lighting (AFL) .... . . . . . . . . . . . 6-3 Twilight Sentinel . . . . . . . . . . . . . . 6-4 Hazard Warning Flashers .... . 6-5 Turn and Lane-Change

Signals .... . .. . . . . . .. . . . . . .. . 6-6 Front Fog Lamps .............. 6-6

####### Interior Lighting

Instrument Panel Illumination

Control .... . . . . . . . . . . . . . . . . . . 6-7 Cargo Lamp .... . . . . . . . . . . . . . . 6-7 Courtesy Lamps .... . . . . . . . . . . 6-7 Dome Lamps .... . . . . . . . . . . . . . 6-7 Reading Lamps .... . . . . . . . . . . . 6-8

####### Lighting Features

Entry Lighting .... . . . . . . . . . . . . . 6-8 Exit Lighting ................... 6-8 Battery Load Management .... 6-9

Exterior Lighting Exterior Lamp Controls


The exterior lamp control is located on the instrument panel to the left of the steering column.

It controls the following systems:

. Headlamps

. Taillamps

. Parking Lamps

. License Plate Lamps

. Instrument Panel Lights

. Fog Lamps

The exterior lamps control has four positions:

AUTO (Automatic): Turns the headlamps on automatically at normal brightness, together with the following:

. Parking Lamps

. Taillamps

. License Plate Lamps

. Instrument Panel Lights

; (Parking Lamps): Turns the parking lamps on together with the following:

. Taillamps

. License Plate Lamps

. Instrument Panel Lights 2 (Headlamps): Turns the headlamps on together with the lamps listed below. A warning chime sounds if the driver door is opened when the ignition switch is off and the headlamps are on.

. Parking Lamps

. Taillamps

. License Plate Lamps

. Instrument Panel Lights # (Front Fog Lamps): For vehicles with fog lamps, press to turn the lamps on or off. See Front Fog Lamps on page 6￿6.



#### Headlamp High/ Low-Beam Changer

Push the turn signal/lane change lever away from you and release, to turn the high beams on. To return to low beams, push the lever again or pull it toward you and release.


This indicator light turns on in the instrument panel cluster when the high￿beam headlamps are on.

#### Flash-to-Pass

The flash￿to￿pass feature works with the low beams or Daytime Running Lamps (DRL) on or off.

To flash the high beams, pull the turn signal/lane change lever all the way toward you, then release it.

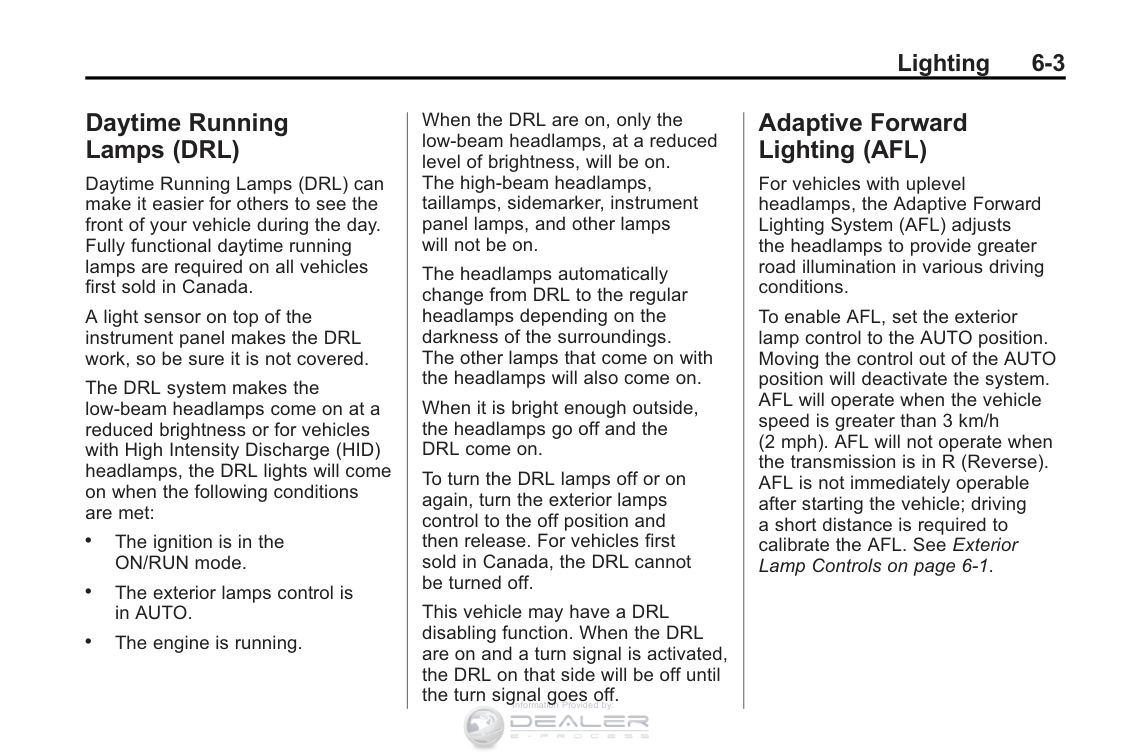

#### Daytime Running Lamps (DRL)

Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. Fully functional daytime running lamps are required on all vehicles first sold in Canada.

Alightsensorontopofthe instrument panel makes the DRL work, so be sure it is not covered.

The DRL system makes the low￿beam headlamps come on at a reduced brightness or for vehicles with High Intensity Discharge (HID) headlamps, the DRL lights will come on when the following conditions are met:

. The ignition is in the ON/RUN mode.

. The exterior lamps control is in AUTO.

. The engine is running.

When the DRL are on, only the low￿beam headlamps, at a reduced level of brightness, will be on. The high￿beam headlamps, taillamps, sidemarker, instrument panel lamps, and other lamps will not be on.

The headlamps automatically change from DRL to the regular headlamps depending on the darkness of the surroundings. The other lamps that come on with the headlamps will also come on. When it is bright enough outside, the headlamps go off and the DRL come on. To turn the DRL lamps off or on again, turn the exterior lamps control to the off position and then release. For vehicles first sold in Canada, the DRL cannot be turned off. This vehicle may have a DRL disabling function. When the DRL are on and a turn signal is activated, the DRL on that side will be off until the turn signal goes off.



#### Adaptive Forward Lighting (AFL)

For vehicles with uplevel headlamps, the Adaptive Forward Lighting System (AFL) adjusts the headlamps to provide greater road illumination in various driving conditions.

To enable AFL, set the exterior lamp control to the AUTO position. Moving the control out of the AUTO position will deactivate the system. AFL will operate when the vehicle speed is greater than 3 km/h (2 mph). AFL will not operate when the transmission is in R (Reverse). AFL is not immediately operable after starting the vehicle; driving ashortdistanceisrequiredto calibrate the AFL. See Exterior Lamp Controls on page 6￿1.

######## Curve Lighting

The light beam pivots based on the steering wheel position and vehicle speed of at least 10 km/h (6 mph). The headlamps shine at an angle of up to 15 degrees to the right or left of the direction of travel.

######## Highway Lighting

If the vehicle is traveling straight continuously at high speeds, the light beam automatically raises slightly to increase the headlamp range.

######## City Lighting

If the vehicle speed is less than 50 km/h (31 mph), the headlamp range is automatically reduced.

#### Twilight Sentinel


This feature automatically turns the lamps on and off. A light sensor on top of the instrument panel makes the Twilight Sentinel® work, so be sure it is not covered.

With Twilight Sentinel the following will happen:

. When it is dark enough outside, and the exterior lamp control is in the AUTO position, the Daytime Running Lamps (DRL) go off, and the headlamps and parking lamps come on. The other lamps that come on with the headlamps also come on.

. When it is bright enough outside, the headlamps go off, and the DRL come on, as long as the exterior lamp control is in the AUTO position. See Exterior Lamp Controls on page 6￿1.

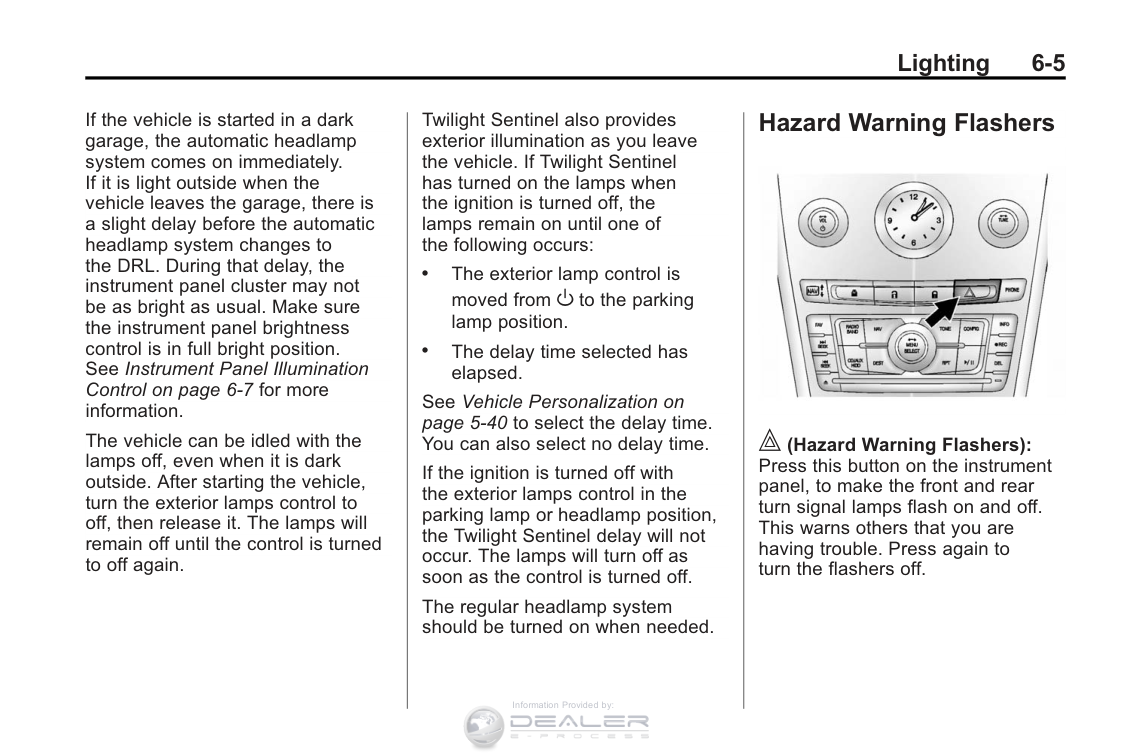

If the vehicle is started in a dark garage, the automatic headlamp system comes on immediately. If it is light outside when the vehicle leaves the garage, there is aslightdelaybeforetheautomatic headlamp system changes to the DRL. During that delay, the instrument panel cluster may not be as bright as usual. Make sure the instrument panel brightness control is in full bright position. See Instrument Panel Illumination Control on page 6￿7 for more information. The vehicle can be idled with the lamps off, even when it is dark outside. After starting the vehicle, turn the exterior lamps control to off, then release it. The lamps will remain off until the control is turned to off again.

Twilight Sentinel also provides exterior illumination as you leave the vehicle. If Twilight Sentinel has turned on the lamps when the ignition is turned off, the lamps remain on until one of the following occurs:

. The exterior lamp control is moved from O to the parking lamp position.

. The delay time selected has

elapsed. See Vehicle Personalization on page 5￿40 to select the delay time. You can also select no delay time. If the ignition is turned off with the exterior lamps control in the parking lamp or headlamp position, the Twilight Sentinel delay will not occur. The lamps will turn off as soon as the control is turned off. The regular headlamp system should be turned on when needed.

#### Hazard Warning Flashers


| (Hazard Warning Flashers): Press this button on the instrument panel, to make the front and rear turn signal lamps flash on and off. This warns others that you are having trouble. Press again to turn the flashers off.

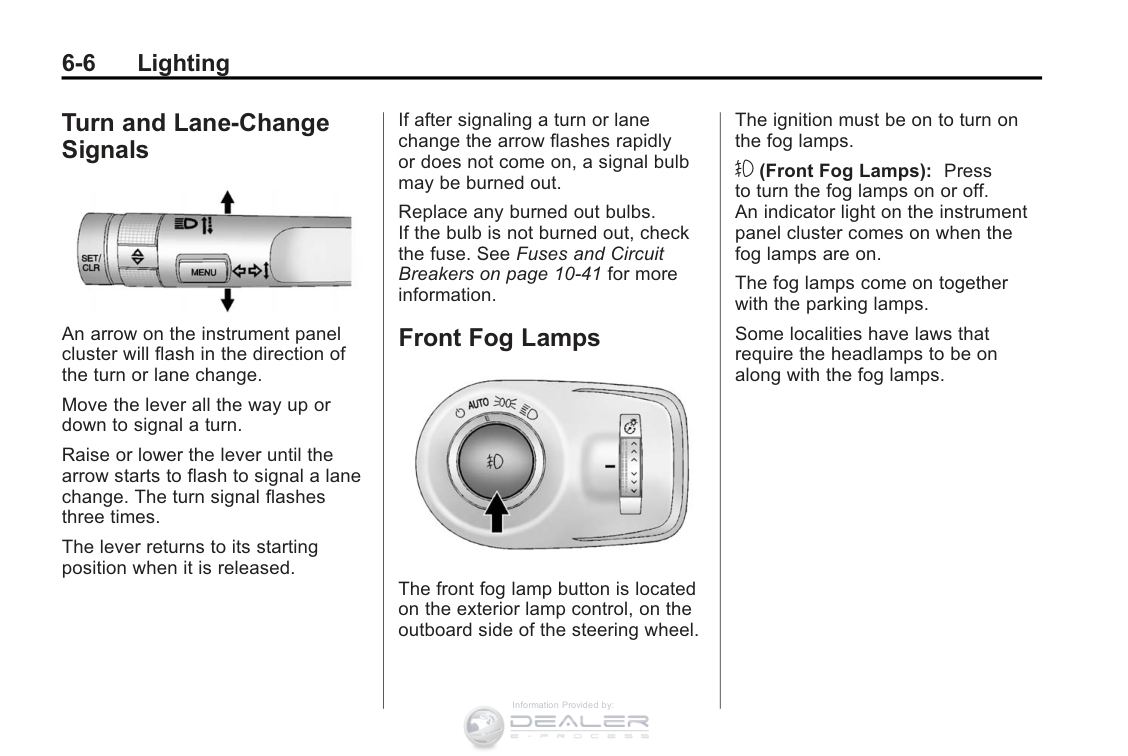

#### Turn and Lane-Change Signals


An arrow on the instrument panel cluster will flash in the direction of the turn or lane change.

Move the lever all the way up or down to signal a turn.

Raise or lower the lever until the arrow starts to flash to signal a lane change. The turn signal flashes three times.

The lever returns to its starting position when it is released.

If after signaling a turn or lane change the arrow flashes rapidly or does not come on, a signal bulb may be burned out.

Replace any burned out bulbs. If the bulb is not burned out, check the fuse. See Fuses and Circuit Breakers on page 10￿41 for more information.

#### Front Fog Lamps


The front fog lamp button is located on the exterior lamp control, on the outboard side of the steering wheel.

The ignition must be on to turn on the fog lamps.

(Front Fog Lamps): Press to turn the fog lamps on or off. An indicator light on the instrument panel cluster comes on when the fog lamps are on.

The fog lamps come on together with the parking lamps.

Some localities have laws that require the headlamps to be on along with the fog lamps.

Interior Lighting

#### Instrument Panel Illumination Control


The brightness of the instrument panel lights and steering wheel controls can be adjusted.

D (Instrument Panel Brightness): Move and hold the thumbwheel up or down to brighten or dim the lights.

#### Cargo Lamp

The cargo lamp is located in the rear compartment and is controlled by the dome lamp. See Dome Lamps on page 6￿7.

#### Courtesy Lamps

The courtesy lamps come on automatically when any door is opened and the dome lamp is in the door position.

#### Dome Lamps

The dome lamp is located in the overhead console.


To change the dome lamp settings, press the following:

1 (Door): The lamp comes on automatically when a door is opened.

+ (On): Turns the dome lamp on.

#### Reading Lamps

There are reading lamps located on the overhead console and over the rear passenger doors. These lamps come on automatically when any door is opened.

To manually turn the reading lamps on or off:

. Press # or $ next to each

overhead console reading lamp.

. Press the lamp lens on the rear passenger reading lamps.

Lighting Features Entry Lighting

The headlamps, taillamps, license plate lamps, back￿up lamps, dome lamps, and most of the interior lights

turn on briefly, when K is pressed on the Remote Keyless Entry (RKE) transmitter, or when the door handle is pulled. After about 30 seconds the exterior lamps turn off, and then the dome and remaining interior lights dim to off. The entry lighting can be manually turned off by changing the ignition out of the off position, or by pressing Q on the RKE transmitter. This feature can be changed. See Vehicle Personalization on page 5￿40.

#### Exit Lighting

The headlamps, taillamps, parking lamps, back￿up lamps, and license plate lamps come on at night, or in areas with limited lighting, when a door is opened after the ignition is turned off. The dome lamps also come on when a door is opened after the ignition is changed to the off position.

The exterior lights and dome lamp remain on after the door is closed for a set amount of time, then automatically turn off.

The exterior lights turn off immediately by turning the exterior lamps control to off.

This feature can be changed. See Vehicle Personalization on page 5￿40.

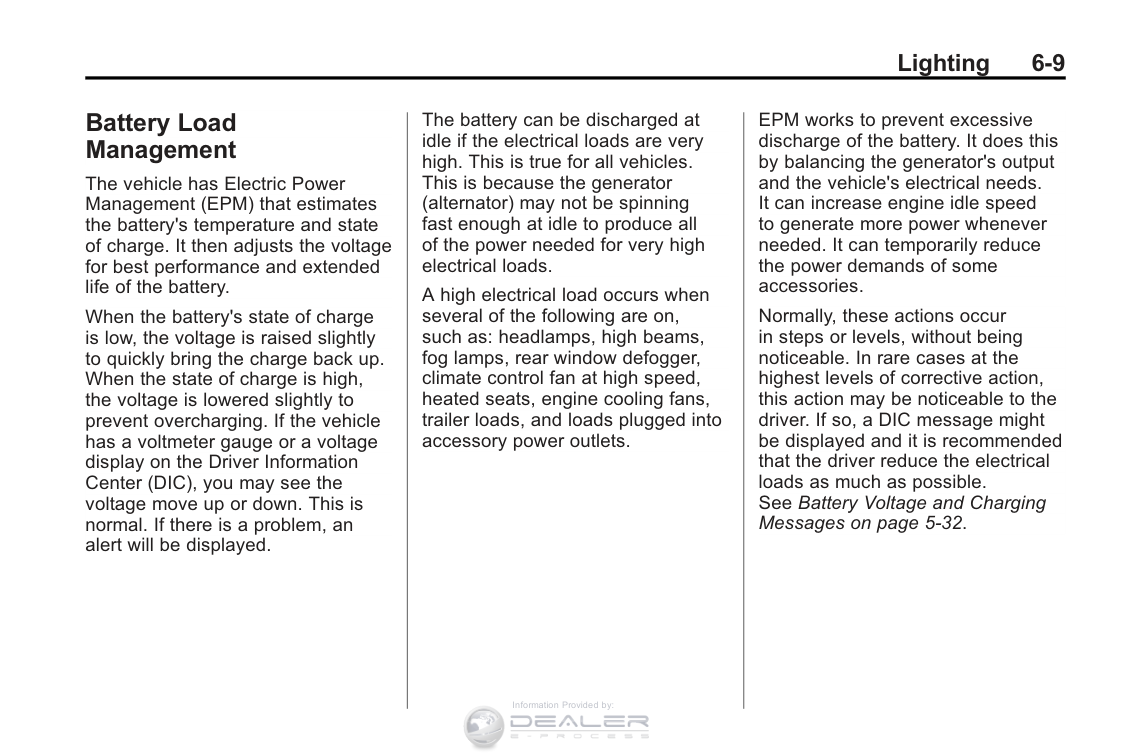

Battery Load Management The vehicle has Electric Power Management (EPM) that estimates the battery's temperature and state of charge. It then adjusts the voltage for best performance and extended life of the battery.

When the battery's state of charge is low, the voltage is raised slightly to quickly bring the charge back up. When the state of charge is high, the voltage is lowered slightly to prevent overcharging. If the vehicle has a voltmeter gauge or a voltage display on the Driver Information Center (DIC), you may see the voltage move up or down. This is normal. If there is a problem, an alert will be displayed.

The battery can be discharged at idle if the electrical loads are very high. This is true for all vehicles. This is because the generator (alternator) may not be spinning fast enough at idle to produce all of the power needed for very high electrical loads.

Ahighelectricalloadoccurswhen several of the following are on, such as: headlamps, high beams, fog lamps, rear window defogger, climate control fan at high speed, heated seats, engine cooling fans, trailer loads, and loads plugged into accessory power outlets.

EPM works to prevent excessive discharge of the battery. It does this by balancing the generator's output and the vehicle's electrical needs. It can increase engine idle speed to generate more power whenever needed. It can temporarily reduce the power demands of some accessories.

Normally, these actions occur in steps or levels, without being noticeable. In rare cases at the highest levels of corrective action, this action may be noticeable to the driver. If so, a DIC message might be displayed and it is recommended that the driver reduce the electrical loads as much as possible. See Battery Voltage and Charging Messages on page 5￿32.

2 NOTES

Infotainment System

####### Introduction

Infotainment ................... 7-1 Theft-Deterrent Feature .... . . . 7-2 Overview (Radio with CD) .... . 7-3 Overview (Radio with

CD/DVD and MEM) .......... 7-5 Operation .... . .. . . .. . .. . .. . . .. 7-7

####### Radio

AM-FM Radio ..... .. ... .. .. .. 7-11 Satellite Radio .... . . . . . . . . . . . 7-14 Radio Reception ..... . .. .. . .. 7-18 Multi-Band Antenna .......... 7-18

####### Audio Players

CD Player

(Radio with CD) .... . . . . . . . . 7-19 CD/DVD Player .... . . . . . . . . . . 7-21 Mass Storage

Media (MEM) ............... 7-25 Auxiliary Devices

(Radio with CD) .... . . . . . . . . 7-29 Auxiliary Devices (Radio with

CD/DVD and MEM) .... . . . . 7-35

####### Rear Seat Infotainment Rear Seat Entertainment

(RSE) System .... . .. .. . .. .. 7-37 Rear Seat Audio (RSA)

System ..................... 7-47

Phone Bluetooth (Overview) .... . . . . 7-49 Bluetooth (Infotainment

Controls) .... . . . . . . . . . . . . . . . 7-51 Bluetooth

(Voice Recognition) .... . . . . 7-55 Bluetooth

(UHP Mexico Only) ..... .. .. 7-62

####### Trademarks and License Agreements

Trademarks and License Agreements .... . . . . . . . . . . . . 7-73

Introduction Infotainment

Read the following pages to become familiar with the audio system's features.

|{ WARNING| |---| |Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others. Do not give extended attention to infotainment tasks while driving.|

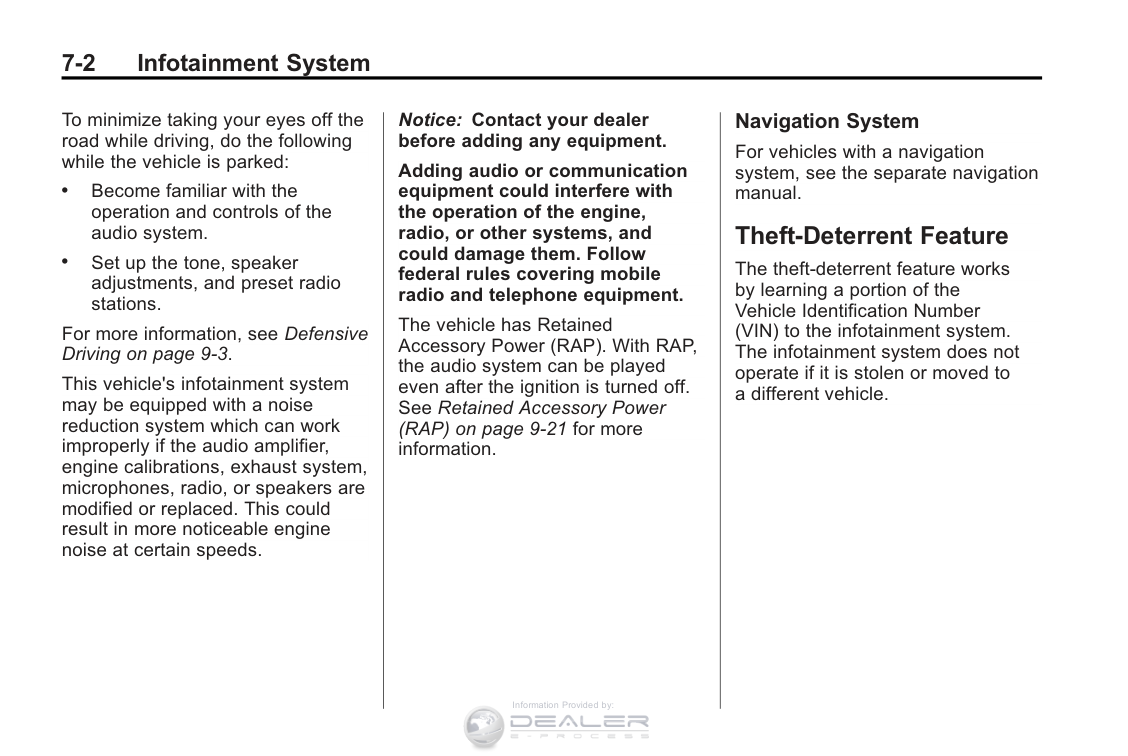

This system provides access to many audio and non￿audio listings.



To minimize taking your eyes off the road while driving, do the following while the vehicle is parked:

. Become familiar with the operation and controls of the audio system.

. Set up the tone, speaker adjustments, and preset radio stations.

For more information, see Defensive Driving on page 9￿3.

This vehicle's infotainment system may be equipped with a noise reduction system which can work improperly if the audio amplifier, engine calibrations, exhaust system, microphones, radio, or speakers are modified or replaced. This could result in more noticeable engine noise at certain speeds.

Notice: Contact your dealer before adding any equipment. Adding audio or communication equipment could interfere with the operation of the engine, radio, or other systems, and could damage them. Follow federal rules covering mobile radio and telephone equipment.

The vehicle has Retained Accessory Power (RAP). With RAP, the audio system can be played even after the ignition is turned off. See Retained Accessory Power (RAP) on page 9￿21 for more information.

####### Navigation System

For vehicles with a navigation system, see the separate navigation manual.

Theft-Deterrent Feature The theft-deterrent feature works by learning a portion of the Vehicle Identification Number (VIN) to the infotainment system. The infotainment system does not operate if it is stolen or moved to adifferentvehicle.

|Overview (Radio with CD)| | |---|---| | | | |

|Information Provided by:|

favorite stations. C. TUNE

. Radio: Manually selects

radio stations. . CD: Selects tracks. D. FAV

. Radio: Opens the favorites list. E. l SEEK

. Radio: Seeks the next station.

. CD: Selects the next track or fast forwards within a track.

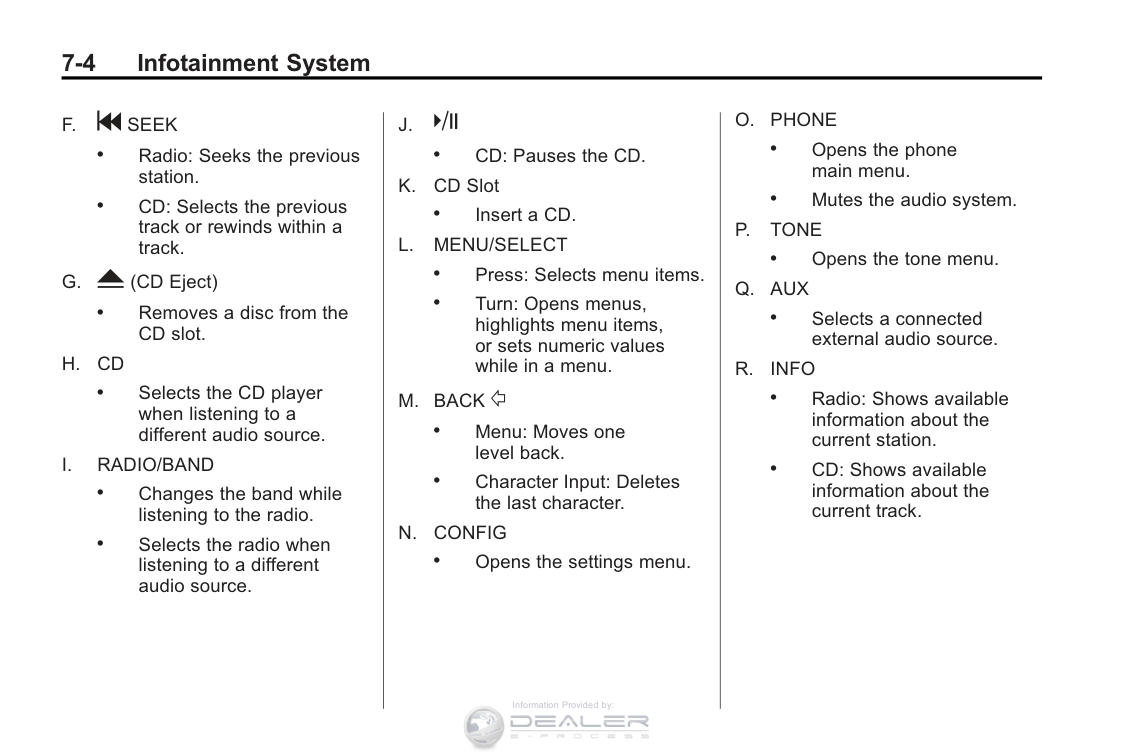

. Radio: Seeks the previous station.

. CD: Selects the previous track or rewinds within a track.

. Removes a disc from the CD slot.

. Selects the CD player when listening to a different audio source.

. Changes the band while listening to the radio.

. Selects the radio when listening to a different audio source.

. CD: Pauses the CD.

. Insert a CD.

. Press: Selects menu items.

. Turn: Opens menus,

highlights menu items, or sets numeric values while in a menu.

. Menu: Moves one level back.

. Character Input: Deletes the last character.

. Opens the settings menu.

. Opens the phone main menu.

. Mutes the audio system.

. Opens the tone menu.

. Selects a connected external audio source.

. Radio: Shows available information about the current station.

. CD: Shows available information about the current track.

|verview (Radio with CD/D|D and MEM)| |---|---| | | | |

|Information Provided by:|

favorite stations.

. MEM: Saves and selects favorite tracks and playlists.

C. TUNE/INFO

. Radio: Manually selects radio stations and shows available information about the current station.

. CD: Selects tracks and shows available information about the current track.

. MEM: Selects tracks and shows available information about the current track.

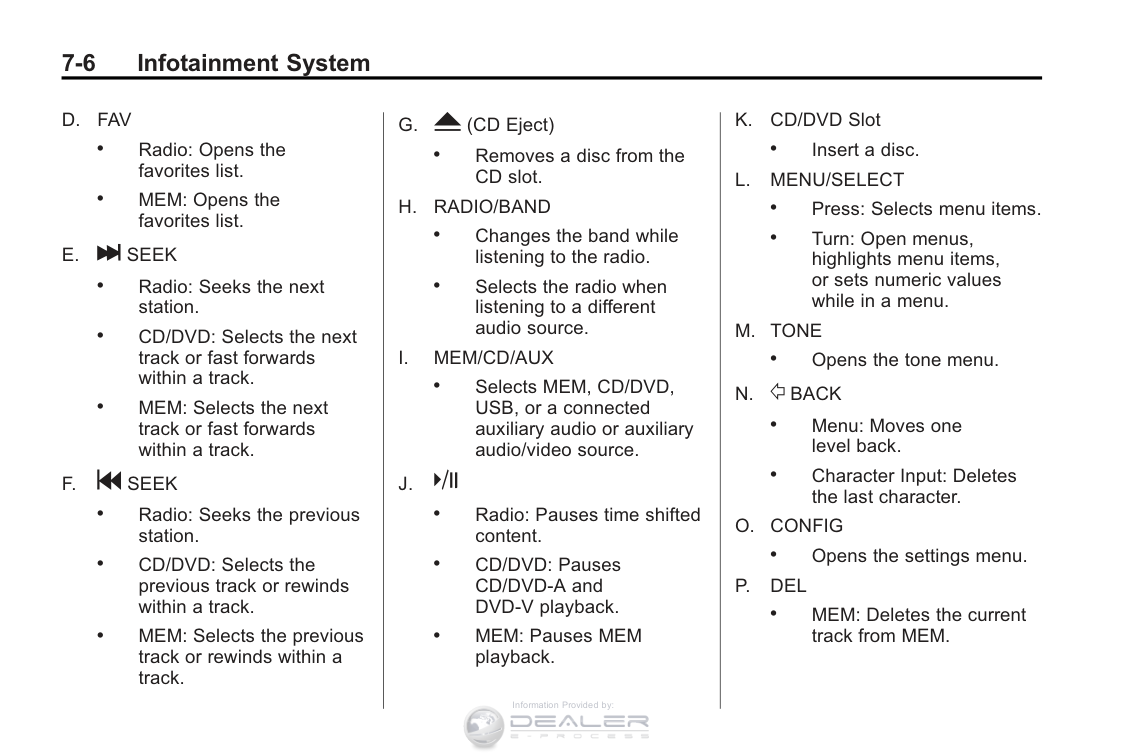

. Radio: Opens the favorites list.

. MEM: Opens the favorites list.

. Radio: Seeks the next station.

. CD/DVD: Selects the next track or fast forwards within a track.

. MEM: Selects the next track or fast forwards within a track.

. Radio: Seeks the previous station.

. CD/DVD: Selects the previous track or rewinds within a track.

. MEM: Selects the previous track or rewinds within a track.

. Removes a disc from the CD slot.

. Changes the band while listening to the radio.

. Selects the radio when listening to a different audio source.

. Selects MEM, CD/DVD, USB, or a connected auxiliary audio or auxiliary audio/video source.

. Radio: Pauses time shifted content.

. CD/DVD: Pauses CD/DVD￿Aand DVD￿Vplayback.

. MEM: Pauses MEM playback.



. Insert a disc.

. Press: Selects menu items.

. Turn: Open menus,

highlights menu items, or sets numeric values while in a menu.

. Opens the tone menu.

. Menu: Moves one level back.

. Character Input: Deletes the last character.

. Opens the settings menu.

. MEM: Deletes the current track from MEM.

Q. ( REC

. CD/DVD: Records content from audio CDs and MP3/WMA CDs.

. AUX: Records content from USB mass storage devices.

R. PHONE

. Opens the phone main menu.

. Mutes the audio system. Operation Controls

The infotainment system is operated by using the pushbuttons, multifunction knobs, menus shown on the display, and steering wheel controls, if equipped.

Turning the System On or Off VOL/ O (Volume/Power): Press to turn the system on and off. Automatic Switch￿Off

If the infotainment system has been turned on after the ignition is turned off, the system will turn off automatically after 10 minutes.

Volume Control VOL/ O (Volume/Power): Turn to adjust the volume.

PHONE: For vehicles with OnStar, press and hold PHONE to mute the infotainment system. Press and hold

PHONE again, or turn the VOL/ O knob to cancel mute.

For vehicles without OnStar®,press PHONE to mute the infotainment system. Press PHONE again, or turn the VOL/ O knob to cancel mute.

Menu System Controls The MENU/SELECT knob and the BACK / button are used to navigate the menu system. MENU/SELECT: Press to: . Select or activate the highlighted

menu option.

. Confirm a set value.

. Turn a system setting on or off. Turn to:

. Enter the menu system.

. Highlight a menu option.

. Select a value. BACK / : Press to:

. Exit a menu.

. Return from a submenu screen

to the previous menu screen. . Delete the last character in a

sequence.

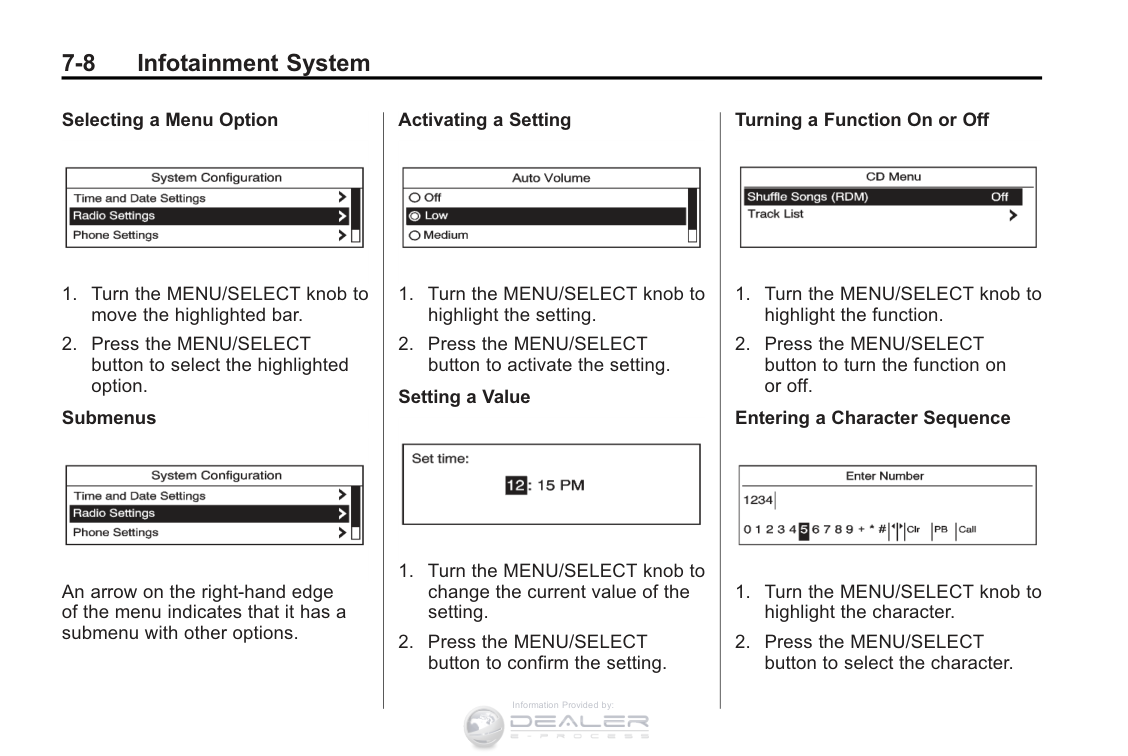

######## Selecting a Menu Option


######## Submenus


An arrow on the right￿hand edge of the menu indicates that it has a submenu with other options.

######## Activating a Setting


######## Setting a Value


######## Turning a Function On or Off


######## Entering a Character Sequence


highlight the character. 2. Press the MENU/SELECT

button to select the character.

Press the BACK / button to delete the last character in the sequence or press and hold to delete the entire character sequence.

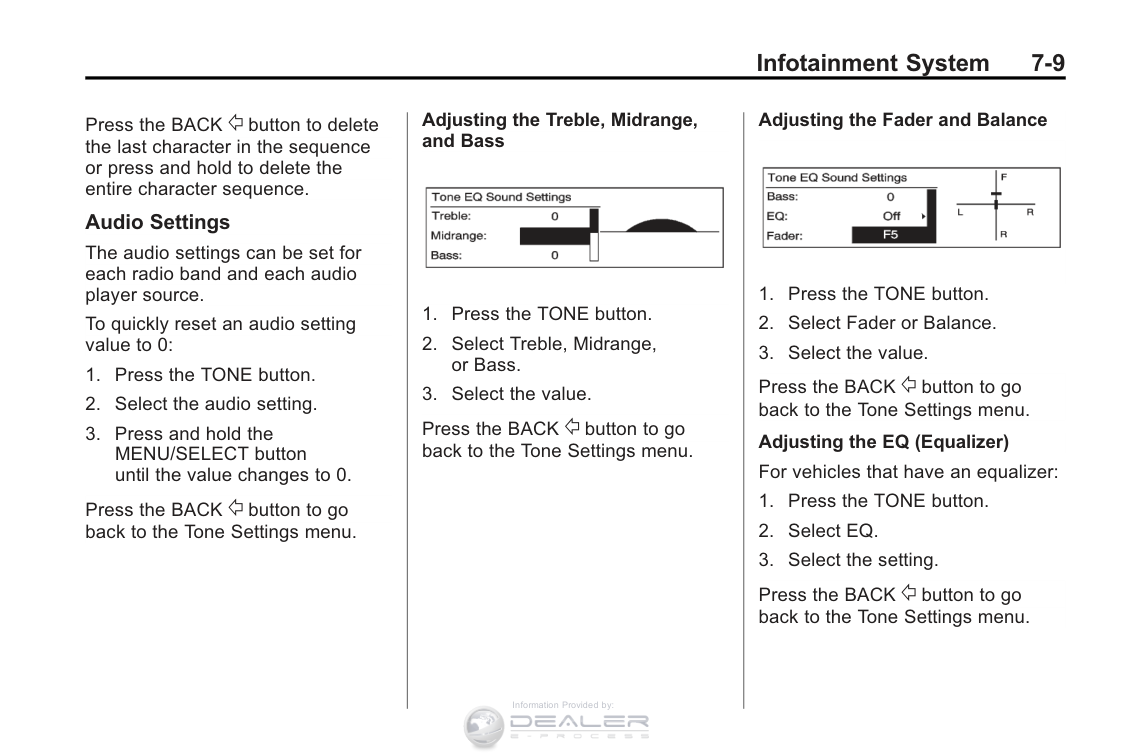

####### Audio Settings

The audio settings can be set for each radio band and each audio player source.

To quickly reset an audio setting value to 0:

Press the BACK / button to go back to the Tone Settings menu.

######## Adjusting the Treble, Midrange, and Bass


Press the BACK / button to go back to the Tone Settings menu.

######## Adjusting the Fader and Balance


Press the BACK / button to go back to the Tone Settings menu.

Adjusting the EQ (Equalizer) For vehicles that have an equalizer:

Press the BACK / button to go back to the Tone Settings menu.

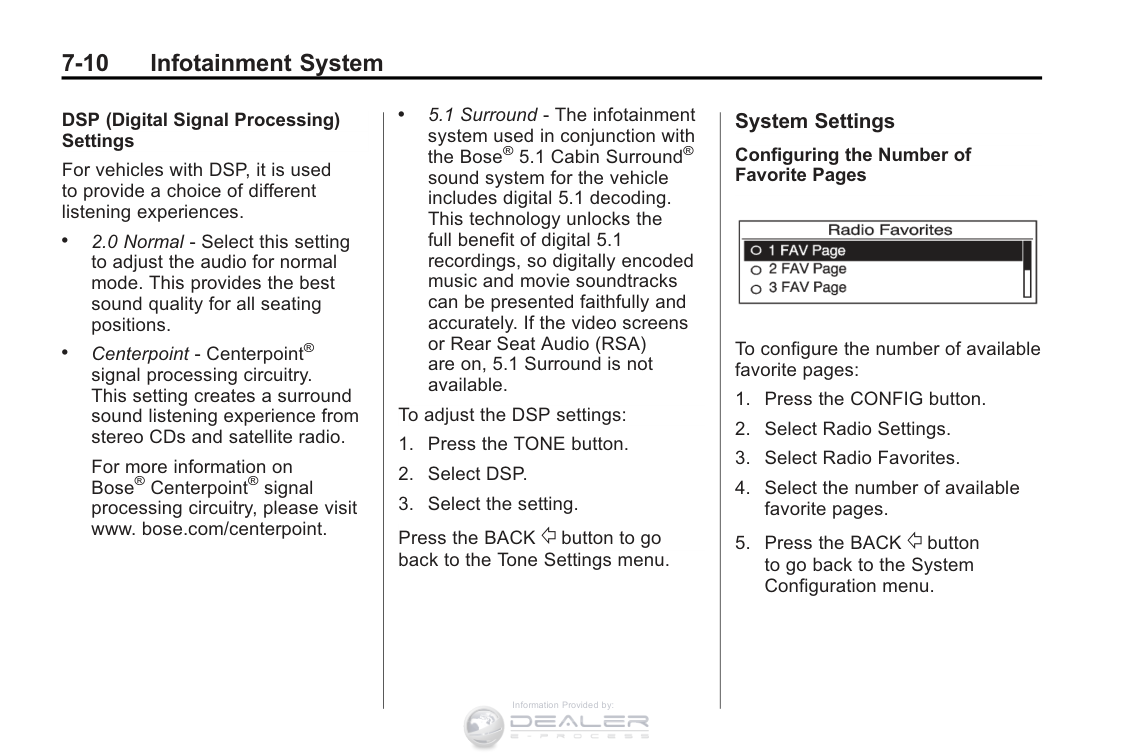

DSP (Digital Signal Processing) Settings

For vehicles with DSP, it is used to provide a choice of different listening experiences.

. 2.0 Normal ￿ Select this setting to adjust the audio for normal mode. This provides the best sound quality for all seating positions.

. Centerpoint ￿ Centerpoint® signal processing circuitry. This setting creates a surround sound listening experience from stereo CDs and satellite radio.

For more information on Bose® Centerpoint® signal processing circuitry, please visit www. bose.com/centerpoint.

. 5.1 Surround ￿ The infotainment system used in conjunction with the Bose® 5.1 Cabin Surround® sound system for the vehicle includes digital 5.1 decoding. This technology unlocks the full benefit of digital 5.1 recordings, so digitally encoded music and movie soundtracks can be presented faithfully and accurately. If the video screens or Rear Seat Audio (RSA) are on, 5.1 Surround is not available.

To adjust the DSP settings:

Press the BACK / button to go back to the Tone Settings menu.

####### System Settings

######## Configuring the Number of Favorite Pages


To configure the number of available favorite pages:

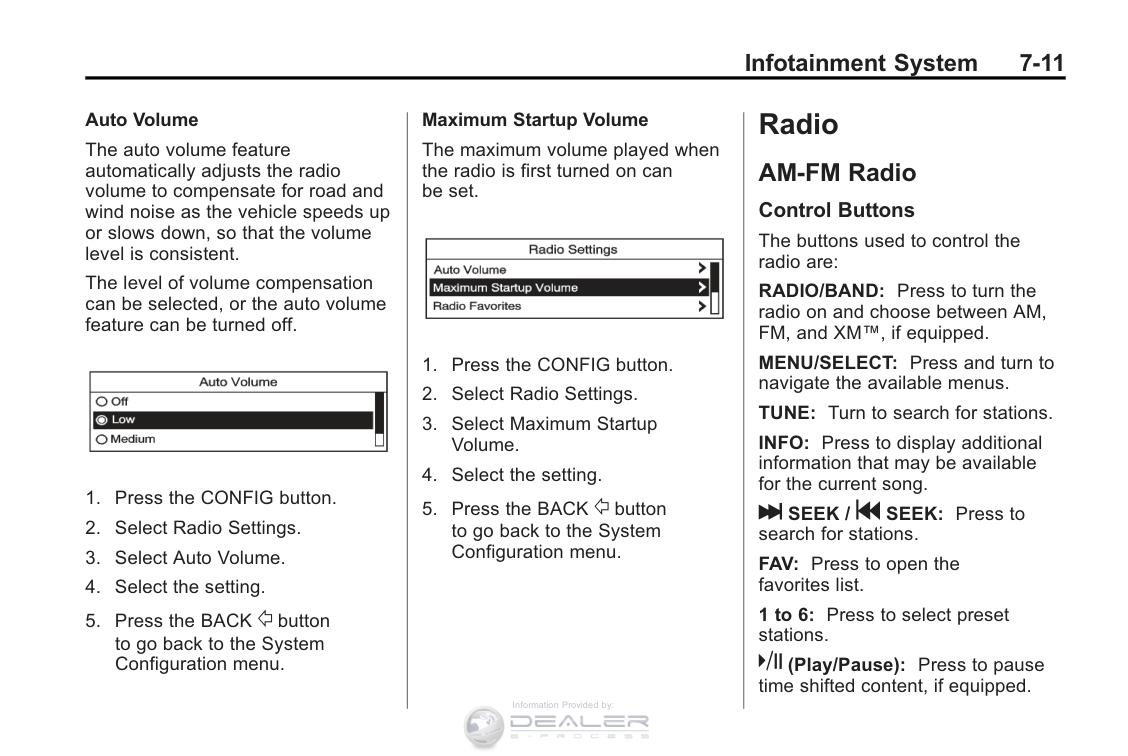

######## Auto Volume

The auto volume feature automatically adjusts the radio volume to compensate for road and wind noise as the vehicle speeds up or slows down, so that the volume level is consistent.

The level of volume compensation can be selected, or the auto volume feature can be turned off.


######## Maximum Startup Volume

The maximum volume played when the radio is first turned on can be set.




Radio

AM-FM Radio Control Buttons The buttons used to control the radio are: RADIO/BAND: Press to turn the radio on and choose between AM, FM, and XM™,ifequipped. MENU/SELECT: Press and turn to navigate the available menus. TUNE: Turn to search for stations. INFO: Press to display additional information that may be available for the current song. l SEEK / g SEEK: Press to search for stations. FAV: Press to open the favorites list. 1to6: Press to select preset stations. k (Play/Pause): Press to pause time shifted content, if equipped.

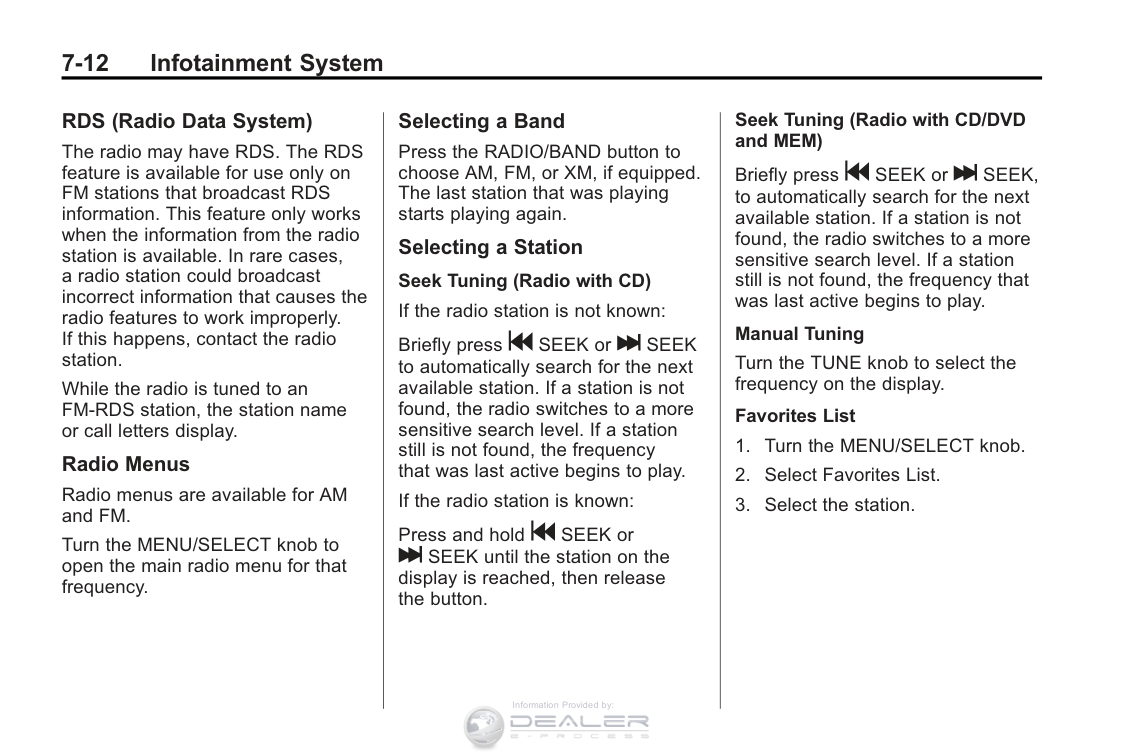

####### RDS (Radio Data System)

The radio may have RDS. The RDS feature is available for use only on FM stations that broadcast RDS information. This feature only works when the information from the radio station is available. In rare cases, aradiostationcouldbroadcast incorrect information that causes the radio features to work improperly. If this happens, contact the radio station.

While the radio is tuned to an FM-RDS station, the station name or call letters display.

####### Radio Menus

Radio menus are available for AM and FM.

Turn the MENU/SELECT knob to open the main radio menu for that frequency.

####### Selecting a Band

Press the RADIO/BAND button to choose AM, FM, or XM, if equipped. The last station that was playing starts playing again.

Selecting a Station Seek Tuning (Radio with CD) If the radio station is not known:

Briefly press g SEEK or l SEEK to automatically search for the next available station. If a station is not found, the radio switches to a more sensitive search level. If a station still is not found, the frequency that was last active begins to play.

If the radio station is known: Press and hold g SEEK or

l SEEK until the station on the display is reached, then release the button.

Seek Tuning (Radio with CD/DVD and MEM)

Briefly press g SEEK or l SEEK, to automatically search for the next available station. If a station is not found, the radio switches to a more sensitive search level. If a station still is not found, the frequency that was last active begins to play.

######## Manual Tuning

Turn the TUNE knob to select the frequency on the display.

######## Favorites List

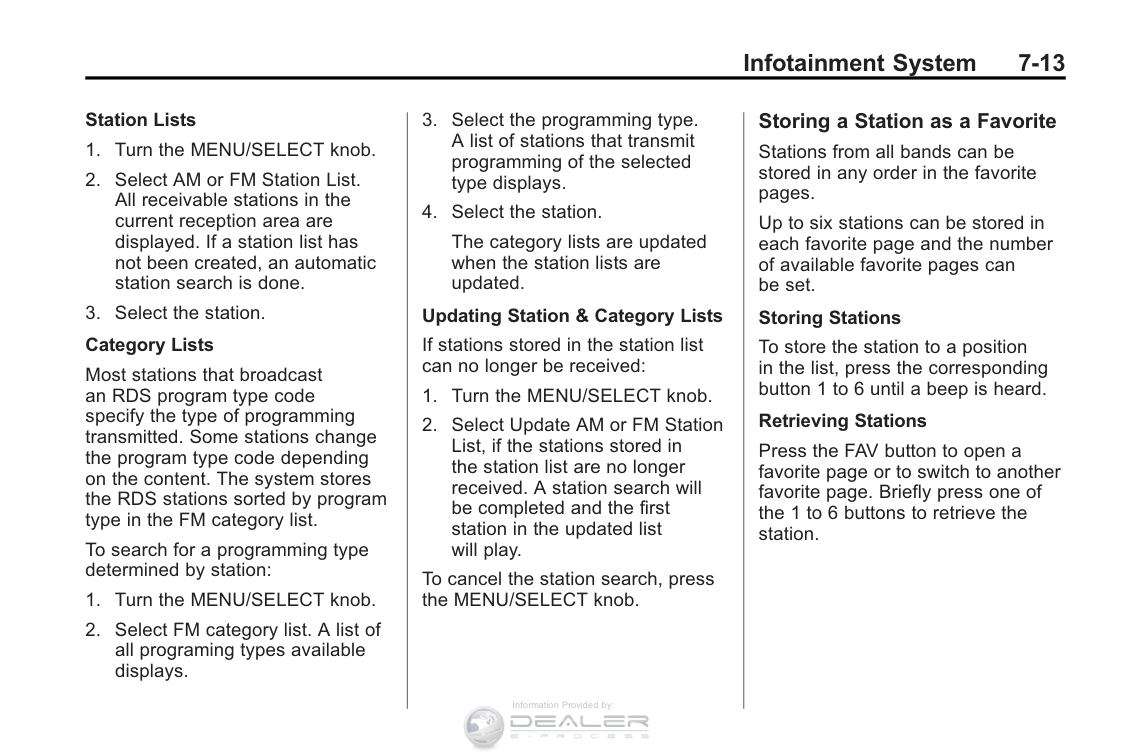

######## Station Lists

Most stations that broadcast an RDS program type code specify the type of programming transmitted. Some stations change the program type code depending on the content. The system stores the RDS stations sorted by program type in the FM category list.

To search for a programming type determined by station:

The category lists are updated when the station lists are updated.

######## Updating Station & Category Lists

If stations stored in the station list can no longer be received:

To cancel the station search, press the MENU/SELECT knob.



####### Storing a Station as a Favorite

Stations from all bands can be stored in any order in the favorite pages.

Up to six stations can be stored in each favorite page and the number of available favorite pages can be set.

######## Storing Stations

To store the station to a position in the list, press the corresponding button 1 to 6 until a beep is heard.

######## Retrieving Stations

Press the FAV button to open a favorite page or to switch to another favorite page. Briefly press one of the 1 to 6 buttons to retrieve the station.

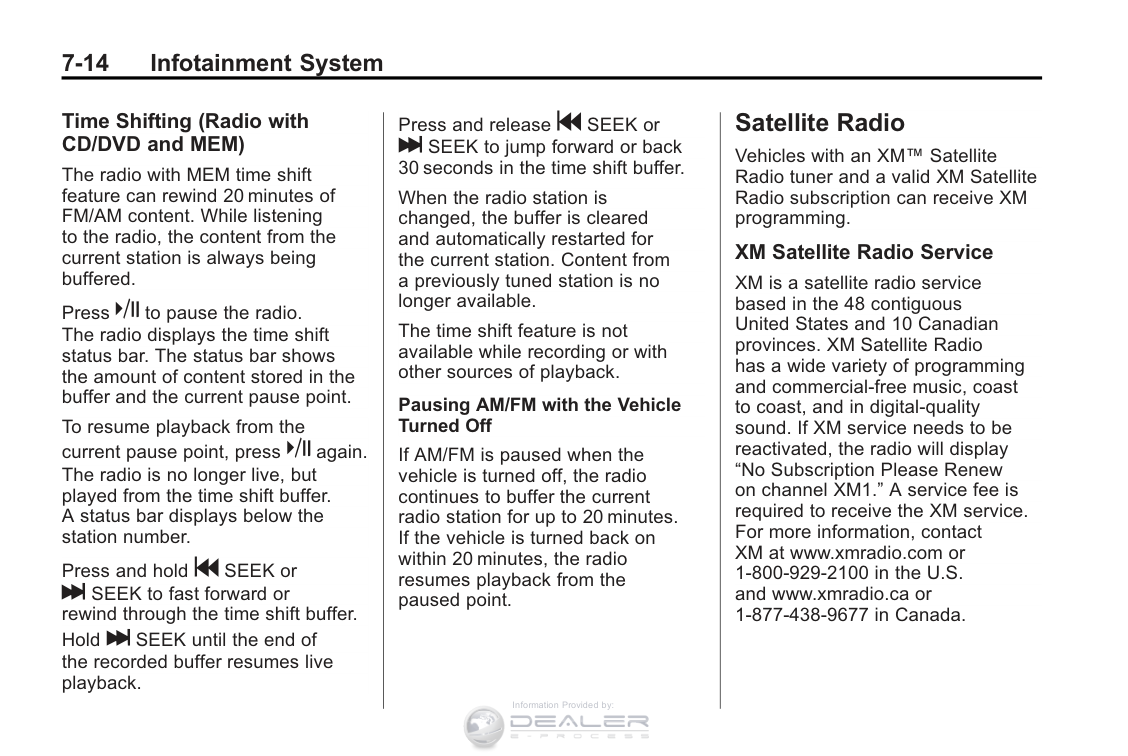

####### Time Shifting (Radio with CD/DVD and MEM)

The radio with MEM time shift feature can rewind 20 minutes of FM/AM content. While listening to the radio, the content from the current station is always being buffered.

Press k to pause the radio. The radio displays the time shift status bar. The status bar shows the amount of content stored in the buffer and the current pause point.

To resume playback from the current pause point, press k again. The radio is no longer live, but played from the time shift buffer. Astatusbardisplaysbelowthe station number.

Press and hold g SEEK or l SEEK to fast forward or rewind through the time shift buffer. Hold l SEEK until the end of the recorded buffer resumes live playback.

Press and release g SEEK or

l SEEK to jump forward or back 30 seconds in the time shift buffer.

When the radio station is changed, the buffer is cleared and automatically restarted for the current station. Content from apreviouslytunedstationisno longer available.

The time shift feature is not available while recording or with other sources of playback.

Pausing AM/FM with the Vehicle Turned Off

If AM/FM is paused when the vehicle is turned off, the radio continues to buffer the current radio station for up to 20 minutes. If the vehicle is turned back on within 20 minutes, the radio resumes playback from the paused point.



#### Satellite Radio

Vehicles with an XM™ Satellite Radio tuner and a valid XM Satellite Radio subscription can receive XM programming.

####### XM Satellite Radio Service

XM is a satellite radio service based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound. If XM service needs to be reactivated, the radio will display “No Subscription Please Renew on channel XM1.” Aservicefeeis required to receive the XM service. For more information, contact XM at www.xmradio.com or 1-800-929-2100 in the U.S. and www.xmradio.ca or 1-877-438-9677 in Canada.

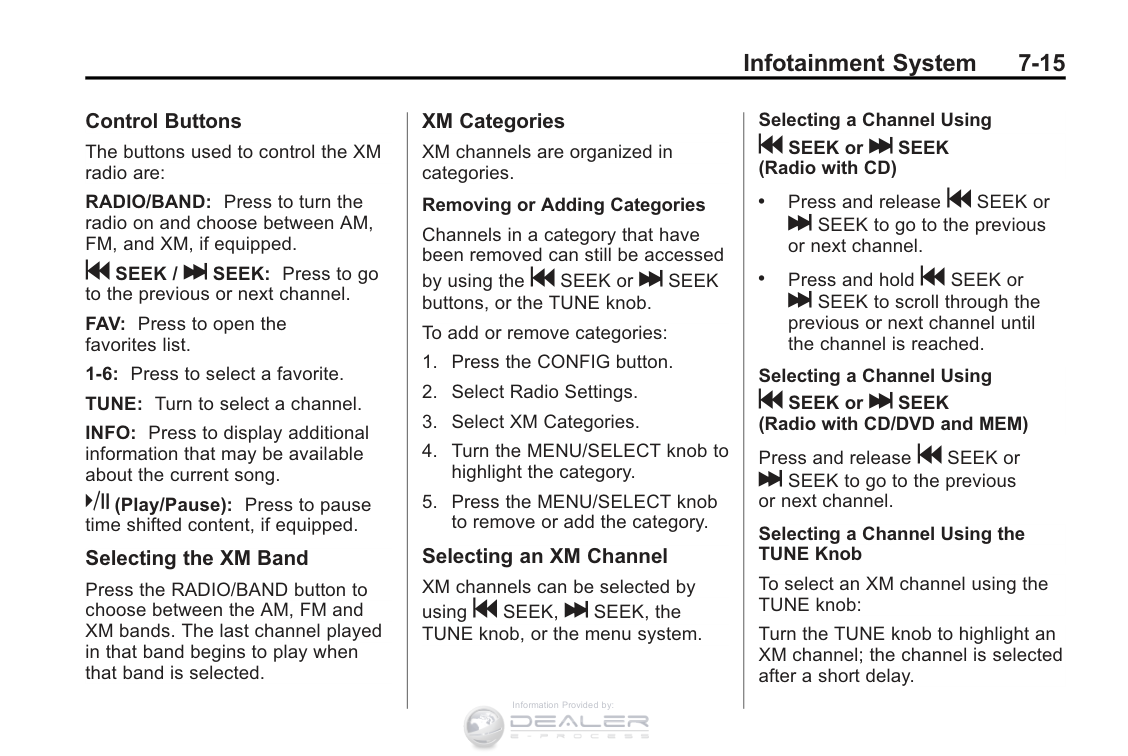

####### Control Buttons

The buttons used to control the XM radio are:

RADIO/BAND: Press to turn the radio on and choose between AM, FM, and XM, if equipped.

g SEEK / l SEEK: Press to go to the previous or next channel.

FAV: Press to open the favorites list.

1￿6: Press to select a favorite. TUNE: Turn to select a channel. INFO: Press to display additional information that may be available about the current song. k (Play/Pause): Press to pause time shifted content, if equipped. Selecting the XM Band

Press the RADIO/BAND button to choose between the AM, FM and XM bands. The last channel played in that band begins to play when that band is selected.

####### XM Categories

XM channels are organized in categories.

Removing or Adding Categories Channels in a category that have been removed can still be accessed by using the g SEEK or l SEEK buttons, or the TUNE knob. To add or remove categories:

Selecting an XM Channel XM channels can be selected by using g SEEK, l SEEK, the TUNE knob, or the menu system.



Selecting a Channel Using g SEEK or l SEEK (Radio with CD)

. Press and release g SEEK or l SEEK to go to the previous or next channel.

. Press and hold g SEEK or l SEEK to scroll through the previous or next channel until the channel is reached.

Selecting a Channel Using g SEEK or l SEEK (Radio with CD/DVD and MEM)

Press and release g SEEK or l SEEK to go to the previous or next channel.

Selecting a Channel Using the TUNE Knob

To select an XM channel using the TUNE knob:

Turn the TUNE knob to highlight an XM channel; the channel is selected after a short delay.

To select a channel using the menu:

Selecting a Channel Using the Menu System

####### Storing an XM Channel as a Favorite

Channels from all bands can be stored in any order in the favorite pages.

Up to six channels can be stored in each favorite page and the number of available favorite pages can be set.

Storing a Channel as a Favorite To store the channel to a position in the list, press and hold the corresponding 1 to 6 button until the channel can be heard again. Retrieving Channels

Press the FAV button to open afavoritepageortochangeto another favorite page. Briefly press one of the 1 to 6 buttons to retrieve the channel.

####### Time Shifting (Radio with CD/DVD and MEM)

The radio with the MEM time shift feature can rewind 20 minutes of XM content. While listening to the radio, the content from the current channel is always being buffered.

Press k to pause the radio. The radio displays the time shift status bar. The status bar shows the amount of content stored in the buffer and the current pause point.



To resume playback from the current pause point, press k again. The radio is no longer live, but played from the time shift buffer. Astatusbardisplaysbelowthe channel number.

Press and hold g SEEK or l SEEK to fast forward or rewind through the time shift buffer. Hold l SEEK until the end of the recorded buffer resumes live playback.

Press and release g SEEK or l SEEK to go to the next or previous song in the time shift buffer.

When the channel is changed, the buffer is cleared and automatically restarted for the current channel. Content from a previously tuned station is no longer available.

The time shift feature is not available while recording or with other sources of playback.

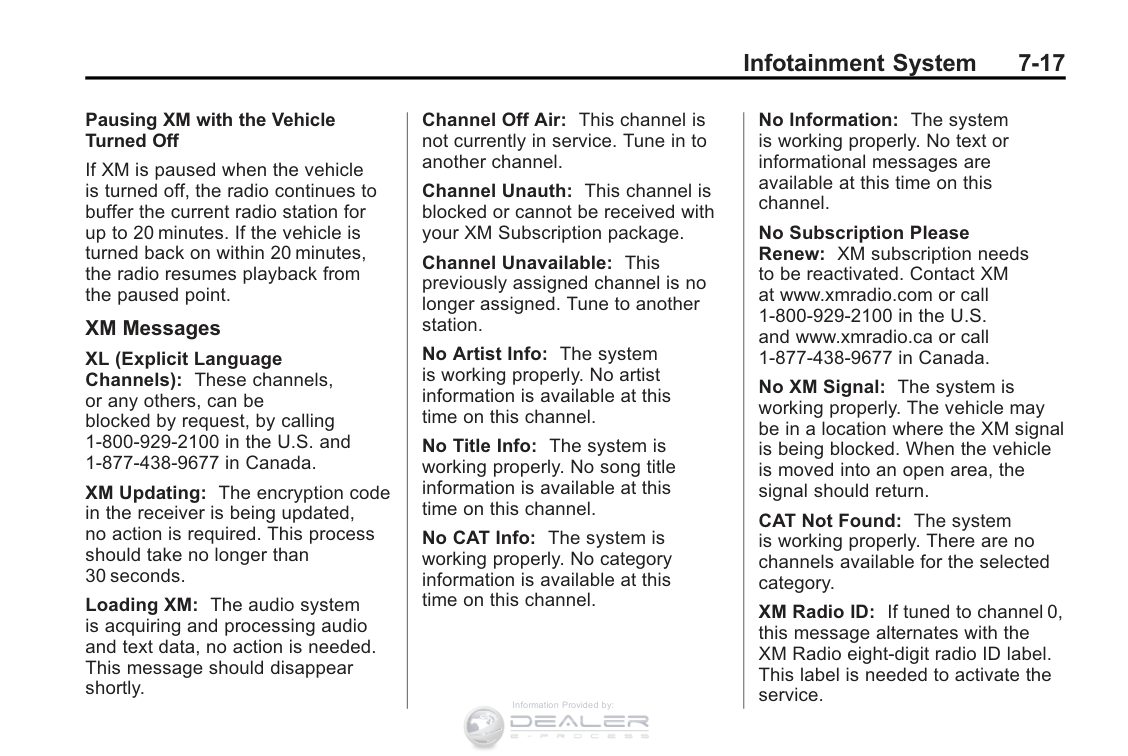

Pausing XM with the Vehicle Turned Off

If XM is paused when the vehicle is turned off, the radio continues to buffer the current radio station for up to 20 minutes. If the vehicle is turned back on within 20 minutes, the radio resumes playback from the paused point.

####### XM Messages

Loading XM: The audio system is acquiring and processing audio and text data, no action is needed. This message should disappear shortly.

Channel Off Air: This channel is not currently in service. Tune in to another channel.

Channel Unauth: This channel is blocked or cannot be received with your XM Subscription package.

Channel Unavailable: This previously assigned channel is no longer assigned. Tune to another station.

No Artist Info: The system is working properly. No artist information is available at this time on this channel.

No Title Info: The system is working properly. No song title information is available at this time on this channel.

No CAT Info: The system is

working properly. No category information is available at this time on this channel.



No Information: The system is working properly. No text or informational messages are available at this time on this channel.

No Subscription Please Renew: XM subscription needs to be reactivated. Contact XM at www.xmradio.com or call 1-800-929-2100 in the U.S. and www.xmradio.ca or call 1-877-438-9677 in Canada.

No XM Signal: The system is working properly. The vehicle may be in a location where the XM signal is being blocked. When the vehicle is moved into an open area, the signal should return.

CAT Not Found: The system is working properly. There are no channels available for the selected category.

XM Radio ID: If tuned to channel 0, this message alternates with the XM Radio eight￿digit radio ID label. This label is needed to activate the service.

Unknown: If this message is received when tuned to channel 0, there could be a receiver fault. Consult with your dealer.

Check Antenna: If this message does not clear within a short period of time, the receiver could have a fault. Consult with your dealer.

XM Not Available: If this message does not clear within a short period of time, the receiver could have a fault. Consult with your dealer.

#### Radio Reception

Frequency interference and static can occur during normal radio reception if items such as cell phone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.

####### FM

FM signals only reach about 16 to 65 km (10 to 40 mi). Although the radio has a built-in electronic circuit that automatically works to reduce interference, some static can occur, especially around tall buildings or hills, causing the sound to fade in and out.

####### AM

The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. Static can occur when things like storms and power lines interfere with radio reception. When this happens, try reducing the treble on the radio.



####### XM™ Satellite Radio Service

XM Satellite Radio Service gives digital radio reception from coast to coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or tunnels may cause loss of the XM signal for a period of time.

####### Cellular Phone Usage

Cellular phone usage can cause interference with the vehicle's radio.

#### Multi-Band Antenna

The multi-band antenna is on the roof of the vehicle. The antenna is used for the AM￿FM radio, OnStar, the XM Satellite Radio Service System, and GPS (Global Positioning System), if the vehicle has these features. Keep the antenna clear of obstructions for clear reception.

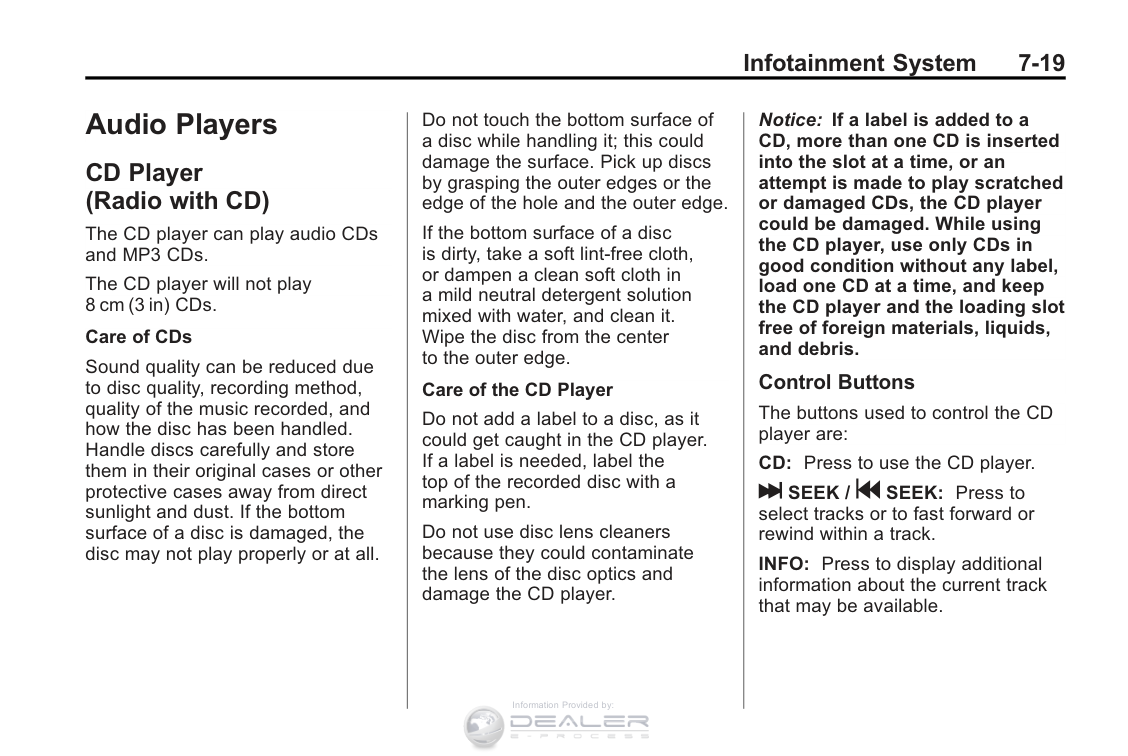

Audio Players

#### CD Player (Radio with CD)

The CD player can play audio CDs and MP3 CDs.

The CD player will not play 8cm(3in)CDs.

######## Care of CDs

Sound quality can be reduced due to disc quality, recording method, quality of the music recorded, and how the disc has been handled. Handle discs carefully and store them in their original cases or other protective cases away from direct sunlight and dust. If the bottom surface of a disc is damaged, the disc may not play properly or at all.

Do not touch the bottom surface of adiscwhilehandlingit;thiscould damage the surface. Pick up discs by grasping the outer edges or the edge of the hole and the outer edge.

If the bottom surface of a disc is dirty, take a soft lint￿free cloth, or dampen a clean soft cloth in amildneutraldetergentsolution mixed with water, and clean it. Wipe the disc from the center to the outer edge.

######## Care of the CD Player

Do not add a label to a disc, as it could get caught in the CD player. If a label is needed, label the top of the recorded disc with a marking pen.

Do not use disc lens cleaners because they could contaminate the lens of the disc optics and damage the CD player.

Notice: If a label is added to a CD, more than one CD is inserted into the slot at a time, or an attempt is made to play scratched or damaged CDs, the CD player could be damaged. While using the CD player, use only CDs in good condition without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials, liquids, and debris.

####### Control Buttons

The buttons used to control the CD player are:

CD: Press to use the CD player. l SEEK / g SEEK: Press to select tracks or to fast forward or rewind within a track. INFO: Press to display additional information about the current track that may be available.

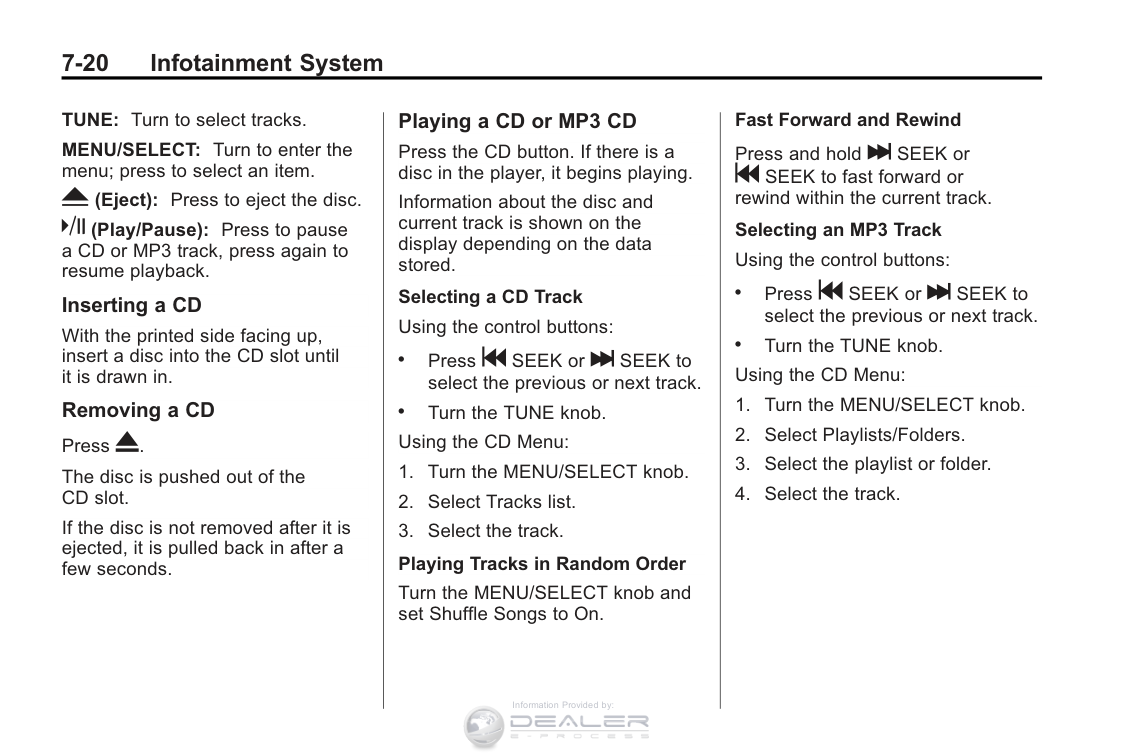

TUNE: Turn to select tracks. MENU/SELECT: Turn to enter the menu; press to select an item. Y (Eject): Press to eject the disc. k (Play/Pause): Press to pause aCDorMP3track,pressagainto resume playback. Inserting a CD

With the printed side facing up, insert a disc into the CD slot until it is drawn in.

Removing a CD Press X. The disc is pushed out of the CD slot. If the disc is not removed after it is ejected, it is pulled back in after a few seconds.

####### Playing a CD or MP3 CD

Press the CD button. If there is a disc in the player, it begins playing.

Information about the disc and current track is shown on the display depending on the data stored.

Selecting a CD Track Using the control buttons:

. Press g SEEK or l SEEK to

select the previous or next track.

. Turn the TUNE knob. Using the CD Menu:

Turn the MENU/SELECT knob and set Shuffle Songs to On.

Fast Forward and Rewind Press and hold l SEEK or g SEEK to fast forward or rewind within the current track. Selecting an MP3 Track Using the control buttons:

. Press g SEEK or l SEEK to

select the previous or next track.

. Turn the TUNE knob. Using the CD Menu:

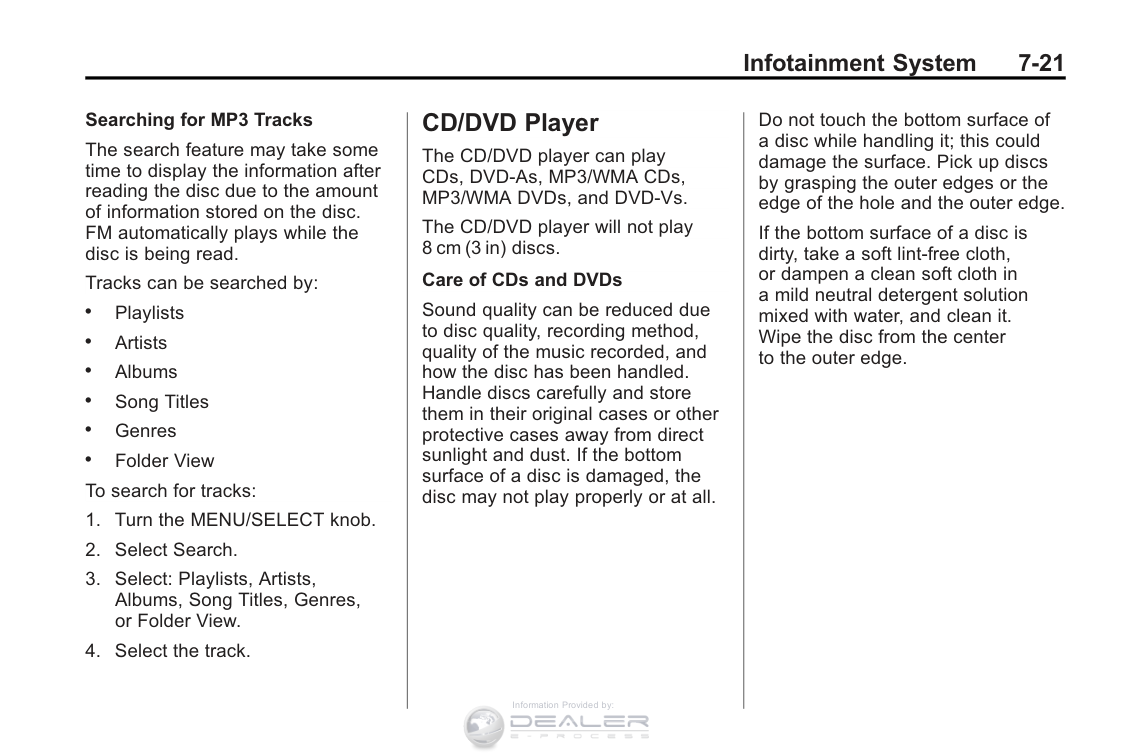

######## Searching for MP3 Tracks

The search feature may take some time to display the information after reading the disc due to the amount of information stored on the disc. FM automatically plays while the disc is being read.

Tracks can be searched by:

. Playlists

. Artists

. Albums

. Song Titles

. Genres

. Folder View To search for tracks:

#### CD/DVD Player

The CD/DVD player can play CDs, DVD￿As, MP3/WMA CDs, MP3/WMA DVDs, and DVD￿Vs.

The CD/DVD player will not play 8cm(3in)discs.

######## Care of CDs and DVDs

Sound quality can be reduced due to disc quality, recording method, quality of the music recorded, and how the disc has been handled. Handle discs carefully and store them in their original cases or other protective cases away from direct sunlight and dust. If the bottom surface of a disc is damaged, the disc may not play properly or at all.

Do not touch the bottom surface of adiscwhilehandlingit;thiscould damage the surface. Pick up discs by grasping the outer edges or the edge of the hole and the outer edge.

If the bottom surface of a disc is dirty, take a soft lint￿free cloth, or dampen a clean soft cloth in amildneutraldetergentsolution mixed with water, and clean it. Wipe the disc from the center to the outer edge.

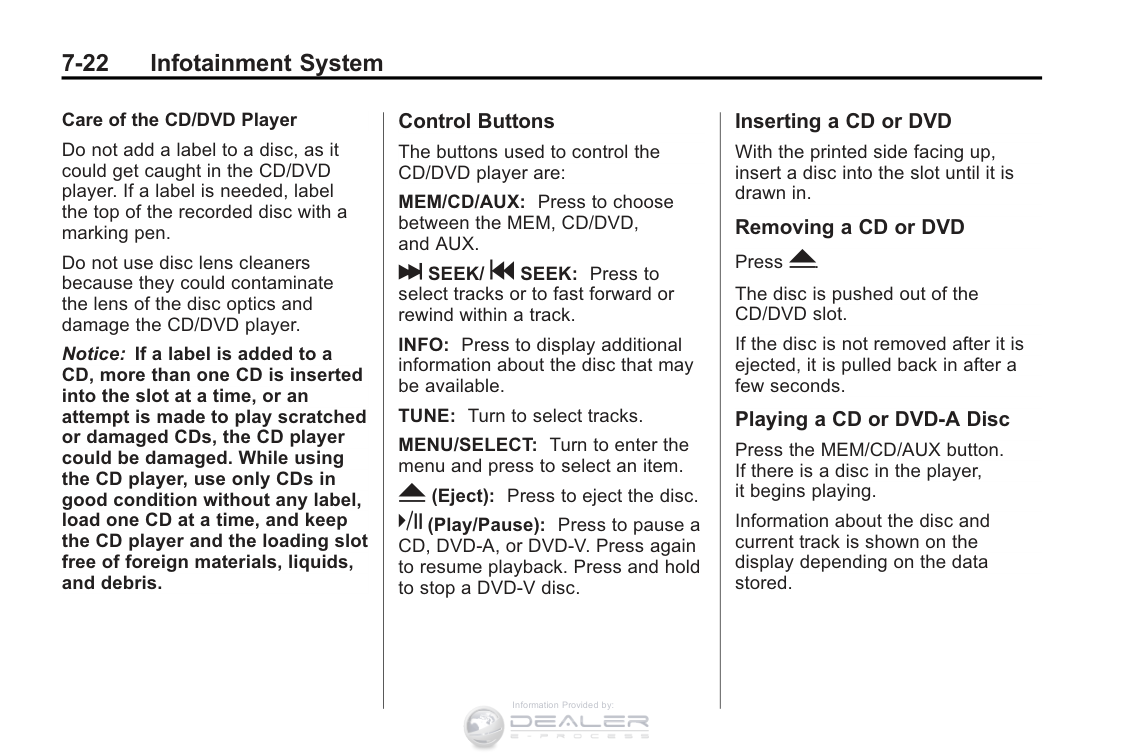

######## Care of the CD/DVD Player

Do not add a label to a disc, as it could get caught in the CD/DVD player. If a label is needed, label the top of the recorded disc with a marking pen.

Do not use disc lens cleaners because they could contaminate the lens of the disc optics and damage the CD/DVD player.

Notice: If a label is added to a CD, more than one CD is inserted into the slot at a time, or an attempt is made to play scratched or damaged CDs, the CD player could be damaged. While using the CD player, use only CDs in good condition without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials, liquids, and debris.

####### Control Buttons

The buttons used to control the CD/DVD player are:

MEM/CD/AUX: Press to choose between the MEM, CD/DVD, and AUX.

l SEEK/ g SEEK: Press to select tracks or to fast forward or rewind within a track.

INFO: Press to display additional information about the disc that may be available.

TUNE: Turn to select tracks. MENU/SELECT: Turn to enter the menu and press to select an item. Y (Eject): Press to eject the disc. k (Play/Pause): Press to pause a CD, DVD￿A, or DVD￿V. Press again to resume playback. Press and hold to stop a DVD￿Vdisc.

####### Inserting a CD or DVD

With the printed side facing up, insert a disc into the slot until it is drawn in.

Removing a CD or DVD Press Y. The disc is pushed out of the CD/DVD slot. If the disc is not removed after it is ejected, it is pulled back in after a few seconds. Playing a CD or DVD￿A Disc

Press the MEM/CD/AUX button. If there is a disc in the player, it begins playing.

Information about the disc and current track is shown on the display depending on the data stored.

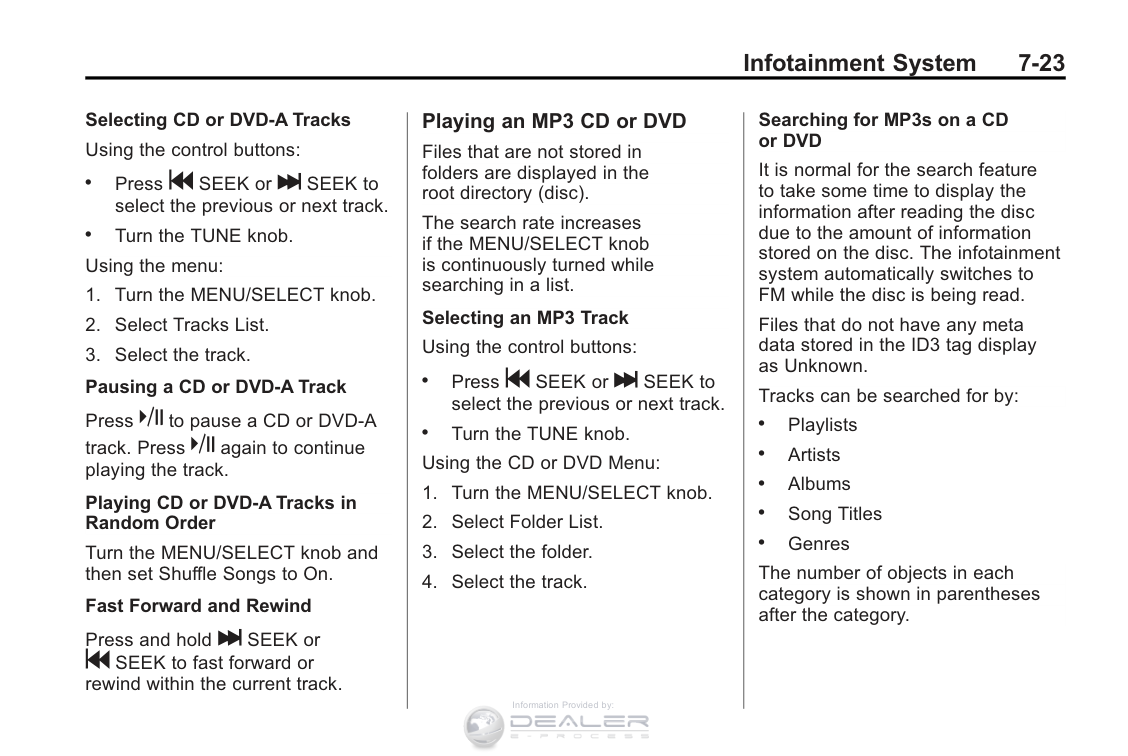

Selecting CD or DVD￿A Tracks Using the control buttons:

. Press g SEEK or l SEEK to

select the previous or next track.

. Turn the TUNE knob. Using the menu:

Press k to pause a CD or DVD￿A track. Press k again to continue playing the track.

Playing CD or DVD￿A Tracks in Random Order

Turn the MENU/SELECT knob and then set Shuffle Songs to On.

Fast Forward and Rewind Press and hold l SEEK or g SEEK to fast forward or rewind within the current track.

####### Playing an MP3 CD or DVD

Files that are not stored in folders are displayed in the root directory (disc).

The search rate increases if the MENU/SELECT knob is continuously turned while searching in a list.

Selecting an MP3 Track Using the control buttons:

. Press g SEEK or l SEEK to

select the previous or next track.

. Turn the TUNE knob. Using the CD or DVD Menu:



Searching for MP3s on a CD or DVD

It is normal for the search feature to take some time to display the information after reading the disc due to the amount of information stored on the disc. The infotainment system automatically switches to FM while the disc is being read. Files that do not have any meta data stored in the ID3 tag display as Unknown. Tracks can be searched for by:

. Playlists

. Artists

. Albums

. Song Titles

. Genres

The number of objects in each category is shown in parentheses after the category.

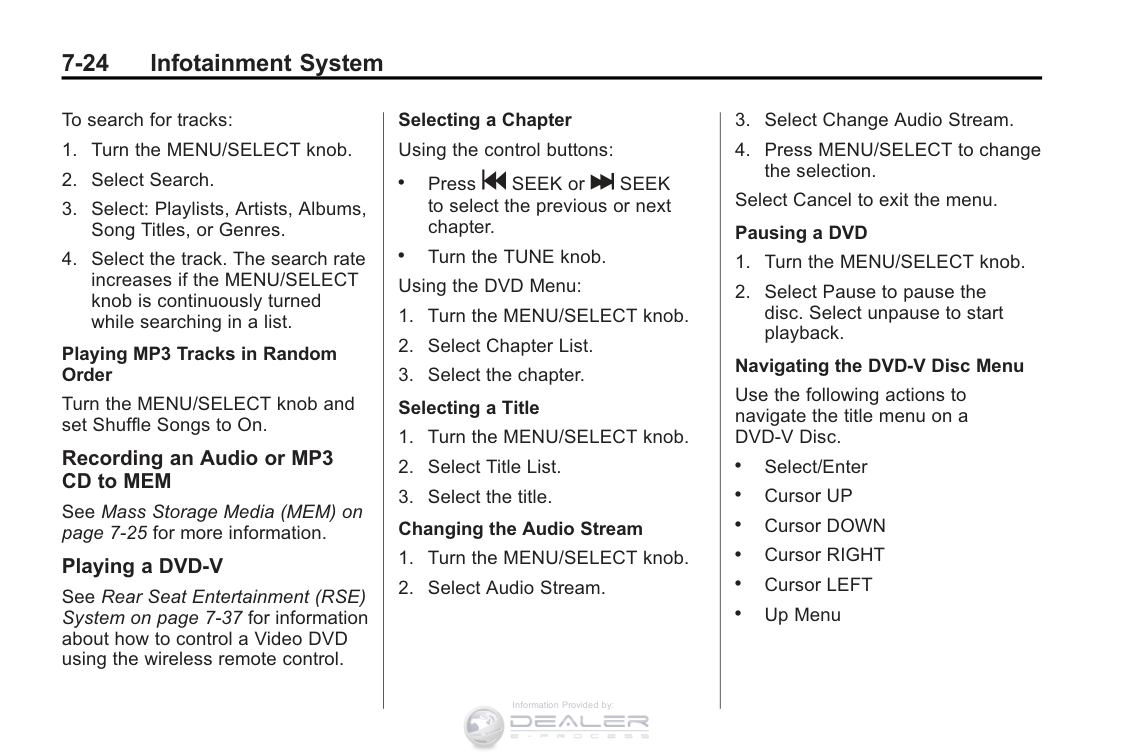

To search for tracks:

Playing MP3 Tracks in Random Order

Turn the MENU/SELECT knob and set Shuffle Songs to On.

####### Recording an Audio or MP3 CD to MEM

See Mass Storage Media (MEM) on page 7￿25 for more information.

####### Playing a DVD￿V

See Rear Seat Entertainment (RSE) System on page 7￿37 for information

about how to control a Video DVD using the wireless remote control.

Selecting a Chapter Using the control buttons:

. Press g SEEK or l SEEK to select the previous or next chapter.

. Turn the TUNE knob. Using the DVD Menu:

Select Cancel to exit the menu. Pausing a DVD

######## Navigating the DVD￿V Disc Menu

Use the following actions to navigate the title menu on a DVD￿VDisc.

. Select/Enter

. Cursor UP

. Cursor DOWN . Cursor RIGHT . Cursor LEFT

. Up Menu

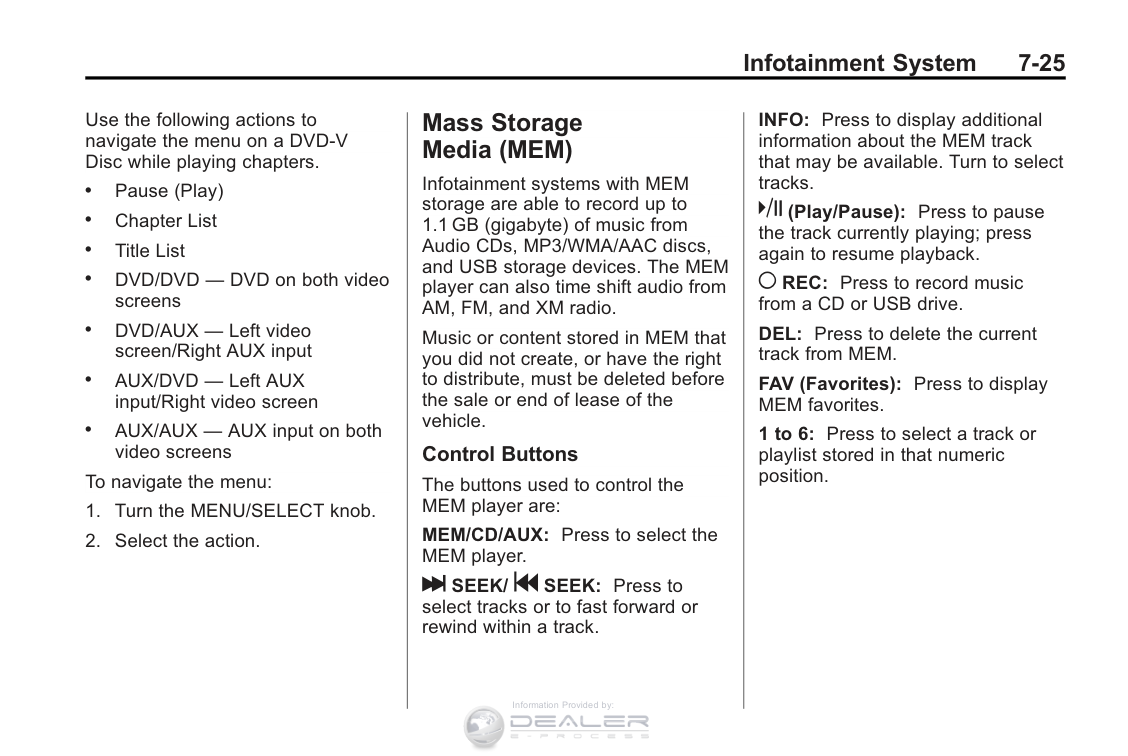

Use the following actions to navigate the menu on a DVD￿V Disc while playing chapters.

. Pause (Play)

. Chapter List

. Title List

. DVD/DVD — DVD on both video screens

. DVD/AUX — Left video screen/Right AUX input

. AUX/DVD — Left AUX input/Right video screen

. AUX/AUX — AUX input on both video screens

To navigate the menu:

#### Mass Storage Media (MEM)

Infotainment systems with MEM storage are able to record up to 1.1 GB (gigabyte) of music from Audio CDs, MP3/WMA/AAC discs, and USB storage devices. The MEM player can also time shift audio from AM, FM, and XM radio.

Music or content stored in MEM that you did not create, or have the right to distribute, must be deleted before the sale or end of lease of the vehicle.

####### Control Buttons

The buttons used to control the MEM player are:

MEM/CD/AUX: Press to select the MEM player.

l SEEK/ g SEEK: Press to select tracks or to fast forward or rewind within a track.

INFO: Press to display additional information about the MEM track that may be available. Turn to select tracks.

k (Play/Pause): Press to pause the track currently playing; press again to resume playback.

( REC: Press to record music from a CD or USB drive.

DEL: Press to delete the current track from MEM.

FAV (Favorites): Press to display MEM favorites.

1to6: Press to select a track or playlist stored in that numeric position.

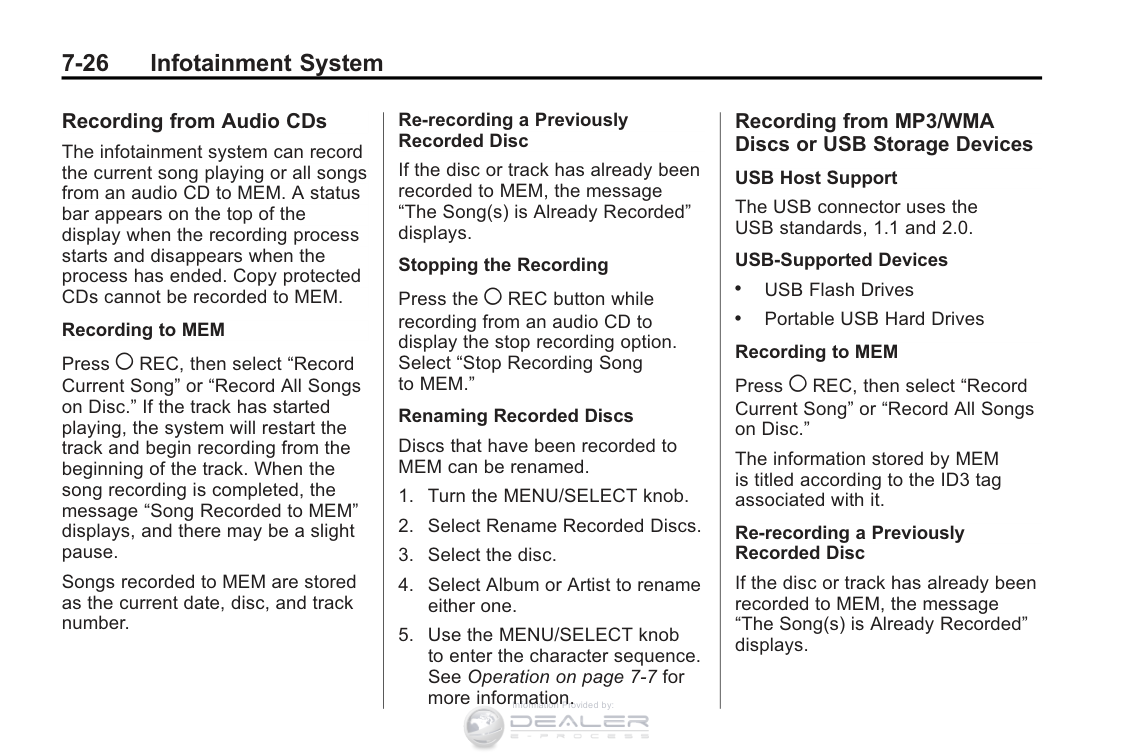

####### Recording from Audio CDs

The infotainment system can record the current song playing or all songs from an audio CD to MEM. A status bar appears on the top of the display when the recording process starts and disappears when the process has ended. Copy protected CDs cannot be recorded to MEM.

######## Recording to MEM

Press ( REC, then select “Record Current Song” or “Record All Songs on Disc.” If the track has started playing, the system will restart the track and begin recording from the beginning of the track. When the song recording is completed, the message “Song Recorded to MEM” displays, and there may be a slight pause.

Songs recorded to MEM are stored

Re-recording a Previously Recorded Disc

If the disc or track has already been recorded to MEM, the message “The Song(s) is Already Recorded” displays.

######## Stopping the Recording

Press the ( REC button while recording from an audio CD to display the stop recording option. Select “Stop Recording Song to MEM.”

######## Renaming Recorded Discs

Discs that have been recorded to MEM can be renamed.



####### Recording from MP3/WMA Discs or USB Storage Devices

######## USB Host Support

The USB connector uses the USB standards, 1.1 and 2.0.

######## USB￿Supported Devices

. USB Flash Drives

. Portable USB Hard Drives Recording to MEM

Press ( REC, then select “Record Current Song” or “Record All Songs on Disc.”

The information stored by MEM is titled according to the ID3 tag associated with it.

Re-recording a Previously Recorded Disc

If the disc or track has already been recorded to MEM, the message “The Song(s) is Already Recorded” displays.

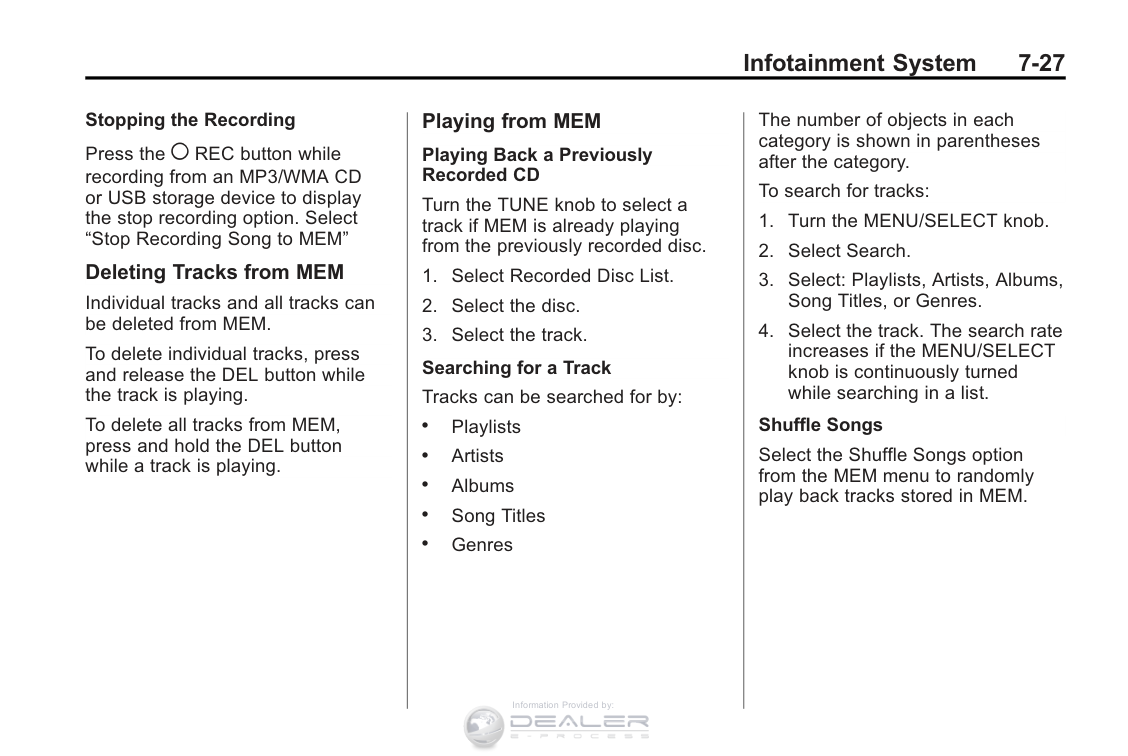

Stopping the Recording Press the ( REC button while

recording from an MP3/WMA CD or USB storage device to display the stop recording option. Select “Stop Recording Song to MEM”

####### Deleting Tracks from MEM

Individual tracks and all tracks can be deleted from MEM.

To delete individual tracks, press and release the DEL button while the track is playing.

To delete all tracks from MEM, press and hold the DEL button while a track is playing.

####### Playing from MEM

Playing Back a Previously Recorded CD

Turn the TUNE knob to select a track if MEM is already playing from the previously recorded disc.

. Playlists

. Artists

. Albums

. Song Titles

. Genres

The number of objects in each category is shown in parentheses after the category.

To search for tracks:

######## Shuffle Songs

Select the Shuffle Songs option from the MEM menu to randomly play back tracks stored in MEM.

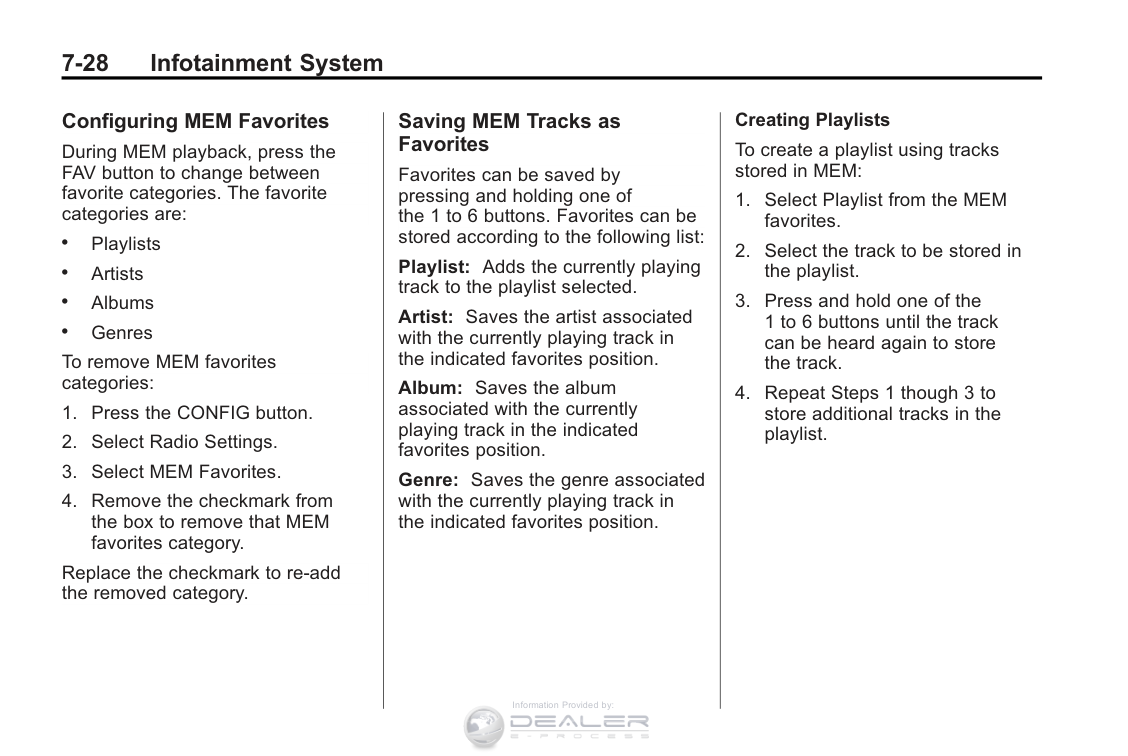

####### Configuring MEM Favorites

During MEM playback, press the FAV button to change between favorite categories. The favorite categories are:

. Playlists

. Artists

. Albums . Genres To remove MEM favorites categories:

the box to remove that MEM favorites category.

Replace the checkmark to re-add the removed category.

####### Saving MEM Tracks as Favorites

Favorites can be saved by pressing and holding one of the 1 to 6 buttons. Favorites can be stored according to the following list: Playlist: Adds the currently playing track to the playlist selected. Artist: Saves the artist associated with the currently playing track in the indicated favorites position. Album: Saves the album

associated with the currently playing track in the indicated favorites position.

Genre: Saves the genre associated with the currently playing track in the indicated favorites position.

######## Creating Playlists

To create a playlist using tracks stored in MEM:

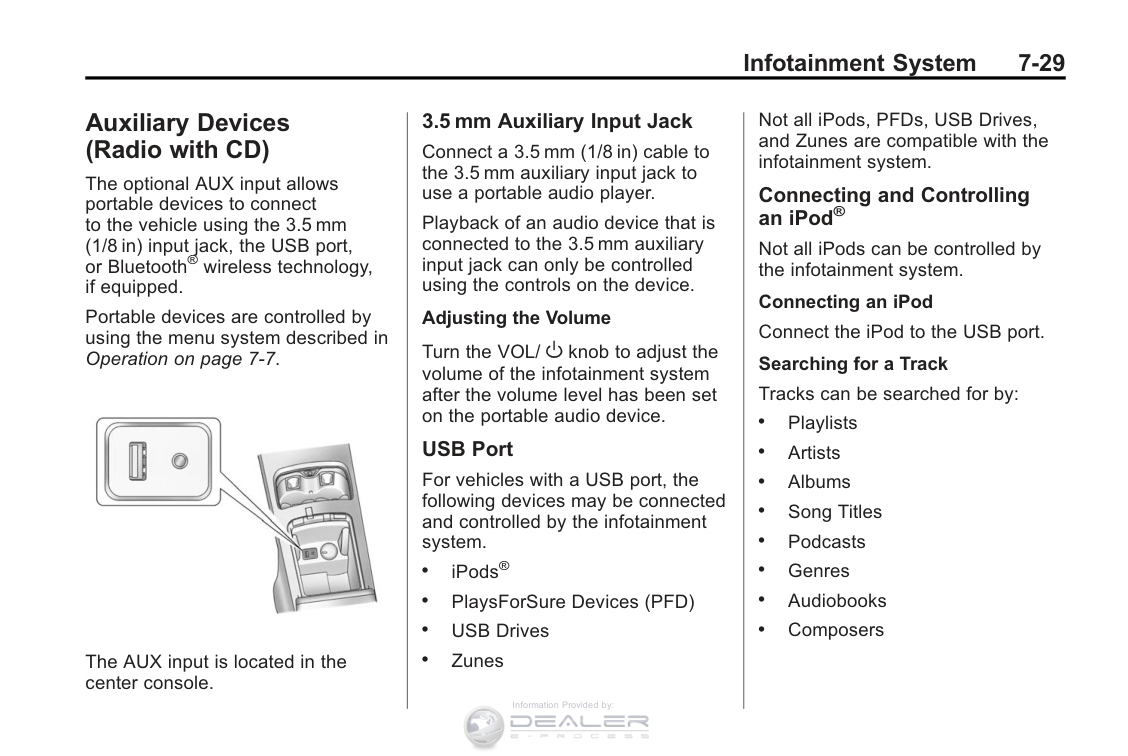

#### Auxiliary Devices (Radio with CD)

The optional AUX input allows portable devices to connect to the vehicle using the 3.5 mm (1/8 in) input jack, the USB port, or Bluetooth® wireless technology, if equipped.

Portable devices are controlled by using the menu system described in Operation on page 7￿7.


The AUX input is located in the center console.

####### 3.5 mm Auxiliary Input Jack

Connect a 3.5 mm (1/8 in) cable to the 3.5 mm auxiliary input jack to use a portable audio player.

Playback of an audio device that is connected to the 3.5 mm auxiliary input jack can only be controlled using the controls on the device.

######## Adjusting the Volume

Turn the VOL/ O knob to adjust the volume of the infotainment system after the volume level has been set on the portable audio device.

####### USB Port

For vehicles with a USB port, the following devices may be connected and controlled by the infotainment system.

. iPods®

. PlaysForSure Devices (PFD)

. USB Drives

. Zunes



Not all iPods, PFDs, USB Drives, and Zunes are compatible with the infotainment system.

####### Connecting and Controlling an iPod®

Not all iPods can be controlled by the infotainment system.

Connecting an iPod Connect the iPod to the USB port. Searching for a Track Tracks can be searched for by:

. Playlists

. Artists

. Albums

. Song Titles

. Podcasts

. Genres

. Audiobooks . Composers

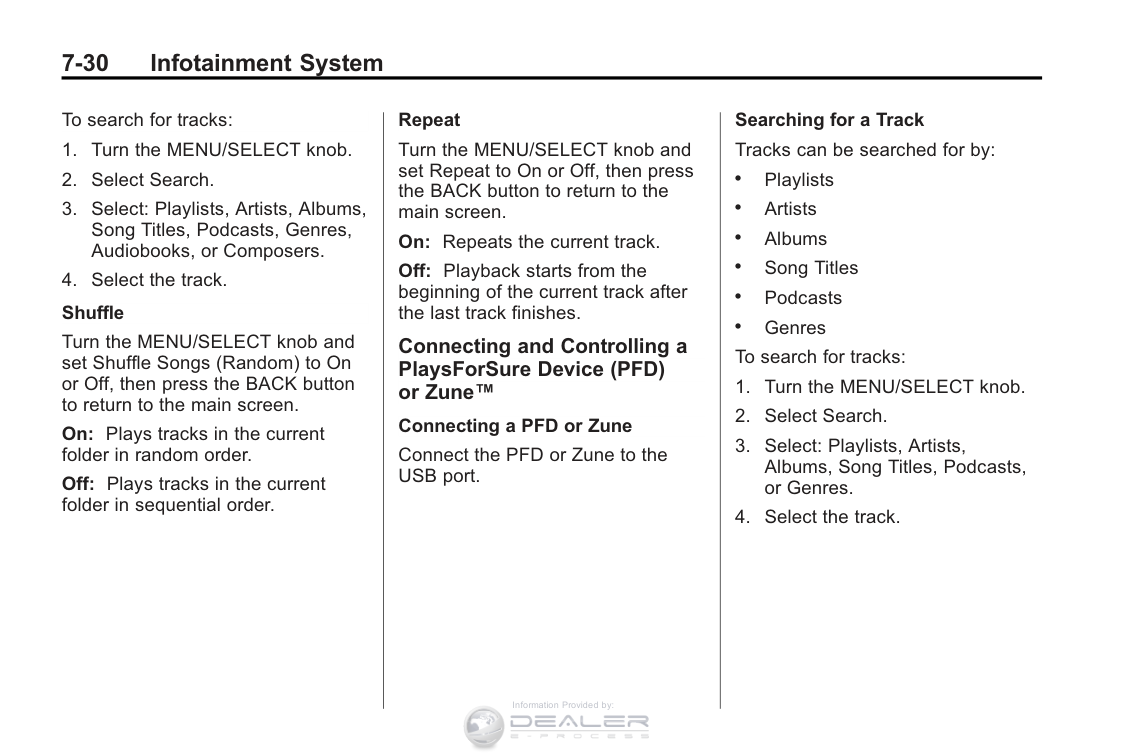

To search for tracks:

Turn the MENU/SELECT knob and set Shuffle Songs (Random) to On or Off, then press the BACK button to return to the main screen.

On: Plays tracks in the current folder in random order.

Off: Plays tracks in the current folder in sequential order.

######## Repeat

Turn the MENU/SELECT knob and set Repeat to On or Off, then press the BACK button to return to the main screen.

On: Repeats the current track. Off: Playback starts from the beginning of the current track after the last track finishes.

####### Connecting and Controlling a PlaysForSure Device (PFD) or Zune™

######## Connecting a PFD or Zune

Connect the PFD or Zune to the USB port.

Searching for a Track Tracks can be searched for by:

. Playlists

. Artists

. Albums

. Song Titles

. Podcasts

. Genres To search for tracks:

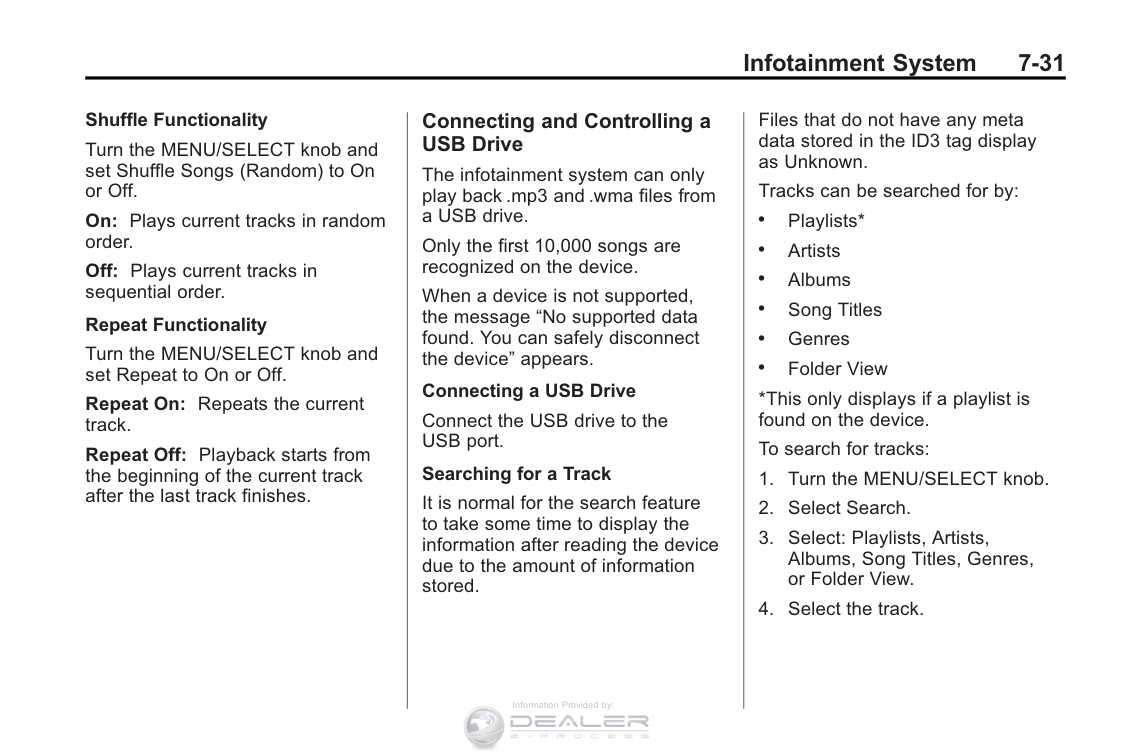

######## Shuffle Functionality

Turn the MENU/SELECT knob and set Shuffle Songs (Random) to On or Off.

On: Plays current tracks in random order.

Off: Plays current tracks in sequential order.

######## Repeat Functionality

Turn the MENU/SELECT knob and set Repeat to On or Off.

Repeat On: Repeats the current track.

Repeat Off: Playback starts from the beginning of the current track after the last track finishes.

####### Connecting and Controlling a USB Drive

The infotainment system can only play back .mp3 and .wma files from aUSBdrive.

Only the first 10,000 songs are recognized on the device.

When a device is not supported, the message “No supported data found. You can safely disconnect the device” appears.

######## Connecting a USB Drive

Connect the USB drive to the USB port.

######## Searching for a Track

It is normal for the search feature to take some time to display the information after reading the device due to the amount of information stored.

Files that do not have any meta data stored in the ID3 tag display as Unknown.

Tracks can be searched for by:

. Playlists*

. Artists

. Albums

. Song Titles

. Genres

. Folder View

*This only displays if a playlist is found on the device. To search for tracks:

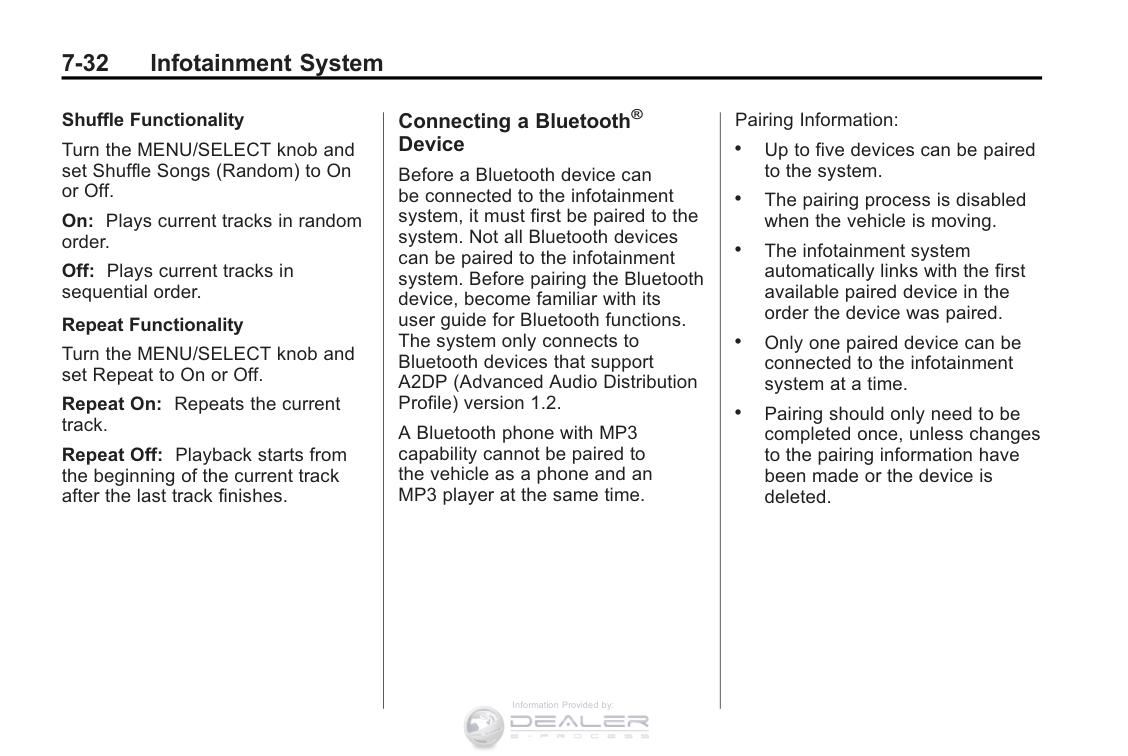

######## Shuffle Functionality

Turn the MENU/SELECT knob and set Shuffle Songs (Random) to On or Off.

On: Plays current tracks in random order.

Off: Plays current tracks in sequential order.

######## Repeat Functionality

Turn the MENU/SELECT knob and set Repeat to On or Off.

Repeat On: Repeats the current track.

Repeat Off: Playback starts from the beginning of the current track after the last track finishes.

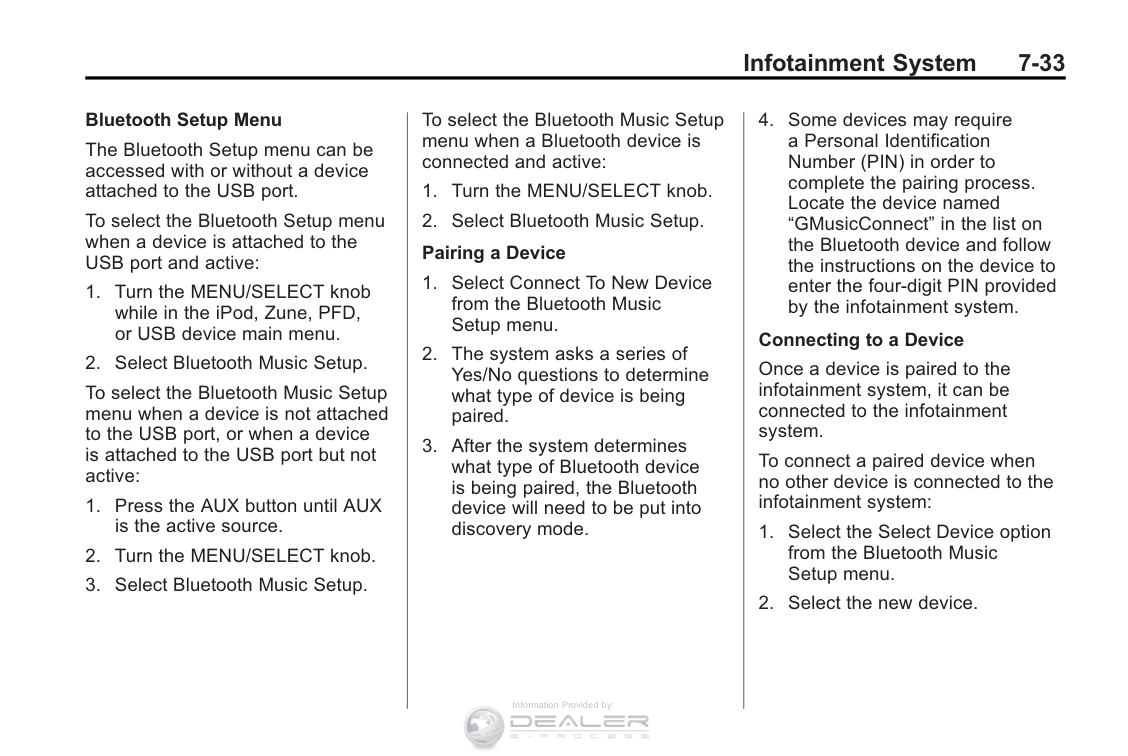

####### Connecting a Bluetooth® Device

Before a Bluetooth device can be connected to the infotainment system, it must first be paired to the system. Not all Bluetooth devices can be paired to the infotainment system. Before pairing the Bluetooth device, become familiar with its user guide for Bluetooth functions. The system only connects to Bluetooth devices that support A2DP (Advanced Audio Distribution Profile) version 1.2.

ABluetoothphonewithMP3 capability cannot be paired to the vehicle as a phone and an MP3 player at the same time.

Pairing Information:

. Up to five devices can be paired to the system.

. The pairing process is disabled when the vehicle is moving.

. The infotainment system automatically links with the first available paired device in the order the device was paired.

. Only one paired device can be connected to the infotainment system at a time.

. Pairing should only need to be completed once, unless changes to the pairing information have been made or the device is deleted.

######## Bluetooth Setup Menu

The Bluetooth Setup menu can be accessed with or without a device attached to the USB port.

To select the Bluetooth Setup menu when a device is attached to the USB port and active:

To select the Bluetooth Music Setup menu when a device is not attached to the USB port, or when a device is attached to the USB port but not active:

To select the Bluetooth Music Setup menu when a Bluetooth device is connected and active:

######## Connecting to a Device

Once a device is paired to the infotainment system, it can be connected to the infotainment system.

To connect a paired device when no other device is connected to the infotainment system:

To connect a paired device when another device is connected to the infotainment system:

######## Removing a Device

Before connecting to the removed device again, it will need to paired to the infotainment system.

Changing the Default PIN To change the default PIN:

To create a PIN:

The following messages may appear on the infotainment screen.

Poor Bluetooth Signal Quality: This message displays when the Bluetooth signal strength is low.

This Feature is Unavailable While Vehicle is Moving: This message displays when an action is not allowed while the vehicle is moving.

####### Controlling a Bluetooth® Device

Bluetooth devices that support AVRCP (Audio/Video Remote Control Profile) version 1.0 may be able to be controlled by the infotainment system.

Press and release g SEEK / l SEEK to skip tracks.

####### Other Information

The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by General Motors is under license. Other trademarks and trade names are those of their respective owners.

See Radio Frequency Statement on page 13￿23 for FCC information.

#### Auxiliary Devices (Radio with CD/DVD and MEM)

The optional AUX input allows portable devices to be connected using the 3.5 mm (1/8 in) input jack or the USB port.

Portable devices are controlled by using the menu system described in Operation on page 7￿7.


The AUX input is located in the center console.

####### 3.5 mm Auxiliary Input Jack

Connect a 3.5 mm (1/8 in) cable to the 3.5 mm auxiliary input jack to use a portable audio player.

Playback of an audio device that is connected to the 3.5 mm auxiliary input jack can only be controlled using the controls on the device.

######## Adjusting the Volume

Turn the VOL/ O knob to adjust the volume of the infotainment system after the volume level has been set on the portable audio device.

####### USB Port

The following devices may be connected to the USB port and controlled by the infotainment system.

. iPods

. USB Mass Storage Devices

Not all iPods or USB Mass Storage Devices are compatible with the infotainment system.



####### Connecting and Controlling an iPod®

Not all iPods can be controlled by the infotainment system.

Connecting an iPod Connect the iPod to the USB port. Selecting a Track Using the control buttons:

. Press g SEEK or l SEEK to

select the previous or next track.

. Turn the TUNE knob to select a track in the current submenu. The track will start to play.

######## Playing Tracks in Random Order

Turn the MENU/SELECT knob and set Shuffle Songs to On or Off.

Shuffle On: Plays current tracks in random order.

Shuffle Off: Plays current tracks in sequential order.

Searching for a Track Tracks can be searched for by:

. Playlists

. Artists

. Albums

. Song Titles

. Genres

. Composers . Audiobooks The number of objects in each category is shown in parentheses after the category. To search for tracks:

####### Connecting and Controlling a USB Drive

Files that are not stored in folders are displayed in the root directory (USB).

######## Connecting a USB Drive

Connect the USB drive to the USB port.

######## Disconnecting a USB Drive

AUSBdriveshouldbeejectedfrom the USB port before disconnecting it. To eject a USB drive:

Turn the MENU/SELECT knob and then set Shuffle Songs to On.



Selecting a Track Using the control buttons:

. Press g SEEK or l SEEK to

select the previous or next track.

. Turn the TUNE knob to select a track in the current submenu. The track will start to play.

Selecting a track in a different folder:

It is normal for the search feature to take some time to display the information after reading the device due to the amount of information stored.

Files that do not have any meta data stored in the ID3 tag display as Unknown.

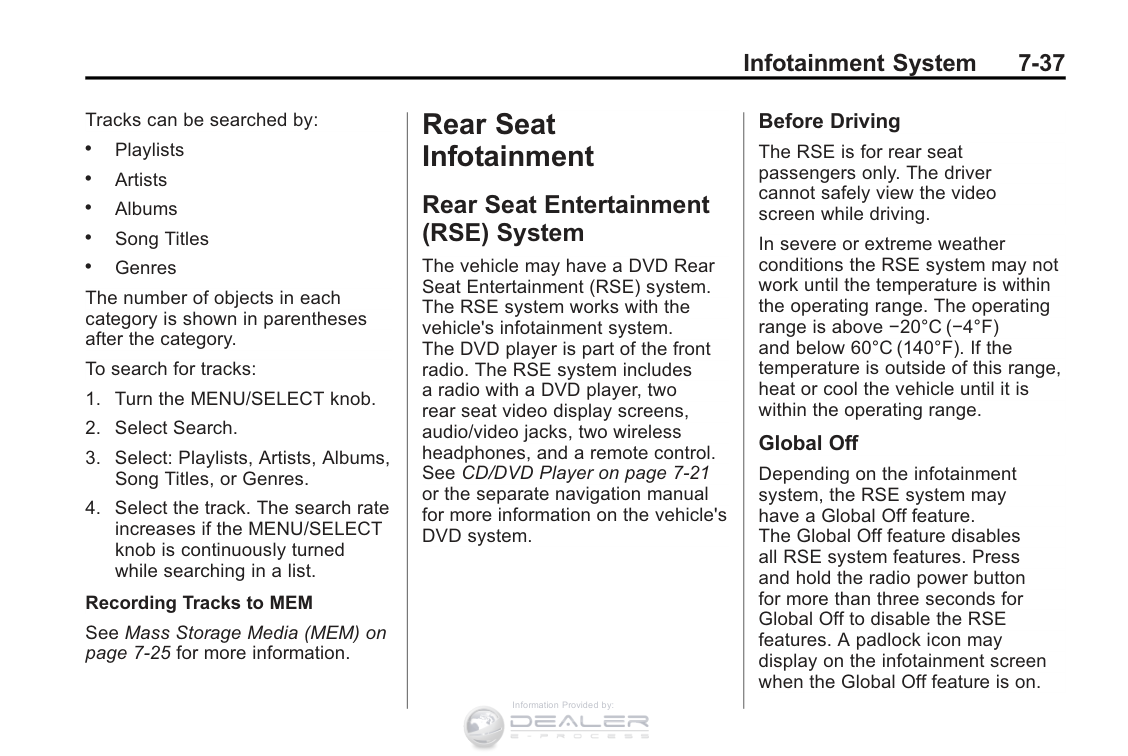

Tracks can be searched by:

. Playlists

. Artists

. Albums

. Song Titles

. Genres

The number of objects in each category is shown in parentheses after the category.

To search for tracks:

Recording Tracks to MEM See Mass Storage Media (MEM) on page 7￿25 for more information.

Rear Seat Infotainment

#### Rear Seat Entertainment (RSE) System

The vehicle may have a DVD Rear Seat Entertainment (RSE) system. The RSE system works with the vehicle's infotainment system. The DVD player is part of the front radio. The RSE system includes aradiowithaDVDplayer,two rear seat video display screens, audio/video jacks, two wireless headphones, and a remote control. See CD/DVD Player on page 7￿21 or the separate navigation manual for more information on the vehicle's DVD system.



####### Before Driving

The RSE is for rear seat passengers only. The driver cannot safely view the video screen while driving.

In severe or extreme weather conditions the RSE system may not work until the temperature is within the operating range. The operating range is above −20°C (−4°F) and below 60°C (140°F). If the temperature is outside of this range, heat or cool the vehicle until it is within the operating range.

####### Global Off

Depending on the infotainment system, the RSE system may have a Global Off feature. The Global Off feature disables all RSE system features. Press and hold the radio power button for more than three seconds for Global Off to disable the RSE features. A padlock icon may display on the infotainment screen when the Global Off feature is on.

On some infotainment systems, the Global Off feature can be turned off by performing one of the following:

. Press and hold the radio power button for more than three seconds.

. Insert or eject any disc.

. Insert a DVD video disc.

. Press the Remote Control power button.

. Press the MEM/CD/AUX button or the k button when a DVD video disc is in the player.

. Press the SRC button on the steering wheel when a DVD video disc is in the player.

. Cycle the ignition.

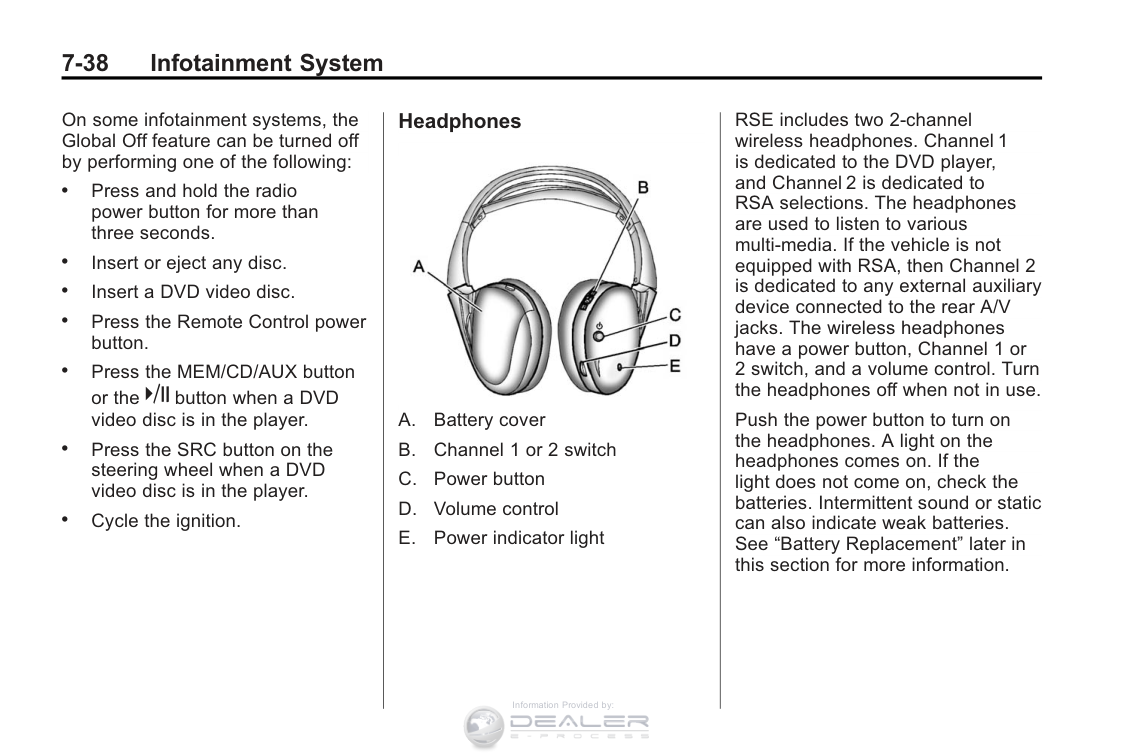

####### Headphones


RSE includes two 2-channel wireless headphones. Channel 1 is dedicated to the DVD player, and Channel 2 is dedicated to RSA selections. The headphones are used to listen to various multi￿media. If the vehicle is not equipped with RSA, then Channel 2 is dedicated to any external auxiliary device connected to the rear A/V jacks. The wireless headphones have a power button, Channel 1 or 2switch,andavolumecontrol.Turn the headphones off when not in use.

Push the power button to turn on the headphones. A light on the headphones comes on. If the light does not come on, check the batteries. Intermittent sound or static can also indicate weak batteries. See “Battery Replacement” later in this section for more information.

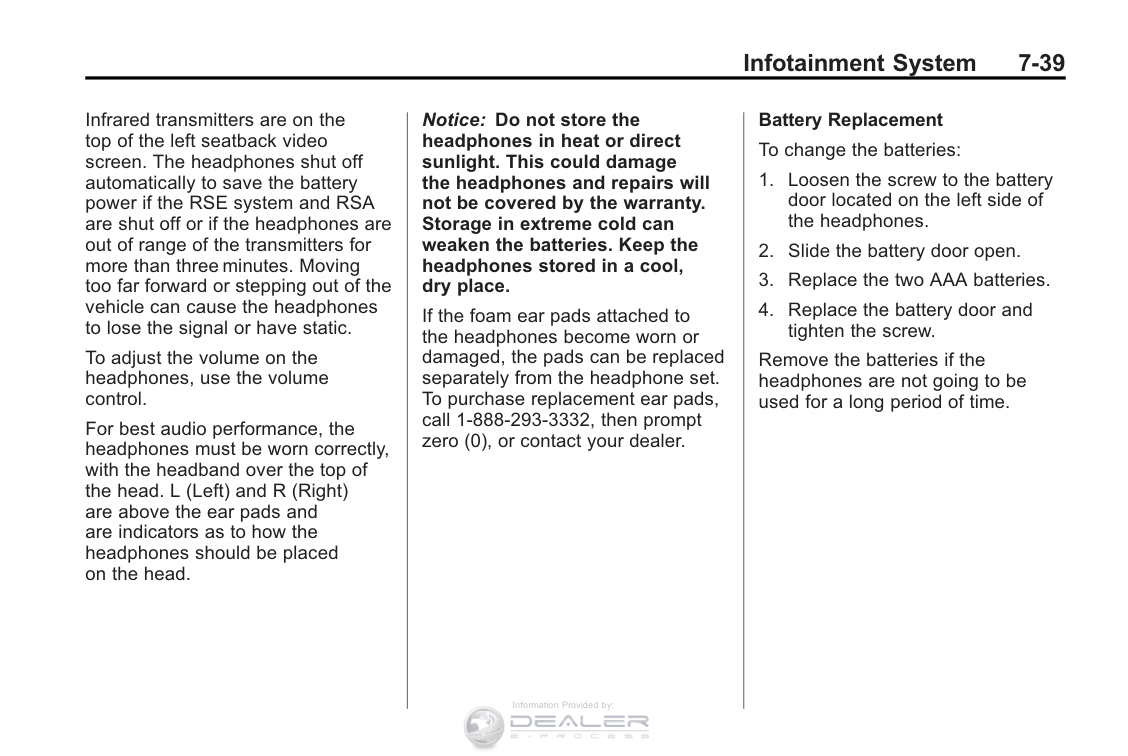

Infrared transmitters are on the top of the left seatback video screen. The headphones shut off automatically to save the battery power if the RSE system and RSA are shut off or if the headphones are out of range of the transmitters for more than three minutes. Moving too far forward or stepping out of the vehicle can cause the headphones to lose the signal or have static.

To adjust the volume on the headphones, use the volume control.

For best audio performance, the headphones must be worn correctly, with the headband over the top of the head. L (Left) and R (Right) are above the ear pads and are indicators as to how the headphones should be placed on the head.

Notice: Do not store the headphones in heat or direct sunlight. This could damage the headphones and repairs will not be covered by the warranty. Storage in extreme cold can weaken the batteries. Keep the headphones stored in a cool, dry place.

If the foam ear pads attached to the headphones become worn or damaged, the pads can be replaced separately from the headphone set. To purchase replacement ear pads, call 1￿888￿293￿3332, then prompt zero (0), or contact your dealer.

Battery Replacement To change the batteries:

Remove the batteries if the headphones are not going to be used for a long period of time.

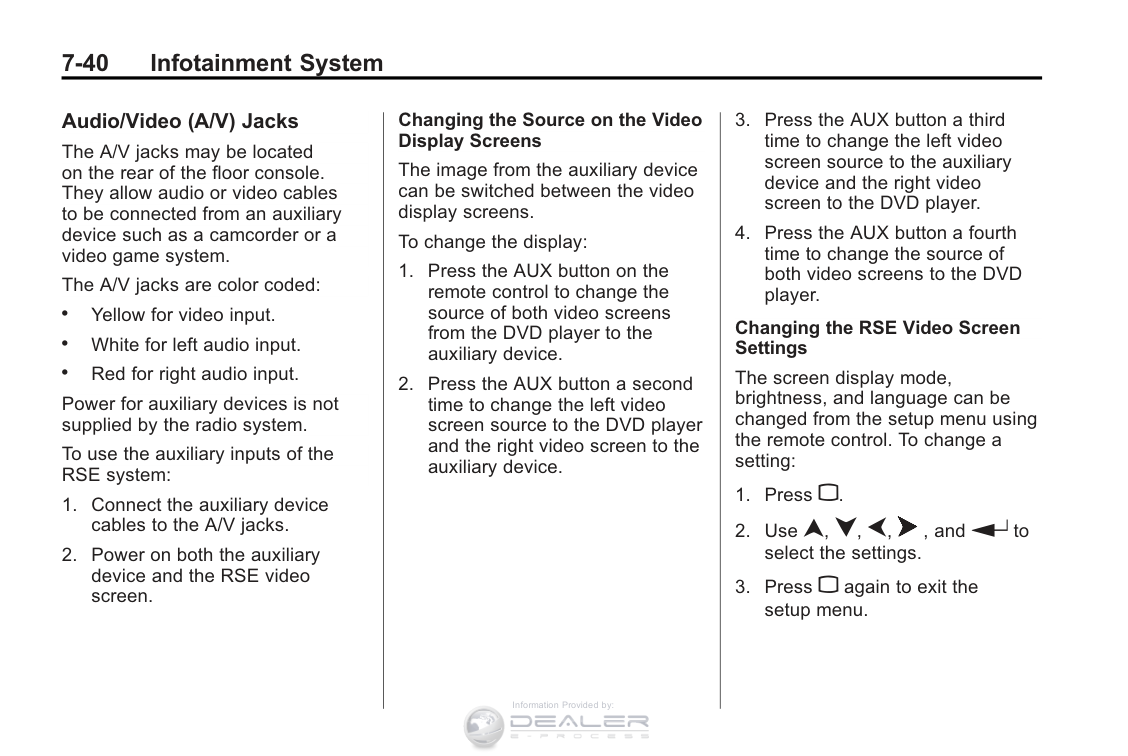

####### Audio/Video (A/V) Jacks

The A/V jacks may be located on the rear of the floor console. They allow audio or video cables to be connected from an auxiliary device such as a camcorder or a video game system.

The A/V jacks are color coded:

. Yellow for video input.

. White for left audio input. . Red for right audio input. Power for auxiliary devices is not supplied by the radio system. To use the auxiliary inputs of the RSE system:

Changing the Source on the Video Display Screens

The image from the auxiliary device can be switched between the video display screens.

To change the display:

Changing the RSE Video Screen Settings

The screen display mode, brightness, and language can be changed from the setup menu using the remote control. To change a setting:

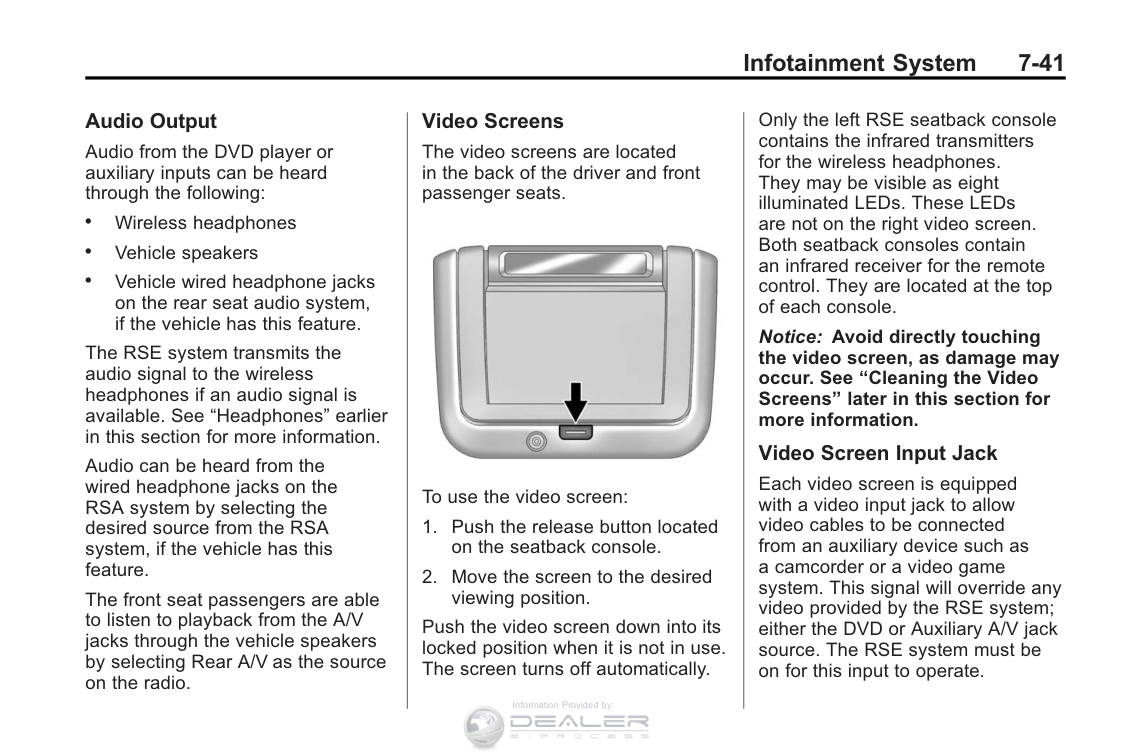

####### Audio Output

Audio from the DVD player or auxiliary inputs can be heard through the following:

. Wireless headphones

. Vehicle speakers

. Vehicle wired headphone jacks on the rear seat audio system, if the vehicle has this feature.

The RSE system transmits the audio signal to the wireless headphones if an audio signal is available. See “Headphones” earlier in this section for more information.

Audio can be heard from the wired headphone jacks on the RSA system by selecting the desired source from the RSA system, if the vehicle has this feature.

The front seat passengers are able to listen to playback from the A/V jacks through the vehicle speakers by selecting Rear A/V as the source on the radio.

####### Video Screens

The video screens are located in the back of the driver and front passenger seats.


To use the video screen:

Push the video screen down into its locked position when it is not in use. The screen turns off automatically.



Only the left RSE seatback console contains the infrared transmitters for the wireless headphones. They may be visible as eight illuminated LEDs. These LEDs are not on the right video screen. Both seatback consoles contain an infrared receiver for the remote control. They are located at the top of each console.

Notice: Avoid directly touching the video screen, as damage may occur. See “Cleaning the Video Screens” later in this section for more information.

####### Video Screen Input Jack

Each video screen is equipped with a video input jack to allow video cables to be connected from an auxiliary device such as acamcorderoravideogame system. This signal will override any video provided by the RSE system; either the DVD or Auxiliary A/V jack source. The RSE system must be on for this input to operate.

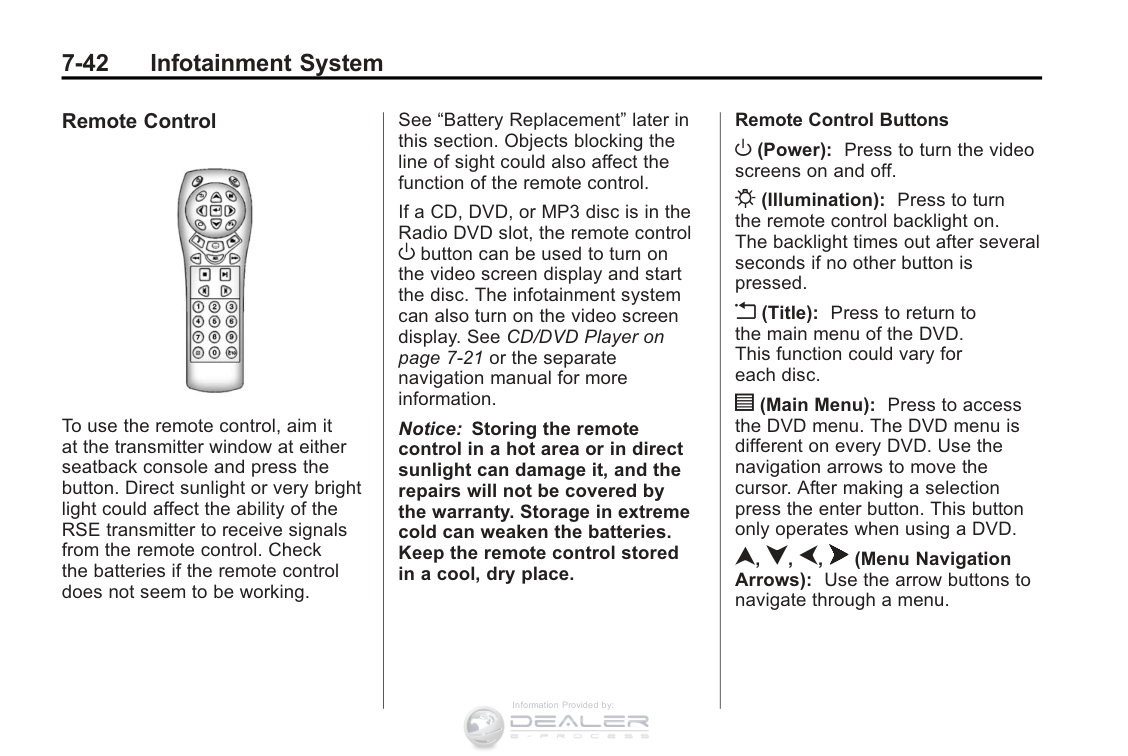

####### Remote Control


To use the remote control, aim it

See “Battery Replacement” later in this section. Objects blocking the line of sight could also affect the function of the remote control.

If a CD, DVD, or MP3 disc is in the Radio DVD slot, the remote control O button can be used to turn on

the video screen display and start the disc. The infotainment system can also turn on the video screen display. See CD/DVD Player on

page 7￿21 or the separate navigation manual for more information.

Notice: Storing the remote control in a hot area or in direct sunlight can damage it, and the repairs will not be covered by the warranty. Storage in extreme cold can weaken the batteries. Keep the remote control stored in a cool, dry place.

Remote Control Buttons O (Power): Press to turn the video screens on and off. P (Illumination): Press to turn the remote control backlight on. The backlight times out after several seconds if no other button is pressed. v (Title): Press to return to

the main menu of the DVD. This function could vary for each disc.

y (Main Menu): Press to access the DVD menu. The DVD menu is different on every DVD. Use the navigation arrows to move the cursor. After making a selection press the enter button. This button only operates when using a DVD.

n, q, p, o (Menu Navigation Arrows): Use the arrow buttons to navigate through a menu.

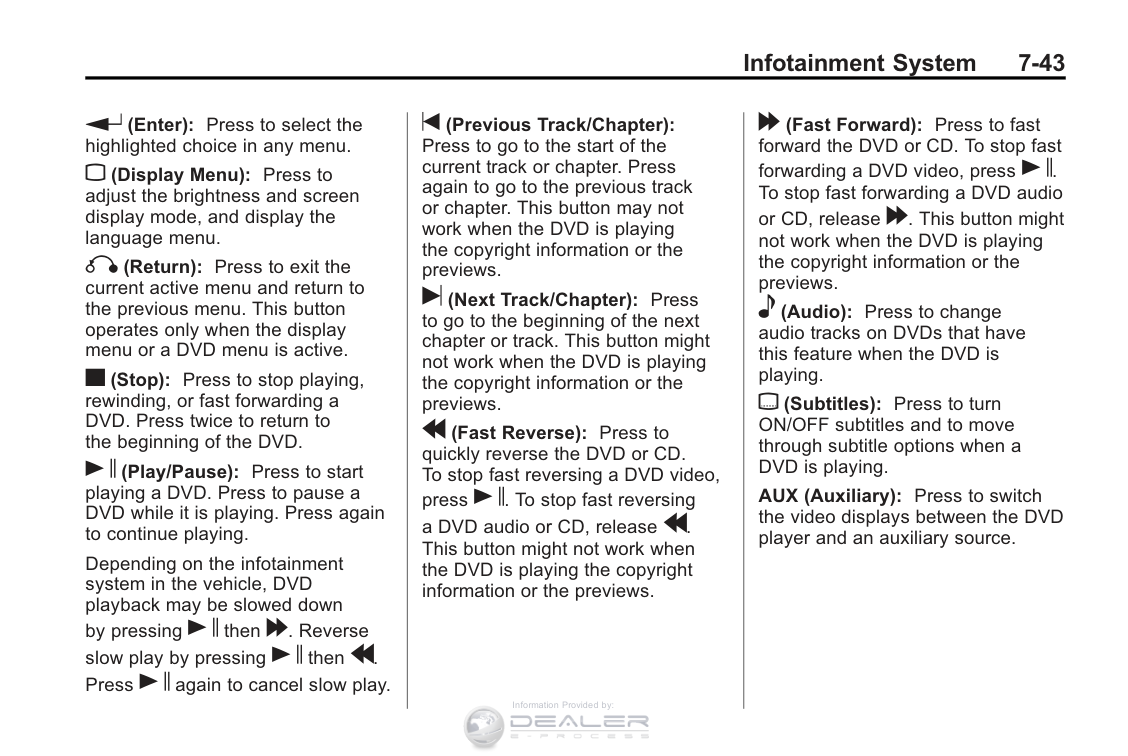

z (Display Menu): Press to adjust the brightness and screen display mode, and display the language menu.

q (Return): Press to exit the current active menu and return to the previous menu. This button operates only when the display menu or a DVD menu is active.

c (Stop): Press to stop playing, rewinding, or fast forwarding a DVD. Press twice to return to the beginning of the DVD.

Depending on the infotainment system in the vehicle, DVD playback may be slowed down

by pressing s then [.Reverse slow play by pressing s then r. Press s again to cancel slow play.

r (Fast Reverse): Press to quickly reverse the DVD or CD. To stop fast reversing a DVD video, press s.Tostopfastreversing

aDVDaudioorCD,releaser. This button might not work when the DVD is playing the copyright information or the previews.



[ (Fast Forward): Press to fast forward the DVD or CD. To stop fast forwarding a DVD video, press s. To stop fast forwarding a DVD audio or CD, release [.Thisbuttonmight not work when the DVD is playing the copyright information or the previews. e (Audio): Press to change audio tracks on DVDs that have this feature when the DVD is playing. { (Subtitles): Press to turn ON/OFF subtitles and to move through subtitle options when a DVD is playing. AUX (Auxiliary): Press to switch the video displays between the DVD player and an auxiliary source.

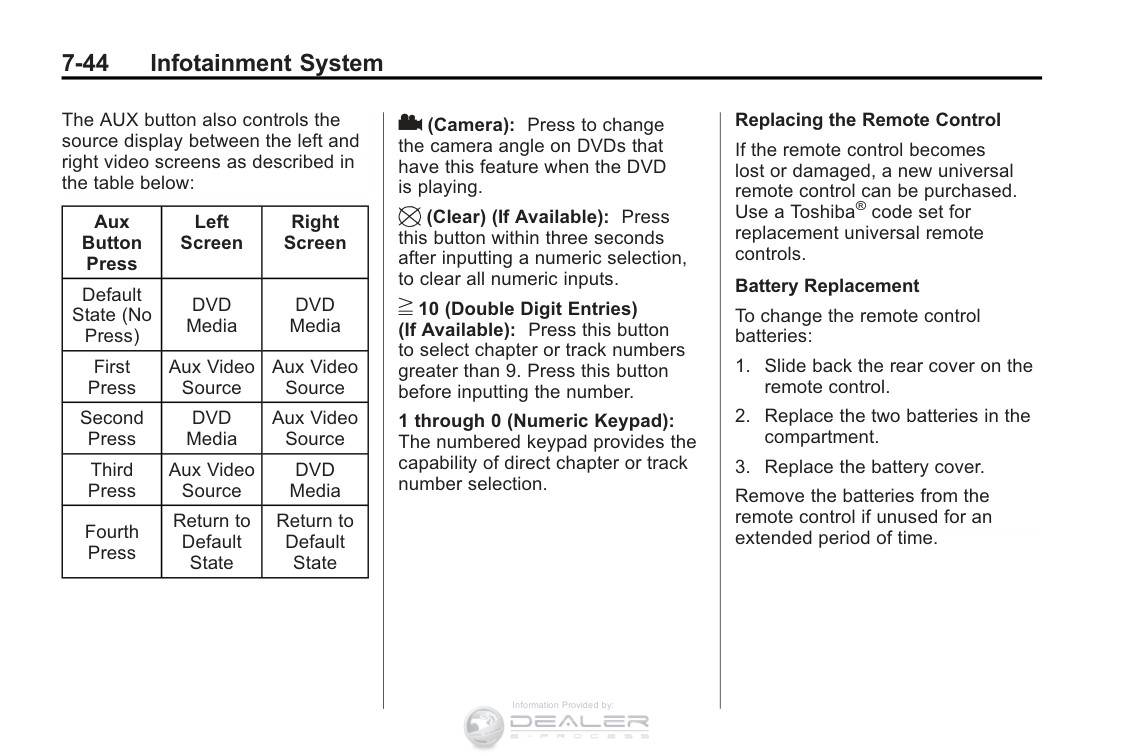

The AUX button also controls the source display between the left and right video screens as described in the table below:

|Aux Button Press|Left Screen|Right Screen| |---|---|---| |Default State (No Press)|DVD Media|DVD Media| |First Press|Aux Video Source|Aux Video Source| |Second Press|DVD Media|Aux Video Source| |Third Press|Aux Video Source|DVD Media| |Fourth Press|Return to Default State|Return to Default State|

2 (Camera): Press to change the camera angle on DVDs that have this feature when the DVD is playing.

\ (Clear) (If Available): Press this button within three seconds after inputting a numeric selection, to clear all numeric inputs.

} 10 (Double Digit Entries) (If Available): Press this button to select chapter or track numbers greater than 9. Press this button before inputting the number.

1through0(NumericKeypad): The numbered keypad provides the capability of direct chapter or track number selection.

######## Replacing the Remote Control

If the remote control becomes lost or damaged, a new universal remote control can be purchased. Use a Toshiba® code set for replacement universal remote controls.

######## Battery Replacement

To change the remote control batteries:

Remove the batteries from the remote control if unused for an extended period of time.

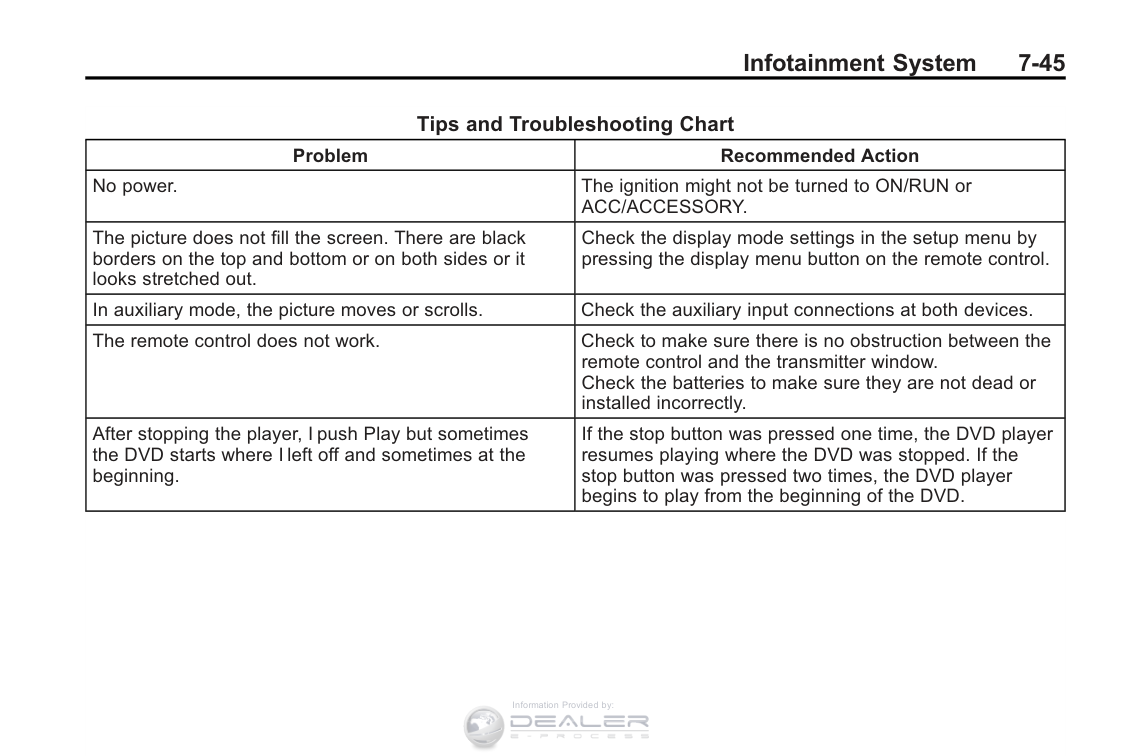

####### Tips and Troubleshooting Chart

|Problem|Recommended Action| |---|---| |No power.|The ignition might not be turned to ON/RUN or ACC/ACCESSORY.| |The picture does not fill the screen. There are black borders on the top and bottom or on both sides or it looks stretched out.|Check the display mode settings in the setup menu by pressing the display menu button on the remote control.| |In auxiliary mode, the picture moves or scrolls.|Check the auxiliary input connections at both devices.| |The remote control does not work.|Check to make sure there is no obstruction between the remote control and the transmitter window. Check the batteries to make sure they are not dead or installed incorrectly.|

|After stopping the player, I push Play but sometimes the DVD starts where I left off and sometimes at the beginning.|If the stop button was pressed one time, the DVD player resumes playing where the DVD was stopped. If the stop button was pressed two times, the DVD player begins to play from the beginning of the DVD.|

|

Information Provided by:

| |---| | |

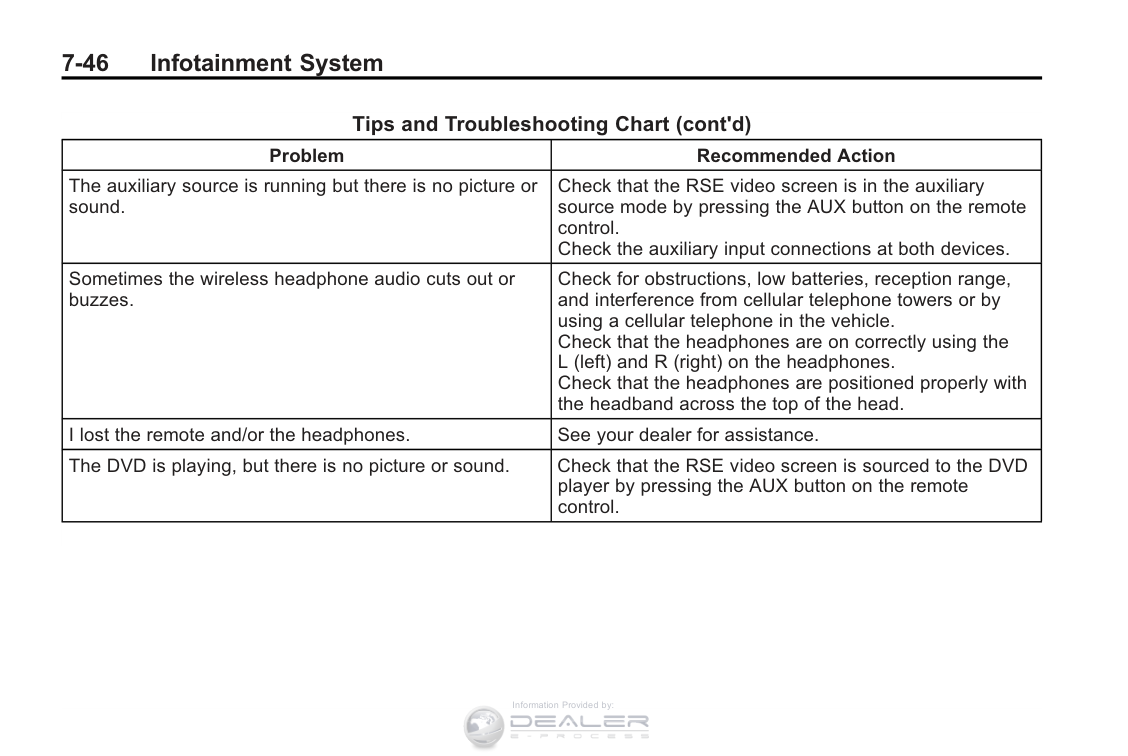

####### Tips and Troubleshooting Chart (cont'd)

|Problem|Recommended Action| |---|---| |The auxiliary source is running but there is no picture or sound.|Check that the RSE video screen is in the auxiliary source mode by pressing the AUX button on the remote control. Check the auxiliary input connections at both devices.| |Sometimes the wireless headphone audio cuts out or buzzes.|Check for obstructions, low batteries, reception range, and interference from cellular telephone towers or by using a cellular telephone in the vehicle. Check that the headphones are on correctly using the L(left)andR(right)ontheheadphones. Check that the headphones are positioned properly with the headband across the top of the head.| |Ilosttheremoteand/ortheheadphones.|See your dealer for assistance.| |The DVD is playing, but there is no picture or sound.|Check that the RSE video screen is sourced to the DVD player by pressing the AUX button on the remote control.| | | |

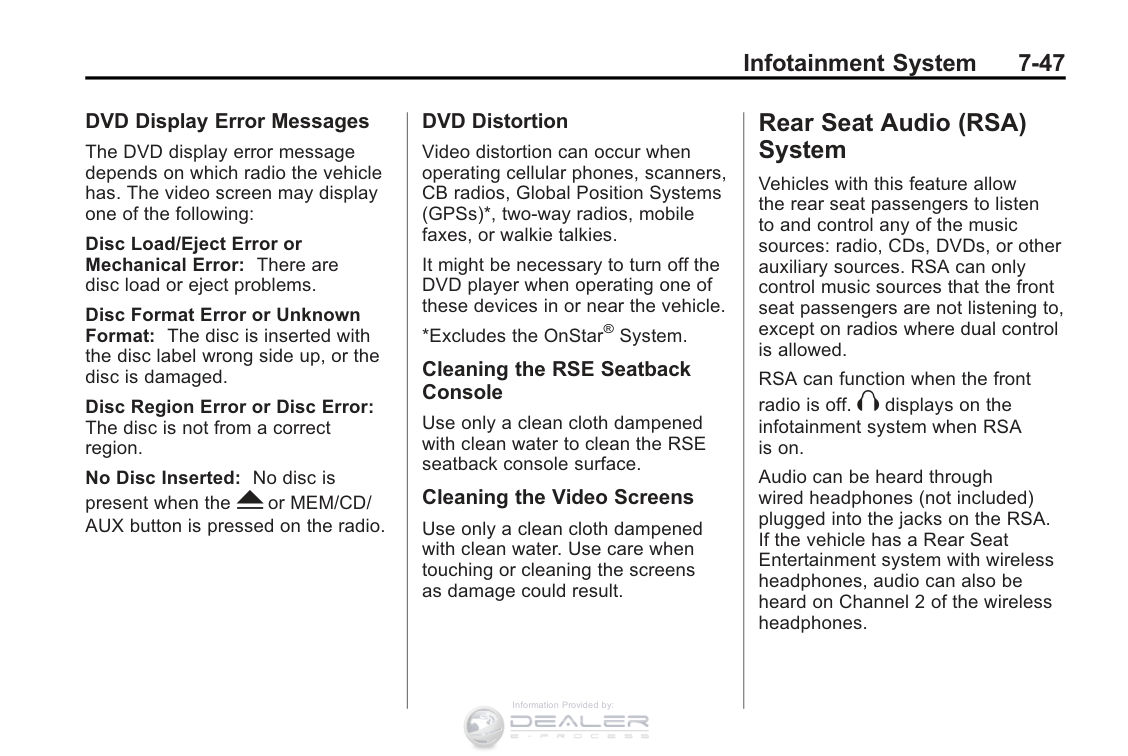

####### DVD Display Error Messages

The DVD display error message depends on which radio the vehicle has. The video screen may display one of the following:

Disc Load/Eject Error or Mechanical Error: There are disc load or eject problems.

Disc Format Error or Unknown Format: The disc is inserted with the disc label wrong side up, or the disc is damaged.

Disc Region Error or Disc Error: The disc is not from a correct region.

No Disc Inserted: No disc is present when the Yor MEM/CD/ AUX button is pressed on the radio.

####### DVD Distortion

Video distortion can occur when operating cellular phones, scanners, CB radios, Global Position Systems (GPSs)*, two-way radios, mobile faxes, or walkie talkies.

It might be necessary to turn off the DVD player when operating one of these devices in or near the vehicle.

####### *Excludes the OnStar® System. Cleaning the RSE Seatback Console

Use only a clean cloth dampened with clean water to clean the RSE seatback console surface.

####### Cleaning the Video Screens

Use only a clean cloth dampened with clean water. Use care when touching or cleaning the screens as damage could result.

#### Rear Seat Audio (RSA) System

Vehicles with this feature allow the rear seat passengers to listen to and control any of the music sources: radio, CDs, DVDs, or other auxiliary sources. RSA can only control music sources that the front seat passengers are not listening to, except on radios where dual control is allowed.

RSA can function when the front radio is off. X displays on the infotainment system when RSA is on. Audio can be heard through wired headphones (not included) plugged into the jacks on the RSA. If the vehicle has a Rear Seat Entertainment system with wireless headphones, audio can also be heard on Channel 2 of the wireless headphones.

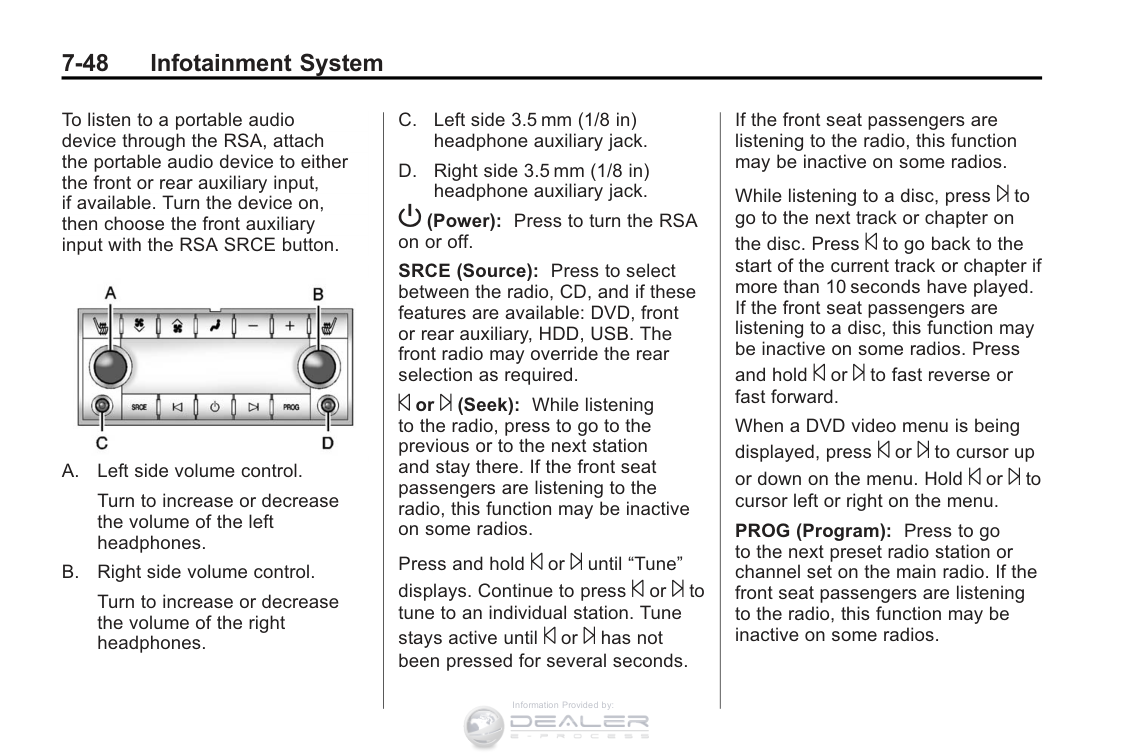

To listen to a portable audio device through the RSA, attach the portable audio device to either the front or rear auxiliary input, if available. Turn the device on,


Turn to increase or decrease the volume of the left headphones.

Turn to increase or decrease the volume of the right headphones.

C. Left side 3.5 mm (1/8 in)

headphone auxiliary jack. D. Right side 3.5 mm (1/8 in) headphone auxiliary jack.

P (Power): Press to turn the RSA on or off.

SRCE (Source): Press to select between the radio, CD, and if these features are available: DVD, front or rear auxiliary, HDD, USB. The front radio may override the rear selection as required.

© or ¨ (Seek): While listening to the radio, press to go to the previous or to the next station and stay there. If the front seat passengers are listening to the radio, this function may be inactive on some radios.

Press and hold © or ¨ until “Tune” displays. Continue to press © or ¨ to tune to an individual station. Tune stays active until © or ¨ has not been pressed for several seconds.

If the front seat passengers are listening to the radio, this function may be inactive on some radios.

While listening to a disc, press ¨ to go to the next track or chapter on the disc. Press © to go back to the start of the current track or chapter if more than 10 seconds have played. If the front seat passengers are listening to a disc, this function may be inactive on some radios. Press and hold © or ¨ to fast reverse or fast forward. When a DVD video menu is being displayed, press © or ¨ to cursor up or down on the menu. Hold © or ¨ to cursor left or right on the menu. PROG (Program): Press to go to the next preset radio station or channel set on the main radio. If the front seat passengers are listening to the radio, this function may be inactive on some radios.

When a CD or DVD audio disc is playing, press PROG to go to the beginning of the disc or display disc info. If the front seat passengers are listening to a disc, this function may be inactive on some radios.

When a disc is playing in the CD or DVD changer, press and hold PROG to select the next disc, if multiple discs are loaded. If the front seat passengers are listening to a disc, this function may be inactive on some radios.

The PROG button may be used to access the menu of an MP3. Once in the menu, use © or ¨ to make selections. When a DVD video menu is displayed, press PROG, or press and hold PROG to perform the menu function, then press ENTER.

Phone Bluetooth (Overview)

For vehicles equipped with Bluetooth capability, the system can interact with many cell phones, allowing:

. Placement and receipt of calls in ahands-freemode.

. Sharing of the cell phone’s address book or contact list with the vehicle.

To minimize driver distraction, before driving, and with the vehicle parked:

. Become familiar with the features of the cell phone. Organize the phone book and contact lists clearly and delete duplicate or rarely used entries. If possible, program speed dial or other shortcuts.

. Review the controls and operation of the infotainment system.



. Pair cell phone(s) to the vehicle. The system may not work with all cell phones. See “Pairing” in this section for more information.

. If the cell phone has voice dialing capability, learn to use that feature to access the address book or contact list. See “Voice Pass-Thru” in this section for more information.

. See “Storing and Deleting Phone Numbers” in this section for more information.

|{ WARNING| |---| |When using a cell phone, it can be distracting to look too long or too often at the screen of the phone or the infotainment (navigation) system. Taking your eyes off the road too long or too often could cause a crash resulting in injury or death. Focus your attention on driving.|

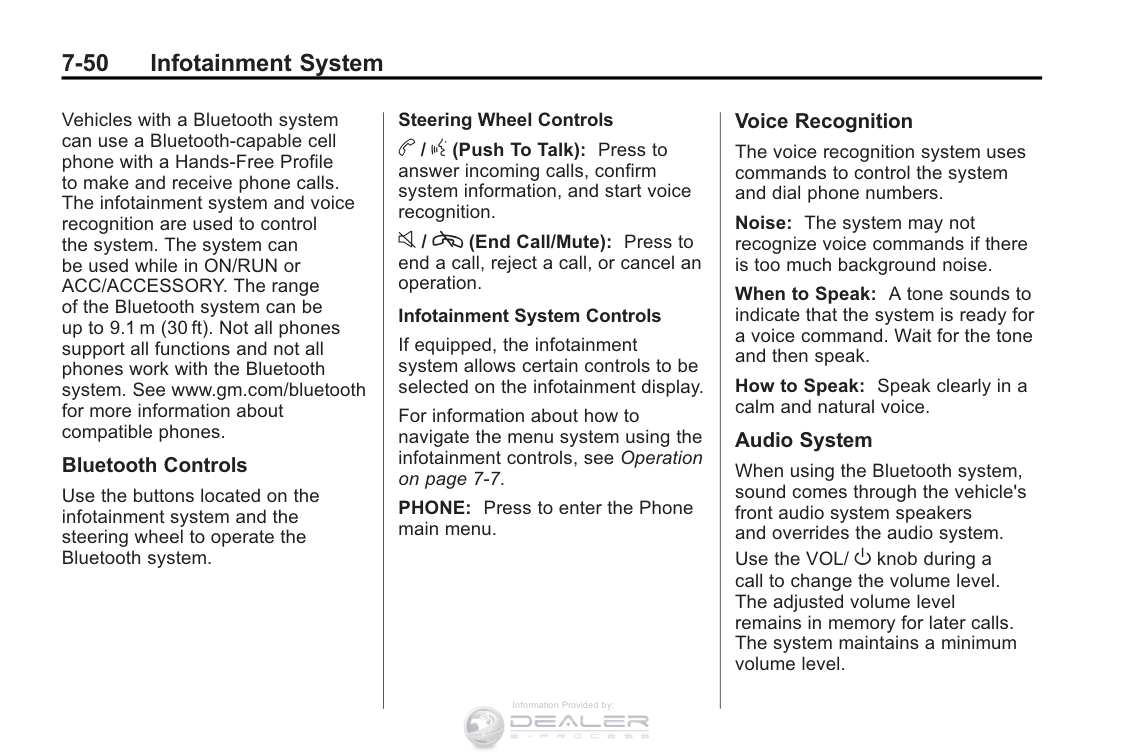

Vehicles with a Bluetooth system can use a Bluetooth￿capable cell phone with a Hands￿Free Profile

Use the buttons located on the infotainment system and the steering wheel to operate the Bluetooth system.

Steering Wheel Controls b / g (Push To Talk): Press to answer incoming calls, confirm system information, and start voice recognition. 0 / c (End Call/Mute): Press to end a call, reject a call, or cancel an operation. Infotainment System Controls

If equipped, the infotainment system allows certain controls to be selected on the infotainment display.

For information about how to navigate the menu system using the infotainment controls, see Operation on page 7￿7.

PHONE: Press to enter the Phone main menu.

####### Voice Recognition

The voice recognition system uses commands to control the system and dial phone numbers.

Noise: The system may not recognize voice commands if there is too much background noise.

When to Speak: Atonesoundsto indicate that the system is ready for avoicecommand.Waitforthetone and then speak.

How to Speak: Speak clearly in a calm and natural voice.

Audio System When using the Bluetooth system, sound comes through the vehicle's front audio system speakers and overrides the audio system. Use the VOL/ O knob during a call to change the volume level. The adjusted volume level remains in memory for later calls. The system maintains a minimum volume level.

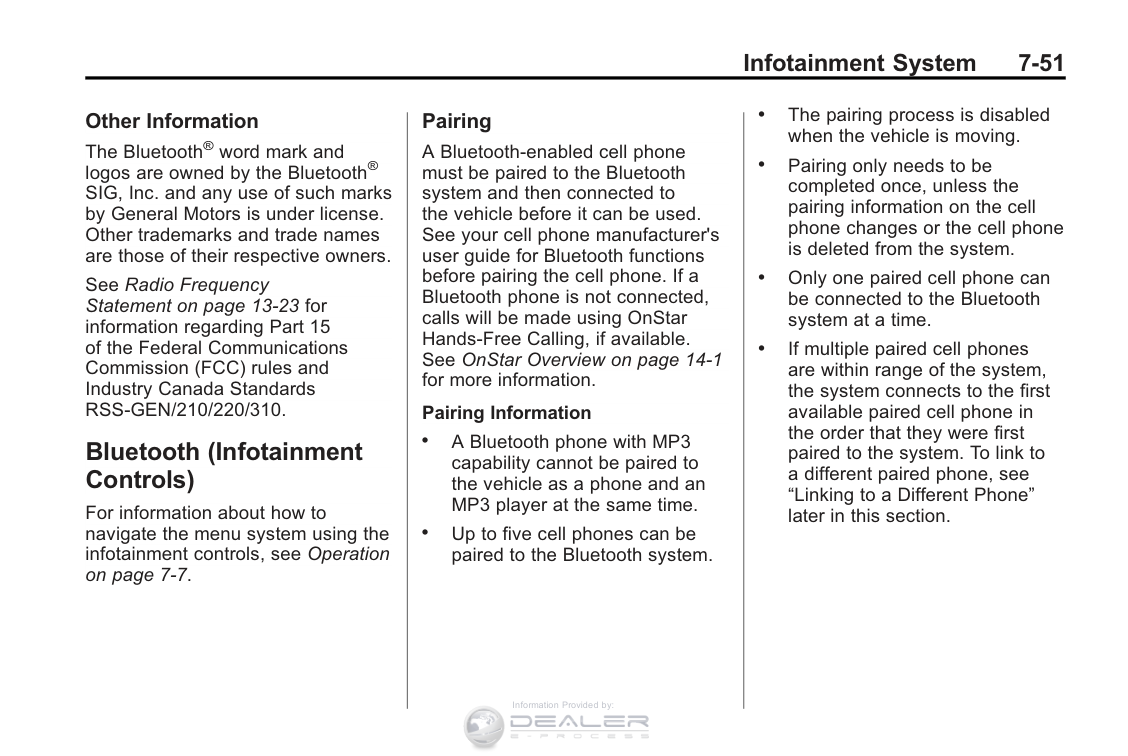

####### Other Information

The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by General Motors is under license. Other trademarks and trade names are those of their respective owners.

See Radio Frequency Statement on page 13￿23 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310.

#### Bluetooth (Infotainment Controls)

For information about how to navigate the menu system using the infotainment controls, see Operation on page 7￿7.

####### Pairing

ABluetooth￿enabled cell phone must be paired to the Bluetooth system and then connected to the vehicle before it can be used. See your cell phone manufacturer's user guide for Bluetooth functions before pairing the cell phone. If a Bluetooth phone is not connected, calls will be made using OnStar Hands￿Free Calling, if available. See OnStar Overview on page 14￿1 for more information.

######## Pairing Information

. ABluetoothphonewithMP3 capability cannot be paired to the vehicle as a phone and an MP3 player at the same time.

. Up to five cell phones can be paired to the Bluetooth system.

. The pairing process is disabled when the vehicle is moving.

. Pairing only needs to be completed once, unless the pairing information on the cell phone changes or the cell phone is deleted from the system.

. Only one paired cell phone can be connected to the Bluetooth system at a time.

. If multiple paired cell phones are within range of the system, the system connects to the first available paired cell phone in the order that they were first paired to the system. To link to adifferentpairedphone,see “Linking to a Different Phone” later in this section.

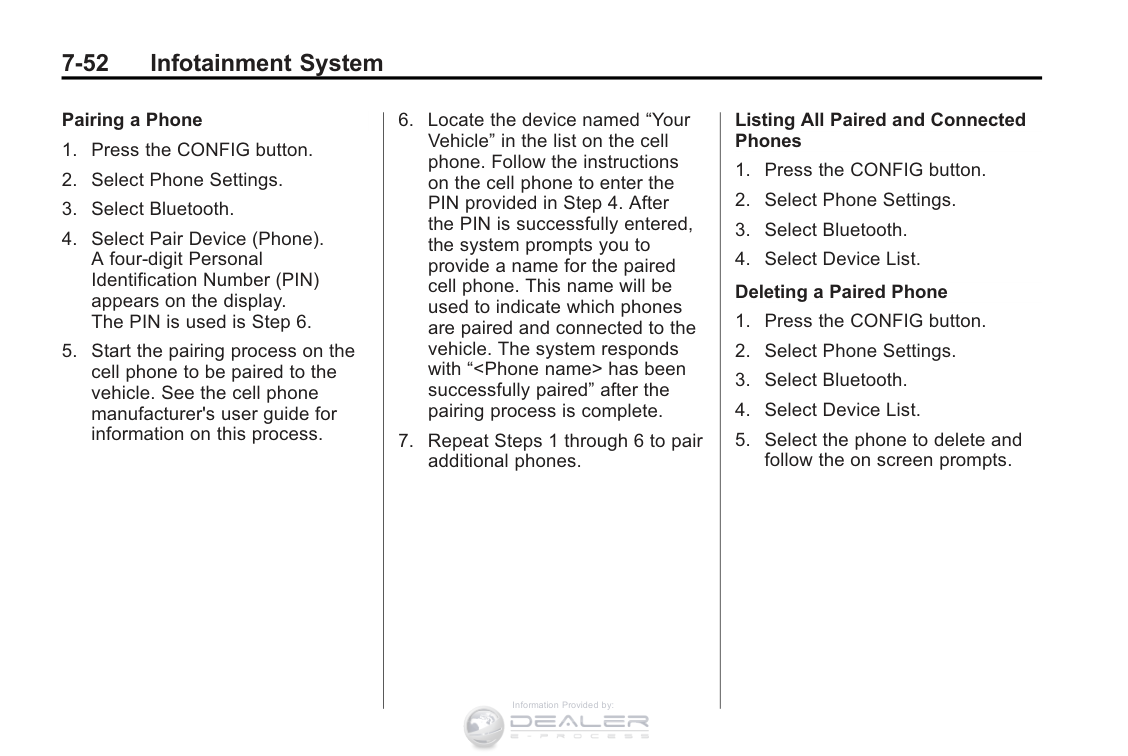

######## Pairing a Phone

Listing All Paired and Connected Phones

######## Linking to a Different Phone

To link to a different phone, the new phone must be in the vehicle and available to be connected to the Bluetooth system before the process is started.

If delete is selected, the highlighted phone will be deleted.

####### Making a Call Using Phone Book

For cell phones that support the phone book feature, the Bluetooth system can use the contacts stored on your cell phone to make calls. See your cell phone's owner's guide or contact your wireless provider to find out if this feature is supported by your phone.

When a cell phone supports the phone book feature, the Phone Book and Call Lists menus are automatically available.

The Phone Book menu allows you to access the phone book stored in the cell phone to make a call.

The Call Lists menu allows you to access the phone numbers from the Incoming Calls, Outgoing Calls, and Missed Calls menus on your cell phone to make a call.

######## Radio with CD

To make a call using the Phone Book menu:

To make a call using the Call Lists menu:

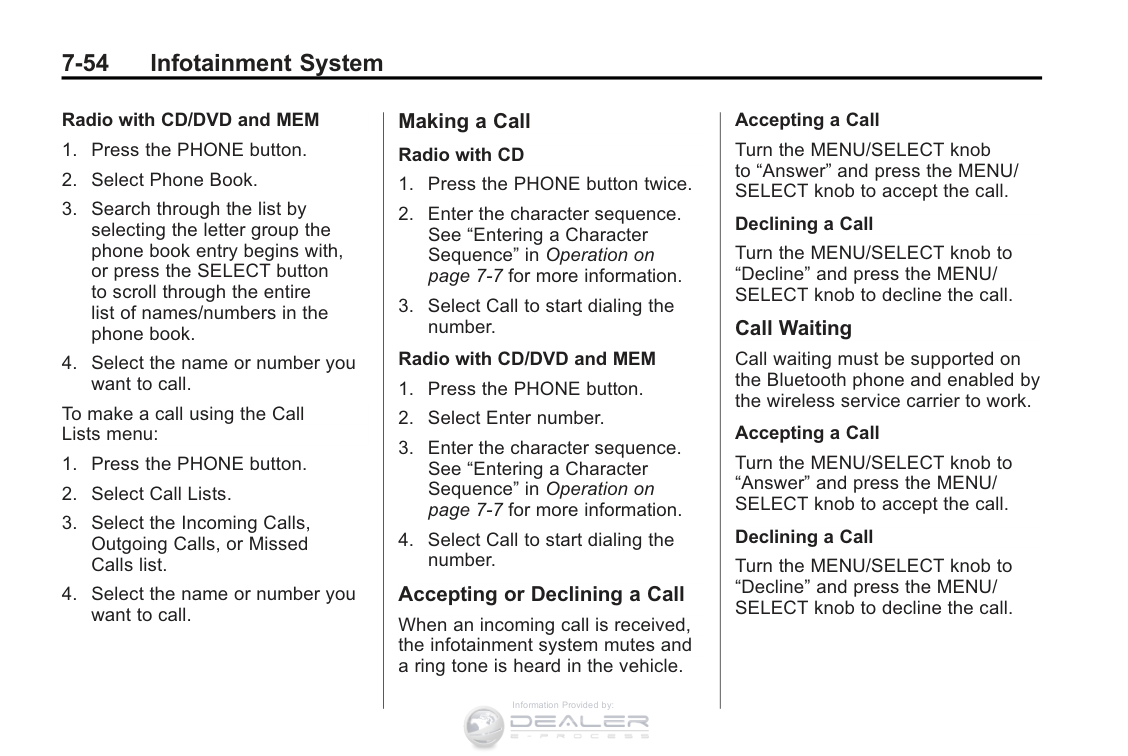

######## Radio with CD/DVD and MEM

To make a call using the Call Lists menu:

####### Making a Call Radio with CD

######## Radio with CD/DVD and MEM

####### Accepting or Declining a Call

When an incoming call is received, the infotainment system mutes and aringtoneisheardinthevehicle.

######## Accepting a Call

Turn the MENU/SELECT knob to “Answer” and press the MENU/ SELECT knob to accept the call.

Declining a Call Turn the MENU/SELECT knob to “Decline” and press the MENU/ SELECT knob to decline the call. Call Waiting

Call waiting must be supported on the Bluetooth phone and enabled by the wireless service carrier to work.

Accepting a Call Turn the MENU/SELECT knob to “Answer” and press the MENU/ SELECT knob to accept the call. Declining a Call Turn the MENU/SELECT knob to “Decline” and press the MENU/ SELECT knob to decline the call.

Switching Between Calls (Call Waiting Calls Only)

To switch between calls:

####### Conference Calling

Conference calling and three￿way calling must be supported on the Bluetooth phone and enabled by the wireless service carrier to work.

To start a conference while in a current call:

####### Ending a Call

Turn or press the MENU/SELECT knob and select Hang Up.

Muting a Call To Mute a Call Turn or press the MENU/SELECT knob and select Mute Call. To Cancel Mute

Turn or press the MENU/SELECT knob and select Mute Call.



####### Dual Tone Multi-Frequency (DTMF) Tones

The in￿vehicle Bluetooth system can send numbers during a call. This is used when calling a menu￿driven phone system.

#### Bluetooth (Voice Recognition)

Using Voice Recognition To use voice recognition, press the b / g button located on the steering wheel. Use the commands below for the various voice features. For additional information, say "Help" while you are in a voice recognition menu.

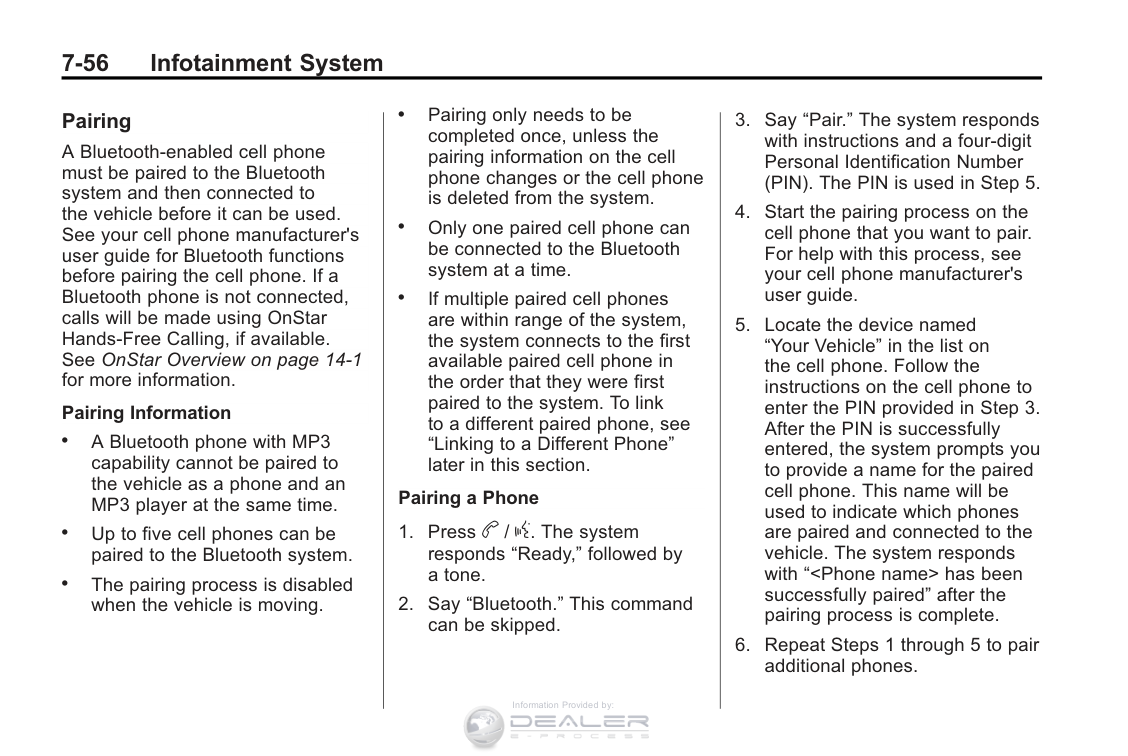

####### Pairing

ABluetooth￿enabled cell phone must be paired to the Bluetooth system and then connected to the vehicle before it can be used. See your cell phone manufacturer's user guide for Bluetooth functions before pairing the cell phone. If a Bluetooth phone is not connected, calls will be made using OnStar Hands￿Free Calling, if available. See OnStar Overview on page 14￿1 for more information.

######## Pairing Information

. ABluetoothphonewithMP3 capability cannot be paired to the vehicle as a phone and an MP3 player at the same time.

. Up to five cell phones can be paired to the Bluetooth system.

. The pairing process is disabled when the vehicle is moving.

. Pairing only needs to be completed once, unless the pairing information on the cell phone changes or the cell phone is deleted from the system.

. Only one paired cell phone can be connected to the Bluetooth system at a time.

. If multiple paired cell phones are within range of the system, the system connects to the first available paired cell phone in the order that they were first paired to the system. To link to a different paired phone, see “Linking to a Different Phone” later in this section.

######## Pairing a Phone

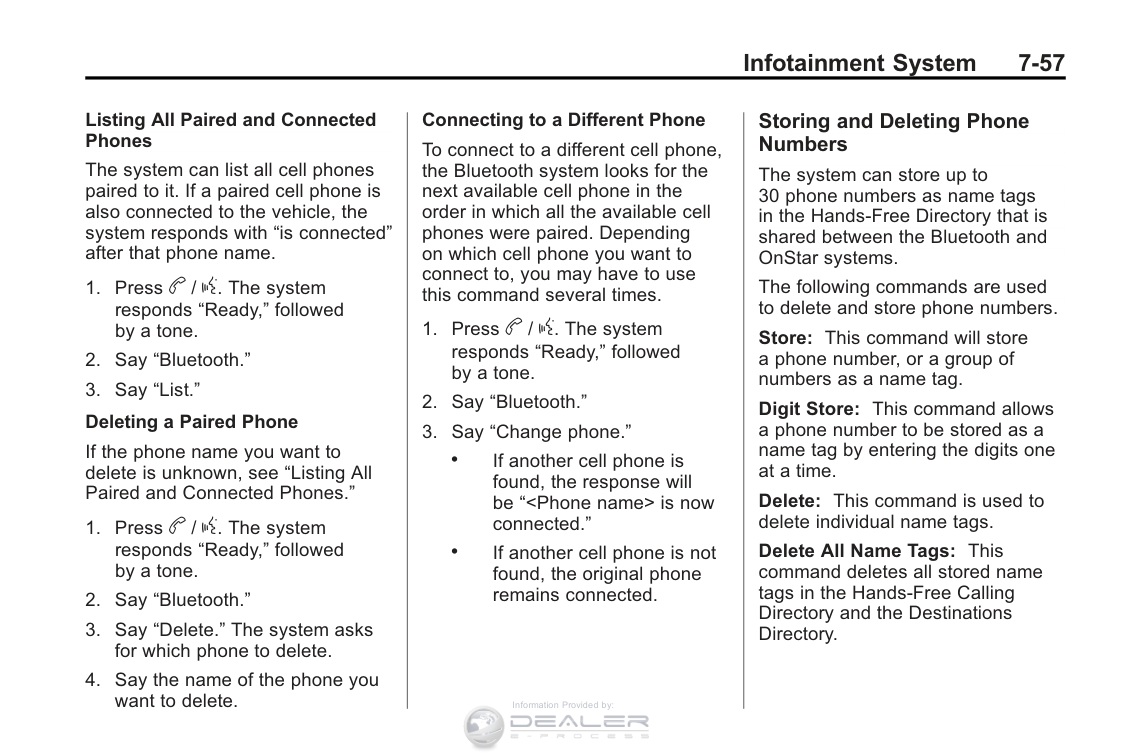

Listing All Paired and Connected Phones

The system can list all cell phones paired to it. If a paired cell phone is also connected to the vehicle, the system responds with “is connected” after that phone name.

If the phone name you want to delete is unknown, see “Listing All Paired and Connected Phones.”

######## Connecting to a Different Phone

To connect to a different cell phone, the Bluetooth system looks for the next available cell phone in the order in which all the available cell phones were paired. Depending on which cell phone you want to connect to, you may have to use this command several times.

. If another cell phone is found, the response will be “ is now connected.”

. If another cell phone is not found, the original phone remains connected.



####### Storing and Deleting Phone Numbers

The system can store up to 30 phone numbers as name tags in the Hands￿Free Directory that is shared between the Bluetooth and OnStar systems.

The following commands are used to delete and store phone numbers.

Store: This command will store aphonenumber,oragroupof numbers as a name tag.

Digit Store: This command allows aphonenumbertobestoredasa name tag by entering the digits one at a time.

Delete: This command is used to delete individual name tags.

Delete All Name Tags: This command deletes all stored name tags in the Hands￿Free Calling Directory and the Destinations Directory.

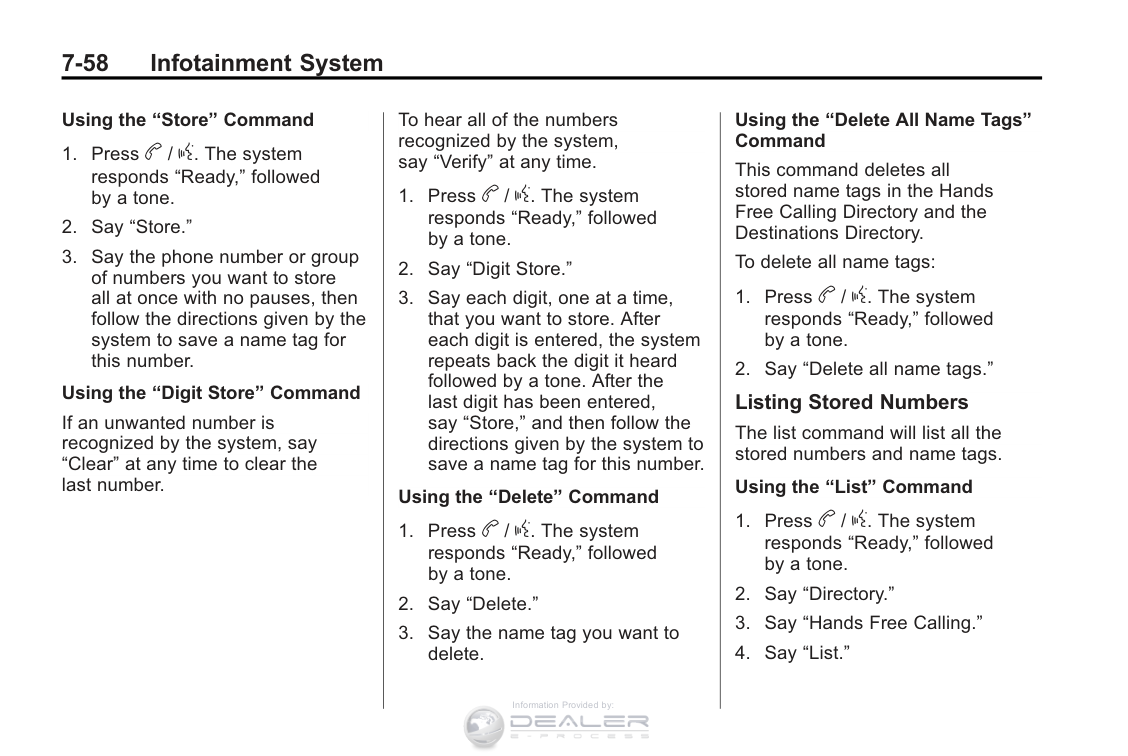

######## Using the “Store” Command

######## Using the “Digit Store” Command

If an unwanted number is recognized by the system, say “Clear” at any time to clear the last number.

To hear all of the numbers recognized by the system, say “Verify” at any time.

######## Using the “Delete” Command

Using the “Delete All Name Tags” Command

This command deletes all stored name tags in the Hands Free Calling Directory and the Destinations Directory.

To delete all name tags:

The list command will list all the stored numbers and name tags.

######## Using the “List” Command

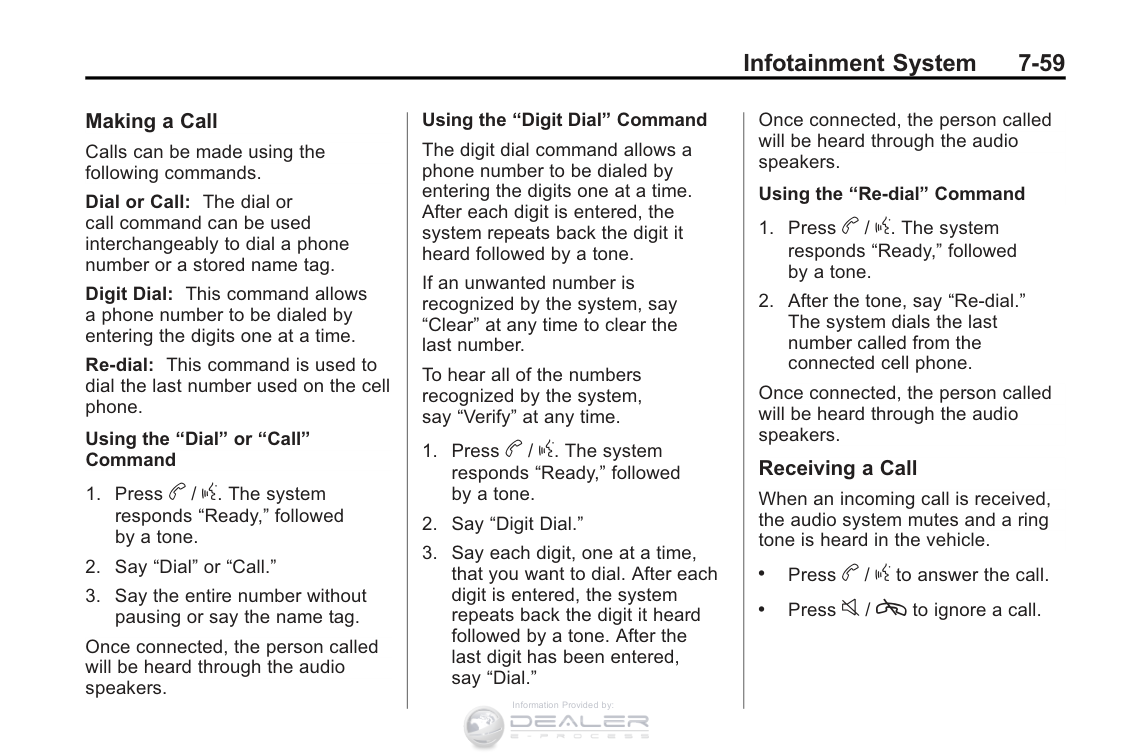

####### Making a Call

Calls can be made using the following commands.

Dial or Call: The dial or call command can be used interchangeably to dial a phone number or a stored name tag.

Digit Dial: This command allows

aphonenumbertobedialedby entering the digits one at a time.

Re￿dial: This command is used to dial the last number used on the cell phone.

Using the “Dial” or “Call” Command

Once connected, the person called will be heard through the audio speakers.

Using the “Digit Dial” Command The digit dial command allows a phone number to be dialed by entering the digits one at a time. After each digit is entered, the system repeats back the digit it heard followed by a tone. If an unwanted number is recognized by the system, say “Clear” at any time to clear the last number.

To hear all of the numbers recognized by the system, say “Verify” at any time.



Once connected, the person called will be heard through the audio speakers.

######## Using the “Re￿dial” Command

Once connected, the person called will be heard through the audio speakers.

####### Receiving a Call

When an incoming call is received, the audio system mutes and a ring tone is heard in the vehicle.

. Press b / g to answer the call.

. Press 0 / c to ignore a call.

####### Call Waiting

Call waiting must be supported on the cell phone and enabled by the wireless service carrier.

. Press b / g to answer an incoming call when another call is active. The original call is placed on hold.

. Press b / g again to return to

the original call.

. To ignore the incoming call, no action is required.

. Press 0 / c to disconnect the current call and switch to the call on hold.

####### Three￿Way Calling

Three￿way calling must be supported on the cell phone and enabled by the wireless service carrier.

#### Ending a Call Press 0 / c to end a call. Muting a Call

During a call, all sounds from inside the vehicle can be muted so that the person on the other end of the call cannot hear them.

To mute a call, press b / g ,and then say “Mute Call.”

To cancel mute, press b / g ,and then say “Un￿mute Call.”

####### Transferring a Call

Audio can be transferred between the Bluetooth system and the cell phone.

The cell phone must be paired and connected with the Bluetooth system before a call can be transferred. The connection process can take up to two minutes after the ignition is turned to ON/RUN.

To Transfer Audio from the Bluetooth System to a Cell Phone

During a call with the audio in the vehicle:

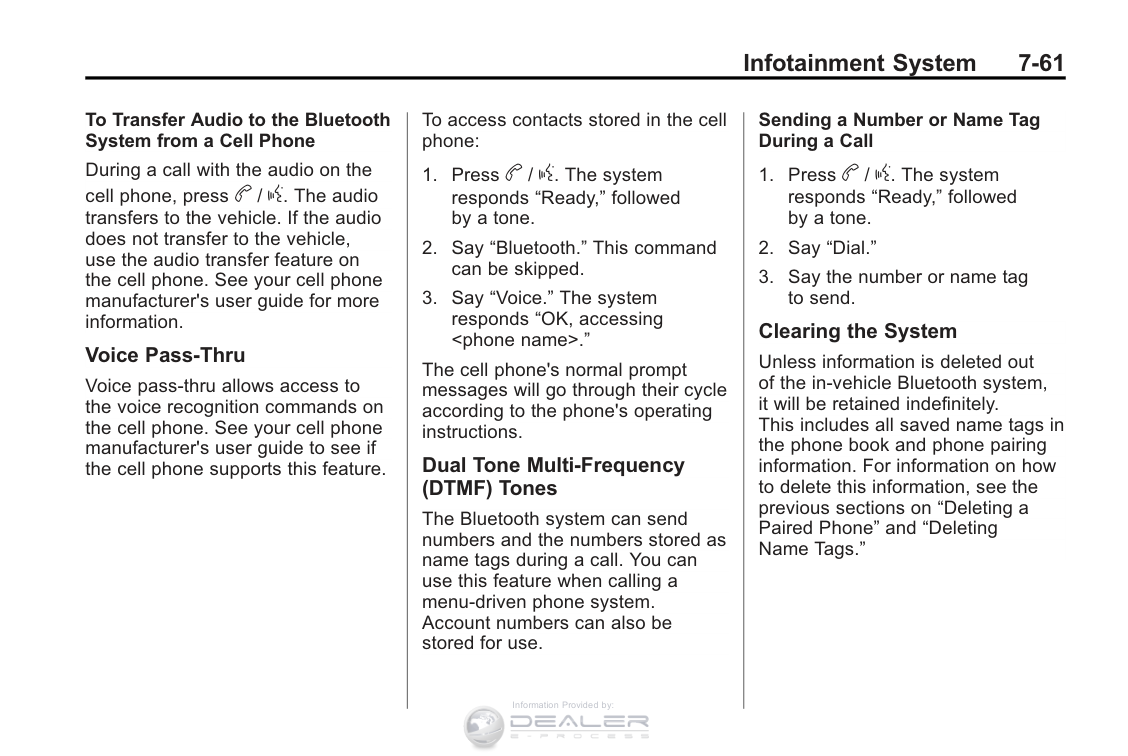

To Transfer Audio to the Bluetooth System from a Cell Phone

During a call with the audio on the cell phone, press b / g.Theaudio transfers to the vehicle. If the audio does not transfer to the vehicle, use the audio transfer feature on the cell phone. See your cell phone manufacturer's user guide for more information.

####### Voice Pass-Thru

Voice pass￿thru allows access to the voice recognition commands on the cell phone. See your cell phone manufacturer's user guide to see if the cell phone supports this feature.

To access contacts stored in the cell phone:

The cell phone's normal prompt messages will go through their cycle according to the phone's operating instructions.

####### Dual Tone Multi-Frequency (DTMF) Tones

The Bluetooth system can send numbers and the numbers stored as name tags during a call. You can use this feature when calling a menu￿driven phone system. Account numbers can also be stored for use.

Sending a Number or Name Tag During a Call

####### Clearing the System

Unless information is deleted out of the in￿vehicle Bluetooth system, it will be retained indefinitely. This includes all saved name tags in the phone book and phone pairing information. For information on how to delete this information, see the previous sections on “Deleting a Paired Phone” and “Deleting Name Tags.”

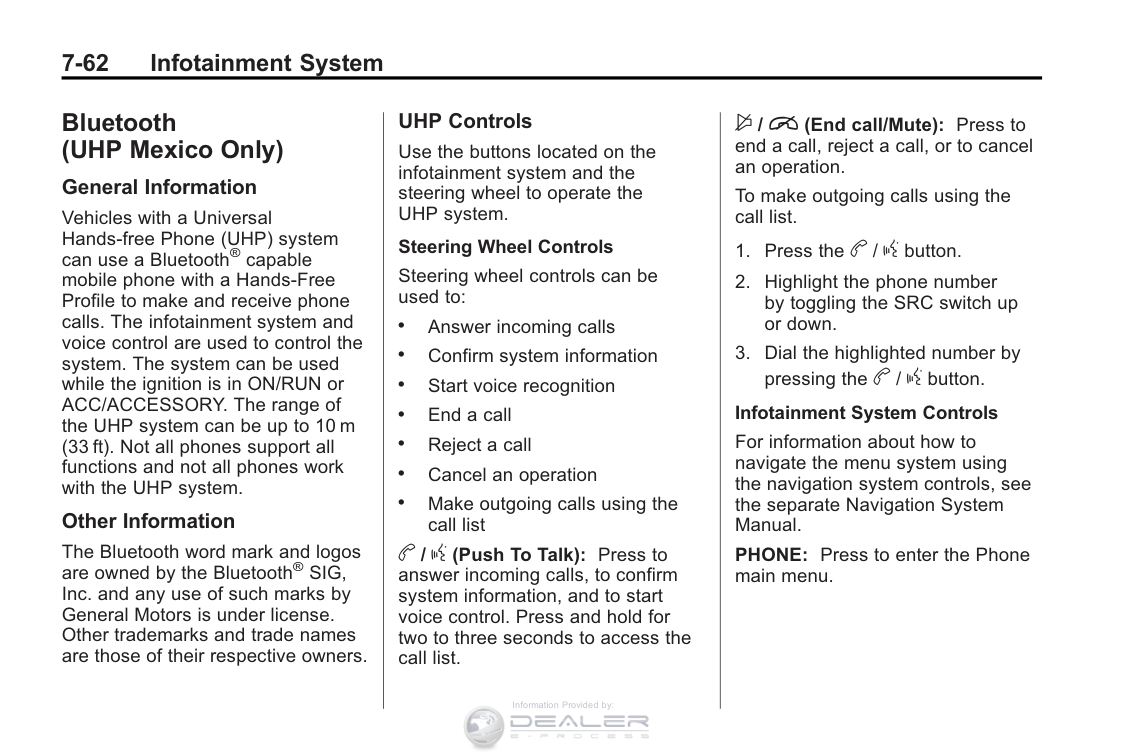

#### Bluetooth (UHP Mexico Only)

####### General Information

Vehicles with a Universal Hands￿free Phone (UHP) system can use a Bluetooth® capable mobile phone with a Hands-Free Profile to make and receive phone calls. The infotainment system and voice control are used to control the system. The system can be used while the ignition is in ON/RUN or ACC/ACCESSORY. The range of the UHP system can be up to 10 m (33 ft). Not all phones support all functions and not all phones work with the UHP system.

####### Other Information

The Bluetooth word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by General Motors is under license. Other trademarks and trade names are those of their respective owners.

####### UHP Controls

Use the buttons located on the infotainment system and the steering wheel to operate the UHP system.

######## Steering Wheel Controls

Steering wheel controls can be used to:

. Answer incoming calls

. Confirm system information

. Start voice recognition

. End a call

. Reject a call

. Cancel an operation

. Make outgoing calls using the call list

b / g (Push To Talk): Press to answer incoming calls, to confirm system information, and to start voice control. Press and hold for two to three seconds to access the call list.

$ / i (End call/Mute): Press to end a call, reject a call, or to cancel an operation.

To make outgoing calls using the call list.

######## Infotainment System Controls

For information about how to navigate the menu system using the navigation system controls, see the separate Navigation System Manual.

PHONE: Press to enter the Phone main menu.

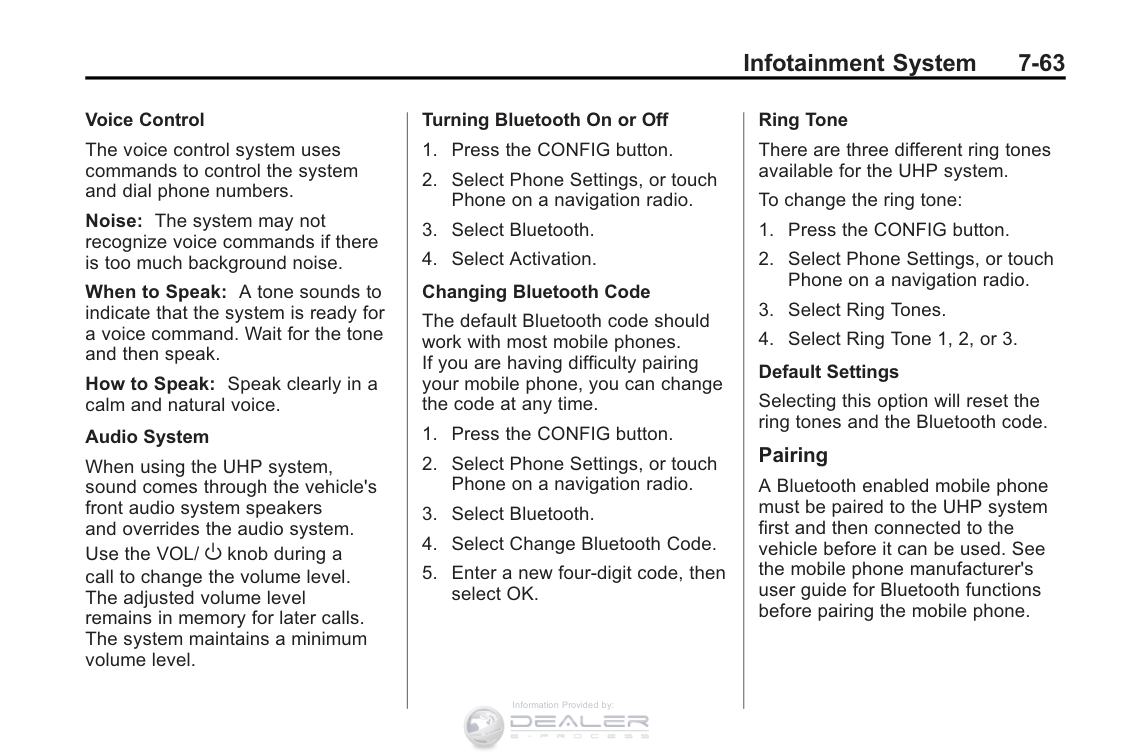

######## Voice Control

The voice control system uses commands to control the system and dial phone numbers.

Noise: The system may not recognize voice commands if there is too much background noise.

When to Speak: Atonesoundsto indicate that the system is ready for avoicecommand.Waitforthetone and then speak.

How to Speak: Speak clearly in a calm and natural voice.

Audio System When using the UHP system, sound comes through the vehicle's front audio system speakers and overrides the audio system. Use the VOL/ O knob during a call to change the volume level. The adjusted volume level remains in memory for later calls. The system maintains a minimum volume level.

######## Turning Bluetooth On or Off

The default Bluetooth code should work with most mobile phones. If you are having difficulty pairing your mobile phone, you can change the code at any time.

######## Ring Tone

There are three different ring tones available for the UHP system.

To change the ring tone:

Selecting this option will reset the ring tones and the Bluetooth code.

####### Pairing

ABluetoothenabledmobilephone must be paired to the UHP system first and then connected to the vehicle before it can be used. See the mobile phone manufacturer's user guide for Bluetooth functions before pairing the mobile phone.

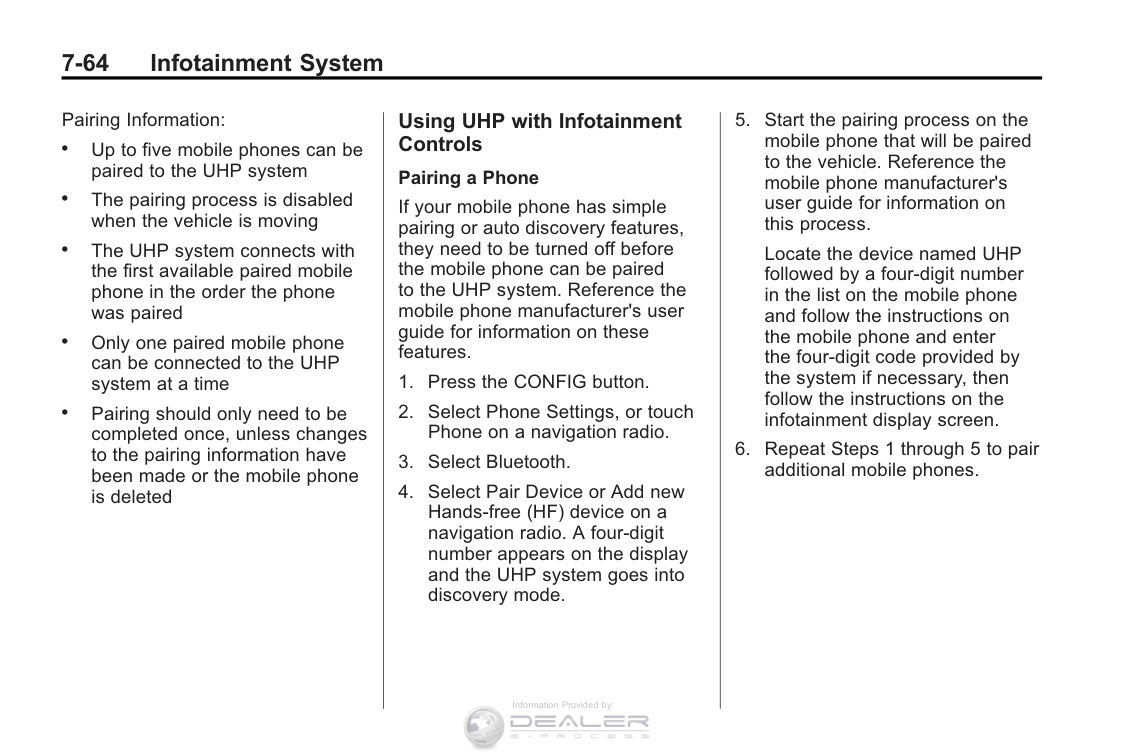

Pairing Information:

. Up to five mobile phones can be paired to the UHP system

. The pairing process is disabled when the vehicle is moving

. The UHP system connects with the first available paired mobile phone in the order the phone was paired

. Only one paired mobile phone can be connected to the UHP system at a time

. Pairing should only need to be completed once, unless changes to the pairing information have been made or the mobile phone is deleted

####### Using UHP with Infotainment Controls

######## Pairing a Phone

If your mobile phone has simple pairing or auto discovery features, they need to be turned off before the mobile phone can be paired to the UHP system. Reference the mobile phone manufacturer's user guide for information on these features.

Locate the device named UHP followed by a four￿digit number in the list on the mobile phone and follow the instructions on the mobile phone and enter the four-digit code provided by the system if necessary, then follow the instructions on the infotainment display screen.

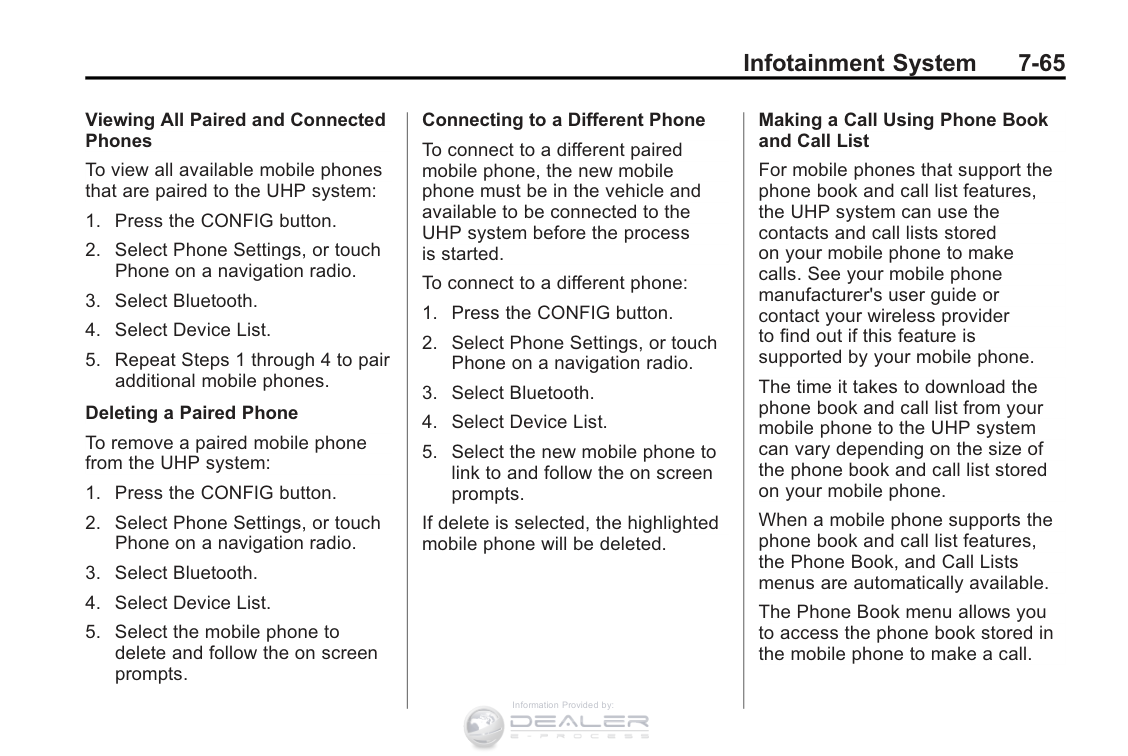

Viewing All Paired and Connected Phones

To view all available mobile phones that are paired to the UHP system:

######## Deleting a Paired Phone

To remove a paired mobile phone from the UHP system:

######## Connecting to a Different Phone

To connect to a different paired mobile phone, the new mobile phone must be in the vehicle and available to be connected to the UHP system before the process is started.

To connect to a different phone:

If delete is selected, the highlighted mobile phone will be deleted.



Making a Call Using Phone Book and Call List

For mobile phones that support the phone book and call list features, the UHP system can use the contacts and call lists stored on your mobile phone to make calls. See your mobile phone manufacturer's user guide or contact your wireless provider to find out if this feature is supported by your mobile phone. The time it takes to download the phone book and call list from your mobile phone to the UHP system can vary depending on the size of the phone book and call list stored on your mobile phone. When a mobile phone supports the phone book and call list features, the Phone Book, and Call Lists menus are automatically available. The Phone Book menu allows you to access the phone book stored in the mobile phone to make a call.

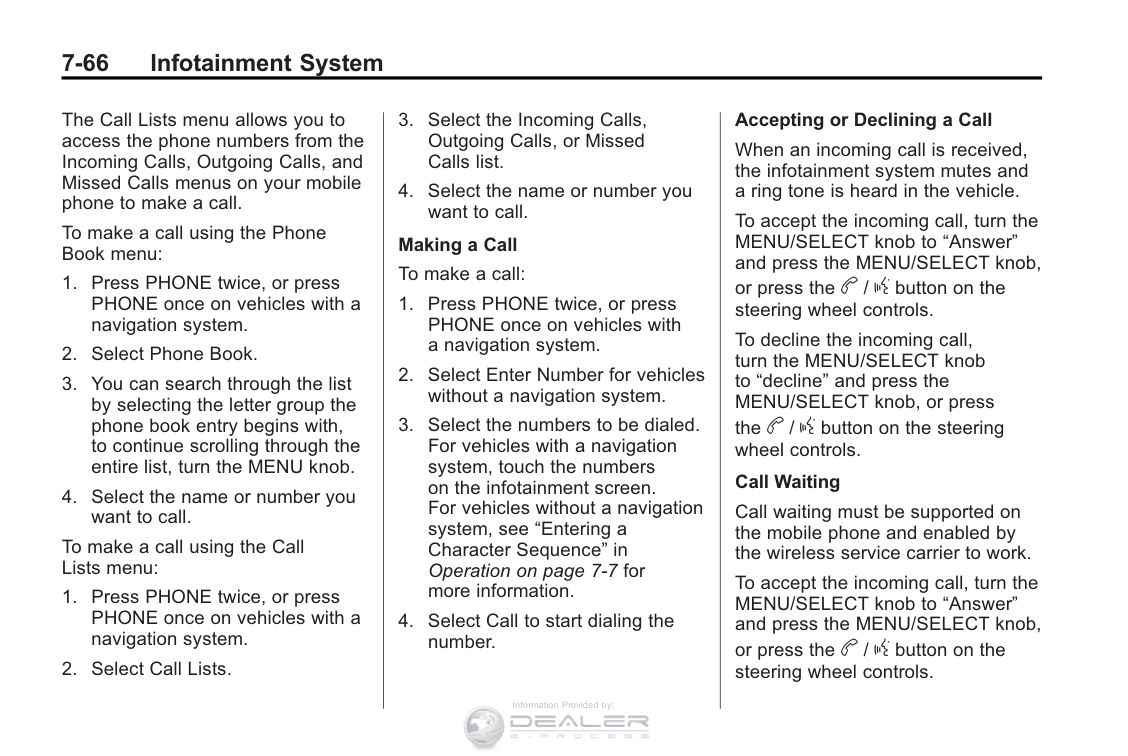

The Call Lists menu allows you to access the phone numbers from the Incoming Calls, Outgoing Calls, and Missed Calls menus on your mobile phone to make a call.

To make a call using the Phone Book menu:

To make a call using the Call Lists menu:

Making a Call To make a call:



######## Accepting or Declining a Call

When an incoming call is received, the infotainment system mutes and aringtoneisheardinthevehicle.

To accept the incoming call, turn the MENU/SELECT knob to “Answer” and press the MENU/SELECT knob, or press the b / g button on the steering wheel controls. To decline the incoming call, turn the MENU/SELECT knob to “decline” and press the MENU/SELECT knob, or press the b / g button on the steering wheel controls. Call Waiting

Call waiting must be supported on the mobile phone and enabled by the wireless service carrier to work.

To accept the incoming call, turn the MENU/SELECT knob to “Answer” and press the MENU/SELECT knob, or press the b / g button on the steering wheel controls.

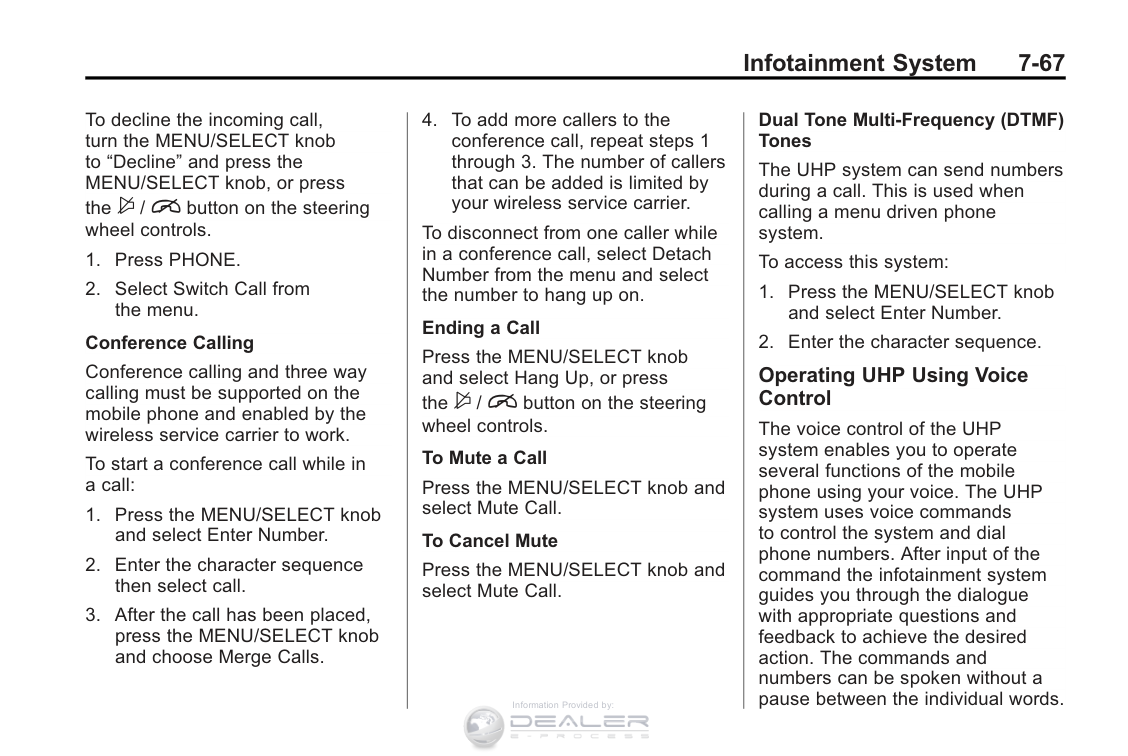

To decline the incoming call, turn the MENU/SELECT knob to “Decline” and press the MENU/SELECT knob, or press the $ / i button on the steering wheel controls.

######## Conference Calling

Conference calling and three way calling must be supported on the mobile phone and enabled by the wireless service carrier to work.

To start a conference call while in acall:

To disconnect from one caller while in a conference call, select Detach Number from the menu and select the number to hang up on.

Ending a Call Press the MENU/SELECT knob and select Hang Up, or press the $ / i button on the steering wheel controls. To Mute a Call Press the MENU/SELECT knob and select Mute Call. To Cancel Mute

Press the MENU/SELECT knob and select Mute Call.



Dual Tone Multi-Frequency (DTMF) Tones

The UHP system can send numbers during a call. This is used when calling a menu driven phone system.

To access this system:

####### Operating UHP Using Voice Control

The voice control of the UHP system enables you to operate several functions of the mobile phone using your voice. The UHP system uses voice commands to control the system and dial phone numbers. After input of the command the infotainment system guides you through the dialogue with appropriate questions and feedback to achieve the desired action. The commands and numbers can be spoken without a pause between the individual words.

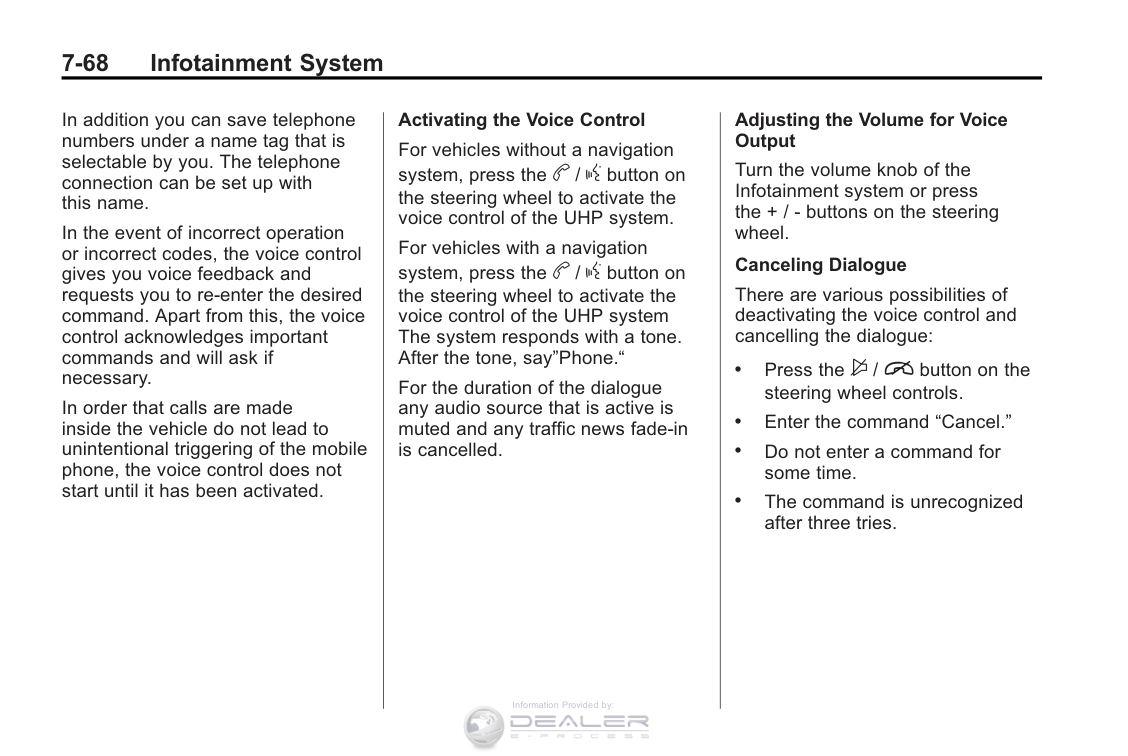

In addition you can save telephone numbers under a name tag that is selectable by you. The telephone connection can be set up with this name.

In the event of incorrect operation or incorrect codes, the voice control gives you voice feedback and requests you to re-enter the desired command. Apart from this, the voice control acknowledges important commands and will ask if necessary.

In order that calls are made inside the vehicle do not lead to unintentional triggering of the mobile phone, the voice control does not start until it has been activated.

Activating the Voice Control For vehicles without a navigation system, press the b / g button on

the steering wheel to activate the voice control of the UHP system.

For vehicles with a navigation system, press the b / g button on the steering wheel to activate the voice control of the UHP system The system responds with a tone. After the tone, say”Phone.“ For the duration of the dialogue any audio source that is active is muted and any traffic news fade-in is cancelled.

Adjusting the Volume for Voice Output

Turn the volume knob of the Infotainment system or press the + / - buttons on the steering wheel.

######## Canceling Dialogue

There are various possibilities of deactivating the voice control and cancelling the dialogue:

. Press the $ / i button on the

steering wheel controls.

. Enter the command “Cancel.”

. Do not enter a command for some time.

. The command is unrecognized after three tries.

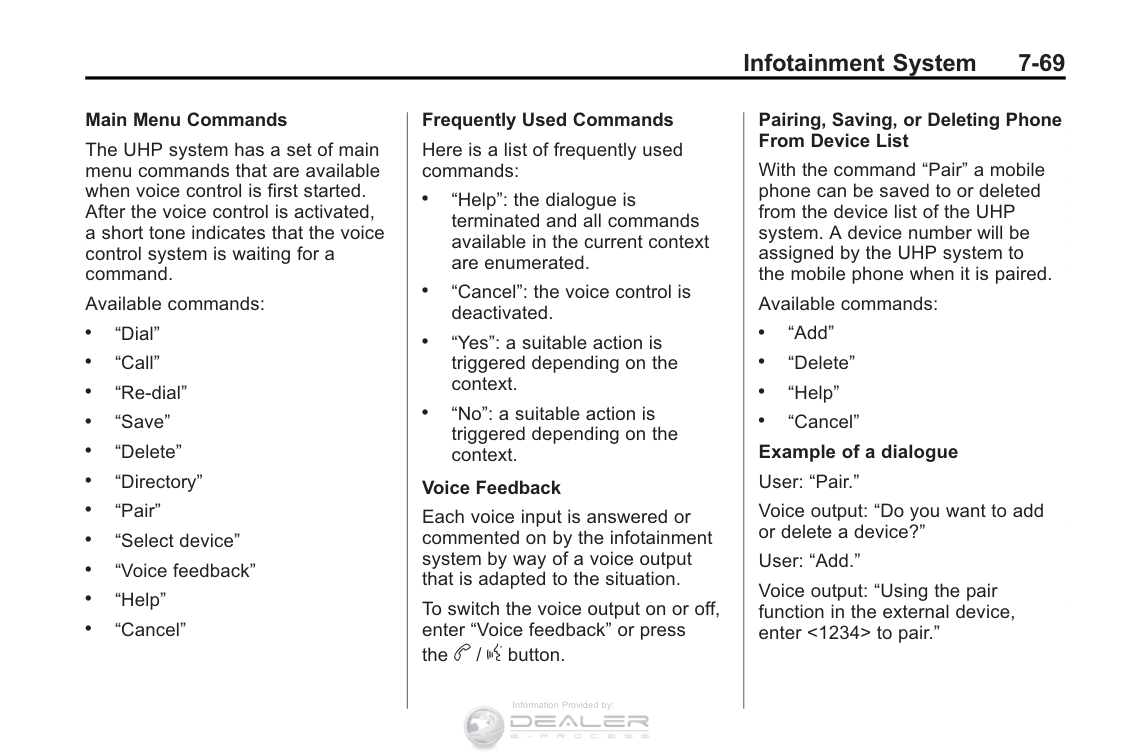

######## Main Menu Commands

The UHP system has a set of main menu commands that are available when voice control is first started. After the voice control is activated, ashorttoneindicatesthatthevoice control system is waiting for a command.

Available commands:

. “Dial” . “Call” . “Re-dial”

. “Save”

. “Delete”

. “Directory”

. “Pair”

. “Select device”

. “Voice feedback”

. “Help”

. “Cancel”

######## Frequently Used Commands

Here is a list of frequently used commands:

. “Help”:thedialogueis terminated and all commands available in the current context are enumerated.

. “Cancel”:thevoicecontrolis deactivated.

. “Yes”:asuitableactionis triggered depending on the context.

. “No”:asuitableactionis triggered depending on the context.

######## Voice Feedback

Each voice input is answered or commented on by the infotainment system by way of a voice output that is adapted to the situation.

To switch the voice output on or off, enter “Voice feedback” or press the b / g button.

Pairing, Saving, or Deleting Phone From Device List

With the command “Pair” amobile phone can be saved to or deleted from the device list of the UHP system. A device number will be assigned by the UHP system to the mobile phone when it is paired.

Available commands:

. “Add”

. “Delete”

. “Help”

. “Cancel” Example of a dialogue User: “Pair.” Voice output: “Do you want to add or delete a device?” User: “Add.” Voice output: “Using the pair function in the external device, enter <1234> to pair.”

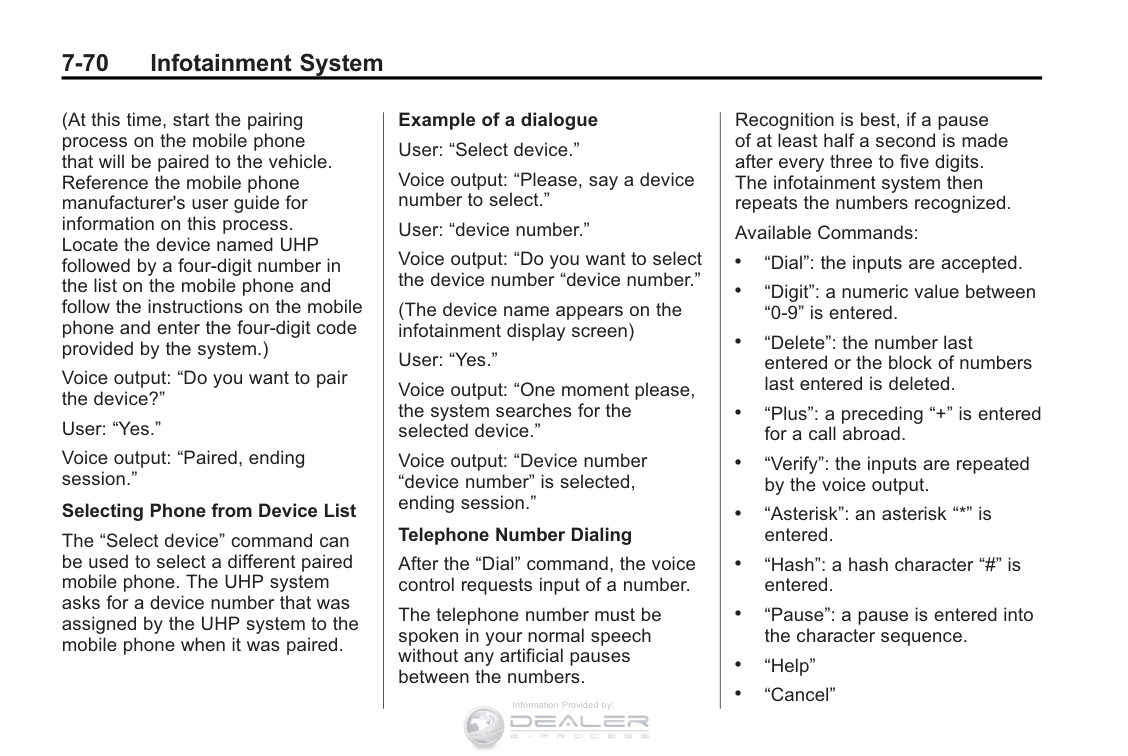

(At this time, start the pairing process on the mobile phone that will be paired to the vehicle. Reference the mobile phone manufacturer's user guide for information on this process. Locate the device named UHP followed by a four￿digit number in the list on the mobile phone and follow the instructions on the mobile phone and enter the four-digit code provided by the system.)

Voice output: “Do you want to pair the device?”

User: “Yes.” Voice output: “Paired, ending session.” Selecting Phone from Device List

The “Select device” command can be used to select a different paired mobile phone. The UHP system asks for a device number that was assigned by the UHP system to the mobile phone when it was paired.

Example of a dialogue User: “Select device.” Voice output: “Please, say a device number to select.” User: “device number.”

Voice output: “Do you want to select the device number “device number.”

(The device name appears on the infotainment display screen)

User: “Yes.” Voice output: “One moment please, the system searches for the selected device.” Voice output: “Device number “device number” is selected, ending session.” Telephone Number Dialing

After the “Dial” command, the voice control requests input of a number.

The telephone number must be spoken in your normal speech without any artificial pauses between the numbers.



Recognition is best, if a pause of at least half a second is made after every three to five digits. The infotainment system then repeats the numbers recognized.

Available Commands:

. “Dial”:theinputsareaccepted.

. “Digit”:anumericvaluebetween “0-9” is entered.

. “Delete”:thenumberlast entered or the block of numbers last entered is deleted.

. “Plus”:apreceding“+” is entered for a call abroad.

. “Verify”:theinputsarerepeated by the voice output.

. “Asterisk”:anasterisk“*” is entered.

. “Hash”:ahashcharacter“#” is entered.

. “Pause”:apauseisenteredinto the character sequence.

. “Help”

. “Cancel”

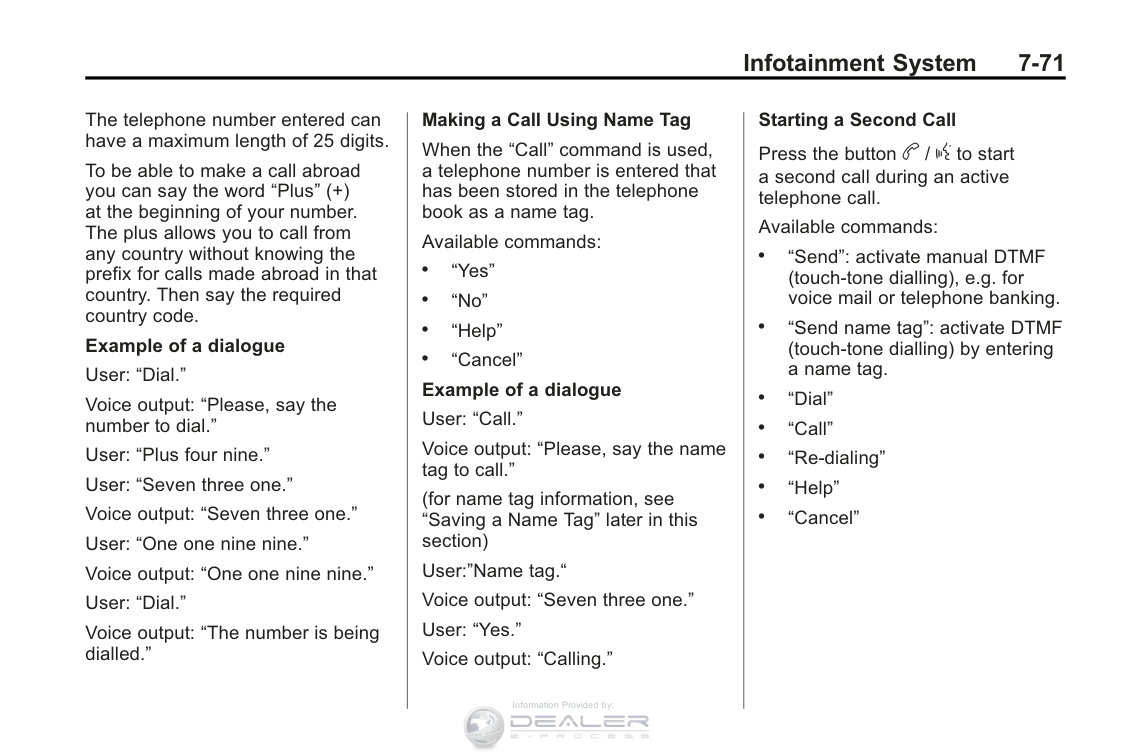

The telephone number entered can have a maximum length of 25 digits.

To be able to make a call abroad you can say the word “Plus” (+) at the beginning of your number. The plus allows you to call from any country without knowing the prefix for calls made abroad in that country. Then say the required country code.

Example of a dialogue User: “Dial.” Voice output: “Please, say the number to dial.” User: “Plus four nine.” User: “Seven three one.” Voice output: “Seven three one.” User: “One one nine nine.” Voice output: “One one nine nine.” User: “Dial.” Voice output: “The number is being dialled.”

######## Making a Call Using Name Tag

When the “Call” command is used, atelephonenumberisenteredthat has been stored in the telephone book as a name tag.

Available commands:

. “Yes”

. “No”

. “Help”

. “Cancel” Example of a dialogue User: “Call.” Voice output: “Please, say the name tag to call.” (for name tag information, see “Saving a Name Tag” later in this section) User:”Name tag.“ Voice output: “Seven three one.” User: “Yes.” Voice output: “Calling.”

######## Starting a Second Call

Press the button b / g to start asecondcallduringanactive telephone call.

Available commands:

. “Send”:activatemanualDTMF (touch-tone dialling), e.g. for voice mail or telephone banking.

. “Send name tag”:activateDTMF (touch-tone dialling) by entering anametag.

. “Dial” . “Call” . “Re-dialing”

. “Help”

. “Cancel”

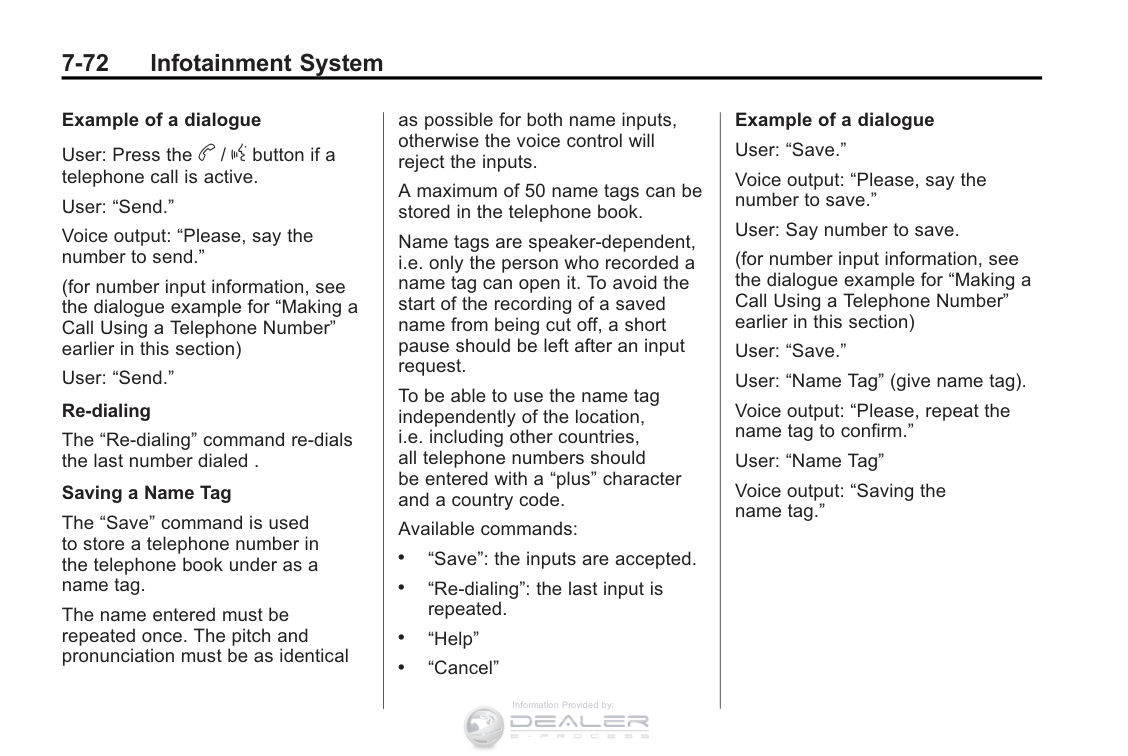

######## Example of a dialogue

User: Press the b / g button if a telephone call is active.

User: “Send.” Voice output: “Please, say the number to send.” (for number input information, see the dialogue example for “Making a Call Using a Telephone Number” earlier in this section) User: “Send.” Re-dialing

The “Re-dialing” command re-dials the last number dialed .

######## Saving a Name Tag

The “Save” command is used to store a telephone number in the telephone book under as a name tag.

The name entered must be repeated once. The pitch and pronunciation must be as identical

as possible for both name inputs, otherwise the voice control will reject the inputs.

Amaximumof50nametagscanbe stored in the telephone book.

Name tags are speaker-dependent, i.e. only the person who recorded a name tag can open it. To avoid the start of the recording of a saved name from being cut off, a short pause should be left after an input request.

To be able to use the name tag independently of the location, i.e. including other countries, all telephone numbers should be entered with a “plus” character and a country code.

Available commands:

. “Save”:theinputsareaccepted.

. “Re-dialing”:thelastinputis repeated.

. “Help”



. “Cancel”

Example of a dialogue User: “Save.” Voice output: “Please, say the number to save.” User: Say number to save. (for number input information, see the dialogue example for “Making a Call Using a Telephone Number” earlier in this section) User: “Save.” User: “Name Tag” (give name tag). Voice output: “Please, repeat the name tag to confirm.” User: “Name Tag” Voice output: “Saving the name tag.”

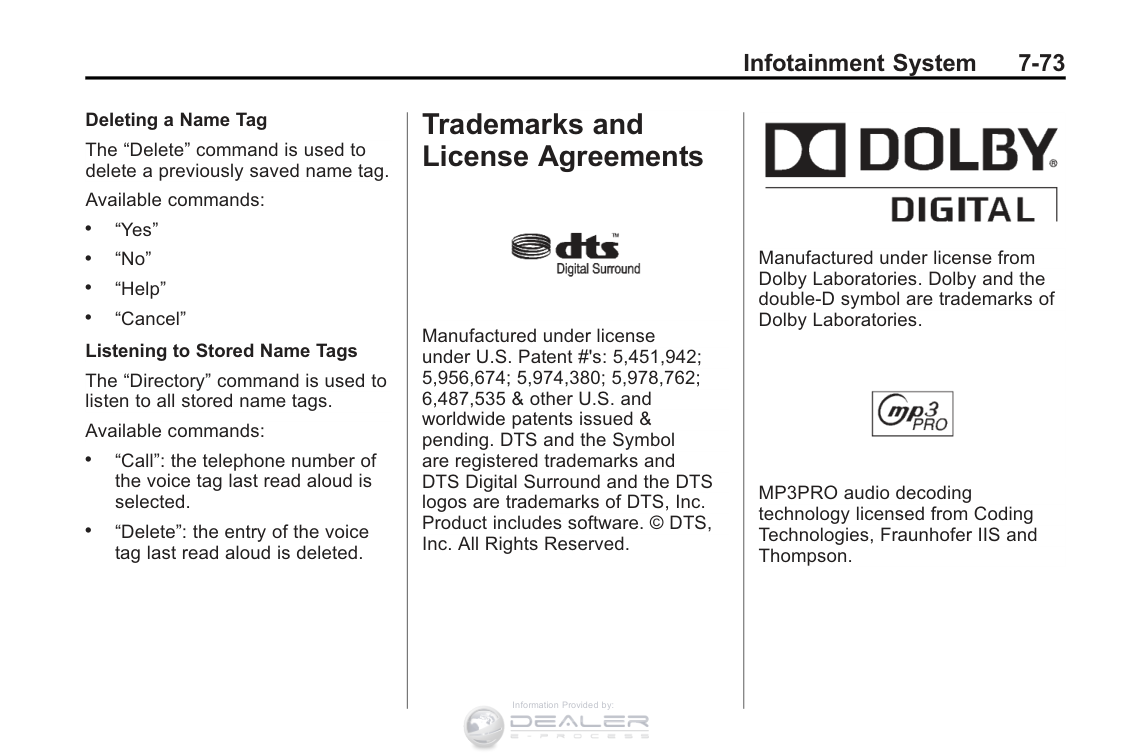

######## Deleting a Name Tag

The “Delete” command is used to delete a previously saved name tag.

Available commands:

. “Yes”

. “No”

. “Help”

######## . “Cancel” Listening to Stored Name Tags

The “Directory” command is used to listen to all stored name tags.

Available commands:

. “Call”:thetelephonenumberof the voice tag last read aloud is selected.

. “Delete”:theentryofthevoice tag last read aloud is deleted.

Trademarks and License Agreements


Manufactured under license under U.S. Patent #'s: 5,451,942;


Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.


MP3PRO audio decoding technology licensed from Coding Technologies, Fraunhofer IIS and Thompson.


DivX® is a certified product. It plays all versions of DivX® video (including DivX® 6) with standard playback of DivX media files.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.


“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.


Fees and Taxes — Subscription fee, taxes, one time activation fee, and other fees may apply. Subscription fee is consumer only. All fees and programming subject to change. Subscriptions subject to Customer Agreement available at www.xmradio.com. XM™ service only available in the 48 contiguous United States and Canada*.



*Canada — Some deterioration of service may occur in extreme northern latitudes. This is beyond the control of XM™ Satellite Radio. Explicit Language Notice — Channels with frequent explicit language are indicated with an “XL” preceding the channel name. Channel blocking is available for XM Satellite Radio receivers by notifying XM at:

. USA Customers — Visit www.xmradio.com or call 1-800-xmradio (1-800-967-2346).

. Canadian Customers — Visit www.xmradio.ca or call 1-877-438-9677.

It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate, or otherwise make available any technology or software incorporated in receivers compatible with the XM™ Satellite Radio System or that support the XM website, the Online Service or any of its content.

Furthermore, the AMBER voice compression software included in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc.

General Requirements:


This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering or disassermbly is prohibited.


This product uses the source code of T-Kernel under T-License granted by the T-Engine Forum (www.t-engine.org).


Music and video recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000 to present Gracenote. One or more patents owned by Gracenote apply to this product and service.

See the Gracenote website for a non-exhaustive list of applicable Gracenote patents. Gracenote and CDDB, MusicID, Media VOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

If you require more information regarding the use of the Gracenote Service, visit: www.gracenote.com/ corporate.

For the data provided by Gracenote® Music Recognition Service, the content is not necessarily guaranteed 100%.

Regarding the use of Gracenote Music Recognition Service, when this product is used, it is necessary to agree to the following articles.

######## Gracenote® End User License

This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”)enables this application to perform disc and/or file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively, “Gracenote Servers”)andtoperformother functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device. You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party.

YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN. You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers.

Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights.

Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identifier to track queries for statistical purposes.

The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted.

Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

Gracenote disclaims all warranties express or implied, including, but not limited to, implied warranties of merchantability, fitness for a particular purpose, title, and non-infringement. Gracenote does not warrant the results that will be obtained by your use of the gracenote software or any gracenote server. In no case will gracenote be liable for any consequential or incidental damages or for any lost profits or lost revenues.

©Gracenote,Inc.2010

2 NOTES

Climate Controls

####### Climate Control Systems

Dual Automatic Climate Control

System .... .. .. .. .. .. .. .. .. .. 8-1 Rear Climate Control

System .... .. .. .. .. .. .. .. .. .. 8-5 Air Vents

Air Vents ...................... 8-6 Maintenance

Passenger Compartment Air Filter ......................... 8-6

|limate Control Syste|s| |---|---| | | | |ual Automatic Climate Co|trol System| | | | |he heating, cooling, and ventilation f|r the vehicle can be controlled with| | | | |this system.


A. Fan Control
B. Power
C. AUTO (Automatic Operation)
D. ZONE
E. Defrost
F. Air Delivery Mode Control


Information Provided by:|G. Driver and Passenger Temperature Controls
H. Driver and Passenger Heated and Ventilated Seats
I. Air Conditioning
J. Recirculation
K. Outside Air
L. Rear Window Defogger
|



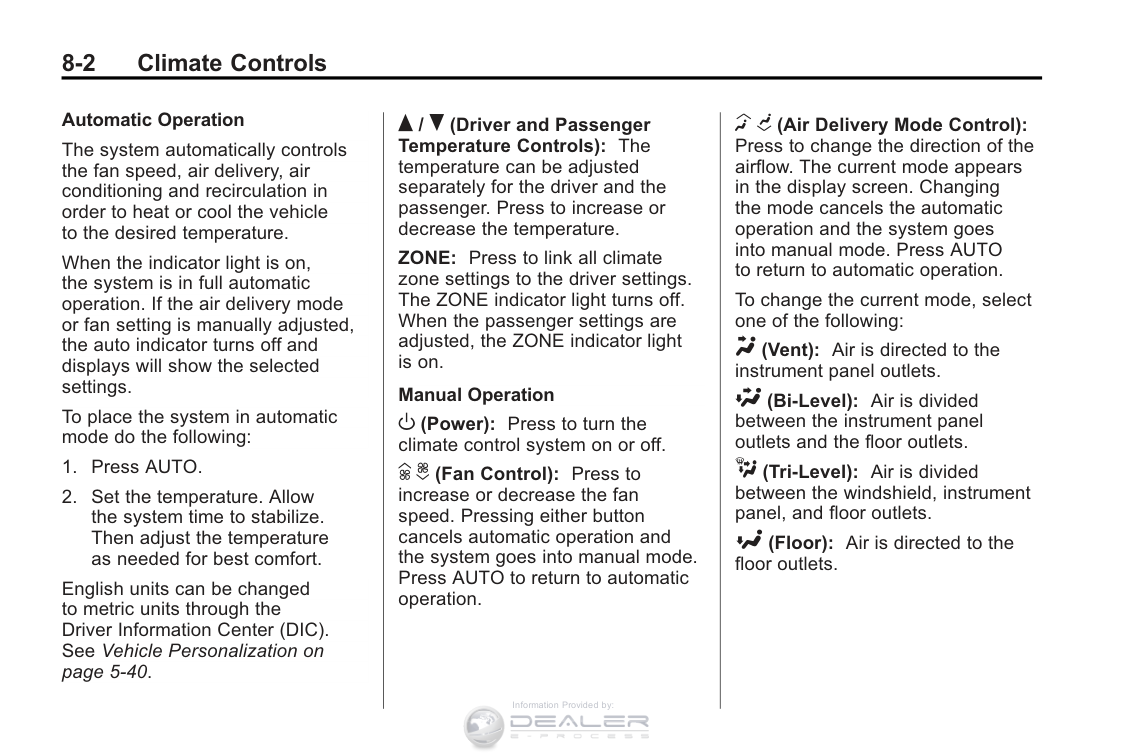

######## Automatic Operation

The system automatically controls the fan speed, air delivery, air conditioning and recirculation in order to heat or cool the vehicle to the desired temperature.

When the indicator light is on, the system is in full automatic operation. If the air delivery mode or fan setting is manually adjusted, the auto indicator turns off and displays will show the selected settings.

To place the system in automatic mode do the following:

English units can be changed to metric units through the Driver Information Center (DIC). See Vehicle Personalization on page 5￿40.

Q / R (Driver and Passenger Temperature Controls): The temperature can be adjusted separately for the driver and the passenger. Press to increase or decrease the temperature.

ZONE: Press to link all climate zone settings to the driver settings. The ZONE indicator light turns off. When the passenger settings are adjusted, the ZONE indicator light is on.

Manual Operation O (Power): Press to turn the climate control system on or off.

hi(Fan Control): Press to increase or decrease the fan speed. Pressing either button cancels automatic operation and the system goes into manual mode. Press AUTO to return to automatic operation.

HG(Air Delivery Mode Control): Press to change the direction of the airflow. The current mode appears in the display screen. Changing the mode cancels the automatic operation and the system goes into manual mode. Press AUTO to return to automatic operation.

To change the current mode, select one of the following:

Y (Vent): Air is directed to the instrument panel outlets.

\ (Bi-Level): Air is divided between the instrument panel outlets and the floor outlets.

C (Tri￿Level): Air is divided between the windshield, instrument panel, and floor outlets.

[ (Floor): Air is directed to the floor outlets.



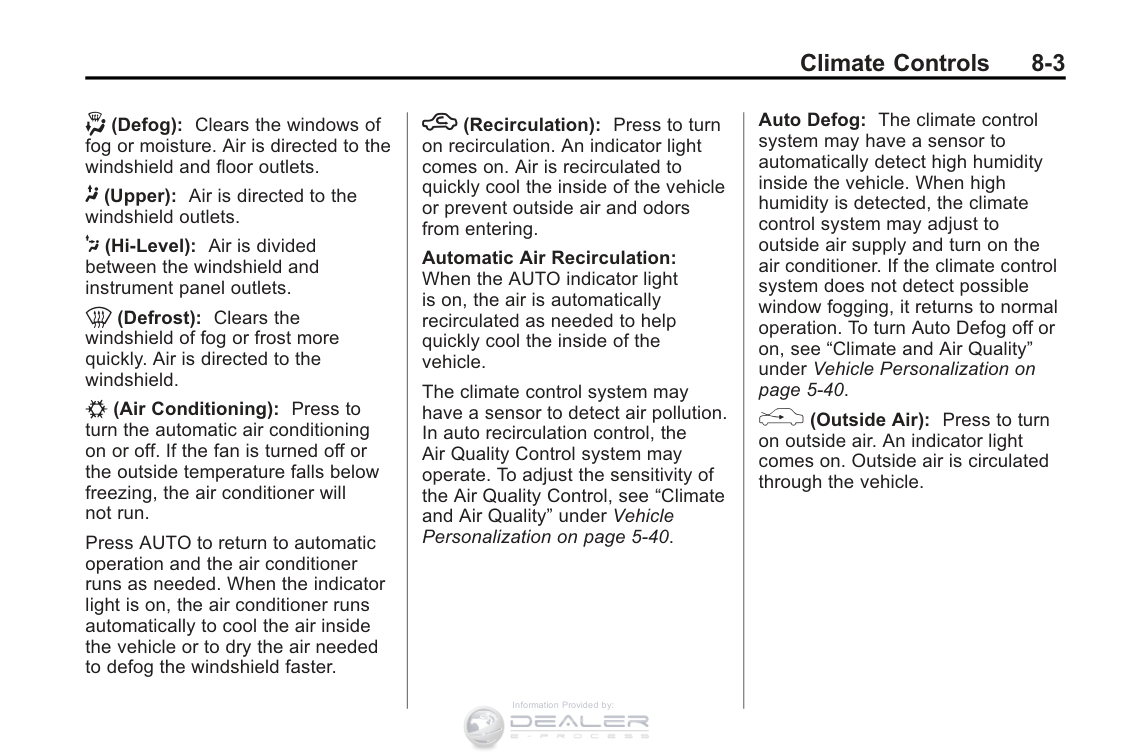

8 (Upper): Air is directed to the windshield outlets.

7 (Hi-Level): Air is divided between the windshield and instrument panel outlets.

(Air Conditioning): Press to turn the automatic air conditioning on or off. If the fan is turned off or the outside temperature falls below freezing, the air conditioner will not run.

Press AUTO to return to automatic operation and the air conditioner runs as needed. When the indicator light is on, the air conditioner runs automatically to cool the air inside the vehicle or to dry the air needed to defog the windshield faster.

h (Recirculation): Press to turn on recirculation. An indicator light comes on. Air is recirculated to quickly cool the inside of the vehicle or prevent outside air and odors from entering.

Automatic Air Recirculation: When the AUTO indicator light is on, the air is automatically recirculated as needed to help quickly cool the inside of the vehicle.

The climate control system may have a sensor to detect air pollution. In auto recirculation control, the Air Quality Control system may operate. To adjust the sensitivity of the Air Quality Control, see “Climate and Air Quality” under Vehicle Personalization on page 5￿40.

Auto Defog: The climate control system may have a sensor to automatically detect high humidity inside the vehicle. When high humidity is detected, the climate control system may adjust to outside air supply and turn on the air conditioner. If the climate control system does not detect possible window fogging, it returns to normal operation. To turn Auto Defog off or on, see “Climate and Air Quality” under Vehicle Personalization on page 5￿40.

% (Outside Air): Press to turn on outside air. An indicator light comes on. Outside air is circulated through the vehicle.



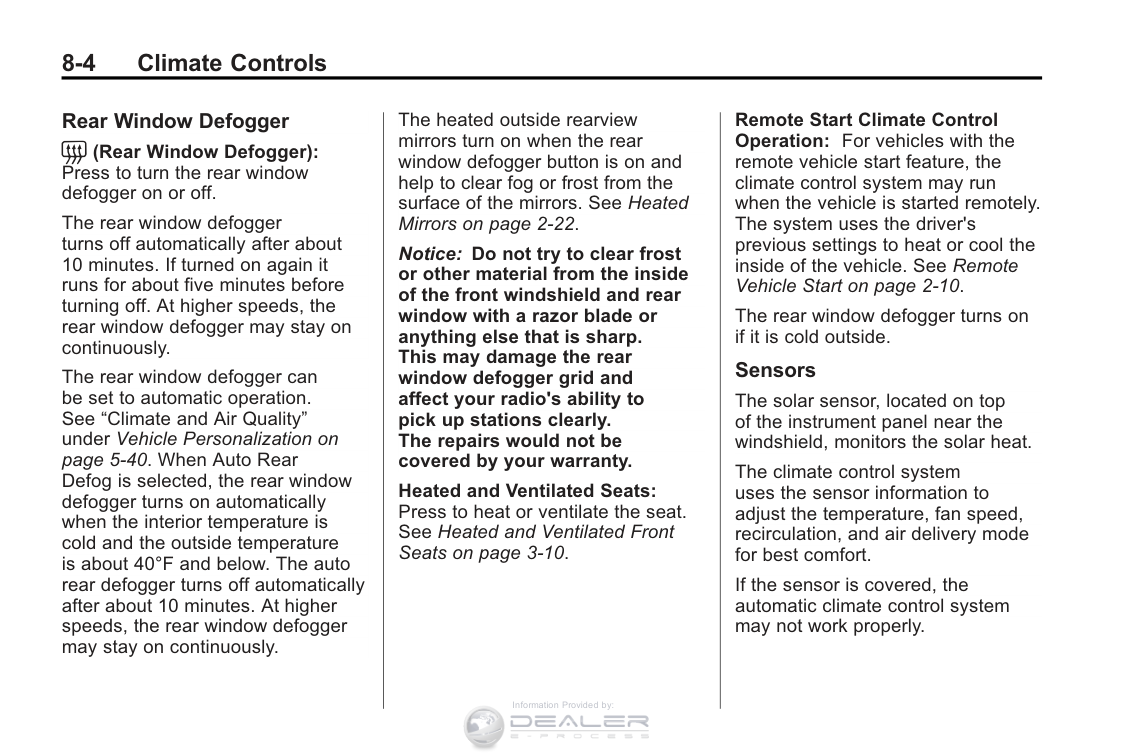

####### Rear Window Defogger

= (Rear Window Defogger): Press to turn the rear window defogger on or off.

The rear window defogger turns off automatically after about 10 minutes. If turned on again it runs for about five minutes before turning off. At higher speeds, the rear window defogger may stay on continuously.

The rear window defogger can be set to automatic operation. See “Climate and Air Quality” under Vehicle Personalization on page 5￿40.WhenAutoRear Defog is selected, the rear window defogger turns on automatically when the interior temperature is cold and the outside temperature is about 40°F and below. The auto rear defogger turns off automatically after about 10 minutes. At higher speeds, the rear window defogger may stay on continuously.

The heated outside rearview mirrors turn on when the rear window defogger button is on and help to clear fog or frost from the surface of the mirrors. See Heated Mirrors on page 2￿22.

Notice: Do not try to clear frost or other material from the inside of the front windshield and rear window with a razor blade or anything else that is sharp. This may damage the rear window defogger grid and affect your radio's ability to pick up stations clearly. The repairs would not be covered by your warranty.

Heated and Ventilated Seats: Press to heat or ventilate the seat. See Heated and Ventilated Front Seats on page 3￿10.



Remote Start Climate Control Operation: For vehicles with the remote vehicle start feature, the climate control system may run when the vehicle is started remotely. The system uses the driver's previous settings to heat or cool the inside of the vehicle. See Remote Vehicle Start on page 2￿10.

The rear window defogger turns on if it is cold outside.

####### Sensors

The solar sensor, located on top of the instrument panel near the windshield, monitors the solar heat.

The climate control system uses the sensor information to adjust the temperature, fan speed, recirculation, and air delivery mode for best comfort.

If the sensor is covered, the automatic climate control system may not work properly.

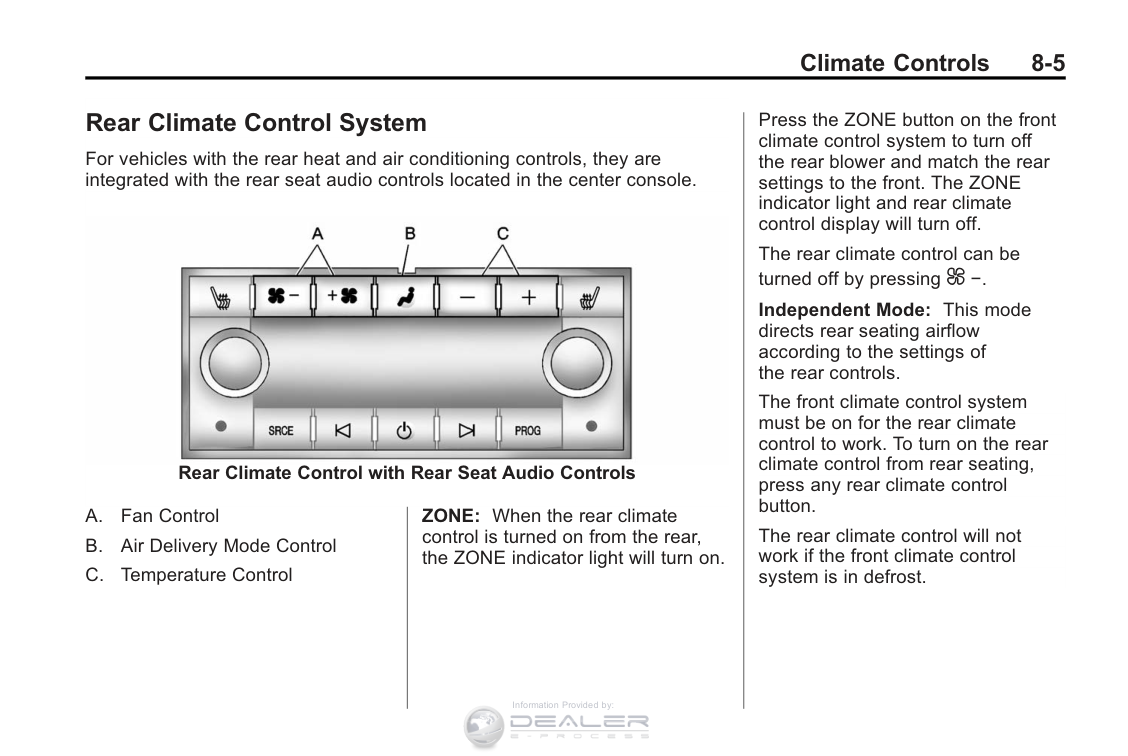

|ear Climate Control Syste| | |---|---| | | | |or vehicles with the rear heat and air ntegrated with the rear seat audio co|conditioning controls, they are trols located in the center console.| | | | |Rear Climate Control with

A. Fan Control
B. Air Delivery Mode Control
C. Temperature Control
|

Rear Seat Audio Controls

ZONE: When the rear climate control is turned on from the rear, the ZONE indicator light will turn on.

Information Provided by:|



Press the ZONE button on the front climate control system to turn off the rear blower and match the rear settings to the front. The ZONE indicator light and rear climate control display will turn off.

The rear climate control can be turned off by pressing ] −. Independent Mode: This mode directs rear seating airflow according to the settings of the rear controls.

The front climate control system must be on for the rear climate control to work. To turn on the rear climate control from rear seating, press any rear climate control button.

The rear climate control will not work if the front climate control system is in defrost.

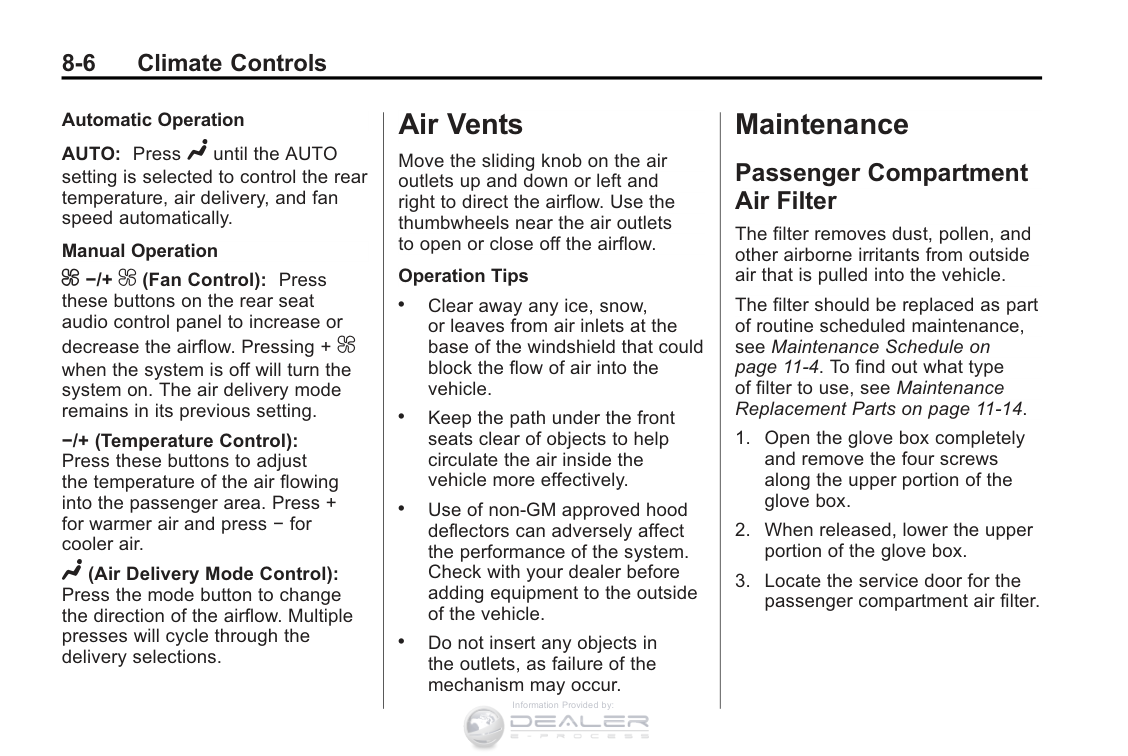

Automatic Operation AUTO: Press N until the AUTO

setting is selected to control the rear temperature, air delivery, and fan speed automatically.

Manual Operation ] −/+ ^ (Fan Control): Press these buttons on the rear seat audio control panel to increase or

decrease the airflow. Pressing + ^ when the system is off will turn the system on. The air delivery mode remains in its previous setting.

−/+ (Temperature Control): Press these buttons to adjust the temperature of the air flowing into the passenger area. Press + for warmer air and press − for cooler air.

N (Air Delivery Mode Control): Press the mode button to change the direction of the airflow. Multiple presses will cycle through the delivery selections.

Air Vents

Move the sliding knob on the air outlets up and down or left and right to direct the airflow. Use the thumbwheels near the air outlets to open or close off the airflow.

######## Operation Tips

. Clear away any ice, snow, or leaves from air inlets at the base of the windshield that could block the flow of air into the vehicle.

. Keep the path under the front seats clear of objects to help circulate the air inside the vehicle more effectively.

. Use of non￿GM approved hood deflectors can adversely affect the performance of the system. Check with your dealer before adding equipment to the outside of the vehicle.

. Do not insert any objects in the outlets, as failure of the mechanism may occur.



Maintenance

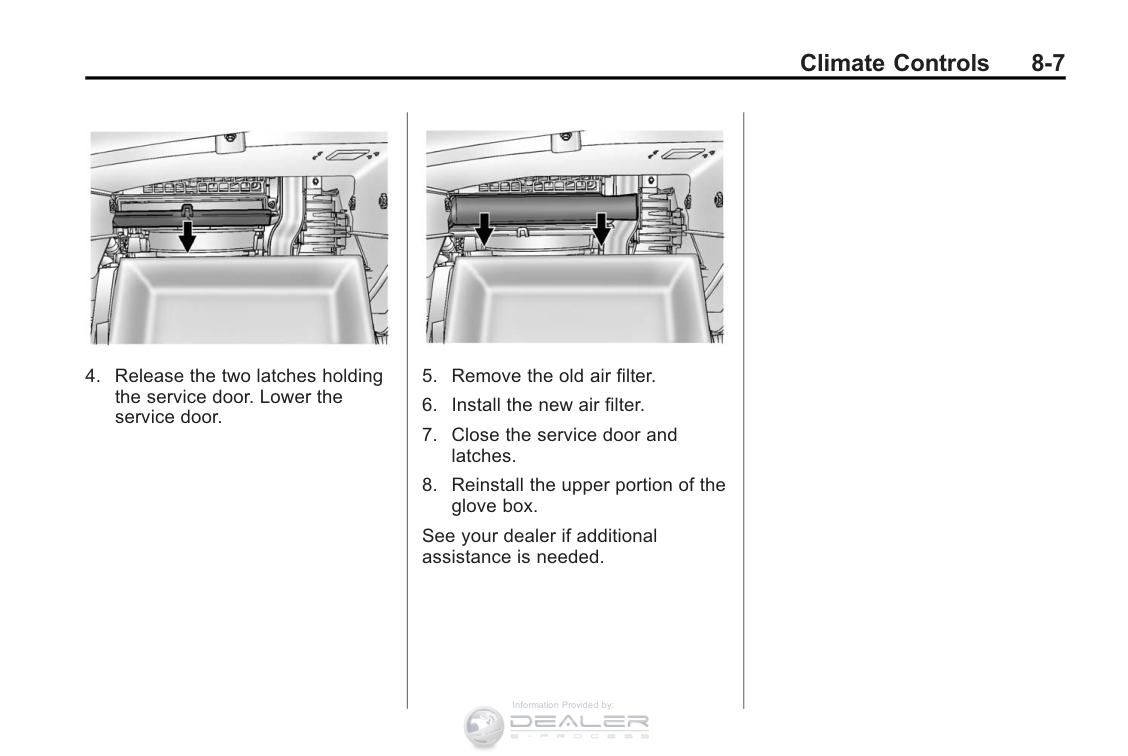

#### Passenger Compartment Air Filter

The filter removes dust, pollen, and other airborne irritants from outside air that is pulled into the vehicle.

The filter should be replaced as part of routine scheduled maintenance, see Maintenance Schedule on page 11￿4.Tofindoutwhattype of filter to use, see Maintenance Replacement Parts on page 11￿14.



See your dealer if additional assistance is needed.

2 NOTES

Driving and Operating

####### Driving Information

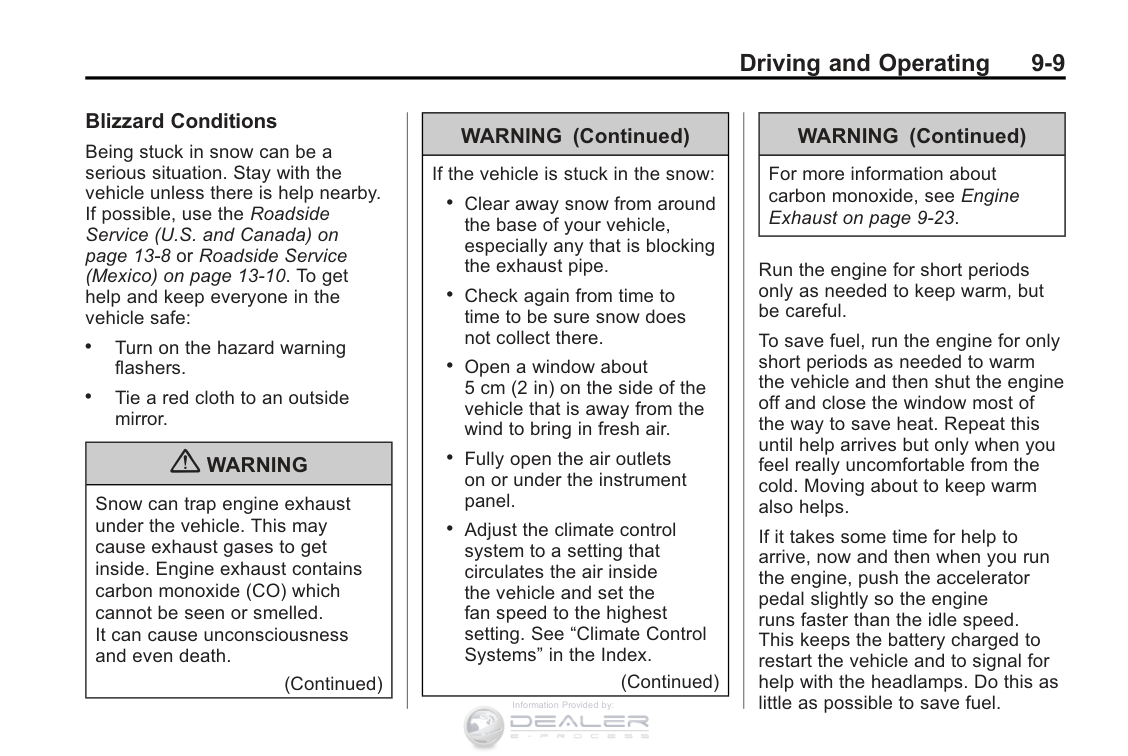

Distracted Driving .... . . . . . . . . . 9-2 Defensive Driving .... . . . . . . . . . 9-3 Drunk Driving .... . . . . . . . . . . . . . 9-3 Control of a Vehicle .... . . . . . . . 9-4 Braking .... . . . . . . . . . . . . . . . . . . . 9-4 Steering ....................... 9-4 Off-Road Recovery ............ 9-5 Loss of Control ................ 9-5 Driving on Wet Roads ..... .. .. 9-6 Highway Hypnosis .... . . . . . . . . 9-7 Hill and Mountain Roads .... . . 9-7 Winter Driving ................. 9-8 If the Vehicle Is Stuck ..... ... 9-10 Vehicle Load Limits . . . . . . . . . . 9-10

Starting and Operating New Vehicle Break-In .... . . . . 9-16 Adjustable Throttle and Brake

Pedal ....................... 9-16 Ignition Positions .... . . . . . . . . 9-17

Starting the Gasoline

Engine .... . . . . . . . . . . . . . . . . . 9-19 Engine Heater .... . . . . . . . . . . . 9-20 Retained Accessory

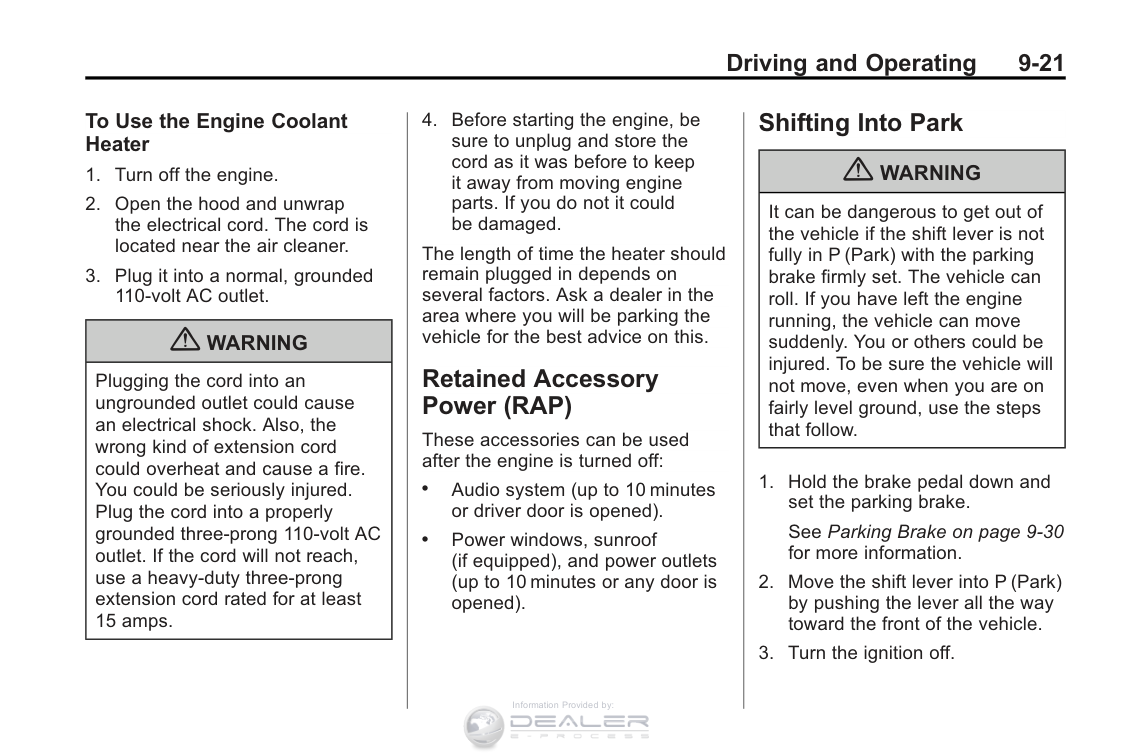

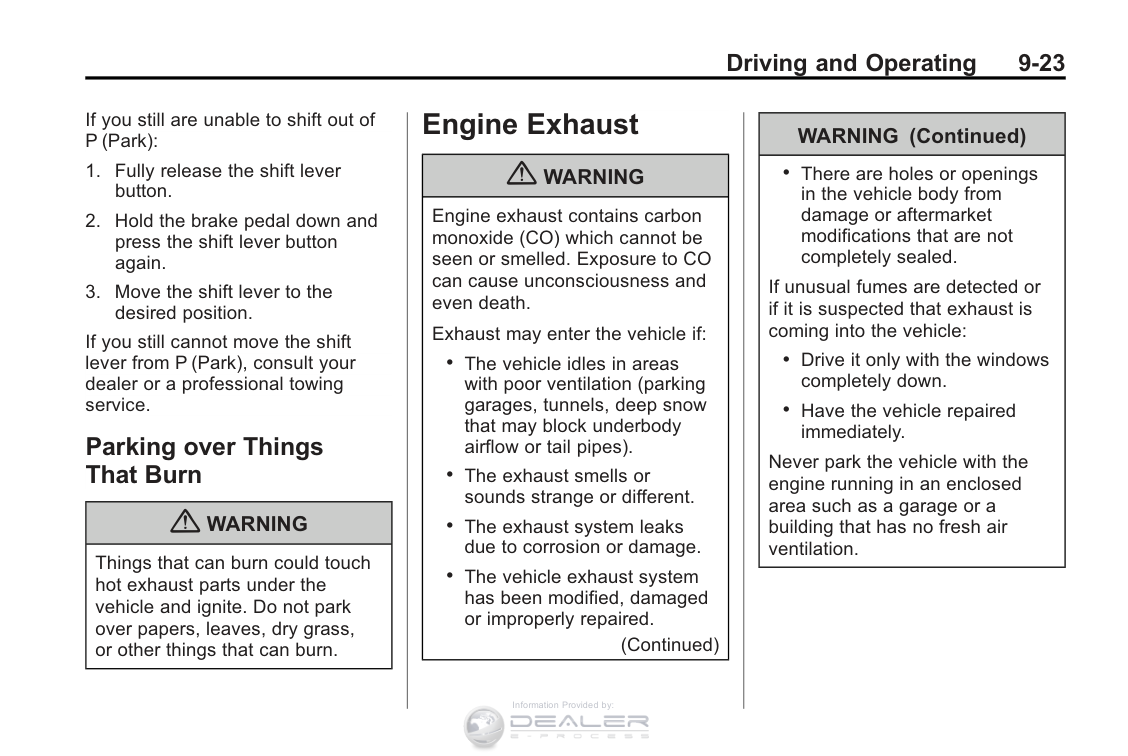

Power (RAP) .... . . . . . . . . . . . 9-21 Shifting Into Park .... . . . . . . . . 9-21 Shifting out of Park .... . . . . . . 9-22 Parking over Things

That Burn .... . . . . . . . . . . . . . . 9-23

Engine Exhaust Engine Exhaust .............. 9-23 Running the Vehicle While

Parked .... . . . . . . . . . . . . . . . . . 9-24 Automatic Transmission

Automatic Transmission .... . 9-24 Manual Mode .... . . . . .. . . . . .. 9-26 Fuel Economy Mode .... . . . . . 9-28

####### Drive Systems

All-Wheel Drive .... . . . . . . . . . . 9-28 Brakes

Antilock Brake

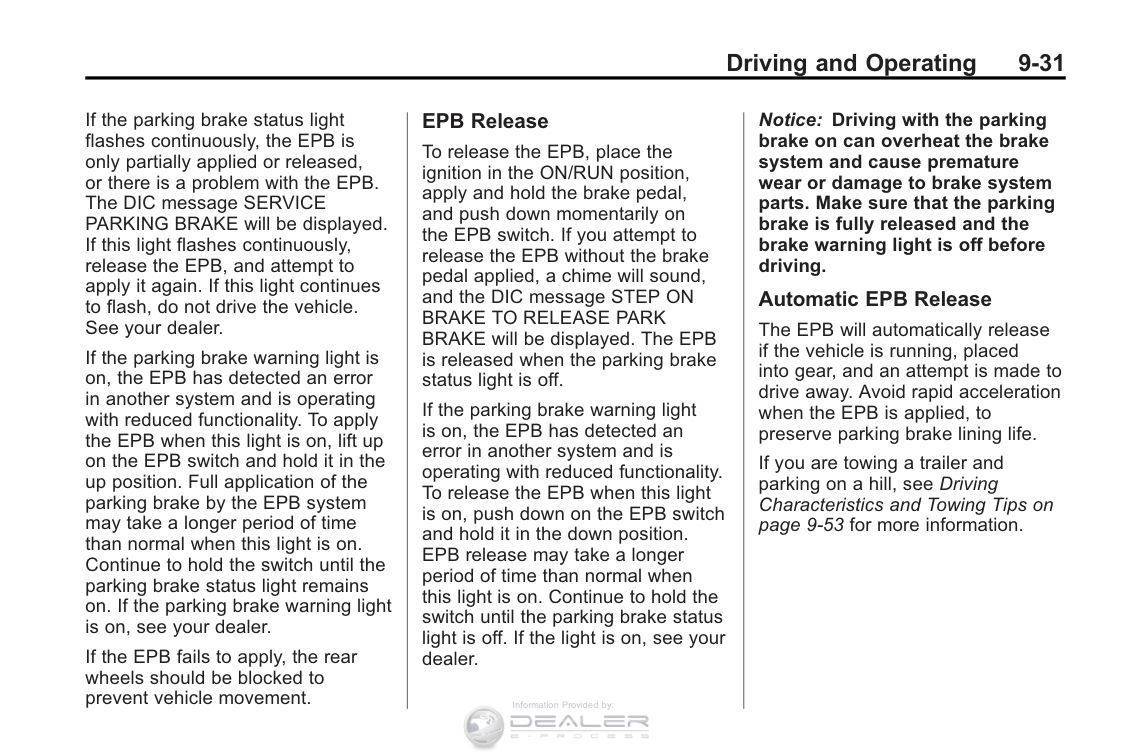

System (ABS) .... . . . . . . . . . . 9-29 Parking Brake .... . . . . . . . . . . . 9-30 Brake Assist .... . . . . . . . . . . . . . 9-32 Hill Start Assist (HSA) .... . . . 9-32



####### Ride Control Systems

Traction Control

System (TCS) .... . . . . . . . . . . 9-32 StabiliTrak® System .... . . . . . 9-34 Limited-Slip Rear Axle .... . . . 9-35 Selective Ride Control .... . . . 9-35

####### Cruise Control

Cruise Control .... . . . . . . . . . . . 9-36

Object Detection Systems Ultrasonic Parking Assist .... 9-38 Rear Vision

Camera (RVC) .... . . . . . . . . . 9-42 Fuel

Fuel .... . . . . . . . . . . . . . . . . . . . . . 9-46 Recommended Fuel .... . . . . . 9-46 Gasoline Specifications

(U.S. and Canada Only) .... 9-47 California Fuel

Requirements .... . . . . . . . . . . 9-47 Fuels in Foreign Countries ... 9-47 Fuel Additives .... . . . . . . . . . . . 9-48 Fuel E85 (85% Ethanol) .... . 9-49 Filling the Tank .... . . . . . . . . . . 9-50 Filling a Portable Fuel

Container ................... 9-52

####### Towing

General Towing

Information .... . . .. . . . .. . . .. 9-52 Driving Characteristics and

Towing Tips . . . . . . . . . . . . . . . . 9-53 Trailer Towing . . . . . . . . . . . . . . . . 9-57 Towing Equipment . . . . . . . . . . . 9-60 Trailer Sway

Control (TSC) .... . . . . . . . . . . 9-61 Conversions and Add-Ons

Add-On Electrical Equipment .... . . . . . . . . . . . . . 9-61

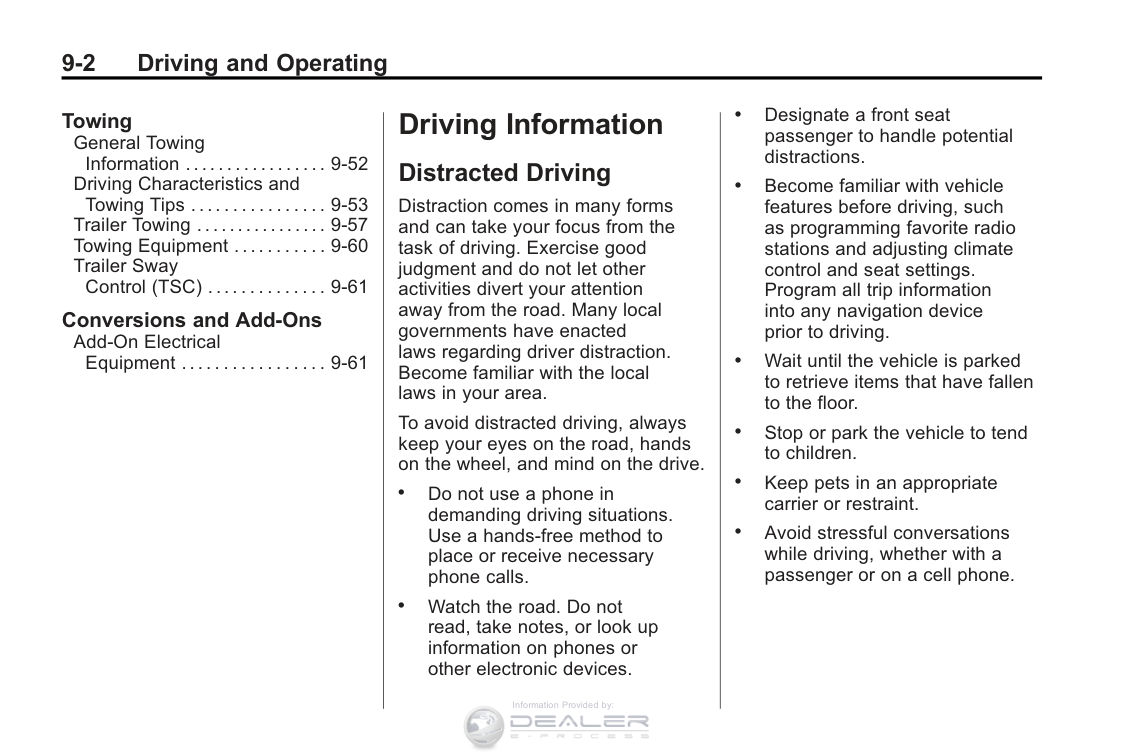

Driving Information Distracted Driving

Distraction comes in many forms and can take your focus from the task of driving. Exercise good judgment and do not let other activities divert your attention away from the road. Many local governments have enacted laws regarding driver distraction. Become familiar with the local laws in your area.

To avoid distracted driving, always keep your eyes on the road, hands on the wheel, and mind on the drive.

. Do not use a phone in demanding driving situations. Use a hands-free method to place or receive necessary phone calls.

. Watch the road. Do not read, take notes, or look up information on phones or other electronic devices.



. Designate a front seat passenger to handle potential distractions.

. Become familiar with vehicle features before driving, such as programming favorite radio stations and adjusting climate control and seat settings. Program all trip information into any navigation device prior to driving.

. Wait until the vehicle is parked to retrieve items that have fallen to the floor.

. Stop or park the vehicle to tend to children.

. Keep pets in an appropriate carrier or restraint.

. Avoid stressful conversations while driving, whether with a passenger or on a cell phone.

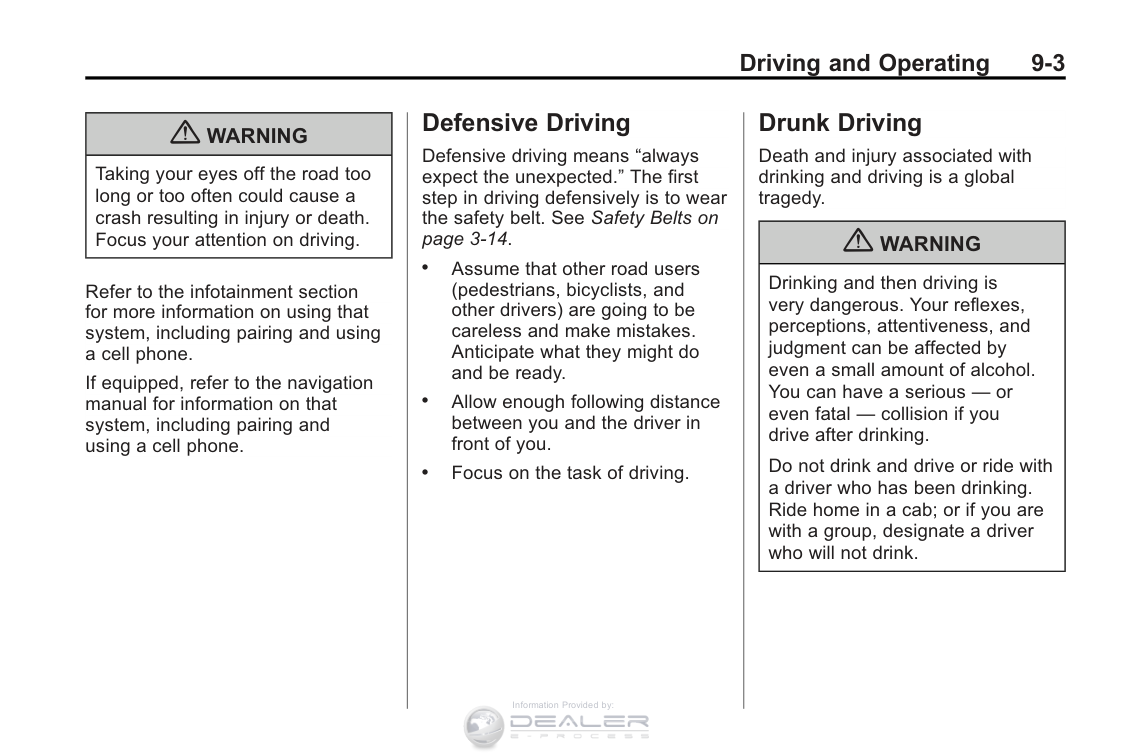

|{ WARNING| |---| |Taking your eyes off the road too long or too often could cause a crash resulting in injury or death. Focus your attention on driving.|

Refer to the infotainment section for more information on using that system, including pairing and using acellphone.

If equipped, refer to the navigation manual for information on that system, including pairing and using a cell phone.

#### Defensive Driving

Defensive driving means “always expect the unexpected.” The first step in driving defensively is to wear the safety belt. See Safety Belts on page 3￿14.

. Assume that other road users (pedestrians, bicyclists, and other drivers) are going to be careless and make mistakes. Anticipate what they might do and be ready.

. Allow enough following distance between you and the driver in front of you.

. Focus on the task of driving.

#### Drunk Driving

Death and injury associated with drinking and driving is a global tragedy.

|{ WARNING| |---| |Drinking and then driving is very dangerous. Your reflexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking.

Do not drink and drive or ride with adriverwhohasbeendrinking. Ride home in a cab; or if you are with a group, designate a driver who will not drink.|

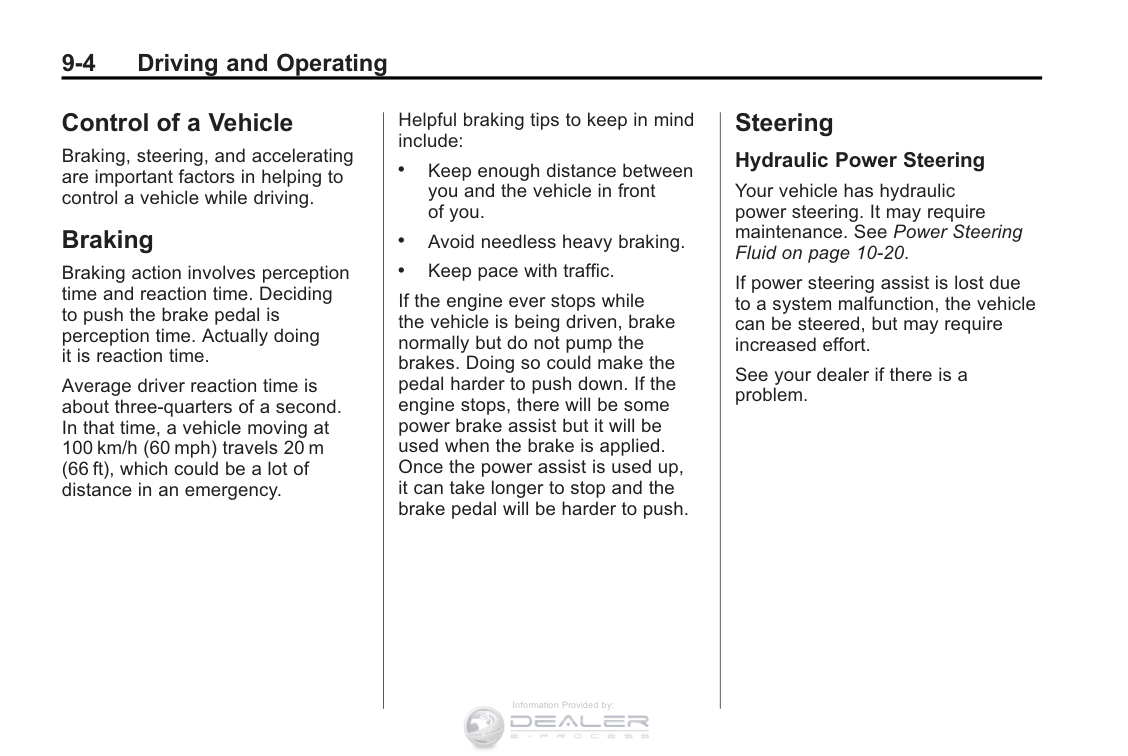

#### Control of a Vehicle

Braking, steering, and accelerating are important factors in helping to control a vehicle while driving.

#### Braking

Braking action involves perception time and reaction time. Deciding to push the brake pedal is perception time. Actually doing it is reaction time.

Average driver reaction time is about three-quarters of a second. In that time, a vehicle moving at 100 km/h (60 mph) travels 20 m (66 ft), which could be a lot of distance in an emergency.

Helpful braking tips to keep in mind include:

. Keep enough distance between you and the vehicle in front of you.

. Avoid needless heavy braking.

. Keep pace with traffic.

If the engine ever stops while the vehicle is being driven, brake normally but do not pump the brakes. Doing so could make the pedal harder to push down. If the engine stops, there will be some power brake assist but it will be used when the brake is applied. Once the power assist is used up, it can take longer to stop and the brake pedal will be harder to push.

#### Steering Hydraulic Power Steering

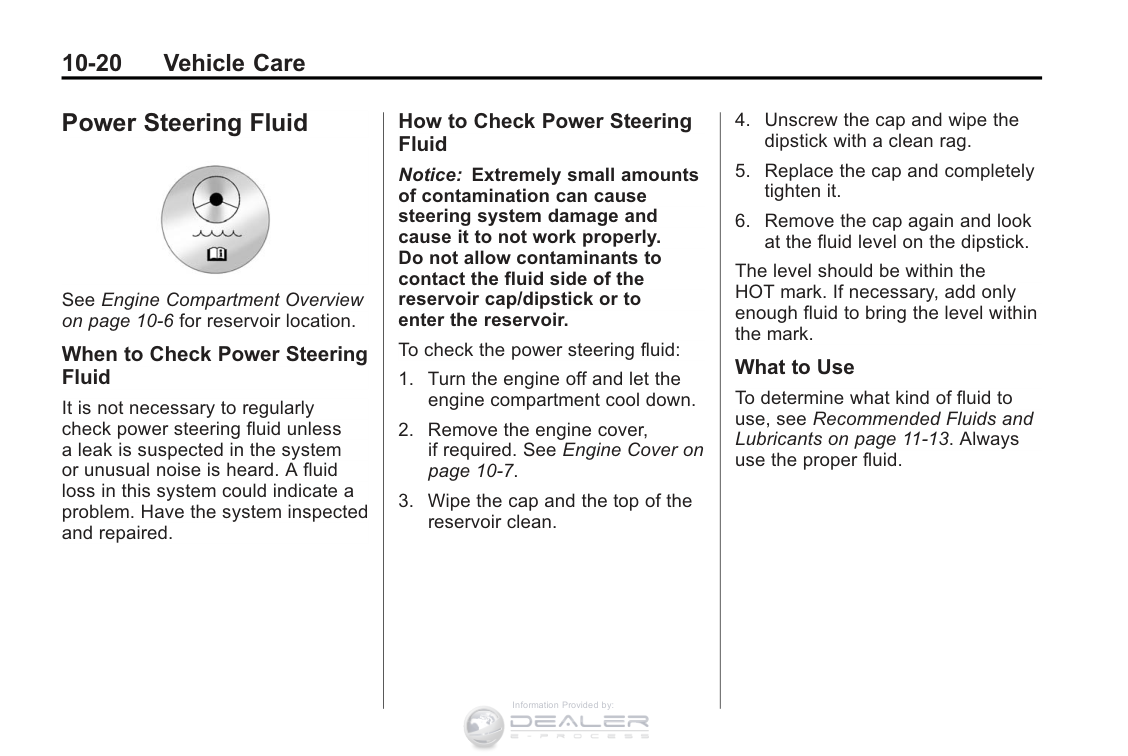

Your vehicle has hydraulic power steering. It may require maintenance. See Power Steering Fluid on page 10￿20.

If power steering assist is lost due to a system malfunction, the vehicle can be steered, but may require increased effort.

See your dealer if there is a problem.

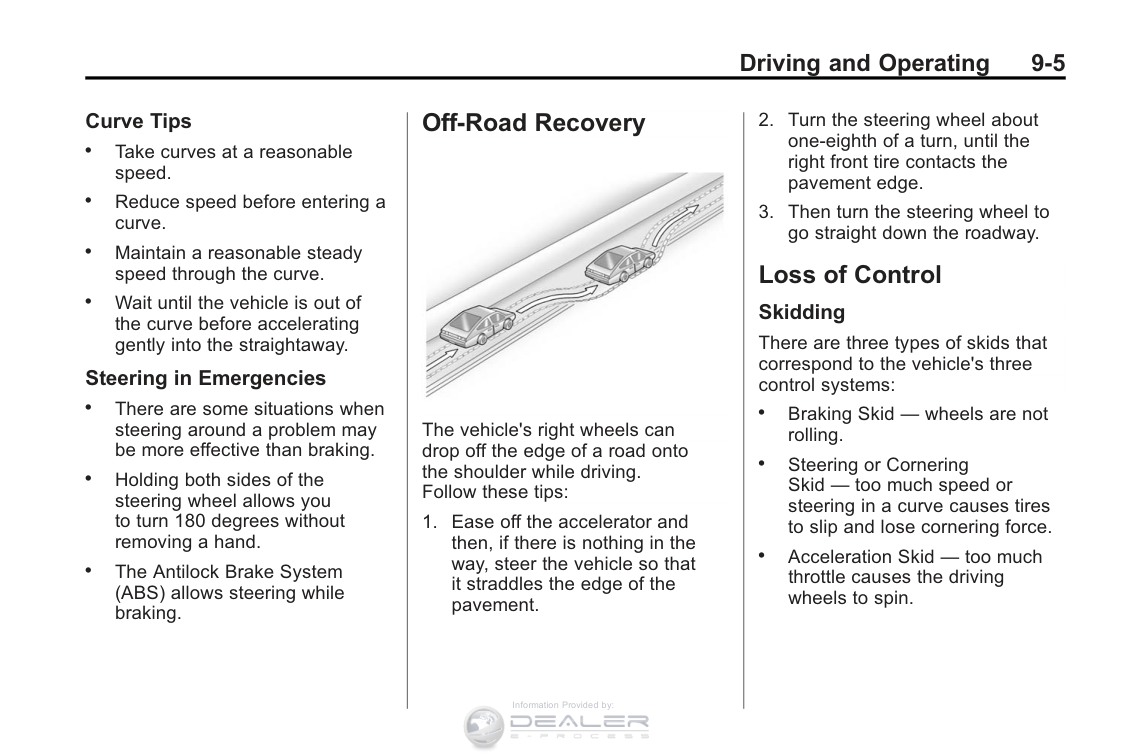

####### Curve Tips

. Take curves at a reasonable speed.

. Reduce speed before entering a curve.

. Maintain a reasonable steady speed through the curve.

. Wait until the vehicle is out of the curve before accelerating gently into the straightaway.

####### Steering in Emergencies

. There are some situations when

steering around a problem may be more effective than braking.

. Holding both sides of the steering wheel allows you to turn 180 degrees without removing a hand.

. The Antilock Brake System (ABS) allows steering while braking.

#### Off-Road Recovery


The vehicle's right wheels can drop off the edge of a road onto the shoulder while driving. Follow these tips:

#### Loss of Control Skidding

There are three types of skids that correspond to the vehicle's three control systems:

. Braking Skid — wheels are not rolling.

. Steering or Cornering Skid — too much speed or steering in a curve causes tires to slip and lose cornering force.

. Acceleration Skid — too much throttle causes the driving wheels to spin.

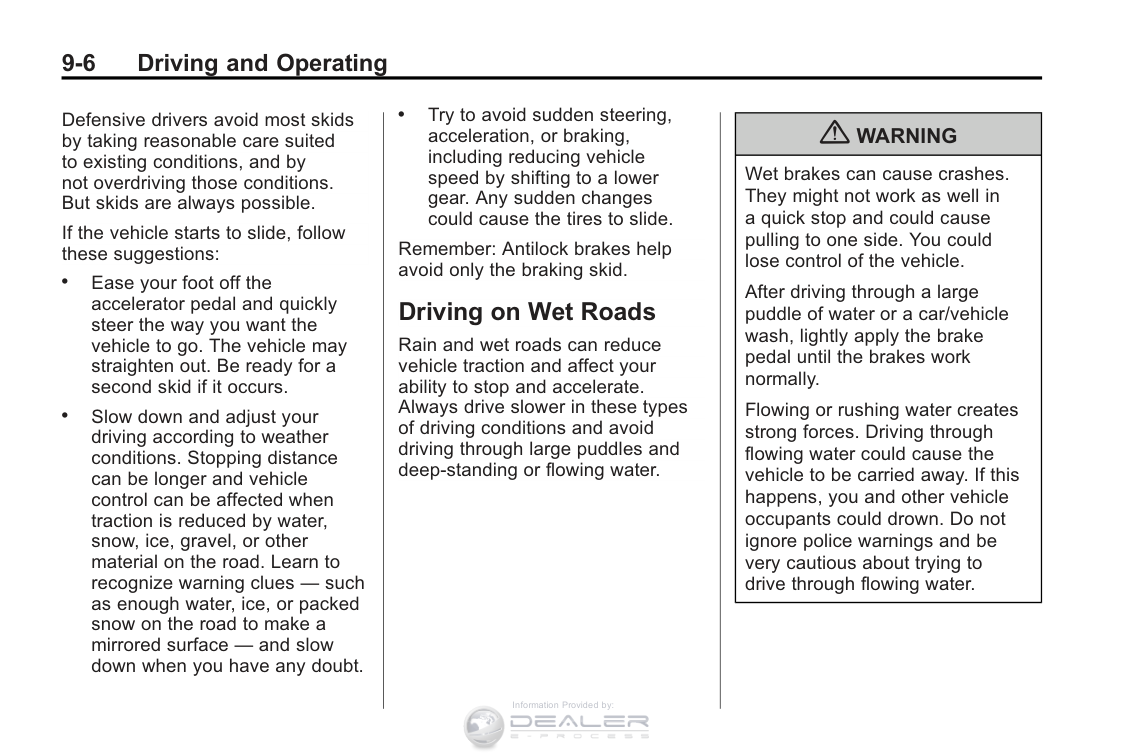

Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible.

If the vehicle starts to slide, follow these suggestions:

. Ease your foot off the accelerator pedal and quickly steer the way you want the vehicle to go. The vehicle may straighten out. Be ready for a second skid if it occurs.

. Slow down and adjust your driving according to weather conditions. Stopping distance can be longer and vehicle control can be affected when traction is reduced by water, snow, ice, gravel, or other material on the road. Learn to recognize warning clues — such as enough water, ice, or packed snow on the road to make a mirrored surface — and slow down when you have any doubt.

. Try to avoid sudden steering, acceleration, or braking, including reducing vehicle speed by shifting to a lower gear. Any sudden changes could cause the tires to slide.

Remember: Antilock brakes help avoid only the braking skid.

#### Driving on Wet Roads

Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep￿standing or flowing water.

|{ WARNING| |---| |Wet brakes can cause crashes. They might not work as well in aquickstopandcouldcause pulling to one side. You could lose control of the vehicle.

After driving through a large puddle of water or a car/vehicle wash, lightly apply the brake pedal until the brakes work normally.

Flowing or rushing water creates strong forces. Driving through flowing water could cause the vehicle to be carried away. If this happens, you and other vehicle occupants could drown. Do not ignore police warnings and be very cautious about trying to drive through flowing water.|

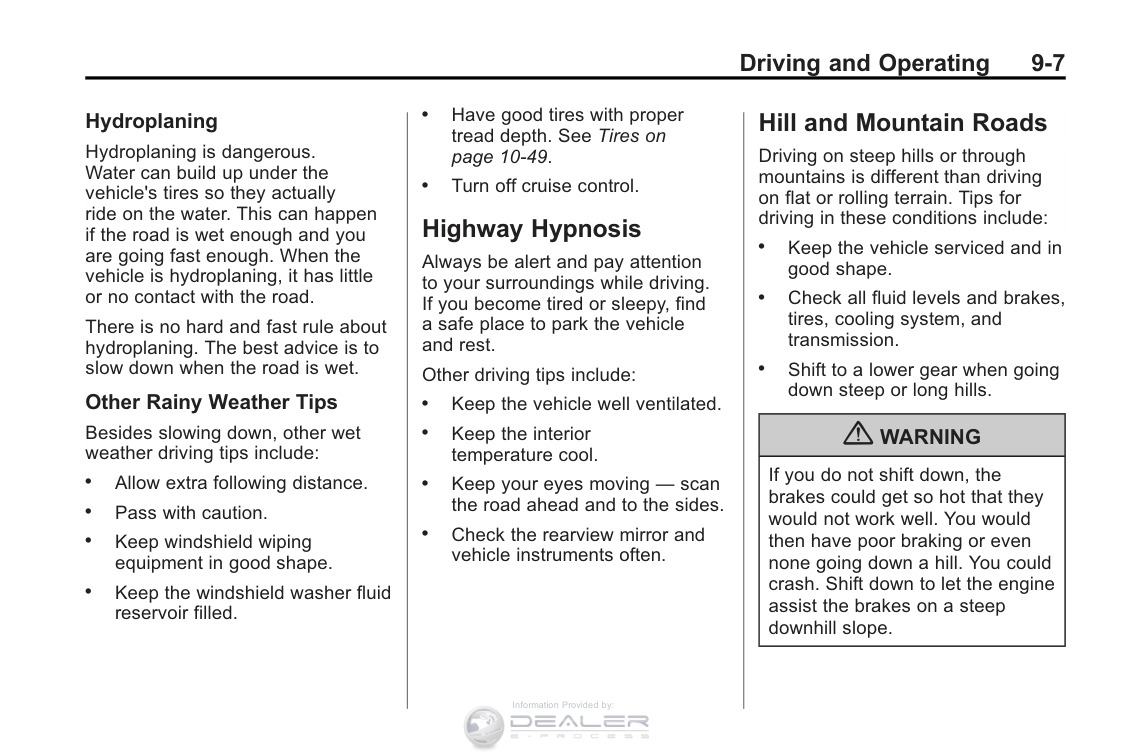

####### Hydroplaning

Hydroplaning is dangerous. Water can build up under the vehicle's tires so they actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When the vehicle is hydroplaning, it has little or no contact with the road.

There is no hard and fast rule about hydroplaning. The best advice is to slow down when the road is wet.

####### Other Rainy Weather Tips

Besides slowing down, other wet weather driving tips include:

. Allow extra following distance.

. Pass with caution.

. Keep windshield wiping equipment in good shape.

. Keep the windshield washer fluid reservoir filled.

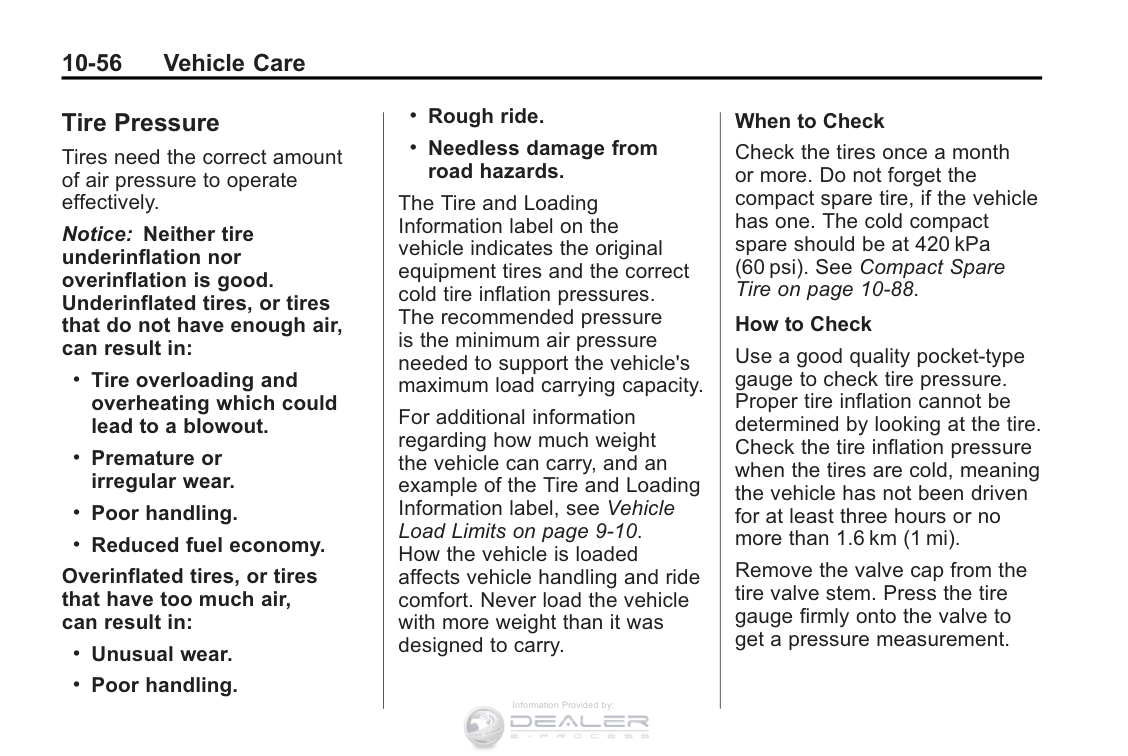

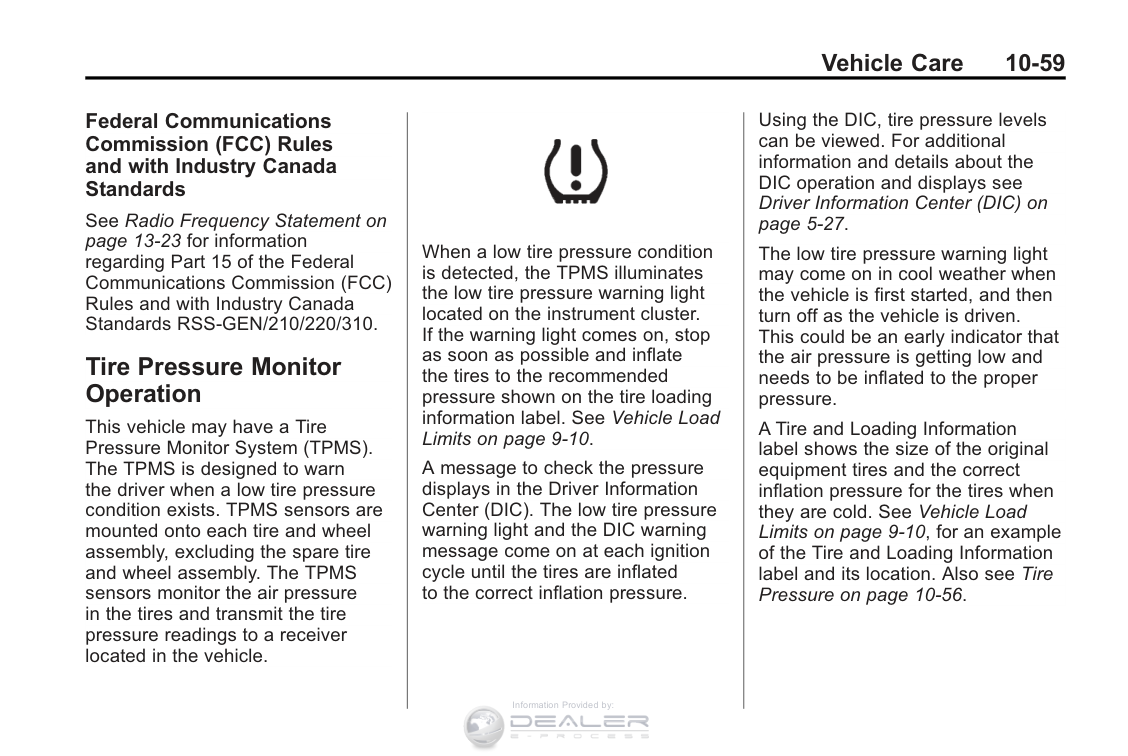

. Have good tires with proper tread depth. See Tires on page 10￿49.

. Turn off cruise control. Highway Hypnosis Always be alert and pay attention to your surroundings while driving. If you become tired or sleepy, find asafeplacetoparkthevehicle and rest. Other driving tips include:

. Keep the vehicle well ventilated.

. Keep the interior temperature cool.

. Keep your eyes moving — scan the road ahead and to the sides.

. Check the rearview mirror and vehicle instruments often.

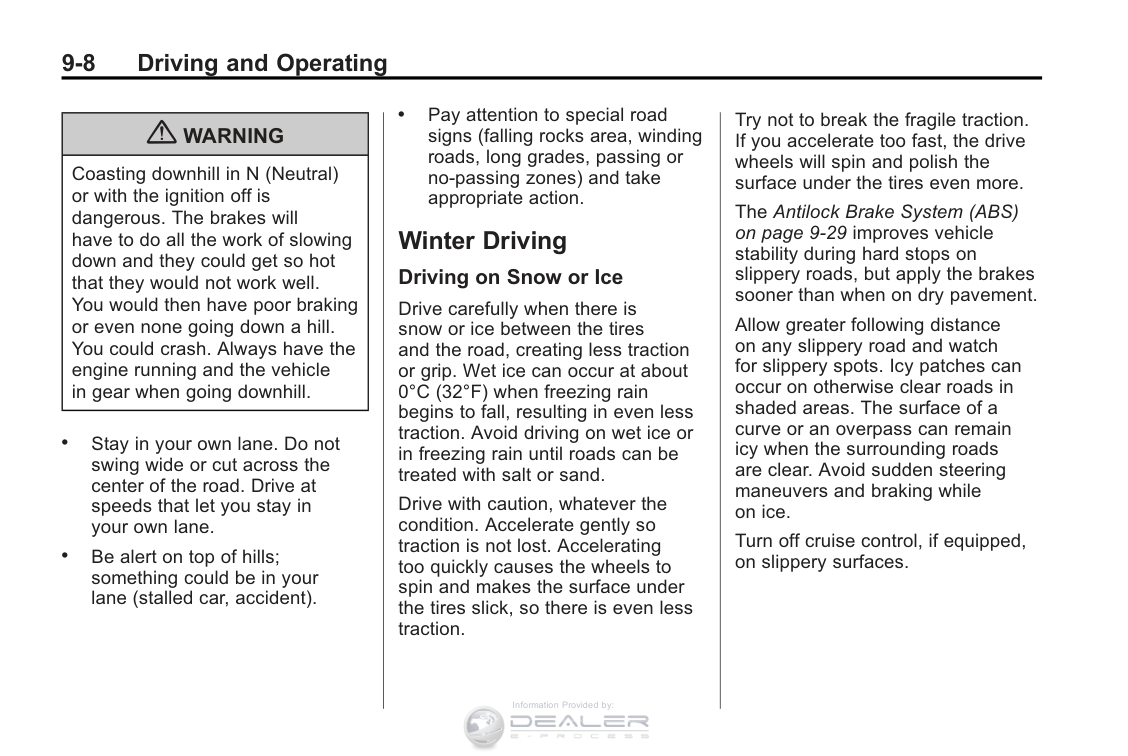

#### Hill and Mountain Roads
