10 totalWhat are the dimensions of the Frigidaire Frfg1723Av refrigerator?
The Frfg1723Av has a height of 67.9" with hinge and 67.1" without hinge, a width of 31.3", and a depth of 25.2" for the cabinet. With the door open, the total depth extends to 29.1", and with the handle included, it reaches 31". This is a counter-depth model designed to fit flush with standard kitchen counters.
What is the total capacity and how much freezer space does the Frfg1723Av have?
The Frfg1723Av has a total capacity of 17.6 cubic feet, with 12.2 cu. ft. of fresh food storage and 5.4 cu. ft. of freezer capacity. This 17.6 cu. ft. counter-depth French door refrigerator provides substantial storage for most households.
Does the Frfg1723Av have an ice maker and water filter?
Yes, the Frfg1723Av includes both an automatic ice maker located in the frozen section that produces square-shaped ice and a water filter system. The refrigerator has a water inlet located at the left rear bottom and features a water filter indicator to alert you when the filter needs replacement.
What type of shelving and storage does the Frfg1723Av offer?
The Frfg1723Av features 2 adjustable glass shelves and 1 fixed shelf in the fresh food section. It includes 2 crisper drawers with clear color and a total of 6 door bins (2 adjustable gallon bins, 2 fixed gallon bins, and 2 fixed 2-liter bins) for flexible storage options.
Is the Frfg1723Av energy efficient and ENERGY STAR certified?
Yes, the Frfg1723Av is ENERGY STAR certified and has an annual energy consumption of 484 kWh, making it an energy-efficient choice. The refrigerator uses R-600A refrigerant and features a dynamic condenser type with a single evaporator cooling system.
What warranty coverage does the Frfg1723Av come with?
The Frfg1723Av includes a 1-year warranty on both parts and labor. For detailed warranty terms and coverage information, contact Frigidaire customer service.
Full Manual
2 pages
Frigidaire
French Door Refrigerator 17.6 Cu. Ft. Counter-Depth French Door Refrigerator
Frfg1723Av
Available Colors : Brushed Steel Version : 05/21 Refrigerator Exterior Air Filter YesCounter-Depth Yes Crisper Color Clear
Door Finish Smooth Door Bin Color Clear
Door Stops Yes Interior Lighting
Led
Front Rollers Yes Shelf Material Glass
Rear Rollers Yes Water Filter Yes
Water Inlet Location Left Rear Bottom Number of Adjustable Gallon Door Bins 2
Number of Fixed 2 Liter Door Bins 2 Dimensions and Volume Number of Fixed Gallon Door Bins 2

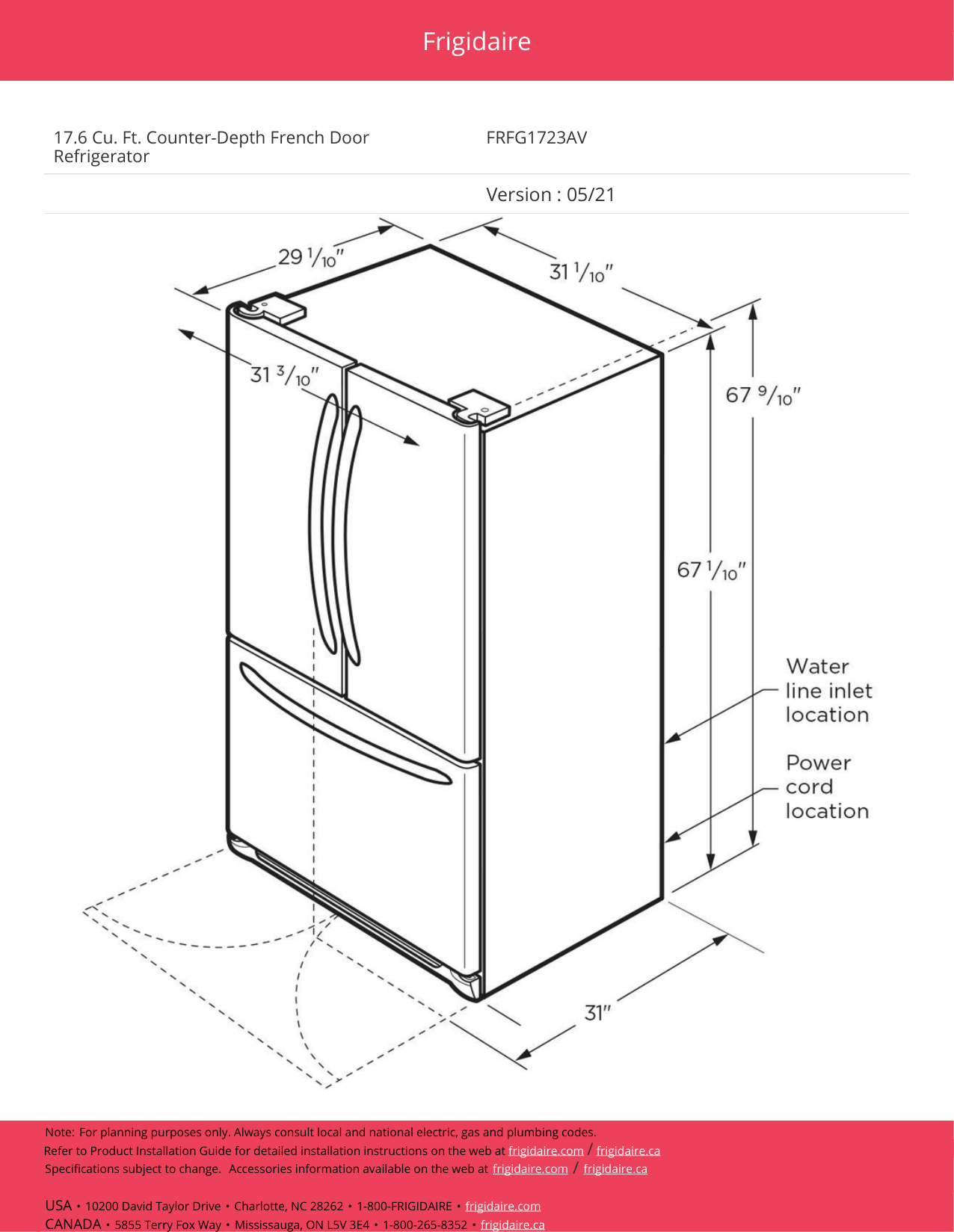

Height With Hinge 67.9" Total Number of Door Bins 6
Height Without Hinge 67.1" Number of Adjustable Shelves 2
Width 31 3/10" Number of Fixed Shelves 1
Width of Cabinet 31 1/10" Number of Crispers 2
Depth of Cabinet 25 2/10"
Depth With Door 29 1/10" Freezer
Depth With Door and Handle 31" Auto Close Drawer Yes
Freezer Capacity 5.4 Cu. Ft. Baskets / Bins Color White
Fresh Food Capacity 12.2 Cu. Ft. Drawer Color Clear
Total Capacity 17.6 Cu. Ft. Interior Lighting None
Number of Baskets / Bins 1 General Specifications Number of Drawers 2
Annual Energy 484 kWh
Condenser Type Dynamic Ice Maker
Cooling System Single Evaporator Ice Maker Yes
Leveling Legs Yes Ice Maker Location Frozen Section
Product Weight 220 lbs Ice Shape Square
Prop 65 Label Yes
Refrigerant Type
R-600A
ControlsWarranty - Labor 1 Year Air Filter Indicator Yes
Warranty - Parts 1 Year Digital Display Yes
Door Ajar Alarm Yes Performance Certifications and Approvals Ice Maker On/Off Yes
ENERGY STAR Certified Yes Power Failure Alarm No
Sabbath Mode Yes Safety Certifications and Approvals Water Filter Indicator Yes
CSA Listed Yes Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Frigidaire
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca 17.6 Cu. Ft. Counter-Depth French Door Refrigerator
Frfg1723Av
