Name: HP Elitebook 840 G5 Notebook PC
Brand: HP

Question 1

If I encounter an issue accessing a specific menu in BIOS, how can I get more information?

Accepted Answer

Hover your cursor over the option within the BIOS to bring up detailed help information on that specific item (page 3).

Question 2

How do I restart into the Third-Party Option ROM Management application?

Accepted Answer

Restarting into this application can be done by pressing F3 during startup, as mentioned within the BIOS utility description for HP computer setup (page 7).

Question 3

What should I do if my device encounters a security warning in BIOS?

Accepted Answer

Refer to the 'Security Menu' and 'Main Security Advanced UEFI Drivers' sections within the BIOS utility menus for guidance on handling security issues and configurations (page 5).

Question 4

I need to configure advanced settings. How can I access them?

Accepted Answer

Go to the 'Advanced' menu within the BIOS Utility Menus to find additional options for detailed system configurations and UEFI drivers management (page 6).

Question 5

What parts can I replace myself on the HP EliteBook 840 G5, and which require an authorized service provider?

Accepted Answer

Customer Self-Repair parts include the AC adapter, solid-state drive, memory module, WLAN module, WWAN module, and keyboard. Parts such as the battery, heat sink, system board, fan, display assembly, and speaker assembly should only be accessed by an authorized service provider, as accessing them can damage the computer or void the warranty. (Page 3, Page 6)

Question 6

How do I safely remove the bottom cover of the HP EliteBook 840 G5?

Accepted Answer

First, turn off the computer, disconnect the power cord, and disconnect all external devices. Then turn the computer upside down on a flat surface, loosen the five captive screws and the two inset captive screws, and starting under the display in the upper left corner, pry and lift the bottom cover off the computer. Reverse these steps to reinstall the cover. (Page 37-38)

Question 7

What is the maximum amount of RAM supported by the HP EliteBook 840 G5, and what type of memory does it use?

Accepted Answer

The HP EliteBook 840 G5 supports up to 32 GB of system RAM across two memory module slots. It uses DDR4-2400 dual channel memory with 8th generation processors, and DDR4-2133 dual channel memory with 7th generation processors. (Page 12)

Question 8

Do I need to update the BIOS before installing new memory modules in the HP EliteBook 840 G5?

Accepted Answer

Yes, you must update the computer to the latest BIOS before adding new memory modules. Failure to update the BIOS prior to installing new memory may result in various system problems. You can download the latest BIOS by navigating to www.hp.com and searching for your computer model. (Page 40)

Question 9

What do the battery light indicator colors mean on the HP EliteBook 840 G5?

Accepted Answer

When AC power is connected, a white battery light means the charge is greater than 90 percent, amber means the charge is between 0 and 90 percent, and off means the battery is not charging. When AC power is disconnected, a blinking amber light means the battery has reached a low level, and rapidly blinking amber indicates a critical battery level. (Page 18)

Question 10

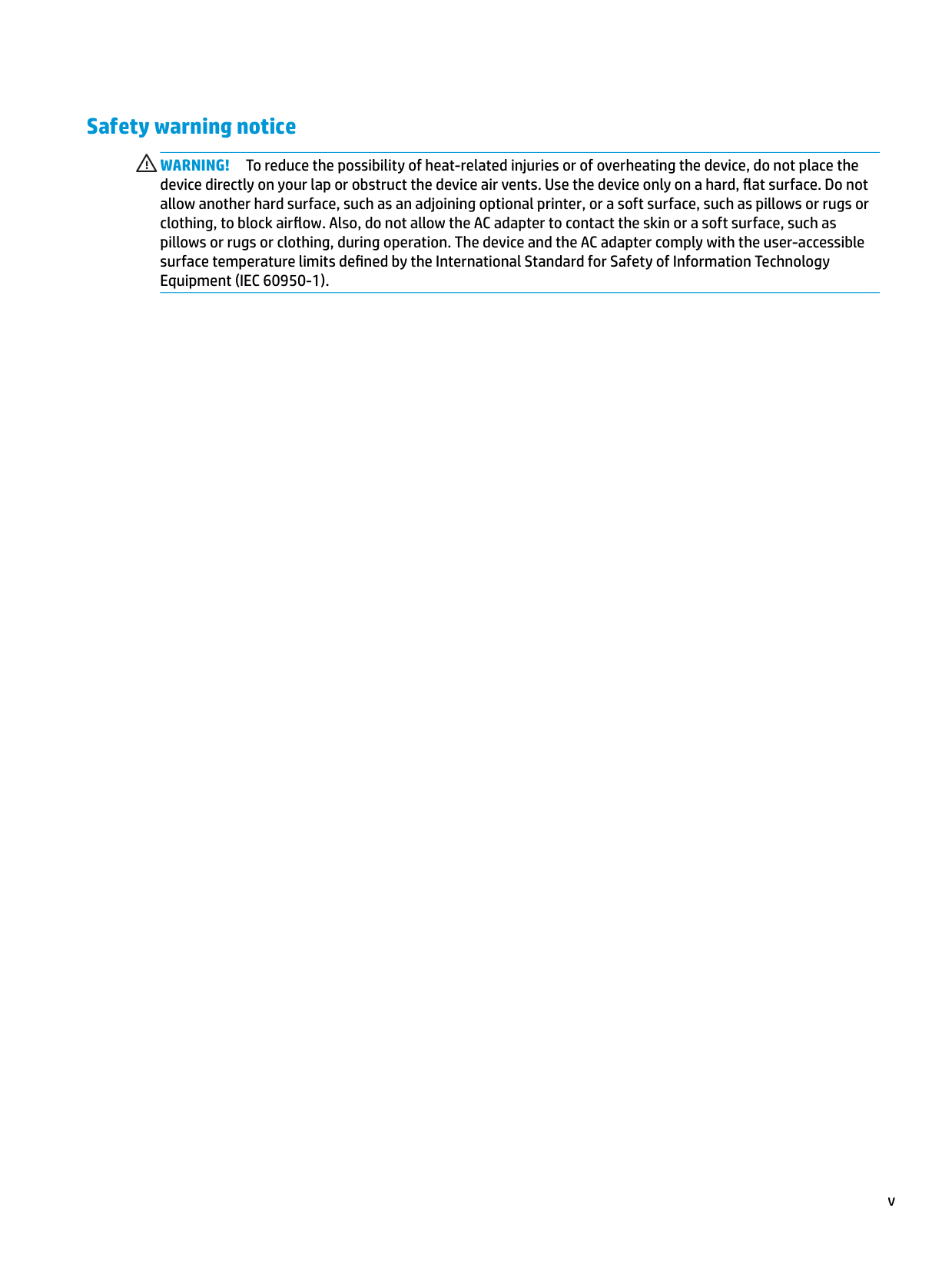

What safety precautions should I follow to prevent overheating the HP EliteBook 840 G5?

Accepted Answer

Do not place the device directly on your lap or obstruct the air vents, and only use the device on a hard, flat surface. Do not allow hard surfaces like a printer or soft surfaces like pillows, rugs, or clothing to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface during operation. (Page 5)

Question 11

What security features are built into the HP EliteBook 840 G5?

Accepted Answer

The HP EliteBook 840 G5 includes a security cable slot, Trusted Platform Module (TPM) 2.0 (Infineon, soldered down), a touch fingerprint sensor, an active smart card reader, and preboot authentication via password or smart card. It also features Hardware enforced Firmware Protection through HP Hardware Root of Trust and Sure Start Gen4. (Page 15)

Question 12

How do I find my HP EliteBook 840 G5 serial number, model number, and warranty information?

Accepted Answer

The service label affixed to the bottom of the computer provides the HP product name, model number, product ID, serial number, and warranty period. Check the bottom of the computer, inside the battery bay, under the service door, on the back of the display, or on the bottom of a tablet kickstand for this label. (Page 22)

Question 13

How can I ensure my HP Elitebook drivers are up-to-date?

Accepted Answer

Access the 'UEFI Drivers' menu in the BIOS Utility Menus, where you will find utilities for managing and updating third-party option ROMs (page 6).

Question 14

How do I factory reset my HP EliteBook using Computer Setup?

Accepted Answer

To initiate a factory reset, use Computer Setup (BIOS), press F9 to change boot order, and select the option to restore factory settings. For detailed instructions, see pages 85-86 of your manual.

Question 15

What are the safety precautions when using my HP EliteBook?

Accepted Answer

Avoid placing the device directly on your lap or blocking its air vents. Use it only on a hard, flat surface to prevent overheating and heat-related injuries. Consult page 6 for comprehensive safety instructions.

Question 16

How do I update the BIOS on my HP EliteBook?

Accepted Answer

Navigate to www.hp.com, click Support & Drivers > Drivers & Software, search for your model, select OS if applicable, and download the latest BIOS from available options. Follow the on-screen instructions for installation, as detailed in Chapter 8 of the manual.

Question 17

How do I replace the WLAN/Bluetooth module?

Accepted Answer

To remove the WLAN/Bluetooth combo card, first shut down and disconnect power from the computer. Remove the bottom cover, disconnect battery cable, detach antenna cables, then unscrew and carefully pull out the card as described in Chapter 5 of your manual.

Question 18

What is the procedure to replace memory modules?

Accepted Answer

Before adding new RAM, ensure BIOS is updated. Power down the system properly, disconnect power and external devices, remove bottom cover, unplug battery cable, spread retaining clips on side of slot, pull out RAM module with care, as detailed in Chapter 5.

Question 19

How do I replace the keyboard?

Accepted Answer

To change the keyboard, first turn off and unplug your computer, remove external devices and the bottom cover. Disconnect the battery cable from system board, then loosen screws securing the keyboard to the right of fan vent area, lift and rotate out for replacement.

Question 20

How do I replace the solid-state drive?

Accepted Answer

Replace your SSD by powering down computer, unplugging power cables, removing bottom cover, disconnecting battery cable from system board, loosening securing screws, carefully pulling out and installing replacement as described in Chapter 5.

Question 21

Can I update the BIOS to fix system issues?

Accepted Answer

To resolve potential system problems, navigate to www.hp.com > Support & Drivers, download the latest BIOS, follow instructions for installation and rebooting your HP EliteBook.

Question 22

How do I force shut down the HP EliteBook 840 G5 if it stops responding?

Accepted Answer

If the computer has stopped responding and normal shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer. Be aware that pressing and holding the power button results in the loss of unsaved information. (Page 25)

Question 23

What tools do I need to service or replace components on the HP EliteBook 840 G5?

Accepted Answer

A Phillips P0 screwdriver is required to complete removal and replacement procedures. Additionally, when working with internal components, proper electrostatic discharge (ESD) protection equipment such as a wrist strap or foot strap connected to a grounded workstation is recommended to prevent component damage. (Page 32, Page 36)

Question 24

How do I safely handle the components inside my HP EliteBook 840 G5?

Accepted Answer

Handle electronic components with care to avoid damage. Before touching, discharge static electricity. Avoid contact with pins, leads, or circuitry as much as possible. Place removed components in electrostatic-safe containers and use proper grounding techniques when handling sensitive parts. (Page 35)

Question 25

What are the steps to replace the solid-state drive (SSD) on my HP EliteBook?

Accepted Answer

To replace the SSD, start by turning off and unplugging the computer, then remove the bottom cover. Disconnect the battery cable from the system board and release the securing screw that attaches the SSD to the system board. Carefully pull out the SSD module while noting its orientation for proper reinstallation. (Page 41)
