HP Elitebook 845 G7 Notebook PC manual — page 1

Interactive Part Locator

HP EliteBook 840 G7 Notebook PC

Welcome to the interactive part locator for the HP EliteBook 840 G7 Notebook PC

Here’s how to use it… External Views (Click the link to navigate to the views) On this page you will find large icons of each of the external views of this product. To view a specific view in greater detail, simply click that view. Parts List (Click the link to navigate to the parts) On this page, you will find a list of all of the replaceable parts for this product. To view a specific part and its location in the product, click the part name in the list.

That’s it! On every page there is a link that brings you back to either the External Views or the Parts List, enabling you to navigate to whatever view or part you wish to review.

Back to Welcome page

Page 2
HP Elitebook 845 G7 Notebook PC manual — page 2

|![image 1](c06692773_images/imageFile1.png)| |---|

Front

|![image 2](c06692773_images/imageFile2.png)| |---|

Display

Page 3
HP Elitebook 845 G7 Notebook PC manual — page 3

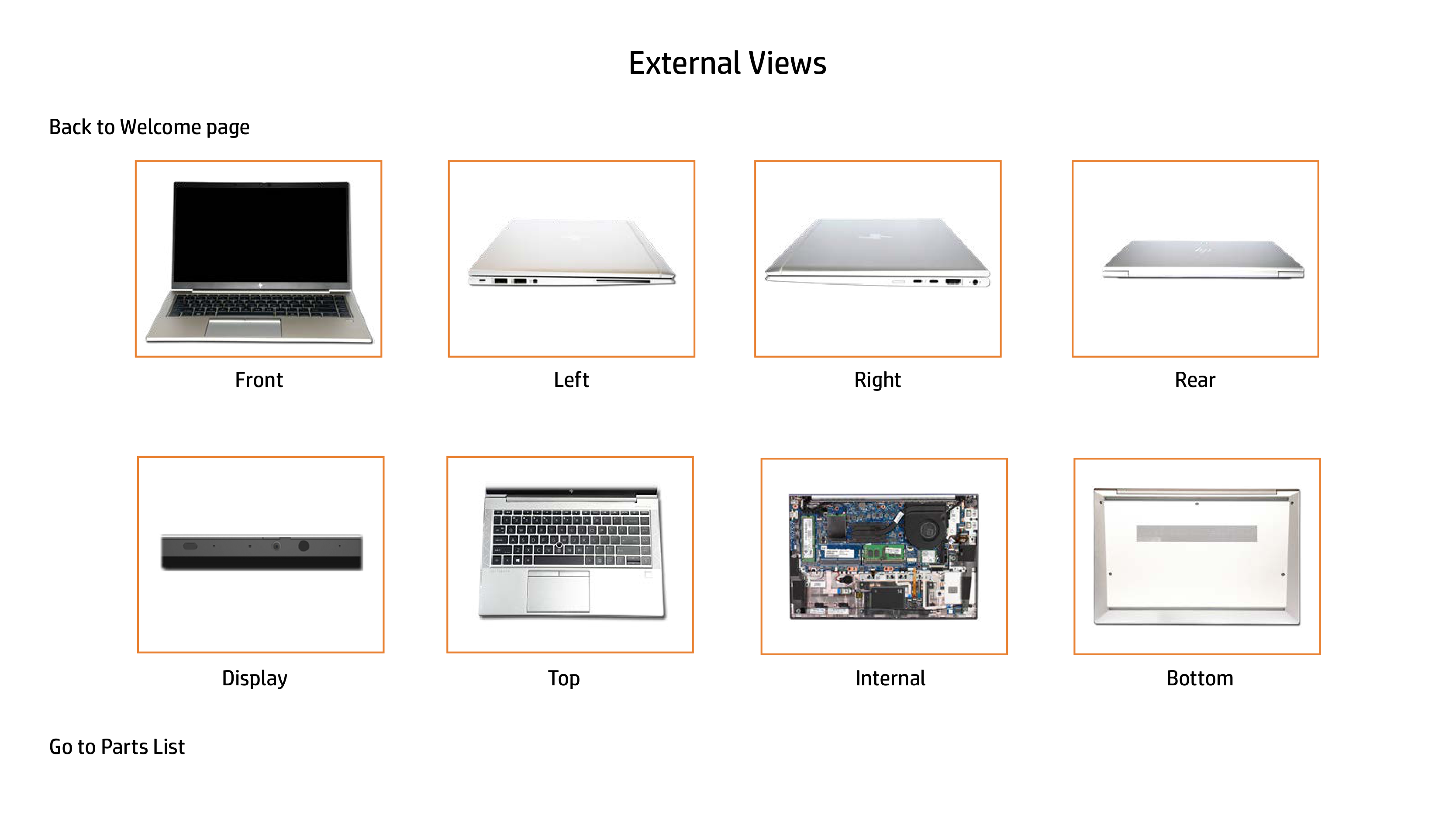

External Views

|![image 3](c06692773_images/imageFile3.png)| |---|

Left

|![image 4](c06692773_images/imageFile4.png)| |---|

Page 4
HP Elitebook 845 G7 Notebook PC manual — page 4

Right

|![image 5](c06692773_images/imageFile5.png)| |---|

Top

|![image 6](c06692773_images/imageFile6.png)| |---|

Page 5
HP Elitebook 845 G7 Notebook PC manual — page 5

Internal

|![image 7](c06692773_images/imageFile7.png)| |---|

Rear

|![image 8](c06692773_images/imageFile8.png)| |---|

Page 6
HP Elitebook 845 G7 Notebook PC manual — page 6

Bottom

Back to External Views

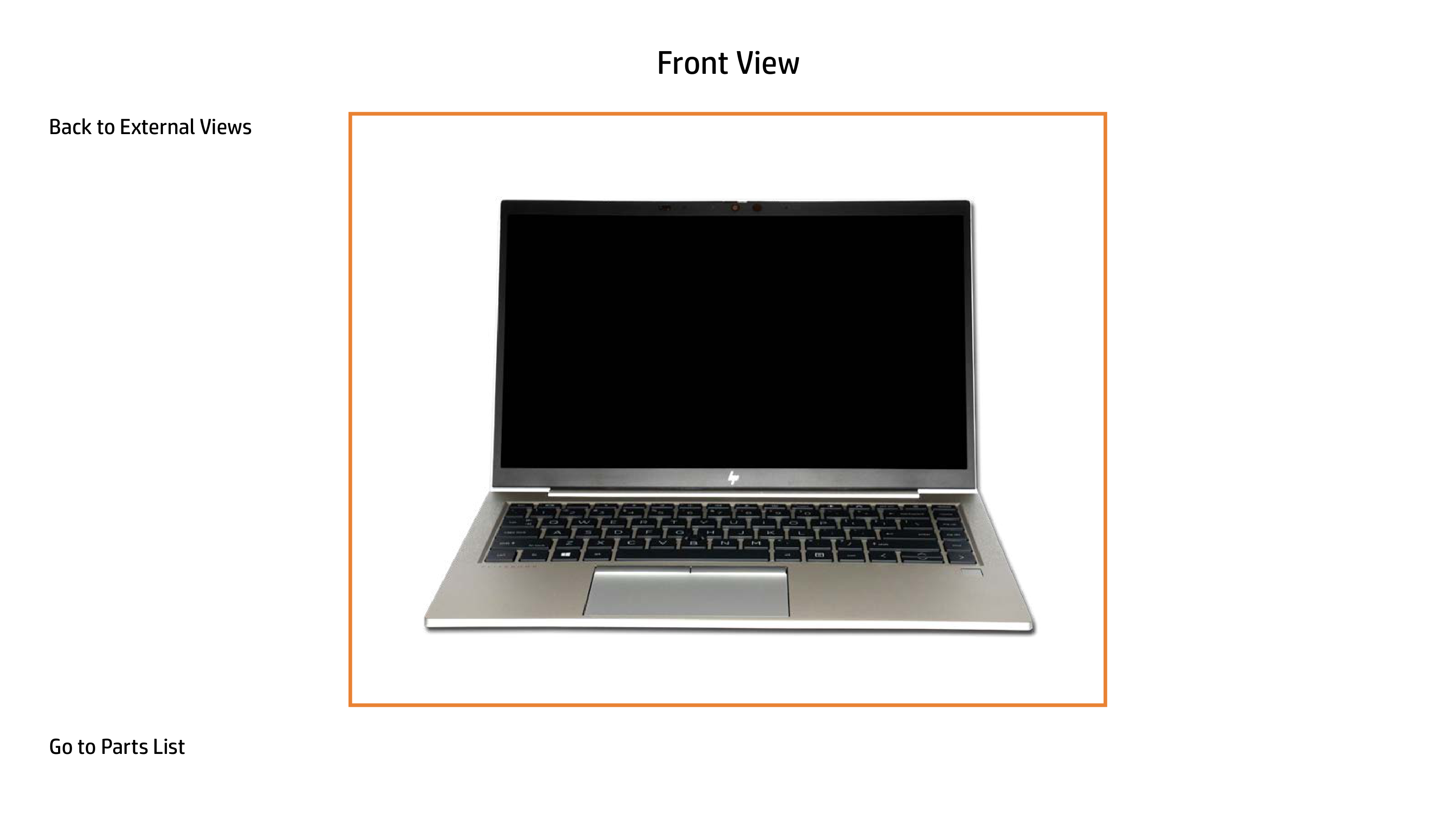

Front View

|![image 9](c06692773_images/imageFile9.png)| |---|

Back to External Views

Page 7
HP Elitebook 845 G7 Notebook PC manual — page 7

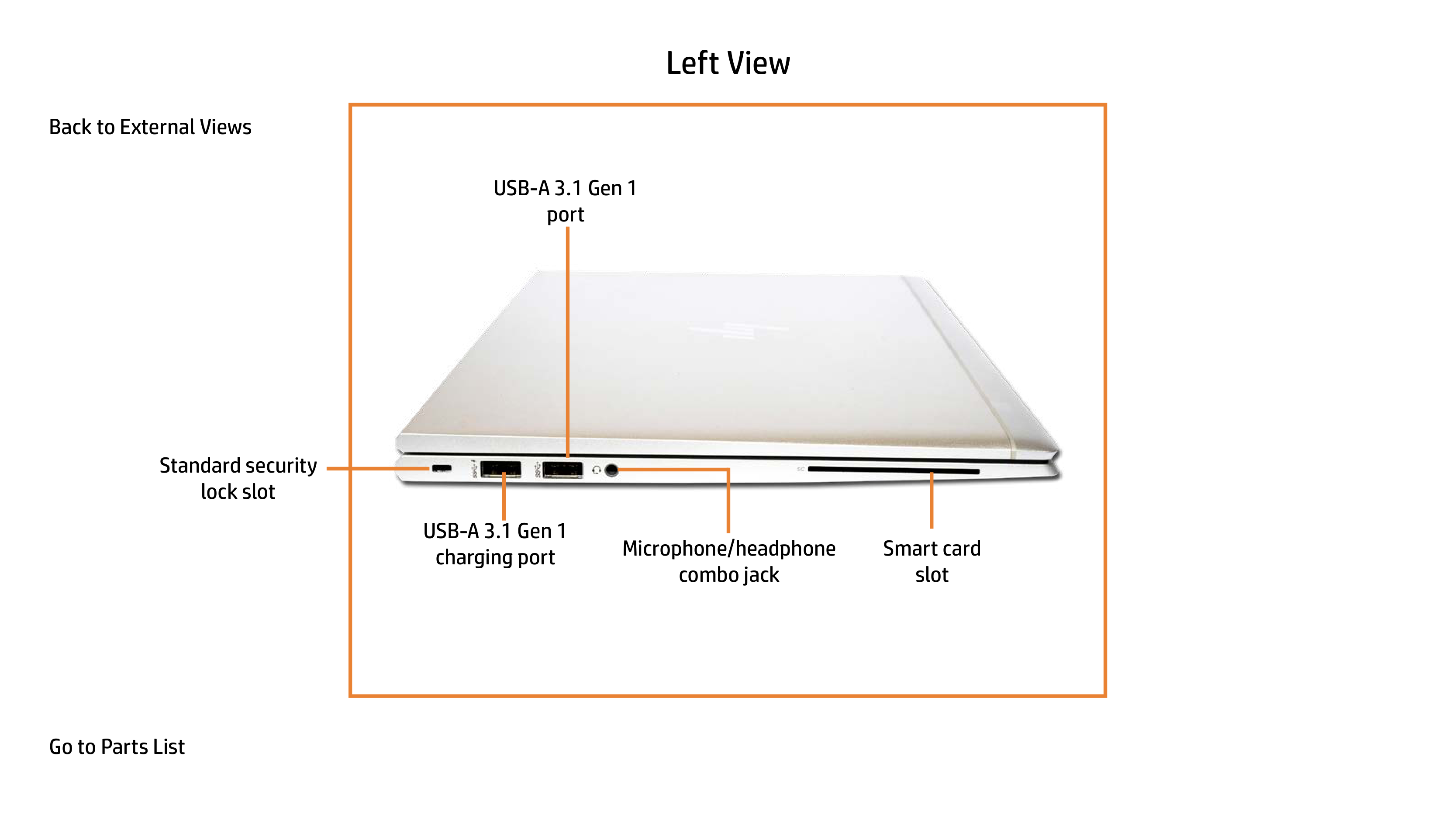

Left View

Standard security lock slot

USB-A 3.1 Gen 1 port

![image 10](c06692773_images/imageFile10.png)

USB-A 3.1 Gen 1 charging port

Microphone/headphone combo jack

Page 8
HP Elitebook 845 G7 Notebook PC manual — page 8

Smart card slot

Back to External Views

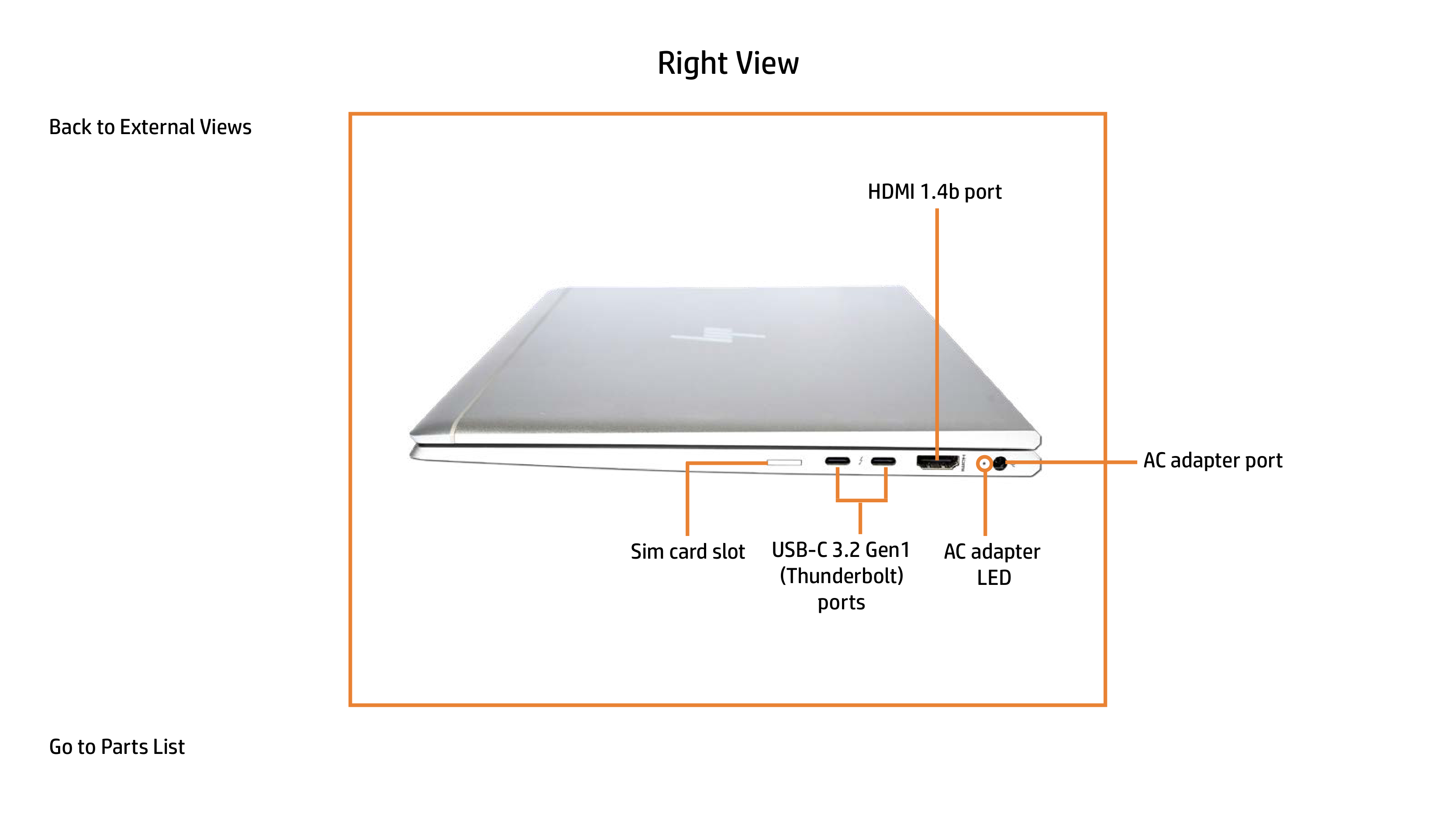

Right View

HDMI 1.4b port

![image 11](c06692773_images/imageFile11.png)

USB-C 3.2 Gen1 (Thunderbolt) ports

Page 9
HP Elitebook 845 G7 Notebook PC manual — page 9

Sim card slot

AC adapter LED

AC adapter port

Back to External Views

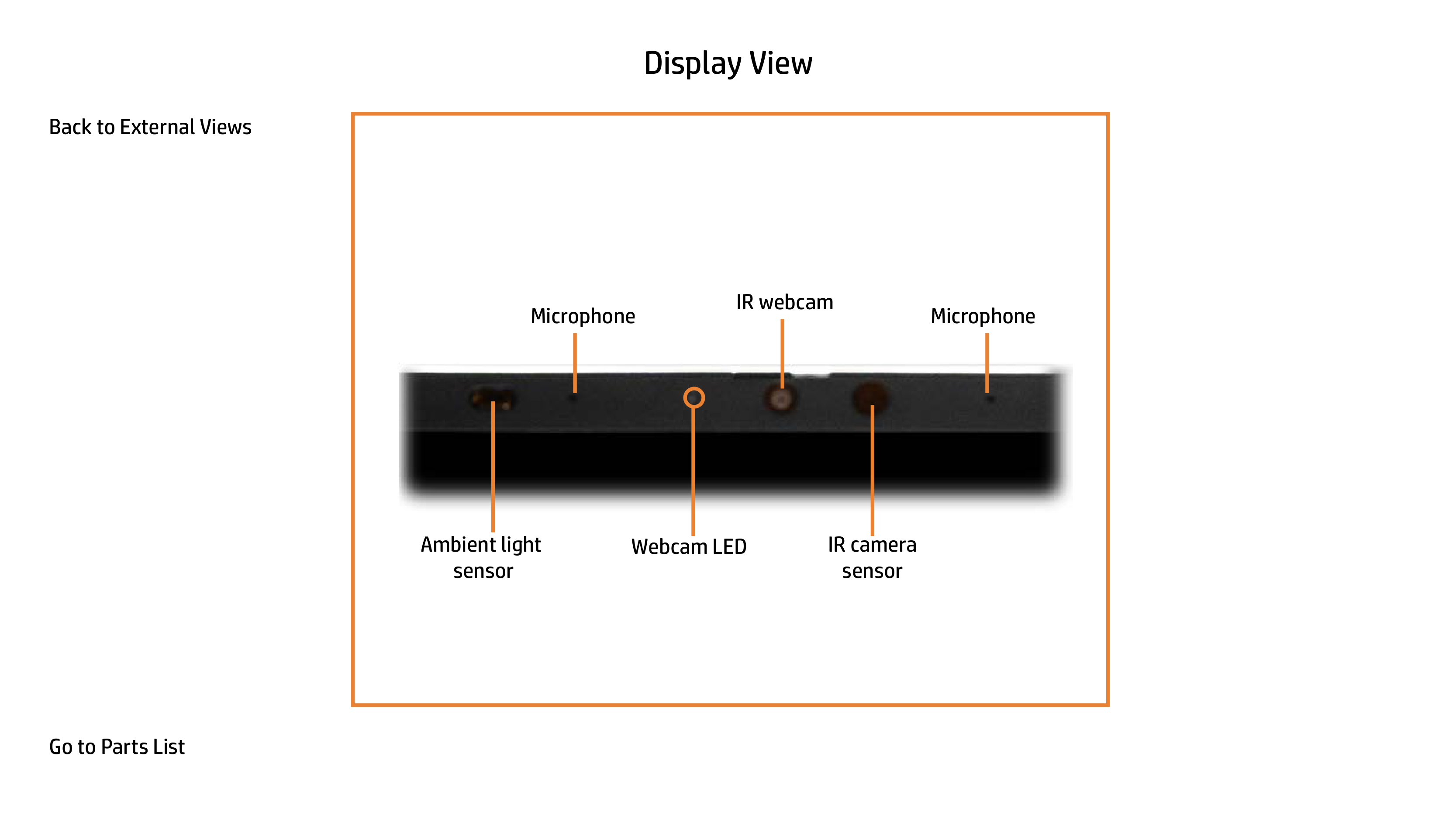

Display View

|![image 12](c06692773_images/imageFile12.png)

Ambient light sensor

Webcam LED

IR webcam MicrophoneMicrophone

IR camera sensor

| |---|

Page 10
HP Elitebook 845 G7 Notebook PC manual — page 10

Back to External Views

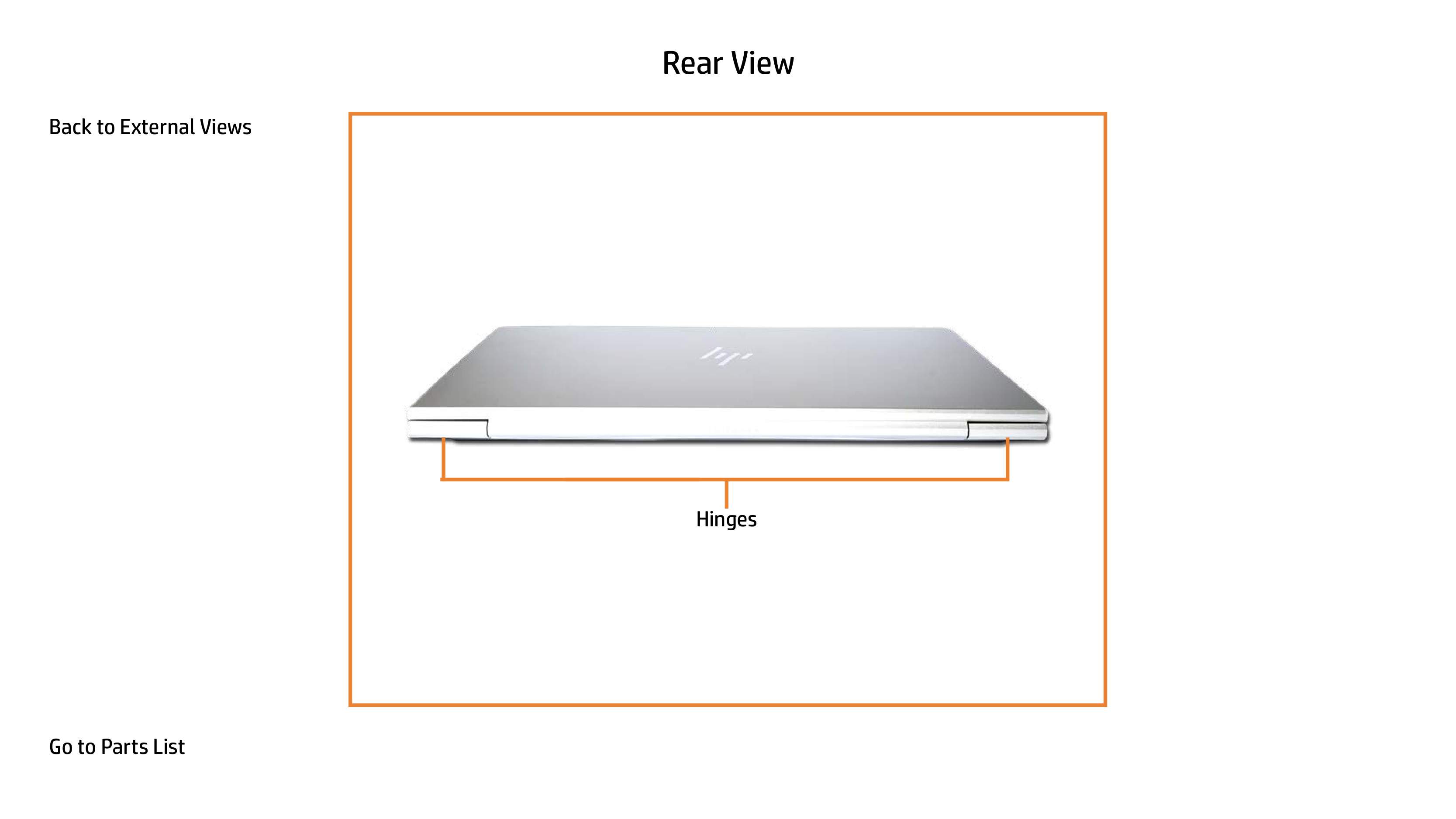

Rear View

|![image 13](c06692773_images/imageFile13.png)

Hinges

| | | |---|---| | | | | |---|

Page 11
HP Elitebook 845 G7 Notebook PC manual — page 11

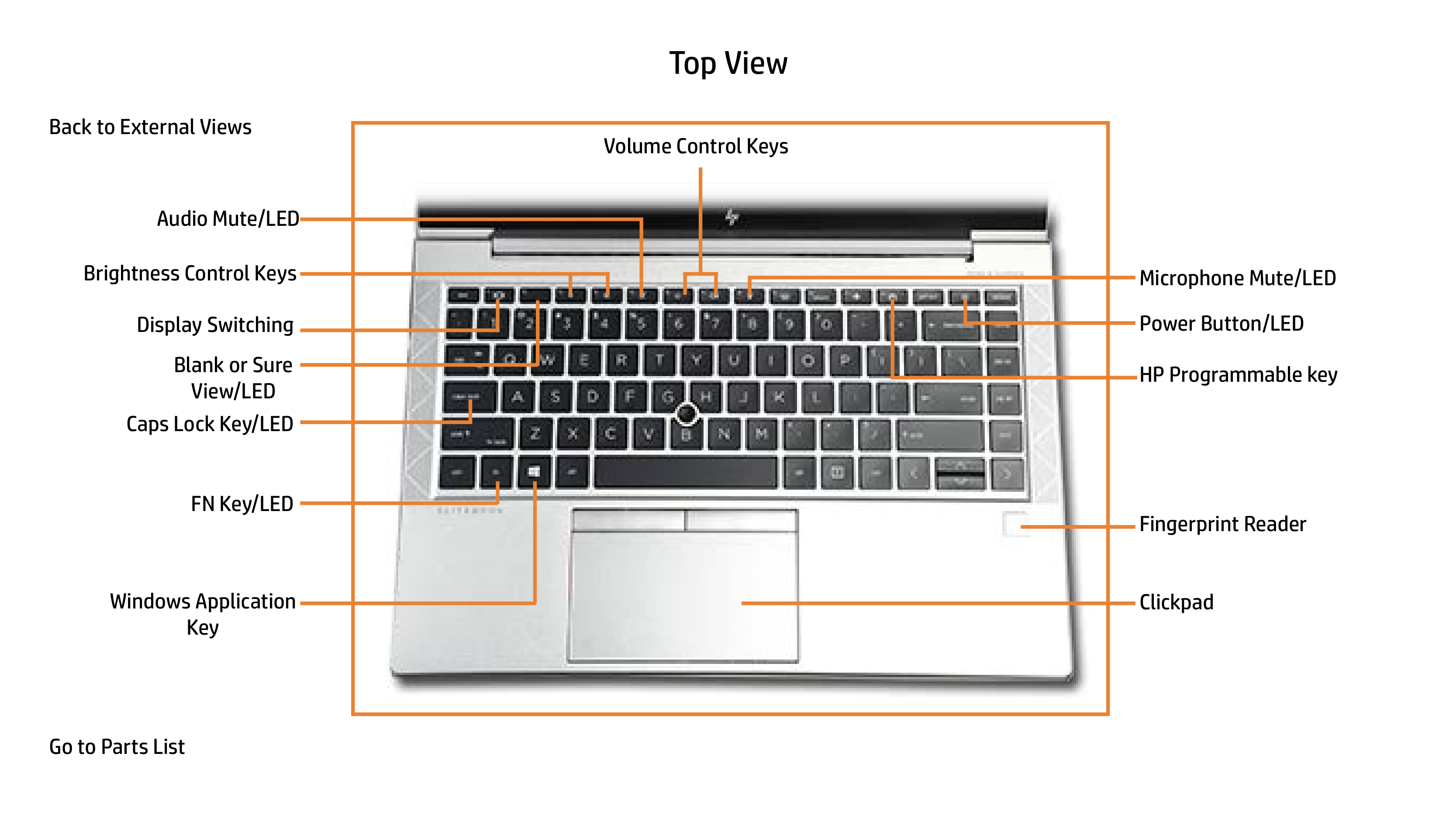

Top View

Back to External Views

Volume Control Keys

| | | |---|---| | | |

Page 12
HP Elitebook 845 G7 Notebook PC manual — page 12

![image 14](c06692773_images/imageFile14.png)

Audio Mute/LED

Brightness Control Keys

Microphone Mute/LED

Power Button/LED

Display Switching

Page 13
HP Elitebook 845 G7 Notebook PC manual — page 13

Blank or Sure View/LED

HP Programmable key

Caps Lock Key/LED

FN Key/LED

Fingerprint Reader

ClickpadWindows Application Key

Page 14
HP Elitebook 845 G7 Notebook PC manual — page 14

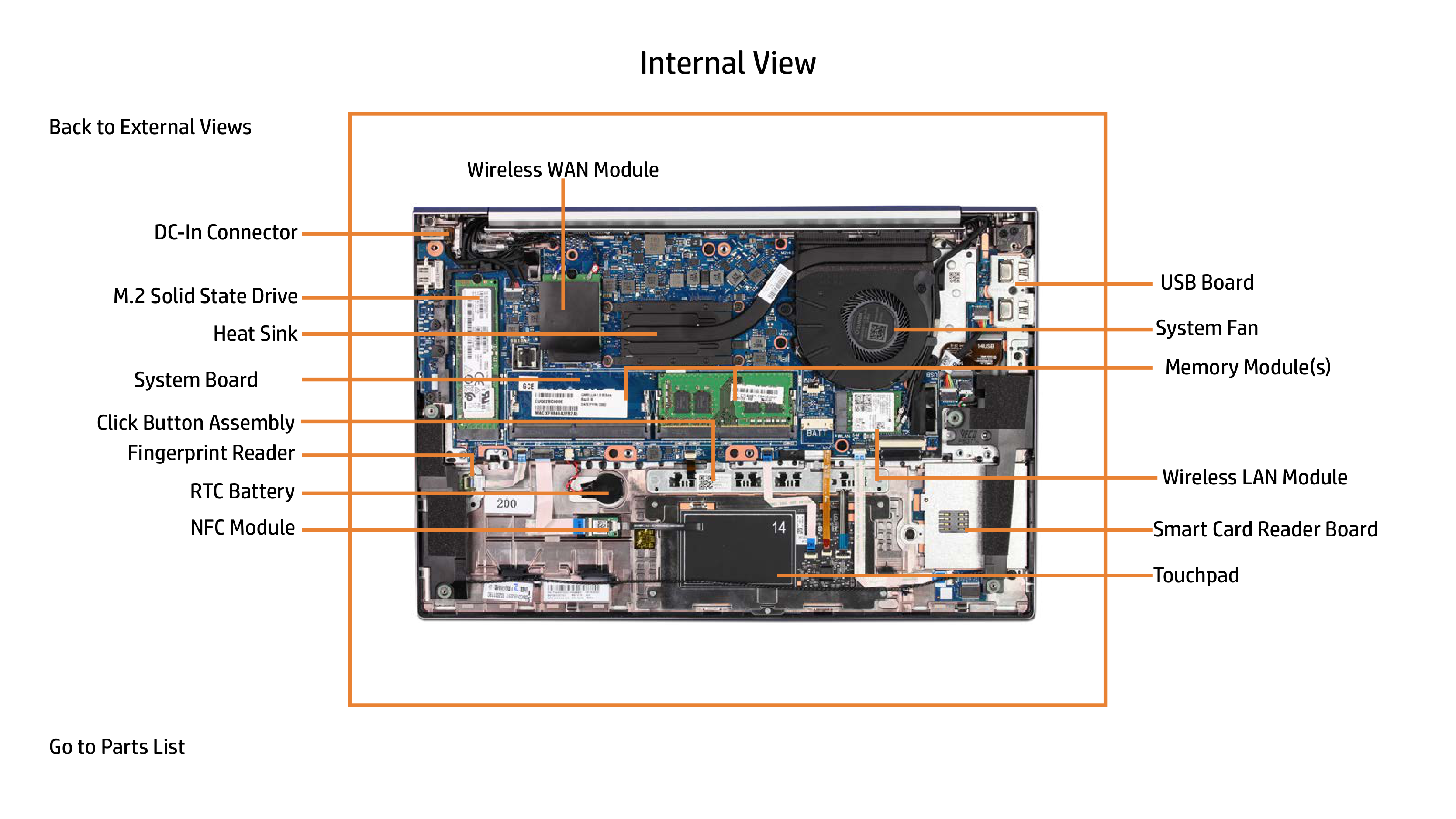

Internal View

Back to External Views

Wireless WAN Module

![image 15](c06692773_images/imageFile15.png)

DC-In Connector

USB Board

Page 15
HP Elitebook 845 G7 Notebook PC manual — page 15

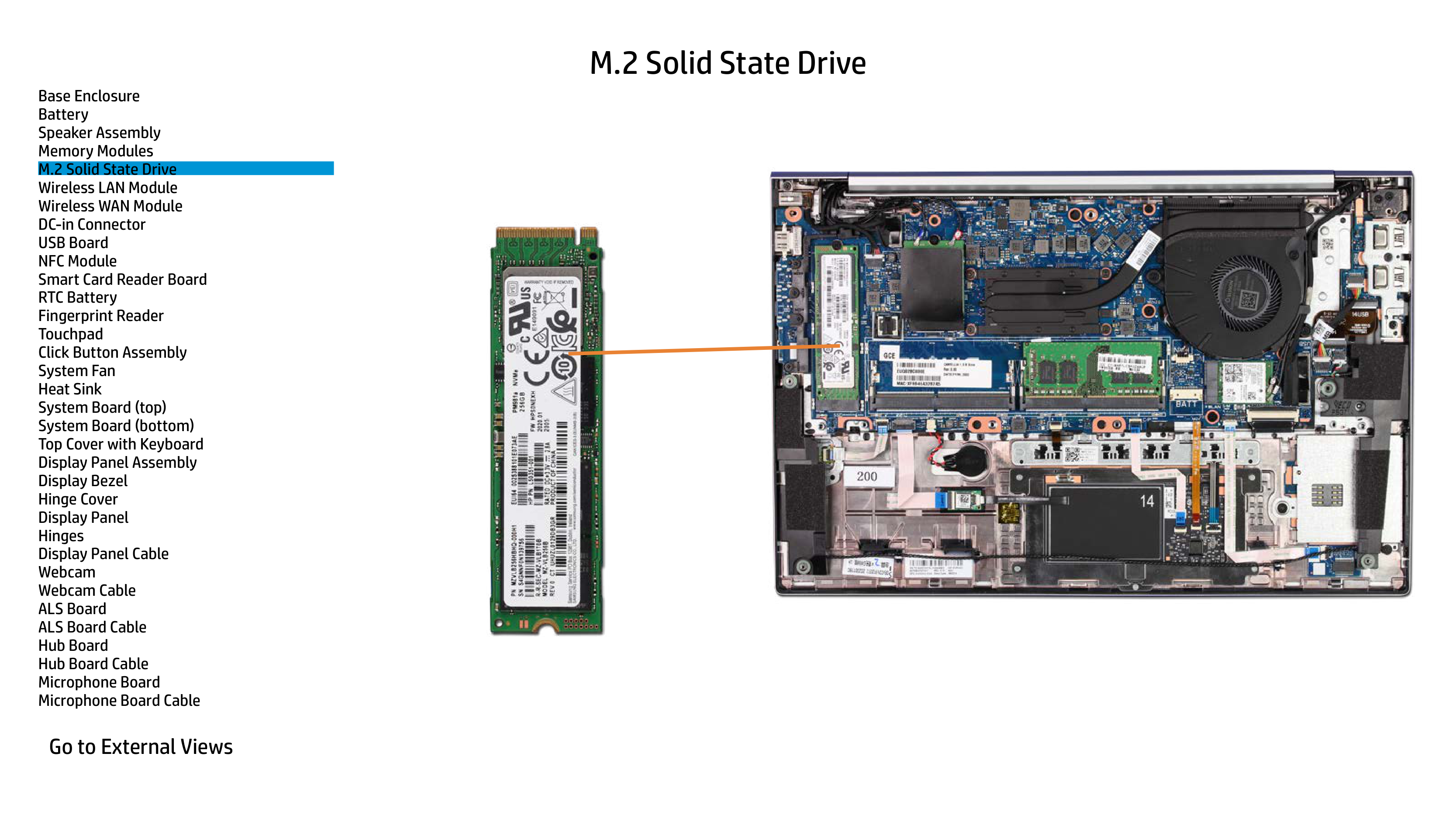

M.2 Solid State Drive

System Fan Memory Module(s)

Heat Sink

System Board

Click Button Assembly

Fingerprint Reader

Page 16
HP Elitebook 845 G7 Notebook PC manual — page 16

Wireless LAN Module

RTC Battery NFC Module Smart Card Reader Board

Touchpad

Back to External Views

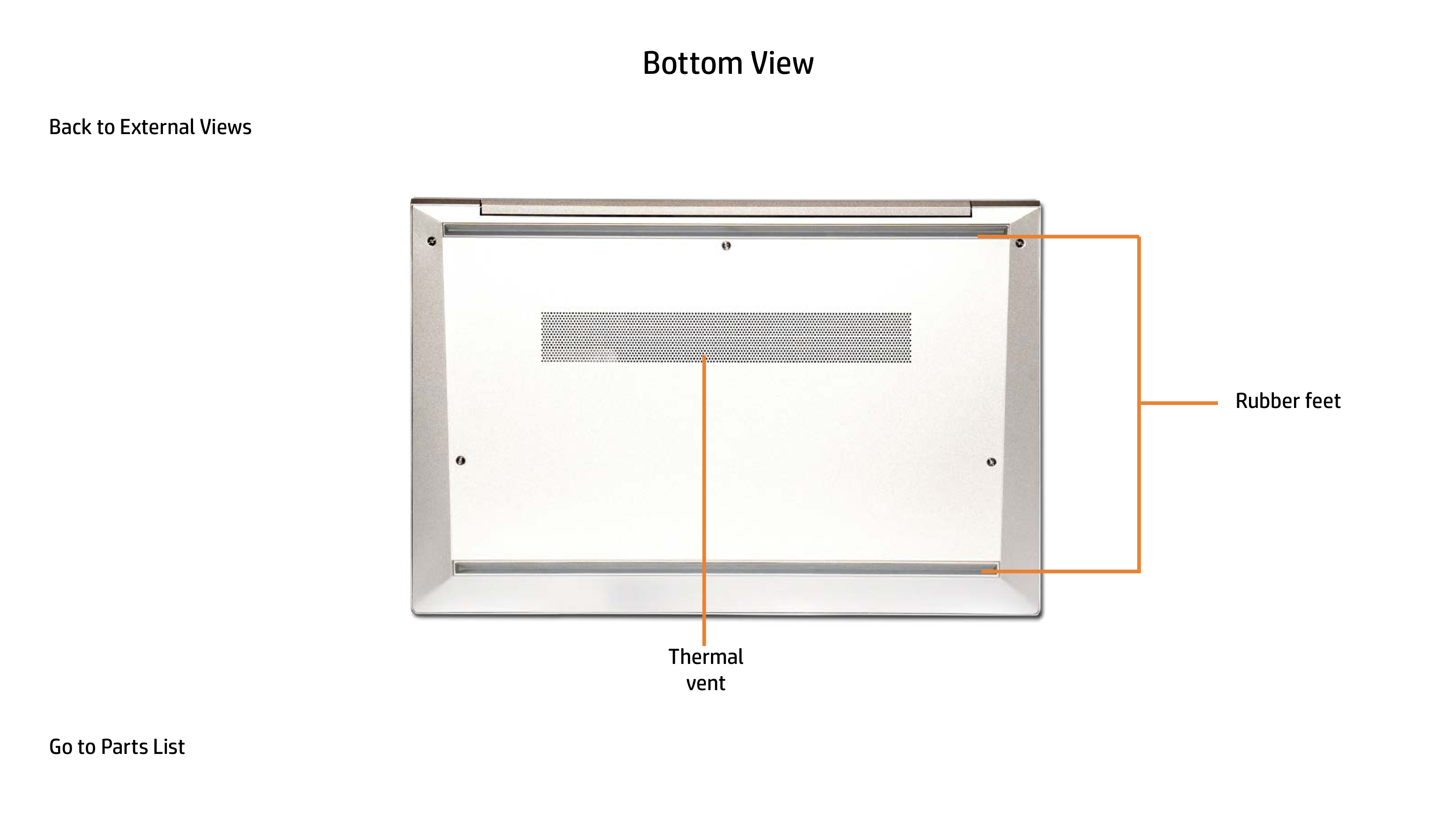

Bottom View

![image 16](c06692773_images/imageFile16.png)

Page 17
HP Elitebook 845 G7 Notebook PC manual — page 17

| | | |---|---| | | |

Thermal vent

Rubber feet

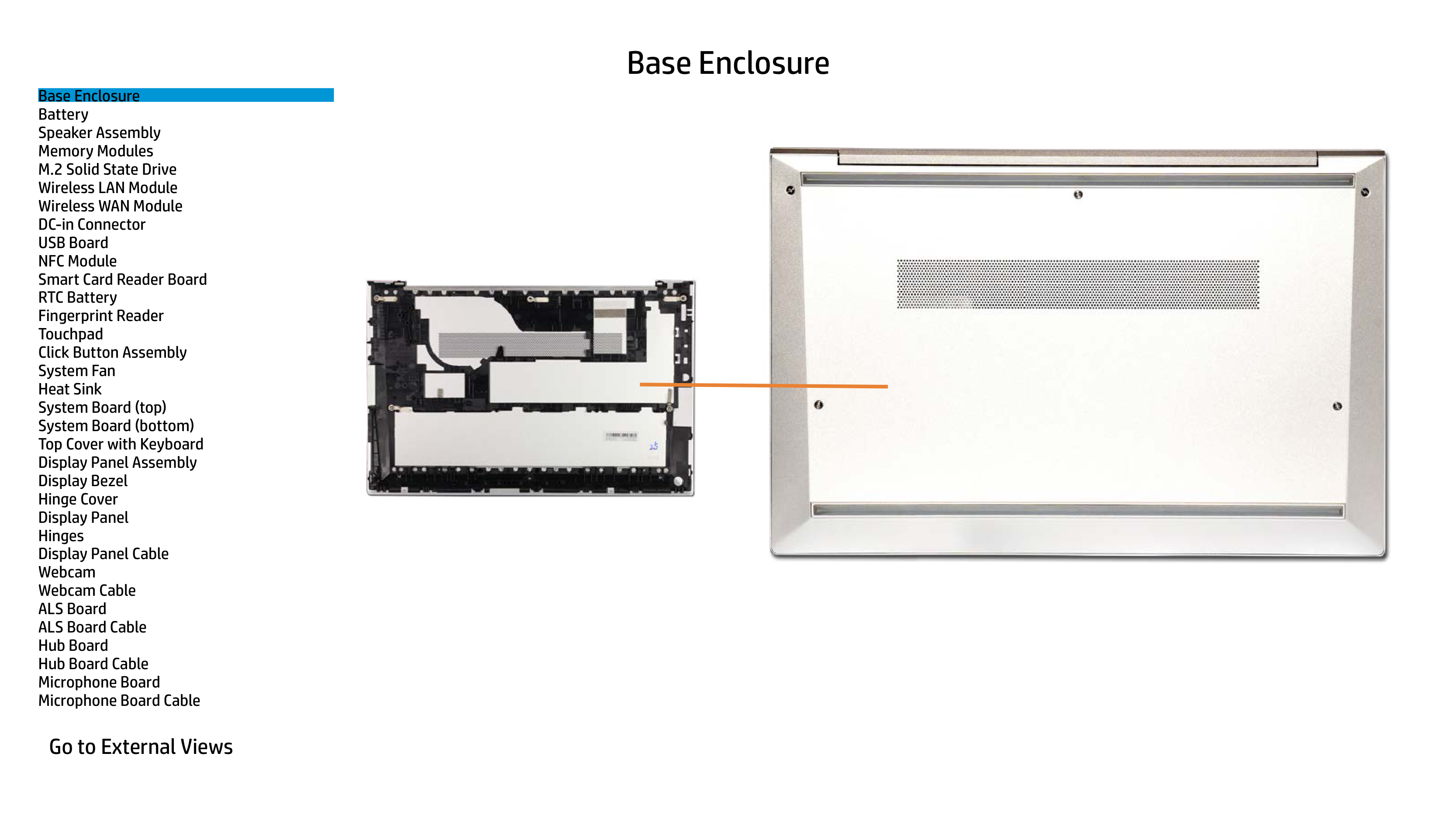

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Page 18
HP Elitebook 845 G7 Notebook PC manual — page 18

Base Enclosure

![image 17](c06692773_images/imageFile17.png)

![image 18](c06692773_images/imageFile18.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

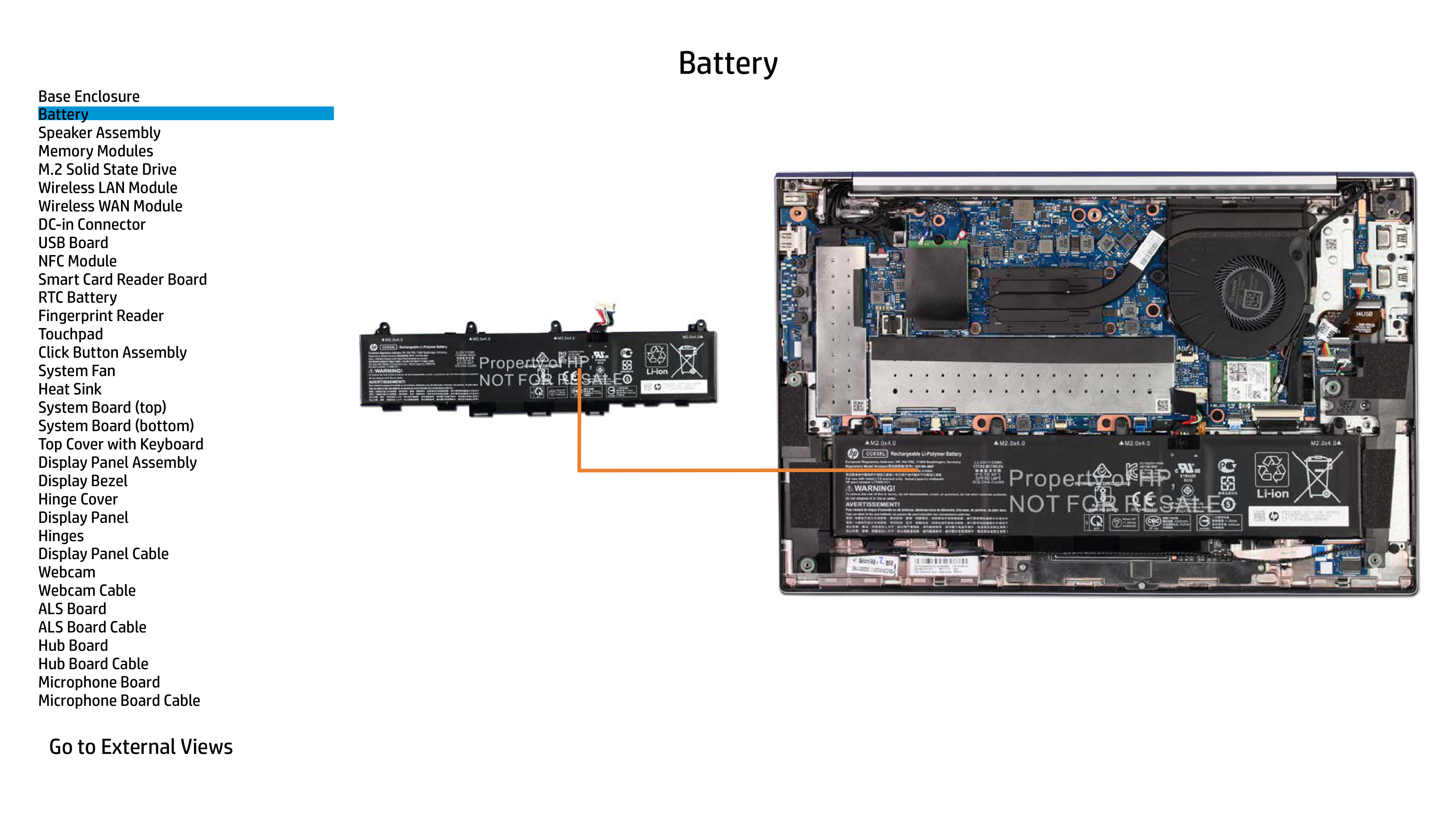

Battery

Page 19
HP Elitebook 845 G7 Notebook PC manual — page 19

![image 19](c06692773_images/imageFile19.png)

![image 20](c06692773_images/imageFile20.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

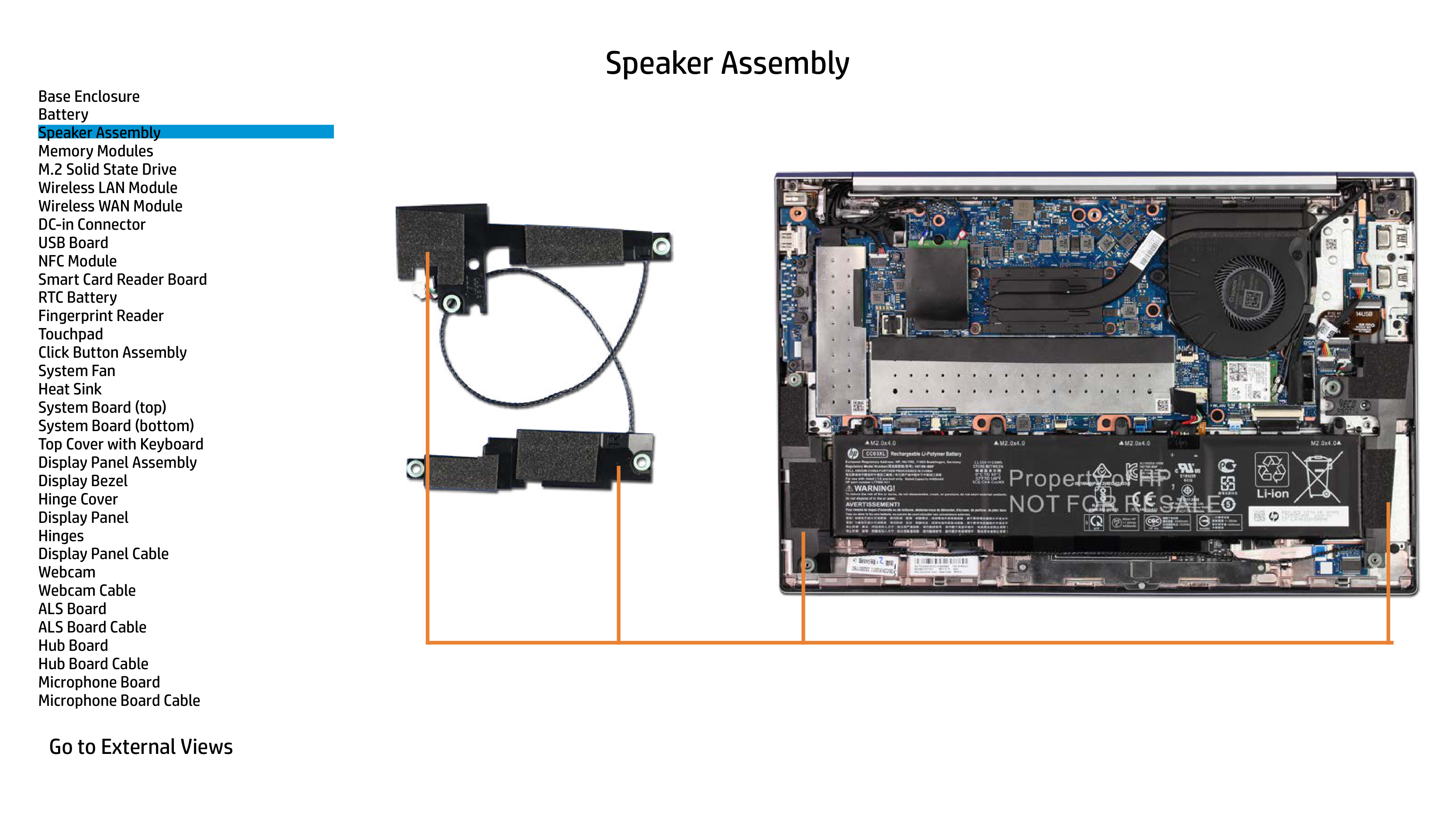

Speaker Assembly

![image 21](c06692773_images/imageFile21.png)

Page 20
HP Elitebook 845 G7 Notebook PC manual — page 20

![image 22](c06692773_images/imageFile22.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

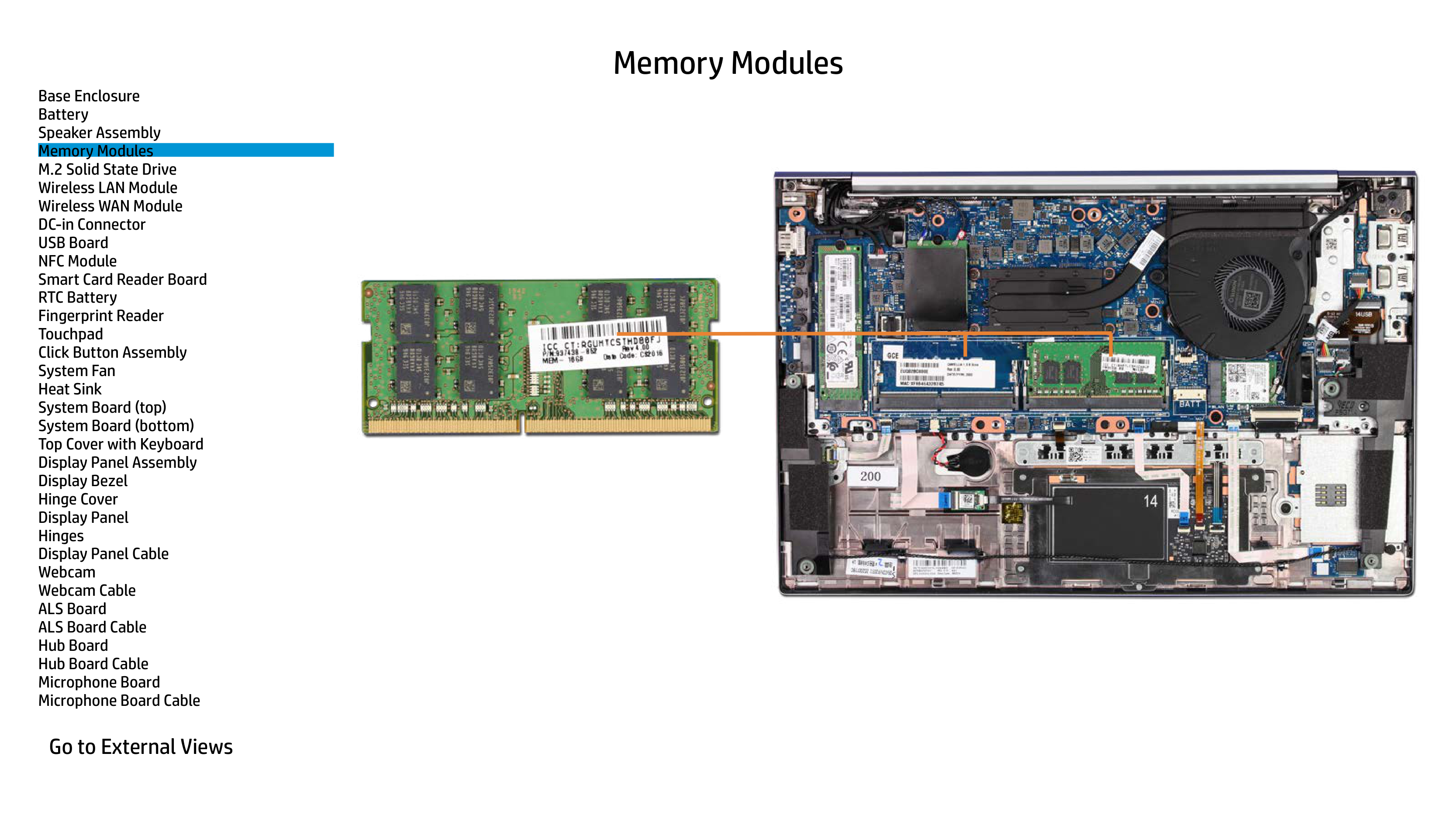

Memory Modules

![image 23](c06692773_images/imageFile23.png)

![image 24](c06692773_images/imageFile24.png)

Page 21
HP Elitebook 845 G7 Notebook PC manual — page 21

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

M.2 Solid State Drive

![image 25](c06692773_images/imageFile25.png)

![image 26](c06692773_images/imageFile26.png)

Base Enclosure

Page 22
HP Elitebook 845 G7 Notebook PC manual — page 22

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

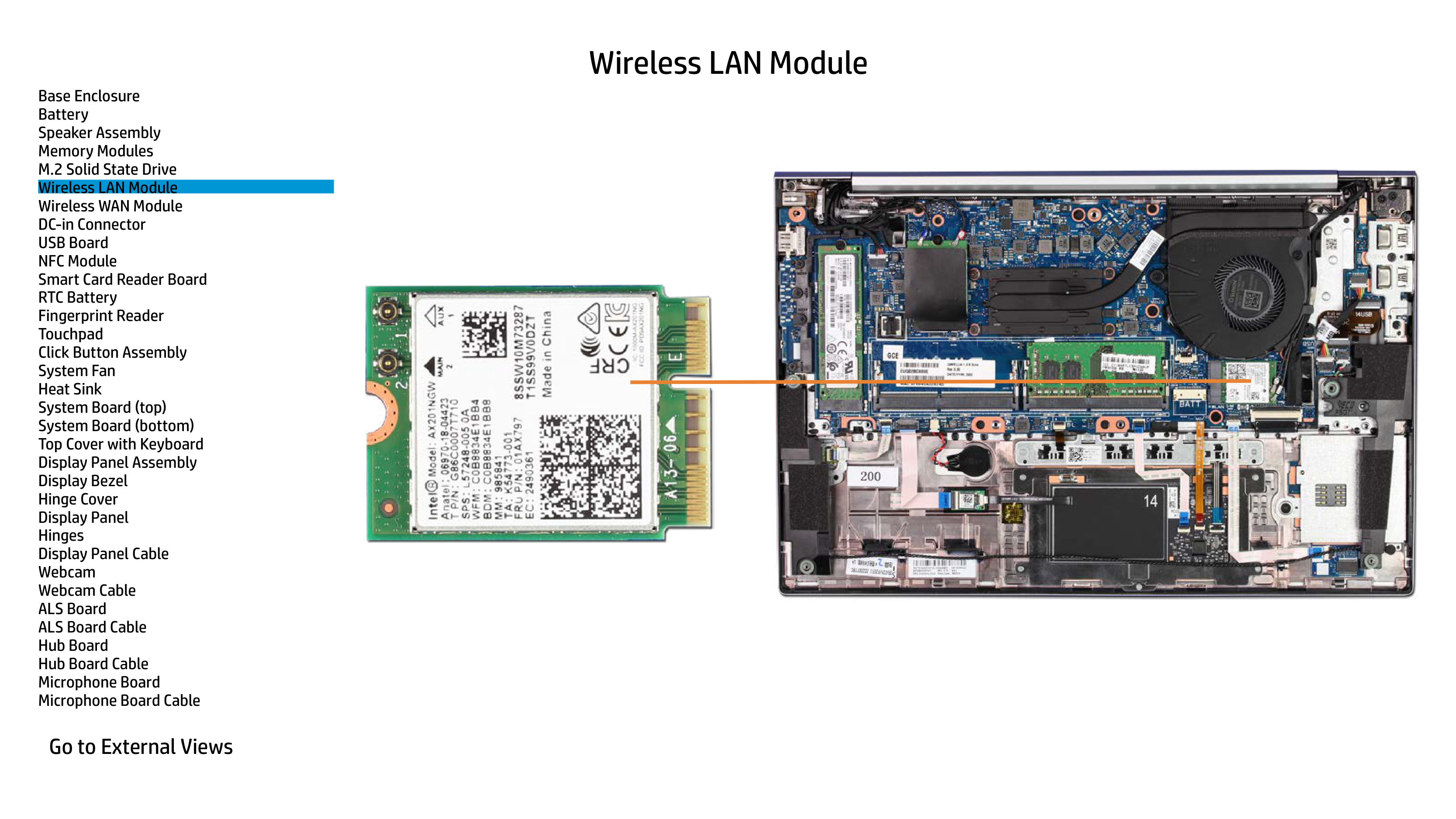

Wireless LAN Module

![image 27](c06692773_images/imageFile27.png)

![image 28](c06692773_images/imageFile28.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Page 23
HP Elitebook 845 G7 Notebook PC manual — page 23

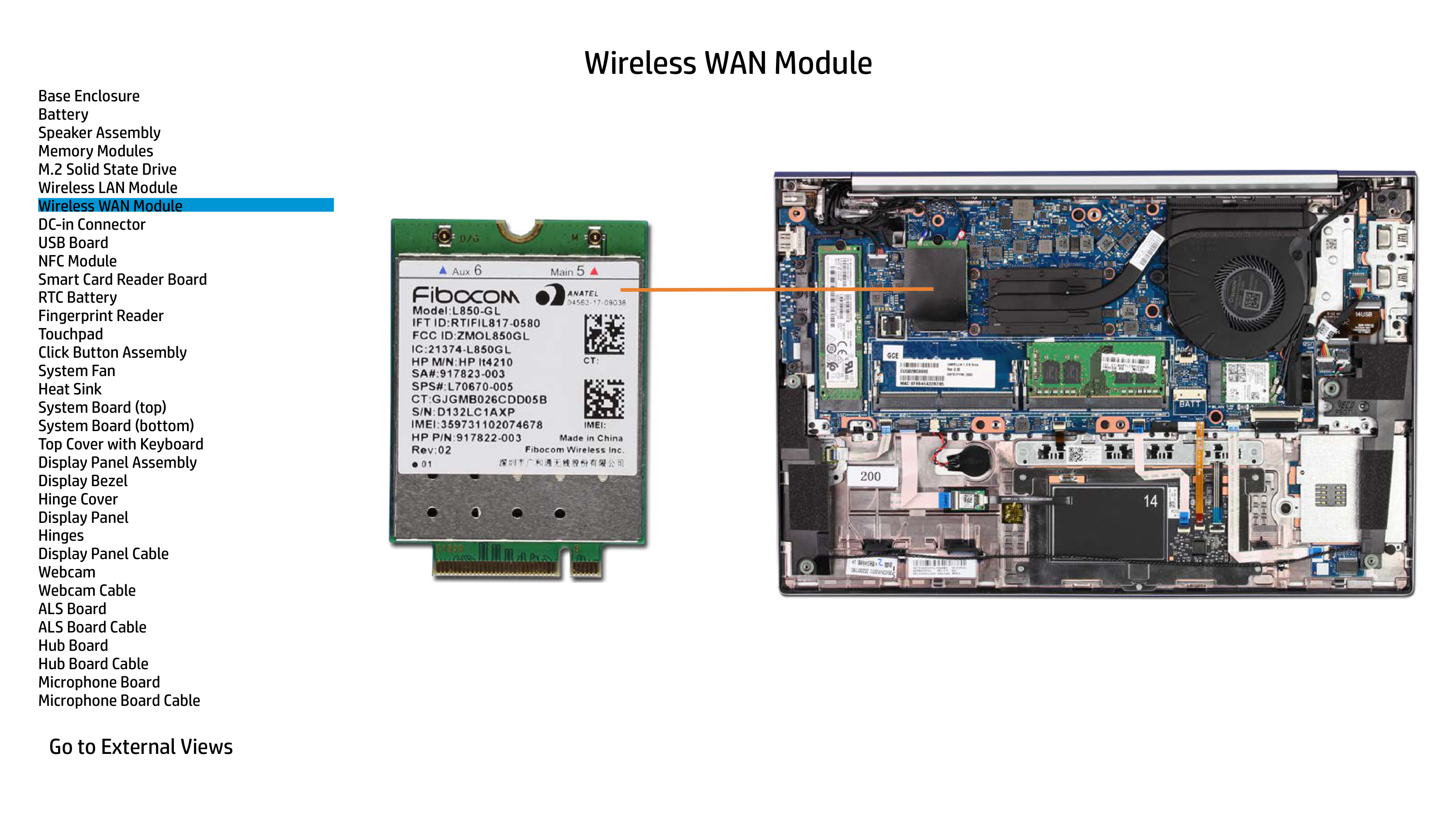

Wireless WAN Module

![image 29](c06692773_images/imageFile29.png)

![image 30](c06692773_images/imageFile30.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

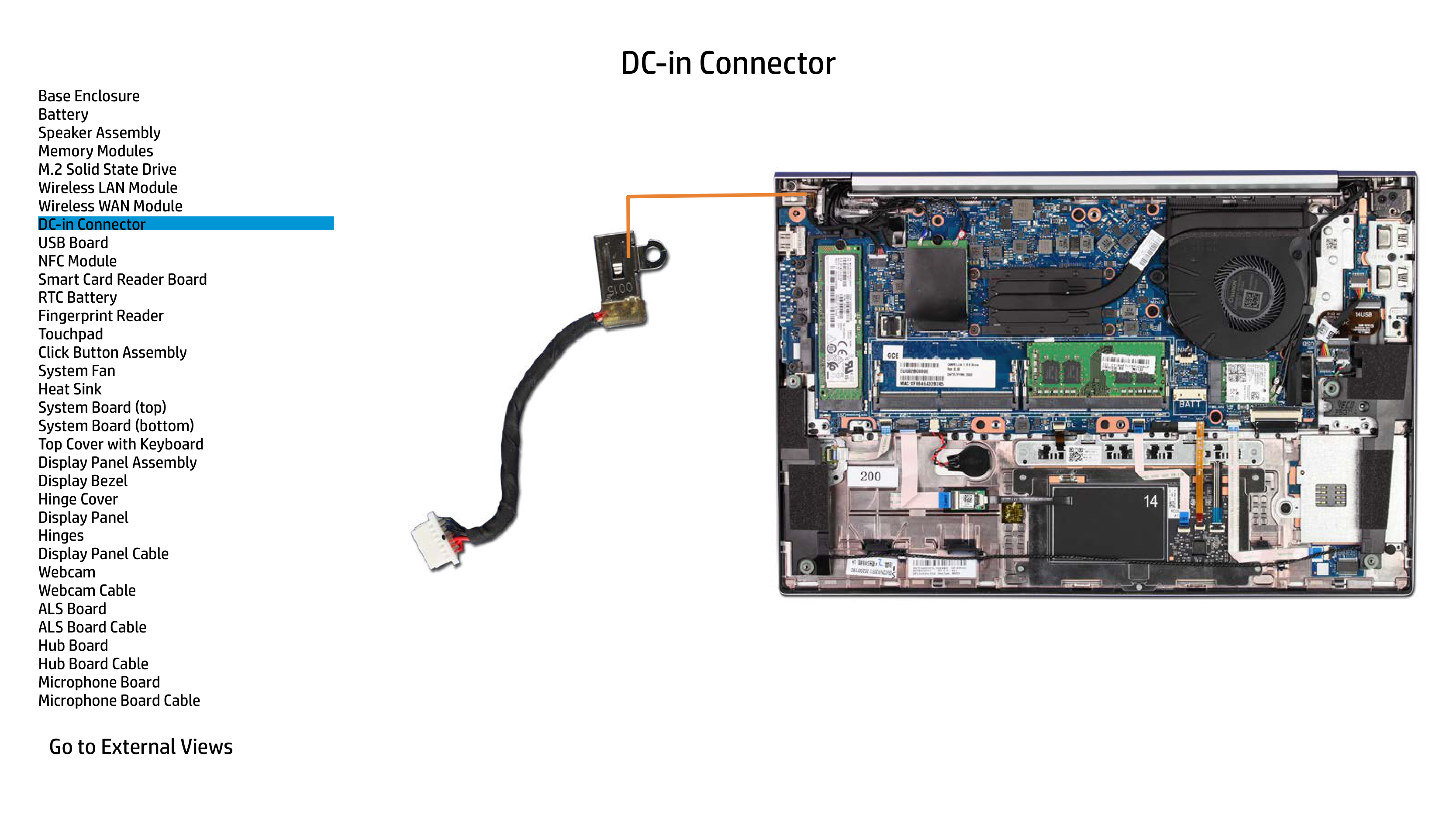

DC-in Connector

Page 24
HP Elitebook 845 G7 Notebook PC manual — page 24

![image 31](c06692773_images/imageFile31.png)

![image 32](c06692773_images/imageFile32.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

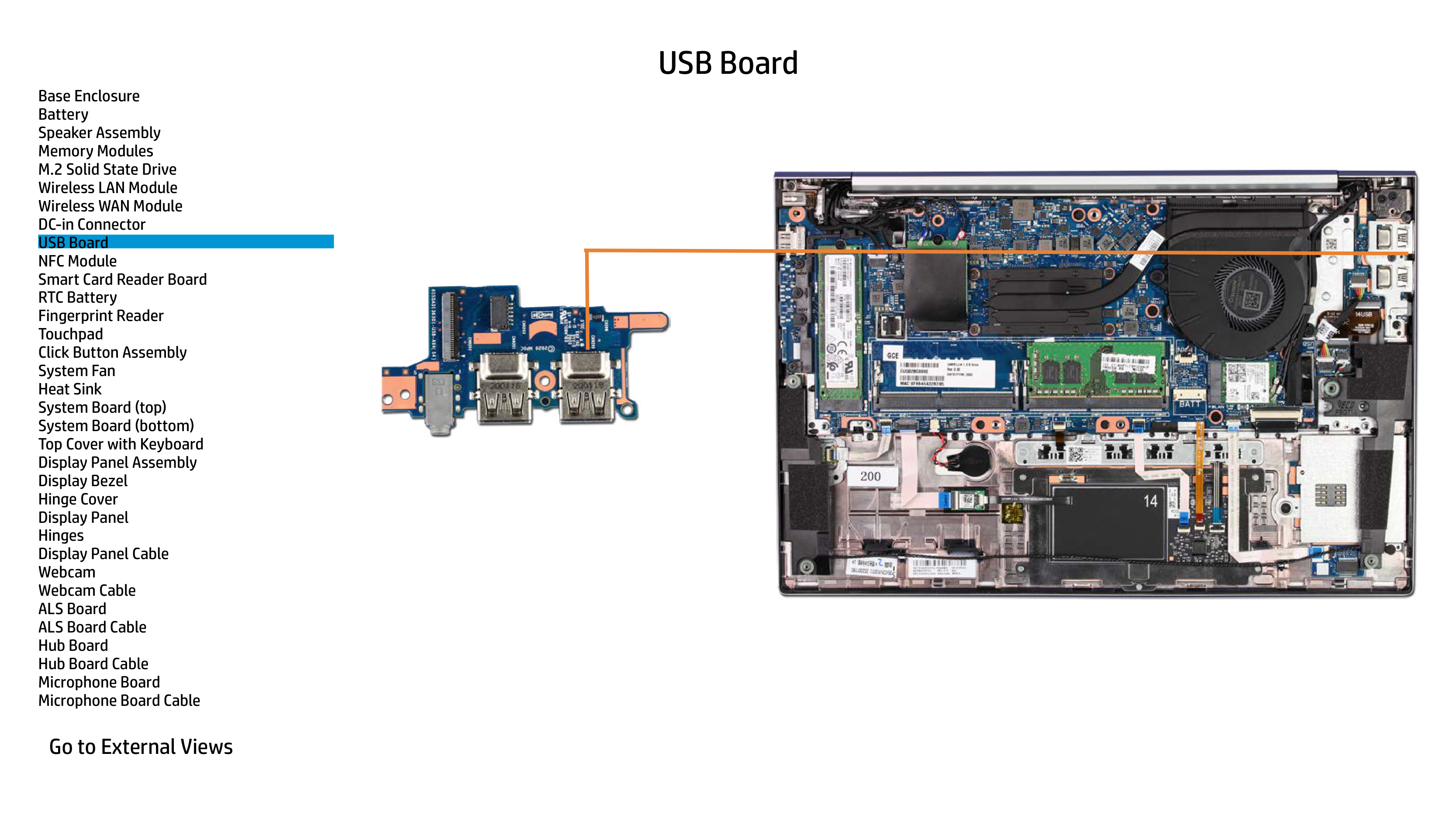

USB Board

![image 33](c06692773_images/imageFile33.png)

Page 25
HP Elitebook 845 G7 Notebook PC manual — page 25

![image 34](c06692773_images/imageFile34.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

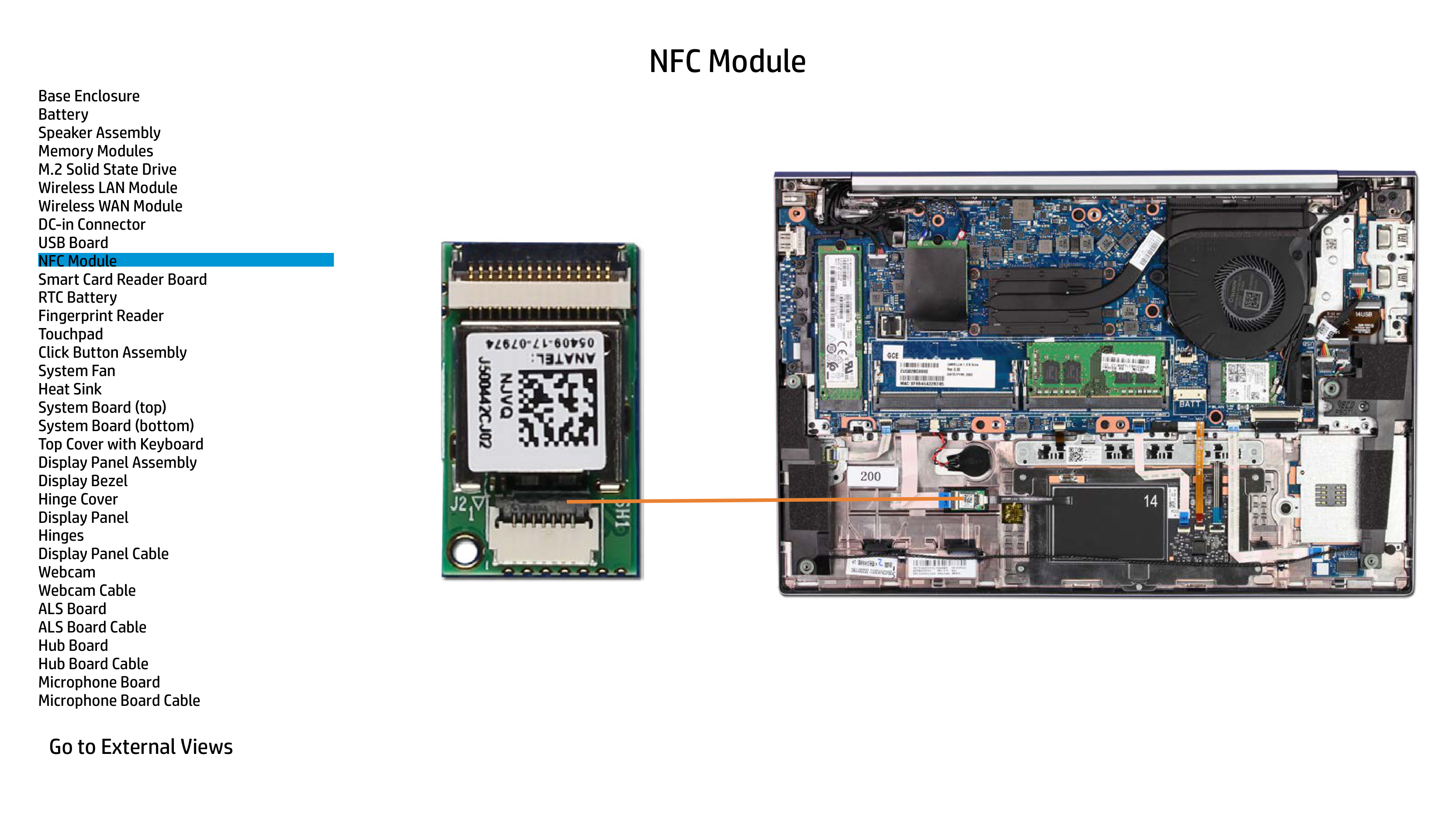

NFC Module

![image 35](c06692773_images/imageFile35.png)

![image 36](c06692773_images/imageFile36.png)

Page 26
HP Elitebook 845 G7 Notebook PC manual — page 26

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

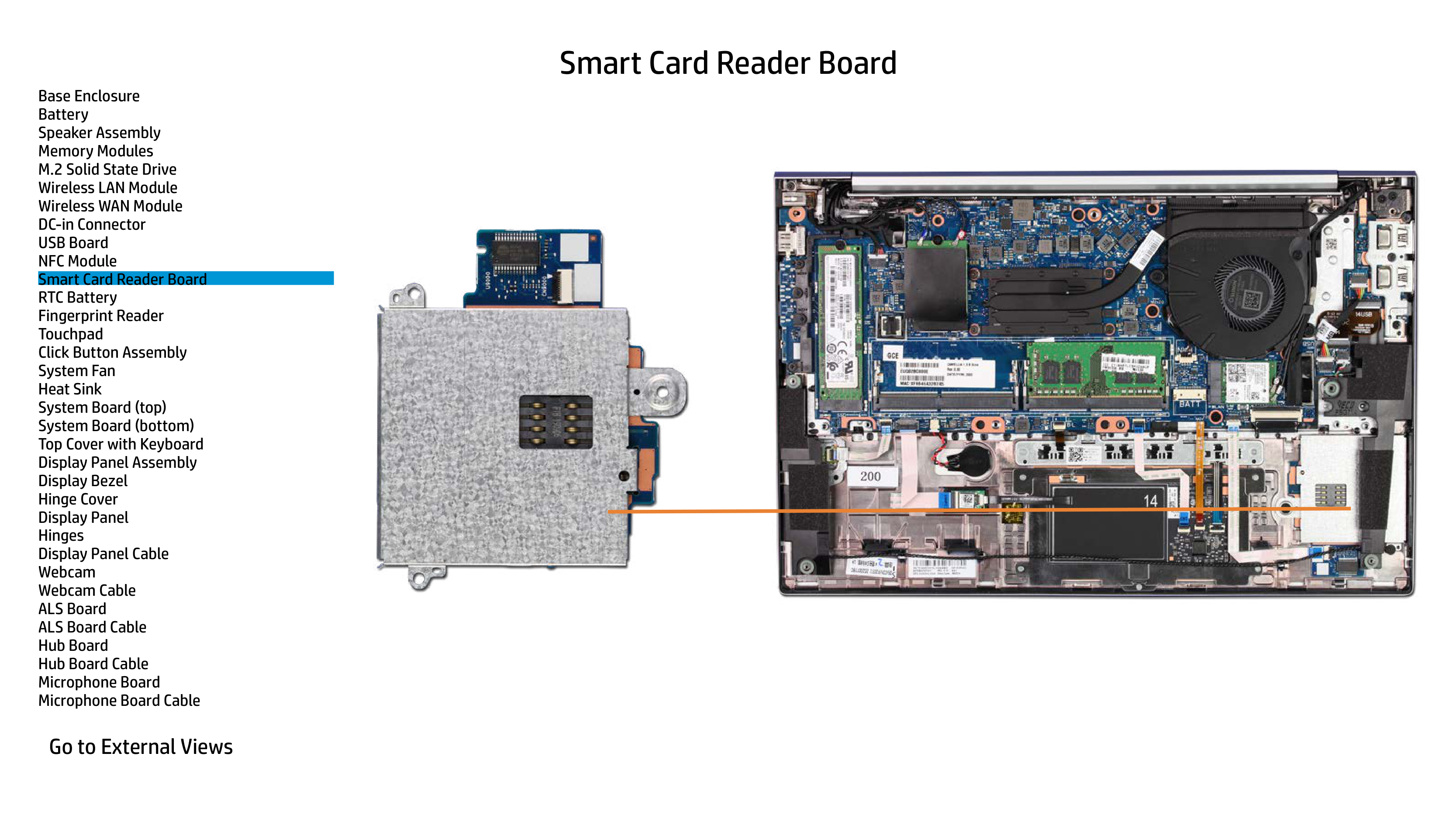

Smart Card Reader Board

![image 37](c06692773_images/imageFile37.png)

![image 38](c06692773_images/imageFile38.png)

Base Enclosure

Page 27
HP Elitebook 845 G7 Notebook PC manual — page 27

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

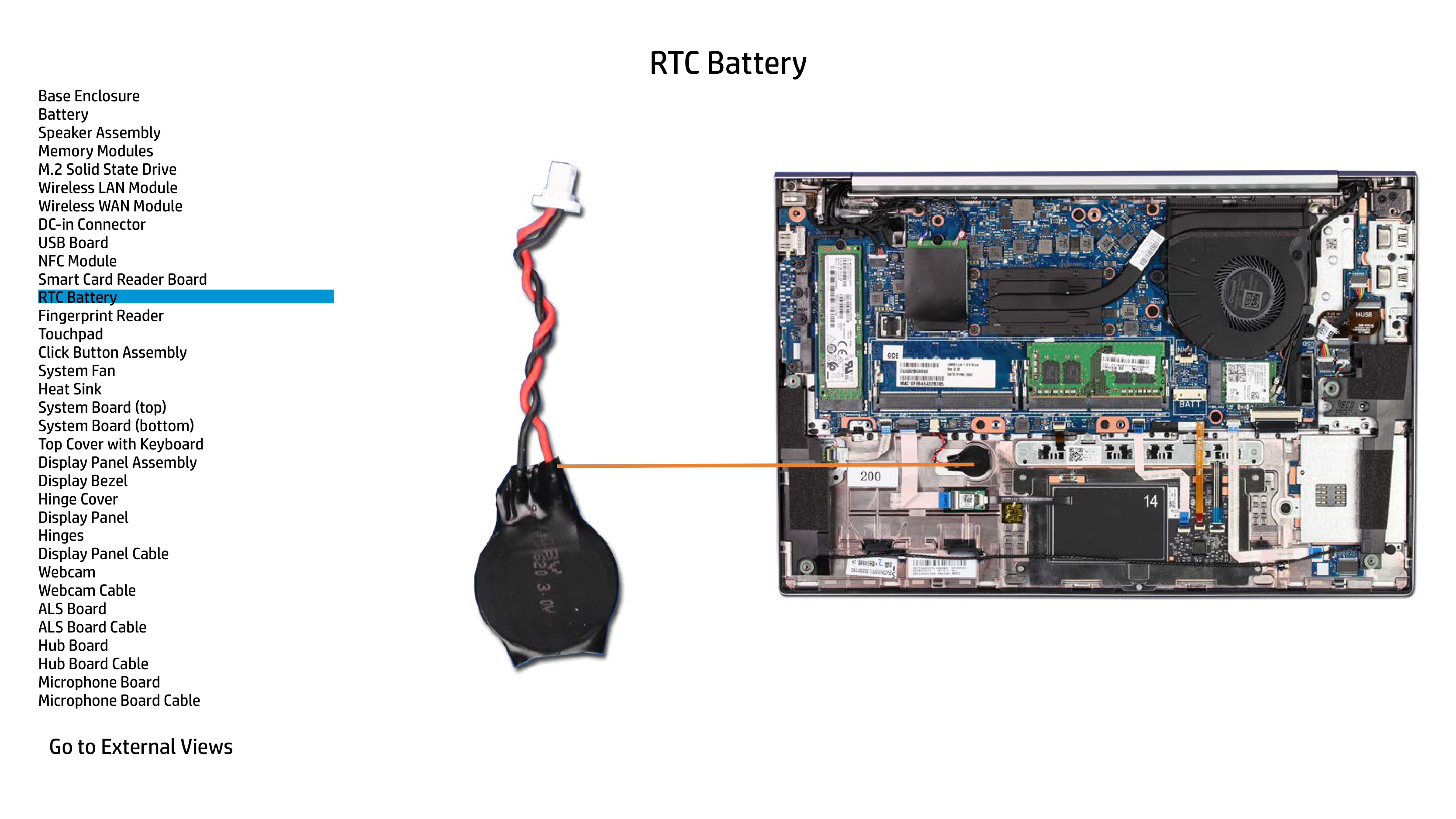

RTC Battery

![image 39](c06692773_images/imageFile39.png)

![image 40](c06692773_images/imageFile40.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Page 28
HP Elitebook 845 G7 Notebook PC manual — page 28

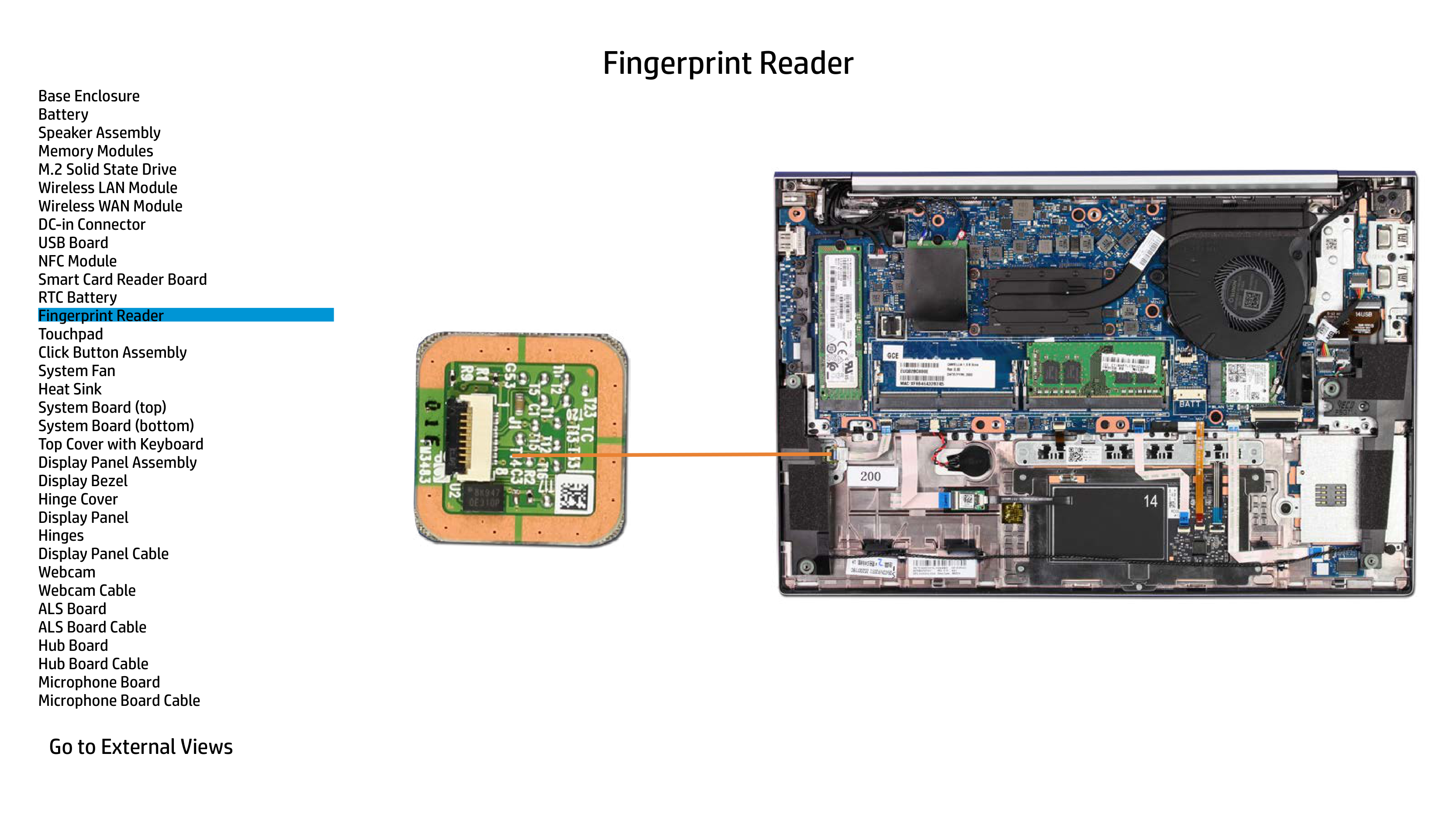

Fingerprint Reader

![image 41](c06692773_images/imageFile41.png)

![image 42](c06692773_images/imageFile42.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

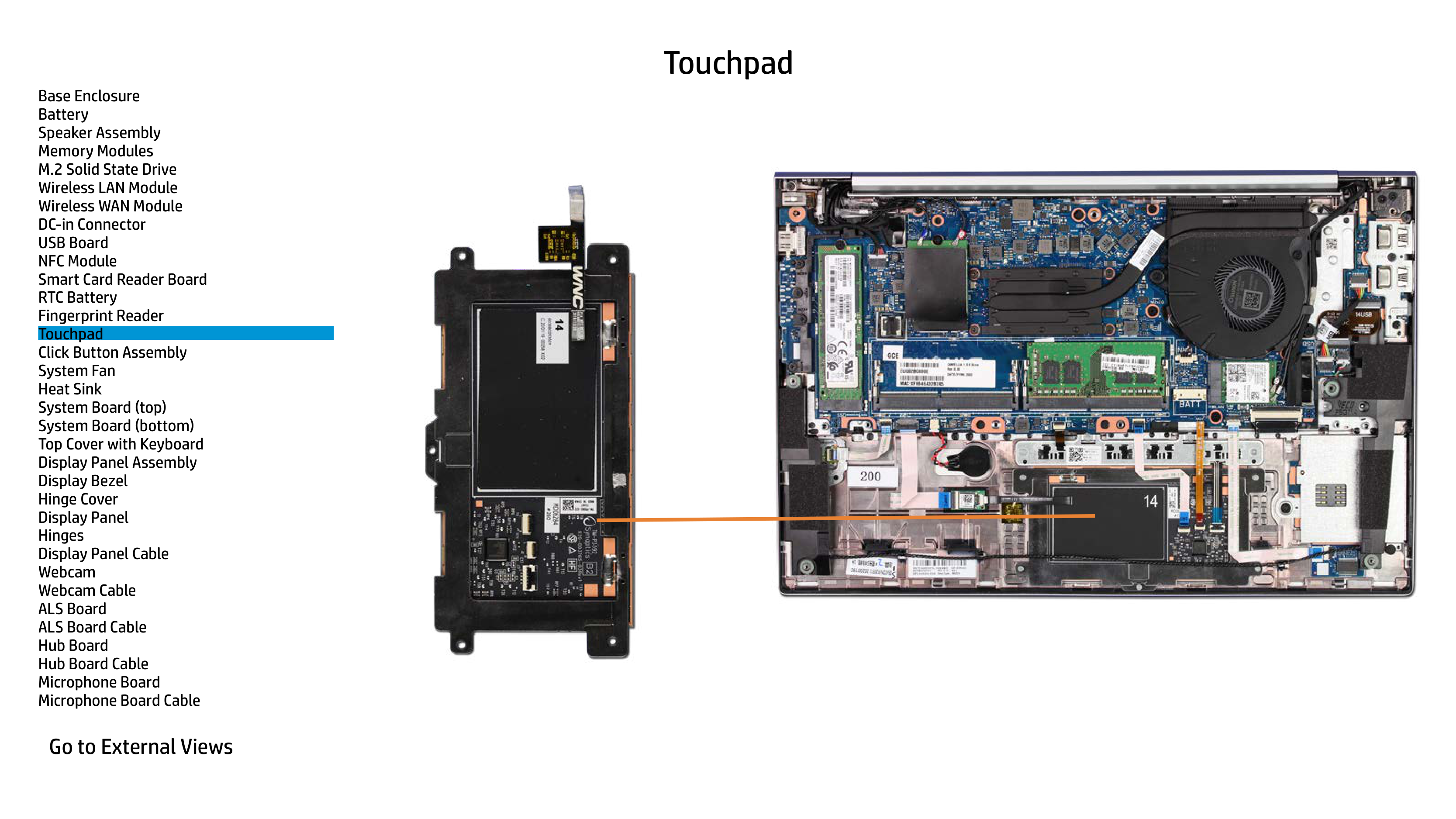

Touchpad

Page 29
HP Elitebook 845 G7 Notebook PC manual — page 29

![image 43](c06692773_images/imageFile43.png)

![image 44](c06692773_images/imageFile44.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

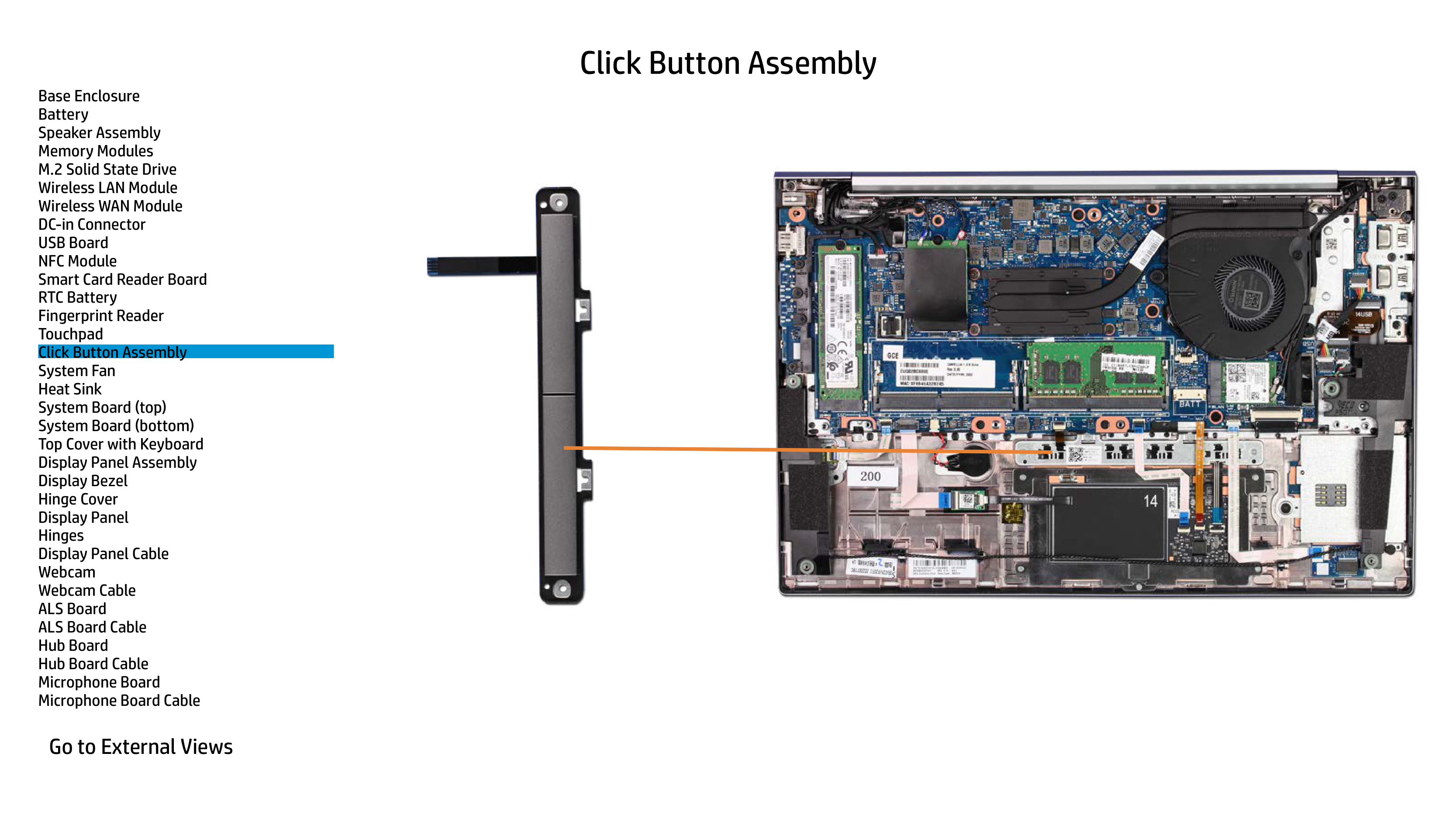

Click Button Assembly

![image 45](c06692773_images/imageFile45.png)

Page 30
HP Elitebook 845 G7 Notebook PC manual — page 30

![image 46](c06692773_images/imageFile46.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

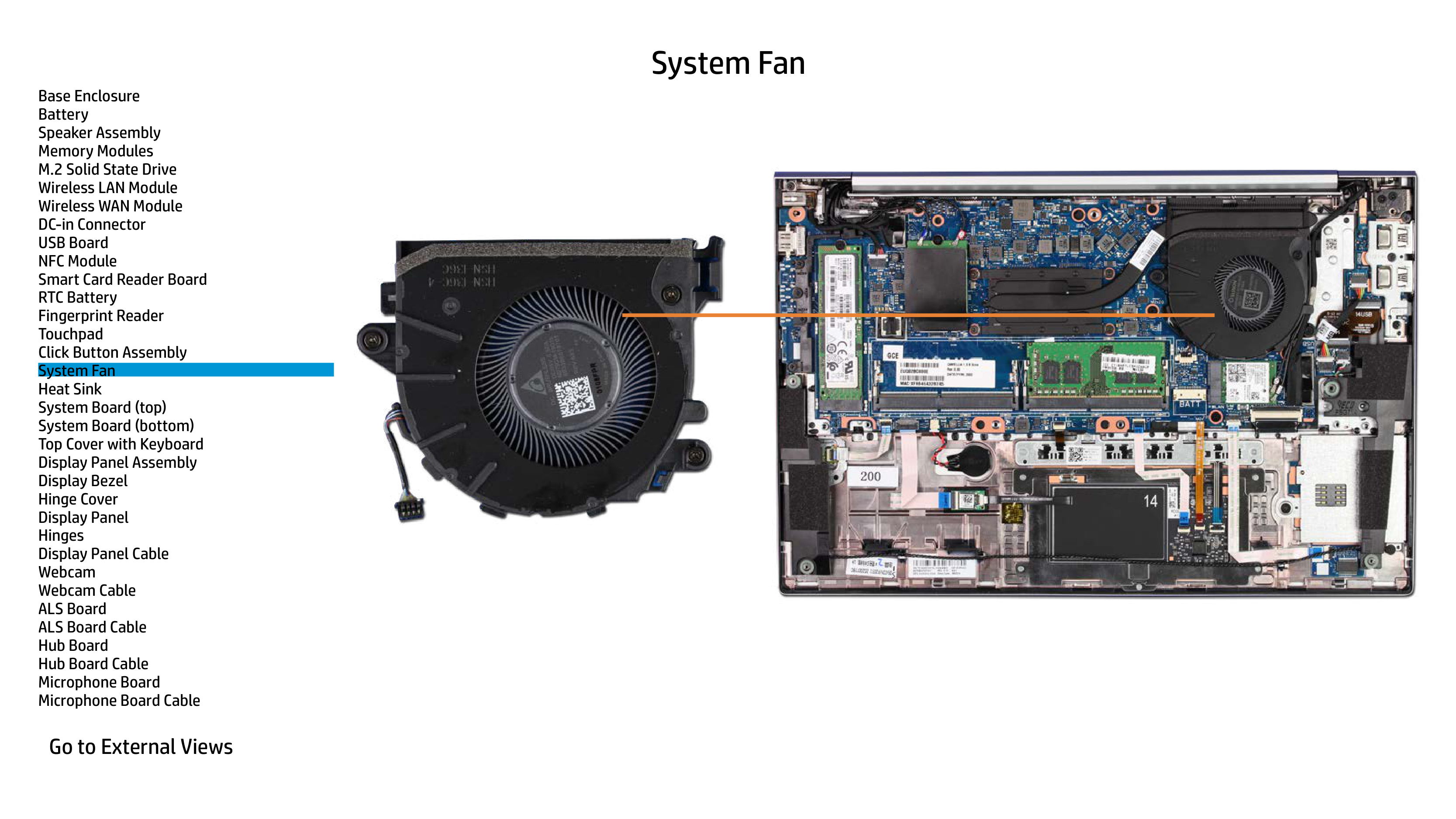

System Fan

![image 47](c06692773_images/imageFile47.png)

![image 48](c06692773_images/imageFile48.png)

Page 31
HP Elitebook 845 G7 Notebook PC manual — page 31

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

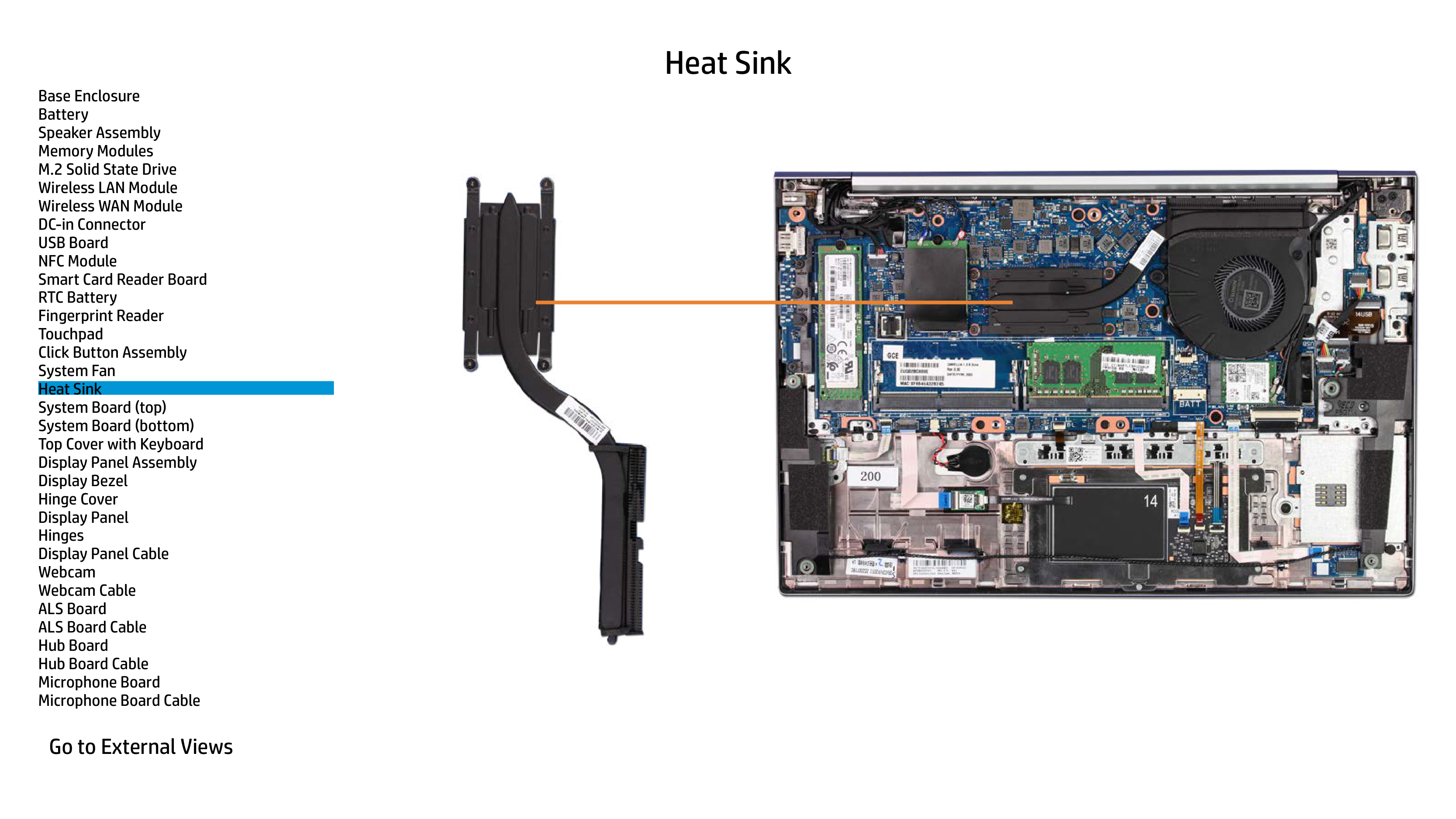

Heat Sink

![image 49](c06692773_images/imageFile49.png)

![image 50](c06692773_images/imageFile50.png)

Base Enclosure

Page 32
HP Elitebook 845 G7 Notebook PC manual — page 32

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

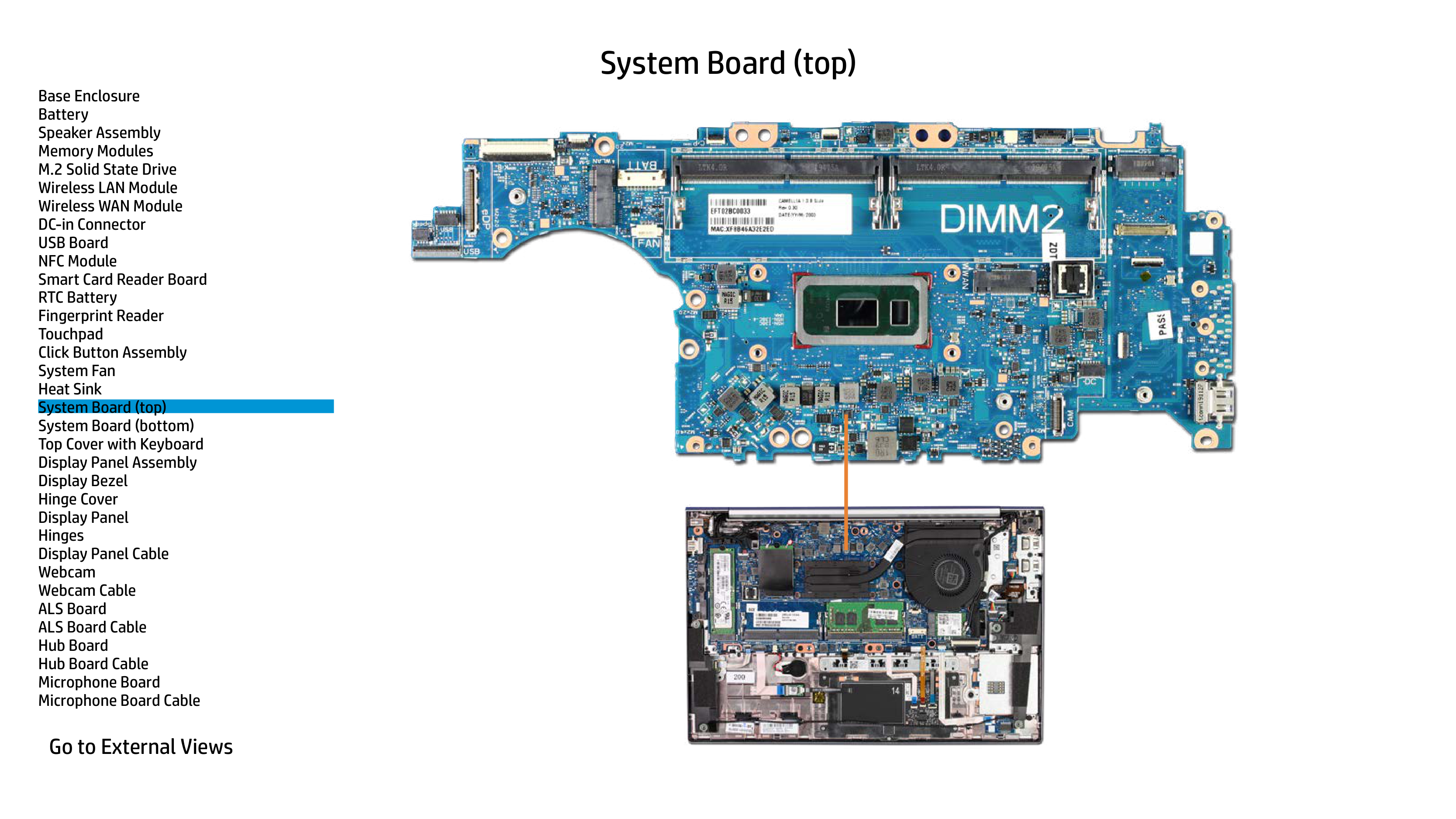

System Board (top)

![image 51](c06692773_images/imageFile51.png)

![image 52](c06692773_images/imageFile52.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Page 33
HP Elitebook 845 G7 Notebook PC manual — page 33

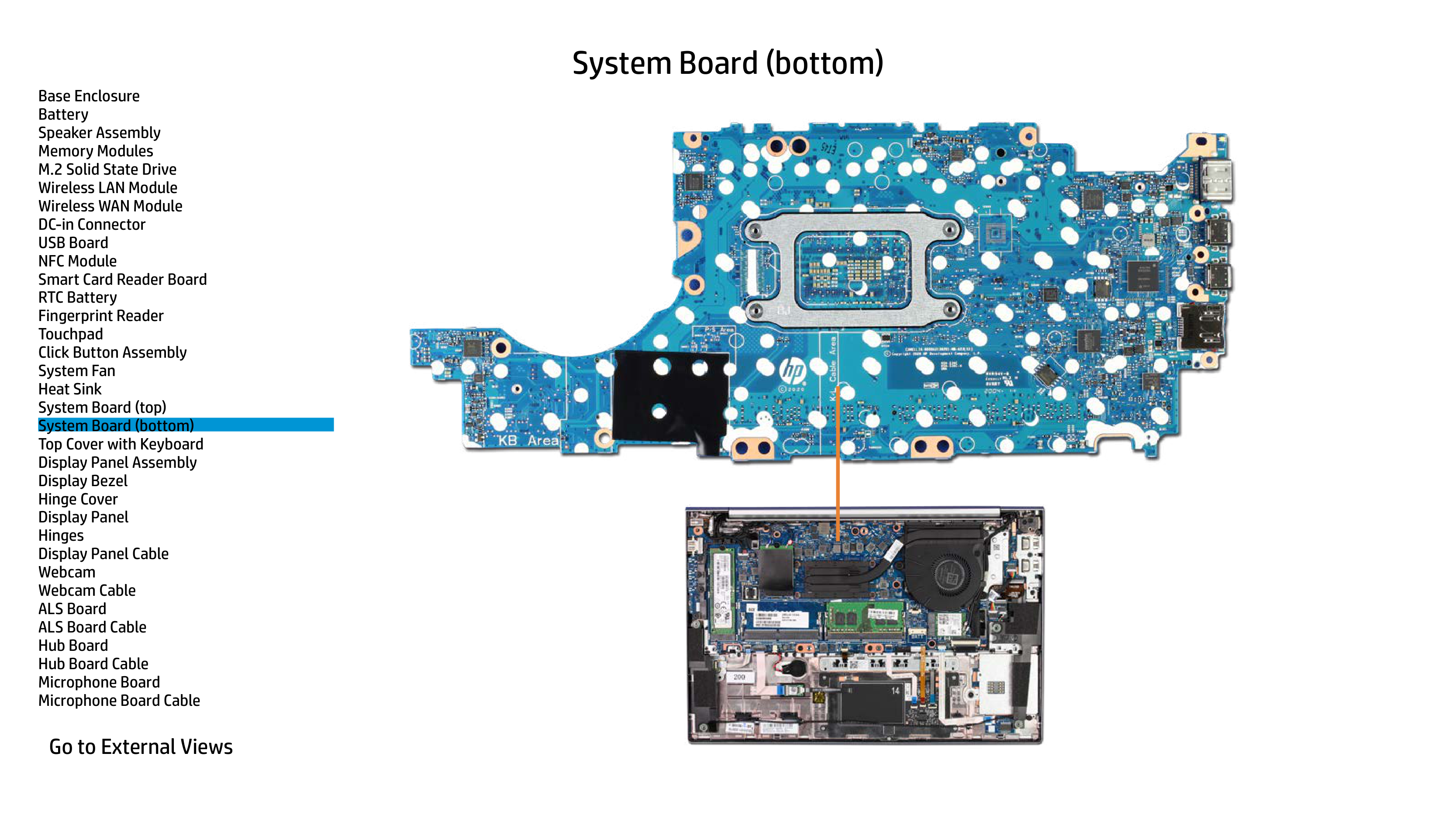

System Board (bottom)

![image 53](c06692773_images/imageFile53.png)

![image 54](c06692773_images/imageFile54.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

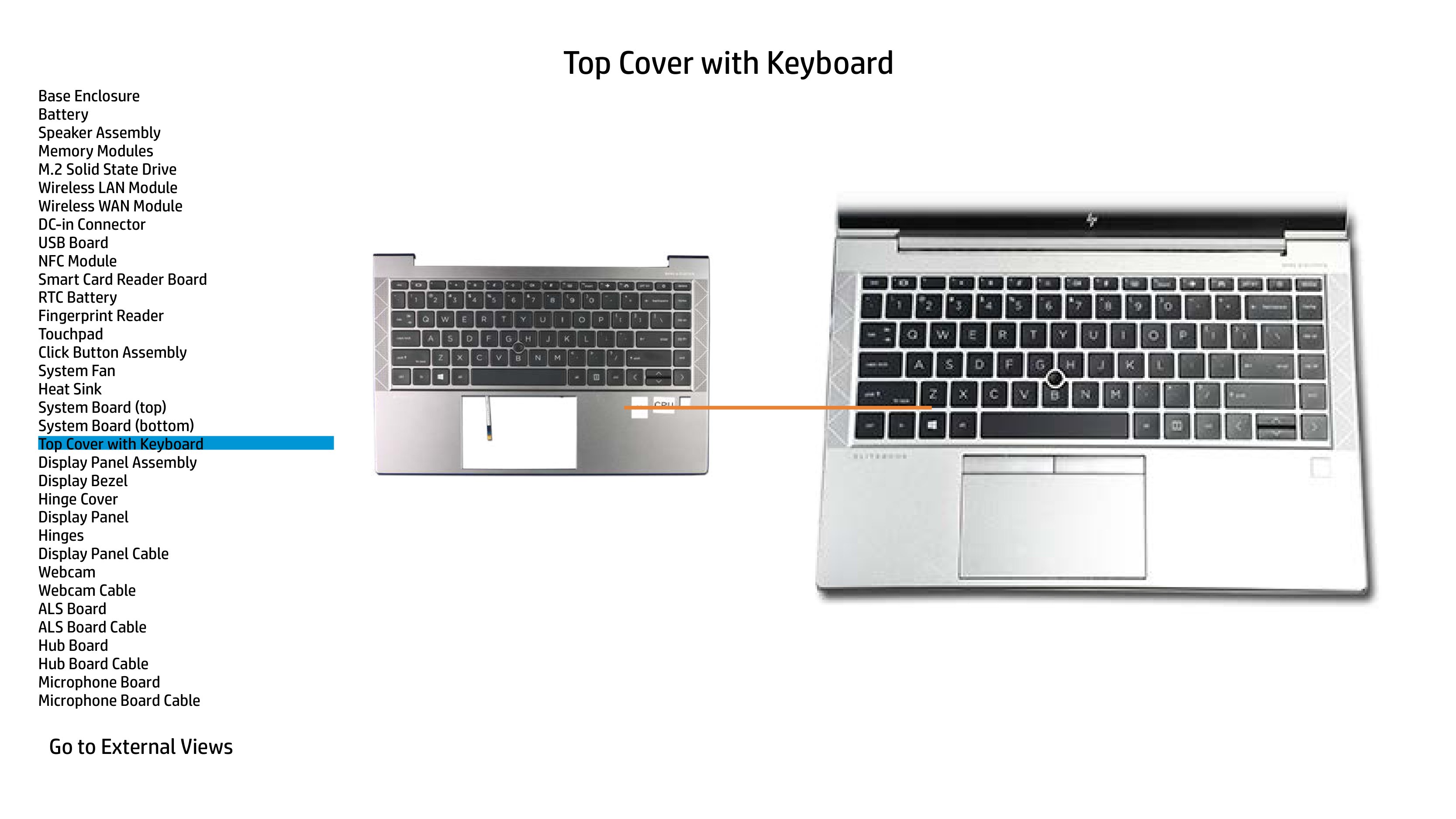

Top Cover with Keyboard

Page 34
HP Elitebook 845 G7 Notebook PC manual — page 34

![image 55](c06692773_images/imageFile55.png)

![image 56](c06692773_images/imageFile56.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

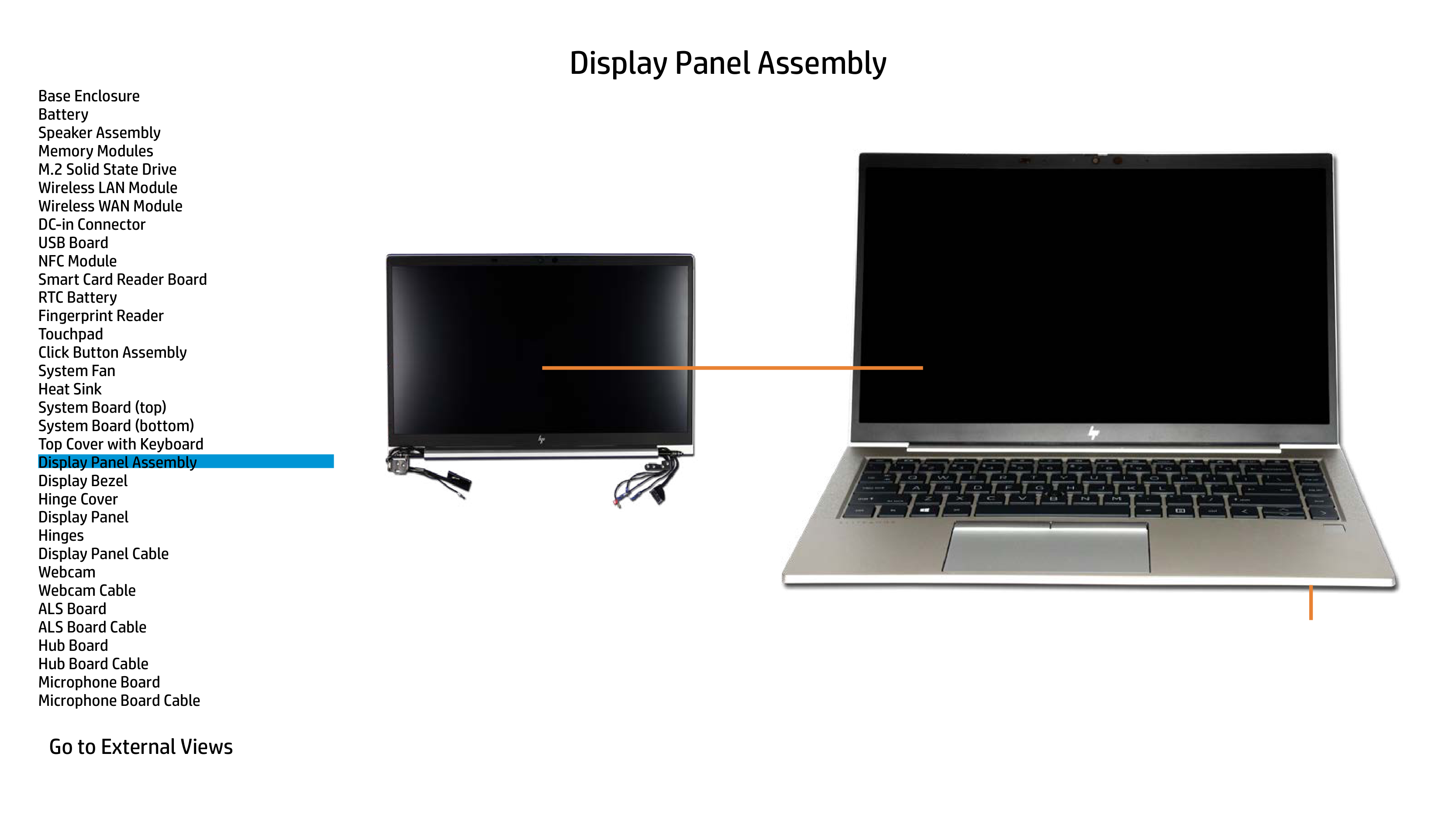

Display Panel Assembly

![image 57](c06692773_images/imageFile57.png)

Page 35
HP Elitebook 845 G7 Notebook PC manual — page 35

![image 58](c06692773_images/imageFile58.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

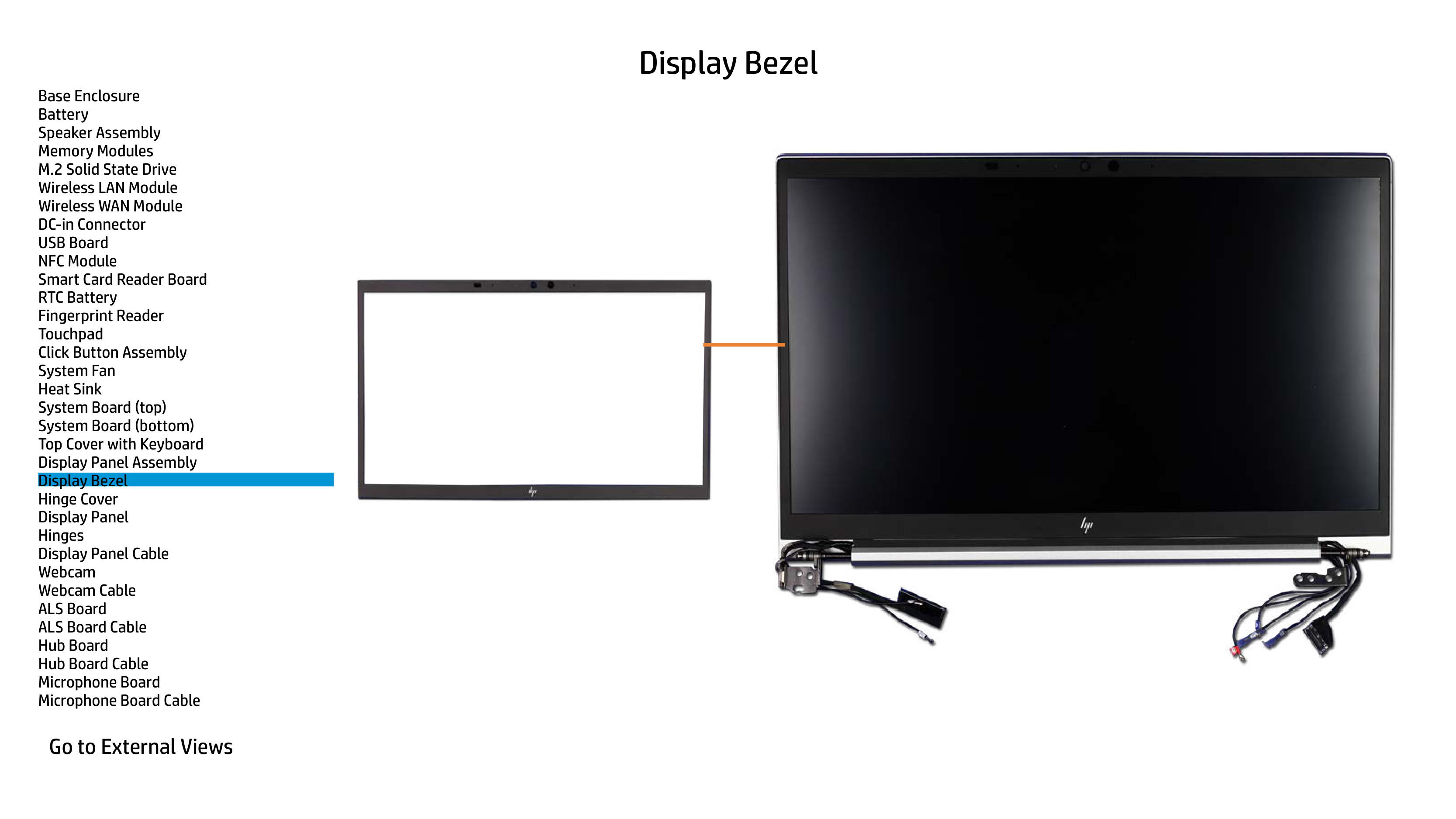

Display Bezel

![image 59](c06692773_images/imageFile59.png)

![image 60](c06692773_images/imageFile60.png)

Page 36
HP Elitebook 845 G7 Notebook PC manual — page 36

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

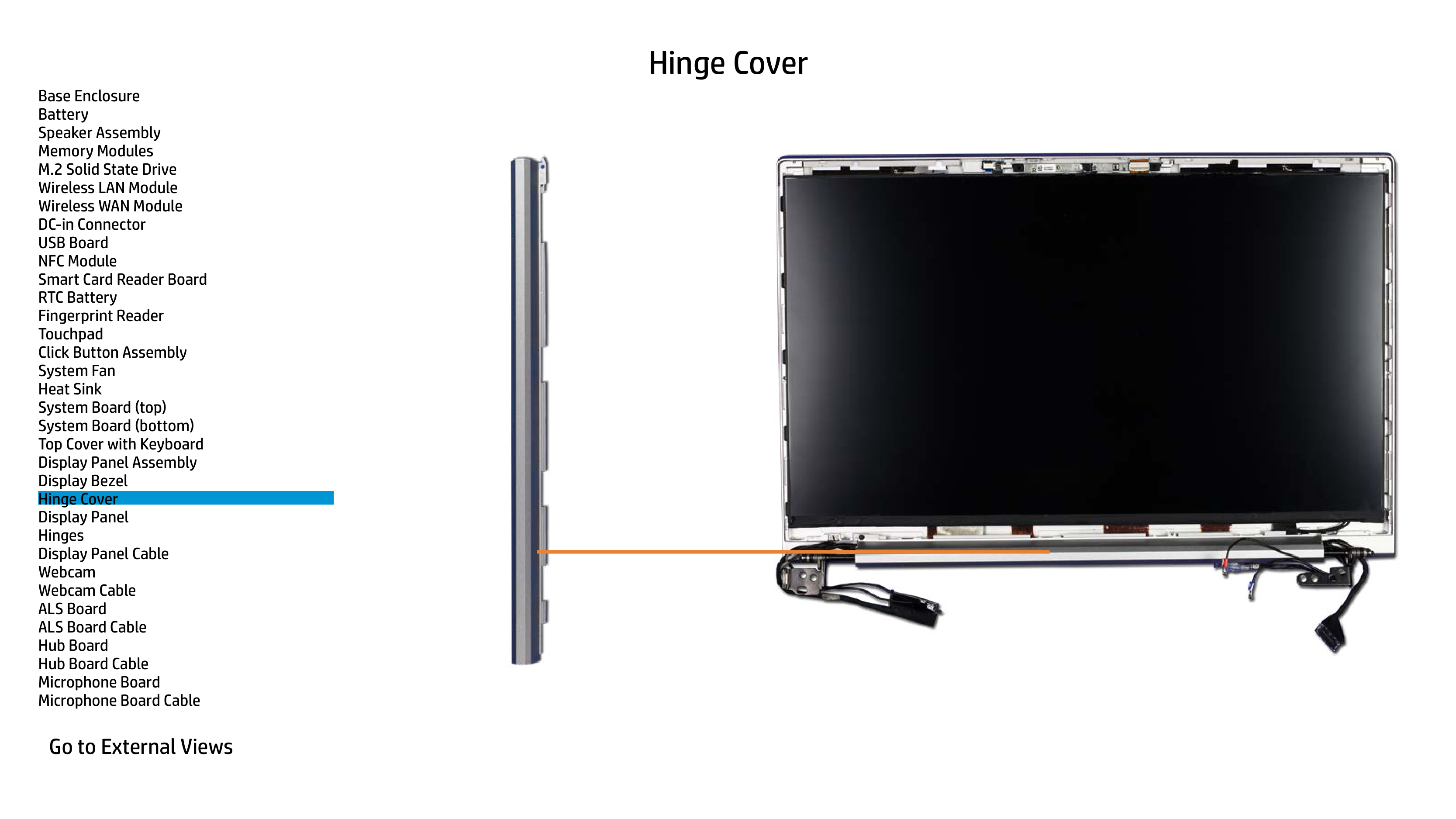

Hinge Cover

![image 61](c06692773_images/imageFile61.png)

![image 62](c06692773_images/imageFile62.png)

Base Enclosure

Page 37
HP Elitebook 845 G7 Notebook PC manual — page 37

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

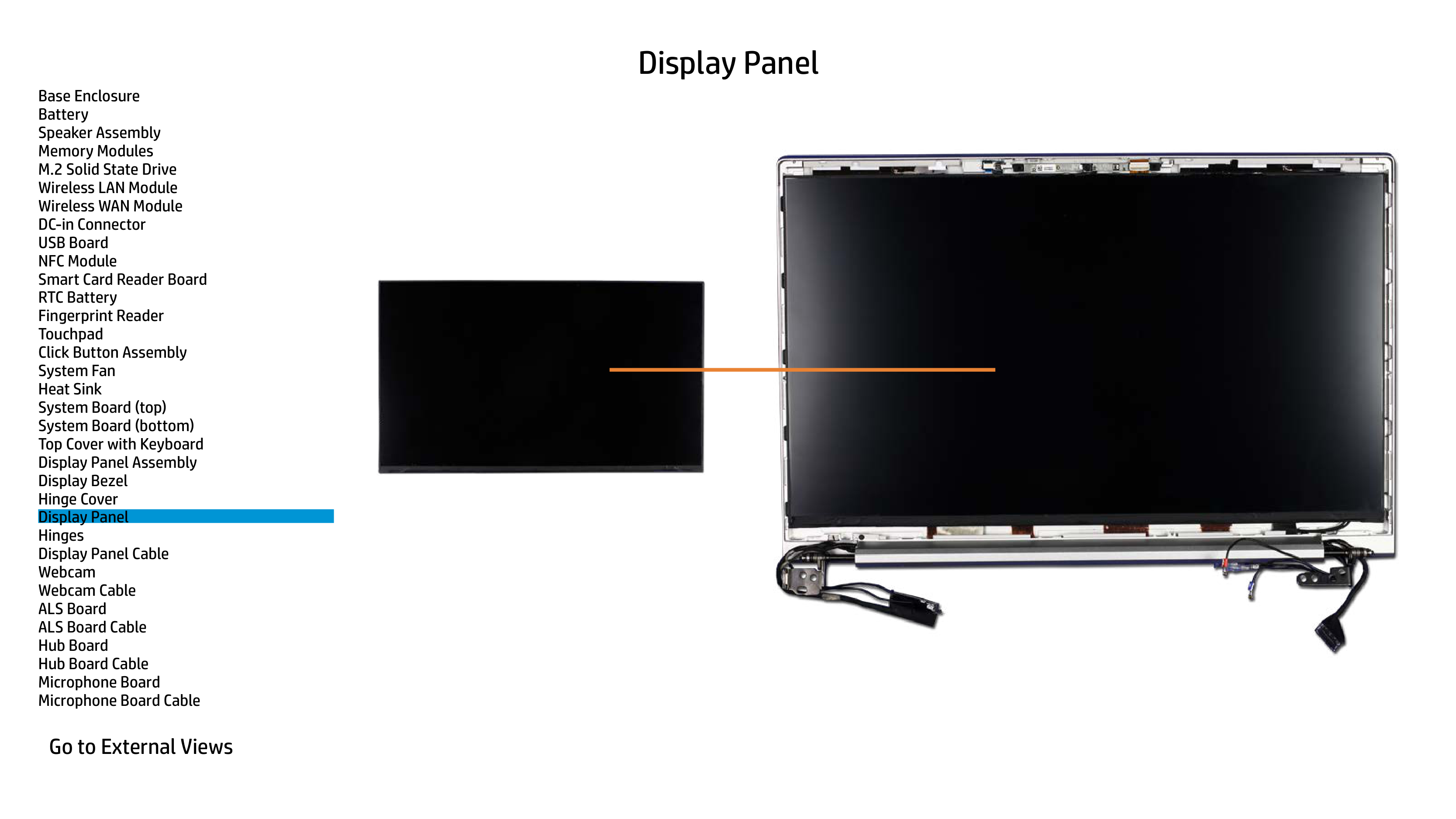

Display Panel

![image 63](c06692773_images/imageFile63.png)

![image 64](c06692773_images/imageFile64.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Page 38
HP Elitebook 845 G7 Notebook PC manual — page 38

![image 65](c06692773_images/imageFile65.png)

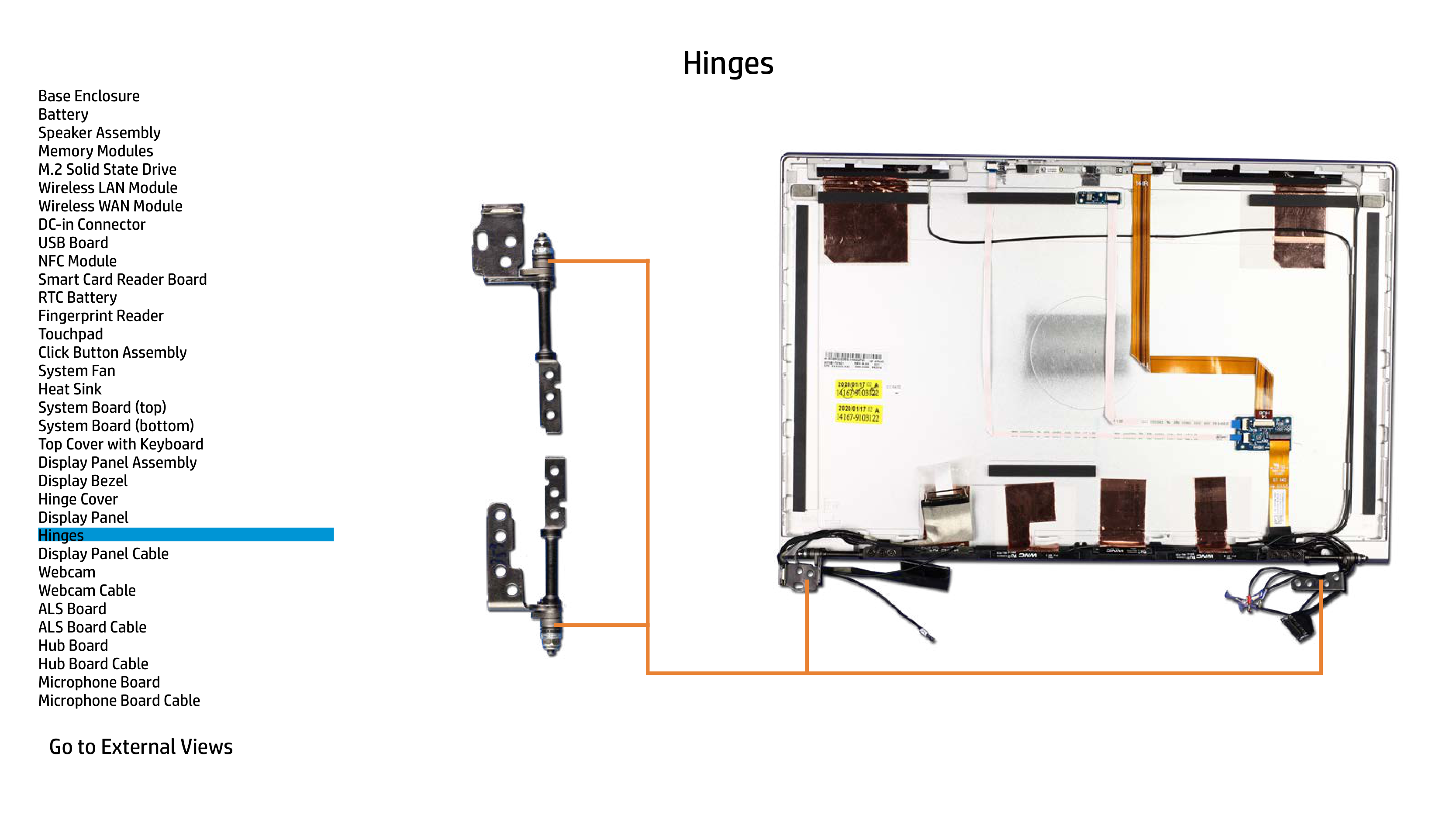

Hinges

![image 66](c06692773_images/imageFile66.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

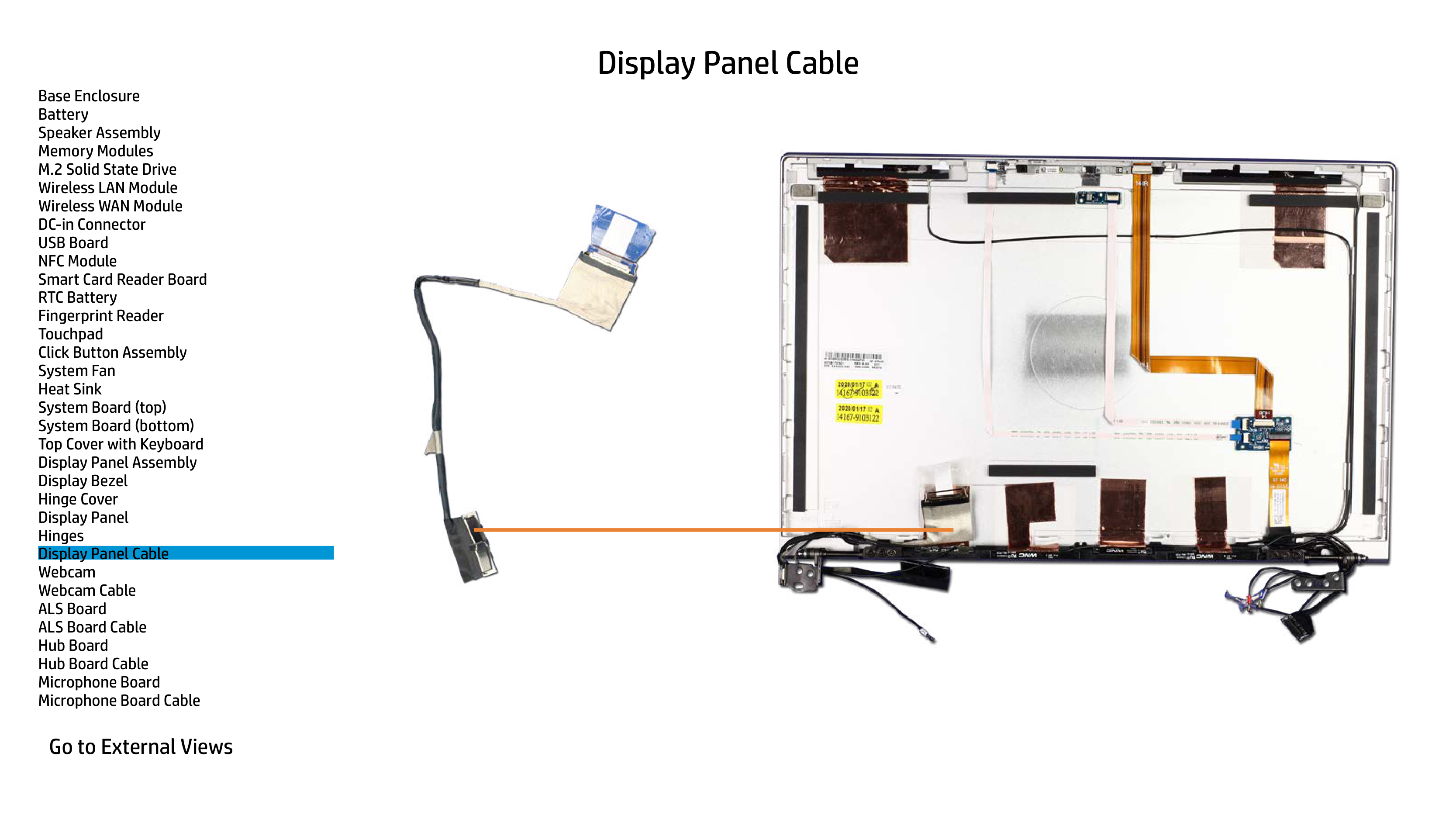

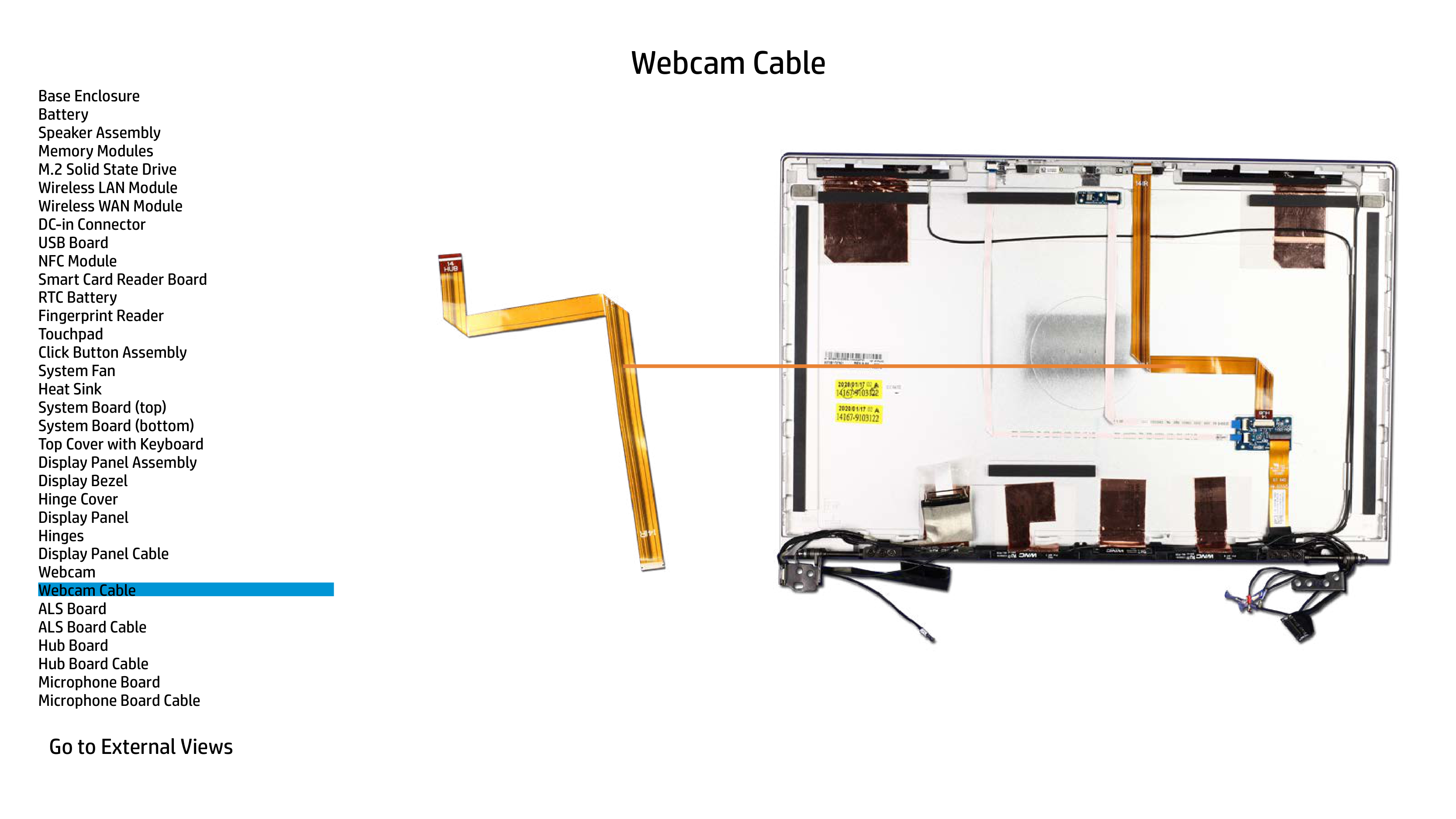

Display Panel Cable

Page 39
HP Elitebook 845 G7 Notebook PC manual — page 39

![image 67](c06692773_images/imageFile67.png)

![image 68](c06692773_images/imageFile68.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

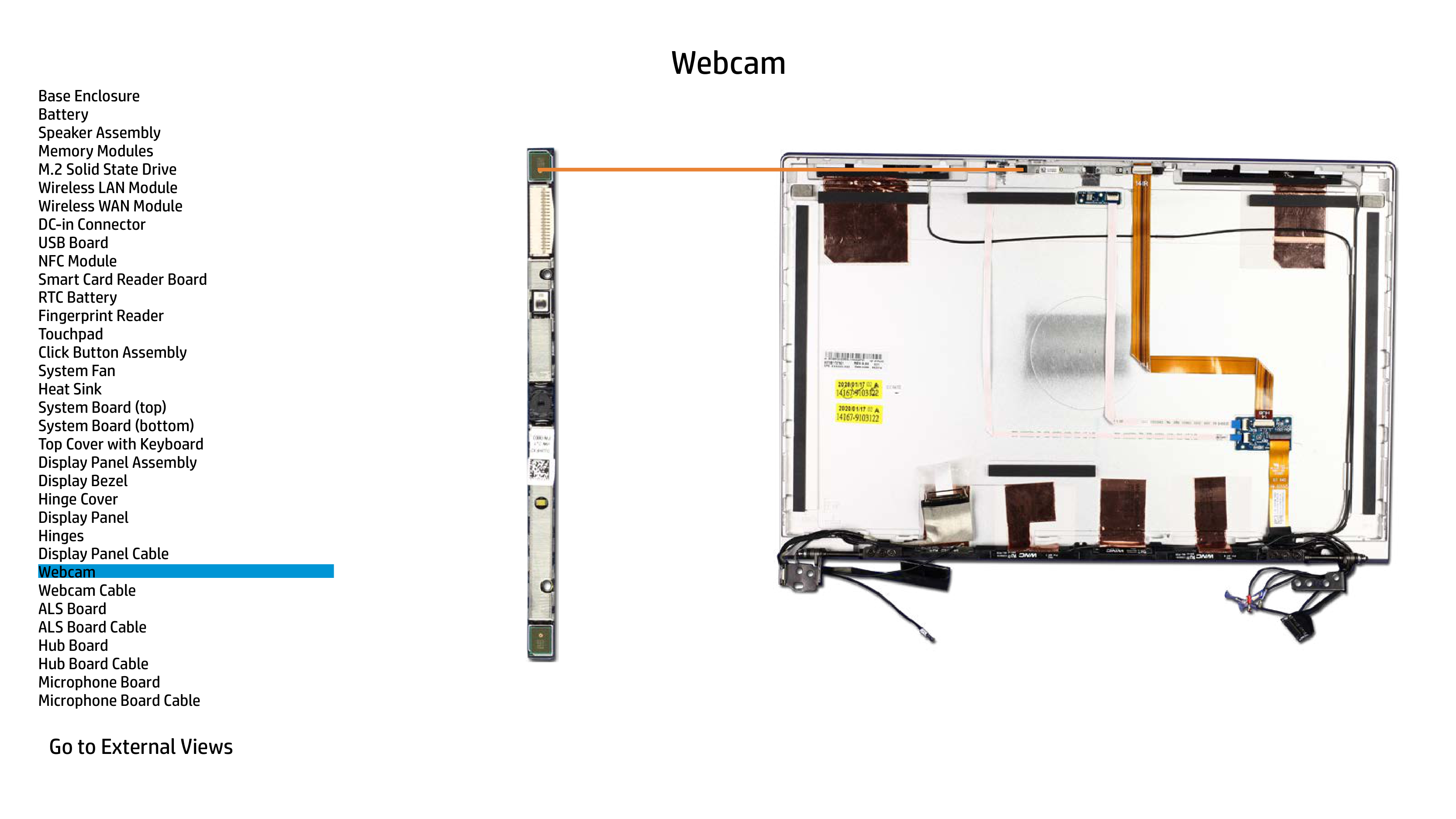

Webcam

![image 69](c06692773_images/imageFile69.png)

Page 40
HP Elitebook 845 G7 Notebook PC manual — page 40

![image 70](c06692773_images/imageFile70.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Webcam Cable

![image 71](c06692773_images/imageFile71.png)

![image 72](c06692773_images/imageFile72.png)

Page 41
HP Elitebook 845 G7 Notebook PC manual — page 41

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

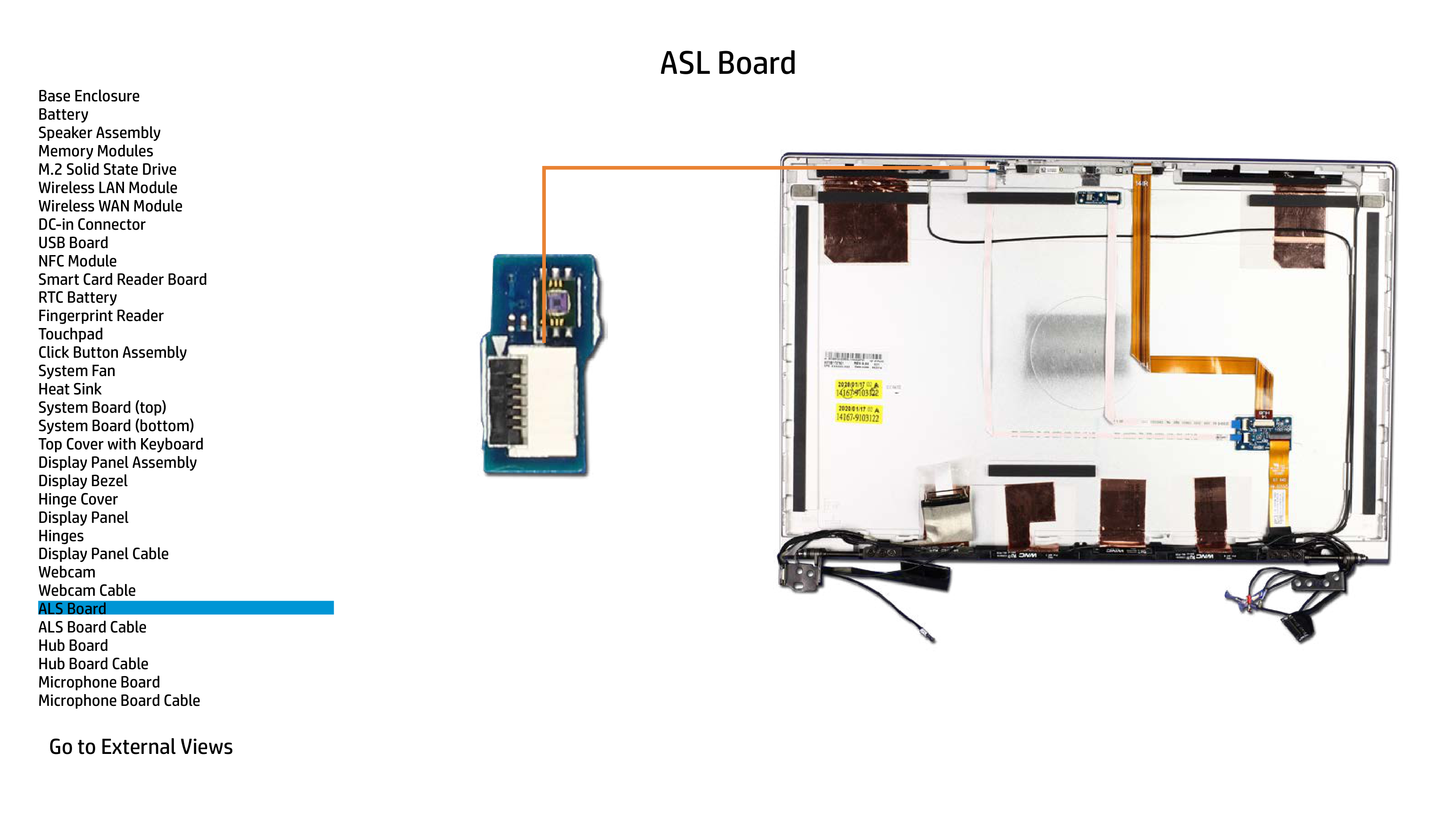

ASL Board

![image 73](c06692773_images/imageFile73.png)

![image 74](c06692773_images/imageFile74.png)

Base Enclosure

Page 42
HP Elitebook 845 G7 Notebook PC manual — page 42

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

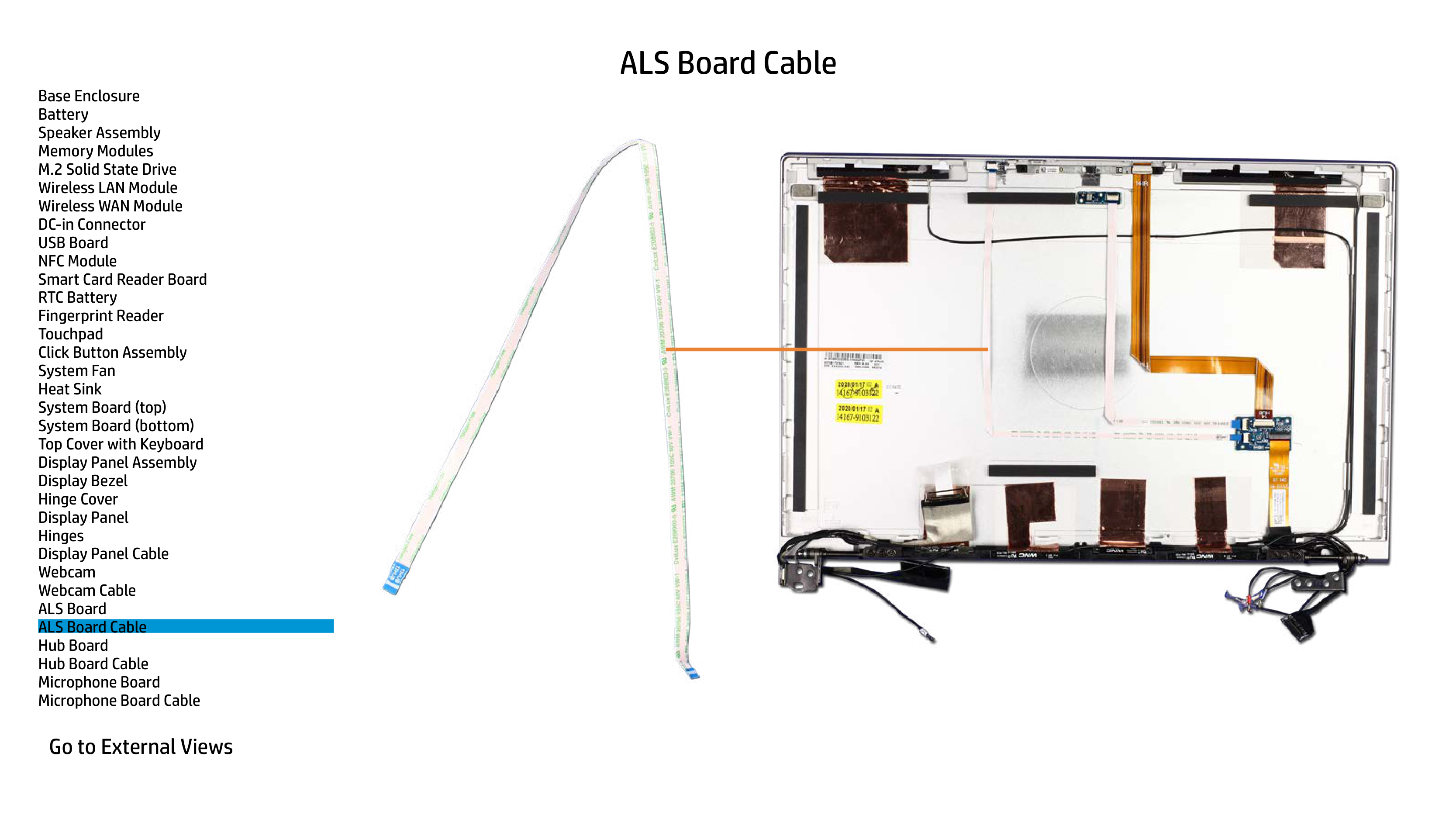

ALS Board Cable

![image 75](c06692773_images/imageFile75.png)

![image 76](c06692773_images/imageFile76.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

Page 43
HP Elitebook 845 G7 Notebook PC manual — page 43

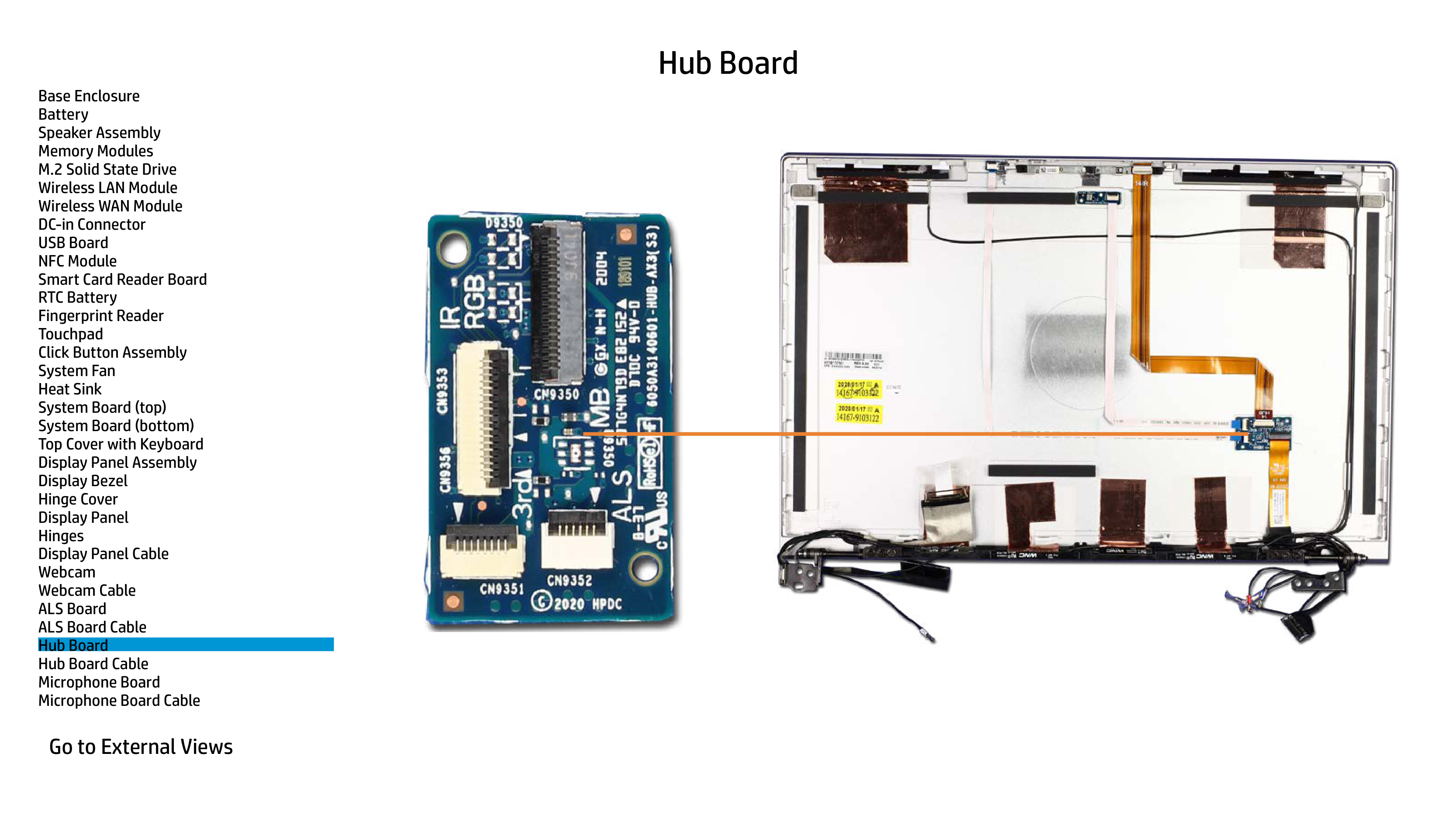

Hub Board

![image 77](c06692773_images/imageFile77.png)

![image 78](c06692773_images/imageFile78.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

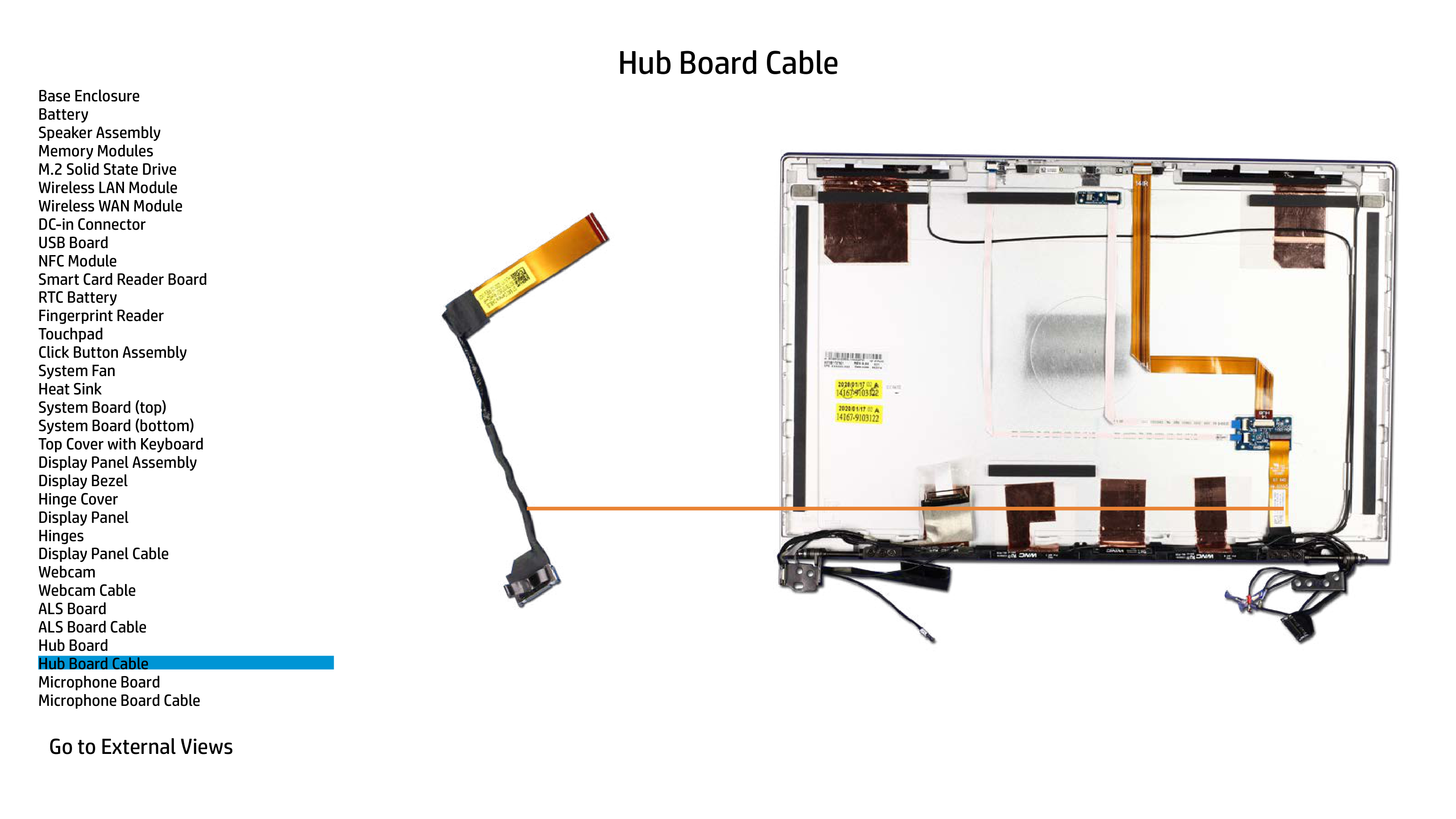

Hub Board Cable

Page 44
HP Elitebook 845 G7 Notebook PC manual — page 44

![image 79](c06692773_images/imageFile79.png)

![image 80](c06692773_images/imageFile80.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

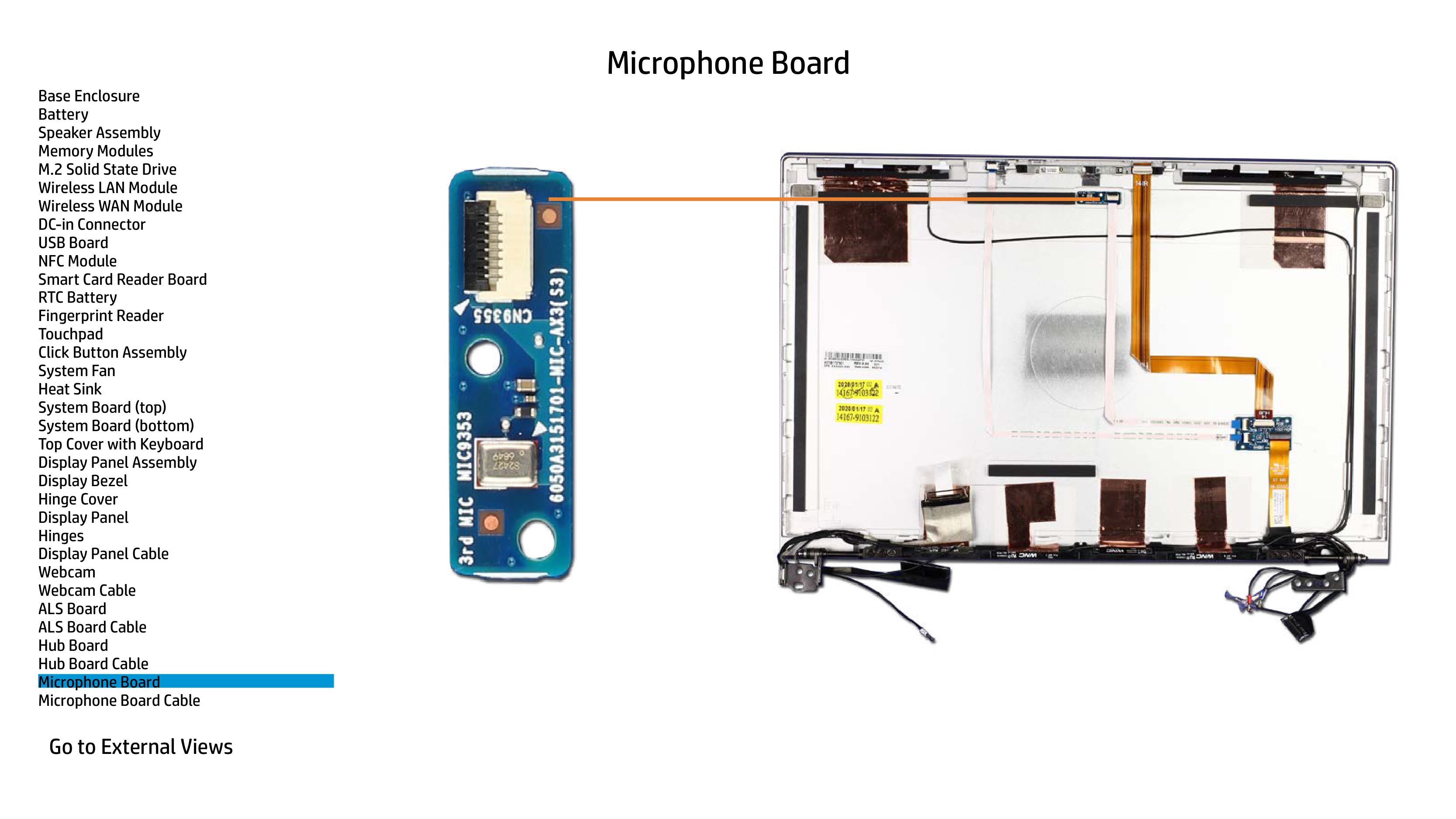

Microphone Board

![image 81](c06692773_images/imageFile81.png)

![image 82](c06692773_images/imageFile82.png)

Base Enclosure

Battery Speaker Assembly Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board NFC Module Smart Card Reader Board RTC Battery Fingerprint Reader Touchpad Click Button Assembly System Fan Heat Sink System Board (top) System Board (bottom) Top Cover with Keyboard Display Panel Assembly Display Bezel Hinge Cover Display Panel Hinges Display Panel Cable

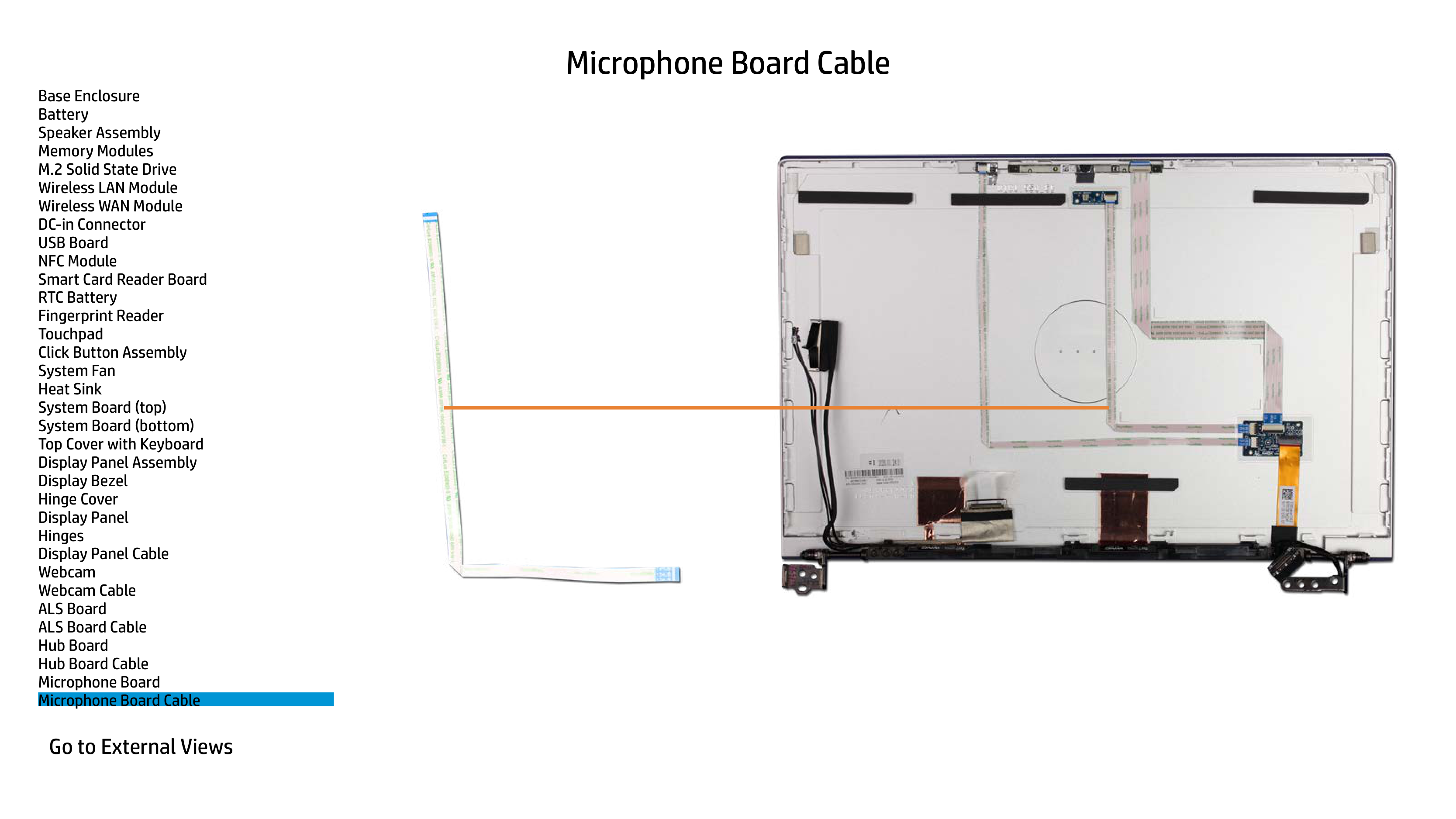

Microphone Board Cable

![image 83](c06692773_images/imageFile83.png)

![image 84](c06692773_images/imageFile84.png)

More from HP

Printers

123 Laserjet Printing Supplies

10 Q&As

 Laptops

15 Da0000 Laptop PC

7 Q&As

 Laptops

15 Db0000 Laptop PC

10 Q&As

 Laptops

15 F1000 Laptop PC

8 Q&As

Similar Laptops

Toshiba

Satellite L645 S4032 HD Intel Core I3 350m Laptop Specifications And Datasheet

9 Q&As

 Toshiba

Satellite L745 S4210 14 Inch Intel Core I3 Laptop Specifications And Datasheet

10 Q&As

 Toshiba

Satellite L745 S4210 Laptop

0 Q&As
