Interactive Part Locator
HP EliteBook 850 G8 Notebook PC
Welcome to the interactive part locator for the HP EliteBook 850 G8 Notebook PC
Here’s how to use it… External Views (Click the link to navigate to the views) On this page you will find large icons of each of the external views of this product. To view a specific view in greater detail, simply click that view. Parts List (Click the link to navigate to the parts) On this page, you will find a list of all of the replaceable parts for this product. To view a specific part and its location in the product, click the part name in the list.
That’s it! On every page there is a link that brings you back to either the External Views or the Parts List, enabling you to navigate to whatever view or part you wish to review.
Back to Welcome page
|| |---|
Front View

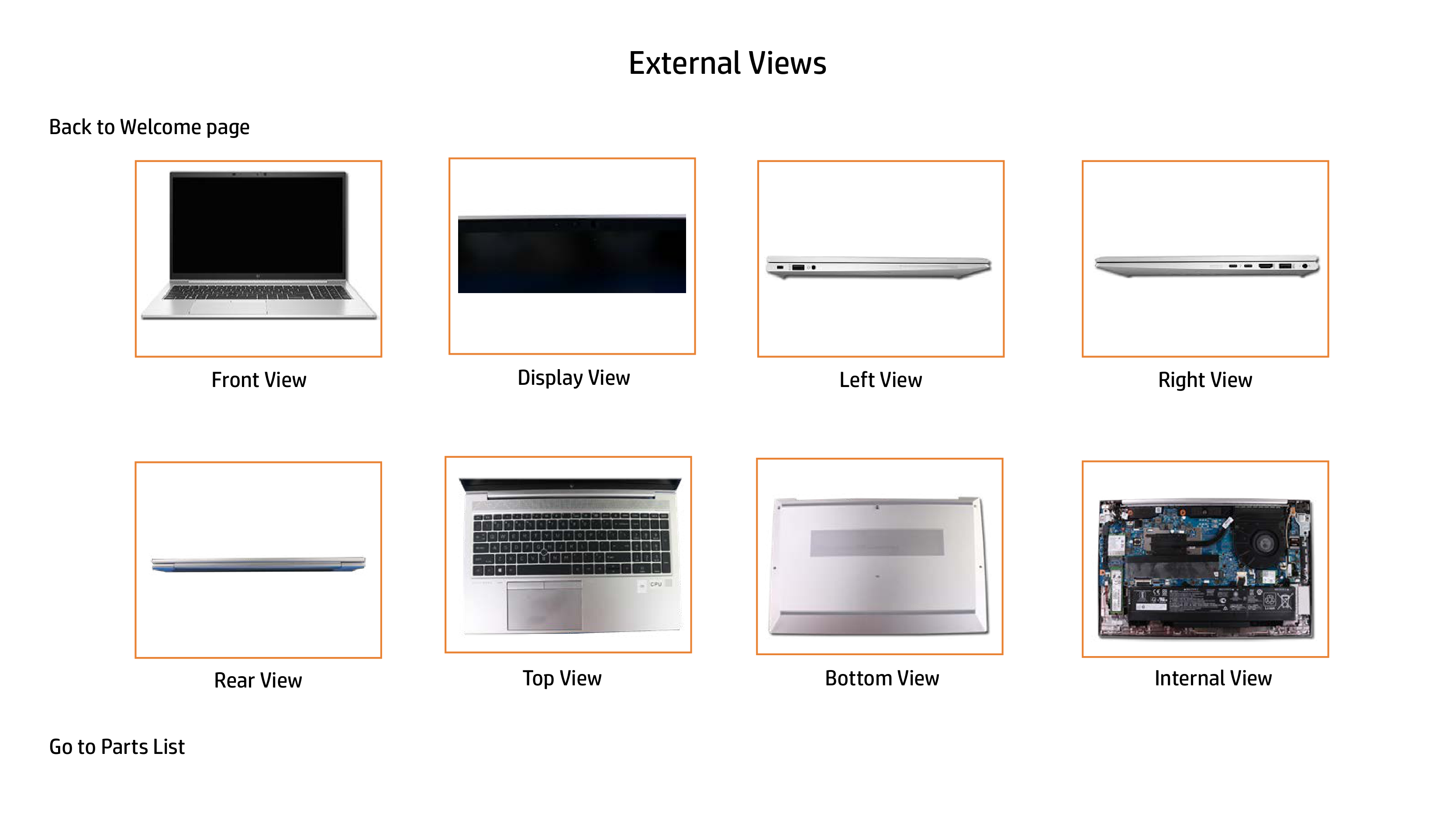

External Views
|| |---|
Display View
|| |---|
Left View
||
|---|
|| |---|
|| |---|
Top View
Rear View Bottom View
|| |---|
Right View
||
|---|
Internal View
Back to External Views

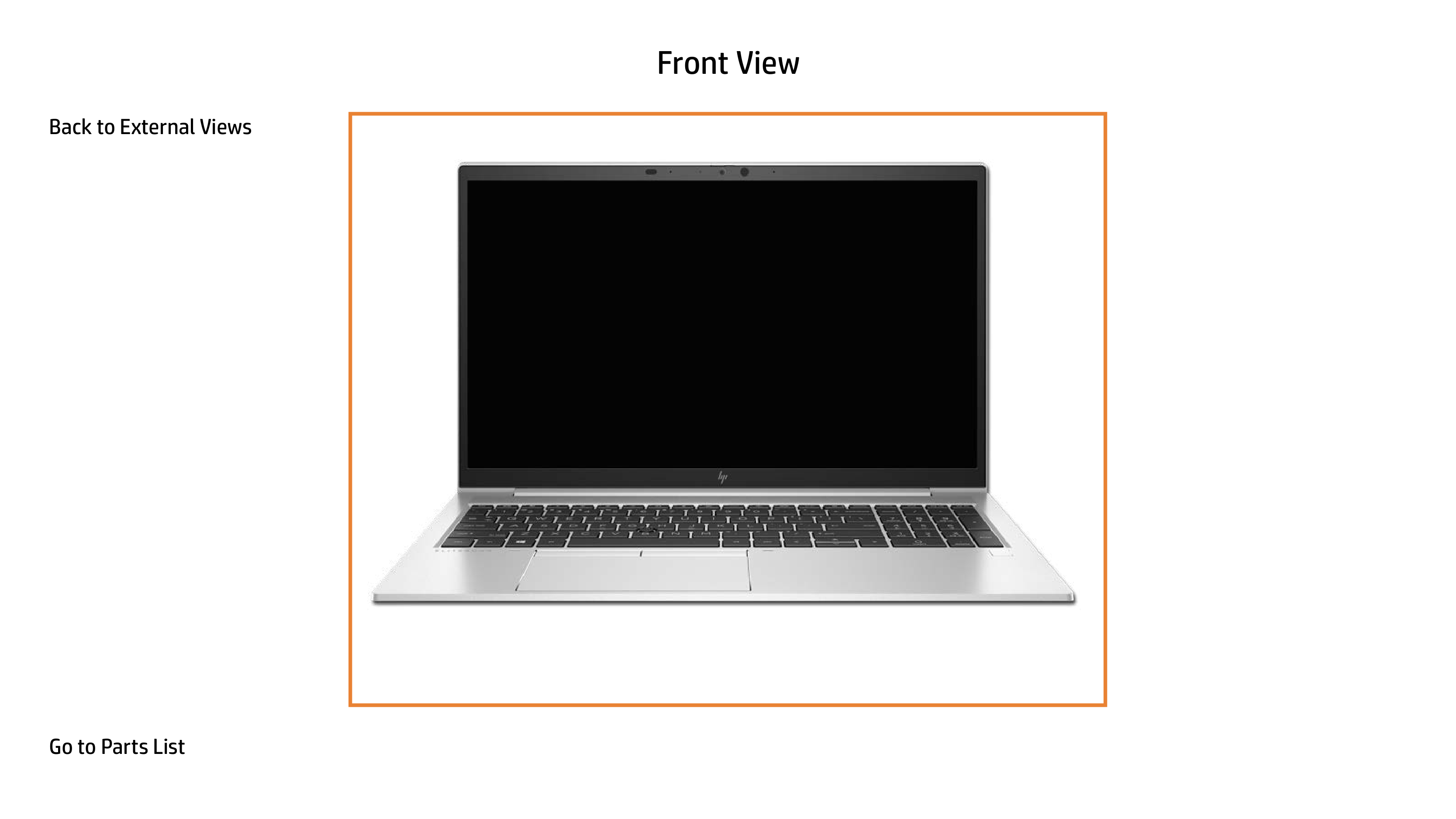

Front View
|| |---|
Back to External Views

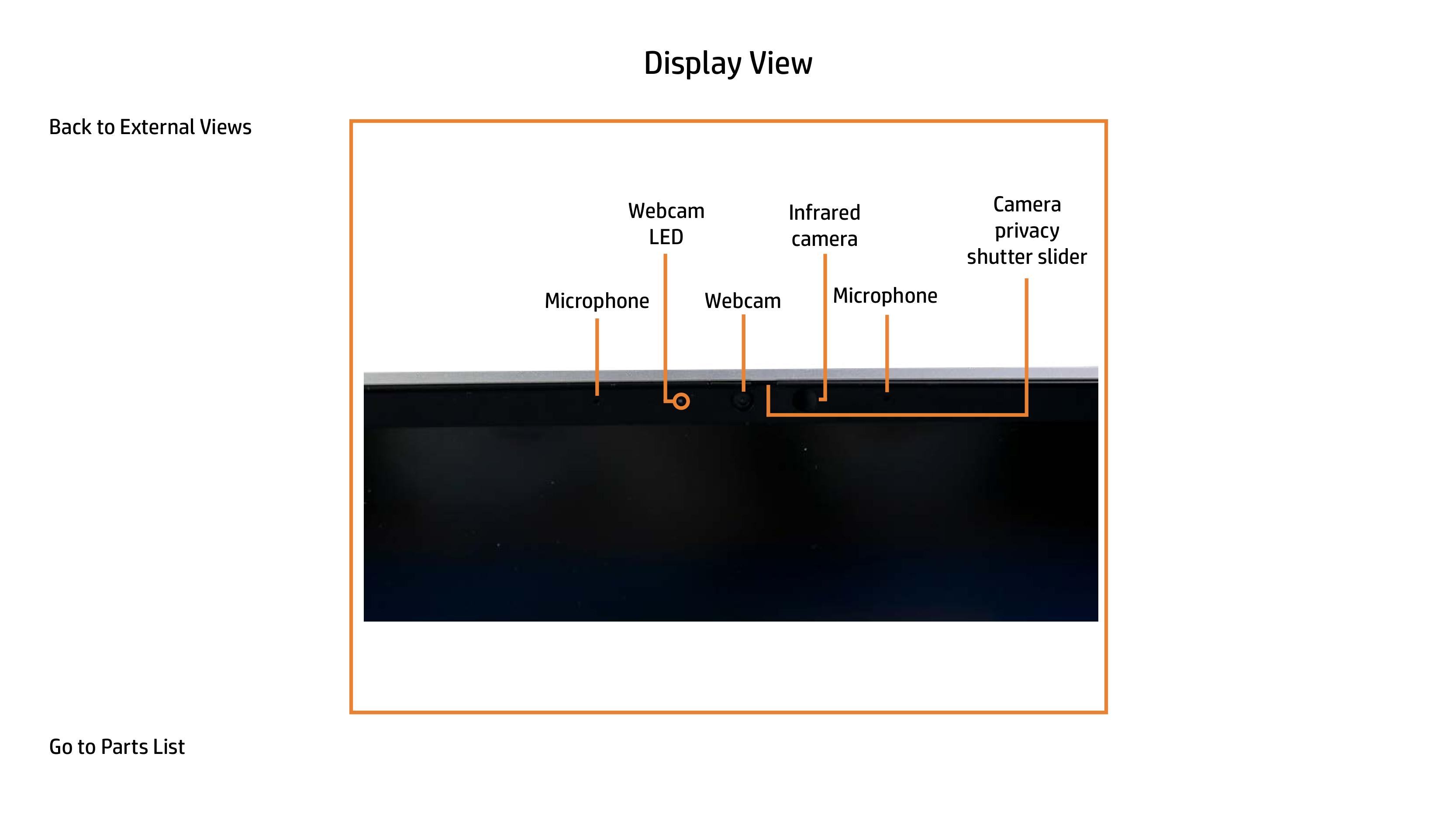

Display View
|
Microphone
Webcam LED
Microphone
Infrared camera
Camera privacy shutter slider Webcam
| |---|
Back to External Views

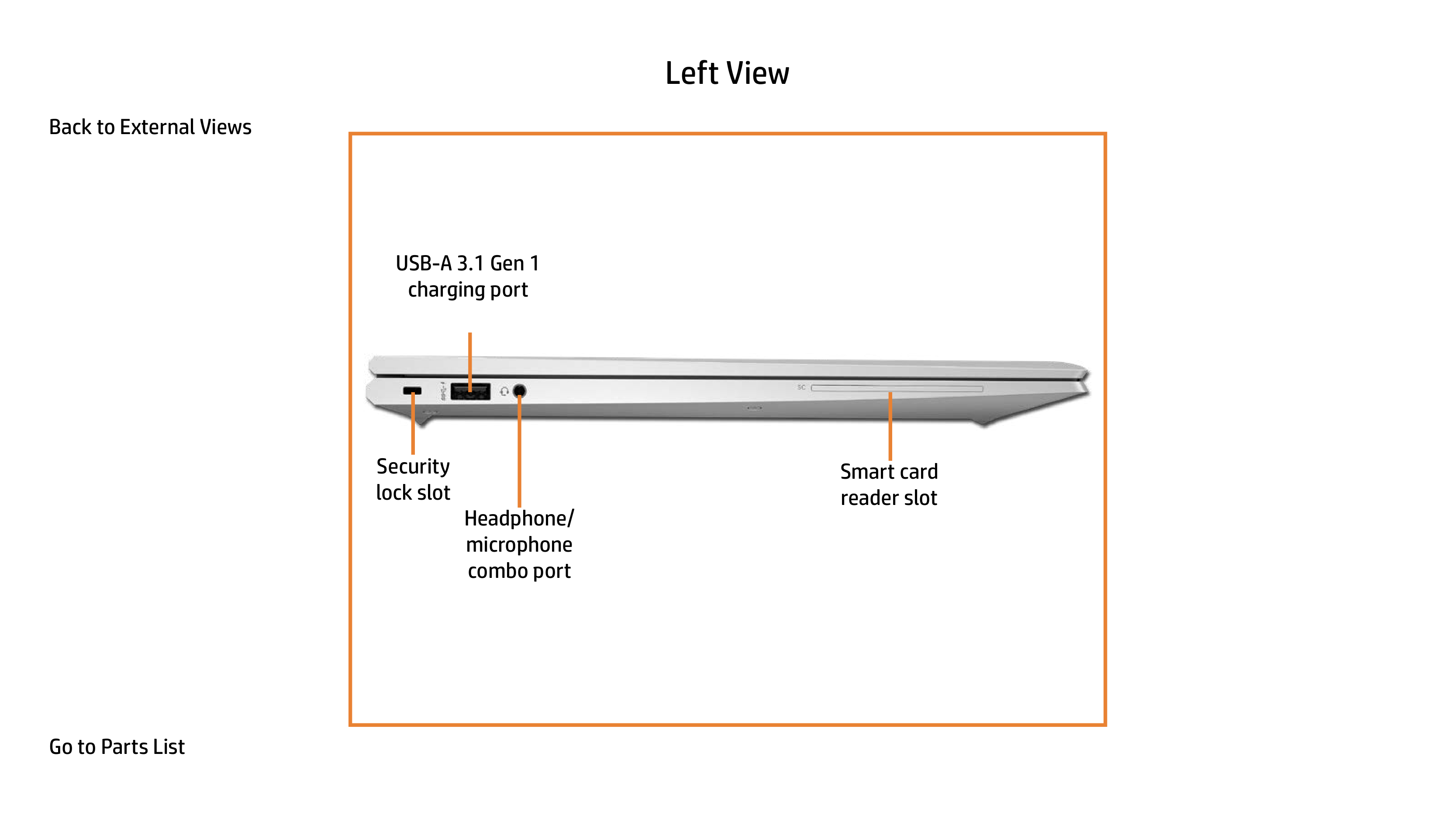

Left View
|
Smart card reader slot
USB-A 3.1 Gen 1 charging port
Headphone/ microphone combo port
Security lock slot
| |---|
Back to External Views

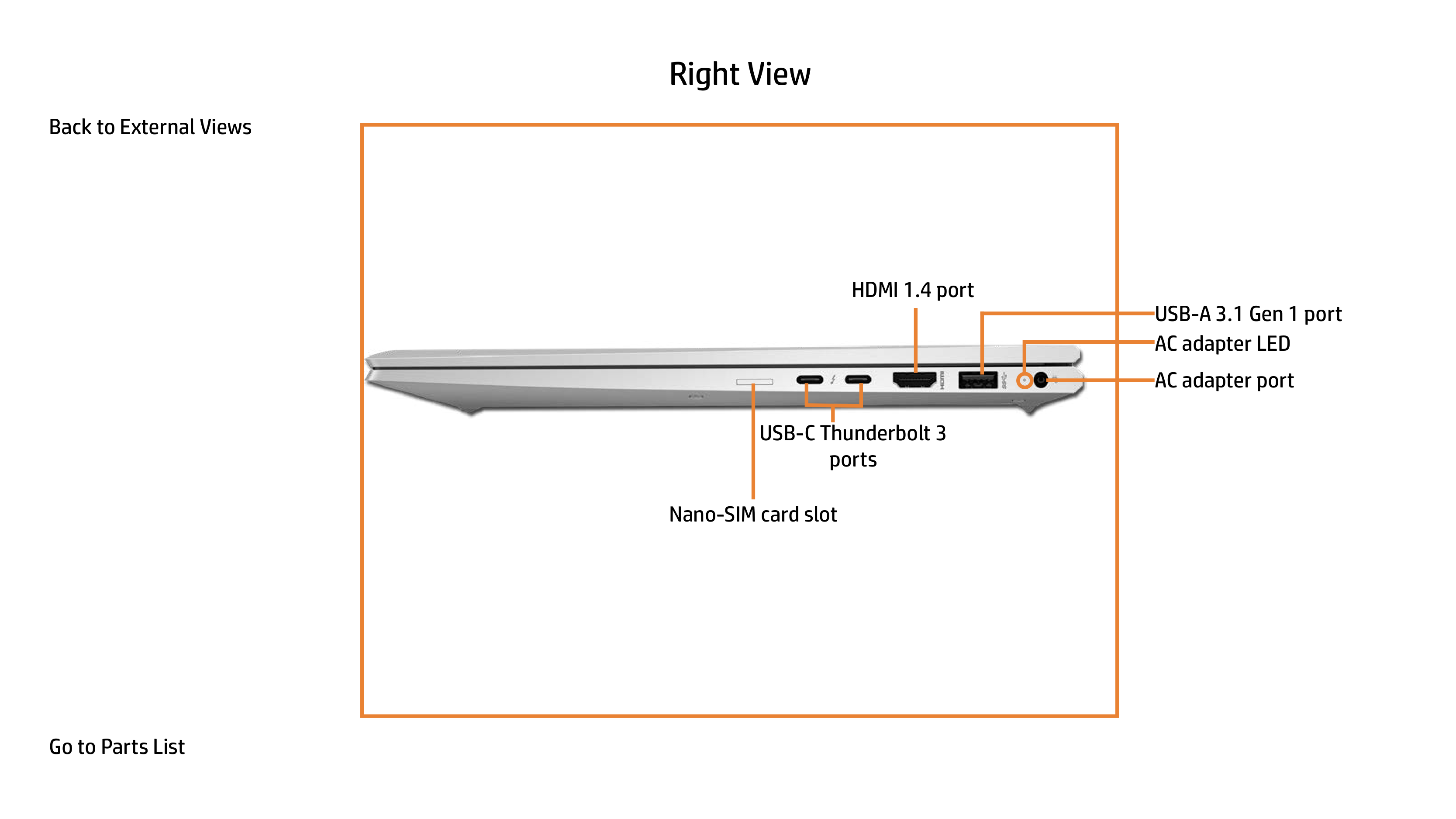

Right View
HDMI 1.4 port
USB-A 3.1 Gen 1 port AC adapter LED
AC adapter port
USB-C Thunderbolt 3 ports
Nano-SIM card slot
Back to External Views

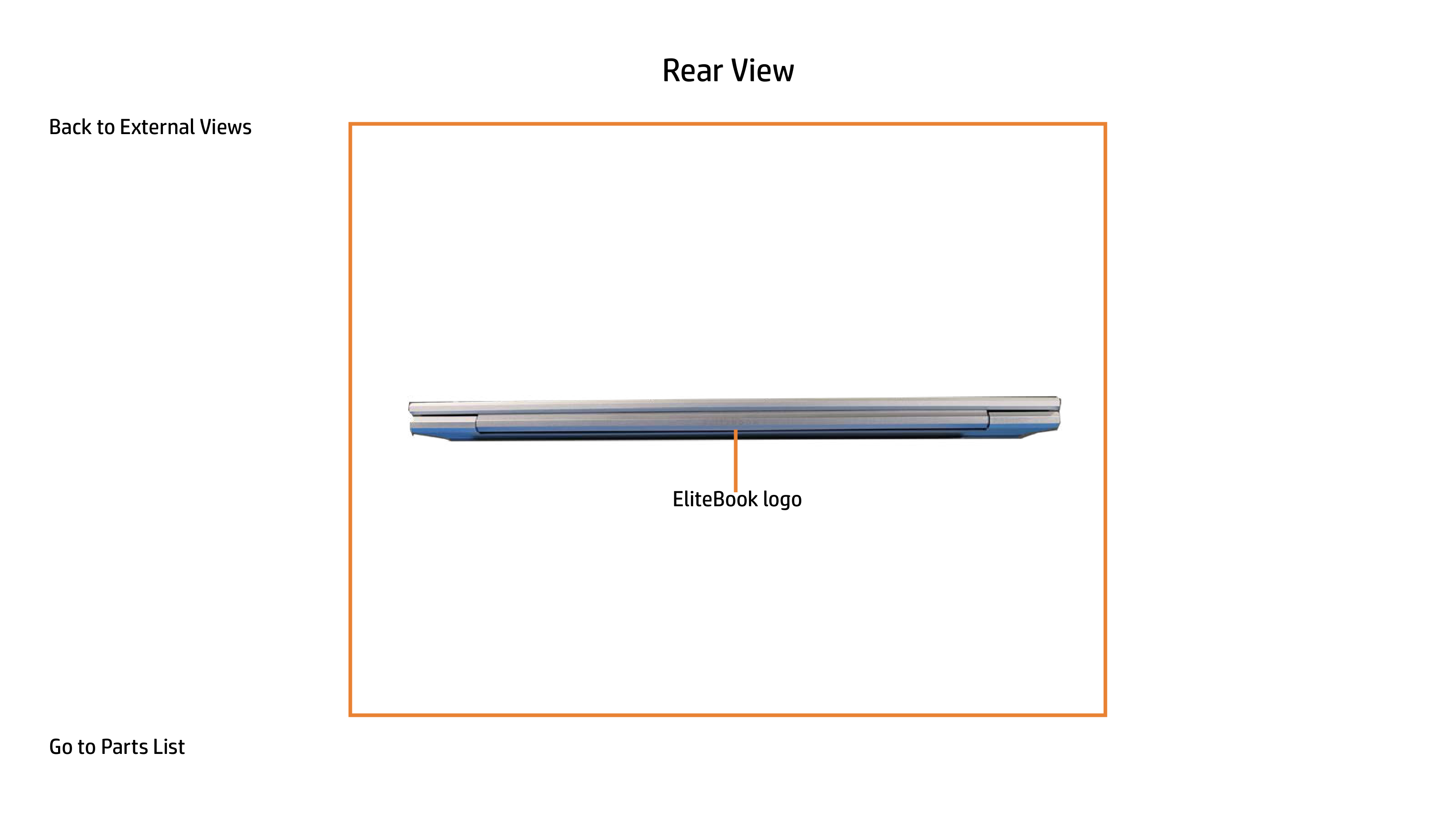

Rear View
|
EliteBook logo
| |---|

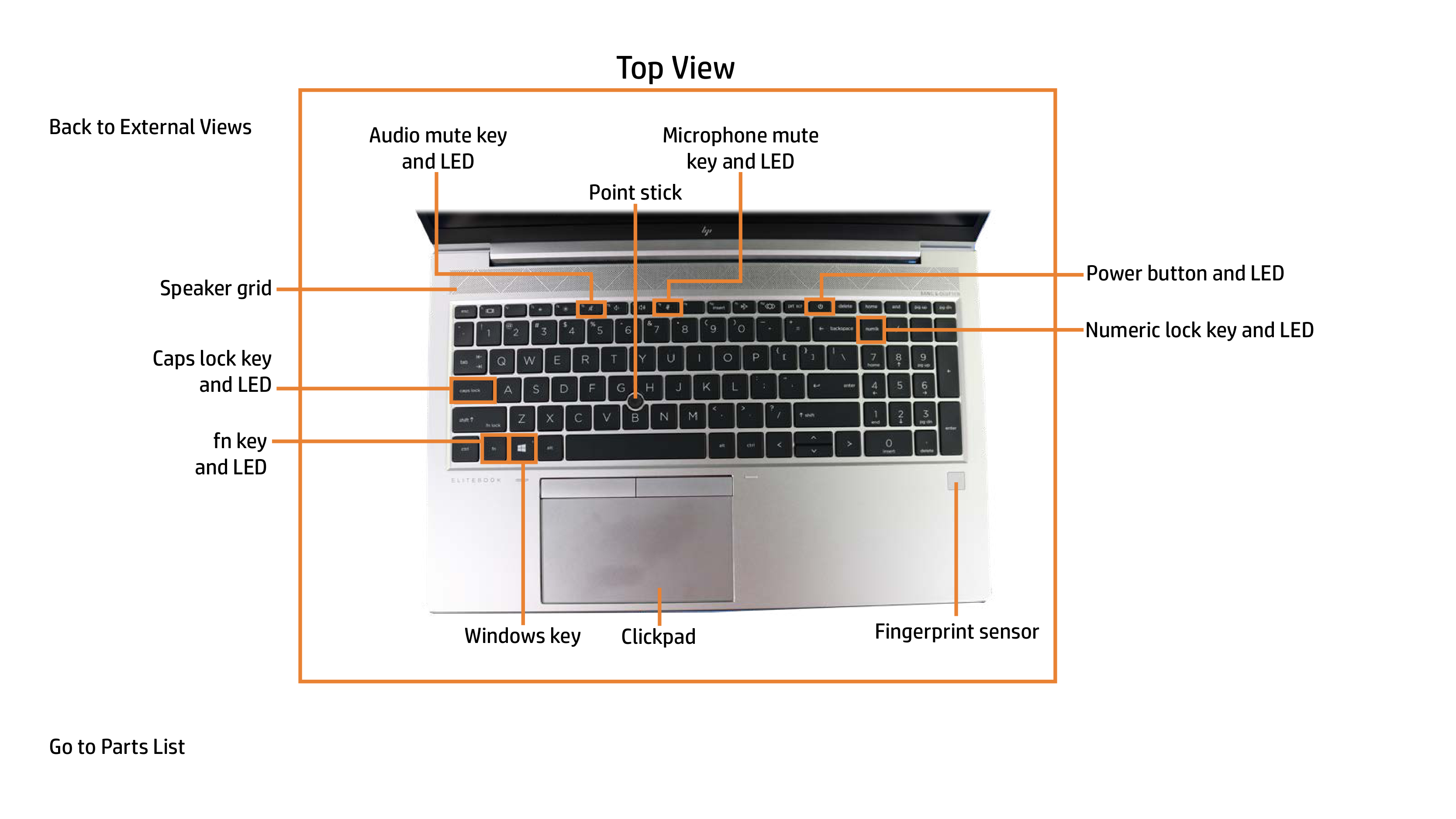

Top View
Back to External Views
Audio mute key and LED
Microphone mute key and LED Point stick
Speaker grid
Caps lock key and LED
fn key and LED
Fingerprint sensorWindows key
Clickpad
Power button and LED
Numeric lock key and LED
Back to External Views

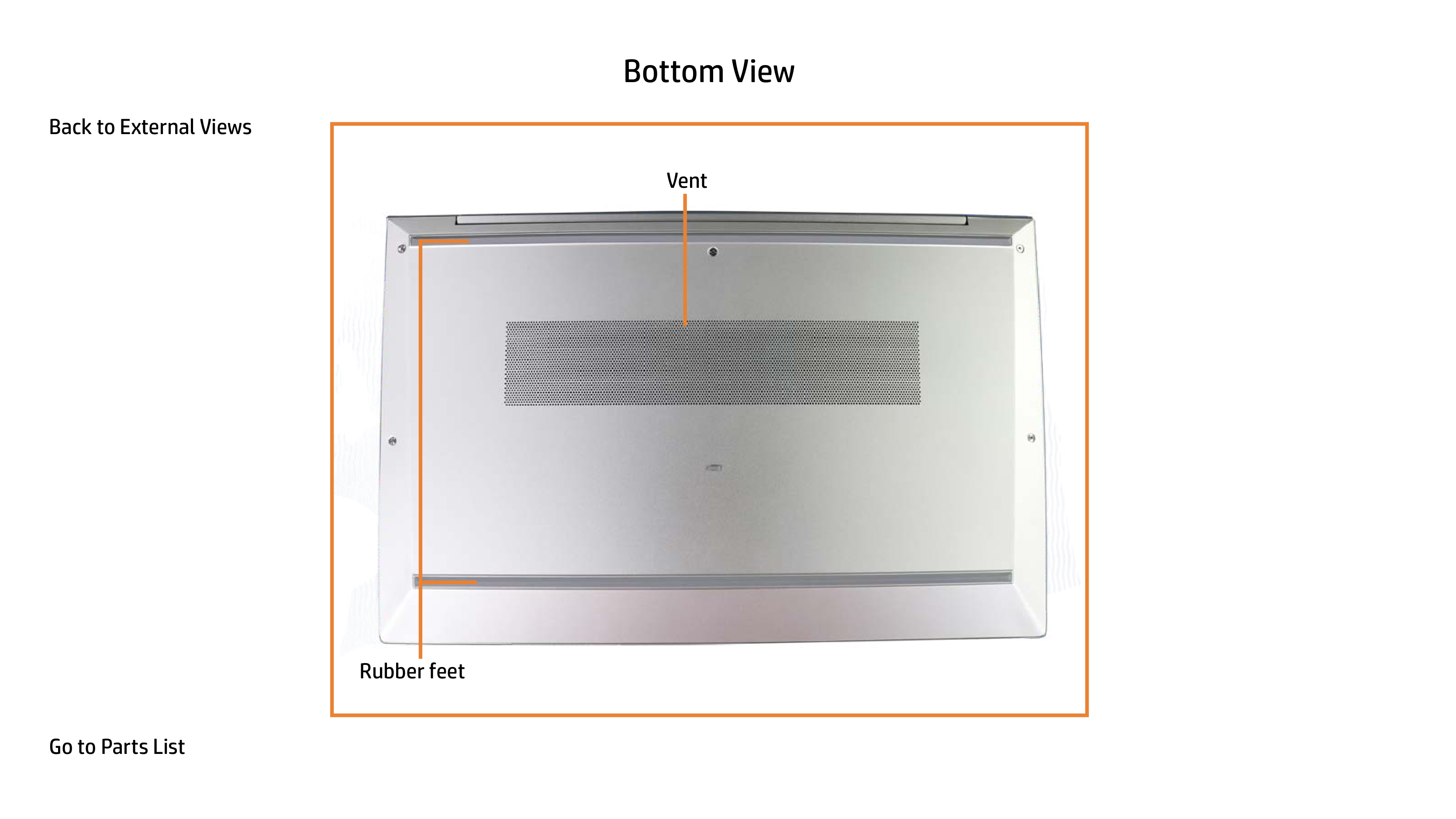

Bottom View
|
Rubber feet
Vent| |---|
Back to External Views
DC-in Connector
Heat Sink
Wireless WAN Module
Memory Modules

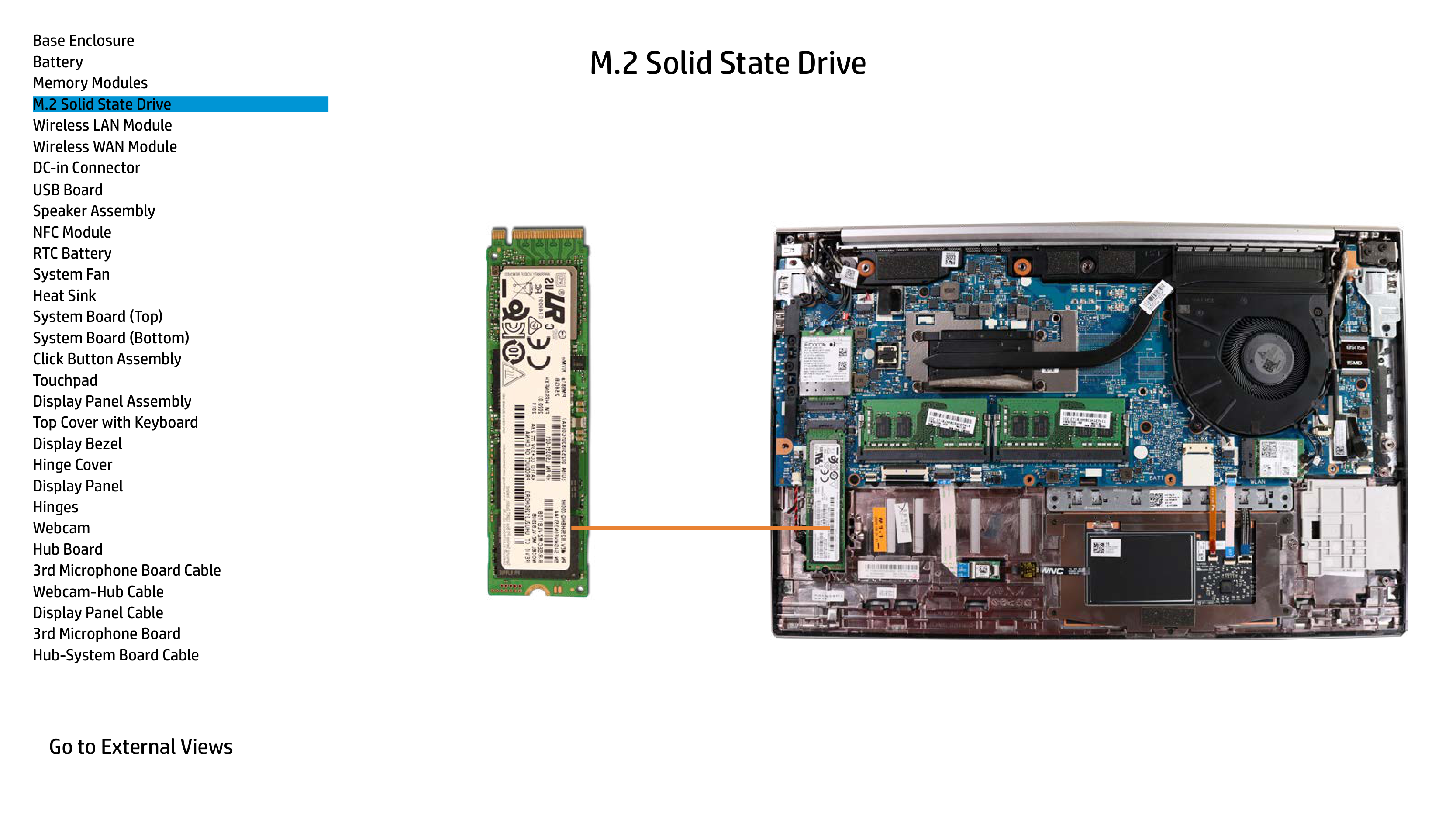

M.2 Solid State Drive

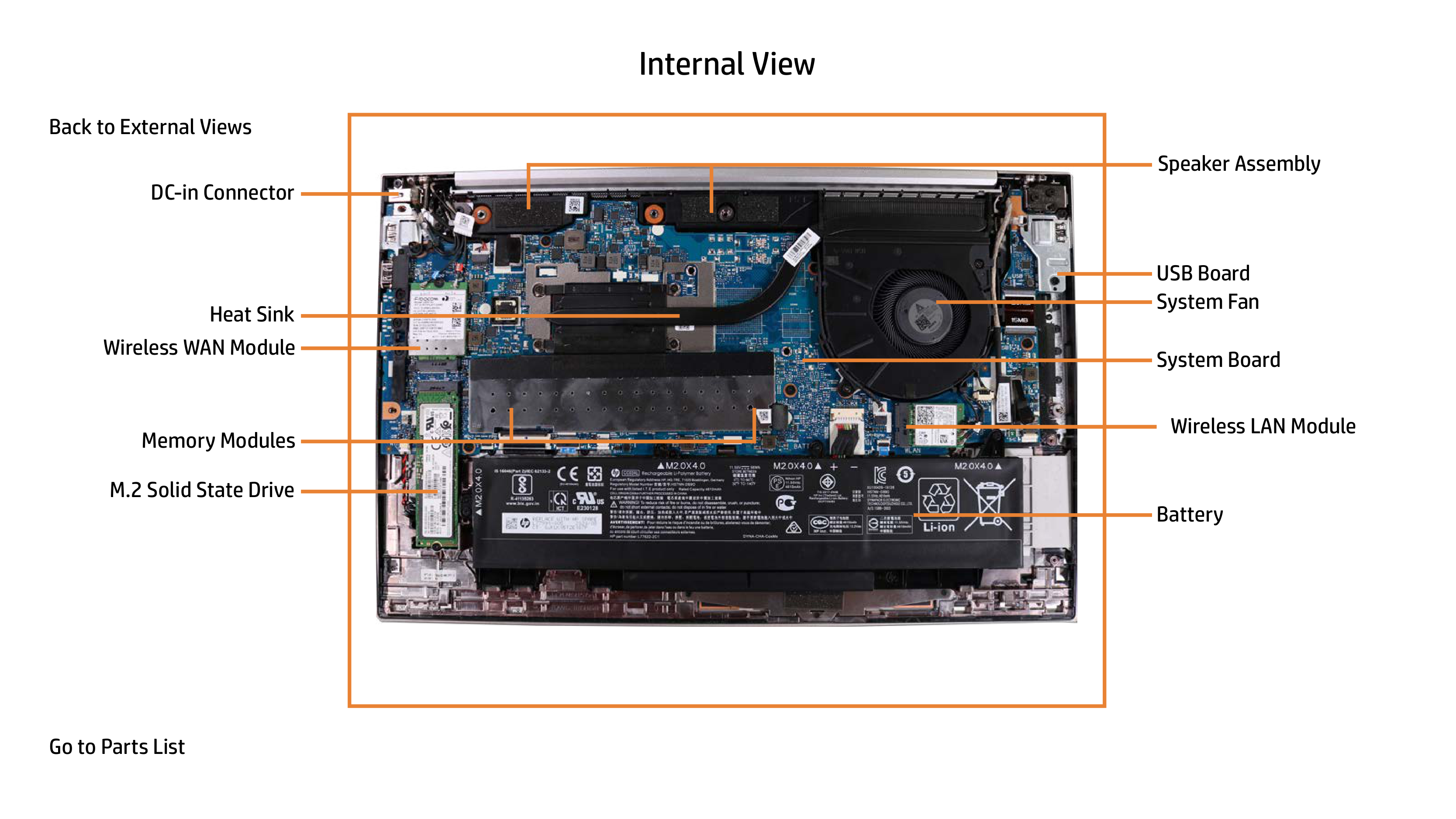

Internal View
Speaker Assembly
USB Board System Fan
System Board
Wireless LAN Module

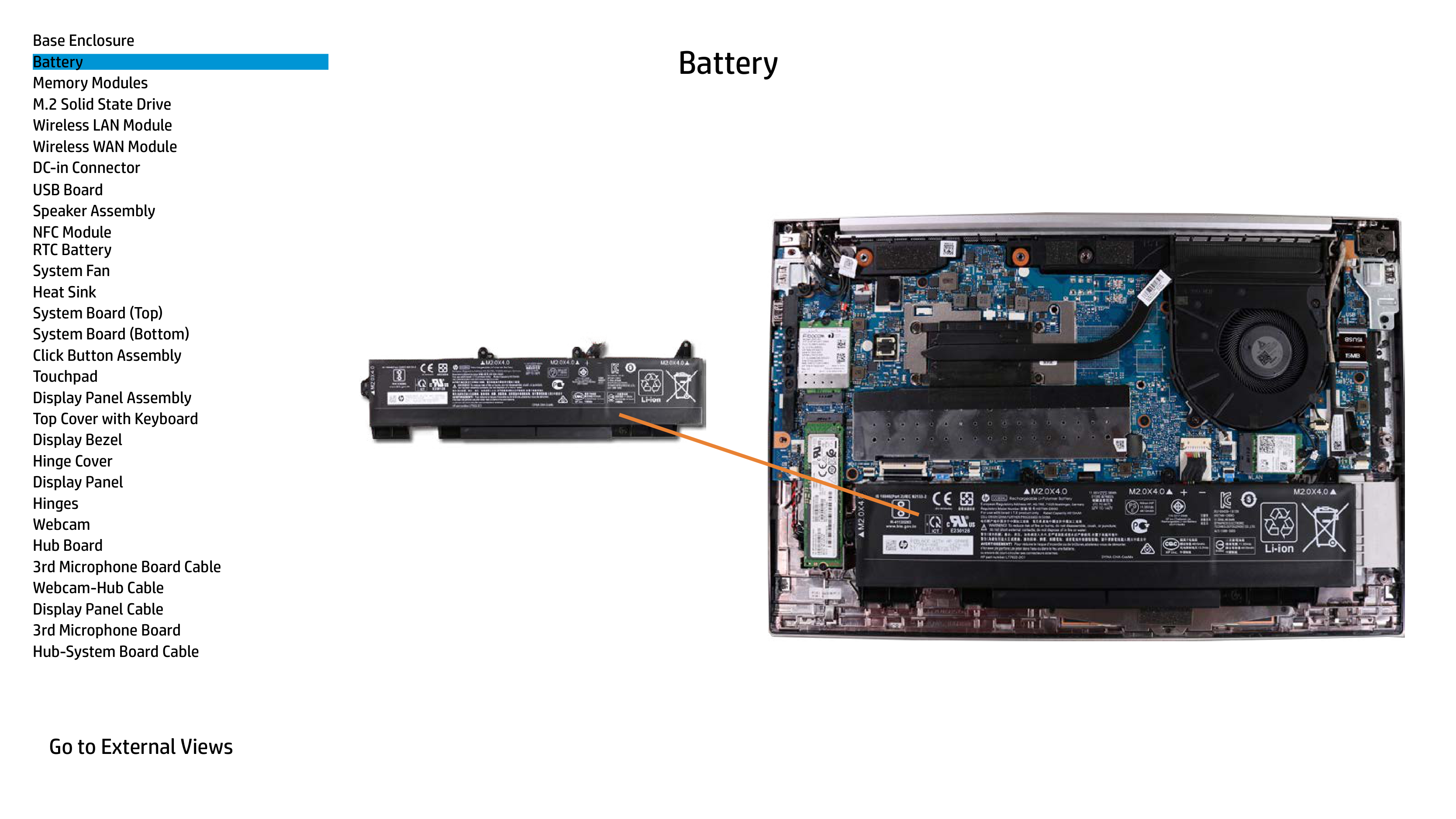

Battery
Battery
Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

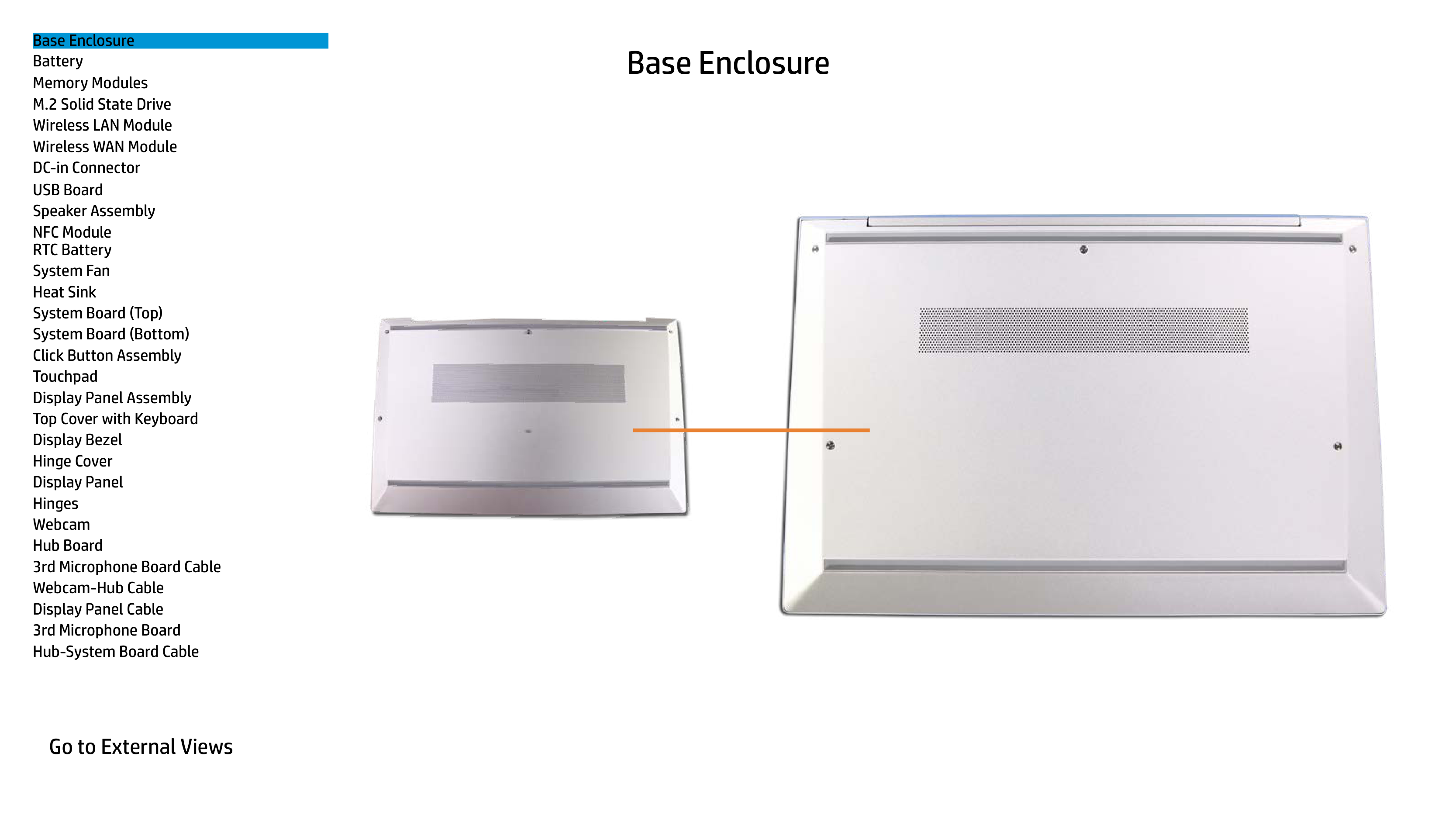

Base Enclosure
Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board
Battery
Battery
M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

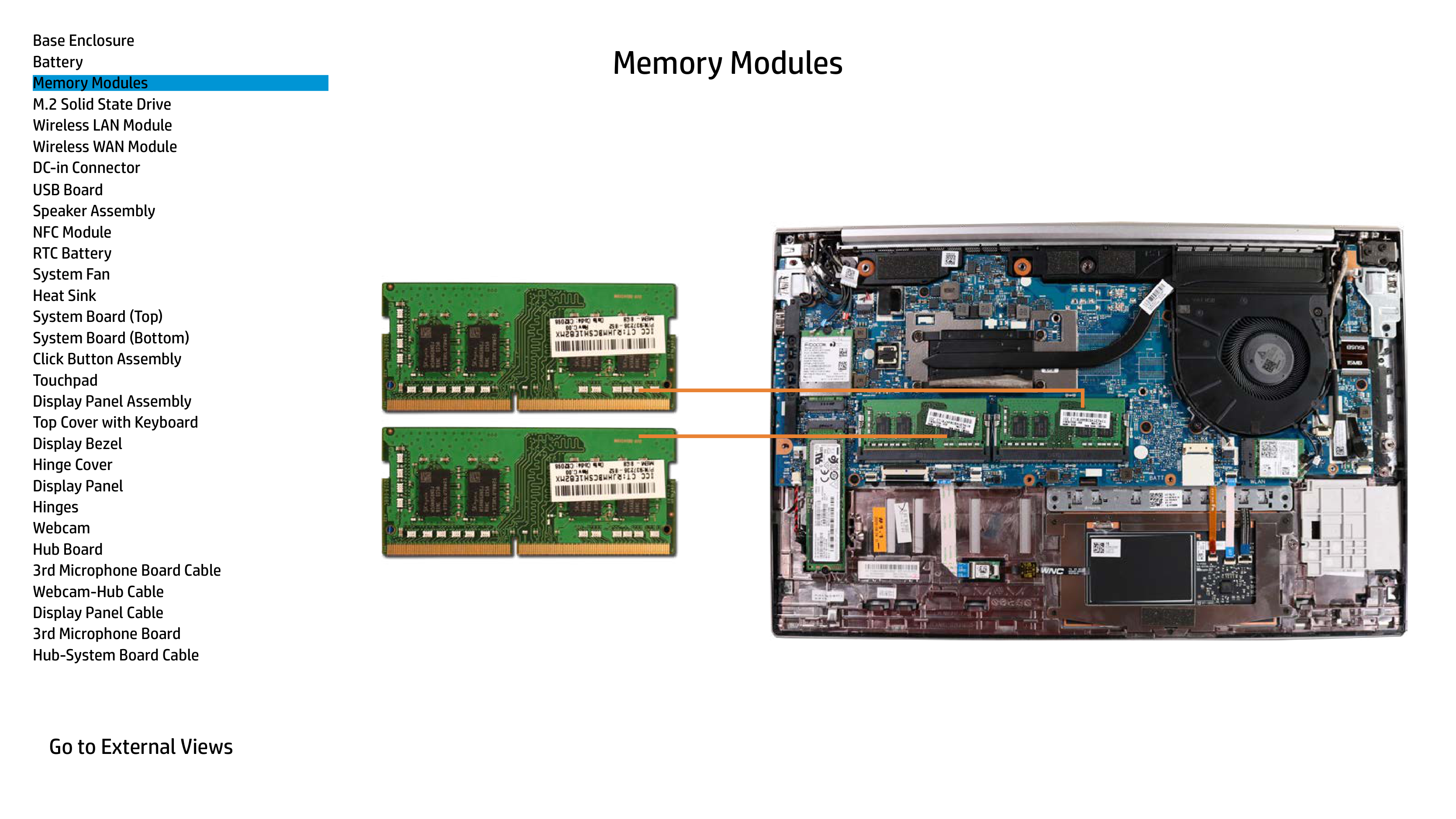

Memory Modules
Battery Memory Modules
Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board
M.2 Solid State Drive
Battery Memory Modules M.2 Solid State Drive
Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

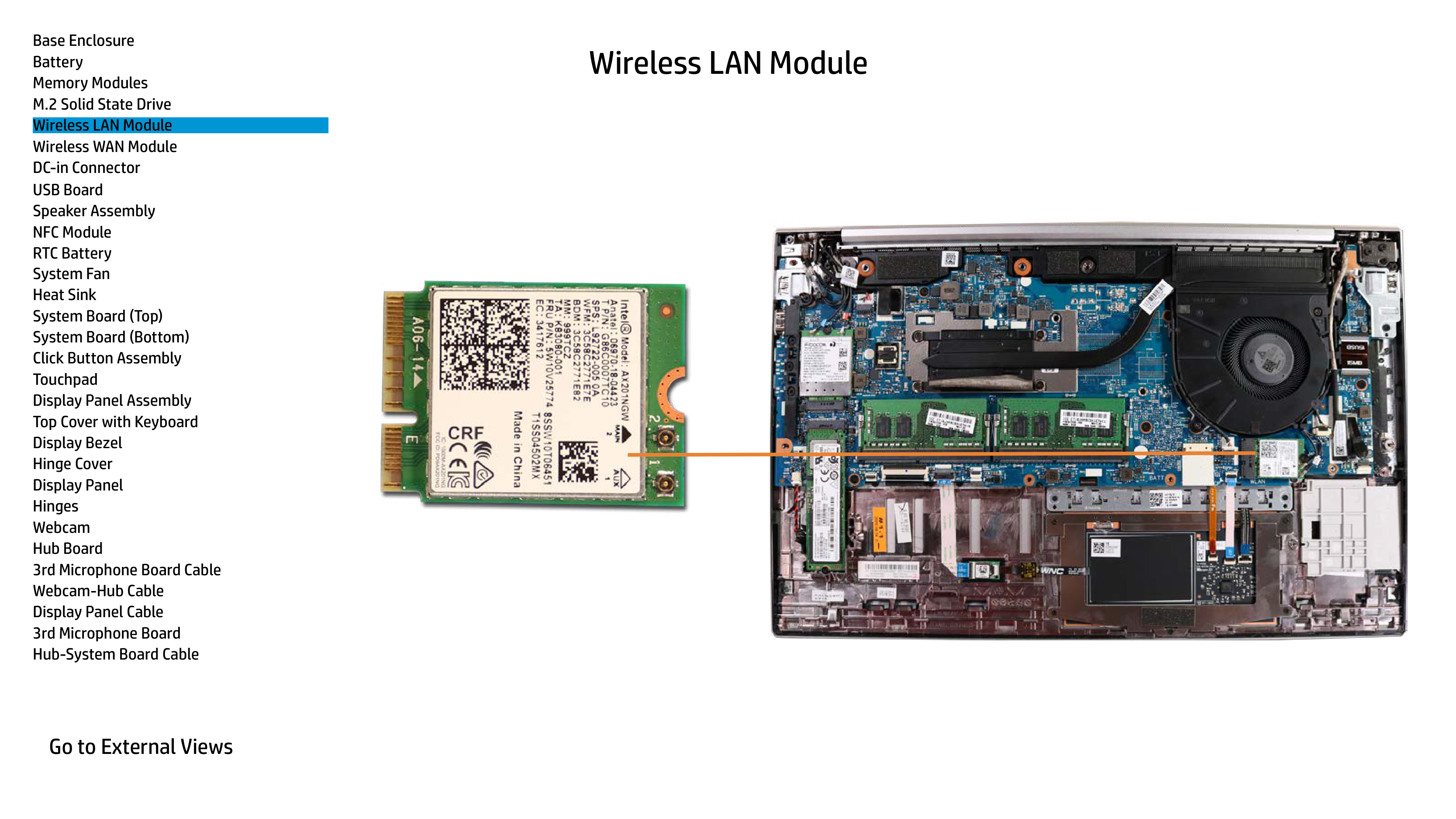

Wireless LAN Module
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module
DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

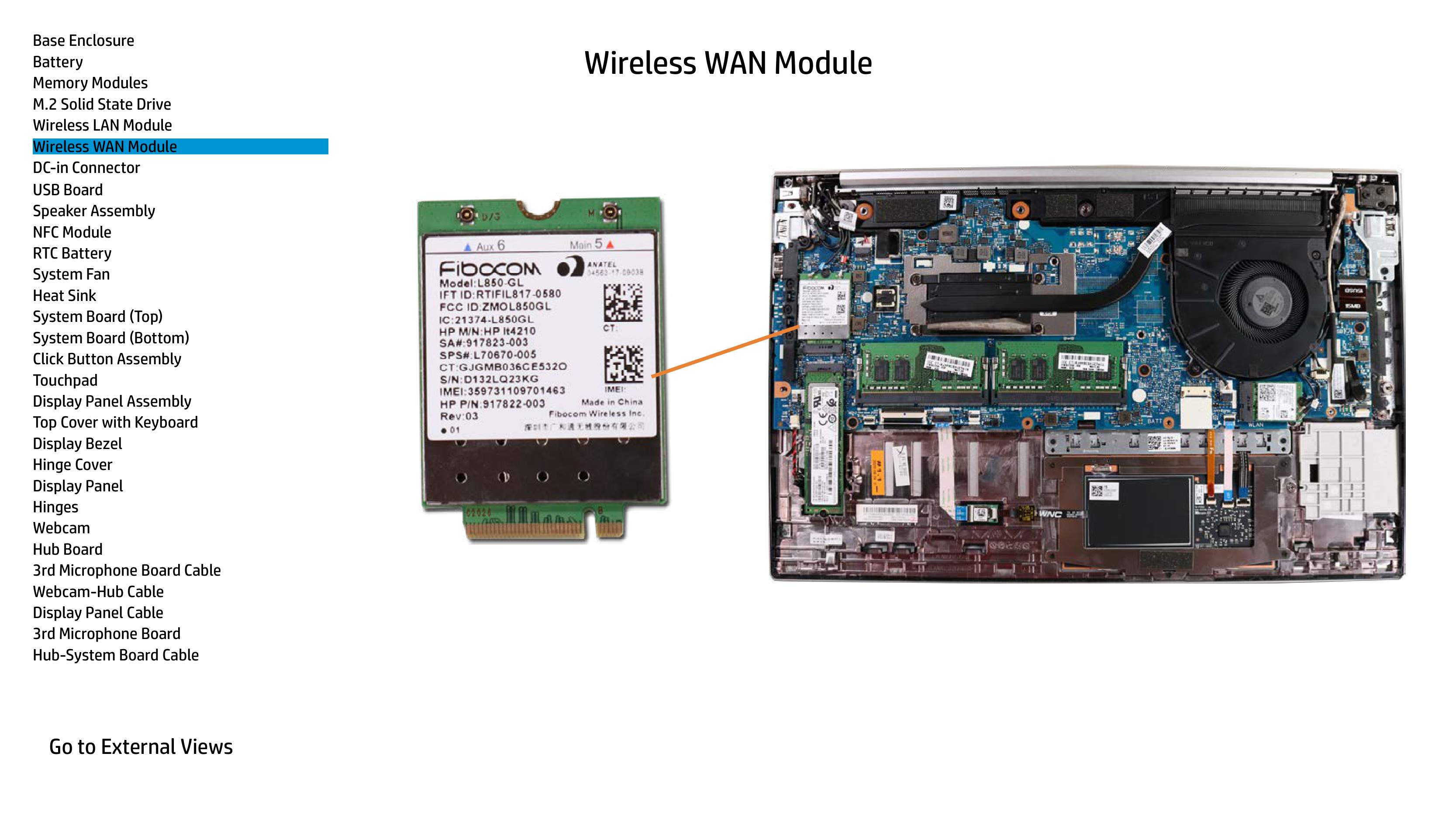

Wireless WAN Module
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module
USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

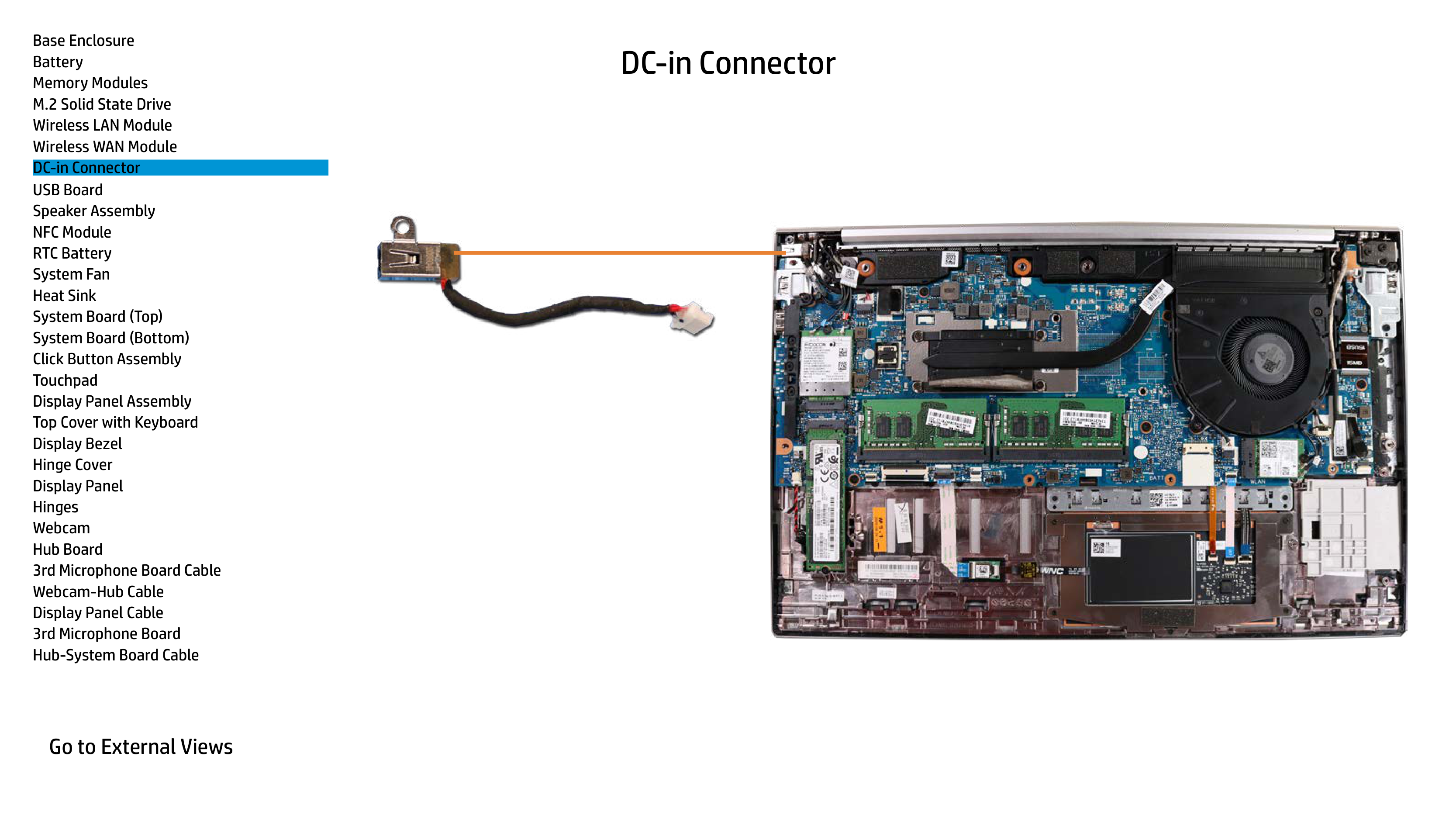

DC-in Connector
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector
Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

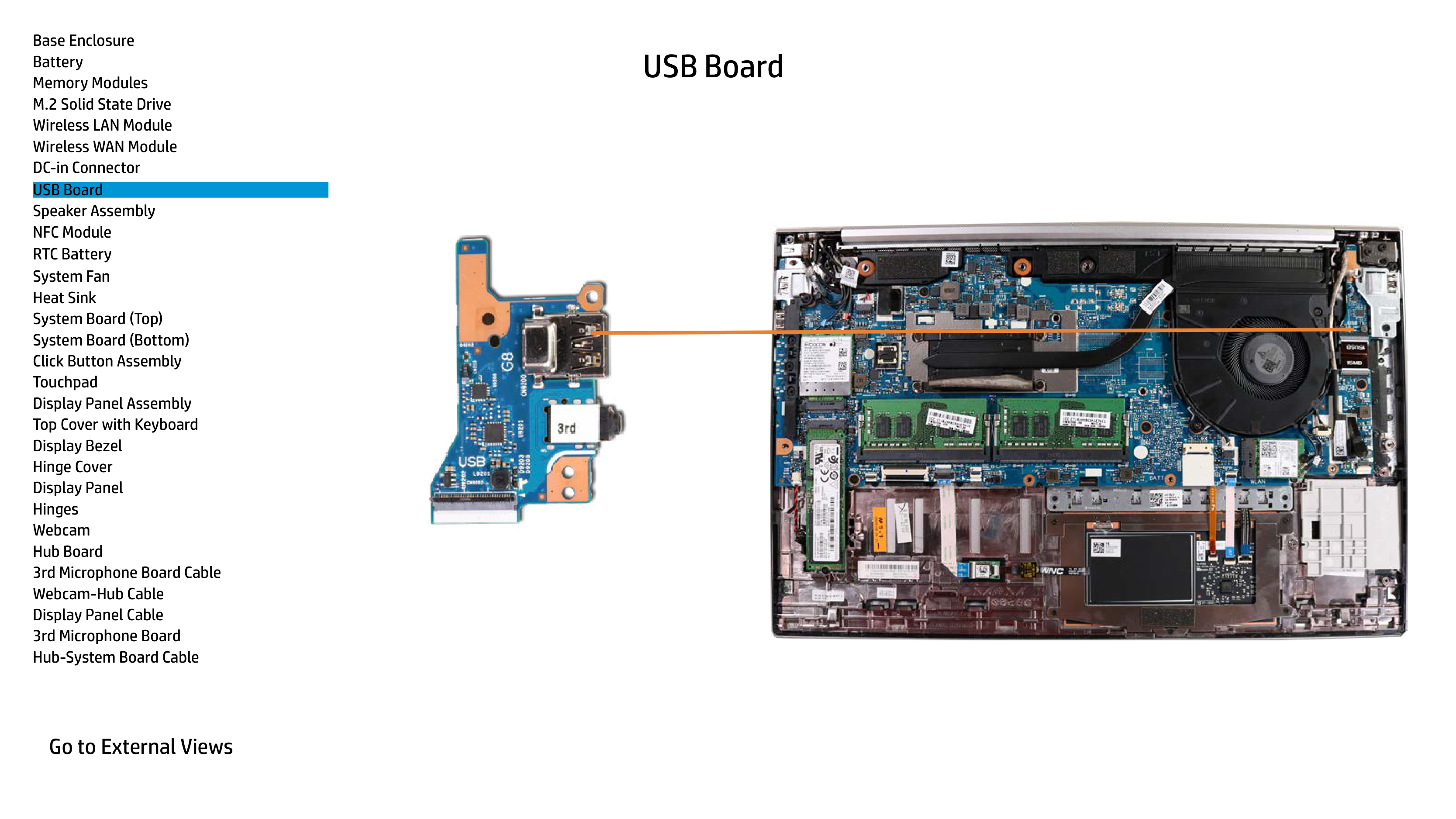

USB Board
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board
NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

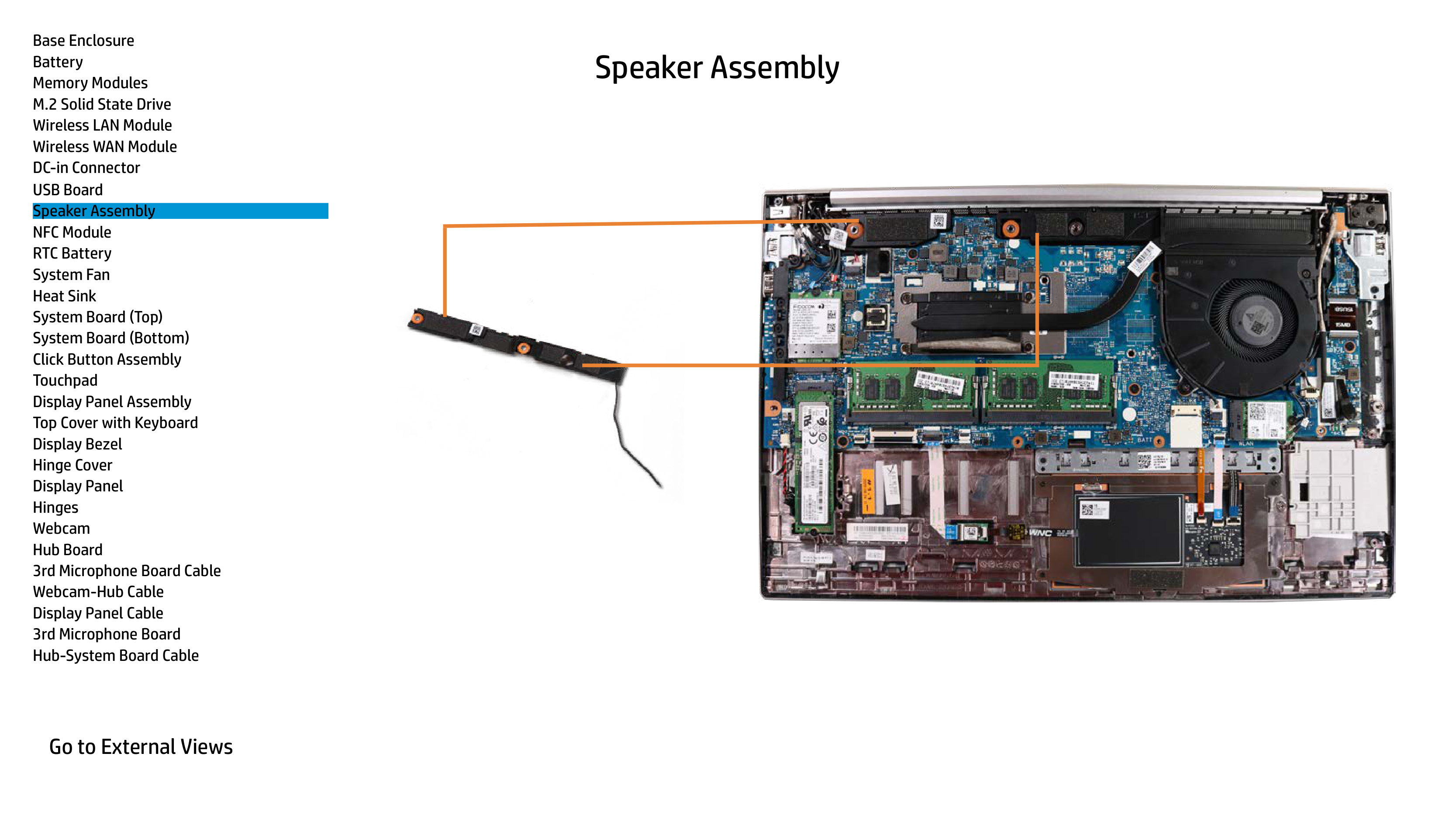

Speaker Assembly
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly
RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

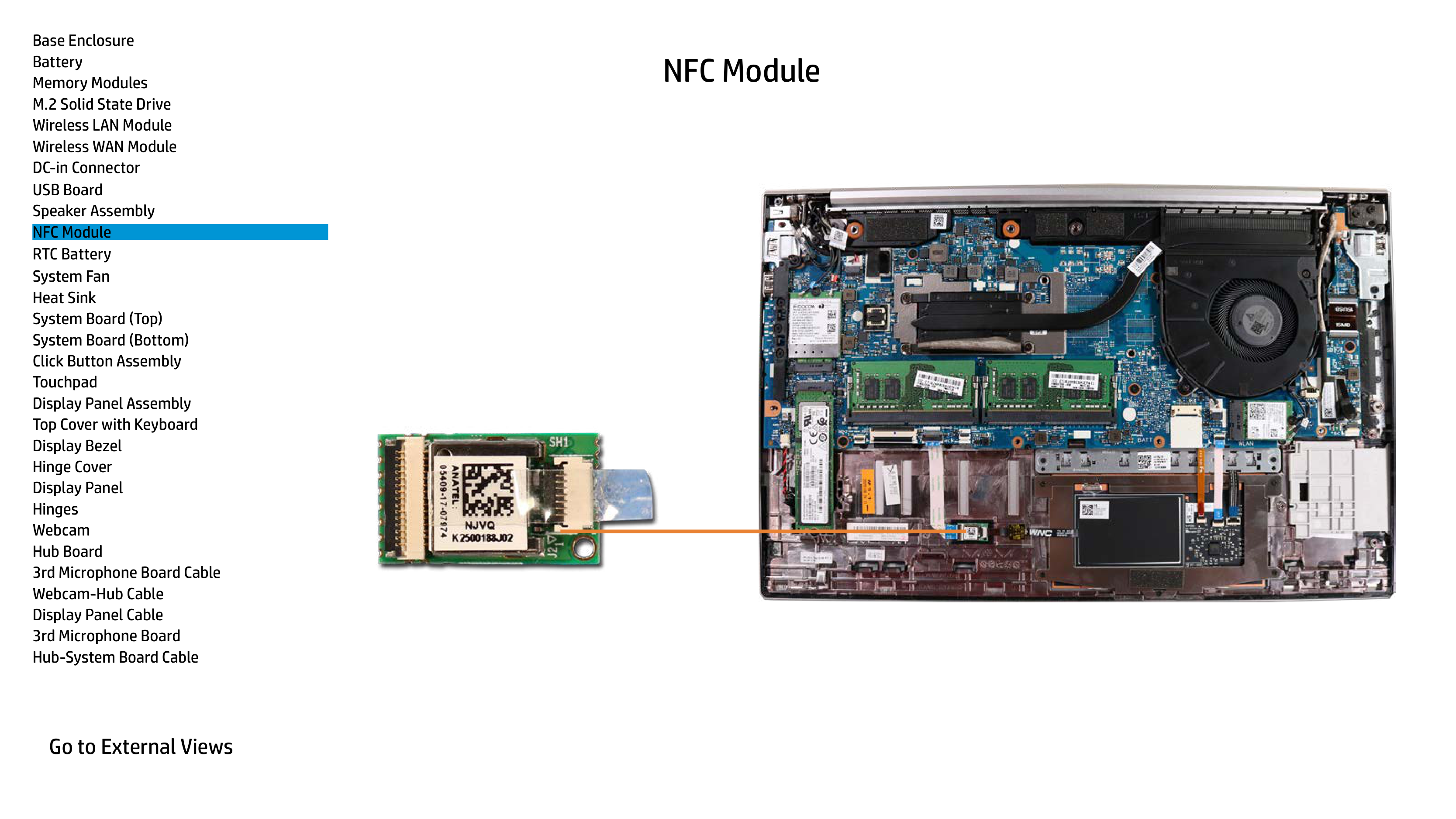

NFC Module
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module
System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

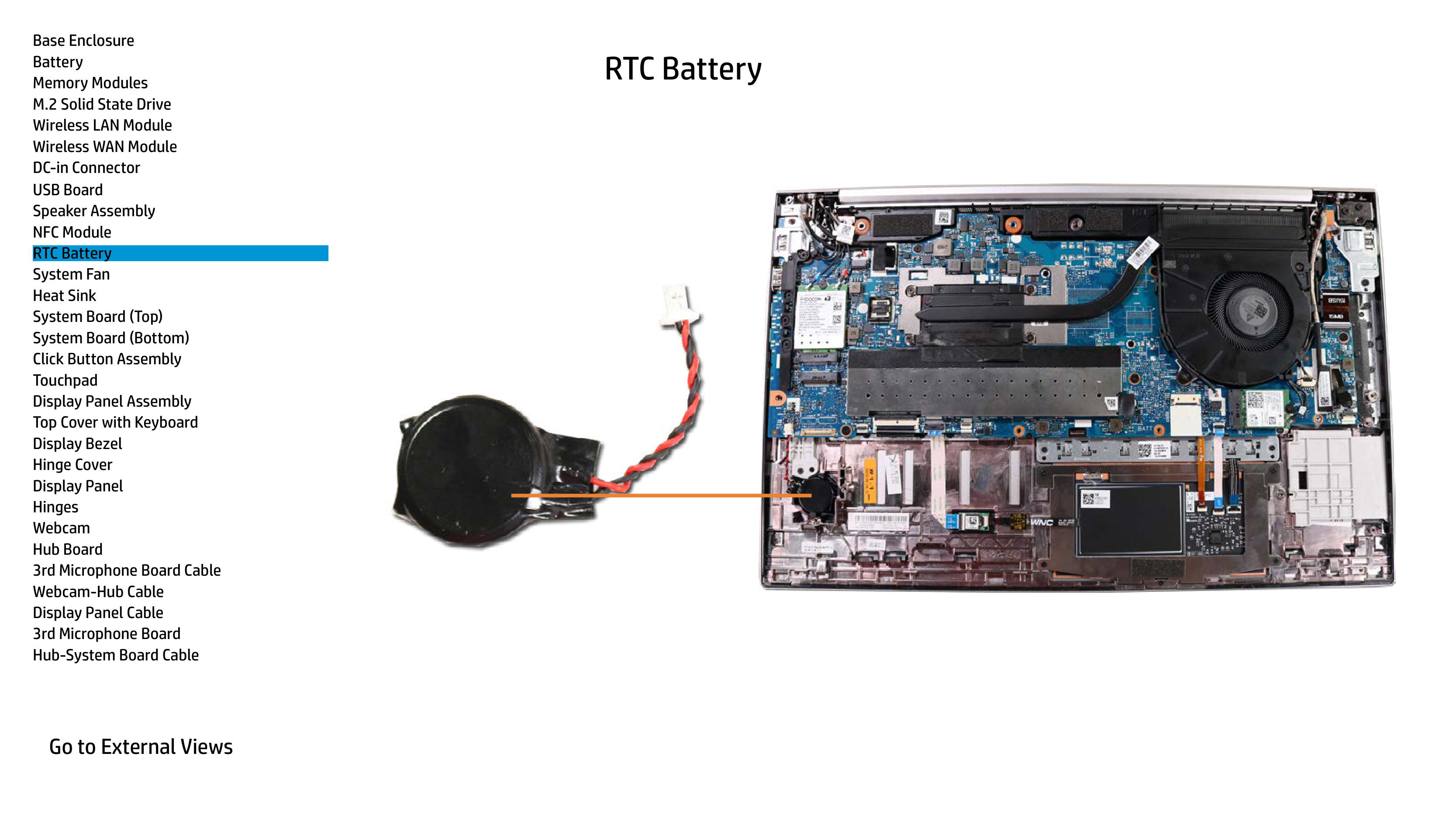

RTC Battery
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery
Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

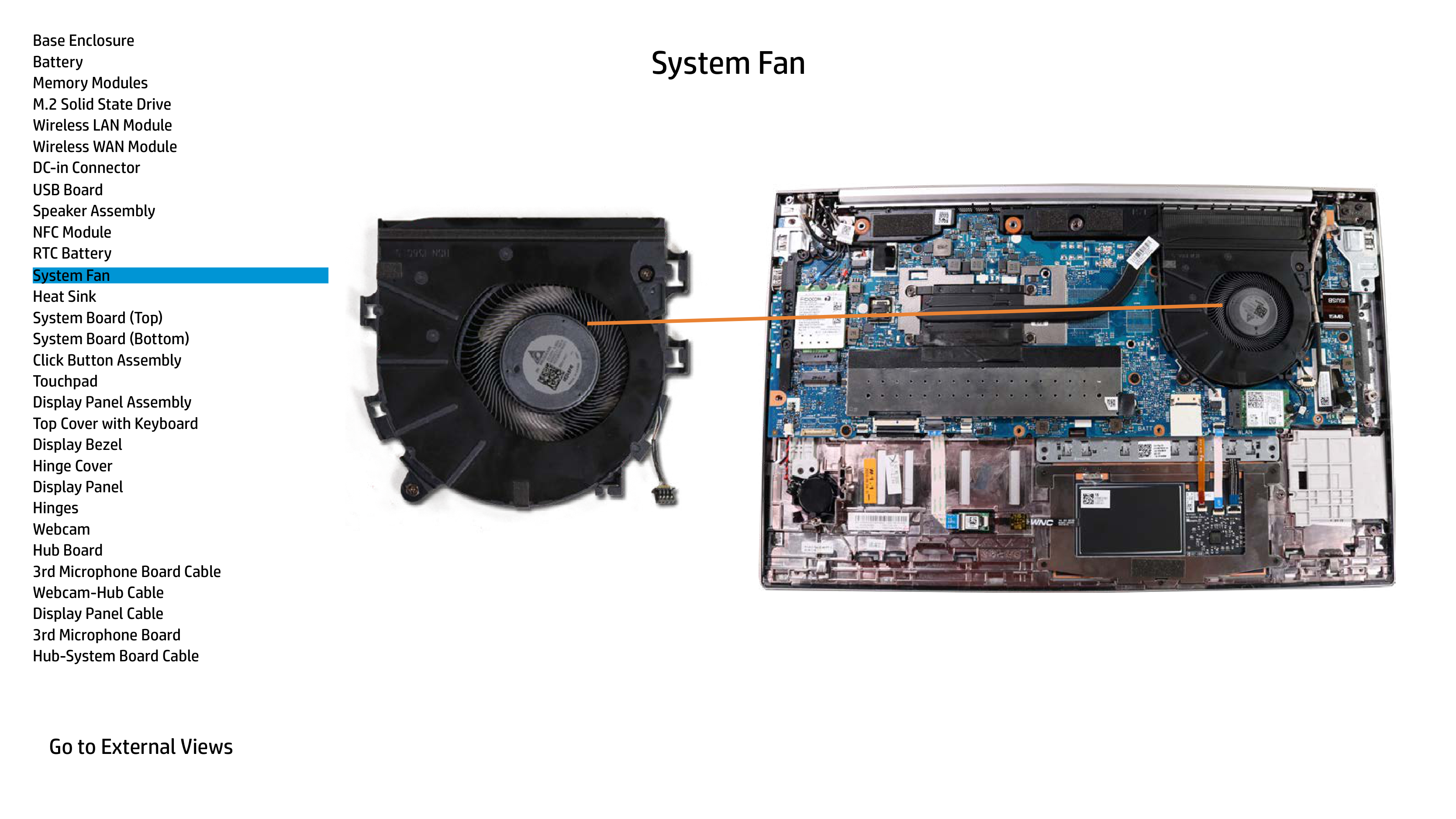

System Fan
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan
System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

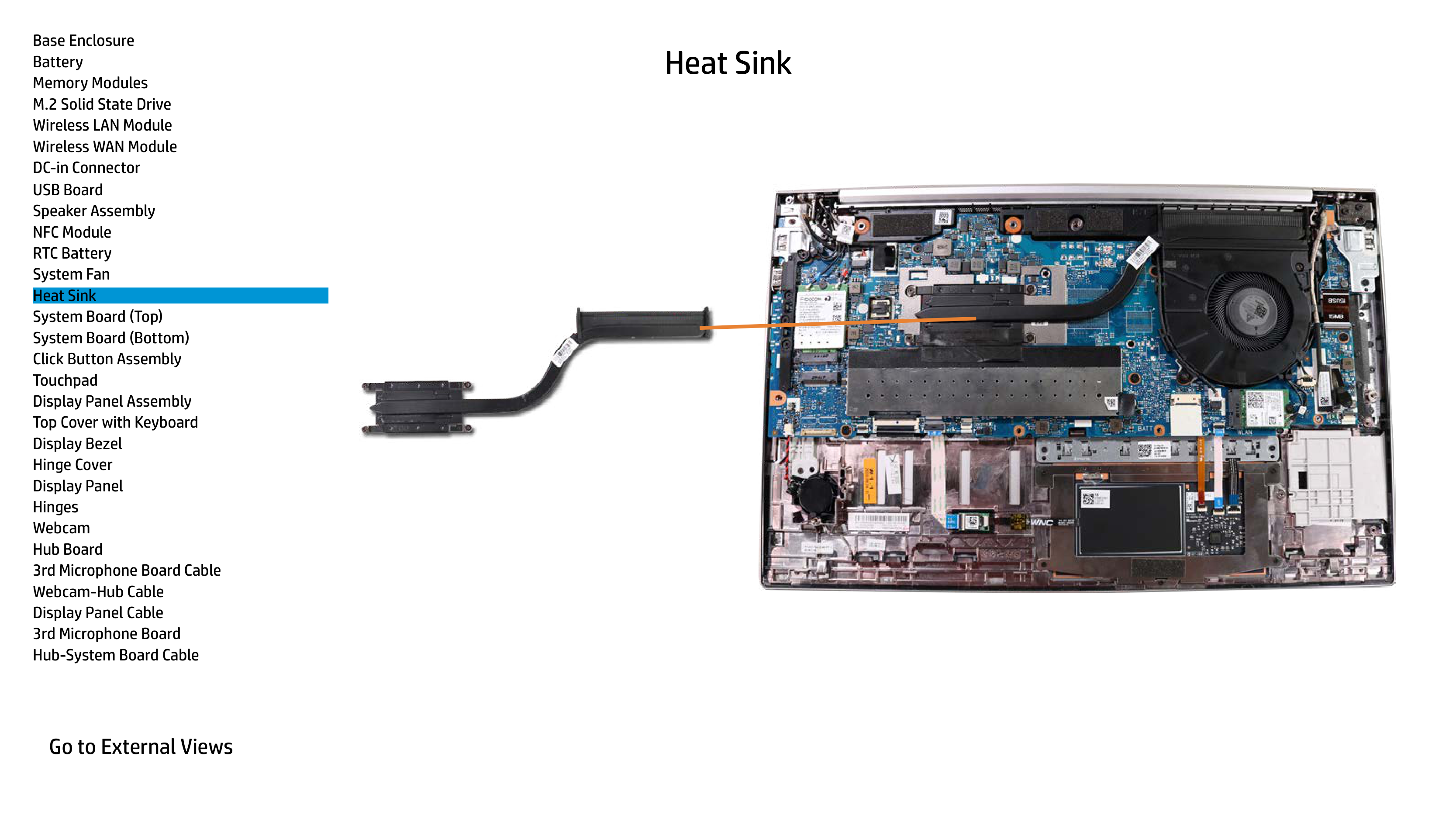

Heat Sink

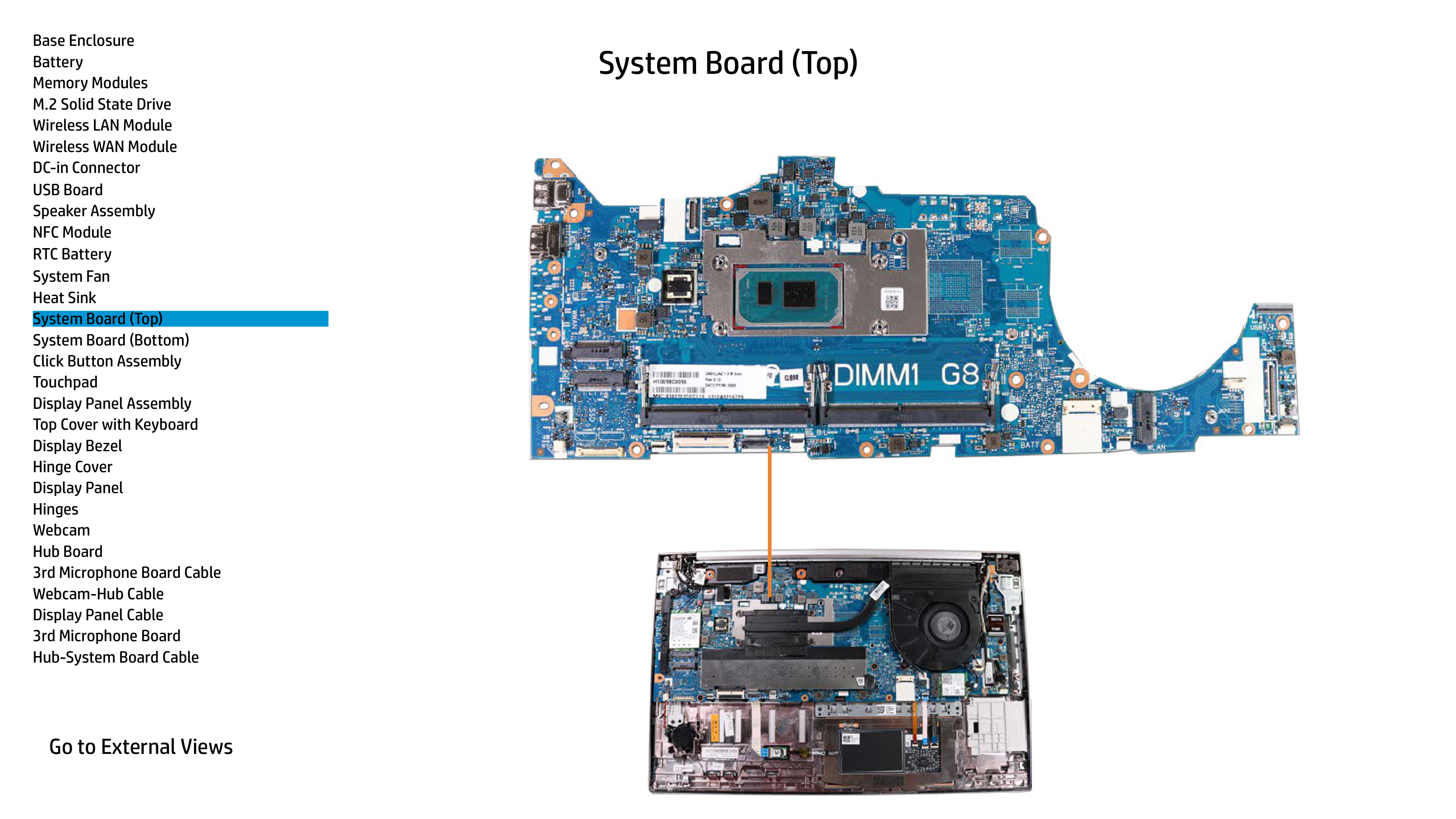

System Board (Top)
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink
System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

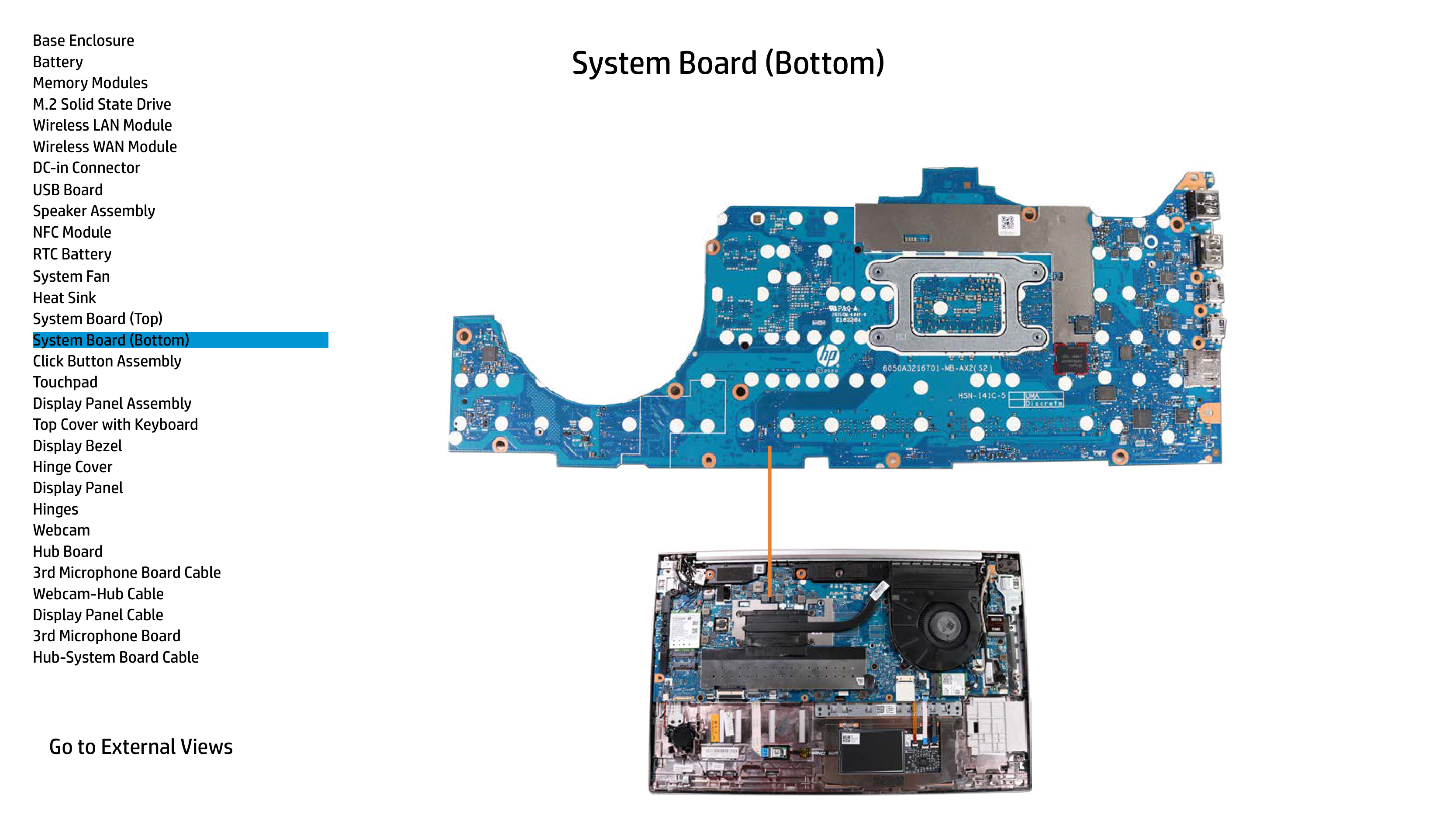

System Board (Bottom)
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top)
Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom)
Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

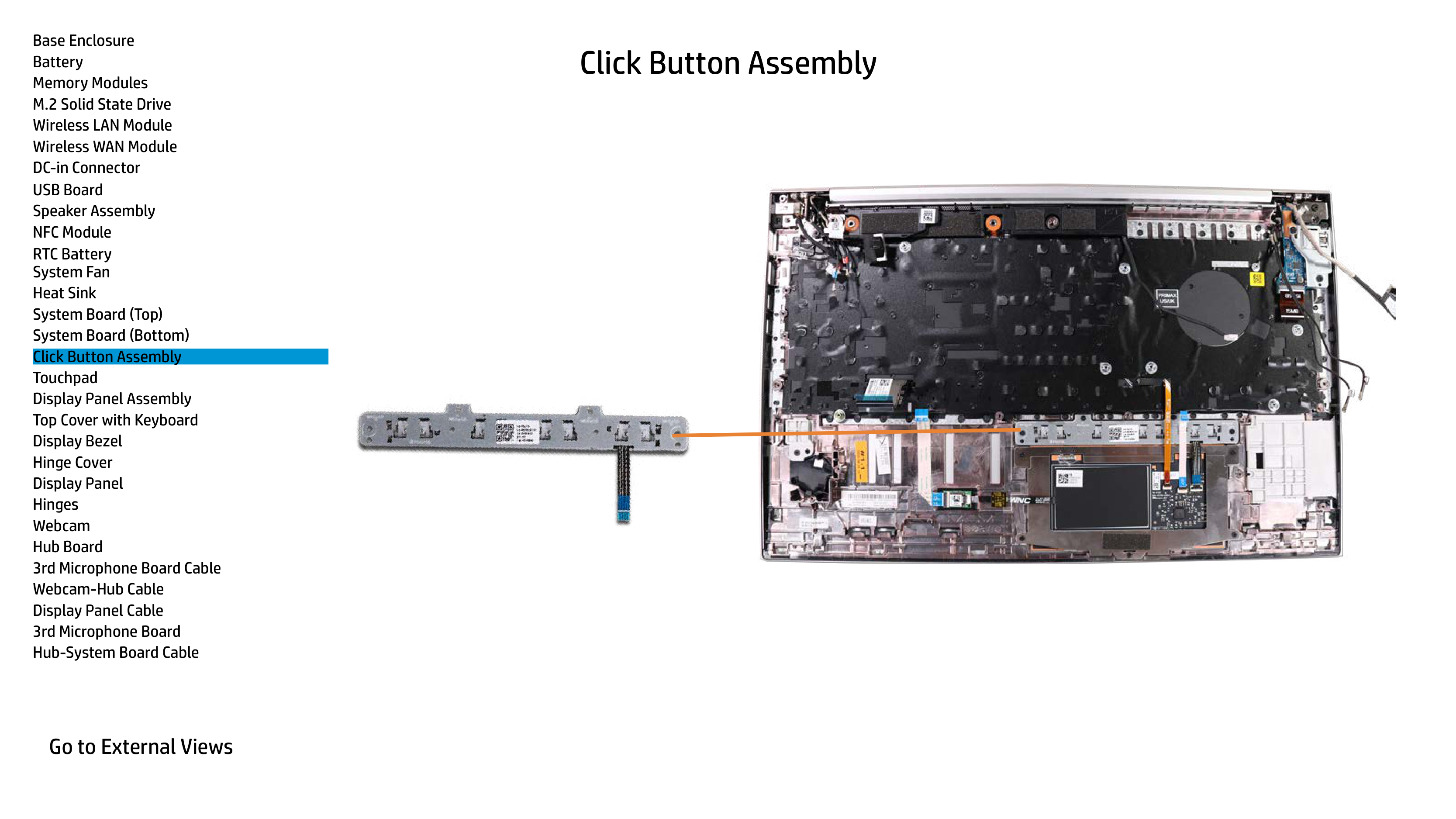

Click Button Assembly
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly
Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

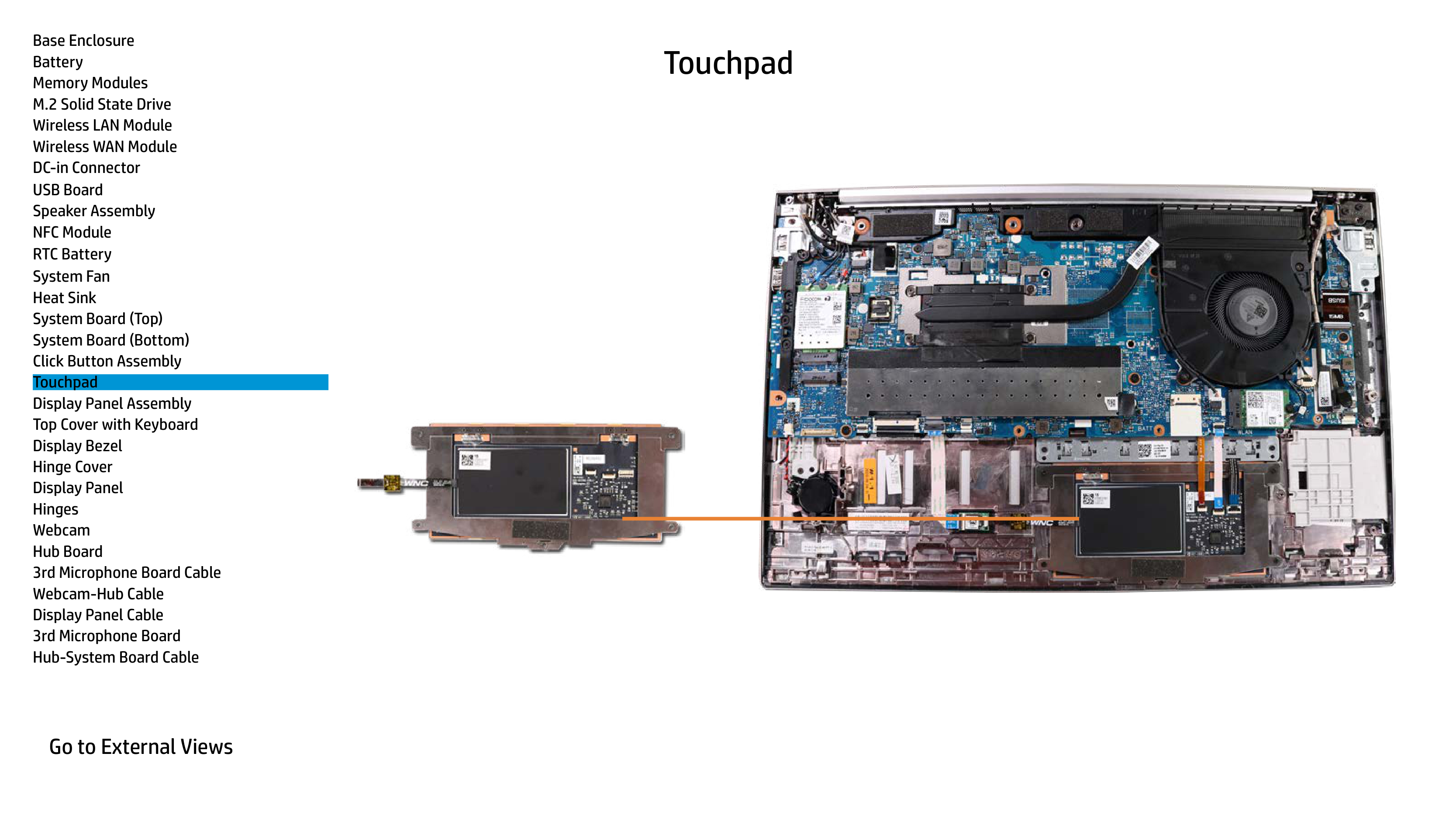

Touchpad
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad
Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

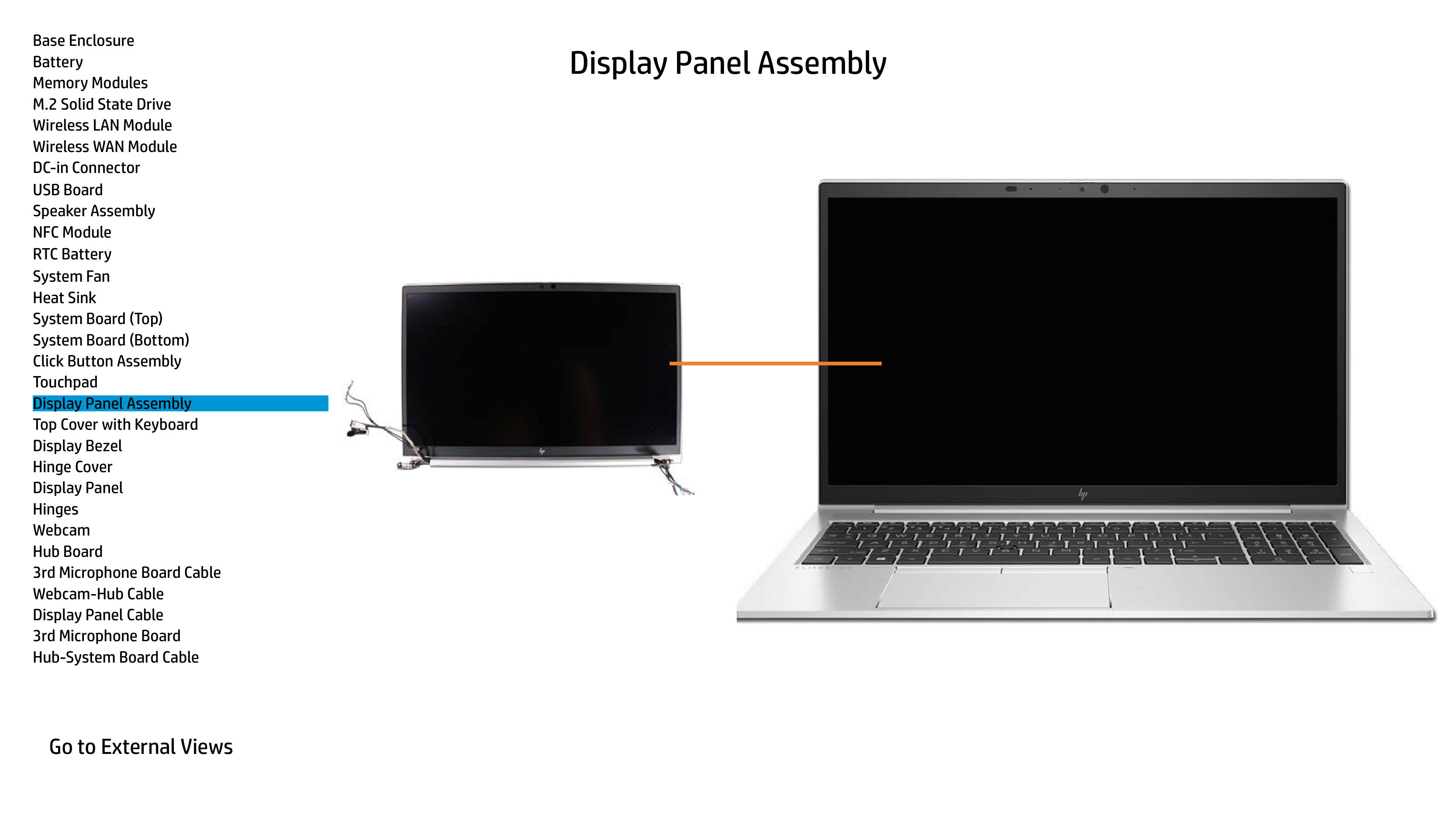

Display Panel Assembly
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly
Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

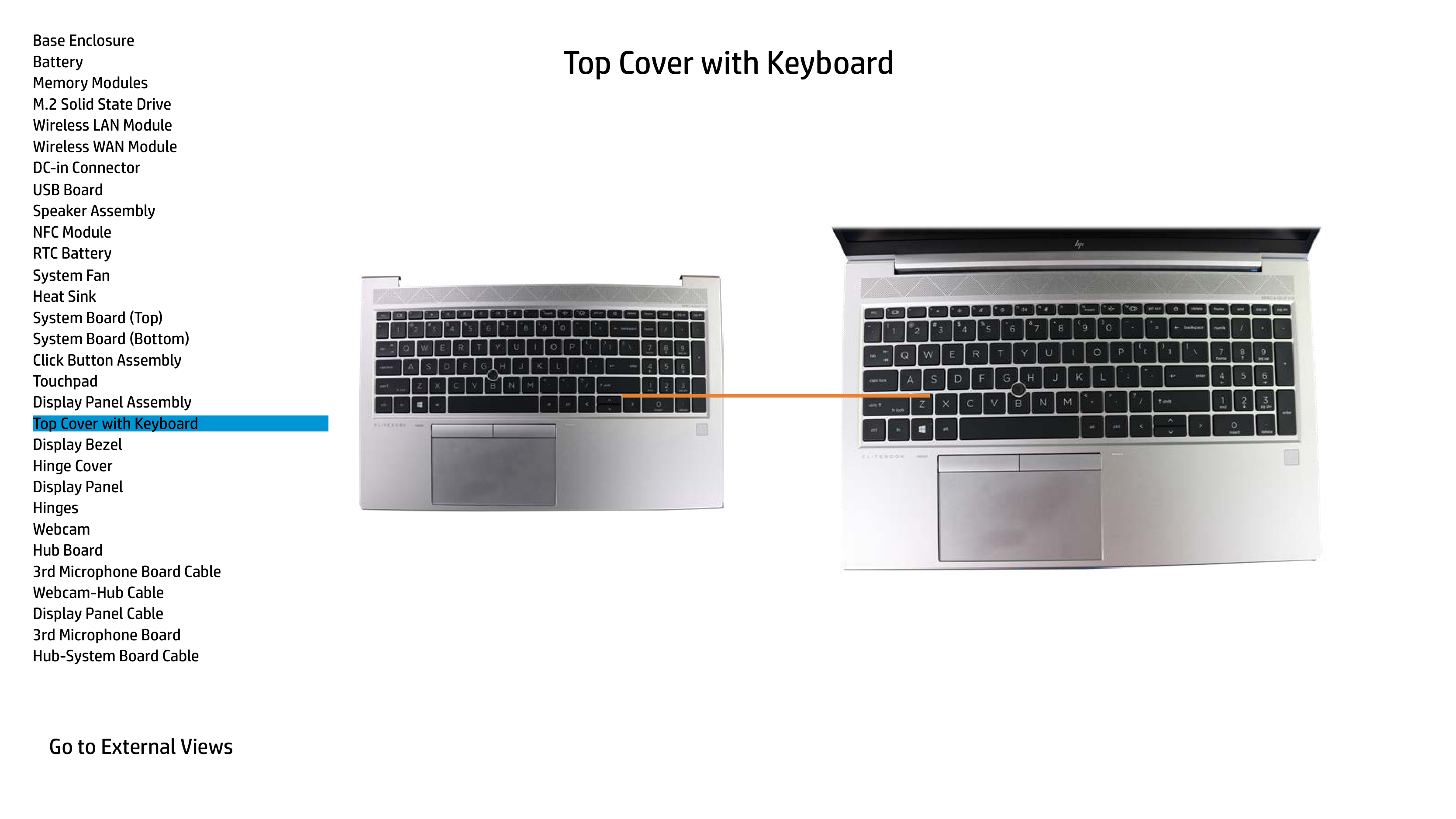

Top Cover with Keyboard
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard
Hinge Cover Display Panel Hinges Webcam Hub Board

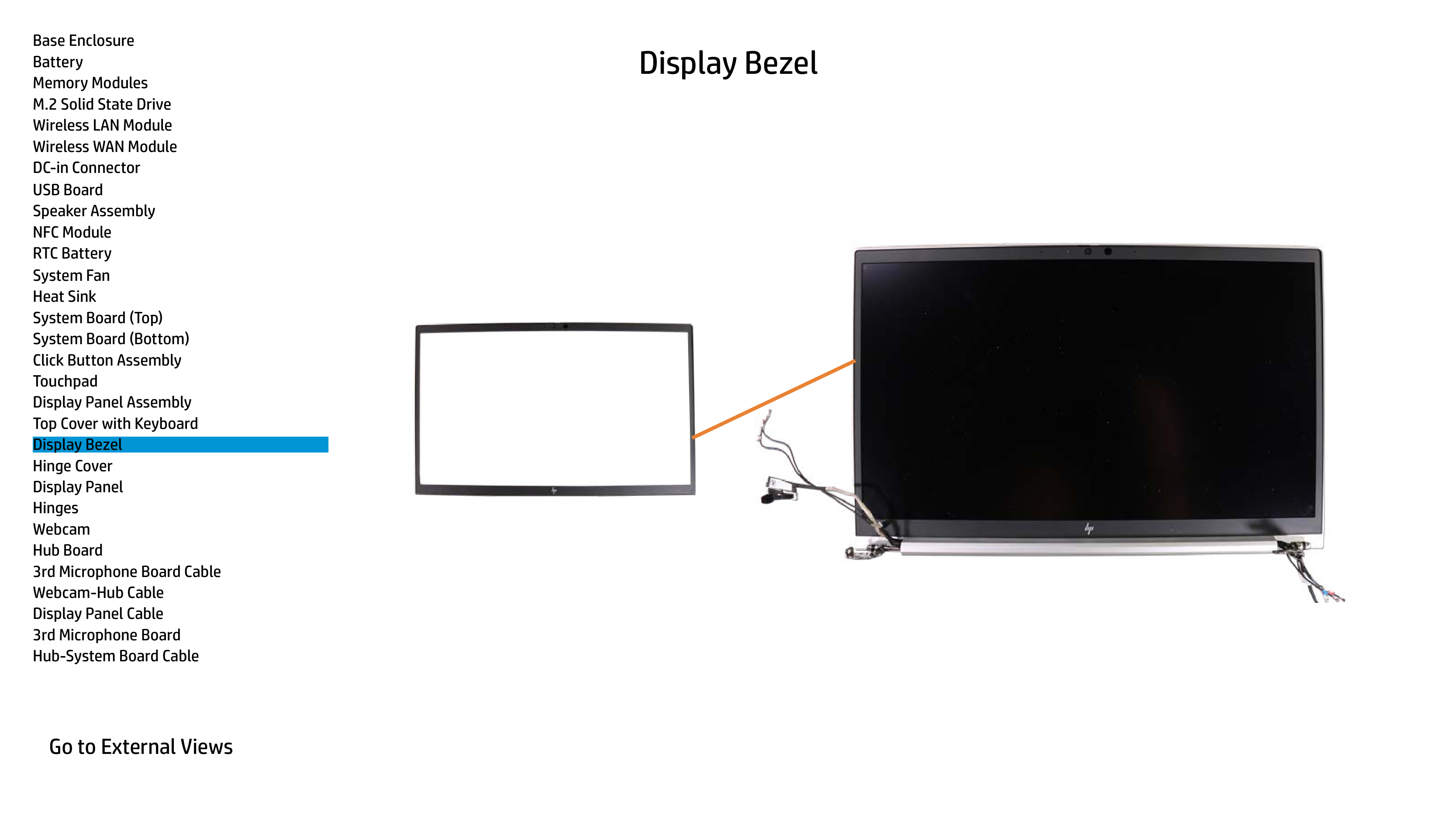

Display Bezel
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel
Hinges
Webcam Hub Board

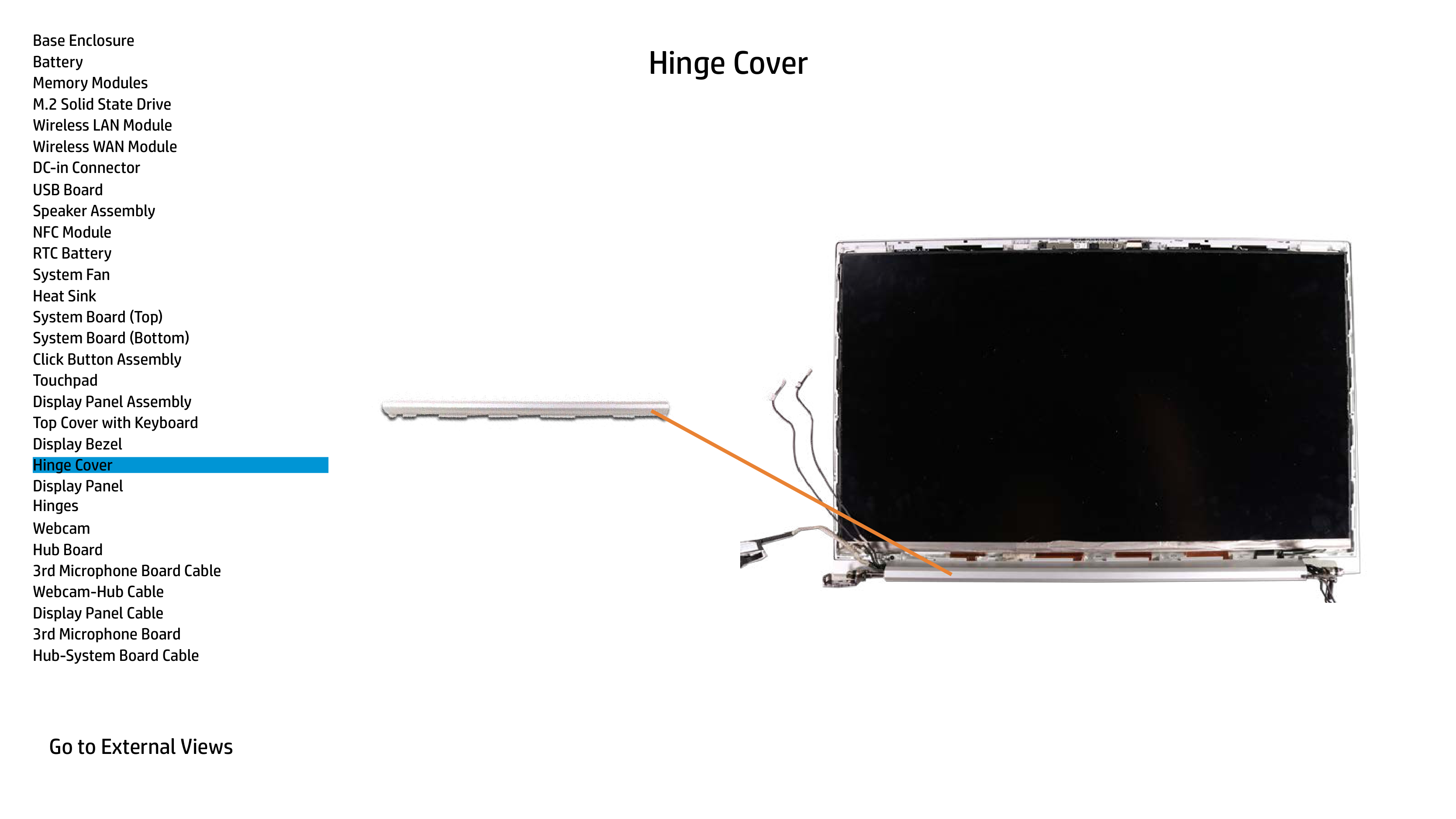

Hinge Cover
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover
Hinges Webcam Hub Board

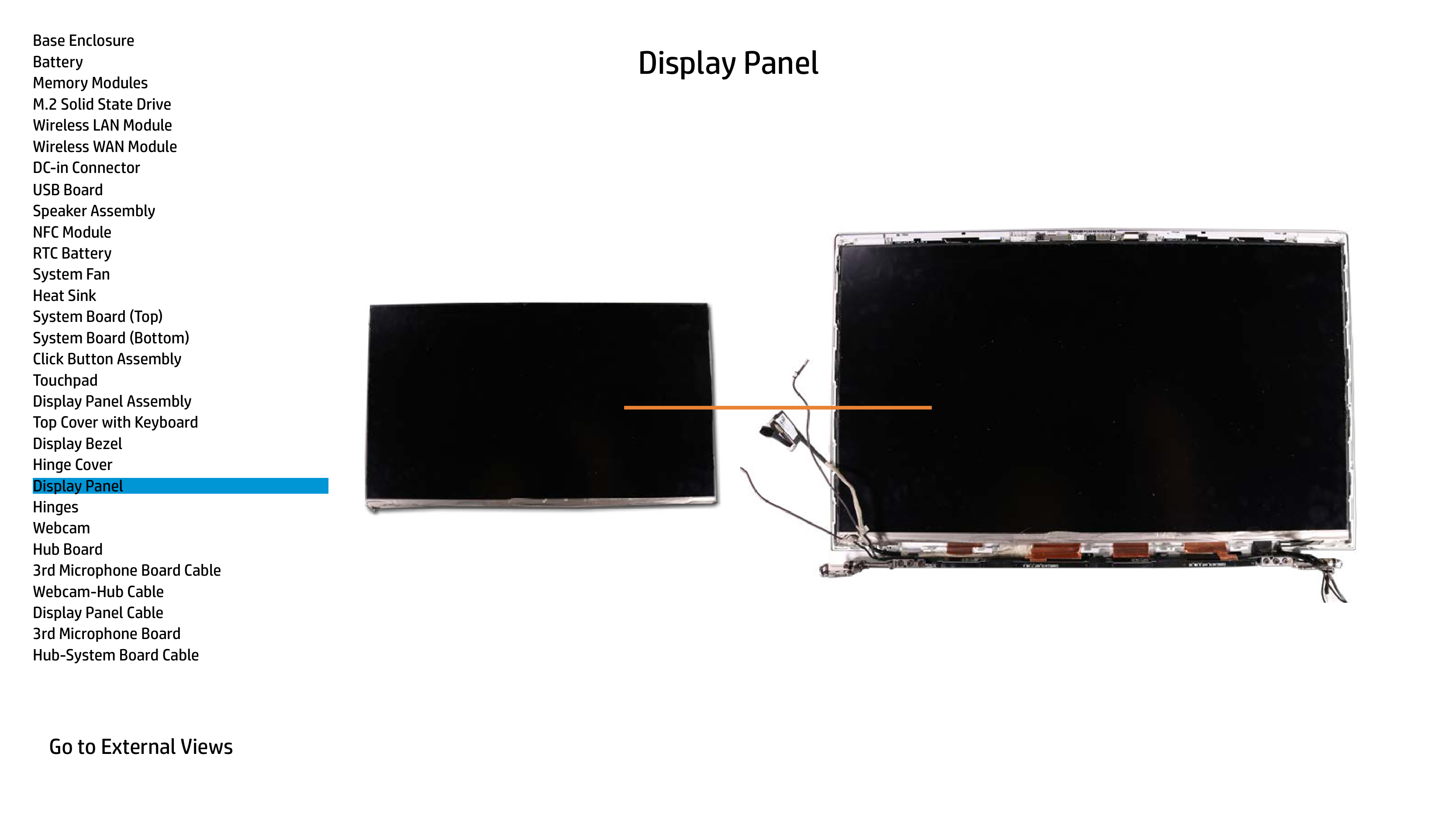

Display Panel
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel
Webcam Hub Board

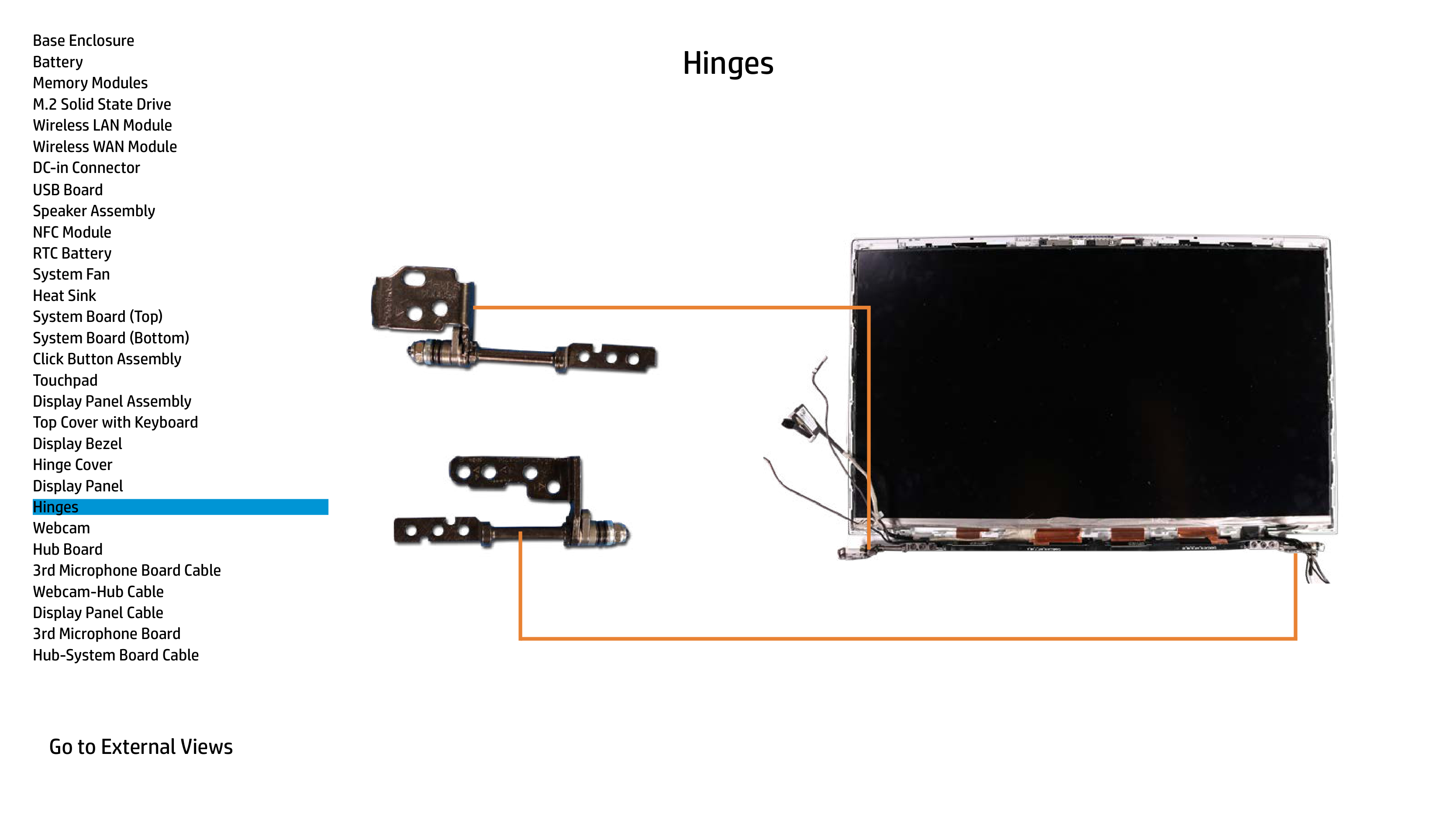

Hinges
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges
Hub Board

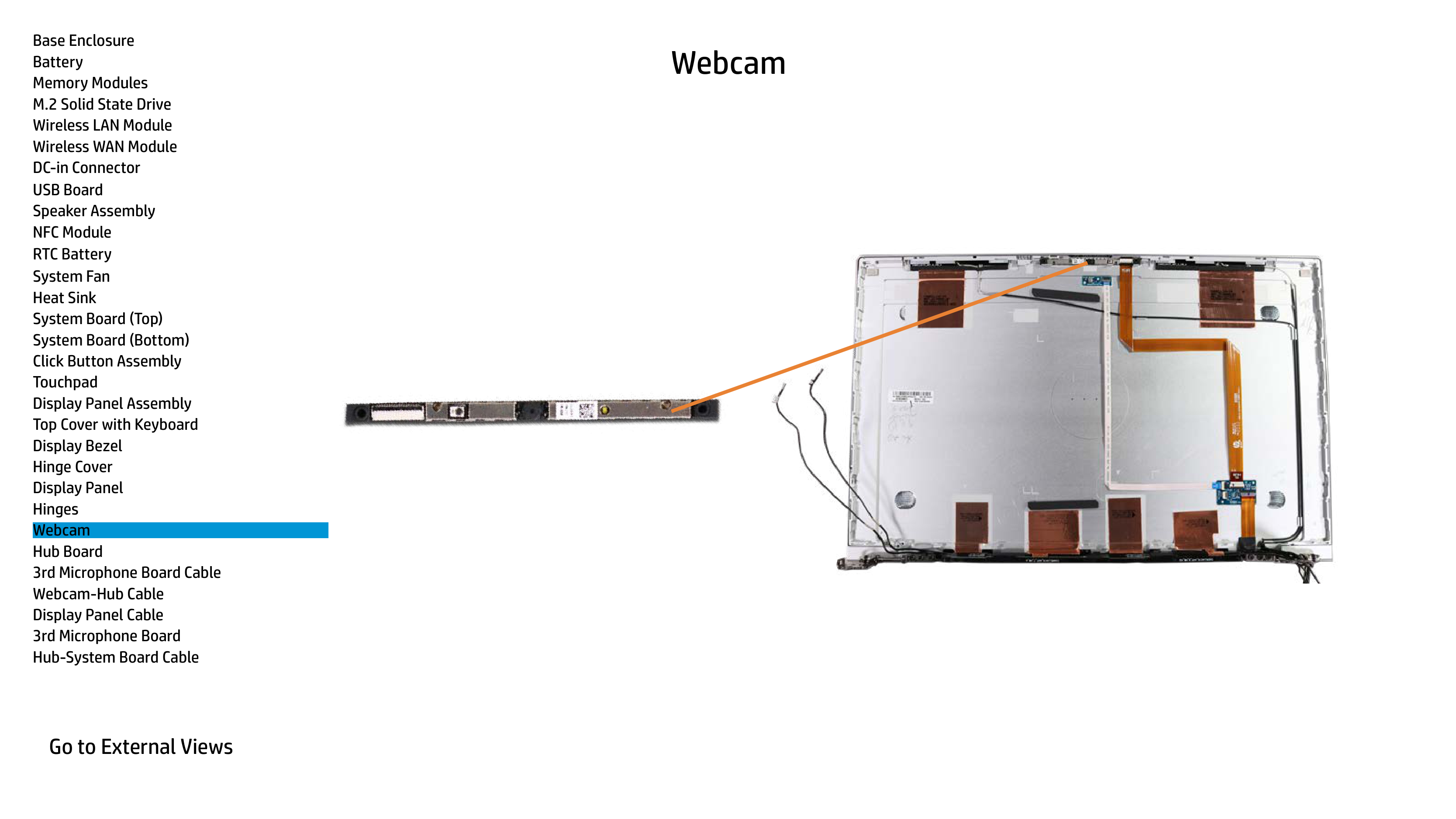

Webcam
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam
Hub Board
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board

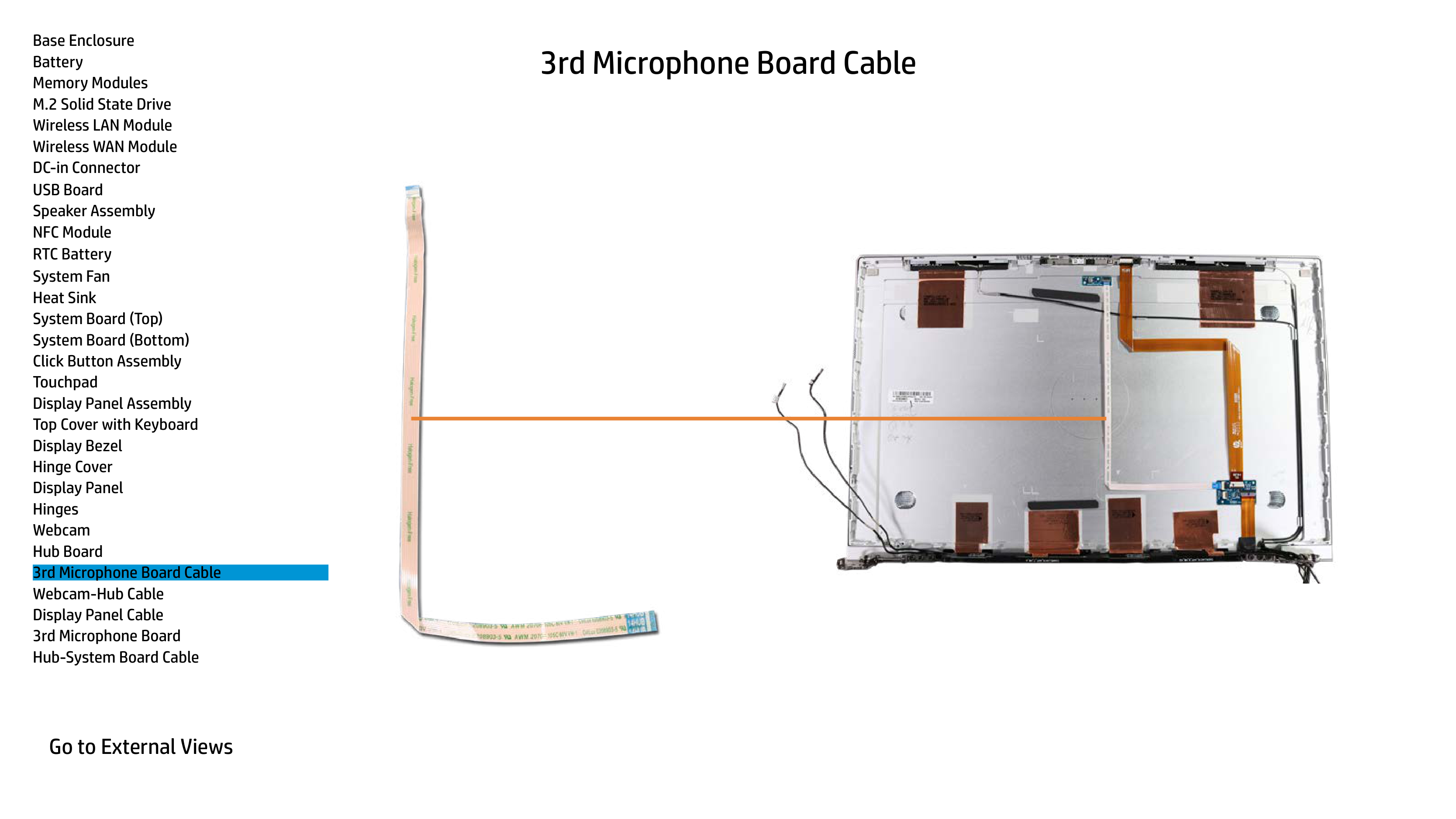

3rd Microphone Board Cable
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board 3rd Microphone Board Cable

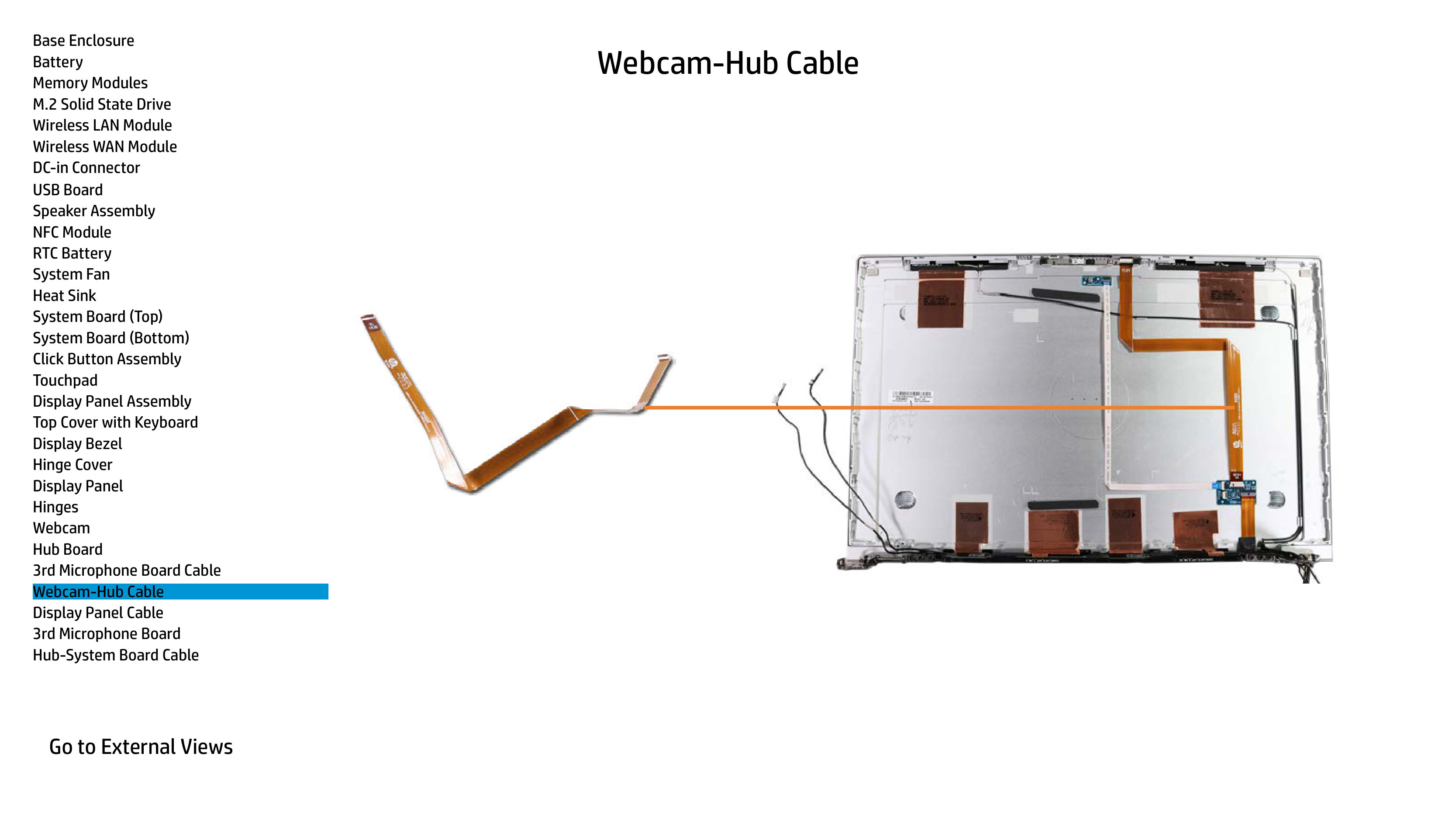

Webcam-Hub Cable
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board 3rd Microphone Board Cable Webcam-Hub Cable

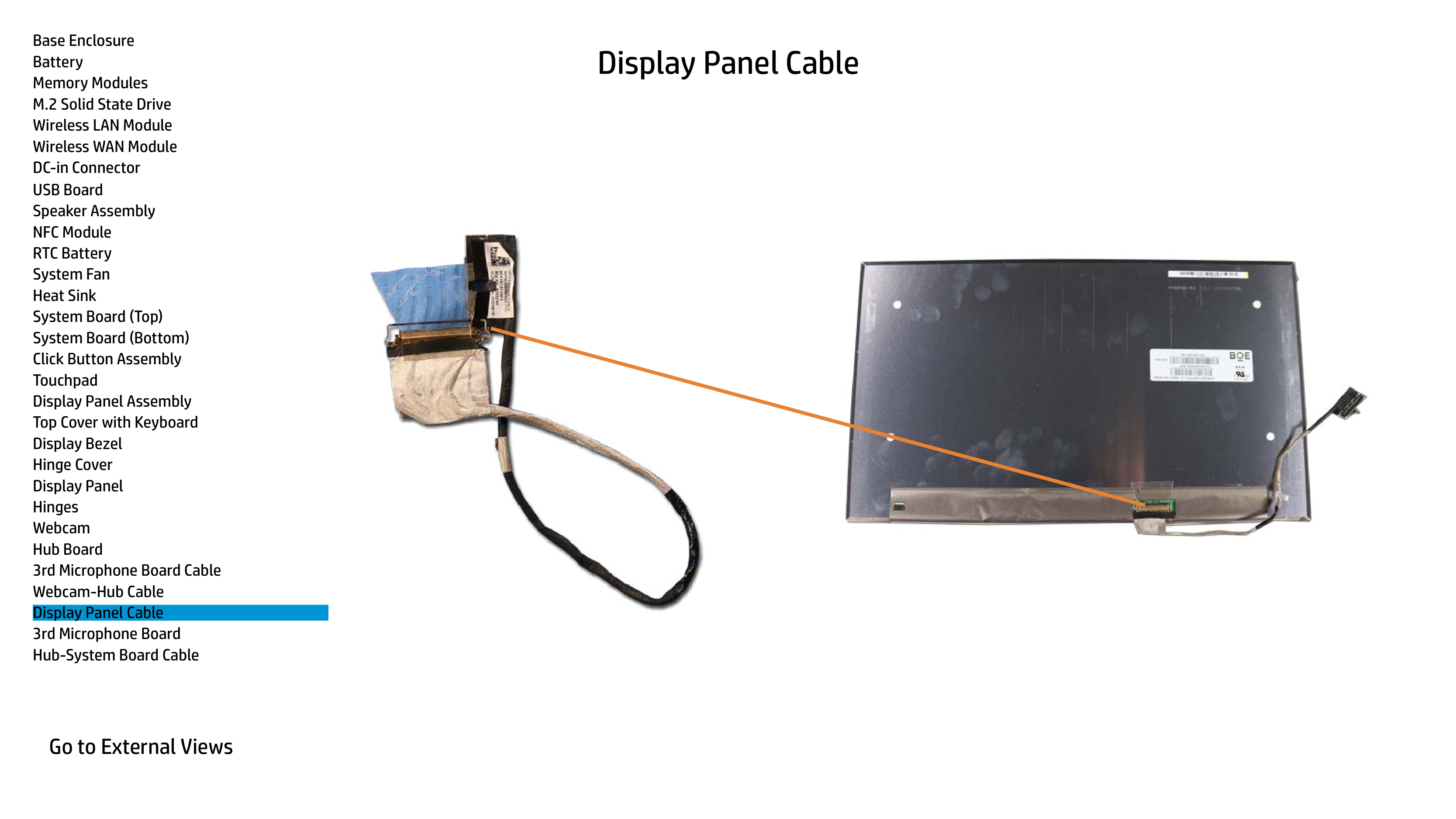

Display Panel Cable
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board 3rd Microphone Board Cable Webcam-Hub Cable Display Panel Cable

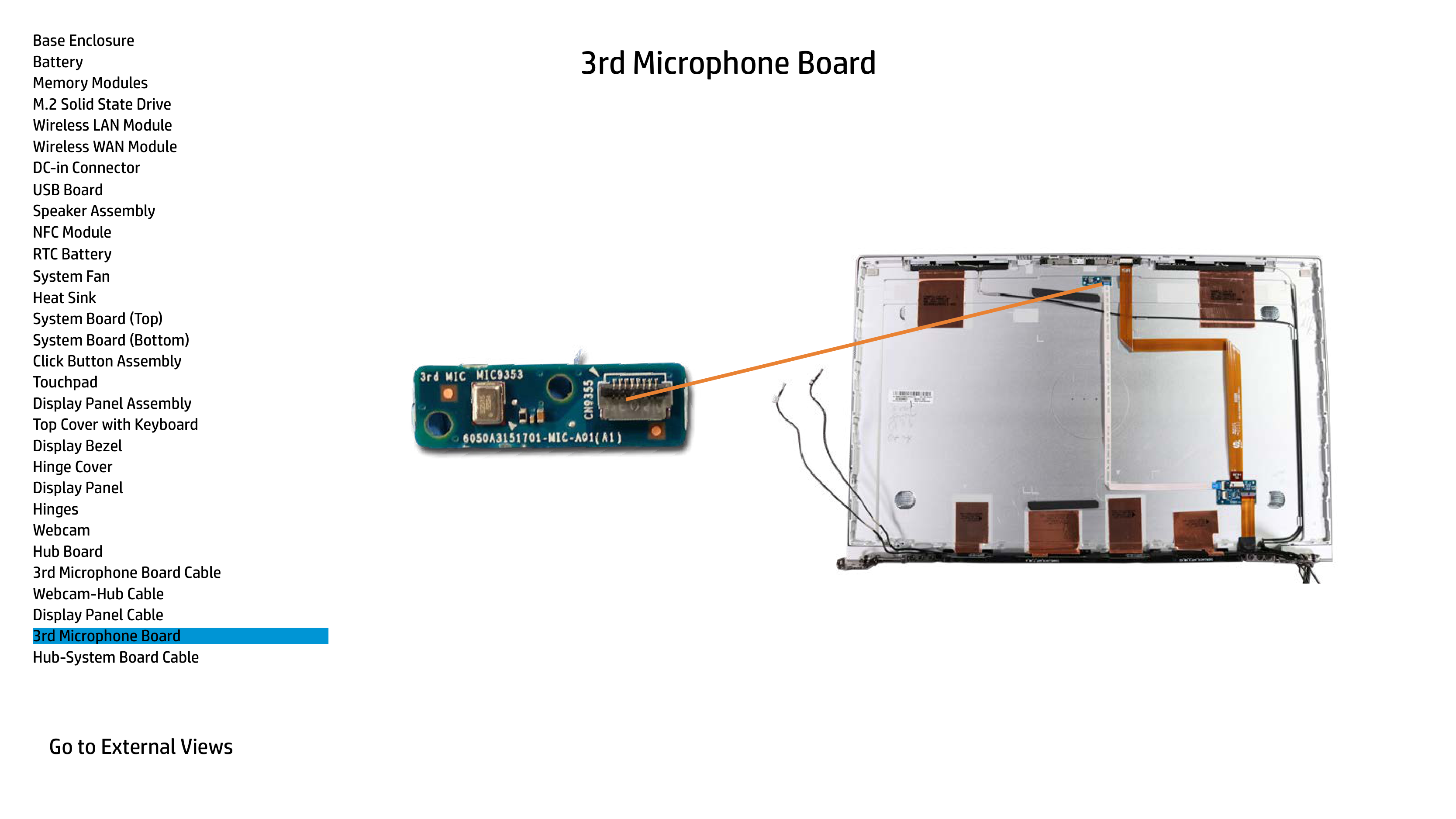

3rd Microphone Board
Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module DC-in Connector USB Board Speaker Assembly NFC Module RTC Battery System Fan Heat Sink System Board (Top) System Board (Bottom) Click Button Assembly Touchpad Display Panel Assembly Top Cover with Keyboard Display Bezel Hinge Cover Display Panel Hinges Webcam Hub Board 3rd Microphone Board Cable Webcam-Hub Cable Display Panel Cable 3rd Microphone Board

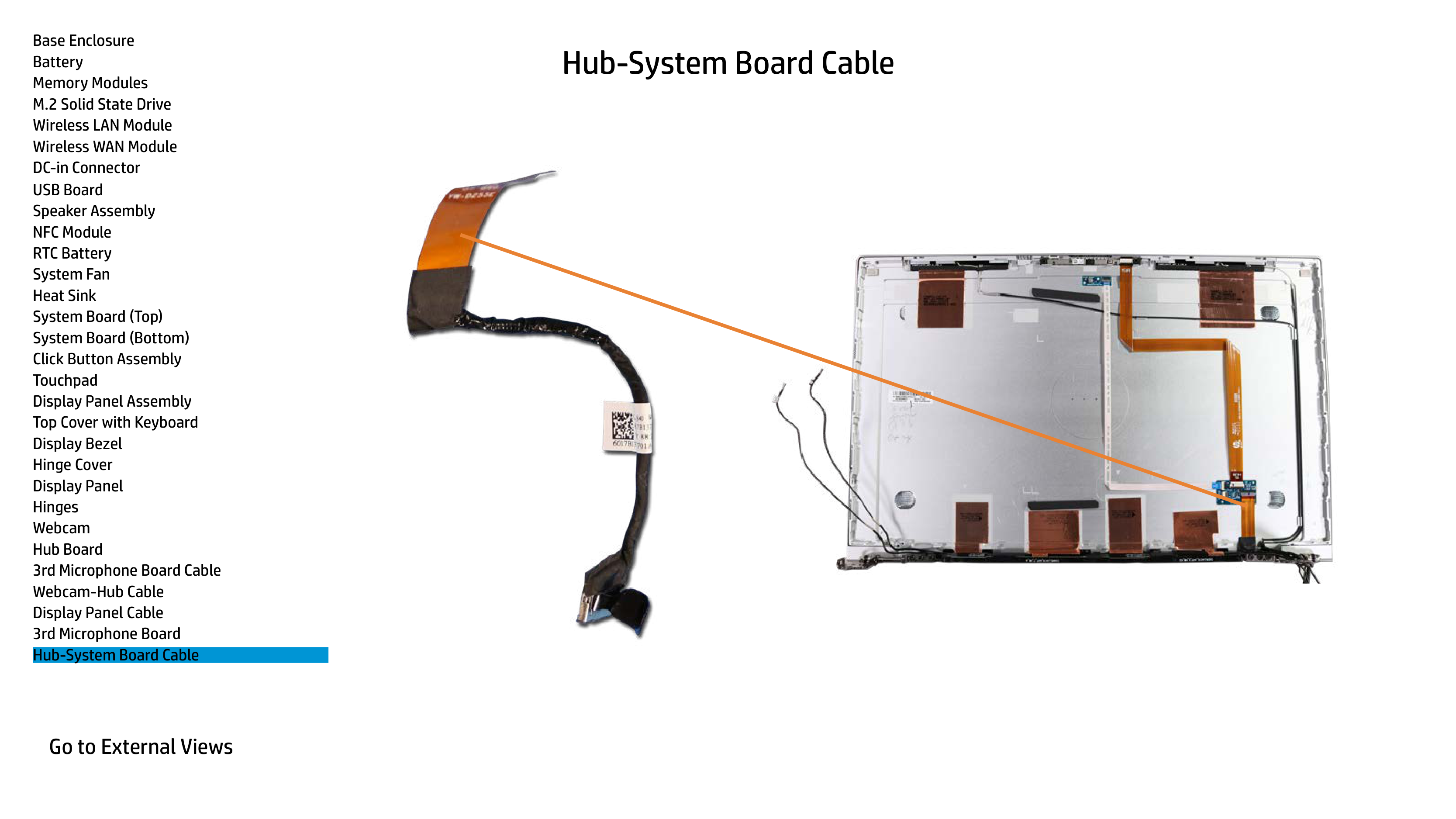

Hub-System Board Cable
